Canada

Reference Guide

and Pricebook

Prices effective

January 1, 2014

Pricebook

Eaton ePDU G3

1

Introduction

Input Plug and Output Receptacle Chart .............................................................................................................................................................................................. 3

Ordering Information, Parts, Accessories and Current List Pricing

Eaton Power Distribution, Monitoring and Enclosures

ePDU Basic ...................................................................................................................................................................................................................................... 5

ePDU Metered Input (Monitored) ................................................................................................................................................................................................. 7

ePDU Switched ................................................................................................................................................................................................................................ 8

ePDU Managed ................................................................................................................................................................................................................................ 9

Eaton Automatic Transfer Switches ........................................................................................................................................................................................... 10

Eaton HotSwap Maintenance Bypass (MBP) ......................................................................................................................................................................... 11

ePDU Cables . ................................................................................................................................................................................................................................. 12

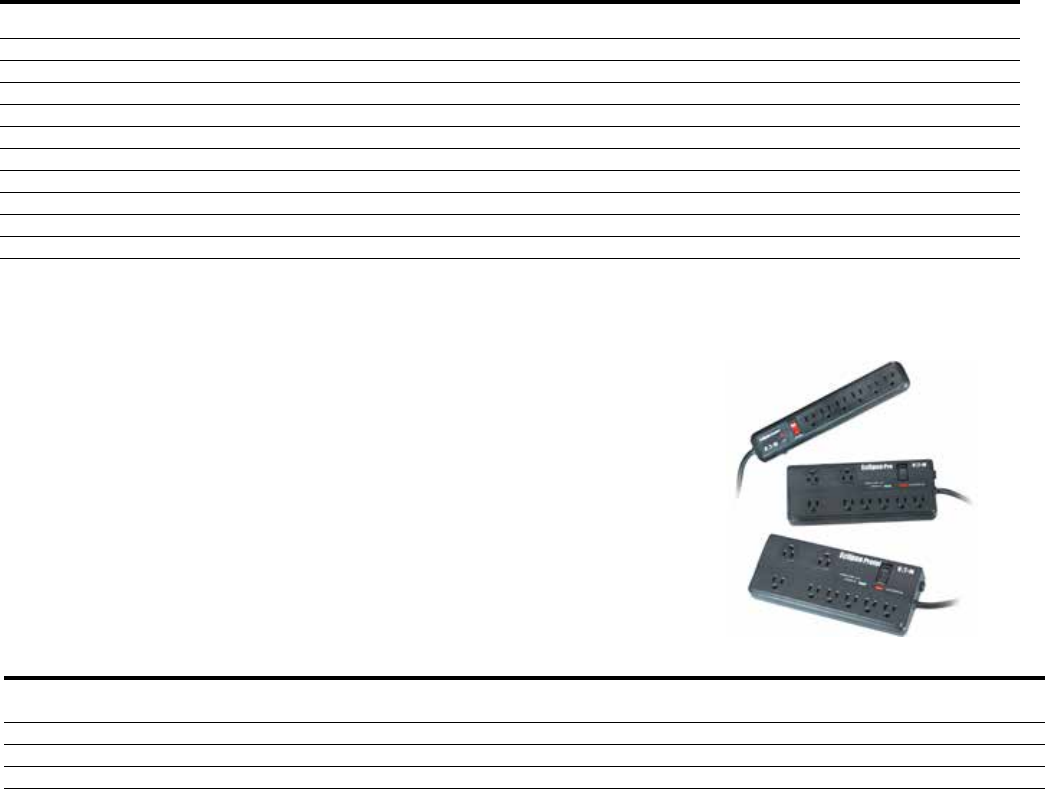

Eclipse Surge Suppressors ......................................................................................................................................................................................................... 13

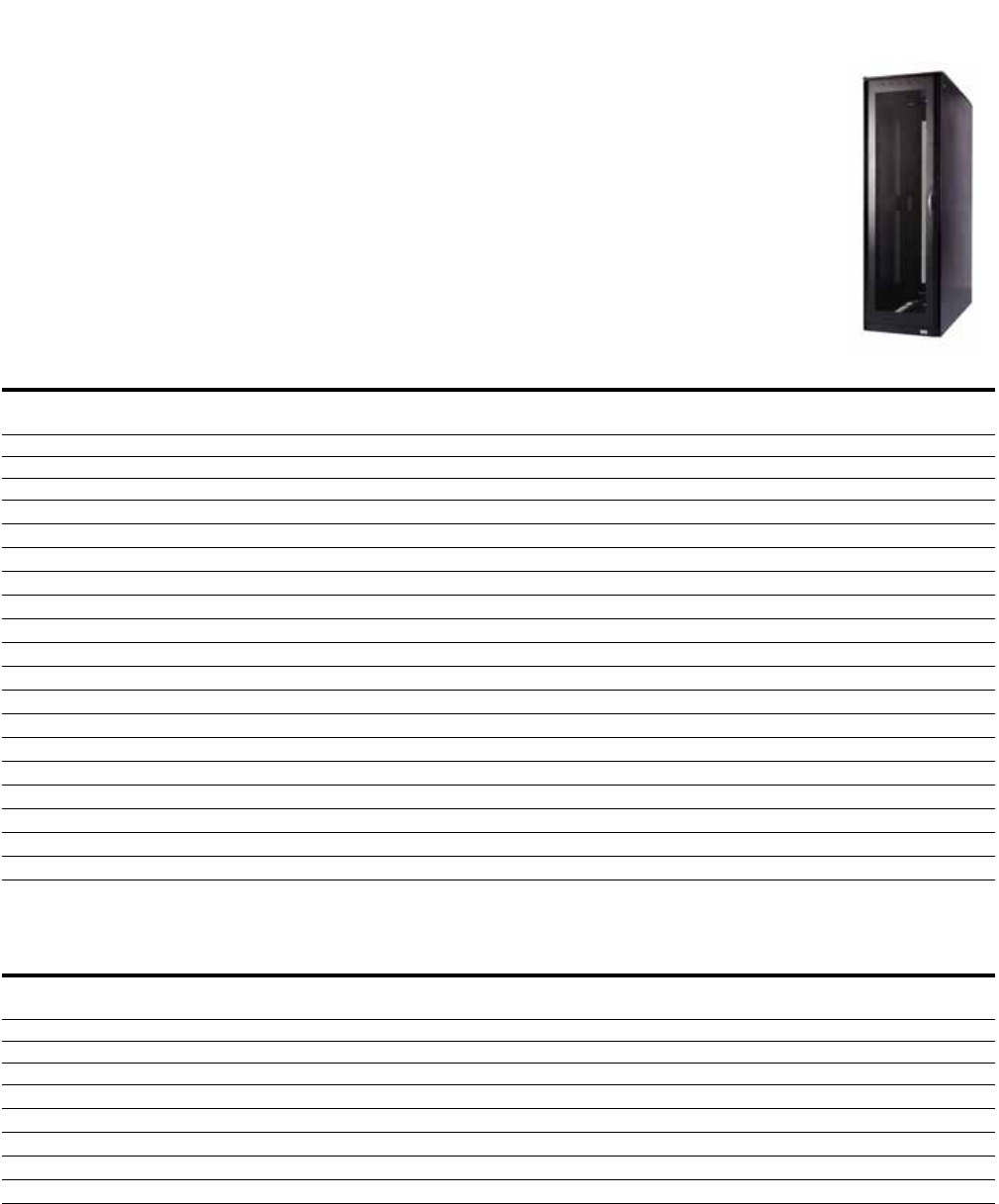

Eaton S-Series Rack ...................................................................................................................................................................................................................... 14

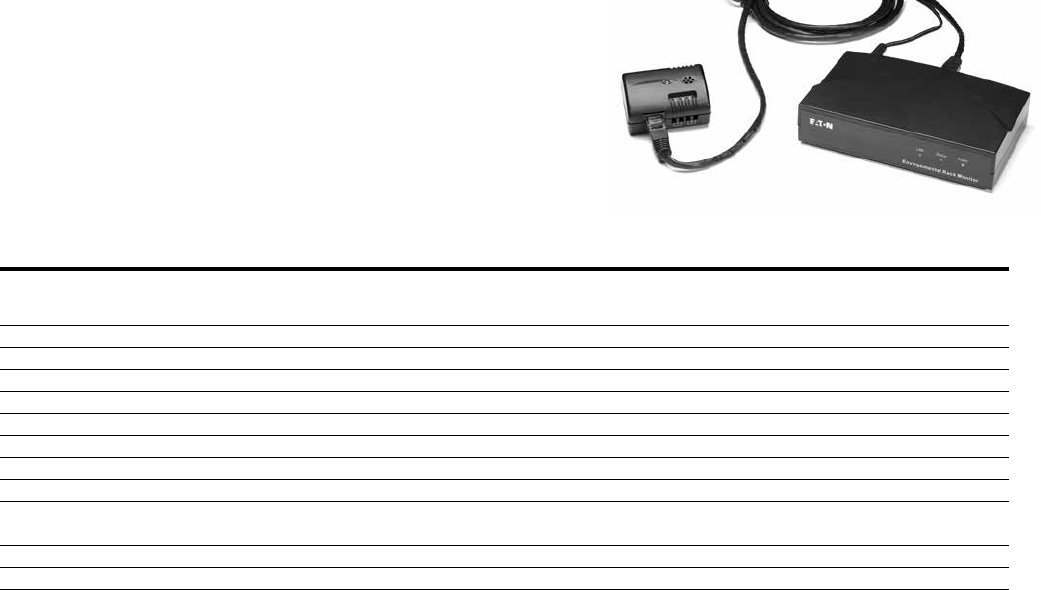

Environmental Rack Monitor (ERM) ........................................................................................................................................................................................... 18

Remote Power Panel (RPP) ......................................................................................................................................................................................................... 20

Power Distribution Rack (PDR) ................................................................................................................................................................................................... 24

Eaton Branch Circuit Breakers ................................................................................................................................................................................................... 26

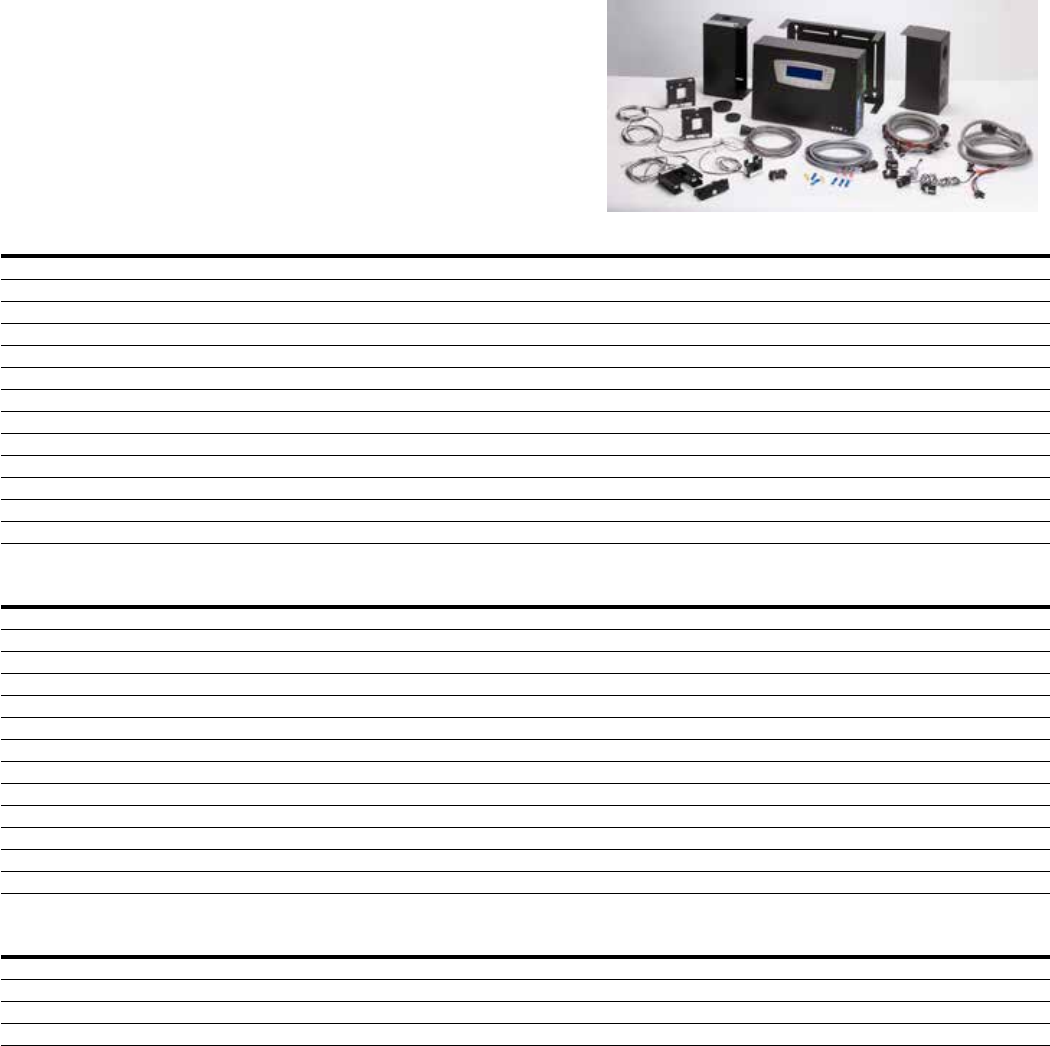

Eaton Energy Management System Upgrade Kit ..................................................................................................................................................................... 27

UL Listed Power Distribution Cables . ........................................................................................................................................................................................ 28

Single-phase Products

Catalog Number Ordering Instructions for Single-phase Products .................................................................................................................................................... 31

Single-phase (Standby)

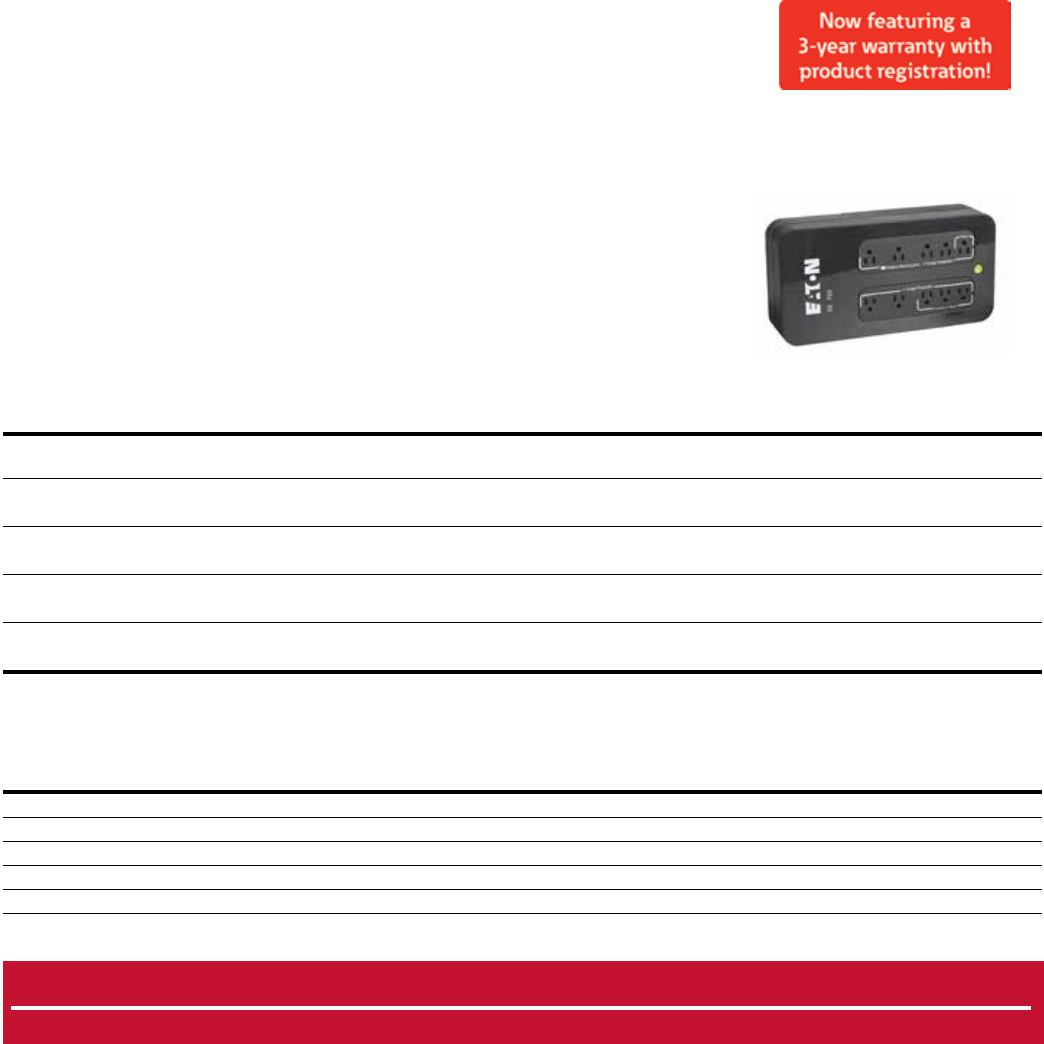

Eaton 3S UPS (350–750 VA) .......................................................................................................................................................................................................... 32

Single-phase (Line-interactive)

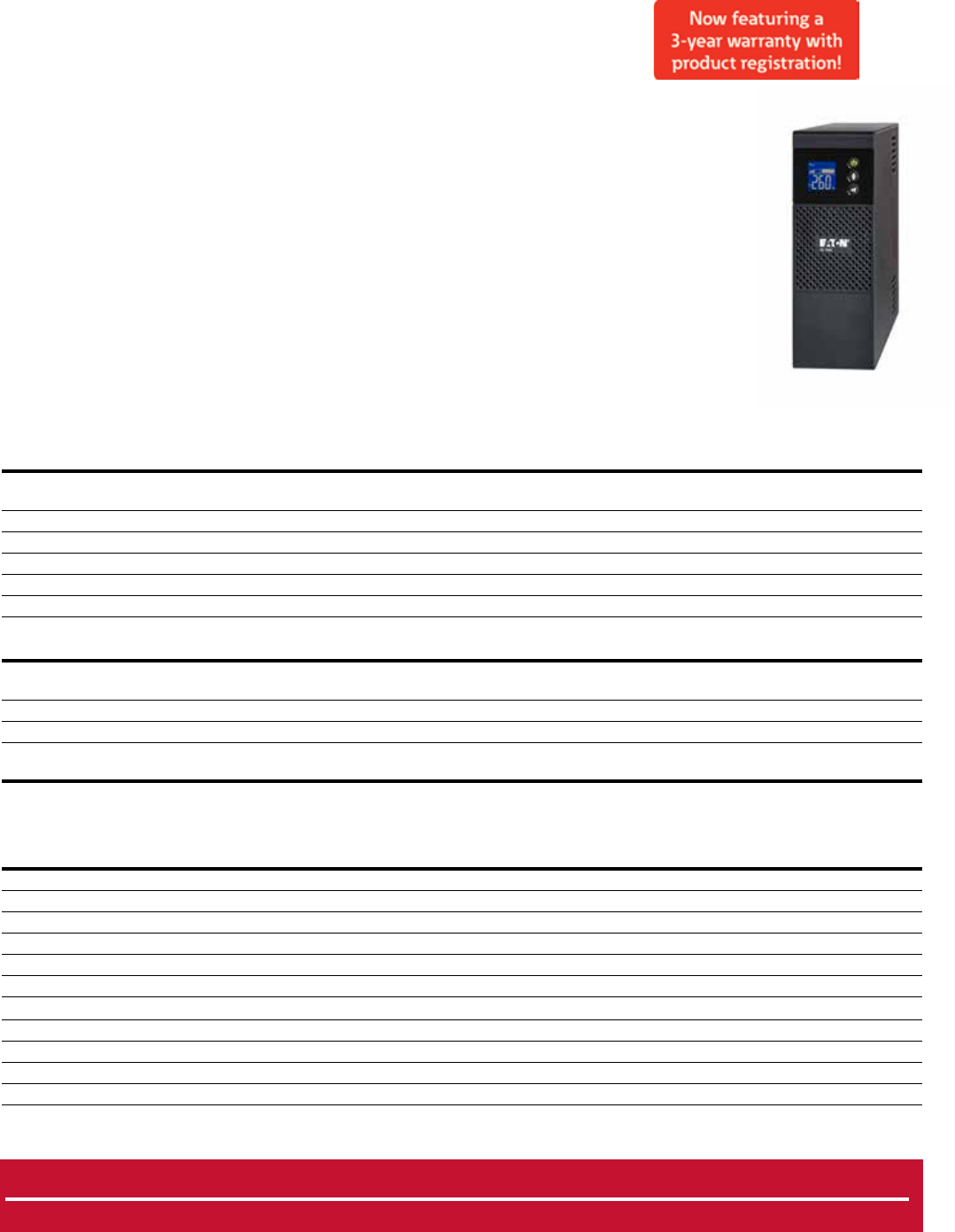

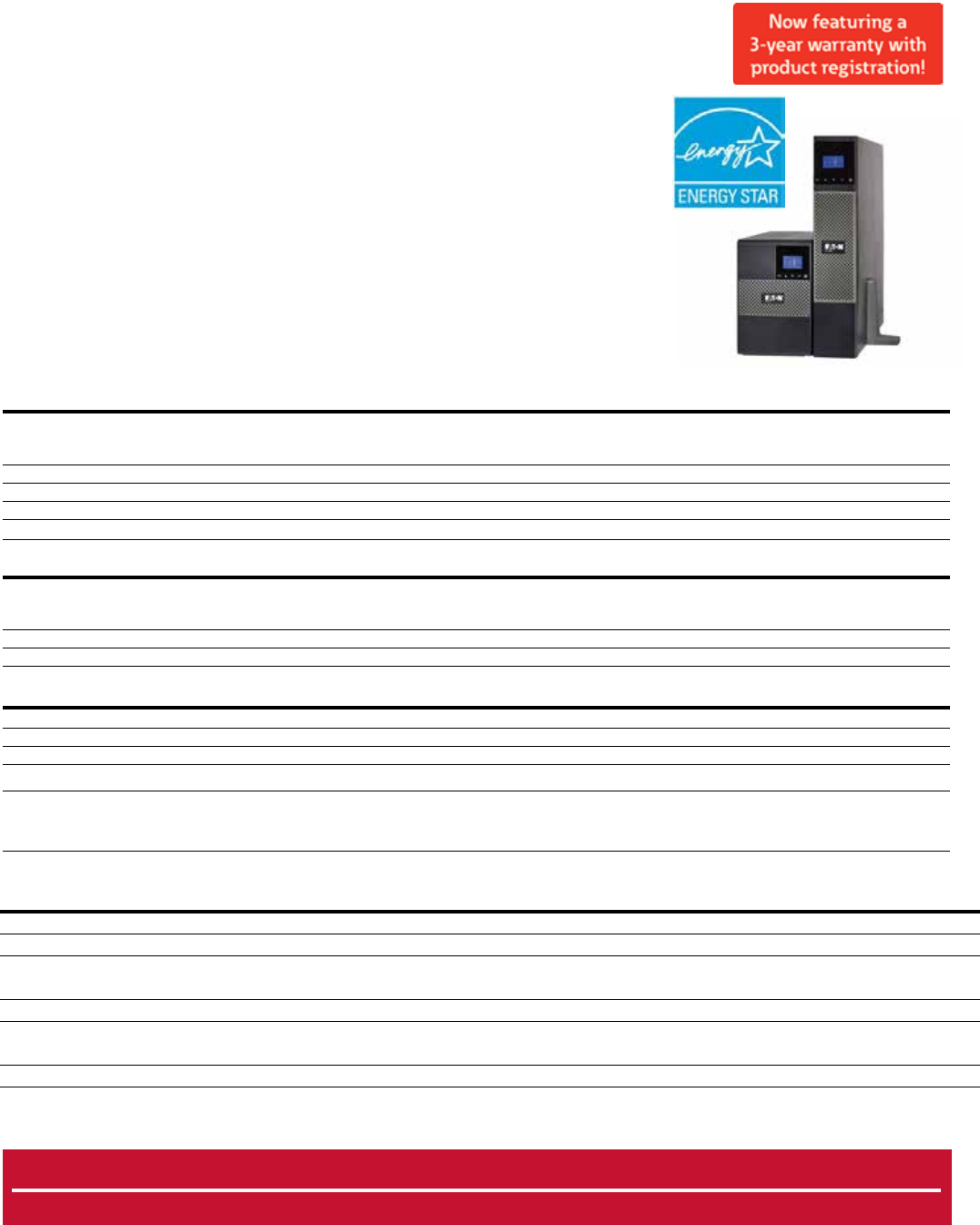

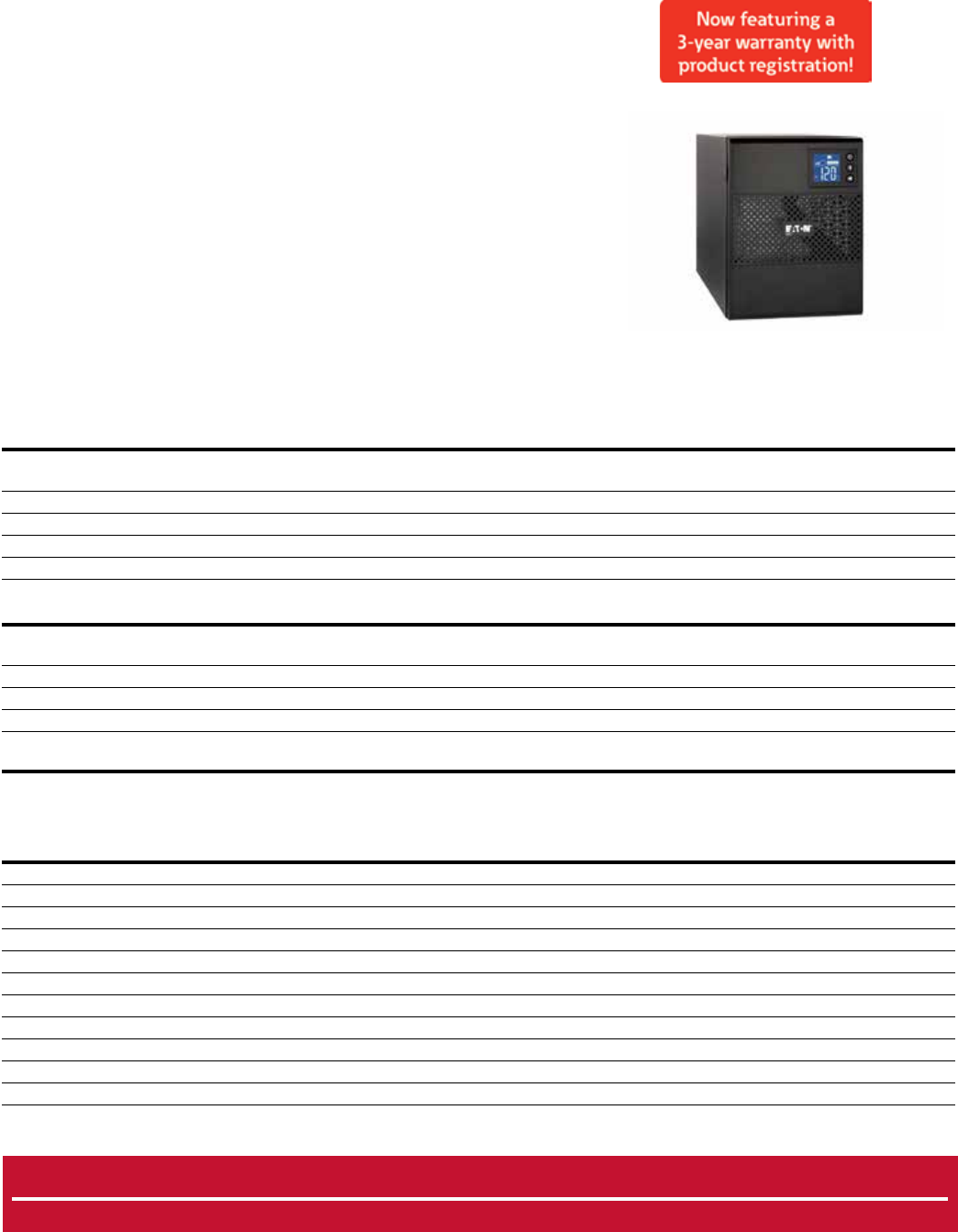

Eaton 5S UPS (550–1500 VA) ........................................................................................................................................................................................................ 33

Eaton 5SC UPS (550–1500 VA) ..................................................................................................................................................................................................... 34

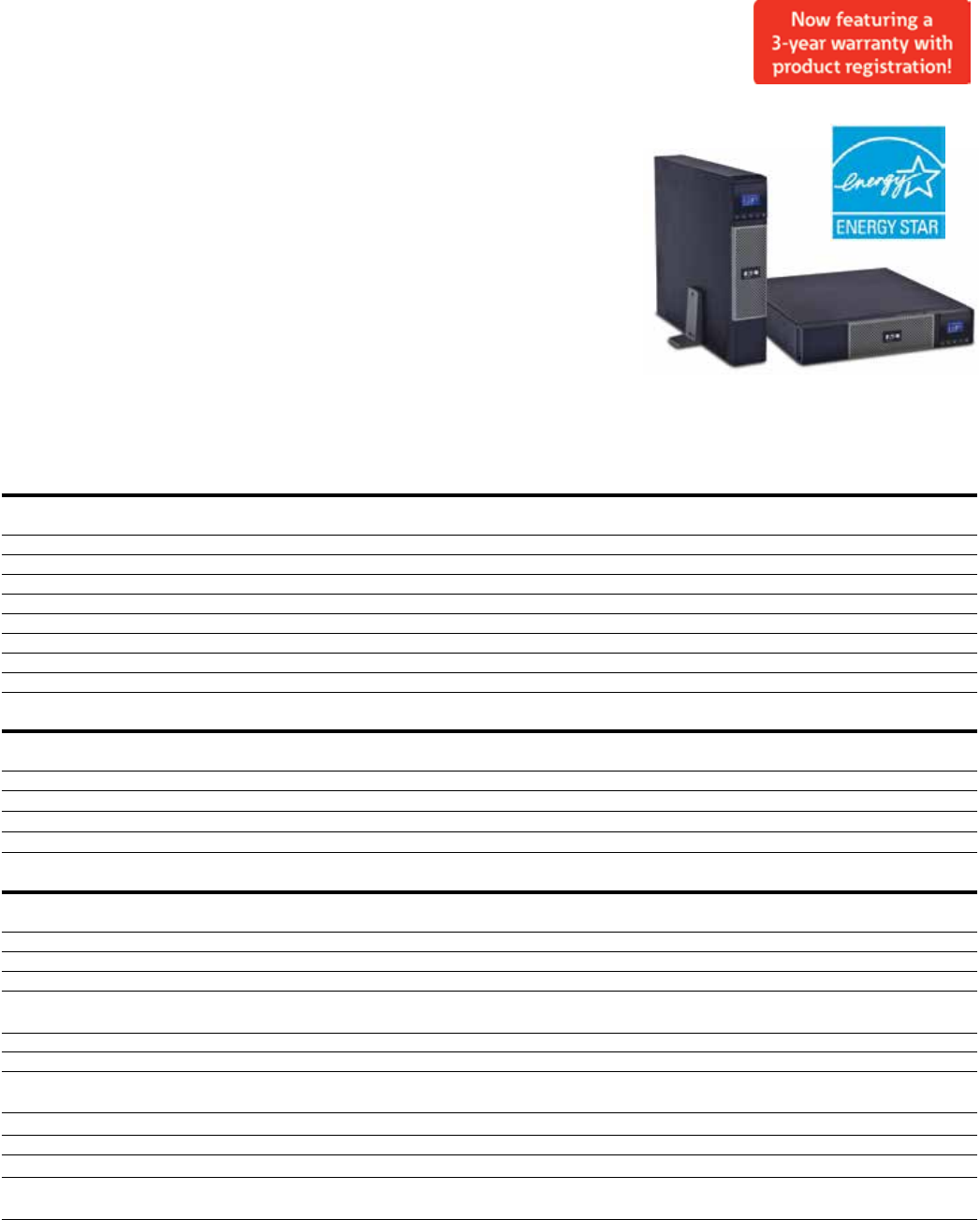

Eaton 5P UPS Rackmount (550–3000 VA) .................................................................................................................................................................................. 35

Eaton 5P UPS Tower (750–3000 VA) .......................................................................................................................................................................................... 37

Eaton 5PX UPS Rack/Tower (1000–3000 VA) ............................................................................................................................................................................. 38

Single-phase (Online)

Eaton EX UPS (700–3000 VA)........................................................................................................................................................................................................ 40

Eaton 9130 UPS Rack (700–3000 VA) .......................................................................................................................................................................................... 43

Eaton 9130 UPS Tower (700–3000 VA) ........................................................................................................................................................................................ 46

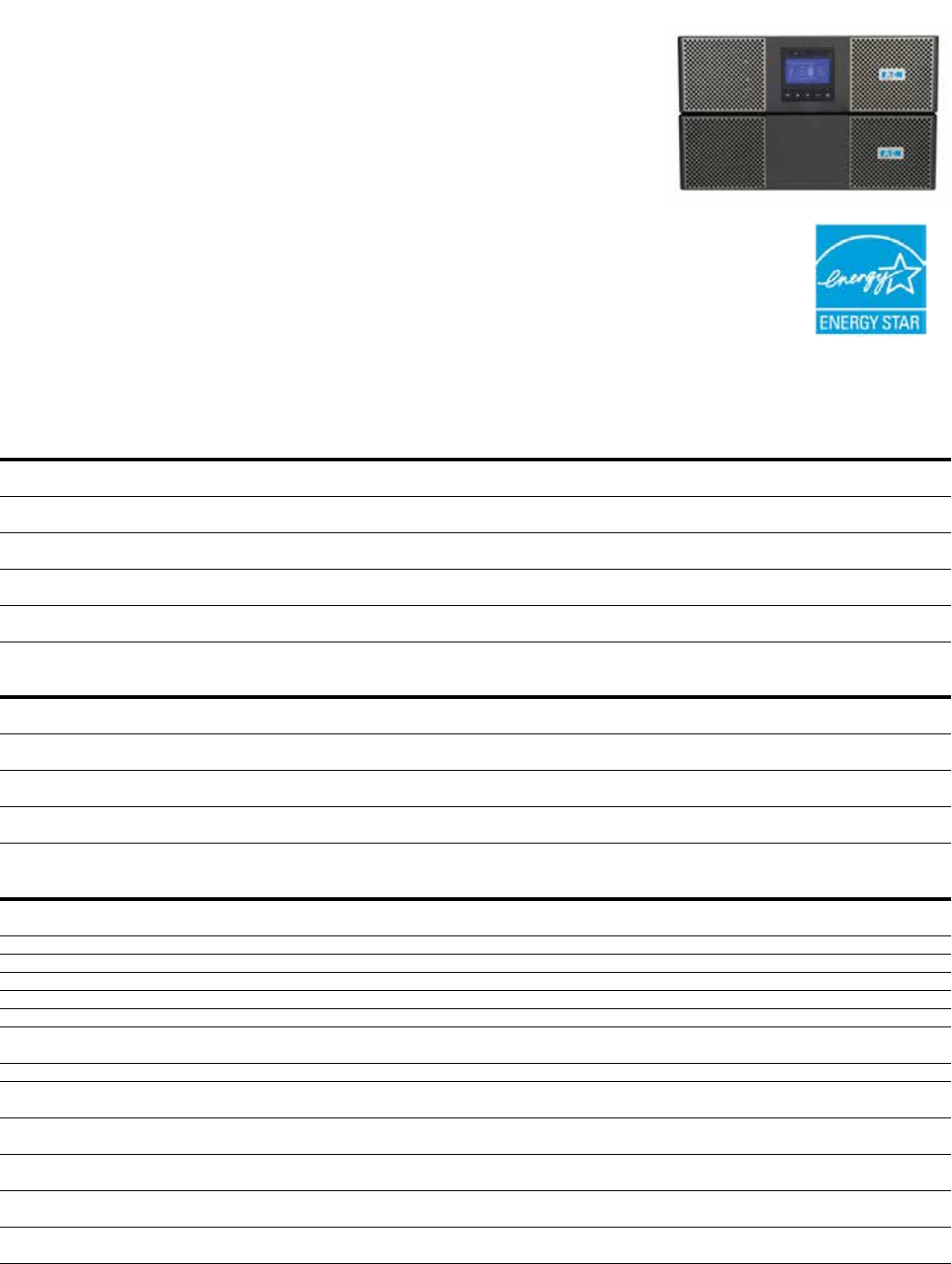

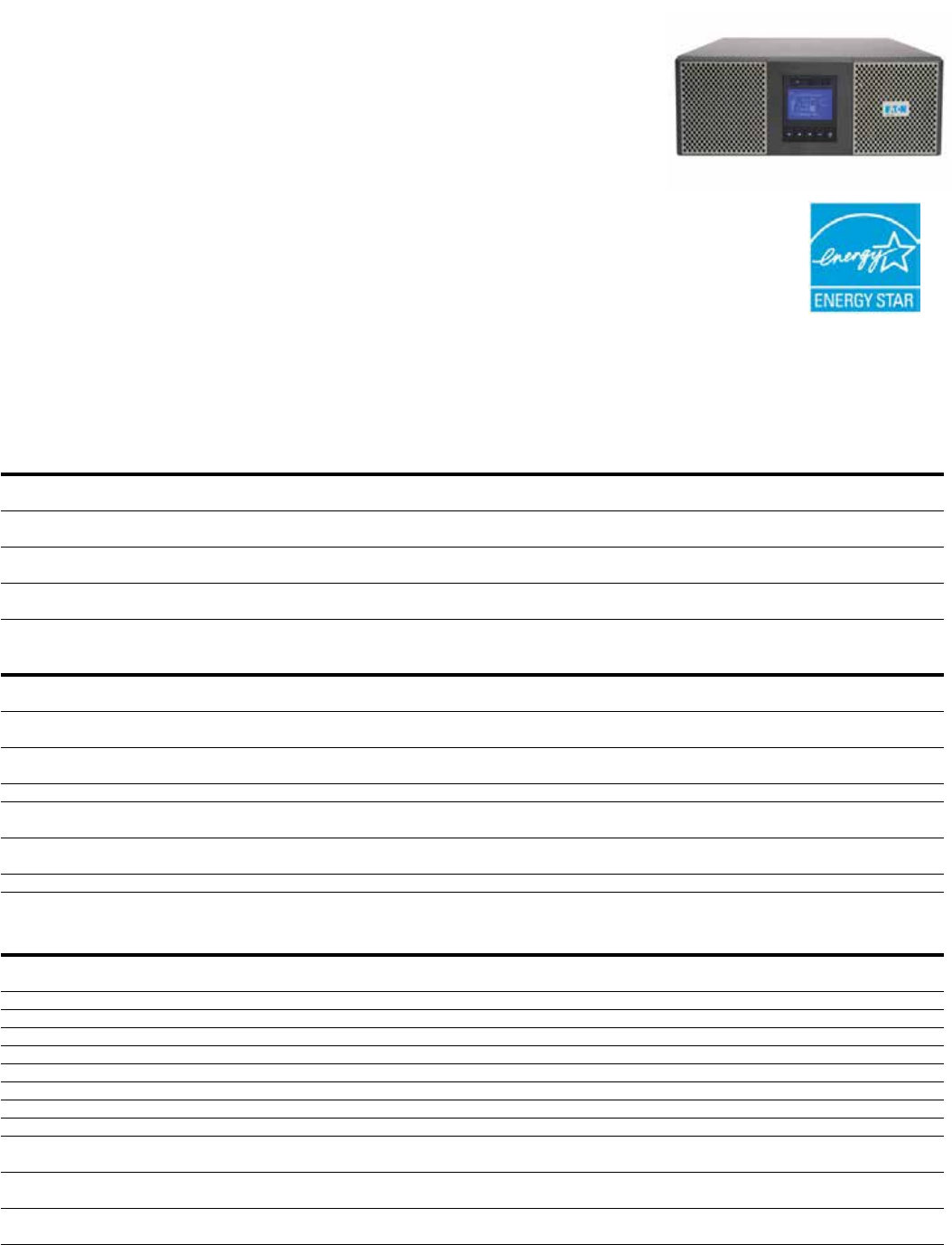

Eaton 9PX SP UPS Rack/Tower (5-10 kVA) .............................................................................................................................................................................. 48

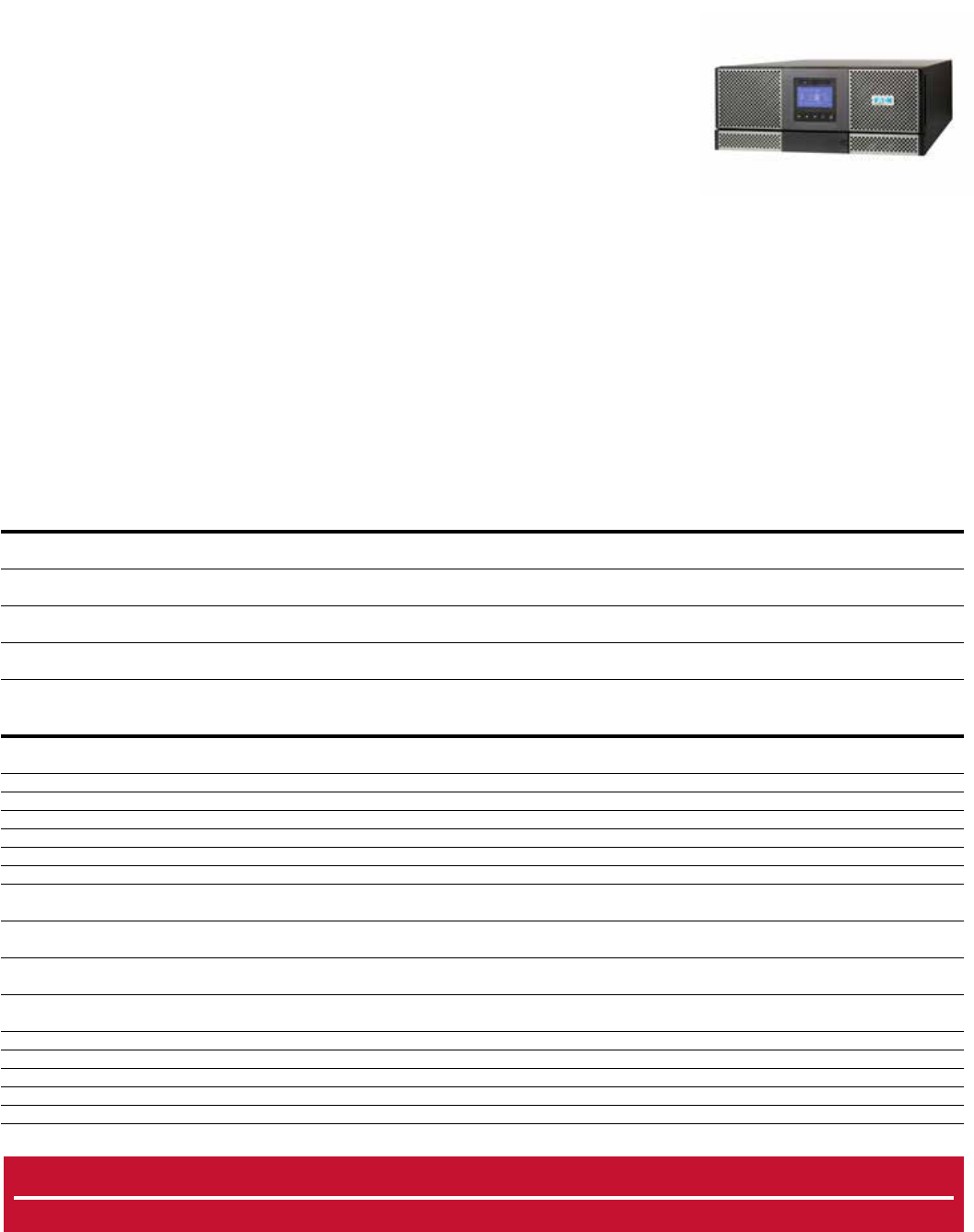

Eaton 9PX UPS Rack/Tower (5–6 kVA) ....................................................................................................................................................................................... 50

Eaton 9PX UPS Rack/Tower (8–11kVA) ...................................................................................................................................................................................... 52

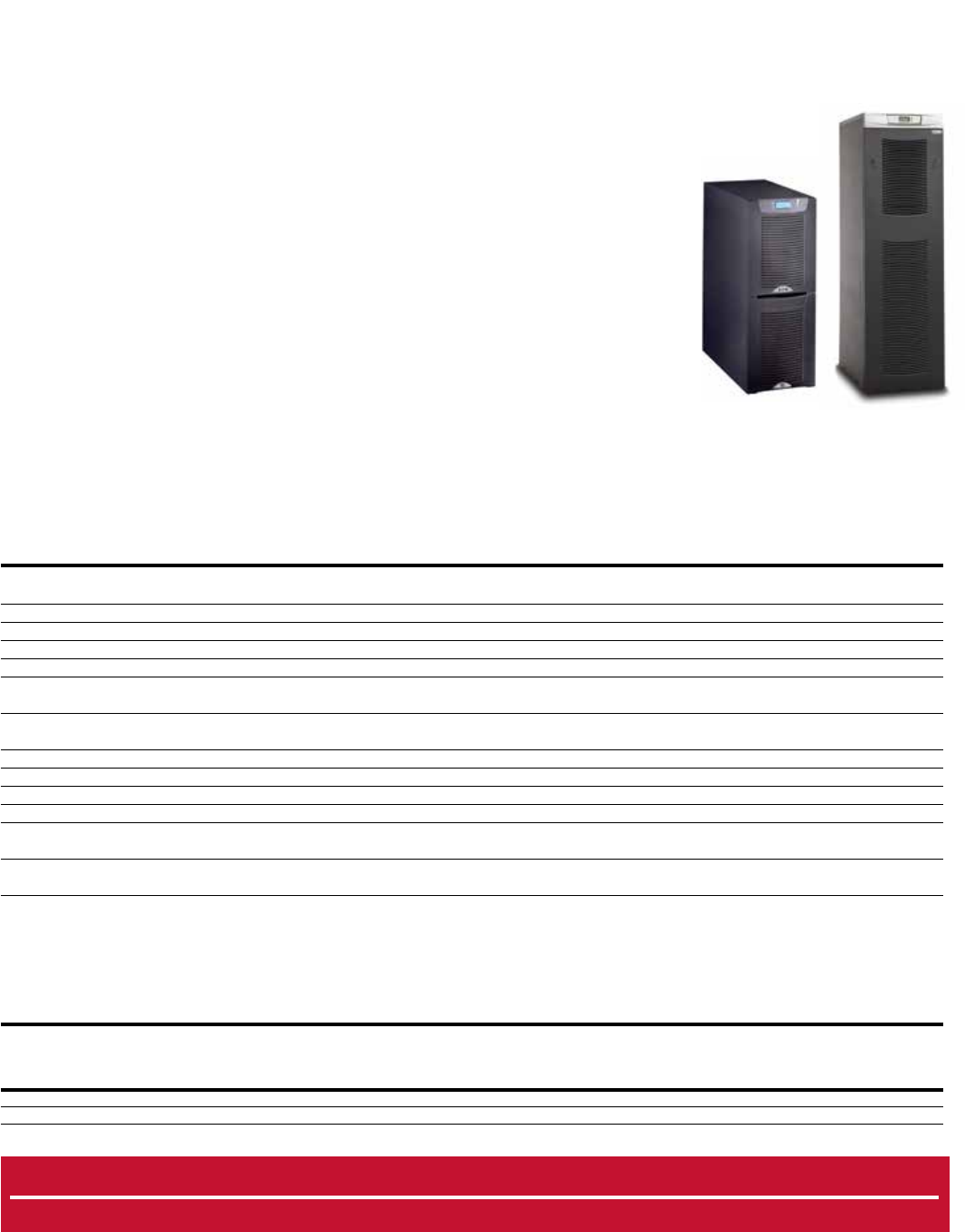

Eaton 9155 UPS (8–15 kVA) .......................................................................................................................................................................................................... 54

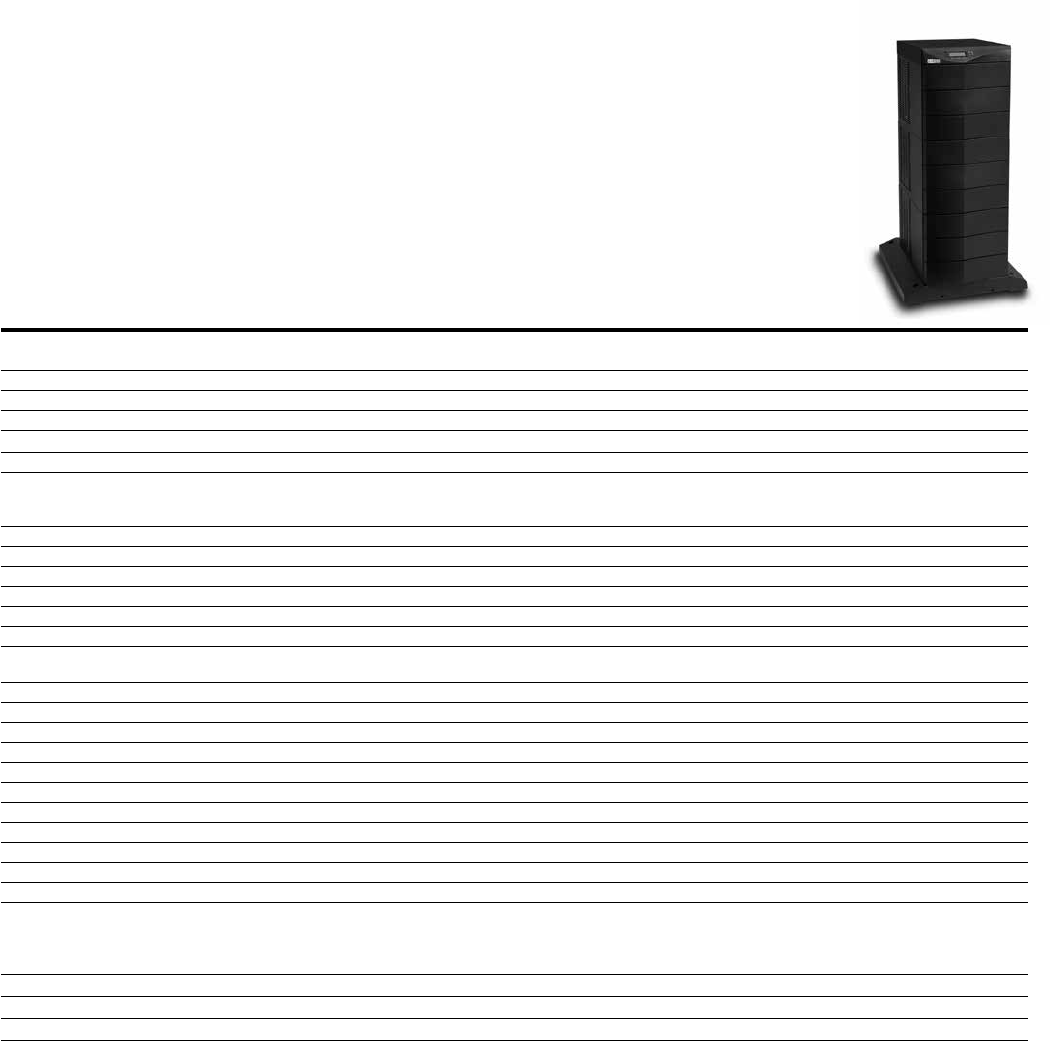

Eaton 9170+ UPS Rack/Tower (3–18 kVA) .................................................................................................................................................................................. 57

Series FERRO

Eaton FERRUPS FE UPS 60 Hz (500–3100 VA) .......................................................................................................................................................................... 62

Eaton FERRUPS UPS Rack Series (1.4 kVA–7 kVA) ................................................................................................................................................................. 64

Eaton FERRUPS UPS External Options & Accessories .......................................................................................................................................................... 65

(table of contents continued on next page)

REFERENCE GUIDE AND PRICEBOOK

Table of Contents

2EATON INDUSTRIES (CANADA) COMPANY Canadian Reference Guide & Pricebook

January 1, 2014

REFERENCE GUIDE AND PRICEBOOK

Table of Contents (continued)

Ordering Information, Parts, Accessories and Current List Pricing (continued)

Three-phase (Double-conversion)

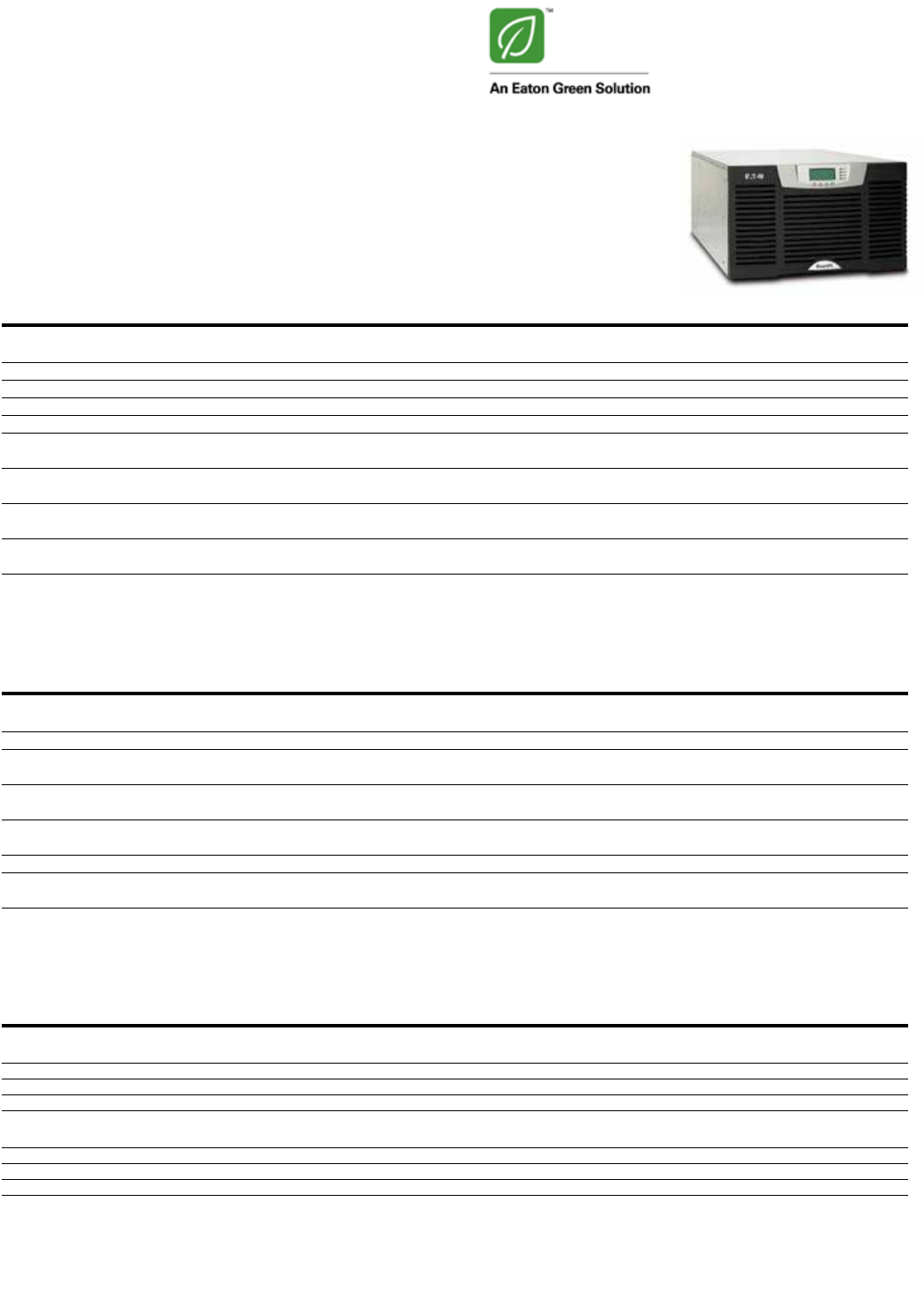

Eaton BladeUPS (12–60 kW) ....................................................................................................................................................................................................... 67

Eaton 9355 UPS (10–15 kVA) ....................................................................................................................................................................................................... 75

Eaton 9355 UPS (20–30 kVA) ....................................................................................................................................................................................................... 78

Eaton Emergency Lighting UPS (10–30 kVA) ............................................................................................................................................................................ 81

Eaton 93E UPS (20–60 kVA) ......................................................................................................................................................................................................... 82

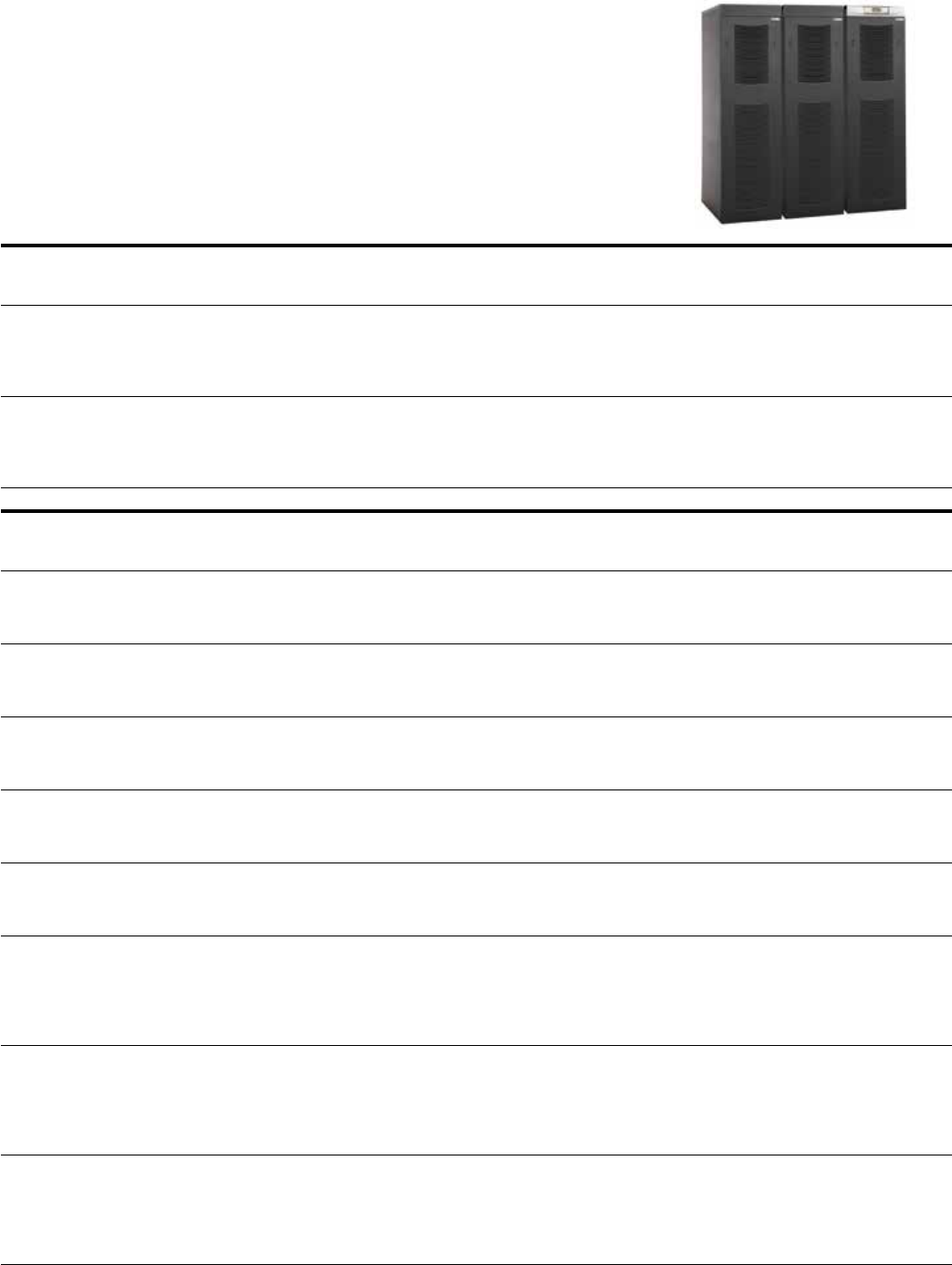

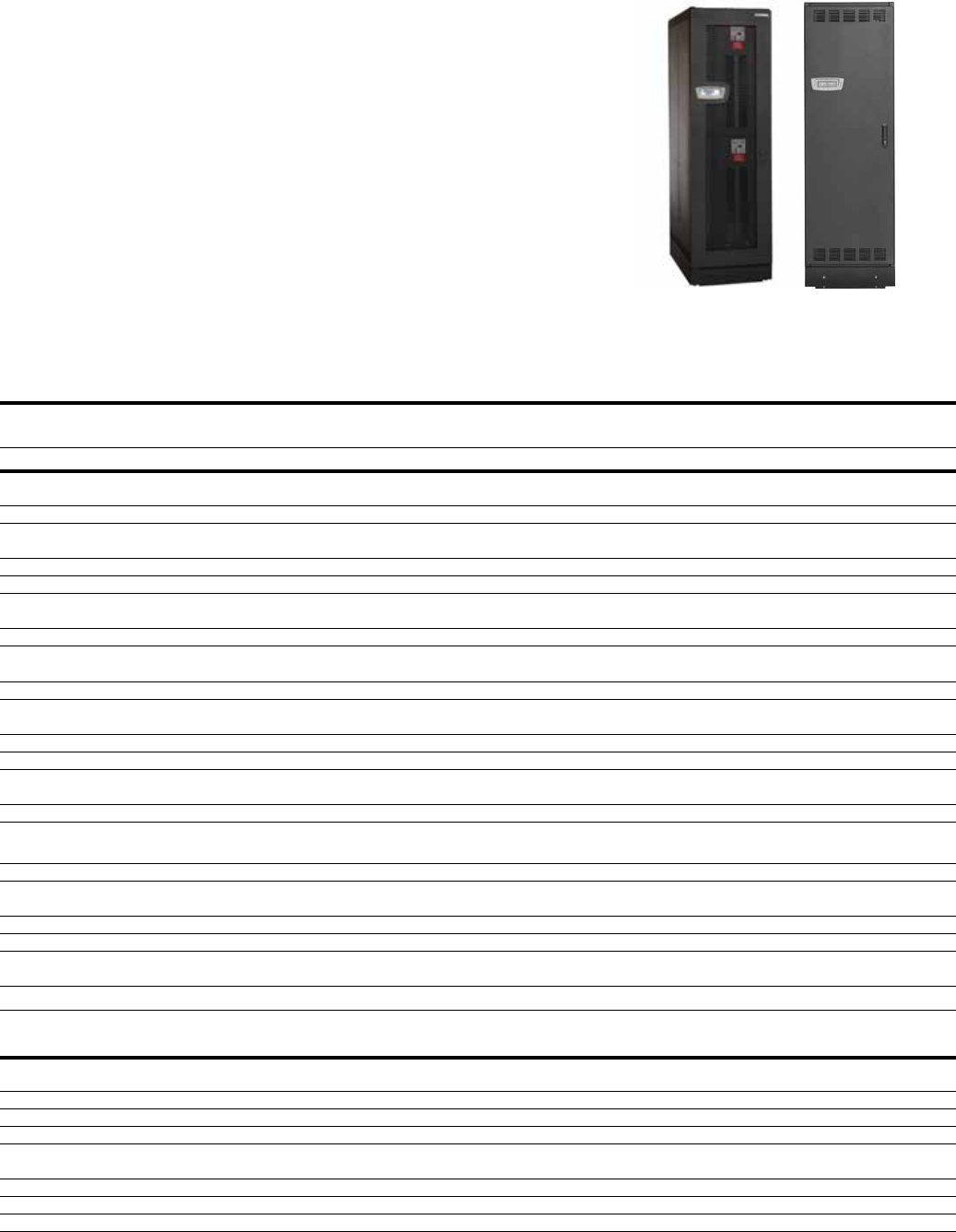

Eaton 9390IT UPS (40–160 kVA) .................................................................................................................................................................................................. 88

Additional Products

Ultra-isolator Noise Suppressors .............................................................................................................................................................................................. 91

Power Conditioners ...................................................................................................................................................................................................................... 92

Software Products ........................................................................................................................................................................................................................ 97

Connectivity Products .................................................................................................................................................................................................................. 98

Surge Protection Products – PSPD Series ............................................................................................................................................................................ 100

Surge Protection Products – PSPV Series ............................................................................................................................................................................ 105

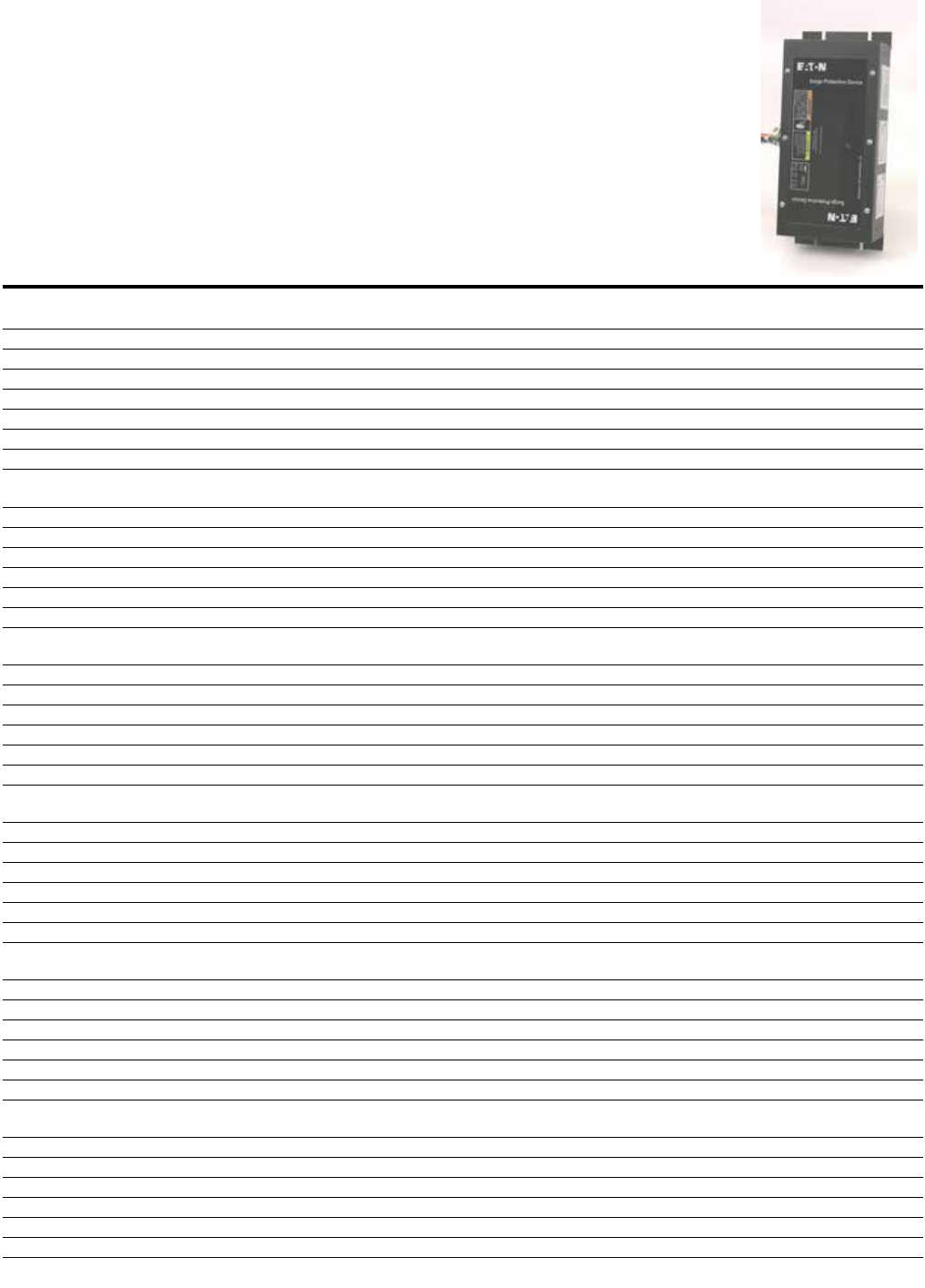

Surge Protection Devices ......................................................................................................................................................................................................... 106

Services

Single-phase Service Plans Overview .................................................................................................................................................................................... 108

Single-phase Service Plans ...................................................................................................................................................................................................... 109

Three-phase Service Plans Overview .................................................................................................................................................................................... 114

Three-phase Service Plans ...................................................................................................................................................................................................... 114

Time and Material Service Rate Schedule ............................................................................................................................................................................. 129

RMA Policy and Product Warranties

Sales Returned Merchandise Authorization (RMA) Policy ................................................................................................................................................. 130

Product Warranty Statements .................................................................................................................................................................................................. 131

Notes: Due to continuing product improvement programs, all specifications and prices are subject to change without notice.

With the exception of batteries, any UPS parts or parts kit pricing that is included in this reference guide is based on a concurrent purchase of a new unit(s). Pricing for parts or parts kits

purchases made separately from a concurrent unit purchase must be obtained from the Eaton Customer Support Center at 800.356.5737.

3www.eaton.com/powerquality 1.800.461.9166

January 1, 2014

January 1, 2014

RECEPTACLE CHART

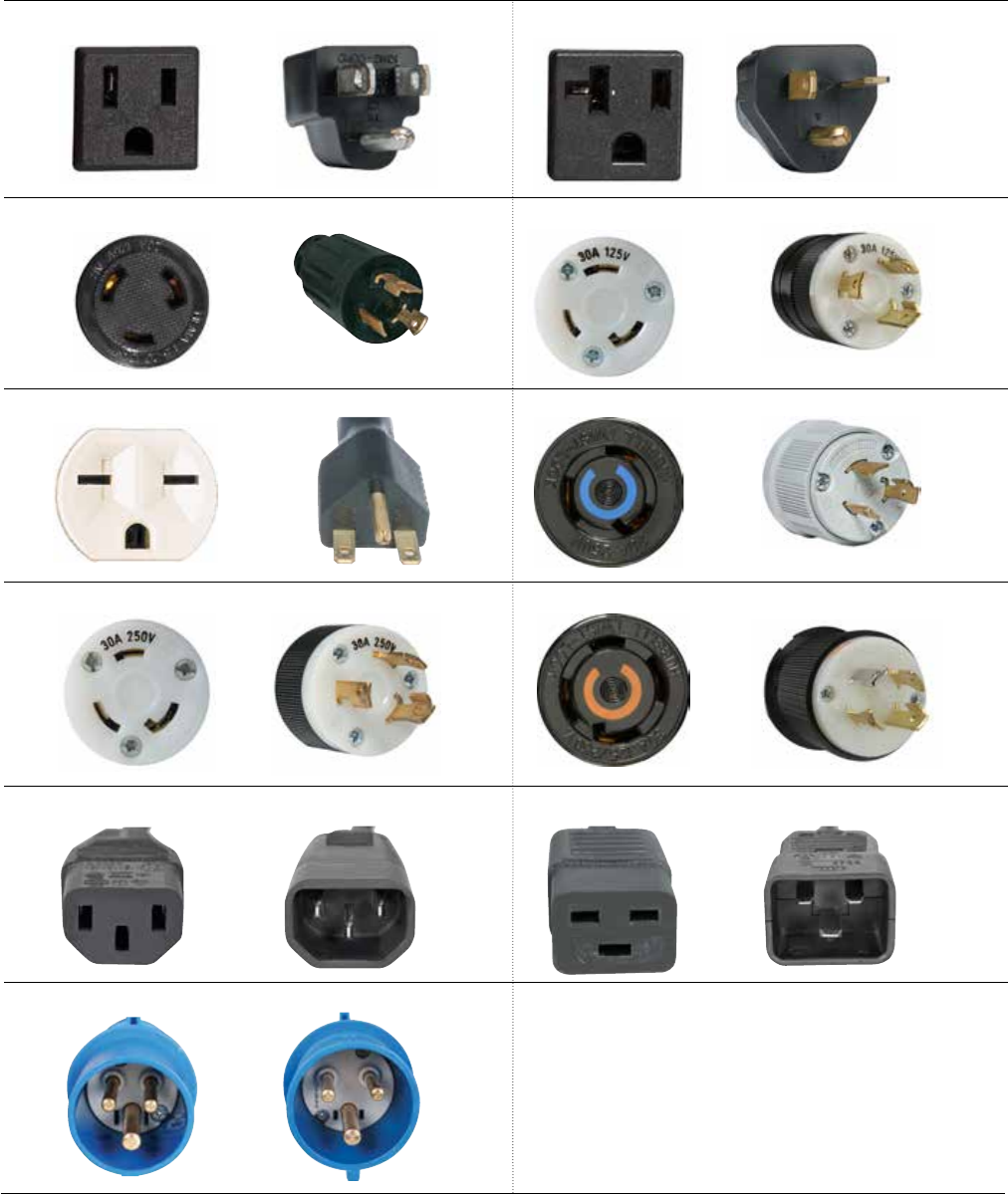

Input Plug and Output Receptacle Chart

5-15R 5-15P 5-20R 5-20P

L5-20R L5-20P L5-30R L5-30P

6-15R 6-15P L6-20R L6-20P

IEC-309, 16A IEC-309, 32A

L6-30R L6-30P L14-30R L14-30P

R indicates receptacle

P indicates plug

L indicates locking plug or receptacle

IEC-320-C13 (female) IEC-320-C14 (male) IEC-320-C19 (female) IEC-320-C20 (male)

4EATON INDUSTRIES (CANADA) COMPANY Canadian Reference Guide & Pricebook

January 1, 2014

EATON POWER DISTRIBUTION, MONITORING AND ENCLOSURES

Eaton ePDU Catalog Numbering System

PW 1 04 BA 0U 006

Function / Communications

BA = Basic

MI = Ethernet Monitored

SW = Switched

Branding

PW = Eaton series

Form Factor

OU, 1U, 2U

Unique Three-digit Model Identifier

001-999 Unique for every model

Note that alphas signify international part

numbers

Input Phase

1 = Single- / Split-phase

3 = Three-phase

Max kW Rounded

Two characters, 01- 23

Eaton Generation 1 (G1) model numbering: Eaton's smart part numbers help our customers understand our numbering system.

Follow the example below to see what the letters and numbers mean within our ePDU catalog numbers.

Eaton Generation 2 (G2) model numbering:

ePBZ

BZ = Basic

eMA

MA = Managed

eAM

AM = Advanced Monitored

Eaton Generation 3 (G3) model numbering:

EBA

BA = Basic

EMI

MI= Metered Input

5www.eaton.com/powerquality 1.800.461.9166

January 1, 2014

January 1, 2014

EATON POWER DISTRIBUTION, MONITORING AND ENCLOSURES

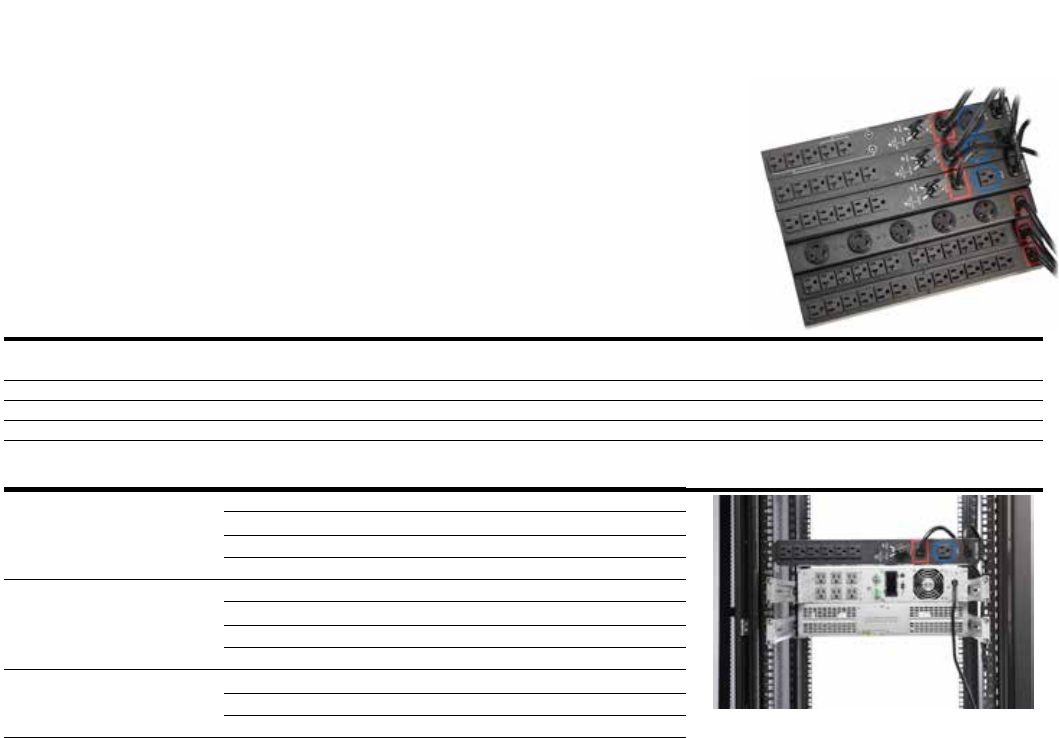

Basic ePDUs

Basic ePDUs are designed for reliable and cost-effective power distribution.

• Available in horizontal and vertical design

• Clearly labeled circuits simplify load balancing

• Cost effective solutions to meet Basic needs

New G3 models feature IEC grip outlets and color-coded outlet sections as well as high-operating temperatures (up to 140F).

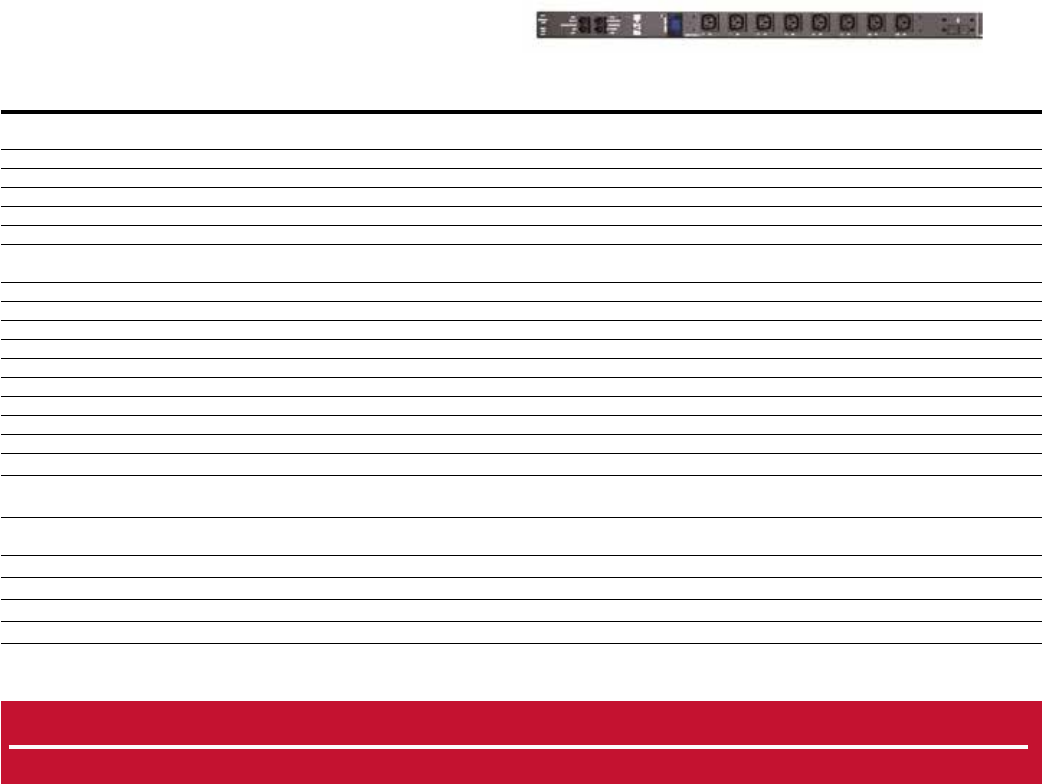

Basic ePDUs

Catalog Max. Cord Input Output Dimensions List

Number kW Function Length (ft) Plug Receptacles (H x W x D, inches) Price

Horizontal Mount Models

ePBZ78 2.88 BA 15 L5-30P (20) 5-20R 1.7 x 17.0 x 3.5 $330

ePBZ79 4.99 BA 15 L6-30P (16) C13, (4) C19 1.7 x 17.0 x 5.1 $330

ePBZ82 1.92 BA 15 L5-20P/5-20P* (12) 5-20R 1.7 x 17.3 x 2.3 $189

ePBZ83 1.44 BA 15 5-15P (12) 5-15R 1.7 x 17.3 x 2.3 $126

ePBZ84 2.88 BA 10 L5-30P (10) 5-20R 1.7 x 17.0 x 3.5 $288

ePBZ85 1.92 BA 10 5-20P (12) 5-20R 1.7 x 17.3 x 2.3 $152

ePBZ86 1.44 BA 10 5-15P (12) 5-15R 1.7 x 17.3 x 2.3 $126

ePBZ88 3.33 BA 6 C20 (10) C13, (2) C19 1.7 x 19.0 x 2.4 $165

ePBZ91 4.99 BA 10 L6-30P (10) C13 1.7 x 17.0 x 3.5 $266

ePBZ94 4.99 BA 6 L6-30P (6) C19 1.7 x 19.0 x 2.4 $292

ePBZ95 3.33 BA 6 L6-20P (12) C13, (1) C19 1.7 x 19.0 x 2.4 $165

ePBZ99 1.92 BA 6 L5-20P (12) 5-20R 1.7 x 19.0 x 2.4 $152

EFLXI3000R-PDU1UIEC 3.33 BA 3 C20 (12) C13, (1) C19 1.7 x 17.3 x 2.4 $200

EFLXL1500R-PDU1U 1.44 BA 3 5-15P (12) 5-15R 1.7 x 17.3 x 2.4 $120

EFLXL2000R-PDU1U 1.92 BA 3 5-20P (12) 5-20R 1.7 x 17.3 x 2.4 $133

EFLXL2000R-PDU1UL 1.92 BA 3 5-20P (5) L5-20R 1.7 x 17.3 x 2.4 $173

PW101BA1U140 1.44 BA 9 5-15P (12) 5-15R 1.7 x 19.0 x 7.0 $322

PW102BA1U158 1.92 BA 9 5-20P (12) 5-20R 1.7 x 19.0 x 7.0 $326

PW102BA1U159 1.92 BA 9 L5-20P (12) 5-20R 1.7 x 19.0 x 7.0 $339

PW103BA1U190 2.88 BA 9 L5-30P (12) 5-20R 1.7 x 19.0 x 7.0 $355

PW103BA1U191 3.33 BA 9 L6-20P (12) C13 1.7 x 19.0 x 7.0 $427

PW103BA1U405 3.33 BA 9 C20 (16) C13 1.7 x 19.0 x 7.0 $307

PW103BA1U406 4.99 BA 9 L6-30P (16) C13 1.7 x 19.0 x 7.0 $532

PW105BA1U163 4.99 BA 9 L6-30P (12) C13 1.7 x 19.0 x 7.0 $493

PW105BA1U192 4.99 BA 9 L6-30 P (8) C13, (4) C19 1.7 x 19.0 x 7.0 $527

PW105BA1U404 4.99 BA 9 L14-30P (12) 5-15R 1.7 x 19.0 x 7.0 $597

PW105BA2U420 4.99 BA 9 L6-30P (4) L6-20R 3.4 x 19.0 x 6.0 $737

PW105BA2U422 4.99 BA 9 L14-30P (4) L6-20R 3.4 x 19.0 x 6.0 $826

PW314BA1U193 14.40 BA 9 CS8365 (6) C19 1.7 x 17.0 x 7.0 $928

Vertical Mount Models

ePBZ71 1.92 BA 15 5-20P/L5-20P* (30) 5-20R 72.0 x 1.5 x 1.5 $355

EBA300-06 14.4 BA 6 CS8365 (24) C13, (4) C19, (2) L6-30P 66.5 x 2.05 x 2.1 $1,514

EBA301-10 5.76 BA 10 L15-20P (30) C13, (6) C19 66.5 x 2.05 x 2.1 $704

EBA302-10 5.76 BA 10 L21-20P (30) C13, (6) C19 66.5 x 2.05 x 2.1 $649

EBA303-10 8.64 BA 10 L15-30P (30) C13, (6) C19 66.5 x 2.05 x 2.1 $1,028

EBA304-10 8.64 BA 10 L21-30P (30) C13, (6) C19 66.5 x 2.05 x 2.1 $1,028

EBA305-06 12.48 BA 6 CS8365 (30) C13, (6) C19 66.5 x 2.05 x 2.1 $1,115

EBA306-06 14.4 BA 6 CS8365 (21) C13, (12) C19 66.5 x 2.05 x 2.1 $1,514

EBA307-06 17.3 BA 6 IEC60309 460P9 (21) C13, (12) C19 66.5 x 2.05 x 2.1 $1,601

EBA308-10 5.76 BA 10 L21-20P (21) 5-20R, (6) L6-20R 66.5 x 2.05 x 2.1 $547

EBA309-10 5.76 BA 10 L21-20P (39) 5-20R 66.5 x 2.05 x 2.1 $547

EBA310-10 8.64 BA 10 L21-30P (30) C13, (6) C19, (1) 5-20R 66.5 x 2.05 x 2.1 $812

EBA311-10 5.76 BA 10 L15-20P (42) C13 69.5 x 2.05 x 2.1 $704

EBA312-10 5.76 BA 10 L21-20P (42) C13 69.5 x 2.05 x 2.1 $704

EBA313-10 8.64 BA 10 L15-30P (42) C13 69.5 x 2.05 x 2.1 $974

EBA314-10 8.64 BA 10 L21-30P (42) C13 69.5 x 2.05 x 2.1 $974

EBA315-10 12.48 BA 10 CS8365 (42) C13 69.5 x 2.05 x 2.1 $1,298

ePBZ72 1.92 BA 15 5-20P/L5-20P* (18) 5-20R 48.0 x 1.5 x 1.5 $266

ePBZ73 1.44 BA 15 5-15P (18) 5-15R 48.0 x 1.5 x 1.5 $190

ePBZ74 1.92 BA 15 5-20P/L5-20P* (14) 5-20R 24.0 x 1.5 x 1.5 $215

ePBZ75 1.44 BA 15 5-15P (14) 5-15R 24.0 x 1.5 x 1.5 $152

ePBZ77 1.92 BA 15 L5-20P/5-20P (24) 5-20R 60.0 x 1.5 x 1.5 $279

ePBZ80 4.99 BA 10 L6-30P (30) C13, (6) C19 52.9 x 1.9 x 2.1 $381

6EATON INDUSTRIES (CANADA) COMPANY Canadian Reference Guide & Pricebook

January 1, 2014

EATON POWER DISTRIBUTION, MONITORING AND ENCLOSURES

Basic ePDUs (continued)

Basic ePDUs

(continued)

Catalog Max. Cord Input Output Dimensions List

Number kW Function Length (ft) Plug Receptacles (H x W x D, inches) Price

Basic ePDUs (continued)

Vertical Mount Models (continued)

ePBZ89 1.44 BA 6 C14 (16) C13 28.0 x 2.2 x 1.9 $126

ePBZ90 2.88 BA 15 L5-30P (24) 5-20R 40.0 x 1.9 x 2.1 $343

ePBZ92 4.99 BA 6 L6-30P (20) C13, (4) C19 42.0 x 2.2 x 1.9 $355

ePBZ93 3.33 BA 6 L6-20P (20) C13, (4) C19 42.0 x 2.2 x 1.9 $292

ePBZ96 1.92 BA 6 L5-20P (24) 5-20R 60.0 x 1.5 x 1.5 $254

ePBZ97 1.92 BA 6 5-20P (24) 5-20R 60.0 x 1.5 x 1.5 $190

ePBZ98 1.44 BA 6 5-15P (18) 5-15R 48.0 x 1.5 x 1.5 $126

PW103BA0U237 3.33 BA 9 L6-20P (24) C13, (4) C19 66.0 x 1.9 x 2.0 $667

PW103BA0U257 2.88 BA 9 L5-30P (24) 5-20R 66.0 x 1.9 x 2.0 $603

PW105BA0U239 4.99 BA 9 L6-30P (24) C13, (4) C19 66.0 x 1.9 x 2.0 $682

PW105BA0U412 4.99 BA 6 L14-30P (12) 5-15R 10.0 x 7.8 x 3.0 $444

PW105BA0U421 4.99 BA 9 L14-30P (24) 5-20R 66.0 x 1.9 x 2.0 $762

PW309BA0U409 8.65 BA 9 L21-30P (24) 5-20R 66.0 x 1.9 x 2.0 $1,119

* These units ship with an adapter allowing for 5-20P input plug.

SERVICES

For detailed information on service plans, please refer to the Single-phase Service section on page 108.

7www.eaton.com/powerquality 1.800.461.9166

January 1, 2014

January 1, 2014

EATON POWER DISTRIBUTION, MONITORING AND ENCLOSURES

Metered Input ePDUs

Metered Input models provide input phase and branch circuit monitoring. These ePDUs feature an LED or pixel LCD display that shows current draw for branch circuit

loading and phase balancing. All models offer remote monitoring over a network connection.

• Clearly labeled circuits simplify load balancing

• Local current meter display

• Remote monitoring with network connection

Metered Input ePDUs

Catalog Max. Cord Input Output Dimensions List

Number kW Function Length (ft) Plug Receptacles (H x W x D, inches) Price

Horizontal Mount Models

PW101MI1U221 1.44 MI 9 5-15P (12) 5-15R 1.7 x 17.0 x 7.0 $553

PW101MI1U403 1.44 MI 9 5-15P (12) 5-20R 1.7 x 17.0 x 7.0 $611

PW102MI1U160 1.92 MI 9 L5-20P (12) 5-20R 1.7 x 17.0 x 7.0 $628

PW103MI1U161 2.88 MI 9 L5-30P (12) 5-20 R 1.7 x 17.0 x 7.0 $708

PW103MI1U162 3.33 MI 9 L6-20P (12) C13 1.7 x 17.0 x 7.0 $657

PW105MI1U164 4.99 MI 9 L6-30P (12) C13 1.7 x 17.0 x 7.0 $868

PW105MI1U165 4.99 MI 9 L6-30P (6) C13, (4) C19 1.7 x 17.0 x 7.0 $801

PW105MI2U402 4.99 MI 9 L6-30P (20) C13 3.4 x 19.0 x 7.0 $934

PW317MI2U141 17.29 MI 9 IEC30960 460P9W (12) C19 3.4 x 19.0 x 9.5 $1,803

Vertical Models (ePDU G2)

EMI100-10 1.44 MI 10 5-15P (24) 5-15R 66.5 x 2.05 x 2.1 $714

EMI101-10 1.92 MI 10 5-20P/L5-20P* (24) 5-20R 66.5 x 2.05 x 2.1 $764

EMI102-10 2.88 MI 10 L5-30P (30) 5-30R 66.5 x 2.05 x 2.1 $848

EMI103-10 3.84 MI 10 C20 (18) C13, (2) C19 35.5 x 2.05 x 2.1 $782

(L6-20 cord included)

EMI104-10 5.76 MI 10 L6-30P (36) C13, (6) C19 66.5 x 2.05 x 2.1 $1,017

EMI300-06 14.4 MI 6 CS8365 (24) C13, (4) C19, (2) L6-30R 66.5 x 2.05 x 2.1 $1,839

EMI301-10 5.76 MI 10 L15-20P (30) C13, (6) C19 66.5 x 2.05 x 2.1 $1,082

EMI302-10 5.76 MI 10 L21-20P (30) C13, (6) C19 66.5 x 2.05 x 2.1 $1,082

EMI303-10 8.64 MI 10 L15-30P (30) C13, (6) C19 66.5 x 2.05 x 2.1 $1,557

EMI304-10 8.64 MI 10 L21-30P (30) C13, (6) C19 66.5 x 2.05 x 2.1 $1,557

EMI305-06 12.48 MI 6 CS8365 (30) C13, (6) C19 66.5 x 2.05 x 2.1 $1,716

EMI308-10 5.76 MI 10 L21-20P (21) 5-20R, (6) L6-20R 66.5 x 2.05 x 2.1 $887

EMI309-10 5.76 MI 10 L21-20P (39) 5-20R 66.5 x 2.05 x 2.1 $887

EMI310-10 8.64 MI 10 L21-30P (30) C13, (6) C19, (1) 5-20R 66.5 x 2.05 x 2.1 $1,582

EMI311-10 5.76 MI 10 L15-20P (42) C13 69.5 x 2.05 x 2.1 $1,082

EMI312-10 5.76 MI 10 L21-20P (42) C13 69.5 x 2.05 x 2.1 $1,082

EMI313-10 8.64 MI 10 L15-30P (42) C13 69.5 x 2.05 x 2.1 $1,557

EMI314-10 8.64 MI 10 L21-30P (42) C13 69.5 x 2.05 x 2.1 $1,557

EMI315-10 12.48 MI 10 CS8365 (42) C13 69.5 x 2.05 x 2.1 $1,877

EMI316-06 14.4 MI 6 CS8365 (9) C13, (12) C19 66.5 x 2.05 x 2.1 $1,791

EMI317-06 17.3 MI 6 IEC60309 460P9 (9) C13, (12) C19 66.5 x 2.05 x 2.1 $2,055

EMI318-10 5.76 MI 10 L21-20P (30) C13, (6) C19, (3) 5-20R 66.5 x 2.05 x 2.1 $1,082

* These units ship with an adapter allowing for 5-20P input plug.

Environmental Probes

Catalog

Number Description Price

EMP001 Environmental Monitoring Probes for AM and MA $133

SERVICES

For detailed information on service plans, please refer to the Single-phase Service section on page 108.

8EATON INDUSTRIES (CANADA) COMPANY Canadian Reference Guide & Pricebook

January 1, 2014

EATON POWER DISTRIBUTION, MONITORING AND ENCLOSURES

Switched ePDUs

Outlet switching is included on all models and some models offer branch current monitoring. Outlet switching is ideal for remote site management to reboot outlets or

turn outlets off when not being used. All vertical monitors accommodate optional environmental proves.

• Individually control outlets via Serial or Ethernet connection

• Voltage Monitoring and Current Monitoring

• Local current meter display shows current draw

Switched ePDUs

Catalog Max. Cord Input Output Dimensions List

Number kW Function Length (ft) Plug Receptacles (H x W x D, inches) Price

Horizontal Mount Models

PW103SW2U413 3.33 SW 9 C20 (8) C13 1.7 x 19.0 x 9.5 $1,002

PW103SW2U414 3.33 SW 9 C20 (8) 5-15R 1.7 x 19.0 x 9.5 $1,002

PW105SW2U223 4.99 SW 9 L6-30P (20) C13 1.7 x 19.0 x 9.5 $1,869

PW105SW2U415 4.99 SW 9 L6-30P (20) C13, (4) C19 1.7 x 19.0 x 9.5 $1,869

Vertical Mount Models

PW101SW0U224 1.44 SW 9 5-15P (16) 5-15R 68.0 x 1.9 x 2.0 $1,564

PW102SW0U150 1.92 SW 9 L5-20P (8) 5-15R 42.0 x 1.9 x 2.0 $1,208

PW102SW0U151 1.92 SW 9 L5-20P (24) 5-15R 66.0 x 1.9 x 2.0 $1,780

PW103SW0U152 2.88 SW 9 L5-30P (16) 5-15R 66.0 x 1.9 x 2.0 $1,780

PW103SW0U153 3.33 SW 9 L6-20P (24) C13 66.0 x 1.9 x 2.0 $1,780

PW105SW0U154 4.99 SW 9 L6-30P (16) C13 66.0 x 1.9 x 2.0 $1,653

PW306SW0U155 5.76 SW 9 L21-20P (24) 5-15R 66.0 x 1.9 x 2.0 $1,780

PW309SW0U178 8.65 SW 9 L21-30P (24) C14 66.0 x 1.9 x 2.0 $2,034

PW317SW0U400 17.29 SW 9 IEC 60309P 3P + PE (18) C13, (6) C19 66.0 x 2.0 x 4.0 $2,938

PW317SW0U401 17.29 SW 9 IEC60309 460P9 (12) C13, (12) C19 66.0 x 2.0 x 4.0 $2,925

Environmental Probes

Catalog

Number Description Price

SENSOR-T1-10 Sensor with 1 Temperature Probe $101

SENSOR-T1H1-10 Sensor with 1 Temperature Probe 1 Humidity Probe $127

SENSOR-T2-10 Sensor with 2 Temperature Probes $216

SENSOR-T2H1-10 Sensor with 2 Temperature Probes 1 Humidity Probe $229

SERVICES

For detailed information on service plans, please refer to the Single-phase Service section on page 108.

9www.eaton.com/powerquality 1.800.461.9166

January 1, 2014

January 1, 2014

EATON POWER DISTRIBUTION, MONITORING AND ENCLOSURES

Advanced Monitored and Managed ePDUs

Managed ePDUs include outlet switching and metered outlets. Switching allows you to power cycle (reboot) locked servers or turn off unused outlets. Outlet level

monitoring of voltage, current, power and energy (KWH) provides necessary measurements to calculate Level 3 PUE and to run capacity /usage analytics.

• Monitor power consumption in kilowatt hours at the individual outlet level requirement

• Readings available via Ethernet connection over a network (utilizing Eaton's Intelligent Power Manager)

• Power consumption readings allow for Power Usage Effectiveness calculations

Advanced Monitored and Managed ePDUs

Catalog Max. Cord Input Output Dimensions List

Number kW Function Length (ft) Plug Receptacles (H x W x D, inches) Price

Vertical Mount Models

eMA006 5.8 MA 10 L21-20P (21) C13, (3) C19 60.0 x 2.2 x 2.6 $1,654

eMA007 12.6 MA 10 CS8365C (21) C13, (3) C19 68.0 x 2.2 x 2.6 $1,998

eMA009 17.3 MA 10 IEC309 48A (12) C13, (12) C19 72.4 x 2.2 x 2.6 $3,142

eMA010 5.8 MA 10 L6-30P (20) C13, (4) C19 68.0 x 2.2 x 2.6 $1,463

eMA011 8.6 MA 10 L21-30P (21) C13, (3) C19 68.0 x 2.2 x 2.6 $1,998

eMA012 3.3 MA 10 C20 (L6-20 cord included) (20) C13, (4) C19 60.0 x 2.2 x 2.6 $1,298

eMA013 11.5 MA 10 IEC309 16A (12) C13, (12) C19 68.0 x 2.2 x 2.6 $2,188

eMA014 17.3 MA 10 IEC309 32A (12) C13, (12) C19 72.4 x 2.2 x 2.6 $2,748

Advanced Monitored–Outlet level monitoring of voltage, current, power and energy (KWH).Provides necessary measurements to calculate Level 3 PUE and to run capacity /usage analytics.

Advanced local display and color coded silk screen.

Vertical Mount Models

eAM001 5.8 AM 10 L6-30P (20) C13, (4) C19 68.0 x 2.2 x 2.6 $1,311

eAM002 5.8 AM 10 L21-20P (21) C13, (3) C19 60.0 x 2.2 x 2.6 $1,489

eAM003 12.6 AM 10 CS8365 (21) C13, (3) C19 68.0 x 2.2 x 2.6 $1,807

eAM004 8.6 AM 10 L21-30P (21) C13, (3) C19 68.0 x 2.2 x 2.6 $1,807

eAM005 17.3 AM 10 IEC60309 460P9 (12) C13, (12) C19 72.4 x 2.2 x 2.6 $2,850

eAM008 3.3 AM 10 C20 (L6-20 cord included) (20) C13, (4) C19 60.0 x 2.2 x 2.6 $1,171

Environmental Probes

Catalog

Number Description Price

EMP001 Environmental Monitoring Probes for AM and MA units $133

Accessories

Catalog

Number Description Price

KBLT01 Plug Restraint Cable Tray for AM and MA units $106

SERVICES

For detailed information on service plans, please refer to the Single-phase Service section on page 108.

10 EATON INDUSTRIES (CANADA) COMPANY Canadian Reference Guide & Pricebook

January 1, 2014

EATON POWER DISTRIBUTION, MONITORING AND ENCLOSURES

Eaton Automatic Transfer Switches

eATS (Automatic Transfer Switch) and STS (Source Transfer Switch) ePDUs—Designed for switching non-phase synchronized AC power sources,

the automatic transfer switch ePDUs' intelligent circuitry monitors both inputs, providing a fast switch transfer from primary to secondary source power

critical equipment without interruption. These ePDUs assure the highest level of redundancy to mission-critical applications.

• 1U configurations available

• Custom designs upon request

eATS (Automatic Transfer Switch) and STS (Source Transfer Switch) ePDUs

Catalog Max. Cord Input Output Dimensions List

Number kW Function Length (ft) Plug Receptacles (H x W x D, inches) Price

Horizontal Mount Models

PULSTS1400R-1U 1.44 AT 6 (2) 5-15P (6) 5-15R 1.7 x 19.0 x 9.8 $382

PULSTS16AMPR-1U 3.33 AT - (2) C20 (6) C13, (1) C19 1.7 x 16.9 x 9.8 $395

PWATSL520004 1.92 AT 9 (2) L5-20P (8) 5-20R 1.7 x 19.0 x 7.0 $934

PWATSL530005 2.88 AT 9 (2) L5-30P (8) 5-20R 1.7 x 19.0 x 7.0 $1,002

PWATSL530007 2.88 AT 9 (2) L5-30P (1) L5-30R 1.7 x 19.0 x 7.0 $1,002

PWATSL630006 4.99 AT 9 (2) L6-30P (12) C13 1.7 x 19.0 x 7.0 $1,068

PWATSL630008 4.99 AT 9 (2) L6-30P (1) L6-30R 1.7 x 19.0 x 7.0 $1,002

PWATSS515002 1.44 AT 9 (2) 5-15P (8) 5-15R 1.7 x 19.0 x 7.0 $801

PWATSS520003 1.92 AT 9 (2) 5-20P (8) 5-20 R 1.7 x 19.0 x 7.0 $868

PWATSSC20001 3.33 AT - (2) C20 (8) C13, (1) C19 1.7 x 19.0 x 7.0 $801

11www.eaton.com/powerquality 1.800.461.9166

January 1, 2014

January 1, 2014

EATON POWER DISTRIBUTION, MONITORING AND ENCLOSURES

Eaton HotSwap Maintenance Bypass (MBP)

HotSwap MBP—Facilitating hot-swappable UPS replacement from the rack—the HotSwap MBP is also

ideal when exchanging a faulty unit or upgrading to a new UPS. The HotSwap MBP offers

receptacles in 5-15R and 5-20R.

• Gain additional receptacles on UPSs

• Provide service continuity during battery replacement, UPS maintenance or upgrade

• Ease installation with flexible mounting options (rear panel, the top, on the left or on the right of

the UPS (depending on the UPS model)

• Accommodate most space constraints with minimal depth 1U form factor

HOTSWAP MBP

Catalog Max. Cord Input Output Dimensions List

Number kW Function Length Connection Receptacles (Quantity) (H x W x D, inches) Price

EHBPL1500R-PDU1U 1.44 BA 3' 5-15P (6) 5-15R 2.1 x 3.8 x 17.3 $308

EHBPL2000R-PDU1U 1.92 BA 3' 5-20P (6) 5-15R 2.1 x 3.8 x 17.3 $368

EHBPL3000R-PDU1U 2.88 BA 3' L5-30P (5) 5-20R 2.1 x 3.8 x 17.3 $535

HotSwap MBP UPS model (North American only)

Eaton Evolution Rack UPS, 650–1550 VA

15 Eaton 5PX Rack/Tower UPS, 1000-1500 VA

Eaton 9130 Rack UPS, 700–1500 VA

Eaton EX Rack UPS, 1000–1500 VA

Eaton Evolution Rack/Tower UPS, 2000 VA

20 Eaton 5PX Rack/Tower UPS, 2200 VA

Eaton 9130 Rack UPS, 2000 VA

Eaton EX Rack/Tower UPS, 2200 VA

30 Eaton 5PX Rack/Tower UPS, 3000 VA

Eaton 9130 Rack UPS, 2500–3000 VA

Eaton EX Rack/Tower UPS, 3000 VA

12 EATON INDUSTRIES (CANADA) COMPANY Canadian Reference Guide & Pricebook

January 1, 2014

EATON POWER DISTRIBUTION, MONITORING AND ENCLOSURES

ePDU Cables

• Adapters to enable equipment with disparate input/output receptacles to work together

• Jumpers to connect two pieces of equipment without cluttering up the cable arrangement

• Splitters to add extra equipment to a UPS or PDU without using up more outlets

All Eaton power cables are tested and certified for use with Eaton products, such as ePDUs, rack power modules

(RPMs) and UPSs—proven to deliver the reliability and service life needed for the most rigorous data center

applications.

• Choose from adapters, jumpers and splitters for any rack power distribution application

• Select from a broad range of input/output connectors

• Streamline cabling in Enclosures by deploying exactly the cable length needed

• Count on assured performance with pre-tested products that meet UL and Eaton standards

Adapter Cables

Catalog

Number Description Leads Input Plug Output Length (ft) Price

010-0020 10 ft IEC320-C14 to IEC320-C13 Jumper Cable 1 C14 C13 10 $22

010-0021 7 ft IEC320-C14 to IEC320-C13 Jumper Cable 1 C14 C13 7 $18

010-0024 15 ft IEC320-C14 to IEC320-C13 Jumper Cable 1 C14 C13 15 $26

010-0025 8 ft IEC320-C14 to IEC320-C13 Jumper Cable 1 C14 C13 8 $20

010-0026 8 ft C19 TO Bare Wire Cable 1 Bare Wire C19 8 $21

010-0027 6 ft IEC320-C14 to IEC320-C13 Jumper Cable 1 C14 C13 6 $17

010-0028 4 ft IEC320-C14 to IEC320-C13 Jumper Cable 1 C14 C13 4 $14

010-0029 2 ft IEC320-C14 to IEC320-C13 Jumper Cable 1 C14 C13 2 $12

010-0032 1 ft IEC320-C14 to 5-15R Adapter Cable 1 C19 C14 1 $20

010-0034 8 ft IEC320-C19 to Bare Wire Adapter Cable 1 C19 Bare 8 $41

010-9332 8 ft IEC320-C13 to 5-15P Jumper Cable 1 5-15P C13 8 $21

010-9334 8 ft IEC320-C19 to 5-15P Adapter Cable 1 5-15P C19 8 $27

010-9335 8 ft IEC320-C19 to 5-20P Adapter Cable 1 5-20P C19 8 $35

010-9336 8 ft IEC320-C19 to 6-15P Adapter Cable 1 6-15P C19 8 $41

010-9337 8 ft IEC320-C19 to 6-20P Adapter Cable 1 6-20P C19 8 $41

010-9338 8 ft IEC320-C19 to L5-15P Adapter Cable 1 L5-15 P C19 8 $48

010-9339 8 ft IEC320-C19 to L5-20P Adapter Cable 1 L5-20 P C19 8 $35

010-9341 8 ft IEC320-C19 to L6-20P Adapter Cable 1 L6-20 P C19 8 $41

010-9342 8 ft IEC320-C19 to IEC320-C20 Adapter Cable 1 C20 C19 8 $41

010-9343 8 ft SCHUCKO to IEC320-C19 Adapter Cable 1 C19 SCHUCKO 8 $39

010-9345 8 ft AS/NZS 3112 to IEC320-C19 Adapter Cable 1 C19 AS/NZS 3112 8 $45

010-9351 8 ft British to IEC320-C19 Adapter Cable 1 C19 British Connector 8 $35

010-9365 8 ft IEC320-C14 to IEC320-C19 Jumper Cable 1 C19 C14 8 $43

CBL146 30 ft Power Cord Assembly 10/3 SOOW 2" Pigtails 2 Pigtails Pigtails 30 $177

CBL147 Cable Assembly High Volt Cover, 15 ft 10/3 SOOW, L6-30P 1 L6-30P 15 $188

SUB-PWRCORD-908 8 ft L6-30R to L6-30P Adapter Cable 1 L6-30P L6-30R 8 $72

Splitter Cables

Catalog

Number Description Leads Input Plug Output Length (ft) Price

CBL139 Splitter Cable L14-30P to (2) L6-30R (4ft/2ft) 2 L14-30P L6-30R 4 $201

CBL143 Splitter Cable L14-30P to (2) L5-30R (4ft/2ft) 2 L14-30P L5-30R 4 $201

CBL148 Splitter Cable L14-20P to (2) L5-20R (4ft/2ft) 2 L14-20P L5-20R 4 $215

CBL149 Splitter Cable L21-30P to (3) L5-30R (4ft/2ft/1ft) 3 L21-30P L5-30R 4 $200

CBL150 Splitter Cable L21-20P to (3) L5-20R (4ft/2ft/1ft) 3 L21-20P L5-20R 4 $292

13www.eaton.com/powerquality 1.800.461.9166

January 1, 2014

January 1, 2014

EATON POWER DISTRIBUTION, MONITORING AND ENCLOSURES

ePDU Cables (continued)

Accessories

Catalog

Number Description Price

010-0322 C19 Receptacle Connector $18

035-0113 C13 Outlet Cap $4

001-0819-1 Mounting Bracket Right $25

001-0819-2 Mounting Bracket Left $25

001-1393-1 Mounting Bracket Adjustable Black - RoHS Compliant $8

001-1928-1 Side Mounting Bracket $34

001-1995-1 Bracket $40

SUB-HRDWARE-017 VPC Bracket - Standard, Offset $16

SUB-HRDWARE-032 Mounting Bracket $7

SUB-HRDWARE-038 Tool-less Mounting Kit $4

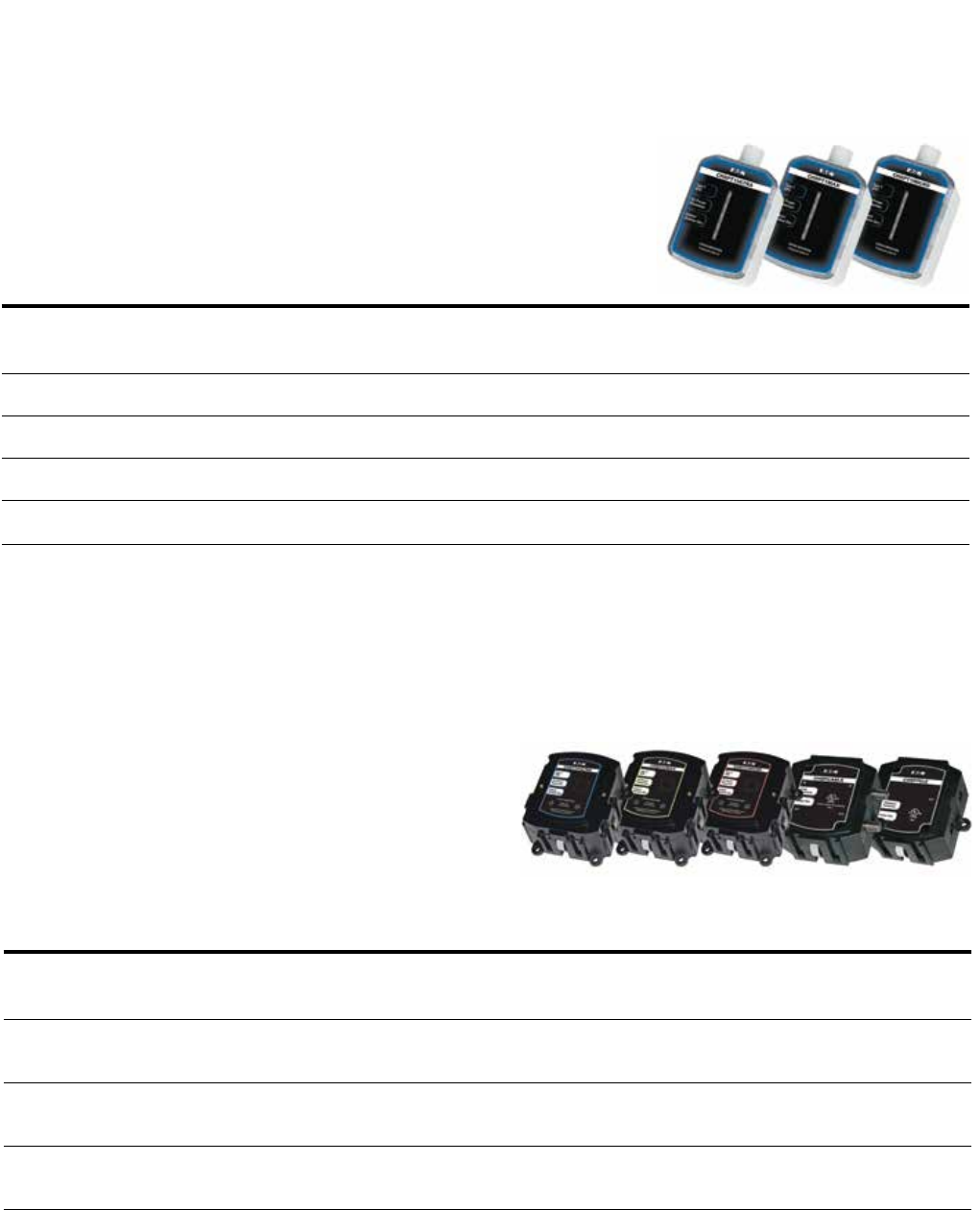

ECLIPSE SURGE SUPPRESSORS

Pulsar series

The Eclipse is Ideal for all uses—computer, peripheral, stereo and video—total

protection against power surges, spikes, nearby lightning strikes and line noise.

• Up to 1020 joule rating

• Master on/off switch

• Instantaneous response time

• Visual alarm(s)

• Audible alarm (except personal)

• Circuit breaker and thermal fuse protection

• 360º rotating plug (except personal)

Eclipse Surge Suppressors

Catalog Style Dimensions Weight List

Number Number Description (H x W x D, inches) (lb) Price*

ECLL1800-PER 83500 ECLIPSE Personal 120V 1800W (6) 5-15R 2.00 x 1.25 x 11.00 1.0 $240

ECLL1800-PRO 83501 ECLIPSE Pro 120V 1800W (8) 5-15R 3.88 x 1.31 x 9.75 1.5 $449

ECLL1800-PROTEL 83502 ECLIPSE ProTel 1800W (8) 5-15R 3.88 x 1.31 x 9.75 1.5 $489

* List price reflects minimum purchase quantity of 20 pieces.

14 EATON INDUSTRIES (CANADA) COMPANY Canadian Reference Guide & Pricebook

January 1, 2014

EATON POWER DISTRIBUTION, MONITORING AND ENCLOSURES

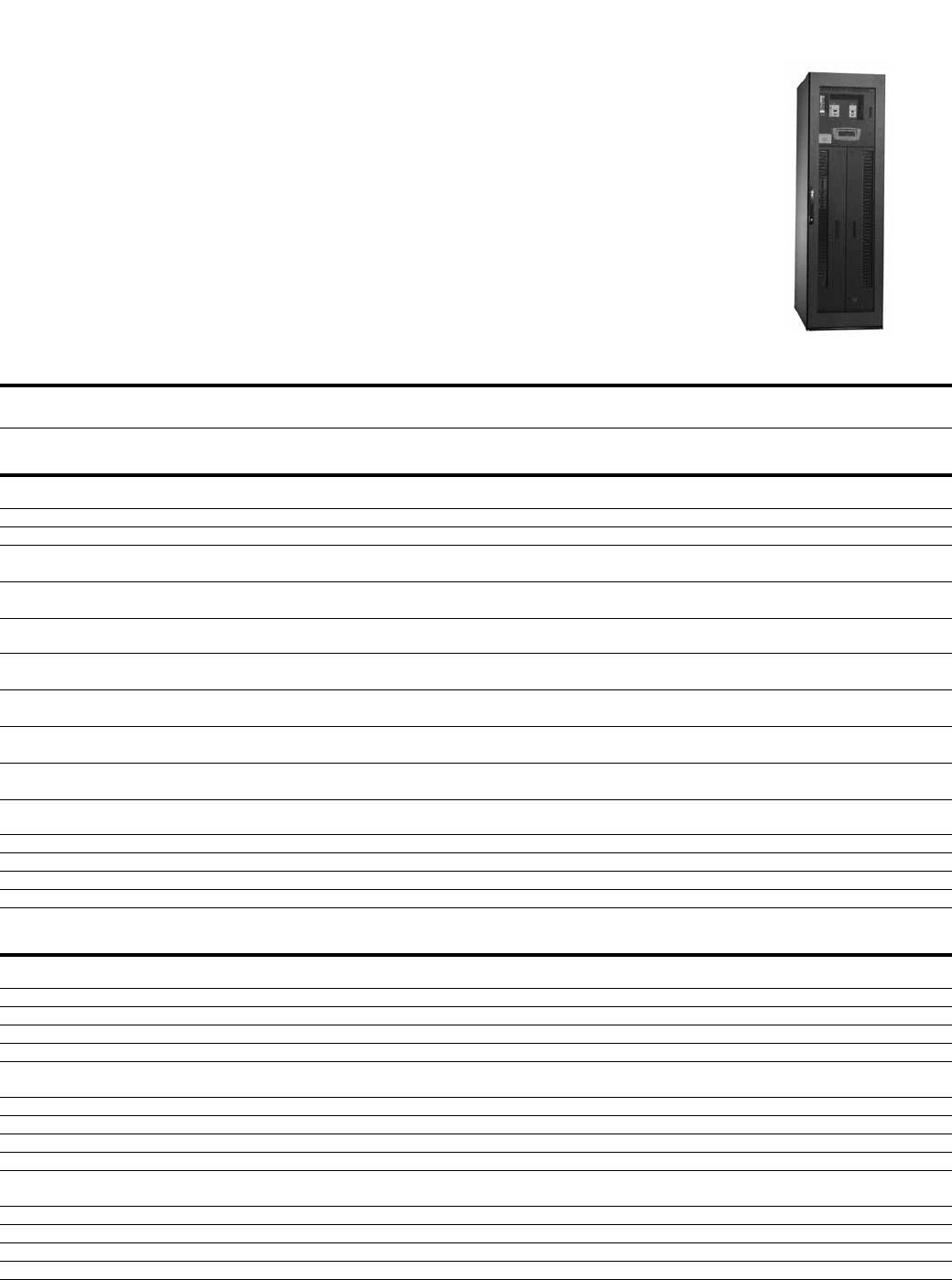

S-Series Rack

Designed for small and medium-sized businesses, the Eaton S-Series Rack manage and support your critical IT equipment.

These standard configured racks are scalable and integrate an array of options including cable management, power

distribution and backup power to provide a full network solution.

• Fully-welded steel frame that can store up to 2,200 pounds of computer and networking equipment

• Enhanced frame ensures zero leakage around the front perimeter and also features oval grommets in front frame verticals

for cable pass-thru between racks

• Split rear doors provide easier access and maneuverability in data center environments

• Top panel with two six-inch wide brushed openings for cable egress

• Guaranteed compatibility with EIA-310 standard size equipment

• A wide range of cable management options enhance cable routing horizontally and vertically

• Split rear doors provide easy access and maneuverability

S-SERIES RACK

Dimensions (H x W x D, inches) List

Part Number Description Shipping Installed Weight (lb) Price

ETN-ENC422442SE Eaton Rack 42Ux24x40 4 post (no sides/doors/divide/castors) 87 x 38 x 60 81 x 24 x 41 171 $1,375

ETN-ENC422442S Eaton Rack 42Ux24x42 w/doors/top/divider/castors 87 x 38 x 60 81 x 24 x 42 309 $2,356

ETN-ENC422448S Eaton Rack 42Ux24x48 w/doors/top/divider/castors 87 x 38 x 60 81 x 24 x 48 321 $2,945

ETN-ENC423042S Eaton Rack 42Ux30x42 w/doors/top/divider/castors 87 x 38 x 60 81 x 30 x 42 351 $3,043

ETN-ENC423048S Eaton Rack 42Ux30x48 w/doors/top/divider/castors 87 x 38 x 60 81 x 30 x 48 364 $3,485

ETN-ENC482442S Eaton Rack 48Ux24x42 w/doors/top/divider/castors 97 x 38 x 60 91 x 24 x 42 336 $2,749

ETN-ENC483042S Eaton Rack 48Ux30x42 w/doors/top/divider/castors 97 x 38 x 60 91 x 30 x 42 380 $3,239

ETN-ENC482448S Eaton Rack 48Ux24x48 w/doors/top/divider/castors 97 x 38 x 60 91 x 24 x 48 350 $3,288

ETN-ENC483048S Eaton Rack 48Ux30x48 w/doors/top/divider/castors 97 x 38 x 60 91 x 30 x 48 394 $3,681

ETN-ENC422442SB Eaton Rack 42Ux24x42 w/doors/sides/top/leveler/castors 87 x 38 x 60 81 x 25.5 x 42 367 $2,750

ETN-ENC422442SC Eaton Rack 42Ux24x 42 w/doors/sides/top (no castors) 87 x 38 x 60 81 x 24 x 42 327 $2,601

ETN-ENC423042SC Eaton Rack 42Ux30x 42 w/doors/sides/top (no castors) 87 x 38 x 60 81 x 30 x 42 341 $3,288

ETN-ENC422442SD Eaton Rack 42Ux24x 42 w/doors/top (no sides/divider/castors) 87 x 38 x 60 81 x 24 x 42 269 $1,914

ETN-ENC423042SD Eaton Rack 42Ux30x 42 w/doors/top (no sides/divider/castors) 87 x 38 x 60 81 x 30 x 42 299 $2,601

ETN-ENC422442SL Eaton Rack 42Ux24x 42 w/doors/sides/top/castors/combo lock 87 x 38 x 60 81 x 25.5 x 42 370 $3,239

ETN-ENZ422440S Eaton Rack Seismic 42Ux24x42 w/drs/divider/lace (no castors)1 90 x 38 x 60 84 x 24 x 42 340 $4,319

ETN-ENZ422440SB Eaton Rack Seismic 42Ux24x42 w/drs/sides/lace (no castors)1 90 x 38 x 60 84 x 24 x 42 398 $4,712

ETN-ENZ423040S Eaton Rack Seismic 42Ux30x42 w/drs/divider/lace (no castors)1 90 x 38 x 60 84 x 30 x 42 381 $4,515

ETN-ENZ423040SB Eaton Rack Seismic 42Ux30x42 w/drs/sides/lace (no castors)1 90 x 38 x 60 84 x 32.5 x 42 437 $5,104

Note: 1.) Seismic racks tested to NEBS Zone 4 via Telecordia GR-63-CORE specification with 1300 lbs added load weight, and 50 lbs top of cabinet cable weight

Each side panel will add approximately 3/4" to the width of the rack

Add 65 lbs to installed weights to get estimated shipping weights with pallet and packaging materials

S-SERIES CHIMNEY CABINETS AND OPTIONS

Dimensions (H x W x D, inches) List

Part Number Description Shipping Installed Weight (lb) Price

ETN-ETC422442S Eaton Chimney Rack 42Ux24x42 w/doors/top/divider/castors 87 x 38 x 60 81 x 30 x 42 322 $2,552

ETN-ETC422442SB Eaton Chimney Rack 42Ux24x42 w/doors/top/sides/castors 87 x 38 x 60 81 x 25.5 x 42 320 $2,994

ETN-ETC422448S Eaton Chimney Rack 42Ux24x48 w/doors/top/divider/castors 87 x 38 x 60 81 x 24 x 48 330 $3,239

ETN-ETC422448SB Eaton Chimney Rack 42Ux24x48 w/doors/top/sides/castors 87 x 38 x 60 81 x 25.5 x 48 335 $3,779

ETN-ETC423042S Eaton Chimney Rack 42Ux30x42 w/doors/top/divider/castors 87 x 38 x 60 81 x 30 x 42 325 $3,239

ETN-ETC423042SB Eaton Chimney Rack 42Ux30x42 w/doors/top/sides/castors 87 x 38 x 60 81 x 31.5 x 42 330 $3,779

ETN-ETC423048S Eaton Chimney Rack 42Ux30x48 w/doors/top/divider/castors 87 x 38 x 60 81 x 30 x 48 335 $3,681

ETN-ETC423048SB Eaton Chimney Rack 42Ux30x48 w/doors/top/sides/castors 87 x 38 x 60 81 x 31.5 x 48 340 $4,221

Notes: Depth of enclosures includes front and rear doors

ETN-ENCXXXXXXS Configurations Include: Perforated Hi Flow 75% Front Door, Top Panel for Telescopic Chimney , Solid Split Rear Door, 19" EIA Square Holed Rails, Divider Panel with cable pass

thru, Casters, PDU Brackets

ETN-ENCXXXXXXSB Configurations Include: Perforated Hi Flow 75% Front Door, Top Panel for Telescopic Chimney, Solid Split Rear Door, 19" EIA Square Holed Rails, (2) Solid Side Panels, Casters,

PDU Brackets

15www.eaton.com/powerquality 1.800.461.9166

January 1, 2014

January 1, 2014

EATON POWER DISTRIBUTION, MONITORING AND ENCLOSURES

S-Series Rack (continued)

S-SERIES CHIMNEYS, PICK ONE WITH REQUIRED HEIGHT FOR "ETN-ETC" CABINETS ABOVE

Dimensions (H x W x D, inches) List

Part Number Description Shipping Installed Weight (lb) Price

ETN-EXTTC1219 Telescopic Chimney for rack to ceiling heights of 12 to 19 in 24 x 24 x 16 H x 23 x 19.5 30 $315

ETN-EXTTC1728 Telescopic Chimney for rack to ceiling heights of 17 to 28 in 24 x 24 x 20 H x 23 x 19.5 39 $373

ETN-EXTTC2645 Telescopic Chimney for rack to ceiling heights of 26 to 45 in 24 x 24 x 30 H x 23 x 19.5 56 $432

ETN-EXTTC4376 Telescopic Chimney for rack to ceiling heights of 43 to 76 in 24 x 24 x 48 H x 23 x 19.5 87 $491

S-SERIES RACK OPTIONS

Dimensions (H x W x D, inches) List

Part Number Description Shipping Installed Weight (lb) Price

Rack Panels and Doors

ETN-ACC4242DP S-Series Divider Panel 42U x 42D w/Pass-Thru (Qty-1) 6 x 90 x 50 Side of rack 25 $221

ETN-ACC4248DP S-Series Divider Panel 42U x 48D w/Pass-Thru (Qty-1) 6 x 90 x 50 Side of rack 28 $246

ETN-ACC4842DP S-Series Divider Panel 48U x 42D w/Pass-Thru (Qty-1) 6 x 90 x 50 Side of rack 28 $246

ETN-ACC4848DP S-Series Divider Panel 48U x 48D w/Pass-Thru (Qty-1) 6 x 90 x 50 Side of rack 30 $270

ETN-ACC4242SP S-Series Side Panel 42U x 42D (Qty-1) 6 x 90 x 50 Add 3/4" width 45 $442

ETN-ACC4248SP S-Series Side Panel 42U x 48D (Qty-1) 6 x 90 x 50 Add 3/4" width 49 $589

ETN-ACC4842SP S-Series Side Panel 48U x 42D (Qty-1) 6 x 90 x 50 Add 3/4" width 50 $491

ETN-ACC4848SP S-Series Side Panel 48U x 48D (Qty-1) 6 x 90 x 50 Add 3/4" width 56 $467

ETN-ACC2442TP S-Series Top Panel 24W x 42D 5 x 32 x 51 No height added 21 $255

ETN-ACC2448TP S-Series Top Panel 24W x 48D 5 x 32 x 51 No height added 25 $290

ETN-ACC3042TP S-Series Top Panel 30W x 42D 5 x 32 x 51 No height added 23 $271

ETN-ACC3048TP S-Series Top Panel 30W x 48D 5 x 32 x 51 No height added 28 $313

ETN-ACC4224FD S-Series Front Door 42U x 24W 6 x 90 x 50 Add 1" depth 49 $334

ETN-ACC4224RD S-Series Rear Door Split 42U x 24W 6 x 90 x 50 Add 1" depth 54 $605

ETN-ACC4230FD S-Series Front Door 42U x 30W 6 x 90 x 50 Add 1" depth 55 $357

ETN-ACC4230RD S-Series Rear Door Split 42U x 30W 6 x 90 x 50 Add 1" depth 62 $618

ETN-ACC4824FD S-Series Front Door 48U x 24W 6 x 90 x 50 Add 1" depth 55 $443

ETN-ACC4824RD S-Series Rear Door Split 48U x 24W 6 x 90 x 50 Add 1" depth 62 $801

ETN-ACC4830FD S-Series Front Door 48U x 30W 6 x 90 x 50 Add 1" depth 60 $473

ETN-ACC4830RD S-Series Rear Door Split 48U x 30W 6 x 90 x 50 Add 1" depth 65 $853

ETN-ACC4224RL S-Series Rails 42U x 24W 8 x 88 x 5 Internal 22 $395

ETN-ACC4230RL S-Series Reducer Rails 42U x 30W 4 x 88 x 8 Internal 42 $427

ETN-ACC4824RL S-Series Rails 48U x 24W 8 x 88 x 5 Internal 26 $357

ETN-ACC4830RL S-Series Reducer Rails 48U x 30W 4 x 88 x 8 Internal 45 $567

ETN-ACC42VBP S-Series Vertical Blanking Panels 42U x 30W 5 x 9 x 49 Internal 9 $199

ETN-ACC48VBP S-Series Vertical Blanking Panels 48U x 30W 5 x 9 x 49 Internal 10 $215

Rack and Raised Floor Air Management

ETN-PBP1U10 Eaton Blanking Panel 19" Tool-less Plastic 1U (Qty-10) 5 x 5 x 20 1U x 19 4 $50

ETN-PBP1U100 Eaton Blanking Panel 19" Tool-less Plastic 1U (Qty-100) 25 x 10 x 20 1U x 19 40 $467

ETN-PBP2U10 Eaton Blanking Panel 19" Tool-less Plastic 2U (Qty-10) 5 x 9 x 20 2U x 19 7 $59

ETN-PBP2U100 Eaton Blanking Panel 19" Tool-less Plastic 2U (Qty-100) 25 x 18 x 20 2U x 19 70 $516

ETN-PBP8U10 Eaton Blanking Panel 19" Tool-less Plastic 8U (Qty-10) 20 x 11 x 15 8U x 19 15 $172

ETN-PBP8U100 Eaton Blanking Panel 19" Tool-less Plastic 8U (Qty-100) 21 x 50 x 30 8U x 19 150 $1,522

ETN-JFT12440 Top fan tray kit (4 fans) for S-Series 24" x 42", 120VAC 5 x 32 x 51 Top of rack 45 $310

ETN-JFT12445 Top fan tray kit (4 fans) for S-Series 24" x 48", 120VAC 5 x 32 x 51 Top of rack 48 $344

ETN-JFT13040 Top fan tray kit (4 fans) for S-Series 30" x 42", 120VAC 5 x 32 x 51 Top of rack 50 $329

ETN-JFT13045 Top fan tray kit (4 fans) for S-Series 30" x 48", 120VAC 5 x 32 x 51 Top of rack 54 $359

ETN-FLRGR118 Eaton Floor Grommet, 11"W x 8.25"D (Qty-1) 2 x 12 x 17 1 x 11 x 8.25 5 $94

ETN-FLRGR11810 Eaton Floor Grommet, 11"W x 8.25"D (Qty-10) 20 x 12 x 17 1 x 11 x 8.25 50 $884

ETN-FLRGR76 Eaton Floor Grommet, 7.5"W x 6.5"D (Qty-1) 2 x 8 x 11 1 x 7.5 x 6.5 4 $84

ETN-FLRGR7610 Eaton Floor Grommet, 7.5"W x 6.5"D (Qty-10) 20 x 8 x 11 1 x 7.5 x 6.5 40 $786

Network Switch Air Deflectors for Front to Rear Air Flow

ETN-6509CVK42 Cisco 6509 Conversion Kit for S-Series Racks 42U x 30" W 6 x 90 x 50 Internal 90 $938

ETN-6509CVK48 Cisco 6509 Conversion Kit for S-Series Racks 48U x 30" W 6 x 90 x 50 Internal 110 $977

ETN-6513CVK42 Cisco 6513 Conversion Kit for S-Series Racks 42U x 30" W 6 x 90 x 50 Internal 90 $938

ETN-6513CVK48 Cisco 6513 Conversion Kit for S-Series Racks 48U x 30" W 6 x 90 x 50 Internal 115 $977

16 EATON INDUSTRIES (CANADA) COMPANY Canadian Reference Guide & Pricebook

January 1, 2014

EATON POWER DISTRIBUTION, MONITORING AND ENCLOSURES

S-Series Rack (continued)

S-SERIES RACK OPTIONS

(continued)

Dimensions (H x W x D, inches) List

Part Number Description Shipping Installed Weight (lb) Price

Rack Shelves

ETN-FS19201U20 Eaton Shelf Fixed 19" 1U x 20"D 200lbs 3 x 22 x 33 1U x 20 15 $128

ETN-FS19201U40 Eaton Shelf Fixed 19" 1U x 20"D 400lbs 3 x 22 x 33 1U x 20 17 $143

ETN-FS19241U20 Eaton Shelf Fixed 19" 1U x 24"D 200lbs 3 x 22 x 33 1U x 24 16 $133

ETN-FS19241U40 Eaton Shelf Fixed 19" 1U x 24"D 400lbs 3 x 22 x 33 1U x 24 18 $153

ETN-FS19281U20 Eaton Shelf Fixed 19" 1U x 28"D 200lbs 3 x 22 x 33 1U x 28 17 $138

ETN-FS19281U40 Eaton Shelf Fixed 19" 1U x 28"D 400lbs 3 x 22 x 33 1U x 28 19 $158

ETN-RS19241U10 Eaton Shelf Roll-Out 19" 1U x 24"D 100lbs 3 x 22 x 33 1U x 24 18 $388

ETN-RS19242U20 Eaton Shelf Roll-Out 19" 2U x 24"D 200lbs 3 x 22 x 33 1U x 24 20 $418

ETN-RS19281U10 Eaton Shelf Roll-Out 19" 1U x 28"D 100lbs 3 x 22 x 33 1U x 28 21 $398

ETN-RS19282U20 Eaton Shelf Roll-Out 19" 2U x 28"D 200lbs 3 x 22 x 33 1U x 28 23 $427

ETN-CHASBKT2032 Eaton Chassis Support Brackets Adj 19" (20"-32") 400 lbs. 6 x 6 x 30 2U x 19 14 $305

EAUS192U1605 Eaton 19" Utility Shelf, 2 post mounting, 50 lbs 12 x 24 x 9 2U x 30 12 $123

Rack Cable and PDU Management, hardware

ETN-LACEB42U03 Eaton S-Series Lacing Bar 42U x 3"W 4 x 3 x 88 42U x 3 7 $64

ETN-LACEB42U08 Eaton S-Series Lacing Bar 42U x 8"W 5 x 15 x 88 42U x 8 12 $84

ETN-LACEB42U12 Eaton S-Series Lacing Bar 42U x 12"W 5 x 15 x 88 42U x 12 15 $104

ETN-LACEB48U03 Eaton S-Series Lacing Bar 48U x 3"W 4 x 3 x 88 48U x 3 8 $74

ETN-LACEB48U08 Eaton S-Series Lacing Bar 48U x 8"W 5 x 15 x 88 48U x 8 14 $94

ETN-LACEB48U12 Eaton S-Series Lacing Bar 48U x 12"W 5 x 15 x 88 48U x 12 17 $118

ETN-PWRBAR42U Eaton S-Series Power Mounting Bar 42U x 9"W 5 x 15 x 88 42U x 9 15 $123

ETN-PWRBAR48U Eaton S-Series Power Mounting Bar 48U x 9"W 5 x 15 x 88 48U x 9 17 $128

ETN-PDUBRCKTW Eaton S-Series PDU Mounting Brackets 4 x 9 x 6 4.5 x 7.1 x 1 3 $45

ETN-CMDRNR031U Eaton Cable D-Ring Kit 1U (Qty-4) 6 x 4 x 9 1U x .75 x 3.3 3 $28

ETN-CMDRNR032U Eaton Cable D-Ring Kit 2U (Qty-4) 6 x 4 x 9 2U x .75 x 3.3 4 $30

ETN-STLDRING Eaton Cable D-Ring Kit, Plastic, (Qty-4) 6 x 4 x 9 1U x .75 x 3.3 3 $94

ETN-CMTUNR02 Eaton Fiber Spool 2.5"H 6 x 9 x 4 4 x 2.75 x 3.8 2 $54

ETN-CMTUNR05 Eaton Fiber Spool 5"H 6 x 9 x 4 4 x 5 x 3.8 3 $59

ETN-BX45V8 Eaton Velcro Strap 8"L, (Qty-50) 5 x 5 x 10 Internal 2 $59

ETN-BX45V11 Eaton Velcro Strap 11"L, (Qty-50) 5 x 5 x 10 Internal 2 $69

ETN-CMVBCKL Eaton Velcro Buckle Strap 9"L, (Qty-10) 6 x 9 x 4 Internal 1 $80

ETN-CMVBCKL12 Eaton Velcro Buckle Strap 12"L, (Qty-10) 6 x 9 x 4 Internal 1 $83

ETN-CMRB19022U Eaton Cable Strain Relief Bar 2"D 3 x 21 x 8 3.5 x 19 x 3 3 $74

ETN-CMRB19042U Eaton Cable Strain Relief Bar 4"D 3 x 21 x 8 3.5 x 19 x 5 4 $77

ETN-CMRB19062U Eaton Cable Strain Relief Bar 6"D 3 x 21 x 8 3.5 x 19 x 7 5 $81

ETN-CMRB19082U Eaton Cable Strain Relief Bar 8"D 3 x 21 x 8 3.5 x 19 x 9 6 $84

ETN-CMPD19031U Eaton Horizontal Ring Manager 1U 3 x 21 x 8 1U x 19 x 4.2 4 $45

ETN-CMPD19032U Eaton Horizontal Ring Manager 2U 3 x 21 x 8 2U x 19 x 4.2 4 $47

ETN-CMBPBRSH1U Eaton Cable Pass-Thru Panel 1U w/Brush 6 x 9 x 4 1U x 19 x .5 1 $73

ETN-CMBPBRSH2U Eaton Cable Pass-Thru Panel 2U w/Brush 6 x 9 x 4 2U x 19 x .5 2 $52

ETN-CMFD19041U Eaton PatchLink Horizontal Cable Manager 1U 2 x 4 x 22 1U x 19 x 4 2 $120

ETN-CMFD19042U Eaton PatchLink Horizontal Cable Manager 2U 4 x 4 x 22 2U x 19 x 4 2 $140

ETN-CMFP19032U Eaton Upper Transition Tray 2U x 3.5"D 9 x 9 x 28 2U x 19 x 4 5 $104

ETN-CMFP19052U Eaton Upper Transition Tray 2U x 5.0"D 9 x 9 x 28 2U x 19 x 6 6 $108

ETN-CMLT19032U Eaton Lower Transition Tray 2U x 3.5"D 9 x 9 x 28 2U x 19 x 5 5 $133

ETN-CMLT19052U Eaton Lower Transition Tray 2U x 5.0"D 9 x 9 x 28 2U x 19 x 6 6 $138

ETN-CMHD19242U High Density Cable Organizer, w/rear transition tray 24" cabinet 9 x 9 x 28 2U x 19 x 24 5 $418

ETN-CMHD19302U High Density Cable Organizer, w/rear transition tray 30" cabinet 9 x 9 x 28 2U x 19 x 30 7 $437

ETN-1032CAGE20 Eaton Cage Nut #10-32 Hardware Kit (Qty-20) 5 x 5 x 5 Internal 2 $19

ETN-M6CAGE20 Eaton Cage Nut M6 Hardware Kit (Qty-20) 5 x 5 x 5 Internal 2 $19

Top of Rack Cable Management

ETN-LAD1006B Eaton S-Series Cable Ladder Rack 6"W x 10'L BLK 2 x 7 x 122 1.5 x 6 x 120 12 $221

ETN-LAD1012B Eaton S-Series Cable Ladder Rack 12"W x 10'L BLK 2 x 13 x 122 1.5 x 12 x 120 24 $246

ETN-JCMTLDRPD Eaton S-Series Ladder Rack Bracket Perpendicular 6 x 10 x 5 Internal 5 $94

17www.eaton.com/powerquality 1.800.461.9166

January 1, 2014

January 1, 2014

EATON POWER DISTRIBUTION, MONITORING AND ENCLOSURES

S-Series Rack (continued)

S-SERIES RACK OPTIONS

(continued)

Dimensions (H x W x D, inches) List

Part Number Description Shipping Installed Weight (lb) Price

Top of Rack Cable Management (continued)

ETN-JCMTLDRPR Eaton S-Series Ladder Rack Bracket Parallel 6 x 10 x 5 Internal 5 $74

ETN-JCMT24SP Eaton S-Series Data Cable Partition Panel 24" Solid 6 x 6 x 48 5 x 24 x 2.5 3 $74

ETN-JCMT24PP Eaton S-Series Data Cable Partition Panel 24" Pass-Thru 6 x 6 x 48 5 x 24 x 2.5 3 $79

ETN-JCMT24PT Eaton S-Series Power Cable Trough 24" 3 x 33 x 16 5 x 24 x 10 7 $148

ETN-JCMT30SP Eaton S-Series Data Cable Partition Panel 30" Solid 6 x 6 x 48 5 x 30 x 2.5 4 $79

ETN-JCMT30PP Eaton S-Series Data Cable Partition Panel 30" Pass-Thru 6 x 6 x 48 5 x 30 x 2.5 4 $84

ETN-JCMT30PT Eaton S-Series Power Cable Trough 30" 6 x 6 x 48 5 x 30 x 10 8 $167

Rack shipping and anchoring

ETN-JANCHOR1 Eaton S-Series Floor Anchor Brackets (S-Series) 6 x 10 x 5 2.8 x 7 x 2.8 11 $177

ETN-ENCRMP24 Eaton Standard-Duty Ramp for 24"W Racks (S-Series) 1 x 38 x 44 1 x 38 x 44 22 $50

ETN-ENCRMP30 Eaton Standard-Duty Ramp for 30"W Racks (S-Series) 1 x 38 x 44 1 x 38 x 44 22 $50

ETN-ACCJCSTR40 S Series Caster Kit - Qty 4 - for 42" Deep cabinet 10 x 10 x 40 4 x 31 x 6 40 $235

ETN-ACCJCSTR45 S Series Caster Kit - Qty 4 - for 48" Deep cabinet 10 x 10 x 40 4 x 36 x 6 45 $274

Note: Call factory for heavy duty packaging options

18 EATON INDUSTRIES (CANADA) COMPANY Canadian Reference Guide & Pricebook

January 1, 2014

• Connect and monitor up to two temperature sensors, two humidity sensors and four input

contact sensors

• 0U form factor space saving design; does not take valuable space that can be occupied

by servers

• Built-in Web server—access, monitor, configure and even reboot the device from

anywhere on the Internet using its own dedicated IP address

• Supports SNMP and comes with its own MIB (Management Information Base). Can

integrate with any open-standards based Network Management System (NMS) such

as HP OpenView

• One-year warranty on rack monitor and all sensors

ENVIRONMENTAL RACK MONITORS

Shipping

Dimensions Shipping List

Description Part Number (H x W x D, inches) Weight (lb) Price

Environmental Rack Monitor, 120V AC 2-pin power input1 103005775 2.5 x 7.6 x 11.9 1.7 $392

Environmental Rack Monitor, C13/C14, 100-250V AC, 50/60Hz 3-pin power input 103005912 2.5 x 7.6 x 11.9 2.2 $392

TH-Module (Black), individual 103005822 2.4 x 6.3 x 8.8 0.7 $88

Environmental Rack Monitor Water Leak Detector, 3ft 103005780 0.6 x 7.9 x 8.2 0.3 $137

Environmental Rack Monitor Water Leak Detector, 12ft 103005894 0.6 x 11.2 x 11.4 0.5 $245

Environmental Rack Monitor Door Contact Sensor 103005781 2.0 x 2.0 x 2.0 0.1 $29

Environmental Rack Monitor Vibration Sensor 103005782 2.0 x 3.0 x 2.0 0.1 $35

Environmental Rack Monitor Power Supply, 120V AC 103005783 2.1 x 2.8 x 4.1 0.2 $22

Environmental Rack Monitor Power Supply, C13/C14 adapter cable, 103005895 2.1 x 2.8 x 4.1 0.2 $39

100-250V AC, 50/60Hz

Environmental Rack Monitor Smoke Detector/Alarm (220V, IEC C-13) 103005779 2.4 x 6.3 x 8.8 2.2 $137

Environmental Rack Monitor Smoke Detector/Alarm (110V, 5-15) 103005890 2.4 x 6.3 x 8.8 2.2 $137

1. Includes one TH-module

EATON POWER DISTRIBUTION, MONITORING AND ENCLOSURES

Environmental Rack Monitor (ERM)

19www.eaton.com/powerquality 1.800.461.9166

January 1, 2014

January 1, 2014

EATON POWER DISTRIBUTION, MONITORING AND ENCLOSURES

Eaton Remote Power Panel Part Number Illustration

Eaton is now employing the use of smart part numbers to help our customers understand the product that fits their needs. Follow the example below as

reference only. For ordering purposes please select one of the pre-configured part numbers in the price book or use the online configurator available

through the Power Quality web site.

B1 4 1 A CC 0 3 2 0 3 001

Series

B1 = Small RPP (24”W x 24”D)

B2 = Rack RPP (24”W x 42”D)

Display

0 = None

1 = Single Display

2 = Dual Display

Input Connection

1 = Direct Connect

2-3 = Single Input

4-5 = Dual Input

Door

0 = Solid

1 = See-Thru Plexi

2 = Rack Mesh

Communication

0 = None

2 = Modbus RTU

3 = PXGXPDP

4 = Modbus RTU & PXGXPDP

Panel Main Breaker

1 = Standard kAIC

2 = High kAIC

Generation

001 = Gen 1

Panel Type

A = 208V 225A Bolt-on CH

B = 208V 400A Bolt-on CH

C = 208V 225A Plug-on CH

D = 208V 400A Plug-on CH

E = 208V 225A Bolt-on SQD

F = 208V 400A Bolt-on SQD

Front/Rear Configuration

0 = None

A = Top Only (1 Panel)

B = Bottom Only (1 Panel)

C = Top & Bottom (2 Panels)

Metering

0 = None

1 = System Level

2 = Premium BCMS 60A

3 = Premium BCMS 100A

Surge

0 = None

2 = 100kA/ph

3 = 200kA/ph

20 EATON INDUSTRIES (CANADA) COMPANY Canadian Reference Guide & Pricebook

January 1, 2014

Eaton RPPs deliver unmatched power distribution with up to 168 factory-installed branch breakers in a

highly compact footprint. These products offer ease of installation through standard top and bottom

cable entry provisions within a free-standing structure. They include extensive monitoring options

such as branch circuit monitoring, which allows you to manage and monitor power effectively.

• Unmatched power distribution in either a highly compact footprint or rack configuration to line and

match with IT equipment racks

• Ease of installation through standard top and bottom cable entry provision

• Extensive monitoring options allow you to manage power effectively

• Factory-tested power distribution to ensure highest reliability

• Flexible expansion for your power distribution within a data center

• Includes one year local (250 km) 5x8 Corrective warranty, Local 5x8 start-up

REMOTE POWER PANEL TOPSELLERS (24”W x 24”D x 80”H)

Surge List

Part Number Description Local Display Protection Door Style Price

Direct Connection to Panel Main Breakers

System Level Monitoring (Includes Power Xpert Gateway PDP Card)

B111AC010113001 Front Only - 2 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer Front None See-Through Plexi $11,212

B111AC012113001 Front Only - 2 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer Front 100 kA/ph See-Through Plexi $13,472

per Input

B111BC010103001 Front Only - 2 x 42-pole Panels - 208/120V 400A Bolt-on Cutler-Hammer Front None Solid Standard $12,287

B111ACC10213001 Front & Back - 4 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer Front & Back None See-Through Plexi $18,510

B111ACC12213001 Front & Back - 4 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer Front & Back 100 kA/ph See-Through Plexi $23,030

per Input

B111BCC10203001 Front & Back - 4 x 42-pole Panels - 208/120V 400A Bolt-on Cutler-Hammer Front & Back None Solid Standard $20,963

Premium Level Monitoring with BCMS (60A max) (Includes Power Xpert Gateway PDP Card)

B111AC020113001 Front Only - 2 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer Front None See-Through Plexi $14,629

B111AC022113001 Front Only - 2 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer Front 100 kA/ph See-Through Plexi $16,889

per Input

B111BC020103001 Front Only - 2 x 42-pole Panels - 208/120V 400A Bolt-on Cutler-Hammer Front None Solid Standard $15,704

B111ACC20213001 Front & Back - 4 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer Front & Back None See-Through Plexi $22,919

B111ACC22213001 Front & Back - 4 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer Front & Back 100 kA/ph See-Through Plexi $27,439

per Input

B111BCC20203001 Front & Back - 4 x 42-pole Panels - 208/120V 400A Bolt-on Cutler-Hammer Front & Back None Solid Standard $25,372

Premium Level Monitoring with BCMS (100A max) (Includes Power Xpert Gateway PDP Card)

B111AC030113001 Front Only - 2 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer Front None See-Through Plexi $15,125

B111AC032113001 Front Only - 2 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer Front 100 kA/ph See-Through Plexi $17,385

per Input

B111BC030103001 Front Only - 2 x 42-pole Panels - 208/120V 400A Bolt-on Cutler-Hammer Front None Solid Standard $16,200

B111ACC30213001 Front & Back - 4 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer Front & Back None See-Through Plexi $24,022

B111ACC32213001 Front & Back - 4 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer Front & Back 100 kA/ph See-Through Plexi $28,542

per Input

B111BCC30203001 Front & Back - 4 x 42-pole Panels - 208/120V 400A Bolt-on Cutler-Hammer Front & Back None Solid Standard $26,475

Single Input Main Lug

System Level Monitoring (Includes Power Xpert Gateway PDP Card)

B121AC010113001 Front Only - 2 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer Front None See-Through Plexi $11,912

B131ACC10113001 Front & Back - 4 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer Front None See-Through Plexi $15,092

B131BAA10103001 Front & Back - 2 x 42-pole Panels - 208/120V 400A Bolt-on Cutler-Hammer Front None Solid Standard $14,238

Premium Level Monitoring with BCMS (60A max) (Includes Power Xpert Gateway PDP Card)

B121AC020113001 Front Only - 2 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer Front None See-Through Plexi $15,329

B131ACC20113001 Front & Back - 4 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer Front None See-Through Plexi $21,927

B131BAA20103001 Front & Back - 2 x 42-pole Panels - 208/120V 400A Bolt-on Cutler-Hammer Front None Solid Standard $17,655

EATON POWER DISTRIBUTION, MONITORING AND ENCLOSURES

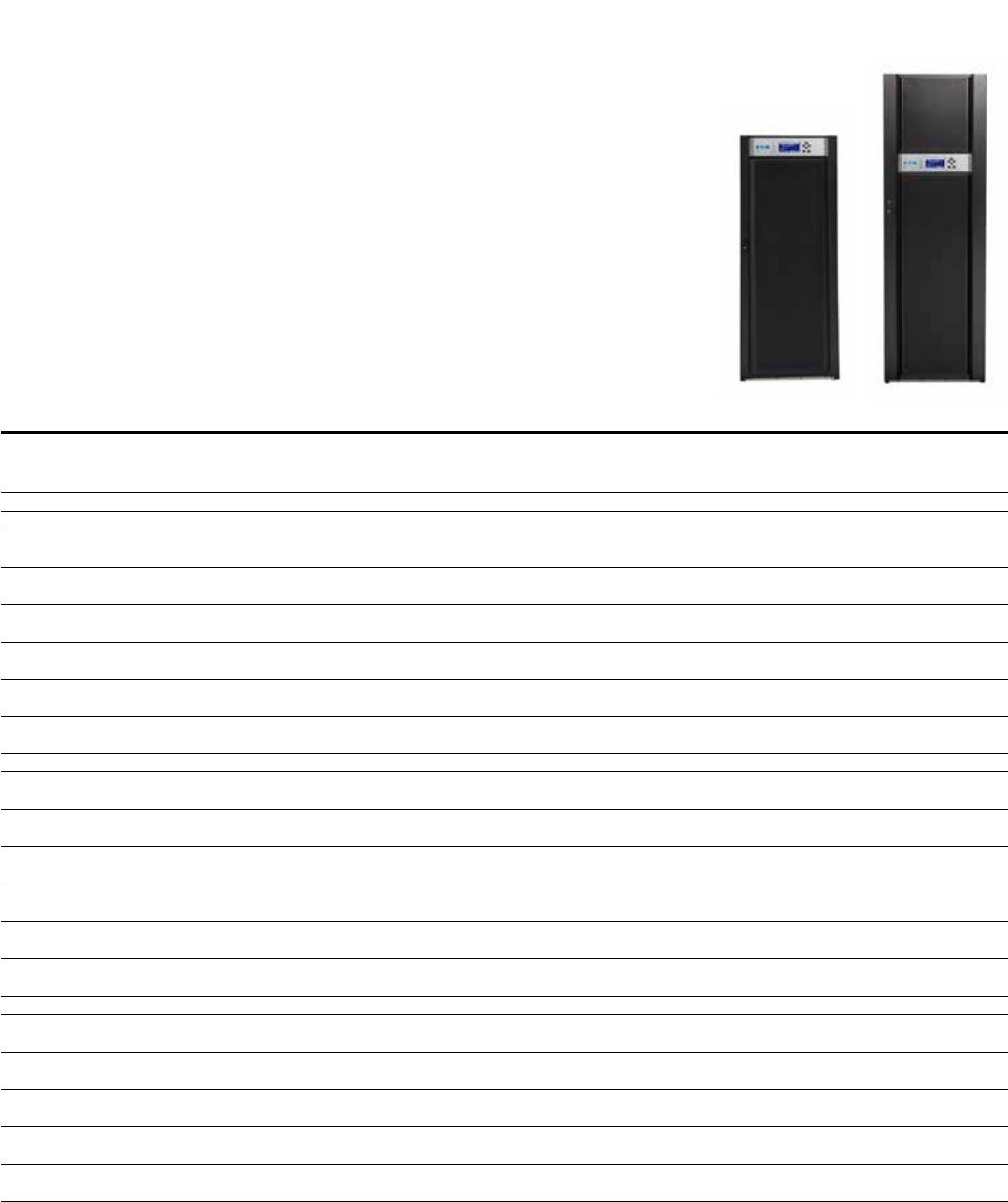

Remote Power Panel (RPP)

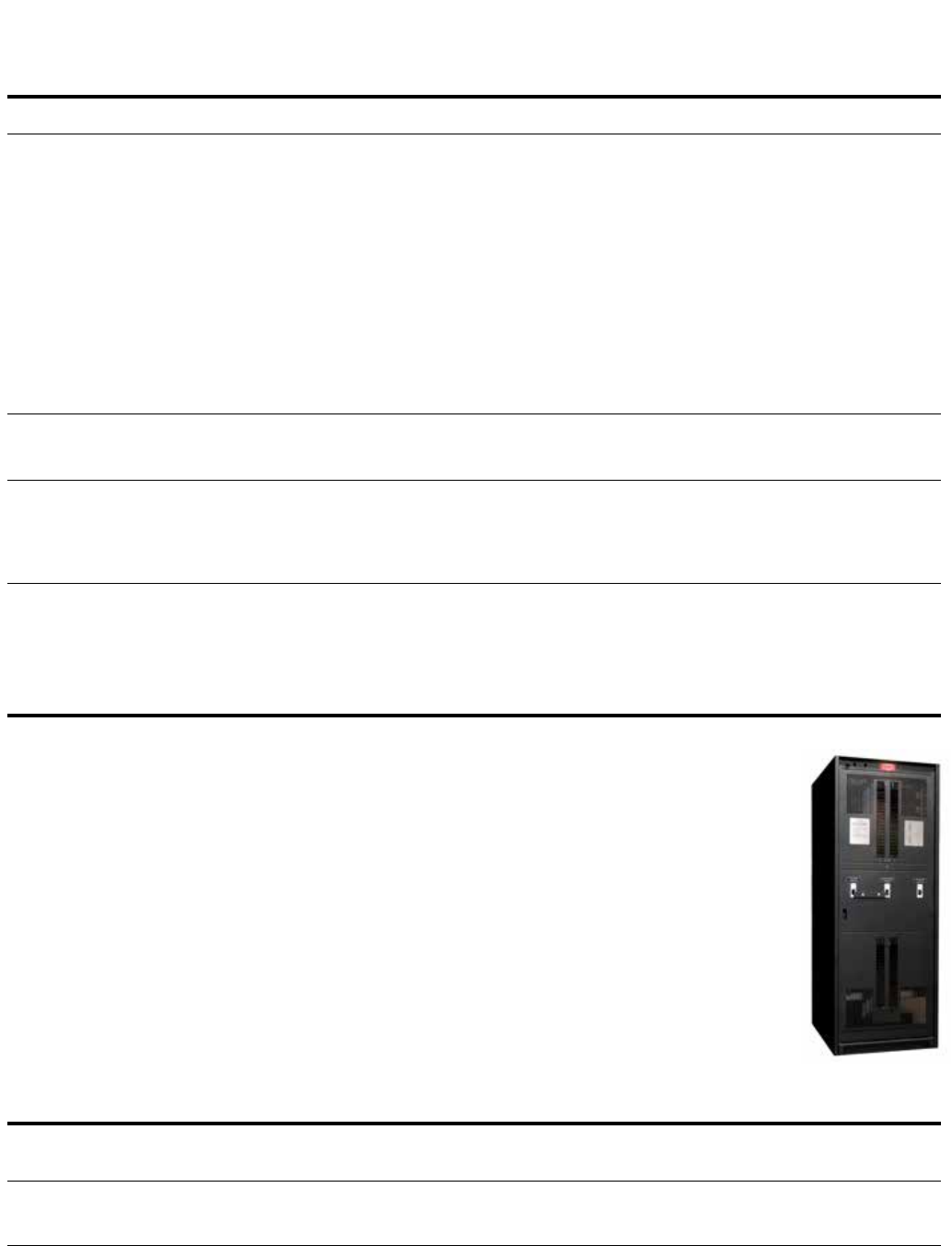

Remote Power Panel

24"W x 24"D x 80"H

Rack Power Panel

24"W x 42"D x 80"H

21www.eaton.com/powerquality 1.800.461.9166

January 1, 2014

January 1, 2014

EATON POWER DISTRIBUTION, MONITORING AND ENCLOSURES

Remote Power Panel (RPP)

(continued)

REMOTE POWER PANEL TOPSELLERS (24”W x 24”D x 80”H)

(continued)

Surge List

Part Number Description Local Display Protection Door Style Price

Single Input Main Lug (continued)

Premium Level Monitoring with BCMS (100A max) (Includes Power Xpert Gateway PDP Card)

B121AC030113001 Front Only - 2 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer Front None See-Through Plexi $15,825

B131ACC30113001 Front & Back - 4 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer Front None See-Through Plexi $23,030

B131BAA30103001 Front & Back - 2 x 42-pole Panels - 208/120V 400A Bolt-on Cutler-Hammer Front None Solid Standard $18,152

Dual Input Main Lugs

System Level Monitoring (Includes Power Xpert Gateway PDP Card)

B141ACC10213001 Front & Back - 4 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer Front & Back None See-Through Plexi $19,689

B141BAA10203001 Front & Back - 2 x 42-pole Panels - 208/120V 400A Bolt-on Cutler-Hammer Front & Back None Solid Standard $18,835

Premium Level Monitoring with BCMS (60A max) (Includes Power Xpert Gateway PDP Card)

B141ACC20213001 Front & Back - 4 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer Front & Back None See-Through Plexi $24,099

B141BAA20203001 Front & Back - 2 x 42-pole Panels - 208/120V 400A Bolt-on Cutler-Hammer Front & Back None Solid Standard $19,827

Premium Level Monitoring with BCMS (100A max) (Includes Power Xpert Gateway PDP Card)

B141ACC30213001 Front & Back - 4 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer Front & Back None See-Through Plexi $25,201

B141BAA30203001 Front & Back - 2 x 42-pole Panels - 208/120V 400A Bolt-on Cutler-Hammer Front & Back None Solid Standard $20,323

RACK POWER PANEL TOPSELLERS (24”W x 42”D x 80”H)

Surge List

Part Number Description Local Display Protection Door Style Price

Direct Connection to Panel Main Breakers

System Level Monitoring (Includes Power Xpert Gateway PDP Card)

B211AC010113001 Front Only - 2 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer Front None See-Through Plexi $13,885

B211AC012113001 Front Only - 2 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer Front 100 kA/ph See-Through Plexi $16,145

per Input

B211BC010103001 Front Only - 2 x 42-pole Panels - 208/120V 400A Bolt-on Cutler-Hammer Front None Solid Standard $14,822

B211ACC10213001 Front & Back - 4 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer Front & Back None See-Through Plexi $21,183

B211ACC12213001 Front & Back - 4 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer Front & Back 100 kA/ph See-Through Plexi $25,703

per Input

B211BCC10203001 Front & Back - 4 x 42-pole Panels - 208/120V 400A Bolt-on Cutler-Hammer Front & Back None Solid Standard $23,498

Premium Level Monitoring with BCMS (60A max) (Includes Power Xpert Gateway PDP Card)

B211AC020113001 Front Only - 2 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer Front None See-Through Plexi $17,303

B211AC022113001 Front Only - 2 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer Front 100 kA/ph See-Through Plexi $19,563

per Input

B211BC020103001 Front Only - 2 x 42-pole Panels - 208/120V 400A Bolt-on Cutler-Hammer Front None Solid Standard $18,240

B211ACC20213001 Front & Back - 4 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer Front & Back None See-Through Plexi $25,593

B211ACC22213001 Front & Back - 4 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer Front & Back 100 kA/ph See-Through Plexi $30,113

per Input

B211BCC20203001 Front & Back - 4 x 42-pole Panels - 208/120V 400A Bolt-on Cutler-Hammer Front & Back None Solid Standard $27,908

Premium Level Monitoring with BCMS (100A max) (Includes Power Xpert Gateway PDP Card)

B211AC030113001 Front Only - 2 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer Front None See-Through Plexi $17,799

B211AC032113001 Front Only - 2 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer Front 100 kA/ph See-Through Plexi $20,059

per Input

B211BC030103001 Front Only - 2 x 42-pole Panels - 208/120V 400A Bolt-on Cutler-Hammer Front None Solid Standard $18,736

B211ACC30213001 Front & Back - 4 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer Front & Back None See-Through Plexi $26,585

B211ACC32213001 Front & Back - 4 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer Front & Back 100 kA/ph See-Through Plexi $31,105

per Input

B211BCC30203001 Front & Back - 4 x 42-pole Panels - 208/120V 400A Bolt-on Cutler-Hammer Front & Back None Solid Standard $28,900

Single Input Main Lug

System Level Monitoring (Includes Power Xpert Gateway PDP Card)

B221AC010113001 Front Only - 2 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer Front None See-Through Plexi $14,585

B231ACC10113001 Front & Back - 4 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer Front None See-Through Plexi $17,766

B231BAA10103001 Front & Back - 2 x 42-pole Panels - 208/120V 400A Bolt-on Cutler-Hammer Front None Solid Standard $16,774

22 EATON INDUSTRIES (CANADA) COMPANY Canadian Reference Guide & Pricebook

January 1, 2014

EATON POWER DISTRIBUTION, MONITORING AND ENCLOSURES

Remote Power Panel (RPP)

(continued)

RACK POWER PANEL TOPSELLERS (24”W x 42”D x 80”H)

(continued)

Surge List

Part Number Description Local Display Protection Door Style Price

Single Input Main Lug (continued)

Premium Level Monitoring with BCMS (60A max) (Includes Power Xpert Gateway PDP Card)

B221AC020113001 Front Only - 2 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer Front None See-Through Plexi $18,003

B231ACC20113001 Front & Back - 4 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer Front None See-Through Plexi $24,601

B231BAA20103001 Front & Back - 2 x 42-pole Panels - 208/120V 400A Bolt-on Cutler-Hammer Front None Solid Standard $20,191

Premium Level Monitoring with BCMS (100A max) (Includes Power Xpert Gateway PDP Card)

B221AC030113001 Front Only - 2 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer Front None See-Through Plexi $18,499

B231ACC30113001 Front & Back - 4 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer Front None See-Through Plexi $25,593

B231BAA30103001 Front & Back - 2 x 42-pole Panels - 208/120V 400A Bolt-on Cutler-Hammer Front None Solid Standard $20,687

Dual Input Main Lugs

System Level Monitoring (Includes Power Xpert Gateway PDP Card)

B241ACC10213001 Front & Back - 4 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer Front & Back None See-Through Plexi $22,363

B241BAA10203001 Front & Back - 2 x 42-pole Panels - 208/120V 400A Bolt-on Cutler-Hammer Front & Back None Solid Standard $21,371

Premium Level Monitoring with BCMS (60A max) (Includes Power Xpert Gateway PDP Card)

B241ACC20213001 Front & Back - 4 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer Front & Back None See-Through Plexi $26,772

B241BAA20203001 Front & Back - 2 x 42-pole Panels - 208/120V 400A Bolt-on Cutler-Hammer Front & Back None Solid Standard $22,363

Premium Level Monitoring with BCMS (100A max) (Includes Power Xpert Gateway PDP Card)

B241ACC30213001 Front & Back - 4 x 42-pole Panels - 208/120V 225A Bolt-on Cutler-Hammer Front & Back None See-Through Plexi $27,764

B241BAA30203001 Front & Back - 2 x 42-pole Panels - 208/120V 400A Bolt-on Cutler-Hammer Front & Back None Solid Standard $22,859

REMOTE AND RACK POWER PANEL TOPSELLERS

-

OPTIONS

Part Number Description List Price

157607364 Transient Suppression Plate - 4'W x 4'D plate $276

157607206 Extra Knock-out Plates - 84 holes $188

157607208 Extra Blank Plates $188

124100030-009 Low Voltage Control Junction Box $408

REMOTE AND RACK POWER PANEL TOPSELLERS

-

BRANCH BREAKERS

For branch breakers, please refer to the Eaton Branch Circuit Breakers section.

SERVICES

For detailed information on service plans, please refer to the Three-phase Service section on page 114.

23www.eaton.com/powerquality 1.800.461.9166

January 1, 2014

January 1, 2014

EATON POWER DISTRIBUTION, MONITORING AND ENCLOSURES

Eaton Power Distribution Rack Part Number Illustration

Eaton is now employing the use of smart part numbers to help our customers understand the product that the fits their needs. Follow the example below

as reference only. For ordering purposes please select one of the pre-configured part numbers in the price book or use the online configurator available

through the Power Quality web site.

PD 1 1 2 0 0 0 2 0 1 0 0 0 1

PDR

Display

1 = Single UCB/display(Front)

2 = Single UCB/Dual Display

3 = Dual UCB/Dual Display

Voltage

208/1/20V

Door

0 = Standard Mesh Door

1 = See-Thru Plexi

2 = Mesh with cut out

None

Input

1 = Direct connection

2 = Single input 800A lug

3 = Dual input 800A lug

4 = Single 400A main CB

5 = Single 600A main CB

6 = Dual 400A main CB

7 = Dual 600A main CB

Gen Code

Front

1 = 1x 225A 42cct PB

2 = 2 x 225A 42 cct PB

3 = 1 x 400A 42 cct PB

4 = 2 x 400A 42 cct PB

Access

1 = No side access

2 = Left side access

Rear

1 = 1x 225A 42cct PB

2 = 2 x 225A 42 cct PB

3 = 1 x 400A 42 cct PB

4 = 2 x 400A 42 cct PB

SPD

0 = None

1 = 50KA 1 unit

2 = 100KA 1 unit

3 = 50KA 2 unit

4 = 100KA 2 unit

5 = 50KA 3 unit

6 = 100KA 3 unit

7 = 50KA 4 unit

8 = 100KA 4 unit

Metering

0 = None

2 = System Level

3 = Premium BCMS 60A

4 = Premium BCMS 100A

Custom

0 = None

1 = Breakers installed

None

24 EATON INDUSTRIES (CANADA) COMPANY Canadian Reference Guide & Pricebook

January 1, 2014

EATON POWER DISTRIBUTION, MONITORING AND ENCLOSURES

Power Distribution Rack (PDR)

Eaton PDRs are designed for high power applications in data center and rack equipment environments. The PDR packs up

to four 400A column panelboards into a single EIA standard Enclosure allowing users to take full advantage of all 168 pole

positions. The PDR offers top and bottom cable entry for fast, flexible installation. Available options include 100% rated

breakers, plexiglas doors and cabinet main input breakers.

• Flexible power distribution with up to 168 factory-installed branch breakers in a highly compact footprint

• Designed for high-density racks, with 400A panels and high power inputs

• Aesthetically pleasing design, with an elegant rack Enclosure in textured black finish

• Free-standing unit with top and bottom cable entry for fast, flexible installation

• Front and/or rear access, column power panels, large LCD for ease of servicing

• Extensive monitoring options, including the Eaton Energy Management System

• Includes one year local (250 km) 5x8 Corrective warranty, Local 5x8 start-up

POWER DISTRIBUTION RACK TOPSELLERS

Surge List

Part Number Description Local Display Protection Door Style Price

Direct Connection to Panel Main Breakers

System Level Monitoring

PD1122002031001 Front & Back - 4 Panels - 208/120V 225A Bolt-on Cutler-Hammer Front & Back None Plexi $20,538

PD1120102011001 Front only - 2 Panels - 208/120V 225A Bolt-on Cutler-Hammer Front None Plexi $14,982

PD1120032010001 Front only - 2 Panels - 208/120V 225A Bolt-on Cutler-Hammer Front 50 kA/ph Mesh $16,691

per Input

PD1122182030001 Front & Back - 4 Panels - 208/120V 225A Bolt-on Cutler-Hammer Front & Back 100 kA/ph Mesh $25,995

per Input

Premium Level Monitoring with BCMS (60A max)

PD1122003031001 Front & Back - 4 Panels - 208/120V 225A Bolt-on Cutler-Hammer Front & Back None Plexi $24,937

PD1120103011001 Front only - 2 Panels - 208/120V 225A Bolt-on Cutler-Hammer Front None Plexi $18,124

PD1120033010011 Front only - 2 Panels - 208/120V 225A Bolt-on Cutler-Hammer Front 50 kA/ph Plexi $20,108

per Input

PD1122183030001 Front & Back - 4 Panels - 208/120V 225A Bolt-on Cutler-Hammer Front & Back 100 kA/ph Mesh $30,394

per Input

Premium Level Monitoring with BCMS (100A max)

PD1144104030001 Front & Back - 4 Panels - 208/120V 400A Bolt-on Cutler-Hammer Front & Back None Mesh $30,217

PD1122004030001 Front & Back - 4 Panels - 208/120V 225A Bolt-on Cutler-Hammer Front & Back None Mesh $25,014

PD1120004010001 Front only - 2 Panels - 208/120V 225A Bolt-on Cutler-Hammer Front None Mesh $18,014

PD1140004010001 Front only - 2 Panels - 208/120V 400A Bolt-on Cutler-Hammer Front None Mesh $21,056

Single Input Main Lug

System Level Metering

PD1244102030001 Front & Back - 4 Panels - 208/120V 400A Bolt-on Cutler-Hammer Front & Back None Mesh $27,671

PD1222102010001 Front & Back - 4 Panels - 208/120V 225A Bolt-on Cutler-Hammer Front & Back None Mesh $22,467

PD1200002011011 Front only - 2 Panels - 208/120V 225A Bolt-on Cutler-Hammer Front None Plexi $17,187

PD1222002031011 Front & Back - 4 Panels - 208/120V 225A Bolt-on Cutler-Hammer Front & Back None Plexi $22,743

Premium Level Monitoring with BCMS (60A max)

PD1244103030001 Front & Back - 4 Panels - 208/120V 400A Bolt-on Cutler-Hammer Front & Back None Mesh $32,069

PD1222103030001 Front & Back - 4 Panels - 208/120V 225A Bolt-on Cutler-Hammer Front & Back None Mesh $26,866

PD1244103030011 Front & Back - 4 Panels - 208/120V 400A Bolt-on Cutler-Hammer Front & Back None Plexi $32,345

PD1244003030011 Front & Back - 4 Panels - 208/120V 400A Bolt-on Cutler-Hammer Front & Back None Plexi $27,142

Premium Level Monitoring with BCMS (100A max)

PD1244104030001 Front & Back - 4 Panels - 208/120V 400A Bolt-on Cutler-Hammer Front & Back None Mesh $32,422

PD1222104030001 Front & Back - 4 Panels - 208/120V 225A Bolt-on Cutler-Hammer Front & Back None Mesh $27,219

PD1244104030011 Front & Back - 4 Panels - 208/120V 400A Bolt-on Cutler-Hammer Front & Back None Plexi $32,698

PD1220004011001 Front only - 2 Panels - 208/120V 225A Bolt-on Cutler-Hammer Front None Plexi $20,494

25www.eaton.com/powerquality 1.800.461.9166

January 1, 2014

January 1, 2014

EATON POWER DISTRIBUTION, MONITORING AND ENCLOSURES

Power Distribution Rack (PDR)

(continued)

POWER DISTRIBUTION RACK TOPSELLERS

Surge List

Part Number Description Local Display Protection Door Style Price

Dual Input Main Lugs

System Level Metering

PD1344102031001 Front & Back - 4 Panels - 208/120V 400A Bolt-on Cutler-Hammer Front & Back None Plexi $30,151

PD1322102030001 Front & Back - 4 Panels - 208/120V 225A Bolt-on Cutler-Hammer Front & Back None Mesh $24,672

PD1322002031001 Front & Back - 4 Panels - 208/120V 225A Bolt-on Cutler-Hammer Front & Back None Plexi $24,948

Premium Level Monitoring with BCMS (60A max)

PD1322103031001 Front & Back - 4 Panels - 208/120V 225A Bolt-on Cutler-Hammer Front & Back None Plexi $33,006

PD1344103031001 Front & Back - 4 Panels - 208/120V 400A Bolt-on Cutler-Hammer Front & Back None Plexi $34,550

PD1322003030001 Front & Back - 4 Panels - 208/120V 225A Bolt-on Cutler-Hammer Front & Back None Mesh $29,071

PD1344003031001 Front & Back - 4 Panels - 208/120V 400A Bolt-on Cutler-Hammer Front & Back None Plexi $34,274

Premium Level Monitoring with BCMS (100A max)

PD1322104030001 Front & Back - 4 Panels - 208/120V 225A Bolt-on Cutler-Hammer Front & Back None Mesh $29,424

PD1344104030001 Front & Back - 4 Panels - 208/120V 400A Bolt-on Cutler-Hammer Front & Back None Mesh $34,627

PD1322004031001 Front & Back - 4 Panels - 208/120V 225A Bolt-on Cutler-Hammer Front & Back None Plexi $29,699

PD1344004031001 Front & Back - 4 Panels - 208/120V 400A Bolt-on Cutler-Hammer Front & Back None Plexi $34,902

Single Input Main Breaker (400A)

System Level Metering

PD1420102010001 Front only - 2 Panels - 208/120V 225A Bolt-on Cutler-Hammer Front None Mesh $17,463

PD1422002030001 Front & Back - 4 Panels - 208/120V 225A Bolt-on Cutler-Hammer Front & Back None Mesh $23,019

Premium Level Monitoring with BCMS (60A max)

PD1420003011001 Front only - 2 Panels - 208/120V 225A Bolt-on Cutler-Hammer Front None See-Through Plexi $20,880

PD1420003012001 Front only - 2 Panels - 208/120V 225A Bolt-on Cutler-Hammer Front None Mesh w/ Cut-out $20,770

Premium Level Monitoring with BCMS (100A max)

PD1420004011001 Front only - 2 Panels - 208/120V 225A Bolt-on Cutler-Hammer Front None See-Through Plexi $21,045

PD1420004012001 Front only - 2 Panels - 208/120V 225A Bolt-on Cutler-Hammer Front None Mesh w/ Cut-out $20,935

Dual Input Main Breaker (600A)

System Level Metering

PD1722102030001 Front & Back - 4 Panels - 208/120V 225A Bolt-on Cutler-Hammer Front & Back None Mesh $27,979

PD1744102030001 Front & Back - 4 Panels - 208/120V 400A Bolt-on Cutler-Hammer Front & Back None Mesh $33,183

Premium Level Monitoring with BCMS (60A max)

PD1722103031001 Front & Back - 4 Panels - 208/120V 225A Bolt-on Cutler-Hammer Front & Back None Plexi $32,378

PD1744103030001 Front & Back - 4 Panels - 208/120V 400A Bolt-on Cutler-Hammer Front & Back None Mesh $37,581

Premium Level Monitoring with BCMS (100A max)

PD1722104031001 Front & Back - 4 Panels - 208/120V 225A Bolt-on Cutler-Hammer Front & Back None Plexi $32,731

PD1744104030001 Front & Back - 4 Panels - 208/120V 400A Bolt-on Cutler-Hammer Front & Back None Mesh $37,934

POWER DISTRIBUTION RACK TOPSELLERS

-

OPTIONS

Part Number Description List Price

103008064-5591 Power Xpert Gateway Communication PDP Card $1,310

124100030-009 Control Junction Box $408

157607364 Transient Suppression Plate $249

Notes: PDRs come with 42-circuit column panelboards with 225A or 400A panel main breakers. Please contact factory for custom configurations.

SERVICES

For detailed information on service plans, please refer to the Three-phase Service section on page 114.

26 EATON INDUSTRIES (CANADA) COMPANY Canadian Reference Guide & Pricebook

January 1, 2014

EATON POWER DISTRIBUTION, MONITORING AND ENCLOSURES

Eaton Branch Circuit Breakers

Eaton Cutler-Hammer bolt-on branch circuit breakers can be installed in any 42-pole Cutler-Hammer panelboard providing over-current and high

interrupting current protection. Single-, double- and three-pole breakers can be provided from 10 to 100A trip rating and 10 or 22 kAIC.

Single-pole Breakers

Part Number Trip Rating kAIC List Price

BAB1010 10A 10 Call

BAB1015 15A 10 Call

BAB1020 20A 10 Call

BAB1025 25A 10 Call

BAB1030 30A 10 Call

BAB1035 35A 10 Call

BAB1040 40A 10 Call

BAB1045 45A 10 Call

BAB1050 50A 10 Call

BAB1055 55A 10 Call

BAB1060 60A 10 Call

QBHW1015 15A 22 Call

QBHW1020 20A 22 Call

QBHW1025 25A 22 Call

QBHW1030 30A 22 Call

QBHW1035 35A 22 Call

QBHW1040 40A 22 Call

QBHW1045 45A 22 Call

QBHW1050 50A 22 Call

QBHW1055 55A 22 Call

QBHW1060 60A 22 Call

Double-pole Breakers Three-pole Breakers

Part Number Trip Rating kAIC List Price Part Number Trip Rating kAIC List Price

BAB2010 10A 10 Call BAB3015H 15A 10 Call

BAB2015 15A 10 Call BAB3020H 20A 10 Call

BAB2020 20A 10 Call BAB3025H 25A 10 Call

BAB2025 25A 10 Call BAB3030H 30A 10 Call

BAB2030 30A 10 Call BAB3035H 35A 10 Call

BAB2035 35A 10 Call BAB3040H 40A 10 Call

BAB2040 40A 10 Call BAB3045H 45A 10 Call

BAB2045 45A 10 Call BAB3050H 50A 10 Call

BAB2050 50A 10 Call BAB3055H 55A 10 Call

BAB2055 55A 10 Call BAB3060H 60A 10 Call

BAB2060 60A 10 Call QBHW3015H 15A 22 Call

BAB2070 70A 10 Call BAB3070H 70A 10 Call

BAB2080 80A 10 Call BAB3080H 80A 10 Call

BAB2090 90A 10 Call BAB3090H 90A 10 Call

BAB2100 100A 10 Call BAB3100H 100A 10 Call

QBHW2015 15A 22 Call QBHW3020H 20A 22 Call

QBHW2020 20A 22 Call QBHW3025H 25A 22 Call

QBHW2025 25A 22 Call QBHW3030H 30A 22 Call

QBHW2030 30A 22 Call QBHW3035H 35A 22 Call

QBHW2035 35A 22 Call QBHW3040H 40A 22 Call

QBHW2040 40A 22 Call QBHW3045H 45A 22 Call

QBHW2045 45A 22 Call QBHW3050H 50A 22 Call

QBHW2050 50A 22 Call QBHW3055H 55A 22 Call

QBHW2055 55A 22 Call QBHW3060H 60A 22 Call

QBHW2060 60A 22 Call QBHW3070H 70A 22 Call

QBHW2070 70A 22 Call QBHW3080H 80A 22 Call

QBHW2080 80A 22 Call QBHW3090H 90A 22 Call

QBHW2090 90A 22 Call QBHW3100H 100A 22 Call

QBHW2100 100A 22 Call

27www.eaton.com/powerquality 1.800.461.9166

January 1, 2014

January 1, 2014

EATON POWER DISTRIBUTION, MONITORING AND ENCLOSURES

Eaton Energy Management System Upgrade Kit

Eaton EMS Upgrade Kit (EMS-UGK) extends branch circuit monitoring capabilities to any existing and third-party power distribution equipment, such as RPPs, PDUs or

wall-mounted panels. This standalone device monitors, tracks and analyzes power, voltage, current and frequency readings, providing time-stamped metering, alarms,

events and statistical information for better energy planning. This practical and affordable solution comes with an easy-to-use software tool to configure startup settings

and options.

• Monitors up to 2 x 42-poles panels and 2 main inputs up to 400A through split core CTs

• Subfeed monitoring, 75A and 100A branch breaker CTs optional

• LCD screen for local indication of energy consumption

• Conduit box for enhanced wiring harness protection

• 208/120V or 380-415/220-240V rating for North American and International use

• Power Xpert PDP SNMP and TCP/IP Gateway Card included

• Dimensions: 15”W x 11”H x 5”D

EMS UPGRADE KIT - NORTH AMERICAN MODELS: 120/208V, 50/60Hz

Part Number Power Monitoring Display Conduit Box List Price

E11101003 1 Panel (42 Poles) No No call

E11201003 2 Panels (84 Poles) No No call

E12101003 1 Panel (42 Poles) Yes No call

E12201003 2 Panels (84 Poles) Yes No call

E11112003 1 Panel (42 Poles) & Panel Main Breaker No Yes call

E11212003 2 Panels (84 Poles) & Panel Main Breaker No Yes call

E12112003 1 Panel (42 Poles) & Panel Main Breaker Yes Yes call

E12212003 2 Panels (84 Poles) & Panel Main Breaker Yes Yes call

E11111003 1 Panel (42 Poles) & Panel Main Breaker No No call

E11211003 2 Panels (84 Poles) & Panel Main Breaker No No call

E12111003 1 Panel (42 Poles) & Panel Main Breaker Yes No call

E12211003 2 Panels (84 Poles) & Panel Main Breaker Yes No call

EMS UPGRADE KIT - INTERNATIONAL MODELS: 380/415 - 220/240V, 50/60Hz

Part Number Power Monitoring Display Conduit Box List Price

E21101003 1 Panel (42 Poles) No No call

E21201003 2 Panels (84 Poles) No No call

E22101003 1 Panel (42 Poles) Yes No call

E22201003 2 Panels (84 Poles) Yes No call

E21112003 1 Panel (42 Poles) & Panel Main Breaker No Yes call

E21212003 2 Panels (84 Poles) & Panel Main Breaker No Yes call

E22112003 1 Panel (42 Poles) & Panel Main Breaker Yes Yes call

E22212003 2 Panels (84 Poles) & Panel Main Breaker Yes Yes call

E21111003 1 Panel (42 Poles) & Panel Main Breaker No No call

E21211003 2 Panels (84 Poles) & Panel Main Breaker No No call

E22111003 1 Panel (42 Poles) & Panel Main Breaker Yes No call

E22211003 2 Panels (84 Poles) & Panel Main Breaker Yes No call

EMS UPGRADE KIT - OPTIONS

Part Number Description List Price

103006704 Subfeed Breaker Monitoring Kit (3 CTs) call

103006705 100A Branch Breaker CTs Kit (10) call

103006756 Extra 75A Branch Breaker CTs Kit (5) call

28 EATON INDUSTRIES (CANADA) COMPANY Canadian Reference Guide & Pricebook

January 1, 2014

Eaton's line of liquid-tight power distribution cables minimizes electrical and mechanical disturbances

including harmonic distortion. These cables are UL listed for use with Integration Technology Equipment

(NEC 645) and are exempt from being secured in place, making your power distribution system completely

flexible and cost effective.

• Highly flexible and approved for data center environments (NEC 645)

• Custom configurations and colors available

STANDARD NEMA CABLE

NEMA

Type

Hubbell

PN Volts Amps Phase Breaker Wire Qty Wire Size Sealtite Fixed

Price

Price Per

Foot

5-15R1 5261 120 15 1 1 Pole 312 awg 0.5" Call Call

5-15R2 5262 120 15 1 1 Pole 312 awg 0.5" Call Call

5-15R4 5262 120 15 1 1 Pole 312 awg 0.5" Call Call

5-20R1 5361 120 20 1 1 Pole 312 awg 0.5" Call Call

5-20R2 5362 120 20 1 1 Pole 312 awg 0.5" Call Call

5-20R4 5362 120 20 1 1 Pole 312 awg 0.5" Call Call

5-30R1 9308 120 30 1 1 Pole 310 awg 0.5" Call Call

5-50R1 9360 120 50 1 1 Pole 38 awg 0.5" Call Call

6-15R1 5661 208 15 1 2 Pole 312 awg 0.5" Call Call

6-15R2 5662 208 15 1 2 Pole 312 awg 0.5" Call Call

6-15R4 5662 208 15 1 2 Pole 312 awg 0.5" Call Call

6-20R1 5465 208 20 1 2 Pole 312 awg 0.5" Call Call

6-20R2 5462 208 20 1 2 Pole 312 awg 0.5" Call Call

6-20R4 5462 208 20 1 2 Pole 3 12 awg 0.5" Call Call

6-30R1 9330 208 30 1 2 Pole 310 awg 0.5" Call Call

14-20R1 8410 120/208 20 1 2 Pole 412 awg 0.5" Call Call

14-30R1 9430 120/208 30 1 2 Pole 410 awg 0.5" Call Call

14-50R1 9450 120/208 50 1 2 Pole 48 awg 0.75" Call Call

L5-15R1 4710 120 15 1 1 Pole 312 awg 0.5" Call Call

L5-15R2 4700 120 15 1 1 Pole 312 awg 0.5" Call Call

L5-20R1 2310 120 20 1 1 Pole 312 awg 0.5" Call Call

L5-30R1 2610 120 30 1 1 Pole 310 awg 0.5" Call Call

L6-15R1 4560 208 15 2 2 Pole 312 awg 0.5" Call Call

L6-15R2 4550 208 15 2 2 Pole 312 awg 0.5" Call Call

L6-20R1 2320 208 20 2 2 Pole 312 awg 0.5" Call Call

L6-30R1 2620 208 30 2 2 Pole 310 awg 0.5" Call Call

L14-20R1 2410 120/208 20 2 2 Pole 412 awg 0.5" Call Call

L14-30R1 2710 120/208 30 2 2 Pole 410 awg 0.5" Call Call

L15-20R1 2420 208 20 3 3 Pole 412 awg 0.5" Call Call

L15-30R1 2720 208 30 3 3 Pole 410 awg 0.5" Call Call

L21-20R1 2510 208 20 3 3 Pole 512 awg 0.5" Call Call

L21-30R1 2810 208 30 3 3 Pole 510 awg 0.5" Call Call

Notes: See next page

EATON POWER DISTRIBUTION, MONITORING AND ENCLOSURES

UL Listed Power Distribution Cables

29www.eaton.com/powerquality 1.800.461.9166

January 1, 2014

January 1, 2014

NEMA "IG" ISOLATED GROUND CABLE

NEMA Type Hubbell

PN Volts Amps Phase Breaker Wire Qty Wire Size Sealtite Fixed

Price

Price Per

Foot

5-15R1 IG 5261 120 15 1 1 Pole 412 awg 0.5" Call Call

5-15R2 IG 5262 120 15 1 1 Pole 412 awg 0.5" Call Call

5-15R4 IG 5262 120 15 1 1 Pole 412 awg 0.5" Call Call

5-20R1 IG 5361 120 20 1 1 Pole 412 awg 0.5" Call Call

5-20R2 IG 5362 120 20 1 1 Pole 412 awg 0.5" Call Call

5-20R4 IG 5362 120 20 1 1 Pole 412 awg 0.5" Call Call

5-30R1 IG 9308 120 30 1 1 Pole 410 awg 0.5" Call Call

6-15R1 IG 5661 208 15 1 2 Pole 412 awg 0.5" Call Call

6-15R2 IG 5662 208 15 1 2 Pole 412 awg 0.5" Call Call

6-15R4 IG 5662 208 15 1 2 Pole 412 awg 0.5" Call Call

6-20R1 IG 5465 208 20 1 2 Pole 412 awg 0.5" Call Call

6-20R2 IG 5462 208 20 1 2 Pole 412 awg 0.5" Call Call

6-20R4 IG 5462 208 20 1 2 Pole 412 awg 0.5" Call Call

6-30R1 IG 9330 208 30 1 2 Pole 410 awg 0.5" Call Call

L5-15R1 IG 4710 120 15 1 1 Pole 412 awg 0.5" Call Call

L5-15R2 IG 4700 120 15 1 1 Pole 412 awg 0.5" Call Call

L5-20R1 IG 2310 120 20 1 1 Pole 412 awg 0.5" Call Call

L5-30R1 IG 2610 120 30 1 1 Pole 410 awg 0.5" Call Call

L6-15R1 IG 4560 208 15 2 2 Pole 412 awg 0.5" Call Call

L6-15R2 IG 4550 208 15 2 2 Pole 412 awg 0.5" Call Call

L6-20R1 IG 2320 208 20 2 2 Pole 412 awg 0.5" Call Call

L6-30R1 IG 2620 208 30 2 2 Pole 410 awg 0.5" Call Call

L14-20R1 IG 2410 120/208 20 2 2 Pole 512 awg 0.5" Call Call

L14-30R1 IG 2710 120/208 30 2 2 Pole 510 awg 0.5" Call Call

L15-20R1 IG 2420 208 20 3 3 Pole 512 awg 0.5" Call Call

L15-30R1 IG 2720 208 30 3 3 Pole 510 awg 0.5" Call Call

L21-20R1 IG 2510 208 20 3 3 Pole 612 awg 0.5" Call Call

L21-30R1 IG 2810 208 30 3 3 Pole 610 awg 0.5" Call Call

Notes:

1. For the cables that have 0.5" conduit, to go to 0.75" conduit, please add $1.05 per foot to the above list price.

2. For the cables that have 12 awg wire, to go to 10 awg wire conduit, please add $1.00 per foot to the above list price.

3. Breakers are NOT included in the base price above.

4. The above pricing does NOT include shipping costs.

5. Please see the Cables specifications or contact the factory for details.

6. Add .63 per FT for colored LT.

7. For separate circuits for quads etc, must call for quote.

8. To construct a part number use the following format: <NEMA Type> - <Cable Length in Feet, min of 2 digits>. As an example, a 5-50R1 NEMA type with 2

feet of cable becomes 5-50R1-02.

9. Price is determined by adding the Fixed Price to Price per Foot multiplied by the cable length in feet.

EATON POWER DISTRIBUTION, MONITORING AND ENCLOSURES

UL Listed Power Distribution Cables (continued)

30 EATON INDUSTRIES (CANADA) COMPANY Canadian Reference Guide & Pricebook

January 1, 2014

RUSSELLSTOLL & IEC CABLES

Device Volts Amps Phase Breaker Wire Qty Wire Size Sealtite Fixed

Price

Price Per

Foot

RS3913 250 20 2 2 Pole 312 awg 0.5" Call Call

RS3743 250 20 2 2 Pole 312 awg 0.5" Call Call

RS3913U2 250 20 2 2 Pole 312 awg 0.5" Call Call

RS3914 250 20 3 3 Pole 412 awg 0.5" Call Call

RS3933 250 30 2 2 Pole 410 awg 0.5" Call Call

RS3753 250 30 2 2 Pole 410 awg 0.5" Call Call

RS3934 250 30 3 3 Pole 410 awg 0.5" Call Call

RS3754 250 30 3 3 Pole 410 awg 0.5" Call Call

RS7428-78 600 60 3 3 Pole 46 awg 0.75" Call Call

9C33UO 250 30 2 2 Pole 310 awg 0.5" Call Call

9C54U2/C75 250 50 3 3 Pole 48 awg 0.75" Call Call

HBL360C6W 250 60 2 2 Pole 36 awg 0.75" Call Call

HBL460C9W 250 60 3 3 Pole 46 awg 0.75" Call Call

HBL360R9W 250 60 3 3 Pole 46 awg 0.75" Call Call

EATON POWER DISTRIBUTION, MONITORING AND ENCLOSURES

UL Listed Power Distribution Cables (continued)

"FIELD WIRE" CABLES

Description Device Volts Amps Phase Breaker Wire Qty Wire Size Sealtite Fixed

Price

Price Per

Foot

FW120 N/A 120 15 1 1 Pole 312 awg 0.5" Call Call

FW130 N/A 120 15 1 1 Pole 310 awg 0.5" Call Call

FW220 N/A 120 15 1 2 Pole 312 awg 0.5" Call Call

FW220N N/A 120 20 1 2 Pole 412 awg 0.5" Call Call

FW230 N/A 120 20 1 2 Pole 310 awg 0.5" Call Call

FW230N N/A 120 20 1 2 Pole 410 awg 0.5" Call Call

FW320 N/A 120 30 1 3 Pole 412 awg 0.5" Call Call

FW320N N/A 208 15 1 3 Pole 512 awg 0.5" Call Call

FW330 N/A 208 15 1 3 Pole 410 awg 0.5" Call Call

FW330N N/A 208 15 1 3 Pole 510 awg 0.5" Call Call

FW360 N/A 208 20 1 3 Pole 46 awg 0.75" Call Call

FW360N N/A 208 20 1 3 Pole 56 awg 1.00" Call Call

FW3100 N/A 208 20 1 3 Pole 43 awg 1.25" Call Call

FW3100N N/A 208 100 1 3 Pole 51 awg 1.50" Call Call

Notes:

1. For the cables that have 0.5" conduit, to go to 0.75" conduit, please add $1.05 per foot to the above list price. 2. For the cables that have 12 awg

wire, to go to 10 awg wire conduit, please add $1.00 per foot to the above list price. 3. Breakers are NOT included in the base price above. 4. The

above pricing does NOT include shipping costs. 5. Please see the Cables specifications or contact the factory for details. 6. Add .63 list per FT for

colored LT. 7. For "Field Wire" cables: All single pole field wire cables include a neutral, separate "N" is not required.

31www.eaton.com/powerquality 1.800.461.9166

January 1, 2014

January 1, 2014

EATON CATALOG NUMBER ORDERING INSTRUCTIONS

Single-phase Products

Eaton is now employing the use of smart part numbers to help our customers design the product that fits their needs and makes ordering a snap.

Follow the example below to see how to easily select your product’s features and create the catalog number for your order.

PW 5130 G 2000 R - XL 2U EU

Series Descriptor

PW = Eaton series

Form Factor

R = Rackmount

T = Tower

Family

5130 = Line-interactive 1250-3000 kVA

9130 = Online 700-3000 kVA

9135 = Online 5-6 kVA

Option Field 1: Runtime

XL = Extended runtime (None = Standard)

EBM = Extended battery module

PDM = Power distribution module

Option Field 2: U size

1U = 1U package (Blank = Tower)

2U = 2U package

3U = 3U package etc...

Voltage

L = 120V, nominal* J = 200V only

G = 208V, nominal* N =Voltage irrelevant

I = 230V, nominal*

Option Field 3: Open

Two characters (325 combinations)

EU = European model/IEC outlets

HW = Hardwired

VA

3-5 characters

e.g. 700 or 12000

*Other selectable voltages vary by product

32 EATON INDUSTRIES (CANADA) COMPANY Canadian Reference Guide & Pricebook

January 1, 2014

EATON 3S UPS

Eaton series

Standby UPS (350–750 VA)

The sleek Eaton 3S delivers high efficiency and energy-saving battery backup and surge protection for your premium home and office equipment —

ready to go right out of the box.

• Ease of use: Plug-and-play capability — features HID-compliant USB port for automatic integration with

Windows, Mac and Linux (no drivers required)

• EcoControl for 30% greater energy savings than a typical battery backup

• Attractive design and glossy finish make the 3S a perfect fit for the modern office environment

• Up to 10 receptacles — (5) battery backup and surge protection, (5) surge protection

• Protection for devices connected to telephone, fax and Ethernet lines

• User-replaceable batteries

• Integrated graceful shutdown capability for connected devices

• Warranty (US and Canada): Three-year limited warranty (third year of warranty free with

online product registration), $25,000 load protection guarantee

3S NORTH AMERICAN MODELS: 120V, 50/60 Hz

Part Rating Input Output Dimensions Weight List

Model Number (VA/Watts) Connection Receptacles (H x W x D, inches) (lb) Price

3S 350 3S350 350/200 5-15P (8) 5-15R (4 Battery Backup & 3.4 x 5.5 x 13.2 6.6 $87

4 Surge Protection only)

3S 550 3S550 550/330 5-15P (8) 5-15R (4 Battery Backup & 3.4 x 5.5 x 13.2 7.3 $108

4 Surge Protection only)

3S 750 3S750 750/450 5-15P (10) 5-15R (5 Battery Backup & 3.4 x 6.7 x 13.2 9.7 $164

5 Surge Protection only)

SOFTWARE

To enable EcoControl functionality on the 750 VA unit, download Personal Solution-Pac software at www.eaton.com/psp. The Intelligent Power Software

Suite is available for download free of charge from www.eaton.com/intelligentpower. See the software and connectivity product sections for more

detail.

3S BATTERY BACKUP TIMES (in minutes)

UPS model

Load 50W 100W 150W 200W 250W 300W 350W 400W 450W

3S350 30 12 7 5

3S550 42 18 11 6 4

3S750 61 31 20 13 10 7 6 4 3

Note: Battery runtimes are approximate and may vary with equipment, configuration, battery age, temperature, etc.

SERVICES

For detailed information on service plans, please refer to the Single-phase Service section on page 108.

33www.eaton.com/powerquality 1.800.461.9166

January 1, 2014

January 1, 2014

EATON 5S UPS TOWER

Line-interactive UPS (550 – 1500 VA)

• Power management: Enhance your power protection capabilities and ensure safe system shutdown

with the Eaton UPS Companion software. The 5S interface is auto-recognized when plugged into

computers with Windows, Macintosh and Linux environments

• LCD display: Access critical UPS information including battery time and outage tracking

in a single screen view with the user-friendly LCD

• Data protection: Safeguard your work and data with the UPS Companion software by gracefully shutting

down your equipment during power outages

• Eco-Control: Save up to 30 percent on energy consumption by shutting down non-essential peripherals

when the connected computer is turned off

• Convenient form factor: Fit the 5S easily into tight spaces with its slim form factor. The versatile 5S can be

used as a tower or as a desktop monitor stand

• Surge protection: Provide surge protection for network phone lines, cable TV and satellite applications

• Battery health checks: Schedule daily, weekly or monthly health checks to verify battery performance and ensure it

delivers power during the next outage

• Warranty (US and Canada): Three-year limited warranty (third year of warranty free with

online product registration), $25,000 load protection guarantee

5S NORTH AMERICAN MODELS: 120V, 50/60 Hz

Catalog Rating Input Output Dimensions Net Weight List

Number (VA/Watts) Connection Receptacles (H x W x D, inches) (lb) LCD Eco Control Price

5S550 550/330 5-15P (6 ft) (8) 5-15R 9.8 x 3.4 x 10.2 12.6 No No $159

5S700 700/420 5-15P (6 ft) (8) 5-15R 9.8 x 3.4 x 10.2 14.7 No No $176

5S700LCD 700/420 5-15P (6 ft) (8) 5-15R 9.8 x 3.4 x 10.2 15.1 Yes Yes $186

5S1000LCD 1000/600 5-15P (6 ft) (10) 5-15R 9.8 x 3.4 x 15.0 21.7 Yes Yes $226

5S1500LCD 1500/900 5-15P (6 ft) (10) 5-15R 9.8 x 3.4 x 15.0 26.1 Yes Yes $331

5S INTERNATIONAL MODELS: 208 or 230V, 50/60 Hz

Catalog Rating Input Output Dimensions Net Weight List

Number (VA/Watts) Connection Receptacles (H x W x D, inches) (lb) LCD Eco Control Price

5S700G 700/420 C14 (6) C13 9.8 x 3.4 x 10.2 13.2 No No $213

5S1500G 1500/900 C14 (8) C13 9.8 x 3.4 x 15.0 24.6 No No $381

SOFTWARE

The UPS Companion software is available for download free of charge. See the software and connectivity product sections for more detail.

5S BATTERY BACKUP TIMES (in minutes)

UPS model

Load 30W 60W 90W 120W 150W 180W 210W 240W 270W 300W 330W 360W 390W 420W

5S550 121 56 31 20 14 10 8 6 5 4 1

5S700 151 75 37 30 21 14 12 11 9 7 6 5 3 2

5S700G 151 75 37 30 21 14 12 11 9 7 6 5 3 2

5S700LCD 86 67 36 27 20 15 11 9 7 6 5 4 2 2

UPS model

Load 120W 180W 240W 300W 360W 420W 480W 540W 600W 660W 720W 780W 840W 900W

5S1000LCD 43 26 18 14 10 9 6 4 3

5S1500G 79 43 30 22 17 13 10 9 8 6 5 4 3 2

5S1500LCD 71 42 31 22 16 13 10 8 7 6 5 4 3 2

Note: Battery runtimes are approximate and may vary with equipment, configuration, battery age, temperature, etc.

SERVICES

For detailed information on service plans, please refer to the Single-phase Service section on page 108.

34 EATON INDUSTRIES (CANADA) COMPANY Canadian Reference Guide & Pricebook

January 1, 2014

EATON 5SC UPS

Line-interactive UPS (550 – 1500 VA)

The 5SC offers flexible integration with a small form factor and adjustable input waveform

sensitivity, making it ideal for protecting tower servers, network-attached storage (NAS), network

equipment, ATMs, tickets machines and kiosks.

• LCD display: Enables you to customize UPS settings, view load and power consumption

• Power management: Integrates with Intelligent Power Manager (IPM) for point-to-point power

management (USB/serial) or network-based using server as a proxy

• Battery technology: Extends battery service life by 50% with ABM® technology and offers user-

replaceable batteries

• Warranty and service: Protects you with a three-year warranty, which includes the battery

• Reliable power protection: Corrects a wide range of input voltage variations through buck and

boost operation; Provides high quality pure-sinewave output capability, protecting any sensitive

equipment connected ensuring consistent input voltage to the loads protected

• Convenient form factor: Fits easily into small spaces making the 5SC ideal for protecting tower

servers, Network-attached storage (NAS), network equipment, ATMs, ticket machines and kiosks

5SC NORTH AMERICAN MODELS: 120V, 50/60 Hz

Catalog Rating Input Output Dimensions Weight List

Number (VA/Watts) Connection Receptacles (H x W x D, inches) (lb) Price

5SC500 500/350 5-15P (6 ft) (4) 5-15R 8.2 x 5.9 x 9.4 15.2 $280

5SC750 750/525 5-15P (6 ft) (6) 5-15R 8.2 x 5.9 x 13.4 23.1 $403

5SC1000 1000/700 5-15P (6 ft) (8) 5-15R 8.2 x 5.9 x 13.4 25.6 $462

5SC1500 1440/1080 5-15P (6 ft) (8) 5-15R 8.2 x 5.9 x 16.1 34.0 $594

5SC INTERNATIONAL MODELS: 208 or 230V, 50/60 Hz

Catalog Rating Input Output Dimensions Weight List

Number (VA/Watts) Connection Receptacles (H x W x D, inches) (lb) Price

5SC500G 500/350 C14 (4) C13 8.2 x 5.9 x 9.4 15.0 $322

5SC750G 750/525 C14 (6) C13 8.2 x 5.9 x 13.4 23.1 $464

5SC1500G 1500/1050 C14 (8) C13 8.2 x 5.9 x 16.1 33.5 $684

SOFTWARE

The Intelligent Power Software Suite is available for download free of charge. See the software and connectivity product sections for more detail.

5SC BATTERY BACKUP TIMES (in minutes)

UPS model

Wattage 18 28 35 70 105 140 175 210 245 280 315 350

5SC500 118 89 64 29 19.6 16.3 12.1 10.4 8.9 7.1 5.3 4.7

Wattage 26 42 53 105 158 210 263 315 368 420 473 525

5SC750 120 89 71 36 24 16.6 12.6 10.6 8.7 7 6 5

5SC750G 124 100 74 38 23 16.5 12.6 10.7 8.8 7 6 4.9

Wattage 35 56 70 140 210 280 350 420 490 560 630 700

5SC1000 111 85 66 35.5 23 17 12.7 10.6 8.7 7 5.9 4.8

Wattage 54 86 108 216 324 432 540 648 756 864 972 1080

5SC1500 136 111 90 40.7 24.9 17.5 12.8 10.5 8.6 6.9 5.9 5

5SC1500G 144 109 90 41 24.7 17.3 12.7 10.4 8.4 6.8 5.8 4.8

Note: Battery runtimes are approximate and may vary with equipment, configuration, battery age, temperature, etc.

SERVICES

For detailed information on service plans, please refer to the Single-phase Service section on page 108.

35www.eaton.com/powerquality 1.800.461.9166

January 1, 2014

January 1, 2014

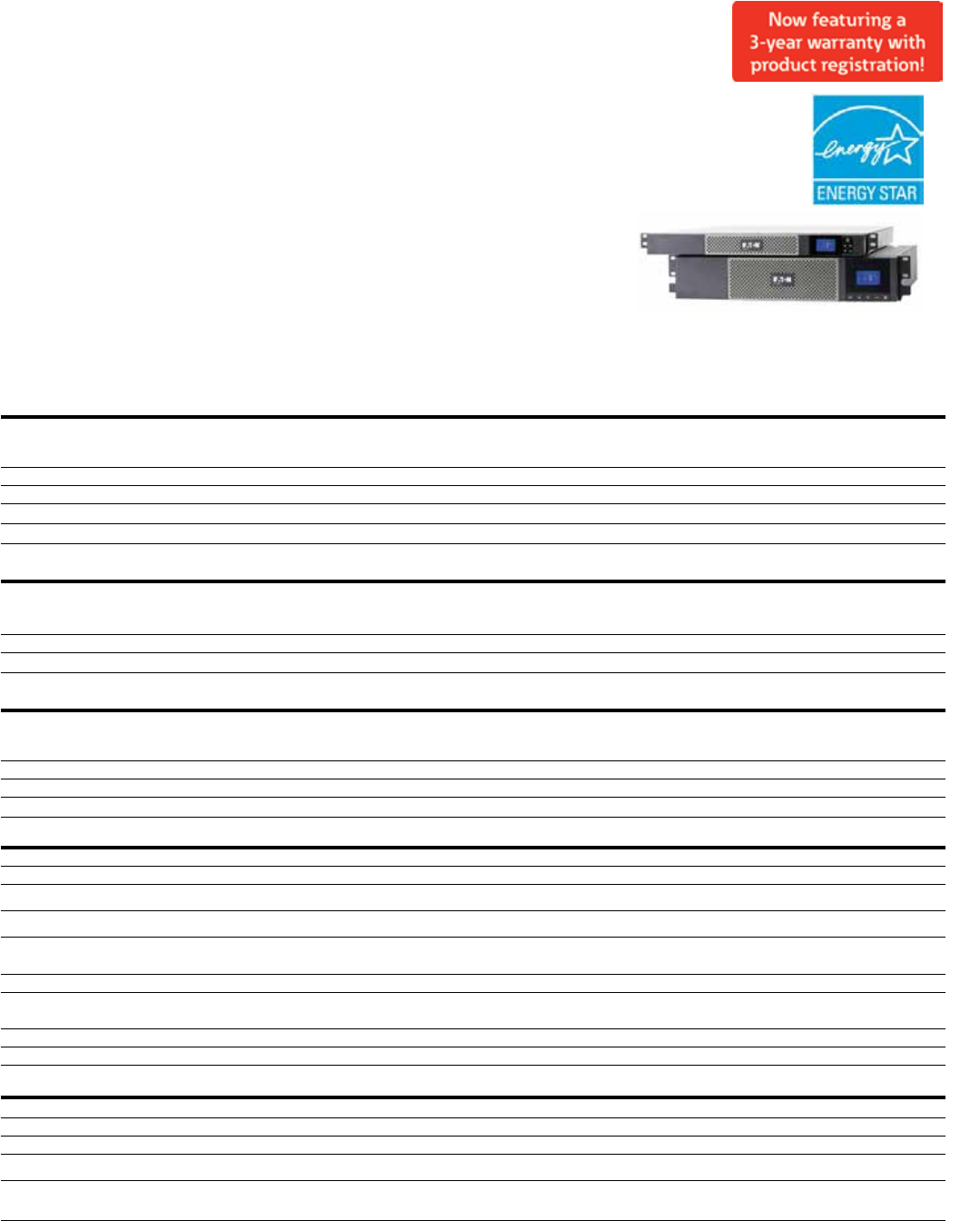

EATON 5P UPS RACKMOUNT

Line-interactive UPS (550–3000 VA)

• Helps save money and protect the environment through energy efficient operation (ENERGY

STAR® qualified UPS)

• Enables you to customize UPS settings, view load and power consumption through the graphical interactive LCD screen

interface

• Fully integrates with Intelligent Power Software Suite for continuous up time of servers and virtual

machines

• Provides more real power (watts) to protect more equipment and leave room for expanding IT

systems

• Extends battery service life by 50% with ABM Technology

• Warranty (US and Canada): Three-year limited warranty (third year of warranty free with online

product registration), five-year extended warranty plans available, $150,000 load protection

guarantee

5P RACKMOUNT 1U MODELS: 120V, 50/60 Hz

Dimensions

Catalog Rating Input Output (H x W x D, Weight List

Number Description (VA/Watts) Connection Receptacles inches) (lb) Price

5P550R 5P 550 VA 120V Rackmount 1U 550/420 5-15P (6 ft) (5) 5-15R 1.7 (1U) x 17.2 x 14.3 20 $433

5P750R 5P 750 VA 120V Rackmount 1U 750/600 5-15P (6 ft) (5) 5-15R 1.7 (1U) x 17.2 x 20.0 31 $648

5P1000R 5P 1000 VA 120V Rackmount 1U 1000/770 5-15P (6 ft) (5) 5-15R 1.7 (1U) x 17.2 x 20.0 33 $826

5P1500R 5P 1500 VA 120V Rackmount 1U 1440/1100 5-15P (6 ft) (5) 5-15R 1.7 (1U) x 17.2 x 21.8 44 $1,046

5P RACKMOUNT 1U MODELS: 208/230V, 50/60 Hz

Dimensions

Catalog Rating Input Output (H x W x D, Weight List

Number Description (VA/Watts) Connection Receptacles inches) (lb) Price

5P850GR 5P 850 VA 208V Rackmount 1U 850/600 C14 (4) C13 1.7 (1U) x 17.2 x 20.0 30 $703

5P1550GR 5P 1550 VA 208V Rackmount 1U 1550/1100 C14 (6) C13 1.7 (1U) x 17.2 x 21.8 43 $1,135

5P RACKMOUNT 2U MODELS: 120V, 50/60 Hz

Dimensions

Catalog Rating Input Output (H x W x D, Weight List

Number Description (VA/Watts) Connection Receptacles inches) (lb) Price

5P1500RT 5P 1500 VA 120V Rack/Tower 2U 1440/1440 5-15P (8 ft) (8) 5-15R 3.4 (2U) x 17.4 x 20.6 65 $1,113

5P2200RT 5P 2200 VA 120V Rack/Tower 2U 1950/1920 5-20P (8 ft) (4) 5-15R, (4) 5-20R 3.4 (2U) x 17.4 x 20.6 65 $1,700

5P3000RT 5P 3000 VA 120V Rack/Tower 2U 3000/2700 L5-30P (10 ft) (6) 5-20R, (1) L5-30R 3.4 (2U) x 17.4 x 20.6 87 $2,036

5P RACKMOUNT OPTIONS

Catalog Number Description For use with List Price

Mounting Hardware

RK2PA 2-post rail kit (optional) 1U All Models except 5P550G TBA

103007018-5591 Two-post rack mounting rail kit All RT Models $107

Catalog For use with Input Output Dimensions List

Number Description 5P model Connection Receptacles (H x W x D, inches) Price

Power distribution and maintenance bypass

EHBPL1500R-PDU1U HotSwap Maintenance Bypass (MBP) 5P550R, 5P750R, 5P1000R 5-15P (6) 5-15R 2.1 x 17.3 x 3.8 $308

5P1500R, 5P1500RT

EHBPL2000R-PDU1U HotSwap Maintenance Bypass (MBP) 5P2200RT 5-20P (6) 5-15R 2.1 x 17.3 x 3.8 $368

EHBPL3000R-PDU1U HotSwap Maintenance Bypass (MBP) 5P3000RT L5-30P (5) 5-20R 2.1 x 17.3 x 3.8 $535

SOFTWARE AND CONNECTIVITY OPTIONS

Catalog Number Description For use with List Price

Network-MS Network Card-MS All Models $385

Relay-MS Relay / Serial Interface Card All Models $138

116750224-001 Environmental Monitoring Probe All Models (requires Network-MS) $304

See software and connectivity product sections for more detail.

36 EATON INDUSTRIES (CANADA) COMPANY Canadian Reference Guide & Pricebook

January 1, 2014

EATON 5P UPS RACKMOUNT

(continued)

5P RACKMOUNT BATTERY BACKUP TIMES (in minutes)

UPS model

Load (watts) 50 100 200 400 600 700 800 1000 1500 2500

5P550R 37 19 9 3

5P750R 40 19 8 4

5P850GR

5P1000R 51 25 11 7 6

5P1500R 47 20 12 10 8 5

5P1550GR

5P1500RT 56 26 15 11 9 7 3

5P2200RT 59 33 20 16 13 8 4

5P3000RT 41 27 22 18 14 9 4

Note: Runtimes are displayed in minutes. Runtimes are approximate and may vary with equipment, configuration, battery age, temperature, etc. View interactive runtime graphs at www.eaton.com/5Prm.

SERVICES

For detailed information on service plans, please refer to the Single-phase Service section on page 108.

37www.eaton.com/powerquality 1.800.461.9166

January 1, 2014

January 1, 2014

Line-interactive UPS (750–3000 VA)

• Helps save money and protect the environment through energy efficient operation (ENERGY

STAR® qualified UPS)

• Enables you to customize UPS settings, view load and power consumption through the graphical

interactive LCD screen interface

• Fully integrates with Intelligent Power Software Suite for continuous up time of servers and virtual

machines

• Provides more real power (watts) to protect more equipment and leave room for expanding IT systems

• Extends battery service life by 50% with ABM Technology

• Warranty (US and Canada): Three-year limited warranty (third year of warranty free with online product

registration), five-year extended warranty plans available, $150,000 load protection guarantee

EATON 5P UPS TOWER

5P TOWER MODELS: 120V, 50/60 Hz

Dimensions

Catalog Rating Input Output (H x W x D, Weight List

Number Description (VA/Watts) Connection Receptacles inches) (lb) Price

5P750 5P 750 VA 120V Tower 750/600 5-15P (6ft) (8) 5-15R 9.1 x 5.9 x 13.6 24 $486

5P1000 5P 1000 VA 120V Tower 1000/770 5-15P (6ft) (8) 5-15R 9.1 x 5.9 x 13.6 25 $687

5P1500 5P 1500 VA 120V Tower 1440/1100 5-15P (6ft) (8) 5-15R 9.1 x 5.9 x 17.5 36 $853

5P3000 5P 3000 VA 120V Tower 3000/2700 L5-30P (10 ft) (6) 5-20R, (1) L5-30R 3.4 (2U) x 17.4 x 25.4 81 $1,665

5P TOWER MODELS: 208/230V, 50/60 Hz

Dimensions

Catalog Rating Input Output (H x W x D, Weight List

Number Description (VA/Watts) Connection Receptacles inches) (lb) Price

5P850G 5P 850 VA 208V Tower 850/600 C14 (6) C13 9.1 x 5.9 x 13.6 23 $528

5P1550G 5P 1550 VA 208V Tower 1550/1100 C14 (8) C13 9.1 x 5.9 x 17.5 34 $926

SOFTWARE AND CONNECTIVITY OPTIONS

Catalog Number Description For use with List Price

Network-MS Network Card-MS All Models $385

Relay-MS Relay / Serial Interface Card All Models $138

116750224-001 Environmental Monitoring Probe All Models (requires Network-MS) $304

See software and connectivity product sections for more detail.

5P TOWER BATTERY BACKUP TIMES (in minutes)

UPS model

Load (watts) 50 100 200 400 600 700 800 1000 1500 2500

5P750 40 19 8 4

5P850G

5P1000 51 25 11 7 6

5P1500 47 20 12 10 8 5

5P1550G

5P3000 41 27 22 18 14 9 4

Note: Runtimes are displayed in minutes. Runtimes are approximate and may vary with equipment, configuration, battery age, temperature, etc. View interactive runtime graphs at www.eaton.com/5P.

SERVICES

For detailed information on service plans, please refer to the Single-phase Service section on page 108.

38 EATON INDUSTRIES (CANADA) COMPANY Canadian Reference Guide & Pricebook

January 1, 2014

EATON 5PX UPS RACK/TOWER

Extended Run Capable

5PX NORTH AMERICAN MODELS: 120V, 50/60 Hz

Catalog Rating Input Output Dimensions Weight List

Number Description (VA/Watts) Connection Receptacles (H x W x D, inches) (lb) Price

5PX1000RT Eaton 5PX 1000 VA 120V Rack / Tower 2U 1000/1000 5-15P (8ft) (8) 5-15R 3.4 (2U) x 17.4 x 20.6 62 $953

5PX1500RT Eaton 5PX 1500 VA 120V Rack / Tower 2U 1440/1440 5-15P (8ft) (8) 5-15R 3.4 (2U) x 17.4 x 20.6 65 $1,246

5PX1500RTN Eaton 5PX 1500 VA with Network Card-MS 1440/1440 5-15P (8ft) (8) 5-15R 3.4 (2U) x 17.4 x 20.6 65 $1,592

5PX2200RT Eaton 5PX 2200 VA 120V Rack / Tower 2U 1950/1920 5-20P (8ft) (4) 5-20R, (4) 5-15R 3.4 (2U) x 17.4 x 20.6 65 $2,064

5PX2200RTN Eaton 5PX 2200 VA with Network Card-MS 1950/1920 5-20P (8ft) (4) 5-20R, (4) 5-15R 3.4 (2U) x 17.4 x 20.6 65 $2,416

5PX3000RT2U Eaton 5PX 3000 VA 120V Rack / Tower 2U 3000/2700 L5-30P (10ft) (6) 5-20R, (1) L5-30R 3.4 (2U) x 17.4 x 25.4 87 $2,434

5PX3000RTN Eaton 5PX 3000 VA with Network Card-MS 3000/2700 L5-30P (10ft) (6) 5-20R, (1) L5-30R 3.4 (2U) x 17.4 x 25.4 87 $2,749

5PX3000RT3U Eaton 5PX 3000 VA 120V Rack / Tower 3U 3000/2700 L5-30P (10ft) (6) 5-20R, (1) L5-30R 5.1 (3U) x 17.4 x 19.6 86 $2,531

5PX INTERNATIONAL MODELS: 208/230V, 50/60 Hz

Catalog Rating Input Output Dimensions Weight List

Number Description (VA/Watts) Connection Receptacles (H x W x D, inches) (lb) Price

5PX1500iRT Eaton 5PX 1500 VA 208/230V Rack / Tower 2U 1500/1350 C14 (8) C13 3.4 (2U) x 17.4 x 20.6 61 $1,407

5PX2200iRT Eaton 5PX 2200 VA 208/230V Rack / Tower 2U 2200/1980 C20 (1) C19, (8) C13 3.4 (2U) x 17.4 x 20.6 63 $2,379

5PX3000iRT2U Eaton 5PX 3000 VA 208/230V Rack / Tower 2U 3000/2700 C20 (1) C19, (8) C13 3.4 (2U) x 17.4 x 25.4 84 $2,757

5PX3000iRTN Eaton 5PX 3000 VA with Network Card-MS 3000/2700 C20 (1) C19, (8) C13 3.4 (2U) x 17.4 x 25.4 84 $3,073

5PX OPTIONS

Catalog Rating For use with Dimensions Weight List

Number Description (VA) 5PX model (H x W x D, inches) (lb) Price

Extended Battery Modules

5PXEBM48RT Eaton 5PX 48V EBM Rack / Tower 2U 48V 5PX1000RT, 5PX1500RT, 5PX2200RT 3.4 (2U) x 17.4 x 20.0 72 $794

5PXEBM72RT2U Eaton 5PX 72V EBM Rack / Tower 2U 72V 5PX3000RT2U 3.4 (2U) x 17.4 x 25.5 102 $1,165

5PXEBM72RT3U Eaton 5PX 72V EBM Rack / Tower 3U, 72V 5PX3000RT3U 5.1 (3U) x 17.4 x 19.6 98 $1,165

short depth

Two-post rail kit

103007018-5591 Two-post rack mounting rail kit (supports 2U models only) $107

Catalog For use with Input Output Dimensions List

Number Description 5PX model Connection Receptacles (H x W x D, inches) Price

Power distribution and maintenance bypass

EHBPL1500R-PDU1U HotSwap Maintenance Bypass (MBP) 5PX1000RT, 5PX1500RT 5-15P (6) 5-15R 2.1 x 17.3 x 3.8 $308

EHBPL2000R-PDU1U HotSwap Maintenance Bypass (MBP) 5PX2200RT 5-20P (6) 5-15R 2.1 x 17.3 x 3.8 $368

EHBPL3000R-PDU1U HotSwap Maintenance Bypass (MBP) 5PX3000RT2U, L5-30P (5) 5-20R 2.1 x 17.3 x 3.8 $535

5PX3000RT3U

For detailed information on FlexPDU and HotSwap Maintenance Bypass products, please refer to the Eaton Power Distribution and Enclosures section.

Line-interactive UPS (1000–3000 VA)

The Eaton 5PX UPS provides advanced power conditioning and unparalleled battery backup for network

closets and small data centers.

• Line-interactive topology with sine wave output

• Industry-leading efficiency of up to 99 percent

• Meters energy consumption down to the outlet segments

• Displays critical UPS information in a next-generation graphical LCD

• Protects more devices by providing up to 28 percent more wattage than traditional UPSs

• ABM technology extends battery life by 50 percent

• Extended available runtime by adding up to 4 EBMs

• Comes with free monitoring and management software, perfect for virtualized environments

• Hot-swappable batteries allow you to replace batteries while the UPS stays on

• Load segments enable shutdown of connected devices for increased runtime

• 4-post rail kit included (2-post rail kit optional)

• Warranty (US and Canada): Three-year limited warranty (third year of warranty free with

online product registration), five-year extended warranty plans available, $150,000 load protection guarantee

39www.eaton.com/powerquality 1.800.461.9166

January 1, 2014

January 1, 2014

EATON 5PX UPS RACK/TOWER

Eaton series (continued)

SOFTWARE AND CONNECTIVITY OPTIONS

Catalog Number Description List Price

Network-MS Network Card-MS $279

See software and connectivity product sections for more detail.

5PX BATTERY BACKUP TIMES (in minutes)1

Load (VA/Watts) Internal Batteries +1 EBM +2 EBMs +3 EBMs +4 EBMs

5PX1000RT (with 5PXEBM48RT)

100/70 120 462 796 1131 1466

250/175 69 286 490 695 899

500/350 30 145 254 364 473

750/525 17 83 151 219 286

1000/700 11 59 108 156 204

1000/10002 7 39 71 103 135

5PX1500RT (with 5PXEBM48RT)

150/105 81 334 550 765 981

375/262 43 187 315 442 569

750/525 18 87 150 214 277

1125/787 9 50 89 129 169

1440/1050 6 35 66 96 126

1440/14402 3 21 41 62 82

5PX2200RT (with 5PXEBM48RT)

195/136 71 274 465 656 847

488/341 39 154 270 385 501

975/682 16 67 123 179 236

1463/1045 8 36 67 93 128

1950/1365 5 26 48 65 93

2200/19202 3 15 29 36 57

5PX3000RT2U or 5PX3000RT3U (with 5PXEBM72RT2U or 5PXEBM72RT3U)

300/210 63 273 470 667 864

750/525 31 148 254 360 465

1500/1050 13 64 111 158 206

2250/1575 8 35 64 94 123

3000/2100 6 26 48 70 91

3000/27002 4 19 35 52 68

1. Battery backup times are approximate and may vary with equipment, configuration, battery age, temperature, etc. International model runtimes are available; please visit www.eaton.com/5PX for

details. 2. Runtimes shown at full load with maximum power factor.

View interactive runtime graphs at www.eaton.com/5PX

SERVICES

For detailed information on service plans, please refer to the Single-phase Service section on page 108.

40 EATON INDUSTRIES (CANADA) COMPANY Canadian Reference Guide & Pricebook

January 1, 2014

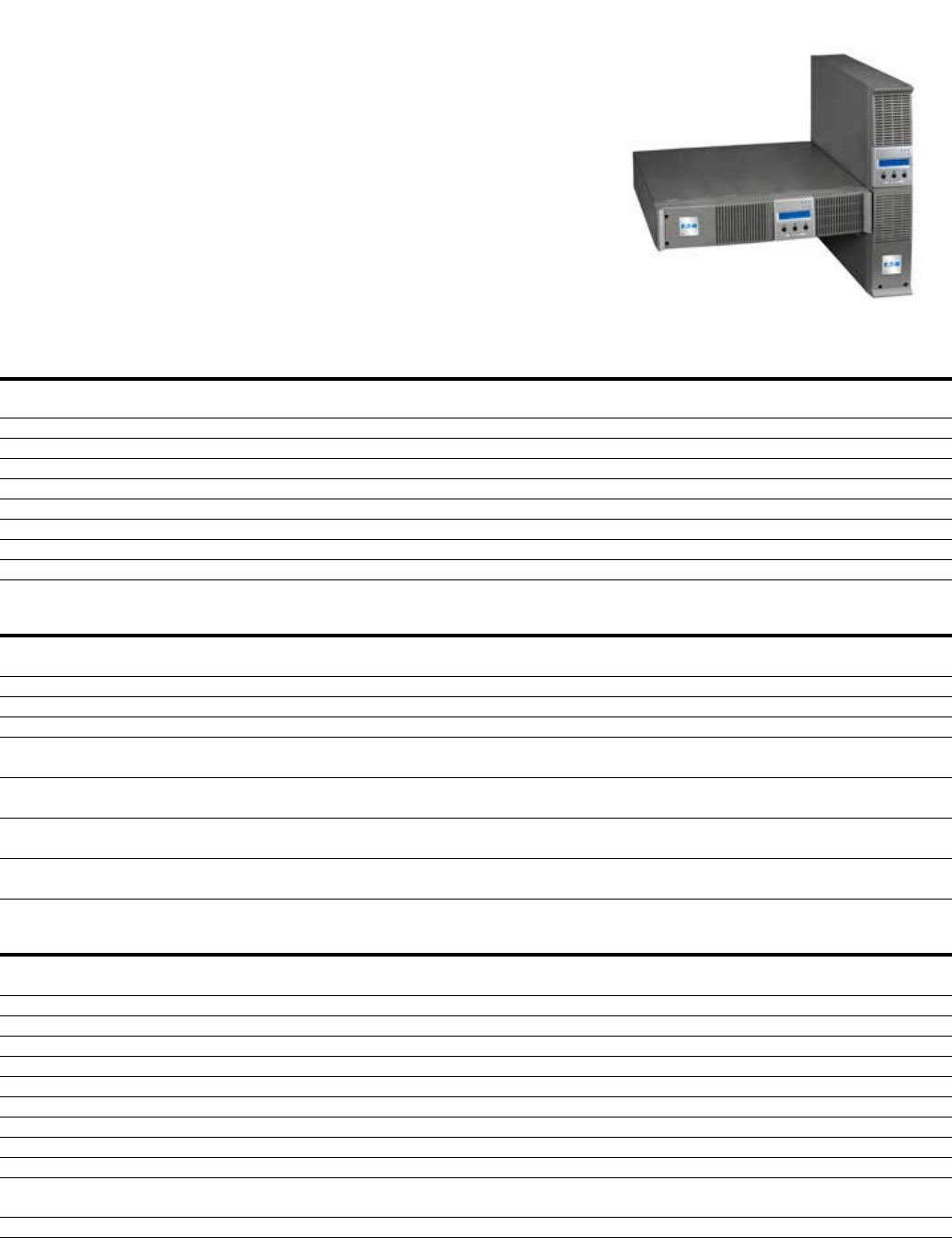

Online UPS (700–3000 VA)

Ideal protection for servers, data storage, network equipment, telephony, VoIP and

medical equipment—industrial processes.

• True double-conversion

• Hot-swappable batteries

• Two load segments

• USB and RS-232 ports

• Rack/tower configurations provide versatility

• Four-post rail kit included with rack UPS (except where noted)

• Optional two-post rail kit

EX NORTH AMERICAN MODELS: 120V, 50/60 Hz

Catalog Style Rating Input Output Dimensions Weight List

Number Number Description (VA/Watts) Connection Receptacles (H x W x D, inches) (lb) Price

PULSL700T 86700 120V TWR 0.7 kVA 700/630 5-15P (4) 5-15R 9.52 x 6.00 x 17.31 25.7 $823

PULSL1000T 86701 120V TWR 1 kVA 1000/900 5-15P (4) 5-15R 9.52 x 6.00 x 17.31 33.0 $990

PULSL1500T 86703 120V TWR 1.5 kVA 1500/1350 5-15P (4) 5-15R 9.52 x 6.00 x 19.29 39.6 $1,334

PULSL1000R-XL2U 86702 120V RT2U 1 kVA 1000/900 5-15P (6) 5-15R 3.46 (2U) x 17.25 x 19.00 39.6 $1,146

PULSL1500R-XL2U 86704 120V RT2U 1.5 kVA 1500/1350 5-15P (6) 5-15R 3.46 (2U) x 17.25 x 19.00 45.2 $1,520

PULSML2200-XL2U 86722 120V RT2U 2.2 kVA 2100/1650 5-20P (6) 5-20R, (1) L5-20R 3.40 (2U) x 17.30 x 25.20 68.2 $2,207

PULSML2200-XL3U 86723 120V RT3U 2.2 kVA 2100/1650 5-20P (6) 5-20R, (1) L5-20R 5.14 (3U) x 17.30 x 19.29 70.0 $2,207

PULSML3000-XL2U 86732 120V RT2U 3 kVA 3000/2550 L5-30P (6) 5-20R, (1) L5-30R 3.40 (2U) x 17.30 x 25.20 70.0 $2,760

EX INTERNATIONAL MODELS: 230V, 50/60 Hz

Catalog Style Rating Input Output Dimensions Weight List

Number Number Description (VA/Watts) Connection Receptacles (H x W x D, inches) (lb) Price

PULSI1000T 68181 230V TWR 1 kVA 1000/900 IEC C14 (10A Socket) (6) IEC C13 (10A) 9.52 x 6.00 x 17.31 33.0 $1,050

PULSI1000R-XL2U 68182 230V RT2U 1 kVA 1000/900 IEC C14 (10A Socket) (6) IEC C13 (10A) 3.46 (2U) x 17.25 x 19.00 39.6 $1,207

PULSI1500R-XL2U 68184 230V RT2U 1.5 kVA 1500/1350 IEC C14 (10A Socket) (6) IEC C13 (10A) 3.46 (2U) x 17.25 x 19.00 - $1,715

PULSMI2200-XL2U 68401 230V RT2U 2.2 kVA 2200/1980 IEC C20 (16A) or terminal (8) IEC C13 (10A) 3.39 (2U) x 17.32 x 25.20 68.3 $2,268

block on 103007536-6591 PPDM (1) IEC C19 (16A)

PULSMI2200-XL3U* 68400 230V RT3U 2.2 kVA 2200/1980 IEC C20 (16A) or terminal (8) IEC C13 (10A) 5.16 (3U) x 17.32 x 19.29 66.1 $2,268

block on 103007536-6591 PPDM (1) IEC C19 (16A)

PULSMI3000-XL2U 68403 230V RT2U 3 kVA 3000/2700 IEC C20 (16A) or terminal (8) IEC C13 (10A) 3.39 (2U) x 17.32 x 25.20 68.3 $3,065

block on 103007536-6591 PPDM (1) IEC C19 (16A)

PULSMI3000-XL3U* 68402 230V RT3U 3 kVA 3000/2700 IEC C20 (16A) or terminal (8) IEC C13 (10A) 5.16 (3U) x 17.32 x 19.29 66.1 $3,065

block on 103007536-6591 PPDM (1) IEC C19 (16A)

*Four-post rail kit not included

EX OPTIONS

Catalog Style Dimensions Weight List

Number Number Description (H x W x D, inches) (lb) Price

Extended Battery Modules

PULSL1500T-EBM 86705 120V TWR EBM 1–1.5 kVA 9.52 x 6.00 x 17.32 46.3 $643

PULSL1500R-EBM 86706 120V RT EBM 1-1.5 kVA 3.40 (2U) x 17.25 x 19.00 58.1 $774

PULSI1500T-EBM 68185 230V TWR EBM 1–1.5 kVA 9.53 x 6.22 x 15.75 46.3 $724

PULSI1500R-EBM 68186 230V RT EBM 1-1.5 kVA 3.41 (2U) x 17.32 x 18.9 58.1 $835

PULSMI3000-EBM 68405 120/230V RT EBM 2–3 kVA 5.16 (3U) x 17.32 x 19.29 92.4 $1,046

Optional Mounting Hardware

PULSM-RAIL 68441 2U/3U Four-post rail kit - 22.0 $112

- 103007018-5591 Two-post rack mounting rail kit - - $107

Power distribution and maintenance bypass

For detailed information on FlexPDU and HotSwap Maintenance Bypass products, please refer to the Eaton Power Distribution and Enclosures section.

EATON EX UPS

Pulsar series

(this product was formerly known as the Pulsar and Pulsar M UPSs)

41www.eaton.com/powerquality 1.800.461.9166

January 1, 2014

January 1, 2014

EATON EX UPS

Pulsar series (continued)

SOFTWARE AND CONNECTIVITY OPTIONS

Catalog Number Description List Price

Network-MS Network Card-MS $385

See software and connectivity product sections for more detail.

EX BATTERY BACKUP TIMES (in minutes)

Load Standard

(VA/Watts) Internal Batteries +1 EBM +2 EBMs +3 EBMs +4 EBMs

EX 700

70/49 71 – – – –

140/98 36 – – – –

210/147 25 – – – –

280/196 20 – – – –

350/245 16 – – – –

420/294 12 – – – –

490/343 10 – – – –

560/392 8 – – – –

630/441 6 – – – –

700/490 5 – – – –

EX 1000 / 1000 RT 2U

100/70 75 290 490 790 980

200/140 40 170 290 440 550

300/210 28 125 210 310 390

400/280 21 92 180 240 310

500/350 18 75 150 205 250

600/420 14 60 110 170 220

700/490 11 52 90 145 190

800/560 9 43 78 125 170

900/630 7 40 70 112 155

1000/700 6 35 60 95 135

EX 1500 / 1500 RT 2U

150/105 60 212 360 475 700

300/210 32 110 220 280 380

450/315 21 78 155 210 260

600/420 16 60 115 160 200

750/525 13 47 83 140 180

900/630 10 40 71 110 140

1050/735 8 34 60 90 118

1200/840 7 30 52 76 100

1350/945 6 27 48 70 90

1500/1050 5 24 42 62 80

EX 2200 RT 2U & 3U*

220/154 90 352 587 831 1216

440/308 48 200 340 470 650

660/462 30 130 225 320 450

880/616 22 100 170 260 350

1100/770 16 80 135 215 286

1320/924 13 62 110 180 240

1540/1078 10 50 95 150 200

1760/1232 8 42 80 125 170

1980/1386 7 36 65 110 152

2200/1540 6 30 51 83 134

View interactive runtime graphs at www.eaton.com/ex

42 EATON INDUSTRIES (CANADA) COMPANY Canadian Reference Guide & Pricebook

January 1, 2014

EX BATTERY BACKUP TIMES (in minutes)

(continued)

Load Standard

(VA/Watts) Internal Batteries +1 EBM +2 EBMs +3 EBMs +4 EBMs

EX 3000 RT 2U & 3U**

300/210 79 254 454 549 847

600/420 40 130 255 290 445

900/630 25 80 160 205 290

1200/840 18 60 120 162 230

1500/1050 14 48 102 129 187

1800/1260 12 38 82 103 150

2100/1470 9 32 72 86 125

2400/1680 7 27 58 73 100

2700/1890 6 22 50 64 82

3000/2100 5 18 36 47 70

EX 3000 RT 3U XL***

300/210 - 175 375 549 768

600/420 - 90 215 290 405

900/630 - 55 135 205 265

1200/840 - 42 102 162 212

1500/1050 - 34 88 129 173

1800/1260 - 26 70 103 138

2100/1470 - 23 63 86 116

2400/1680 - 20 51 73 93

2700/1890 - 16 44 64 76

3000/2100 - 13 31 47 65

* Output power rating = 1650W ** Standard configuration power rating = 2550W, with EBM = 2100W *** Output power rating = 2150W up to 12 EBMs can be added for extended runtime of 196–1909

minutes

Note: Backup times are approximate and may vary with equipment, configuration, battery age, temperature, etc.

The Eaton EX has a 0.9 power factor, but runtimes are shown here at 0.7 power factor for easy comparison against competitor's products, which have a 0.7 power factor.

EATON EX UPS

Pulsar series (continued)

SERVICES

For detailed information on service plans, please refer to the Single-phase Service section on page 108.

43www.eaton.com/powerquality 1.800.461.9166

January 1, 2014

January 1, 2014

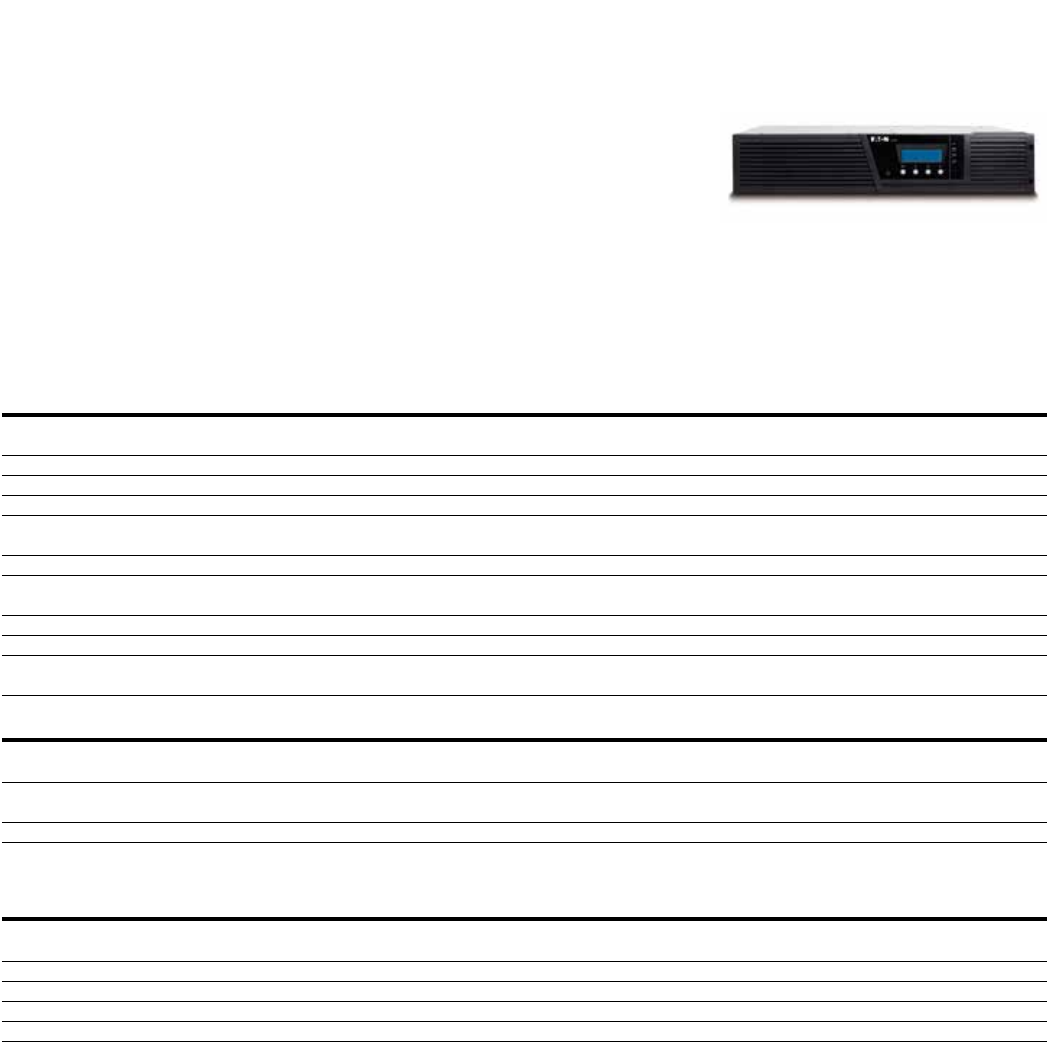

EATON 9130 UPS RACKMOUNT

Powerware series

9130 NORTH AMERICAN RACK MODELS: 120V, 50/60 Hz

Catalog Rating Input Output Dimensions Weight List

Number Description (VA/Watts) Connection1 Receptacles (H x W x D, inches) (lb) Price

PW9130L700R-XL2U 9130 700 120V RACK 700/630 5-15P (6) 5-15R 3.4 (2U) x 17.3 x 16.9 35.3 $1,010

PW9130L1000R-XL2U 9130 1000 120V RACK 1000/900 5-15P (6) 5-15R 3.4 (2U) x 17.3 x 16.9 35.3 $1,277

PW9130L1500R-XL2U 9130 1500 120V RACK 1500/1350 5-15P (6) 5-15R 3.4 (2U) x 17.3 x 16.9 43.0 $1,870

PW9130L1500R-XL2UN 9130 1500 120V RACK 1500/1350 5-15P (6) 5-15R 3.4 (2U) x 17.3 x 16.9 43.0 $2,226

with Network Card-MS

PW9130L2000R-XL2U 9130 2000 120V RACK 2000/1800 5-20P (6) 5-20R, (1) L5-20R 3.4 (2U) x 17.3 x 22.6 63.9 $2,224

PW9130L2000R-XL2UN 9130 2000 120V RACK 2000/1800 5-20P (6) 5-20R, (1) L5-20R 3.4 (2U) x 17.3 x 22.6 63.9 $2,565

with Network Card-MS

PW9130L2500R-XL2U 9130 2500 120V RACK 2500/2250 L5-30P (6) 5-20R, (1) L5-30R 3.4 (2U) x 17.3 x 22.6 65.0 $2,745

PW9130L3000R-XL2U 9130 3000 120V RACK 3000/2700 L5-30P (6) 5-20R, (1) L5-30R 3.4 (2U) x 17.3 x 22.6 65.0 $3,636

PW9130L3000R-XL2UN 9130 3000 120V RACK 3000/2700 L5-30P (6) 5-20R, (1) L5-30R 3.4 (2U) x 17.3 x 22.6 65.0 $3,992

with Network Card-MS

9130 GLOBAL RACK MODELS: 208V, 50/60 Hz

Catalog Rating Input Output Dimensions Weight List

Number Description (VA/Watts) Connection1 Receptacles (H x W x D, inches) (lb) Price

PW9130G3000R-XL2U 9130 3000G RACK 3000/2700 L6-20P2 (1) L6-30R, (1) L6-20R, 3.4 (2U) x 17.3 x 22.6 65.0 $3,524

(2) 6-20R

PW9130G3000R-XL2UEU 9130 3000G EU RACK 3000/2700 L6-20P2 (8) C13, (1) C19 3.4 (2U) x 17.3 x 22.6 65.0 $3,524

1. Input cord length is 6 ft

2. C20, w/detachable L6-20P cord

9130 INTERNATIONAL RACK MODELS: 230V, 50/60 Hz

Catalog Rating Input Output Dimensions Weight List

Number Description (VA/Watts) Connection1 Receptacles (H x W x D, inches) (lb) Price

PW9130i1000R-XL2U 9130 1000 230V RACK 1000/900 C14 (6) C13 3.4 (2U) x 17.3 x 16.9 35.3 $1,328

PW9130i1500R-XL2U 9130 1500 230V RACK 1500/1350 C14 (6) C13 3.4 (2U) x 17.3 x 16.9 43.0 $1,901

PW9130i2000R-XL2U 9130 2000 230V RACK 2000/1800 C14 (8) C13, (1) C19 3.4 (2U) x 17.3 x 22.6 63.9 $2,254

PW9130i3000R-XL2U 9130 3000 230V RACK 3000/2700 C20 (8) C13, (1) C19 3.4 (2U) x 17.3 x 22.6 65.0 $3,524

1. Input cord length is 6 ft

Online UPS (700–3000 VA)

The Eaton 9130 UPS delivers online power quality and scalable battery runtimes for servers, voice

and data networks, storage systems and other IT equipment.

• 4-post rail kit (2-post rail kit optional) . UPS unit designed to fit in 19 inch racks

• Fully integrates with Intelligent Power Software Suite for continuous up time of servers and virtual

machines. (Included)

• Provides up to 28% more real power (watts) to protect more equipment and leave room for expanding IT systems with a 0.9 power factor

• Simplifies UPS monitoring and management with a bright LCD user interface, intuitive power management software and optional eNotify

Remote Monitoring service

• Increases battery service life and system uptime up to 50% with ABM battery-charging technology and hot-swappable batteries

• Maximizes runtimes with optional extended battery modules

• Warranty (US and Canada): Two-year limited warranty, extended warranty, Onsite Flex and Onsite PowerTrust service plans

44 EATON INDUSTRIES (CANADA) COMPANY Canadian Reference Guide & Pricebook

January 1, 2014

9130 RACK OPTIONS

Style Input Output Dimensions Weight List

Catalog Number Number Description Connection Receptacles (H x W x D, inches) (lb) Price

Extended Battery Modules

PW9130N1000R-EBM2U1 – PW9130 700/1000 EBM Rack – – 3.4 (2U) x 17.3 x 16.9 48.7 $753

PW9130N1500R-EBM2U2 – PW9130 1500 EBM Rack – – 3.4 (2U) x 17.3 x 16.9 62.0 $753

PW9130N3000R-EBM2U3 – PW9130 2000/2500/3000 EBM Rack – – 3.4 (2U) x 17.3 x 22.6 90.6 $887

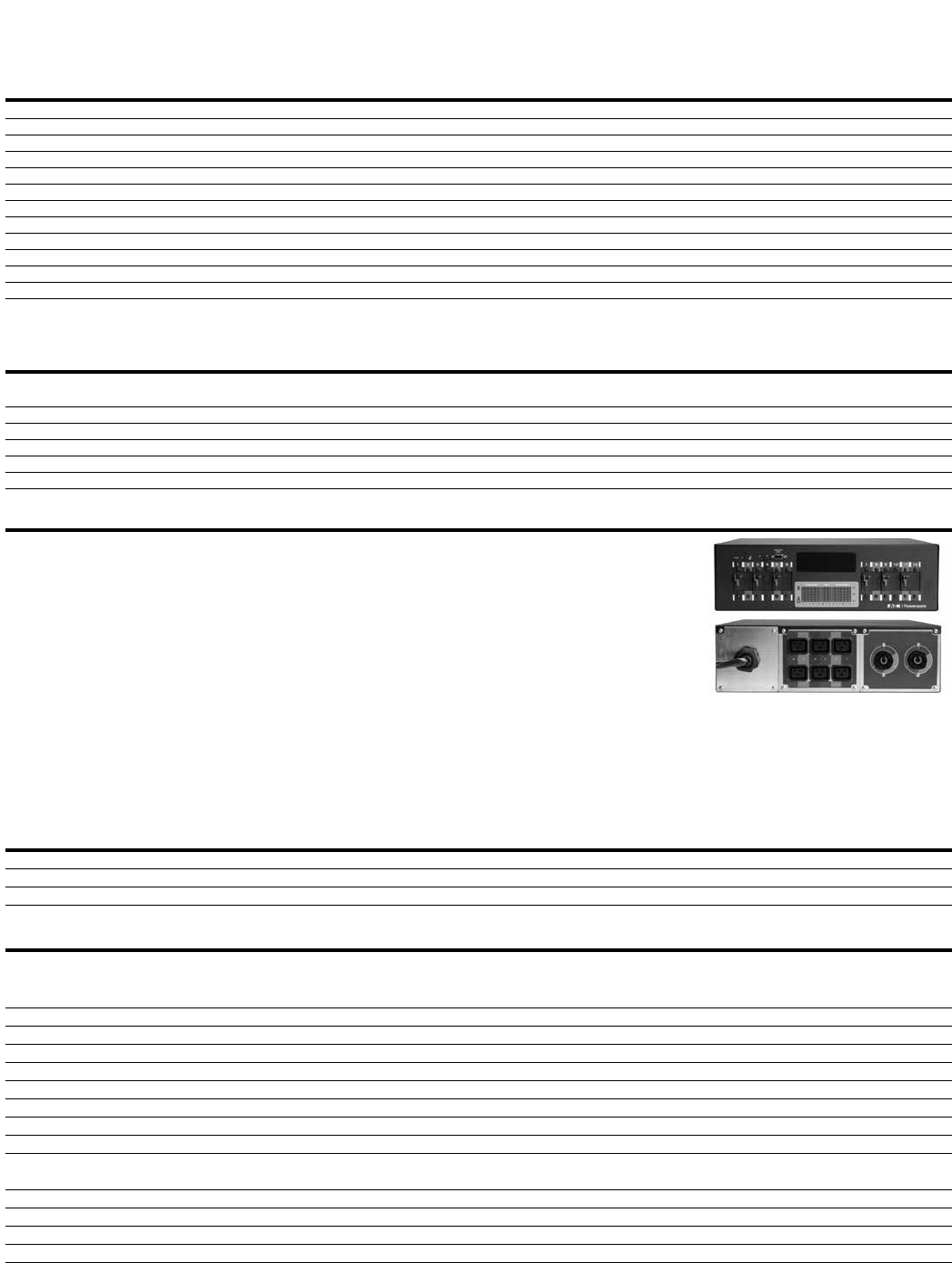

PowerPass® Distribution Modules (PPDMs)

EPPDMG3000R-2U-15 103007535-6591 PPDM1-HV-US-P2 3 kVA IEC320-C204 (1) L5-30R 3.5 (2U) x 17.0 x 23.9 76.0 $1,040

& (6) 5-20R

EPPDMG3000R-2U-HW5 103007536-6591 PPDM1-HV-US-HW 3 kVA (ROHS) Hardwire Hardwire 3.5 (2U) x 17.0 x 23.9 76.0 $1,040

EPPDML3000R-2U-HW6 103007537-6591 PPDM2-LV-US-HW 3 kVA (ROHS) Hardwire Hardwire 3.5 (2U) x 17.0 x 23.9 20.0 $831

EPPDML3000R-2U-46 103006843-6591 PPDM2-LV-US-P1 3 kVA L5-30P4 (1) L5-30R 3.5 (2U) x 17.0 x 23.9 20.0 $831

& (6) 5-20R

– 103002731-65915 PPDM1-HV-US-P3 3 kVA C20 (6) 5-20R 3.5 (2U) x 17.0 x 23.9 76.0 $1,040

Two-post rail kit

103007018-5591 Two-post rack mounting rail kit - - $107

(supports 2U models only; 3 kVA PPDM not supported)

Power distribution and maintenance bypass

EHBPL1500R-PDU1U7 - HotSwap Maintenance Bypass (MBP) 5-15P (6) 5-15R 2.1 (2U) x 17.3 x 3.8 - $308

EHBPL2000R-PDU1U8 - HotSwap Maintenance Bypass (MBP) 5-20P (6) 5-15R 2.1 (2U) x 17.3 x 3.8 - $368

EHBPL3000R-PDU1U9 - HotSwap Maintenance Bypass (MBP) L5-30P (5) 5-20R 2.1 (2U) x 17.3 x 3.8 - $535

For detailed information on FlexPDU and HotSwap Maintenance Bypass products, please refer to the Eaton Power Distribution and Enclosures section.

1. This EBM works with 700/1000 VA models, where available

2. This EBM works with 1500 VA model

3. This EBM works with 2000/2500/3000 VA models, where available

4. Connection cables to the UPS are included with the PPDM; use the input cord from the UPS as input to the PPDM, except for hardwire units

5. These PPDMs work with the following 9130 models: PW9130G3000R-XL2UEU and PW9130i3000R-XL2U.

6. These PPDMs work with the following 9130 models: PW9130L2500R-XL2U and PW9130L3000R-XL2U.

7. This HotSwap MBP works with the following 9130 models: PW9130L700R-XL2U, PW9130L1000R-XL2U, PW9130L1500R-XL2U

8. This HotSwap MBP works with the following 9130 model: PW9130L2000R-XL2U

9. This HotSwap MBP works with the following 9130 models: PW9130L2500R-XL2U, PW9130L3000R-XL2U

SOFTWARE AND CONNECTIVITY OPTIONS

Catalog Number Description List Price

Network-MS Network Card-MS $385

See software and connectivity product sections for more detail.

EATON 9130 UPS RACKMOUNT

Powerware series (continued)

SERVICES

For detailed information on service plans, please refer to the Single-phase Service section on page 108.

45www.eaton.com/powerquality 1.800.461.9166

January 1, 2014

January 1, 2014

9130 RACK MODELS BATTERY BACKUP TIMES (in minutes) @ 0.7 Power Factor*

Internal

VA/Watts Batteries +1EBM +2 EBMs +3 EBMs +4 EBMs

PW9130L700R-XL2U

700/490 14 55 102 148 175

525/368 20 77 140 179 239

350/245 32 124 189 282 414

175/123 64 200 395 552 739

PW9130L1000R-XL2U

1000/700 10 40 73 108 149

750/525 13 58 101 152 219

500/350 24 85 172 249 304

250/175 48 190 310 451 569

PW9130i1000R-XL2U

1000/700 10 40 78 110 150

750/525 13 55 103 151 223

500/350 22 82 186 250 312

250/175 47 190 328 431 584

PW9130L1500R-XL2U

1500/1050 7 34 63 88 135

1125/788 11 44 84 129 210

750/525 18 79 148 207 267

375/263 38 167 278 475 540

PW9130i1500R-XL2U

1500/1050 7 32 61 98 128

1125/788 11 47 83 126 195

750/525 18 81 143 208 262

375/263 38 171 298 416 564

PW9130L2000R-XL2U

2000/1400 9 45 86 124 163

1500/1050 14 66 115 165 225

1000/700 26 101 185 251 343

500/350 52 197 353 481 629

PW9130i2000R-XL2U

2000/1400 9 46 83 118 163

1500/1050 13 64 118 170 221

1000/700 25 95 190 242 345

500/350 53 205 346 488 625

PW9130L2500R-XL2U

2500/2250 7 31 59 87 119

1875/1688 10 43 81 121 154

1250/1125 17 65 120 163 203

625/563 40 145 228 363 491

PW9130L3000R-XL2U

3000/2100 5 25 48 72 100

2250/1575 8 37 72 102 137

1500/1050 13 60 100 165 223

750/525 34 138 228 326 438

PW9130G3000R-XL2U / PW9130G3000R-XL2UEU / PW9130i3000R-XL2U

3000/2100 6 25 45 68 96

2250/1575 8 34 70 96 130

1500/1050 14 62 92 156 211

750/525 34 130 212 355 442

*Battery backup times are approximate and may vary with equipment, configuration, battery age, temperature, etc. The 9130 has a 0.9 power factor, but runtimes are shown here at 0.7 power factor for

easy comparison against competitors' products, which have a 0.7 power factor.

EATON 9130 UPS RACKMOUNT

Powerware series (continued)

View interactive runtime graphs

at www.eaton.com/9130rm

46 EATON INDUSTRIES (CANADA) COMPANY Canadian Reference Guide & Pricebook

January 1, 2014

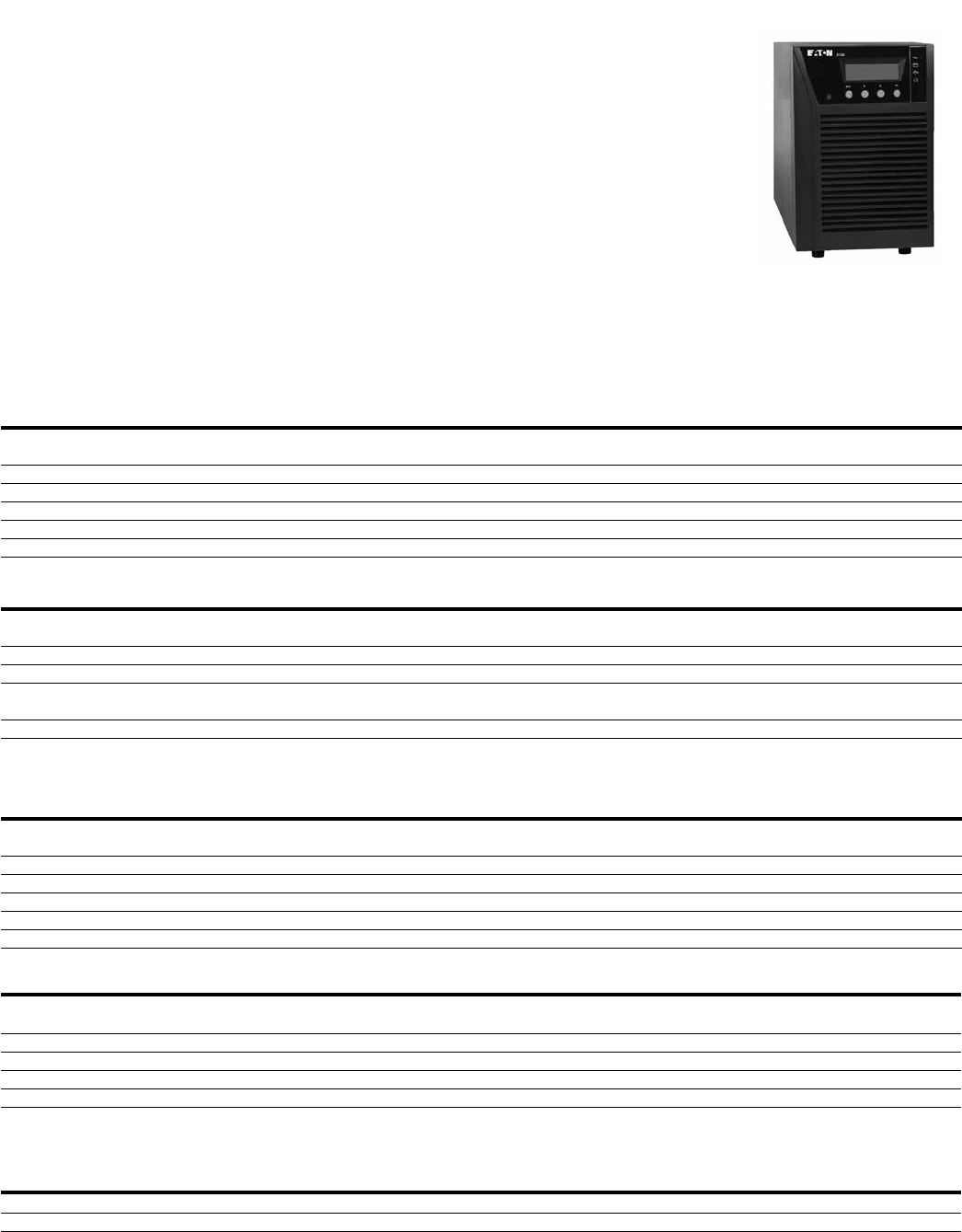

EATON 9130 UPS TOWER

Powerware series

Online UPS (700–3000 VA)

The Eaton 9130 UPS delivers online power quality and scalable battery runtimes for servers, voice and data networks,

storage systems and other IT equipment.

• Cuts energy usage and costs with >95% efficiency rating in high efficiency mode

• Displays critical UPS information on a bright lit, configurable LCD screen

• Ships with free monitoring and management software, perfect for virtualized environments

• True tower form factor

• Provides up to 22% more real power (watts) to protect more equipment and leave room for expanding IT systems with

a 0.9 power factor

• Increases battery service life and system uptime up to 50% with ABM battery-charging technology and hot-swappable batteries

• Maximizes runtimes with optional extended battery modules (compatible with all units except the 700 VA tower models)

• Warranty (US and Canada): Two-year limited warranty, extended warranty, Onsite Flex and Onsite PowerTrust service plans

9130 NORTH AMERICAN TOWER MODELS: 120V, 50/60 Hz

Catalog Rating Input Output Dimensions Weight List

Number Description (VA/Watts) Connection1 Receptacles (H x W x D, inches) (lb) Price

PW9130L700T PW9130 700 120V TOWER 700/630 5-15P (6) 5-15R 9.1 x 6.3 x 13.9 26.5 $951

PW9130L1000T-XL PW9130 1000 120V TOWER 1000/900 5-15P (6) 5-15R 9.1 x 6.3 x 15.1 30.9 $1,227

PW9130L1500T-XL PW9130 1500 120V TOWER 1500/1350 5-15P (6) 5-15R 9.1 x 6.3 x 17.0 41.8 $1,692

PW9130L2000T-XL PW9130 2000 120V TOWER 2000/1800 5-20P (1) L5-20, (4) 5-20R 12.8 x 8.4 x 16.2 77.2 $2,146

PW9130L3000T-XL PW9130 3000 120V TOWER 3000/2700 L5-30P (4) 5-20R, (1) L5-30R 12.8 x 8.4 x 16.2 77.2 $3,361

1. Input cord length is 6 ft

9130 GLOBAL TOWER MODELS: 208V, 50/60 Hz

Catalog Rating Input Output Dimensions Weight List

Number Description (VA/Watts) Connection1 Receptacles (H x W x D, inches) (lb) Price

PW9130G2000T-XL PW9130 2000G TOWER 2000/1800 L6-20P2 (1) L6-20R, (4) 6-20R 12.8 x 8.4 x 16.2 77.2 $2,136

PW9130G2000T-XLEU PW9130 2000G EU TOWER 2000/1800 L6-20P2 (8) C13, (1) C19 12.8 x 8.4 x 16.1 76.1 $2,136

PW9130G3000T-XL PW9130 3000G TOWER 3000/2700 L6-20P3 (1) L6-30R, (1) L6-20R, 12.8 x 8.4 x 16.2 77.2 $3,334

(2) 6-20R

PW9130G3000T-XLEU PW9130 3000G EU TOWER 3000/2700 L6-20P3 (8) C13, (1) C19 12.8 x 8.4 x 16.2 77.2 $3,334

1. Input cord length is 6 ft

2. C14, w/detachable 6' L6-20P cord

3. C20, w/detachable L6-20P

9130 INTERNATIONAL TOWER MODELS: 230V, 50/60 Hz

Catalog Rating Input Output Dimensions Weight List

Number Description (VA/Watts) Connection1 Receptacles (H x W x D, inches) (lb) Price

PW9130i700T PW9130 700 230V TOWER 700/630 C14 (6) C13 9.1 x 6.3 x 13.9 26.5 $931

PW9130i1000T-XL PW9130 1000 230V TOWER 1000/900 C14 (6) C13 9.1 x 6.3 x 15.1 30.9 $1,115

PW9130i1500T-XL PW9130 1500 230V TOWER 1500/1350 C14 (6) C13 9.1 x 6.3 x 17.0 41.8 $1,650

PW9130i2000T-XL PW9130 2000 230V TOWER 2000/1800 C14 (8) C13, (1) C19 12.8 x 8.4 x 16.2 77.2 $2,177

PW9130i3000T-XL PW9130 3000 230V TOWER 3000/2700 C20 (8) C13, (1) C19 12.8 x 8.4 x 16.2 77.2 $3,225

1. Input cord length is 6 ft

9130 OPTIONS

Catalog Dimensions Weight List

Number Description (H x W x D, inches) (lb) Price

Extended Battery Modules

PW9130N1000T-EBM1 PW9130 1000 EBM Tower 9.1 x 6.3 x 15.1 41.8 $623

PW9130N1500T-EBM2 PW9130 1500 EBM Tower 9.1 x 6.3 x 17.0 52.9 $785

PW9130N3000T-EBM3 PW9130 2000/3000 EBM Tower 12.8 x 8.4 x 16.2 110.2 $898

1. This EBM works with 1000 VA model

2. This EBM works with 1500 VA model

3. This EBM works with 2000/3000 VA models

SOFTWARE AND CONNECTIVITY OPTIONS

Catalog Number Description List Price

Network-MS Network Card-MS $385

See software and connectivity product sections for more detail.

47www.eaton.com/powerquality 1.800.461.9166

January 1, 2014

January 1, 2014

9130 TOWER MODELS BATTERY BACKUP TIMES (in minutes) @ 0.7 Power

Factor*

Internal

VA/Watts Batteries +1EBM +2 EBMs +3 EBMs +4 EBMs

PW9130L700T

700/490 8 N/A N/A N/A N/A

525/368 12 N/A N/A N/A N/A

350/245 21 N/A N/A N/A N/A

175/123 37 N/A N/A N/A N/A

PW9130i700T

700/490 8 N/A N/A N/A N/A

525/368 12 N/A N/A N/A N/A

350/245 19 N/A N/A N/A N/A

175/123 35 N/A N/A N/A N/A

PW9130L1000T-XL

1000/700 10 40 73 108 149

750/525 13 58 101 152 219

500/350 24 85 172 249 304

250/175 48 190 310 451 569

PW9130i1000T-XL

1000/700 10 40 78 110 150

750/525 13 55 103 151 223

500/350 22 82 186 250 312

250/175 47 190 328 431 584

PW9130L1500T-XL

1500/1050 7 34 63 88 135

1125/788 11 44 84 129 210

750/525 18 81 143 208 262

375/263 38 171 298 416 564

PW9130i1500T-XL

1500/1050 7 32 61 88 135

1125/788 11 47 83 126 195

750/525 18 81 143 208 262

375/263 38 171 298 416 564

PW9130L2000T-XL

2000/1400 15 61 111 156 194

1500/1050 21 81 145 184 269

1000/700 34 129 198 193 410

500/350 72 225 449 590 766

PW9130G2000T-XL / XLEU / PW9130i2000T-XL

2000/1400 15 61 111 156 186

1500/1050 21 81 145 184 248

1000/700 34 129 198 293 410

500/350 72 225 449 590 766

PW9130L3000T-XL

3000/2100 9 35 66 95 132

2250/1575 13 53 100 139 183

1500/1050 22 86 153 221 267

750/525 69 168 298 395 545

PW9130G3000T-XL / XLEU / PW9130i3000T-XL

3000/2100 9 36 68 101 137

2250/1575 12 49 90 134 165

1500/1050 20 79 143 180 240

750/525 46 161 267 434 547

*Battery backup times are approximate and may vary with equipment, configuration, battery age, temperature, etc. The 9130 has a 0.9 power factor, but runtimes are shown here at 0.7 power factor for

easy comparison against competitors' products, which have a 0.7 power factor.

EATON 9130 UPS TOWER

Powerware series (continued)

View interactive runtime graphs

at www.eaton.com/9130

SERVICES

For detailed information on service plans, please refer to the Single-phase Service section on page 108.

48 EATON INDUSTRIES (CANADA) COMPANY Canadian Reference Guide & Pricebook

January 1, 2014

EATON 9PX SP UPS RACK/TOWER SPLIT-PHASE

6-10 kVA Split-phase

Delivering premium backup power and scalable battery runtimes for servers, voice/data networks and

storage systems, the Eaton 9PX SP UPS is the ideal solution for both rack and stand-alone installations. With

an advanced LCD screen interface and robust power management software, managing a UPS has never

been easier with the 9PX—even in virtualized environments.

• SP models offer both 120 and 208 output without a transformer saving, u space, weight and cost

• Graphical LCD screenenables you to customize UPS settings, diagnose UPS alarms and view load and

power consumption

• Provides more real power (watts) to protect more equipment and leave room for expanding IT systems

• Delivers added runtime with extended battery modules and extends battery service life by 50% with ABM Technology

• Virtualization-ready UPS includes connectivity card

• Cuts energy usage and costs with 93% efficiency rating in default, online mode

• Maximizes availability with extended battery runtime options, hot-swappable batteries, internal bypass and optional

maintenance bypass

• Fully integrates with Intelligent Power Software Suite for continuous up time of servers and virtual machines. (Included)

• 4-post rail kit included (2-post rail kit optional for 9PX6KSP)

• Warranty (US and Canada): Two-year limited warranty, five-year extended warranty plans available, $250,000 load

protection guarantee

9PX SP 6-10 kVA RACK/TOWER: 120/208 or 120/240** OUTPUT, 50/60 Hz, SPLIT-PHASE

Catalog Rating Input Output Dimensions Weight List

Number Description (VA/Watts) Connection Receptacles (H x W x D, inches) (lb) Price

9PX6KSP 6kVA 9PX SP UPS 5500/4900**** L14-30P*** (1) L14-30R, (1) L6-30R, 6.8 (4U) x 17.3 x 25.6 157.3 $7,329

(6) 5-20R, Hardwired

9PX8KSP 8kVA 9PX SP UPS 8000/7200 Hardwired (2) L14-30R, (1) L6-30R, 10.3 (6U) x 17.3 x 27.6 225.0 $9,646

Hardwired

9PX10KSP 10kVA 9PX SP UPS 10000/9000 Hardwired (2) L14-30R, (1) L6-30R, 10.3 (6U) x 17.3 x 27.6 225.0 $11,800

Hardwired

**UPS and EBM ship with a 4-post rail kit, 9RK ***Terminal block with L14-30P cord **** 6K models derated at 100/200, 120/208, 110/220V (see technical specs)

9PX SPLIT-PHASE OPTIONS

Catalog Input Output Dimensions Weight List

Number Description Connection Receptacles (H x W x D, inches) (lb) Price

Extended runtime

9PXEBM240SP 6K SP EBM (add up to 4 EBMs), Use with 9PX6KSP UPS 5.1 (3U) x 17.3 x 26.6 132 $1,588

EBMCBL240SP 9PX EBM Cable Extension 6kVA Split-Phase, 6ft $358

9PXEBM360SP 8/10K EBM (add up to 4 EBMs) Use with 9PX8KSP, 9PX10KSP UPS 5.1 (3U) x 17.3 x 25.4 163 $1,588

EBMCBL360SP 9PX EBM Cable Extension 8/10kVA Split-Phase, 6ft $358

Power distribution

PW105BA2U420 Basic ePDU for additional output receptacles. L6-30P (4) L6-20R 3.5 (2U) x 19.0 x 6.0 $736

2U form factor.

PW105BA0U421 Basic ePDU for additional output receptacles. L14-30P (24) 5-20R 66.0 (0U) x 1.89 x 2.0 $762

0U form factor.

PW105BA2U422 Basic ePDU for additional output receptacles. L14-30P (4) L6-20R 3.5 (2U) x 19.0 x 6.0 $826

2U form factor.

ePBZ79 Basic ePDU for additional output receptacles. L6-30P (16) C13 and (4) C19 1.7 (1U) x 17.0 x 5.1 $329

1U form factor.

CBL139 Splitter Cable L14-30P to (2) L6-30R (4ft/2ft) L14-30P (2) L6-30R $201

CBL143 Splitter Cable L14-30P to (2) L5-30R (4ft/2ft) L14-30P (4) L5-30R $201

Mounting Hardware (all modules include 4-post rail kits)

RK2PC 2-post rack mounting rail kit, works with 9PX6K UPS ONLY $111

BINTSYS Battery integration system - vertical mounting platform with wheels 7.9 x 20.5 x 31.5 30 $546

SERVICES

For detailed information on service plans, please refer to the Single-phase Service section on page 108.

49www.eaton.com/powerquality 1.800.461.9166

January 1, 2014

January 1, 2014

EATON 9PX SP UPS RACK/TOWER SPLIT-PHASE

(continued)

9PX 6 kVA BATTERY BACKUP TIMES (in minutes)**

Load (Watts) Internal Batteries +1 EBM +2 EBMs +3 EBMs +4 EBMs

100% 6 16 29 44 61

90% 7 18 32 48 68

80% 8 21 38 56 78

70% 10 25 44 66 90

60% 12 31 53 79 109

50% 15 38 66 96 133

40% 20 49 82 124 195

30% 27 68 113 198 259

9PX 11 kVA BATTERY BACKUP TIMES (in minutes)**

Load (Watts) Internal Batteries +1 EBM +2 EBMs +3 EBMs +4 EBMs

9000 5 13 22 33 47

8100 6 15 25 38 52

7200 7 17 30 44 61

6300 8 20 35 51 71

5400 9 24 43 62 86

4500 12 30 53 77 105

3600 16 40 68 99 135

2700 23 55 95 148 193

** Runtimes shown at full load with maximum power factor, are approximate and may vary with equipment, configuration, battery age, temperature, etc.View interactive runtime graphs at www.eaton.

com/9PX

50 EATON INDUSTRIES (CANADA) COMPANY Canadian Reference Guide & Pricebook

January 1, 2014

EATON 9PX UPS RACK/TOWER

5-6 kVA Bundles

Delivering premium backup power and scalable battery runtimes for servers, voice/data networks and

storage systems, the Eaton 9PX UPS is the ideal solution for both rack and stand-alone installations. With

an advanced LCD screen interface and robust power management software, managing a UPS has never

been easier with the 9PX—even in virtualized environments.

• Graphical LCD screenenables you to customize UPS settings, diagnose UPS alarms and view load and

power consumption

• Provides more real power (watts) to protect more equipment and leave room for expanding IT systems

• Delivers added runtime with extended battery modules and extends battery service life by 50% with ABM Technology

• Virtualization-ready UPS includes connectivity card

• Cuts energy usage and costs with 93% efficiency rating in default, online mode

• Maximizes availability with extended battery runtime options, hot-swappable batteries, internal bypass and optional

maintenance bypass

• Fully integrates with Intelligent Power Software Suite for continuous up time of servers and virtual machines. (Included)

• 4-post rail kit included (2-post rail kit optional)

• Warranty (US and Canada): Two-year limited warranty, five-year extended warranty plans available, $250,000 load

protection guarantee

9PX 5-6 kVA RACK/TOWER: 208/230V* OUTPUT, 50/60 Hz BUNDLES

Catalog Rating Input Output Dimensions Weight List

Number Description (VA/Watts) Connection1 Receptacles (H x W x D, inches) (lb) Price

9PX5K 5 kVA 9PX UPS 5000/4500 Terminal block with Hardwired + (2) L6-30R, 5.1 (3U) x 17.3 x 28.4 106 $5,624

L6-30P cord (2) L6-20R

9PX6K** 6 kVA 9PX UPS 6000/5400 Terminal block with Hardwired + (2) L6-30R, 5.1 (3U) x 17.3 x 28.4 106 $6,216

L6-30P cord (2) L6-20R

9PX6KG** 6 kVA 9PX UPS Global 6000/5400 Hardwired Hardwired + (2) C19, 5.1 (3U) x 17.3 x 27.0 106 $6,216

(8) C13

* 9PX 5K, 6K operate at 200, 208 (default), 220, 230, 240V ** 6K models derated at 200, 208, 220V (see technical specs)

9PX 5-6 kVA RACK/TOWER: 120/208/230V** OUTPUT, 50/60 Hz BUNDLES

Catalog Rating Input Output Dimensions Weight List

Number Description (VA/Watts) Connection Receptacles (H x W x D, inches) (lb) Price

9PX5KTF5 5 kVA 9PX UPS and 5 kVA Transformer 5000/4500 Terminal block with (1) L6-30R, (2) L6-20R, 10.2 (6U) x 17.3 x 28.4 201 $6,577

L6-30P cord (18) 5-20R

9PX5KP1*** 5 kVA 9PX UPS and 6 kVA PPDM* 5000/4500 L6-30P (1) L14-30R, (1) L6-30R, 10.2 (6U) x 17.3 x 28.4 203 $6,661

(6) 5-20R

9PX5KP2*** 5 kVA 9PX UPS and 6 kVA PPDM* 5000/4500 Hardwired Hardwired 10.2 (6U) x 17.3 x 28.4 201 $6,661

9PX6KTF5 6 kVA 9PX UPS and 5 kVA Transformer 6000/5400 Terminal block with (1) L6-30R, (2) L6-20R, 10.2 (6U) x 17.3 x 28.4 201 $7,237

L6-30P cord (18) 5-20R

9PX6KP1*** 6 kVA 9PX UPS and 6 kVA PPDM* 6000/5400 L6-30P (1) L14-30R, (1) L6-30R, 10.2 (6U) x 17.3 x 28.4 203 $7,330

(6) 5-20R

9PX6KP2*** 6 kVA 9PX UPS and 6 kVA PPDM* 6000/5400 Hardwired Hardwired 10.2 (6U) x 17.3 x 28.4 201 $7,330

* PPDM provides external, wrap-around maintenance bypass ** 9PX 5K, 6K operates at 200, 208 (default), 220, 230, 240V *** 6K models derated at 200, 208, 220V (see technical specs)

9PX OPTIONS

Catalog Input Output Dimensions Weight List

Number Description Connection Receptacles (H x W x D, inches) (lb) Price

Extended runtime

9PXEBM180RT 5/6 kVA EBM (add up to 4 EBMs), Cable is 18" in length 5.1 (3U) x 17.3 x 25.4 150 $1,567

EBMCBL180 6-foot battery extension cable for EBM $160

CBLADAPT180 Adapter cable from Eaton 9135/MX UPS or EBM to 5/6 kVA 9PX UPS models $135

Mounting Hardware (all modules include 4-post rail kits)

RK2PC 2-post rack mounting rail kit $112

BINTSYS Battery integration system - vertical mounting platform with wheels 7.9 x 20.5 x 31.5 30 $547

Power distribution and maintenance bypass

MBP6K208 Rear-mount 3U, 208V maintenance bypass Hardwired Hardwired + (2) L6-30R $608

for 5 and 6 kVA 9PX UPS models

PW105BA2U420 Basic ePDU for additional output receptacles. L6-30P (4) L6-20R 3.5 (2U) x 19.0 x 6.0 $737

2U form factor.

PW105BA0U421 Basic ePDU for additional output receptacles. L14-30P (24) 5-20R 66.0 (0U) x 1.89 x 2.0 $762

0U form factor.

51www.eaton.com/powerquality 1.800.461.9166

January 1, 2014

January 1, 2014

EATON 9PX UPS RACK/TOWER (continued)

9PX OPTIONS

(continued)

Catalog Rating Input Output Dimensions Weight List

Number Description (VA/Watts) Connection Receptacles (H x W x D, inches) (lb) Price

Power distribution and maintenance bypass (continued)

PW105BA2U422 Basic ePDU for additional output receptacles. L14-30P (4) L6-20R 3.5 (2U) x 19.0 x 6.0 $826

2U form factor.

ePBZ79 Basic ePDU for additional output receptacles. L6-30P (16) C13 and (4) C19 1.7 (1U) x 17.0 x 5.1 $330

1U form factor.

Transformer accessories*

9PXTFMR5 9PX 5 kVA stepdown transformer 5000 L6-30P (18) 5-20R 5.1 (3U) x 17.3 x 25.4 95 $1,120

9PXPPDM1 9PX PowerPass Distribution Module 6000 L6-30P (1) L14-30R, (1) L6-30R, 5.1 (3U) x 17.3 x 25.4 97 $1,278

(plug-and-play) (6) 5-20R

9PXPPDM2 9PX PowerPass Distribution Module 6000 Hardwired Hardwired 5.1 (3U) x 17.3 x 25.4 95 $1,278

(Hardwired)

* These transformer accessories may be ordered a la cart but for best pricing they should be purchased as bundled solution.

9PX BATTERY BACKUP TIMES (in minutes)**

Load (Watts) Internal Batteries +1 EBM +2 EBMs +3 EBMs +4 EBMs

5400 3.0 16 28 47 58

4050 4.5 24 45 62 90

2700 8.5 38 71 104 133

1350 22.0 85 147 214 287

540 57.0 203 399 554 755

** Runtimes shown at full load with maximum power factor, are approximate and may vary with equipment, configuration, battery age, temperature, etc.View interactive runtime graphs at www.eaton.

com/9PX

SERVICES

For detailed information on service plans, please refer to the Single-phase Service section on page 108.

52 EATON INDUSTRIES (CANADA) COMPANY Canadian Reference Guide & Pricebook

January 1, 2014

EATON 9PX UPS RACK/TOWER

8-11 kVA Bundles

Delivering premium backup power and scalable battery runtimes for servers, voice/data networks and

storage systems, the Eaton 9PX UPS is the ideal solution for both rack and stand-alone installations. With

an advanced LCD screen interface and robust power management software, managing a UPS has never

been easier with the 9PX—even in virtualized environments.

• Graphical LCD screenenables you to customize UPS settings, diagnose UPS alarms and view load and

power consumption

• Provides more real power (watts) to protect more equipment and leave room for expanding IT systems

• Delivers added runtime with extended battery modules and extends battery service life by 50% with ABM Technology

• Virtualization-ready UPS includes connectivity card

• Cuts energy usage and costs with 94% efficiency rating in default, online mode

• Maximizes availability with extended battery runtime options, hot-swappable batteries, internal bypass and optional

maintenance bypass

• Fully integrates with Intelligent Power Software Suite for continuous up time of servers and virtual machines. (Included)

• 4-post rail kit included

• Warranty (US and Canada): Two-year limited warranty, five-year extended warranty plans available, $250,000 load

protection guarantee

9PX RACK/TOWER: 208/230V* OUTPUT, 50/60 Hz BUNDLES

Catalog Rating Input Output Dimensions Weight List

Number Description (VA/Watts) Connection1 Receptacles (H x W x D, inches) (lb) Price

9PX8KHW 8 kVA 9PX UPS power module 8000/7200 Hardwired Hardwired 10.2 (6U) x 17.3 x 27.6 190 $7,471

and 11 kVA EBM

9PX8K 8 kVA 9PX UPS power module, 8000/7200 Hardwired Hardwired + (3) L6-30R 10.2 (6U) x 17.3 x 30.0 205 $8,014

11 kVA EBM and 11 kVA MBP

9PX11KHW** 11 kVA 9PX UPS power module 11000/10000 Hardwired Hardwired 10.2 (6U) x 17.3 x 27.6 190 $9,027

and 11 kVA EBM

9PX11K** 11 kVA 9PX UPS power module, 11000/10000 Hardwired Hardwired + (3) L6-30R 10.2 (6U) x 17.3 x 30.0 205 $9,474

11 kVA EBM and 11 kVA MBP

* 9PX 8K, 11K operate at 200, 208 (default), 220, 230, 240, 250V ** 11K models derated at 200, 208, 220, 250V (see technical specs)

9PX RACK/TOWER: 120/208/230V OUTPUT, 50/60 Hz BUNDLES

Catalog Rating Input Output Dimensions Weight List

Number Description (VA/Watts) Connection Receptacles (H x W x D, inches) (lb) Price

9PX8KTF5 8 kVA 9PX UPS power module, 8000/7200 Hardwired Hardwired + (2) L6-30R, 15.3 (9U) x 17.3 x 30.0 300 $9,012

11 kVA EBM, 11 kVA MBP and 5 kVA Transformer (18) 5-20R

9PX11KTF5* 11 kVA 9PX UPS power module, 11000/10000 Hardwired Hardwired + (2) L6-30R, 15.3 (9U) x 17.3 x 30.0 300 $10,578

11 kVA EBM, 11 kVA MBP and 5 kVA Transformer (18) 5-20R

9PX11KTF11* 11 kVA 9PX UPS power module, 11000/10000 Hardwired Hardwired + (2) L14-30R, 15.3 (9U) x 17.3 x 27.6 377 $11,799

11 kVA EBM and 10 kW Transformer (8) 5-20R

* 11K models derated at 200, 208, 220, 250V (see technical specs)

9PX OPTIONS

Catalog Input Output Dimensions Weight List

Number Description Connection Receptacles (H x W x D, inches) (lb) Price

Extended runtime

9PXEBM240RT 8/11 kVA EBM (add up to 5 EBMs), Cable is 18" in length 5.1 (3U) x 17.3 x 25.4 150 $1,561

EBMCBL240 6-foot battery extensioncable for EBM $

CBLADAPT240 Adapter cable from Eaton EX RT UPS or EBM to 8/11 kVA 9PX UPS models $

BINTSYS Battery integration system - vertical mounting platform with wheels 7.9 x 20.5 x 31.5 30 $547

SC240RT 240V supercharger module to add up to 12 EBMs to 8 /11 kVA 9PX UPS models. 5.1 (3U) x 17.3 x 26.8 34 $816

Includes 4-post rail kit

Power distribution and maintenance bypass

MBP11K208 Rear-mount 3U, 208V maintenance bypass module Hardwired Hardwired + (3) L6-30R $970

for 8/11 kVA 9PX UPS models.

PW105BA2U420 Basic ePDU for additional output receptacles. L6-30P (4) L6-20R 3.5 (2U) x 19.0 x 6.0 $737

2U form factor

PW105BA0U421 Basic ePDU for additional output receptacles. L14-30P (24) 5-20R 66.0 (0U) x 1.89 x 2.0 $762

0U form factor.

PW105BA2U422 Basic ePDU for additional output receptacles. L14-30P (4) L6-20R 3.5 (2U) x 19.0 x 6.0 $826

2U form factor.

ePBZ79 Basic ePDU for additional output receptacles. L6-30P (16) C13 and (4) C19 1.7 (1U) x 17.0 x 5.1 $330

1U form factor.

53www.eaton.com/powerquality 1.800.461.9166

January 1, 2014

January 1, 2014

EATON 9PX UPS RACK/TOWER (continued)

9PX OPTIONS

(continued)

Catalog Rating Input Output Dimensions Weight List

Number Description (VA/Watts) Connection Receptacles (H x W x D, inches) (lb) Price

Additional modules

9PXTFMR5 9PX 5 kVA stepdown transformer 5000/5000 L6-30P (18) 5-20R 5.1 (3U) x 17.3 x 25.4 95 $1,120

9PXTFMR11 9PX 10 kW stepdown transformer 10000/10000 Hardwired Hardwired + (2) L14-30R, 5.1 (3U) x 17.3 x 25.4 187 $3,267

(8) 5-20R

9PX8KPM* 9PX 8 kVA power module 8000/7200 Hardwired Hardwired 5.1 (3U) x 17.3 x 27.6 46 $5,814

9PX11KPM* 9PX 11 kVA power module 11000/10000 Hardwired Hardwired 5.1 (3U) x 17.3 x 27.6 46 $7,349

* These transformer accessories may be ordered a la cart but for best pricing they should be purchased as bundled solution.

9PX BATTERY BACKUP TIMES (in minutes)**

Load (Watts) Internal Batteries +1 EBM +2 EBMs +3 EBMs +4 EBMs +5 EBMs

10000 3 10 18 25 34 42

7500 5.5 15 25 37 48 61

5000 10 25 42 61 80 98

2500 25 60 97 136 163 184

** Runtimes shown at full load with maximum power factor, are approximate and may vary with equipment, configuration, battery age, temperature, etc.View interactive runtime graphs at www.eaton.

com/9PX

SERVICES

For detailed information on service plans, please refer to the Single-phase Service section on page 108.

54 EATON INDUSTRIES (CANADA) COMPANY Canadian Reference Guide & Pricebook

January 1, 2014

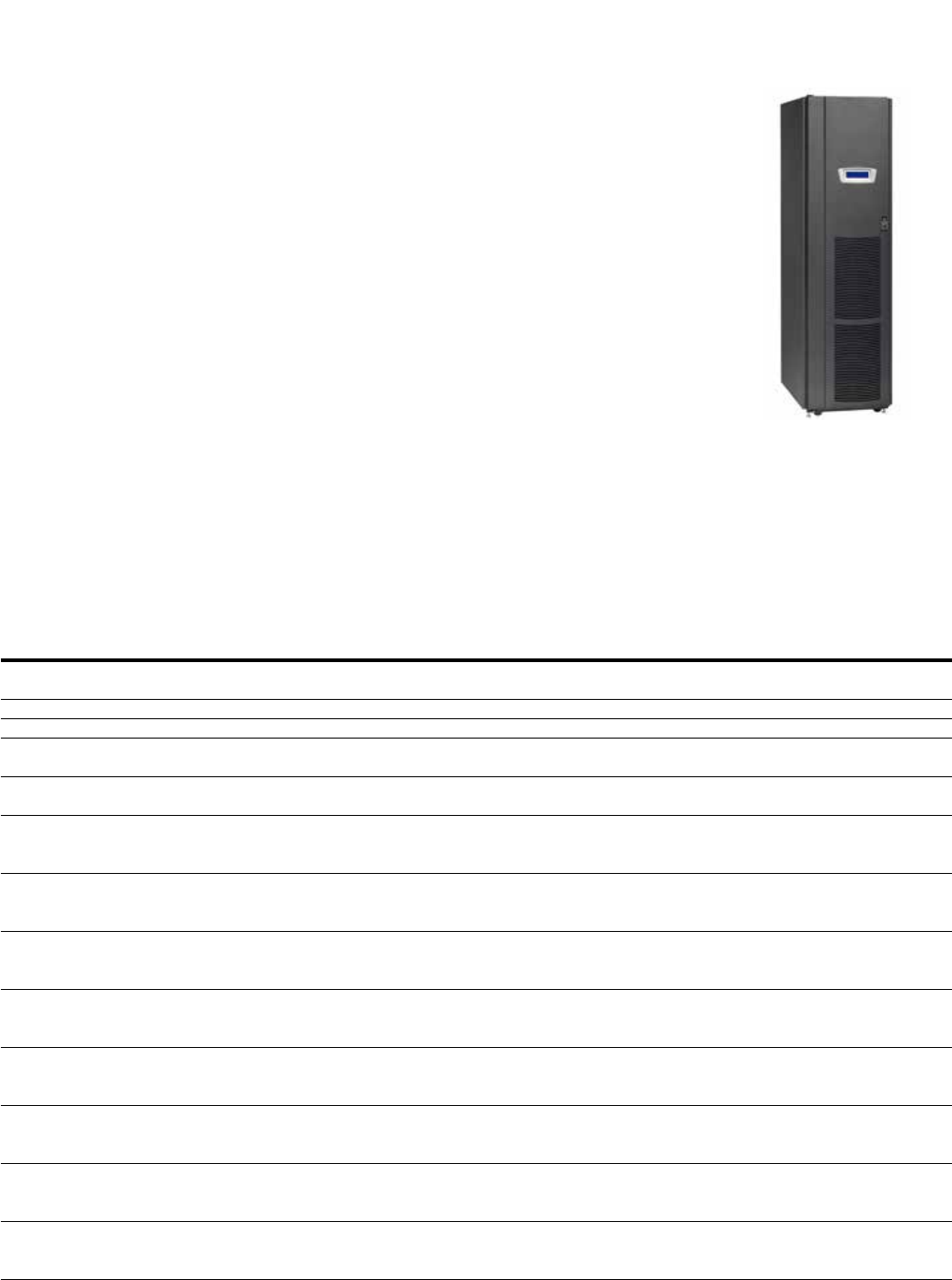

EATON 9155 UPS

Powerware series

Online double-conversion UPS (8–15 kVA)

This innovative design delivers one of the industry's best combinations of high efficiency, low input current distortion and

highest power factor, while conserving valuable space and offering the most cost-effective, highest performance option

available today.

• True online double-conversion topology protects equipment from all nine of the most common power problems

• Industry leading power density, providing up to 13 percent more power capacity in a compact tower design including

batteries

• Up to 200 percent more standard runtime out of the box, 600 percent more runtime in a smaller footprint with a 3-high module

• Up to a 74 percent footprint reduction

• Flexible voltages, as split-phase architecture creates up to 15 kVA at 100, 120, 208 or 240 Vac with no transformers required

• Flexible on-board power distribution modules (PDMs) allow for hardwired output or up to 15 different output receptacle

options, reducing installation and site preparation expenses

• Plug-and-play rack Enclosure power distribution with the on-board PDU

• Inherently scalable from 8–15 kVA, allowing you to pay as you grow or increase capacity with no additional hardware

purchases or installation concerns

• Eaton’s patented Hot Sync paralleling technology allows for wireless paralleling in the event of communications failure,

providing the industry’s only truly redundant paralleling technology

• Flexible 0 footprint extended run configurations allow for adding additional runtime in the same industry-leading compact

footprint available

• Includes on-site 5x8 startup and operator training by Eaton field technician

• Includes one year of eNotify remote monitoring service (requires connectivity parts and self installation)

• Includes one year local (250 km) 5x8 Corrective warranty, Local 5x8 start-up

9155 MODELS

Part Rating2 Input Output Dimensions Weight3 List

Model Number1 (kVA/kW) Connection Receptacles (H x W x D, inches) (lb) Price

PW9155 8 kVA 32 Battery (2-high) K40811000000000 8/7.2 Hardwired Optional 32.2 x 12.0 x 33.7 352 $11,032

PW9155 8 kVA 64 Battery (3-high) K40812000000000 8/7.2 Hardwired Optional 47.8 x 12.0 x 33.7 590 $13,118

PW9155 8 kVA 32 Battery K40813000000000 8/7.2 Hardwired Optional 47.8 x 12.0 x 33.7 558 $15,169

w/Trans. Mod. (3-high)

PW9155 10 kVA 32 Battery (2-high) K41011000000000 10/9 Hardwired Optional 32.2 x 12.0 x 33.7 352 $12,656

PW9155 10 kVA 64 Battery (3-high) K41012000000000 10/9 Hardwired Optional 47.8 x 12.0 x 33.7 590 $15,078

PW9155 10 kVA 32 Battery K41013000000000 10/9 Hardwired Optional 47.8 x 12.0 x 33.7 558 $17,339

w/Trans. Mod. (3-high)

PW9155 12 kVA 32 Battery (2-high) K41211000000000 12/10.8 Hardwired Optional 32.2 x 12.0 x 33.7 352 $13,309

PW9155 12 kVA 64 Battery (3-high) K41212000000000 12/10.8 Hardwired Optional 47.8 x 12.0 x 33.7 590 $15,754

PW9155 12 kVA 32 Battery K41213000000000 12/10.8 Hardwired Optional 47.8 x 12.0 x 33.7 558 $17,925

w/Trans. Mod. (3-high)

PW9155 15 kVA 32 Battery (2-high) K41511000000000 15/13.5 Hardwired Optional 32.2 x 12.0 x 33.7 352 $14,461

PW9155 15 kVA 64 Battery (3-high) K41512000000000 15/13.5 Hardwired Optional 47.8 x 12.0 x 33.7 590 $17,215

PW9155 15 kVA 32 Battery K41513000000000 15/13.5 Hardwired Optional 47.8 x 12.0 x 33.7 558 $19,467

w/Trans. Mod. (3-high)

1. 50/60 Hz auto-sensing. All models can be used for frequency/phase conversion with derated 80% load, please refer to manual for details. 2. Input voltage 100/200, 110/220, 120/240, Vac 180° phase

displacement, 120/208, 127/220 Vac 120° phase displacement. Output voltages are user-selectable 100/200, 110/220, 120/240 Vac 180° phase displacement. 3. Weight is installed weight, add 47 lb

(2-modules high) or 50 lb (3-modules high) to determine shipping weight.

BUILT-IN CONNECTIVITY OPTIONS

Available X-Slot card options (The UPS has two X-Slot bays available; one X-Slot card can be factory installed, the second X-Slot card can be ordered separately

and user-installed.)

Value for Part List

Description CTO Digit 8 Number (if ordered separately) Price

NONE (No Pre-installed X-Slot card) 0 - $0

Modbus Card-X-Slot 4 103005425-5591 $911

Relay Interface Card-X-Slot (AS/400 Compatible) 5 1018460 $202

Industrial Relay and Display Drive Card X-Slot 6 103003055 $462

SOFTWARE AND CONNECTIVITY OPTIONS

Description Part Number List Price

Power Xpert Gateway UPS Card PXGXUPS (103007974-5591) $621

Bundled with Intelligent Power Software Suite CD and communication cable. See the software and connectivity sections for more details.

55www.eaton.com/powerquality 1.800.461.9166

January 1, 2014

January 1, 2014

EATON 9155 UPS

Powerware series (continued)

OUTPUT RECEPTACLES AND MAINTENANCE BYPASS

Order Number Description Dimensions (H x W x D, inches) Weight (lb) List Price

See worksheet below: Power Distribution Module (PDM) with Mechanical 16.5 x 12.0 x 7.0 25.0 $1,020

Bypass Switch (rear UPS mount)*

Receptacle Codes (Qty) NEMA Type

(Select digits 9–12 in the CTO number)

Price Adder

PDM Worksheet CTO Description Voltage Phase per Receptacle Code Chosen

S Mechanical Bypass Module only $1,020

A (4) 5-15R 120V Single $225

B (4) 5-20R UL 120V Single $225

D (4) 6-15R 208V Dual $225

E (4) 6-20R 208V Dual $225

F (4) L5-15R 120V Single $225

G (2) L5-20R* 120V Single $225

H (2) L5-30R* 120V Single $225

I (2) L6-15R 208V Dual $225

J (2) L6-20R* 208V Dual $225

K (2) L6-30R* 208V Dual $225

L (2) L14-20R* 120/208V Dual $225

M (2) L14-30R* 120/208V Dual $225

X Blank Plate - - $21

0 (Zero) Last Product Identifier Number - - -

Notes: If any output receptacles are chosen, the Maintenance Bypass module will be included and will add $999 to the cost. Maximum 4 choices within CTO part number (9-12). The combined quantities

of LOCKING receptacles (denoted with a *) must not exceed four. Please be sure to utilize the "X" designation for any of the 4 total slots not populated. * Please contact factory for custom configuration

availability.

* If only mechanical bypass is chosen, remaining three slots should be populated with "0".

9155 OPTIONS

Model Number Description Dimensions (H x W x D, inches) Weight (lb) List Price

Hot Sync (Parallel Systems)*

124100017-001 9155 Parallel Tie Cabinet 24.00 x 20.30 x 6.00 80.0 $1,755

103004336 CAN Bridge Card - - $562

Note: Up to (3) PW9155s can be paralleled within the Parallel Tie Cabinet and each UPS must include a Hot Sync CAN Bridge Card installed in the 2nd X-Slot.

Extended Battery Module

103004192-5501 PW9155 EBM 64 (2-high Stack) 32.20 x 12.00 x 30.20 480.0 $6,595

103004193-5501 PW9155 EBM 96 (3-high Stack) 47.80 x 12.00 x 30.20 710.0 $9,409

Note: Up to (4) EBM64s or (3) EBM96s can be added for additional runtime.

Maintenance Bypass Module (MBM)

BPE20MBB1A Wall-mounted Maintenance Bypass Module 21.00 x 14.00 x 6.75 34.0 $1,828

9155 Upgrade Packages

103004195 PW9155 One-step kVA Upgrade Kit $1,378

103004196 PW9155 Two-step kVA Upgrade Kit $2,760

Seismic Kit

103004194-5501 Seismic kit, Rated Zone 4, UL tested, performance rating 136.0 $2,188

based on NEBS GR-63-CORE Standard Vibration Test

Notes: An 8 to 15 kVA upgrade would require purchase of a one and two-step upgrade. Up to three 9155s can be paralleled within the Parallel Tie Cabinet and each UPS must include CAN Bridge Card

installed in the second X-Slot. For extended runtime applications, each UPS must have dedicated and identical number of EBMs. Kit includes CAN Bridge Card and Instructions.

* Eaton startup is required for factory warranty of parallel configuration.

9155 SPARE PARTS

Description Part Number List Price

PW9155 Spares Kit 106711155 call

Spare parts kits MUST be purchased at the time of the UPS. If not purchasing at the time of the UPS then contact our Service Group, 1-800-356-5737, for pricing.

9155 UPGRADES

Description Part Number List Price

9155–2 Unit Parallel Upgrade Kit4 103004626 call for quotation

9155–3 Unit Parallel Upgrade Kit4 103004627 call for quotation

1. Up to three PW9155s can be paralleled with the parallel cabinet. 2. Each 9155 must have a Hot Sync Bridge CAN Card installed in the second X-Slot communication bay. 3. If extended runtime is

required for the application, then each UPS must have its own EBM and the same number of EBM(s). 4. Kit includes CAN Bridge Card and instructions.

56 EATON INDUSTRIES (CANADA) COMPANY Canadian Reference Guide & Pricebook

January 1, 2014

EATON 9155 UPS

Powerware series (continued)

9155 BATTERY BACKUP TIMES (in minutes) @ 0.9 Power Factor

Load UPS + Internal UPS + Internal

(VA/Watts) 32 Battery +1 EBM 64 +2 EBM 64 +3 EBM 64 +4 EBM 64 64 Battery +1 EBM 96 +2 EBM 96 +3 EBM 96

15000/13500 4.6 23.0 43.0 65.1 88.6 13.3 43.0 76.7 113.0

14500/13050 4.9 24.1 45.2 68.3 93.0 14.1 45.2 80.5 119.0

14000/12600 5.2 25.2 47.3 71.5 97.4 14.9 47.3 84.2 125.0

13500/12150 5.5 26.4 49.4 74.7 102.0 15.8 49.4 88.1 130.0

13000/11700 5.8 27.6 51.6 78.1 106.0 16.7 51.6 92.0 136.0

12500/11250 6.1 28.8 54.0 81.6 111.0 17.6 54.0 96.2 142.0

12000/10800 6.5 30.2 56.5 85.5 116.0 18.6 56.5 101.0 149.0

11500/10350 6.9 31.6 59.3 89.7 122.0 19.2 59.3 106.0 156.0

11000/9900 7.3 33.3 62.4 94.4 129.0 20.2 62.4 111.0 164.0

10500/9450 7.8 35.1 65.9 99.6 136.0 21.4 65.9 117.0 174.0

10000/9000 8.4 37.2 69.8 106.0 144.0 22.6 69.8 124.0 184.0

9500/8550 9.1 39.6 74.2 112.0 153.0 24.1 74.2 132.0 196.0

9000/8100 9.9 42.3 79.4 120.0 163.0 25.7 79.4 141.0 209.0

8500/7650 10.8 45.5 85.2 129.0 175.0 27.6 85.2 152.0 225.0

8000/7200 11.9 49.1 91.9 139.0 189.0 29.8 91.9 164.0 242.0

7500/6750 13.1 53.2 99.7 151.0 205.0 32.3 99.7 178.0 263.0

7000/6300 14.6 58.0 109.0 164.0 224.0 35.2 109.0 194.0 286.0

6500/5850 16.3 63.5 119.0 180.0 245.0 38.6 119.0 212.0 314.0

6000/5400 18.4 70.0 131.0 198.0 270.0 42.5 131.0 234.0 346.0

5500/4950 20.1 77.6 145.0 220.0 300.0 47.2 145.0 259.0 383.0

5000/4500 22.4 86.6 162.0 245.0 334.0 52.6 162.0 289.0 428.0

4500/4050 25.2 97.4 182.0 276.0 376.0 59.2 182.0 325.0 -

4000/3600 28.6 110.0 207.0 313.0 426.0 67.1 207.0 369.0 -

3500/3150 32.8 127.0 238.0 359.0 - 77.0 238.0 423.0 -

3000/2700 38.3 148.0 277.0 418.0 - 89.7 277.0 - -

2500/2250 45.6 176.0 329.0 - - 107.0 329.0 - -

Note: Backup times are approximate and may vary with equipment, configuration, battery age, temperature, etc.

SERVICES

For detailed information on service plans, please refer to the Three-phase Service section on page 112.

57www.eaton.com/powerquality 1.800.461.9166

January 1, 2014

January 1, 2014

Online double-conversion UPS (3–18 kVA)

Reliable online, high-frequency, double-conversion power protection that provides flexible solutions for mission-critical

applications.

• N + X power and logic redundancy eliminating all system level single point-of-failure

• Easily scalable to adapt to changing IT environments by simply adding power and/or battery modules

• Double-conversion, online design delivers the highest level of protection

• ABM technology significantly increases battery service life

• Hot-swappable battery and power modules, each weighing less than 30 pounds for easy handling and replacement

• Power management software bundle provides monitoring and shutdown capabilities

• Warranty (US and Canada): Two-year limited warranty and $250,000 load protection guarantee; optional Gold Plans

available

EATON 9170+ UPS RACK/TOWER

Powerware series

9170+ MODELS

Dimensions Weight List

Model Part Number (H x W x D, inches) (lb) Price

9170+ Modules

Split-phase Power Module (100/200, 120/208, 127/220, 110/220, 120/240V In & Out) ASY-0673 4.23 x 14.12 x 15.25 17 $2,113

Universal Power Module (208-240V In & Out) ASY-0674 4.23 x 14.12 x 15.25 17 $1,993

Battery Module (two required per slot/string)1 ASY-0529 4.23 x 7.012 x 14.75 30 $411

Optional 20 Amp Charger Module (same form factor as 3 kVA power modules) ASY-0675 4.23 x 14.12 x 14.75 17 $2,918

Note: For 9170 replacement modules, contact our Service Group at 800.356.5737 for pricing.

UPS Enclosures

3-slot Enclosure (3 kVA max.), Hardwired Input/Output 0660C030AAAAAAAI 17.80 x 17.00 x 25.40 66 $3,392

6-slot Enclosure (3, 6 or 9 kVA), Hardwired Input/Output 0660C060AAAAAAAI 31.50 x 17.00 x 25.40 103 $3,704

9-slot Enclosure (3, 6, 9, 12, 15 or 18 kVA), Hardwired Input/Output 0660C090AAAAAAAI 47.00 x 24.00 x 28.40 158 $3,975

12-slot Enclosure (3, 6, 9, 12, 15 or 18 kVA), Hardwired Input/Output 0660C120AAAAAAAI 60.70 x 24.00 x 28.40 196 $4,277

9-slot rack Enclosure 0660C092AAAAAAAI 45.00 x 17.00 x 25.40 158 $4,291

12-slot rack Enclosure 0660C122AAAAAAAI 58.00 x 17.00 x 25.40 196 $4,583

External Options

Rack Kit (3- & 6-slot Enclosure only) ASY-0547 - 15 $174

Caster option for 3- & 6-slot Enclosure ASY-0527 - 9 $215

External battery connection option (matching cabinet for hot-swap battery modules) ASY-0525 - 8 $281

Floor Anchoring kit ASY-0548 - 6 $72

6-slot external battery Enclosure: black1 ASY-0612 31.50 x 17.00 x 25.40 93 $1,583

9-slot external battery Enclosure: black1 ASY-0737 47.00 x 24.00 x 28.40 148 $2,016

12-slot external battery Enclosure: black1 ASY-0738 60.70 x 24.00 x 28.40 186 $2,751

12-slot Enclosure w/AC for charger option: black ASY-0739 60.70 x 24.00 x 28.40 196 $3,037

12-slot rack external battery Enclosure: black 103004136 58.00 x 17.00 x 25.40 186 $2,538

12-slot rack external battery Enclosure w/AC charger option: black 103004137 58.00 x 17.00 x 25.40 196 $3,201

Rail Kit Option for 3 & 6 slot rackmount2 103007312 - 12 $317

1. External Battery Cabinet connection option (ASY-0525) required with each battery cabinet.

2. Rail kit optional for 3 & 6 slot rackmount chassis - included with 9 & 12 slot rackmount chassis

Wall-mounted Maintenance Bypass Cabinets

3- & 6-slot Enclosure (Make-Before-Break) BPE14MBB1A 21.0 x 14.0 x 6.75 31 $1,414

9- & 12-slot Enclosure (Break-Before-Make) BPE20BBM1A 21.0 x 14.0 x 6.75 34 $1,589

9- & 12-slot Enclosure (Make-Before-Break) BPE20MBB1A 21.0 x 14.0 x 6.75 34 $1,828

58 EATON INDUSTRIES (CANADA) COMPANY Canadian Reference Guide & Pricebook

January 1, 2014

EATON 9170+ UPS RACK/TOWER

Powerware series (continued)

9170+ PRE-CONFIGURED SYSTEMS

Output Dimensions Weight List

Model Number Rating Input Connection Receptacles (H x W x D, inches) (lb) Price

Pre-configured Systems with Hardwire Input and Output Options

PW3S3K 3 kVA expandable Hardwired Hardwired 19.5 x 17.0 x 25.5 155 $6,509

Includes: to 3 kVA N+1

(1) 3-slot Enclosure

(1) power module

(2) battery modules

(1) caster kit

PW6S3K 3 kVA expandable Hardwired Hardwired 33.3 x 17.0 x 25.5 155 $ 6,822

Includes: to 9 kVA N+X

(1) 6-slot Enclosure

(1) power module

(2) battery modules

(1) caster kit

PW6S6K 6 kVA expandable Hardwired Hardwired 33.3 x 17.0 x 25.5 232 $ 9,725

Includes: to 9 kVA N+X

(1) 6-slot Enclosure

(2) power modules

(4) battery modules

(1) caster kit

PW6S9K 9 kVA expandable Hardwired Hardwired 33.3 x 17.0 x 25.5 346 $12,628

Includes: to 9 kVA N+X

(1) 6-slot Enclosure

(3) power modules

(6) battery modules

(1) caster kit

PW9S9K 9 kVA expandable Hardwired Hardwired 47.0 x 24.0 x 28.5 389 $12,684

Includes: to 18 kVA N+X

(1) 9-slot Enclosure

(3) power modules

(6) battery modules

PW12S9K 9 kVA expandable Hardwired Hardwired 60.7 x 24.0 x 28.5 427 $12,986

Includes: to 18 kVA N+X

(1) 12-slot Enclosure

(3) power modules

(6) battery modules

PW12S12K 12 kVA expandable Hardwired Hardwired 60.7 x 24.0 x 28.5 504 $15,889

Includes: to 18 kVA N+X

(1) 12-slot Enclosure

(4) power modules

(8) battery modules

PW12S15K 15 kVA expandable Hardwired Hardwired 60.7 x 24.0 x 28.5 581 $18,792

Includes: to 18 kVA N+X

(1) 12-slot Enclosure

(5) power modules

(10) battery modules

PW12S18K 18 kVA expandable Hardwired Hardwired 60.7 x 24.0 x 28.5 658 $21,695

Includes: to 18 kVA N+X

(1) 12-slot Enclosure

(6) power modules

(12) battery modules

Replacement batteries—contact Sales Support 800.356.5794, option 3.

59www.eaton.com/powerquality 1.800.461.9166

January 1, 2014

January 1, 2014

PRE-CONFIGURED SYSTEMS WITH HARDWIRE INPUT AND RECEPTACLES OUTPUT OPTIONS

Output Dimensions Weight List

Model Number Rating Input Connection Receptacles (H x W x D, inches) (lb) Price

PW6S3K-PD 3 kVA expandable Hardwired (2) L14-30R, 33.3 x 17.0 x 25.5 192 $7,244

Includes: to 9 kVA N+X (2) L6-30R,

(1) 6-slot Enclosure (12) 5-20R

(1) power modules

(2) battery modules

(1) caster kit

PW6S6K-PD 6 kVA expandable Hardwired (2) L14-30R, 33.3 x 17.0 x 25.5 269 $10,147

Includes: to 9 kVA N+X (2) L6-30R,

(1) 6-slot Enclosure (12) 5-20R

(2) power modules

(4) battery modules

(1) caster kit

PW6S9K-PD 9 kVA expandable Hardwired (2) L14-30R, 33.3 x 17.0 x 25.5 346 $13,050

Includes: to 9 kVA N+X (2) L6-30R,

(1) 6-slot Enclosure (12) 5-20R

(3) power modules

(6) battery modules

(1) caster kit

PW9S9K-PD 9 kVA expandable Hardwired (2) L14-30R, 47.0 x 24.0 x 28.5 389 $13,106

Includes: to 18 kVA N+X (2) L6-30R,

(1) 9-slot Enclosure (12) 5-20R

(3) power modules

(6) battery modules

PW12S9K-PD 9 kVA expandable Hardwired (3) L14-30R, 60.7 x 24.0 x 28.5 427 $13,549

Includes: to 18 kVA N+X (3) L6-30R,

(1) 12-slot Enclosure (12) 5-20R

(3) power modules

(6) battery modules

PW12S12K-PD 12 kVA expandable Hardwired (3) L14-30R, 60.7 x 24.0 x 28.5 504 $16,452

Includes: to 18 kVA N+X (3) L6-30R,

(1) 12-slot Enclosure (12) 5-20R

(4) power modules

(8) battery modules

PW12S15K-PD 15 kVA expandable Hardwired (3) L14-30R, 60.7 x 24.0 x 28.5 581 $19,355

Includes: to 18 kVA N+X (3) L6-30R,

(1) 12-slot Enclosure (12) 5-20R

(5) power modules

(10) battery modules

PW12S18K-PD 18 kVA expandable Hardwired (3) L14-30R, 60.7 x 24.0 x 28.5 658 $22,258

Includes: to 18 kVA N+X (3) L6-30R,

(1) 12-slot Enclosure (12) 5-20R

(6) power modules

(12) battery modules

PW3S3K-LPD 3 kVA expandable L14-30P (1) L14-30R, 19.5 x 17.0 x 25.5 155 $6,881

Includes: to 3 kVA N+1 (1) L6-30R,

(1) 3-slot Enclosure (4) 5-20R

(1) power modules

(2) battery modules

(1) caster kit

PW6S3K-LPD 3 kVA expandable 14-50P (2) L14-30R, 33.3 x 17.0 x 25.5 192 $7,396

Includes: to 9 kVA N+X (2) L6-30R,

(1) 6-slot Enclosure (12) 5-20R

(1) power modules

(2) battery modules

(1) caster kit

PW6S6K-LPD 6 kVA expandable 14-50P (2) L14-30R, 33.3 x 17.0 x 25.5 269 $10,298

Includes: to 9 kVA N+X (2) L6-30R,

(1) 6-slot Enclosure (12) 5-20R

(2) power modules

(4) battery modules

(1) caster kit

Notes: 50/60 Hz automatic frequency selection. Input/output voltages: 208–240 Vac or 100/200, 110/220, 120/208, 120/240 and 127/220 Vac. Pre-configured systems (3) and (6) slot Enclosure dimensions include

caster kit. Each pre-configured system includes a 6.5-minute runtime. Backup times are approximate and may vary with equipment, configuration, battery age, temperature, etc. Split-phase Power Modules

included.

EATON 9170+ UPS RACK/TOWER

Powerware series (continued)

60 EATON INDUSTRIES (CANADA) COMPANY Canadian Reference Guide & Pricebook

January 1, 2014

SOFTWARE AND CONNECTIVITY OPTIONS

Catalog Number Description List Price

116750222-001 ConnectUPS-BD $462

Bundled with Intelligent Power Software Suite CD and communication cable.

See software and connectivity product sections for more detail.

SPLIT-PHASE MODULE ASY-0673 RUNTIME CHART IN MINUTES (FULL LOAD/HALF LOAD)

Load (VA) Number of Strings (two battery modules per string; two battery modules occupy one slot)

1 String 2 String 3 String 4 String 5 String 6 String 7 String 8 String 9 String 10 String 11 String 12 String

3 kVA 6.5/16 16/40 27.5/67.5 40/98 53.5/132 67.5/167 83/204 98/242 115/283 132/324 149/365 167/408

6 kVA 6.5/16 11/27.5 16/40 21.5/53.5 27.5/68 33.5/83 40/98 46.5/115 53.5/132 60.5/149 67.5/167

9 kVA 6.5/16 9.5/23.5 13/31.5 16/40 20/49 23.5/58 27.5/67.5 31.5/78 35.5/88 40/98

12 kVA 6.5/16 9/21.5 11/27.5 13.5/33.5 16/40 19/46.5 21.5/53.5 24.5/60.5 27.5/68

15 kVA 6.5/16 8/20.5 10/25 12/30 14/35 16/40 18.5/45 20.5/50.5

18 kVA 6.5/16 8/20 9.5/23.5 11/27.5 12.5/30 14.5/35.5 16/40

Note: Additional battery runtimes available up to 8 hr. Please contact your Eaton representative. Split-phase Module is for U.S. use.

13 String 14 String 15 String 16 String 17 String 18 String 19 String 20 String 21 String 22 String 23 String 24 String

3 kVA 185/456 204/501 223/549 242/595 262/640 283/692 302/750 323/790 345/850 365/900 387/955 408/1015

6 kVA 75/185 83/204 90/223 98/242 106/262 115/285 123/302 132/324 140/345 149/365 157/388 167/408

9 kVA 44/109 49/120 53.5/132 58/143 63/154 68/167 73/179 78/191 83/204 88/210 93/229 98/242

12 kVA 30.5/75 33.5/83 37/90 40/98 43/106 46.5/115 50/123 53.5/132 57/140 60/149 64/157 68/167

15 kVA 23/56 25/62 27.5/67.5 30/73.5 32.5/79.5 35/86 37.5/92 40/98 42.5/105 45/111 48/118 51/124

18 kVA 18/44 20/49 21.5/53.5 23.5/58 25.5/63 27.5/68 29.5/73 31.5/78 33.5/83 35.5/88 38/93 40/98

Note: Battery strings above and to the right of the dark line require additional (N+X) power modules or a 20A charger module.

UNIVERSAL MODULE ASY-0674 RUNTIME CHART IN MINUTES (FULL LOAD/HALF LOAD)

Load (VA) Number of strings (two battery modules per string; two battery modules occupy one slot)

1 String 2 String 3 String 4 String 5 String 6 String 7 String 8 String 9 String 10 String 11 String 12 String

3 kVA 8/24 24/59 43/95 58/140 80/175 95/125 119/240 135/290 155/335 165/365 200/395 215/450

6 kVA 8/24 16/40 24/59 32/83 40/103 49/114 58/140 69/156 83/175 90/190 103/205

9 kVA 8/24 13/35 18/46 24/59 29/63 35/86 40/103 46/115 54/125 58/140

12 kVA 8/24 13/33 16/40 19.5/43.5 24/59 29/70 33/80 36/90 41/100

15 kVA 8/24 11.5/31 14.5/31.5 18/46 20.5/51 24/58 28/66 31/73

18 kVA 8/24 11/31.5 13/36 15.5/41 18/45 20.5/51 24/58

Note: Additional battery runtimes available up to 8 hours. Please contact your Eaton representative.

13 String 14 String 15 String 16 String 17 String 18 String 19 String 20 String 21 String 22 String 23 String 24 String

3 kVA 225/500 245/540 270/600 290/620 315/650 335/690 350/720 365/780 375/850 395/890 425/920 450/950

6 kVA 113/335 123/255 135/273 143/290 148/315 156/333 165/350 175/365 183/385 190/395 198/420 205/440

9 kVA 63/150 73/165 80/178 86/190 93/200 100/210 107/225 115/240 121/255 125/270 135/280 143/290

12 kVA 47/110 52/121 56/130 58/140 65/147 70/156 75/165 80/175 85/185 90/195 95/205 100/215

15 kVA 34/83 38/94 41.5/103 44.5/113 46.5/117 51/127 56/130 58/140 61/149 66/158 71/165 73/170

18 kVA 27/65 31.5/72 34.5/77 36/83 38/94 41/100 44/105 45/115 48/122 54/131 57/137 58/140

Battery strings above and to the right of the dark line require additional (N+X) power modules or a 20A charger module.

CUSTOMIZABLE INPUT PLUG OPTIONS1

Input Plug Power Module Type CTO Digit List Price

L14-20P2 Split-phase F $112

L14-30P3 Split-phase G $132

14-50P4 Split-phase H $153

Notes: 1. May be configured to order by contacting sales support: 800.356.5794. 2. Limits chassis to maximum current of 16A and two power modules for 3 kVA redundant. 3. Limits chassis to maximum

current of 24A and three power modules for 5 kVA redundant. 4. Limits chassis to maximum current of 40A and four power modules for 8 kVA redundant.

EATON 9170+ UPS RACK/TOWER

Powerware series (continued)

61www.eaton.com/powerquality 1.800.461.9166

January 1, 2014

January 1, 2014

CUSTOMIZABLE RECEPTACLE OPTIONS

Output Receptacle Power Module Type # of Bays CTO Digit List Price

5-20R duplex Split-phase 1 E $ 51

6-20R duplex All 1 G $71

L5-20R twist lock Split-phase 1 K $51

L5-30R twist lock Split-phase 1 L $61

L6-15R twist lock duplex All 1 M $81

L6-20R twist lock All 1 N $71

L6-30R twist lock All 1 O $71

L14-30R twist lock Split-phase 1 R $71

3 x 5-15R duplex Split-phase 2 W $71

3 x 5-20R duplex Split-phase 2 X $71

Maximum of three different

types of receptacles

per Enclosure

Bays available per

Enclosure:

3-slot has (4) bays

6-slot has (8) bays

9-slot has (8) bays

12-slot has (12) bays

EATON 9170+ UPS RACK/TOWER

Powerware series (continued)

SERVICES

For detailed information on service plans, please refer to the Single-phase Service section on page 108.

62 EATON INDUSTRIES (CANADA) COMPANY Canadian Reference Guide & Pricebook

January 1, 2014

FERRUPS FE 60 Hz MODELS

Input/Output Runtimes Output List

CTO Number Voltage Full/Half Load Input Plug Receptacles Price

MODEL FE500 (500 VA/350W)

FA000AA0A0A0A0A 120V/120V 9/25 min Hardwire Hardwire $1,978

FA000BB2A0A0A0A 120V/120V 9/25 min 5-15 (4) 5-15 $1,934

FA010BB2A0A0A0A 120V/120V 20/56 min 5-15 (4) 5-15 $2,010

FA020BB2A0A0A0A 120V/120V 75/212 min 5-15 (4) 5-15 $2,171

MODEL FE700 (700 VA/500W)

FB000AA0A0A0A0A 120V/120V 11/31 min Hardwire Hardwire $2,219

FB000BB2A0A0A0A 120V/120V 11/31 min 5-15 (4) 5-15 $2,174

FB020BB2A0A0A0A 120V/120V 34/96 min 5-15 (4) 5-15 $2,397

FB040BB2A0A0A0A 120V/120V External Battery 5-15 (4) 5-15 $2,059

Model FE850 (850 VA/600W)

FC000AA0A0A0A0A 120V/120V 9/25 min Hardwire Hardwire $2,471

FC000BB2A0A0A0A 120V/120V 9/25 min 5-15 (4) 5-15 $2,426

FC010BB2A0A0A0A 120V/120V 38/107 min 5-15 (4) 5-15 $2,550

Model FE1.15 (1.15 kVA/800W)

FD000AA0A0A0A0A 120V/120V 8/22 min Hardwire Hardwire $3,361

FD000BB3A0A0A0A 120V/120V 8/22 min 5-15 (6) 5-15 $3,316

FD010BB3A0A0A0A 120V/120V 30/85 min 5-15 (6) 5-15 $3,636

FD020BB3A0A0A0A 120V/120V 70/197 min 5-15 (6) 5-15 $3,741

Model FE1.4 (1.4 kVA/1 kW)

FE000AA0A0A0A0A 120V/120V 11/31 min Hardwire Hardwire $3,646

FE000BB3A0A0A0A 120V/120V 11/31 min 5-15 (6) 5-15 $3,601

FE010BB3A0A0A0A 120V/120V 22/62 min 5-15 (6) 5-15 $3,890

Model FE1.8 (1.8 kVA/1.25 kW)

FF000CC3A0A0A0B 120V/120V 11/30 min 5-20 (6) 5-20 $5,199

FF010AA0A0A0A0B 120V/120V 86/206 min Hardwire Hardwire $5,806

FF010CC3A0A0A0B 120V/120V 86/206 min 5-20 (6) 5-20 $5,760

Model FE2.1 (2.1 kVA/1.5 kW)

FG000AA0A0A0A0B 120V/120V 9/25 min Hardwire Hardwire $5,786

FG000CC3A0A0A0B 120V/120V 9/25 min 5-20 (6) 5-20 $5,741

FG010AA0A0A0A0B 120V/120V 66/163 min Hardwire Hardwire $6,338

FG010CC3A0A0A0B 120V/120V 66/163 min 5-20 (6) 5-20 $6,294

Model FE3.1 (3.1 kVA/2.2 kW)

FH000AA0A0A0A0B 120V/120V 14/35 min Hardwire Hardwire $7,245

FH000JC3A0A0A0B 120V/120V 14/35 min L5-30 (6) 5-20 $7,199

FH010AA0A0A0A0B 120V/120V 37/98 min Hardwire Hardwire $7,740

FH010JC3A0A0A0B 120V/120V 37/98 min L5-30 (6) 5-20 $7,696

Note: See following pages for external battery packs and maintenance bypass switches.

Ferroresonant UPS (500–3100 VA)

• Bulletproof power integrity and management for telecommunications and

computer loads

• Special configurations and options available—call sales support for

details: 1-800-461-9166

• Warranty (US and Canada): Two-year limited warranty and $250,000 load

protection guarantee; optional Gold Plans available

The FERRUPS® can be

customized with many

options and runtimes.

If you do not find the

configuration you need

in this price book, call

1-800-461-9166.

EATON FERRUPS FE UPS 60 HZ

Powerware series

63www.eaton.com/powerquality 1.800.461.9166

January 1, 2014

January 1, 2014

EATON FERRUPS FE UPS 60 HZ

Powerware series (continued)

FERRUPS FE 60 Hz MODELS

(continued)

Input/Output Runtimes Output List

Model Number CTO Number Voltage Full/Half Load Input Plug Receptacles Price

Model FE4.3 (4.3 kVA/3 kW)

FE4.3 kVA FI000AA0A0A0A0B 120V/120V 10/24 min Hardwired Hardwired $10,712

FE4.3 kVA FI100AA0A0A0A0B 208-208/120V 10/24 min Hardwired Hardwired $10,410

FE4.3 kVA FI300AA0A0A0A0B 240-240/120V 10/24 min Hardwired Hardwired $10,410

Model FE5.3 (5.3 kVA/3.7 kW)

FE5.3 kVA FJ000AA0A0A0A0B 120V/120V 20/50 min Hardwired Hardwired $12,219

FE5.3 kVA FJ100AA0A0A0A0B 208-208/120V 20/50 min Hardwired Hardwired $11,917

FE5.3 kVA FJ300AA0A0A0A0B 240-240/120V 20/50 min Hardwired Hardwired $11,917

Model FE7 (7 kVA/5 kW)

FE7 kVA FK000AA0A0A0A0B 120V/120V 12/33 min Hardwired Hardwired $15,329

FE7 kVA FK100AA0A0A0A0B 208-208/120V 12/33 min Hardwired Hardwired $15,029

FE7 kVA FK300AA0A0A0A0B 240-240/120V 12/33 min Hardwired Hardwired $15,029

Model FE10 (10 kVA/7.5 kW)

FE10 kVA FL140AA0A0A0A0B 208-208/120V External Hardwired Hardwired $16,287

Recommended system options: EBPS10F Standard external battery pack (11/26 min) $5,524

BPE04BBM1A External maintenance bypass switch (break-before-make) $1,117

System List $22,928

FE10 kVA FL340AA0A0A0A0B 240-240/120V External Hardwired Hardwired $16,287

Recommended system options: EBPS10F Standard external battery pack (11/26 min) $5,524

BPE04MBB1A External maintenance bypass switch (make-before-break) $1,236

System List $23,047

Model FE12.5 (12.5 kVA/10 kW)

FE12.5 kVA FM140AA0A0A0A0B 208-208/120V External Hardwired Hardwired $17,389

Recommended system options: EBPS12F Standard external battery pack (18/48 min) $7,625

BPE04BBM1A External maintenance bypass switch (break-before-make) $1,117

System List $26,131

FE12.5 kVA FM340AA0A0A0A0B 240-240/120V External Hardwired Hardwired $17,389

Recommended system options: EBPS12F Standard external battery pack (18/48 min) $7,625

BPE04MBB1A External maintenance bypass switch (make-before-break) $1,236

System List $26,250

Model FE18 (18 kVA/15 kW)

FE18 kVA FN140AA0A0A0A0B 208-208/120V External Hardwired Hardwired $22,369

Recommended system options: EBPS18F Standard external battery pack (10/26 min) $7,625

BPE05BBM1A External maintenance bypass switch (break-before-make) $1,376

System List $31,370

FE18 kVA FN340AA0A0A0A0B 240-240/120V External Hardwired Hardwired $22,369

Recommended system options: EBPS18F Standard external battery pack (10/26 min) $7,625

BPE05MBB1A External maintenance bypass switch (make-before-break) $1,544

System List $31,538

Note: See following pages for external battery packs and maintenance bypass switches. Call for other configurations and options.

Ferroresonant UPS (4.3–18 kVA)

• Bulletproof power integrity and management for telecommunications and computer loads

• Power factor-corrected, switch-mode and linear power supplies

The FERRUPS can be

customized with many

options and runtimes.

If you do not find the

configuration you need

in this price book, call

1-800-461-9166.

64 EATON INDUSTRIES (CANADA) COMPANY Canadian Reference Guide & Pricebook

January 1, 2014

FERRUPS RACK SERIES 60 Hz MODELS

Input/Output Runtimes Output List

CTO Number Voltage Full/Half Load Input Plug Receptacles Price

Model FES1.4 (1.4 kVA/1 kW)

RC000BB2A0A0A0A 120V–120V 14/36 min 5-15 (4) 5-15 $7,071

RC000AA0A0A0A0A 120V–120V 14/36 min Hardwired Hardwired $6,937

Model FER2.1 (2.1 kVA/1.5 kW)

RH000CC3A0A0A0B 120V–120V 24/58 min 5-20 (6) 5-20 $8,208

RH000AA0A0A0A0B 120V–120V 24/58 min Hardwired Hardwired $7,984

Model FER3.1 (3.1 kVA/2.2 kW)

RI000JB3A0A0A0B 120V–120V 14/35 min L5-30 (6) 5-15 $9,022

RI000AA0A0A0A0B 120V–120V 14/35 min Hardwired Hardwired $8,752

Model FER7 (7 kVA/5 kW)

RK140AA0A0A0A0B 208–120/208V External Battery Hardwired Hardwired $16,510

RK340AA0A0A0A0B 240–120/240V External Battery Hardwired Hardwired $16,510

EBPS4.3R Standard external battery pack (12/33 min) $4,698

Note: See following pages for external battery packs and maintenance bypass switches. Call for other configurations and options.

SOFTWARE AND CONNECTIVITY OPTIONS

Description Part Number List Price

Serial CheckUPS Cable DB25M to DB9F INT-0035 $69

BestLink Web/SNMP Adapter (external) 116750225-001 $481

IBM AS/400 Kit Standard Cable Kit IPK-0001 $134

Handheld Remote and Keypad (FE, FES, FER models only) RCK-0007 $392

Caster Assy CAA-0006 $201

Ferroresonant UPS (1.4 kVA–7 kVA)

• Bulletproof power integrity and management for telecommunications and computer loads

• Power factor-corrected, switch-mode and linear power supplies

• High reliability for industrial and harsh environment

• Ultra-high reliability for standard, commercial environment

The FERRUPS can be

customized with many

options and runtimes.

If you do not find the

configuration you need

in this price book, call

1-800-461-9166.

EATON FERRUPS UPS RACK SERIES 60 HZ

Powerware series

SERVICES

For detailed information on service plans, please refer to the Single-phase Service section on page 108.

65www.eaton.com/powerquality 1.800.461.9166

January 1, 2014

January 1, 2014

FERRUPS EXTERNAL BATTERY PACK BACKUP TIMES (full/half load)

FERRUPS external battery packs offer extended backup times. Please see following pages for typical backup times. Use of the external battery packs require that

the FERRUPS UPS be configured with external battery or battery charger options as noted below.

EATON FERRUPS UPS EXTERNAL OPTIONS & ACCESSORIES

Powerware series

Tower: 1.4–3.1 kVA

Battery Pack List Price FE1.15 kVA FE1.4 kVA FE1.8 kVA FE2.1 kVA FE3.1 kVA

8ME $3,694 3h 15m / 9h 11m 2h 20m / 6h 35m - - -

9ME $4,034 3h 50m / 10h 50m 3h 10m / 8h 57m 2h 12m / 4h 53m 1h 41m / 3h 54m 57m / 2h 27m

10ME $6,934 6h 30m / 18h 23m 5h 20m / 15h 5m 3h 38m / 8h 22m 2h 50m / 6h 37m 1h 41m / 4h 03m

11ME $7,681 - - 5h 09m / 11h 30m 4h 03m / 9h 10m 2h 29m / 5h 44m

12ME1 $10,219 - - 6h 07m / 14h 06m 4h 46m / 11h 08m 2h 52m / 6h 50m

13ME1 $12,476 - - 8h 30m / 18h 53m 6h 42m / 15h 04m 4h 07m / 9h 27m

14ME1 $15,311 - - 12h 08m / 27h 06m 9h 33m / 21h 36m 5h 52m / 13h 30m

15ME1 $20,705 - - 18h 52m / 44h 45m 15h 12m / 36h 28m 9h 41m / 22h 18m

Tower: 4.3–7 kVA

Battery Pack List Price FE4.3 kVA FE5.3 kVA FE7 kVA

1FE $4,983 40m / 1h 42m 27m / 1h 14m -

2FE $6,979 1h 11m / 2h 51m 49m / 2h 10m 34m / 1h 28m

3FE $7,735 1h 49m / 4h 05m 1h 12m / 3h 08m 48m / 2h 13m

4FE2 $9,821 2h 06m / 4h 46m 1h 27m / 3h 39m 60m / 2h 33m

5FE2 $12,004 3h 04m / 6h 46m 2h 13m / 5h 11m 1h 32m / 3h 41m

6FE3 $14,448 4h 27m / 9h 39m 3h 08m / 7h 22m 2h 16m / 5h 14m

7FE3 $19,954 7h 12m / 15h 56m 5h 10m / 12h 10m 3h 45m / 8h 39m

Tower: 10–18 kVA

Battery Pack List Price FE10 kVA FE12.5 kVA Battery Pack List Price FE18 kVA

EBPS10F $5,524 11m / 26 m - EBPS18F $7,625 10m / 26m

EBPS12F $7,625 - 18m / 48m 16FE $9,990 14m / 39m

8FE $7,670 27m / 1h 10m - 17FE $15,337 27m / 1h 10m

9FE $10,108 41m / 1h 48m 27m / 1h 13m 18FE $16,496 37m / 1h 46m

10FE $15,392 1h 13m / 2h 59m 49m / 2h 07m 19FE3 $23,123 48m / 2h 04m

11FE $17,067 1h 51m / 4h 16m 1h 12m / 3h 04m 20FE3 $28,941 1h 13m / 3h 01m

12FE2 $21,830 2h 09m / 5h 02m 1h 38m / 4h 05m 21FE3 $32,991 1h 49m / 4h 17m

13FE2 $27,836 3h 07m / 7h 04m 2h 12m / 5h 05m 22FE3 $49,329 3h 04m / 7h 05m

14FE3 $32,322 4h 26m / 10h 04m 3h 08m / 7h 14m

15FE3 $46,953 7h 20m / 16h 38m 5h 10m / 11h 57m

Rackmount: 2.1–7 kVA

Battery Pack List Price FER2.1 kVA FER3.1 kVA FER7 kVA

1RE $4,781 1h 41m / 3h 54m 57m / 2h 27m -

2RE $8,297 2h 50m / 6h 37m 1h 41m / 4h 03m -

EBPS4.3R $4,698 - - 12m / 33m

1. Requires FERRUPS UPS to be configured with optional 15 Amp battery charger.

2. Requires FERRUPS UPS to be configured with optional 10 Amp battery charger.

3. Requires FERRUPS UPS to be configured with optional 20 Amp battery charger.

Note: Backup times are approximate and vary with equipment, configuration, battery age, temperature etc.

66 EATON INDUSTRIES (CANADA) COMPANY Canadian Reference Guide & Pricebook

January 1, 2014

MAINTENANCE BYPASS SWITCHES

Part Number Description Application List Price

BPE01MBB1A BPE01 Make-Before-Break Maintenance Bypass Switch For use with:

FE500 VA–2.1 kVA with 120V input

FE3.1 kVA with 120 V input and standard charger $682

BPE02BBM1A BPE02 Break-Before-Make Maintenance Bypass Switch For use with:

FE500 VA–7 kVA with 208V or 220V input $934

BPE02MBB1A BPE02 Make-Before-Break Maintenance Bypass Switch For use with:

FE3.1 kVA with 120V input and 15 Amp charger

FE4.3 kVA with 120V input

FE500 VA–FE7 kVA with 240V input $934

BPE04BBM1A BPE04 Break-Before-Make Maintenance Bypass Switch For use with:

FE10 kVA–12.5 kVA with 208V input $1,117

BPE04MBB1A BPE04 Make-Before-Break Maintenance Bypass Switch For use with:

FE5.3 kVA–7 kVA with 120V input

FE10 kVA–FE12.5 kVA with 240V input $1,236

BPE05MBB1A BPE05 Make-Before-Break Maintenance Bypass Switch For use with:

FE18 kVA with 240V input $1,544

BPE05BBM1A BPE05 Break-Before-Make Maintenance Bypass Switch For use with:

FE18 kVA with 208V input $1,376

Note: See FERRUPS CTO Configuration Guides for additional external maintenance bypass switch options.

SPARE PARTS KITS1

Application Low Voltage Part Number High Voltage Part Number List Price

FE500VA 60 Hz Tower SPK-FALV - call

FE700VA 60 Hz Tower SPK-FBLV - call

FE850VA 60 Hz Tower SPK-FCLV SPK-FCHV call

FE1.15kVA 60 Hz Tower SPK-FDLV SPK-FDHV call

FE1.4kVA 60 Hz Tower SPK-FELV SPK-FEHV call

FE1.8kVA 60 Hz Tower SPK-FFLV SPK-FFHV call

FE2.1kVA 60 Hz Tower SPK-FGLV SPK-FGHV call

FE3.1kVA 60 Hz Tower SPK-FHLV SPK-FHHV call

FE4.3kVA 60 Hz Tower, with 5 Amp Battery Charger SPK-FILV-5A SPK-FIHV-5A call

FE4.3kVA 60 Hz Tower, with 10 Amp Battery Charger SPK-FILV-10A SPK-FIHV-10A call

FE4.3kVA 60 Hz Tower, with 20 Amp Battery Charger SPK-FILV-20A SPK-FIHV-20A call

FE5.3kVA 60 Hz Tower, with 5 Amp Battery Charger SPK-FJLV-5A SPK-FJHV-5A call

FE5.3kVA 60 Hz Tower, with 10 Amp Battery Charger SPK-FJLV-10A SPK-FJHV-10A call

FE5.3kVA 60 Hz Tower, with 20 Amp Battery Charger SPK-FJLV-20A SPK-FJHV-20A call

FE7kVA 60 Hz Tower, with 5 Amp Battery Charger SPK-FKLV-5A SPK-FKHV-5A call

FE7kVA 60 Hz Tower, with 10 Amp Battery Charger SPK-FKLV-10A SPK-FKHV-10A call

FE7kVA 60 Hz Tower, with 20 Amp Battery Charger SPK-FKLV-20A SPK-FKHV-20A call

FE10kVA 60 Hz Tower, with 5 Amp Battery Charger - SPK-FLHV-5A call

FE10kVA 60 Hz Tower, with 10 Amp Battery Charger - SPK-FLHV-10A call

FE10kVA 60 Hz Tower, with 20 Amp Battery Charger - SPK-FLHV-20A call

FE12.5kVA 60 Hz Tower, with 5 Amp Battery Charger - SPK-FMHV-5A call

FE12.5kVA 60 Hz Tower, with 10 Amp Battery Charger - SPK-FMHV-10A call

FE12.5kVA 60 Hz Tower, with 20 Amp Battery Charger - SPK-FMHV-20A call

FE18kVA 60 Hz Tower, with 5 Amp Battery Charger - SPK-FNHV-5A call

FE18kVA 60 Hz Tower, with 10 Amp Battery Charger - SPK-FNHV-10A call

FE18kVA 60 Hz Tower, with 20 Amp Battery Charger - SPK-FNHV-20A call

FES850VA 60 Hz rack SPK-RALV SPK-RAHV call

FES1.4kVA 60 Hz rack SPK-RCLV - call

FER or FES2.1kVA 60 Hz rack SPK-RHLV - call

FER or FES3.1kVA 60 Hz rack - SPK-RIHV call

FER7kVA 60 Hz rack, with 5 Amp Battery Charger SPK-RKLV-5A SPK-RKHV-5A call

FER7kVA 60 Hz rack, with 10 Amp Battery Charger SPK-RKLV-10A SPK-RKHV-10A call

1. Spare parts kits must be ordered at time of FERRUPS UPS order.

EATON FERRUPS UPS EXTERNAL OPTIONS & ACCESSORIES

Powerware series (continued)

67www.eaton.com/powerquality 1.800.461.9166

January 1, 2014

January 1, 2014

Double-conversion on-demand (8–60 kW)

The Eaton BladeUPS is a revolutionary power quality solution, expanding

power protection from 8 kW

to 60 kW in a single industry standard 19-inch rack, and, most significantly, providing this robust, compact

solution without generating the additional heat associated with legacy end-of-row, modular UPS products.

• Achieves the highest power density in the marketplace

• Requires only six rack units (6U) per unit

• Reduces single points of failure with an intelligent bypass design that eliminates human error

• Provides the ultimate in reliability through a peer-to-peer paralleling relationship

• Includes one year local (250 km) 5x8 Corrective warranty, Local 5x8 start-up

EATON BLADEUPS

BLADEUPS (12 kW) MODELS: 208V

Input/Output Dimensions Weight1 List

Description Style Number Rating Voltage (H x W x D, inches) (lb) Price

BladeUPS 12 kW 208V w/60A 5W in/5W out ZC1212200100000 12 kVA (12 kW) 208/208 10.5 (6U) x 17.3 x 28.0 322 $15,849

BladeUPS 12 kW 208V w/60A 5W in/4W out ZC1212600100000 12 kVA (12 kW) 208/208 10.5 (6U) x 17.3 x 28.0 321 $15,784

BladeUPS 12 kW 208V w/60A 5W in/RPM ONLY ZC1212000100000 12 kVA (12 kW) 208/208 10.5 (6U) x 17.3 x 28.0 321 $15,590

BladeUPS 12 kW 208V w/parallel cord ZC121P060100000 12 kVA (12 kW) 208/208 10.5 (6U) x 17.3 x 28.0 311 $15,849

BladeUPS 12 kW 208V w/60A 5W in/5W out ZC1212208100000 12 kVA (12 kW) 208/208 10.5 (6U) x 17.3 x 28.0 322 $16,431

w/Power Xpert SNMP/ModBus

BladeUPS 12 kW 208V w/60A 5W in/4W out ZC1212608100000 12 kVA (12 kW) 208/208 10.5 (6U) x 17.3 x 28.0 321 $16,366

w/Power Xpert SNMP/ModBus

BladeUPS 12 kW 208V w/parallel cord ZC121P068100000 12 kVA (12 kW) 208/208 10.5 (6U) x 17.3 x 28.0 311 $16,431

w/Power Xpert SNMP/ModBus

BladeUPS 8 kW 208V w/ NEMA L21-30P in ZC0811100100000 8 kVA (8 kW) 208/208 10.5 (6U) x 17.3 x 28.0 311 $11,004

/ L21-30R out

1. All weights are installed weight, add 80 lb to determine shipping weight

2. 5W in (wired input plug) is model IEC309-60 HBL560P9W or similar

3. 5W out (output connector) is model IEC309-60 HBL560C9W or similar

4. 4W out (output connector) is model IEC309-60 HBL460C9W or similar

BLADEUPS (12 kW) MODELS: 400V

Input/Output Dimensions Weight1 List

Description Style Number Rating Voltage (H x W x D, inches) (lb) Price

BladeUPS 12 kW 400V w/IEC 309-32A 5W in/5W out ZC1224400100000 12 kVA (12 kW) 400/400 10.5 (6U) x 17.3 x 28.0 318 $15,849

BladeUPS 12kW 400V w/IEC 309-32A 5W in/5W out ZC1224408100000 12 kVA (12 kW) 400/400 10.5 (6U) x 17.3 x 28.0 314 $16,431

w/PXGX SNMP/ModBus

BladeUPS 12 kW 400V w/IEC 309-32A 5W in/ RPM ZC1224000100000 12 kVA (12 kW) 400/400 10.5 (6U) x 17.3 x 28.0 317 $15,590

ONLY out

BladeUPS 12kW 400V w/IEC 309-32A 5W in/ RPM ZC1224008100000 12 kVA (12 kW) 400/400 10.5 (6U) x 17.3 x 28.0 318 $16,172

ONLY out w/PXGX SNMP/ModBus

BladeUPS 12 kW 400V w/parallel cord ZC122P060100000 12 kVA (12 kW) 400/400 10.5 (6U) x 17.3 x 28.0 314 $15,849

BladeUPS 12kW 400V w/parallel cord w/PXGX ZC122P068100000 12 kVA (12 kW) 400/400 10.5 (6U) x 17.3 x 28.0 317 $16,431

SNMP/ModBus

1. All weights are installed weight, add 80 lb to determine shipping weight

2. 5W in (wired input plug) is model IEC309-32 HBL532P6W or similar

3. 5W out (output connector) in model IEC309-32 HBL532C6W or similar

Note: BladeUPS EBMs are not TAA Compliant

BUILT-IN CONNECTIVITY OPTIONS

Select digit “8” Value for Price

Option in the Style Number Style Number digit 8 Adder

X-Slot 2 Standard Relay Card (<60 Vac rated, IBM AS/400) 3 $187

Industrial Relay Card (5A @ 250 Vac) 4 $428

Hot Sync CAN Bridge Card 6 $663

Select digit “9” Value for Price

Option in the Style Number Style Number digit 9 Adder

X-Slot 1 Standard Relay Card (<60 Vac rated, IBM AS/400) 3 $187

Industrial Relay Card (5A @ 250 Vac) 4 $428

Power Xpert Gateway UPS Card (Web/SNMP/ModBusTCP) 8 $575

Note: All parallel configured systems include a Hot Sync CAN Bridge card in the standard part number

68 EATON INDUSTRIES (CANADA) COMPANY Canadian Reference Guide & Pricebook

January 1, 2014

EATON BLADEUPS (continued)

BLADEUPS (12–60 kW) MODELS: PRE-ASSEMBLED SYSTEMS IN S-SERIES RACK

Factory Installed and Tested UPS Systems in Eaton 42U Rack

Input/Output Dimensions1 Weight2 List

Description Style Number Rating Voltage (H x W x D, inches) (lb) Price

BladeUPS Pre-Assembled Bottom Entry 12 kW, 208V ZP21110XXXXX000 12 kVA (12 kW) 208/208 81.0 x 24.0 x 42.0 683 $24,153

BladeUPS Pre-Assembled Bottom Entry 12 kW, 208V ZP21115XXXXX000 12 kVA (12 kW) 208/208 81.0 x 24.0 x 42.0 683 $24,735

w/(1) Power Xpert SNMP/ModBus

BladeUPS Pre-Assembled Bottom Entry 24 kW, 208V ZP212100XXXX000 24 kVA (24 kW) 208/208 81.0 x 24.0 x 42.0 994 $39,031

BladeUPS Pre-Assembled Bottom Entry 24 kW, 208V ZP212150XXXX000 24 kVA (24 kW) 208/208 81.0 x 24.0 x 42.0 994 $39,614

w/(1) Power Xpert SNMP/ModBus

BladeUPS Pre-Assembled Bottom Entry 36 kW, 208V ZP2131000XXX000 36 kVA (36 kW) 208/208 81.0 x 24.0 x 42.0 1316 $52,746

BladeUPS Pre-Assembled Bottom Entry 36 kW, 208V ZP2131500XXX000 36 kVA (36 kW) 208/208 81.0 x 24.0 x 42.0 1316 $53,328

w/(1) Power Xpert SNMP/ModBus

BladeUPS Pre-Assembled Bottom Entry 48 kW, 208V ZP21410000XX000 48 kVA (48 kW) 208/208 81.0 x 24.0 x 42.0 1638 $64,519

BladeUPS Pre-Assembled Bottom Entry 48 kW, 208V ZP21415000XX000 48 kVA (48 kW) 208/208 81.0 x 24.0 x 42.0 1638 $65,101

w/(1) Power Xpert SNMP/ModBus

BladeUPS Pre-Assembled Bottom Entry 60 kW, 208V ZP215100000X000 60 kVA (60 kW) 208/208 81.0 x 24.0 x 42.0 1960 $81,209

BladeUPS Pre-Assembled Bottom Entry 60 kW, 208V ZP215150000X000 60 kVA (60 kW) 208/208 81.0 x 24.0 x 42.0 1960 $81,791

w/(1) Power Xpert SNMP/ModBus

BladeUPS Pre-Assembled Bottom Entry 60 kW N+1, 208V ZP2161000000000 60 kVA (60 kW) N+1 208/208 81.0 x 24.0 x 42.0 2282 $96,346

BladeUPS Pre-Assembled Bottom Entry 60 kW N+1, 208V ZP2161500000000 60 kVA (60 kW) N+1 208/208 81.0 x 24.0 x 42.0 2282 $96,928

w/(1) Power Xpert SNMP/ModBus

BladeUPS Pre-Assembled Top Entry 12 kW, 208V ZP22110XXXXX000 12 kVA (12 kW) 208/208 81.0 x 24.0 x 42.0 683 $24,153

BladeUPS Pre-Assembled Top Entry 12 kW, 208V, ZP22115XXXXX000 12 kVA (12 kW) 208/208 81.0 x 24.0 x 42.0 683 $24,735

w/Power Xpert SNMP/ModBus

BladeUPS Pre-Assembled Top Entry 24 kW, 208V ZP222100XXXX000 24 kVA (24 kW) 208/208 81.0 x 24.0 x 42.0 994 $39,031

BladeUPS Pre-Assembled Top Entry 24 kW, 208V, ZP222150XXXX000 24 kVA (24 kW) 208/208 81.0 x 24.0 x 42.0 994 $39,614

w/Power Xpert SNMP/ModBus

BladeUPS Pre-Assembled Top Entry 36 kW, 208V ZP2231000XXX000 36 kVA (36 kW) 208/208 80.0 x 24.0 x 42.0 1316 $52,746

BladeUPS Pre-Assembled Top Entry 36 kW, 208V, ZP2231500XXX000 36 kVA (36 kW) 208/208 80.0 x 24.0 x 42.0 1316 $53,328

w/Power Xpert SNMP/ModBus

BladeUPS Pre-Assembled Top Entry 48 kW, 208V ZP22410000XX000 48 kVA (48 kW) 208/208 81.0 x 24.0 x 42.0 1638 $64,519

BladeUPS Pre-Assembled Top Entry 48 kW, 208V, ZP22415000XX000 48 kVA (48 kW) 208/208 81.0 x 24.0 x 42.0 1638 $65,101

w/Power Xpert SNMP/ModBus

BladeUPS Pre-Assembled Top Entry 60 kW, 208V ZP225100000X000 60 kVA (60 kW) 208/208 81.0 x 24.0 x 42.0 1960 $81,209

BladeUPS Pre-Assembled Top Entry 60 kW, 208V, ZP225150000X000 60 kVA (60 kW) 208/208 81.0 x 24.0 x 42.0 1960 $81,791

w/Power Xpert SNMP/ModBus

BladeUPS Pre-Assembled Top Entry 60 kW N+1, 208V ZP2261000000000 60 kVA (60 kW) N+1 208/208 81.0 x 24.0 x 42.0 2282 $96,346

BladeUPS Pre-Assembled Top Entry 60 kW N+1, 208V, ZP2261500000000 60 kVA (60 kW) N+1 208/208 81.0 x 24.0 x 42.0 2282 $96,928

w/Power Xpert SNMP/ModBus

1. Shipping dimensions are 87”H x 37”W x 60”D. If more than 4 units are installed batteries for 5th and 6th units will ship on a separate pallet maximum 15”H x 32”W x 48”D. Total shipping weight for

configurations of 4 UPS modules or less is installed weight plus 345 lbs. For configurations of 5 or 6 UPS modules add 391 lbs. to installed weight.

Additional notes: Factory-installed connectivity for Pre-Assembled Systems: Style Number digits 7 thru 12 (based in number of systems installed) represent the communication card(s) installed in the

system. 0 = No connectivity, 2 = ModBus RTU, 3 = Standard relay card, 4 = Industrial relay card, 5 = Power Xpert Gateway UPS Card For systems with more than one UPS module, additional cards can be

installed. Please visit the Connectivity Products section for card information, including pricing.

69www.eaton.com/powerquality 1.800.461.9166

January 1, 2014

January 1, 2014

EATON BLADEUPS (continued)

BLADEUPS (12–48 kW) MODELS: PRE-ASSEMBLED SYSTEMS IN S-SERIES RACK

Factory Installed and Tested UPS Systems in Eaton 42U Rack. System capable of expansion to maximum of 48kW

Input/Output Dimensions1 Weight2 List

Description Style Number Rating Voltage (H x W x D, inches) (lb) Price

BladeUPS Pre-Assembled Bottom Entry 12 kW, 208V ZP23110XXXXX000 12 kVA (12 kW) 208/208 81.0 x 24.0 x 42.0 661 $23,118

BladeUPS Pre-Assembled Bottom Entry 12 kW, 208V ZP23115XXXXX000 12 kVA (12 kW) 208/208 81.0 x 24.0 x 42.0 661 $23,700

w/(1) Power Xpert SNMP/ModBus

BladeUPS Pre-Assembled Bottom Entry 24 kW, 208V ZP232100XXXX000 24 kVA (24 kW) 208/208 81.0 x 24.0 x 42.0 972 $37,996

BladeUPS Pre-Assembled Bottom Entry 24 kW, 208V ZP232150XXXX000 24 kVA (24 kW) 208/208 81.0 x 24.0 x 42.0 972 $38,579

w/(1) Power Xpert SNMP/ModBus

BladeUPS Pre-Assembled Bottom Entry 36 kW, 208V ZP2331000XXX000 36 kVA (36 kW) 208/208 81.0 x 24.0 x 42.0 1294 $51,711

BladeUPS Pre-Assembled Bottom Entry 36 kW, 208V ZP2331500XXX000 36 kVA (36 kW) 208/208 81.0 x 24.0 x 42.0 1294 $52,293

w/(1) Power Xpert SNMP/ModBus

BladeUPS Pre-Assembled Bottom Entry 48 kW, 208V ZP23410000XX000 48 kVA (48 kW) 208/208 81.0 x 24.0 x 42.0 1616 $63,484

BladeUPS Pre-Assembled Bottom Entry 48 kW, 208V ZP23415000XX000 48 kVA (48 kW) 208/208 81.0 x 24.0 x 42.0 1616 $64,066

w/(1) Power Xpert SNMP/ModBus

BladeUPS Pre-Assembled Top Entry 12 kW, 208V ZP24110XXXXX000 12 kVA (12 kW) 208/208 81.0 x 24.0 x 42.0 661 $23,118

BladeUPS Pre-Assembled Top Entry 12 kW, 208V, ZP24115XXXXX000 12 kVA (12 kW) 208/208 81.0 x 24.0 x 42.0 661 $23,700

w/Power Xpert SNMP/ModBus

BladeUPS Pre-Assembled Top Entry 24 kW, 208V ZP242100XXXX000 24 kVA (24 kW) 208/208 81.0 x 24.0 x 42.0 972 $37,996

BladeUPS Pre-Assembled Top Entry 24 kW, 208V, ZP242150XXXX000 24 kVA (24 kW) 208/208 81.0 x 24.0 x 42.0 972 $38,579

w/Power Xpert SNMP/ModBus

BladeUPS Pre-Assembled Top Entry 36 kW, 208V ZP2431000XXX000 36 kVA (36 kW) 208/208 80.0 x 24.0 x 42.0 1294 $51,711

BladeUPS Pre-Assembled Top Entry 36 kW, 208V, ZP2431500XXX000 36 kVA (36 kW) 208/208 80.0 x 24.0 x 42.0 1294 $52,293

w/Power Xpert SNMP/ModBus

BladeUPS Pre-Assembled Top Entry 48 kW, 208V ZP24410000XX000 48 kVA (48 kW) 208/208 81.0 x 24.0 x 42.0 1616 $63,484

BladeUPS Pre-Assembled Top Entry 48 kW, 208V, ZP24415000XX000 48 kVA (48 kW) 208/208 81.0 x 24.0 x 42.0 1616 $64,070

w/Power Xpert SNMP/ModBus

1. Shipping dimensions are 87”H x 37”W x 60”D. If more than 4 units are installed batteries for 5th and 6th units will ship on a separate pallet maximum 15”H x 32”W x 48”D. Total shipping weight for

configurations of 4 UPS modules or less is installed weight plus 345 lbs. For configurations of 5 or 6 UPS modules add 391 lbs. to installed weight.

Additional notes: Factory-installed connectivity for Pre-Assembled Systems: Style Number digits 7 thru 12 (based in number of systems installed) represent the communication card(s) installed in the

system. 0 = No connectivity, 2 = ModBus RTU, 3 = Standard relay card, 4 = Industrial relay card, 5 = Power Xpert Gateway UPS Card For systems with more than one UPS module, additional cards can be

installed. Please visit the Connectivity Products section for card information, including pricing.

BLADEUPS ASSEMBLIES

Nominal Dimensions Weight List

Description Style Number Part Number Voltage (H x W x D, inches) (lb) Price

S-Series Rack with 48kW BladeUPS Parallel bar Top P-103000505 ETN-BLADERACK4T 208V or 400V 81.0 x 24.0 x 42.0 452 $7,522

w/wireway

S-Series Rack with 48kW BladeUPS Parallel bar Bottom P-103000506 ETN-BLADERACK4B 208V or 400V 81.0 x 24.0 x 42.0 452 $7,522

w/wireway

S-Series Rack with 60kW BladeUPS Parallel bar Top P-103000503 ETN-BLADERACK6T 208V or 400V 81.0 x 24.0 x 42.0 466 $8,543

w/wireway

S-Series Rack with 60kW BladeUPS Parallel bar Bottom P-103000504 ETN-BLADERACK6B 208V or 400V 81.0 x 24.0 x 42.0 466 $8,543

w/wireway

70 EATON INDUSTRIES (CANADA) COMPANY Canadian Reference Guide & Pricebook

January 1, 2014

EATON BLADEUPS (continued)

BLADEUPS OPTIONS

Description Style Number Dimensions (H x W x D, inches) Weight (lb) List Price

Extended Battery Modules

BladeUPS 3U EBM1 2 103005747-6591 5.2 (3U) x 17.2 x 26.0 170 $2,227

S-Series Rack (Used to install extra EBMs or MBM)

S-Series 42Ux24"x42" w/Side Panels, Castors ETN-ENC422442SB 80.5 (42U) x 24 x 42 2,200 $2,700

S-Series 42Ux24"x42" w/divider, Castors ETN-ENC422442S 80.5 (42U) x 24 x 42 2,200 $2,356

Extension Cable

BladeUPS 3 Ft EBM Extension Cable 103006348-001 2.4 x 8.5 x 9.7 2 $319

1. Shipped on pallet with dimensions of 5x40x48. Up to 8 EBMS can be shipped stacked on the same pallet. Contact Customer Care for more information.

2. BladeUPS EBMs are not TAA Compliant

Maintenance Bypass

BladeUPS Maintenance Bypass Module, 208V 103007415-5208 10.5 (6U) x 17.3 x 29.6 76 $7,905

BladeUPS Maintenance Bypass Module, 400V 103007415-5400 10.5 (6U) x 17.3 x 29.6 76 $7,905

UPS Paralleling

BladeUPS 60 kW Bus Bar, Bottom Entry 103007571-55912 71.9 x 6.0 x 5.7 54 $4,843

BladeUPS 60 kW Bus Bar, Top Entry 103007573-55912 71.9 x 6.0 x 5.7 54 $4,843

BladeUPS 60 kW Universal Wireway 103007569-55912 10.4 (6U) x 19.0 x 34.0 45 $1,844

BladeUPS 48 kW BusBar, Top Entry 103007828-55912 51.0 x 6.0 x 5.7 40 $4,077

BladeUPS 48 kW BusBar, Bottom Entry 103007830-55912 51.0 x 6.0 x 5.7 40 $4,077

2. Please consult Application Engineering when purchasing this item.

3. All bus bar assemblies are rated for 208 or 400V installations.

4. Add 15 lbs for shipping material

Distribution Options

See ePDU options in the Eaton Power Distribution and Enclosures section of this book.

SOFTWARE AND CONNECTIVITY OPTIONS

Bundled with Intelligent Power Software Suite CD and communication cable. See the software and connectivity product sections for more detail.

SERVICES

For detailed information on service plans, please refer to the Three-phase Service section on page 114.

71www.eaton.com/powerquality 1.800.461.9166

January 1, 2014

January 1, 2014

BLADEUPS BATTERY BACKUP TIMES (in minutes)

Load (kW) Internal Battery +1 EBM +2 EBMs +3 EBMs +4 EBMs

2 44 85 137 199 258

3 30 56 89 128 165

4 23 42 66 94 120

5 18 33 51 73 94

6 13.6 27 42 60 76

7 11 23 32 50 64

8 9 18 28 43 55

9 7 15 24 38 48

10 6 13 22 33 42

11 5 11 20 30 38

12 4.7 9.5 17 27 34

Note: Backup times are approximate and may vary with equipment, configuration, battery age, temperature, etc.

1 For parallel installations, add same number of EBMs to each 12kW UPS module.

BLADEUPS BATTERY BACKUP TIMES (Parallel UPS, in minutes)

Number of Total Load Internal

UPS Modules (kW) Configuration Battery +1 EBM +2 EBMs +3 EBMs +4 EBMs

2 12 N+1 14 27 42 60 76

3 24 N+1 8.7 18 28 43 55

4 36 N+1 7.3 15 24 38 48

5 48 N+1 6.7 13 23 35 44

6 60 N+1 6.2 13 22 33 42

BLADEUPS OPTIONS: RACK POWER MODULE (RPM)

The RPM delivers up to 36 kW of power in an organized manner to loads of various voltages, power cords

and layouts. The 3U RPM can be deployed in the same rack with the UPS and IT equipment; there’s no need

for a dedicated infrastructure rack. The resulting architecture has fewer cables to manage, fewer distribution

points to monitor, and greater flexibility for IT personnel make changes without an electrician.

• Provides plug-and-play primary distribution of power from three-phase input source to secondary

power distribution devices

• Serves data center loads with various voltages, power cord configurations and layouts

• Distributes three-phase power to 12 poles, with choice of output receptacle types

• “Power Equalizer” LED gives quick visual indication of each circuits load, reducing possibility of overloads and breakers tripped offline

• Load information available from the front of the rack, no need to check individual power strips in the rear of the cabinet (hot isle)

• Branch circuit monitoring option allows easy load monitoring over the network, with Power Xpert infrastructure

• Installs in only 3U of space in EIA 19-inch rack or Enclosure (or optional wall-mount), all hardware included

• Enables customer installation and changes without the services of a licensed electrician

RPM DIMENSIONS

Dimensions (H x W x D, inches) Dimensions (H x W x D, mm) Weight (lb) Weight (kg)

Installed 5.2 x 17.4 x 26.3 132 x 442 x 668 32 15

Shipped 16.2 x 21.5 x 31.0 5.2 x 17.4 x 26.3 44 20

RPM TOPSELLERS

Topseller RPMs are the most popular configurations.

Receptacles

Part Number Input Cable Recep 1 (Qty) Recep 2 (Qty) Metering List Price

Y03113011100000 BladeUPS 208V 15' L21-20 (2) L21-20 (2) Power Equalizer $3,560

Y03113022100000 BladeUPS 208V 15' L21-30 (2) L21-30 (2) Power Equalizer $3,675

Y03114022100000 BladeUPS 208V 20' L21-30 (2) L21-30 (2) Power Equalizer $3,771

Y03113055100000 BladeUPS 208V 15' L6-30 (3) L6-30 (3) Power Equalizer $3,050

Y03113047100000 BladeUPS 208V 15' L6-20 (3) 5-20 (6) Power Equalizer $3,095

Y03113017100000 BladeUPS 208V 15' L21-20 (2) 5-20 (6) Power Equalizer $3,273

Y03113027100000 BladeUPS 208V 15' L21-30 (2) 5-20 (6) Power Equalizer $3,331

Y031220AA300000 IEC309-60 (60A) 10' IEC C13 (12) IEC C13 (12) Energy Management $4,728

Y03100044100000 Hardwire (208V) L6-20 (3) L6-20 (3) Power Equalizer $3,075

Y03100077100000 Hardwire (208V) 5-20 (6) 5-20 (6) Power Equalizer $2,859

Y032420CD100000 BladeUPS 400V 10' IEC C13 (12) IEC C19 (6) Power Equalizer $2,865

Y032440CD100000 BladeUPS 400V 20' IEC C13 (12) IEC C19 (6) Power Equalizer $3,069

Y032000CC300000 Hardwire (400V) IEC C13 (12) IEC C13 (12) Energy Management $4,179

EATON BLADEUPS (continued)

72 EATON INDUSTRIES (CANADA) COMPANY Canadian Reference Guide & Pricebook

January 1, 2014

EATON BLADEUPS (continued)

RACK POWER MODULE CONFIGURATOR

Description Quantity Part List

Number Digit Value Price

Base 3U RPM Distribution Box - 1 Y

2 0

3 3

Input Voltage 208V - 4 1 $2,138

400V 2 $2,138

Input Cords: Connection Hardwired - 5 0

BladeUPS Unit 208V 1

IEC309-60 5 wire 2

NEMA L21-30P 3

BladeUPS Unit 400V 4

Input Cords: Length Hardwired - 6 0 $275

8 feet - 1 BladeUPS Unit 208V $217

IEC309-60 5 wire $817

NEMA L21-30P $160

BladeUPS Unit 400V $217

10 feet - 2 BladeUPS Unit 208V $294

IEC309-60 5 wire $823

NEMA L21-30P $179

BladeUPS Unit 400V $294

15 feet - 3 BladeUPS Unit 208V $402

IEC309-60 5 wire $900

NEMA L21-30P $198

BladeUPS Unit 400V $402

20 feet - 4 BladeUPS Unit 208V $498

IEC309-60 5 wire $1,015

NEMA L21-30P $224

BladeUPS Unit 400V $498

Future Option - 7 0 -

Rack Power Module (RPM)

Y03

Input Cords/Connection

0 = Hardwire

1 = BladeUPS Unit 208V

2 = IEC309-60 5 wire

3 = NEMA l21-30P

4 = BladeUPS Unit 400V

Input Voltage

1 = 208V

2 = 400V

Metering Choices

1 = Power Equalizer

2 = Energy Management System, NO Card

3 = Energy Management System, with card

Input Cord Length

0 = Hardwire

1 = 8 feet

2 = 10 feet

3 = 15 feet

4 = 20 feet

(Base 3U RPM distribution box) 0 0

Output Receptacle Plate #1 & #2

1 = L21-20R

2 = L21-30R

3 = L6-15R

4 = L6-20R

5 = L6-30R

6 = 5-15R

7 = 5-20R

8 = L14-20R

9 = L14-30R

A = IEC320-C13 (208V)

B = IEC320-C19 (208V)

C = IEC320-C13 (230V) International

D = IEC320-C19 (230V) International

E = L15-20R

F = L15-3R

0 0 0 0

Rack Power Module (RPM)

RPM ACCESSORIES

Description Part Number List Price

RPM wall-mount bracket kit 103006226 $262

73www.eaton.com/powerquality 1.800.461.9166

January 1, 2014

January 1, 2014

EATON BLADEUPS (continued)

RACK POWER MODULE CONFIGURATOR

(continued)

Description Quantity Part List

Number Digit Value Price

Output Receptacle Plate #1 & L21-20R 2 8 & 9 1 $511

Output Receptacle Plate #2 L21-30R 2 2 $568

L6-15R 3 3 $313

L6-20R 3 4 $332

L6-30R 3 5 $256

5-15R 6 6 $217

5-20R 6 7 $224

L14-20R 3 8 $230

L14-30R 3 9 $313

IEC320-C13 (208V) 12 A $230

IEC320-C19 (208V) 6 B $205

IEC320-C13 (230V) 12 C $230

IEC320-C19 (230V) 6 D $205

L15-20 2 E $511

L15-30 2 F $568

Metering Choices Power Equalizer - 10 1 -

Energy Management System, NO card - 2 $887

Energy Management System, with card - 3 $1,308

Future Option - 11 0 -

None - 12 0 -

- 13 0 -

- 14 0 -

- 15 0 -

How to order: 1. Select base model voltage (208V or 400V), 2. Select input connector option, 3. Select input cord length (corded units only), 4. Select first recep-

tacle plate option, 5. Select second receptacle plate option, 6. Select metering option.

Example of configured model part number: Y03111022300000

BLADEUPS OPTIONS: EATON BLADEUPS PDU WITH MAINTENANCE BYPASS

K-1 RATED TP-1 TRANSFORMER, 480V IN 208V OUT AND (2) 42-POLE PANELBOARDS

The Eaton BladeUPS PDU with Maintenance Bypass saves money and space in the data center or network operations

center while offering three functions in one cabinet. The BladeUPS PDU combines step-down transformation, power

distribution (up to 84 pole positions) and maintenance bypass into a single cabinet—the perfect complement to a 60 kVA

BladeUPS system.

• TP-1, K1-rated input transformer—Energy-star efficiency, 480-208/120V, along with integral voltage transformation,

electrical isolation and high efficiency

• Integrated maintenance bypass, including maintenance bypass breaker, rectifier input breaker and UPS output

breaker, all rated for 225A, for high availability

• Available with up to two Eaton PRL-1a 42-pole panelboards, or up to four subfeed breakers or full rated lugs.

PRL-1a panels accept BAB or QBHW style breakers

• Multiple power functions in a single cabinet mean efficient use of space

• Free-standing, easy-access design that complements other modern data center equipment while providing ease of

installation and use for flexible access and deployment options

• Warranty: Eighteen months

EATON BLADEUPS PDU WITH MAINTENANCE BYPASS

Dimensions

Catalog Style Rating Input Output (H x W x D, Weight List

Number Number Description (VA/Watts) Connection Receptacles inches) (lb) Price

124100029-001 124100029-001 PDU for 60 kVA 60 kVA/60 kW AC input 480V (2) 42-pole panelboards 80 x 30 x 36 1200 $29,589

BladeUPS – 3 phase 3 wire, (branch breakers

2 panels – 480:208V ground, 60 Hz not included)

74 EATON INDUSTRIES (CANADA) COMPANY Canadian Reference Guide & Pricebook

January 1, 2014

EATON BLADEUPS (continued)

EATON BLADEUPS PDU WITH MAINTENANCE BYPASS

(continued)

Dimensions

Catalog Style Rating Input Output (H x W x D, Weight List

Number Number Description (VA/Watts) Connection Receptacles inches) (lb) Price

124100029-002 PTE06056BAS4100 PDU with bypass 60 kVA/60 kW Hardwire 480 vac (1) 42 pole 80 x 30 x 36 1150 $29,002

w/ 1 42 pole panelboard

panelboard Eaton PRL1

124100029-003 PTE06056BAS41LL PDU with bypass 60 kVA/60 kW Hardwire 480 vac (1) 42 pole 80 x 30 x 36 1170 $29,883

w/ 1 42 pole panelboard

panelboard, Eaton PRL1,

full rated output lugs full output lugs

124100029-004 PTE06056BAS412A PDU with bypass 60 kVA/60 kW Hardwire 480 vac (1) 42 pole 80 x 30 x 36 1210 $30,036

w/ 1 42 pole panelboard

panelboard, Eaton PRL1,

2 subfeed breakers 2 subfeed breakers

124100029-005 PTE06056BAS413A PDU with bypass 60 kVA/60 kW Hardwire 480 vac (1) 42 pole 80 x 30 x 36 1225 $34,616

w/ 1 42 pole panelboard

panelboard, Eaton PRL1,

3 subfeed breakers 3 subfeed breakers

124100029-006 PTE06056BAS414A PDU with bypass 60 kVA/60 kW Hardwire 480 vac (1) 42 pole 80 x 30 x 36 1240 $36,683

w/ 1 42 pole panelboard

panelboard, Eaton PRL1,

4 subfeed breakers 4 subfeed breakers

124100029-007 PTE06056BAS40LL PDU with bypass 60 kVA/60 kW Hardwire 480 vac Full rated 80 x 30 x 36 1100 $29,117

w/ full rated output lugs

output lugs

124100029-008 PTE06056BAS402A PDU with bypass 60 kVA/60 kW Hardwire 480 vac 2 subfeed 80 x 30 x 36 1130 $32,243

w/ 2 subfeed breakers

breakers

124100029-009 PTE06056BAS403A PDU with bypass 60 kVA/60 kW Hardwire 480 vac 3 subfeed 80 x 30 x 36 1145 $34,144

w/ 3 subfeed breakers

breakers

124100029-010 PTE06056BAS404A PDU with bypass 60 kVA/60 kW Hardwire 480 vac 4 subfeed 80 x 30 x 36 1160 $36,250

w/ 4 subfeed breakers

breakers

124100029-011 PTE06056BAS42LL PDU with bypass 60 kVA/60 kW Hardwire 480 vac (2) 42 pole 80 x 30 x 36 1210 $30,482

w/ 2 42 pole panelboard

panelboard, Eaton PRL1,

full rated output lugs full output lugs

124100029-014 124100029-014 PDU for 60 kVA 60 kVA/60 kW Hardwire 208 vac (2) 42 pole 80 x 30 x 36 656 $25,392

(No XFMR) panelboards

BladeUPS – (branch

2 panels – 208:208V breakers not included)

Note:

1. Please contact Pre-sales Support to specify what trip ratings are needed for the subfeed breakers.

2. All subfeed breakers are standard Eaton FD frames, rated at 225A trip.

3. The PDU with bypass should be discounted at the same multiplier level as the BladeUPS system.

4. Standard Panelboards accept BAB or QBH breakers. Contact Customer Care if other breakers are required.

75www.eaton.com/powerquality 1.800.461.9166

January 1, 2014

January 1, 2014

Double-conversion (10–15 kVA)

This innovative design delivers one of the industry’s best combinations of high efficiency, low input current

distortion and highest power factor, while conserving valuable space and offering the most cost-effective,

highest performance option available today.

• True double-conversion topology protects equipment from all nine of the most common power problems

• Industry leading power density, providing up to 20 percent more power capacity in a compact tower design

including batteries

• Up to 350 percent more standard runtime

• Up to a 74 percent footprint reduction and up to an 83 percent total size reduction

• Flexible on-board power distribution modules (PDMs) allow for hardwired output or up to 15 different output

receptacle options, reducing installation and site preparation expenses

• Plug-and-play rack Enclosure power distribution with the 9355 on-board PDU

• Inherently scalable from 10–15 and 20–30 kVA, allowing you to pay as you grow or increase capacity with no

additional hardware purchases or installation concerns

• Eaton’s patented Hot Sync paralleling technology allows for wireless paralleling in the event of

communications failure, providing the industry’s only truly redundant paralleling technology

• Flexible 0 footprint extended run configurations allow for adding additional runtime in the same industry-leading compact footprint

• Includes rear-mounted bypass switch

• Includes on-site 5x8 startup and operator training by Eaton field technician

• Includes one year of eNotify remote monitoring service (requires connectivity parts and self installation)

• Includes one year local (250 km) 5x8 Corrective warranty, Local 5x8 start-up

EATON 9355 UPS

Powerware series

9355 (10–15 kVA) MODELS

Input/Output Base Dimensions Weight List

Description Part Number1 Rating Voltage Runtime (min) (H x W x D, inches)3 (lb)3 Price

PW9355 10 kVA with 32-Battery (2-high) KA1011100000010 10 kVA/9 kW 208/208 8 32.2 x 12.0 x 33.7 373 $17,953

PW9355 10 kVA with 64-Battery (3-high) KA1012100000010 10 kVA/9 kW 208/208 22 47.8 x 12.0 x 33.7 609 $19,987

PW9355 10 kVA with 32-Battery (2-high) KA1011200000010 10 kVA/9 kW 220/2202 8 32.2 x 12.0 x 33.7 373 $17,953

PW9355 10 kVA with 64-Battery (3-high) KA1012200000010 10 kVA/9 kW 220/2202 22 47.8 x 12.0 x 33.7 609 $19,987

PW9355 10 kVA with 32-Battery and input KA1013400000010 10 kVA/9 kW 480/208 8 47.8 x 12.0 x 33.7 577 $22,876

isolation transformer (3-high)

PW9355 10 kVA with 32-Battery and input KA1013600000010 10 kVA/9 kW 600/208 8 47.8 x 12.0 x 33.7 577 $22,876

isolation transformer (3-high)

PW9355 15 kVA with 32-Battery (2-high) KA1511100000010 15 kVA/13.5 kW 208/208 4 32.2 x 12.0 x 33.7 373 $19,502

PW9355 15 kVA with 64-Battery (3-high) KA1512100000010 15 kVA/13.5 kW 208/208 13 47.8 x 12.0 x 33.7 609 $21,584

PW9355 15 kVA with 32-Battery (2-high) KA1511200000010 15 kVA/13.5 kW 220/2202 4 32.2 x 12.0 x 33.7 373 $19,502

PW9355 15 kVA with 64-Battery (3-high) KA1512200000010 15 kVA/13.5 kW 220/2202 13 47.8 x 12.0 x 33.7 609 $21,584

PW9355 15 kVA with 32-Battery and input KA1513400000010 15 kVA/13.5 kW 480/208 4 47.8 x 12.0 x 33.7 577 $24,136

isolation transformer (3-high)

PW9355 15 kVA with 32-Battery and input KA1513600000010 15 kVA/13.5 kW 600/208 4 47.8 x 12.0 x 33.7 577 $24,136

isolation transformer (3-high)

1. 50/60 Hz auto-sensing.

2. 220V units are wye connected 220/127V input and 220/127V output, three-phase, 4-wire plus ground.

3. Add 47 lbs for 2-high configurations or 50 lbs for 3-high configurations to determine shipping weight.

4. An input neutral is required for all configurations unless the input isolation transformer is used.

5. For parallel systems, change CTO digit #5 to a “2” and add $300 to the list price and include Parallel Tie Cabinet.. Eaton startup is required for factory warranty of parallel configuration.

SURGE PROTECTION

See the surge protection product section for more details.

SOFTWARE AND CONNECTIVITY OPTIONS

Description Part Number List Price

Power Xpert Gateway UPS Card PXGXUPS (103007974-5591) $621

Bundled with Intelligent Power Software Suite CD and communication cable. See the software and connectivity sections for more details.

SERVICES

For detailed information on service plans, please refer to the Three-phase Service section on page 114.

76 EATON INDUSTRIES (CANADA) COMPANY Canadian Reference Guide & Pricebook

January 1, 2014

EATON 9355 UPS

Powerware series (continued)

9355 OPTIONS

Part Additional Input/Output Dimensions Weight List

Description Number Information Voltage (H x W x D, inches) (lb) Price

PW9355 10-15 kVA 2-High Line & Match Extended Battery Module 103004192-5501 64 Batteries - 32.2 x 12.0 x 30.2 480 $6,595

PW9355 10-15 kVA 3-High Line & Match Extended Battery Module 103004193-5501 96 Batteries - 47.8 x 12.0 x 30.2 710 $9,409

PW9355 Wall Mount Parallel Tie Cabinet, 2-Breaker MBP 124100020-001* - 208V/208V 36.0 x 20.0 x 5.75 681 $1,844

(225A Bus, 200A Neutral, (1) 225A MBP, & (4) 80A MOBs)

PW9355 Wall Mount Parallel Tie Cabinet With MIS Breaker 124100020-002* - 208V/208V 60 x 20.0 x 5.75 140 $4,378

(225A MBP, 225A MIS, & (4) 80A MOBs)

PW9355 Remote EPO Switch 103002939 Wall-mounted - - - $511

PW9355 10-15 kVA Seismic Mounting Kit 103004194-5501 Zone 4 Kit - - - $2,188

Remote Monitor Panel requires Industrial Relay X-Slot Card part See section for Connectivity Options & Pricing

CAN Bridge Parallel Card 103004336* - - - $574

1. This is a net weight; please add 40 lb for the shipping weight of the panels and 50 lb for panels with panelboard provisions.

* Eaton startup is required for factory warranty of parallel configuration

9355 BYPASS PANELS

Part Input/Output Dimensions Weight List

Description Number Voltage (H x W x D, inches) (lb)1 Price

PW9355 15 kVA 3-breaker Maintenance Bypass Panel 124100027-001 208V/208V 48.0 x 20.0 x 5.8 120 $3,880

(100A Bus, 200A Neutral, & 60A MBP, MIB, MIS)

PW9355 15 kVA 3-breaker Maintenance Bypass Panel 124100027-002 208V/208V 60.0 x 20.0 x 5.8 120 $7,363

with integral 120 KA TVSS (100A Bus, 200A Neutral,

& 60A MBP, MIB, MIS)

PW9355 15 kVA 3-breaker Maintenance Bypass Panel 124100027-003 208V/208V 72.0 x 20.0 x 5.8 210 $4,330

with 36-Pole Distribution Provisions (Cutler-Hammer GHB 65 kAIC)

PW9355 15 kVA 3-breaker Maintenance Bypass Panel 124100027-004 208V/208V 90.0 x 20.0 x 5.8 225 $7,984

with 36-Pole Distribution Provisions & Integrated TVSS

(Cutler-Hammer GHB 65 kAIC)

PW9355 15 kVA 3-breaker Maintenance Bypass Panel 124100027-006 208V/208V 72.0 x 20.0 x 5.8 210 $4,330

with 36-Pole Distribution Provisions (Cutler-Hammer GHBW 22 kAIC)

PW9355 15 kVA 3-breaker Maintenance Bypass Panel 124100027-007 208V/208V 72.0 x 20.0 x 5.8 210 $4,330

with 36-Pole Distribution Provisions (Cutler-Hammer BAB 10 kAIC)

PW9355 15 kVA 3-breaker Maintenance Bypass Panel 124100027-008 208V/208V 90.0 x 20.0 x 5.8 225 $7,984

with 36-Pole Distribution Provisions & Integrated TVSS

(Cutler-Hammer GBHW 22 kAIC)

PW9355 15 kVA 3-breaker Maintenance Bypass Panel 124100027-009 208V/208V 90.0 x 20.0 x 5.8 225 $7,984

with 36-Pole Distribution Provisions & Integrated TVSS

(Cutler-Hammer BAB 10 kAIC)

1. This is a net weight; please add 40 lb for the shipping weight of the panels and 50 lb for panels with panelboard provisions.

OUTPUT RECEPTACLES

Receptacle Codes (Qty) NEMA Type Enter “Receptacle Code” into CTO Digits # Price Adder for EACH Receptacle Code Chosen

2 (1) L15-30R 9, 10 or 11 only $238

3 (1) L21-20R 9, 10 or 11 only $238

4 (1) L21-30R 9, 10 or 11 only $238

A (2) 5-15R 9,10,11,12 $238

B (2) 5-20R UL 9,10,11,12 $238

D (2) 6-15R 9,10,11,12 $238

E (2) 6-20R 9,10,11,12 $238

F (2) L5-15R 9,10,11,12 $238

G (1) L5-20R* 9,10,11,12 $238

H (1) L5-30R* 9,10,11,12 $238

I (2) L6-15R 9,10,11,12 $238

J (1) L6-20R* 9,10,11,12 $238

K (1) L6-30R* 9,10,11,12 $238

L (1) L14-20R* 9,10,11,12 $238

M (1) L14-30R* 9,10,11,12 $238

X Blank Panel 9,10,11,12 $22

N (2) IEC 320 C13 (120V) 9,10,11,12 $238

P (2) IEC 320 C19 (120V) 9,10,11,12 $238

Note: Arrange receptacle codes in numerical-alphabetical order in digits 9 through 12 of the CTO number

Example 1: a PDM with an L21-20, an L14-30, and Qty 2 IEC320-C19 would have digits 9 through 12 of the CTO arranged as "3MPP"

Example 2: a PDM with a 5-15R, and an L6-30, and an L14-30 would have digits 9 through 12 of the CTO arranged as “AKMX”

The combined quantities of LOCKING receptacles (denoted by *) must not exceed 4 per unit.

Please be sure to utilize the "X" designation for any of the 4 total slots not populated.

77www.eaton.com/powerquality 1.800.461.9166

January 1, 2014

January 1, 2014

EATON 9355 UPS

Powerware series (continued)

BUILT-IN CONNECTIVITY OPTIONS

Value for Part List

Description CTO Digit 8 Number (if ordered separately) Price

NONE (No Pre-installed X-Slot card) 0 - $0

Modbus Card-X-Slot 4 103005425-5591 $911

Relay Interface Card-X-Slot (AS/400 Compatible) 5 1018460 $202

Industrial Relay and Display Drive Card X-Slot 6 103003055 $462

Note: You can have up to two optional connectivity cards installed.

9355 BATTERY BACKUP TIMES (in minutes) @ 0.9 POWER FACTOR

Load UPS + Internal UPS + Internal

(VA/Watts) 32 Battery +1 EBM 64 +2 EBMs 64 +3 EBMs 64 +4 EBMs 64 64 Battery +1 EBM 96 +2 EBMs 96 +3 EBMs 96

15000/13500 4.6 23.0 43.0 65.1 88.6 13.3 43.0 76.7 113.0

14500/13050 4.9 24.1 45.2 68.3 93.0 14.1 45.2 80.5 119.0

14000/12600 5.2 25.2 47.3 71.5 97.4 14.9 47.3 84.2 125.0

13500/12150 5.5 26.4 49.4 74.7 102.0 15.8 49.4 88.1 130.0

13000/11700 5.8 27.6 51.6 78.1 106.0 16.7 51.6 92.0 136.0

12500/11250 6.1 28.8 54.0 81.6 111.0 17.6 54.0 96.2 142.0

12000/10800 6.5 30.2 56.5 85.5 116.0 18.6 56.5 101.0 149.0

11500/10350 6.9 31.6 59.3 89.7 122.0 19.2 59.3 106.0 156.0

11000/9900 7.3 33.3 62.4 94.4 129.0 20.2 62.4 111.0 164.0

10500/9450 7.8 35.1 65.9 99.6 136.0 21.4 65.9 117.0 174.0

10000/9000 8.4 37.2 69.8 106.0 144.0 22.6 69.8 124.0 184.0

9500/8550 9.1 39.6 74.2 112.0 153.0 24.1 74.2 132.0 196.0

9000/8100 9.9 42.3 79.4 120.0 163.0 25.7 79.4 141.0 209.0

8500/7650 10.8 45.5 85.2 129.0 175.0 27.6 85.2 152.0 225.0

8000/7200 11.9 49.1 91.9 139.0 189.0 29.8 91.9 164.0 242.0

7500/6750 13.1 53.2 99.7 151.0 205.0 32.3 99.7 178.0 263.0

7000/6300 14.6 58.0 109.0 164.0 224.0 35.2 109.0 194.0 286.0

6500/5850 16.3 63.5 119.0 180.0 245.0 38.6 119.0 212.0 314.0

6000/5400 18.4 70.0 131.0 198.0 270.0 42.5 131.0 234.0 346.0

5500/4950 20.1 77.6 145.0 220.0 300.0 47.2 145.0 259.0 383.0

5000/4500 22.4 86.6 162.0 245.0 334.0 52.6 162.0 289.0 428.0

4500/4050 25.2 97.4 182.0 276.0 376.0 59.2 182.0 325.0 -

4000/3600 28.6 110.0 207.0 313.0 426.0 67.1 207.0 369.0 -

3500/3150 32.8 127.0 238.0 359.0 - 77.0 238.0 423.0 -

3000/2700 38.3 148.0 277.0 418.0 - 89.7 277.0 - -

2500/2250 45.6 176.0 329.0 - - 107.0 329.0 - -

Note: Backup times are approximate and may vary with equipment, configuration, battery age, temperature, etc.

78 EATON INDUSTRIES (CANADA) COMPANY Canadian Reference Guide & Pricebook

January 1, 2014

9355 (20–30 KVA) MODELS

20 kVA (18 kW)

Input/Output Base Dimensions Weight List System

Description Part Number1 Voltage Runtime (min) (H x W x D, inches)3 (lb)3 Price Price

PW9355 20 kVA with Internal Batteries KB2013100000010 208/208 18 66.0 x 20.0 x 34.1 1160 $26,743 $26,743

PW9355 20 kVA Single Feed with KB2013100000010 208/208 18 66.0 x 20.0 x 34.1 1160 $26,743 $32,561

Options Cabinet & Internal Batteries KBT001100000010* Input Isolation options Cab 66.0 x 20.0 x 34.1 535 $5,818

PW9355 20 kVA with Internal Batteries KB2013100000010 208/208 18 66.0 x 20.0 x 34.1 1160 $26,743

& Dual Feed Isolation Transformer KBT001100000010* Input Isolation options Cab 66.0 x 20.0 x 34.1 535 $5,818 $38,379

(2 Opt Cabs) KBT002100000010 Output Isolation options Cab 66.0 x 20.0 x 34.1 535 $5,818

PW9355 20 kVA with Internal Batteries KB2013200000010 220/2202 18 66.0 x 20.0 x 34.1 1160 $26,743 $26,743

PW9355 20 kVA with Internal Batteries KB2013100000010 480/208 18 66.0 x 20.0 x 34.1 1160 $26,743 $32,561

& Single Feed Options Cabinet KBT001200000010* Input Isolation options Cab 66.0 x 20.0 x 34.1 535 $5,818

PW9355 20 kVA Dual Feed with Options KB2013100000010 480/208 18 66.0 x 20.0 x 34.1 1160 $26,743

Cabinets & Internal Batteries KBT002200000010 Input Isolation options Cab 66.0 x 20.0 x 34.1 535 $5,818 $38,379

(2 Opt Cabs) KBT001200000010* Output Isolation options Cab 66.0 x 20.0 x 34.1 535 $5,818

PW9355 20 kVA Single Feed with KB2013100000010 600/208 18 66.0 x 20.0 x 34.1 1160 $26,743 $32,561

Options Cabinets & Internal Batteries KBT001300000010 Input Isolation options Cab 66.0 x 20.0 x 34.1 535 $5,818

PW9355 20 kVA Dual Feed with KB2013100000010 600/208 18 66.0 x 20.0 x 34.1 1160 $26,743

Options Cabinets & Internal Batteries KBT001300000010* Input Isolation options Cab 66.0 x 20.0 x 34.1 535 $5,818 $38,379

KBT002300000010 Output Isolation options Cab 66.0 x 20.0 x 34.1 535 $5,818

PW9355 20 kVA Single Feed with Options KB2013100000010 480/480 18 66.0 x 20.0 x 34.1 1160 $26,743 $38,379

Cabinet & Internal Batteries (1 Opt Cab) KBT004200000010* Input Isolation options Cab 66.0 x 20.0 x 34.1 792 $11,636

30 kVA (27 kW)

UPS Part Input/Output Base Dimensions Weight List System

Description (CTO) Number Voltage Runtime (min) (H x W x D, inches)3 (lb)3 Price Price

PW9355 30 kVA with Internal Batteries KB3013100000010 208/208 11 66.0 x 20.0 x 34.1 1160 $28,028 $28,028

PW9355 30 kVA Single Feed with KB3013100000010 208/208 11 66.0 x 20.0 x 34.1 1160 $28,028 $33,846

Options Cabinet & Internal Batteries, KBT001100000010* Input Isolation options Cab 66.0 x 20.0 x 34.1 535 $5,818

including Isolation

PW9355 30 kVA with Internal Batteries KB3013100000010 208/208 11 66.0 x 20.0 x 34.1 1160 $28,028

& Dual Feed Isolation Transformer KBT001100000010* Input Isolation options Cab 66.0 x 20.0 x 34.1 535 $5,818 $39,664

(2 Opts Cabs) KBT002100000010 Output Isolation options Cab 66.0 x 20.0 x 34.1 535 $5,818

PW9355 30 kVA with Internal Batteries KB3013200000010 220/2202 11 66.0 x 20.0 x 34.1 1160 $28,028 $28,028

PW9355 30 kVA with Internal Batteries KB3013100000010 480/208 11 66.0 x 20.0 x 34.1 1160 $28,028 $33,846

& Single Feed Options Cabinet KBT001200000010* Input Isolation options Cab 66.0 x 20.0 x 34.1 535 $5,818

PW9355 30 kVA Dual Feed with KB3013100000010 480/208 11 66.0 x 20.0 x 34.1 1160 $28,028

Options Cabinets & Internal Batteries KBT001200000010* Input Isolation options Cab 66.0 x 20.0 x 34.1 535 $5,818 $39,664

(2 Opts Cabs) KBT002200000010 Output Isolation options Cab 66.0 x 20.0 x 34.1 535 $5,818

PW9355 30 kVA Single Feed with KB3013100000010 600/208 11 66.0 x 20.0 x 34.1 1160 $28,028 $33,846

Options Cabinet & Internal Batteries KBT001300000010 Output Isolation options Cab 66.0 x 20.0 x 34.1 535 $5,818

PW9355 30 kVA Dual Feed with KB3013100000010 600/208 11 66.0 x 20.0 x 34.1 1160 $28,028

Options Cabinet & Internal Batteries KBT001300000010* Input Isolation options Cab 66.0 x 20.0 x 34.1 535 $5,818 $39,664

(2 Opts Cabs) KBT002300000010 Output Isolation options Cab 66.0 x 20.0 x 34.1 535 $5,818

PW9355 30 kVA Single Feed with Options KB3013100000010 480/480 11 66.0 x 20.0 x 34.1 1160 $28,028 $39,664

Cabinet & Internal Batteries (1 Opts Cab) KBT004200000010* Input Isolation options Cab 66.0 x 20.0 x 34.1 792 $11,636

* contains MBP Rotary Style

1. 50/60 Hz auto-sensing.

2. 220V units are wye connected 220/127V input and 220/127V output, three-phase, 4-wire plus ground.

3. Add 47 lb for 2-high configurations or 50 lbs for 3-high configurations to determine shipping weight.

4. An input neutral is required for all configurations unless the input isolation transformer is used.

5. For parallel systems, change CTO digit #5 to a “2” and add $500 to the list price and include Parallel Tie Cabinet.. Eaton startup is required for factory warranty of parallel configuration.

EATON 9355 UPS

Powerware series (continued)

79www.eaton.com/powerquality 1.800.461.9166

January 1, 2014

January 1, 2014

9355 OPTIONS

Part Input/Output Dimensions Weight List

Description Number Rating Voltage (H x W x D, inches) (lb)1 Price

PW9355 20 & 30 kVA 2 String Line & Match

Extended Battery Cabinet 103005183 36 - 66.0 x 20.0 x 34.1 1105.0 $9,488

PW9355 20 & 30 kVA 4 String Line & Match

Extended Battery Cabinet 103004868 72 - 66.0 x 20.0 x 34.1 2060.0 $14,480

Option Cabinet, Containing Maintenance Bypass,

with No Transformer KBT000000000010 - 208/208 67.0 x 20.0 x 34.1 205.0 $3,077

PW9355 30 kVA Wall-mount Parallel Tie Cabinet 2-Breaker MBP

(400A Bus, 200A Neutral, 1 350A MBP, & (4) 110A MOBs) 124100026-001* - 208/208 48.0 x 20.0 x 5.8 150.01 $3,424

PW9355 30 kVA Wall-mount Parallel Tie Cabinet with MIS

Breaker (350A MBP, 350A MIS, & (4) 110A MOBs) 124100026-002* - 208/208 57.0 x 24.0 x 11.3 235 $7,919

Remote EPO Switch 103002939 Wall-mounted - - - $511

Zone 4 Seismic Kit (UPS Cabinet only) 103004896 Zone 4 Kit - - - $591

Remote Monitor Panel requires Industrial Relay X-Slot Card part See section for Connectivity Options & Pricing

CAN Bridge Parallel Card 103004336* - - - - $562

UPS Optional Output Breaker (125A, Change Digit #5 in CTO number to "3" for RT systems) $

1. This is a net weight; please add 40 lb for the shipping weight of the panels and 50 lb for panels with panelboard provisions.

Notes: Up to 3 EBMs can be added to each UPS for extended runtime. To find items and pricing for spare parts, kVA upgrades and parallel upgrades, please refer to the 9355 services page.

* Eaton startup is required for factory warranty of parallel configuration

9355 BYPASS PANELS

Part Input/Output Dimensions Weight List

Description Number Voltage (H x W x D, inches) (lb)1 Price

PW9355 20 & 30 kVA 3-breaker Maintenance Bypass Panel 124100028-001 208/208 48.0 x 20.0 x 5.8 120 $4,428

(225A Bus, 225A Neutral, & 110A MBP, 125A MIB, 110A MIS)

PW9355 20 & 30 kVA 3-breaker Maintenance Bypass Panel 124100028-002 208/208 60.0 x 20.0 x 5.8 120 $8,407

with integral 120 KA TVSS

(225A Bus, 225A Neutral, & 110A MBP, 125A MIB, 110A MIS)

PW9355 20 & 30kVA 3-Breaker Maintenance Bypass Panel 124100028-003 208/208 72.0 x 20.0 x 5.8 210 $5,107

with 36-pole Distribution Provisions (Cutler-Hammer GHB 65 kAIC)

PW9355 20 & 30 kVA 3-Breaker Maintenance Bypass Panel 124100028-004 208/208 90.0 x 20.0 x 5.8 225 $8,796

with 36-pole Distribution Provisions & Integrated TVSS (Cutler-

Hammer GHB 65 kAIC)

PW9355 20 & 30kVA 3-Breaker Maintenance Bypass Panel 124100028-006 208/208 72.0 x 20.0 x 5.8 210 $5,107

with 36-pole Distribution Provisions (Cutler-Hammer GBHW 22 kAIC)

PW9355 20 & 30kVA 3-Breaker Maintenance Bypass Panel 124100028-007 208/208 72.0 x 20.0 x 5.8 210 $5,107

with 36-pole Distribution Provisions (Cutler-Hammer BAB 10 kAIC)

PW9355 20 & 30 kVA 3-Breaker Maintenance Bypass Panel 124100028-008 208/208 90.0 x 20.0 x 5.8 225 $8,796

with 36-pole Distribution Provisions & Integrated TVSS (Cutler-

Hammer GBHW 22 kAIC)

PW9355 20 & 30 kVA 3-Breaker Maintenance Bypass Panel 124100028-009 208/208 90.0 x 20.0 x 5.8 225 $8,796

with 36-pole Distribution Provisions & Integrated TVSS (Cutler-

Hammer BAB 10 kAIC)

1. This is a net weight; please add 40 lb for the shipping weight of the panels and 50 lb for panels with panelboard provisions.

Note: Please specify preference for breakers.

9355 BUILT-IN CONNECTIVITY OPTIONS

Available X-Slot card options

Value for Part List

Description CTO Digit 8 Number (if ordered separately) Price

NONE (No pre-installed X-Slot card) 0 – $0

Modbus Card-X-Slot 4 103005425-5591 $991

Relay Interface Card-X-Slot (AS/400 Compatible) 5 1018460 $202

Industrial Relay and Display Drive Card X-Slot 6 103003055 $462

Note: UPS has two X-Slots, one of which can be populated or factory installed, with the second X-Slot accessory supplied separately.

SOFTWARE AND CONNECTIVITY OPTIONS

Description Part Number List Price

Power Xpert Gateway UPS Card PXGXUPS (103007974-5591) $621

Bundled with Intelligent Power Software Suite CD and communication cable. See the software and connectivity sections for more details.

EATON 9355 UPS

Powerware series (continued)

80 EATON INDUSTRIES (CANADA) COMPANY Canadian Reference Guide & Pricebook

January 1, 2014

EATON 9355 UPS

Powerware series (continued)

9355 BATTERY BACKUP TIMES (in minutes)

UPS Internal Internal Internal Internal

Load w/Internal Battery Battery Battery Battery

(VA/Watts) Battery +EBC 36 +EBC 72 +2 EBC 72 +3 EBC 72

30000/27000 11 31 56 89 108

29000/26100 11 33 58 90 109

28000/25200 12 35 60 93 111

27000/24300 12 38 62 95 114

26000/23400 13 40 65 98 118

25000/22500 14 43 68 101 124

24000/21600 14 46 71 103 129

23000/20700 15 48 74 106 134

22000/19800 16 51 76 109 144

21000/18900 17 53 79 111 152

20000/18000 18 56 82 114 160

19000/17100 19 58 85 117 175

18000/16200 20 62 88 120 189

17000/15300 22 66 92 130 204

16000/14400 24 71 96 142 219

15000/13500 26 75 101 154 234

14000/12600 28 79 105 166 249

13000/11700 31 84 110 178 265

12000/10800 35 88 114 201 280

11000/9900 38 94 119 226 319

10000/9000 42 101 134 251 355

7500/6750 58 117 188 347 471

5000/4500 90 188 294 543 610

Note: Battery backup times are approximate and may vary with equipment, configuration, battery age, temperature, etc.

SERVICES

For detailed information on service plans, please refer to the Three-phase Service section on page 114.

81www.eaton.com/powerquality 1.800.461.9166

January 1, 2014

January 1, 2014

EATON EMERGENCY LIGHTING UPS

SINGLE-PHASE EMERGENCY LIGHTING

System Dimensions Individual System

Individual Quantity Rating Input/Output Runtime (H x W x D, Weight List List

Description Part Number Description Required (kVA/kW) Voltage (min) inches) (lb) Price Price

K41012000000000 9155 10 kVA UPS 1 $14,567

Eaton Emergency Lighting BH-10KEL2081P-100 UPS Upgrade 1 $2,712

Single-phase 7 kW 277V 103004193-5501 9155 Battery Cabinet 2 10/6.8 277/277 134 47.8 x 48.0 x 33.7 2,408 $8,702 $47,431

UPS System BH-EBM96EL-600 Battery Upgrade 2 $926

BH-KBT001-200 277/277V Transformer 1 $9,932

K41512000000000 9155 15 kVA UPS 1 $16,632

Eaton Emergency Lighting BH-15KEL2081P-100 UPS Upgrade 1 $3,120

Single-phase 9 kW 277V 103004193-5501 9155 Battery Cabinet 2 15/9 277/277 120 47.8 x 48.0 x 33.7 2,408 $8,702 $49,956

UPS System BH-EBM96EL-600 Battery Upgrade 2 $926

BH-KBT001-200 277/277V Transformer 1 $9,932

THREE-PHASE EMERGENCY LIGHTING

System Dimensions Individual System

Individual Quantity Rating Input/Output Runtime (H x W x D, Weight List List

Description Part Number Description Required (kVA/kW) Voltage (min) inches) (lb) Price Price

KA1012100000010 9355 10 kVA UPS 1 $18,230

Eaton Emergency Lighting BH-10KEL2083P-100 UPS Upgrade 1 10/8.5 208/208 124 47.8 x 36.0 x 33.7 2,029 $ $44,284

Three-phase 8.5 kW 208V 103004193-5501 9355 Battery Cabinet 2 $9,409

UPS System BH-EBM96EL-600 Battery Upgrade 2 $

KA1512100000010 9355 15 kVA UPS 1 $19,687

Eaton Emergency Lighting BH-15KEL2083P-100 UPS Upgrade 1 15/13.1 208/208 113 47.8 x 48.0 x 33.7 2,739 $ $56,706

Three-phase 13 kW 208V 103004193-5501 9355 Battery Cabinet 3 $9,409

UPS System BH-EBM96EL-600 Battery Upgrade 3 $

KB2013100000010 9355 20 kVA UPS 1 $24,393

Eaton Emergency Lighting BH-20KEL2083P-100 UPS Upgrade 1 20/18 208/208 114 66.0 x 60.0 x 34.1 5,280 $ $63,460

Three-phase 18 kW 208V 103004868 9355 Battery Cabinet 2 $14,480

UPS System BH-EBC72EL-600 Battery Upgrade 2 $

KB3013100000010 9355 30 kVA UPS 1 $25,565

Eaton Emergency Lighting BH-30KEL208SF-100 UPS Upgrade 1 30/24 208/208 108 66.0 x 60.0 x 34.1 5,280 $ $65,130

Three-phase 24 kW 208V 103004868 9355 Battery Cabinet 2 $14,480

UPS System BH-EBC72EL-600 Battery Upgrade 2 $

KB3013100000010 9355 30 kVA UPS 1 $25,565

Eaton Emergency Lighting BH-30KEL2083P-100 UPS Upgrade 1 30/27 208/208 90 66.0 x 80.0 x 34.1 7,340 $ $81,195

Three-phase 27 kW 208V 103004868 9355 Battery Cabinet 3 $14
