556 Philips

Lytespan

Lytespan

Canlyte Lighting Resource Guide

Lytespan Track has maintained a reputation for its commitment to

excellence and innovation since its inception over 40 years ago.

Designed to blend with a variety of residential and light commercial

interiors, Lytespan offers lighting that is visually powerful and versatile.

A wide selection of products allows Lytespan to meet virtually any lighting

need while providing the optimum level of style and performance.

With Lytespan, high light output and energy efciency are not mutually

exclusive. By taking advantage of state-of-the-art light sources,

Lytespan can deliver powerful lighting that is extremely energy-

efcient. Lytespan LED, Energy Smart®, uorescent and metal halide

track xtures such Alcyon LED and Mini HID can save up to 70% of

the energy consumed by ordinary incandescent xtures while utilizing

product designs that are elegant and timeless. Lytespan delivers

lighting that excites while it communicates. Only from Lightolier, the

pioneer of track lighting.

557Philips Canlyte Lighting Resource Guide

Alcyon LED 560

Mini LED 562

Spot LED 562

Alcyon LED Flood 563

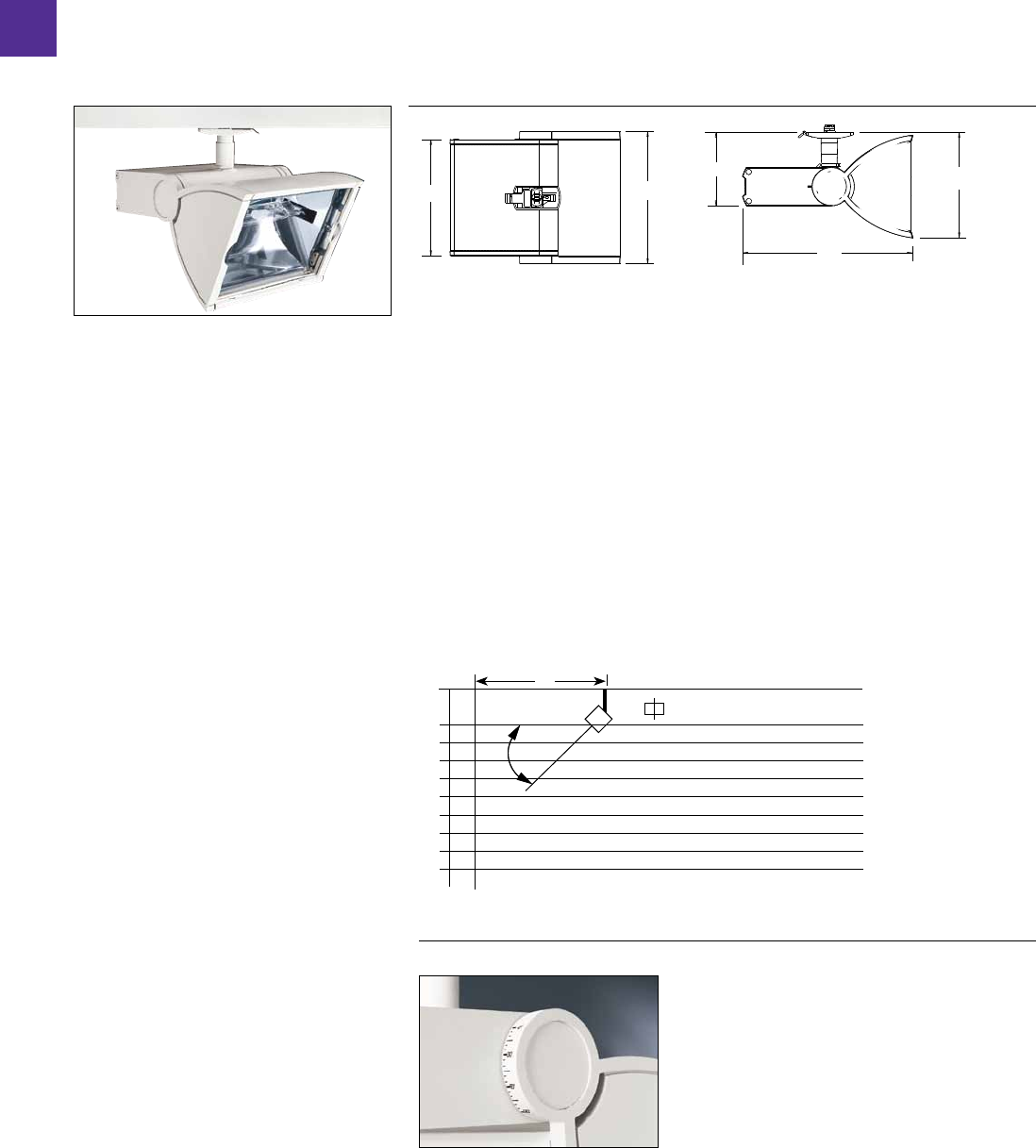

Mini HID 566

Vertilyte Mini 571

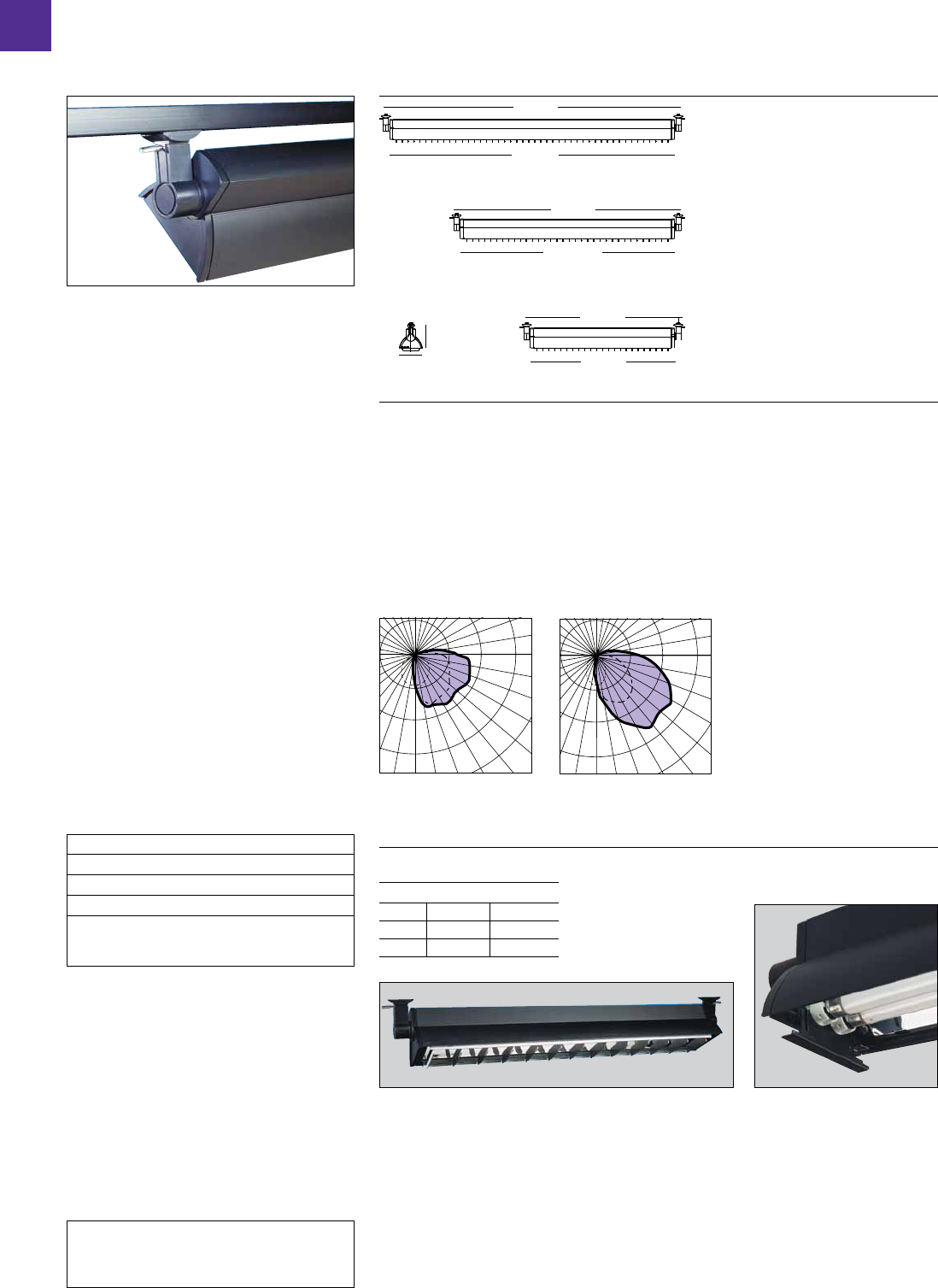

PowerArcTM 572

PowerWashTM 574

Lyteood 575

Alcyon - Low Voltage 578

Sof-Te ch 580

Classic Forms 581

Alcyon - Line Voltage 582

Low Prole ParTech 584

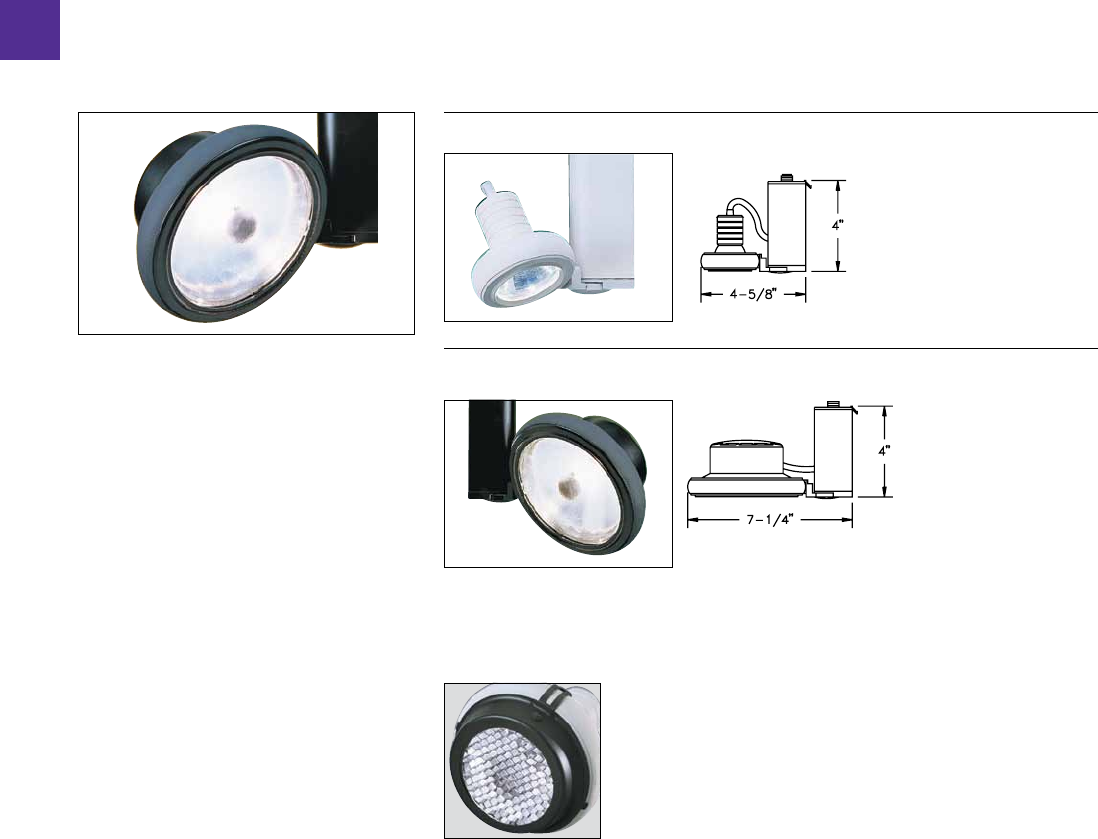

Ring Lytespots – Basic 585

Theatrical Lytespot – Dramalux 586

Framing Projector 587

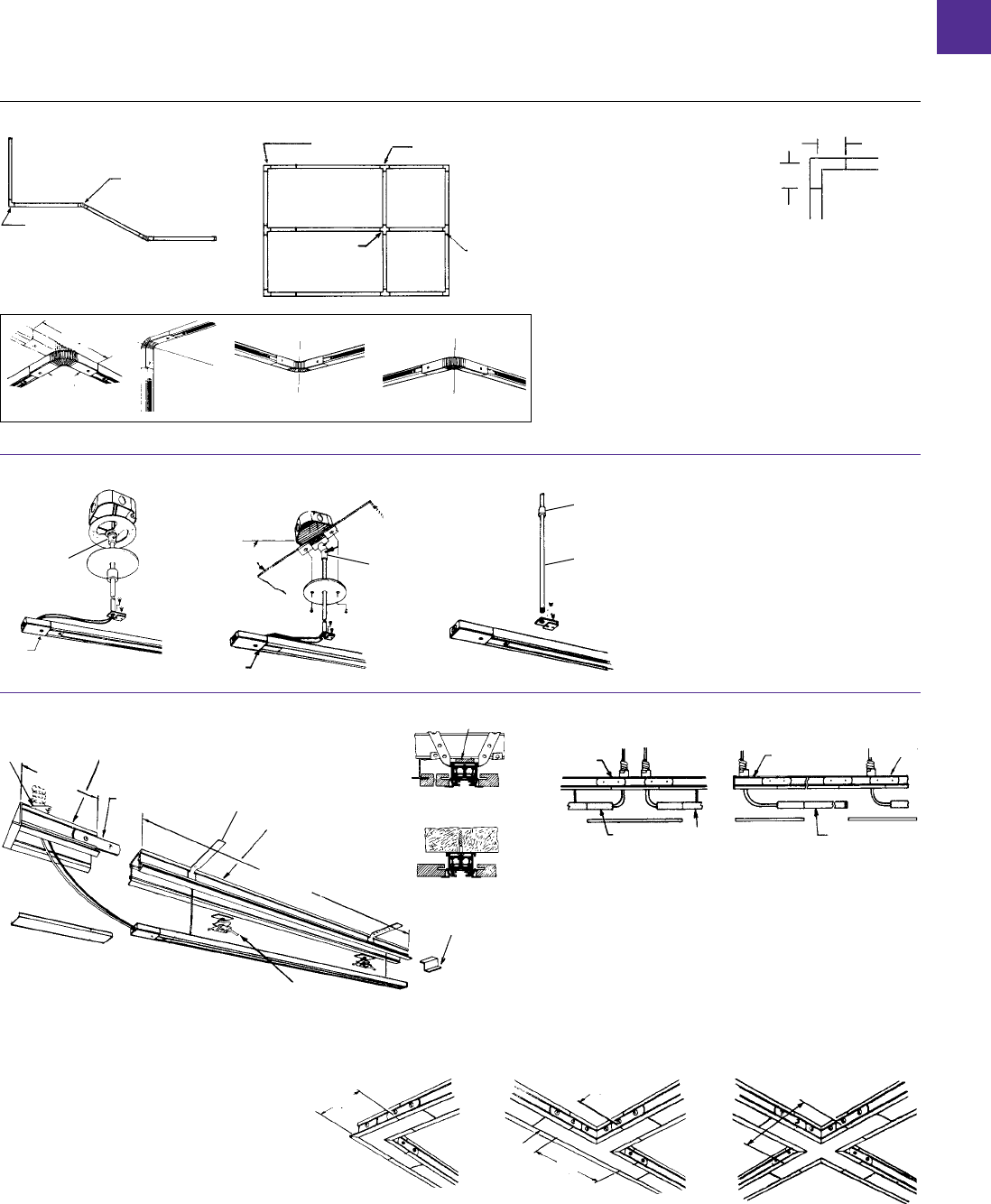

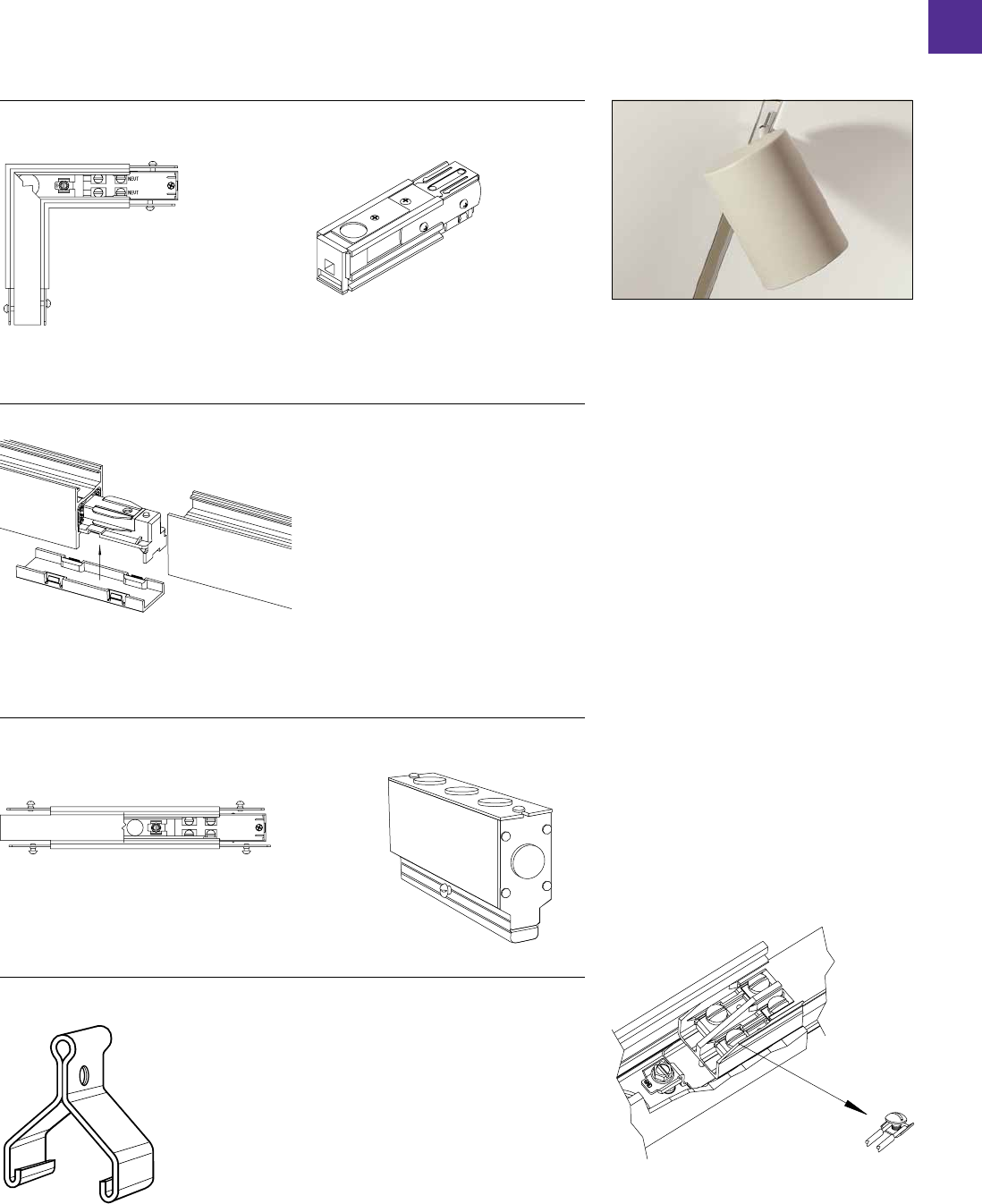

Basic Track – Advent Track 588

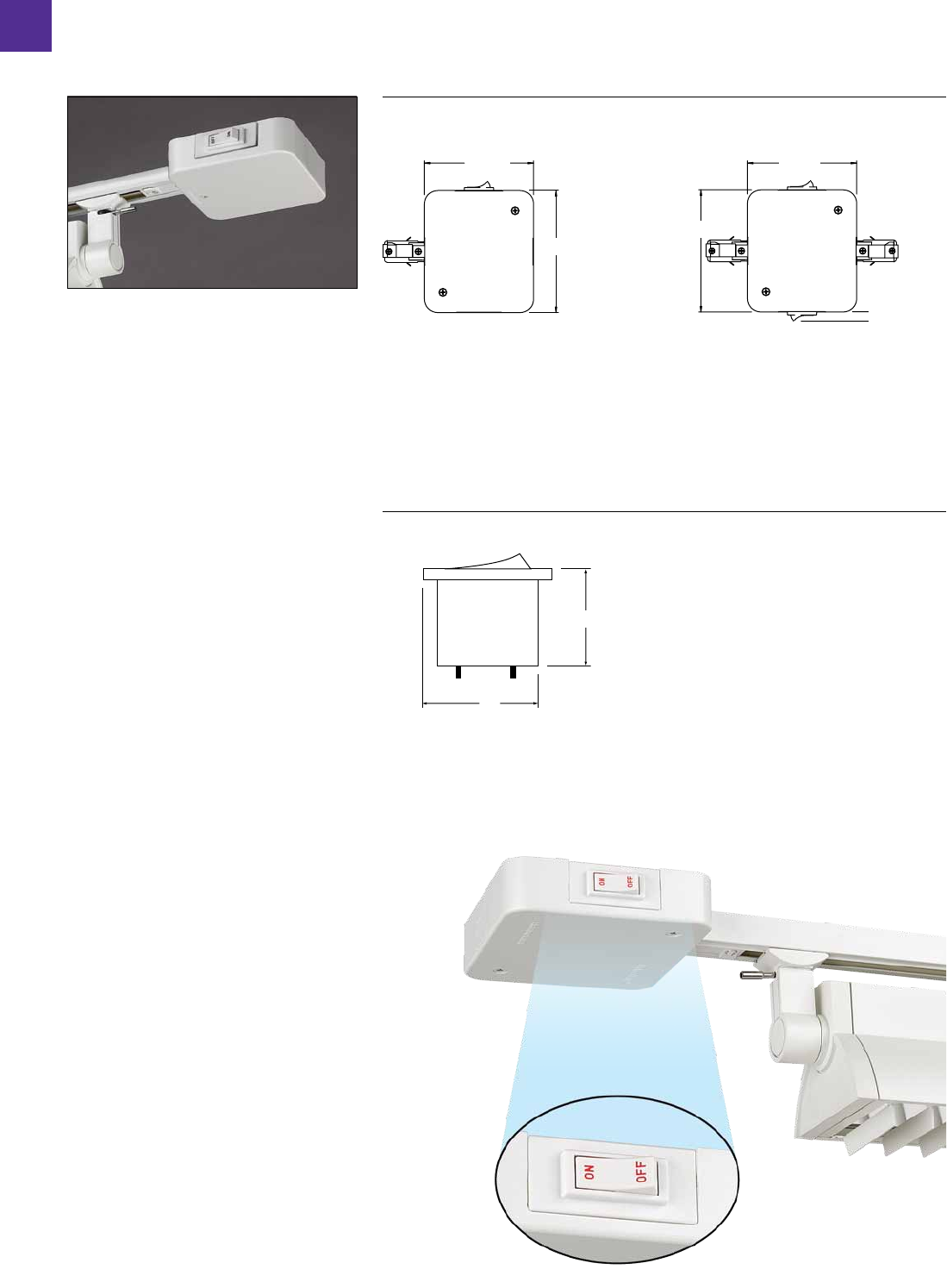

Powertrip 592

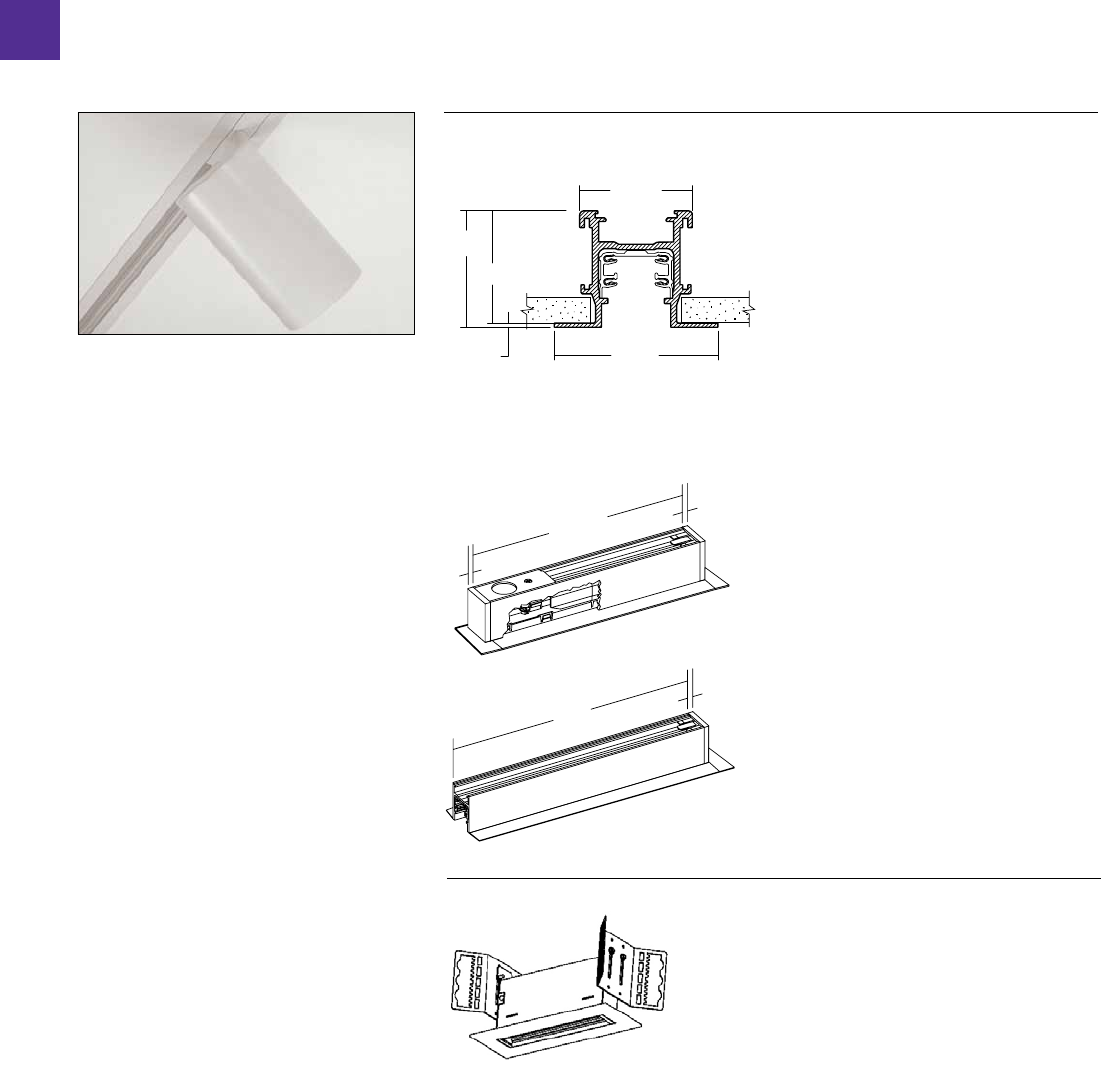

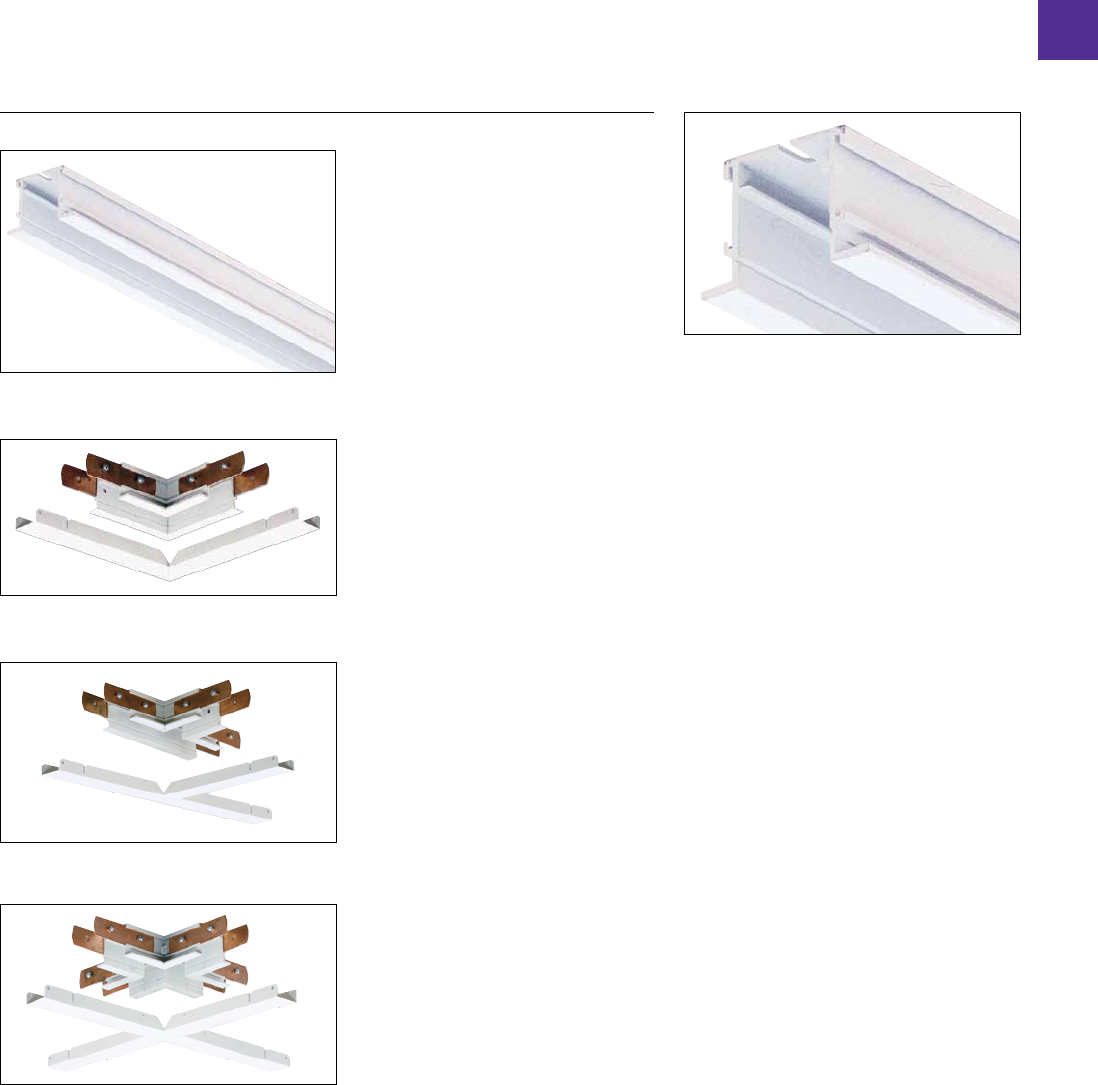

Recessed Track 593

Tange nt 59 6

Prospec 604

Lytespan Accessories 618

Contents

558 Philips

Lytespan – Philips Lightolier

Canlyte Lighting Resource Guide

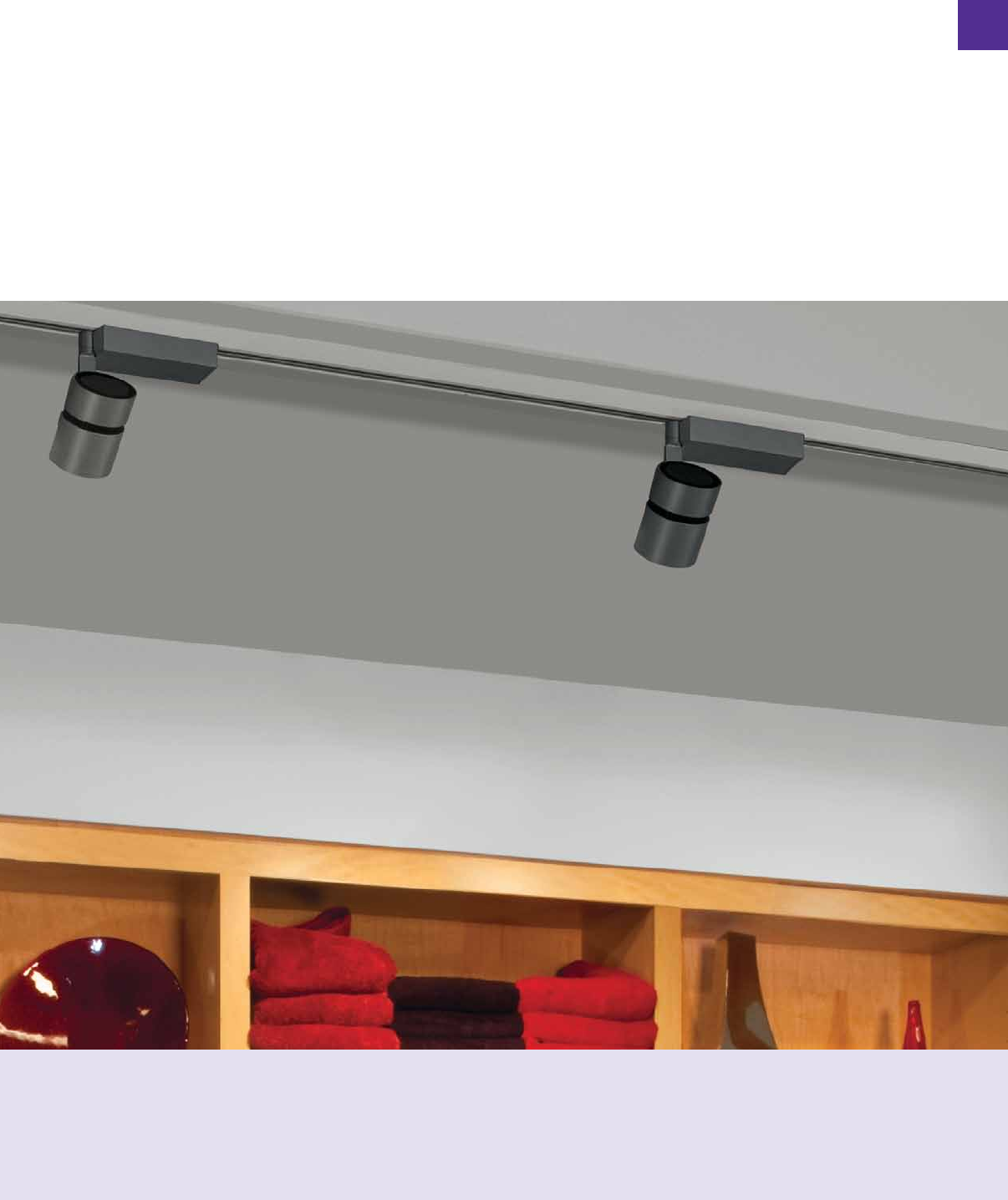

Lytespan LED

Setting the standard in innovation, flexibility and performance.

Employing the latest in LED technology, combined

with the proven success of Alcyon and Mini HID,

our LED luminaires set the standard for innovation,

exibility and performance, without sacricing

design.

Building upon our expertise in LED, the Lytespan

LED family represents the state-of-the-art in

energy efcient lighting for retail, commercial and

architectural applications. Lytespan LED delivers

long lasting performance for accent and ood

lighting in a stunning wireless design.

559Philips

Lytespan – Philips Lightolier

Canlyte Lighting Resource Guide

560 Philips

Lytespan – Philips Lightolier

6-1/4"

(159mm)

1/4"

(6mm)

1-3/8"

(35mm)

7"

(178mm)

7-7/16"

(189mm)

6-7/16"

(164mm) 7/8"

(22mm)

3-9/16"

(90mm)

2-13/16"

(71mm)

3-3/16"

(81mm)

Canlyte Lighting Resource Guide

Designed around the finest white LED’s and thermally

engineered for superior optical performance, the Alcyon

LED Small Cylinder delivers light equal to most MR16 lamp

sources. Available in a range of beam spreads for lighting

flexibility and is dimmable.

Features

•15W, 640* Nominal Lumens

•Integrated Housing Heat Sink: Die-cast aluminum

maintains LED junction temperature for minimum

50,000 hr lifetime at 70% lumen maintenance

•Optical Assembly: Interchangeable reflectors may

be changed at any time to accommodate the lighting

requirements of the space

•Integral Locking: Vertical and horizontal locking

preserves original lighting design intent

•Aiming Indicator: Allows a series of luminaires to be

precisely set to the same aiming angle

*+⁄– 5% for 3000K

Alcyon LED — Small Cylinder

LLA01 Series

Reflector Assembly

Choose from a spot,

narrow flood or wide flood.

Ordered Separately.

Accessory holder

Accommodates lens or hex

cell louver plus a snoot.

Adjustable to allow for

maximum light output.

Front housing

Twist and lock feature

allows for easy access to

accessories and reflector

holder.

LED board

Six white LEDs.

Integrated passive cooling

Maintains LED

junction temperature.

Cat. No. Description CCT

LLA0130 Dimmable 3000K

LLA0127 Dimmable 2700K

Add suffix for choice of finish;

(AL) Aluminum, (BK) Matte Black,

and (WH) Matte White.

Cat. No. Description

LLA01

RS Spot Reflector

RNF Narrow Flood Reflector

RF Flood Reflector

*Ordered separately. Field changeable.

Add SOL to catalog number for

reflector + Solite option

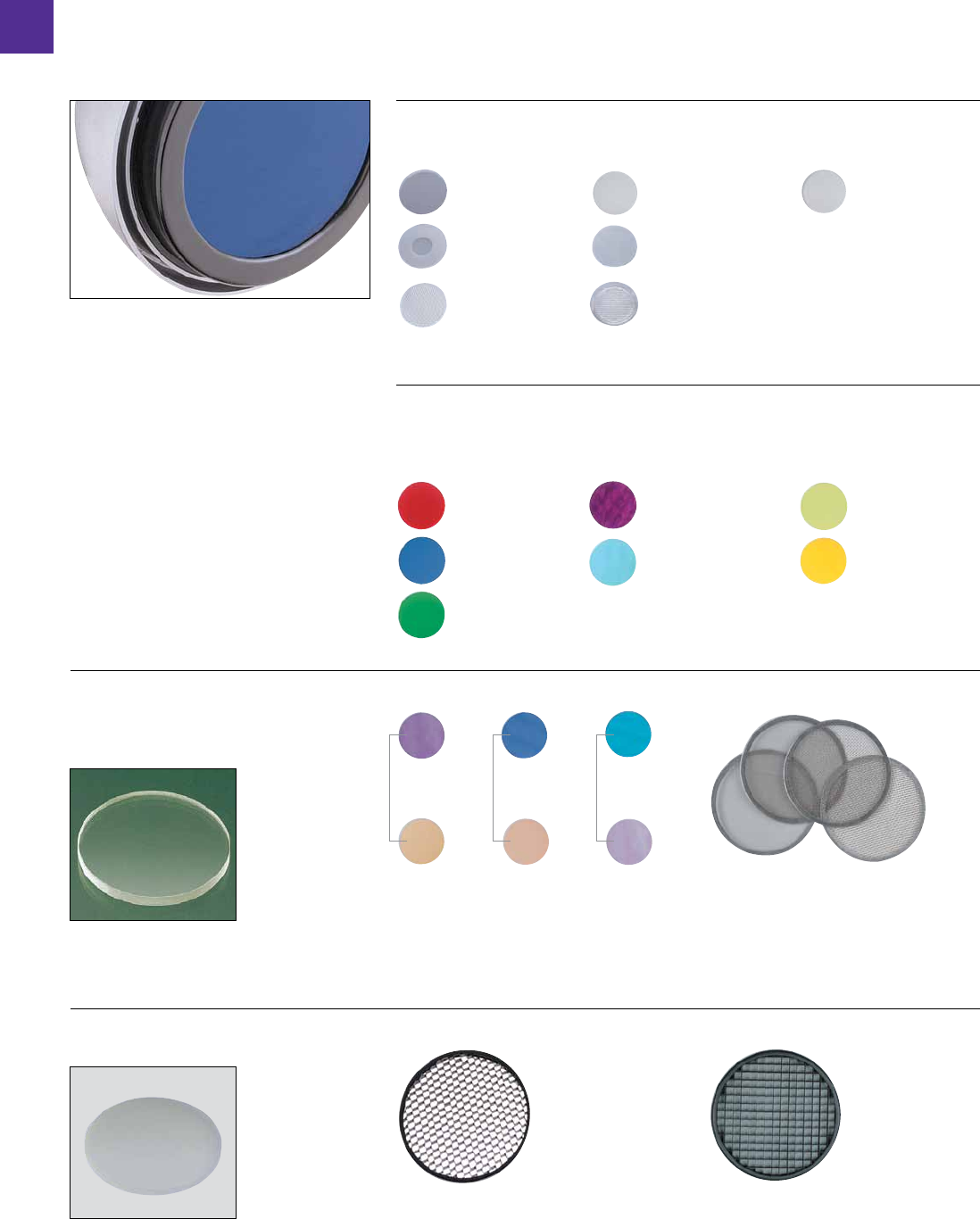

Cat. No. Description

LLA01SNBK Snoot (Matte black)

LLA01SNWH Snoot (Matte white)

AL25HC Hex Louver

AF25 Diffusion Filters

ADF25 Color Filters

Must use LLA01HBK/WH accessory holder,

when using a combination of two lenses or a

lens plus a louver.

Small Cylinder

Reflector Options*

Accessories

Ordering Information

led

561Philips

Lytespan – Philips Lightolier

7"

(179mm)

7-3/4"

(197mm)

8-1/2"

(216mm)

3-1/4"

(83mm)

7-1/4"

(184mm)

1"

(25mm)

3-1/2"

(89mm)

4-1/4"

(108mm)

1/4"

(6mm)

1-1/4"

(32mm)

Canlyte Lighting Resource Guide

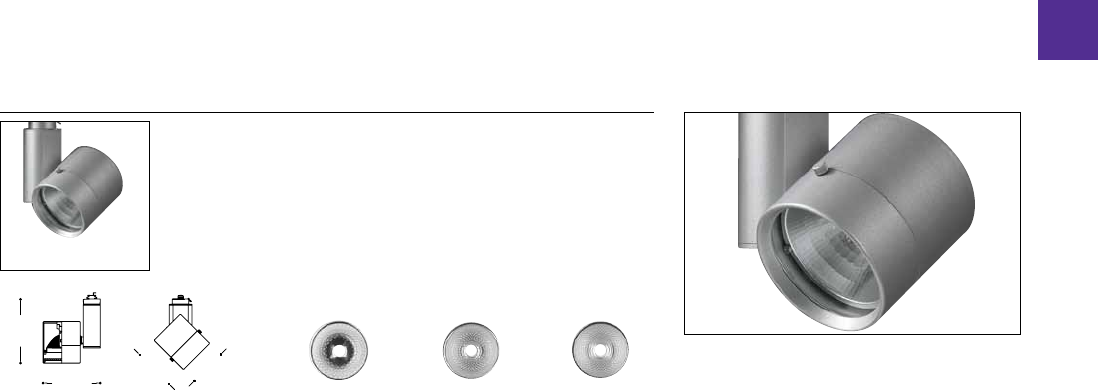

Architecturally styled the Alcyon LED Medium Cylinder

offers excellent beam control and aesthetics while provid-

ing high performance accent lighting for retail and com-

mercial applications. Delivering lumens equivalent to many

20W T4 metal halide systems.

Features

•23W,1000*NominalLumens

•Integrated Housing Heat Sink: Die-cast aluminum

maintains LED junction temperature for minimum

50,000 hr lifetime at 70% lumen maintenance

•OpticalAssembly: Interchangeable reflectors may

be changed at any time to accommodate the lighting

requirements of the space

•IntegralLocking: Vertical and horizontal locking

preserves original lighting design intent

•AimingIndicator: Allows a series of luminaires

to be precisely set to the same aiming angle

*+⁄– 10% for 3000K

LLA11 Series

Cat. No. Description CCT

LLA0130 Dimmable 3000K

LLA0127 Dimmable 2700K

Add suffix for choice of finish;

(AL) Aluminum, (BK) Matte Black,

and (WH) Matte White.

Cat. No. Description

LLA11

RS Spot Reflector

RNF Narrow Flood Reflector

RF Flood Reflector

*Ordered separately. Field changeable.

Add SOL to catalog number for

reflector + Solite option

Cat. No. Description

LLA11SNBK Snoot (Matte black)

LLA11SNWH Snoot (Matte white)

LLAHCA11 Hex Louver

LLA11AFSY Symmetrical Spread

LLA11AFSF Solite Soft Focus

Must use LLA11HBK /WH accessory holder,

when using a combination of two lenses or a

lens plus a louver.

Medium Cylinder

Reflector Options*

Accessories

Ordering Information

led

Alcyon LED — Medium Cylinder

Accessory holder

Accommodates lens or hex

cell louver plus a snoot.

Adjustable to allow for

maximum light output.

Front housing

Twist and lock feature

allows for easy access

to accessories and

reflector holder.

Reflector Assembly

Choose from a spot, narrow flood

or wide flood.

Ordered separately.

Active cooling

Integrated active cooling

solution used to aid in the

thermal management of

the heat sink.

LED board

Nine white LEDs.

562 Philips

Lytespan – Philips Lightolier

4-3/8"

(111mm)

5-7/8"

(149mm)

5-7/16"

(138mm)

7-5/16"

(186mm)

7-5/16"

(186mm) 9-3/8"

(238mm)

1-11/16"

(43mm)

2-1/2"

(64mm)

6-1/16"

(154mm)

7-7/8"

(201mm)

7-15/16"

(202mm) 10-5/16"

(262mm)

1-7/8"

(48mm)

2-1/2"

(64mm)

Canlyte Lighting Resource Guide

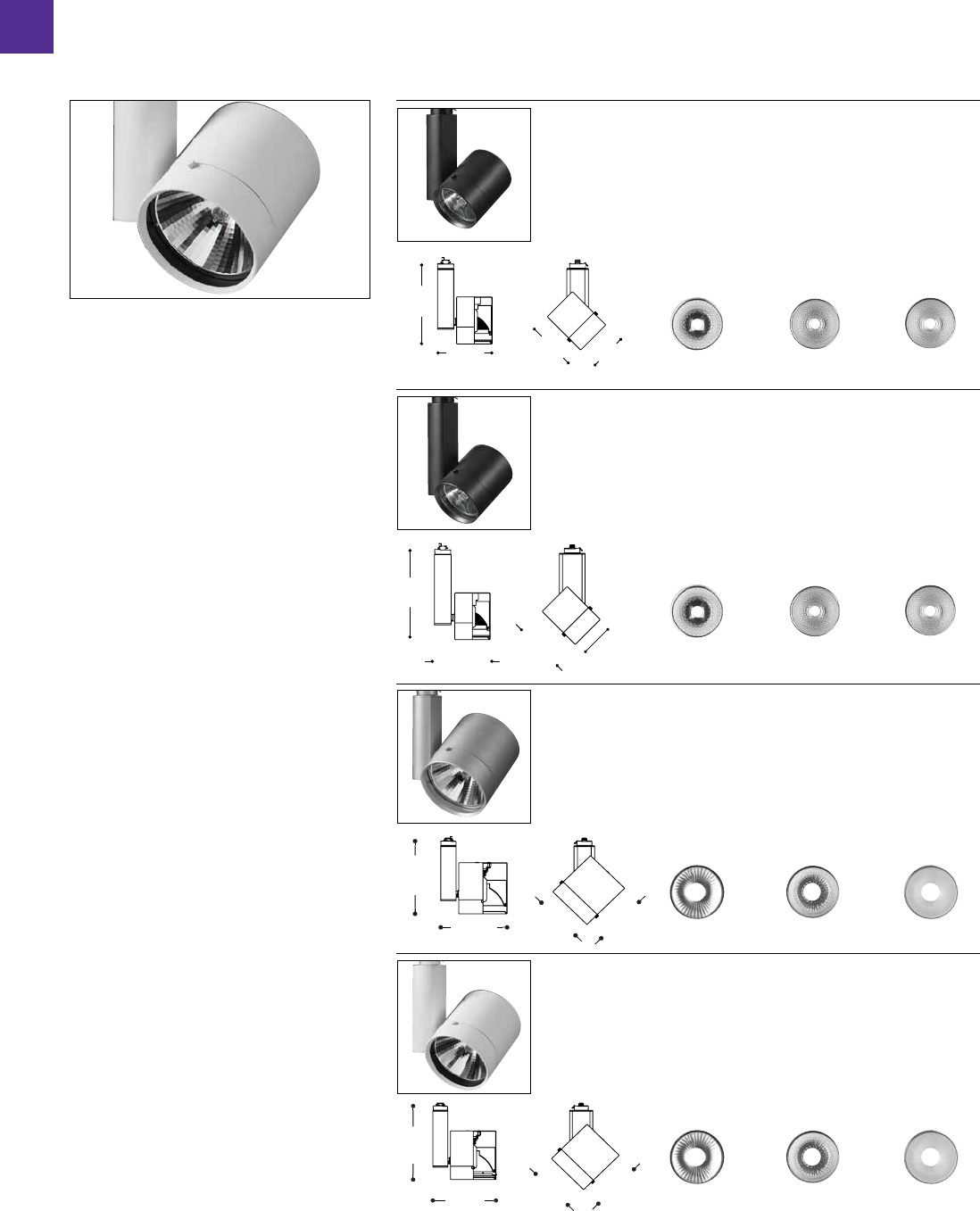

Designed around the finest white LED’s and thermally

engineered for superior optical performance, the Mini LED

Micro Cylinder delivers light equal to MR16 lamp sources.

Available in a range of beam spreads for lighting flexibility

and is dimmable.

Features

•10W,400*NominalLumens

•IntegratedHousingHeatSink: Die-cast aluminum

maintains LED junction temperature for minimum

50,000 hr lifetime at 70% lumen maintenance

•OpticalAssembly: Interchangeable reflectors may

be changed at any time to accommodate the lighting

requirements of the space

•Compatibile with extension wands, sloped ceiling

adapter and clamp-on monopoint

*+⁄– 5% for 3000K

A breakthrough in LED accent lighting. Philips Lightolier

provides powerful accent lighting with only 15W of power.

Ideally suited for accent lighting in retail, commercial and

hospitality spaces. Available in a range of beam spreads for

lighting flexibility and is dimmable.

Features

•Delivering900nominallumensat15W,1800nominal

lumens at 32W

•Efcacy:58lumensperwattforLLAB0series

•Fullexibilityin3beamspreads(10°,22°,36°)

•Availablein2700Kand3000K*or3000Kand4000K*

•CRI85,typical

•Dimmable:Electroniclowvoltage

•Acceptstwoaccessories

•CompatiblewithLytespantrack**

•50,000hourratedlife(L70)

•5yearwarranty

* +⁄– 5% for 3000K

** Contact factory for other adaptor options

For photometric data, please consult appropriate

spec sheet.

Mini LED — Micro Cylinder

Spot LED

LLAV Series

LLAB0 Series

LLAB1 Series

Cat. No. Description CCT

LLAV0030 Dimmable 3000K

LLAV0027 Dimmable 2700K

Add suffix for choice of finish;

(AL) Aluminum, (BK) Matte Black,

and (WH) Matte White.

Cat. No. Description CCT

LLAB030RS Spot 3000K

LLAB030RNF Narrow Flood 3000K

LLAB030RF Flood 3000K

LLAB027RS Spot 2700K

LLAB027RNF Narrow Flood 2700K

LLAB027RF Flood 2700K

Add suffix for choice of finish;

(AL) Aluminum, (BK) Matte Black,

and (WH) Matte White.

Cat. No. Description CCT

LLAB130RS Spot 3000K

LLAB130RNF Narrow Flood 3000K

LLAB130RF Flood 3000K

LLAB140RS Spot 4000K

LLAB140RNF Narrow Flood 4000K

LLAB140RF Flood 4000K

Add suffix for choice of finish;

(AL) Aluminum, (BK) Matte Black, (WH) Matte White.

Cat. No. Description

LLAV00

RS Spot Reflector

RNF Narrow Flood Reflector

RF Flood Reflector

*Ordered separately. Field changeable. Add SOL to

catalog number for reflector + Solite option

Cat. No. Description

LLAV00AHBK Acc Holder (Black)

LLAV00AHWH Acc Holder (White)

AL2HC Hex Cell Louver

AF2 Diffusion/Special Filters

ADF2 Color Filters

Cat. No. Description

8595 Accessory Holder (BK)

LLAB1AHBK Accessory Holder (BK) -

LLAB1 series only

AL4HC 4-3/4" dia. Hex Cell Louver

AF4 Diffusion/Special Filters

23SNT6WH/BK/AL Snoot

Micro Cylinder

Spot LED — 15W

Spot LED — 32W

Reflector Options*

Accessories

Accessories

Ordering Information

Ordering Information

led

563Philips

Lytespan – Philips Lightolier

5-11/16"

(144mm)

1-15/16"

(49mm)

1-3/8"

(35mm)

7/8"

(22mm)

2"

(51mm)

5-3/8"

(137mm)

1/4"

(6mm)

3-3/16"

(81mm)

10-5/8"

(270mm) 2-1/16"

(52mm)

5-5/16"

(135mm)

Canlyte Lighting Resource Guide

Features

•20W,1000*NominalLumens

•LEDBoard: Metal Core Printed Circuit board for

efficient thermal management with 16 royal blue LEDs

•OpticalAssembly: Remote phosphor technology

provides increased efficiency and color stability.

Phosphor lens assembly positioned in front of LED array

converts blue light to white and produces a wide even

pattern of diffused light without bright spots created

by individual LEDs. Uniform phosphor coating provides

consistent, stable color with a shift of no more than

+/- 100K over life. High reflectance material in optical

chamber harnesses led light and redirects through

phosphor with minimal losses

•IntegralLocking: Vertical and horizontal locking

preserves original lighting design intent

•AimingIndicator:Allows a series of luminaires to be

precisely set to the same aiming angle

*+⁄– 5%

LLF series

Ordering Information

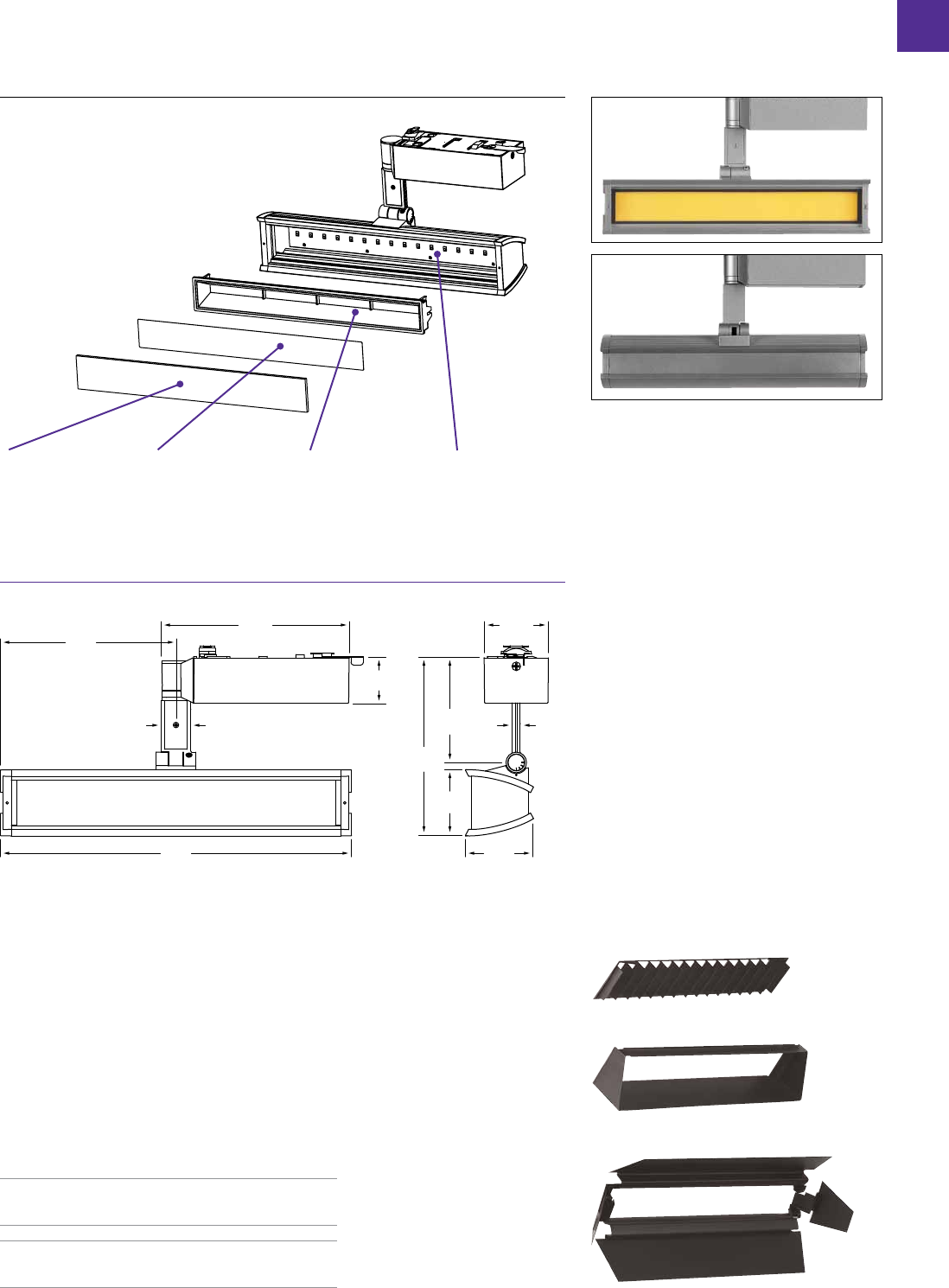

Alcyon LED Flood

Cover lens

Colorless borosilicate glass

protects optical chamber

and LED surfaces from dust

and other contaminants.

Phosphor lens

Remote phosphor technology

provides increased efficiency

and color stability.

Optical Chamber

Harnesses LED light and

redirects through phosphor

with minimal losses.

LED board

16 royal blue LEDs.

Remote phosphor

application minimizes

performance variation.

Cat. No. Description* CCT

LLF27 Dimmable 2700K

LLF30 Dimmable 3000K

LLF35 Dimmable 3500K

LLF40 Dimmable 4000K

Add suffix for choice of finish;

(AL) Aluminum, (BK) Matte Black,

and (WH) Matte White.

*Dimming:UseelectronicELV

(electronic low voltage) type dimmer.

Consult factory for dimming compatibility.

Flood

Cat. No. Finish Description

LLFVZ

WH White Track LED Flood - Visor

BK Black Track LED Flood - Visor

AL Aluminum Track LED Flood - Visor

LLFLV BK Black Track LED Flood - Vertical blade louver

LLFBD

WH White Track LED Flood - Barn Door

BK Black Track LED Flood - Barn Door

AL Aluminum Track LED Flood - Barn Door

Accessories

LLFVZBK Flood visor

LLFLVBK Vertical Blade Louver

LLFBDBK Barn Door

led

564 Philips

Lytespan – LightolierLytespan – Philips Lightolier

Canlyte Lighting Resource Guide

565Philips

Lytespan – Philips Lightolier

Canlyte Lighting Resource Guide

EnergySmart

With Lytespan, the end user does not have to

choose between higher light output and energy

efficiency. By taking advantage of state-of-the-

art light sources, Lytespan can deliver good

quality lighting that is cost efficient, flexible and

extremely effective. It’s all part of a strategy we

call EnergySmart. EnergySmart, fluorescent

and metal halide Lytespan products such as Mini

HID, PowerArc and PowerWash T5 can save up

to 70% of the energy consumed by ordinary

incandescent fixtures. This makes them ideal

for new construction and retrofit applications

virtually anywhere where an extremely efficient,

high quality light source is required. Since

they are specifically designed for each light

source, EnergySmart fixtures optimize lumens

per watt, minimizing stray light and glare.

Lytespan is committed to meeting the needs

of the lighting industry with high performance,

energy-efficient products.

566 Philips

Lytespan – Philips Lightolier

4-1/2"

(116mm) 3-3/8"

(87mm)

7-3/4"

(197mm)

5-1/4"

(134mm)

8-1/8“

(206mm)

6-3/4“

(171mm)

5“

(127mm) 5-1/2“

(114mm)

8-1/4“

(210mm)

6-7/8“

(175mm)

5“

(127mm)

5-1/2“

(140mm)

3-3/8"

(86mm)

4-5/8"

(117mm)

8-7/8"

(225mm)

5-1/4"

(133mm)

Canlyte Lighting Resource Guide

Mini HID

Lytespan Mini HID is a powerful combination of high

performance Ceramic Metal Halide lamps and sleek unob-

trusive designs in the smallest available package. Offering

up to 70% energy savings vs. incandescent spotlights

with 3 to 4 times longer lamp life, Lytespan Mini HID is

the choice for high-performance energy smart retail and

architectural lighting.

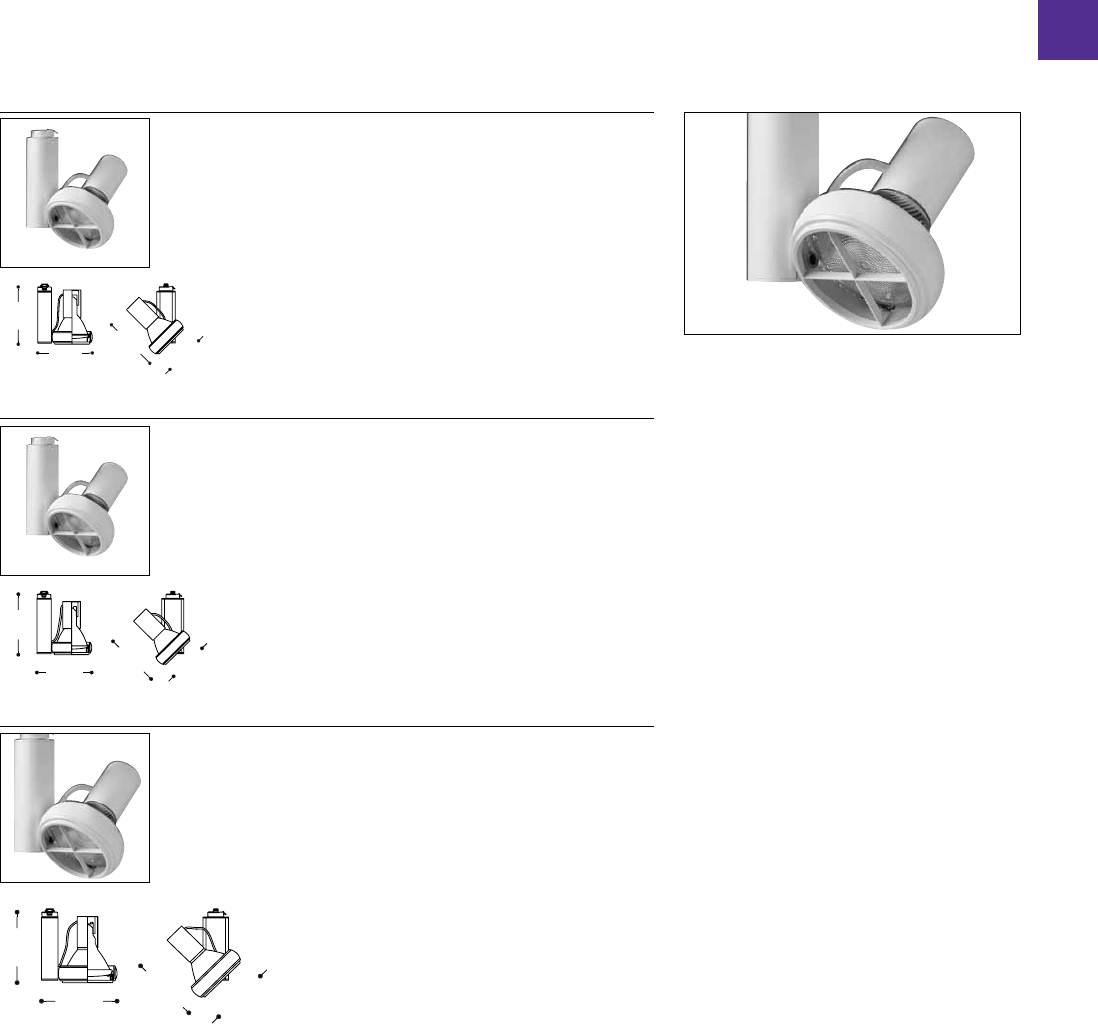

Cylinder Features

•Architecturallyinspiredwirelessdesign

•Extrudedaluminumballasthousing

•Compactelectronicballastwiththermalprotection

•Forgivingreectorswithrandomfacettechnology

ensuring smooth beam even when lamp is misaligned

in socket

•Aiming:350°horizontal,180°verticalrotation

•Temperedglass

Mini HID - Cylinder

hid

Catalogue No. Finish Lamp

8114WH White 39WT4.5Cer.MH

8114BK Black

8114AL Aluminum

Accessories (seep.618)

AccessoryHolder:8195

 Accessories:OneAF25, ADF25 or AL25 Series,

One AL35HC or AL35FR(doesnotrequire8195holder)

Catalogue No. Finish Lamp

8121WH White 39WT6Cer.MH

8121BK Black

8121AL Aluminum

Accessories (seep.618)

AccessoryHolder:Integral

 Accessories:One AF4, ADF4 or AL4 Series

Catalogue No. Finish Lamp

8115WH White 70W T4.5 Cer. MH

8115BK Black

8115AL Aluminum

Accessories (seep.618)

AccessoryHolder:8195

 Accessories:OneAF25, ADF25 or AL25 Series,

One AL35HC or AL35FR(doesnotrequire8195holder)

Catalogue No. Finish Lamp

8122WH White 70W T6 Cer. MH

8122BK Black

8122AL Aluminum

Accessories (seep.618)

AccessoryHolder:Integral

 Accessories:One AF4, ADF4 or AL4 Series

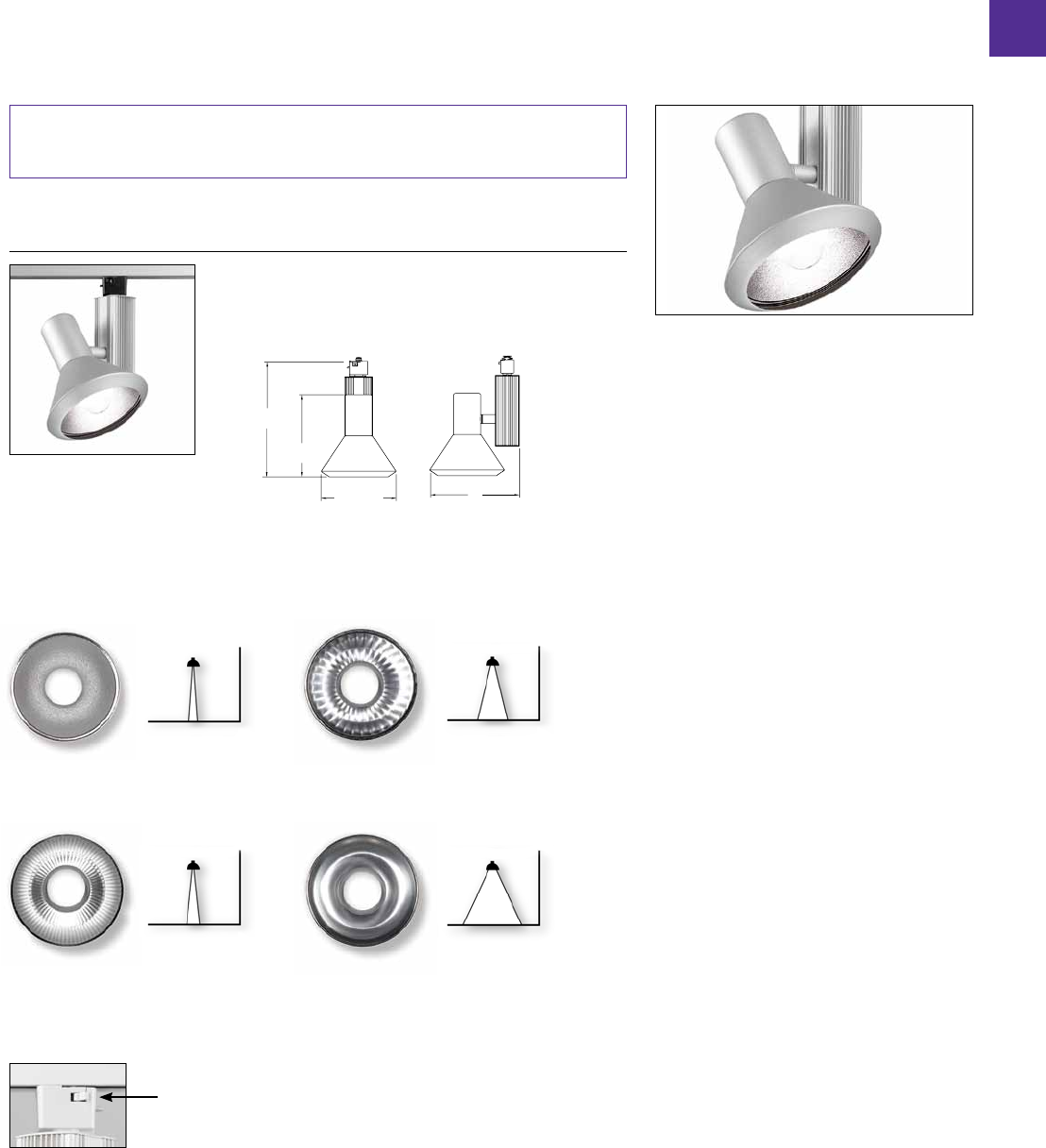

Reflector Accessory

To order reflector in incandescent warm finish add WRM to end of item

# (i.e. 24MHT45RSWRM).

 10°Spot 20°NarrowFlood 35°Flood

24MHT45RS 24MHT45RNF 24MHT45RF

Reflector Accessory

To order reflector in incandescent warm finish add WRM to end of item

# (i.e. 24MHT45RSWRM).

 10°Spot 20°NarrowFlood 35°Flood

24MHT45RS 24MHT45RNF 24MHT45RF

Reflector Accessory

To order reflector in incandescent warm finish add WRM to end of item

# (i.e. MHT6RSWRM).

 10°Spot 21°NarrowFlood 40°Flood

MHT6RS MHT6RNF MHT6RF

Reflector Accessory

To order reflector in incandescent warm finish add WRM to end of item

# (i.e. MHT6RSWRM).

 10°Spot 21°NarrowFlood 40°Flood

MHT6RS MHT6RNF MHT6RF

567Philips

Lytespan – Philips Lightolier

3-3/8"

(86mm)

3-7/8"

(98mm)

5-1/4"

(133mm)

5-7/8"

(149mm)

Canlyte Lighting Resource Guide

Cylinder Features

•Architecturallyinspiredwirelessdesign

•Extrudedaluminumballasthousing

•Compactelectronicballastwiththermalprotection

•Forgivingreectorswithrandomfacettechnology

ensuring smooth beam even when lamp is misaligned

in socket

•Aiming:350°horizontal,180°verticalrotation

•Temperedglass

Mini HID - Cylinder

hid

Catalogue No. Finish Lamp

8109WH White 20W T4 Cer. MH

8109BK Black

8109AL Aluminum

Accessories (seep.618)

AccessoryHolder:8195

 Accessories:OneAF25, ADF25 or AL25 Series,

One AL35HC or AL35FR(doesnotrequired8195holder)

Reflector Accessory

To order reflector in incandescent warm finish add WRM to end of item

# (i.e. 24MHT4RSWRM).

 10°Spot 23°NarrowFlood 35°Flood

24MHT4RS 24MHT4RNF 24MHT4RF

568 Philips

Lytespan – Philips Lightolier

4-7/8“

(124mm)

4-1/2“

(114mm)

4“

(102mm) 2-7/8“

(73mm)

5-1/4“

(133mm)

4-7/8“

(124mm)

4-3/4“

(121mm) 3-1/4“

(83mm)

7-3/8“

(187mm)

4-7/8“

(124mm)

4-3/4“

(121mm) 3-1/7“

(83mm)

6-3/4“

(171mm)

6-1/4“

(159mm)

5-7/8“

(149mm) 4-5/8“

(117mm)

6-7/8“

(175mm)

6-1/4“

(159mm)

5-7/8“

(149mm) 4-5/8“

(117mm)

Canlyte Lighting Resource Guide

Step Spot Features

•Easyfrontrelamping&die-castaluminumconstruction

(PAR30)

•Extrudedaluminumballasthousing

•Compactelectronicballastwiththermalprotection

•PAR20/PAR30ballasthousing:70%reductioninsize

compared to HID magnetic ballasts

•Cool-Grip® silicone band for hot aiming adjustments

(MR16&PAR20only)

•Aiming:350°horizontal,180°verticalrotation

Catalogue No. Finish Lamp

8100WH White 20W MR16 Cer. MH

8100BK Black

8100AL Aluminum

Accessories (seep.618)

AccessoryHolder:Integral

 Accessories:OneAF2, ADF2, AL2 or 7550FD Series

Catalogue No. Finish Lamp

8104WH White 20W PAR20 Cer. MH

8104BK Black

8104AL Aluminum

Accessories (seep.618)

AccessoryHolder:Integral

 Accessories:OneAF25, ADF25 or AL25 Series

Catalogue No. Finish Lamp

8105WH White 39WPAR20Cer.MH

8105BK Black

8105AL Aluminum

Accessories (seep.618)

AccessoryHolder:Integral

 Accessories:OneAF25, ADF25 or AL25 Series

Catalogue No. Finish Lamp

8110WH White 39WPAR30Cer.MH

8110BK Black

8110AL Aluminum

Accessories (seep.618)

AccessoryHolder:8473

 Accessories:OneAF3, ADF3 or AL3 Series

Catalogue No. Finish Lamp

8113WH White 70W PAR30 Cer. MH

8113BK Black

8113AL Aluminum

Accessories (seep.618)

AccessoryHolder:8473

 Accessories:OneAF3, ADF3 or AL3 Series

Mini HID - Step Spots

hid

569Philips

Lytespan – Philips Lightolier

6-7/8“

(175mm)

6-1/4“

(159mm)

6-1/8“

(156mm) 4-5/8“

(117mm)

7“

(178mm)

6-1/4“

(159mm)

6-1/8“

(156mm) 4-5/8“

(117mm)

7“

(178mm)

7-3/8“

(187mm)

6-3/4“

(171mm) 5-3/4“

(146mm)

Canlyte Lighting Resource Guide

Open Ring Features

•Easybackrelamping

•Extrudedaluminumhousing

•Compactelectronicballastwiththermalprotection

•PAR30/PAR38ballasthousing:70%reductioninsize

compared to HID magnetic ballasts

•Cool-Grip® silicone band for hot aiming adjustments

•Aiming:350°horizontal,180°verticalrotation

Mini HID - Open Ring

Catalogue No. Finish Lamp

8106WH White 39WPAR30Cer.MH

8106BK Black

8106AL Aluminum

Accessories (seep.618)

 AccessoryHolder:Integral

 Accessories:OneAF3, ADF3 or AL3 Series

Catalogue No. Finish Lamp

8107WH White 70W PAR30 Cer. MH

8107BK Black

8107AL Aluminum

Accessories (seep.618)

 AccessoryHolder:Integral

 Accessories:OneAF3, ADF3 or AL3 Series

Catalogue No. Finish Lamp

8108WH White 70WPAR38Cer.MH

8108BK Black

8108AL Aluminum

Accessories (seep.618)

 AccessoryHolder:Integral

 Accessories:OneAF4, ADF4 or AL4 Series

hid

570 Philips

Lytespan – Philips Lightolier

3-1/2"

[89.53 mm] 7-5/16"

[185.76 mm]

5-7/16"

[138.64 mm]

8-9/16"

[217.52 mm]

6-3/4"

[170.75 mm]

1-9/16"

[39.64 mm]

5-1/16"

[128.43 mm]

2-1/8"

[53.18 mm]

3-1/2"

[89.53 mm] 7-5/16"

[185.76 mm]

5-7/16"

[138.64 mm]

8-9/16"

[217.52 mm]

6-3/4"

[170.75 mm]

1-9/16"

[39.64 mm]

5-1/16"

[128.43 mm]

2-1/8"

[53.18 mm]

3-7/16"

[87.12 mm] 7-5/16"

[186.28 mm]

5-7/16"

[138.66 mm]

9-3/16"

[233.09 mm]

7-5/16"

[186.33 mm]

5-1/16"

[128.43 mm]

1-9/16"

[39.65 mm]

2-1/2"

[63.50 mm]

3-7/16"

[87.12 mm]

5-1/16"

[128.43 mm]

5-7/16"

[138.66 mm]

7-1/4"

[184.82 mm]

8-9/16"

[217.52 mm]

6-3/4"

[170.77 mm]

1-9/16"

[39.64 mm]

2-1/8"

[53.18 mm]

3-7/16"

[87.12 mm]

6-7/16"

[163.83 mm]

8-1/4"

[209.99 mm]

8-9/16"

[217.52 mm]

6-3/4"

[170.77 mm]

5-1/16"

[128.43 mm]

2-1/8"

[53.18 mm] 1-9/16"

[39.69 mm]

3-7/16"

[87.12 mm] 8-5/16"

[211.45 mm]

6-7/16"

[163.83 mm]

8-11/16"

[220.39 mm]

6-13/16"

[173.63 mm]

5-1/16"

[128.43 mm]

1-9/16"

[39.64 mm]

2-1/2"

[63.50 mm]

Canlyte Lighting Resource Guide

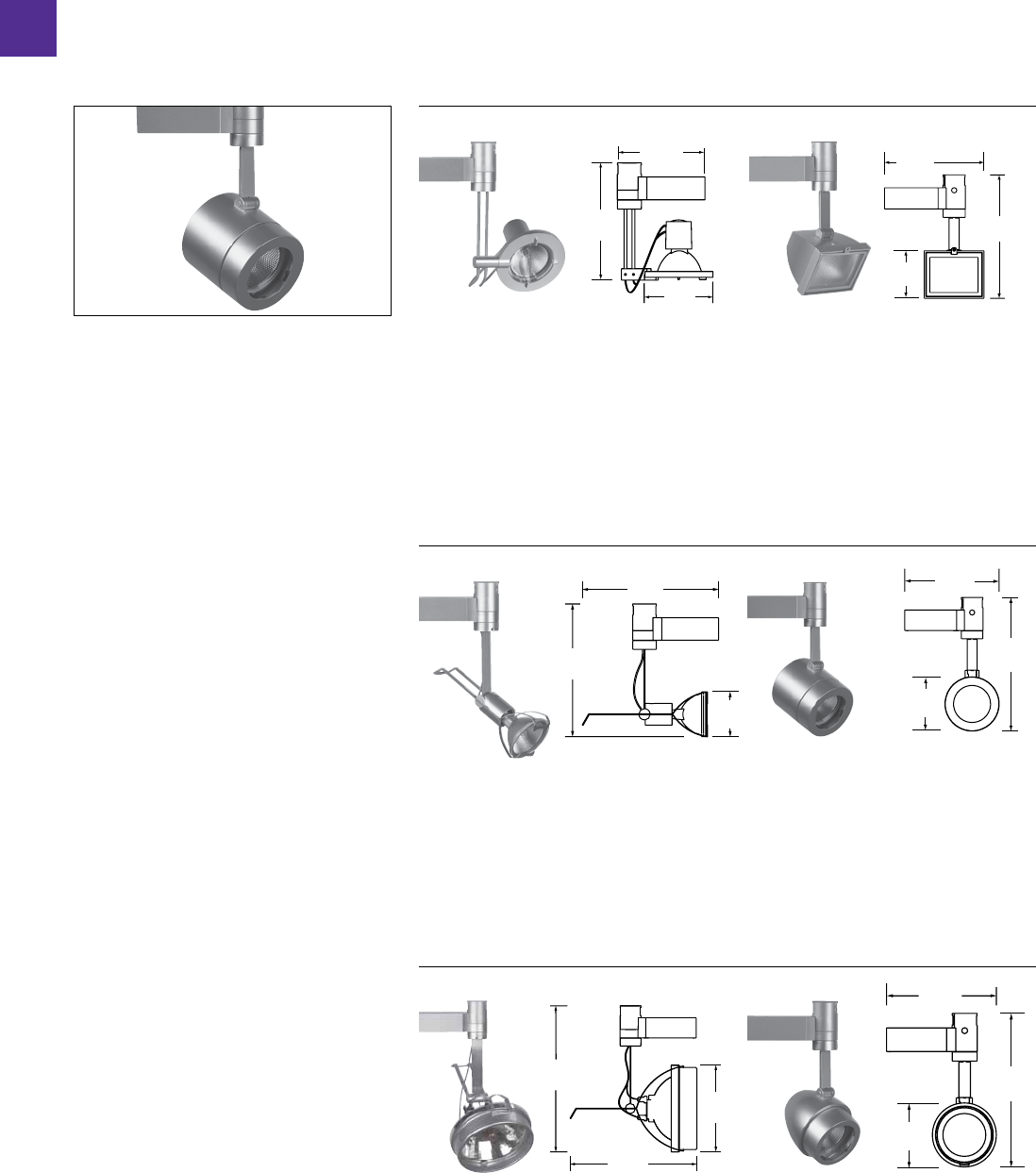

Features

•Architecturallyinspiredwirelessdesign

•Extrudedaluminumballasthousing

•Compactelectronicballastwiththermalprotection

•Aiming:350°horizontal,180°verticalrotation

•Temperedglass

81F20T4AL Aluminum

81F20T4BK Black

81F20T4WH White

20W T4 Cer. MH

81F39T45AL Aluminum

81F39T45BK Black

81F39T45WH White

39WT4.5Cer.MH

81F39T6AL Aluminum

81F39T6BK Black

81F39T6WH White

39WT6Cer.MH

81F39T4AL Aluminum

81F39T4BK Black

81F39T4WH White

39WT4Cer.MH

81F70T45AL Aluminum

81F70T45BK Black

81F70T45WH White

70W T4.5 Cer. MH

81F70T6AL Aluminum

81F70T6BK Black

81F70T6WH White

70W T6 Cer. MH

T4 Flood 20W

T4.5 Flood 39W

T6 Flood 39W

T4 Flood 39W

T4.5 Flood 70W

T6 Flood 70W

Mini HID - Wall Washer

hid

571Philips

Lytespan – Philips Lightolier

13°x13°

8°x8°

52°x52°

32°x32°

10-3/8"

(264mm)

7-3/8"

(187mm)

6-3/4"

(172mm)

8"

(203mm)

Canlyte Lighting Resource Guide

Reflectorized ED17P CMH Lamp Luminaires

Ceramic Metal Halide ED17P (Enclosed) lamps are

more affordable than their PAR counterparts and their

exceptional lamp life – today up to 24,000 hours –

substantially reduces maintenance costs. In addition,

these ED17P luminaires ensure precise beam con-

trol with a choice of 4 easily interchangeable reflectors.

For optimal light distribution, only clear ED17P lamp ver-

sions should be used.

Vertilyte Mini

83ED17RNS Narrow Spot Reflector

Concentrated very narrow beam for pin

spotting objects.

83ED17RS Spot Reflector

Powerful tight beam for accenting

or highlighting.

83ED17RF Flood Reflector

Full general-purpose beam for illuminating

sizeable areas or large objects.

83ED17RWF Wide Flood Reflector

Soft wide beam for large area coverage.

Reflectors ED17P

For 70W photometric information, visit www.canlyte.com.

Complete Vertilyte ED17P luminaire consists

of a Lighting Module + a Reflector

On/Off switch:

Convenient relamping, easy reflector substitution (ED17P) and simple luminaire con-

trol by selectively turning off a track head.

Catalogue No. Finish Cer. MH Lamp Input Watts

55317ED70NWH White

55317ED70NBK Black 70WED17PClear 78W

55317ED70NAL Aluminum

hid

Lighting Module

572 Philips

Lytespan – Philips Lightolier

5 1/2" 6 1/4"

8"

3 1/2" 5"

5 1/2" 6 1/4"

8"

3 1/2" 5"

Canlyte Lighting Resource Guide

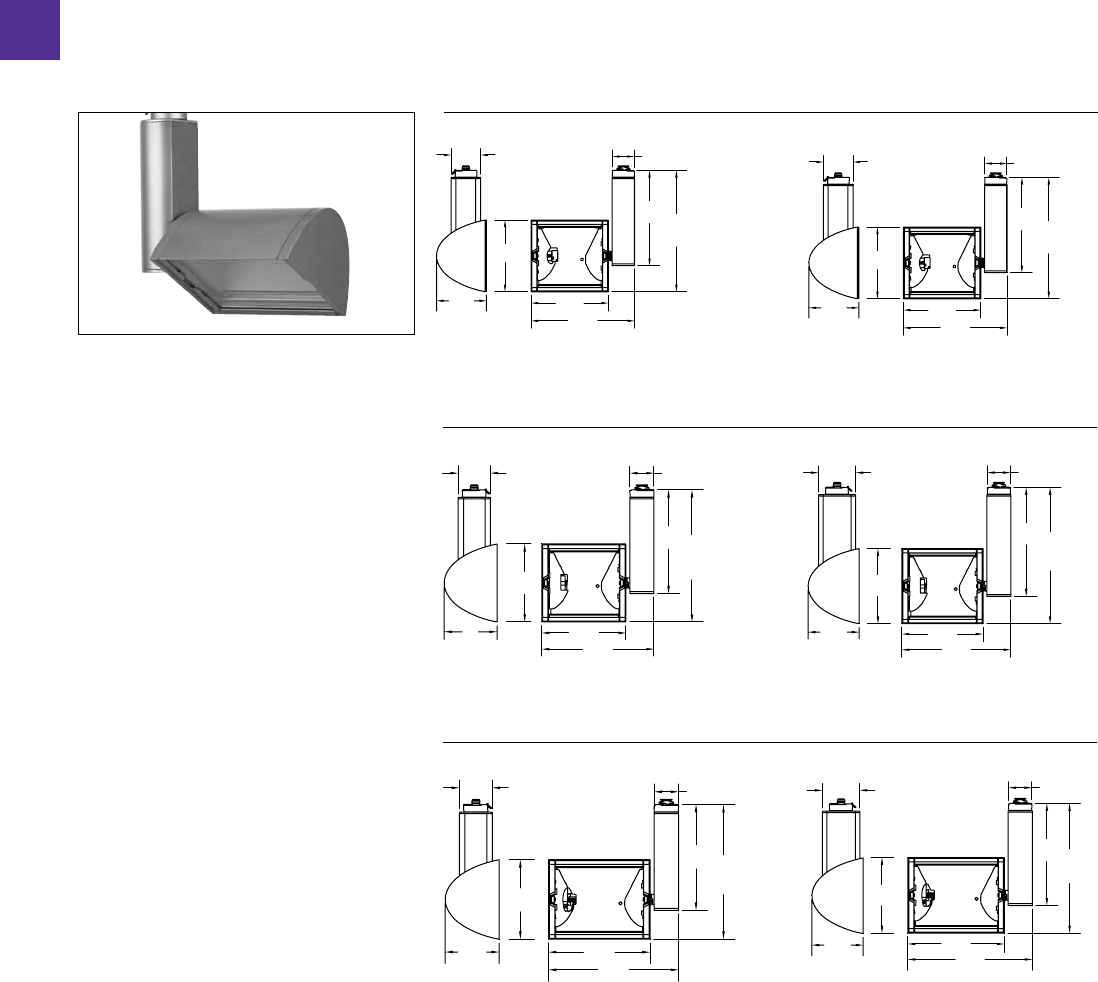

PowerArcTM

4'

0' 1' 2' 3' 4' 5'

4'

50˚

 1' 89 78 51 26 11 4

 2' 82 72 52 32 17 8

 3' 56 51 40 28 17 10

 4' 41 38 32 24 16 10

 5' 31 29 25 21 15 10

 6' 23 22 20 16 13 9

 7' 18 17 15 13 10 8

 8' 14 13 12 10 9 7

 9' 10 10 9 8 7 6

30°VerticalFlood

8292F3EWH White

8292F3EBK Black

8292F3EAL Metallic Aluminum

Asymmetrical Wall Washer

8292WEWH White

8292WEBK Black

8292WEAL Metallic Aluminum

70W CDM or CMH T6 Double-ended, RX7s Base

Accessory Holder (Holds 1 Accessory)

8293ACWH White

8293ACBK Black

Louver–Vertical Blade

8293LVWH White

8293LVBK Black

Visor

8293VSWH Visor Shield, White

Accessory Filters/Lens (Requires Accessory Holder)

8293UV UV Filter

8293BE Spread Lens

8293ICF Incandescent Conversion Filter

• Excellentcolorrendering(82CRI)

• Metalhalidelampsprovide6,600initiallumenswithanaveragelifeof10,000hours

• ProvideshighfootcandlelevelswhilereducingHVACcosts

• 0–90°verticaladjustment,375°horizontalrotation

• Allunitsfeatureelectronicballast

• Availableinmatchingfloodlightandwallwasherversions

• Idealfornewconstructionandretrofitapplications

• Featureswhite,blackandmetallicaluminumfinishes

• CompatiblewithBasicandAdvent Track

• Lowprofile–closetoceiling

Distance From Ceiling

Beam Center

Track 4 Feet From Wall Single Unit

Footcandles on Wall (or Ceiling)

70W T6 Double-Ended Ceramic Metal Halide

Footcandles are average and rounded off.

Track Mount

Offering a sleek, compact design coupled with extremely

powerful capabilities, the PowerArc flood and wall washer

bring an exciting level of refinement and performance to

metal halide track lighting.

Designed to meet the need for higher light levels in mer-

chandising areas while providing superior energy effi-

ciency, PowerArc utilizes ceramic arc tube metal halide

lamps for superior color rendering and long lamp life with

minimal color shift. Carefully designed around the light

source, PowerArc can save up to 70% of the energy con-

sumed by ordinary incandescent fixtures.

The PowerArc design features an ideal balance of soft

curves and hard edges that integrates well with virtually

anyinterior.TwoversionsofPowerArcareavailable;a30°

flood and an asymmetrical wall washer. The wall washer

features an integral kick reflector that provides wide, even

illumination over vertical surfaces.

A number of key features allow PowerArc to provide unpar-

alleled flexibility and performance. An aiming angle indica-

tor conveniently measured in degrees allows a series of

luminaires to be precisely set to the same aiming angle. The

PowerArc’s protective glass lens can be slid out from either

direction and uses no hinges or clips. A hidden micro-safety

switch automatically de-powers the fixture during relamp-

ing for safety. By providing a visual cutoff to the face of the

fixture, a vertical blade louver can be used for glare control

or an optional accessory holder can be added to hold an

asymmetrical spread lens, UV filter, or incandescent con-

version filter. An ideal way to provide powerful floodlighting

and wall washing, PowerArc’s Energy Smart® performance

allows fewer fixtures to be used to light a space, providing

superior economy compared to other fixtures.

hid

573Philips

Lytespan – Philips Lightolier

180˚150˚

120˚

90˚

2000

1000

0˚

0˚ 30˚

90˚

60˚

1000

2000

0˚

6 7

/

8

"

8 3

/

4

"

2 7

/

8

"

3 3

/

4

"

9 1

/

4

"

2 7

/

8

"

3 1

/

2

"

8 3

/

16

"

Canlyte Lighting Resource Guide

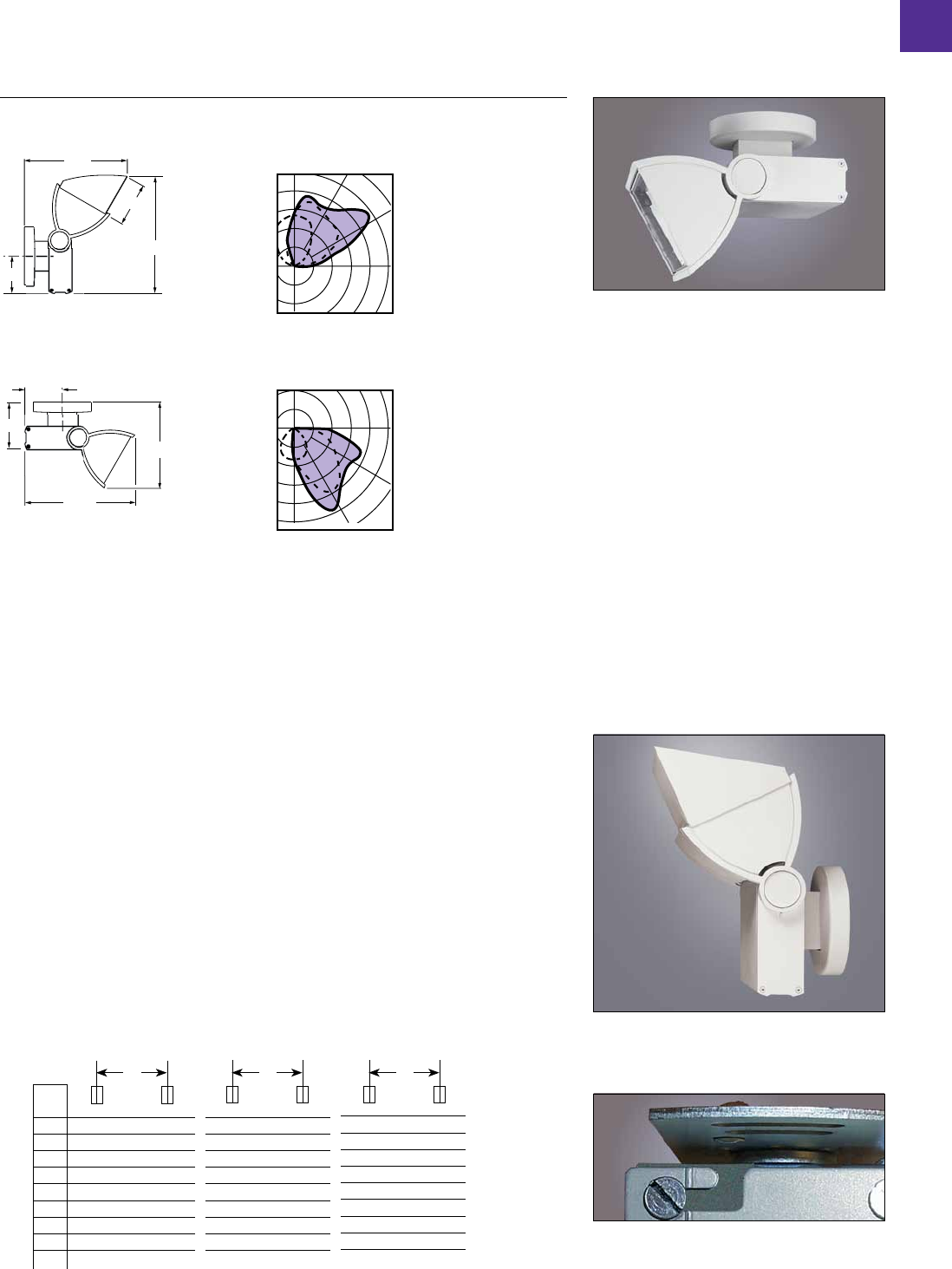

Canopy Mount

The PowerArc Canopy Mount provides crisp, powerful

metal halide lighting that’s ideal for both direct and indirect

lighting applications.

Its ability to be installed in damp locations makes it an

excellent choice for atriums, covered outdoor balconies

and similar locations. Whatever the environment, the

PowerArc Canopy Mount provides a clean, unobtrusive

look at the ceiling line while offering excellent aiming flex-

ibility. When mounted on the wall, it makes an ideal indirect

lighting fixture. An easily attached visor provides excellent

glare control.

This versatile lighting instrument is available as an asym-

metrical wall washer featuring an integral kick reflector that

provides wide, even illumination. Offering unrivaled power,

versatility and aiming flexibility, the PowerArc Canopy

Mount provides crisp styling and the energy savings of

halogen lighting but with energy savings comparable

to fluorescent.

PowerArcTM – Canopy Mount

106 102 107

 116 109 116

 92 90 92

77 76 77

66 65 66

53 53 53

44 44 44

37 37 37

30 30 30

 94 71 94

 97 83 97

74 70 74

62 61 62

53 53 53

43 42 43

36 35 36

31 30 31

24 24 25

 89 49 89

 88 62 88

64 56 64

53 50 53

45 45 45

36 36 36

30 30 30

26 26 26

21 21 21

4' 5' 6'

1'

2'

3'

4'

5'

6'

7'

 8'

 9'

A mounting bracket with rotation adjustment and locking

feature allows the fixture to be conveniently hung before wiring.

The Visor provides glare control for indirect lighting applications.

Asymmetrical Wall Washer

8292WEWHCY White, Asymmetrical Wall Washer, 120 Volts

70W T6 Double-Ended Ceramic Metal Halide, RX7s Base

Accessory Holder (Holds 1 Accessory)

8293ACWH White

8293ACBK Black

Louver–Vertical Blade

8293LVWH White

8293LVBK Black

Visor

8293VSWH Visor Shield, White

Accessory Filters/Lens (Requires Accessory Holder)

8293UV UV filter

8293BE Spread Lens

8293ICF Incandescent Conversion Filter

• 0°to90°verticaladjustmentallowsgoodindirectlightingnomatterwhattheceilingheight

• Canopyfeatures355°horizontalrotationandcanbelockedevery45°;interiorpositivelockcreates

a permanent fixed position

Footcandles are average and rounded off. Data for multiple units are based on a minimum of five units.

Footcandles on Wall (or Ceiling)

70W T6 Double-Ended Ceramic Metal Halide

(Track 4 feet from wall)

Distance From Ceiling

Wall mounted installation T6

(shown with Visor)

Ceiling mounted installation

Multiple Units

hid

574 Philips

Lytespan – Philips Lightolier

one lamp aimed

45degrees down

47 1/2"

38 3/8"

35 11/16"

3 3/4"

3 3/4"

25 3/8"

23 7/8"

50 1/4"

Canlyte Lighting Resource Guide

fluorescent

Note: For more detailed photometrics, visit www.canlyte.com.

One lamp with louver,

aimed45°down.

Two lamp with louver,

aimed45°down.

Series 9477/9476

Series 9377/9376

Series 9277/9276

Track Mount

9277WH White 2'–24W

9277BK Black 2'–24W

9277AL Aluminum 2'–24W

9377WH White 3'–39W

9377BK Black 3'–39W

9377AL Aluminum 3'–39W

9477WH White 4'–54W

9477BK Black 4'–54W

9477AL Aluminum 4'–54W

1 Lamp T5HO Electronic 120V

9276WH White 2'–24W

9276BK Black 2'–24W

9276AL Aluminum 2'–24W

9376WH White 3'–39W

9376BK Black 3'–39W

9376AL Aluminum 3'–39W

9476NWH White 4'–54W

9476NBK Black 4'–54W

9476NAL Aluminum 4'–54W

2 Lamp T5HO Electronic 120V

Watts consumed with ballast 120 volt

T5HO 1 lamp 2 lamps

24W 26W 52W

39W  43W 85W

54W  59W 117W

Track Mount

PowerWash T5 Track Mount represents the state of the

art in Energy Smart linear fluorescent wall washing and

flood lighting combined with the unsurpassed flexibility of

Lytespan track.

Linear T5HO (high output) lamps powered by efficient pro-

gram-start electronic ballasts deliver greater lighting power

and optical performance than other fluorescent sources.

Ultraslim5/8"diameterT5lampsresultinmoreprecise

optic control of the light, more consistent beam patterns

and greater luminaire spacing ratios. The narrow diameter

also permits an elegant, streamlined design that’s archi-

tecturally compatible with commercial and retail spaces

alike and integrates well with Lightolier PowerArc and

ParTech Lytespots.

•Availableinoneortwolampcongurationsin2',3'

or4'lengthstomatchT5HO24W,39Wand

54W lamps respectively

•Choiceofnishes:white,black,contemporary

aluminum

•Compatiblewith120-voltLytespanBasicTrack(single

circuit) and Advent (two-circuit tracks)

•Additionalfeatures:180°rotationforexibleaiming;

built-in pull-out lampholder allowing fast, easy

relamping; integral louver for superior cut-off

and glare control

Note

White finished luminaires supplied with White louver. Black

and Aluminum finished luminaires supplied with Specular

Metallized louver.

Integral pull-out lamp holders permit quick, easy relamping.

PowerWashTM – Track Mount

Lens

56957-1 2' Clear Acrylic Lens

56956-1 3' Clear Acrylic Lens

56955-1 4' Clear Acrylic Lens

A clear acrylic lens that complies with FDA guide lines for use

in all food preparation applications, is available in 2', 3' and

4' lengths.

575Philips

Lytespan – Philips Lightolier

24-3/4"

Canlyte Lighting Resource Guide

Lyteflood Compact Fluorescent L18 Electronic

Produces a soft wash using half the energy of incandescent light.

A single adapter allows for vertical and horizontal adjustment.

8276EWH White

8276EBK Black

2Lt.18W(2G11)

(Rapid Start Lamp)

Twin Tube

Electronic

Lyteflood Compact Fluorescent L24 Electronic

Provides a medium-intensity wash of light equivalent to 150W of incandes-

cent light using 60% less energy. A single adapter allows for both vertical

and horizontal adjustment.

8277EWH White

8277EBK Black

2Lt.24/27W(2G11)

(Rapid Start Lamp)

Twin Tube

Electronic

Lyteflood Compact Fluorescent L40 Electronic

•Electronicballastfeaturesendoflifeprotection

•Sidemountadaptersforeasyadjustmentandaiming

•Speciallockingknobmaintainspreciseadjustment

•Separatemechanicalandelectricalconnectionfor

easy and secure installation

8279ENWH White, white louver

8279ENBK Black, metalized louver

8279ENAL Aluminum, metalized louver

8279ENLWH White, less louver

8279ENLBK Black, less louver

8279ENLAL Aluminum, less louver

2Lt.40W(2G11)

(Rapid Start Lamp)

Twin Tube

Electronic

For photometric details, visit www.canlyte.com for the appropriate product spec sheet.

Dramatic impact, high efficiency and long life make

Lyteflood ideal for a host of merchandising and retrofit

applications. Lyteflood luminaires are especially well-

suited for floodlighting and wall washing and can be

installed on existing Lytespan track. Lytefloods utilize

compact fluorescent lamps for significant energy savings,

long lamp life (up to 20,000 hours) and excellent colour

rendition. All Lytefloods come standard with electronic

ballasts. Electronic ballasts are more efficient and quieter,

which makes them ideal for low-noise applications. They

also provide additional mounting options due to their lighter

weight.

Lyteood

fluorescent

576 Philips

Lytespan – Philips Lightolier

Canlyte Lighting Resource Guide

577Philips

Lytespan – Philips Lightolier

Canlyte Lighting Resource Guide

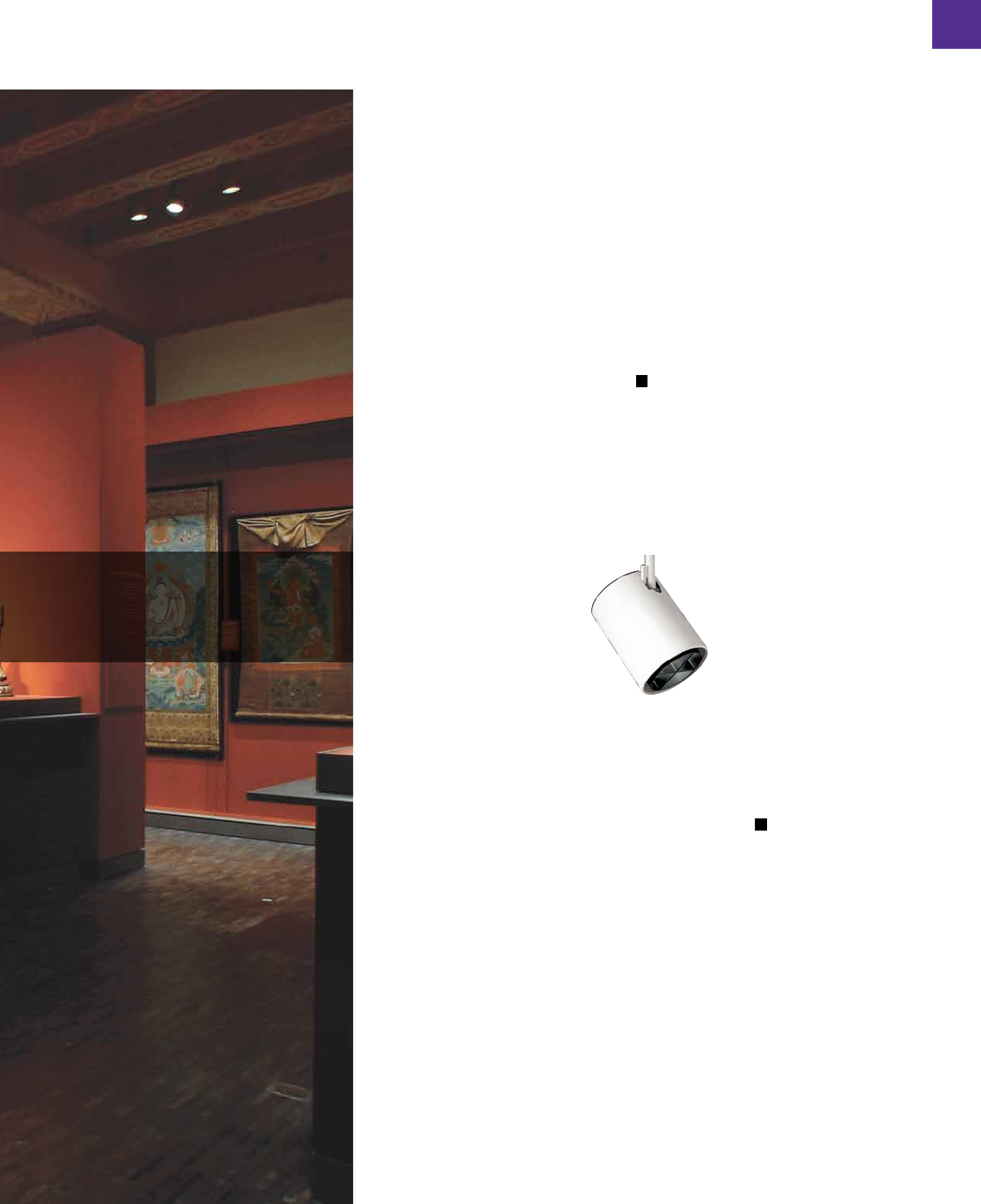

LOW VOLTAGE

& LINE VOLTAGE

Low voltage light sources produce the highest

quality white light available and can be made

in myriad lamp types, wattages, and beam

spreads. The diverse and flexible Lytespan low

voltage is the obvious choice for illuminating

displays of every kind imaginable. Reflectorized

halogen light sources are so efficient that

they can replace incandescent lamps of much

more lower wattage with very high lumen

maintenance over the life of the lamp.

Lytespan line voltage units are more

compact and versatile than ever before. From

general lighting to accent lighting, there are a

wide variety of products that can provide the

right light for any environment-with legendary

Lytespan quality. The Alcyon line voltage

luminaires utilize PAR and T4 halogen lamps

for ambient, task, accent and wall washing

applications. Lytespan’s ParTech Lytespots are

carefully designed to trap spill light from PAR

lamps and keep eyes focused on displays, not

the fixture.

578 Philips

Lytespan – Philips Lightolier

Canlyte Lighting Resource Guide

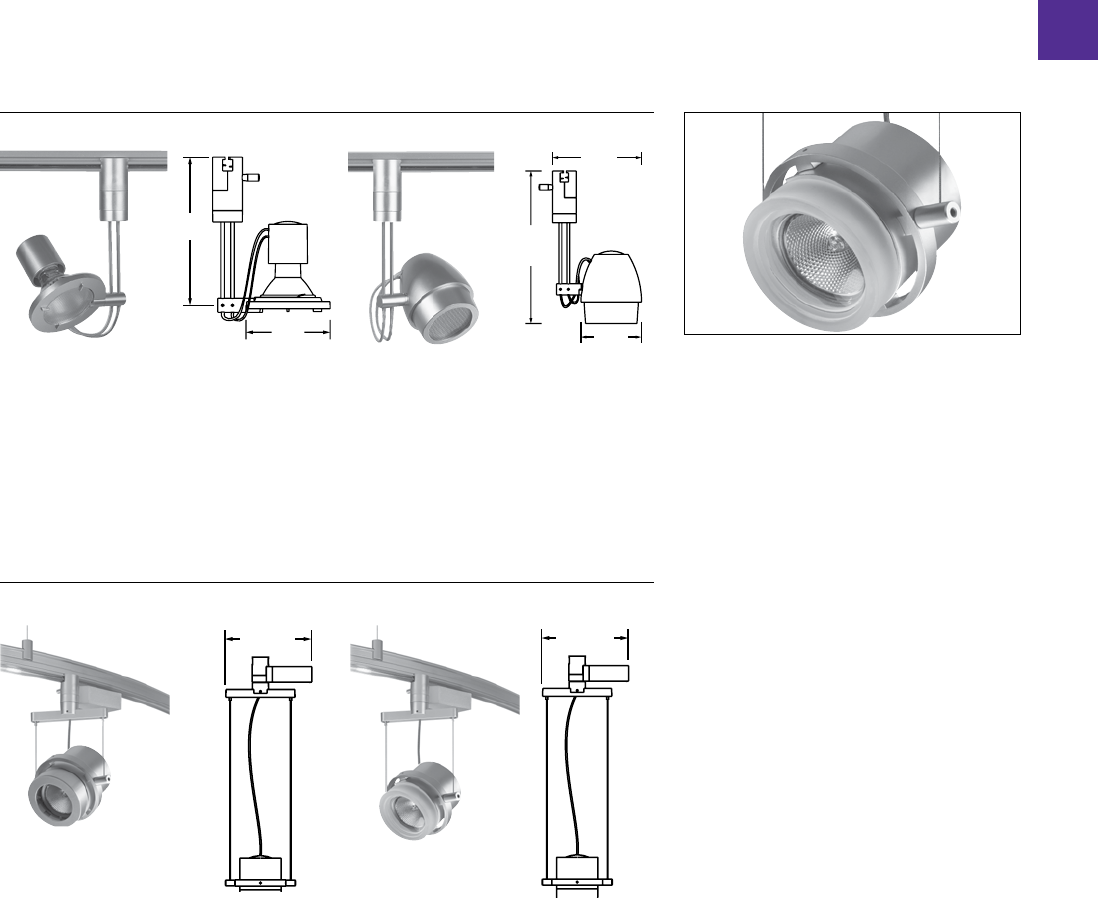

Alcyon features the smallest available transformer assem-

bly with a fully potted, rugged polycarbonate construction.

The silent electronic transformer includes short-circuit and

over-heat protection. Alcyon's architectural styling is clean

and elegant featuring a wireless blade/stem that seems to

suspend the fixture in mid-air.

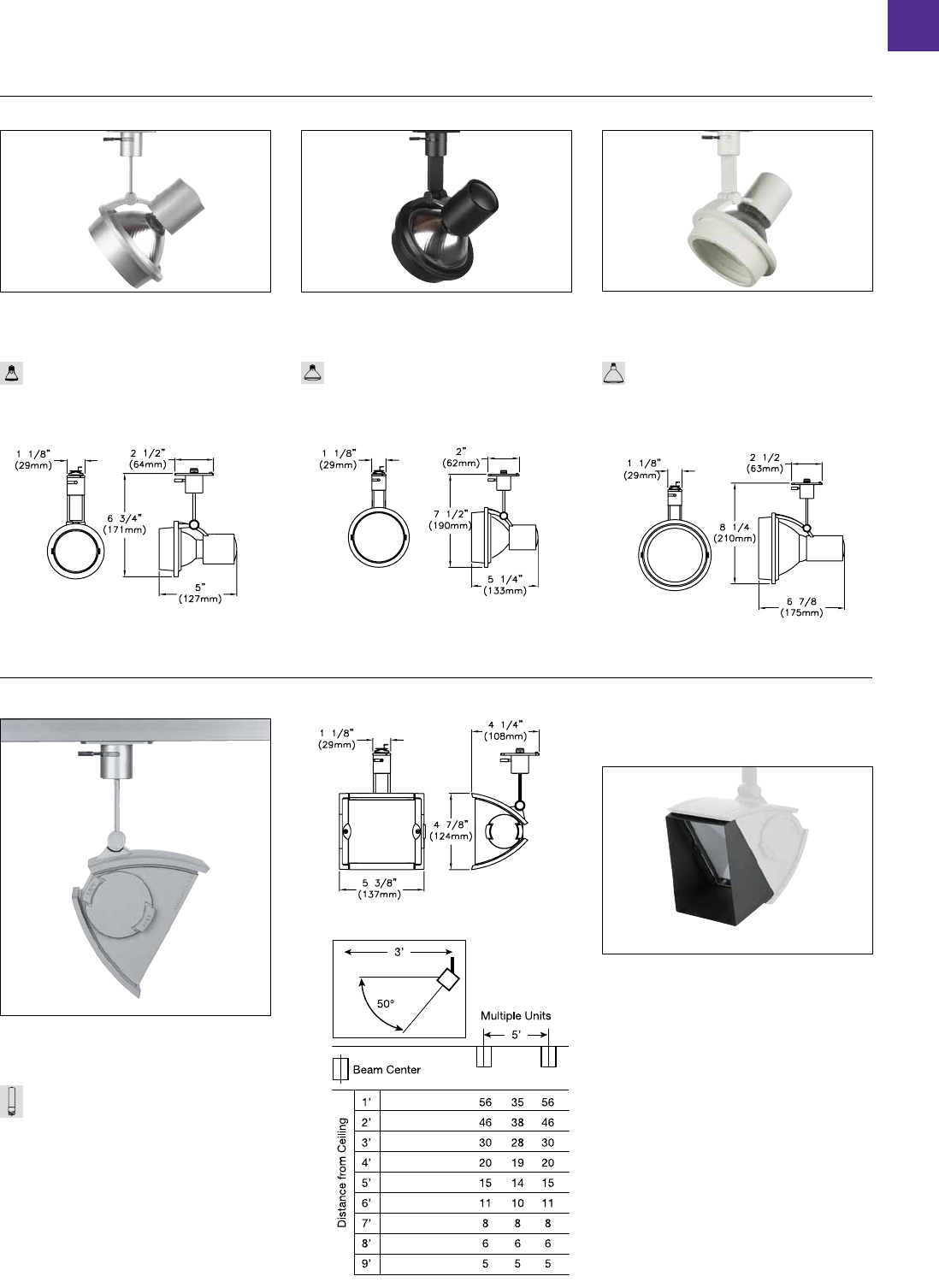

The unique MR16 Wall Washer features an integral asym-

metrical spread lens and kick reflector to create a smooth

elliptical wash. Utilizing the T4 bi-pin lamp, the Micro Flood

includes an integral Solite patterned lens to create a soft,

smooth flood of light.

•Smallestavailabletransformerassembly.Fullypotted,

rugged polycarbonate construction. Silent electronic

transformer w/short-circuit and over-heat protection

•Architecturalstylingisclean&elegant.Wirelessblade/

stem suspends head in mid-air

•Innitehorizontalrotationformaximumaimingexibility

without “dead spots”

•Lamp-forwarddesignimprovesaccessandsimplies

relamping

•Die-castaluminumconstructionthroughout.Durable

baked enamel finish in white, black and aluminum

•CaptiveAccessoryCartridgeacceptstwoaccessories

and provides excellent glare control

•CompatiblewithLytespan® Basic one-circuit track and

Advent® two-circuit track

* Luminaire designed for non-lensed lamps

For accessories see p. 618.

Alcyon

low voltage

Open Ring

22OR6AL Aluminum

22OR6BK Black

22OR6WH White

Step Spots

22SS6AL Aluminum

22SS6BK Black

22SS6WH White

Cylinder

22MC6AL Aluminum

22MC6BK Black

22MC6WH White

MR16 50W Max./ MR16 IR 37W Max.*

Accessories: One ADF2 (Colour) or AF2 (Diffusion) series

lens, plus either one AL2HC Hex Cell Louver or 22SR6 Snoot.

MR16 50W Max./ MR16 IR 37W Max.*

Accessories: One ADF2 (Colour) or AF2 (Diffusion) series

lens, plus either one AL2HC Hex Cell Louver or 22SR6 Snoot.

MR16 50W Max./ MR16 IR 37W Max.*

Accessories: One ADF2 (Colour) or AF2 (Diffusion) series

lens, plus either one AL2HC Hex Cell Louver or 22SR6 Snoot.

Rectangular Monopoint

6170WH White

6170BK Black

6170AL Aluminum

(Use90°CMin.supplywire.)

Ultra shallow Monopoint mounts track fixtures

to 3-1/2" or 4" octagon outlet box (1/4" deep).

MR16 Snoot For Alcyon

Provides maximum light shielding and cut-off to

lamp.Blackinterior,45°lampshieldingangle.

Recommended for use with Narrow Flood lamps.

22SR6AL Aluminum

22SR6BK Black

22SR6WH White

1-3/16" Aperture (30mm)

579Philips

Lytespan – Philips Lightolier

Canlyte Lighting Resource Guide

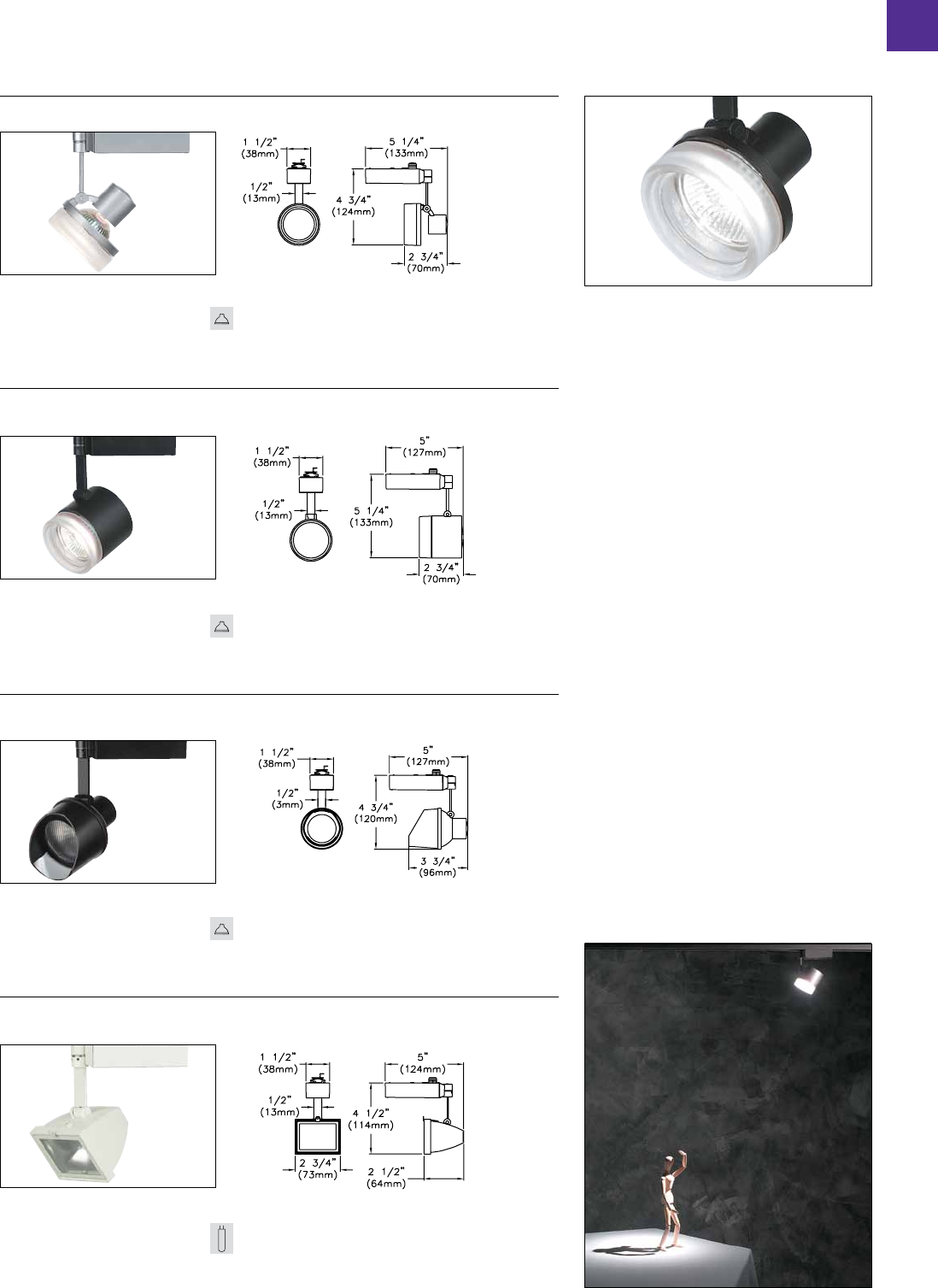

Alcyon Low Voltage luminaires harness the newest in

MR16 and T4 bi-pin lamp technology for performance

that is simply brilliant – providing up to 50-watts of white

halogen light for retail, residential and commercial appli-

cations. Economical and easily dimmable, low voltage

sources deliver the drama, magic and impact of lighting in

the smallest envelope available.

* Luminaire designed for non-lensed lamps.

low voltage

Alcyon

Glass Ring

22GR6BK Black

22GR6WH White

22GR6AL Aluminum

Glass Cylinder

22GC6BK Black

22GC6WH White

22GC6AL Aluminum

Wall Washer

22MW6BK Black

22MW6WH White

22MW6AL Aluminum

Micro Flood

22MW4BK Black

22MW4WH White

22MW4AL Aluminum

MR16 50W Max./ MR16 IR 37W Max.*

Accessories: No accessory capability.

MR16 50W Max./ MR16 IR 37W Max.*

Accessories: No accessory capability.

MR16 50W Max. / MR16 IR 37W Max.*

(36°floodrecommended)

Accessories: No accessory capability.

Asymmetrical spread lens included.

T4 bi-pin 50W Max.

Accessories: No accessory capability.

Solite beam softening lens included.

580 Philips

Lytespan – Philips Lightolier

Canlyte Lighting Resource Guide

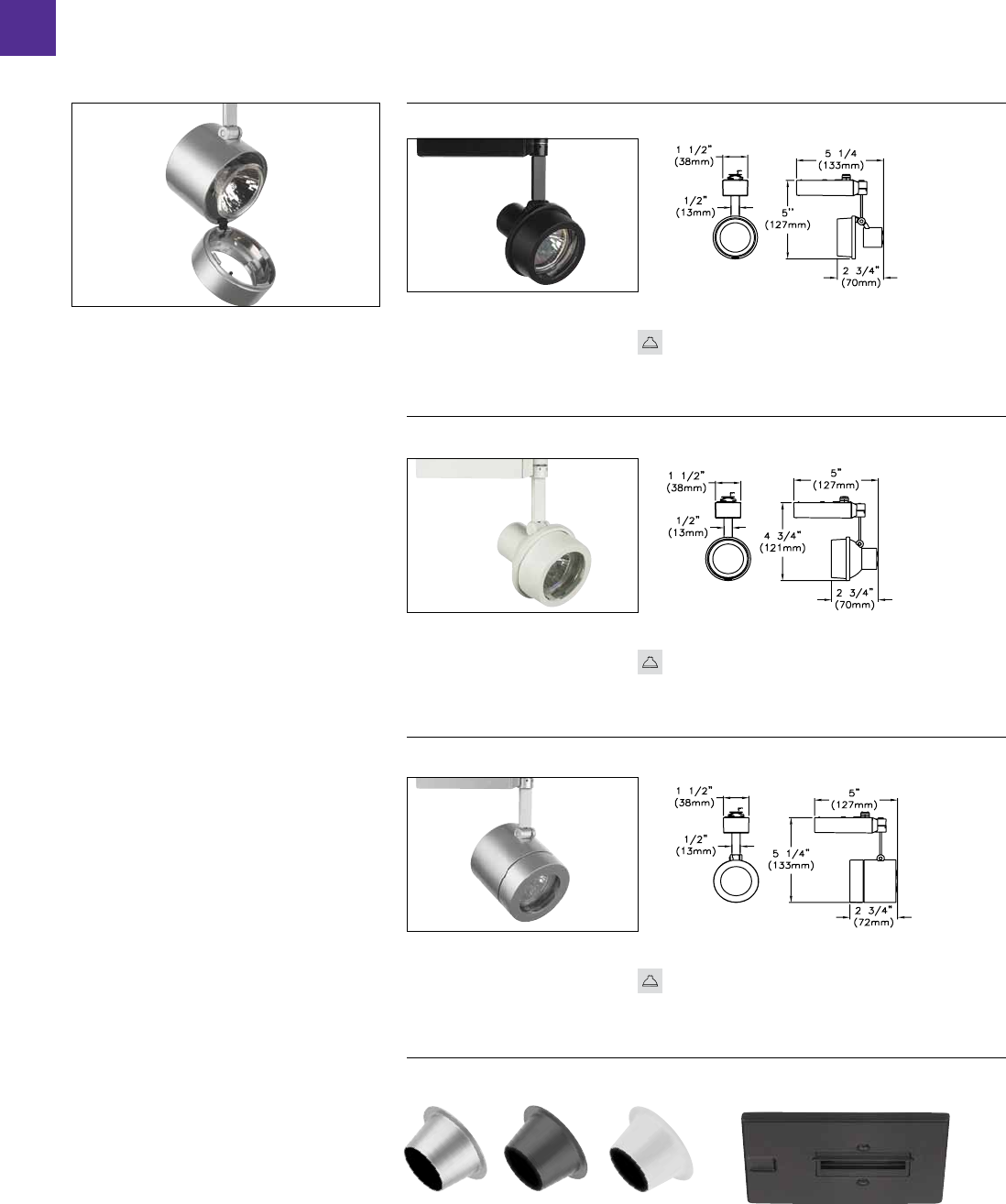

Sof-Tech Open Ring

6275BWH White

6275BBK Black

6275BAL Aluminum

75W MR16 12V

Accessory Holder: 7662

Accessories: One AF2,

ADF2 or AL2 Series

(50W max. with accessories).

6279WH White

6279BK Black

50W PAR36 12V

6289WH White

6289BK Black

75W AR111 12V

Sof-Tech Enclosed Spot

Sof-Tech Low Voltage

Accessory Holders

A series of low voltage spots using the most complete

selection in quality halogen low voltage light sources. Die-

cast elements combined with silicone rubber components

and a new vertical electronic transformer are brought

together to create sleek, compact, low voltage track lumi-

naires. The new electronic transformer gives you reliable

and quiet operation in a small housing. All backed by

Lightolier’s two-year warranty.

Glass cover included with AR111 and MR16 bi-pin

luminaires.

All new in-line, aluminum die-cast transformer housing.

No visible hardware allows a clean close-to-track look.

Siliconerubberbandratedfor93°C(200°F).TheCoolGrip

aiming system from Lightolier lets you aim your spot when

it’s hot.

For accessories, see p. 618.

Sof-Tech

low voltage

Accessory Holder: 7660

Accessories: One AF3,

ADF3 or AL3 Series

(50W max. with accessories).

581Philips

Lytespan – Philips Lightolier

Canlyte Lighting Resource Guide

Magnetic Transformer

8170WH Matte white

8170BK Matte black

65W MR16 12V

Lamping:

MR16 Bi-Pin 75W max.

Accessories:

Accepts one accessory

Diffusion/Special Filters:

AF2 series

Color Filters: ADF2 series

Louver: 7472 (Hex Cell)

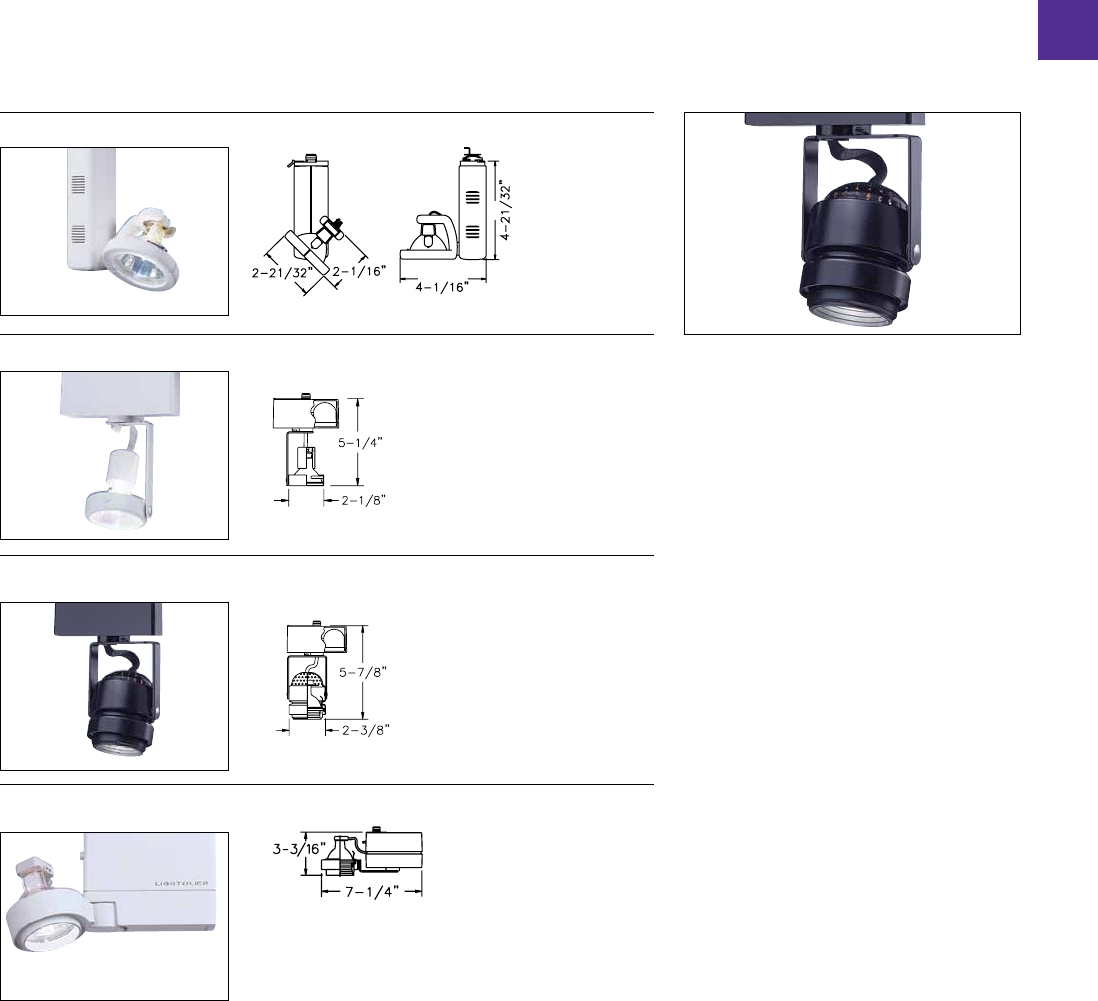

MR16 Ring

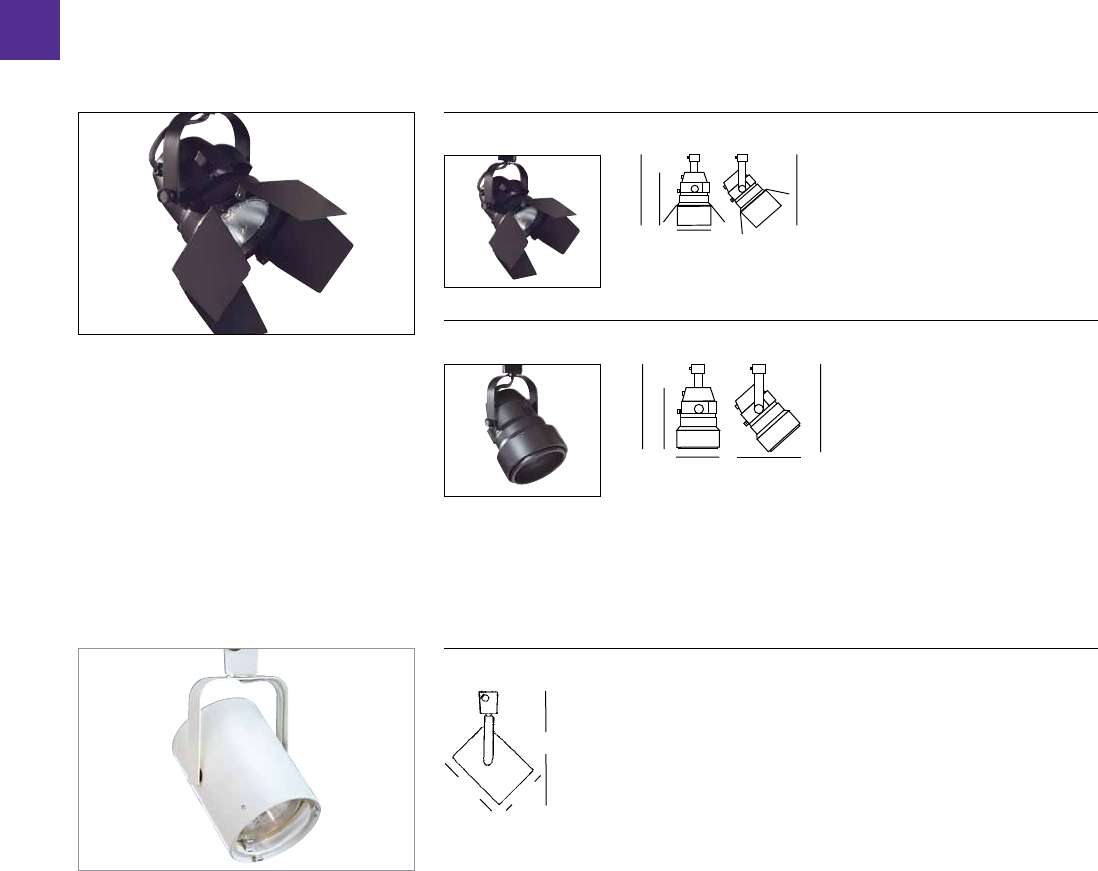

Even if your budget is limited, you can still have the best

in style and performance from Lightolier. Designed for

easy, do-it-yourself installation, Classics are constructed

of durable steel with black phenolic baffles to reduce glare.

They feature a die-cast adapter that attaches anywhere

along the track. Offered in a choice of white or black to

blend into any setting.

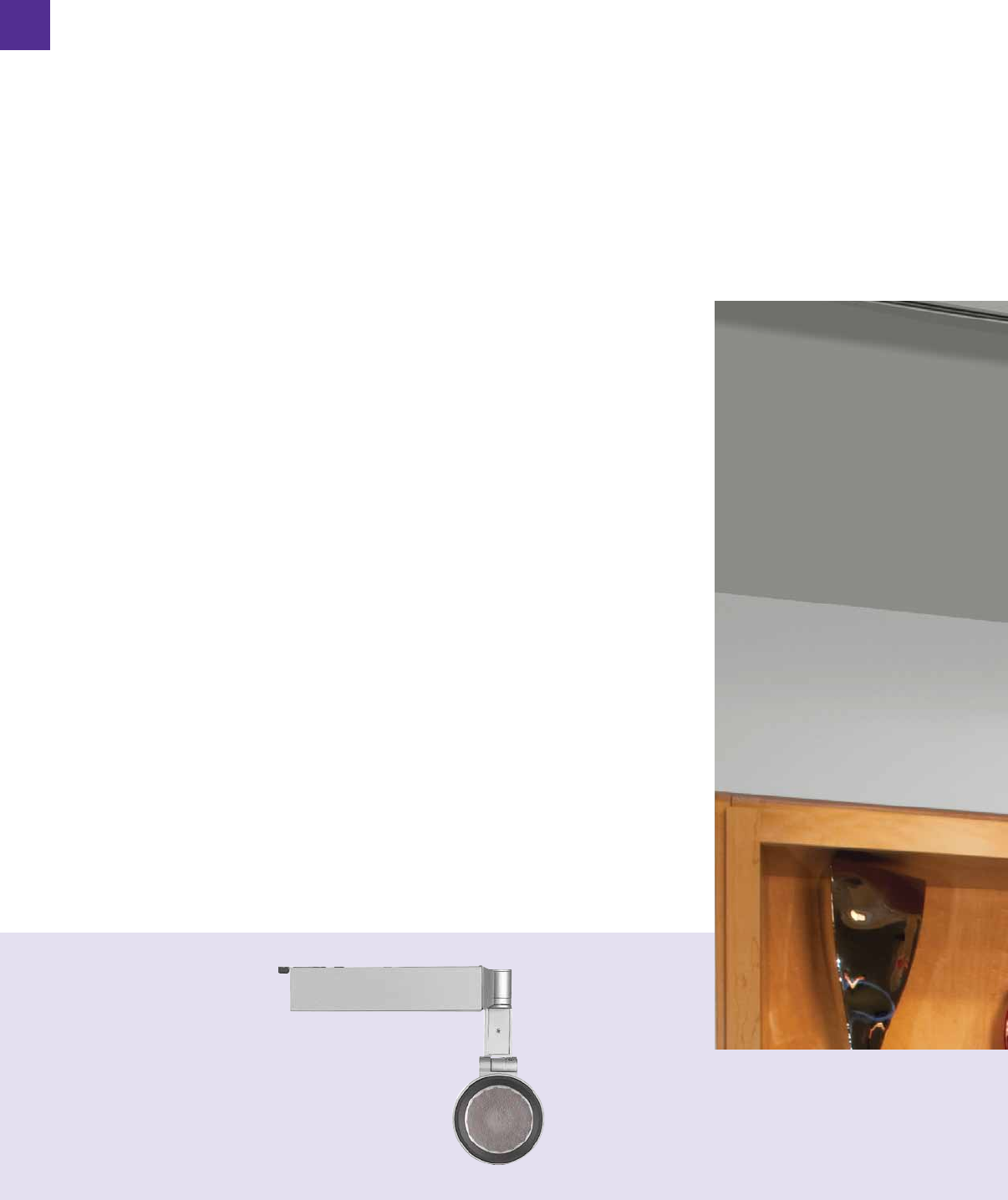

Radius FreeForm

At first sight, its compact, minimalist design seems wire-

less. In fact, wiring is concealed inside the railway for

a cleaner, softer appearance.

•Ruggeddie-castaluminumlampholder

•Snap-offlampforeasyrelamping

•ProjectorcompatiblewithLytespan® Basic Track (single

circuit) or Advent® (two-circuit) track systems

Barelite

Projector compatible with Lytespan single-circuit track only.

Domelite

Projector compatible with Lytespan single-circuit track only.

MR16 Ring

Economical high tech look for use with a full range of MR16

lamps. “Open back” design allows for intriguing light spill.

Emphasizes today’s base minimum look. Universal aim-

ing adjustability. Accepts a wide range of accessories.

Available with magnetic transformers.

For accessories, see p. 618.

low voltage

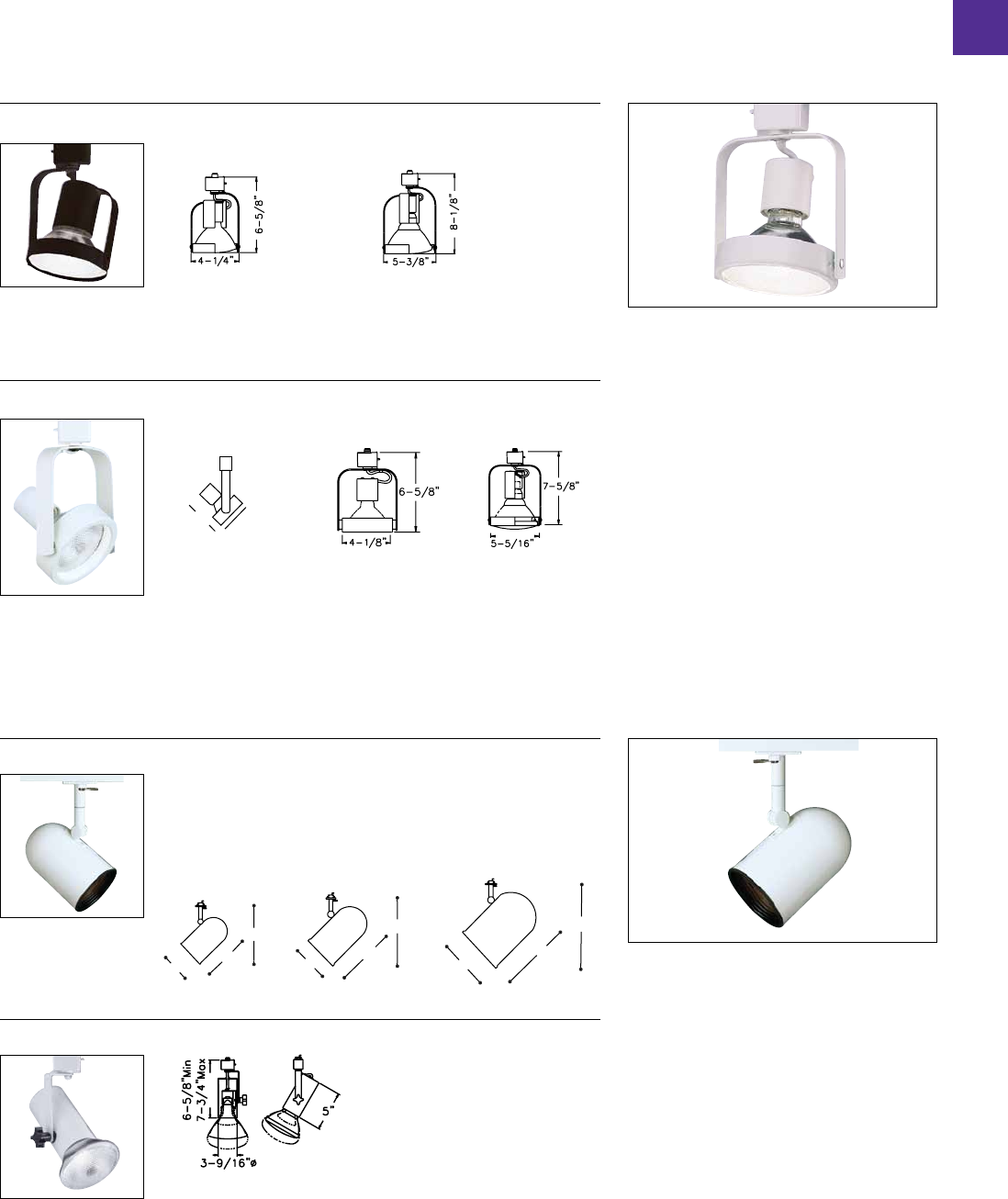

Classic Forms

Barelite

Domelite

Electronic

Transformer

853WH White

853BK Black

50W MR16 12V

Accessories:

One AF2, ADF2

Series, 7472

Electronic Transformer

850WH White

850BK Black

50W MR16 12V

Accessories: One AF2, ADF2

Series, 7472

Electronic Transformer

851WH White

851BK Black

50W MR16 12V

Accessories: One AF2, ADF2

Series, 7472

Radius FreeForm

582 Philips

Lytespan – Philips Lightolier

Canlyte Lighting Resource Guide

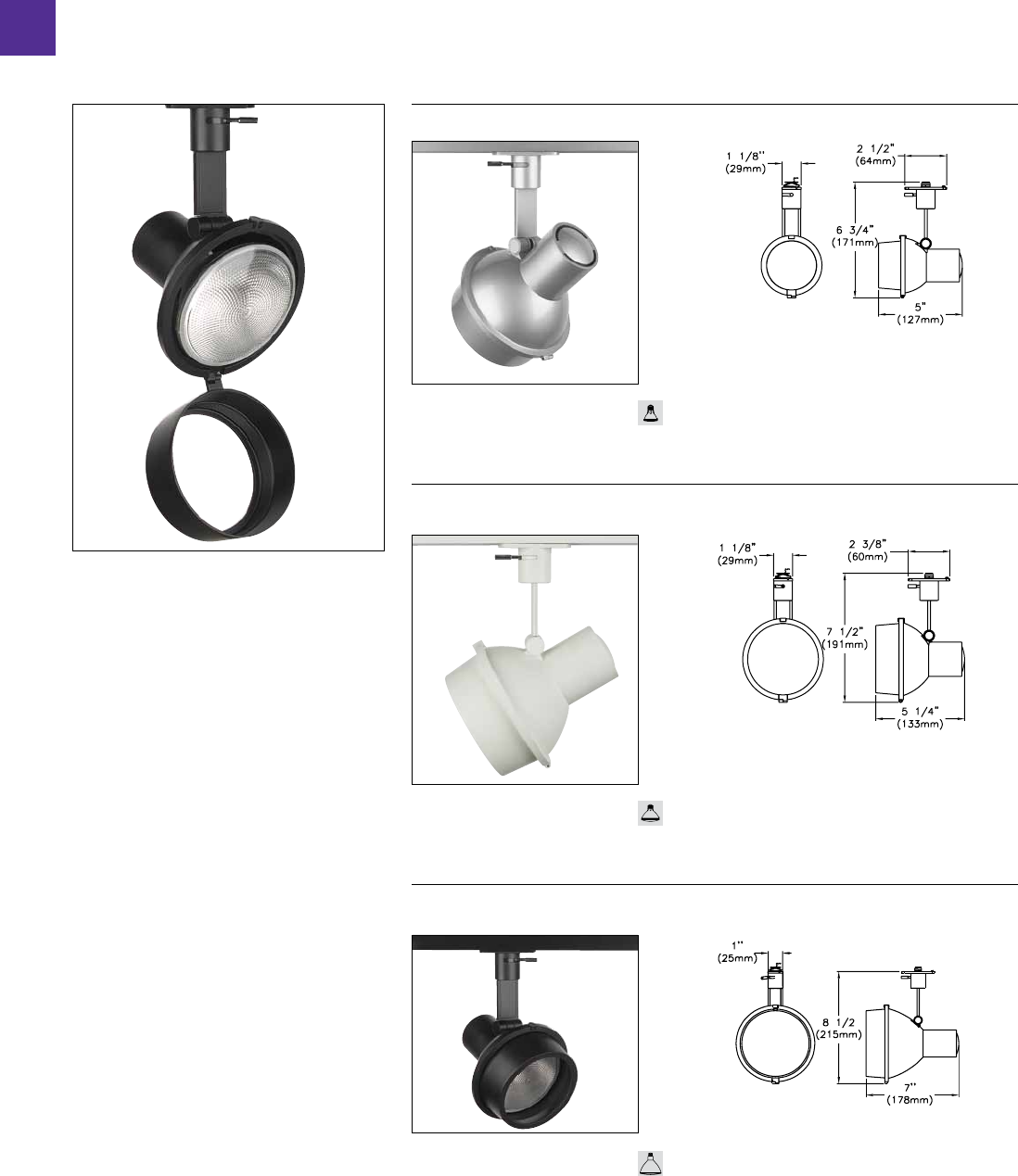

Alcyon Line Voltage luminaires utilize today’s reliable

and economical halogen lamps for ambient, task, accent

andwallwashingapplications.AvailableinPAR20/30/38

and T4 tungsten halogen sources from 50 to 250 watts,

Alcyon delivers bright halogen light that’s easily dimmable

and offers the warmth and color rendering that only incan-

descent sources can provide.

•Wirelessstemw/365horizontalrotation

•Compactlinevoltagetrackadapter

•Lampforwarddesignforeasyrelamping

•Integralaccessorycartridge

•Acceptsuptotwoaccessories

For accessories see p. 618.

Alcyon

line voltage

Step Spot - PAR20

Step Spot - PAR30

Step Spot - PAR38

22SS2AL Aluminum

22SS2BK Black

22SS2WH White

22SS3AL Aluminum

22SS3BK Black

22SS3WH White

22SS8AL Aluminum

22SS8BK Black

22SS8WH White

PAR20 50W Max.

Accessories: One ADF25 (Colour), AF25 (Diffusion) lens plus

one AL25HC Hex Cell Louver or two lenses.

PAR30S 75W Max

Accessories: One ADF3 (Colour), AF3 (Diffusion) lens plus

one AL3HC Hex Cell Louver or two lenses.

PAR38150WMax.

Accessories: One ADF4 (Colour), AF4 (Diffusion) lens plus

one AL4HC Hex Cell Louver or two lenses.

583Philips

Lytespan – Philips Lightolier

Canlyte Lighting Resource Guide

Alcyon

line voltage

22WW4AL Aluminum

22WW4BK Black

22WW4WH White

T4 Mini Can. 150W Max.

Accessories: One 22VZ4 series Visor.

22VZ4AL Aluminum

22VZ4BK Black

22VZ4WH White

5-1/8"L,4-7/16"W,2-1/2"Max.Depth.

130mm L, 113mm W, 63mm Max. Depth.

Wall Washer Wall Washer Visor

For use with Alcyon 22WW4 series Wall Washer;

provides additional light shielding.

Open Ring - PAR20 Open Ring - PAR30 Open Ring - PAR38

22OR2AL Aluminum

22OR2BK Black

220R2WH White

PAR20 50W Max.

Accessories: One ADF25 (Colour), AF25

(Diffusion) lens plus one AL25HC Hex Cell

Louver or two lenses.

22OR3AL Aluminum

22OR3BK Black

22OR3WH White

PAR30S 75W Max.

Accessories: One ADF3 (Colour), AF3

(Diffusion) lens plus one AL3HC Hex Cell

Louver or two lenses.

22OR8AL Aluminum

22OR8BK Black

22OR8WH White

 PAR38250WMax.

(150W Max. with accessories)

Accessories: One ADF4 (Colour), AF4

(Diffusion) lens plus one AL4HC Hex Cell

Louver or two lenses.

T4 150W

584 Philips

Lytespan – Philips Lightolier

7 1/4"

5 1/4"

6 15/16"

3 1/2"

5"

4"

5 9/16"

4 5/8"

4 3/8"

6"

5 11/16"

7 1/4"

3 3/16"

1 7/8"

3 13/16"

6 1/8"

4"

4 1/4"

5 1/4"

6 15/16"

3 1/2"

5 7/8"

4"

6 7/16"

4 5/8"

4 5/16"

6"

5 11/16"

7 3/4"

5 3/4"

2 3/8"

3 13/16"

6 1/8"

4"

1

2

2

1

Canlyte Lighting Resource Guide

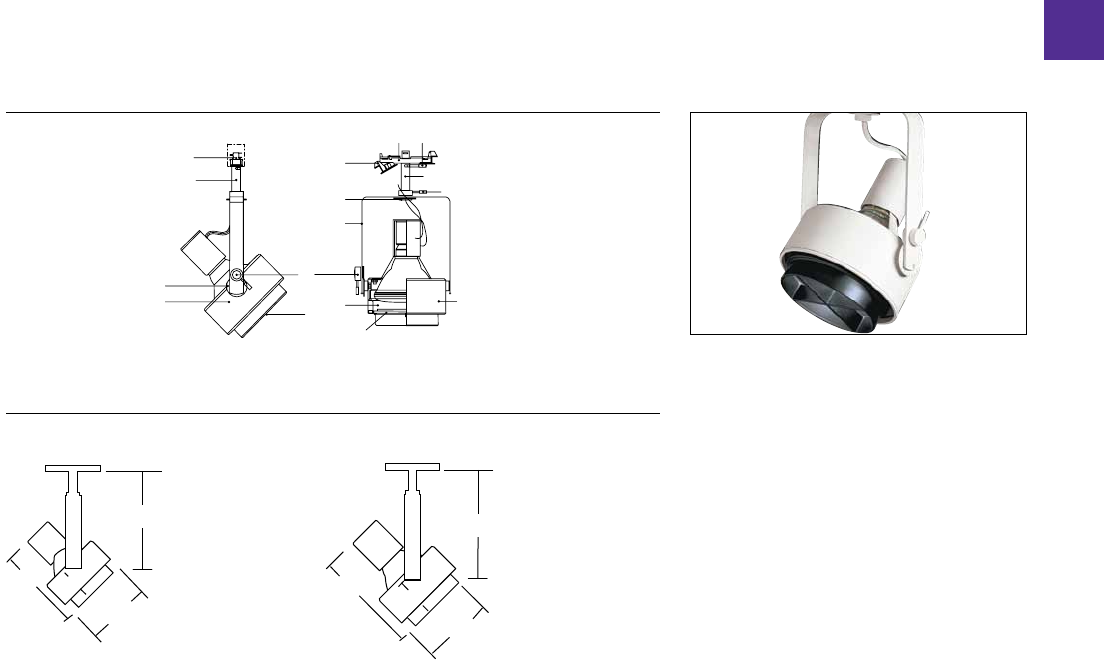

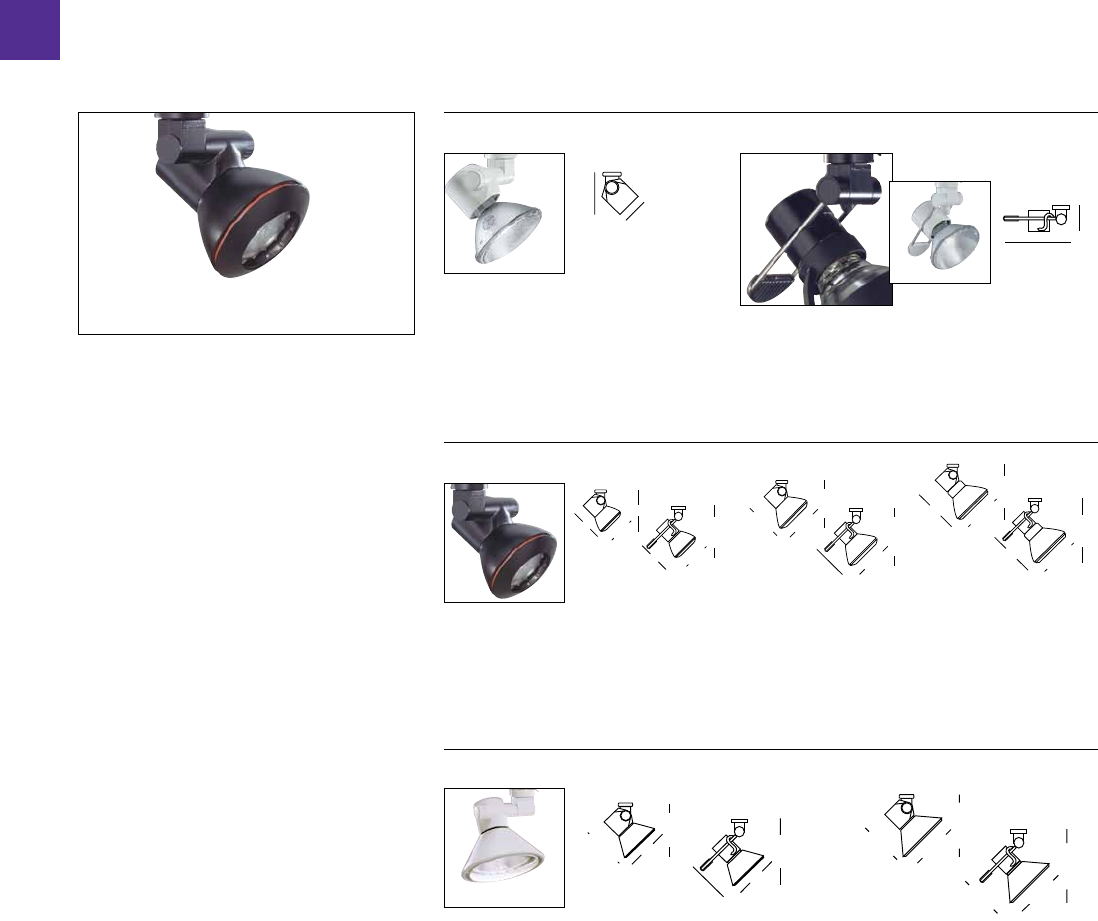

The ParTech Concept

Lytespan’s ParTech delivers high impact lighting by com-

bining compact halogen light sources with a versatile and

adaptable line of luminaires. Designed specifically for the

PAR16, PAR20, PAR30, and PAR38 lamps, their crisp

white light creates the dramatic effects of low voltage

lighting without the need for transformers. The complete

ParTech offering includes two unique adapters, twist-on

shades and accessories.

Low Profile ParTech Adapter

The compact, sculptured style of Low Profile ParTech

is perfect for tight spaces such as troughs or other archi-

tectural enclosures. ParTech luminaires are ruggedly

constructed of die-cast aluminum and vented for cool

operation. Accessory holder is required when accesso-

ries such as spread lenses, colour filters or louvers are

being used.

Hinged ParTech Adapter

A hinged, chrome-plated steel lever cradles the lampholder

andpermitsadjustmentupto90°fromvertical.Die-cast

aluminum shades with bayonet mount attach with a simple

twist-action. Shades hug the lamp profile and may be used

with hex cell louver, beam elongator and beam smoother;

barn doors for PAR20 or PAR30 Bezel only.

For accessories, see p. 618.

Important: A complete unit consists of an Adapter (1)

and a Shade (2). Order each separately.

ex:8201WH(1)+8225WH(2)=CompleteUnit

Low Profile ParTech

line voltage

Bezel Shade

Cone Shade

Adapter Low Profile ParTech

8201WH White

8201BK Black

55W PAR16

50W PAR20

75W PAR30

250WPAR38

Hinged ParTech Adapter

8202WH White

8202BK Black

55W PAR16

50W PAR20

75W PAR30

250WPAR38

PAR20  PAR30  PAR38

8227WH White 8237WH White 8247WH White

8227BK Black 8237BK Black 8247BK Black

50WPAR20 75WPAR30S 150WPAR38

(short neck lamp)

Accessory Holder: Accessory Holder: Accessory Holder:

8592 8593 8595

PAR20 PAR30

8225WH White 8235WH White

8225BK Black 8235BK Black

50W PAR20 75W PAR30S

(short neck lamp)

Accessory Holder: 8582 Accessory Holder: 8583

585Philips

Lytespan – Philips Lightolier

3 1/8"

4"

9-3/4"

4-1/2"

7"

9"

6"

3-3/8"

11-1/4"

5-3/4"

7-1/2"

Canlyte Lighting Resource Guide

For style, quality and value, nothing outperforms

Lightolier’s Basic series. These popular Lytespots come in

a variety of shapes and sizes and feature crisply defined

contours, concealed fasteners and dressed and con-

cealed wiring. The Basic series provides maximum value

at reasonable cost.

PAR Ring Front Relamping

Smart design and attractive style (no cage effect). User-

friendly:onehandfrontrelamping.Availablein2sizesand

2 colours.

PAR Ring

Simple, basic form designed for the 3 popular PAR sizes.

Ring Lytespots – Basic

line voltage

PAR38

55215WH White

55215BK Black

250WPAR38

PAR20

6278WH White

6278BK Black

50W PAR20

PAR38

55242WH White

55242BK Black

55242AL Aluminium

250WPAR38

PAR30S

55241WH White

55241BK Black

75W PAR30S

(Short neck lamp)

PAR30S

6282WH White

6282BK Black

75W PAR30S

(Short neck lamp)

PAR Ring

PAR Ring Front Relamping

PAR20

9120WH White

9120BK Black

75WA19

50W PAR20

50W R20

PAR30

9530WH White

9530BK Black

100WA19

75W PAR16, PAR30

PAR38

9538WH White

9538BK Black

150WPAR38

6320WH White

6320BK Black

250WPAR38

300W BR40

150W A21

50W PAR20

55W PAR16

75W PAR30

Roundback

This simple form is scaled to accommodate the compact

PAR tungsten-halogen lamps. Constructed of durable steel

with black phenolic baffle.

Universal

Versatile housing can be used individually or with cowls.

Internal black band on all cowls reduces glare. A sliding

socket accommodates a variety of lamps.

Basic

Roundback

Universal

586 Philips

Lytespan – Philips Lightolier

6"

2

8 1/2"

11"

11 1/2"

6" 28"

7 1/4"

10"

11 1/2"

5-1/ 2"

12-1/8"

7-1/2"

Canlyte Lighting Resource Guide

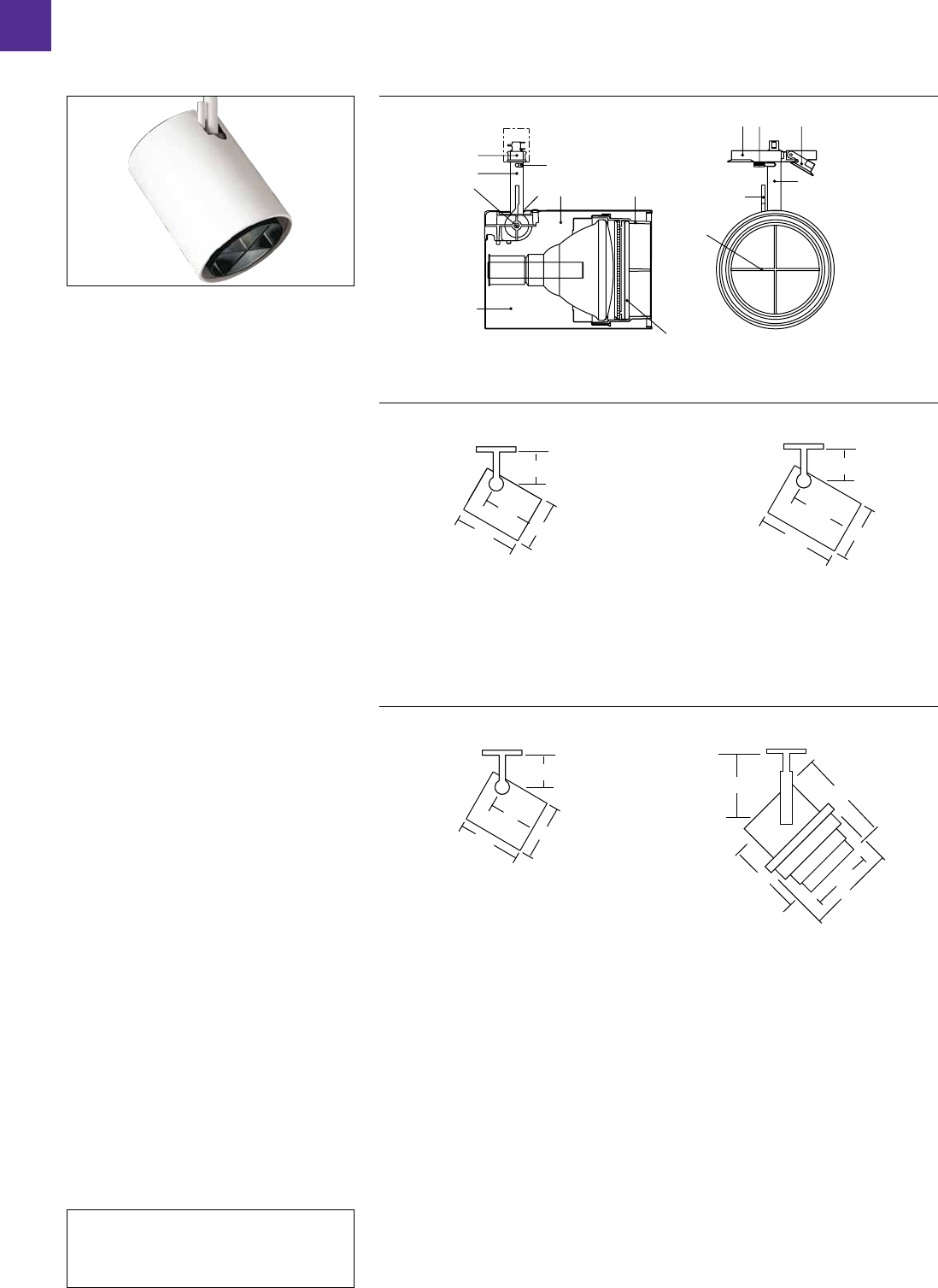

Theatrical Lytespot

Influenced by the aesthetics of stage lighting, Theatrical

Lytespots combine dramatic style with affordability. Line

voltage styles are designed around the proportions of the

lamp but can use a PAR38 sizelamp aswell. Anexter-

nal accessory “holder” is not required for these Lytespots

making them an extraordinary value. One unit has an

integral barn door and the other unit features an integral

accessory cartridge that can accommodate up to 2 acces-

sories simultaneously.

Dramalux

When it comes to lighting galleries, museums, institutions

and large retail interiors, Dramalux offers the perfect blend

of performance, flexibility and durability. Each fixture can

produce a wide range of lighting effects thanks to inte-

gral spring clips that support accessories such as color

filters, spread lenses, louvers and barn doors. Easy “back

door” access permits lamp changes without disturbing the

accessories.

Theatrical Lytespot – Dramalux

8270WH White

8270BK Black

75W PAR30

150WPAR38

8269WH White

8269BK Black

75W PAR30

150WPAR38

Accessories: One AF4, ADF4

or AL4 Series

7631 Matte white

7630 Matte black

PAR38250Wmax.

PAR38CoolBeam150Wmax.

Accessories: Two AL4, ADF4

or AF4 series.

(150W max. w/accessories)

Theatrical Lytespot with Integral Barn Door

Dramalux PAR38

Theatrical Lytespot with Accessory Cartridge

line voltage

587Philips

Lytespan – Philips Lightolier

9’’

(229mm)

3.5’’

(89mm)

9’’

(229mm)

Canlyte Lighting Resource Guide

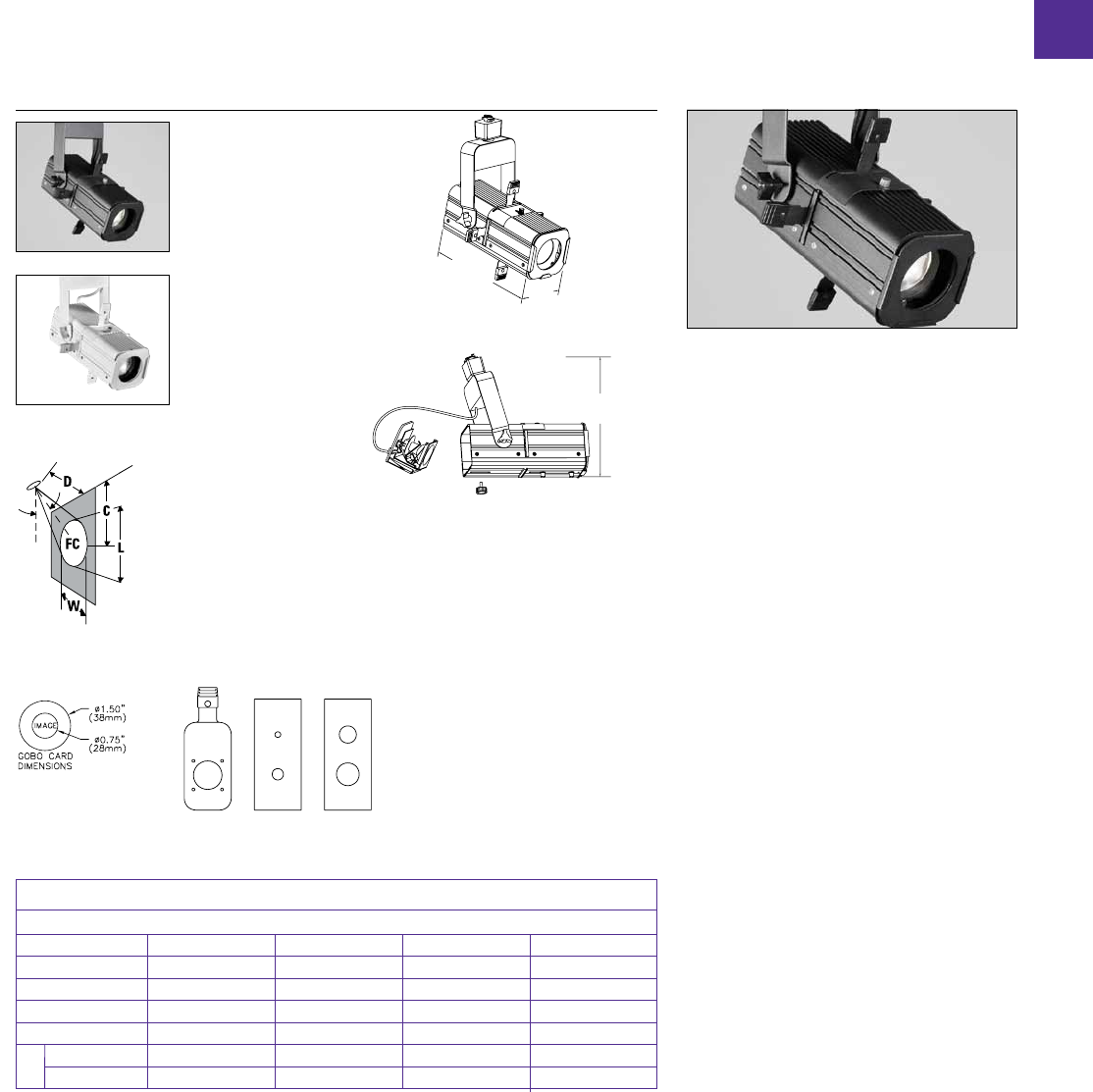

Framing Projector

special applications – incandescent

Lightolier’s Framing Projector combines three functions:

FramingProjector,BeamConcentratorandGoboProjector.

Four framing shutters on all four sides of main projector

housing allow precise light cut-off to illuminate square and

rectangularimages.Goboholderincludedisdesignedfor

38mm steel card gobo (supplied by others). The Beam

Concentrator includes 4 different circle beam sizes for a

defined beam with no residual spill light. A gel holder is

included(Gelnotincluded).Lightolier’sFramingProjector

permits any of the above combinations simultaneously.

Features

•Housingismadeofextrudedaluminum,designedwith

ridged linear texturing to maximize heat dissipation

•Goboholder,GelholderandBeamConcentrator

accessories included

•Electronictransformerhousedinaseparate

compartment for a cooler operation

•Duallensesforprecisefocus

•75WMR16max

Gobo:

A:Diameter 1-1/2" (38mm)

B:ImageHandW 3/4" (19mm)

C:ImagetoEdge 3/8" (9.5mm)

Illumination on Vertical Plane

Shutter Blades Set For Maximum Beam Coverage

Distance(D) 24" 36" 48" 60"

AimingAngle(A) 30° 45° 60° 30° 45° 60° 30° 45° 60° 30° 45° 60°

Width(W) 12" 18" 22" 20" 30" 35" 29" 42" 48" 37" 54" 62"

Length(L) 16" 22" 44" 27" 37" 70" 39" 51" 97" 50" 66" 123"

Distance(C) 13" 22" 33" 20" 33" 50" 26" 44" 66" 33" 55" 83"

FC 50W MR16 FL EXN 376 183 52 130 66 20 65 34 11 39 20 7

75W MR16 FL EYC 680 332 95 234 119 37 117 61 20 70 37 12

55221BK Black

75W MR16 12V

55221WH White

75W MR16 12V

A

588 Philips

Lytespan – Philips Lightolier

1-5/32"

3/4"

3/4"

2"

1-5/32"

1-3/32"

Canlyte Lighting Resource Guide

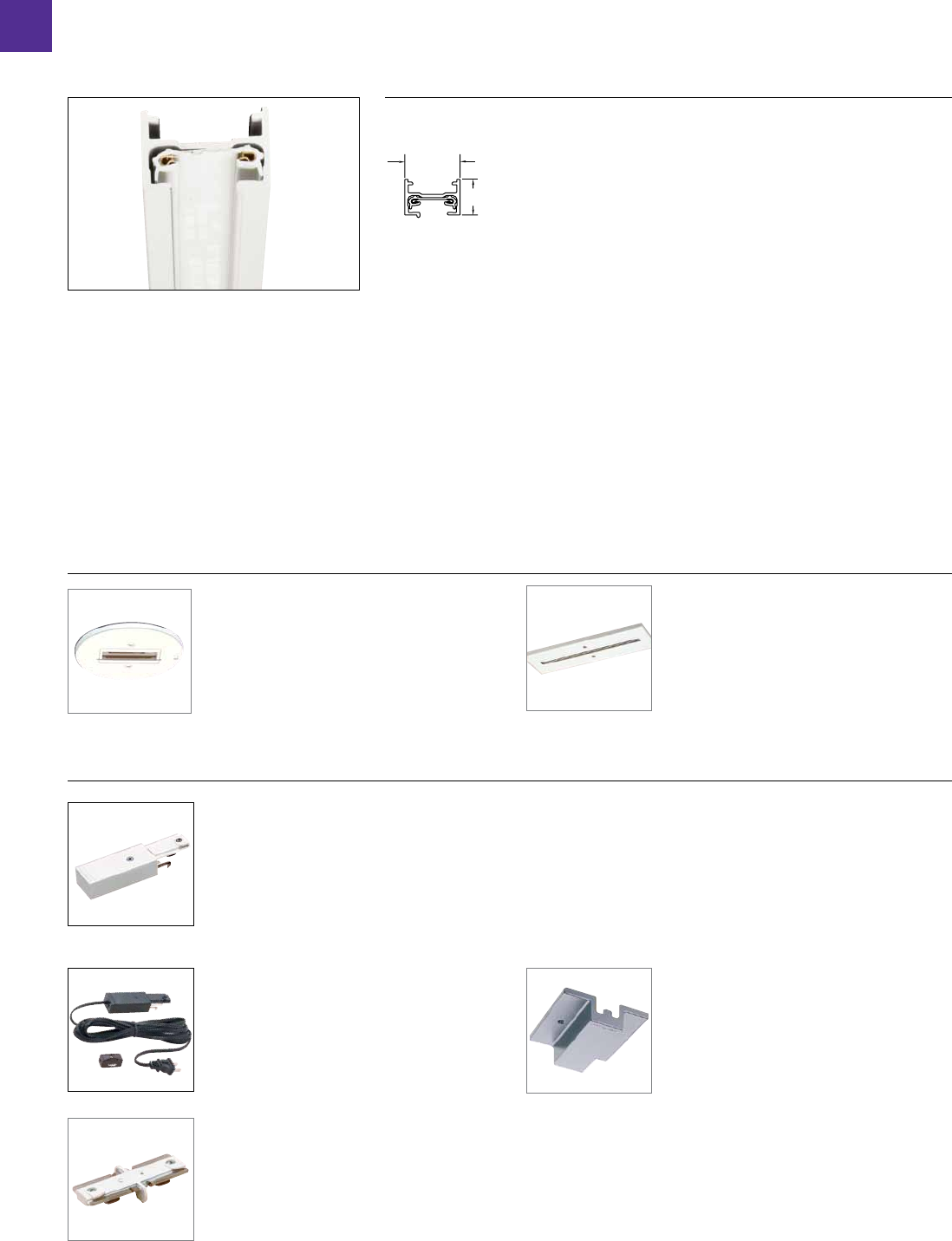

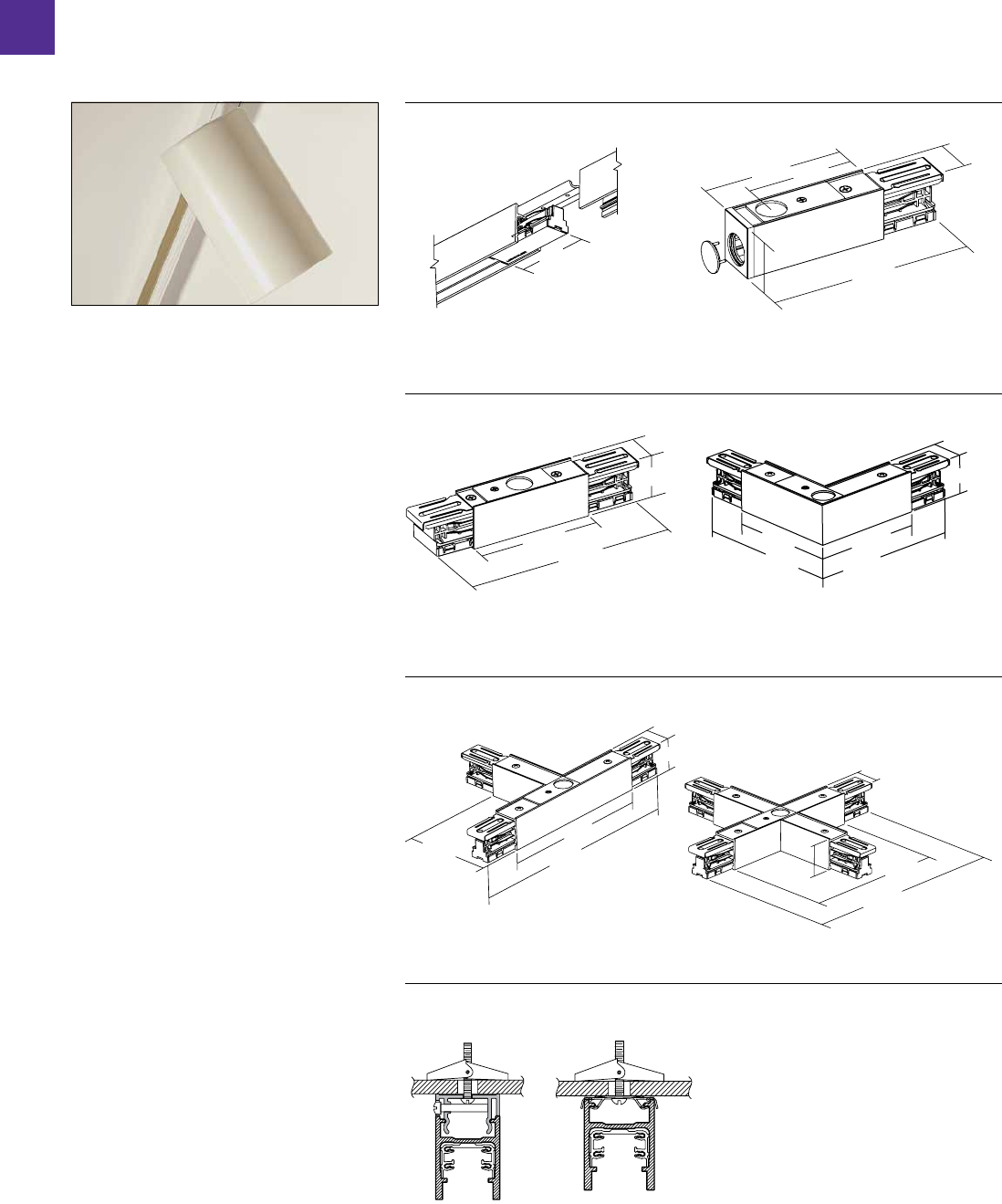

Basic Track single-circuit track enables all the Lytespots

to work in tandem. It can be surface or stem mounted on

ceilings, and mounted vertically or horizontally on walls, in

straight runs or patterns. It can be field cut to the desired

length. Capacity is 20 amps at 120V per branch circuit.

To build a straight run or a pattern, order as many sec-

tions of track as required (lengths of 4’ to 12’), along with

the connectors, power feeds and accessories needed for

your project.

Section of track

Includes track, flush dead end, twist-lock mounting clips and additional hardware for direct mounting.

4'

6004NAL Aluminum

6004NWH White

6004NBK Black

Length:45-1/4"

6'

6006NAL Aluminum

6006NWH White

6006NBK Black

Length:69-1/4"

8'

6008NAL Aluminum

6008NWH White

6008NBK Black

Length:93-1/4"

12'

6012NAL Aluminum

6012NWH White

6012NBK Black

Length:141-1/4"

Power Feeds

Monopoint & Multipoint

Basic Track – One Circuit Track and Accessories

track

Live End Feed

For feeding track mounted flush with ceiling, without using

outlet box or canopy. Use with floating invisible feed or with

stems (not included).

6048NAL Aluminum

6048NWH White

6048NBK Black

Monopoint

Very shallow Monopoint canopy (1/4" high, 4-1/2" diam-

eter) for surface mounting of any single Lytespot over

standard outlet box.

Includes crossbar.

6190NAL Aluminum

6190WH White

6190BK Black

Multipoint

Surface mounts up to 3 Lytespots, depending on luminaire

size, over any standard outlet box. Track length 11-11/16",

width4-1/2",depth9/16".Includescrossbar.

7619AL Aluminum

7619WH White

7619BK Black

Joiner

Used to connect two pieces of track together me-

chanically and electrically. Power cannot be fed to

the joiner connector.

6049NAL Aluminum

6049NWH White

6049NBK Black

Floating Saddle Canopy Feed Kit

Mounts at any point along track for power feed from

outlet box. Includes 4-1/2" saddle canopy, crossbar,

dead end cap and electrical connector.

6063NAL Aluminum

6063WH White

6063BK Black

Live End Cordset

For feeding track from a grounded duplex receptacle.

Includes 15', 2 - wire cord with plug and switch (capa city

of 7 amps at 120V).

6062WH White

6062BK Black

589Philips

Lytespan – Philips Lightolier

Canlyte Lighting Resource Guide

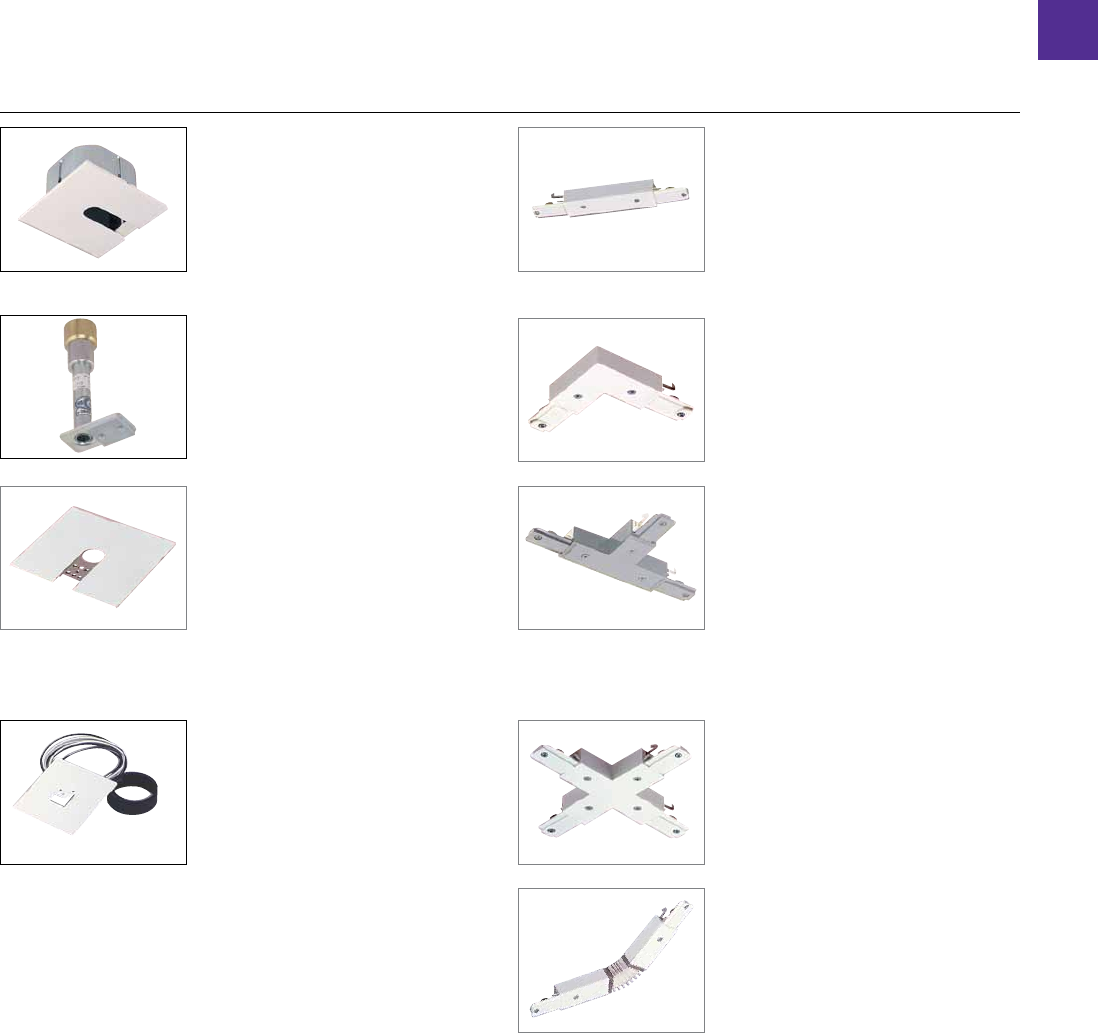

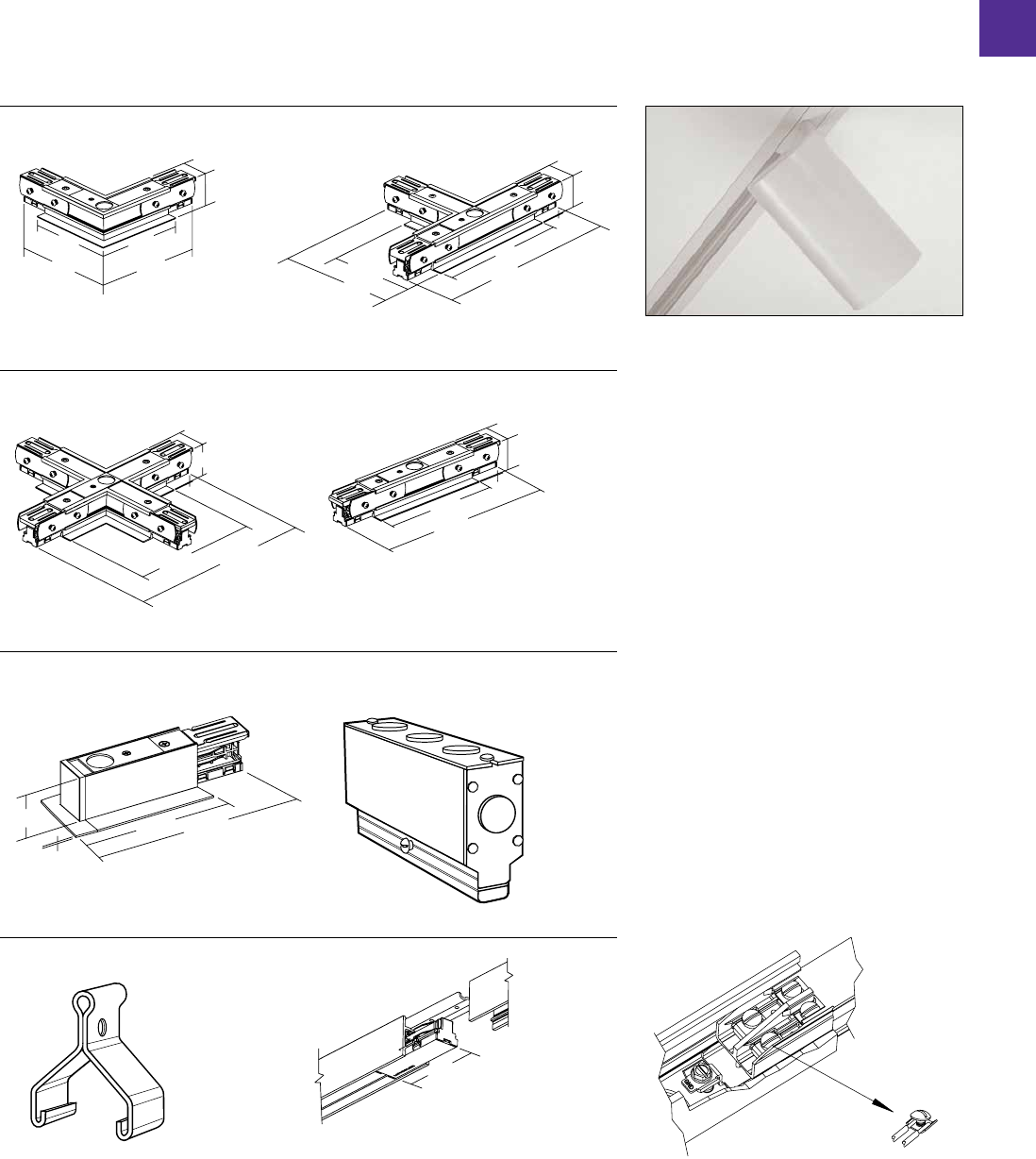

Basic Track – One Circuit Track and Accessories

track

In-Line Connector

The "In-Live" connector is polarized and pre-wired.

Allows power feed-in between the track units in a

straight run of track. Allows to feed independently or

on the same circuit.

6054NAL Aluminum

6054NWH White

6054NBK Black

“L” Connector

The "L" connector is polarized and pre-wired. Allows

to feed independently or on the same circuit.

6050NAL Aluminum

6050NWH White

6050NBK Black

“T” Connector

The "T" connector is not polarized and pre-wired.

Allows to feed three units of rail independently or on

the same circuit.

6051NAL Aluminum

6051NWH White

6051NBK Black

“X” Connector

The "X" connector is not polarized or pre-wired.

Allows to feed four units of track independently or on

the same circuit.

6052NAL Aluminum

6052NWH White

6052NBK Black

Variable Angle Connector

The Variable Angle connector is polarized and pre-

wired. Flexes to any angle between 0 degree and

90degrees.Allowstofeedindependentlyoronthe

same circuit.

6053NAL Aluminum

6053NWH White

6053NBK Black

End Feed Canopy for use with

Connectors

Mounts above in-line, "L", "T", "X" or Variable Angle

connector for power feed from 3" or 4" octogonal

outlet box 4-1/2 sq. Includes canopy and crossbar.

6060NAL Aluminum

6060WH White

6060BK Black

Grid Ceiling Feed Kit

Kit includes a junction box, a canopy, crossbar and

mounting clips.

6096WH White

6096BK Black

Floating Feed Canopy for use

with Connectors

Mounts at any point along track for power feed from

3" or 4" octogonal outlet box to live end or any con-

nector. Supplied with four 4’ lengths of 12 ga. solid

wire and wireway cover.

6061NAL Aluminum

6061WH White

6061BK Black

Floating Invisible Feed

26082 Zinc Plated

590 Philips

Lytespan – Philips Lightolier

Canlyte Lighting Resource Guide

track

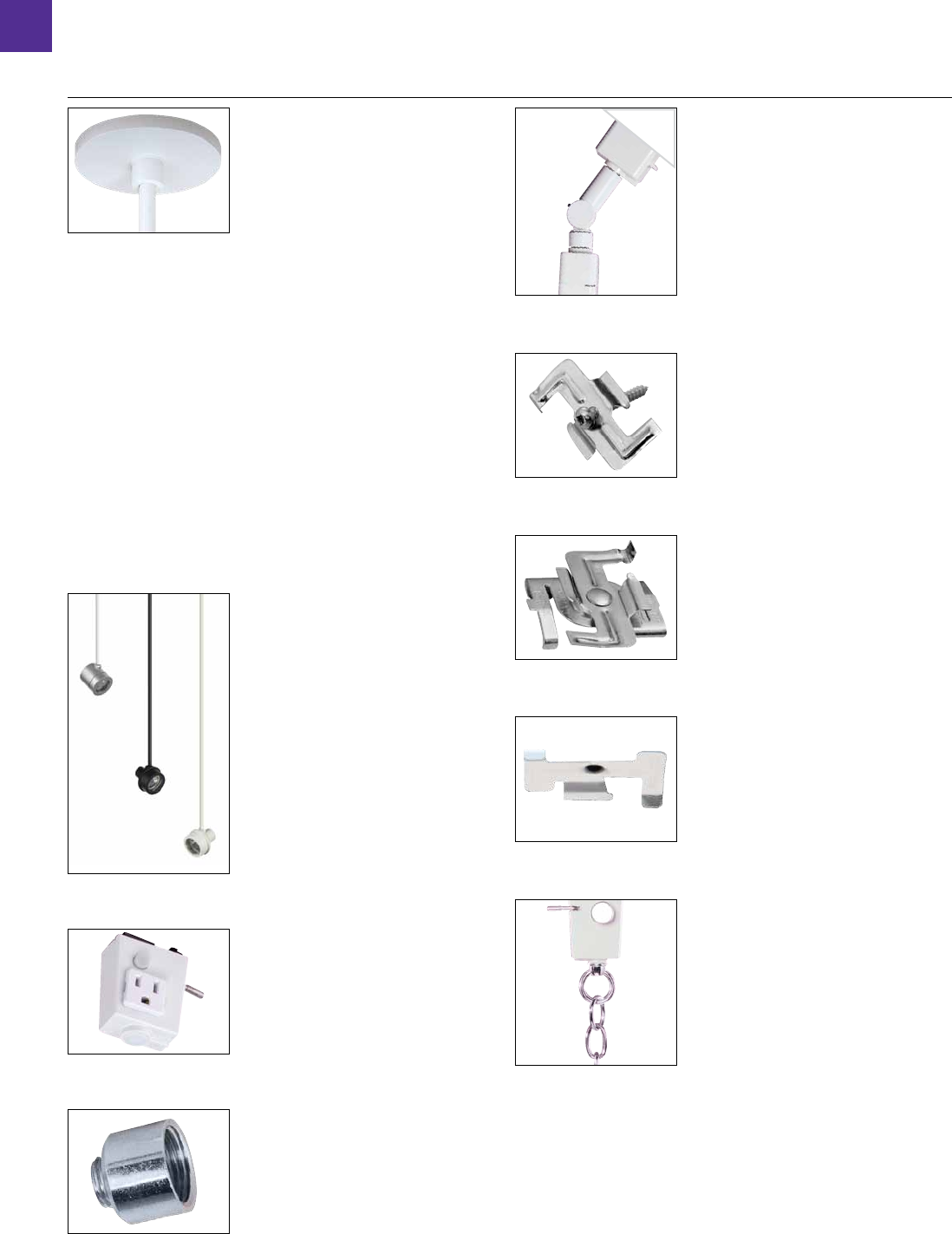

Basic Track and Advent Accessories

Stem mounting kits for Basic

and Advent track

Use two stems for a 4-foot single track; 3 stems

fora8-footand12-footsingletrack.Stemsattach

to the track at any point, and may be spaced up to

4' apart in a run of track. Stems may be cut in the

field.The48"StemExtensionKitisusedtoextend

stem length and may not be field cut. Canopy

diameter:41/2",Stemdiameter:1/2".

Note:Systemscannotbemounteddirectlytotrack

connectors.

18''StemMountingKit

7584 White

7683 Black

48''StemMountingKit

7586 White

7681 Black

48''StemExtensionKit

7582 White

7680 Black

48''SwivelStem*

7480 White

7481 Black

*0°-90°adjustmentforslopedceilings.

Convenience Outlet

Provides auxiliary source for plug-in equipment.

Capacity of 6 amps.

6085 White

Sloped Ceiling Adapter

Installs on Monopoint, Multipoint or track. Adjusts

from 0° to 90°. For sloped or cathedral ceiling

applications. Can be used alone or with Suspension

Stems.

6079WH White

6079BK Black

Suspension Stems

For suspending Lytespots on Basic Track or Advent

Tracks.Stemdiameter:1/2".

6074WH 18"White

6074BK 18"Black

6075WH 36" White

6075BK 36" Black

6076WH 48"White

6076BK 48"Black

Note:Notfieldcuttable

Twist-Lock Flush Clips

Set of 10. For Basic Track or Advent.

56451WH White

56451BK Black

T-Bar Clips

Setof9.Forgridceilings.ForBasicTrack

or Advent.

6089 Zinc plated

Surface Clips

Set of 10. For installation on uneven ceilings.

For Basic Track or Advent.

56478

Attachment fitting

Supports cord-mounted luminaires (5 lbs. max.)

and stem or chain luminaires (25 lbs. max.). Loop

(female thread 1/4" - 18 NPS) and chain not

included.

7589 White

7589BK Black

Conduit Adapter

Forfeedingpowertoliveend6048Nfromsurface

conduit which has 1/2" IPS threaded connector

(1" dia. x 3/4" long).

7596 Zinc Plated

591Philips

Lytespan – Philips Lightolier

1-5/32"

3/4"

3/4"

2"

1-5/32"

1-3/32"

Canlyte Lighting Resource Guide

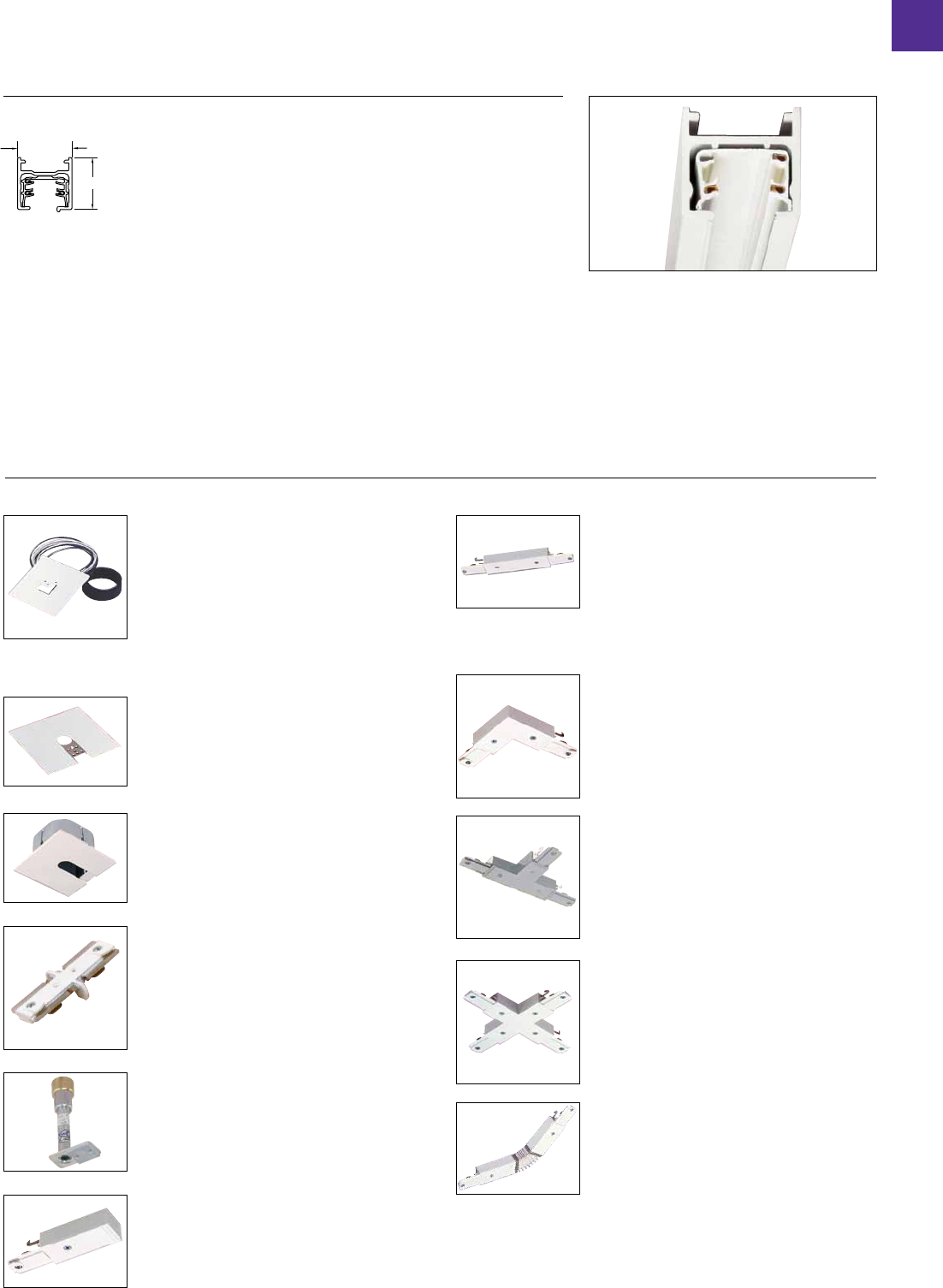

Advent double-circuit track allows for separate control

of the Lytespots on the same track. It can be surface or

stem mounted on ceilings, and mounted vertically or hori-

zontally on walls, in straight runs or patterns. It can be

field cut to the desired length. Total capacity is 40 amps

when supplied by a single phase, 120/240V three-wire

branch circuit.

To build a straight run or a pattern, order as many sections

of track as required (choice of 4' to 12' lengths) along with

the connectors, power feeds and accessories needed to

complete your project.

Advent – Two-Circuit Track and Accessories

4'

6104NAL Aluminum

6104NWH White

6104NBK Black

Length: 43-9/32"

8'

6108NAL Aluminum

6108NWH White

6108NBK Black

Length: 91-9/32"

12'

6112NAL Aluminum

6112NWH White

6112NBK Black

Length: 139-9/32"

Section of track

Includes track, dead end cap and additional mounting hardware.

Power Feeds

Floating Feed Canopy for use

with Connectors

Mounts at any point along track for power feed from 3"

or 4" octogonal outlet box to live end or any connector.

Supplied with four 4’ lengths of 12 ga. solid wire and

wireway cover.

6061NAL Aluminum

6061WH White

6061BK Black

Grid Ceiling Feed Kit

Kit includes a junction box, a canopy, crossbar and

mounting clips.

6096WH White

6096BK Black

Joiner

Used to connect two pieces of track together mechanically

and electrically. Power cannot be fed to the joiner

connector. Includes connectors and spline.

6149NAL Aluminum

6149NWH White

6149NBK Black

Floating Invisible Feed

26082 Zinc Plated

End Feed Canopy for use with Connectors

4-1/2" square canopy.

6060NAL Aluminum

6060WH White

6060BK Black

Live End Feed

Electrifies track from beginning of run.

6148NAL Aluminum

6148NWH White

6148NBK Black

In-Line Connector

The "In-Live" connector is polarized and pre-wired. Allows

power feed-in between the track units in a straight run of

track. Allows to feed independently or on the same circuit.

6154NAL Aluminum

6154NWH White

6154NBK Black

“L” Connector

The "L" connector is polarized and pre-wired. Allows to feed

independently or on the same circuit.

6150NAL Aluminum

6150NWH White

6150NBK Black

“T” Connector

The "T" connector is not polarized and pre-wired.

Allows to feed three units of rail indepen dently or

on the same circuit.

6151NAL Aluminum

6151NWH White

6151NBK Black

“X” Connector

The "X" connector is not polarized or pre-wired.

Allows to feed four units of track independently

or on the same circuit.

6152NAL Aluminum

6152NWH White

6152NBK Black

Variable Angle Connector

The Variable Angle connector is polarized and pre-wired.

Flexestoanyanglebetween0degreeand90degrees.

Allows to feed independently or on the same circuit.

6153NAL Aluminum

6153NWH White

6153NBK Black

track

592 Philips

Lytespan – Philips Lightolier

45/8"

5 3/16"

5 3/16"

45/8"

7/16"

2"

1 1/2"

Canlyte Lighting Resource Guide

The first integral

current limiting

device for line

voltage track

lighting.

Basic Track

6099WH White

6099BK Black

6099AL Aluminum

Advent Track

6199WH White

6199BK Black

6199AL Aluminum

Basic Track

6033WH White

6033BK Black

6033AL Aluminum

Advent Track

6133WH White

6133BK Black

6133AL Aluminum

In-Line Kit Live End Kit

PLD120WH White 1.0A/120W

PLD120BK Black 1.0A/120W

PLD300WH White 2.5A/300W

PLD300BK Black 2.5A/300W

PLD600WH White 5.0A/600W

PLD600BK Black 5.0A/600W

PLD900WH  Whit e 7.5 A / 9 0 0W

PLD900BK  Black 7.5A/900W

Consult factory for custom ratings.

Height: 1-3/16" Height: 1-3/16"

PowerTrip Breaker Modules

Shortcircuitcurrentrating(AIC):1kA

PowerTrip™

PowerTrip is a current limiting device designed for use with

Lytespan Basic Track and Advent Track. It works by mini-

mizing the impact of current; particularly with fluorescent

or metal halide light sources in retail applications.

How it Works

PowerTrip replaces standard Live-End and In-Line track

power feeds and is just as easy to install. PowerTrip

connectors contain a miniature electro-magnetic circuit

breaker that limits the current load on the track to a

specified amperage/wattage. Exceeding the rating of the

PowerTrip device by increasing fixture wattage or count

breaks the circuit and shuts off power to the track. Remove

the excess load, reset the PowerTrip breaker and power is

restored to the track.

How to Select

Total the wattage (including ballast input wattage if appli-

cable) of all fixtures that will be used on each circuit of

track. Determine the default wattage as stipulated by the

applicable code. If the actual load exceeds the default load

PowerTrip is not required. If the default load is higher than

the actual load select the PowerTrip kit that exceeds but is

closest to the actual load.

How to Order

PowerTrip is a two-part system. Choose the PowerTrip kit

that best suits the power feed requirements of the installa-

tion, either Live-End or In-Line. Next choose the PowerTrip

Breaker Module as shown in “How to Select” above. Order

both components separately.

PowerTrip – Current Limiting Device

track

593Philips

Lytespan – Philips Lightolier

7690

7691

7692

Canlyte Lighting Resource Guide

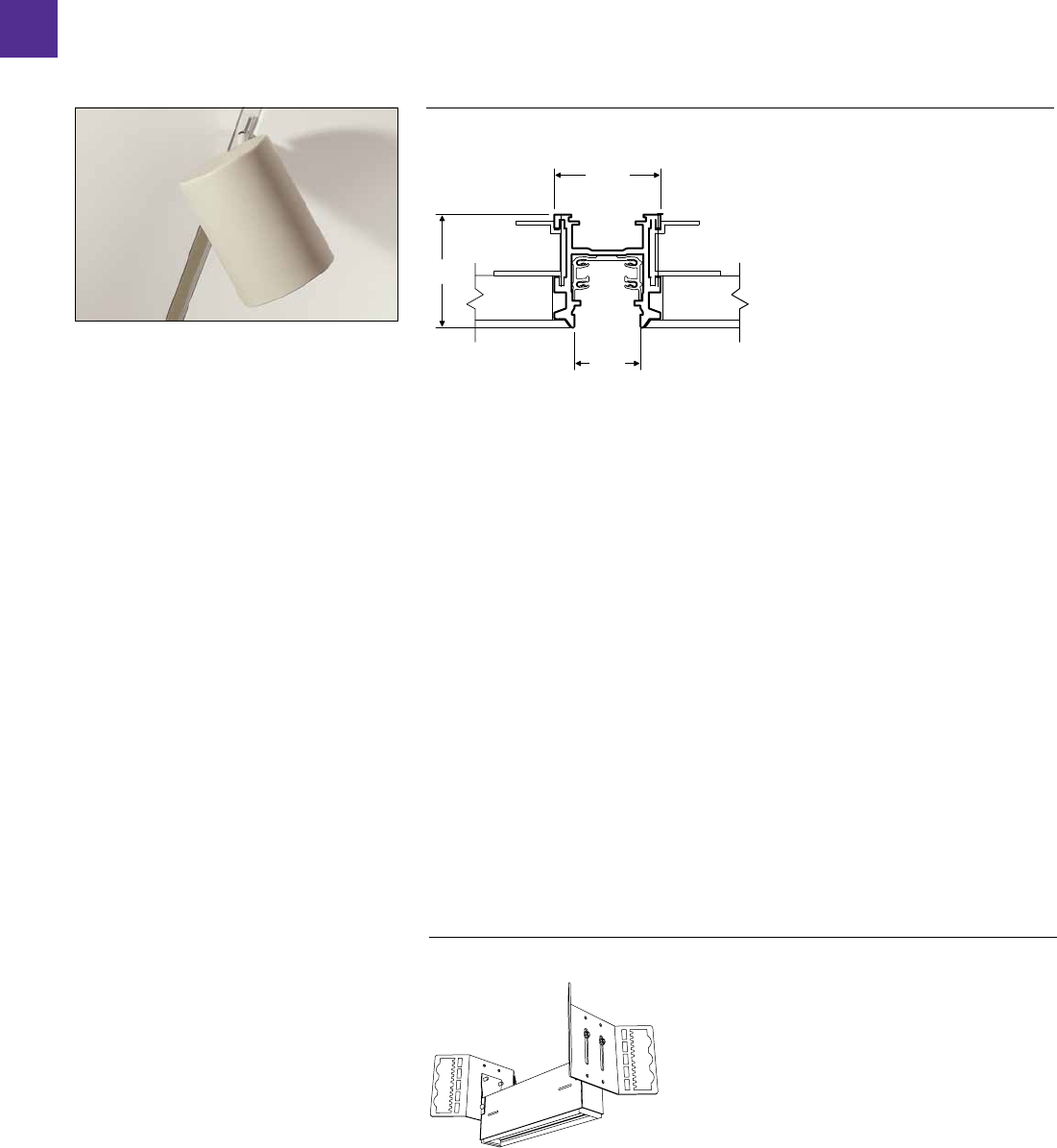

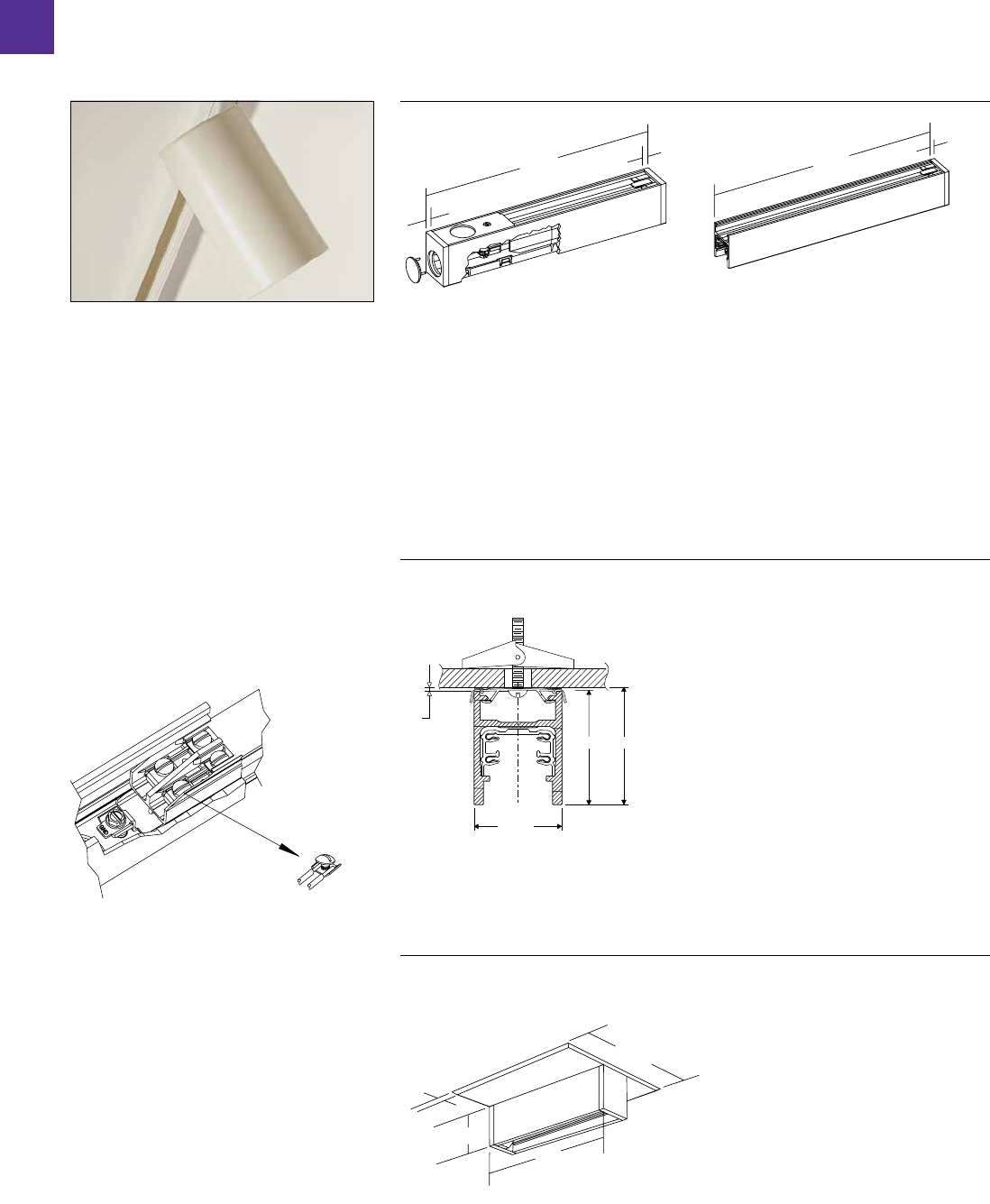

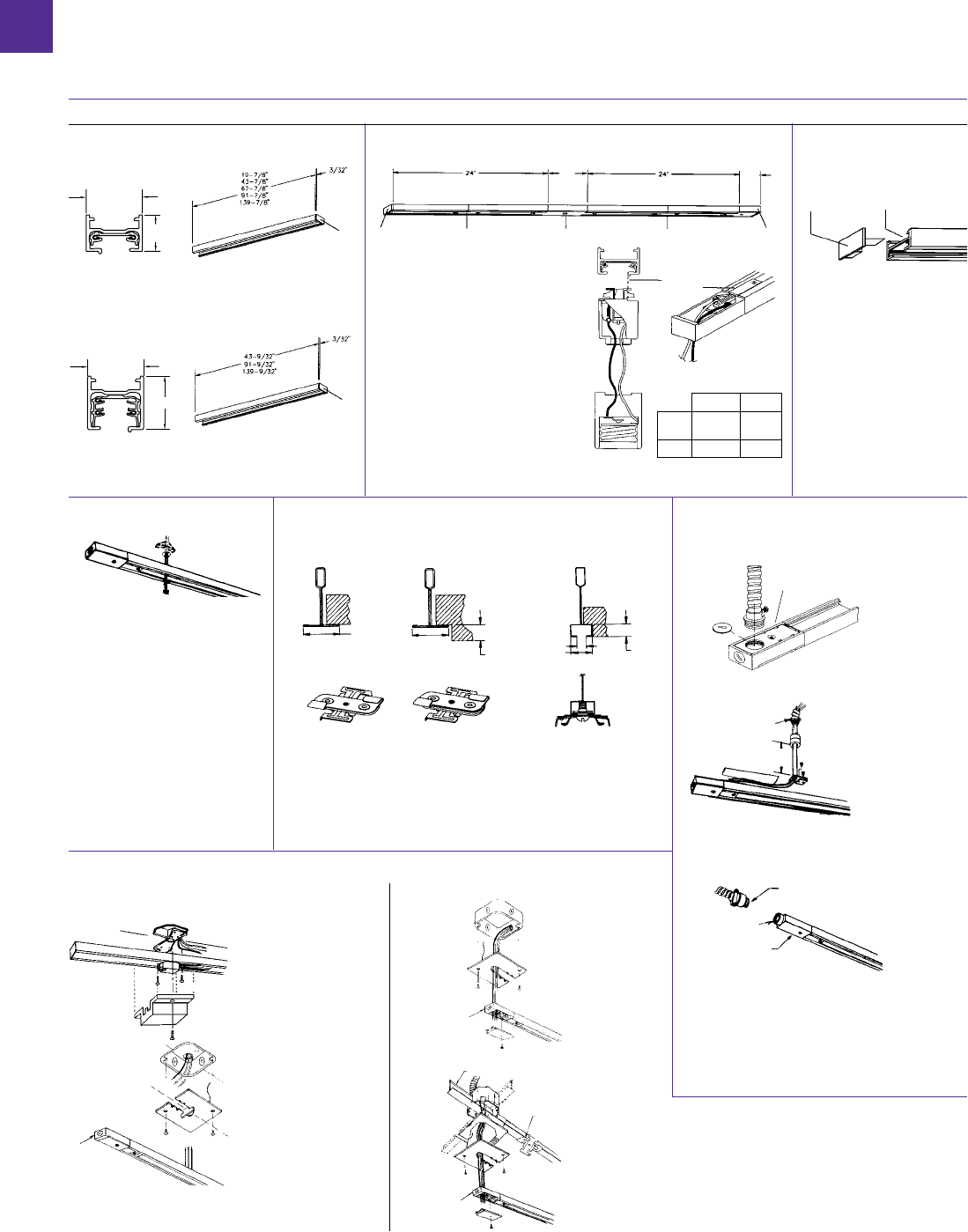

Lytespan Track housings

Recessed extruded aluminum housing encloses Basic or

Advent track, sold separately, for a clean ceiling. Housing

has minimum-width trim flange for use with all ceiling

materials and can be field-cut to length. Recessed track

is fed from splice box installed at the end of, or between

housings. Electrical connector kit connects track sections

through “L”, “T”, and “X”. Ceiling Material should not pro-

trude below the flange of the recessed housing to ensure

proper installation of Lytespots.

Recessed housing intercepts

In patterns, power can be fed at “L”, “T” or “X” Splice Box.

Order Electrical connector kit for each splice box for power

feed or power continuity. Order one 4' or 8' Individual

Track section and as many 8' Joiner Track sections as

required for each straight run of track between intercepts.

For more detailed information see application guide,

page595.

Recessed track

Recessed Track End Splice Box

Recessed track

Recessed track in straight runs is fed from end

splice box installed at the end of or between 4' or

8'housings.

Splice box

7517 Matte white

4' Recessed housing

7515 Matte white

8' Recessed housing

7516 Matte white

Electrical connector kits

For use with “L” Splice Box.

Basic

6464WH (Set of 2)

Advent

6467WH (Set of 2)

Electrical connector kits

For use with “T” Splice Box.

Basic

6462WH (Set of 4)

Advent

6465WH (Set of 4)

Electrical connector kits

For use with “X” splice box.

Basic

6462WH (Set of 4)

Advent

6465WH (Set of 4)

Recessed track “L” splice box

Recessed track “T” splice box

Recessed track “X” splice box

track

594 Philips

Lytespan – Philips Lightolier

1/4" 5/16"

9/16"

15/16" 9/16"

15/16"

5/16"

13/32" 9/16"

21/8"

1-5/32"

3/4"

3/4"

2"

1-5/32"

1-3/32"

1-5/32"

3/4"

3/4"

2"

1-5/32"

1-3/32"

BA

Canlyte Lighting Resource Guide

Basic/Advent

Track application guide

Surface mounting track

Power Feed to Surface mounted track from outlet box

Mounting to exposed grid suspended ceilings Power feed to surface mounted track

from conduit or cable

Direct mounting

Toggle bolts with nylon insulators,

supplied with track, can be used to

mount track to a wall or ceiling

through existing holes in the track.

With track mounting clips

Mounting clips, provided with track,

attach to track at any point.

Use only for ceiling mounting.

T-Runner Slotted grid runner

Square

Edge

Panel

Regressed

edge panel

T-Runner

Use grid ceiling mounting clips above for ceilings shown.

Use grid ceiling canopy kit for power feed.

Do not exceed 4' spacing of track supports.

Clip screw

Live end

1/2"-14

nut (included)

3/8"Electrical

fitting (by others)

3/8"Electrical

fitting (by others)

Conduit adapter

Basic live end

Conduit Adapter attaches to Live End of Basic Track

for power feed from surface conduit terminating in

1/2–14 threaded electrical fitting. Not required for

Advent Track.

Saddle canopy kit

mounts at any point

along basic track for

power feed directly

to track conductors.

Includes extra dead end

cover to replace live end.

3" or 4" octagon outlet box

(by others)

Floating canopy kit

mounts anywhere along

track installed with

mounting clips for power

feed to live end, “L”, “T”,

“X”, in-line or variable

angle connector.

May be located up to 4'

from power feed-in point.

3" or 4"

Octagon

Outlet Box

(by others)

Live end

End feed

canopy kit

mounts directly

to live end, “L”,

“T”, “X”, In-Line

or variable angle

connector.

3" or 4"

octagon

outlet box

(by others)

T-Bar

mounting clip

Live end

Live end

T-Bar

Conduit or cable

mounts directly

to a Live End,

“L”, “T”, “X”,

In-line or variable

angle connector.

Does not require

separate power

feed kit.

3/8"

electrical

fitting

(By others)

Floating invisible

feed mounts

anywhere along

track installed with

mounting clips for

power feed to live

end, “L”, “T”, “X”,

in-line or variable

angle connector.

May be located up

to 4' from power

feed-in point.

Use grid ceiling canopy kit to feed power to the live

end, “L”, “T”, “X”, In-line or variable angle connector

of track mounted to a grid ceiling. Its special outlet

box mounts along a t-bar runner or at the intersection

of t-bar runners.

6089 (9) Clips 6087 (9) Clips 6088 (9) Clips

track

Track Cuts Easily

to Any Length

Dead End Cover Cut Track

With Basic or Advent Track, you can

cut the track to any length

without having to cut back conduc-

tors. No special tools required.

Important:Puttheendcoverback

in place.

Note:Donotcuttrackwhereliveendis

installed.

Bead Side

(neutral)

DeadEnd JoinerConnector In-LineConnector JoinerConnector LiveEnd

Start with a live end and add as many track

lengths as required. Join track lengths with

joiner connector or in-line connectors.

Note:

1.Joinerconnectorconnectstrackunitmechanically

and electrically.

2. In-line connector permits power feed for a long run

of track.

3. The maximum length per circuit is 24'.

(load:1,500wattsapprox.percircuit).

4. Observe polarity (bead side). Do not interrupt

continuity of bead side on the same circuit.

TRACK LAYOUTS

Basic Track (Single Circuit) Straight Run of Track

Advent (Double Circuit)

Dead end

Note:Trackincludesflushdeadend,twist-lockmountingclipsandadditional

hardware for direct mounting.

Note:Trackincludesflushdeadend.

Dead end

A B

Basic 2-23/32" 4-1/8"

Track

Advent 4-1/2" 4-1/2"

595Philips

Lytespan – Philips Lightolier

Y

90°

7-1/4"

Y

6-1/16"

Canlyte Lighting Resource Guide

Basic/Advent

Track application guide

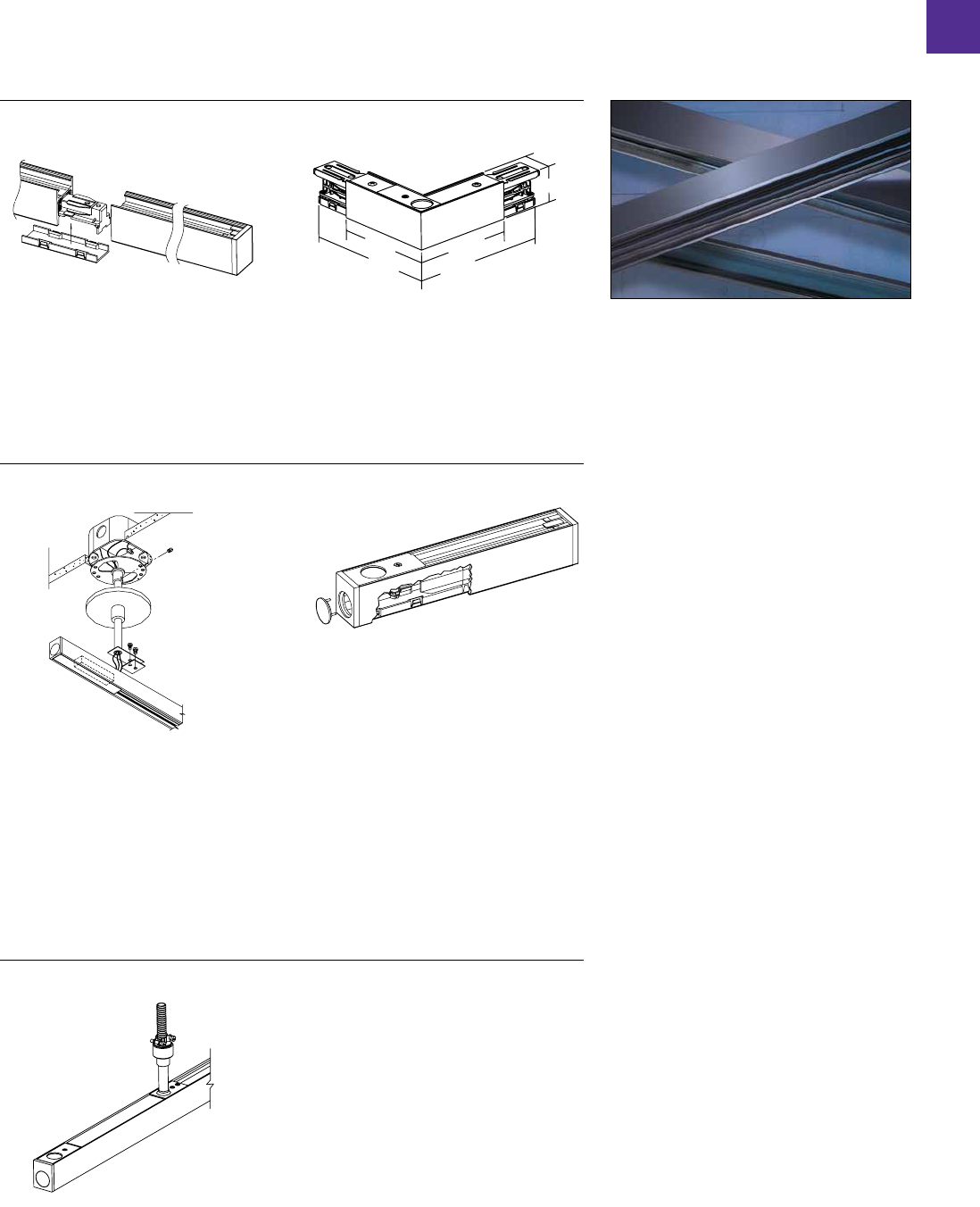

Track patterns

Stem Mounting Track

Recessing track

Add length (Y) to each

track length to determine

total length in patterns.

“L,” “T,” or

“X” Connectors

(Y) Basic (Y) Advent

2 1/16" 2 3/4"

Use “L,” “T,” “X,” In-line,

and variable angle connectors

to turn corners or form “T” or “X”

intersections. Power may be fed

into the connectors. “L,” In-Line,

and variable angle connectors are

polarized, “T” and “X” connectors are

not. The “L” connector may be rotated

forleftorrightangleturns.Jumper

wires are provided for power continuity.

Use plain track (or individual track with

live end removed) and as many joiner

tracks as required for each straight

run of track between connectors.

Connectors may be attached to

cut track.

“X” connector “T” connector

Individual or

plain track

Joiner

track

“L” connector “T” connector

Ceiling

to wall

Wall inside corner

Variableangleconnectorexes90°inalldirections.

Wall outside corner

“L” connector

Variable angle connector

All individual or plain tracks

Stem

3" or 4" octagon

outlet box

(by others)

3" or 4" octagon outlet

box (by others)

1/4"–18

NPSM Thread

0–90°Slope

Stem extension

Live

end Live end

This end

may be

field cut

Stem

extension

Stem

Swivel stem

Stems (18" or 48") and swivel stems(48")

attach to the track at any point, may be spaced up to

4' apart and may be cut in the field. 4' wire way cover

provided with stems. The stem extension kit

extendsstemlength48"butmaynotbecutinthe

field because it is threaded at both ends. Stems can

be used to feed power to a live end, “L,” “T,” “X,”

In-Line, or Variable Angle Connector; use stem

closest to feed-in point. Not recommended for

wall mounting.

This end

may be

field cut

Suspended tile

Tile or plasterboard

End cap

1/2" Conduit

connector End splice box

Spline

Recessed housing

Mounting clip

Lathing tab

Live end

Multiple power feeds

End splice box End splice box

Live End Live End

Housing

TrackTrack

Basic and Advent track can be recessed in 4' or 8' recessed

housings. The housings may be installed individually or in straight

runs and may be cut in the field. Use an individual track with a single

housing. Use an individual track and as many joiner tracks as required

for a run of housings. Lathing tabs, splines, and mounting clips are

supplied with housings. Splines secure housings together. The end

splice box is used for power feed and may be installed at the end

of or between housings. End caps are provided with splice boxes.

L splice box

“L,” “T,” and “X” Splice boxes permit

recessed track to be installed in patterns. Each

straight run of track between splice boxes is started

with a plain track or individual track with live end

removed and as many joiner tracks as required.

7/8"K.O.’Sareprovidedforpowerfeed.Electrical

connector kits (order separately) are used for

power feed or power continuity at corners and

intersections. “L,” “T,” or “X” track connectors used

for surface or stem mounted track cannot be used

with recessed track.

T splice box X splice box

48"or96"

3-3/4"

3-3/4"

6"

6"

track

596 Philips

Lytespan – Philips Lightolier

T A N G E N T

Canlyte Lighting Resource Guide

597Philips

Lytespan – Lightolier

TANGENT®

Canlyte Lighting Resource Guide

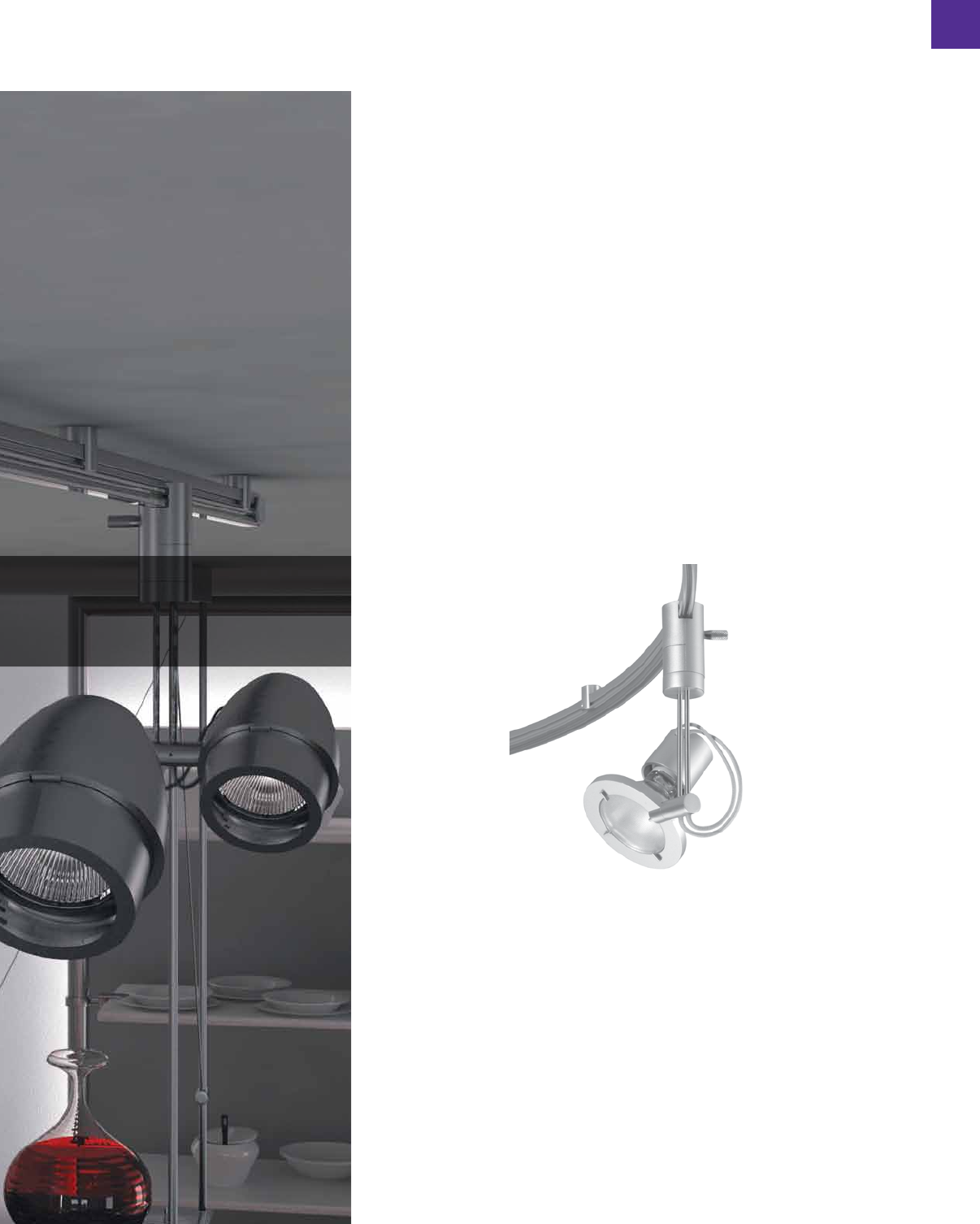

The smallest, most versatile line voltage track

lighting system on the planet. Tangent delivers

the performance and convenience of line

voltage in a profile no larger than most low

voltage Track systems. Ideal for commercial,

retail and residential applications. Tangent may

be surface mounted or suspended, in straight

runs or in sweeping architectural curves.

Tangent's unique design, diminutive size and

strikingly clean lines redefines the state of the

art in line voltage track lighting. Tangent may be

installed in an infinite variety of configurations.

Surface mounted on ceilings or walls or

suspended from wire or stems, in straight or

curved patterns. The size of low voltage, the

power of line voltage, at a third the size of

standard track. Tangent is the world's smallest

line voltage track lighting system.

598 Philips

Lytespan – Philips Lightolier

5-7/8"

(150mm)

6-1/8"

(154mm)

2"

(51mm)

7-3/8"

(187mm)

6-3/8"

(162mm)

4-3/8"

(111mm"

3"

(76mm)

5-1/8"

(130mm)

3-13/16"

(99mm)

5-7/8"

(148mm)

4-3/4"

(120mm)

2-1/4"

(57mm)

4-5/8"

(117mm)

6-1/2"

(166mm)

2-5/8"

(67mm)

4-5/8"

(118mm)

6-1/2"

(165mm)

2-3/4"

(69mm)

Canlyte Lighting Resource Guide

Tangent Track, the smallest, most versatile line voltage

track lighting system on the planet.

Each Tangent luminaire is designed and constructed for

superior performance, clean architectural styles and qual-

ity. Utilizing a wide variety of lamps including both Line

Voltage (MR16 and T4) and Low Voltage (MR16, AR111

and T4). Fixture options include spots, floods, adjustable

suspended spots and miniature decorative pendants.

• Tangent features the smallest available transformer

assembly. The silent electronic transformer includes

short-circuit and over-heat protection

• Minimal styling and easy relamping

• Innite horizontal rotation for maximum aiming

flexibility without “dead spots”

• Die-cast aluminum construction

The Low Voltage Micro Flood, Line Voltage Soft Cone and

Open Ring include an integral Solite smoothing lens to cre-

ate a soft, smooth beam of light.

For accessories see p. 618.

Tangent - Low Voltage

low voltage

Micro Flood

FXT4F Silver

12V T4 Halogen bi-pin (clear only),

Transverse filament recommended 50W Max

Accessories: No accessory capability

Solite® beam softening lens included

Open Ring

FX16R Silver

12V MR16 Halogen bi-pin 50W Max or 50W Max IR

Acc. Holder: Integral

Accessories: Accepts one accessory lens; replaces clear

glass shield provided with fixture

Lens: AF2 or ADF2 Series

Snoot: Can be used with 22SR6AL only with clear

lamp shield provided

Bare Lamp Holder

FXA1B Silver

12V AR111 Halogen G53 Base 50W Max

Accessories: No accessory capability

Soft Cone

FX16S Silver

12V MR16 Halogen 50W Max or 37W Max IR

Accessories may be used with 37W Max lamp only

Accessories: Accepts two total (1 lens plus either

1 louver or 1 snoot).

Lens: AF2 or ADF2 Series

Louver: AL2HC

Snoot: 22SR6AL

Bare Lamp Holder

FX16B Silver

12V MR16 Halogen 50W Max or 50W Max IR

Acc. Holder: Integral

Accessories: Accepts one accessory lens; replaces clear

glass shield provided with fixture

Lens: AF2 or ADF2 Series

Mini Cylinder

FX16C Silver

12V MR16 Halogen 50W Max or 37W Max IR

Acc. Holder: Integral

Accessories: Accepts two total (1 lens plus either

1 louver or 1 snoot)

Lens: AF2 or ADF2 Series

Louver: AL2HC

Snoot: 22SR6AL

599Philips

Lytespan – Philips Lightolier

3"

(76mm)

5-1/4"

(134mm) 6-3/4"

(173mm)

2-3/4"

(69mm)

4"

(101mm)

2-5/8"

(67mm)

5-1/2"

(141mm)

2-5/8"

(67mm)

5-1/2"

(141mm)

Canlyte Lighting Resource Guide

Tangent Track, the smallest, most versatile line voltage

track lighting system on the planet.

Each Tangent luminaire is designed and constructed for

superior performance, clean architectural styles and qual-

ity. Utilizing a wide variety of lamps including both Line

Voltage (MR16 and T4) and Low Voltage (MR16, AR111

and T4). Fixture options include spots, floods, adjustable

suspended spots and miniature decorative pendants.

• Tangent features the smallest available transformer

assembly. The silent electronic transformer includes

short-circuit and over-heat protection

• Minimal styling and easy relamping

• Innite horizontal rotation for maximum aiming

flexibility without “dead spots”

• Die-cast aluminum construction

The Low Voltage Micro Flood, Line Voltage Soft Cone and

Open Ring include an integral Solite smoothing lens to cre-

ate a soft, smooth beam of light.

Tangent - Line Voltage / Suspended Low Voltage

line and low voltage

Soft Cone

FXESS Silver

120V GU10 Halogen 50W max

Accessories: Accepts two total (1 lens plus either

1 louver or 1 snoot)

Lens: AF2 or ADF2 Series

Louver: AL2HC

Snoot: 22SR6AL

Solite® beam softening lens included

Open Ring

FXESR Silver

120V GU10 Halogen 35W max

FXESRN Silver

120V GU10 Halogen 50W max

Acc. Holder: Integral

Accessories: Accepts two total (1 lens plus either

1 louver or 1 snoot)

Lens: AF2 or ADF2 Series

Louver: AL2HC

Solite® beam softening lens included

Glass Cylinder

FX16GC Silver

12V MR16 Halogen 50W max or 37W max IR

Accessories: No accessory capability

6' stainless steel cables and powercord. Field cuttable

Mini Cylinder

FX16SC Silver

12V MR16 Halogen 50W max or 37W max IR

Acc. Holder: Integral

Accessories: Accepts two total (1 lens plus either

1 louver or 1 snoot)

6' stainless steel cables and powercord. Field cuttable

600 Philips

Lytespan – Philips Lightolier

3 3/8 in

[84 mm]

3 7/8 in

[97 mm]

1 5/8 in

[43 mm]

4 1/4"

2 1/8"

4 1/2"

2 3/16"

Canlyte Lighting Resource Guide

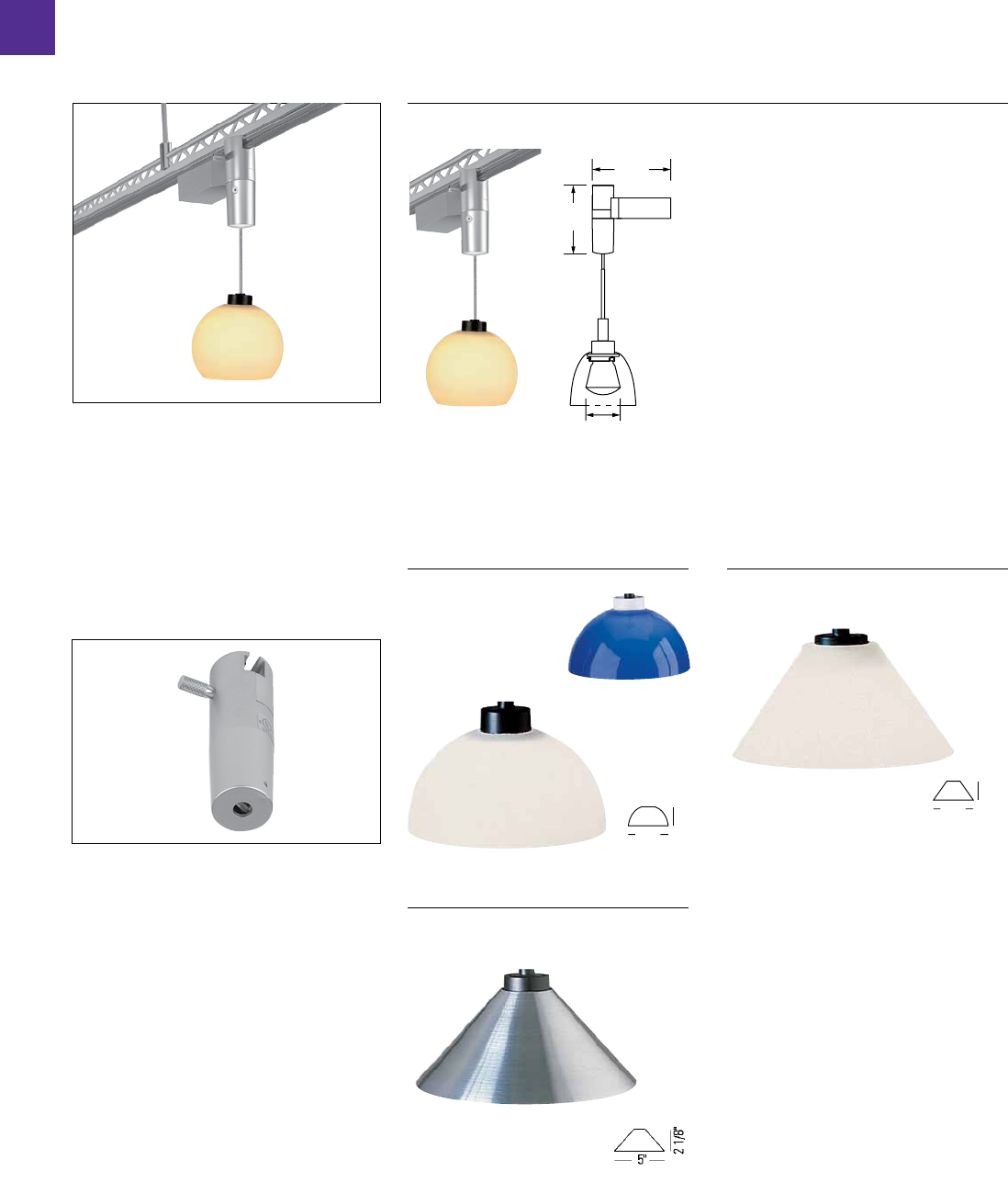

FXPDT Pendant Adapter

For use only with pendants supplied by others, that meet

the following criteria:

• Total weight of all components being attached to

adapter does not exceed 2.5 lbs.

• Pendant Cord Type is 1/4" dia. 18 ga. 3-wire, 300V

min. SVT, with .062 dia. aircraft cable or without

aircraft cable

• Pendant is rated 120V/60Hz., .83A max, 100W max.

T4 Pendant

FXT4P Silver

12V T4 Halogen 40W max Frosted or Clear

Power Cord 6' max. suspension

Accessories: No accessory capability

Cable mounted, curved

Suspension Truss

How to Order Mini Pendants

Step 1: Order the T4 Pendant.

Step 2: Select the Desired Shade

Choose from over a dozen styles and colors of hand-blown

glass and spun aluminum shades. All Mini Shades are

compatible with FXT4P Pendant.

Tangent - Mini Pendants

accessories

Mini Dome

8640WH Satin White

8640BL Cobalt Blue

Mini Cone

Triplex-Cased Glass

8641WH Satin White

Metal Cone

Spun Aluminum

8647BA Brushed Aluminum

601Philips

Lytespan – Philips Lightolier

Cucumber

3 3/4"

7 7/8"

4 11/64"

3 3/8"

3 15/16"

3 5/32"

Transparent Cylinder Mirrored Globe Swirl

Tall BellGlobe

3 25/32"

7 31/64"

4 7/8"

7 78"

3 5/8"

6 11/16"

Canlyte Lighting Resource Guide

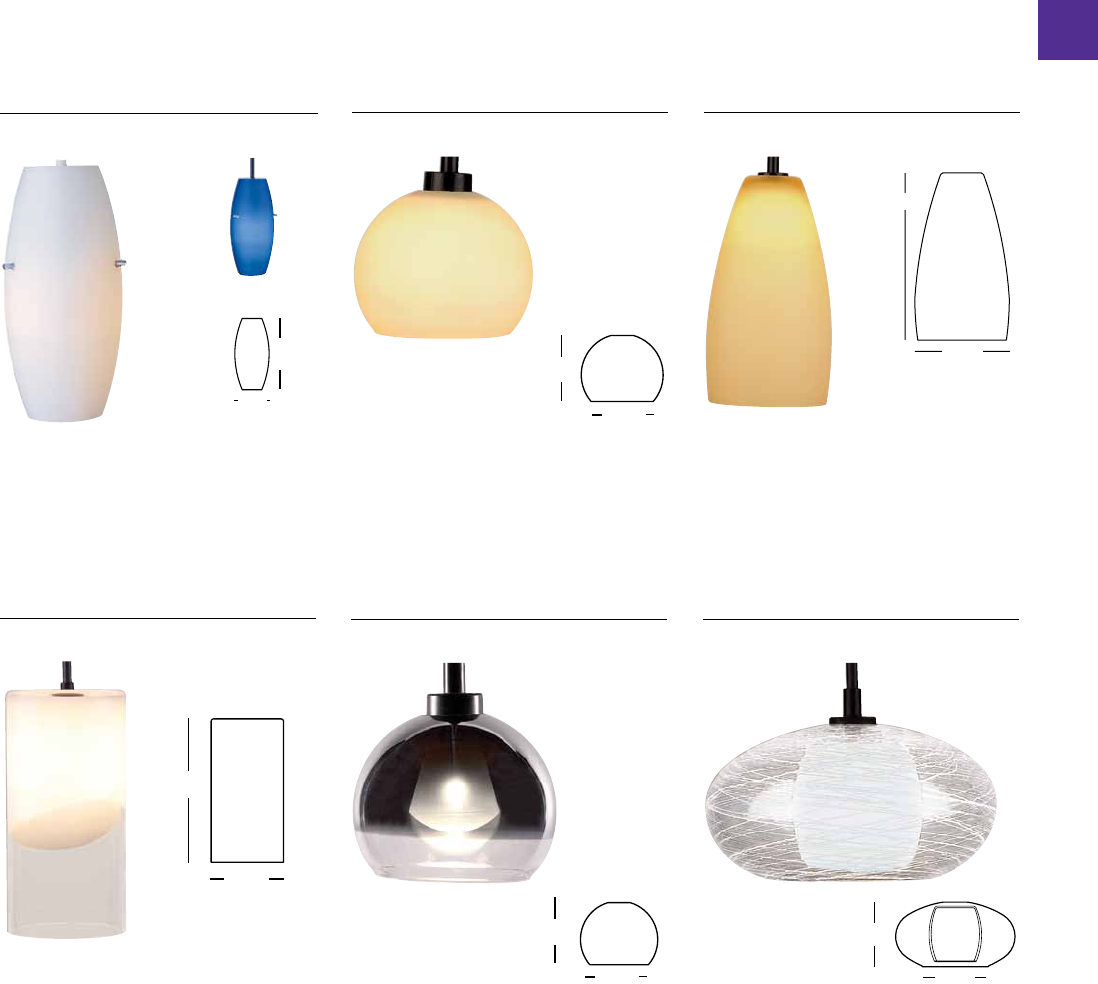

Tangent - Mini Pendants

accessories

42225WH Satin White

42225BL Satin Blue

8685LC* Light Caramel 8686LC* Light Caramel

8684MR* Mirrored 8682WH* White

*A characteristic of blown glass is variation in color and sometimes even in size and shape.

8683WH* White

602 Philips

Lytespan – Philips Lightolier

Canlyte Lighting Resource Guide

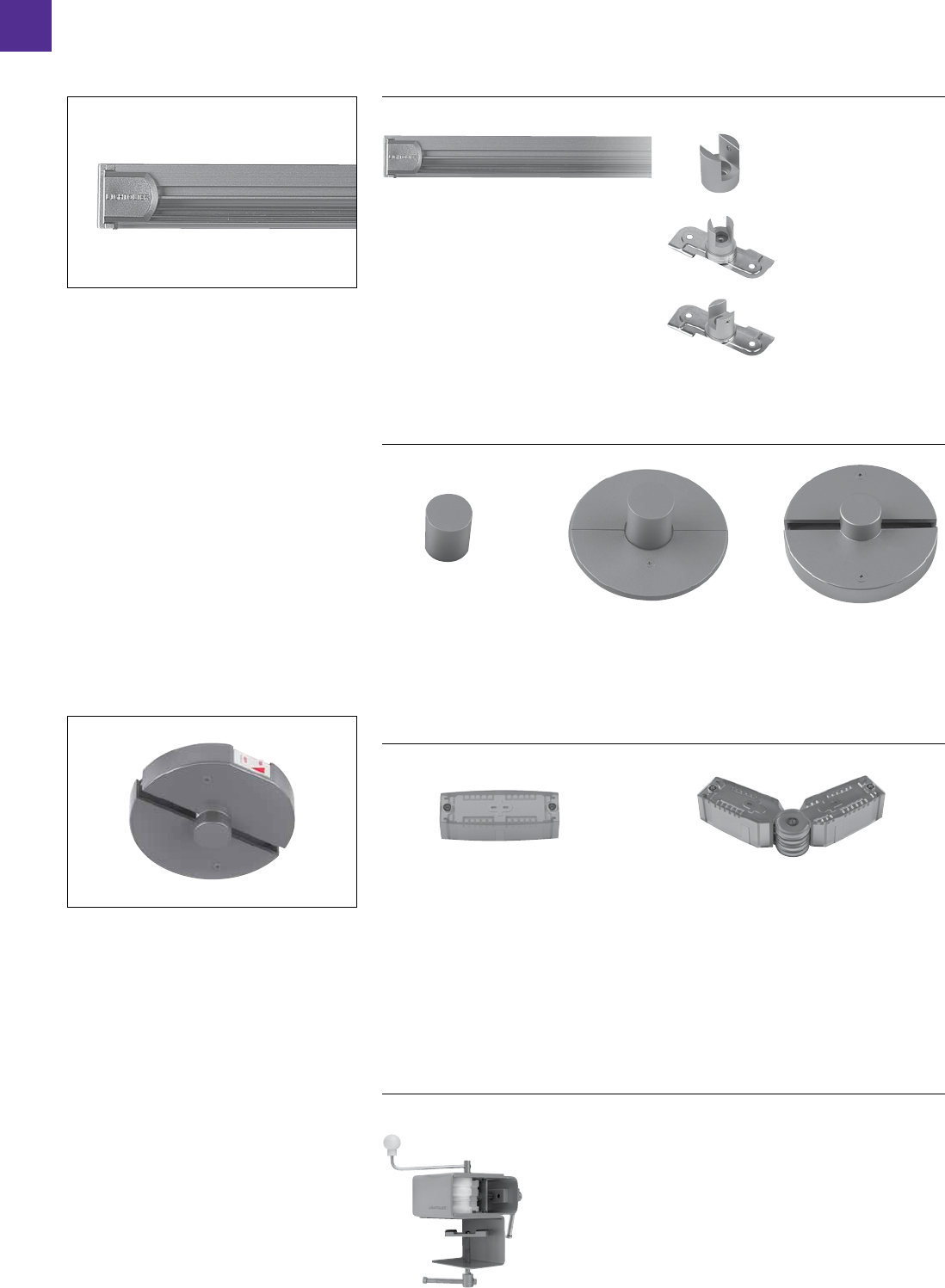

For mounting directly to ceilings or walls. Extruded aluminum/

polycarbonate construction. Includes two end caps as shown.

Anchors/mounting clips not included (order separately).

Note: Surface Mount Anchors or Clips are required a minimum of every

3 feet on Surface Mount Track. Anchors/Clips are available in packs of 5;

order accordingly. Consult specification sheet #FX for installation details.

FX04 Silver Plain Surface Track 4'

FX08 Silver Plain Surface Track 8'

FX12 Silver Plain Surface Track 12'

FX25 Surface Mount

Anchors mount track

to hard ceilings/walls.

Pack of 5 anchors with

hex wrench.

FX87 Regressed-Edge

Clips For Regressed-Edge

Grid Ceilings. Pack of 5 clips

with hex wrench.

FX89 Square-Edge

Clips For Square-Edge

Grid Ceilings. Pack of 5 clips

with hex wrench.

Surface Mount Track Mounting Anchors

Power Feeds

FX48 Silver

Surface Power Feed Supplies

power anywhere along track.

For direct wiring without

a J-Box.

FX61 Silver

FX61WH White

Surface Power Feed

from J-Box

FX96 Silver

FX96WH White

Grid Ceiling Power Feed

FX54 Silver

In-line Connector

Electrical/Mechanical

Connects surface track

in straight runs with

continuous power. Not a

power feed device.

FX55 Silver

In-line Connector

Mechanical Only

Connects surface track

in straight runs without

continuous power. Not a

power feed device.

FX53 Silver

Variable Angle Connector – Electrical/

Mechanical

Connects Surface Track at angles from 700 to 1800

with continuous power. Not a power feed device.

FX52 Silver

Variable Angle Connector – Mechanical Only

Connects Surface Track at angles from 700 to 1800

without power. Not a power feed device.

Connectors

FX100

The Tangent Bending Tool allows Tangent Surface Track, Suspension Beam

and Truss to be precisely field bent down to a minimum radius of 3 feet.

Scratch resistant nylon rollers are specifically designed to accept all three

track profiles. Completely assembled of durable steel, requires no power.

Tool clamps easily to table or work surface.

Bending Machine

FX99 Silver

Powertrip feed kit for surface track. Compatible with PLD

plug in breakers. Refer to p.592 for complete listing of

breaker modules.

Surface Powertrip

Tangent Surface Mount

Innovative side by side buss-bars minimize overall height

and allow Tangent to be mounted directly to ceilings and

walls without bulky stand-offs.

Tangent line voltage track is rated for a full 20 amps at

120V. Tangent may be installed in an infinite variety of con-

figurations. Surface mounted on ceilings or walls, or sus-

pended from wire or stems, in straight or curved patterns.

Field Bendable for Custom Configurations

Tangent may be field bent to a minimum radius of 3 feet

allowing for an infinite variety of custom configurations in

any application.

Tangent – Surface Mount Track

track

603Philips

Lytespan – Philips Lightolier

Canlyte Lighting Resource Guide

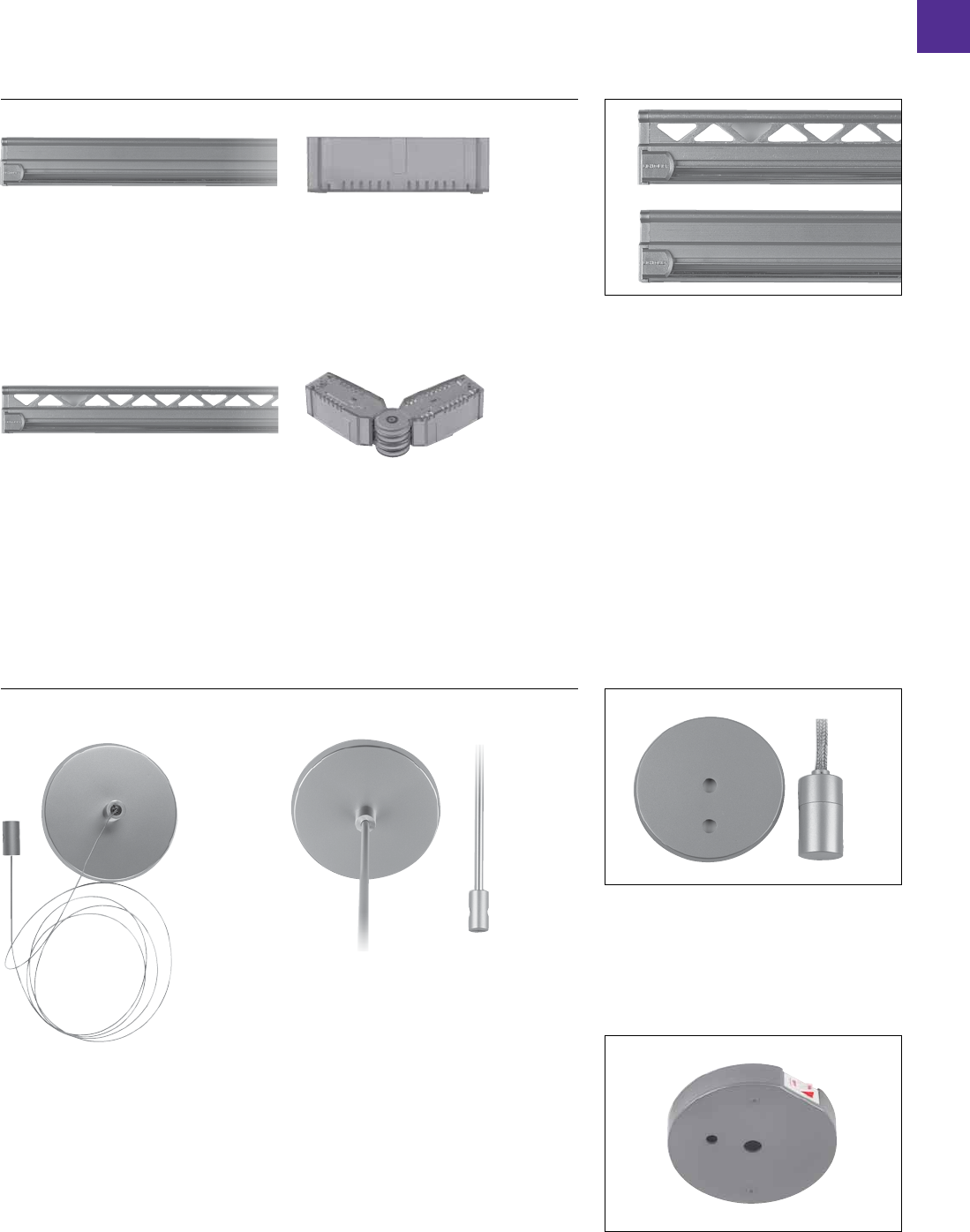

Tangent Suspension Beam

Crisp architectural design is ideal for suspended applica-

tions where a larger profile is desired.

Tangent Suspension Truss

Perforated Truss makes a dramatic statement in suspended

applications with a unique “engineered” aesthetic.

Field Bendable for Custom Configurations

Tangent may be field bent to a minimum radius of 3 feet

allowing for an infinite variety of custom configurations in

any application when using Tangent Bending Machine.

Tangent – Suspended Track

track

For suspension from cable or stem kits.

Extruded aluminum/polycarbonate construction.

Includes two end caps as shown.

Power Feed and Suspension kits sold separately.

Suspension Truss

FXT08 Clear Anodized

Plain Truss 8’

Connectors

FXS54 Silver

In-line Connector

Electrical/Mechanical

Connects Suspension

Beam and Truss in

straight runs with contin-

uous power. Not a power

feed device.

FXS55 Silver

In-line Connector

Mechanical Only

Connects Suspension

Beam and Truss in

straight runs without

power. Not a power feed

device.

FXS53 Silver

Variable Angle Connector

Electrical/Mechanical

Connects Suspension Beam and Truss at angles from 700

to 1800 with continuous power. Not a power feed device.

FXS52 Silver

Variable Angle Connector

Mechanical Only

Connects Suspension Beam and Truss at angles from 700

to 1800 with continuous power. Not a power feed device.

Power Feeds

FXS67

20A feed supplies power anywhere along track. 10' power

cable may be field shortened. Includes canopy cover for J-Box.

For power feed only - not a suspension device.

Cable Kit

FXS68 Silver

Cable Suspension Kit

8' adjustable stainless steel aircraft cable. Installs

on hard or grid ceilings. Ceiling canopy included. For

suspension only - not a power feed device.

Note: Cable Kits are required a minimum of every 6 feet

on Suspended Beam or Truss track. Cable Kits include one

suspension point each; order accordingly. Consult

specification sheet #FXS for installation details.

FXS84 Silver

18" Stem Suspension Kit

FXS86 Silver

48" Stem Suspension Kit

Note: Stem Kits are required a minimum of every 6 feet on

Suspended Beam or Truss track. Stem Kits include one

suspension point each; order accordingly. Consult

specification sheet #FXS for installation details.

1/4" diameter solid steel stems. Install on hard or grid

ceilings. Ceiling canopy included. Stems may be field

shortened. For suspension only - not a power feed device.

Suspended Powertrip

FXS99 Silver

Powertrip feed kit for suspended track. Compatible with PLD

plug in breakers. Refer to p.592 for complete listing of breaker

modules.

Suspension Beam

FXS04 Clear Anodized

Plain Beam Track 4’

FXS08 Clear Anodized

Plain Beam Track 8’

FXS12 Clear Anodized

Plain Beam Track 12’

Suspended Track

604 Philips

Lytespan – Philips Lightolier

P R O S P E C

Canlyte Lighting Resource Guide

605Philips

Lytespan – Philips Lightolier

PROSPEC®

Canlyte Lighting Resource Guide

Demanding environments such as museums,

libraries and other institutional spaces present

lighting designers with some of their greatest

challenges. Lightolier’s ProSpec Track is

a track lighting system created to help

designers meet these challenges by offering

the kind of innovation that results in superior

lighting solutions. ProSpec’s hallmark is a

consistently clean, unobtrusive look that blends

easily into architectural environments and

allows the true beauty of objects being lighted

to stand out.

Most importantly, every part of the ProSpec

system has been carefully designed to achieve

the highest possible performance. Some

of ProSpec’s innovative features include the

unique Tru-Lock™ cylinder aiming mechanism

that allows cylinder adjustment to be positively

locked in place with one lever, a track system

with 2 independent 20 amp circuits to provide

increased installation and dimming capabilities

and, a convenient “built-in” Media Cartridge

that holds up to three accessories and can be

easily removed without disturbing the aiming

adjustment.

606 Philips

Lytespan – Philips Lightolier

1

10

29

3

47

6

5

8

1

3

2

4

Accessories Ordered Separately

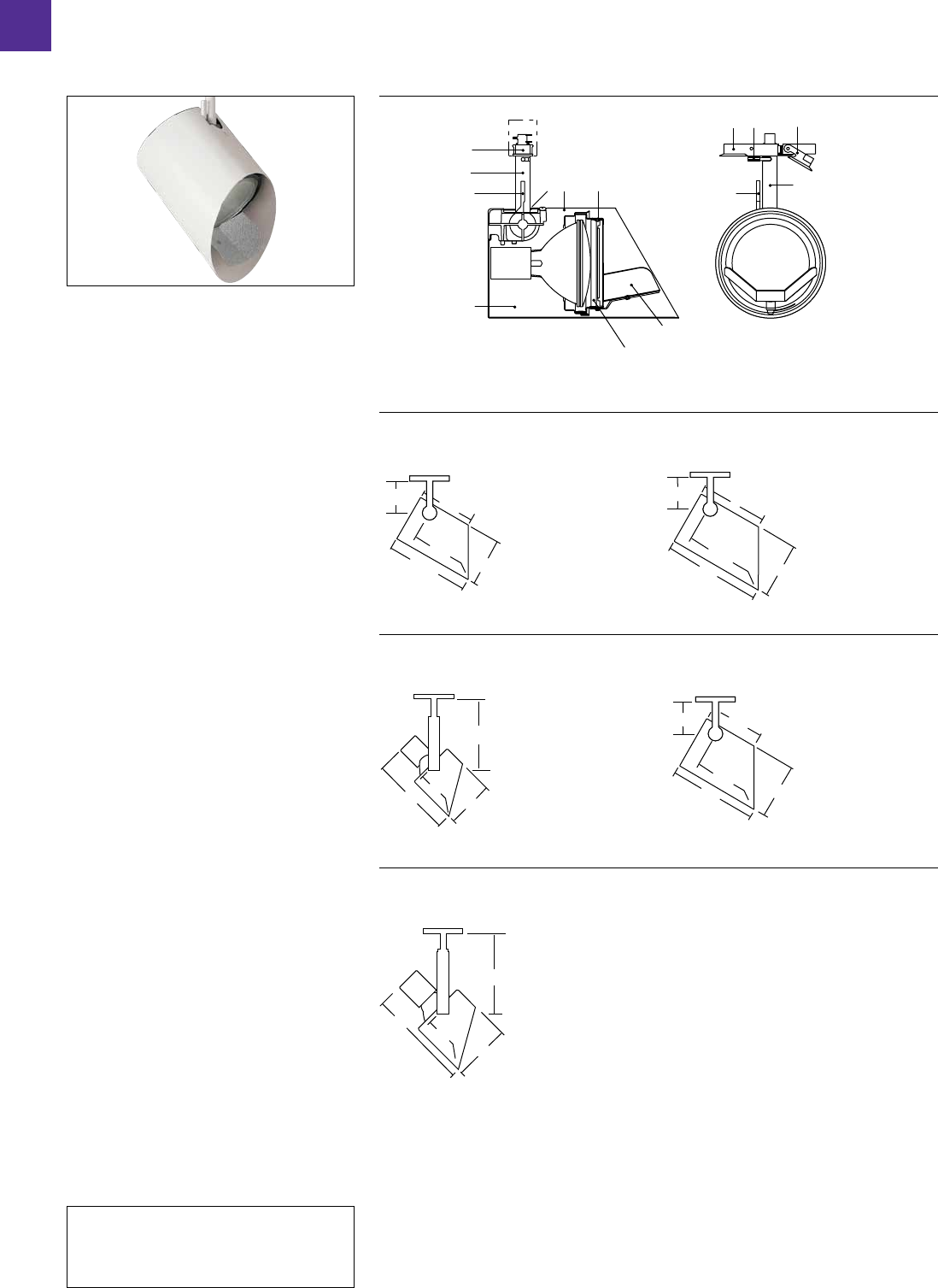

Prospec Line Voltage Cylinder

5 3/4"

6 1/2"

3 1/4"

5 3/4"

8 1/8"

5 "

9 1/2"

9"

7" 6 1/8"

5"

9 1/2"

9"

7" 6 1/8"

5"

3 1/4"

6 9/16 "

4 3/4"

6 3/8"

3 1/4"

4 7/8 "

SC par56

SC par 46

5 3/4 cyl 150

5 3/4 cyl 250

43/4 cyl

ProSpec Line Voltage Cylinders

5 3/4"

6 1/2"

3 1/4"

5 3/4"

8 1/8"

5 "

9 1/2"

9"

7" 6 1/8"

5"

9 1/2"

9"

7" 6 1/8"

5"

3 1/4"

6 9/16 "

4 3/4"

6 3/8"

3 1/4"

4 7/8 "

SC par56

SC par 46

5 3/4 cyl 150

5 3/4 cyl 250

43/4 cyl

ProSpec Line Voltage Cylinders

5 3/4"

6 1/2"

3 1/4"

5 3/4"

8 1/8"

5 "

9 1/2"

9"

7" 6 1/8"

5"

9 1/2"

9"

7" 6 1/8"

5"

3 1/4"

6 9/16 "

4 3/4"

6 3/8"

3 1/4"

4 7/8 "

SC par56

SC par 46

5 3/4 cyl 150

5 3/4 cyl 250

43/4 cyl

ProSpec Line Voltage Cylinders

5 3/4"

6 1/2"

3 1/4"

5 3/4"

8 1/8"

5 "

9 1/2"

9"

7" 6 1/8"

5"

9 1/2"

9"

7" 6 1/8"

5"

3 1/4"

6 9/16 "

4 3/4"

6 3/8"

3 1/4"

4 7/8 "

SC par56

SC par 46

5 3/4 cyl 150

5 3/4 cyl 250

43/4 cyl

ProSpec Line Voltage Cylinders

Canlyte Lighting Resource Guide

ProSpec Line Voltage Cylinders feature a classic

design that is easily integrated into various architectural

environments. Each unit accepts the ProSpec Media

Cartridge which can hold up to three accessories and

allows quick and convenient changing of filters, louvers

and screens.

Product Features

1. Flush Adapter: inserts easily into track and provides

separate mechanical and electrical connection.

2. Lever: energizes fixture electrically by 90° rotation.

Fixture cannot be mechanically engaged or disengaged

when powered.

3. Stem: constructed of stainless steel; 5/8" OD; 0.049"

wall thickness.

4. Tru-Lock™: aiming mechanism allows simultaneous

horizontal and vertical locking. Full tension is

maintained even when braking lever is released to

hold aiming position.

5. Finish: all painted finishes are powder coated baked

enamel.

6. Indicator Guide: allows precise fixture aiming.

7. Housing : 20 gauge (0.036") drawn steel construction.

Hemmed front edge provides supe rior durability and

additional stiffness, prevents chipping and enhances

appearance.

8. Media Cartridge: allows convenient loading and

removal of up to three accessories without disturbing

aiming adjustment. Easily installed and removed with

a simple twisting motion. Constructed of formed

aluminum.

9. Clamping Wedges: cam-operated wedges expand

or release gripper springs from track ledge; gripper

springs hold adapter securely within track.

10. Cross Blade Louver: extruded aluminum, 1"

deep, provides additional shielding and can be easily

removed.

For accessories see p. 618

Stepped Cylinder*

26383WH White

26383BK Black

150W PAR38/3

Accessories: AF4, ADF4 filters,

AL4 louvers, AS4 screens

26056WH White

26056BK Black

500W PAR56

Mogul End Prong.

Accessories: AF7, ADF7 filters,

AL7 louvers, AS7 screens

*Yoke mounted

Accessories Ordered Separately

4-3/4" Cylinder 5-3/4" Cylinder

26030WH White

26030BK Black

75W PAR30

Accessories: AF3, ADF3 filters,

AL3 louvers, AS3 screens

26038WH White

26038BK Black

250W PAR38

Accessories: AF4, ADF4 filters,

AL4 louvers, AS4 screens

(150W max with accessories)

5-3/4" Cylinder

Note:

PAR56 Stepped Cylinders feature yoke mount ing with a side-

locking lever for vertical adjustment. Not all features apply to

Step Cylinders; please consult your Canlyte representative.

Prospec - Cylinders

line voltage

607Philips

Lytespan – Philips Lightolier

93

11

2

10

1

4

1

3

47

6

5

8

212

Accessories

Ordered

Separately

Prospec low voltage cylinder

3 3/4"

3 1/4"

SC

5 3/4 cyl

3 3/4 cyl ar70

3 3/4 cyl mr16

7"

5 3/4"

8 1/8"

3 1/4"

6 1/8"

9"

11 5/8"

5"

5"

6 5/8"

3 3/4"

3 1/4"

7"

5"

8 1/2"

ProSpec low voltage cylinders

3 3/4"

3 1/4"

SC

5 3/4 cyl

3 3/4 cyl ar70

3 3/4 cyl mr16

7"

5 3/4"

8 1/8"

3 1/4"

6 1/8"

9"

11 5/8"

5"

5"

6 5/8"

3 3/4"

3 1/4"

7"

5"

8 1/2"

ProSpec low voltage cylinders

3 3/4"

3 1/4"

SC

5 3/4 cyl

3 3/4 cyl ar70

3 3/4 cyl mr16

7"

5 3/4"

8 1/8"

3 1/4"

6 1/8"

9"

11 5/8"

5"

5"

6 5/8"

3 3/4"

3 1/4"

7"

5"

8 1/2"

ProSpec low voltage cylinders

Canlyte Lighting Resource Guide

low voltage

Prospec - Cylinders

5-3/4" Cylinder Stepped Cylinder*

26016MBWH White

26016MBBK Black

Magnetic

50W MR16 12V

Accessories: AF25. ADF25 filters,

AL25 louvers, AS25 screens

26036MWH White

26036MBK Black

Magnetic

75W PAR36 5.5V/12V

75W AR111 12V

Accessories: AF4, ADF4 filters

AL4 louvers, AS4 screens

26556MWH White

26556MBK Black

26556MWHCY White w/Canopy Mount

26556MBKCY Black w/Canopy Mount

Magnetic

240W PAR56 12V

Accessories: AF7, ADF7 filters

AL7 louvers, AS7 screens

*Yoke mounted

3-3/4" Cylinder

Accessories

Ordered

Separately

Featuring a wide selection of halogen light sources,

ProSpec’s Low Voltage Cylinders provide powerful, yet

easily controlled light that’s ideal for display environ-

ments. The PAR36 Cylinder features a dual tap 5.5/12V

transformer with a convenient slide switch. The PAR36

Cylinder and Stepped Cylinder also feature lamps that can

be rotated from 0–180° and locked in place.

Product Features

1. Flush Adapter: inserts easily into track and provides

separate mechanical and electrical connection.

2. Lever: energizes fixture electrically by 90° rotation.

Fixture cannot be mechanically engaged or disengaged

when powered.

3. Stem: constructed of stainless steel; 5/8" OD; 0.049"

wall thickness.

4. Tru-Lock™: aiming mechanism allows simultaneous

horizontal and vertical locking. Full tension is

maintained even when braking lever is released

to hold aiming position.

5. Magnetic Transformer: offers reliable operation

and is completely housed inside fixture.

6. Finish: all painted finishes are powder coated

baked enamel.

7. Indicator Guide: allows precise fixture aiming.

8. Housing: 20 gauge (0.036") drawn steel construction.

Hemmed front edge provides supe rior durability and

additional stiffness, prevents chipping and enhances

appearance.

9. Media Cartridge: allows convenient loading and

removal of up to three accessories without disturbing

aiming adjustment. Easily installed and removed with

a simple twisting motion. Constructed of formed

aluminum.

10. Clamping Wedges: cam-operated wedges expand

or release gripper springs from track ledge; gripper

springs hold adapter securely within track.

11. Cross Blade Louver: extruded aluminum, 1"

deep, provides additional shielding and can be easily

removed.

12. Lamp Rotation Lock: lamp can rotate from

0–180° and then be locked in the desired position

(PAR36 and PAR56 only).

For accessories see p. 618

Note:

The PAR56 Stepped Cylinders feature yoke mounting with a

side-locking level for vertical adjust ment. Not all features apply to

Stepped Cylinders, please consult your Canlyte representative.

608 Philips

Lytespan – Philips Lightolier

1

5

38

9

6

4

7

43

2

10

1

Accessory Ordered Separately

ProSpec Wall Washers

4 3/4"

8 1/4"

5 1/2"

3 1/4"

5 3/4"

10 3/8"

7"

5 3/4"

5 1/2"

8 7/8"

8 1/8" 4 3/4"

7 1/4"

5 3/4"

10 1/4"

9"

3 1/4"

3 1/4"

8 7/8"

6 3/4"

7 3/8"

4 1/2"

5 5/16"

ProSpec Wall Washers

4 3/4"

8 1/4"

5 1/2"

3 1/4"

5 3/4"

10 3/8"

7"

5 3/4"

5 1/2"

8 7/8"

8 1/8" 4 3/4"

7 1/4"

5 3/4"

10 1/4"

9"

3 1/4"

3 1/4"

8 7/8"

6 3/4"

7 3/8"

4 1/2"

5 5/16"

ProSpec Wall Washers

4 3/4"

8 1/4"

5 1/2"

3 1/4"

5 3/4"

10 3/8"

7"

5 3/4"

5 1/2"

8 7/8"

8 1/8" 4 3/4"

7 1/4"

5 3/4"

10 1/4"

9"

3 1/4"

3 1/4"

8 7/8"

6 3/4"

7 3/8"

4 1/2"

5 5/16"

ProSpec Wall Washers

4 3/4"

8 1/4"

5 1/2"

3 1/4"

5 3/4"

10 3/8"

7"

5 3/4"

5 1/2"

8 7/8"

8 1/8" 4 3/4"

7 1/4"

5 3/4"

10 1/4"

9"

3 1/4"

3 1/4"

8 7/8"

6 3/4"

7 3/8"

4 1/2"

5 5/16"

ProSpec Wall Washers

4 3/4"

8 1/4"

5 1/2"

3 1/4"

5 3/4"

10 3/8"

7"

5 3/4"

5 1/2"

8 7/8"

8 1/8" 4 3/4"

7 1/4"

5 3/4"

10 1/4"

9"

3 1/4"

3 1/4"

8 7/8"

6 3/4"

7 3/8"

4 1/2"

5 5/16"

Canlyte Lighting Resource Guide

ProSpec Wall Washers feature an asymmetrical spread

lens and an anodized aluminum kick reflector to distribute

light evenly from ceiling to floor. The kick reflector assem-

bly can hold one accessory and be removed from the front

for relamping. ProSpec’s Tru-Lock™ aiming mechanism

allows simultaneous locking of both horizontal and verti-

cal positions. Ring Wall Washers feature highly adjustable

yoke mounting.

Product Features

1. Flush Adapter: inserts easily into track and provides

separate mechanical and electrical connection.

2. Lever: energizes fixture electrically by 90° rotation.

Fixture cannot be mechanically engaged or disengaged

when powered.

3. Stem: constructed of stainless steel; 5/8" OD; 0.049"

wall thickness.

4. Tru-Lock™: aiming mechanism allows simultaneous

horizontal and vertical locking. Full tension is

maintained even when braking lever is released

to hold aiming position.

5. Finish: all painted finishes are powder coated baked

enamel.

6. Indicator Guide: allows precise fixture aiming.

7. Housing : 20-gauge (0.036") drawn steel

construction.

8. Kick Reflector Assembly: holds one accessory

behind the spread lens. Assem bly can easily be

removed from the front using a simple twisting motion.

9. Kick Reflector: constructed of anodized aluminum.

Embossed texture reflects light toward upper portion of

wall and ceiling line.

For accessories see p. 618

Prospec - Wall Washers

*Yoke mounted

5-3/4" Wall Washer

5-3/4" Ring Wall Washer*

4-3/4" Wall Washer

4-3/4" Ring Wall Washer*

5-3/4" Wall Washer

26030WWH White

26030WBK Black

75W PAR30

Accessories: AF3, ADF3,

AS3 screens

26038WWH White

26038WBK Black

250W PAR38

Accessories: AF4,

ADF4,

AS4 screens

150W max with

accessories

26383WWH White

26383WBK Black

150W PAR38/3

Accessories: AF4,

ADF4, AS4 screens

26230WWH White

26230WBK Black

75W PAR30

Accessories: AF3,

ADF3, AS3 screens

26238WWH White

26238WBK Black

250W PAR38

Accessories: AF4, ADF4,

AS4 screens

150W max with accessories

Accessories Ordered Separately

Note:

The PAR30 and PAR38 Ring Wall Washer feature yoke mounting

with a side-locking lever for vertical adjustment and top lever

for horizontal adjustment (Tru-Lock is not featured in Ring

Wall-Washer).

line voltage

609Philips

Lytespan – Philips Lightolier

ProSpec Line Voltage Rings

6 1/8"

4 3/4"

7 1/4"

9"

2 1/2"

5 3/4"

7 3/4" 2 7/8"

ProSpec Line Voltage Rings

6 1/8"

4 3/4"

7 1/4"

9"

2 1/2"

5 3/4"

7 3/4" 2 7/8"

Accessories Ordered Separately

1

1

3

4

7

5

6

3

4

5

8

9

11

2

10

Prospec Line Voltage Ring

Canlyte Lighting Resource Guide

Prospec - Rings

line voltage

4-3/4" Ring* 5-3/4" Ring*

26230WH White

26230BK Black

75W PAR30

Accessories:

AF3, ADF3 filters,

AL3 louvers,

AS3 screens

26238WH White

26238BK Black

250W PAR38

Accessories:

AF4, ADF4 filters,

AL4 louvers,

AS4 screens

150W max

with accessories

Accessories Ordered Separately

*Yoke mounted

Line Voltage Rings

These line voltage units feature a clean, minimal look that’s

ideal for museums, lobbies and other institutional environ-

ments. Extremely versatile, they can be adjusted horizon-

tally and vertically and then locked in place. The convenient

Indicator Guide allows a series of fixtures to be accurately

aimed and adjusted. These Line Voltage Rings also include

ProSpec’s Media Cartridge, so lters, louvers and screens

can be added or removed without disturbing aiming adjust-

ment. Ring and Cylinder Media Cartridges of the same size are

completely interchangeable. A Cross Blade Louver provides

additional shielding and can be easily removed if necessary.

Product Features

1. Flush Adapter: inserts easily into track and provides

separate mechanical and electrical connection.

2. Lever: energizes fixture electrically by 90° rotation.

Fixture cannot be mechanically engaged or disengaged

when powered.

3. Stem: constructed of stainless steel; 5/8" OD; 0.049"

wall thickness.

4. Locking Lever: side lever precisely locks vertical

adjustment. Top lever precisely locks horizontal

adjustment.

5. Indicator Guide: allows precise fixture aiming.

6. Housing: 20-gauge (0.036") drawn steel

construction. Hemmed front edge provides superior

durability and additional stiffness, prevents chipping

and enhances appearance.

7. Cross Blade Louver: extruded aluminum,

1" deep, provides additional shielding and can

be easily removed.

8. Clamping Wedges: cam-operated wedges expand

or release gripper springs from track ledge; gripper

springs hold adapter securely within track.

9. Yoke Mounting: allows adjustment up to 180°

vertically and 350° horizontally.

10. Media Cartridge: allows convenient loading and

removal of up to three accessories without disturbing

aiming adjustment.

11. Finish : all painted finishes are powder coated

baked enamel.

For accessories see p. 618

610 Philips

Lytespan – Philips Lightolier

GND

NEUT

NEUT

48"

96"

144"

3/16"

1/16"

1 3/16"

1 5/8"

1 9/16"

48"

96"

144"

3/16"

3/16"

1/4"

1 13/16"

7"

4 9/16"

Canlyte Lighting Resource Guide

Surface Mount Track

ProSpec Track is a family of track products from Lightolier

designed to be used exclusively with ProSpec lighting

instruments. It is available in 4', 8' or 12' sections in either

Plain or Feed units. The track is crafted of extruded alumi-

num and joins together with a nearly invisible seam for a

continuous appearance. Tracks can be fed directly at the

end or anywhere along its surface. ProSpec Track can be

mounted directly to a surface or with a choice of standard

Direct Mounting Clips or optional Stand-Off Mounting Clips

which lower the track from the ceiling by 3/8 of an inch and

provide a neat appearance on uneven surfaces. A full line

of ProSpec connectors makes it easy to achieve the exact

pattern desired during installation.

Feed track contains electrical module with screw terminals

for feeding power. There are no seams in track extrusion.

Two wires may be attached to one screw terminal.

Includes flush mounting clips and hardware.

4' Feed Track

26001WH White

26001BK Black

8' Feed Track

26002WH White

26002BK Black

12' Feed Track

26013WH White

26013BK Black

Includes flush mounting clips and hardware.

4' Plain Track

26004WH White

26004BK Black

8' Plain Track

26008WH White

26008BK Black

12' Plain Track

26012WH White

26012BK Black

ProSpec Track Specifications

• A two circuit track consisting of two separate

120V 60Hz 20 amp branch circuits, each with

dedicated neutrals

• Track is continuously grounded throughout but need

not be polarized since the circuits are arranged

symmetrically within the track

• Flush Adapters can be inserted in any orientation

to access the circuit desired. Position of lever

allows easy identification of circuit being used

• Power is fed into Integral Feed wiring connector

contained in the Feed Track

• Track Connectors are extruded aluminum housings

with the same profile as the track to provide a

clean continuous look. All connectors can be power

fed except invisible coupler

• All track sections may be field cut to length.

• Aluminum track has a profile of 13/16" with an

average wall thickness of 0.08" creating a strong

support for fixtures while minimizing deflections

between ceiling mounts

Feed Track Plain Track

Prospec - Surface Mount Track

track

Surface Monopoint J-Box Mount

26190WH White

26190BK Black

611Philips

Lytespan – Philips Lightolier

4 3/16" 4 3/16"

5 7/8" 5 7/8"

1 3/16"

1 9/16"

Canlyte Lighting Resource Guide

Prospec - Installing Surface Mount Track

track

Straight Runs of Track

Stem Mounting

Making Track Patterns

Direct Feed into Connector

Floating Invisible Feed

Begin with any length of Feed Track and add as

many Plain sections as desired. The concealed

Invisible Coupler (ordered separately) connects

track sections mechanically and electrically.

Replace the Invisible Coupler with In-Line

Connector for power feed-in between track

units. ProSpec Track may be cut in the field.

Use “L”, “T”, “X” and In-Line Connectors to turn

corners or from “T” or “X” intersections. Power

may be fed into the connectors. Jumper wires

are provided for power continuity. Use Plain

Track for each straight run of track between

connectors. Connectors may be attached

to track that has been cut.

ProSpec Track can be suspended from horizontal

surfaces or sloped surfaces using ProSpec Stems.

The stems can be cut to any length to achieve the

exact height desired. The minimum length obtainable

from the ceiling is 3". Stems should not be spaced

more than 4' apart. Swivel Stem Mounting Kits are

available to allow the track to hang vertically with the

track opening horizontal to the floor. This is possible

if the track is running parallel to the slope or perpen-

dicular to the slope.

The Feed Track, Power Extension, “L”, “T”, “X”

and In-Line Connectors contain a nut with a

1/2-14 thread to accept a 3/8" or 1/2" (trade

size) electrical connector. Does not require

a separate power feed kit.

This can be mounted anywhere along the track

at a maximum distance of 4' from the edge of track.

The Floating Invisible Feed accepts conduit or cable

with 3/8" or 1/2" electrical connector (by others).

It can be used with Feed Track “L”, “T”, “X” and

In-Line Connectors.

See the following pages for Surface Mount Track

Connectors.

612 Philips

Lytespan – Philips Lightolier

3 7/16"

4 3/16" 3 1/8"

1 3/16"

5 7/8"

2 9/16"

6 3/16"

1 3/16"

1 9/16"

9 1/2"

4 3/16" 4 3/16"

5 7/8" 5 7/8"

1 3/16"

1 9/16"

7 3/16"

10 9/16"

4 3/16"

1 3/16"

1 9/16"

7 3/16"

10 9/16"

1 9/16"

1 3/16"

Canlyte Lighting Resource Guide

Straight Runs of Track

Begin with any length of Feed Track and add as many

Plain sections as desired. The concealed Invisible Coupler

(ordered separately) connects track sections mechanically

and electrically. Replace the Invisible Coupler with In-Line

Connector for power feed-in between track units. ProSpec

Track may be cut in the field.

Making Track Patterns

Use “L”, “T”, “X” and In-Line Connectors to turn corners or

from “T” or “X” intersections. Power may be fed into the

connectors. Jumper wires are provided for power continu-

ity. Use Plain Track for each straight run of track between

connectors. Connectors may be attached to track that has

been cut.

Stem Mounting

ProSpec Track can be suspended from horizontal surfaces

or sloped surfaces using ProSpec Stems. The stems (except

extension stems) can be cut to any length to achieve the

exact height desired. The minimum length obtainable from

the ceiling is 3". Stems should not be spaced more than 4'

apart. Swivel Stem Mounting Kits are available to allow the

track to hang vertically with the track opening horizontal to

the floor. This is possible if the track is running parallel to

the slope or perpendicular to the slope.

Direct Feed into Connectors

The Feed Track, Power Extension, “L”, “T”, “X” and In-Line

Connectors contain a nut with a 1/2-14 thread to accept

a 3/8" or 1/2" (trade size) elec trical connector. Does not

require a separate power feed kit.

Floating Invisible Feed

This can be mounted anywhere along the track at a maxi-

mum distance of 4' from the edge of track. The Floating

Invisible Feed accepts conduit or cable with 3/8" or 1/2"

electrical connector (by others). It can be used with Feed

Tr a c k , “L”, “T”, “X” and In-Line Connectors.

Note: Provides 0-90° adjustment for sloped ceilings.

“T” Feed Connector

Invisible Coupler

In-line Feed Connector “L” Feed Connector

Stand-Off/Direct Mounting Clips

“X” Feed Connector

Power Feed Extension (Live End)

26049WH White

26049BK Black

26054WH White

26054BK Black

26050WH White

26050BK Black

26052WH White

26052BK Black

26051WH White

26051BK Black

3/8" Stand-Off

Mounting Clips

Set of 4

26478WH White

26478BK Black

1/16" Direct

Mounting Clips

Set of 10

Replacement Clips

56451WH White

56451BK Black

26046WH White

26046BK Black

Prospec - Surface Mount Track Connectors / Accessories

track

Cannot feed

coupler.

Optional Stand-Off Mounting Clips provide rigid

support and hold the track 3/8" from the mounting

surface. The clips feature one-screw mounting/

one-screw tightening. The track snaps onto the

clips and can be moved into position before

tightening the locking screws.

Direct Mounting Clips allow a clean appearance by

spacing the track 1/16" from the mounting surface.

Standard with all track units, they are nylon-coated

to prevent rusting and ceiling marks. Toggle bolts

and screws are also furnished with all units for direct

mounting to the ceiling or wall.

613Philips

Lytespan – Philips Lightolier

1/8"

4 3/4" 4 3/4"

1/8"

4 3/4" 4 3/4"

3/8"

Canlyte Lighting Resource Guide

Prospec - Surface Mount Track Connectors / Accessories

track

26082

Invisible Floating Feed

Grid Ceiling Canopy and J Box

End Feed J Box & Floating Canopy Kit End Feed J Box & Floating Canopy

Kit for 3/8" Stand Off Clip

26096WH White

Mounts to any

feed connector

or along track

length 4' max.

from feed

connector.

Mounts to any feed connector or along track. Use

with 1/16" mounting clip or direct track mount.

26060WH White

26060BK Black

Mounts to any feed connector or along track.

For use with 3/8" Stand-Off Mounting Clips.

26061WH White

26061BK Black

For suspending track. Use two stems for a 4-foot

single track; 3 stems for a 8-foot and 12-foot

single track. Stems attach to the track at any

point, and may be spaced up to 4' apart in a run

of track. Stems cannot be attached directly to

track connectors. Stems may be cut in the field.

The 48" Stem Extension Kit is used to extend

stem length and may not be field cut. Stem

diameter: 1/2".

18" Stem

7584 White

7683 Black

48" Stem

7586 White

7681 Black

Stem Mounting Kits

Lytespan to ProSpec Adapter

Allows most Lytespan fixtures to be mounted to

ProSpec track.

120V Only

26075WH White

26075BK Black

6-3/4" l x 1-9/16" w x 1-7/16" h

Grid Ceiling Mounting Clips

For Regressed-Edge Panels and 9/16" or 15/16" T-Bar

runners.

Set of 9.

6087 White

For Square-Edge Panels and 9/16" or 15/16" T-Bar

runners.

Set of 9.

6089 White

Stems attach to the track at any point and may be

spaced up to 4' apart.

Stems cannot be attached directly to track connectors.

For Regressed-Edge Panels and Slotted Grid runners

in ceiling systems such as DONN®, FINELINE® and

Ultraline® 3500.†

Set of 9.

6088 White

† D O N N ® and FINELINE® are registered trademarks

of USG Interiors, Inc. Ultraline® 3500 is a registered

trademark of Chicago Metallic Corporation.

Sloped ceiling stem provides 00-900 adjustment for

sloped ceilings.

48" Sloped ceiling*

7480 White

7481 Black

48" Extension Stem

7582 White

7680 Black

* 0°-90° adjustment for sloped ceilings

614 Philips

Lytespan – Philips Lightolier

1 1/2"

1 9/16"

1 17/32"

2 7/32"

1/16"

47 5/8"

95 5/8"

143 5/8"

13/64"

13/64"

13/64"

48"

96"

144"

Canlyte Lighting Resource Guide

ProSpec Recessed Track

When an exceptionally clean look at the ceiling is desired,

ProSpec’s Recessed Track is the preferred choice. These

flanged housings with integral track are available in 4', 8'

and 12' sections for a simplified, all-in-one installation.

Recessed Track is available in either Feed or Plain units.

The housing has minimum-width trim flange ideal for all

ceiling materials and can be eld-cut to length. ProSpec

Recessed Track is designed to be recessed in dry ceiling

applications only, such as sheet rock or suspended acous-

tic ceilings.

Prospec - Recessed Track

ProSpec Recessed Track Specifications

• A two circuit recessed track consisting of two

separate 120V 20 amp 60Hz branch circuits.

Each circuit has dedicated neutral

• Track is continuously grounded throughout

• Flush Adapters can be inserted in any

orientation to access the circuit desired. Lever

identifies which circuit is being used and is

easily observed from floor

• Material: aluminum with an average wall

thickness of 0.08" creating a strong support

for fixtures while minimizing deflections between

ceiling mounts

• ProSpec lighting units can be attached at any

point along the length of the track

• Floating Splice Box is available for convenient

feeding of power to the installation

• All recessed track sections may be field cut

to length

4' Recessed

Feed Track

26601WH White

8' Recessed

Feed Track

26602WH White

12' Recessed

Feed Track

26613WH White

4' Recessed

Plain Track

26604WH White

8' Recessed

Plain Track

26608WH White

12' Recessed

Plain Track

26612WH White

track

ProSpec track luminaires, 500W Max. NOT FOR USE

with ProSpec PAR56 or PAR64 track mounted units

26690WH White

26690BK Black

Aperture: 7-1/8'' L x 1-3/16'' W

Overall Height: 4-13/16''

Recessed Monopoint

615Philips

Lytespan – Philips Lightolier

4 11/16" 4 11/16"

6 3/8" 6 3/8"

1 1/2"

1 17/32"

4 11/16"

6 3/8"

7 3/16"

10 9/16"

1/16"

1 17/32"

1 1/2"

7 3/16" 10 9/16"

1/16"

1 17/32"

1 1/2"

9 1/2"

6 3/16"

1/16"

1 17/32"

1 1/2"

4 5/8" 6 5/16"

1 1/2"

1/16"

3 7/16"

GND

NEUT

NEUT

Canlyte Lighting Resource Guide

Prospec - Recessed Track

track

Recessed “L” Connector Recessed “T” Connector

Recessed Inline Connector

Power Extension (Live End) Floating Splice Box

(with Wire Cover)

Recessed Hanger Clips Invisible Coupler

26650WH White 26651WH White

26652WH White 26654WH White

26646WH White 26660

Required for recessing track into dropped ceilings.

26090 Set of 4

Not a power feed.

26049WH White

26049BK Black

Installing ProSpec Recessed Track

• Power is fed into Integral Feed contained in the

Feed Track

• Recessed Track can also be fed from a Floating Splice

Box installed at the end along the track length (order

separately)

• Order one Feed Recessed Track unit and as many Plain

Recessed Track units as required for each straight run

of track between intercepts

• Patterns can be constructed using the recessed “L,”

“T,” and “X,” power extensions or In-Line Connectors

• Power can be fed into Recessed “L,” “T,” “X,”

In-Line, Power Extension Connectors, or Feed Track

• Invisible Coupler is used to join straight tracks mechani-

cally and electrically

• All connectors are extruded aluminum housings with the

same profile as the recessed track to provide a clean

continuous look

• All connectors can be joined to the cut end of the track

Each leg of feed connector contains screw

terminals for complete wiring flexibility.

Two wires may be attached to one screw terminal.

Recessed “X” Connector

616 Philips

Lytespan – Philips Lightolier

15/16"

1 9/16"

1 5/8"

Canlyte Lighting Resource Guide

Prospec - Recessed Flangeless Track

ProSpec Recessed Flangeless Track Specifications

• A two-circuit recessed track consisting of two separate 120v

20 amp 60Hz branch circuits. Each circuit has dedicated neutral

• Track is continuously grounded throughout

• Flush Adapters can be inserted in any orientation to access the

circuit desired. Lever identifies which circuit is being used and

is easily observed from floor

• Material: aluminum with an average wall thickness of .08" creating

a strong support for fixtures while minimizing deflections between

ceiling mounts

• ProSpec lighting units can be attached at any point along the

length of the track

• Floating Splice Box is available for convenient feeding of power

to the installation

• All recessed track sections may be field cut to length

4' Recessed Flangeless Feed Track

26801WH White

26801BK Black

8' Recessed Flangeless Feed Track

26802WH White

26802BK Black

12' Recessed Flangeless Feed Track

26813WH White

26813BK Black

4' Recessed Flangeless Plain Track

26804WH White

26804BK Black

8' Recessed Flangeless Plain Track

26808WH White

26808BK Black

12' Recessed Flangeless Plain Track

26812WH White

26812BK Black

Full Ceiling Integration

ProSpec Recessed Flangeless Track provides full integra-

tion of the track system into the ceiling for the cleanest

possible appearance. The housings with integral track are

available in 4', 8' and 12' sections and feature a mounting

flange that is completely concealed by the finished ceiling.

The track sections are available in Feed and Plain units and

can be eld-cut to length. ProSpec Recessed Flangeless

Track is designed to be recessed in dry ceiling applications

only, such as sheet rock or plaster ceilings.

track

Recessed Flangeless Monopoint

26890WH White

26890BK Black

Aperture: 7-1/16"l x 1-5/16"w

Overall Height: 4 11/16"h

ProSpec track luminaires, 500W Max. NOT FOR USE

with ProSpec PAR56 or PAR64 track mounted units

617Philips

Lytespan – Philips Lightolier

GND

NEUT

NEUT

Canlyte Lighting Resource Guide

Prospec - Installing Recessed Flangeless Track

track

Installing ProSpec Recessed Flangeless Track

• Power is fed into Integral Feed contained in the

Feed Track

• Recessed Flangeless Track can also be fed from

a Floating Splice Box installed at the end of or between

housings (order separately)

• Order one Feed Track unit and as many Plain Track

units as required for each straight run of track between

intercepts

• Patterns can be constructed using the recessed “L”

power extensions or In-Line Connectors

• Power can be fed into Recessed “L” or In-Line

Connectors

• Invisible Coupler is used to join straight tracks

mechanically and electrically

• All connectors are extruded aluminum housings with

the same profile as the Recessed Flangeless Track

to provide a clean continuous look

• All connectors can be joined to the cut end of the track

Recessed Flangeless

“L” Connector

Recessed Flangeless

Live End/Power Extension

Recessed Floating Splice Box

Invisible Coupler

26850WH White

26850BK Black

26846WH White

26846BK Black

26660

Recessed Hanger Clips

Required for recessing track into dropped ceilings

Set of 4

26090

26049WH White

26049BK Black

Recessed Flangeless

In-Line Connector

26854WH White

26854BK Black

Two wires may

be attached to

one screw terminal.

Each leg of feed connector contains

screw terminals for complete wiring

flexibility.

618 Philips

Lytespan – Philips Lightolier

Canlyte Lighting Resource Guide

Lytespan accessories

accessories

Accessories

Lytespan, Tangent and ProSpec® track lighting offer a full

range of high performance accessories for tinting, coloring

and shaping of the light beam.

All accessories are designed to attach easily. Accessory

holders hold one, two or three accessories. Simply choose

the correct size needed for the attached shade.

A complete accessory consists of a size and series

suffix. For example, AF25 + UV = AF25UV (2-1/2"

UV Filter).

AF4IR

7550FD

Infrared Reduction Filter

One-piece, resistant, clear borosilicate glass reduces

infrared heat by 40% while maintaining 83%

transmission of visible light.

Frosted Lens

For use with MR16 spots.

AS25LS = 2-1/2" dia. Light Blocking

AS3LS = 3-3/4" dia. Light Blocking

AS4LS = 4-3/4" dia. Light Blocking

AS7LS = 6-1/4" dia. Light Blocking

Each kit contains two 15% Light Blocking Screen

and two 40% Light Blocking Screens.

Diffusion/Special Filters

Color Filters

Mixing Colors*

Hex Cell Louvers Cube Cell Louvers

Series: AF2 = 2" dia., AF25 = 2-1/2" dia., AF3 = 3-3/4" dia., AF35 = 3-5/16" dia. (FR and SF only),

AF4 = 4-3/4" dia., AF7 = 6-1/4" dia.

*Optivex UV filters by Bausch & Lomb. **Not for use on all fixtures. See fixture spec sheet.

Series: ADF2 = 2" dia., ADF25 = 2 1/2" dia., ADF3 = 3 3/4" dia., ADF4 = 4 3/4" dia., ADF7 = 6 1/4" dia.

Secondary Colors:Primary Colors:

*Filters shown together mix to white.

Series: AL

AL2HC = 2" dia.

AL25HC = 2-1/2" dia.

AL3HC = 3-3/4" dia.

AL35HC = 3-5/16" dia.

AL4HC = 4-3/4" dia.

7472 = 2" dia.

AL4CC = 4-3/4" dia.

AL7CC = 6-1/4" dia.

Provides additional light shielding and reduces

lamp glare when needed. Black finish.

Screen Kits

ProSpec only

FR Frosted Etched

Lens

IR** Infra-Red Reduction

AS** Beam Elongator Lens

SF Solite Soft

Focus Lens

UV Optivex™

UV Reduction*

PF Perimeter Frost

SY Symmetrical

Spread Lens

RD Red

BL Blue

GR Green

MM Medium Magenta

BG Blue Green

YG Yellow Green

MA Medium Amber

SP Surprise

Pink

LS Light

Straw

SB Steel

Blue

BA Bastard

Amber

DA Daylight Color

Correction

LP Light

Pink

Series: AL

619Philips

Lytespan – Philips Lightolier

Canlyte Lighting Resource Guide
