Lockout/Tagout Products Catalog–WW-IDCB06
TABLE OF CONTENTS
Training ............................................................................................................................. 3 - 4
OSHA Compliance Manual............................................................................................................................ 3
Training Video and Handbooks...................................................................................................................... 3
CD-ROM Interactive Lockout/Tagout Training Program .................................................................................4
Lockout Steps Wallet Card.............................................................................................................................4
Lockout Devices.............................................................................................................. 5 - 12
Circuit Breaker Lockouts...........................................................................................................................5 - 6

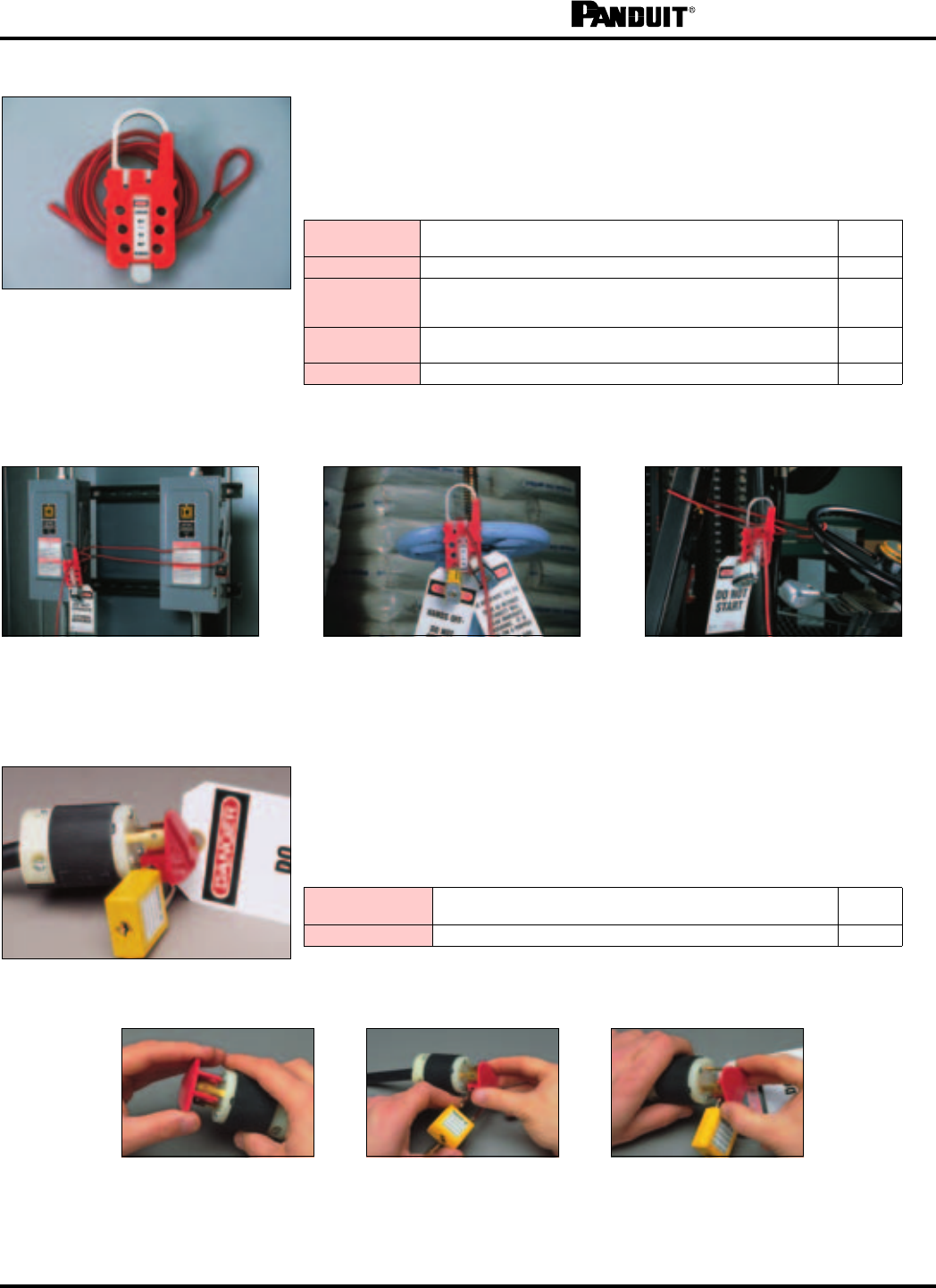

Multiple Lockout Device ................................................................................................................................. 7
Plug and Cord Lockouts............................................................................................................................7 - 8
Receptacle Blockout ......................................................................................................................................8

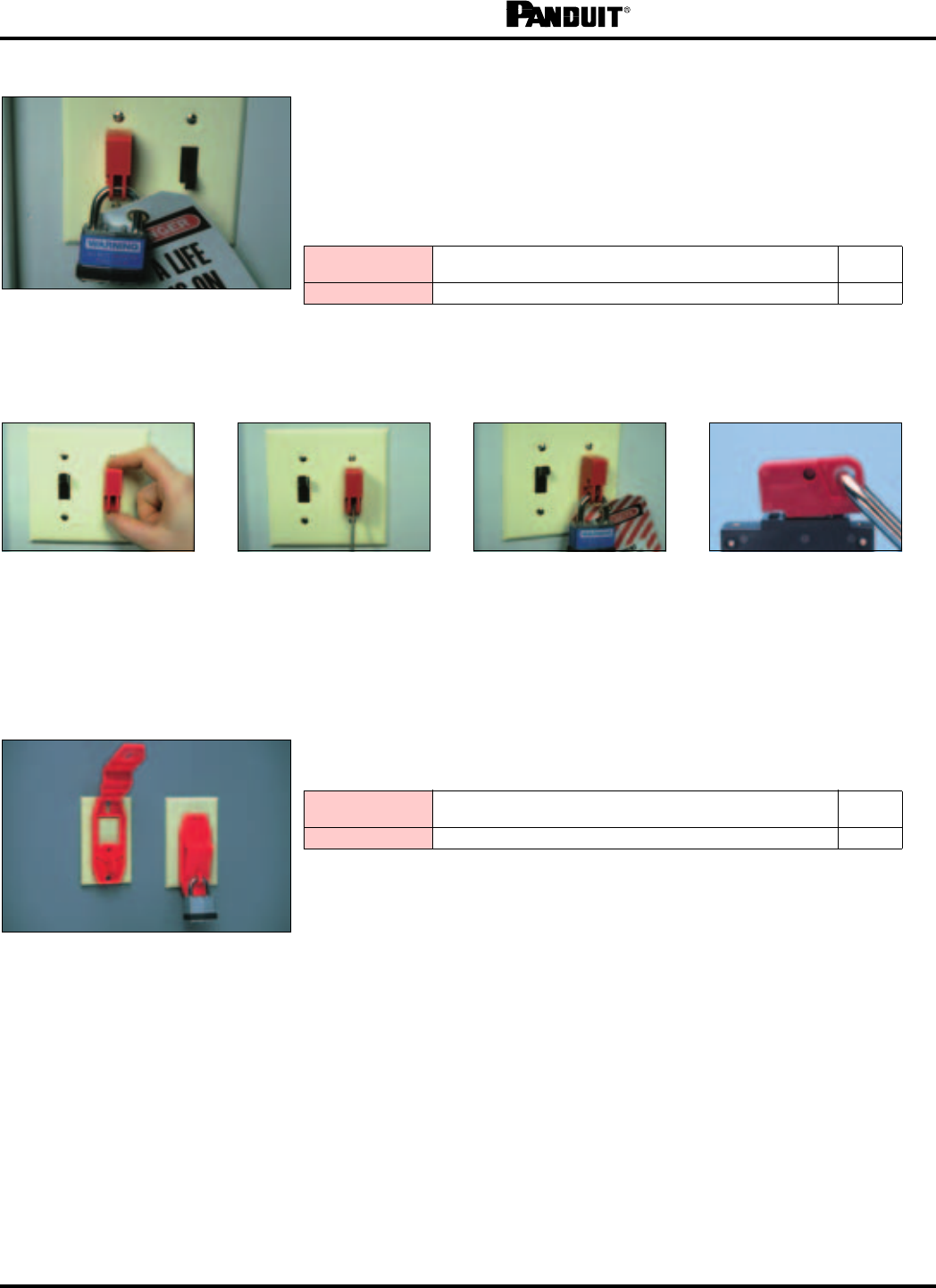

Wall Switch Lockouts ..................................................................................................................................... 9

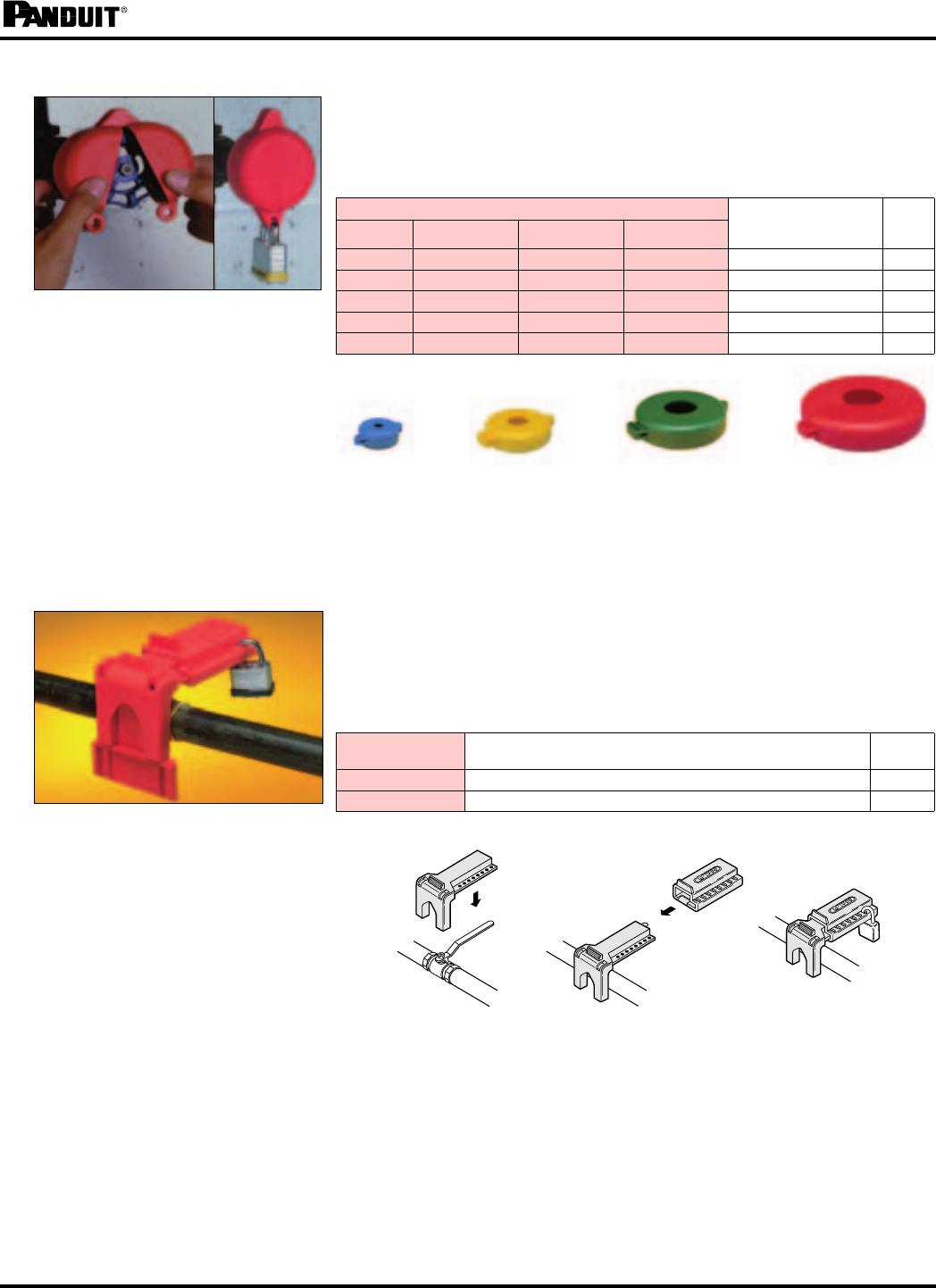

Valve Lockouts.............................................................................................................................................10

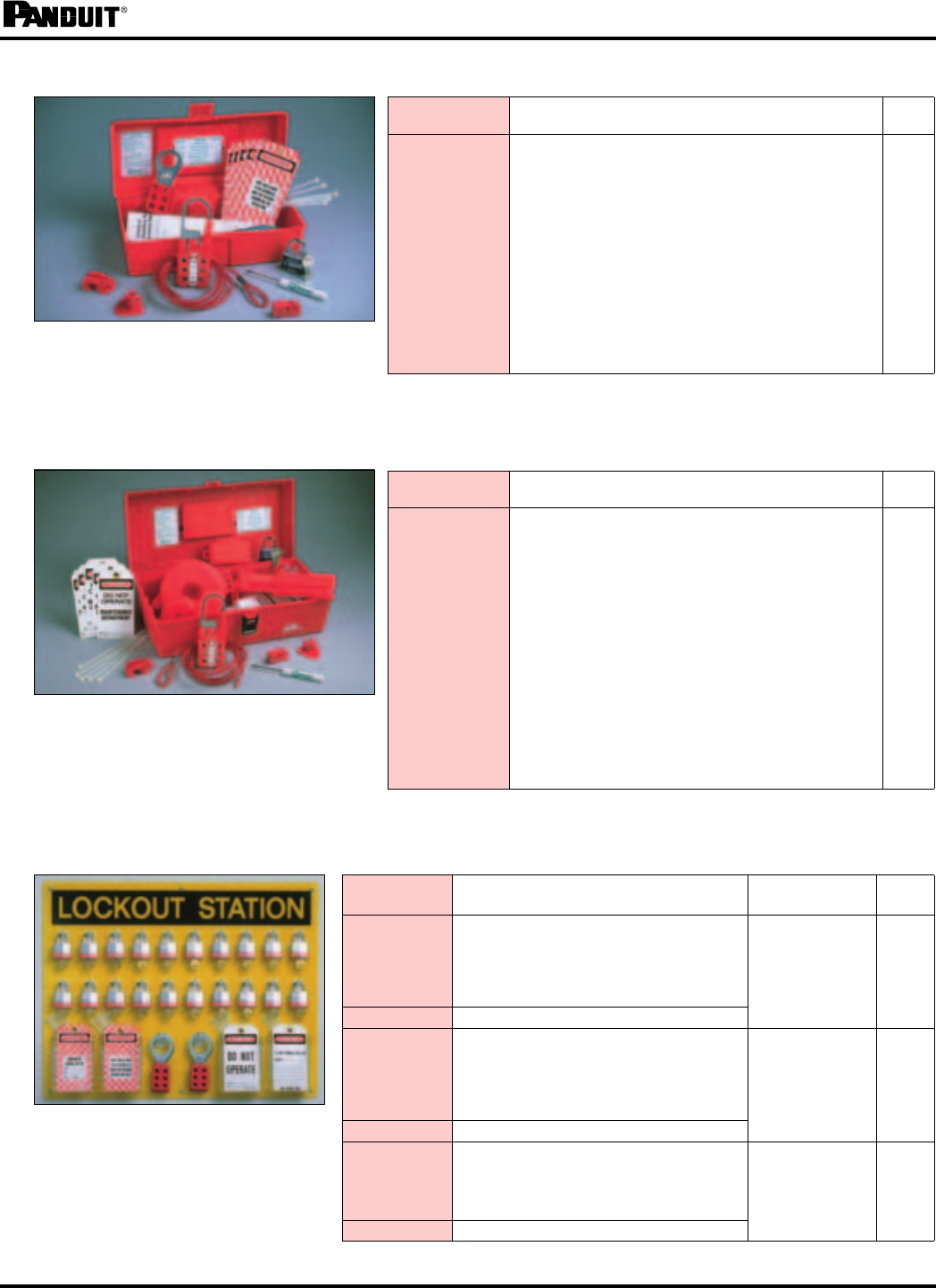

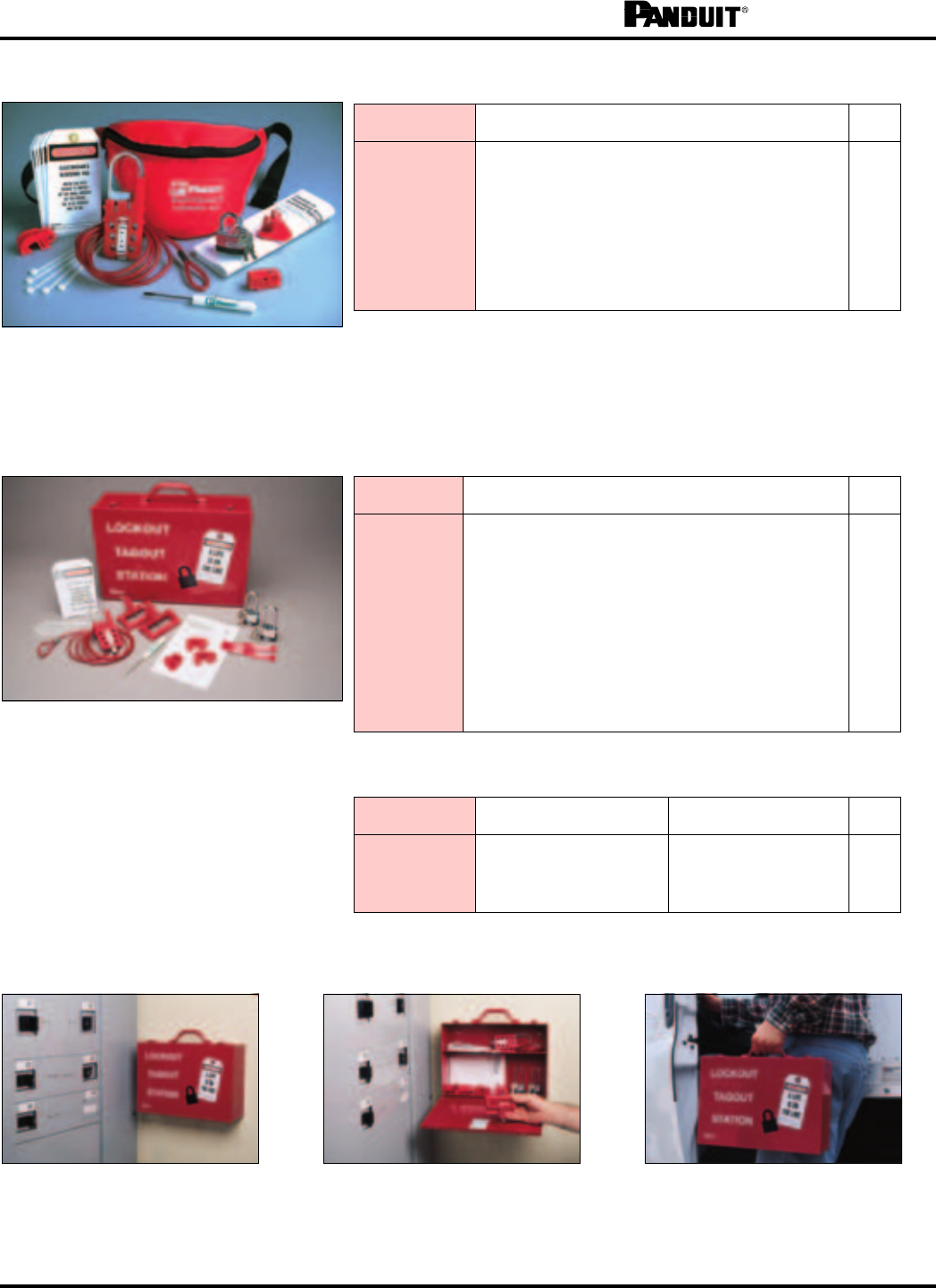

Lockout Kits and Stations......................................................................................................................11 - 12

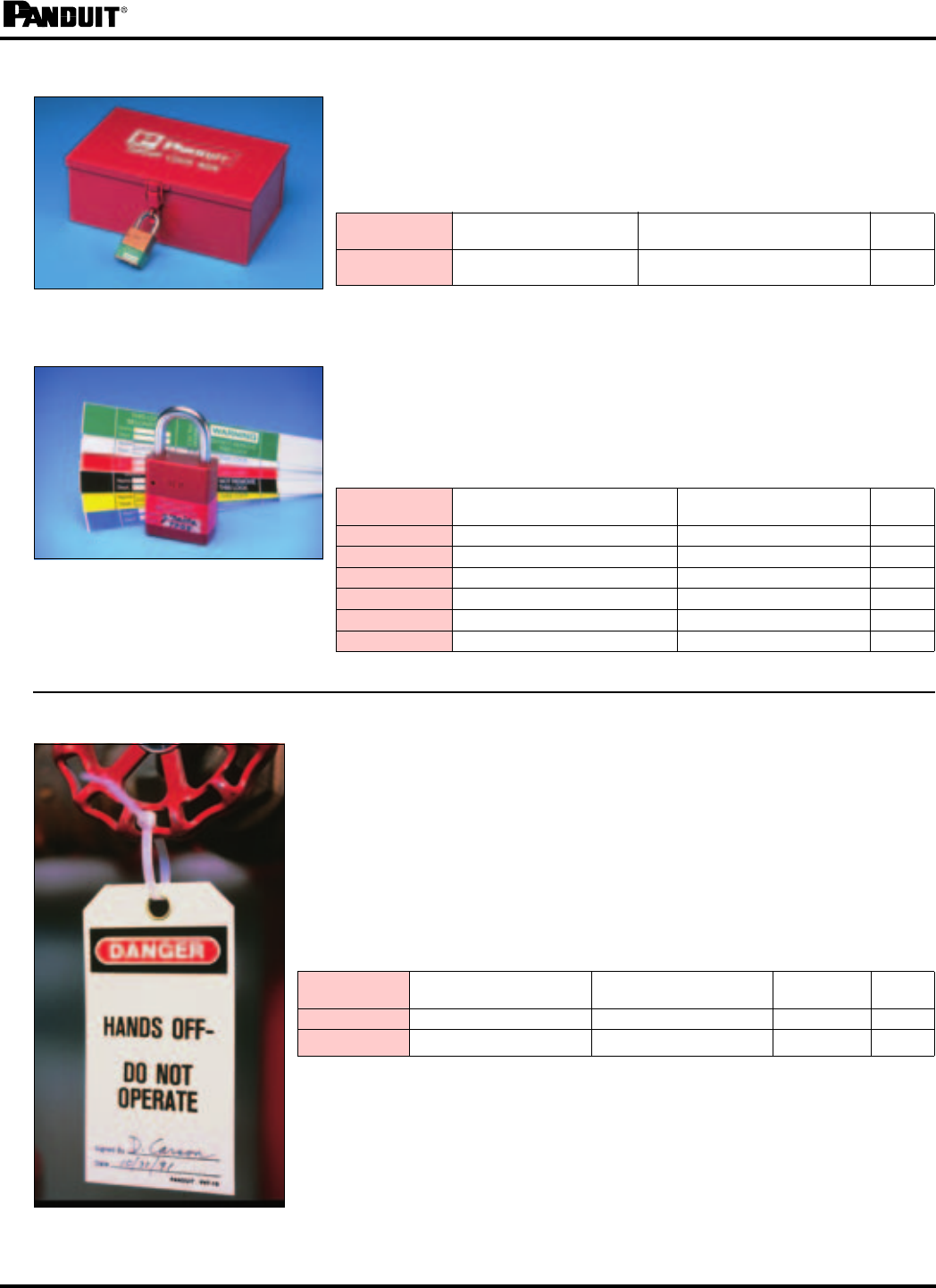

Padlocks, Hasps and Accessories .............................................................................. 13 - 16

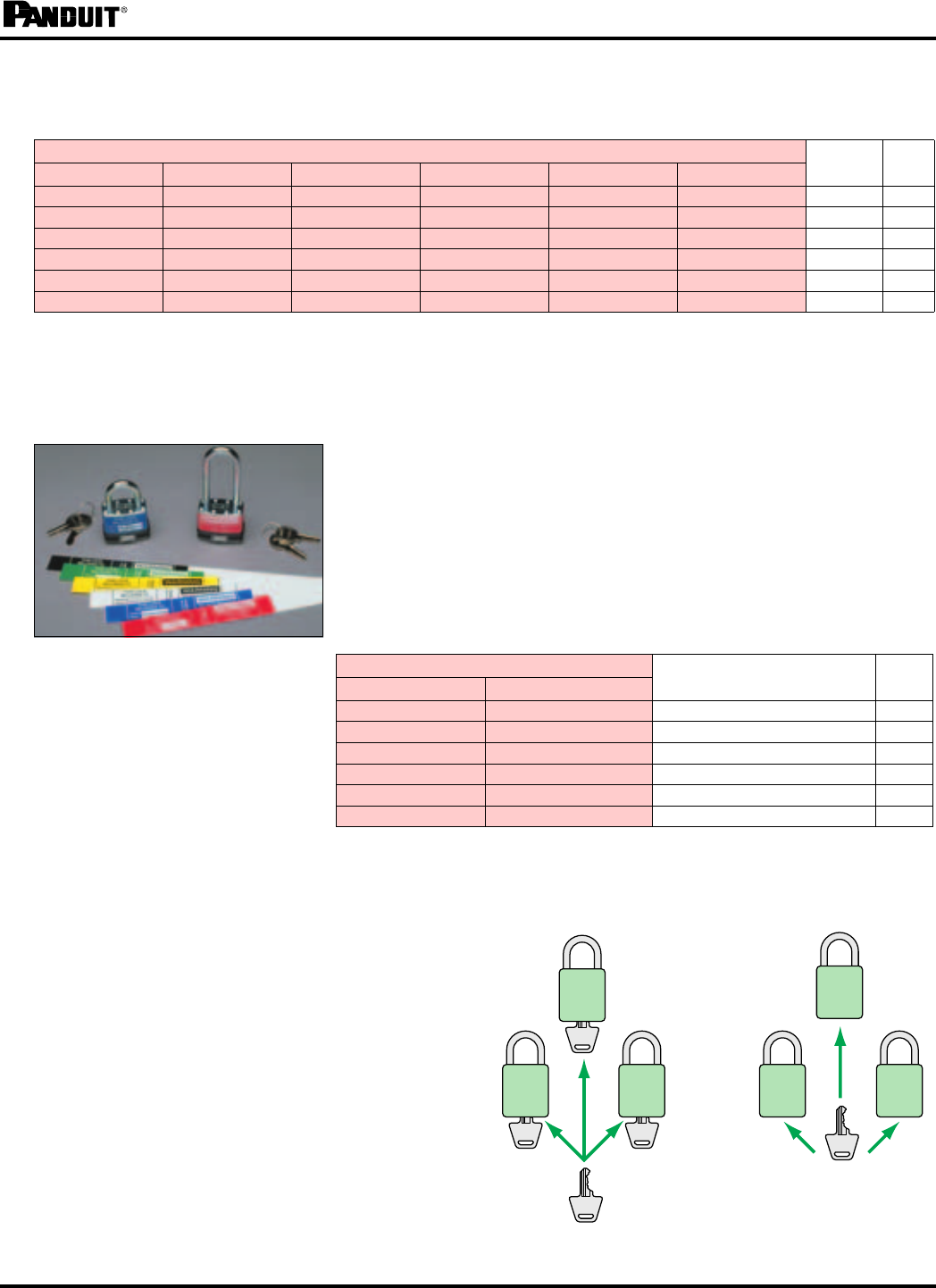

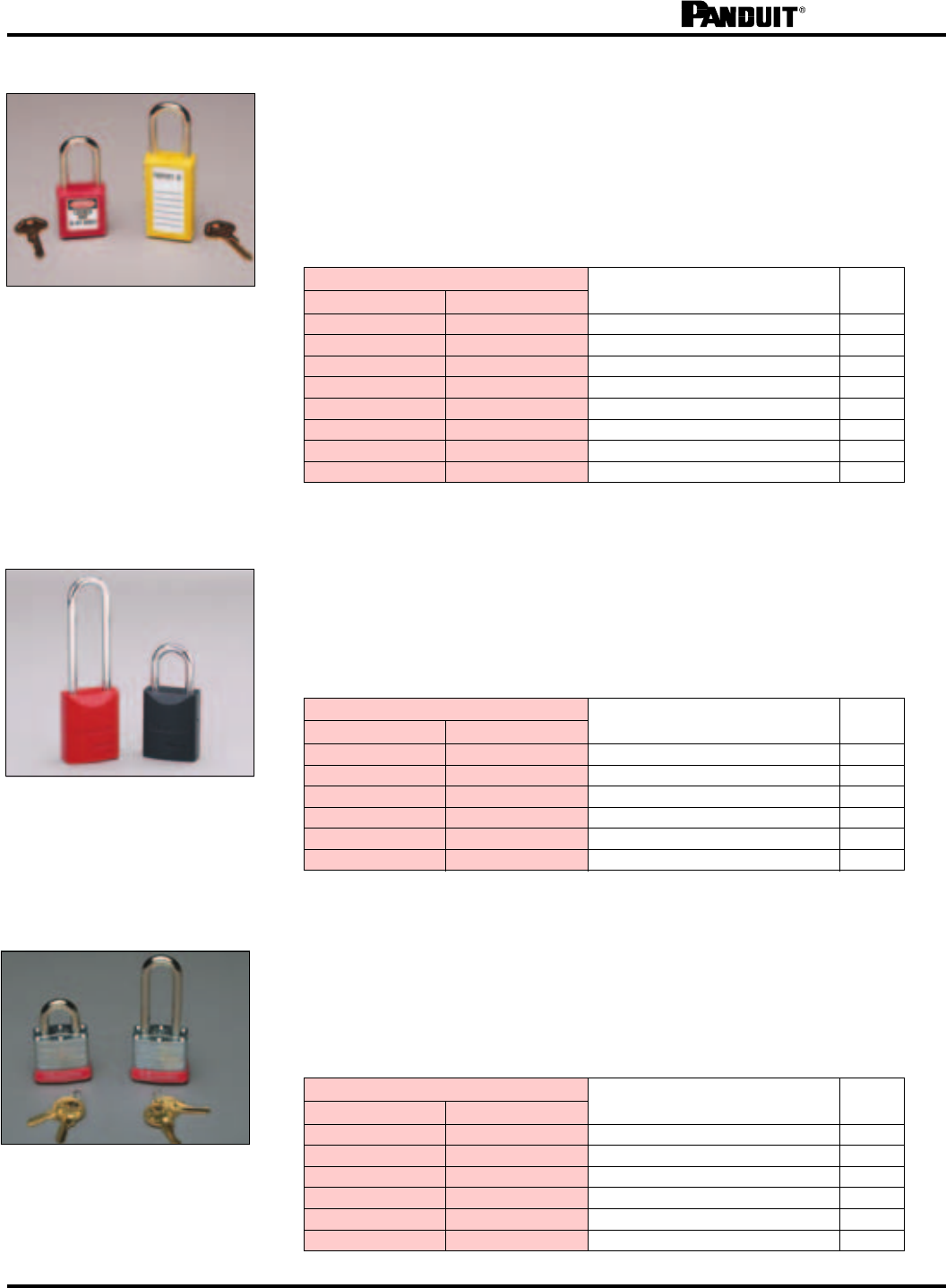

Padlocks................................................................................................................................................13 - 14
Lockout Hasps ............................................................................................................................................. 15
Padlock Accessories.............................................................................................................................15 - 16
Tags, Signs and Labels................................................................................................. 16 - 29

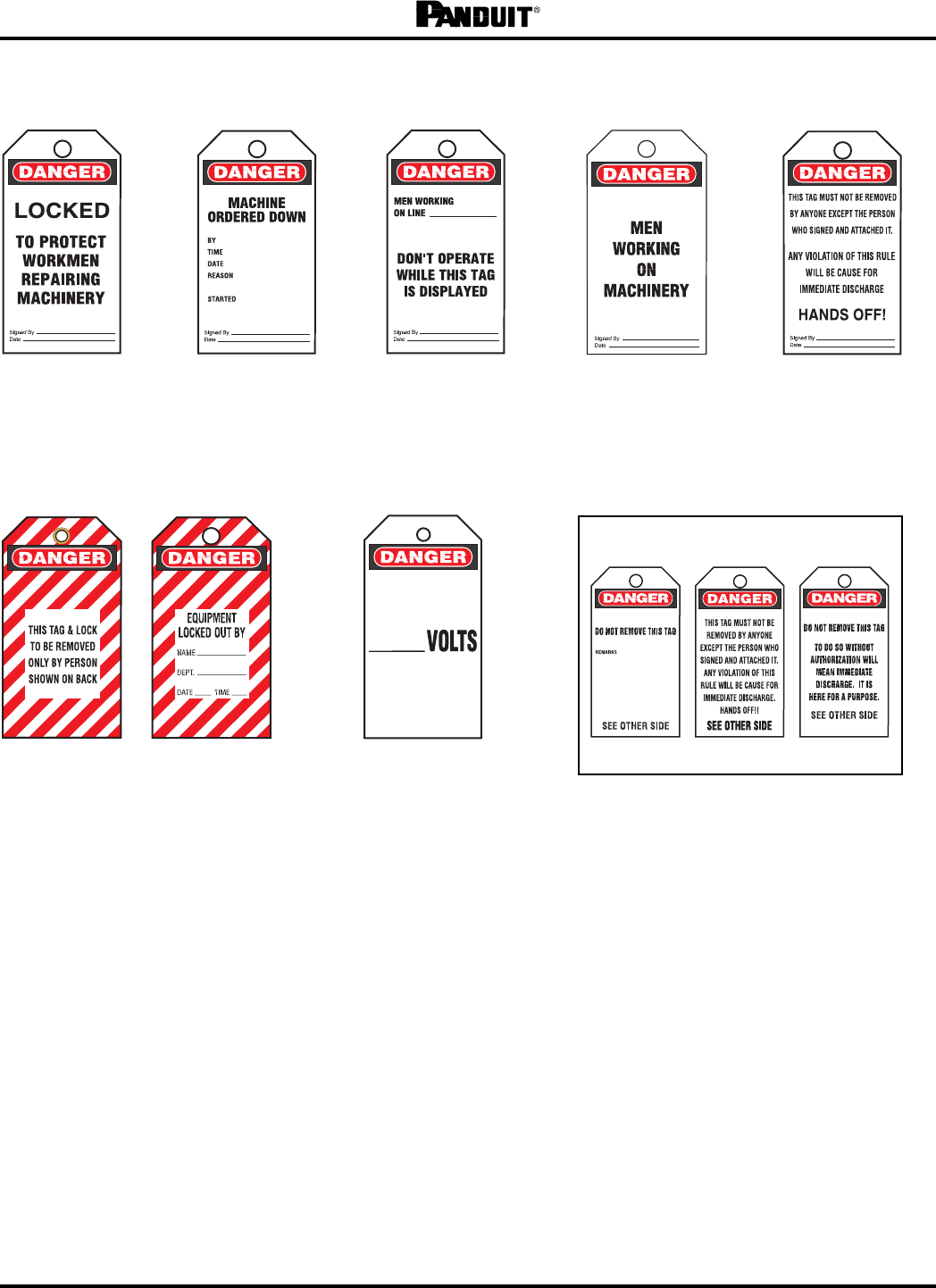

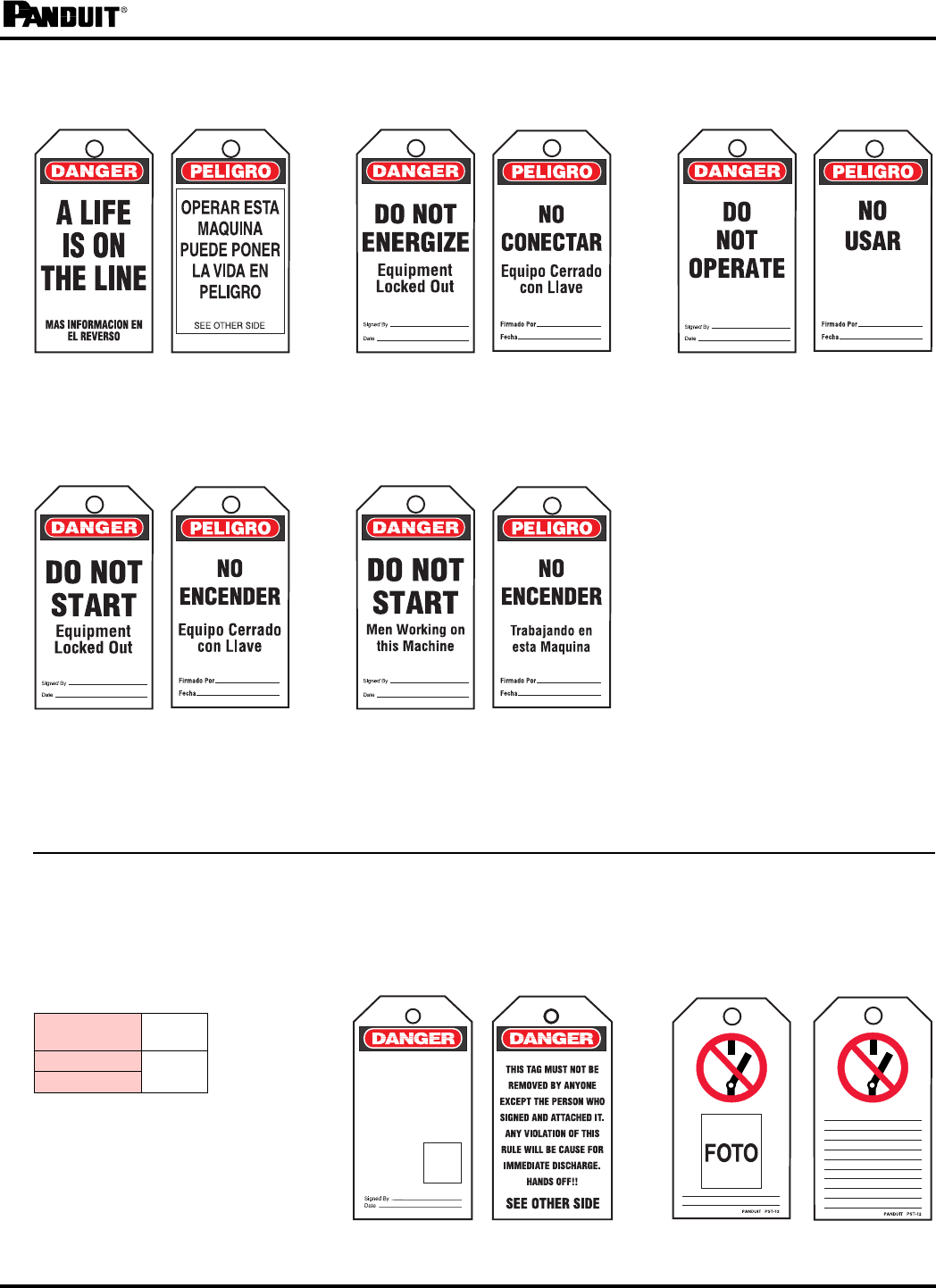

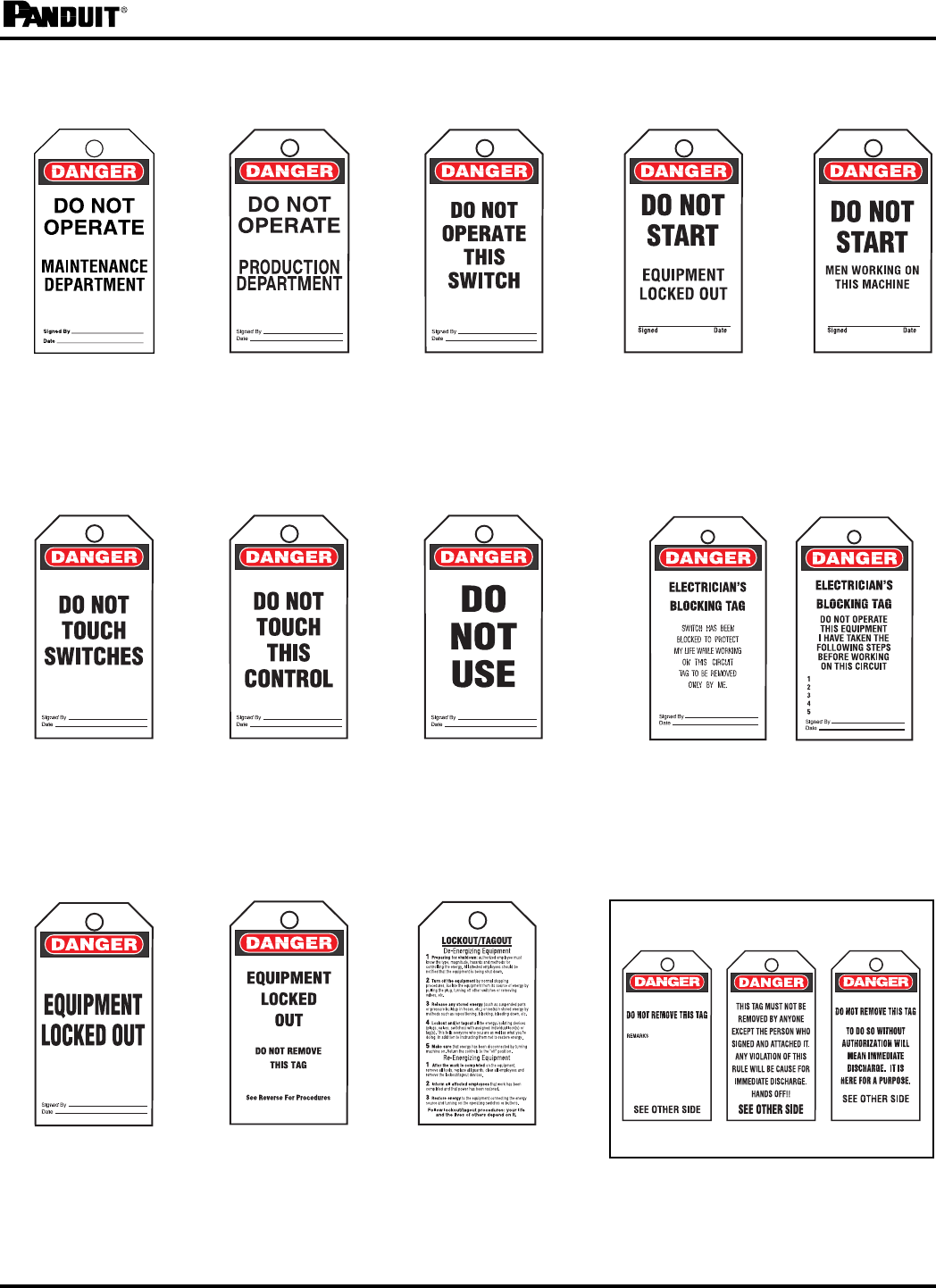

Safety Tags ...........................................................................................................................................16 - 20
Marker Pens.................................................................................................................................................21

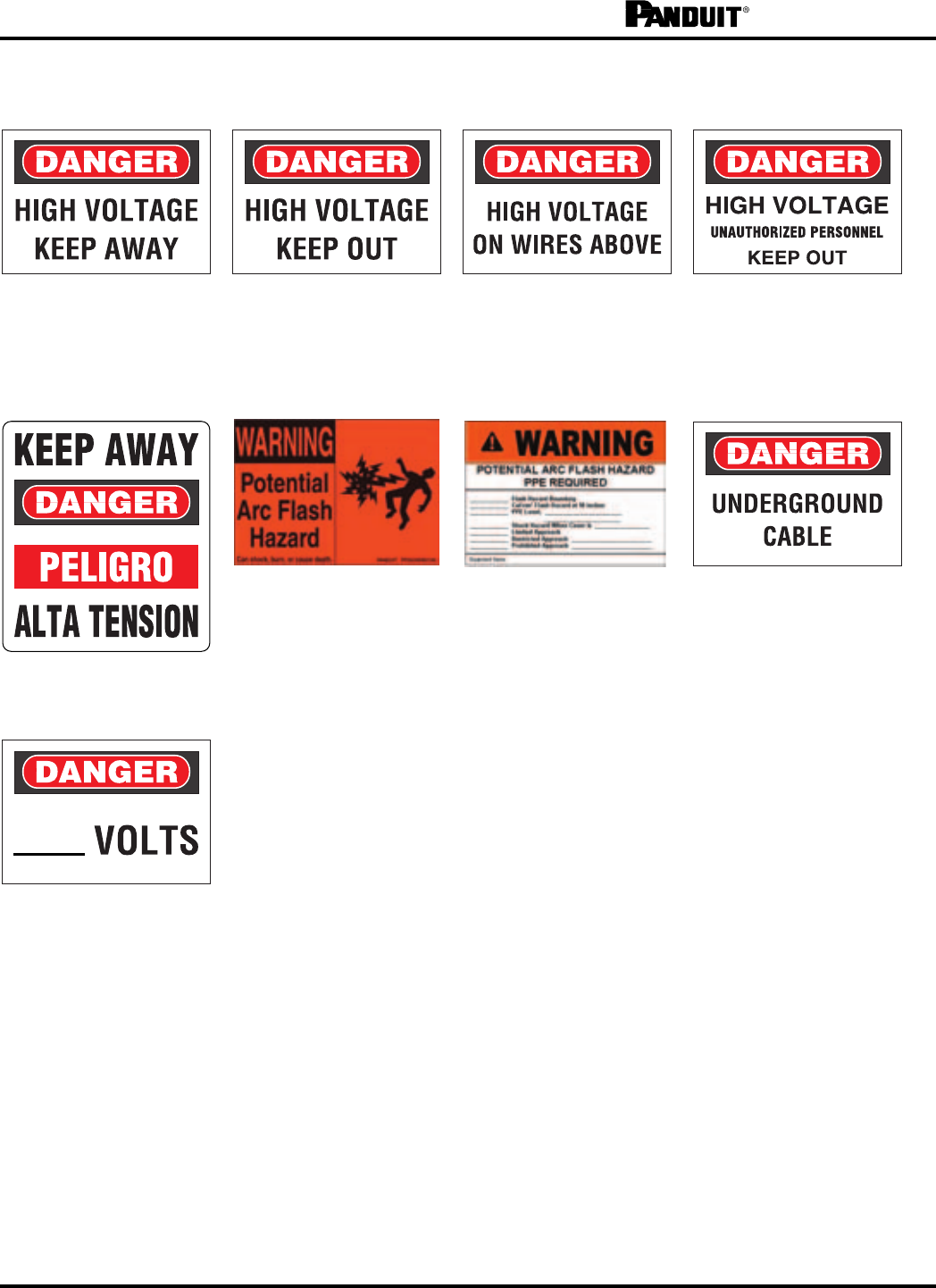

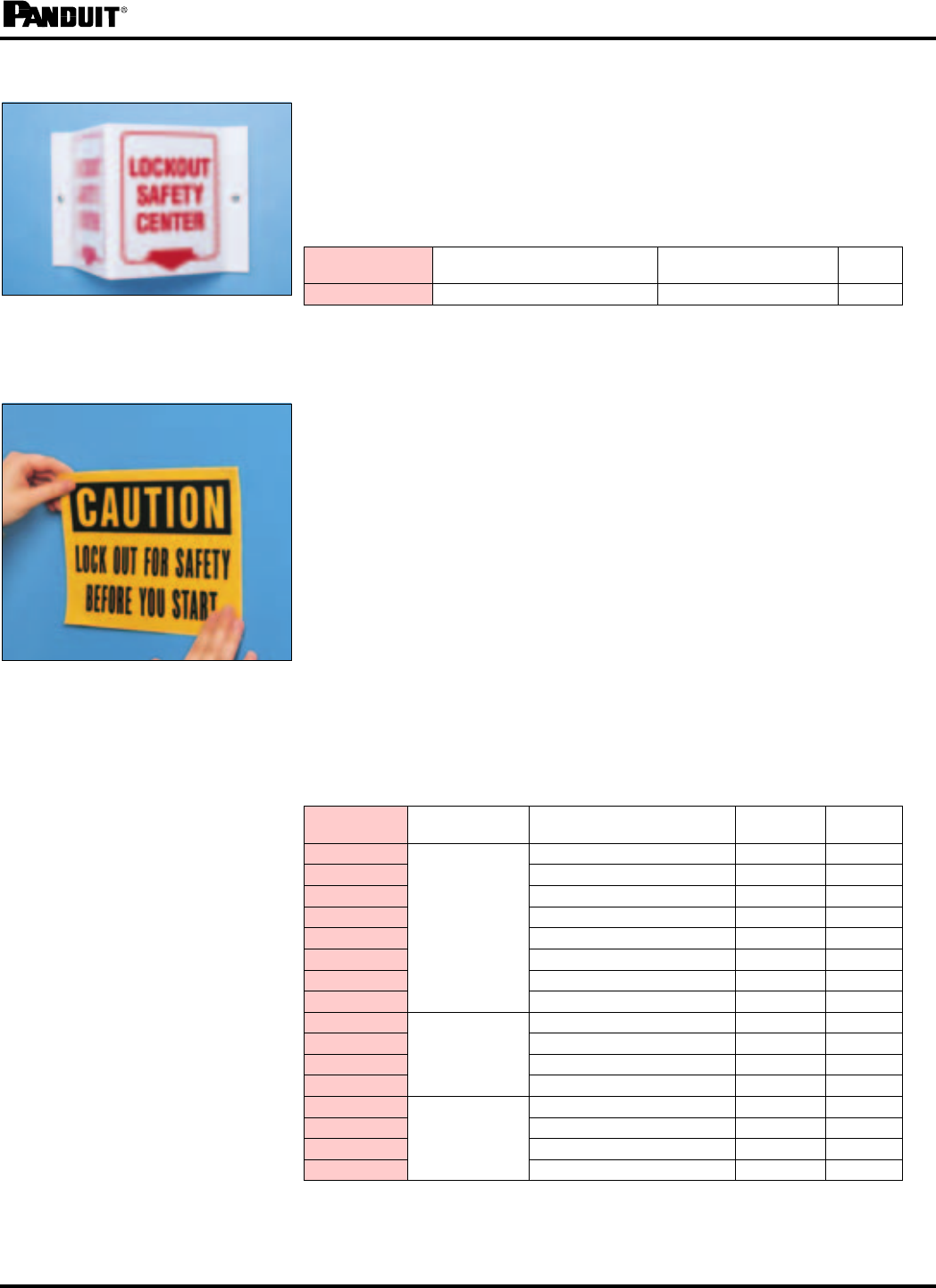

Safety Signs..........................................................................................................................................22 - 26

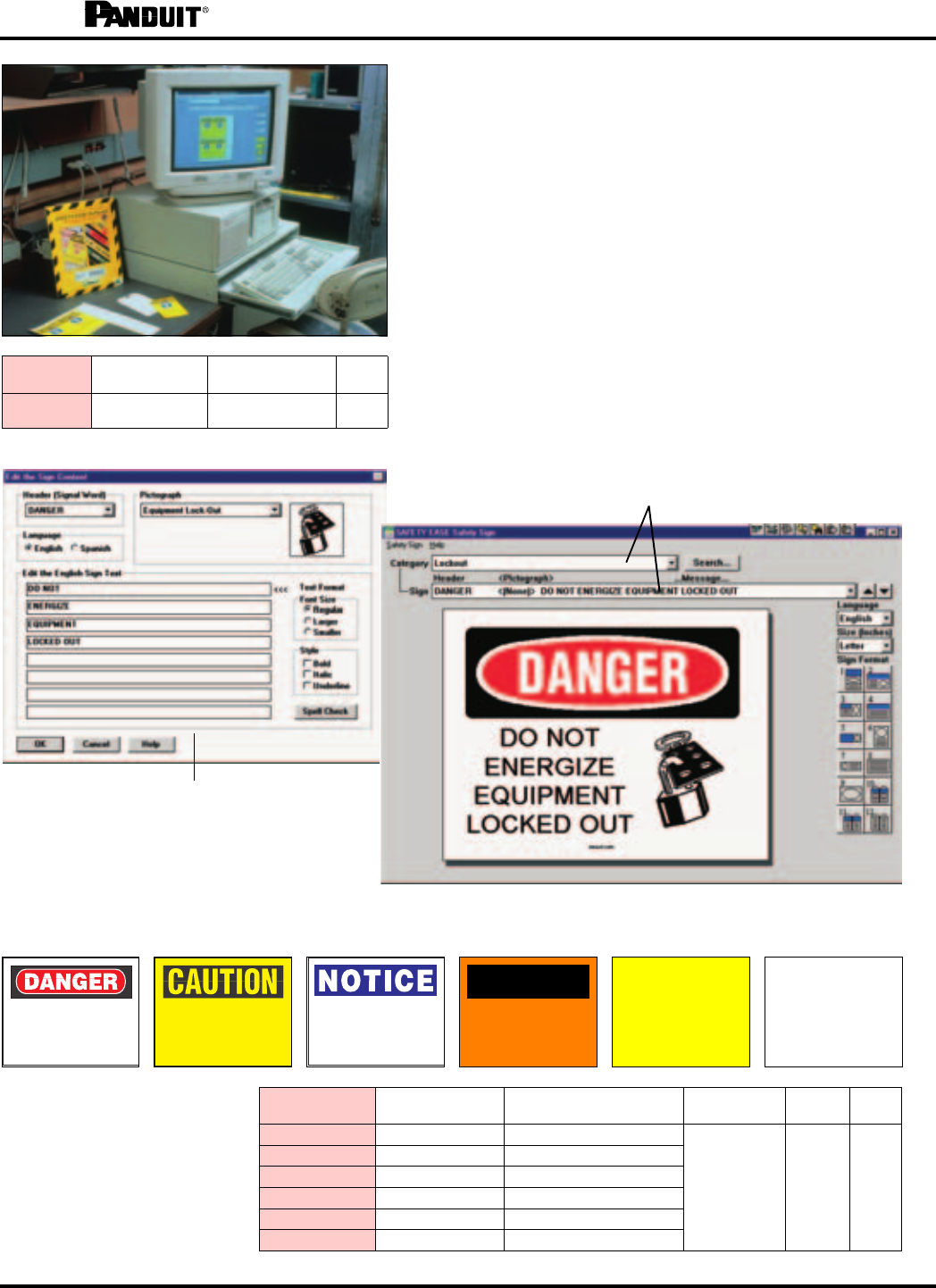

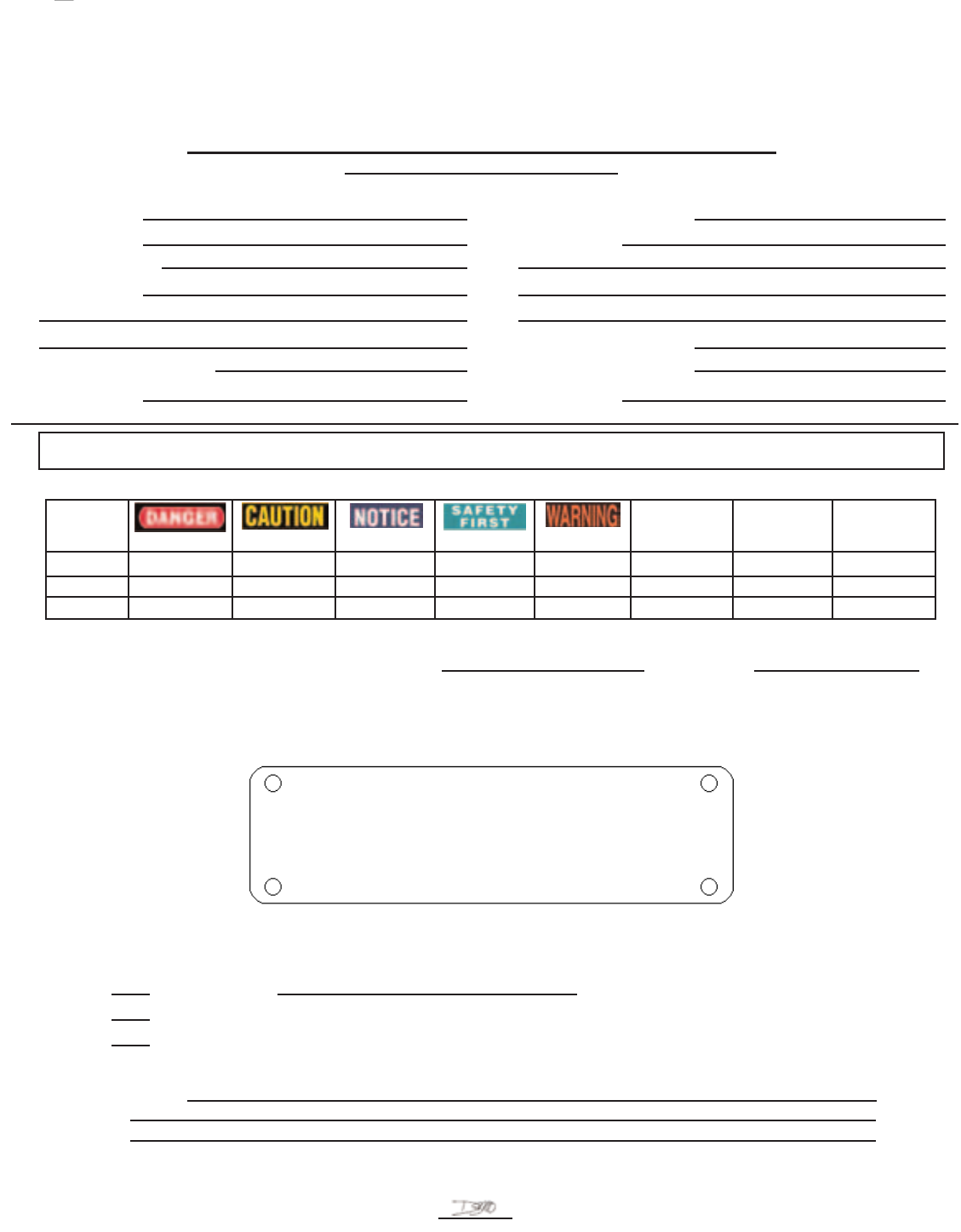

SAFETY EASE ™ Safety Sign Software and Accessories ........................................................................27 - 28

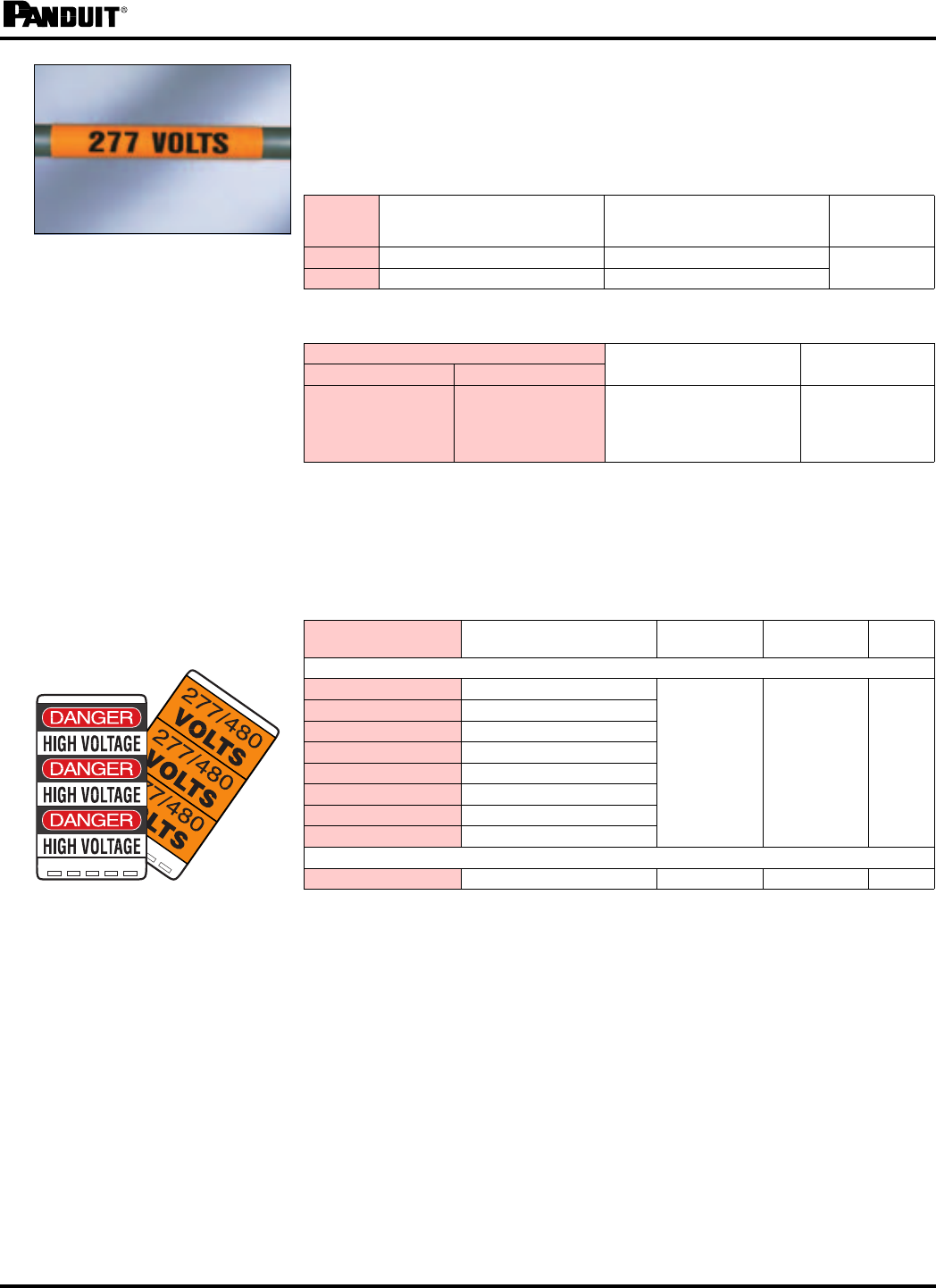

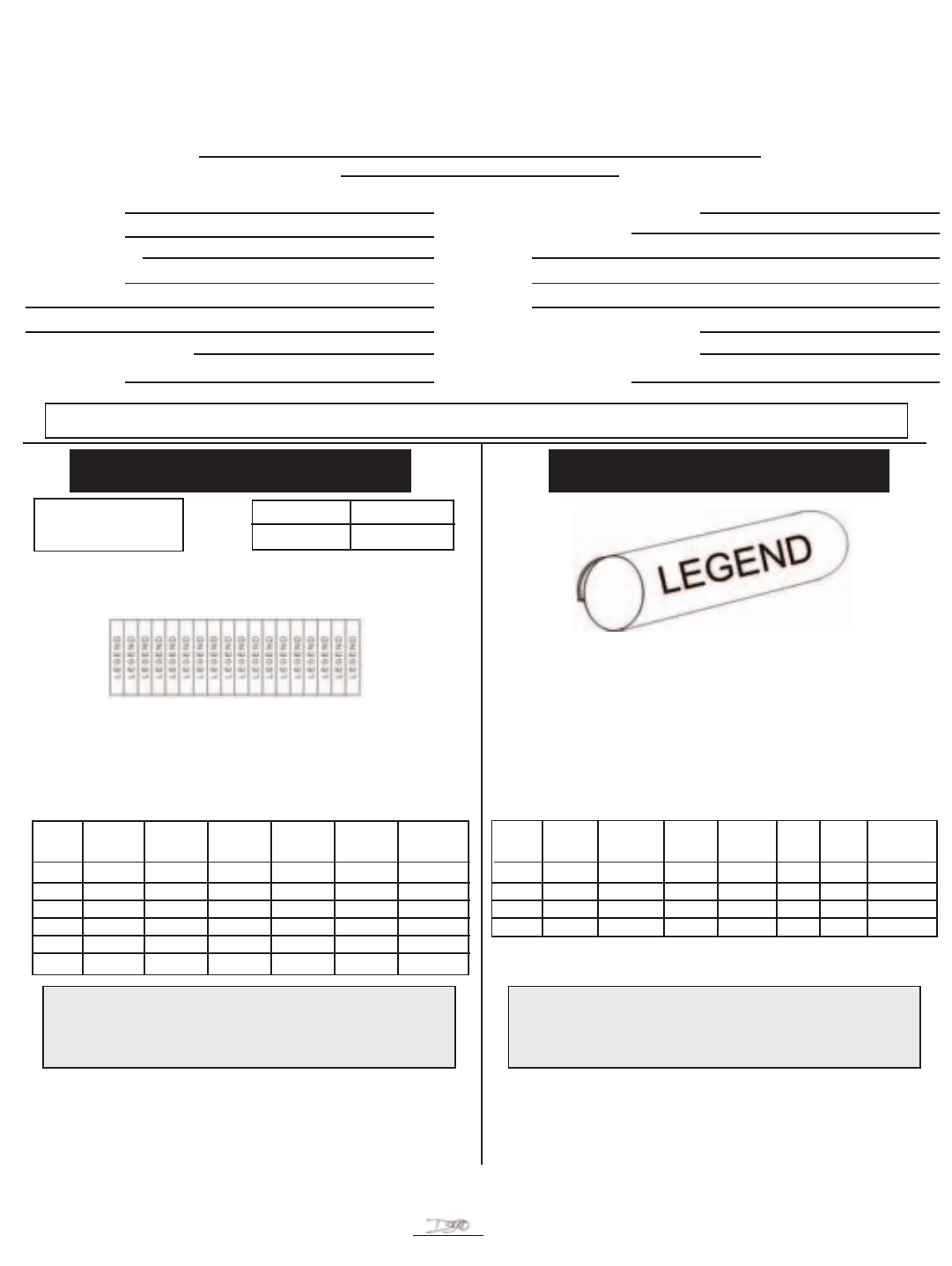

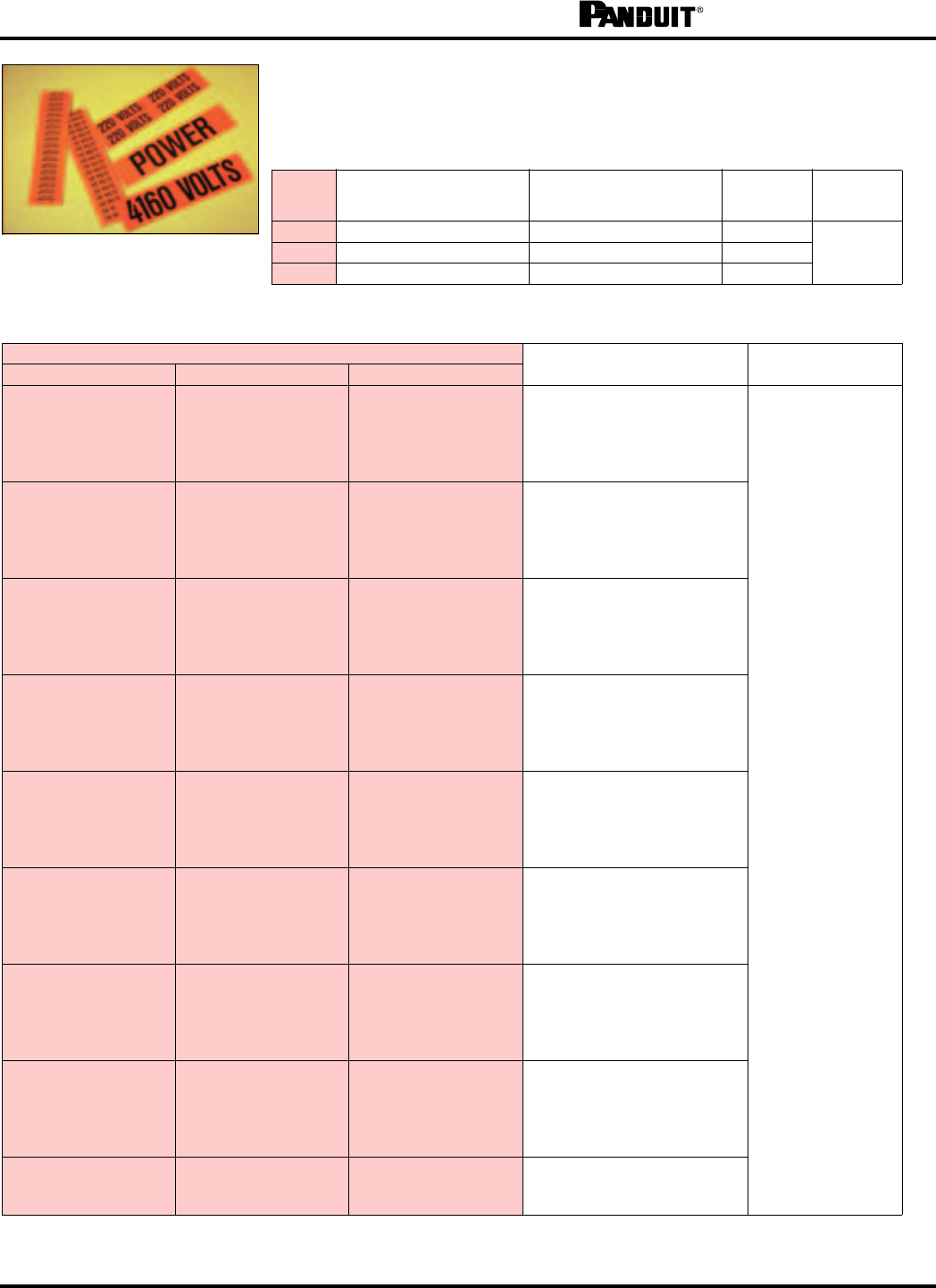

Voltage Markers....................................................................................................................................29 - 30

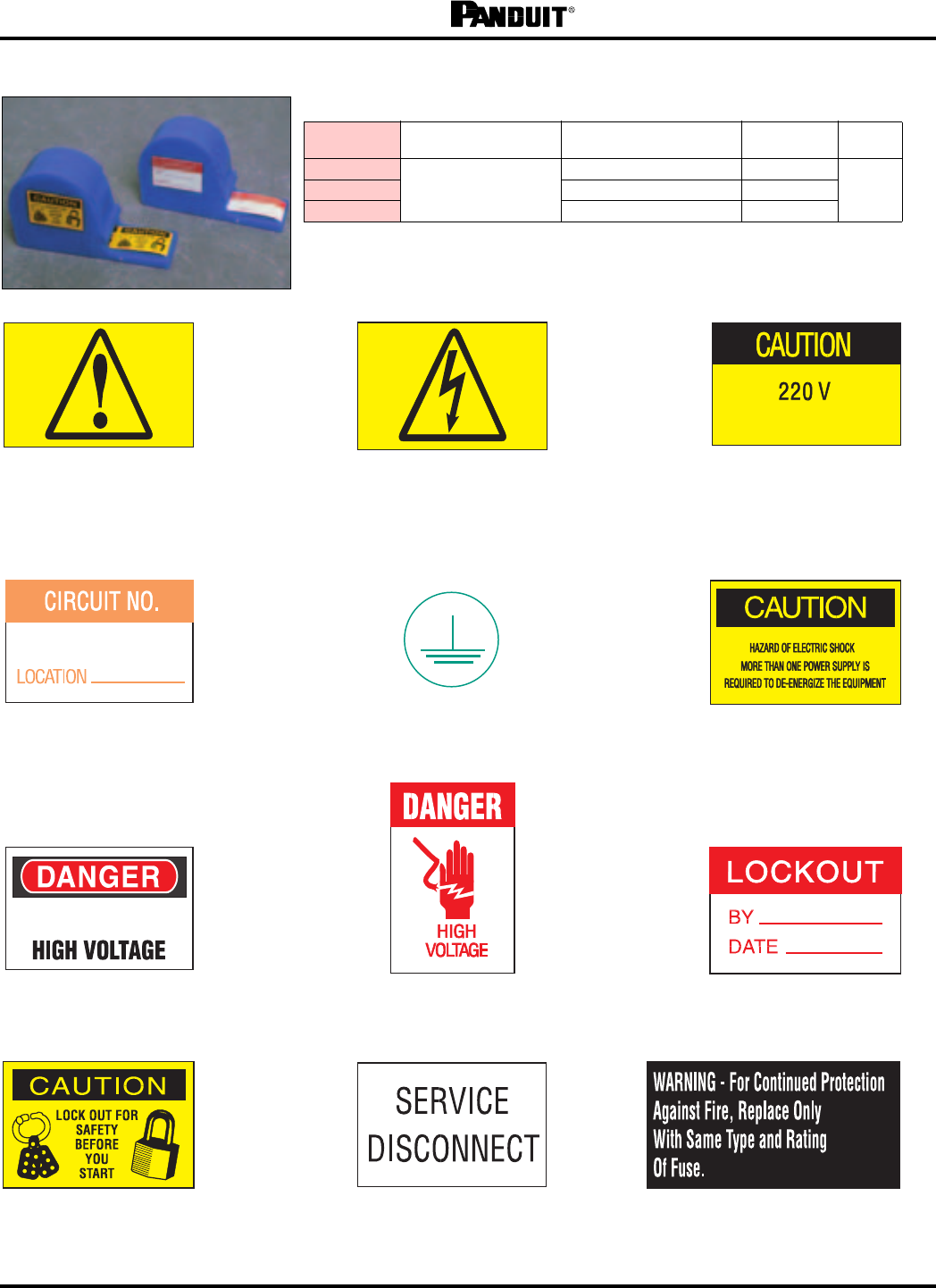

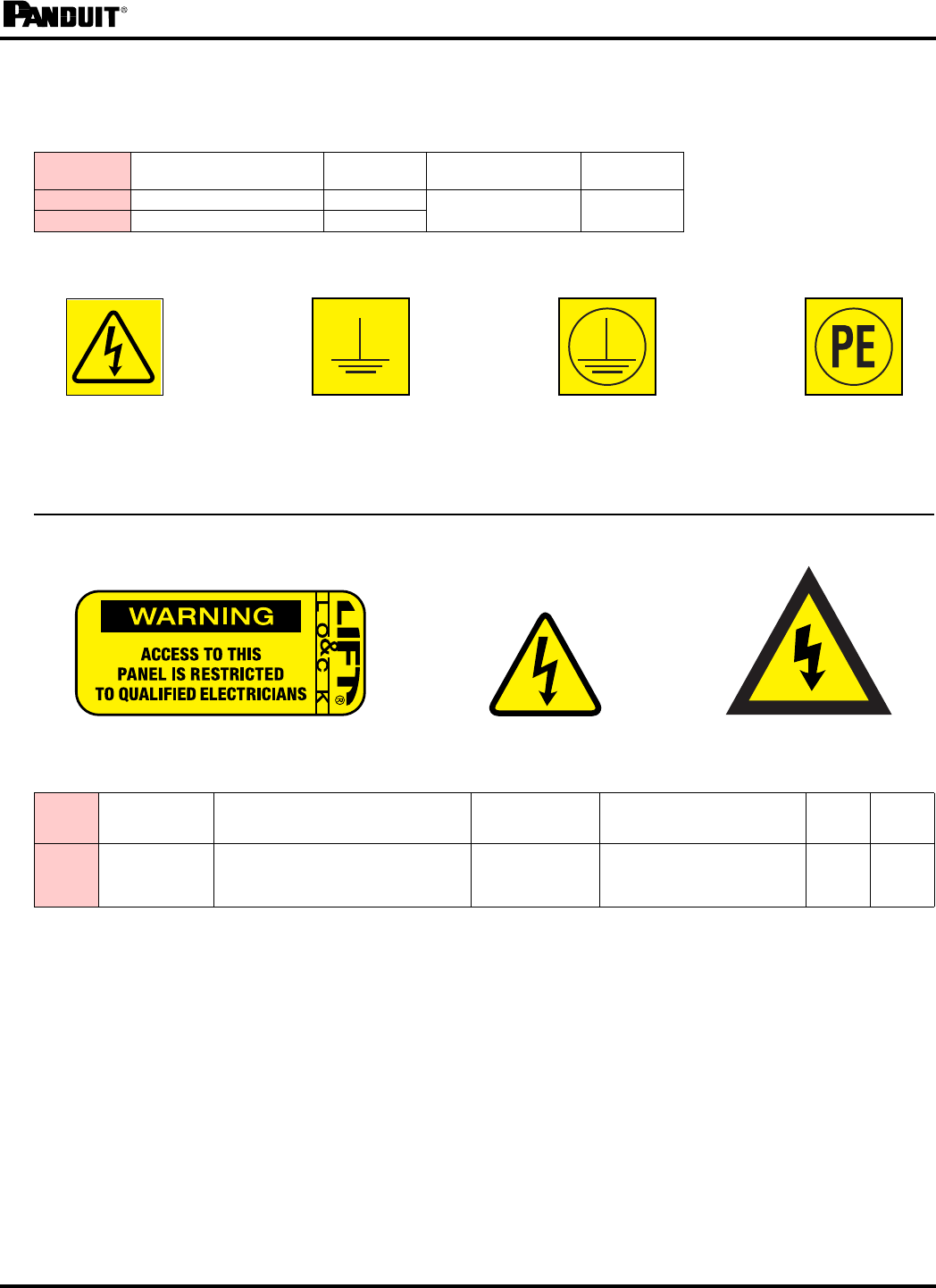

Electrical Warning Labels .....................................................................................................................31 - 32
ISO Labels ................................................................................................................................................... 33
Lockout/Tagout Requirements
The Occupational Safety and Health Administration (OSHA) has
mandated that all energy sources be turned off and locked out to
protect employees from injuries caused by the accidental startup of
equipment under repair or service. This is outlined in OSHA standard
29CFR 1910.147.
Panduit has developed a complete program to help you comply with
these standards:
• Full line of lockout devices, tags, and signs for a variety of energy
sources
• Compliance manuals to help you understand the regulations and
implement a compliance program
• Training videos, interactive CD-ROM programs and handbooks for
your employees
3
Lockout Regulations Training Video
and Handbooks
"A Life is on the Line" Lockout/Tagout Training Program
(English or Spanish)
This training program is designed to protect your employees and helps
put you into compliance with OSHA Lockout/Tagout general training
requirements quickly, easily and at low cost.
Part
Number Description
No. Guides
and Cards
Included Std.
Pkg.*
PSL-LTP Complete English Program - VHS Format Video 10 1
PSL-LTPA Complete English Program - PAL Format Video 10 1
PSL-LTM Replacement English Participant Guides
and Completion Cards 10 1
PSL-LTPS Complete Spanish Program - VHS Format Video 10 1
PSL-LTMS Replacement Spanish Participant Guides
and Spanish Completion Cards 10 1
OSHA Compliance Manual
The Lockout Compliance Manual takes you step-by-step through the
process of bringing your company into compliance with OSHA Standard
29CFR 1910.147.
This complete package includes:
• Lockout/Tagout Regulations Video
• 10 Participant Guides with Quizzes
• 10 Certificate of Completion Cards
• Leaders Guide complete with Quiz Key
• Training Log
• Lockout/Tagout samples
• Panduit Lockout/Tagout Bulletin
Lockout/Tagout Compliance and Training Products
*Order number required in multiples of Std. Pkg.
Also included:
• Forms to administer
your program
• Sample programs
and procedures
Topics covered:
• Background, scope and purpose of the regulation
• Process of developing a lockout/tagout plan
• How to write your company’s lockout/tagout policy
• Establishing lockout/tagout procedures for
equipment in your plant
• Implementing a lockout/tagout training program
Part
Number Description Std.
Pkg.*
PSL-LCM OSHA Compliance Manual 1
Updated
Group Lockout Video
"Your Lock is Your Key to Life" Training Program provides thorough
instruction on OSHA recommended safety practices and procedures for
group lockout — multi-craft / multi-shift lockout operations.
Part
Number Description
No. Guides
and Cards
Included Std.
Pkg.*
PSL-LTPGP Complete English Program -
VHS Format Video 10 1
PSL-LTMGP Replacement English Participant Guides
and Completion Cards 10 1
This complete package includes:
• Group Lockout / Tagout Video
• Leader’s Guide with Quiz Key
• Training Log
• 25 PSL-STEPS Lockout Steps
Wallet Cards
• 10 Participant Guides with Quizzes
• 10 Certificate of Completion Cards
• Lockout/Tagout samples
• Panduit Lockout/Tagout Bulletin
4

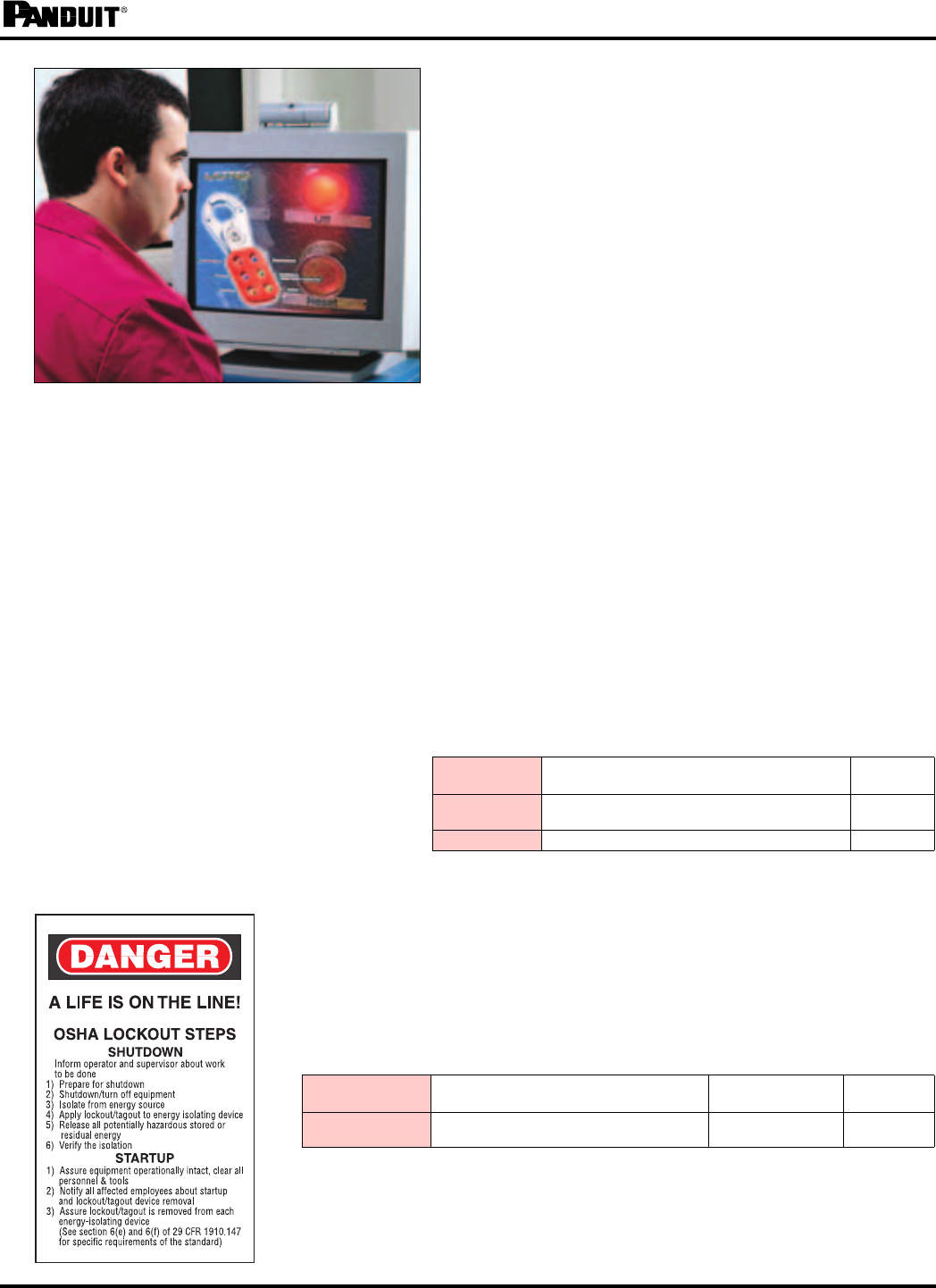

CD-ROM Interactive Lockout/Tagout
Training Program
Increase employee retention of critical lockout/tagout
requirements and related safe work practices with the "A Life
Is On The Line" interactive CD-ROM Training Course. The
Panduit "A Life Is On The Line" video is featured along with
audio, text and graphics to provide a time and cost effective
method of lockout/tagout training.
At their own pace, employees will learn:
− General Lockout/Tagout Requirements
− Proper Shutdown and Startup Procedures
− Lockout and Tagout Device Requirements
and Applications
− Proper Installation of Common Lockout Devices
• Correct test answers and rationale are featured immediately after an incorrect response
• Post test evaluation identifies subject areas associated with incorrect responses to allow trainer to
focus on individual follow up training
• Create Certificates of Completion and maintain training and test records for OSHA compliance
• Approximate course completion time: 30 to 60 minutes
• English only
Lockout/Tagout Training Products
*Order number required in multiples of Std. Pkg.
This self-instructive program includes:
• CD-ROM interactive training program
• 25 PSL-STEPS Lockout Steps Wallet Cards
• 10 Quick Reference Lockout Steps / Certificate of
Completion Cards
• Quick Start Trainer and Trainee Guide
• Panduit Lockout/Tagout Bulletin
• Lockout/Tagout Samples
Minimum System requirements:
• 486 processor
• WINDOWS^ 95, 98, 3.x or NT 4.0
• 4 Mb RAM
• 10 Mb free hard disk space
• 2X speed CD-ROM drive (4X speed recommended)
• WINDOWS compatible sound card and mouse
• 640 x 480 monitor (800 x 600 recommended)
• 256 color VGA display (SVGA recommended)
^ WINDOWS is a registered trademark of Microsoft Corp.
Part
Number Description Std.
Pkg.*
PSL-LTPCD CD-ROM Interactive Lockout/Tagout
Training Program 1
PSL-LTPCD-5 Site License for 5 Users 1
Lockout Steps / Calendar Wallet Card
• Provide those employees responsible for lockout/tagout procedures
with a constant reminder of the OSHA recommended steps for
shutdown and startup
• Semi-rigid card fits easily in wallet
• Current year calendar is printed on back side
Part
Number Description Size
In. (mm) Std.
Pkg.*
PSL-STEPS Lockout Steps / Calendar Wallet Card 2.13 x 3.38
(54 x 86) 1 Pkg.
(25 cards)
5

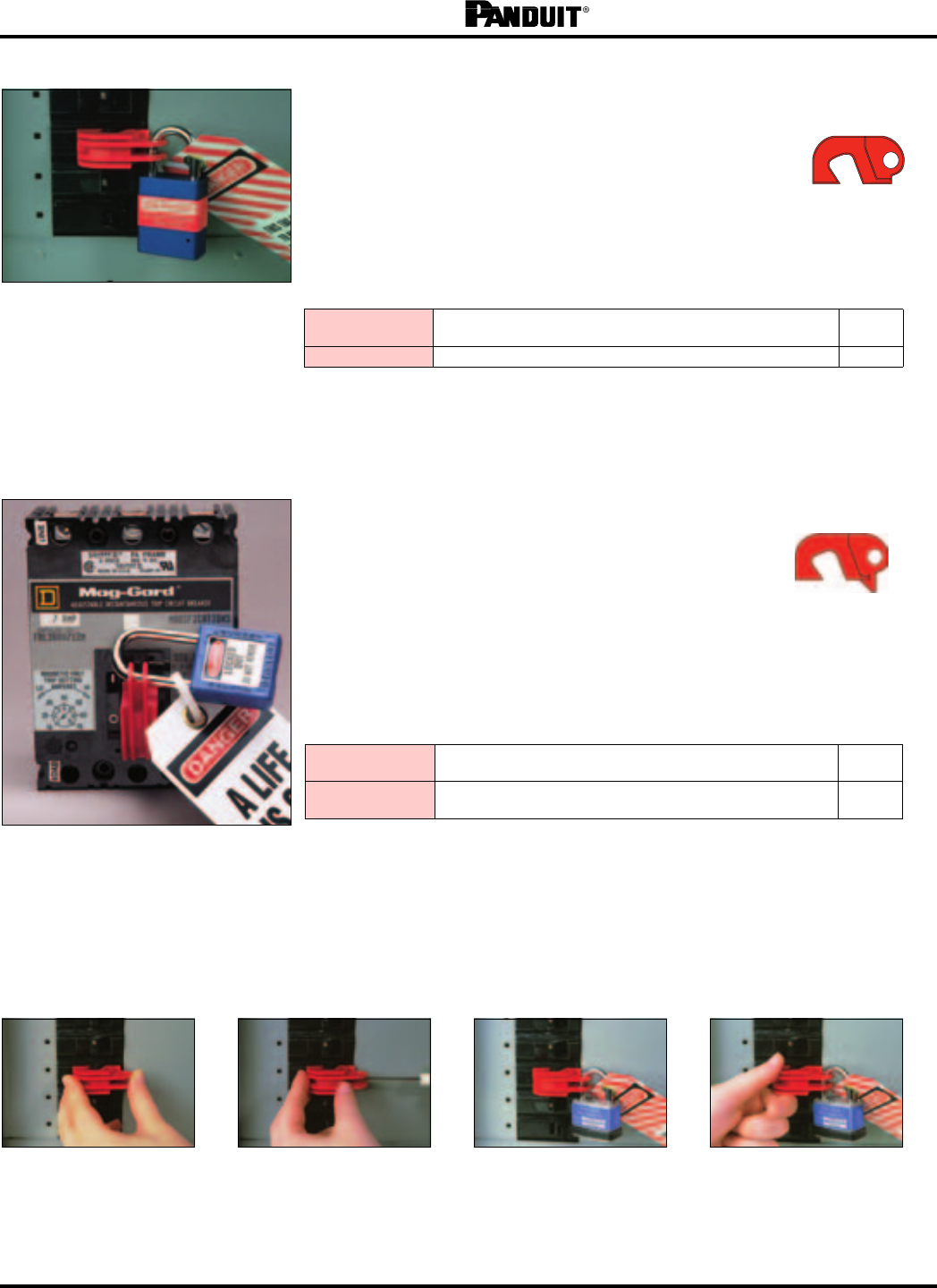

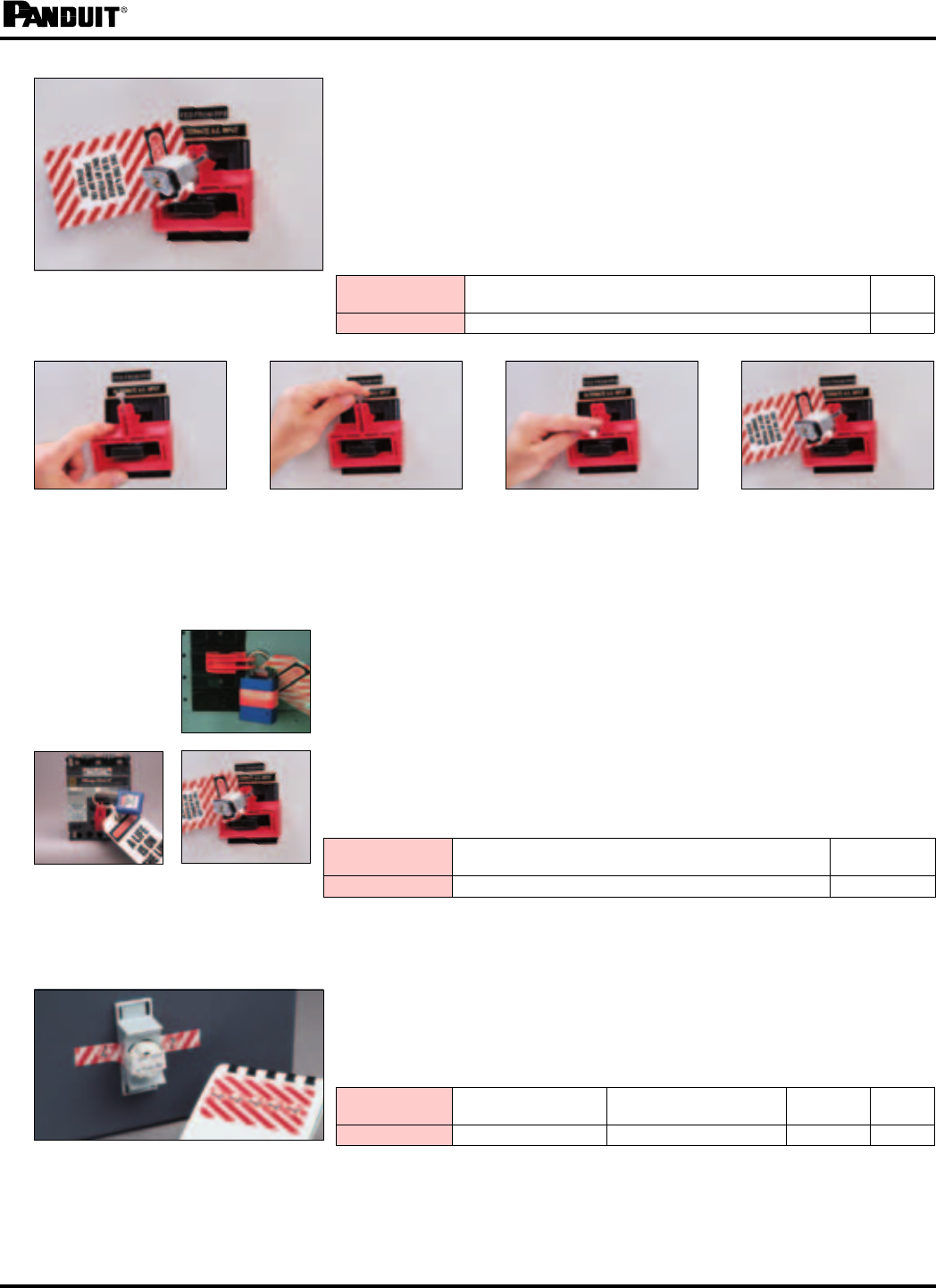

Circuit Breaker Lockouts
• Shroud over set screw prevents tampering with the device during
lockout procedures
• Accommodates breaker handles with 0.30" - 0.60"
(8 x 15 mm) high and 0.25" - 0.44" (6 x 11 mm)
thick switches
• Compact, universal design fits wide range of single, double and
triple handle circuit breakers
• Easily attached with no modifications to panel or circuit breaker
• Does not require hole in circuit breaker handle
Part
Number Description Std.
Pkg.*
PSL-CB Universal Circuit Breaker Lockout 1
Turn switch to off position.
Place lockout over
desired switch.
Tighten set screw securely
with standard screwdriver. Attach padlock and tag. Verify that the lockout
device secures the
disconnect in a safe or
off position.
Universal Circuit Breaker Lockout
Individual circuit breakers can be
locked in off position without
locking out the entire panel.
To lockout mini circuit breakers, see PSL-WS on page 9.
• Accommodates a wide range of Square D I-LINE▲ and equivalent
circuit breaker brands and styles as well as
Federal Pacific (FPE) breakers
• Compact, lightweight
• Easily attached with no modifications to panel or circuit breaker
• Rugged stainless steel/nylon construction offers great strength,
durability, added security and corrosion resistance
• Shroud over set screw prevents tampering with the device during
lockout procedures
• Compatible with a wide variety of circuit breakers
Part
Number Description Std.
Pkg.*
PSL-CBIL Lockout Device for use with Square D I-LINE▲ /
Federal Pacific (FPE) Circuit Breakers 1
Lockout Device for use with Square D I-LINE▲ and Federal Pacific (FPE) Circuit Breakers
▲I-LINE is a Registered Trademark of Square D Company.
*Order number required in multiples of Std. Pkg.
Individual circuit breakers can be
locked in off position without
locking out the entire panel.
Installation instructions for PSL-CB and PSL-CBIL
6
• Accommodates breaker handle dimensions up to 0.80"
thick x 3.00" wide (20 x 76 mm)
• Secures and prevents re-engaging of the breaker handle
• Easy installation — no installation tools required
• Accepts Panduit PSL-3, PSL-4, PSL-5 and PSL-11 Lock Series
(see pages 13-14)
• Rugged stainless steel/nylon construction offers great strength,
durability, added security and corrosion resistance
Part
Number Description Std.
Pkg.*
PSL-CBL Molded Case / Enclosed Systems Circuit Breaker Lockout 1
Verify circuit breaker is
de-energized. Place
lockout device over breaker
with the handle centered in
lockout opening.
Turn the toggle set screw
knob and tighten firmly
against breaker handle.
Rotate and flip toggle set
screw upwards. Install lock and tag and test
for security. Verify that the
lockout device secures the
disconnect in a safe or
off position.
Molded Case / Enclosed Systems Circuit Breaker Lockout
Designed to lockout a wide range
of 3 phase circuit breakers
(277V and above).
Circuit Breaker Lockouts
▲I-LINE is a Registered Trademark of Square D Company.
*Order number required in multiples of Std. Pkg.
• Write-on area for adding your own warning message
• Label removes easily after repairs are completed
• Features the international prohibition symbol for "Do Not
Throw Switch"
Part
Number Material Marker Size
In. (mm) Markers
Per Book Std.
Pkg.*
PSL-CBWL GMC1 Vinyl Cloth 4.84 x 0.54 (123 x 14) 60 1
Lockout Warning Strip Labels
Designed as a warning device to
prohibit tampering with push
buttons during lockout operations.
NOTE: This is not a lockout device.
• Contains three circuit breaker lockout devices that will secure and
prevent the re-engaging of a variety of commercial, institutional and
industrial circuit breakers, including:
- Single, double, triple pole
- Square D I-LINE▲ and equivalent circuit breaker brands and styles
- Federal Pacific (FPE)
- Molded case/enclosed systems
• Quick and easy to install
• Rugged nylon construction offers great strength and durability
Part
Number Description Std.
Pkg.*
PSL-CBKIT Circuit Breaker Lockout Kit 1 kit
Circuit Breaker Lockout Kit
Contains:
PSL-CB
PSL-CBIL
PSL-CBL
7
• Rugged stainless steel/nylon construction offers great durability,
strength, added security and corrosion resistance
• Compact and easy to install
• One six foot vinyl coated galvanized steel cable with loophole
included with every lockout!
Part
Number Description Std.
Pkg.*
PSL-MLD Multiple Lockout Device; includes lockout hasp and cable 1
PSL-MLDC 6 ft. (1.8 m) vinyl coated galvanized steel cable with loophole,
0.19" (4.8 mm) diameter. Combine several cables to extend
cable length. 1
PSL-MLDC200 200 ft. (61.0 m) vinyl coated galvanized steel cable on roll, no
loophole, 0.19" (4.8 mm) diameter 1
PSL-MLDH-X PSL-MLD Lockout Hasps without cable 10
Lockout Single or Multiple
Disconnects Lockout Gate Valve Device
Immobilize Large or
Cumbersome Devices
• Lockout device for a wide range of plug connector applications (see
page 8 for other plug types)
• Requires a hole in a blade of the plug
• Should be used with locks that have a minimum shackle length of
1.5" (38 mm)
Part Number Description Std.
Pkg.*
PSL-P Plug Lockout 1
Place PSL-P Lockout
through the hole in blade
of plug.
Insert padlock shackle
through both holes in the
lockout and lock padlock.
Verify that lockout cannot
be removed from plug and
that plug blades cannot be
inserted into a receptacle.
Add safety tag.
Multiple Lockout Device
Only one device needed to
perform a variety of
lockout functions:
Plug Lockout
Prevents a plug from being
plugged in.
Lockout Devices
*Order number required in multiples of Std. Pkg.
8
Place PSL-ERB blockout device
over outlet so that the hole pattern in
the blockout lines up with the 3
holes in the receptacle to be used.
Insert plug into the receptacle. The
blockout is now held firmly in place
by the plug and the second
receptacle is blocked out.
• Two sizes to accommodate small and large plugs
• Locks must have 0.38" (10 mm) or smaller shackle diameter
Part
Number Description Inside Dimension
In. (mm) Std.
Pkg.*
PSL-CL110 Lockout for 120 Volt AC Cord 2.00 x 2.00 x 3.50 (51 x 51 x 89) 1
PSL-CL480 Lockout for 240-480 Volt AC Cord 3.25 x 3.25 x 6.5 (83 x 83 x 165) 1
• Prevent overloading the circuit, which may cause damage to
equipment plugged into the other receptacle
• Prevent use of the open receptacle for devices which may induce
electrical interference in computer equipment, causing data
transmission problems or damage of computer
controlled equipment
Part
Number Description Std.
Pkg.*
PSL-ERB Blockout for open electrical receptacles 1

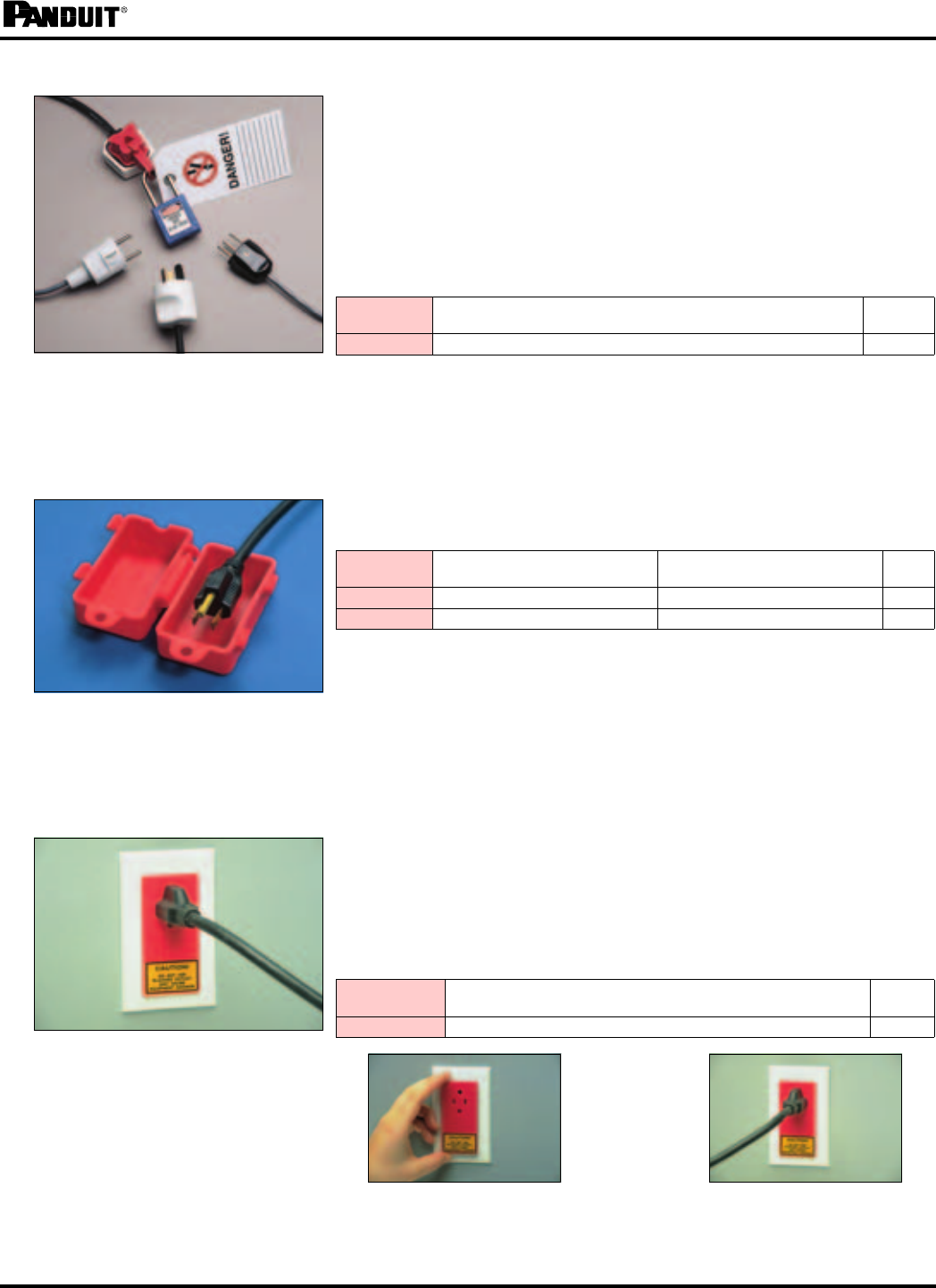

Cord Lockouts
Prevents a plug from being
plugged in.
Receptacle Blockout
Used to prevent use of an open
electrical receptacle.
Cord and Receptacle Lockouts
*Order number required in multiples of Std. Pkg.
• Compact, universal design accommodates most 220-240 volt plugs
• Quickly and easily installed
• Nylon construction offers great strength and durability
• Accepts Panduit PSL-3, PSL-4, PSL-5 and PSL-11 series locks
(see pages 13-14)
• Requires lock with shackle diameter between 0.20" (6 mm) and
0.37" (9 mm)
• Note: cannot be used with North American 120 VAC plugs
Part
Number Description Std.
Pkg.*
PSL-PI Global Plug Lockout 1
Global Plug Lockout
Prevents a plug from being
plugged in.
9
• Compact, secure design fits most toggle switches and some small
circuit breakers
• Accommodates switches 0.45" - 0.78" (12.2 - 19.8 mm) high x
0.25" - 0.38" (6.4 - 9.6 m) wide x 0.25" - 0.40" (6.4 - 10.2 mm) thick
• Easily attached without removal of face plate or screws
• Quick installation with standard screwdriver
Part
Number Description Std.
Pkg.*
PSL-WS Toggle Switch Lockout 1
Toggle Switch Lockout
Toggle / Rocker Switch Lockout
Turn switch to desired
position. Place lockout
over switch.
Tighten set screw
securely with a standard
screwdriver.
Attach padlock and tag.
Test to insure secure
lockout.
For locking out electrical
supply controlled by ordinary
toggle switches.
• Versatile design allows lockout of both toggle and rocker switches
• Install device using faceplate screws
Part
Number Description Std.
Pkg.*
PSL-WS1A Toggle / Rocker Switch Lockout 1
For locking out electrical supply
controlled by toggle or rocker
switches.
Lock out toggle switches without removing faceplates screws Lock out mini circuit breakers
Wall Switch Lockouts
*Order number required in multiples of Std. Pkg.
10
Prevents valve handle from
being turned. Slip lockout over
valve handle and attach
padlock.
Gate Valve Lockouts
PSL-V2BLU PSL-V4YEL PSL-V6GRN PSL-V9
Ball Valve Lockouts
• Two sizes for ball valves up to 3" (76 mm)
• PSL-BV1 (only) may be attached with valve in open or
closed position
• Locks must have a 0.3" (8 mm) or smaller shackle diameter with a
1.0" (25 mm) minimum shackle clearance
Part
Number Valve Size
In. (mm) Std.
Pkg.*
PSL-BV1 0.25 to 1.00 (13 to 25) 1
PSL-BV2 1.25 to 3.00 (32 to 76) 1
Cover valve handle
with cover. Slide multiple lock
piece over cover. Attach padlock(s).
• Four colors and five sizes to fit valve handles up to 13" (330 mm)
• Fast and easy to apply
• Locks must have a 0.3" (8 mm) or smaller shackle diameter with a
1.0" (25 mm) minimum shackle clearance
Part Number Valve
Handle Size
In. (mm) Std.
Pkg.*
RED BLUE GREEN YELLOW
PSL-V2 PSL-V2BLU PSL-V2GRN PSL-V2YEL 1.0 - 2.5 (25 to 64) 1
PSL-V4 PSL-V4BLU PSL-V4GRN PSL-V4YEL 2.5 - 5.0 (64 - 127) 1
PSL-V6 PSL-V6BLU PSL-V6GRN PSL-V6YEL 5.0 - 6.5 (127 - 165) 1
PSL-V9 — — PSL-V9YEL 6.5 - 10.0 (165 - 254) 1
PSL-V13 — — PSL-V13YEL 10.0 - 13.0 (254 - 330) 1
Prevents valve handle from
being turned.
Valve Lockouts
*Order number required in multiples of Std. Pkg.
11
Part
Number Contents Std.
Pkg.*
PSL-PK-EA
(1) Screwdriver
1
(1) PSL-PK Pouch
(1) PSL-5RED-LS Long Shackle Padlock w/Red Label
(1) PSL-MLD Multiple Lockout Device
(1) PSL-WS Wall Switch Lockout
(1) PSL-CB Circuit Breaker Lockout
(1) PSL-P Plug Lockout
(5 Tags) PVT-30 Electricians Blocking Tags
For the individual electrician to lockout
a variety of electrical sources.
Lockout Kits
*Order number required in multiples of Std. Pkg.
Part
Number Contents Std.
Pkg.*
PSL-KT-PWR
(1) Screwdriver
1
(1) PSL-STATION Metal Wall Mount Cabinet
(2) PSL-5RED-LS Long Shackle Padlocks w/Red Labels
(1) PSL-MLD Multiple Lockout Device
(2) PSL-CB Circuit Breaker Lockouts
(2) PSL-CBL Molded Case / Enclosed Systems Circuit
Breaker Lockouts
(2) PSL-CBIL Circuit Breaker Lockouts
(1) PSL-P Plug Lockout
(25 Tags) PVT-23-Q “DO NOT OPERATE ELECTRICIANS
AT WORK” Tags
Mount close to power and
distribution panels Station is equipped with a stop hinge
door so lockout devices won’t fall out Durable steel case is also portable
Metal Wall Mount Cabinet
Part
Number Description Dimensions
In. (mm) Std.
Pkg.*
PSL-STATION
Can be purchased
separately and filled with
your own variety of lockout
devices and tags
(Non-lockable)
14.75 x 10.25 x 4.63
(375 x 260 x 117) with two
0.38 (9) mounting holes 1
For locking out circuit breakers and
disconnect switches in a variety of pole
sizes, amperages and voltages.
Power and Panel Distribution Lockout Kit
Electrician’s Lockout Kit
12
Lockout Stations
Part
Number Description Size
In. (mm) Std.
Pkg.*
PSL-20SWC
Departmental Lockout Station
Components include:
(20) PSL-3RED padlocks (keyed differently)
(25) PVT-98 safety tags
(25) PVT-41 safety tags
(6) PSL-1.5 lockout hasps
24.0 x 19.0
(610 x 483) 1
PSL-20S Station Only
PSL-10SWC
Ten Lock Station
Components include:
(10) PSL-3RED padlocks (keyed differently)
(15) PVT-98 safety tags
(10) PVT-41 safety tags
(3) PSL-1.5 lockout hasps
12.0 x 19.0
(305 x 483) 1
PSL-10S Station Only
PSL-4SWC
Personal Lockout Station
Components include:
(4) PSL-3RED padlocks (keyed differently)
(15) PVT-98 safety tags
(3) PSL-1.5 lockout hasps
12.0 x 9.5
(305 x 241) 1
PSL-4S Station Only
Lockout Kits and Lockout Stations
*Order number required in multiples of Std. Pkg.
• Convenient way to store
departmental or personal
lockouts
• Durable rigid base with plastic
hanging hooks for locks
Part
Number Contents Std.
Pkg.*
PSL-KT-MROA
(1) Screwdriver
1
(1) PSL-BX Carrying Case - 6.5" x 5.0" x 14.5"
(32 x 127 x 368 mm)
(3) PSL-5RED-LS Long Shackle Padlocks w/Red Labels
(1) PSL-MLD Multiple Lockout Device
(2) PSL-WS Wall Switch Lockouts
(2) PSL-CB Circuit Breaker Lockouts
(2) PSL-P Plug Lockouts
(1) PSL-V4RED Gate Valve Lockout - 5.0" (127 mm)
(1) PSL-V2RED Gate Valve Lockout - 2.5" (64 mm)
(1) PSL-BV2 Ball Valve Lockout - 3.0" (76 mm)
(1) PSL-CL110 110V Plug Lockout
(10 Tags) PVT-44 “DO NOT OPERATE” Maintenance
Tags
Part
Number Contents Std.
Pkg.*
PSL-KT-CONA
(1) Screwdriver
1
(1) PSL-KT Carrying Case - 5.0" x 3.5" x 11.0"
(127 x 89 x 279 mm)
(3) PSL-5RED-LS Long Shackle Padlocks w/Red Labels
(3) PSL-5RED Standard Shackle Padlocks w/Red Labels
(1) PSL-1A Lockout Hasp - 1.0" (25 mm) Jaw Diameter
(1) PSL-MLD Multiple Lockout Device
(3) PSL-WS Wall Switch Lockouts
(3) PSL-CB Circuit Breaker Lockouts
(3) PSL-P Plug Lockouts
(15 Tags) PVT-98 “EQUIPMENT LOCKED OUT BY...”
Safety Tags
For Maintenance Departments who must
lockout a variety of electrical and
mechanical energy sources for
departmental work.
For the Electrical Contractor to identify
personnel working on a project required
to be locked out and provide lockout
capability for many projects.
Contractor Lockout Kit
MRO Lockout Kit
13
High Security Padlocks with Color Coded Lock Body
• Aluminum padlock with hardened steel shackles
• Powder coated finish resists scratches
• Ideal for corrosive and tough environments
• 30% lighter than laminated steel
• 0.25" (6 mm) diameter shackle
Part Number
Description Std.
Pkg.*
1" (25 mm) Shackle 3" (76 mm) Shackle
PSL-11BLU PSL-11BLU-LS Blue Lock 6
PSL-11BLK PSL-11BLK-LS Black Lock 6
PSL-11GRN PSL-11GRN-LS Green Lock 6
PSL-11ORNG PSL-11ORNG-LS Orange Lock 6
PSL-11RED PSL-11RED-LS Red Lock 6
PSL-11YEL PSL-11YEL-LS Yellow Lock 6
Each lock keyed differently
and supplied with 2 keys.
NOTE: These locks can be master keyed or
keyed alike. These locks can also be
custom engraved. See Custom Lock
Options on page 14.
Safety Lockout Padlocks
• Rugged, lightweight Xenoy† plastic body with non-hardened
steel shackle
• Supplied with padlock labels in English, Spanish and French
• Short body: 1.50" x 1.75" (38 x 44 mm)
• Long body: 1.50" x 3.00" (38 x 76 mm), allows for identification from
greater distances
• Shackle: 0.25" (6 mm) diameter x 1.50" (38 mm) length
†Xenoy is a registered trademark of General Electric
Part Number
Description Std.
Pkg.*
Short Body Long Body
PSL-4BLU PSL-4BLU-LB Blue Lock 6
PSL-4BLK PSL-4BLK-LB Black Lock 6
PSL-4GRN PSL-4GRN-LB Green Lock 6
PSL-4ORG PSL-4ORG-LB Orange Lock 6
PSL-4PRP PSL-4PRP-LB Purple Lock 6
PSL-4RED PSL-4RED-LB Red Lock 6
PSL-4TEL PSL-4TEL-LB Teal Lock 6
PSL-4YEL PSL-4YEL-LB Yellow Lock 6
Each lock keyed differently
and supplied with 1 key and 2
padlock labels.
NOTE: These locks can be master keyed or
keyed alike. These locks can also be
custom engraved. See Custom Lock
Options on page 14.
Padlocks
*Order number required in multiples of Std. Pkg.
Laminated Steel Padlocks with Color Coded Bumper
• Laminated steel, pin tumbler lock
• Double-locking, case-hardened steel shackle
• Bumper color identifies the department or an individual depending
on the operation size
• 0.28" (7 mm) diameter shackle
Part Number
Description Std.
Pkg.*
¾" (19 mm) Shackle 2" (51 mm) Shackle
PSL-3BLUE PSL-3BLUE-LS Lock with Blue Bumper 6
PSL-3BLACK PSL-3BLACK-LS Lock with Black Bumper 6
PSL-3GREEN PSL-3GREEN-LS Lock with Green Bumper 6
PSL-3RED PSL-3RED-LS Lock with Red Bumper 6
PSL-3WHITE PSL-3WHITE-LS Lock with White Bumper 6
PSL-3YELLOW PSL-3YELLOW-LS Lock with Yellow Bumper 6
Each lock keyed differently
and supplied with 2 keys.
NOTE: These locks can be master keyed
or keyed alike. See Custom Lock
Options on page 14.
These locks not suitable for custom
engraving.
14
Padlocks
Keyed Alike Laminated Steel Padlocks
• Ready to ship sets of PSL-3 series locks keyed alike. To order keyed alike locks for other styles or
master keyed locks, see the Custom Lock Options at the bottom of this page.
*Order number of sets required in multiples of Std. Pkg.
Part Number Locks
Per Set Std.
Pkg.*
Blue Bumper Black Bumper Green Bumper Red Bumper White Bumper Yellow Bumper
PSL-3BLU-KA2 ——PSL-3RED-KA2 PSL-3WHT-KA2 —21
PSL-3BLU-KA3 —PSL-3GRN-KA3 PSL-3RED-KA3 —PSL-3YEL-KA3 31
———PSL-3RED-KA4 — — 41
———PSL-3RED-KA5 — — 51
PSL-3BLU-KA6 —PSL-3GRN-KA6 PSL-3RED-KA6 — — 61
PSL-3BLU-KA10 PSL-3BLK-KA10 —PSL-3RED-KA10 — — 10 1
Value Line Padlocks with Color Coded Labels
Each lock keyed differently and
supplied with 2 keys and colored
padlock label.
NOTE: These locks not suitable for custom
engraving and cannot be master keyed or
keyed alike.
• Economical padlock has laminated steel body with case hardened,
corrosion resistant steel shackle and double steel ball locking
system
• All locks have black bumpers and are supplied with color coded
self-laminating padlock labels. Labels are designed with blank
write-on area for name and department designation and can be
marked with pencil or Panduit Marking Pens found on page 21.
Additional labels are found on page 16.
• 0.25" (6 mm) shackle diameter
*Order number required in multiples of Std. Pkg.
Part Number
Description Std.
Pkg.*
¾" (19 mm) Shackle 2.5" (64 mm) Shackle
PSL-5BLU —Lock with Blue Padlock Label 6
PSL-5BLK —Lock with Black Padlock Label 6
PSL-5GRN —Lock with Green Padlock Label 6
PSL-5RED PSL-5RED-LS Lock with Red Padlock Label 6
PSL-5WHT —Lock with White Padlock Label 6
PSL-5YEL —Lock with Yellow Padlock Label 6
Custom Lock Options
Padlocks are available with the following common
lock options:
• Master keying
• Keyed-alike locks
• Variety of lock sizes and shackle lengths
• Available in brass for harsh environments
• Engraving available on PSL-4 Safety Lockout
and PSL-11 High Security Padlocks
See Generic Lock Order Form on page 34.
Note: Excludes PSL-5 Value Line Padlocks

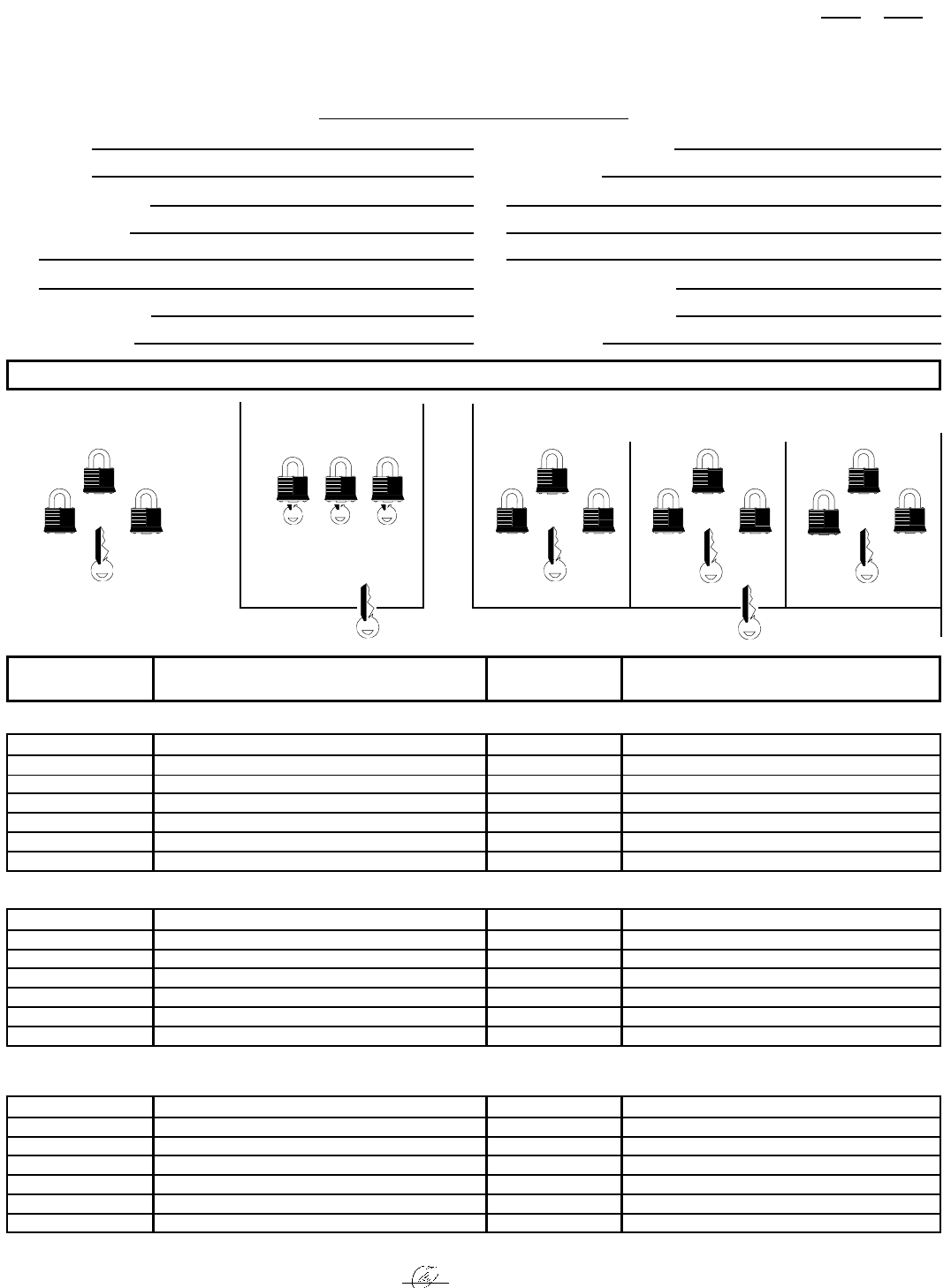

MASTER KEY
INDIVIDUALLY KEYED KEYED-ALIKE SYSTEMS
15
More than one worker can lockout the same
energy source for added safety. Heavy duty hasps
(PSL-HD1 and PSL-HD3) have tamper-proof
design for added security.
PSL-1.5
PSL-1.5A
PSL-1A PSL-1
PSL-HD1 PSL-HD3
PSL-MLD
Lockout Hasps .
Part
Number Description
Max.
No.
Locks Std.
Pkg.*
PSL-MLD Multiple Lockout Device; includes
lockout hasp and cable 61
PSL-MLDH-X PSL-MLD Lockout Hasps without cable 6 10
PSL-1 Hasp with 1.0" (25 mm) Diameter Jaw
and Overlapping Tabs 612
PSL-1.5 Hasp with 1.5" (38 mm) Diameter Jaw
and Overlapping Tabs 612
PSL-1A Hasp with 1.0" (25 mm) Diameter Jaw 6 12
PSL-1.5A Hasp with 1.5" (38 mm) Diameter Jaw 6 12
PSL-HD1 Heavy Duty Hasp with 1.0" x 1.0"
(25 x 25 mm) Clearance 512
PSL-HD3 Heavy Duty Hasp with 1.0" x 3.0"
(25 x 76 mm) Clearance 712
Fixturing for all brass and stainless steel tags is available for use with the Manual Indenter Marking
Press. Contact Stainless Steel Systems Products Technical Support at 866-405-6659.
Part
Number Description Std.
Pkg.*
PSL-TG1 Brass identification tag 12
PSL-SC Shackle Collar for attaching tags to padlocks 12
MTB1D-Q Brass identification tag 1.00" (25 mm) diameter 25
MT172W38-C Stainless steel tag 1.72" x 0.38" (44 x 9 mm) 100
MT172W38-C
PSL-TG1 PSL-SC
MTB1D-Q
Metal I.D. Tags and Collars
Padlock Eyes
Chain Attachment
• These padlock eyes can help bring you into compliance with OSHA
standards, which require that equipment be modified to accept
locks and lockout devices
• Surface mounted eyes are made of 0.13" (3 mm) hard
wrought steel
• Tamper resistant inside mounting eyes - 2.50" (64mm) wide, accept
shackle diameters up to 0.63" (16 mm)
Part
Number Description Std.
Pkg.*
PSL-PE1 Padlock eyes, angled (Metal mounting screws included) 1
PSL-PE2 Padlock eyes, straight (Wood mounting screws included) 1
• Optional 9.0" (229 mm) chain for permanently attaching lockouts at
pre-designed locations
Part
Number Description Std.
Pkg.*
PSL-PC Heavy duty zinc plated steel chain with chain holder attached 1
Lockout Hasps and Padlock Accessories
*Order number required in multiples of Std. Pkg.
16
Group Lock Box
Self-Laminating Padlock Labels
• Used to identify employees’ locks. Employees sign the label, attach
it to the padlock, and overwrap with the clear vinyl to protect the
legend.
• Available in six colors for departmental coding
• One piece design is easy to use
*Order number required in multiples of Std. Pkg.
Part
Number Description Size
In. (mm) Std.
Pkg.*
PSL-PL1BLU Blue Padlock Label 10.00 x 0.75 (254 x 19) 25
PSL-PL1BLK Black Padlock Label 10.00 x 0.75 (254 x 19) 25
PSL-PL1GRN Green Padlock Label 10.00 x 0.75 (254 x 19) 25
PSL-PL1RED Red Padlock Label 10.00 x 0.75 (254 x 19) 25
PSL-PL1WHT White Padlock Label 10.00 x 0.75 (254 x 19) 25
PSL-PL1YEL Yellow Padlock Label 10.00 x 0.75 (254 x 19) 25
• Used when there are multiple employees and energy sources
involved in a lockout procedure. Once all energy sources have been
locked out, all keys are placed in the lock box. The leader places a
lock on lock box until job is finished and all group members are
cleared from work area.
*Order number required in multiples of Std. Pkg.
Part
Number Description Dimensions
In. (mm) Std.
Pkg.*
PSL-GLB Lock box for group lockouts 10.00 x 6.00 x 4.00
(254 x 152 x 102) 1
Write-on Safety Tags
All tags have a write-on surface that accepts pen, pencil or marker pens. Can
be permanently marked with Panduit Marker Pens shown on page 21.
• Meet OSHA Standard 1910.147 requirements for tagout applications
• Semi-rigid plastic tags with a 0.38" (9 mm) brass grommet for greater
strength and increased durability
• Tags can be attached with a lockout device or with a Panduit PLT2S
nylon tie (50 lb. loop tensile strength) supplied with each tag
• PVT-† Package consists of 5 tags and 5 PLT2S cable ties
• PVT-†-Q Package consists of 25 tags and 25 PLT2S cable ties
*Order number of packages required in multiples of Std. Pkg.
† See pages 17-20 for available safety tags.
Part
Number Material Size
In. (mm) Tags Per
Pkg. Std.
Pkg.*
PVT-† Semi-Rigid Plastic 3.00 x 5.75 (76 x 146) 5 1 Pkg.
PVT-†-Q Semi-Rigid Plastic 3.00 x 5.75 (76 x 146) 25 1 Pkg.
Padlock Accessories and Lockout/Tagout Safety Tags
17
Write-on Safety Tags (cont.)
Front Side of Tags (Back side is indicated by Style A, B or C under part number and shown in box below).
Style A Style B Style C
Back Side of Tags
PVT-97
PVT-97-Q
Style B
PVT-146-Q
Style A
PVT-147-Q
Style A
PVT-148-Q
Style A
PVT-149-Q
Style A
PVT-150-Q
Style A
PVT-41
Style A
PVT-42-Q
Style A
PVT-43
Style A
Lockout/Tagout Safety Tags
PVT-23
PVT-23-Q
Style C
PVT-15
Style C
DO NOT OPERATE
PVT-99
PVT-99-Q
Style B
PVT-153-Q
Style A
*Order number of packages required in multiples of Std. Pkg. See page 16 for number of tags per package.
18
PVT-45-Q
Style A
PVT-155
PVT-155-Q
Style A
PVT-157-Q
Style A
PVT-156-Q
Style A
PVT-51-Q
Style A
PVT-52-Q
Style A
PVT-158-Q
Style A
Write-on Safety Tags (cont.)
Front Side of Tags (Back side is indicated by Style A, B or C under part number and shown in box below).
Style A Style B Style C
Back Side of Tags
*Order number of packages required in multiples of Std. Pkg. See page 16 for number of tags per package.
Lockout/Tagout Safety Tags
Front Back
PVT-30
PVT-30-Q
PVT-44
PVT-44-Q
Style A
Front Back
PVT-160-Q
PVT-96
PVT-96-Q
Style B
19
*Order number of packages required in multiples of Std. Pkg. See page 16 for number of tags per package.
PVT-26-Q
Style C PVT-9-Q
Style C PVT-62-Q
Style A
PVT-238-Q
Style A
Front Back
PVT-98
PVT-98-Q
Style A Style B Style C
Back Side of Tags
Write-on Safety Tags (cont.)
Front Side of Tags (Back side is indicated by Style A, B or C under part number and shown in box below).
Lockout/Tagout Safety Tags
PVT-27-Q
Style C
PVT-57-Q
Style A
20
Front Back
PVT-163-Q
Bilingual and Spanish Write-on Safety Tags
Lockout/Tagout Safety Tags
Front Back
PVT-162-Q
Front Back
PVT-161-Q
• Semi-rigid plastic with polyester laminate to protect photo and other written data
• Package consists of 5 tags and 5 PLT2S (50lb. loop tensile strength) nylon cable ties
• Tags have write-on surface and are 3.00" x 5.75" (76 x 146 mm)
DO
NOT
OPERATE
Do not remove
this lock. It
is here to
protect my life.
PLACE
HERE
Front Back
PST-3
*Order number of packages
required in multiples of Std. Pkg.
Part Number Std.
Pkg.*
PST-3 1 Pkg.
PST-12
Self Laminating Photo Tags
Front Back
PVT-97S-Q
Front Back
PVT-165-Q
Front Back
PST-12
*Order number of packages required in multiples of Std. Pkg. See page 16 for number of tags per package.
21

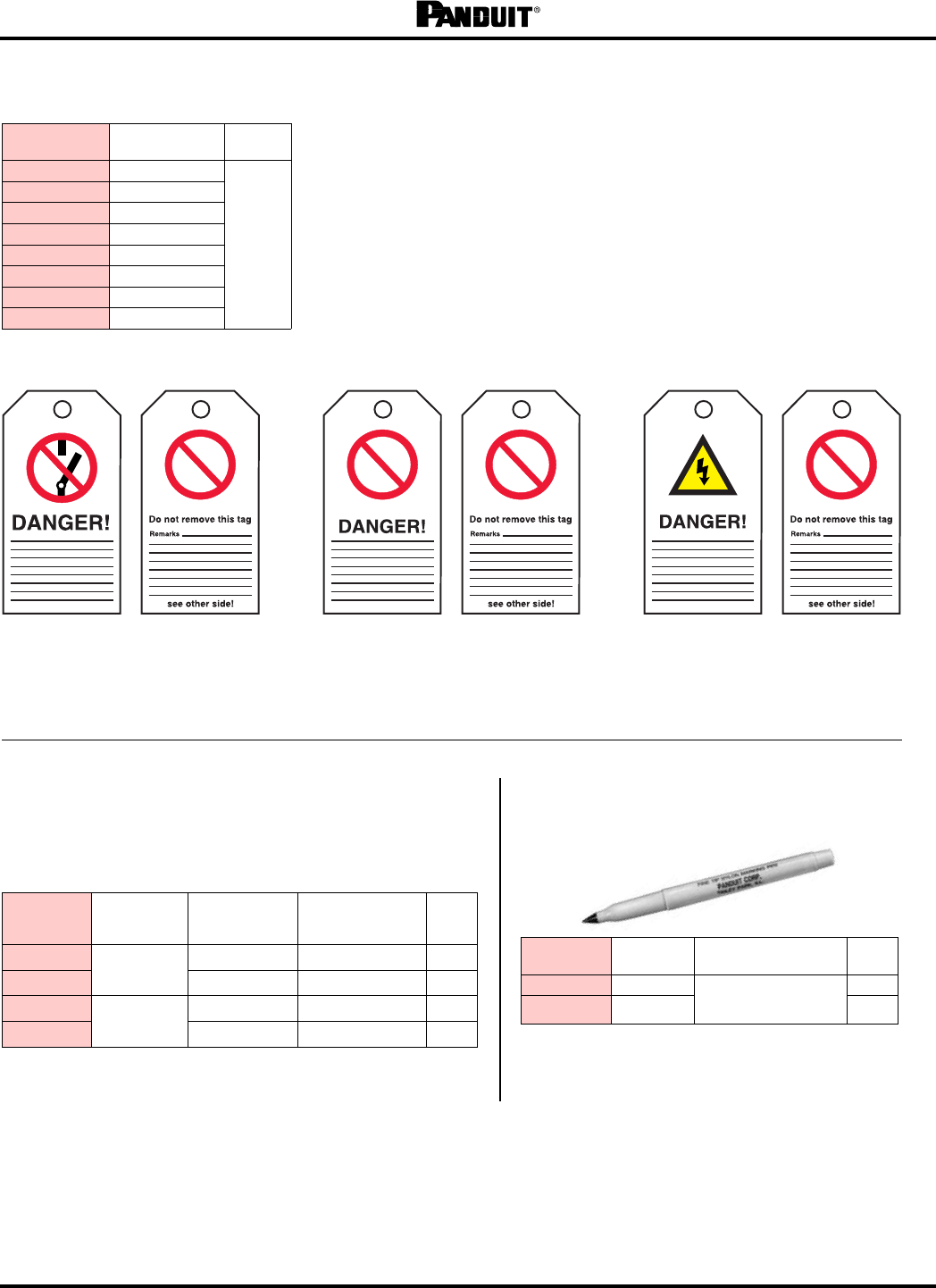

Replacement Nylon Ties
In addition to the PLT1.5I and PLT2S nylon ties supplied
with our lockout tags, Panduit offers other ties in different
sizes, colors and materials which can be used with tags.
Contact factory for details.
*Order number of ties required in multiples of Std. Pkg.
†PLT2S ties meet OSHA’s 50 lb. tensile strength tag attachment requirement
Part
Number Material
Approx.
Length
In. (mm)
Min. Loop
Tensile Strength
Lbs. (N) Std.
Pkg.*
PLT1.5I-C Natural
Nylon 6.6
(Indoor)
5.6 (142) 40 (178) 100
PLT2S-C† 7.4 (188) 50 (222) 100
PLT1.5I-C0 Weather
Resistant
Nylon 6.6
5.6 (142) 40 (178) 100
PLT2S-C0† 7.4 (188) 50 (222) 100
Marking Pens Used on Safety Tags
Permanent, fast drying ink. Fine tips.
* Order number of pens required in multiples of Std. Pkg.
Part
Number Color Description Std.
Pkg.*
PFX-0 Black Color of cap
and end is
color of ink.
12
PFX-2 Red 12
Lockout/Tagout Safety Tags

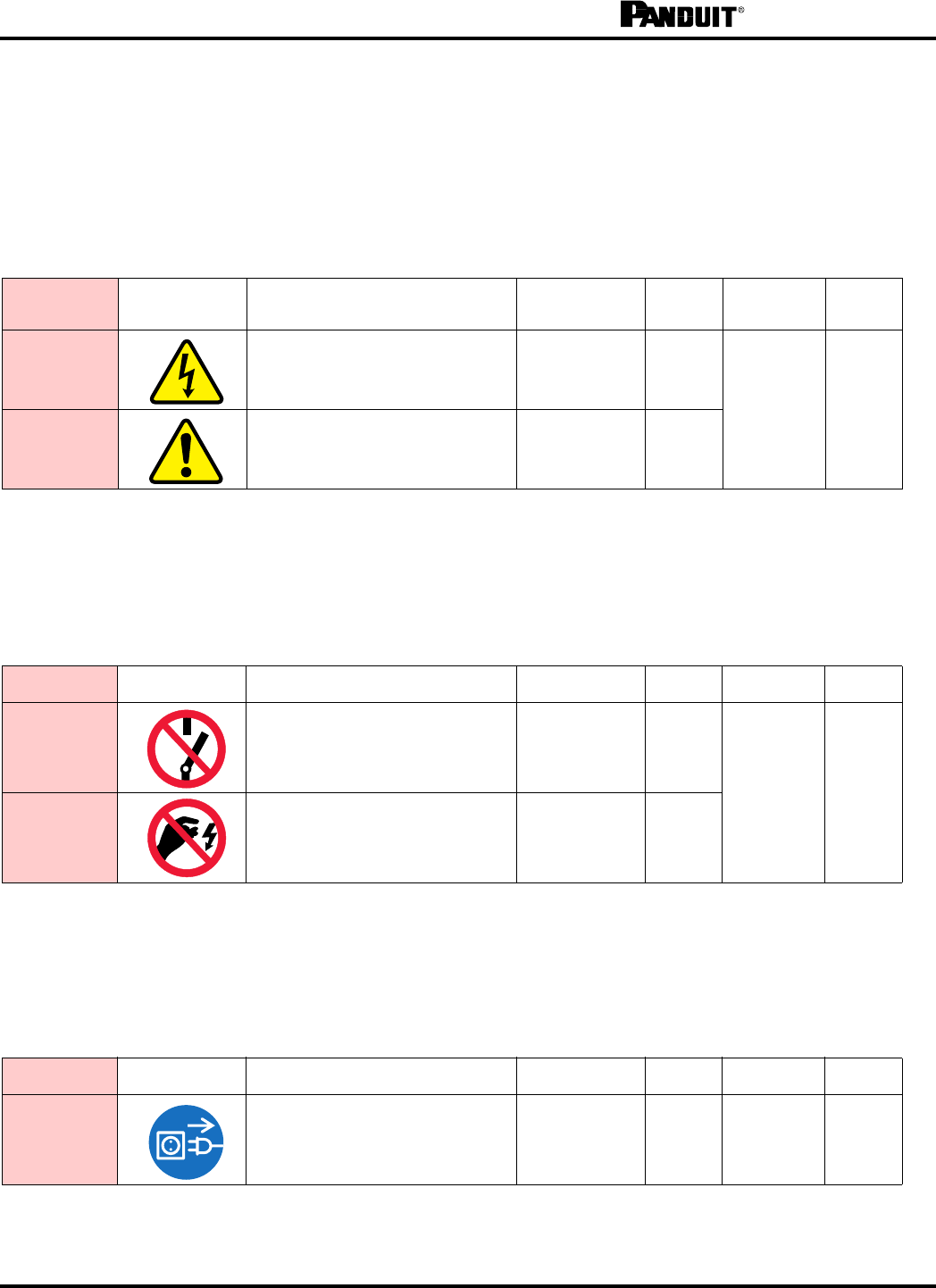

ISO Symbol Safety Tags
• The International Organization for Standardization (ISO) has
established a system to communicate safety information without
the use of words
• Package consists of 5 tags and 5 PLT2S (50lb. loop tensile
strength) nylon cable ties
• Semi-rigid plastic tags have write-on surface and are 3.00" x 5.75"
(76 x 146 mm)
• Available in 8 languages
*Order number of packages required in multiples of
Std. Pkg.
Part Number Language Std.
Pkg.*
PVT-*** English
1 Pkg.
PVT-***-NL Dutch
PVT-***-F French
PVT-***-D German
PVT-***-I Italian
PVT-***-N Norwegian
PVT-***-P Portuguese
PVT-***-E Spanish
Front Back
PVT-112
(Warning of Dangerous Electrical
Voltage)
Front Back
PVT-111
(Prohibition)
Front Back
PVT-110
(Do Not Throw Switch)
22
Standout (3D) Lockout Sign
Safety Signs
Panduit offers signs in three materials:
Indoor Adhesive Vinyl (Type PVS)
• Economical, general purpose signs for use in most environments
• Very good adhesive properties when applied to a clean surface
Indoor/Outdoor Sub-Surface Printed Adhesive Polyester
(Type PPS)
• High quality signs for use indoors and outdoors
• Excellent resistance to UV light, chemical atmosphere, and
abrasion
• Excellent life and adhesion properties
• Printed graphics are protected by clear polyester laminate
Indoor/Outdoor Rigid Polyethylene (Type PRS)
• Rugged signs for indoors and outdoors
• Abrasion resistant
• Used where adhesives will not work
*Order number required in multiples of Std. Pkg.
Part Number
Prefix Material Sign Size
In. (mm) Signs Per
Card Std.
Pkg.*
PVS0204†
Indoor
Adhesive
Vinyl
2.25 x 4.50 (57 x 114) 2 5 Cards
PVS0305†3.50 x 5.00 (89 x 127) 2 5 Cards
PVS0503†5.00 x 3.50 (127 x 89) 1 5 Signs
PVS0505†5.00 x 5.00 (127 x 127) 1 5 Signs
PVS0507†5.00 x 7.00 (127 x 178) 1 5 Signs
PVS0705†7.00 x 5.00 (178 x 127) 1 5 Signs
PVS0710†7.00 x 10.00 (178 x 254) 1 1 Sign
PVS1007†10.00 x 7.00 (254 x 7.00) 1 1 Sign
PPS0202†Indoor / Outdoor
Adhesive
Polyester
2.25 x 2.25 (57 x 57) 4 5 Cards
PPS0305†3.50 x 5.00 (89 x 127) 2 5 Cards
PPS0505†5.00 x 5.00 (127 x 127) 1 5 Signs
PPS0710†7.00 x 10.00 (178 x 254) 1 1 Sign
PRS0710†Indoor / Outdoor
Rigid
Polyethylene
7.00 x 10.00 (178 x 254) 1 1 Sign
PRS1007†10.00 x 7.00 (254 x 178) 1 1 Sign
PRS1014†10.00 x 14.00 (254 x 356) 1 1 Sign
PRS2014†20.00 x 14.00 (508 x 356) 1 1 Sign
• Rigid acrylic standout sign will identify the location of locks, lockout
devices and tags from any vantage point on the plant floor
• Stands out 4.00" (102 mm) from the wall
• Pre-drilled holes as well as self-adhesive mounting pads and
mounting screws and washers are provided for quick and easy
installation
*Order number of signs required in multiples of Std. Pkg.
Part
Number Description Size
In. (mm) Std.
Pkg.*
PAS-LOTO Standout (3D) Lockout Sign 6.00 x 8.75 (152 x 222) 1
Safety Signs
†See pages 23-26 for available
Safety Signs.
23
LOCK OUT
FOR SAFETY
THE FOLLOWING STEPS MUST
BE PERFORMED WHEN LOCKING
OUT EQUIPMENT:
1 - Identify all potential hazards
and energy sources.
2 - Inform operator / supervisor about
work to be performed.
3 - Prepare equipment for shutdown.
4 - Shutdown / turn off equipment.
5 - Isolate and LOCKOUT energy sources.
6 - Release all stored energy.
7 - Test equipment for zero energy state.
8 - Clear personnel / tools before
and after job.
9 - Remove locks and tags when work
completed.
PVS0204C529 PVS0204C501
PVS0204C526 PVS0710C173
PRS0710C173
PVS0204C524 PVS0204C525 PVS0503N458
PVS0705N458
PVS1007N458
PRS1007N458
PRS2014N182
Safety Signs
* Order number required in multiples of Std. Pkg., see page 22 for packaging information.

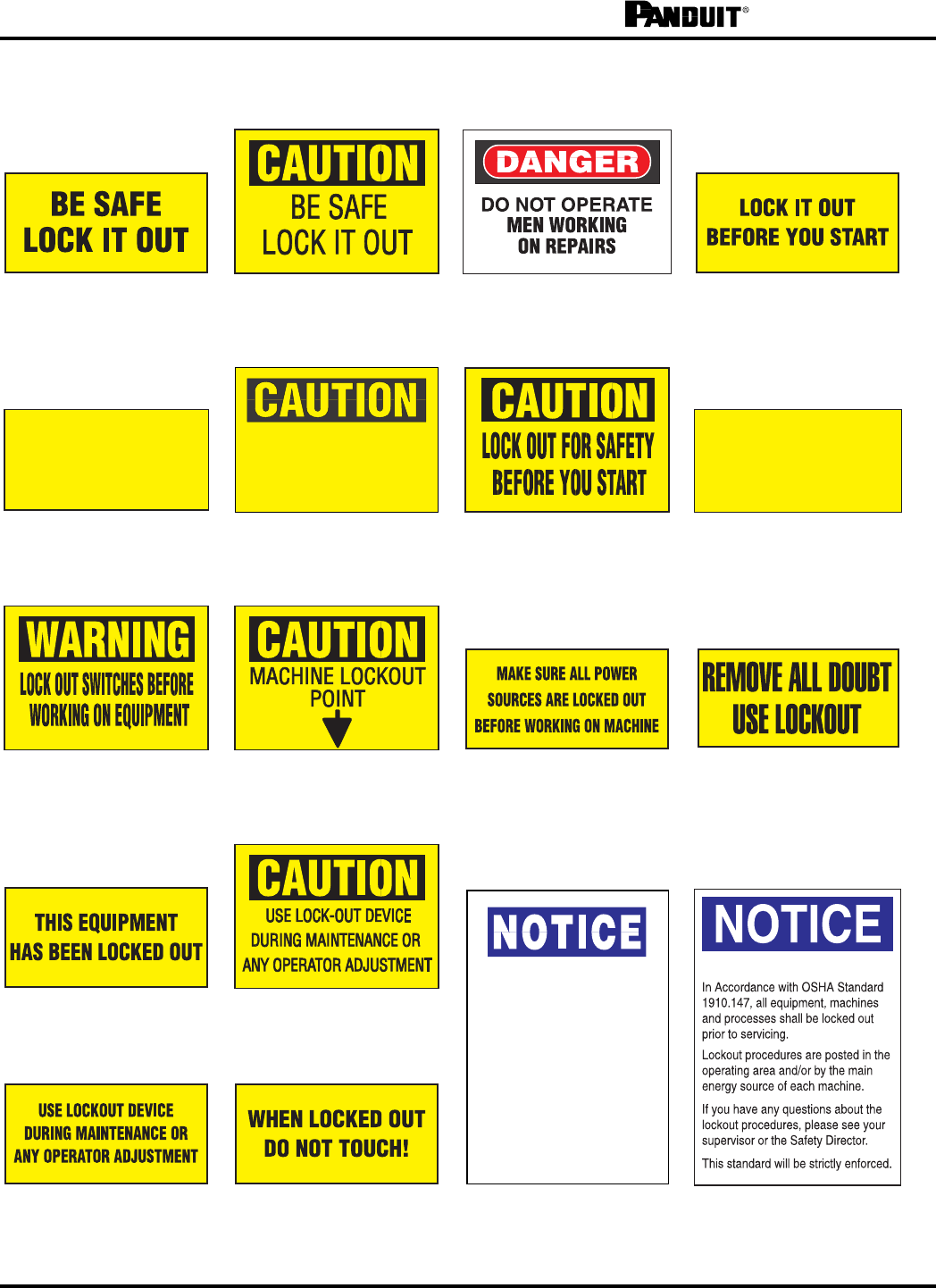

Lockout / Tagout Safety Signs
See page 22 for information on part number sizes and materials.
LOCK OUT
BEFORE SERVICING
LOCK OUT
HERE
PVS0204C531 PVS0710C180
PRS0710C180 PRS0710D83 PVS0204C523
PVS0204C176 PVS0204C175
PVS0507C175 PVS0204C171
PVS0710C171 PVS0204C177
PVS0204W172
PVS0710W172 PVS0204C179
24
Safety Signs
Electrical Hazard Safety Signs
See page 22 for information on part number sizes and materials.
PPS0710D72S PPS0710D66 PPS0710C141 PRS0507C143
PPS0710D68 PRS0710B361 PRS0710B360 PVS0509B364
PRS0710D68 PVS0710B364
PPS0509B364
PPS0710B364
PRS0710B364
PRS1014B364
CAUTION
HIGH
VOLTAGE
OVERHEAD
PPS0514B363 PRS1014D71 PPS0710N203
PPS0710D70 PPS0305D77 PVS0204D72
PPS1007D72SE
HIGH VOLTAGE
HIGH
VOLTAGE
ALTO
VOLTAJE
PRS1014D70 PPS0710D77 PVS0710D72
PPS0710D72
PRS0710D72
PRS1007D72
PRS1014D72
PRS1420D72
PVS0109D72
PRS1014B365
DANGER
HIGH VOLTAGE
CABLE BURIED
BELOW
*Order number required in multiples of Std. Pkg., see page 22 for packaging information.
25

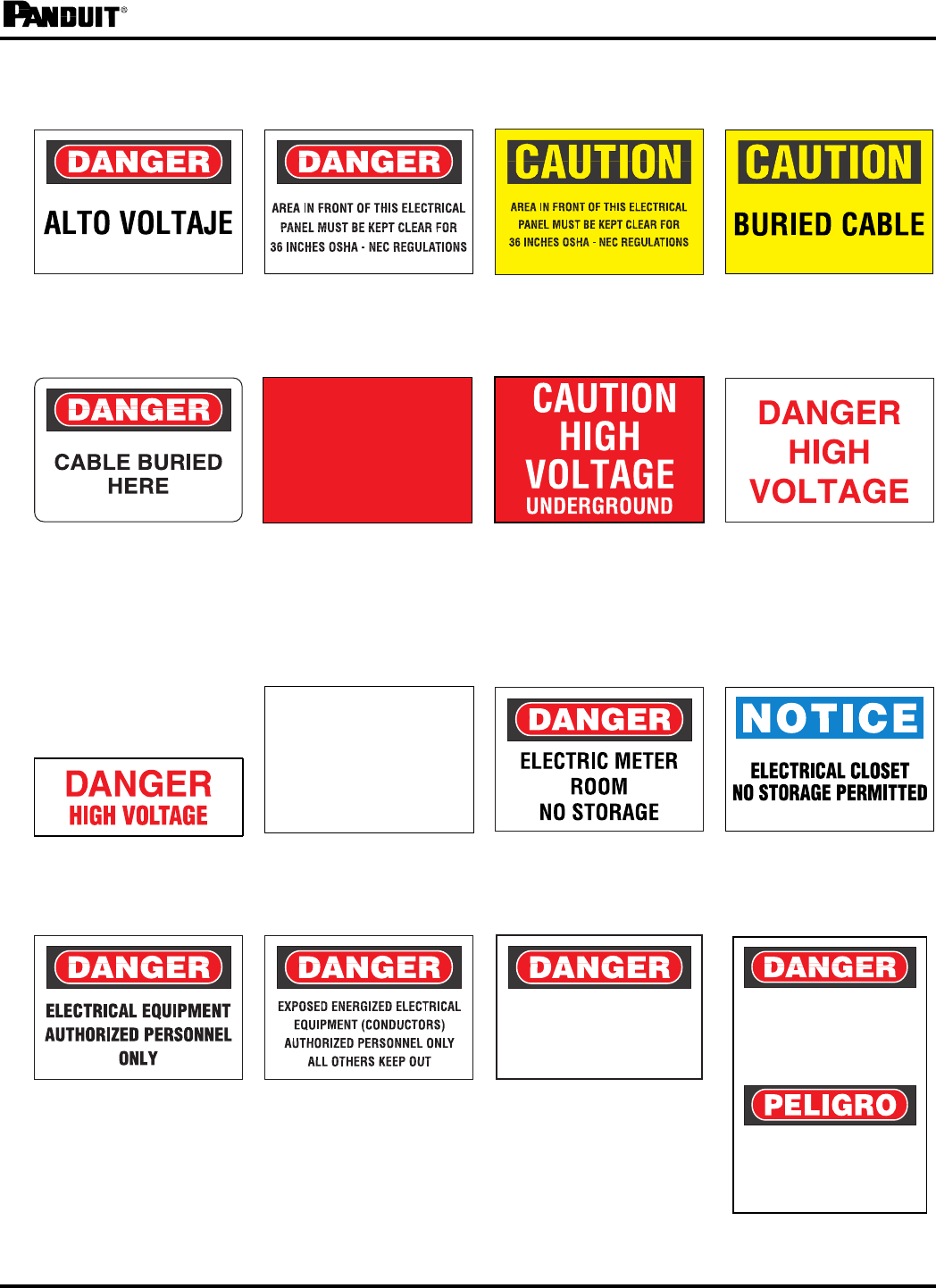

Safety Signs
Electrical Hazard Safety Signs
See page 22 for information on part number sizes and materials.
PPS0305D73 PRS1420D74 PPS0305D75
PRS0910D453
PRS1014D27
PPS0710D28
PPS0710D73
PPS1014D73
PRS1014D73
PRS1420D73
PPS0710D75
PPS1014D75
PRS1420D75
PRS0710D28
PRS1014D28
PRS1014D79
PVS0305W2101
PVS0507W2101
PPS0204W2100
PPS0305W2100
PPS0507W2100
*Order number required in multiples of Std. Pkg., see page 22 for packaging information.
26
CLEARANCE FT.
Safety Signs
PPS0710D24 PPS0202B494 PPS0710C119
PVS0204C533 PRS1014D84 PPS0202B521 PRS1014C122
PVS0710C519 PVS0710C518 PPS0202B493 PVS0204D100
PVS0204C522 PVS0204C178 PPS0710D101
PRS0710D101
PRS1014D101
PVS0305C174
PVS0505C174
PPS0305C174
PPS0505C174
PPS0202B520 PPS0710D102 PVS0705C181
THIS EQUIPMENT
STARTS AUTOMATICALLY

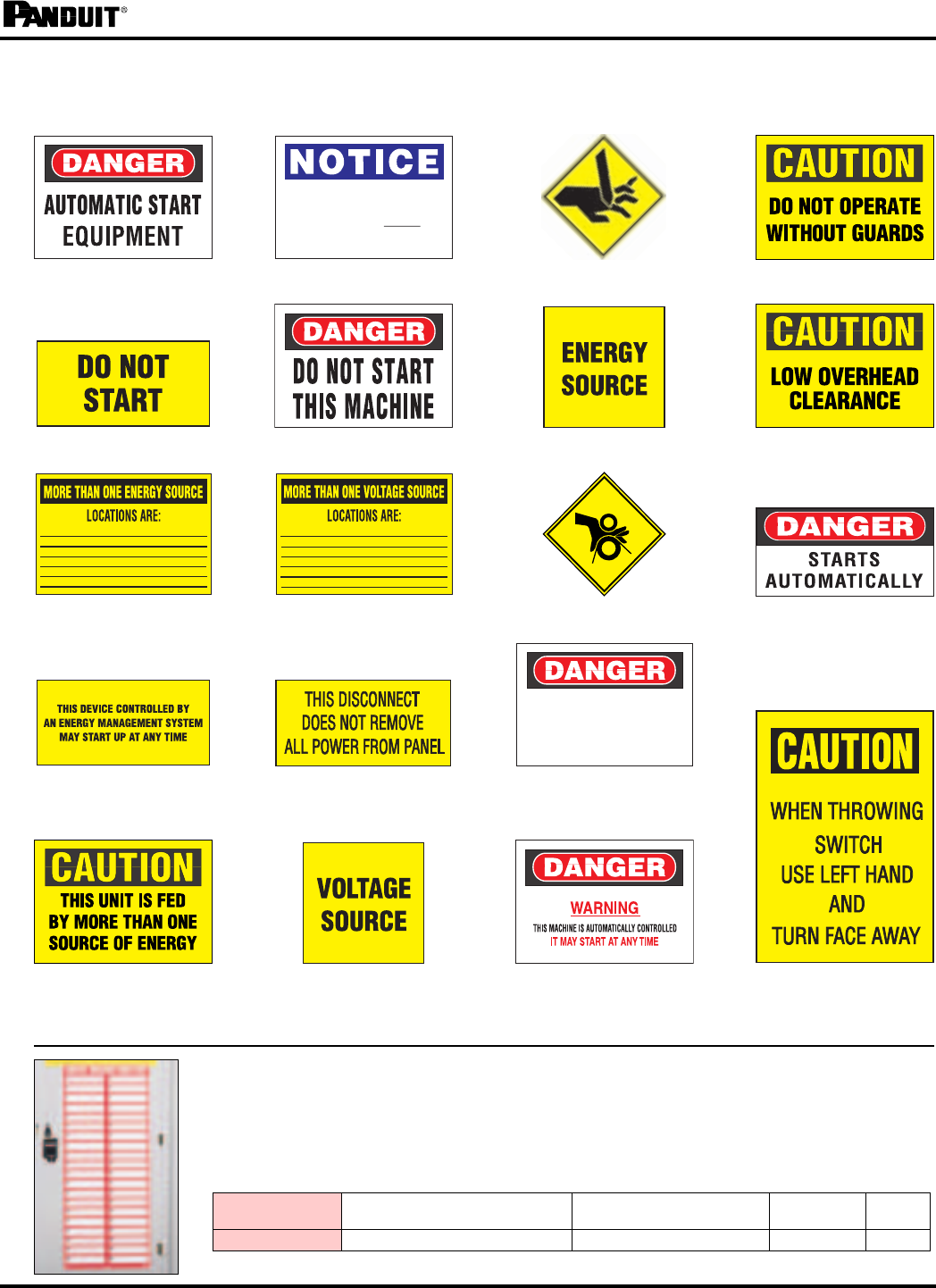

Machine and Operational Safety Signs
See page 22 for information on part number sizes and materials.
Circuit Breaker Directory Sign
• Eliminate the guesswork when identifying power sources — a must for lockout/
tagout compliance
• Adhesive paper sign designed to provide clear identification of circuit breaker
connections, list up to 40 circuits
Part
Number Description Size
In. (mm) Signs Per
Pkg. Std.
Pkg.*
PES-S1 Circuit Breaker Directory Sign 13.00 x 5.50 (330 x 140) 5 1 Pkg.
*Order number required in multiples of Std. Pkg.
PPS0710N191
27
SAFETY EASE ™ Safety Sign Software
and Accessories
Create lockout, operational and electrical signs and
tags in minutes!
• Create cost-effective English and Spanish signs and
tags on your ink jet or laser printer
• Select from over 2,000 pre-defined safety and general
facility legends or create your own custom legend
• Pictographs and spell check included
• System Requirements: WINDOWS^ 3.1 or higher, 386
processor or higher, 4 Mb RAM for WINDOWS 3.1 and
3.11, 8 Mb RAM for WINDOWS 95 and higher, 5 Mb
RAM hard drive space
Part
Number Description Format Std.
Pkg.*
SEZ-SN Safety Sign
Software (2) 3.5" Diskettes 1

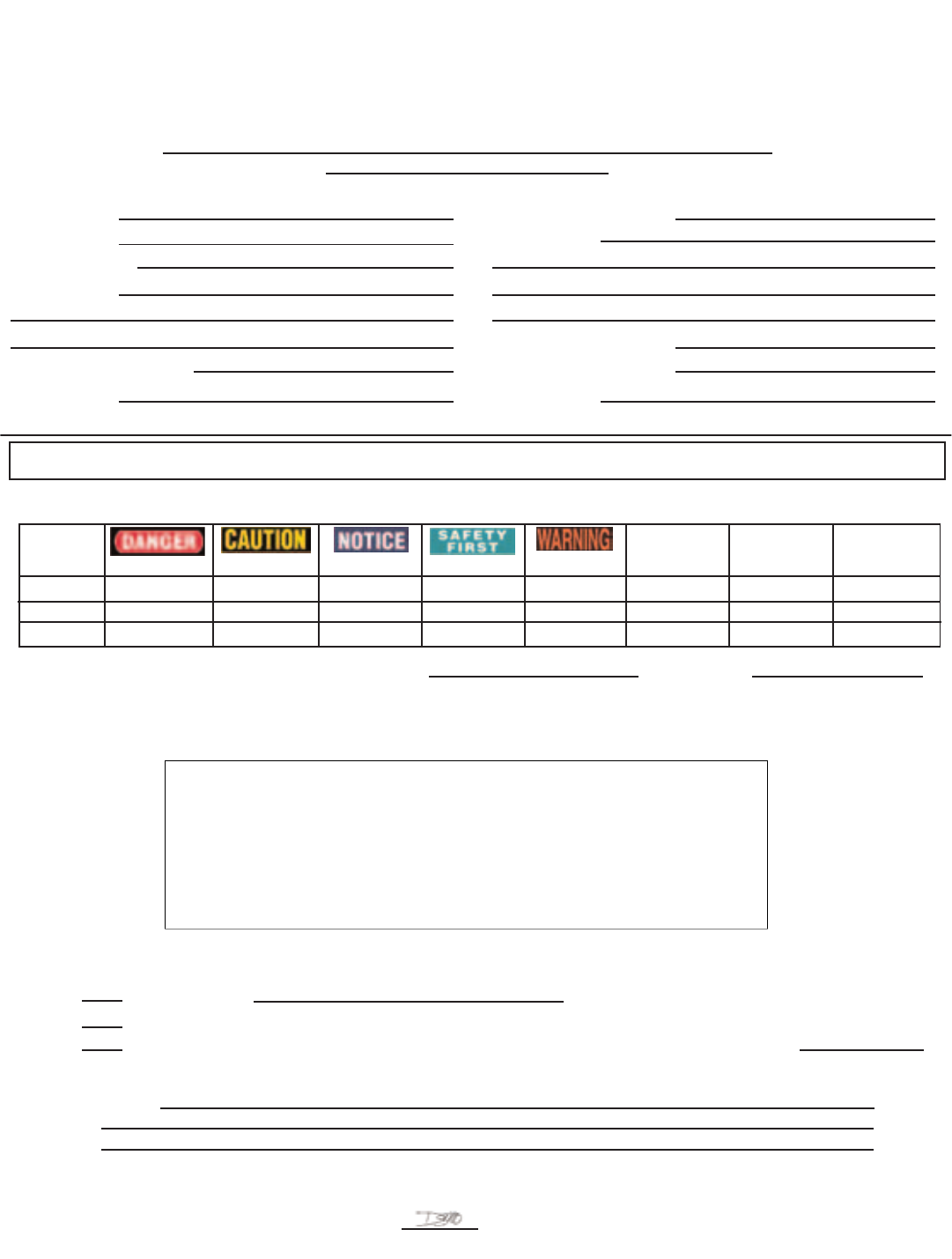

Part
Number Header Color
(Legend/Background) Size
In. (mm) Signs/
Pkg. Std.
Pkg.*
SEZ-1DLL DANGER Red and Black/White
8.5 x 11.0
(216 x 279) 25 1 Pkg.
SEZ-1CLL CAUTION Black/Yellow
SEZ-1NLL NOTICE Blue/White
SEZ-1WLL WARNING Black/Orange
SEZ-1YLL No Header Yellow
PLL-25-PO-SH No Header White
• Indoor pressure sensitive
Polyolefin signs with
square corners on stay
flat liner
Adhesive Laser Printable Signs
WARNING
Convenient Category and Message
Pull Down Menus allow user to choose
from over 2,000 legends
Pop Up Edit Screen allows the
user to quickly edit text, change
headers and add pictographs
*Order number of packages required in multiples of Std. Pkg.
^WINDOWS is a registered trademark of Microsoft
SAFETY EASE ™ Safety Sign Software and Accessories
28
Part
Number Description Lamination
Carriers
and Ties/
Pkg. Std.
Pkg.*
PST-4 Tag Carriers with
overlaminate Front Only 25 1 Pkg.
PST-5 Front and Back 25

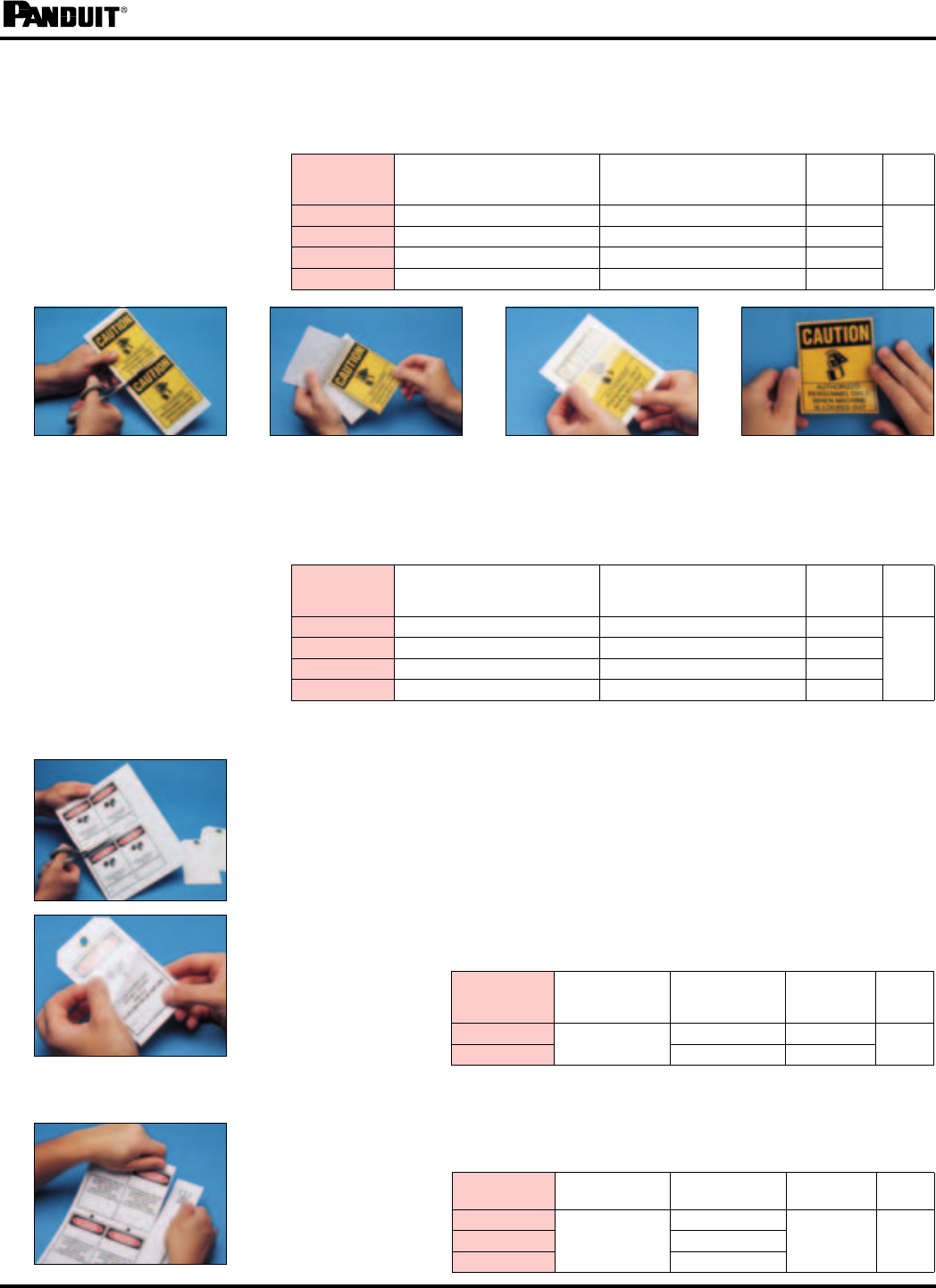

• Create your own rigid indoor tags with protected
legends in minutes! Using the PST Tag carrier allows
tags to be resistant to mild chemicals and acids.
Sturdy brass grommet provides extra durability
• Panduit PLT2S (7.4") nylon ties included for quick and
easy installation
• Meet OSHA Standard 1910.147 for lockout tag 50 lb.
pull force requirement
Place tag between self-
adhesive laminate liner
and rigid vinyl backing.
Fasten tag with Panduit
Cable Tie.
Print sheet of tag stock
using an ink-jet printer.
Tear tags apart on
perforation.
• Economical solution for temporary, indoor tags
Part
Number Description Color Sheets/
Pkg. Std.
Pkg.*
SEZ-TAGWH Perforated card
stock, four blank
tags per sheet
White
25 1 Pkg.
SEZ-TAGOR Orange
SEZ-TAGY Yellow
Economical Card Stock Tags for Ink Jet Printers
Indoor Rigid Vinyl Safety Tag Carriers
Print paper tag using a
laser or ink-jet printer. Use
scissors to cut out tag.
Part
Number Carrier Size
In. (mm)
For Maximum
Label Size
In. (mm)
Carriers
Per
Pkg. Std.
Pkg.*
SEZ-RSC1 7.0 x 6.0 (178 x 152) 6.0 x 5.0 (152 x 127) 5
1 Pkg.
SEZ-RSC2 10.5 x 7.0 (267 x 178) 9.5 x 6.0 (241 x 152) 5
SEZ-RSC4 12.0 x 6.0 (305 x 152) 11.0 x 5.0 (279 x 127) 5
SEZ-RSC3 12.0 x 9.5 (305 x 241) 11.0 x 8.5 (279 x 216) 5
• Convert paper to rigid
indoor signs
• Cut out paper sign
and insert into the
self-laminating carrier
Self-Laminating Rigid Sign Carriers
Part
Number Carrier Size
In. (mm)
For Maximum
Label Size
In. (mm)
Carriers
Per
Pkg. Std.
Pkg.*
SEZ-SNC4 7.0 x 6.0 (178 x 152) 6.0 x 5.0 (152 x 127) 5
1 Pkg.
SEZ-SNC2 10.5 x 7.0 (267 x 178) 9.5 x 6.0 (241 x 152) 5
SEZ-SNC3 12.0 x 6.0 (305 x 152) 11.0 x 5.0 (279 x 127) 5
SEZ-SNC1 12.0 x 9.5 (305 x 241) 11.0 x 8.5 (279 x 216) 5
• Convert paper to
adhesive indoor signs
• For clean and dry
surfaces
Self-Laminating Adhesive Sign Carriers
*Order number of packages required in multiples of Std. Pkg.
SAFETY EASE ™ Products (cont.)
Print paper marker using a
laser or ink jet printer and
cut out with scissors.
Place marker between the
two pieces of self-adhesive
laminate liner.
Remove top adhesive liner
by peeling and press firmly
onto top of marker.
Remove liner on back of
carrier and adhere to
clean, dry surface.
SAFETY EASE™
Safety Sign Software and Accessories
29
Voltage and Fiber Optic Adhesvie Markers
• Durable Indoor Vinyl Material
• Available in 3 sizes
• Black legend on orange background
*Order number of cards required in multiples of Std. Pkg.
Style Conduit O.D.
In. (mm)
Marker Size
Width x Length
In. (mm)
Markers
Per
Card Std.
Pkg.*
A3.00 (76) and Over 9.00 x 2.25 (229 x 57) 1 5
Cards
B1.25 - 3.00 (32 - 76) 4.50 x 1.13 (114 x 29) 4
C1.25 (32) and Under 2.25 x 0.50 (57 x 13) 18
Part Number
Legend Color
(Legend/Bkrnd)
Style A Style B Style C
PCV-110A PCV-110B PCV-110C 110 Volts
Black/Orange
PCV-115A PCV-115B PCV-115C 115 Volts
PCV-120A PCV-120B PCV-120C 120 Volts
PCV-120/208A PCV-120/208B PCV-120/208C 120/208 Volts
PCV-208A PCV-208B PCV-208C 208 Volts
PCV-220A PCV-220B PCV-220C 220 Volts
PCV-230A PCV-230B PCV-230C 230 Volts
PCV-240A PCV-240B PCV-240C 240 Volts
PCV-240/480A PCV-240/480B —240/480 Volts
PCV-277A PCV-277B PCV-277C 277 Volts
PCV-277/480A PCV-277/480B PCV-277/480C 277/480 Volts
PCV-380A PCV-380B PCV-380C 380 Volts
—PCV-415B —415 Volts
PCV-440A PCV-440B PCV-440C 440 Volts
PCV-460A PCV-460B PCV-460C 460 Volts
PCV-480A PCV-480B PCV-480C 480 Volts
PCV-550A PCV-550B PCV-550C 550 Volts
PCV-600A PCV-600B PCV-600C 600 Volts
PCV-2300A PCV-2300B —2300 Volts
PCV-2400A PCV-2400B —2400 Volts
PCV-4160A PCV-4160B —4160 Volts
PCV-4800A — — 4800 Volts
PCV-12000A — — 12000 Volts
PCV-12470A PCV-12470B —12470 Volts
PCV-13200A PCV-13200B —13200 Volts
PCV-13800A PCV-13800B —13800 Volts
—PCV-ACB PCV-ACC AC
PCV-BLANKA PCV-BLANKB PCV-BLANKC Blank-No Legend
——PCV-CNC Circuit #
—PCV-CBB —Circuit Breaker
PCV-DCA PCV-DCB PCV-DCC DC
PCV-ESA PCV-ESB PCV-ESC Emergency Service
PCV-FOA PCV-FOB PCV-FOC Fiber Optic
PCV-FOCA PCV-FOCB PCV-FOCC Fiber Optic Cable
—PCV-FAB PCV-FAC Fire Alarm
—PCV-L/PB —Light & Power
—PCV-LTSB PCV-LTSC Lights
PCV-MAINA PCV-MAINB PCV-MAINC Main
PCV-PWRA PCV-PWRB PCV-PWRC Power
PCV-1PHA PCV-1PHB PCV-1PHC Single Phase
PCV-TELEA PCV-TELEB PCV-TELEC Telephone
PCV-3PHA PCV-3PHB PCV-3PHC Three Phase
—PCV-VOLTSB PCV-VOLTSC _____VOLTS
Voltage Markers
30
Voltage and Fiber Optic Snap-On Markers (Non-Adhesive)
• Pre-coiled, sub-surface printed markers for indoor use
• Available in 2 sizes
• Rigid Polyester
• Black legend on orange background
*Order number of markers required in multiples of Std. Pkg.
Style Conduit O.D.
In. (mm)
Marker Size
Width x Length
In. (mm) Std.
Pkg.*
M2.25 - 6.00 (57 - 152) 14.00 x 23.00 (356 x 584) 1
Marker
R0.75 - 2.25 (19 - 57) 8.00 x 8.00 (203 x 203)
Part Number
Legend Color
(Legend/Bkrnd)
Style M Style R
—PCV-120R 120 Volts
Black/Orange
PCV-480M PCV-480R 480 Volts
PCV-4160M —4160 Volts
PCV-FOM PCV-FOR Fiber Optic
Marker Books
Vinyl
Marker Size:
1.50" x 3.25" (38 x 82 mm)
*Order number of books required in multiples of Std. Pkg.
Part Number Legend Markers Per
Page Markers Per
Book Std.
Pkg.*
Voltage Markers
PCVB-110 110 Volts
330 1 Book
PCVB-220 220 Volts
PCVB-277 277 Volts
PCVB-277/480 277/480 Volts
PCVB-440 440 Volts
PCVB-480 480 Volts
PCVB-550 550 Volts
PCVB-4160 4160 Volts
Safety Signs
PSSB-13 Danger High Voltage 330 1 Book
Voltage Markers
31
Label Dispensers
• Self-adhesive labels with write-on surface in handy dispenser
*Order number of dispensers required in multiples of Std. Pkg.
†See below for available label dispensers.
Part
Number Material Size
In. (mm) Labels per
Dispenser Std.
Pkg.*
PLD-†Subsurface
Printed Polyester
1.50 x 1.00 (38 x 25) 200
1 disp.
PLD-57 0.75 (19) diameter 300
PLD-71 2.00 x 1.00 (51 x 25) 150
Electrical Warning Labels
PLD-36 Caution 120V
PLD-37 Caution 220V
PLD-38 Caution 240V
PLD-91 Caution 480V
PLD-81
NEC 230.70(b)
PLD-12
PLD-56
ISO 3864 Warning -
Risk of Electric Shock
PLD-72
PLD-67
NEC 110-31
PLD-43
PLD-74
PLD-68
PLD-52
ISO 3864 Warning -
Risk of Danger
PLD-57
ISO 3864
PLD-71
NEC 240.53
32
Electrical Warning Labels
Electrical Symbols on Cards
* Order number of cards required in multiples of Std. Pkg.
†See below for additional electrical symbols on cards.
Part
Number Marker Size
In. (mm) Markers per
Card Material Std. Pkg.*
PESC-H-†0.51 x 0.51 (13 x 13) 60 Vinyl Cloth 10 Cards
PESC-J-†0.75 x 0.75 (19 x 19) 36
WL25
Reusable adhesive allows label to be
applied, unsealed and resealed.
WL32
ISO 3864
WL33
ISO 3864
*Order number of packages required in multiples of Std. Pkg. Qty.
Part
Number Material Legend
Color
(Legend/
Background)
Label Size
Width x Length
In. (mm)
Labels
per
Pkg.
Std.
Pkg.
Qty.*
WL25 Polyester Warning....Lift & Lock Black/Yellow 3.50 x 1.50 (89 x 38) 50
1 Pkg.
WL32 Laminated Vinyl Warning Risk Of Electrical Shock Sym. Black/Yellow 1.50 (38) Triangle 50
WL33 Laminated Vinyl Warning Risk Of Electrical Shock Sym. Black/Yellow 4.50 (114) Triangle 50
Electrical Warning Labels
PESC-†-AT
Warning of Dangerous
Electrical Voltage
PESC-†-E
Earth (Ground) PESC-†-EC
Protective Earth
(Ground)
PESC-†-PE
Protective Conductor
33
ISO Symbols
Part
Number Legend Description
Triangular
Length
In. (mm) Markers
Per Card Material Std.
Pkg.*
PESW-A-1
PESW-B-1
PESW-C-1
PESW-D-1
PESW-E-1
Warning - Risk of Electric Shock
0.49 (12.5)
0.98 (25.0)
1.97 (50.0)
3.94 (100.0)
7.87 (200.0)
10
10
10
3
1 Laminated
Vinyl 10 Cards
PESW-A-9
PESW-B-9
PESW-C-9
PESW-D-9
PESW-E-9
Warning of Hazard
0.49 (12.5)
0.98 (25.0)
1.97 (50.0)
3.94 (100.0)
7.87 (200.0)
10
10
10
3
1
• The International Organization for Standardization (ISO) has established a system to communicate
safety information without the use of words. This is accepted in most countries worldwide. Colors and
shapes recognizable worldwide are prescribed.
ISO symbology for "Risk of Danger" is a triangle (using black and yellow as its primary colors) to
denote "WARNING." The symbols below are those generally accepted as usable without
supplementary signs to explain the essence of the message.
• Ref. ISO 3864 (DIN 40008, DIN 4844)
ISO Labels - Warning Labels
• The circle denotes a prohibition or mandatory action. The following symbols in red, white and black
prohibit certain behavior.
• Ref. ISO 3864 (DIN 40008, DIN 4844)
ISO Labels — Prohibition Labels
Part
Number Symbol Description Marker Diameter
In. (mm) Markers
Per Card Material Std.
Pkg.*
PESV-C-1
PESV-D-1
PESV-E-1 Do not throw switch 1.97 (50)
3.94 (100)
7.87 (200)
5
1
1
Laminated
Vinyl 10 Cards
PESV-C-2
PESV-D-2
PESV-E-2 Do not touch 1.97 (50)
3.94 (100)
7.87 (200)
5
1
1
Part
Number Symbol Description Marker Diameter
In. (mm) Markers
Per Card Material Std.
Pkg.*
PESG-A-1
PESG-B-1
PESG-C-1
PESG-D-1
Switch off electrical supply
before working on equipment
0.49 (13)
0.98 (25)
1.97 (50)
3.94 (100)
10
10
5
1
Laminated
Vinyl 10 Cards
ISO Labels — Mandatory Labels
• The below symbol denotes a mandatory action without the use of words. The most common
mandatory action in the Electrical Industry is to insure the electrical supply is switched off.
• Ref. ISO3864 (DIN 40008)
*Order number of cards required in multiples of Std. Pkg.
Panduit offers a complete line of ISO Warning, Prohibition and Mandatory Symbol labels.
Contact Customer Service for more information.
34
Date: Panduit Sales Rep:
From: Distributor:
Telephone #:
End-User:
Distributor Contact:
Telephone #: Telephone #/Fax #:
Account #: Account #:
→
Z
A123
A1
→
→
KEYED ALIKE
SYSTEM
→
A
→
→
→
B
→
→
→
C
→
→
INDIVIDUALLY KEYED
AND MASTER KEYED KEYED ALIKE AND MASTER KEYED
Page of
A2 A3
MASTER KEY “A123”
ABC
MASTER KEY “ABC”
(Opens all locks in groups “A” “B” “C”)
Panduit Corp. Generic Lock Order Form
One Form per Generic Lock Option
Fax orders to Panduit Corp. - Attn. Customer Service (708) 570-3570
Generic Locks are Non-Returnable
Generic Padlock Options
Generic Lock
Part Number Description
GPSL-3KA Keyed Alike Padlock - 3/4” Shackle
GPSL-3LSKA Keyed Alike Padlock - 2” Shackle
GPSL-3MK Master Keyed Padlock - 3/4” Shackle
GPSL-3LSMK Master Keyed Padlock - 2” Shackle
GPSL-3MKEY Master Key for a PSL-3 Master Keyed Padlock
GPSL-3KAMK
Keyed Alike and Master Keyed Padlock - 3/4” Shackle
GPSL-3LSKAMK
Keyed Alike and Master Keyed Padlock - 2” Shackle
Qty
Min. 12/Lock Series
Notes
(Colors, Key Numbers, Set Description)
Form: ID-0209 Approved by MD 28FEB02 Property of Panduit Corp.
GPSL-4KA Keyed Alike Padlock
GPSL-4LBKA Keyed Alike Padlock - Long Body
GPSL-4MK Master Keyed Padlock
GPSL-4LBMK Master Keyed Padlock - Long Body
GPSL-4MKEY Master Key for a PSL-4 Master Keyed Padlock
GPSL-4KAMK Keyed Alike and Master Keyed Padlock
GPSL-4LBKAMK
Keyed Alike and Master Keyed Padlock - Long Body
For Pricing and Lead Time Information, Contact Customer Service at 888-506-5400, ext. 4959.
GPSL-11KA Keyed Alike Padlock - 1” Shackle
GPSL-11LSKA Keyed Alike Padlock - 3” Shackle
GPSL-11MK Master Keyed Padlock - 1” Shackle
GPSL-11LSMK Master Keyed Padlock - 3” Shackle
GPSL-11MKEY Master Key for a PSL-11 Master Keyed Padlock
GPSL-11KAMK
Keyed Alike and Master Keyed Padlock - 1” Shackle
GPSL-11LSKAMK
Keyed Alike and Master Keyed Padlock - 3” Shackle
35
Select the Generic Polyester Sign Part Number and Quantity
Black on White Black on Yellow Black on White Black on White
Panduit Sales Rep:
Distributor:
Distributor Contact:
Telephone#/Fax#:
Account #:
Panduit Corp. Generic Adhesive PPS Safety Sign Order Form
One Form per Generic Sign Option
Fax orders to Panduit Corporation, Attn: Customer Service (708) 570-3570
Generic Signs are Non-Returnable
Date:
From:
Telephone #:
End User:
Telephone#/Fax#:
Account #:
Generic PPS Sign Options
3” x 5”
7” x 10”
10” x 14”
Size
Black on White
Black on Orange Black on Yellow
“No Header” “No Header”“No Header”
GPPS0305D
GPPS0710D
GPPS1014D
GPPS0305C
GPPS0710C
GPPS1014C
GPPS0305N
GPPS0710N
GPPS1014N
GPPS0305SF
GPPS0710SF
GPPS1014SF
GPPS0305W
GPPS0710W
GPPS1014W
GPPS0305B-BO
GPPS0710B-BO
GPPS1014B-BO
GPPS0305B-BW
GPPS0710B-BW
GPPS1014B-BW
GPPS0305B-BY
GPPS0710B-BY
GPPS1014B-BY
Quantity Per Legend Per Size (Minimum of 10): Part Number:
Print Legend in the Format Required:
Include Logos and/or Pictograms
Check Applicable Order Requirements
Pictogram (type )
Logo Required (camera ready artwork must accompany order form)
Character Height (legend will be formatted to fit the size of the sign unless otherwise specified):
ARTWORK APPROVAL (Panduit reserves the right to assign artwork approval when necessary)
Notes:
For Pricing and Lead Time Information, Contact Customer Service at (888) 506-5400, extension 4959
Form: ID-0298 8NOV02 Property of Panduit Corp.
PanWeb contains the current revisions of documents. Printed copies should be checked for current date prior to use. Page ____ of ____
Black on Orange
Approved by DSMO
36
Select the Generic Semi-Rigid GMPE1 Polyethylene Sign Part Number and Quantity
Black on White Black on Yellow Black on White Black on Orange
Black on White
Panduit Sales Rep:
Distributor:
Distributor Contact:
Telephone#/Fax#:
Account #:
Panduit Corp. Generic Semi-Rigid PRS Safety Sign Order Form
One Form per Generic Sign Option
Fax orders to Panduit Corporation, Attn: Customer Service (708) 570-3570
Generic Signs are Non-Returnable
Date:
From:
Telephone #:
End User:
Telephone#/Fax#:
Account #:
Generic PRS Sign Options
7” x 10”
10” x 14”
14” x 20”
Size
Black on White
Black on Orange Black on Yellow
“No Header” “No Header”“No Header”
GPRS0710D
GPRS1014D
GPRS1420D
GPRS0710C
GPRS1014C
GPRS1420C
GPRS0710N
GPRS1014N
GPRS1420N
GPRS0710SF
GPRS1014SF
GPRS1420SF
GPRS0710W
GPRS1014W
GPRS1420W
GPRS0710B-BO
GPRS1014B-BO
GPRS1420B-BO
GPRS0710B-BW
GPRS1014B-BW
GPRS1420B-BW
GPRS0710B-BY
GPRS1014B-BY
GPRS1420B-BY
Quantity Per Legend Per Size (Minimum of 10): Part Number:
Print Legend in the Format Required:
Include Logos and/or Pictograms
Each sign will have (1) .1875” hole in each corner and .375” radius corners.
Check Applicable Order Requirements
Pictogram (type )
Logo Required (camera ready artwork must accompany order form)
Character Height (legend will be formatted to fit the size of the sign unless otherwise specified):
ARTWORK APPROVAL (Panduit reserves the right to assign artwork approval when necessary)
Notes:
For Pricing and Lead Time Information, Contact Customer Service at (888) 506-5400, extension 4959
Form: ID-0299 8NOV02 Property of Panduit Corp.
PanWeb contains the current revisions of documents. Printed copies should be checked for current date prior to use.
Page ____ of ____
Approved by DSMO
37
GPCV-AO
GPCV-BO
GPCV-CO
GPCV-AY
GPCV-BY
GPCV-CY
Panduit Sales Rep:
Distributor:
Distributor Contact:
Telephone#/Fax#:
Account #:
Panduit Corp. Generic Conduit and Voltage Marker Order Form
One Form per Generic Marker Option
Fax orders to Panduit Corporation, Attn: Customer Service (708) 570-3570
Generic Markers are Non-Returnable
Date:
From:
Telephone #:
End User:
Telephone#/Fax#:
Account #:
Generic Conduit and Voltage Marker Options
Pressure Sensitive Adhesive GMV1 Vinyl
Conduit and Voltage Markers Semi-Rigid Snap-On GMPET Polyester
Conduit and Voltage Markers
LEGEND LEGEND LEGEND
LEGEND LEGEND
STYLE A
Marker size: 2.25” x 9” - 1 marker per card
Character height: 1.75”
STYLE B
Marker size: 1.125” x 4.5” - 1 marker per card
Character height: .75”
STYLE C
Marker size: .50” x 2.25” - 18 marker per card
Character height: .3125”
Minimum Order Quantity: 10 cards per legend per size
and in multiples of 5 cards
Part
Desired
✓✓
Quantity
of Cards Part
Number Legend
Color Backgrnd
Color Style Markers/
Card
BLACK
BLACK
BLACK
BLACK
BLACK
BLACK
ORANGE
ORANGE
ORANGE
YELLOW
YELLOW
YELLOW
A
B
C
A
B
C
1
4
18
1
4
18
Print Legend Required
Legend to fit on one line. Max. 17 characters including spaces.
*Note:In Style B and C, if you want several different legends on a card, draw the lines
to signify label division on the legend area. Write in the different legends needed.
For Pricing and Lead Time Information, Contact Customer Service at (888) 506-5400, extension 4959
Form: ID-0165 Approved by DSMO 8NOV02 Property of Panduit Corp.
– Protected graphics
– 6 Reversible legends per marker
– Character height: Size M - .50”
Size R - .75”
Minimum Order Quantity: 10 markers per legend per size
Part
Desired
✓✓
Quantity
of
Markers
Part
Number Legend
Color Backgrnd
Color Length
of
Marker
Style
GPCV-RO
GPCV-MO
GPCV-RY
GPCV-MY
BLACK
BLACK
BLACK
BLACK
ORANGE
ORANGE
YELLOW
YELLOW
R
M
R
M
Conduit
O.D.
Range
3/4” - 2 1/4”
2 1/2” - 6”
3/4” - 2 1/4”
2 1/2” - 6”
8”
14”
8”
14”
Print Legend Required
Legend to fit on one line. Max. 19 characters including spaces.
PanWeb contains the current revisions of documents. Printed copies should be checked for current date prior to use.
Page ____ of ____
38
*
Panduit Sales Rep:
Distributor:
Distributor Contact:
Telephone#/Fax#:
Account #:
Panduit Corp. Generic PVT Vinyl Tag Order Form
PanWeb contains the current revisions of documents. Printed copies should be checked for current date prior to use.
One Form per Generic Tag Option
Fax orders to Panduit Corporation, Attn: Customer Service (708) 570-3570
Generic Tags are Non-Returnable
Date:
From:
Telephone #:
End User:
Telephone#/Fax#:
Account #:
Select the Generic Vinyl Tag Part Number and Quantity:
Black on White Black on Yellow Black on White
1
2
Number of
Sides Printed Black on Yellow
Black on White Black on Red
“No Header” “No Header”“No Header”
GPVT-RBW1
GPVT-RBW2
GPVT-BY1
GPVT-BY2
GPVT-BBW1
GPVT-BBW2
GPVT-W1-1
GPVT-W1-2
Quantity In Packs (min. of 4 packs, 25 tags and ties / pack): Part Number:
Black on Green
“No Header”
Use this space to create a rough sketch of your tag.
Please indicate colors and legend. Please print.
Attach an additional page or customer sketch if needed.
Pictogram (type )
Logo Required (camera ready artwork must
accompany the order form)
Character Height (legend will be formatted to fit
the size of the tag unless otherwise specified)
Logo Required (Panduit reserves the right to
assign artwork approval when necessary)
Check Applicable Order Requirements:
*Normal position of header. Hole size = .375”
with grommet.
(1) Panduit tie is included per tag.
For Pricing and Lead Time Information, Contact Customer Service at (888) 506-5400, extension 4959
Form: ID-0266 8NOV02 Property of Panduit Corp.
*
3”
FRONT OF TAG BACK OF TAG
5.75”
Page ____ of ____
GPVT-Y1-1
GPVT-Y1-2
GPVT-R1-1
GPVT-R1-2
GPVT-G1-1
GPVT-G1-2
Approved by DSMO

Navigation menu
