Green Lighting Technology
Eco-Logical
A Common Sense Approach to Sustainability
Sustainability is a term often used today by many businesses to show
they are interested in the long-term preservation of our planet and its
occupants. Crescent/Stonco defines sustainability as acting with long
term consequences in mind and managing our business such that our
products can be manufactured and used indefinitely with minimal impact
on the environment. In other words, we practice what we preach and
build lighting products with little waste as possible, and that operate with
longer life cycles using far less energy.
Take this catalog as an example. Unlike the majority of lighting
manufacturers, we purposely made our catalog with as few pages
as possible. We introduce key product offerings only, and we have
eliminated coated paper and varnish coatings, making our catalog easy
to recycle at the end of its useful life. We also use a recycled paper stock
with only black ink to simplify the printing process.
Crescent/Stonco developed a full-featured and easy to navigate website
for all detailed information and comprehensive products list. Search
online quickly and print only the information you need. We have made
it easy to measure and compare the efficiency of current systems to
high performing, low energy consuming Crescent/Stonco luminaires
using special online tools. Need to know how you can benefit financially
through tax incentives and rebates? Our website offers valuable resources
for every step of the way.
The same philosophy reflects with our products. Crescent/Stonco has
always developed luminaires that deliver greater efficiency. Our next
generation lines include LED outdoor lighting, solar lighting packages
that operated at no cost for years and retrofit kits that convert old, energy-
hog ceiling fixtures to high-output, low energy usage units without
removing the fixture!
Crescent/Stonco also believes in Build America-Buy America. Our
products help keep your neighbors working, and our products offer
greater value than cheap imports. When you want the best and most
efficient lighting products, contact your Crescent/Stonco dealer and he
will develop a lighting package that’s best for you.
Visit www.csgreenlightingsolutions.com for more information
on Crescent/Stonco’s approach to Energy Conservation Through
Lighting Innovation.

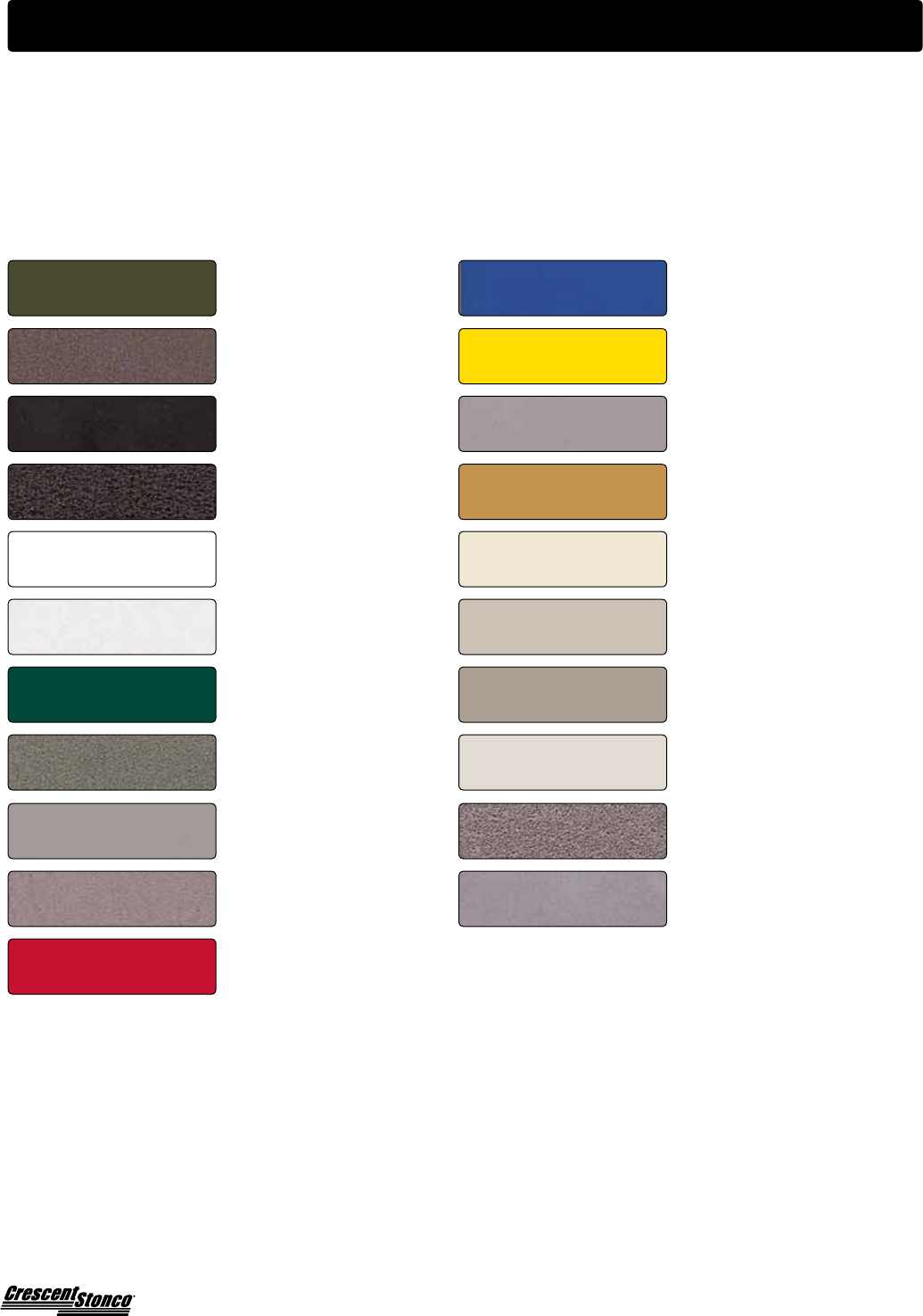

Colors
Colors
The following finish options apply to a select group of Stonco products. Consult factory for availability. To order products in a specific finish other than the standard
factory finish, add the suffix of the desired finish at the end of the catalog number, preceding the voltage code. EXAMPLE: FPM175PMALBLK-8.
Finishes are representative of actual colors only. Consult factory for color chips.
Bronze BRZ
Protech Paint # UM612M38
Wrinkle Bronze BRW
Protech Paint # PM612M145
Black BLF
Protech Paint # US511NG
Wrinkle Black BLK
Protech Paint # PW311N34
White WHT
Protech Paint # PS212W203
Wrinkle White WHW
Protech Paint # PW612W202
Green GRN
Protech Paint # PS211G58
Wrinkle Green GRW
Protech Paint # PW612G285
Gray GRA
Protech Paint # PS311A13
Wrinkle Gray GRY
Protech Paint # PW612A267
Red RED
Protech Paint # PS211R95
Blue BLU
Protech Paint # PS211B6
Yellow YEL
Protech Paint # PS211Y56
Silver SIL
Protech Paint # UM211S11
Caramel CA
Protech Paint # PX611M146
Almond ALM
Protech Paint # PS111H1
Limestone LS
Protech Paint # PX611H167
Clay CL
Protech Paint # PX611A260
Slate SL
Protech Paint # PX612A261
Galvanite GA
Protech Paint # PM611S58
Satin Aluminum* SA
Consult Factory
* Indoor use only
Product information subject to change without notice.
1
www.crescent-stonco.com
New for 2010

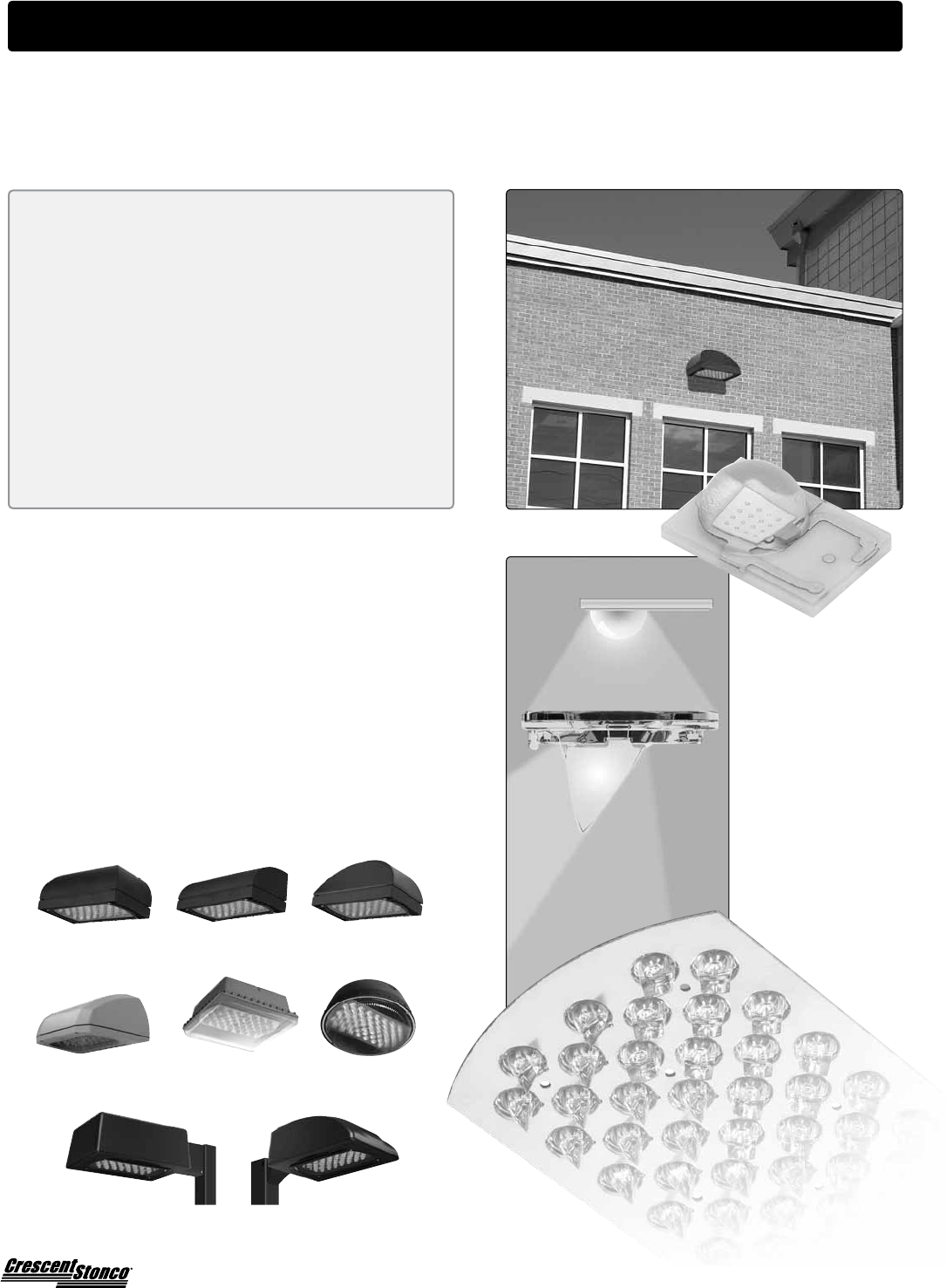

LED Site Lighting
• PhilipsLEDlightengine
• Familyofxtures
• 60,000hoursoveritsoperationallifespan
• Deliversenergysavingsofupto50%

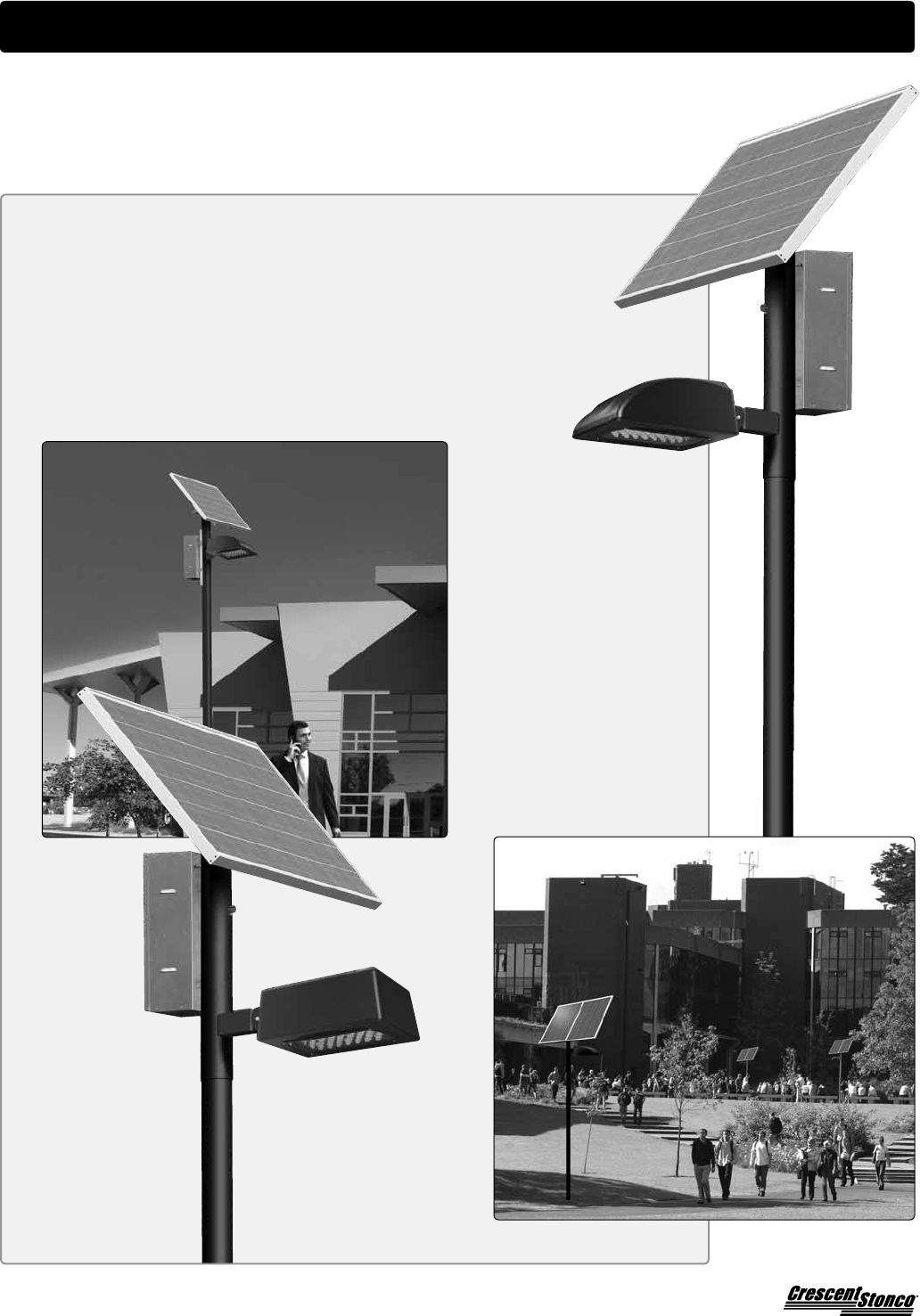

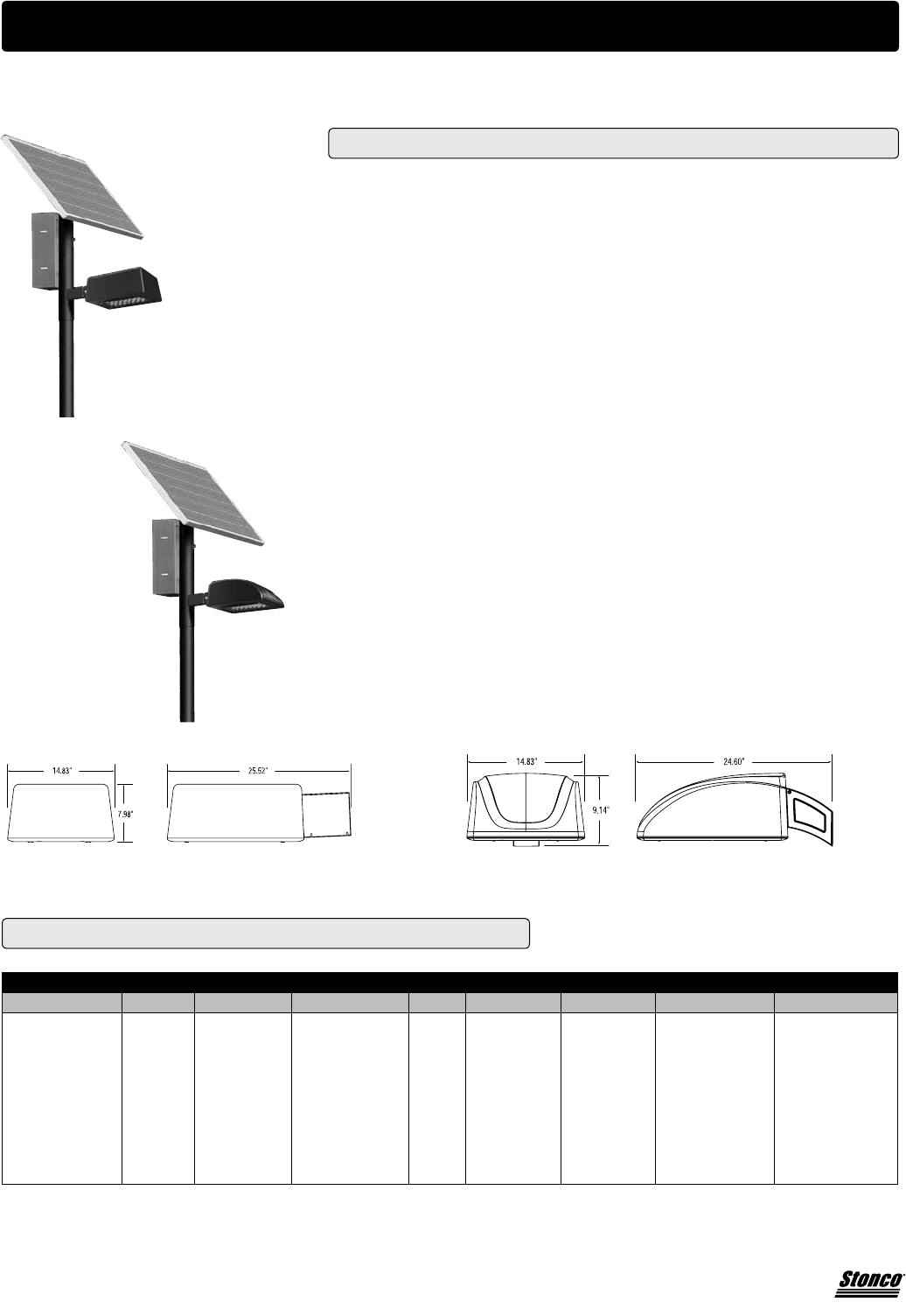

Solar Site Lighting
• Requiresnocabletrenching
• Freeoperationoversystemlife
• IncludesLEDxture,solarpanel,controller,
batteryandpole
LytePro7 Architectural LED Sconce
• PhilipsLEDlightengine
• Averageratedlifeof60,000hours
• 13systemwatts
• Titaniumandwhitenishes
Value LED
• Die-castaluminumconstructionforexcellentheat
management
• Value-basedxturesformostapplications
• Evenilluminationat4000kcolortemperature
Retrofit Kits
• Availableforinternaltroffersandparabolics
• Designedforeasyinstallation
• ReplacesconventionalT12systemswithhigh-
efciencyT5,T5HOandT8
LED LytePlus Undercabinet
• Bright,evenillumination
• Thinprole
• Foursizes(9”,12”,18”and24”)
• WhiteandStainlessSteel
Philips QL Induction Systems
• Availablein55w,85wand165w
• Parkinggarages,oods,arealightingand
surface-mountingapplications
• 100,000lamplife
WeT-Bay
• IP66andIP67rated
• 4-and6-lampcongurations
• Waterclearlenswithfrostedends
• Wetlocationlisted(1,300psihose-down)
X-Treme Series Linear Fluorescent
• 50,000hourlamplifebasedonminimum
 12hourstart
• PhilipsXXLT8lamping
• AdvanceprogrammedstartOptaniumballast
Survi’VR Series Cutoff
• Twistandsealinstallation
• HIDandcompactuorescentsources
• One-pieceinjectionmoldedhousing
• Uniquevandal-resistant“ShockandSeal”design
HPT8
• Combineshighefciencyelectronicballastsand
fourfoot32wattT8lamps
• Energysavingsupto40%
• Availableintroffers,parabolics,RDIandwraps
X-Bay
• X-Tremethermalmanagement
• X-Tremeopticalperformancewithprecision
die-formedMiro4reector
• X-Tremeenergymanagementwith50%saving
overconventionalHIDhighbays
2www.crescent-stonco.com
Pictoral Index
Recessed - Page 3 Surface - Page 11 Undercabinet - Page 17 Industrial - Page 21 Exit - Page 31
Vandal - Page 51 Flood - Page 58 Surface - Page 70 Canopy - Page 78 Area - Page 83
Industrial - Page 93 Architectural - Page 111 Supply - Page 123
Crescent Products
Stonco Products
3
www.crescentlighting.com

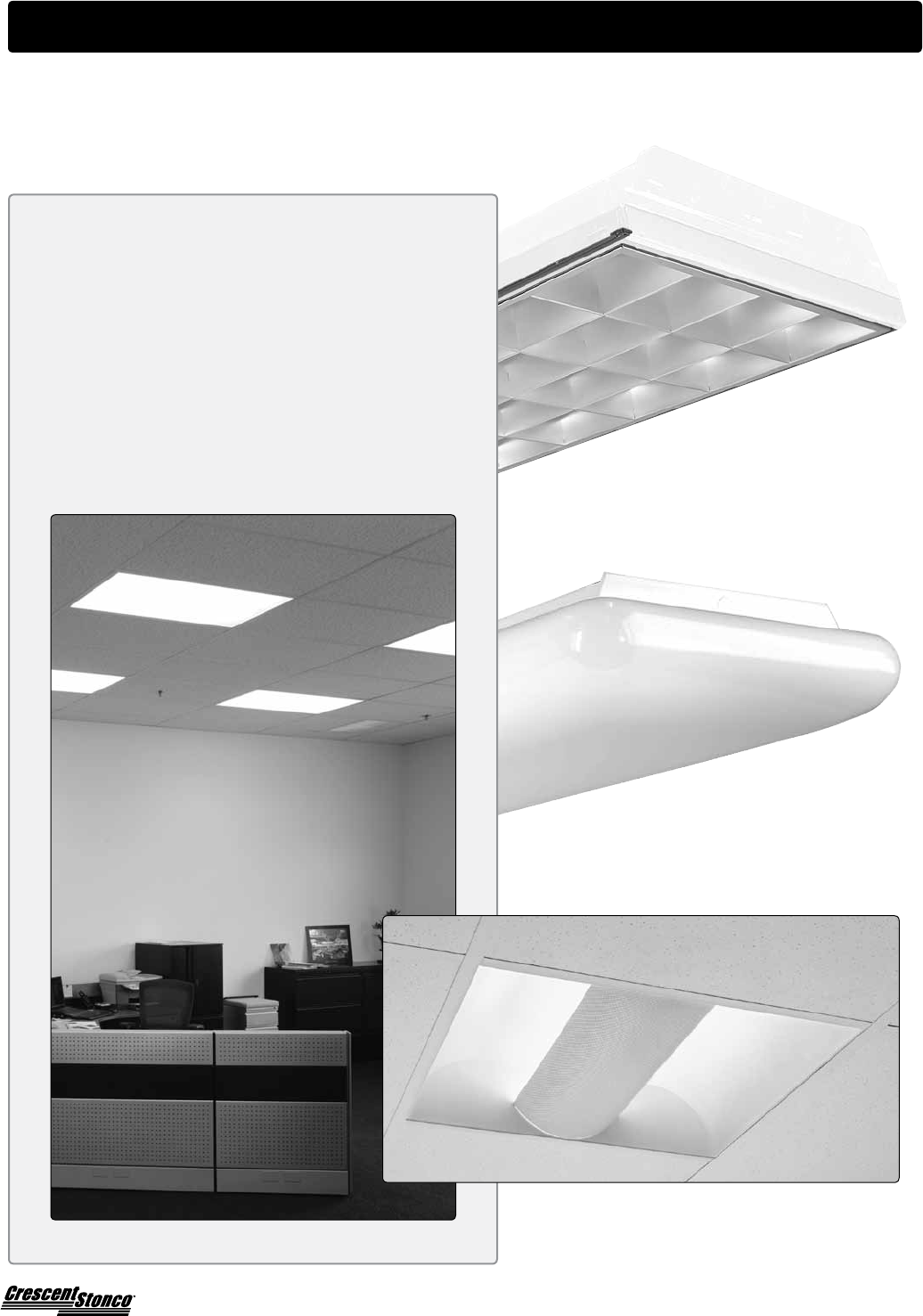

Recessed Lighting

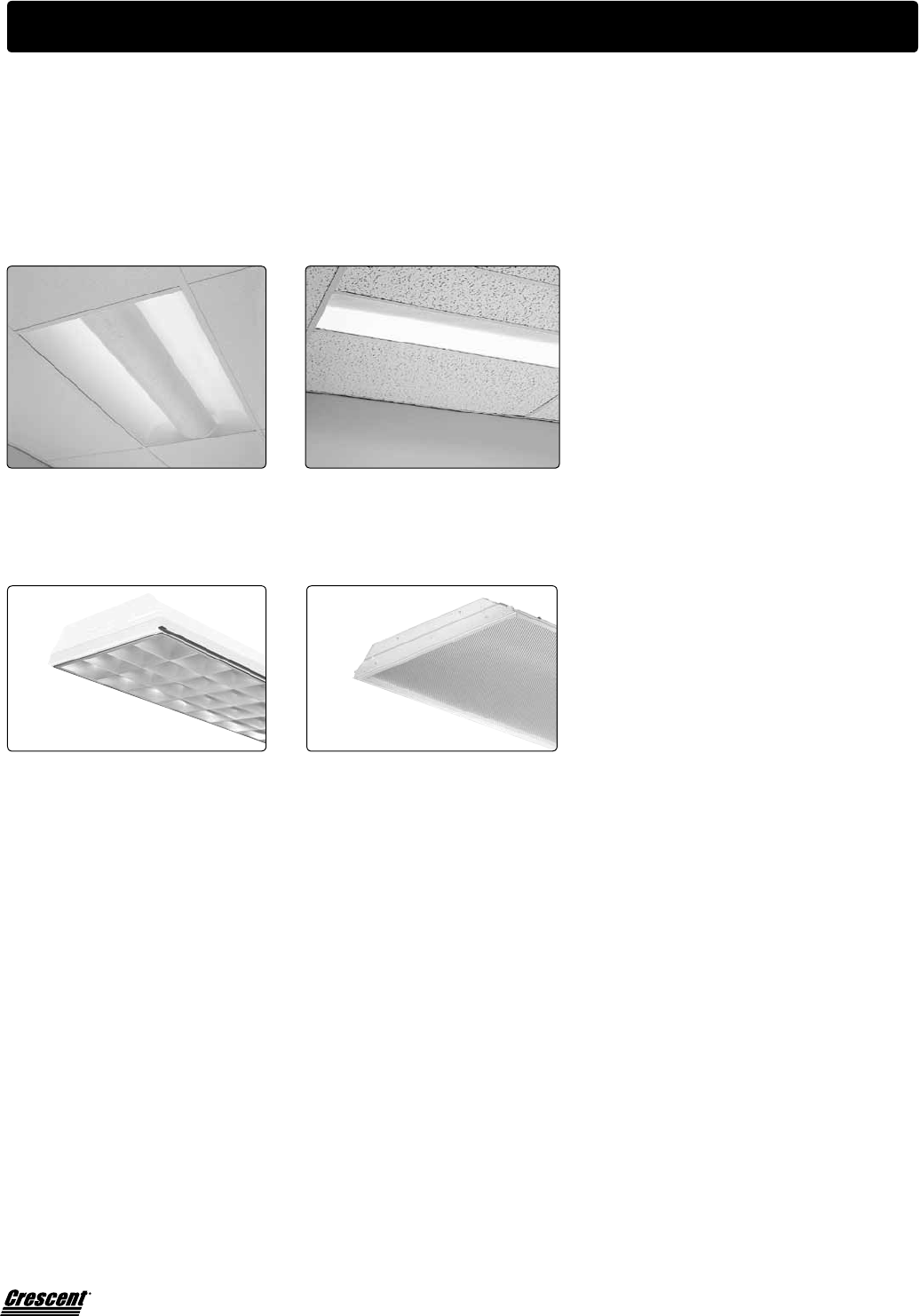

RecessedFluorescent
Crescentrecesseduorescentluminairesincludeparabolic,troffer,RDIandwall-washer.Theyare
manufacturesusinghighlyreectivepost-paintednishformaximumperformance.AllCrescent
recessedluminairesareavailablewithhighperformancelamp/ballastcombinationsforexcellent
illuminationandlowenergyconsumption.
RDI Series
RecessedDirect/Indirect
Page 4
D3 Series
Deep-CellParabolicTroffers
Page 6
RWA Series
RecessedWallwasherAsymmetric
Page 5
GP Series
PremiemGridTroffers
Page 7
4www.crescentlighting.com

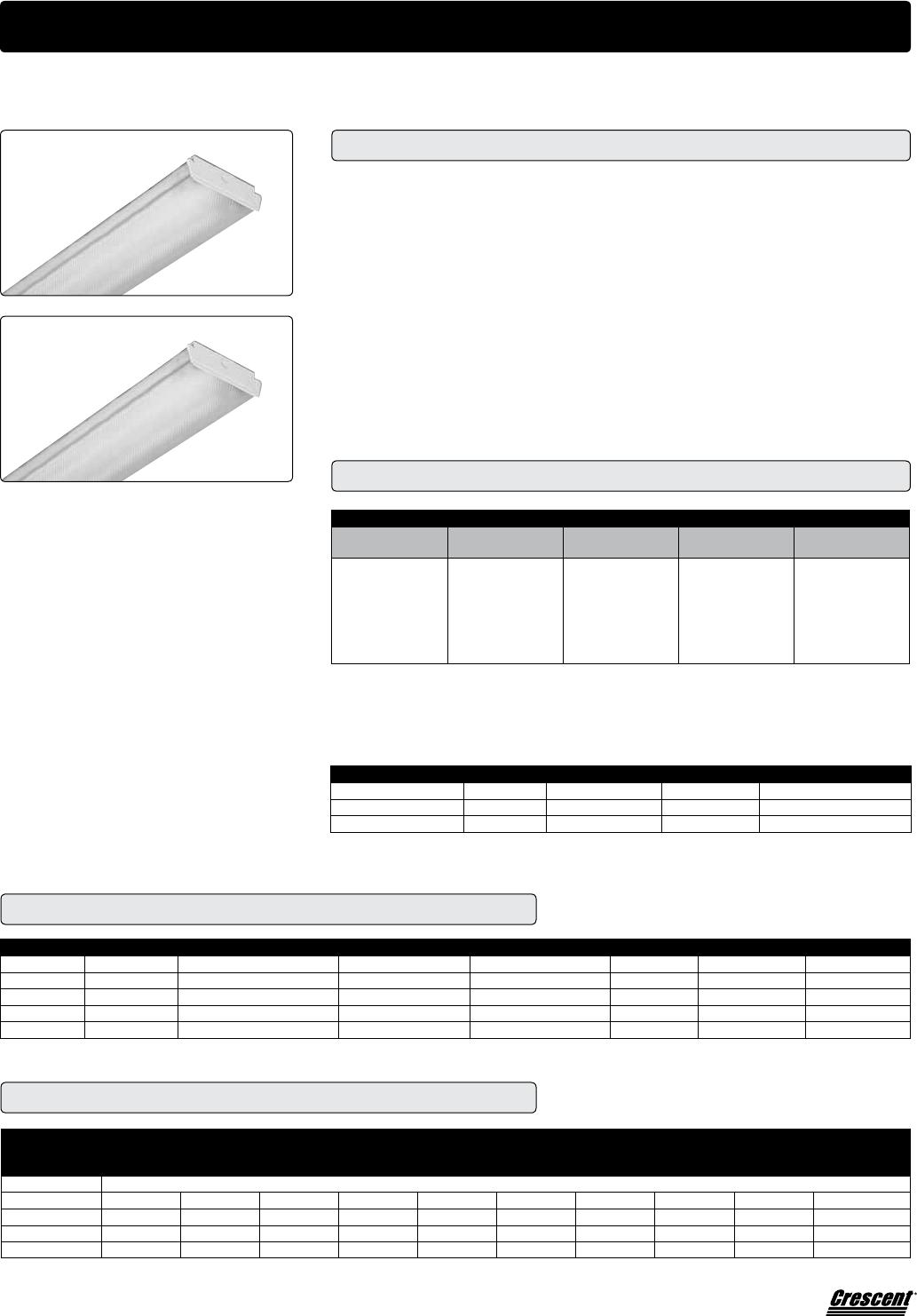

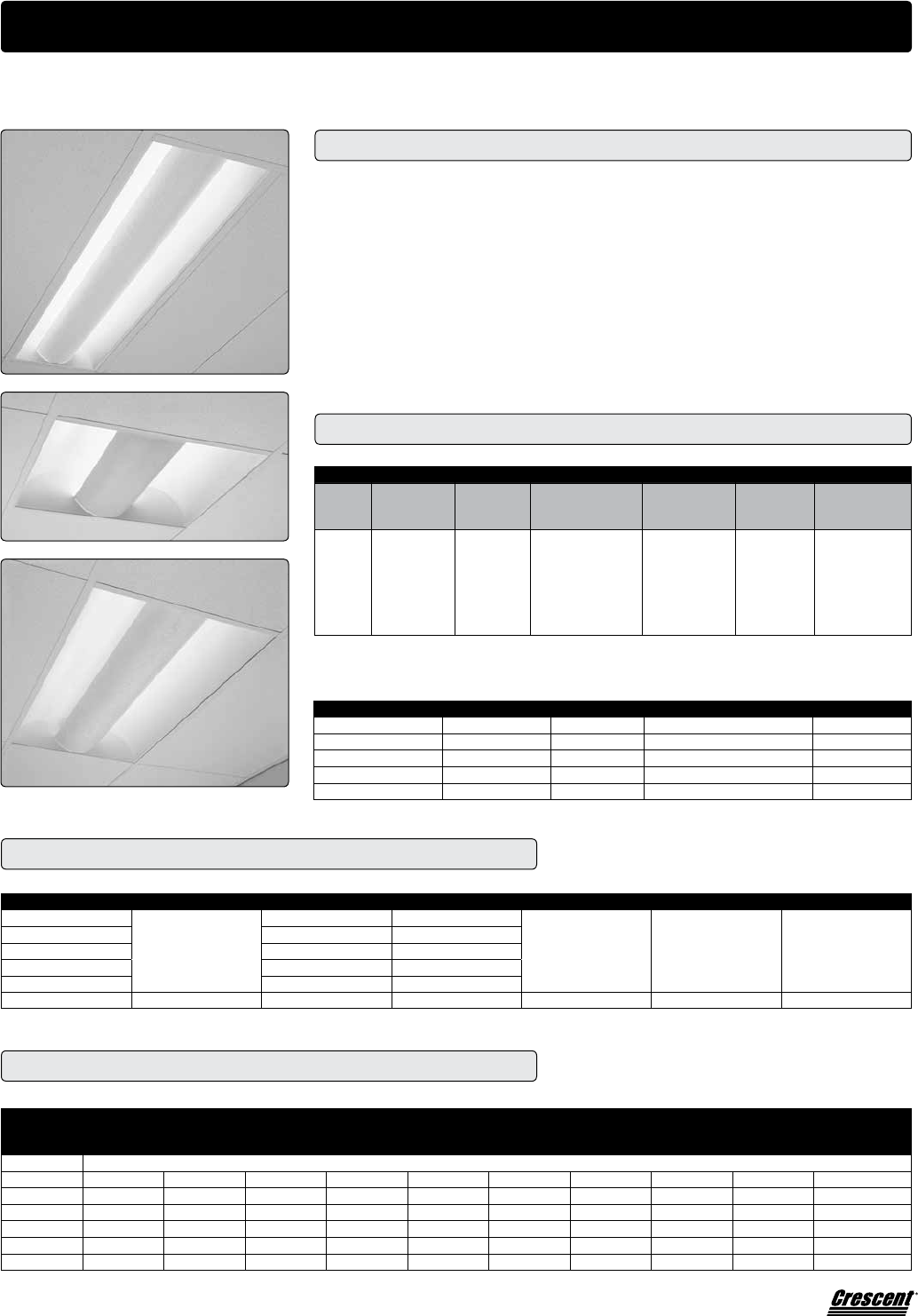

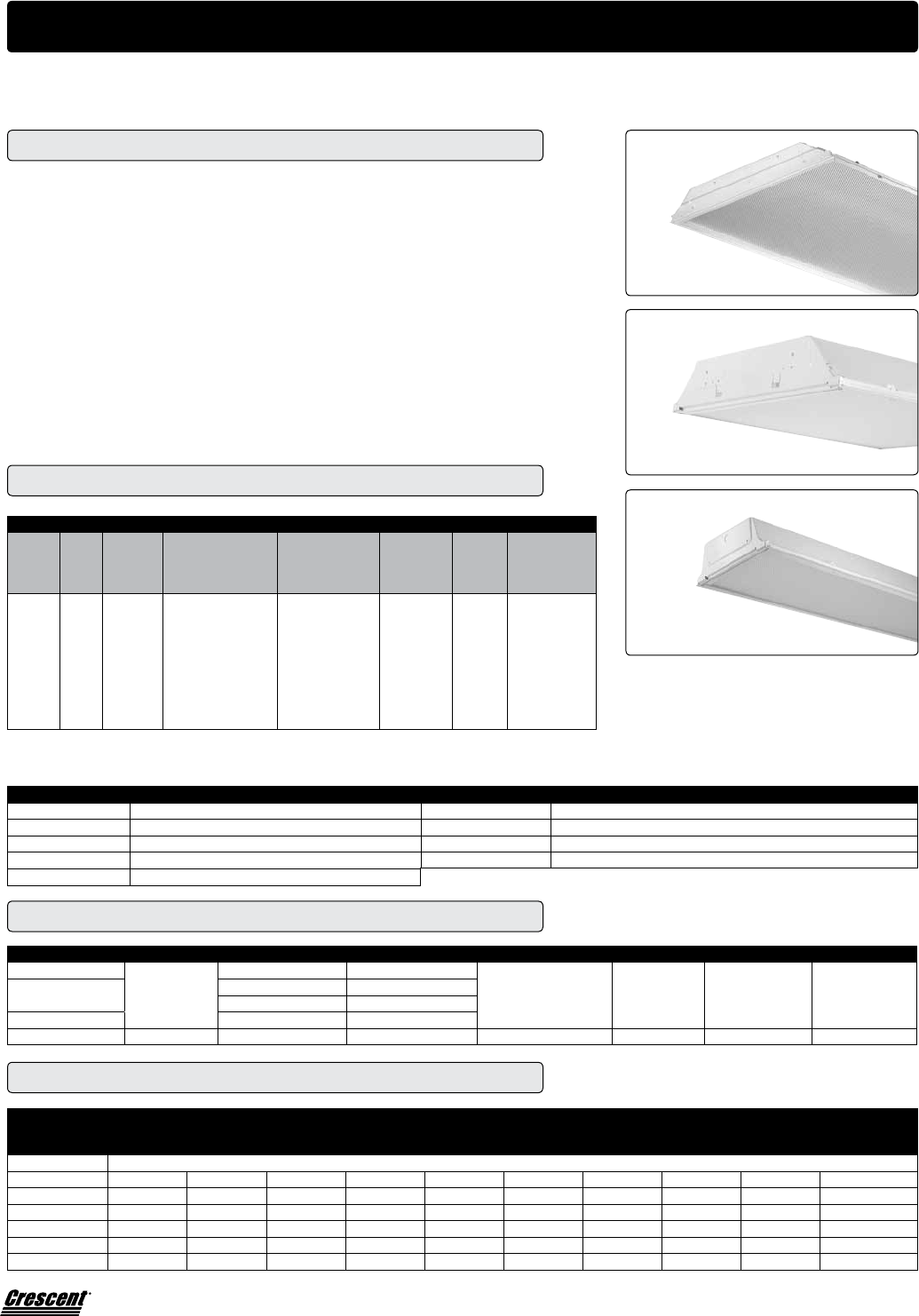

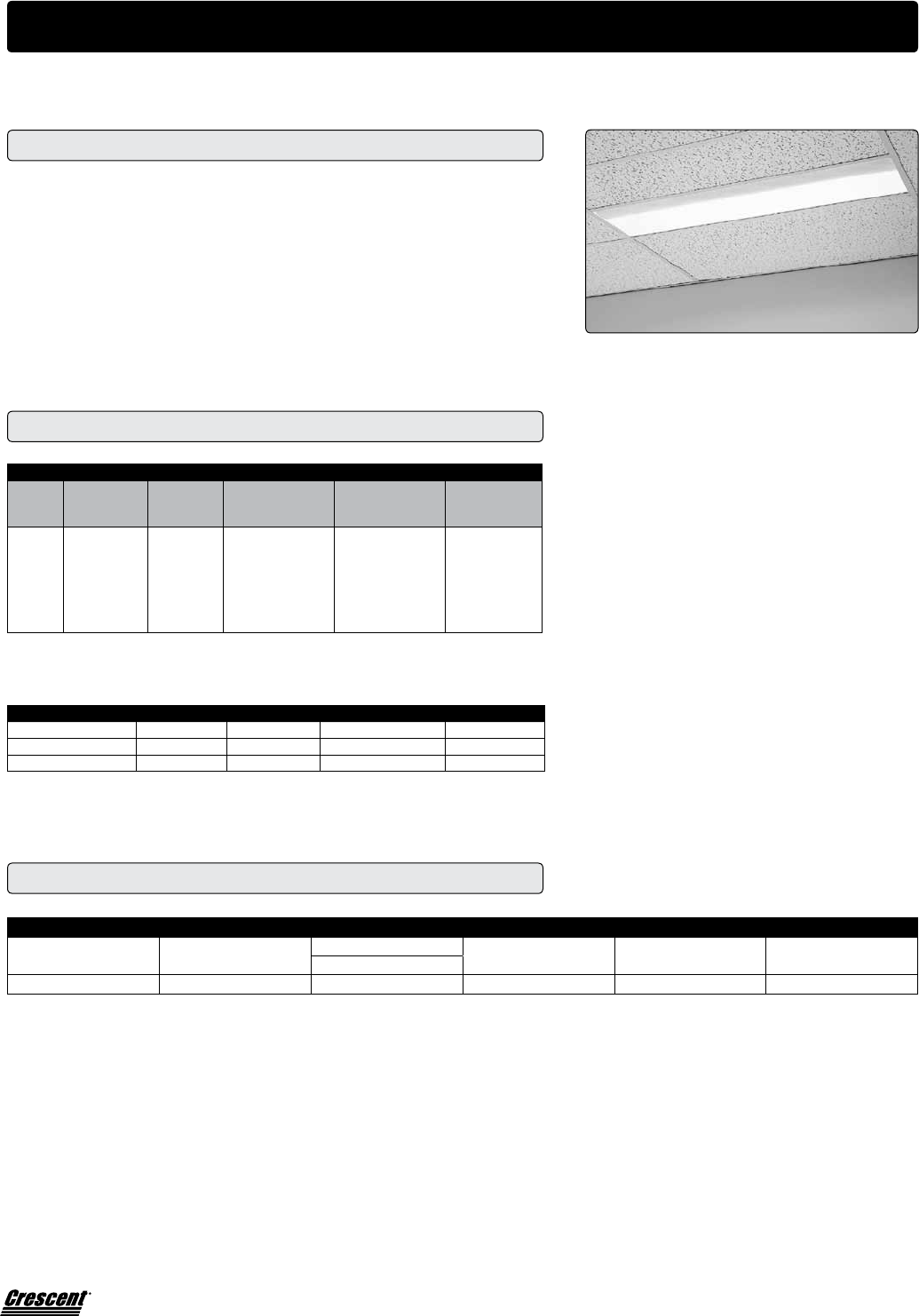

Recessed Direct/Indirect - RDI 1x4, RDI 2x2, RDI 2x4
Specifications
• 20-gaugesteelbody
•Swingdownmicro-perforatedlampshieldforeasyre-lampingandmaintenance
•Softwhitelmoninsideofmeshconcealslampimageprovidingbalancebetweenreectedanddirectlight
•Fullyrecessedluminaireandlampcompartment
•95%reectivesoftwhitepaintnish
•Highreectancewhiteinteriorreector
•Onepiecebodyforeasyinstallation
•Exclusivesocketlockslampintoplace
•Easyaccesstoballastthroughlampcompartment
•FitsstandardT-Gridceilings
• Efciencyrating47.2%(1x4),58.5%(2x2),54.5%(2x4)
• ULlistedfordamplocations
RDI Series - Recessed Lighting
RDI 1x4
RDI 2x2
RDI 2x4
Ordering Information
QuickEst
Fixture 120 200 300 400 600 800 1000 2000 over 2000 per
1000
Max. Spacing-to-
Mounting Height
Ratio
NumberofFixturesRequiredfor100Footcandles*
14RDI132 21 30 42 54 75 95 116 218 104 1.2
14RDI232 10 15 21 27 37 48 58 108 52 1.3
22RDI217 20 30 38 50 68 90 108 200 48 1.3
24RDI232 9 12 18 24 30 45 54 107 48 1.2
24RDI332 6 7 12 16 21 30 36 72 33 1.3
24RDI432 4 6 9 12 15 22 27 27 24 1.2
Size Family No. of Lamps Lamp Code Shield Voltage Ballast
14-1x4
RDI
1 28,32,54
PMW
1-120
7-277
B-Universal
L2Y
14-1x4 2 28,32,BX,54
22-2x2 1,2,3 14,17,24,BX
24-2x4 2,3 28,32,54
24-2x4 2,4 BX
Refertopage35 Refertopage36
Product Availability
14 RDI 2 32 PMW 1 K2Y
Size Family
No. of Lamps
(per cross
section)
Lamp Type Code Lamp Shield
Type Voltage Ballast
14-1x4
22-2x2
24-2x4
RDI-
Recessed
Direct/Indirect
1
2
3
4
14-14WT5(24”)
17-17WT8(24”)
24-24WT5HO(24”)
28-28WT5(48”)
32-32WT8(48”)
BX-40WTT5(24”)
54-54WT5HO(48”)
PMW-
PerforatedMesh
White
1-120
7-277
B-UNV120-277
BallastMatrix
SeePage36
Aboveexample:
ElectronicT8
InstantStart2Lamp
Generic
Available in X-Treme Extra Long Life T8 and HPT8. See pages 9 and 36
Common Part Numbers
Catalog Number Description
14RDI232PMWBL2Y 1X4 2LT 32WattT8 120-277V
22RDI217PMWBL2Y 2X2 2LT 17WattT8 120-277V
22RDI2BXPMWBU2Y 2X2 2LT 40WattTT5BIAX 120-277V
24RDI232PMWBL2Y 2X4 2LT 32WattT8 120-277V
24RDI332PMWBL3Y 2X4 3LT 32WattT8 120-277V
5
www.crescentlighting.com
Recessed Wallwasher Asymmetric - RWA 1x4
Specifications
• Swingdownmicro-perforatedlampshieldforeasyre-lampingandmaintenance
• Asymmetricalopticalsystemprovidesasoftuniformwallwash
• Softwhitelmoninsideofmeshconcealslampimageprovidingbalancebetweenreectedanddirectlight
• Fullyrecessedluminaireandlampcompartment
• 95%reectivesoftwhitepaintnish
• Highreectancewhiteinteriorreector
• Onepiecebodyforeasyinstallation
• Exclusivesocketlockslampintoplace
• Easyaccesstoballastthroughlampcompartment
• FitsstandardT-Gridceilings
• ULlistedfordamplocations
Recessed Lighting - RWA Series Wallwasher
Ordering Information
Size Family No. of Lamps Lamp Code Voltage Ballast
14-1x4 RWA 128,32,54 1-120
7-277 L2Y
2
Refertopage35 B-Universal Refertopage36
Product Availability
14 RWA 2 32 1 K2Y
Size Family
No. of Lamps
(per cross
section)
Lamp Type Code Voltage Ballast
14-1x4 RWA-
Recessed
Wallwasher
Asymmetric
1
2
28-28WT5(48”)
32-32WT8(48”)
54-54WT5HO(48”)
1-120
7-277
B-UNV120-277
BallastMatrix
SeePage36
Aboveexample:
ElectronicT8
InstantStart2Lamp
Generic
Available in X-Treme Extra Long Life T8 and HPT8. See pages 9 and 36
Common Part Numbers
Catalog Number Description
14RWA132BL1Y 1X4 1LT 32WattT8 120-277V
14RWA232BL2Y 1X4 2LT 32WattT8 120-277V
14RWA254BS2Y 1X4 2LT 54WattT5HO 120-277V
6www.crescentlighting.com
3” Deep Cell Parabolic Troffer - D3 2x2, D3 2x4, D3 1x4
Specifications
• Anodizedaluminumparaboliclouverscloselycontrolledforuniformlow-brightnessappearanceandinterlockedto
avoidvibration
• Airhandling(combinationairsupplyandheattransfer)optionavailable**
• Housingisconstructedforaddedstrengthandmaximumcorrosionresistance
• Blackinsideperimeterrevealfor“oatingdoor”appearance
• Canbehingedandlatchedfromeitherside
• Shippedwithplasticlmtokeepoutconstructiondirt
• ULlistedfordamplocations
D3 Series Parabolics - Recessed Lighting
Ordering Information
QuickEst
Fixture 120 200 300 400 600 800 1000 2000 over 2000 per
1000
Max. Spacing-to-
Mounting Height
Ratio
NumberofFixturesRequiredfor100Footcandles*
22D3G2U4/U6 7 10 13 17 23 30 36 67 32 1.3
24D3G232 6 8 12 16 20 30 36 72 32 1.2
24D3G232 4 5 8 11 14 20 24 48 22 1.3
24D3G232 3 4 6 8 10 15 18 36 16 1.2
14D3G132 14 20 28 36 50 64 78 146 70 1.2
14D3G232 7 10 14 18 25 32 39 73 35 1.2
Product Availability
Size Family Style # of Lamps Lamp Code # of Cells Louver Finish Voltage Ballast Options
14-1x4
D3
GS(Static) 1,2 28,32,54 08,12
D(matte)
1-120
7-277
B-Universal
L2Y22-2x2
GS(Static) 2 17,U1,U6,BX 09,16
GS(Static) 3 17,U1,BX 09,16
GS(Static) 4 17 09,16
24-2x4 GS(Static) 2,3,4 28,32,54 12,18,24,32
Refertopage35 Refertopage36 Refertopage38
D3 2x2
D3 2x4
D3 1x4
24 D3 G S 3 32 18 D 1 K3Y
Size Family Grid Air
Function
Number
of Lamps
(per cross
section)
Lamp Type
Code
Number
of Cells
Louver
Finish Voltage Ballast
14-1x4
22-2x2
24-2x4
D3 G-Grid A-Air
Handling**
S-Static
1
2
3
4
17-17WT8(24”)
U1-31WT81-5/8”
U6-32WT86”
28-28WT5(48”)
32-32WT8(48”)
BX-40WTT5
54-54WT5HO
(48”)
08
09
12
16
18
24
32
D-Low
Iridescent
Matte
Finish
1-120
7-277
B-UNV
120-277
BallastMatrix
SeePage36
Above
example:
ElectronicT8
InstantStart
3Lamp
Generic
Available in X-Treme Extra Long Life T8 and HPT8. See pages 9 and 36
Common Part Numbers
Part Number Description
14D3GS23208DBL2Y 1x42-lampT88-cellparabolicuniversalvoltage
22D3GS2U609DBL2Y 2x2U62-lampT89-cellparabolicuniversalvoltage
24D3GS33218DBL3Y 2x43-lampT818-cellparabolicuniversalvoltage
24D3GS30C18DBL3Y sameasabovewith741klamps
24D3GS30C18DBL3YF1 sameasabovewithlampsandex
24D3GS43232DBL4Y 2x44-lampT832-cellparabolicuniversalvoltage
7
www.crescentlighting.com
Premium Grid Troffer - GP2 2x4, GP 2x2, GP 1x4
Specifications
• Ultrahighefciencywithaminimumof83%
• Hemmeddoorframeprovidesextrarigidity&nosharpedges
• Integral“T”hinges
• Allsidesareturnedinandhemmedforsafehandlingandinstallation
• Mitereddoorframeincludesuniquelight-blockingconstructionwhicheliminatesanyneedforgasketingorbafes
• One-pieceribbedunitizedhousingwithinterlockingcornersmaintainsstructuralintegrity
• Springloadedcamlatchesrmlysecureframeoneitherside
• Easylamping.Nospecialslotsorholesnecessaryforinsertionoflamppins
• Alllampscanbeindividuallyinstalledorremovedinanyorder
• Built-inseismictabs.Noneedtopurchaseseparateclips
• UL-listedtwinknockoutaccessplate
• Captive-boltballastmounting
• Fourcornertiepointsforsafetywiresupportwhenrequired
• Canbeasshallowas3”
• ULlistedfordamplocations
Recessed Lighting - GP Series Troffers
Ordering Information
Product Availability
QuickEst
Fixture 120 200 300 400 600 800 1000 2000 over 2000 per
1000
Max. Spacing-to-
Mounting Height
Ratio
NumberofFixturesRequiredfor100Footcandles*
24GP232 6 8 12 16 20 30 36 72 32 1.2
24GP332 4 5 8 11 14 20 24 48 22 1.3
24GP432 3 4 6 8 10 15 18 36 16 1.2
22GP2U4/U6 7 10 13 17 23 30 36 67 32 1.3
14GP132 14 20 28 36 50 64 78 146 70 1.2
14GP232 7 10 14 18 25 32 39 73 35 1.2
Size Family Lamp Quantity Lamp Code Door Frame Lens Voltage Ballast
14-1x4
GP
2 28,32,54
FS(FlushSteel) A1
1-120
7-277
B-Universal
L2Y22-2x2 2 17,U1,U6
3,4 17
24-2x4 2,3,4 28,32,54
Refertopage35 Refertopage36 Refertopage37 Refertopage36
GP2 2x4
GP 2x2
GP 1x4
Common Part Numbers
Part Number Description Part Number Description
14GP232UNIV 1x42-lampT8lensedtrofferuniversalvoltage 24GP332UNIV-41KFX 2x43-lampT8lensedtrofferuniversalvoltagewithlampsandex
22GP2U6UNIV 2x2U62-lampT8lensedtrofferuniversalvoltage 24GP432UNIV 2x44-lampT8lensedtrofferuniversalvoltage
24GP232UNIV 2x42-lampT8lensedtrofferuniversalvoltage 24GP432UNIV-41K 2x44-lampT8lensedtrofferuniversalvoltagewith741klamps
24GP332UNIV 2x43-lampT8lensedtrofferuniversalvoltage 24GP432UNIV-41KFX 2x44-lampT8lensedtrofferuniversalvoltagewithlampsandex
24GP332UNIV-41K 2x43-lampT8lensedtrofferuniversalvoltagewith741klamps
24 GP 4 32 FS A2 1 K4Y
Size Family
Number
of Lamps
(per cross
section)
Lamp Type Code Door Frame Lens Voltage Ballast
14-1x4
22-2x2
24-2x4
GP 1
2
3
4
17-17WT8(24”)
U1-31WT81-5/8”
U6-32WT86”
28-28WT5(48”)
32-32WT8(48”)
54-54WT5HO(48”)
FS-FlushSteel
RW-RegressedWhite
Aluminum
RB-RegressedBlack
Aluminum
A1-A12(.090)
ClearAcrylic
A2-A12(.125)
ClearAcrylic
A9-A19(.156)
ClearAcrylic
LensGuide:
SeePage37
1-120
7-277
B-UNV
120-277
BallastMatrix
SeePage36
Aboveexample:
ElectronicT8
InstantStart
4LampGeneric
Available in X-Treme Extra Long Life T8 and HPT8. See pages 9 and 36
8www.crescentlighting.com

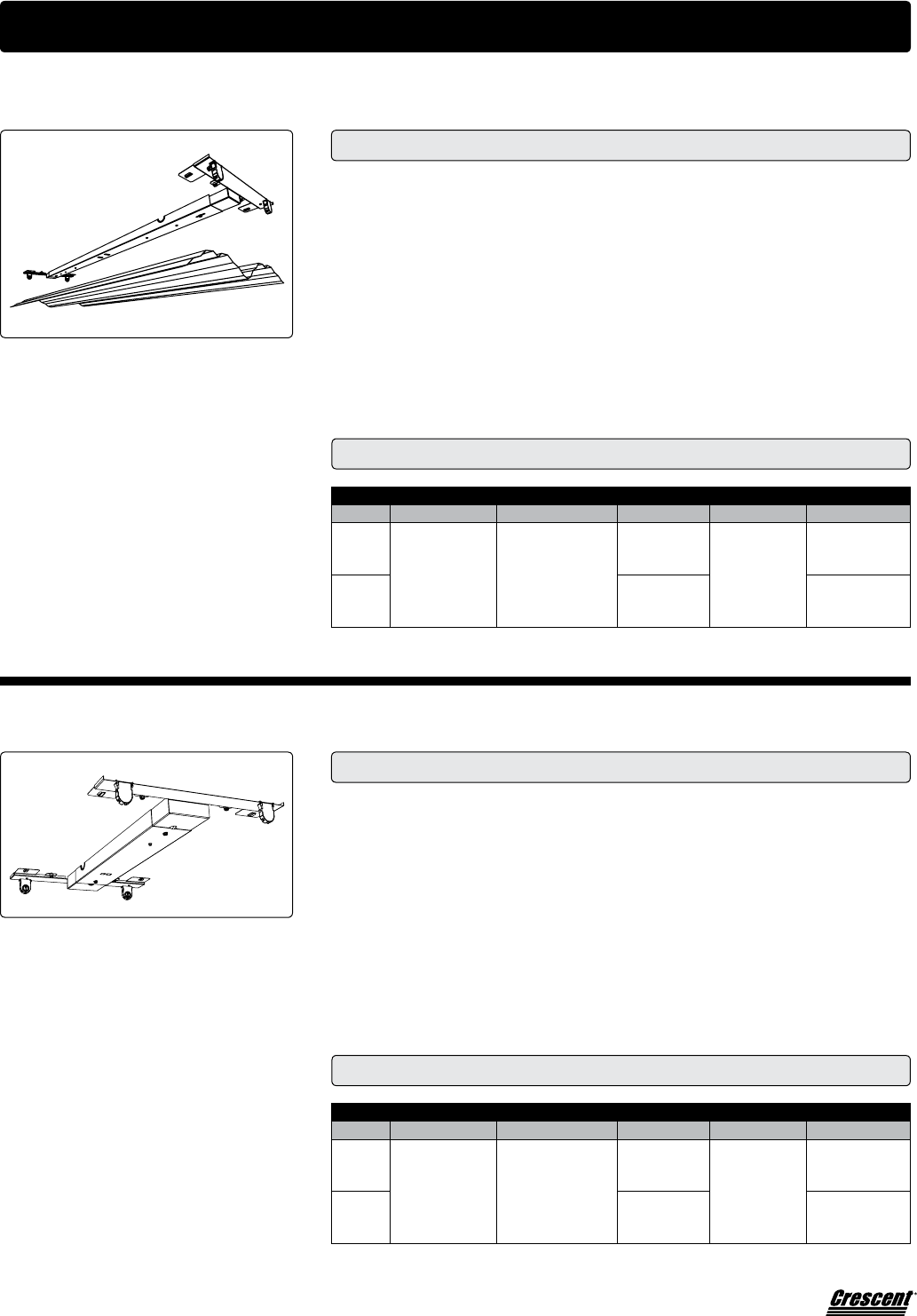

Revue Retrofit Kits - Internal Recessed 3” Deep Cell Parabolic
Revue Retrofit Kits - Internal Recessed Troffer
Specifications
Specifications
• InternalretrotpackageconvertsT12to2-lampcrosssection.Packageincludestelescopingchannelassembly
andreector.Existinglouverisretained
• Reectorprovidesevencellilluminationtoprevent“dark”rowsofcells.Highlumenlampsandhighefciency
ballastsarerecommendedtominimizeenergyconsumptionwithoutsacricinglightlevels
• Energysavingsupto18%arepossiblecomparedtoconventional3-lampT8/electronicsystemsandupto46%
comparedto3-lampor4-lampT12/magneticsystems,whilemaintainingexistinglightlevels
• 2-lampcrosssectionreducesthenumberoflampstoreducemaintenancecosts.Manylamps(includinghigh
lumenmodels)haveextendedlamplifetofurtherreducerelampingrequirements
• Lamp/ballastsystemsareavailableofferingelectricalsystemefcacyratingsupto102Lumens/Watt.Examination
ofexistinglightlevelsishighlyrecommended,reducedlevelsmaybeappropriateandwillprovideadditional
energysavings
• Theenclosureretainsexistinglouverassembly,andretrotpackageisinternaltotheluminairehousing
• Channelassemblyisfullywiredwithballastandlampholdersandservesasawiringenclosure
• ULlisteddamplocations.Canadiancertiedoptional.ModelswithemergencyballastULlisteddrylocations
• Internalretrotpackagetoconvertlensedtroffersto2-lampstraightlampcrosssection.Packageincludes
telescopingchannelassembly.Existingenclosureisretainedwithretrotpackagettinginternaltotheluminaire
housing
• Internalhousinglengthmustbe23-15/16”orgreatertoaccommodateT8lamps.T5/T5HOlampscanbeusedin
shorterhousings
• Highlumenlamps&highefciencyballastsarerecommendedtominimizeenergyconsumptionwithout
sacricinglightlevels
• Channelassemblyisfullywiredwithballastandlampholdersandservesasawiringenclosure
• Lightingpowerdensitiesaslowas0.7Watts/squarefootarepossibleinmanycaseswhilemaintaining
recommendedlightlevels
• Lamp/ballastsystemsareavailableofferingelectricalsystemefcacyratingsupto90Lumens/Watt
• ULlisteddamplocations.Canadiancertiedoptional.ModelswithemergencyballastULlisteddrylocations
• Examinationofexistinglightlevelsishighlyrecommended,reducedlevelsmaybeappropriateandwillprovide
additionalenergysavings,andatrialinstallationisrecommendedbeforeorderingprojectquantities
Revue Retrofit Kits - Recessed Lighting
Ordering Information
Ordering Information
22 PR 2 1 B L2Y
Size Series Number of Lamps Wattage Voltage Ballast Code
22 PR-Parabolic
Retrot
2 14-14wT5
17-17wT8
24-24wT5HO
B-120-277 N2Y(T5)
L2Y(T8)
S2Y(T5HP)
24 28-28wT5
32-32wT8
54-54wT5HO
N2Y(T5)
L2Y(T8)
S2Y(T5HO)
Available in X-Treme Extra Long Life T8 and HPT8. See pages 9 and 36
22 TR 2 1 B L2Y
Size Series Number of Lamps Wattage Voltage Ballast Code
22 TR-Recessed
TrofferRetrot
2 14-14wT5
17-17wT8
24-24wT5HO
B-120-277 N2Y(T5)
L2Y(T8)
S2Y(T5HP)
24 28-28wT5
32-32wT8
54-54wT5HO
N2Y(T5)
L2Y(T8)
S2Y(T5HO)
Available in X-Treme Extra Long Life T8 and HPT8. See pages 9 and 36
9
www.crescentlighting.com

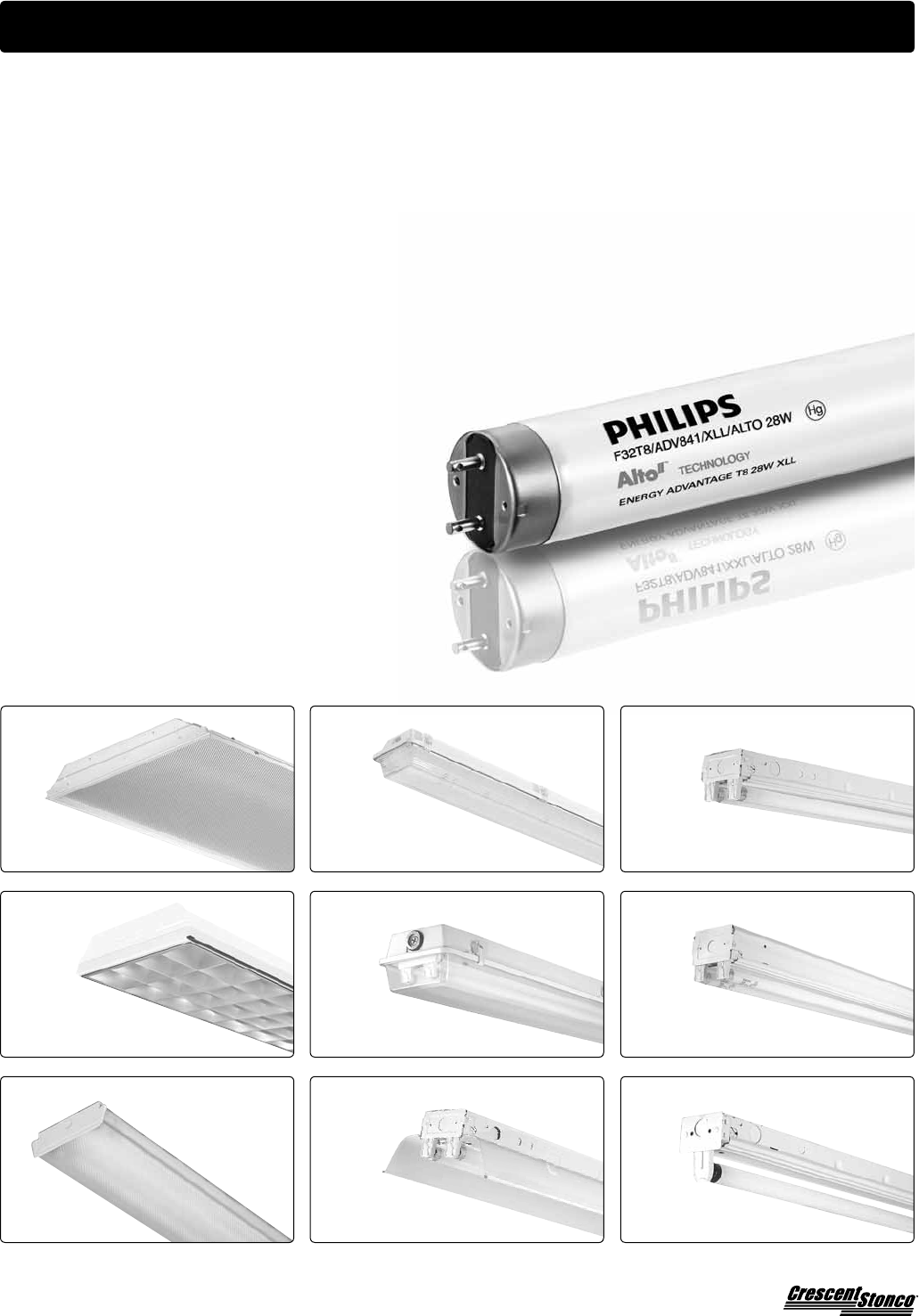

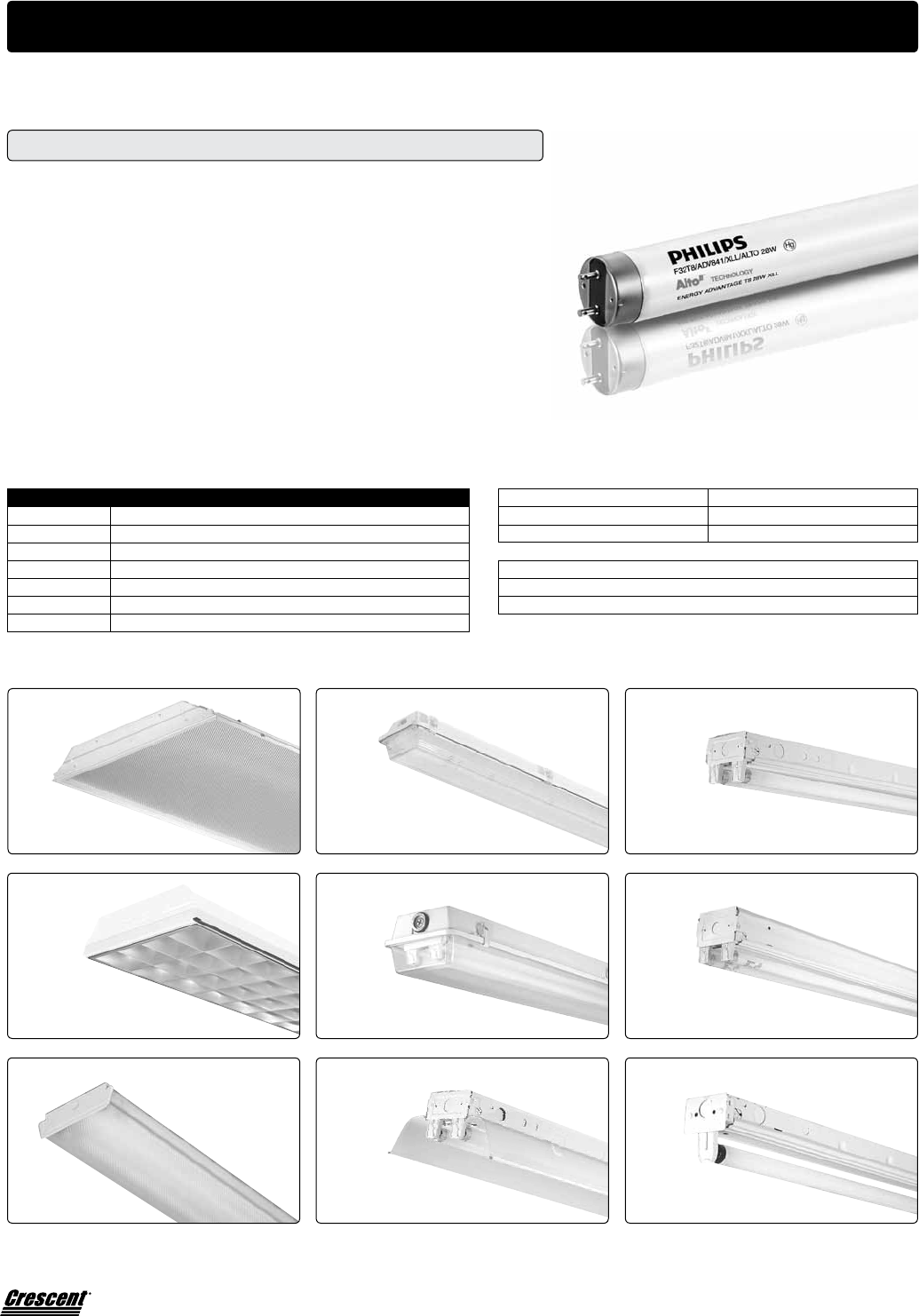

X-Treme Series Philips XLL Long Life T8
Specifications
• High-qualityCrescentsxturesfeaturingPhilipsXLLSeriesT8lampingandAdvanceprogrammedstart
Optaniumballast
• T825W,28Wand32W
• 60,000hourlamplifebasedonminimum12-hourstart
• Combinationendplate/couplercanbeusedforindividualmountingorslidesintopositionbetweentwo
xtures,assuringintegrityofrowalignment
• Optionalheavy-duty10”sleevecouplerscanprovideadditionalbracingatxturejunctures
• Symmetricandasymmetricreectorsareavailableforadditionaldownlightanddirectionalcontrol
• ULDampLocationlabelsarestandardwiththisseries
• Fixturesaresuitableformountingonlow-densitycelluloseberboardsurfaces
• 1/4turnfastenertolockballastcoveronhousing
• Lampsshipped“Job-Pak”,separatefromxture
Recessed Lighting - X-Treme Series
D3 2x4
NLTN
SCF
SCN
GP2 2x4
CRN
MST
SLT
X-TREME PHILIPS BALLAST CODE:
Catalog No. Description
BX2M LowBallastFactor,Optanium,ProgramStart,2-light
BX3M LowBallastFactor,Optanium,ProgramStart,3-light
BX4M LowBallastFactor,Optanium,ProgramStart,2,4-light
BM2M NormalBallastFactor,Optanium,ProgramStart,2-light
BM3M NormalBallastFactor,Optanium,ProgramStart,3-light
BM4M NormalBallastFactor,Optanium,ProgramStart,2,4-light
X-TREME PHILIPS LAMPS INSTALLED CODE:
AK=32WATT,XLL835 AQ=28WATT,ADVXLL835
AM=32WATT,XLL841 AR=28WATT,ADVXLL841
1U=32WATT,XLL850 AS=28WATT,ADVXLL850
AG=25WATT,ADVXLL835
AB=25WATT,ADVXLL841
AJ=25WATT,ADVXLL850
10 www.crescentlighting.com
Flanged Troffer - FP / Specification-Grade Troffer - SG
FP Flanged Troffer / SG Specification-Grade Troffer - Recessed Lighting
Specifications
• Ultrahighefciencywithaminimumof83%(FP)
• Full4-1/2”(4-3/4”for1x4)deepone-piecehousingdesignedwithaddedstrengthconstruction(SG);3”shallow
design(FP)
• Hemmeddoorframeprovidesextrarigidity&nosharpedges
• Integral“T”hinges.
• Allsidesareturnedinandhemmedforsafehandlingandinstallation
• Mitereddoorframeincludesuniquelight-blockingconstructionwhicheliminatesanyneedforgasketingorbafes
• One-pieceribbedunitizedhousingwithinterlockingcornersmaintainsstructuralintegrity
• Springloadedcamlatchesrmlysecureframeoneitherside
• Easylamping.Nospecialslotsorholesnecessaryforinsertionoflamppins
• Alllampscanbeindividuallyinstalledorremovedinanyorder
• Built-inseismictabs.Noneedtopurchaseseparateclips
• UL-listedtwinknockoutaccessplate
• Captive-boltballastmounting
• Fourcornertiepointsforsafetywiresupportwhenrequired
• Housingispre-treatedinamulti-stagephosphatebathandpostpaintedinahighreectancewhitenish(SG)
• ULlistedfordamplocations
Ordering Information
FP 2x4
SG 2x4
QuickEst
Fixture 120 200 300 400 600 800 1000 2000 over 2000 per
1000
Max. Spacing-to-
Mounting Height
Ratio
NumberofFixturesRequiredfor100Footcandles*
22FP2U4/2U6 7 10 13 17 23 30 36 67 32 1.3
24FP232 6 8 11 14 19 25 30 57 27 1.2
24FP432 3 4 6 8 11 14 17 31 15 1.3
14SG232 7 10 14 18 25 32 39 73 35 1.2
22SG2U4/2U6 7 10 13 17 23 30 36 67 32 1.3
24SG232 6 8 11 14 19 25 30 57 27 1.2
24SG432 3 4 6 8 11 14 17 31 15 1.3
Product Availability
Size Family No. of Lamps Lamp Code Height
2x2 FP
2 17,U1,U6,BX
4-3/8”3 17
4 17,BX
2x4 FP
2 28,32,54
3-9/16”3 28,32,54
4 28,32,54
1x4 FP 2 28,32,54 5”
Size Family No. of Lamps Lamp Code Height
1x4 SG 2 28,32,54 5”
2x2 SG
2 17,U1,U6,BX
4-3/8”3 17,U1,BX
4 17
2x4 SG
2 28,32,54
4-3/8”3 28,32,54
4 28,32,54
Common Part Numbers
Catalog Number
24FP332FSA1BL3Y
24FP432FSA1BL4Y
24SG232FSA1BL2Y
24SG332FSA1BL3Y
24 FP 4 32 FS A1 1 K4Y
Size Family
Number
of Lamps
(per cross
section)
Lamp Type Code Door Frame Lens Voltage Ballast
14-1x4
22-2x2
24-2x4
FP
SG
2
3
4
17-17WT8(24”)
U1-31WT81-5/8”
U6-32WT86”
28-28WT5(48”)
32-32WT8(48”)
54-54WT5HO(48”)
BX-40WTT5(24”)
FA-FlushWhite
Aluminum(SGonly)
FS-FlushSteel
RW-RegressedWhite
Aluminum
RB-RegressedBlack
Aluminum
A1-A12(.090)
ClearAcrylic
A2-A12(.125)
ClearAcrylic
A9-A19(.156)
ClearAcrylic
LensGuide:
SeePage37
1-120
7-277
B-UNV
120-277
BallastMatrix
SeePage36
Aboveexample:
ElectronicT8
InstantStart
4LampGeneric
Available in X-Treme Extra Long Life T8 and HPT8. See pages 9 and 36
11
www.crescentlighting.com

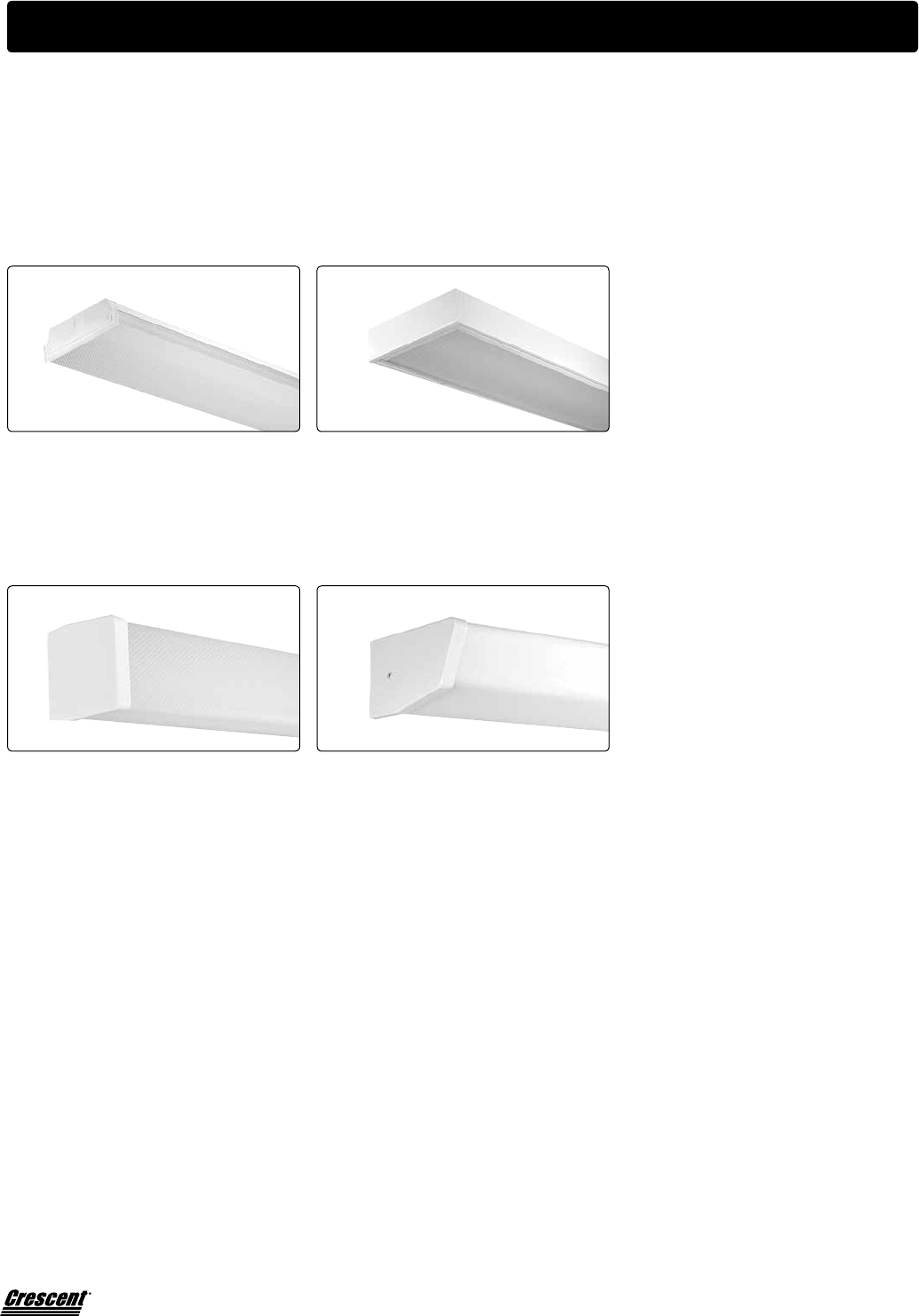

Surface-Mounted Lighting
Surface
Crescentsurfaceuorescentluminairesareavailableintraditionalwrapsforgeneralpurposeinstallationto
thesoftCloudlineforanarchitecturalappearance.AllCrescentsurfaceluminairesareavailablewithhigh
performancelamp/ballastcombinationsforexcellentilluminationandlowenergyconsumption.
NLTN Series
General-PurposeWraparound
Page 12
BNM Series
SurfaceModule
Page 13
SWB Series
General-PurposeWallBracket
Page 14
AWB Series
AngledWallBracket
Page 14
12 www.crescentlighting.com

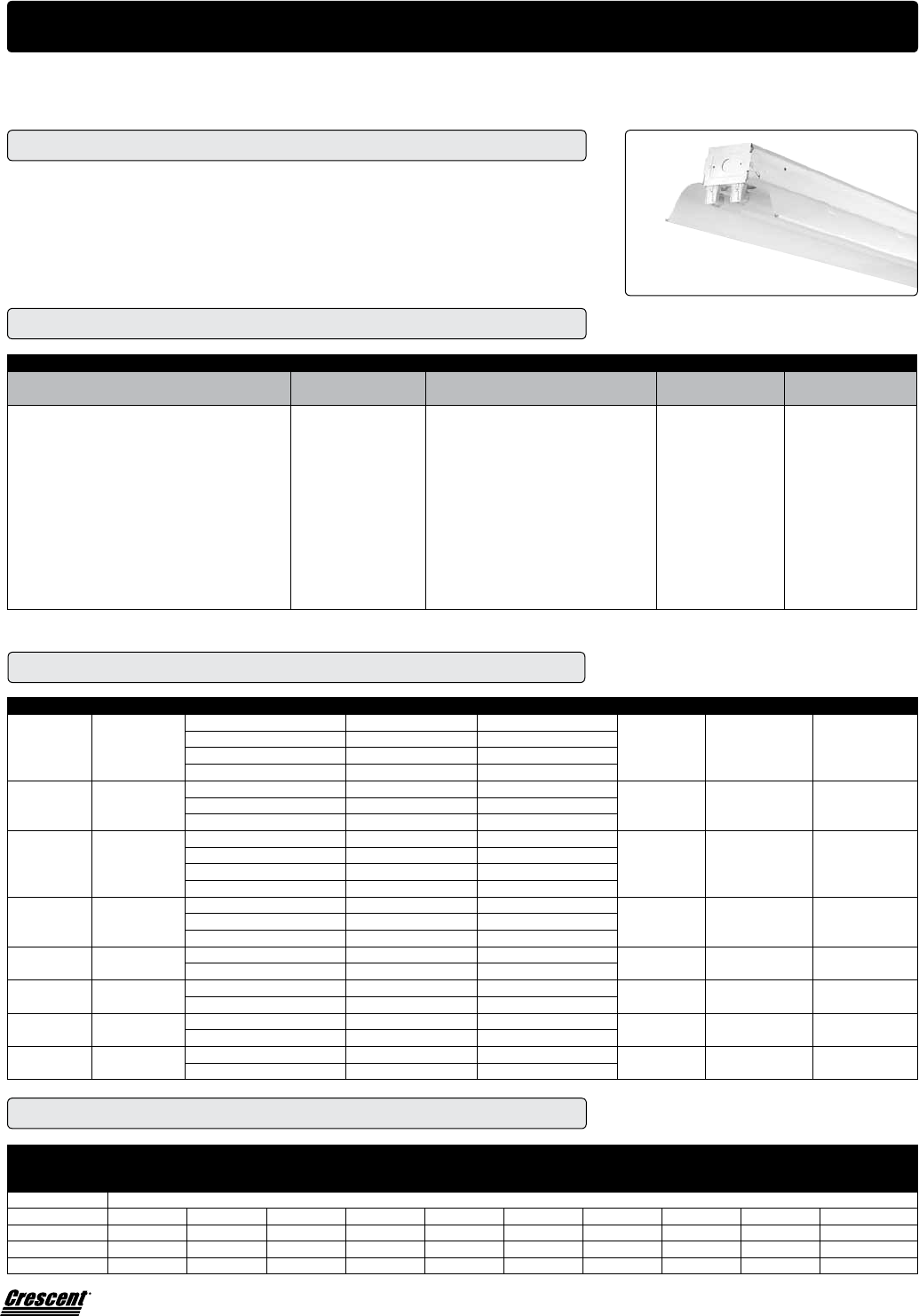

NLTN - General-Purpose Wraparound
Specifications
• ULlistedfordirectmountingonlowdensityceilings
• Housingismulti-stagephosphatetreatedformaximumcorrosionresistanceandnishishigh
reectancebakedwhiteenamel
• Forsurfaceorstemmounting
• Energysavingelectronicballasts
• ULlistedfordamplocations
Ordering Information
QuickEst
Fixture 120 200 300 400 600 800 1000 2000 over 2000 per
1000
Max. Spacing-to-
Mounting Height
Ratio
NumberofFixturesRequiredfor100Footcandles*
NLTN232 6 9 13 16 22 28 34 63 30 1.3
NLTTN232 3 5 6 8 11 14 17 32 15 1.3
NLTN296 3 5 6 8 11 14 17 32 15 1.3
NLTTN432 3 5 7 9 12 15 18 34 16 1.3
Product Availability
NLTN (2LT)
Quick Ship Part Numbers
Part Number No. Lamps Wattage Voltage Description
NLTN232UNIV 2LT 32WattT8 120-277V QuickShipWrap
NLTTN232UNIV 2LT 32WattT8 120-277V TandemWrap
NLTN432UNIV 4LT 32WattT8 120-277V Wrap
NLT General-Purpose Wraparound - Surface-Mounted Lighting
Family Size No. Lamps/Cross Section No. Lamps/Fixture Lamp Code Length Width Height
NLTN 2’ 2 2 17,20 24” 8-5/8” 2-3/4”
NLTN 4’ 2 2 28,32,54 48” 8-5/8” 2-3/4”
NLTTN 8’ 2 4 28,32,54 96” 8-5/8” 2-3/4”
NLTN 4’ 3 3 28,32 48” 13-7/8” 2-3/4”
NLTN 4’ 4 4 28,32 48” 13-7/8” 2-3/4”
NLTN 2 32 1 K2Y
Family Number of Lamps
(per cross section) Lamp Type Code Voltage Ballast
Note:
SufxFamilynamewith
“T”fortandem
xtures
Ex.NLTTN
2
3
4
17-17WT8(24”)
28-28WT5(48”)
32-32WT8(48”)
54-54WT5HO(48”)*
1-120
7-277
B-UNV120-277
BallastMatrix
SeePage36
Aboveexample:
ElectronicT8
InstantStart2Lamp
Generic
*2-lamponly
Available in X-Treme Extra Long Life T8 and HPT8. See pages 9 and 36
NLTTN (4LT)
13
www.crescentlighting.com

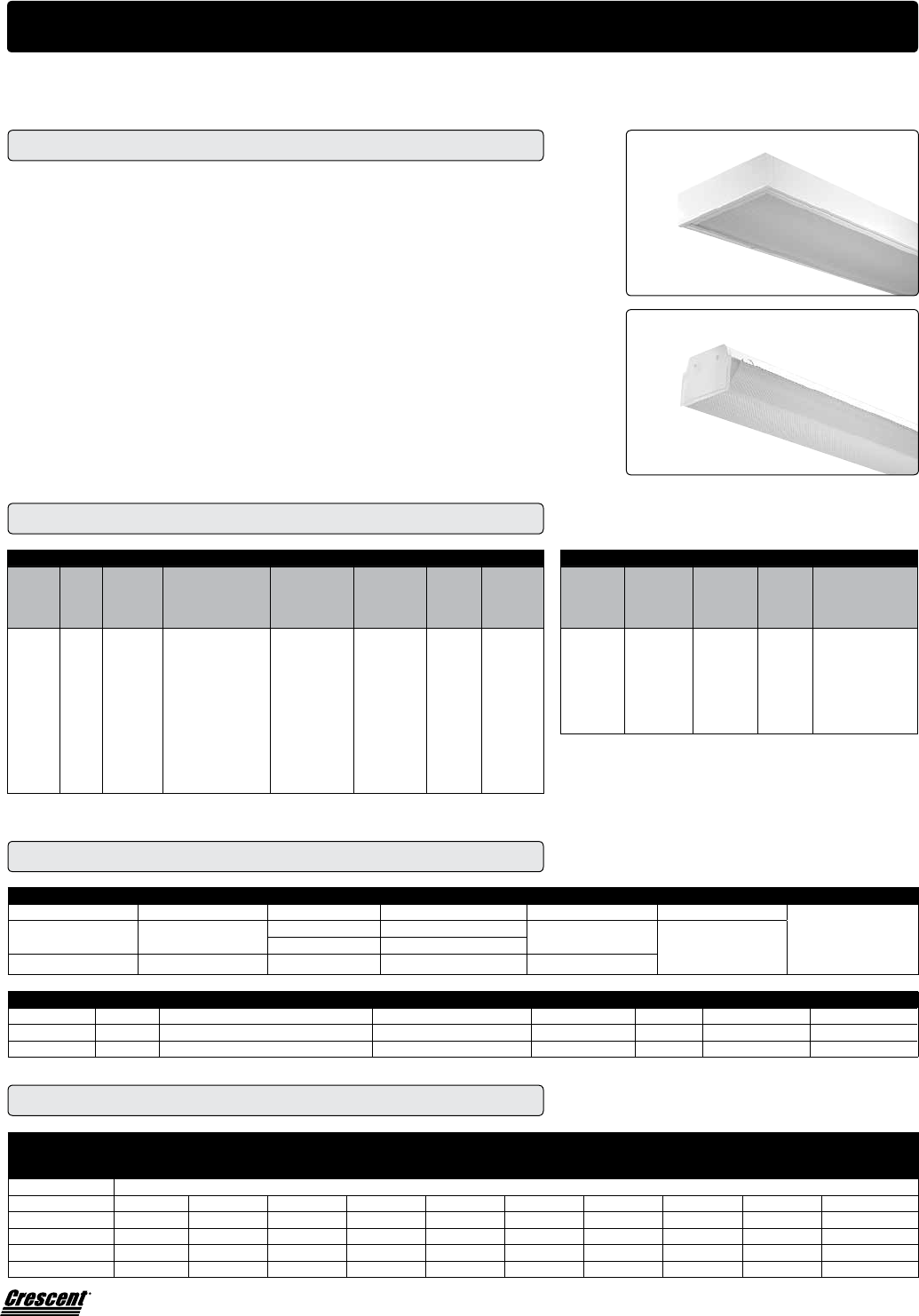

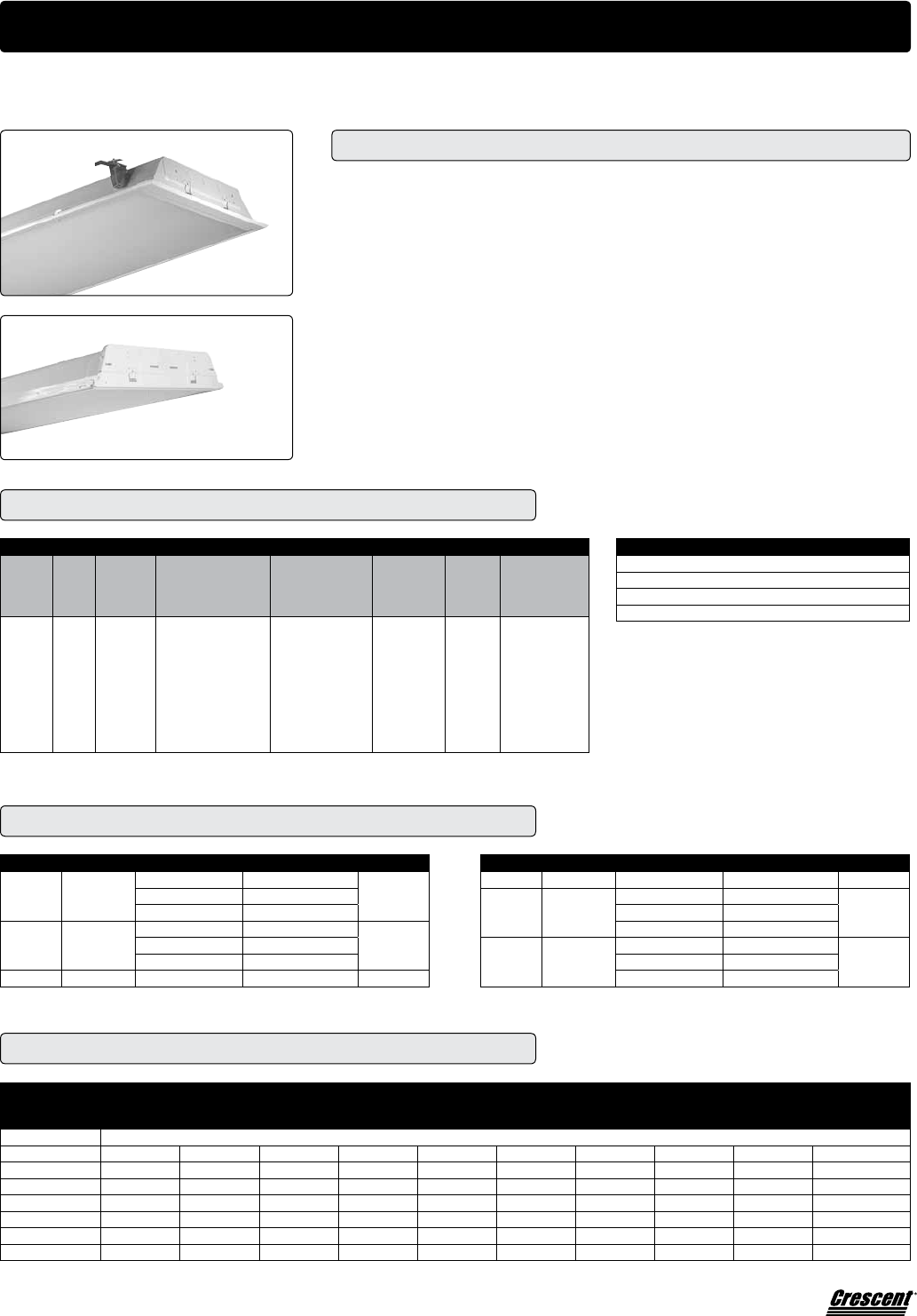

Surface Module - BNM / Corridor Wraparound - DLT
Specifications
Surface Module (BNM)
• Shallow4”depthincludesknockoutsforallnormalinstallationmethods
• Dieformeddoorframehingesfromeitherside
• Positiveactioncamlatchesrmlysecureframeoneitherside
• Optionalblackextrudedaluminumregresseddoorframeavailable
• Snap-onwiringchannelcoverisremovedwithoutuseoftools
• Matteblacklightsealonbothendstopreventlightleaks
• ULlistedfordamplocations
Corridor Wraparound (DLT)
• Completefamilyofoneandtwolightunitsin2’,4’,and8’tandemlengths
• Lenshingesalongentirelengthforsafetyandeaseofmaintenance
• U.L.low-densitylabelsarestandard
• Linearprismaticsidesprovidesufcientup-lighttoreduceceilingcontrast
• ULlistedfordamplocations
Ordering Information
Product Availability
QuickEst
Fixture 120 200 300 400 600 800 1000 2000 over 2000 per
1000
Max. Spacing-to-
Mounting Height
Ratio
NumberofFixturesRequiredfor100Footcandles*
14BNM232 8 11 15 19 26 3 40 74 35 1.1
22BNM2U4/2U6 7 10 14 17 24 31 37 70 33 1.3
24BNM432 3 5 6 8 11 14 17 31 15 1.3
DLT132 12 17 23 29 41 51 62 118 55 1.4
DLT232 6 9 13 16 22 28 34 63 30 1.4
Size Family Lamp Quantity Lamp Code Length Width Height
1x4 BNM 2 28,32,54 48” 12-1/4”
4”
2x2 BNM 2 U1,U6,14,17,24 24” 24-1/4”
3,4 14,17,24
2x4 BNM 2,3,4 28,32,54 48”
BNM
DLT
Surface-Mounted Lighting - BNM Surface Module / DLT Corridor Wraparound
Family Size Lamp Quantity / Cross Section Lamp Code / Fixture Lamp Code Length Width Height
DLT 2’ 1,2 1,2 17 24” 5-1/2” 4-1/4”
DLT 4’ 1,2 1,2 32 48” 5-1/2” 4-1/4”
DLTT 8’ 1,2 2,4 32 96” 5-1/2” 4-1/4”
24 BNM 4 32 FS A1 1 K4Y
Size Family
Number
of Lamps
(per cross
section)
Lamp Type Code Door Frame Lens Voltage Ballast
14-1x4
22-2x2
24-2x4
BNM 2
3
4
14-14WT5(24”)
17-17WT8(24”)
24-24WT5HO(24”)
28-28WT5(48”)
U1-31WT81-5/8”
U6-32WT86”
32-32WT8(48”)
54-54WT5HO(48”)
FS-FlushSteel
RW-Regressed
WhiteAluminum
RB-Regressed
BlackAluminum
A1-A12(.090)
ClearAcrylic
A2-A12(.125)
ClearAcrylic
A9-A19(.156)
ClearAcrylic
LensGuide:
SeePage37
1-120
7-277
B-UNV
120-277
Ballast
Matrix
SeePage36
Above
example:
Electronic
T8
InstantStart
4Lamp
Generic
Available in X-Treme Extra Long Life T8 and HPT8. See pages 9 and 36
DLT 2 32 1 K1Y
Family
Number
of Lamps
(per cross
section)
Lamp Type
Code Voltage Ballast
Note:
SufxFamily
namewith
“T”for
tandem
xtures
Ex.DLTT
1
2
17-17WT8
(24”)
32-32WT8
(48”)
1-120
7-277
B-UNV
120-277
BallastMatrix
SeePage36
Aboveexample:
ElectronicT8
InstantStart1Lamp
Generic
Available in X-Treme Extra Long Life T8 and HPT8.
See pages 9 and 36
14 www.crescentlighting.com
General-Purpose Wall Bracket - SWB / Angle Wall Bracket - AWB / ACB
Specifications
General-Purpose Wall Bracket (SWB)
• Stylizeddesignfortodaysapplications.
• Semi-translucentprismaticacryliclensreduceslampimagewhilemaintainingahighlevelof
efciency
• Moldedhigh-impactendcaps
• Canbeeitherceilingorwallmounted,inverticalorhorizontalpositions
• Slide-onendcapsprovidesimple,time-savinginstallation(notoolsnecessarytore-lamp)
• ULlistedfordamplocations
AWB Angled Wall Bracket
ACB Angled Chrome Bracket
• Crisp,clean,contemporarydesignprovidessoft,evenilluminationwhilemaximizingthelensareafor
greaterlampefciency
• Smoothopalacrylicshieldingmaskslampimageandcutsglare
• Contemporarydesignwithcleancrispanglesandmirrornishchromeends(ACB)
• ULlistedfordamplocations
Ordering Information
Product Availability
SWB
AWB
ACB
General-Purpose Wall Bracket / Angle Wall Bracket - Surface-Mounted Lighting
Family Size Lamp Quantity Lamp Code Length Width Height
SWB 2’ 1,2 17
24-1/4” 4-7/8” 5”SWB 3’ 1,2 25
SWB 4’ 1,2 32
AWB 2’ 1,2 17 24-1/4”
6” 3-3/8”AWB 3’ 1,2 25 36-1/4”
AWB 4’ 1,2 32 48-1/4”
ACB 2’ 1,2 17 24-1/4”
5-3/8” 3-3/8”ACB 3’ 1,2 25 36-1/4”
ACB 4’ 1,2 32 48-1/4”
SWB 1 32 1 91Y
Family Number of Lamps
(per cross section) Lamp Type Code Voltage Ballast
SWB
AWB
ACB
1
2
17-17WT8(24”)
25-25WT8(24”)
32-32WT8(48”)
1-120
7-277
B-UNV120-277
BallastMatrix
SeePage36
Aboveexample:
MagneticT8
RapidStart1Lamp
Generic
Available in X-Treme Extra Long Life T8 and HPT8. See pages 9 and 36
Common Part Numbers
Part Number No. Lamps Wattage Voltage Description
AWB232BL2Y 2LT 32WattT8 120-277V AngleWallBracket
SWB217BT2Q 2LT 17WattT8 120-277V GPWallBracket
ACB225BL2Y 2LT 25WattT8 120-277V ChromeWallBracket
15
www.crescentlighting.com

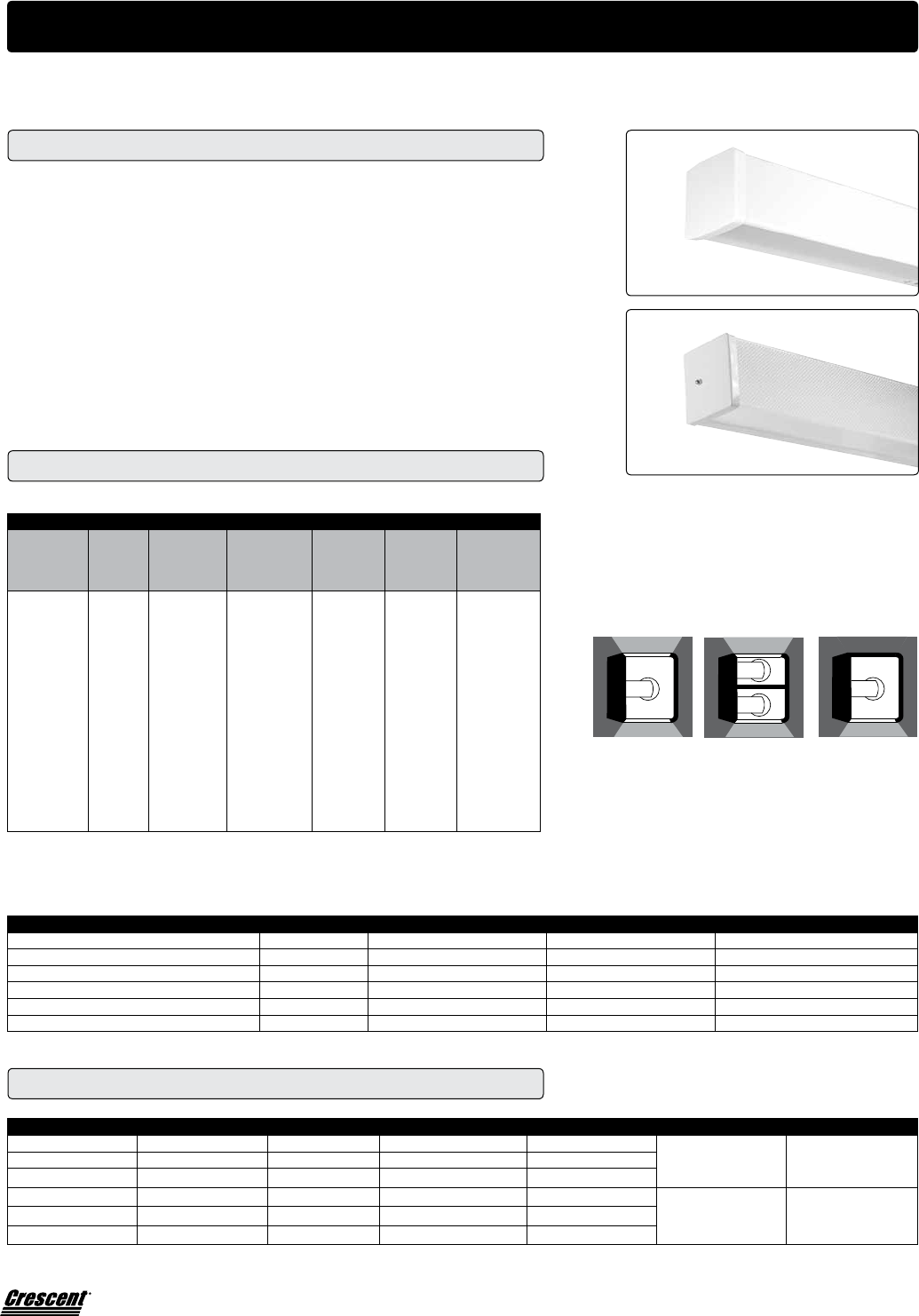

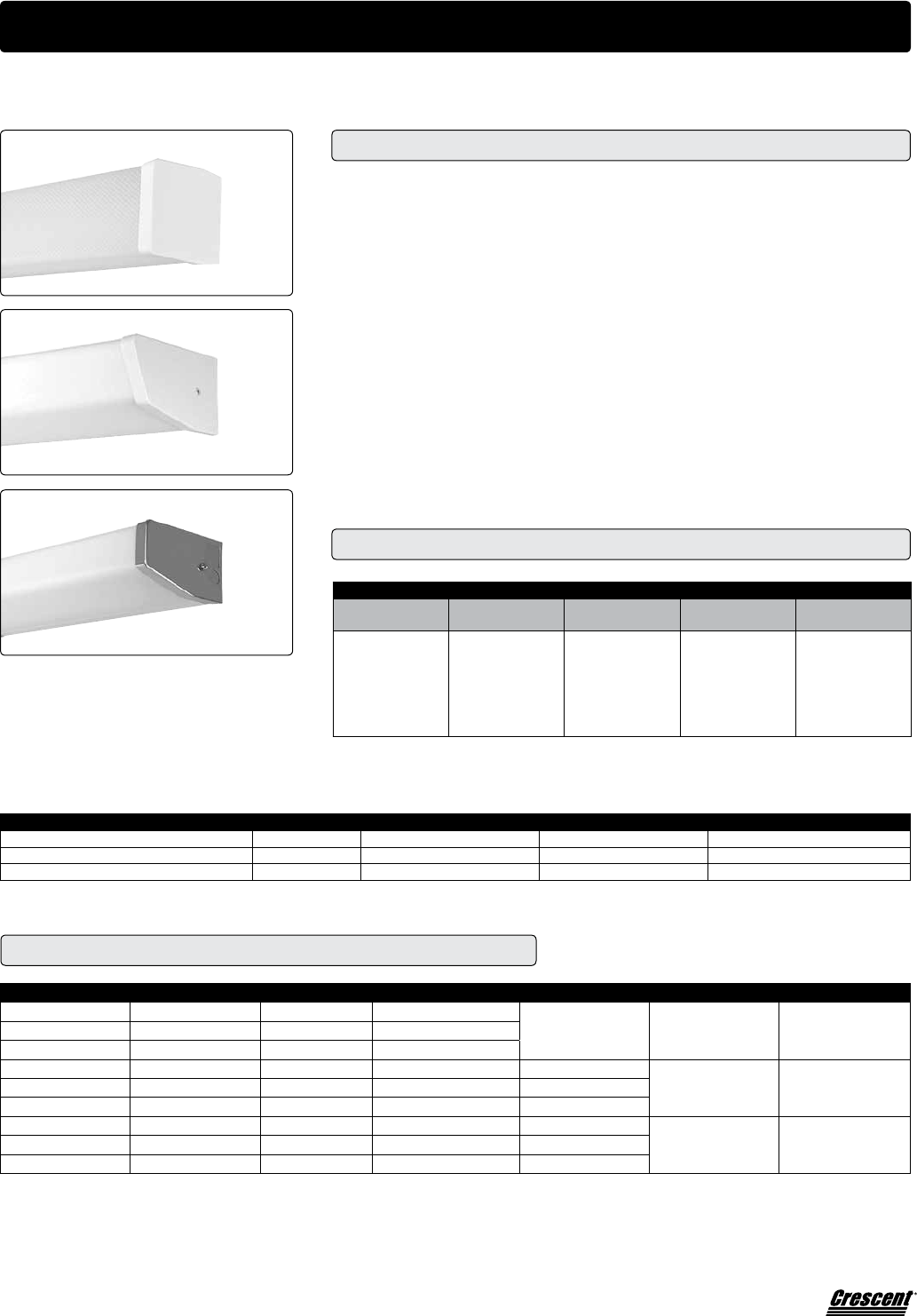

Multi-Purpose Wall Bracket - SRW / Square Wall Bracket - BRW
Specifications
Multi-Purpose Wall Bracket (SRW)
Square Wall Bracket (BRW)
• Semi-translucentprismaticacryliclensreduceslampimagewhilemaintainingahighlevelofefciency
• Slide-onendcapsprovidesimple,time-savinginstallation(notoolsnecessarytore-lamp)
• ULlistedfordamplocations
Ordering Information
Product Availability
SRW
BRW
Surface-Mounted Lighting - Multi-Purpose Wall Bracket / Square Wall Bracket
Family Size Lamp Quantity Lamp Code Length Width Height
SRW 2’ 1,2 17 24-1/4”
4-7/8” 5”
SRW 3’ 1,2 25 36-1/4”
SRW 4’ 1,2 32 48-1/4”
BRW 2’ 1,2 17 24-1/4”
4-7/8” 5”BRW 3’ 1,2 25 36-1/4”
BRW 4’ 1,2 32 48-1/4”
SRW 2 32 1 92Y CFB H9
Family
Number
of Lamps
(per cross
section)
Lamp Type
Code Voltage Ballast
Optional
Light Control
Baffles
Switching
Options
SRW
BRW
forBRWxtures,
sufxfamily
namewithZEfor
chromeendcap;
BRWZE
1
2
17-17WT8
(24”)
25-25WT8
(36”)
32-32WT8
(48”)
1-120
7-277
B-UNV120-277
BallastMatrix
SeePage36
Above
example:
MagneticT8
RapidStart
2Lamp
Generic
FB-Front
Bafe
CFB-Front
Bafewith
CenterDivider
FTB-FrontTop
Bafe
H2-2-way
on-off
for1or
2-lampunit
H1*-4-way
on-offfor2-lamp
unit(usewith
CFBoption)
H9*-On-off
forbottomof
2-lampunit
*H1andH9
SwitchingOption
requires2
ballasts
Available in X-Treme Extra Long Life T8 and HPT8. See pages 9 and 36
Common Part Numbers
Part Number No. Lamps Wattage Voltage Description
SRW217BL2Y 2LT 17WattT8 120-277V WallBracket
SRW225BL2Y 2LT 25WattT8 120-277V WallBracket
SRW232BL2Y 2LT 32WattT8 120-277V WallBracket
BRW217BL2Y 2LT 17WattT8 120-277V WallBracket
BRW225BL2Y 2LT 25WattT8 120-277V WallBracket
BRW232BL2Y 2LT 32WattT8 120-277V WallBracket
Optional Light Control Baffles
Up/Down Light Up/Down Light
with Divider
Down Light Only
FrontBafe FrontBafewith
CenterDivider
FrontTopBafe
16 www.crescentlighting.com

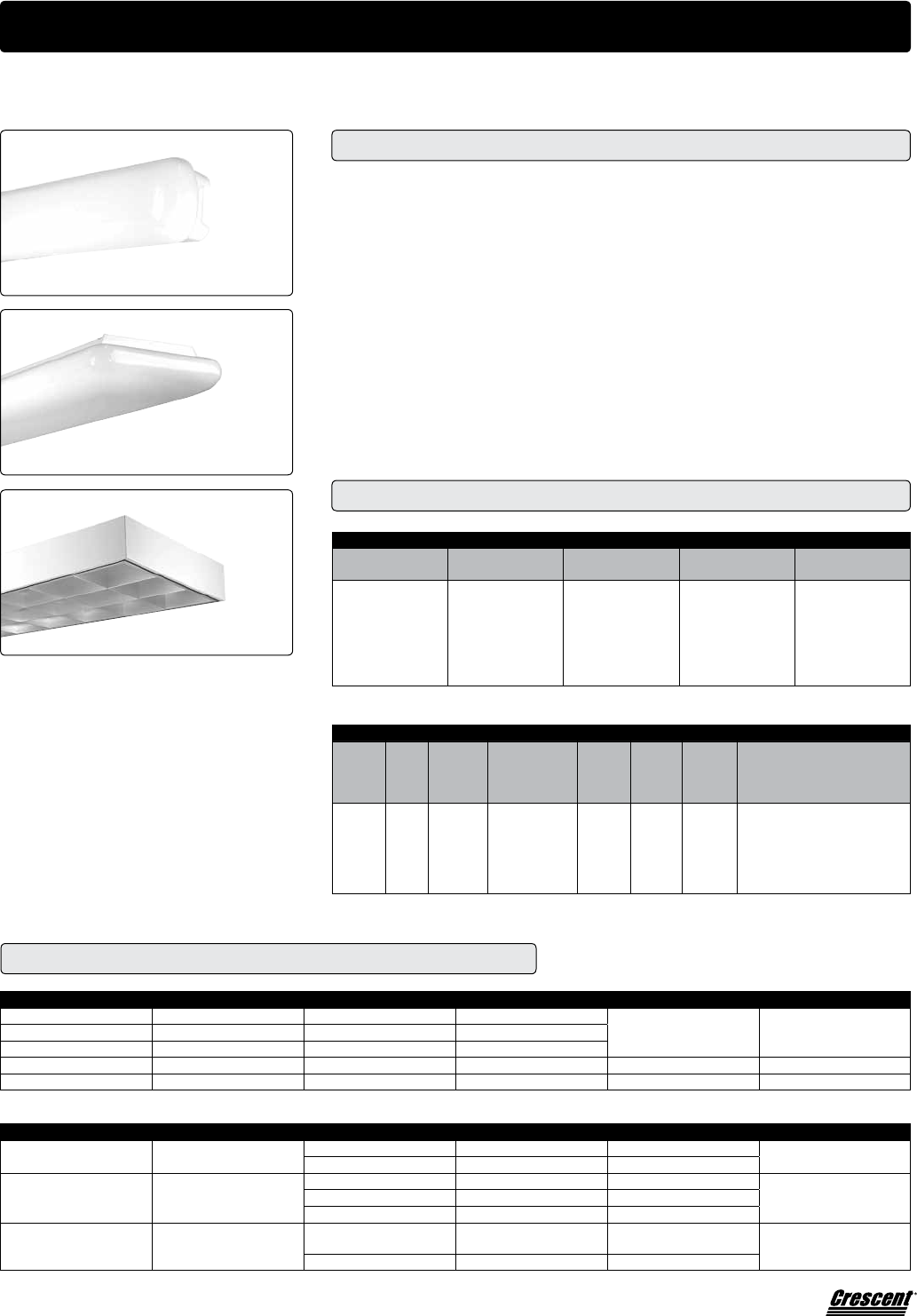

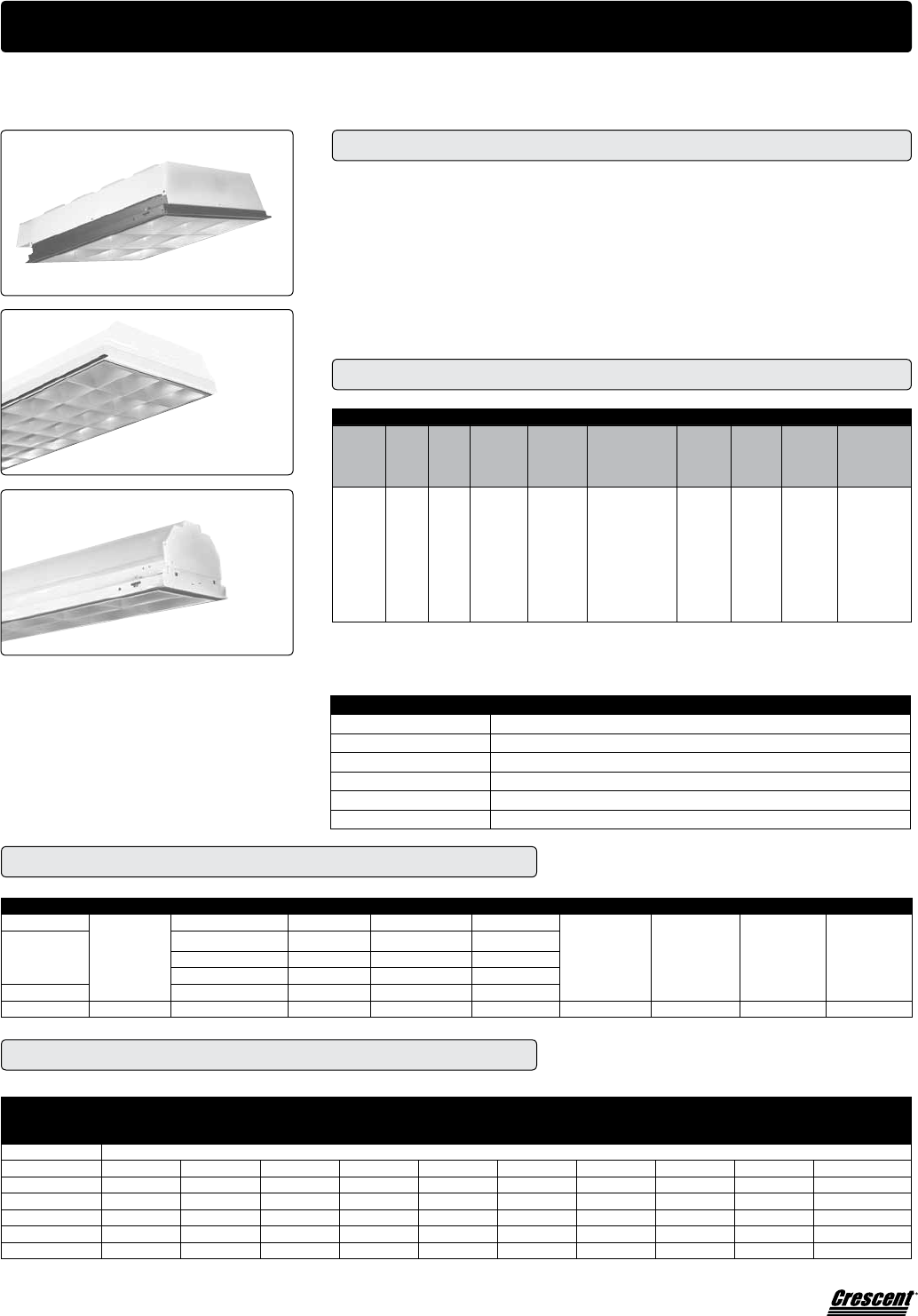

Cloud Bracket - CLDW / Cloudline - CLDC / Deep-Cell Parabolic - D3S
Specifications
Cloud Bracket (CLDW) / Cloudline 4-Lamp (CLDC) / Cloudline 2-Lamp (CLDC)
• Softdiffusedlightingprovidesevenilluminationindecorativeresidentialandhigh-stylecommercialapplications
• Softcurvaturewhiteacrylicdiffuser
• Wallmounteddesignforbathroom,corridorsorhallways(CLDW)
• Surfacemountedhousing2&4lampunits(CLDC)
• Snap-oncomponentsprovidesimple,time-savinginstallation(CLDC)
• Optionallow-densitymountingisavailable(CLDC)
• ULlistedfordamplocations
3” Deep-Cell Parabolic Surface Module (D3S)
• Lowiridescencealuminumisstandard
• Housingisonepieceweldedassemblyforstructuralrigidity
• ULlistedfordirectmountingonlowdensityceiling
• ULlistedfordamplocations
• Energysavingelectronicballasts
• Unitsincorporatingemergencyballasts
Ordering Information
Product Availability
CLDW
CLDC
D3S
Cloud Bracket / Cloudline / Deep-Cell Parabolic - Surface-Mounted Lighting
Family Lamp Quantity Lamp Code Length Width Height
CLDW 1,2 17 26-3/4”
6” 4-1/2”CLDW 1,2 25 38-3/4”
CLDW 1,2 32 50-3/4”
CLDC 4-Light 4 32 50” 17” 5-1/2”
CLDC 2-Light 2 32 50” 11-3/4” 5-1/2”
Size Family Lamp Quantity Lamp Code Number of Cells Height
2x2 D3S 2 U1,U6,17 9(3x3)/16(4x4) 5-1/2”
3 17,U1 9(3x3)/16(4x4)
2x4 D3S
2 32 12(2x6)/18(3x6)
5-1/2”3 32 12(2x6)/18(3x6)/24(3x8)
4 32 18(3x6)/24(4x6)/32(4x8)
1x4 D3S 1,2 32 8(1x8)
12(2x6)/16(2x8) 6-5/8”
3 32 8(1x8)/12(2x6)
CLDW 2 32 1 K2Y
Family Number of Lamps
(per cross section) Lamp Type Code Voltage Ballast
CLDW
CLDC
1
2
4
17-17WT8(24”)
25-25WT8(24”)
32-32WT8(48”)
1-120
7-277
B-UNV120-277
BallastMatrix
SeePage36
Aboveexample:
ElectronicT8
InstantStart2Lamp
Generic
Available in X-Treme Extra Long Life T8 and HPT8. See pages 9 and 36
24 D3S 3 32 18 D 1 K3Y
Size Family
Number
of Lamps
(per cross
section)
Lamp Type
Code
Number
of Cells
Louver
Finish Voltage Ballast
14-1x4
22-2x2
24-2x4
D3S 1
2
3
4
17-17WT8(24”)
U1-31WT81-5/8”
U6-32WT86”
32-32WT8(48”)
09
12
16
18
24
32
D-Semi
Specular
1-120
7-277
B-UNV
120-277
BallastMatrixSeePage36
Aboveexample:
ElectronicT8InstantStart
3LampGeneric
Available in X-Treme Extra Long Life T8 and HPT8. See pages 9 and 36
17
www.crescentlighting.com

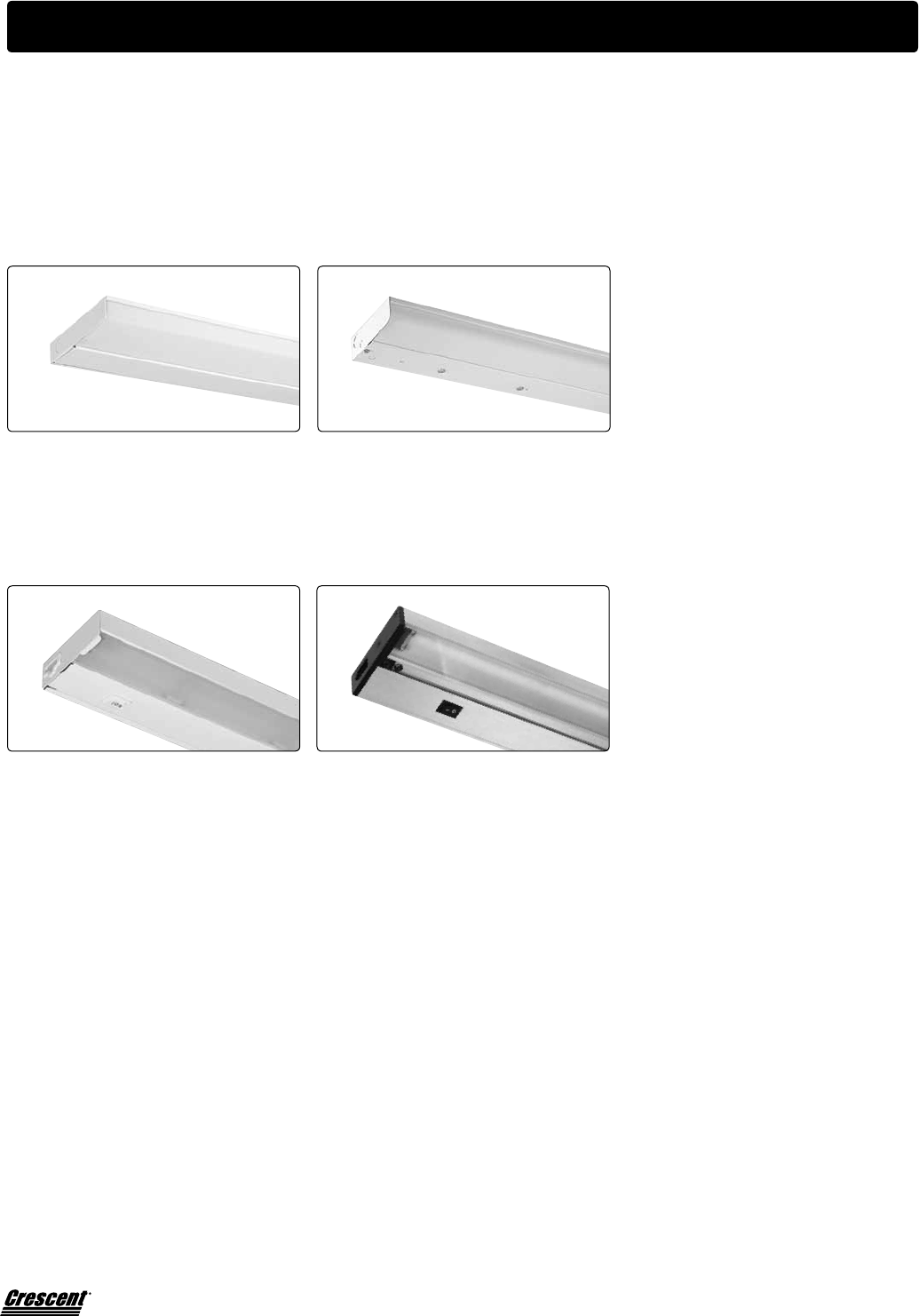

Undercabinet Lighting
Undercabinet
Newfor2010isLEDUndercabinetluminairesfeaturedinstainlesssteelandwhite.CrescentLEDluminaires
deliverbrightilluminationusinglittleenergy.ChoosetheXenonLytePlusforhighCRIratingsandeasyend-
to-endruns.TheCrescentUndercabinetluminairefamilyalsoincludestraditionallinearuorescentlamping
forindustrialtasklightingtoslimandultraslimstylesusingT5technology.
SLP Series
SlimLyteUndercabinet
Page 18
CU Series
Undercabinet
Page 19
LLP Series
LEDUndercabinet
Page 20
XLP Series
XenonLytePlusUndercabinet
Page 19
18 www.crescentlighting.com

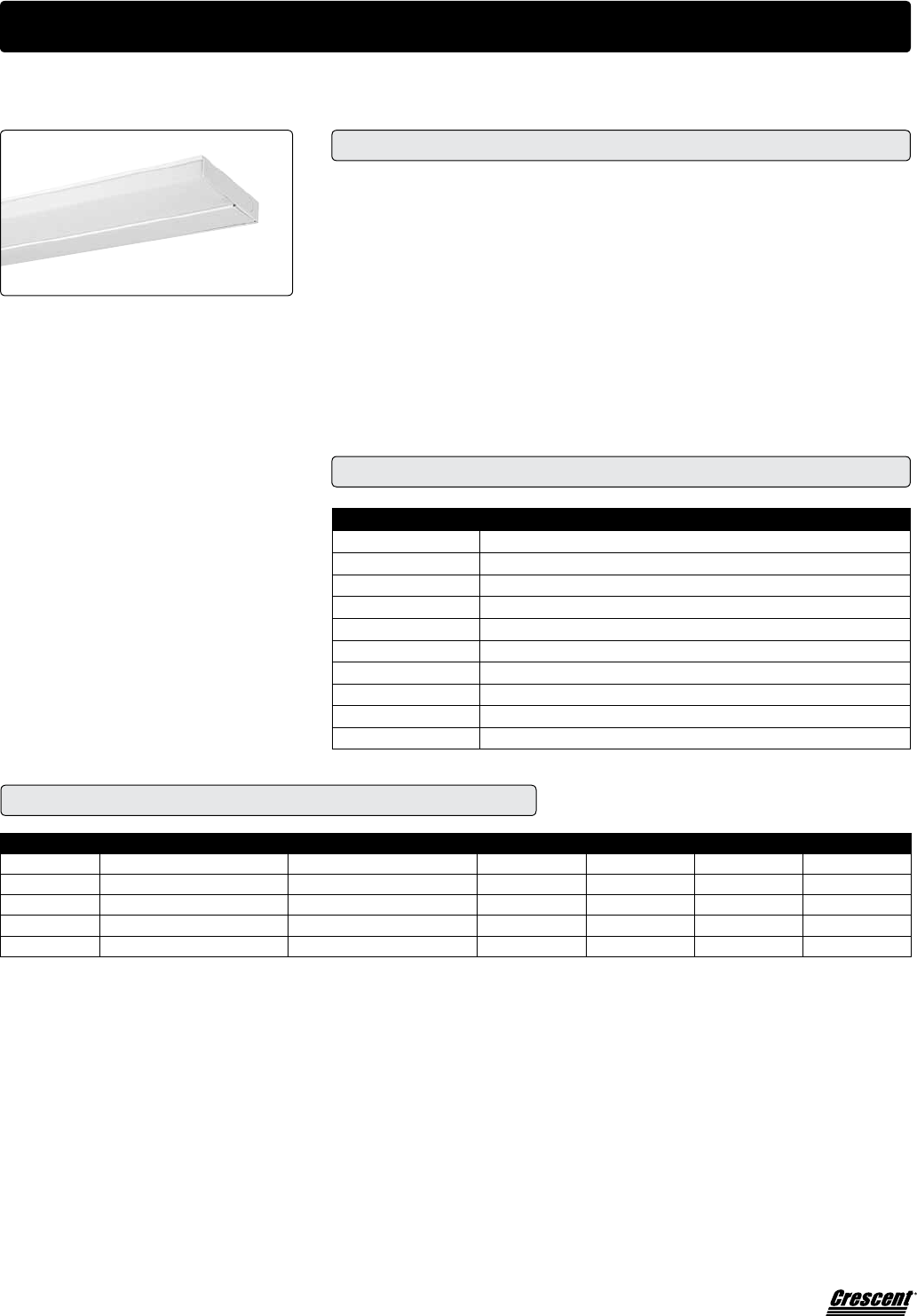

SLP SlimLyte Plus
Specifications
• 1-1/8”ultra-slimstylingcreatesunobtrusivehiddenlightsourceforavarietyoftasklighting
applications
• Electronicstartballasteliminatesstarterwhileprovidingtheuserwithinstantlight
• Postpaintingafterfabricationinsureshighqualitynish
• Snap-inelectricalttingincludedtoacceptexibleconduitorromex
• Damage-resistantwhiteacryliclensreducesglarefactor
• Convenienceoutletand/orrockerswitchavailableasaccessories
 Orderas:
 -KIT-SWR
 -KIT-SCO
• Contractorfriendlysnap-togetherconstruction
• Large7/8”Knock-outinrearfacilitatesinstallation
Ordering Information
Product Availability
Part Number Description
SLP108ES EnergyStarSlimLytePlus,8-wattT5,120-volt
SLP113ES EnergyStarSlimLytePlus,13-wattT5,120-volt
SLP116ES EnergyStarSlimLytePlus,(2)8-wattT5,120-volt
SLP121ES EnergyStarSlimLytePlus,(1)8-wattT5,(1)13-wattT5,120-volt
SLP126ES EnergyStarSlimLytePlus,(2)13-wattT5,120-volt
SLP1080LES EnergyStarSlimLytePlus,8-wattT5,120-volt,w/lamp
SLP1130LES EnergyStarSlimLytePlus,13-wattT5,120-volt,w/lamp
SLP1160LES EnergyStarSlimLytePlus,(2)8-wattT5,120-volt,w/lamp
SLP1210LES EnergyStarSlimLytePlus,(1)8-wattT5,(1)13-wattT5,120-volt,w/lamp
SLP1260LES EnergyStarSlimLytePlus,(2)13-wattT5,120-volt,w/lamp
SLP SlimLyte Plus - Undercabinet Lighting
Family Lamp Quantity / Cross Section Lamp Quantity / Fixture Lamp Code Length Width Height
SLP 1 1 08 12-1/4” 5” 1-1/8”
SLP 1 1 13 21-1/4” 5” 1-1/8”
SLP 1 2 16 24-1/2” 5” 1-1/8”
SLP 1 2 21 33-1/2” 5” 1-1/8”
SLP 1 2 26 42-1/2” 5” 1-1/8”
19
www.crescentlighting.com
CU Undercabinet
XLP Xenon LytePlus
Specifications
• Shallow1-7/8”depthprovidesunobtrusivelightsourceforavarietyoftasklightingapplications.
• Convenienceoutletand/orrockerswitchavailableasaccessories
 Orderas:
 -KIT-SWRorKIT-SCO
• Postpainted
Ordering Information
Product Availability
Undercabinet Lighting - CU / XLP
Part Number Description
CUE115121YLSES 18.125”T12undercabinet,nolamp,120-volt
CU1171K1YLS 24.125”T8undercabinet,nolamp,120-volt
CUE120121YLSES 24.125”T12undercabinet,nolamp,120-volt
CU1251K1LYS 36.125”T8undercabinet,nolamp,120-volt
CUE130141YLSES 36.125”T12undercabinet,nolamp,120-volt
CU1321K1YLS 48.25”T8undercabinet,nolamp,120-volt
CUE134141YLSES 48.25”T12undercabinet,nolamp,120-volt
Family Lamp Quantity / Cross Section Lamp Code Length Width Height
CU 1 15 18-1/8” 5-1/4” 1-7/8”
CU 1 17,20 24-1/8” 5-1/4” 1-7/8”
CU 1 25,30 36-1/8” 5-1/4” 1-7/8”
CU 1 32,34 48-1/8” 5-1/4” 1-7/8”
Part Number Description
CUE115121YOJLS 18.125”T12undercabinet,lamped,120-volt
CUE120121YOJLS 24.125”T12undercabinet,lamped,120-volt
CUE130141YOJLS 36.125”T12undercabinet,lamped,120-volt
CUE132161YOJLS 48.25”T8undercabinet,lamped,120-volt
Specifications
• Precisiondieformedsteelhousing
• Postpaintingwhitenisheliminatessharpedges
• HighCRIXenonlampsource.
• 18wattwedgebaselampsincluded
• Completewithintegrallowvoltagetransformer
• 7/8”KOfacilitateshardwiring
• Completewithcord/plugfor120vplug-in
requirements
• Completewithjumpercordforend-to-endruns
Ordering Information
Product Availability
Part Number Description
XLP1180L 9.5”1-lightXenonUndercabinet,120-volt XLP3180L 18”3-lightXenonUndercabinet,120-volt
XLP2180L 12”2-lightXenonUndercabinet,120-volt XLP4180L 24”4-lightXenonUndercabinet,120-volt
Family Lamp Quantity / Cross Section Lamp Code Length Width Height
XLP 1 18 9-1/2” 3-1/2” 1-1/8”
XLP 2 18 12” 3-1/2” 1-1/8”
XLP 3 18 18” 3-1/2” 1-1/8”
XLP 4 18 24” 3-1/2” 1-1/8”
• 3wayswitch:hi-lo-off.
• Frostedhightemperatureglassdiffuser
providesevenilluminationoncountersurface
• Availablein1,2,3or4lampcongurations
• Completewithallrequiredmountinghardware
• Snap-Typedesignspeedsinstallation.No
disassemblyrequired
20 www.crescentlighting.com
LED LytePlus - Undercabinet Lighting
LLP Series LED Undercabinet
Specifications
•Bright,evenillumination
•Verylowenergyconsumption,nominalonewattperLED
•Warmwhitecolor,4000k
•Easytoinstall
•Extrudedaluminumformaximumheattransfer
•Built-inON/OFFrockerswitch
•60”longpowercord
•17”jumpercordformultipleconnections
•Captiveinstallationscrews
•Prismaticglasslens
Ordering Information
Part Number Description Finish Length Width Height Color Temp.
LLP2SS (2)1-wattHigh-OutputLEDs BrushedAluminum 9” 3-1/2” 1” 4000K
LLP2W (2)1-wattHigh-OutputLEDs White 9” 3-1/2” 1” 4000K
LLP4SS (4)1-wattHigh-OutputLEDs BrushedAluminum 12” 3-1/2” 1” 4000K
LLP4W (4)1-wattHigh-OutputLEDs White 12” 3-1/2” 1” 4000K
LLP6SS (6)1-wattHigh-OutputLEDs BrushedAluminum 18” 3-1/2” 1” 4000K
LLP6W (6)1-wattHigh-OutputLEDs White 18” 3-1/2” 1” 4000K
LLP8SS (8)1-wattHigh-OutputLEDs BrushedAluminum 24” 3-1/2” 1” 4000K
LLP8W (8)1-wattHigh-OutputLEDs White 24” 3-1/2” 1” 4000K
Quality Features Add Value and Convenience
Extrudedaluminumformaximumheattransfer
Prismaticglasslens
Built-inON/OFFrockerswitch
60”longpowercordand17”jumpercord
Keyholeslotsforeasyinstallation
SlimProle
Availablein9”,12”,18”and24”(12”modelshown)
5-yearwarranty
Highquality,highlumen
outputLEDs Brushedaluminumandwhite
nishes
21
www.crescentlighting.com
Industrial Lighting
Industrial
TheCrescentIndustriallineincludeslinearuorescentluminairesfortoughlightingapplications.Mostareavailablewithhighefciency
T5andT8lampingforhugeenergysavings.Selectindustrialluminairesareavailablewithareectoroptionsforexactlightplacement,and
Crescentoffersspecialcoveandcontinuousinstallation.OtherIndustrialluminairesincludetheSealtightforseverewetareasandHazard
Lyteforvaporandgasapplications.
SCF Series
General-PurposeChannel
Page 22
C Series
NarrowChannel
Page 24
RN Series
Industrials
Page 26
MST Series
MiniSealTight
Page 29
22 www.crescentlighting.com

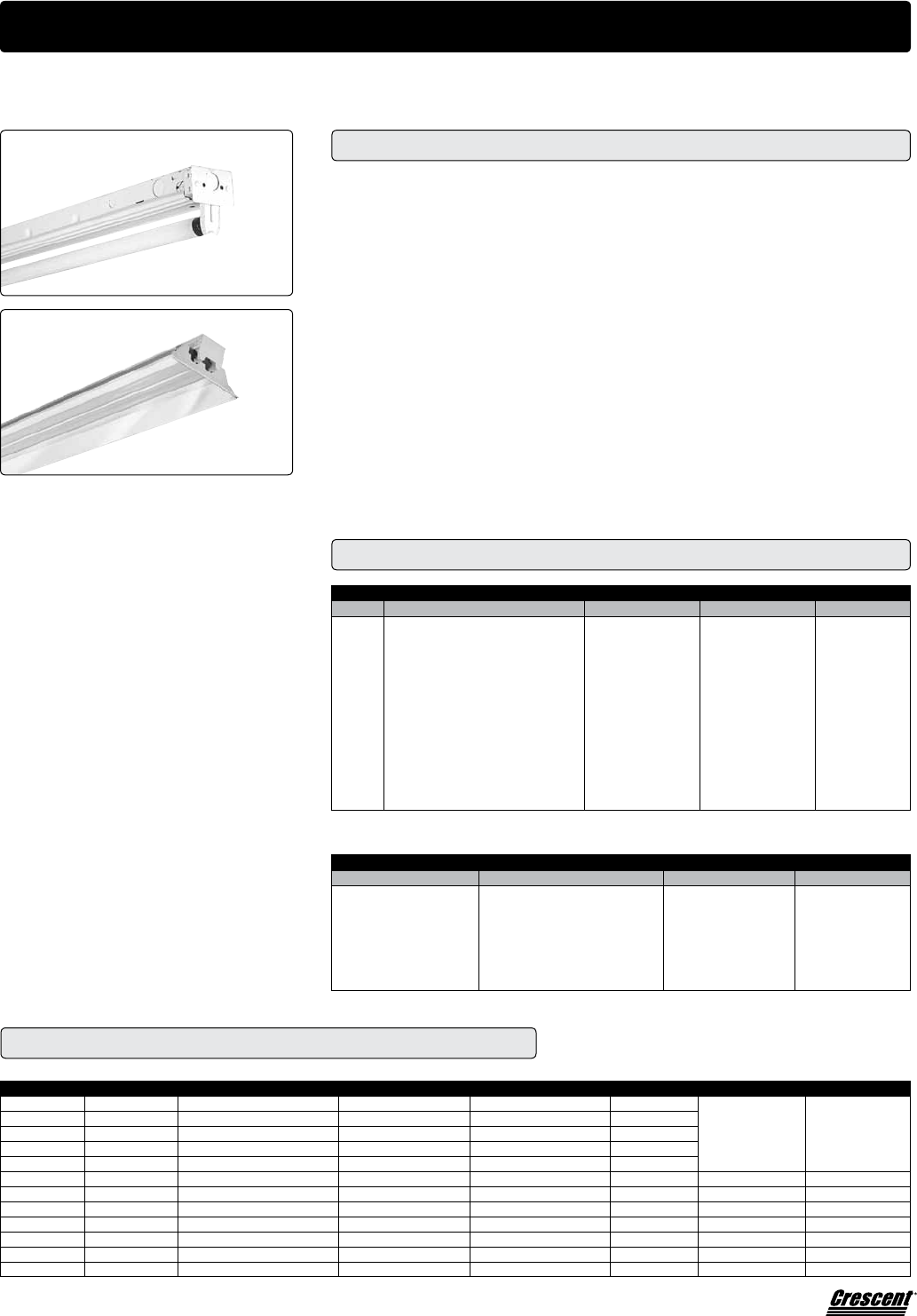

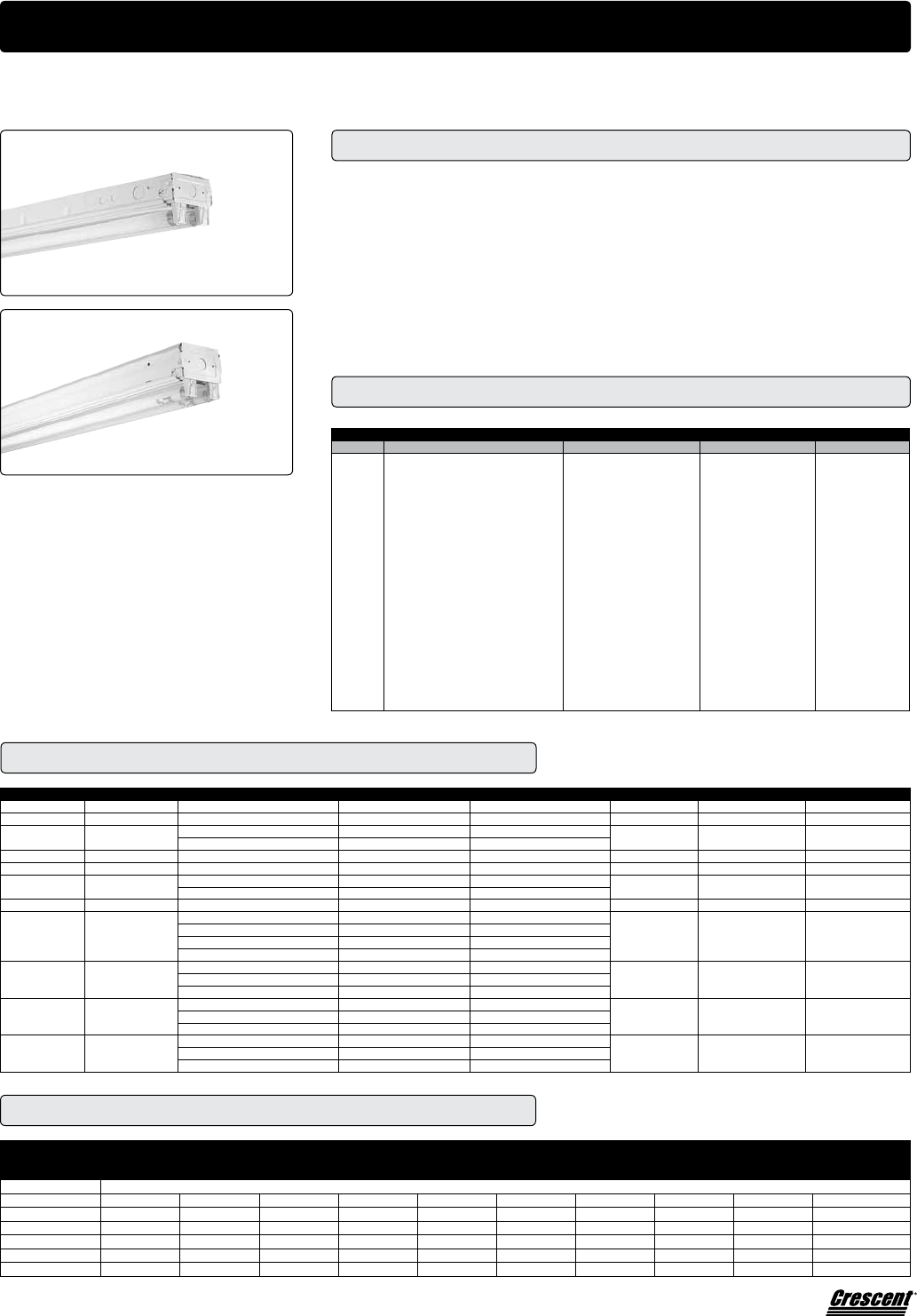

SCF General-Purpose / SCN Premium
Specifications
General-Purpose Channel (SCF)
Premium Channel (SCN)
• Combinationendplate/couplercanbeusedforindividualmountingorslidesintopositionbetweentwoxtures,
assuringintegrityofrowalignment
• Symmetricandasymmetricreectorsareavailableforadditionaldownlightanddirectionalcontrol
• Optionalheavy-duty10”sleevecouplerscanprovideadditionalbracingatxturejunctures
• All20wattthrough40wattxturesaresuitableformountingonlow-densitycelluloseberboardsurfaces
• AllT8highoutputunitsneedtobesuspendedaminimumof1-1/2”fromsurface
• 1/4turnfastenerlockballastcoverontohousing
• ULDampLocationlabelsarestandardwiththisseries
Ordering Information
Product Availability
SCF
SCN
SCF / SCN Channels - Industrial Lighting
Family Size No. Lamps/Cross Section No. Lamps/Fixture Lamp Code Length Width Height
SCF 2’ 2 1,2 14,17,20,24 24” 4-1/8” 3-7/8”
SCF 3’ 2 1,2 21,25,30,39 36” 4-1/8” 3-7/8”
SCF 4’ 1 1,2 48 48” 4-1/8” 3-7/8”
2 1,2 32,34,48,54
SCF 6’ 1,2 1,2 72 72” 4-1/8” 3-7/8”
SCF 8’ 1,2 1,2 59,96 96” 4-1/8” 3-7/8”
SCFT 8’ 1 2 32,34 96” 4-1/8” 3-7/8”
2 4 32,34,39,54
SCFT 16’ 1 2 59,96 192” 4-1/8” 3-7/8”
SCN 4’
2 2 28,32,34
48” 4-1/8” 4-3/4”
1 1 28,48
1,2 1,2 44,54,60
1,2 1,2 115
SCN 6’
1,2 1,2 72
72” 4-1/8” 4-3/4”1,2 1,2 65,85
1,2 1,2 160
SCN 8’
1,2 1,2 59,96
96” 4-1/8” 4-3/4”1,2 1,2 86,95
1,2 1,2 215
SCNT 16’
1,2 1,2 59,96
192” 4-1/8” 4-3/4”1,2 1,2 86,95
1,2 1,2 215
QuickEst
Fixture 120 200 300 400 600 800 1000 2000 over 2000 per
1000
Max. Spacing-to-
Mounting Height
Ratio
NumberofFixturesRequiredfor100Footcandles*
SCF234/232 6 8 11 13 19 24 28 52 25 1.6
SCF196 6 8 10 13 18 23 27 50 24 1.6
SCF296 3 4 6 7 9 12 14 26 12 1.6
SCN196 6 8 10 13 18 23 27 50 24 1.6
SCN296 3 4 6 7 9 12 14 26 12 1.6
SCN295 2 3 4 5 7 8 10 18 9 1.6
SCF 2 32 1 K2Y
Family Number of Lamps (per cross section) Lamp Type Code Voltage Ballast
SCF
SCN
Note:
SufxFamily
namewith“T”
fortandem
xturesEx.
SCFT
1
2
14-14WT5(24”)
17-17WT8(24”)
20-20WT12(24”)
21-21WT5(36”)
24-24WT5HO(24”)
25-25WT8(36”)
28-28WT5(48”)
30-30WT12(36”)
32-32WT8(48”)
34-34WT12(48”)
39-39WT5HO(36”)
44-44WT8HO(48”)
48-39WT12(48”)Slimline
54-54WT5HO(48”)
59-59WT8(96”)Slimline
60-60WT12HO(48”)
65-65WT8HO(72”)
72-55WT12(72”)Slimline
95-95WT12HO(96”)Slimline
86-86WT8HO(96”)
96-60WT12(96”)Slimline
115-115WT12(48”)VHO
160-160WT12(72”)VHO
215-215WT12(96”)VHO
1-120
7-277
B-UNV120-277
BallastMatrix
SeePage36
Aboveexample:
ElectronicT8
InstantStart2Lamp
Generic
Available in X-Treme Extra Long Life T8 and HPT8. See pages 9 and 36
23
www.crescentlighting.com

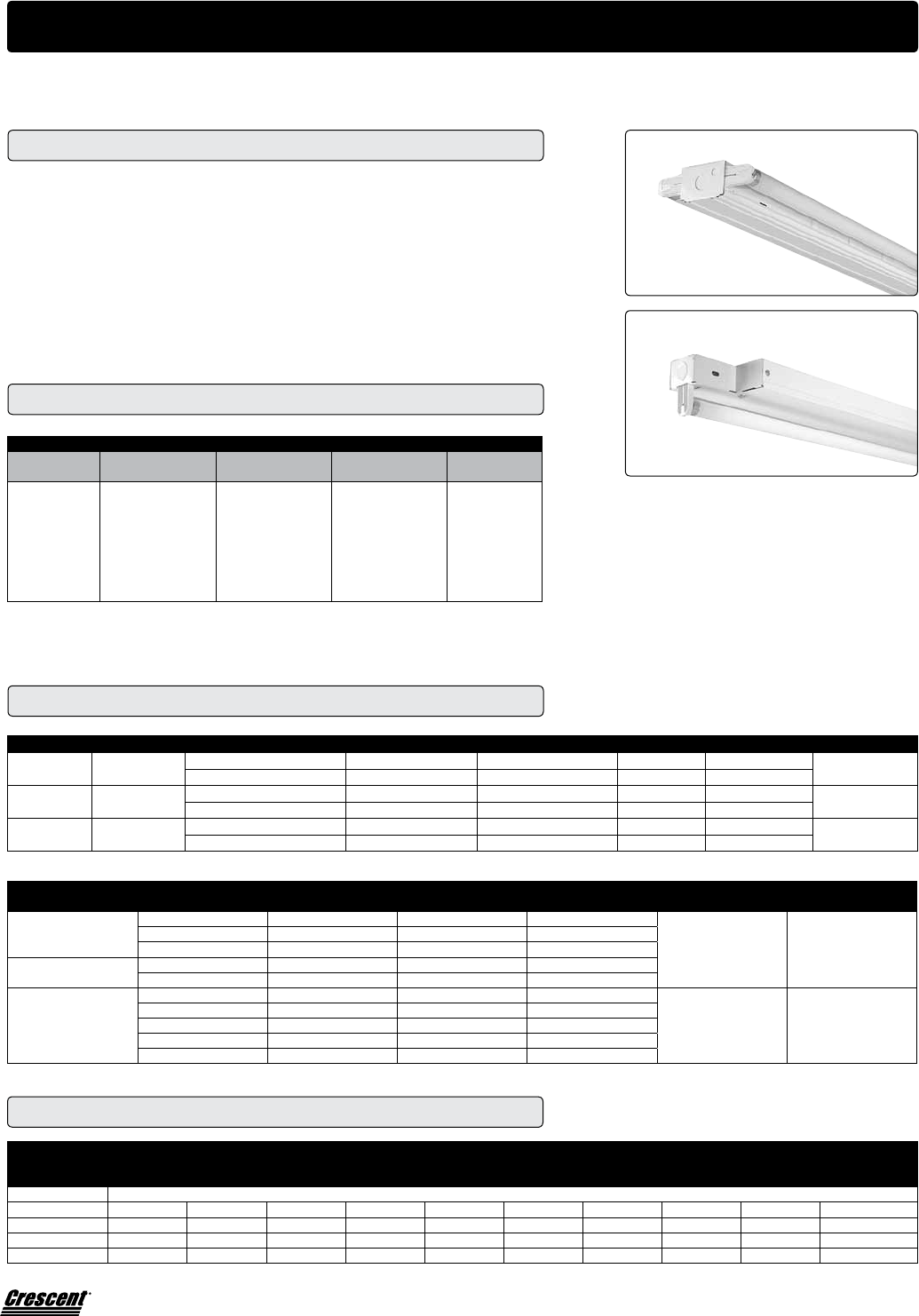

SM Side Mount / STG Staggered Channel
Specifications
Side-Mount Channel (SM)
Staggered-Channel One and Two Lamp (STG)
• Shallow1-7/8”depthmaybeusedforshowcases,shallowplenums,oranywherespaceisaproblem(SM)
• Designedforcoveandvalancelightinginmallandretailareas,corridorsandlobbies(STG)
• Three-inchoffsetprovideseven,unbrokenbandofillumination(STG)
• Severalunitsmaybeusedfordimmingorcoldweatherapplications(SM)
• Housingsaredie-formedandweldedformaximumrigidity
• 1/4turnfastenerlockballastcoverontohousing
• ULDampLocationlabelsarestandard
Ordering Information
Product Availability
SM
Industrial Lighting - Side Mount / Staggered Channel
STG
Family Size No. Lamps/Cross Section No. Lamps/Fixture Lamp Code Length Width Height
SM 2’ 1 1 17,20 24” 4-3/16” 2”
2 2 17,20 24” 5-7/8”
SM 3’ 1 1 25,30 36” 4-3/16” 2”
2 2 25,30 36 5-7/8”
SM 4’ 1 2 32,34 48” 4-3/16” 2”
2 2 32,34 48” 5-7/8”
Family No. Lamps/Cross
Section
No. Lamps/Fixture Lamp Code Length Width Height
STG
2 2 17,20 27”
4-1/8” 3-1/4”
2 2 25,30 39”
2 2 32,34 51”
STGT 2 4 25,30 75”
2 4 32,34 99”
STG
1 1 17,20 24”
4-1/8” 3-1/4”
1 1 25,30 36”
1 1 32,34 48”
1 2 25,30 69”
1 2 32,34 93”
SM 1 32 1 K1Y
Family Number of Lamps
(per cross section) Lamp Type Code Voltage Ballast
SM
STG
Note:
SufxFamilyname
with“T”fortandem
xtures
Ex.STGT
1
2
17-17WT8(24”)
20-20WT12(24”)
25-25WT8(36”)
30-30WT12(36”)
32-32WT8(48”)
34-34WT12(48”)
1-120
7-277
B-UNV120-277
BallastMatrix
SeePage36
Aboveexample:
ElectronicT8
InstantStart1Lamp
Generic
Available in X-Treme Extra Long Life T8 and HPT8. See pages 9 and 36
QuickEst
Fixture 120 200 300 400 600 800 1000 2000 over 2000 per
1000
Max. Spacing-to-
Mounting Height
Ratio
NumberofFixturesRequiredfor100Footcandles*
SM220 20 29 40 50 68 88 105 196 93 1.5
SM230 11 15 21 26 36 46 55 102 49 TO
SM134/132 19 27 38 47 65 83 100 186 88 2
SM234/232 8 11 15 19 26 33 40 74 36 AboveCeiling
24 www.crescentlighting.com
C Narrow Channel / RS Recessed Strip
Specifications
Narrow Channel (C)
• Combinationendplate/couplercanbeusedforindividualmountingorslidesintopositionbetweentwoxtures,
assuringintegrityofrowalignment
• Symmetricandasymmetricreectorsareavailableforadditionaldownlightanddirectionalcontrol
• All20wattthrough40wattxturesaresuitableformountingonlow-densitycelluloseberboardsurfaces
• AllT8highoutputunitsneedtobesuspendedaminimumof1-1/2”fromsurface
• 1/4turnfastenerlockballastcoverontohousing
• ULDampLocationlabelsarestandardwiththisseries
Recessed Strip (RS)
• Recessedforcleanerlookingandmorevisuallycomfortableinstallationcomparedtoopenstripxtureslocations
• Providesimprovedlightingonmerchandiseortaskatreducedenergyconsumptionwhencomparedtoopenstrip
systems
• Forinstallationininverted“T”(NEMA“G”)ceilingsystemsin1’x4’or1’x8’individualunitsorincontinuousrows
• Energysavingelectronicballastsstandard
• Highreectancewhitereectorstandard.
• Multi-stagephosphatetreatedhousingformaximumcorrosionresistancewithbakedwhiteenamelnishcoat
• ULListedfordamplocations
• UnitsincorporatingemergencyballastsULlistedfordry
• Ballastaccessplateprovidedinreector
Ordering Information
Product Availability
C
RS
C Narrow Channel / RS Recessed Strip - Industrial Lighting
Family Size No. Lamps/Cross Section No. Lamps/Fixture Lamp Code Length Width Height
C 1-1/2’ 1 1 15 18”
2-1/2” 3-11/16”
C 2’ 1 1 14,17,20,24 24”
C 3’ 1 1 21,25,30,39 36”
C 4’ 1 1 28,32,34,54 48”
CT 8’ 1 2 28,32,34,54 96”
RS 4’ 1,2 1,2 32,48 48” 1’ 5-1/4”
RS 4’ 1,2 1,2 60 48” 1’ 6-1/8”
RST 8’ 1,2 2,4 32 96” 1’ 5-1/4”
RS 8’ 1,2 1,2 59,96 96” 1’ 5-1/4”
RS 8’ 1,2 1,2 86 96” 1’ 6-1/8”
RST 16’ 1,2 2,4 59,96 192” 1’ 5-1/4”
RST 16’ 1,2 2,4 86 192” 1’ 6-1/8”
C 2 32 1 K1Y
Family Number of Lamps (per cross section) Lamp Type Code Voltage Ballast
C
Note:
Sufx
Family
namewith
“T”for
tandem
xtures
Ex.CT
114-14WT5(24”)
15-15WT12(18”)
17-17WT8(24”)
20-20WT12(24”)
21-21WT5(36”)
24-24WT5HO(24”)
25-25WT8(36”)
28-28WT5(48”)
30-30WT12(36”)
32-32WT8(48”)
34-34WT12(48”)
39-39WT5HO(36”)
54-54WT5HO(48”)
1-120
7-277
B-UNV120-277
BallastMatrix
SeePage36
Aboveexample:
ElectronicT8
InstantStart1Lamp
Generic
Available in X-Treme Extra Long Life T8 and HPT8. See pages 9 and 36
RS 2 32 1
Family Number of Lamps (not included) Wattage Voltage
RS
Note:
SufxFamilynamewith“T”for
tandemxturesEx.RST
1
2
32-32WT8(48”)
48-39WT12(48”)Slimline
59-59WT8(96”)Slimline
60-60WT12HO(48”)
86-86WT8HO(72”)
Slimline
96-60WT12(96”)Slimline
1-120
7-277
B-UNV120-277
Available in X-Treme Extra Long Life T8 and HPT8. See pages 9 and 36
25
www.crescentlighting.com

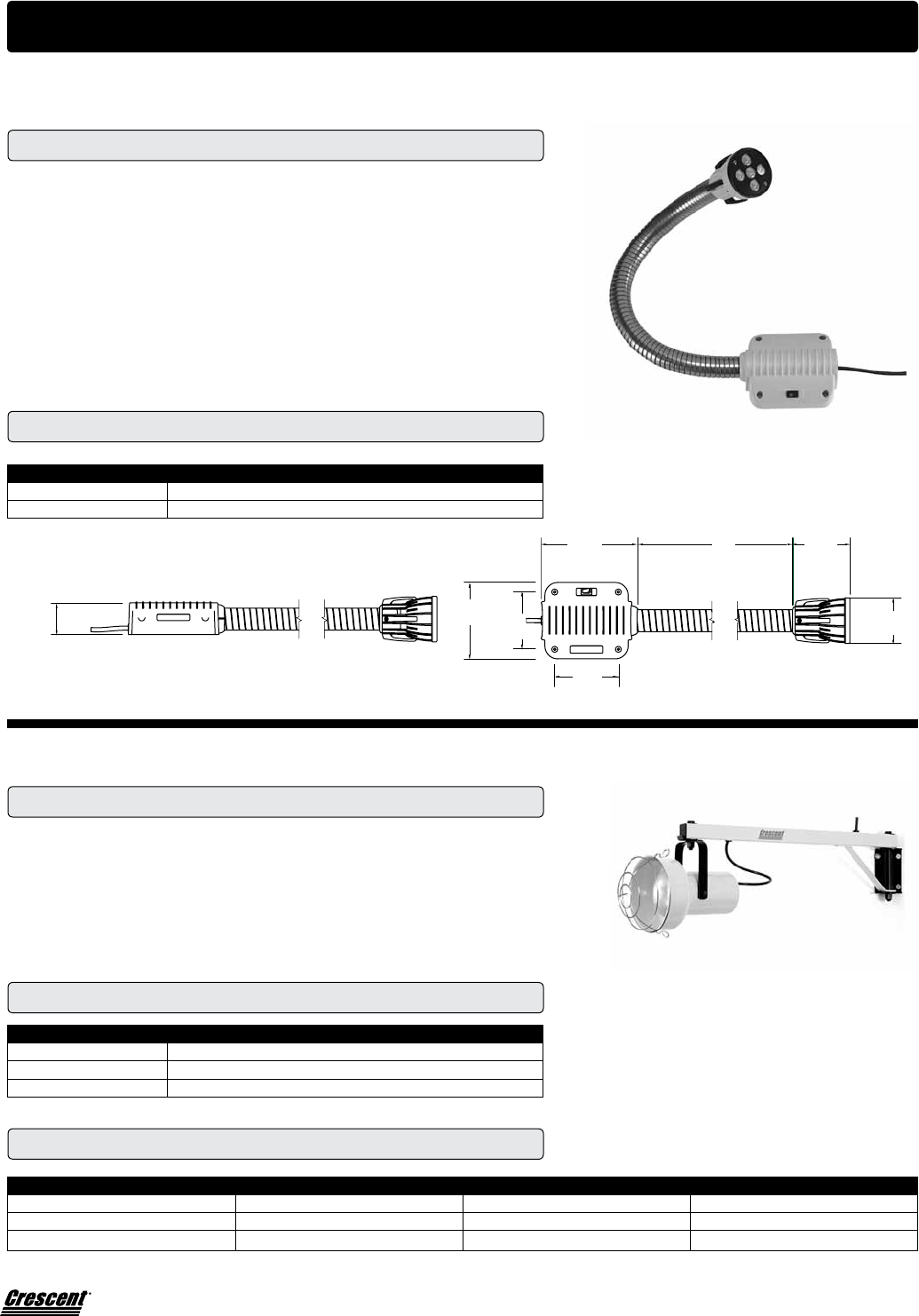

2-1/2"
(64mm)
6"
(152mm) 4-1/2"
(114mm)
5"
(127mm)
7-1/2"
(192mm) A4-1/2"
(114mm)
3-5/8"
(91mm)
32" Model 42" Model
28-1/8" 38-1/8"
LED DockLyte
Specifications
• 15WattLED=150Wattincandescent
• 50,000hourlamplife
• Innovativeheatsinkdesignwithcopper,waterlledtubesinsertedforoptimumdissipation
• Convenientelectricalreceptacle
• WeatherproofOn/Offtoggleswitch
• Acrylicshatterprooflens
• Durablediecastaluminumhead
• Innitelyadjustablestainlesssteelneck
• AssembledintheUSA
• ETLListedfordamplocations
• 5yearwarranty
Ordering Information
Industrial Lighting - LED DockLyte / DCF DockLyte
Product Availability
Part Number Description
DCF24CP3 DockLyte24”with3-FootCord
DCF40CP3 DockLyte40”with3-FootCord
DCF60CP3 DockLyte60”with3-FootCord
Part Number Description
DL532LED LEDDockLyte,5-Light,32”Arm
DL542LED LEDDockLyte,5-Light,42”Arm
Catalog No. Watts No. Arms Total Length
DCF24CP3 150-300 1 24”
DCF40CP3 150-300 2 40”
DCF60CP3 150-300 2 60”
DCF DockLyte
Specifications
• Chip-resistantyellowpowdercoatnishforhigh
visibilityanddurability
• Nylonandsteelwashersatalljointsforlongwear
andsmoothoperation
• HardserviceSJT18/3cord-setwithgroundedplug
• Availablein3armsizes:24”,40”&60”.
• 1-1/2”squaresteeltubing
Ordering Information
• Lightonlyswitch
• Lowinitialcost
• Upto300wattsincandescentlight,mediumbase
• Flexibledesignresistsbreakingwhenbumped
• Guardincluded
• ULApprovedDampLocations
26 www.crescentlighting.com
RN General-Purpose Industrials
Specifications
• Die-formed4ft.reectorwithtransverseribbingforstructuralstability
• Quick-releasequarter-turnfastenersprovideeaseofinstallationandmaintenance
• Combinationendplate/couplerassuresintegrityofrowalignment.(Heavy-duty10”coupleravailable)
• Cord,plugandchainsetsavailableforreducedinstallationcost
• ULDampLocationlabelsarestandardwiththisseries
Ordering Information
Product Availability
RN
RN Industrials - Industrial Lighting
Family Size No. Lamps/Cross Section No. Lamps/Fixture Lamp Code Length Width Height
RN 4’ 2 2 32 48” 10” 3-15/16”
48,54
RN 8’ 1 1 59,96 96” 10” 3-15/16”
2 2 59,96
RNA 4’ 2 2 28,32 48” 10” 3-15/16”
48,54
RNA 8’ 1 1 59,96 96” 10” 3-15/16”
2 2 59,96
RNT 8’ 1 2 32,54 96” 10” 3-15/16”
2 4 32,54
RNT 16’ 1 2 59,96 192” 10” 3-15/16”
RNAT 8’ 1 2 28,32 96” 10” 3-15/16”
2 4 32,54
RNAT 16’ 1 2 59,96 192” 10” 3-15/16”
QuickEst
Fixture 120 200 300 400 600 800 1000 2000 over 2000 per
1000
Max. Spacing-to-
Mounting Height
Ratio
NumberofFixturesRequiredfor100Footcandles*
RN232 6 8 10 13 18 22 27 49 23 1.5
RN196 5 7 10 12 17 22 26 48 23 1.5
RN296 3 4 5 6 9 11 13 25 12 1.5
RN 2 32 1 K2Y
Family Number of Lamps
(per cross section) Lamp Type Code Voltage Ballast
Note:
•SufxFamilynamewith“A”for10%
aperturedreectors
Ex.RNA
•SufxFamilynamewith“T”fortandem
xturesEx.RNT
•SufxFamilynamewith“AT”fortandem
xtureswith10%aperturedreectors
Ex.RNAT
1
2
28-28WT5(48”)
32-32WT8(48”)
48-39WT12(48”)Slimline
54-54WT5HO(48”)
59-59WT8(96”)Slimline
96-60WT12(96”)Slimline
1-120
7-277
B-UNV120-277
BallastMatrix
SeePage36
Aboveexample:Electronic
T8
InstantStart
2Lamp
Generic
Available in X-Treme Extra Long Life T8 and HPT8. See pages 9 and 36
27
www.crescentlighting.com
Industrial Lighting - RH Industrials
Product Availability
Family Size No. Lamps/Cross Section No. Lamps/Fixture Lamp Code Length Width Height
RH 4’
2 2 28,32
48” 10” 4-13/16”
2 2 48
2 2 44,54,60
2 2 115
RH 8’
1,2 1,2 59,96
96” 10” 4-13/16”1,2 1,2 86,95
2 2 215
RHA 4’
2 2 28,32
48” 10” 4-13/16”
2 2 48
2 2 44,54,60
2 2 115
RHA 8’
1,2 1,2 59,96
96” 10” 4-13/16”1,2 1,2 86,95
2 2 215
RHT 8’ 1 2 28,32,54 96” 10” 4-13/16”
2 4 28,32,54
RHT 16’ 1 2 59,96 192” 10” 4-13/16”
1 2 86,95
RHAT 8’ 1 2 28,32,54 96” 10” 4-13/16”
2 4 28,32,54
RHAT 16’ 1 2 59,96 192” 10” 4-13/16”
1 2 86.95
QuickEst
Fixture 120 200 300 400 600 800 1000 2000 over 2000 per
1000
Max. Spacing-to-
Mounting Height
Ratio
NumberofFixturesRequiredfor100Footcandles*
RH232 6 8 10 13 18 22 27 49 23 1.5
RH196 5 7 10 12 17 22 26 48 23 1.5
RH296 3 4 5 6 9 11 13 25 12 1.5
RH295 2 3 4 5 6 8 9 17 8 1.5
Specifications
• Die-formed4ft.reectorwithtransverseribbingforstructuralstability
• Deep-groovedchannelhousingforextrastrengthandstabilityallowsuseofslidegriphangers
• Quick-releasequarter-turnfastenersprovideeaseofinstallationandmaintenance
• Combinationendplate/couplerassuresintegrityofrowalignment.(Heavy-duty10”coupleravailable)
• Cord,plugandchainsetsavailableforreducedinstallationcost
• ULDampLocationlabelsarestandardwiththisseries
Ordering Information
RH
RH 2 59 1 Q2Y
Family Number of Lamps
(per cross section) Lamp Type Code Voltage Ballast
Note:
SufxFamilynamewith“A”for10%apertured
reectors.
Ex.RHA
SufxFamilynamewith“T”fortandemxtures.
Ex.RHT
SufxFamilynamewith“AT”fortandemxtures=with
10%apertured=reectors.
Ex.RHAT
1
2
28-28WT5(48”)
32-32WT8(48”)
44-44WT8HO(48”)
48-39WT12(48”)Slimline
54-54WT5HO(48”)
59-59WT8(96”)Slimline
60-60WT12HO(48”)
86-86WT8HO(96”)Slimline
95-95WT12HO(96”)Slimline
96-60WT12(96”)Slimline
115-115WT12(48”)VHO
215-215WT12(96”)VHO
1-120
7-277
B-UNV120-277
BallastMatrix
SeePage36
Aboveexample:
Electronic
T8
InstantStart
2Lamp
Generic
Available in X-Treme Extra Long Life T8 and HPT8. See pages 9 and 36
RH Premium Industrials
28 www.crescentlighting.com

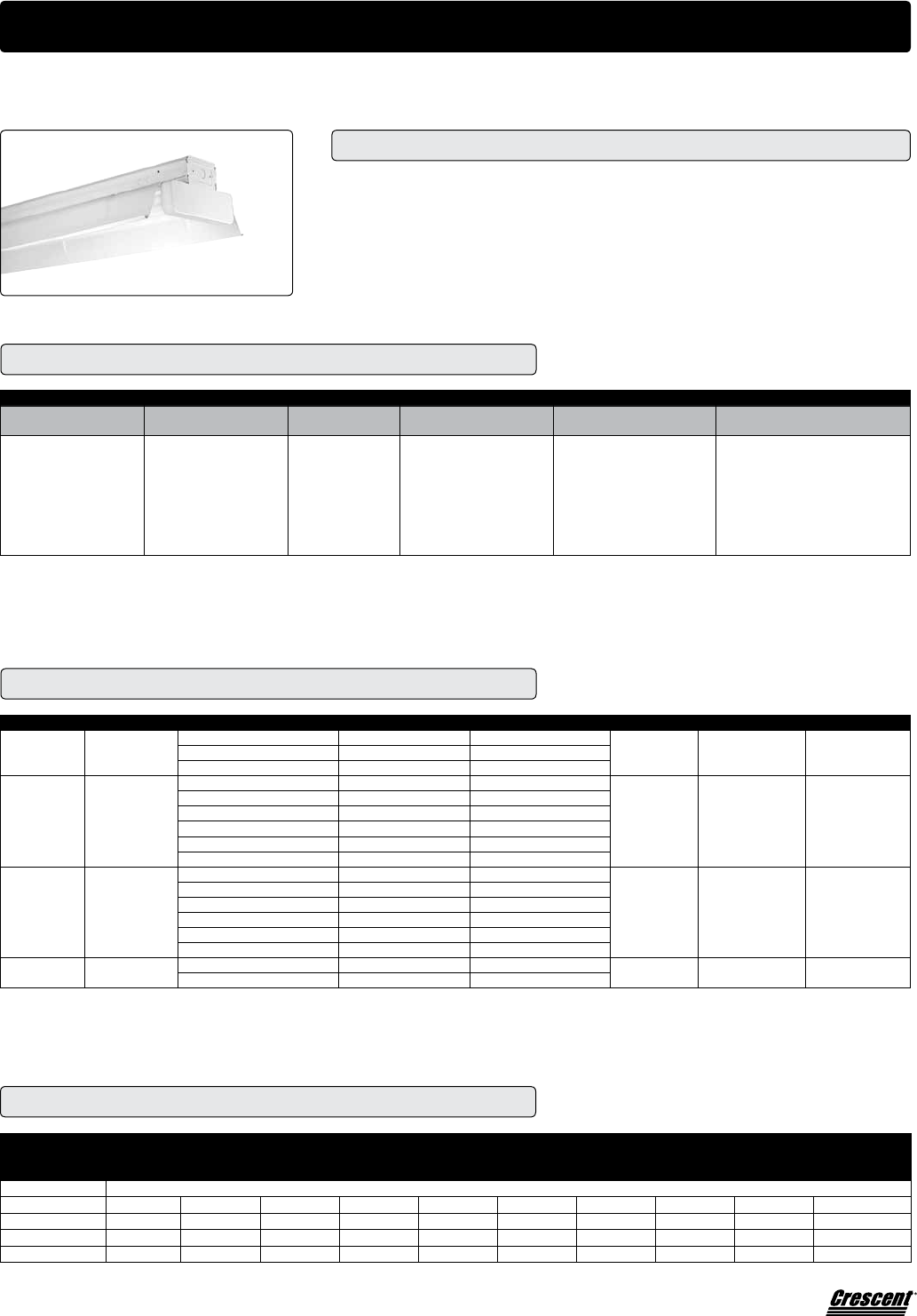

RTU Turret Industrials - Industrial Lighting
RTU Turret Industrials 4’ and 8’
Product Availability
RTU
Family Size No. Lamps/Cross Section No. Lamps/Fixture Lamp Code Length Width Height
RTU 4’
2 2 32
50-5/32” 11-3/4” 6-1/8”3 3 32
4 4 32
RTU 4’
2 2 48
48-5/16” 11-3/4” 6-1/8”
3 3 48
4 4 48
2 2 44
3 3 44
2 2 115
RTU 8’
2 2 59,96
96-5/16” 11-3/4” 6-1/8”
3 3 59,96
4 4 59,96
2 2 86,95
3 3 86,95
2 2 215
RTTU 8’ 2 4 32 100-5/16” 11-3/4” 6-1/8”
3 6 32
QuickEst
Fixture 120 200 300 400 600 800 1000 2000 over 2000 per
1000
Max. Spacing-to-
Mounting Height
Ratio
NumberofFixturesRequiredfor100Footcandles*
RTU232 5 7 10 12 17 22 26 49 23 1.5
RTU296 3 4 5 6 9 11 13 25 12 1.5
RTU496 1 2 3 3 4 6 7 12 6 1.5
RTU295 2 3 4 4 6 8 9 17 8 1.5
Specifications
• Spring-loadedturretsocketsprovidewide6”lampspacingfortwo-lampunitsandinsureproperpincontact
• Rigid4ft.reectorwithdeeplateralembossmentsincludesareturnedgeformaximumuniformity
• Groovedchannelhousingforextrastrengthandstabilityallowsuseofslidegriphangers
• Heavy-duty10”coupleravailable
• ULDampLocationlabelsarestandardwiththisseries
RTU A 2 32 1 K2Y
Family Reflector Number of Lamps
(per cross section) Lamp Type Code Voltage Ballast
RTU
Note:
SufxFamilynamewith“T”for
tandemxtures
Ex.RTTU
A-Apertured
S-SolidReector
2
3
4
32-32WT8(48”)
44-44WT8HO(48”)
48-39WT12(48”)Slimline
59-59WT8(96”)Slimline
86-86WT8HO(96”)Slimline
95-95WT12HO(96”)Slimline
115-115WT12(48”)VHO
215-215WT12(96”)VHO
1-120
7-277
B-UNV120-277
BallastMatrix
SeePage36
Aboveexample:Electronic
T8
InstantStart
2Lamp
Generic
Available in X-Treme Extra Long Life T8 and HPT8. See pages 9 and 36
Ordering Information
29
www.crescentlighting.com

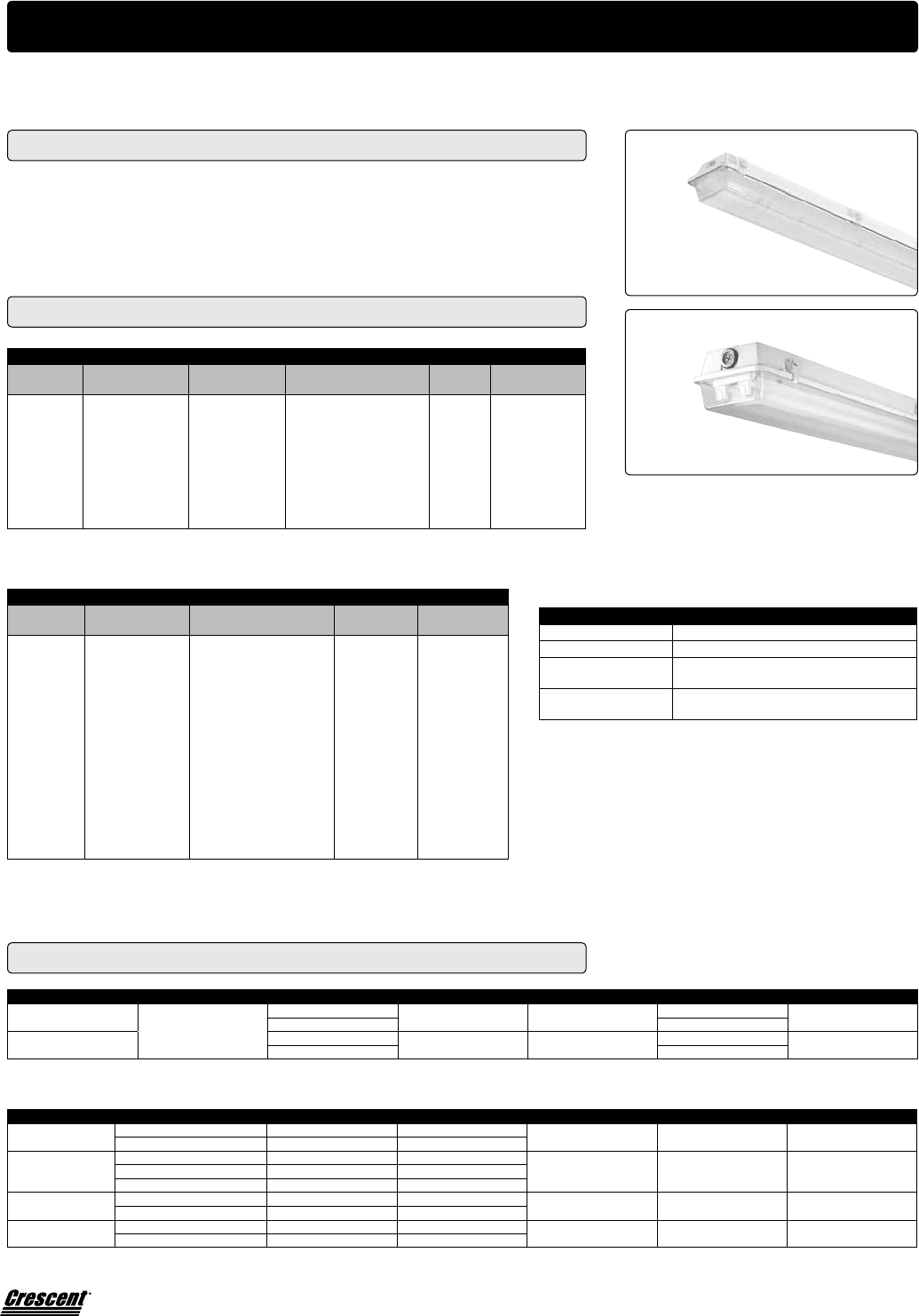

Specifications
• One-pieceberglassreinforcedpolyesterhousingisimpactresistant,preventsrustandcorrosion
• Pouredneoprenegasketbondedtohousingprovidesprotectionagainstdust,dirt,moisture,andotherforeignelements
• Moldedcamactionlatchestightlycompressinglensagainstgasketformingacontinuoussealandeaseofmaintenance
• FixturecanbecompletelywasheddownandincludesULWetLocationlabel
• NSFrated
Ordering Information
MST
SLT
Common Part Numbers
Part Number Description
MST2R54BS2Y 4’2-lampT5HOmini-sealtightuniversalvoltage
MST2R32BL2Y 4-2-lampT8mini-sealtightuniversalvoltage
SLT232UNIV 4’2-lampT8sealtightuniversalvoltage
(“R”Lensonly)
SLTT232UNIV (TANDEM) 8’2-lampcrosssectionT8sealtightuniversalvoltage
(“R”Lensonly)
Industrial Lighting - MST / SLT Mini SealTight
Size Family No. Lamps/Fixture Lamp Code Length Width Height
2’
MST
114,17,20,24 27” 4-1/2” 4-1/4”
2 7-1/4”
4’ 128,32,40,54 51” 4-1/2” 4-1/4”
2 7-1/4”
Family No. Lamps/ Cross Section No. Lamps/Fixture Lamp Code Length Width Height
SLT 11 17,20 25-13/16” 5-1/2” 5”
22 14,17,20,24
SLT
11 32,34
49-13/16” 6-5/8” 5”22 28,32,34,48,54
22 44,60
SLT 22 59,96 97-13/16” 6-5/8” 5”
22 86,95
SLTT 12 32,34 97-13/16” 6-5/8” 5”
24 32,34,54
MST Mini SealTight / SLT Fiberglass SealTight
MST 2 R 32 1 K2Y
Family Number of Lamps
(per cross section) Lens Lamp Type Code Voltage Ballast
MST
Note:
SufxFamily
namewith“T”
fortandem
xturesEx.
MSTT
1
2
R-LinearRibbed
Polycarbonate
P-Prismatic
InjectionMolded
Polycarbonate
14-14WT5(24”)
17-17WT8(24”)
20-20WT12(24”)
24-24WT5HO(24”)
28-28WT5(48”)
32-32WT8(48”)
35-35WT5(58”)
40-40WT12(48”)
54-54WT5HO(48”)
1-120
7-277
B-UNV
120-277
BallastMatrix
SeePage36
Aboveexample:
ElectronicT8
InstantStart2Lamp
Generic
Available in X-Treme Extra Long Life T8 and HPT8. See pages 9 and 36
SLT 2 32 1 K2Y
Family Number of Lamps
(per cross section) Lamp Type Code Voltage Ballast
SLT
Note:
SufxFamily
namewith“T”
fortandem
xturesEx.
SLTT
1
2
14-14WT5(24”)
17-17WT8(24”)
20-20WT12(24”)
24-24WT5HO(24”)
28-28WT5(48”)
32-32WT8(48”)
34-34WT12(48”)
44-44WT8HO(48”)
48-39WT12(48”)Slimline
54-54WT5HO(48”)
59-59WT8(96”)Slimline
60-60WT12HO(48”)
80-80WT5HO(58”)
95-60WT12HO(96”)
96-60WT12(96”)Slimline
1-120
7-277
B-UNV120-277
BallastMatrix
SeePage36
Aboveexample:
ElectronicT8
InstantStart2
Lamp
Generic
Available in X-Treme Extra Long Life T8 and HPT8. See pages 9 and 36
Product Availability
30 www.crescentlighting.com

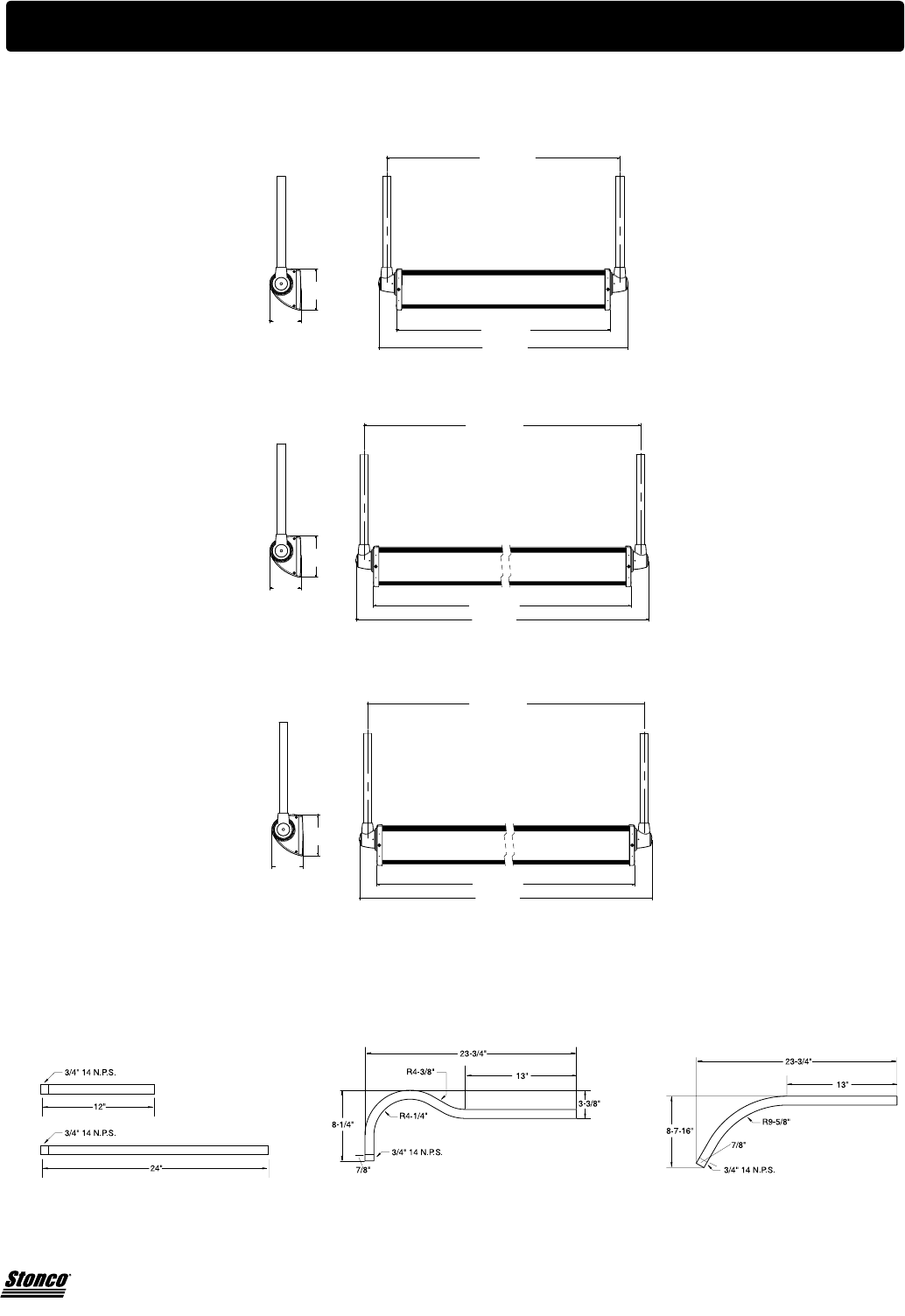

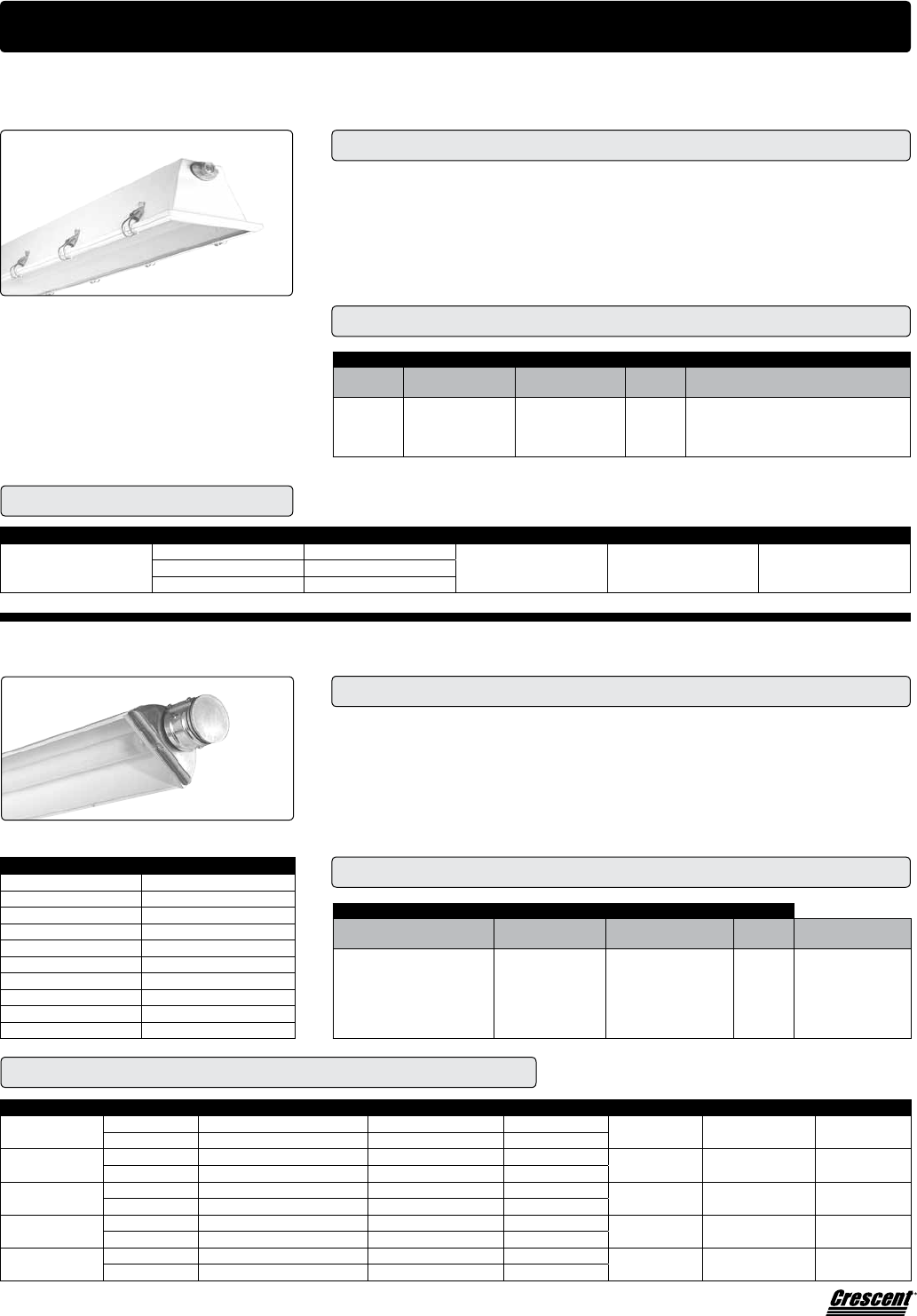

HCLX / OD - Industrial Lighting
HCLX Hazard Lyte
OD Outdoor Sign Light
Specifications
Specifications
• Non-corrosiveberglassreinforcedpolyestercompositebody
• Heavy-dutystainlesssteelhingeddoorwithtemperedglasslens
• Stainlessspringsteeltoggleclampstosecurelensdoorframe
• Topandenddie-castaluminumsuspensionhubs(4)
• Quick-changepower-channelballastdesign
• One-piecesiliconegasketfordust-tightconstruction
• Extrudedaluminumhousinganddie-castaluminumendsinsurestrengthandmaximumresistancetoweather
• Butt-ontelescopicsocketsarerubber-bootedtogiveaweatherproofsealaroundthebaseofthelamp
• Smoothclearacryliclensslidesinplaceforeaseoflampmaintenance
• Mountingconduitsize3/4-14”
Ordering Information
Ordering Information
Product Availability
Product Availability
Family No. Lamps Lamp Code Length Width Height
HCLX
2 32
53-3/4” 12” 7-3/8”3 32
2 44
Family Size No. Lamps/Cross Section No. Lamps/Fixture Lamp Code Length Width Height
OD 4’ 1 1 60 50-1/2” 5-3/4” 3-1/2”
1 1 115
OD 6’ 1 1 85 74-1/2” 5-3/4” 3-1/2”
1 1 160
OD 8’ 1 1 110 98-1/2” 5-3/4” 3-1/2”
1 1 215
OD 12’ 1 2 85 149” 5-3/4” 3-1/2”
1 2 160
OD 16’ 1 2 110 197” 5-3/4” 3-1/2”
1 2 215
HCLX 2 32 1 K2Y
Family Number of Lamps
(per cross section) Lamp Type Code Voltage Ballast
HCLX
VapororGas
2
3
32-32WT8(48”)
44-44WT8HO(48”)
1-120
7-277
B-UNV
120-277
BallastMatrix
SeePage36
Aboveexample:ElectronicT8InstantStart
2LampGeneric
Available in X-Treme Extra Long Life T8 and HPT8. See pages 9 and 36
OD 1 110 1
Family Number of Lamps
(per cross section) Lamp Type Code Voltage Ballast
OD
Note:
SufxFamilynamewith“T”for
tandemxtures.Ex.ODT
1 60-60WT12HO(48”)
85-85WT12HO(72”)
110-110WT12HO(96”)
115-115WT12(48”)VHO
160-160WT12(72”)VHO
215-215WT12(96”)VHO
1-120 StandardMagnetic
RemoteWeatherproofT12
RapidStartGeneric
OD Ballast Matrix (Order Separately)
Ballast Number Fixture Number
OD1LTHO120-46 OD1601
OD1851
OD1LTHO120-8 OD11101
OD1LTPG120-4 OD11151
OD1LTPG120-68 OD11601
OD12151
OD2LTHO120-68 ODT1851
ODT11101
OD2LTPG120-68 ODT11601
ODT12151
31
www.crescentlighting.com

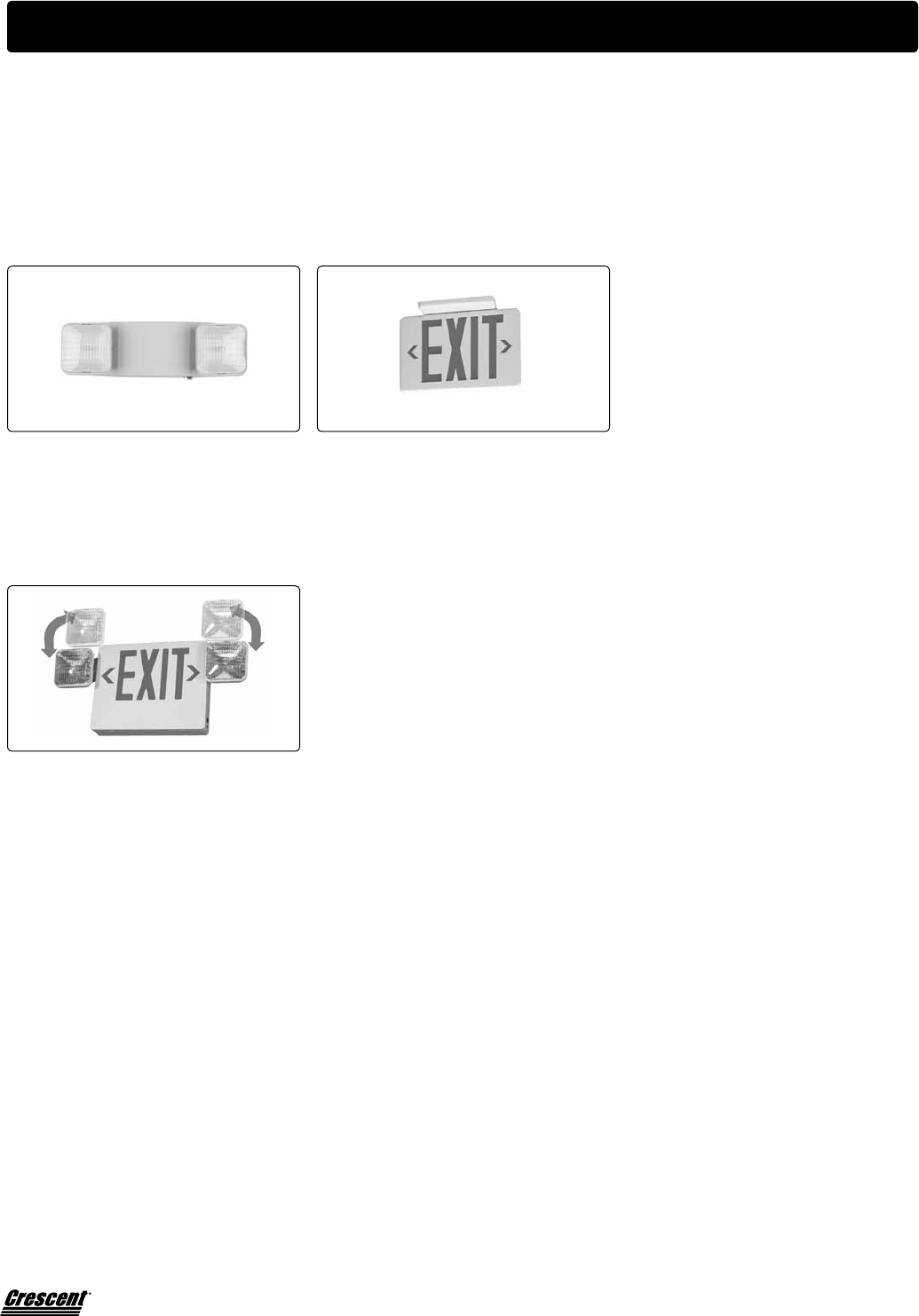

Exit / Emergency
Exit/Emergency
CrescentEclipseExit/Emergencyluminairesareengineeredforreliableoperation.LEDlampingdesignensuresbright
illuminationunderallconditions,andemergencyilluminationisprovidedbyfullyadjustablelampholders.
CEL Series
EmergencyLight
Page 32
CP Series
LEDExitLight
Page 33
CPC Series
LEDComboExitLight
Page 33
32 www.crescentlighting.com

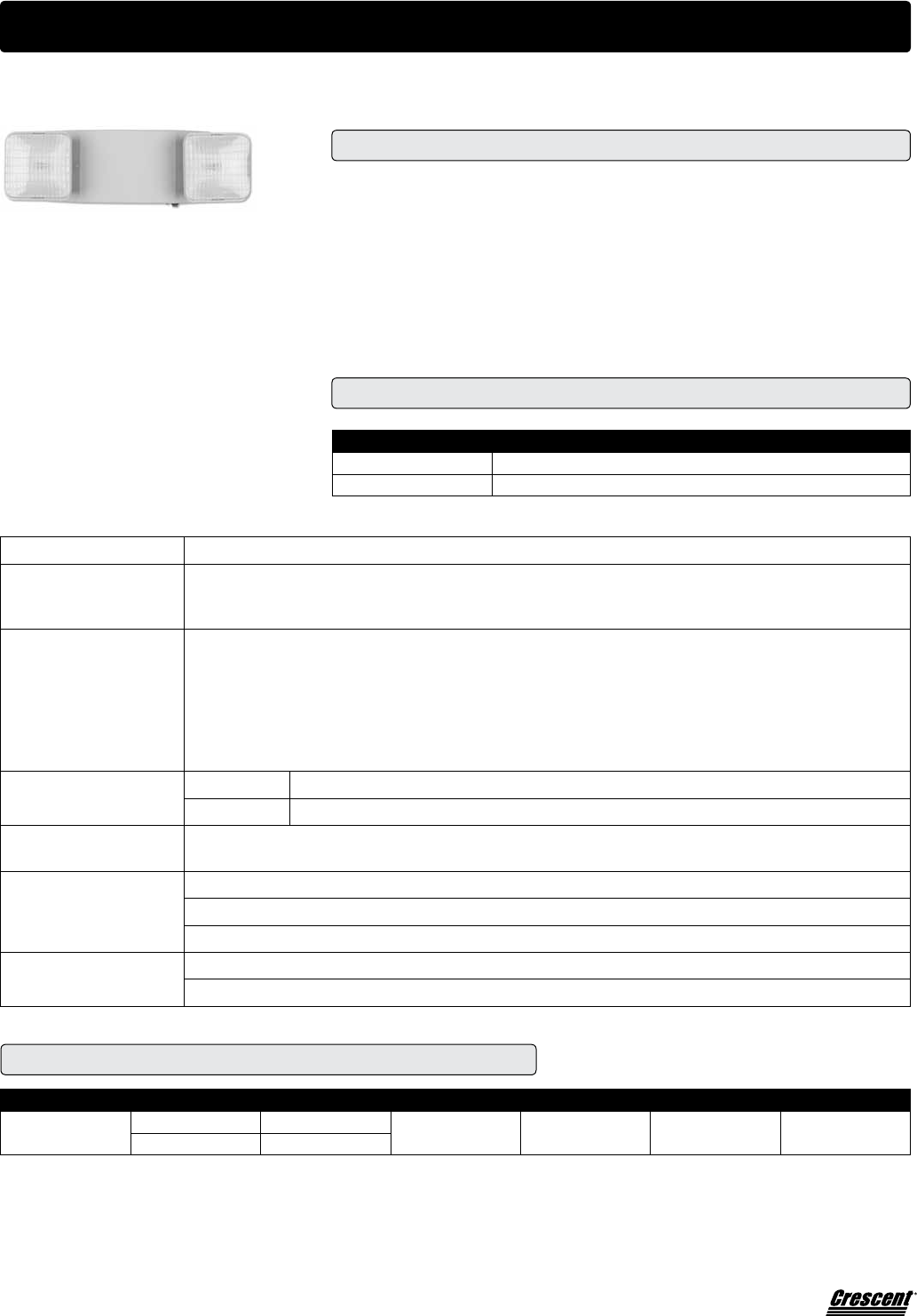

CEL Emergency Light - Exit/Emergency Lighting
CEL Emergency Light
Specifications
• Contemporarystylewithaclean,lowprolecompactdesign
• Lowpowerconsumption
• Field-adjustable,high-outputlampheadsprovidesuperioregressilluminationandsafety
• 6Vmaintenance-freesealedleadacidbattery
• Contractor-friendlyinstallationwithsnaptogetherdesignwithelectricalquick-connect
• Backmounted
• ULlisted,conformstoUL924
• NFPA101LifeSafetyCode
Ordering Information
Product Availability
Part Number Description
CELW2EN EmergencyLight,WhiteHousing,120/277v,BatteryBackup
CELB2EN EmergencyLight,BlackHousing,120/277v,BatteryBackup
Family Housing Color Voltage Battery Length Width Height
CEL W 120/277v EN 16” 4-1/2” 5”
B 120/277v
Housing Housingconstructedofimpact-resistant,scratch-proof,corrosion-proof,UV-stablethermoplasticwithUL94-5VAamerating.
Illumination Providedbytwofullyadjustablelampheadswithparabolicreectordesignand6V/5.4Whighintensitywedgebasetungsten
lamps.Track&swiveldesignwithpositivedetentmechanism.High-impact,high-temperaturethermoplasticlensesminimize
glareandmaximizebeamspread.
Electronics •Dualvoltageinput120/277VAC60Hz.
•Testswitch.
•Automatic,solid-state,constantvoltagecharger.
•Brownoutprotection.
•Lowvoltagedisconnect.
•Temperaturecompression.
•Short-circuitprotection.
Power Consumption InputWatts: 3.5Wmaxcharge1.0Wsteadystate
OutputWatts: CEL–16.2WCEL3–10.0W
Battery 6Vmaintenance-freesealedleadacidbattery.Optimumoperatingtemperaturesrangeof65F(19C)to85F(30C).Providesa
totalof90minutesoffulllightoutputillumination.
Code Compliance ULlisted,conformstoUL924.
MeetsNFPALifeSafetyCode70and101.
ComplieswithNECandOSHA.
Warranty Limited3-yearwarranty.
3-Yearsealedleadcalciumpro-ratedbatterywarranty.
33
www.crescentlighting.com

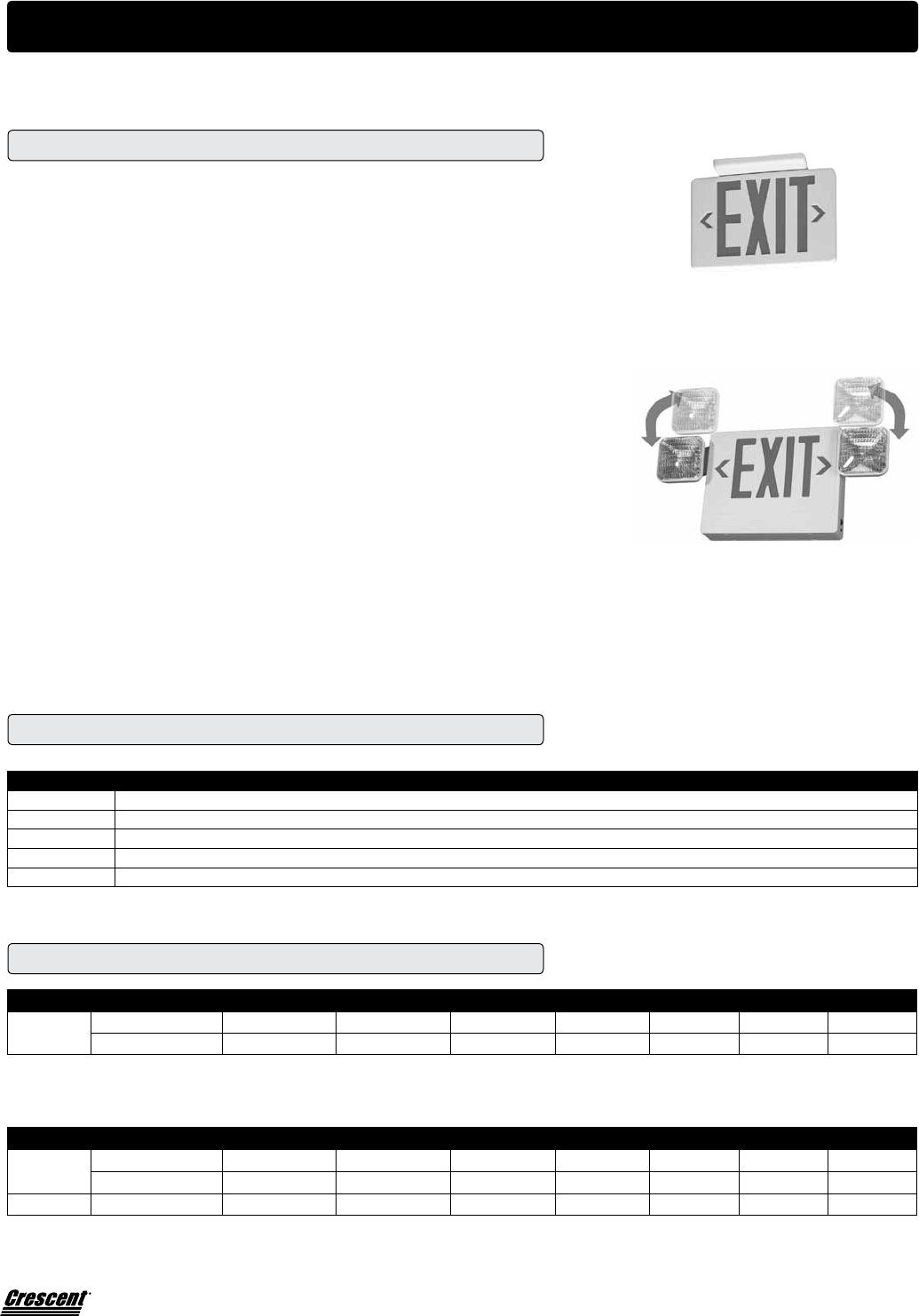

Exit/Emergency Lighting - CP / CPC LED Exit Sign
CP / CPC LED Exit Sign
Specifications
Ordering Information
Product Availability
LED Exit Sign (CP)
• AdvancedLEDtechnologyprovidesbright,evenilluminationforvisibilityandsafety
• Long-lifeenergy-efcientLEDsreduceannualenergyconsumption
• 1.0Wattconsumption(Red120Vonly)
• Maintenance-freedesigneliminateschangingincandescentoruorescentlamps
• Contemporarystylewithacleanlowprolesoftcontoureddesign
• CanbeeldmountedintandemtoEclipseEmergencyLight
• Universalmountingcanopy-topandsidewithbackmountingplateprovided
• Universalunitsareprovidedwithextrastencilandcolordiffuser
• ULlisted,conformstoUL924
Exit Light (CPC)
• Emergencyilluminationprovidedbytwohighperformancelampreectorsystems
integraltotheproducthousing
• Lampreectorsystemscanbeadjusted180°verticallyand180°horizontally
• Lampsystemincorporatesahighintensity5.4watt,T-5wedgebasetungstenlamp
• Highimpactpolycarbonatediffuserutilizeslinearfrostedsectionstocontrolsight-line
glareandmaximizereectorefciency
• Exitfaceilluminationusinglonglasting,highoutputLightEmittingDiodes(LEDs)
• LEDsandsupportelectronicshaveanexpectedservicelifeof25years
• Impactresistant,UL94V-0,5VAwhiteorblackthermoplastichousingwithNFPA-type
eldselectablechevrons
• Chevronscanbeinstalled/removedfromoutsidetheexithousing
• Thermoplasticbackplatehasknockoutsforeasyinstallationtostandardjunctionboxes
• 120/277VACdualvoltageinputwithsurge-protected,solid-statecircuitry
• Additional6wattsofremotecapabilityisstandard
CP
Part Number Description
CPRW32EN LEDExitRedLEDLetters,WhiteHousing,120/277v,withBatteryBackup
CPGW32EN LEDExitGreenLEDLetters,WhiteHousing,120/277v,withBatteryBackup
CPCRW32EN LEDComboExitRedLEDLetters,WhiteHousing,120/277v,with12wBatteryBackup
CPCRW32ENR LEDComboExitRedLEDLetters,WhiteHousing,120/277v,with18wBatteryBackup
CPCGW32EN LEDComboExitGreenLEDLetters,WhiteHousing,120/277v,withBatteryBackup
Family LED Letter Color Housing Color No. of Faces Voltage Battery Length Width Adj. Height
CPC R W Universal* 120/277v EN 21” 1-5/8” 10”-14”
G W Universal* 120/277v EN 21” 1-5/8” 10”-14”
CPC R W Universal* 120/277v ENR 21” 1-5/8” 10”-14”
*Universal:Singlewithextrastencilandcolordiffuser
CPC
Family LED Letter Color Housing Color No. of Faces Voltage Battery Length Width Height
CP R W Universal* 120/277v EN 12” 1-5/8” 7-1/2”
G W Universal* 120/277v EN 12” 1-5/8” 7-1/2”
*Universal:Singlewithextrastencilandcolordiffuser
34 www.crescentlighting.com
Exit/Emergency Lighting
Catalog Number Replacement Part No.
Thermoplastic
Voltage Wattage White Beige Black Part No. ANSI No.
Tungsten
6-Volt
5.4 CSWTA CSDTA CSBTA CS19-2-54 939
7.2 CSWTD CSDTD CSBTD CS19-2-58 927
9.0 CSWTB CSDTB CSBTB CS19-2-45 908
12-Volt
9.0 CSWTC CSDTC CSBTC CS19-2-53 915
12.5 CSWTE CSDTE CSBTE CS19-2-62 922
17.9 CSWTF CSDTF CSBTF CS19-2-61 921
Halogen 6-Volt
7.0 CSWTS CSDTS CSBTS CS19-2-83 ERM
10.0 CSWTN CSDTN CSBTN CS19-2-82 ERM
12.0 CSWTT CSDTT CSBTT CS19-2-84 ERK
12-Volt 12.0 CSWTV CSDTV CSBTV CS19-2-85 ERB
Catalog Number Replacement Part No.
Metal Thermoplastic
Voltage Wattage Chrome White Beige Black Part No. ANSI No.
Tungsten
6-Volt
8.0 CSY CSDY CSWY CSBY CS19-1-7613 7613
18.0 CSA CSDA CSWA CSBA CS19-1-4014 4014
25.0 CSL CSDL CSWL CSBL CS19-1-4510 4510
30.0 CSC CSDC CSWC CSBC CS19-1-4515 4515
12-Volt
12.0 CSNY CSDNY CSWNY CSBNY CS19-1-4044 4044
18.0 CSE CSDE CSWE CSBE CS19-1-4414 4414
25.0 CSK CSDK CSWK CSBK CS19-1-4446 4446
30.0 CSG CSDG CSWG CSBG CS19-1-4405 4405
Halogen
6-Volt 8.0 CSQ CSDQ CSWQ CSBQ CS19-1-7551 7551
12.0 CSCHY CSDCHY CSWCHY CSBCHY CS19-1-7553 7553
12-Volt 8.0 CSD CSDD CSWD CSBD CS19-1-7555 7555
12.0 CSB CSDB CSWB CSBB CS19-1-7557 7557
Catalog Number Replacement Part No.
Polycarbonate
Voltage Wattage White Beige Black Part No. ANSI No.
Tungsten
6-Volt
5.4 CSJ66T CSJ66 CSJ66B CS19-2-54 939
7.2 CSJ76T CSJ76 CSJ76B CS19-2-58 927
9.0 CSJ96T CSJ96 CSJ96B CS19-2-45 908
12-Volt
9.0 CSJ912T CSJ912 CSJ912B CS19-2-53 915
12.5 CSJ1212T CSJ1212 CSJ1212B CS19-2-62 922
17.9 CSJ1812T CSJ1812 CSJ1812B CS19-2-61 921
Catalog Number Replacement Part No.
Voltage Wattage Class 1 Div. 2 Gray NEMA Rated Gray Part No. ANSI No.
Tungsten
6-Volt
8.0 CSZA CSZM CS19-1-7613 7613
18.0 CSZB CSZN CS19-1-4014 4014
25.0 CSZC CSZO CS19-1-4510 4510
30.0 CSZD CSZP CS19-1-4515 4515
12-Volt
12.0 CSZE CSZQ CS19-1-4044 4044
18.0 CSZF CSZR CS19-1-4414 4414
25.0 CSZG CSZS CS19-1-4446 4446
30.0 CSZH CSZT CS19-1-4405 4405
Halogen
6-Volt
6.0 CSZY CSZZ CS19-1-7556 7556
8.0 CSZI CSZU CS19-1-7551 7551
12.0 CSZJ CSZV CS19-1-7553 7553
12-Volt 8.0 CSZK CSZW CS19-1-7555 7555
12.0 CSZL CSZX CS19-1-7557 7557
Emergency Remote Lamp Heads
Outdoor Heads
Thermoplastic Wedge Base
Round Head
Polycarbonate Wedge Base
Rectangular Head
Thermoplastic and Metal
Chrome Sealed Beam
PAR36
Industrial Polycarbonate
Sealed Beam PAR36
35
www.crescentlighting.com
Lamp Type Codes
INSTALLED LAMP CODES FOR CRESCENT PRODUCT
GENERIC INSTALLED LAMPS PHILIPS INSTALLED LAMPS
TYPE DESCRIPTION/COLOR CODE TYPE DESCRIPTION/COLOR CODE
T5HO54WATT 835K 0R T5HO54WATT 835K 1K
T5HO54WATT 841K 0Q T832WATT 730K 1A
T5HO54WATT 850K 0S T832WATT 735K 1B
T528WATT 841K 0X T832WATT 741K 1C
T528WATT 835K 0T T832WATT 830K 1D
T5HO24WATT 841K 0W T832WATT 835K 1E
T832WATT 730K 0A T832WATT 835KPLUSLONGLIFE 1S
T832WATT 735K 0B T832WATT 841K 1F
T832WATT 741K 0C T832WHILUMEN F32T8/ADV841/ALTO 1N
T832WATT 750K 0M T832WLONGLIFE F32T8TL741.PLUS/ALTO 1M
T832WATT 830K 0D T832WHILUMEN F32T8/ADV835/ALTO 1P
T832WATT 835K 0E T828W147348 F28T8/ADV841.EW 1Q
T832WATT 841K 0F T832WATT 750K 1L
T832WATT 850K 0N T8U-LAMP32W 730K6”LEG 5A
T832WATT 850KHILUMEN 0Y T8U-LAMP32W 735K6”LEG 5B
T832WATT 865K 0V T8U-LAMP32W 741K6”LEG 5C
BIAX40WATT 835K 4X T8U-LAMP32W 830K6”LEG 5D
BIAX40WATT 841K 4K T8U-LAMP32W 835K6”LEG 5E
T8U-LAMP32WATT 730K6”LEG 4A T8U-LAMP32W 841K6”LEG 5F
T8U-LAMP32WATT 735K6”LEG 4B T86”U-LAMP32WATT FB32T8/ADV841/6/XEW/ALTO 5K
T8U-LAMP32WATT 741K6”LEG 4C T832ULAMP FB32T8/850/PLUS/6 5L
T8U-LAMP32WATT 835K6”LEG 4E FB32T825WATT FB32T8/TL850/6/ALTO 5M
T8U-LAMP32WATT 841K6”LEG 4F T825WATTULAMP6 835ULAMP6” 5N
T8U-LAMP32WATT 830K6”LEG 4D T832WATT 960HIGHCRI 1J
T514WATT 835 0J T832WATT 830HILUMEN 1G
 T514WATT 835 1H
SYLVANIA INSTALLED LAMPS T825WATT 841ENERGYSAVINGS 1R
TYPE DESCRIPTION/COLOR CODE T832WATT 850ADVHILUMEN 1T
T832WATT 730K 3A T832WEXTRALONGLIFE F32T8TL850XLL 1U
T832WATT 735K 3B T528WATT 841 1W
T832WATT 741K 3C T817WATTADV 841 1V
T832WATT 841XP/SS/ECO 3N F32T828WATT ADV835EWALTO28W 1X
T832WATT 850K 3P F32T825WATT ADV850XEWALTO25W 1Y
T832WATT 741KECO 3R F32T828WATT ADV850EWALTO28W 1Z
T832WATT 765K 3K T5HO/49WATT 841 AA
T832WATT 830K 3D T8/25WATT15208-2 841ADVXLL AB
T832WATT 835K 3E T8/32WATT 850 AC
T832WATT 841KXP 3M T8/25WATT137836 841ADV AD
T832WATT 841K 3F T8/25W/U6 841#204230U6 AE
T832WATT 835KXL 3V T8/28WATT 841#14734-8ADV AF
T830WATT F030/835/XP/SS 3U T8/25WATTES15207-4 835ADVXLL AG
T828WATT F028/841 3T T8/25WATT137828 835ADV AH
T828WATT F028/835 3S T825WATT152090 850ADVXLL AJ
T8U-LAMP32W 730K6”LEG 7A T832WATTXLL F32T8TL835XLL AK
T8U-LAMP32W 735K6”LEG 7B T832WATTXLL F32T8TL841XLL AM
T8U-LAMP32W 741K6”LEG 7C T832WATT735 204289TUFFGUARD AN
T8U-LAMP32W 830L1-5/8”LEG 7D T5HO54WATT850 13510-3 AP
T8U-LAMP32W 830K6”LEG 8D T828WATT835 ADVXLL AQ
T8U-LAMP32W 835K1-5/8”LEG 7E T828WATT841 ADVXLL AR
T8U-LAMP32W 835K6”LEG 8E T828WATT850 ADVXLL AS
T832WATT 850XP 3W  
T832WATT 850XL 3X  
T817WATT FO17835XPO#21778 3Z  
T830WATT U6835XP/SS 8M  
40WATTBIAX 835 3Y
T832WATT865 XP/EW21659 3G
36 www.crescentlighting.com
Ballast Matrix
Code
XNoBallast(Satellite)
PrimaryLampWattages
1Preheat 15w,20w
2LPF TSElectronic 15w,20w
3HPF TriggerStart 152w,20w
4LPF RapidStart 14w,20w,30w,40w
VHPF RSElectronic 30w,40w
5SeeBelow/Electronic Rev.8/23/05apg
7LPF ResidentialElectronic 20w,30w,40w
8Export 20w,30w,40w
9Octron 17w,25w,32w
0UseElectronicQ 50w
ASeeBelow/Electronic rev2/1/07apg
BHO UseElectronicR 60w,85w,110w
CHO UseElectronicR 95w-EnergySaver
DVHO PowerGroove 115w,160w,215w
EDimming 40w
FTS ColdWeather 20w
GRS ColdWeather 40w
HSL ColdWeather 60w(T12SL)
Note:LPFisonlyavailablein120v
Lamp Type THD BF
5T12 RS >20% StandardLightOutput
XT8 PS >10% LowPower
AT12 IS >20% Slimline
IT12 RS >20% StandardLightOutput
JT8 PS >10% HighLightOutput
KT8 IS >20% StandardLightOutput
LT8 IS >10% 0.88 NormalBallastFactor
NT8/T5 PRS >10% StandardLightOutput
MT8 PS >10% ProgramStart
PT12 IS >10% Slimline
6T8 RS >10% Residential
QT8 IS >10% Slimline
RT12 RS >20% HighOutput
ST8/T5 RS >10% HighOutput
THPT8 IS >10% 0.77 LowBallastFactor
UFT5 RS >10% Biax(FT40for120&277v)
WT8 RS >20% 1.18 HighBallastFactor
Y ** FT5 RS 10% BiaxforUniversalVoltage
Z ** T8 RS 10% DaylightHarvesting
Voltage Codes
Code Volts Hertz ***
1120 60
2220 60
3347 60
4240 60
5120 50
6220 50
7277 60
8240 50
9230 60
A230 50
B120/277 60
C480 60
Code
XNoBallast(Satellite)
11LT
22LT
33LT
44LT
51LTand1LT
61LTand2LT
71LTand3LT
82LTand2LT
C**
2LT>10%HightOutputand
1LT>20%Std.LightOutput
(Use“L”BallastType)
E3LTand3LT
F2LTand4LT
G4LTand4LT
H2LTand2LTand2LT
J** 3LTand3LTand3LT
K** 4LTand2LTand3LT
L**
As“C”above,except2LT
>20%Std.LightOutput
wiredas1LT(Use“L”Ballast
Type)
M**
Inboard:2LTT12Magnetic
Outboard:2LTT8Electronic
(Use“5”BallastType)
N** (4)2LTand(2)1LT
P**
(1)4LTand(2)2LT
(SeparateCircuitforOne
1LT)
Q** (1)4LTand(2)2LT
R** 4LTand4LTand4LT
S** (2)2LTand(2)1LT
W(1)IS/(2)Dimming
T(3)1LT
Master Applications
93LTand3LT
02LTand4LT
A4LTand4LT
U2LTRS/2LTDimming
V1LTISLOsram/2LTPSXO
B2LTand2LTand2LT
D
4LT>10%Std.LightOutput
and2LT>10%HightLight
Output
(Use“L”BallastType)
X(4)2LTBallasts
Code
XNoBallast(Satellite)
YGeneric
Name Model Type
CAdvance Centium Electronic
3Advance MarkIII Magnetic
5Advance MarkV Electronic
7* Advance MarkVII Dimming
1* Advance MarkX Dimming
PAdvance Powerkut Magnetic
AAdvance Elect./Mag.
QOsram HESeries Electronic
GGE UltraMax Electronic
HULT DemandFlexDR Dimming(?)
I* Howard “Hex”Ext-Life Electronic
L* Lutron EC5 Dimming
DLutron ECO10 Dimming
ELutron FDB(HiLume) Dimming
SOsram Electronic
ROsram XtremeSystems Electronic
VULT TriadHE Electronic
FULT TriadELSeries Electronic
TULT Triad Electronic
UULT Universal Magnetic
MAdvance Optanium Electronic
NAdvance BiLevel Electronic
2ULT AddressPro Dimming
4T8/T12 SunparkRS
JT8 OsramRS Dimming
ZKeystone T8Residential
6Tridonic T8
8T8Residential
9Axis DaylightHarvest Dimming
WFulham Workhorse Electronic
B
CustomerSupplied
Note:Provide“BallastType”and“Lamp
Operations”
CanlyteECO/Yes-HiLume/No
*Use“N”BallastType
**Limitedapplicationsonly,consultEngineering
***Someelectronicballastsarecapableof50/60Hz
operation.ConsultEngineeringfordetails.
Usethetablesbelowtodeterminedesiredballasttype.Exampleshown:K=T8InstantStart2=2-lightY=Generic
K 2 Y
NOTE:
Use“T”CodetoorderHigh-PerformanceT8product.
EXAMPLE:“T2Y”
Use“M”or“X”CodetoorderX-TremeSeriesT8product.
EXAMPLE:“X2M”or“M2M”
37
www.crescentlighting.com
Fluorescent Lighting - Recessed Lens Guide
Code Lens/Louver Pattern Description
A1 A12.090thickness ClearAcrylicLens
A2 A12.125thickness ClearAcrylicLens
A3 A12.125STthickness SilverTintAcrylicLens
A7 A15.200thickness ClearAcrylicLens
A9 A19.156thickness ClearAcrylicLens
AD WhiteDroppedDishAcrylicLens(11/2”deep)
I5 AIM.150thickness ClearAcrylicInjectionMoldedLens
H4 H8224 HolophaneAcrylicLens
H6 H8246 HolophaneAcrylicLenswithOverlay
P1 PS1 PolystryreneParabolicSilverLouver(1/2”x1/2”x1/2”)
P2 PS2 PolystryreneParabolicSilverLouver(11/2”x11/2”x1”)
P3 PS3/4 PolystryreneParabolicSilverLouver(3/4”x3/4”x1/2)
P4 PSG PolystryreneParabolicGoldLouver(1/2”x1/2”x1/2”)
P5 PSG2 PolystryreneParabolicGoldLouver(11/2”x11/2”x1”)
P6 PSG3/4 PolystryreneParabolicGoldLouver(3/4”x3/4”x1/2”)
PL PL PolystyreneWhiteLouver(1/2”x1/2’x1/2”)
PA PLA WhiteAcrylicLouver(1/2”x1/2’x1/2”)
PX PSX PolystyreneHexagonalParahexSilverLouver
Option Code A2
ExtrudedAcrylic#12Pattern
Nominal.125”thickness
Option Code A9
ExtrudedAcrylic#19Pattern
Nominal.156”thickness
Option Code A7
ExtrudedAcrylic#15Pattern
Nominal.200”thickness
Option Code I5
InjectionMoldedAcrylic
.150”thickness
Option Code H4
InjectionMoldedAcrylic
Holophane#8224
Option Code PL
PolystyreneWhiteLouver
1/2”x1/2”x1/2”Cube
(ForAcrylicLouverchangesufxto“PA”pattern)
Option Code P1
PolystyreneParabolicSilver
Louver1/2”x1/2”x1/2”
Option Code P4
PolystyreneParabolicGold
Louver1/2”x1/2”x1/2”
Option Code P2
PolystyreneParabolicSilver
Louver1-1/2”x1-1/2”x1”
(ForGoldLouverchangesufxto“P5”pattern)
Option Code P3
PolystyreneParabolicSilver
Louver3/4”x3/4”x1/2”
Option Code PX
HexagonalPolystyrene
SilverLouver
Option Code AD
WhiteDroppedDish
AcrylicLens1-1/2”deep
38 www.crescentlighting.com
Options and Accessories - Fluorescent Lighting
Options Code Fixture
Stem and Canopy
SSC-24StemandCanopy(24”StemandCanopy)
Switches
2-WayPullSwitch H0
4-WayPullSwitch H1
TurnSwitch H4
2-WayPullSwitchKit SWF
TurnSwitchKit SWT
Cords and Plugs (120v only)
2-WireWhiteCordandPlug HA
3-WireWhiteCordandPlug HB
3-wire6’BlackCord&Plug(120Vonly) H5
GroundedConvenienceOutlet(120vonly) H6
GroundedConvenienceOutlet(120vonly)Kit SCO
Cables
3-WireFlex(SingleCircuit) F1
4-WireFlex(DoubleCircuit) F2
Emergency Lighting Systems
350-450LumensB100(CS100) B0
500-600LumensB90(CS90) B1
600-700LumensB70(CS60) B2
600-700LumensB602-LampOperation(CS60) B3
1100-1400LumensB50(CS50) B4
1100-1400LumensB502-LampOperation(CS50 B5
LP550650MaxLumens B6
LP500520MaxLumens B7
Fuses
In-LineFuse C1
TwoFuses(1perballast) C2
SlowBlowFuse C3
RadioInterferenceSuppressor D1
Pre-Wired Plug-In
PLSPre-WiredPlug-Ins F3
PLRPre-WiredPlug-Ins(ballast“hot”wiretoredcircuit) F4
PLBPre-WiredPlug-Ins(ballast“hot”wiretoblackcircuit) F6
Mounting Devices
ZCSHangers J1
ZNSHangers J1
SG-5Hangers J1
YC-670ChainHangers J1
C-900All-purposeCeilingHangers J1
TopMountingBracket J1
Sleeve Couplers
50051Heavy-duty10”SleeveCoupler
50053Heavy-duty10”SleeveCoupler
50060Heavy-duty10”SleeveCoupler
75600Heavy-duty10”SleeveCoupler
Symmetric and Asymmetric Reflectors
SYMCSymmetricReectors
SYMFSymmetricReectors
ASYCAsymmetricReectors
ASYFAsymmetricReectors
RASYFReverseAsymmetricReectors
ReectorAligners
Wire Guards
SCG-4Wireguard
TEG-4Wireguard
CHG-4Wireguard
FWG-4Wireguard
NRG-4Wireguard
FWG-5Wireguard
TRG-4Wireguard
Gasketing
SingleGasketing(betweendoorframe&housing) K0
DoubleGasketing(betweenlens,doorframe&housing) K1
TripleGasketing(betweenlens,doorframe,housing,ceiling) K2
JobPack JP
Fire-RatedLabel E1
GP
FP
SG
D3
RDI
RWA
CLDC
CLDW
D3S
NLT
DLT
SGW
SBT
BNM
AWB
SWB
ACB
SRW
BRW
39
www.crescentlighting.com
Fluorescent Lighting - Options and Accessories
Options Code Fixture
Stem and Canopy
SSC-24StemandCanopy(24”StemandCanopy)
Switches
2-WayPullSwitch H0
4-WayPullSwitch H1
TurnSwitch H4
2-WayPullSwitchKit SWF
TurnSwitchKit SWT
Cords and Plugs (120v only)
2-WireWhiteCordandPlug HA
3-WireWhiteCordandPlug HB
3-wire6’BlackCord&Plug(120Vonly) H5
GroundedConvenienceOutlet(120vonly) H6
GroundedConvenienceOutlet(120vonly)Kit SCO
Cables
3-WireFlex(SingleCircuit) F1
4-WireFlex(DoubleCircuit) F2
Emergency Lighting Systems
350-450LumensB100(CS100) B0
500-600LumensB90(CS90) B1
600-700LumensB70(CS60) B2
600-700LumensB602-LampOperation(CS60) B3
1100-1400LumensB50(CS50) B4
1100-1400LumensB502-LampOperation(CS50 B5
LP550650MaxLumens B6
LP500520MaxLumens B7
Fuses
In-LineFuse C1
TwoFuses(1perballast) C2
SlowBlowFuse C3
RadioInterferenceSuppressor D1
Pre-Wired Plug-In
PLSPre-WiredPlug-Ins F3
PLRPre-WiredPlug-Ins(ballast“hot”wiretoredcircuit) F4
PLBPre-WiredPlug-Ins(ballast“hot”wiretoblackcircuit) F6
Mounting Devices
ZCSHangers J1
ZNSHangers J1
SG-5Hangers J1
YC-670ChainHangers J1
C-900All-purposeCeilingHangers J1
TopMountingBracket J1
Sleeve Couplers
50051Heavy-duty10”SleeveCoupler
50053Heavy-duty10”SleeveCoupler
50060Heavy-duty10”SleeveCoupler
75600Heavy-duty10”SleeveCoupler
Symmetric and Asymmetric Reflectors
SYMCSymmetricReectors
SYMFSymmetricReectors
ASYCAsymmetricReectors
ASYFAsymmetricReectors
RASYFReverseAsymmetricReectors
ReectorAligners
Wire Guards
SCG-4Wireguard
TEG-4Wireguard
CHG-4Wireguard
FWG-4Wireguard
NRG-4Wireguard
FWG-5Wireguard
TRG-4Wireguard
Gasketing
SingleGasketing(betweendoorframe&housing) K0
DoubleGasketing(betweenlens,doorframe&housing) K1
TripleGasketing(betweenlens,doorframe,housing,ceiling) K2
JobPack JP
Fire-RatedLabel E1
RN
RH
RTU
VTC
SLT
HCLX
OD
SCF
SCN
C
SM
STG
MSC
MSF
MSCM
40 www.crescentlighting.com
Options and Accessories - Fluorescent Lighting
Cat. No. Width Length
SYMF24S 8.5” 24”
SYMF36S 8.5” 36”
SYMF48S 8.5” 48”
Cat. No. Width Length
ASYF24S 7” 24”
ASYF36S 7” 36”
ASYF48S 7” 48”
Cat. No. Width Length
RASYF24 7” 24”
RASYF36 7” 36”
RASYF48 7” 48”
Catalog No. Width Length
SYMC15 7” 18”
SYMC20 7” 24”
SYMC30 7” 36”
SYMC40 7” 48”
Catalog No. Width Length
ASYC15 5” 18”
ASYC20 5” 24”
ASYC30 5” 36”
ASYC40 5” 48”
SCN or SCF C Channel
Specifications
•Designedtominimizethenumberofballastsusedtomaximizeenergysaving
•Savesinstallationwiringtimewithpre-wiredplug-inintertie
•Savesmaterialcostusingfewerconduitrunsandjunctionboxes
•Polarizedmale/femaleplugsminimizewiringerrors
•Systemexibilityallowsunitstobeunpluggedandmovedastasklocationschange
Tandem Troffer
Symmetric and Asymmetric Reflectors
Ordering Information
Varioussizesandlamp/ballastscongurationscanbeemployedwithour
TandemTroffersystem.
6-Foot Pre-Wired Troffer
Pre-wired6’long3/8”exible
conduitwith3#18or4#18
leadsandconnectorinstalled.
SufxOptionCodeF1orF2to
catalognumber(SeePage34).
Note:Orderxturesperpair.Standardintertieis9ft.inlength.
Optional6ft.powersupplycableisavailableuponrequest.Consultfactory.
Contractor-Friendly Job Pack
NowavailableonGP2Troffer(page7)
• Savetimeandlabor
•Environmentally-friendlypackaging
reduceswaste
41
www.crescentlighting.com
Fluorescent Lighting - Options and Accessories
Cord and Plug
Option Code H5
3-wire6’blackcord
&plugforusewith
OpenChannelandIndustrial
xtures.120Vonly
Sufxcatalognumberwith
OptionCode.
Switches
Option Code
H22-waypullswitch
H14-wayPullSwitch
H4Turnswitch
120Vonly
Sufxcatalognumber
withOptionCode.
Pre-Wired Plug-Ins
PLS Pre-wired Plug-ins:
Option Code F3SingleCircuit
PLR Pre-wired Plug-ins:
Option Code F4DoubleCircuit
(ballast“hot”wiretoredlead)
PLB Pre-wired Plug-ins:
Option Code F6DoubleCircuit
(ballast“hot”wiretoblacklead)
Grounded Convenience Outlet
Option Code H6
120Vonly
SufxcatalognumberwithOptionCode.
Emergency Lighting Systems
Option Codes: BO, B1, B2, B3, B4, B5
(SeeOptionListfordescriptions)
SufxcatalognumberwithOptionCode.
Hanger
Catalog No. ZCS
ForusewithSCFandRN.
Catalog No. ZNS
ForusewithSCN,RH,TENandRT.
Hangersprovide1-1/2”minimumspacing.
Hanger
Catalog No. SG-5
ForusewithRH,TENandRT.
Hangerprovide1-1/2”minimum
spacing.
In-Line Fuse
Option Code C1
Sufxcatalognumberwith
OptionCode.
All-Purpose
Ceiling Hanger
Catalog No. C-900
Providesminimum
1-1/2”spacing.
Stem and Canopy
Catalog No. SSC
Canopy
Catalog No. XXSTEM
SingleStem(3/8”IPSStem)
(“XX”=Length,i.e.,24Stemfor24”)
Chain Hangers
Catalog No. DB-28-75422-000
Consistsoftwo24”heavydutyJackChains
andtwoY-hooks.
Radio Interference
Suppressor
Option Code D1
Sufxcatalognumberwith
OptionCode.
TRonly.
RTU Sleeve Coupler
Catalog No. 50060
ForusewithSCN,RH.
Catalog No. 75600
ForusewithSCFandRN.
Heavyduty10”
SleeveCouplerfor
usewith41/4”wide
OpenChannelsandIndustrialxtures.
Top Mounting Bracket
CatalogNo.SLTBRKT1
RTU Wire Guard
4ft. Wireguards
Formed
Catalog No. Series
SCG-4 SCF&SCN
CHG-4C
RTU Wire Guard
4ft. Wireguards
Formed
Catalog No. Series
NRG-4 RN&RH
RTU Wire Guard
4ft. Wireguards
Flat
Catalog No. Series
FWG-4 RN&RH
42 www.crescent-stonco.com
Energy Solutions
Green Lighting Technology is a Must for Today
Energyefcientlightingislessanoptionandmorearealityintoday’s
environmentallyconsciousworld!Thehighcostofoperatinginefcientlighting
xturesislikewiseaburdenonthebottomline.Thetimeisrightnowtomake
theshifttoGreenLightingTechnology.Taxincentivesandreducedenergy
consumptioncouldmeanapaybackintherstyearofoperation.Theimpacton
theenvironmentwillmeanimprovedsustainabilityforyearstocome.
Your Source for Green Lighting Technology
Crescent/Stoncoisaleadingproviderofenergy-efcientcommercialluminaires.
AsamanufacturerofbothuorescentandHIDluminaires,weareabletodeliver
thebestsolutionsregardlessoftheapplication.WearealsopartofPhilips,a
companydedicatedtoinnovationandadvancedtechnology.
TheprofessionalstaffatCrescent/Stoncocanprovideenergysavinglighting
solutionsforyourneworexistingbuildingproject.Wecanassistyouinproject
planningandxtureselectionfromourwidearrayofinnovativeluminaires.
More Fixtures, More Choices and More Savings
Crescent/Stoncohighperformanceluminairesareavailablewithawidevariety
oflampingoptions.HighefciencyHIDxturesincludepulsestartandPhilips
MasterColor®CDMEliteMWlampsthatdeliverimprovedlightqualityandcolor
rendering.
LinearuorescentbeginwithT5HOandT8andextentintoHPT8,energysaving
T5HO49WlampandextremetemperatureT8VHO.TheStoncoSmarT-Bayis
designedtoworkspecicallywithoccupancysensorsandcarriesathreeyearno
questionswarrantyonallcomponents.
EvenmoreexcitingistheintroductionofLEDluminaires!Stoncomanufacturesa
familyofultrahighefciencyLEDluminairesfeaturingPhilipsLEDtechnology.
ThesexturescanbespeciedwithaSolarpackagethatincludesallsystem
componentsincludingthepole--OneSystem,OneSource.
DecraDLED
LightingSolutionsforaNewGeneration
43
www.crescent-stonco.com
Energy Solutions
LED Luminaires
StoncooffersacompletefamilyofLEDluminairesforexterior
andinteriorinstallation.Theseluminaireshavebeenengineered
specicallytothenewtechnology,andarepoweredbyPhilips
LEDlightengines,thebestperformingandmostdurablesystems
onthemarkettoday.StoncoLEDluminairesdeliverexceptional
energyefciency,longlifeandsuperiorphotometricperformance.
TheirhighCRIratingguaranteesgoodcolorreproduction,and
theexcellentlumenmaintenanceensuresmaximumlightoutput
overthelifeofthelightengine.Stylesincludearea,wall,canopy,
parkinggarage,oodandinteriorpendantmount.
ES1,Pg.72 ES2,Pg.72 ES3,Pg.72
FPL,Pg.71 LCQ,Pg.80 LPQ,Pg.80
MCL,Pg.87 SSM,Pg.87
ANewApproachtoEfciency
Photometric Efficiency with LED
WhenwespeakofLEDtechnology,wearenotsimplyspeakingofthelight
emittingdiodesthemselvesbutofalltheotherpartsthatmakeupthesystem.
TheLEDsystemiscomposedofvemajorcomponents,allcriticaltothe
performanceoftheengine.Theintegratedcomponentsprovideanefcient
platformfromwhichtoproducelightforoutdoorapplications.
LEDoffersalongeroperationallifethanconventionallightsourceswithan
averageratedlifeof60,000hours.WhencomparedtootherLEDoptics,LED
offersexceptionalphotometricefciencywithgreaterxturespacingandmore
lumensintargetedareas.AndLEDisasustainabledesignwithupto55%
energysavingsaswellasotherenvironmentallyfriendlyfeatures.
PhilipsandPhilips
companiesworldwide
havedevotedthousands
ofhoursinresearch
developingthenext
generationofLEDsystems
foroutdoorlighting.This
newtechnology,LED,
solvesthetwomain
industryLEDperformance
problemsregarding
uniformityandintensity
whiledeliveringenergy
savingsofupto50%.
A Complete Line of LED Luminaires
Visit www.crescent-stonco.com/LED for detailed information.
44 www.crescent-stonco.com
Energy Solutions

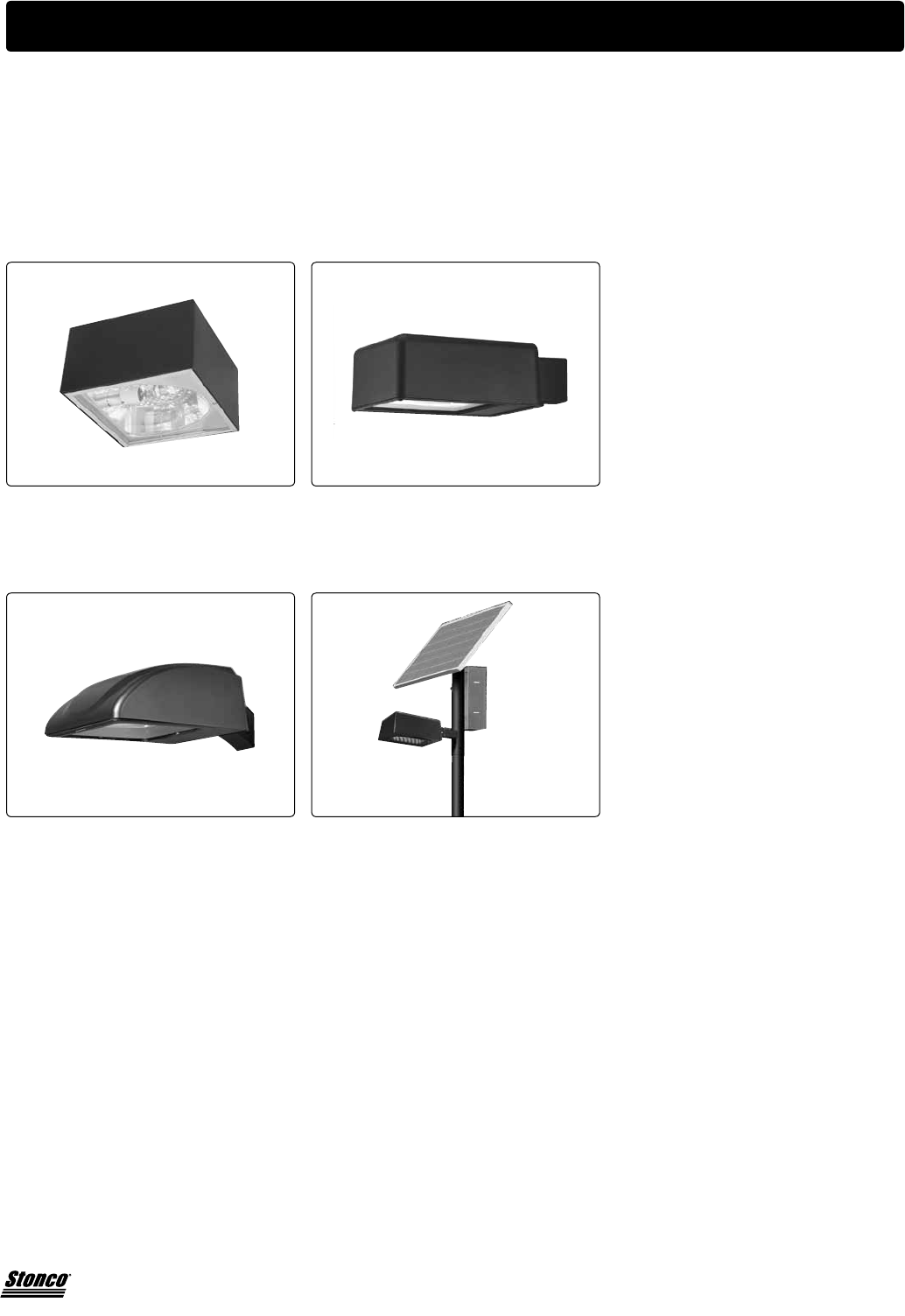

Solar-Powered LED Lighting
StoncoremainsontheforefrontoflightinginnovationwiththeintroductionofSolarPoweredLED
Lightingsystems.Solarpoweredmeannocostlyundergroundtrenchinglikeline-voltagepowered
xtures.Andbecauseyouhavefreeoperationforthelifeofthesystem,paybackisimmediatewith
everynewinstallation.Stonco’sOneSystem,OneSourcephilosophymeansStoncowilldeliverthe
entiresolarpackage,includingLEDxture,solarpanel,controller,batteryandpole,sizedforyour
applicationandlocation.SolarpowerisavailableontheStoncoSilhouetteorMCLenergy-efcient
LEDluminaires.Visit www.crescent-stonco.com/Solar for detailed information.
SolarLEDTechnology
MCL,Pg.88
SSM,Pg.88
45
www.crescent-stonco.com
Energy Solutions
Pulse Start Metal Halide
StoncoluminairesfeaturePhilipsPulseStartMetalHalidelampsthat
deliverhighperformancewithlowtotalcostofownership.Philips
PulseStartLampsofferanoptimizedmetalhalidesystemforgreater
efciencyandlumenmaintenance.Theydeliveruptoa25%increasein
maintainedlightoutputanduptoa50%increaseinlifeoverstandard
metalhalidelamping,Pulsestartlampsdeliverfasterwarm-upandre-
striketimelongwithimprovedefcacy.

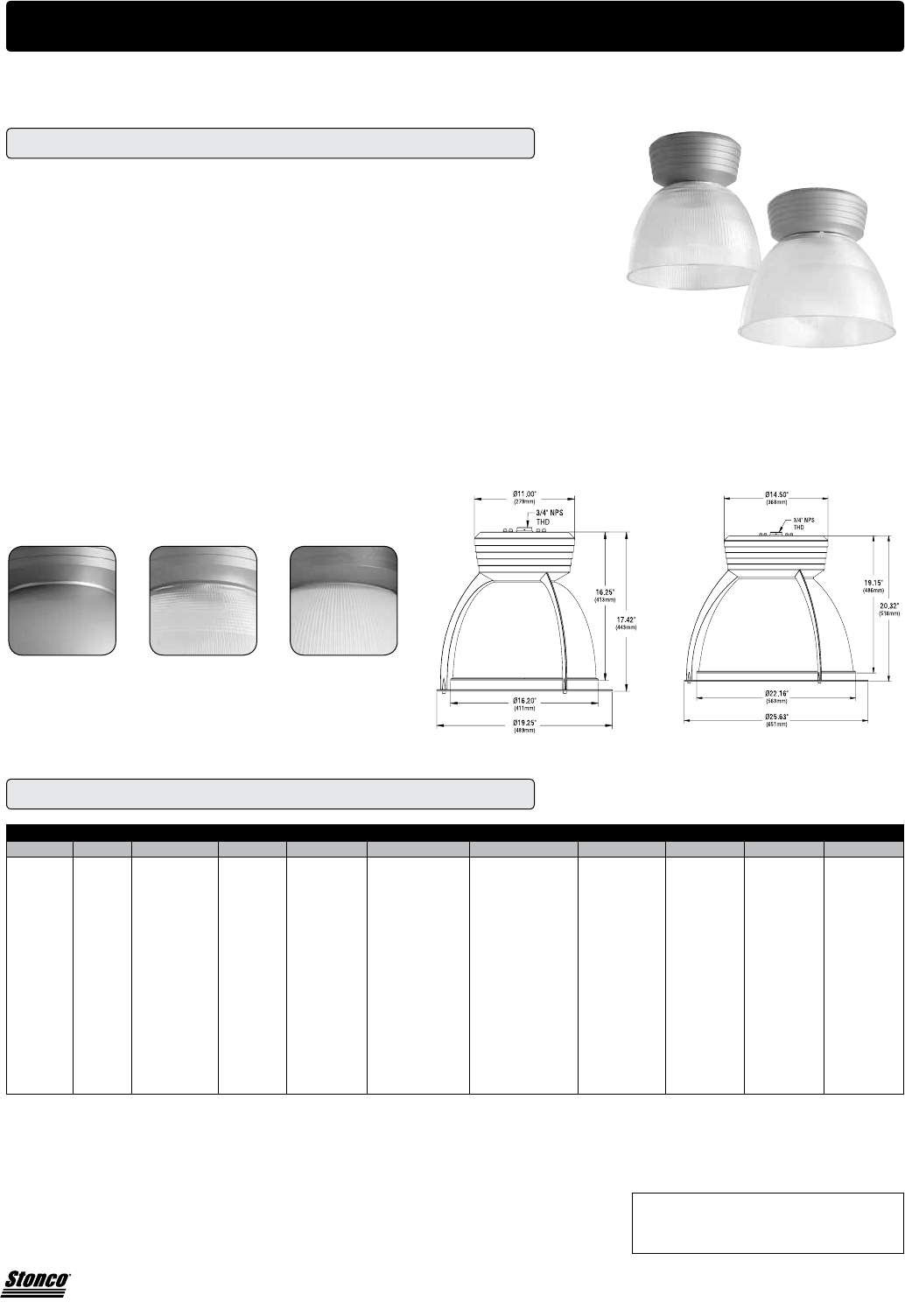

Decra Elite
StoncoDecraluminairesequippedwithPhilipsMasterColor®CDM
EliteMWlampsdeliverimprovedlightqualityandcolorrendering
(90+CRI),andfeaturesadualreectordesigndelivering90%optical
efciencytoprovideoptimalperformance.Thesesystemsdeliver
20,000hoursofoperationwith80%lightoutputatendoflife,an
industryrst!TheDecrausingElitelamptechnologyuse50%
lesswattagethanconventionHIDsystemstherebyrequiringlower
wattagelampsforthesamespace,orfewerxtureswillbeneededfor
newconstruction.Visit www.crescent-stonco.com/decra for
detailed information.
Energy-EfcientHIDLightingSystems
Decra,Pg.120-122
46 www.crescent-stonco.com
Energy Solutions
Endurance Series
A Selection of Performance-Driven Induction
Lighting Systems
Stonco’snewestadditiontoitsEnergySolutionsProgramisthe
EnduranceSeriesofPhilipsinductionlighting.PhilipsQLinduction
lampingsystemsarecertiedtoprovide100,000hours*ofuninterrupted
operationoverthelifeofthelamp.TheEnduranceisbestsuitedforlong
burnapplicationswhereaccessisdifcultandreliabilityiscritical.They
deliverlonglife,verylowmaintenanceandimprovedsafetyatavery
reasonablecost!
ThePhilipsQLlampusesatechnologyoflightgenerationthatcombines
theprinciplesofinductionandgasdischargesimilartoauorescent
source..Itiscomprisedofagenerator,thepowercouplerandlamp
havingnoelectrode.
More Benefits Drives Greater Value
100,000hoursofoperationisequalto25yearsofcontinuous
illuminationbasedon4,000hoursofannualoperation.
Superior Lighting Quality
ThePhilipsQLinductionlampdelivershighqualitycrisp,whitelight
in3K,4Kand5Ktemperatures.IthasaCRIratingof80+andhas
nolightlossincoldenvironments.Ithasinstant-onandrequiresno
re-strikewithgoodlumenmaintenanceandlightqualityoverthelife
ofthesystem.
Equivalent Brightness while Reducing Energy Up to 43%
TheQLproducesmorelightintheblueareaofthevisiblelight
spectrumthanHPS.Theresultisthe85wattinductionlamphasfewer
lumensthan150wattHPSbutofferssufcientlumensforequivalent
illuminationatnightwhileusing43%lessenergy.
Low Lifetime Cost of Ownership
Thepaybackinmaintenancesavingswillmorethanoffsetthe
additionalcostoftheinitialQLinductionsystembecauseitoffersve
totentimesthelifeofHIDsourcesforonlytwotothreetimesthecost
oftheHIDlampandballast.AllEnduranceSeriesxturesreturneven
greatersavingsthroughlimitedre-lampingandroutinemaintenance
Low EMI
TheQLsystemcomplieswithFCCruleswithnoninterferencewith
electronicdevicesundernormalcircumstances.Likewise,itwill
notinterferewithnavigationandradiocommunicationandcellular
telephones.
InductionSystems
LPQ,Pg.81
MBSeries,Pg.101 MCL,Pg.85
GP4,Pg.67 WP,Pg.77
47
www.crescent-stonco.com
Energy Solutions
Solid State Lighting Luminaires
StoncoValueLEDSeriesluminairescombinestraditionalvaluextures
withadvancedtechnology.TheresultisaffordableGreenTechnology
atContractor-Friendlypricepoints.Theyareasteptowardreal
sustainabilitybecausetheyareenvironmentallyfriendlythroughlow
energyconsumption,reducedoverallwasteinreplacementxturesand
lamps,andnotoxicmaterialstopolluteourlandlls.
StoncohasValueLEDxturesformostapplications.Theirdie-cast
aluminumconstructionisexcellentforheatmanagement,andthe
precisionopticsprovideevenilluminationat4,000Ktemperature.
ValueLEDluminairesdeliver50,000lifetimeoperatinghoursbefore
replacing.Theirlowwattageconsumptionreducesenergyconsumption
upto50%,acceleratingpaybackinaveryshorttime.
ValueLED
WP,Pg.77 WPM,Pg.77
48 www.crescent-stonco.com

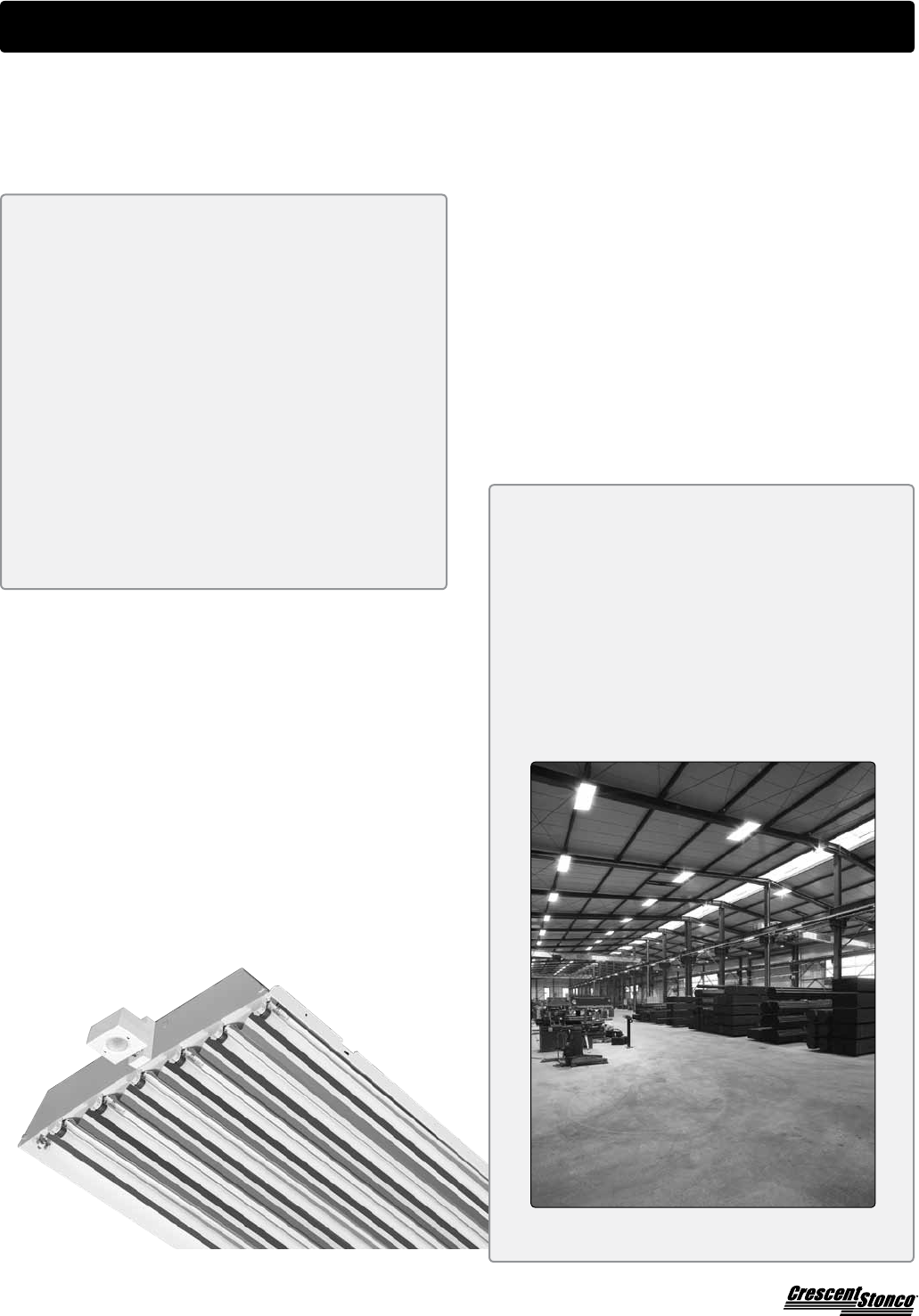

Energy Solutions
T8VHO
Crescent/Stoncolinearuorescenthighbayluminairesusing
thePhilipsT8VHOExtremeTemperatureSystemcanuse
T8lampswithoutsacricinglightoutputresultingfromhot
orcoldtemperatures.Lumenoutputis>90%from50°Fto
160°F(10°Cto70°C),anddeliver40%moresystemlumens
perwattthanastandardHID400Wsystem.PhilipsT8VHO
lampswillreduceyourtotalcostofownershipwhencompared
toastandardHID400Wsystem,andreducemaintenance
costsbyupto25%becauseoflongerlamplife.TheT8VHO
produces7,200lumensascomparedto5,000forT5HOand
2,850forT8,therebyrequiringfewlampsforthesamelighting
application.
Energy Advantage T5HO 49W lamp
Crescent/StoncoluminairesusingEnergyAdvantageT5HOlamps
fromPhilipsareasimplewaytomaximizeenergysavingsbyjust
changingalamp.Thesenewlampsprovidea5wattenergysavings
ascomparedtothestandard54Wlampscurrentlyinuse.Thisisa
perfectenergysavingoptionforhighbayretailapplicationswhere
youcan’tsacriceanylightloss,butstillwanttoreduceyourenergy
consumption.Theyarealsotheidealreplacementforindustrial
applicationslikewarehousesanddistributioncenterscurrentlyusing
T5HO54Wlampsthatareinneedofare-lamp.

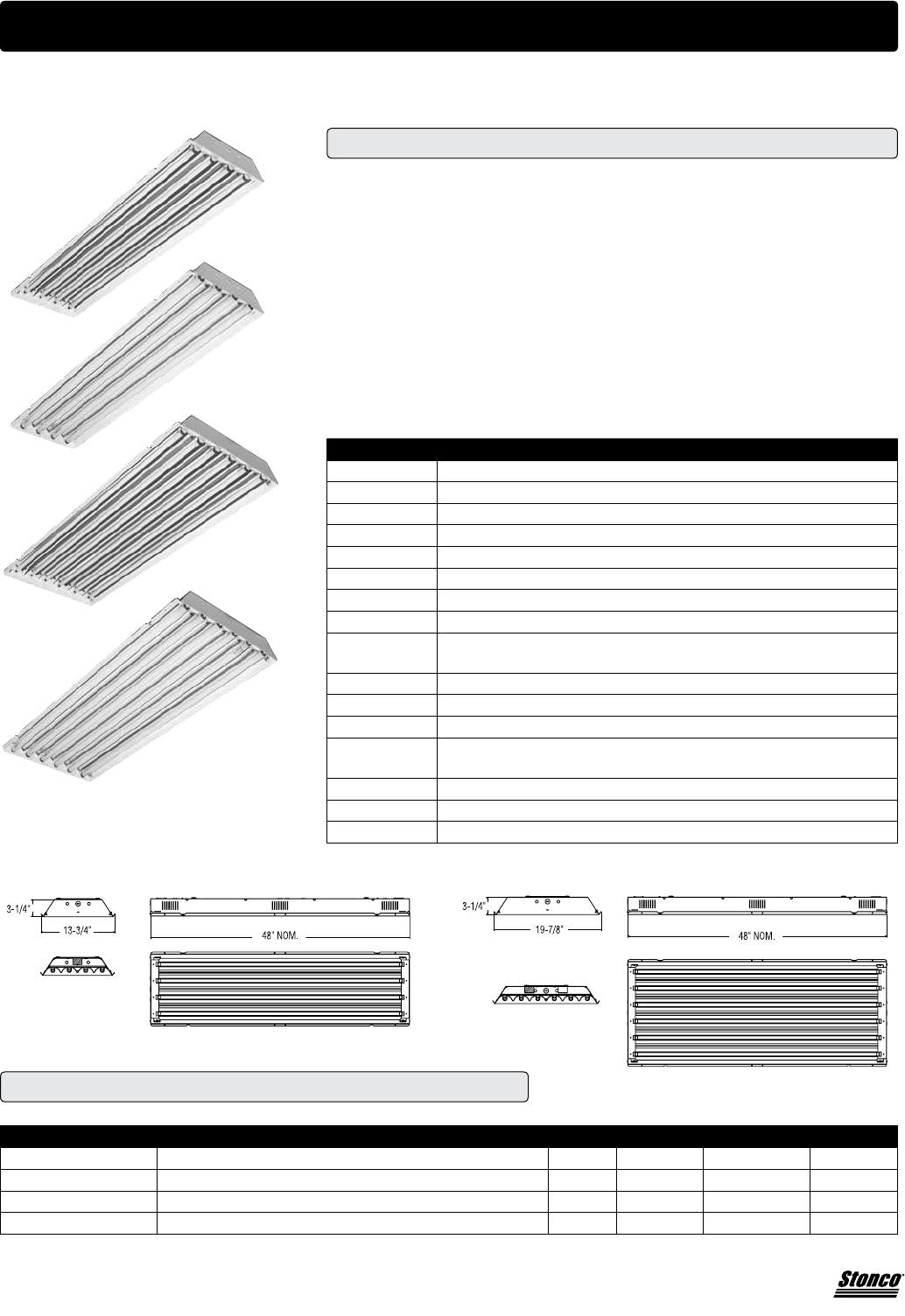

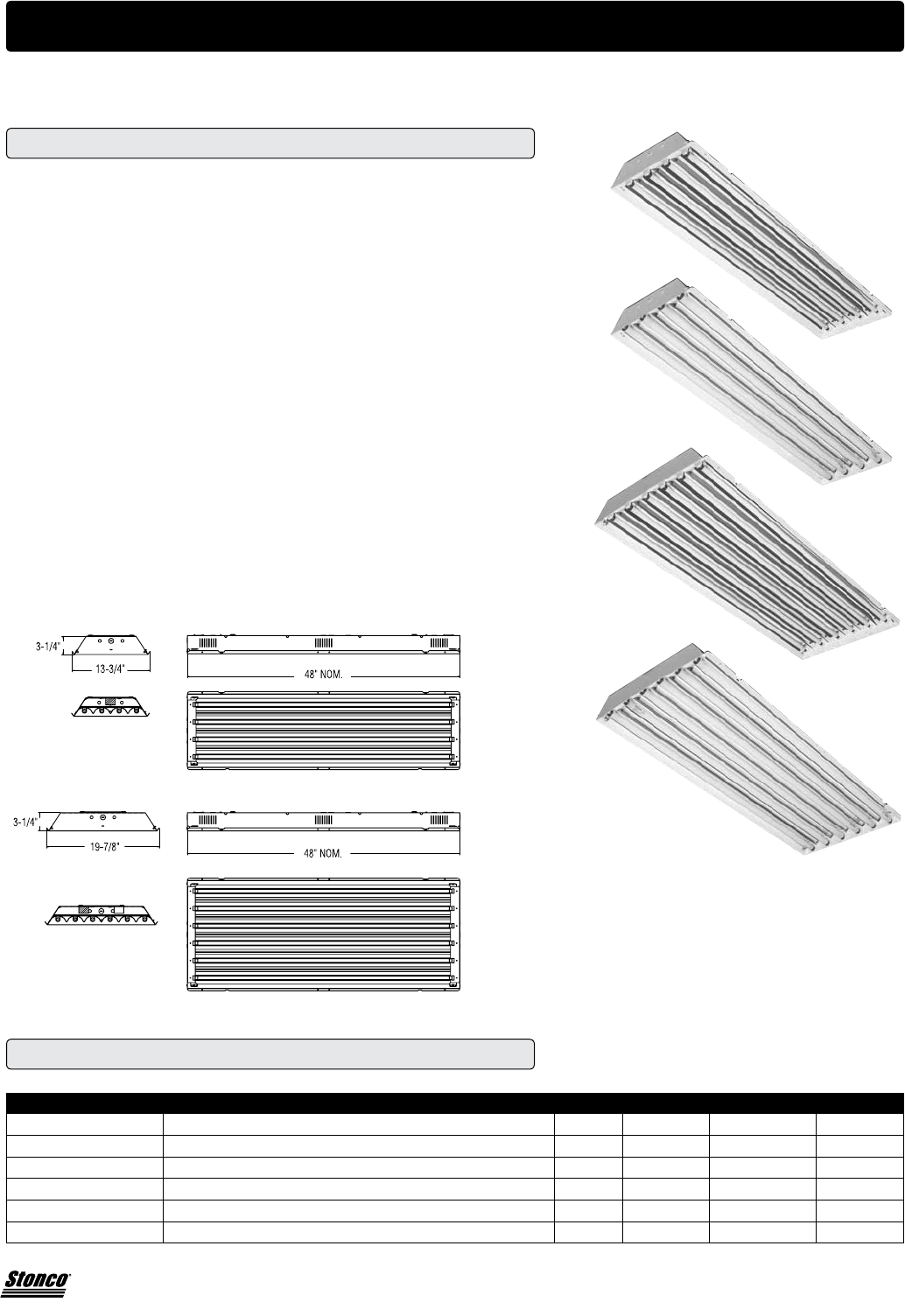

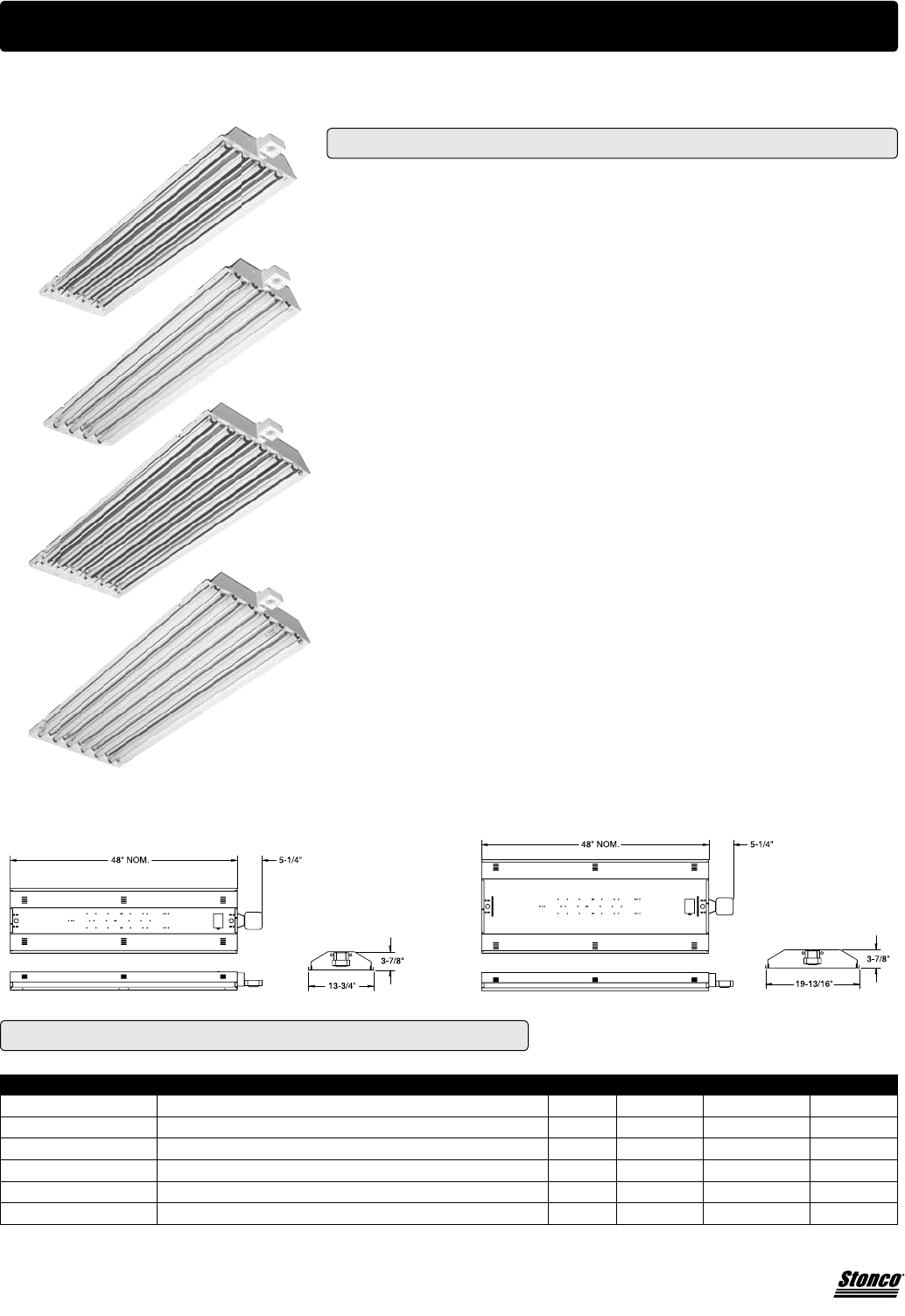

T5HO and T8 Linear Fluorescent High Bays
Crescent/StoncowastherstHIDhighbaycompanytooffer
linearuorescenthighbayxturestothecommercialmarket.
Crescent/Stoncouorescenthighbaysutilize4-light;54watt
T5HOor6-light;32wattT8lampsthatproducethesame
lightasa400wattmetalhalide.Theselinearuorescent
highbaysdeliverupto50%inenergysavings,95%lumen
maintenance,CRIratingof85andinstantonwhencompared
totraditional400wattmetalhalidextures.
LinearFluorescentTechnology
SmarT-Bay
Crescent/StoncodevelopedtheSmarT-Baylinearuorescenthighbay
luminairespecicallyforusewithoccupancysensors.TheSmarT-Bay
matchesthecorrectAdvanceballastandPhilipsLightinglow-mercury
ALTO™lampwithinaStoncohigh-performancehighbayxtureand
SensorSwitch’sinnovativeoccupancysensortechnology.The
SmarT-Baypreventsprematurelampfailureduetofrequentcycling,
andcarriesa36monthwarrantyonallcomponentsincludinglamps-
OneSource,OneSolution,OneWarranty.
Visit www.smartlightingtechnology.com for detailed
information.
SBSeries,Pg.94
49
www.crescent-stonco.com
Energy Solutions
HPT8 (High-Performance T8)
Crescent/Stoncoofferslinearuorescentluminairesequippedwith
HPT8lamping.HPT8isacombinationofhighefciencyelectronic
ballastsandfourfoot32wattT8lamps.HPT8willreducelighting
energycostbyupto40%comparedtoolderT12orupto17%
comparedtostandardT8systems.Otherbenetsincludegreater
lumens,higherCRIratingandlongerlamplife.Crescent/Stonco
luminaireswithHPT8lampingcanbeusedinanyapplicationwhere
astandardT8orT12uorescentluminairewouldbeusedincluding
troffers,parabolics,RDIandwraps.
SeePage36fororderinginformation.
LinearFluorescentTechnology
Visit www.csgreenlightingsolutions.com for
detailed information.
50 www.crescent-stonco.com
Energy Solutions
LinearFluorescentTechnology
D3 2x4,Pg.6
NLTN,Pg.12
SCF,Pg.22
SCN,Pg.22
GP2 2x4,Pg.7
C,Pg.24RN,Pg.26
MST,Pg.29
SLT,Pg.29
Philips T8 Extra Long Life Lamps
• T825W,28Wand32Wextendlamplifebyupto67%comparedtostandardT8lamps
• 60,000hourlamplifebasedonminimum12-hourstart
• Lessmaintenance
• 95%-97%lumenmaintenance
• Reducedlamp-endblackening
• T825Wdeliversoutstandingenergysavingsof7wattsperlamp(25%)
Philips Advance Optanium High-Efficiency Electronic Ballast
• High-efciencyelectronicballast
• Consumeslessinputwattsthanstandardefciencyelectronicballasts
• Reducesthepotentialforlampstriation
• Fiveyearwarranty
Environmentally Friendly
• Lessre-lampingresultinginlesswaste
• Extralowmercury(1.7mg)
• Lowerenergyconsumption

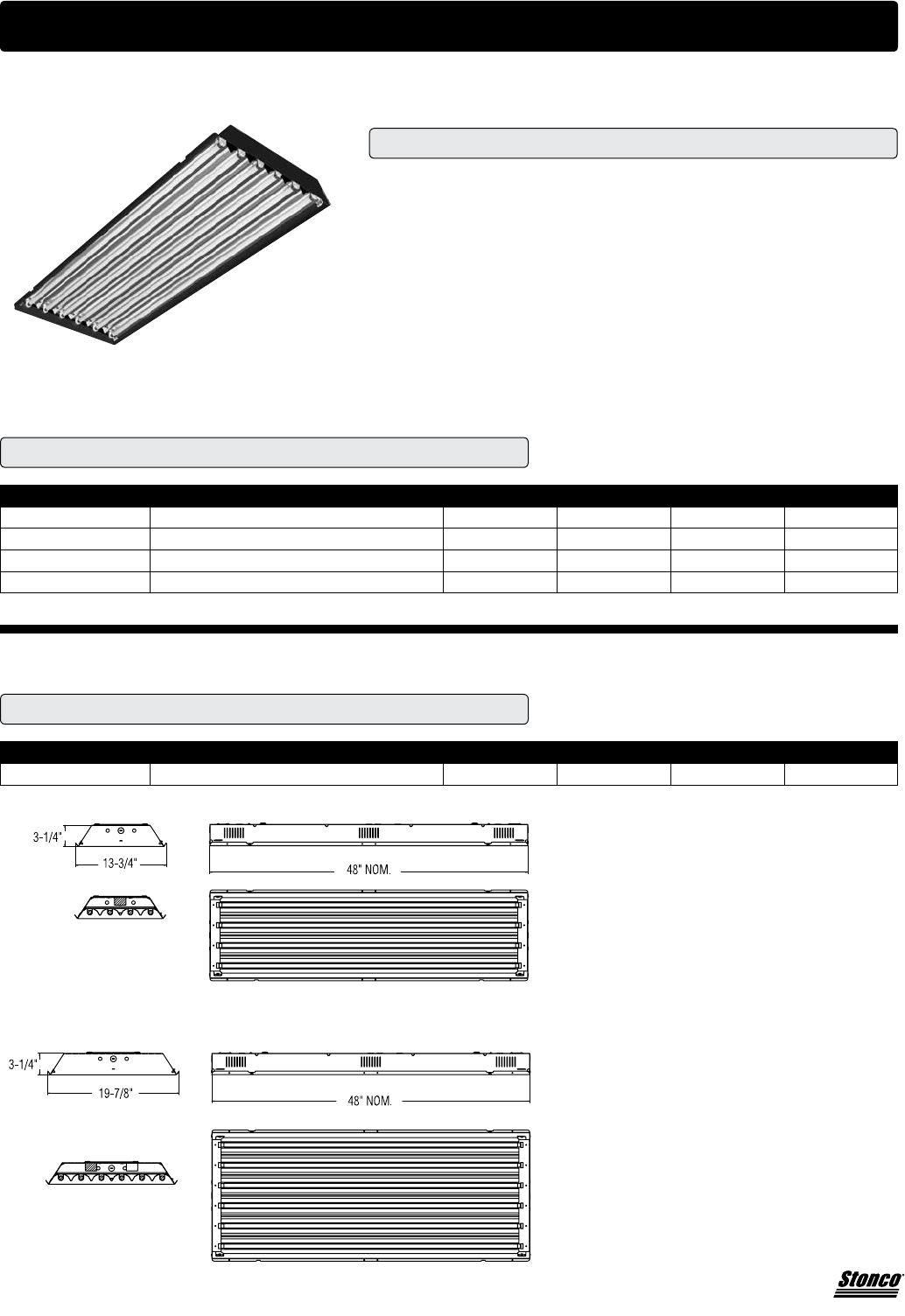

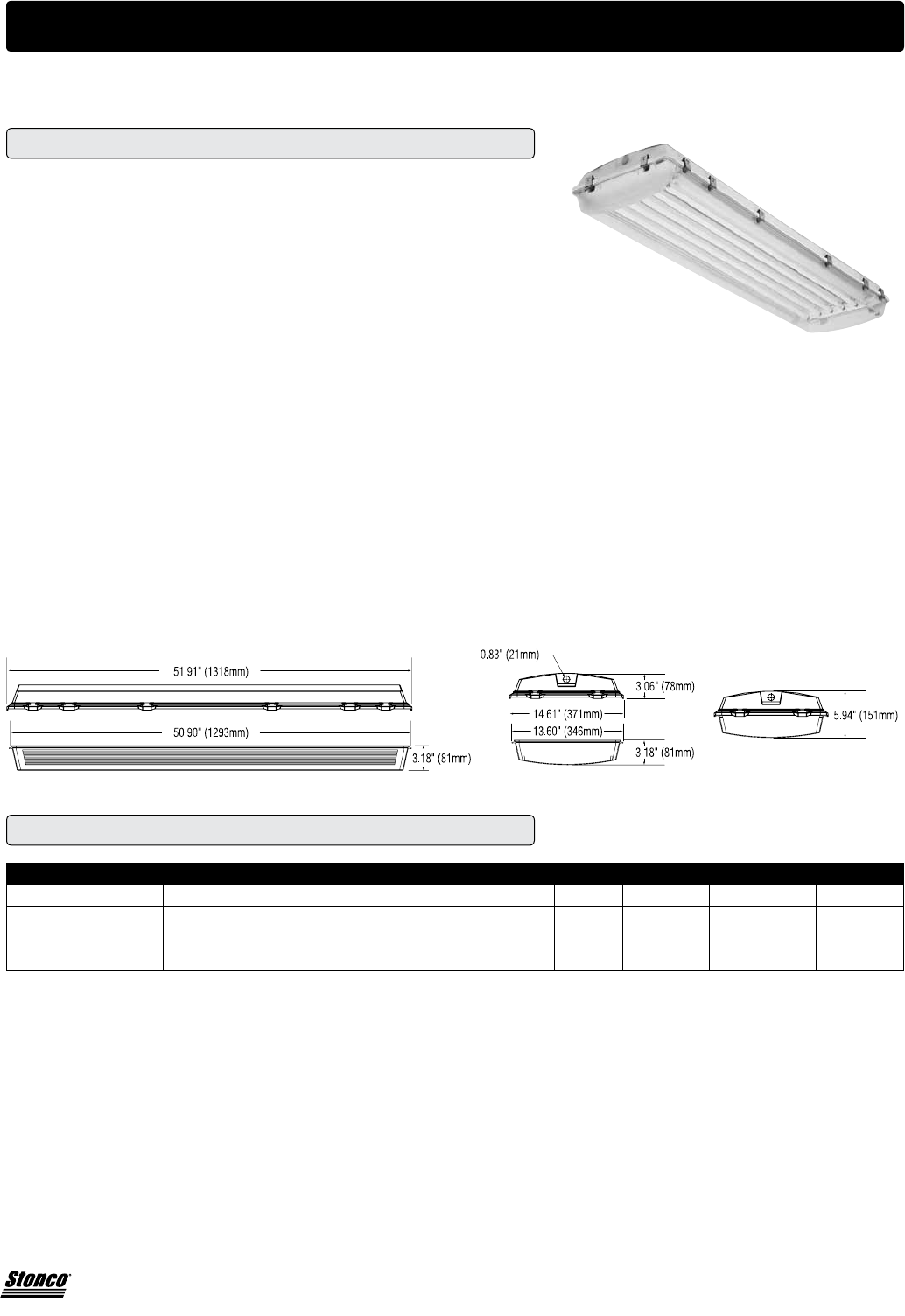

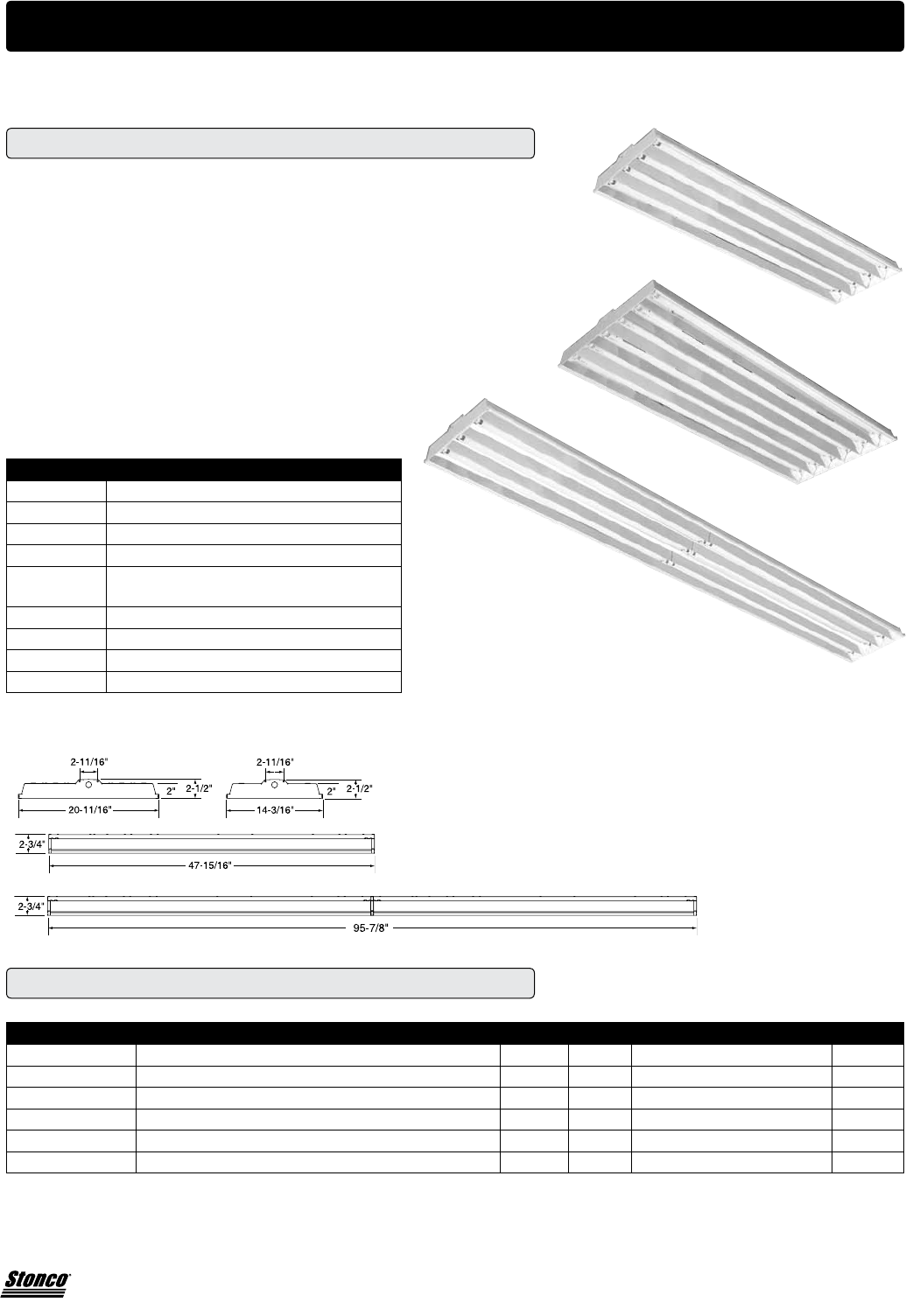

X-Treme Series
X-TremeT8FluorescentLuminairescombineourhighqualityCrescentluminaireswithPhilipsXLLSeriesT8lampsandAdvanceprogramstartOptaniumballast.
Itisdesignedforapplicationswithaminimum12hourstartcyclesuchasparkinggarages,commercialspace,retailandofces.Seepage35forXLLballastand
lampinformation.
51
www.stoncolighting.com

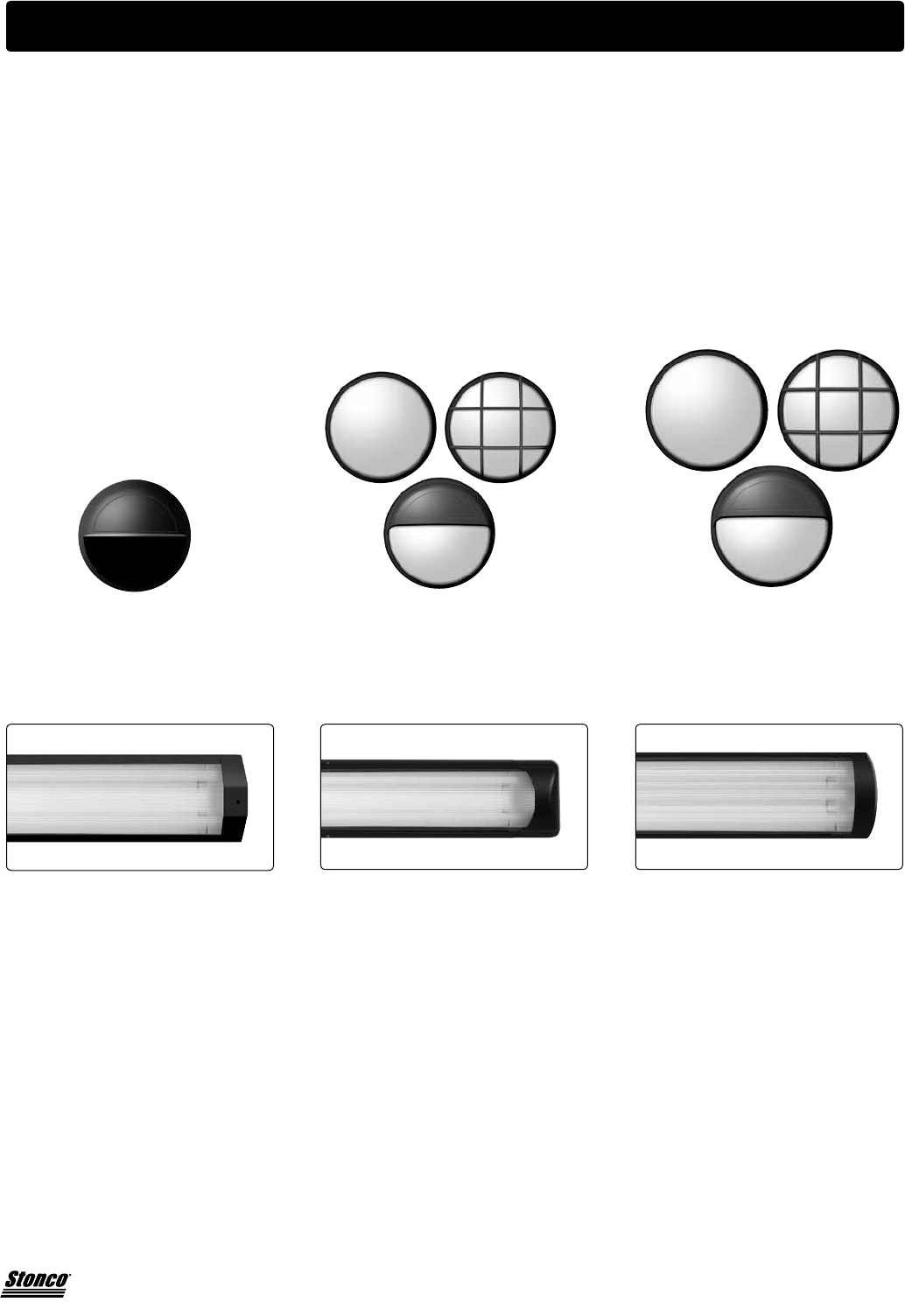

Vandal-Resistant Lighting
VandalResistant
Stonco’scomprehensivelineofvandal-resistantluminairesprovidesrelieffromdamagedxturescausedby
intentionalvandalism.Theirsturdyconstructionandshockabsorptiongasketingresistsbreakageandprotects
thelamp.TheVR’sarchitecturaldesignblendsbeautifullywithmoststructures,andtheycanbecustomized
usingdifferentfaceplatesandrings.TheVRseriesisavailableinroundandlinearcongurationswithavariety
oflampandsizingoptions.
Survi’VR Series
13”RoundVandal-Resistant
Page 53
Survi’VR Series Cutoff
13”RoundVandal-Resistant
Page 52
Survi’VR Series
16”RoundVandal-Resistant
Page 54
Survi’VR Series
LSeriesLinearFluorescent
Vandal-Resistant
Page 55
Survi’VR Series
SSeriesLinearFluorescent
Vandal-Resistant
Page 56
Survi’VR Series
VSeriesLinearFluorescent
Vandal-Resistant
Page 57
52 www.stoncolighting.com

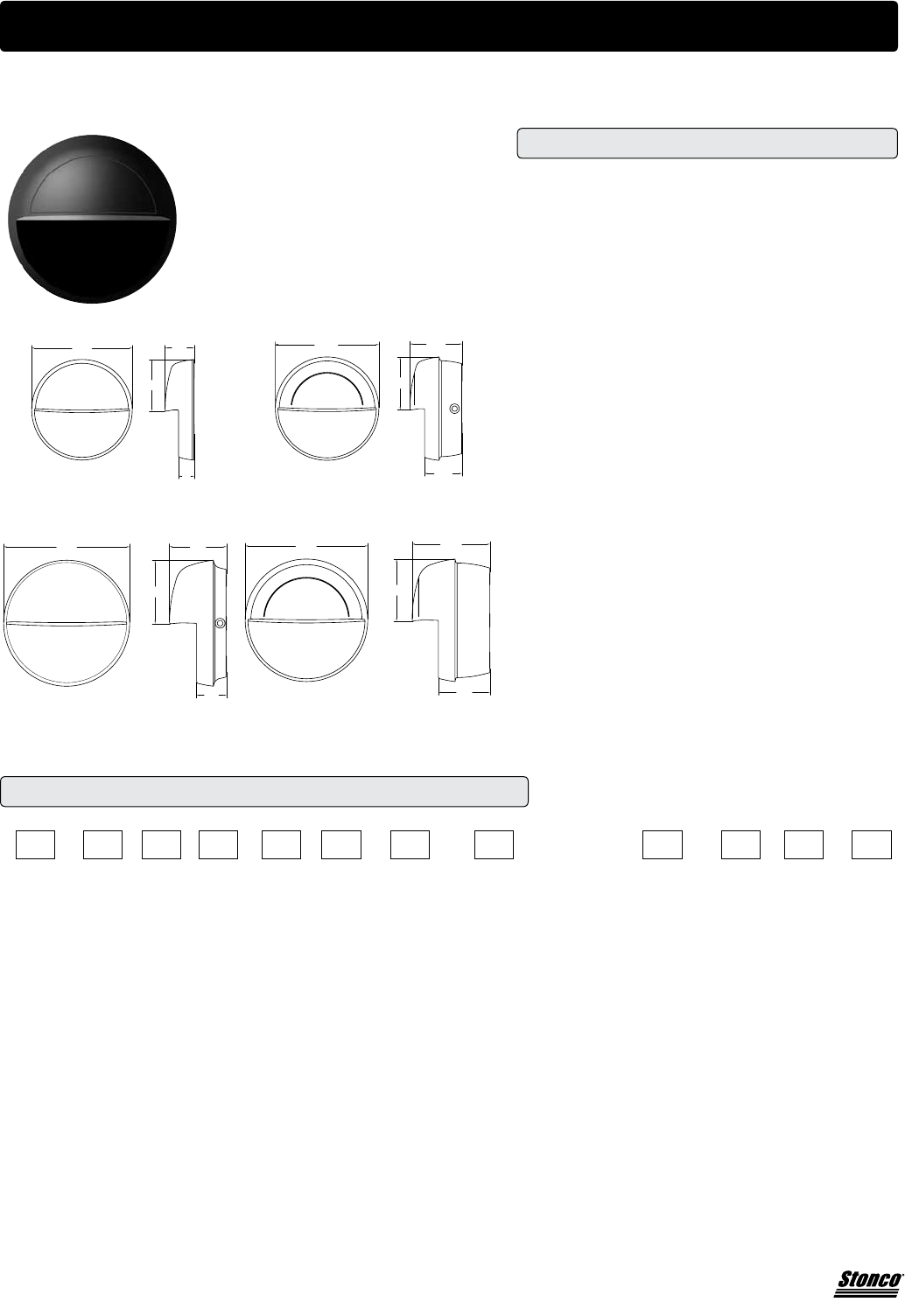

Survi’VR Series - Vandal-Resistant Lighting
Survi’VR Series Cutoff
Specifications
• Precisiondie-cast360alloymarine-gradealuminumbackplatewithcast-
inmountingknock-outs
• FinishedinDuraplexIIpolyesterpowdercoat
• One-pieceinjectionmoldedandUV-stabilizedpolycarbonatefacewith
snap-in,interlockinglensprovision
• Colormoldedintothepolycarbonatefacefordurable,scratch-resistant
nish
• Lockingrecessedsetscrewatthe1:00o’clockpositionsecurelylocksthe
faceandlenstothecasthousing
• Die-cutneoprenerubbergasketprovidesaddedprotectionagainst
elementsbetweenbackcastingandmountingsurface
• HIDunitsequippedwithmagneticballasts
• CompactFluorescentunitsequippedwithanelectronicHPFballastwith
120-277voltagesensingcapability
• Lensisaone-piece,injection-molded,UV-stabilizedpolycarbonate
• Internalprismsre-directthelightminimizinghotspotsandmaximizing
uniformity
• Lensavailableineitherclearprismaticoropalprismaticpolycarbonate
• Twistandsealconstructionlocksthelensandfaceontothebackcasting
• Extrudedsiliconegasketprovidesatightweather-resistantseal.Unique
“ShockandSeal”designprovidesacushionthatsupports/sealsthelens
againsttheelementsandalsoactsasashockabsorbertohelpreduce
damagefromimpacttotheunitface
• HIDunitsequippedwithaprecisiondie-formsegmentedreector
• CompactFluorescentunitsequippedwithahighreectancewhitepan
reectorsystem.
• CeilingunitshaveasymmetricTypeVdistribution
• Integralbubbleleveltospeedinstallationisprovided
• TrimRings(deeponly):VR3DB(black),VR3DW(white),VR3DP(bronze)
• ULlistedforwetlocations
Ordering Information
S
Series
R
Shape
C
Style
3
Size
D
Depth
W
Mounting
35W
Wattage
EPM
Source
F
Options
B
Base Color
8
Voltage
B
Face Color
S=Survi’VR R=Round C=Cut-off 3=13
6=16
S=Shallow
D=Deep
S=Shallow
D=Deep
W=Wall
20W1
39W1
126=1x26
132=1x32
35W2
132=1X32
142=1x42
35W1
50W1
126=1x26
132=1x32
142=1x42
157=1x57
226=2x26
232=2x32
35W2
50W2
132=1x32
142=1x42
157=1x57
226=2x26
232=2x32
TE=EPST4
TE=EPST4
HF=CFL(HPF)
HF=CFL(HPF)
NX=HPS(NPF)
EPM=PSMH
EPM=PSMH
HF=CFL(HPF)
HF=CFL(HPF)
HF=CFL(HPF)
HF=CFL(HPF)
HF=CFL(HPF)
HF=CFL(HPF)
PM=PSMH
PM=PSMH
HF=CFL(HPF)
HF=CFL(HPF)
HF=CFL(HPF)
HF=CFL(HPF)
HF=CFL(HPF)
NX=HPS(NPF)
NX=HPS(NPF)
NX=HPS(NPF)
LX=HPS(HPF)
E=Battery-pack
P=Photo-control
T=Thru-wire
F=Fusing
Q=AuxiliaryRelay
B=Black
W=White
P=Bronze
1=120
8=120-277
B=Black
W=White
P=Bronze
1 ElectronicBallast
2 Core&CoilBallast
13.73"
7.03"
3.98"
2.16"
16.25" 7.35"
8.17"
3.85"
13.72" 6.92"
7.02"
4.98"
8.26"
6.85"
10.34"
16.26"
13” Shallow
16” Shallow
13” Deep
16” Deep
53
www.stoncolighting.com

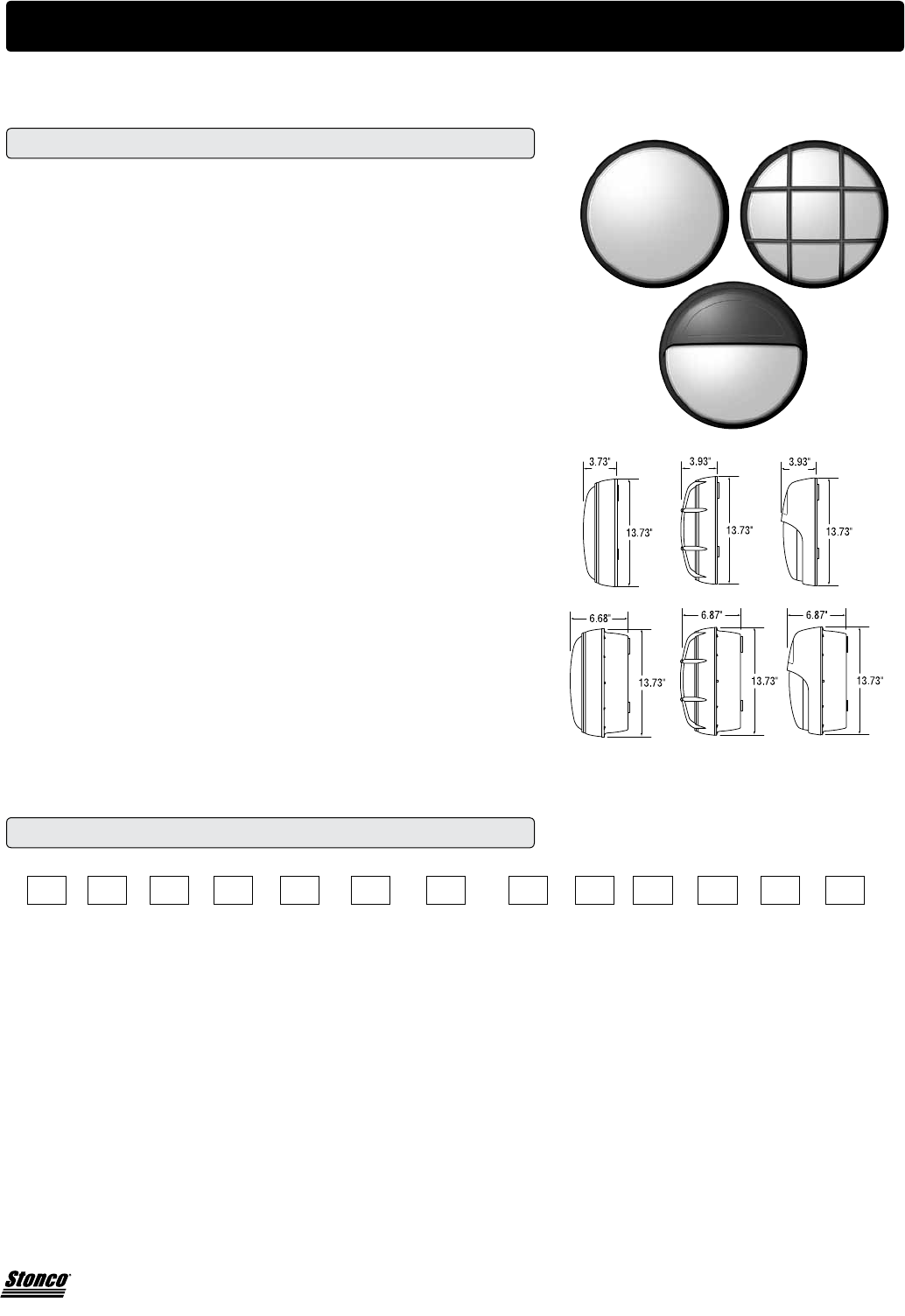

Vandal-Resistant Lighting - Survi’VR Series

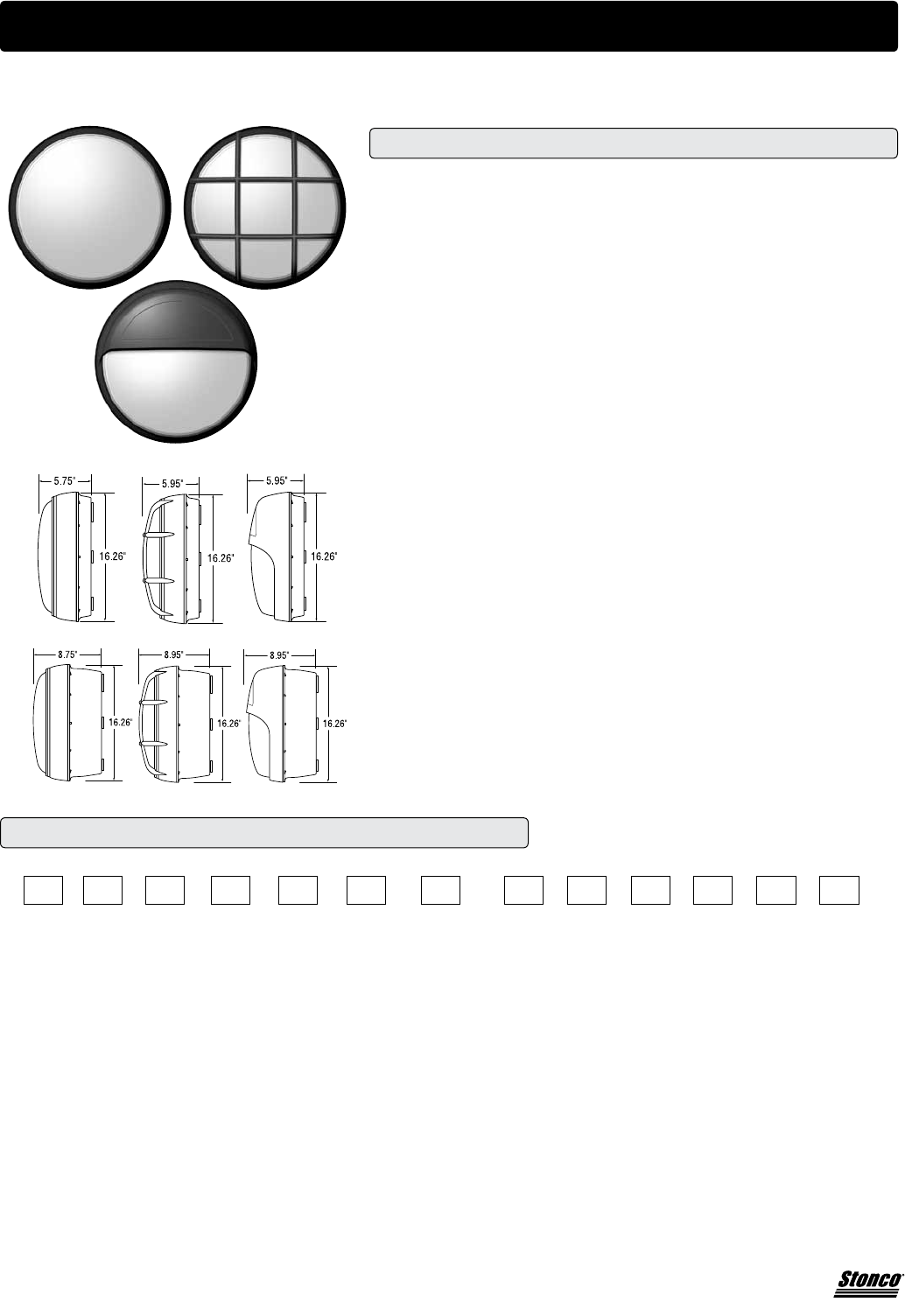

Survi’VR Series Round 13”
Specifications
• Precisiondie-cast360alloymarine-gradealuminumbackplatewithcast-inmountingknock-outs
• FinishedinDuraplexIIpolyesterpowdercoat
• One-pieceinjectionmoldedandUV-stabilizedpolycarbonatefacewithsnap-in,interlockinglens
provision
• Colormoldedintothepolycarbonatefacefordurable,scratch-resistantnish
• Lockingrecessedsetscrewatthe1:00o’clockpositionsecurelylocksthefaceandlenstothecast
housing
• Die-cutneoprenerubbergasketprovidesaddedprotectionagainstelementsbetweenbackcastingand
mountingsurface
• HIDunitsequippedwithmagneticballasts
• CompactFluorescentunitsequippedwithanelectronicHPFballastwith120-277voltagesensing
capability
• Lensisaone-piece,injection-molded,UV-stabilizedpolycarbonate
• Internalprismsre-directthelightminimizinghotspotsandmaximizinguniformity
• Lensavailableineitherclearprismaticoropalprismaticpolycarbonate
• Twistandsealconstructionlocksthelensandfaceontothebackcasting
• Extrudedsiliconegasketprovidesatightweather-resistantseal.Unique“ShockandSeal”design
providesacushionthatsupports/sealsthelensagainsttheelementsandalsoactsasashock
absorbertohelpreducedamagefromimpacttotheunitface
• HIDunitsequippedwithaprecisiondie-formsegmentedreector
• CompactFluorescentunitsequippedwithahighreectancewhitepanreectorsystem.
• CeilingunitshaveasymmetricTypeVdistribution
• Integralbubbleleveltospeedinstallationisprovided
• TrimRings(deeponly):VR3DB(black),VR3DW(white),VR3DP(bronze)
• ULlistedforwetlocations
Ordering Information
S R 3 D W 50 LX F B 8 G C B
Series Shape Size Depth Mounting Wattage Source Options Base Color* Voltage Style Lens Face Color
S= R= 3=13” D=Deep W=Wall 50=50 LX=HPS L=Lamped B=Black 1=120 B=OpenBezel O=Opal B=Black 
 Survi’VR C=Ceiling 70=701PM=PSMH E=Emergency W=White 8=120-277 G=Grid C=Clear W=White 
 Round 126=1x26 NX=HPS(NPF)2 (1)26w P=Bronze  E=Closed P=Bronze
 132=1x32 HF=Compact (1)32w Eyelid
 142=1x42 Fluorescent (1or2)18w 
 218=2x18 (HPF) U=UVShield3
 226=2x26 Q=QuartzAux
 232=2x32  F=Fusing
 242=2x42 T=ThruWiring4
 PC=PhotoControl4
1 70wattmodelsarenotavailablewithaPMlampsource.
2 120Vonly.
3 ForMHlampsonly.
4 Unavailablewithtrimrings.
Series Shape Size Depth Mounting Wattage Source Options Base Color* Voltage Style Lens Face Color
S= R= 3=13” S= W=Wall 113=1x13 HF=Compact L=Lamped B=Black 8=120-277 B=OpenBezel O=Opal B=Black 
 Survi’VR Shallow C=Ceiling 118=1x18 Fluorescent F=Fusing W=White G=Grid C=Clear W=White 
 Round 126=1x26 (HPF) P=Bronze E=Closed P=Bronze
 132=1x32  Eyelid
 142=1x42 
 213=2x13 
 218=2x18
 226=2x26
*Customcolorsavailable.Consultfactory.
54 www.stoncolighting.com
Survi’VR Series Round 16”
Specifications
• Precisiondie-cast360alloymarine-gradealuminumbackplatewithcast-in
mountingknock-outs
• FinishedinDuraplexIIpolyesterpowdercoat
• One-pieceinjectionmoldedandUV-stabilizedpolycarbonatefacewithsnap-in,
interlockinglensprovision
• Colormoldedintothepolycarbonatefacefordurable,scratch-resistantnish
• Lockingrecessedsetscrewatthe1:00o’clockpositionsecurelylockstheface
andlenstothecasthousing
• Die-cutneoprenerubbergasketprovidesaddedprotectionagainstelements
betweenbackcastingandmountingsurface
• HIDunitsequippedwithmagneticballasts
• CompactFluorescentunitsequippedwithanelectronicHPFballastwith120-277
voltagesensingcapability
• Lensisaone-piece,injection-molded,UV-stabilizedpolycarbonate
• Internalprismsre-directthelightminimizinghotspotsandmaximizing
uniformity
• Lensisavailableineitherclearprismaticoropalprismaticpolycarbonate
• Twistandsealconstructionlocksthelensandfaceontothebackcasting
• Extrudedsiliconegasketprovidesatightweather-resistantseal.Unique“Shock
andSeal”designprovidesacushionthatsupports/sealsthelensagainstthe
elementsandalsoactsasashockabsorbertohelpreducedamagefromimpact
totheunitface
• HIDunitsequippedwithaprecisiondie-formsegmentedreector
• CompactFluorescentunitsequippedwithahighreectancewhitepanreector
system
• Wall-mountedunitsequippedwithadditionalkickplatestodirectthelightdown
andoutintoaTypeIIIpatternwithaminimum4:1spacingratio
• Integralbubbleleveltospeedinstallationisprovided
• TrimRings(deeponly):VR6DB(black),VR6DW(white),VR6DP(bronze)
• ULlistedforwetlocations
Ordering Information
S R 6 D W 70 LX F B 8 G C B
Series Shape Size Depth Mounting Wattage Source Options Base Color* Voltage Style Lens Face Color
S= R= 6=16” D=Deep W=Wall 70=70 LX=HPS L=Lamped B=Black 1=120 B=OpenBezel O=Opal B=Black 
 Survi’VR C=Ceiling 100=100 PM=PSMH E=Emergency W=White 5=480 G=Grid C=Clear W=White 
Round    150=1501NX=HPS(NPF)2 (1or2)26w P=Bronze 8=120-277 E=Closed P=Bronze
  226=2x26 HF=Compact (1)32w Eyelid
  232=2x32 Fluorescent (1)42w 
  242=2x42 (HPF) (2)18w
  326=3x26  U=UVShield3
  332=3x32  Q=QuartzAux
  342=3x42  F=Fusing
   T=ThruWiring
   PC=PhotoControl
Series Shape Size Depth Mounting Wattage Source Options Base Color* Voltage Style Lens Face Color
S= R= 6=16” S= W=Wall 50=50 LX=HPS L=Lamped B=Black 1=120 B=OpenBezel O=Opal B=Black 
 Survi’VR Shallow C=Ceiling 126=1x26 PM=PSMH E=Emergency W=White 8=120-277 G=Grid C=Clear W=White 
Round     132=1x32 NX=HPS(NPF)1 (1or2)26w P=Bronze E=Closed  P=Bronze
 142=1x42 HF=Compact (1)32w Eyelid
 226=2x26 Fluorescent (1)42w
 232=2x32 (HPF) (2)18w
 242=2x42 U=UVShield2
 326=3x26 Q=QuartzAux
  F=Fusing
  T=ThruWiring3
  PC=PhotoControl3
*Customcolorsavailable.Consultfactory.
1 120Vonly.
2 ForMHlampsonly.
3 Unavailablewithtrimrings.
1 150wattmodelsarenotavailablewithaPMlampsource.
2 120Vonly.
3 ForMHlampsonly.
Survi’VR Series - Vandal-Resistant Lighting
55
www.stoncolighting.com
Vandal-Resistant Lighting - Survi’VR Series

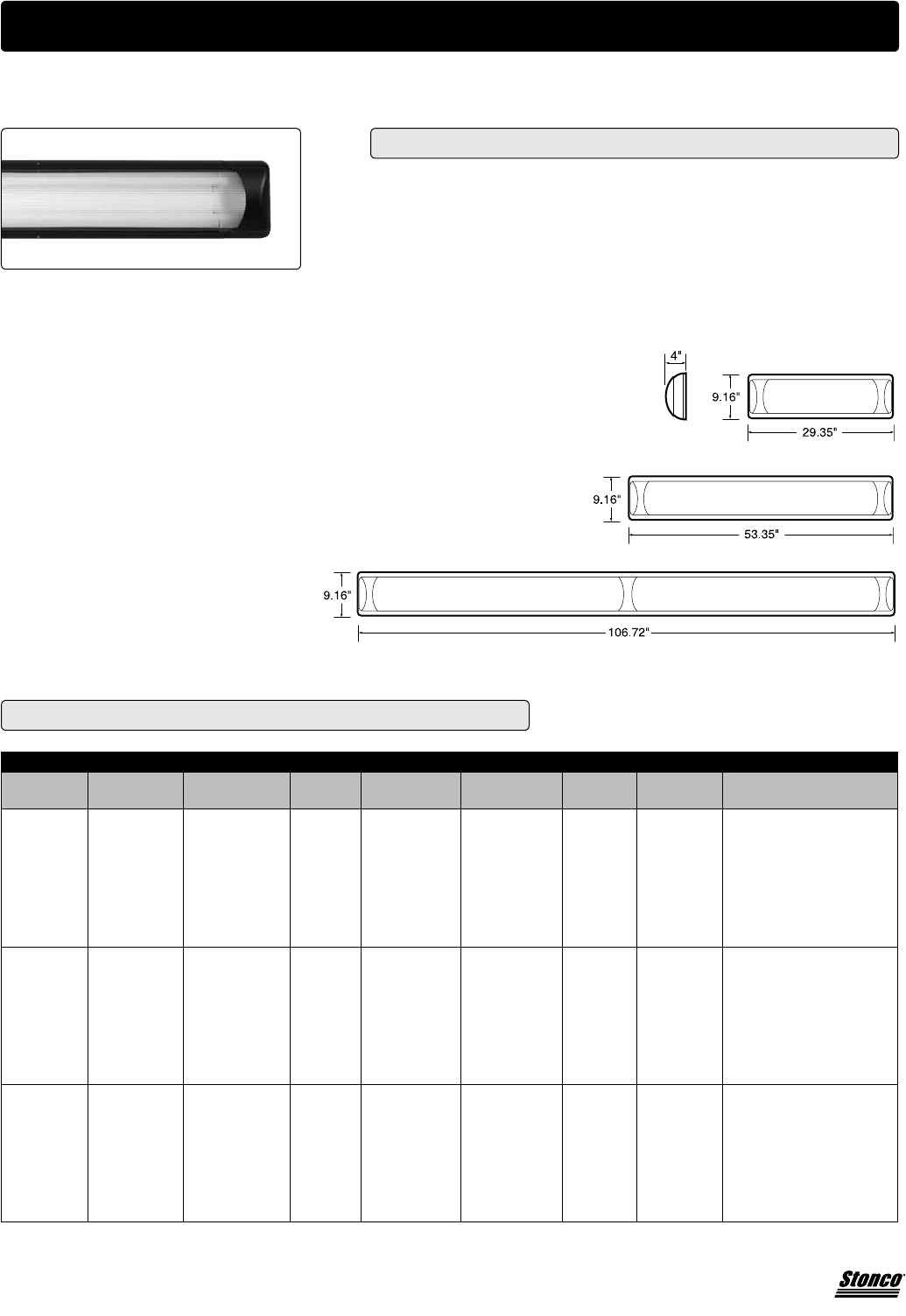

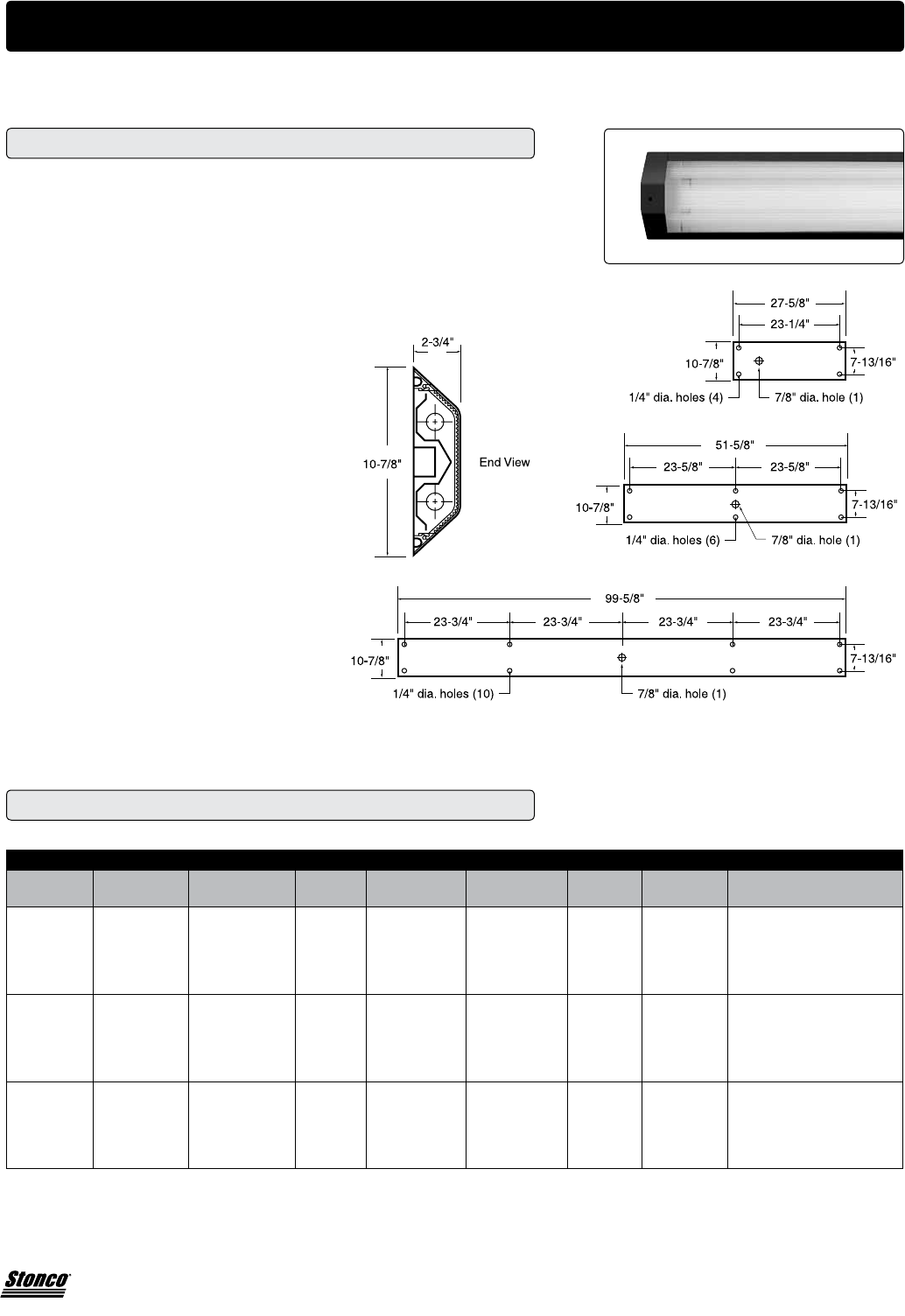

Survi’VR L Series Linear Fluorescent
Specifications
• Marine-grade,extrudedaluminumhousing
• Tamper-resistantstainlesssteelhardware
• Architecturaldie-castendcaps
• Polyesterpowder,semi-glosstexturednish
• Fade-resistantcolor(customcolorsavailable–consultfactory)
• High-EfciencyT5,T5HOandT8lamping
• Exceptionallyhighxtureefciency
• 91.7%maintainedlumenswithhighCRIof85
• .156”thickextrudedimpact-resistantpolycarbonatelens
• Lensavailableinclearprismaticandopalprismatic
• Highuniformityandinstant-oncapability
• Nocolorshift
• Fielddrillingnotrequired
• UL/CULlistedforwetlocations
Ordering Information
S L C 2 54 1 S2Y B F
Series Style Lens Lamps Wattage Voltage Ballast
Source Color Options
S
Survi’VR
SeriesVandal
Resistant
2-Foot
L-Wide(11”) O-OpalPoly
C-ClearPoly
2 14-14WT5
17-17WT8
24-24WT5HO
1-120V
7-277V
B-120-277V
N2Y-T5
K2Y-T8
S2Y-T5HO
B-Black
W-White
P-Bronze
2C-2Circuit
3C-3Circuit
F-Fused
PC-PhotoControl
BatteryBack-UpConsultFactory
S
Survi’VR
SeriesVandal
Resistant
4-Foot
L-Wide(11”) O-OpalPoly
C-ClearPoly
2 28-28WT5
32-32WT8
54-54WT5HO
1-120V
7-277V
B-120-277V
N2Y-T5
K2Y-T8
S2Y-T5HO
B-Black
W-White
P-Bronze
2C-2Circuit
3C-3Circuit
F-Fused
PC-PhotoControl
BatteryBack-UpConsultFactory
S
Survi’VR
SeriesVandal
Resistant
8-Foot
LT-Wide
Tandem(11”)
O-OpalPoly
C-ClearPoly
2
(percross
section)
28-28WT5
32-32WT8
54-54WT5HO
1-120V
7-277V
B-120-277V
N8Y-T5
K4Y-T8
S4Y-T5HO
B-Black
W-White
P-Bronze
2C-2Circuit
3C-3Circuit
F-Fused
PC-PhotoControl
BatteryBack-UpConsultFactory
Available in X-Treme Extra Long Life T8 and HPT8. See pages 9 and 36
56 www.stoncolighting.com
Survi’VR Series Linear Fluorescent
Specifications
• Marinegradeextrudedaluminumsiderailsandbackrails
• Precisiondie-cast,marine-gradealuminumhousing
• Extruded,UV-stabilizedpolycarbonatelensavailableinprismaticopalorprismaticclear
• Electronichigh-frequencywithvoltagesensingcapabilityinT5,T5HOandT8lamping
• Precisionsnap-tyte,spring-loadedsockets
• High-reectancewhitepanreectorsystem
• DuraplexIIpolyesterpowdernish
• ULlistedforwetlocations
Ordering Information
Survi’VR Series - Vandal-Resistant Lighting
S A O 2 54 1 S2Y B F
Series Style Lens Lamps Wattage Voltage Ballast
Source Color Options
S
Survi’VR
SeriesVandal
Resistant
2-Foot
A-Aluminum O-OpalPoly
C-ClearPoly
2 14-14WT5
17-17WT8
24-24WT5HO
1-120V
7-277V
B-120-277V
N2Y-T5
K2Y-T8
S2Y-T5HO
B-Black
W-White
P-Bronze
2C-2Circuit
3C-3Circuit
F-Fused
RB-RowBeginning
RM-RowMiddle
RE-RowEnd
PC-PhotoControl
BatteryBack-UpConsultFactory
S
Survi’VR
SeriesVandal
Resistant
4-Foot
A-Aluminum O-OpalPoly
C-ClearPoly
2 28-28WT5
32-32WT8
54-54WT5HO
1-120V
7-277V
B-120-277V
N2Y-T5
K2Y-T8
S2Y-T5HO
B-Black
W-White
P-Bronze
2C-2Circuit
3C-3Circuit
F-Fused
RB-RowBeginning
RM-RowMiddle
RE-RowEnd
PC-PhotoControl
BatteryBack-UpConsultFactory
S
Survi’VR
SeriesVandal
Resistant
8-Foot
AT-Aluminum
Tandem
O-OpalPoly
C-ClearPoly
2
(percross
section)
28-28WT5
32-32WT8
54-54WT5HO
1-120V
7-277V
B-120-277V
N8Y-T5
K4Y-T8
S4Y-T5HO
B-Black
W-White
P-Bronze
2C-2Circuit
3C-3Circuit
F-Fused
RB-RowBeginning
RM-RowMiddle
RE-RowEnd
PC-PhotoControl
BatteryBack-UpConsultFactory
Available in X-Treme Extra Long Life T8 and HPT8. See pages 9 and 36
57
www.stoncolighting.com

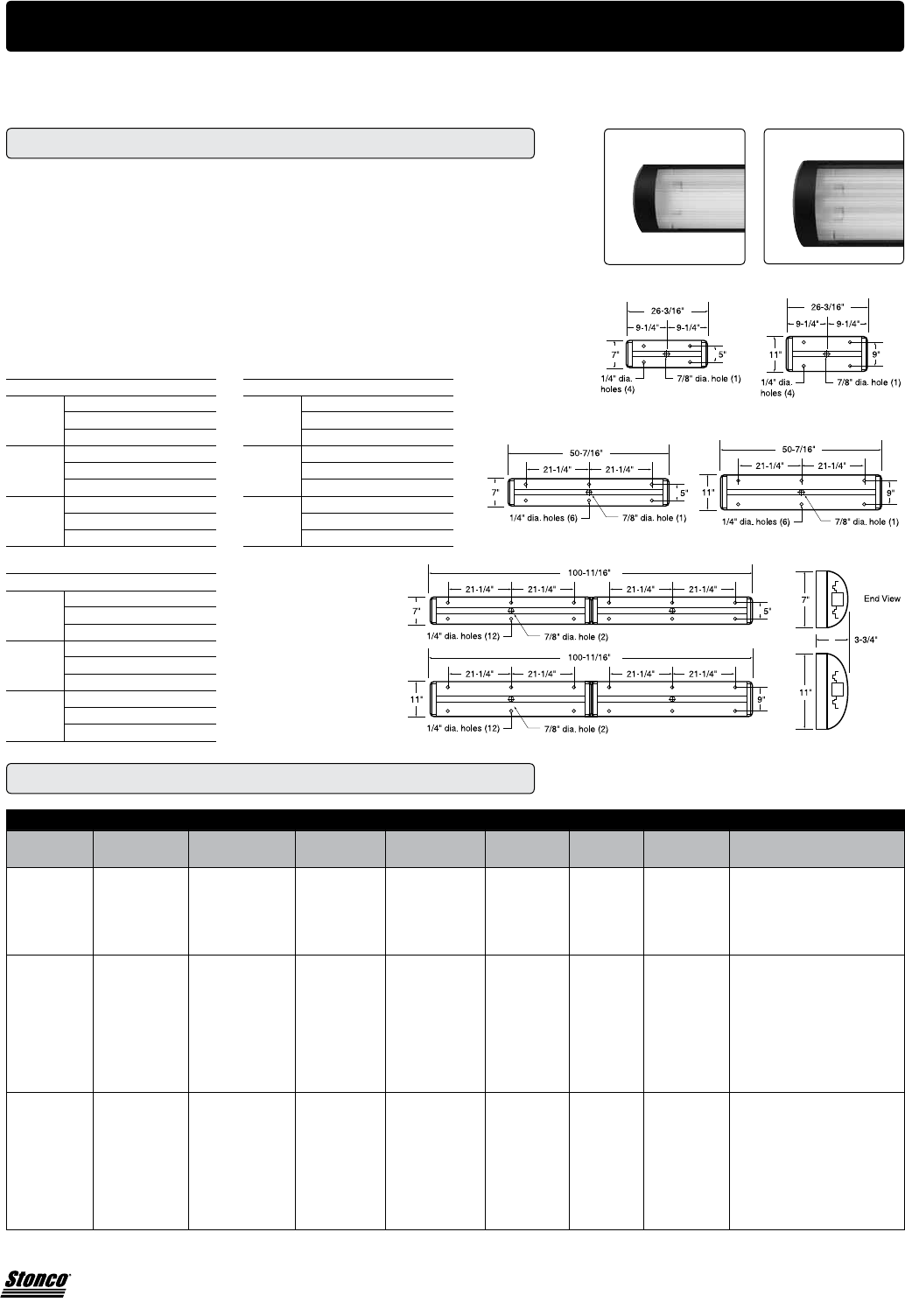

Survi’VR V Series Linear Fluorescent
Specifications
Vandal-Resistant Lighting - Survi’VR Series
Ordering Information
• Marine-grade,extrudedaluminumhousing
• Tamper-resistantstainlesssteelhardware
• Architecturaldie-castendcaps
• Polyesterpowder,semi-glosstexturednish
•Customcolorsavailable,consultfactory
• High-EfciencyT5,T5HOandT8lamping
• Exceptionallyhighxtureefciency
• 91.7%maintainedlumenswithhighCRIof85
S VN C 2 54 1 S2Y B F
Series Style Lens Lamps Wattage Voltage Ballast
Source Color Options
S
Survi’VR
SeriesVandal
Resistant
2-Foot
VN-Narrow(7”)
VW-Wide(11”)
O-OpalPoly
C-ClearPoly
2-Narrow(7”)
3-Wide(11”)
4-Wide(11”)
14-14WT5
17-17WT8
24-24WT5HO
1-120V
7-277V
B-120-277V
SeeBallast
MatrixAbove
B-Black
W-White
P-Bronze
2C-2Circuit
3C-3Circuit
F-Fused
PC-PhotoControl
BatteryBack-UpConsultFactory
S
Survi’VR
SeriesVandal
Resistant
4-Foot
VN-Narrow(7”)
VW-Wide(11”)
O-OpalPoly
C-ClearPoly
2-Narrow(7”)
3-Wide(11”)
4-Wide(11”)
28-28WT5
32-32WT8
54-54WT5HO
1-120V
7-277V
B-120-277V
SeeBallast
MatrixAbove
B-Black
W-White
P-Bronze
2C-2Circuit
3C-3Circuit
F-Fused
RB-RowBeginning
RM-RowMiddle
RE-RowEnd
PC-PhotoControl
BatteryBack-UpConsultFactory
S
Survi’VR
SeriesVandal
Resistant
8-Foot
VNT-Narrow
Tandem(7”)
VWT-Wide
Tandem(11”)
O-OpalPoly
C-ClearPoly
2-Narrow(7”)
3-Wide(11”)
4-Wide(11”)
28-28WT5
32-32WT8
54-54WT5HO
1-120V
7-277V
B-120-277V
SeeBallast
MatrixAbove
B-Black
W-White
P-Bronze
2C-2Circuit
3C-3Circuit
F-Fused
RB-RowBeginning
RM-RowMiddle
RE-RowEnd
PC-PhotoControl
BatteryBack-UpConsultFactory
Available in X-Treme Extra Long Life T8 and HPT8. See pages 9 and 36
• Extrudedimpact-resistantpolycarbonatelens
• Lensavailableinclearprismaticandopal
prismatic
• Greateruniformityandinstant-oncapability
• Nocolorshift
• Fielddrillingnotrequired
• UL/CULlistedforwetlocations
2-Foot Ballast Matrix
# Lamps Wattage Source Ballast
  14w T5 N2Y
 2 17w T8 K2Y
24w T5HO S2Y
  14w T5 N6Y
 3 17w T8 K3Y
24w T5HO S6Y
  14w T5 N8Y
 4 17w T8 K4Y
24w T5HO S8Y
8-Foot Ballast Matrix
# Lamps Wattage Source Ballast
  28w T5 N8Y
 2 32w T8 K4Y
54w T5HO S4Y
  28w T5 NHY
 3 32w T8 KFY
54w T5HO SFY
  28w T5 NXY
 4 32w T8 KGY
54w T5HO SGY
4-Foot Ballast Matrix
# Lamps Wattage Source Ballast
  28w T5 N2Y
 2 32w T8 K2Y
54w T5HO S2Y
  28w T5 N6Y
 3 32w T8 K3Y
54w T5HO S3Y
  28w T5 N8Y
 4 32w T8 K4Y
54w T5HO S4Y
58 www.stoncolighting.com

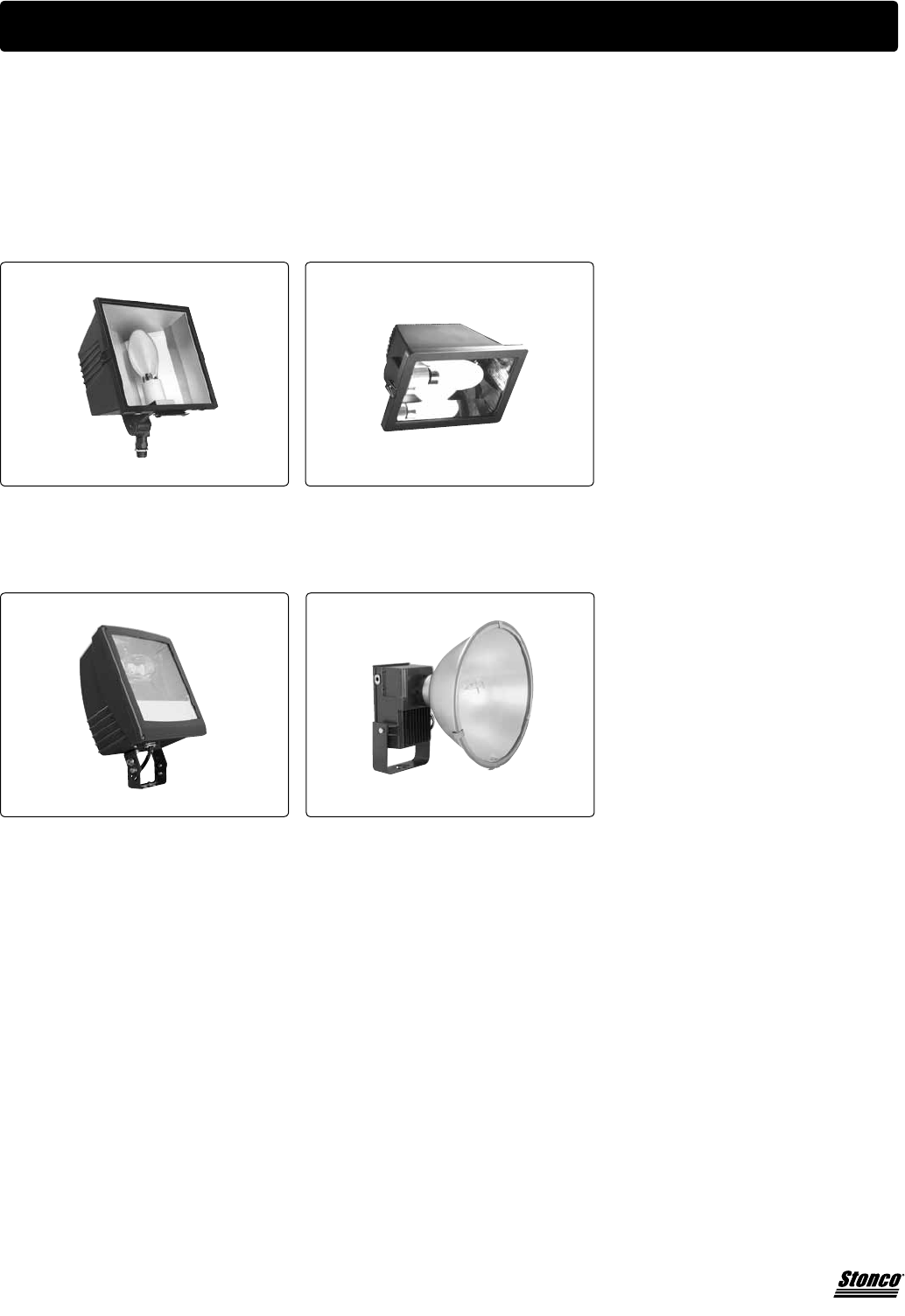

HID Floodlighting
Floodlighting
TheGPFloodlightingSeriesisoneofthemostversatilelightingpackagesavailable.With5sizesavailable,this
familyofluminaireswillprovideuniformitywhendifferentsizesarerequired.OtherStoncooodluminaires
delivercorrectilluminationforood,accent,security,recreationalandsportsapplications.Stoncoluminaires
aremadefromdurablecastaluminumforlonglifeanddependableoperation.
SLA Series
Mini-Flood
Page 59
TLX Series
TwilighterFlood
Page 60
SCTII Series
SportslighterFlood
Page 68
GP Flood
GeneralPurposeFlood
Page 62-67
59
www.stoncolighting.com

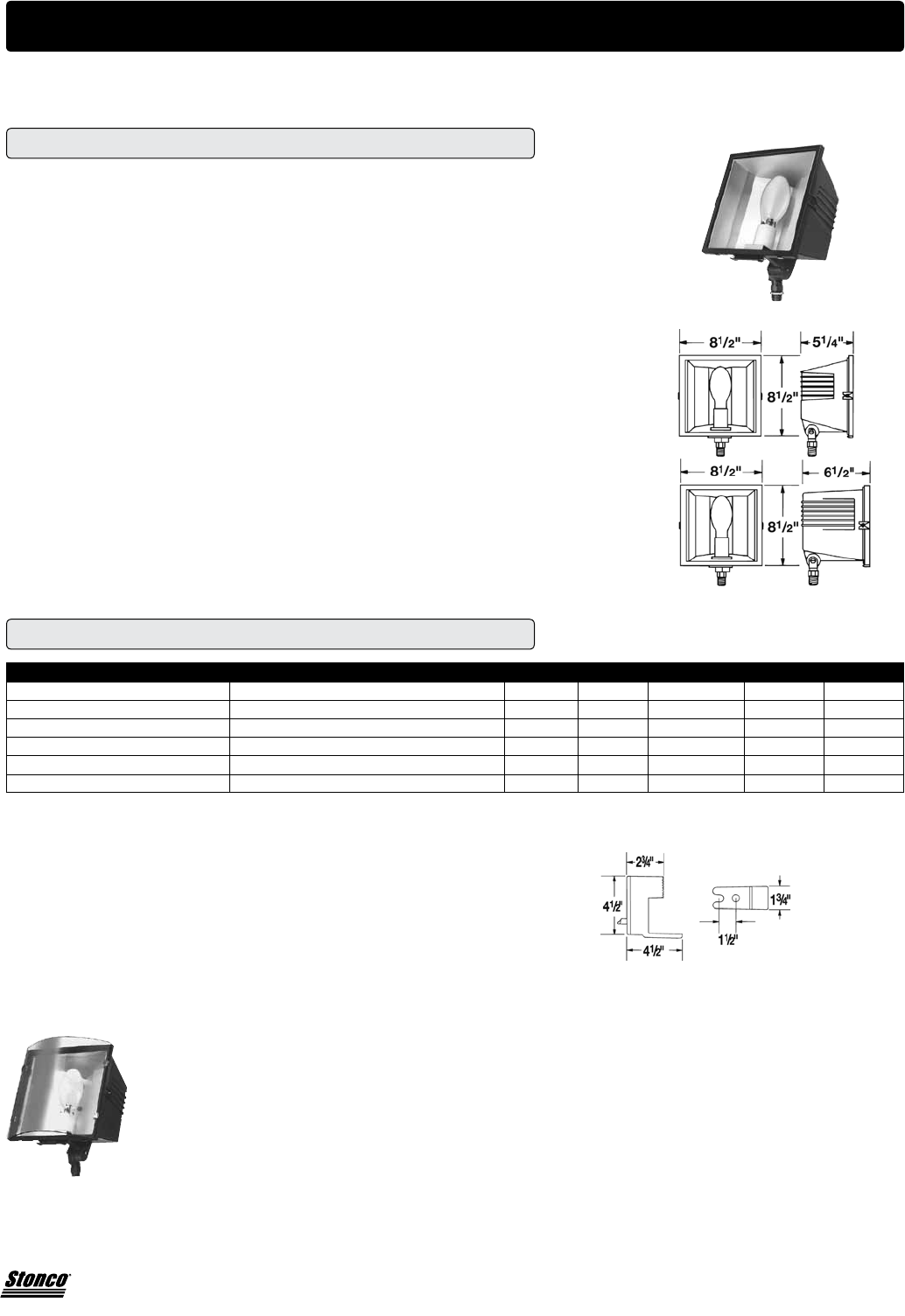

SLA Series Mini-Flood
Specifications
• TheSLASeriesMini-Floodisdesignedforgeneralpurposeoodlightingapplications
• OnepieceprecisiondiecastaluminumhousingwithDuraplexIIbronzepolyesterpowder
• Diecastaluminumlensframeisfullygasketedandhingedtobodyforeaseofre-lamping
• Hightemperatureandshockresistanttemperedglasslens
• Unitcanbeaimedaboveandbelowhorizontal.Serratedteethlockarmmountunitintoposition
• HPSsocketsarepulseratedfor4KV
• Threepieceanodizedaluminumreectorforwidebeamdistribution,NEMA7x7
• Fixturesavailablewith1/2”armmountoroptionalsurfacemount,orderSLW10
Ordering Information
HID Floodlighting - SLA MiniFlood
Accessories
SL552*-Lexan®shield
TL550*-Wireguard
SLW10-Surfaceadaptertoconvert1/2”armtosurfacemount(seebelow)
SLA552-Replacementlenskit
9010126-Tamperproofscrews(2per)
*SL552&TL550cannotbeusedtogether
SLAMiniFloodwithSL552shield
SLA Size A
HPS
EPA=.6ft.2
SLA Size B
PS
EPA=.6ft.2
SLW10
Part Number Description Wattage Source Ballast Base Voltage
SLA101MAL-6(SizeB) Mini-FloodDualVoltage100wMHw/Lamp 100 MH HX-HPF Medium 120/277
SLA101NLXL-1(SizeA) Mini-Flood120v100wHPSw/Lamp 100 HPS NPF-Reactor Medium 120
SLA150PMAL-6(SizeB) Mini-FloodDualVoltage150wPSw/Lamp 150 PSMH HX-HPF Medium 120/277
SLA151NLXL-1(SizeA) Mini-Flood120v150wHPSw/Lamp 150 HPS NPF-Reactor Medium 120
SLA71MAL-6(SizeB) Mini-FloodDualVoltage70wMHw/Lamp 70 MH HX-HPF Medium 120/277
SLA71NLXL-1(SizeA) Mini-Flood120v70wHPSw/Lamp 70 HPS HX-HPF Medium 120
60 www.stoncolighting.com

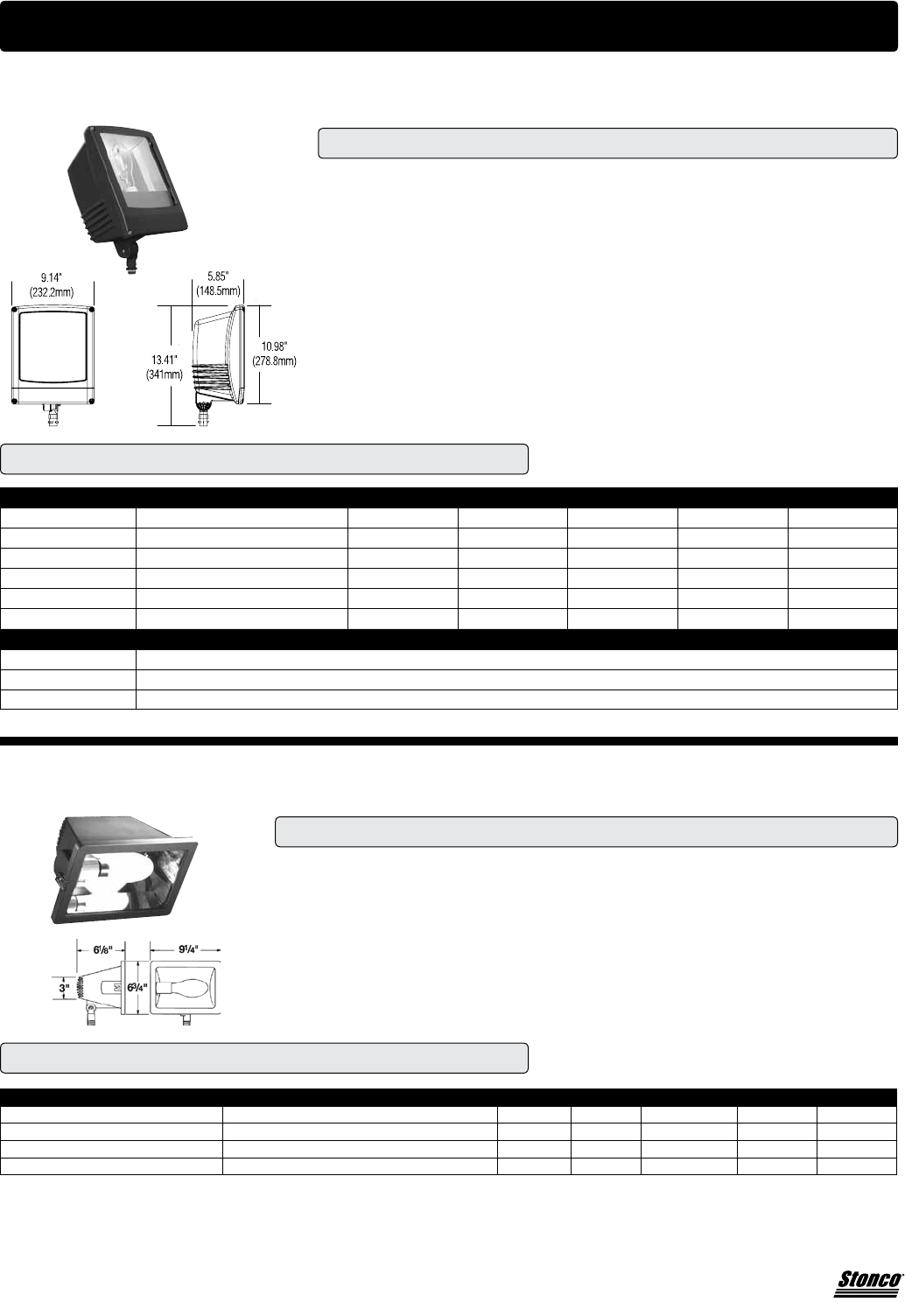

GP Flood / TLX Series - HID Floodlighting
Part Number Description Wattage Source Ballast Base Voltage
TLX70NLXL-1 Mini-Flood70wHPSw/Lamp120v 70 HPS NPF-Reactor Medium 120
TLX100NLXL-1 Mini-Flood100wHPSw/Lamp120v 100 HPS NPF-Reactor Medium 120
TLX150NLXL-1 Mini-Flood150wHPSw/Lamp120v 150 HPS NPF-Reactor Medium 120
TLX42HFL-8 Mini-Flood42wCFLw/LampMulti-Tap 42 CF Electronic GX 120-277
TLX Twilighter Series
Specifications
• TheTLXTwilighterMiniFloodprovidessmoothwidedistributionforsecurity,accent,recreationalandparking
lotlighting
• OnepieceprecisiondiecastaluminumhousingwithDuraplexIIbronzepolyesterpowder
• Diecastaluminumlensframeisfullygasketedcapableofaboveandbelowhorizontalaiming
• Hightemperature,shockresistantglasslenssealedtohingedlensframe
• Deluxeglazedporcelainsocketspulseratedfor4KV
• Segmentedaluminumreectorwrapsaroundhorizontallampprovidingwidelightdistribution
• Die-castaluminum1/2”NPSthreadedarmwithcast-inaimingquadrants.Serratedteethlockintoposition
Ordering Information
GP2 Small Floodlight
Specifications
• Opticsincludegeneralpurpose(standardcatalognumber,noadder),spot(S)andasymmetric(A)
opticsavailable,add“S”or“A”toendofcatalognumber
• Reectorsincludegeneralpurpose,spotandcut-offopticsforcontroloflighttrespass
• 1/2”armwithserratedteethlockarmmountunitintopositionforwallsandground/oodmounting
• IP65Ratedforextraprotectionagainstwater,dustanddebris
• Onepiecediecastaluminumdoorwithcleartemperedglasslensishingedtothediecastaluminum
housingforeasymaintenance
• Extrudedsiliconerubbergasketforlonglife
• Integralheatsinkensurescooloperation
• Lensscrewsarecaptivestainlesssteelfasteners
• DuraplexIIdarkbronzepolyesterpowdernishisstandard,availableinavarietyofdesignercolors
• Unitcanbeaimedaboveorbelowhorizontal
Ordering Information
Accessories
TL552-Lexan®shield
TLX552-Replacementlenskit
TL550-Wireguard
*TL552andTL550cannotbeusedtogether.
EPA=.5ft2
Part Number Description Wattage Source Ballast Base Voltage
GP2A70NLXL-1 70wHPS120vw/Lamp 70 HPS NPF-Reactor Medium 120
GP2A100NLXL-1 100wHPS120vw/Lamp 100 HPS NPF-Reactor Medium 120
GP2A150NLXL-1 150wHPS120vw/Lamp 150 HPS NPF-Reactor Medium 120
GP2A70PMAL-6 70wPSMH120/277vw/Lamp 70 PSMH HX-HPF Medium 120/277
GP2A100PMAL-6 100wPSMH120/277vw/Lamp 100 PSMH HX-HPF Medium 120/277
GP2A150PMAL-6 150wPSMH120/277vw/Lamp 150 PSMH HX-HPF Medium 120/277
Accessories  
GP2VS VandalShield
GP2WG WireGuard
GP2GS GlareShield
EPA=.5ft2
61
www.stoncolighting.com

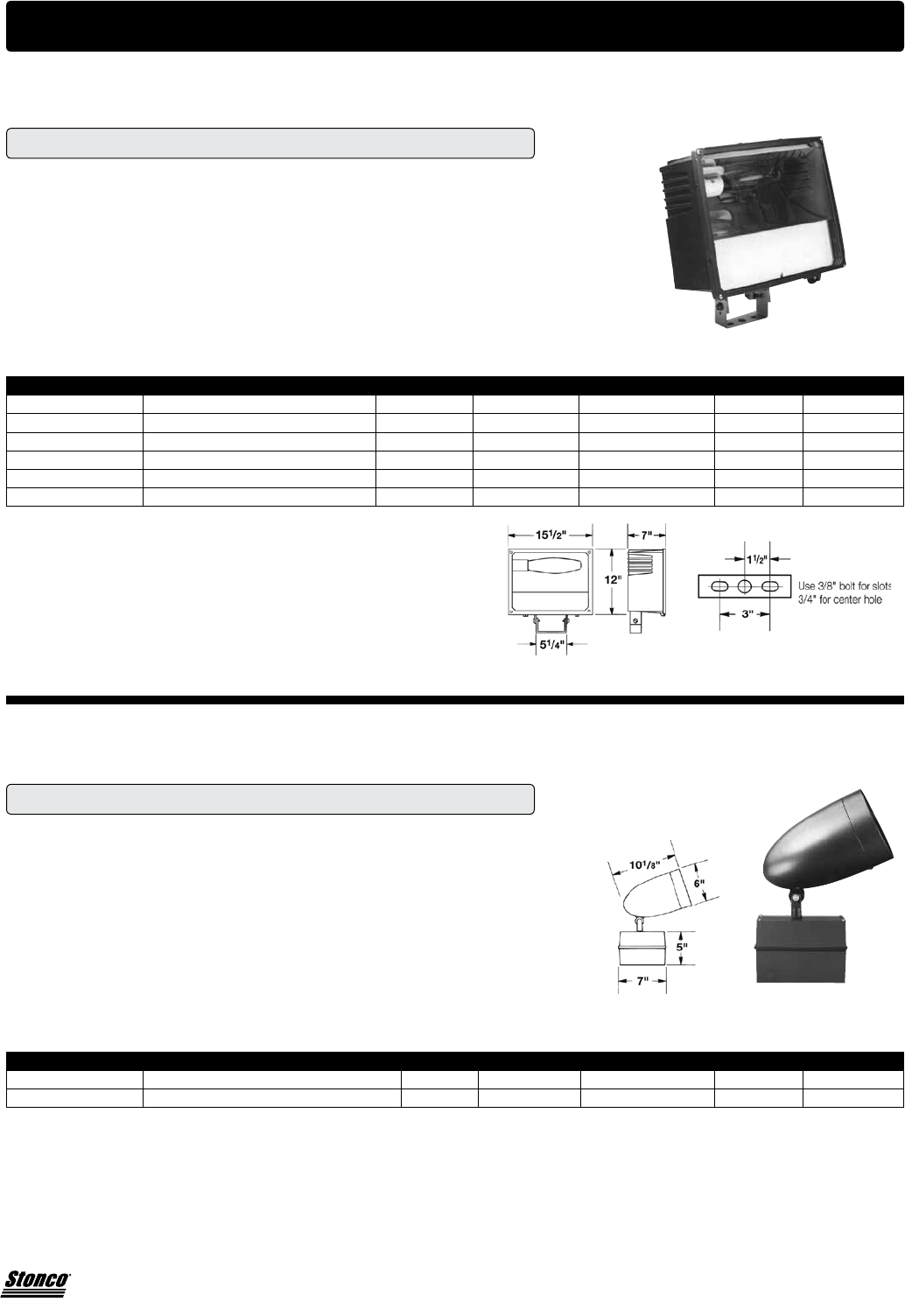

Part Number Description Wattage Source Ballast Base Voltage
SLM200PMAL-8 Maxi-FloodMulti-Tap200wPS 200 PSMH CWA Mogul 120-277
SLM250LXL-8 Maxi-FloodMulti-Tap250wHPS 250 HPS CWA Mogul 120-277
SLM250PMAL-8 Maxi-FloodMulti-Tap250wPS 250 PSMH CWA Mogul 120-277
SLM320PMAL-8 Maxi-FloodMulti-Tap320wPS 320 PSMH CWA Mogul 120-277
SLM400LXL-8 Maxi-FloodMulti-Tap400wHPS 400 HPS CWA Mogul 120-277
SLM400PMAL-8 Maxi-FloodMulti-Tap400wPS 400 PSMH CWA Mogul 120-277
SLM Maxi-Flood
Specifications
• TheSLASeriesMini-Floodisdesignedforgeneralpurposeoodlightingapplications
• OnepieceprecisiondiecastaluminumhousingwithDuraplexIIbronzepolyesterpowder
• Diecastaluminumlensframeisfullygasketedandhingedtobodyforeaseofre-lamping
• Hightemperatureandshockresistanttemperedglasslens
• Unitcanbeaimedaboveandbelowhorizontal
• Pulseratedfor4KV
• Threepieceanodizedaluminumreectorforwidebeamdistribution,NEMA7x7
• Fixturesavailablewith1/2”armmount,yoke,oroptionalsurfacemount,orderSLW10
• Adjustableheavy-dutysteelyoke
HID Floodlighting - SLM Series/HID Bullet
Accessories
USF10BRZ-PoleTopMountingAccessoryforSLM
UHA10BRZ-UniversalHorizontalYokeMountingAdapter
UWT238BRZ-TenonWallAngleBracket
SLM552-ReplacementLens
HID Bullet
Specifications
• HIDBulletsareperfectforsecurity,accentuplighting,facade,andlandscapelighting.Usefor
surfacemountingonly.Ballastboxshouldbemountedonconcretepadwithsuitablebarrier
orspacingbetweenhousingandpadtopreventcorrosion
• DuraplexIIbronzepolyesterpowdernish
• Heatandshocktemperedglasslens
• Deluxeglazedporcelain4KVsocketmediumbaseplatescrew-shellandspring-loadedcenter
contact
• Ballastandcomponentsmountedandsealedingasketeddie-castaluminumbox
• Ballastboxequippedwithsix1/2”-14NPSaccessholesforconduitaccess
• Bulletdie-castextenderwithtemperedglasslenssealedwithRTV
Part Number Description Wattage Source Ballast Base Voltage
3870MAP-8 HIDBulletMulti-Tap70wPSBronze 70 PSMH HX-HPF Medium 120-277
38100MAP-8 HIDBulletMulti-Tap100wPSBronze 100 PSMH HX-HPF Medium 120-277
Accessories
3850EP-Replacementlenskit
3850EPCONVEX-Extenderandconvexlens
38HIDLENS-Convexlens
EPA=1.7ft2
62 www.stoncolighting.com

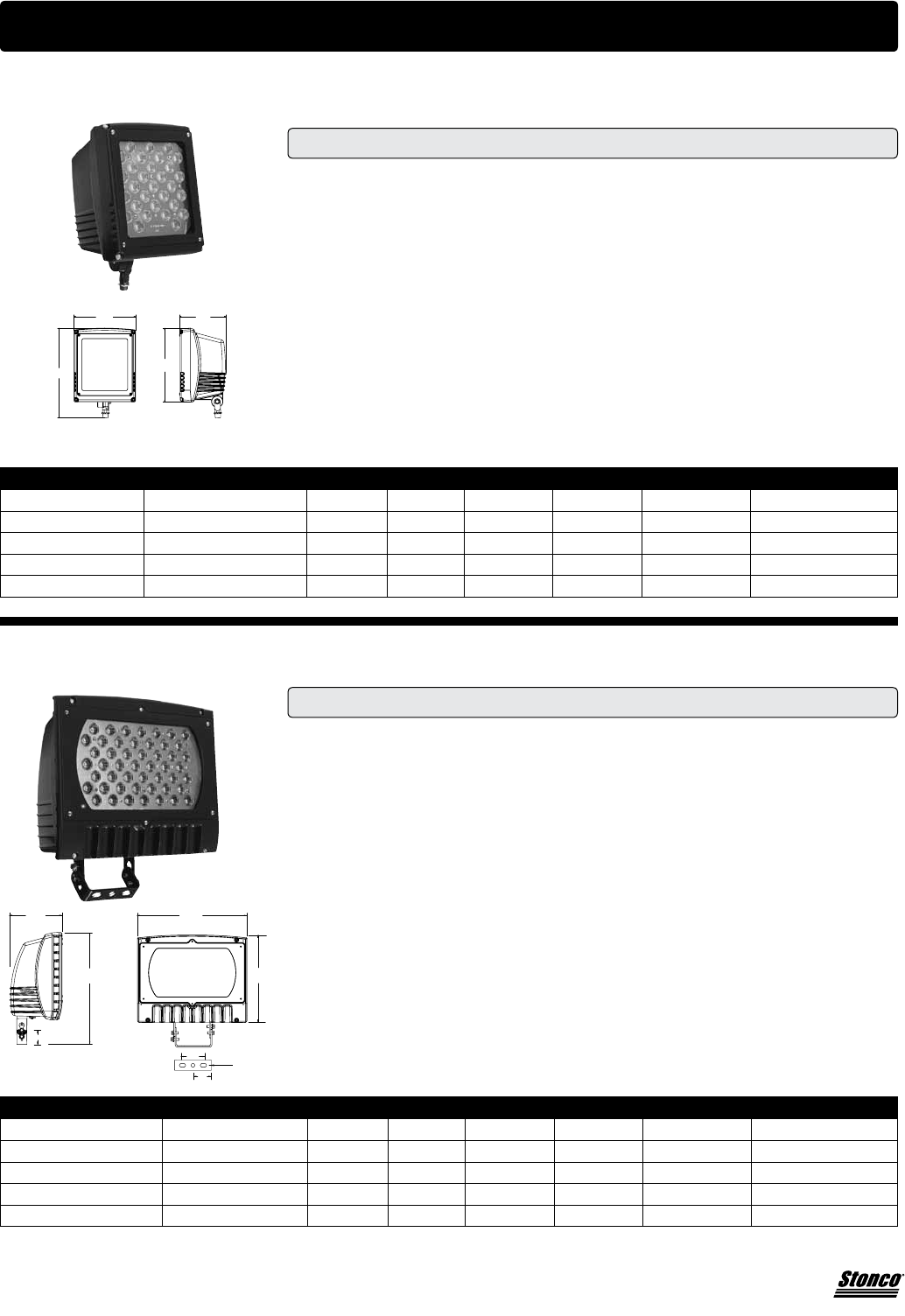

GP Flood LED - LED Floodlighting
GP2 Small LED Floodlight
Specifications
Specifications
• TheGPLEDFloodcombinesarchitecturaldesignwithon-siteversatility
• Applicationsincludesecurity,accent,facade,agpoleandsignlighting
• Availableinavarietyoflightdistributionpatternswith4kcolortemperature
• Diecastaluminumhousing
• Extrudedsiliconerubbergasketforlonglife
• Integralheatsinkensurescooloperation
• 30LEDsavailablein40wattconguration
• Lensscrewsarestainlesssteelfasteners
• DuraplexIIdarkbronze,blackandgraypolyesterpowdernishesstandard,availableindesignercolors
•3/4”armwithserratedteethlockarmmountunitintopositionforwallsandground/oodmounting
• Unitcanbeaimedaboveorbelowhorizontal
• Availablewithvandalshield,wireguardandglareshield
• Published5-yearlimitedwarranty
GP3 Medium LED Floodlight
• TheGPLEDFloodcombinesarchitecturaldesignwithon-siteversatility
• Applicationsincludesecurity,accent,facade,agpoleandsignlighting
• Mountingoptionsforpoles,wallsandground/oodareavailable
• Availableinavarietyoflightdistributionpatternswith4kcolortemperature
• Fixturesavailablewithtrunnion(UL)andsliptter(UL)mounting
• Keyholeslotsontrunnionfacilitatehands-freemounting
• Diecastaluminumhousing
• Extrudedsiliconerubbergasketforlonglife
• Integralheatsinkensurescooloperation
• 49LEDsavailablein101wattconguration
• Lensscrewsarestainlesssteelfasteners
• DuraplexIIdarkbronze,blackandgraypolyesterpowdernishesstandard,availableindesignercolors
• Unitcanbeaimedaboveorbelowhorizontal
• Availablewithvandalshield,wireguardandglareshield
• Published5-yearlimitedwarranty
Part Number Description Wattage Voltage Color # of LEDs Color Temp. Distribution
GP204UB-0304K2X2 GPFloodSmallLED 40 120-277 Black 030 4K 2x2:24.1˚Hx23.6˚V
GP204UB-0304K3X5 GPFloodSmallLED 40 120-277 Black 030 4K 3x5:33.6˚Hx74.7˚V
GP204UB-0304K4X4 GPFloodSmallLED 40 120-277 Black 030 4K 4x4:51.7˚Hx53.7˚V
GP204UB-0304K5X3 GPFloodSmallLED 40 120-277 Black 030 4K 5x3:74.7˚Hx33.6˚V
GP204UB-0304K5X5 GPFloodSmallLED 40 120-277 Black 030 4K 5x5:85.9˚Hx84˚V
Part Number Description Wattage Voltage Color # of LEDs Color Temp. Distribution
GP3T09UB-0494K2X2 GPFloodMediumLED 101 120-277 Black 049 4K 2x2:28.1˚Hx28.5˚V
GP3T09UB-0494K3X5 GPFloodMediumLED 101 120-277 Black 049 4K 3x5:33.1˚Hx75.5˚V
GP3T09UB-0494K4X4 GPFloodMediumLED 101 120-277 Black 049 4K 4x4:54.2˚Hx52.6˚V
GP3T09UB-0494K5X3 GPFloodMediumLED 101 120-277 Black 049 4K 5x3:75.5˚Hx33.1˚V
GP3T09UB-0494K5X5 GPFloodMediumLED 101 120-277 Black 049 4K 5x5:76.7˚Hx79.8˚V
Substitute“T”(Trunnion)with“S”forsliptteroption,forexample:GP3ST09UB-0494K2X2
9.14
13.31 10.98
6.91
16.35
20.19
13.08
7.89
7.875
16.625
2.125
3.5 9/1 6" DIA.
HOLES (3)
2.75
16.375
13
EPA=.55ft2
EPA=1ft2
63
www.stoncolighting.com
HID Floodlighting - GP Flood

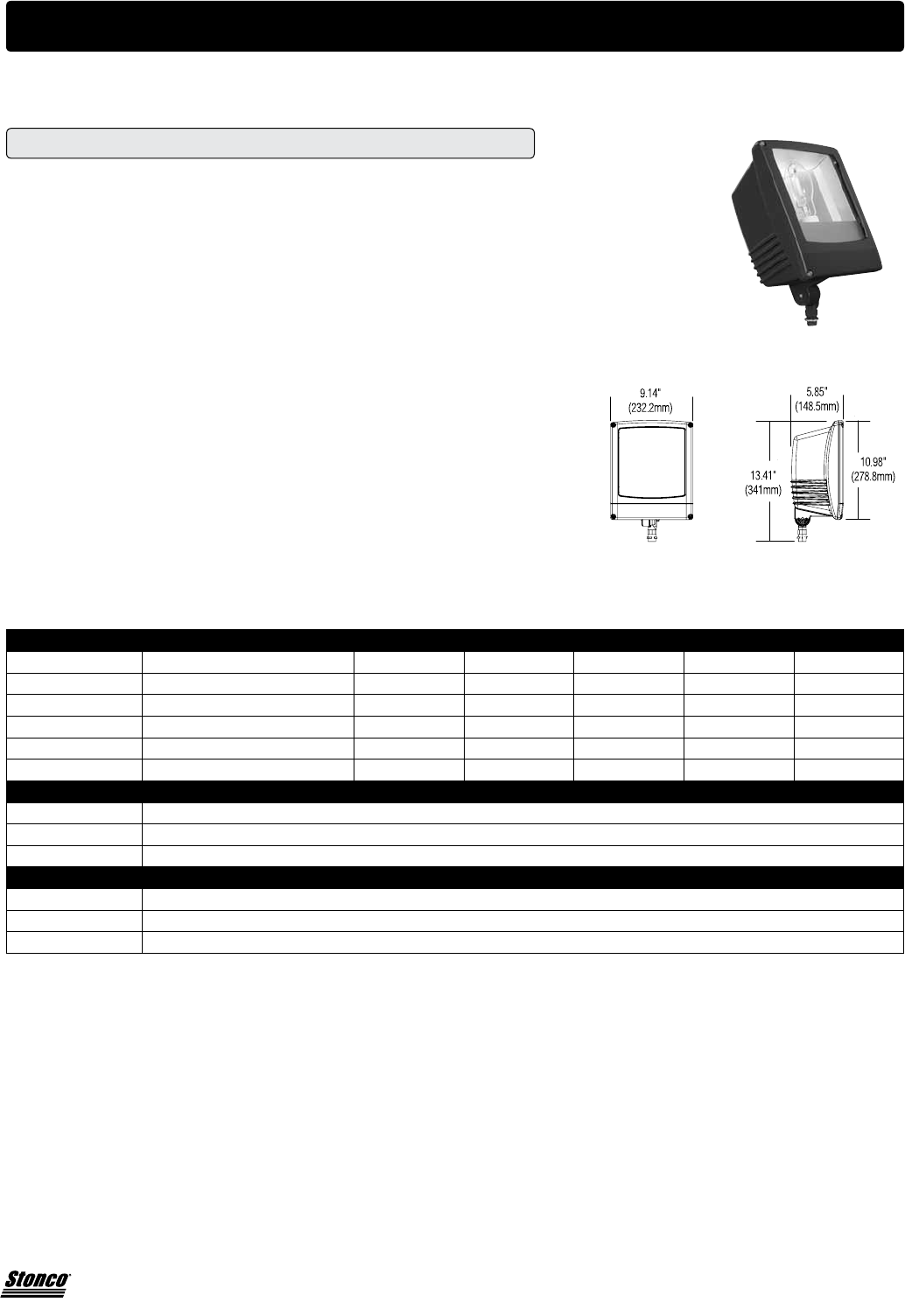

GP2 Small Floodlight
Specifications
• Opticsincludegeneralpurpose(standardpartnumber,noadder),spot(S)and
asymmetric(A)opticsavailable,add“S”or“A”toendofpartnumber
• Reectorsincludegeneralpurpose,spotandcut-offopticsforcontroloflighttrespass
• 1/2”armwithserratedteethlockarmmountunitintopositionforwallsandground/
oodmounting
• IP65Ratedforextraprotectionagainstwater,dustanddebris
• Onepiecediecastaluminumdoorwithcleartemperedglasslensishingedtothedie
castaluminumhousingforeasymaintenance
• Extrudedsiliconerubbergasketforlonglife
• Integralheatsinkensurescooloperation
• Lensscrewsarecaptivestainlesssteelfasteners
• DuraplexIIdarkbronzepolyesterpowdernishisstandard,availableinavarietyof
designercolors
• Unitcanbeaimedaboveorbelowhorizontal
Part Number Description Wattage Source Ballast Base Voltage
GP2A70NLXL-1 70wHPS120vw/Lamp 70 HPS NPF-Reactor Medium 120
GP2A100NLXL-1 100wHPS120vw/Lamp 100 HPS NPF-Reactor Medium 120
GP2A150NLXL-1 150wHPS120vw/Lamp 150 HPS NPF-Reactor Medium 120
GP2A70PMAL-6 70wPSMH120/277vw/Lamp 70 PSMH HX-HPF Medium 120/277
GP2A100PMAL-6 100wPSMH120/277vw/Lamp 100 PSMH HX-HPF Medium 120/277
GP2A150PMAL-6 150wPSMH120/277vw/Lamp 150 PSMH HX-HPF Medium 120/277
Accessories  
GP2VS VandalShield
GP2WG WireGuard
GP2GS GlareShield
Optional Distributions
BLANK General-PurposeOptics
CCutoffOptics
SSpotOptics
Generalpurpose(standardpartnumber,noadder),spot(S)andcutoff(C)optics,add“S”or“C”toendofpartnumber
EPA=.5ft2
64 www.stoncolighting.com
GP Flood - HID Floodlighting

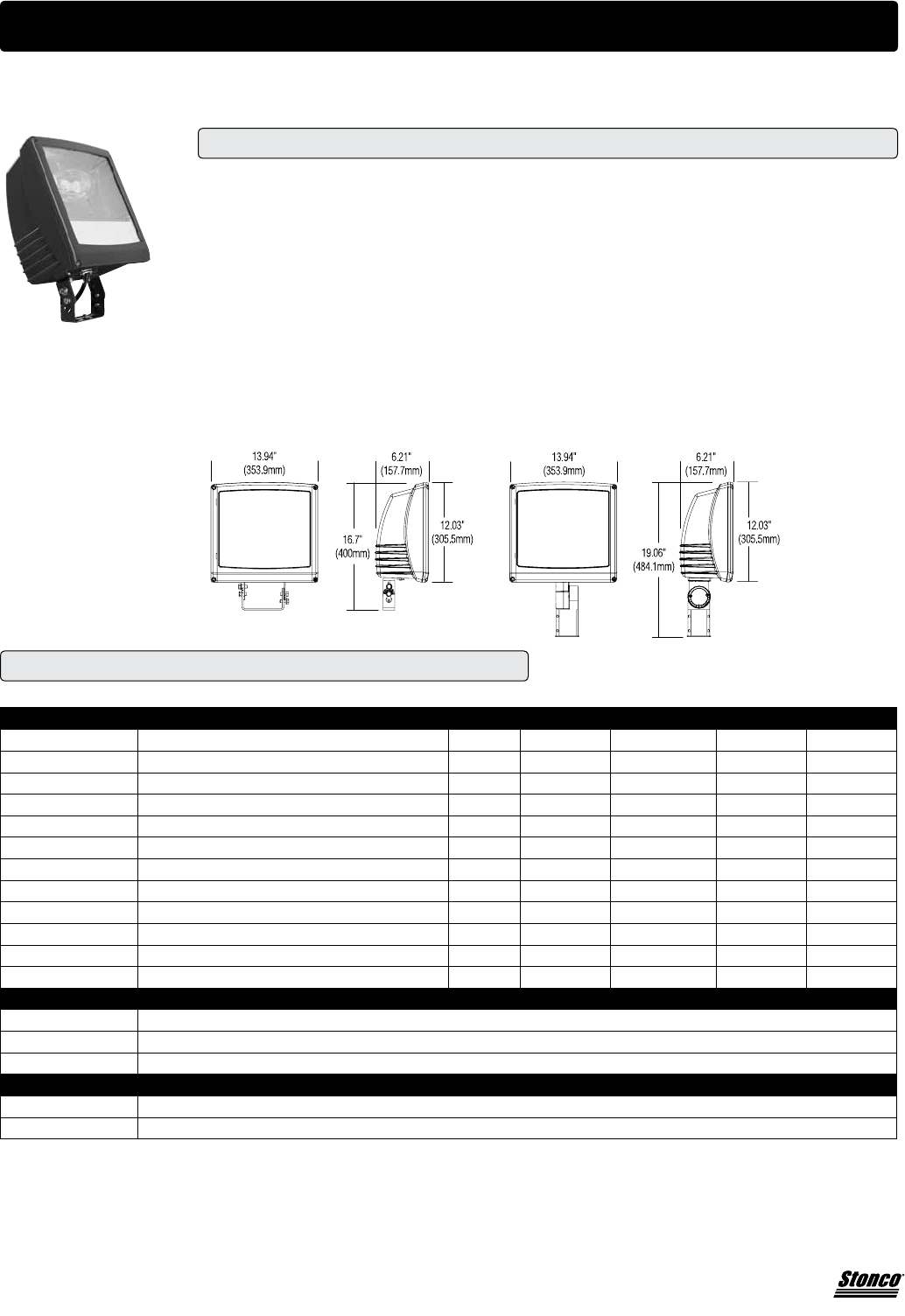

GP3 Medium Floodlight
Specifications
• Mountingoptionsforpoles,wallsandground/oodareavailable
• Opticsincludegeneralpurpose(standard)andcut-off(C)optics,add“C”toendofcatalognumberforcut-off
• Keyholeslotsontrunnionfacilitatehands-freemounting
• ED28lampsformetalhalideandED18lampsforhighpressuresodium
• Fixturesavailablewithtrunnion(IP65andUL)andsliptter(UL)mounting(ConsultfactoryforIP65sliptteroption)
• IP65Ratedforextraprotectionagainstwater,dustanddebris
• Onepiecediecastaluminumdoorwithcleartemperedglasslensishingedtothediecastaluminumhousingforeasy
maintenance
• Extrudedsiliconerubbergasketforlonglife
• Integralheatsinkensurescooloperation
• Lensscrewsarecaptivestainlesssteelfasteners
• DuraplexIIdarkbronzepolyesterpowdernishisstandardandalsoavailableinavarietyofdesignercolors
• Unitcanbeaimedaboveorbelowhorizontal
Ordering Information
Part Number Description Wattage Source Ballast Base Voltage
GP3S200PMAL-8 200wPSMulti-Tapw/LampandSlipFitter 200 PSMH CWA Mogul 120-277
GP3S250LXL-8 250wHPSMulti-Tapw/LampandSlipFitter 250 HPS CWA Mogul 120-277
GP3S250PMAL-8 250wPSMulti-Tapw/LampandSlipFitter 250 PSMH CWA Mogul 120-277
GP3S320PMAL-8 320wPSMulti-Tapw/LampandSlipFitter 320 PSMH CWA Mogul 120-277
GP3S400LXL-8 400wHPSMulti-Tapw/LampandSlipFitter 400 HPS CWA Mogul 120-277
GP3S400PMAL-8 400wPSMulti-Tapw/LampandSlipFitter 400 PSMH CWA Mogul 120-277
GP3T200PMAL-8 200wPSMulti-Tapw/LampandTrunnionMount 200 PSMH CWA Mogul 120-277
GP3T250LXL-8 250wHPSMulti-Tapw/LampandTrunnionMount 250 HPS CWA Mogul 120-277
GP3T250PMAL-8 250wPSMulti-Tapw/LampandTrunnionMount 250 PSMH CWA Mogul 120-277
GP3T320PMAL-8 320wPSMulti-Tapw/LampandTrunnionMount 320 PSMH CWA Mogul 120-277
GP3T400LXL-8 400wHPSMulti-Tapw/LampandTrunnionMount 400 HPS CWA Mogul 120-277
GP3T400PMAL-8 400wPSMulti-Tapw/LampandTrunnionMount 400 PSMH CWA Mogul 120-277
Accessories
GP3VS VandalShield
GP3WG WireGuard
GP3GS GlareShield
Optional Distributions
BLANK General-PurposeOptics
CCutoffOptics
Generalpurpose(standardpartnumber,noadder),cutoff(C)optics,add“C”toendofpartnumber
EPA=1ft2
65
www.stoncolighting.com

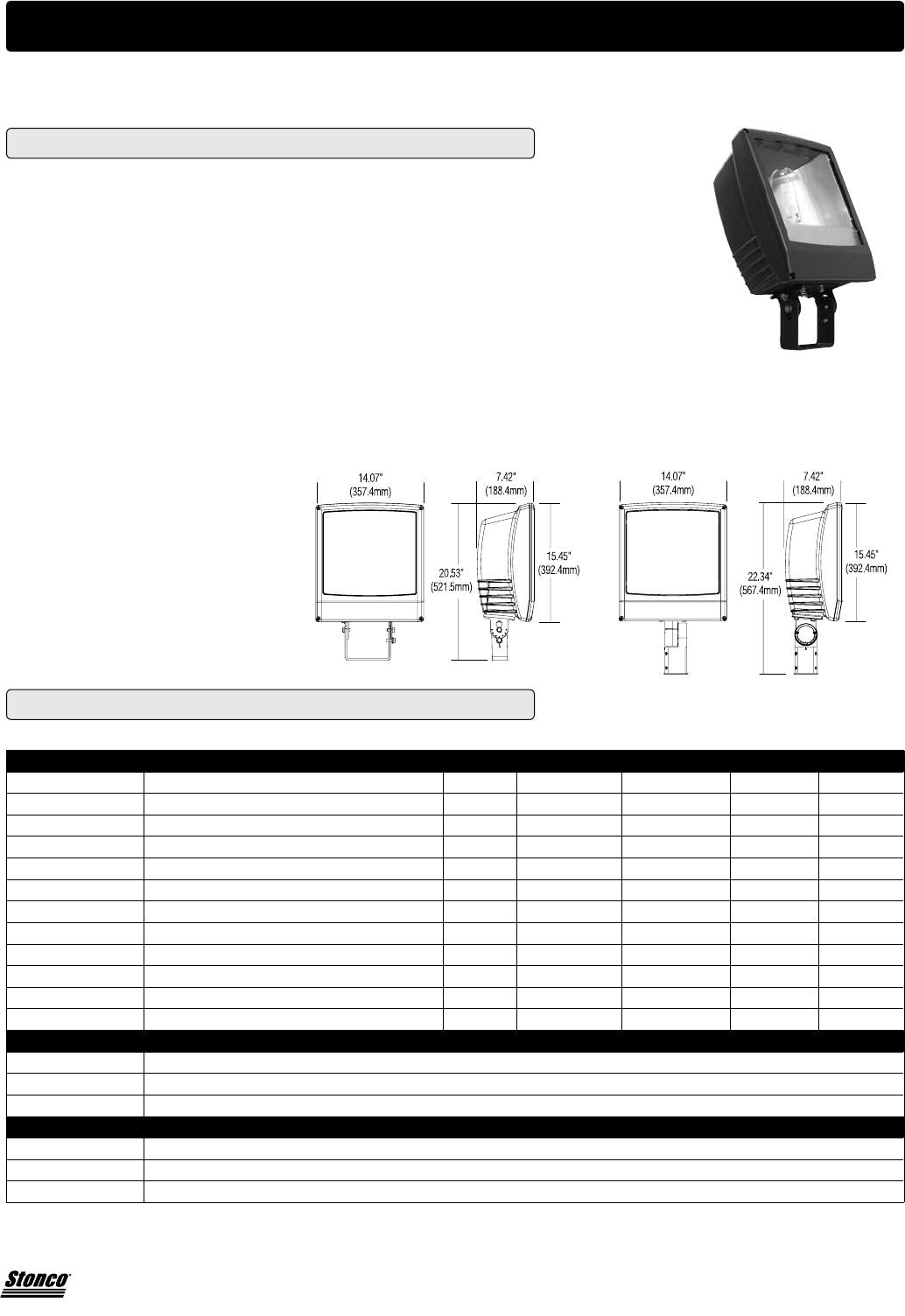

GP4 Flood Large Floodlight
Specifications
• Onepiecediecastaluminumdoorwithcleartemperedglasslensishingedtothediecastaluminumhousingforeasy
maintenance
• Extrudedsiliconerubbergasketforlonglife
• ED28lampsformetalhalideandED18lampsforhighpressuresodium
• Integralheatsinkensurescooloperation
• Lensscrewsarecaptivestainlesssteelfasteners
• DuraplexIIdarkbronzepolyesterpowdernishisstandardandalsoavailableinavarietyofdesignercolors
• Opticsincludegeneralpurpose(standard),spot(“S”)andcut-off(“C”)opticsforcontroloflighttrespass,add“S”or“C”toend
ofcatalognumber
• Mountingoptionsforpoles,wallsandground/oodareavailable
• Fixturesavailablewithtrunnion(IP65andUL)andsliptter(UL)mounting
• IP65Ratedusingtrunnionmountingforextraprotectionagainstwater,dustanddebris(ConsultfactoryforIP65sliptteroption)
• Keyholeslotsontrunnionfacilitatehands-freemounting
• Unitcanbeaimedaboveorbelowhorizontal
• Availablewithvandalshields,wireguardsandglareshields
HID Floodlighting - GP Flood
Part Number Description Wattage Source Ballast Base Voltage
GP4S200PMAL-8 200wPSMulti-Tapw/LampandSlipFitter 200 PSMH CWA Mogul 120-277
GP4S250LXL-8 250wHPSMulti-Tapw/LampandSlipFitter 250 HPS CWA Mogul 120-277
GP4S250PMAL-8 250wPSMulti-Tapw/LampandSlipFitter 250 PSMH CWA Mogul 120-277
GP4S320PMAL-8 320wPSMulti-Tapw/LampandSlipFitter 320 PSMH CWA Mogul 120-277
GP4S400LXL-8 400wHPSMulti-Tapw/LampandSlipFitter 400 HPS CWA Mogul 120-277
GP4S400PMAL-8 400wPSMulti-Tapw/LampandSlipFitter 400 PSMH CWA Mogul 120-277
GP4T200PMAL-8 200wPSMulti-Tapw/LampandTrunnionMount 200 PSMH CWA Mogul 120-277
GP4T250LXL-8 250wHPSMulti-Tapw/LampandTrunnionMount 250 HPS CWA Mogul 120-277
GP4T250PMAL-8 250wPSMulti-Tapw/LampandTrunnionMount 250 PSMH CWA Mogul 120-277
GP4T320PMAL-8 320wPSMulti-Tapw/LampandTrunnionMount 320 PSMH CWA Mogul 120-277
GP4T400LXL-8 400wHPSMulti-Tapw/LampandTrunnionMount 400 HPS CWA Mogul 120-277
GP4T400PMAL-8 400wPSMulti-Tapw/LampandTrunnionMount 400 PSMH CWA Mogul 120-277
Accessories
GP4VS VandalShield
GP4WG WireGuard
GP4GS GlareShield
Optional Distributions
BLANK General-PurposeOptics
CCutoffOptics
SSpotOptics
Generalpurpose(standardpartnumber,noadder),spot(S)andcutoff(C)optics,add“S”or“C”toendofpartnumber
Ordering Information
EPA=1.2ft2
66 www.stoncolighting.com
GP Flood - HID Floodlighting

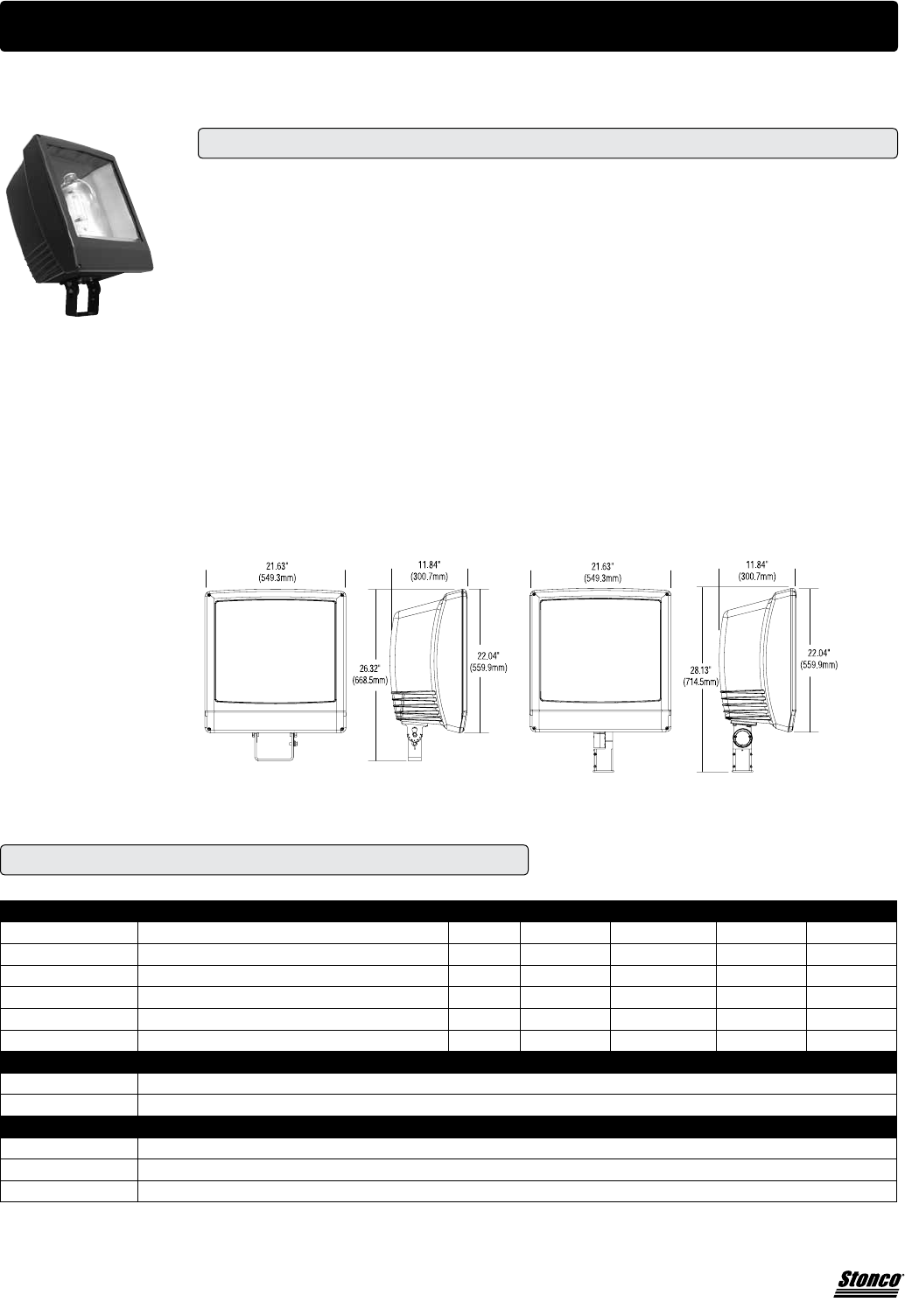

GP5 X-Large Floodlight
Specifications
• Onepiecediecastaluminumdoorwithcleartemperedglasslensishingedtothediecastaluminumhousingforeasy
maintenance
• Extrudedsiliconerubbergasketforlonglife
• BT56lampsformetalhalideandE25lampsforhighpressuresodium
• Integralheatsinkensurescooloperation
• Lensscrewsarecaptivestainlesssteelfasteners
• DuraplexIIdarkbronzepolyesterpowdernishisstandardandalsoavailableinavarietyofdesignercolors
• Opticsincludegeneralpurpose(standard),spot(“S”)andcut-off(“C”)opticsforcontroloflighttrespass,add“S”or“C”to
endofcatalognumber
• Mountingoptionsforpoles,wallsandground/oodareavailable
• Fixturesavailablewithtrunnion(IP65andUL)andsliptter(UL)mounting
• IP65Ratedusingtrunnionmountingforextraprotectionagainstwater,dustanddebris(ConsultfactoryforIP65sliptter
option)
• Keyholeslotsontrunnionfacilitatehands-freemounting
• Unitcanbeaimedaboveorbelowhorizontal
• Availablewithwireguardandglareshield
Ordering Information
Part Number Description Wattage Source Ballast Base Voltage
GP5S1000LXL-8 1000wHPSMulti-Tapw/LampandSlipFitter 1000 HPS CWA Mogul 120-277
GP5S1000MAL-8 1000wMHMulti-Tapw/LampandSlipFitter 1000 MH CWA Mogul 120-277
GP5S1500MAL-8 1500wMHMulti-Tapw/LampandSlipFitter 1500 MH CWA Mogul 120-277
GP5T1000LXL-8 1000wHPSMulti-Tapw/LampandTrunnionMount 1000 HPS CWA Mogul 120-277
GP5T1000MAL-8 1000wMHMulti-Tapw/LampandTrunnionMount 1000 MH CWA Mogul 120-277
GP5T1500MAL-8 1500wMHMulti-Tapw/LampandTrunnionMount 1500 MH CWA Mogul 120-277
Accessories
GP5WG WireGuard
GP5GS GlareShield
Optional Distributions
BLANK General-PurposeOptics
CCutoffOptics
SSpotOptics
EPA=2.6ft2
67
www.stoncolighting.com

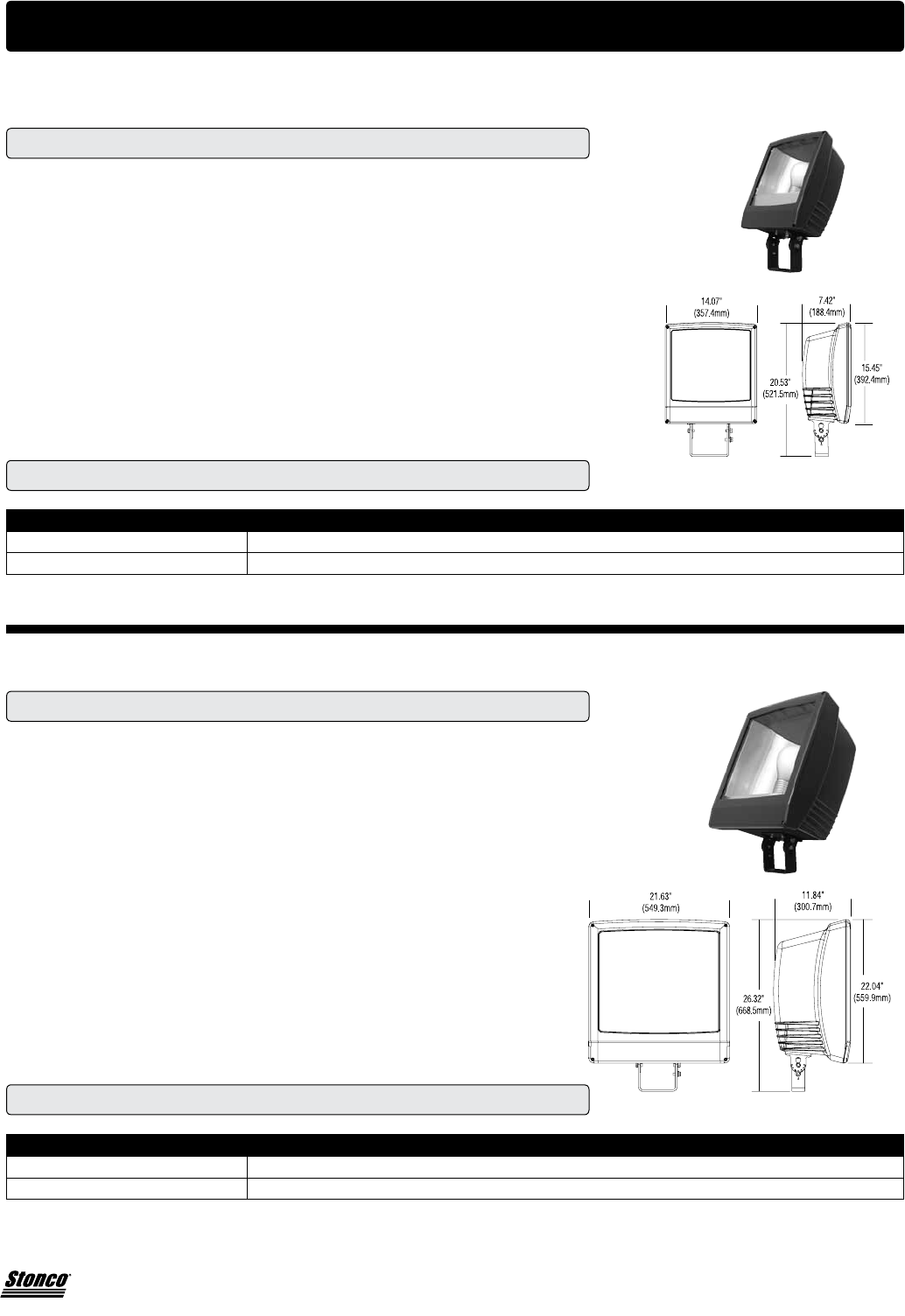

Induction Floodlighting - GP Induction
GP4 Large Induction Floodlight
Specifications
Ordering Information
Ordering Information
Specifications
• PhilipsQLInductionsystemratedfor100,000hours
• Mountingoptionsforpoles,wallsandground/oodareavailable
• Reectorsincludegeneralpurpose,spotopticsandcut-offopticsIP65Ratedusingtrunnionmountingforextra
protectionagainstwater,dustanddebris
• Keyholeslotsontrunnionfacilitatehands-freemounting
• Onepiecediecastaluminumdoorwithcleartemperedglasslensishingedtothediecastaluminumhousingfor
easymaintenance
• Extrudedsiliconerubbergasketforlonglife
• Integralheatsinkensurescooloperation
• Lensscrewsarecaptivestainlesssteelfasteners
• StandardDuraplexIIdarkbronzepolyesterpowdernishwithvarietyofdesignercolorsalsoavailable
• Unitcanbeaimedaboveorbelowhorizontal
• Availablewithvandalshields,wireguardsandglareshields
• Published5-yearlimitedwarranty
GP5 X-Large Induction Floodlight
• PhilipsQLInductionsystemratedfor100,000hours
• Mountingoptionsforpoles,wallsandground/oodareavailable
• Generalpurposereector
• Fixturesavailablewithtrunnionandslipttermounting
• Keyholeslotsontrunnionfacilitatehands-freemounting
• Onepiecediecastaluminumdoorwithcleartemperedglasslensishingedtothediecast
aluminumhousingforeasymaintenance
• Extrudedsiliconerubbergasketforlonglife
• Integralheatsinkensurescooloperation
• Lensscrewsarecaptivestainlesssteelfasteners
• StandardDuraplexIIdarkbronzepolyesterpowdernishwithvarietyofdesignercolorsalso
available
• Unitcanbeaimedaboveorbelowhorizontal
• Availablewithwireguardsandglareshields
• Published5-yearlimitedwarranty
Part Number Description
GP4T8584IND-1 LargeGPFlood,trunnionmount,85w,4000Kcolortemperature,inductionsystem,100-120v
GP4T8584IND-4 LargeGPFlood,trunnionmount,85w,4000Kcolortemperature,inductionsystem,200-277v
T=TrunnionMount.Changeto“S”forSliptterMount.Example:GP4S8584IND-1
Part Number Description
GP5T16584IND-1 Extra-LargeGPFlood,trunnionmount,165w,4000Kcolortemperature,inductionsystem,100-120v
GP5T16584IND-4 Extra-LargeGPFlood,trunnionmount,165w,4000Kcolortemperature,inductionsystem,200-277v
T=TrunnionMount.Changeto“S”forSliptterMount.Example:GP5S16584IND-1
EPA=1.2ft2
EPA=2.6ft2
68 www.stoncolighting.com

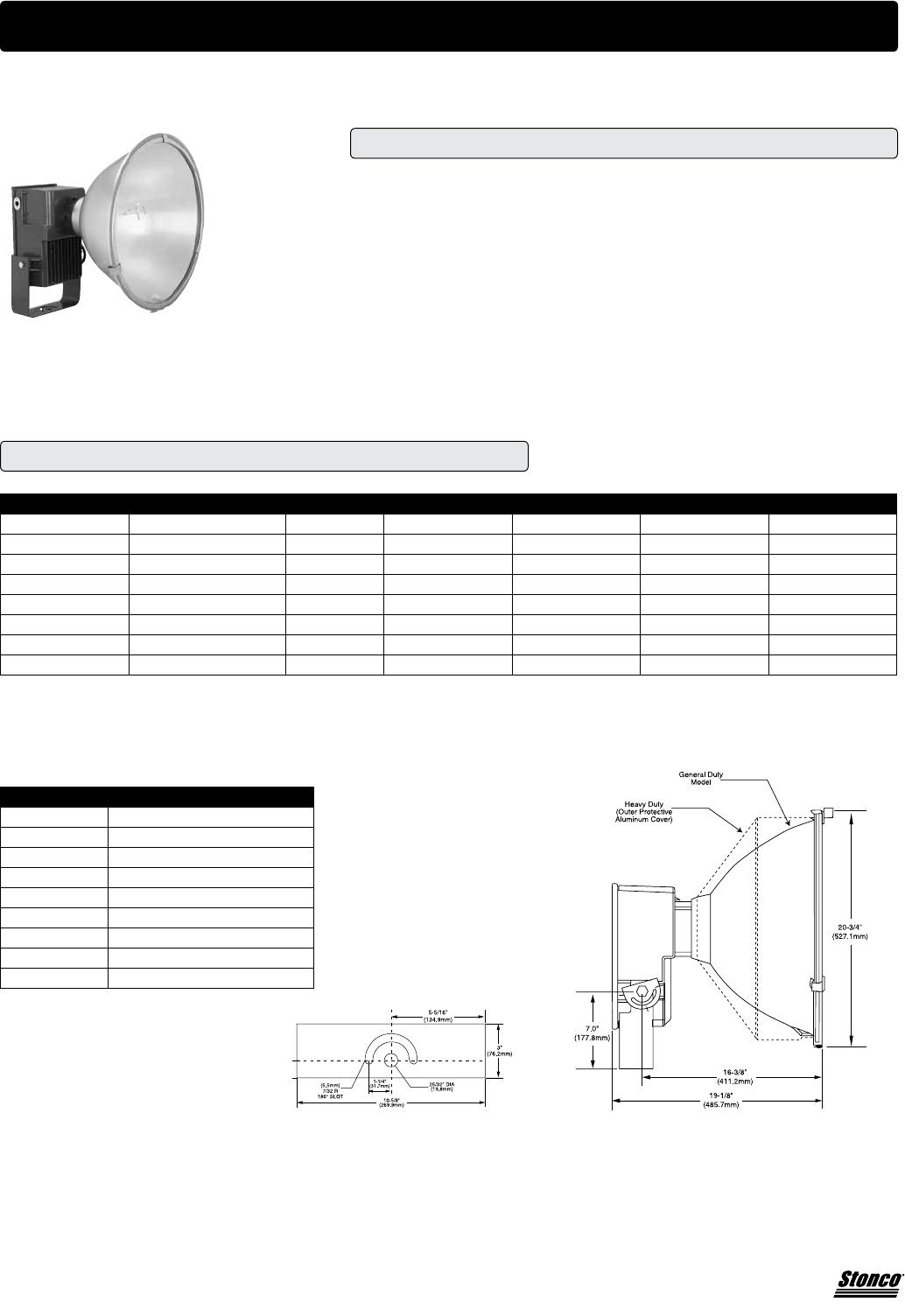

SCT Sportslighter - HID Floodlighting
Ordering Information
SCT Series Sportslighter
Specifications
• Controlledhigh-intensityilluminationforsportsarenas,playingelds,golfdrivingranges,and
othersportingareasaswellasfairgrounds,workareas,façadelightingapplications
• Die-castaluminumhousing,nishedindarkarchitecturalbronzepolyesterpowder
• Adjustableyoke,integralverticalaimingquadrant
• Onepieceparabolicheavygaugeprecisionspunaluminumreector,highpurityaluminumnish
• Siliconerubbergasket
• NEMA3through6beampatternwithtemperedclearglasslens
• Constantwattagehighpowerfactorautotransformerprovided
• ULlistedforwetlocations
• Standardwitha6footcord(eldinstalled)
• Reectorandpowerpackshippedseparately
Accessories
Part Number Description Wattage Source Ballast Base Voltage
SCTII1013MA-8 1000wNEMA3Multi-Tap 1000 MH CWA Mogul 120-277
SCTII1014MA-8 1000wNEMA4Multi-Tap 1000 MH CWA Mogul 120-277
SCTII1015MA-8 1000wNEMA5Multi-Tap 1000 MH CWA Mogul 120-277
SCTII1016MA-8 1000wNEMA6Multi-Tap 1000 MH CWA Mogul 120-277
SCTII1513MA-8 1500wNEMA3Multi-Tap 1500 MH CWA Mogul 120-277
SCTII1514MA-8 1500wNEMA4Multi-Tap 1500 MH CWA Mogul 120-277
SCTII1515MA-8 1500wNEMA5Multi-Tap 1500 MH CWA Mogul 120-277
SCTII1516MA-8 1500wNEMA6Multi-Tap 1500 MH CWA Mogul 120-277
Part Number Description
SCTIFL ConcentricLouver,BlackFinish
SCTHL ConcentricHalfLouver,BlackFinish
SCTPSF 2”TenonSlip-Fitter
SCTVS VandalShield
SCTVSF Visor
SCTWG WireGuard
SCTII552 ReplacementLens
PWB PipeWallBracket
HDS Heavy-DutyShroud
69
www.stoncolighting.com

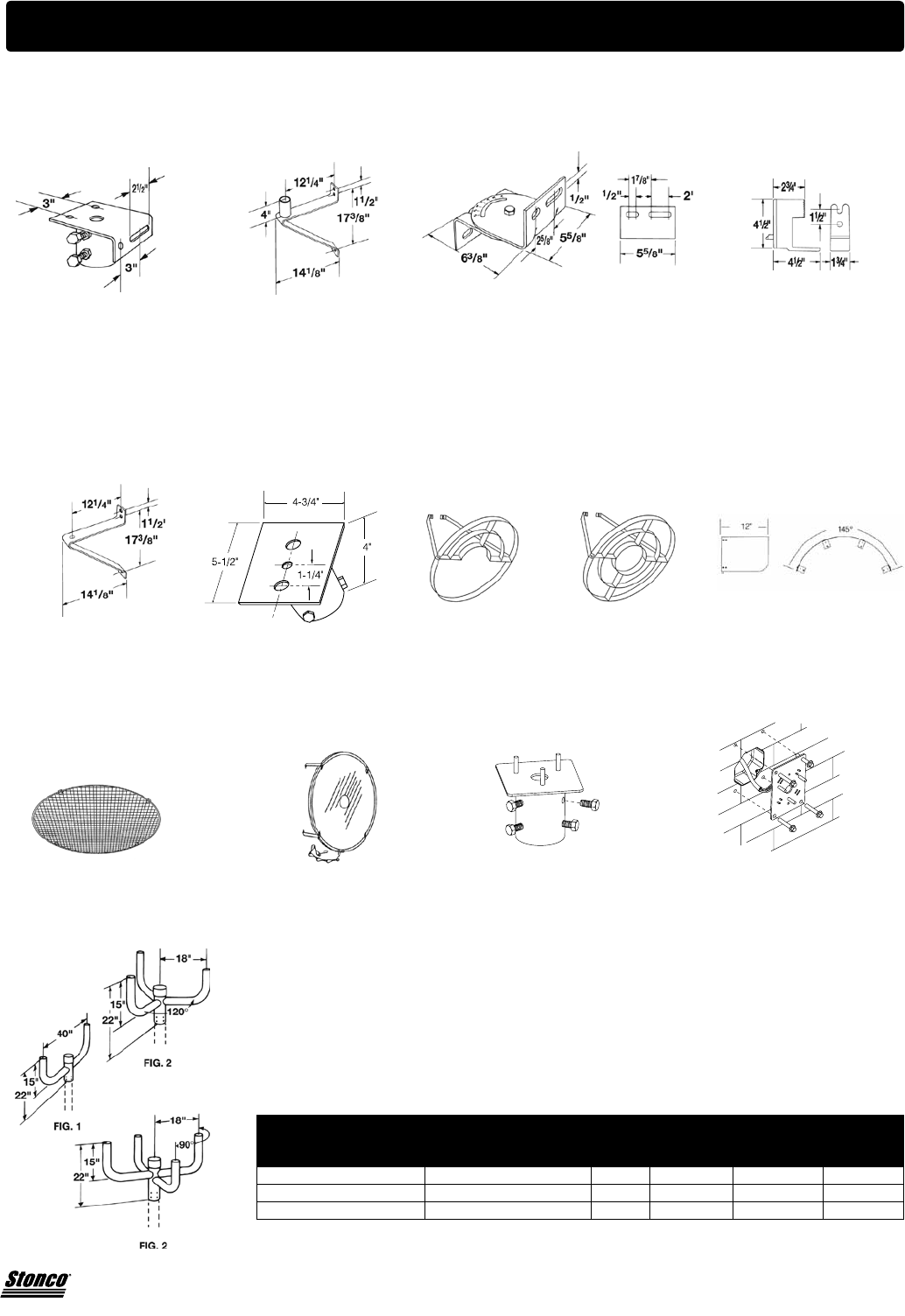

HID Floodlighting / Mounting Accessories
USF10BRZ
PoleTopMountingAccessoryfor
TrunnionFixtures(SLMSeries,
GP3TandGP4T)
Adjustableslide-boltdesignedforusewith
mosttrunnionstyleoods.Heavygauge
constructionmountstoanystandard2”
(2-3/8”OD)poletenon.
UHA10BRZ
UniversalHorizontalYoke
MountingAdapter(SLMSeries,GP3TandGP4T)
Heavygauge(3/16”)galvanizedsteelbracketwithbuilt-in
degreemarkerforaccuratehorizontalaiming.Finishedin
Duraplex™bronzepolyesterpowder.
UWB10BRZ
UniversalWallAngleBracketfor
Yoke&TrunnionMountedFixtures
(SLMSeries,GP3T,GP4TandGP5T)
Heavygauge(1/4”)steelwallbracketfor
mountingyokexturestowall.Finishedin
Duraplex™bronzepolyesterpowder.
UWT238BRZ
Universal2”TenonWall
AngleBracketforSliptter
MountFixtures(SLMwith
USF10BRZ,GP3SandGP4S)
SCTPSF-SliptterAdapter
forSportslighterFlood
SCTHL-SportslighterFlood
ConcentricHalfLouver
SCTIFL-Sportslighter
FloodConcentricLouver
SLW10
SurfaceAdapter
Toconvert1/2”armtosurface
mountwithIntegralSplicebox
(SLASeriesandGP2A)
SCTVLL-SportslighterVisor
WGLL-Sportslighter
WireGuard
WGLL-Sportslighter
VandalShield
PMAS-PipeAdapter
forSmallandMedium
FloodPak
PMAL-PipeAdapterfor
LargeFloodPak
2”PipeandConcrete
PadApplications
WMAS-WallMounting
AdapterforSmalland
MediumFloodPak
RetrotApplications
Pole-Top “Bull-Horn” Brackets
Product Specifications
Heavygaugesteelprotectedinsideandoutwithrust-resistantprimer.Bottomttingslipsoverpipeortenon,lockstightlyintoplacewithhuskyset
screws.Two-to-fourwelded-ontenonsacceptalloodlightsequippedwithslip-ttersfor2”pipeinuprightpositionforindividual360°rotation.
Catalog No. for 2
(2-3/8)” pipe
Catalog No.for 3
(3-1/2)” pipe
Fig. No. No. of Floods Projected
Area
(sq. ft.)
Description
PA22 PA32 1 2 .8 180°
PA24 PA34 2 4 1.3 90°
PA22BRZ — 1 2 .8 180°
HID Floodlighting Mounting Accessories
70 www.stoncolighting.com
HID Surface-Mounted Lighting
Surface-Mount
StoncointroducedtheWallcubethateventuallybecamethestandardintheindustry.Stoncocontinuesits
leadershiprolewithproductsliketheFloodPak,andEvoscapeluminairesthatcombinepleasinglinesand
durableconstruction.TodayStoncogoesevenfurtherwiththeintroductionofLEDtobothofthesepowerhouse
luminaires.OtherWallpakluminairesofferevenlightinginavarietyofinstallationsincludingcutoff
applications.
FloodPak Series
ArchitecturalWallPack
Page 71
EvoScapes Series
ES1ArchitecturalWallSconce
Page 72
WP Series
WallPrism
Page 74
NPM Series
NyteProCut-OffWallPrism
Page 75
71
www.stoncolighting.com

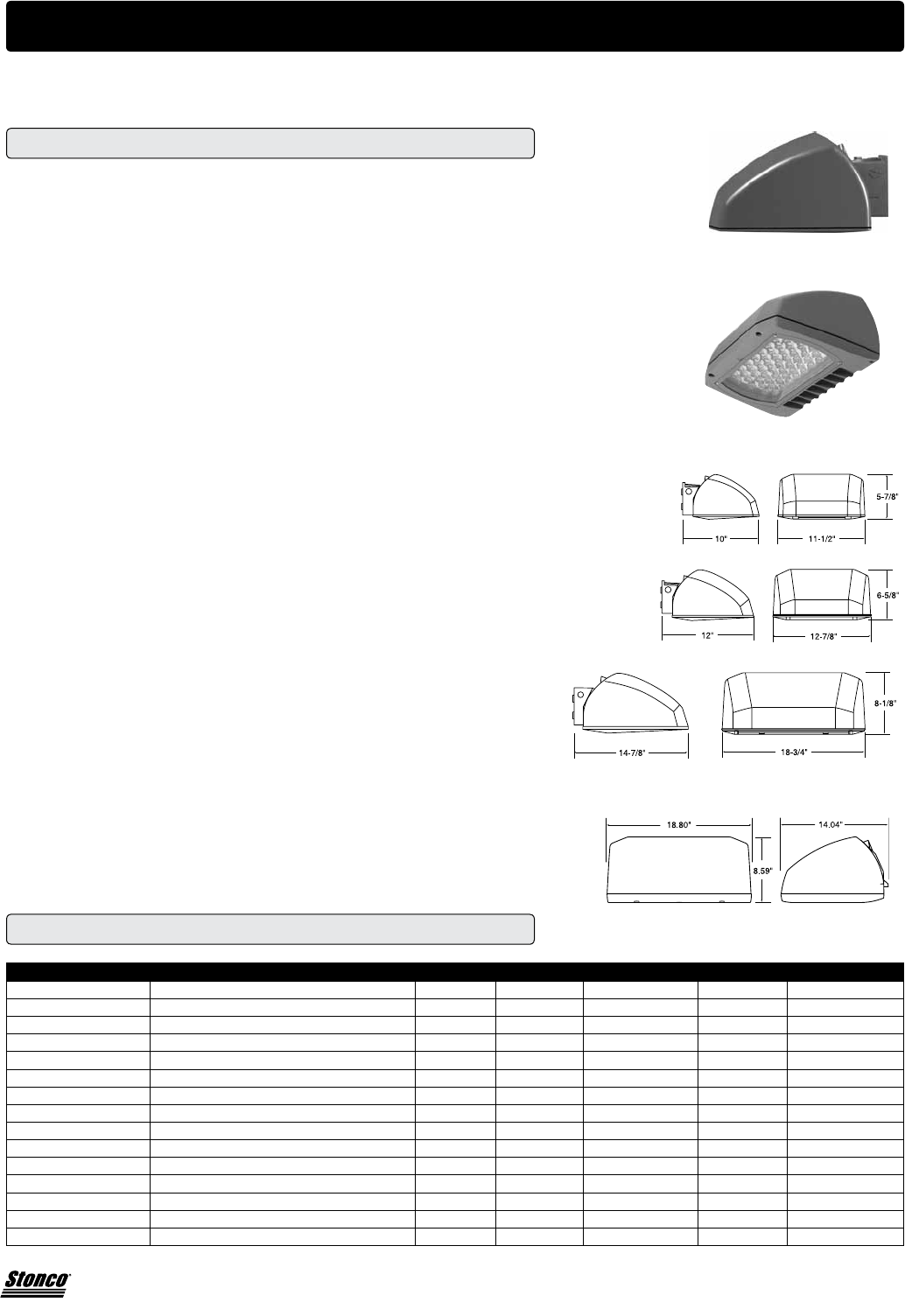

HID / LED Surface-Mounted Lighting - FloodPak
Ordering Information
Part Number Description Wattage Source Ballast Base Voltage
FPS42HFL-8 FloodPakSize1multi-tap42wCFL 42 CF Electronic GX 120-277
FPS70NLXL-1 FloodPakSize170wHPS120vw/Lamp 70 HPS NPF-Reactor Medium 120
FPS100NLXL-1 FloodPakSize1100wHPS120vw/Lamp 100 HPS NPF-Reactor Medium 120
FPS150NLXL-1 FloodPakSize1150wHPS120vw/Lamp 150 HPS NPF-Reactor Medium 120
FPM70PMAL-8 FloodPakSize270wPSw/LampMT 70 PSMH HX-HPF Medium 120-277
FPM100PMAL-8 FloodPakSize2100wPSw/LampMT 100 PSMH HX-HPF Medium 120-277
FPM150LXL-8 FloodPakSize2150wHPSw/LampMT 150 HPS CWA Medium 120-277
FPM150PMAL-8 FloodPakSize2150wPSw/LampMT 150 PSMH HX-HPF Medium 120-277
FPL250LXL-8 FloodPakSize3Multi-Tap250wHPSw/Lamp 250 HPS CWA Mogul 120-277
FPL200PMAL-8 FloodPakSize3Multi-Tap200wPSw/Lamp 200 PSMH CWA Mogul 120-277
FPL250PMAL-8 FloodPakSize3Multi-Tap250wPSw/Lamp 250 PSMH CWA Mogul 120-277
FPL400LXL-8 FloodPakSize3Multi-Tap400wHPSw/Lamp 400 HPS CWA Mogul 120-277
FPL320PMAL-8 FloodPakSize3Multi-Tap320wPSw/Lamp 320 PSMH CWA Mogul 120-277
FPL400PMAL-8 FloodPakSize3Multi-Tap400wPSw/Lamp 400 PSMH CWA Mogul 120-277
FPL08UB-0546KH2 FloodPakLED 82 LED Electronic n/a 120-277
FPS / FPM / FPL FloodPak
Specifications
FloodPak Small (FPS)
FloodPak Medium (FPM)
FloodPak Large (FPL)
• Theperfectblendofarchitecturaldesignandperformance
• Surfacemountedinvariouspositions:cut-offwallpack,22.5°forforwardthrowwithsemi-cut-off,
tip45°foroodlighting,orturnitoveranduseitforindirect/accentlighting
• Polemountedorgroundmountedusingmountingaccessories
• Precisiondiecastaluminumconstructionwithstainlesssteelexposedhardware
• DuraplexIIdarkbronzepolyesterpowdernishisstandardalongwithavarietyofdesignercolors
• Hingeddoorframewithcleartemperedglasslens
• Multi-facetedreectionsystemprovidesuniformdistribution
• Injectionmoldedtriplengersiliconegasket
• ULwetlocationlistedforaboveorbelowhorizontalaiming
• CompletewithaULapprovedmountingboxratedfor90°Csupplywirewithintegralbubblelevel
• Integralheatsinkensurescooloperation
• MeetsIESNAFullcut-offrequirementsin0˚position
• ContractorFriendlydesignwithintegralcablepermittinghandsfreewiring
LED
• ElectronicclassIILEDdriveraccepts120-277v,50/60hzinput(constantcurrent)
• High-outputLEDs
• Individualprecisionopticscollectandredirectlighttooptimizeperformance
• Opticalsystemindividuallycontrolsplacementoflightinthetargetareaminimizingglare
• LEDshaveanaverageratedlifeof60,000hours
• Integralcastaluminumheatsinkensurescooloperation
Accessories
FPSKNUCKLE-1/2”adjustableknuckle(FPS,FPM)
FPSARM-Shoeboxarm.ConvertsFloodPaktopole-mount(minimum4”squarepole,FPS,FPM)
FPLKNUCKLE-Adjustable2”TenonSliptter(FPL)
FPLARM-ShoeboxArm.ConvertsFloodPaktopole-mount(minimum4”squarepole,FPL)
FP2-Singleholeroundcoverforusewithstandard4”roundsurfaceboxes.
FP4A-SingleholeFSstylecoverforuseonstandardsinglegangFSboxes.
FP4B-ThreeholeFSstylecoverforuseonstandardsinglegangFSboxes.
FPS/FPM/FPL552-ReplacementlensforsmallsizeFloodPak.
FPS/FPM/FPLSHIELD-VandalShield.Helpsprotectlensandlampfrombreakage.
Clearpolycarbonateshieldsnapsinplaceoverglasslens.(Forbelowhorizontalonly)
HID
LED
LED
72 www.stoncolighting.com

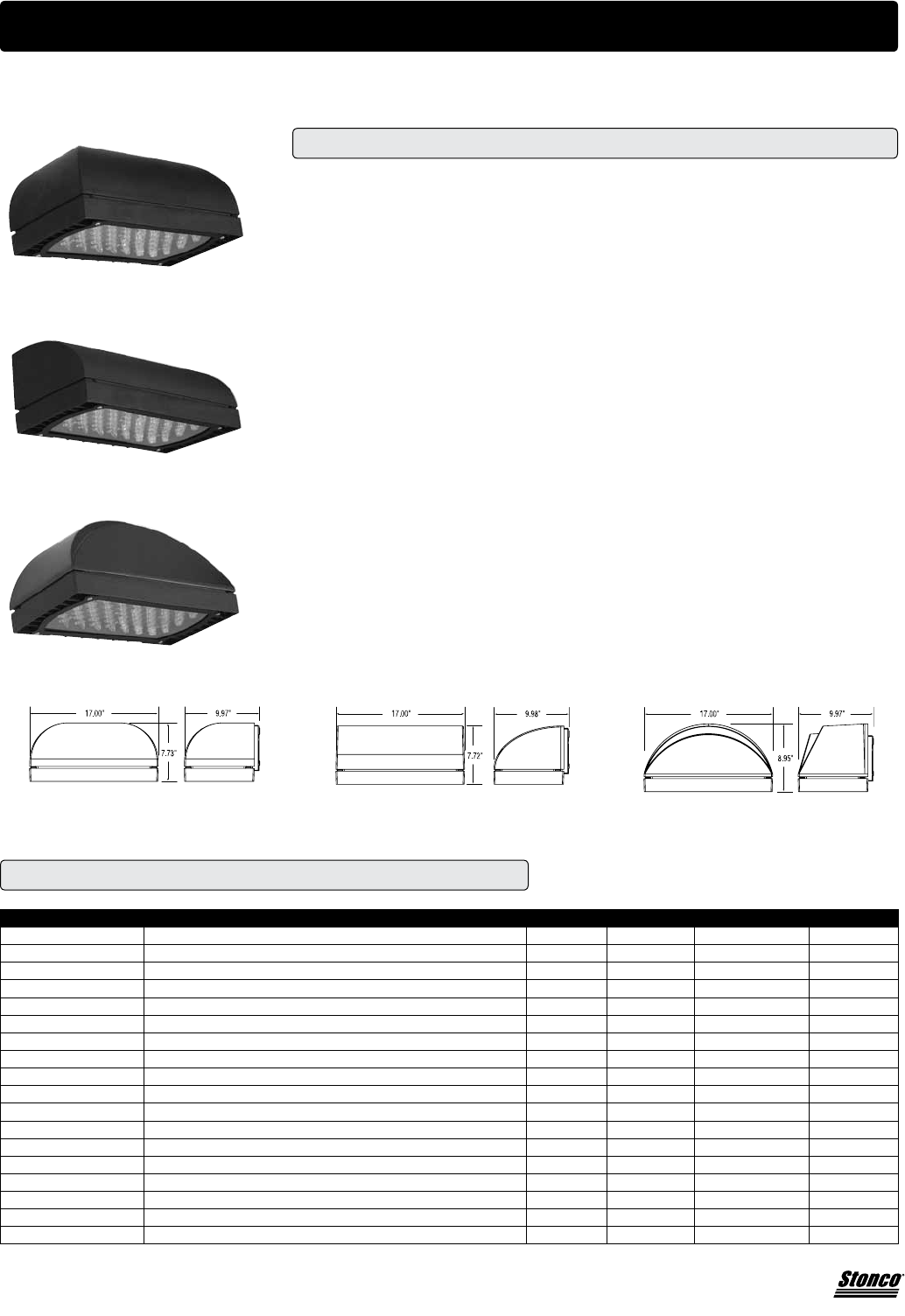

EvoScapes - LED Surface-Mounted Lighting
EvoScapes LED - ES1 / ES2 / ES3
Specifications
• Idealforschools,malls,ofcebuildings,industrialparks,hospitals,sportscomplexes,and
commercialcenters
• Heavydutydiecastaluminumhousing
• CorrosionresistantDuraplexIIwrinklebronzepolyesterpowdercoatednishstandard
• Fullytemperedsodalimeglasslens
• Optionaldesignernishesavailable.(Consultfactory)
• ElectronicClassIILEDdriveraccepts120-277v,50/60hzinput(constantcurrent)
• High-outputLEDs
• Individualprecisionopticscollectandredirectlighttooptimizeperformance
• Opticalsystemindividuallycontrolstheplacementoflightinthetargetareaminimizingglare
• LEDshaveanaverageratedlifeof60,000hours
• Integralcastaluminumheatsinkensurescooloperation
• Pre-mountablewallboxwithintegralsplicechamber.(NoJ-Boxneeded)
• Built-inbubblelevelforaccuracy
• Hands-freexturetowallpositioningforeasywiring
• UL1598wetlocationlisted
Ordering Information
Part Number Description Voltage # of LEDs Color Temp. Optics
ES108UB0546KH2 EvoScapesSeries1,LED,WrinkleBlack,120-277v,HorizontalTypeII 120-277 54 4K H2(Type2)
ES108UB0546KH3 EvoScapesSeries1,LED,WrinkleBlack,120-277v,HorizontalTypeIII 120-277 54 4K H3(Type3)
ES108UW0546KH2 EvoScapesSeries1,LED,WrinkleWhite,120-277v,HorizontalTypeII 120-277 54 4K H2(Type2)
ES108UW0546KH3 EvoScapesSeries1,LED,WrinkleWhite,120-277v,HorizontalTypeIII 120-277 54 4K H3(Type3)
ES108UP0546KH2 EvoScapesSeries1,LED,WrinkleBronze,120-277v,HorizontalTypeII 120-277 54 4K H2(Type2)
ES108UP0546KH3 EvoScapesSeries1,LED,WrinkleBronze,120-277v,HorizontalTypeIII 120-277 54 4K H3(Type3)
ES208UB0546KH2 EvoScapesSeries2,LED,WrinkleBlack,120-277v,HorizontalTypeII 120-277 54 4K H2(Type2)
ES208UB0546KH3 EvoScapesSeries2,LED,WrinkleBlack,120-277v,HorizontalTypeIII 120-277 54 4K H3(Type3)
ES208UW0546KH2 EvoScapesSeries2,LED,WrinkleWhite,120-277v,HorizontalTypeII 120-277 54 4K H2(Type2)
ES208UW0546KH3 EvoScapesSeries2,LED,WrinkleWhite,120-277v,HorizontalTypeIII 120-277 54 4K H3(Type3)
ES208UP0546KH2 EvoScapesSeries2,LED,WrinkleBronze,120-277v,HorizontalTypeII 120-277 54 4K H2(Type2)
ES208UP0546KH3 EvoScapesSeries2,LED,WrinkleBronze,120-277v,HorizontalTypeIII 120-277 54 4K H3(Type3)
ES308UB0546KH2 EvoScapesSeries3,LED,WrinkleBlack,120-277v,HorizontalTypeII 120-277 54 4K H2(Type2)
ES308UB0546KH3 EvoScapesSeries3,LED,WrinkleBlack,120-277v,HorizontalTypeIII 120-277 54 4K H3(Type3)
ES308UW0546KH2 EvoScapesSeries3,LED,WrinkleWhite,120-277v,HorizontalTypeII 120-277 54 4K H2(Type2)
ES308UW0546KH3 EvoScapesSeries3,LED,WrinkleWhite,120-277v,HorizontalTypeIII 120-277 54 4K H3(Type3)
ES308UP0546KH2 EvoScapesSeries3,LED,WrinkleBronze,120-277v,HorizontalTypeII 120-277 54 4K H2(Type2)
ES308UP0546KH3 EvoScapesSeries3,LED,WrinkleBronze,120-277v,HorizontalTypeIII 120-277 54 4K H3(Type3)
ES1
ES2
ES3
ES1 ES2 ES3
73
www.stoncolighting.com

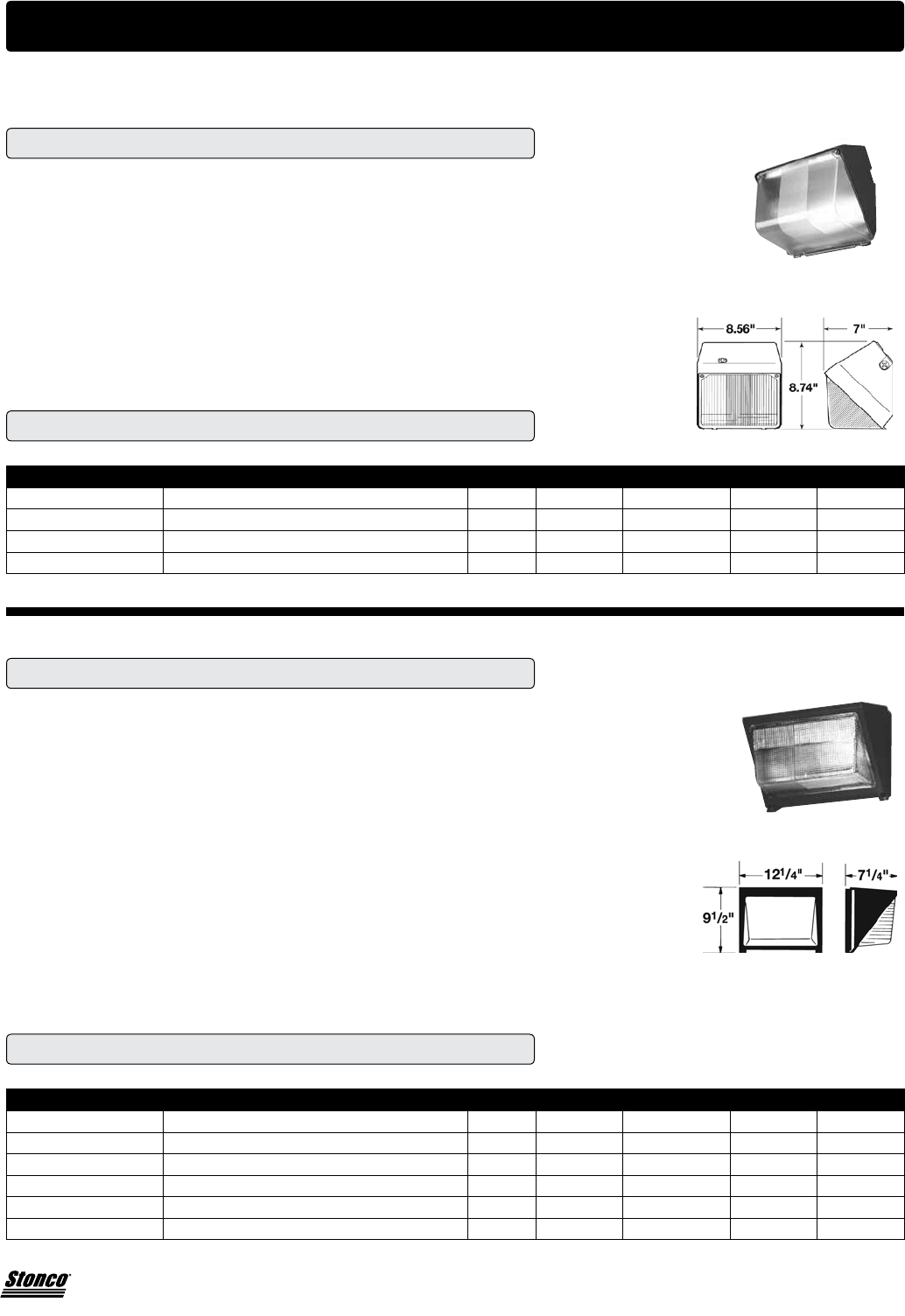

HID Surface-Mounted Lighting - WNPS / WPM WallPrism
WNPS Series Mini WallPrism
WPM / WNPM Series WallPrism
Specifications
WNPS Mini-WallPrism
• Idealforsecurity,accent,andperimeterlighting
• Applicationsincludeentranceways,garages,tunnels,overpasses,andalleys
• Precisiondie-castaluminumhousingnishedinDuraplexIIbronzepolyester
• UVstabilizedpolycarbonateprismaticrefractor
• Highlyspecularanodizedaluminumonepiecereectormaximizeslightutilization
• Precisiondiecastaluminummountingplatewithcast-inknockoutsforalignmentwithallstandardrecessedboxes
• One-tappedhole(1/2”NPS)oneachsideandtopforconduitorphotocontrol,completewithclosureplugs
• Deluxeglazedporcelainsocketpulseratedfor4KV
Ordering Information
WNPS
WPM
Specifications
WPM WallPrism
• Idealforsecurity,accent,andperimeterlighting
• Applicationsincludeentranceways,garages,tunnels,overpasses,andalleys
• Catadiopticrefractorredirectslighttominimizeglare,alignsopticalcenteroflensandlampforsymmetricallight
distribution
• Heatandshockresistantborosilicateglassrefractor,bondedtolensframe
• Stainlesssteelaircraftcableretainslensframetobackplatefreeinghandsforservicing
• Precisiondie-castaluminumDuraplexIIbronzenishbackplatewithcast-inknockoutsforalignmentwithall
standardrecessedboxes
• One-tappedhole(1/2”NPS)oneachsideandtopcompletewithclosureplugsforconduitorphotocontrol
• Deluxeglazedporcelainsocketpulseratedfor4KV
Part No. Description Wattage Source Ballast Socket Voltage
WNPS35NLXL-1 Mini-WallPrism120v35wHPSw/Lamp 35 HPS NPF-Reactor Medium 120
WNPS50NLXL-1 Mini-WallPrism120v50wHPSw/Lamp 50 HPS NPF-Reactor Medium 120
WNPS70NLXL-1 Mini-WallPrism120v70wHPSw/Lamp 70 HPS NPF-Reactor Medium 120
WNPS101NLXL-1 Mini-WallPrism120v100wHPSw/Lamp 100 HPS NPF-Reactor Medium 120
Ordering Information
Part No. Description Wattage Source Ballast Socket Voltage
WNPM101MAL-6 WPMWallPrism100wDualVoltagew/Lamp 100 PSMH HX-HPF Medium 120/277
WNPM150PMAL-8 WPMWallPrism150wPSMulti-Tapw/Lamp 150 PSMH HX-HPF Medium 120-277
WNPM151NLXL-1 WPMWallPrism150wHPS120vw/Lamp 150 HPS NPF-Reactor Medium 120
WPM101NLXL-1 WPMWallPrism100wHPS120vw/Lamp 100 HPS NPF-Reactor Medium 120
WPM150LX-8 WPMWallPrism150wHPSMulti-Tap 150 HPS CWA Mogul 120-277
WPM71MAL-6 WPMWallPrism70wMHw/LampMulti-Tap 70 PSMH HX-HPF Medium 120/277
Accessories
P110A-Pencilphotocontrolfor120V
P150M-Lightlevelerphotocontrolfor208V-277V
330S-Steelwireguard
335S-Clearpolycarbonateshieldforaddedprotection
32352-Replacementglass,gasket,hardware,doorlenskit
74 www.stoncolighting.com

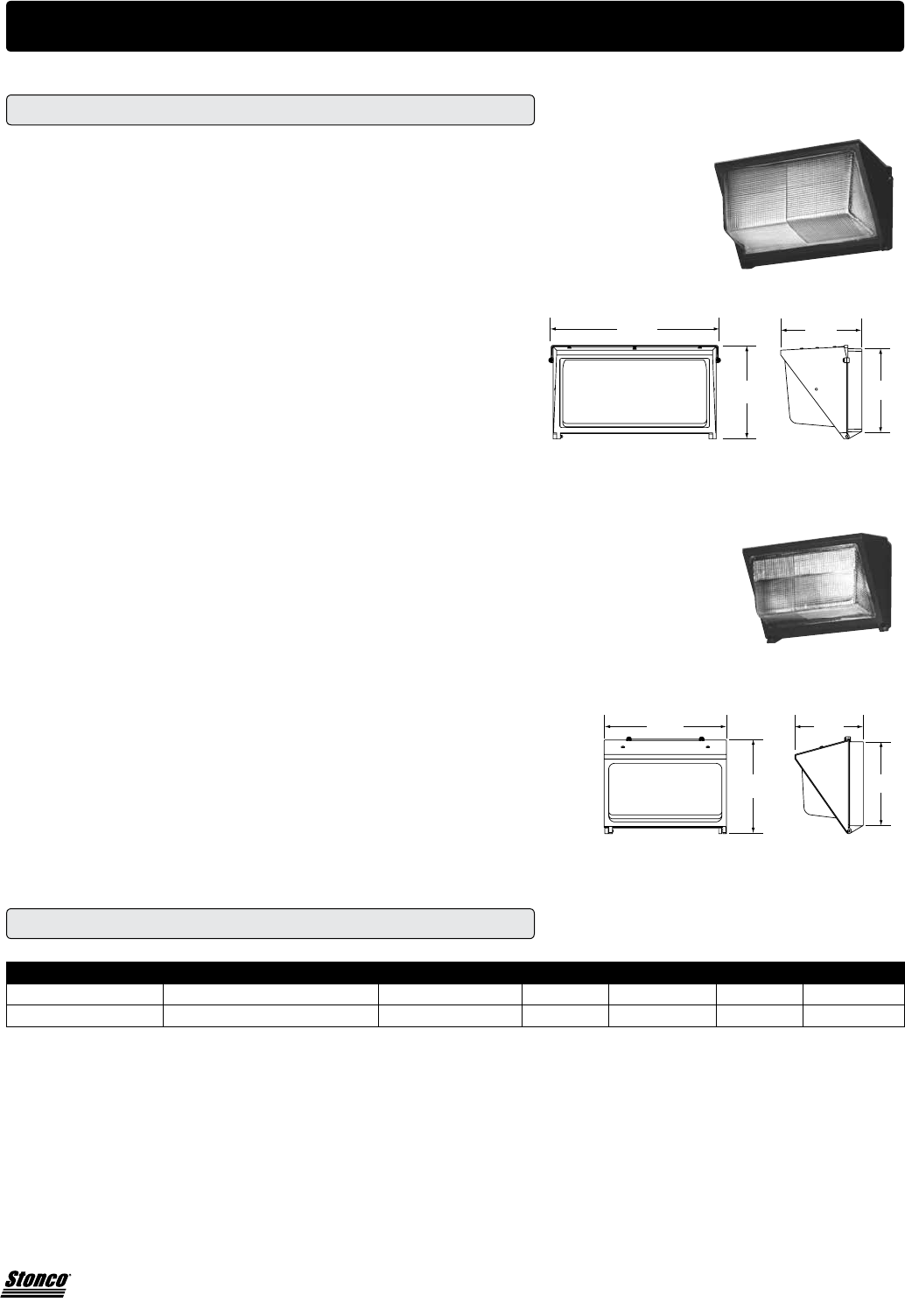

WP / WP Deep-Back WallPrism - HID / Induction Surface-Mounted Lighting

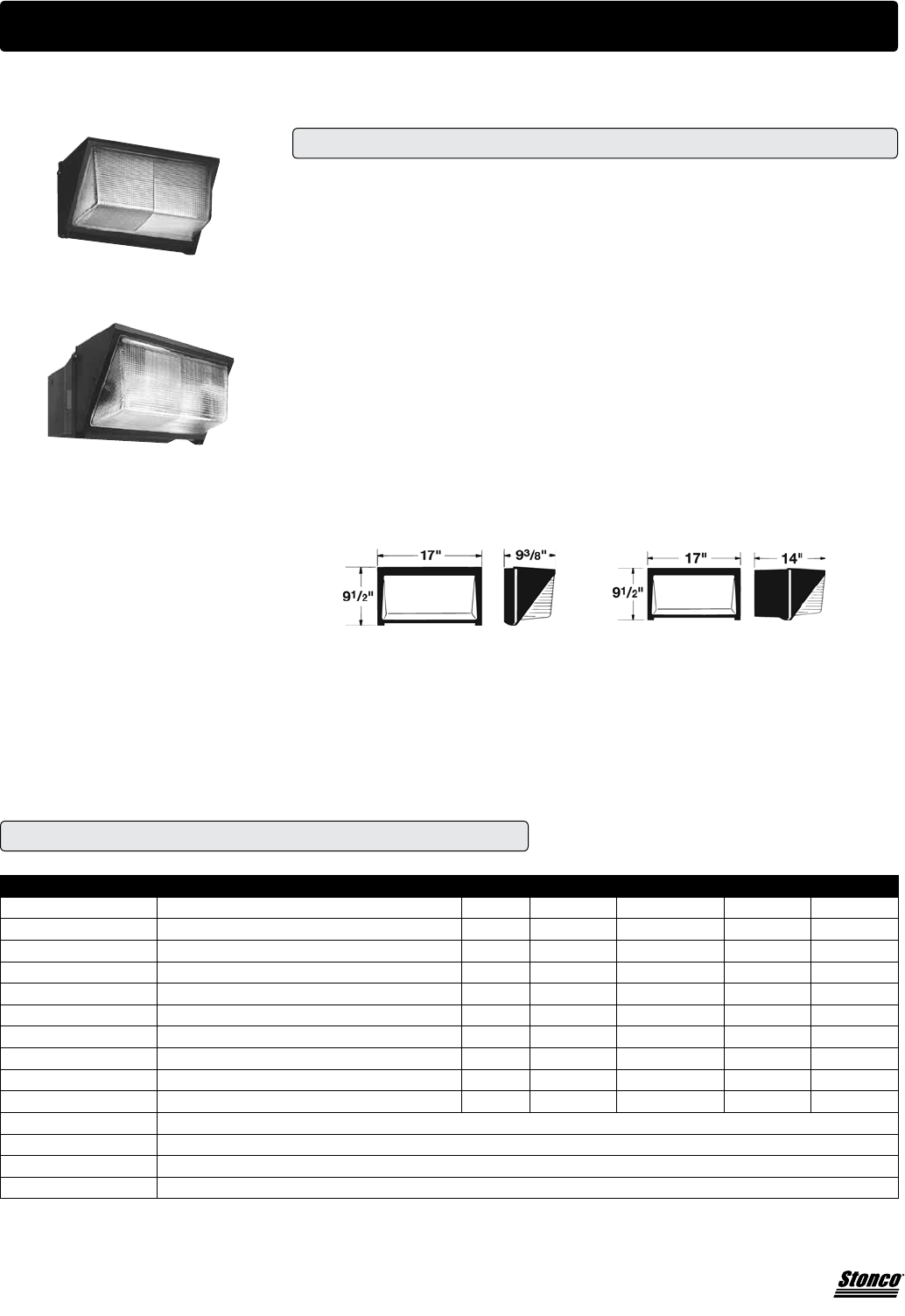

WP WallPrism / WP Deep-Back WallPrism
Specifications
WP
WP DeepBack
• Idealforsecurity,accent,andperimeterlighting.Applicationsincludeentranceways,garages,tunnels,
overpasses,andalleys
• Catadiopticrefractorredirectslighttominimizeglare,alignsopticalcenteroflensandlampforsymmetrical
lightdistribution
• Deepbackforgreateroffsetfromwall(DeepBackonly)
• Heatandshockresistantborosilicateglassrefractorpermanentlybondedtolensframe
• Stainlesssteelaircraftcablesafetyretainedlensframetobackplatefreeingbothhandsforservicing
• Precisiondie-castaluminum,DuraplexIIbronzenish,backplatewithcast-inknockoutsforalignmentwith
allstandardrecessedboxes
• One-tappedhole(1/2”NPS)oneachsideandtopforconduitorphotocontrol,completewithclosureplugs
• Deluxeglazedporcelainsocketpulseratedfor4KV
• Inductionsystemratedfor100,000hours
Ordering Information
WP
WP Deep-Back
Part No. Description Wattage Source Ballast Socket Voltage
WP175PMA-8 WPWallPrismMulti-Tap175WPS 175 PSMH CWA Mogul 120-277
WP175PMAL-8 WPWallPrismMulti-Tap175WPSw/Lamp 175 PSMH CWA Mogul 120-277
WP251PMA-8 WPWallPrismMulti-Tap250wPS 250 PSMH CWA Mogul 120-277
WP251PMAL-8 WPWallPrismMulti-Tap250wPSw/Lamp 250 PSMH CWA Mogul 120-277
WP251LX-8 WPWallPrismMulti-Tap250wHPS 250 HPS CWA Mogul 120-277
WP321PMA-8 WPWallPrismMulti-Tap320wPS 320 PSMH CWA Mogul 120-277
WP321PMAL-8 WPWallPrismMulti-Tap320wPSw/Lamp 320 PSMH CWA Mogul 120-277
WP401PMA-8 WPWallPrismMulti-Tap400wPS 400 PSMH CWA Mogul 120-277
WP401PMAL-8 WPWallPrismMulti-Tap400wPSw/Lamp 400 PSMH CWA Mogul 120-277
WP401LX-8 WPWallPrismMulti-Tap400wHPS 400 HPS CWA Mogul 120-277
WP5584IND-1 WPSeriesWallPack,55w,4000Kcolortemperature,inductionsystem,100-120v
WP5584IND-4 WPSeriesWallPack,55w,4000Kcolortemperature,inductionsystem,200-277v
WP8584IND-1 WPSeriesWallPack,85w,4000Kcolortemperature,inductionsystem,100-120v
WP8584IND-4 WPSeriesWallPack,85w,4000Kcolortemperature,inductionsystem,200-277v
WP - 175w and 250w WP Deep-Back - 320w and 400w
Accessories
P110A-Pencilphotocontrolfor120V
P150M-Lightlevelerphotocontrolfor208V-277V
530S-Steelwireguard
535S-ClearLexanforaddedprotection
52352-Replacement,glass,gasket,hardware,doorlenskit
75
www.stoncolighting.com

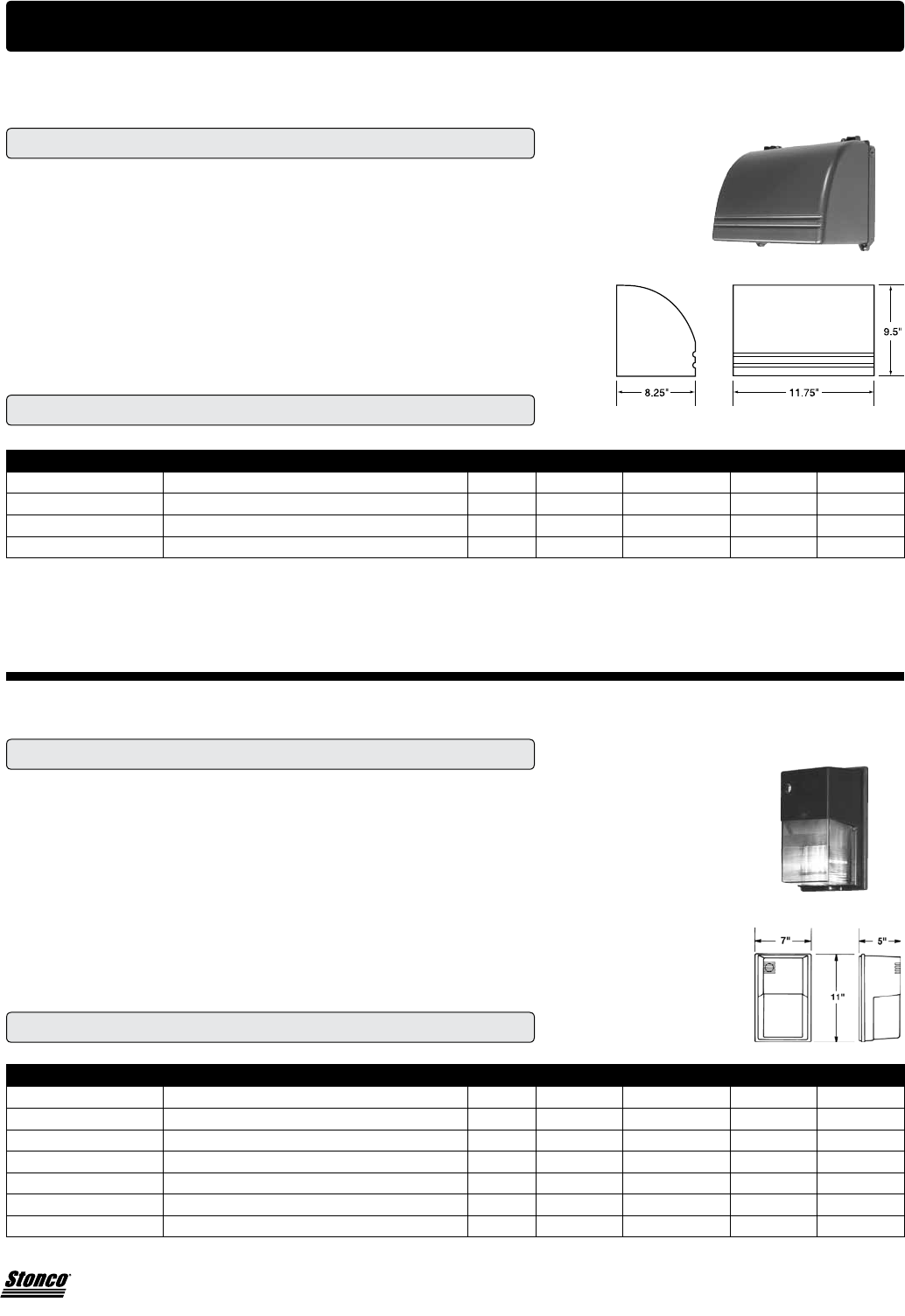

HID Surface-Mounted Lighting - NPM NytePro / TLW Twilighter WallPrism

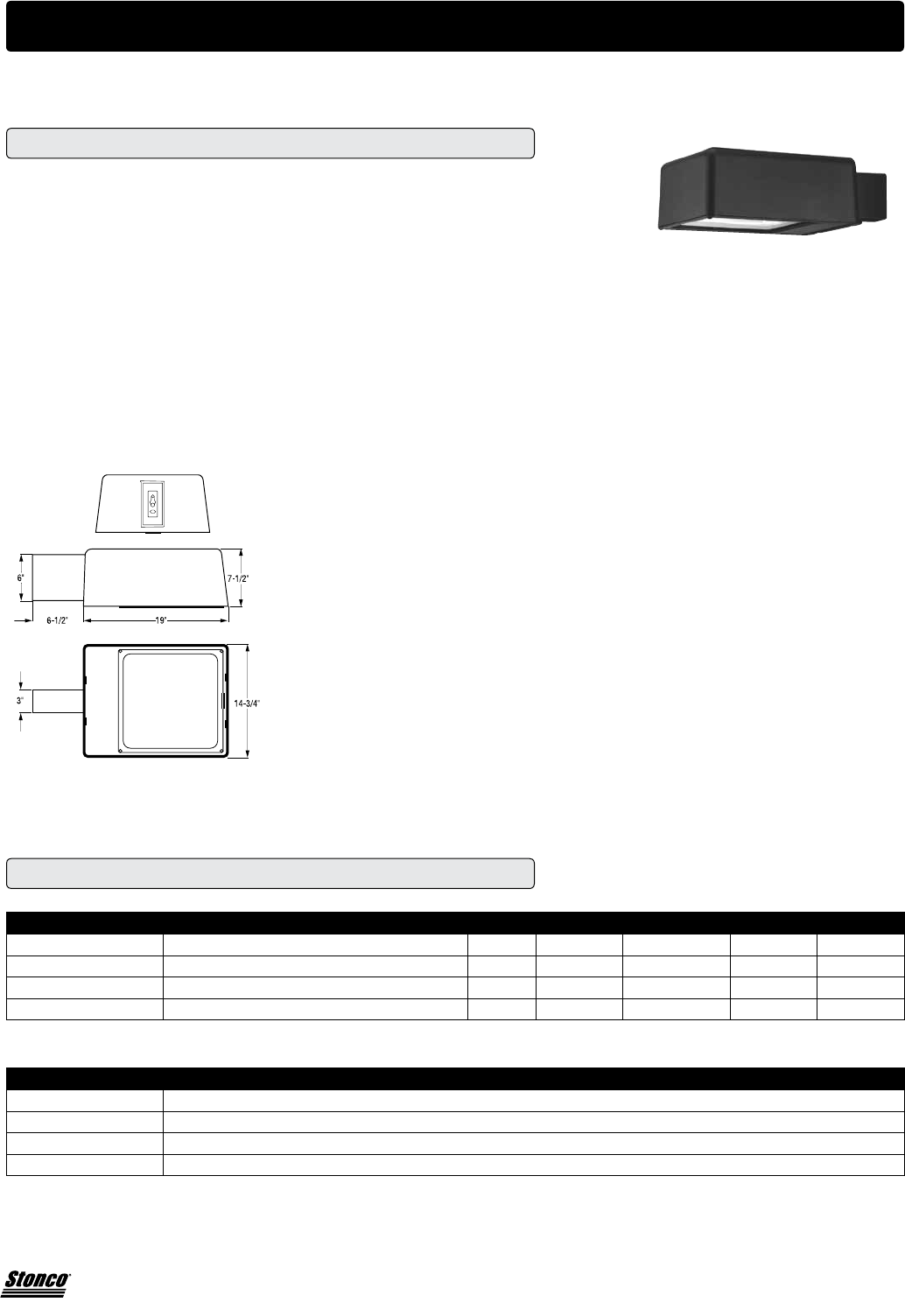

NPM NytePro Architectural Cut-Off Series WallPrism
Specifications
• Perfectblendoflooksandperformance
• Idealforsecurity,accentandperimeterlightingoncommercialandinstitutionalbuildings
• Cut-offopticsmeetlocal“DarkSky”ordinances
• Precisiondie-castaluminumconstruction
• FinishedinDuraPlexIIarchitecturalbronzepolyesternish.
• 1/2”NPStappedholesoneachsideandtopforconduitaccess
• Deluxeglazedporcelainsocketpulseratedfor4kV
• ULlistedforwetlocation
• Precisiondieformedaluminumreectorforpreciselightplacement
• Temperedatglasslenswithaweather-tightgasket
Ordering Information
Specifications
• Excellentforsecurity,accent,andperimeterlighting
• Applicationsincludeentranceways,garages,tunnels,overpassesandalleys
• Vandalresistantpolycarbonatehousingnishedinarchitecturaldarkbronze
• UVstabilizedpolycarbonateprismaticrefractor
• Aluminumreectorprovidessmoothdown-and-outdistribution
• Electricalcomponentsmountedtodie-castmountingplateforeffectiveheattransfer
• Deluxeglazedporcelainsocketpulseratedfor4kV
Part No. Description Wattage Source Ballast Socket Voltage
NPM42HFL-8 NytePro,42w,120-277v 42 CF Electronic GX 120-277
NPM70PMAL-8 NytePro,70w,120-277v,w/Lamp 70 PS HX-HPF Medium 120-277
NPM100PMAL-8 NytePro,100w,120-277v,w/Lamp 100 PS HX-HPF Medium 120-277
NPM150PMAL-8 NytePro,150w,120-277v,w/Lamp 150 PS HX-HPF Medium 120-277
Ordering Information
TLW Twilighter Series WallPrism
Part No. Description Wattage Source Ballast Socket Voltage
TLW35NLXL-1 TwilighterSeriesWallPrism35wHPS 35 HPS NPF-Reactor Medium 120
TLW35NLXLPC-1 TwilighterSeriesWallPrism35wHPSw/PC 35 HPS NPF-Reactor Medium 120
TLW50NLXL-1 TwilighterSeriesWallPrism50wHPS 50 HPS NPF-Reactor Medium 120
TLW50NLXLPC-1 TwilighterSeriesWallPrism50wHPSw/PC 50 HPS NPF-Reactor Medium 120
TLW70NLXL-1 TwilighterSeriesWallPrism70wHPS 70 HPS NPF-Reactor Medium 120
TLW70NLXLPC-1 TwilighterSeriesWallPrism70wHPSw/PC 70 HPS NPF-Reactor Medium 120
TLW42HFL-8 TwilighterSeriesWallPrism42wCF 42 CF Electronic GX 120-277
Accessories
NPM552-ReplacementLens
NPM550-WireGuard
NPMLATCH-ToolessEntryLatch
76 www.stoncolighting.com

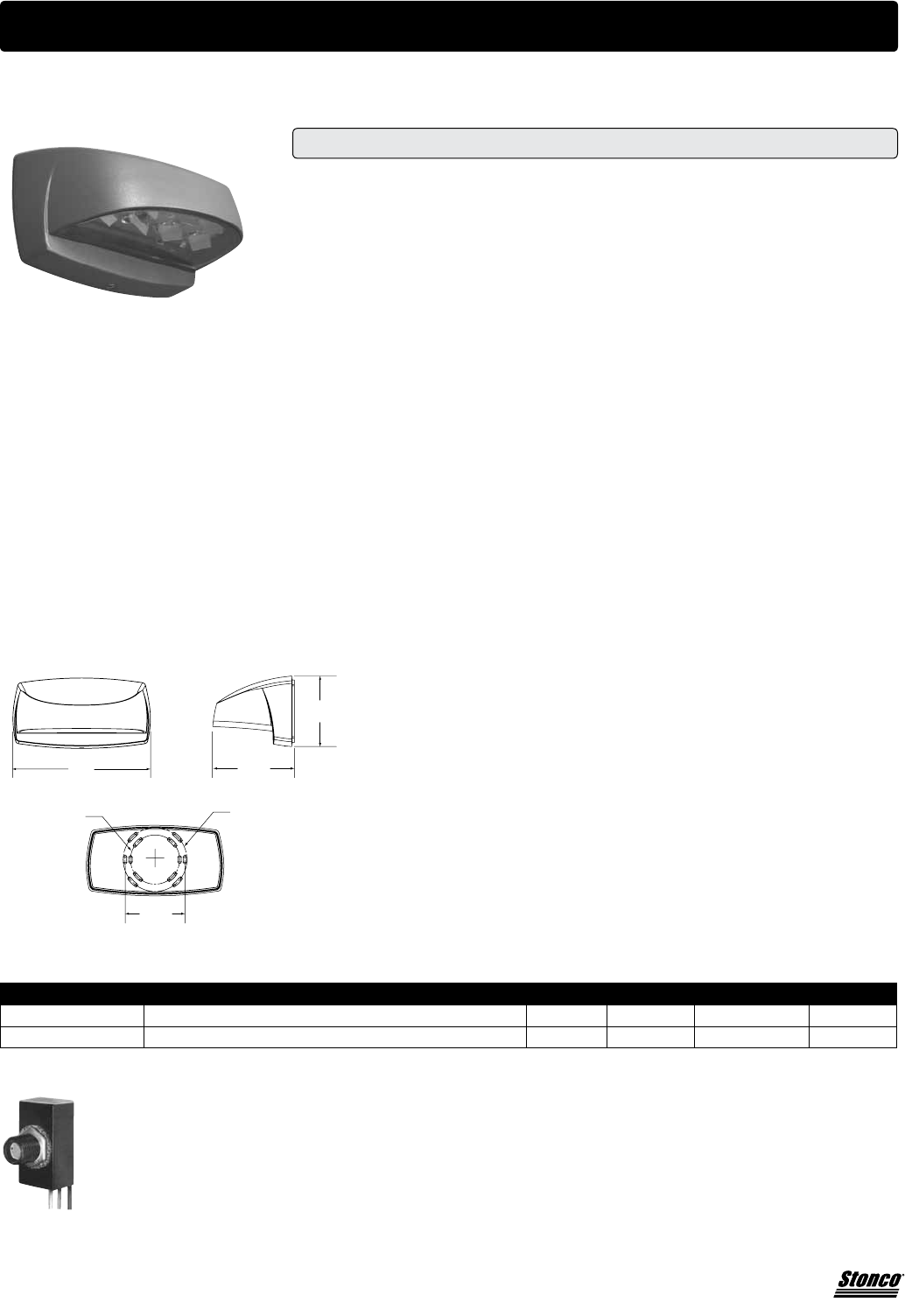

LytePro7 - LED Surface-Mounted Lighting
LytePro7 Architectural LED Wall Sconce
Specifications
• Providessafetyandsecurityinresidentialandlightcommercialapplicationsinlocationssuchasentrances,
overgarages,illuminatehousenumbers,wallsignsandlocatedalongperimetersandpathways
• Sevenhigh-outputLEDShavinganaverageratedlifeof60,000hours
• PhilipsLEDOpticalSystemindividuallycontrolstheplacementoflightinthetargetareaminimizingglare
• 4100kneutralcolortemperaturedeliverslightwithminimalwaste
• TypeIIIdistributionwithshieldedopticsandnouplight
• Individualprecisioncollimatingopticscollectsandredirectlighttooptimizeperformance.
• Functionsinenvironmentswithtemperaturesthatrangefrom-30°Cto40°C
• Housingconstructedofheavydiecastaluminumandfullygasketed
• CorrosionresistantDuraplexIIpolyesterpowdercoatednishavailableinwhiteandtitanium
• Acryliclens
• ElectronicClassIILEDdriveraccepts120-220v,50/60Hzinput(constantcurrent)
• Requiresonly13systemwattsforenvironmentally-friendlyoperation
• Integralcastaluminumheatsinkensurescooloperation
• Completewithintegralsplicechamber
• Built-inbubblelevelforaccuracy
• Universalmountingplatewithhookandlockmounting
• OptionaleldinstalledPCB1photocontrolforautomaticallnightlighting
• ETLtestedsuitableforwetlocations
• Fiveyearwarranty
7.6"
ø 3.5"
ø 2.7"
4.5"
3.9"
3.3"
Part Number Description Voltage # of LEDs Color Temp. Optics
LP7T LytePro7,LED,TitaniumFinish,120-220v,HorizontalTypeIII 120-220 7 4K H3(Type3)
LP7W LytePro7,LED,WhiteFinish,120-220v,HorizontalTypeIII 120-220 7 4K H3(Type3)
Accessories
PCB-1-Photocontrol
77
www.stoncolighting.com
LED Surface-Mounted Lighting - WP / WPM ValueLED
Specifications
• Idealforsecurity,accentandperimeterlighting.Applicationsincludeentrance
ways,garages,tunnels,overpassesandalleys
• Catadiopticrefractorredirectslighttominimizeglare,alignsopticalcenterof
lensandlampforsymmetricallightdistribution
• Heatandshockresistantborosilicateglassrefractorpermanentlybondedto
lensframe
• Stainlesssteelaircraftcablesafetyretainedlensframetobackplatefreeing
bothhandsforservicing
• Precisiondie-castaluminum,DuraplexIIbronzenish,backplatewithcast-
inknockoutsforalignmentwithallstandardrecessedboxes
• One-tappedhole(1/2”NPS)oneachsideandtopforconduitorphotocontrol,
completewithclosureplugs
• HighlumenoutputLEDs
• Upto50%reductioninenergyuse
• 50,000lifetimeoperatinghours
• AcceleratedROIoflessthan3years
• Environmentallyfriendlyuniversalmountingtemplate
• Computerdesignedcatadiopticrefractor
• Precisedie-castaluminumconstructionforexcellentheatmanagement
maximizinglightoutputlife
• Providesevenilluminationat4,000ktemperature
• Traditionalluminairedesignsensuresarchitecturalintegrity
• 5yearsystemwarranty
Ordering Information
Part No. Description System Watts Voltage Finish # of LEDs Color Temp.
WP49LED4K-8 LargeWallPack 92Watt 120-277 Bronze 49 4000K
WPM30LED4K-8 MediumWallPack 65Watt 120-277 Bronze 30 4000K
WP / WPM WallPrism ValueLED
WPM
WP
17.32"
9.71"
8.41"
8.55"
12.61"
9.99"
7.06"
8.66"
78 www.stoncolighting.com
HID Canopy Lighting

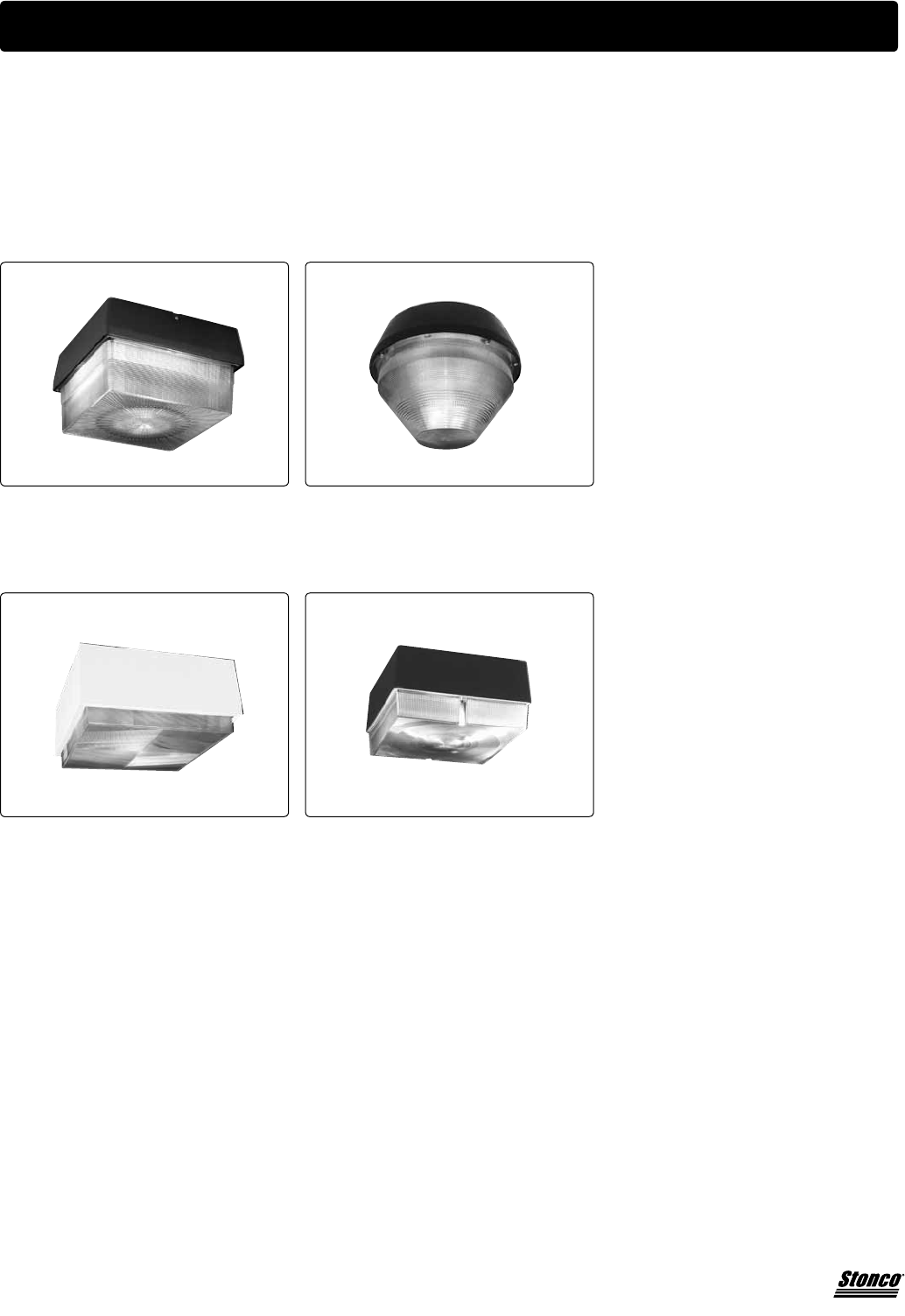

Canopy
StoncoleadsthewaywiththeirinnovativeLPQareaandgarageluminaire.Itisavailablewithavarietyof
sourcesincludinglong-lifeinductionandLED.Superiorlightdistributionmaximizesxtureplacementwhile
addingimportantuplighting.LiketheLPQ,theLCQisforcanopyapplicationsandincludesmanyofthedesign
features,includingLED.
LCQ Series
LyteCubeCanopyLight
Page 79
LPQ Series
LytePrismGarageLight
Page 79
SCL Series
SignatureCanopyLight
Page 81
TLC Series
TwilighterCanopyLight
Page 82
79
www.stoncolighting.com

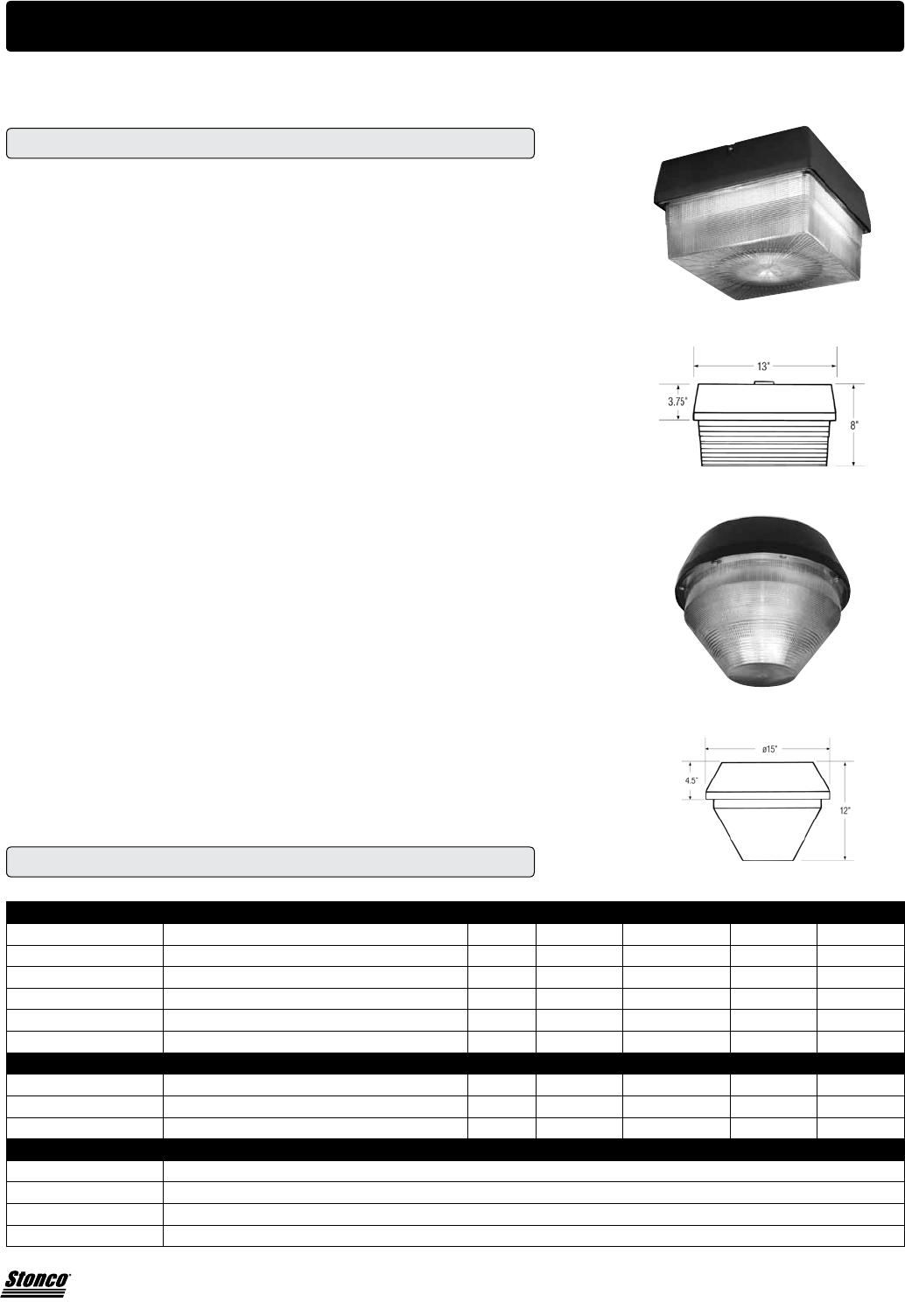

Induction / HID Canopy Lighting - LCQ / LPQ
LCQ Lyte Cube / LPQ Lyte Prism
Specifications
LCQ HID
• Recommendedforceilingorcanopymountedinstallationswhereheightsdonotexceed15feet
• Typicalareasincludeparkinggarages,stripshoppingmallwalkways,maintenanceareas,
industrialcorridors,lowceilingwarehousesandstorageareasorwalk-upwindows
• Precisiondie-castaluminumhousingactsasaheatsinkformaximumheatdissipation
• FinishedinDuraplexIIbronzepolyester
• Hydroformedaluminumreectorwithspecularnishforhighreectivityandmaximumlamp
utilization
• Polycarbonaterefractorprovidesbeamcontrol(55-60°s)andglare-freeilluminationinIESType
Vpatternofferingaspacingratio3.4to1
• Quick-mountplatepermitseasymountingovermoststeeloraluminumrecessedboxes,pendant
orceilingmounting
• Fixturehingesonmountingplateallowingbothhandsfreeforwiring
• Fixtureispre-lampedanddoesnothavetobedisassembledtobeinstalled--hang,mount,wire,
andlockintoplace.
• Deluxeglazedporcelainsocketratedfor4kV
LPQ HID / Induction
• Recommendedforindoorapplicationswhereceilingmountingheightsdonotexceed15feet
• Typicalareasincludeparkinggarages,maintenanceareas,industrialcorridors,washrooms,
storageareas,andlockerrooms
• Precisiondie-castaluminumhousingactsasaheatsinkformaximumheatdissipation
• FinishedinDuraplexIIbronzepolyester
• Quick-mountplatepermitseasymountingoverjunctionboxes,thatarependant,ceiling,or
recessedmounting
• Die-formedheavygaugereectornishedinhighreectancewhitepolyesterpowderprovides
smooth,evenilluminationinanIESTypeVpattern
• Acrylicrefractorprovides20%uplightwithmainbeamat70°,optimallydesignedforparking
garages,polycarbonaterefractoravailable
• Fixtureispre-lampedanddoesnothavetobedisassembledtobeinstalled--hang,mount,wire,
andlockintoplace
• Deluxeglazedporcelainsocketratedfor4kV
• Availablein100,000hrinduction
Ordering Information
Part No. Description Wattage Source Ballast Socket Voltage
LCQ075MAL-6 75wMHCanopy,Type5 75 MH HX-HPF Medium 120/277
LCQ105MAL-6 100wMHCanopy,Type5 100 MH HX-HPF Medium 120/277
LCQ125PMAL-8 125wPulseStartCanopyMulti-Tap,Type5 125 PSMH HX-HPF Medium 120-277
LCQ155LXL-8 150wHPSCanopyMulti-Tap,Type5 150 HPS CWA Medium 120-277
LCQ155NLXL-1 150wHPS120vCanopy,Type5 150 HPS NPF-Reactor Medium 120
LCQ155PMAL-8 150wPulseStartCanopyMulti-Tap,Type5 150 PSMH HX-HPF Medium 120-277
Part No. Description Wattage Source Ballast Socket Voltage
LPQ105MAL-6 100wMHGarage 100 MH HX-HPF Medium 120/277
LPQ125PMAL-8 125wPulseStartGarageMulti-Tap 125 PSMH HX-HPF Medium 120-277
LPQ155PMAL-8 150wPulseStartGarageMulti-Tap 150 PSMH HX-HPF Medium 120-277
Part No. Description
LPQ55840IND-1 LPQSeriesParkingGarageLuminaire,55w,4000Kcolortemperature,inductionsystem,100-120v
LPQ55840IND-4 LPQSeriesParkingGarageLuminaire,55w,4000Kcolortemperature,inductionsystem,200-277v
LPQ85840IND-1 LPQSeriesParkingGarageLuminaire,85w,4000Kcolortemperature,inductionsystem,100-120v
LPQ85840IND-4 LPQSeriesParkingGarageLuminaire,85w,4000Kcolortemperature,inductionsystem,200-277v
LCQ
LPQ
80 www.stoncolighting.com

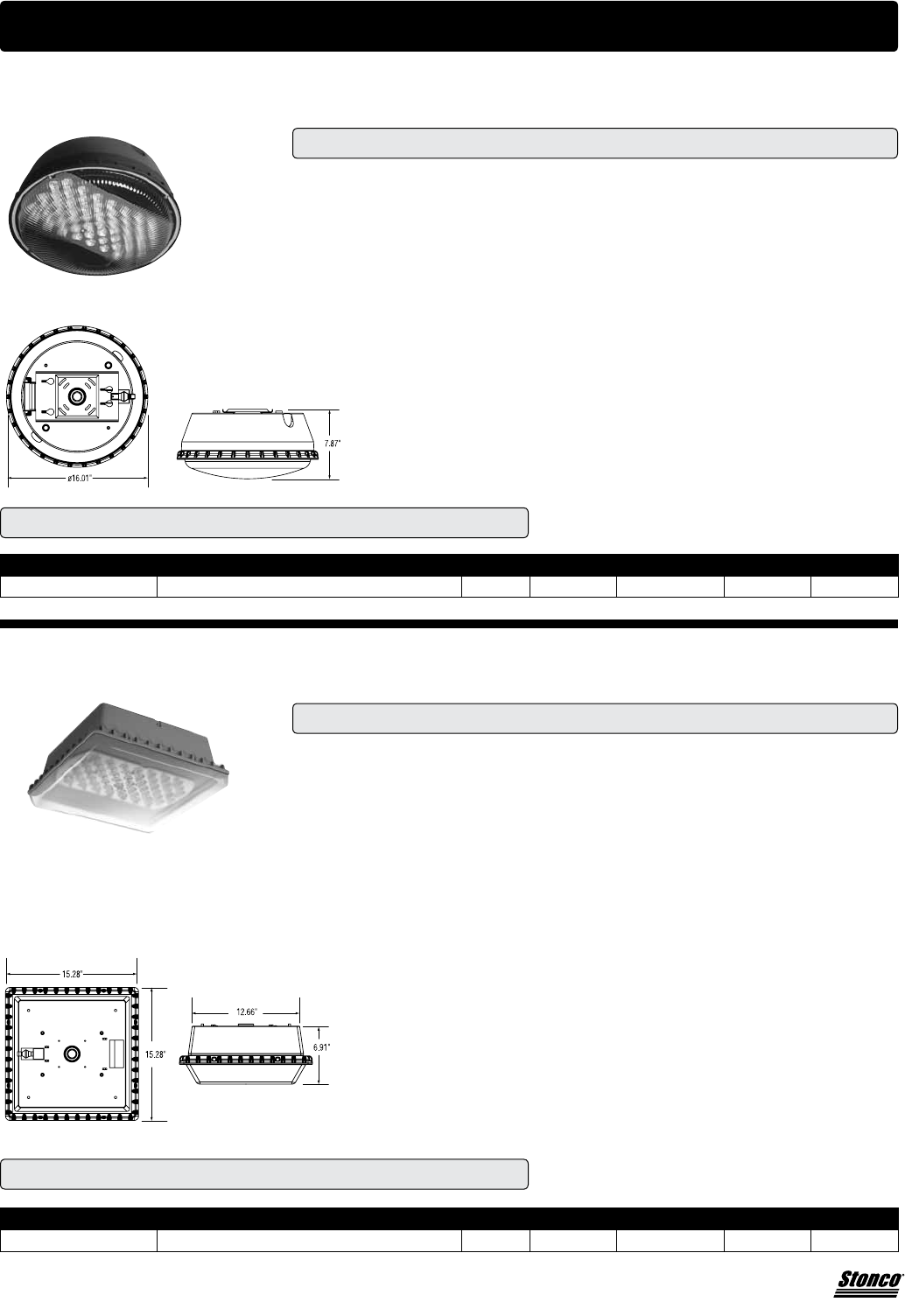

LPQ / LCQ - LED Canopy Lighting
LPQ Lyte Prism LED Parking Garage Luminaire
LCQ LED Canopy Light
Specifications
Specifications
• Precisiondie-castaluminumhousing,nishedinDuraplexIIwrinklebronzepolyesterstandard,actsasa
heatsinkformaximumheatdissipation
• Polycarbonatelens
• Quick-mountplateforeasymountingoverjunctionboxesthatarependant,ceilingorrecessedmounted
• ElectronicclassIILEDdriveraccepts120-277v,50/60hzinput(constantcurrent)
• High-outputLEDs
• Individualprecisionopticscollectandredirectlighttooptimizeperformance
• Opticalsystemindividuallycontrolstheplacementoflightinthetargetareaminimizingglare
• LEDshaveanaverageratedlifeof60,000hours
• Precisiondie-castaluminumhousing,nishedinDuraplexIIwrinklebronzepolyester,actsasaheatsink
formaximumheatdissipation
• Quick-mountplateforeasymountingovermoststeeloraluminumrecessedboxes,pendantorceiling
mounting
• ElectronicclassIILEDdriveraccepts120-277v,50/60hzinput(constantcurrent)
• High-outputLEDs
• Individualprecisionopticscollectandredirectlighttooptimizeperformance
• Opticalsystemindividuallycontrolstheplacementoflightinthetargetareaminimizingglare
• LEDshaveanaverageratedlifeof60,000hours
• Fixturehingesonmountingplateallowingbothhandsfreeforwiring
• Polycarbonatelens
Ordering Information
Ordering Information
Part No. Description Wattage Source Ballast Socket Voltage
LCQ08UB-0546KT5 82wLEDType5Canopy 82 LED Electronic n/a 120-277
Part No. Description Wattage Source Ballast Socket Voltage
LPQ08UB-0546KT5 82wLEDType5Garage 82 LED Electronic n/a 120-277
LPQ LED
LCQ LED
81
www.stoncolighting.com

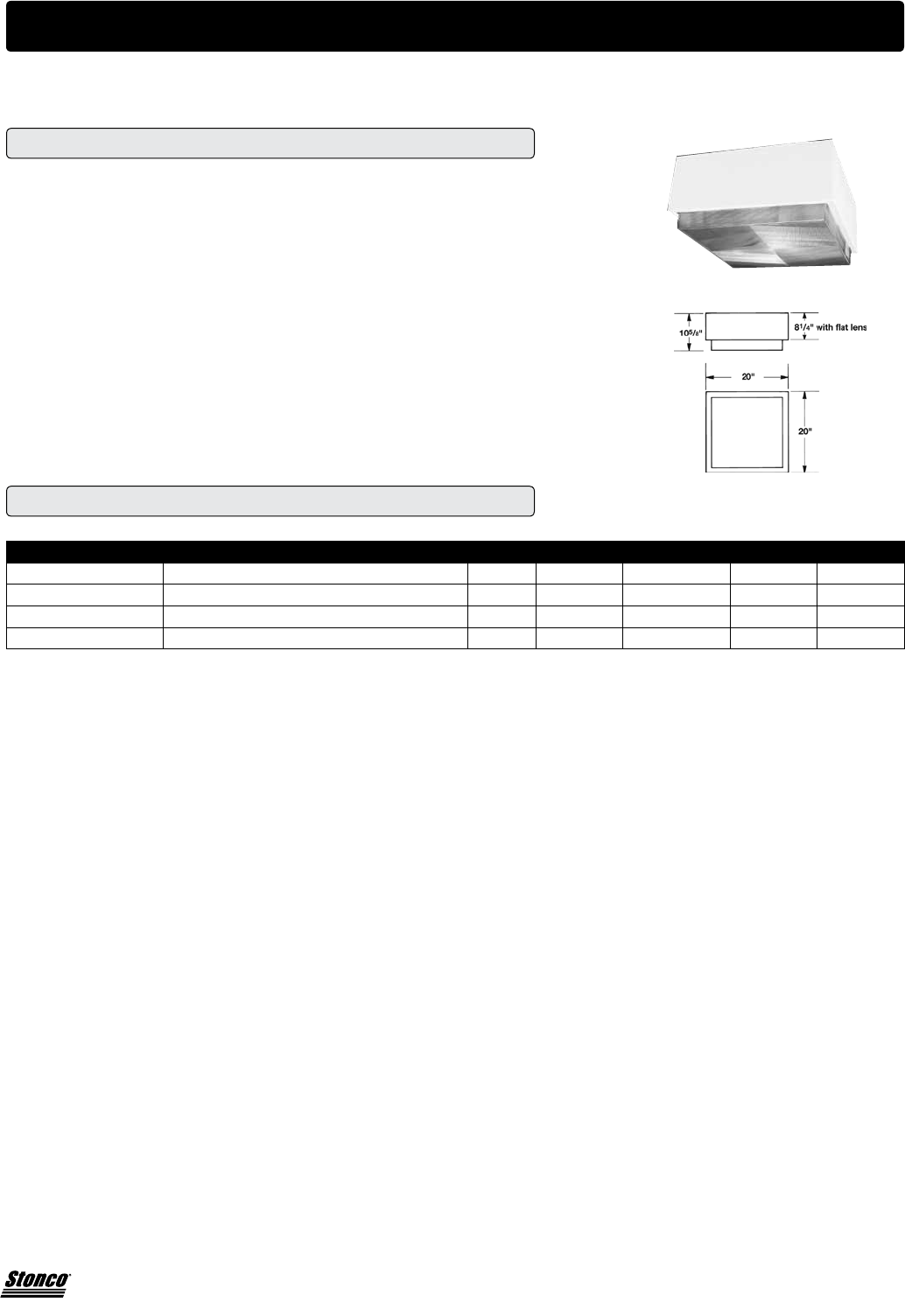

HID Canopy Lighting - SCL Canopy
SCL Signature Canopy Luminaire
Specifications
• Outdoorcanopyandsoftinstallationwheremountingheightsrangebetween10’and20’
• Applicationsincluderetailgasolineislandcanopies,drive-throughcanopiesandsoftsover
walksandentries
• Housingisfabricatedfromformedsteelfordurability
• FinishedinDuraplexIIwhitepolyester
• Ballastcomponentsarerigidlymountedtothehousingformaximumheattransferandstrength.
• Ballastcomponentseasilyaccessiblethrougharemovableballastcover.
• Aclosedcellneoprenegasketprovidesmaximumsealingbetweenthehousingandlens
assembly.
• Nickelplatedlampgrip-typelampsocketswithaspringloadedcentercontactpulse-rated4KV
• Anodizedaluminum,highreectancelightingsheetisusedastheprimaryreectorwithballast
coverusedasthesecondaryreectorforhighefciency
• Highimpactresistantdoubleprisminjectionmoldedacrylicrefractor
• TypeVdistributionisstandardandrotatingrefractor90°providesasymmetricdistribution
Ordering Information
Part No. Description Wattage Source Ballast Socket Voltage
SCL255PMAL-8 250wPS120-277vCanopy,Type5 250 PS CWA Mogul 120-277v
SCL255LXL-8 250wHPS120-277vCanopy,Type5 250 HPS CWA Mogul 120-277v
SCL325PMAL-8 320wPS120-277vCanopy,Type5 320 PS CWA Mogul 120-277v
SCL400PMAL-8 400wPS120-277vCanopy,Type5 400 PS CWA Mogul 120-277v
Accessories
SCL552-ReplacementLens SCL552PR-PolycarbonateLens SCL552GL-GlassLensKit
82 www.stoncolighting.com

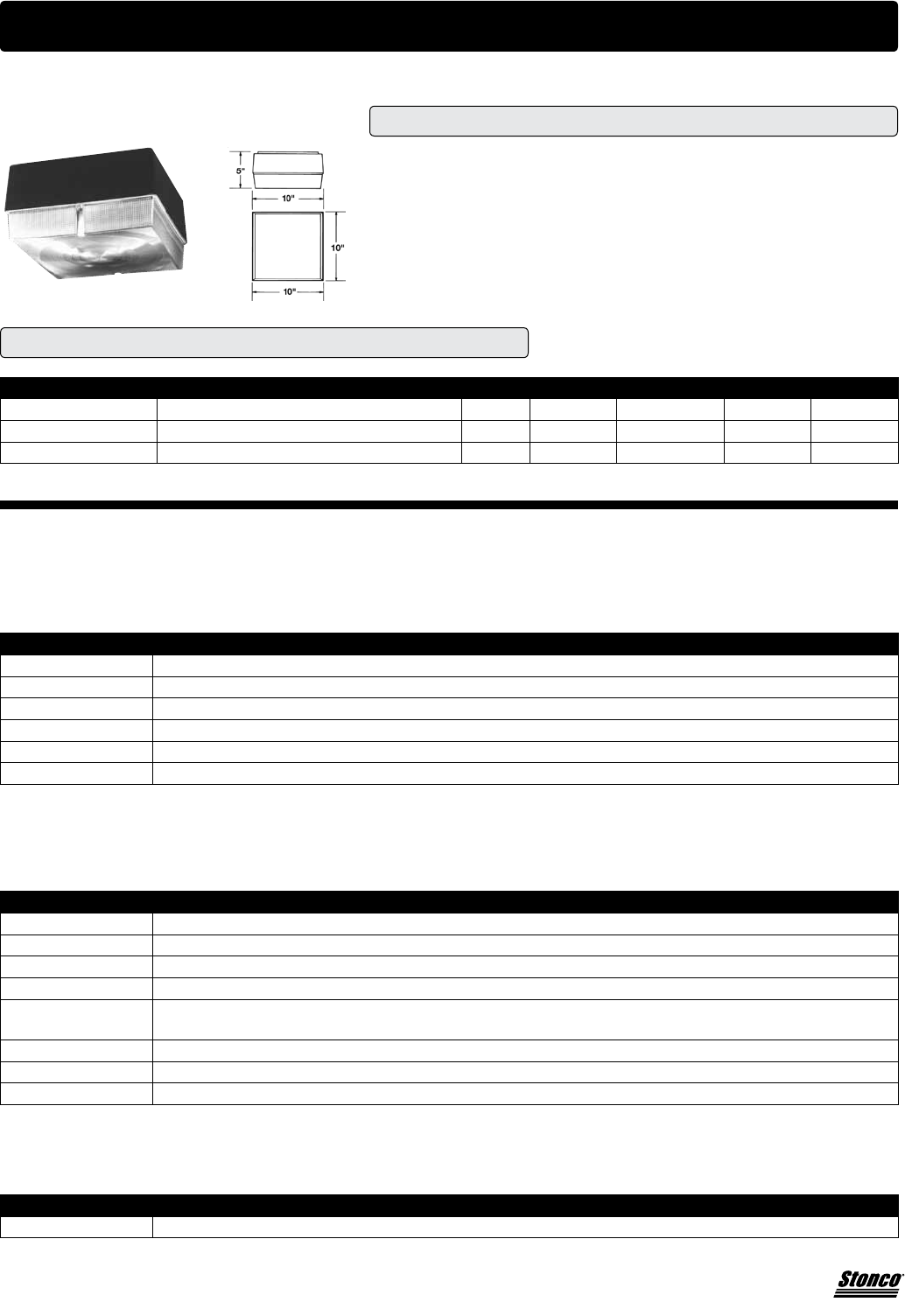

Accessories - HID Canopy Lighting
LCQ / LPQ / TLC Accessories
LCQ Accessories
Catalog Number Description
75 4”roundcastaluminumboxwith4sideholestapped1/2”NPSforthru-wiring
753 4”roundcastaluminumboxwith4sideholestapped3/4”NPSforthru-wiring
LCQ552 Replacementlens
LCQGUARD Wireguard
UJB1 4-1/2”x4-1/2”x2”castaluminumboxwithfour3/4”NPStappedholesonside
HSK Hangstraightkitforslopedceilingsorusewithpendant.Includesuniversaljunctionbox(UJB1)andballandswivelaligner(718S)
LPQ Accessories
Catalog Number Description
75 4”roundcastaluminumboxwith4sideholestapped1/2”NPSforthru-wiring
753 4”roundcastaluminumboxwith4sideholestapped3/4”NPSforthru-wiring.
UJB1 Universaljunctionbox4-1/2”x4-1/2”x2”castaluminumboxwithfour3/4”NPStappedholesonside
HSK Hangstraightkitforslopedceilingsorusewithpendant.Includesuniversaljunctionbox(UJB1)andballandswivelaligner(718S)
3CP15 3’,3conductorapprovedrubberjacketed14-3cableandheavyduty15amptwistplugwithproperNEMAcongurationforspecied
voltage.Openloophookforusew/UJB1(orderseparately)included
3C 3’,3-conductorapprovedrubberjacketed16-3cordandopenloophookforusew/UJB1(orderseparately)
LPQ552 Replacementlenskit
LPQ552PR PolycarbonateReplacementlens
TLC Accessories
Catalog Number Description
TLC552 ReplacmentKit
• Designedforuseundereaves,canopies,enclosedentrancewaysoralongcoveredwalkways
• Pressure-formedglasslledpolyesterhousingnishedinarchitecturaldarkbronze
• HIDunitsequippedwithdeluxeporcelain4KVsocket
• UVStabilizedpolycarbonateprismaticrefractorprovidesTypeVdistribution
• Electricalcomponentsmountedtometalplateforeffectiveheattransfer
Specifications
Part No. Description Wattage Source Ballast Socket Voltage
TLC50NLXL-1 50wHPS120vCanopy,120v,Type5 50 HPS NPF-Reactor Medium 120v
TLC70NLXL-1 70wHPS120vCanopy,120v,Type5 70 HPS NPF-Reactor Medium 120v
TLC42HFL-8 42wCF120vCanopy,120-277v,Type5 42 CF Electronci GX 120-277v
Ordering Information
TLC Twilighter Series
83
www.stoncolighting.com
HID Area Lighting
AreaLighting
CuttingedgearealightingbeginswithStonco’sMCLandSilhouetteArchitecturalseriesxtures.Thesehigh
performanceluninairesdelivercutofflightingbeautifullyandefciently.TheMCLandSilhouettearenow
availablewithanLEDsourcethatreducesenergyconsumptionandgreatlyincreaselamplife.Forentirelyfree
lightingbothareavailablewiththeallnewsolarpackagethatincludesallcomponents,includingpole,from
Stonco.Otherroadwayluminairesareavailableinavarietyofsizesandlamping.
SytePro Series
Horizontal
Page 84
MCL Series
MediumCut-OffRoadway
Page 85
SSM Series
SilhouetteArchitecturalAreaLight
Page 86
MCL Series Solar
MediumCut-OffRoadway
Page 88
84 www.stoncolighting.com
SPH/SPV SytePro - HID Area Lighting
SPH/SPV SytePro Direct-Mount / Post Top
Specifications
• DesignedtosatisfythegrowingneedoflightingdesignerstomeetDarkSkyandlighttrespassrequirements
• Reectorassembliesareeldrotatablein90°increments,allowingorientationofdistributionsinanydirection
• Formedheavy-gaugealuminumsheetmetalhousingresistsdistortion
• Rigidanodizedaluminumdoorframeextrusionishingedforeasylampaccessandgasketedforaleak
 resistantseal
• DuraPlexIIpolyesterpowdercoatnishavailableinsixcolors
• Temperedglasslenswithstandsthermalandphysicalshock
• High-performancehydroformedreectorsarecomputer-optimizedandbalancedforpreciselightdistribution
• Porcelain4KVpulserated,grip-typemogulbasedsocket
• Highpowerfactorballastwithintegralheatsinkdeliversreliableoperationandeffectiveheatremovalfor
 extendedlife
SPH Direct-Mount Luminaire
• TypeIIhasanasymmetricalwidelateralpatternbestsuitedforroadwaysandnarrowareassuchaswalkwaysand
TypeIIIproducesbothlateralandforwardlightthrow,makingitidealforgeneralsiteandperimeterlighting(both
allowmaximumspacing)
SPH Post-Top Luminaire
• Designedforlightingfromthecenterout,TypeVproducesasquarelightpatternthatisbestsuitedforlargeareas
suchasparkinglots
SPV Direct-Mount Luminaire
• TypeIIIproducesbothlateralandforwardlightthrow,makingitidealforgeneralsiteandperimeterlightingand
allowingmaximumspacing.

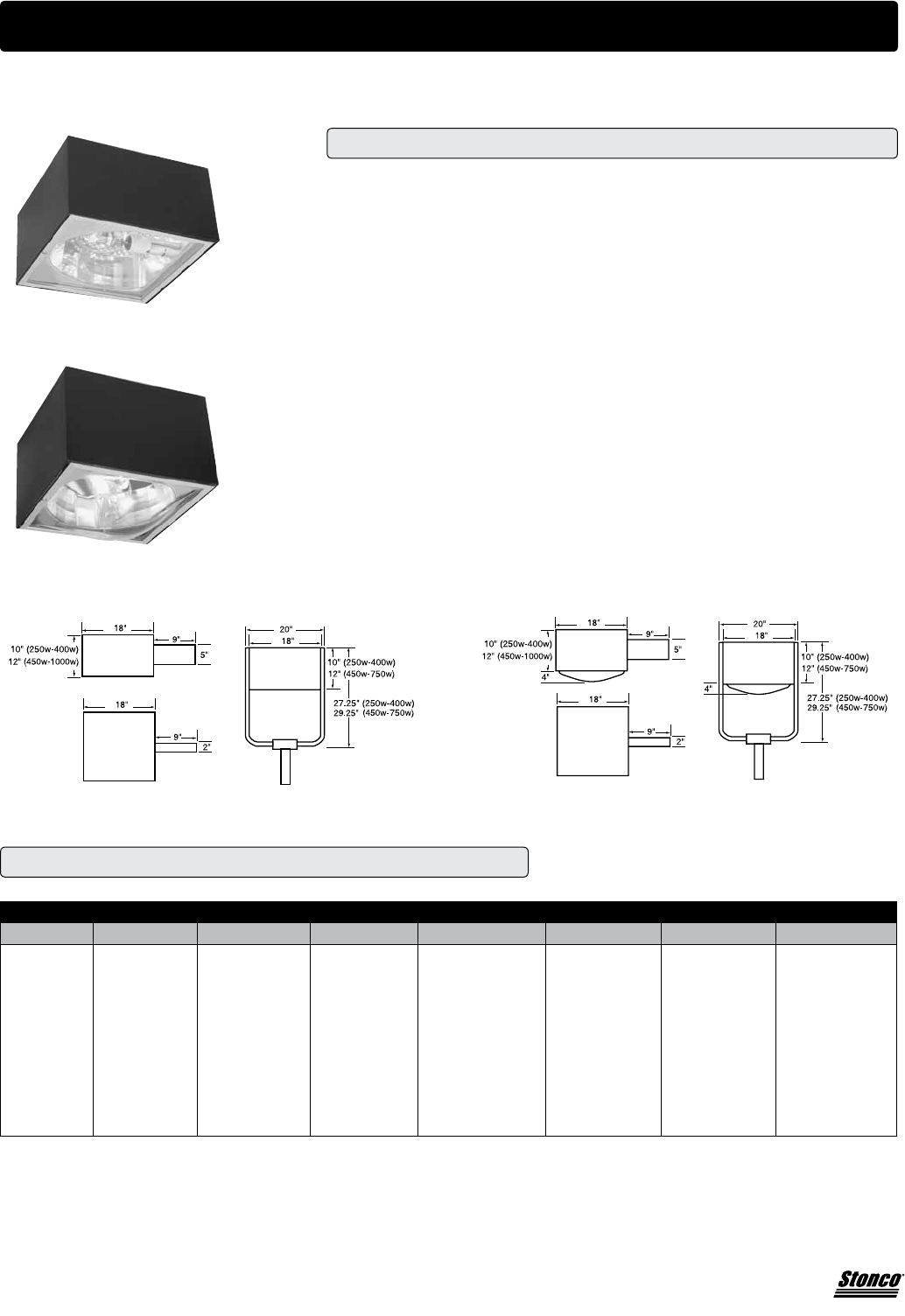

SPV Post-Top Luminaire
• TypeIIIproducesbothlateralandforwardlightthrow,makingitidealforgeneralsiteandperimeterlightingand
allowingmaximumpolespacing.
Ordering Information
Fixture Lamp Distribution Wattage1Source Mounting Options Voltage
SP H 2 320 PMA DM 1
SP-SytePro H-Horizontal
Lamp2
V-VerticalLamp5
2-TypeII4
3-TypeIII
4-TypeIV
5-TypeV
250-250W
320-320W3
350-350W3
400-400W3
450-450W3
750-750W3
MA-MetalHalide
PMA-PulseStart
LX-HighPressure
Sodium
DM-DirectMount
PT4S-PostTop4”
square*
PT5S-PostTop5”
square*
PT3R-PostTop3”
round*
PT4R-PostTop4”
round*
ConsultFactory 1-120V
2-208V
3-240V
4-277V
5-480V
8-120V-277V
*Fordirectpost-topmountingonpolewithouttenon.
1250W-400Wavailablein10”deephousing;450-1000Wavailablein12”deephousing.
2 Horizontal(lamp)mountxturesprovidedwithFlatGlassLensstandard.
3Requiresreducedouterjacketedlamp.
4TypeIIdistributiononlyavailablein400WandbelowMetalHalide.
5 Vertical(lamp)mountxturesprovidedwithSagGlassLensstandard.
SPH
SPH
EPA=1.9ft2(2.2ft2750w)
SPV
EPA=1.9ft2(2.2ft2750w)
SPV
85
www.stoncolighting.com
Induction / HID Area Lighting - MCL Medium Cutoff
MCL Cutoff HID and Induction Luminaire
Specifications
• Idealforanyoutdoorapplicationwheretightlightcontrolisneededtopreventglareandlighttrespassfor
exampleforroadwaysandparkinglots
• Onepiecedie-castaluminumhousingisnishedinDuraplexIIbronzepolyester
• Lensframeassemblyisfullygasketedwithsiliconetopreventdustandbugentry
• Heatandshockresistanttemperedglasslens
• Tool-lessentryforrelamping.Lensframeopensbyreleasingastainlesssteellatch
• Onepiecehydro-formedreectorforIESTypesIIandIII.Forwardthrowwithprecisionformedsegmented
reectorisavailable
• Allinternalelectricalcomponentsareinstalledonaballasttraythatswingsdownforeasyaccessand
replacement
• Die-castaluminumarm,factoryinstalled,withintegralwiringcompartment
• Sideaccesscoverallowswiringconnectionstobemadeinarm
• Keyslotdesignallowsforsinglepersonhookandplacementofxtureleavinghandsfreeforwiring
• Inductionsystemratedfor100,000hours
Ordering Information
Part No. Description Wattage Source Ballast Socket Voltage
MCL3250LX-8 250wHPSMulti-TapType3 250 HPS CWA Mogul 120-277
MCL3250PMA-8 250wPulseStartMulti-TapType3 250 PSMH CWA Mogul 120-277
MCL3400LX-8 4000wHPSMulti-TapType3 400 HPS CWA Mogul 120-277
MCL3400PMA-8 400wPulseStartMulti-TapType3 400 PSMH CWA Mogul 120-277
MCL HID / QL
MCL HID
EPA=1.5ft2
Part No. Description
MCL28584IND-1 MCLSeriesAreaLight,TypeIIdist.,85w,4000Kcolortemperature,inductionsystem,100-120v
MCL28584IND-4 MCLSeriesAreaLight,TypeIIdist.,85w,4000Kcolortemperature,inductionsystem,200-277v
MCL216584IND-1 MCLSeriesAreaLight,TypeIIdist.,165w,4000Kcolortemperature,inductionsystem,100-120v
MCL216584IND-4 MCLSeriesAreaLight,TypeIIdist.,165w,4000Kcolortemperature,inductionsystem,200-277v
86 www.stoncolighting.com

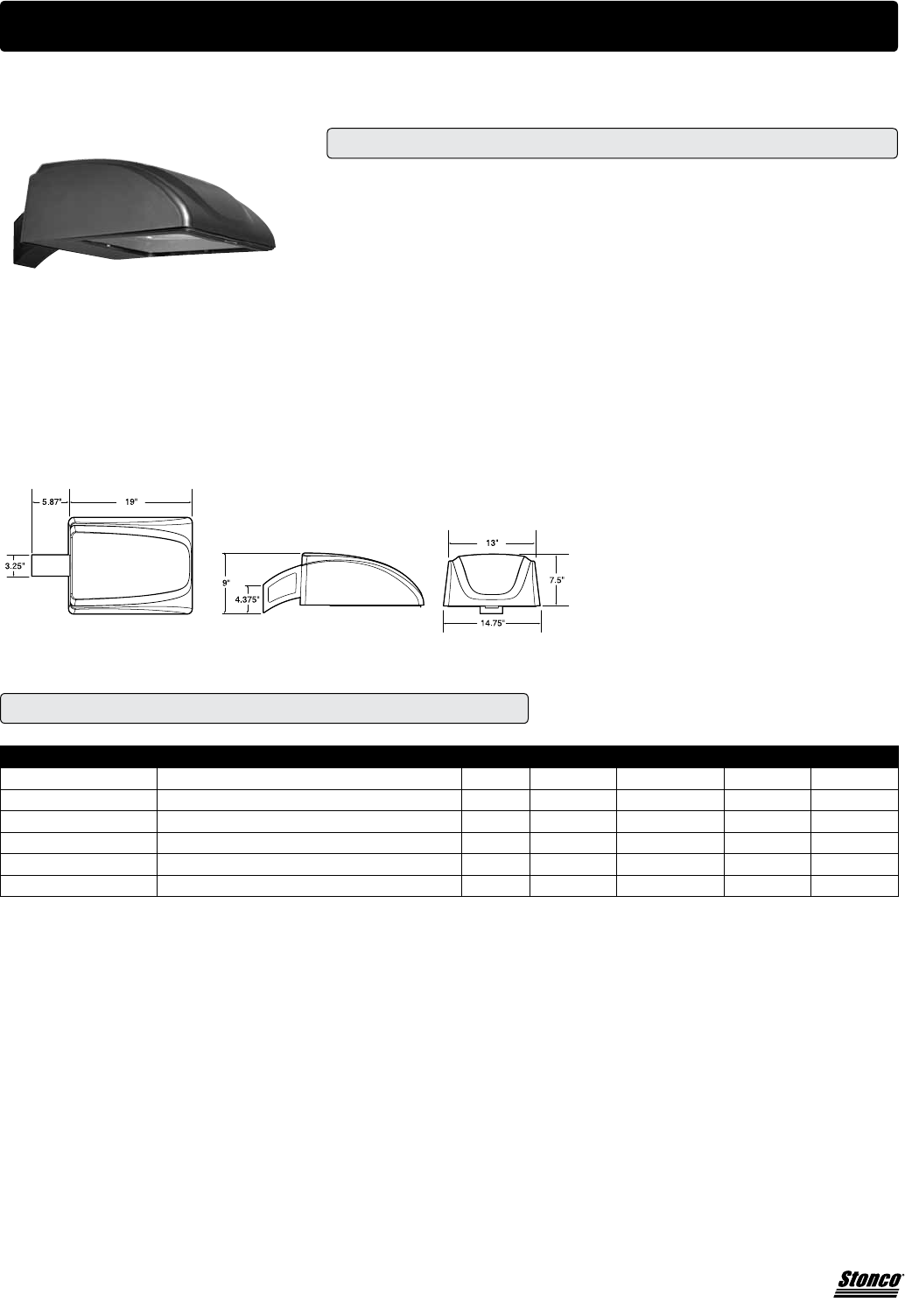

SSM Silhouette - HID Area Lighting
SSM Silhouette Series Architectural Cutoff Luminaire
Specifications
• Idealforanyoutdoorapplicationwheretightlightcontrolisneededtopreventglareandlight
trespass.Idealforroadwaysandparkinglots
• ComplieswithIESrequirementsforfullcutoffmeetingallDarkSkyordinances.
• One-piecedie-castaluminumhousingisnishedinDuraplexIIpolyesterinmanystandardand
designercolors
• Tool-lessentryforre-lampingwithstainlesssteellatchforlensframeopening
• Lensframeassemblyisfullygasketedwithsiliconetopreventdustandbugentry
• Heatandshockresistanttemperedglasslens
• Onepiecehydro-formedcut-offreector
• Allinternalelectricalcomponentsareinstalledonaballasttraythatswingsdownforeasyaccessand
replacement
• Keyslotdesignallowsforsingle-personhookandplacementofxtureleavinghandsfreeforwiring
• 6”die-castaluminumarm,factoryinstalled,withintegralwiringcompartment
• Sideaccesscoverallowswiringconnectionstobemadeinarm
Ordering Information
Part No. Description Wattage Source Ballast Socket Voltage
SSM3175PMA-8 175wPulseStartMulti-TapType3 175 PSMH CWA Mogul 120-277
SSM3250LX-8 250wHPSMulti-TapType3 250 HPS CWA Mogul 120-277
SSM3250PMA-8 250wPulseStartMulti-TapType3 250 PSMH CWA Mogul 120-277
SSM3320PMA-8 320wPulseStartMulti-TapType3 320 PSMH CWA Mogul 120-277
SSM3400LX-8 400wHPSMulti-TapType3 400 HPS CWA Mogul 120-277
SSM3400PMA-8 400wPulseStartMulti-TapType3 400 PSMH CWA Mogul 120-277
EPA=1.5ft2
87
www.stoncolighting.com
• One-piecedie-castaluminumhousingisnishedinDuraplexIIwrinklebronzepolyesterstandard
• Optionaldesignernishesavailable.(Consultfactory)
• Fullytemperedsodalimeglasslens
• ElectronicclassIILEDdriveraccepts120-277v,50/60hzinput(constantcurrent)
• High-outputLEDs
• Individualprecisionopticscollectandredirectlighttooptimizeperformance.
• Opticalsystemindividuallycontrolstheplacementoflightinthetargetareaminimizingglare
• LEDshaveanaverageratedlifeof60,000hours.
• Integralcastaluminumheatsinkensurescooloperation.
•Fullytemperedsodalimeglasslens
• ElectronicClassIILEDdriveraccepts120-277v,50/60hzinput(constantcurrent)
• High-outputLEDs
• Individualprecisionopticscollectandredirectlighttooptimizeperformance
• Opticalsystemindividuallycontrolstheplacementoflightinthetargetareaminimizingglare
• LEDshaveanaverageratedlifeof60,000hours
• Integralcastaluminumheatsinkensurescooloperation
• Keyslotdesignallowsforsinglepersonhookandplacementofxtureleavinghandsfreeforwiring
Specifications
Specifications
LED Area Lighting - SSM/MCL LED
Ordering Information
Ordering Information
SSM Silhouette Series Architectural Cutoff LED Luminaire
MCL Medium Cutoff LED Luminaire
Part No. Description Wattage Source Ballast Socket Voltage
SSM08UB-0546KV3 82wLEDType3 82 LED ElectronicDriver n/a 120-277
Part No. Description Wattage Source Ballast Socket Voltage
MCL08UB-0546KV3 82wLEDMulti-TapType3 82 LED ElectronicDriver n/a 120-277
EPA=1.5ft2
EPA=1.5ft2
88 www.stoncolighting.com
MCL / SSM Solar LED Systems - Solar LED Area Lighting
MCL Medium Cutoff / SSM Architectural Solar LED
Specifications
System
• Completesolarsystemdesignedforoffgridapplications
• CompletewithLEDluminaire,driver,batteries,solarpanelsandpole
• Factoryprogrammedruntime
• Customsizedbasedupongeographiclocation(zipcode)
Luminaire
• 49highoutputLEDs
• Individualprecisionoptics
• Ratedfor60,000hours
• Integralcastaluminumheatsinkensuresproperthermalmanagement
• Availableinavarietyofstyles:singleordouble,architectural(SSM)orconventional(MCL)
Battery
• Longlifegelcellbattery
• 12volts
• 100Ah
• 12volt
Panel
• Multiplesof80,100or125watts
• 18Vnominalvoltage
• 1000VDCmaximumsystemvoltage
Driver
• ElectronicLEDdriver
• Availablefor30,40or60watts
• Factoryprogrammedruntime
Ordering Information
Series Finish Distribution Zone LED No. Fixtures Wattage Run Time Battery Location
SSM P 3 PV13 LED 1 40 DTD L
MCL-
MediumCutoff
Roadway
Luminaire
SSM-
SilhouetteSeries
ArchitecturalArea
Luminaire
B-Black
W-White
P-Bronze
2-IESTypeII
3-IESTypeIII
PV01-PV20
BasedonGeographic
Location(ZIPCode)
ConsultFactory
LED 1-Single
2-Double1
30-30Watts
40-40Watts
60-60Watts
DTD-Dusk-to-Dawn
5/0/0-5hoursafter
dusk
6/0/2-6hoursafter
dusk,2hoursbefore
dawn
6/0/8@50%-6
hoursfullpowerafter
duskand8hours1/2
powertodawn.
L-8-Feetabovegrade
H-PoleTop
1Availablein30wattsonly
MCL LED
EPA=1.5ft2
SSM LED
EPA=1.5ft2
MCL LED
SSM LED
89
www.stoncolighting.com
DTD Dusk-To-Dawn Series
Specifications
• Provideslightingforsecurity,accent,convenienceandperimeterlightinglikeentrancewaysandgarages
• NEMAtwistlockautomaticDusktoDawnphoto-control
• Onepieceprismaticrefractorwithopenbottomprovidessymmetricallightpattern
• Allunitscomecompletewithmountinghardware
HID Area Lighting - DTD Dusk-To-Dawn Series
Ordering Information
Part Number Description Wattage Source Lamp Voltage
DTDA100NLXL-1 Dusk-To-Dawn,100w,HighPressureSodium,120v 100 NLX Included 120v
DTDA150NLXL-1 Dusk-To-Dawn,150w,HighPressureSodium,120v 150 NLX Included 120v
Replacement Parts
DTDA552-Acrylliclenswith12”diameter
DTDA553-Aluminumreectorwith12”diameter
DTDARM-ConvertDTDtoDTDA
MCL / SSM Accessories
Catalog Number Description
MCLTA25R Two@90°-forRoundPoles
MCLTA35R Three@120˚-forRoundPoles
MCLRPA4 4”RoundPoleAdapter
MCLTA10R TenonAdapter(23/8OD)drilledforone-forRoundPoles
MCLTA20R TenonAdapter(23/8OD)drilledfortwo@180°-forRoundPoles
MCLTA30R TenonAdapter(23/8OD)drilledforthree-forRoundPoles
MCLTA40R TenonAdapter(23/8OD)drilledforfour-forRoundPoles
MCLTA25S Two@90°forSquarePoles
MCLTA10S TenonAdapter(23/8OD)drilledforone-forSquarePoles
MCLTA20S TenonAdapter(23/8OD)drilledfortwo@180°-forSquarePoles
MCLTA30S TenonAdapter(23/8OD)drilledforthree-forSquarePoles
MCLTA40S TenonAdapter(23/8OD)drilledforfour-forSquarePoles
MC10 5”SquareWallMountingPlate
206WBR 5”SquareThruWireBox
MCLARMTLRSC 6”armwithTwistLockPhotocontrolandShortingCap
MCL / SSM Accessories
90 www.stoncolighting.com
Steel Poles
Poles- Steel
Round Tapered Steel
Fixture Diameter
Catalog Number Mounting Height EPA (100 MPH) Weight Base Top Gauge
S590A200-XX-ZZ 20 12.2 305 5.9 3.1 11
S590A250-XX-ZZ 25 8 200 5.9 2.4 11
S660A300-XX-ZZ 30 7.5 187 6.6 2.4 11
S730A350-XX-ZZ 35 7.1 177 7.3 2.4 11
S782A389-XX-ZZ 39 6.6 165 7.82 2.4 11
Round Non-Tapered Steel
Fixture Diameter Wall
Catalog Number Mounting Height EPA (100 MPH) Weight Base Top Thickness
S300V160-XX-ZZ 16 2.3 60 3 3 .12
S400V180-XX-ZZ 18 4.5 130 4.5 4.5 .12
S450V200-XX-ZZ 20 5.2 130 4.5 4.5 .12
S500V250-XX-ZZ 25 4.2 150 5 5 .12
S5006300-XX-ZZ 30 4.7 125 5 5 .18
Square Tapered Steel
Fixture Diameter
Catalog Number Mounting Height EPA (100 MPH) Weight Base Top Gauge
S525A200-XX-ZZ 20 10.7 268 5.25 3.05 11
S641E250-XX-ZZ 25 9.5 238 6 3.25 11
S641A300-XX-ZZ 30 7 175 6.41 3.11 11
S681A350-XX-ZZ 35 4.8 120 6.81 2.96 11
S713E389-XX-ZZ 39 10.4 260 7.13 2.87 7
Soft Square Steel
Fixture Diameter
Catalog Number Mounting Height EPA (100 MPH) Weight Base Top Gauge
S400Q180-XX-ZZ 18 6.7 168 4 4 11
S400Q200-XX-ZZ 20 4.5 150 4 4 11
S400W250-XX-ZZ 25 5.4 135 4 4 7
S500W300-XX-ZZ 30 3.9 100 5 5 7
S600W350-XX-ZZ 35 4.2 105 6 6 7
Specifications
Ordering Information
• Roundnon-taperedsteelpoleisfabricatedfromhotrolledweldedsteeltubingofone-piececonstructionwithminimumyieldstrengthof42,000psi.Pole
shaftsconformtoconformstoASTMA595GradeAorA572Grade55.Roundsteeltaperedhasalineartaperof.14in/ft.Squaretaperedhasalineartaperof
0.11in/ft.
• Apoletopplateandtenonareprovidedfortopmountluminaireand/orbracket.Aremovablepolecapisprovidedforpolesreceivingdrillingpatternsfor
side-mountluminairearmassemblies.Forotherxturemountinginformation,pleaseconsultthefactory.
• Standardnishesaregalvanized,primepaintedoranyofStonco’sProtectionSystems.Additionalnishoptionsavailableuponrequest.
• Allstructuralfastenersaregalvanizedhighstrengthcarbonsteel.Allnon-structuralfastenersaregalvanizedorzinc-platedcarbonsteelorstainlesssteel.
• Theanchorbase(baseplate)conformstoASTMA36.
• AnchorboltsconformtoASTMF1554Grade55andareprovidedwiththecorrectnumberofhexnutsandwashersdependingonthepolestyle.Boltshavean
“L”bendononeendandaregalvanizedaminimumof12”onthethreadedend.
• Optionalanchorboltnutcoversareavailableuponrequest.
• Thetwo-piecestandardfullbasecoverisfabricatedfromABSplastic.Stoncoreservestherighttoprovideanoptionaltwo-piecesteelfullbasecoveronsome
applicationsdependinguponthenishrequirementand/orpolebasesquare.
• Acoveredhandholeandgroundingprovisionwithhardwareisprovided.
91
www.stoncolighting.com
Aluminum Poles
Poles- Aluminum
Round Tapered Aluminum
Fixture Diameter Wall
Catalog Number Mounting Height EPA (100 MPH) Weight Base Top Thickness
S1908-3056T4-XX-ZZ 20 4.5 150 5 3 0.188
S2208-40605T4-XX-ZZ 23 4.4 150 6 4 0.156
S2408-40606T4-XX-ZZ 25 4.6 150 6 4 0.188
S2708-45805T4-XX-ZZ 28 7.6 150 8 4.5 0.156
Round Straight Aluminum
Fixture Diameter Wall
Catalog Number Mounting Height EPA (100 MPH) Weight Base Top Thickness
S1600-50504S4-XX-ZZ 16 4 150 5 5 0.125
S1800-50505S4-XX-ZZ 18 4.1 150 5 5 0.156
S2000-50506S4-XX-ZZ 20 4.2 150 5 5 0.188
S2500-60606S4-XX-ZZ 25 4.7 150 6 6 0.188
Specifications
Ordering Information
• AllaluminumalloysshallcomplywithmetallurgicalandmechanicalpropertiessetforthintheAluminumAssociationStandards.
• Thesquarestraightshaftsshallbeextrudedfromallnewseamless6000seriesalloyaluminumtubing.Squareshaftsshallbesuppliedwithasquaretop
closurewhentheshaftsaretobedrilledforsidemountingofluminaires.RoundStraightpolesshallbeextrudedfromallnewseamless6063alloyaluminum
andshallbeheattreatedtoproduceaT6temper.Stoncosquarestraightshaftswithasatinnishshallbelongitudinallypolished,resultinginahighquality
brushednish.Afternishing,eachpoleshallbefullywrappedforprotectioninshipment.
• TheanchorbaseiscastfromA356alloyaluminumandiscircumferentiallyweldedtotheshaft.TheassemblyshallbeheattreatedtoaT6temperafterall
structuralweldinghasbeencompleted.Theanchorboltrecessesintheanchorbasecastingshallbeushcoveredby(4)tamperresistantaluminumnut
coverdisks.
• Allsquarepolesshallincludeawireaccessopeningwithasurface-mountedcover.Theopeninginthe4”squarepolesshallbe2”x4”centered12”above
thebottomofthepole.Theopeninginthe5”polesshallbe2”x4”centered14”abovethebottomofthepole.Theopeninginthe6”polesshallbe2-5/8”x
5”centered18”abovethebottomofthepole.Thegroundlugwith5/16”-18tappedholeshallbelocatedoppositethehandhole.Roundpolestandardsshall
includeacoveredhandhole.Theopeninginthe4-1/2”and5”diameterpoleshallmeasure3”x5”.Theopeninginthe4”diameterpoleshallmeasure2-3/8”
x4-1/2”.Consultfactoryforavailabilityoflargeropeningsandotheropeninglocations.
• Eachanchorbaseshallinclude:(4)steelhotdipgalvanizedanchorboltseachwith(2)nutsand(2)atwasherssizedtomatchtheanchorbolt.
• Naturalanodize,duranodic,orpaintednishesmaybespeciedasanadditiontothepolesatinnish.Allaluminumpartsandaccessoriesshallreceivea
nishsimilartothatspecied.
Mounting Arrangement and Finish Designation (Applies to Steel and Aluminum Poles)
XX= MountingArrangement: ZZ= Finish
D1 1xture BZ StandardBronze
D2 2@180˚ DB DarkBronze
D3 3@120˚ BK Black
D4 4@90˚ GV Galvanized
D5 2@90˚ WH White
D6 3@90˚
P2 2-3/8”ODx4”LongTenon
P4 4”ODx6”LongTenon
92 www.stoncolighting.com

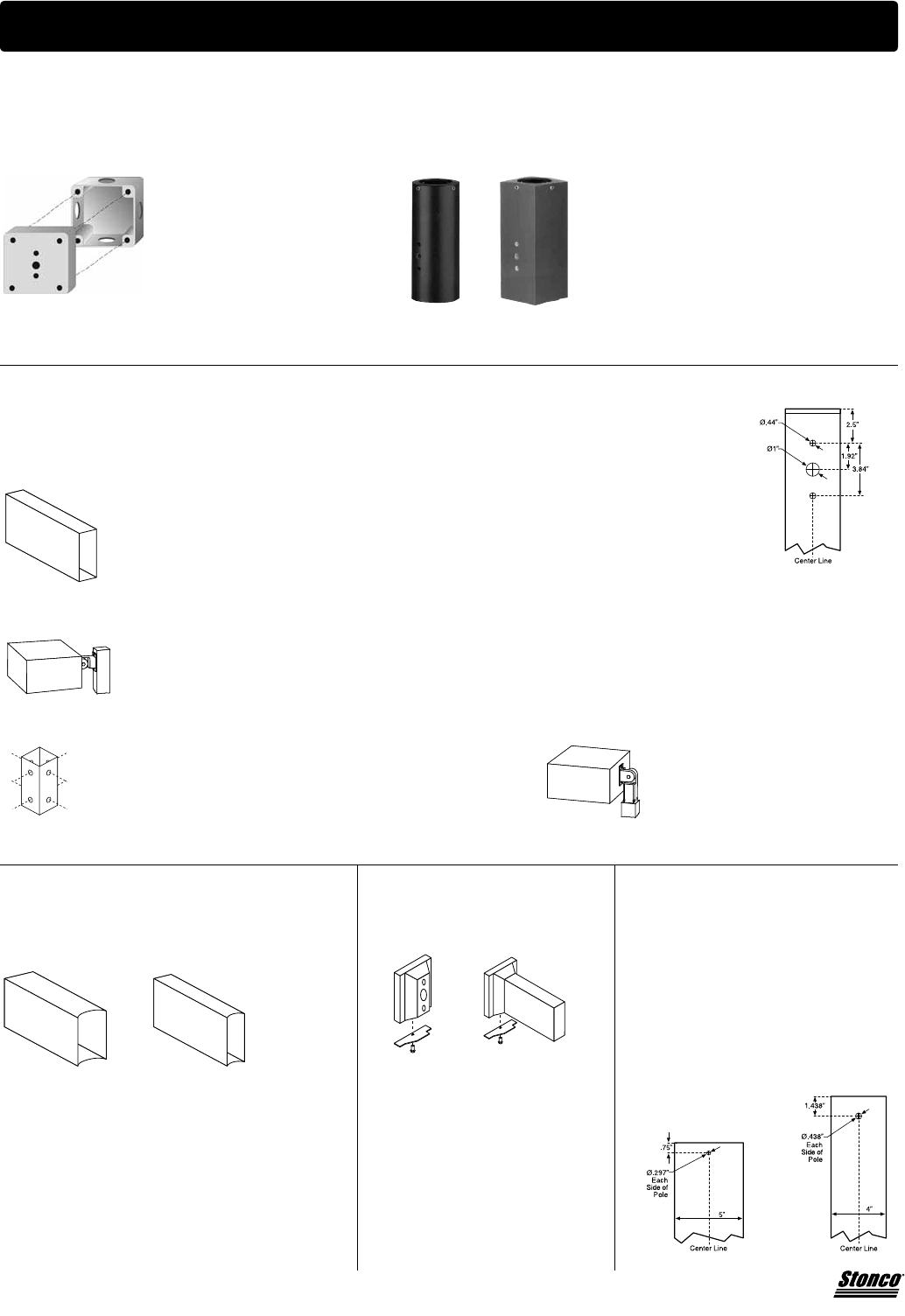

MC10
Die-castaluminumadaptermounting
platewithbronzepowdernish.
FixturearmmountstoMC10andcan
besurfacemountedvia4lagbolts.
206WBR
Die-castaluminumJ-BoxforMC10.
Hasfour3/4”threadedholes.Finished
inbronzepowder.
MC10
206WBR
MCLTA10R MCLTA10S
MCLTA10RandMCLTA10S
Sand-castaluminumtenonadapters.Allows1to4xtures
tobemountedtoasquareorroundpolewitha23/8”tenon.
NumberofFixtures RoundAdapters SquareAdapters
1 MCLTA10R* MCLTA10S
2 MCLTA20R* MCLTA20S
3 MCLTA30R* MCLTA30S
4 MCLTA40R* MCLTA40S
*RequiresoneMCLRPA4roundpoleadapterperxture.
For MCL (up to 400w) Shoebox Fixtures
For SytePro Direct-Mount Fixtures on Square Poles (DM)
“DM”(DirectMount)xturesaredesignedtomountdirectlytothesideofasquarepolewith4”minimumsize.Thepolemustbedrilledtomatchthe
mountingtemplateofthexture.Two“DM”stylexturescanbemountedat180˚butrequirea9”arminordertomountat90˚.
“DM”stylexturesareshippedwithoutanarm,whicharerequiredtomountxturestoasquarepoleat90˚.Thecorrect
catalognumberformountingtoasquarepoleisARM9S.
ARM9S
AnSPAAisdesignedtomounta“DM”stylexturedirectlytothesideofasquarepole,withthepoledrilledtomatchthe
SPAAmountingtemplate.Twoxturescanbemountedat180˚butnotat90˚
SPAA
Inordertomountmultiple“DM”stylexturestoasquarepolewitha2”tenonyoumust
useaSTA490.Ifthexturesaregoingtobemountedat90˚,youmustorderanARM9S
toeach“DM”stylexture.Ifsingleordoublexturesareneededat180˚,youdonot
needanARM9S.
A2TAAisdesignedtomountasingle“DM”
stylexturetoastandard2”roundtenonand
givethexturetheabilitytobetiltedup.
2TAA
For SytePro Direct-Mount
Fixtures on Round Poles
Inorderfora“DM”stylexturetomountdirectlytoaroundpole
youmustorderanARM9R5.Thisisa9”armwithanadapterto
converta4”to5”roundpole.Ifthediameteroftheroundpoleis3”
to4”,youmustorderanARM9R3.
ARM9R5 ARM9R3
Ifapoleisequippedwitha2”tenon,thenyouhavetouseatenon
adapterforaroundpole.TheRTA490isdesignedforfourxtures
mountedat90˚,withtheRTA3120forthreexturesat120˚.“DM”
stylextureswillnotmounttoeithertenonadapterwithoutan
ARM9R3/5,whichwouldbeorderedseparately.
STA490
For SytePro Direct-Mount
Fixtures on Walls
For SytePro Direct-Mount
Fixtures on Post-Top (PT)
Inordertomounta“DM”stylextureto
awall,youmustuseaWBorWBA.The
WBAincludesa9”arm.
WB WBA
Posttopmountingrequiresastandard2”tenon.
SytePro“PT”stylextureshavetobeorderedas
oneofthefollowing:PT4Sisintendedtomounta
4”squarepolewitha2”tenon.PT5Smountstoa
5”squarepolewitha2”tenon.PT3Rmountstoa
3”roundpolewitha2”tenon.PT4Rmountstoa4”
roundpolewitha2”tenon.
HID Area Lighting - Accessories
HID Area Lighting Accessories
93
www.stoncolighting.com
Industrial Lighting
Industrial
Stoncoremainsaleaderwithindustriallightingbyofferingmoreoptionsthanothermanufacturers.StartingwiththeT-Baylinearuorescent,thisreplacement
forthetraditionalHIDhighbaydeliversmorelumensforlessmoney.StoncoalsodelivershighperformancespecialtyxturesliketheX-Bayforincreaselumen
output,WeT-BayforhighmoistureapplicationsandtheSmarT-Bayformaximizinglamplifewhenusedwithsensorcontrols.Stoncomaintainsawideselectionof
traditionalHIDhighbaysinmanydifferentstylesforalmostanyapplication.
SmarT-Bay Series
4-Lampand6-LampMotionSensor
LinearFluorescentHighBays
Page 94
WeT-Bay Series
4-Lampand6-Lamp
LinearFluorescentHighBays
Page 99
CF Bay Series
FluorescentHighBays
Page 102
SSC Series
SmartChoiceTemp
Page 107
NOTE
Someoftheluminairesinthissectionusecomponentsmadefromcomposites(acrylic,polycarbonate,etc)andmaynotbesuitableinenvironments
wherecertainair-bornsolventsarepresent.Consultfactoryforacompletelistofsuitableandnon-suitablesolvents.
94 www.stoncolighting.com
SBN / SBW SmarT-Bay - Industrial Lighting
SBN / SBW SmarT-Bay Motion Sensor Highbay T5HO/T8
Specifications
• IncludesSmartSensortechnology
• Precisiondie-formedsteelhousingwithtwotopaccessplates
• Architecturalwhitepostpaintednisheliminatesexposededgesforsafehandling
• BeveledMiro4highlyspecularanodizedaluminumreector
• 55˚Cambientrating
• Acceptsstem,pendant,orchainmounting
• Outperformsconventional400wattMHtechnologyforafractionoftheenergyconsumption
• Standardwithelectronicballasts
• Instant-on
• Multi-levelswitchingcapability
•Pre-wiredforall-on/all-off
• 3-yearsystemwarranty
• UL1598Listedfordamplocations
• AvailableinenvironmentallyfriendlyJob-Packforreducedwaste(seeoptionJP)
• Pre-lampedwith841Serieslow-mercuryAlto®lamps
Lamp Specifications
• 54wT5HO:Philips#29083-3F54T5/841/HO/ALTO4,100K,5,000initiallumens
• 49wT5HO:Philips#29083-3F54T5/841/HO/EA/49E/ALTO4,100K,5,000initiallumens
• 32wT8:Philips#24671-0F32T8/TL841/ALTOII4,100K,2,850initiallumens
Electrical Specifications T5HO Electrical Specifications T8
•T5HO4-light4-lamp#ICN-4S54-90C-2LS •T84-light4-lamp#IOP-4P32-HL-90C-G
•120v,277v,480v,120-277v •120v,277v,480v,120-277v
•AdvanceCentiumballastfamily •AdvanceOptaniumballastfamily
• 1.0ballastfactor •1.18ballastfactor
Sensor Specifications
• Circular30-40ft.diametercoverage
• Passiveinfrared
• 120/277vor208v/240v/480voperatingvoltage
• Mountingheight15to45ft.
• GreenLEDindicator
• ULandcULListed
• Maximizeslamplife
Ordering Information
Part No. Description Wattage Source Ballast Voltage*
SBN432EB1-6 4-LampT8SmarT-Bayw/841T8LampsandSensor 4-32w T8 Electronic 120/277
SBN449EB1-6 4-LampT5HOSmarT-Bayw/841T5HOLampsandSensor 4-49w T5HO Electronic 120/277
SBN454EB1-6 4-LampT5HOSmarT-Bayw/841T5HOLampsandSensor 4-54w T5HO Electronic 120/277
SBW632EB4-6 6-LampT8SmarT-Bayw/841T8LampsandSensor 6-32w T8 Electronic 120/277
SBW649EB4-6 6-LampT5HOSmarT-Bayw/841T5HOLampsandSensor 6-49w T5HO Electronic 120/277
SBW654EB4-6 6-LampT5HOSmarT-Bayw/841T5HOLampsandSensor 6-54w T5HO Electronic 120/277
Othervoltagesavailable,contactfactory.
SBN T5HO
SBN T8
SBW T5HO
SBW T8
SBN SBW
95
www.stoncolighting.com
Industrial Lighting - N / W T-Bay Extended Warranty
Extended Warranty T-Bay T5HO / T8
Specifications
• Precisiondie-formed22GAsteellow-prolehousing
• Architecturalpostpaintednisheliminatesexposededgesforsafehandling
• BeveledMiro4reectorsurroundseachlampforoptimumefciency
• 55˚Cambientrating
• Hingedreectorpanel/accessdoor
• Acceptsstem,pendant,chainorcablemounting
• Instant-on
• Topaccessplatelocatedateachend
• T8unitsprovidedwith1.18ballastfactorinstantstartelectronicballast
• T5HOunitsprovidedwith1.0ballastfactorprogrammedrapidstartelectronicballast
• Pre-lampedwith841Serieslow-mercuryAlto®lamps
Lamp Specifications
• 54wT5HO:Philips#29083-3F54T5/841/HO/ALTO4,100K,5,000initiallumens
• 49wT5HO:Philips#29083-3F54T5/841/HO/EA/49E/ALTO4,100K,5,000initiallumens
• 32wT8:Philips#24671-0F32T8/TL841/ALTOII4,100K,2,850initiallumens
Electrical Specifications T5HO Electrical Specifications T8
•T5HO4-light4-lamp#ICN-4S54-90C-2LS •T84-light4-lamp#IOP-4P32-HL-90C-G
•120v,277v,480v,120-277v •120v,277v,480v,120-277v
•AdvanceCentiumballastfamily •AdvanceOptaniumballastfamily
• 1.0ballastfactor •1.18ballastfactor
N T5HO
N T8
W T5HO
W T8
Ordering Information
Part No. Description Wattage Source Ballast Voltage
N432EB1-8 4-LampT8T-BayExtendedWarrantyw/841T8Lamps 4-32w T8 Electronic 120-277
N449EB1-8 4-LampT5HOT-BayExtendedWarrantyw/841T5HOLamps 4-49w T5HO Electronic 120-277
N454EB1-8 4-LampT5HOT-BayExtendedWarrantyw/841T5HOLamps 4-54w T5HO Electronic 120-277
W632EB4-8 6-LampT8T-BayExtendedWarrantyw/841T8Lamps 6-32w T8 Electronic 120-277
W649EB4-8 6-LampT5HOT-BayExtendedWarrantyw/841T5HOLamps 6-49w T5HO Electronic 120-277
W654EB4-8 6-LampT5HOT-BayExtendedWarrantyw/841T5HOLamps 6-54w T5HO Electronic 120-277
N
W
96 www.stoncolighting.com
TBN / TBW T-Bay II - Industrial Lighting
TBN / TBW T-Bay II Highbay T5HO/T8
Specifications
• Precisiondie-formed22GAsteelhousing
• Architecturalpostpaintednisheliminatesexposededgesforsafehandling
• BeveledMiro4reectorsurroundseachlampforoptimumefciency
• 55˚Cambientrating
• Hingedreectorpanel/accessdoor
• Acceptsstem,pendant,chainorcablemounting
• Instant-on
• Lowprole
• Twotopaccessplateslocatedateachend
• T8unitsprovidedwith1.18ballastfactorinstantstartelectronicballast
• T5HOunitsprovidedwith1.0ballastfactorprogrammedrapidstartelectronicballast
Ordering Information
Part No. Description Wattage Source Ballast Voltage
TBN432EB1-8 4-LampT8T-BayIIT8Lamps 4-32w T8 Electronic 120-277
TBN454EB1-8 4-LampT5HOT-BayIIT5HOLamps 4-54w T5HO Electronic 120-277
TBW632EB2-8 6-LampT8T-BayIIT8Lamps 6-32w T8 Electronic 120-277
TBW654EB4-8 6-LampT5HOT-BayIIT5HOLamps 6-54w T5HO Electronic 120-277
• Lampsnotincluded
TBN T5HO
TBN T8
TBW T5HO
TBW T8
TBN TBW
Accessories
Part Number Description
GRIP5 5-footaircraftcablewithhanger(2per)
GRIP10 10-footaircraftcablewithhanger(2per)
GRIP20 20-footaircraftcablewithhanger(2per)
TSCHAIN Heavy-dutychainandhanger(2per)
TSMTG Universalmountingplatewithchain
MD360 Motionsensorfor120or277volt
MD360-5 Motionsensorfor480volt
TBNLENS Singlegasketedclearprismaticacryliclens/hingeddoorframe
TBNGUARD Wireguardfornarrowhousingwithclipsformountingtodoororhousingand
hingeddoorframe
TBNLENS-CL Singlegasketedclearacryliclens/doorframeandhingeddoorframe
TBNLENS-DG Doublegasketedclearprismaticacryliclens/hingeddoorframe
TBWLENS Singlegasketedclearprismaticacryliclens/hingeddoorframe
TBWGUARD Wireguardfornarrowhousingwithclipsformountingtodoororhousingand
hingeddoorframe
TBWLENS-CL Singlegasketedclearacryliclens/doorframeandhingeddoorframe
TBWLENS-DG Doublegasketedclearprismaticacryliclens/hingeddoorframe
MDBOX Offsetwiringboxforusewithmotionsensors
97
www.stoncolighting.com
Industrial Lighting - TLN / TLW / TLNT T-Bay Lyte
TLN / TLW / TLNT T-Bay Lyte Highbay T5HO / T8
Specifications
• Precisiondie-formedsteelhousing
• Directdown-lightstandard,optional10%uplightavailable
• Architecturalpostpaintednisheliminatesexposededgesforsafehandling
• BeveledMiro4reectorsurroundseachlampforoptimumefciency
• 45˚Cambientrating
• Acceptsstem,pendant,orchainmounting
• Outperformsconventional400wattMHtechnologyforafractionoftheenergyconsumption
• Standardwithelectronicballastsfor120V,277V,480V,orvoltagesensing120-277V
applications
• Instant-on
• Lowprole
• Multi-levelswitchingcapability
Ordering Information
Part No. * Description Wattage Source Ballast Voltage
TLND432EB1-8 T-BayLyte4-LampT8Multi-Tap 4-32w T8 InstantStart1.18BF 120-277
TLND454EB1-8 T-BayLyte4-LampT5HOMulti-Tap 4-54w T5HO ProgrammedRapidStart1.0BF 120-277
TLWD632EB2-8 T-BayLyte6-LampT8Multi-Tap 6-32w T8 InstantStart1.18BF 120-277
TLWD654EB4-8 T-BayLyte6-LampT5HOMulti-Tap 6-54w T5HO ProgrammedRapidStart1.0BF 120-277
TLNTD332EB2-8 T-BayLyte3-Lamp(percrosssection)T8TandemMulti-Tap 3-32w T8 InstantStart1.18BF 120-277
TLNTD354EB4-8 T-BayLyte3-Lamp(percrosssection)T5HOTandemMulti-Tap 4-54w T5HO ProgrammedRapidStart1.0BF 120-277
*Change“D”to“U”for10%uplighting-Example:TLNU432EB1-8
Accessories
Part Number Description
TLCM CentermountforT-BayLyte
TLNGUARD Wireguardfor4lightxtures
TLWGUARD Wireguardfor6lightxtures
TSCHAIN 2setsofheavydutychainforhangingT5/T8units
TSMTG Universalmountingplateforusewith
TSCHAINaccessory
MD360 120-277Vmotionsensorwith360°eldofvision
MD360 5-Forusewith480Vxtures
TLNLENS Prismaticlens
TLWLENS Prismaticlens
TLN
TWN
TLNT
TLNTLW
98 www.stoncolighting.com
XBS X-Bay Highbay T5HO/T8
XBS X-Bay Highbay T8VHO
• X-TremeThermalManagement6-lightratedfor55˚C
• X-TremeOpticalPerformancewithprecisiondie-formedMiro4reector
• X-TremeEnergyManagementsaving50%moreenergythanconventionalHIDhighbays
• Precisiondie-formedaluminumlow-prolehousingwithtopaccessplate
• Architecturalpostpaintednisheliminatesexposededgesforsafehandling
• Hingedendsforeasyaccesstowiringchamber,hingedreectorpanel/accessdoor
• Acceptsstem,pendant,chainorcablemounting
• Instant-on
• T8unitsprovidedwith1.18ballastfactorinstantstartelectronicballast
• T5HOunitsprovidedwith1.0ballastfactorprogrammedrapidstartelectronicballast
• 65˚Cambientratingon4-lightand55˚Cambientratingon6-light
• Fixturedoesnotincludelamps(standard).Lampsareoptional
Specifications
Part No. Description Wattage Source Ballast Voltage
XSN432EB1-6 4-LampT8X-Bay 4-32w T8 Electronic 120/277
XSN454EB1-8 4-LampT5HOX-Bay 4-54w T5HO Electronic 120-277
XSW632EB4-8 6-LampT8X-Bay 6-32w T8 Electronic 120-277
XSW654EB4-8 6-LampT5HOX-Bay 6-54w T5HO Electronic 120-277
Part No. Description Wattage Source Ballast Voltage
XSW684EB3-4 6-LampT8VHOX-Bay 6-84w T8VHO Electronic 120-277
Ordering Information
Ordering Information
XSN
X-Bay - Industrial Lighting
XSW
Showninoptionalblack
nish,whitenishis
standard
99
www.stoncolighting.com
Industrial Lighting - WeT-Bay
WBS WeT-Bay Highbay T5HO/T8
Part No. Description Wattage Source Ballast Voltage
WBS432EB2-8 4-LampT8WeT-Bay 4-32w T8 Electronic 120/277
WBS454EB2-8 4-LampT5HOWeT-Bay 4-54w T5HO Electronic 120-277
WBS632EB3-8 6-LampT8WeT-Bay 6-32w T8 Electronic 120-277
WBS654EB3-8 6-LampT5HOWeT-Bay 6-54w T5HO Electronic 120-277
• Designedtominimizetheretentionofliquidsordebriswhenhosedoff
• Acrylicoroptionalpolycarbonatediffusersresistbreakage,reducingreplacementand
maintenancecosts
• 5VAammabilityrating(UL94)(f1)housing(UL176)
• Waterclearlenswithfrostedends
• Pouredinplacegasketandstainlesssteellatchessealtheenclosuresfrommosthostile
environments
• Captivegeartrayopensfromeithersideforeasyaccess
• Optionalspecularreectors
• Whitereectorstandard(87%)
• T8ballastsare1.18ballastfactor
• Wetlocationlisted(1,300psihosedown)
• WideproledesignedaroundT8andT5lampsforlongtermenergysavings
• Ratedfor25˚C(6-light)&40˚C(4-light)ambienttemperatures
• MountingoptionsforV-Hookorcablesystems
• Economicalmountingoptionscanprovidedramaticsavingsontheinstallationlabor
• 4and6lampcongurationsareavailableforbothT5andT8tobestmeetyourspecicneeds
• Utilizesoff-the-shelf1/2”liquid-tightttings.
• Tamper-resistantstainlesssteellatchesstandard
• Fixturedoesnotincludelamps
Notes:
1. Allstandardunitsinclude(2)V-Hookmountingbrackets,
 (2)V-Hooks,(12)stainlesssteellatches
 (2)1/2”entryholes(1ateachend),acryliclens.
2. Allunitsarewetlocationlisted,IP66,IP67,NEMA4X,
 andNSFCertication.
UL Wet Location, IP66, IP67,
NEMA 4x and NSF Certification
Ordering Information
Specifications
100 www.stoncolighting.com

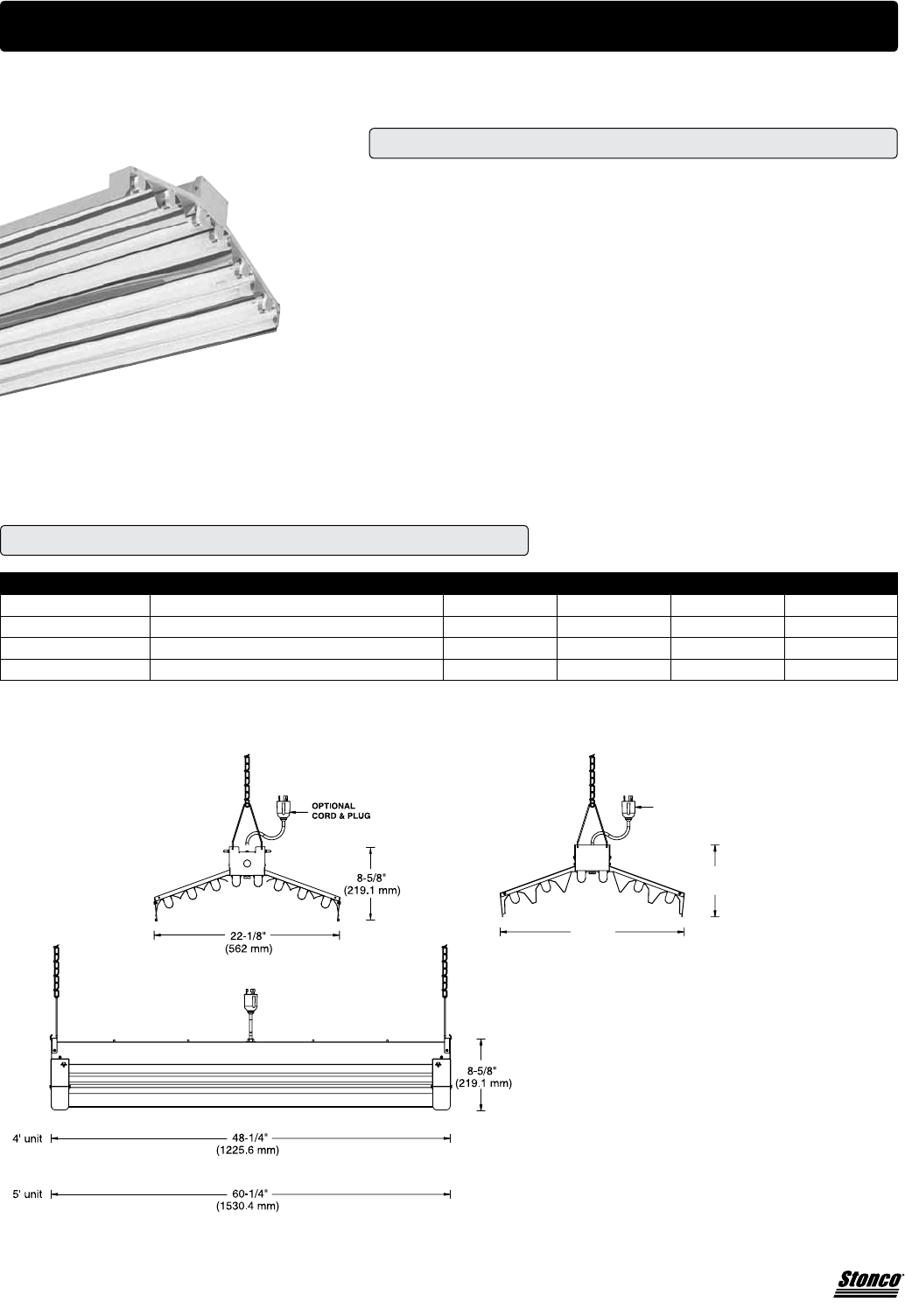

TL Series 6-Lamp / 8-Lamp Highbay T5HO/T8
• Ideallysuitedforindustrialapplicationswithhighceilingsthatrequireuniformlight
distribution
• Anefcientalternativetotraditional1000wmetalhalidehighbayluminaires
• Steelhousingwithwhitepolyesterpowdernish
• Reectorsarefabricatedfromhighlyspecularaluminum
• Rotatingring,lockingtypelampholdersforT5HOlamps
• LockingtypeforT8lamps
• Emergencyballastsandmulit-levelswitchingrequirecords,cords&plugsorexwithfouror
moreconductors
• 95%reective
• 6-and8-lampcongurations
• Heavydutymountingchainandhookassemblyincluded
• UL1598listedforusein40°Cambientanddamplocationapplications
Specifications
Part No. Description Wattage Source Ballast Voltage
TLW654EB2-8 6-LampT5HOHigh-Bay 6-54w T5HO Electronic 120-277
TLW632EB2-8 6-LampT8High-Bay 6-32w T8 Electronic 120-277
TLW854EB2-8 8-LampT5HOHigh-Bay 8-54w T5HO Electronic 120-277
TLW832EB2-8 8-LampT8High-Bay 8-32w T8 Electronic 120-277
Ordering Information
TL Series 8-Lamp - Industrial Lighting
22-1/8"
(562 mm)
(219.1 mm)
8-5/8"
OPTIONAL
CORD & PLUG
101
www.stoncolighting.com
MBA
22” Aluminum Reflector,
No Lens
Induction Multi-Bays
• Availableinavarietyofopticstomeetmanyapplications
• Multi-BayandLow-Bayxturesaretypicallyusedinaisles,corridors,warehousesand
stockrooms,providinghighverticalillumination
• InjectionmoldedhighimpactUVstabilizedacrylicreector/refractorprovideshighvertical
footcandleyieldinghighspacingratio
• Mountingtapped3/4”-14NPS,accepts3/4”pipeor715NEWhook
• Foruseinopenairambient
• Precisiondie-castaluminumhousing,nishedinDuraplexIIgraypolyesterpowder,actsasa
heatsinkformaximumheatdissipation
• Availablequick-mountplatepermitseasymountingoverjunctionboxesthatarependant,
ceilingorrecessedmounted
• Inductionratedfor100,000hours
Specifications
Ordering Information
Industrial Lighting - Induction MBCR / MBCA / MBR / MBA / MBL
MBCR
22”AcrylicRefractor,
ConicalLens
MBCA
22” Aluminum Reflector,
ConicalLens
MBR
22”AcrylicRefractor,
No Lens
MBL
22” Aluminum Reflector
Low-Bay
Product Number Description
MBCA228584IND-1 Multi-Bay,22”AluminumReector,ConicalLens,85w,4000Kcolortemperature,inductionsystem,100-120v
MBCA228584IND-4 Multi-Bay,22”AluminumReector,ConicalLens,85w,4000Kcolortemperature,inductionsystem,200-277v
MBCA2216584IND-1 Multi-Bay,22”AluminumReector,ConicalLens,165w,4000Kcolortemperature,inductionsystem,100-120v
MBCA2216584IND-4 Multi-Bay,22”AluminumReector,ConicalLens,165w,4000Kcolortemperature,inductionsystem,200-277v
MBCR228584IND-1 Multi-Bay,22”AcrylicRefractor,ConicalLens,85w,4000Kcolortemperature,inductionsystem,100-120v
MBCR228584IND-4 Multi-Bay,22”AcrylicRefractor,ConicalLens,85w,4000Kcolortemperature,inductionsystem,200-277v
MBCR2216584IND-1 Multi-Bay,22”AcrylicRefractor,ConicalLens,165w,4000Kcolortemperature,inductionsystem,100-120v
MBCR2216584IND-4 Multi-Bay,22”AcrylicRefractor,ConicalLens,165w,4000Kcolortemperature,inductionsystem,200-277v
MBA228584IND-1 Multi-Bay,22”AluminumReector,NoLens,85w,4000Kcolortemperature,inductionsystem,100-120v
MBA228584IND-4 Multi-Bay,22”AluminumReector,NoLens,85w,4000Kcolortemperature,inductionsystem,200-277v
MBA2216584IND-1 Multi-Bay,22”AluminumReector,NoLens,165w,4000Kcolortemperature,inductionsystem,100-120v
MBA2216584IND-4 Multi-Bay,22”AluminumReector,NoLens,165w,4000Kcolortemperature,inductionsystem,200-277v
MBR228584IND-1 Multi-Bay,22”AcrylicRefractor,NoLens,85w,4000Kcolortemperature,inductionsystem,100-120v
MBR228584IND-4 Multi-Bay,22”AcrylicRefractor,NoLens,85w,4000Kcolortemperature,inductionsystem,200-277v
MBR2216584IND-1 Multi-Bay,22”AcrylicRefractor,NoLens,165w,4000Kcolortemperature,inductionsystem,100-120v
MBR2216584IND-4 Multi-Bay,22”AcrylicRefractor,NoLens,165w,4000Kcolortemperature,inductionsystem,200-277v
MBL228584IND-1 Low-Bay,22”AluminumReector,AcrylicDropLens,85w,4000Kcolortemperature,inductionsystem,100-120v
MBL228584IND-4 Low-Bay,22”AluminumReector,AcrylicDropLens,85w,4000Kcolortemperature,inductionsystem,200-277v
MBL2216584IND-1 Low-Bay,22”AluminumReector,AcrylicDropLens,165w,4000Kcolortemperature,inductionsystem,100-120v
MBL2216584IND-4 Low-Bay,22”AluminumReector,AcrylicDropLens,165w,4000Kcolortemperature,inductionsystem,200-277v
For3000Kcolortemperature,substitutethe“84”priorto“IND”with“83”.
For5000Kcolortemperature,substitutethe“84”priorto“IND”with“85”.
102 www.stoncolighting.com

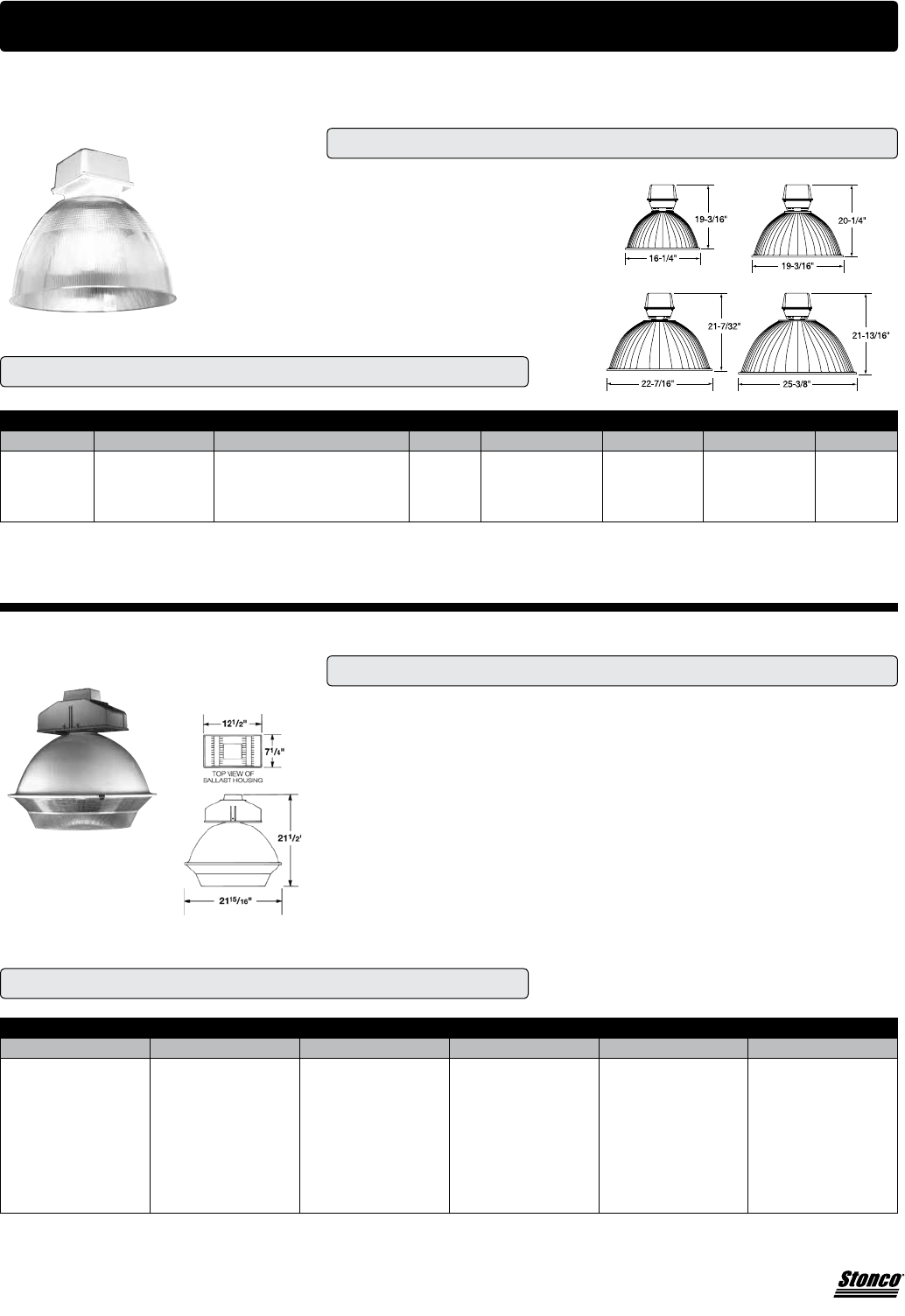

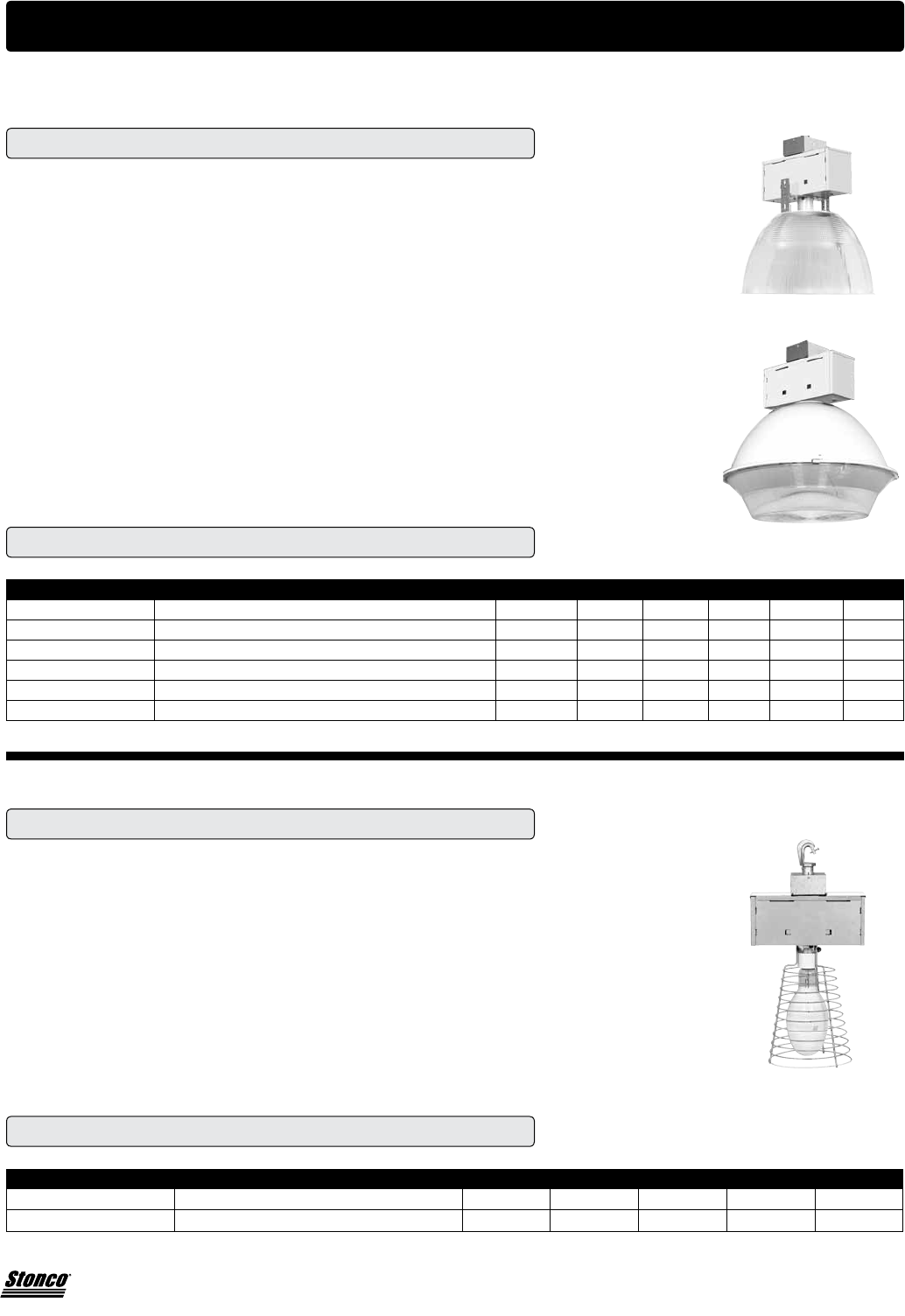

CF Bay / MBL Low Bay - Industrial Lighting
CF Bay Compact Fluorescent Highbay
Specifications
• Heavy-wall,die-castaluminumhousing
• Lockinguniversalwattagelampsockets
• Virginacrylicprismaticreector
• Captivewiringaccesspanel
• Multiplemountingoptions
• 2-lampto8-lampcongurations
• UL1598listedforusein40ºCambientanddamp
locationapplications
Ordering Information
MBL Low Bay
Specifications
• Applicationsincludeaisles,corridors,warehouses,assemblyareas,andstockrooms
• Universallight-weight,die-castaluminumballasthousingpermitsfullow-throughventilation
• FinishedinDuraplexIIgraypolyesterpowder
• Capacitorsarenestedwithinintegraloutboardpodsandventedair-owconstructionisolatesheat-sensitive
capacitorsfromheat-generatingcore
• Rigidheavygaugealuminumreectorwithhigh-reectancewhitepolyesterpowdernishoninteriorandexterior
• HighimpactUVstabilizedacrylicrefractorwithlinearandhorizontalprisms,designedtooptimizewidespread
distribution
• Ballasthousingdesignincludesintegralroomyspliceboxwithcoverandquickmountingplate
• Die-castmountingplatetapped3/4”-14NPS,accepts3/4”pipeor714S,715NEW,and725Shooks
• Unitslipsontomountingplateleavingbothhandsfreeforwiring
• Deluxeglazedporcelainlampsocketpulse-ratedfor4KV
• Foruseinopenairambient
Ordering Information
CFB G 22 8 42 HF HMR 8
Fixture Lens Reflector Size Lamps Wattage Source Options Voltage
CFB-
CFBay
G-Open
C-Conical5, 6, 8
D-Drop5, 6, 7
E-FlatAcrylic5, 6
16-(2,4lamp)1, 4
19-(4,6lamp)1, 2, 4, 5
22-(4,6,8lamp)1, 2, 3, 4, 5, 6
25-(6,8lamp)2, 3, 5, 6
2
4
6
8
42-26/32/42Watt
57-4, 9
HF-Compact
Fluorescent
Seepage92 8-108-305
Universal
Voltage
MBL 22 320 PMAOR J 1
Fixture Reflector Size Wattage Source Options Voltage
MBL-EnclosedLowBay 22-22” 150-150W*
175-175W
200-200W
250-250W
320-320W
350-350W
400-400W
450-450W
LX-HighPressureSodium
(HPF-CWA)
LR-LinearReactorPulse
StartMetalHalide
277Vonly
PMAOR-Super
ConstantWattage
AutoRegulatedPulseStart
MetalHalide,OpenRated
F-Fusing
G-Fusing
J-Wiring
K-Wiring
L-Hot/ColdStart
M-Switch-onAuxiliary
Z-Bi-Level
1-120V
2-208V
3-240V
4-277V
5-480V
8-120V,208V,240V,277V
*150wHPSonly
14-lampunitsuse2-2lampballast
26-lampunitsuse3-2lampballast
38-lampunitsuse4-2lampballast
457wavailablein4-lamponly
56-lampunitscannotbeenclosed
68-lampunitscannotbeenclosed
7notavailableon16”and19”units
8notavailableon25”unit
9availablein19”and22”reectorsonly
103
www.stoncolighting.com
Industrial Lighting - MBG Glo/Prism Bay 16” / 22” / 25”
MBG Glo/Prism Bay 16” / 22” / 25”
Specifications
• Usedinaisles,corridors,warehousesandstockroomsandprovideshighverticalillumination
• Universallight-weight,easytohandledie-castaluminumballasthousingnnedformaximumheatdissipation
• FinishedinDuraplexIIgraypolyesterpowder
• Ballastassemblyclampedindie-castaluminumhousingpermitsfullow-throughventilationformaximumcoolingofall
components
• Capacitorsarenestedwithinintegraloutboardpodsandventedair-owconstructionisolatesheat-sensitivecapacitorsfromheat-
generatingcore
• InjectionmoldedhighimpactUVstabilizedacrylicreector/refractorprovideshighverticalfootcandleyieldinghighspacingratio
• Uniqueballasthousingdesignincludesintegralroomyspliceboxwithcoverandquickmountingplate
• Ruggeddie-castplatetapped3/4”-14NPS,accepts3/4”pipeor714S,715NEW,and725Shooks
• Unitslipsontomountingplateleavingbothhandsfreeforwiring
• Deluxeglazedporcelainlampsocketpulse-ratedfor4KV
• Foruseinopenairambient
Ordering Information
MBG16
MBG22
MBG25
MBG16
MBG22
MBG25
MBG 22 320 PMAOR J 1
Fixture Reflector Size Wattage Source Options Voltage
MBG-OpenGloBay
MBP-Enclosed
PrismBay
MBC-EnclosedConical
Reector
MBD-DropRefractor(25”)
16-16”
22-22”
25-25”
175-175W
200-200W
250-250W
320-320W
350-350W
400-400W
450-450W
750-750W
875-875W
1000-1000W
LX-HighPressureSodium
(HPF-CWA)
LR-LinearReactorPulse
StartMetalHalide
277Vonly
PMAOR-Super
ConstantWattageAuto
RegulatedPulseStart
MetalHalideOpenRated
A-Hot/Coldstart,
B-Notavailable
C-Switch-onauxiliary
F-Fusing
G-Fusing
J-Wiring
K-Wiring
Z-Bi-Level
1-120V
2-208V
3-240V
4-277V
5-480V
8-120V,208V,240V,277V
Note:16”models:250wmaximumforenclosedoptics.22”and25”models:400wmaximumforenclosedoptics.
MaximumWattagewithLens:
250WATT
MaximumWattagewithLens:400WATT
MaximumWattagewithLens
andDustcap:250WATT
MaximumWattagewithLens:400WATT
MaximumWattagewithLens
andDustcap:400WATT
104 www.stoncolighting.com
MBH High Bay Multi-Bay - Industrial Lighting
MBH High Bay Multi-Bay 17” / 20” / 14”
Specifications
• Idealforindoorapplicationswhereceilingmountingheightsexceed15feet
• Typicalapplicationsincludewarehousefacilities,assemblyareas,gyms,hangars,transportation
garages,loadingandstagingareas
• Universallight-weight,easytohandledie-castaluminumballasthousingnishedinDuraplexIIgray
polyesterpowder
• Uniqueballasthousingdesignpermitsfullow-throughventilationformaximumcoolingofall
components
• Heavy-gaugediffuseanodizedaluminumreectorlocksonadjustablestrapsforeldadjustmentof
opticsfromwidetonarrowdistribution
• Enclosedunitsuseaformeddustcaptoprotectlampandreectorfromdustandgrime
• Enclosedunitscontainaclearheat-temperedglasslensretainedbystainlesssteelspringclampsand
safetycable
• Ruggeddie-castmountingplatetapped3/4”-14NPS,accepts3/4”pipeor714S,715NEW,and725S
hooks
• Unitslipsontomountingplateleavingbothhandsfreeforwiring
Ordering Information
MBH17
MBH20
MBH14
MBH17 MBH20
MBH14
MBH 17 320 PMAOR J 1
Fixture Reflector Size Wattage Source Options Voltage
MBH-OpenHighBay
MBE-EnclosedHighBay
MBS-Enclosedunit
withoutDustcover
17-17”
20-20”
14-14”
150-150W**
175-175W
200-200W
250-250W
320-320W
350-350W
400-400W
450-450W
750-750W(20”)
875-875W(20”)
1000-1000W(20”)***
LX-HighPressureSodium
(HPF-CWA)
LR-LinearReactorPulse
StartMetalHalide
277Vonly*
PMAOR-Super
ConstantWattageAuto
RegulatedPulseStart
MetalHalideOpenRated*
A-Hot/Coldstart,
B-Hot/Coldstart
C-Switch-onauxiliary
D-Switch-onauxiliary
F-Fusing
G-Fusing
J-Wiring
K-Wiring
Z-Bi-Level
1-120V
2-208V
3-240V
4-277V
5-480V
8-120V,208V,240V,277V
*Requiresopen-ratedlamporenclosedoptics
**150wHPSonly
***1000wMHonly
105
www.stoncolighting.com
Industrial Lighting - WBH Worker Series High Bay
WBH Worker Bay Series 14” / 17” High Bay
Specifications
• Designedforindoorapplicationswhereceilingheightexceeds15feet
• Idealforgeneralpurposeindustriallightingincludingwarehousefacilities,assemblyareas,gyms,hangars,transportation
garages,loadingandstagingarea
• Dieformedsteelballasthousing,whitenish
• Wiringaccesscoverplatewithadditional3/4”knockoutsforthru-wireconnections(thru-wireboxincluded)
• Fieldadjustablelightdistributionpatterns
• Constantwattage,autotransformer(CWA)highpowerfactorballastorequivalent,capableofstartingandoperatingat-30°
Celsiusminimum
• Die-castplatetapped3/4”NPSaccepts3/4”pipeor715NEW/714Sdiecasthook
• Removablesteelwiringcompartmentdoorforquickandeasymounting,allowingforhandsfreemounting
• 55°Celsiusrating
• Interchangeableoptics
• Shippedascomponents(powerpackinoneboxandopticsinonebox)
Ordering Information
Optics 
H14R 14InchReector
H17R 17InchReector
Enclosures
LENS14 14InchLens
LENS17 17InchLens
GUARD11 11GuardforTemp.HID
Steel PowerPack
Catalog Number Description
STP350PMAOR-8 350WPulseStartPowerPackOpenRated
STP350PMAORB-8 350WPulseStartPowerPackw/QuartzOptionOpenRated
STP320PMAOR-8 320WPulseStartPowerPackOpenRated
STP320PMAORB-8 320WPulseStartPowerPackw/QuartzOptionOpenRated
STP250LX-8 250WHPSPowerPack
STP250LXB-8 250WHPSPowerPackw/QuartzOption
Part No. Description Packaging Wattage Source Ballast Socket Voltage
WBH14250PMAOR-8 WorkerBayHighBayw/14”OpenReector(Components) Shippedin2Boxes 250 PulseStart CWA Open-Rated 120-277
WBH14320PMAOR-8 WorkerBayHighBayw/14”OpenReector(Components) Shippedin2Boxes 320 PulseStart CWA Open-Rated 120-277
WBH14400PMAOR-8 WorkerBayHighBayw/14”OpenReector(Components) Shippedin2Boxes 400 PulseStart CWA Open-Rated 120-277
WBH17250PMAOR-8 WorkerBayHighBayw/17”OpenReector(Components) Shippedin2Boxes 250 PulseStart CWA Open-Rated 120-277
WBH17320PMAOR-8 WorkerBayHighBayw/17”OpenReector(Components) Shippedin2Boxes 320 PulseStart CWA Open-Rated 120-277
WBH17400PMAOR-8 WorkerBayHighBayw/17”OpenReector(Components) Shippedin2Boxes 400 PulseStart CWA Open-Rated 120-277
106 www.stoncolighting.com
WBL Worker Series Low Bay - Industrial Lighting
WBL Worker Series 22” Low Bay
Specifications
• Designedforindoorapplicationswhereceilingheightexceeds15feet
• Idealforgeneralpurposeindustriallightingincludingwarehousefacilities,assemblyareas,gyms,hangars,
transportationgarages,loadingandstagingarea
• Dieformedsteelballasthousing,whitepolyesterpowdernish
• Wiringaccesscoverplatewithadditional3/4”knockoutsforthru-wireconnections(thru-wireboxincluded)
• Fieldadjustablelightdistributionpatterns
• Constantwattage,autotransformer(CWA)highpowerfactorballastorequivalent,capableofstartingandoperating
at-30°Celsiusminimum
• Die-castplatetapped3/4”NPSaccepts3/4”pipeor715NEW/714Sdiecasthook
• Removablesteelwiringcompartmentdoorforquickandeasymounting,allowingforhandsfreemounting
• 45°Celsiusambientrating
• Shippedascomponents(powerpackinoneboxandopticsinonebox)
Ordering Information
Ordering Information
Part No. Description Wattage Source Ballast Socket Voltage
WBG16320PMAOR-8 320wOpenRatedHighbay16”GloBayw/LampSafe&715NEWHook 320 PSMH HX-HPF Medium 120-277
WBG22320PMAOR-8 320wOpenRatedHighbay22”GloBayw/LampSafe&715NEWHook 320 PSMH HX-HPF Medium 120-277
WBG Worker Series 16” / 22” Glo Bay
Specifications
• Designedforindoorapplicationswhereceilingheightexceeds15feetincludingwarehousefacilities,assembly
areas,gyms,hangars,transportationgarages,loadingandstagingarea
• Dieformedsteelballasthousing,whitepolyesterpowdernish
• Wiringaccesscoverplatewithadditional3/4”knockoutsforthru-wireconnections(thru-wireboxincluded)
• Fieldadjustablelightdistributionpatterns
• Constantwattage,autotransformer(CWA)highpowerfactorballastorequivalent,capableofstartingandoperating
at-30°Celsiusminimum
• Die-castplatetapped3/4”NPSaccepts3/4”pipeor715NEW/714Sdiecasthook
• Removablesteelwiringcompartmentdoorforquickmounting,allowingforhandsfreemounting
• 40°Celsiusrating.
• Shippedascomponents(powerpackinoneboxandopticsinonebox)
Optics 
L22RNEW 22InchLowBayReector
L22L 22InchLowBayLens
Steel PowerPack
Catalog Number Description
STP350PMAOR-8 350WPulseStartPowerPackOpenRated
STP350PMAORB-8 350WPulseStartPowerPackw/QuartzOptionOpenRated
STP320PMAOR-8 320WPulseStartPowerPackOpenRated
STP320PMAORB-8 320WPulseStartPowerPackw/QuartzOptionOpenRated
STP250LX-8 250WHPSPowerPack
STP250LXB-8 250WHPSPowerPackw/QuartzOption
Optics 
G16R 16InchAcrylicReector
G22R 22InchAcrylicReector
Enclosures 
22DL 22InchDropRefractorforG22R
P16L 16InchDropRefractorforG16R
P22L 22InchDropRefractorforG22R
Steel PowerPack
Catalog Number Description
STP350PMAOR-8 350WPulseStartPowerPackOpenRated
STP350PMAORB-8 350WPulseStartPowerPackw/QuartzOptionOpenRated
STP320PMAOR-8 320WPulseStartPowerPackOpenRated
STP320PMAORB-8 320WPulseStartPowerPackw/QuartzOptionOpenRated
STP250LX-8 250WHPSPowerPack
STP250LXB-8 250WHPSPowerPackw/QuartzOption
Part No. Description Packaging Wattage Source Ballast Socket Voltage
WBL22250PMAOR-8 WorkerBayLowBaywith22”EnclosedReector(Components) Shippedin2Boxes 250 PulseStart CWA Open-Rated 120-277
WBL22320PMAOR-8 WorkerBayLowBaywith22”EnclosedReector(Components) Shippedin2Boxes 320 PulseStart CWA Open-Rated 120-277
WBL22400PMAOR-8 WorkerBayLowBaywith22”EnclosedReector(Components) Shippedin2Boxes 400 PulseStart CWA Open-Rated 120-277
107
www.stoncolighting.com
Industrial Lighting - High Bay / Low Bay Unit Pack / SCT Temp
WBH Worker Bay High Bay / WBL Worker Low Bay Unit Packs
Specifications
• Designedforindoorapplicationswhereceilingheightexceeds15feet
• Idealforgeneralpurposeindustriallightingincludingwarehousefacilities,assemblyareas,gyms,hangars,
transportationgarages,loadingandstagingarea
• Dieformedsteelballasthousing,whitepolyesterpowdernish
• Wiringaccesscoverplatewithadditional3/4”knockoutsforthru-wireconnections(thru-wireboxincluded)
• Fieldadjustablelightdistributionpatterns
• Constantwattage,autotransformer(CWA)highpowerfactorballastorequivalent,capableofstartingand
operatingat-30°Celsiusminimum
• Die-castplatetapped3/4”NPSaccepts3/4”pipeor715NEW/714Sdiecasthook
• Removablesteelwiringcompartmentdoorforquickandeasymounting,allowingforhandsfreemounting
• 55°Celsiusrating
• Shippedascomponents(powerpackinoneboxandopticsinonebox)
Ordering Information
SSC Stonco Smart Choice HID Temp
Specifications
• Replacesuptotwo100’strandsofincandescenttemporarylighting
• Consumeslessenergythantwostrandsof100’stringlights
• Producesmorelightthantwostrands
• Provideswhiterlightforbettervisibility
• Installsfaster
• ULListedfordamplocations
• Alsoavailableascomponents
Ordering Information
Part No. Description Wattage Source Ballast Socket Voltage
SSCII320PAMGHLOR-8 OpenRated320wSSCIIw/Guard,HookandLamp 320 PSMH HX-HPF Mogul 120-277
SSCII400PMAGHLOR-8 OpenRated400wSSCIIw/Guard,HookandLamp 400 PSMH HX-HPF Mogul 120-277
Replacement Parts and Accessories
GUARD11 11”ProtectiveCage
3C 3’Cord
Part No. Description Packaging Wattage Source Ballast Socket Voltage
WBH14250PMAORU-8 WorkerBayHighBayw/14”OpenReector(IncludesLamp) UnitPack 250 PulseStart CWA Open-Rated 120-277
WBH14320PMAORU-8 WorkerBayHighBayw/14”OpenReector(IncludesLamp) UnitPack 320 PulseStart CWA Open-Rated 120-277
WBH14400PMAORU-8 WorkerBayHighBayw/14”OpenReector(IncludesLamp) UnitPack 400 PulseStart CWA Open-Rated 120-277
WBL22250PMAORU-8 WorkerBayLowBaywith22”EnclosedReector(IncludesLamp) UnitPack 250 PulseStart CWA Open-Rated 120-277
WBL22320PMAORU-8 WorkerBayLowBaywith22”EnclosedReector(IncludesLamp) UnitPack 320 PulseStart CWA Open-Rated 120-277
WBL22400PMAORU-8 WorkerBayLowBaywith22”EnclosedReector(IncludesLamp) UnitPack 400 PulseStart CWA Open-Rated 120-277
WBH
WBL
108 www.stoncolighting.com
Options and Accessories - Industrial Lighting
Options Code Fixture
Fusing120/277V F1
6'Blackcordonly 6C
6'Blackcord/15Aplug 6F
6'Blackcord/20Aplug 6T
Jobpack(bulkqty.) JP
Pre-lamped35K 835
Pre-lamped41K 841
Pre-lamped35K 735
Pre-lamped41K 741
Onelampemergencypack(STD-lumen) E1
Onelampemergencypack(Hi-lumen) E2
Twolampdimming(1ball) D2
Fourlampdimming(2ball) D4
Wiredsinglefuse WSF
Wireddoublefuse WDF
Wiredforemergencybyothers EM
3'blackcordonly 3C
3'blackcord/15Aplug 3F
3'Cord,714Loop/15APlug H
3'Cord,714Loop/20APlug I
3'Cord,715Hook/15APlug J
3'Cord,715Hook/20APlug K
Bi-levelSwitching Z
Bi-levelIndividualSwitching BLIC
T.D.restrike-150PAR38 A
T.D.restrike-Q150/DC B
Manualsocketexternal-150PAR38 C
Manualsocket-Q150/DC D
T.D.restrike-lowbay-Q150 L
Manualsocket-lowbay150PAR38 M
Fusingfor120/277V F
Fusingfor208/240/480V G
Openratedsocket OR
PolycarbonateRefractor P
Softguardmodication R
65°Cambientrating BLK
Quickhangw/chain TSMTG
Motionsensor(120-277V) MD360
Motionsensor(480V) MD360-5
Centermounthanger TLCM
Centermountfor3/4”pipe CP
Centermountwithhook CH
Lensfornarrowbody TBNLENS
Lensforwidebody TBWLENS
Lensfornarrowbody TNDOOR
Lensforwidebody TWDOOR
TBN454 Series
TBW632 Series
TBW654 Series
TLN454 Series
TLW632 Series
TLW654 Series
TLNT3 Series
TLNT4 Series
CFB 16"
CFB 19"
CFB 22"
CFB 25"
MBG 16" Series
MBG 22" Series
MBG 25" Series
MBH 14" Series
MBH 17" Series
MBH 20" Series
MBA 19" Series
WBL 22" Series
WBG 16" Series
WBG 22" Series
WBH 14" Series
WBL 22" Series
Industrial Options and Accessories
109
www.stoncolighting.com
Industrial Lighting - Options and Accessories
Accessories Code Fixture
Wireguardnarrowbody TBNGUARD
Wireguardwidebody TBWGUARD
Wireguardnarrowbody TBNGUARD
Wireguardwidebody TBWGUARD
Gymprismnarrow TBNGYM
Gymprismwide TBWGYM
Gymclearnarrow TBNGYM-CL
Gymclearwide TBWGYM-CL
Tandemconnector T5CONNECTOR
Fullwirecage(16"&19") WCG19-HBC
Fullwirecage(22"&25") WCG25-HBC
Wireguard16" WGA16
Wireguard19" WGA19
Wireguard22" WGA22
Wireguard25" WGA25
Openloop HMR
Closedhook LMR
3'-16/3715hook,15Aplug 3CP15-voltage
3'-16/3cord,715hook,20Aplug 3CP-voltage
3'-16/3cord,714loop,15Aplug 3CP15L-voltage
3'-16/3cord,714loop,20Aplug 3CPL-voltage
3'-cord(noplug) 3C
3'-16/3cord,15Aplug(nohook) 3CP15LH–voltage
3'-16/3cord,20Aplug(nohook) 3CPLH–voltage
Hangstraight 718S
Mountingloops 714S
Castaluminummountinghook 715NEW
Steelmountinghook 725S
Powerhook-universalmount 713–voltage
Powerhook-universal 713S–voltage
Powerhook-pendantmount 723–voltage
Powerhook-pendantmount 723S–voltage
Powerhook-universal 733–voltage
Powerhook-universal 733S–voltage
48"safetychain 717
Throughwirebox TWB
16"wirecage SOFTGUARD16
25"wirecage SOFTGUARD25
16"wireguard(lens) GUARD16
22"wireguard(enclosed) GUARD22
22"wireguard(open) GUARD22OPEN
14"wireguard GUARD14
17"wireguard GUARD17
20"wireguard GUARD20
TBN454 Series
TBW632 Series
TBW654 Series
TLN454 Series
TLW632 Series
TLW654 Series
TLNT3 Series
TLNT4 Series
CFB 16"
CFB 19"
CFB 22"
CFB 25"
MBG 16" Series
MBG 22" Series
MBG 25" Series
MBH 14" Series
MBH 17" Series
MBH 20" Series
MBA 19" Series
WBL 22" Series
WBG 16" Series
WBG 22" Series
WBH 14" Series
WBL 22" Series
Industrial Options and Accessories
110 www.stoncolighting.com
Options - Area, Flood and Wall-Mounted Lighting
Accessories Code Fixture
Fusing-Single FS
Fusing-Double FSS
Photocontrol-TwistLock TLR/PC
Photocontrol-Button PCB
QuartzRestrike AMC
Thru-Wiring TW
Bi-Level Z
PolycarbonateLens PR
FlatGlassLens GL
JobPack JP
Tamper-ProofScrews TP
SLA
SLM
GP1
GP2
GP3
GP4
GP5
FPS
FPM
FPL
WPM
WPM
NPM
LCQ
LPQ
SCL
MCL
SSM
Area, Flood and Wall-Mounted Options and Accessories
111
www.stoncolighting.com
Architectural Lighting
Architectural
Stoncoarchitecturalluminairescombinesmartappearancewithhighperformance.Therecentlyintroduced
Decraserieswasdesignedspecicallyforretail-typeapplicationswherestyleisparamountandlightquality
iscritical.TheDecrafeaturesPhilipsMasterColor®CDMEliteMWlampsandPhilipsRemotePhosphor
LEDlamping.Fortheultimateinoutdoorandindoordecorativeluminaires,StoncoXpressivesserieslets
youcreatenearlylimitlesslightingdesigns.Choosefromawideselectionofshades,mountingoptionsand
lampingoptionstosuitetheapplication.Addcustomcolorandaccessoriestomakeittotallyunique.
X-Pressives Series Round
ArchitecturalIndoor/OutdoorLuminaires
Page 112
X-Pressives Series Linear
ArchitecturalIndoor/OutdoorLuminaires
Page 116
Decra Series
ArchitecturalHighBays
Page 120-122
112 www.stoncolighting.com
WX1A WP50WA1R G 1G Q
1A=MiniAngle R=Remote W1A=Wall1/2”StemStyleGNW1A 050(2,3) P=Electronic
S=Surface W1B=Wall1/2”StemStyleGNW1B 070(2,3) PulseStart
2A=ShallowAngle  W1C=Wall1/2”StemStyleGNW1C 100(2,3) MetalHalide
2L=ShallowDome  W1E=Wall1/2”StemStyleGNW1E 150(2,3)
2F=ShallowFluted
2C=ShallowConical  W3A=Wall3/4”StemStyleGNW3A 050(2,3) M=Magnetic
2E=DeepAngle W3B=Wall3/4”StemStyleGNW3B 070(2,3) PulseStart
2D=DeepDome W3C=Wall3/4”StemStyleGNW3C 100(2,3) MetalHalide*
2B=DeepBowl W3D=Wall3/4”StemStyleGNW3D 150(2,3)
W3E=Wall3/4”StemStyleGNW3E 175(2,3) (*Remoteonly)
3L=ShallowDome
3F=ShallowFluted  SWF=3/4”StemAdapterw/GNP3F
3D=DeepDome SWG=3/4”StemAdapterw/GNP3G 075(1,2,3) I=Incandescent
3B=DeepBowl  100(2,3) (usew/6”plate
   only)
3U=UplightDeepBowl   200(2,3)
(3Uforindooruseonly)   300(3)

026(2,3) H=Electronic
032(2,3) Compact
042(2,3) Fluorescent
060(3) (notforusew/any
085(3) cordmounting
   units)
060(1) Q=Halogen
   (MiniOnly,
 60wmax.)

020(1) T=Electronic
039(1) PulseStartT4
   (MiniOnly)
1O=MiniGlassShade R=Remote W1A=Wall1/2”StemStyleGNW1A 075(1) I=Incandescent
S=Surface W1B=Wall1/2”StemStyleGNW1B
W1C=Wall1/2”StemStyleGNW1C 060(1) Q=Halogen
Note:1Oonlycomes  W1E=Wall1/2”StemStyleGNW1E  (MiniOnly,
InOpalWhiteand  60wmax.)
with½”arms. 
020(1) T=Electronic
039(1) PulseStartT4
   (MiniOnly)

Small Shades: 1/2” Stems only
Large Shades: 3/4” Stems only
W=Wrinkle G=Green W=Wrinkle G=Green Pipe 1=120 G=VaportiteGlobe*
 B=Black B=Black  Q=ComboSCPM 8=120-277 T=Thru-wire
W=White W=White  T=ComboS-CPM  P=PhotoControl
P=Bronze P=Bronze  U=ComboSC-PM B=G&Toptionscombined
 V=ComboSCP-M C=G&Poptionscombined
F=Flat B=Black F=Flat B=Black W=ComboSP-CM D=T&Poptionscombined
 P=Bronze P=Bronze X=ComboSPM-C E=G&T&Poptionscombined
 Y=ComboSM-CP
G=HighGloss G=Green G=HighGloss G=Green Z=ComboSMC-P  (Note:“T”onlywiththeballastbox
 B=Black B=Black  andnotforusewithINCxtures)
 W=White W=White
 Y=Yellow Y=Yellow
 U=Blue U=Blue*  Globesnotavailablewithany
 R=Red R=Red   angledshades.Mediumshades
     have100wmaxforINC
M=Metallic C=Copper M=Metallic C=Copper   andlargeshades
S=Silver S=Silver   have200wmaxforINC.
     Also,42wCFL
T=Textured S=Silver T=Textured S=Silver  cannotuseglobe.
 
   
 
W=Wrinkle G=Green W=Wrinkle G=Green Pipe 1=120 T=Thru-wire
 B=Black B=Black Q=ComboCPM 8=120-277 P=PhotoControl
 W=White W=White U=ComboC-PM D=T&PoptionsCombined
 P=Bronze P=Bronze V=ComboCP-M
 W=ComboP-CM Note:“T”onlywiththeballastbox
F=Flat B=Black F=Flat B=Black
 P=Bronze P=Bronze
 
G=HighGloss G=Green G=HighGloss G=Green
 B=Black B=Black
 W=White W=White Cord
 Y=Yellow Y=Yellow Color1=cap
 U=Blue U=Blue Color2=mounting
 R=Red R=Red
 
M=Metallic C=Copper M=Metallic C=Copper
 S=Silver S=Silver
T=Textured S=Silver T=Textured S=Silver
Style Ballast Mounting Wattage Source Texture Color Texture Color Color Combination Voltage Options
X-Pressives - Architectural Lighting
X-Pressives - Wall Mounted and Post-Top
Specifications
Ordering information
Mini Angle Shallow Angle Shallow Dome Shallow Fluted Shallow Conical Deep Angle Deep Dome Deep Bowl Uplight Deep Bowl Mini Glass
• Idealforrestaurants,tavernsornightclubs,foodcourts,atriumsorplazas,malls,
retailoutlets,stores,athleticclubsandfacilities,theatres,arenas,stadiumsand
amusementparks
• Spunaluminumshadestandard.Precisiondie-castaluminumelectricalcap
attachestoshadeviakeyholeslots.Caplocksintoplaceusingsetscrew,and
two-pieceshade/capassemblyattachestocordorpipe
• Corrosion-resistantDuraplexIIpolyesterpowder-coatednishwithoptional
designernishesavailable
• Remoteorsurfaceballastmountingwithaporcelain4KVpulserated
socket.Mostxturesfurnishedwith96”leadswithamaximumdistance
forelectronicHIDis5’fromballasttolamp
• ½”or¾”NPSaluminumstem/goosenecksareschedule40withno
exposedthreads
• Straightorcoilwhitecordavailablein18/3SJTOW
• Wallplate/ballastboxmadefromdiecastaluminum
• CSAlistedforwetlocations
Visit www.x-pressives.com
for more information
PF1=PostTopPole(1xturew/GNP3F)
PF2=PostTopPole(2@90w/GNP3F)
PF3=PostTopPole(3@90w/GNP3F)
PF4=PostTopPole(4@90w/GNP3F)
PF5=PostTopPole(2@180w/GNP3F)
PG1=PostTopPole(1xturew/GNP3G)
PG2=PostTopPole(2@90w/GNP3G)
PG3=PostTopPole(3@90w/GNP3G)
PG4=PostTopPole(4@90w/GNP3G)
PG5=PostTopPole(2@180w/GNP3G)
113
www.stoncolighting.com
WX1A WP50WA1R G 1G Q
1A=MiniAngle R=Remote C11=Ceiling1/2”1ftStemStyleGNC11 050(2,3) P=Electronic
S=Surface C12=Ceiling1/2”2ftStemStyleGNC12 070(2,3) PulseStart
2A=ShallowAngle  C13=Ceiling1/2”3ftStemStyleGNC13 100(2,3) MetalHalide
2L=ShallowDome C14=Ceiling1/2”4ftStemStyleGNC14 150(2,3)
2F=ShallowFluted C31=Ceiling3/4”1ftStemStyleGNC31
2C=ShallowConical  C32=Ceiling3/4”2ftStemStyleGNC32 050(2,3) M=Magnetic
2E=DeepAngle C33=Ceiling3/4”3ftStemStyleGNC33 070(2,3) PulseStart
2D=DeepDome C34=Ceiling3/4”4ftStemStyleGNC34 100(2,3) MetalHalide*
2B=DeepBowl   150(2,3)
SC5=StraightCord5ft 175(2,3) (*Remoteonly)
3L=ShallowDome  SC0=StraightCord10ft
3F=ShallowFluted  SA5=StraightCordw/aircraft5ft
3D=DeepDome  SA0=StraightCordw/aircraft10ft 075(1,2,3) I=Incandescent
3B=DeepBowl  CC5=Coil+Cord5ft 100(2,3) (usew/6”plate
CW5=CordWetLocation5ft  only)
3U=UplightDeepBowl   200(2,3)
(3Uforindooruseonly)   300(3)

 026(2,3) H=Electronic
 032(2,3) Compact
 042(2,3) Fluorescent
 060(3) (notforusew/any
 085(3) cordmounting
 units)
 060(1) Q=Halogen
  (MiniOnly,
  60wmax.)

 020(1) T=Electronic
 039(1) PulseStartT4
 (MiniOnly)
1O=MiniGlassShade R=Remote C11=Ceiling1/2”1ftStemStyleGNC11 075(1) I=Incandescent
S=Surface C12=Ceiling1/2”2ftStemStyleGNC12
C13=Ceiling1/2”3ftStemStyleGNC13 060(1) Q=Halogen
Note:1Oonlycomes  C14=Ceiling1/2”4ftStemStyleGNC14  (MiniOnly,
InOpalWhiteand  60wmax.)
with½”stems. 
 020(1) T=Electronic
 039(1) PulseStartT4
  (MiniOnly)
 
SC5=StraightCord5ft
SC0=StraightCord10ft
SA5=StraightCordw/aircraft5ft
SA0=StraightCordw/aircraft10ft
CC5=Coil+Cord5ft
CW5=CordWetLocation5ft
W=Wrinkle G=Green W=Wrinkle G=Green Pipe 1=120 G=VaportiteGlobe*
 B=Black B=Black  Q=ComboSCPM 8=120-277 T=Thru-wire
W=White W=White  T=ComboS-CPM  P=PhotoControl
P=Bronze P=Bronze  U=ComboSC-PM B=G&Toptionscombined
 V=ComboSCP-M C=G&Poptionscombined
F=Flat B=Black F=Flat B=Black W=ComboSP-CM D=T&Poptionscombined
 P=Bronze P=Bronze X=ComboSPM-C E=G&T&Poptionscombined
 Y=ComboSM-CP
G=HighGloss G=Green G=HighGloss G=Green Z=ComboSMC-P  (Note:“T”onlywiththeballastbox
 B=Black B=Black  andnotforusewithINCxtures)
 W=White W=White
 Y=Yellow Y=Yellow
 U=Blue U=Blue*  Globesnotavailablewithany
 R=Red R=Red Cord  angledshades.Mediumshades
   Q=ComboSCM  have100wmaxforINC
M=Metallic C=Copper M=Metallic C=Copper T=ComboS-CM  andlargeshades
S=Silver S=Silver  U=ComboSC-M  have200wmaxforINC.
 Y=ComboSM-C  Also,42wCFL
T=Textured S=Silver T=Textured S=Silver  cannotuseglobe.
  
  
  
W=Wrinkle G=Green W=Wrinkle G=Green Pipe 1=120 T=Thru-wire
 B=Black B=Black Q=ComboCPM 8=120-277 P=PhotoControl
 W=White W=White U=ComboC-PM D=T&PoptionsCombined
 P=Bronze P=Bronze V=ComboCP-M
 W=ComboP-CM Note:“T”onlywiththeballastbox
F=Flat B=Black F=Flat B=Black
 P=Bronze P=Bronze
  
G=HighGloss G=Green G=HighGloss G=Green
 B=Black B=Black
 W=White W=White Cord
 Y=Yellow Y=Yellow Color1=cap
 U=Blue U=Blue Color2=mounting
 R=Red R=Red
  
M=Metallic C=Copper M=Metallic C=Copper
 S=Silver S=Silver
T=Textured S=Silver T=Textured S=Silver
Style Ballast Mounting Wattage Source Texture Color Texture Color Color Combination Voltage Options
Architectural Lighting - X-Pressives
X-Pressives - Ceiling Mounted
Specifications
Ordering information
Mini Angle Shallow Angle Shallow Dome Shallow Fluted Shallow Conical Deep Angle Deep Dome Deep Bowl Uplight Deep Bowl Mini Glass
• Idealforrestaurants,tavernsornightclubs,foodcourts,atriumsorplazas,malls,
retailoutlets,stores,athleticclubsandfacilities,theatres,arenas,stadiumsand
amusementparks
• Spunaluminumshadestandard.Precisiondie-castaluminumelectricalcap
attachestoshadeviakeyholeslots.Caplocksintoplaceusingsetscrew,and
two-pieceshade/capassemblyattachestocordorpipe
• Corrosion-resistantDuraplexIIpolyesterpowder-coatednishwithoptional
designernishesavailable
• Remoteorsurfaceballastmountingwithaporcelain4KVpulserated
socket.Mostxturesfurnishedwith96”leadswithamaximumdistance
forelectronicHIDis5’fromballasttolamp
• ½”or¾”NPSaluminumstem/goosenecksareschedule40withno
exposedthreads
• Straightorcoilwhitecordavailablein18/3SJTOW
• Wallplate/ballastboxmadefromdiecastaluminum
• CSAlistedforwetlocations
Visit www.x-pressives.com
for more information
114 www.stoncolighting.com
X-Pressives - Architectural Lighting
Arm Shapes
Post-Top Stem
Wall Adapter
Post-Top Stem
Wall Adapter
4-Inch
Mounting Plate
(accessory only)
6-Inch
Mounting Plate
Remote-Mounted Ballast Surface-Mounted Ballast
6-Inch Mounting
Plate and Box
8-Inch Mounting
Plate and Box
PGPF
W1E, W3EW1E, W3EW1C, W3CW1B, W3BW1A, W1A
SA5, SA0
Straight Cord
w/ Aircraft Cable
SC5, SC0
Straight Cord Mounting
Remote-Mounted Ballast
C11-C34
Pendant Mounting
CC5
Coil and Cord
Surface-Mounted Ballast
SA5
Straight Cord
w/ Aircraft Cable
SC5
Straight Cord Mounting
C11-C34
Pendant Mounting
C11, C31
C12, C32
C13, C33
C14, C34
X-Pressives Wall Mounting
X-Pressives Ceiling Mounting
Ceiling
Stems
115
www.stoncolighting.com
Architectural Lighting - X-Pressives
Combination U
ShadeandCap-Color1
ArmandMounting-Color2
Combination Y
Shadeandmounting-Color1
CapandArm-Color2
Combination Q
Allcomponentsmatchingcolor
Combination W
ShadeandArm-Color1
CapandMounting-Color2
Combination V
Shade,Cap,andArm-Color1
Mounting-Color2
Combination Z
Shade,Cap,andMounting-Color1
Arm-Color2
Combination T
Shade-Color1
Cap,Arm,andMounting-Color2
Combination X
Shade,ArmandMounting-Color1
Cap-Color2
Wall Mounting
Cast Guard
Guard only. Available only with "G" option (as shown)
V131XX3-1/2"twiston/offaluminumguard
V132XX4-3/8"twiston/offaluminumguard
Note: Availableinanytexture/colorcombo
Wire Guards
GUARD12XXMediumDeepAngleandDeepBowlonly
GUARD16XXMediumShallowDomeandShallowConical
LargeDeepBowlandUplightDeepBowl
GUARD20XXLargeShallowDomeandDeepDomeonly
Note:Availableinallcolorandtexturecombinations
Aircraft Cable Support
ACS11/2"AircraftCableSupport
ACS33/4"AircraftCableSupport
Note:Cablecannotbepainted
Trim Rings
Guard only. Available only with "G" option (as shown)
TR2XXforusewithmediumshades
TR3XXforusewithlargeshades
Note: Availableinalltexture/colorcombinations
PF3/PG3 PF4/PG4 PF5/PG5
Post Top Mounting
Consultfactoryforposttopmountingoptions
X-Pressives Color Combinations
X-Pressives Accessories
PF2/PG2PF1/PG1
116 www.stoncolighting.com
W
X1 171
GWA T8 1G Q
Series Shape Reflector Texture Color Lamp # Lamp Ballast Texture Color Color Voltage Options
(cross section) Wattage Combination
X1 A=Asymmetric W=Wrinkle G=Green 1(T12only) 17=2’T8 T8 W=Wrinkle G=Green Q=ComboHEBC 1=120V E=
   B=Black 2 32=4’T8 K1Y  B=Black T=ComboH-EBC 7=277V Enclosed
XT W=White (T5/T8/ K2Y W=White U=ComboHE-BC B=120-277
 (Tandem) P=Bronze T5HO) K4Y P=Bronze V=ComboHEB-C 5=480V R=
W=ComboHB-EC  Remote
  F=Flat B=Black  24=2’T5HO T5HO F=Flat B=Black X=ComboHBC-E  ballast
  P=Bronze  54=4’T5HO S1Y P=Bronze Y=ComboHC-EB
S2Y Z=ComboHEC-B  Dimming
 G=HighGloss G=Green  S4Y G=HighGloss G=Green  (consult
  B=Black   B=Black  factory)
  W=White  14=2’T5 T5  W=White Color Key 
  Y=Yellow  28=4’T5 N1Y Y=Yellow H=Housing Note:
  U=Blue  N2Y U=Blue E=End  Enclosed
  R=Red  N4Y R=Red B=Hub  xturesare
C=Cap  wetlocation
  M=Metallic C=Copper  60=4’T12HO T12 M=Metallic C=Copper  listed
  S=Silver  110=8’T12HO B1Y  S=Silver
 
  T=Textured S=Silver  T=Textured S=Silver 
  N=Natural U=Unnished  N=Natural U=Unnished
X-Pressives - Linear Fluorescent
Specifications
Combination Q
AllComponentsmatchingcolor
Combination T
Housing-Color1
End,Hub,andCap-Color2
Combination U
HousingandEnd-Color1
Hub,andCap-Color2
Combination V
Housing,EndandHub-Color1
Cap-Color2
Combination W
HousingandHub-Color1
EndandCap-Color2
Combination X
Housing,Hub,andCap-Color1
End-Color2
Combination Y
HousingandCap-Color1
EndandHub-Color2
Combination Z
Housing,EndandCap-Color1
Hub-Color2
Cap
Hub
End
Housing
SL1 SL2
SL3
SL4
Mounting Components
WB43XX
4-Inch
MountingPlate
for2-foot
xtures
WB63XX
6-InchMounting
Plateusedwith
4-and8-foot
xtures
WJB63XX
6”Box/CoverPower
feedsupplysplicebox
(rowmountingonlywith
accessplate)
JA3XX-XX
JoinerandCapAssembly
(Contrastingcolorsavailable)
ACS1 / ACS3
AircraftCableSupport
(includedwitharmstyles2,3and4)
Mounting Arms
X-Pressives - Architectural Lighting
1
Available in X-Treme Extra Long Life T8 and HPT8. See pages 9 and 36
117
www.stoncolighting.com
Architectural Lighting - X-Pressives
Dimensional Data - X-Pressives Round
2A - Shallow Angle 2E - Deep Angle 2B - Deep Bowl 3B - Deep Bowl
2D - Deep Dome 3D - Deep Dome 1A - Mini Angle 1O - Mini Glass
2C - Shallow Conical 2L - Shallow Dome 3L - Shallow Dome
2F - Shallow Fluted 3F - Shallow Fluted 3U - Uplight Deep Bowl
118 www.stoncolighting.com
Dimensional Data - Arms for Round Luminaires
X-Pressives - Architectural Lighting
W1A=1/2”
W3A=3/4”
W1B=1/2”
W3B=3/4”
W1C=1/2”
W3C=3/4”
W3D=3/4” W1E=1/2”
W3E=3/4”
W1G=1/2”
W3G=3/4”
W1F=1/2”
W3F=3/4”
C11=1/2” C12=1/2” C13=1/2” C14=1/2”
C31=3/4” C32=3/4” C33=3/4” C34=3/4”
Wall Mount Arm Styles
Ceiling Mount Arm Styles
Post-Top Arm Styles
Note:Whenspecifying“G”option,aircraftcablesupportisrequired
119
www.stoncolighting.com
Architectural Lighting - X-Pressives
Dimensional Data - X-Pressives Linear
SL1
SL2
SL3 SL4
Note:ArmstylesSL2,SL3andSL4requireaircraftcablesupport(included)
Dimensional Data - Arms for Linear Luminaires
3-7/8"
5-3/16"
28-15/16"
26-9/16"
30-15/16"
3-7/8"
5-3/16"
52-15/16"
50-9/16"
54-15/16"
3-7/8"
5-3/16"
100-7/8"
98-1/2"
102-7/8"
2-Foot Linear
4-Foot Linear
8-Foot Linear
120 www.stoncolighting.com
D 1 G 09 O 132 HF SD W L 8
Series Size Material Diameter Lens Wattage Source Mounting Finish Options Voltage
D-DecraSeries 1-Mini
2-Small
H=Spun
Aluminum
G=Clear
Acrylic
W=Opal
Acrylic
09=9”
12=12”
O=Open2
G=FlatGlass
withBlades
C=FlatClear
Acrylic
W=FlatWhite
Acrylic
126=(1)26
132=(1)32
226=(2)26
232=(2)32
242=(2)42
020=20watt
T41
030=30watt
T41
070=70watt
T41
039=39watt
T61
070=70watt
T61
100=100
wattPS
150=150watt
PS6
HF
E4=ElectronicT4
E6=ElectronicT6
PS=MagneticPSMH7
EP=ElectronicMH
SD=
Standard
1/2”Hub
C4=
4’CoiledCord
C0=
10’Coiled
Cord
S6=
6’Straight
Cord
3DC=
Decorative
Hookwith3’
cord
3DCP=
Decorative
Hookwith3’
cord
withplug3
B=FlatBlack
W=FlatWhite
A=Aluminum
L=Lamped5
X=LineItem
Lamp
AM=Aux.
Quartzsocket&
relay(lampnot
included)5
FS=In-Line
Fusing
(120-277v)
6=120/277
8=120-277
1T4andT6MHxturesmustbeenclosed
2OpenmodelsforPulseStartMHincludemediumbaseopen-ratedsocket
3Specifyvoltagewhenrequestingthisoption
5AMquartznotavailablewithEPorHF
6150wmustbe“EP”or“ED”
7Standardwithopen-ratedsockets
Architectural Lighting - Decra Series D1 / D2
Decra Series - D1 / D2
Specifications
• Diecastaluminumballasthousing
• StandardnishisDuraplexIITMelectrostaticpowdercoat.Optionalcolorsavailable
• Energyefcient,electronicpulsestartMHballast,featuringthermalprotection,safetyshutdownfeatures,endof
lifeprotection,superiorhotlampre-strike.Highpowerfactor,electroniccompactuorescentballastsavailablein
1-lampconguration
• HIDlampholdertobeG8.5baseforT4CMHlamps,G12forT6CMHlamps.Compactuorescentlampstobe
GX24q.Porcelain,openratedmediumbaseforED17lamps
• Clearacrylicrefractor:injectionmoldedclearacrylicprismaticrefractor,designedtoprovidemaximumefciency
andbrightnesscontrol,withhighuplightcomponentforreducedcontrastandimproveduniformity
• Opalacrylicrefractor:injectionmoldedfrostedacrylicprismaticrefractor,designedtoprovidemaximumefciency
andbrightnesscontrol,withhighuplightcomponentforreducedcontrastandimproveduniformity
• Aluminumreector:formedaluminum,brightenedforperformancewithprotectiveanodizedcoating
• Enclosedmodelcomeswithchoiceof:(a)frostedlens&decorativecastaluminumblades;(b)clearatacrylic
lenssecuredtoreectorbysiliconeretainer;(c)frostedatacryliclenswithsiliconeretainer.(“b”and“c”not
availablewithaluminumreector.)
• Mountingincludes1/2”NPSpendantstem,decorativehookwithcord,aircraftcablewithcoiledorstraightcord
• CSAApprovedfordamplocations
Ordering Information
Visit www.crescent-stonco.com/decra
for more information
Reflector and Refractor Options
AluminumReector ClearAcrylicRefractor OpalAcrylicRefractor
121
www.stoncolighting.com
Decra Series - D3 / D4
Specifications
• Diecastaluminumballasthousing.StandardnishisDuraplexIITMelectrostaticpowdercoat.Optionalcolors
available
• Energyefcient,electronicpulsestartMHballast,featuringthermalprotection,safetyshutdownfeatures,endoflife
protection,superiorhotlamprestrike.MagneticHIDballast,classHinsulation,copperwindings,highpowerfactor,
centeredinhousingforlevelorientation.Highpowerfactor,electroniccompactuorescentballastsavailablein1,2,
3or4lampcongurations
• HIDlampholdertobeporcelain,openratedmogulbaseforED28lamps.CompactuorescentlampstobeGX24q
• Clearacrylicrefractor:injectionmoldedclearacrylicprismaticrefractor,designedtoprovidemaximumefciency
andbrightnesscontrol,withhighuplightcomponentforreducedcontrastandimproveduniformity
• Opalacrylicrefractor:injectionmoldedmicrocellularfoamedacrylicrefractor.Uplightcomponentisreducedwhile
downlightlevelsareincreasedprovidingmoredownwardlight
• Aluminumreector:formedaluminum,brightenedforperformancewithprotectiveanodizedcoating
• Enclosedmodelcomeswithchoiceof:(a)frostedlens&decorativeblades;(b)clearatacryliclenswithstainless
steelretainer;(c)prismaticconicalacryliclenswithstainlesssteelretainer.(Notavailablewithaluminumreector.)
• Mountingchoicesinclude3/4”NPSpendantstem,aircraftcablewithcoiledorstraightcord
• CSAApprovedfordamplocations
Ordering Information
Architectural Lighting - Decra Series D3 / D4
Reflector and Refractor Options
AluminumReector ClearAcrylicRefractor OpalAcrylicRefractor
Visit www.crescent-stonco.com/decra
for more information
D 3 G 16 G 070 E6 SD W L 8
Series Size Material Diameter Lens Wattage Source Mounting Finish Options Voltage
D-Decra
Series
3-Medium
4-Large
H=Spun
Aluminum
G=Clear
Acrylic
W=Opal
Acrylic
16=16”
22=22”
O=Open
G=FlatGlass
withBlades
C=FlatClear
Acrylic1
P=Prismatic
Conical1
S=StretchLens1
326=(3)26
332=(3)32
342=(3)42
426=(4)46
432=(4)32
442=(4)42
150=150wattPS4
175=175wattPS
250=250wattPS
320=320wattPS8
350=350wattPS8
400=400wattPS8
210=210EliteCMH8
315=315wattCMH8
HF
PS=MagneticPS5
EP=ElectronicPS
ED=Electronic
Dimming2
EE=ElectronicElite6
SD=
Standard
1/2”Hub
C4=
4’CoiledCord
C0=
10’CoiledCord
S6=
6’StraightCord
B=FlatBlack
W=FlatWhite
A=Aluminum
L=Lamped
X=LineItem
Lamp
AM=Aux.
Quartzsocket&
relay(lampnot
included)3
FS=In-Line
Fusing
(SpecifyVoltage)
6=120/277
8=120-277
11=200-2777
(requiredfor
320w,350w,
400wwith
dimming)
(requiredfor
320w,350w,
400wnon-
dimming)
1C,PandSnotavailablew/aluminumreector(H)
2Dimmingonlyw/250wPulseStartMH
3AMquartznotavailablewithEP,ED,EEorHF
4150wmustbe“EP”or“ED”
5Standardwithopen-ratedsockets
6Mustbeenclosed
7D4unitsonly
122 www.stoncolighting.com
Decra Series - DLED
Specifications
• TheDecraLEDisdesignedaroundPhilipsLEDremotephosphortechnology.Thisremotephosphor
technologyispairedwithoneofthemostefcientLEDdriversonthemarket,providing62lm/wwith
ahighlightoutputof1,100lmusingonly18wofenergy
• ThecompactLEDisidealforapplicationsthatincludeofces,publicbuildings,high-endboutiques
andshops,supermarkets,retailandbigboxstores
• ConstructionincludesadiecastaluminumballasthousingwithastandardnishDuraplexIITM
aluminumelectrostaticpowdercoat.Optionalcolorsavailable
• 70%lumenmaintenanceafter50,000hours
• 1100lumen,4000K,80CRIdesignuses18W
• MercuryandleadfreedesignandROHScompliantelectronics
• Miniaturespecularreectorprovides55°cutoff,lowglare,uniformcolorandnohotspots.
• Ourtechnologyprovidesacoolbeamoflightwithnoultra-violet(UV)orinfrared(IR)which
eliminatesanyheatingoftheilluminatedproductsaswellaseliminationoffadingduetoUVexposure
• High-qualityLEDlightisachievedbymixingblueLED’sandusingacuttingedgephosphor
technologytogiveyouhighqualitywhitelightandcolorconsistency
• Mountingchoicesinclude1/2”NPSpendantstem,decorativehookwithcord,aircraftcablewith
coiledorstraightcord
• CSAApprovedfordamplocations
Decra Series DLED - Architectural Lighting
Ordering Information
D LED 18 RP SD W 8
Series Size Wattage Source Mounting Finish Voltage
D-DecraSeries LED-LED 18=18watt RP=
RemotePhosphor
SD=Std.3/4”Hub
C4=4’
CoilCord
C0=10’
CoilCord
S6=6’StraightCord
B=FlatBlack
W=FlatWhite
A=Aluminum
8=120-277
Optional Lenses (Sizes1through4only)
Decorativebladessupport
adroppedglasslenswith
perimeterfrostingproviding
a50˚cutoffforreducedglare.
Theglasslensisheldinplace
bycaptivethumbscrewsandis
laminatedtopreventshattering
shouldbreakageoccur.DSeries
alsohasawideselectionof
traditionallensesavailable.
*Notavailablewithaluminumreector
G
Laminatedfrosted
glasslenswith
decorative
blades(not
available42wc)
G
Laminatedfrosted
glasslenswith
decorativeblades
G
Laminatedfrosted
glasslenswith
decorativeblades
G
Laminatedfrosted
glasslenswith
decorativeblades
C
Clearatacrylic
lenswithsilicone
lensretainer*
C
Clearat
acryliclenswith
stainlesssteel
lensretainer*
C
Clearat
acryliclenswith
stainlesssteel
lensretainer*
C
Clearat
acryliclenswith
stainlesssteel
lensretainer*
W
Frostedat
acryliclens
withsilicone
lensretainer*
P
Conicalprismatic
acryliclenswith
stainlesssteel
lensretainer*
P
Conicalprismatic
acryliclenswith
stainlesssteel
lensretainer*
P
Conicalprismatic
acryliclenswith
stainlesssteel
lensretainer*
Size 1 Size 2 Size 3 Size 4
S
Prismaticsilicone
stretch-to-tlens
Visit www.crescent-stonco.com/decra
for more information
123
www.stoncolighting.com
Supply Lighting
SupplyProducts
Roughlyte
TheStoncoRoughlyteserieslivesuptoitsname!Theseruggedxturesaremadefromcastaluminumandcanbemountedonwall,ceilingorpendant.Modelsare
availableforincandescent,compactuorescentandHIDsources,andimpact-resistantcagesandglobesprotectlampagainstbreakage.
Lampholders
StoncoLampholdersincludeawideassortmentofsecurityandmotionsensingluminairesliketheNyteWatchthatdeliversunparallelsafetyandsecurity.Includedin
thelineisanarrayofbulletsandquartzxturesforavarietyofoodandhighlightingtasks.AllStoncolampholdersandmotionluminairesarebuildfordurability,
reliabilityandlonglife.
Boxes and Mounting Accessories
Stoncosuppliesthecontractorawideselectionofelectricalboxesandmountingaccessoriesforanylightinginstallation.Theyareconstructedofheavydie-cast
aluminumforstrengthandaredesignedwithlabor-savingfeaturesforfast,easyandreliableinstallation.
RoughLyte Series
CeilingMount
Page 124-127
920 / 3800 Series
ArchitecturalBullets
Page 129
EQ Series
QuartzFloods
Page 133
NyteWatch Series
MotionSensors
Page 135
124 www.stoncolighting.com
VCXL / VWXL / VK RoughLyte Series Ceiling Mounted - Supply Lighting
RoughLyte Series - VCXL / VP / VK
Specifications
• VCRoughlytexturesareforuseonceilingsandcanopies.Roughlytexturesguardagainstmoisture
anddebrisinexteriorapplications(forglobedownmountingonly).Notrecommendedforhazardous
locations
• Completewith4”die-castaluminumbox,foursideandtopholetapped1/2”NPT(fourplugsincluded)
• Heatandshockresistantglassorpolycarbonateglobe
• Castaluminumbayonetguardwithallenheadsecurityscrews
• Socketsarepre-wiredwithextralong1/2”strippedleads
• TouseVCunitswith3/4”conduituseVKSerieswithVXL13universalbox
• VPRoughlytexturesareforusependantapplications,stemsnotincluded.Tophubtapped1/2”NPT.
VPguardagainstmoistureanddebrisinexteriorapplications(forglobedownmountingonly).Not
recommendedforhazardouslocations
• TouseVKunitswith3/4”conduit,useVXL13universalbox.100WVKxturestall3-1/2”roundand
octagonboxesandall4”roundboxes
AllincandescentRoughlyteceilingandwallmountedxturesarenot
suppliedwithlamp.ThisxturerequiresamediumbaseincandescentA
lamp.Thelampcanbeclearorcoated.
Part Number Description Part Number Description
VCXL21A RoughlyteCeilingMount200wLexanGlobe VP11GC RoughlytePendantMount100wGlassGlobeCastGuard
VCXL5A RoughlyteCeilingMount60wLexanGlobe VP21GC RoughlytePendantMount200wGlassGlobeCastGuard
VCXL10A RoughlyteCeilingMount75wLexanGlobe VP11K RoughlytePendantMount100wGlassGlobe
VCXL11GCN RoughlyteCeilingMount100wGlassGlobeCastGuard VP21K RoughlytePendantMount200wGlassGlobe
VCXL21GC RoughlyteCeilingMount200wGlassGlobeCastGuard
VCXL11K RoughlyteCeilingMount100wGlassGlobe
VCXL21K RoughlyteCeilingMount200wGlassGlobe
Catalog No. Height (H) Dia. (D)
VCXL11 3-3/4” 4-1/4”
VCXL21 3-3/4” 5-1/8”
VCXL11K 8-5/8” 4-1/4”
VCXL21K 0-3/8” 5-1/8”
VCXL11GCN 9-1/8” 4-1/4”
VCXL21GC 10-7/8” 5-1/4”
VCXL5A 8-5/8” 4-1/4”
VCXL10A 10-3/8” 5-1/8”
VP11 4” 4-1/8”
VP21 4” 5-1/8”
VP11K 9-1/4” 5-1/8”
VP21K 10-3/8” 5-1/8”
VP11GC 9-3/4” 4-5/16”
VP21GC 10-7/8” 5-5/16”
VK1 2” 4-1/8”
VK2 2” 5-1/8”
VK1K 7” 4-1/4”
VK2K 8-3/4” 5-1/8”
VK1GC 7-1/2” 4-1/4”
VK2GC 9-1/4” 5-1/4”
VCXL
VCXL11-Box
mountadapter
Ordering Information NoSufxforsurface-mountunitonly
Part Number Description
VK1GC RoughlyteSurface/CeilingMount100wGlassGlobeCastGuard
VK2GC RoughlyteSurface/CeilingMount200wGlassGlobeCastGuard
VK1K RoughlyteSurface/CeilingMount100wGlassGlobe
VK2K RoughlyteSurface/CeilingMount200wGlassGlobe
VK
VCXL
VK
VK1-Round
SurfaceAdapter
VP VP11-Pendantadapter
VP
125
www.stoncolighting.com
Supply Lighting - VW / VWXL RoughLyte Series Wall Mounted
VW VWXL
VW / VP - RoughLyte Series
Specifications
• VWRoughlytexturesareforuseonwallsandcolumns.Fixturesguardagainstmoistureanddebrisin
exteriorapplications(forglobedownmountingonly).Notrecommendedforhazardouslocations.
• Fitsall4”roundandoctagonboxes
• TouseVWunitswith3/4”conduit,useVWSerieswithVXL13universalbox
• Heatandshockresistantglass
• Socketsarepre-wiredwithextralong1/2”strippedleads
• For3/4”conduit,useVWserieswithVXL13universalbox
Part Number Description Part Number Description
VW1GC RoughlyteWallMount100wGlassGlobeCastGuard VWXL5A RoughlyteWallMount60wLexanGlobe
VW2GC RoughlyteWallMount200wGlassGlobeCastGuard VWXL10A RoughlyteWallMount75wLexanGlobe
VW1K RoughlyteWallMount100wGlassGlobe VWXL11GC RoughlyteWallMount100wGlassGlobeCastGuard
VW2K RoughlyteWallMount200wGlassGlobe VWXL21GC RoughlyteWallMount200wGlassGlobeCastGuard
VWXL11K RoughlyteWallMount100wGlassGlobe
VWXL21K RoughlyteWallMount200wGlassGlobe
AllincandescentRoughlyteceilingandwallmountedxturesarenot
suppliedwithlamp.ThisxturerequiresamediumbaseincandescentA
lamp.Thelampcanbeclearorcoated.
Catalog No. Height (H) Dia. (D)
VW1 4-1/4” 5-3/8”
VW2 4-1/4” 5-7/8”
VW1K 9-1/4” 5-3/8”
VW2K 11” 5-7/8”
VW1GC 9-3/4” 5-1/2”
VW2GC 11-1/2” 6”
VWXL 12-3/4” 7”
VWXL11 4-1/4” 7-1/8”
VWXL21 4-1/4” 7-7/16”
VWXL11K 9-1/4” 7-1/8”
VWXL21K 10-7/8” 7-7/16”
VWXL11GCN 9-3/4” 7-1/4”
VWXL21GC 11-3/8” 7-1/2”
VWXL5A 9-1/4” 7-1/8”
VWXL10A 10-7/8” 7-7/16”
VW
VW1-Walladapter
Ordering Information NoSufxforsurface-mountunitonly
VWXL
126 www.stoncolighting.com
Supply Lighting - RoughLyte Series HID
Specifications
RoughLyte Series - VCXL / VWXL / VC HID
• RoughlyteHIDxturesareforsurfacemountedlightinginindustrialapplications(forglobe
downmountingonly)
• Notrecommendedforhazardouslocations.
• Precisiondie-castaluminumhousingwithdeluxeporcelain4KVsocket(NLXL)orquad-tube
type(NFL)
• Prismaticglassglobeprovideslowglaresymmetricallightdistribution
• Die-castaluminumguard
• VCXLandVWXLunitssuppliedwith4”roundboxformountingandconduitaccess
• VCunitsaresuppliedreadytomountoverrecessedceilingboxes
VCXL HID VWXL HID
VC HID
VCXL HID VWXL HID VC HID
Ordering Information
VCXL 28 NFL 1
Fixture Wattage Source Voltage
VCXL-CeilingMount
VWXL-WallMount
VC-CeilingRecessedBoxMounting
13-13W*
35-35W**
50-50W**
NFL-CompactFluorescent(NPFTrans.)
NLXL-HighPressureSodium(NPF)
1-120V
NOTE:NotAvailablein277voltorHighPowerFactor.
*AvailableinCompactFluorescentonly.**AvailableinHighPressureSodiumonly.
• RoughlyteSeriesHIDsaresuppliedwithlamps.HighPressureSodiumunitsuseE17mediumbaselamp
• CompactFluorescentunitsusePLC:13WuseGX23-2,22WuseGX32d-2,28WunitsuseGX32d-3.
• StartingTemperatures:NLX=-40°FNF=-20°F,28W
127
www.stoncolighting.com
VCXL / VWXL CF - VC2 / VP2 / VW2 RoughLyte Series - Supply Lighting
Specifications
VCXL / VWXL Compact Fluorescent - RoughLyte Series
VCXL VWXL
• Foruseinrestaurants,tavernsornightclubs,foodcourts,atriumsorplazas,malls,retailoutlets,athletic
clubsandfacilities,theatres,arenas,stadiums,amusementparks
• Precisiondie-castaluminumelectricalenclosure.Diecastaluminumballastbox
• Heatandshockresistant,prismaticglassopticalchamberwithneoprenegaskets
• Corrosion-resistantDuraplexIIpolyesterpowdernish.Optionaldesignernishesavailable
• CompactuorescentelectronicballastsHPF>95%,<10%THD
• PLTfourpinbaseGX24q-3(26/32w),GX24q-4(42w).PLT-4/side,1/back1/2”NPThubs
• Startingtemperature:0°F/-18°C
• Lowglareclearprismaticglassglobestandard.Approximately40%uplight
• UL1598listedforwetlocations(forglobedownmountingonly)
Ordering Information
VCXL 26 HFL EB 1
Fixture Wattage Source Ballast Voltage
VCXL-CeilingMount
VWXL-WallMount
26-26W
32-32W
42-42W
HFL-Compact
Fluorescent
EB-Electronic
Ballast
1-120V
4-277V
8-120V
208V
240V
277V
NOTE:Notforuseinhazardousorclassiedlocations.Notforrecessedmounting
Specifications
• Useforsurfaceorpendantmountedlightinginindoorandoutdoorindustrialapplicationsinnon-
hazardouslocations.Applicationsincludemanufacturingandindustrialfacilities,parkinggaragesand
masstransitstations(forglobedownmountingonly)
• Fixturesareresistanttotheelementsandvandalism.Notrecommendedforhazardouslocations
• Die-castaluminumhousingwithagraypolyesterpowdernish
• Castaluminumtwistlockguardandallenscrewsdetervandalism
• Prismaticglassglobeprovideslowglaresymmetricallightdistribution
• Pre-mountablesurface/pendantbasewithhingedballasthousingallowsforhands-freewiring
• Fixtureallowsfortheuseof90°Csupplywireat25°Cambient
• 3/4”NPStoporsideholesforceilingorpendantmounting
VC2 / VP2 / VW2 - RoughLyte II Series
VC2 VW2
Ordering Information
VCXL 26 HFL 8
Fixture Wattage Source Lamp Description Voltage
VC2-CeilingMount
VP2-PendantMount
VW2-WallMount
70-70W
100-100W
150-150W
MA-MetalHalide(HX-HPF)
NLXL-HighPressureSodium(NPF)
LXL-HighPressureSodium(HX-HPF)
Fixtures
Furnishedwith
Lamps
FixturesFurnishedwithGlass
GlobeandCastGuard
1-120V
2-208V
3-240V
4-277V
8-120V
208V
240V
277V
128 www.stoncolighting.com
Supply Lighting - RoughLyte Accessories
RoughLyte Series - Accessories
VXL1 V12
VGC100 VGP100
VGR100 VPRC10
V127 V131
VCN VCA1
4” Round RoughLyte Boxes and Plugs
Die-castaluminumforusewithconduit,StoncoRoughlyteceiling,surfaceandwallxturesandoodlights.
Foursideandonebackholetapped3/4”or1/2”,asshown.Heavy-dutygasket(exceptonVXL1),screws,four
aluminumve-threadedplugs.Nocover.
Catalog No. Tap Size Description Catalog No. NPT Size Description
VXL1 1/2” MountingBox V12 1/2” Plug
VXL13 3/4” MountingBox V13 3/4” Plug
Colored and Specialty Globes
Fullmoldedthreads.FitallStoncoRoughlytehousings.Globesforverticalmountingonly.
Catalog No. Description Catalog No. Description
3-1/2”GlobeDiameterGlass 4-3/8”GlobeDiameterGlass
VGC100 Clear* VGC200 Clear*
VGCH100 Clear,heattempered VGCH200 Clear,heattempered
VGP100 Clear,prismatic VGP200 Clear,prismatic
VGA100 Amber(60wmax.) VGA200 Amber(75wmax.)
VGB100 Blue(60wmax.) VGB200 Blue(75wmax.)
VGG100 Green(60wmax.) VGG200 Green(75wmax.)
VGR100 Ruby(60wmax.) VGR200 Ruby(75wmax.)
3-1/2”GlobeDiameterLexan 4-3/8”GlobeDiameterLexan
VPRC5 Clear,prismatic(60WMax.) VPRC10 Clear,prismatic(75WMax.)
*Standardwithallincandescentglassxtures.
NOTE:Useofcoloredglobeswilldown-ratewattage.
3-1/2”Globeshaveaheightof6-11/16”.4-3/8”Globeshaveaheightof8-3/8”
Guards
Wireguardsareclamp-ontype.Castaluminumguardsaretwiston/offbayonettype,includesallenheadsecurity
screws.ShippedwiththreadedringadapterforusewithstandardthreadedbasesorthenewRoughLyte™bases.
Catalog No. Fits Globe Diameter Catalog No. Fits Globe Diameter
WIREGUARD CASTGUARD
V127 3-1/2” V131 3-1/2”
V128 4-3/8” V132 4-3/8”
Adapter Plates
Permitseasyboxmountingovervarioussizeboxesandplumbalignment.
Heavy-gaugealuminum.Completewithgasket,screws.
Catalog No. Use With For Mounting On
VCP VKSeries 4”octagonboxes
VCP VWSeries 3-1/2”roundboxes
VCN VK&VWSeries 4”octagonboxes
VCA1 VWSeriesandHIDSeries Recessedboxes
*RoughlytexturesareNOTforuseinhazardouslocations.
129
www.stoncolighting.com
Supply Lighting - 920 / 3800
920 / 3800 Architectural Bullets
3300 Lampholders
Ordering Information
Specifications
• Designedforsafety,security,andaccentlighting
• Providesgoodcolorrendition,instant-on,dimmingcapability,easyinstallationandlowinitialcost
• Precisiondie-castaluminumnishedinpolyesterpowderinavarietyofcolors
• Premiumporcelainsocketwithplatedmediumbasescrewshell,reinforcedcentercontactforpositivet
• 1/2”NPTthreadedadjustablearm,locknutpreinstalled,pre-lubedtofacilitatemounting
• Cast-inquadrantswithserratedteethlockunitinplaceonceaimed
• Extralongpigtailsforeasysplicing.
• Unitsequippedwithweepholesforopenxtureapplications
• OpenunitsULlistedforabovehorizontalaimingwithPARlamps
• EnclosedunitsULlistedforabovehorizontalaimingwithRorPARlamps
Specifications
• Mediumbaselampholdersareidealforoverentranceways,undereaves,oversigns,anysafety,security,temporary
orrecreationallighting
• Providesgoodcolorrendition,instant-on,dimmingcapability,easyinstallationandlowinitialcost
• Precisiondie-castaluminumwithheatsinksandribstomaximizeheatdissipation
• Premiumporcelainsocketwithreinforcedscrewshellandcentercontact
• 3300Seriesequippedwithdurablerubbergasket
• 1/2”NPTthreadedadjustablearm,locknutpreinstalled,pre-lubedtofacilitatemounting
• Cast-inquadrantswithserratedteethlockunitinplaceonceaimed
• Extralongpigtailsforeasysplicing
Part No. Description Part No. Description
920 GrayOpenBullet,75wmaximum 920P BronzeOpenBullet,75wmaximum
920B BlackOpenBullet,75wmaximum 920G GreenOpenBullet,75wmaximum
920W WhiteOpenBullet,75wmaximum
Part No. Description Part No. Description
3800 GrayBullet,300wmaximum 3800P BronzeBullet,300wmaximum
3800B BlackBullet,300wmaximum 3800G GreenBullet,300wmaximum
3800W WhiteBullet,300wmaximum
Part No. Description
3300BULK Lampholder,SmoothZincFinish
3300WHT Lampholder,WhiteFinish
920 Extender 920 Shield 3800 Extender
FlatGlass FlatGlassandVisor Flatglass ConcaveGlass
Gray 9250E 9255E 3850E 3851E
Bronze 9250EP 9255EP 3850EP 3851EP
Black 9250EB 9255EB 3850EB 3851EB
Green 9250EG 9255EG 3850EG 3851EG
White 9250EW 9255EW 3850EW 3851EW
Accessories
3350 Wireguard
920
3800
Ordering Information
130 www.stoncolighting.com
40L / V4400 / 150L / 30KL - Supply Lighting
Specifications
• Idealforindustrial,commercial,andresidentialusessuchasgroundlevellighting,signlighting,and
industrialtask-safetylighting
• Precisiondie-castaluminumwithintegralshieldtoprotectlampwithabove/belowhorizontalaiming
• Multi-piecegasketsystemlocksoutmoistureanddebris
• Premiumporcelainsocketmountedonheatsinkpodforeffectiveheattransferandreinforcedlamp
contact,deepintegralcast360°“bell”protectslamp,helpsshieldglareandpreventslightspill
• 1/2”NPTthreadeddiecastarm,locknutpreinstalled,pre-lubedtofacilitatemounting
• Cast-inquadrantswithserratedteethlockunitinplaceonceaimed
• Extralongpigtailsforeasysplicing
Specifications
• Idealforuseoverentranceways,undereaves,oversigns,anysafety,security,temporaryorrecreational
lighting
• Providesgoodcolorrendition,instant-on,dimmingcapability,easyinstallationandlowinitialcost
• Precisiondie-castaluminumwithheatsinksandribbingtomaximizeheatdissipation
• Weather-resistantaluminumnish
• Premiumporcelainsocketwithdoublereinforcedscrewshellandspringloadedcentercontact
• 150Ltriple-gasketconsistsofthicksiliconerubbersealbackedupbydurableheatbarrierandanchored
inplacewithmetallockring
• Model30KLismoldednordel
• 1/2”NPTthreadedadjustablearm,locknutpreinstalled,pre-lubedtofacilitatemounting
• Cast-inquadrantswithserratedteethlockunitinplaceonceaimed
• Extralongpigtailsforeasysplicing
40L / V4400 Landscape and Heavy-Duty Floods
150L / 30KL Medium Base Lampholders
Part Number Description
40L 150wAluminumFlood
40LBRZ 150wBronzeFlood
40LBLACK 150wBlackFlood
40LWHITE 150wWhiteFlood
V4400E 75w-300wNaturalAluminumEnclosedFlood
V4400 75w-300wNaturalAluminumOpenFlood
150L 30KL
40L V4400
40L
V4400E
V4400E Accessories
BV4450-Castguard V4453C-Clearscrewinlens
4503-3/4”arm SLW10A-SurfaceadaptertoconvertV44001/2”armtosurfacemount.
40L Accessories
207-Wireguard
Ordering Information
Part Number Description
150L 250wMax.Lampholder
30KL 150wMax.Lampholder
Accessories
80-Wireguard(150Lonly)
3350-Wireguard(30KLonly)
Ordering Information
150L
30KL
131
www.stoncolighting.com
Supply Lighting - CLD / 6400
Specifications
• Idealfortask,safety,orsecuritylightinginsuchapplicationsaspressandmachineshops,railwaystations,andtollbooths
• Precisiondie-castaluminumnishedinnaturalaluminum
• Premiumporcelainsocketwithplatedscrewshellandreinforcedcentercontact,cradledinheavysteelcoiledspring
• Lampissealedagainsthousingviabraidedheat-resistantgasket
• 1/2”NPTthreadeddiecastarm,locknutpreinstalled,pre-lubedtofacilitatemounting
• Cast-inquadrantswithserratedteethlockunitinplaceonceaimed
• Extralongpigtailsforeasysplicing
Ordering Information
Ordering Information
Part No. Watts Lamp Base A B C
CLD1500 250wIndustrial PAR38/QPAR38 Medium 6-1/8” 1-3/16” 2-1/8”
6400 Power Beams
Part No. Description A B C D E
6400E 500wPowerBeam,AluminumFinish,Enclosed 9-1/8” 4-1/2” 2-3/4” 5-1/2” 9”
6400 500wPowerBeam,AluminumFinish,Open 9-1/8” 4-1/2” 2-3/4” 5-1/2” 9”
Accessories
SLW10A-Surfaceadaptertoconvert1/2”armtosurfacemount.
6450-WireguardforallPAR64units.
6451-Glareshield(270degrees)forallPAR64units.
6452T-ClearlensandmountingkitforPAR64INCunits.
6453T-Clearlens(8-3/8”dia.)forPAR64INCunits.
Q6452AH-Clearabove-horizontallensandmountingkitforPAR64
TungstenHalogen(Quartz)units.
Q6453AH-Clearabove-horizontallensforPAR64TungstenHalogen
(Quartz)units.
Specifications
• Idealforlongthrowapplicationssuchasbillboard,sign,agpole,andfacadelighting
• Providesinstant-onandexcellentcolorrenditioncombinedwithbrightwattageandtightbeamcontrol
• Precisiondie-castaluminumhousingribbedformaximumheatdissipation
• 1/2”NPTadjustablemalearm,withserratedteeth,mountstoavarietyofstandardhardware,forground,surface,
orpolemount
• Unitsarepre-wiredwithporcelainsocketusingsiliconegasketforweatherresistance
• Enclosedunitsequippedwithshockandheatresistanttemperedglass
• Extralongpigtailaidsinstallation
• Mogulendprongsocket
CLD Series Industrial
132 www.stoncolighting.com
CPH Series Quartz Floods - Supply Lighting
CPH Series Quartz Floods
Specifications
• Designedforanyoutdoorapplicationrequiringtrue,accuratecolorrendition
• Popularusesincludebillboardsignlighting,tenniscourts,andsportsplayingelds
• Die-castaluminumcastingwithintegralribsforoptimumheatdissipation
• FinishedinDuraplexIIbronzepolyesterpowder
• Lensframeisdie-castaluminumwithsiliconegasketandretainedbyoatinghingedesign
• Hightemperatureandshockresistantlens
• Porcelainsocketswithsilver-platedcontactsareenclosedinaintegralhousingforoptimumheatdissipation
• Three-pieceanodizedaluminumreectorsystem
• 1/2”NPTthreadedarmwithserratedteethmountstoanystandardhardwarewith1/2”tappedaccessholes
• Canbesurfaceorpolemountedusingseveralmountingaccessories
CAUTION: FOR OUTDOOR APPLICATION ONLY
• Notforuseindoors
• Notforuseindwellings
• Notforuseinareasthatmayentrapheat
• Notforuseinhazardousareai.e.painting
• Notforuseinambientsabove80°F
• Notforuseinareaswithvibration
• Notforuseasaportablexture
Ordering Information
Accessories
SLW10-Surfaceadaptertoconvert1/2”armtosurfacemount
TL550-Wireguardfor500WONLY,snapsoverlens(CPH515Lonly)
4503BRZ-3/4”conversionarm
CPH515L
CPH1525L
Part Number Description
CPH515 CPHSeriesQuartzFloodupto500w
CPH515L CPHSeriesQuartzFloodwithLamp
CPH1525 CPHSeriesQuartzFloodupto1500w
CPH1525L CPHSeriesQuartzFlood,240v,withLamp
CPH515L CPH1525L
133
www.stoncolighting.com
Supply Lighting - EQ / EQX Series Quartz Floods
Specifications
EQ Series Quartz
• Foruseinanyoutdoorapplicationrequiringtrue,accuratecolorrenditionandinstant-oncapability
• Popularusesincluderesidentialandcommercialsecuritylighting,andsignlighting
• Die-castaluminumhousing
• Siliconegasketsealslenstobody
• Socketswithintegralspringmaintaincontact
• Anodizedaluminumreectorprovideswidedistribution
• 1/2”threadedarmmountstoanystandardhardware
CAUTION: FOR OUTDOOR APPLICATION ONLY
• Notforuseindoors
• Notforuseindwellings
• Notforuseinareasthatmayentrapheat
• Notforuseinhazardousareai.e.painting
• Notforuseinambientsabove80°F
• Notforuseinareaswithvibration
• Notforuseasaportablexture
EQ2100LBRZ
EQ2150LBRZ
EQX1500L
EQ500L
Ordering Information
EQ2100LBRZ EQ2150LBRZ
EQX500L EQX1500L EQ500L
Part Number Description
EQ2100LBRZ EQQuartzFloodDualHead100wBronze
EQ2100LWHT EQQuartzFloodDualHead100wWhite
EQ300LBRZ EQQuartzFlood300wBronze
EQ500L EQQuartzFlood500wBronze
EQX1500 EQw/LensFrame1500w
EQX150LWHT EQw/LensFrame150wWhite
EQX150LBRZ EQw/LensFrame150wBronze
EQX500L EQw/LensFrame500wBronze
EQX2150LBRZ EQQuartzFloodDualHead150wBronze
EQX2150LWHT EQQuartzFloodDualHead150wWhite
EQ / EQX Series Quartz Floods
134 www.stoncolighting.com
Photocontrols - Supply Lighting
Photocontrols
Ordering Information
Basic Mini-Controls (Button Style)
Insealedcase2-1/8”x1”x3/4”.3/8”NPSthreadednippleforuseinboxes,ttingsandotherprotectiveenclosures.
Max. Watts Max. Watts HID
Catalog No. Volts Incandescent HPF NPF Description
P105A 120 1000 400 250 BlackBody
P105M 208-277 1000 400 250 BlackBody
Architectural Pencil-Controls
Sealedinroundplasticcasewithbuilt-inswiveland1/2”-14NPTarm.
Max. Watts Max. Watts HID
Catalog No. Volts Incandescent HPF NPF Description
P110A 120 1000 400 250 BlackBody
Light-Leveler Photocontrols
Hermeticallysealedpolycarbonatewitheld-adjustablelight-levelerand1/2”nipple.
Max. Watts Max. Watts HID
Catalog No. Volts Incandescent HPF NPF Description
P150A 120 1800 1000 400 GreyBody
P150M 208-277 1800 1000 400 GreyBody
P150E 480 1800 1000 400 GreyBody
P150F 120-277 1800 1000 400 GreyBody
Light-Leveler Photocontrols
Hermeticallysealedpolycarbonatewitheld-adjustablelight-levelerand1/2”nipple.
Max. Watts Max. Watts HID
Catalog No. Volts Incandescent HPF NPF Description
P400A 120 1800 1000 400 FiberglassBody
P400E 480 1800 1000 400 FiberglassBody
P400F 120-277 1800 1000 400 FiberglassBody
P105A
P110A
P150A
P400A
MD361 Twist-Lock Accessories
Catalog No. Description
P400R TWIST-LOCKRECEPTACLE:Polarizedmoldedsocketindie-cast
aluminumhousingwith1/2”malenipple.
P400S SHORTINGCAP:Permitsoperationofoodlightwithphotocontrol
removed.
High-Bay Motion Sensor
Catalog No. Description
MD361 IdealforLinearFluorescentHighBayxtures,120v/277v/347v
135
www.stoncolighting.com
Supply Lighting - NBA / NBC NyteWatch
NBC2150LBLK
Ordering Information
Part Number Description
NBA2150LBLK NyteWatchAdjustable,300wHalogen(150wx2),BlackFinish
NBA2150LWHT NyteWatchAdjustable,300wHalogen(150wx2),WhiteFinish
NBC2150LBLK NyteWatchFixedatCut-Off,300wHalogen(150wx2),BlackFinish
NBC2150LWHT NyteWatchFixedatCut-Off,300wHalogen(150wx2),WhiteFinish
NBA2150LBLK
70˚
240˚
Conventional Motion Lighting
Emits Extreme Glare
NyteWatch
Vertical Vision Plane Horizontal Vision PlaneNBA: 0˚ to 30˚ Rotation
NBA / NBC NyteWatch Series
Specifications
• Architecturaldesignblendswithanyenvironment
• Low-glareoptics
• Swiveldesigneasilyadaptstowallsorsofts
• Die-castaluminumconstruction
• Soda-limetemperedglasslenses
• Universalmountingplatewithintegralbubblelevel
• Availableasadjustableandnon-adjustablemodels
• Adjustableunitoffers0°-30°forcutofforforward-throwapplications
• Fixedmodelofferscutoffillumination
• 240°horizontalvisionplaneand70°verticalvisionplanewithantisneak-byoptics
• Nyte-Glow™settingdimslightto30%fordusk-to-dawnoperation
• Motionsensorhas10-secondto15-minutetimedelaycontrolwithautomaticsensitivityadjustment
• UL-Approvedforinternalsplicingeliminatestheneedforanexternalsplicebox
• Universalbackplateformountingtorecessedorsurfacejunctionboxes,roundboxesorsinglegang
FSboxes
• Built-inphotocontrolwithON/OFFswitch
• Includes(2)150wquartzhalogenlamps
• Built-insurgeprotection
• 10-YearLimitedWarranty
136 www.stoncolighting.com
Boxes and Mounting Accessories - Supply Lighting
Specifications
• Roundboxesandcoversaredesignedtoacceptavarietyofstandardelectricalequipmentincludingphotocontrols
andarmmountedlightingxtures
• Heavy-dutydie-castaluminumorzinc
• Allholesaretapped1/2”or3/4”NPS
• Close-upplugsareincludedwitheachbox(1lessthanthenumberofholes/box)
• Universalstyleboxesareequippedwith“secured”die-castlugsformountingtoanysurface:wood,cement,orbrick
Round Boxes and Covers
75
27
2 2B
2H
3-1/2” ROUND BOXES—4 Hole and 6 Hole Body
Catalog No. Side Holes Back Hole Cover Hole Mtg. Lugs Plugs Pipe Thread Size
29 4 1 1 —4 1/2”
27 4 1 1 2 4 1/2”
4” ROUND BOXES—4 Hole Body
Catalog No. Side holes Back hole Cover hole Mtg. lugs Plugs Pipe Thread Size
75 4 1 —2 4 1/2”
75WHT 4 1 —2 4 1/2”
75D 4 1 1 2 4 1/2”
75F 4 1 3 2 5 1/2”
75FWHT 4 1 3 2 5 1/2”
753 4 1 —2 4 3/4”
753D 4 1 1 2 4 3/4”
Ordering Information
Specifications
• FSBoxesaredesignedtoacceptavarietyofstandardelectricalequipmentincludingphotocontrols,switches,
receptacles,andlightingxtures.Canbesurfacemountedorusedatgroundlevelforaccent/landscapelighting.Also
idealforsplicingandendofruns.
• Heavy-dutydie-castaluminumnishedinsilverorwhiteDuraplexIIpolyesterpowder.
• Allholesaretapped1/2”or3/4”NPS.Zincclose-upplugsareincludedwitheachbox(1lessthanthenumberof
holes/box),aswellas,pre-installedgroundscrews.AllFSboxesareequippedwithtwostainlesssteel,slide-out
mountinglugsforinstallationtoanysurface:wood,cement,orbrick.
• Boxescanalsobeinstalledviaconduitclamps.
FS Boxes
One Gang Boxes
Catalog No. Type End Holes Bottom Holes Side Holes NPS Size Vol. Cu. In.
FS111 A1-1 1 0-0 1/2” 17.5
FS211 1-1 1 0-0 3/4” 17.5
*NOTE:Allboxcovershave1/2”pipethreadINCLUDING753D.
4” ROUND COVERS
Catalog No. Number of Holes Pipe Thread Size Finish
2H - - NaturalAluminum
21 1/2” NaturalAluminum
2A 1 3/4” NaturalAluminum
2 Black 1 1/2” Black
2B 3 1/2” NaturalAluminum
2B Black 3 1/2” Black
2BWHT 3 1/2” White
2P 1 1/2” Bronze
137
www.stoncolighting.com
Supply Lighting - Boxes and Mounting Accessories
FS Box Cover Plates and Extenders
Specifications
• Roundboxesandcoversaredesignedtoacceptavarietyofstandardelectricalequipmentincluding
photocontrolsandarmmountedlightingxtures
• Heavy-dutydie-castaluminumorzinc
• Allholesaretapped1/2”or3/4”NPS
• Close-upplugsareincludedwitheachbox(1lessthanthenumberofholes/box)
• Universalstyleboxesareequippedwith“secured”die-castlugsformountingtoanysurface:wood,
cement,orbrick
FC10 FC11 FC13
4A 4A
ONE-GANG COVERS — 2-3/4” x 4-1/2”
Catalog No. Description
FC10 PlainCover.Stampedaluminum.Completewithgasket,screws.
FC11 One-HoleCover.Tapped1/2”NPSforlampholder,photocontrol
FC13 Three-HoleCover.Tapped1/2”NPSforlampholders,photocontrol.
Completewithgasket,screws,oneclose-upplug.
Withoneduplexverticalspring-loadedgasketedsnap-cover.
ONE-GANG JUMBO COVERS — 3-1/8” x 5-1/8”
Catalog No. Description
4A OneHoleCover.Tapped1/2”NPSforlampholder,photocontrol.Completewith
gasket,screws.
4B Three-HoleCover.Tapped1/2”NPSforup-to-threelampholders,etc.Complete
withgasket,screws,oneclose-upplug.
DOUBLE-GANG COVERS — 4-1/2” x 4-1/2”
Catalog No. Description
FC50 PlainCover.Stampedaluminum.Completewithgasket,screws.
*WHTdenoteswhitenish.
Miscellaneous Hardware and Accessories
Twin Y-Adapter
Part Number Description
9Y Single1/2”maleend,two1/2”femaletappedhubs.Permitsone-holedevicestomounttwoxtures.
•Forusewitharmmountedincandescentandhalogenxtures
Conversion Arms
Part Number Description
45001 1/2”maleconversionarm;bottomswivelonly
4503 3/4”maleconversionarm;bottomswivelonly
Close-Up Plugs - Standard
Part Number Thread Size Description
12 1/2” Zincwith3NPSthreads,straight-slotted
13 3/4” Zincwith3NPSthreads,straight-slotted
Close-Up Plugs - RoughLyte
Part Number Thread Size Description
V12 1/2” Zincwith3NPTthreads,x-slotted
V13 3/4” Zincwith3NPTthreads,straight-slotted
138 www.stoncolighting.com
Boxes and Mounting Accessories - Supply Lighting
Specifications
• Specialpurposeboxesforawiderangeofstandardanduniqueapplications
 #49Junior—Endofrunsplices
 #143Square—Inexpensivetroughforpole-topmounting
 #SJ-2—Landscapemountingbox
• Precisiondie-castironoraluminumfullygasketedfortightweather-resistantseal
• Allboxesforusewith1/2”conduitand/orlampholders.Completewithcastcovers(asspecied)
gasketsandallnecessaryhardware
Specialty Boxes
JUNIOR JUNCTION BOX — For Lampholders or End of Run
Catalog No. Body Holes Bottom Holes Cover Holes Plugs Tap Size
49 2———1/2”
3” SQUARE BOX — 4 Hole Body
Catalog No. Body Holes Bottom Holes Cover Holes Plugs Tap Size
143 4 1 1 3 1/2”
4” SQUARE BURIABLE BOX
Catalog No. Body Holes Bottom Holes Cover Holes Plugs Tap Size
SJ-2 —2 1 —1/2”
•Castironandhotdippedgalvanized.Completewith1/8”rubbergasketandcastcoverwith1/2”NPTholeandstainlesshardware.Baseequippedwith2-1/2”NPTaccessholesinbottom.
49 143
Troughs and Slipfitters Specifications
Die-Cast Aluminum Troughs
• Formountingclustersofoods.CantedSeries(#15and#16)forlowwattageHID,RandPARlamps
• Heavy-wallcastaluminumwithcantedholesformorecompactoodlightclusters.Pluggedcenter
mountingholetapped1”withlockingsetscrewforusewithsliptters#7Aor#3B.Oppositecenter
mountingholetapped1/2”forusewithconduitorslip-tters#7or#3.Allotherholesaretapped1/2”
NPS.Troughs#15and#16havecantedholesandcannotbeusedforquartzT-3lampoods
• Mountstopole-toptenon(2”or3”)viasliptter.Removablecoverpermitsampleroomformaking
splices
Part Number Description
16 13”RectangularTrough—8holes,5plugs
15 22”RectangularTrough—12holes,7plugs
Slipfitters
• Adaptsawiderangeofhardwareto2”or3”pole-topmounting
• Heavy-dutydie-castaluminumwithstainlesssteelhardware
• Mountsto2”or3”tenon(asspecied)andlocksinplace.Acceptseither3/4”or1/2”male/female
(dependingonstyle)
Part Number Description
7 (2-3/8” O.D.) For1-1/2”to2”pipe—1/2”and3/4”female,1/2”male
3 (3-1/2” O.D.) For3”pipe—1/2”and3/4”female,1/2”male
7A (2-3/8” O.D.) For1-1/2”to2”pipe—1”male
3B (3-1/2” O.D.) For3”pipe—1”male
16
15
7 3
SJ-2
139
www.stoncolighting.com
Supply Lighting - Landscape
Rocket Perma-Post - RPP3VG
Specifications
• RocketPerma-Postlandscapeaccessoriesaredesignedforusewithlandscapelighting
• CanalsobeusedwithincandescentandlowwattageHIDoods
• ConstructedofheavydutyPVCpipewithmolded1/2”bushingtobeusedwith3wirexturesonly
• Equippedwithbuilt-instabilizersothatunitwillnottiltorshiftafterinstalled.
• Color-fastPVCwillnotcorrodeorfade
Ordering Information
Part Number Description
RPP3VG RocketPerma-Post,VerdeGreenFinish
RPP3BLK RocketPerma-Post,BlackFinish
RPP3WHT RocketPerma-Post,WhiteFinish
Burial Box
SJ-2 4” Square Buriable Box
• Castironandhotdippedgalvanized
• Completewith1/8”rubbergasketandcastcoverwith1/2”NPTholeandstainlesshardware
• Baseequippedwith2-1/2”NPTaccessholesinbottom
18”
140 www.crescent-stonco.com
IES Lighting Levels - Technical Data
APPLICATION FOOTCANDLE
LEVEL
ASSEMBLY
Rougheasyseeing........................................................................... 30
Roughdifcultseeing...................................................................... 50
Medium........................................................................................... 100
Fine................................................................................................ 500*
ExtraFine...................................................................................... 1000*
AUDITORIUMS
SocialActivities................................................................................. 5
Assemblyonly.................................................................................. 15
Exhibitions....................................................................................... 30
BASKETBALL
Regulation........................................................................................ 50
Recreation........................................................................................ 30
DEPOTS, TERMINALS, STATIONS
Concourse........................................................................................ 10
Platforms.......................................................................................... 20
Waiting,Restrooms.......................................................................... 30
Baggage........................................................................................... 50
TicketCounter................................................................................. 100
FOUNDRIES
Annealingfurnaces........................................................................... 30
Cleaning........................................................................................... 30
Coremaking.................................................................................... 100
Inspection
Fine............................................................................................... 500
Medium......................................................................................... 100
Molding.......................................................................................... 100
Pouring,sorting............................................................................... 50
GARAGES–MOTOR VEHICLES
Storage.............................................................................................. 5
TrafcLanes
Parkinggarage............................................................................... 10
Servicegarage............................................................................... 20
Entrances....................................................................................... 50
RepairArea.................................................................................... 100
GYMNASIUMS
Assemblies....................................................................................... 10
Generalexercise&recreation........................................................... 30
Exhibitions,matches........................................................................ 50
HOCKEY, ICE
Professional................................................................................ 100-200
Amateur............................................................................................ 50
Recreation........................................................................................ 20
MACHINE SHOPS
Roughbench.................................................................................... 50
Mediumbench,roughgrinding,bufng.......................................... 100
MATERIALS HANDLING
Loading,trucking............................................................................. 20
Pickingstock,classifying................................................................. 30
Wrapping,packing,labeling............................................................. 50
OFFICES
Corridors,stairways....................................................................... 20**
Reading,transcribing....................................................................... 70
Regularofcework.......................................................................... 100
Accounting,auditing,tabulating,machineop,roughdrafting......... 150
Cartography,designing,detaileddrafting........................................ 200
STORES
Circulationarea,stockroom............................................................. 30
Merchandising,serviced................................................................. 100
Merchandising–selfservice............................................................ 200
APPLICATION FOOTCANDLE
LEVEL
TENNIS
Regulation........................................................................................ 40
Recreation........................................................................................ 30
TESTING
General............................................................................................. 50
WAREHOUSING, STORAGE
Inactive.............................................................................................. 5
Active
Rough,bulky.................................................................................. 10
Medium.......................................................................................... 20
Fine................................................................................................ 50
BUILDING (CONSTRUCTION)
Generalconstruction........................................................................ 10
Excavationwork................................................................................ 2
BUILDING EXTERIORS
Entrances
Active(pedestrianand/orconveyance............................................. 5
Inactive(normallylocked,infrequentlyused).................................. 1
Vitallocationsorstructures............................................................... 5
Buildingsurrounds........................................................................... 1
BUILDINGS AND MONUMENTS, FLOODLIGHTED
Brightsurroundings
Lightsurroundings......................................................................... 15
Mediumlightsurfaces.................................................................... 20
Mediumdarksurfaces.................................................................... 30
Darksurfaces................................................................................. 50
Darksurroundings
Lightsurfaces.................................................................................. 5
Mediumlightsurfaces.................................................................... 10
Mediumdarksurfaces.................................................................... 15
Darksurfaces................................................................................. 20
BULLETIN AND POSTER BOARDS
Brightsurroundings
Lightsurfaces................................................................................. 50
Darksurfaces................................................................................ 100
Darksurroundings
Lightsurfaces................................................................................. 20
Darksurfaces................................................................................. 50
GARDENS
Generallighting................................................................................0.5
Path,steps,awayfromhouse............................................................ 1
Backgrounds–fences,walls,trees,shrubbery................................... 2
Flowerbeds,rockgardens................................................................ 5
Trees,shrubbery,whenemphasized.................................................. 5
Focalpoints,large............................................................................ 10
Focalpoints,small........................................................................... 20
LOADING AND UNLOADING PLATFORMS............................... 20
Freightcarinteriors.......................................................................... 10
PARKING AREAS
Self-parkingarea............................................................................... 1
Attendantparkingarea....................................................................... 2
STORAGE YARDS
Active............................................................................................... 20
Inactive.............................................................................................. 1
* Obtainedwithacombinationofgenerallightingplusspecialized
supplementarylighting.
**Ornotlessthan1/5thelevelinadjacentareas.
141
www.crescent-stonco.com
Technical Data
Lamp Type Lamp Base Life/Hours Initial Lumens
Quartz
150 T4 D.C.Bayonet 2,000 2,800
250 T4 D.C.Bayonet 2,000 5,000
300 T3 RSC 2,000 5,950
500 T3 RSC 2,000 11,100
500 PAR56 MogulEndProng 4,000 8,000
1000 T3 RSC 2,000 21,500
1000 PAR64 ExtendedMogulEndProng 4,000 19,400
1500 T3 RSC 2,000 35,800
Incandescent
60 A19 Medium 1,000 870
100 A19 Medium 750 1,750
150 PAR38 Medium 2,000 1,740
150 R40 Medium 2,000 1,900
150 PAR46 MediumSideProng 2,000 1,740
200 A21 Medium 750 4,010
200 PAR46 MediumSideProng 2,000 2,300
200 PAR56 MogulEndProng 2,000
300 PAR56 MogulEndProng 2,000 3,840
500 PAR64 ExtendedMogulEndProng 2,000 6,500
Compact Fluorescent
7 PL G23 10,000 400
9 PL G23 10,000 600
13 PL GX23 10,000 900
18 SL18 Medium,ANSI30570-6 10,000 1,100
22 PLC GX32d-2,ANSI20478-4 10,000 1,200
28 PLC GX32d-3,ANSI20479-2 10,000 1,600
32 PLT GX24q-3,4PinTripleTube 10,000 2,400
42 PLT GX24q-4,4PinTripleTube 10,000 3,200
ApproximateInitialOutputofTypicalRandPARLamps
Watts Average Max.
Lamp Candelas C.P.1Beam Spread2Beam
Lumens Total Lumens
Flood Lamps
75 R30 400 136° 730 900
150 R40 1040 124° 1650 1900
300 R40 1950 123° 3200 3650
500 R40 3800 124° 6000 6500
150 PAR38 4000 60° 1690 1740
200 PAR48 11500423°x38° 1300 2300
300 PAR56 24000419°x34° 2100 3840
300 PAR56 11000527°x52° 2200 3840
500 PAR64 37000419°x35° 3300 6500
500 PAR64 13000532°x55° 3400 6500
SpotLamps
75 R30 1540378° 760 900
150 R40 5400349° 1550 1900
300 R40 8900360° 3100 3650
500 R40 21000342° 4700 6500
150 PAR38 11500328° 1200 1740
200 PAR46 310003, 6 19°x23° 1100 2300
300 PAR56 680003, 6 14°x20° 1800 3840
300 PAR56 — — — —
500 PAR64 11,0003, 6 14°x19° 3000 6500
500 PAR64 — — — —
1Averagein10°Cone
2To10%(approx.)ofmaximumcandlepower
3Averagein5°Cone
4MediumFlood
5WideFlood
6NarrowFlood
Watts Lamp Type Lamp Base ANSI Code Desc. Life (Hrs.) Initial Lumens
High Pressure Sodium
35 E17 Medium S76HA Clear 16,000 2,250
35 E17 Medium S76HB Diffuse 16,000 2,150
50 E17 Medium S68LP Clear 24,000+ 4,000
50 E17 Medium S68LR Diffuse 24,000+ 3,800
70 E231/2 Mogul S62ME Clear 24,000+ 6,300
70 E231/2 Mogul S62MF Diffuse 24,000+ 5,860
70 E17 Medium S621G Clear 24,000+ 6,300
70 E17 Medium S62LH Diffuse 24,000+ 5,860
100 E231/2 Mogul S54SB Clear 24,000+ 9.500
100 E231/2 Mogul S54ML Diffuse 24,000+ 8,800
100 E17 Medium S54SG Clear 24,000+ 9,500
100 E17 Medium S54SH Diffuse 24,000+ 8,800
150 E231/2 Mogul S55SC Clear 24,000+ 16,000
150 E231/2 Mogul S55MD Diffuse 24,000+ 15,000
150 E17 Medium M110 Clear 24,000+ 16,000
150 E17 Medium M98 Diffuse 24,000+ 15,000
250 E18 Mogul S50VA Clear 24,000+ 28,500
250 E28 Mogul S50VC Diffuse 24,000+ 26,000
400 E18 Mogul S51WA Clear 24,000+ 50,000
400 E37 Mogul S51WB Diffuse 24,000+ 47,500
750 BT37 Mogul S111NH Clear 24,000+ 99,000
1000 E25 Mogul S52XB Clear 24,000+ 140,00
Metal Halide (Probe Start and Pulse Start)
50 ED17 Medium M110TM Clear 10,000 2,250
*50 ED17 Medium M110 Clear 10,000 3,400
**50 ED17 #Medium M110 Clear 10,000 3,200
70 ED17 Medium M98SJ Clear 15,000 5,600
*70 ED17 Medium M98 Clear 15,000 5,600
**70 ED17 #Medium M98 Clear 15,000 5,600
100 ED17 Medium M107 Clear 7,500 7,200
*100 ED17 Medium M90 Clear 15,000 9,000
**100 ED17 #Medium M90 Clear 15,000 8,500
150 ED17 Medium M57 Clear 10,000 13,500
*150 ED17 Medium M102 Clear 15,000 15,000
**150 ED17 #Medium M102 Clear 15,000 14,250
175 ED17 Medium M57 Clear 10,000 14,000
*175 ED17 Medium M137 Clear 15,000 17,500
175 ED28 Mogul M57PE Clear 10,000 12,000
*175 ED28 Mogul M137 Clear 15,000 14,000
175 ED28 Mogul M57PF Diffuse 10,000 14,000
*175 ED28 Mogul M137 Diffuse 15,000 16,600
*200 ED17 Medium M136 Clear 12,000 21,000
*200 ED17 Medium M136 Diffuse 12,000 20,000
*200 ED28 Mogul M136 Clear 15,000 21,000
*200 ED28 Mogul M136 Diffuse 15,000 20,000
**200 ED28 #Mogul M136 Clear 15,000 20,000
**200 ED28 #Mogul M136 Diffuse 15,000 19,000
250 ED28 Mogul M58PG Clear 10,000 20,500
*250 ED28 Mogul M138 Clear 15,000 26,300
**250 ED28 #Mogul M138 Clear 15,000 25,000
250 ED28 Mogul M58PH Diffuse 10,000 19,475
*250 ED28 Mogul M138 Diffuse 15,000 25,000
**250 ED28 #Mogul M138 Diffuse 15,000 23,800
*320 ED37 Mogul M132 Clear 20,000 33,000
*320 ED37 Mogul M132 Diffuse 20,000 31,000
**320 ED37 #Mogul M132 Clear 20,000 32,300
**320 ED37 #Mogul M132 Diffuse 20,000 30,600
*350 ED37 Mogul M131 Clear 20,000 38,000
*350 ED37 Mogul M131 Diffuse 20,000 36,000
**350 ED37 #Mogul M131 Clear 20,000 36,000
**350 ED37 #Mogul M131 Diffuse 20,000 34,200
400 ED37 Mogul M59PJ Clear 20,000 36,000
*400 ED37 Mogul M135 Clear 20,000 44,000
**400 ED37 #Mogul M135 Clear 20,000 42,000
400 ED37 Mogul M59PK Diffuse 20,000 36,000
*400 ED37 Mogul M135 Diffuse 20,000 42,000
**400 ED37 #Mogul M135 Diffuse 20,000 40,000
400 ED28 Mogul M59 Clear 20,000 36,000
*400 ED28 Mogul M135 Clear 20,000 44,000
**400 ED28 #Mogul M135 Clear 20,000 42,000
400 BT28 Mogul M59 Clear 20,000 36,000
*450 ED37 Mogul M144 Clear 20,000 50,000
**450 ED37 #Mogul M144 Clear 20,000 47,500
1000 BT56 Mogul M47PA Clear 12,000 110,000
1000 BT56 Mogul M47PB Diffuse 12,000 110,000
1000 BT37 Mogul M47 Clear 12,000 110,000
*PulseStartLampsforenclosedxtures.
**PulseStartLampsforopenxtures.
#OPENMED(EX26)orOPENMOG(EX29)SocketsRequired.
Life(hrs)isshownforverticalburn,allotherburningpositionsare75%ofratedlife.
142 www.crescent-stonco.com
Technical Data
Lamp Data
FLUORESCENT
Watts Type Description Nominal Length Average Life Initial CRI Lumens
8 T5 WARMWHITE,3000K 12 7500 400 53
8 T5 COOLWHITE,4100K 12 7500 400 62
13 T5 COOLWHITE,4100K 21 7500 820 62
14 T5 3000K 22 20,000 1350 85
14 T5 3500K 22 20,000 1350 85
14 T5 4100K 22 20,000 1350 85
17 T8 3500K 24 20000 1400 85
17 T8 4100K 24 20000 1400 85
20 T12 4100K 24 7500 1090 62
21 T5 3000K 34 20,000 2100 85
21 T5 3500K 34 20,000 2100 85
21 T5 4100K 34 20,000 2100 85
24 T5HO 3000K 22 20,000 2000 85
24 T5HO 3500K 22 20,000 2000 85
24 T5HO 4100K 22 20,000 2000 85
25 T8 3500K 36 20,000 2225 85
25 T8 4100K 36 20,000 2225 85
25 T12 4100K 36 18,000 1950 62
28 T5 3000K 46 20,000 2900 85
28 T5 3500K 46 20,000 2900 85
28 T5 4100K 46 20,000 2900 85
30 T12 4100K 36 7500 1850 62
32 T8 3500K 48 20,000 2950 85
32 T8 4100K 48 20,000 2950 85
32 T8U-BENT 3500k 227/16 20,000 2800 85
32 T8U-BENT 4100K 227/16 20,000 2800 85
34 T12 WARMWHITE,3000K 48 20,000 2700 62
34 COOLWHITE,4100K 48 20,000 2650 62
34 T12U-BENT WARMWHITE,3000K 227/16 18,000 2425 51
34 T12U-BENT COOLWHITE,4100K 227/16 18,000 2350 62
39 T5HO 3000K 34 20,000 3500 85
39 T5HO 3500K 34 20,000 3500 85
39 T5HO 4100K 34 20,000 3500 85
44 T8 3500K 48 18,000 4000 85
44 T8 4100K 48 18,000 4000 85
49 T5HO 4100K 46 20,000 5000 85
54 T5HO 3000K 46 20,000 5000 85
54 T5HO 3500K 46 20,000 5000 85
54 T5HO 4100K 46 20,000 5000 85
59 T8 3500K 96 15,000 5490 85
59 T8 4100K 96 15,000 5490 85
60 T12HO COOLWHITE,4100K 48 12,000 4050 62
65 T8 3500K 72 18,000 6100 85
65 T8 4100K 72 18,000 6100 85
84 T8VO 3500/4100/5000K 48 20,000 7200 85
86 T8 3500K 96 18,000 8200 85
86 T8 4100K 96 18,000 8200 85
95 T12HO COOLWHITE,4100K 96 12000 8000 62
110 T12VHO COOLWHITE,4100K 48 12,000 7800 62
160 T12VHO COOLWHITE,4100K 72 12,000 11,250 62
215 T12VHO COOLWHITE,4100K 96 12,000 15,200 62
143
www.crescent-stonco.com
Watts Ballast Type Input Volts Input Watts Start Current (Amps) Op. Current (Amps)
High Pressure Sodium
35 NPF(Reactor) 120V 46W 1.35 .83
35 HPF(Reactor) 120V 46W .78 .38
50 NPF(Reactor) 120V 62W 1.80 1.08
50 HPF(Reactor) 120V 62W .95 .55
50 HX-HPF 120V 64W .58 .58
50 HX-HPF 208V 64W .35 .33
50 HX-HPF 240V 64W .30 .29
50 HX-HPF 277W 64W .24 .25
70 NPF(Reactor) 120V 82W 2.25 1.60
70 HPF(Reactor) 120V 82W .85 .75
70 HX-HPF 120V 88W .75 .81
70 HX-HPF 208V 88W .45 .47
70 HX-HPF 240V 88W .37 .40
70 HX-HPF 277V 88W .35 .35
100 NPF(Reactor) 120V 115W 3.05 2.10
100 HPF(Reactor) 120V 115W 1.50 1.05
100 HX-HPF 120V 130W 1.30 1.15
100 HX-HPF 208V 130W .76 .67
100 HX-HPF 240V 130W .66 .58
100 HX-HPF 277V 130W .60 .50
100 HX-HPF 480V 130W .33 .29
150 NPF(Reactor) 120V 170W 4.50 3.20
150 HPF(Reactor) 120V 170W 2.20 1.50
150 HX-HPF 120V 188W 2.00 1.65
150 HX-HPF 208V 188W 1.15 .95
150 HX-HPF 240V 188W 1.00 .83
150 HX-HPF 277V 188W .85 .72
150 HX-HPF 480V 188W .50 .42
150 CWA 120V 188W .50 1.75
150 CWA 208V 188W .25 1.00
150 CWA 240V 188W .20 .88
150 CWA 277V 188W .15 .75
150 CWA 480V 188W .10 .44
250 CWA 120V 300W 1.80 2.75
250 CWA 208V 300W 1.00 1.60
250 CWA 240V 300W .90 1.38
250 CWA 277V 300W .78 1.20
250 CWA 480V 300W .38 .69
400 CWA 120V 457W 2.70 3.80
400 CWA 208V 457W 1.70 2.20
400 CWA 240V 457W 1.40 1.90
400 CWA 277V 457W 1.30 1.70
400 CWA 480V 457W .70 1.00
750 CWA 120V 835W —7.20
750 CWA 208V 835W —4.20
750 CWA 240V 835W —3.60
750 CWA 277V 835W —3.10
750 CWA 480V 835W —1.80
1000 CWA 120V 1100W 6.35 9.50
1000 CWA 208V 1100W 3.80 5.50
1000 CWA 240V 1100W 3.20 4.75
1000 CWA 277V 1100W 2.26 4.15
1000 CWA 480V 1100W 2.20 2.30
Metal Halide
50 NPF(Reactor) 120V 69W 1.80 1.55
50 HX-HPF 120V 69W .75 .65
50 HX-HPF 277V 67W .39 .25
70 HX-HPF 120V 89W .53 .85
70 HX-HPF 277V 89W .27 .37
100 HX-HPF 120V 129W 1.15 2.6
100 HX-HPF 277V 129W .50 1.15
150 CWA 120V 195W —1.54
150 CWA 208V 195W —.89
150 CWA 240V 195W —.77
150 CWA 277V 195W —.67
150 CWA 480V 195W —.39
175 CWA 120V 210W .90 1.80
175 CWA 208V 210W .52 1.04
175 CWA 240V 210W .45 .90
175 CWA 277V 210W .39 .78
175 CWA 480V 210W .22 .45
250 CWA 120V 294W 1.40 2.60
250 CWA 208V 294W .81 1.50
250 CWA 240V 294W .70 1.30
250 CWA 277V 294W .60 1.12
250 CWA 480V 294W .35 .65
400 CWA 120V 455W 1.50 4.00
400 CWA 208V 455W .87 2.30
400 CWA 240V 455W .75 2.00
400 CWA 277V 455W .65 1.75
400 CWA 480V 455W .38 1.00
Watts Ballast Type Input Volts Input Watts Start Current (Amps) Op. Current (Amps)
Metal Halide Continued
1000 CWA 120V 1080W 8.00 9.00
1000 CWA 208V 1080W 4.60 5.20
1000 CWA 240V 1080W 4.00 4.50
1000 CWA 277V 1080W 3.50 3.90
1000 CWA 480V 1080W 2.00 2.25
1500 CWA 120V 1605W 13.50 13.50
1500 CWA 208V 1605W 7.70 7.80
1500 CWA 240V 1605W 6.70 6.80
1500 CWA 277V 1605W 5.90 5.90
1500 CWA 480V 1605W 3.30 3.40
Technical Data
Watts Ballast Type Input Volts Input Watts Start Current (Amps)
Metal Halide (Pulse Start)
50 HX 120v 65W 1.3
50 HX 208v 65W .75
50 HX 240v 65W .65
50 HX 277v 65W .56
70 HX 120v 90W 1.7
70 HX 208v 90W .95
70 HX 240v 90W .85
70 HX 277v 90W .70
100 HX 120v 127W 2.6
100 HX 208v 127W 1.5
100 HX 240v 127W 1.3
100 HX 277v 127W 1.15
150 CWA 120v 190W 1.7
150 CWA 208v 190W 1.0
150 CWA 240v 190W .85
150 CWA 277v 190W .75
150 CWA 480v 190W .40
175 CWA 120v 208W 1.9
175 CWA 208v 208W 1.05
175 CWA 240v 208W .95
175 CWA 277v 208W .80
175 CWA 480v 208W .50
200 CWA 120v 232W 2.0
200 CWA 208v 232W 1.15
200 CWA 240v 232W 1.0
200 CWA 277v 232W .85
200 CWA 488v 232W .50
250 CWA 120v 288W 2.5
250 CWA 208v 288W 1.45
250 CWA 240v 288W 1.25
250 CWA 277v 288W 1.10
250 CWA 480v 288W .60
320 CWA 120v 365W 3.2
320 CWA 208v 365W 1.8
320 CWA 240v 365W 1.6
320 CWA 277v 365W 1.4
320 CWA 480v 370W .80
350 CWA 120v 400W 3.6
350 CWA 208v 400W 2.1
350 CWA 240v 400W 1.8
350 CWA 277v 400W 1.55
350 CWA 480v 400W .90
400 CWA 120v 448W 4.0
400 CWA 208v 448W 2.2
400 CWA 240v 448W 2.0
400 CWA 277v 448W 1.7
400 CWA 480v 452W 1.0
450 CWA 120v 505W 4.5
450 CWA 208v 505W 2.6
450 CWA 240v 505W 2.25
450 CWA 277v 505W 2.0
450 CWA 480v 505W 1.1
Watts Ballast Type Input Volts Input Watts Start Current (Amps) Op. Current (Amps)
Mercury Vapor
100 HX-HPF 120V 125W 3.60 2.10
175 CWA 120V 200W 1,65 1.75
175 CWA 208V 200W .95 1.00
175 CWA 240V 200W .83 .87
175 CWA 277V 200W .72 .76
175 CWA 480V 200W .41 .44
Compact Fluorescent
13 NPF 17W .50 .30
18 NPF 26W .61 .50
28 NPF 32W .60 —
13 HPF 17W .28 .15
18 HPF 22W .19 .17
28 HPF 33W .60 .30
32 ELECTRONIC 120 33 .33 .28
32 ELECTRONIC 277 33 .14 .12
42 ELECTRONIC 120 44 .44 .37
42 ELECTRONIC 277 44 .19 .16
144 www.crescent-stonco.com
Index
3”DeepCellParabolicTroffer-D32x2,D32x4,D31x4.........................................6
40L/V4400LandscapeandHeavy-DutyFloods....................................................130
150L/30KLMediumBaseLampholders...............................................................130
920/3800ArchitecturalBullets.............................................................................129
3300Lampholders.................................................................................................129
6400PowerBeams................................................................................................131
Area,FloodandWall-MountedOptionsandAccessories.......................................110
BurialBox..............................................................................................................139
CELEmergencyLight..............................................................................................32
CFBayCompactFluorescentHighbay...................................................................102
CLDSeriesIndustrial.............................................................................................131
CloudBracket-CLDW/Cloudline-CLDC/Deep-CellParabolic-D3S...............16
CNarrowChannel/RSRecessedStrip...................................................................24
CP/CPCLEDExitSign..........................................................................................33
CPHSeriesQuartzFloods......................................................................................132
CUUndercabinet.....................................................................................................19
DCFDockLyte.........................................................................................................25
DecraSeries-D1/D2...........................................................................................120
DecraSeries-D3/D4...........................................................................................121
DecraSeries-DLED..............................................................................................122
DTDDusk-To-DawnSeries.....................................................................................89
EmergencyRemoteLampHeads.............................................................................34
EQ/EQXSeriesQuartzFloods...............................................................................133
EvoScapesLED-ES1/ES2/ES3..........................................................................72
ExtendedWarrantyT-BayT5HO/T8.......................................................................95
FlangedTroffer-FP/Specication-GradeTroffer-SG...........................................10
FPS/FPM/FPLFloodPak.....................................................................................71
FSBoxCoverPlatesandExtenders........................................................................137
FSBoxes................................................................................................................136
General-PurposeWallBracket-SWB/AngleWallBracket-AWB/ACB...............14
GP2SmallFloodlight..............................................................................................60
GP2SmallFloodlight..............................................................................................63
GP2SmallLEDFloodlight......................................................................................62
GP3MediumFloodlight..........................................................................................64
GP3MediumLEDFloodlight..................................................................................62
GP4FloodLargeFloodlight....................................................................................65
GP4LargeInductionFloodlight..............................................................................67
GP5X-LargeFloodlight..........................................................................................66
GP5X-LargeInductionFloodlight...........................................................................67
HCLXHazardLyte...................................................................................................30
HIDAreaLightingAccessories................................................................................92
HIDBullet................................................................................................................61
HIDFloodlightingMountingAccessories................................................................69
InductionMulti-Bays..............................................................................................101
IndustrialOptionsandAccessories........................................................................108
IndustrialPolycarbonateSealedBeamPAR36.........................................................34
LCQLEDCanopyLight...........................................................................................80
LCQ/LPQ/TLCAccessories.................................................................................82
LCQLyteCube/LPQLytePrism............................................................................79
LEDDockLyte..........................................................................................................25
LLPSeriesLEDUndercabinet.................................................................................20
LPQLytePrismLEDParkingGarageLuminaire......................................................80
LytePro7ArchitecturalLEDWallSconce.................................................................76
MBGGlo/PrismBay16”/22”/25”.......................................................................103
MBHHighBayMulti-Bay17”/20”/14”...............................................................104
MBLLowBay.........................................................................................................102
MCLCutoffHIDandInductionLuminaire...............................................................85
MCLMediumCutoffLEDLuminaire.......................................................................87
MCLMediumCutoff/SSMArchitecturalSolarLED...............................................88
MCL/SSMAccessories.........................................................................................89
MiscellaneousHardwareandAccessories.............................................................137
MSTMiniSealTight/SLTFiberglassSealTight......................................................29
Multi-PurposeWallBracket-SRW/SquareWallBracket-BRW...........................15
NBA/NBCNyteWatchSeries.................................................................................135
NLTN-General-PurposeWraparound.....................................................................12
NPMNyteProArchitecturalCut-OffSeriesWallPrism.............................................75
ODOutdoorSignLight............................................................................................30
OutdoorHeads........................................................................................................34
Photocontrols.........................................................................................................134
Poles-Aluminum....................................................................................................91
Poles-Steel.............................................................................................................90
PolycarbonateWedgeBaseRectangularHead.........................................................34
PremiumGridTroffer-GP22x4,GP2x2,GP1x4....................................................7
RecessedDirect/Indirect-RDI1x4,RDI2x2,RDI2x4.............................................4
RecessedWallwasherAsymmetric-RWA1x4.........................................................5
RevueRetrotKits-InternalRecessed3”DeepCellParabolic................................8
RevueRetrotKits-InternalRecessedTroffer..........................................................8
RHPremiumIndustrials..........................................................................................27
RNGeneral-PurposeIndustrials..............................................................................26
RocketPerma-Post-RPP3VG................................................................................139
RoughLyteSeries-Accessories.............................................................................128
RoughLyteSeries-VCXL/VP/VK.......................................................................124
RoughLyteSeries-VCXL/VWXL/VCHID..........................................................126
RoundBoxesandCovers.......................................................................................136
RTUTurretIndustrials4’and8’...............................................................................28
SBN/SBWSmarT-BayMotionSensorHighbayT5HO/T8......................................94
SCFGeneral-Purpose/SCNPremium...................................................................22
SCLSignatureCanopyLuminaire...........................................................................81
SCTSeriesSportslighter.........................................................................................68
SLASeriesMini-Flood............................................................................................59
SLMMaxi-Flood.....................................................................................................61
SLPSlimLytePlus..................................................................................................18
SMSideMount/STGStaggeredChannel..............................................................23
SpecialtyBoxes......................................................................................................138
SPH/SPVSyteProDirect-Mount/PostTop............................................................84
SSCStoncoSmartChoiceHIDTemp.....................................................................107
SSMSilhouetteSeriesArchitecturalCutoffLEDLuminaire.....................................87
SSMSilhouetteSeriesArchitecturalCutoffLuminaire............................................86
SurfaceModule-BNM/CorridorWraparound-DLT.............................................13
Survi’VRLSeriesLinearFluorescent......................................................................55
Survi’VRSeriesCutoff.............................................................................................52
Survi’VRSeriesLinearFluorescent.........................................................................56
Survi’VRSeriesRound13”.....................................................................................53
Survi’VRSeriesRound16”.....................................................................................54
Survi’VRVSeriesLinearFluorescent......................................................................57
TandemTroffer........................................................................................................40
TBN/TBWT-BayIIHighbayT5HO/T8....................................................................96
ThermoplasticandMetalChromeSealedBeamPAR36..........................................34
ThermoplasticWedgeBaseRoundHead.................................................................34
TLCTwilighterSeries..............................................................................................82
TLN/TLW/TLNTT-BayLyteHighbayT5HO/T8...................................................97
TLSeries6-Lamp/8-LampHighbayT5HO/T8......................................................100
TLWTwilighterSeriesWallPrism.............................................................................75
TLXTwilighterSeries..............................................................................................60
TroughsandSliptters...........................................................................................138
VC2/VP2/VW2-RoughLyteIISeries.................................................................127
VCXL/VWXLCompactFluorescent-RoughLyteSeries.......................................127
VW/VP-RoughLyteSeries..................................................................................125
WBGWorkerSeries16”/22”GloBay...................................................................106
WBHWorkerBayHighBay/WBLWorkerLowBayUnitPacks.............................107
WBHWorkerBaySeries14”/17”HighBay..........................................................105
WBLWorkerSeries22”LowBay...........................................................................106
WBSWeT-BayHighbayT5HO/T8............................................................................99
WNPSSeriesMiniWallPrism.................................................................................73
WPM/WNPMSeriesWallPrism............................................................................73
WPWallPrism/WPDeep-BackWallPrism.............................................................74
WP/WPMWallPrismValueLED.............................................................................77
XBSX-BayHighbayT5HO/T8.................................................................................98
XBSX-BayHighbayT8VHO....................................................................................98
XLPXenonLytePlus...............................................................................................19
X-Pressives-CeilingMounted..............................................................................113
X-Pressives-LinearFluorescent...........................................................................116
X-Pressives-WallMountedandPost-Top............................................................112
X-TremeSeriesPhilipsXLLLongLifeT8.................................................................9
www.crescent-stonco.com www.crescent-stonco.com
Green Lighting Technology
Eco-Logical
A Common Sense Approach to Sustainability
Sustainability is a term often used today by many businesses to show
they are interested in the long-term preservation of our planet and its
occupants. Crescent/Stonco defines sustainability as acting with long
term consequences in mind and managing our business such that our
products can be manufactured and used indefinitely with minimal impact
on the environment. In other words, we practice what we preach and
build lighting products with little waste as possible, and that operate with
longer life cycles using far less energy.
Take this catalog as an example. Unlike the majority of lighting
manufacturers, we purposely made our catalog with as few pages
as possible. We introduce key product offerings only, and we have
eliminated coated paper and varnish coatings, making our catalog easy
to recycle at the end of its useful life. We also use a recycled paper stock
with only black ink to simplify the printing process.
Crescent/Stonco developed a full-featured and easy to navigate website
for all detailed information and comprehensive products list. Search
online quickly and print only the information you need. We have made
it easy to measure and compare the efficiency of current systems to
high performing, low energy consuming Crescent/Stonco luminaires
using special online tools. Need to know how you can benefit financially
through tax incentives and rebates? Our website offers valuable resources
for every step of the way.
The same philosophy reflects with our products. Crescent/Stonco has
always developed luminaires that deliver greater efficiency. Our next
generation lines include LED outdoor lighting, solar lighting packages
that operated at no cost for years and retrofit kits that convert old, energy-
hog ceiling fixtures to high-output, low energy usage units without
removing the fixture!
Crescent/Stonco also believes in Build America-Buy America. Our
products help keep your neighbors working, and our products offer
greater value than cheap imports. When you want the best and most
efficient lighting products, contact your Crescent/Stonco dealer and he
will develop a lighting package that’s best for you.
Visit www.csgreenlightingsolutions.com for more information
on Crescent/Stonco’s approach to Energy Conservation Through
Lighting Innovation.
Colors
Colors
The following finish options apply to a select group of Stonco products. Consult factory for availability. To order products in a specific finish other than the standard
factory finish, add the suffix of the desired finish at the end of the catalog number, preceding the voltage code. EXAMPLE: FPM175PMALBLK-8.
Finishes are representative of actual colors only. Consult factory for color chips.
Bronze BRZ
Protech Paint # UM612M38
Wrinkle Bronze BRW
Protech Paint # PM612M145
Black BLF
Protech Paint # US511NG
Wrinkle Black BLK
Protech Paint # PW311N34
White WHT
Protech Paint # PS212W203
Wrinkle White WHW
Protech Paint # PW612W202
Green GRN
Protech Paint # PS211G58
Wrinkle Green GRW
Protech Paint # PW612G285
Gray GRA
Protech Paint # PS311A13
Wrinkle Gray GRY
Protech Paint # PW612A267
Red RED
Protech Paint # PS211R95
Blue BLU
Protech Paint # PS211B6
Yellow YEL
Protech Paint # PS211Y56
Silver SIL
Protech Paint # UM211S11
Caramel CA
Protech Paint # PX611M146
Almond ALM
Protech Paint # PS111H1
Limestone LS
Protech Paint # PX611H167
Clay CL
Protech Paint # PX611A260
Slate SL
Protech Paint # PX612A261
Galvanite GA
Protech Paint # PM611S58
Satin Aluminum* SA
Consult Factory
* Indoor use only
Product information subject to change without notice.
Lighting Solutions for a New Generation
Form #CSCAT 20K 10/10
Crescent/Stonco is a Philips group brand
2345 Vauxhall Road • P.O. Box 129 • Union, NJ 07083
908-964-7000 • Fax: 908-688-1388
www.crescent-stonco.com
Lighting Solutions for a New Generation
Lighting Solutions for a New Generation

Navigation menu
