integration protocol
revision O 10 April 2014
Lutron®
2
Lutron® integration protocol
Updates new to this release of the Lutron® Integration Protocol
Revision Update: O
Integrator’s Reference
• Compatibility Matrix (Device Compatibility Matrix) . . . . . . . . . . . . . . . . . . . . . . . . . 10
– Devices added: Energi Savr NodeTM QS/Softswitch®, Energi Savr NodeTM QS/International
Softswitch®, Energi Savr NodeTM QS/Phase Adaptive, QS Input/Output Interface (QSE-IO),
QS Sensor Module (QSM)
• DEVICE: Command Summary (Action Numbers and Parameters) . . . . . . . . . . . . . .11, 12
– Actions added: Enable (#1), Disable (#2), QSG Timeclock State (#34),
Query CCI State (#35)
– “Not supported by Quantum” note added to actions (#14 – 20)
• MONITORING: Command Summary (Monitoring Type) . . . . . . . . . . . . . . . . . . . . . . 16
– Monitoring Types added: Occupancy (#6), System Variable (#10), Venetian Tilt (#14),
Shade Group (#23), Partition Wall (#24)
– “Not supported in QS Standalone” note added to monitoring types: LED (#4),
Sequence (#16), HVAC (#17), Mode (#18)
• HELP: Command Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
– “Not supported in QS Standalone” note added
QS Standalone
• System Overview (QS System Device Compatibility Index) . . . . . . . . . . . . . . . . . . . . 20
– Devices added: Energi Savr NodeTM QS International Motor Module,
QS Input/Output Interface (QSE-IO), QS Sensor Module (QSM), QS Wall Control Interface
• Supported Commands (formerly “Additional Commands”) . . . . . . . . . . . . . . . . . . . . 21
– Command description added: OUTPUT
• ETHERNET Commands (Configuration Numbers) . . . . . . . . . . . . . . . . . . . . . . . .23
– Descriptions modified: Get/Set (#0 – 3)
– Parameter modified: Login Info (#3)
• RESET Commands (Action Numbers) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
– Action added: Restore to Factory Defaults (#2)
• PROGRAMMING Commands (Action Numbers and Parameters) . . . . . . . . . . . . . . . .27
– Action added: Add Scene programming to a phantom button (#2)
– Parameters modified: a), b): “Shade” removed (#1)
– Parameters added: d): “Fade”, e): “Delay” (#1)
• DEVICE Commands (Action Numbers and Parameters) . . . . . . . . . . . . . . . . . . . . .30
– Command descriptions modified: Lighting zones added (#14), Venetians removed (#18 – 20)
RadioRA® 2
• TIMECLOCK Commands (Action Numbers and Parameters) . . . . . . . . . . . . . . . . . . . 37
– Action added: Enable/Disable Event (#6)
Quantum®
• AREA Commands (Action Numbers and Parameters) . . . . . . . . . . . . . . . . . . . . . .51
– Actions added: Get or Set HyperionTM Shadow Sensor Override State (#26),
Get or Set HyperionTM Brightness Sensor Override State (#27)
– Parameters added: 1= unknown, 2= inactive (#8)
– “Scene 17 to 32 available only on slider” note added (#6)
Continued on next page…
3
Lutron® integration protocol
Updates new to this release of the Lutron® Integration Protocol (continued)
Revision Update: O (continued)
HomeWorks® QS
• TIMECLOCK Commands (Action Numbers and Parameters) . . . . . . . . . . . . . . . . . . . 65
– Action added: Enable/Disable Event (#6)
GRAFIK Eye® QS
• DEVICE Commands (Component Numbers) . . . . . . . . . . . . . . . . . . . . . . . . . 72, 73
– Components added: Local CCI (#163), Timeclock Controller (#166),
Wireless Occupancy Sensor 1– 30 (#500 – 529), EcoSystem® Ballast
Occupancy Sensor 1– 64 (#700 –763)
– “Not supported in QS Standalone” note added (#201, #210, #219, #228, #237,
#174, #175, #211, #183, #184, #220, #192, #193, #229)
• DEVICE Commands (Action Numbers and Parameters) . . . . . . . . . . . . . . . . . . . . .73
– Actions added: Scene Save (#12), Get/Set Timeclock State (#34)
– Actions modified: Press/Occupied (#3), Release/Unoccupied (#4),
Get/Set Light Level (#14)
– Parameter modified: QS Standalone fade/delay (#14)
• OUTPUT Commands (Action Numbers and Parameters) . . . . . . . . . . . . . . . . . . . . . 74
– Parameter modified: QS Standalone fade/delay (#1)
Energi Savr NodeTM QS for DALI®
• DEVICE Commands (Component Numbers) . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
– Component added: Occupancy Sensors 1– 4 (#151– 154)
– Component numbers changed: #301– 332 (formerly #201– 232)
• DEVICE Commands (Action Numbers and Parameters) . . . . . . . . . . . . . . . . . . . . .76
– Actions added: Report Occupied (#3), Report Unoccupied (#4), Scene Save (#12)
– Parameter modified: QS Standalone fade/delay (#14)
• OUTPUT Commands (Action Numbers and Parameters) . . . . . . . . . . . . . . . . . . . . . 77
– Parameter modified: QS Standalone fade/delay (#1)
Energi Savr NodeTM QS with EcoSystem®
• DEVICE Commands (Component Numbers) . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
– Components added: Occupancy Sensors 1– 4 (#136–139), Loop 1 Ballast
Occupancy Sensors (#140–203), Loop 2 Ballast Occupancy Sensors (#204–267)
• DEVICE Commands (Action Numbers and Parameters) . . . . . . . . . . . . . . . . . . . . .79
– Actions added: Report Occupied (#3), Report Unoccupied (#4), Scene Save (#12)
• OUTPUT Commands (Action Numbers and Parameters) . . . . . . . . . . . . . . . . . . . . . 80
– Parameter modified: QS Standalone fade/delay (#1)
Energi Savr NodeTM QS for 0 –10V/Softswitch®/Phase Adaptive
(Phase Adaptive models added)
• DEVICE Commands (Component Numbers) . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
– Components added: Occupancy Sensors 1– 4 (#34 – 37),
Occupancy Sensors 1– 2 (#34 – 35)
• DEVICE Commands (Action Numbers and Parameters) . . . . . . . . . . . . . . . . . . . . .82
– Actions added: Report Occupied (#3), Report Unoccupied (#4), Scene Save (#12)
• OUTPUT Commands (Action Numbers and Parameters) . . . . . . . . . . . . . . . . . . . . . 83
– Parameter modified: QS Standalone fade/delay (#1)
Continued on next page…
4
Lutron® integration protocol
Updates new to this release of the Lutron® Integration Protocol (continued)
Revision Update: O (continued)
Energi Savr NodeTM QS for Motor Module (International)
• DEVICE Commands (Component Numbers) . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
– Component added: Zones 1– 4 (#1– 4)
• DEVICE Commands (Action Numbers and Parameters) . . . . . . . . . . . . . . . . . . . . .85
– Actions added: Set Light Level (#14), Raise (#18), Lower (#19), Stop (#20)
• OUTPUT Commands (Action Numbers and Parameters) . . . . . . . . . . . . . . . . . . . . . 86
– Actions added: Set/Get Zone Level (#1), Report Travel Time Remaining (#17)
Architrave Keypad
• DEVICE Commands (Component Numbers) . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
– “Available only on units in a Quantum® or HomeWorks® system” note removed (#26)
– “Available only on units in a Quantum® or HomeWorks® system” note added (#82 – 87)
• DEVICE Commands (Action Numbers and Parameters) . . . . . . . . . . . . . . . . . . . . .91
– Actions modified: Press/CCI Close (#3), Release/CCI Open (#4)
– “Available only on units in a Quantum® or HomeWorks® system” note removed (#5)
seeTouch® Keypad
• DEVICE Commands (Action Numbers and Parameters) . . . . . . . . . . . . . . . . . . . . .97
– Actions modified: Press/CCI Close (#3), Release/CCI Open (#4)
– “Available only on units in a Quantum® or HomeWorks® system” note removed (#5, #6)
– “Available only on units in a Quantum® or HomeWorks® system” note added (#9)
seeTouch® Keypad (International)
• DEVICE Commands (Component Numbers) . . . . . . . . . . . . . . . . . . . . . . . . . . . 99
– “Not supported in QS Standalone” note added (#81– 90)
• DEVICE Commands (Action Numbers and Parameters) . . . . . . . . . . . . . . . . . . . . 100
– Actions modified: Press/CCI Close (#3), Release/CCI Open (#4)
– “Not supported in QS Standalone” note added (#32)
Wallbox Input Closure Interface
• DEVICE Commands (Component Numbers) . . . . . . . . . . . . . . . . . . . . . . . . . . 113
– Components added: Button 8 (#8), LED 8 (#88)
QSE-IO
– New product section added . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137
QS Sensor Module
– New product section added . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141
5
Lutron® integration protocol
Revisions to previous releases of the Lutron® Integration Protocol
Revision Update: N
• Integrator’s Reference
– DEVICE Command . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9, 10
– OUTPUT Command . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12, 13
– MONITORING Command . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
– SYSTEM Command . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
• Quantum® System Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50, 53
• GRAFIK Eye® QS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70, 71
• Pico® wireless controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107
Revision Update: M

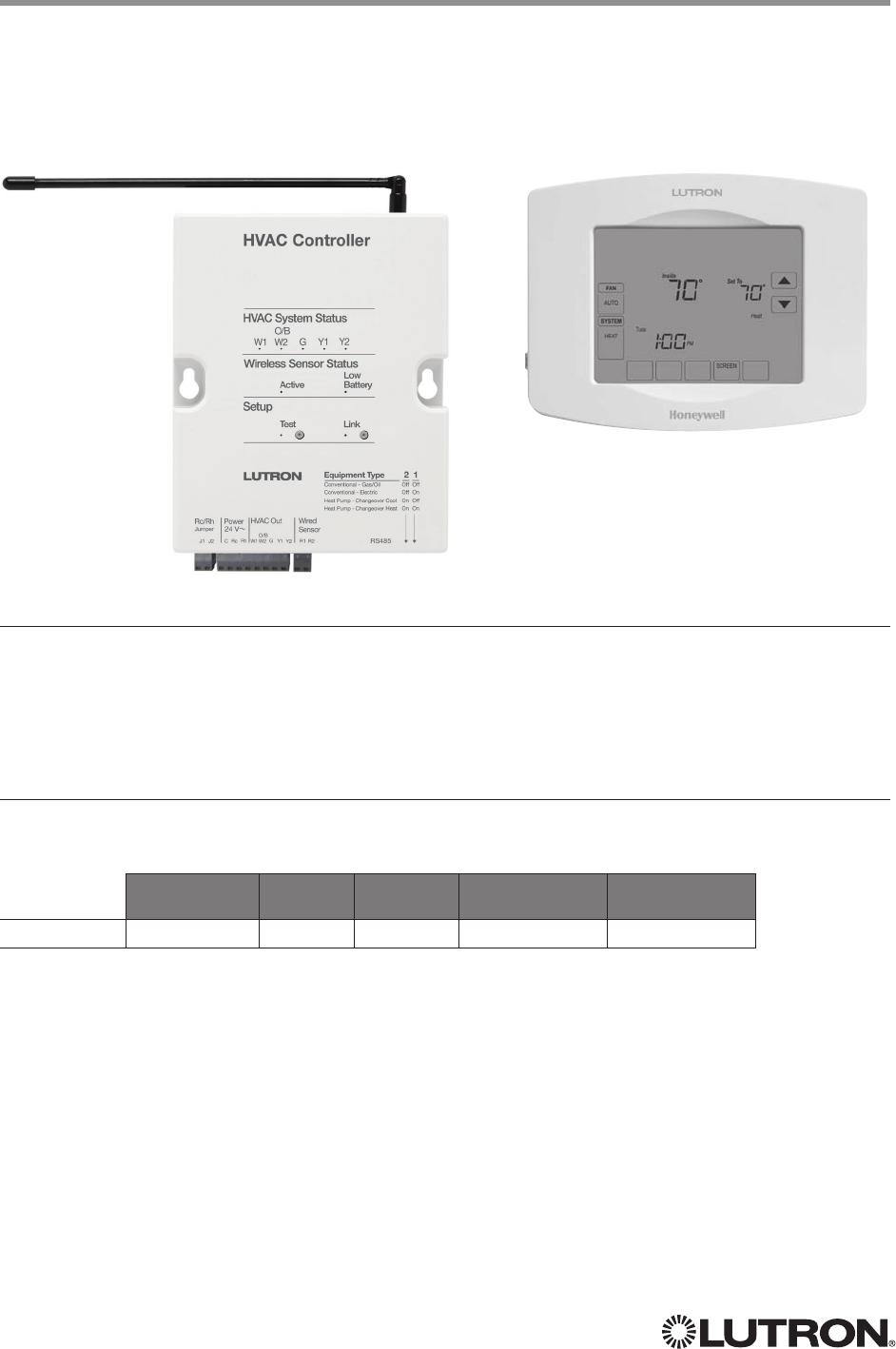

• HVAC Controller Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132
Revision Update: L
• Integrator’s Reference
– Compatibility Matrix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
– GROUP Command . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
• RadioRA® 2 System Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
• Clear Connect® Gateway System Commands and Features . . . . . . . . . . . . . . . . . . .41
6
Lutron® integration protocol
About Integration
Integration Operations . . . . . . . . . . . . . . . 7
Operation Characters . . . . . . . . . . . . . . .7
Command Types . . . . . . . . . . . . . . . . . . 7
Command Structure . . . . . . . . . . . . . . . . 7
Command Termination . . . . . . . . . . . . . . . 7
Command Examples . . . . . . . . . . . . . . . . 8
Integration Access Points . . . . . . . . . . . . .9
Command Rules and Formatting . . . . . . . . . . 9
Integrator’s Reference
Compatibility Matrix . . . . . . . . . . . . . . . 10
Device Command Summary . . . . . . . . . . . 11
Output Command Summary . . . . . . . . . . . 14
Group Command Summary . . . . . . . . . . . 15
Monitoring Command Summary . . . . . . . . . 16
Error Command Summary . . . . . . . . . . . . 17
Help Command Summary . . . . . . . . . . . . 18
System Command Summary . . . . . . . . . . . 19
QS Standalone
System Overview . . . . . . . . . . . . . . . . . 20
Integration Access Points . . . . . . . . . . . . 21
System Commands . . . . . . . . . . . . . . . 23
RadioRA® 2
System Overview . . . . . . . . . . . . . . . . . 31
Integration Access Points . . . . . . . . . . . . 32
System Commands . . . . . . . . . . . . . . . 33
Clear Connect® Gateway System
System Overview . . . . . . . . . . . . . . . . . 38
Integration Access Points . . . . . . . . . . . . 39
System Commands . . . . . . . . . . . . . . . 42
Quantum®
System Overview . . . . . . . . . . . . . . . . . 44
Integration Access Points . . . . . . . . . . . . 46
System Commands . . . . . . . . . . . . . . . 48
HomeWorks® QS
System Overview . . . . . . . . . . . . . . . . . 57
Integration Access Points . . . . . . . . . . . . 59
System Commands . . . . . . . . . . . . . . . 61
Devices

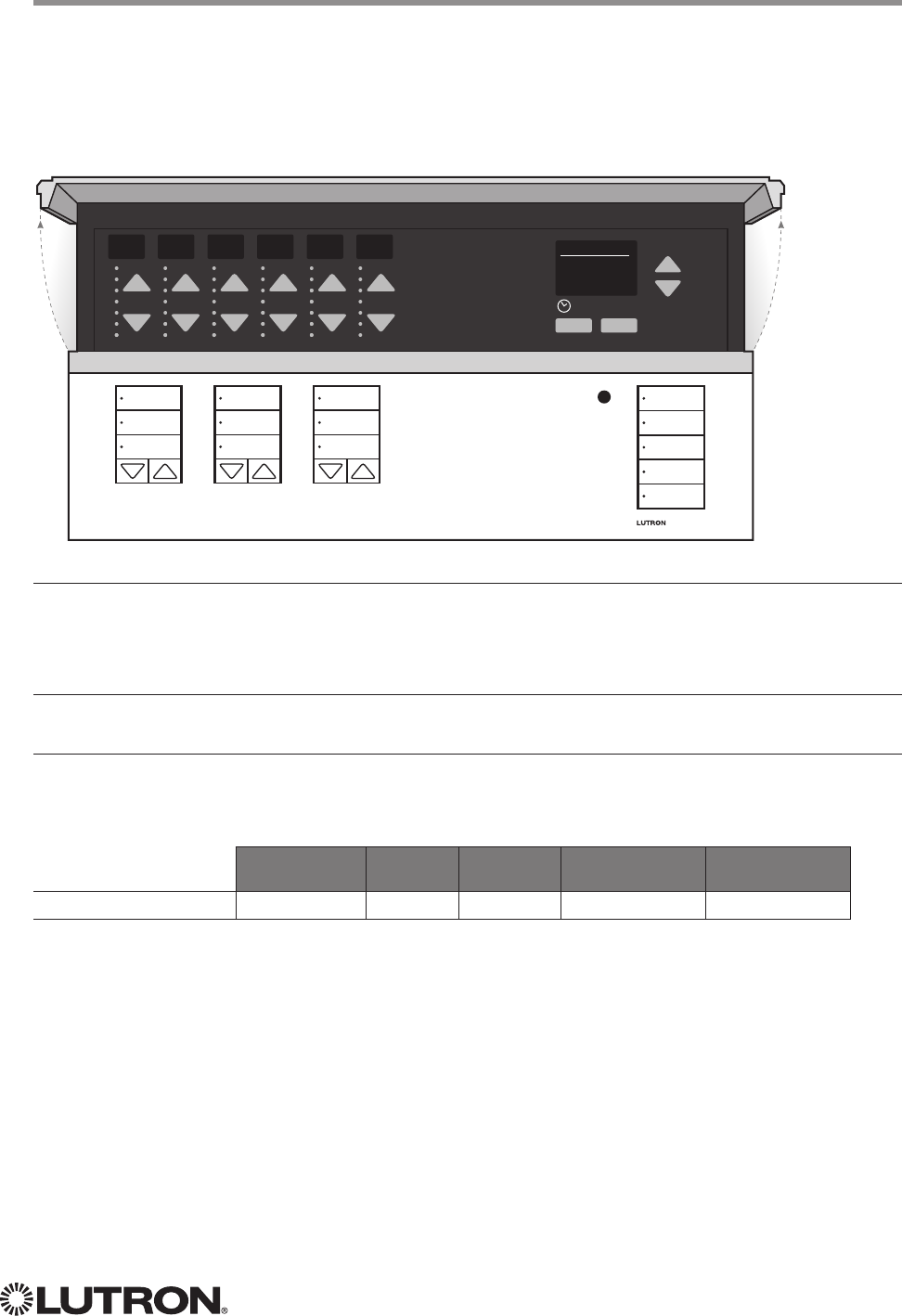

GRAFIK Eye® QS . . . . . . . . . . . . . . . . . 71
Energi Savr NodeTM QS/DALI® . . . . . . . . . . 75

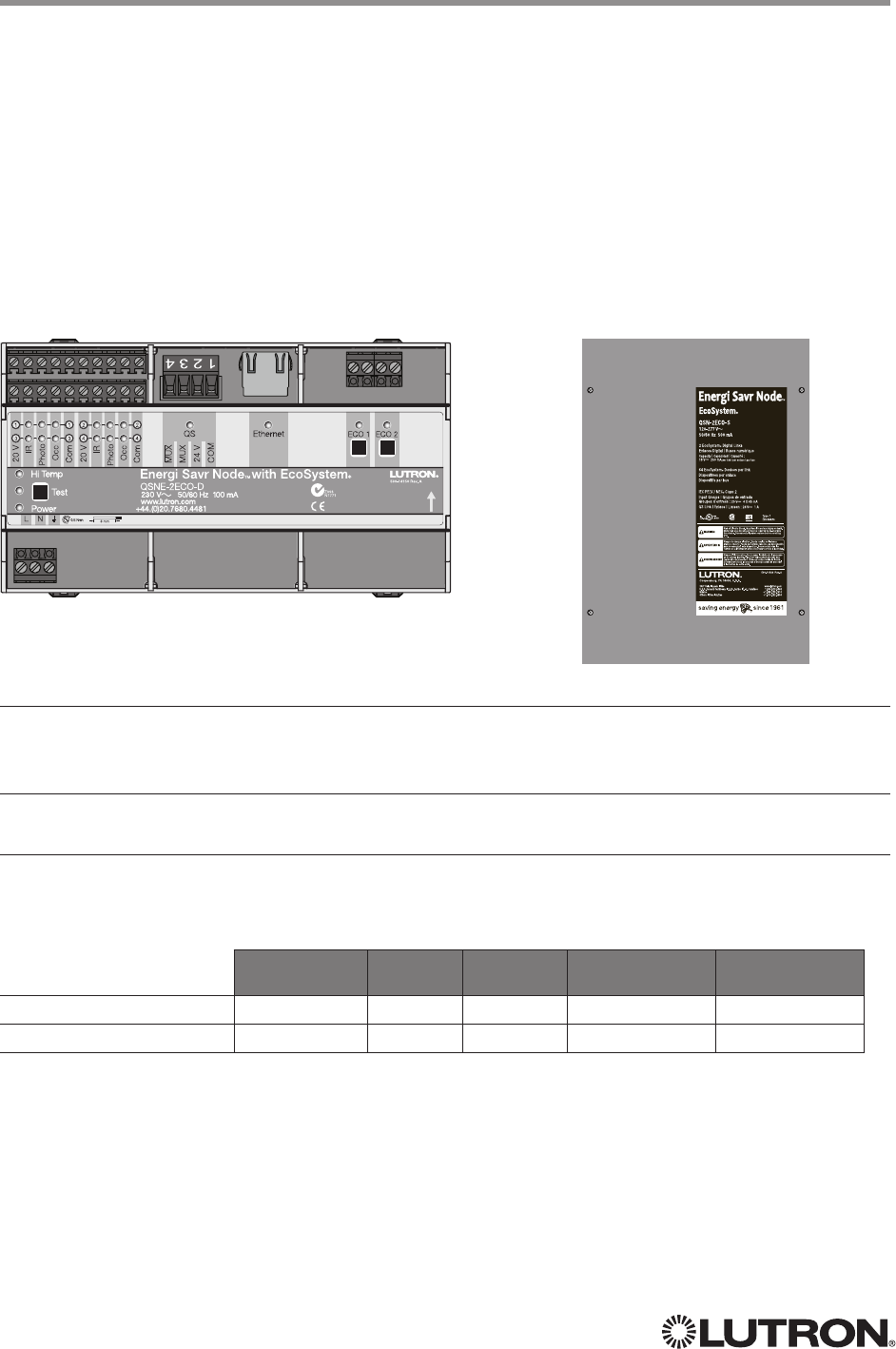

Energi Savr NodeTM QS/EcoSystem® . . . . . . . 78
Energi Savr NodeTM QS/EcoSystem® (Int’l) . . . . 78
Energi Savr NodeTM QS/0 –10 V/Softswitch® (Int’l) . 81
Energi Savr NodeTM QS/Phase Adaptive (Int’l) . . . 81
Energi Savr NodeTM QS/0 –10 V/Softswitch® . . . 81
Energi Savr NodeTM QS/Motor Module (Int’l) . . . 84

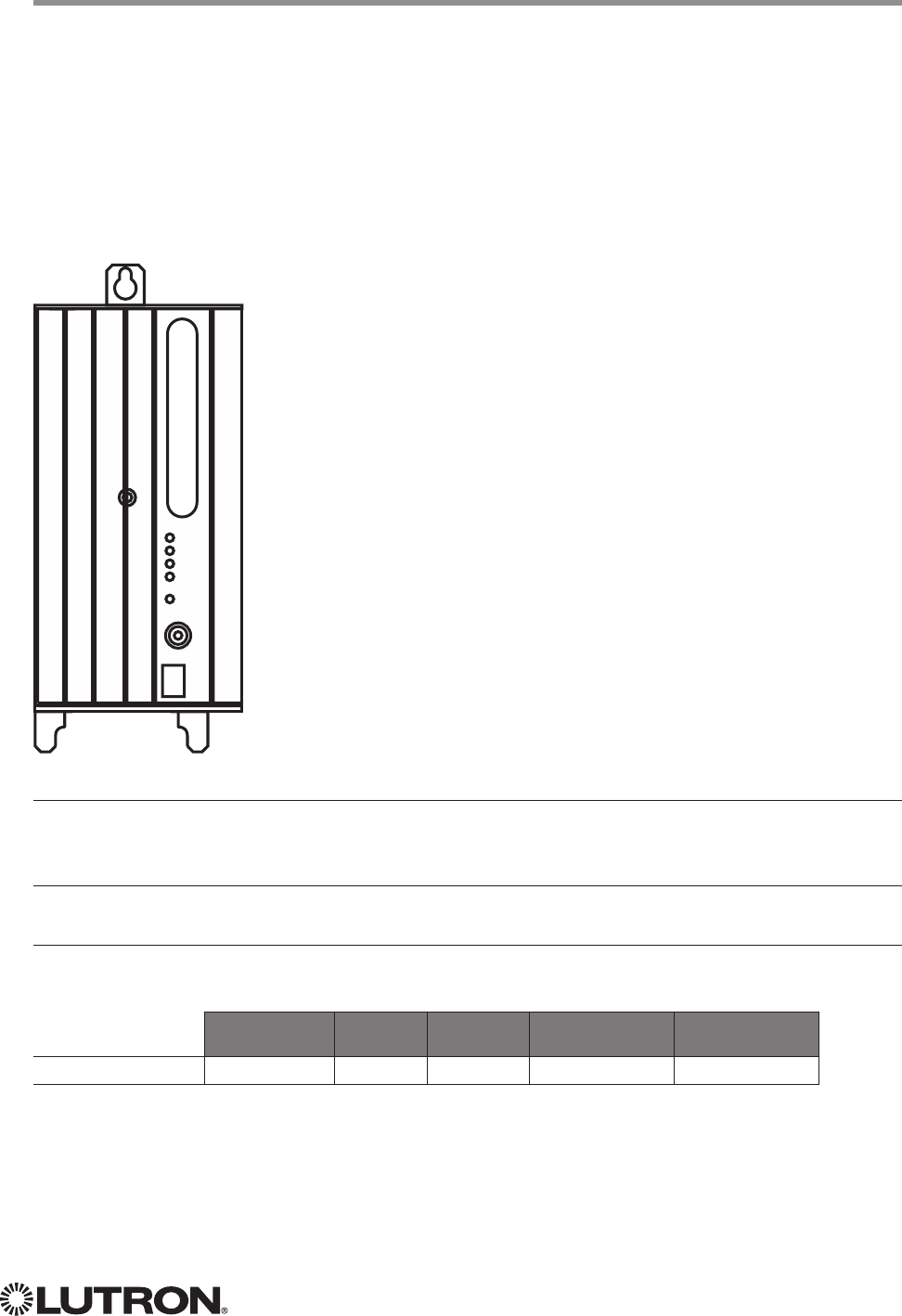

Remote Power Module . . . . . . . . . . . . . . 87
ArchitraveTM Keypad . . . . . . . . . . . . . . . 89
Signature SeriesTM Keypad . . . . . . . . . . . . 92
seeTouch® Keypad . . . . . . . . . . . . . . . . 95
seeTouch® QS International Keypad . . . . . . . 98
Tabletop seeTouch® Keypad . . . . . . . . . . .101
Hybrid Keypad . . . . . . . . . . . . . . . . . .104
Pico® Wireless Control . . . . . . . . . . . . . .108
Dynamic Keypad . . . . . . . . . . . . . . . . .110
Wallbox Input Closure Interface. . . . . . . . . .112
Sivoia® QS Shade . . . . . . . . . . . . . . . .115
Sivoia® QS Venetian Blind . . . . . . . . . . . .118

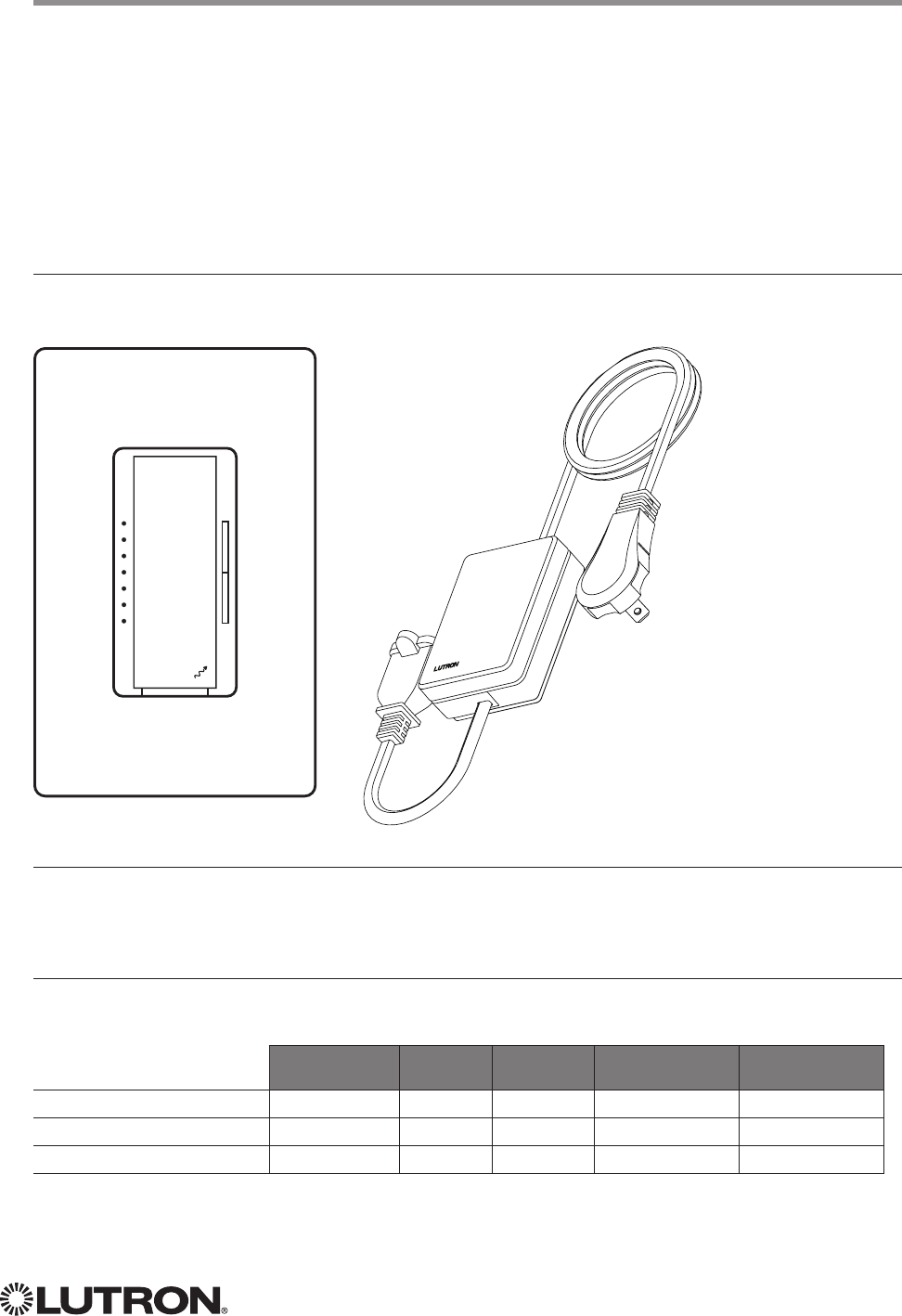

Maestro® Dimmer and Plug-In Module . . . . . .121
Maestro® Fan Speed Control . . . . . . . . . . .124
Visor Control Receiver . . . . . . . . . . . . . .126
Radio Powr SavrTM Sensor . . . . . . . . . . . .130
HVAC Controller . . . . . . . . . . . . . . . . .132
Wireless Temperature Sensor . . . . . . . . . .135
QSE-IO Control Interface . . . . . . . . . . . . .137
QS Sensor Module (QSM) . . . . . . . . . . . .141
Table of Contents
7
Lutron® integration protocol
About Integration
Integration Operations
The Lutron® integration protocol will allow third-party equipment, such as touch-screens, universal
remote controls and software applications, to control and monitor devices in a Lutron® lighting
control system.
The protocol supports three basic types of integration operations:
• Execute an action in the Lutron® system
• Query the status of the Lutron® system and Lutron® devices
• Monitor responses from the Lutron® system
Operation Characters
To help create and manage the different integration operations, three distinct operation characters
have been selected to begin each command. All protocol messages will start with one of the
following operation characters:
# Execute an action (e.g., turn a dimmer on/off)
? Query system information (e.g., determine on/off status of a dimmer)
~ Monitor responses from the system when requested or after a change has occurred (e.g., if
someone turns on a dimmer locally, a response command is sent out to indicate the change)
Note to Integrator: Operation characters are not used in any other location in the protocol
command string. Therefore, the driver can search for these characters to determine the start of a
new command string.
Command Types
Operation characters will be followed by command types. The two most common commands are:
OUTPUT and DEVICE. Other command types are available; see the Integrator’s Reference for a
summary.
• OUTPUT allows control and monitoring of device outputs such as dimmers and contact closure
outputs.
• DEVICE allows control and monitoring of device inputs such as button presses, releases, and
contact closure inputs.
Command Structure
The protocol command structure is made up of three parts:
Command Integration ID Command-specific fields
1. The Command is made up of the operation character and the command type.
2. The Integration ID is assigned to each device in the system during system setup, providing a
unique user-assigned address for each system device.
3. The Command-specific fields contain additional information relevant to the type of command.
Details about what command-specific field data is supported can be found in the appropriate
device specific section of this integration protocol guide.
Command Termination
Each command is made up of fields, separated by commas and terminated with a carriage return
(ASCII dec 13/hex 0D) and a line feed (ASCII dec 10/hex 0A). Throughout this document, carriage
return is shown as <CR> and line feed is shown as <LF>.
8
Lutron® integration protocol
About Integration (continued)
Command Examples
1) This command sets a dimmer (1) level to 75% with a 1 minute and 30 second fade time.
#OUTPUT,1,1,75,01:30<CR><LF>
Command Integration ID Command-specific fields
Action Number Level Fade Time
#OUTPUT 1 1 75 01:30
2) This command presses button number 1 of a keypad (2).
#DEVICE,2,4,3<CR><LF>
Command Integration ID Command-specific fields
Component Number Action Number
#DEVICE 2 4 3
3) This command requests the output level for a dimmer (3).
?OUTPUT,3,1<CR><LF>
Command Integration ID Command-specific fields
Action
?OUTPUT 3 1
4) When a user makes a change to a dimmer locally, the following command response would be sent
out from the system or when requested by the command in Example 3 above. This command
response example shows the local dimmer (3) level was changed to 90%.
~OUTPUT,3,1,90.00<CR><LF>
Command Integration ID Command-specific fields
Action Level
~OUTPUT 3 1 90.00
9
Lutron® integration protocol
About Integration (continued)
Integration Access Points
• Integration Access Points communicate with external systems using RS232, Ethernet or both.
The Lutron® integration protocol will allow third-party equipment, such as touch-screens, keypads
and software applications, to control and monitor devices in the Lutron® lighting control system
through an Integration Access Point. For more information, check the page specific to the

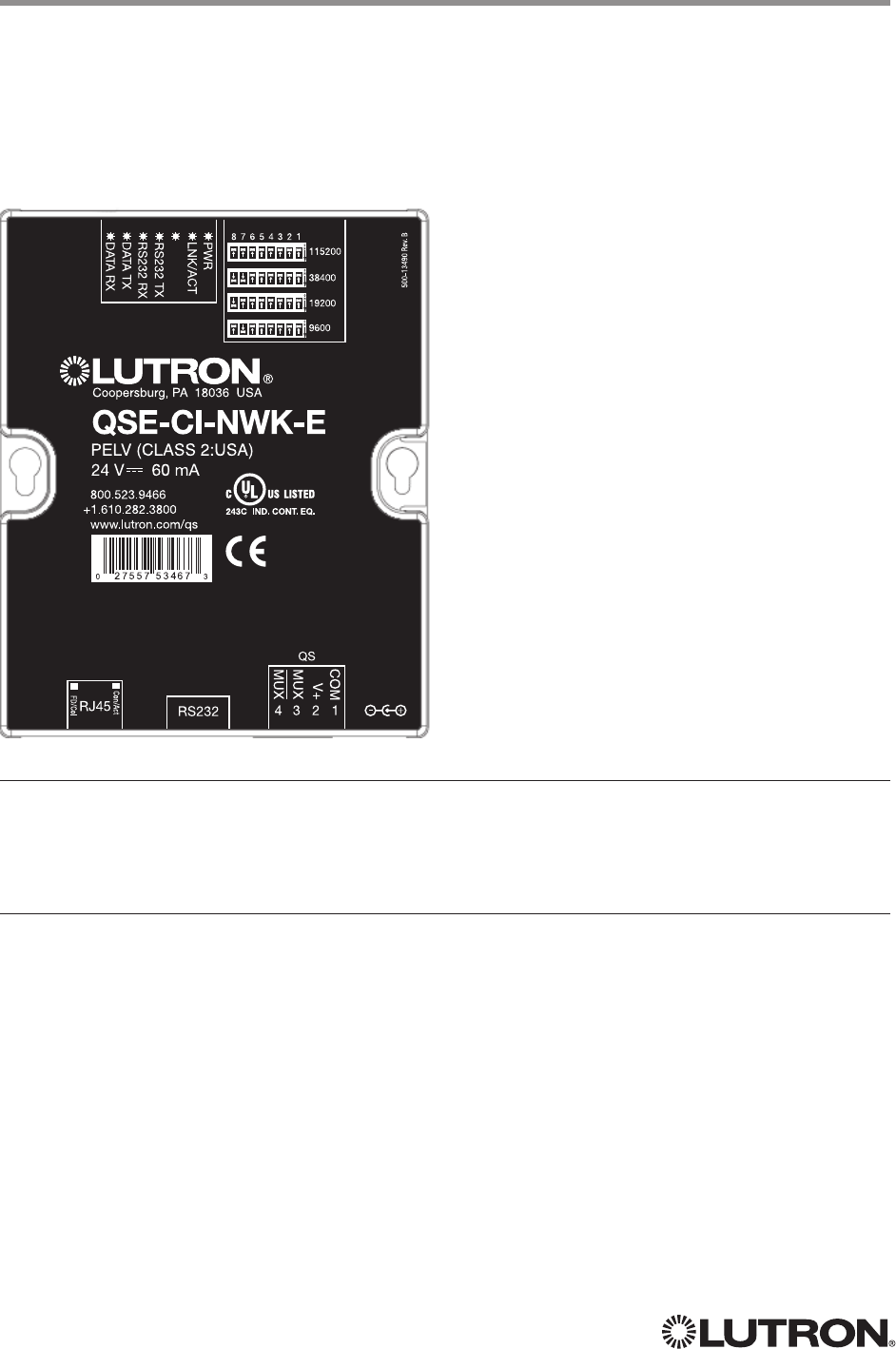

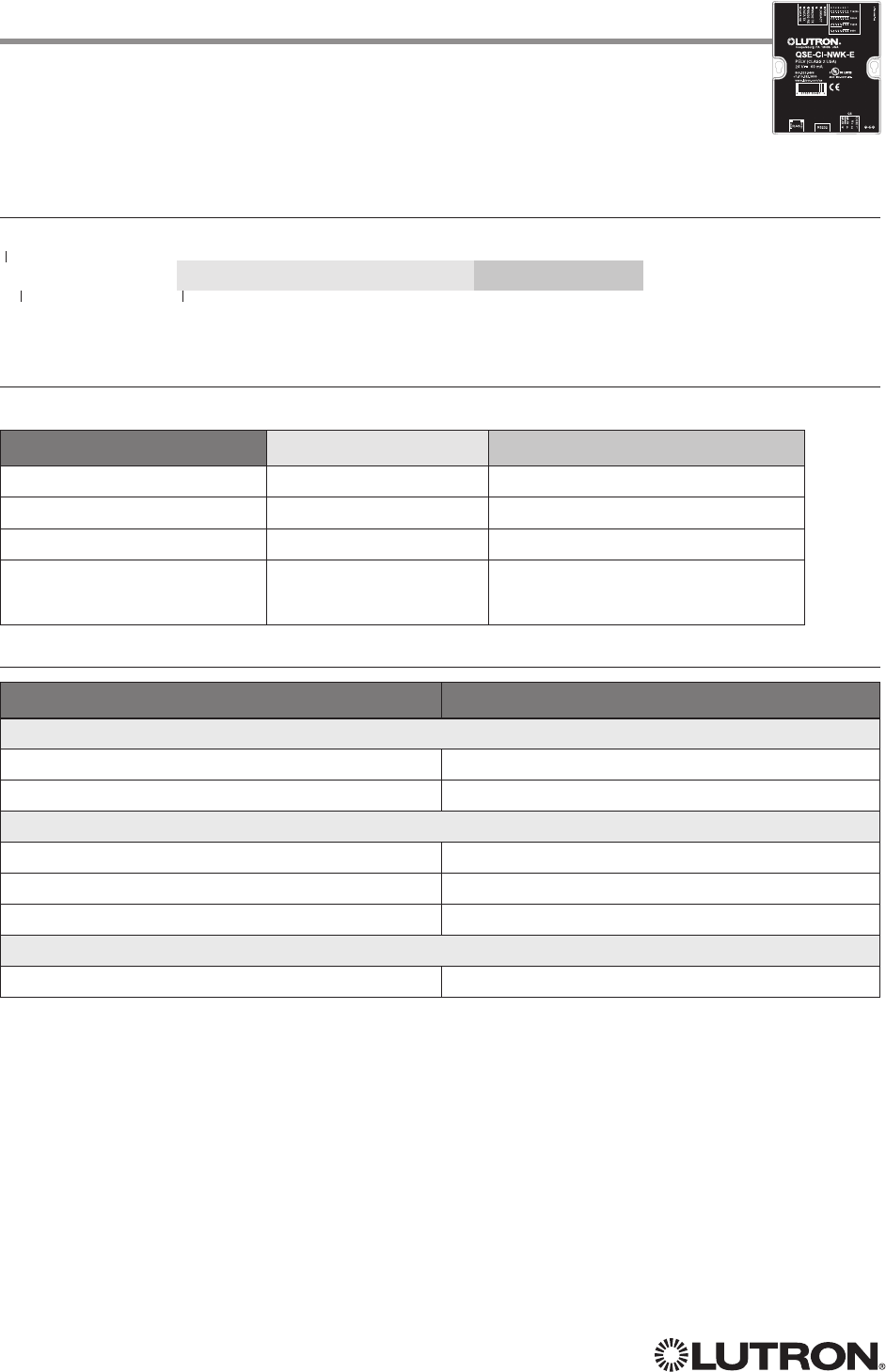

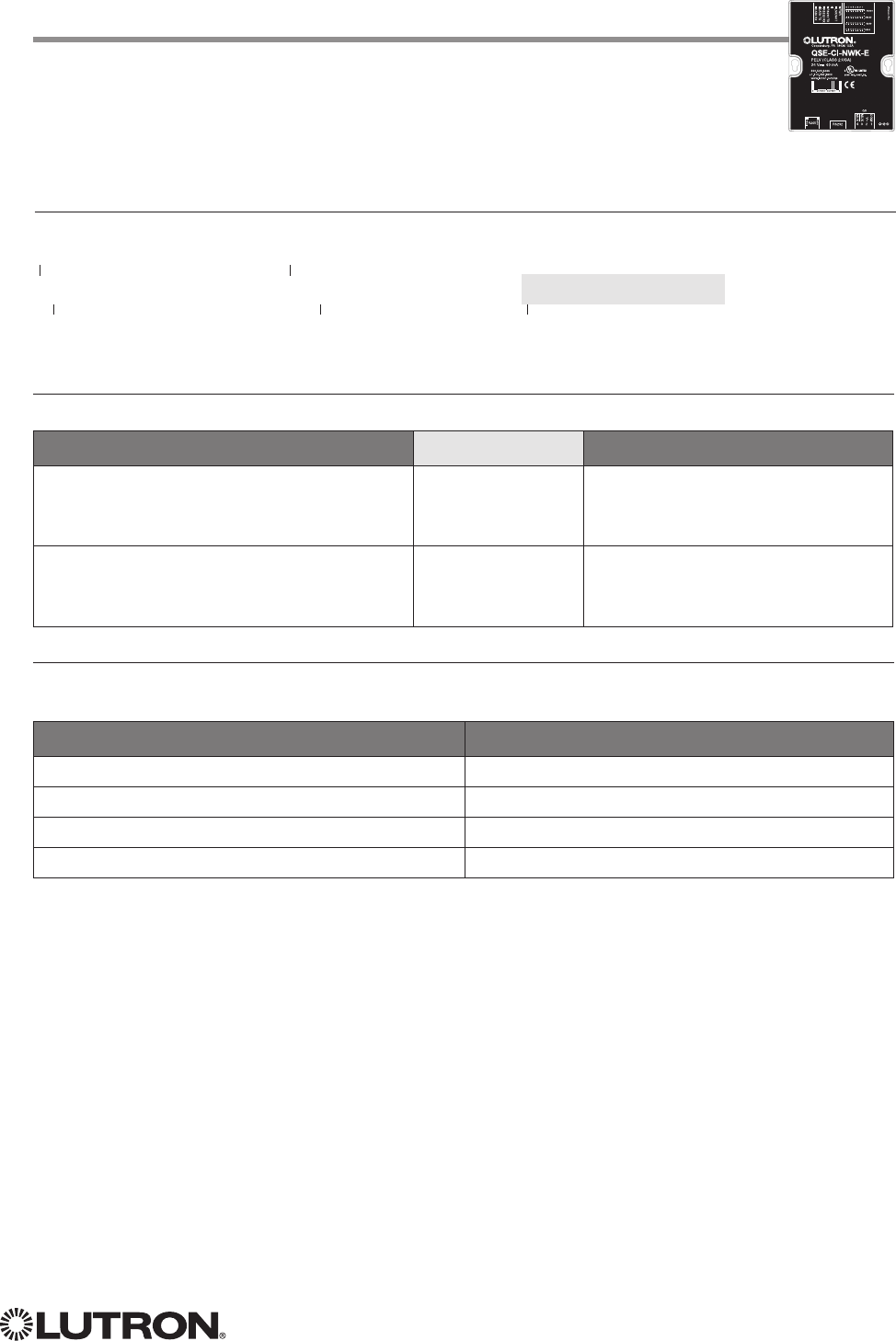

Integration Access Point being used. An example of an Integration Access Point is the QS Network
Interface (QSE-CI-NWK-E). For a listing of all the available Integration Access Points supported
by a particular system, see the Integration Access Points section for that system in the table of
contents.
Command Rules and Formatting
• All commands are in ASCII characters
• Each command is made up of fields, separated by commas and terminated with a carriage return
(<CR>, ASCII 13) and a new line (<LF>, ASCII 10)
• Letter case is ignored
• Spaces are ignored
• Leading zeros are ignored
10
Integration Access Point Compatibility Matrix:
QS Standalone Quantum®RadioRA® 2 HomeWorks® QS Clear Connect®
Gateway System
QS Network Interface  
RadioRA® 2 Main Repeater
HomeWorks® QS Processor
Clear Connect® Gateway
Device Compatibility Matrix:
QS Standalone Quantum®RadioRA® 2 HomeWorks® QS Clear Connect®
Gateway System
GRAFIK Eye® QS  
seeTouch® Keypad  
Tabletop seeTouch® Keypad  
ArchitraveTM Keypad  
Signature SeriesTM Keypad  
Sivoia® QS Shade  
Maestro® Dimmer + Switch  
Maestro® Fan Speed Control  
Visor Control Receiver  
Hybrid Keypad  
Pico® Wireless Control  
Radio Powr SavrTM Sensor  
HVAC Controller  
Remote Power Module  
Energi Savr NodeTM QS/DALI® 
Energi Savr NodeTM QS/0 –10 V
(Int’l)  
Energi Savr NodeTM QS/
EcoSystem®
 
Energi Savr NodeTM QS/0 –10 V  
Energi Savr NodeTM QS/
EcoSystem® (Int’l)  
Energi Savr NodeTM QS/
Motor Module (Int’l)  
Wallbox Input Closure Interface  
Wireless Temperature Sensor
Energi Savr NodeTM QS/Softswitch® 
Energi Savr NodeTM QS/
Softswitch® (Int’l)  
Energi Savr NodeTM QS/
Phase Adaptive (Int’l)
QS Input/Output Interface  
QS Sensor Module  
Lutron® integration protocol
Integrator’s Reference
COMPATIBILITY MATRIX
11
Lutron® integration protocol
DEVICE Command-specific fields
Component Numbers:
Refer to device specific tables for lists of Component Numbers.
Action Numbers and Parameters:
Action Action Number Parameters
Enable 1 None1
Disable 2 None1
Press / Close / Occupied 3 None
Release / Open / Unoccupied 4 None
Hold25 None
Multi-tap26 None
Set or Get Current Scene1,2 7 Scene
Set (#) or Get (?) LED State 9 0 = Off
1 = On
2 = Normal Flash2
3 = Rapid Flash2
Set or Get Light Level3,4 14 0–100 or 0.00 –100.003
SS.ss, SS, MM:SS, or HH:MM:SS3
SS.ss, SS, MM:SS, or HH:MM:SS3
NOTES
1. Quantum® 2.7 and higher.
2. Not supported in RadioRA® 2.
3. Not supported by Quantum®.
4. Not supported by Clear Connect® Gateway.
DEVICE Command Formats
Use “DEVICE Command-specific fields” tables
to complete these command fields.
Operation
Command
Integration ID (example)
#DEVICE, 5, Component Number, Action Number, Parameters
Continued on next page…
Integrator’s Reference (continued)
DEVICE: Command Summary
Device integration commands allow the user to access components of the system such as a
physical device. The user can activate programming via button presses, releases, etc., as well as
monitor those same events as they occur in real time in the system.
12
Lutron® integration protocol
DEVICE Command-specific fields (continued)
Action Numbers and Parameters:
Action Action Number Parameters
Set or Get Zone Lock 1,2,3 15 0 = Off
1 = On
Set or Get Scene Lock 1,2,3 16 0 = Off
1 = On
Set or Get Sequence State 1,2,3 17 0 = Off
1 = Scenes 1– 4
2 = Scenes 5 –16
Start Raising 3,4,5 18 None
Start Lowering 3,4,5 19 None
Stop Raising / Lowering 3,4,5 20 None
Get battery status 22 1 = Normal, 2 = Low
Set a custom lift and tilt level of venetian blinds
programmed to the phantom button 4,6 23 Lift level %
Tilt level %
Set a custom lift level only of venetian blinds
programmed to the phantom button 4,6 24 Lift level %
Set a custom tilt level only of venetian blinds
programmed to the phantom button 4,6 25 Tilt level %
Hold / Release232 None
GRAFIK Eye® QS Timeclock state 34 0 = Disabled
1 = Enabled
Query CCI state 35 None
NOTES
1. Not supported in HomeWorks® QS.
2. Not supported in RadioRA® 2.
3. Not supported by Quantum®.
4. Use OUTPUT command with equivalent action number in RadioRA® 2.
5. Use OUTPUT command with equivalent action number in HomeWorks® QS.
6. Use SHADEGRP command with equivalent action number in HomeWorks® QS.
Integrator’s Reference (continued)
DEVICE: Command Summary (continued)
13
Lutron® integration protocol
Programming Options Required Integration Action Numbers
Buttton Type Double
Tap Hold Cycle
Dim
Press
(3)
Release
(4)
Multi-Tap
(6)
Hold
(5)
Hold
Release (32)
Single-Action and
Toggle Buttons
— — — — — — —
— — —— —
—— — ——
  — —    —
— —    — 
—  
Dual Action Buttons — — —   — — —
— —   — —
Master and Single
Scene Raise / Lower
Buttons
— — —   — — —
Open/Stop/Close/
Stop Buttons — — — — — — —
Integrator’s Reference (continued)
DEVICE: Command Summary (continued)
HomeWorks® QS Button Types and Integration Requirements:
Refer to Lutron® Designer software for setting up programming options.
RadioRA® 2 Button Types and Integration Requirements:
Refer to RadioRA® 2 Essentials / Inclusive software for setting up programming options.
Programming Options Required Integration Action Numbers
Buttton Type Scene Save
Enabled
Press
(3)
Release
(4)
Multi-Tap
(6)
Hold
(5)
Hold
Release (32)
Single-Action and
Toggle Buttons
—— — — —
— — —
Master and Single
Scene Raise / Lower
Buttons
—  — — —
Shade Toggle Buttons — — — — —
14
OUTPUT Command-specific fields
Action Numbers and Parameters:
Action Action Number Parameters
Set or Get Zone Level 1 0–100 or
0.00–100.00
SS.ss
1, SS, MM:SS, or HH:MM:SS
Start Raising 2 None
Start Lowering 3 None
Stop Raising / Lowering 4 None
Start Flash
25 SS.ss
1, SS, MM:SS, or HH:MM:SS
Pulse 6 SS.ss
1, SS, MM:SS, or HH:MM:SS
Set (#) or Get (?) 3,4
Venetian tilt level only
9 Tilt Level
5 = 0 –1006 or 0.00–100.00
5,6
Fade
1 in: SS.ss
2, SS, MM:SS, or HH:MM:SS
Delay
3 in: SS.ss
2, SS, MM:SS, or HH:MM:SS
Set (#) or Get (?) 4
Venetian lift & tilt level
10 Lift Level
5 = 0 –100 or 0.00 –100.00 5
Tilt Level
5 = 0 –100f or 0.00–100.00
5,6
Fade
1 in: SS.ss
2, SS, MM:SS, or HH:MM:SS
Delay
3 in: SS.ss
2, SS, MM:SS, or HH:MM:SS
Start raising Venetian tilt
11 None 4
Start lowering Venetian tilt
12 None 4
Stop Venetian tilt
13 None 4
Start raising Venetian lift
14 None 4
Start lowering Venetian lift
15 None 4
Stop Venetian lift
16 None 4
Set DMX color / level settings 7 17 Color / level index: 0 –255 / 0.00 –100.00 8
Motor Jog Raise 7 18 None 9
Motor Jog Lower 7 19 None 9
Motor 4-Stage Jog Raise 7 20 None 9
Motor 4-Stage Jog Lower 7 21 None 9
NOTES
1. Fractions are rounded up to the closest 1/4 second.
2. To stop a dimmer from flashing, send it to a valid level (action 1).
3. The Delay time is optional. When not used, the system will use a zero-second delay. The minimum delay time is
0seconds. The maximum delay time is 4 hours.
4. Not supported in Quantum®.
5. For switched outputs, any non-zero level results in on or closed, 0 results in off or open.
6. 50 for Horizontal Sheer Blinds.
7. Not supported in RadioRA® 2.
8. Supported in Quantum® version 2.2 and higher.
9. Supported in Quantum® version 2.5 and higher.
Lutron® integration protocol
OUTPUT Command Format
Use “OUTPUT Command-specific fields” tables
to complete these command fields.
Operation
Command
Integration ID (example)
#OUTPUT, 6, Action Number, Parameters
Integrator’s Reference (continued)
OUTPUT: Command Summary
Outputs are dimmers, CCOs, or other devices in a system that have a controllable output. All of
these devices will accept levels from 0% to 100% and 0.00% to 100.00% with a given fade and
delay time. These same commands can be monitored in real-time as they occur in the system.
15
Lutron® integration protocol
Integrator’s Reference (continued)
GROUP1: Command Summary
The GROUP command is used to report the status of a group of occupancy sensors.
GROUP Command-specific fields
Action Numbers:
Action Action Number
Get (?) Occupancy Group State
3
GROUP Command Format
Use “GROUP Command-specific fields” tables
to complete these command fields.
Operation
Command
Integration ID (example)
?GROUP, 6, Action Number
Example GROUP Messages
Operation Command String
Query: ?GROUP, Integration ID, Action Number
What is Occ GROUP 1’s status? ?GROUP,1,3<CR><LF>
Response: ~ GROUP, Integration ID, Action Number, Parameters
Occ group 1 is occupied ~GROUP,1,3,3<CR><LF>
Occ group 1 is unknown ~GROUP,1,3,255<CR><LF>
Occupancy States:
Description Value
Occupied 3
Unoccupied 4
Unknown 255
NOTE
1. Not supported in QS Standalone.
16
Lutron® integration protocol
MONITORING Command-specific fields
Monitoring Type:
Description Monitoring Type
Diagnostic Monitoring 1
Event Monitoring 2
Button Monitoring 3
LED Monitoring14
Zone Monitoring 5
Occupancy 6
Scene # 8
System Variable 10
Reply State (if disabled, all messages FROM the integration access point will cease) 11
Prompt State (if disabled, the prompt will not be printed to the terminal) 12
Venetian Tilt214
Sequence Monitoring116
HVAC Monitoring1,2 17
Mode Monitoring1,2 18
Shade Group Monitoring323
Partition Wall324
Set (#) or Get (?) State of All Monitoring (except Reply and Prompt) 255
NOTES
1. Not supported in QS Standalone.
2. Not compatible with Quantum®.
3. Not supported in RadioRA® 2.
Action Numbers:
Action Action Number
Enable 1
Disable 2
MONITORING Command Formats
Use “MONITORING Command-specific fields” tables
to complete these command fields.
Operation
Command
#MONITORING, Monitoring Type, Action Number
Integrator’s Reference (continued)
MONITORING: Command Summary
Monitoring allows the user to configure what types of messages the system will report.
Note to Integrator: The default values of these are set in the programming database and restored
whenever the integration port is logged in. The user can temporarily change those settings to hide
or show information as desired.
17
Lutron® integration protocol
ERROR Command Formats
Refer to “ERROR Command-specific fields” table
Operation
Command
~ERROR, Error Number
ERROR Command-specific fields
Error Numbers:
Description Error Number
Parameter count mismatch 1
Object does not exist 2
Invalid action number 3
Parameter data out of range 4
Parameter data malformed 5
Unsupported Command 6
Example ERROR Messages
Operation Command String
Parameter count mismatch: Too many or too few parameters for the specified action
Too many parameters when activating scene #AREA,2,6,1,1,1,1,1<CR><LF>
Parameter count mismatch. ~ERROR,1<CR><LF>
Object does not exist: The Integration ID or serial number entered does not map to a known part of the system
Send command to an ID that is not valid #OUTPUT,1234,1,100.00<CR><LF>
Object does not exist ~ERROR,2<CR><LF>
Invalid Action: The action does not exist for this command
Send invalid action (4321) to Area 2 #AREA,2,4321<CR><LF>
Invalid action number ~ERROR,3<CR><LF>
Parameter data out of range: The parameter data is out of range for this action
Send Output 11 to 120% #OUTPUT,11,1,120.00<CR><LF>
Parameter data out of range ~ERROR,4<CR><LF>
Parameter data malformed: The parameter data given was not formatted properly
Set Time to 12:23:24:25 #SYSTEM,1,12:23:24:25<CR><LF>
Invalid action number ~ERROR,5<CR><LF>
Integrator’s Reference (continued)
ERROR: Command Summary
Integration Access Points will respond with an error if an invalid command is received. See the
table below for explanations of different errors.
18
Lutron® integration protocol
HELP Command Formats
Example HELP Messages
Operation Command String
Query: #HELP, Command Name, Action Number
What are all the supported Integration Commands? ?HELP<CR><LF>
What actions are available for #OUTPUT? ?HELP,#OUTPUT<CR><LF>
How is “Raise” used for #OUTPUT? ?HELP,#OUTPUT,2<CR><LF>
Response: ~HELP, Help Information
The list of all Integration Commands. #OUTPUT,?OUTPUT,#DEVICE,?DEVICE,#AREA,
?AREA,#TIMECLOCK,?TIMECLOCK,#SYSTEM,
?SYSTEM,#MONITORING,?MONITORING,
<CR><LF>
The help information for the #OUTPUT command. ~HELP, #OUTPUT requires action<1–6><CR><LF>
1 = Set Level / Position
2 = Start Raising
3 = Start Lowering
4 = Stop Raising / Lowering
6 = Pulse
USAGE: #OUTPUT, <ID>, <action>,<CR><LF>
The help information for the “Raise” action (#OUTPUT). ~HELP, #OUTPUT, <action=2> start raising
output level<CR><LF>
USAGE: #OUTPUT, <ID>, <action=2><CR><LF>
Operation
Command
?HELP, Command Name
2, Action Number
3
Integrator’s Reference (continued)
HELP1: Command Summary
HELP Command for a specific Command Name provides command-name specific usage
information.
NOTES
1. HELP not supported in QS Standalone.
2. The “Command Name” parameter is optional. If not entered, a list of all the supported Integration Commands will be
printed. If a supported command name is entered, the corresponding actions will be listed.
3. The “Action” parameter is optional. When a valid action number is entered (i.e. it is supported by the corresponding
“Command Name”), the help information for that particular action will be displayed.
19
Lutron® integration protocol
SYSTEM Command Formats
SYSTEM Command-specific fields
Action Numbers and Parameters:
Action Action Number Parameters
Set (#) or Get (?)Time
11 Time in: SS.ss, SS, MM:SS, or HH:MM:SS
Set or Get Date 2 Date in MM/DD/YYY
Set or Get Latitude and
Longitude
4 Latitude = –90.00 to +90.00 degrees
Longitude = –180.00 to +180.00 degrees
Set or Get Time Zone
25Hours = –12 to 12
Minutes = 0 to 59
Get Sunset 6 None
Get Sunrise 7 None
Get OS Rev 8 None
Set Load Shed
311 0 = Disabled
1 = Enabled
NOTES
1. The system time must be entered in 24 hour format.
2. The Time Zone is referenced to GMT.
3. Load Shed commands available only on Quantum® version 2.0 and higher.
Example SYSTEM Messages
Operation Command String
Execute: #SYSTEM, Action Number, Parameters
Set time to 5:45 PM. #SYSTEM,1,17:45<CR><LF>
Set date to June 1, 2009. #SYSTEM,2,06/01/2009<CR><LF>
Query: ?SYSTEM, Action Number
What is the system time? ?SYSTEM,1<CR><LF>
What is the system date? ?SYSTEM,2<CR><LF>
Response: ~SYSTEM, Action Number, Parameters
The system time is 11:05 AM. ~SYSTEM,1,11:05:00<CR><LF>
The system date is July 3, 2009. ~SYSTEM,2,07/03/2009<CR><LF>
Use “SYSTEM Command-specific fields” tables to
complete these command fields.
Operation
Command
#SYSTEM, Action Number, Parameters
Integrator’s Reference (continued)
SYSTEM1: Command Summary
SYSTEM Command provides support for location, device and system specific information
(e.g., Date, Time, Software Version Numbers).
NOTE
1. Not supported in QS Standalone.
20
Lutron® integration protocol
QS Standalone
System Overview
The QS family of products delivers scalable lighting and shading solutions for residential and
commercial applications. At the center of the QS system are the GRAFIK Eye® QS control units,
Energi Savr NodeTM control units, and Sivoia® QS shades and drapes, providing direct control of
electric and natural light. QS system devices communicate over the highly flexible QS link; the
link allows for daisy-chain or t-tap wiring configurations. All QS system devices communicate
without the need for interfaces, and addressing is automatic, eliminating the need to set DIP
switches. In addition, QS keypads are configurable in the field to control lights, shades, lights +
shades, or third-party devices. The QS system can be easily integrated with other systems through
contact-closure input /output, DMX output, or Ethernet/RS232.
QS System Device Compatibility Index:
QS Standalone
GRAFIK Eye® QS
seeTouch® QS
Sivoia® QS Shade
Energi Savr NodeTM QS DALI®
Energi Savr NodeTM QS EcoSystem® (Int’l)
Energi Savr NodeTM QS 0 –10 V/Softswitch® (Int’l)
Energi Savr NodeTM QS Phase Adaptive (Int’l)
Energi Savr NodeTM QS EcoSystem®
Energi Savr NodeTM QS 0 –10 V/Softswitch®
Energi Savr NodeTM QS Motor Module (Int’l)
QSE-IO Control Interface
QS Sensor Module
QS Wall Control Interface
21
Lutron® integration protocol
Why Integrate with a QSE-CI-NWK-E?
• Integrates a QS lighting control system with a PC or other digital equipment that supports RS232
or Ethernet TCP/IP connection.
• Allows monitor and control of system devices. For example, the QSE-CI-NWK-E can be used to
simulate button presses, report button presses, control light levels, and monitor light levels.
Supported Commands
• MONITORING specifies what type of messages the system will report
• ETHERNET modifies the Ethernet configurations of the QSE-CI-NWK-E
• RESET restarts the QSE-CI-NWK-E or restores it to factory defaults
• INTEGRATION ID assigns IDs to devices, so that they may be referred to in a more logical fashion
• DETAILS returns information about a QS device
• ERROR reports syntax errors in an integration string command or query
• PROGRAMMING allows user to program Phantom Buttons on the NWK supported in version 8.0
or higher
• DEVICE used to activate Phantom Buttons on the NWK
• OUTPUT used to control outputs of a Device
• “Programming” and “Device” commands require version 8.0 or higher of the NWK software
QS Standalone (continued)
Integration Access Points

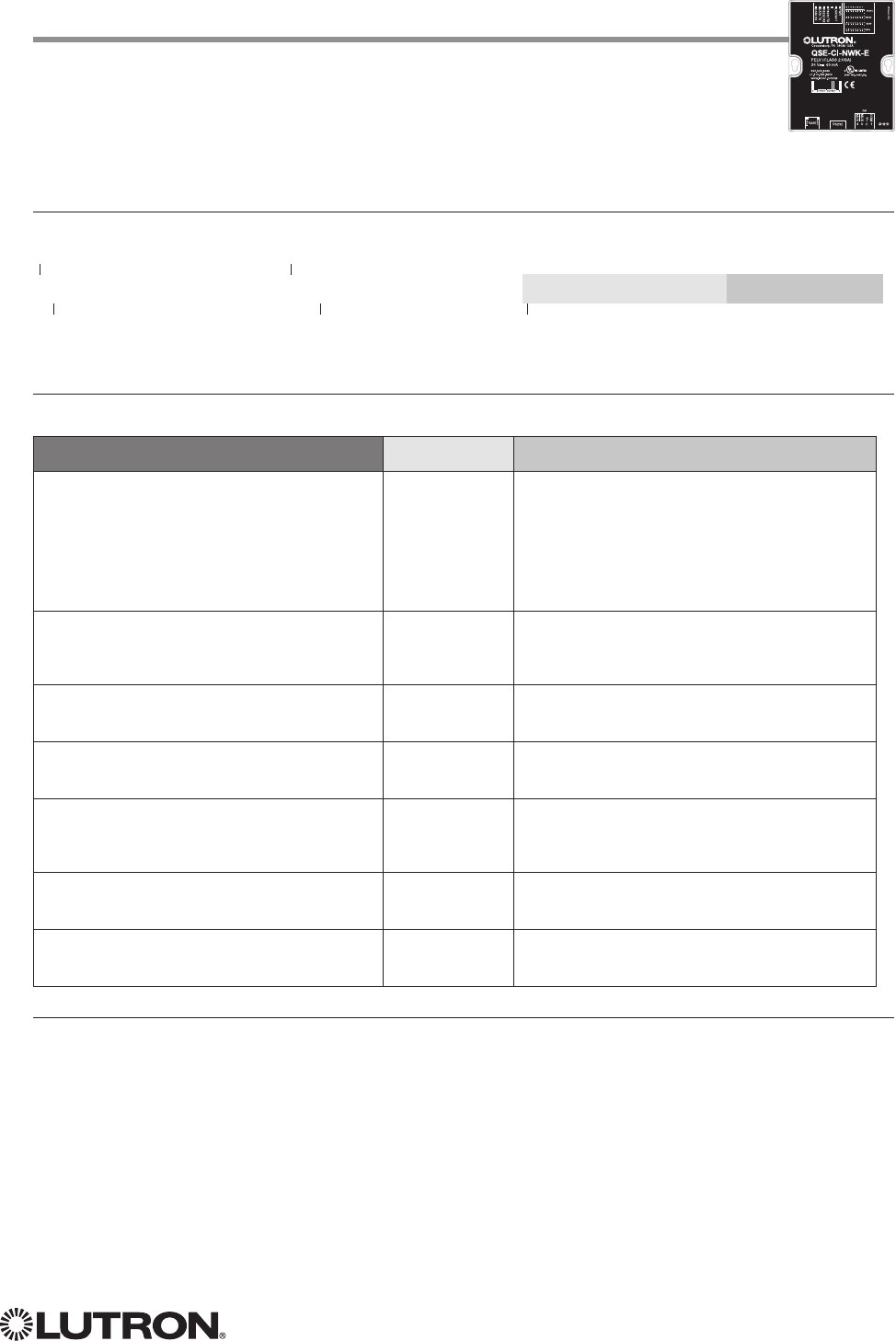

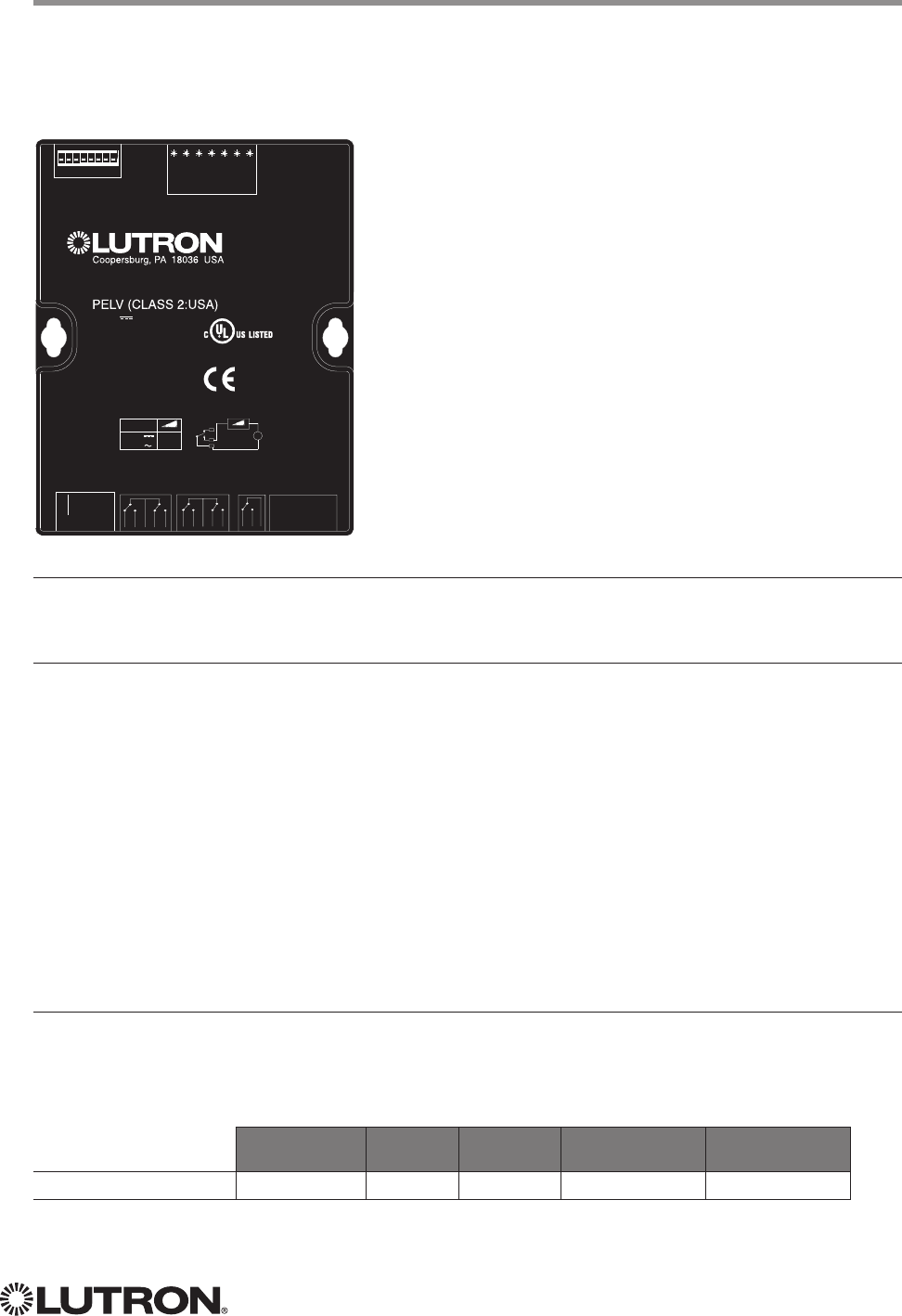

Network Interface
Model: QSE-CI-NWK-E
22
Lutron® integration protocol
Connection Information
Provides an RS232 and Ethernet connection to communicate with external equipment.
Communication is through either RS232 or Ethernet, but not both simultaneously.
RS232
The RS232 connection has the following communication settings:
• Baud Rate 9600/19200/38400/115200 (set via dipswitch on unit)
• 8 data bits
• No parity bit
• 1 stop bit
• No flow control
Ethernet
Configuring the control interface to communicate over a network takes not only knowledge
of the QS system, but of networking as well. Installers with limited networking knowledge are
advised to contact a networking professional before attempting to connect a QSE-CI-NWK-E
through a network. The information below will help an installer communicate the QSE-CI-NWK-E
configurations to a network professional.
The installer will make any necessary changes to the control interface using the Lutron® DeviceIP or
PC software tool and the network professional can make any necessary changes to the networking
equipment.
Single Ethernet Port
• IEEE® 802.3 Auto-Sensing 10BaseT / 100BaseTX
• Supports MDI/MDIX auto-crossover (no crossover cable needed).
• Female 8P8C “Computer RJ-45” socket
• Green “Connect” LED, Amber “Activity” LED
• Use Cat 5 cabling or better
TCP / IP Settings
• IP Address: <static default = 192.168.250.1>
• Subnet Mask: <static default = 255.255.255.0>
• Gateway: <static default = 0.0.0.0>
Protocols Used for Integration
• TELNET
Telnet Server
• Used by third party equipment (i.e. touch screen)
• Limited to transferring ASCII characters
• Telnet Port number is 23
• Login #1: nwk
• Login #2: nwk2
QS Standalone (continued)
Integration Access Points (continued)
23
Lutron® integration protocol

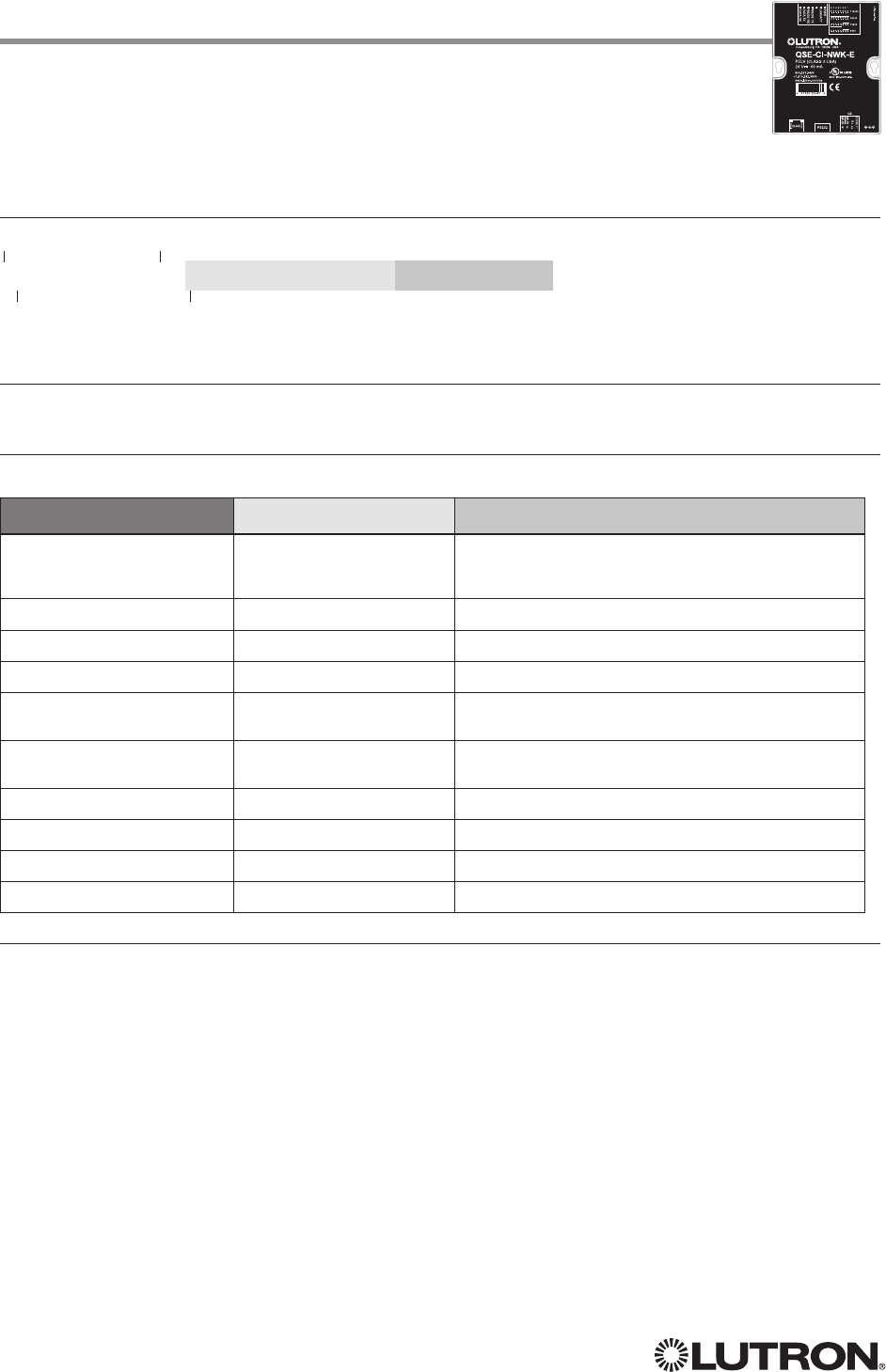

ETHERNET Command Formats
ETHERNET Command-specific fields
Configuration Numbers:
Description Configuration Number Parameters
Get/Set IP Address 0 Address (XXX.XXX.XXX.XXX)
Get/Set Gateway Address 1 Address (XXX.XXX.XXX.XXX)
Get/Set Subnet Mask 2 Address (XXX.XXX.XXX.XXX)
Get/Set Login Info 3 User (0 = All users; 1 = User 1; 2 = User 2),
Old Login,
New Login
Example ETHERNET Commands
Operation Command String
Execute: #ETHERNET, Configuration Number, Parameters
Set IP Address to 192.168.250.1 #ETHERNET,0,192.168.250.1<CR><LF>
Set Gateway Address to 10.2.4.1 #ETHERNET,1,10.2.4.1<CR><LF>
Query: ?ETHERNET, Configuration Number, Parameters
What is the IP Address? ?ETHERNET,0<CR><LF>
What is the Login Information for user 1? ?ETHERNET,3,1<CR><LF>
What is the Login Information for ALL users? (Note: 0 = ALL) ?ETHERNET,3,0<CR><LF>
Response: ~DEVICE, Integration ID, Configuration Number, Parameters
The IP Address is 192.168.250.1 ~ETHERNET,0=,192.168.250.1<CR><LF>
QS Standalone (continued)
System Commands
ETHERNET Commands
Use “ETHERNET Command-specific fields” tables
to complete these command fields.
Operation
Command
#ETHERNET, Configuration Number, Parameters
24
Lutron® integration protocol
INTEGRATION ID Command Formats
INTEGRATION ID Command-specific fields
Action Numbers and Parameters:
Description Action Number Parameters
Set or Get Integration ID for a
Serial Number
1 Serial Number = 8 character HEX serial number of the device
Integration ID = The integration ID to be assigned.
Change Integration ID 2 Current Integration ID, New Integration ID
Note: An error will be reported if the new Integration ID is the
same as an existing Integration ID in the system.
Get Info from ID 3 Integration ID
Note: If this field is left blank, all integration IDs will be printed.
Set or Get output Integration ID 4 Serial Number, Component Number, Integration ID
Example INTEGRATION ID Commands
Operation Command String
Execute: #INTEGRATIONID, Action Number, Parameters
Set the Integration ID for a serial number #INTEGRATIONID,1,1234ABCD,kitchen dimmer<CR><LF>
Response: ~INTEGRATIONID, Action Number, Parameters
Set the Integration ID for a serial number ~INTEGRATIONID,1,1234ABCD,kitchen dimmer<CR><LF>
Execute: ?INTEGRATIONID, Action Number, Parameters
Get the Integration ID for a serial number ?INTEGRATIONID,1,5678EFEF<CR><LF>
Response: ~INTEGRATIONID, Action Number, Parameters
Get the Integration ID for a serial number ~INTEGRATIONID,1,5678EFEF,living room keypad<CR><LF>
Execute: #INTEGRATIONID, Action Number, Parameters
Change the Integration ID #INTEGRATIONID,2,diningroomlights1,diningroomaccents<CR><LF>
Response: ~INTEGRATIONID, Action Number, Parameters
Change the Integration ID ~INTEGRATIONID,2,diningroomlights1,diningroomaccents<CR><LF>
Execute: ?INTEGRATIONID, Action Number, Parameters
Get information about an Integration ID
command
?INTEGRATIONID,3,livingroomkeypad<CR><LF>
Response: ~INTEGRATIONID, Action Number, Parameters
Get information about an Integration ID command ~INTEGRATIONID,3,livingroomkeypad,DEVICE,5678EFEF<CR><LF>
QS Standalone (continued)
System Commands (continued)
INTEGRATION ID Commands
Use “INTEGRATIONID Command-specific fields” tables
to complete these command fields.
Operation
Command
#INTEGRATIONID, Action Number, Parameters
25
Lutron® integration protocol
Example DETAILS String
Operation Command String
Query: ?DETAILS, ID
Get details of the device with serial ID number 00AC123D ?DETAILS,00AC123D<CR><LF>
Response: ~DETAILS, Serial Number, Name, Family, Model, Software Rev., Boot Software Rev.
The device with serial ID number 00AC123D has the
following information:
Name = GRAFIK Eye 1
Product Family = GRAFIK Eye
Product Model = QSG
Software Revision = 1.70
Boot Code Software Revision = 2
~DETAILS,SN:00AC123D,IntegrationID:GRAFIKEye1,Famil
y:GRAFIK_Eye(2),Product:QSG(1),CODE:1.70,Boot:2.1,H
W:1.1<CR><LF>
DETAILS Command Formats
Operation
Command
?DETAILS, ID
1
QS Standalone (continued)
System Commands (continued)
DETAILS String
NOTE
1. Device ID may be entered as the serial ID number or the Integration ID. Use ALL_DEVICES or FFFFFFFF to query all
devices on the link.
26
Lutron® integration protocol
RESET Command Formats
RESET Command-specific fields
Action Numbers:
Action Action Number
Restart the device 0
Restore to factory defaults 1
Restore to factory defaults (does not affect the IP address,
Gateway address, subnet mask settings)
2
Example RESET Commands
Operation Command String
Execute: #RESET, Action Number
Restart the NWK #RESET,0<CR><LF>
Restore NWK to factory defaults #RESET,1<CR><LF>
Use “RESET Command-specific fields” tables
to complete these command fields.
Operation
Command
#RESET, Action Number
QS Standalone (continued)
System Commands (continued)
RESET Commands
27
Lutron® integration protocol
QS Standalone (continued)
System Commands (continued)
PROGRAMMING Commands
PROGRAMMING Command-specific fields
Action Numbers and Parameters:
Description Action Number Parameters
Add programming to a phantom button 1 a) Integration ID – The Integration ID of the device
b) Component Number – Always ‘0’ for Shade
c) Level – The level to which the shade being
programmed will go on activation of this button
d) Fade – The time the zone takes to reach the
level specified (maximum 4 hours)1
e) Delay – The time until the Shade/Zone begins
to change (maximum 4 hours)
Add Scene programming to a phantom button 2 a) Integration ID
b) Component Number (GRAFIK Eye® QS Scene
controller, Energi Savr NodeTM area2)
c) Scene Number
Clear programming from a phantom button.
Note: Use 0 to clear programming from all
buttons.
3 None
Configure Stop-If-Moving functionality
Note: Use button 0 to configure Stop-If-Moving
functionality on all buttons.
40 = Stop-If-Moving Off
1 = Stop-If-Moving On
Add programming to a phantom button
(Venetian blind, lift and tilt levels)
5 a) Venetian Integration ID
b) Component Number (always 0)
c) Lift level
d) Tilt level
Add programming to a phantom button
(Venetian blind, tilt only)
6 a) Venetian Integration ID
b) Component Number (always 0)
c) Tilt level
Add programming to a phantom button
(Venetian blind, lift only)
7 a) Venetian Integration ID
b) Component Number (always 0)
c) Lift level
NOTES
A maximum of 500 programming assignments can be made in the QSE-CI-NWK-E.
1. Not available for Shades.
2. If a device’s Zone is already assigned to the button, you cannot program a Scene for that Zone. If a Scene is already
programmed for this button for a device, you cannot program another Scene.
PROGRAMMING Command Formats
Integration ID or Serial # of
the QSE-CI-NWK being used
Use “PROGRAMMING Command-specific fields” tables
to complete these command fields.
Operation
Phantom Button Number
(can be 1–100)
Command
#PROGRAMMING, 1, Button Number, Action Number, Parameters
28
Lutron® integration protocol
QS Standalone (continued)
System Commands (continued)
PROGRAMMING Commands (continued)
Example PROGRAMMING Commands
For a system of one shade (Integration ID “living room sheer”), one Venetian blind (“kitchen
venetian”), and one QSE-CI-NWK (Integration ID “1”), the following examples show how
programming can be done.
Operation Command String
Add shade at 100% to phantom button 1 #PROGRAMMING,1,1,1,living room sheer,0,100<CR><LF>
Response Received ~PROGRAMMING,1,1,1,living room sheer,0,100<CR><LF>
Add Venetian blind at 0% lift and 50% tilt to phantom
button 2
#PROGRAMMING,1,2,5,kitchen venetian,0,0,50<CR><LF>
Response Received ~PROGRAMMING,1,2,5,kitchen venetian,0,0,50<CR><LF>
Add Venetian blind at 75% tilt to phantom button 3 #PROGRAMMING,1,3,6,kitchen venetian,0,75<CR><LF>
Response Received ~PROGRAMMING,1,3,6,kitchen venetian,0,75<CR><LF>
Add Venetian blind at 15% lift to phantom button 4 #PROGRAMMING,1,4,7,kitchen venetian,0,15<CR><LF>
Response Received ~PROGRAMMING,1,4,7,kitchen venetian,0,15<CR><LF>
Add shade at 50% to phantom button 2 #PROGRAMMING,1,2,1,dining room blackout,0,50<CR><LF>
Response Received ~PROGRAMMING,1,2,1,dining room blackout,0,50<CR><LF>
Turn On Stop-If-Moving for phantom button 5 #PROGRAMMING,1,5,4,1<CR><LF>
Response Received ~PROGRAMMING,1,5,4,1<CR><LF>
Clear programming from all the phantom buttons #PROGRAMMING,1,0,3<CR><LF>
Response Received Repeat command to clear all phantom button programming
Repeat command to clear all phantom button
programming
#PROGRAMMING,1,0,3<CR><LF>
Response Received ~PROGRAMMING,1,0,3<CR><LF>
Clear programming from phantom button 6 #PROGRAMMING,1,6,3<CR><LF>
Response Received ~PROGRAMMING,1,6,3<CR><LF>
29
Lutron® integration protocol
PROGRAMING Command Formats
PROGRAMMING Command-specific fields
Action Numbers and Parameters:
Description Action Number Parameters
Display programming of a specific
phantom button
Note: To display programming of all phantom
buttons, leave the button # field blank
None None
Display Stop-If-Moving configuration of a specific
phantom button
Note: To display Stop-If-Moving configuration of all
phantom buttons, use button #0
4 None
Example PROGRAMMING Commands
The following examples show how to verify the programming of the phantom buttons of a
QSE-CI-NWK-E with an Integration ID of “1.”
Operation Command String
Display programming of phantom button 1 ?PROGRAMMING,1,1<CR><LF>
Display programming of all phantom buttons ?PROGRAMMING,1<CR><LF>
Display Stop-If-Moving configuration of phantom button 5 ?PROGRAMMING,1,5,4<CR><LF>
Display Stop-If-Moving configuration of all phantom buttons ?PROGRAMMING,1,0,4<CR><LF>
Operation
Command
?PROGRAMMING, 1, Button Number, Action Number
Integration ID or Serial # of
the QSE-CI-NWK being used
Use “PROGRAMMING Command-specific fields” tables
to complete these command fields.
Phantom Button Number
(can be 1–100)
QS Standalone (continued)
System Commands (continued)
PROGRAMMING Commands (continued)
30
Lutron® integration protocol
QS Standalone (continued)
System Commands (continued)
DEVICE Commands

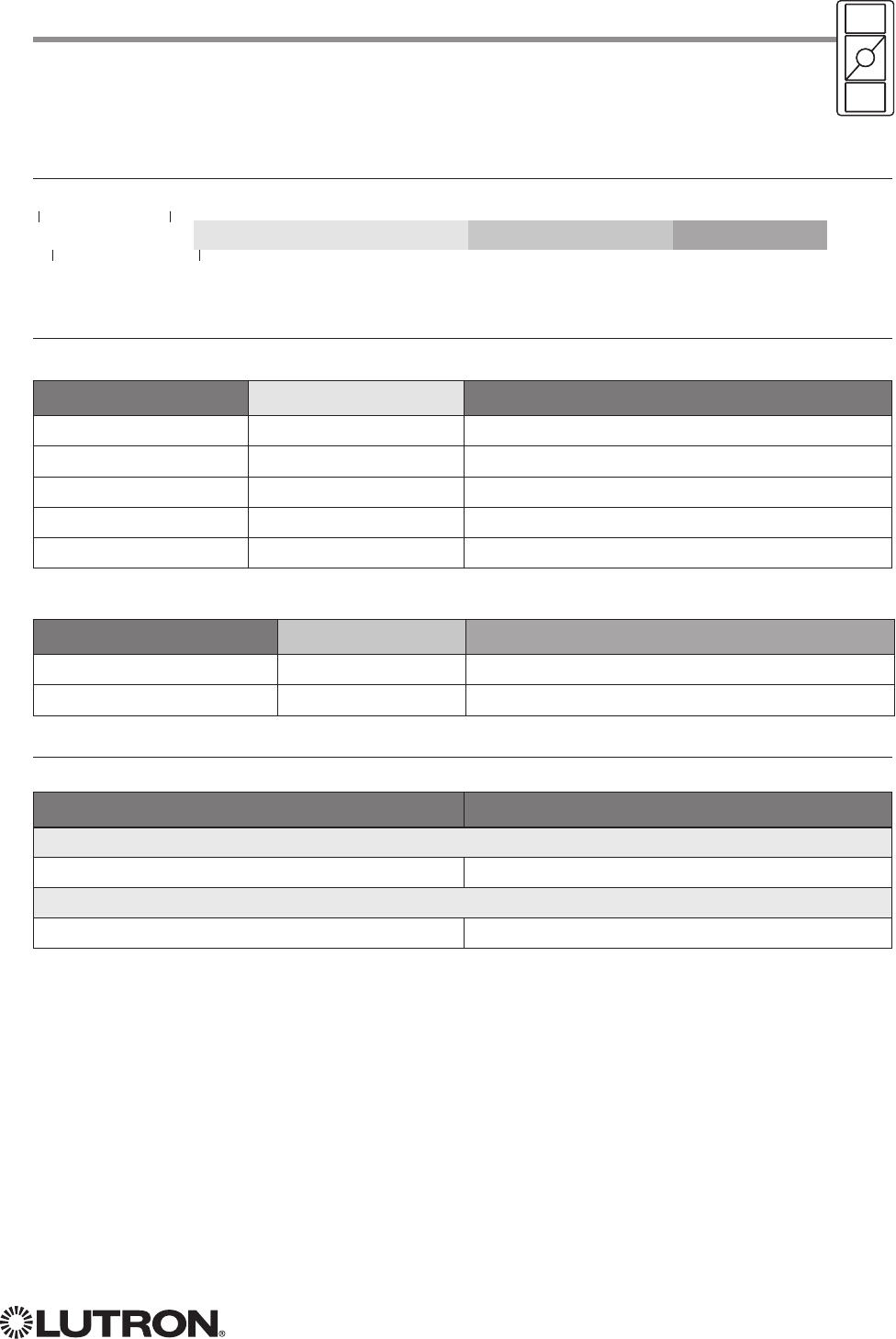

DEVICE Command Formats
DEVICE Command-specific fields
Action Numbers and Parameters:
Description Action Number Parameters
Activate the phantom button preset 3 None
Set a custom level of the shades, lighting zones
programmed to the phantom button
14
1Level: The level the shades will go to
1
Raise the shades 18
2None
Lower the shades 19
2None
Stop the shades 20 None
Set a custom lift and tilt level of venetian blinds programmed
to the phantom button
23
1Lift level %
Tilt level %
Set a custom lift level only of venetian blinds programmed to
the phantom button
24
1Lift level %
Set a custom tilt level only of venetian blinds programmed to
the phantom button
25
1Tilt level %
NOTES
1. Specifying a custom level above will not affect the preset level programmed for the phantom button.
2. For Venetian blinds, the Raise & Lower Actions will affect either the lift or the tilt based on how the phantom button was
programmed. If #PROGRAMMING Action 5 is used (affecting both lift and tilt levels), then the Raise & Lower Actions will
affect the tilt.
Example DEVICE Commands
The following examples show how we can activate phantom buttons on a link with a
QSE-CI-NWK-E whose Integration ID is “1.”
Operation Command String
Activate Preset on phantom button 1 #DEVICE,1,1,3<CR> <LF>
Set the level of all shades programmed to phantom button 2 to 50% #DEVICE,1,2,14,50<CR><LF>
Set all venetian blinds programmed to phantom button 3 to a lift level of
50% and tilt level of 25%
#DEVICE,1,3,23,50,25<CR><LF>
Set all venetian blinds programmed to phantom button 4 to a lift level of 50% #DEVICE,1,4,24,50<CR><LF>
Set all venetian blinds programmed to phantom button 5 to a tilt level of 25% #DEVICE,1,5,25,25<CR><LF>
Raise the shades and venetian blinds programmed to phantom button 6 #DEVICE,1,6,18<CR><LF>
Lower shades and venetian blinds programmed to phantom button 7 #DEVICE,1,7,19<CR><LF>
Stop shades and venetian blinds programmed to phantom button 8 #DEVICE,1,8,20<CR><LF>
Operation
Command
Integration ID or Serial # of
the QSE-CI-NWK being used
Use “DEVICE Command-specific fields” tables
to complete these command fields.
Phantom Button Number
(can be 1–100)
#DEVICE, 1, Button Number, Action Number, Parameters
31
Lutron® integration protocol
RadioRA® 2
System Overview
RadioRA® 2 is a wireless multi-room control system for lights and shades. The system is made up
of repeaters, dimmers, keypads, and other devices. The Lutron® proven, patented RF technology
ensures reliable performance. With the RadioRA® 2 system, you can: create the right ambience for
varied activities, easily monitor and control your lights, reduce energy usage, and increase safety in
and around your home.
RadioRA® 2 System Device Compatibility Index:
RadioRA® 2
Maestro® Dimmer
Tabletop seeTouch® Keypad
Visor Control Receiver
GRAFIK Eye® QS
seeTouch® Keypad
Sivoia® QS Wireless Shade
Hybrid Keypad
Pico® Wireless Control
Radio Powr SavrTM Sensor

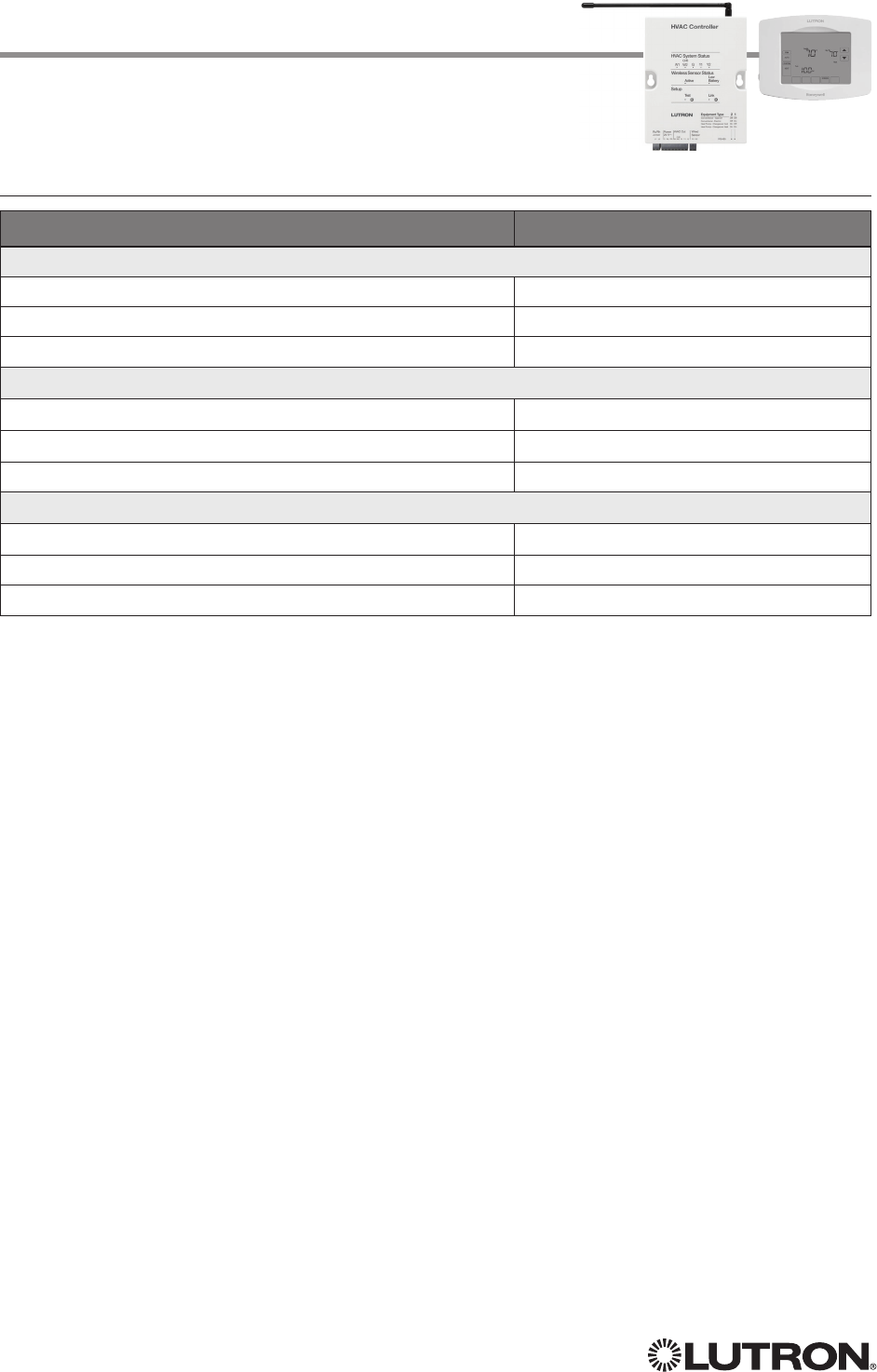

HVAC Controller
Plug-In Module
32
Lutron® integration protocol
Setup
Wired
RF
Communication
Repeater Status
13 4
2
M
Main Repeater
Power Repeater Link
COM
9 V
1
N / C
MUX
MUX
234
AddTest
Integrate
Program / Integrate
RS232 Ethernet
USB
Why Integrate with a RadioRA® 2 Main Repeater?
• Integrates a RadioRA® 2 lighting control system with a PC or other digital equipment that supports
RS232 or Ethernet TCP/IP communication.
• Allows monitoring and control of system devices. For example, the Main Repeater can be used to
simulate button presses, report button presses, monitor LEDs, and control light levels of dimmers.
Integration Capabilities
• 100 “virtual” programmable buttons with LEDs (use DEVICE command)
• Monitoring of changes to other system devices (use MONITORING command)
Additional Commands
• MONITORING commands are used to program what types of messages the system will report
RadioRA® 2 (continued)
Integration Access Points
Main Repeater
Model: RR-MAIN-REP-WH, RRK-MAIN-REP-WH
33
Lutron® integration protocol
Setup
Wired
RF
Communication
Repeater Status
13 4
2
M
Main Repeater
Power Repeater Link
COM
9 V
1
N / C
MUX
MUX
234
AddTest
Integrate
Program / Integrate
RS232 Ethernet
USB
RadioRA® 2 (continued)
Integration Access Points (continued)
Connection Information
Provides an RS232 and Ethernet connection to communicate with external equipment.
RS232
The RS232 connection has the following communication settings:
• Baud Rate 9600
• 8 data bits
• No parity bit
• 1 stop bit
• No flow control
Ethernet
Configuring the control interface to communicate over a network takes not only knowledge of
the RadioRA® 2 system, but of networking as well. Installers with limited networking knowledge
are advised to contact a networking professional before attempting to connect a control interface
through a network. The information below will help an installer communicate the control interface
configurations to a network professional.
The installer will make any necessary changes to the control interface using the Lutron® DeviceIP
or RadioRA® 2 PC software tool and the network professional can make any necessary changes to
the networking equipment.
Single Ethernet Port
• IEEE® 802.3 Auto-Sensing 10BaseT / 100BaseTX
• Supports MDI/MDIX auto-crossover (no crossover cable needed).
• Female 8P8C “Computer RJ-45” socket
• Green “Connect” LED, Amber “Activity” LED
• Use Cat 5 cabling or better
TCP / IP Settings
• DHCP (dynamic) or static configuration <factory default = DHCP>
• IP Address: <static default = 192.168.1.50 or dynamic configuration>
• Subnet Mask: <static default = 255.255.255.0 or dynamic configuration>
• Gateway: <static default = 0.0.0.0 or dynamic configuration>
Protocols Used for Integration
• TELNET
Telnet Server
• Up to 4 telnet sessions can be accessed through Essentials Software
• Used by software and/or third party equipment (e.g., touch screen)
• Limited to transferring ASCII characters
• Login: lutron
• Password: integration
Notes:
– Up to four additional login and password values can be defined in the RadioRA® 2 PC software.
– Only one connection per login / password is allowed at a time.
UDP Multicast Messaging
• Used by the RadioRA® 2 PC software during device configuration and system programming
• There are no user modifiable settings for UDP messaging
34
Lutron® integration protocol
DEVICE Command Formats
DEVICE Command-specific fields
Component Numbers:
Component Component Number Available Actions
Button 1–100 1–100 Press, Release
LED 1–100 101–200 Set or Get LED state
Action Numbers and Parameters:
Action Action Number Parameters
Press 3 None
Release 4 None
Set or Get LED State 9 0 = Off
1 = On
Example DEVICE Commands
Operation Command String
Execute: #DEVICE, Integration ID, Component Number, Action Number, Parameters
Press Button 1. #DEVICE,4,1,3<CR><LF>
Release Button 1 #DEVICE,4,1,4<CR><LF>
Turn On LED 1. #DEVICE,4,101,9<CR><LF>
Query: ?DEVICE, Integration ID, Component Number, Action Number
What is the state of LED 1? ?DEVICE,4,101,9<CR><LF>
Response: ~DEVICE, Integration ID, Component Number, Action Number, Parameters
LED 1 is On. ~DEVICE,4,101,9,1<CR><LF>
Setup
Wired
RF
Communication
Repeater Status
13 4
2
M
Main Repeater
Power Repeater Link
COM
9 V
1
N / C
MUX
MUX
234
AddTest
Integrate
Program / Integrate
RS232 Ethernet
USB
RadioRA® 2 (continued)
System Commands
DEVICE Commands
Use “DEVICE Command-specific fields” tables
to complete these command fields.
Operation
Command
Integration ID (example)
#DEVICE, 1, Component Number, Action Number, Parameters
35
Lutron® integration protocol
RadioRA® 2 (continued)
System Commands (continued)
GROUP Commands
Setup
Wired
RF
Communication
Repeater Status
13 4
2
M
Main Repeater
Power Repeater Link
COM
9 V
1
N / C
MUX
MUX
234
AddTest
Integrate
Program / Integrate
RS232 Ethernet
USB
GROUP Command-specific fields
Action Numbers:
Action Action Number
Get (?) Occupancy Group State
3
GROUP Command Format
Use “GROUP Command-specific fields” tables
to complete these command fields.
Operation
Command
Integration ID (example)
?GROUP, 6, Action Number
Example GROUP Messages
Operation Command String
Query: ?GROUP, Integration ID, Action Number
What is Occ GROUP 1’s status? ?GROUP,1,3<CR><LF>
Response: ~ GROUP, Integration ID, Action Number, Parameters
Occ group 1 is occupied ~GROUP,1,3,3<CR><LF>
Occ group 1 is unknown ~GROUP,1,3,255<CR><LF>
Occupancy States:
Description Value
Occupied 3
Unoccupied 4
Unknown 255
36
Lutron® integration protocol
MONITORING Command Formats
MONITORING Command-specific fields
Monitoring Type:
Description Monitoring Type
Diagnostic Monitoring 1
Button Monitoring (if enabled, button actions will be reported) 3
LED Monitoring (if enabled, LED states will be reported) 4
Zone Monitoring (if enabled, zone levels will be reported, i.e. dimmer, shade, contact closure
output level)
5
Reply State (if disabled, all messages FROM the integration access point will cease) 11
Prompt State (if disabled, the prompt will not be printed to the terminal) 12
Set or Get State of All Monitoring (except Reply and Prompt) 255
Action Numbers:
Action Action Number
Enable 1
Disable 2
Example MONITORING Commands
Operation Command String
Execute: #MONITORING, Monitoring Type, Action Number
Disable Diagnostic Monitoring. #MONITORING,1,2<CR><LF>
Enable Event Monitoring. #MONITORING,2,1<CR><LF>
Query: ?MONITORING, Monitoring Type
Is Diagnostic Monitoring disabled? ?MONITORING,1<CR><LF>
Response: ~MONITORING, Monitoring Type, Action Number
Diagnostic Monitoring is disabled. ~MONITORING,1,2<CR><LF>
Setup
Wired
RF
Communication
Repeater Status
13 4
2
M
Main Repeater
Power Repeater Link
COM
9 V
1
N / C
MUX
MUX
234
AddTest
Integrate
Program / Integrate
RS232 Ethernet
USB
RadioRA® 2 (continued)
System Commands (continued)
MONITORING Commands
Use “MONITORING Command-specific fields”
tables to complete these command fields.
Operation
Command
#MONITORING, Monitoring Type, Action Number
37
Lutron® integration protocol
Setup
Wired
RF
Communication
Repeater Status
13 4
2
M
Main Repeater
Power Repeater Link
COM
9 V
1
N / C
MUX
MUX
234
AddTest
Integrate
Program / Integrate
RS232 Ethernet
USB
RadioRA® 2 (continued)
System Commands (continued)
TIMECLOCK Commands
TIMECLOCK Command Formats
TIMECLOCK Command-specific fields
Action Numbers and Parameters:
Action Action Number Parameters
Set (#) Current Timeclock
Mode
11 Mode
Get (?) Current Timeclock
Mode
1 None
Get (?) Sunrise Time 2 None
Get (?) Sunset Time 3 None
Get (?) Day’s Schedule 4 None
Execute (#) event 5 Index of the event to test. The index number of the first event
is 1; the second event is 2, and so on.
Enable/Disable Event 6 Event Index, Enable State (1 = Enable, 2 = Disable)
NOTE
1. In order to set the Timeclock Mode, the “mode” settings must first be determined using the ?help,#timeclock,1 command.
Example TIMECLOCK Messages
Operation Command String
Execute: #TIMECLOCK, Integration ID, Action Number, Parameters
Execute the 3rd event of the time clock. #TIMECLOCK,4,5,3<CR><LF>
Query: ?TIMECLOCK, Integration ID, Action Number
What is the sunrise time? ?TIMECLOCK,4,2<CR><LF>
Response: ~TIMECLOCK, Integration ID, Action Number, Parameters
The time the sun rises. ~TIMECLOCK,4,2,05:32<CR><LF>
Use “TIMECLOCK Command-specific fields” tables
to complete these command fields.
Operation
Command
#TIMECLOCK, 4, Action Number, Parameters
Integration ID (example)
38
Lutron® integration protocol
Clear Connect® Gateway System
System Overview
The Clear Connect® Gateway System is a wireless multi-room control system for lights and shades.
The system is made up of repeaters, dimmers, keypads, and other devices. The Lutron® proven,
patented RF technology ensures reliable performance. With the Clear Connect® Gateway system,
you can: create the right ambience for varied activities, easily monitor and control your lights,
reduce energy usage, and increase safety in and around your home.
Clear Connect® System Device Compatibility Index:
Clear Connect®
Gateway System
Maestro® Dimmer
seeTouch® Keypad
Sivoia® QS Wireless Shade
Radio Powr SavrTM Sensor
39
Lutron® integration protocol
Why Integrate with a Clear Connect® Gateway System?
• Integrates a Clear Connect® lighting control system with a PC or other digital equipment that
supports Ethernet TCP/IP communication.
• Allows monitoring and control of system devices. For example, the Translator can be used to
simulate button presses, report button presses, monitor LEDs, and control light levels of dimmers.
Integration Capabilities
• 100 “virtual” programmable buttons with LEDs (use DEVICE command).
Additional Commands
• PING commands are used to verify network connectivity.
Clear Connect® Gateway System (continued)
Integration Access Points

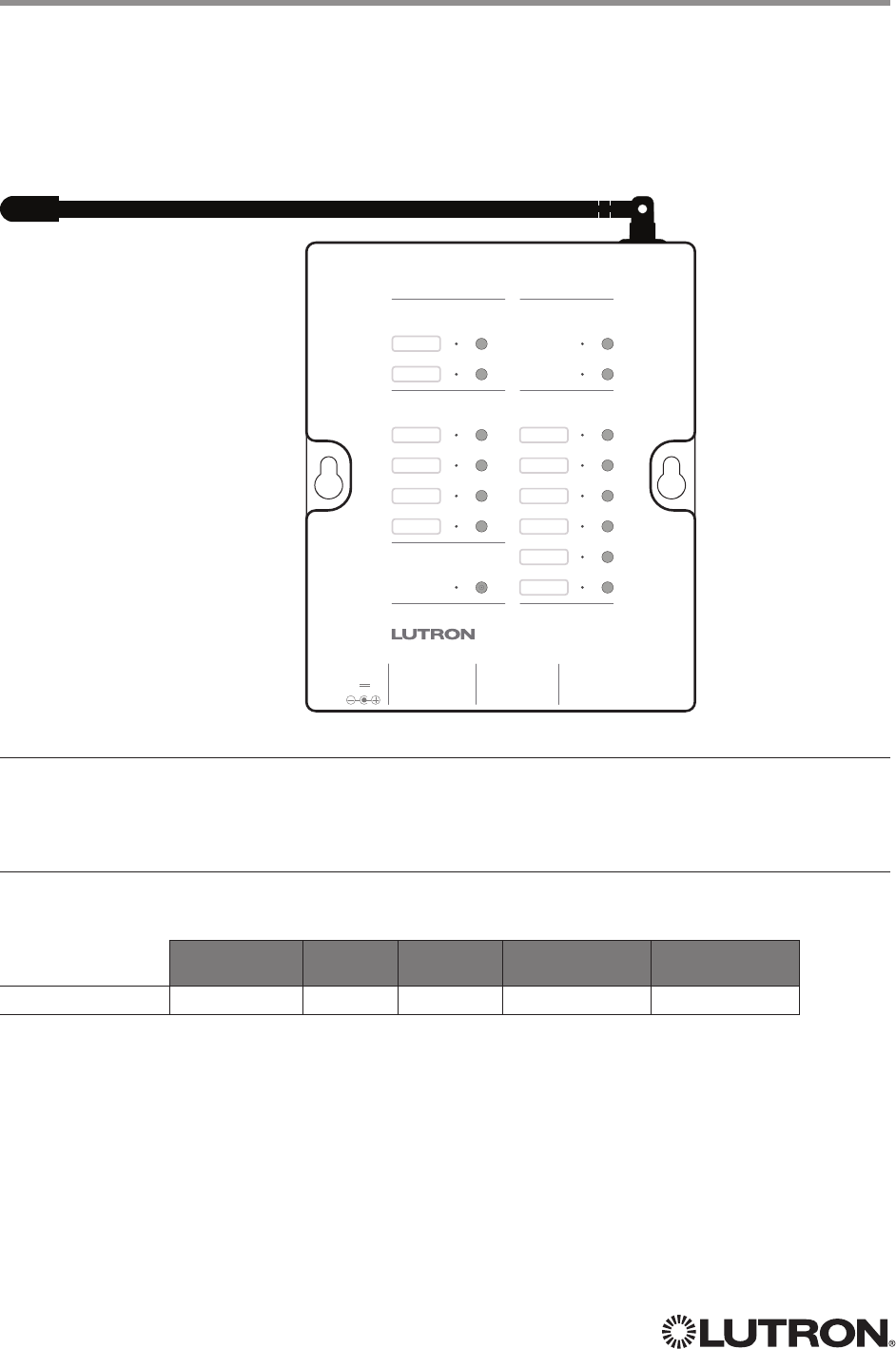

Models: NXB-CCG, NXB-CCG-K
40
Lutron® integration protocol
Clear Connect® Gateway System (continued)
Integration Access Points (continued)
Connection Information
Provides an Ethernet connection to communicate with external equipment.
Ethernet
Configuring the control interface to communicate over a network takes not only knowledge of the
Clear Connect® Gateway System, but of networking as well. Installers with limited networking
knowledge are advised to contact a networking professional before attempting to connect a
control interface through a network. The information below will help an installer communicate the
control interface configurations to a network professional.
The installer will make any necessary changes to the control interface using the Integrated
Web Configuration tool and the network professional can make any necessary changes to the
networking equipment.
Single Ethernet Port
• IEEE® 802.3 Auto-Sensing 10BaseT / 100BaseTX
• Supports MDI/MDIX auto-crossover (no crossover cable needed).
• Female 8P8C “Computer RJ-45” socket
• Green “Connect” LED, Amber “Activity” LED
• Use Cat 5 cabling or better
TCP / IP Settings
• DHCP (dynamic) or static configuration <factory default = DHCP>
• IP Address: <static or dynamic configuration>
• Subnet Mask: <static or dynamic configuration>
• Gateway: <static or dynamic configuration>
Protocols Used for Integration
• Raw socket (Telnet port)
• SSH
Server
• Up to 10 usernames can be created. Each username supports multiple simultaneous connections
• Used by software and/or third party equipment (i.e. touch screen)
• Limited to transferring ASCII characters
• Raw Socket port number is 23; can be changed in the Web Configuration tool
• SSH port number is 22; cannot be changed
• Default Integration Login information
NXB-CCG / NXB-CCG-K:
– Login: amx
– Password: clearconnect
Continued on next page…
41
Lutron® integration protocol
Clear Connect® Gateway System (continued)
Integration Access Points (continued)
Connection Information (continued)
System Configuration
• Default web admin information
NXB-CCG / NXB-CCG-K:
– Login: admin
– Password: 1988
• XML file extraction is supported
a) Browsing to “/xml” after logging in will return the XML data for the system
b) Browsing to “/xml?login=<user>&password=<password>” will return the XML data without
first having to log in
Note: The “login” info can use either web login or integration login credentials.
• ZeroConf discovery of the CCT device
a) The device will present itself as:
– NXB-CCG or NXB-CCG-K will present itself as
“NXB-CCG-<Numeric Portion of Serial Number>”
b) The domain suffix is displayed next to the hostname in the Web Configuration tool
42
Lutron® integration protocol
DEVICE Command Formats
DEVICE Command-specific fields
Component Numbers:
Component Component Number Available Actions
Button 1–100 1–100 Press, Release
LED 1–100 101–200 Set or Get LED state
Action Numbers and Parameters:
Action Action Number Parameters
Press 3 None
Release 4 None
Set or Get LED State 9 0 = Off
1 = On
Example DEVICE Commands
Operation Command String
Execute: #DEVICE, Integration ID, Component Number, Action Number, Parameters
Press Button 1. #DEVICE,4,1,3<CR><LF>
Release Button. 1 #DEVICE,4,1,4<CR><LF>
Turn On LED 1. #DEVICE,4,101,9<CR><LF>
Query: ?DEVICE, Integration ID, Component Number, Action Number
What is the state of LED 1? ?DEVICE,4,101,9<CR><LF>
Response: ~DEVICE, Integration ID, Component Number, Action Number, Parameters
LED 1 is On. ~DEVICE,4,101,9,1<CR><LF>
Clear Connect® Gateway System (continued)
System Commands
DEVICE Commands
Use “DEVICE Command-specific fields” tables
to complete these command fields.
Operation
Command
Integration ID (example)
#DEVICE, 1, Component Number, Action Number, Parameters
43
Lutron® integration protocol
Clear Connect® Gateway System (continued)
System Commands (continued)

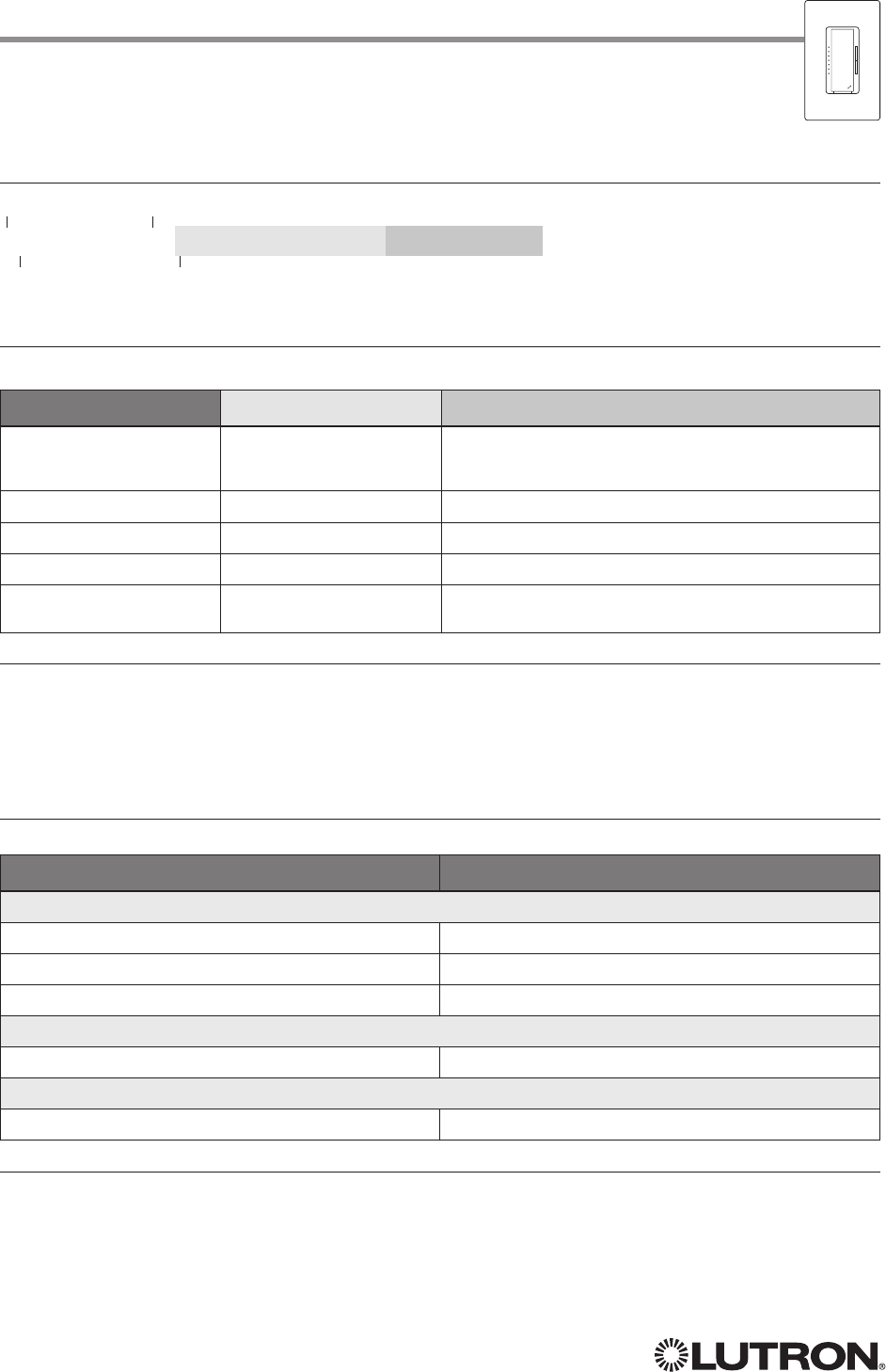

GROUP Commands
GROUP Command-specific fields
Action Numbers:
Action Action Number
Get (?) Occupancy Group State
3
GROUP Command Format
Use “GROUP Command-specific fields” tables
to complete these command fields.
Operation
Command
Integration ID (example)
?GROUP, 6, Action Number
Example GROUP Messages
Operation Command String
Query: ?GROUP, Integration ID, Action Number
What is Occ GROUP 1’s status? ?GROUP,1,3<CR><LF>
Response: ~ GROUP, Integration ID, Action Number, Parameters
Occ group 1 is occupied ~GROUP,1,3,3<CR><LF>
Occ group 1 is unknown ~GROUP,1,3,255<CR><LF>
Occupancy States:
Description Value
Occupied 3
Unoccupied 4
Unknown 255
44
Lutron® integration protocol
PING Command Formats
Example PING Command
Operation Command String
Execute: #PING
Ping to verify connectivity #PING
Response: ~PING
Connection is established ~PING
Operation
Command
#PING
Clear Connect® Gateway System (continued)
System Commands (continued)
PING Commands
45
Lutron® integration protocol
Quantum®
System Overview
The Quantum® system is the Lutron® premier commercial lighting control system. It allows the
control and monitoring of individual devices and outputs as well as allowing control of entire areas,
shade groups or other portions of the system. The Quantum® system includes QS devices such as
the GRAFIK Eye® QS and Sivoia® QS shades as well as Lutron® EcoSystem® ballasts and GRAFIKTM
dimming panels. When integrating with a Quantum® system the integrator gets additional access
to portions of a the system not available when using products in stand-alone mode, particularly
the ability to activate scenes on an area-by-area basis and to control the position of and activate
presets on entire groups of shades at once.
Quantum® System Device Compatibility Index:
Quantum®
GRAFIK Eye® QS
seeTouch® QS
Sivoia® QS Shade
QS Input / Output Interface
Energi Savr NodeTM QS DALI®
Energi Savr NodeTM QS EcoSystem® (Int’l)
Energi Savr NodeTM QS 0 –10 V/Softswitch® (Int’l)
Energi Savr NodeTM QS Phase Adaptive (Int’l)
Energi Savr NodeTM QS EcoSystem®
Energi Savr NodeTM QS 0 –10 V/Softswitch®
Why Integrate with a Quantum® System
• Compatible with Quantum® system version 1.7 or higher
• Gain access to system-only information
• Activate System Area scenes
• Set levels for System Outputs
• Activate System Shade Group presets
• View and modify parameters of a Quantum® system, such as time, date, time zone, etc.
Command Types
Operation characters will be followed by command types:
• AREA allows control of an area in the Quantum® system. Scenes can be activated, occupancy
monitored etc.
• SHADEGRP allows control of shade groups in the Quantum® system. Shade Groups are
collections of shades that operate in unison
• OUTPUT allows control and monitoring of a Quantum® system output group such as a lighting
zone or closure output.
• SYSTEM allows setting and controlling system parameters and variables *
• HELP displays usage information for the supported commands and their corresponding actions
• INTEGRATION ID allows querying integration IDs of devices in the system
* Load Shed commands available only on Quantum® version 2.0 and higher.
46
Lutron® integration protocol
Why Integrate with a QSE-CI-NWK-E?
• Integrates a QS lighting control system with a PC or other digital equipment that supports RS232
or Ethernet TCP/IP connection.
• Allows monitor and control of system devices. For example, the QSE-CI-NWK-E can be used to
simulate button presses, report button presses, monitor LEDs, and control light levels.
Additional Commands
• MONITORING specifies what type of messages the system will report
• ETHERNET modifies the Ethernet configurations of the QSE-CI-NWK-E
• RESET restarts the QSE-CI-NWK-E or restores it to factory defaults
• INTEGRATION ID assigns IDs to devices, so that they may be referred to in a more logical fashion
• DETAILS returns information about a QS device
• ERROR reports syntax errors in an integration string command or query
Quantum® (continued)
Integration Access Points
Network Interface

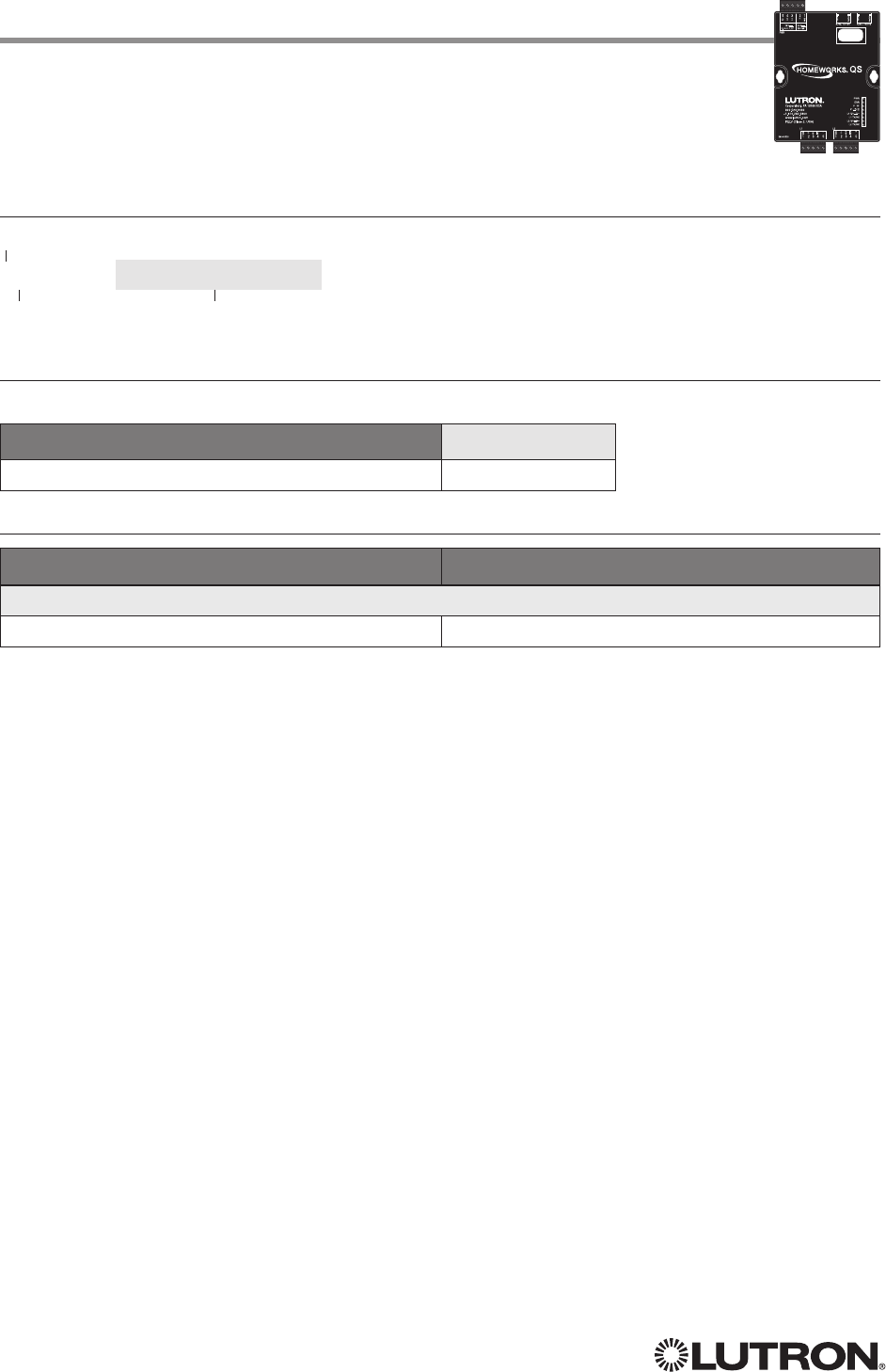

Model: QSE-CI-NWK-E
47
Lutron® integration protocol
Quantum® (continued)
Integration Access Points (continued)
Connection Information
Provides an RS232 and Ethernet connection to communicate with external equipment.
RS232
The RS232 connection has the following communication settings:
• Baud Rate 9600/19200/38400/115200 (set via dipswitch on unit)
• 8 data bits
• No parity bit
• 1 stop bit
• No flow control
Ethernet
Configuring the control interface to communicate over a network takes not only knowledge of
the Quantum® system, but of networking as well. Installers with limited networking knowledge
are advised to contact a networking professional before attempting to connect a QSE-CI-NWK-E
through a network. The information below will help an installer communicate the QSE-CI-NWK-E
configurations to a network professional.
The installer will make any necessary changes to the control interface using the Lutron® DeviceIP or
Quantum® PC software tool and the network professional can make any necessary changes to the
networking equipment.
Single Ethernet Port
• IEEE® 802.3 Auto-Sensing 10BaseT / 100BaseTX
• Supports MDI/MDIX auto-crossover (no crossover cable needed).
• Female 8P8C “Computer RJ-45” socket
• Green “Connect” LED, Amber “Activity” LED
• Use Cat 5 cabling or better
TCP / IP Settings
• IP Address: <static default = 192.168.250.1>
• Subnet Mask: <static default = 255.255.255.0>
• Gateway: <static default = 0.0.0.0>
Protocols Used for Integration
• TELNET
Telnet Server
• Used by third party equipment (e.g., touch screen)
• Limited to transferring ASCII characters
• Telnet Port number is 23
• Login #1: nwk
• Login #2: nwk2
48
Lutron® integration protocol
ETHERNET Command Formats
ETHERNET Command-specific fields
Configuration Numbers:
Description Configuration Number Parameters
Set IP Address 0 IP Address (XXX.XXX.XXX.XXX)
Set Gateway Address 1 IP Address (XXX.XXX.XXX.XXX)
Set Subnet Mask 2 IP Address (XXX.XXX.XXX.XXX)
Change Login Info 3 User (1 or 2),
Old Login,
New Login
Example ETHERNET Commands
Operation Command String
Execute: #ETHERNET, Configuration Number, Parameters
Set IP Address to 192.168.250.1 #ETHERNET,0,192.168.250.1<CR><LF>
Set Gateway Address to 10.2.4.1 #ETHERNET,1,10.2.4.1<CR><LF>
Query: ?ETHERNET, Configuration Number, Parameters
What is the IP Address? ?ETHERNET,0<CR><LF>
What is the Login Information for user 1? ?ETHERNET,3,1<CR><LF>
What is the Login Information for ALL users? ?ETHERNET,3,0<CR><LF> (Note: 0 = ALL)
Response: ~ETHERNET, Integration ID, Configuration Number, Parameters
The IP Address is 192.168.250.1 ~ETHERNET,0,192.168.250.1<CR><LF>
Quantum® (continued)
System Commands
ETHERNET Commands
Use “ETHERNET Command-specific fields” tables
to complete these command fields.
Operation
Command
#ETHERNET, Configuration Number, Parameters
49
Lutron® integration protocol
INTEGRATION ID Command Formats
INTEGRATION ID Command-specific fields
Action Numbers and Parameters:
Description Action Number Parameters
Get Integration ID for a Serial
Number
1 Serial Number: 8 character HEX serial number of the device;
Integration ID: The integration ID to be assigned.
Get Info from ID 3 Integration ID = The Integration ID that information is desired for.
Note: If this field is left blank, all integration IDs will be printed.
Example INTEGRATION ID Commands
Operation Command String
Execute: ?INTEGRATIONID, Action Number, Parameters
Get the Integration ID for a serial number ?INTEGRATIONID,1,5678EFEF<CR><LF>
Response: ~INTEGRATIONID, Action Number, Parameters
Get the Integration ID for a serial number ~INTEGRATIONID,1,5678EFEF,1<CR><LF>
Execute: ?INTEGRATIONID, Action Number, Parameters
Get information about an Integration ID command ?INTEGRATIONID,3,1<CR><LF>
Response: ~INTEGRATIONID, Action Number, Parameters
Get information about an Integration ID command ~INTEGRATIONID,3,1,DEVICE,5678EFEF<CR><LF>
Quantum® (continued)
System Commands (continued)
INTEGRATION ID Commands
Use “INTEGRATIONID Command-specific fields” tables
to complete these command fields.
Operation
Command
?INTEGRATIONID, Action Number, Parameters
50
Lutron® integration protocol
RESET Command Formats
RESET Command-specific fields
Action Numbers:
Action Action Number
Restart the device 0
Restore to factory defaults 1
Example RESET Commands
Operation Command String
Execute: #RESET, Action Number
Restart the NWK #RESET,0<CR><LF>
Restore NWK to factory defaults #RESET,1<CR><LF>
Use “RESET Command-specific fields” tables
to complete these command fields.
Operation
Command
#RESET, Action Number
Quantum® (continued)
System Commands (continued)
RESET Commands
51
Lutron® integration protocol
AREA Command Formats
AREA Command-specific fields
Action Numbers and Parameters:
Action Action Number Parameters
Set (#) Area Level 1 Level
1 = 0 –100 or 0.00 –100.00
Fade
2 in: SS.ss
3, SS, MM:SS, or HH:MM:SS
Delay
2 in: SS.ss
3, SS, MM:SS, or HH:MM:SS
Start Raising
42 None
Start Lowering
43 None
Stop Raising / Lowering 4 None
Set or Get Current Scene 6 Scene Number
5 = 0 –326
Set or Get Daylighting Mode 7 1 = Active
2 = Inactive
Get Occupancy State 8 1 = Unknown
2 = Inactive
3 = Occupied
4 = Unoccupied
Set or Get Occupancy Mode 9 1 = Occupancy and Vacancy 7
2 = Vacancy 7
3 = Not Applicable 8
4 = Inactive
Get or Set Occupied Level or Scene 12 Level
= 0–100; 200–232 for Scene Number = 0– 32
Get or Set Unoccupied Level or Scene 13 Level
= 0–100; 200–232 for Scene Number = 0– 32
Get or Set HyperionTM Shadow Sensor Override
State926 0 = Disable
1 = Enable
2 = Mixed (Get Only)
Get or Set HyperionTM Brightness Sensor
Override State927 0 = Disable
1 = Enable
2 = Mixed (Get Only)
NOTES
1. The Level is accepted as a percentage.
2. The Fade and Delay time are optional. When not used, the system will use a one-second fade time with zero-second
delay. The minimum fade and delay time is 0 seconds. The maximum fade and delay time is 4 hours.
3. Fractional seconds “SS.ss” will be rounded down to the nearest quarter-second. For example, if a fade time is specified
as 1.45 seconds a value of 1.25 seconds will be used.
4. When a Raise/Lower command is issued, the area’s level will continue to go towards high end/low end until a Stop
command is received.
5. Scene 0 is the Off Scene.
6. Scenes 17 – 32 available only on Slider.
7. If After Hours is used in an area, setting the area’s Occupancy Mode to “Occupancy and Vacancy” or “Vacancy” will
activate After Hours.
8. The area will report “Not Applicable” as its Occupancy Mode if the area does not have occupancy sensors and if After
Hours is not used.
9. Quantum® 2.7 and higher.
Quantum® (continued)
System Commands (continued)
AREA Commands
Use “AREA Command-specific fields” tables
to complete these command fields.
Operation
Command
Integration ID (example)
#AREA
1, 2, 2, Action Number, Parameters
NOTES
1. AREA can be used to control only those areas of a Quantum® system that have been assigned to a particular integration
access point. Please refer to the Q-DesignTM software (Integration Tab) or Quantum® Integration Report for details of what
areas are available for control and monitoring.
2. AREA commands cannot be sent to areas that contain other areas, such as a floor or an entire building.
52
Lutron® integration protocol
Example AREA Messages
Operation Command String
Execute: #AREA, Integration ID, Action Number, Parameters
Set area level to 75% (Fade = 4 sec, Delay = 2 sec) #AREA,2,1,70,4,2<CR><LF>
Lower Area #AREA,2,3<CR><LF>
Query: ?AREA, Integration ID, Action Number
Is the area occupied? ?AREA,2,8<CR><LF>
What is the current active scene? ?AREA,2,6<CR><LF>
Response: ~AREA, Integration ID, Action Number, Parameters
The area is currently occupied ~AREA,2,8,3<CR><LF>
Area Scene 2 is currently active ~AREA,2,6,2<CR><LF>
Quantum® (continued)
System Commands (continued)
AREA Commands (continued)
53
Lutron® integration protocol
SHADEGRP Command Formats
SHADEGRP Command-specific fields
Action Numbers and Parameters:
Action Action Number Parameters
Set (#) Shade Group Level 1 Level
1 = 0 –100 or 0.00 –100.00
Delay
2 in: SS.ss
3, SS, MM:SS, or HH:MM:SS
Start Raising
42 None
Start Lowering
43 None
Stop Raising / Lowering 4 None
Set or Get Current Preset 6 Preset Number
5 = 0 –30
NOTES
1. The Level is accepted as a percentage, where 100% is fully open and 0% is fully closed.
2. The Delay time is optional. When not used, the system will use a zero-second delay. The minimum delay time is
0seconds. The maximum delay time is 4 hours.
3. Fractional seconds “SS.ss” will be rounded down to the nearest quarter second. For example, if a delay time is specified
as 1.45 seconds a value of 1.25 seconds will be used.
4. When a Raise / Lower command is issued, the shade group’s level will continue to go towards open / close until a Stop
command is received.
5. Preset 0 is the Open Preset and Preset 30 is the Closed Preset.
Example SHADEGRP Messages
Operation Command String
Execute: #SHADEGRP, Integration ID, Action Number, Parameters
Set shade group to 70% (Delay = 2 sec) #SHADEGRP,2,1,70,2<CR><LF>
Lower shade group. #SHADEGRP,2,3<CR><LF>
Query: ?SHADEGRP, Integration ID, Action Number
What is the current active preset? ?SHADEGRP,2,6<CR><LF>
Response: ~SHADEGRP, Integration ID, Action Number, Parameters
Shade group Preset 2 is currently active. ~SHADEGRP,2,6,2<CR><LF>
Quantum® (continued)
System Commands (continued)
SHADEGRP Commands
Use “SHADEGRP Command-specific fields” tables
to complete these command fields.
Operation
Command
Integration ID (example)
#SHADEGRP
1, 2, Action Number, Parameters
NOTE
1. SHADEGRP can be used to control only those shade groups of a Quantum® system that have been assigned to a
particular integration access point. Please refer to the Q-DesignTM software (Integration Tab) or Quantum® Integration
Report for details of what shade groups are available for control and monitoring.
54
Lutron® integration protocol
OUTPUT Command Format
OUTPUT Command-specific fields
Action Numbers and Parameters:
Action Action Number Parameters
Set (#) or Get (?) Output Level 1 Level
1 = 0 –100 or 0.00 –100.00
Fade
2 in: SS.ss
3, SS, MM:SS, or HH:MM:SS
Delay
2 in: SS.ss
3, SS, MM:SS, or HH:MM:SS
Start Raising
42 None
Start Lowering
43 None
Stop Raising / Lowering 44 None
Pulse 6 Pulse
5 time in: SS.ss
3, SS, MM:SS, or HH:MM:SS, or
Delay
2 in: SS.ss
3, SS, MM:SS, or HH:MM:SS
Set DMX color / level settings 6 17 Color / level index: 0 –255
0.00–100.00 5
Motor Jog Raise 6 18 None 7
Motor Jog Lower 6 19 None 7
Motor 4-Stage Jog Raise 6 20 None 7
Motor 4-Stage Jog Lower 6 21 None 7
NOTES
1. The Level is taken as a percentage.
2. The Fade and Delay time are optional. When not used, the system will use a one-second fade time with zero-second
delay. The minimum fade and delay time is 0 seconds. The maximum fade and delay time is 4 hours. For shade outputs,
the Fade parameter has no effect (since shades have fixed speeds) but it is required when specifying an optional delay.
3. Fractional seconds “SS.ss” will be rounded down to the nearest quarter second. For example, if a fade time is specified
as 1.45 seconds a value of 1.25 seconds will be used.
4. When a Raise / Lower command is issued, the output’s level will continue to go towards high end / low end until a Stop
command is received.
5. The default time is one second.
6. Not supported in RadioRA® 2.
7. Quantum® 2.5 and up.
Quantum® (continued)
System Commands (continued)
OUTPUT Commands
Use “OUTPUT Command-specific fields” tables
to complete these command fields.
Operation
Command
Integration ID (example)
#OUTPUT
1, 2, Action Number, Parameters
NOTE
1. OUTPUT commands can be used to control system lighting zones, contact closed outputs and AC Motor Loads.
55
Lutron® integration protocol
Example OUTPUT Messages
Operation Command String
Execute: #OUTPUT, Integration ID, Action Number, Parameters
Set output level to 70% (Fade = 4 sec, Delay = 2 sec) #OUTPUT,2,1,70,4,2<CR><LF>
Raise Output #OUTPUT,2,2<CR><LF>
Query: ?OUTPUT, Integration ID
What is the current output level? ?OUTPUT,2<CR><LF>
Response: ~OUTPUT, Integration ID, Action Number, Parameters 1
Output level is set to 48%. ~OUTPUT,2,1,48<CR><LF>
NOTE
1. The Fade and Delay time are optional. When not used, the system will use a one-second fade time with zero-second
delay. The minimum fade and delay time is 0 seconds. The maximum fade and delay time is 4 hours. For shade outputs,
the Fade parameter has no effect (since shades have fixed speeds) but it is required when specifying an optional delay.
Quantum® (continued)
System Commands (continued)
OUTPUT Commands (continued)
56
Lutron® integration protocol
Quantum® (continued)
System Commands (continued)
SYSVAR Commands
1
SYSVAR Command Formats
Use “SYSVAR Command-specific fields” tables
to complete these command fields.
Operation
Command
SYSVAR Command-specific fields
Action Numbers and Parameters:
Action Action Number Parameters
Set (#) or Get (?) the state
of a given variable
1 State number
Example SYSVAR Messages
Operation Command String
Execute: #SYSVAR, Integration ID, Action Number, Parameters
Set the variable state to the third state #SYSVAR,2,1,3<CR><LF>
Query: ?SYSVAR, Integration ID, Action Number
What is the state of the variable? ?SYSVAR,2,1<CR><LF>
Response: ~SYSVAR, Integration ID, Action Number, Parameters
The variable is in the third state. ~SYSVAR,2,1,3<CR><LF>
#SYSVAR,2,Action Number, Parameters
NOTE
1. SYSVAR Commands available only on Quantum® version 2.5 or higher.
57
Lutron® integration protocol
HomeWorks® QS
System Overview
HomeWorks® QS is Lutron’s premier total home control system. It allows control and monitoring of
lights, shades, HVAC, sensors and appliances. The HomeWorks® QS system includes QS devices,
RF devices and power panels that provide solutions for new construction and retrofit projects of
any size.
HomeWorks® QS (HomeWorks® QS) System Device Compatibility Index:
HomeWorks QS®
HomeWorks® QS RF and Wired seeTouch® Keypad
Sivoia® QS and RF Shade
HomeWorks® QS RF and Wired Maestro® Control
HomeWorks® QS Hybrid Keypad
HomeWorks® QS Dynamic Keypad
HomeWorks® QS Tabletop seeTouch® Keypad
HVAC Controller
Hom eWorks® QS Plug-in Module
HomeWorks® QS Visor Control Receiver
QS Input / Output Interface
HomeWorks® QS Wallbox Power Module
GRAFIK Eye® QS
Pico® Wireless Control
Radio Powr SavrTM Sensor
Remote Power Module
Adaptive Power Module (Int’l)
EcoSystem® Adaptive Power Module (Int’l)
DALI® Power Module (Int’l)
0 –10 V/Softswitch® Power Module (Int’l)
Motor Module (Int’l)
58
Lutron® integration protocol
HomeWorks® QS (continued)
System Overview (continued)
Command Types
The following is a list of supported command types. Details on certain device-specific types (e.g.,
DEVICE, HVAC) are located in the individual device section of this manual.
Operation characters will be followed by command types.
• DEVICE allows control and monitoring of device inputs such as button presses and contact
closure inputs
• OUTPUT allows control and monitoring of device outputs such as dimmers and contact closure
outputs
• SHADEGRP allows control of shades in the HomeWorks® QS system. Shade groups are
collections of shades that operate in unison
• MONITORING specifies the type of messages that the system will report
• HVAC allows control and monitoring of Lutron® HVAC equipment
• TIMECLOCK allows control (enable/disable) and monitoring of system timeclocks
• SYSVAR allows control and monitoring of system variables
• AREA allows control and monitoring of an area (e.g., activating area Scenes, monitoring
occupancy)
• ERROR displays responses to invalid commands
• HELP displays usage information for the supported commands and their corresponding actions
• SYSTEM allows setting and controlling system parameters and variables
• ETHERNET modifies the Ethernet configuration of the HomeWorks® QS processor
• INTEGRATIONID gets information of the integration id or serial number of a device
• RESET resets the HomeWorks® QS processor
59
Lutron® integration protocol
Why Integrate with a HomeWorks® QS Processor?
• Integrating with a HomeWorks® QS Processor provides integration over Ethernet without the need
for additional equipment or interfaces.
• RS-232 integration can also be accomplished using third party Ethernet to RS-232 adapters.
• Integrating directly with the HomeWorks® QS Processor also provides the greatest bandwidth port
into the HomeWorks® QS system.
• Integration IDs are automatically generated by the HomeWorks® QS software application (e.g., for
devices, outputs, shadegroups, timeclocks). Integration IDs can be removed to reduce processing
and traffic of unwanted messages.
• Phantom Keypads allow for integration functionality to be organized on various virtual keypads that
have unlimited buttons and do not count towards link device count limits.
Integration Capabilities
• Control and monitoring of output devices such as dimmers, the GRAFIK Eye®, shades and contact
closure outputs
• Control and monitoring of physical or phantom keypad buttons and button status LEDs
• Control and monitoring of Lutron® HVAC equipment
• Control and monitoring of individual timeclocks
• Control and monitoring of state variables
• Monitoring of occupancy sensors
• Control and monitoring of areas to activate scenes and monitor occupancy
HomeWorks® QS (continued)
Integration Access Points
HomeWorks® QS Processor
Model: HQP6-2
60
Lutron® integration protocol
HomeWorks® QS (continued)
Integration Access Points (continued)
Connection Information
Ethernet
Configuring the HomeWorks® QS processor to communicate over a network takes not only
knowledge of the HomeWorks® QS system, but of networking as well. Installers with limited
networking knowledge are advised to contact a networking professional before attempting to
connect a HomeWorks® QS processor through a network.
The installer will make any necessary configuration changes to the HomeWorks® QS processor
using the HomeWorks® QS Design Software Application and the network professional can make
any necessary changes to the networking equipment.
Dual Ethernet Port
• IEEE® 802.3 Auto-Sensing 10BaseT / 100BaseTX
• Supports MDI/MDIX auto-crossover (no crossover cable needed).
• Female 8P8C “Computer RJ-45” socket
• Green “Connect” LED, Amber “Activity” LED
• Use Cat 5 cabling or better
• 2 Port 10/100 Ethernet Switch
TCP / IP Settings
• IP Address: Address at which the processor can be reached for integration. In most instances
when integrating to a processor, DHCP should be disabled and a static IP address should be
assigned to prevent the processor from changing IP addresses.
• Subnet Mask: In conjunction with the IP address, it defines the subnet on which the processor
communicates. Processors will be able to integrate only with devices on the same subnet.
• Gateway: Used in instances where the processor needs to communicate to the internet. Should be
set to the IP address of the device on the network connected directly to the internet—typically, the
home router.
Protocols Used for Integration
• TELNET
Telnet Server
• Used by third party equipment (e.g., touch screen)
• Used by Lutron® mobile devices (e.g., iPad and iPhone)
• Limited to transferring ASCII characters
• Telnet Port number is 23
• Logins: Defined in the HomeWorks® QS software application
RS232
The HomeWorks® QS Processor does not have native support for RS232. An Ethernet to RS232
adapter can be used and configured to provide RS232 integration directly from the Processor if
needed.
iPhone and iPad are trademarks of Apple, Inc., registered in the U.S. and other countries.
61
Lutron® integration protocol
OUTPUT Command Format
OUTPUT Command-specific fields
Action Numbers and Parameters:
Action Action Number Parameters
Set (#) or Get (?) Output Level 1 Level
1 = 0 –100 or 0.00 –100.00
Fade
2 in: SS.ss
3, SS, MM:SS, or HH:MM:SS
Delay
2 in: SS.ss
3, SS, MM:SS, or HH:MM:SS
Start Raising
42 None
Start Lowering
43 None
Stop Raising / Lowering 44 None
Flash (#) or Get (?) Flash Frequency 5 Fade
2 in: SS.ss
3, SS, MM:SS, or HH:MM:SS
Delay
2 in: SS.ss
3, SS, MM:SS, or HH:MM:SS
Set Pulse CCO (#) 6 Pulse
5 time in: SS.ss
3, SS, MM:SS, or HH:MM:SS,
or Delay
2 in: SS.ss
3, SS, MM:SS, or HH:MM:SS
Set (#) Venetian Shade Tilt to a
specified level
9 Tilt level in % = 0.00–100
6
Fade
2 in: SS.ss
3, SS, MM:SS, or HH:MM:SS
Delay
2 in: SS.ss
3, SS, MM:SS, or HH:MM:SS
Set (#) Venetian Shade Tilt and Lift to a
specified level
10 Lift
1 = 0 –100 or 0.00 –100.00
Tilt
1 = 0 –1006 or 0.00–100.006
Fade
2 in: SS.ss
3, SS, MM:SS, or HH:MM:SS
Delay
2 in: SS.ss
3, SS, MM:SS, or HH:MM:SS
Raise (#) Tilt Output Level 11 None
Lower (#) Tilt Output Level 12 None
Stop (#) Raise / Lower Tilt Output Level 13 None
Raise(#) Lift Output Level 14 None
Lower(#) Lift Output Level 15 None
Stop (#) Raise / Lower Lift Output Level 16 None
Get Horizontal Sheer Shade Region 28 Regions: 0 = Lift, 1 = Tilt
NOTES
1. The Level/Lift/Tilt is taken as a percentage.
2. The Fade and Delay time are optional. When not used, the system will use a one-second fade time with zero-second
delay. The minimum fade and delay time is 0 seconds. The maximum fade and delay time is 4 hours. For shade outputs,
the Fade parameter has no effect (since shades have fixed speeds) but it is required when specifying an optional delay.
3. Fractional seconds “SS.ss” will be rounded down to the nearest quarter second. For example, if a fade time is specified
as 1.45 seconds a value of 1.25 seconds will be used.
4. When a Raise / Lower command is issued, the output’s level will continue to go towards high end / low end until a Stop
command is received.
5. The default time is one second.
6. 50 for Horizontal Sheer Blinds.
HomeWorks® QS (continued)
System Commands
OUTPUT Commands
Use “OUTPUT Command-specific fields” tables
to complete these command fields.
Operation
Command
Integration ID (example)
#OUTPUT
1, 2, Action Number, Parameters
NOTE
1. OUTPUT commands can be used to control system lighting zones, individual shades, and contact closed outputs.
62
Lutron® integration protocol
Example OUTPUT Messages
Operation Command String
Execute: #OUTPUT, Integration ID, Action Number, Parameters
Set output level to 70% (Fade = 4 sec, Delay = 2 sec) #OUTPUT,2,1,70,4,2<CR><LF>
Raise Output #OUTPUT,2,2<CR><LF>
Query: ?OUTPUT, Integration ID
What is the current output level? ?OUTPUT,2<CR><LF>
Response
1: ~OUTPUT, Integration ID, Action Number, Parameters
Output level is set to 48%. ~OUTPUT,2,1,48<CR><LF>
NOTE
1. The Fade and Delay time are optional. When not used, the system will use a one-second fade time with zero-second
delay. The minimum fade and delay time is 0 seconds. The maximum fade and delay time is 4 hours. For shade outputs,
the Fade parameter has no effect (since shades have fixed speeds) but it is required when specifying an optional delay.
HomeWorks® QS (continued)
System Commands (continued)
OUTPUT Commands (continued)
63
Lutron® integration protocol
SHADEGRP Command Formats
SHADEGRP Command-specific fields
Action Numbers and Parameters:
Action Action Number Parameters
Set (#) or Get (?) Shade Group
Level
1 Level
1 = 0 –100 or 0.00 –100.00
Delay
1 in: SS.ss
2, SS, MM:SS, or HH:MM:SS
Start Raising
32 None
Start Lowering
33 None
Stop Raising / Lowering 4 None
Set (#) or Get (?) Current Preset 6 Preset Number
4 = 0 –30
Set (#) Venetian Tilt 14 Level
5 = 0 –100 6 or 0.00–100.00
6
Fade
1 in: SS.ss
2, SS, MM:SS, or HH:MM:SS
Delay
1 in: SS.ss
2, SS, MM:SS, or HH:MM:SS
Set (#) Lift and Tilt for venetians 15 Lift
5 = 0 –100 or 0.00 –100.00
Tilt
5 = 0 –100 6 or 0.00–100.00
6
Fade
1 in: SS.ss
2, SS, MM:SS, or HH:MM:SS
Delay
1 in: SS.ss
2, SS, MM:SS, or HH:MM:SS
Raise Venetian Tilt
316 None
Lower Venetian Tilt
317 None
Stop Venetian Tilt
318 None
Raise Venetian Lift
319 None
Lower Venetian Lift
320 None
Stop Venetian Lift
321 None
Get Horizontal Sheer Shade Region 28 Lift = 0
Tilt = 1
NOTES
1. The Fade and Delay time are optional. For shades, the Fade parameter has no effect (since shades have fixed speeds)
but it is required when specifying an optional delay. When not used, the system will use a zero-second delay. The
minimum fade and delay time is 0 seconds. The maximum fade and delay time is 4 hours.
2. Fractional seconds “SS.ss” will be rounded down to the nearest quarter second. For example, if a delay time is specified
as 1.45 seconds, a value of 1.25 seconds will be used.
3. When a Raise / Lower command is issued, the shade group’s level will continue to go towards open / close until a Stop
command is received.
4. Preset 0 is the Open Preset and Preset 30 is the Closed Preset.
5. The Level is accepted as a percentage, where 100% is fully open and 0% is fully closed.
6. 50 for Horizontal Sheer Blinds.
HomeWorks® QS (continued)
System Commands (continued)
SHADEGRP Commands
Use “SHADEGRP Command-specific fields” tables
to complete these command fields.
Operation
Command
Integration ID (example)
#SHADEGRP, 2, Action Number, Parameters
64
Lutron® integration protocol
Example SHADEGRP Messages
Operation Command String
Execute: #SHADEGRP, Integration ID, Action Number, Parameters
Set shade group to 70% (Delay = 2 sec). #SHADEGRP,2,1,70,2<CR><LF>
Lower shade group. #SHADEGRP,2,3<CR><LF>
Query: ?SHADEGRP, Integration ID, Action Number
What is the current active preset? ?SHADEGRP,2,6<CR><LF>
Response: ~SHADEGRP, Integration ID, Action Number, Parameters
Shade group Preset 2 is currently active. ~SHADEGRP,2,6,2<CR><LF>
HomeWorks® QS (continued)
System Commands (continued)
SHADEGRP Commands (continued)
65
Lutron® integration protocol
HomeWorks® QS (continued)
System Commands (continued)
TIMECLOCK Commands
TIMECLOCK Command Formats
TIMECLOCK Command-specific fields
Action Numbers and Parameters:
Action Action Number Parameters
Get (?) Sunrise Time 2 None
Get (?) Sunset Time 3 None
Get (?) Day’s Schedule 4 None
Execute (#) event 5 Index of the event to test. The index number of the first event
is 1; the second event is 2, and so on.
Enable/Disable Event 6 Event Index, Enable State (1 = Enable, 2 = Disable)
Example TIMECLOCK Messages
Operation Command String
Execute: #TIMECLOCK, Integration ID, Action Number, Parameters
Execute the 3rd event of the timeclock. #TIMECLOCK,2,5,3<CR><LF>
Query: ?TIMECLOCK, Integration ID, Action Number
What is the sunrise time? ?TIMECLOCK,2,2<CR><LF>
Response: ~TIMECLOCK, Integration ID, Action Number, Parameters
The time the sun rises. ~TIMECLOCK,2,2,05:32<CR><LF>
Use “TIMECLOCK Command-specific fields” tables
to complete these command fields.
Operation
Command
#TIMECLOCK,2,Action Number, Parameters
66
Lutron® integration protocol
HomeWorks® QS (continued)
System Commands (continued)
SYSVAR Commands
SYSVAR Command Formats
SYSVAR Command-specific fields
Action Numbers and Parameters:
Action Action Number Parameters
Set (#) or Get (?) the state
of a given variable
1 State number
Example SYSVAR Messages
Operation Command String
Execute: #SYSVAR, Integration ID, Action Number, Parameters
Set the variable state to the third state. #SYSVAR,2,1,3<CR><LF>
Query: ?SYSVAR, Integration ID, Action Number
What is the state of the variable? ?SYSVAR,2,1<CR><LF>
Response: ~SYSVAR, Integration ID, Action Number, Parameters
The variable is in the third state. ~SYSVAR,2,1,3<CR><LF>
Use “SYSVAR Command-specific fields” tables
to complete these command fields.
Operation
Command
#SYSVAR,2,Action Number, Parameters
67
Lutron® integration protocol
HomeWorks® QS (continued)
System Commands (continued)
AREA Commands
AREA Command Formats
AREA Command-specific fields
Action Numbers and Parameters:
Action Action Number Parameters
Get (?) Occupancy State 8 3 = Occupied
4 = Unoccupied
Example AREA Messages
Operation Command String
Execute: #AREA, Integration ID, Action Number, Parameters
Set area level to 75% (Fade = 4 sec, Delay = 2 sec) #AREA,2,1,70,4,2<CR><LF>
Lower Area. #AREA,2,3<CR><LF>
Query: ?AREA, Integration ID, Action Number
Is the area occupied? ?AREA,2,8<CR><LF>
What is the current active scene? ?AREA,2,6<CR><LF>
Response: ~AREA, Integration ID, Action Number, Parameters
The area is currently occupied. ~AREA,2,8,3<CR><LF>
Area Scene 2 is currently active. ~AREA,2,6,2<CR><LF>
Use “AREA Command-specific fields” tables
to complete these command fields.
Operation
Command
Integration ID (example)
#AREA
1, 2, Action Number, Parameters
NOTE
1. AREA commands cannot be sent to areas that contain other areas, such as a floor or an entire building.
68
Lutron® integration protocol
ETHERNET Command-specific fields
Configuration Number and Parameters:
Description Configuration Number Parameters
Get (?) or Set(#) IP Address 0 IP Address (XXX.XXX.XXX.XXX)
Get (?) or Set (#) Gateway
Address
1 IP Address (XXX.XXX.XXX.XXX)
Get (?) or Set (#) Subnet Mask 2 IP Address (XXX.XXX.XXX.XXX)
Get (?) DHCP 4 None
Get (?) or Set (#) Multicast
Address
5 IP Address (XXX.XXX.XXX.XXX)
Example ETHERNET Commands
Operation Command String
Execute: #ETHERNET, Configuration Number, Parameters
Set IP Address to 192.168.250.1 #ETHERNET,0,192.168.250.1<CR><LF>
Set Gateway Address to 10.2.4.1 #ETHERNET,1,10.2.4.1<CR><LF>
Query: ?ETHERNET, Configuration Number, Parameters
What is the IP Address? ?ETHERNET,0<CR><LF>
Response: ~DEVICE, Integration ID, Configuration Number, Parameters
The IP Address is 192.168.250.1 ~ETHERNET,0=,192.168.250.1<CR><LF>
HomeWorks® QS (continued)
System Commands (continued)
ETHERNET Commands
ETHERNET Command Formats
Use “ETHERNET Command-specific fields” tables
to complete these command fields.
Operation
Command
#ETHERNET, Configuration Number, Parameters
69
Lutron® integration protocol
INTEGRATION ID Command-specific fields
Action Numbers and Parameters:
Description Action Number Parameters
Get (?) Integration ID for a Serial
Number
1 Serial Number = 8 character HEX serial number of the device
Integration ID = The integration ID to be assigned.
Get (?) Info from ID 3 Integration ID
Note: If this field is left blank, all integration IDs will be printed.
Example INTEGRATION ID Commands
Operation Command String
Query: ?INTEGRATIONID, Action Number, Parameters
Get the Integration ID for a serial number ?INTEGRATIONID,1,5678EFEF<CR><LF>
Response: ~INTEGRATIONID, Action Number, Parameters
Get the Integration ID for a serial number ~INTEGRATIONID,1,5678EFEF,1<CR><LF>
Query: ?INTEGRATIONID, Action Number, Parameters
Get information about an Integration ID
command
?INTEGRATIONID,3,1<CR><LF>
Response: ~INTEGRATIONID, Action Number, Parameters
Get information about an Integration ID
command
~INTEGRATIONID,3,1,DEVICE,5678EFEF<CR><LF>
HomeWorks® QS (continued)
System Commands (continued)
INTEGRATION ID Commands
INTEGRATION ID Command Formats
Use “INTEGRATIONID Command-specific fields” tables
to complete these command fields.
Operation
Command
#INTEGRATIONID, Action Number, Parameters
70
Lutron® integration protocol
RESET Command Formats
RESET Command-specific fields
Action Numbers:
Action Action Number
Resets the HomeWorks® QS processor 0
Example RESET Commands
Operation Command String
Execute: #RESET, Action Number
Reset the HomeWorks® QS processor #RESET,0<CR><LF>
Use “RESET Command-specific fields” tables
to complete these command fields.
Operation
Command
#RESET, Action Number
HomeWorks® QS (continued)
System Commands (continued)
RESET Commands
71
Lutron® integration protocol
Why Integrate with a GRAFIK Eye® QS?
• Control individual lights and scenes
• Query current scene and light levels
• Control LEDs of unprogrammed buttons
Integration Capabilities
• 16 scenes and up to 24 controllable outputs (output count depends on model)
Supported Command Types
• DEVICE allows control and monitoring of buttons, LEDs and scenes
• OUTPUT allows control and monitoring of the dimmer device output
Compatibility
QS Standalone Quantum®RadioRA® 2 HomeWorks® QS Clear Connect®
Gateway System
GRAFIK Eye® QS Main Unit  
123456 Scene 1
OK
Fade Time
03 Seconds
GRAFIK Eye® QS
Main Unit
Models: QSGR-, QSG RJ-, QSGRK-, QSGRM-, QSGRN-, QSGRQ-
72
Lutron® integration protocol

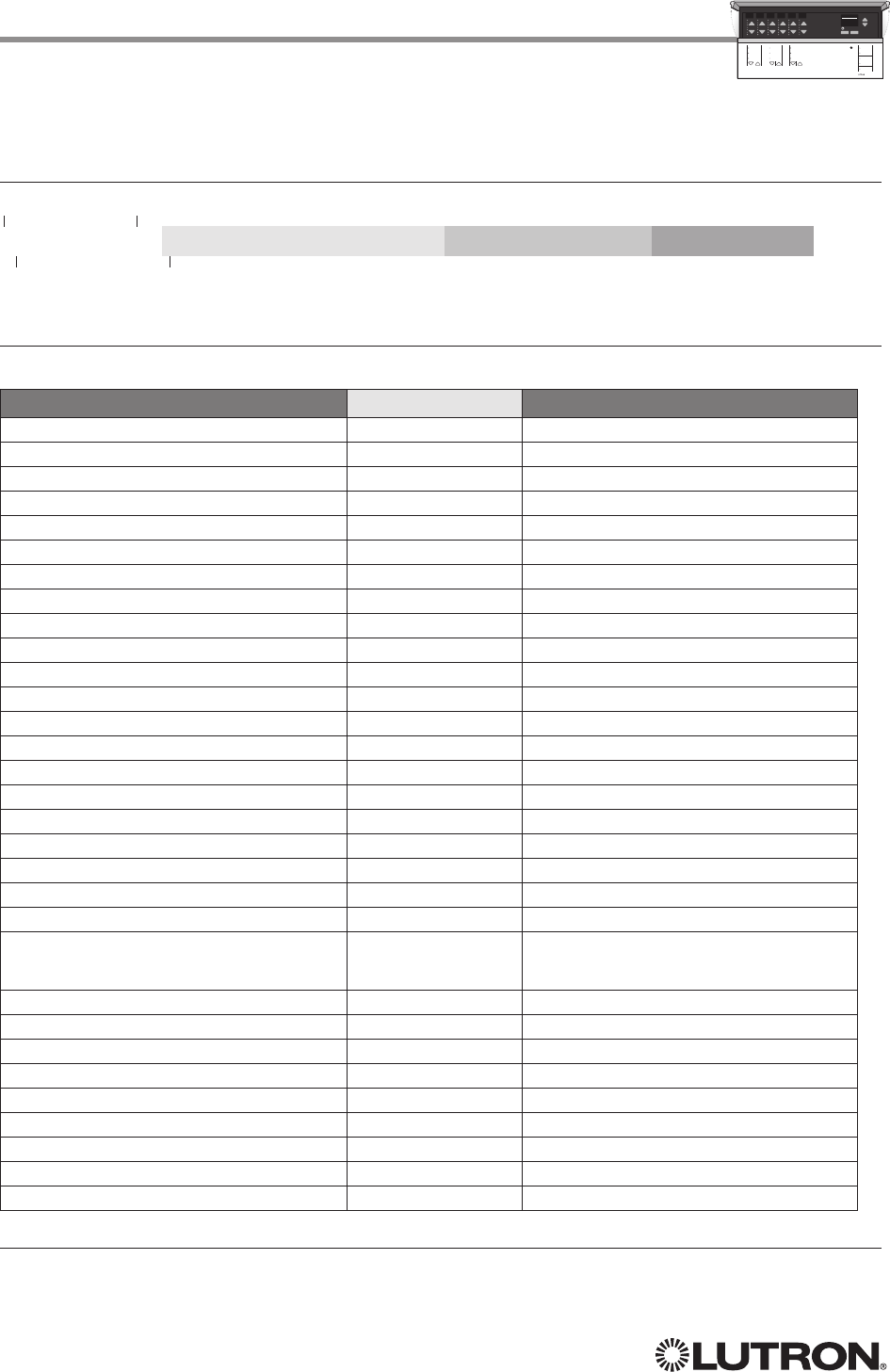

GRAFIK Eye® QS (continued)
DEVICE Commands
DEVICE Command Formats
DEVICE Command-specific fields
Component Numbers:
Component Component Number Available Actions
Zone 1 Controller – Zone 24 Controller 1–24 Raise, Lower, Stop, Set Light Level
Scene 1 Button 70 Press, Release (Scenes Activate on “Press”)
Scene 2 Button 71 Press, Release (Scenes Activate on “Press”)
Scene 3 Button 76 Press, Release (Scenes Activate on “Press”)
Scene 4 Button 77 Press, Release (Scenes Activate on “Press”)
Scene Off Button 83 Press, Release
Shade Column 1 Open 38 Press, Release (Shades React on “Release”)
Shade Column 1 Preset 1 39 Press, Release (Shades React on “Release”)
Shade Column 1 Close 40 Press, Release (Shades React on “Release”)
Shade Column 1 Lower 41 Press, Release (Shades React on “Release”)
Shade Column 1 Raise 47 Press, Release (Shades React on “Release”)
Shade Column 2 Open 44 Press, Release (Shades React on “Release”)
Shade Column 2 Preset 1 45 Press, Release (Shades React on “Release”)
Shade Column 2 Close 46 Press, Release (Shades React on “Release”)
Shade Column 2 Lower 52 Press, Release (Shades React on “Release”)
Shade Column 2 Raise 53 Press, Release (Shades React on “Release”)
Shade Column 3 Open 50 Press, Release (Shades React on “Release”)
Shade Column 3 Preset 1 51 Press, Release (Shades React on “Release”)
Shade Column 3 Close 56 Press, Release (Shades React on “Release”)
Shade Column 3 Lower 57 Press, Release (Shades React on “Release”)
Shade Column 3 Raise 58 Press, Release (Shades React on “Release”)
Scene Controller 141
Set Current Scene, Set Zone Lock,
Set Scene Lock, Set Sequence State,
Raise, Lower, Stop, Scene Save
Scene 1 LED1201 Get (?) LED state
Scene 2 LED1210 Get (?) LED state
Scene 3 LED1219 Get (?) LED state
Scene 4 LED1228 Get (?) LED state
Scene Off LED1237 Get (?) LED state
Local CCI 163 Report (~) Occupied, Report (~) Unoccupied
Timeclock Controller 166 Enable/Disable, Query Status
Wireless Occupancy Sensor 1 – 30 500 – 529 Report (~) Occupied, Report (~) Unoccupied
EcoSystem® Ballast Occupancy Sensor 1 – 64 700 – 763 Report (~) Occupied, Report (~) Unoccupied
NOTE
1. Not supported in QS Standalone.
Continued on next page…
123456 Scene 1
OK
Fade Time
03 Seconds
Use “DEVICE Command-specific fields” tables
to complete these command fields.
Operation
Command
Integration ID (example)
#DEVICE, 5, Component Number, Action Number, Parameters
73
Lutron® integration protocol
DEVICE Command-specific fields (continued)
Component Numbers (continued):
Component Component Number Available Actions
Shade Column 1 Open LED1174 Get (?) LED state
Shade Column 1 Preset 1 LED1175 Get (?) LED state
Shade Column 1 Close LED1211 Get (?) LED state
Shade Column 2 Open LED1183 Get (?) LED state
Shade Column 2 Preset 1 LED1184 Get (?) LED state
Shade Column 2 Close LED1220 Get (?) LED state
Shade Column 3 Open LED1192 Get (?) LED state
Shade Column 3 Preset 1 LED1193 Get (?) LED state
Shade Column 3 Close LED1229 Get (?) LED state
NOTE
1. Not supported in QS Standalone.
Action Numbers and Parameters:
Action Action Number Parameters
Press/Occupied 3 None
Release/Unoccupied 4 None
Set Current Scene
1,2 7 Scene
Set (#) or Get (?) LED State
390 = Off
1 = On
2 = Normal-Flash: 1 flash every second
2
3 = Rapid-Flash: 10 flashes every second
2
Scene Save 12 Scene
Get/Set Light Level
4,5 14 Level = 0 –100 or 0.00 –100.00
Fade
6 in: SS.ss
7, SS, MM:SS, or HH:MM:SSJ79 (QS Standalone
fade: maximum 4 hours)
Delay
6 in: SS.ss
7, SS, MM:SS, or HH:MM:SS (QS Standalone delay:
maximum 4 hours)
Set Zone Lock
815 0 = Off; 1 = On
Set Scene Lock
816 0 = Off; 1 = On
Set Sequence State
817 0 = Off
1 = Sequence through Scenes 1–4
2 = Sequence through Scenes 5–16
Start Raising
4,5 18 None
Start Lowering
4,5 19 None
Stop Raising / Lowering 4,5 20 None
Get/Set Timeclock State 34 0 = Disabled
1 = Enabled
NOTES
The number of zone controllers available matches the number of zones a particular model supports.
1. Not supported in HomeWorks® QS.
2. Not supported in RadioRA® 2.
3. Quantum® or HomeWorks® only. “Set” is for unprogrammed buttons and buttons with LED logic ‘Defined by Integration.’
4. Use OUTPUT command with equivalent command in RadioRA® 2.
5. Use OUTPUT command with equivalent command in HomeWorks® QS.
6. The Fade and Delay time are optional. When not used, the system will use a one-second fade time with zero-second delay.
7. Fractional seconds “SS.ss” will be rounded down to the nearest quarter second. For example, if a fade time is specified
as 1.31 seconds a value of 1.25 seconds will be used.
8. QS Standalone only.
GRAFIK Eye® QS (continued)
DEVICE Commands (continued)
123456 Scene 1
OK
Fade Time
03 Seconds
74
Lutron® integration protocol 123456 Scene 1
OK
Fade Time
03 Seconds
GRAFIK Eye® QS (continued)
OUTPUT Commands
OUTPUT Command-specific fields
Action Numbers and Parameters:
Action Action Number Parameters
Set or Get Zone Level 1 Level = 0–100 or 0.00 –100.00
Fade
1 in: SS.ss
2, SS, MM:SS, or HH:MM:SS
(QSStandalone fade: maximum 4 hours)
Delay
1 in: SS.ss
2, SS, MM:SS, or HH:MM:SS
(QSStandalone delay: maximum 4 hours)
Start Raising 2 None
Start Lowering 3 None
Stop Raising / Lowering
4 None
NOTES
1. The Fade and Delay time are optional. When not used, the system will use a one-second fade time with zero-second delay.
2. Fractional seconds “SS.ss” will be rounded down to the nearest quarter sec. For example, if a fade time is specified as
1.31 seconds a value of 1.25 seconds will be used.
Example OUTPUT Commands
Operation Command String
Execute: #OUTPUT, Integration ID, Action Number, Parameters
Set dimmer to 75% with a 1 min 30 sec fade. #OUTPUT,1,1,75,01:30<CR><LF>
Start Raising zone level. #OUTPUT,1,2<CR><LF>
Stop Raising / Lowering zone level. #OUTPUT,1,4<CR><LF>
Query: ?OUTPUT, Integration ID, Action Number
What is the state of the output? ?OUTPUT,1,1<CR><LF>
Response
1: ~OUTPUT, Integration ID, Action Number, Parameters
Output level is set to 90%. ~OUTPUT,1,1,90.00<CR><LF>
NOTE
1. The system will report the target level of a dimmer while it is fading from one level to another.
The actual level is not transmitted while dimming between levels.
Example: If the “Over Sink” (Integration ID-1) dimmer is at 20% and is then commanded to go to 100% by sending
#OUTPUT,1,1,100, the response from the system will be ~OUTPUT,1,1,100.00
OUTPUT Command Format
Use “OUTPUT Command-specific fields” tables
to complete these command fields.
Operation
Command
Integration ID (example)
#OUTPUT, 1, Action Number, Parameters
75
Lutron® integration protocol
Why Integrate with an Energi Savr NodeTM (ESN)?
• Control individual zones and scenes in an area
• Query current scene and light levels
Integration Capabilities
• Up to 32 areas with 16 scenes per area. Up to 32 zones across the two DALI® buses
Supported Command Types
• DEVICE allows control and monitoring of zone levels and area scenes
• OUTPUT allows control and monitoring of the dimmer device output
Compatibility
QS Standalone Quantum®RadioRA® 2 HomeWorks® QS Clear Connect®
Gateway System
ESN QS for DALI® 
Energi Savr NodeTM QS for DALI®
QS Model: QSNE-2DAL-D
HomeWorks® QS Model: LQSNE-2DAL-D
QSNE-2DAL-D
®
V
D E
Test
Power
Hi Temp
Ethernet DALI 1 DALI 2
IR
Com
20 V
20 V
Com
MUX
MUX
24 V
COM
Occ
IR
Occ
Energi Savr NodeTM QS
QSNE-2DAL-D
230 V~ 50/60 Hz 100 mA
www.lutron.com
+44.(0)20.7680.4481
L N
1 1 2 2
33 4 4
QS
8 mm
0,5 N∙m
N1771
Z096
76
Lutron® integration protocol
Energi Savr NodeTM QS for DALI® (continued)
DEVICE Commands
5
iPhone and iPod Touch are trademarks of Apple, Inc., registered in the U.S. and other countries.
®
V
D E
Test
Power
Hi Temp
Ethernet DALI 1 DALI 2
IR
Com
20 V
20 V
Com
MUX
MUX
24 V
COM
Occ
IR
Occ
Energi Savr Node
TM
QS
QSNE-2DAL-D
230 V~ 50/60 Hz 100 mA
www.lutron.com
+44.(0)20.7680.4481
L N
1 1 2 2
33 4 4
QS
8 mm
0,5 N∙m
N1771
Z096
DEVICE Command Formats
Use “DEVICE Command-specific fields” tables
to complete these command fields.
Operation
Command
Integration ID (example)
#DEVICE, 5, Component Number, Action Number, Parameters
DEVICE Command-specific fields
Component Numbers:
Component Component Number Available Actions
Zone 1–Zone 32
1, 2, 3 301– 332 Set or Get Light Level, Raise, Lower, Stop
Area 1–Area 32
1, 3 401–432 Set or Get Scene, Set Light Level, Raise, Lower, Stop
Occupancy Sensors 1–4 151–154 Report (~) Occupied
Report (~) Unoccupied
NOTES
1. Zones and areas are created and configured using the Lutron® ESN Configuration Tool on an iPhone or iPod Touch
mobile device, the Quantum® Q-DesignTM Tool, or the HomeWorks® QS Lutron® Designer. Only those areas and zones
which have been configured using one of these tools are accessible through integration.
2. Assigned zones can be given an individual Integration ID and controlled using the #OUTPUT command. For more details
on setting the output Integration ID of a zone component, see the Integration Access Point section of the system that
contains the ESN.
3. When the ESN is part of a Quantum® system, then the #AREA and #OUTPUT commands found in the Quantum®
“System Commands” section of this integration document should be used.
Action Numbers and Parameters:
Action Action Number Parameters
Report (~) Occupied 3 None
Report (~) Unoccupied 4 None
Set or Get Current Scene 7 Scene
Scene Save 12 Scene1
Set or Get Light Level 14 Level = 0–100 or 0.00 –100.00
Fade
2 in: SS.ss
3, SS, MM:SS, or HH:MM:SS
(QSStandalone fade: maximum 90 seconds)
Delay
2 in: SS.ss
3, SS, MM:SS, or HH:MM:SS
(QSStandalone delay: maximum 4 hours)
Set Scene Lock
416 0 = Off; 1 = On
Set Sequence State
417 0 = Off; 1 = Sequence through Scenes 1–4;
2 = Sequence through Scenes 5–16
Start Raising 18 None
Start Lowering 19 None
Stop Raising / Lowering 20 None
NOTES
1. Available only with Energi Savr NodeTM firmware > 6.x.
2. The Fade and Delay time are optional. When not used, the system will use a one-second fade time with zero-second delay.
3. Fractional seconds “SS.ss” will be rounded down to the nearest quarter-second. For example, if a fade time is specified
as 1.31 seconds, a value of 1.25 seconds will be used.
4. QS Standalone only.
5. Not supported in HomeWorks® QS.
77
Lutron® integration protocol
Energi Savr NodeTM QS for DALI® (continued)
OUTPUT Commands
OUTPUT Command Format
OUTPUT Command-specific fields
Action Numbers and Parameters:
Action Action Number Parameters
Set or Get Zone Level 1 Level = 0–100 or 0.00 –100.00
Fade
1 in: SS.ss
2, SS, MM:SS, or HH:MM:SS
(QSStandalone fade: maximum 90 seconds)
Delay
1 in: SS.ss
2, SS, MM:SS, or HH:MM:SS
(QSStandalone delay: maximum 4 hours)
Start Raising 2 None
Start Lowering 3 None
Stop Raising / Lowering
4 None
NOTES
1. The Fade and Delay time are optional. When not used, the system will use a one-second fade time with zero-second delay.
2. Fractional seconds “SS.ss” will be rounded down to the nearest quarter second. For example, if a fade time is specified
as 1.31 seconds a value of 1.25 seconds will be used.
Example OUTPUT Commands
Operation Command String
Execute: #OUTPUT, Integration ID, Action Number, Parameters
Set dimmer to 75% with a 1 min 30 sec fade. #OUTPUT,1,1,75,01:30<CR><LF>
Start Raising zone level. #OUTPUT,1,2<CR><LF>
Stop Raising / Lowering zone level. #OUTPUT,1,4<CR><LF>
Query: ?OUTPUT, Integration ID, Action Number
What is the state of the output? ?OUTPUT,1,1<CR><LF>
Response
1: ~OUTPUT, Integration ID, Action Number, Parameters
Output level is set to 90%. ~OUTPUT,1,1,90.00<CR><LF>
NOTE
1. The system will report the target level of a dimmer while it is fading from one level to another.
The actual level is not transmitted while dimming between levels.
Example: If the “Over Sink” (Integration ID -1) dimmer is at 20% and is then commanded to go to 100% by sending
#OUTPUT,1,1,100 the response from the system will be ~OUTPUT,1,1,100.00
®
V
D E
Test
Power
Hi Temp
Ethernet DALI 1 DALI 2
IR
Com
20 V
20 V
Com
MUX
MUX
24 V
COM
Occ
IR
Occ
Energi Savr Node
TM
QS
QSNE-2DAL-D
230 V~ 50/60 Hz 100 mA
www.lutron.com
+44.(0)20.7680.4481
L N
1 1 2 2
33 4 4
QS
8 mm
0,5 N∙m
N1771
Z096
Use “OUTPUT Command-specific fields” tables
to complete these command fields.
Operation
Command
Integration ID (example)
#OUTPUT, 1, Action Number, Parameters
78
Lutron® integration protocol
Why Integrate with an Energi Savr NodeTM?
• Control individual zones and scenes in an area
• Query current scene and light levels
Integration Capabilities
• Up to 100 areas with 16 scenes per area. Up to 100 zones across the two EcoSystem® loops
Supported Command Types
• DEVICE allows control and monitoring of zone levels and area scenes
• OUTPUT allows control and monitoring of the dimmer device output
Compatibility
QS Standalone Quantum®RadioRA® 2 HomeWorks® QS Clear Connect®
Gateway System
ESN QS with Ecosystem® (Int’l)  
ESN with EcoSystem® 
Energi Savr NodeTM QS
with EcoSystem®
Model: QSN-2ECO-S
Energi Savr NodeTM QS
with EcoSystem® (International)
QS Model: QSNE-2ECO-D
HomeWorks® QS Model: LQSE-2ECO-D
QSNE-2ECO-D QSN-2ECO-S
79
Lutron® integration protocol
Energi Savr NodeTM QS
with EcoSystem® (continued)
DEVICE Commands
1
DEVICE Command Formats
iPhone and iPod Touch are trademarks of Apple, Inc., registered in the U.S. and other countries.
Use “DEVICE Command-specific fields” tables
to complete these command fields.
Operation
Command
Integration ID (example)
#DEVICE, 5, Component Number, Action Number, Parameters
DEVICE Command-specific fields
Component Numbers:
Component Component Number Available Actions
Occupancy Sensors 1 – 4 136 – 139 Report (~) Occupied, Report (~) Unoccupied
Loop 1 Ballast Occupancy Sensors 140 – 203 Report (~) Occupied, Report (~) Unoccupied
Loop 2 Ballast Occupancy Sensors 204 – 267 Report (~) Occupied, Report (~) Unoccupied
Zone 1–Zone 100
1, 2, 3 1001–1100 Set or Get Light Level, Raise, Lower, Stop
Area 1–Area 100
1, 3 1201–1300 Set or Get Scene, Set Light Level, Raise, Lower, Stop
NOTES
1. Zones and areas are created and configured using the Lutron® ESN Configuration Tool on an iPhone or iPod Touch
mobile device, the Quantum® Q-DesignTM Tool, or the HomeWorks® QS Lutron® Designer. Only those areas and zones
which have been configured using one of these tools are accessible through integration.
2. Assigned zones can be given an individual Integration ID and controlled using the #OUTPUT command. For more details
on setting the output Integration ID of a zone component, see the Integration Access Point section of the system that
contains the ESN.
3. When the ESN is part of a Quantum® or HomeWorks® QS system, then the #AREA and #OUTPUT commands found in
the Quantum® “System Commands” section of this integration document should be used.
Action Numbers and Parameters:
Action Action Number Parameters
Report (~) Occupied 3 None
Report (~) Unoccupied 4 None
Set or Get Current Scene 7 Scene
Scene Save 12 Scene1
Set or Get Light Level 14 Level = 0 –100 or 0.00 –100.00
Fade
2 in: SS.ss
3, SS, MM:SS, or HH:MM:SS
Delay
2 in: SS.ss
3, SS, MM:SS, or HH:MM:SS
Set Scene Lock
416 0 = Off; 1 = On
Set Sequence State
417 0 = Off; 1 = Sequence through Scenes 1–4;
2 = Sequence through Scenes 5–16
Start Raising 18 None
Start Lowering 19 None
Stop
Raising / Lowering
20 None
NOTES
1. Available only with Energi Savr NodeTM Firmware > 6.x.
2. The Fade and Delay time are optional. When not used, the system will use a one-second fade time with zero-second delay.
3. Fractional seconds “SS.ss” will be rounded down to the nearest quarter second. For example, if a fade time is specified
as 1.31 seconds, a value of 1.25 seconds will be used.
4. QS Standalone only.
NOTE
1. Not Supported in HomeWorks® QS.
80
Lutron® integration protocol
OUTPUT Command Format
OUTPUT Command-specific fields
Action Numbers and Parameters:
Action Action Number Parameters
Set or Get Zone Level 1 Level = 0–100 or 0.00 –100.00
Fade
1 in: SS.ss
2, SS, MM:SS, or HH:MM:SS
(QSStandalone fade: maximum 2 hours)
Delay
1 in: SS.ss
2, SS, MM:SS, or HH:MM:SS
(QSStandalone delay: maximum 4 hours)
Start Raising 2 None
Start Lowering 3 None
Stop Raising / Lowering
4 None
NOTES
1. The Fade and Delay time are optional. When not used, the system will use a one-second fade time with zero-second delay.
2. Fractional seconds “SS.ss” will be rounded down to the nearest quarter second. For example, if a fade time is specified
as 1.31 seconds a value of 1.25 seconds will be used.
Example OUTPUT Commands
Operation Command String
Execute: #OUTPUT, Integration ID, Action Number, Parameters
Set dimmer to 75% with a 1 min 30 sec fade. #OUTPUT,1,1,75,01:30<CR><LF>
Start Raising zone level. #OUTPUT,1,2<CR><LF>
Stop Raising / Lowering zone level. #OUTPUT,1,4<CR><LF>
Query: ?OUTPUT, Integration ID, Action Number
What is the state of the output? ?OUTPUT,1,1<CR><LF>
Response1: ~OUTPUT, Integration ID, Action Number, Parameters
Output level is set to 90%. ~OUTPUT,1,1,90.00<CR><LF>
NOTE
1. The system will report the target level of a dimmer while it is fading from one level to another.
The actual level is not transmitted while dimming between levels.
Example: If the “Over Sink” (Integration ID-1) dimmer is at 20% and is then commanded to go to 100% by sending
#OUTPUT,1,1,100 the response from the system will be ~OUTPUT,1,1,100.00
Energi Savr NodeTM QS
with EcoSystem® (continued)
OUTPUT Commands
Use “OUTPUT Command-specific fields” tables
to complete these command fields.
Operation
Command
Integration ID (example)
#OUTPUT, 1, Action Number, Parameters
81
Lutron® integration protocol
Why Integrate with an Energi Savr NodeTM?
• Control individual zones and scenes in an area
• Query current scene and light levels
Integration Capabilities
• Four areas with 16 scenes per area. Four zones on four independent outputs
Supported Command Types
• DEVICE allows control and monitoring of zone levels and area scenes
• OUTPUT allows control and monitoring of the dimmer device output
Compatibility
QS Standalone Quantum®RadioRA® 2 HomeWorks® QS Clear Connect®
Gateway System
ESN 0 –10 V/Softswitch® (Int’l)  
ESN QS Phase Adaptive (Int’l)  
ESN 0 –10/Softswitch® 
Energi Savr NodeTM QS
for 0 –10 V/Softswitch® (International)
QS Models (QSNE-): 4T10-D, 4S10-D
HomeWorks® QS Models (LQSE-): 4T10-D, 4S10-D
Energi Savr NodeTM QS
for Phase Adaptive (International)
QS Model: QSNE-4A-D
HomeWorks® QS Model: LQSE-4A-D
Energi Savr NodeTM QS
for 0 –10 V/Softswitch®
Models (QSN-): 4T16-S, 4S16-S
QSNE-4T10-D
QSNE-4A-D
QSN-4T16-S
H
M
L
QSNE-4A-D
DIN Rail Power Module
230 V~ 50 / 60 Hz 10 A www.lutron.com +44.(0)20.7702.0657
Input
S1 S2 S3 S4 CCI
SwitchOccPhotoIR
Type
500 W Max 800 W Max 500 W Max 500 W Max
Zone 2Zone 1 Zone 3 Zone 4
Input
Hi Temp
Prog
Power
Opt1
Opt2
Opt3
Def
Option
82
Lutron® integration protocol
Energi Savr NodeTM QS
0 –10 V/Softswitch®/Phase Adaptive (continued)
DEVICE Commands
1
DEVICE Command Formats
iPhone and iPod Touch are trademarks of Apple, Inc., registered in the U.S. and other countries.
H
M
L
QSNE-4A-D
DIN Rail Power Module
230 V~ 50 / 60 Hz 10 A www.lutron.com +44.(0)20.7702.0657
Input
S1 S2 S3 S4 CCI
SwitchOccPhotoIR
Type
500 W Max 800 W Max 500 W Max 500 W Max
Zone 2Zone 1 Zone 3 Zone 4
Input
Hi Temp
Prog
Power
Opt1
Opt2
Opt3
Def
Option
Use “DEVICE Command-specific fields” tables
to complete these command fields.
Operation
Command
Integration ID (example)
#DEVICE, 5, Component Number, Action Number, Parameters
DEVICE Command-specific fields
Component Numbers:
Component Component Number Available Actions
Zone 1 – Zone 4 1, 2, 3 5 – 8 Set or Get Light Level, Raise, Lower, Stop
Area 1 – Area 4 1, 3 10 –13 Set or Get Scene, Set Light Level, Raise, Lower, Stop
Occupancy Sensor 1 – 4 34 – 37 Report (~) Occupied, Report (~) Unoccupied
Occupancy Sensor 1 – 2 34 – 35 Report (~) Occupied, Report (~) Unoccupied
NOTES
1. Zones and areas are created and configured using the Lutron® ESN Configuration Tool on an iPhone or iPod Touch
mobile device, the Quantum® Q-DesignTM Tool, or the HomeWorks® QS Lutron® Designer. Only those areas and zones
which have been configured using one of these tools are accessible through integration.
2. Assigned zones can be given an individual Integration ID and controlled using the #OUTPUT command. For more details
on setting the output Integration ID of a zone component, see the Integration Access Point section of the system that
contains the ESN.
3. When the ESN is part of a Quantum® or HomeWorks® system, then the #AREA and #OUTPUT commands found in the
Quantum® “System Commands” section of this integration document should be used.
Action Numbers and Parameters:
Action Action Number Parameters
Report (~) Occupied 3 None
Report (~) Unoccupied 4 None
Set or Get Current Scene
17 Scene
Scene Save 12 Scene2
Set or Get Light Level 14 Level = 0 –100 or 0.00 –100.00
Fade
3 in: SS.ss
4, SS, MM:SS, or HH:MM:SS
Delay
3 in: SS.ss
4, SS, MM:SS, or HH:MM:SS
Set Scene Lock
116 0 = Off; 1 = On
Set Sequence State
117 0 = Off; 1 = Sequence through Scenes 1–4;
2 = Sequence through Scenes 5–16
Start Raising 18 None
Start Lowering 19 None
Stop Raising / Lowering 20 None
NOTES
1. QS Standalone only.
2. Available only with Energi Savr NodeTM Firmware > 6.x.
3. The Fade and Delay time are optional. When not used, the system will use a one-second fade time with zero-second delay.
4. Fractional seconds “SS.ss” will be rounded down to the nearest quarter-second. For example, if a fade time is specified
as 1.31 seconds, a value of 1.25 seconds will be used.
NOTE
1. Not Supported in HomeWorks® QS.
83
Lutron® integration protocol H
M
L
QSNE-4A-D
DIN Rail Power Module
230 V~ 50 / 60 Hz 10 A www.lutron.com +44.(0)20.7702.0657
Input
S1 S2 S3 S4 CCI
SwitchOccPhotoIR
Type
500 W Max 800 W Max 500 W Max 500 W Max
Zone 2Zone 1 Zone 3 Zone 4
Input
Hi Temp
Prog
Power
Opt1
Opt2
Opt3
Def
Option
OUTPUT Command Format
OUTPUT Command-specific fields
Action Numbers and Parameters:
Action Action Number Parameters
Set or Get Zone Level 1 Level = 0–100 or 0.00 –100.00
Fade
1 in: SS.ss
2, SS, MM:SS, or HH:MM:SS
(QSStandalone fade: maximum 4 hours)
Delay
1 in: SS.ss
2, SS, MM:SS, or HH:MM:SS
(QSStandalone delay: maximum 4 hours)
Start Raising 2 None
Start Lowering 3 None
Stop Raising / Lowering
4 None
NOTES
1. The Fade and Delay time are optional. When not used, the system will use a one-second fade time with zero-second delay.
2. Fractional seconds “SS.ss” will be rounded down to the nearest quarter second. For example, if a fade time is specified
as 1.31 seconds a value of 1.25 seconds will be used.
Example OUTPUT Commands
Operation Command String
Execute: #OUTPUT, Integration ID, Action Number, Parameters
Set dimmer to 75% with a 1 min 30 sec fade. #OUTPUT,1,1,75,01:30<CR><LF>
Start Raising zone level. #OUTPUT,1,2<CR><LF>
Stop Raising / Lowering zone level. #OUTPUT,1,4<CR><LF>
Query: ?OUTPUT, Integration ID, Action Number
What is the state of the output? ?OUTPUT,1,1<CR><LF>
Response1: ~OUTPUT, Integration ID, Action Number, Parameters
Output level is set to 90%. ~OUTPUT,1,1,90.00<CR><LF>
NOTE
1. The system will report the target level of a dimmer while it is fading from one level to another.
The actual level is not transmitted while dimming between levels.
Example: If the “Over Sink” (Integration ID-1) dimmer is at 20% and is then commanded to go to 100% by sending
#OUTPUT,1,1,100 the response from the system will be ~OUTPUT,1,1,100.00
Energi Savr NodeTM QS
0 –10 V/Softswitch®/Phase Adaptive (continued)
OUTPUT Commands
Operation
Use “OUTPUT Command-specific fields” tables
to complete these command fields.
Command
Integration ID (example)
#OUTPUT, 1, Action Number, Parameters
84
Lutron® integration protocol
Why Integrate with an Energi Savr NodeTM?
• Allows control and monitoring of the direction and remaining travel time of the four high-voltage
outputs.
Integration Capabilities
• Up to 4 zones
Supported Command Types
• DEVICE allows control and monitoring of zone levels
• OUTPUT allows control and monitoring of the device outputs
Compatibility
QS Standalone Quantum®RadioRA® 2 HomeWorks® QS Clear Connect®
Gateway System
ESN QS for Motor Module  

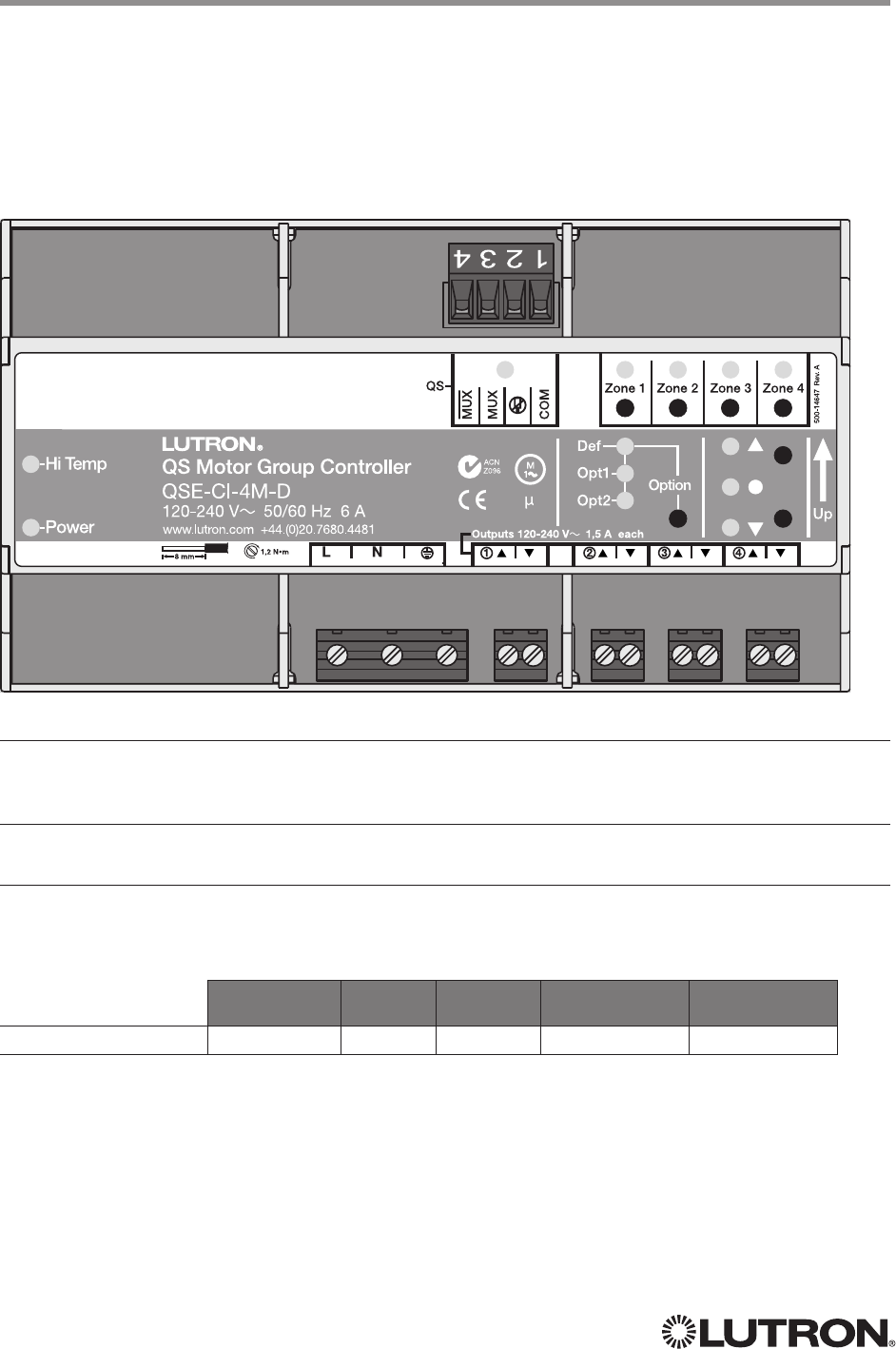

Energi Savr NodeTM QS
for Motor Module (International)
QS Model: QSE-CI-4M-D
HomeWorks® QS Model: LQSE-4M-D
LQSE-CI-4M-D
85
Lutron® integration protocol
DEVICE Command-specific fields
Component Numbers:
Component Component Number Available Actions
Zone 1 – Zone 41,2 1 – 4 Set or Get Light Level, Raise, Lower, Stop
NOTES
1. Assigned zones can be given an individual Integration ID and controlled using the #OUTPUT command. For more details
on setting the output Integration ID of a zone component, see the Integration Access Point section of the system that
contains the QS Motor Module.
2. When the QS Motor Module is part of a Quantum® system, then the commands found in the Quantum® “System
Commands” section of this integration document should be used.
Action Numbers and Parameters:
Action Action Number Parameters
Set Light Level 14 Level = 0–100 or 0.00 –100.001
Fade
2 in: Always use 0
Delay
3 in: SS.ss
4, SS, MM:SS, or HH:MM:SS
Raise 18 None
Lower 19 None
Stop 20 None
NOTES
1. Setting the level to 0% will cause the output to travel in the Closed direction; setting the level to 100% will cause the
output to travel in the Open direction; setting any level from 1 – 99% will be ignored by the output. Querying its level will
report 0 or 100%, based on the last direction it moved.
2. Fade is not available for Motor Loads because they move at a constant rate. The parameter must be entered, but is
ignored.
3. The delay time is optional. When not used, the system will use a zero-second delay.
4. Fractional seconds “SS.ss” will be rounded down to the nearest quarter-second. For example, if a fade time is specified
as 1.31 seconds, a value of 1.25 seconds will be used.
DEVICE Command Format
Use “DEVICE Command-specific fields” tables
to complete these command fields.
Operation
Command
Integration ID (example)
#DEVICE, 5, Component Number, Action Number, Parameters
Energi Savr NodeTM QS
for Motor Module (International) (continued)
DEVICE Commands
86
Lutron® integration protocol
OUTPUT Command-specific fields
Action Numbers and Parameters:
Action Action Number Parameters
Set (#) / Get (?) Zone Level 1 Level = 0 or 100.001
Fade
2 in: SS.ss
3, SS, MM:SS, or HH:MM:SS
Delay
4 in: SS.ss
3, SS, MM:SS, or HH:MM:SS
Start Raising 2 None
Start Lowering 3 None
Stop Raising Lowering 4 None
Report Travel Time Remaining517 Travel time in seconds: 0 – 255
Motor Jog Raise618 None
Motor Jog Lower619 None
Motor 4-Stage Jog Raise620 None
Motor 4-Stage Jog Lower621 None
NOTES
1. Setting the level to 0% will cause the output to travel in the Closed direction; setting the level to 100% will cause the
output to travel in the Open direction; setting any level from 1 – 99% will be ignored by the output. Querying its level will
report 0 or 100%, based on the last direction it moved.
2. Fade is not available for Shades because they move at a constant rate. The parameter must be entered, but is ignored.
3. Fractional seconds “SS.ss” will be rounded down to the nearest quarter-second. For example, if a delay time is specified
as 1.45 seconds, a value of 1.25 seconds will be used.
4. The delay time is optional. When not used, the system will use a zero-second delay. The minimum delay time is 0.25
seconds; the maximum delay time is 4 hours.
5. If the travel time of a motor is greater than 255 seconds, the unit will report 255 until the travel time drops below that
value.
6. Not supported in QS Standalone.
OUTPUT Command Format
Energi Savr NodeTM QS
for Motor Module (International) (continued)
OUTPUT Commands
Operation
Use “OUTPUT Command-specific fields” tables
to complete these command fields.
Command
Integration ID (example)
#OUTPUT, 3, Action Number, Parameters
87
Lutron® integration protocol
Why Integrate with a Remote Power Module?
• Control individual zones and scenes in an area
• Query current scene and light levels
Integration Capabilities
• Up to four zones on each remote power module
Supported Command Types
• OUTPUT allows control and monitoring of the control zone output
Compatibility
QS Standalone Quantum®RadioRA® 2 HomeWorks® QS Clear Connect®
Gateway System
Remote Power Module  
Remote Power Module
Adaptive Phase Control Model: HW-RPM-4A
Phase Control Model: HW-RPM-4U
Quiet Fan Speed Control Model: HW-RPM-4FSQ
3-Wire Motor Control Model: HW-RPM-4M
Relay Switching Model: HW-RPM-4R
HW-RPM-4A
88
Lutron® integration protocol
OUTPUT Command-specific fields
Action Numbers and Parameters:
Action Action Number Parameters
Set or Get Zone Level 1 0–100 or
0.00–100.00
SS.ss
1, SS, MM:SS, or HH:MM:SS
Start Raising 2 None
Stop Lowering 3 None
Stop
Raising / Lowering
4 None
Start Flash
25 SS.ss
1, SS, MM:SS, or HH:MM:SS
Pulse 6 SS.ss
1, SS, MM:SS, or HH:MM:SS
Motor Jog Raise 18 None
Motor Jog Lower 19 None
Motor 4-Stage Jog Raise 20 None
Motor 4-Stage Jog Lower 21 None
NOTES
1. Fractions are rounded up to the closest ¼ second.
2. To stop a dimmer from flashing, send it to a valid level (action 1).
OUTPUT Command Format
Use “OUTPUT Command-specific fields” tables
to complete these command fields.
Operation
Command
Integration ID (example)
#OUTPUT, 6, Action Number, Parameters
Remote Power Module (continued)
OUTPUT Commands
89
Lutron® integration protocol
Why Integrate with an ArchitraveTM Keypad?
• Simulate a button press
• Control LEDs of unprogrammed buttons
Compatibility
ArchitraveTM
Keypads QS Standalone Quantum®RadioRA® 2 HomeWorks® QS Clear Connect®
Gateway System
QS Model  
HomeWorks® QS Model
ArchitraveTM Keypad
QS Models (QSWAS-) with Faceplate / Button Kit Models (KP5-, KP7-): DN, KP7
HomeWorks® QS Models (HQWA-) with Faceplate / Button Kit Models (KP5-, KP7-): DN, KP7
KP5-DN KP5-DW
KP7-DN KP7-DW
QS HomeWorks® QS
Button 1 Button 1
Button 2 Button 2
Button 3 Button 3
Button 4 Button 4
Button 5 Button 5
Button 6 Button 6
Button 7 Button 7
QS HomeWorks® QS
Button 1 Button 1
Button 2 Button 2
Button 3 Button 3
Button 4 Button 4
Button 5 Button 5
Raise Button 6
Lower Button 7
90
Lutron® integration protocol
ArchitraveTM Keypad (continued)
DEVICE Commands
DEVICE Command Formats
DEVICE Command-specific fields
Component Numbers:
Component Component Number Available Actions
Button 1 1 Press, Release, Multi Tap, Hold, Hold Release
Button 2 2 Press, Release, Multi Tap, Hold, Hold Release
Button 3 3 Press, Release, Multi Tap, Hold, Hold Release
Button 4 4 Press, Release, Multi Tap, Hold, Hold Release
Button 5 5 Press, Release, Multi Tap, Hold, Hold Release
Button 6 6 Press, Release, Multi Tap, Hold, Hold Release
Button 7 7 Press, Release, Multi Tap, Hold, Hold Release
Lower 18 Press, Release, Multi Tap, Hold, Hold Release
Raise 19 Press, Release, Multi Tap, Hold, Hold Release
CCI 1 25 Press, Release
CCI 2 26 Press, Release
LED 1
181 Set or Get LED state
LED 2
182 Set or Get LED state
LED 3
183 Set or Get LED state
LED 4
184 Set or Get LED state
LED 5
185 Set or Get LED state
LED 6
186 Set or Get LED state
LED 7
187 Set or Get LED state
NOTE
1. Available only on units in a Quantum® or HomeWorks® system.
Use “DEVICE Command-specific fields” tables
to complete these command fields.
Operation
Command
Integration ID (example)
#DEVICE, 2, Component Number, Action Number, Parameters
91
Lutron® integration protocol
ArchitraveTM Keypad (continued)
DEVICE Commands (continued)
DEVICE Command-specific fields (continued)
Action Numbers and Parameters:
Action Action Number Parameters
Press/CCI Close 3 None
Release/CCI Open 4 None
Hold 5 None
Multi-tap 6 None
Set (#) or Get (?) LED State
190 = Off
1 = On
2 = Normal-Flash: 1 flash every second
2
3 = Rapid-Flash: 10 flashes every second
2
Hold Release
232 None
NOTES
1. Quantum® or HomeWorks® only. “Set” is for unprogrammed buttons and buttons with LED logic ‘Defined by Integration.’
2. Available only on units in a Quantum® or HomeWorks® system.
Example DEVICE Commands
Examples presume keypad has been assigned Integration ID 2.
Operation Command String
Execute: #DEVICE, Integration ID, Component Number, Action Number, Parameters
Press Button 1. #DEVICE,2,1,3<CR><LF>
Turn On LED 5. #DEVICE,2,85,9,1<CR><LF>
Query: ?DEVICE, Integration ID, Component Number, Action Number
What is the state of LED 1? ?DEVICE,2,81,9<CR><LF>
Response: ~DEVICE, Integration ID, Component Number, Action Number, Parameters
LED 1 is On. ~DEVICE,2,81,9,1<CR><LF>
92
Lutron® integration protocol
Why Integrate with a Signature SeriesTM Keypad?
• Simulate a button press
• Control LEDs of unprogrammed buttons
Compatibility
Signature SeriesTM
Keypads QS Standalone Quantum®RadioRA® 2 HomeWorks® QS Clear Connect®
Gateway System
QS Model  
HomeWorks® QS Model
Signature SeriesTM Keypad
QS Models (QSWAS-): 1B, 1RLD, 2B, 2BRL, 2RLD, 3B, 3BD, 3BRL, 5B, 5BRL, 7B
HomeWorks® QS Models (HQWAS-B, HQWAS-G) with Faceplate / Button Kit Models (LFS-W):
1B, 1RLD, 2BS, 2RLD, 3BS, 3BD, 3BSRL, 4BS, 4S, 5B, 5BRL, 6B, 6BRL, 7B
1B
3B
5BT
1RLD
3BD
5BRL
2B
3BRL
6B
2BRL
3BSRL
6BRL
2BS
4BS
7B
2RLD
4S
3BS
5B
1
2
3
4
5
6
7
4
1
2
3
5
6
3
4
3
4
3
5
1
2
5
6
2
4
6
2
3
4
1
2
3
5
6
7
2
3
4
1
3
5
1
3
5
7
1
2
3
4
6
2
3
4
5
6
1
2
3
4
5
1
2
3
4
5
1
2
3
4
5
6
1
2
3
4
5
6
Configuration
Button 1
Button 2
Button 3 or Raise/Lower
Button 4
Button 5
Button 6
Button 7 or Raise/Lower
93
Lutron® integration protocol
Signature SeriesTM Keypad (continued)
DEVICE Commands
DEVICE Command Formats
DEVICE Command-specific fields
Component Numbers:
Component Component Number Available Actions
Button 1 1 Press, Release, Multi Tap, Hold, Hold Release
Button 2 2 Press, Release, Multi Tap, Hold, Hold Release
Button 3 3 Press, Release, Multi Tap, Hold, Hold Release
Button 4 4 Press, Release, Multi Tap, Hold, Hold Release
Button 5 5 Press, Release, Multi Tap, Hold, Hold Release
Button 6 6 Press, Release, Multi Tap, Hold, Hold Release
Button 7 7 Press, Release, Multi Tap, Hold, Hold Release
Button Top Lower 16 Press, Release, Multi Tap, Hold, Hold Release
Button Top Raise 17 Press, Release, Multi Tap, Hold, Hold Release
Button Bottom Lower 18 Press, Release, Multi Tap, Hold, Hold Release
Button Bottom Raise 19 Press, Release, Multi Tap, Hold, Hold Release
CCI 1 25 Press, Release
CCI 2 26 Press, Release
LED 1
181 Set or Get LED state
LED 2
182 Set or Get LED state
LED 3
183 Set or Get LED state
LED 4
184 Set or Get LED state
LED 5
185 Set or Get LED state
LED 6
186 Set or Get LED state
LED 7
187 Set or Get LED state
NOTE
1. Available only on units in a Quantum® or HomeWorks® system.
Use “DEVICE Command-specific fields” tables
to complete these command fields.
Operation
Command
Integration ID (example)
#DEVICE, 2, Component Number, Action Number, Parameters
94
Lutron® integration protocol
Signature SeriesTM Keypad (continued)
DEVICE Commands (continued)
DEVICE Command-specific fields (continued)
Action Numbers and Parameters:
Action Action Number Parameters
Press 3 None
Release 4 None
Hold 5 None
Multi-tap 6 None
Set (#) or Get (?) LED State
190 = Off
1 = On
2 = Normal-Flash: 1 flash every second
3 = Rapid-Flash: 10 flashes every second
Hold Release
232 None
NOTES
1. Quantum® or HomeWorks® only. “Set” is for unprogrammed buttons and buttons with LED logic ‘Defined by Integration.’
2. Available only on units in a Quantum® or HomeWorks® system.
Example DEVICE Commands
Examples presume keypad has been assigned Integration ID 2.
Operation Command String
Execute: #DEVICE, Integration ID, Component Number, Action Number, Parameters
Press Button 1. #DEVICE,2,1,3<CR><LF>
Turn On LED 5. #DEVICE,2,85,9,1<CR><LF>
Query: ?DEVICE, Integration ID, Component Number, Action Number
What is the state of LED 1? ?DEVICE,2,81,9<CR><LF>
Response: ~DEVICE, Integration ID, Component Number, Action Number, Parameters
LED 1 is On. ~DEVICE,2,81,9,1<CR><LF>
95
Lutron® integration protocol
Why Integrate with a seeTouch® Keypad?
• Simulate a button press
• Control LEDs of unprogrammed buttons
Compatibility
seeTouch®
Keypads QS Standalone Quantum®RadioRA® 2 HomeWorks® QS Clear Connect®
Gateway System
QS Model  
RadioRA® 2 Model
HomeWorks® QS Model
Clear Connect® Device Model
seeTouch® Keypad
QS Models (QSWS2-): 1B, 1RLD, 2B, 2BRL, 2BRLIR, 2RLD, 3B, 3BD, 3BRL, 3BRLIR, 5B, 5BRL, 5BRLIR, 7B
RadioRA® 2 Models (RRD-W): 1RLD, 2RLD, 3BD, 3BRL, 3BSRL, 4S, 5BRL, 5BRLIR, 6BRL, 7B
HomeWorks® QS Models (HQRD-W, HQWD-W, HQWA-W, HQRA-W, HQWAS-W):
1B, 1RLD, 2BS, 2RLD, 3BS, 3BD, 3BSRL, 4BS, 4S, 5B, 5BRL, 5BIR, 6B, 6BRL, 7B
Clear Connect® Device Models (CCD-W): 6BRL
1B
3B
5B
1RLD
3BD
5BRL
2B
3BRL
5BRLIR
2BRL
3BRLIR
5BIR
2BRLIR
3BSRL
6B
2BS
4BS
6BRL
2RLD
4S
7B
button
1
button
2
button
3
button
4
button
5
button
6
button
7
button
4
button
2
button
3
button
4
button
1
button
2
button
3
button
5
button
6
button
7
button
2
button
3
button
4
button
2
button
3
button
4
button
1
button
3
button
5
button
1
button
3
button
5
button
7
button
1
button
2
button
3
button
4
button
6
button
1
button
2
button
3
button
4
button
5
button
1
button
2
button
3
button
4
button
5
button
1
button
2
button
3
button
4
button
5
button
1
button
2
button
3
button
4
button
5
button
1
button
2
button
3
button
4
button
5
button
6
button
1
button
2
button
3
button
4
button
5
button
6
button
1
button
2
button
3
button
5
button
6
button
3
button
4
button
3
button
4
button
3
button
4
button
3
button
5
button
1
button
2
button
5
button
6
96
Lutron® integration protocol
seeTouch® Keypad (continued)
DEVICE Commands
DEVICE Command Formats
DEVICE Command-specific fields
Component Numbers:
Component Component Number Available Actions
Button 1 1 Press, Release
Button 2 2 Press, Release
Button 3 3 Press, Release
Button 4 4 Press, Release
Button 5 5 Press, Release
Button 6 6 Press, Release
Button 7 7 Press, Release
Button Top Lower 16 Press, Release
Button Top Raise 17 Press, Release
Button Bottom Lower 18 Press, Release
Button Bottom Raise 19 Press, Release
CCI 1 25 Press, Release
CCI 2 26 Press, Release
LED 1
181 Set or Get LED state
LED 2
182 Set or Get LED state
LED 3
183 Set or Get LED state
LED 4
184 Set or Get LED state
LED 5
185 Set or Get LED state
LED 6
186 Set or Get LED state
LED 7
187 Set or Get LED state
NOTE
1. Available only on units in a Quantum® or HomeWorks® system.
Use “DEVICE Command-specific fields” tables
to complete these command fields.
Operation
Command
Integration ID (example)
#DEVICE, 2, Component Number, Action Number, Parameters
97
Lutron® integration protocol
seeTouch® Keypad (continued)
DEVICE Commands (continued)
DEVICE Command-specific fields (continued)
Action Numbers and Parameters:
Action Action Number Parameters
Press/CCI Close 3 None
Release/CCI Open 4 None
Hold 5 None
Multi-tap 6 None
Set (#) or Get (?) LED State
1,2 90 = Off
1 = On
2 = Normal-Flash: 1 flash every second
1
3 = Rapid-Flash: 10 flashes every second
1
NOTES
1. Available only on units in a Quantum® or HomeWorks® system.
2. Quantum® or HomeWorks® only. “Set” is for unprogrammed buttons and buttons with LED logic ‘Defined by Integration.’
Example DEVICE Commands
Examples presume keypad has been assigned Integration ID 2.
Operation Command String
Execute: #DEVICE, Integration ID, Component Number, Action Number, Parameters
Press Button 1. #DEVICE,2,1,3<CR><LF>
Turn On LED 5. #DEVICE,2,85,9,1<CR><LF>
Query: ?DEVICE, Integration ID, Component Number, Action Number
What is the state of LED 1? ?DEVICE,2,81,9<CR><LF>
Response: ~DEVICE, Integration ID, Component Number, Action Number, Parameters
LED 1 is On. ~DEVICE,2,81,9,1<CR><LF>
98
Lutron® integration protocol
Why Integrate with a seeTouch® QS Keypad?
• Simulate a button press
• Control LEDs of unprogrammed buttons
Compatibility
seeTouch® QS
Keypads (International) QS Standalone Quantum®RadioRA® 2 HomeWorks® QS Clear Connect®
Gateway System
QS Model  
HomeWorks® QS Model
seeTouch® QS Keypad (International)
QS Models (QSWE-): 2B, 3B, 4B, 5BRL, 5BRLIR, 6BRL, 7BRL, 8BRL, 8BRLIR, 10BRL
HomeWorks® QS Models (HWQIS-NB-NONE) with Faceplate / Button Kit Models (LFS-W):
2B, 3B, 4B, 5BRL, 5BRLIR, 6BRL, 7BRL, 8BRL, 8BRLIR, 10BRL
2B
5BRLIR
8BRLIR
3B
6BRL
10BRL
4B
7BRL
5BRL
8BRL
button
6
button
7
button
8
button
9
button
10
button
1
button
2
button
3
button
4
button
5
Lower Raise
button
6
button
7
button
8
button
9
button
10
button
1
button
3
button
5
Lower Raise
button
6
button
7
button
8
button
9
button
10
Lower Raise
button
6
button
8
button
10
button
1
button
3
button
5
Lower Raise
button
6
button
7
button
8
button
9
button
10
button
2
button
4
Lower Raise
button
7
button
9
button
6
button
8
button
10
button
7
button
9
button
2
button
4
button
6
button
7
button
8
button
9
button
10
button
1
button
3
button
5
Lower Raise
button
6
button
7
button
8
button
9
button
10
Lower Raise
99
Lutron® integration protocol
seeTouch® QS Keypad (International) (continued)
DEVICE Commands
DEVICE Command Formats
DEVICE Command-specific fields
Component Numbers:
Component Component Number Available Actions
Button 1 1 Press, Release, Multi Tap, Hold, Hold Release
Button 2 2 Press, Release, Multi Tap, Hold, Hold Release
Button 3 3 Press, Release, Multi Tap, Hold, Hold Release
Button 4 4 Press, Release, Multi Tap, Hold, Hold Release
Button 5 5 Press, Release, Multi Tap, Hold, Hold Release
Button 6 6 Press, Release, Multi Tap, Hold, Hold Release
Button 7 7 Press, Release, Multi Tap, Hold, Hold Release
Button 8 8 Press, Release, Multi Tap, Hold, Hold Release
Button 9 9 Press, Release, Multi Tap, Hold, Hold Release
Button 10 10 Press, Release, Multi Tap, Hold, Hold Release
Lower 18 Press, Release, Multi Tap, Hold, Hold Release
Raise 19 Press, Release, Multi Tap, Hold, Hold Release
CCI 1 25 Press, Release
CCI 2 26 Press, Release
LED 1181 Set or Get LED state
LED 2182 Set or Get LED state
LED 3183 Set or Get LED state
LED 4184 Set or Get LED state
LED 5185 Set or Get LED state
LED 6186 Set or Get LED state
LED 7187 Set or Get LED state
LED 8188 Set or Get LED state
LED 9189 Set or Get LED state
LED 10190 Set or Get LED state
NOTE
1. Not supported in QS Standalone.
Use “DEVICE Command-specific fields” tables
to complete these command fields.
Operation
Command
Integration ID (example)
#DEVICE, 2, Component Number, Action Number, Parameters
100
Lutron® integration protocol
seeTouch® QS Keypad (International) (continued)
DEVICE Commands (continued)
DEVICE Command-specific fields (continued)
Action Numbers and Parameters:
Action Action Number Parameters
Press/CCI Close 3 None
Release/CCI Open 4 None
Hold 5 None
Multi-tap 6 None
Set (#) or Get (?) LED State
190 = Off
1 = On
2 = Normal-Flash: 1 flash every sec
3 = Rapid-Flash: 10 flashes every sec
Hold Release232 None
NOTES
1. “Set” is for unprogrammed buttons and buttons with LED logic ‘Defined by Integration.’
2. Not supported in QS Standalone.
Example DEVICE Commands
Examples presume keypad has been assigned Integration ID 2.
Operation Command String
Execute: #DEVICE, Integration ID, Component Number, Action Number, Parameters
Press Button 1. #DEVICE,2,1,3<CR><LF>
Turn On LED 5. #DEVICE,2,85,9,1<CR><LF>
Query: ?DEVICE, Integration ID, Component Number, Action Number
What is the state of LED 1? ?DEVICE,2,81,9<CR><LF>
Response: ~DEVICE, Integration ID, Component Number, Action Number, Parameters
LED 1 is On. ~DEVICE,2,81,9,1<CR><LF>
101
Lutron® integration protocol
Why Integrate with a Tabletop seeTouch® Keypad?
• Simulate a button press
• Control LEDs of unprogrammed buttons
Additional Commands
• None
Compatibility
QS Standalone Quantum®RadioRA® 2 HomeWorks® QS Clear Connect®
Gateway System
Tabletop seeTouch®  
Tabletop seeTouch® Keypad
RadioRA® 2 Models (RR-): T 5RL, T10RL, T15RL
HomeWorks® QS Models (HQR-, HQK-, HQQ-, HQM-, HQN-):
T5RL, T10RL, T15RL, T5CRL, T10CRL, T15CRL
T5-RL T10-RL
T15-RL T15-CRL
button 11
button 12
button 13
button 14
button 15
button 11
button 12
button 13
button 14
button 15
button 6
button 7
button 8
button 9
button 10
button 6
button 7
button 8
button 9
button 10
button 6
button 7
button 8
button 9
button 10
button 1
button 2
button 3
button 4
button 5
button 1
button 2
button 3
button 4
button 5
button 1
button 2
button 3
button 4
button 5
button 1
button 2
button 3
button 4
button 5
Column 3
Lower Raise
Column 3
Lower Raise
Column 3
Lower Raise
Column 3
Lower Raise
Column 2
Lower Raise
Column 1
Lower Raise
button 17
All ON
button 17
All ON
button 17
All ON
button 16
All OFF
button 16
All OFF
button 16
All OFF
102
Lutron® integration protocol
Tabletop seeTouch® Keypad (continued)
DEVICE Commands
DEVICE Command Formats
DEVICE Command-specific fields
Component Numbers:
Component Component Number Available Actions
Button 1 1 Press, Release
Button 2 2 Press, Release
Button 3 3 Press, Release
Button 4 4 Press, Release
Button 5 5 Press, Release
Button 6 6 Press, Release
Button 7 7 Press, Release
Button 8 8 Press, Release
Button 9 9 Press, Release
Button 10 10 Press, Release
Button 11 11 Press, Release
Button 12 12 Press, Release
Button 13 13 Press, Release
Button 14 14 Press, Release
Button 15 15 Press, Release
Button 16 16 Press, Release
Button 17 17 Press, Release
Column 1: Lower 20 Press, Release
Column 1: Raise 21 Press, Release
Column 2: Lower 22 Press, Release
Column 2: Raise 23 Press, Release
Column 3: Lower 24 Press, Release
Column 3: Raise 25 Press, Release
Continued on next page…
Use “DEVICE Command-specific fields” tables
to complete these command fields.
Operation
Command
Integration ID (example)
#DEVICE, 3, Component Number, Action Number, Parameters
103
Lutron® integration protocol
Tabletop seeTouch® Keypad (continued)
DEVICE Commands (continued)
DEVICE Command-specific fields (continued)
Component Numbers (continued):
Component Component Number Available Actions
LED 1 81 Set or Get LED state
LED 2 82 Set or Get LED state
LED 3 83 Set or Get LED state
LED 4 84 Set or Get LED state
LED 5 85 Set or Get LED state
LED 6 86 Set or Get LED state
LED 7 87 Set or Get LED state
LED 8 88 Set or Get LED state
LED 9 89 Set or Get LED state
LED 10 90 Set or Get LED state
LED 11 91 Set or Get LED state
LED 12 92 Set or Get LED state
LED 13 93 Set or Get LED state
LED 14 94 Set or Get LED state
LED 15 95 Set or Get LED state
Actions and Parameters:
Action Action Number Parameters
Press 3 None
Release 4 None
Set (#) or Get (?) LED State
Set is for unprogrammed LEDs only
90 = Off
1 = On
Example DEVICE Commands
Examples presume keypad has been assigned Integration ID 3.
Operation Command String
Execute: #DEVICE, Integration ID, Component Number, Action Number, Parameters
Press Button 1. #DEVICE,3,1,3<CR><LF>
Turn On LED 1. #DEVICE,3,81,9,1<CR><LF>
Query: ?DEVICE, Integration ID, Component Number, Action Number
What is the state of LED 1? ?DEVICE,3,81,9<CR><LF>
Response: ~DEVICE, Integration ID, Component Number, Action Number, Parameters
LED 1 is On. ~DEVICE,3,81,9,1<CR><LF>
104
Lutron® integration protocol
Hybrid Keypad
RadioRA® 2 Models (RRD-H): 1RLD, 2RLD, 3BSRL, 4S, 5BRL, 6BRL
HomeWorks® QS Models (HQRD-H): 1RLD, 2RLD, 3BSRL, 4S, 5BRL, 6BRL
Why Integrate with a Hybrid Keypad?
• Turn On to specific light level or Off
• Raise / Lower light level
• Query current light level
Additional Commands
• None
Compatibility
QS Standalone Quantum®RadioRA® 2 HomeWorks® QS Clear Connect®
Gateway System
Hybrid Keypad  
H6BRL
105
Lutron® integration protocol
Hybrid Keypad (continued)
OUTPUT Commands
OUTPUT Command Format
OUTPUT Command-specific fields
Action Numbers and Parameters:
Action Action Number Parameters
Set or Get Zone Level 1 Level = 0 –100 or 0.00 –100.00
Fade
1 in: SS.ss
2, SS, MM:SS, or HH:MM:SS
Delay
1 in: SS.ss
2, SS, MM:SS, or HH:MM:SS
Start Raising 2 None
Start Lowering 3 None
Stop Raising / Lowering
4 None
Start Flashing
3, 4, 5 5 Fade
1 in: SS.ss
2, SS, MM:SS, or HH:MM:SS
Delay
1 in: SS.ss
2, SS, MM:SS, or HH:MM:SS
NOTES
1. The Fade and Delay time are optional. When not used, the system will use a one-second fade time with zero-second delay.
2. Fractional seconds “SS.ss” will be rounded down to the nearest quarter second. For example, if a fade time is specified
as 1.31 seconds a value of 1.25 seconds will be used.
3. The system will not report a level while the output is flashing, it will instead report that it is flashing.
4. Default flash every second, unless fade time is specified (flash period is 2× fade time).
5. To stop a dimmer from flashing, send it to a valid level.
Example OUTPUT Commands
Examples presume dimmer has been assigned Integration ID 1.
Operation Command String
Execute: #OUTPUT, Integration ID, Action Number, Parameters
Set dimmer to 75% with a 1 min 30 sec fade. #OUTPUT,1,1,75,01:30<CR><LF>
Start Raising dimmer level. #OUTPUT,1,2<CR><LF>
Stop Raising / Lowering dimmer level. #OUTPUT,1,4<CR><LF>
Start Flashing a dimmer. #OUTPUT,1,5<CR><LF>
Start Flashing a dimmer once every 2 seconds. #OUTPUT,1,5,1<CR><LF>
Query: ?OUTPUT, Integration ID, Action Number
What is the state of the output? ?OUTPUT,1,1<CR><LF>
Response
1, 2: ~OUTPUT, Integration ID, Action Number, Parameters
Output level is set to 90%. ~OUTPUT,1,1,90.00<CR><LF>
NOTES
1. The system will report the target level of a dimmer while it is fading from one level to another.
The actual level is not transmitted while dimming between levels.
Example: If the “Over Sink” (1) dimmer is at 20% and is then commanded to go to 100% by sending
#OUTPUT,1,1,100
the response from the system will be ~OUTPUT,1,1,100.00
2. The system will not report a level while the output is flashing, it will instead report that it is flashing.
Use “OUTPUT Command-specific fields” tables
to complete these command fields.
Operation
Command
Integration ID (example)
#OUTPUT, 1, Action Number, Parameters
106
Lutron® integration protocol
Hybrid Keypad (continued)
DEVICE Commands
DEVICE Command-specific fields
Component Numbers:
Component Component Number Available Actions
Button 1 1 Press, Release
Button 2 2 Press, Release
Button 3 3 Press, Release
Button 4 4 Press, Release
Button 5 5 Press, Release
Button 6 6 Press, Release
Button 7 7 Press, Release
Button Top Lower 16 Press, Release
Button Top Raise 17 Press, Release
Button Bottom Lower 18 Press, Release
Button Bottom Raise 19 Press, Release
LED 1 81 Set or Get LED state
LED 2 82 Set or Get LED state
LED 3 83 Set or Get LED state
LED 4 84 Set or Get LED state
LED 5 85 Set or Get LED state
LED 6 86 Set or Get LED state
LED 7 87 Set or Get LED state
DEVICE Command Formats
Use “DEVICE Command-specific fields” tables
to complete these command fields.
Operation
Command
Integration ID (example)
#DEVICE, 2, Component Number, Action Number, Parameters
107
Lutron® integration protocol
Hybrid Keypad (continued)
DEVICE Commands (continued)
DEVICE Command-specific fields (continued)
Action Numbers and Parameters:
Action Action Number Parameters
Press 3 None
Release 4 None
Set (#) or Get (?) LED State 9 0 = Off
1 = On
2 = Normal-Flash: 1 flash every second
1
3 = Rapid-Flash: 10 flashes every second
1
NOTE
1. “Set” is for LEDs on unprogrammed buttons and buttons with LED logic ‘Defined by Integration.’
Example DEVICE Commands
Examples presume keypad has been assigned Integration ID 2.
Operation Command String
Execute: #DEVICE, Integration ID, Component Number, Action Number, Parameters
Press Button 1. #DEVICE,2,1,3<CR><LF>
Turn On LED 5. #DEVICE,2,85,9,1<CR><LF>
Query: ?DEVICE, Integration ID, Component Number, Action Number
What is the state of LED 1? ?DEVICE,2,81,9<CR><LF>
Response: ~DEVICE, Integration ID, Component Number, Action Number, Parameters
LED 1 is On. ~DEVICE,2,81,9,1<CR><LF>
108
Lutron® integration protocol
Why Integrate with a Pico® Wireless Control?
• Simulate a button press
• Monitor button presses
Compatibility
QS Standalone Quantum®RadioRA® 2 HomeWorks® QS Clear Connect®
Gateway System
QS Model* *
RadioRA® 2 Model
Current Model (PJ-)  
* Can be used only when associated to a QSM
Pico® Wireless Control
CURRENT Models: PJ-2B, PJ-3B, PJ-2BRL, PJ-3BRL
LEGACY Models:
QS Models (QSR4P-, QSR8P-, QSRKP-, QSRMP-): 2, 2R, 3R
RadioRA® 2 Models (RRD- P): 3BRL-L, 3BRL-S
2BRL
3BRL
2B
3B
Button 1
Button 1
Button 2
Button 3
Button 1
Button 1
Button
Raise
Button
Raise
Button
2
Button
Lower
Button
Lower
Button 3
Button 3
Button 3
109
Lutron® integration protocol
Pico® Wireless Control (continued)
DEVICE Commands
DEVICE Command Formats
DEVICE Command-specific fields
Component Numbers:
Component Component Number Available Actions
Button 1 2 Press, Release
Button 2 3 Press, Release
Button 3 4 Press, Release
Button Raise 5 Press, Release
Button Lower 6 Press, Release
Action Numbers and Parameters:
Action Action Number Parameters
Press 3 None
Release 4 None
Example DEVICE Commands
Examples presume keypad has been assigned Integration ID 2.
Operation Command String
Execute: #DEVICE, Integration ID, Component Number, Action Number, Parameters
Press Button 1. #DEVICE,2,2,3<CR><LF>
Response: ~DEVICE, Integration ID, Component Number, Action Number, Parameters
Button 1 was pressed. ~DEVICE,2,2,3<CR><LF>
Use “DEVICE Command-specific fields” tables
to complete these command fields.
Operation
Command
Integration ID (example)
#DEVICE, 2, Component Number, Action Number, Parameters
110
Lutron® integration protocol
Why Integrate with a Dynamic Keypad?
• Recognize a button press / release in order to control a third party device from the Dynamic Keypad’s
user interface
• Simulate a button press
• Control LEDs of unprogrammed buttons
Compatibility
QS Standalone Quantum®RadioRA® 2 HomeWorks® QS Clear Connect®
Gateway System
Dynamic Keypad
Dynamic Keypad
Model: HQ-J-DK420
HQ-J-DK420
111
Lutron® integration protocol
Dynamic Keypad (continued)
DEVICE Commands
DEVICE Command Formats
DEVICE Command-specific fields
Component Numbers:
Component Component Number Available Actions
Button 1 (left hard button) 1 Press, Release
Button 2 (middle hard button) 2 Press, Release
Button 3 (right hard button) 3 Press, Release
Button N 1 N Press, Release
LED M 1 M Set or Get LED state
NOTE
1. Component Numbers for the various pages of buttons and LEDs for a Dynamic Keypad are generated by the
HomeWorks® QS Software.
Action Numbers and Parameters:
Action Action Number Parameters
Press 3 None
Release 4 None
Hold 5 None
Multi-tap 6 None
Set (#) or Get (?) LED State 9 0 = Off
1 = On
2 = Normal-Flash
3 = Rapid-Flash
Example DEVICE Commands
Examples presume the Dynamic Keypad has been assigned Integration ID 23.
Operation Command String
Execute: #DEVICE, Integration ID, Component Number, Action Number, Parameters
Press Button 118. #DEVICE,23,118,3<CR><LF>
Turn On LED 566. #DEVICE,23,566,9,1<CR><LF>
Query: ?DEVICE, Integration ID, Component Number, Action Number
What is the state of LED 566? ?DEVICE,23,566,9<CR><LF>
Response: ~DEVICE, Integration ID, Component Number, Action Number, Parameters
LED 1 is On. ~DEVICE,23,566,9,1<CR><LF>
Use “DEVICE Command-specific fields” tables
to complete these command fields.
Operation
Command
Integration ID (example)
#DEVICE, 2, Component Number, Action Number, Parameters
112
Lutron® integration protocol

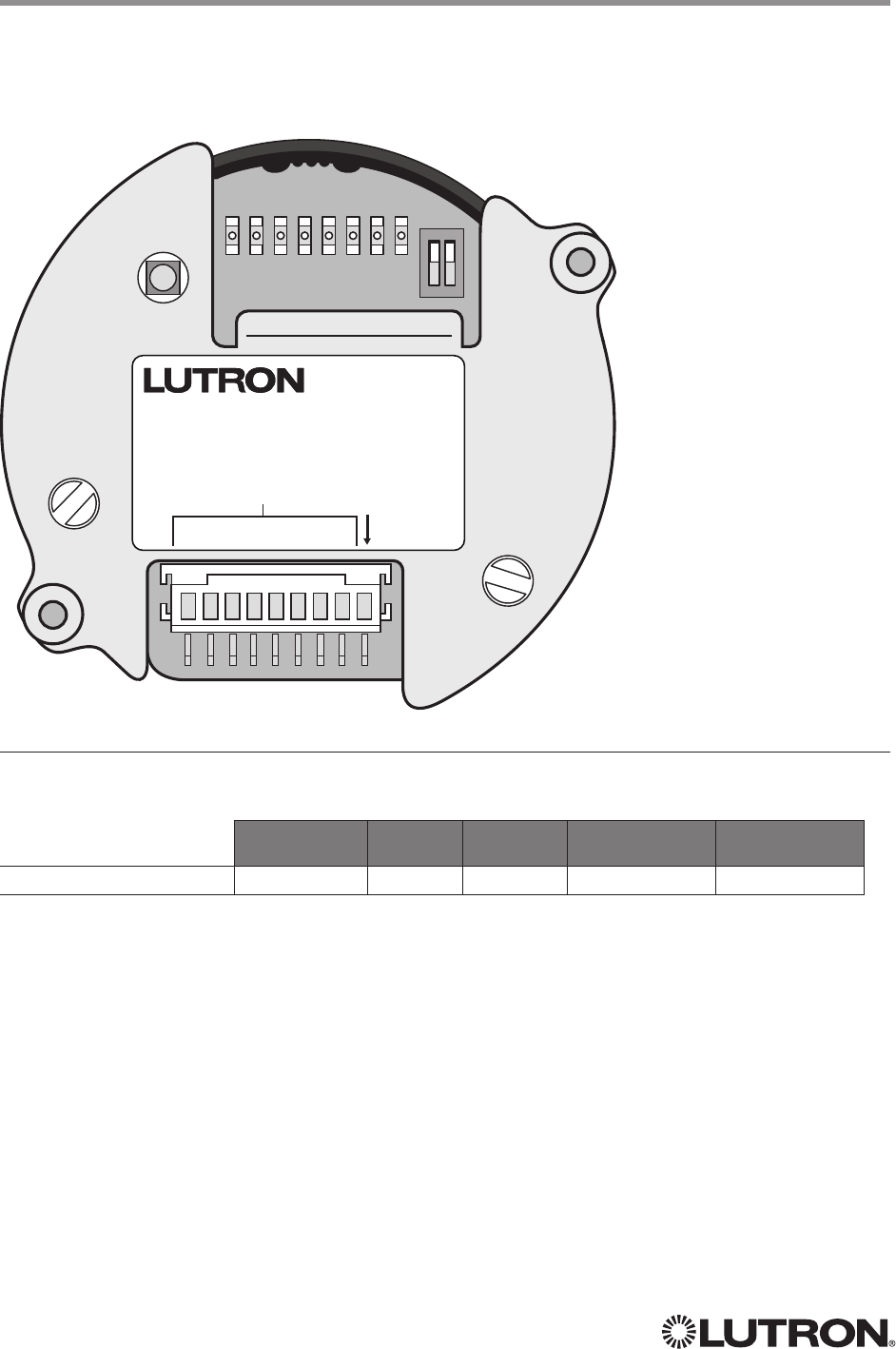

Why Integrate with a Wallbox Input Closure Interface?
• Simulate a button press
Compatibility
QS Standalone Quantum®RadioRA® 2 HomeWorks® QS Clear Connect®
Gateway System
Wallbox Input Closure Interface  
Wallbox Input Closure Interface
Model: QSE-CI-WCI
ON
12
1 2 3 4 5 6 7 8
1 2 3 4 5 6 7 8
®
COM
QSE-CI-WCI
INPUTS
ENTRADA
ENTRÉES
113
Lutron® integration protocol
Wallbox Input Closure Interface (continued)
DEVICE Commands
DEVICE Command Formats
DEVICE Command-specific fields
Component Numbers:
Component Component Number Available Actions
Button 1 1 Press, Release, Multi Tap, Hold, Hold Release
Button 2 2 Press, Release, Multi Tap, Hold, Hold Release
Button 3 3 Press, Release, Multi Tap, Hold, Hold Release
Button 4 4 Press, Release, Multi Tap, Hold, Hold Release
Button 5 5 Press, Release, Multi Tap, Hold, Hold Release
Button 6 6 Press, Release, Multi Tap, Hold, Hold Release
Button 7 7 Press, Release, Multi Tap, Hold, Hold Release
Button 8 8 Press, Release, Multi Tap, Hold, Hold Release
LED 1181 Set or Get LED state
LED 2182 Set or Get LED state
LED 3183 Set or Get LED state
LED 4184 Set or Get LED state
LED 5185 Set or Get LED state
LED 6186 Set or Get LED state
LED 7187 Set or Get LED state
LED 8188 Set or Get LED state
NOTE
1. Available only on units in a Quantum® or HomeWorks® system.
Use “DEVICE Command-specific fields” tables
to complete these command fields.
Operation
Command
Integration ID (example)
#DEVICE, 2, Component Number, Action Number, Parameters
ON
12
1 2 3 4 5 6 7 8
1 2 3 4 5 6 7 8
®
COM
QSE-CI-WCI
INPUTS
ENTRADA
ENTRÉES
114
Lutron® integration protocol
Wallbox Input Closure Interface (continued)
DEVICE Commands (continued)
DEVICE Command-specific fields (continued)
Action Numbers and Parameters:
Action Action Number Parameters
Press 3 None
Release 4 None
Hold (only if input mode is Momentary) 5 None
Multi-tap 6 None
Set (#) or Get (?) LED State
190 = Off
1 = On
2 = Normal-Flash: 1 flash every second
2
3 = Rapid-Flash: 10 flashes every second
2
Hold Release232 None
NOTES
1. Quantum® or HomeWorks® only. “Set” is for unprogrammed buttons and buttons with LED logic ‘Defined by Integration.’
2. Available only on units in a Quantum® or HomeWorks® system.
Example DEVICE Commands
Examples presume keypad has been assigned Integration ID 2.
Operation Command String
Execute: #DEVICE, Integration ID, Component Number, Action Number, Parameters
Press Button 1. #DEVICE,2,1,3<CR><LF>
Turn On LED 5. #DEVICE,2,85,9,1<CR><LF>
Query: ?DEVICE, Integration ID, Component Number, Action Number
What is the state of LED 1? ?DEVICE,2,81,9<CR><LF>
Response: ~DEVICE, Integration ID, Component Number, Action Number, Parameters
LED 1 is On. ~DEVICE,2,81,9,1<CR><LF>
ON
12
1 2 3 4 5 6 7 8
1 2 3 4 5 6 7 8
®
COM
QSE-CI-WCI
INPUTS
ENTRADA
ENTRÉES
115
Lutron® integration protocol

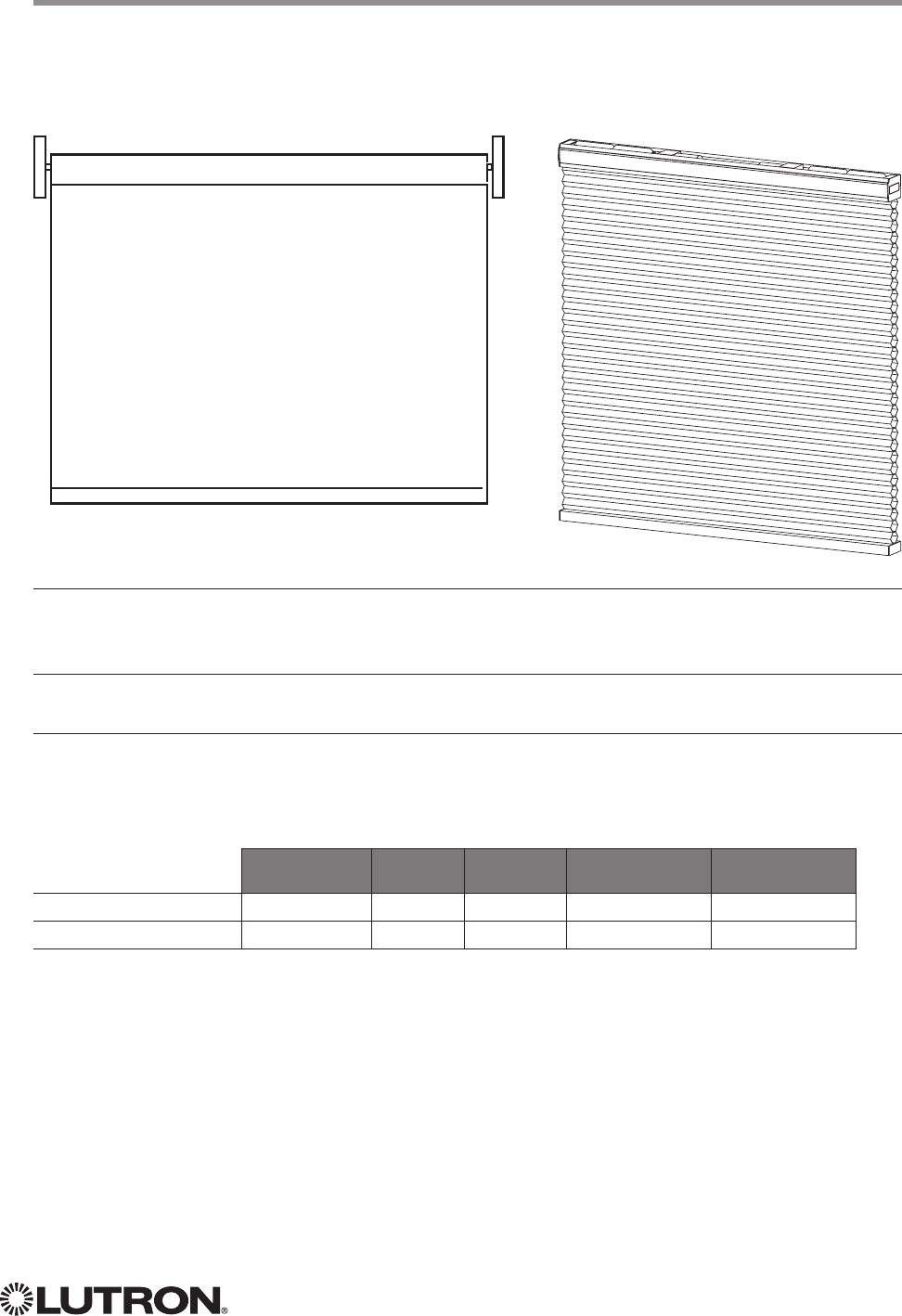

Sivoia® QS Shade
Sivoia® QS Wireless Shade
Why Integrate with a Sivoia® QS Shade?
• Set shades to a specific level
• Query current level
Integration Capabilities
• One controllable output (use OUTPUT command)
Supported Command Types
• OUTPUT allows control and monitoring of the shade output
• SHADEGRP allows control of shade groups in a Quantum® or HomeWorks® QS system. Shade
Groups are collections of shades that operate in unison.
Compatibility
QS Standalone Quantum®RadioRA® 2 HomeWorks® QS Clear Connect®
Gateway System
Sivoia® QS Shade  
Sivoia® QS Wireless Shade  
Includes all roller, cellular, and drapery styles
116
Lutron® integration protocol
Sivoia® QS Shade (continued)
OUTPUT Commands
OUTPUT Command Format
OUTPUT Command-specific fields
Action Numbers and Parameters:
Action Action Number Parameters
Set (#) or Get (?) Zone Level 1 Level
1 = 0 –100 or 0.00 –100.00 2
Fade
3 in: SS.ss
4, SS, MM:SS, or HH:MM:SS
Delay
5 in: SS.ss
4, SS, MM:SS, or HH:MM:SS
Start Raising 2 None
Start Lowering 3 None
Stop Raising / Lowering
4 None
NOTES
1. For shades, a level of 0 (or 0.00) equals closed and a level of 100 (or 100.00) equals full open.
2. 0% = Closed; 100% = Open
3. Fade is not available for shades since they move at a constant rate. The parameter must be entered but is ignored.
4. Fractional seconds “SS.ss” will be rounded down to the nearest quarter second. For example, if a delay time is specified
as 1.45 seconds a value of 1.25 seconds will be used.
5. The Delay time is optional. When not used, the system will use a zero-second delay. The minimum delay time is
0.25seconds. The maximum delay time is 4 hours. Not supported in QS Standalone.
Example OUTPUT Messages
Examples presume shade has been assigned Integration ID 1.
Operation Command String
Execute: #OUTPUT, Integration ID, Action Number, Parameters
Set shade to 75% with a 1 min 30 sec delay. #OUTPUT,1,1,75,0,1:30<CR><LF>
Start Raising shade level. #OUTPUT,1,2<CR><LF>
Stop Raising / Lowering shade level. #OUTPUT,1,4<CR><LF>
Query: ?OUTPUT, Integration ID, Action Number
What is the state of the output? ?OUTPUT,1,1<CR><LF>
Response
1: ~OUTPUT, Integration ID, Action Number, Parameters
Output level is set to 90%. ~OUTPUT,1,1,90.00<CR><LF>
NOTE
1. The system will report the target level of a shade. The actual level is not transmitted while they are moving.
Example: If the Living Room Blackouts (Integration ID 1) are at 20% and are commanded to go to 100% by sending
#OUTPUT,1,1,100 the response from the system will be ~OUTPUT,1,1,100.00
Use “OUTPUT Command-specific fields” tables
to complete these command fields.
Operation
Command
Integration ID (example)
#OUTPUT, 1, Action Number, Parameters
117
Lutron® integration protocol
SHADEGRP Command Formats
SHADEGRP Command-specific fields
Action Numbers and Parameters:
Action Action Number Parameters
Set (#) or Get (?) Shade
Group Level
11 Level
2 = 0 –100 or 0.00 –100.00
Delay
2 in: SS.ss
3, SS, MM:SS, or HH:MM:SS
Start Raising
42 None
Start Lowering
43 None
Stop Raising / Lowering 4 None
Set (#) or Get (?)
Current Preset
6 Preset Number
5 = 0 –30
Set (#) Venetian Tilt 14 Level
6 = 0 –100 or 0.00 –100.00
Fade
2 in: SS.ss
3, SS, MM:SS, or HH:MM:SS
Delay
2 in: SS.ss
3, SS, MM:SS, or HH:MM:SS
Set (#) Lift and Tilt
for venetians
15 Lift
6 = 0 –100 or 0.00 –100.00
Tilt
6 = 0 –100 or 0.00 –100.00
Fade
2 in: SS.ss
3, SS, MM:SS, or HH:MM:SS
Delay
2 in: SS.ss
3, SS, MM:SS, or HH:MM:SS
Raise Venetian Tilt
416 None
Lower Venetian Tilt
417 None
Stop Venetian Tilt
418 None
Raise Venetian Lift
419 None
Lower Venetian Lift
420 None
Stop Venetian Lift
421 None
NOTES
1. Get (?) Shade Group Level (action number 1).
2. The Fade and Delay time are optional. For shades, the Fade parameter has no effect (since shades have fixed speeds)
but it is required when specifying an optional delay. When not used, the system will use a zero-second delay. The
minimum fade and delay time is 0 seconds. The maximum fade and delay time is 4 hours.
3. Fractional seconds “SS.ss” will be rounded down to the nearest quarter second. For example, if a delay time is specified
as 1.45 seconds, a value of 1.25 seconds will be used.
4. When a Raise / Lower command is issued, the shade group’s level will continue to go towards open / close until a Stop
command is received.
5. Preset 0 is the Open Preset and Preset 30 is the Closed Preset.
6. The Level is accepted as a percentage, where 100% is fully open and 0% is fully closed.
Use “SHADEGRP Command-specific fields” tables
to complete these command fields.
Operation
Command
Integration ID (example)
#SHADEGRP, 2, Action Number, Parameters
Sivoia® QS Shade (continued)
OUTPUT Commands (continued)
118
Lutron® integration protocol
Sivoia® QS Venetian Blind
Sivoia® QS Wireless Venetian Blind
Why Integrate with a Sivoia® QS Venetian Blind?
• Set Venetian blind tilt, lift to specific levels
• Query current tilt, lift levels
Integration Capabilities
• One controllable output (use OUTPUT command)
Supported Command Types
• OUTPUT allows control and monitoring of the Venetian blind output
• SHADEGRP allows control of shade groups in a Quantum® or HomeWorks® QS system.
Shade Groups are collections of shades that operate in unison
Compatibility
QS Standalone Quantum®RadioRA® 2 HomeWorks® QS Clear Connect®
Gateway System
Sivoia® QS Venetian  
Sivoia® QS Wireless Venetian  
119
Lutron® integration protocol
Sivoia® QS Venetian Blind (continued)
OUTPUT Commands
OUTPUT Command Format
OUTPUT Command-specific fields
Action Numbers and Parameters:
Action Action Number Parameters
Set (#) or Get (?)
Venetian lift level only
1 Lift Level
1 = 0 –100 or 0.00 –100.00
Fade
2 in: SS.ss
3, SS, MM:SS, or HH:MM:SS
Delay
4 in: SS.ss
3, SS, MM:SS, or HH:MM:SS
Set (#) or Get (?)
Venetian tilt level only
9 Tilt Level
1 = 0 –100 or 0.00 –100.00
Fade
2 in: SS.ss
3, SS, MM:SS, or HH:MM:SS
Delay
4 in: SS.ss
3, SS, MM:SS, or HH:MM:SS
Set (#) or Get (?)
Venetian lift & tilt level
10 Lift Level
1 = 0 –100 or 0.00 –100.00
Tilt Level
1 = 0 –100 or 0.00 –100.00
Fade
2 in: SS.ss
3, SS, MM:SS, or HH:MM:SS
Delay
4 in: SS.ss
3, SS, MM:SS, or HH:MM:SS
Start raising Venetian tilt 11 None
Start lowering Venetian tilt 12 None
Stop Venetian tilt 13 None
Start raising Venetian lift 14 None
Start lowering Venetian lift 15 None
Stop Venetian lift
16 None
NOTES
1.
2.
Fade is not available for blinds since they move at a constant rate. The parameter must be entered but is ignored.
3. Fractional seconds “SS.ss” will be rounded down to the nearest quarter second. For example, if a delay time is specified
as 1.45 seconds, a value of 1.25 seconds will be used.
4. The Delay time is optional. When not used, the system will use a zero-second delay. The minimum delay time is
0.25seconds. The maximum delay time is 4 hours. Not supported in QS Standalone.
Use “OUTPUT Command-specific fields” tables
to complete these command fields.
Operation
Command
Integration ID (example)
#OUTPUT, 1, Action Number, Parameters
100% 75% 50% 25% 0%
Lift
Tilt
120
Lutron® integration protocol
Sivoia® QS Venetian Blind (continued)
OUTPUT Commands (continued)
Example OUTPUT Messages
Examples presume shade has been assigned Integration ID 1.
Operation Command String
Execute: #OUTPUT, Integration ID, Action Number, Parameters
Set Venetian blind to lift 0%, tilt 50% #OUTPUT,1,10,0,50<CR><LF>
Start raising Venetian tilt. #OUTPUT,1,11<CR><LF>
Stop raising Venetian tilt. #OUTPUT,1,13<CR><LF>
Query: ?OUTPUT, Integration ID, Action Number
What is the state of the Venetian lift and tilt? ?OUTPUT,1,10<CR><LF>
Response
1: ~OUTPUT, Integration ID, Action Number, Parameters
Venetian lift level is 0%, tilt level 50%. ~OUTPUT,1,10,0.00,50.00<CR><LF>
NOTE
1. The system will report the target lift level and target tilt level of a Venetian blind. The actual levels are not transmitted
while it is moving. Example: If the Kitchen Venetian (Integration ID 1) is set at 25% lift and 75% tilt, and is
commanded to go to 100% lift and 50% tilt by sending #OUTPUT,1,10,100,50, the response from the system will be
~OUTPUT,1,10,100.00,50.00
121
Lutron® integration protocol
Maestro® Dimmer and Plug-In Module
RadioRA® 2 Models (RRD-): 6D, 6NA, 8ANS, 8S-DV, 10D, 10ND, F6AN-DV, 3LD
RadioRA® 2 Models (RR-): 3PD, 15APS
HomeWorks® QS Models (HQRD-, HQRA): 6D, 6ND, 10D, 10ND, 6NA, F6AN-DV, 8ANS, 8S-DV
HomeWorks® QS Models (HWD-, HWA-): 6D, 6ND, 10D, 10ND, 5NE
1, 8ANS
HomeWorks® QS Models (HQR-): 3PD-1, 15APS-1, 3LD
Clear Connect® Device Models (CCD-W): 6D, 6NA, F6AN-DV, 15APS-1
Why Integrate with a Maestro® Dimmer or Plug-In Module?
• Turn On to specific light level or Off
• Raise / Lower light level
• Query current light level
Additional Commands
• None
Compatibility
QS Standalone Quantum®RadioRA® 2 HomeWorks® QS Clear Connect®
Gateway System
RadioRA® 2 Model
HomeWorks® QS Model
Clear Connect® Device Model
6D 3PD
LUTRON
NOTE
1. 5NE is not available in architectural style
122
Lutron® integration protocol
Maestro® Dimmer (continued)
OUTPUT Commands
OUTPUT Command Format
OUTPUT Command-specific fields
Action Numbers and Parameters:
Action Action Number Parameters
Set or Get Zone Level 1 Level = 0 –100 or 0.00 –100.00
Fade
1 in: SS.ss
2, SS, MM:SS, or HH:MM:SS
Delay
1 in: SS.ss
2, SS, MM:SS, or HH:MM:SS
Start Raising 2 None
Start Lowering 3 None
Stop Raising / Lowering
4 None
Start Flashing
3, 4, 5 5 Fade
1 in: SS.ss
2, SS, MM:SS, or HH:MM:SS
Delay
1 in: SS.ss
2, SS, MM:SS, or HH:MM:SS
NOTES
1. The Fade and Delay time are optional. When not used, the system will use a one-second fade time with zero-second delay.
2. Fractional seconds “SS.ss” will be rounded down to the nearest quarter second. For example, if a fade time is specified
as 1.31 seconds a value of 1.25 seconds will be used.
3. The system will not report a level while the output is flashing, it will instead report that it is flashing.
4. Default flash every second, unless fade time is specified (flash period is 2× fade time).
5. To stop a dimmer from flashing, send it to a valid level.
Example OUTPUT Commands
Examples presume dimmer has been assigned Integration ID 1.
Operation Command String
Execute: #OUTPUT, Integration ID, Action Number, Parameters
Set dimmer to 75% with a 1 min 30 sec fade. #OUTPUT,1,1,75,01:30<CR><LF>
Start Raising dimmer level. #OUTPUT,1,2<CR><LF>
Stop Raising / Lowering dimmer level. #OUTPUT,1,4<CR><LF>
Query: ?OUTPUT, Integration ID, Action Number
What is the state of the output? ?OUTPUT,1,1<CR><LF>
Response
1: ~OUTPUT, Integration ID, Action Number, Parameters
Output level is set to 90%. ~OUTPUT,1,1,90.00<CR><LF>
NOTE
1. The system will report the target level of a dimmer while it is fading from one level to another.
The actual level is not transmitted while dimming between levels.
Example: If the “Over Sink” (1) dimmer is at 20% and is then commanded to go to 100% by sending
#OUTPUT,1,1,100,
the response from the system will be ~OUTPUT,1,1,100.00
Use “OUTPUT Command-specific fields” tables
to complete these command fields.
Operation
Command
Integration ID (example)
#OUTPUT, 1, Action Number, Parameters
LUTRON
123
Lutron® integration protocol
LUTRON
Maestro® Dimmer (continued)
DEVICE Commands
DEVICE Command Format
DEVICE Command-specific fields
Component Numbers:
Component Component Number Available Actions
Maestro® Tap Switch 6 Press, Release, Double Tap, Hold
Action Numbers and Parameters:
Action Action Number Parameters
Press 3 None
Release 4 None
Hold 5 None
Double Tap 6 None
Example OUTPUT Commands
Examples presume dimmer has been assigned Integration ID 2.
Operation Command String
Execute: #DEVICE, Integration ID, Component Number, Action Number, Parameters
Press Button 1. #DEVICE,2,1,3,<CR><LF>
Use “OUTPUT Command-specific fields” tables
to complete these command fields.
Operation
Command
Integration ID (example)
#DEVICE
1, 2, Component Number, Action Number, Parameters
NOTE
1. Supported only in HomeWorks® QS 4.0 or higher.
124
Lutron® integration protocol
Maestro® Fan Speed Control
RadioRA® 2 Models (RRD-): 2ANF
HomeWorks® QS Models (HQRD-, HQRA-, HWD-, HWA-): 2ANF
Why Integrate with a Maestro® Fan Speed Control?
• Turn On to specific speed (High, Medium-High, Medium, Low, or Off)
• Raise / Lower fan speed
• Query current speed
Additional Commands
• None
Compatibility
QS Standalone Quantum®RadioRA® 2 HomeWorks® QS Clear Connect®
Gateway System
RadioRA® 2 Fan Speed Control
HomeWorks® QS Fan Speed
Control
2ANF
LUTRON
LUTRON
125
Lutron® integration protocol
Maestro® Fan Speed Control (continued)
OUTPUT Commands
OUTPUT Command Format
OUTPUT Command-specific fields
Action Numbers and Parameters:
Action Action Number Parameters
Set or Get Zone Level 1 Levels:
0 = Off
1– 25% = Low
26 –50% = Medium
56 –75% = Medium High
76 –100% = High
Example OUTPUT Commands
Examples presume dimmer has been assigned Integration ID 1.
Operation Command String
Execute: #OUTPUT, Integration ID, Action Number, Parameters
Set fan speed to Medium High. #OUTPUT,1,1,75<CR><LF>
Query: ?OUTPUT, Integration ID, Action Number
What is the state of the output? ?OUTPUT,1,1<CR><LF>
Response
3: ~OUTPUT, Integration ID, Action Number, Parameters
Output level is set to High. ~OUTPUT,1,1,100.00<CR><LF>
Use “OUTPUT Command-specific fields” tables
to complete these command fields.
Operation
Command
Integration ID (example)
#OUTPUT
1, 1, Action Number, Parameters
LUTRON
NOTE
1. Supported only in HomeWorks® QS 4.0 or higher and RadioRA® 2 6.0 or higher.
126
Lutron® integration protocol
Visor Control Receiver
RadioRA® 2 Model: RR-VCRX
HomeWorks® QS Model: HQR-VCRX
Why Integrate with a Visor Control Receiver?
• Simulate a keypad press or contact closure inputs
• Control LEDs of unprogrammed buttons
• Control contact closure outputs
Additional Commands
• None
Compatibility
QS Standalone Quantum®RadioRA® 2 HomeWorks® QS Clear Connect®
Gateway System
Visor Control Receiver  
RR-VCRX
Visor Control Receiver
Learn
Visor Transmitter
Keypad
Outputs
Flash
Full
Security Input
Inputs
1 2
Power
9V
Inputs
C
Full
1 C 2 C
Outputs
3 C
4
C
Flash
127
Lutron® integration protocol
Visor Control Receiver (continued)
DEVICE Commands
DEVICE Command Formats
DEVICE Command-specific fields
Component Numbers:
Component Component Number Available Actions
Scene 1 1 Press, Release
Scene 2 2 Press, Release
Scene 3 3 Press, Release
Scene 4 4 Press, Release
Scene 5 5 Press, Release
Scene 6 6 Press, Release
Full / Security 30 Open Input, Close Input
Security Flash 31 Open Input, Close Input
Input 1 32 Open Input, Close Input
Input 2 33 Open Input, Close Input
LED Scene 1 81 Set or Get LED state
LED Scene 2 82 Set or Get LED state
LED Scene 3 83 Set or Get LED state
LED Scene 4 84 Set or Get LED state
LED Scene 5 85 Set or Get LED state
LED Scene 6 86 Set or Get LED state
Action Numbers and Parameters:
Action Action Number Parameters
Press, Close Input 3 None
Release, Open Input 4 None
Set (#) or Get (?) LED State
Note: Valid for Scene LEDs only
90 = Off; 1 = On
Use “DEVICE Command-specific fields” tables
to complete these command fields.
Operation
Command
Integration ID (example)
#DEVICE, 5, Component Number, Action Number, Parameters
Visor Control Receiver
Learn
Visor Transmitter
Keypad
Outputs
Flash
Full
Security Input
Inputs
1 2
Power
9V
Inputs
C
Full
1 C 2 C
Outputs
3 C
4
C
Flash
128
Lutron® integration protocol
Example DEVICE Commands
Examples presume Visor Control Receiver has been assigned Integration ID 5.
Operation Command String
Execute: #DEVICE, Integration ID, Component Number, Action Number, Parameters
Press Scene 1. #DEVICE,5,1,3<CR><LF>
Turn On Scene 1 LED. #DEVICE,5,9,81,1<CR><LF>
Query: ?DEVICE, Integration ID, Component Number, Action Number
What is the state of LED 1? ?DEVICE,5,9,81<CR><LF>
Response: ~DEVICE, Integration ID, Component Number, Action Number, Parameters
LED 1 is On. ~DEVICE,5,9,81,1<CR><LF>
Visor Control Receiver (continued)
DEVICE Commands (continued)
Visor Control Receiver
Learn
Visor Transmitter
Keypad
Outputs
Flash
Full
Security Input
Inputs
1 2
Power
9V
Inputs
C
Full
1 C 2 C
Outputs
3 C
4
C
Flash
129
Lutron® integration protocol
Visor Control Receiver (continued)
OUTPUT Commands
OUTPUT Command Format
OUTPUT Command-specific fields
Action Numbers and Parameters:
Action Action Number Parameters
Set (#) or Query (?) Output State 1 Level
1 = 0 –100 or 0.00 –100.00
Set Pulse CCO (#) 6 Pulse
2 time in: SS.ss
3, SS, MM:SS, or HH:MM:SS, or
Delay
4 in: SS.ss
3, SS, MM:SS, or HH:MM:SS
NOTES
1. Any level greater than 0 will close the output. When level is equal to 0 the output will open.
2. The default time is one second.
3. Fractional seconds “SS.ss” will be rounded down to the nearest quarter second. For example, if a fade time is specified
as 1.45 seconds a value of 1.25 seconds will be used.
4. The Fade and Delay time are optional. When not used, the system will use a one-second fade time with zero-second
delay. The minimum fade and delay time is 0 seconds. The maximum fade and delay time is 4 hours. For shade outputs,
the Fade parameter has no effect (since shades have fixed speeds) but it is required when specifying an optional delay.
Example OUTPUT Messages
Examples presume CCO has been assigned Integration ID 21.
Operation Command String
Set: #OUTPUT, Integration ID, Action Number, Parameters
Set output to open. #OUTPUT,21,1,0<CR><LF>
Set output to close. #OUTPUT,21,1,1<CR><LF>
Query
1: ?OUTPUT, Integration ID, Action Number
What is the state of the output? ?OUTPUT,21,1<CR><LF>
Response
2: ~OUTPUT, Integration ID, Action Number
Output state is closed. ~OUTPUT,21,1,100.00<CR><LF>
NOTES
1. Momentary outputs should not be queried.
2. The system will report the target level of outputs. Any level greater than 0 means that the output is closed.
Use “OUTPUT Command-specific fields” tables
to complete the parameter field.
Action number is always
1 for visor control outputs
Operation
Command
Integration ID (example)
#OUTPUT,21, Action Number, Parameters
Visor Control Receiver
Learn
Visor Transmitter
Keypad
Outputs
Flash
Full
Security Input
Inputs
1 2
Power
9V
Inputs
C
Full
1 C 2 C
Outputs
3 C
4
C
Flash
130
Lutron® integration protocol
Why Integrate with a Radio Powr SavrTM Sensor?
• Monitor occupied, unoccupied status of a single sensor
Compatibility
QS Standalone Quantum®RadioRA® 2 HomeWorks® QS Clear Connect®
Gateway System
Radio Powr SavrTM Sensor  
Radio Powr SavrTM Sensor
CURRENT Models (LRF2-, CCD-): OCR2B, VCR2B, OKLB, OHLB, OWLB, VKLB, VHLB, VWLB
LEGACY Models (LRF2-): OCRB, VCRB
LRF2-OCR2B LRF2-OKLB
131
Lutron® integration protocol
Radio Powr SavrTM Sensor (continued)
DEVICE Commands
DEVICE Command Formats
~DEVICE, 19, 2, Action Number
Occupied state component
is always 2 for sensors
Operation
Command
Integration ID (example)
DEVICE Command-specific fields
Component Numbers:
Component Component Number Available Actions
Occupied State 2 Occupied, Unoccupied
Action Numbers:
Action Action Number
Occupied 3
Unoccupied 4
Example DEVICE Commands
Examples presume sensor has been assigned Integration ID 19.
Operation Command String
Response: ~DEVICE, Integration ID, Component Number, Action Number, Parameters
Radio Powr SavrTM 19 went occupied. ~DEVICE,19,2,3<CR><LF>
Radio Powr SavrTM 19 went unoccupied. ~DEVICE,19,2,4<CR><LF>
132
Lutron® integration protocol
Why Integrate with an HVAC Controller?
• Get current temperature
• Set or get heat setpoints and cool setpoints
• Set or get operating mode, fan mode and eco mode
• Get connection status to the temp sensor
• Get schedule information and hold schedules
Supported Command Types
• HVAC allows control and monitoring of the HVAC Controller
Compatibility
QS Standalone Quantum®RadioRA® 2 HomeWorks® QS Clear Connect®
Gateway System
HVAC Controller  
HVAC Controller
MODELS (LR-): HVAC-1-WH, HWLV-HVAC
LR-HVAC-1-WH LR-HWLV-HVAC
133
Lutron® integration protocol
HVAC Command-specific fields
Action Numbers and Parameters:
Action Action Number Parameters
Get (?) Current Temperature (°F) 1 Temperature = 40–100 °F
Set (#) or Get (?) Heat and Cool
Setpoints (°F) 2Heat Setpoint = 40 –103 °F
Cool Setpoint = 50 –113 °F
Set (#) or Get (?) Operating Mode 3 Mode (1 = Off, 2 = Heat, 3 = Cool, 4 = Auto, 5 = Em.Heat)
Set (#) or Get (?) Fan Mode 4 Mode (1 = Auto, 2 = On)
Set (#) or Get (?) Eco (Setback) Mode 5Mode (1 = Off, 2 = On)
Get (?) Eco Offset 6 Eco Offset = 1–11
Set (#) or Get (?) Schedule Status17
0 = Schedule Unavailable (Get “?” only)
1 = Following Schedule (Set “#” or Get “?”)
2 = Permanent Hold (Set “#” or Get “?”)
3 = Temporary Hold (Get “?” only)
Get (?) Temperature Sensor
Connection Status 8
1 = All sensors are active
2 = Missing Sensor
3 = Wired Sensor Only
4 = No Sensor
Get (?) Schedule Event 9 Schedule # (1–7), Event # (1–4), HH,MM, SPH, SPC
Get (?) Schedule Day Assignment 10 Schedule#(1–7), DD(Bitmap:Sunday(Bit 0) –
Saturday(Bit 6) 1–active day, 0– inactive day)
Get (?) System Mode 11
1 = Normal
2 = Away
3 = Green
Set (#) Emergency Heat Available 13 1 = Not Available
2 = Available
Get (?) Call Status 14
0 = None, Last was Heat
1 = Heat Stage 1
2 = Heat Stage 1 and 2
3 = Heat Stage 1, 2 and 3
4 = Heat Stage 3
5 = None, Last was Cool
6 = Cool Stage 1
7 = Cool Stage 1 and 2
Get (?) Current Temperature (°C)215 Temperature = 4– 38 °C
Set (#) or Get (?) Heat and Cool
Setpoints (°C)216 Heat Setpoint = 4– 39 °C
Cool Setpoint = 10 – 45 °C
NOTES
1. Schedule Unavailable –> Schedule not programmed or device needs date / time.
Following Schedule –> Running programmed schedule; set points from schedule.
Permanent Hold –> Schedule is not running; set points as adjusted.
Temporary Hold –> Running schedule; set points as adjusted. Returns to following schedule at next schedule event.
2. HomeWorks® QS software version 4.1 and higher.
HVAC Controller (continued)
HVAC Commands
HVAC Command Format
Use “HVAC Command-specific fields” tables
to complete the parameter field.
Action number is always
1 for visor control outputs
Operation
Command
Integration ID (example)
#HVAC,21, Action Number, Parameters
134
Lutron® integration protocol
Example HVAC Commands
Operation Command String
Execute: #HVAC, Integration ID, Action Number, Parameters
Set Heat Setpoint to 68 °F and Cool Setpoint to 72 °F. #HVAC,1,2,68,72<CR><LF>
Set System Mode to Cool. #HVAC,1,3,3<CR><LF>
Turn Eco Mode On. #HVAC,1,5,2<CR><LF>
Query: ?HVAC, Integration ID, Action Number
What is the Current Temperature? ?HVAC,1,1<CR><LF>
What is are the settings for Schedule 1, Event 2? ?HVAC,1,9,1,2<CR><LF>
What days are running Schedule 1? ?HVAC,1,10,1<CR><LF>
Response: ~HVAC, Integration ID, Action Number, Parameters
Current Temperature is 70° F. ~HVAC,1,1,70<CR><LF>
Schedule 1, Event 2 starts at 8:00am with SPH=65,SPC=78 ~HVAC,1,9,1,2,08,00,65,78<CR><LF>
Schedule 1 is being run on Monday and Tuesday. ~HVAC,1,10,1,06<CR><LF>
HVAC Controller (continued)
HVAC Commands (continued)
135
Lutron® integration protocol
Why Integrate with a Wireless Temperature Sensor?
• Get battery status
Note: To get current temperature, see HVAC Controller on page 132.
Additional Commands
• None
Compatibility
QS Standalone Quantum®RadioRA® 2 HomeWorks® QS Clear Connect®
Gateway System
Wireless Temperature Sensor  
Wireless Temperature Sensor
Model: LRF2-TWRB
Test
Link
136
Lutron® integration protocol
Wireless Temperature Sensor (continued)
DEVICE Commands
DEVICE Command Formats
DEVICE Command-specific fields
Component Numbers:
Component Component Number Available Actions
Battery Status 1 Get battery status
Action Numbers and Parameters:
Action Action Number Parameters
Get battery status 22 1 = Normal, 2 = Low
Example DEVICE Messages
Operation Command String
Query: ?DEVICE, Integration ID, Component Number, Action Number
What is the Temperature Sensor’s Battery Status? ?DEVICE,1,1,22<CR><LF>
Response: ~DEVICE, Integration ID, Component Number, Action Number, Parameters
Temperature Sensor’s Battery is Low. ~DEVICE,1,1,22,2<CR><LF>
Test
Link
Use “DEVICE Command-specific fields” tables
to complete these command fields.
Operation
Command
Integration ID (example)
?DEVICE, 1, Component Number, Action Number, Parameters
137
Lutron® integration protocol
Why Integrate with a QSE-IO?
• Know the state of the Contact Closure Inputs (CCIs).
• Control the state of the Contact Closure Outputs (CCOs).
Integration Capabilities
5 Contact Closure Inputs (CCIs) and 5 Contact Closure Outputs. The QSE-IO mode of operation is specified
by its DIP switch configuration.
• CCI and CCO states can be polled in any DIP configuration.
• CCI events can be monitored through integration in any DIP configuration.
• CCI events (closures or openings of CCIs) can be ‘spoofed’ (faked) through integration in DIP configurations
where momentary CCIs are specified.
• CCO events can be monitored through integration in any DIP configuration.
• The CCO state logic is typically tied to the states of the CCIs or other devices on the QS link and thus, CCO
events cannot be generated through integration in most DIP configurations; the exceptions are the output
DIP configurations (e.g., Shade Output, Zone Control Output) and the Integration DIP configuration that
allows full monitoring of CCIs and control of CCOs through integration.
• Occupancy events can be monitored through integration when the QSE-IO is in an Occupancy DIP
configuration.
Supported Command Types
• DEVICE allows monitoring of CCI and CCO events and polling of CCI/CCO states and in certain QSE-IO DIP
configurations, allows ‘spoofing’ of CCI events and generation of CCO events.
• OUTPUT (in certain output-oriented QSE-IO DIP configurations) allows control and monitoring of the CCOs.
Compatibility
QS Standalone Quantum®RadioRA® 2 HomeWorks® QS Clear Connect®
Gateway System
QSE-IO  
QSE-IO
Model: QSE-IO
CCI 1
CCI 2
CCI 3
CCI 4
COM
CCI 5
V
0-24 V 1 A
0-24 V ½ A
R
O
N
CCO 1 NC
CCO 1 NO
CCO 2 NC
CCO 2 NO
1-2 COM
CCO 3 NC
CCO 4 NO
CCO 3 NO
CCO 4 NC
3-4 COM
CCO 5 NC
5 COM
CCO 5 NO
V
R
MUX
COM
V+
MUX
CCO 1
CCO 2
CCO 3
CCO 4
CCO 5
STAT
QS
800.523.9466
+
1.610.282.3800
www.lutron.com/qs
QSE-IO
24 V 100 mA
®
243C IND. CONT. EQ.
8 7 6 5 4 3 2 1
4 3 2 1
138
Lutron® integration protocol
QSE-IO (continued)
DEVICE Commands
DEVICE Command Formats
DEVICE Command-specific fields
Component Numbers:
Component Component Number Available Actions
CCI 1 1 Report (~) closure/opening1
Poll (?) status
Spoof (#) closure/opening2
CCI 2 2 Report (~) closure/opening1
Poll (?) status
Spoof (#)closure/opening2
CCI 3 3 Report (~) closure/opening1
Poll (?) status
Spoof (#)closure/opening2
CCI 4 4 Report (~) closure/opening1
Poll (?) status
Spoof (#)closure/opening2
CCI 5 5 Report (~) closure/opening1
Poll (?) status
Spoof (#)closure/opening2
CCO 1 11 Report (~) closure/opening3
Poll (?) status
Generate (#) closure/opening2
CCO 2 12 Report (~) closure/opening3
Poll (?) status
Generate (#) closure/opening2
CCO 3 13 Report (~) closure/opening3
Poll (?) status
Generate (#) closure/opening2
CCO 4 14 Report (~) closure/opening3
Poll (?) status
Generate (#) closure/opening2
CCO 5 15 Report (~) closure/opening3
Poll (?) status
Generate (#) closure/opening2
Occupancy Sensor 1 41 Report (~) occupied/unoccupied2,4
Occupancy Sensor 2 42 Report (~) occupied/unoccupied2,4
Occupancy Sensor 3 43 Report (~) occupied/unoccupied2,4
Occupancy Sensor 4 44 Report (~) occupied/unoccupied2,4
Occupancy Sensor 5 45 Report (~) occupied/unoccupied2,4
NOTES
1. Monitoring type 2 must be enabled (see QSE-CI-NWK-E #MONITORING section)
2. Feature supported in only some QSE-IO DIP configurations
3. Monitoring type 5 must be enabled (see QSE-CI-NWK-E #MONITORING section)
4. Monitoring type 6 must be enabled (see QSE-CI-NWK-E #MONITORING section)
Use “DEVICE Command-specific fields” tables
to complete these command fields.
Operation
Command
Integration ID (example)
#DEVICE, 5, Component Number, Action Number, Parameters
CCI 1
CCI 2
CCI 3
CCI 4
COM
CCI 5
V
0-24 V 1 A
0-24 V ½ A
R
O
N
CCO 1 NC
CCO 1 NO
CCO 2 NC
CCO 2 NO
1-2 COM
CCO 3 NC
CCO 4 NO
CCO 3 NO
CCO 4 NC
3-4 COM
CCO 5 NC
5 COM
CCO 5 NO
V
R
MUX
COM
V+
MUX
CCO 1
CCO 2
CCO 3
CCO 4
CCO 5
STAT
QS
800.523.9466
+
1.610.282.3800
www.lutron.com/qs
QSE-IO
24 V 100 mA
®
243C IND. CONT. EQ.
8 7 6 5 4 3 2 1
4 3 2 1
139
Lutron® integration protocol
QSE-IO (continued)
DEVICE Commands (continued)
DEVICE Command-specific fields (continued)
Action Numbers and Parameters:
Action Action Number Parameters
Report (~) Closure/Occupied
Spoof (#) Closure13 None
Report (~) Opening/Unoccupied
Spoof (#) Opening14 None
Poll (?) CCO State 14 None
Report (~) CCO State Level (0 = Open, 100 = Close)
Set (#) CCO State1Level (0 = Open, 100 = Close)
Poll (?) CCI State 33 None
NOTE
1. Feature supported in only some QSE-IO DIP configurations
CCI 1
CCI 2
CCI 3
CCI 4
COM
CCI 5
V
0-24 V 1 A
0-24 V ½ A
R
O
N
CCO 1 NC
CCO 1 NO
CCO 2 NC
CCO 2 NO
1-2 COM
CCO 3 NC
CCO 4 NO
CCO 3 NO
CCO 4 NC
3-4 COM
CCO 5 NC
5 COM
CCO 5 NO
V
R
MUX
COM
V+
MUX
CCO 1
CCO 2
CCO 3
CCO 4
CCO 5
STAT
QS
800.523.9466
+
1.610.282.3800
www.lutron.com/qs
QSE-IO
24 V 100 mA
®
243C IND. CONT. EQ.
8 7 6 5 4 3 2 1
4 3 2 1
140
Lutron® integration protocol
QSE-IO (continued)
OUTPUT Commands
OUTPUT Command Formats
OUTPUT Command-specific fields
Action Numbers and Parameters:
Action Action Number Parameters
Get (?) CCO state 1 None
Report (~) CCO state Level (0 = Open, 100 = Close)
Set (#) CCO state1Level (0 = Open, 100 = Close)
NOTE
1. Feature supported in only some QSE-IO DIP configurations
Use “OUTPUT Command-specific fields” tables
to complete these command fields.
Operation
Command
Integration ID (example)
#OUTPUT, 1, Action Number, Parameters
CCI 1
CCI 2
CCI 3
CCI 4
COM
CCI 5
V
0-24 V 1 A
0-24 V ½ A
R
O
N
CCO 1 NC
CCO 1 NO
CCO 2 NC
CCO 2 NO
1-2 COM
CCO 3 NC
CCO 4 NO
CCO 3 NO
CCO 4 NC
3-4 COM
CCO 5 NC
5 COM
CCO 5 NO
V
R
MUX
COM
V+
MUX
CCO 1
CCO 2
CCO 3
CCO 4
CCO 5
STAT
QS
800.523.9466
+
1.610.282.3800
www.lutron.com/qs
QSE-IO
24 V 100 mA
®
243C IND. CONT. EQ.
8 7 6 5 4 3 2 1
4 3 2 1
141
Lutron® integration protocol

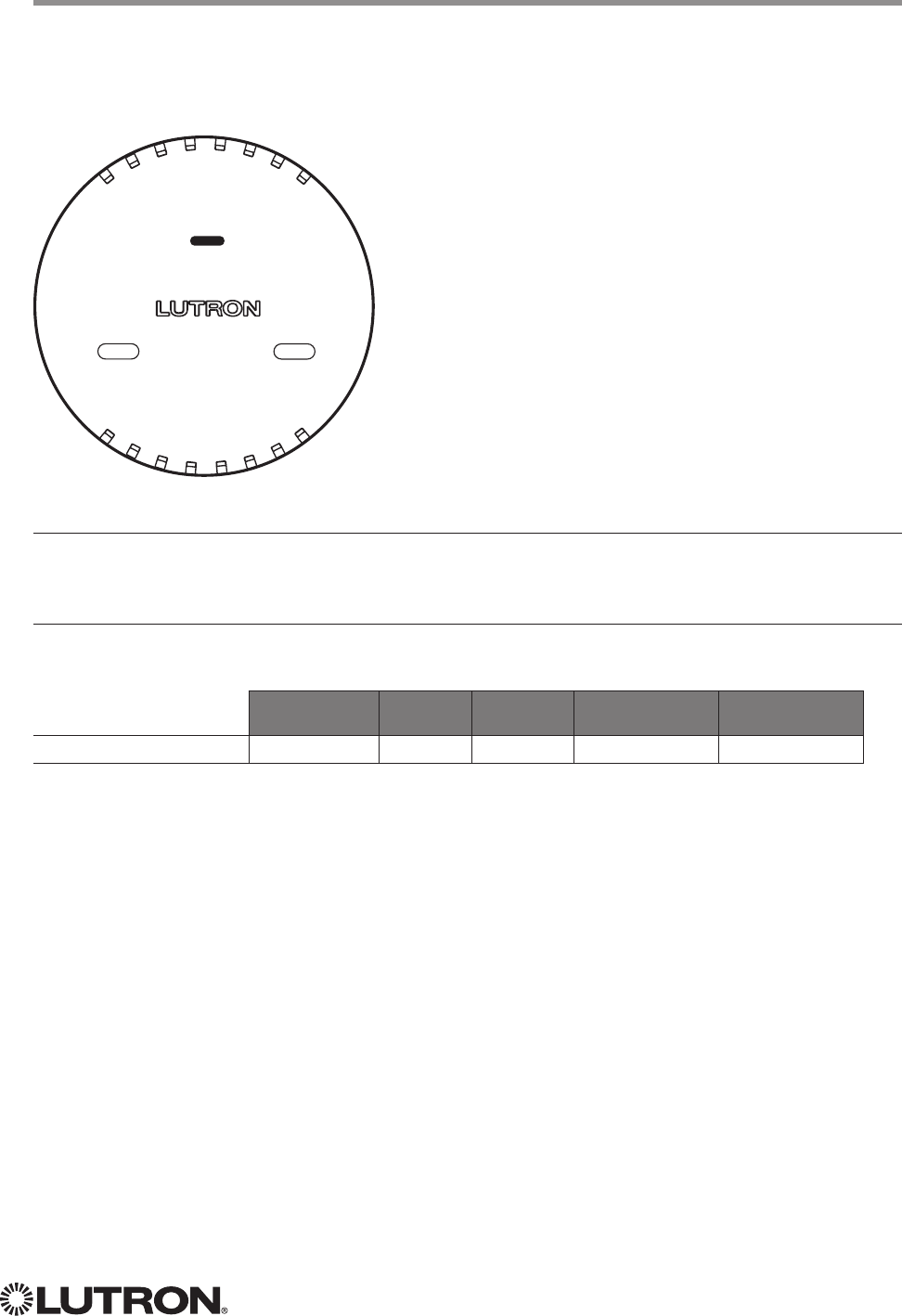

QS Sensor Module
Models: QSMX-, QSM2-, QSM3-, QSM4-, QSM5-, QSM6-, QSM7-
Why Integrate with a QS Sensor Module?
• View occupancy events that occur.
Integration Capabilities
• Can view occupancy events for up to 14 sensors.
• Can view Pico® button Press/Release Events.
Compatibility
QS Standalone Quantum®RadioRA® 2 HomeWorks® QS Clear Connect®
Gateway System
QS Sensor Module
142
Lutron® integration protocol
QS Sensor Module (continued)
DEVICE Commands
DEVICE Command Formats
DEVICE Command-specific fields
Component Numbers:
Component Component Number Available Actions
Wired Occupancy sensors 1 – 4 Occupied, Unoccupied
Wireless Occupancy sensors 1 – 10 5 – 14 Occupied, Unoccupied
Pico® 1 Buttons 1 – 5161 – 651Press, Release
Pico® 2 Buttons 1 – 5182 – 861Press, Release
Pico® 3 Buttons 1 – 51103 – 1071Press, Release
Pico® 4 Buttons 1 – 51124 – 1281Press, Release
Pico® 5 Buttons 1 – 51145 – 1491Press, Release
Pico® 6 Buttons 1 – 51166 – 1701Press, Release
Pico® 7 Buttons 1 – 51187 – 1911Press, Release
Pico® 8 Buttons 1 – 51208 – 2121Press, Release
Pico® 9 Buttons 1 – 51229 – 2331Press, Release
Pico® 10 Buttons 1 – 51250 – 2541Press, Release
NOTE
1. Pico® button order (Top, Favorite, Bottom, Raise, Lower) dictates Component Number (see Pico® 1 example below).
Pico® 1 Button Sample Component Number
Top 61
Favorite 62
Bottom 63
Raise 64
Lower 65
Action Numbers and Parameters:
Action Action Number Parameters
(~) Report Occupied/Button Press 3 None
(~) Report Unoccupied/Button Release 4 None
Example DEVICE Commands
Examples presume QSM has been assigned integration ID QSMID.
Operation Command String
Response: ~DEVICE, Integration ID, Component Number, Action Number
Wired Occupancy Sensor 1 transitions to Occupied ~DEVICE,QSMID,1,3<CR><LF>
Wired Occupancy Sensor 1 transitions to Unoccupied ~DEVICE,QSMID,1,4<CR><LF>
Wireless Occupancy Sensor 1 transitions to Occupied ~DEVICE,QSMID,5,3<CR><LF>
Wireless Occupancy Sensor 1 transitions to Unoccupied ~DEVICE,QSMID,5,4<CR><LF>
Pico® 1 Favorite button press ~DEVICE,QSMID,62,3<CR><LF>
Use “DEVICE Command-specific fields” tables
to complete these command fields.
Operation
Command
Integration ID (example)
#DEVICE, 19, Component Number, Action Number, Parameters
Worldwide Technical and Sales Assistance
If you have questions concerning the installation or operation
of this product, call the Lutron® Technical Support Center.
Please provide the exact model number when calling.
Model number can be found on the product packaging.
Example: SZ-CI-PRG
U.S.A., Canada, and the Caribbean: 1.800.523.9466
Other countries call: +1.610.282.3800
Fax: +1.610.282.1243
Visit us on the web at www.lutron.com
Lutron Electronics Co., Inc.
7200 Suter Road
Coopersburg, PA 18036 USA
Lutron, Clear Connect, EcoSystem, GRAFIK Eye, HomeWorks, Quantum,
Maestro, Pico, RadioRA, seeTouch, Sivoia, and ) are registered trademarks
and Architrave, Energi Savr Node, GRAFIK, Hyperion, Q-Design, Radio Powr Savr,
and Signature Series are trademarks of Lutron Electronics Co., Inc.
IEEE is a registered trademark of the Institute of Electrical and Electronics
Engineers, Inc., (IEEE). This publication is not endorsed or approved by the IEEE.
DALI is a registered trademark of ZVEI - Zentralverband Elektrotechnik-und
Elektronikindustrie e.V.
This publication is not endorsed or approved by Apple, Inc.
© 2014 Lutron Electronics Co., Inc.
P/N 040249 Rev. O 04/2014
