Open the Door to Energy Savings
Opportunity is Knocking
Find out more at
www.chatsworth.com/aisle-containment
www.chatsworth.com or techsupport@chatsworth.com 800-834-4969
Just as no two data centers are the same, the solutions
needed to keep your energy costs down are rarely the same
either. Whether you’re looking for free cooling or need to
support higher heat densities, Chatsworth Products, Inc.
(CPI) can create the perfect Aisle Containment Solution for
you. CPI’s stock of racks, cabinets, cable management and
containment doors have helped create some of the
industry’s most innovative containment solutions from the
floor up – literally. Now, with Aisle Containment Solutions
that are unmatched on the custom market and sealing
solutions that are proven to be 200% more efficient than
any similar product, CPI is proud to introduce its new
pre-engineered Aisle Containment System.
Features & Benefits
• Available as either Hot or Cold Aisle Containment
• Architectural aluminum sliding doors with auto-closing
mechanism
• Designed for ease-of-assembly and maximum sealing
performance
• Work with our application engineers to create unique
design solutions
• Broadens air temperature envelope with 4x higher heat
and power densities
5.2
Request the latest literature and guides from Anixter.
1.800.ANIXTER • anixter.com/literature
Racks, Cabinets and Cable Management
Choosing Racks and Cabinets
Physical Infrastructure Solutions
D
./
Index1.Support and Supplies//Physical Support Structure//Cabinets
Tech Tips
Choosing Rack and Cabinet Systems
What are the main differences between "racks" and "cabinets"?
The term "rack" is often used in the industry to describe both open-frame or relay racks as well as cabinet or rack enclosures. While these products provide the same
basic function, there are a number of factors to consider when deciding which is appropriate for your specific application.
Equipment: A cabinet is more appropriate for heavy servers, while a rack provides easy access to all sides of the mounted equipment.
Airflow and cooling: A rack is completely open while a cabinet needs to be able to provide sufficient airflow when ventilation is needed. Cabinets allow for appropriate
cooling management and heat removal, whereas open racks may dissipate heat uncontrollably.
Environment: If your equipment requires a dust-free environment, the extra protection that a cabinet provides is very suitable. If you have a very clean and well-kept
telecom center then the open convenience of a rack will fit your needs.
Aesthetics: If your closet will be visible to the public, cabinets look neater than an open rack; however, there are various cable management products that will give
a rack a very neat and professional appearance.
Security: Cabinets have locking mechanisms available on their doors for added security. An open rack does not have that feature.
Questions to consider when using cabinets.
Whenever you need to mount network equipment (hubs, switches, bridges, routers, terminal servers, print servers, repeaters, monitors and keyboards), and
environmental protection, aesthetics and security are concerns, here are some of the basic questions you may want to be asking:
Are there existing cabinets in the data center or network environment?
If so, for aesthetic and logistical reasons you might want to select a cabinet from the same manufacturer.
What type of environment is the cabinet going into?
- Standard equipment room - Free-standing, network and server cabinets are common.
- Data center - Colocation cabinets allow compartmental access.
- Limited floor space - Wall-mount cabinets often make sense.
- Earthquake zone - Seismic cabinets are typically used where additional support and bracing are necessary. Standards ratings, like Bellcore Zone 4 and
NEMA are important.
- Zone access - The ZCAC places the consolidation point for wiring patch panels, punch-down blocks, hubs or routers closer to the work area. This allows for
easy access for moves, adds and changes.
- Factory floor - Some cabinets are designed and tested to withstand different industrial environments.
What is going into the cabinet?
- The dimensions of the network equipment, cable management, climate control and power protection will dictate the cabinet, door and shelf sizes, as well as
the number of shelves.
How is the network equipment ventilated?
- All network equipment generates heat, and too much heat can impact network performance. There are many climate control cabinet options, from perforated
doors to ceiling fans that ensure proper temperatures are maintained. Self-contained cooling cabinets are also highly recommended for high-density
environments that exceed 15 kW.
Products. Technology. Services. Delivered Globally.
1.800.ANIXTER • anixter.com 5.3
Racks, Cabinets and Cable Management
Chatsworth Products, Inc. (CPI)
Physical Infrastructure Solutions
./
Index1.Support and Supplies//Physical Support Structure//Cabinets
CHATSWORTH PRODUCTS INC (CPI) PR12030V2-21859.tif
The F-Series TeraFrame is a highly configurable equipment storage cabinet that
organizes, stores and secures computer, data storage and network equipment in the
data center, computer room or network environment. Whether you need a server
cabinet for high-density applications, a networking cabinet to manage fiber and/or
Cat 6A UTP cables, or a combination of both, the F-Series TeraFrame gives you the
ability to configure cabinets suited for your present and future needs.
FEATURES
•Available in multiple sizes
•Welded steel and bolted aluminum frame
•Includes two pairs of 19 in. wide EIA-310-E mounting rails with Universal
hole spacing
•Load ratings: 23.6 in. W 2,500 lb.; 27.6 in. W 2,000 lb.; 31.5 in. W 2,000 lb.
•UL Listed
•Top panels have large brushed-covered cable openings
•Doors have swing-handle latches
•The part numbers listed below are just some of the available configurations
F-SERIES TERAFRAME SOLUTIONS FOR SERVER APPLICATIONS
F-SERIES TERAFRAME SOLUTIONS FOR NETWORK APPLICATIONS
F-SERIES TERAFRAME THERMAL MANAGEMENT OPTIONS AND ACCESSORIES
F-SERIES TERAFRAME CABLE MANAGEMENT OPTIONS AND ACCESSORIES
F-Series TeraFrame Cabinet System
Anixter No. Vendor No. Description
400138 FF1U-111B-C52 45U x 23.6 in. W x 51.0 in. D, perforated
front door, solid rear door, includes top
panel with two cable openings and a
20 in. H to 34 in. H. Vertical Exhaust
Duct and two solid sides, black
492942 FF1U-111B-C62 45U x 23.6 in. W x 51.0 in. D, perforated
front door, solid rear door, top panel with
two cable openings and a 34 in. H to
60 in. H. Vertical Exhaust Duct and two
solid sides, black
492943 FF1N-113C-C42 45U x 23.6 in. W x 47.1 in. D, perforated
front door, double-perforated rear door,
top panel with two cable openings, and
two solid side panels, black
498555 FF2N-113C-C42 45U x 27.6 in. W x 47.1 in. D, perforated
front door, double-perforated rear door,
top panel with two cable openings and
two solid side panels, black
Anixter No. Vendor No. Description
492945 FF3N-113C-C22 45U x 31.5 in. W x 47.1 in. D, perforated
front door, double perforated rear door,
top panel with four cable openings and
two solid sides, black
492946 FF3U-113C-C22 45U x 31.5 in. W x 51.0 in. D, perforated
front door, double perforated rear door,
top panel with four cable openings and
two solid sides, black
Anixter No. Vendor No. Description
366374 34521-C05 Air Dam Kit for 84 in. H (45U) x
23.6 in. W
344103 34522-C05 Air Dam kit for 84 in. H (45U) x
27.6 in. W
342060 34523-C05 Air Dam Kit for 84 in. H (45U) x
31.5 in. W
324470 34538-000 2U Snap-In Filler Panel, 19 in. W, plastic,
black, one each
498556 35086-C16 Bottom panel, for 23.6 in. W x
51.0 in. D cabinet
324473 13571-002 Integral Raised Floor Grommet, 8 in. x
4 in. cable opening, 10 pack
324474 13576-002 Surface Mount Floor Grommet, 8 in. x
4 in. cable opening, 10 pack
492651 13876-000 AisleLok Acrycell sealing tape, for 0.2 in.
to 0.5in. gap, 32.8ft. roll, 5pack
492652 13876-001 AisleLok Acrycell sealing tape, for 0.5 in.
to 1 in. gap, 18.4 ft. roll, 5 pack
492653 13876-002 AisleLok Acrycell sealing tape, for 1 in.
to 2in. gap, 8.5ft. roll, 5pack
492654 13877-001 AisleLok under rack panel, 2.5 in. H x
24 in. W x 1 in. D
Anixter No. Vendor No. Description
366376 34421-C01 Vertical Cable Manager, 10.5 in. D, with
1U fingers, 45U x 23.6 in. W
cabinet, black
436521 35090-C05 Vertical Cable Manager, 11.6 in. D, with
1U fingers, for 45U x 27.6 in. W cabinet,
3.1 in. W x 11.6 in. D, black
444314 35095-C05 Vertical Cable Manager, 11.6 in. D, with
1U fingers, for 45U x 31.5 in. W
cabinet, black
401716 35087-C05 Cable Lashing Bracket, 5 in. D, for
45U cabinets
448287 35086-C05 Cable Lashing Bracket, 5 in. D, for 45U
cabinets, recessed
488965 P3-1F0G3 eConnect monitored PDU, with
30 outlets C13, six outlets C19, 200 -
240 V, 30 A, NEMA L6-30P plug
Continued on next page >>
5.4
Request the latest literature and guides from Anixter.
1.800.ANIXTER • anixter.com/literature
Racks, Cabinets and Cable Management
Chatsworth Products, Inc. (CPI)
Physical Infrastructure Solutions
D
(continued)
F-Series TeraFrame Cabinet System
Index1.Support and Supplies//Physical Support Structure//Accessories
CHATSWORTH PRODUCTS INC (CPI) PR34422V2-254402.tif
The GF-Series GlobalFrame Cabinet System is an easy-to-use, cost-effective, computer
and network equipment storage cabinet for data center, computer and
equipment-room use. Select models are also available for quick shipment.
FEATURES
•Welded and bolted steel frame
•Includes two pairs of 19 in. wide EIA-310-E mounting rails with Universal
hole spacing
•Load ratings: 3,000 lb. on leveling feet, 2,250 lb. on casters
•UL Listed
•Top panels have four large cable openings; Cable Port Brush Kits are
ordered separately
•Doors are perforated with locking swing-handle latches
•Locking two-piece side panels for easier handling
•Includes casters, leveling feet and PDU mounting bracket
•Also available with Vertical Exhaust Duct
42U
Perforated front door, double perforated rear door, includes top panel with four cable
knockouts and two solid sides, black.
48U
Perforated front door, double perforated rear door, includes top panel with four cable
knockouts and two solid sides, black.
ACCESSORIES
Index1.Support and Supplies//Physical Support Structure//Cabinets
CHATSWORTH PRODUCTS INC (CPI) PR20308V2-71442.tif
The N-Series TeraFrame Network Cabinet is designed specifically to store network
equipment and cabling in a hot aisle/cold aisle data center, computer room or
network environment. The N-Series TeraFrame has offset doors and side panels that
provide additional interior space around the front, rear and sides of equipment for
cable management and enhanced airflow. Order with a Network Switch Exhaust Duct
to guide hot exhaust air from the side of network switch equipment to the rear door.
Anixter No. Vendor No. Description
488974 P3-1P0G3 eConnect monitored PDU, with
30 outlets C13, six outlets C19, 208 V,
30 A, NEMA L21-30P plug
324472 13517-701 Rack-mount cable shelf with brush
opening along front, 1U, black
Contact your local sales representative for an F-Series TeraFrame
configuration that best fits your needs.
GF-Series GlobalFrame Cabinet System
Anixter No. Vendor No. Description
431936 GF-1A220 79.3 in. H x 23.6 in. W x 40.3 in. D
431938 GF-1A420 79.3 in. H x 23.6 in. W x 48.4 in. D
431939 GF-1C220 79.3 in. H x 31.5 in. W x 40.3 in. D
431941 GF-1C420 79.3 in. H x 31.5 in. W x 48.4 in. D
Anixter No. Vendor No. Description
444299 GF-3A320 89.8 in. H x 23.6 in. W x 40.3 in. D
444305 GF-3A420 89.8 in. H x 23.6 in. W x 48.4 in. D
431943 GF-3C220 89.8 in. H x 31.5 in. W x 40.3 in. D
431914 GF-3C420 89.8 in. H x 31.5 in. W x 48.4 in. D
Anixter No. Vendor No. Description
431944 25190-001 Cable Port Brush Kit, 3.9 in. W x
8.8 in. D, pack of two, black
431961 25252-702 For 48U, 89.8 in. H x 31.5 in. W cabinet
431960 25252-700 For 42U, 79.3 in. H x 31.5 in. W cabinet
324470 34538-000 2U Snap-In Filler Panel, 19 in. W, plastic,
black, one each
431948 25104-001 Cable Ring Kit, for 23.6 in. W cabinets,
1.7 in. W x 5.0 in. D, pack of eight, black
431950 25106-001 Cable Ring Kit, for 31.5 in. W cabinets,
5.5 in. W x 9.8 in. D, pack of eight, black
431956 25221-701 Cable Lashing Bracket, for 42U cabinets,
5.0 in. W, black
444288 25221-705 Cable Lashing Bracket, for 48U cabinets,
5.0 in. W, black
435290 25141-700 Full Height PDU Bracket, for 42U
cabinets, 5.2 in. W, black
441740 25141-702 Full Height PDU Bracket, for 48U
cabinets, 5.2 in. W, black
488965 P3-1F0G3 eConnect monitored PDU, with
30 outlets C13, six outlets C19, 200 -
240 V, 30 A, NEMA L6-30P plug
488974 P3-1P0G3 eConnect monitored PDU, with
30 outlets C13, six outlets C19, 208 V,
30 A, NEMA L21-30P plug
324472 13517-701 Rack-mount cable shelf with brush
opening along front, 1U, black
Contact your local sales representative for the GF-Series GlobalFrame
configuration that best fits your needs.

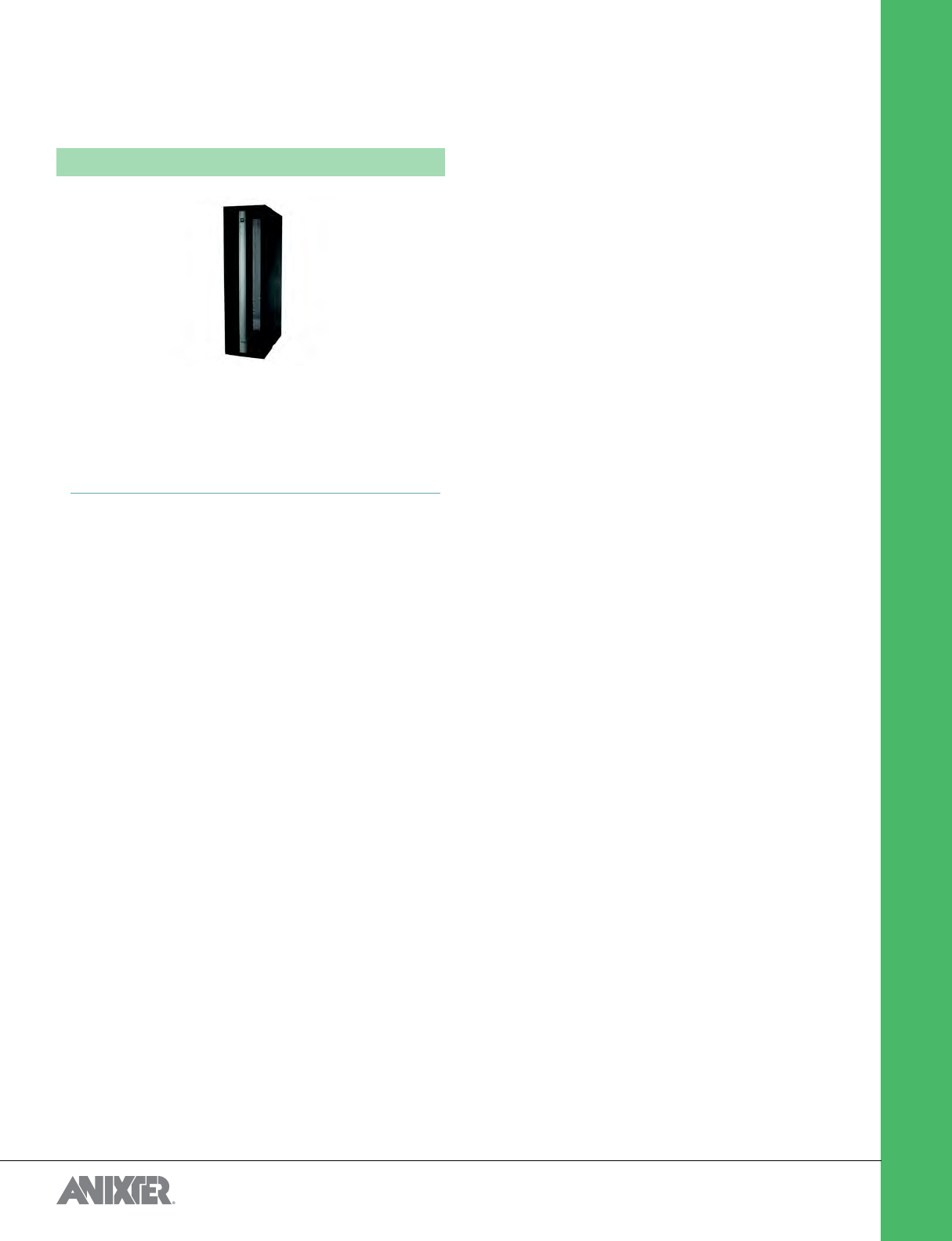

N-Series TeraFrame Network Cabinet
Products. Technology. Services. Delivered Globally.
1.800.ANIXTER • anixter.com 5.5
Racks, Cabinets and Cable Management
Chatsworth Products, Inc. (CPI)
Physical Infrastructure Solutions
FEATURES
•Available in multiple sizes
•Welded steel frame
•Includes two pairs of 19 in. wide EIA-310-E mounting rails with Universal
hole spacing
•Load rating: 2,500 lb.
•Top panels have large cable openings
•Doors have perforated panels and swing-handles with two-point latches

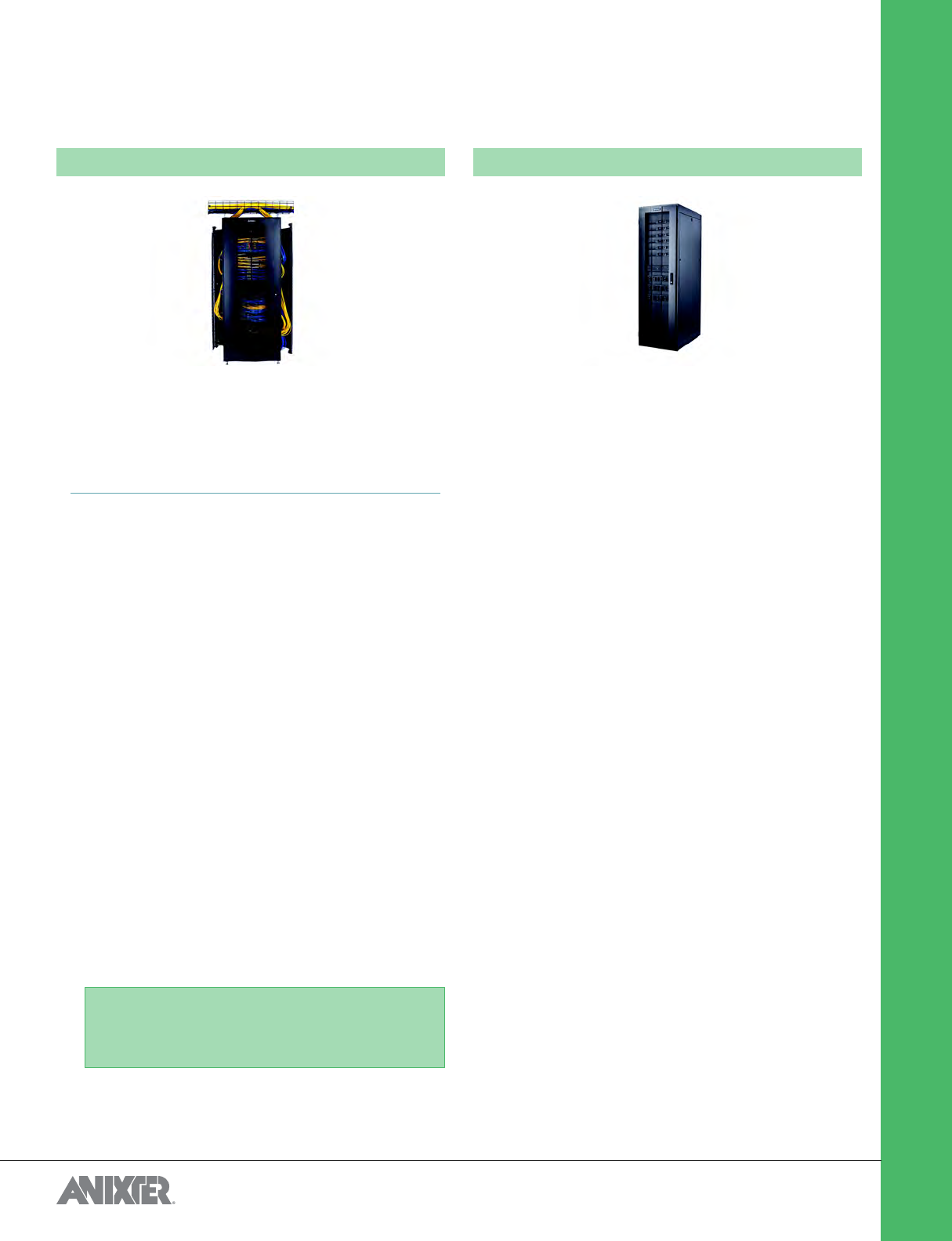

N-SERIES TERAFRAME NETWORK CABINETS
N-SERIES TERAFRAME NETWORK CABINETS WITH NETWORK SWITCH EXHAUST DUCT
N-SERIES TERAFRAME NETWORK CABINETS, RECOMMENDED SOLUTIONS
N-SERIES TERAFRAME NETWORK CABINET ACCESSORIES
Index1.Support and Supplies//Physical Support Structure//Cabinets
CHATSWORTH PRODUCTS INC (CPI) PR6792V2-142734.tif
CPI offers a large variety of power and thermal management products to complete
your rack or cabinet system.
Anixter No. Vendor No. Description
392947 NF0U-213C-C42 45U x 31.5 in. W x 51.0 in. D, perforated
front door, perforated rear double door,
includes top panel and two solid side
panels, black
492947 NF0U-213C-C40 45U x 31.5 in. W x 51.0 in. D, perforated
front door, perforated rear double door,
includes top panel, no side
panels, black
Anixter No. Vendor No. Description
492948 NF1N-213C-C42 45U x 31.5 in. W x 47.1 in. D, perforated
front door, perforated rear double door,
includes Network Switch Exhaust Duct,
top panel and two solid side
panels, black
492949 NF1U-213C-C42 45U x 31.5 in. W x 51.0 in. D, perforated
front door, perforated rear double door,
includes Network Switch Exhaust Duct,
top panel and two solid side
panels, black
492950 NF1N-213C-C40 45U x 31.5 in. W x 47.1 in. D, perforated
front door, perforated rear double door,
includes Network Switch Exhaust Duct,
top panel, no side panels, black
492951 NF1U-213C-C40 45U x 31.5 in. W x 51.0 in. D, perforated
front door, perforated rear double door,
includes Network Switch Exhaust Duct,
top panel, no side panels, black
Anixter No. Vendor No. Description
419228 NF5U-143C-C42 Recommended solution for the Cisco
Nexus 7018 switch: 45U x 40.0 in. W x
51.0 in. D, perforated front double door,
perforated rear double door, includes
Network Switch Exhaust Duct, with visor
and diffuser, top panel and two solid
side panel kits, black
419225 NF0U-113C-C42 Recommended solution for the Cisco
Nexus 7010 switch: 45U x 31.5 in. W x
51.0 in. D, perforated front door,
perforated rear double door, includes
top panel and two solid side
panels, black
378312 NF2K-113C-C42 Recommended solution for the Cisco
Catalyst 6506, 6509 and 6513 switches
and MDS 9509 director: 45U x 31.5 in. W
x 44.2 in. D, perforated front door,
perforated rear double door, includes
Network Switch Exhaust Duct, two power
supply exhaust ducts, top panel and two
solid side panels, black
383905 NF3K-113C-C42 Recommended solution for the Cisco
MDS 9513 director: 45U x 31.5 in. W x
44.2 in. D, perforated front door,
perforated rear double door, includes
Network Switch Exhaust Duct, two power
supply exhaust ducts, top panel and two
solid side panels, black
425307 NF4M-113C-C42 Recommended solution for the Juniper
Networks EX8208 and EX8216 switches:
45U x 31.5 in. W x 46.1 in. D, perforated
front door, perforated rear double door,
includes Network Switch Exhaust Duct,
top panel, two solid side panels, black
Anixter No. Vendor No. Description
324470 34538-000 2U Snap-In Filler Panel, 19 in. W, plastic,
black, one each
353015 34628-C01 N-Series caster kit, black
353016 34680-005 Cable management fingers kit, 45U
423422 34719-C05 Fiber trunk cable manager, 10 in. D, for
45U x 31.5 in. W cabinets
Power and Cooling Solutions for CPI Racks and Cabinets
Please see the Power and Thermal Management Solutions section
for more information.
Anixter No. Vendor No. Description
5.6
Request the latest literature and guides from Anixter.
1.800.ANIXTER • anixter.com/literature
Racks, Cabinets and Cable Management
Chatsworth Products, Inc. (CPI)
Physical Infrastructure Solutions
D
Index1.Support and Supplies//Physical Support Structure//Cabinets
CHATSWORTH PRODUCTS INC (CPI) PR6814V2-143895.tif
FEATURES
•Available in two widths: 27.3 in. or 31.3 in.
•Available in three heights: 38U, 42U, 45U
•Available in four depths: 27.6 in., 33.6 in., 39.6 in. or 42.6 in.
•Specialized support and integrated cable management to match data/network
equipment requirements
•Bolted construction allows partially assembled delivery for easy staging and
prebuild movement on the job site
•All-aluminum construction weighs less than similar steel cabinets
•Includes two pair of 19 in. wide EIA-310-E or 23 in. wide mounting rails with
Universal hole spacing
•Static load rating of 2,000 lb. (also on casters)
•UL Listed
•Stylish two-tone finish with raised panel doors
•The part numbers listed below are just some of the available configurations
•Contact sales for the M-Series MegaFrame configuration that best fits
your applications
MEGAFRAME CABINETS
MEGAFRAME ACCESSORIES
Index1.Support and Supplies//Physical Support Structure//Cabinets
CHATSWORTH PRODUCTS INC (CPI) PR6805V2-143889.tif
The C-Series SlimFrame Cabinet System is similar in design and style to the M-Series
MegaFrame Cabinet System but is only 24 in. wide to match standard raised-access
floor tiles. The C-Series SlimFrame Cabinet System can also be delivered
partially assembled.
FEATURES
•Available in one width: 24 in. W
•Available in three heights: 37U, 40U, 43U
•Available in three depths: 25.5 in., 33.6 in. or 39.6 in.
•Stylish two-tone finish with raised panel doors
•Fits over a single 2 ft. floor tile for maximum use of floor space
•Specialized support and integrated cable management to match
server requirements
•Bolted construction allows partially assembled delivery for easy staging and
prebuild movement on the job site
•All-aluminum construction - weighs less than similar steel cabinets
•Includes two pairs of 19 in. wide EIA-310-E mounting rails with Universal
hole spacing
•Static load rating of 2,000 lb. on casters
•The part numbers listed below are just some of the available configurations
•Contact sales for the C-Series SlimFrame configuration that best fits
your applications
SLIMFRAME CABINETS
M-Series MegaFrame Cabinet System
Anixter No. Vendor No. Description
220435 M1033-731 84 in. H (45U) x 27.3 in. W x 33.6 in. D,
square-punched rails, vented plexiglass
front/perforated metal rear door, black
371084 M1043-741 84 in. H (45U) x 27.3 in. W x 42.6 in. D,
square-punched rails, perforated metal front/
perforated metal rear door, black
283410 M1051-711 84 in. H (45U) x 27.3 in. W x 39.6 in. D,
tapped rails, plexiglass front/metal rear door
220439 M1034-701 84 in. H (45U) x 27.3 in. W x 32.1 in. D,
square-punched rails, without side panels, no
doors, black
Anixter No. Vendor No. Description
314261 13336-710 Air Dam kit for 45U cabinet, 84 in. H x
19 in. W
324470 34538-000 2U Snap-In Filler Panel, 19 in. W, plastic,
black, one each
191525 12465-707 Vertical Cable Manager, with rings, for 45U
cabinet, black
313454 13171-700 Enhanced Vertical Cable Manager with 1U
Fingers, for 45U cabinet, 7 ft. H x 3.50 in. W x
5.23 in. D
492459 13762-701 Vertical Mounting Brackets for CPI M-Series
MegaFrame or C-Series SlimFrame
cabinet systems
488965 P3-1F0G3 eConnect monitored PDU, with 30 outlets
C13, six outlets C19, 200 - 240 V, 30 A, NEMA
L6-30P plug
488974 P3-1P0G3 eConnect monitored PDU, with 30 outlets
C13, six outlets C19, 208 V, 30 A, NEMA
L21-30P plug
191527 12480-701 Cooling fan kit, 400 cfm, 115 V AC, black
283414 13203-001 M-Series caster set of four
C-Series SlimFrame Cabinet System
Anixter No. Vendor No. Description
444263 C1033-731 84 in. H (43U) x 24 in. W x 33.6 in. D,
square-punched rails, vented plexiglass
front/perforated metal rear door, black
237089 C1053-741 84 in. H (43U) x 24 in. W x 39.6 in. D,
square-punched rails, perforated metal front/
perforated metal rear door, black
Anixter No. Vendor No. Description
Products. Technology. Services. Delivered Globally.
1.800.ANIXTER • anixter.com 5.7
Racks, Cabinets and Cable Management
Chatsworth Products, Inc. (CPI)
Physical Infrastructure Solutions
SLIMFRAME ACCESSORIES
Index1.Support and Supplies//Physical Support Structure//Cabinets
CHATSWORTH PRODUCTS INC (CPI) pr5197V2-143862.tif
The seismic-rated MegaFrame Cabinet System is for use in public network facilities or
on the customer premises to support mission-critical equipment.
FEATURES
•Compliant to Bellcore GR-63-CORE Standard for Zone 4 Earthquake requirements
•Certified to an 800 lb. distributed equipment load
•Aluminum outer frame with steel inner frame delivers maximum strength with
minimum weight
•Seismic bracing kits and a full line of structural enhancement products are
available to support a wide range of site-specific structural requirements
•Internal cable management, which includes a vertical cabling ring section,
provides flexibility for wire routing
•Adjustable front-to-rear vertical mounting rails allow use as a standard
four-post cabinet or two-channel rack
•Square-punched vertical mounting rails provide greater rack-mounting flexibility
•Aluminum top panel with four edge-protected punch-out ports accommodate
top-cable access
•Includes two pairs of 19 in. wide EIA-310-E mounting rails with Universal
hole spacing
•Ships fully assembled
•Other options available; contact sales
-
Index1.Support and Supplies//Physical Support Structure//Cabinets
CHATSWORTH PRODUCTS INC (CPI)
The Air Dam Kit creates a barrier between the cabinet door and the front of the
equipment along the top, bottom and sides of the cabinet. When used in combination
with perforated front and rear doors and filler panels, the Air Dam Kit helps channel
cool air to equipment and also helps prevent the mixing of heated air from the rear of
the cabinet with cool air at the front of the cabinet.
FEATURES
•Use on M-Series MegaFrame, C-Series SlimFrame, GF-Series GlobalFrame and
F-Series TeraFrame Cabinet Systems
•Kit includes:
- One top baffle
- One bottom baffle
- Two side baffles
- Installation hardware
AIR DAM KIT FOR M-SERIES MEGAFRAME CABINETS PR11047V2-25353.tif
AIR DAM KIT FOR C-SERIES SLIMFRAME CABINETS
444268 C1050-711 84 in. H (43U) x 24 in. W x 39.6 in. D, tapped
rails, plexiglass front/metal rear door, black
444269 C1034-701 84 in. H (43U) x 24 in. W x 32.1 in. D,
square-punched rails, without side panels,
no doors, black
Anixter No. Vendor No. Description
314261 13336-710 Air Dam kit for 45U cabinet, 84 in. H x
19 in. W
324470 34538-000 2U Snap-In Filler Panel, 19 in. W, plastic,
black, one each
319485 11809-700 Narrow Vertical Cable Manager, with 4 in. D
rings, for 43U cabinets
492459 13762-701 Vertical Mounting Brackets for CPI M-Series
MegaFrame or C-Series SlimFrame
cabinet systems
488965 P3-1F0G3 eConnect monitored PDU, with 30 outlets
C13, six outlets C19, 200 - 240 V, 30 A, NEMA
L6-30P plug
488974 P3-1P0G3 eConnect monitored PDU, with 30 outlets
C13, six outlets C19, 208 V, 30 A, NEMA
L21-30P plug
191527 12480-701 Cooling fan kit, 400 cfm, 115 V AC, black
283468 13204-001 C-Series caster, set of four
Seismic Frame Cabinet System
Anixter No. Vendor No. Description
Anixter No. Vendor No. Description
249584 11972-712 84 in. H (43U) x 27.3 in. W x 39.6 in. D,
plexiglass front, metal rear, black
249585 11973-712 84 in. H (43U) x 27.3 in. W x 39.6 in. D, no
sides, plexiglass front, metal rear, black
249586 11974-702 84 in. H (43U) x 27.6 in. W x 38.1 in. D,
frame only
Air Dam Kit/Rail Seal Kit - Cabinet Airflow Baffles
Anixter No. Vendor No. Description
314261 13336-710 Air Dam kit for 45U cabinet, 84 in. H x
19 in. W
314262 13336-711 78 in. H (42U) x 19 in. W
314263 13336-712 72 in. H (38U) x 19 in. W
314265 13336-720 84 in. H (45U) x 23 in. W
314266 13336-721 78 in. H (42U) x 23 in. W
314267 13336-722 72 in. H (38U) x 23 in. W
Anixter No. Vendor No. Description
314261 13336-710 Air Dam kit for 45U cabinet, 84 in. H x
19 in. W
314262 13336-711 78 in. H (42U) x 19 in. W
314263 13336-712 72 in. H (38U) x 19 in. W
Continued on next page >>
5.8
Request the latest literature and guides from Anixter.
1.800.ANIXTER • anixter.com/literature
Racks, Cabinets and Cable Management
Chatsworth Products, Inc. (CPI)
Physical Infrastructure Solutions
D
(continued)
Air Dam Kit/Rail Seal Kit - Cabinet Airflow Baffles
AIR DAM KIT FOR F-SERIES TERAFRAME CABINETS
RAIL SEAL KIT FOR GF-SERIES GLOBALFRAME CABINETS
Does not include a top or bottom baffle.
-
Index1.Support and Supplies//Physical Support Structure//Cabinets
CHATSWORTH PRODUCTS INC (CPI) PR68099V2-531453.tif
Snap-In Filler Panels are used with the Air Dam Kit and Rail Seal Kit to seal open
rack-mount spaces (U) in cabinets to block hot exhaust air from recirculating around
equipment. Snap-In Filler Panels fit 19 in. EIA cabinets with square-punched rails.
FEATURES
•Use on M-Series MegaFrame, C-Series SlimFrame, GF-Series GlobalFrame,
F-Series TeraFrame and N-Series TeraFrame Network Cabinet Systems with
square-punched 19 in. wide equipment mounting rails
•Available in 1U and 2U heights
•Black plastic
-
Index1.Support and Supplies//Physical Support Structure//Cabinets
CHATSWORTH PRODUCTS INC (CPI) PR68100V2-531459.tif

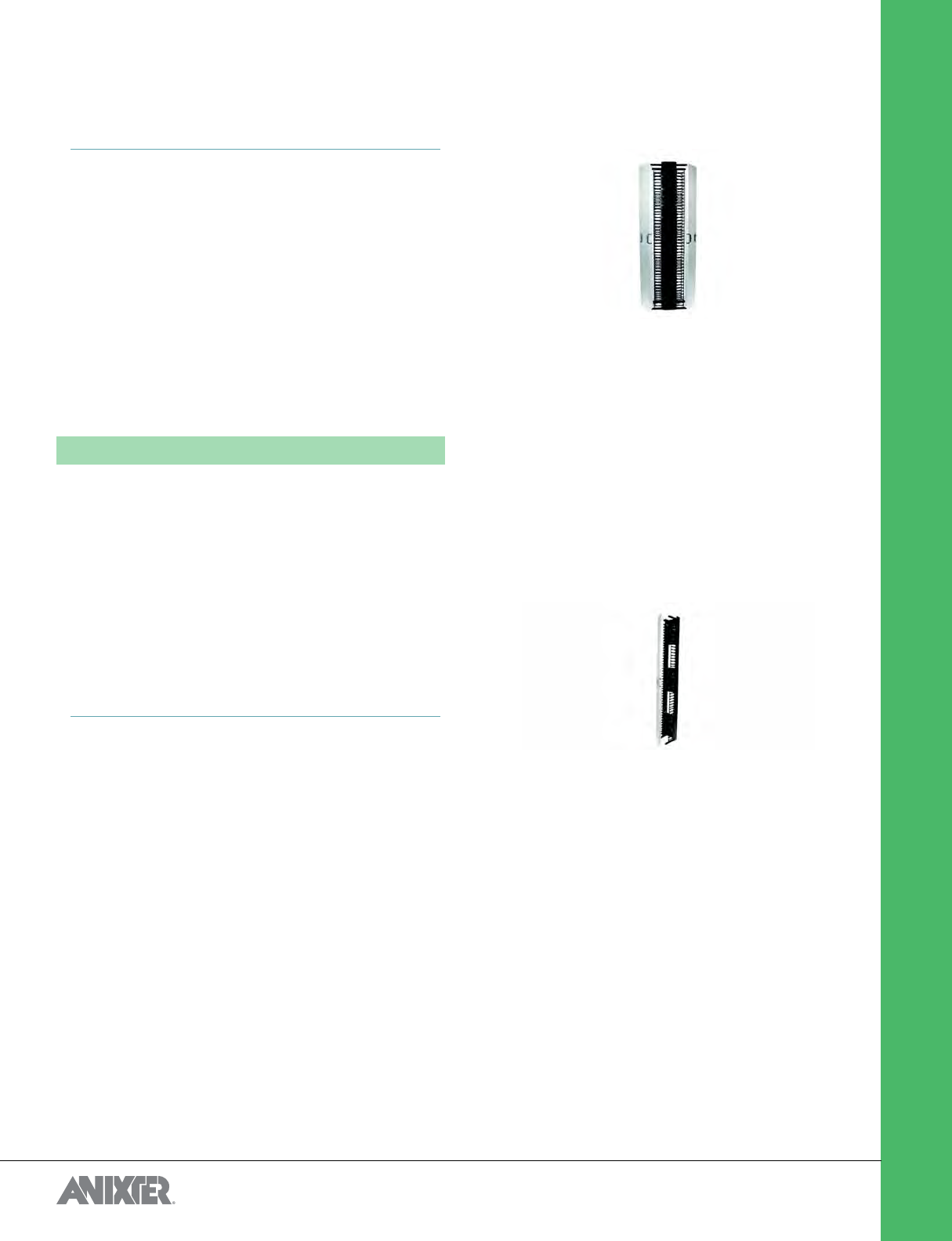

Vertical Exhaust Duct is used with the Air Dam Kit and Snap-In Filler Panels on an
F-Series TeraFrame Cabinet to create a ducted exhaust cabinet. Use on cabinets with
a perforated front door, a solid rear door, solid side panels and a server top panel
with a knockout for the duct. For best results, add a Bottom Panel and a Rear Door
Sealing Kit. Vertical Exhaust Duct isolates and guides hot exhaust air from the back of
the cabinet to an overhead drop ceiling plenum to create a closed hot-air return.
FEATURES
•Use on F-Series TeraFrame Cabinet Systems that are 47.1 in. or 51.0 in. deep
•Available in two heights: short (20 in. to 34 in. high) and tall (34 in. to
60 in. high)
•Can be ordered as an accessory or preinstalled on the cabinet
•Other colors available; call for products not listed
•Also available for GF-Series GlobalFrame Cabinet
Anixter No. Vendor No. Description
366374 34521-C05 Air Dam Kit for 84 in. H (45U) x
23.6 in. W
342060 34523-C05 Air Dam Kit for 84 in. H (45U) x
31.5 in. W
Anixter No. Vendor No. Description
431961 25252-702 For 48U, 89.8 in. H x 31.5 in. W cabinet
431960 25252-700 For 42U, 79.3 in. H x 31.5 in. W cabinet
Snap-In Filler Panel
Anixter No. Vendor No. Description
324468 34537-000 1U Snap-In Filler Panel, 19 in. W, plastic,
black, one each
324469 34537-001 1U Snap-In Filler Panel, 19 in. W, plastic,
black, six each
360782 34537-002 1U Snap-In Filler Panel, 19 in. W, plastic,
black, 50 each
324470 34538-000 2U Snap-In Filler Panel, 19 in. W, plastic,
black, one each
324471 34538-001 2U Snap-In Filler Panel, 19 in. W, plastic,
black, six each
424125 34538-002 2U Snap-In Filler Panel, 19 in. W, plastic,
black, 50 each
Vertical Exhaust Duct
Anixter No. Vendor No. Description
387658 34370-C00 Vertical Exhaust Duct for 23.6 in. W
cabinets, 20 in. to 34 in. H
387659 34370-C01 Vertical Exhaust Duct for 23.6 in. W
cabinets, 34 in. to 60 in. H
445194 34370-C02 Vertical Exhaust Duct for 31.5 in. W
cabinets, 20 in. to 34 in. H
445196 34370-C03 Vertical Exhaust Duct for 31.5 in. W
cabinets, 34 in. to 60 in. H
338345 34570-C00 Airflow Director
493080 35085-C12 Bottom panel for 23.6 in. W x
47.1 in. D cabinet
493081 35085-C16 Bottom panel for 23.6 in. W x
51.0 in. D cabinet
493082 35085-C46 Bottom panel for 31.5 in. W x
47.1 in. D cabinet
493083 35085-C50 Bottom panel for 31.5 in. W x
51.0 in. D cabinet
445200 34573-C01 Rear Door Sealing Kit for
31.5 in. W cabinets
338346 34573-000 Rear Door Sealing Kit for 23.6 in. or
27.6 in. W cabinets
Products. Technology. Services. Delivered Globally.
1.800.ANIXTER • anixter.com 5.9
Racks, Cabinets and Cable Management
Chatsworth Products, Inc. (CPI)
Physical Infrastructure Solutions
--
Index1.Support and Supplies//Physical Support Structure//Cabinets
CHATSWORTH PRODUCTS INC (CPI) PR23428V2-164887.tif
The CUBE-iT PLUS Cabinet System is a series of wall-mounted and floor-supported
telecommunications enclosures designed to secure communications equipment for a
cross connect. Available in five heights, 18 sizes. There are two basic cabinet styles:
wall-mounted and wall-mounted/floor-supported. The 24 in., 36 in. and 48 in. H
cabinets are wall-mounted and support 200 lb. The 60 in. and 72 in. H cabinets are
wall-mounted and floor-supported by a wheeled base under the main body of the
cabinet and support 1,000 lb. Provides a secure wall-mounted enclosure for small
amounts of network and security equipment when storage space is limited and
equipment security is required.
FEATURES
•UL Listed (24 in., 36 in., 48 in. H wall-mount cabinets only)
•Locking solid-panel front door, locking 5 in. deep subpanel, keyed alike
•Includes one pair of adjustable depth threaded equipment mounting rails
•19 in. wide, EIA-310-E-compliant Universal hole pattern (5/8 in.-5/8 in.-1/2 in.)
•Vented side panels, add fan kits to increase air changes
•Multiple conduit knockouts on the rear subpanel
•Contact your local sales representative for accessories not shown below
CUBE-IT PLUS WALL-MOUNTED CABINETS, SOLID FRONT DOORS
CUBE-IT PLUS WALL-MOUNTED, FLOOR-SUPPORTED CABINETS, SOLID FRONT DOORS
CUBE-IT PLUS ACCESSORIES
--
Index1.Support and Supplies//Physical Support Structure//Cabinets
CHATSWORTH PRODUCTS INC (CPI) PR23419V2-164907.tif

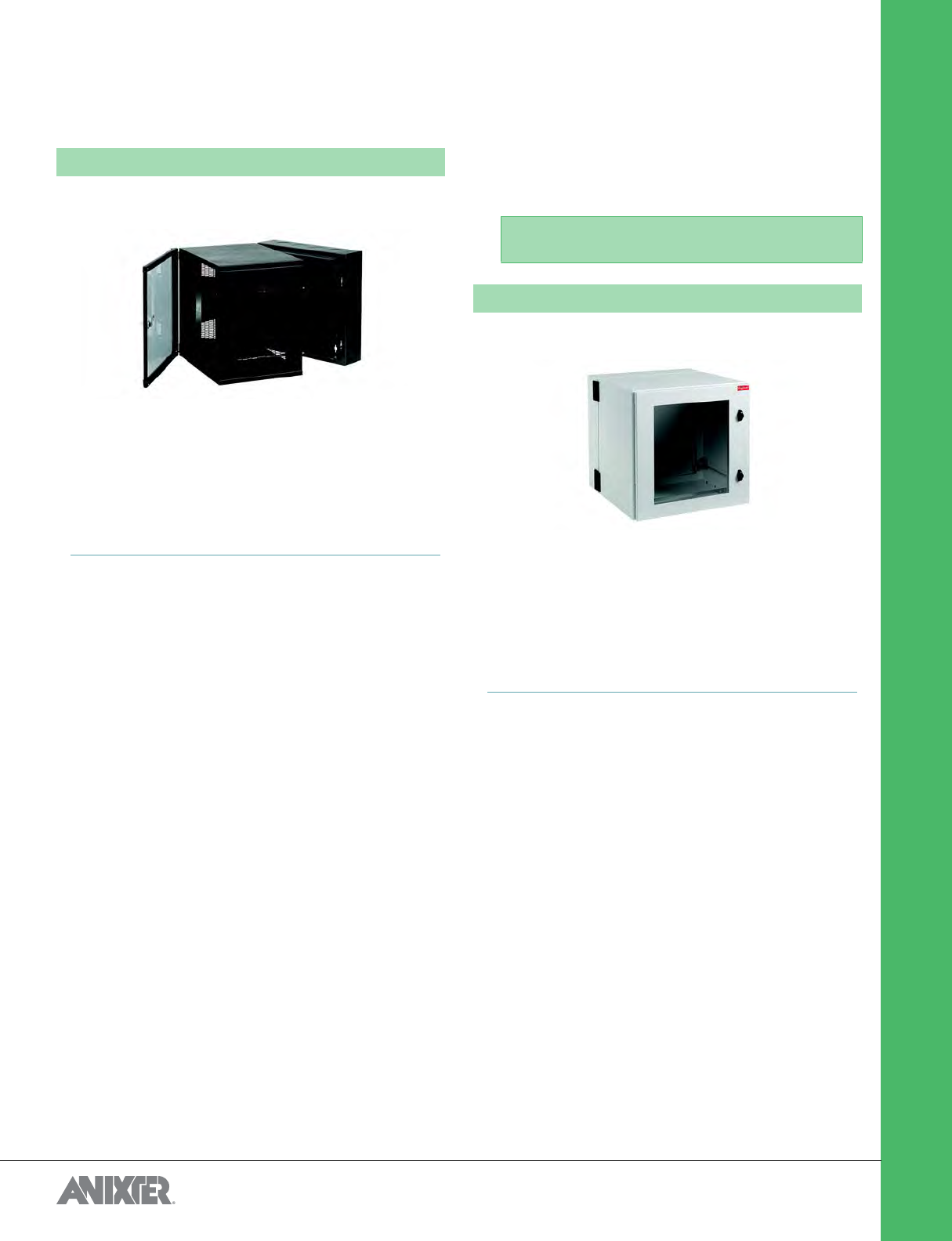

The space-saving ThinLine II safely secures 19 in. rack-mount network equipment
with minimal intrusion into the room. Individual rails can be easily rotated for
horizontal or vertical mounting and then bolted into place, making patch panel
punch-down easier. The cabinet can hold a server, switch, horizontal cable manager,
patch panel, fiber service loop and fiber optic patch panel with room to
accommodate additional mounting needs.
In addition, the 26 in. H cabinet can be mounted so that the removable "top" panel
becomes a side panel. A 4 in. x 6 in. opening in the rear of the cabinet and 3/4 in. and
1 1/2 in. diameter knockouts allow cable entry and exit.
FEATURES
•Door features rounded edges and corners and can be mounted to open from
either right or left
•Removable top panel provides direct access to equipment without disturbing
other devices
•Louvers and optional fan accessory provide ventilation
•Cabinet includes a 2 in. x 4 in. junction box to hold an optional
surge-suppressed duplex outlet, eliminating the need for a power strip
•Ships fully assembled with mounting hardware
•Static load rating is 100 lb.
•Color options are gray, white or black (change part no. suffix to -1xx for gray or
-2xx for white)

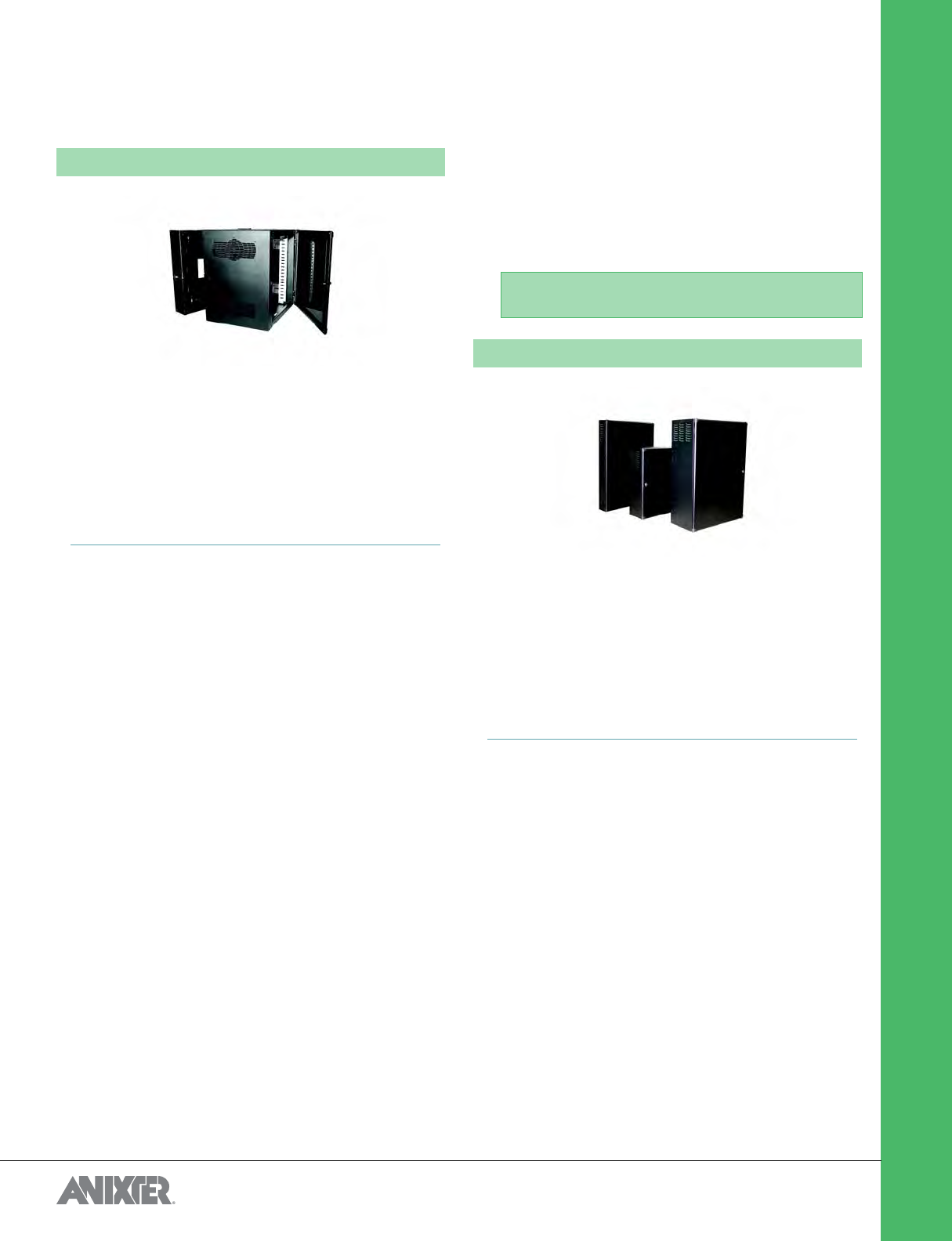

CUBE-iT PLUS Cabinet System
Anixter No. Vendor No. Description
249587 11890-724 24 in. H x 18 in. D, 12U, black
249588 11840-724 24 in. H x 24 in. D, 12U, black
249589 11996-724 24 in. H x 30 in. D, 12U, black
249590 11890-736 36 in. H x 18 in. D, 18U, black
249591 11840-736 36 in. H x 24 in. D, 18U, black
249592 11996-736 36 in. H x 30 in. D, 18U, black
249593 11890-748 48 in. H x 18 in. D, 26U, black
249594 11840-748 48 in. H x 24 in. D, 26U, black
249595 11996-748 48 in. H x 30 in. D, 26U, black
Anixter No. Vendor No. Description
371828 13491-760 60 in. H x 18 in. D, 33U, black
371833 13492-760 60 in. H x 24 in. D, 33U, black
371834 13493-760 60 in. H x 30 in. D, 33U, black
371836 13491-772 72 in. H x 18 in. D, 40U, black
371837 13492-772 72 in. H x 24 in. D, 40U, black
371838 13493-772 72 in. H x 30 in. D, 40U, black
Anixter No. Vendor No. Description
262780 12804-701 Fan kit, 115 V AC, 100 cfm, black
267380 12805-701 Fan filter kit, black
267382 12806-001 Fan replacement filters, pack of six
267384 12796-501 19 in. W x 3U 45-degree mounting
bracket for rear subpanel
Contact your local sales representative
for information about plexiglass front doors.

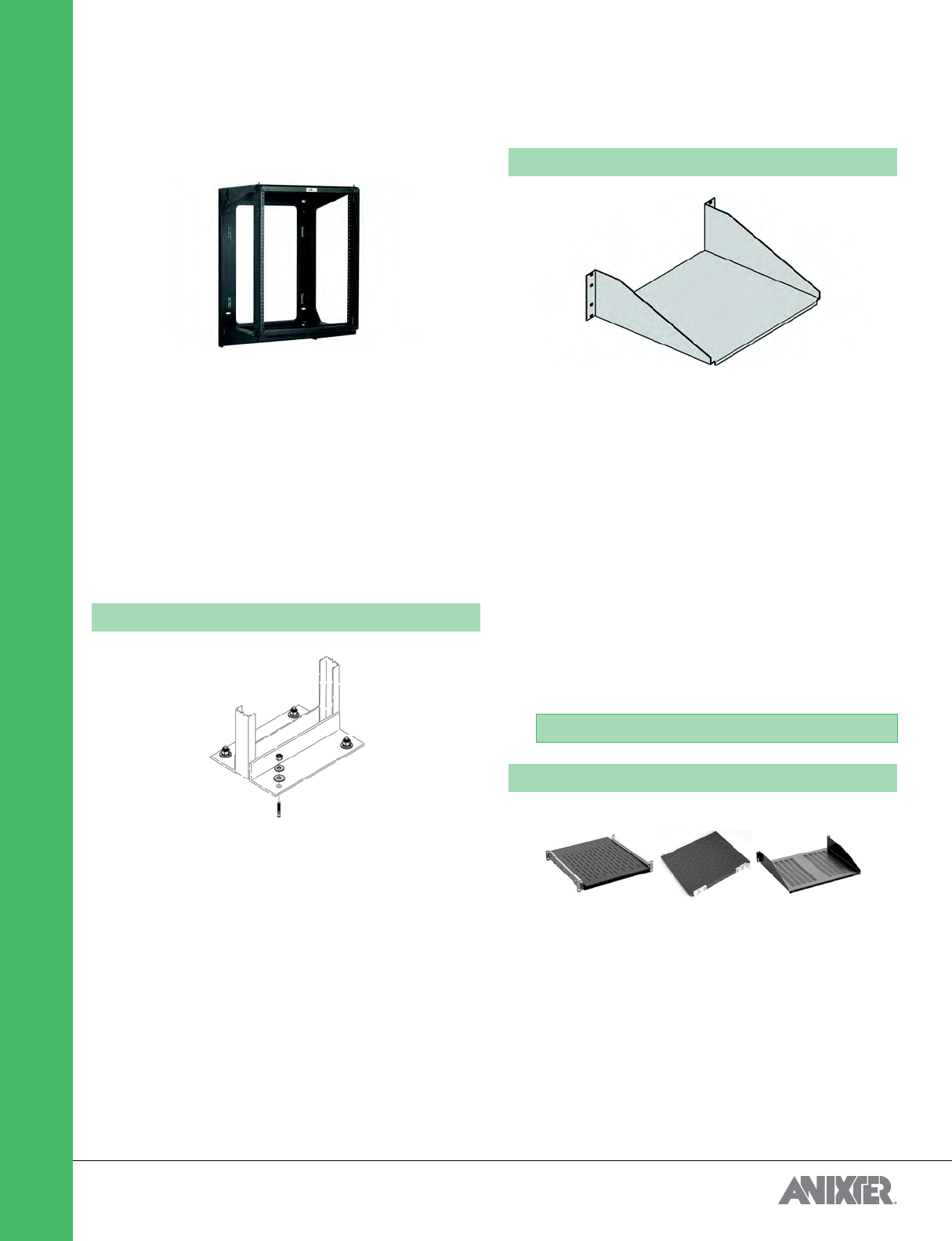

ThinLine II Wall-mount Cabinet
Anixter No. Vendor No. Description
283473 13050-713 26 in. H x 26 in. W x 12 in. D, 6U, black
283474 13050-721 36 in. H x 26 in. W x 5 in. D, 2U, black
283476 13050-722 36 in. H x 26 in. W x 8.5 D, 4U, black
283477 13050-723 36 in. H x 26 in. W x 12 in. D, 6U, black
5.10
Request the latest literature and guides from Anixter.
1.800.ANIXTER • anixter.com/literature
Racks, Cabinets and Cable Management
Chatsworth Products, Inc. (CPI)
Physical Infrastructure Solutions
D

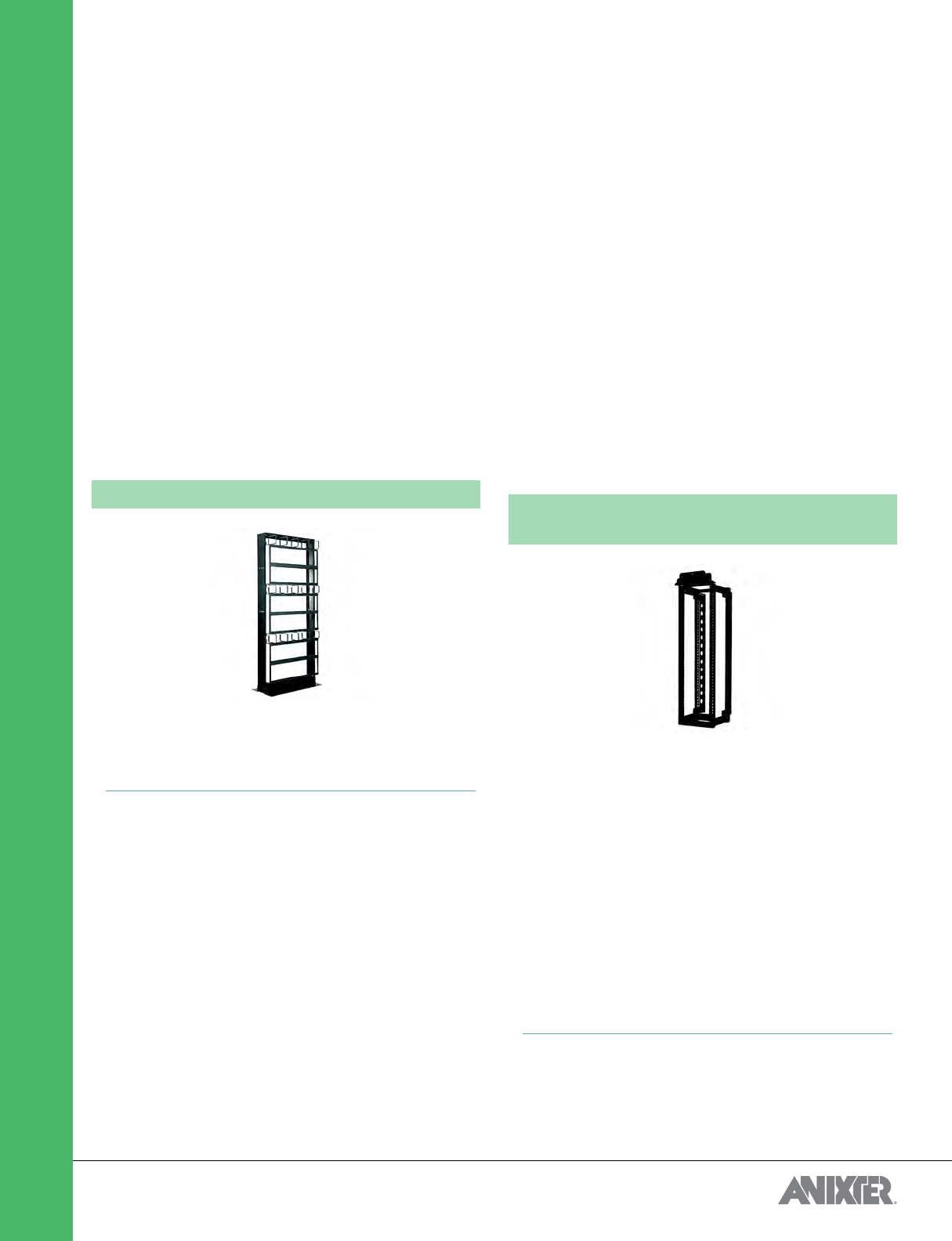

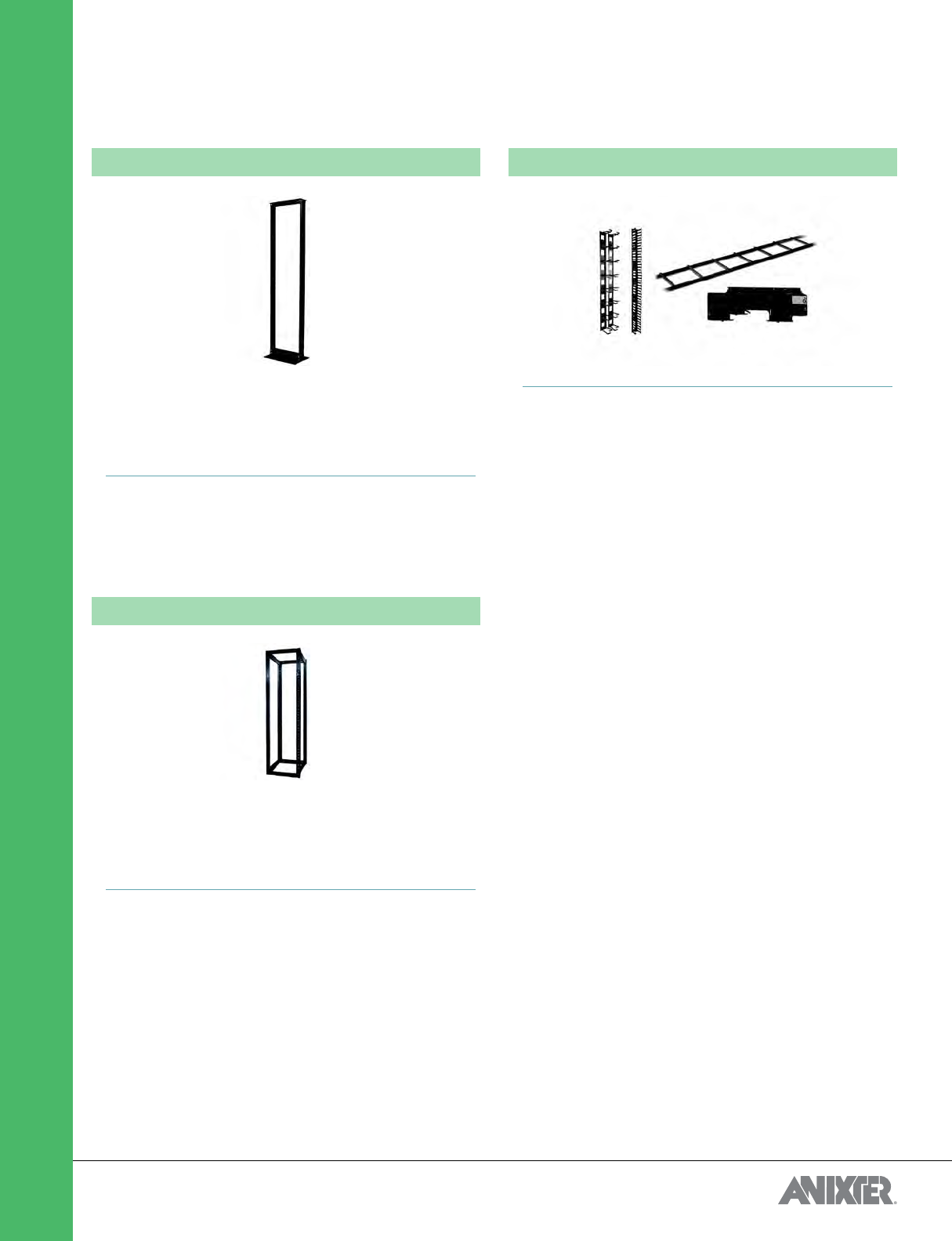

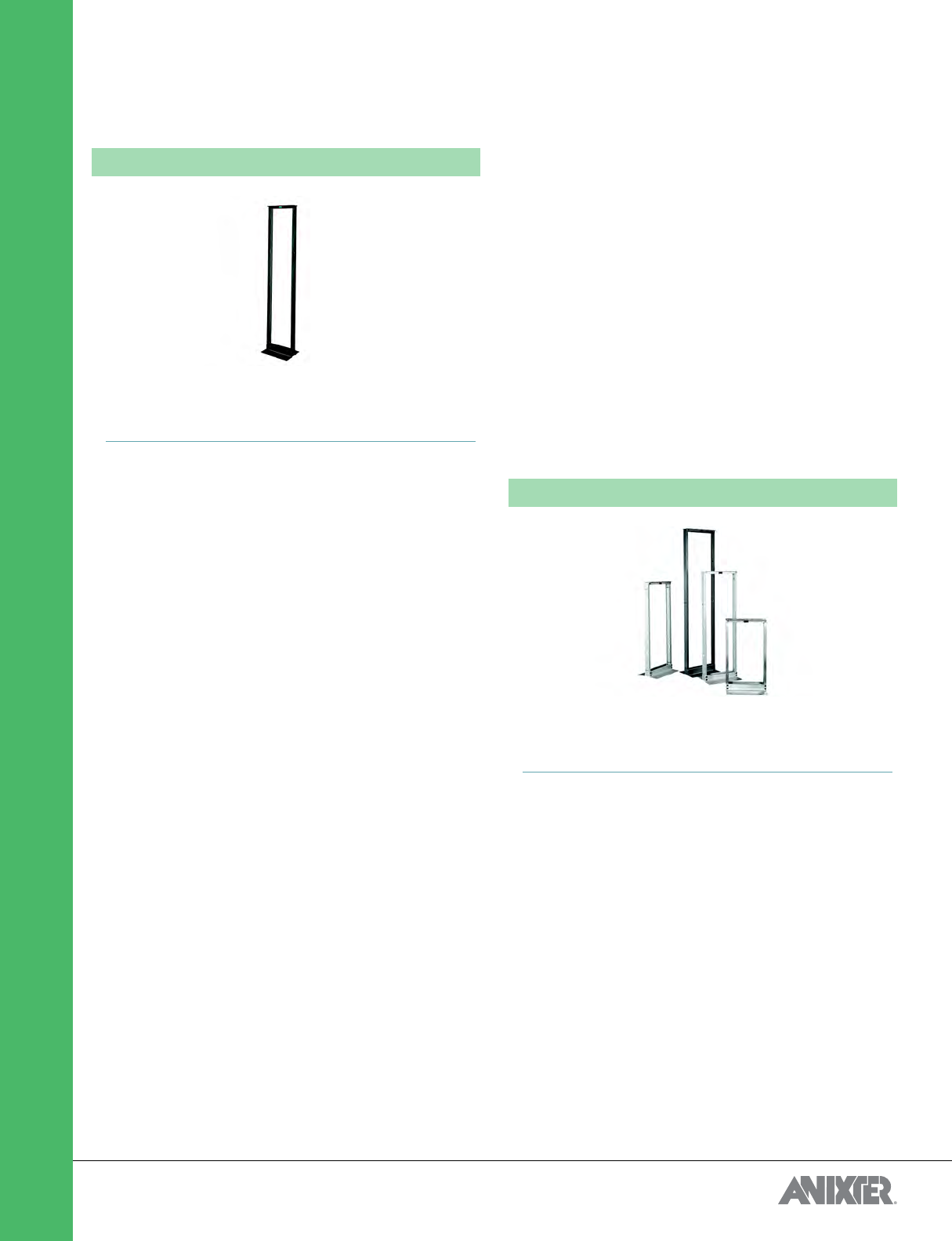

Index1.Support and Supplies//Physical Support Structure//Racks
CHATSWORTH PRODUCTS INC (CPI) PR23426V2-164878.tif

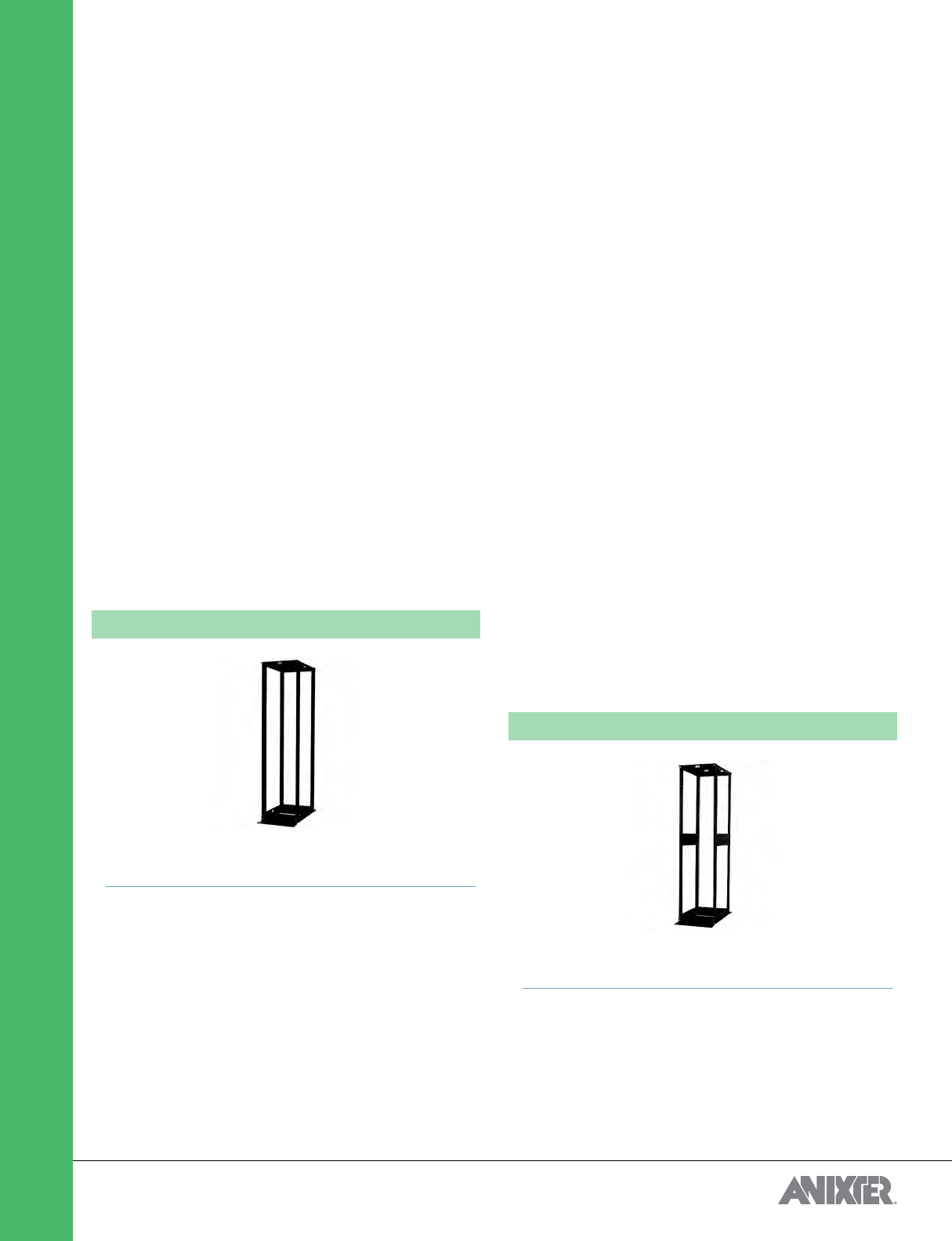

Provides direct support for panel-mount equipment, such as patch panels and
network switches and may be adapted with rack shelves to support computer/data
storage equipment.
FEATURES
•EIA-310-E-compliant, Universal hole pattern (5/8 in.-5/8 in.-1/2 in.)
•12-24 tapped equipment mounting holes
•Rack-mount spaces (U) are marked and numbered to simplify
equipment installation
•3 in. deep equipment-mounting channels
•1,000 lb. equipment load-bearing capacity (must be evenly distributed)
•Includes assembly hardware and 50 each #12-24 mounting screws
•Must be secured to building structure; order installation hardware separately
•UL Listed
•Other sizes available

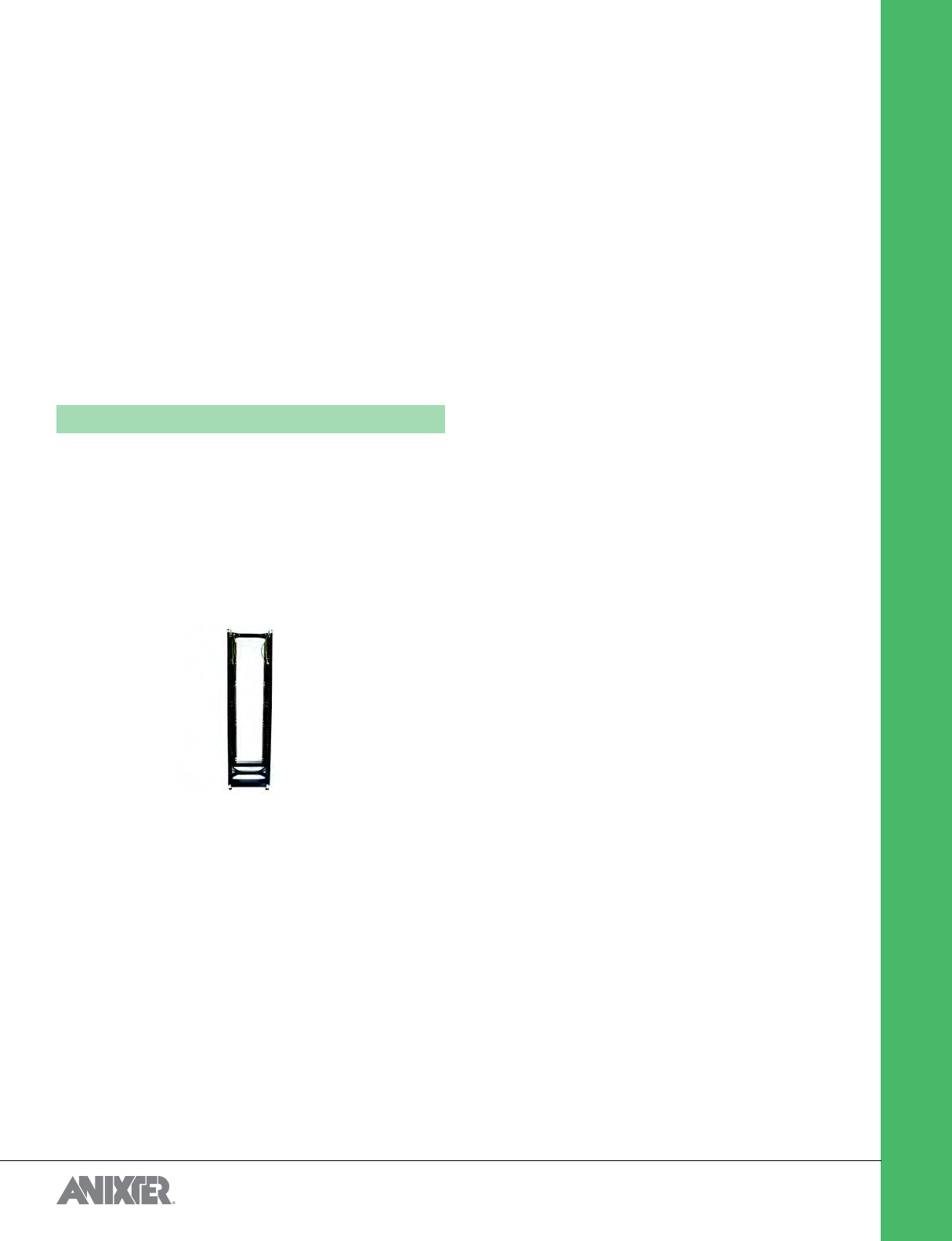

7FT. RACKS,45U
RACK ACCESSORIES
Index1.Support and Supplies//Physical Support Structure//Racks
CHATSWORTH PRODUCTS INC (CPI) pr5227V2-143879.tif
Provides direct support for panel-mount equipment, such as patch panels and
network switches and may be adapted with rack shelves to support computer/data
storage equipment.
FEATURES
•EIA-310-E-compliant Universal hole pattern (5/8 in.-5/8 in.-1/2 in.)
•12-24 tapped equipment mounting holes
•Rack-mount spaces (U) are marked and numbered to simplify
equipment installation
•3 in. deep equipment mounting channels
•1,500 lb. equipment load-bearing capacity
•Integrated masked grounding studs for quick attachment to the
grounding system
•Includes assembly hardware and 50 each 12-24 mounting screws
•Must be secured to building structure; order installation hardware separately
•Other sizes and colors available
6FT. RACKS,38U
Standard Rack
Anixter No. Vendor No. Description
179805 55053-103 7 ft. H x 19 in. W x 3 in. D, 45U, gray
170171 55053-203 7 ft. H x 19 in. W x 3 in. D, 45U, white
143592 55053-503 7 ft. H x 19 in. W x 3 in. D, 45U, clear
167074 55053-703 7 ft. H x 19 in. W x 3 in. D, 45U, black
Anixter No. Vendor No. Description
125458 40604-001 Installation kit, concrete floor, 3/8 in.
hardware, zinc
317881 40604-003 Installation kit, concrete floor, 1/2 in.
hardware, zinc
178458 40607-001 Installation kit, wood floor, 3/8 in.
hardware, zinc
128493 40605-001 Equipment mounting screws, #12-24,
zinc, 50 pack
194844 40605-005 Equipment mounting screws, #12-24,
50 pack, black
173601 30026-703 3U filler panel
173599 30026-702 2U filler panel
420004 13901-703 Velocity vertical cable manager,
single-sided, 80.5 in. H x 3.6 in. W x
9.7 in. D, black
415456 13902-703 Velocity vertical cable manager,
single-sided, 80.5 in. H x 6.0 in. W x
9.8 in. D, black
415459 13914-703 Velocity vertical cable manager,
double-sided, 80.5 in. H x 10 in. W x
17.5 in. D, black
420025 13915-703 Velocity vertical cable manager,
double-sided, 80.5 in. H x 12 in. W x
17.8 in. D, black
415483 13930-702 Velocity horizontal cable manager, 2U x
19 in. W x 5.9 in. D, black
430733 35700-701 Vertical mounting bracket kit for CPI
rack systems, adjusts 8.5 in. to
12.5 in. D
488965 P3-1F0G3 eConnect monitored PDU, with
30 outlets C13, six outlets C19, 200 -
240 V, 30 A, NEMA L6-30P plug
488974 P3-1P0G3 eConnect monitored PDU, with
30 outlets C13, six outlets C19, 208 V,
30 A, NEMA L21-30P plug
Universal Rack
Anixter No. Vendor No. Description
128266 46353-501 72 in. H x 19 in. W, clear
Anixter No. Vendor No. Description
Products. Technology. Services. Delivered Globally.
1.800.ANIXTER • anixter.com 5.11
Racks, Cabinets and Cable Management
Chatsworth Products, Inc. (CPI)
Physical Infrastructure Solutions
7FT. RACKS,45U
7.5 FT. RACKS, 48U
8FT. RACKS,51U
ACCESSORIES
Index1.Support and Supplies//Physical Support Structure//Racks
CHATSWORTH PRODUCTS INC (CPI) PR23422V2-164906.tif
The Seismic Frame Two-post Rack is designed specifically to support network
equipment in areas with seismic activity. The welded steel frame of the Seismic Frame
Two-post Rack resists the swaying motion caused by earthquakes to reduce the
amount of vibration transferred through the rack to equipment and is less likely to be
damaged during a seismic event than nonseismic racks, which means quicker
network recovery times.
FEATURES
•19 in. or 23 in. equipment support on threaded or square-punched
mounting rails
•Equipped with two pairs of adjustable depth mounting rails
•Rack-mount spaces (U) are marked and numbered on rails and rails
are reversible
•Fully bonded frame construction with two masked grounding locations
•Includes one two-mounting hole ground terminal block
•Convenient cable distribution to equipment with unique built-in mounting
locations for attaching T-shape cable management fingers
•Independently seismic tested and certified; meets Telcordia Technologies, Inc.
GR-63-CORE Network Equipment Building Systems (NEBS) Zone 4 requirements
•High-strength steel body, welded construction
•1,000 lb. load rating
•UL Listed
•Ships fully assembled
SEISMIC FRAME TWO-POST RACK
7 ft. H x 19 in. W, 44U
Anixter No. Vendor No. Description
184202 46383-703 84 in. H x 23 in. W, black
164164 46353-703 84 in. H x 19 in. W, black
147836 46353-203 84 in. H x 19 in. W, white
125448 46383-103 84 in. H x 23 in. W, gray
102060 46353-103 84 in. H x 19 in. W, gray
086047 46353-503 84 in. H x 19 in. W, clear
162466 48353-503 84 in. H x 19 in. W, UL Listed, clear
Anixter No. Vendor No. Description
193489 46353-705 90 in. H x 19 in. W, black
155766 46353-505 90 in. H x 19 in. W, clear
160238 46353-105 90 in. H x 19 in. W, gray
Anixter No. Vendor No. Description
095976 46353-515 96 in. H x 19 in. W, clear
164557 46353-215 96 in. H x 19 in. W, white
198924 46353-715 96 in. H x 19 in. W, black
164780 46383-215 96 in. H x 23 in. W, white
Anixter No. Vendor No. Description
125458 40604-001 Installation kit, concrete floor, 3/8 in.
hardware, zinc
178458 40607-001 Installation kit, wood floor, 3/8 in.
hardware, zinc
128493 40605-001 Equipment mounting screws, 12-24,
zinc, 50 pack
194844 40605-005 Equipment mounting screws, 12-24,
50 pack, black
173599 30026-702 2U filler panel
173601 30026-703 3U filler panel
375567 35511-703 Evolution g1 single-sided vertical cable
manager, black, 7 ft. H x 6 in. W x
13.2 in. D
377911 35512-703 Evolution g1 single-sided vertical cable
manager, black, 7 ft. H x 8 in. W x
13.2 in. D
368556 35523-703 Evolution g2 double-sided vertical cable
manager, black, 7 ft. H x 10 in. W x
24.5 in. D
368555 35524-703 Evolution g2 double-sided vertical cable
manager, black, 7 ft. H x 12 in. W x
24.5 in. D
377910 35525-703 Evolution g2 double-sided vertical cable
manager, black, 7 ft. H x 15 in. W x
24.5 in. D
368558 35441-702 Evolution horizontal cable manager, 2U x
19 in. W x 8.2 in. D, black
430733 35700-701 Vertical mounting bracket kit for CPI
rack systems, adjusts 8.5 in. to
12.5 in. D
488965 P3-1F0G3 eConnect monitored PDU, with
30 outlets C13, six outlets C19, 200 -
240 V, 30 A, NEMA L6-30P plug
488974 P3-1P0G3 eConnect monitored PDU, with
30 outlets C13, six outlets C19, 208 V,
30 A, NEMA L21-30P plug
Seismic Frame Two-post Rack
Anixter No. Vendor No. Description
377873 13853-703 12-24 threaded, zinc rails, black
377874 13854-703 Square-punched, zinc rails, black
377875 13855-703 12-24 threaded, painted rails, black
377876 13856-703 Square-punched, painted rails, black
Anixter No. Vendor No. Description
Continued on next page >>
5.12
Request the latest literature and guides from Anixter.
1.800.ANIXTER • anixter.com/literature
Racks, Cabinets and Cable Management
Chatsworth Products, Inc. (CPI)
Physical Infrastructure Solutions
D
(continued)
Seismic Frame Two-post Rack
ACCESSORIES
-
Index1.Support and Supplies//Physical Support Structure//Accessories

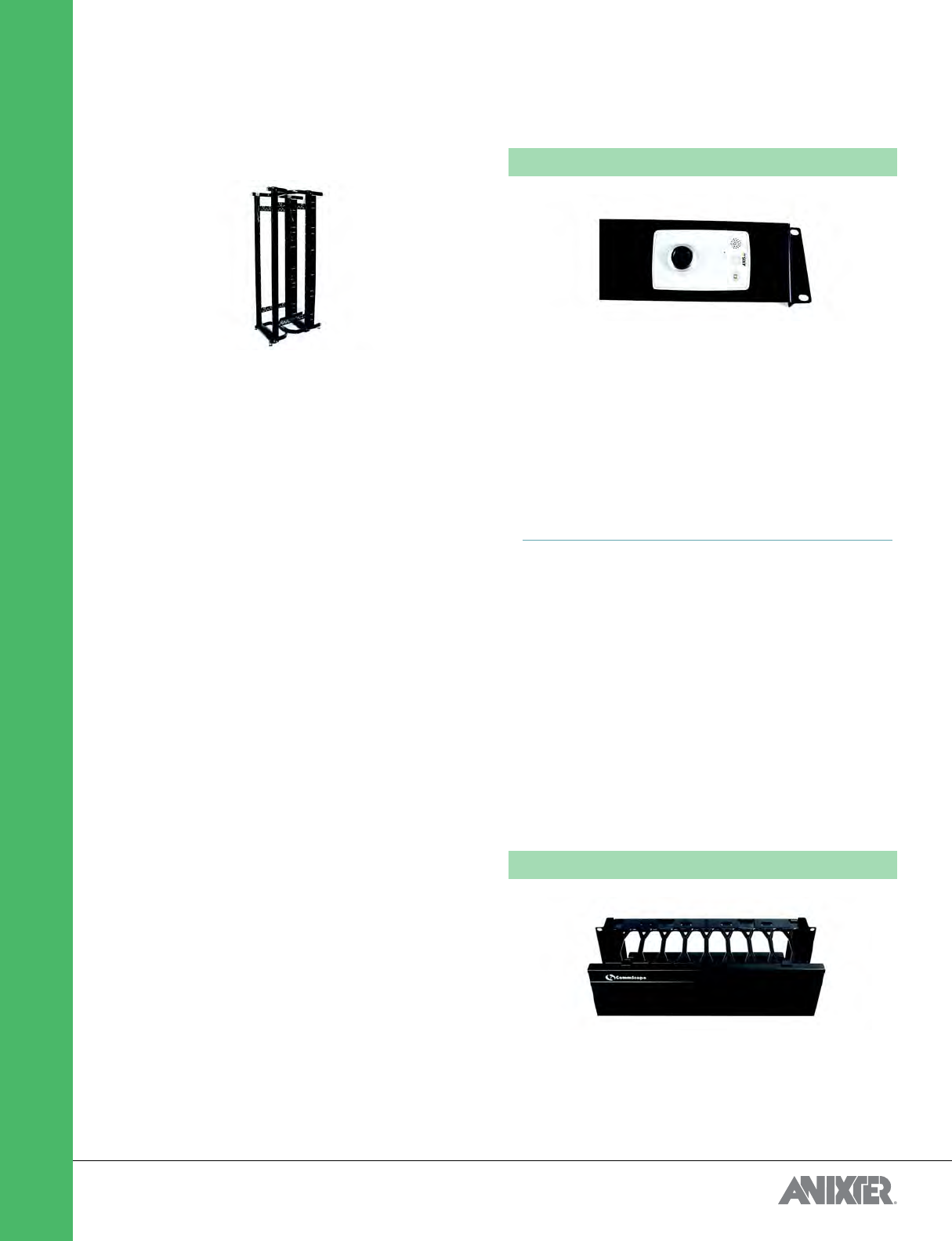

CHATSWORTH PRODUCTS INC (CPI) PR6816V2-143896.tif
Used in telephone entrance facilities of buildings over 100,000 sq. ft. to support
overflow of protector brackets (with 66-style foot prints) or within the equipment
room or telecommunications room to support cross-connect or equipment
connections using 66-style termination blocks.
FEATURES
•Strong, lightweight aluminum construction, ships fully assembled
•Includes 6 in. deep Standard Rack and 66-block mounting brackets
•Does not include 66 Series Termination Blocks
•Available with or without 89D brackets
•19 in. wide frame is available with 1,200-pair (front) or 2,400-pair (front and
rear) density
•19 in. wide frame is populated with four columns by six rows of 66 blocks
per side
•35 in. wide frame is available with 2,700-pair (front) or 5,400-pair (front and
rear) density
•35 in. wide frame is populated with nine columns by six rows of 66 blocks
per side
•Use accessory rack installation kit (Part No. 125458) to mount securely to floor
•Individual racks, block or protector mounting brackets are also available
•Other colors available

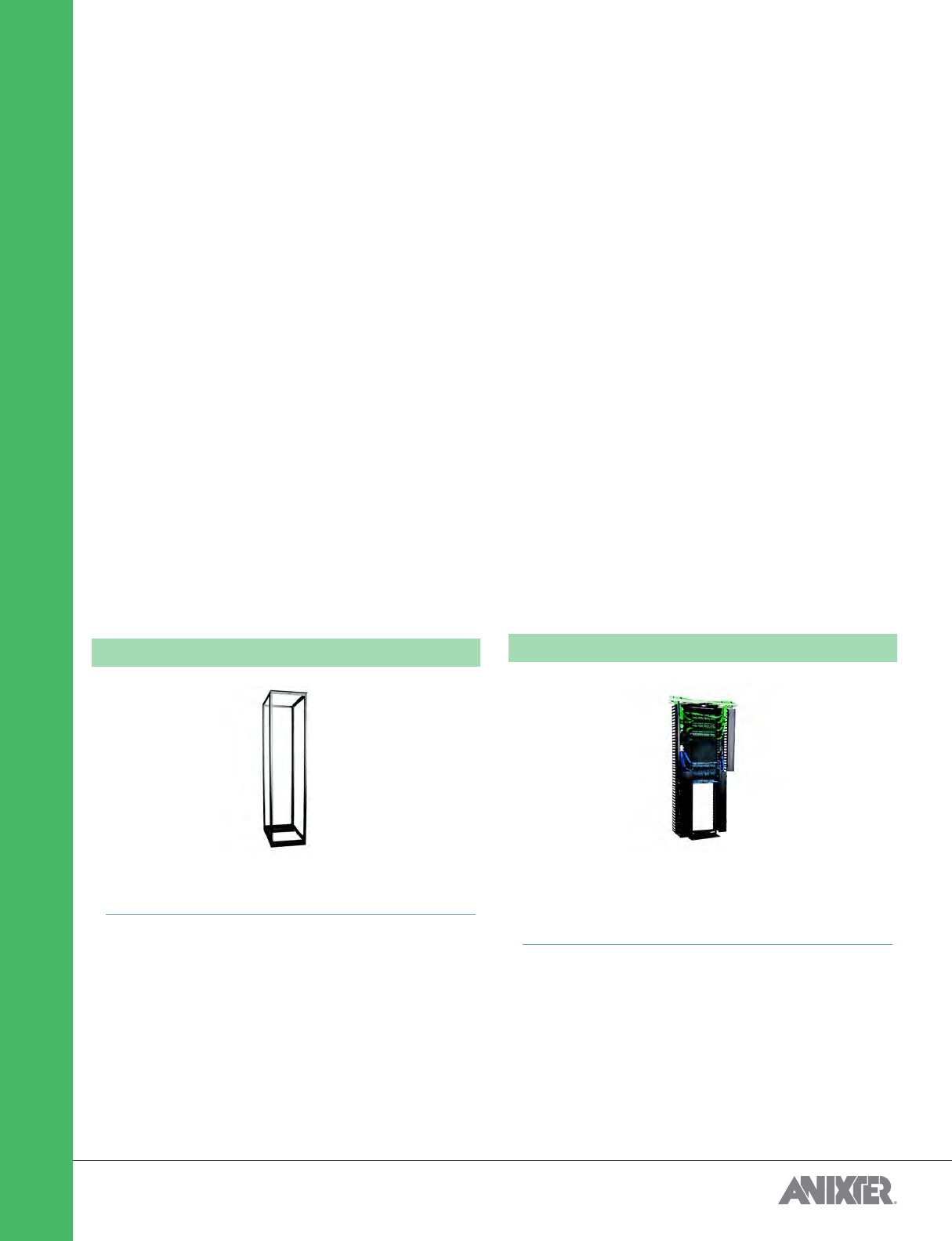

MDF WITH 89D BRACKETS
MDF WITHOUT 89D BRACKETS
Index1.Support and Supplies//Physical Support Structure//Racks
CHATSWORTH PRODUCTS INC (CPI) PR23423V2-164884.tif
The Adjustable Rail QuadraRack (ARQR) and the Adjustable Rail ServerRack (ARSR)
provide sturdy, versatile solutions for supporting rack-mount security, network,
computer server and data storage equipment in data centers, computer equipment
rooms and other IT facilities. Both racks offer the strength and stability of an
enclosure in an open four-post mounting system that provides easy access to
equipment and cabling. Available in 23.62 in. or 35.43 in. fixed depth four-post
frames with adjustable rear mounting rails, the front-to-rear mounting depths of the
ARQR and ARSR are adjustable, helping to match equipment mounting requirements.
The ARQR contains 12-24 threaded mounting rails for data communications
applications and the ARSR has square-punched mounting rails for server and data
storage applications. Each rack includes a Top-Mount Cable Waterfall Tray with an
adjustable radius drop to provide easy side-to-side routing of patch cords and
enhanced cable management. The ARQR and ARSR can be used with any CPI cabling
section or Cable Guide Kit and allows for the attachment of CPI Cable Runway to the
top of the rack with J-bolts, a Cable Runway Elevation Kit or a Cable Runway
Mounting Bracket.
FEATURES
•Available in three heights and two depths
•19 in. equipment support on threaded or square-punched EIA-310-E mounting
rails with Universal hole spacing
•Rack-mount spaces (U) are marked and numbered on front mounting rails
Anixter No. Vendor No. Description
377886 13704-703 Seismic Frame Two-post Rack vertical
cabling section, black
377887 13699-701 VCS Vertical Cabling Section offset
mounting bracket kit, black
377889 13969-001 Cable management fingers kit,
single-sided, black
377890 13969-002 Cable management fingers kit,
double-sided, black
377891 12575-701 Top-Mount Cable Waterfall Tray, black
377893 13697-001 Vertical power strip mounting hardware
kit, clear
377894 13698-001 Duplex electrical outlet box, zinc
377895 13702-001 Seismic Frame Two-post Rack concrete
floor anchor kit, zinc
MDF-66 Block Mounting System
Anixter No. Vendor No. Description
220159 13424-512 7 ft. H x 19 in. W, single-sided,
1,200-pair, clear
220162 13424-524 7 ft. H x 19 in. W, double-sided,
2,400-pair, clear
220163 13425-527 7 ft. H x 35 in. W, single-sided,
2,700-pair, clear
220164 13425-554 7 ft. H x 35 in. W, double-sided,
5,400-pair, clear
Anixter No. Vendor No. Description
195036 12577-512 7 ft. H x 19 in. W, single-sided,
1,200-pair, clear
195040 12577-524 7 ft. H x 19 in. W, double-sided,
2,400-pair, clear
195044 12578-527 7 ft. H x 35 in. W, single-sided,
2,700-pair, clear
Adjustable Rail QuadraRack (ARQR) and Adjustable Rail
ServerRack (ARSR)
Products. Technology. Services. Delivered Globally.
1.800.ANIXTER • anixter.com 5.13
Racks, Cabinets and Cable Management
Chatsworth Products, Inc. (CPI)
Physical Infrastructure Solutions
•Front mount rails can be flipped so that rack-mount space (U) numbering can
start at the top or the bottom
•Rear mounting rails adjust in depth to match equipment requirements
•Includes one Top-Mount Cable Waterfall Tray with adjustable radius drops
•Includes one Two Mounting Hole Ground Terminal Block and
antioxidant compound
•Steel construction
•Static load rating of 2,200 lb.
•UL Listed
ADJUSTABLE RAIL QUADRARACK AND SERVERRACK
ACCESSORIES
Index1.Support and Supplies//Physical Support Structure//Racks
CHATSWORTH PRODUCTS INC (CPI) PR20302V2-71440.tif
The Adjustable ServerRack and Adjustable QuadraRack are four-post frames that can
be adjusted in depth in 1 in. increments during assembly. Each rack has seven depth
settings. The Adjustable ServerRack has square-punched mounting rails that allow
the thread to be changed to match server equipment requirements, and the
Adjustable QuadraRack has threaded 12-24 equipment mounting holes for quick
installation of patch panels and switches.
FEATURES
•19 in. W, adjustable depth four-post frame
•Threaded or square-punched equipment mounting channels with EIA-310-E
Universal hole spacing
•Supports up to 2,000 lb. of equipment
•UL Listed
•Includes assembly and rack-mount hardware
•Must be secured to building structure; order installation hardware separately
•Other sizes and colors available
ADJUSTABLE SERVERRACK (SQUARE-PUNCHED)
ADJUSTABLE QUADRARACK (THREADED 12-24)
ADJUSTABLE QUADRARACK ACCESSORIES
Anixter No. Vendor No. Description
377902 15251-703 84 in. H (45U) x 23.6 in. W x 23.62 in. D,
12-24 threaded rails, black
375571 15252-703 84 in. H (45U) x 23.6 in. W x 35.43 in. D,
12-24 threaded rails, black
377903 15253-703 84 in. H (45U) x 23.6 in. W x 23.62 in. D,
square-punched rails, black
377904 15254-703 84 in. H (45U) x 23.6 in. W x 35.43 in. D,
square-punched rails, black
Anixter No. Vendor No. Description
377905 15285-701 Equipment support rail, 23.62 in. D,
200 lb. capacity, black
377906 15285-702 Equipment support rail, 35.43 in. D,
200 lb. capacity, black
377907 15275-701 Top-Mount Cable Waterfall Tray, 6 in. W x
5.2 in. D, black
377908 15286-003 Cable guide kit, 45U rack, snaps to one
mounting rail, aligns to U
locations, black
125458 40604-001 Installation kit, concrete floor, 3/8 in.
hardware, zinc
178458 40607-001 Installation kit, wood floor, 3/8 in.
hardware, zinc
375567 35511-703 Evolution g1 single-sided vertical cable
manager, black, 7 ft. H x 6 in. W x
13.2 in. D
377911 35512-703 Evolution g1 single-sided vertical cable
manager, black, 7 ft. H x 8 in. W x
13.2 in. D
377912 35513-703 Evolution g1 single-sided vertical cable
manager, black, 7 ft. H x 10 in. W x
13.2 in. D
375568 35514-703 Evolution g1 single-sided vertical cable
manager, black, 7 ft. H x 12 in. W x
13.2 in. D
377913 35515-703 Evolution g1 single-sided vertical cable
manager, black, 7 ft. H x 15 in. W x
13.2 in. D
368558 35441-702 Evolution horizontal cable manager, 2U x
19 in. W x 8.2 in. D, black
Adjustable ServerRack and Adjustable QuadraRack
Anixter No. Vendor No. Description
353022 15211-703 7 ft. H x 19 in. W x 15.7 in. to 21.6 in. D,
45U, black
Anixter No. Vendor No. Description
353024 15215-703 7 ft. H x 19 in. W x 15.7 in. to 21.6 in. D,
45U, black
Anixter No. Vendor No. Description
353026 15255-701 Vented shelf, 19 in. W x 1U x 13.8 in. D,
for 15.7 in. to 21.6 in. D rack, 200 lb.
capacity, black
125458 40604-001 Installation kit, concrete floor, 3/8 in.
hardware, zinc
317881 40604-003 Installation kit, concrete floor, 1/2 in.
hardware, zinc
178458 40607-001 Installation kit, wood floor, 3/8 in.
hardware, zinc
128493 40605-001 Equipment mounting screws, 12-24,
zinc, 50 pack
194844 40605-005 Equipment mounting screws, 12-24,
50 pack, black
173601 30026-703 3U filler panel
173599 30026-702 2U filler panel
Continued on next page >>
5.14
Request the latest literature and guides from Anixter.
1.800.ANIXTER • anixter.com/literature
Racks, Cabinets and Cable Management
Chatsworth Products, Inc. (CPI)
Physical Infrastructure Solutions
D
(continued)
Adjustable ServerRack and Adjustable QuadraRack
Index1.Support and Supplies//Physical Support Structure//Racks
CHATSWORTH PRODUCTS INC (CPI) pr5814V2-9681.tif
The QuadraRack 4-Post Frame provides direct support for data/network equipment
with two pairs of fixed-position threaded equipment mounting channels.
FEATURES
•19 in. wide x 29 in. deep threaded equipment-mounting channels with
EIA-310-E Universal hole spacing
•Supports up to 2,000 lb. of equipment
•Includes assembly hardware and 100 each 12-24 mounting screws
•Must be secured to building structure; order installation hardware separately
•Other sizes and colors available
4-POST FRAME
ACCESSORIES
Index1.Support and Supplies//Physical Support Structure//Racks
CHATSWORTH PRODUCTS INC (CPI) PR6798V2-36184.tif
The QuadraRack ServerFrame provides direct support for server equipment with two
pairs of fixed-position square-punched equipment mounting channels.
FEATURES
•19 in. W x 29 in. deep square-punched equipment-mounting channels with
EIA-310-E Universal hole spacing
•Supports up to 1,000 lb. of equipment
•Includes assembly hardware, order mounting hardware separately
•Must be secured to building structure; order installation hardware separately
Anixter No. Vendor No. Description
420004 13901-703 Velocity vertical cable manager,
single-sided, 80.5 in. H x 3.6 in. W x
9.7 in. D, black
415456 13902-703 Velocity vertical cable manager,
single-sided, 80.5 in. H x 6.0 in. W x
9.8 in. D, black
415457 13904-703 Velocity vertical cable manager,
single-sided, 80.5 in. H x 10 in. W x
10.3 in. D, black
420013 13905-703 Velocity vertical cable manager,
single-sided, 80.5 in. H x 12 in. W x
10.4 in. D, black
415483 13930-702 Velocity horizontal cable manager, 2U x
19 in. W x 5.9 in. D, black
430733 35700-701 Vertical mounting bracket kit for CPI
rack systems, adjusts 8.5 in. to
12.5 in. D
488965 P3-1F0G3 eConnect monitored PDU, with
30 outlets C13, six outlets C19, 200 -
240 V, 30 A, NEMA L6-30P plug
488974 P3-1P0G3 eConnect monitored PDU, with
30 outlets C13, six outlets C19, 208 V,
30 A, NEMA L21-30P plug
QuadraRack 4-Post Frame
Anixter No. Vendor No. Description
249553 50120-703 7 ft. H x 19 in. W x 29 in. D, 45U, black
249554 50120-715 8 ft. H x 19 in. W x 29 in. D, 51U, black
Anixter No. Vendor No. Description
125458 40604-001 Installation kit, concrete floor, 3/8 in.
hardware, zinc
317881 40604-003 Installation kit, concrete floor, 1/2 in.
hardware, zinc
178458 40607-001 Installation kit, wood floor, 3/8 in.
hardware, zinc
420004 13901-703 Velocity vertical cable manager,
single-sided, 80.5 in. H x 3.6 in. W x
9.7 in. D, black
415456 13902-703 Velocity vertical cable manager,
single-sided, 80.5 in. H x 6.0 in. W x
9.8 in. D, black
415457 13904-703 Velocity vertical cable manager,
single-sided, 80.5 in. H x 10 in. W x
10.3 in. D, black
420013 13905-703 Velocity vertical cable manager,
single-sided, 80.5 in. H x 12 in. W x
10.4 in. D, black
415483 13930-702 Velocity horizontal cable manager, 2U x
19 in. W x 5.9 in. D, black
430733 35700-701 Vertical mounting bracket kit for CPI
rack systems, adjusts 8.5 in. to
12.5 in. D
488965 P3-1F0G3 eConnect monitored PDU, with
30 outlets C13, six outlets C19, 200 -
240 V, 30 A, NEMA L6-30P plug
488974 P3-1P0G3 eConnect monitored PDU, with
30 outlets C13, six outlets C19, 208 V,
30 A, NEMA L21-30P plug
QuadraRack ServerFrame
Products. Technology. Services. Delivered Globally.
1.800.ANIXTER • anixter.com 5.15
Racks, Cabinets and Cable Management
Chatsworth Products, Inc. (CPI)
Physical Infrastructure Solutions
QUADRARACK SERVERFRAME
ACCESSORIES
--
Index1.Support and Supplies//Physical Support Structure//Racks
CHATSWORTH PRODUCTS INC (CPI) pr5204V2-143867.tif
Provides easy access to the rear of wall-mounted equipment.
FEATURES
•19 in. wide EIA-310-E threaded equipment-mounting channels with Universal
hole spacing
•100 lb. equipment load capacity, open or closed position
•Pivots open to the right or left, latches in the closed position
•UL Listed
•Includes assembly and installation hardware
•Includes 50 each 12-24 equipment mounting screws
•Other sizes and colors available
29.1 IN. H X 21.7 IN. W, 12U
43.1 IN. H X 21.7 IN. W, 20U
53.6 IN. H X 21.7 IN. W, 26U
78.1 IN. H X 21.7 IN. W, 40U
CABLE MANAGEMENT RINGS
Anixter No. Vendor No. Description
267550 15053-103 7 ft. H x 19 in. W x 29 in. D, 45U, gray
267549 15053-203 7 ft. H x 19 in. W x 29 in. D, 45U, white
251149 15053-703 7 ft. H x 19 in. W x 29 in. D, 45U, black
Anixter No. Vendor No. Description
125458 40604-001 Installation kit, concrete floor, 3/8 in.
hardware, zinc
317881 40604-003 Installation kit, concrete floor, 1/2 in.
hardware, zinc
178458 40607-001 Installation kit, wood floor, 3/8 in.
hardware, zinc
226487 12637-001 M6 cage nuts and mounting screws,
25 pkg., gold
246971 12638-001 10-32 cage nuts and mounting screws,
25 pkg., zinc
246967 12639-001 12-24 cage nuts and mounting screws,
25 pkg., black
420004 13901-703 Velocity vertical cable manager,
single-sided, 80.5 in. H x 3.6 in. W x
9.7 in. D, black
415456 13902-703 Velocity vertical cable manager,
single-sided, 80.5 in. H x 6.0 in. W x
9.8 in. D, black
415457 13904-703 Velocity vertical cable manager,
single-sided, 80.5 in. H x 10 in. W x
10.3 in. D, black
420013 13905-703 Velocity vertical cable manager,
single-sided, 80.5 in. H x 12 in. W x
10.4 in. D, black
415483 13930-702 Velocity horizontal cable manager, 2U x
19 in. W x 5.9 in. D, black
430733 35700-701 Vertical mounting bracket kit for CPI
rack systems, adjusts 8.5 in. to
12.5 in. D
488965 P3-1F0G3 eConnect monitored PDU, with
30 outlets C13, six outlets C19, 200 -
240 V, 30 A, NEMA L6-30P plug
488974 P3-1P0G3 eConnect monitored PDU, with
30 outlets C13, six outlets C19, 208 V,
30 A, NEMA L21-30P plug
Standard Swing-gate Wall Rack
Anixter No. Vendor No. Description
267488 11790-725 25 in. D, black
239729 11790-718 18 in. D, black
249526 11790-712 12 in. D, black
Anixter No. Vendor No. Description
267489 11791-725 25 in. D, black
239731 11791-718 18 in. D, black
240470 11791-712 12 in. D, black
Anixter No. Vendor No. Description
267491 11807-725 25 in. D, black
249531 11807-718 18 in. D, black
249527 11807-712 12 in. D, black
Anixter No. Vendor No. Description
267493 11792-725 25 in. D, black
249532 11792-718 18 in. D, black
249533 11792-712 12 in. D, black
Anixter No. Vendor No. Description
249534 11799-001 Set of six, black
5.16
Request the latest literature and guides from Anixter.
1.800.ANIXTER • anixter.com/literature
Racks, Cabinets and Cable Management
Chatsworth Products, Inc. (CPI)
Physical Infrastructure Solutions
D
--
Index1.Support and Supplies//Physical Support Structure//Racks
CHATSWORTH PRODUCTS INC (CPI) PR12031V2-21862.tif
A cost-effective 19 in. EIA swing-gate wall-rack for mounting network,
communications and security equipment.
FEATURES
•Supports up to 85 lb.
•Ships fully assembled and flat; simply unfold and mount to wall
•Includes (12) 12-24 equipment mounting screws
•19 in. wide EIA-310-E threaded equipment-mounting rails with Universal
hole spacing
•Opens 180 degrees to the right or left
•Keyhole wall-mounting holes with mounting template included on carton
•Includes reusable cable management straps
•Order 1/4 in. installation hardware separately
--
Index1.Support and Supplies//Physical Support Structure//Racks
CHATSWORTH PRODUCTS INC (CPI) pr5801V2-9660.tif
Provides fixed wall-mounted support for rack-mount telecommunications equipment
where storage space is limited.
FEATURES
•19 in. wide EIA-310-E threaded equipment-mounting channels with Universal
hole spacing
•Three height options: 12U, 20U, 40U
•Three depth options: 6 in., 12 in., 18 in.
•Supports up to 200 lb. of equipment
•UL Listed
•Includes assembly and installation hardware
•Attach to a plywood backer board
•Other sizes and colors available
22.4 IN. W X 27.4 IN. H (12U) WALL-MOUNT EQUIPMENT RACKS
22.4 IN. W X 41.4 IN. H (20U) WALL-MOUNT EQUIPMENT RACKS
22.4 IN. W X 76.4 IN. H (40U) WALL-MOUNT EQUIPMENT RACKS
--

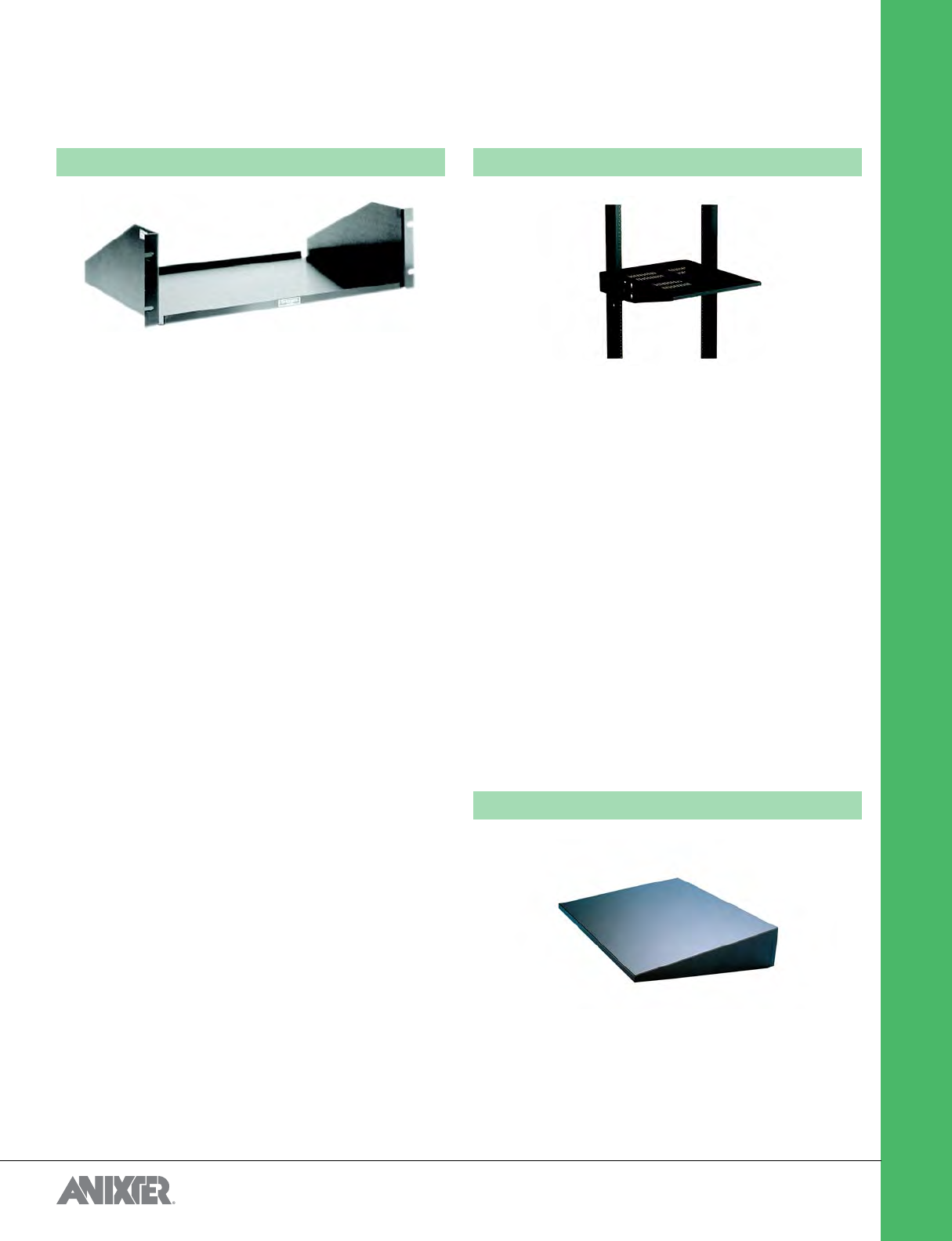

Index1.Support and Supplies//Physical Support Structure//Accessories
CHATSWORTH PRODUCTS INC (CPI) pr5222V2-143875.tif
Use on CPI Universal or Standard Racks to support equipment up to 15 in. deep and
weighing up to 50 lb.
FEATURES
•19 in. shelf supports equipment up to 17.25 in. W
•23 in. shelf supports equipment up to 21.25 in. W
•Usable depth is 14.82 in.
•Requires 3U of rack-mount space
•Supports up to 50 lb. of equipment
•Mounting hardware is not included; use Part No. 128493
•Also available with a vented support surface
SINGLE-SIDED SHELVES FOR 19 IN. RACKS
EasySwing Wall-mount Rack
Anixter No. Vendor No. Description
318650 13602-708 24.5 in. H x 8 in. D, 11U, black
318651 13602-712 24.5 in. H x 12 in. D, 11U, black
318652 13602-718 24.5 in. H x 18 in. D, 11U, black
318655 13604-712 38.5 in. H x 12 in. D, 19U, black
318656 13604-718 38.5 in. H x 18 in. D, 19U, black
318658 13608-712 51.5 in. H x 12 in. D, 26U, black
Fixed Wall-mount Equipment Rack
Anixter No. Vendor No. Description
239705 11960-718 18 in. D, black
239703 11960-712 12 in. D, black
239701 11960-706 6in. D,black
Anixter No. Vendor No. Description
239722 11961-718 18 in. D, black
239720 11961-706 6in. D,black
Anixter No. Vendor No. Description
239725 11962-706 6in. D,black
Single-sided Rack Shelves
Anixter No. Vendor No. Description
080570 40074-100 3U x 19 in. W x 15 in. D, 50 lb.
capacity, gray
106290 40074-500 3U x 19 in. W x 15 in. D, 50 lb.
capacity, clear
171339 40074-700 3U x 19 in. W x 15 in. D, 50 lb.
capacity, black
Products. Technology. Services. Delivered Globally.
1.800.ANIXTER • anixter.com 5.17
Racks, Cabinets and Cable Management
Chatsworth Products, Inc. (CPI)
Physical Infrastructure Solutions

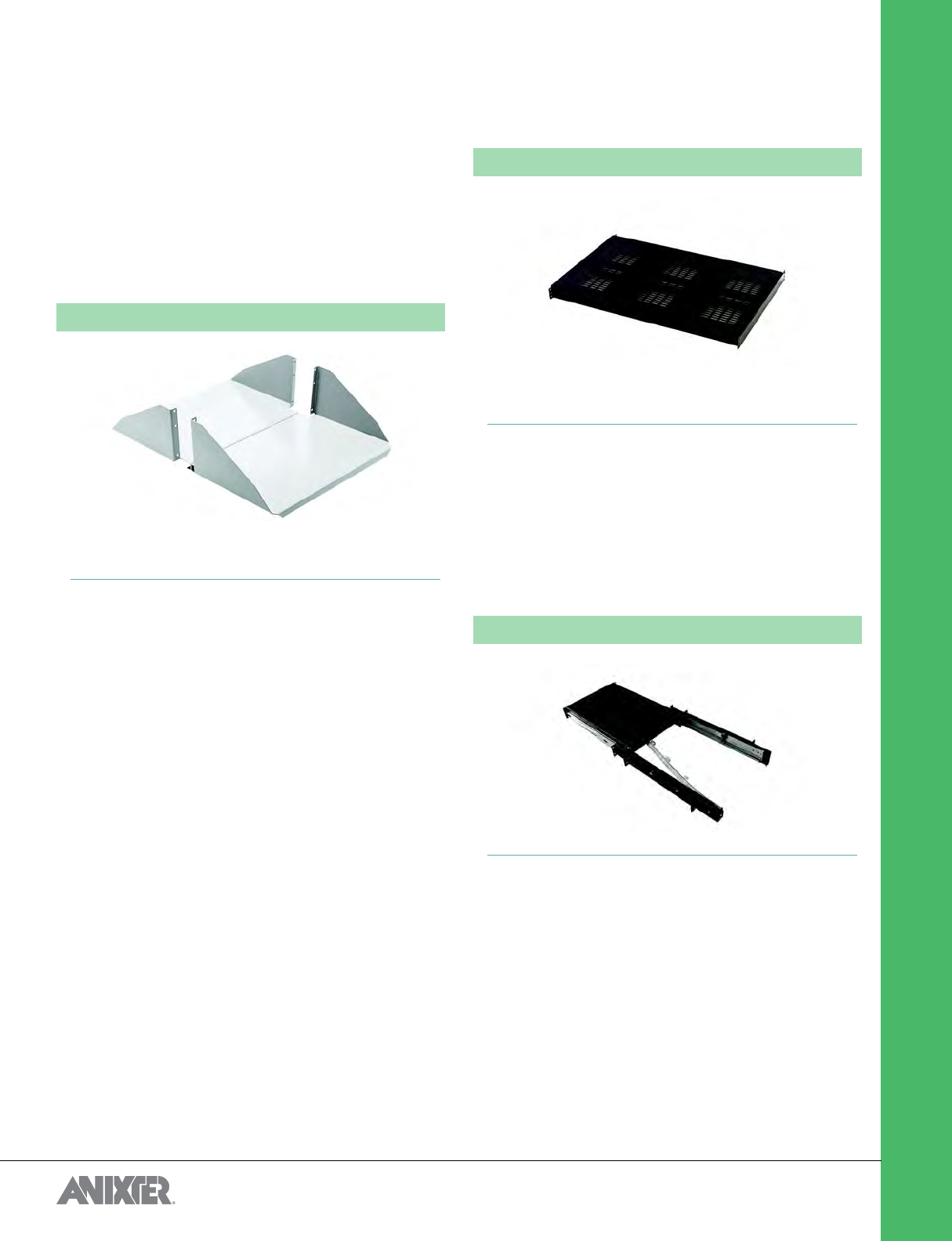

SINGLE-SIDED SHELVES FOR 23 IN. RACKS
-
Index1.Support and Supplies//Physical Support Structure//Accessories
CHATSWORTH PRODUCTS INC (CPI) pr5223V2-143876.tif
Use on CPI Universal or Standard Rack to support equipment up to 21 3/4 in. deep
and weighing less than 100 lb. that is not designed for direct rack mounting.
FEATURES
•19 in. rack shelf supports equipment up to 17.75 in. wide
•23 in. rack shelf supports equipment up to 21.75 in. wide
•Usable depth is 21.75 in.
•Requires 4U of rack-mount space
•Supports up to 100 lb. of equipment
•Mounting hardware not included; use Part No. 128493
•Also available as vented and in other colors
DOUBLE-SIDED SHELVES FOR 19 IN. RACKS
DOUBLE-SIDED SHELVES FOR 23 IN. RACKS
-
Index1.Support and Supplies//Physical Support Structure//Accessories
CHATSWORTH PRODUCTS INC (CPI) pr5811V2-9675.tif
Use to support equipment up to 29 in. deep and weighing up to 200 lb. on
QuadraRack 4-post Frame and QuadraRack ServerFrame.
FEATURES
•19 in. shelf provides 17.25 in. W x 29 in. D surface
•Uses 1U of rack-mount space
•Supports up to 200 lb.
•Available in other colors
-
Index1.Support and Supplies//Physical Support Structure//Accessories
CHATSWORTH PRODUCTS INC (CPI) PR6799V2-143885.tif
FEATURES
•Flexible cable management belt eliminates kinking, bending or cutting of cable
•Adjustable mounting depth of 20 in. to 34 in.
•Provides 17.5 in. W x 26 in. D surface
•Extends 24 in.; locks in fully closed or open position
•Other widths available
Anixter No. Vendor No. Description
127008 40075-100 3U x 23 in. W x 15 in. D, 50 lb.
capacity, gray
133461 40075-500 3U x 23 in. W x 15 in. D, 50 lb.
capacity, clear
184204 40075-700 3U x 23 in. W x 15 in. D, 50 lb.
capacity, black
Double-sided Rack Shelves
Anixter No. Vendor No. Description
133459 40108-119 4U x 19 in. W x 21.5 in. D, 100 lb.
capacity, gray
156072 40108-219 4U x 19 in. W x 21.5 in. D, 100 lb.
capacity, white
132493 40108-519 4U x 19 in. W x 21.5 in. D, 100 lb.
capacity, clear
171338 40108-719 4U x 19 in. W x 21.5 in. D, 100 lb.
capacity, black
Anixter No. Vendor No. Description
133450 40108-123 4U x 23 in. W x 21.5 in. D, 100 lb.
capacity, gray
133449 40108-523 4U x 23 in. W x 21.5 in. D, 100 lb.
capacity, clear
184201 40108-723 4U x 23 in. W x 21.5 in. D, 100 lb.
capacity, black
QuadraRack Shelves
Anixter No. Vendor No. Description
249555 16351-719 Solid, 1U x 19 in. W x 29 in. D, 200 lb.
capacity, black
249556 16350-719 Vented, 1U x 19 in. W x 29 in. D, 200 lb.
capacity, black
Extra-heavy-duty Four-point Sliding Shelf
Anixter No. Vendor No. Description
267554 12700-119 2U x 19 in. W x 26 in. D, 300 lb.
capacity, gray
267553 12700-219 2U x 19 in. W x 26 in. D, 300 lb.
capacity, white
265966 12700-719 2U x 19 in. W x 26 in. D, 300 lb.
capacity, black
5.18
Request the latest literature and guides from Anixter.
1.800.ANIXTER • anixter.com/literature
Racks, Cabinets and Cable Management
Chatsworth Products, Inc. (CPI)
Physical Infrastructure Solutions
D
-

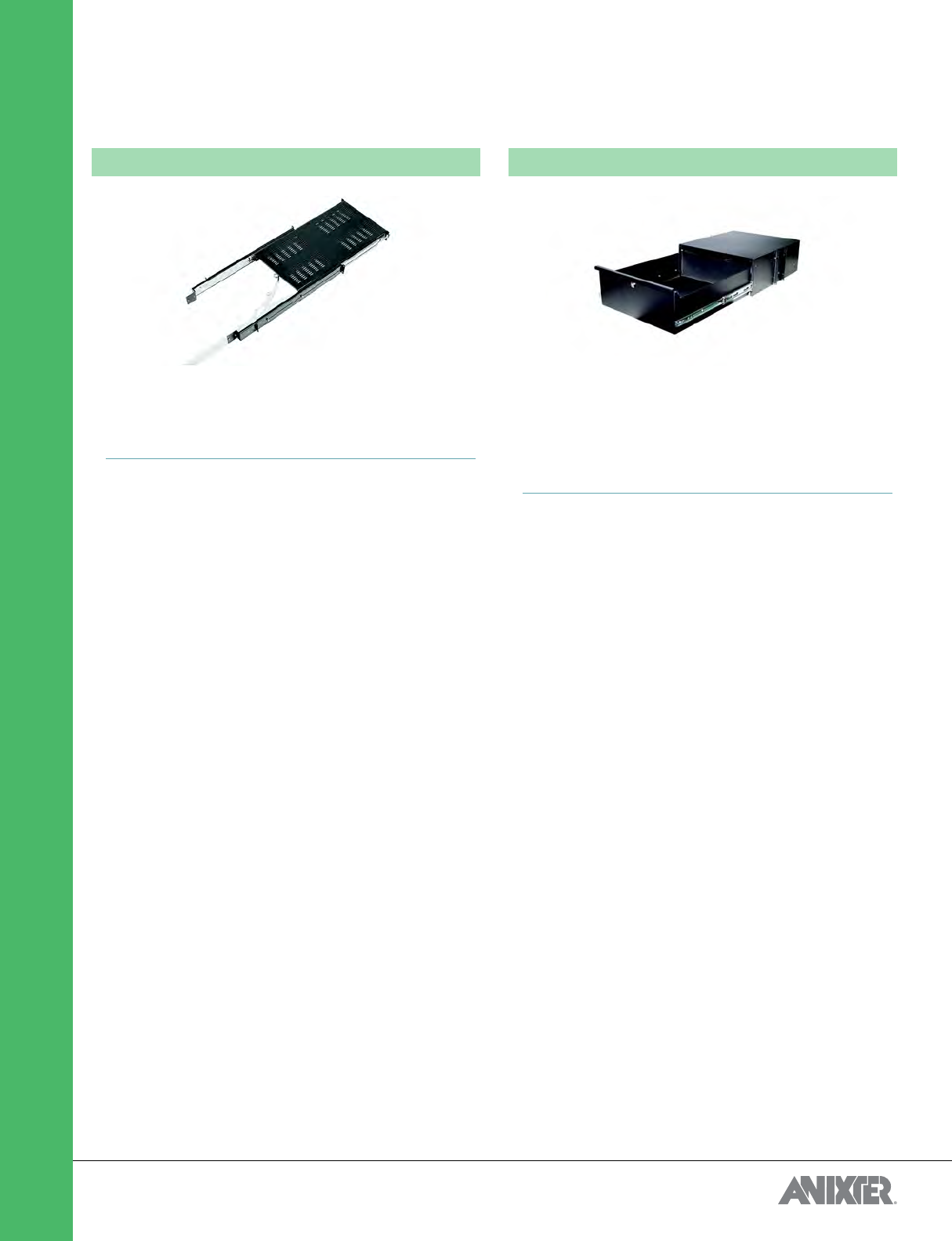

Index1.Support and Supplies//Physical Support Structure//Accessories
CHATSWORTH PRODUCTS INC (CPI) pr5198V2-143863.tif
Use to support equipment that is not designed for direct rack mounting in any CPI
Cabinet System (M-Series MegaFrame, C-Series SlimFrame, Seismic Frame, GF-Series
GlobalFrame, F-Series TeraFrame or N-Series TeraFrame Cabinets). 32 inch deep
vented sliding shelf (Part No. 227315) is shown. Styles vary slightly model to model.
FEATURES
•19 in. wide x 2U shelves
•Fixed or sliding (includes cable management arm)
•Vented or solid shelf surface
•Use 24 in. deep versions in 30 in. deep cabinets
•Use 29 in. and 32 in. deep versions in 36 in. and 39 in. deep cabinets
•Other sizes and colors available
SOLID SHELVES FOR 19 IN. CABINETS
VENTED SHELVES FOR 19 IN. CABINETS
Index1.Support and Supplies//Physical Support Structure//Accessories
CHATSWORTH PRODUCTS INC (CPI) PR9859V2-9749.tif
CPI's Lockable Storage Drawer keeps backup media, software, manuals, laptops, test
equipment and extra patch cords in close proximity to where they are typically used.
They are available for 19 in. or 23 in. wide racks and cabinets. Includes attachment
brackets that allow center mounting on two-post racks with 3 in. or 6 in. deep
equipment channels or front and rear attachment to four-post racks and cabinet
systems with mounting rails that are adjusted between 24 in. and 39 in. in depth.
FEATURES
•Attaches to any CPI free-standing 19 in. wide or 23 in. wide rack or
cabinet system
•Available in three heights: 2U, 3U and 4U
•Supports a 100 lb. load (drawer and top surface combined)
•Features 20 in. deep lockable drawer that extends full depth for easy access to
stored equipment
19 IN. RACK MOUNT
23 IN. RACK MOUNT
DRAWER DIVIDERS 5 IN. WIDE SECTIONS
Cabinet System Shelves
Anixter No. Vendor No. Description
531731 12334-119 Fixed shelf, 24 in. D, 200 lb.
capacity, gray
219575 12334-519 Fixed shelf, 24 in. D, 200 lb.
capacity, clear
191515 12334-719 Fixed shelf, 24 in. D, 200 lb.
capacity, black
546228 14070-719 Fixed shelf, 29 in. D, 200 lb.
capacity, black
191519 12345-719 Sliding shelf, 24 in. D, 140 lb.
capacity, black
Anixter No. Vendor No. Description
191516 12335-719 Fixed shelf, 24 in. D, 200 lb.
capacity, black
545575 14072-719 Fixed shelf, 29 in. D, 200 lb.
capacity, black
191520 12346-719 Sliding shelf, 24 in. D, 140 lb.
capacity, black
227315 11913-719 Sliding shelf, 32 in. D, 160 lb.
capacity, black
Lockable Storage Drawers
Anixter No. Vendor No. Description
277373 13082-719 2U, black
277374 13083-719 3U, black
277375 13084-719 4U, black
Anixter No. Vendor No. Description
283697 13082-723 2U, black
283698 13083-723 3U, black
283700 13084-723 4U, black
Anixter No. Vendor No. Description
283701 13185-701 Drawer divider for 3U and 4U only
Products. Technology. Services. Delivered Globally.
1.800.ANIXTER • anixter.com 5.19
Racks, Cabinets and Cable Management
Chatsworth Products, Inc. (CPI)
Physical Infrastructure Solutions
--

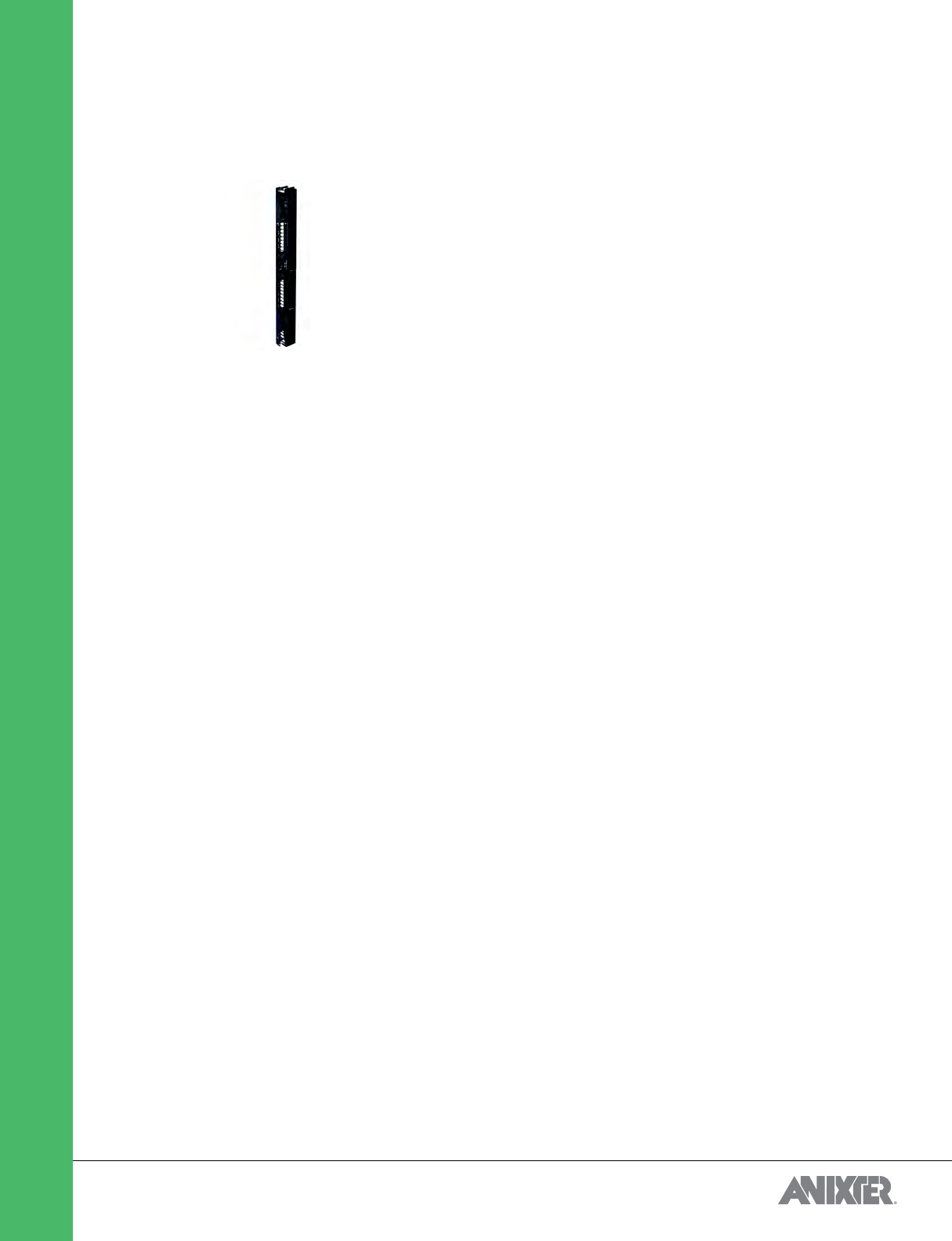

Index1.Support and Supplies//Physical Support Structure//Accessories
CHATSWORTH PRODUCTS INC (CPI) PR34421V2-254400.tif
Evolution Vertical Cable Management provides a solution for managing high-density
cabling applications on open two-post and four-post CPI rack systems, delivering
increased performance to match the demands of data center applications. Featuring
easy-to-use doors with styling that complements the CPI TeraFrame family of
cabinets, Evolution Cable Management provides innovative interior features to help
maximize the capacity and utility of vertical and horizontal cable management.
Evolution Vertical Cable Managers attach to the sides of racks to manage premise
cables, patch cords and jumper cords. Double-sided g2 Evolution Vertical Cable
Managers feature movable midsections that can be positioned for a 50/50, 40/60 or
60/40 front/rear split of the internal cable management space to match cabling
requirements. The front door is secured by a spring-loaded two-point latch controlled
by a single knob; simply turn the knob on the right or left side of the door and pull to
swing the door open or turn both knobs to remove the door.
OPTIONS
- Choose from combination, single- or double-sided vertical managers
- Choose the two-post or four-post rack that best fits your equipment
- Unique Cable Lashing Bar Kit for bundle control
- Unique Fiber Segregation Kit to control fiber within the cabling section trough
- Unique movable midsection allows for adjustable front-to-back trough volume ratio
FEATURES
•6 in., 8 in., 10 in., 12 in. and 15 in. wide models available to match your
cable densities
•6 ft., 7 ft. and 8 ft. height models available to match your room design
•T-shaped cable management cable guides align with rack-mount spaces (U)
with decreased deflection for heavier Cat 6A cabling
•Rigid vertical manager trough supports heavy bundles of cable
•Movable midsection inside g2 double-sided managers for allocation of
front-to-back volume/capacity
•Rear cable rings with spin-open latches on the back of the g3 combination
managers organize large cable bundles
•Rounded cable guide edges at the top to protect cable entrance and exit
EVOLUTION VERTICAL CABLE MANAGEMENT
ACCESSORIES
Evolution Vertical Cable Management
Anixter No. Vendor No. Description
368557 35521-703 7 ft. H x 6 in. W x 24.5 in. D, Evolution
g2 double-sided vertical cable
manager, black
377909 35522-703 7 ft. H x 8 in. W x 24.5 in. D, Evolution
g2 double-sided vertical cable
manager, black
368556 35523-703 Evolution g2 double-sided vertical cable
manager, black, 7 ft. H x 10 in. W x
24.5 in. D
368555 35524-703 Evolution g2 double-sided vertical cable
manager, black, 7 ft. H x 12 in. W x
24.5 in. D
377910 35525-703 Evolution g2 double-sided vertical cable
manager, black, 7 ft. H x 15 in. W x
24.5 in. D
375567 35511-703 Evolution g1 single-sided vertical cable
manager, black, 7 ft. H x 6 in. W x
13.2 in. D
377911 35512-703 Evolution g1 single-sided vertical cable
manager, black, 7 ft. H x 8 in. W x
13.2 in. D
377912 35513-703 Evolution g1 single-sided vertical cable
manager, black, 7 ft. H x 10 in. W x
13.2 in. D
375568 35514-703 Evolution g1 single-sided vertical cable
manager, black, 7 ft. H x 12 in. W x
13.2 in. D
377913 35515-703 Evolution g1 single-sided vertical cable
manager, black, 7 ft. H x 15 in. W x
13.2 in. D
444289 35571-703 7 ft. H x 6 in. W x 20.2 in. D, Evolution
g3 combination vertical cable
manager, black
444292 35572-703 7 ft. H x 8 in. W x 20.2 in. D, Evolution
g3 combination vertical cable
manager, black
444293 35573-703 7 ft. H x 10 in. W x 20.2 in. D, Evolution
g3 combination vertical cable
manager, black
444295 35574-703 7 ft. H x 12 in. W x 20.2 in. D, Evolution
g3 combination vertical cable
manager, black
444297 35575-703 7 ft. H x 15 in. W x 20.2 in. D, Evolution
g3 combination vertical cable
manager, black
Anixter No. Vendor No. Description
377914 35475-701 Fiber Segregation Kit, black
377915 35473-001 Cable Lashing Bar Kit
Anixter No. Vendor No. Description
5.20
Request the latest literature and guides from Anixter.
1.800.ANIXTER • anixter.com/literature
Racks, Cabinets and Cable Management
Chatsworth Products, Inc. (CPI)
Physical Infrastructure Solutions
D
--
Index1.Support and Supplies//Physical Support Structure//Accessories
CHATSWORTH PRODUCTS INC (CPI) pr5217V2-143871.tif
Open vertical cable trough for use with Universal, Standard, and 6 in. deep Standard
Racks and QuadraRacks. Use with racks that support patch panels when customers
want premise cable and patch cords in open view. Select to match the height of the
supporting rack.
FEATURES
•Front- and rear-facing troughs are completely open
•Rotating latches on 12 in. vertical intervals secure cables
•Cable front-to-rear pass-through ports in between each latch
•All cable openings are edge protected
•Includes installation hardware
•Other heights and colors available
DOUBLE-SIDED
SINGLE-SIDED
--
Index1.Support and Supplies//Physical Support Structure//Accessories
CHATSWORTH PRODUCTS INC (CPI) PR6815V2-36185.tif
Front-facing (single-sided) or combination front- and rear-facing (double-sided)
vertical cable trough for use with Universal, Standard and 6 in. deep Standard Racks
and QuadraRacks. Use with racks that support patch panels when customers want
premise cable and patch cords hidden from view. Select to match the height of the
supporting rack.
FEATURES
•Front- and rear-facing troughs have 1U-high openings on both sides for
organizing patch cords/premise cable
•Front- and rear-facing troughs have an integrated latch-closure door/cover that
swings open to the right or left and may be removed
•All cable openings front and rear are edge protected
•Available in three widths, match to height of supporting rack
•Includes installation hardware, finish is black or clear, doors and cable guides
are black
•Other sizes are available
DOUBLE-SIDED
SINGLE-SIDED
VCS Vertical Cabling Sections
Anixter No. Vendor No. Description
174145 12096-503 7 ft. H x 3.65 in. W x 12.75 in. D, clear
174146 12096-703 7 ft. H x 3.65 in. W x 12.75 in. D, black
166031 11729-503 VCS vertical cabling section,
double-sided, 7 ft. H x 6 in. W x
12.75 in. D, clear
174142 11729-703 VCS vertical cabling section,
double-sided, 7 ft. H x 6 in. W x
12.75 in. D, black
Anixter No. Vendor No. Description
164160 11374-703 VCS vertical cabling section,
single-sided, 7 ft. H x 6 in. W x
6.38 in. D, black
176096 11730-703 7 ft. H x 3.65 in. W x 6.38 in. D, black
MCS Master Cabling Section
Anixter No. Vendor No. Description
236176 30094-503 7 ft. H x 4.4 in. W x 16.15 in. D, clear
236177 30094-703 7 ft. H x 4.4 in. W x 16.15 in. D, black
236180 30095-503 7 ft. H x 6 in. W x 16.15 in. D, clear
236182 30096-503 7 ft. H x 10 in. W x 16.15 in. D, clear
236183 30096-703 7 ft. H x 10 in. W x 16.15 in. D, black
Anixter No. Vendor No. Description
236170 30091-503 7 ft. H x 4.4 in. W x 8.08 in. D, clear
236171 30091-703 7 ft. H x 4.4 in. W x 8.08 in. D, black
236172 30092-503 7ft. H x 6in. W x 8.08in. D,clear
236173 30092-703 7ft. H x 6in. W x 8.08in. D,black
236174 30093-503 7 ft. H x 10 in. W x 8.08 in. D, clear
236175 30093-703 7 ft. H x 10 in. W x 8.08 in. D, black
Products. Technology. Services. Delivered Globally.
1.800.ANIXTER • anixter.com 5.21
Racks, Cabinets and Cable Management
Chatsworth Products, Inc. (CPI)
Physical Infrastructure Solutions
--
Index1.Support and Supplies//Physical Support Structure//Accessories
CHATSWORTH PRODUCTS INC (CPI) PR9867V2-143930.tif
The MCS-EFX Master Cabling Section with Extended Fingers is a large-capacity vertical
cable management solution for two-post and four-post racks. The MCS-EFX is
available as a single-sided or double-sided cable management trough in
several sizes.
The MCS-EFX is manufactured from a combination of strong, lightweight aluminum
sheet and plenum-rated composite materials for maximum strength at minimal
weight. The MCS-EFX is packaged in a single carton for easy handling and includes
installation hardware.
FEATURES
•Cable openings on the side of the MCS-EFX are sized to accommodate 48 patch
cords, twice the capacity of the standard MCS. Openings have rounded edges to
protect cable and will not deform or break
•Patented cable openings on the sides of the MCS-EFX align with RMU spaces on
the rack allowing cables to exit by RMU increments
•The door hinges open to the right or left for easy access to cables during moves,
adds or changes, and locks in the closed position to protect cables
from damage
•MCS-EFX also available in 7.5 ft. and 8 ft. H
SINGLE-SIDED
DOUBLE-SIDED
--
Index1.Support and Supplies//Physical Support Structure//Accessories
CHATSWORTH PRODUCTS INC (CPI) PR29084V2-215261.tif
Velocity vertical cable management is an economical vertical cable management
solution with a unique snap-together design that reduces shipping size and cost. The
components can be quickly assembled and then bolted to a CPI rack or QuadraRack.
Ships unassembled with patented cable guide fingers at 1U intervals.
FEATURES
•1U high finger openings for patch cords along both sides of the trough, similar
to MCS and CCS
•Snap-on cover similar to Universal Horizontal Cable Manager
•All cable openings are edge protected
•Single-sided and double-sided models in various widths and heights
•Includes assembly and installation hardware
SINGLE-SIDED, FOR 7 FT. H (45U) RACKS
DOUBLE-SIDED, FOR 7 FT. H (45U) RACKS
MCS-EFX Master Cabling Section with Extended Fingers
Anixter No. Vendor No. Description
284596 40092-703 7ft. H x 6in. W x 10.62in. D,black
284597 40093-703 7 ft. H x 10 in. W x 10.62 in. D, black
284598 40094-703 7 ft. H x 12 in. W x 10.62 in. D, black
Anixter No. Vendor No. Description
284599 40095-703 7ft. H x 6in. W x 21.23in. D,black
284600 40096-703 7 ft. H x 10 in. W x 21.23 in. D, black
284601 40097-703 7 ft. H x 12 in. W x 21.23 in. D, black
Velocity Vertical Cable Management
Anixter No. Vendor No. Description
420004 13901-703 Velocity vertical cable manager,
single-sided, 80.5 in. H x 3.6 in. W x
9.7 in. D, black
415456 13902-703 Velocity vertical cable manager,
single-sided, 80.5 in. H x 6.0 in. W x
9.8 in. D, black
415457 13904-703 Velocity vertical cable manager,
single-sided, 80.5 in. H x 10 in. W x
10.3 in. D, black
420013 13905-703 Velocity vertical cable manager,
single-sided, 80.5 in. H x 12 in. W x
10.4 in. D, black
Anixter No. Vendor No. Description
420016 13911-703 80.5 in. H x 3.6 in. W x 16.4 in. D, black
415458 13912-703 80.5 in. H x 6.0 in. W x 16.6 in. D, black
415459 13914-703 Velocity vertical cable manager,
double-sided, 80.5 in. H x 10 in. W x
17.5 in. D, black
420025 13915-703 Velocity vertical cable manager,
double-sided, 80.5 in. H x 12 in. W x
17.8 in. D, black
5.22
Request the latest literature and guides from Anixter.
1.800.ANIXTER • anixter.com/literature
Racks, Cabinets and Cable Management
Chatsworth Products, Inc. (CPI)
Physical Infrastructure Solutions
D
--
Index1.Support and Supplies//Physical Support Structure//Accessories
CHATSWORTH PRODUCTS INC (CPI) PR6806V2-143890.tif
Combination front- and rear-facing (double-sided) vertical cable trough for use with
the Universal, Standard, and 6 in. deep Standard Racks and QuadraRacks. Use with
racks that support patch panels when customers want patch cords to be hidden
from view.
FEATURES
•Front-facing trough has 1U-high openings on both sides for organizing
patch cords
•Front-facing trough has an integrated latch-closure door/cover that swings open
to the right or left and may be removed
•Rear-facing trough is completely open with spin-latch closures at 12 in.
vertical intervals
•All cable openings front and rear are edge protected
•Available in three widths, match with style and height of supporting rack
•Includes installation hardware; finish is black
CCS COMBINATION CABLING SECTION FOR USE WITH UNIVERSAL OR
STANDARD RACK
CCS COMBINATION CABLING SECTION FOR USE WITH 6 IN. DEEP STANDARD RACK
--
Index1.Support and Supplies//Physical Support Structure//Accessories
CHATSWORTH PRODUCTS INC (CPI) PR9868V2-143931.tif
The CCS-EFX Combination Cabling Section with Extended Fingers is a double-sided
vertical cable management trough designed for use with CPI's Universal and Standard
Racks to manage cable at the cross-connect, especially when using angled-face
copper patch panels.
The CCS-EFX is manufactured from a combination of strong, lightweight aluminum
sheet and plenum-rated composite materials for maximum strength at minimal
weight. The CCS-EFX is packaged in a single carton for easy handling and includes
installation hardware.
FEATURES
•Cable openings on the front of the CCS-EFX are sized to accommodate 48 patch
cords, twice the capacity of the standard CCS. Openings have rounded edges to
protect cable and will not deform or break
•Cable openings on the front of the CCS-EFX align with rack-mount spaces on the
rack allowing cables to exit in 1U increments
•The front door hinges open to the right or left for easy access to cables during
moves, adds and changes (MACs) and locks in the closed position to protect
cables from damage
•The open rear of the CCS-EFX allows large premise cable bundles to exit the
manager into the rack-mount space. Spin closure latches secure cables
•CCS-EFX also available in 7.5 ft. and 8 ft. H
--
Index1.Support and Supplies//Physical Support Structure//Cabinets
CHATSWORTH PRODUCTS INC (CPI) PR34417V2-254410.tif
Vertical Cable Managers for CPI's F-Series TeraFrame Cabinet System creates an
internal pathway that guides and protects network and signal cables and organizes
patch and equipment cords as they enter and exit the manager to make
equipment connections.
FEATURES
•Plastic T-shape cable guides (fingers) organize cables by rack-mount space
•Two sizes with standard and extended fingers for different cable capacities;
match to cabinet width and height
•Edge-protected cable pass-through ports allow cables to exit the rear side of the
manager, behind the equipment mounting rails
•Available in black finish only
VERTICAL CABLE MANAGERS WITH STANDARD FINGERS
CCS Combination Cabling Section
Anixter No. Vendor No. Description
249545 30161-703 7 ft. H x 3.65 in. W x 12.24 in. D, black
249547 30162-703 7ft. H x 6in. W x 12.24in. D,black
249549 30163-703 7 ft. H x 10 in. W x 12.24 in. D, black
Anixter No. Vendor No. Description
249550 30164-703 7 ft. H x 3.65 in. W x 14.61 in. D, black
249551 30165-703 7ft. H x 6in. W x 14.61in. D,black
249552 30166-703 7 ft. H x 10 in. W x 14.61 in. D, black
CCS-EFX Combination Cabling Section With Extended Fingers
Anixter No. Vendor No. Description
284604 40098-703 7 ft. H x 6 in. W x 14.94 in. D, black
284605 40099-703 7 ft. H x 10 in. W x 14.94 in. D, black
284606 40100-703 7 ft. H x 12 in. W x 14.94 in. D, black
Vertical Cable Managers for F-Series TeraFrame Cabinet System
Anixter No. Vendor No. Description
366376 34421-C01 Vertical Cable Manager, 10.5 in. D, with 1U
fingers, 45U x 23.6 in. W cabinet, black
444314 35095-C05 Vertical Cable Manager, 11.6 in. D, with 1U
fingers, for 45U x 31.5 in. W cabinet, black
Products. Technology. Services. Delivered Globally.
1.800.ANIXTER • anixter.com 5.23
Racks, Cabinets and Cable Management
Chatsworth Products, Inc. (CPI)
Physical Infrastructure Solutions
VERTICAL CABLE MANAGERS WITH EXTENDED FINGERS
--
Index1.Support and Supplies//Physical Support Structure//Accessories
CHATSWORTH PRODUCTS INC (CPI) PR23429V2-164874.tif
CPI Evolution Horizontal Cable Management provides a solution for managing
high-density cabling applications on open two-post and four-post CPI rack systems,
delivering increased performance to match the demands of data center applications.
Featuring easy-to-use doors with styling that complements the CPI TeraFrame family
of cabinets, Evolution Cable Management provides innovative interior features to help
maximize the capacity and utility of vertical and horizontal cable management.
Evolution Horizontal Cable Managers are ideal for use above and below patch panels
and network switches to organize and store cables. The included plastic T-shape cable
guides help to organize patch cords and jumper cords as they enter and exit the
horizontal manager to make individual equipment connections.
OPTIONS
- Choose from three heights to match your cabling density
- Use with any CPI two-post or four-post rack system
FEATURES
•Horizontal manager for use above and below patch panels and
network switches
•Superior strength T-shape cable guides for cable routing and control
•Rounded-edge cable guides protect cables from cuts and scrapes
•Contoured front door with snap-on hinges
•Front door swings up or down and stays in the open position while cabling
•Available in 1U, 2U and 3U configurations for 19 in. EIA-310-E-compliant racks
or cabinets
--
Index1.Support and Supplies//Physical Support Structure//Accessories
CHATSWORTH PRODUCTS INC (CPI) PR29085V2-215252.tif
Provides a rack-mounted horizontal pathway for patch cords. Use with CPI's Velocity
Vertical Cable Management above and below patch panels and network switches. CPI
recommends 1U of cable management for every 2U of connectivity.
FEATURES
•Snap-on cover, pivots open up or down
•Pass cables front-to-rear through openings in rear of panel
•T-shape fingers organize patch cords entering/exiting rack-mount equipment
•Made of plastic, all cable openings are edge protected
•Includes installation hardware
--
Index1.Support and Supplies//Physical Support Structure//Accessories
CHATSWORTH PRODUCTS INC (CPI) PR6821V2-143900.tif
Provides a rack-mounted horizontal pathway for patch cords. Use above patch panels
and network switches. CPI recommends 1U of cable management for every 2U of
connectivity. The Universal Horizontal Cable Manager complements CPI's CCS
Combination Cabling Section and MCS Master Cabling Section.
FEATURES
•Snap-on cover, pivots open up or down
•Pass cables front-to-rear through opening in rear of panel
•T-shape fingers organize patch cords entering/exiting rack-mount equipment
•Use 6.5 in. deep panels when double-sided MCS are attached to Standard or
Universal Racks
Anixter No. Vendor No. Description
444318 35103-C05 For 45U x 31.5 in. W cabinet, black
Evolution Horizontal Cable Management
Anixter No. Vendor No. Description
375569 35441-701 1U x 19 in. W x 8.2 in. D, black
368558 35441-702 Evolution horizontal cable manager, 2U x
19 in. W x 8.2 in. D, black
375570 35441-703 3U x 19 in. W x 8.2 in. D, black
Velocity Horizontal Cable Management
Anixter No. Vendor No. Description
420027 13930-701 1U x 19 in. W x 5.9 in. D, black
415483 13930-702 Velocity horizontal cable manager, 2U x
19 in. W x 5.9 in. D, black
420029 13930-703 3U x 19 in. W x 5.9 in. D, black
Universal Horizontal Cable Manager
Continued on next page >>
5.24
Request the latest literature and guides from Anixter.
1.800.ANIXTER • anixter.com/literature
Racks, Cabinets and Cable Management
Chatsworth Products, Inc. (CPI)
Physical Infrastructure Solutions
D
(continued)
Universal Horizontal Cable Manager
SINGLE-SIDED
DOUBLE-SIDED (ALSO AVAILABLE IN 23 IN.)
--
Index1.Support and Supplies//Physical Support Structure//Accessories
CHATSWORTH PRODUCTS INC (CPI) pr5220V2-143873.tif
19 in. Horizontal Wire Management Panels for use on CPI racks or QuadraRacks when
equipped with the VCS Vertical Cabling Section or for use within any CPI Cabinet
System. CPI recommends planning 1U of cable management for every 2U
of connectivity.
FEATURES
•19 in. W x 4 in. D panels
•1.5 in. D standoff from rack
•1U panel, rings are 1.5 in. H x 2.5 in. D
•2U panel, rings are 3.25 in. H x 2.5 in. D
•Includes mounting hardware and cable distribution spools
•Other colors available
--
Index1.Support and Supplies//Physical Support Structure//Accessories
CHATSWORTH PRODUCTS INC (CPI) pr5219V2-143872.tif
Use above large network switches with vertical module cards when power supplies
are at the base of the switch chassis.
FEATURES
•2U panel, 2.8 in. H x 6 in. D-Rings
•Other colors available
--
Index1.Support and Supplies//Physical Support Structure//Raceway
CHATSWORTH PRODUCTS INC (CPI) pr5203V2-143866.tif
Provide strain relief for patch-cord slack and for patch cords transitioning between
adjacent racks.
FEATURES
•Patch cords enter/exit trays over controlled radii
•Upper jumper trays are open on top and cable enters from below
•Lower jumper trays are closed on top and cable enters from above
•Installation hardware not included, use Part No. 128493
•Other sizes and colors available
UPPER JUMPER TRAYS
Anixter No. Vendor No. Description
256551 30139-719 1U x 19 in. W x 5.2 in. D, black
247659 30130-719 2U x 19 in. W x 5.2 in. D, black
247661 30131-719 3U x 19 in. W x 5.2 in. D, black
267509 30139-723 1U x 23 in. W x 5.2 in. D, black
247660 30130-723 2U x 23 in. W x 5.2 in. D, black
247662 30131-723 3U x 23 in. W x 5.2 in. D, black
267511 30339-719 1U x 19 in. W x 6.5 in. D, black
247664 30330-719 2U x 19 in. W x 6.5 in. D, black
247667 30331-719 3U x 19 in. W x 6.5 in. D, black
267512 30339-723 1U x 23 in. W x 6.5 in. D, black
247665 30330-723 2U x 23 in. W x 6.5 in. D, black
247666 30331-723 3U x 23 in. W x 6.5 in. D, black
Anixter No. Vendor No. Description
271867 30529-719 1U x 19 in. W x 11.73 in. D, black
271868 30530-719 2U x 19 in. W x 11.73 in. D, black
271869 30531-719 3U x 19 in. W x 11.73 in. D, black
19 in. Horizontal Wire Management Panels
Anixter No. Vendor No. Description
174172 13070-719 1U x 19 in. W x 4 in. D, black
174173 13075-719 2U x 19 in. W x 4 in. D, black
Large Horizontal Ring Panels
Anixter No. Vendor No. Description
158553 11564-519 2U x 19 in. W x 6 in. D, clear
183717 11564-719 2U x 19 in. W x 6 in. D, black
184190 11564-723 2U x 23 in. W x 6 in. D, black
Jumper Trays
Anixter No. Vendor No. Description
174148 12183-519 2U x 19 in. W x 3.5 in. D, clear
174150 12183-719 2U x 19 in. W x 3.5 in. D, black
174153 12183-723 2U x 23 in. W x 3.5 in. D, black
283579 13183-719 2U x 19 in. W x 6 in. D, black
Products. Technology. Services. Delivered Globally.
1.800.ANIXTER • anixter.com 5.25
Racks, Cabinets and Cable Management
Chatsworth Products, Inc. (CPI)
Physical Infrastructure Solutions
LOWER JUMPER TRAYS
--
Index1.Support and Supplies//Physical Support Structure//Accessories
CHATSWORTH PRODUCTS INC (CPI) pr5221V2-143874.tif
Provides a rack-mounted support for cables in between CPI Cabling Sections and the
rear of patch panels.
--
Index1.Support and Supplies//Physical Support Structure//Cabinets
CHATSWORTH PRODUCTS INC (CPI) PR10994V2-17956.tif
Enhanced Vertical Cable Managers for CPI's MegaFrame Cabinet System allow cables
to be organized by rack-mount space, making it easier to trace individual cables
during moves, adds and changes. Additionally, two Enhanced Vertical Managers can
be connected with Front-to-Back Managers (as shown) to create a complete pathway
for patch cords that connect network switches and computers within the same or
adjacent cabinets.
FEATURES
•Enhanced Vertical Managers are available in two sizes for large and extra-large
cable capacities. The narrow version can be added to any MegaFrame Cabinet.
The wide version is used in any 23 in. wide MegaFrame Cabinet that has been
converted into a 19 in. rack solution with CPI's 23 in. to 19 in. Rail Adapter Kit
(Part No. 10587). Both models include a snap-on door to protect cables. The
matching Front-to-Back Managers (sold in pairs) snap onto the vertical
managers and adjust to match the depth of the cable managers
•Cable openings in the Enhanced Vertical Manager allow cables to exit by U.
Openings have rounded edges to protect cable and will not deform or break
•The back side of the Enhanced Vertical Manager has four edge-protected cable
pass-through ports for front-to-back cabling
•Cover snaps on and opens to the right or left
•Front-to-Back Managers adjust in depth to connect the front and rear Enhanced
Vertical Manager
•Available in black finish only
NARROW ENHANCED VERTICAL CABLE MANAGERS
WIDE ENHANCED VERTICAL CABLE MANAGERS
Anixter No. Vendor No. Description
174159 12185-719 2U x 19 in. W x 3.5 in. D, black
174165 12187-719 3U x 19 in. W x 3.5 in. D, black
249524 12185-723 2U x 23 in. W x 3.5 in. D, black
249525 12187-723 3U x 23 in. W x 3.5 in. D, black
Patch Panel Wire Management Bar
Anixter No. Vendor No. Description
219941 12176-501 Clear
174174 12176-701 Black
Enhanced Cable Managers
Anixter No. Vendor No. Description
313461 13171-702 6 ft. H x 3.50 in. W x 5.23 in. D
313452 13171-701 6 ft. 6 in. H x 3.50 in. W x 5.23 in. D
313454 13171-700 Enhanced Vertical Cable Manager with
1U Fingers, for 45U cabinet, 7 ft. H x
3.50 in. W x 5.23 in. D
Anixter No. Vendor No. Description
313456 13170-702 6 ft. H x 4.75 in. W x 8.77 in. D
313459 13170-701 6 ft. 6 in. H x 4.75 in. W x 8.77 in. D
268426 13170-700 7 ft. H x 4.75 in. W x 8.77 in. D
5.26
Request the latest literature and guides from Anixter.
1.800.ANIXTER • anixter.com/literature
Racks, Cabinets and Cable Management
APC
Physical Infrastructure Solutions
D
./

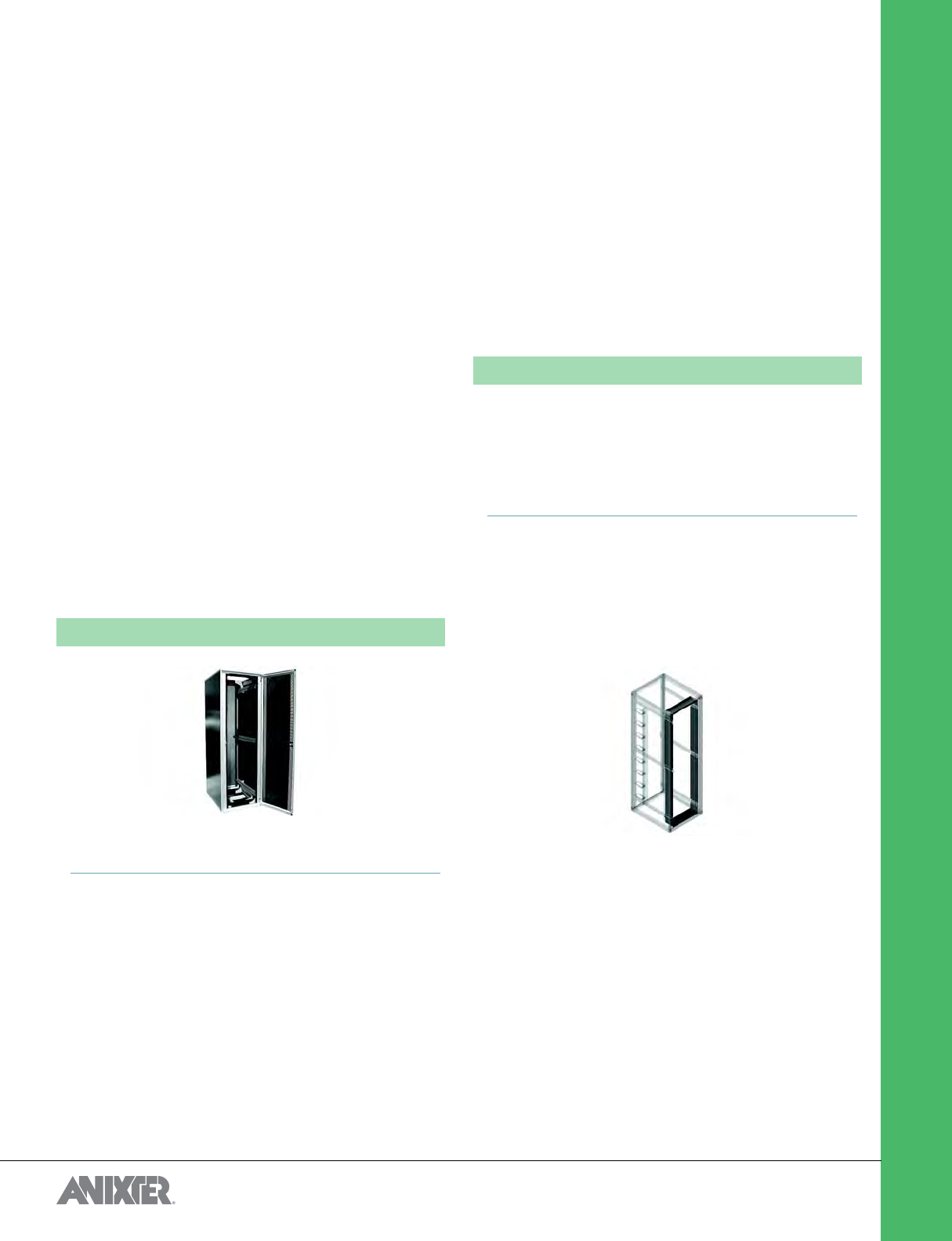

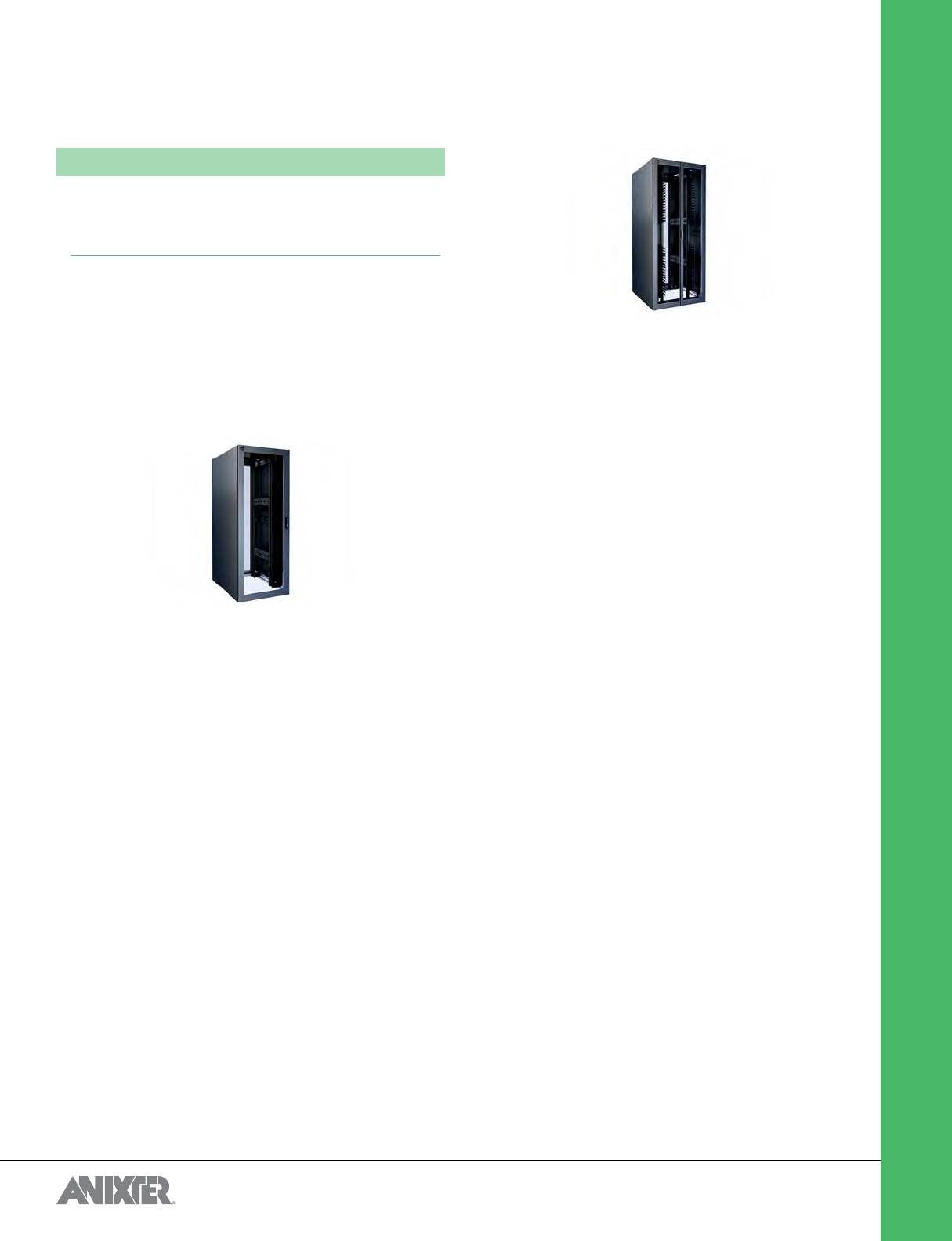

Index1.Support and Supplies//Physical Support Structure//Cabinets
APC BY SCHNEIDER ELECTRIC PR34473V2-255201.tif
The APC NetShelter SX is an integral part of APC's InfraStruxure solution. Designed
specifically for IT and data center applications, the NetShelter SX is ideal for
high-density data centers when the delivery of a high amount of power and cable
management options to servers and networking equipment is required. The
enclosures provide a complete IT support system that seamlessly integrates with
APC's cooling, rack power-distribution and cable management products.
FEATURES
•Several combinations of height, width and depth makes it easy to select the
right cabinet
•Vendor-neutral mounting for guaranteed compatibility with all
EIA-310-compliant 19 in. equipment
•Rear-mounting brackets provide integrated mounting without tools of APC Rack
Power Distribution Units and vertical cable managers
•Adjustable vertical mounting rails
•Numbered U positions
•Perforated front and rear doors provide ample ventilation for servers and
networking equipment
•Side panels are lockable, utilizing a single key with the doors
•Split rear doors improve access and serviceability to rear of
rack-mounted equipment
•Enclosures are shipped standard with both leveling feet and casters
•The roof, side panels, front and rear doors are grounded to the frame of
the enclosure
•Flat-packable option available for onsite setup and installation
Index1.Support and Supplies//Physical Support Structure//Cabinets
APC BY SCHNEIDER ELECTRIC PR72264V2-579249.tif
The APC NetShelter SV enclosure has the basic functionality and features you have
become familiar with from APC in a cost-effective solution. The NetShelter SV
maintains an environment for rack power distribution and cable management to
provide reliable rack-mounting for mission-critical equipment.
FEATURES
•Several combinations of height, width and depth make it easy to select the
right cabinet
•Vendor-neutral mounting for guaranteed compatibility with all
EIA-310-compliant 19 in. equipment
•Rear-mounting brackets provide integrated tool-less mounting of APC Rack
Power Distribution Units and vertical cable managers
•Adjustable vertical mounting rails
•Numbered U positions
•Perforated front and rear doors provide ample ventilation for servers and
networking equipment
•Side panels are lockable, utilizing a single key for all doors
•Split rear doors improve access and serviceability to rear of
rack-mounted equipment
•Enclosures are shipped standard with both leveling feet and casters
•The roof, side panels, front and rear doors are grounded to the frame of
the enclosure
•Flat packable option available for onsite setup and installation
NetShelter SX Enclosures
Anixter No. Vendor No. Description
324347 AR3100 NetShelter SX, 42U x 24 in. W x 42 in. D, black
443182 AR3105 NetShelter SX, 45U x 24 in. W x 42 in. D, black
324398 AR3107 NetShelter SX, 48U x 24 in. W x 42 in. D, black
425087 AR3140 NetShelter SX Networking, 42U x 30 in. W x
42 in. D, black
324348 AR3150 NetShelter SX, 42U x 30 in. W x 42 in. D, black
443183 AR3155 NetShelter SX, 45U x 30 in. W x 42 in. D, black
325939 AR3157 NetShelter SX, 48U x 30 in. W x 42 in. D, black
353152 AR3300 NetShelter SX, 42U x 24 in. W x
47.5 in. D, black
443198 AR3305 NetShelter SX, 45U x 24 in. W x
47.5 in. D, black
353153 AR3307 NetShelter SX, 48U x 24 in. W x
47.5 in. D, black
435379 AR3340 NetShelter SX Networking, 42U x 30 in. W x
47.5 in. D, black
435381 AR3347 NetShelter SX Networking, 48U x 30 in W x
47.5 in D, black
353154 AR3350 NetShelter SX, 42U x 30 in. W x
47.5 in. D, black
443199 AR3355 NetShelter SX, 45U x 30 in W x 47.5 in D, black
370676 AR3357 NetShelter SX, 48U x 30 in. W x
47.5 in. D, black
374028 AR3104 NetShelter SX, 24U x 24 in. W x 42 in. D, black
443246 AR3200 NetShelter SX Colocation, 2 x 20U x 24 in. W x
42 in. D, black
443247 AR3810 NetShelter AV, 42U x 24 in. W x 32.5 in. D,
10-32 threaded rails, black
443248 AR3812 NetShelter AV, 42U x 24 in. W x 32.5 in. D,
10-32 threaded rails, no sides/roof/
doors, black
443249 AR3814 NetShelter AV, 24U x 24 in. W x 32.5 in. D,
10-32 threaded rails, black
NetShelter SV Enclosures
Anixter No. Vendor No. Description
Products. Technology. Services. Delivered Globally.
1.800.ANIXTER • anixter.com 5.27
Racks, Cabinets and Cable Management
APC
Physical Infrastructure Solutions
•Color: black

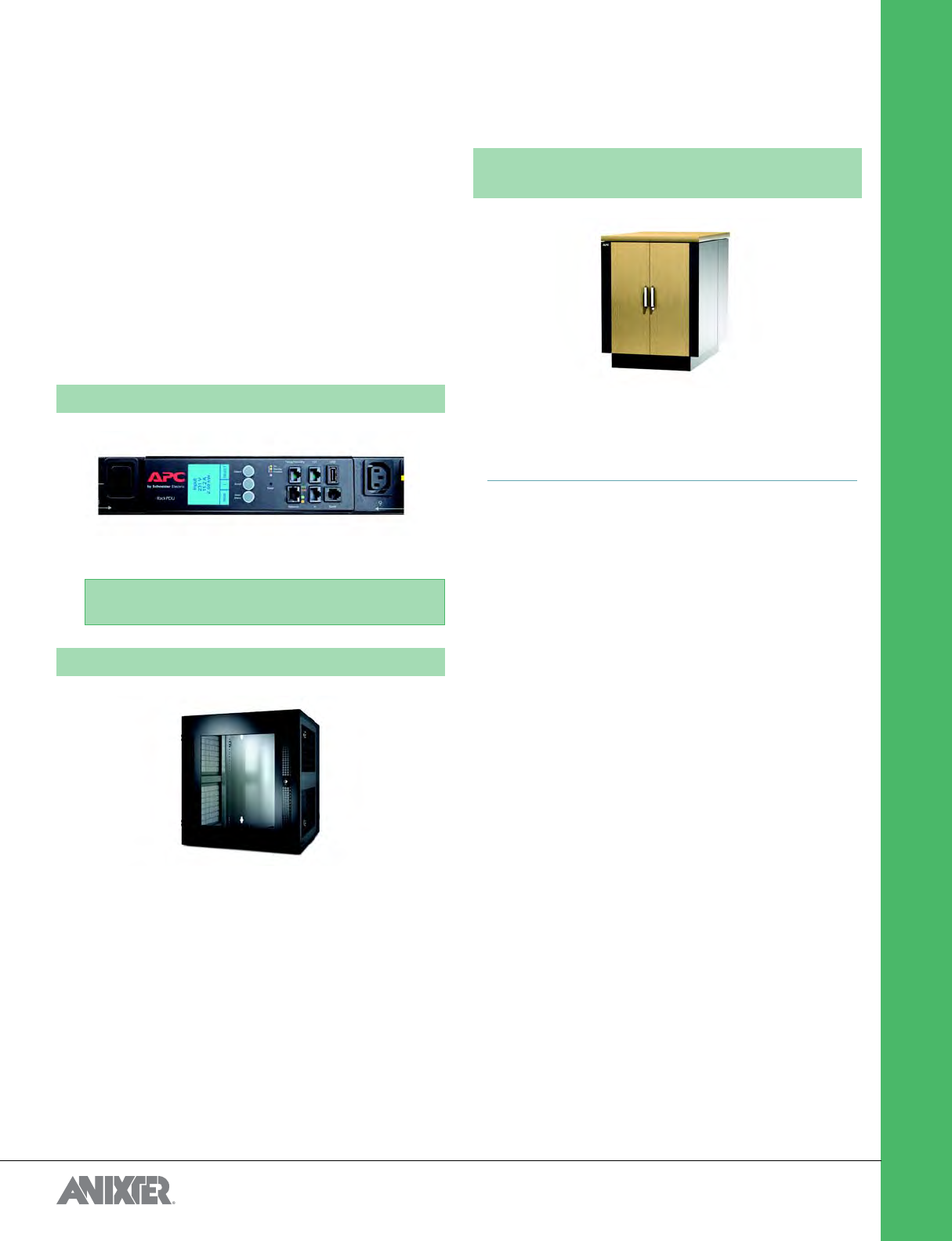

Index1.Support and Supplies//Physical Support Structure//Cabinets
APC BY SCHNEIDER ELECTRIC PR33669V2-248515.tif
APC offers a large variety of power and thermal management products to complete
your rack or cabinet system.
--
Index1.Support and Supplies//Physical Support Structure//Cabinets
APC BY SCHNEIDER ELECTRIC PR33673V2-248522.tif
Support remote patching and networking applications in a convenient wall-mount
rack with an easy-install rear-hinged section and reversible doors.
Index1.Support and Supplies//Physical Support Structure//Cabinets
APC BY SCHNEIDER ELECTRIC PR29144V2-215379.tif
Conveniently support servers and networking equipment in a cool, quiet, secure and
attractive cabinet. The NetShelter CX Office Enclosures deliver an appealing and
cost-effective alternative to building out a new computer room or deploying a loud
metal enclosure in the open office.
FEATURES
•Lockable front doors and side panels protect IT equipment from
unwanted access
•Light oak-veneer finish blends the enclosure discreetly into almost any
office environment
•Acoustic foam lining provides noise dampening of installed IT equipment
allowing the enclosure to be placed in a quiet environment
•Six vertical 0U accessory channels provide multiple mounting locations for cable
management accessories and rack PDUs without using critical equipment space
•Adjustable equipment mountings for any ITapplication
•Integrated power distribution with a rack power-distribution unit provided;
servers and other equipment are ready for deployment
•Integrated heat removal with high-efficiency fan modules remove heat and
eliminate the need to purchase a costly cooling unit for your IT equipment
•Color: oak/grey finish
Anixter No. Vendor No. Description
492695 AR2400 42U x 24 in. W x 42 in. D
492699 AR2480 42U x 32 in. W x 42 in. D
492701 AR2500 42U x 24 in. W x 48 in. D
492703 AR2580 42U x 32 in. W x 48 in. D
492705 AR2407 48U x 24 in. W x 42 in. D
492708 AR2487 48U x 32 in. W x 42 in. D
492710 AR2507 48U x 24 in. W x 48 in. D
492711 AR2587 48U x 32 in. W x 48 in. D
492712 AR2401 42U x 24 in. W x 42 in. D, no sides
492713 AR2400FP1 42U x 24 in. W x 42 in. D, one part flat pack
Power and Cooling Solutions for APC Racks and Cabinets
Please see the Power and Thermal Management Solutions section
for more information.
NetShelter WX Enclosures
Anixter No. Vendor No. Description
312934 AR100 NetShelter WX, 13U, with threaded hole
vertical mounting rail, glass front door, black
312935 AR100HD NetShelter WX, 13U, with threaded hole
vertical mounting rail, vented front
door, black
316608 AR8206ABLK Roof Fan Tray for NetShelter WX Enclosure
NetShelter CX Secure Soundproofed Server-Room-in-a-Box
Office Enclosures
Anixter No. Vendor No. Description
425092 AR4018A 18U, 30 in. W x 44.5 in. D
425094 AR4024A 24U, 30 in. W x 44.5 in. D
425097 AR4038A 38U, 30 in. W x 44.5 in. D
456613 AR4000MV Mini, 27 in. W x 36 in. D
5.28
Request the latest literature and guides from Anixter.
1.800.ANIXTER • anixter.com/literature
Racks, Cabinets and Cable Management
APC
Physical Infrastructure Solutions
D
Index1.Support and Supplies//Physical Support Structure//Racks
APC BY SCHNEIDER ELECTRIC PR20805V2-98538.tif
The NetShelter 2-Post Open Frame Rack offers a quality solution for the economical
installation of rack-mountable networking equipment. The NetShelter 2-Post Open
Frame Rack offers cost-conscious customers a simple solution for rack mounting
network equipment in a secure managed environment, including data centers, wiring
closets and colocation facilities.
FEATURES
•Made with high-grade aluminum extrusions
•45U (78.75 in. or 200 cm) of equipment mounting space in a 7 ft. high design
•Self-squaring design makes assembly quick and easy
Index1.Support and Supplies//Physical Support Structure//Racks
APC BY SCHNEIDER ELECTRIC PR29205V2-216080.tif
The NetShelter 4-Post Open Frame Rack provides simple, low-cost mounting means
for rack-mount equipment in IT environments. Ideal for rack-mount servers,
networking and telecom equipment where security at the individual rack level is not
required, open frame racks provide unobstructed airflow and fast, easy access to
installed equipment.
FEATURES
•New design for easier assembly
•Steel construction
•44U mounting spaces (84 in. tall)
•Black finish
•Multiple tool-less mounting points for hook-and-loop fasteners (AR8621)
•Multiposition rack PDU mounting bracket
•Reversible stabilization plates
•Grounding inserts
•Weight capacity (static load) 2,000 lb. (909 kg)
--
Index1.Support and Supplies//Physical Support Structure//Accessories
APC BY SCHNEIDER ELECTRIC PR34474V2-255194.tif
FEATURES
•Fits two-and four-post open frame racks
•New, best-in-class, high-capacity cable finger design with smooth radius fingers
at 1U increments for superior cable protection
•Options for fully assembly vertical cable managers to assemble on site
•Similar look-and-feel to NetShelter enclosures
•Performance:
- 84 in H, single and double-sided cable channel in 6, 10, 12 in. wide options
- Slam to latch full-length door opens to left or right
- Cable management backplate (single-sided models) for tool-lessly mounting
Rack PDUs and a variety of cable management accessories within the vertical
cable manager
- Cable management midspan bracket (double-sided models ) for tool-less
accessory installation and division of interior cable management space for
deeper or shallower channel space
•Ships fully assembled
VERTICAL CABLE ORGANIZERS
NetShelter 2-Post Open Frame Rack
Anixter No. Vendor No. Description
353150 AR201 45U, 12-24 threaded holes, black
NetShelter 4-Post Open Frame Racks
Anixter No. Vendor No. Description
407843 AR203A Square holes
414514 AR204A Threaded holes
NetShelter Cable Management, Support and Mounting Hardware
Anixter No. Vendor No. Description
348564 AR7502 Replacement vertical 0U accessory
channel for supporting rack PDUs and
vertical cable organizers, NetShelter
SX 42U
492718 AR7552 Replacement vertical 0U accessory
channel for supporting rack PDUs and
vertical cable organizers, NetShelter
SX 45U
324761 AR7572 Replacement vertical 0U accessory
channel for supporting rack PDUs and
vertical cable organizers, NetShelter
SX 48U
492721 AR8654 Cable Fall Protector for NetShelter Racks
and Enclosures and Cable Ladders
(qty. two)
307540 AR8442 Vertical cable organizer, side
rear-mount, zero U (qty. two), metal
ring type
374029 AR8443A Vertical fiber organizer
Products. Technology. Services. Delivered Globally.
1.800.ANIXTER • anixter.com 5.29
Racks, Cabinets and Cable Management
APC
Physical Infrastructure Solutions

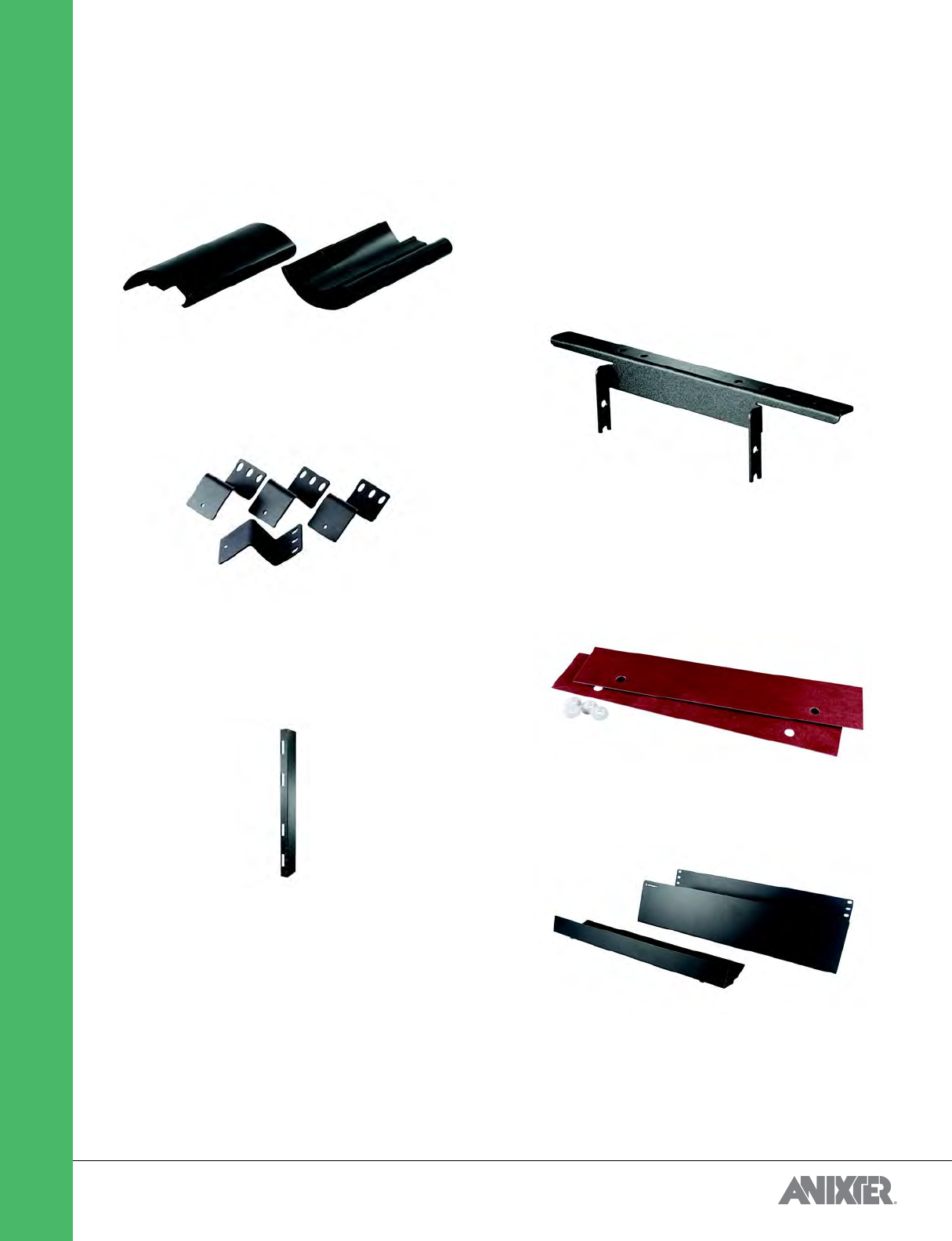

HORIZONTAL CABLE MANAGERS
*Pair two of these parts for a double-sided option
DATA CABLE PARTITIONS
POWER CABLE TROUGHS
Anixter No. Vendor No. Description
374030 AR7711 NetShelter SX zero U Accessory Mounting
Bracket for 1U and 2U patching and
vertical Rack PDU mounting
492723 AR7540 Tool-less Cable Management Rings
(qty. 10)
492722 AR7540100 Tool-less Cable Management Rings
(qty. 100)
492724 AR7721 Vertical Cable Organizer 4 in. deep for
use with NetShelter SX 42U x 600 mm
(AR3x0x) wide enclosures - plastic
finger type
492725 AR7722 Vertical Cable Organizer 4 in. deep for
use with NetShelter SX 45U x 600 mm
(AR3x0x) wide enclosures - plastic
finger type
492726 AR7723 Vertical Cable Organizer 4 in. deep for
use with NetShelter SX 48U x 600 mm
(AR3x0x) wide enclosures - plastic
finger type
492727 AR7580A Vertical Cable Organizer 6 in. deep for
use with NetShelter SX 42U x 750 mm
(AR3x5x) wide enclosures - plastic
finger type
492728 AR7581A Hinged covers for NetShelter SX 42U x
750 mm wide vertical cable manager
492729 AR7585 Vertical Cable Organizer 6 in. deep for
use with NetShelter SX 45U x 750 mm
(AR3x5x) wide enclosures - plastic
finger type
492730 AR7586 Hinged covers for NetShelter SX 45U x
750 mm wide vertical cable managers
492731 AR7588 Vertical Cable Organizer 6 in. deep for
use with NetShelter SX 48U x 750 mm
(AR3x5x) wide enclosures - plastic
finger type
492732 AR7589 Hinged covers for NetShelter SX 48U x
750 mm wide vertical cable managers
492733 AR7582A Cable retainer for NetShelter SX 750 mm
wide vertical cable managers
370677 AR7710 Cable containment brackets with
PDU mounting
353164 AR7707 Cable management rings, 8 in. D,
750 mm wide cabinet, NetShelter SX
(qty. eight)
492734 AR7717A Additional Vertical Cable Manager
Fingers for NetShelter SX 42U
Networking Enclosure
492735 AR7737 Additional Vertical Cable Manager
Fingers for NetShelter SX 45U
Networking Enclosure
492736 AR7727 Additional Vertical Cable Manager
Fingers for NetShelter SX 48U
Networking Enclosure
Anixter No. Vendor No. Description
492742 AR8602A *Horizontal cable manager, 1U x 4 in.
deep single-sided with cover - plastic
finger type
492743 AR8600A *Horizontal cable manager, 3U x 6 in.
deep single-sided with cover - plastic
finger type
459527 AR8612 *Horizontal cable manager, 1U x 6 in.
deep single-sided with cover - plastic
finger type
425173 AR8603A *Horizontal cable manager, 2U x 6 in.
deep single-sided with cover - plastic
finger type
459526 AR8606 *Horizontal cable manager, 2U x 6 in.
deep single-sided with cover - plastic
finger type
459525 AR8605 *Horizontal cable manager, 3U x 6 in.
deep single-sided with cover - plastic
finger type
350020 AR8425A Horizontal cable organizer, 1U, metal
ring type
350016 AR8426A Horizontal cable organizer, 2U, metal
ring type
350019 AR8428 Horizontal cable organizer, 2U, metal
ring type with pass-through holes
325042 AR8429 Horizontal cable organizer, 1U, with
brush strip
353166 AR8008BLK Horizontal cable organizer side channel,
18 to 30 in. adjustment, for use with
NetShelter SX 750 mm (AR3x5x)
wide enclosures
353167 AR8016ABLK Horizontal cable organizer side channel,
10 to 18 in. adjustment, for use with
NetShelter SX 750 mm (AR3x5x)
wide enclosures
Anixter No. Vendor No. Description
353173 AR8162ABLK Data cable partition, NetShelter,
24 in. wide
353174 AR8163ABLK Data cable partition, NetShelter, 24 in.
wide, pass-through
353179 AR8172BLK Data cable partition, NetShelter,
30 in. wide
353180 AR8173BLK Data cable partition, NetShelter, 30 in.
wide, pass-through
Anixter No. Vendor No. Description
425165 AR8561 Cable trough for 24 in. wide enclosures
425169 AR8571 Cable trough for 30 in. wide enclosures
Continued on next page >>
5.30
Request the latest literature and guides from Anixter.
1.800.ANIXTER • anixter.com/literature
Racks, Cabinets and Cable Management
APC
Physical Infrastructure Solutions
D
(continued)
NetShelter Cable Management, Support and
Mounting Hardware
MOUNTING RAILS
GROUNDING BUSBAR
BOLT-DOWN BRACKET
MOUNTING SHELVES
NETSHELTER SX RACK SECURITY DEVICES
NETSHELTER SX AIRFLOW MANAGEMENT BLANKING PANELS AND KOLDLOK RAISED
FLOOR GROMMETS
RACK LCD CONSOLES
Anixter No. Vendor No. Description
353156 AR7503 42U 24 in. wide recessed rail kit
353157 AR7504 48U 24 in. wide recessed rail kit
353159 AR7508 42U 30 in. wide recessed rail kit
353160 AR7578 48U 30 in. wide recessed rail kit
429697 AR7510 42U 23 in. EIA mounting rails, square
holes (qty. four)
353165 AR8006A Equipment support rails for 24 in.
wide enclosure
443679 AR8150BLK Adapter kit 23 in. to 19 in. mounting
Anixter No. Vendor No. Description
443677 AR8395 20U tool-less copper busbar kit for
NetShelter SX Enclosures
Anixter No. Vendor No. Description
353162 AR7701 Bolt-down brackets for NetShelter
SX enclosures
353161 AR7700 Stabilizer plate 24/30 in.
Anixter No. Vendor No. Description
256505 AR8105BLK Fixed shelf 50 lb./22.7 kg, black
252710 AR8122BLK Fixed shelf 250 lb./114 kg, black
256507 AR8123BLK Sliding shelf 100 lb./45.5 kg, black
418494 AR8128BLK Sliding shelf 200 lb./91 kg, black
425197 AR8422 Double-sided fixed shelf for NetShelter
2-Post Open Frame Rack 250 lb., black
443682 AR8125 Adjustable shelf 250 lb. 16 in.-24 in.
deep, black
Anixter No. Vendor No. Description
324907 AP9513 Door switch kit
353171 AR8132A Combination lock handles (qty. two)
353148 AP9361 APC NetBotz Rack Access PX - HID
373087 NBES0302 NetBotz door switch sensor for rooms or
third-party racks - 50 ft.
373099 NBES0303 NetBotz Door Switch Sensor (two) for a
rack - 12 ft.
443064 NBPD0171 Integrated Rack Access for NetShelter SX
Anixter No. Vendor No. Description
332646 AR8136BLK 1U 19 in. modular tool-less airflow
management blanking panel (qty. 10)
324759 AR8136BLK200 1U 19 in. modular tool-less airflow
management blanking panel (qty. 200)
266864 AR8101BLK Airflow management blanking panel kit
(1U, 2U, 4U, 8U)
353168 AR8108BLK 1U airflow management blanking panel
kit (qty. two)
370683 AR7720 KoldLok integral raised-floor grommet
(qty. 10)
374145 AR7730 KoldLok surface-mount raised-floor
grommet (qty. 10)
374146 AR7740 KoldLok extended raised-floor grommet
(qty. 10)
Anixter No. Vendor No. Description
425211 AP5808 17 in. rack LCD console with integrated
8-port analog KVM switch
425212 AP5816 17 in. rack LCD console with integrated
16-port analog KVM switch
425213 AP5717 17 in. Rack LCD Console
425214 AP5719 19 in. Rack LCD Console
Anixter No. Vendor No. Description
Products. Technology. Services. Delivered Globally.
1.800.ANIXTER • anixter.com 5.31
Racks, Cabinets and Cable Management
APC
Physical Infrastructure Solutions
---
Index1.Support and Supplies//Physical Support Structure//Accessories
APC BY SCHNEIDER ELECTRIC PR72263V2-579243.tif
FEATURES
•Fits two-and four-post open frame racks
•High-capacity cable finger design with smooth radius fingers at 1U increments
•Options for fully assembled vertical cable managers to assemble on site
•Similar look and feel to NetShelter enclosures
PERFORMANCE
- 84 in. H, single and double-side cable channel in 6 in., 10 in., 12 in. width options
- Slam to latch full-length door opens to left or right
- Cable management back-plate (single-sided models) for tool-less mounting rack
PDUs and a variety of cable management accessories within the
vertical cable manager
- Cable management midspan bracket (double-sided models) for tool-less accessory
installation and division of interior cable management space for deeper or
shallower channel space
- Ships fully assembled
VALUELINE
- 84 in. H, single-and double-sided cable channel in 6 in. and 12 in. wide options
- 96 in. H, single-sided, 6 in. and 12 in. wide
- Latching full-length door opens to the left or right
- Cable management back-plate for tool-lessly mounting a variety of cable
management accessories with the vertical cable manager
- Ships disassembled for simple assembly onsite
ACCESSORIES
Open Frame Rack Cable Management
Anixter No. Vendor No. Description
459528 AR8615 Performance vertical cable manager for
two-and four-post racks, 84 in. H x
6 in. W, single-sided with door
459529 AR8625 Performance vertical cable manager for
two-and four-post racks, 84 in. H x
6 in. W, double sided with door
459530 AR8635 Performance vertical cable manager for
two-and four-post racks, 84 in. H x
10 in. W, single-sided with door
459531 AR8645 Performance vertical cable manager for
two-and four-post racks, 84 in. H x
10 in. W, double-sided with door
459532 AR8665 Performance vertical cable manager for
two-and four-post racks, 84 in. H x
12 in. W, single-sided with door
459533 AR8675 Performance vertical cable manager for
two-and four-post racks, 84 in. H x
12 in. W, double-sided with door
459534 AR8680 Cable divider organizer for performance
vertical cable manager (qty. two)
459535 AR8681 Additional midspan bracket for
double-sided performance vertical cable
manager, 6 in. W
459536 AR8682 Additional midspan bracket for
double-sided performance vertical cable
manager, 10 in. W
459537 AR8683 Additional midspan bracket for
double-sided performance vertical cable
manager, 12 in. W
492756 AR8678 End of row panel for performance
vertical cable manager, single-sided
492757 AR8679 End of row panel for performance
vertical cable manager, double-sided
Anixter No. Vendor No. Description
492762 AR8715 84 in. H x 6 in. W, single-sided with door
492763 AR8725 84 in. H x 6 in. W, double-sided
with door
492764 AR8765 84 in. H x 12 in. W, single-sided
with door
492765 AR8775 84 in. H x 12 in. W, double-sided
with door
492766 AR8728 84 in. H x 12 in. W, double-sided
with door
492767 AR8768 96 in. H x 12 in. W, single-sided
with door
Anixter No. Vendor No. Description
426313 AR8652 Spacer and rack PDU bracket for
four-post racks, 6 in. wide (qty. two)
492769 AR8662 Spacer and rack PDU bracket for
four-post racks, 10 in. wide (qty. two)
443684 AR8621 Tool-less hook-and-loop cable managers
(qty. 10)
381724 AR8444 Tool-less fiber spools (qty. four)
Anixter No. Vendor No. Description
5.32
Request the latest literature and guides from Anixter.
1.800.ANIXTER • anixter.com/literature
Racks, Cabinets and Cable Management
Belden
Physical Infrastructure Solutions
D
./-
Index1.Support and Supplies//Physical Support Structure//Cabinets
BELDEN PR67220V2-531222.tif
The X-Series design provides for low-resistance airflow through doors featuring
78 percent open hexagonal perforations. The use of front rail seals allows for
physical separation between the supply and return air, thereby limiting recirculation
of hot air within the enclosure for optimized hot/cold aisle deployment.
SPECIFICATIONS
Dimensions
1. X1S Series - 45RU, 84 in. H x 24 in. W x 42 in. D also available in 42RU
(78.75 in. H) or 48RU (89.25 in. H)
2. X2S Series - 45RU, 84 in. H x 24 in. W x 48 in. D also available in 42RU
(78.75 in. H) or 48RU (89.25 in. H)
3. X3S Series - 45RU, 84 in. H x 30 in. W x 42 in. D also available in 42RU
(78.75 in. H) or 48RU (89.25 in. H)
4. X4S Series - 45RU, 84 in. H x 30 in. W x 42 in. D also available in 42RU
(78.75 in. H) or 48RU (89.25 in. H)
Rail Options
5. Square-hole mounting rails
6. 10-32 tapped mounting rails
7. 12-24 tapped mounting rails
FEATURES
•Rail seal and adaptive containment system
•3,000 lb. static load rating / 2,250 lb. capacity on casters
•Static load capacity = load capacity on levelers or ground; capacity on casters
= rolling load capacity on casters (assuming even and level floor)
•Shipment of fully assembled and highly integrated enclosure systems including
power, air flow, connectivity and cable management
•Open frame design
•Welded 14-gauge frame and 11-gauge mounting rails
•78 percent perforated door mesh opening
•Engineered and made in the U.S.A.
•Modular design with options on doors, side panels, chimney containment
options, cable management and PDU mounting
•Standard colors are black and central office white
X1S SERIES
Includes 45U, square-hole mounting rails, brush panel rear top, perforated front
door, perforated rear door, two sets of solid side panels, solid bottom.
X2S SERIES
Includes 45U, square-hole mounting rails, brush panel rear top, perforated front
door, perforated rear door, two sets of solid side panels, solid bottom.
X3S SERIES
Includes 45U, square-hole mounting rails, brush panel rear top, perforated front
door, perforated rear door, two sets of solid side panels, solid bottom.
X4S SERIES
Includes 45U, square-hole mounting rails, brush panel rear top, perforated front
door, perforated rear door, two sets of solid side panels, solid bottom.

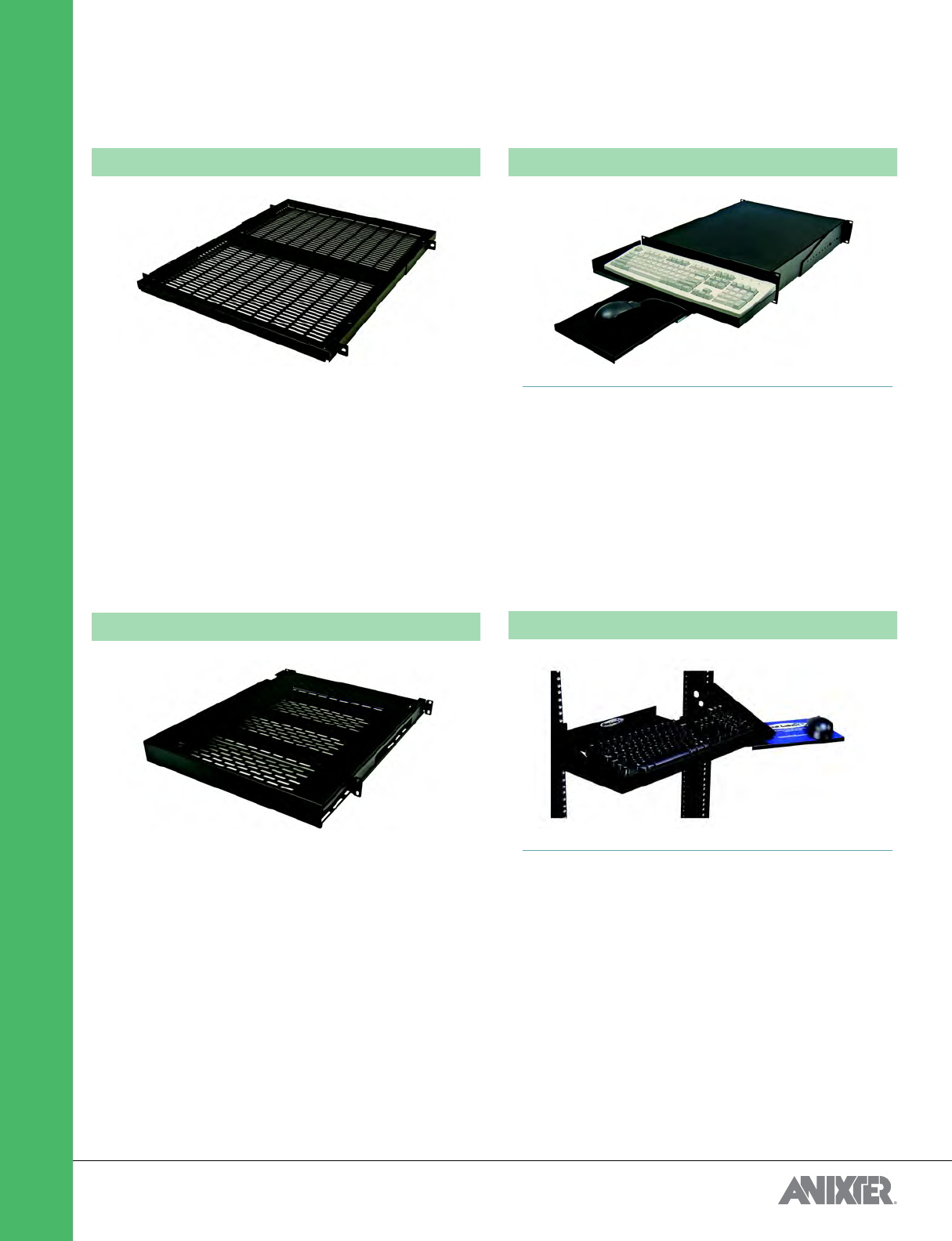

ACCESSORIES - SHELVES
X-Series Enclosures
Anixter No. Vendor No. Description
492108 X1S4-C0110 84 in. D x 24 in. W x 42 in. D, black
492109 X1S45-C0210 84 in. H x 24 in. W x 42 in. D, central
office white
Anixter No. Vendor No. Description
492110 X2S45-C0130 84 in. H x 24 in. W x 48 in. D, black
492111 X2S45-C0230 84 in. H x 24 in. W x 48 in. D, central
office white
Anixter No. Vendor No. Description
492112 X3S45-C0150 84 in. H x 30 in. W x 42 in. D, black
492113 X3S45-C0250 84 in. H x 30 in. W x 42 in. D, central
office white
Anixter No. Vendor No. Description
492114 X4S45-C0170 84 in. H x 30 in. W x 48 in. D, black
492115 X4S45-C0270 84 in. H x 30 in. W x 48 in. D, central
office white
Anixter No. Vendor No. Description
337749 9910-0100 1U 19 in. solid filler panel, black
337750 9911-0200 2U 19 in. solid filler panel, black
337751 9912-0300 3U 19 in. solid filler panel, black
337752 9913-0400 4U 19 in. solid filler panel, black
337747 9010-1924 19 in. heavy-duty adjustable shelf
(vented) four-point mounting 24 in.
depth, 150 lb.
377522 9010-1930 19 in. heavy-duty adjustable shelf
(vented) four-point mounting 30 in.
depth, 150 lb.
377523 9010-1936 19 in. heavy-duty adjustable shelf
(vented) four-point mounting 36 in.
depth, 150 lb.
362137 9011-1918-16 19 in. flush-mount cantilevered shelf
(vented) 18 in. depth, 25 lb.
362142 9012-1918-16 19 in. flush-mount cantilevered shelf
(solid) 18 in. depth, 25 lb.
366547 9015-1909 19 in. retractable keyboard swivel shelf
for maximum cabinet space efficiency
492127 RMD2 2U rack-mounting drawer,
19 in. mounting
492129 RMD3 3U rack-mount drawer, 19 in. mounting
492130 RMD4 4U rack-mount drawer, 19 in. mounting
492131 RMD5 5U rack-mount drawer, 19 in. mounting
492132 9010-1930-Q1 19 in. quick disconnect shelf,
28 in. depth
337748 9013-1924 19 in. heavy-duty sliding adjustable
shelf, 24 in. depth
Products. Technology. Services. Delivered Globally.
1.800.ANIXTER • anixter.com 5.33
Racks, Cabinets and Cable Management
Belden
Physical Infrastructure Solutions
HORIZONTAL MANAGER WITH COVER
Index1.Support and Supplies//Physical Support Structure//Racks
BELDEN PR34406V2-253248.tif
Belden offers a complete line of open racks and rack accessories from single-rack
applications (retail, telecom closed) to high-density, multirack patching and
switching fields (computer room, data centers, central offices). Belden's unique
cable and connectivity expertise was central in the design of a feature-rich racking
system: ease of installation with MACs and highly scalable.
FEATURES
•High level of modularity; combination of high- and low-density managers allows
for configuration to your specific needs
•1RU spaced radius control fingers (on vertical managers) eliminate needs for
horizontal managers. Patch cords can be routed directly to the vertical manager
•Any-point-to-any-point routing capability, make MACs work easily and enables
configuration flexibility
•Mixed media application, designed to handle both copper and fiber structured
cable networks
•Ease of install and great aesthetics
TWO-POST RELAY RACKS
84 in. H x 19 in. W, 44RU, 3 in. channel, black, steel
ACCESSORIES
--
Index1.Support and Supplies//Physical Support Structure//Cabinets
BELDEN PR34407V2-253251.tif
Wall-mount enclosures, with their great aesthetic, rugged construction and cable
management features, are perfectly suited for retail, office, telecom closets or any
hosting applications where space utilization is critical.
SPECIFICATIONS
1. Available with either a glass door with lock, or a steel door with lock
2. Heights: 20.125 in., 25.250 in. and 39.250 in.
3. Width: 21.00 in. and 23.00 in.
4. Depths: 22.875 in. and 27.50 in.
FEATURES
•Sturdy welded-steel construction
•Units include two pair of 12-24 tapped 19 in. mounting rails
•Direction of door swing is reversible in the field
•Top fan knockouts accommodate two 4 in. fans on 9U and four 4 in. fans on 12U
and 20U
•Convenient laser-cut cable entry located on the top and bottom rear section of
the enclosure - 1 in. conduit hubs
Anixter No. Vendor No. Description
362140 9011-1918 19 in. flush-mount cantilevered shelf
(vented) 18 in. depth
492838 9012-1918 19 in. flush-mount cantilevered shelf
(solid) 18 in. depth
Anixter No. Vendor No. Description
406687 BHH191UC Horizontal manager, 19 in. W x 1U, black
349298 BHH192UC Horizontal manager, 19 in. W x 2U, black
349299 BHH193UC Horizontal manager, 19 in. W x 3U, black
362127 9512-1902-FR 2U, 19 in. manager with finger stock
with cover, front and rear
355604 9512-1902 2U, 19 in. manager with finger stock
with cover, 3in. x 3in.
362128 9512-1901 1U, 19 in. manager with finger stock
with cover, 1.5in. x 3in.
High Density Racking System
Anixter No. Vendor No. Description
492839 XDR8419-310N 10-32 tapped hole, no cable manager
492840 XDR8419-310N1M 10-32 tapped hole, one vertical
cable manager
492841 XDR8419-310N2M 10-32 tapped hole, two vertical
cable managers
492842 XDR8419-312N 12-24 tapped hole, no cable manager
492843 XDR8419-312N1M 12-24 tapped hole, one vertical
cable manager
492844 XDR8419-312N2M 12-24 tapped hole, two vertical
cable managers
Anixter No. Vendor No. Description
492849 VCMFDR4X4 Vertical manager with cover, 4 in. W x
4 in. D (for 84 in. W two-post rack)
492850 9512-1902N Horizontal manager, 2RU, rack mount,
finger duct, 3 in. H x 3 in. D with cover
362137 9011-1918-16 19 in. flush-mount cantilevered shelf
(vented) 18 in. depth, 25 lb.
362143 9414-0602 Power distribution unit (PDU) 120 V/
15 A, 19 in. rack mount, six x 5-15R
receptacles, transformer spaced, 5-15P
plug, with 10 ft. cord, surge suppressor,
switch and circuit breaker, UL Listed
Wall-mount Enclosure
Anixter No. Vendor No. Description
Continued on next page >>
5.34
Request the latest literature and guides from Anixter.
1.800.ANIXTER • anixter.com/literature
Racks, Cabinets and Cable Management
Belden
Physical Infrastructure Solutions
D
(continued)
Wall-mount Enclosure
9U MOUNTING
130 lb. load capacity, 20.125 in. H x 21 in. W x 22.875 in. D, no removable
side panels
12U MOUNTING
150 lb. load capacity, 27.5 in. H x 23 in. W x 27.5 in. D, removable side panels
20U MOUNTING
175 lb. load capacity, 39.250 in. H x 23 in. W x 27.5 in. D, removable side panels
ACCESSORIES
Anixter No. Vendor No. Description
492857 XWM-2109-GD With glass door with lock
492865 XWM-2109-SD With solid door with lock
Anixter No. Vendor No. Description
492870 XWM-2312-GD With glass door with lock
492873 XWM-2312-SD With solid door with lock
Anixter No. Vendor No. Description
492874 XWM-2320-GD With glass door with lock
492875 XWM-2320-SD With solid door with lock
Anixter No. Vendor No. Description
492850 9512-1902N Horizontal manager, 2RU, rack mount,
finger duct, 3 in. H x 3 in. D with cover
362137 9011-1918-16 19 in. flush-mount cantilevered shelf
(vented) 18 in. depth, 25 lb.
362143 9414-0602 Power distribution unit (PDU) 120 V/
15 A, 19 in. rack mount, six x 5-15R
receptacles, transformer spaced, 5-15P
plug, with 10 ft. cord, surge suppressor,
switch and circuit breaker, UL Listed
Products. Technology. Services. Delivered Globally.
1.800.ANIXTER • anixter.com 5.35
Racks, Cabinets and Cable Management
CommScope Solutions
Physical Infrastructure Solutions
./
Index1.Support and Supplies//Physical Support Structure//Cabinets
COMMSCOPE ENTERPRISE SOLUTIONS PR24117V2-174780.tif
More than "just a box," CommScope network cabinets are a solution. They are
designed to be the right size, the right weight and have the right level of durability to
support the entire line of CommScope solutions, including its industry-leading
10 Gbps solutions.
FEATURES
•Supplied fully assembled
•Cable management room is superior for 10 Gbps cable
•Multiple cable entry
•Split rear door
•Load rated to 1,450 kg/3,200 lb.
•Future-proofed; can accommodate 19 in.
•Accessories can be easily added or changed
•Depth options: 800 mm
•Width options: 600 mm or 800 mm with or without perforated doors
Index1.Support and Supplies//Physical Support Structure//Cabinets
COMMSCOPE ENTERPRISE SOLUTIONS PR24118V2-174778.tif
CommScope server cabinets are the right cabinet to protect the right solution. They
are designed to be the right size, the right weight and have the right level of durability
to support the entire line of CommScope solutions, including its industry-leading
10 Gbps solutions. The right cabinet means less physical impact on the network
infrastructure and, ultimately, on the network's performance.
FEATURES
•Supplied fully assembled
•Load rated to 1,450 kg/3,200 lb.
•Accommodates all major servers on the market
•Cable management room is superior for 10 Gbps cable
•Future-proofed; can accommodate 19 in.
•Door vent pattern provides excellent thermal management
•Split rear door
•Application-specific accessories
•Two depth options: 1,000 mm and 1,200 mm
•Two width options: 600 mm and 800 mm
•Two height options: 42U and 47U
42U SERVER CABINETS
Doors: vented steel front, double vented steel rear
47U SERVER CABINETS
Doors: vented steel front, double vented steel rear
SIDE PANELS
CABLE MANAGEMENT AND ROUTING
Network Cabinets
Anixter No. Vendor No. Description Material ID
426473 NC 42U 800X800 NS Network bay cabinet, 42U,
800 mm x 800 mm
760142927
432794 NC42U600X800NSR Network bay cabinet
perforated, 42U, 600 mm x
800 mm
760149708
432795 NC42U800X800NSP Network bay cabinet
perforated, 42U, 800 mm x
800 mm
760150664
Server Cabinets
Anixter No. Vendor No. Description Material ID
426476 SC 42U 600X1000 NS Server bay cabinet, 42U,
600 mm x 1,000 mm
760143016
426477 SC 42U 800X1000 NS Server bay cabinet, 42U,
800 mm x 1,000 mm
760143032
426478 SC 42U 600X1200 NS Server bay cabinet, 42U,
600 mm x 1,200 mm
760143024
426479 SC 42U 800X1200 NS Server bay cabinet, 42U,
800 mm x 1,200 mm
760143040
Anixter No. Vendor No. Description Material ID
426482 SC 47U 600X1000 NS Server bay cabinet, 47U
600 mm x 1,000 mm
760143057
426483 SC 47U 800X1000 NS Server bay cabinet, 47U,
800 mm x 1,000 mm
760143073
426485 SC 47U 600X1200 NS Server bay cabinet, 47U
600 mm x 1,200 mm
760143065
426486 SC 47U 800X1200 NS Server bay cabinet, 47U,
800 mm x 1,200 mm
760143081
Anixter No. Vendor No. Description Material ID
426474 42U 800MM SIDE PNL Side panel, 42U x 32 in./
800 mm, two
760143941
426480 42U 1000MM SIDE PNL Side panel, 42U x 40 in./
1,000 mm, two
760143958
426481 42U 1200MM SIDE PNL Side panel, 42U x 48 in./
1,200 mm, two
760143966
426487 47U 1000MM SIDE PNL Side panel, 47U x 40 in./
1,000 mm, two
760143974
426488 47U 1200MM SIDE PNL Side panel, 47U x 48 in./
1,200 mm, two
760143982
Anixter No. Vendor No. Description Material ID
432799 CCM 3.5IN X 9U Cabinet cable mgmt, 3.5 in.
W x 9U
760144626
432797 CCM 10IN X 9U Cabinet cable mgmt, 10 in.
W x 9U
760144600
Continued on next page >>
5.36
Request the latest literature and guides from Anixter.
1.800.ANIXTER • anixter.com/literature
Racks, Cabinets and Cable Management
CommScope Solutions
Physical Infrastructure Solutions
D
(continued)
Server Cabinets
MISCELLANEOUS ACCESSORIES
Index1.Connecting Hardware//Cross-connect Systems//Copper/Fiber-Dual Applications
COMMSCOPE SYSTIMAX SOLUTIONS
The InstaPATCH ZERO server cabinet solution is composed of a 600 mm wide server
cabinet, factory-configured cord cassettes with premanaged slack loops, and
a mini rack mounted above the cabinet. InstaPATCH ZERO provides U/UTP and
fiber connectivity in an integrated, modular system that enables rapid,
plug-and-play server cabinet deployment and facilitates best practices in
intracabinet cable management.
Deployment of InstaPATCH ZERO is a two-step process. Simply roll in a preconfigured
cabinet and plug the cord bundles into the overhead patch panel. Once the servers are
installed in the cabinet, they can be connected instantly by pulling the patch cord out
of the cassette to complete the patch. When your server needs change, InstaPATCH
ZERO's preterminated modularity enables you to slide in additional cassettes, or
quickly decommission and replace an entire cabinet.
LEFT-MOUNT SERVER CABINET WITH CORD CASSETTES PR34244V2-251941.tif
Built on a unique modular 600 mm wide server cabinet equipped with preterminated
cord cassettes that require zero space in the vertical racks, InstaPATCH ZERO is a
preterminated server cabinet solution optimized for rapid server deployment and
change management. Each InstaPATCH ZERO cabinet can accept up to six InstaPATCH
ZERO cord cassettes with built-in U/UTP and fiber patch cords. Cord cassettes are
preinstalled and configured in the zero U space of a 42U 600 mm wide and
1,200 mm deep server cabinet before shipping to end-user sites, which provide up
to 72 U/UTP ports, or up to 72 U/UTP ports and 72 optical fiber duplex LC ports.
Anixter No. Vendor No. Description Material ID
432802 CCM VLR Cabinet cable mgmt, velcro 760144659
432798 CCM 3 CVR Cabinet cable mgmt cover,
3.5 in. W
760144618
432796 CCM 10 CVR Cabinet cable mgmt cover,
10 in. W
760144592
432800 CCM CLW Cabinet cable mgmt
cable claw
760144634
432801 CCM SPL Cabinet cable mgmt
slack spool
760144642
Anixter No. Vendor No. Description Material ID
432810 BAY KIT Baying kit 760144063
432824 M6 GRND CAGE NUT 50 M6 caged nut with contact
(50 pk)
760144097
432811 M6 CAGE NUT 50 M6 caged nut without
contact (50 pk)
760144089
432844 M6 X 12MM TORX 300 Screw kit - M6 x 12 mm Torx
(300 pk)
760144105
432813 M6 X 16MM Screw kit - M6 x
16 mm Phillips
760144113
432814 SC CTR KIT Server cabinet caster kit 760144030
432809 ADJ LEV FEET Adjustable leveling feet 760144048
432818 BOLTCLAMP Bolt down clamps (set
of four)
760144055
432819 GROUND KIT Complete grounding kit 760144071
InstaPATCH ZERO Preterminated Server Cabinet Solution
Anixter No. Vendor No. Description Material ID
443725 PS42U600W1200D
L2-A2110000
Two cord cassettes, A and B
positions, Category 6A,
light blue
760157917
443726 PS42U600W1200D
L2-A2001100
Two cord cassettes, C and D
positions, Category 6A,
light blue
760157925
443727 PS42U600W1200D
L4-A2111100
Four cord cassettes,
A through D positions,
Category 6A, light blue
760157933
443728 PS42U600W1200D
L6-A2111111
Six cord cassettes, A through F
positions, Category 6A,
light blue
760157941
443729 PS42U600W1200D
L2-A3110000
Two cord cassettes, A and B
positions, Category 6A,
dark gray
760158071
443730 PS42U600W1200D
L2-A3001100
Two cord cassettes, C and D
positions, Category 6A,
dark gray
760158089
443731 PS42U600W1200D
L4-A3111100
Four cord cassettes,
A through D positions,
Category 6A, dark gray
760158097
443732 PS42U600W1200D
L6-A3111111
Six cord cassettes, A through F
positions, Category 6A,
dark gray
760158105
443733 PS42U600W1200D
L2-B2110000
Two cord cassettes, A and B
positions, Category 6,
light blue
760158113
443734 PS42U600W1200D
L2-B2001100
Two cord cassettes, C and D
positions, Category 6,
light blue
760158121
443735 PS42U600W1200D
L4-B2111100
Four cord cassettes,
A through D positions,
Category 6, light blue
760158139
443736 PS42U600W1200D
L6-B2111111
Six cord cassettes, A through F
positions, Category 6,
light blue
760158147
443737 PS42U600W1200D
L2-B3110000
Two cord cassettes, A and B
positions, Category 6,
dark gray
760157958
443738 PS42U600W1200D
L2-B3001100
Two cord cassettes, C and D
positions, Category 6,
dark gray
760157966
443739 PS42U600W1200D
L4-B3111100
Four cord cassettes,
A through D positions,
Category 6, dark gray
760157974
443740 PS42U600W1200D
L6-B3111111
Six cord cassettes, A through F
positions, Category 6,
dark gray
760157982
Products. Technology. Services. Delivered Globally.
1.800.ANIXTER • anixter.com 5.37
Racks, Cabinets and Cable Management
CommScope Solutions
Physical Infrastructure Solutions
RIGHT-MOUNT SERVER CABINET WITH CORD CASSETTES
443741 PS42U600W1200D
L2-A2330000
Two cord cassettes, A and B
positions, Category 6A, light
blue, 24 OM4 fiber
760158238
443742 PS42U600W1200D
L2-A2003300
Two cord cassettes, C and D
positions, Category 6A, light
blue, 24 OM4 fiber
760158246
443743 PS42U600W1200D
L4-A2333300
Four cord cassettes,
A through D positions,
Category 6A, light blue,
24 OM4 fiber
760158253
443744 PS42U600W1200D
L6-A2333333
Six cord cassettes, A through F
positions, Category 6A, light
blue, 24 OM4 fiber
760158261
443745 PS42U600W1200D
L2-A3330000
Two cord cassettes, A and B
positions, Category 6A, dark
gray, 24 OM4 fiber
760158394
443746 PS42U600W1200D
L2-A3003300
Two cord cassettes, C and D
positions, Category 6A, dark
gray, 24 OM4 fiber
760158402
443747 PS42U600W1200D
L4-A3333300
Four cord cassettes,
A through D positions,
Category 6A, dark gray,
24 OM4 fiber
760158410
443748 PS42U600W1200D
L6-A3333333
Six cord cassettes, A through F
positions, Category 6A, dark
gray, 24 OM4 fiber
760158428
443749 PS42U600W1200D
L2-B2330000
Two cord cassettes, A and B
positions, Category 6, light
blue, 24 OM4 fiber
760158436
443750 PS42U600W1200D
L2-B2003300
Two cord cassettes, C and D
positions, Category 6, light
blue, 24 OM4 fiber
760158444
443751 PS42U600W1200D
L4-B2333300
Four cord cassettes,
A through D positions,
Category 6, light blue,
24 OM4 fiber
760158451
443752 PS42U600W1200D
L6-B2333333
Six cord cassettes, A through F
positions, Category 6, light
blue, 24 OM4 fiber
760158469
443753 PS42U600W1200D
L2-B3330000
Two cord cassettes, A and B
positions, Category 6, dark
gray, 24 OM4 fiber
760158279
443754 PS42U600W1200D
L2-B3003300
Two cord cassettes, C and D
positions, Category 6, dark
gray, 24 OM4 fiber
760158287
443755 PS42U600W1200D
L4-B3333300
Six cord cassettes, A through F
positions, Category 6, dark
gray, 24 OM4 fiber
760158295
443756 PS42U600W1200D
L6-B3333333
Six cord cassettes, A through F
postions, Category 6, dark
gray, 24 OM4 fiber
760158303
Anixter No. Vendor No. Description Material ID
Anixter No. Vendor No. Description Material ID
443757 PS42U600W1200D
R2-A2110000
Two cord cassettes, A and B
positions, Category 6A,
light blue
760157990
443758 PS42U600W1200D
R2-A2001100
Two cord cassettes, C and D
positions, Category 6A,
light blue
760158006
443759 PS42U600W1200D
R4-A2111100
Four cord cassettes,
A through D positions,
Category 6A, light blue
760158014
443760 PS42U600W1200D
R6-A2111111
Six cord cassettes, A through
F positions, Category 6A,
light blue
760158022
443761 PS42U600W1200D
R2-A3110000
Two cord cassettes, A and B
positions, Category 6A,
dark gray
760158154
443762 PS42U600W1200D
R2-A3001100
Two cord cassettes, C and D
positions, Category 6A,
dark gray
760158162
443763 PS42U600W1200D
R4-A3111100
Four cord cassettes,
A through D positions,
Category 6A, dark gray
760158170
443764 PS42U600W1200D
R6-A3111111
Six cord cassettes, A through
F positions, Category 6A,
dark gray
760158188
443765 PS42U600W1200D
R2-B2110000
Two cord cassettes, A and B
positions, Category 6,
light blue
760158196
443766 PS42U600W1200D
R2-B2001100
Two cord cassettes, C and D
positions, Category 6,
light blue
760158204
443767 PS42U600W1200D
R4-B2111100
Four cord cassettes,
A through D postions,
Category 6, light blue
760158212
443768 PS42U600W1200D
R6-B2111111
Six cord cassettes, A through
F positions, Category 6,
light blue
760158220
443769 PS42U600W1200D
R2-B3110000
Two cord cassettes, A and B
positions, Category 6,
dark gray
760158030
443770 PS42U600W1200D
R2-B3001100
Two cord cassettes, C and D
positions, Category 6,
dark gray
760158048
443771 PS42U600W1200D
R4-B3111100
Four cord cassettes,
A through D positions,
Category 6, dark gray
760158055
443772 PS42U600W1200D
R6-B3111111
Six cord cassettes, A through
F positions, Category 6,
dark gray
760158063
443773 PS42U600W1200D
R2-A2330000
Two cord cassettes, A and B
positions, Category 6A, light
blue, 24 OM4 fiber
760158311
Continued on next page >>
5.38
Request the latest literature and guides from Anixter.
1.800.ANIXTER • anixter.com/literature
Racks, Cabinets and Cable Management
CommScope Solutions
Physical Infrastructure Solutions
D
(continued)
InstaPATCH ZERO Preterminated Server Cabinet Solution CORD CASSETTES PR34245V2-251944.tif
Cord cassettes are available in two configurations. Powered by either SYSTIMAX
GigaSPEED X10D or GigaSPEED XL, the copper cord cassettes come with 12 U/UTP
patch cords. The mixed-media cassettes contain 12 U/UTP (GigaSPEED X10D or
GigaSPEED XL) and 24 OM4 fiber ruggedized fan-out (for 12 LazrSPEED 550 Duplex
LC connections). For initial deployment, cord cassettes are preinstalled and
configured in the zero U space of a 600 mm wide server cabinet.
Anixter No. Vendor No. Description Material ID
443774 PS42U600W1200D
R2-A2003300
Two cord cassettes, C and D
positions, Category 6A, light
blue, 24 OM4 fiber
760158329
443775 PS42U600W1200D
R4-A2333300
Four cord cassettes,
A through D positions,
Category 6A, light blue,
24 OM4 fiber
760158337
443776 PS42U600W1200D
R6-A2333333
Six cord cassettes, A through
F positions, Category 6A, light
blue, 24 OM4 fiber
760158345
443777 PS42U600W1200D
R2-A3330000
Two cord cassettes, A and B
positions, Category 6A, dark
gray, 24 OM4 fiber
760158477
443778 PS42U600W1200D
R2-A3003300
Two cord cassettes, C and D
positions, Category 6A, dark
gray, 24 OM4 fiber
760158485
443779 PS42U600W1200D
R4-A3333300
Four cord cassettes,
A through D positions,
Category 6A, dark gray,
24 OM4 fiber
760158493
443780 PS42U600W1200D
R6-A3333333
Six cord cassettes, A through
F positions, Category 6A, dark
gray, 24 OM4 fiber
760158501
443781 PS42U600W1200D
R2-B2330000
Two cord cassettes, A and B
positions, Category 6, light
blue, 24 OM4 fiber
760158519
443782 PS42U600W1200D
R2-B2003300
Two cord cassettes, C and D
positions, Category 6, light
blue, 24 OM4 fiber
760158527
443783 PS42U600W1200D
R4-B2333300
Four cord cassettes,
A through D positions,
Category 6, light blue,
24 OM4 fiber
760158535
443784 PS42U600W1200D
R6-B2333333
Six cord cassettes, A through
F positions, Category 6, light
blue, 24 OM4 fiber
760158543
443785 PS42U600W1200D
R2-B3330000
Two cord cassettes, A and B
positions, Category 6, dark
gray, 24 OM4 fiber
760158352
443786 PS42U600W1200D
R2-B3003300
Two cord cassettes, C and D
positions, Category 6, dark
gray, 24 OM4 fiber
760158360
443787 PS42U600W1200D
R4-B3333300
Four cord cassettes,
A through D positions,
Category 6, dark gray,
24 OM4 fiber
760158378
Anixter No. Vendor No. Description Material ID
472924 ZC12A2B0000-F006 Cord cassette, Category 6A,
copper only, light blue, 6 ft.
ZC12A2B00
00-F006
472925 ZC12A2B0000-F008 Cord cassette, Category 6A,
copper only, light blue, 10 ft.
ZC12A2B00
00-F008
472926 ZC12A2B0000-F010 Cord cassette, Category 6A,
copper only, light blue, 10 ft.
ZC12A2B00
00-F010
472927 ZC12A2B24LP-F006 Cord cassette, Category 6A,
mixed media, light blue, 6 ft.
ZC12A2B24
LP-F006
472928 ZC12A2B24LP-F008 Cord cassette, Category 6A,
mixed media, light blue, 8 ft.
ZC12A2B24
LP-F008
472930 ZC12A3B0000-F006 Cord cassette, Category 6A,
copper only, dark gray, 6 ft.
ZC12A3B00
00-F006
472937 ZC12B2B0000-F008 Cord cassette, Category 6,
copper only, light blue, 8 ft.
ZC12B2B00
00-F008
472929 ZC12A2B24LP-F010 Cord cassette, Category 6A,
mixed media, light blue, 10 ft.
ZC12A2B24
LP-F010
472933 ZC12A3B24LP-F006 Cord cassette, Category 6A,
mixed media, dark gray, 6 ft.
ZC12A3B24
LP-F006
472935 ZC12A3B24LP-F010 Cord cassette, Category 6A,
mixed media, dark gray, 10 ft.
ZC12A3B24
LP-F010
472936 ZC12B2B0000-F006 Cord cassette, Category 6,
copper only, light blue, 6 ft.
ZC12B2B00
00-F006
472938 ZC12B2B0000-F010 Cord cassette, Category 6,
copper only, light blue, 10 ft.
ZC12B2B00
00-F010
472939 ZC12B2B24LP-F006 Cord cassette, Category 6,
mixed media, light blue, 6 ft.
ZC12B2B24
LP-F006
472940 ZC12B2B24LP-F008 Cord cassette, Category 6,
mixed media, light blue, 8 ft.
ZC12B2B24
LP-F008
472941 ZC12B2B24LP-F010 Cord cassette, Category 6,
mixed media, light blue, 10 ft.
ZC12B2B24
LP-F010
472945 ZC12B3B24LP-F006 Cord cassette, Category 6,
mixed media, dark gray, 6 ft.
ZC12B3B24
LP-F006
Products. Technology. Services. Delivered Globally.
1.800.ANIXTER • anixter.com 5.39
Racks, Cabinets and Cable Management
CommScope Solutions
Physical Infrastructure Solutions

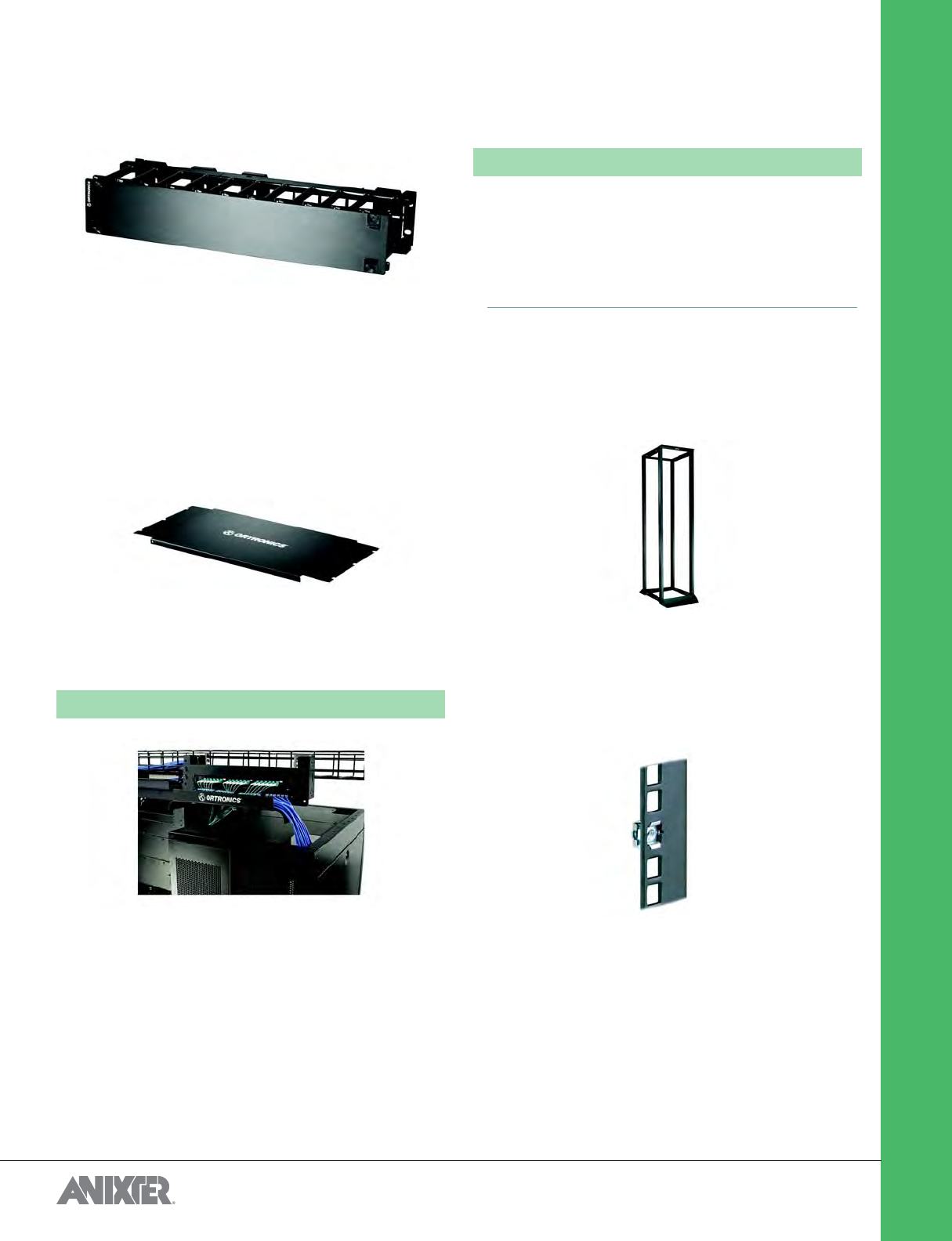

OVERHEAD MINI-RACKS
Patch cords are bundled into a trunk assembly that feeds out of the cabinet's top
and connects to a 4U equipment rack that mounts to the overhead pathway. It
accepts standard 19 in. patch panels and electronics and provides the transition
between the permanent overhead cabling and the server cabinet.
Index1.Support and Supplies//Physical Support Structure//Racks
COMMSCOPE ENTERPRISE SOLUTIONS
While a necessity for managing, distributing and controlling structured cabling, all
racks and cable management devices are not created equal. CommScope
understands the potential negative impact on network performance and company
productivity when installation and accessibility are challenging. CommScope designs
its racks and cable management devices with the same level of detail and importance
as its infrastructure solutions, ensuring that customers get the best product to
protect and manage their investment.
Available in two-post and four-post options.
TWO-POST RACKS: ALUMINUM PR29304V2-216929.tif
TWO-POST RACKS: STEEL
Anixter No. Vendor No. Description Material ID
443844 OVRHDRACK 19 in., 4U 760157800
443846 OVRHDRACKVCM 19 in., 4U with Vertical
Cable Manager
760158592
459958 OVRHDVCM 4U Vertical Cable Manager 760164061
492525 OVRHDRACK6U 19 in., 6U 760169581
492526 OVRHDRACKVCM6U 19 in., 6U with Vertical
Cable Manager
760169599
492527 OVRHDVCM6U 6U Vertical Cable Manager 760169607
Racks and Accessories
Anixter No. Vendor No. Description Material ID
387783 RK3-17A 3 in. D channel x 3 ft H x
19 in. W, 17U, 12-24 tapped
rails, black
760103010
365799 RK3-45A 3 in. D channel x 7 ft. H x
19 in. W, 45U, 12-24 tapped
rails, black
760082479
372111 RK3-52A 3 in. D channel x 8 ft. H x
19 in. W, 52U, 12-24 tapped
rails, black
760082487
443492 RK3-52A-23 3 in. D channel x 8 ft. H x
23 in. W, 52U, 12-24 tapped
rails, black
760159749
443495 RK3-58A 3 in. D channel, 9 ft H x
19 in. W, 58U, 12-24 tapped
rails, black
760139113
443496 RK3-23-58A 3 in. D channel, 9 ft H x
23 in. W, 58U, 12-24 tapped
rails, black
760142364
366103 RK6-45A 6 in. D channel x 7 ft. H x
19 in. W, 45U, 12-24 tapped
rails, black
760082495
372112 RK6-52A 6 in. D channel x 8 ft. H x
19 in. W, 52U, 12-24 tapped
rails, black
760082503
372113 RK12-45A 12 in. D channel x 7 ft. H x
19 in. W, 45U, 12-24 tapped
rails, black
760082511
372114 RK12-52A 12 in. D channel x 8 ft. H x
19 in. W, 52U, 12-24 tapped
rails, black
760090100
Anixter No. Vendor No. Description Material ID
372115 RK3-45S 3 in. D channel x 7 ft. H x
19 in. W, 45U, 3/8 in.
square-punched rails, black
760090118
372116 RK3-52S 3 in. D channel x 8 ft. H x
19 in. W, 52U, 3/8 in.
square-punched rails, black
760090126
372117 RK6-45S 6 in. D channel x 7 ft. H x
19 in. W, 45U, 3/8 in.
square-punched rails, black
760090134
372118 RK6-52S 6 in. D channel x 8 ft. H x
19 in. W, 52U, 3/8 in.
square-punched rails, black
760090142
443501 RK6-58S 6 in. D channel x 9 ft. H x
19 in. W, 58U, 3/8 in.
square-punched rails, black
760139121
372119 RK12-45S 12 in. D channel x 7 ft. H x
19 in. W, 45U, 3/8 in.
square-punched rails, black
760090159
372120 RK12-52S 12 in. D channel x 8 ft. H x
19 in. W, 52U, 3/8 in.
square-punched rails, black
760090167
Anixter No. Vendor No. Description Material ID
Continued on next page >>
5.40
Request the latest literature and guides from Anixter.
1.800.ANIXTER • anixter.com/literature
Racks, Cabinets and Cable Management
CommScope Solutions
Physical Infrastructure Solutions
D
(continued)
Racks and Accessories
FOUR-POST RACKS: ALUMINUM PR29305V2-216932.tif
FOUR-POST RACKS: STEEL
FILLER PANELS
Index1.Support and Supplies//Physical Support Structure//Racks
COMMSCOPE SYSTIMAX SOLUTIONS PR34031V2-251679.tif
The new black 2U adjustable integrated security panel kit is compatible with the AXIS
M10 Network Camera Series. The camera panel kit, with the incorporation of a
compatible AXIS Communications M10 Network Camera, will aid in the recording and
monitoring of all activity within an assigned rack or cabinet.
This unique black 2U security panel kit will be powered with a single UTP connection,
which makes this panel ideal for large-scale rollouts where infrastructure already
exists or where limited space may make installations difficult. Given the panel is fully
adjustable and made to tilt in order to capture the desired image, it is also ideal for
environments where an additional layer of security is necessary.
The panel can be angled and aligned with the appropriate camera settings that allow
end-users complete surveillance of their rack or cabinet entryways.
FEATURES
•Patent-pending design
•Adjustable pivot
•Security within a cabinet
•Audio optional
•PIR optional
•White-light LED optional
•I/O contact port optional
•Motion detection
•Event notification via e-mail
•Remotely accessible
•Remotely managed
•HDTV-compliant video optional
--
Index1.Support and Supplies//Physical Support Structure//Accessories
COMMSCOPE ENTERPRISE SOLUTIONS PR24021V2-174007.tif
The horizontal cable management portfolio includes cable management troughs and
covers in a variety of heights with both single- and double-sided solutions available.
The horizontal cover hinges up or down and easily snaps into position. The open back
on the 2RU and 3RU version allow for easy pass-through of cables.
Anixter No. Vendor No. Description Material ID
372124 RK4P45-29A 29 in. D x 7 ft. H x 19 in. W,
45U, #12-24 tapped
rails, black
760082529
372125 RK4P52-29A 29 in. D x 8 ft. H x 19 in. W,
52U, #12-24 tapped
rails, black
760082537
372128 RK4P45-36A 36 in. D x 7 ft. H x 19 in. W,
45U, #12-24 tapped
rails, black
760082560
372129 RK4P52-36A 36 in. D x 8 ft. H x 19 in. W,
52U, #12-24 tapped
rails, black
760082578
443509 RK4P58-36A 36 in. D x 9 ft. H x 19 in. W,
58U, #12-24 tapped
rails, black
760139709
Anixter No. Vendor No. Description Material ID
372126 RK4P45-29S 29 in. D x 7 ft. H x 19 in. W,
45U, 3/8 in.
square-punched rails, black
760082545
372127 RK4P52-29S 29 in. D x 8 ft. H x 19 in. W,
52U, 3/8 in.
square-punched rails, black
760082552
372130 RK4P45-36S 36 in. D x 7 ft. H x 19 in. W,
45U, 3/8 in.
square-punched rails, black
760082586
372131 RK4P52-36S 36 in. D x 8 ft. H x 19 in. W,
52U, 3/8 in.
square-punched rails, black
760082594
Anixter No. Vendor No. Description Material ID
372140 FPANEL-19-1U Filler panel, 1U x
19 in. W, black
760162065
372141 FPANEL-19-2U Filler panel, 2U x
19 in. W, black
760162073
372142 FPANEL-19-3U Filler panel, 3U x
19 in. W, black
760162081
Integrated Camera Panel Kit
Anixter No. Vendor No. Description Material ID
438822 ICP-19-2U KIT Panel mount kit for AXIS
M10 network camera,
19 inch wide, 2U height
760152512
Horizontal Cable Management
Products. Technology. Services. Delivered Globally.
1.800.ANIXTER • anixter.com 5.41
Racks, Cabinets and Cable Management
CommScope Solutions
Physical Infrastructure Solutions

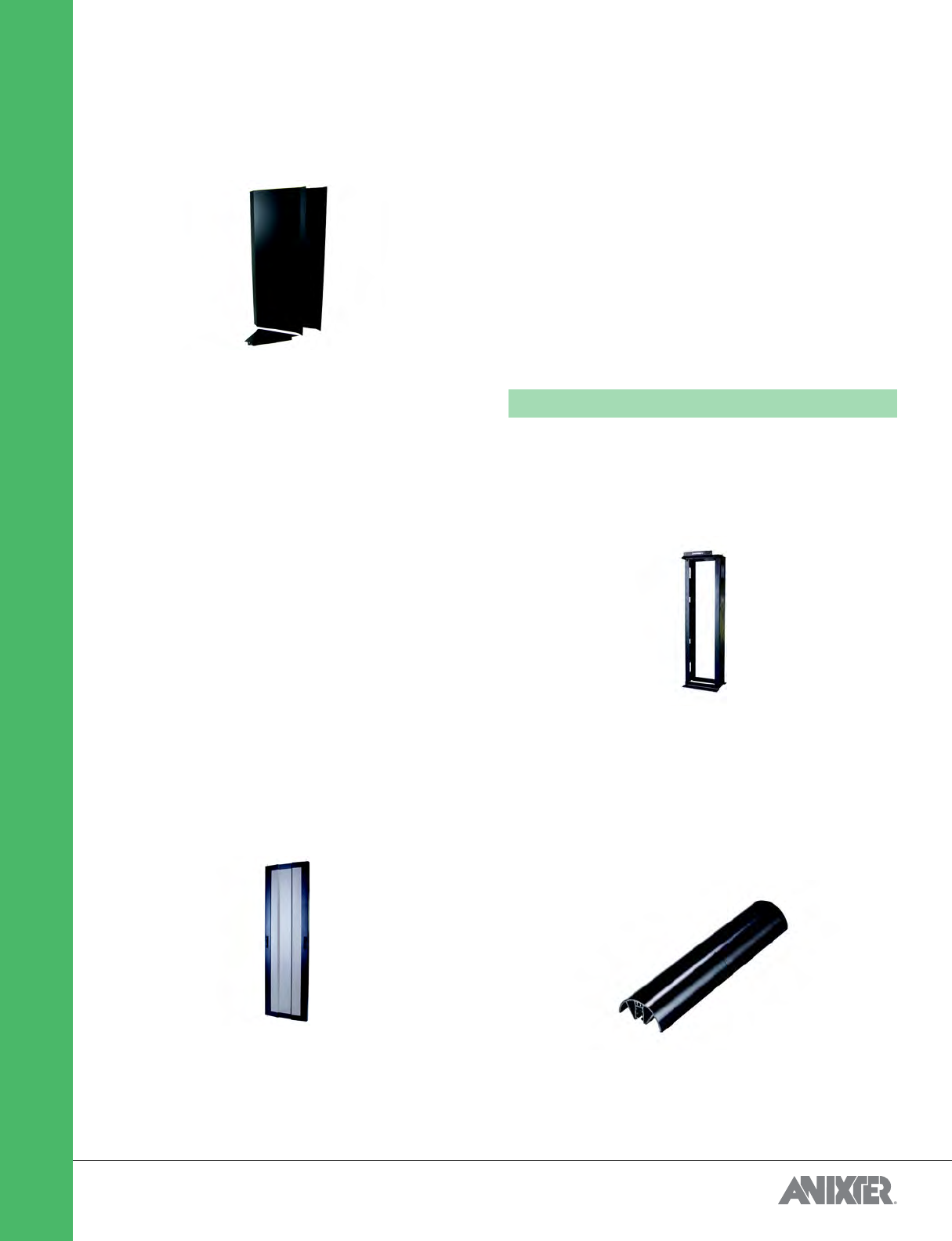

FEATURES
•Horizontal cover hinges up or down and locks into position with cylindrical
finger ends for easy snap-on installation
•Open back on 2U and 3U horizontal troughs for easy pass-through of cables
19 IN. SINGLE-SIDED HORIZONTAL TROUGH KIT
19 IN. DOUBLE-SIDED HORIZONTAL TROUGH KIT
--
Index1.Support and Supplies//Physical Support Structure//Racks
COMMSCOPE ENTERPRISE SOLUTIONS
CommScope's vertical cable management portfolio is flexible, functional, and has a
sleek design consistent with SYSTIMAX 360 products. Vertical cable managers come
in a variety of vertical trough widths with several door options. Door options include
the sturdy but lightweight patented Slam Latch doors. Slam Latch doors come with a
patented latching mechanism for easy close, recessed handles, and doors are hinged
to open both to the left and to the right. These doors are removable and come in
either black or silver. The other option is the Snap-on Twin Door available in black.
Slam Latch and Snap-on doors come in single- or double-sided versions. Contoured
cable fingers separate, organize and maintain patch cords in the desired position.
These flexible "x-style" fingers allow cables easily in or out for quick cable routing
and are spaced at 1RU increments allowing for exact alignment with EIA standard
rack spacing. Spools and spooling kits are also available.
FEATURES
•Ergonomically designed and aesthetically pleasing
•Lightweight, but sturdy, door available in four widths
•Dual-hinge latching door can be opened right or left
•Patent-pending door latching mechanism with easy closing feature
•Cable fingers spaced at 1 RMU increments for exact alignment with EIA standard
rack spacing
•Cable fingers support up to 48 cables per RMU
•Easy one-point removal and installation process for door
•Recessed handle eliminates snag potential for clothes and arms
•Doors standard on all cable management both single- and double-sided
•C Channel bracket allows for easy access to the cable trough
•Tool-less installation of Cable Spool
VERTICAL CABLE MANAGEMENT, DOUBLE-SIDED WITH DOORS PR24019V2-174005.tif
VERTICAL CABLE MANAGEMENT, SINGLE-SIDED WITH DOORS PR24020V2-174003.tif
Anixter No. Vendor No. Description Material ID
365172 HTK-19-SS-1U 1RU 760072942
365173 HTK-19-SS-2U 2RU 760072959
365174 HTK-19-SS-3U 3RU 760072967
Anixter No. Vendor No. Description Material ID
425806 HTK-19-DS-1U 1RU 760128843
425809 HTK-19-DS-2U 2RU 760128850
425812 HTK-19-DS-3U 3RU 760128868
Vertical Cable Management
Anixter No. Vendor No. Description Material ID
365256 VCM-DS-84-6 VCM kit, 6 in. x 84 in.,
stainless steel
760072785
372087 VCM-DS-84-6B VCM kit, 6 in. x 84 in., black 760089342
365257 VCM-DS-84-8 VCM kit, 8 in. x 84 in.,
stainless steel
760072793
372088 VCM-DS-84-8B VCM kit, 8 in. x 84 in., black 760089359
365254 VCM-DS-84-10 VCM kit, 10 in. x 84 in.,
stainless steel
760072801
372089 VCM-DS-84-10B VCM kit, 10 in. x 84 in., black 760089367
365255 VCM-DS-84-12 VCM kit, 12 in. x 84 in.,
stainless steel
760072819
372090 VCM-DS-84-12B VCM kit, 12 in. x 84 in., black 760089375
443513 VCM-DS-108-12B VCM kit, 12 in. x 108 in., black 760142398
Anixter No. Vendor No. Description Material ID
365260 VCM-SS-84-6 Vertical Cable Management Kit,
6 in. x 84 in. (152 mm x
2,134 mm)
760072868
372099 VCM-SS-84-6B VCM kit, 6 in. x 84 in., black 760089425
365261 VCM-SS-84-8 VCM kit, 8 in. x 84 in.,
stainless steel
760072876
372100 VCM-SS-84-8B VCM kit, 8 in. x 84 in., black 760089433
365258 VCM-SS-84-10 VCM kit, 10 in. x 84 in.,
stainless steel
760072884
372101 VCM-SS-84-10B VCM kit, 10 in. x 84 in., black 760089441
365259 VCM-SS-84-12 VCM kit, 12 in. x 84 in.,
stainless steel
760072892
372102 VCM-SS-84-12B VCM kit, 12 in. x 84 in., black 760089458
443514 VCM-SS-108-12B VCM kit, 12 in. x 108 in., black 760142356
Continued on next page >>
5.42
Request the latest literature and guides from Anixter.
1.800.ANIXTER • anixter.com/literature
Racks, Cabinets and Cable Management
CommScope Solutions
Physical Infrastructure Solutions
D
(continued)
Vertical Cable Management
VERTICAL CABLE MANAGEMENT, TWIN COVER PR33997V2-251680.tif
Anixter No. Vendor No. Description Material ID
432840 VCM-SS-84-6-TD Twin Cover VCM,
single-sided, 84 in. H x
6in.W
760124693
432842 VCM-SS-84-8-TD Twin Cover VCM,
single-sided, 84 in. H x
8in.W
760124701
432841 VCM-DS-84-6-TD Twin Cover VCM,
double-sided, 84 in. H x
6in.W
760124719
432843 VCM-DS-84-8-TD Twin Cover VCM,
double-sided, 84 in. H x
8in.W
760124727
Products. Technology. Services. Delivered Globally.
1.800.ANIXTER • anixter.com 5.43
Racks, Cabinets and Cable Management
Cooper B-Line
Physical Infrastructure Solutions
./

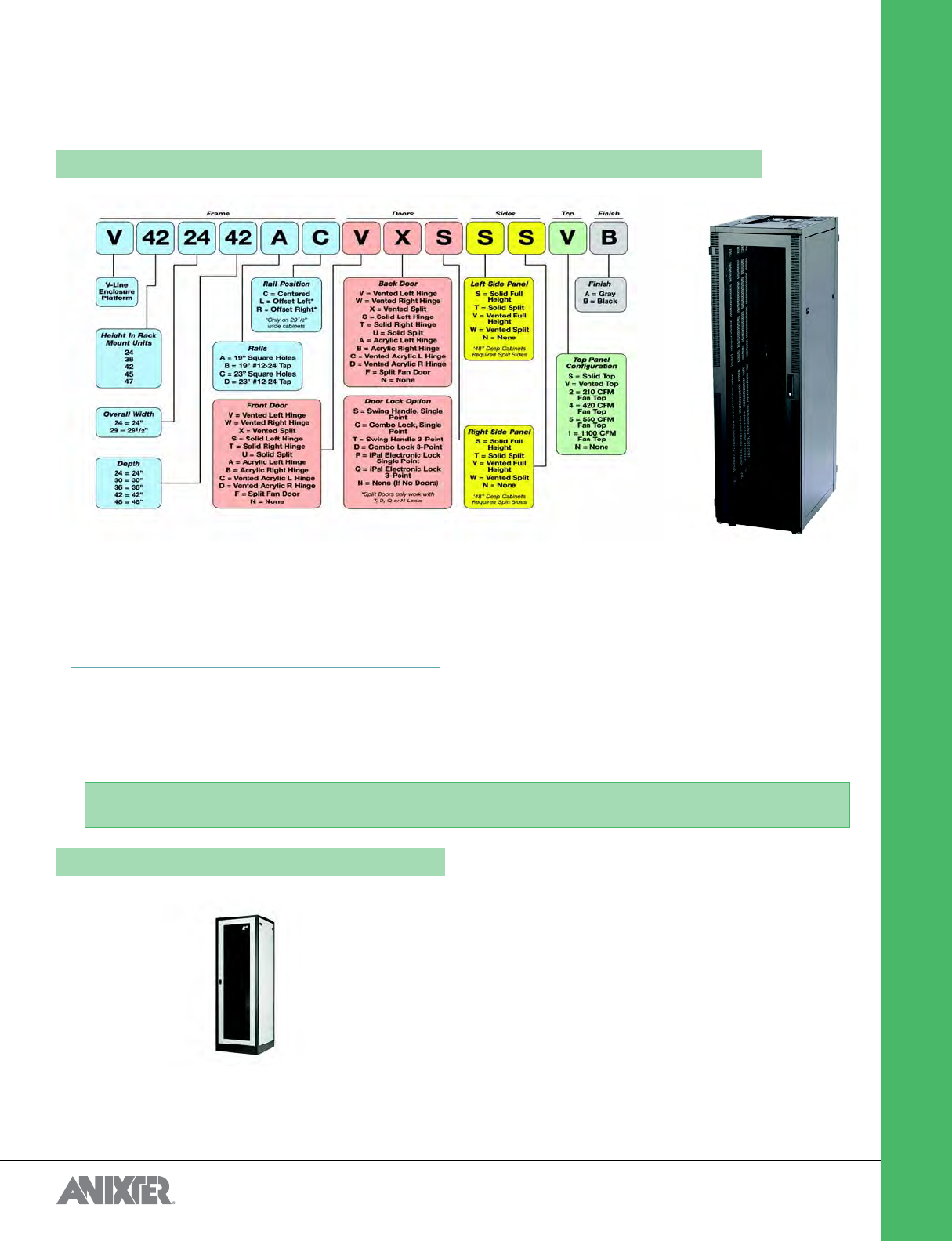

Index1.Support and Supplies//Physical Support Structure//Cabinets
COOPER B-LINE PR24157V2-175177.tif and PR22461V2-132814.tif
Cooper B-Line developed the V-Line enclosure platform, a 19 in. system designed to be versatile enough to exceed performance expectations in today's dynamic networking
environments yet be a competitively priced solution. Many innovative features are designed into the V-Line platform, offering valuable benefits for users. The heart of the system,
the V-Line frame, has standard features such as fully adjustable 19 in. mounting angles with permanent RMU markings, removable and replaceable cable entry plates and
leveling feet. The frame can be fitted with a range of options including solid or vented side panels, a variety of door styles and top or bottom panels - all designed to offer the
flexibility to meet all application requirements for modern data communications systems. The V-Line features excellent aesthetic characteristics and is built to the high-quality
standard that customers have come to expect. All of these features makes the V-Line an excellent choice for anyone needing to house data communications equipment.
FEATURES
•Constructed of high-quality materials
•Fully welded steel construction
•EIA-310-D-compliant
•UL Listed platform, rated for 1,500 lb. (680 kg) load rating
•Multiple options for doors, locks, sides and tops
•Excellent availability and quick shipment
V-Line Cabinets
Ordering the V-Line enclosure solution can be done by ordering individual components or ordering a configured enclosure solution with a single part number.
Use the matrix above to build the part number for your desired V-Line configuration. Contact your local sales representative for further information.
Index1.Support and Supplies//Physical Support Structure//Cabinets
COOPER B-LINE PR10073V2-143850.tif
The E2 Seismic Zone 4 Cabinet offers certified protection in seismic locations.
Designed to withstand maximum vibration with minimal deflection as a stand-alone
cabinet. When ganged in suites it becomes a data network fortress. The E2 Seismic
Zone 4 is recommended for any application where the threat of damage from physical
shock could hinder vital data and communications equipment.
FEATURES
•Tested in accordance with NEBS GR-63-CORE and ANSI T1.329
•Tested to 900 lb. stand-alone system weight per NEBS GR-63-CORE and
ANSI T1.329
•Includes seismic anchor kits
•Reinforced cabinet frame for added rigidity
•Heavy-duty welded base frame
•Specially designed locking side panel latches
•Smoked plexiglass removable front-locking door
•Louvered top/bottom removable rear-locking door
•Two pairs of adjustable mounting rails
•Standard colors: black and light gray powder-coat finish
E2 Seismic Zone 4 Cabinet
Continued on next page >>
5.44
Request the latest literature and guides from Anixter.
1.800.ANIXTER • anixter.com/literature
Racks, Cabinets and Cable Management
Cooper B-Line
Physical Infrastructure Solutions
D
(continued)
E2 Seismic Zone 4 Cabinet
--
Index1.Support and Supplies//Physical Support Structure//Cabinets
COOPER B-LINE
Cooper B-Line offers an innovative selection of wall-mounted products with designs
and features to fit most applications. All B-Line wall-mount products conform to
EIA-310-D Universal hole spacing and are manufactured from high-quality steel.
B-Line wall-mount cabinets are designed to provide solid support, protection and the
required flexibility for present and future technology.

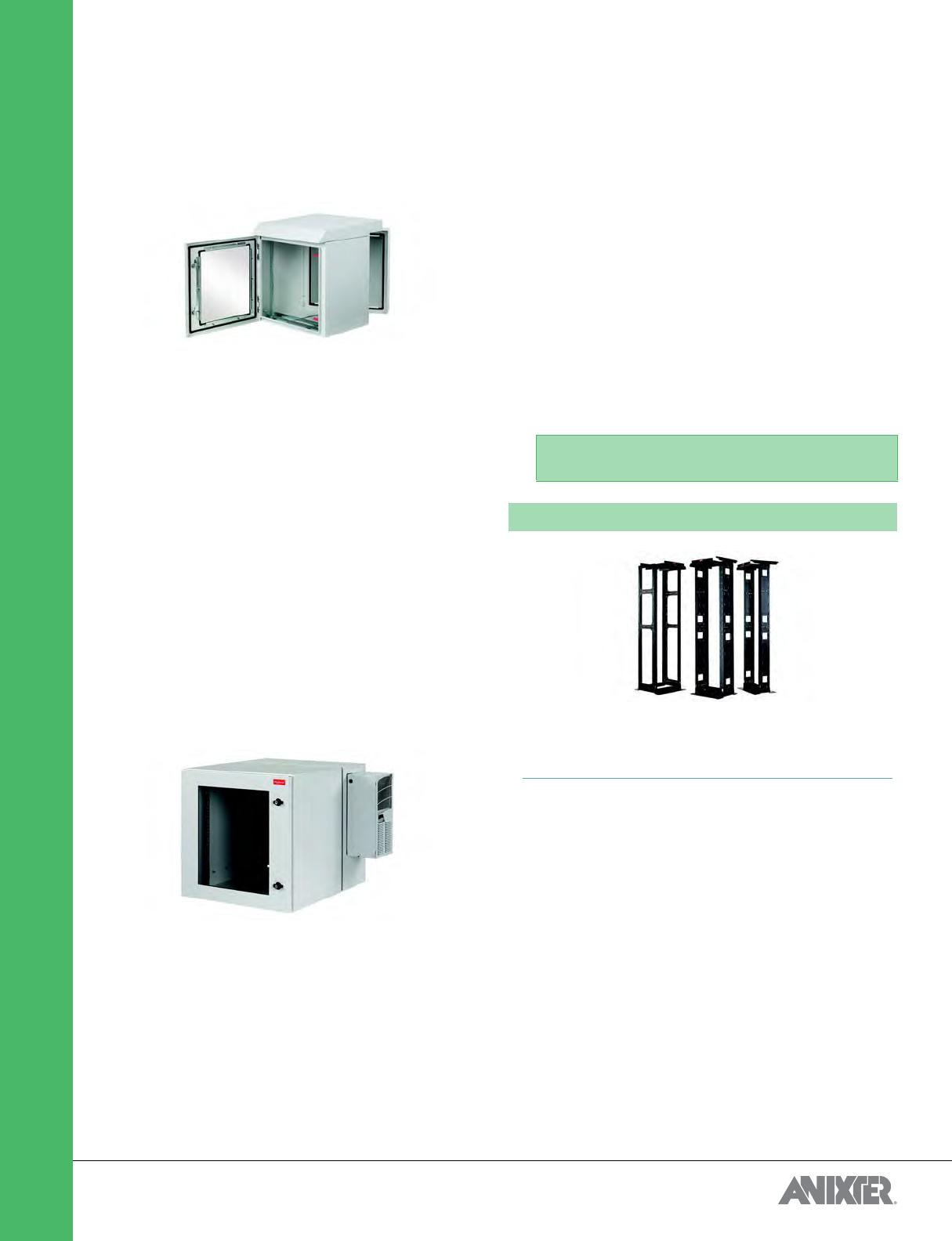

V-LINE DUAL-HINGE WALL CABINETS PR24156V2-175174.tif
V-Line Dual-Hinge Wall Cabinets feature welded steel construction, a
field-reversible, heavy-duty hinge and lock system, provisions for 16 in. on-center
mounting and multiple wire management lances for cable tie points or accessory
mounting. Removable plate allows for knockout or gland plate entry into the
cabinets. UL Listed with an equipment load rating of 150 to 175 lb. depending
on size.
VWM SINGLE-SECTION WALL ENCLOSURES PR20710V2-83474.tif
Cooper B-Line VWM Series single-section wall-mount enclosures are a fully featured
yet cost-effective product. The EIA-310-D-compliant design accepts standard
networking gear safely and securely, holding up to 150 lb. of equipment. Main
features include: welded steel construction, removable locking side panels,
reversible locking glass front door, cutouts for fans and adequate openings for
venting. UL Listed.
Index1.Support and Supplies//Physical Support Structure//Racks
COOPER B-LINE
RELAY RACKS PR22450V2-132830.tif
These relay racks are designed to support switches, patch panels, cable
management and other networking equipment. Double-sided EIA Universal hole
pattern rails with 12-24 tapped holes are standard. These racks ship unassembled
and individually packaged in a protective carton. RMU markings are permanently
stamped into the rack rails. UL Listed. Load rating 1,200 lb. (evenly distributed).
Anixter No. Vendor No. Description
268288. E2Z484243619BL E2 Zone 4, 84 in. H x 24 in. W x
36 in. D, black
268289. E2Z484244019BL E2 Zone 4, 84 in. H x 24 in. W x
40 in. D, black
268290. E2Z484293619BL E2 Zone 4, 84 in. H x 29 in. W x
36 in. D, black
268291. E2Z484294019BL E2 Zone 4, 84 in. H x 29 in. W x
40 in. D, black
Hinge and Fixed-frame Wall-mount Cabinets
Anixter No. Vendor No. Description
380269 VLWM2420PB 24 in. H x 24.7 in. W x 20 in. D, 12U,
plexiglass door, black
380275 VLWM3620PB 36 in. H x 24.7 in. W x 20 in. D, 19U,
plexiglass door, black
380281 VLWM4820PB 48 in. H x 24.7 in. W x 20 in. D, 26U,
plexiglass door, black
380271 VLWM2425PB 24 in. H x 24.7 in. W x 25 in. D, 12U,
plexiglass door, black
380277 VLWM3625PB 36 in. H x 24.7 in. W x 25 in. D, 19U,
plexiglass door, black
380283 VLWM4825PB 48 in. H x 24.7 in. W x 25 in. D, 26U,
plexiglass door, black
380273 VLWM2430PB 24 in. H x 24.7 in. W x 30 in. D, 12U,
plexiglass door, black
380279 VLWM3630PB 36 in. H x 24.7 in. W x 30 in. D, 19U,
plexiglass door, black
380285 VLWM4830PB 48 in. H x 24.7 in. W x 30 in. D, 26U,
plexiglass door, black
380292 VLWMFKB Fan kit, one 105 cfm fan with filter,
blanking plates and power cord
Anixter No. Vendor No. Description
354548 VWM242412 24 in. H x 24 in. W x 12 in. D, black
354549 VWM242418 24 in. H x 24 in. W x 18 in. D, black
366406 VWM242424 24 in. H x 24 in. W x 24 in. D, black
354546 VWM362412 36 in. H x 24 in. W x 12 in. D, black
354547 VWM362418 36 in. H x 24 in. W x 18 in. D, black
366409 VWM362424 36 in. H x 24 in. W x 24 in. D, black
Two-post and Four-post Racks
Anixter No. Vendor No. Description
245387 SB556084XUAL 7 ft. H with 19 in. mounting, 3 in. D,
RMU marks, brushed finish
245388 SB556084XUFB 7 ft. H with 19 in. mounting, 3 in. D,
RMU marks, flat black
Anixter No. Vendor No. Description
Products. Technology. Services. Delivered Globally.
1.800.ANIXTER • anixter.com 5.45
Racks, Cabinets and Cable Management
Cooper B-Line
Physical Infrastructure Solutions
FOUR-POST STANDARD AND SERVER RACKS PR22451V2-132834.tif
These racks are depth-adjustable in 1 in. increments from 18 in. to 24 in., 24 in. to
30 in., 30 in. to 36 in. or 36 in. to 42 in. Available with 12-24 pre-tapped mounting
rails (SB837 series) or EIA square hole rails (SB838 series). These racks ship
unassembled and individually packed in a protective carton. Load rating: 2,000 lb.
UL Listed.
Index1.Support and Supplies//Physical Support Structure//Racks
COOPER B-LINE PR28980V2-214348.tif
RCM Value Packs contain one standard 7 ft. equipment rack and two high-density,
single-sided cable managers. Parts ship in one convenient package and are designed
with captive mounting nuts for easy, one-person assembly.
--
Index1.Support and Supplies//Physical Support Structure//Racks
COOPER B-LINE
HEAVY-DUTY FIXED RACKS PR24158V2-175173.tif
These heavy-duty fixed wall-mount racks are designed for use in applications where
limited space is available. Load capacity: 350 lb.
268204 SB556084XUTG 7 ft. H with 19 in. mounting, 3 in. D,
RMU marks, telco gray
280810 SB55608419U6FB 7 ft. H with 19 in. mounting, 6 in. D,
RMU marks, flat black
184096 SB558084XUAL 7 ft. H with 23 in. mounting, 3 in. D,
RMU marks, brushed finish
245157 SB558084XUFB 7 ft. H with 23 in. mounting, 3 in. D,
RMU marks, flat black
268207 SB558084XUTG 7 ft. H with 23 in. mounting, 3 in. D,
RMU marks, telco gray
Anixter No. Vendor No. Description
376128 SB837084AFB 84 in. H with 19 in. mounting, 18 in. to
24 in. D, 12-24 tapped rails, flat black
376129 SB837084BFB 84 in. H with 19 in. mounting, 24 in. to
30 in. D, 12-24 tapped rails, flat black
376130 SB837084CFB 84 in. H with 19 in. mounting, 30 in. to
36 in. D, 12-24 tapped rails, flat black
376131 SB837084DFB 84 in. H with 19 in. mounting, 36 in. to
42 in. D, 12-24 tapped rails, flat black
376132 SB838084AFB 84 in. H with 19 in. mounting, 18 in. to
24 in. D, EIA square-hole rails, flat black
376133 SB838084BFB 84 in. H with 19 in. mounting, 24 in. to
30 in. D, EIA square-hole rails, flat black
376135 SB838084CFB 84 in. H with 19 in. mounting, 30 in. to
36 in. D, EIA square-hole rails, flat black
376136 SB838084DFB 84 in. H with 19 in. mounting, 36 in. to
42 in. D, EIA square-hole rails, flat black
Anixter No. Vendor No. Description
RCM Rack and Cable Management Value Pack
Anixter No. Vendor No. Description
425030 SB81006 84 in. H rack with two 6 in. cable
managers, black
425031 SB81008 84 in. H rack with two 8 in. cable
managers, black
425032 SB81010 84 in. H rack with two 10 in. cable
managers, black
Wall-mount Racks
Anixter No. Vendor No. Description
324284 SB704192518FB 25 in. H x 19 in. W x 18 in. D, flat black
324285 SB704192524FB 25 in. H x 19 in. W x 24 in. D, flat black
331929 SB704192518AL 25 in. H x 19 in. W x 18 in. D,
brushed finish
331930 SB704192524AL 25 in. H x 19 in. W x 24 in. D,
brushed finish
Continued on next page >>
5.46
Request the latest literature and guides from Anixter.
1.800.ANIXTER • anixter.com/literature
Racks, Cabinets and Cable Management
Cooper B-Line
Physical Infrastructure Solutions
D
(continued)
Wall-mount Racks
SWING-GATE WALL-MOUNT EQUIPMENT RACKS PR20496V2-77425.tif
The SB708 series wall-mounted rack hinges on both sides and provide easy access
to the back of the equipment. Packaged unassembled in protective carton suitable
for parcel shipment. Easily installed by one person. Load capacity 150 lb. UL Listed.
Other sizes and finishes available.
Index1.Support and Supplies//Physical Support Structure//Accessories
COOPER B-LINE PR12044V2-21894.tif
Use to securely anchor equipment racks to concrete. Finish: clear zinc
--
Index1.Support and Supplies//Physical Support Structure//Accessories
COOPER B-LINE pr5429V2-143881.tif
Cooper B-Line steel or aluminum shelves are designed for supporting equipment that
cannot be rack mounted. Available with a solid or vented support surface for 19 in.
rack (23 in. also available). UL Listed.
SOLID SINGLE-SIDED SHELVES FOR 19 IN. RACKS
Supports loads up to 100 lb.
--
Index1.Support and Supplies//Physical Support Structure//Accessories
COOPER B-LINE PR11074V2-18098.tif
SLIDING SHELVES
Telescopic slide mounted, 19 in. wide, ventilated, black, steel shelves are designed
for use in four-post racks, Access and V-Line cabinets. Load rating: 150 lb.
Anixter No. Vendor No. Description
354172 SB708193018FB Swing gate 30 in. H x 19 in. W x 18 in. D,
flat black
354173 SB708193025FB Swing gate 30 in. H x 19 in. W x 25 in. D,
flat black
354174 SB708194418FB Swing gate 44 in. H x 19 in. W x 18 in. D,
flat black
354175 SB708194425FB Swing gate 44 in. H x 19 in. W x 25 in. D,
flat black
Anchor Kits
Anixter No. Vendor No. Description
212190 SB588AZN Self-supporting rack anchor kit, includes
four 3/8in.-16x 23/4in. (70mm)
wedge anchors and hardware
Rack Shelves
Anixter No. Vendor No. Description
198363 SB747S1910AAL 17.5 in. W x 10 in. D, aluminum
brushed finish
354176 SB747S1910SSL 17.5 in. W x 10 in. D, steel silver finish
217114 SB747S1915AAL 17.5 in. W x 15 in. D, aluminum
brushed finish
354177 SB747S1915SSL 17.5 in. W x 15 in. D, steel silver finish
268224 SB747S1910AFB 17.5 in. W x 10 in. D, aluminum
flat black
354178 SB747S1910SFB 17.5 in. W x 10 in. D, steel flat black
268226 SB747S1915AFB 17.5 in. W x 15 in. D, aluminum
flat black
354179 SB747S1915SFB 17.5 in. W x 15 in. D, steel flat black
Double-sided versions are also available.
Cabinet Shelves
Anixter No. Vendor No. Description
250925 E2SHSS1920FB 20 in. deep
250926 E2SHSS1924BLP 24 in. deep
250927 E2SHSS1930BLP 30 in. deep
Products. Technology. Services. Delivered Globally.
1.800.ANIXTER • anixter.com 5.47
Racks, Cabinets and Cable Management
Cooper B-Line
Physical Infrastructure Solutions
FIXED SHELVES
Black, ventilated, steel fixed shelves are designed for use in four-post racks, Access
and V-Line cabinets. Shelf-mounting brackets permit attachment to the mounting
rail from the front or side. Load rating: 150 lb.
FRONT-MOUNTING CANTILEVER SHELF
This 2U-high wide shelf is ideal for supporting networking equipment that can not be
rack-mounted. Fits 19 in. rail spacing. Load rating: 60 lb.
---
Index1.Support and Supplies//Physical Support Structure//Accessories
COOPER B-LINE
Cooper B-Line's vertical and horizontal wire managers are designed to attach to
standard EIA 19 in. and 23 in. racks and to provide economical and versatile cable
management solutions.
RCM+ SINGLE- AND DOUBLE-SIDED HIGH-DENSITY VERTICAL CABLE MANAGERS
PR11217V2-25368.tif
High-density vertical cable managers with 1 RMU spacing and open back are
designed for use in applications with higher cable density and more demanding
cable routing. Available in extended depths for high-performance media or
high-density installations.
RCM+ DOUBLE-SIDED COMBINATION VERTICAL CABLE MANAGERS PR11218V2-25371.tif
Combination back-to-back vertical cable managers are designed for use in
applications with differing cable management requirements on the front and back of
the rack. Front section featuring 1 RMU spaced fingers with snap-on removable
hinged doors for high-density cabling. Rear section featuring widely spaced fingers
with snap-on hinged gates for low-density cabling. Available in extended depths for
high-performance media or high-density installations.
Anixter No. Vendor No. Description
250937 E2SH4P1920BLP 20 in. deep
250938 E2SH4P1924BLP 24 in. deep
250940 E2SH4P1930BLP 30 in. deep
Anixter No. Vendor No. Description
285068 E2SHCLSLP1915PB 15 in. deep, flat black
Wire Management
Anixter No. Vendor No. Description
313642 SB86083S084FB Vertical cabling section 7 ft. H x
9 3/8 in. D x 3 5/8 in. W, flat
black, single-sided
313643 SB86086S084FB Vertical cabling section 7 ft. H x
93/8in. D x 6in. W, flat
black, single-sided
313644 SB860810S084FB Vertical cabling section 7 ft. H x
9 3/8 in. D x 10 in. W, flat
black, single-sided
313645 SB860812S084FB Vertical cabling section 7 ft. H x
9 3/8 in. D x 12 in. W, flat
black, single-sided
313646 SB86083D084FB Vertical cabling section 7 ft. H x
185/8in. D x 35/8in. W, flat
black, double-sided
313647 SB86086D084FB Vertical cabling section 7 ft. H x
185/8in. D x 6in. W, flat
black, double-sided
313648 SB860810D084FB Vertical cabling section 7 ft. H x
18 5/8 in. D x 10 in. W, flat
black, double-sided
313649 SB860812D084FB Vertical cabling section 7 ft. H x
18 5/8 in. D x 12 in. W, flat
black, double-sided
376154 SB860106D084FB Deep vertical cabling section 7 ft. H x
23 5/8 in. D x 6 in. W, flat
black, double-sided
376155 SB8601010D084FB Deep vertical cabling section 7 ft. H x
23 5/8 in. D x 10 in. W, flat
black, double-sided
376156 SB8601012D084FB Deep vertical cabling section 7 ft. H x
23 5/8 in. D x 12 in. W, flat
black, double-sided
Anixter No. Vendor No. Description
313650 SB86483D084FB Vertical combination cabling section
7ft. H x 177/8in. D x 35/8in. W, flat
black, double-sided
313651 SB86486D084FB Vertical combination cabling section
7ft. H x 177/8in. D x 6in. W, flat
black, double-sided
313652 SB864810D084FB Vertical combination cabling section
7 ft. H x 17 7/8 in. D x 10 in. W, flat
black, double-sided
313653 SB864812D084FB Vertical combination cabling section
7 ft. H x 17 7/8 in. D x 12 in. W, flat
black, double-sided
376151 SB864106D084FB Deep vertical combination cabling
section 7 ft. H x 20 3/8 in. D x 6 in. W,
flat black, double-sided
376152 SB8641010D084FB Deep vertical combination cabling
section 7 ft. H x 20 3/8 in. D x 10 in. W,
flat black, double-sided
376153 SB8641012D084FB Deep vertical combination cabling
section 7 ft. H x 20 3/8 in. D x 12 in. W,
flat black, double-sided
Anixter No. Vendor No. Description
Continued on next page >>
5.48
Request the latest literature and guides from Anixter.
1.800.ANIXTER • anixter.com/literature
Racks, Cabinets and Cable Management
Cooper B-Line
Physical Infrastructure Solutions
D
(continued)
Wire Management

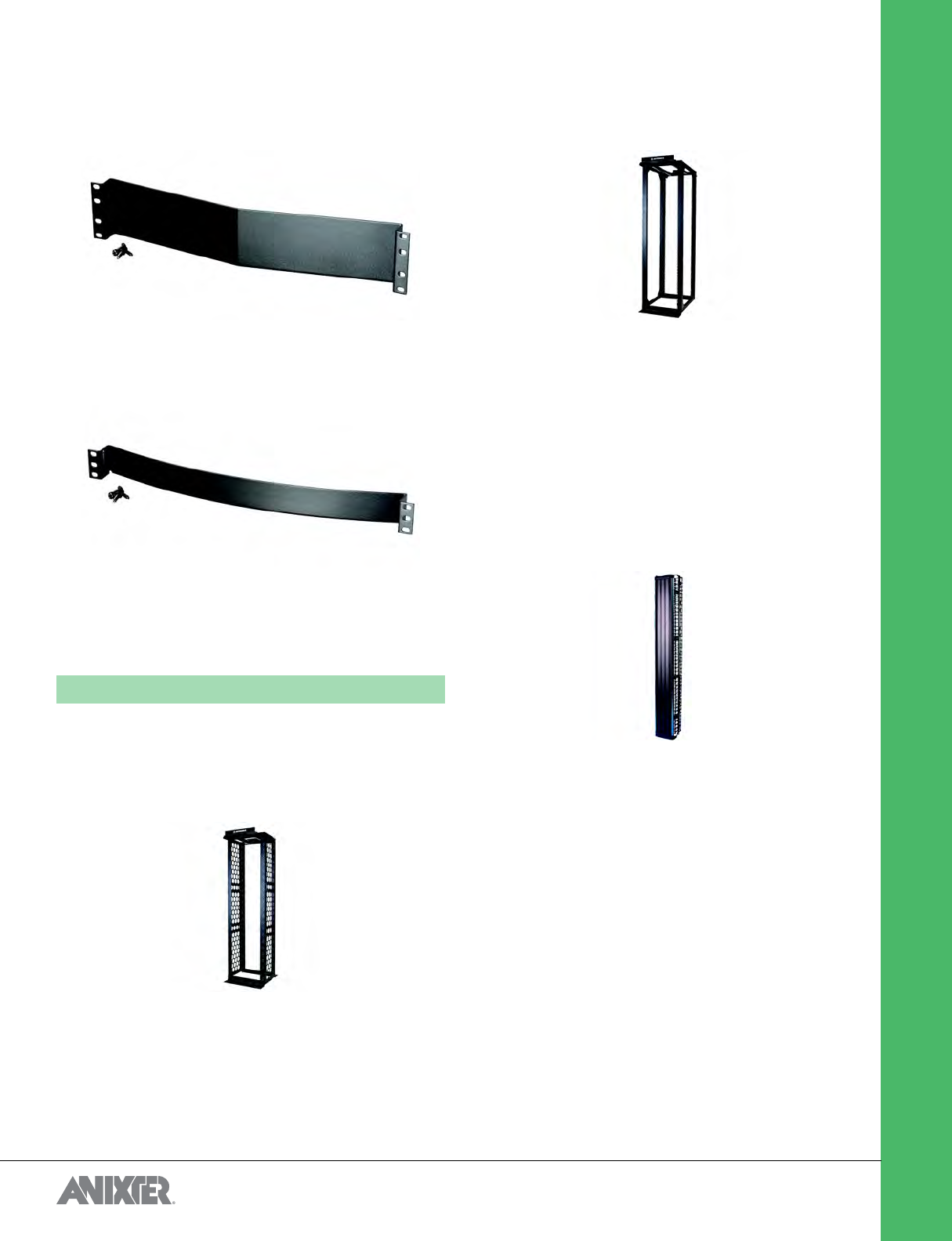

RCM+ HORIZONTAL CABLE MANAGERS SINGLE-SIDED PR11219V2-25365.tif
Single-sided horizontal cable managers with closely spaced fingers and an open
design to provide a horizontal pathway for patch cords. The removable, "snap-on"
hinged doors open up or down past 180 degrees and will remain open in
up position.
RCM+ HORIZONTAL CABLE MANAGERS DOUBLE-SIDED PR22457V2-133154.tif
Double-sided horizontal cable managers with closely spaced fingers and an open
design to provide a horizontal pathway for patch cords. The removable, "snap-on"
hinged doors open up or down past 180 degrees and will remain open in
up position.
RCM+ VERTICAL CABLE MANAGER ACCESSORIES
Cable strap mounts attach to the 1/4 in. holes in vertical cable managers with
push-in fasteners (SB862PIF). Push-in fasteners are used to quickly attach
accessories to 1/4 in. mounting holes in vertical cable manager.
Anixter No. Vendor No. Description
313662 SB87019S1FB Horizontal cable manager 19 in. W - 1U,
flat black, single-sided
313663 SB87019S2FB Horizontal cable manager 19 in. W - 2U,
flat black, single-sided
313664 SB87019S3FB Horizontal cable manager 19 in. W - 3U,
flat black, single-sided
Anixter No. Vendor No. Description
376148 SB87019D1FB Horizontal cable manager 19 in. W - 1U,
flat black, double-sided
376149 SB87019D2FB Horizontal cable manager 19 in. W - 2U,
flat black, double-sided
376150 SB87019D3FB Horizontal cable manager 19 in. W - 3U,
flat black, double-sided
Anixter No. Vendor No. Description
313667 SB862CSM Cable strap mount 1/4 in. mounting
hole, cable straps up to 3/4 in.
wide, black
313668 SB862PIF 1/4 in. push-in fastener, white
Products. Technology. Services. Delivered Globally.
1.800.ANIXTER • anixter.com 5.49
Racks, Cabinets and Cable Management
Great Lakes Case & Cabinets Co., Inc.
Physical Infrastructure Solutions
./
Index1.Support and Supplies//Physical Support Structure//Cabinets
GREAT LAKES CASE & CABINET PR67164V2-529197.tif
The Enhanced Networking Enclosures provide cable management and cooling support
for networking and switch applications. A 2,000 lb. weight capacity, large amounts of
open area outside of the rails, repositionable cable fingers and cable knockouts
easily accommodate the high-density cable management needs of switches and
patch panels. Standard and optional baffle kits aid in the cooling requirements of
side-to-side airflow equipment; kits direct cool air in and exhaust air out. Available in
two sizes, the enclosure meets all minimum requirements specified by CISCO.
FEATURES
•Two sets of 45 RMU, tapped 12-24 rails (3/8 in. SQ. [M6] also available)
•Front rails are fixed and recessed from front of enclosure; rear rails are
fully adjustable
•Maximum rail spacing of 32 in. (29 in. on GL840ENT-3242)
•Flexible mounting profile allows mounting of accessories that do not interfere
with the EIA pattern; three sets of holes on each rail (front, side and rear or rail)
•Cable management fingers come in 7 RMU sections; six sections (total of
42 RMU) are standard on each front and rear rail
•Additional cable management finger sections available
•Large top and bottom cable knockouts easily accommodate large cable bundles
•Solid lift-off side panels lock at top
•Split mesh doors on front and rear of enclosure (front mesh rear door and split
mesh rear door on GL840ENT-3242); swing handle with keyed lock
•Ships completely assembled; no complicated extension kits needed
84 IN. H X 32 IN. W X 42 IN. D EN ENCLOSURE
With two pair of tapped 12-24 mounting rails with cable management "fingers" on
all rails; includes eight levelers
84 IN. H X 40 IN. W X 48 IN. D EN ENCLOSURE
With two pair of tapped 12-24 mounting rails with cable management "fingers" on
all rails; includes eight levelers
SIDE AIR BAFFLE KIT FOR EN3242 ENCLOSURE
ACCESSORIES
Enhanced Networking (EN) Enclosures
Anixter No. Vendor No. Description
481095 GL840ENT-3242MSS Solid top, mesh front door, split mesh
rear door, and solid sides
481096 GL840ENT-3242MSS-NS Solid top, mesh front door, and split
mesh rear door; sides not included
481097 GL840ENT-3242-FK Doors and sides not included
Anixter No. Vendor No. Description
481098 GL840ENT-4048SSS Solid top, split mesh front door, split
mesh rear door, solid sides, and baffle
kit (25 RMU) for CISCO 7018 switch
481099 GL840ENT-4048SSS-NS Solid top, split mesh front door, split
mesh rear door, and baffle kit (25 RMU)
for CISCO 7018 switch; side not included
481100 GL840ENT-4048-FK Baffle kit (25 RMU) for CISCO
7018 switch; doors and sides not
included Note: For enclosure with
3/8 in. square (M6) rails, remove 'T'
from part number
Anixter No. Vendor No. Description
444591 ENSAB19 For use with 19 RMU CISCO and other
side-to-side airflow equipment
444592 ENSAB14 For use with 14 RMU CISCO and other
side-to-side airflow equipment
444593 ENSAB11 For use with 11 RMU CISCO and other
side-to-side airflow equipment
Anixter No. Vendor No. Description
487190 CM-47 Single section of cable management
"fingers" 7 RMU
492913 CBB-72 Copper bus bar, 70 in. (isolated)
492952 LRB-12 Ladder rack bracket for 12 in. W
ladder rack
492134 LRB-24 Ladder rack bracket for 24 in.
ladder rack
492133 TCT32 Top cable trough for 32 in. W
EN enclosure
493329 TCT40 Top cable trough for 40 in. W
EN enclosure
444603 CM-16 Single-sided cable organizer with plastic
fingers and covers, 1RMU, 1.5in. x 3in.
444604 CM-17 Single-sided cable organizer with plastic
fingers and cover, 1RMU, 3in. x 3in.
493341 G101EN Ganging kit used to gang two EN
enclosures together
5.50
Request the latest literature and guides from Anixter.
1.800.ANIXTER • anixter.com/literature
Racks, Cabinets and Cable Management
Great Lakes Case & Cabinets Co., Inc.
Physical Infrastructure Solutions
D
Index1.Support and Supplies//Physical Support Structure//Cabinets
GREAT LAKES CASE & CABINET PR23685V2-168271.tif
The E Series of enclosures provide a feature-rich cabinet for housing
telecommunications equipment, computer control-room hardware, LAN equipment
and other sensitive electronic equipment. Each cabinet includes: two 19 in. universal
cage nut rails, adjustable levelers and pack of mounting screws, removable vented
top panel with two 4 in. horseshoe knockouts, plexiglass door with locking swing
handle, perimeter vented steel rear door with locking swing handle, pair of solid
lift-off side panels with lock and finger release latches and a compatible power strip
with circuit breaker and 15 ft. cord. Available in Advantage Gray, Nitro Blue or
Black color.
FEATURES
•Rails have infinite front-to-rear adjustability
•Frame formed five times for strength
•Strong 12-gauge, powder-coated "universal cage nut rails"
•Tops can be removed without interfering with cable entry
•Grounding studs on doors, side panels and base unit
•Provisions for power outlet strips in all four corners
•Listed to UL 60950-1
•Flexible modular concept
•Easily adapts to equipment upgrades
•Preassembled to your equipment configuration
ACCESSORIES
Index1.Support and Supplies//Physical Support Structure//Cabinets
GREAT LAKES CASE & CABINET PR23686V2-168286.tif
The ES Server line of cabinets is designed specifically to create an ideal environment
for server equipment; several built-in features enhance the cable management and
power necessary for a data center. The 30 in. width of the cabinet provides additional
cable space between mounting rails and side panels while extra depth of rear corner
posts also provide room for cabling and power accessories. Cable access originating
from the top of the cabinet is independent of the removable top panel while
accessories for overhead management help expedite the flow of cable from the
cabinet. Recessed plate casters create a more durable cabinet offering a high
2,000 lb. weight capacity. New contour mesh doors, standard with every cabinet,
feature a reinforced frame for security, an easy-latching door handle and provisions
to mount fans (to eliminate hot spots).
FEATURES
•Frame with two pairs of black powder-coated, universal 19 in. M6 mounting
rails (with RMU markings) and package of M6 hardware; includes two pairs of
universal PDU mounting brackets
•2,000 lb. weight capacity
•Adjustable levelers, 2.5 in. H, set of four
•One solid top panel
•Front and rear mesh contour door with locking easy latch
E Series Enclosures
Anixter No. Vendor No. Description
248804 GL840E-2936P 84 in. H x 29 in. W x 36 in. D, 44 RMU,
1,500 lb. weight capacity
248805 GL840E-2932P 84 in. H x 29 in. W x 32 in. D, 44 RMU,
1,500 lb. weight capacity
248803 GL840E-2436P 84 in. H x 24 in. W x 36 in. D, 44 RMU,
1,500 lb. weight capacity
221658 GL840E-2432P 84 in. H x 24 in. W x 32 in. D, 44 RMU,
1,500 lb. weight capacity
248806 GL720E-2936P 72 in. H x 29 in. W x 36 in. D, 37 RMU,
1,500 lb. weight capacity
248807 GL720E-2932P 72 in. H x 29 in. W x 32 in. D, 37 RMU,
1,500 lb. weight capacity
220562 GL720E-2436P 72 in. H x 24 in. W x 36 in. D, 37 RMU,
1,500 lb. weight capacity
248808 GL720E-2432P 72 in. H x 24 in. W x 32 in. D, 37 RMU,
1,500 lb. weight capacity
281416 GL600E-2432P 60 in. H x 24 in. W x 32 in. D, 31 RMU,
600 lb. weight capacity
281415 GL480E-2432P 48 in. H x 24 in. W x 32 in. D, 24 RMU,
600 lb. weight capacity
273179 GL300E-2432P 30 in. H x 24 in. W x 32 in. D, 13 RMU,
300 lb. weight capacity
Anixter No. Vendor No. Description
214162 7206-FR-AHD Stationary shelf, 17.5 in. W x
22.25 in. D, 200 lb. weight capacity
214163 7206-FR-ADHD Stationary shelf, 17.5 in. W x
27.25 in. D, 150 lb. weight capacity
214213 7206-FRSL-AHD Sliding shelf, 17.5 in. W x 22 in. D
332134 7206-MKM Monitor space: 17 in. W x 24 in. D,
keyboard tray: 19.13 in. W x 7.88 in. D x
1.75 in. H, mouse surface: 8 in. x
9in.,black
444603 CM-16 Single-sided cable organizer with plastic
fingers and covers, 1 RMU, 1.5 in. x 3 in.
444604 CM-17 Single-sided cable organizer with plastic
fingers and cover, 1RMU, 3in. x 3in.
285602 VLB-84 Vertical lacing bar for
84 in. H enclosures
ES Server Enclosures
Anixter No. Vendor No. Description
Products. Technology. Services. Delivered Globally.
1.800.ANIXTER • anixter.com 5.51
Racks, Cabinets and Cable Management
Great Lakes Case & Cabinets Co., Inc.
Physical Infrastructure Solutions
•Pair of solid lift-off side panels with lock and finger release latches
•Listed to UL 60950-1
ACCESSORIES
Index1.Support and Supplies//Physical Support Structure//Cabinets
GREAT LAKES CASE & CABINET PR1764V2-11080.eps
Great Lakes offers a large variety of power management products to complete your
rack or cabinet system. Please see the Power and Thermal Management Solutions
section for more information.
--
Index1.Support and Supplies//Physical Support Structure//Cabinets
GREAT LAKES CASE & CABINET PR1587V2-143853.tif
The WM Wall-mount/Swing-out cabinets provide 19 in. rack mounting in a distribution
enclosure. A snap latch located inside the cabinet opens the 18 in. deep center
swing section for front and rear access. There are also 1 in., 2 in. and 3 in. knockouts
located on the top, bottom and rear for easy wiring, installation and maintenance.
Front and rear sections lock independently for added security. Ships completely
assembled with all accessories installed.
FEATURES
•Vented side walls
•Two pairs of adjustable rails
•Full piano hinge
•Plexiglass front door (except where noted)
•Left- or right-hand swing out
•Dust-resistant kit available
•Listed to UL 60950-1
WM WALL-MOUNT/SWING-OUT CABINETS
Color: black
ACCESSORIES
For 19 in. rack mounting. Shelves are black.
Anixter No. Vendor No. Description
397914 GL840ES-3048MS 84 in. H x 30 in. W x 48 in. D, 44 RMU,
weight capacity 2,000 lb.
397915 GL840ES-2448MS 84 in. H x 24 in. W x 48 in. D, 44 RMU
251385 GL840ES-3042MS 84 in. H x 30 in. W x 42 in. D, 44 RMU
267197 GL840ES-2442MS 84 in. H x 24 in. W x 42 in. D, 44 RMU
353420 GL780ES-3042MS 78 in. H x 30 in. W x 42 in. D, 42 RMU
375822 GL780ES-2442 78 in. H x 24 in. W x 42 in. D, 42 RMU
375821 GL480ES-2442MS 48 in. H x 24 in. W x 42 in. D, 24 RMU
Anixter No. Vendor No. Description
495378 BGRK24 Brush Grommet Kit for 24 in.
wide cabinets
495385 BGRK30 ES Enclosure Brush Grommet Kit
(30 in. W x 78 in. or 84 in. H)
495386 TPES-B Top Panel with Brush Guard for ES
Series Enclosure
487190 CM-47 Single section of cable management
"fingers" 7 RMU
Power Solutions for Great Lakes Racks and Cabinets
WM Series Wall-mount/Swing-out Cabinets
Anixter No. Vendor No. Description
248809 GL2418WM 24 in. H x 21.25 in. W x 18 in. D,
12 RMU, weight capacity 150 lb.
300121 GL2418WMS 24 in. H x 21.25 in. W x 18 in. D,
12 RMU, solid door, weight capacity
150 lb.
200609 GL24WM 24 in. H x 21.25 in. W x 24.5 in. D,
12 RMU, weight capacity 150 lb.
281474 GL24WMS 24 in. H x 21.25 in. W x 24.5 in. D,
12 RMU, solid door, weight capacity
150 lb.
200610 GL36WM 36 in. H x 21.25 in. W x 24.5 in. D,
19 RMU, weight capacity 250 lb.
216980 GL36WMS 36 in. H x 21.25 in. W x 24.5 in. D,
19 RMU, solid door, weight capacity
250 lb.
200611 GL48WM 48 in. H x 21.25 in. W x 24.5 in. D,
25 RMU, weight capacity 300 lb.
281476 GL48WMS 48 in. H x 21.25 in. W x 24.5 in. D,
25 RMU, solid door, weight capacity
300 lb.
Anixter No. Vendor No. Description
164872 7206-FM Front-mount shelf: 18 in. deep, 60 lb.
weight capacity
131892 7206-EIA EIA spacing shelf: 18 in. deep, 80 lb.
weight capacity
131898 7206-SL Sliding shelf: 17.5 in. deep, 40 lb.
weight capacity
300122 7206-14 Stationary shelf: 14 in. deep, 80 lb.
weight capacity (recommended
for GL2418WM)
131905 7219 Six-position power strip for 19 in.
mounting; 5-15R receptacle and
5-15P plug
493152 DK2 Dust-resistant kit contains four cover
plates, four fan filters and hardware
495389 CBB-19 19 in. copper bus bar
5.52
Request the latest literature and guides from Anixter.
1.800.ANIXTER • anixter.com/literature
Racks, Cabinets and Cable Management
Great Lakes Case & Cabinets Co., Inc.
Physical Infrastructure Solutions
D
--
Index1.Support and Supplies//Physical Support Structure//Cabinets
GREAT LAKES CASE & CABINET

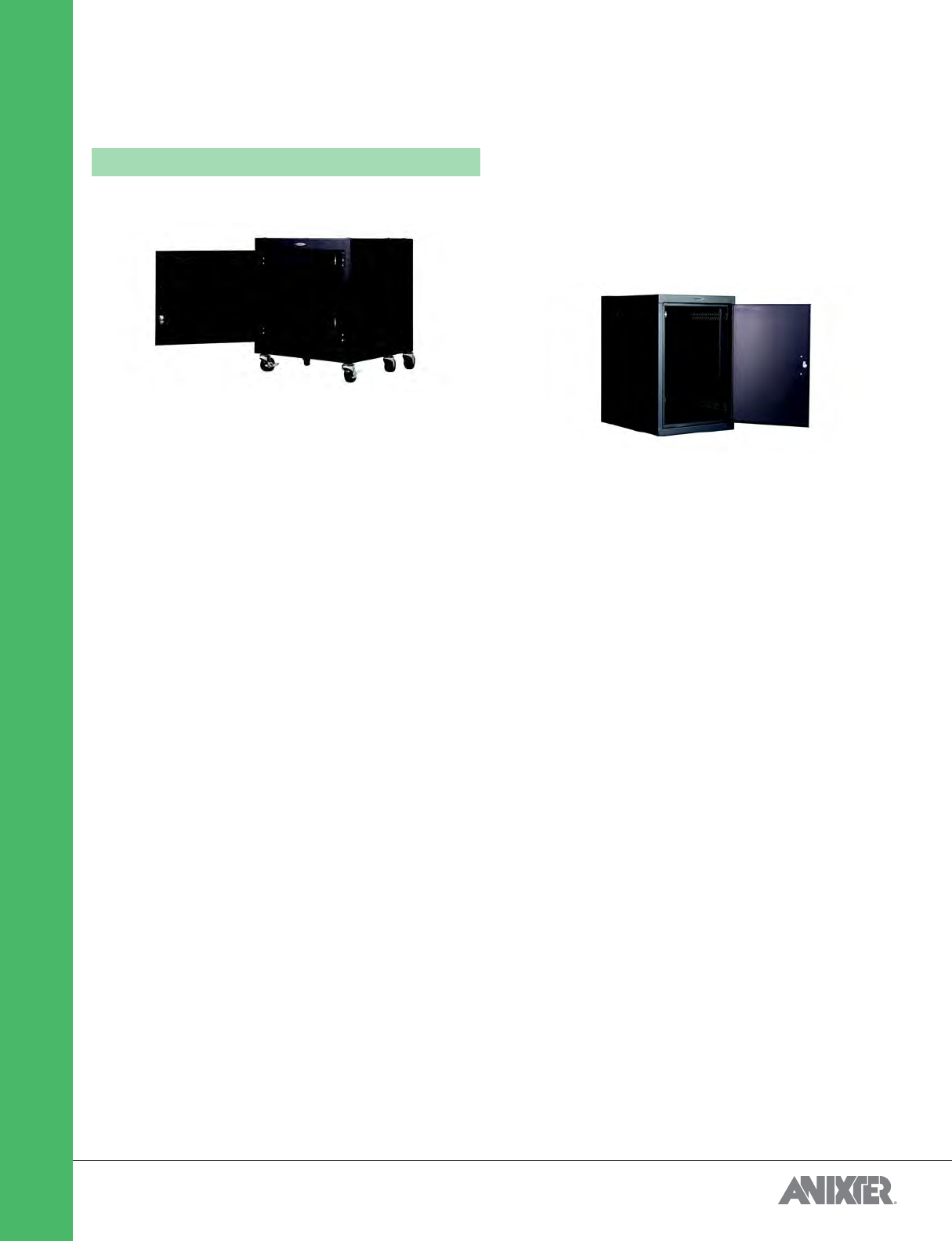

WS SERIES PR23699V2-168275.tif
The WS Series of Wall-mount/Swing-out Enclosures provide 19 in. rack mounting in a
heavy-duty distribution enclosure. With removable sides, interchangeable doors,
optional casters and heavy-duty construction, the WS is the choice for increased
weight capacities. The WS offers all of the features of a full-size enclosure built into
a convenient wall-mount. This durable enclosure features a center swing-out section
for outstanding front and rear access to cable and equipment. A simple finger pull/
latch mechanism located inside the enclosure opens the 18.375 in. deep center
swing section. Available in black color. Listed to UL 60950-1.
WD SERIES PR23696V2-168264.tif
The WD series offers configurations ranging from 24 in. to 36 in. in height, offering
11, 18 or 25 rack-mounted units (RMU) of space. A simple finger pull/latch
mechanism located inside the enclosure opens the 25.75 in. deep center swing
section. The two pairs of 12-24 mounting rails are fully adjustable. The unique hinge
system allows for removal of the rear section for easy installation. Casters are also
available to make the WD free-standing as well as to be able to hold extra weight.
Wall-mount/Swing-out Enclosures
Anixter No. Vendor No. Description
267169 GL24WS-SS Solid front door, solid sides, 24 in. H x
24 in. W x 24 in. D, 11 RMU, weight
capacity 250 lb.
267170 GL24WS-SV Solid front door, vented sides, 24 in. H x
24 in. W x 24 in. D, 11 RMU, weight
capacity 250 lb.
267171 GL24WS-PS Plexiglass front door, solid sides,
24 in. H x 24 in. W x 24 in. D, 11 RMU,
weight capacity 250 lb.
267172 GL24WS-PV Plexiglass front door, vented sides,
24 in. H x 24 in. W x 24 in. D, 11 RMU,
weight capacity 250 lb.
267173 GL36WS-SS Solid front door, solid sides, 36 in. H x
24 in. W x 24 in. D, 18 RMU, weight
capacity 300 lb.
267174 GL36WS-SV Solid front door, vented sides, 36 in. H x
24 in. W x 24 in. D, 18 RMU, weight
capacity 300 lb.
267175 GL36WS-PS Plexiglass front door, solid sides,
36 in. H x 24 in. W x 24 in. D, 18 RMU,
weight capacity 300 lb.
267176 GL36WS-PV Plexiglass front door, vented sides,
36 in. H x 24 in. W x 24 in. D, 18 RMU,
weight capacity 300 lb.
267177 GL48WS-SS Solid front door, solid sides, 48 in. H x
24 in. W x 24 in. D, 25 RMU, weight
capacity 350 lb.
267179 GL48WS-SV Solid front door, vented sides, 48 in. H x
24 in. W x 24 in. D, 25 RMU, weight
capacity 350 lb.
267180 GL48WS-PS Plexiglass front door, solid sides, 48 in.
H x 24 in. W x 24 in. D, 25 RMU, weight
capacity 350 lb.
267182 GL48WS-PV Plexiglass front door, vented sides,
48 in. H x 24 in. W x 24 in. D, 25 RMU,
weight capacity 350 lb.
Anixter No. Vendor No. Description
332125 GL24WD 24 in. H x 24 in. W x 32.13 in. D,
11 RMU, plexiglass door, weight capacity
250 lb.
332127 GL24WDS 24 in. H x 24 in. W x 32.13 in. D,
11 RMU, solid door, weight capacity
250 lb.
332128 GL36WD 36 in. H x 24 in. W x 32.13 in. D,
18 RMU, plexiglass door, weight capacity
300 lb.
332129 GL36WDS 36 in. H x 24 in. W x 32.13 in. D,
18 RMU, solid door, weight capacity
300 lb.
332130 GL48WD 48 in. H x 24 in. W x 32.13 in. D,
25 RMU, plexiglass door, weight capacity
350 lb.
332131 GL48WDS 48 in. H x 24 in. W x 32.13 in. D,
18 RMU, solid door, weight capacity
350 lb.
332132 DK1 Dust-resistant kit contains four cover
plates, four fan filters and hardware
332133 FFK1 Four fan filters
Anixter No. Vendor No. Description
Products. Technology. Services. Delivered Globally.
1.800.ANIXTER • anixter.com 5.53
Racks, Cabinets and Cable Management
Great Lakes Case & Cabinets Co., Inc.
Physical Infrastructure Solutions
WE SERVER SERIES PR20350V2-72959.tif
The WE Server Side Wall Mount is great for applications where a server is required
and limited space is available. In addition, the side-mount design allows for
ventilation of equipment. Available in black color. Features: Mesh side doors for
optimum air flow. Lockable front panel and doors. Optional exhaust fan mounting.
Three concentric knockouts on the top, bottom and rear. At 29 in. rail spacing, there
is 2 in. of space in front and 3 in. in the rear.
15WM WALL-MOUNT PR23674V2-167916.tif
The 15WM is a unique wall-mount enclosure, designed to be ideal for housing
smaller intercom, paging and security systems. The plexiglass option allows for
visual verification of equipment and one-person installation makes the 15WM a
convenient solution for any customer, from the owner of a local retail store, to a
general or electrical contractor, to the office manager at a school. A reversible main
body, conduit knockouts of various sizes and space for mounting a PDU are just
some of the features which create convenience for the user. Tamper-resistant screws
and bits externally secure sections together. The dimensions are 15.38 in. H x
22.25 in. W x 17.66 in. D with a weight capacity of 100 lb.
ACCESSORIES
Index1.Support and Supplies//Physical Support Structure//Racks
GREAT LAKES CASE & CABINET PR22484V2-133055.tif
Great Lakes 19 in. relay racks are designed to easily support the mounting of data,
telecommunications, networking and electrical equipment.
FEATURES
•19 in. EIA-310-E compliant mounting
•12-24 tapped holes
•Constructed from double-sided, extruded aluminum
•Available in a mill finish or black anodized finish
•Cable management accessories and shelves create a complete solution
MILL FINISH
Anixter No. Vendor No. Description
353423 GL24WE 24 in. H x 36.1 in. W x 20.5 in. D,
10 RMU, weight capacity 350 lb.
191088 7217WS Fan assembly with fan guards and two
75 cfm fans
131905 7219 Six-position power strip for 19 in.
mounting; 5-15R receptacle and
5-15P plug
353424 7219-20AR Six-position power strip for 19 in.
mounting; 5-20R receptacle and
5-20P plug
331739 7219-SR14 14 (six front/eight back)-position power
strip for 19 in. mounting; 5-15R
receptacle and 5-15P plug
Anixter No. Vendor No. Description
397926 BS2-15WM Plexiglass door, 7 RMU
397927 BS2-15WMS Solid door, 7 RMU
Anixter No. Vendor No. Description
164872 7206-FM Front-mount shelf: 18 in. deep, 60 lb.
weight capacity
131892 7206-EIA EIA spacing shelf: 18 in. deep, 80 lb.
weight capacity
131898 7206-SL Sliding shelf: 17.5 in. deep, 40 lb.
weight capacity
353430 7206-FR-A18 Four-point shelf: 18 in. deep, 150 lb.
weight capacity
131905 7219 Six-position power strip for 19 in.
mounting; 5-15R receptacle and
5-15P plug
493152 DK2 Dust-resistant kit contains four cover
plates, four fan filters and hardware
300122 7206-14 Stationary shelf: 14 in. deep, 80 lb.
weight capacity (recommended
for GL2418WM)
397938 7217-04 Single fan assembly with a 75 cfm fan
and cord
Two-post Racks
Anixter No. Vendor No. Description
444536 GLRR-1936 36 in. H x 20.31 in. W x 14 in. D, 18 RMU
444538 GLRR-1948 48 in. H x 20.31 in. W x 14 in. D, 24 RMU
444540 GLRR-1960 60 in. H x 20.31 in. W x 14 in. D, 31 RMU
444542 GLRR-1966 66 in. H x 20.31 in. W x 14 in. D, 35 RMU
444544 GLRR-1972 72 in. H x 20.31 in. W x 14 in. D, 38 RMU
214219 GLRR-1984 84 in. H x 20.31 in. W x 14 in. D, 45 RMU
444546 GLRR-1996 96 in. H x 20.31 in. W x 14 in. D, 52 RMU
444548 GLRR-19108 108 in. H x 20.31 in. W x 14 in. D,
59 RMU
Continued on next page >>
5.54
Request the latest literature and guides from Anixter.
1.800.ANIXTER • anixter.com/literature
Racks, Cabinets and Cable Management
Great Lakes Case & Cabinets Co., Inc.
Physical Infrastructure Solutions
D
(continued)
Two-post Racks
BLACK ANODIZED FINISH
ACCESSORIES
Index1.Support and Supplies//Physical Support Structure//Racks
GREAT LAKES CASE & CABINET PR34499V2-255250.tif
Great Lakes four-post racks are designed to easily support the mounting of data,
telecommunications, networking and electrical equipment.
FEATURES
•19 in. EIA-310-E-compliant mounting
•Made from cold-rolled steel and extruded aluminum
•Cable management accessories and shelves create a complete solution
12-24 MOUNTING
Dimensions: 84 in. H x 20.6 in. W, weight capacity: 1,000 lb.
M6 MOUNTING
Dimensions: 84 in. H x 20.6 in. W, weight capacity: 1,000 lb.
HEAVY DUTY
Weight capacity: 2,000 lb. when bolted to the floor
ACCESSORIES
---
Index1.Support and Supplies//Physical Support Structure//Accessories
GREAT LAKES CASE & CABINET PR34470V2-255164.tif
When used with Great Lakes two- and four-post racks, cable management
accessories create a complete network solution. Vertical managers are able to handle
large cable bundles and repositionable accessories, such as cable spools, are easy to
install, adjust and remove based on current and future needs.
FEATURES
•Vertical channels available as a single channel or front/rear channel
•8 in. channels hold up to 384 Cat 6 cables or 738 Cat 5e cables
•5 in. channels hold up to 126 Cat 6 cables or 246 Cat 5e cables
•Large fingers align with RMU openings
Anixter No. Vendor No. Description
444537 GLRR-1936BA 36 in. H x 20.31 in. W x 14 in. D, 18 RMU
444539 GLRR-1948BA 48 in. H x 20.31 in. W x 14 in. D, 24 RMU
444541 GLRR-1960BA 60 in. H x 20.31 in. W x 14 in. D, 31 RMU
444543 GLRR-1966BA 66 in. H x 20.31 in. W x 14 in. D, 35 RMU
444545 GLRR-1972BA 72 in. H x 20.31 in. W x 14 in. D, 38 RMU
267194 GLRR-1984BA 84 in. H x 20.31 in. W x 14 in. D, 45 RMU
444547 GLRR-1996BA 96 in. H x 20.31 in. W x 14 in. D, 52 RMU
444549 GLRR-19108BA 108 in. H x 20.31 in. W x 14 in. D,
59 RMU
Anixter No. Vendor No. Description
267195 1984ST09 Single-sided shelf, 9 in. deep, 75 lb.
weight capacity
267196 1984ST15 Single-sided shelf, 15 in. deep, 75 lb.
weight capacity
397929 1984KM Keyboard shelf with pivoting mouse tray,
19 in. W x 8 in. D, 35 lb. weight capacity
444563 1984LR Ladder Rack Support Brackets, mounts
either parallel or perpendicular to rack;
supports 12 to 18 in. wide ladder rack
444564 GL-RMUTA Package of four RMU labels in ascending
order (1U on the bottom, 45U on the top)
Four-post Racks
Anixter No. Vendor No. Description
444551 4P1224-24 24 in. D, 45 RMU
444552 4P1224-29 29 in. D, 45 RMU
444553 4P1224-32 32 in. D, 45 RMU
444554 4P1224-36 36 in. D, 45 RMU
Anixter No. Vendor No. Description
444555 4PM6-24 24 in. D, 45 RMU
444556 4PM6-29 29 in. D, 45 RMU
444557 4PM6-32 32 in. D, 45 RMU
444558 4PM6-36 36 in. D, 45 RMU
Anixter No. Vendor No. Description
444550 4PHD29 80.5 in. H x 50.6 in. W x 29 in. D,
42 RMU
Anixter No. Vendor No. Description
267195 1984ST09 Single-sided shelf, 9 in. deep, 75 lb.
weight capacity
267196 1984ST15 Single-sided shelf, 15 in. deep, 75 lb.
weight capacity
397929 1984KM Keyboard shelf with pivoting mouse tray,
19 in. W x 8 in. D, 35 lb. weight capacity
444563 1984LR Ladder Rack Support Brackets, mounts
either parallel or perpendicular to rack;
supports 12 to 18 in. wide ladder rack
444564 GL-RMUTA Package of four RMU labels in ascending
order (1U on the bottom, 45U on the top)
Cable Management for Two- and Four-post Racks
Products. Technology. Services. Delivered Globally.
1.800.ANIXTER • anixter.com 5.55
Racks, Cabinets and Cable Management
Great Lakes Case & Cabinets Co., Inc.
Physical Infrastructure Solutions
CABLE MANAGEMENT
- 19 in. mounting
- Helps organize and direct cables
- Includes clips to create proper bend radius
CABLE RETAINERS FOR VERTICAL CABLE CHANNELS PR34469V2-255171.tif
- Attaches anywhere along fingers to secure cable bundles
CABLE SPOOLS AND SLACK LOOP ORGANIZERS FOR VERTICAL CHANNELS PR34468V2-255168.tif
- Stores cable slack while maintaining proper bend radius
- Cable spools are able to be mounted in six locations
- Slack Loop Organizers mount on any fingers where needed
19 IN. HORIZONTAL ORGANIZERS PR72251V2-578617.tif
- 19 in. mounting
- Helps organize and direct cables
- Includes clips to create proper bend radius
- Includes cover
--
Index1.Support and Supplies//Physical Support Structure//Racks
GREAT LAKES CASE & CABINET PR6824V2-11095.TIF
The SR Wall-mount Swing Rack is a very popular and economical solution for
mounting patch panels and switches. Available in three heights and with a weight
capacity of 100 lb., the swing frame provides easy access to the back of
the equipment.
FEATURES
•19 in. EIA-310-D compliant with 12-24 threaded holes and hardware
•"Stay Open" hinge pins
•Provisions for optional cable management cinch straps
•180-degree positive stop
•Minimal assembly required
•Listed to UL 60950-1
Anixter No. Vendor No. Description
444594 VCM8-FR Vertical front and rear cable
management, 8 in. channel x 80 in. L,
includes two spools, 12 wire retainers
and black hinge cover
444595 VCM8-FO Vertical front cable management, 8 in.
channel x 80 in. L, includes one spool,
six wire retainer and black hinge cover
444596 VCM5-FR Vertical front and rear cable
management, 5 in. channel x 80 in. L,
includes black snap-on cover
444598 VCM5-FO Vertical front cable managemnt, 5 in.
channel x 80 in. L, includes black
snap-on cover
Anixter No. Vendor No. Description
444599 VCM8-WR Pack of six wire retainers, for 8 in.
channel only
444600 VCM5-CR Pack of 10 cable retainers, for 5 in.
channel only
Anixter No. Vendor No. Description
444601 VCM8-SL Pack of two, duct slack loop cable spool,
for 8 in. channel only
444602 VCM5-SL Pack of two duct slack loop storage
organizers, for 5 in. channel only
Anixter No. Vendor No. Description
487186 CM-15 Double-sided cable organizer with plastic
fingers and covers; front 2 RMU, 3 in. x 3 in.;
back 1 RMU (3 in. x 1.5 in.
444603 CM-16 Single-sided cable organizer with plastic
fingers and covers, 1RMU, 1.5in. x 3in.
444604 CM-17 Single-sided cable organizer with plastic
fingers and cover, 1RMU, 3in. x 3in.
SR Wall-mount Swing Racks
Anixter No. Vendor No. Description
222906 GL24SR 23.75 in. H x 20.75 in. W x 18 in. D, 12 RMU
397930 GL24SRD 23.75 in. H x 20.75 in. W x 22 in. D, 12 RMU
267186 GL36SR 36.00 in. H x 20.75 in. W x 18 in. D, 19 RMU
397931 GL36SRD 36.00 in. H x 20.75 in. W x 22 in. D, 19 RMU
267187 GL48SR 48.76 in. H x 20.75 in. W x 18 in. D, 26 RMU
397932 GL48SRD 48.76 in. H x 20.75 in. W x 22 in. D, 26 RMU
5.56
Request the latest literature and guides from Anixter.
1.800.ANIXTER • anixter.com/literature
Racks, Cabinets and Cable Management
Great Lakes Case & Cabinets Co., Inc.
Physical Infrastructure Solutions
D
-
Index1.Support and Supplies//Physical Support Structure//Accessories
GREAT LAKES CASE & CABINET PR12064V2-21904.tif
All shelves below are vented and come in black.
-
Index1.Support and Supplies//Physical Support Structure//Accessories
GREAT LAKES CASE & CABINET PR12065V2-21907.tif
Listed to UL 60950-1. Weight capacity: 110 lb. All shelves below are vented and come
in black.
-
Index1.Support and Supplies//Physical Support Structure//Accessories
GREAT LAKES CASE & CABINET PR12066V2-21910.tif
FEATURES
•19 in. rack-mount
•Front-to-rear adjustable mounting tabs
•Minimal 2 RMU mounting height
•200 lb. weight capacity
•Listed to UL 60950-1
•Keyboard and mouse are not included with shelf
-
Index1.Support and Supplies//Physical Support Structure//Accessories
GREAT LAKES CASE & CABINET PR23675V2-167919.tif
FEATURES
•19 in. mounting for Great Lakes two- and four-post racks
•Swivel mouse platform can be mounted for left- or right-hand use
•Capable of being mounted at any height for comfortable use
Stationary Shelves
Anixter No. Vendor No. Description
214162 7206-FR-AHD Stationary shelf, 17.5 in. W x
22.25 in. D, 200 lb. weight capacity
214163 7206-FR-ADHD Stationary shelf, 17.5 in. W x
27.25 in. D, 150 lb. weight capacity
267189 7206-FR-A28HD 17.5 in. W x 28 in. D, 300 lb.
weight capacity
267192 7206-FR-A32HD 17.5 in. W x 32 in. D, 300 lb.
weight capacity
353430 7206-FR-A18 Four-point shelf: 18 in. deep, 150 lb.
weight capacity
Sliding Shelves
Anixter No. Vendor No. Description
214213 7206-FRSL-AHD Sliding shelf, 17.5 in. W x 22 in. D
214214 7206-FRSL-ADHD Sliding shelf, 17.5 in. W x 26 in. D
Monitor/Keyboard/Mouse Shelf
Anixter No. Vendor No. Description
332134 7206-MKM Monitor space: 17 in. W x 24 in. D,
keyboard tray: 19.13 in. W x 7.88 in. D x
1.75 in. H, mouse surface: 8 in. x
9in.,black
Keyboard and Mouse Shelf for Two- and Four-post Racks
Anixter No. Vendor No. Description
397929 1984KM Keyboard shelf with pivoting mouse tray,
19 in. W x 8 in. D, 35 lb. weight capacity
Products. Technology. Services. Delivered Globally.
1.800.ANIXTER • anixter.com 5.57
Racks, Cabinets and Cable Management
Great Lakes Case & Cabinets Co., Inc.
Physical Infrastructure Solutions
---
Index1.Support and Supplies//Physical Support Structure//Accessories
GREAT LAKES CASE & CABINET PR67224V2-531208.tif
CABLE MANAGEMENT RAIL KITS PR67223V2-531207.tif
Installed on the Flexible Mounting Profile (a series of holes outside of the EIA
pattern). Fingers align with RMUs on all enclosures; front rails will need to be
recessed 4.5 in.
CABLE RINGS PR23683V2-168295.tif
Color: black
CABLE ORGANIZERS - 19 IN. MOUNTING PR23682V2-168255.tif
Color: black
STRAIN-RELIEF BARS PR23692V2-168281.tif
Color: black
Cable Management
Anixter No. Vendor No. Description
485972 ESC-K12 Cable Management Rail Kit for front and
rear rails; includes 12 sections of
"fingers" (each section, 7 RMU)
487189 ENC-K24 Cable management rail kit for front and
rear rails; includes 24 sections of
"fingers" (each section, 7 RMU)
487190 CM-47 Single section of cable management
"fingers" 7 RMU
Anixter No. Vendor No. Description
267198 CM-13 Single cable ring, 1.06 in. W x 2.8 in. D
(inside dimensions)
267199 CM-44 4 in. auxiliary ring, 3.8 in. W x 3.8 in. D
(inside dimensions)
267200 CM-425 Heavy-duty cable ring, 2.3 in. W x 3.8 in. D
(inside dimensions)
Anixter No. Vendor No. Description
487186 CM-15 Double-sided cable organizer with
plastic fingers and covers; front 2 RMU,
3in. x 3in.; back 1RMU (3in. x 1.5in.
444603 CM-16 Single-sided cable organizer with plastic
fingers and covers, 1RMU, 1.5in. x 3in.
444604 CM-17 Single-sided cable organizer with plastic
fingers and cover, 1RMU, 3in. x 3in.
267201 CM-02 Low-density front organizer, 1.8 in. W x
3.8 in. D (inside dimensions)
267202 CM-04 Interbay organizer with four horizontal
rings, 3.25 in. W x 2.8 in. D
(inside dimensions)
215648 CM-05 Single-sided organizer with five
horizontal rings, 1.3 in. W x 2.8 in. D
(inside dimensions)
353439 CM-07 Waterfall cable management trough,
1RMU
246767 CM-08 Standard front organizer with four
horizontal and four vertical rings,
1.45 in. W x 3 in. D (inside dimensions)
267203 CM-09 Two-sided organizer with four front and
five rear rings (1.3 in. W x 2.8 in. D)
Anixter No. Vendor No. Description
267207 CM-03 Back side cable organizer
267209 CM-19 19 in. utility strain-relief bar
267210 19SRB 19 in. cable strain-relief bar
267211 23SRB 23 in. cable strain-relief bar
Continued on next page >>
5.58
Request the latest literature and guides from Anixter.
1.800.ANIXTER • anixter.com/literature
Racks, Cabinets and Cable Management
Great Lakes Case & Cabinets Co., Inc.
Physical Infrastructure Solutions
D
(continued)
Cable Management
CABLE MANAGEMENT PANELS PR23681V2-167903.tif
CINCH STRAPS PR23684V2-168251.tif
Anixter No. Vendor No. Description
218683 CM-10 19 in. horizontal panel with 10 slots,
0.25 in. x 0.2 in.
Anixter No. Vendor No. Description
218682 CM-01 12 in. L x 3/4 in. W with buckle and
grommet, blue
218681 CM-06 6in. L x 3/4in. W with buckle and
grommet, black
Products. Technology. Services. Delivered Globally.
1.800.ANIXTER • anixter.com 5.59
Racks, Cabinets and Cable Management
Hoffman
Physical Infrastructure Solutions
./
Index1.Support and Supplies//Physical Support Structure//Cabinets
HOFFMAN ENCLOSURES INC PR23703V2-168562.tif
Hoffman PROLINE Server Cabinets are designed to balance the thermal load of your
equipment, ensuring optimum performance and service life. From standard
passive-cooling features that inherently dissipate heat, to active, ducted and
air-conditioned solutions that maintain proper operational temperatures in
high-density environments.
FEATURES
•Dedicated solutions for colocation, voice/data, hot/cold aisle, liquid-cooled and
NEMA-rated applications
•Modular server cabinet platforms offering a wide variety of sizes, configurations
and versatility
•Passive and active cooling configurations with a wide array of modifications and
co-development solutions
•High-density solutions include top-ducted cabinets and VARISTAR cabinets with
air/water heat exchangers
ADDITIONS
Index1.Support and Supplies//Physical Support Structure//Cabinets
HOFFMAN ENCLOSURES INC PR23702V2-168571.tif
Hoffman PROLINE Communications Cabinets are available in standard configurations
to meet the essential protection needs for rack-mounted voice/data, switch and
patch equipment. Extra-wide design easily accommodates high-density cable patch
cords and equipment. Full-height cable managers are included in the front and rear
to maximize cable capacity.
FEATURES
•ConnecTek Cabinets are available in 27 in. and 32 in. widths to accommodate
high-density cables, patch cords and equipment
•Large gland plate in top allows easy routing of cable, preterminated cables and
patch panels
•Perforated top, front door and rear door allow for maximum ventilation
•Network Switch Cabinet models available to optimize ventilation requirements
for all Cisco series switches
•Front and rear vertical cable managers included for handling large
cable bundles
PROLINE COMMUNICATIONS CABINET
With 42RU, perforated front door, perforated split rear door, black
ADDITIONS
PROLINE Server Cabinets
Anixter No. Vendor No. Description
382185 PSCPC20610B Passive cooling, 78 in. H x 24 in. W x
43 in. D, 42RU, perforated front door,
perforated rear door, black
397853 PSCHCA20610B Hot aisle/cold aisle, 78 in. H x 24 in. W x
43 in. D, 42RU, perforated front door,
rear fan door, black
397855 PSFD20610B Floor ducted, 82 in. H x 24 in. W x
43 in. D, 42RU, window front door, rear
fan door, black
397858 PSTD20610BM Top ducted, 78 in. H x 24 in. W x
43 in. D, 42RU, perforated front door,
solid rear door, black (height dimension
excludes duct)
397861 DV218012LX2 VARISTAR liquid cooled, 82 in. H x
32 in. W x 47 in. D, 42RU, window front
door, solid rear door, black, includes air/
water heat exchanger
Anixter No. Vendor No. Description
355944 D19BPT1RU Snap-in blanking panel, 1RU, 19 in.,
black, 10 pack
355945 D19BPT2RU Snap-in blanking panel, 2RU, 19 in.,
black, 10 pack
355946 D19FVT69B Tool-less vented shelf, fits square-hole
rack angles, 19 in., black
More sizes and configurations are available. Contact your local sales
representative for information.
PROLINE Communications Cabinets
Anixter No. Vendor No. Description
397869 PNC20710B ConnecTek, 79 in. H x 28 in. W x 41 in. D
397870 PNC20710BNS ConnecTek, 79 in. H x 28 in. W x 41 in. D,
no sides
397871 PNC20810B ConnecTek, 79 in. H x 32 in. W x 41 in. D
397872 PNC20810BNS ConnecTek, 79 in. H x 32 in. W x 41 in. D,
no sides
397873 PNS20810B Network Switch Cabinet, 79 in. H x 32 in.
W x 41 in. D
397874 PNS20810BNS Network Switch Cabinet, 79 in. H x 32 in.
W x 41 in. D, no sides
Anixter No. Vendor No. Description
355944 D19BPT1RU Snap-in blanking panel, 1RU, 19 in.,
black, 10 pack
355945 D19BPT2RU Snap-in blanking panel, 2RU, 19 in.,
black, 10 pack
430028 P19VSH68B Vented shelf, four-post, 19 in., black
More sizes and configurations are available. Contact your local sales
representative for ordering information.
5.60
Request the latest literature and guides from Anixter.
1.800.ANIXTER • anixter.com/literature
Racks, Cabinets and Cable Management
Hoffman
Physical Infrastructure Solutions
D
Index1.Support and Supplies//Physical Support Structure//Racks
HOFFMAN ENCLOSURES INC
Hoffman Open Frame Racks are key elements in structured cabling systems and are
well suited or networking and data transmission applications. Customize your
installation with a full offering of helves, hardware and cable management.
OPEN FRAME RACKS PR23706V2-168550.tif
ACCESSORIES PR23708V2-168565.tif
---
Index1.Support and Supplies//Physical Support Structure//Accessories
HOFFMAN ENCLOSURES INC
Hoffman CABLETEK Horizontal and Vertical Cable Manager Systems provide support,
protection and accessibility to network cables and patch cords. CABLETEK is designed
to speed installation and provide flexibility to adapt to changing cabling demands.
HORIZONTAL PR23705V2-168553.tif
- High cable-capacity channel and supporting fingers facilitate proper bend radius
of cables
- Arrowhead supporting fingers provide easy installation and removal of cables
- Easy snap-in-place assembly allows for quick installation
- Included covers are easily removable, provide protection and aesthetics, and stay
open to provide unobstructed access
- Rugged composite construction
VERTICAL PR23707V2-168568.tif
- Arrowhead fingers provide support, easy access and high capacity to network
cables and patch cords
- Rear posts and gates provide proper bend allowance, containment and full access
to network cables and bundles
- Extra deep front channel and open, easy access rear surface provides high cable
capacity and smooth transition to equipment
- Included cover is easy to remove and hinges 180 degrees to the left and right to
provide complete access to cables
- Also available for 8 and 9 foot open frame racks
- With aluminum and composite
Open Frame Racks and Accessories
Anixter No. Vendor No. Description
271801 EDR19FM45U Two-post Open Frame Rack, 19 in. W x
45U, aluminum, black
314578 E4DR19FM45U Four-post Open Frame Rack, 19 in. W x
45U, aluminum, black, tapped 12-24
314580 E4DRS19FM45U Four-post Open Frame Rack, 19 in. W x
45U, aluminum, black, square hole
Anixter No. Vendor No. Description
271805 ESH19V Single-sided vented shelf, fits 19 in.
equipment, steel, black
271804 ESHD19 Double-sided shelf, fits 19 in.
equipment, steel, black
319156 ESH19KBM Keyboard monitor shelf, fits 19 in.
equipment, steel, black
397875 P19SHP68B Sliding shelf, fits 19 in. equipment,
steel, black
317539 EJ2DR Joining kit for Open Frame Racks
278528 ES1224B Screw package, qty. 20, 12-24,
steel, black
CABLETEK Horizontal and Vertical Cable Manager System
Anixter No. Vendor No. Description
397877 DCHS1 19 in., 1RU, single-sided, black composite
364860 DCHS2 19 in., 2RU, single-sided, black composite
363701 DCHD2 19 in., 2RU, double-sided, black composite
397878 DCHB1 19 in., tie-down bar, steel, black
Anixter No. Vendor No. Description
376985 DV6S7 7 ft H x 6 in. W, single-sided
363700 DV6D7 7 ft H x 6 in. W, double-sided
397879 DV10S7 7 ft H x 10 in. W, single-sided
397880 DV10D7 7 ft H x 10 in. W, double-sided
397881 DV12S7 7 ft H x 12 in. W, single-sided
397882 DV10D7 7 ft H x 12 in. W, double-sided
Products. Technology. Services. Delivered Globally.
1.800.ANIXTER • anixter.com 5.61
Racks, Cabinets and Cable Management
Hoffman
Physical Infrastructure Solutions
--
Index1.Support and Supplies//Physical Support Structure//Cabinets
HOFFMAN ENCLOSURES INC PR23342V2-163392.tif
ACCESSPLUS II Cabinets provide security, equipment access, cooling and support for
network and other 19 in. rack-mount equipment. The cabinet has three components:
front door, center section and wall section. Double-hinged for easy equipment
access; center section provides 19 in. rack mounting per EIA universal spacing and is
accessed through the front door or swing the center section away from the wall
section for rear access.
FEATURES
•Industry standard: NEMA Type 1
•Front door has either a solid steel or hardened, tinted safety-glass window door
for superior scratch resistance
•Center section easily removed from rear section; tool-less one-person
installation possible
•Self-locking center-to-wall section latches in two locations
•Front access to all latches (no exposed side latches); cabinet can be installed
tightly in corners
•Vented sides provide cross-flow ventilation to improve heat dissipation
•RAL 9005 black light-textured, low-gloss polyester powder paint
ACCESSPLUS II CABINETS
ADDITIONS
--
Index1.Support and Supplies//Physical Support Structure//Cabinets
HOFFMAN ENCLOSURES INC PR67225V2-531270.tif
This Hoffman double-hinged wall-mounted cabinet is ideal for protecting 19 in.
network equipment from falling dirt, splashing water, dust and other contaminants.
This versatile cabinet mounts to a wall or can be pole-mounted with the optional
pole-mounting kit. Designed to hold multiple pieces of voice/data equipment
comfortably, it can be mounted to be left- or right-hinged and comes completely
assembled and ready to mount.
FEATURES
•Industry standard: NEMA/EEMAC Type 4 or 12
•Also available in UL Type 4x stainless steel
•Solid door provides complete physical and visual protection
•Window door, made with scratch-resistant safety glass, allows equipment
monitoring without opening the door
•Double-hinged for easy equipment access
•Foam-in-place seamless gasket around door seals against outdoor air
infiltration and is nonabsorbing and chemical resistant
•Type 12 cabinets have solid or window doors and a locking wing knob with two
keys. They provide security and convenience in indoor applications
•Type 4 cabinets have solid doors and a padlock capable 1/4-turn latch. They
provide easy operation and locking options in indoor and outdoor applications
•One set of adjustable tapped 19 in. rack angles included
•RAL 7035 light gray textured, low-gloss polyester powder paint
ACCESSPLUS II Type 1 Double-hinged Wall-mount Cabinets
Anixter No. Vendor No. Description
394585 EWMW242418 Window door, 24 in. H x 24 in. W x
18 in. D, 12RU
394586 EWMW362418 Window door, 36 in. H x 24 in. W x
18 in. D, 19RU
394587 EWMW482418 Window door, 48 in. H x 24 in. W x
18 in. D, 26RU
390048 EWMW242425 Window door, 24 in. H x 24 in. W x
25 in. D, 12RU
390051 EWMW362425 Window door, 36 in. H x 24 in. W x
25 in. D, 19RU
390053 EWMW482425 Window door, 48 in. H x 24 in. W x
25 in. D, 26RU
394588 EWMS242418 Solid door, 24 in. H x 24 in. W x 18 in. D, 12RU
394589 EWMS362418 Solid door, 36 in. H x 24 in. W x 18 in. D, 19RU
394590 EWMS482418 Solid door, 48 in. H x 24 in. W x 18 in. D, 26RU
394591 EWMS242425 Solid door, 24 in. H x 24 in. W x 25 in. D, 12RU
394592 EWMS362425 Solid door, 36 in. H x 24 in. W x 25 in. D, 19RU
394593 EWMS482425 Solid door, 48 in. H x 24 in. W x 25 in. D, 26RU
Anixter No. Vendor No. Description
406107 EWMF1 Fan kit, fits 18 in. deep cabinets
403920 EWMF2 Fan kit, fits 25 in. and 30 in. deep cabinets
More sizes and configurations available. For more information contact your
sales representative.
PROTEK DH Type 4 and Type 12 Double-hinged Wall-mount Cabinet
Continued on next page >>
5.62
Request the latest literature and guides from Anixter.
1.800.ANIXTER • anixter.com/literature
Racks, Cabinets and Cable Management
Hoffman
Physical Infrastructure Solutions
D
(continued)
PROTEK DH Type 4 and Type 12 Double-hinged
Wall-mount Cabinet
PROTEK DH WALL-MOUNT CABINETS PR72239V2-578572.tif
PROTEK DH A/C PACKAGE PR23344V2-163397.tif
PROTEK Air-Conditioner Packages provide cool air to internal equipment when high
ambient air temperatures exist (up to 130F). A/C packages include an 800 Btu
indoor/outdoor air conditioner that operates on 115 V AC with 5-15P plug.
PROTEK DH FAN PACKAGE
PROTEK DH Fan packages provide an integral solar top/drip shield and
thermostatically controlled fans to provide airflow to cool internal equipment.
Available in UL Type 3R for outdoor use.
Index1.Support and Supplies//Physical Support Structure//Cabinets
HOFFMAN ENCLOSURES INC PR72209V2-576086.tif
MAXRACK is ideal for high-density cabling applications. It supports the cabling and
thermal management needs of large-core switches by using the combination air
baffle/vertical cable manager accessory.
FEATURES
•Racks can be assembled to accommodate 19 in. and 23 in. equipment
•Multiple available depths for various cabling and equipment capacities
•Press-in nuts enable single-sided easy assembly
•Integrated waterfalls for cable radius management
•Included cable runway supports accommodate parallel and perpendicular
mounting applications
•Multiple grounding points per UL double-lugged standards
MAXRACK
AIR BAFFLE AND VERTICAL CABLE MANAGER
Anixter No. Vendor No. Description
460228 PTHW162415G2 Type 12, window door, 16 in. H x 24 in. W
x 15 in. D, 7RU
460229 PTHW242415G2 Type 12, window door, 24 in. H x 24 in. W
x 15 in. D, 12RU
460230 PTHW242424G2 Type 12, window door, 24 in. H x 24 in. W
x 24 in. D, 12RU
460232 PTHW362415G2 Type 12, window door, 36 in. H x 24 in. W
x 15 in. D, 19RU
460233 PTHW362424G2 Type 12, window door, 36 in. H x 24 in. W
x 24 in. D, 19RU
460236 PTHW482415G2 Type 12, window door, 48 in. H x 24 in. W
x 15 in. D, 26RU
460247 PTHW482424G2 Type 12, window door, 48 in. H x 24 in. W
x 24 in. D, 26RU
460222 PTHS242424G4 Type 4 and 12, solid door, 24 in. H x
24 in. W x 24 in. D, 12RU
460224 PTHS362424G4 Type 4 and 12, solid door, 36 in. H x
24 in. W x 24 in. D, 19RU
460226 PTHS482424G4 Type 4 and 12, solid door, 48 in. H x
24 in. W x 24 in. D, 26RU
Anixter No. Vendor No. Description
492778 PTHW242429G2A Type 12, window door, 24 in. H x 24 in. W
x 29 in. D, 12RU
492781 PTHW482429G2A Type 12, window door, 48 in. H x 24 in. W
x 29 in. D, 26RU
492783 PTHS242429G4A Type 4, solid door, 24 in. H x 24 in. W x
29 in. D, 12RU
492784 PTHS362429G4A Type 4, solid door, 36 in. H x 24 in. W x
29 in. D, 19RU
492785 PTHS482429G4A Type 4, solid door, 48 in. H x 24 in. W x
29 in. D, 26RU
394624 PTDHS482429GA4 Type 4, solid door, 48 in. H x 24 in. W x
29 in. D, 26RU
Anixter No. Vendor No. Description
488288 PTHS242424G3 Type 3R, solid door, 24 in. H x 24 in. W x
24 in. D, 12RU
480607 PTHS362424G3 Type 3R, solid door, 36 in. H x 24 in. W x
24 in. D, 19RU
492586 PTHS482424G3 Type 3R, solid door, 48 in. H x 24 in. W x
24 in. D, 26RU
More sizes and configurations available. For more information
contact your sales representative.
MAXRACK
Anixter No. Vendor No. Description
492594 M846B45 86 in. H x 24 in. W x 16.5 in. D, 45RU
492138 M8410B45 86 in. H x 24 in. W x 20.5 in. D, 45RU
492137 M8416B45 86 in. H x 24 in. W x 26.5 in. D, 45RU
491005 M8432B45 86 in. H x 24 in. W x 41.75 in. D, 45RU
Anixter No. Vendor No. Description
492136 M84D12 12 in. wide
492135 M84D18 18 in. wide
Anixter No. Vendor No. Description
Products. Technology. Services. Delivered Globally.
1.800.ANIXTER • anixter.com 5.63
Racks, Cabinets and Cable Management
Knurr
Physical Infrastructure Solutions
./
Index1.Support and Supplies//Physical Support Structure//Cabinets
KNURR EMERSON NETWORK POWER
The Quick-Ship Racks provide the convenience of 19 in. racks with high-end features
and standardized options to provide fast customization for individual site needs.
FEATURES
•Ships within 72 hours, delivered as a fully assembled cabinet
•Tool-less cable management enables components to be mounted in any internal
frame surface, on the outside edge of the 19 in. rail, or on the PDU/Cable
Management rail
•Perforated doors provide 83 percent open area, the highest in the industry, for
improved airflow
•Rugged aluminum frame is lighter than a comparable steel frame
•Low-profile casters enable cabinet to roll through standard doorways
DCM NETWORK RACK FOR CISCO NEXUS SWITCH 7010
PR71323V2-563231.tif
With front door, rear door, partition panel(s), leveling feet, vertical filler panels and
factory-installed cable fingers
DCM NETWORK RACK FOR CISCO NEXUS SWITCH 7018 PR71324V2-563237.tif
With front door, rear door, partition panel(s), leveling feet, vertical filler panels and
factory-installed cable fingers
CABINET ACCESSORIES
Knurr DCM Quick-Ship Racks
Anixter No. Vendor No. Description
489629 D42CIS7010 42U x 31.5 in. W x 47.2 in. D with
side panels
489634 D45CIS7010 45U x 31.5 in. W x 47.2 in. D with
side panels
489644 D42CIS7010SP 42U x 31.5 in. W x 47.2 in. D with one
side panel, one partition panel
489646 D45CIS7010SP 45U x 31.5 in. W x 47.2 in. D with one
side panel, one partition panel
489656 D42CIS7010P2 42U x 31.5 in. W x 47.2 in. D with two
partition panels
489657 D45CIS7010P2 45U x 31.5 in. W x 47.2 in. D with two
partition panels
Anixter No. Vendor No. Description
489636 D42CIS7018 42U x 39.3 in. W x 47.2 in. D with side
panels and air diverter
489639 D45CIS7018 45U x 39.3 in. W x 47.2 in. D with side
panels and air diverter
489640 D52CIS7018 52U x 39.3 in. W x 47.2 in. D with side
panels and air diverter
489641 D52CIS70182 52U x 39.3 in. W x 47.2 in. D with
side panels
489649 D42CIS7018SP 42U x 39.3 in. W x 47.2 in. D with one
side panel, one partition panel and
air diverter
489652 D45CIS7018SP 45U x 39.3 in. W x 47.2 in. D with one
side panel, one partition panel and
air diverter
489654 D52CIS7018SP 52U x 39.3 in. W x 47.2 in. D with one
side panel, one partition panel and
air diverter
489655 D52CIS70182SP 52U x 39.3 in. W x 47.2 in. D with one
side panel, one partition panel
489658 D42CIS7018P2 42U x 39.3 in. W x 47.2 in. D with two
partition panels and air diverter
489661 D45CIS7018P2 45U x 39.3 in. W x 47.2 in. D with two
partition panels and air diverter
489663 D52CIS7018P2 52U x 39.3 in. W x 47.2 in. D with two
partition panels and air diverter
489664 D52CIS70182P2 52U x 39.3 in. W x 47.2 in. D with two
partition panels
Anixter No. Vendor No. Description
397015 002185000 Fixed tool-less shelf
397016 002185050 (10) tool-less lobster claw
cable management
397013 002185060 (10) tool-less hook and latch
cable management
443690 002185070 Cable management lobster claw (100)
443692 002185080 Cable management Velcro ring (100)
397029 35351081 24-outlet PDU with 5-20R receptacles,
30 A L5-30P input, 10 ft. cord,
vertical mount
443694 539608G2 Tool-less baying kit for 42U cabinets
The
Continues with ...
AIRFLOW MANAGEMENT
There’s nothing passive
about energy savings.
The new Mighty Mo
®
Air Control containment
solutions elevate the Layer Zero
™
solution,
bringing targeted airflow management to
the data center. Together, Mighty Mo racks,
cabinets and containment products provide
completely passive thermal management
solutions to improve cooling, optimize
network performance and significantly
increase energy savings.
Visit
www.legrand.us/ortronics/layer-zero-white-paper
to download our white paper, Layer Zero
for the Data Center.
Products. Technology. Services. Delivered Globally.
1.800.ANIXTER • anixter.com 5.65
Racks, Cabinets and Cable Management
Ortronics
Physical Infrastructure Solutions
./
Index1.Support and Supplies//Physical Support Structure//Cabinets
ORTRONICS PR24124V2-175092.tif
Ortronics' Mighty Mo cabinet is designed around industry-leading cable management
systems that address the high-density requirements in the data center and SAN
environments of today and the future. In addition, the Mighty Mo cabinet is ideal for
maintaining cold aisle/hot aisle airflow. Side rails work with an innovative baffle
system that redirects airflow from side-venting equipment from the hot aisle to the
cold aisle to maintain maximum airflow.
FEATURES
•Capacity: 2,000 lb. static frame load capacity
•Performance and Protection
•To ensure maximum network performance, Mighty Mo cable management
systems protect patch cords, cables and equipment ports from damage by:
- Maintaining proper bend radius requirements
- Reducing tension on plugs and jacks
- Protecting network equipment ports
- Supporting large cable bundles within the rack
•Cable Management
- Support for up to 1,340 Cat 6 ports
- Vertical managers provide ample capacity for a minimum of 48 Category 6A
patch cords per rack unit on a single side of the equipment
- Mounting rails adjust from 12.5 in. to 30 in., independent of the wide rail in
front on either side to handle and route copper (Cat 6A, 6 and 5e) or fiber
distribution cables without impeding airflow while protecting proper
bend-radius requirements
•Airflow
- The Mighty Mo Cabinet is ideal for maintaining cold aisle/hot aisle airflow,
whether your network equipment is front-to-back, bottom- or side-venting
- Side rails work with an innovative baffle system that redirects airflow from
side venting equipment from the hot aisle to the cold aisle to maintain
maximum airflow
- This passive cooling system can help eliminate the extra heat generated by and
power required for typical switch fans
•Power
- Full-size power distribution units (PDUs) are mountable on Mighty Mo wide
back rails, with the switch already mounted, to bring additional power to your
server rack
Index1.Support and Supplies//Physical Support Structure//Cabinets
ORTRONICS PR29321V2-217529.tif
All preconfigured server-cabinet versions include:
- Heavy-duty 14 GA welded-steel frame configured with cable opening at bottom rear
- Frame levelers
- Two pairs of RU labeled mounting rails with 3/8 in. square holes
- Full-profile mesh locking front door
- Split flat mesh locking rear door
- Two L-shape finger managers on rear rails
- Vertical PDU mount and lacing bar
- Divider or side panels as stated below
- Solid top panel in front
- Cable entry top panel in rear
- Rack unit cage nuts 12-24 thread (package of 50)
- Two packages of 50 panel-mounting screws 12-24 (total of 100)
- Additional adhesive rack unit labels (mounted inside of rear set of rails)
- Divider versions have a right-side divider panel and ganging hardware (for within
row). Side-panel versions have a set of end panels (for stand-alone or to create ends
of row). Depth includes doors.
Mighty Mo Cabinets
The Mighty Mo cabinet line includes a complete array of accessories to
create customized solutions for a wide variety of network and data center
configurations. Please consult your local sales representative to create your
unique cabinet part number.
Mighty Mo Preconfigured Server Cabinets
Anixter No. Vendor No. Description
426095 MMC422440-00005 42RU x 24 in. W x 42 in. D,
divider version
426097 MMC422440-00006 42RU x 24 in. W x 42 in. D,
side-panel version
426098 MMC422446-00002 42RU x 24 in. W x 48 in. D,
divider version
426099 MMC422446-00003 42RU x 24 in. W x 48 in. D,
side-panel version
426100 MMC472440-00003 47RU x 24 in. W x 42 in. D,
divider version
426101 MMC472440-00004 47RU x 24 in. W x 42 in. D,
side-panel version
426102 MMC472446-00001 47RU x 24 in. W x 48 in. D,
divider version
426103 MMC472446-00002 47RU x 24 in. W x 48 in. D,
side-panel version
426104 MMC423240-0000G 42RU x 32 in. W x 42 in. D,
divider version
426106 MMC423240-0000H 42RU x 32 in. W x 42 in. D,
side-panel version
Continued on next page >>
5.66
Request the latest literature and guides from Anixter.
1.800.ANIXTER • anixter.com/literature
Racks, Cabinets and Cable Management
Ortronics
Physical Infrastructure Solutions
D
(continued)
Mighty Mo Preconfigured Server Cabinets
Index1.Support and Supplies//Physical Support Structure//Cabinets
ORTRONICS PR29315V2-217394.tif
All preconfigured network cabinet versions include:
- Heavy-duty 14 GA welded-steel frame configured with cable opening at bottom front
- Frame levelers
- Two pairs of RU labeled mounting rails with 12-24 tapped holes
- Full- profile plexiglass locking front door
- Full flat solid locking rear door
- Two L-shape finger managers on front rails
- Right and left locking side panels
- Fan top panel in front
- Cable entry top panel in rear
- Package of 50 panel-mounting screws 12-24
- Depth includes doors
Index1.Support and Supplies//Physical Support Structure//Cabinets
ORTRONICS PR71514V2-569874.tif
FEATURES
•Select models available for next-day shipment
•Custom configured to meet equipment and space storage requirements
•Select accessories can be pre-installed, reducing installation time and
packaging waste
•Configurations utilize a single part number and price to simplify ordering
•Available in 24U, 42U, 45U and 48U heights
•Available in 24 in., 29.5 in. and 31.5 in. widths
•Available in 36 in., 42 in. and 48 in. depths
•EIA mounting rails are available with 0.375 in. square hole or
12-24tappedstyles
•3,000 lb. static load capacity
•UL and C(UL) listed, UL 60950-1 2nd Edition, NWIN
PRE-CONFIGURED CABINETS
Index1.Support and Supplies//Physical Support Structure//Cabinets
ORTRONICS PR24085V2-174763.tif
Ortronics offers a large variety of thermal management products to complete your
cabinet system. Please see the Power and Thermal Management Solutions section for
more information.
Anixter No. Vendor No. Description
426107 MMC423246-00007 42RU x 32 in. W x 48 in. D,
divider version
426109 MMC423246-00008 42RU x 32 in. W x 48 in. D,
side-panel version
426110 MMC473240-00003 47RU x 32 in. W x 42 in. D,
divider version
426111 MMC473240-00004 47RU x 32 in. W x 42 in. D,
side-panel version
426112 MMC473246-00001 47RU x 32 in. W x 48 in. D,
divider version
426113 MMC473246-00002 47RU x 32 in. W x 48 in. D,
side-panel version
Mighty Mo Preconfigured Network Cabinets
Anixter No. Vendor No. Description
426115 MMC422434-00004 42RU x 24 in. W x 36 in. D
426116 MMC423234-0000A 42RU x 32 in. W x 36 in. D
Mighty Mo GX Cabinets
Anixter No. Vendor No. Description
480419 GXC422442-A1-B Server, cabinet assembly 42U,
80.45 in. H x 24 in. W x 42 in. D, black
492140 GXC422942-A1-B Network, cabinet assembly 42U
80.45 in. H x 29.5 in. W x 42 in. D, black
Cooling Solutions for Ortronics Cabinets
Products. Technology. Services. Delivered Globally.
1.800.ANIXTER • anixter.com 5.67
Racks, Cabinets and Cable Management
Ortronics
Physical Infrastructure Solutions
--
Index1.Support and Supplies//Physical Support Structure//Cabinets
ORTRONICS PR29319V2-217524.tif
The Mighty Mo Wall-Mount Cabinets utilize advanced cable management to help
secure, support and organize your network where floor space is limited. Providing
capacity for both active and passive equipment, the cabinets feature 1-rack unit
finger-style vertical managers to ensure proper cable management for maximum
network performance. An optional rear horizontal-mount bracket kit is designed to
provide two additional fixed rack units on the rear wall for mounting fiber, equipment
or power distribution units. In addition, the cabinet center section swings out from
the wall to provide easy access to the equipment.
The front lockable wing turn latch allows you to secure the front door without having
to lock the cabinet. This feature allows for easy access into the front of the cabinet
when you are in a secure environment.
The Mighty Mo Wall-Mount Cabinets are also an ideal choice for mounting in an open
office environment. The cabinet's heavy-duty construction minimizes sagging under
heavy loads and the optional 50 cfm fan is 50 percent quieter than most other
leading cabinets.
FEATURES
•Cable management to support and organize cables, ensuring proper cable
management for minimum distortion and maximum network performance
•Choice of solid or plexiglass door
•Cabinet can be mounted to open left or right
•Locking center section swings out to provide easy access to the equipment
•Front and center sections are keyed alike
•Includes one pair of fully adjustable 12-24 EIA mounting rails
•Brush cable entry plates standard on top rear
•Cable knockout plates standard on bottom rear
•3 in. hole with cap standard on top and bottom rear
•Vented sides for passive cooling of active equipment
•Optional 50 cfm cooling fans are available to further protect active equipment
•Heavy-duty 14-gauge (0.075 in.) steel construction
•Color is basic black
MIGHTY MO WALL-MOUNT 24 IN. W X 20 IN. D
MIGHTY MO WALL-MOUNT 24 IN. W X 26 IN. D
MIGHTY MO WALL-MOUNT CABINET ACCESSORIES
--
Index1.Support and Supplies//Physical Support Structure//Cabinets
ORTRONICS PR29314V2-217397.tif
DataCab Wall-Mount Cabinets are an ideal solution for open office or telecom room
applications where floor space is limited and are perfect for both active equipment
and passive zone cabling. The thin-line front-door construction offers more room in
the center section to provide easy access to the equipment.
The heavy-duty construction of the cabinet minimizes sagging under heavy loads. The
hinge-side placement of the rear-section mounting holes provides additional support
when the center section is open for terminations.
The sides of the cabinet are vented for passive cooling of the active quipment, and the
optional 50 cfm is 50 percent quieter than the fans of most other leading cabinets.
Mighty Mo Wall-Mount Cabinets
Anixter No. Vendor No. Description
410645 MMW122420S-B 12U x 24 in. W x 20 in. D, solid door,
23.5 in. H, 150 lb. weight capacity
410647 MMW122420P-B 12U x 24 in. W x 20 in. D, plexiglass
door, 23.5 in. H, 150 lb. weight capacity
410648 MMW192420S-B 19U x 24 in. W x 20 in. D, solid door,
23.5 in. H, 200 lb. weight capacity
410651 MMW192420P-B 19U x 24 in. W x 20 in. D, plexiglass
door, 23.5 in. H, 200 lb. weight capacity
410652 MMW262420S-B 26U x 24 in. W x 20 in. D, solid door,
23.5 in. H, 300 lb. weight capacity
410653 MMW262420P-B 26U x 24 in. W x 20 in. D, plexiglass
door, 23.5 in. H, 300 lb. weight capacity
Anixter No. Vendor No. Description
410654 MMW122426S-B 12U x 24 in. W x 26 in. D, solid door,
23.5 in. H, 150 lb. weight capacity
410655 MMW122426P-B 12U x 24 in. W x 26 in. D, plexiglass
door, 23.5 in. H, 150 lb. weight capacity
410656 MMW192426S-B 19U x 24 in. W x 26 in. D, solid door,
23.5 in. H, 200 lb. weight capacity
410657 MMW192426P-B 19U x 24 in. W x 26 in. D, plexiglass
door, 23.5 in. H, 200 lb. weight capacity
410658 MMW262426S-B 26U x 24 in. W x 26 in. D, solid door,
23.5 in. H, 300 lb. weight capacity
410659 MMW262426P-B 26U x 24 in. W x 26 in. D, plexiglass
door, 23.5 in. H, 300 lb. weight capacity
Anixter No. Vendor No. Description
410660 MMCFAN-4-50 Fan kit, 4 in., 50 cfm
410661 MMWHMBM12-B Rear horizontal-mount bracket kit, 2U
410662 MMWBPK Brush plate kit
410663 MMW12M12-B 12U mounting rail, 12-24, one pair
410664 MMW19M12-B 19U mounting rail, 12-24, one pair
410665 MMW26M12-B 26U mounting rail, 12-24, one pair
DataCab Wall-Mount Cabinets
Anixter No. Vendor No. Description
Continued on next page >>
5.68
Request the latest literature and guides from Anixter.
1.800.ANIXTER • anixter.com/literature
Racks, Cabinets and Cable Management
Ortronics
Physical Infrastructure Solutions
D
(continued)
DataCab Wall-Mount Cabinets
FEATURES
•Choice of solid or plexiglass door
•Locking center section swings out to provide easy access
•Door and center section are keyed alike
•Includes one pair of fully adjustable 12-24 EIA mounting rails
•Heavy-duty welded-steel construction
•Vented sides for passive cooling of active equipment
•Optional 50 cfm cooling fans are available to further protect active equipment
DATACAB WALL-MOUNT CABINETS
CABINET ACCESSORIES
-
Index1.Support and Supplies//Physical Support Structure//Cabinets
ORTRONICS PR24083V2-174636.tif
The Mighty Mo Ceiling-Mount Telecom Enclosure has a unique patent-pending
swing-gate design that allows for easy access to patching and equipment by simply
opening the front cover. The swing-out access supports easy retermination and
includes dampening cylinders to control the speed of opening. The attractive exterior
blends well with office décor and a lockable front door provides security and
protection in public areas. Built-in cable management supports and organizes cables,
ensuring proper bend radius. Approved to UL 2043 for use in air-handling spaces.
MIGHTY MO CEILING-MOUNT TELECOM ENCLOSURE
CEILING-MOUNT ACCESSORIES
Index1.Support and Supplies//Physical Support Structure//Accessories
ORTRONICS
Tool-less filler panels snap into 19 in. EIA-310-E-compliant tapped or square-hole
mounting rails. Since no field modification is required to fit a tapped hole, the panel
can be remounted in a square hole in the future, eliminating the need to stock two
different types of panels.
TOOLLESS SNAP-IN FILLER PANELS
FLAT BLANK FILLER PANELS PR9327V2-143919.tif
Anixter No. Vendor No. Description
426090 DCW122424S-B 12U x 24 in. W x 24 in. D, solid door,
23.5 in. H, 125 lb. weight capacity
426105 DCW122424P-B 12U x 24 in. W x 24 in. D, plexiglass
door, 23.5 in. H, 125 lb. weight capacity
426108 DCW192424S-B 19U x 24 in. W x 24 in. D, solid door,
35.75 in. H, 150 lb. weight capacity
426114 DCW192424P-B 19U x 24 in. W x 24 in. D, plexiglass
door, 35.75 in. H, 150 lb.
weight capacity
492833 DCW262424S-B 26U x 24 in. W x 24 in. D, solid door,
48 in. H, 175 lb. weight capacity
492834 DCW262424P-B 26U x 24 in. W x 24 in. D, plexiglass
door, 48 in. H, 175 lb. weight capacity
Anixter No. Vendor No. Description
410660 MMCFAN-4-50 Fan kit, 4 in., 50 cfm
410662 MMWBPK Brush plate kit
426127 DCW12M12-B 12U mounting rail, 12-24, one pair
426138 DCW19M12-B 19U mounting rail, 12-24, one pair
492835 DCW26M12-B 26U mounting rail, 12-24, one pair
Mighty Mo Ceiling-Mount Telecom Enclosures
Anixter No. Vendor No. Description
400009 MMTECSG22 Ceiling mount, 23.50 in. H x 23.50 in. W
x 20.61 in. D, 10-rack units, 80 lb.
capacity, beige
Anixter No. Vendor No. Description
400010 MMTECFCBP Plate kit - includes fan plate with
100 cfm fan, guard, 3 ft. cord with plug,
cable brush plate and mounting
hardware, black
400011 MMTECFSP Fire stop cable plate kit - includes
intumescent foam and mounting
hardware, set of two, beige
Blank Filler Panels
Anixter No. Vendor No. Description
442215 BFPT-1RU-10 1.75 in. H x 19 in. W, 1RU, pack of 10
442216 BFPT-2RU-10 3.5 in. H x 19 in. W, 2RU, pack of 10
Anixter No. Vendor No. Description
132300 401004788 1.75 in. H x 19 in. W, 1U
132301 401004789 3.5 in. H x 19 in. W, 2U
132302 401004790 5.25 in. H x 19 in. W, 3U
130290 401004791 7 in. H x 19 in. W, 4U
353679 401045773 38.5 in. H x 19 in. W, 22U
Products. Technology. Services. Delivered Globally.
1.800.ANIXTER • anixter.com 5.69
Racks, Cabinets and Cable Management
Ortronics
Physical Infrastructure Solutions
ANGLED BLANK FILLER PANELS PR22638V2-136637.tif
CURVED BLANK FILLER PANELS PR22637V2-136635.tif
Index1.Support and Supplies//Physical Support Structure//Racks
ORTRONICS
Mighty Mo 10 racks are designed to maximize the airflow of network equipment.
Honeycomb side rails and baffles combine to manage intake and exhaust air creating
cold aisle/hot aisle air distribution from side-vented equipment. The bottom flange
turns inward, allowing it to fit on a 2 ft. x 2 ft. floor tile.
MIGHTY MO 10 CABLE MANAGEMENT RACKS PR22648V2-137487.tif
Static load rating 1,500 lb. UL Listed.
MIGHTY MO 10 SERVER RACK PR34796V2-261601.tif
The Mighty Mo 10 Server Rack works with all of the Mighty Mo 6 and 10 racks and
cable management. The mounting rails adjust from 12.5 in. to 30 in., independent
of the structural members allowing the rails to be adjusted after the rack is
installed. Mighty Mo vertical managers can be mounted front or rear. Color is black.
MIGHTY MO 10 VERTICAL CABLE MANAGEMENT CAGE WITH DOOR PR22643V2-136779.tif
Cage design promotes efficient routing of patch cords between racks. Hinged doors
allow easy access during moves, adds and changes. 16 in. wide cage creates a
12.25 in. gap between racks. 12 in. wide cage creates a 8.25 in. gap between racks
for front-to-back routing of equipment cables and patch cords. Both are supplied
with four spools and 12 bend-limiting clips.
Anixter No. Vendor No. Description
378023 BFPA-1RU 1.75 in. H x 19 in. W, 1U
378024 BFPA-2RU 3.5 in. H x 19 in. W, 2U
Anixter No. Vendor No. Description
377155 BFPC-1RU Curved Blank Filler Panel to fit with
curved PHC patch panel, 44.45 mm H,
482.6 mm W, 1-rack unit
Mighty Mo 10 Cable Management Rack System
Anixter No. Vendor No. Description
363051 MM10716 7 ft. H x 16.25 in. D, black, 45RU
363052 MM10816 8 ft. H x 16.25 in. D, black, 51RU
Anixter No. Vendor No. Description
363053 MM107SVR Four-post aluminum frame with steel EIA
rails, supplied with 50 12-24 cage nuts
and screws, 45RU, 7 ft. H
425824 MM108SVR Four-post aluminum frame with steel EIA
rails, supplied with 50 12-24 cage nuts
and screws, 45RU, 8 ft. H
363054 MM107SVRABR Server rack baffle rail for mounting
airflow baffles
Anixter No. Vendor No. Description
363055 MM10VMD712 12.13 in. x 13 in. x 7 ft.
363056 MM10VMD716 16.38 in. x 13 in. x 7 ft.
363057 MM10VMD812 12.13 in. x 13 in. x 8 ft.
363058 MM10VMD816 16.38 in. x 13 in. x 8 ft.
Continued on next page >>
5.70
Request the latest literature and guides from Anixter.
1.800.ANIXTER • anixter.com/literature
Racks, Cabinets and Cable Management
Ortronics
Physical Infrastructure Solutions
D
(continued)
Mighty Mo 10 Cable Management Rack System
MIGHTY MO 10 AIRFLOW BAFFLES PR22642V2-136778.tif
Mighty Mo 10 airflow baffles mount between racks and direct intake and exhaust air
on side-flow network equipment from cold aisle to hot aisle.
MIGHTY MO 10 VENTED DOOR ASSEMBLIES PR24076V2-174633.tif
Door design allows mounting to the front or rear of any Mighty Mo 6 or Mighty Mo
10 rack. The double-hinged door pivots to the right or left and is easily removed.
Black.
Index1.Support and Supplies//Physical Support Structure//Racks
ORTRONICS
Mighty Mo 6 Racks are available in 6.5 in., 10.5 in. and 16.25 in. channel depths.
The 16.25 in. size is designed specifically for heavy and large networking equipment.
The bottom flange on the 16.25 in. version can turn inward so that it will fit on a 2 ft.
x 2 ft. floor tile. All Mighty Mo 6 racks and accessories are black.
RACKS PR20429V2-77399.tif
Static load rating 1,500 lb. UL Listed. Accomidates 19 in. and 23 in.
equipment panels.
MIGHTY MO CHANNEL BEND LIMITERS PR24078V2-174647.tif
Mighty Mo channel bend limiters clip onto the top edge of Mighty Mo channels
providing the proper bend radius for cables entering the channel. Set of two; black.
Anixter No. Vendor No. Description
363061 MM10AB71612 For use with 7 ft. x 16 in. Mighty Mo
10 rack and 12 in. wide Mighty Mo
10 cage
363062 MM10AB71616 For use with 7 ft. x 16 in. Mighty Mo
10 rack and 16 in. wide Mighty Mo
10 cage
363063 MM10AB81612 For use with 8 ft. x 16 in. Mighty Mo
10 rack and 12 in. wide Mighty Mo
10 cage
363064 MM10AB81616 For use with 8 ft. x 16 in. Mighty Mo
10 rack and 16 in. wide Mighty Mo
10 cage
399990 MM10AB73012 For use with MM107SVR, Mighty Mo
10 server rack, and 12 in. wide Mighty
Mo 10 cage
399991 MM10AB73016 For use with MM107SVR, Mighty Mo
10 server rack, and 16 in. wide Mighty
Mo 10 cage
425825 MM10AB83012 For use with MM108SVR, Mighty Mo
10 server rack, and 12 in. wide Mighty
Mo 10 cage
425826 MM10AB83016 For use with MM108SVR, Mighty Mo
10 server rack, and 16 in. wide Mighty
Mo 10 cage
Anixter No. Vendor No. Description
363059 MM10VDA7248 7 ft. x 24 in. with 8.38 in. of clearance
behind door for use with VMD-style
vertical managers
363060 MM10VDA7244 7 ft. x 24 in. with 4.38 in. of clearance
behind door for use without
vertical managers
399975 MM10VDA8248 8 ft. x 24 in. with 8.38 in. of clearance
behind door for use with VMD-style
vertical managers
399976 MM10VDA8244 8 ft. x 24 in. with 4.38 in. of clearance
behind door for use without
vertical managers
Mighty Mo 6 Cable Management Rack System
Anixter No. Vendor No. Description
341682 MM6706 7 ft. H x 23.75 in. W x 6.5 in. D
274481 MM6710 7 ft. H x 23.75 in. W x 10.5 in. D
276262 MM6716 7 ft. H x 23.75 in. W x 16.25 in. D
274482 MM6810 8 ft. H x 23.75 in. W x 10.5 in. D
276237 MM6816 8 ft. H x 23.75 in. W x 16.25 in. D
Products. Technology. Services. Delivered Globally.
1.800.ANIXTER • anixter.com 5.71
Racks, Cabinets and Cable Management
Ortronics
Physical Infrastructure Solutions
VERTICAL CABLE MANAGEMENT CAGE WITH DOOR PR9345V2-25174.tif
10 in. wide cage creates 6.5 in. gap between racks, 6 in. wide cage creates 2.5 in.
gap between racks. Both are supplied with four spools and 12 bend-limiting clips.
Includes mounting hardware.
VERTICAL CABLE MANAGEMENT CAGE WITH COVER PR20430V2-77409.tif
Cage design promotes efficient routing of patch cords between racks. Dual snap-on
hinged covers allow easy access during moves, adds and changes. 6 in. wide cage
creates a 2.5 in. gap between racks for front-to-back routing of equipment cables
and patch cords. 6 in. wide cage is supplied with four spools and 12 bend-limiting
clips. Includes mounting hardware.
VERTICAL CABLE MANAGEMENT CAGE WITH LATCHES PR20431V2-77387.tif
Promotes efficient routing of patch cords between racks. Hinged latches allow easy
access during moves, adds and changes. 6 in. wide cage creates a 2.5 in. gap
between racks for front-to-back routing of equipment cables and patch cords.
Includes mounting hardware.
MIGHTY MO 10 WATERFALL EXTENSION PR22652V2-137493.tif
Increases the height of the front flange of the Mighty Mo waterfall by 57.15 mm
when additional cable capacity is required.
VERTICAL CABLE MANAGEMENT SPOOLS PR9341V2-143925.tif
Come in sets of four.
Anixter No. Vendor No. Description
399996 MM6CBL06 For use with Mighty Mo racks with
6.5 in. channels
399998 MM6CBL10 For use with Mighty Mo racks with
10.5 in. channels
399999 MM6CBL16 For use with Mighty Mo racks with
16.25 in. channels
Anixter No. Vendor No. Description
276478 MM6VMD710 7 ft. H x 10 in. W x 13 in. D
276480 MM6VMD706 7ft. H x 6in. W x 8in.D
276482 MM6VMD810 8 ft. H x 10 in. W x 13 in. D
274484 MM6VMD806 8ft. H x 6in. W x 8in.D
Anixter No. Vendor No. Description
341683 MM6VMS704 7ft. H x 4in. W x 7in.D
341684 MM6VMS706 7ft. H x 6in. W x 7in.D
353682 MM6VMS804 8ft. H x 4in. W x 7in.D
353683 MM6VMS806 8ft. H x 6in. W x 7in.D
Anixter No. Vendor No. Description
353684 MM6VML704 7ft. H x 4in. W x 6in.D
276494 MM6VML706 7ft. H x 6in. W x 6in.D
353686 MM6VML804 8ft. H x 4in. W x 6in.D
276496 MM6VML806 7ft. H x 6in. W x 6in.D
Anixter No. Vendor No. Description
376945 MM10WFE Waterfall extension
Anixter No. Vendor No. Description
353687 MM6CMS10 11 in. long for 10 in. cage
276525 MM6CMS8 8 in. long for 10 in. cage
276526 MM6CMS6 6in. long for 6in.cage
Continued on next page >>
5.72
Request the latest literature and guides from Anixter.
1.800.ANIXTER • anixter.com/literature
Racks, Cabinets and Cable Management
Ortronics
Physical Infrastructure Solutions
D
(continued)
Mighty Mo 6 Cable Management Rack System
BEND-LIMITING CLIP PR9339V2-143923.tif
Come in sets of 12.
MIGHTY MO 6 VERTICAL MANAGEMENT BRACKET KIT PR20490V2-77418.tif
Vertical management bracket kit includes four brackets and all the hardware needed
to mount two Mighty Mo 6 vertical managers to a standard EIA rack. Kit consists of
four brackets, eight panel-mounting screws and four cage-mounting screws.
END PANEL - STANDARD PR9343V2-143927.tif
For use with 6 in. Mighty Mo 6 vertical cable managers, also includes
mounting hardware.
END PANEL - NARROW
For use with 4 in. Mighty Mo 6 vertical cable managers, also includes
mounting hardware.
CABLE RUNWAY MOUNTING BRACKET PR9342V2-143926.tif
MIGHTY MO ISOLATION PAD KIT PR24082V2-174640.tif
Isolates Mighty Mo racks from concrete floors for effective bonding and grounding.
MIGHTY MO 6 CABLE TROUGH PR22651V2-137485.tif
For supporting fiber cables at the bottom of Mighty Mo racks. The kit includes an
extension that bridges the space between racks and mounting hardware.
Anixter No. Vendor No. Description
276527 MM6BLC 3.25 in. long
Anixter No. Vendor No. Description
353688 60400687 Kit of four
Anixter No. Vendor No. Description
371366 MM6EP706 7 ft. H for 6.5 in. channel
276521 MM6EP710 7 ft. H for 10.5 in. channel
276522 MM6EP716 7 ft. H for 16.25 in. channel
276523 MM6EP810 8 ft. H for 10.5 in. channel
276524 MM6EP816 8 ft. H for 16.25 in. channel
Anixter No. Vendor No. Description
378332 MM6EPN706 7ft. H for 6.5in.channel
378331 MM6EPN710 7 ft. H for 10.5 in. channel
378333 MM6EPN716 7 ft. H for 16.25 in. channel
425827 MM6EPN810 8 ft. H for 10.5 in. channel
425828 MM6EPN816 8 ft. H for 16.25 in. channel
Anixter No. Vendor No. Description
353689 MM6CRB06 For 6.5 in. channel depth
276528 MM6CRB10 For 10.5 in. channel depth
276529 MM6CRB16 For 16.25 in. channel depth
425829 MM10CRBSVR For MM10 server rack
425830 MM10CRBRSVR For rear of MM10 server rack
Anixter No. Vendor No. Description
400000 MMIPK Isolation pad kit for Mighty Mo racks
Anixter No. Vendor No. Description
378336 MM6CT4RU Cable trough, 4RU
378337 MM6CT4RUK Cable trough kit, 4RU
Products. Technology. Services. Delivered Globally.
1.800.ANIXTER • anixter.com 5.73
Racks, Cabinets and Cable Management
Ortronics
Physical Infrastructure Solutions
HORIZONTAL CABLE MANAGEMENT PANEL PR9344V2-143928.tif
Note: 12-24 mounting hardware included.
BASE DUST COVER PR9338V2-143922.tif
Index1.Support and Supplies//Physical Support Structure//Racks
ORTRONICS PR29320V2-217523.tif
The Mighty Mo overhead cable pathway racks provide cable management and an
innovative mounting method for 19 in. rack-mount copper and fiber panels and
cabinets. The pathway racks allow horizontal connectivity to be supported by the
overhead pathway, freeing up valuable rack or cabinet space below. Includes
everything needed to mount the bracket to the side of runway with 1 1/2 in. stringers
or any Cablofil cable tray 2 in. or deeper.
Index1.Support and Supplies//Physical Support Structure//Racks
ORTRONICS
The patented adjustable dual equipment racks provide a solid, sturdy foundation for
mounting heavier network equipment. The design also expands installation
opportunities by enabling cross-connects, facilitating cable management and
eliminating heat buildup. Available in two depths. Constructed of
6061-T6 structural-grade aluminum.
FEATURES
•Self-supporting, self-squaring
•Assembles quickly and easily
•24 mounting screws included
•5/8 in., 5/8 in. Universal mounting hole pattern
•Meets EIA-310-D
•Black powder-coat finish
ADJUSTABLE RACKS PR2347V2-25708.tif
CAGE NUTS PR6832V2-25015.tif
Anixter No. Vendor No. Description
329311 MM6HMF1RU 1.75 in. x 19 in., 1RU
276534 MM6HMF2RU 3.5 in. x 19 in., 2RU
373676 MM6HMF4RU 7 in. x 19 in., 4RU
286477 MM6HM61RU 1.75 in. x 19 in., 1RU
300026 MM6HM62RU 3.5 in. x 19 in., 2RU
353691 MM6HM81RU 1.75 in. x 19 in., 1RU
338940 MM6HM82RU 3.5 in. x 19 in., 2RU
353693 MM6HM6D2RU 3.5 in. x 19 in., 2RU, double-sided
Anixter No. Vendor No. Description
353694 MM6BDC06 For 6.5 in. channel depth
276532 MM6BDC10 For 10.5 in. channel depth
276533 MM6BDC16 For 16.25 in. channel depth
Overhead Cable Pathway Rack
Anixter No. Vendor No. Description
353704 60401001 7.4 in. H x 23.6 in. W x 9 in. D, 2RU
353705 60401015 12.6 in. H x 23.6 in. W x 9 in. D, 5RU
425906 60401089 17.86 in. H x 23.6 in. W x 9 in. D, 8RU
Adjustable Dual Equipment Racks and Accessories
Anixter No. Vendor No. Description
204733 19-84-T4SDA1520 84 in. H x 19 in. W x 15-20 in. D,
45U, standard
375954 19-84-T4SDA2132 84 in. H x 19 in. W x 21-32 in. D, 45U
384762 19-84-SSDA2132 84 in. H x 19 in. W x 21-32 in. D,
45U, M6
Anixter No. Vendor No. Description
259874 PS-1032CN 10-32 cage nuts, 50 per bag
259873 PS-1224CN 12-32 cage nuts, 50 per bag
425911 RU-1224CN Rack unit cage nuts, 12-24 thread, pkg.
of 50, clear
425912 RU-M6X1CN Rack unit cage nuts, M6X1 thread, pkg.
of 50, clear
Continued on next page >>
5.74
Request the latest literature and guides from Anixter.
1.800.ANIXTER • anixter.com/literature
Racks, Cabinets and Cable Management
Ortronics
Physical Infrastructure Solutions
D
(continued)
Adjustable Dual Equipment Racks and Accessories
ADJUSTABLE SHELVES PR6833V2-25018.TIF
FIXED SHELVES PR6834V2-25012.TIF
Index1.Support and Supplies//Physical Support Structure//Racks
ORTRONICS
The Ortronics computer-guided manufacturing process assures that each rack meets
exact dimensions, guaranteeing a self-squaring assembly. Made of top-quality
6061-T6 structural-grade aluminum, Ortronics equipment racks provide strength and
stability for years. Racks ship unassembled for efficient delivery and storage.
SPECIFICATIONS
1. 5/8 in., 5/8 in., 1/2 in. Universal mounting hole pattern
2. Equipped with 1/2 in. junctioning holes for securing multiple-rack lineups
3. Meets EIA-310-D standards
4. Listed to the UL 1863 Standard for Communication Circuit Accessories
FEATURES
•Self-squaring and self-supporting
•Tapped uprights so no nuts are required for assembly
•Top angles, patented self-support base are standard
•Assembly hardware included
•Mounting holes are roll-formed for work-hardened thread system
•Includes 12-24 cross-recessed black panel-mounting screws
•Constructed of 6061-T6 structural-grade aluminum
•3 in. x 1 1/4 in. channel uprights
STANDARD EQUIPMENT RACKS PR20435V2-77413.tif
EQUIPMENT RACK ISOLATION PAD KIT PR24087V2-174770.tif
Isolates equipment racks from concrete floors for effective bonding and grounding
STANDARD VERTICAL CABLE MANAGEMENT CAGE WITH COVER
PR24088V2-174775.tif
Mounts to side of standard EIA rack. The fingers are spaced to line up with rack
units, promoting efficient routing of patch cords to patch panels and equipment
from the vertical manager. Dual snap-on hinged covers allow easy access during
moves, add and changes. Available in single-side and double-side versions. Includes
all hardware necessary to mount to the side of a standard EIA rack.
Anixter No. Vendor No. Description
260910 ES-19-FDR2126 21-26 in. deep, solid
251821 ES-19-FDR2732 27-32 in. deep, solid
259878 ESV-19-FDR2126 21-26 in. deep, vented
261188 ESV-19-FDR2732 27-32 in. deep, vented
Anixter No. Vendor No. Description
261176 ESV-19-SDR2126F 21-26 in. deep, vented
261178 ESV-19-SDR2732F 27-32 in. deep, vented
Two-post Racks and Accessories
Anixter No. Vendor No. Description
168007 19-84-T2SD 84 in. H x 19 in. W x 15 in. D,
45U, aluminum
192349 19-84-T2SDB 84 in. H x 19 in. W x 15 in. D, 45U, black
168085 23-84-T2SD 84 in. H x 23 in. W x 15 in. D,
45U, aluminum
262614 23-84-T2SDB 84 in. H x 23 in. W x 15 in. D, 45U, black
Anixter No. Vendor No. Description
400410 IPK Isolation pad kit for standard
equipment racks
Anixter No. Vendor No. Description
400402 SVMS704 7 ft. H x 3.75 in. W x
6.58 in. D, single-sided
394836 SVMS706 7 ft. H x 6.00 in. W x
6.58 in. D, single-sided
Products. Technology. Services. Delivered Globally.
1.800.ANIXTER • anixter.com 5.75
Racks, Cabinets and Cable Management
Ortronics
Physical Infrastructure Solutions
VERTICAL ORGANIZERS
Ortronics patented vertical organizers save time and money during moves, adds and
changes to patch panels. Rings in the front organize patch cords with ease. A rear,
U-shape channel is formed either between equipment racks or at the end of a lineup
to provide a pathway for delivering horizontal cables to patch panels. The 6 in. width
is used between fully-loaded racks; the 3 in. width is used with a single rack, at the
end of a lineup or between partially loaded racks.
--
Index1.Support and Supplies//Physical Support Structure//Racks
ORTRONICS PR6836V2-11666.TIF
The patented Swing-EZ Wall Rack arrives ready to square and keyhole mount in
minutes. Reinforcement plates stabilize the frame to allow maximum load-bearing
capacity. Hub and LAN applications are easily accommodated without door
deflection. Latch pins or bolts secure the door to the frame and remove to smoothly
swing open from the left or right.
FEATURES
•Both latch pins and bolts are included
•Velcro straps feed into slots for backside cable management
•Side panels fold flat for shipping, then unfold for easy on-site assembly
•5/8 in., 5/8 in., 1/2 in. Universal mounting hole pattern
•Mounting holes threaded for 12-24 hardware
•Includes cross-recessed 12-24 black panel mounting screws
•Meets EIA-310-D standards
•Listed to the UL 1863 Standard for Communication Circuit Accessory
•Cable management products manage Swing-EZ cables both horizontally and
vertically. Use organizers with side rings for optimum cable delivery
--
Index1.Support and Supplies//Physical Support Structure//Racks
ORTRONICS PR9332V2-143921.tif
Ortronics wall-mount relay racks are designed for applications where space is
critical. Their wall-mount design increases closet wiring capacity while allowing rear
access to patch panels and equipment.
400403 SVMS804 8 ft. H x 3.75 in. W x
6.58 in. D, single-sided
400404 SVMS806 8 ft. H x 6.00 in. W x
6.58 in. D, single-sided
400405 DVMS704 7 ft. H x 3.75 in. W x
13.17 in. D, double-sided
400406 DVMS706 7 ft. H x 6.00 in. W x
13.17 in. D, double-sided
400407 DVMS804 8 ft. H x 3.75 in. W x
13.17 in. D, double-sided
400409 DVMS806 8 ft. H x 6.00 in. W x
13.17 in. D, double-sided
Anixter No. Vendor No. Description
194131 VO-84-T3E 79 in. H x 3 in. W x 5.31 in. D, solid
195137 VO-84-T6E 79 in. H x 6 in. W x 5.31 in. D, solid
226514 VO-84-T3FTE 79 in. H x 3 in. W x
5.31 in. D, feed-through
208451 VO-84-T6FTE 79 in. H x 6 in. W x
5.31 in. D, feed-through
Swing-EZ Wall Racks
Anixter No. Vendor No. Description
Anixter No. Vendor No. Description
133550 19-21-T12D 21 in. H x 19.75 in. W x 12 in. D,
11U, gray
261184 19-21-T12DB 21 in. H x 19.75 in. W x 12 in. D,
11U, black
176026 19-21-T18D 21 in. H x 19.75 in. W x 18 in. D,
11U, gray
227935 19-21-T18DB 21 in. H x 19.75 in. W x 18 in. D,
11U, black
168671 19-35-T18D 35 in. H x 19.75 in. W x 18 in. D,
19U, gray
228247 19-35-T18DB 35 in. H x 19.75 in. W x 18 in. D,
19U, black
261185 19-35-T25DHYDT 38.25 in. H x 19.75 in. W x 25 in. D,
19U, heavy-duty, gray
Wall-mount Relay Racks
Anixter No. Vendor No. Description
224592 604045400 26 in. H x 20.25 in. W x 18 in. D, 12U
242072 604045450 38 in. H x 20.25 in. W x 18 in. D, 18U
240553 604045451 50 in. H x 20.25 in. W x 18 in. D, 25U
5.76
Request the latest literature and guides from Anixter.
1.800.ANIXTER • anixter.com/literature
Racks, Cabinets and Cable Management
Ortronics
Physical Infrastructure Solutions
D
Index1.Support and Supplies//Physical Support Structure//Hinged Wall Mount
ORTRONICS PR9807V2-23463.tif
Vertical Wall-Mount Brackets allow equipment requiring cage nuts or threaded holes
to be mounted in a variety of ways:
- Hanging vertically on the wall
- Flush and horizontal on the wall using dual brackets
- Horizontally under a desk top
- Hanging vertically on the side of 2 in. and higher Cablofil cable tray
- Hanging horizontally under and with Cablofil cable tray
- Hanging vertically on any 19 in. EIA-style rack or cabinet
Index1.Support and Supplies//Physical Support Structure//Accessories
ORTRONICS
Mounts on the rear of any 19 in. rack to support the weight of heavy equipment. The
bracket is especially effective on the Mighty Mo racks where the channel depth is
6.5 in. or deeper. Black. Includes 12-24 mounting hardware.
Index1.Support and Supplies//Physical Support Structure//Accessories
ORTRONICS
This kit provides a reliable systems ground for the distribution rack. One kit is
recommended for each rack.
---
Index1.Support and Supplies//Physical Support Structure//Racks
ORTRONICS PR29313V2-217400.tif
The Ortronics Mighty Mo 6 110D Distribution Frame provides total vertical cable
management to route cable more effectively in a 110 cross-connect. Use with
OR-30600166 to mount 300-pair 110 blocks with legs. Front and rear mounting
supports up to 9,000 pairs. Includes cable management straps in 6.5 in. deep
vertical channels. Color is black.
900-PAIR RACK-MOUNT PANEL WITH CABLE TROUGHS PR24089V2-174767.tif
Accepts three 300-pair 110 blocks with legs.
MIGHTY MO 6 VERTICAL CABLE MANAGEMENT CAGE WITH LATCHES PR24090V2-174771.tif
Patented design promotes efficient routing of patch cords between racks. Hinged
latches allow easy access during moves, adds and changes. 6 in. wide cage
creates a 2.5 in. gap between racks for front-to-back routing of equipment cables
and patch cords. Includes all hardware necessary to mount cage on face of
two Mighty Mo 6 racks, single rack or end of row.
Vertical Wall-Mount Bracket
Anixter No. Vendor No. Description
492741 WMBV2U 19 in. mounting x 2-rack units, black
492772 WMBV3U 19 in. mounting x 3-rack units, black
492806 WMBV4U 19 in. mounting x 4-rack units, black
Equipment Support Bracket
Anixter No. Vendor No. Description
217307 60400383 1.75 in. H x 19 in. W x 1 in. D
Grounding Kit for Mighty Mo Racks
Anixter No. Vendor No. Description
217308 60400010 Single-conductor ground lug for 6 AWG
to 14 AWG conductors
Mighty Mo 6 110D Distribution Frame
Anixter No. Vendor No. Description
400501 MM67110D 86 in. H x 39 in. W x 16.50 in. D
Anixter No. Vendor No. Description
250631 30600166 34.25 in. x 14.54 in.
Anixter No. Vendor No. Description
353684 MM6VML704 7ft. H x 4in. W x 6in.D
333784 MM6VML706 With latches, 7ft. H x 6in. W x 6in. D.
To be used on 45U racks
Products. Technology. Services. Delivered Globally.
1.800.ANIXTER • anixter.com 5.77
Racks, Cabinets and Cable Management
Ortronics
Physical Infrastructure Solutions
-
Index1.Support and Supplies//Physical Support Structure//Accessories
ORTRONICS PR7089V2-36188.tif
Aluminum equipment shelf with black finish. Made for a 19 in. EIA rack.
EQUIPMENT SHELF
Holds up to 75 lb., inside width is 17 in., black
CANTILEVERED VENTED EQUIPMENT SHELF
Holds up to 85 lb., inside width is 17.5 in., black
STANDARD VENTED EQUIPMENT SHELF
Holds 50 lb. capacity, inside width is 17.5 in., black
VENTED EQUIPMENT SHELF FOR MIGHTY MO RACKS
This four-point shelf can be used with Mighty Mo racks in all three channel depths,
150 lb. capacity, black
FOLDING KEYBOARD SHELF
ADJUSTABLE FOUR-POST EQUIPMENT SHELF
This equipment shelf has a fixed front flange with an infinitely adjustable rear flange
that allows for secure four-point mounting as deep as 30 in. Holds 200 lb. capacity,
inside width is 17.25 in., black
DOUBLE-SIDED EQUIPMENT SHELVES
For use with Mighty Mo racks with 6.5 in. channels. Holds 150 lb. capacity, inside
width is 17 in.
FOUR-POINT EQUIPMENT SHELF FOR MIGHTY MO RACKS AND CABINETS
This 1-unit shelf works with Mighty Mo racks with all depth channels and Mighty Mo
cabinets 24 in. and deeper. Shelf is 17.25 in. wide, black
--
Index1.Support and Supplies//Physical Support Structure//Accessories
ORTRONICS PR6837V2-11669.TIF
Ortronics offers several styles of equipment shelves for all your needs. Shelves mount
on any 19 in. wall or free-standing rack. 23 in. versions are also available. Mounting
hardware included.
SOLID
VENTED
---
Index1.Support and Supplies//Physical Support Structure//Accessories
ORTRONICS PR1552V2-579430.eps
Steel wall-mount shelf with black finish. Designed for smaller applications where
space is limited and a free-standing rack cannot be used. 4.875 in. H x 20 in. W x
18 in. D. 120 lb. capacity
Mighty Mo Equipment Shelves
Anixter No. Vendor No. Description
134761 60400006 5.25 in. H x 19 in. W x 12.125 in. D
204672 60400405 5.25 in. H x 19 in. W x 15.125 in. D
Anixter No. Vendor No. Description
201539 604045075 5.75 in. H x 19 in. W x 20 in. D
204657 604045081 5.75 in. H x 19 in. W x 24 in. D
Anixter No. Vendor No. Description
219263 604045401 4 in. H x 19 in. W x 16 in. D
Anixter No. Vendor No. Description
232060 604045388 5.75 in. H x 19 in. W x 20 in. D
Anixter No. Vendor No. Description
242104 60400550 19 in. W, 1U, black
Anixter No. Vendor No. Description
241649 60400538 1.7 in. H x 19 in. W x 30 in. D
Anixter No. Vendor No. Description
226289 60400355 5.25 in. H x 19 in. W x 24 in. D, black
Anixter No. Vendor No. Description
305721 604045681 1.75 in. H x 19 in. W x 20 in. D, black
Equipment Shelves
Anixter No. Vendor No. Description
226513 ES-19-MCSB 5.25 in. H x 17.5 in. W x 12 in. D,
black, multiconfiguration
259876 ES-19-FMB 5.25 in. H x 17.25 in. W x 14 in. D,
black, front-mount
201935 ES-19-3B 3.5 in. H x 17.38 in. W x
15.5 in. D, black
232076 ES-19-4B 3.5 in. H x 17.38 in. W x
21.75 in. D, black
Anixter No. Vendor No. Description
261189 ESV-19-FMB 5.25 in. H x 17.25 in. W x 14 in. D,
black, front-mount
262169 ESV-19-3B 3.5 in. H x 17.38 in. W x
15.5 in. D, black
262171 ESV-19-4B 3.5 in. H x 17.38 in. W x
21.75 in. D, black
Wal
