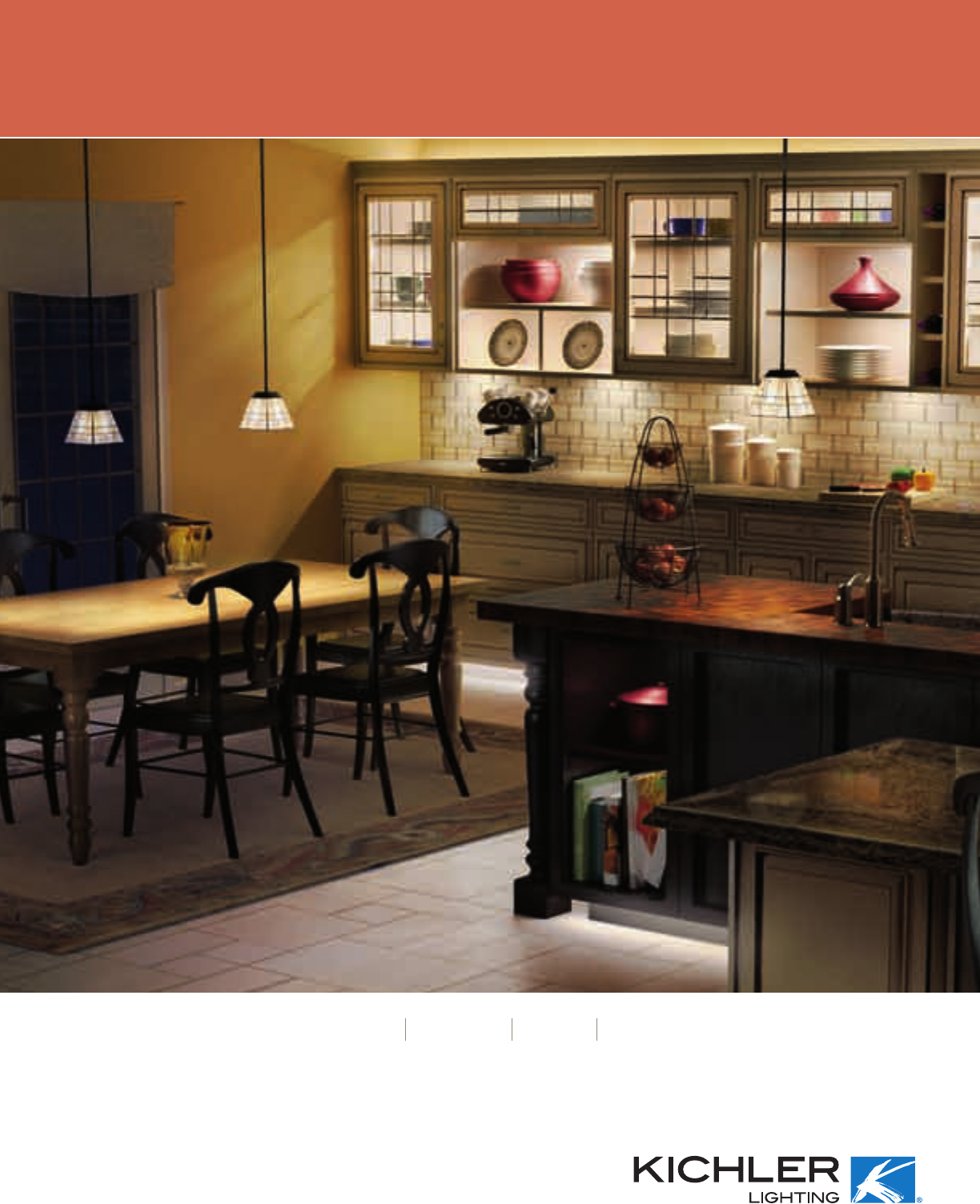

CABINET LINEAR TASK MOOD

Cabinet Lighting Systems

1522523 KL_CLSlayout.indd 1 12/3/09 5:14 PM

2 Kichler® Lighting

A well-designed interior often employs

three layers of light:

Ambient or general lighting serves as the base. It

creates a space with workable light – but without much

drama. The architecture and interior details often fall

into the shadows and workspaces may not have

sufficient illumination.

Accent lighting adds interest and depth to a space. An

unlit tray ceiling looks flat and foreboding; when lit it com-

mands attention. Over-cabinet lighting enlarges the visual

perception of the room. Toekick lighting adds interest to

the previously ignored floor. Lighted cabinets provide

depth to the room. And well-placed pendants highlighting

a counter add a stylish finishing touch to a room.

Task lighting helps illuminate areas where chores

often take place – under a cabinet in a kitchen or over a

desk in an office. It makes a dark space more useable

and functional.

Layer upon layer

of beautiful light

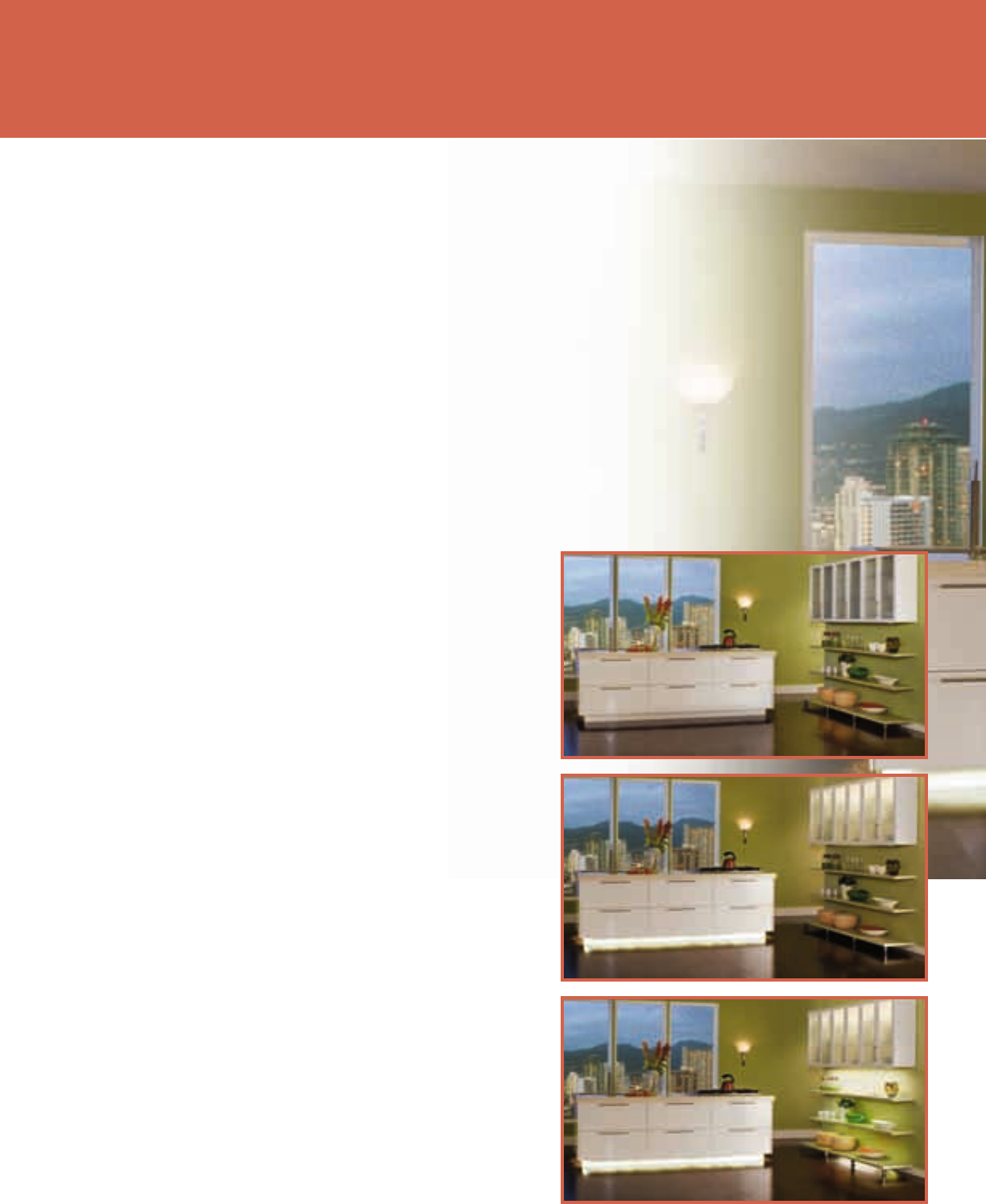

Ambient

Ambient & Accent

Ambient, Accent & Task

1522523 KL_CLSlayout.indd 2 11/30/09 11:24 AM

KICHLER.COM 3

When layering with light, remember:

• Incorporate multiple switching options so the homeowner can use the light in a variety of ways:

toekicks only at night, all lights on during entertaining,

task and general lights on during food prep, etc.

• For larger rooms consider controlling regional areas separately.

Installation photo employs Design Pro LED Linear at island toekick, above cabinets and under the shelving.

Design Pro LED Discs are inside each cabinet door. (4) 18" Design Pro LED Modular units are used under the

cabinet. Kichler wall sconce 42009 PN. For other coordinating decorative items, please visit www.kichler.com.

1522523 KL_CLSlayout.indd 3 11/30/09 11:24 AM

4 Kichler® Lighting

Innovative

Lighting

Solutions

6 Design Pro LED Linear

10 Design Pro LED Disc

14 Design Pro LED Modular

18 Design Pro LED Direct Wire

20 TaskWork Modular 12 Volt Xenon

24 TaskWork Modular 120 Volt Xenon

26 TaskWork Direct Wire 12 Volt Xenon

27 TaskWork Direct Wire 120 Volt Xenon

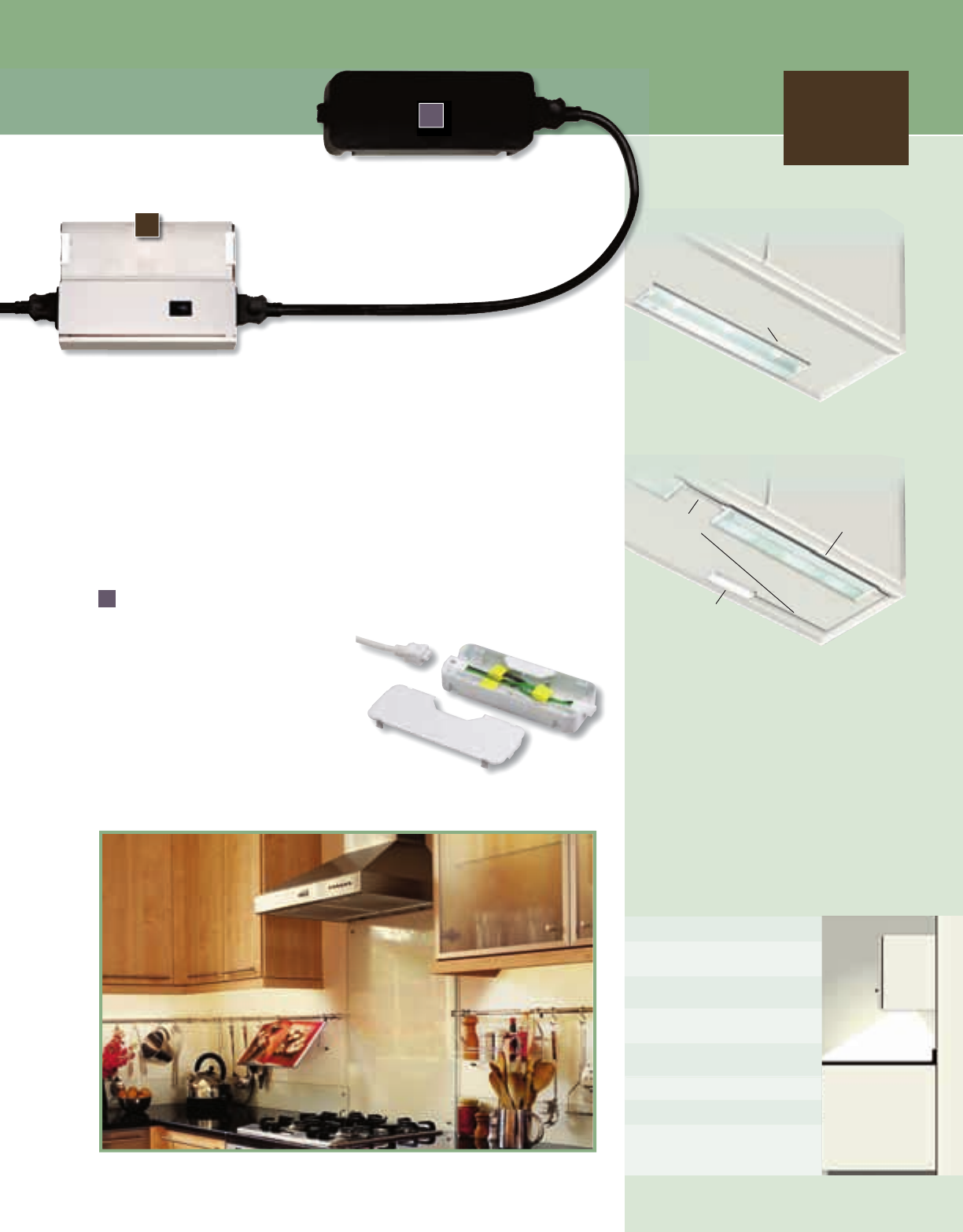

28 TaskWork Modular 120 Volt Fluorescent

29 TaskWork Direct Wire 120 Volt Fluorescent

30 TaskWork Bright Disc

32 TaskWork Linear

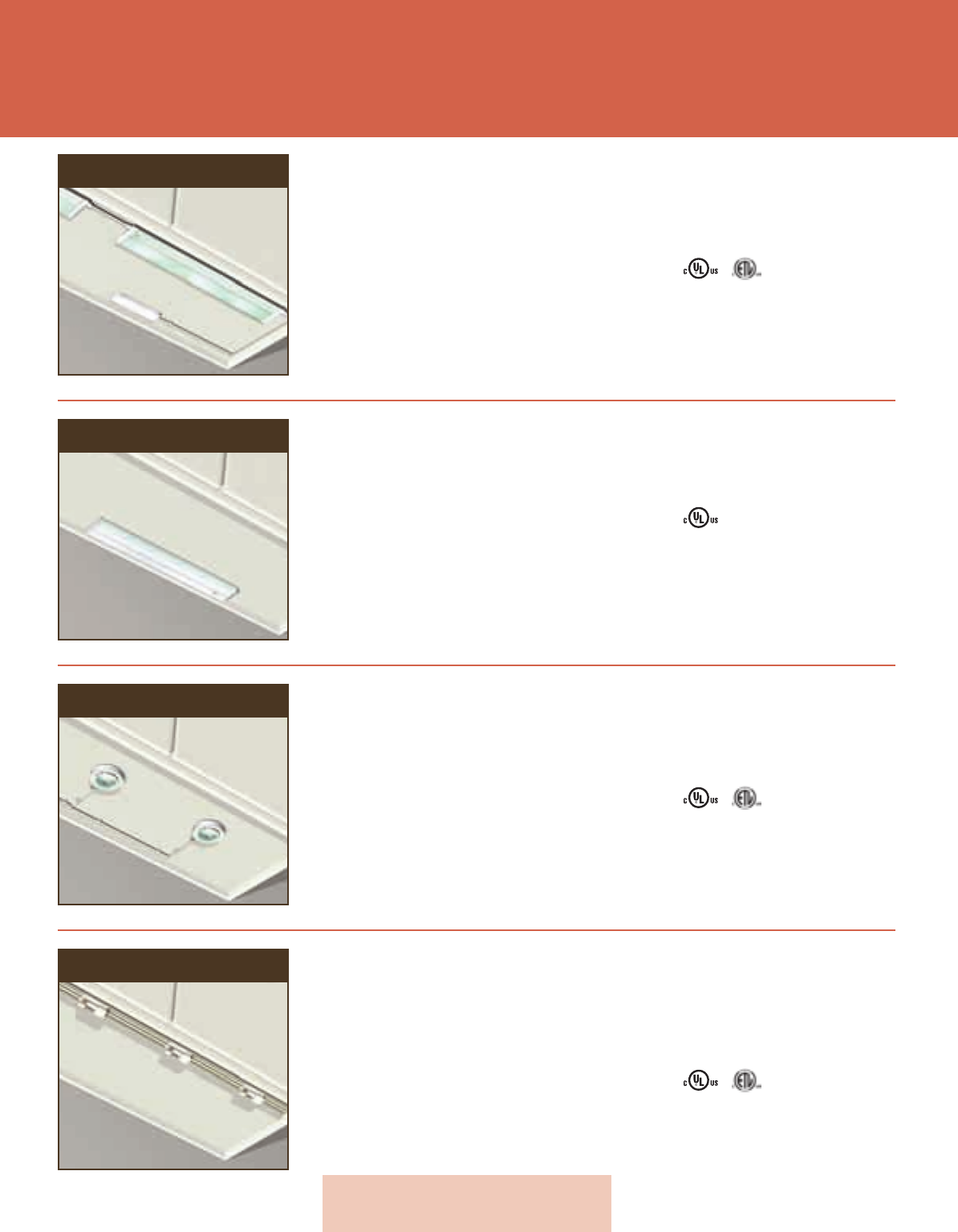

36 Selection Guide

39 Index, Awards & Notable Distinctions

1522523 KL_CLSlayout.indd 4 12/2/09 2:35 PM

KICHLER.COM 5

Everyday you look for innovative ways to complete a project. At Kichler, we’re here to help. We think of the aesthetic

possibilities, application opportunities and ease of installation that you need – and we design fixtures that exceed your

every expectation. You’ll find extended life and energy efficient options, low profile offerings and an array of designer finishes

many backed by our limited warranties and 70 years of proven experience. Each is available when you need them through

our authorized dealer network. From the newest, smartest LED options to traditional xenon and fluorescent choices …

you get an extensive selection of light layering products that help you create the utility, ambient, and architectural detail

you deserve.

Installation photo employs Design Pro LED Linear at all toekicks. (4) 18" Design Pro

LED Modular units are used under the cabinet. Kichler pendant 42384 MIZ. For other

coordinating decorative items, please visit www.kichler.com.

1522523 KL_CLSlayout.indd 5 11/30/09 11:25 AM

Design Pro LED Linear

24 Volt DC

Precise lighting

that crosses

new lines

6 Kichler® Lighting

1522523 KL_CLSlayout.indd 6 12/2/09 2:43 PM

Advanced technology, superior optics and a pure, even flow of light are just few of the professional advancements

you’ll find with Kichler Design Pro LED. We’ve taken LED a step further than the rest, delivering high brightness, a

cooler operating temperature and superior color rendering LED – no matter what the need.

Now, with Design Pro LED Linear, Kichler offers you the most flexible, easy-to-install and ultra-thin profile fixture –

allowing you to put light anywhere you want it. Under a bed, inside a bookcase, over a cabinet, around a cove:

the remarkably thin 1/4" unit hides and adjusts to almost any application. Think outside the box – and let LED Linear

create a unique and impressive effect. Our linear choices are also energy efficient and last four times longer than

xenon alternatives.

KICHLER.COM 7

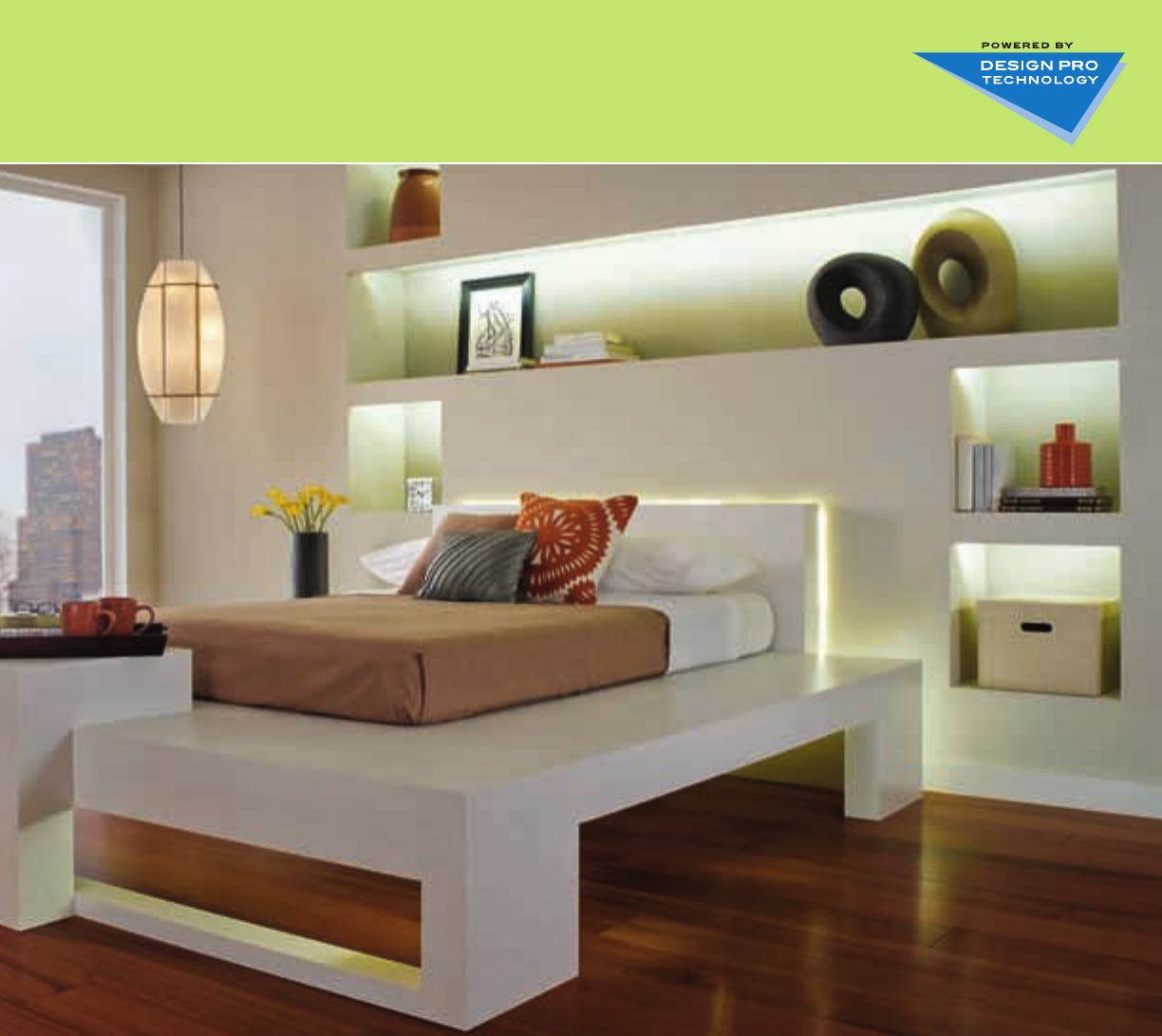

Installation photo employs 50' of Design Pro LED Linear including each shelf, around

headboard and under platform bed. Kichler pendant 42420 NI.

1522523 KL_CLSlayout.indd 7 11/30/09 11:27 AM

AVAILABLE FINISHES

Black (BK) and White (WH)

8 Kichler® Lighting

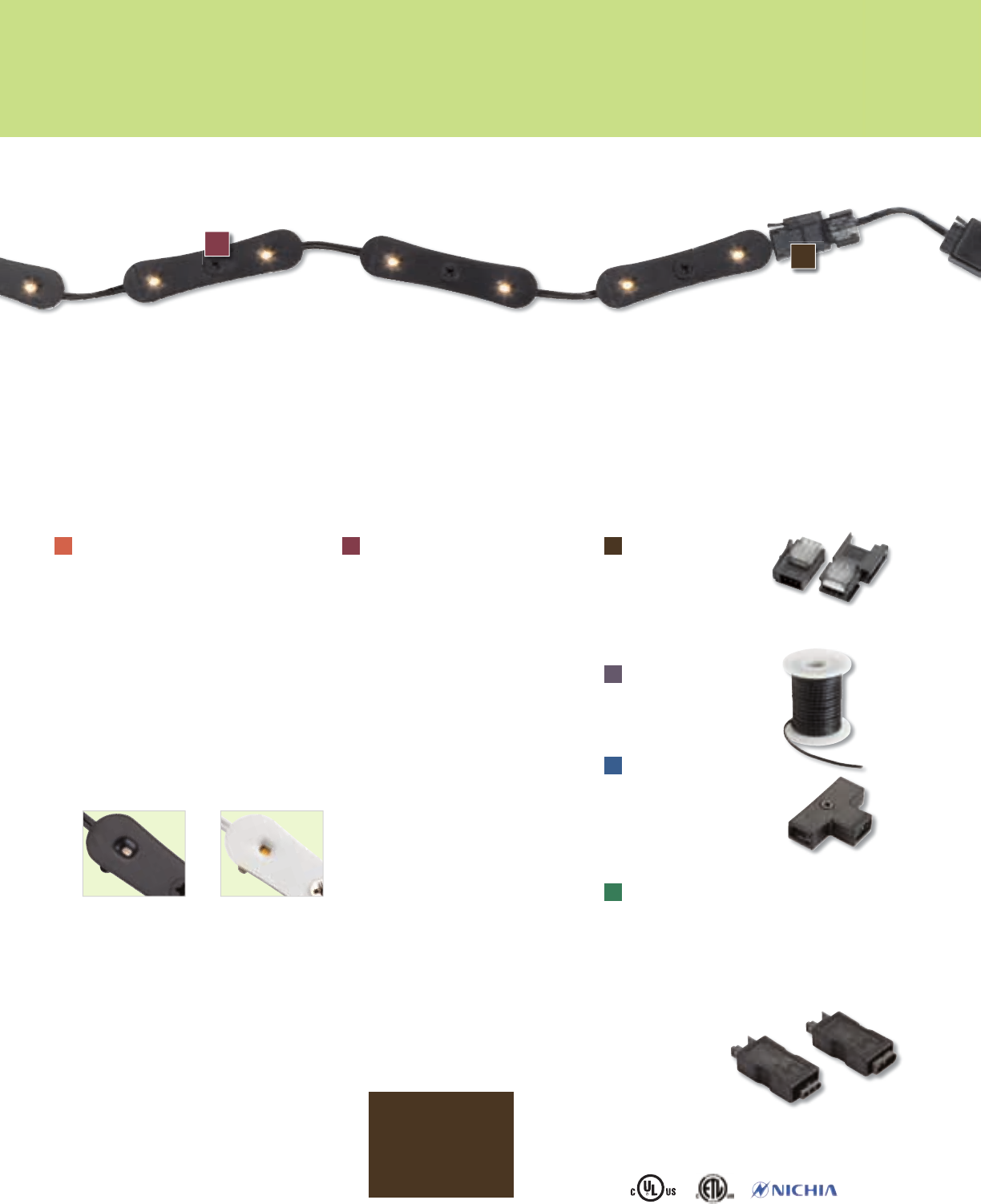

12320 BK, WH - 12'-0" spool

of linear LED

n 2 LEDs per lighting pod

n 4 pods per foot

n 24-gauge wire between pods

n Section may be cut every 3"

n 4.2 Watts max per foot

n 2-3/8" L x 9/16" W x 1/4" H

n Snaps into track or can be installed

directly, without track

n Center mounting hole will hold screw

in place for ease of installation

n 24'-0" maximum length of linear

lighting per run

Accessories

10299 - Box of Screws (100 pieces)

Nickel plated

10299 BK - Box of Screws

(100 pieces) Black

Wire Connector Clips

12332 BK - Male

12333 BK - Female

n Snaps onto blunt-cut

wire – no need to split and strip wire

n Gender neutral

Extension Wire

12323 BK, WH

n 50'-0" Roll

n 24-gauge (2 conductors)

“T” Connector

12335 BK, WH

n Power can enter any of

the ports and exit through

the other two ports

n 180° or 90° split

Interconnect Cable Transition Module

12338 BK, WH - Male to Female Connector

n Male interconnect plug transitions to female

linear wire connector clip

12339 BK, WH - Female to Female Connector

n Female interconnect plug transitions to female

linear wire connector clip

12330 BK, WH (10-pack)

n 3'-0" track section

n Snaps on the score every 6"

n Captive screws every 6"

n White or Black finish

21 SELECT LINEAR

LENGTH OF LED

AND FINISH

EASY TO

INSTALL TRACK

Not required, but suggested to

ensure straight runs 3CONNECTORS,

JUNCTIONS AND WIRE

TO TRANSITION FROM

LIGHTS TO POWER SOURCE

STEPSTEPSTEP

B

E

f

A C

D

10 year limited

warranty

For more

details, visit

www.kichler.com

Design Pro LED Linear

24 Volt DC

C

12332 BK

12333 BK

B

12320 BK

1522523 KL_CLSlayout.indd 8 11/24/09 10:08 AM

KICHLER.COM 9

4SELECT POWER

SUPPLY

STEP Flexible Mount Design

E

A

B

C

D

PeRFoRMAnCe DAtA

(48" length MounteD

to FRont oF CAbinet)

FeAtuRes

n Low profile 1/4"

n Flexible installation

n Install with or without track

n Can be linked with LED strip and disc system

n Black and White finish

n cUL Listed Class 2

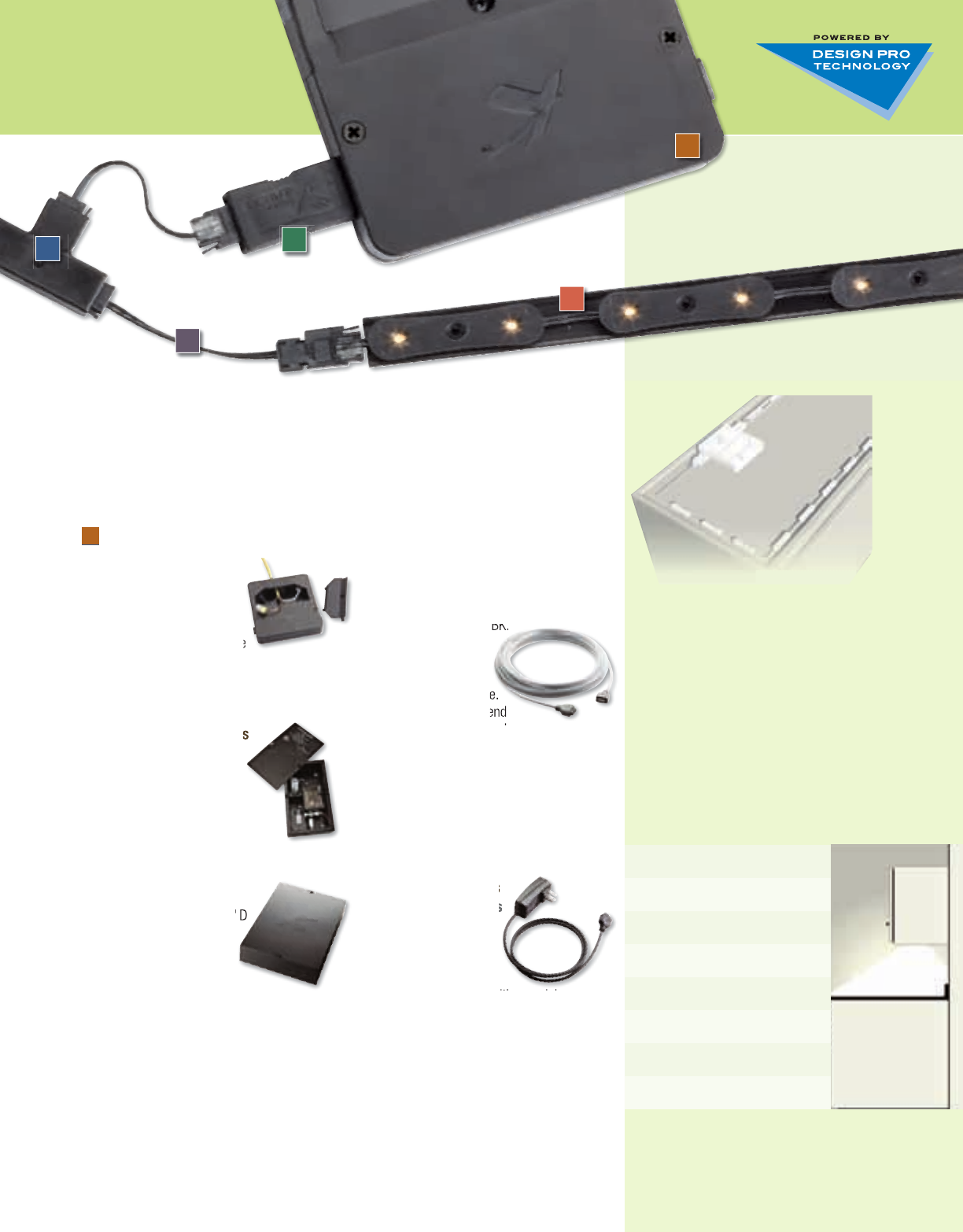

Undercabinet Power Supplies

12353 BK, WH - 50 Watt

n Compact undercabinet

hard wire design

n 5" L x 5-1/2" W x 1" D

n Class 2 / 24 Volt DC

n Use with sheathed cable

(12-2 or 14-2 with ground)

n Interconnect cable transition module

needed to power LED linear system

Remote Power Supplies

12380 BK - 100 Watts

Remote Power Supply

n 11" H x 6-1/2" W x 3" D

n Includes (1) 100 Watt

power supply

n Class 2 / 24 Volt DC

12382 BK - 200 Watts

Remote Power Supply

n 15-1/2" H x 11" W x 3" D

n Includes (2) 100

Watt power supplies

n Class 2 / 24 Volt DC

Power Supply Leads

12344 BK, WH - 25' length

12346 BK, WH - 8' length

n Should only be used to connect

to Remote Power Supplies

12380 BK and 12382 BK.

n Note: Connect either

the male or female

plug to interconnect

cable transition module.

The plug on the other end

is cut off and the two leads

are connected to the terminals

on the Remote Power Supply.

n Interconnect cable transition module

needed to power LED linear system

n Class 2 jacket suitable to be run

behind walls (please check local

codes for compliance).

Plug-In Power Supplies

12383 BK, WH - 30 Watts

n 4' length

n 1 female connector,

12348 included

n Class 2 / 24 Volt DC

n Interconnect cable transition module

needed to power LED linear system

12384 BK, WH - 60 Watts

n 4' length

n 1 female connector,

12348 included

n Class 2 / 24 Volt DC

n Interconnect cable transition module

needed to power LED linear system

Supplies

3"

D

cable

Supplies

atts

transition

module

BK.

module.

end

leads

G

Design Pro LED Linear is not recommended for

use as an undercabinet task light source. Data

provided for comparative analysis.

LUMENS/WATT 5.9

LIGHT OUTPUT FC 6.5

(COUNTER FRONT)

LIGHT OUTPUT FC 13.9

(COUNTER MIDDLE)

LIGHT OUTPUT FC 13.6

(COUNTER BACK)

LIGHT OUTPUT FC 8.3

(COUNTER WALL)

CRI 70

(COLOR RENDERING)

CCT 3000K avg.

(COLOR TEMPERATURE)

LIGHT SOURCE LIFE 40,000 hrs.

A B C

D

D

12323 BK

E12335 BK

12353 BK

G

12338 BK

F

12330 BK

A

1522523 KL_CLSlayout.indd 9 12/2/09 2:59 PM

10 Kichler® Lighting

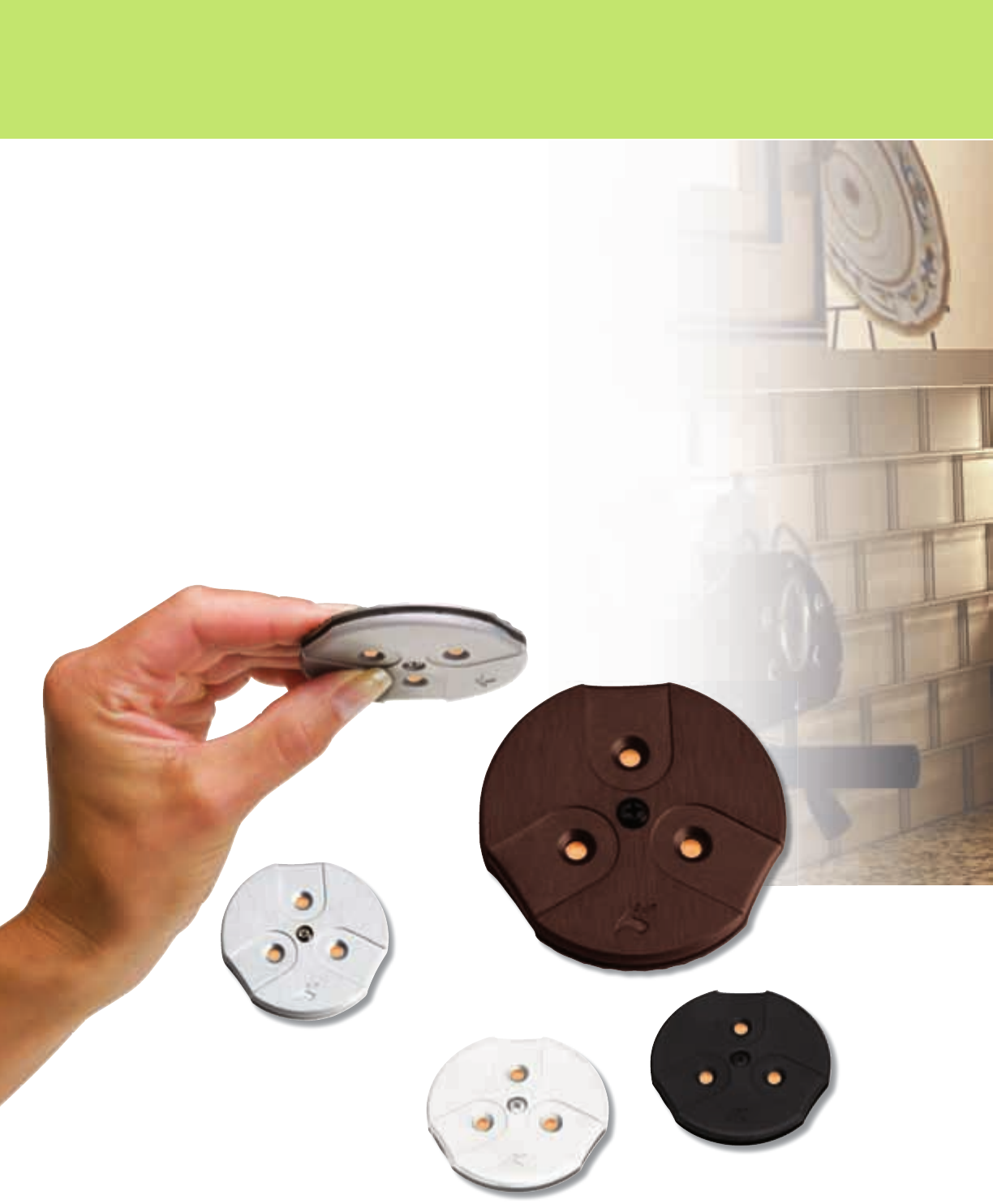

Design Pro LED Disc

24 Volt DC Patent Pending

Beautiful

color rendering

all around

12310 NI

shown in Brushed Nickel

12310 WH

shown in White

12310 BRZ

2-3/4" D x 3/8" H

Shown in Bronze

(actual size)

12310 BK

shown in Black

1522523 KL_CLSlayout.indd 10 11/30/09 12:24 PM

KICHLER.COM 11

So sleek, they’re practically invisible. So versatile, you’ll find new application opportunities around and under every niche.

Each unit offers you Design Pro’s advanced technology, superior optics and a pure, even flow of light. Plus, an ultra thin 3/8"

profile means there’s no need to recess the fixture, and the cool operating temperature gives you beautiful light that can fit

in even the smallest of spaces.

Installation is just as versatile: wiring ties into any Design Pro lighting configuration and each disc

comes with the wiring pre-spooled. Just pull out the wire length you need, and the rest will stay

neatly tucked into place.

limited lifetime

warranty

For more

details, visit

www.kichler.com

Installation photo employs Design Pro LED Discs placed close to wall surface to accentuate

an array pattern on the tile surface. Design Pro LED Discs are inside each cabinet door.

1522523 KL_CLSlayout.indd 11 11/30/09 12:25 PM

BRZ

NI

BK

WH

12 Kichler® Lighting

uLtRA tHIN PRoFILE

limited lifetime

warranty

For more

details, visit

www.kichler.com

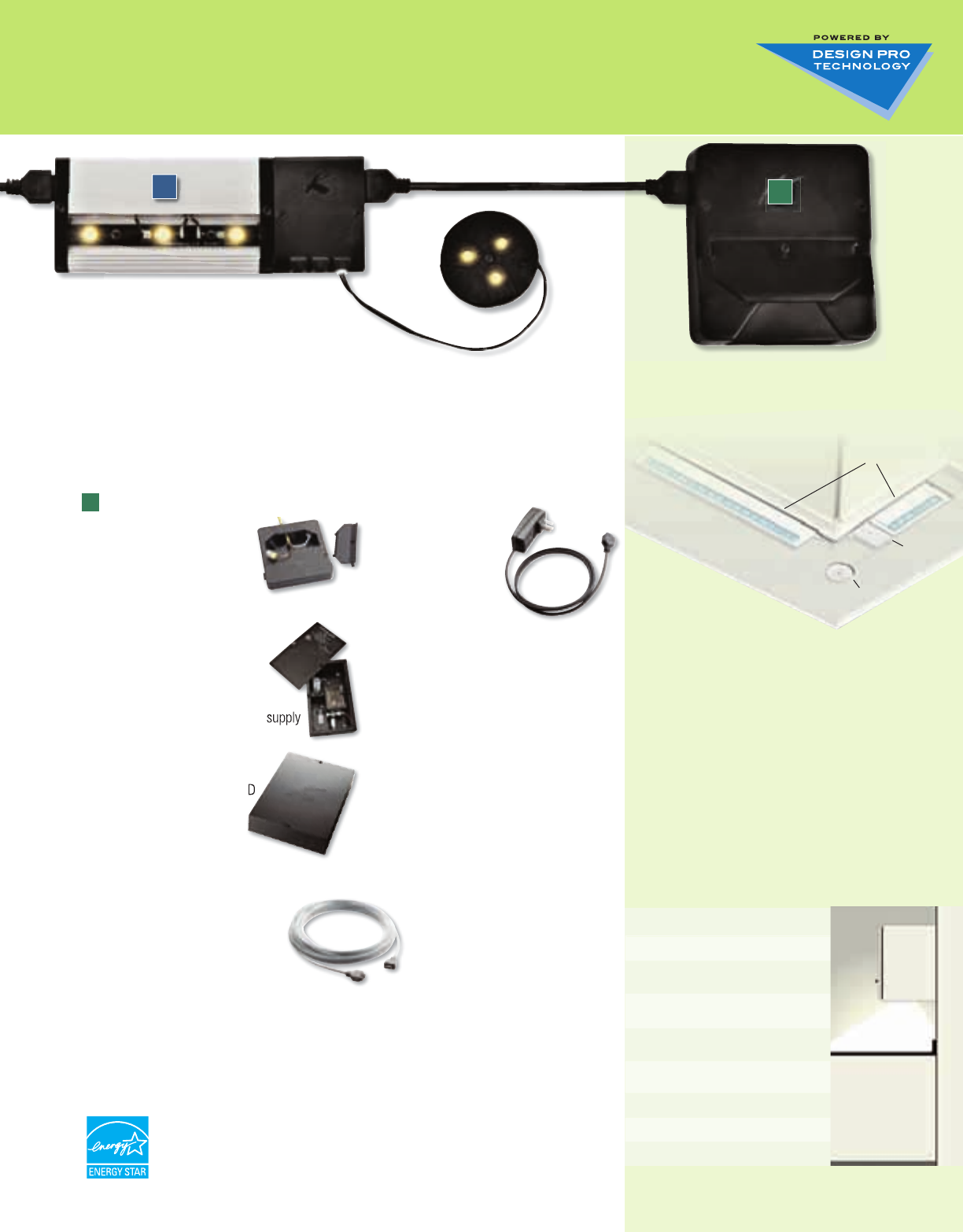

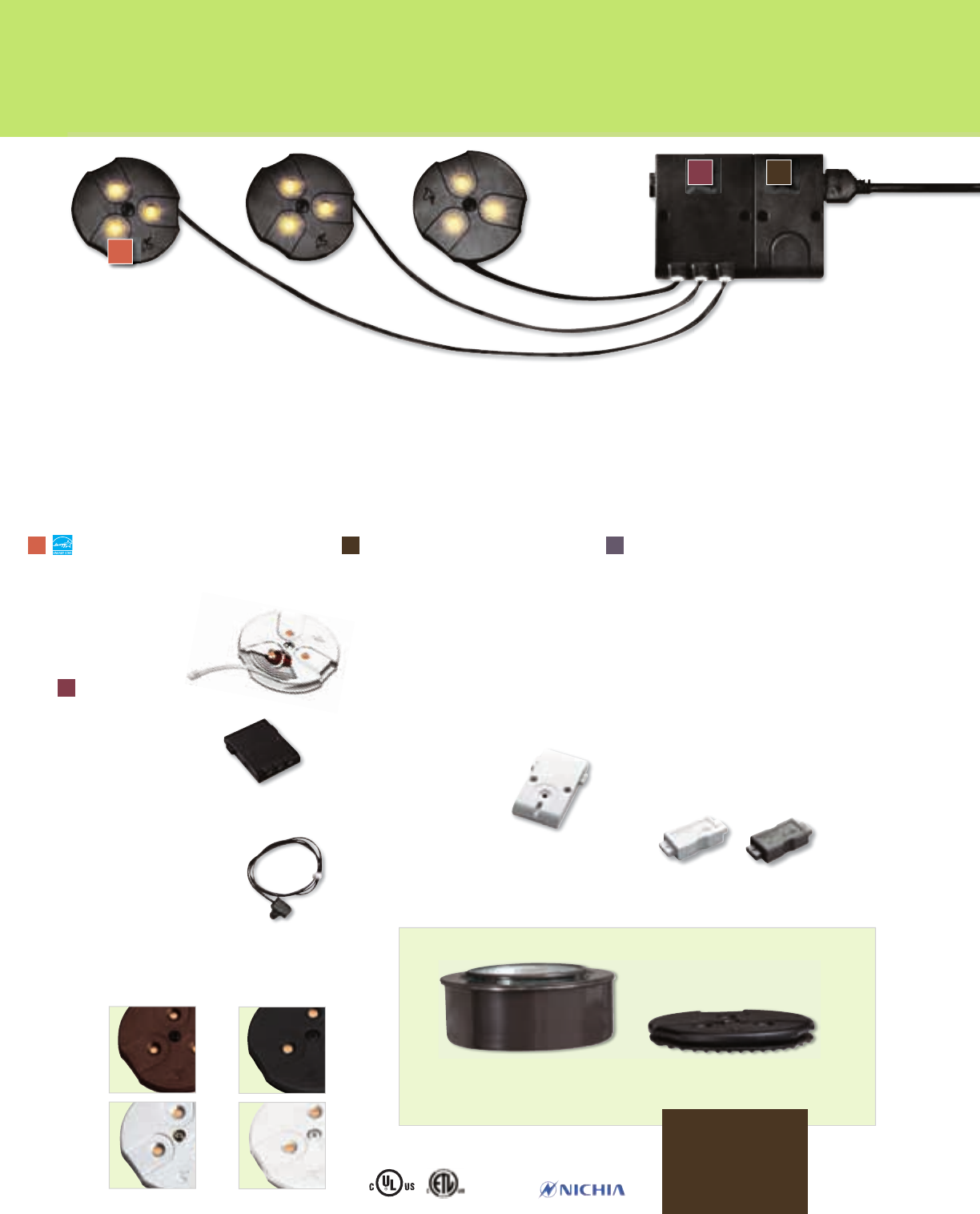

12310* BK, BRZ, NI, WH LED Disc

n 3 High Brightness LEDs built in, 3 Watts

n 2-3/4" D x 3/8" H

n Unique spooled wire design (36")

n Must be used with

12354 BK, WH

Driver Module

Driver Module

12354 BK, WH - LED Disc Driver

n Consumes 1 Watt

n Connects up to three

Design Pro LED Discs

n Must be used with 12310

Design Pro LED Discs

12347 BK, WH

LED Disc Wire Extension

(optional)

n Adds 3' of length for greater

installation flexibility

21 DIMMING SWITCH &

NIGHTLIGHT ALLOW

FOR LIGHT LEVEL

CONTROL

SELECT

APPROPRIATE

NUMBER OF

DISCS & FINISH 3INTERCONNECT

CABLES CONNECT

MULTIPLE DESIGN PRO

DISCS OR FIXTURES

STEPSTEPSTEP

AVAILABLE FINISHES

Bronze (BRZ), Brushed Nickel (NI), Black (BK) and White (WH)

B C

12310 BK

Disc

shown in Black

12350 BK

Dimming

Switch

(optional)

12354 BK

Driver

Module

A

Design Pro LED Disc

24 Volt DC Patent Pending

C D

B

A

Typical 12V Xenon Disc Kichler Design Pro Disc

Ultra Thin 3/8" profile

Dimming Switch (optional)

12350 BK, WH

n Consumes 1 Watt

n 4 Positions (Off/Low/Medium/High)

n Use to control light level

n Installs directly to the supply lead or

inline with fixtures

n Use one per run

n Will not control linear LED

Night Light Module (optional)

12351 BK, WH

n Consumes 1 Watt

n Must be used with

12350 power switch

n Use where low light

level is desired for

safety or convenience

n Photo sensor activation

n Installs directly to the supply lead or

inline with fixtures

The interconnect cables are listed Class 2 and

connect multiple fixtures. Wire in accordance with

Article 725 of the National Electric Code.

12341 BK, WH - Interconnect 9 Inches

12342 BK, WH - Interconnect 14 Inches

12343 BK, WH - Interconnect 21 Inches

12345 BK, WH - Interconnect 10 Feet

12348 BK , WH - Female Connector

n Female connectors join male ends

together where necessary

12349 BK, WH - Male Connector

n Male connectors join female ends

together where necessary

1522523 KL_CLSlayout.indd 12 11/24/09 10:14 AM

Undercabinet Power Supplies

12353 BK, WH - 50 Watt

n Compact undercabinet

hard wire design

n 5" L x 5-1/2" W x 1" D

n Class 2 / 24 Volt DC

n Use with sheathed cable

(12-2 or 14-2 with ground)

Remote Power Supplies

12380* BK - 100 Watts

Remote Power Supply

n 11" H x 6-1/2" W x 3" D

n Includes (1) 100 Watt

power supply

n Class 2 / 24 Volt DC

12382* BK - 200 Watts

Remote Power Supplies

n 15-1/2 " H x 11" W x 3" D

n Includes (2) 100 Watt

power supplies

n Class 2 / 24 Volt DC

Power Supply Leads

12344 BK, WH – 25' length

12346 BK, WH – 8' length

n Should only be used to connect

to remote power supplies

12380 BK and 12382 BK.

n Note: Connect either

the male or female

plug to fixture, driver

module or switch. The

plug on the other end is

cut off and the two leads

are connected to the terminals

on the remote power supply.

n Class 2 jacket suitable to be run

behind walls (please check local

codes for compliance).

Plug-In Power Supplies

12383 BK , WH - 30 Watts

n 4' length cord

n 1 female

connector,

12348 included

n Class 2 / 24

Volt DC

12384 BK , WH - 60 Watts

n 4' length cord

n 1 female connector,

12348 included

n Class 2 / 24 Volt DC

Supplies

D

Supplies

3"

D

12382

BK.

The

is

leads

cable

KICHLER.COM 13

4SELECT POWER

SUPPLY

STEP

Design

Pro

LED

can

be

added

as

added as added

an

option

to

the

Design

Pro

LED

Disc

system

and

further

and further and

expand

further expand further

the

possibilities.

See

page

16

for

more

for morefor

details.

D

E

12353 BK

Undercabinet

Power Supply

(Hard Wire)

12301 NI

Fixture

n Ultra thin 3/8" Profile x 2-3/4" D

n Color Rendering Index >90

n High brightness LED

n Higher efficiency

n 3000K correlated color temperature ±150K

n Long life light source (40,000 Hours)

n Captive screws for ease of installation

n Class 2 Listed

DESIGN PRO LED DISC

E

FEATURES

Driver

Module

Design Pro

LED Disc

Power

Supply

Interconnect

Cable

Kichler Design Pro LED Undercabinet and

Disc System meets ENERGY STAR Requirements

when used with our remote power supplies

12380BK and 12382BK, a minimum of any

3 fixtures, and a minimum of 20 Watts.

*

TOTAL WATTAGE 4

LUMENS/WATT 36.5

LIGHT OUTPUT FC 8.6

(COUNTER FRONT)

LIGHT OUTPUT FC 37.7

(COUNTER MIDDLE)

LIGHT OUTPUT FC 53.5

(COUNTER BACK)

LIGHT OUTPUT FC 25.2

(COUNTER WALL)

CRI (COLOR RENDERING) >90

CCT (COLOR TE MPERATURE) 3000K avg.

LIGHT SOURCE LIFE 40,000 hrs.

Design Pro Discs

can be used over (F),

inside (E) and

undercabinets for

unmatched versatility.

A

B

C

D

PERFORMANCE DATA (12310)

A B C

D

1522523 KL_CLSlayout.indd 13 11/30/09 8:06 AM

14 Kichler® Lighting

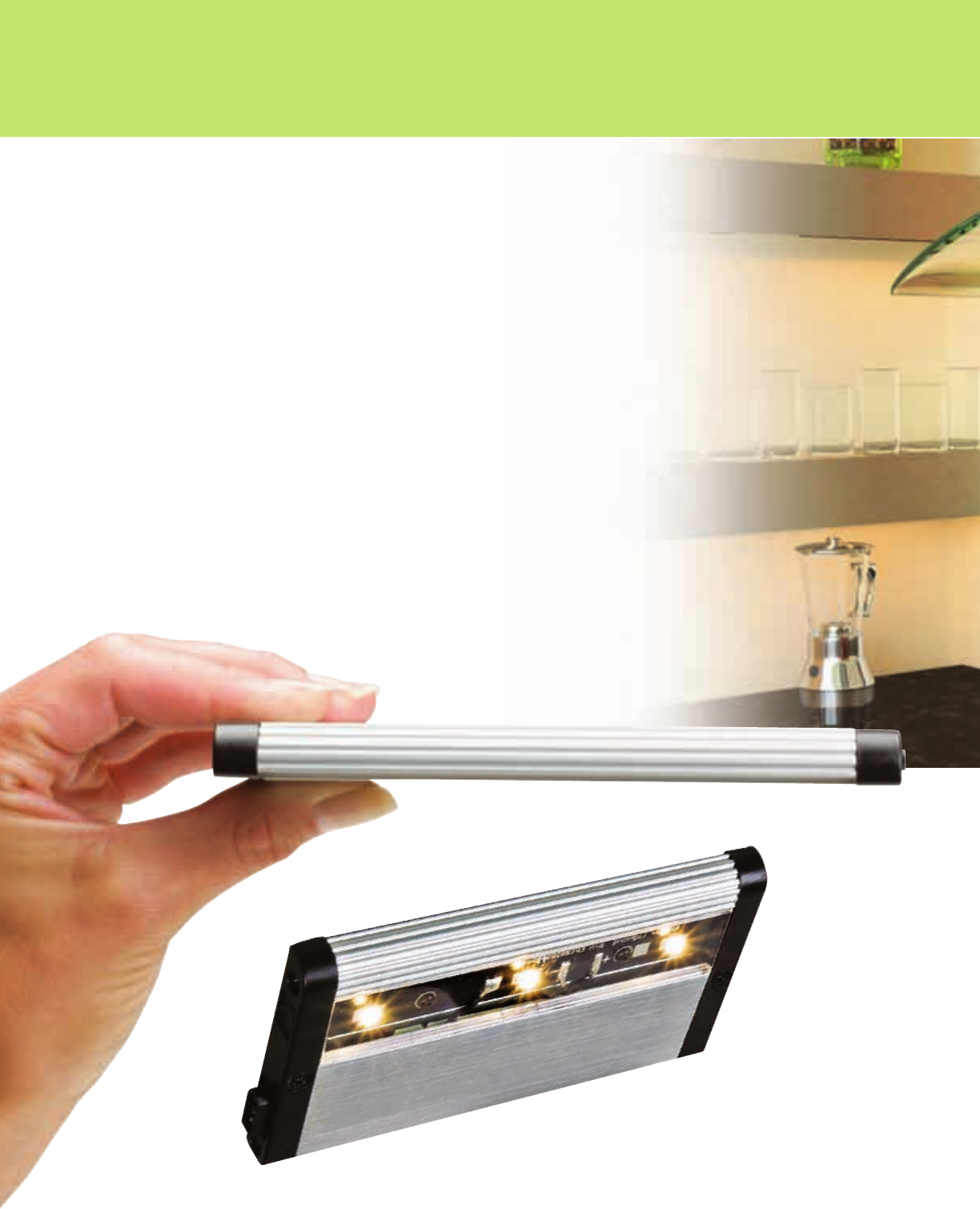

12301 NI

6" L x 3-1/4" W x 1/2" H

shown in Brushed Nickel

(actual size)

See true colors

without seeing

a thing

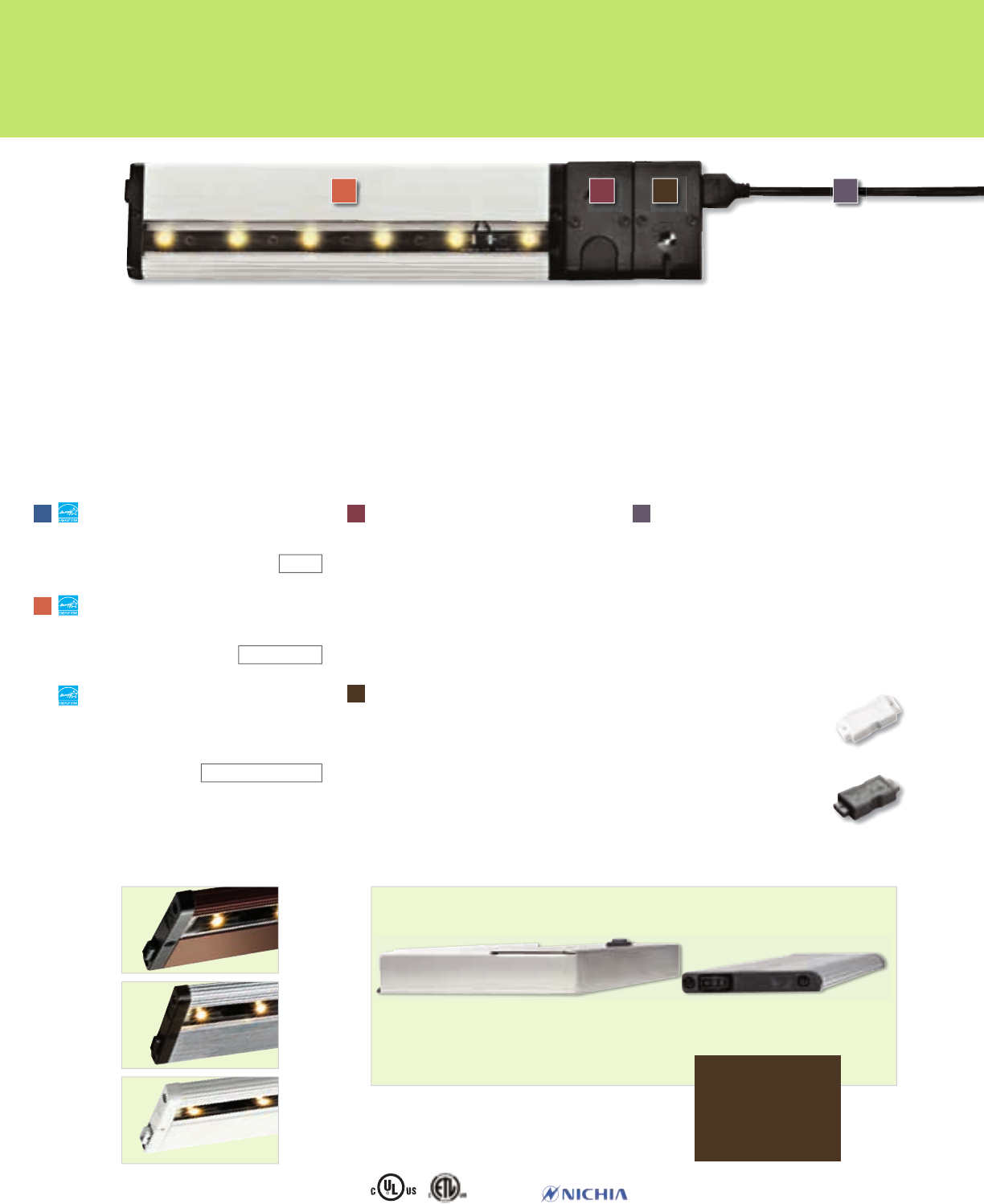

Design Pro LED Modular

24 Volt DC Patent Pending

12301 NI

shown in Brushed Nickel

1522523 KL_CLSlayout.indd 14 11/30/09 12:27 PM

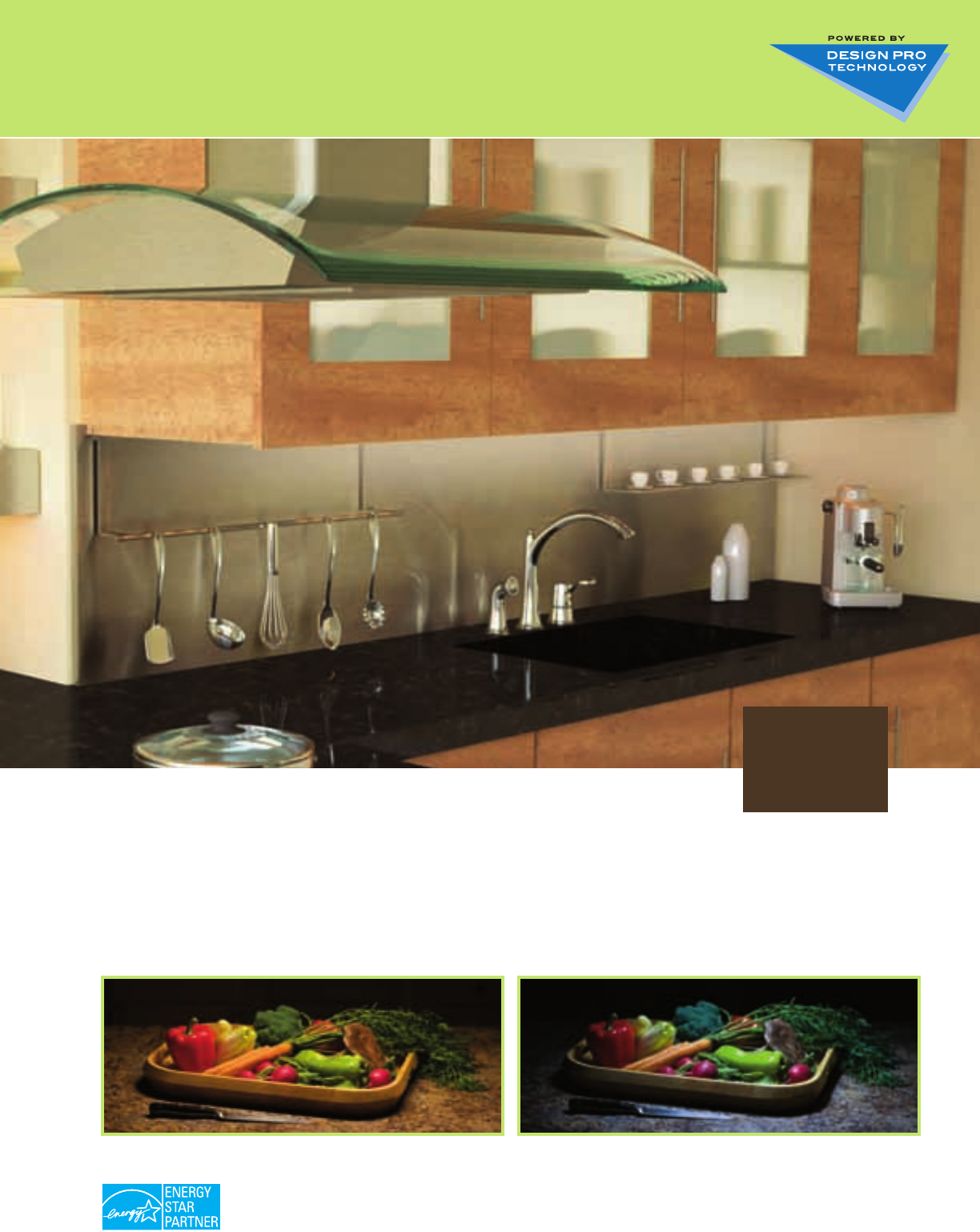

Installation photo employs Design Pro LED Linear under the shelving.

Design Pro LED Discs are inside each cabinet door. (2) 18" Design Pro

LED Modular units are used under the cabinet. KICHLER.COM 15

So thin and clean – all you’ll see is the beautiful light. A remarkably sleek unit tucks cleanly under cabinets, so all

homeowners see is the warm white light they demand. Best of all, it delivers the ultimate in energy savings and 40,000

hours of life: an unprecedented amount when compared with alternatives such as fluorescent and xenon. It’s efficient

for builders, remodelers and other professionals looking to build today’s residential and commercial structures with

products that are Energy Star qualified and can support LEEDs certification and National Green Building Standards.

limited lifetime

warranty

For more

details, visit

www.kichler.com

Competitor’s LED

Kichler’s LED > High Color Rendering Index vs.

1522523 KL_CLSlayout.indd 15 12/2/09 2:45 PM

WH

BRZ

NI

12305

12303

12301

16 Kichler® Lighting

Fixtures can be used individually,

snapped directly together, or

connected via interconnect cables

to customize the lighting effect.

A B C D

12303 NI

Fixture

12351 BK

Nightlight

12350 BK

Dimming

Switch

Design Pro LED Modular

24 Volt DC Patent Pending

C

A

E DB

12"

6"

18"

Dimming Switch (optional)

12350 BK, WH

n Consumes 1 Watt

n 4 Position (Off/Low/Medium/High)

Use to control light level

n Installs directly to the supply lead

or inline with fixtures

n Use one per run

n Will not control linear LED

Night Light Module (optional)

12351 BK, WH

n Consumes 1 Watt

n Must be used with 12350 Power Switch

n Use where low light level is desired for safety

or convenience

n Photo sensor activation

n Installs directly to the supply lead

or inline with fixtures

1

The interconnect cables are listed Class

2 and connect multiple fixtures. Wire in

accordance with Article 725 of the National

Electric Code.

12341 BK, WH - Interconnect 9 Inches

12342 BK, WH - Interconnect 14 Inches

12343 BK, WH - Interconnect 21 Inches

12345 BK, WH - Interconnect 10 Feet

12348 BK , WH - Female Connector

n Female connectors join male ends

together where necessary

12349 BK, WH - Male Connector

n Male connectors join female ends

together where necessary

AVAILABLE FINISHES

Bronze (BRZ), Brushed Nickel (NI) and White (WH)

2DIMMING SWITCH &

NIGHTLIGHT ALLOW

FOR LIGHT LEVEL

CONTROL

SELECT

APPROPRIATE

LIGHT FIXTURE

SIZES & FINISH 3INTERCONNECT

CABLES CONNECT

MULTIPLE FIXTURES

STEPSTEPSTEP

12301* BRZ, NI, WH

n 3 High Brightness LEDs built in,

4 Watts

n 6" L x 3-1/4" W x 1/2" H

12303* BRZ, NI, WH

n 6 High Brightness LEDs built in,

7 Watts

n 12" L x 3-1/4" W x 1/2" H

12305* BRZ, NI, WH

n 9 High Brightness LEDs built in,

10 Watts

n 18" L x 3-1/4" W x 1/2" H

uLtRA tHIN PRoFILE

Typical Cabinet Light Kichler Design Pro LED

Ultra Thin 1/2" profile

limited lifetime

warranty

For more

details, visit

www.kichler.com

1522523 KL_CLSlayout.indd 16 11/24/09 10:20 AM

KICHLER.COM 17

Undercabinet Mounted Power Supply

12353 BK, WH - 50 Watt

n Compact undercabinet

hard wire design

n 1" H x 5" W x 5-1/2" D

n Class 2 / 24 Volt DC

n Use with sheathed cable

(12-2 or 14-2 with ground)

Remote Power Supply

12380* BK - 100 Watt

n 11" H x 6-1/2" W x 3" D

n Includes (1) 100 Watt power supply

n Class 2 / 24 Volt DC

12382* BK - 200 Watt

n 15-1/2 " H x 11" W x 3" D

n Includes (2) 100 Watt

power supplies

n Class 2 / 24 Volt DC

Power Supply Leads

12344 BK, WH – 25' length

12346 BK, WH – 8' length

n Should only be used to connect

to remote power supplies

12380 BK and 12382 BK.

n Connect either the male or female

plug to fixture or switch. The plug on

the other end is cut off and the two

leads are connected to the terminals

on the remote power supply.

n Class 2 jacket suitable to be run behind walls

(please check local codes for compliance).

Plug-In Power Supplies

12383 BK, WH - 30 Watts

n 4' length cord

n 1 female connector,

12348 included

n Class 2 / 24 Volt DC

12384 BK, WH - 6 0 Watts

n 4' length cord

n 1 female connector,

12348 included

n Class 2 / 24 Volt DC

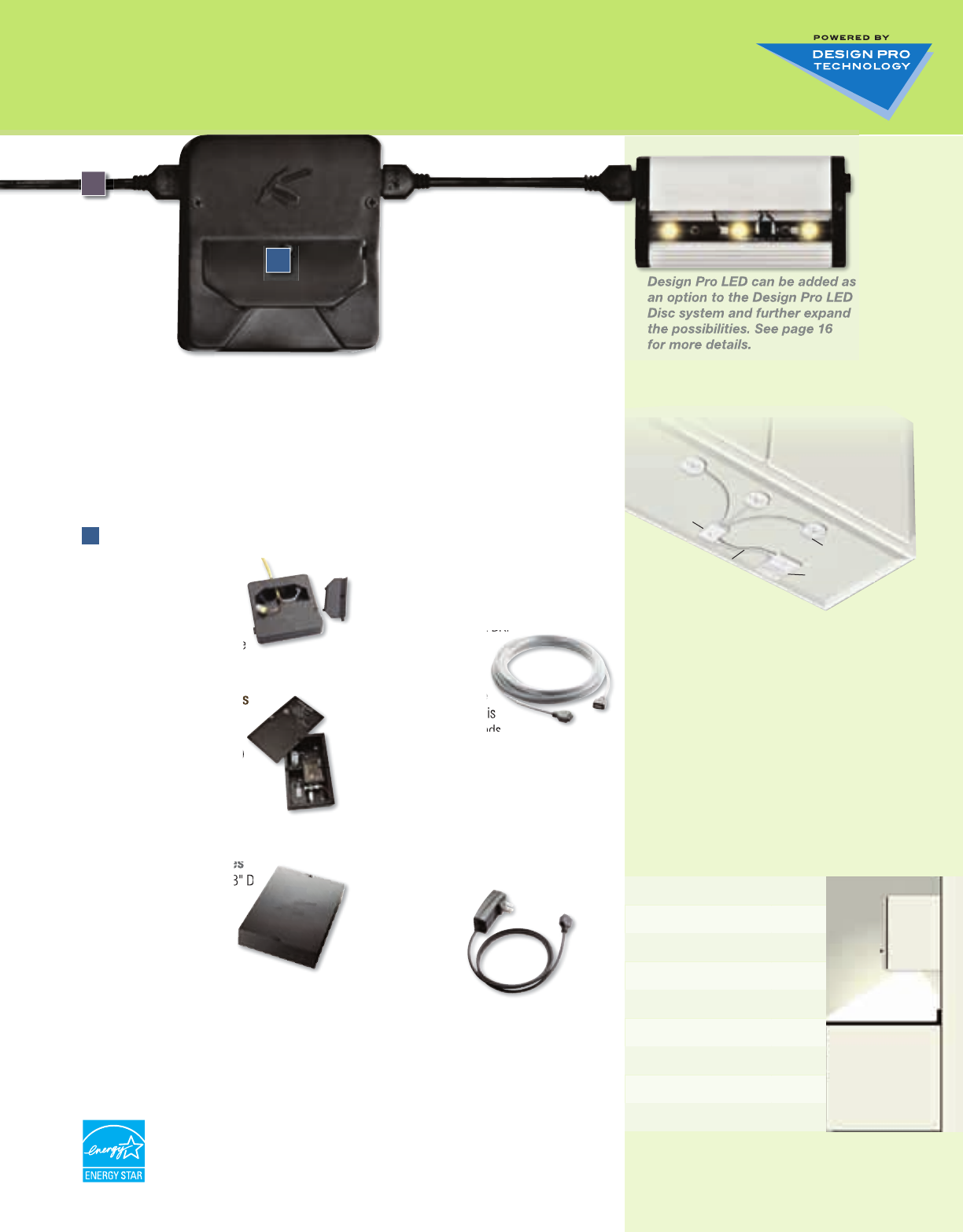

Design Pro LED Disc can be added

to the Design Pro LED system to

further expand the possibilities.

See page 12 for more details.

F

E

12301 NI

Fixture

12310 BK

Design Pro

LED Disc, see

page 12

12353 BK

Undercabinet

Mounted

Power Supply

(hard wire)

A

B

C

D

7

42

26.1

53.1

62.1

34.6

>90

3000K avg.

40,000 hrs.

TOTAL WATTAGE

LUMENS/WATT

LIGHT OUTPUT FC

(COUNTER FRONT)

LIGHT OUTPUT FC

(COUNTER MIDDLE)

LIGHT OUTPUT FC

(COUNTER BACK)

LIGHT OUTPUT FC

(COUNTER WALL)

CRI (COLOR RENDERING)

CCT (COLOR TEMPERATURE)

LIGHT SOURCE LIFE

PERFORMANCE DATA (12303)

n Ultra Thin 1/2" Profile

n Color Rendering Index >90 CRI

n High brightness LED

n Higher efficiency

n 3000K correlated color temperature average

is similar to Xenon

n Long life light source (40,000 Hours)

n Ability to snap fixtures together or interconnect

to create an even flow of light

n Captive screws for ease of installation

n Class 2 Listed

FEATURES

FRONT MOUNT DESIGN

F

4SELECT POWER

SUPPLY

STEP

12354 BK

Driver Module,

see page 12

supply

D

Driver

Module

Design Pro

LED Disc

A B C

D

Kichler Design Pro LED undercabinet and

disc system meets ENERGY STAR Requirements

when used with our remote power supplies

12380BK and 12382BK, a minimum of any

3 fixtures, and a minimum of 20 Watts.

*

Design Pro

LED Fixture

1522523 KL_CLSlayout.indd 17 11/30/09 8:07 AM

Design Pro LED Direct Wire

120 Volt Patent Pending

18 Kichler® Lighting

Energy

efficiency

anywhere

Kichler Design Pro LED Direct Wire delivers

high-tech LED at a value. It’s proof that

unprecedented long life, unmatched energy

savings and beautiful light don’t have to

break the bank.

AvAilAble Finishes

Bronze (BZ), Stainless Steel (SS) and White (WH)

BZ

SS

WH

Installation photo employs Design Pro LED Linear at

island toekick and above cabinets. (4) 6" Design Pro LED

Direct Wire units are used under the cabinet and shelving.

1522523 KL_CLSlayout.indd 18 12/4/09 12:24 PM

limited lifetime

warranty

For more

details, visit

www.kichler.com

KICHLER.COM 19

1

SELECT APPROPRIATE

LIGHT FIXTURE SIZE

& FINISH. DETERMINE

DIRECT WIRE OR CORD &

PLUG POWER SUPPLY.

12051* BZ, SS, WH

n 1 High Brightness LED built in

n 4 Watts

n 6" L x 4-1/2" W x 1" H

12052 BZ, SS, WH

n 2 High Brightness LED built in

n 6.4 Watts

n 12" L x 4-1/2" W x 1" H

12053* BZ, SS, WH

n 3 High Brightness LED built in

n 9.3 Watts

n 22" L x 4-1/2" W x 1" H

12054 BZ, SS, WH

n 4 High Brightness LED built in

n 12.4 Watts

n 30" L x 4-1/2" W x 1" H

Accessories

10582 WH – 38" Power Cord and Plug

Accessory (not shown)

10588 SI – Duplex BX Cable Connector

n Connects two cables to any convenient

wireway knockout located on the fixture.

This allows for a group of fixtures to be

wired in series, using a single knockout.

Connector is listed for use with 14-2

steel armored cable, 3/8 trade size

reduced wall flexible steel, aluminum

conduit or steel flexible metal conduit

(not shown)

10589 SI – Connector for NM &

BX Cable

n UL listed for both non-metal (NM) or

BX cables

n Connects a single cable to any

convenient wireway knockout located

on the fixture

STEP

A

B

30"

22"

12"

6"

A B C

D

A

B

C

D

PERFORMANCE DATA (12052)

LUMENS/WATT 38.1

LIGHT OUTPUT FC 14.3

(COUNTER FRONT)

LIGHT OUTPUT FC 31.8

(COUNTER MIDDLE)

LIGHT OUTPUT FC 49.5

(COUNTER BACK)

LIGHT OUTPUT FC 17.7

(COUNTER WALL)

CRI (COLOR RENDERING) mid 80's

CCT (COLOR TEMPERATURE) 3000K avg.

LIGHT SOURCE 40,000

LIFE (HRS)

BACk MOuNT DEsigN

FEATuREs

n Color Rendering Index – mid 80’s

n High brightness LED

n High efficiency

n 3000K correlated color temperature average

±150K is similar to Xenon

n Long life light source (40,000 Hours)

n 1" Profile x 4-1/2" W

n Hinged assembly

n Keyhole mounting

n Multiple KO’s for installation ease

n Side KO’s for optional end-to-end assembly

n UL listed NM & BX single cable connector included

n On-off Switch

n Built-in driver

n cUL Listed

Energy

efficiency

anywhere

12053 SS

2008 CALIFORNIA TITLE 24

COMPLIANT.

*

1522523 KL_CLSlayout.indd 19 12/2/09 3:36 PM

20 Kichler® Lighting

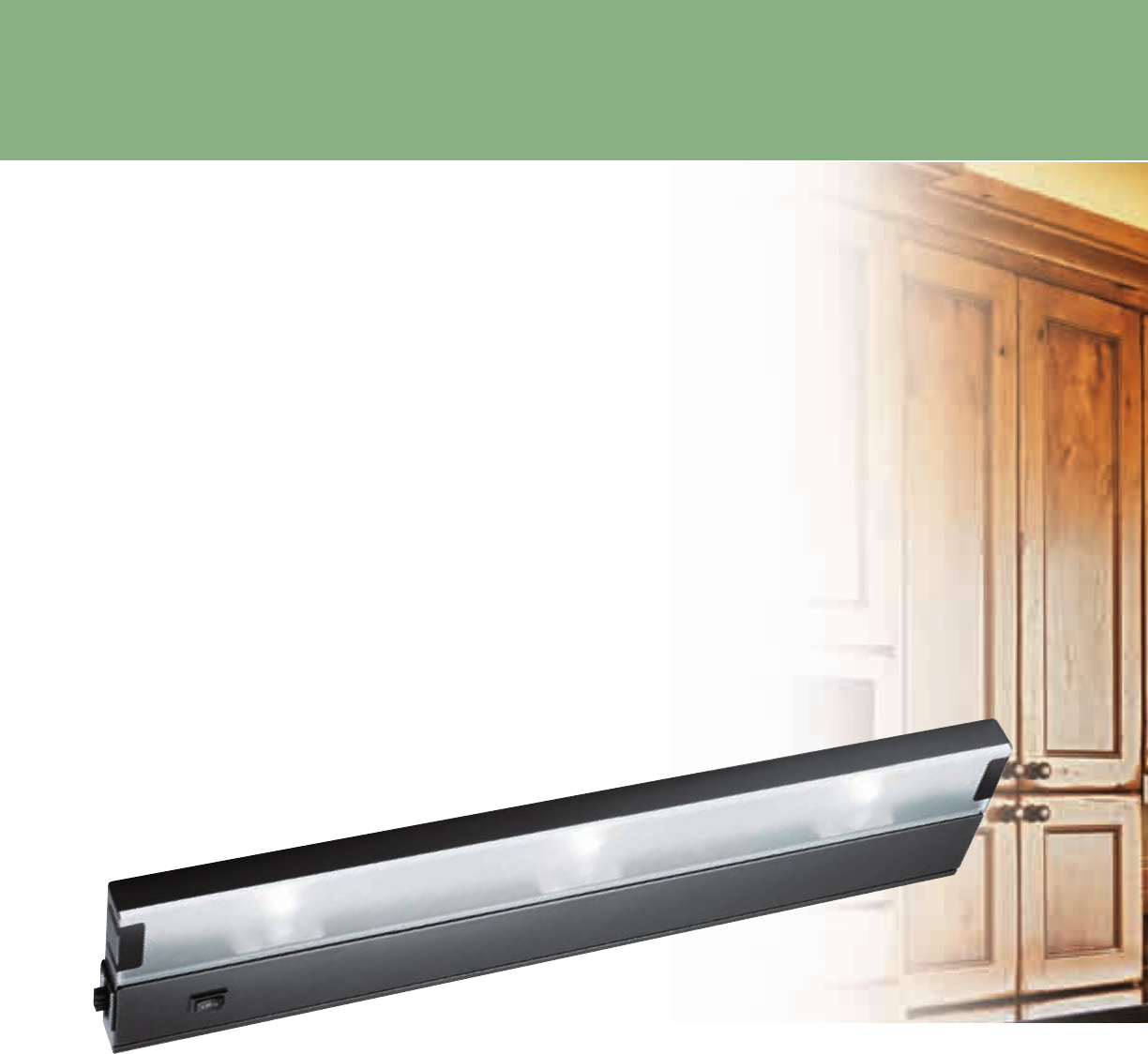

TaskWork Modular & Direct Wire

Xenon & Fluorescent

A proven classic

for any space

12213 BZ

shown in Bronze

1522523 KL_CLSlayout.indd 20 11/30/09 12:33 PM

KICHLER.COM 21

Wherever you need to take light, our TaskWork Modular & Direct Wire fixtures can accommodate. They feature

tried and true long life xenon or fluorescent technology that offers both direct wire and plug-in configurations

for modular installation. Plus, the broad selection comes in multiple sizes and finishes for maximum design and

application flexibility. Put task or ambient lighting where it’s needed — while staying within budget.

Installation photo employs (5) 7" TaskWork 12V Direct Wire units under each cabinet section. TaskWork

12V Direct Wire units are assembled end-to-end for a continuous light flow over cabinets.

1522523 KL_CLSlayout.indd 21 11/30/09 12:33 PM

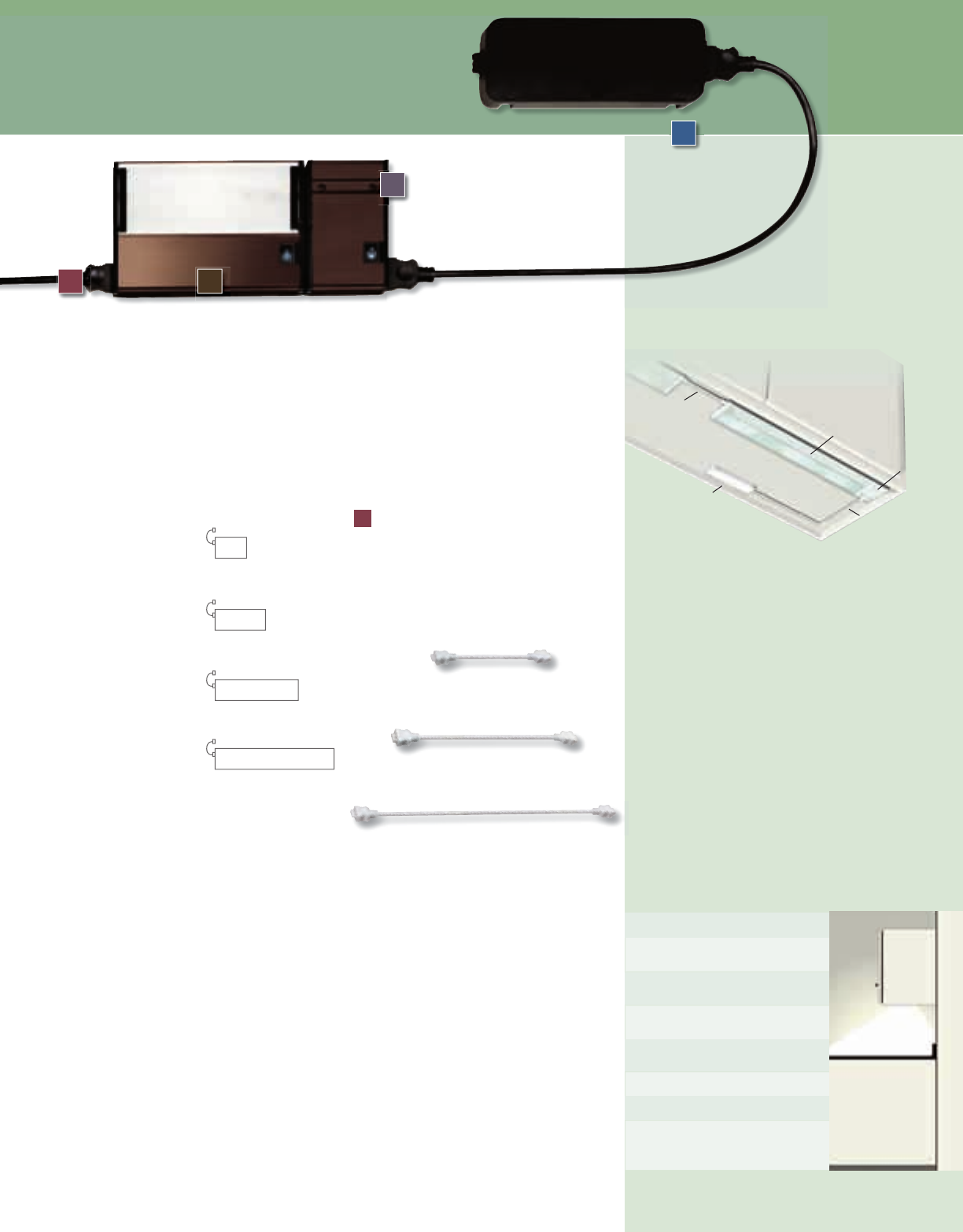

22 Kichler® Lighting

AVAILABLE FINISHES

Bronze (BRZ), Nickel (NI) and White (WH)

1

SELECT

APPROPRIATE

LIGHT FIXTURE

SIZE & FINISH

STEP

Starter Kit

10568 BRZ, NI, WH

n 1 light, 14" Interconnect

Cable and Wire Module

n 12 Volt, 18 Watt Xenon bulb included

n 7" L x 5" W x 1" H

10567 BRZ, NI, WH

n 2 light, 14" Interconnect

Cable and Wire Module

n 12 Volt, 18 Watt Xenon bulbs included

n 13" L x 5" W x 1" H

10566 BRZ, NI, WH

n 3 light, 21" Interconnect

Cable and Wire Module

n 12 Volt, 18 Watt Xenon bulbs included

n 22" L x 5" W x 1" H

10585 BRZ, NI, WH

n 4 light, 21" Interconnect

Cable and Wire Module

n 12 Volt, 18 Watt Xenon bulbs included

n 30-1/2" L x 5" W x 1" H

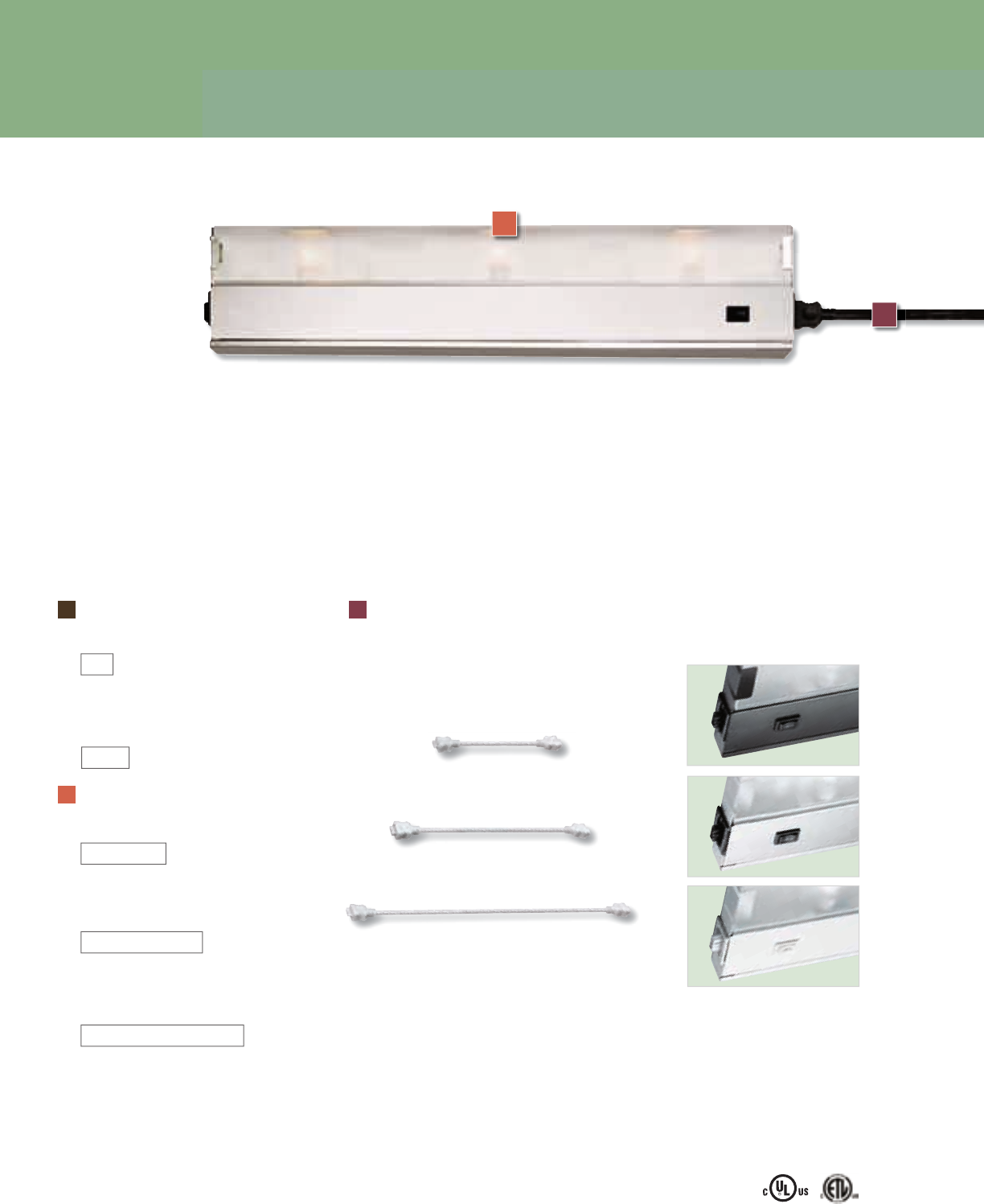

Modular (Fixture Only) Xenon

10565 BRZ, NI, WH

n 1 light, 7" L x 5" W x 1" H

n 12 Volt, 18 Watt Xenon bulb included

10564 BRZ, NI, WH

n 2 light, 13" L x 5" W x 1" H

n 12 Volt, 18 Watt Xenon bulbs included

10563 BRZ, NI, WH

n 3 light, 22" L x 5" W x 1" H

n 12 Volt, 18 Watt Xenon bulbs included

10587 BRZ, NI, WH

n 4 light, 30-1/2" L x 5" W x 1" H

n 12 Volt, 18 Watt Xenon bulbs included

Modular Accessories

10570* BK, WH – Wire Module

n 7-3/4" L x 2-5/8" W x 1" H

n Provides for safe, push-in wiring without

the use of wire connectors

n Interconnect cables easily join wire

module and fixtures

n Integrated supply wire strain relief for

one or two wires

n Snap-on cover

n Use for hard-wire installation

n Use with sheathed cable

(12-2 or 14-2 with ground)

A

A

10563 BRZ

Fixture

shown in Bronze

30-1/2"

22"

13"

7"

7"

13"

30-1/2"

22"

10570 BK, WH

Wire Module

shown in White

WH

BRZ NI

C

TaskWork Modular

12 Volt Xenon

E

10569** BRZ, NI, WH

Master Switch (optional)

n 3-1/2" L x 5" W x 1" H

n Can be installed between the wiring

module and the first fixture to control the

entire system. Or, it can be positioned

between fixtures to control those fixtures

located after it in line.

10575** BRZ, NI, WH

Plug-in Master Switch (optional)

n 3-1/2" L x 5" W x 1" H

n Allows control of cabinet lighting without

accessing house wiring

* For use only with Kichler interconnect cables as

part of TaskWork Modular systems

** For use only with Kichler interconnect cables

as part of TaskWork Modular systems. Note,

too, that switch assembly will plug directly into

the side of any TaskWork Modular fixture. This

eliminates the need to use an interconnect cable.

Check mounting location for adequate space

D

10575 BRZ, NI, WH

Plug-In Master Switch

shown in White

Fixtures can be used individually, snapped

directly together, or connected via interconnect

cables to customize the lighting application.

1522523 KL_CLSlayout.indd 22 11/30/09 8:10 AM

KICHLER.COM 23

10570 BK

Wire Module

shown in Black

10569 BRZ

Master Switch

(optional)

shown in Bronze

n 1" Profile x 5" W

n 12 Volt, 18 Watt Xenon bulb(s) included

n Unique front-mount design as recommended

by the American Lighting Association

n Ability to snap fixtures together to create an

even flow of light

n Captive screws for ease of installation

n Durable, Anodized Brushed Bronze, Nickel or

Powder-Coated White finish

n Extruded aluminum construction

n Hinged tempered glass diffuser

n High/Low/On-Off Switch

n Built-in electronic transformer

n cUL Listed

FEATURES

2INTERCONNECT

CABLES CONNECT

MULTIPLE FIXTURES

STEP

Cord & Plug

Fixture Xenon

10562 WH

n 1 light, 7" L x 5" W x 1" H , 36" power cord

n 12 Volt, 18 Watt Xenon bulb included

10561 WH

n 2 light, 13" L x 5" W x 1" H , 36" power cord

n 12 Volt, 18 Watt Xenon bulbs included

10560 WH

n 3 light, 22" L x 5" W x 1" H, 36" power cord

n 12 Volt, 18 Watt Xenon bulbs included

10586 WH

n 4 light, 30-1/2" L x 5" W x 1" H 36" power cord

n 12 Volt, 18 Watt Xenon bulbs included

Replacement Bulbs

10574 CLR - Replacement Bulb

n 12 Volt, 18 Watt Xenon, clear

10571 BK, WH – Interconnect 9 Inches

10572 BK, WH – Interconnect 14 Inches

10573 BK, WH – Interconnect 21 Inches

n For longer interconnect cable lengths,

multiple cables may be connected together

B

B

E

FRONT MOUNT

- USE WIRE MODULE AND

INTERCONNECT CABLES

PERFORMANCE DATA (10564)

7"

13"

30-1/2"

22"

LUMENS/WATT 6

LIGHT OUTPUT FC 21.3

(COUNTER FRONT)

LIGHT OUTPUT FC 45.6

(COUNTER MIDDLE)

LIGHT OUTPUT FC 59.4

(COUNTER BACK)

LIGHT OUTPUT FC 29.5

(COUNTER WALL)

CRI (COLOR RENDERING) 100

CCT

(COLOR TEMPERATURE) 2700K

LIGHT SOURCE 10,000

LIFE (HRS)

A

B

C

D

10571 BK, WH

Interconnect Cable

shown in White

10572 BK, WH

Interconnect Cable

shown in White

10573 BK, WH

Interconnect Cable

shown in White

D

10571 BK

Interconnect

Cable

TaskWork

Modular 12 Volt

Interconnect

Cable

Interconnect

Cable

Wire

Module

10565 BRZ

Fixture

shown in Bronze

C

Master

Switch

A B C

D

1522523 KL_CLSlayout.indd 23 11/30/09 8:12 AM

STEP

WH

BZ

SS

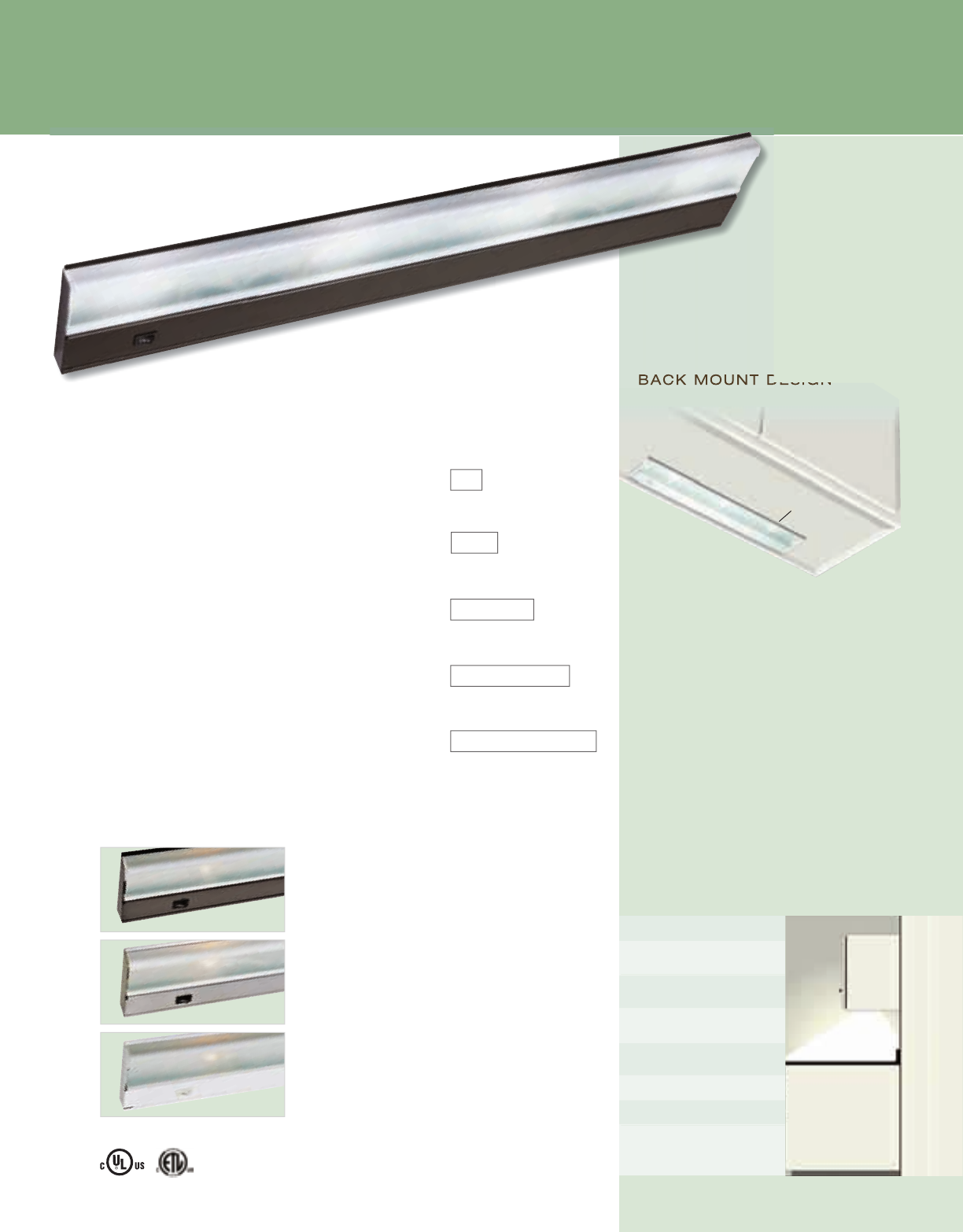

AVAILABLE FINISHES

Bronze (BZ), Brushed Stainless Steel (SS)

and White (WH)

24 Kichler® Lighting

Fixtures can be used individually, snapped

directly together, or connected via interconnect

cables to customize the lighting effect.

B

A

12213 SS

Fixture shown in

Brushed Stainless Steel

10571 BK, WH – Interconnect 9 Inches

10572 BK, WH – Interconnect 14 Inches

10573 BK, WH – Interconnect 21 Inches

n For longer interconnect cable lengths,

multiple cables may be connected together

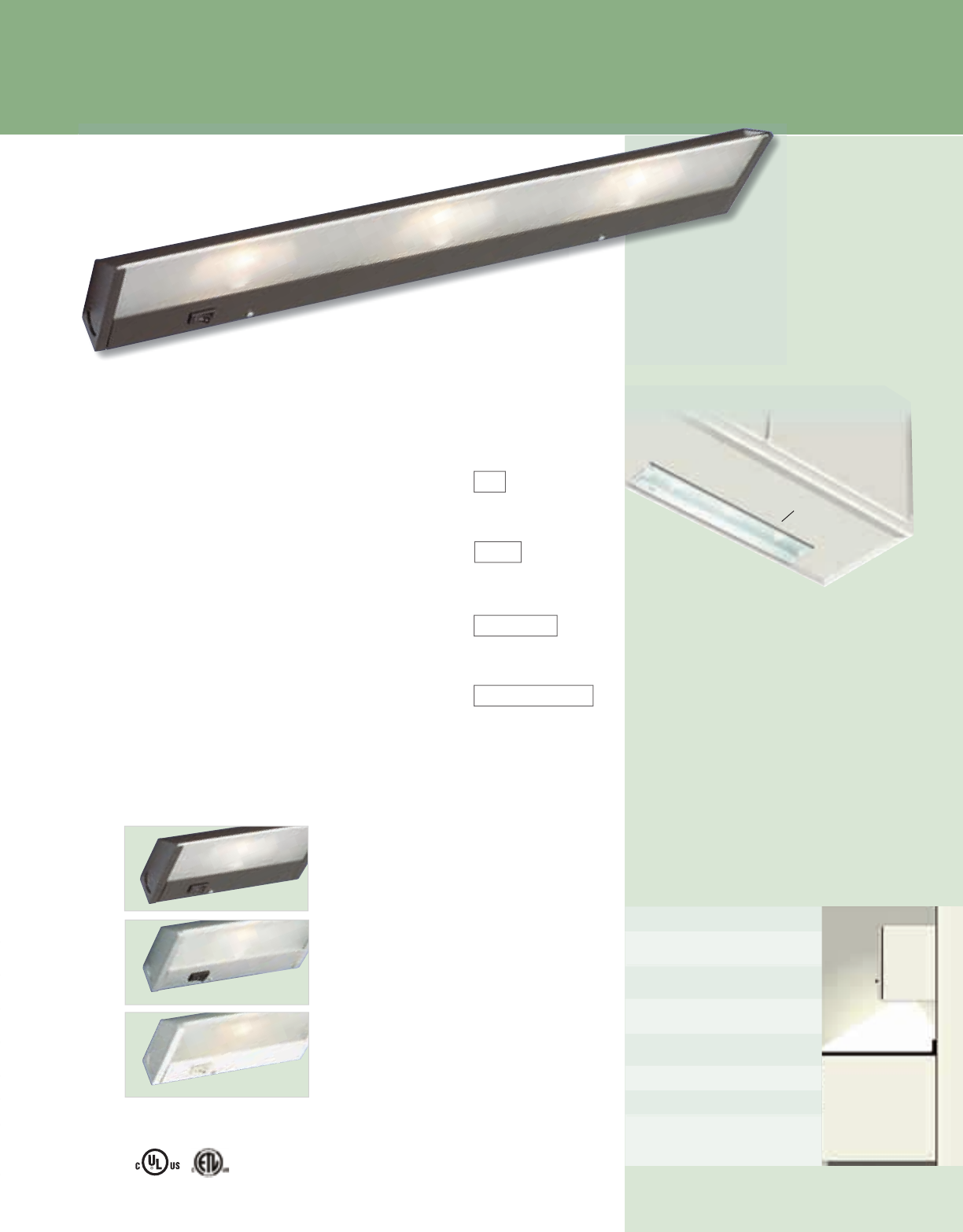

12211 BZ, SS, WH

n 1 light, 7" L x 5" W x 1" H

n 120 Volt, 20 Watt Xenon bulb included

12212 BZ, SS, WH

n 2 light, 13" L x 5" W x 1" H

n 120 Volt, 20 Watt Xenon bulbs included

12213 BZ, SS, WH

n 3 light, 22" L x 5" W x 1" H

n 120 Volt, 20 Watt Xenon bulbs included

12214 BZ, SS, WH

n 4 light, 30" L x 5" W x 1" H

n 120 Volt, 20 Watt Xenon bulbs included

12215 BZ, SS, WH

n 5 light, 40" L x 5" W x 1" H

n 120 Volt, 20 Watt Xenon bulbs included

21 INTERCONNECT

CABLES CONNECT

MULTIPLE FIXTURES

SELECT

APPROPRIATE

LIGHT FIXTURE

SIZE & FINISH 3SELECT APPROPRIATE

LIGHT FIXTURE SIZE

& FINISH OF EACH

ADDITIONAL FIXTURE

STEPSTEP

40"

30"

22"

13"

7"

10571 BK, WH

Interconnect Cable

shown in White

10572 BK, WH

Interconnect Cable

shown in White

10573 BK, WH

Interconnect Cable

shown in White

10571 BK

Interconnect

Cable

BC

A

TaskWork Modular

120 Volt Xenon

1522523 KL_CLSlayout.indd 24 11/24/09 10:25 AM

A

Front Mt.

B C

D

KICHLER.COM 25

10570 BK

Wire Module

shown in Black

C

A

B

C

D

n 1" Profile x 5" W

n 120 Volt, 20 Watt Xenon bulb(s)

n Direct wire or inter-connectability

n Ability to snap fixtures together to create

an even flow of light

n Durable Anodized Bronze, Brushed Stainless Steel

or Powder-Coated White finish

n High/Low/On-Off Switch

n cUL Listed

n UL listed NM & BX single cable connector included

FEAtuRES

BACk oF WALL

- DIRECt WIRE CoNNECt

FRoNt MouNt

- uSE WIRE MoDuLE AND

INtERCoNNECt CABLES

PERFoRMANCE DAtA (12212)

LUMENS/WATT 5

LIGHT OUTPUT FC 14.6

(COUNTER FRONT)

LIGHT OUTPUT FC 28.7

(COUNTER MIDDLE)

LIGHT OUTPUT FC 37.0

(COUNTER BACK)

LIGHT OUTPUT FC 19.6

(COUNTER WALL)

CRI (COLOR RENDERING) 100

CCT (COLOR TEMPERATURE) 2620K

LIGHT SOURCE 2,500

LIFE (HRS)

10570 BK, WH – Wire Module

n 7-3/4" L x 2-5/8" W x 1" H

n Provides for safe, push-in wiring without

the use of wire connectors

n Interconnect cables easily join wire module

and fixtures

n Integrated supply wire strain relief for one

or two wires

n Snap-on cover

n Use for hard-wire installation

n Use with sheathed cable

(12/2 or 14/2 with ground)

4

STEP

POWER TO SYSTEM

WITH WIRE MODULE

(OPTIONAL)

10570 BK, WH

Wire Module

shown in White

D

12211 SS

Fixture shown in

Brushed Stainless Steel

TaskWork

Modular 120 Volt

TaskWork

Modular 120 Volt

Wire Module

Interconnect

Cables

D

Back of wall or unique

front-mount design

as recommended by

the American Lighting

Association

Installation photo employs TaskWork 120V Modular under each cabinet section.

1522523 KL_CLSlayout.indd 25 11/24/09 10:26 AM

FEATURES

BACK MOUNT DESIGN

BACK

MOUNT

DESIGN

DESIGN

BACK

MOUNT

DESIGN

WH

BZ

SS

B C

D

A B C

D

26 Kichler® Lighting

n 1" Profile x 5" W

n 12 Volt, 18 Watt Xenon bulb(s) included

n Durable, Brushed Stainless Steel,

Powder-Coated White or Bronze finishes

n Fastener-free hinge assembly

n Keyhole mounting

n Easy-lock poly-tempered glass diffuser

n UL listed NM & BX single cable connector included

n High/Low/On-Off Switch

n Built-in electronic transformer

n cUL Listed

TaskWork Direct Wire 12 Volt

Xenon offers you a simple

installation solution for

illuminating a task area or

adding ambient lighting.

AVAILABLE FINISHES

Bronze (BZ), Brushed Stainless Steel (SS)

and White (WH)

1

STEP

10584 BZ

Fixture

shown in Bronze

SELECT APPROPRIATE LIGHT

FIXTURE SIZE & FINISH.

DETERMINE DIRECT WIRE OR

CORD & PLUG POWER SUPPLY.

30"

22-1/2"

12-1/4"

7"

40"

TaskWork Direct Wire

12 Volt Xenon

PERFORMANCE DATA (10580)

LUMENS/WATT 6.1

LIGHT OUTPUT FC 14.1

(COUNTER FRONT)

LIGHT OUTPUT FC 31.2

(COUNTER MIDDLE)

LIGHT OUTPUT FC 47.3

(COUNTER BACK)

LIGHT OUTPUT FC 17.8

(COUNTER WALL)

CRI (COLOR RENDERING) 100

CCT (COLOR TEMPERATURE) 2700K

LIGHT SOURCE 10,000

LIFE (HRS)

A

B

C

D

10579 BZ, SS, WH

n 1 light, 7" L x 5" W x 1" H

n 12 Volt, 18 Watt Xenon bulb included

10580 BZ, SS, WH

n 2 light, 12-1/4" L x 5" W x 1" H

n 12 Volt, 18 Watt Xenon bulbs included

10581 BZ, SS, WH

n 3 light, 21-1/2" L x 5" W x 1" H

n 12 Volt, 18 Watt Xenon bulbs included

10584 BZ, SS, WH

n 4 light, 30" L x 5" W x 1" H

n 12 Volt, 18 Watt Xenon bulbs included

10595 BZ, SS, WH

n 5 light, 40" L x 5" W x 1" H

n 12 Volt, 18 Watt Xenon bulbs included

Accessories

10582 WH - 38" Power Cord and Plug

Accessory (not shown)

10588 SI - Duplex BX Cable Connector

n Connects two cables to any convenient

wireway knockouts located on the fixture. This

allows for a group of fixtures in a series using

a single knockout. Connectors listed for use

with 14-2 steel armored cable, 3/8" trade size

reduced wall flexible steel, aluminum conduit

or steel flexible metal conduit (not shown)

10589 SI - Connector for NM & BX Cable

n UL approved for both non-metal (NM)

& BX cables

n Connects a single cable convenient wireway

knockouts located on the fixture (not shown)

Replacement Bulbs

10574 CLR - Replacement Bulb

n 12 Volt, 18 Watt Xenon, clear

TaskWork Direct

Wire 12 Volt

1522523 KL_CLSlayout.indd 26 11/30/09 8:14 AM

30"

AVAILABLE FINISHES

painted Bronze (BZ), Silver (SI) and White (WH)

WH

A B C

D

KICHLER.COM 27

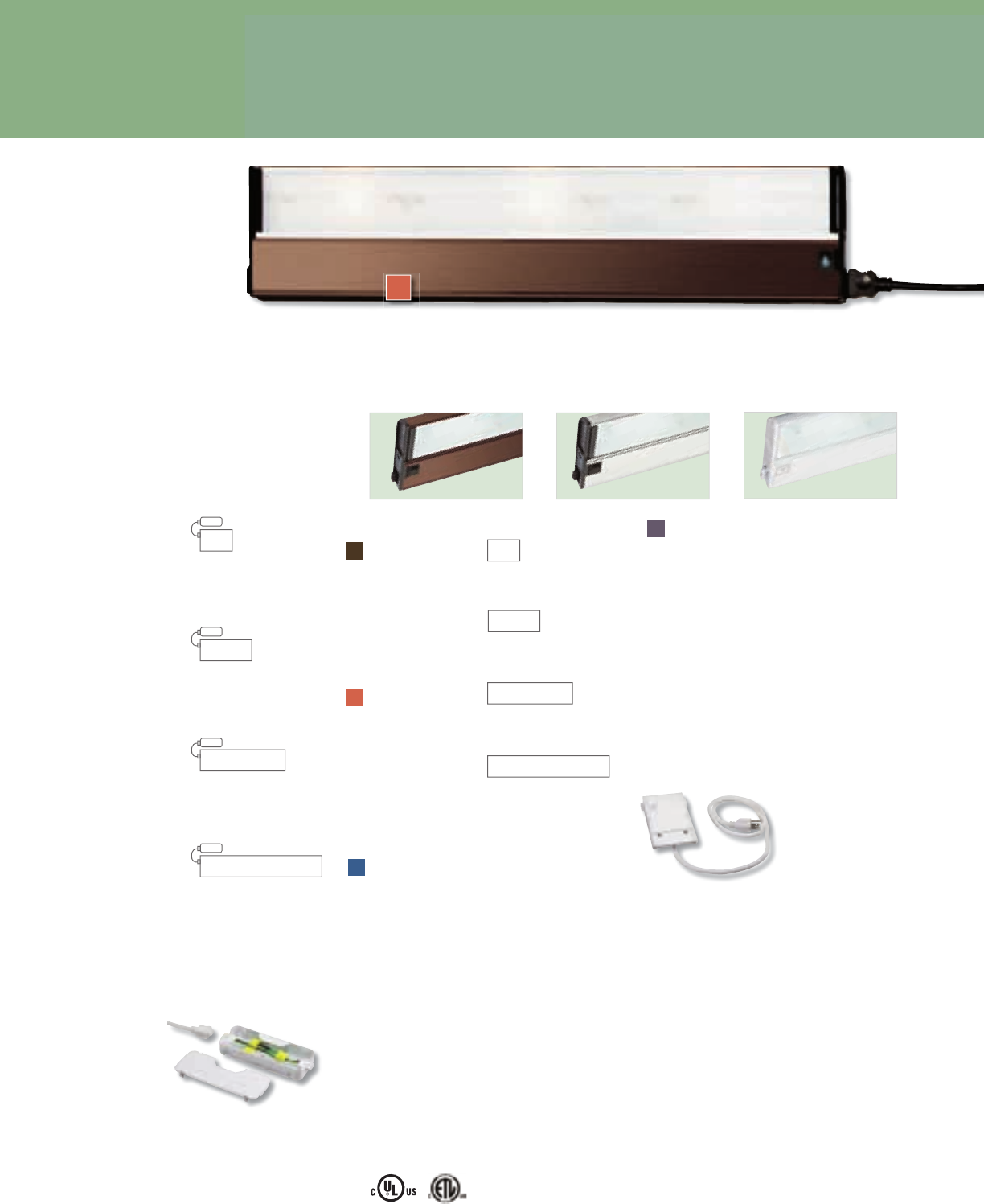

12013 BZ

Fixture

shown in Bronze

n 1-1/4" Profile x 5" W

n 120 Volt, 20 Watt Xenon bulb(s)

n Painted Bronze, Silver or White finish

n High/Low/On-Off Switch

n cUL Listed

FEAtuRES

BACk MouNt DESIgN

12011 BZ, SI, WH

n 1 light, 7" L x 5" W x 1-1/4" H

n 120 Volt, 20 Watt Xenon bulb included

12012 BZ, SI, WH

n 2 light, 12" L x 5" W x 1-1/4" H

n 120 Volt, 20 Watt Xenon bulbs included

12013 BZ, SI, WH

n 3 light, 22" L x 5" W x 1-1/4" H

n 120 Volt, 20 Watt Xenon bulbs included

12014 BZ, SI, WH

n 4 light, 30" L x 5" W x 1-1/4" H

n 120 Volt, 20 Watt Xenon bulbs included

Replacement Bulbs

12090 CLR – Replacement Bulb

n 120 Volt, 20 Watt Xenon, clear

1

SELECT APPROPRIATE

LIGHT FIXTURE

SIZE & FINISH.

STEP

TaskWork Direct Wire 120

Volt Xenon design features

large wiring compartments

and multiple 1/2" trade-size

knockouts for fast and

easy installation.

BZ

SI

TaskWork Direct Wire

120 Volt Xenon

PERFoRMANCE DAtA (12012)

LUMENS/WATT 5

LIGHT OUTPUT FC 8.6

(COUNTER FRONT)

LIGHT OUTPUT FC 21.1

(COUNTER MIDDLE)

LIGHT OUTPUT FC 38.2

(COUNTER BACK)

LIGHT OUTPUT FC 13.2

(COUNTER WALL)

CRI (COLOR RENDERING) 100

CCT (COLOR TEMPERATURE) 2620K

LIGHT SOURCE 2,500

LIFE (HRS)

A

B

C

D

22"

12"

7" TaskWork Direct

Wire 120 Volt

1522523 KL_CLSlayout.indd 27 11/24/09 10:27 AM

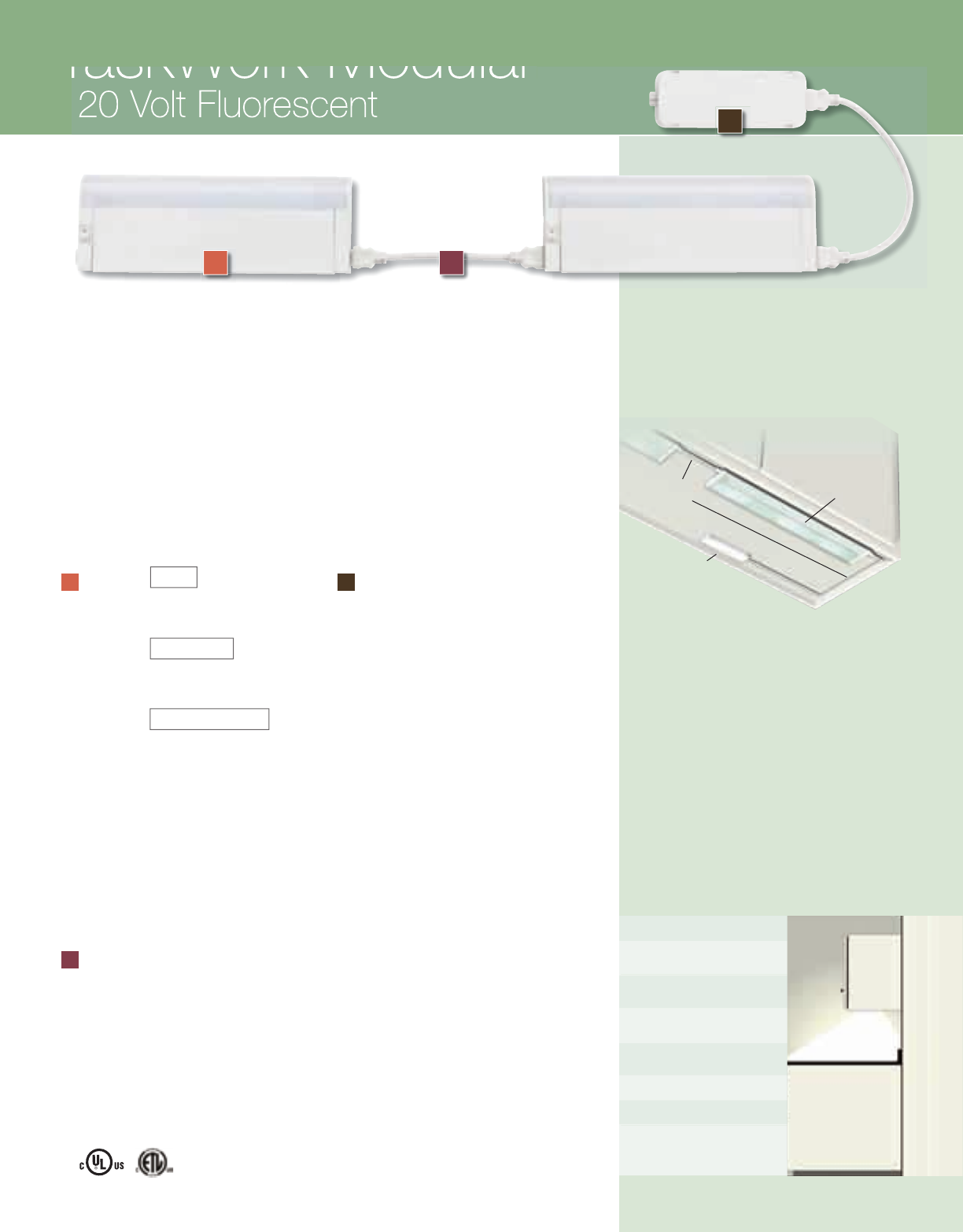

TaskWork Modular

120 Volt Fluorescent

A B C

D

28 Kichler® Lighting

FEATURES

n 1" profile x 5" Width

n Fluorescent lamp included

n Unique front mount design as recommended by

the American Lighting Association

n Ability to snap fixtures together to create an even

flow of light

n Keyhole mounting

n Extruded Aluminum construction

n On-off Switch

n cUL Listed

PERFORMANCE DATA (10026)

Lumens/Watt 52

Light Output FC 9.8

(COunter FrOnt)

Light Output FC 24.5

(COunter miDDLe)

Light Output FC 37.5

(COunter BaCK)

Light Output FC 20.2

(COunter WaLL)

Cri (COLOr renDering) 80

CCt (COLOr temperature) 4100K

Light sOurCe 7500

LiFe (hrs)

A

B

C

D

10570* WH - Wire Module

n 7-3/4" L x 2-5/8" W x 1" H

n Provides for safe, push-in wiring without

the use of wire connectors

n Interconnect cables easily join wire module

and fixtures

n Integrated supply wire strain relief for one

or two wires

n Snap-on cover

n Use for hard-wire installation

n Use with sheathed cable

(12/2 or 14/2 with ground)

10569 WH Master Switch (optional)

n 3-1/2" L x 5" W x 1" H

n Can be installed between the wiring module

and the first fixture to control the entire

system. Or, it can be positioned between

fixtures to control those fixtures located

after it in line.

10575** WH

Plug-in Master Switch (optional)

n 3-1/2" L x 5" W x 1" H

n Allows control of cabinet lighting without

accessing house wiring

* For use only with Kichler interconnect cables as

part of TaskWork Modular systems

** For use only with Kichler interconnect cables as

part of TaskWork Modular systems. Note, too, that

switch assembly will plug directly into the side of

any TaskWork Modular fixture. This eliminates

the need to use an interconnect cable. Check

mounting location for adequate space.

10026 WH

•8WattsMaxT5Fluorescentlampincluded

• 12-1/4"Lx4-3/4"Wx1"H

10027 WH

• 13WattsMaxT5Fluorescentlampincluded

• 21-1/2"Lx4-3/4"Wx1"H

10028 WH

• 21WattsMaxT5Fluorescentlampincluded

• 33-1/2"Lx4-3/4"Wx1"H

10571 WH - Interconnect 9 inches

10572 WH - Interconnect 14 inches

10573 WH - Interconnect 21 inches

n For longer interconnect cable lengths, multiple

cables may be connected together

33-1/2"

21-1/2"

12-1/2"

Fixtures may be used individually, snapped

directly together or connected via interconnect

cables to customize the lighting installation.

STEP 31 POWER AND

ACCESSORIES

SELECT

APPROPRIATE LIGHT

FIXTURE SIZE.

STEP

2INTERCONNECT

CABLES CONNECT

MULTIPLE FIXTURES

STEP

a C

B

FRONT MOUNT DESigN

TaskWork Modular

Fluorescent 120 Volt

Interconnect

Cable

Wire

Module

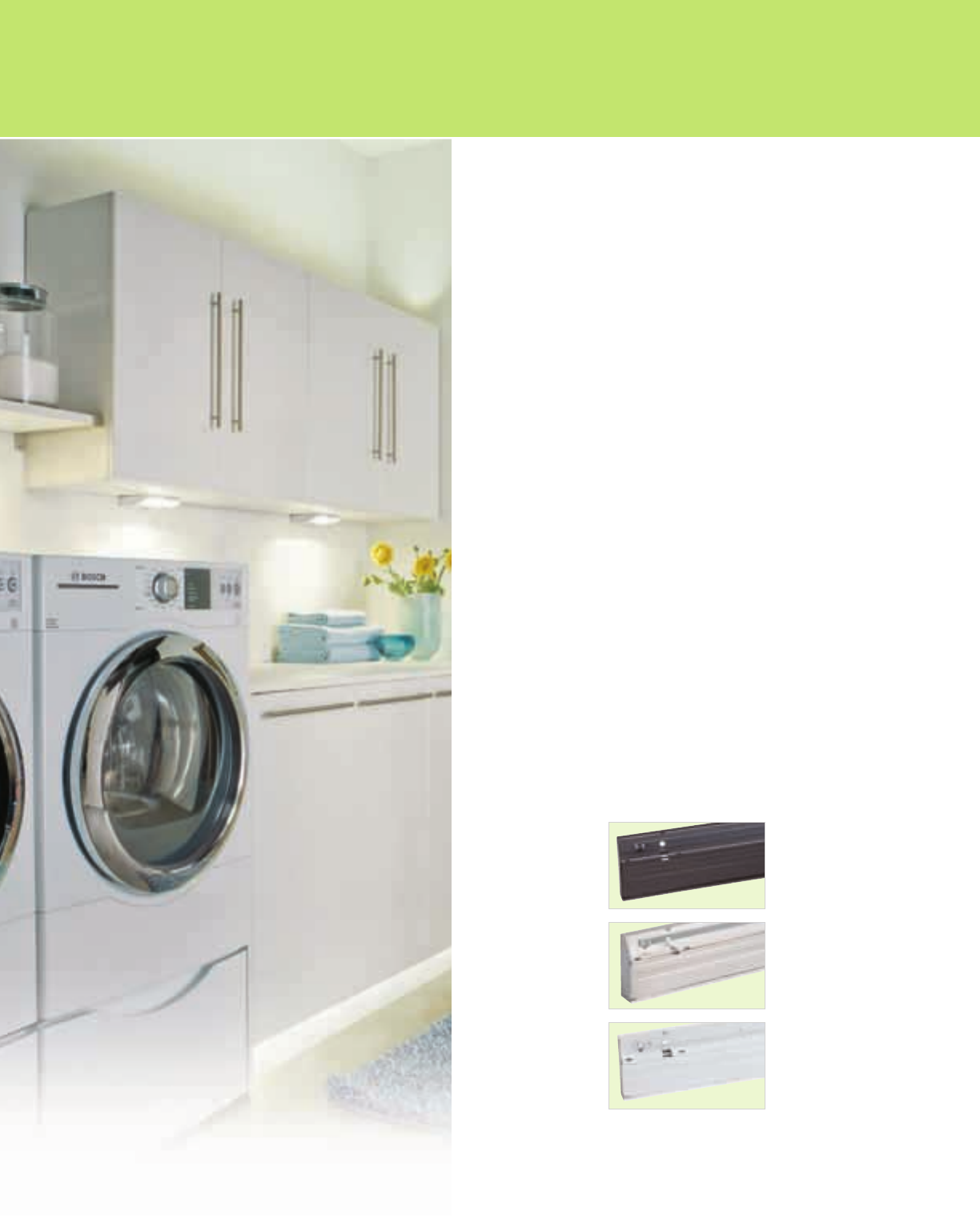

Flexibility and cost-effectiveness in one: TaskWork Modular

fluorescent is ideal for laundry or secondary rooms.

TaskWork

Modular

TaskWork ModularTaskWork

120

Volt

Fluorescent

B

C

a

10026 WH

TaskWork

Modular

10571 WH

Interconnect

Cable

10570 WH

Wire Module

1522523 KL_CLSlayout.indd 28 11/30/09 8:16 AM

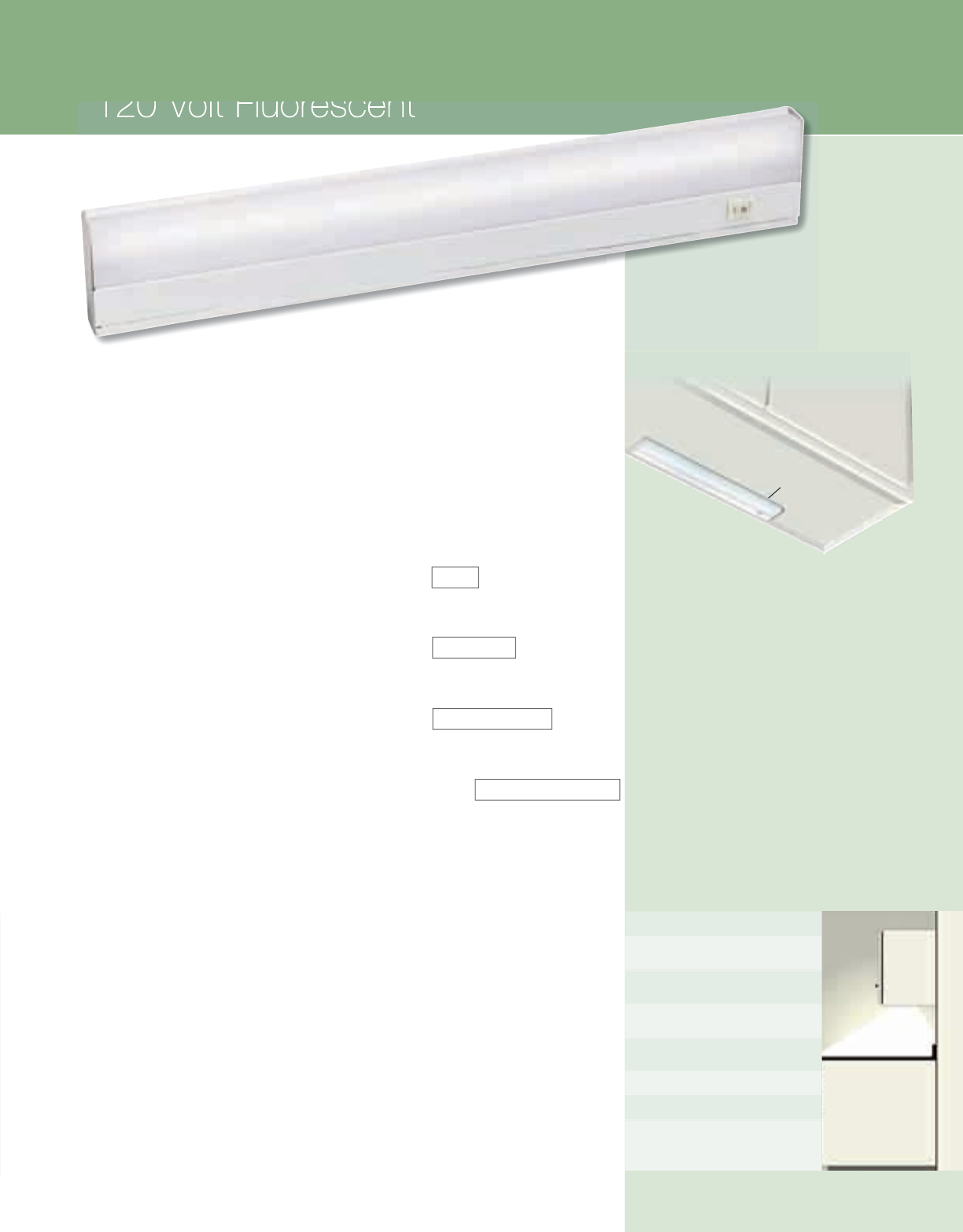

TaskWork Direct Wire

120 Volt Fluorescent

A B C

D

120

Volt

Fluorescent

KICHLER.COM 29

Fixtures may be used individually, snapped

directly together or connected via interconnect

cables to customize the lighting installation.

10042 WH

n 2700K Correlated Color Temperature

n 1" Profile x 3-1/2" W

n Snap-in etched and ribbed diffuser

n Hinged assembly

n Keyhole mounting

n Multiple KO’s for installation ease

n Side KO’s for optional end-to-end assembly

n UL listed NM & BX single cable connector included

n On-off Switch

n Built-in transformer

n cUL Listed

FEATURES

BACK MOUNT DESIGN

10041 WH

n 8 Watts Max T5 Fluorescent lamp included

n 12-1/4" L x 3-1/2" W x 1" H

10042 WH

n 13 Watts Max T5 Fluorescent lamp included

n 21-1/2" L x 3-1/2" W x 1" H

10043 WH

n 21 Watts Max T5 Fluorescent lamp included

n 34-1/2" L x 3-1/2" W x 1" H

10044 WH

n 28 Watts Max T5 Fluorescent lamp included

n 36-1/2" L x 3-1/2" W x 1" H

Accessories

10582 WH - 38" Power Cord and Plug

Accessory (not shown)

10588 SI - Duplex BX Cable Connector

n Connects two cables to any convenient

wireway knockout located on the fixture. This

allows for a group of fixtures to be wired in

series, using a single knockout. Connector is

listed for use with 14-2 steel armored cable,

3/8 trade size reduced wall flexible steel,

aluminum conduit or steel flexible metal

conduit (not shown)

10589 SI - Connector for NM & BX cable

n UL listed for both non-metal (NM) or BX cables

n Connects a single cable to any convenient

wireway knockout located on the fixture

1

SELECT APPROPRIATE LIGHT

FIXTURE SIZE. DETERMINE

DIRECT WIRE OR CORD &

PLUG POWER SUPPLY.

STEP

TaskWork Direct Wire

Fluorescent is a traditional

choice for electricians who

require a low cost solution

to finish a job.

PERFORMANCE DATA (10041)

LUMENS/WATT 47.5

LIGHT OUTPUT FC 11.4

(COUNTER FRONT)

LIGHT OUTPUT FC 22.7

(COUNTER MIDDLE)

LIGHT OUTPUT FC 33.5

(COUNTER BACK)

LIGHT OUTPUT FC 11.8

(COUNTER WALL)

CRI (COLOR RENDERING) 85

CCT (COLOR TEMPERATURE) 2700K

LIGHT SOURCE 7,500

LIFE (HRS)

A

B

C

D

TaskWork Direct

Wire 120 Volt

34-1/2"

46-1/2"

21-1/2"

12"

1522523 KL_CLSlayout.indd 29 12/2/09 2:56 PM

Installation photo employs (3) 30" TaskWork 12V Direct Wire units

under each cabinet section and above each cabinet section.

(3) TaskWork Bright Discs are used per each island shelf.

From under kitchen cabinets to inside bookshelves,

TaskWork Bright Discs put a touch of 20 Watt light where

you need it. They offer high quality, all-metal casings in

six popular finishes, and versatile, Class 2 transformer

choices simplify professional installation in virtually any

new construction or remodeling application.

Accentuate

the everyday

12501 BZ

1" H x 3" D

Shown in Bronze

(actual size)

30 Kichler® Lighting

TaskWork Bright Disc

12 Volt Xenon

1522523 KL_CLSlayout.indd 30 12/4/09 12:27 PM

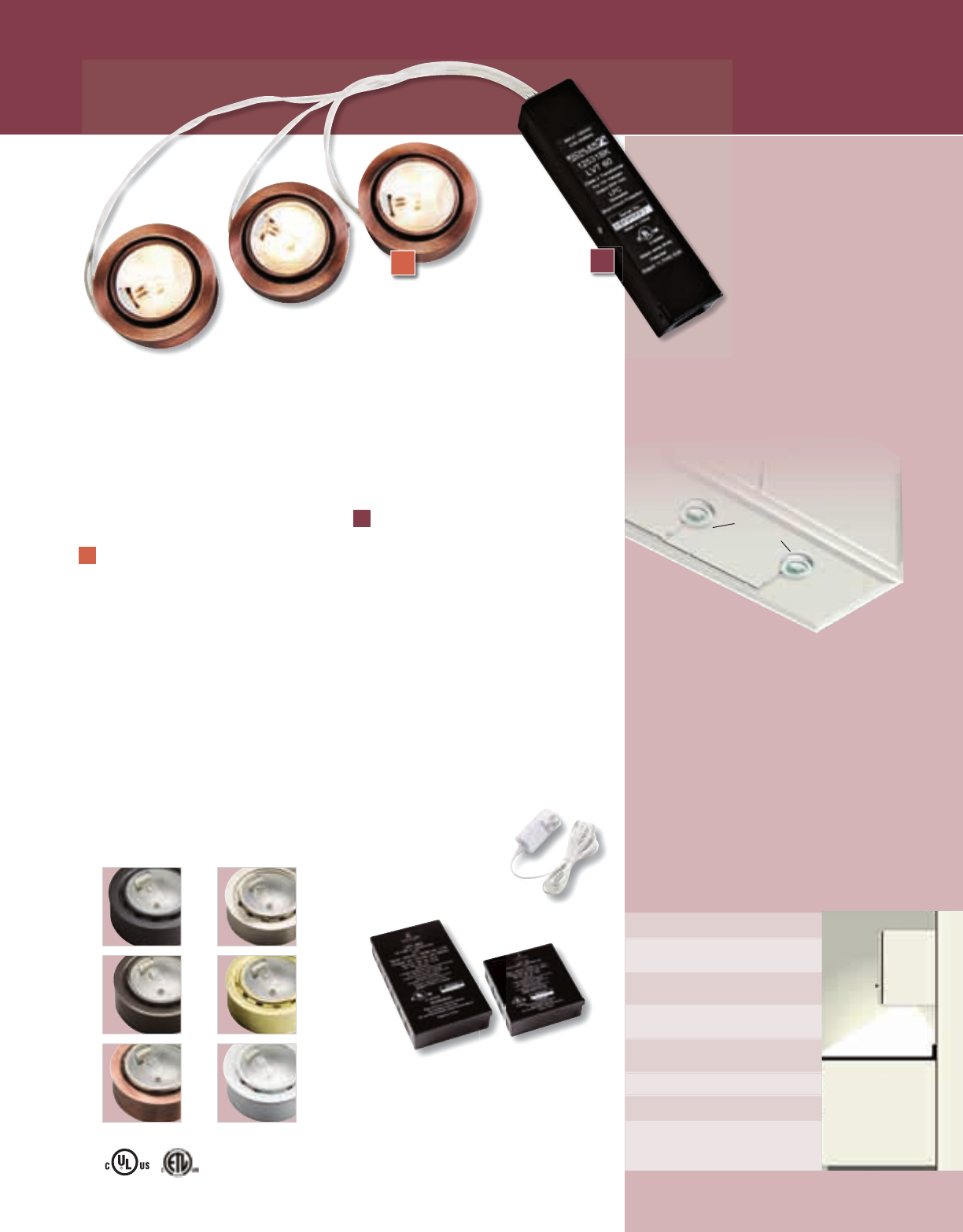

A B C

D

KICHLER.COM 31

1

12533 BK

Transformer

SELECT NUMBER

OF BRIGHT DISCS

& FINISH 2SELECT POWER

SUPPLY

STEP

12501 BK – Black

12501 BZ – Bronze

12501 CO – Copper

12501 NI – Nickel

12501 PB – Polished Brass

12501 WH – White

n 1 light, 1" H x 3" D

n Supplied with 72" of lead wire

n 12 Volt, 20 Watt Xenon bulb included

Replacement Bulb

12590 CLR - Replacement Bulb

n 12 Volt, 20 Watt replacement bulb

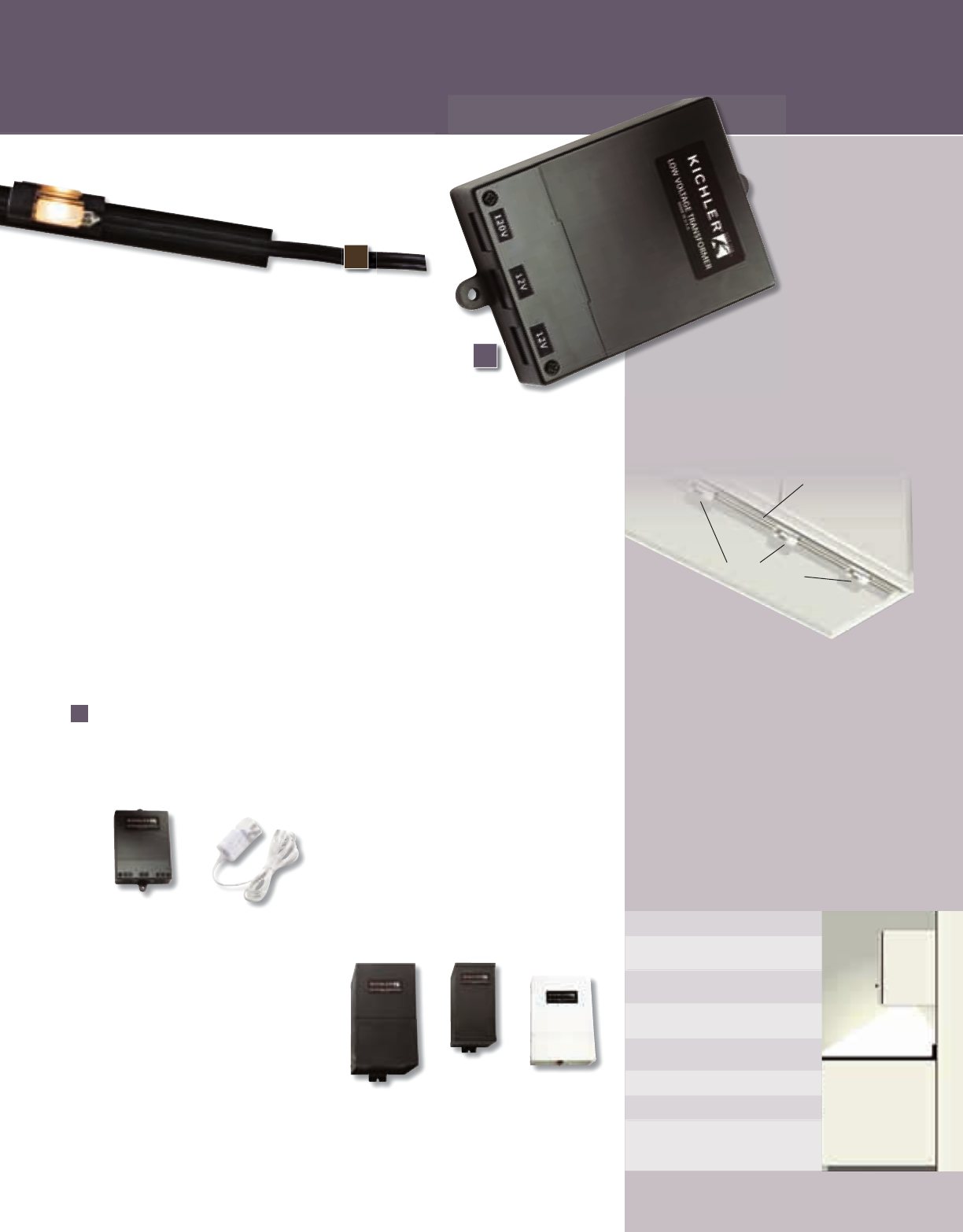

12531 BK 60 Watt – 12 Volt

Enclosed Electronic Transformer

n 6-1/2" H x 1-1/2" W x 1-1/2" D

n Class 2

12533 BK 3x60* (180) Watt 12 Volt

Enclosed Electronic Transformer

n 5-1/4" H x 4-3/4" W x 1-3/4" D

n Class 2

12534 BK 6x60* (360) Watt 12 Volt

Enclosed Electronic Transformer

n 8-1/2" H x 5-1/4" W x 1-3/4" D

n Class 2

Plug-In Transformer

12532 BK, WH 60* Watt 12 Volt

Electronic Transformer

n Class 2

* 20 Watt Minimum load

required for each

60 Watt transformer

STEP

B

A

A

B

n 1" Profile x 3" D

n 12 Volt, 20 Watt Xenon bulb

n Suitable for recessed or flush mount

installations. Not suited for ceiling or

wall installation.

n Durable Nickel, Copper, Polished Brass, Powder-

Coated White, Bronze or Black finishes available

n cUL Listed Class 2

FEATURES

UNIVERSAL MOUNT DESIGN

AVAILABLE FINISHES

Black (BK), Bronze (BZ), Copper (CO), Nickel (NI),

Polished Brass (PB) and White (WH)

BZ

BK NI

CO

PB

WH

PERFORMANCE DATA

LUMENS/WATT 4.9

LIGHT OUTPUT FC 14.5

(COUNTER FRONT)

LIGHT OUTPUT FC 57.7

(COUNTER MIDDLE)

LIGHT OUTPUT FC 73

(COUNTER BACK)

LIGHT OUTPUT FC 40.5

(COUNTER WALL)

CRI (COLOR RENDERING) 100

CCT (COLOR TEMPERATURE) 3000K

LIGHT SOURCE 5,000

LIFE (HRS)

A

B

C

D

12534 BK

Transformer

12501 CO

TaskWork

Bright Disc

shown in Copper

12531 BK

Remote

Transformer

TaskWork

Bright Disc

1522523 KL_CLSlayout.indd 31 11/30/09 8:21 AM

TaskWork Linear

12 Volt & 24 Volt Xenon

Bring light

to any and

every space

10215 BK

1-15/16" L x 11/16" W x 3/4" H

Shown in Black (actual size)

10215 WH

1-15/16" L x 11/16" W x 3/4" H

Shown in White (actual size)

10215

WH

1-15/16"

L

x

11/16"

W

x

3/4"

H

1522523 KL_CLSlayout.indd 32 11/30/09 12:35 PM

KICHLER.COM 33

Put away the special tools. With Kichler TaskWork Linear Lighting, you’ll have versatile, low voltage xenon lighting that

installs in a snap. The low-profile units help you create a customized design under, above or inside cabinetry to produce

instant lighting interest.

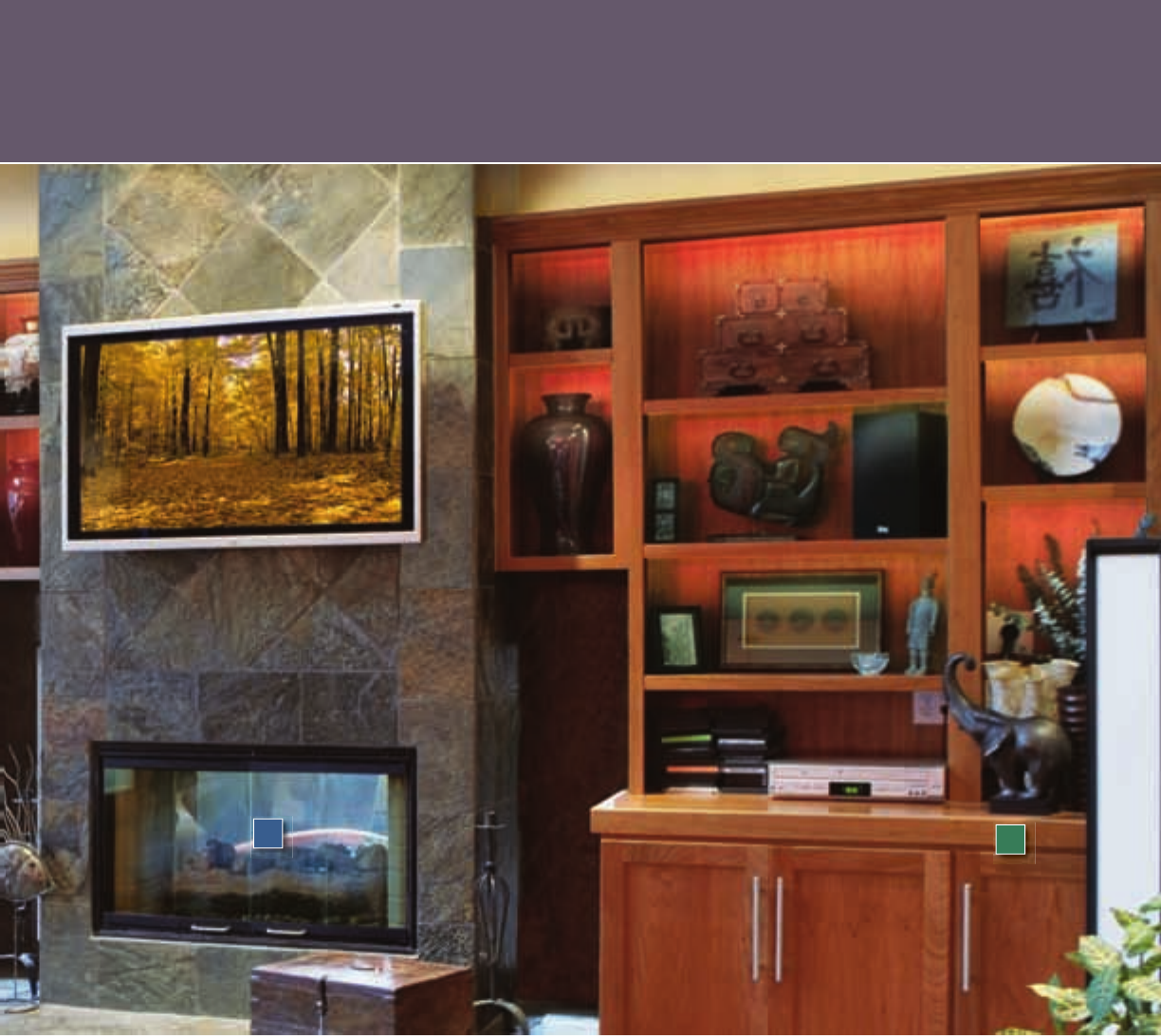

Installation photo employs 27'-0" of TaskWork Linear lighting

with 5 watt lamps installed every 4" including each shelf.

F

E

1522523 KL_CLSlayout.indd 33 11/30/09 12:35 PM

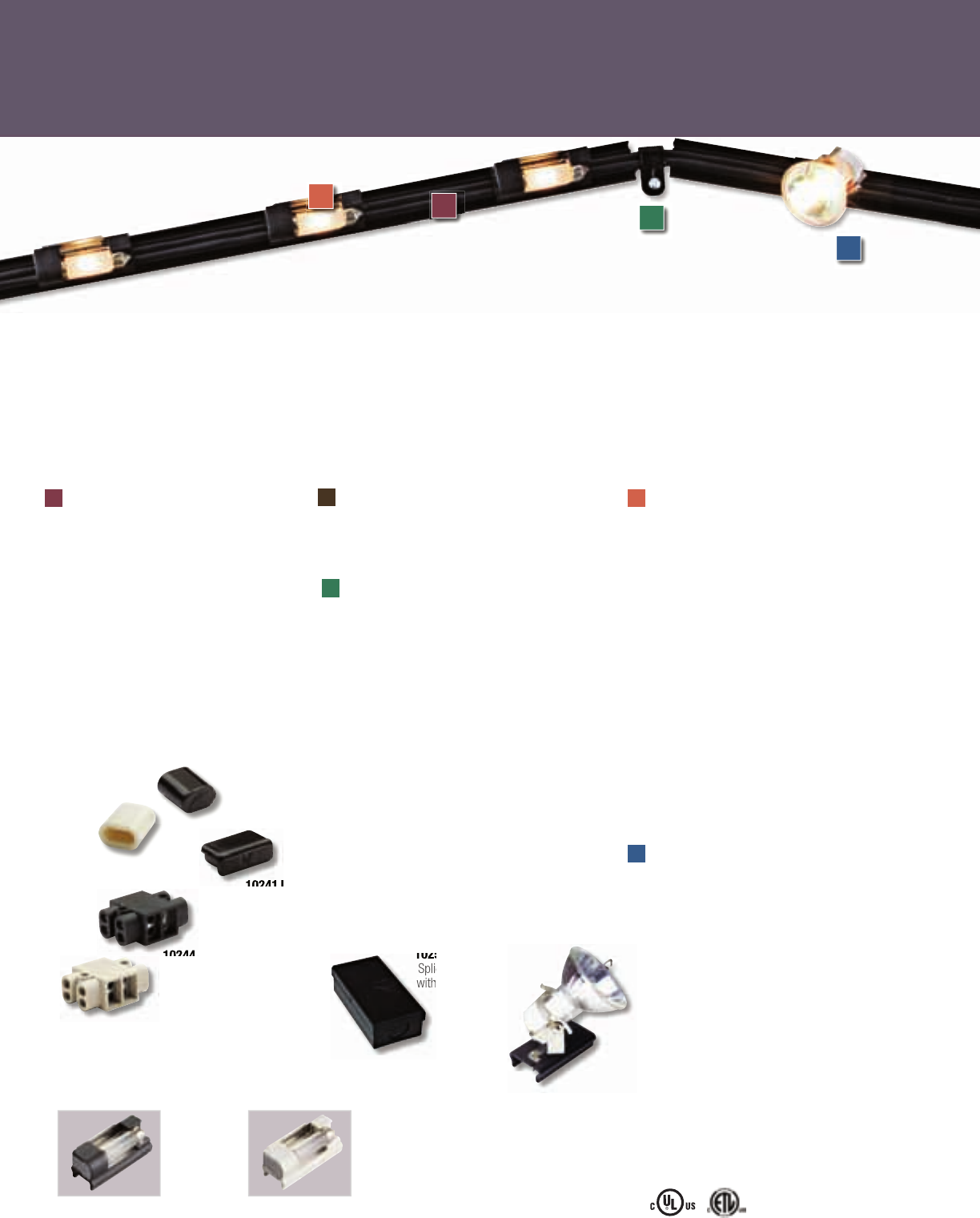

10241 BK, WH

Track End Caps

10244 BK, WH

Splicing Block

Connector

(listed enclosure

required)

10240 BK, WH

Wire End Caps

TaskWork Linear

12 Volt & 24 Volt Xenon

10261 BK, WH

Multi-Directional Fixture

with

10256 CLR

Multi-Directional Lamp

10254 BK, WH

Splicing Block

with Enclosure

34 Kichler® Lighting

AVAILABLE FINISHES

Black (BK) and White (WH)

AB

A

E

3

SELECT NUMBER OF

IN-LINE OR DIRECTIONAL

FIXTURES AND FINISH. FOR

IN-LINE, SELECT VOLTAGE & WATTAGE.

FOR DIRECTIONAL, SELECT 12º SPOT

OR 26º FLOOD & VOLTAGE.

STEP

In-Line Fixture

10215 BK, WH – 12 Volt/5 Watt

10216 BK, WH – 12 Volt/10 Watt

10217 BK, WH – 24 Volt/5 Watt

10218 BK, WH – 24 Volt/10 Watt

■ Shipped with frosted bulb pre-installed

■ Easy to handle, no sharp edges,

no bent reflectors

■ Less than width of track

In-Line Replacement Lamps

10245 – 12 Volt/5 Watt

10246 – 24 Volt/5 Watt

10247 – 12 Volt/10 Watt

10248 – 24 Volt/10 Watt

■ Bright Xenon bulb

■ Frosted for no glare

■ 5 or 10 Watt options

Multi-Directional Fixture

10261 BK, WH

■ Order bulbs separately

■ G4, MRC-11

■ Added versatility for your Linear Lighting

■ Highlight architectural features

■ Overall dimensions (with bulb)

2-1/4" H x 1-1/2" W x 1-1/2" H

■ Maintain clearance of 3" from other

surfaces. Space no closer than 3" from

other lampholders

Multi-Directional Lamps

10256 CLR – 12 Volt, 12º spot (20 Watt)

10257 CLR – 12 Volt, 26º flood (20 Watt)

10258 CLR – 24 Volt, 12º spot (20 Watt)

10259 CLR – 24 Volt, 26º flood (20 Watt)

■ Rated life 2,000 hours

C

F

2LOW-VOLTAGE

CABLE

STEP

10230 BK, WH – Linear Cable 25 Feet

10232 BK, WH – Linear Cable 100 Feet

10233 BK, WH – Linear Cable 500 Feet

10234 BK, WH – Linear Cable 1000 Feet

Stabilizer Clip

10242 BK, WH

■ Designed to attach Kichler Linear SPT cable

to any wood surface

■ Prevents cable from sagging

■ Allows for making turns in cable in areas where

cable is not supported by track

Splicing Block Connector

10244 BK, WH (listed enclosure required)

10254 BK, WH - Splicing Block With Enclosure

■ Four connections allow up to four rounds of

NM or Kichler’s SPT cable in any combination

■ Possible combinations

1. NM cable in and up to three SPT cables out

2. SPT cable in and up to three SPT cables out

3. NM cable in and up to three NM cables out. All

wiring should be in accordance with local and

national codes

1

EASY-TO-INSTALL

TRACK

STEP

10243 BK, WH (50-pack)

10283 BK, WH (10-pack)

■ Snaps on the score, every 6"

■ Captive screws every 6"

■ White or Black finish

■ 4' linear track

Accessories

10240 BK, WH – Wire End Caps

10241 BK, WH – Track End Caps

10298 WH – Double-Sided Tape (1/2" x 15')

10299 – Box Of Screws (100 pieces)

B

10243 BK or

10283 BK

Linear Track

10242 BK

Stabilizer Clip

10261 BK

Multi-Directional

Fixture

10215 BK

In-Line Fixture

10215 BK

In-Line Fixture

10215 WH

In-Line Fixture

’

F

E

./B&/6OD\RXWLQGG $0

KICHLER.COM 35

D

4SELECT POWER

SUPPLY

MORE THAN ONE POWER

SUPPLY MAY BE NEEDED

STEP

D

n Resettable short-circuit protection

n Built-in overload protection

n All transformers are UL 2108 listed

n Magnetic Premium Transformers have screw

terminals for faster wiring, no wire nuts. Slim

profile allows for easily concealed mounting.

Electronic/Plug-In Transformers

10214 BK, WH – 12 Volt/75 Watt

Electronic Plug-in Transformer

n 10' of linear cable attached

n 3" D x 9" H x 5" L

Electronic Transformers

10210 BK – 12 Volt/150 Watt

Electronic Hardwire Transformer

n 35-Watt minimum load required

n 1-1/2" D x 4" H x 4" L (not shown)

Remote Magnetic Transformers

10205 BK – 12 Volt/150 Watt Magnetic

n 3-1/2" D x 6" H x 3" L

10204 BK – 12 Volt/300 Watt Magnetic

n 4-1/8" D x 6" H x 3-1/2" L

10206 BK – 12 Volt/2 x 300 Watt Magnetic

n 5" D x 9-1/2" H x 4-1/2" L

10208 BK – 24 Volt/300 Watt Magnetic

n 4-1/8" D x 6" H x 3-1/2" L

10209 BK – 24 Volt/600 Watt Magnetic

n 4-7/8" D x 9-1/2" H x 4-1/2" L

10219 BK – 24 Volt/2 x 600 Watt Magnetic

n 6" D x 10-1/2" H x 5-1/2" L

Remote Magnetic Premium Transformers-

Exclusively by Kichler®

10207 WH – 12 Volt/150 Watt magnetic

n 6-3/4" D x 2-5/16" H x 10" L

10213 WH – 12 Volt/300 Watt magnetic

n 6-3/4" D x 2-5/16" H x 10" L

10211 WH – 12 Volt/2 x 300 Watt magnetic

n 6-3/4" D x 2-5/16" H x 10" L

n Low profile

n Flexible installation

n Black and White finish

n 12 Volt and 24 Volt options

n 5 Watt and 10 Watt options

n cUL Listed

FEAtuRES

FRoNt MouNt DESIgN

10219 BK (shown)

10208 BK

10209 BK

Magnetic Transformers

10206 BK

(shown)

10204 BK

10205 BK

Magnetic

Transformers

10207 WH (shown)

10213 WH

10211 WH

Magnetic Premium

Transformers

10210 BK

Hardwire Electronic

Transformers

C

A

B

C

D

PERFoRMANCE DAtA

(10216 10 WAtt oN 4" CENtER)

LUMENS/WATT 4.8

LIGHT OUTPUT FC 14

(COUNTER FRONT)

LIGHT OUTPUT FC 27

(COUNTER MIDDLE)

LIGHT OUTPUT FC 32

(COUNTER BACK)

LIGHT OUTPUT FC 28

(COUNTER WALL)

CRI (COLOR RENDERING) 100

CCT (COLOR TEMPERATURE) 2800K

LIGHT SOURCE 3,000

LIFE (HRS)

A B C

D

10230 BK

Linear Cable

10210 BK

Electronic

Transformer

10214 BK, WH

Plug-In Electronic

Transformers

Track and Cable

TaskWork Linear

1522523 KL_CLSlayout.indd 35 11/24/09 10:33 AM

36 Kichler® Lighting

DESIgN PRo LED LINEAR

DESIgN PRo LED DISC

DESIgN PRo LED MoDuLAR

DESIgN PRo LED

DIRECt WIRE

Selection Guide

INStALLAtIoN

n Flexible installation with or without track

n Position as needed in coves, tray ceilings,

cabinets, toekicks and over cabinets

n Class 2 rated

n Plug-in power supply available

kEy FEAtuRES

n Low profile

n Equidistant spaced light

n Can be linked with LED Strip and Disc system

n Black and White finish

n Class 2 Listed

INStALLAtIoN

n Interconnect

n Fixtures Interconnect

n Plug-in power supply available

n Center mount

n Easy to mount with captive screws

n Class 2 rated

n Remote power supply*

kEy FEAtuRES

n Ultra-Thin 3/8" Profile x 2-3/4" D

n Color Rendering Index > 90 CRI

n High brightness LED

n Higher efficiency

n 3,000K correlated color temperature average

is similar to Halogen & Xenon

n Long life light source (40,000 HRS)

n Captive screws for ease of installation

n Class 2 Listed

Kichler Design Pro LED Undercabinet and Disc System

meets ENERGY STAR Requirements when used with

our Remote Power Supplies 12380BK and 12382BK, a

minimum of any 3 fixtures, and a minimum of 20 watts.

Kichler Design Pro LED Undercabinet and Disc System

meets ENERGY STAR Requirements when used with

our Remote Power Supplies 12380BK and 12382BK, a

minimum of any 3 fixtures, and a minimum of 20 watts.

INStALLAtIoN

n Interconnect

n Fixtures interconnect

n Plug-in power supply available

n Front mount

n Easy to mount with captive screws

n Class 2 rated

n Remote power supply*

kEy FEAtuRES

n Ultra-Thin 1/2" Profile

n Color Rendering Index > 90 CRI

n High brightness LED

n Higher efficiency

n 3,000 K correlated color temperature average

is similar to Xenon

n Long life light source (40,000 HRS)

n Ability to snap fixtures together or interconnect

to create an even flow of light

n Captive screws for ease of installation

n Class 2 Listed

INStALLAtIoN

n Direct wire

n All-in-one unit

kEy FEAtuRES

n Color Rendering Index – mid 80’s

n High brightness LED

n High efficiency

n 3000K correlated color temperature average

±150K is similar to Xenon

n Long life light source (40,000 Hours)

n 1" Profile x 4-1/2" W

n Hinged assembly

n Keyhole mounting

n Multiple KO’s for installation ease

n Side KO’s for optional end-to-end assembly

n UL listed NM & BX single cable connector included

n On-off Switch

n Built-in transformer/driver

1522523 KL_CLSlayout.indd 36 11/24/09 10:34 AM

KICHLER.COM 37

tASkWoRk MoDuLAR

12 VoLt xENoN

tASkWoRk MoDuLAR

120 VoLt xENoN

tASkWoRk DIRECt WIRE

12 VoLt xENoN

tASkWoRk DIRECt WIRE

120 VoLt xENoN

*Installation Tip: To avoid frequency interference, locate

and install Transformer/Power Supplies at least 3 ft. from

television, computer, radio or other electronic receivers.

INStALLAtIoN

n Front mount

n Optional direct wire

n Fixtures interconnect

kEy FEAtuRES

n 1" Profile x 5" W

n 120 Volt, 20 Watt Xenon Bulb(s)

n Direct wire or inter-connectability

n Unique front-mount design as recommended by the

American Lighting Association or optional rear mount

n Ability to snap fixtures together to create an even flow of light

n Durable Anodized Bronze, Brushed Stainless Steel or

Powder-Coated White finish

n High/Low/On-Off Switch

INStALLAtIoN

n Direct wire

n Built-in transformer*

kEy FEAtuRES

n 1" Profile x 5" W

n 12 Volt, 18 Watt Xenon Bulb(s)

n Durable, Brushed Stainless Steel or Powder-Coated White

or Bronze finishes

n Fastener-free hinge assembly

n Keyhole mounting

n Easy-lock poly-tempered glass diffuser.

n Single BX Connector Included

n High/Low/On-Off Switch

n Built-in electronic transformer

INStALLAtIoN

n Direct wire

kEy FEAtuRES

n 1-1/4" Profile x 5" W

n 120 Volt, 20 Watt Xenon Bulb(s)

n Painted Bronze, Silver or

White finish

n High/Low/On-Off Switch

INStALLAtIoN

n Xenon – interconnect

n Fixtures interconnect

n Front mount

kEy FEAtuRES

n 1" Profile x 5" W

n 12 Volt, 18 Watt Xenon Bulb(s)

n Unique front-mount design as recommended by the American

Lighting Association

n Ability to snap fixtures together to create an even flow of light

n Captive screws for ease of installation

n Durable, Anodized Brushed Bronze, Nickel or Powder-Coated

White finish

n Extruded aluminum construction

n Hinged tempered glass diffuser

n High/Low/On-Off Switch

n Built-in electronic transformer

1522523 KL_CLSlayout.indd 37 11/24/09 10:34 AM

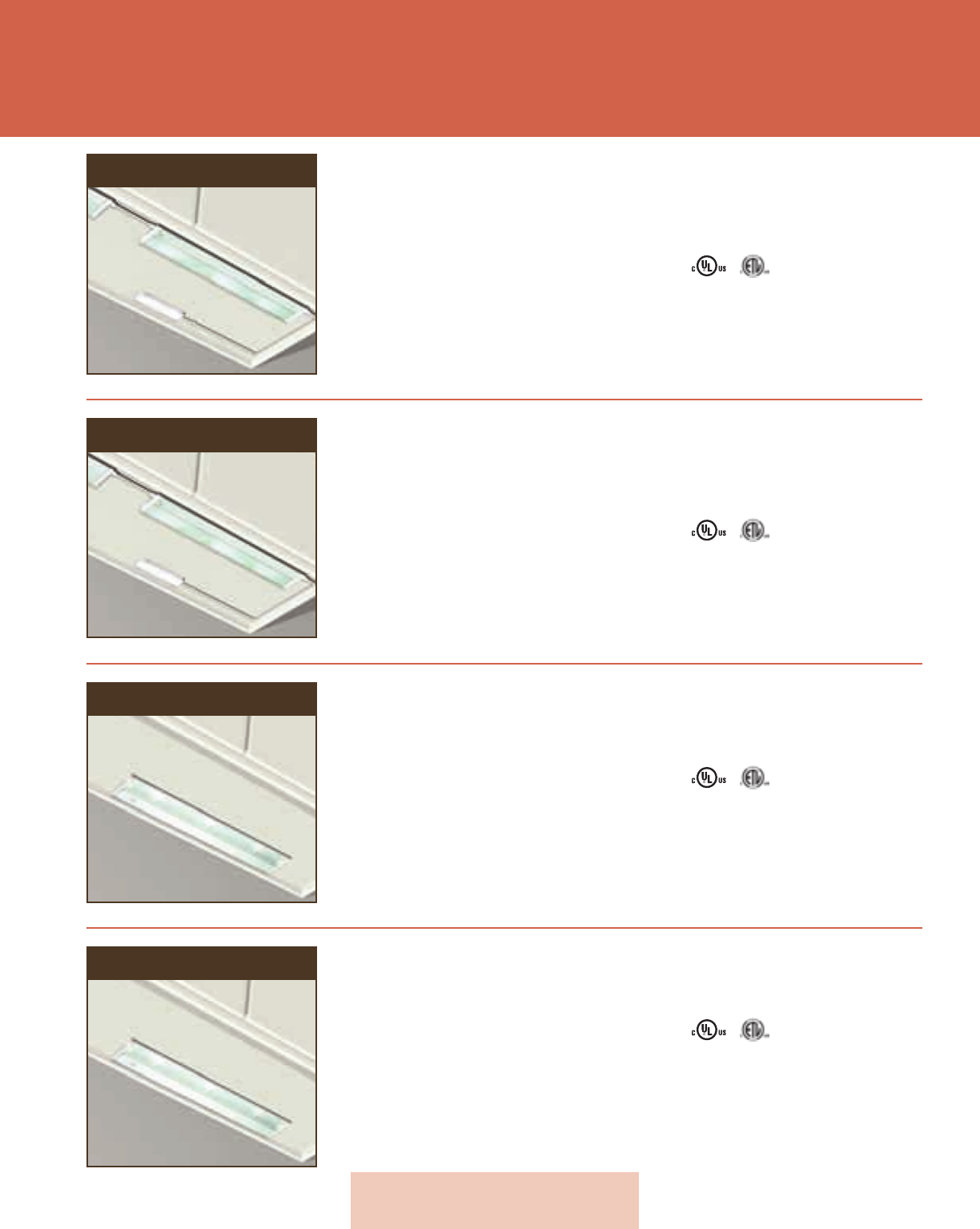

Selection Guide

tASkWoRk MoDuLAR

120 VoLt FLuoRESCENt

tASkWoRk DIRECt WIRE

120 VoLt FLuoRESCENt

tASkWoRk BRIgHt DISC

12 VoLt xENoN

tASkWoRk LINEAR

12 VoLt & 24 VoLt xENoN

38 Kichler® Lighting

INStALLAtIoN

n Fluorescent – direct wire & interconnect

n Fixtures interconnect

n Front mount

kEy FEAtuRES

n 1" Profile x 5" W

n T5 fluorescent lamps included

n Unique front-mount design as recommended by the American

Lighting Association

n Ability to snap fixtures together to create an even flow of light

n Captive screws for ease of Installation

n Durable Powder-Coated White finish

n Extruded aluminum construction

n White polycarbonate diffuser

n On-Off Switch

n Electronic ballast

INStALLAtIoN

n Direct wire

n All-in-one unit

kEy FEAtuRES

n 2700K Correlated Color Temperature

n 1" Profile x 3-1/2" W

n Snap-in etched and ribbed diffuser

n Hinged assembly

n Keyhole mounting

n Multiple KO’s for installation ease

n Side KO’s for optional end-to-end assembly

n UL listed NM & BX single cable connector included

n On-off Switch

n Built-in transformer

INStALLAtIoN

n Flexible mounting

n Class 2 rated

n Remote transformer*

kEy FEAtuRES

n 1" Profile x 3" D

n 12 Volt, 20 Watt Xenon Bulb

n Suitable for recessed or flush mount installations.

Not suited for ceiling or wall installation.

n Durable Nickel, Copper, Polished-Brass, Powder-Coated

White, Bronze or Black finishes available

n UL Listed Class 2

INStALLAtIoN

n Flexible mounting

n Easy to mount with

captive screws in track

n Remote transformer*

kEy FEAtuRES

n Flexible installation

n Black and White finish

n 12 Volt and 24 Volt options

n 5 and 10 Watt options

*Installation Tip: To avoid frequency interference, locate

and install Transformer/Power Supplies at least 3 ft. from

television, computer, radio or other electronic receivers.

1522523 KL_CLSlayout.indd 38 11/24/09 10:34 AM

Awards & Notable Distinctions

• 2009 Hanley Wood Building Products

MVP Award Winner

• 2009 Hanley Wood Green Proucts Award

• 2009 Professional Builder/Professional Remodeler

Top 100 New Products Awards

• ENERGY STAR: America’s First ENERGY STAR rated

residential solid state LED under-cabinet lighting product

• 2009 ADEX Platinum Award Winner

• 2008 Lighting for Tomorrow Award

• 2008 Green Builder Magazine – Sustainable

“HOT 50” Winner

• 2008 Eco Home Magazine – Editor’s Choice Award

• 2008 Kitchen & Bath Business Product Innovator Award

– Honorable Mention

• 2008-2009 Syndicated Home Improvement Shows

• The Daily Buzz – Environmentally Conscious Innovation

for the Home

Index

Item ID Page

10026 WH

10027 WH

10028 WH

10041 WH

10042 WH

28

28

28

29

29

10043 WH

10044 WH

10204 BK

10205 BK

10206 BK

29

29

35

35

35

10207 WH

10208 BK

10209 BK

10210 BK

10211 WH

35

35

35

35

35

10213 WH

10214 BK

10214 WH

10215 BK

10215 WH

35

35

35

34

34

10216 BK

10216 WH

10217 BK

10217 WH

10218 BK

34

34

34

34

34

10218 WH

10219 BK

10230 BK

10230 WH

10232 BK

34

35

34

34

34

10232 WH

10233 BK

10233 WH

10234 BK

10234 WH

34

34

34

34

34

10240 BK

10240 WH

10241 BK

10241 WH

10242 BK

34

34

34

34

34

10242 WH

10243 BK

10243 WH

10244 BK

10244 WH

34

34

34

34

34

10245

10246

10247

10248

10254 BK

34

34

34

34

34

10254 WH

10256 CLR

10257 CLR

10258 CLR

10259 CLR

34

34

34

34

34

Item ID Page

10261 BK

10261 WH

10283 BK

10283 WH

10298 WH

34

34

34

34

34

10299

10299 BK

10560 WH

10561 WH

10562 WH

8, 34

8

23

23

23

10563 BRZ

10563 NI

10563 WH

10564 BRZ

10564 NI

22

22

22

22

22

10564 WH

10565 BRZ

10565 NI

10565 WH

10566 BRZ

22

22

22

22

22

10566 NI

10566 WH

10567 BRZ

10567 NI

10567 WH

22

22

22

22

22

10568 BRZ

10568 NI

10568 WH

10569 BRZ

10569 NI

22

22

22

22

22

10569 WH

10570 BK

10570 WH

10571 BK

10571 WH

22, 28

22, 25

22, 25, 28

23, 24

23, 24, 28

10572 BK

10572 WH

10573 BK

10573 WH

10574 CLR

23, 24

23, 24, 28

23, 24

23, 24, 28

23, 26

10575 BRZ

10575 NI

10575 WH

10579 BZ

10579 SS

22

22

22, 28

26

26

10579 WH

10580 BZ

10580 SS

10580 WH

10581 BZ

26

26

26

26

26

10581 SS

10581 WH

10582 WH

10584 BZ

10584 SS

26

26

19, 26, 29

26

26

Item ID Page

10584 WH

10585 BRZ

10585 NI

10585 WH

10586 WH

26

22

22

22

23

10587 BRZ

10587 NI

10587 WH

10588 SI

10589 SI

22

22

22

19, 26, 29

19, 26, 29

10595 BZ

10595 SS

10595 WH

12011 BZ

12011 SI

26

26

26

27

27

12011 WH

12012 BZ

12012 SI

12012 WH

12013 BZ

27

27

27

27

27

12013 SI

12013 WH

12014 BZ

12014 SI

12014 WH

27

27

27

27

27

12051 BZ

12051 SS

12051 WH

12052 BZ

12052 SS

19

19

19

19

19

12052 WH

12053 BZ

12053 SS

12053 WH

12054 BZ

19

19

19

19

19

12054 SS

12054 WH

12090 CLR

12211 BZ

12211 SS

19

19

27

24

24

12211 WH

12212 BZ

12212 SS

12212 WH

12213 BZ

24

24

24

24

24

12213 SS

12213 WH

12214 BZ

12214 SS

12214 WH

24

24

24

24

24

12215 BZ

12215 SS

12215 WH

12301 BRZ

12301 NI

24

24

24

16

16

Item ID Page

12301 WH

12303 BRZ

12303 NI

12303 WH

12305 BRZ

16

16

16

16

16

12305 NI

12305 WH

12310 BK

12310 BRZ

12310 NI

16

16

12

12

12

12310 WH

12320 BK

12320 WH

12323 BK

12323 WH

12

8

8

8

8

12330 BK

12330 WH

12332 BK

12333 BK

12335 BK

8

8

8

8

8

12335 WH

12338 BK

12338 WH

12339 BK

12339 WH

8

8

8

8

8

12341 BK

12341 WH

12342 BK

12342 WH

12343 BK

12, 16

12, 16

12, 16

12, 16

12, 16

12343 WH

12344 BK

12344 WH

12345 BK

12345 WH

12, 16

9, 13, 17

9, 13, 17

12, 16

12, 16

Item ID Page

12346 BK

12346 WH

12347 BK

12347 WH

12348 BK

9, 13, 17

9, 13, 17

12

12

12, 16

12348 WH

12349 BK

12349 WH

12350 BK

12350 WH

12, 16

12, 16

12, 16

12, 16

12, 16

12351 BK

12351 WH

12353 BK

12353 WH

12354 BK

12, 16

12, 16

9, 13, 17

9, 13, 17

12

12354 WH

12380 BK

12382 BK

12383 BK

12383 WH

12

9, 13, 17

9, 13, 17

9, 13, 17

9, 13, 17

12384 BK

12384 WH

12501 BK

12501 BZ

12501CO

9, 13, 17

9, 13, 17

31

31

31

12501 NI

12501 PB

12501 WH

12531 BK

12532 BK

31

31

31

31

31

12532 WH

12533 BK

12534 BK

12590 CLR

31

31

31

31

KICHLER.COM 39

1522523 KL_CLSlayout.indd 39 12/2/09 2:54 PM

B

BB

B

C

C

Design Pro LED Modular

See pages 14-17

KICHLER® LIGHTING

World Headquarters

7711 E. Pleasant Valley Rd.

PO Box 318010

Cleveland, Ohio 44131-8010

www.kichler.com

Distribution Centers:

Atlanta, Georgia

Cleveland, Ohio

Las Vegas, Nevada

100M/09-LS-903

Catalog No. K510

Printed in USA

© Copyright All rights reserved.

Kichler Lighting.

The majority of newer Kichler Lighting fixtures are U.S.

Patent Pending. Many are also Patent Pending in Canada.

AA

Design Pro LED Discs

See pages 10-13

Design Pro LED Linear

See pages 6-9

Design Pro LED System Applications

B CA

C

1522523 KL_CLSlayout.indd 40 11/30/09 8:23 AM
