Cable duct-CD 80X100-3240264
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://download.phoenixcontact.com)

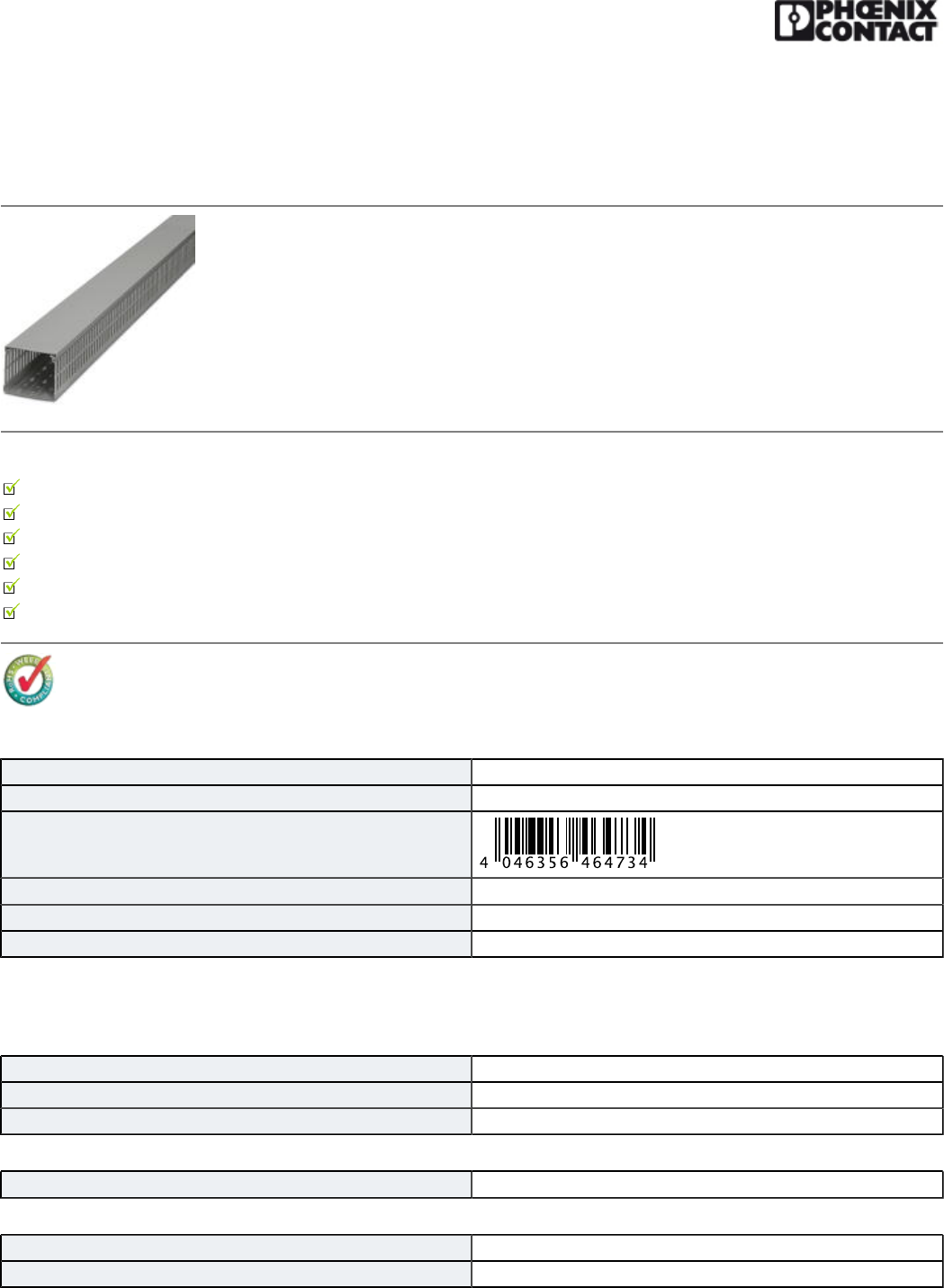

Cable duct, gray, consisting of upper and lower part, width: 80 mm, height: 100 mm, length 2000 mm
Product Features
Easy, burr-free cutting with minimum effort using the CUTFOX-CD cable duct cutter
Thanks to its leverage and special cutting geometry, the PPS CD cable duct cutter enables easy, burr-free cutting with minimum effort
Predetermined breaking point enables tool-free, burr-free removal of bars
The wide, diagonal heads of the cable duct bars make it easy to fit the cover and hold it securely in place
Installed conductors are securely held in place by means of wire retaining clips that can be snapped onto bars on the side
Plastic body-bound rivets enable easy fixing of cable ducts using the rivet setting tool
Key commercial data
Packing unit 8 pc
Minimum order quantity 8 pc
GTIN
Weight per Piece (excluding packing) 2375.0 g
Custom tariff number 39259020
Country of origin Germany
Technical data
Dimensions
Length (b) 2000 mm
Height 100 mm
Width (a) 80 mm
Ambient conditions
Ambient temperature (operation) -5 °C ... 60 °C
General
Color gray
Components Lead-free
https://www.phoenixcontact.com/in/products/3240264
04/26/2014Page2/4
Cable duct-CD 80X100-3240264
Technical data
General
Inflammability class according to UL 94 V0
Material PVC
Classifications
eCl@ss
eCl@ss 4.0 27140602
eCl@ss 4.1 27140602
eCl@ss 5.0 27140602
eCl@ss 5.1 27140602
eCl@ss 6.0 27400703
eCl@ss 7.0 27400703
eCl@ss 8.0 27400703
ETIM
ETIM 2.0 EC000012
ETIM 3.0 EC000012
ETIM 4.0 EC000012
ETIM 5.0 EC000012
UNSPSC
UNSPSC 6.01 30101815
UNSPSC 7.0901 30101815
UNSPSC 11 30101815
UNSPSC 12.01 30101815
UNSPSC 13.2 30101815
Approvals
Approvals
Approvals
CSA / UL Recognized / VDE Zeichengenehmigung
Ex Approvals
Approvals submitted
Approval details
https://www.phoenixcontact.com/in/products/3240264
04/26/2014Page3/4
Cable duct-CD 80X100-3240264
Approvals
CSA
UL Recognized
VDE Zeichengenehmigung
Accessories
Accessories
Cover

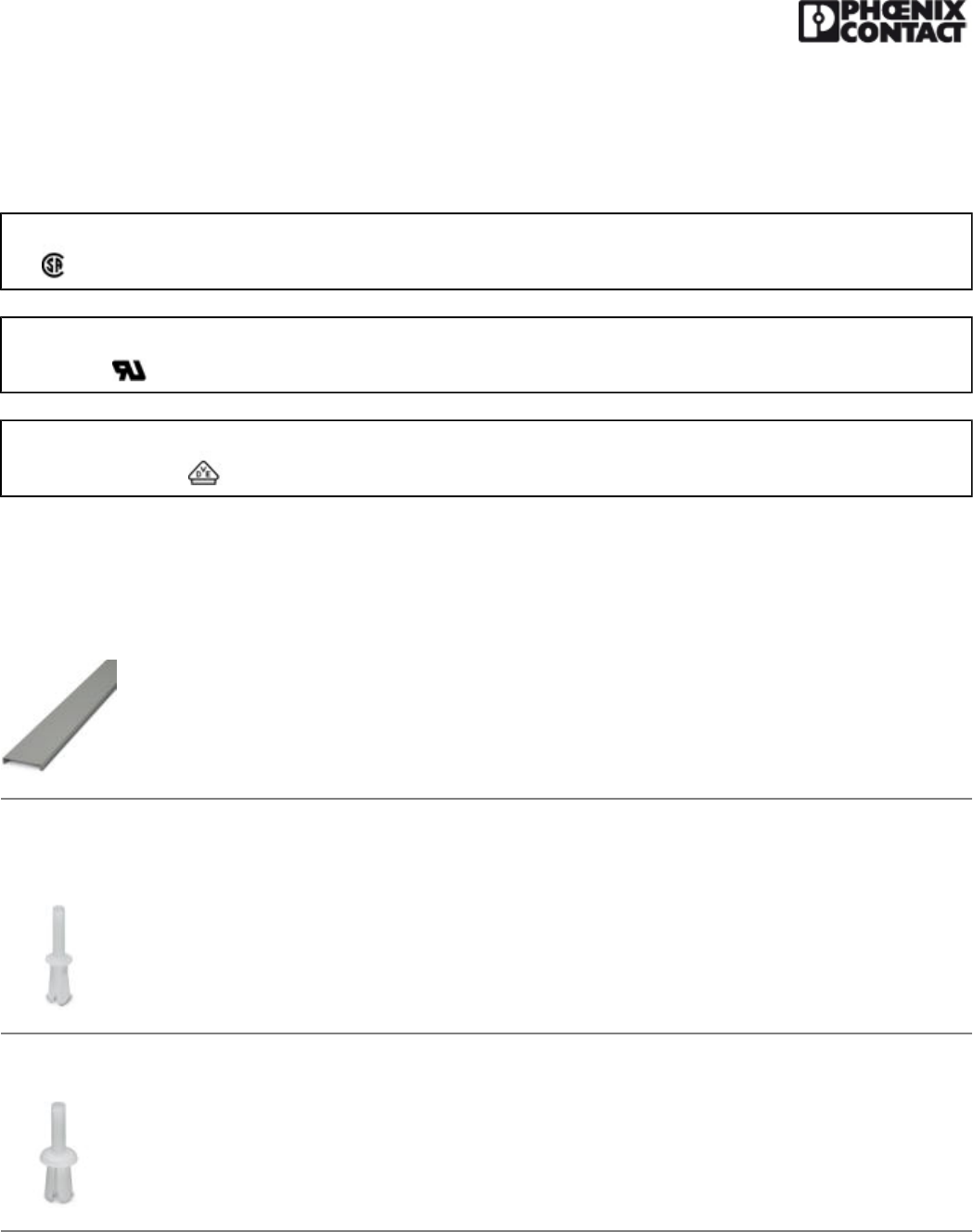

Cover profile-CD COVER 80-3240288
Cover for cable duct, gray, width: 80 mm, length: 2000 mm
Filler plug
Fastening clip-RVT-PA 4-3240498
Plastic body-bound rivet, for hole diameter of 4 mm and a material thickness of 1.5 ... 6 mm
Fastening clip-RVT-PA 6-3240499
Plastic body-bound rivet, for hole diameter of 6 mm and a material thickness of 1.5 ... 6 mm
Riveting tools
https://www.phoenixcontact.com/in/products/3240264
04/26/2014Page4/4
Cable duct-CD 80X100-3240264
Accessories

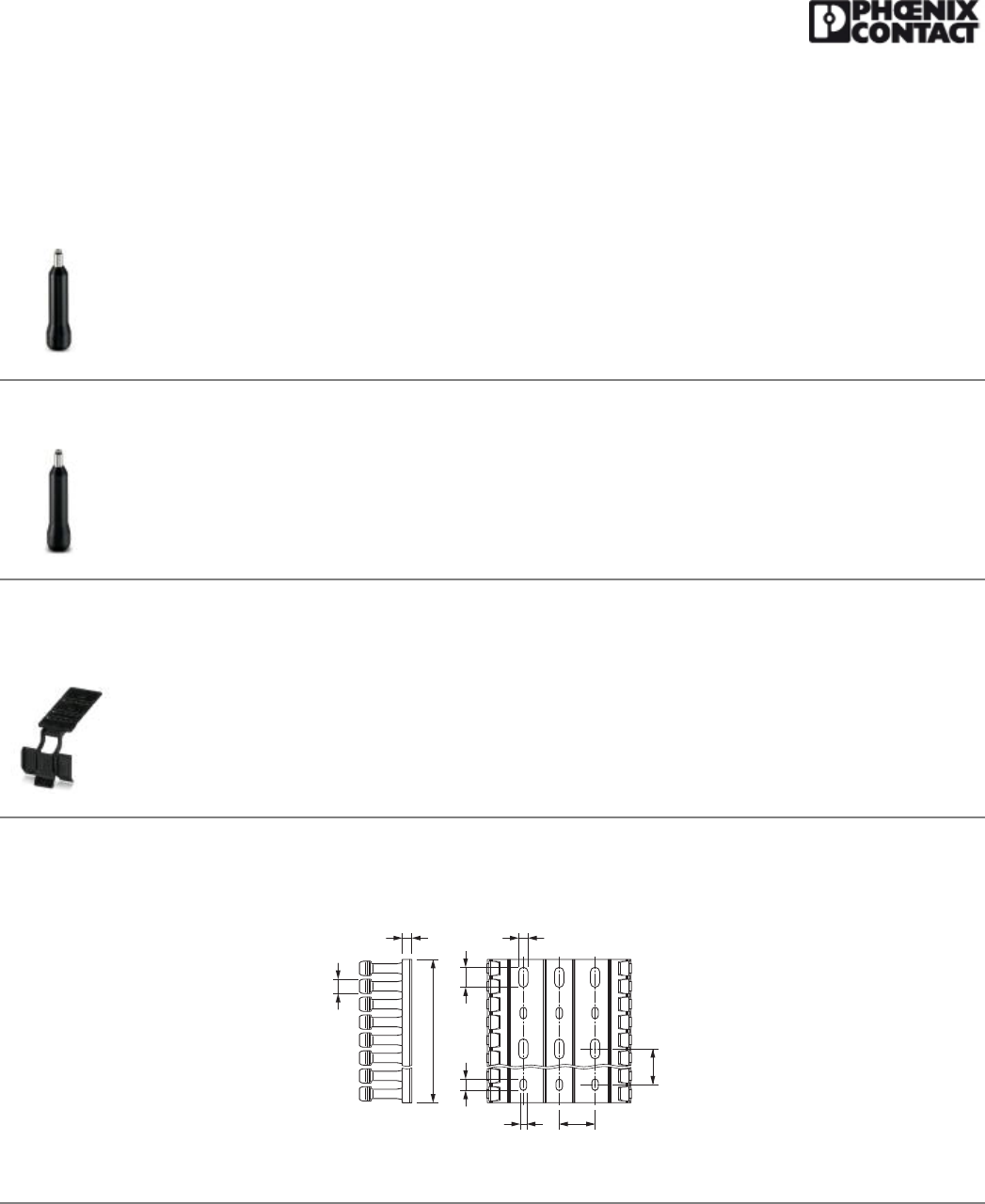

Tool-UNIFOX-RVT P 4-1212478
Rivet setting tool, for use with RVT-PA 4 plastic body-bound rivets
Tool-UNIFOX-RVT P 6-1212509
Rivet setting tool, for use with RVT-PA 6 plastic body-bound rivets
Wiring duct
Universal wire retaining clip-CD WR-3240284
Universal wire holding bracket, perforated, for wiring channels
Drawings
Dimensioned drawing
2000
10
6,8 6,5
4,5 25
814
25
Base perforation according to DIN EN 50085
Phoenix Contact 2014 © - all rights reserved
http://www.phoenixcontact.com
