Pushbuttons and Indicating Lights
22.5 mm Modular Pushbuttons—M22
Indicating Lights
Product Description
Eaton’s M22 indicating lights
use the combination of a
durable, bright LED unit and
modern lenses designed
specifically for this type of
LED to create a bright and
visible indicating light.
As with the pushbuttons, the
indicating light lenses can be
laser engraved. Indicating
lights can be ordered as
complete devices, including
lens and LED unit, or as
modular components.
Features
●Customizable laser
engraving on all lenses
●LED offering only for
improved brightness
quality and up to 100,000
hours of operation
●Lenses designed
specifically for LED
illumination
●Modular construction
makes assembly fast and
simplifies stocking of
components and complete
devices
●Capable of communicating
via ASi protocol with ASi
adapter modules
Protection Type
●IP67, IP69K
●NEMA 4X, 13
Catalog Number Selection
Catalog Number Selection is for illustrative purposes only and not to be used to create new catalog numbers.
Indicating Lights
Product Selection
Indicating Lights, Flush
Complete Devices
Operators Only
Note
Includes contact block mounting adapter.
Lens Color Light Color Light Unit Voltage Catalog Number
White White 12–30 Vac/Vdc M22-L-W-W
Red Red M22-L-R-R
Green Green M22-L-G-G
Yellow White M22-L-Y-W
Blue Blue M22-L-B-B
Amber White M22-L-A-W
White White 85–264 Vac M22-L-W-230W
Red Red M22-L-R-230R
Green Green M22-L-G-230G
Yellow White M22-L-Y-230W
Blue Blue M22-L-B-230B
Amber White M22-L-A-230W
Lens Color Catalog Number
White M22-L-W
Red M22-L-R
Green M22-L-G
Yellow M22-L-Y
Blue M22-L-B
Amber M22-L-A
Note: Light unit should match color of lens.
Use white light unit with yellow lens.
Lens Color
W = White
R = Red
G = Green
Y = Yellow
B = Blue
M22 - L –B– GB8 –B
Operator Type
M22-L = Flush indicating light
When ordering, specify inscription per catalog number suffix
from the Symbols
Library (see
Pages
114
–
121
) into the Order Notes.
For example, M22-L-B-ETCH; Order Notes: Mark with symbol X91, Line item #_.
Plate Inscription
ETCH = Custom
GB5 = OFF
GB6 =ON
GB8 = FAULT
GB15 = FORWARD
GB16 = REVERSE
Light Units
12–30 Vac/Vdc
W = White
R = Red
G = Green
B = Blue
85–264 Vac
230W = White
230R = Red
230G = Green
230B = Blue
M22-L-R-R
M22-L-R
56 Control Products Catalog CA08102001E—August 2010 www.eaton.com
47
47
47
47
47
47
47
47
47
47
47
47
47
47
47
47
47
47
47
47
47
47
47
47
47
47
47
47
47
47
47.4
Pushbuttons and Indicating Lights
22.5 mm Modular Pushbuttons—M22
Indicating Lights, Flush
Components

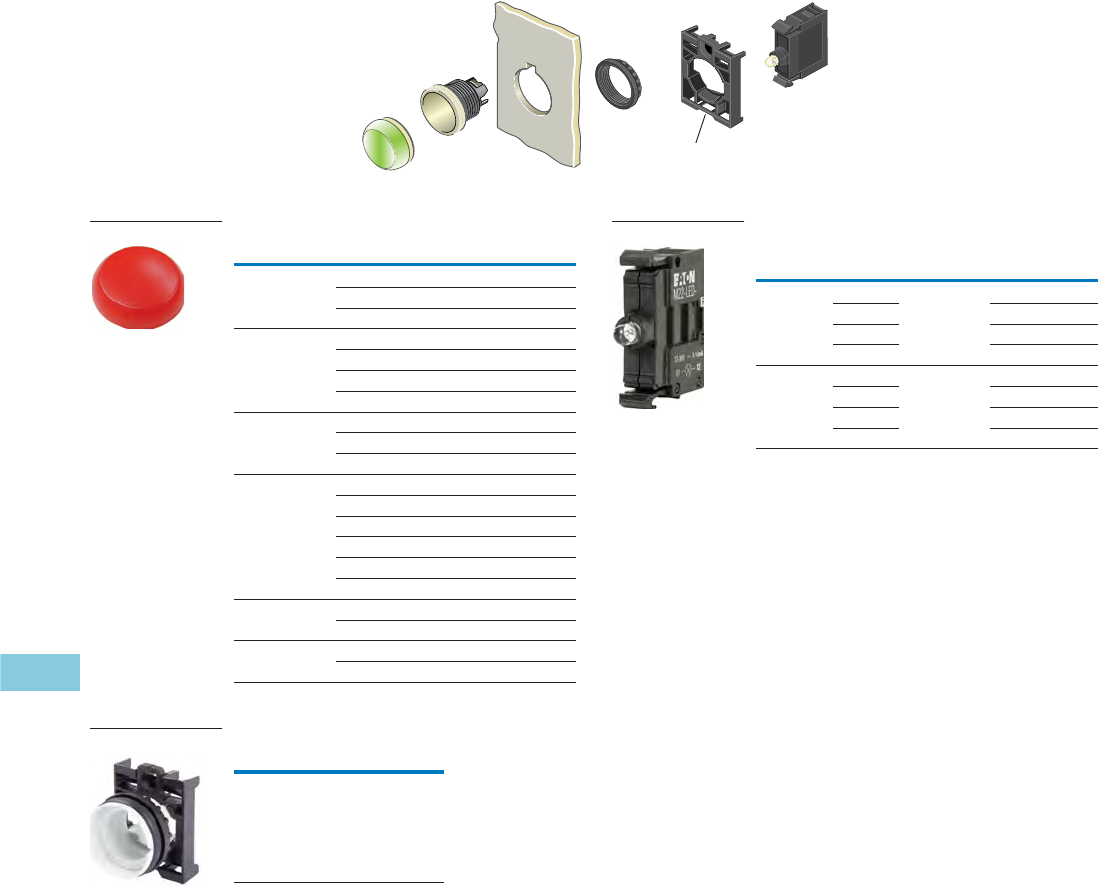

Lenses
Lensless Indicating Light
Light Units
Notes
For complete listing of available lenses and light units, see Accessories,
Pages
96
–
101
.
Minimum order quantity of (10).
When ordering, specify inscription per catalog number suffix from the Symbols
Library (see
Pages
114
–
121
) into the Order Notes.
For example, M22-XL-R-ETCH; Order Notes: Mark with symbol X91, Line item #_.
Select the same color LED element as lens color; for yellow and amber lenses,
choose a white LED.
max. 5mm
thickness
Note: Included
with operator.
Color Inscription Catalog Number
Red — M22-XL-R
Custom M22-XL-R-ETCH
OFF M22-XL-R-GB5
Green — M22-XL-G
Custom M22-XL-G-ETCH
ON M22-XL-G-GB6
REVERSE M22-XL-G-GB16
Blue — M22-XL-B
Custom M22-XL-B-ETCH
FAULT M22-XL-B-GB8
White — M22-XL-W
Custom M22-XL-W-ETCH
OFF M22-XL-W-GB5
ON M22-XL-W-GB6
FAULT M22-XL-W-GB8
FORWARD M22-XL-W-GB15
Yellow — M22-XL-Y
Custom M22-XL-Y-ETCH
Amber — M22-XL-A
Custom M22-XL-A-ETCH
Catalog Number
M22-L-X
M22-XL-R
M22-L-X
Terminal
Type
LED
Color
Light Unit
Voltage Catalog Number
Screw White 12–30
Vac/Vdc
M22-LED-W
Red M22-LED-R
Green M22-LED-G
Blue M22-LED-B
Screw White 85–264
Vac
M22-LED230-W
Red M22-LED230-R
Green M22-LED230-G
Blue M22-LED230-B
M22-LED-W
