June 2013
![](asset-2.png)
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
About our new Buyers’ Guide
Throughout this guide, you will find products
for a wide range of applications. In order
to quickly identify products with special
features or benefits, we have marked them
with one or more badges. The following is a
brief guide to help you identify them.
Energy
Simkar has dedicated itself to new products
and technology meant to help you reduce
your energy use as well as your environmental
footprint. This logo – it designates products
and services that provide energy-saving
alternatives and are designed to help reduce
your costs.
20 Gauge
This badge identifies products offered in 20
gauge weight.
Vandal Resistant
A number of our products are highly resistant
to abuse and have been identified with this
badge as being vandal resistant.
Dark Sky Compliant
Simkar has had a range of products approved
as being Dark-Sky friendly by the International
Dark Sky Association. These fixtures are
designed to help limit light pollution.
CFL Available
We now offer many products with Compact
Fluorescent technology. These products
provide an energy-saving alternative to HID
where the application permits.
HPT8 Available
The HPT8 program was initiated by
the Consortium for Energy Efficiency, a
national group of utilities, energy conscious
organizations, and educational programs to
identify and promote High Performance T8
products and encourage their use through
education, rebates, and legislation. Because
of their improved energy efficiency, HPT8
systems are required to be eligible for certain
rebate programs.
A
V
A
I
L
A
B
L
E
CFL
AVAILABLE
RESISTANT
VANDAL
20
GAUGE
DARK SKY
![](asset-3.png)
1
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
WELCOME
As a manufacturer of high quality commercial, industrial, and residential
lighting products, we would like to welcome you to our new comprehensive
Buyers’ Guide.
Simkar is proud to offer interior and exterior products geared to the
lighting professional with an emphasis on innovative, energy efficient
products that are essential to existing and emerging markets.
We are pleased to introduce Altus, a recessed direct/indirect fixture with
some very special features, Adjust-a-Bay, the ultimate in fluorescent high
bay versatility, Latitude, an energy-efficient version of a classic design
and many other new products, improvements and technical advancements
that allow us to provide you with more choices to meet all of your lighting
needs.
To our present customers we would like to extend our sincere appreciation
for your support. For our new and future customers, you will find that
our responsive, professional and courteous staff is dedicated to providing
you with high quality, energy efficient, value-added products on a timely
basis. We also have a professional engineering group to fulfill your custom
needs as well as layout and design assistance for fluorescent and HID
applications.
At Simkar, we appreciate your business and input into how we can serve
you better. We are determined to be your first choice.
![](asset-4.png)
2
Table Of Contents
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
FLUORESCENT
RECESSED
ALTUS Adjustable Recessed Direct/Indirect Lighting 8
Altus Energy Adjustable Recessed Direct/Indirect Lighting 10
Anjelus Direct/Indirect Lighting 13
TEP & FEP Deep Parabolic 14
TE2P Precision Parabolic 15
TE3P Shallow Plenum Parabolic 16
TEP94 Vertical Precision Parabolic 17
TY Lensed Troffers 18
XT Spec Grade Post-Painted Deep Recessed Troffer 19
T Series Louvered Troffers 20
TWW Lay-In Wall Washer 22
TY66 Cube 23
FLUORESCENT
SURFACE
SEP Surface Parabolic 26
SYLP Low Profile Surface Series 27
SY Surface Module 28
WY66 And WE66 Surface Mount Task Lighting 29
SY920 Low Profile Wraparound 30
SY950 Wraparound 31
SN990 Glare Reducing Wraparound 32
SY130 Narrow Wraparound 33
SP175 Corridor Wraparound 34
SLP Low Profile 35
SMC Clouds 36
LDI Direct/Indirect 37
FLUORESCENT
INDUSTRIAL,STRIPS & CHANNELS
Adjust-a-Bay Three-in-One Fluorescent High Bay 40
Reflect-A-Bay 4, 6, or 8 lamp T5/T8 44
MIRO® Premium Specular Industrial 46
IE Industrial 47
IF Premium Turret Industrial 48
IDP Industrial Decorative with Perforated Shielding 49
Latitude Louvered Industrial Fluorescent 50
Latitude Contour Louvered Industrial Fluorescent 52
EN2 Enclosed gasketed weatherproof 54
EN3 Enclosed gasketed weatherproof 56
OV410 Enclosed and Gasketed Striplite 58
OV450 Wet Location Enclosed and Gasketed 59
OG Aluminum Enclosed Light 60
OS Directional Sign Light 61
CH Original Patented Striplite 62
CHX Slimline And High Output Channel 63
CHA and CHS Striplites 64
LP5 and LS5 Low Profile T5 Strip 65
WS Slim Striplite 66
STC Staggered Striplites 67
ST5 T5 Staggered Strip 68
SA5 T5 Staggered Adjustable Strip 69
SKDL and SKDDL Docklight 70
FLUORESCENT
SPECIALTY
WEC Bath Bars And Sconce 74
OM Health Care 75
AW Architectural Health Care 76
![](asset-5.png)
3
Table Of Contents
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
UW Task Lighting 77
KW, JBH and OW Task Lighting 78
T5 Fluorescent MINI 79
T8 & T12 Fluorescent SLIM 80
Parabolics - 20 Gauge 81
TY Troffers - 20 Gauge 82
TY Louvered Troffers - 20 Gauge 83
CH 20 Gauge Striplite 84
CHX 20 Gauge Slimline And High Output Channel 85
V4000 Vandal Resistant 86
V1000 Vandal Resistant 87
V5000 Vandal Resistant 88
V6000 Vandal Resistant 89
V9000 Vandal Resistant 90
Popular Reflectors For Simkar Fixtures 91
Wiring Options 92
Options and Accessories 93
FLUORESCENT
LIGHT COMMERCIAL
& RESIDENTIAL
Decorative Crowns 96
Oak Grid 97
Oak Drop Dish 98
Wraparounds 99
Low Profile Cloud 100
Full Size Clouds 101
Compact Clouds 102
Circline Basics 103
Accent Cloud 104
SLP Low Profile 105
Architectural Vanity 106
Bath Bars 107
SMCW Wall Cloud 108
Wall Brackets 109
Xenon & Halogen XLINE & HLINE Series 110
CH Strip Lights 111
CHX Slimline And High Output Channel 112
Troffers 113
TEP Series Deep Parabolic 114
EN2 Enclosed gasketed weatherproof 115
Residential Shop Light 116
EXIT AND EMERGENCY
Self-Diagnostics 121
SLED LED Exit Light 122
SREL Recessed Edge Lit LED Exit Light 124
SEL Edge Lit LED Exit Light 126
SSL Self Luminous Exit Light 128
SDC Die-Cast Aluminum LED Exit Light 130
SWLED Wet Location LED Exit Light 132
CSWLED Wet Location LED Exit And Emergency Light 133
SCLI Combination Emergency Exit Light 134
EB100, EB60, & EB50 Fluorescent Emergency Ballasts 136
LED Energy Savings 137
REM Remote Heads 138
Accessories 139
SEM Twin Head Emergency Light 140
SEMR16 Twin MR16 Head Emergency Light 142
SFOEM Fixed Optics Emergency Light 144
SHDEM Heavy Duty Emergency Light 146
SWLEM Wet Location Emergency Light 148
![](asset-6.png)
4
Table Of Contents
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
HID LIGHTING
HIGH AND LOW BAYS
ZC Series 17” & 22” Electronic/Faceted Reflector 152
ZL Series 16”, 22” & 25” Electronic/Prismatic Refractor 154
Electronic Ballast Controls 156
DMC-1 Dimming Control 156
CX-100 Passive Infrared Occupancy Sensor 157
LS-301 Occupancy Sensors 158
LS-301 Light Harvester & Power Supply 159
JB Series 14”, 16” & 22” High Bay 160
JC Series 17” & 22” Faceted Reflector 162
JLC Series 12” Mini Acrylic High Bay 164
JL Series 16”, 22” & 25” Prismatic Refractor 166
JTC Series TempLiteTM Jobsite Fixture 168
YB Series 14”, 16” & 22” Econobay High Bay 170
YL Series 16”, 22” & 25” Prismatic Acrylic 172
YTC (TEMP-O) Series Temporary Jobsite Fixture 174
LJS Series 16” Low Bay 176
LJM Series 22” Low Bay 178
LJL Series 30” Low Bay 180
LYS Series 16” Low Bay Y Pod 182
LYM/LYL Series 22” & 30” Low Bay 184
Options & Accessories 186
Reflector Options & Accessories 188
High-2-LowTM Lighting System 190
Flex Modular Wiring 194
HID LIGHTING
WALLPACKS &
GARAGE LIGHTERS
WSS Series 11” Wallpack 198
WPS Series 13” Die Cast Aluminum Wallpack 199
WPC Series 9” Polycarbonate Wallpack 200
WPG Series 9” Compact Glass Prismatic Wallpack 201
WPL Series 15” Square Wallpack 202
WSM Series 13” Wallpack 204
WSL Series 18” Wallpack 206
W Series 13” & 18” Full Cutoff Wallpack 208
WCM Series 18” Stargazer Wallpack 210
GCS/GVV Series 8” & 12” Square Canopy Lighters 212
GR Series 11” & 15” Round Canopy Lighters 214
GLX Series 12” Garage Lighter 216
GBX Series 12” Garage Lighter 218
CF Series 12” & 16” Canopy Fixture 220
HID LIGHTING
FLOODLIGHTS
FMS Series 9” Micro Floodlight with Hood 224
FMM Series 9” Mini Floodlight 226
FMR Series 11” Roundback Floodlight 228
FBD Series 16” Compact Floodlight 230
FB Series Standard Floodlight 232
FC Series Cutoff Floodlight 234
FF Series Forward Throw Floodlight 236
FP Series Parking/Roadway Floodlight 238
FAL Series 23” Square Automotive/Parking Floodlight 240
FVL Series 23” Square Vertical Burn Floodlight 242
SLF Series 21” Sports Floodlight 244
![](asset-7.png)
5
Table Of Contents
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
Dusk to Dawn Yard Lites 246
Outdoor Fixture Mounting Options 247
Outdoor Fixture Accessories 248
HID LIGHTING
POLES
Wind Map 250
EPA Ratings 252
SSP Series Square Steel Poles 254
RTSP Series Round Tapered Steel Poles 256
STSP Series Square Tapered Steel Poles 258
RNTP Series Round Non-Tapered Steel Poles 260
SPB & SSB Series Square Pole Mounting Brackets 262
ST & STA Series Square Pole Mounting Brackets 263
RTA and RT Series Round Pole Mounting Brackets 264
BH Series Bull Horns 265
Outdoor Fixture Mounting Alternatives 266
HID
SPECIALTY LIGHTING
RMVG Series 2 x 2 Recessed Louver 270
RMVG Series 2 x 2 Recessed Lens 272
BL Series Round & Square Bollards 274
PR Series The Producer 275
FSM Series Sign Light 276
R-CAD Reflector/Refractor Retrofit System 278
HID Lamp/Ballast Kits 281
RC Series Remote Ballast Enclosure 282
RJ Series Remote Ballast J-Pod 284
JLC and RS Series Remote Shade Assemblies 286
RS Series Remote Shade Assemblies 287
ENERGY SOLUTIONS
Adjust-a-Bay™ Series 294
Reflect-A-Bay™ series 296
MIRO Industrial Series 298
Z-Pod Series 300
Exit & Emergency 302
Sensors • Lamp/Ballast Kits 303

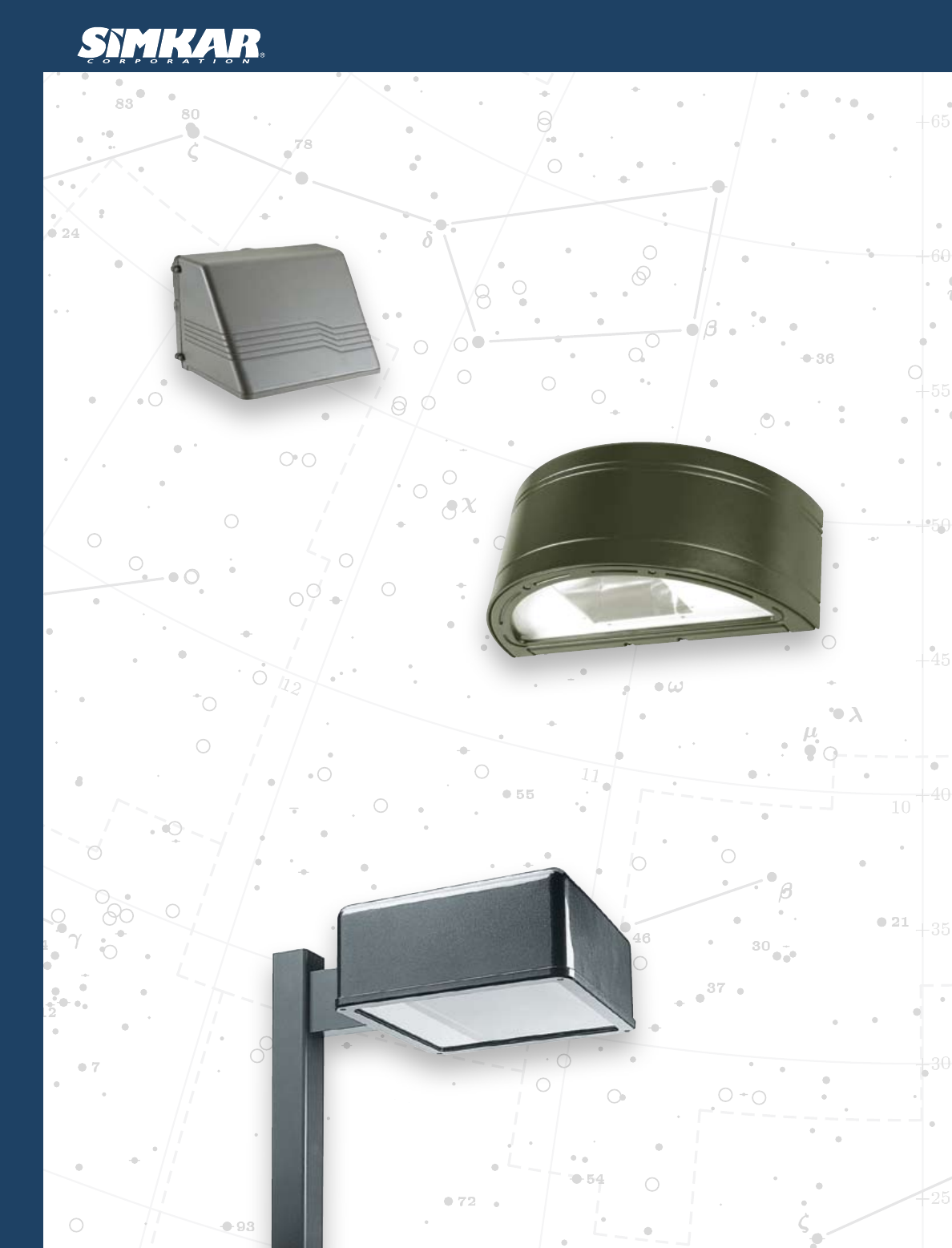

DARK SKY
FF Series Forward Throw Floodlight 306
FP Series Parking/Roadway Floodlight 308
WCM Series 18” Stargazer Wallpack 310
W Series 13” & 18” Full Cutoff Wallpack 312
CF Series 12” & 16” Canopy Fixture 314
GENERAL INFORMATION
Ballast Line Current Data 316
Light Loss Factors 317
Glossary 318
Index 321
![](asset-8.png)
6
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
FLUORESCENT
![](asset-9.png)
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
7
FLUORESCENT - RECESSED
Fluorescent
RECESSED
AVAILABLE
Simkar is proud to offer fixtures that comply to
HPT8 and NEMA Premium programs.
The HPT8 program was initiated by the Consortium
for Energy Efficiency (CEE), a national group
of utilities, energy conscious organizations and
educational programs to identify and promote
High Performance T8 products. HPT8 systems are
required to be eligible for certain rebate programs.
An HPT8 ballast must be have a power factor > 0.9,
a THD < 20% and operate at a frequency between
20 and 33 kHz or > 40 kHz. HPT8 ballasts are
available in three levels: Low BF (< .85), Normal BF
(> .85 but < 1.0) and High (greater than or equal
to 1.01). Ballasts are available in programmed and
instant start and HPT8 qualified ballasts are also
available in 25W and 28W energy saving versions.
For lamps, High Performance is a 32 Watt, 3100
+ lumen lamp that has a life of 24,000 hours
based on programmed or rapid start ballasts, 94%
lumen maintenance and CRI greater than 81. For
lamps with a color temperature > 45K, 2950 initial
lumens is acceptable. 25W and 28 W lamps must
meet lumen maintenance and CRI criteria with life >
18,000 hours on an instant start ballast.
HPT8 systems must have a ballast and lamp
combination that delivers >90 mean lumens per
watt (LPW) with instant start ballasts or > 88 mean
LPW with programmed start ballasts.
NEMA (National Electrical Manufacturers Association)
has created the NEMA Premium Ballast program
that uses the CEE HPT8 base criteria. It is important
to note that not all of the HPT8 and NEMA Premium
ballasts appear on both lists.
Consult your local utility to determine if HPT8 or
NEMA Premium products are required in your
area. Simkar will be happy to assist you in ballast
selection.
Simkar is proud to offer fixtures that
comply with the HPT8 program.
Simkar offers a comprehensive line of fluorescent fixtures
designed for recessed applications. Whether the ceiling is a lay-
in T-bar or requires a plaster frame, we offer 2x2, 2x4, or 1x4
lensed or parabolic solutions in T12, T8 or T5.
Specialty and multiple ballasts needed for switching or daylight
harvesting required for rebates or incentives are also available.
Our Altus line is a unique direct/indirect recessed system that
uses T5 technology with a shallow profile in center, dual or side
basket models. The center basket fixtures can be adjusted to
three positions to provide aesthetic and functional versatility.
Two models are available – Altus, using perf shielding, and the
new Altus Energy, using lensed shielding. Whether your goal
is aesthetics, energy efficiency, or economy, Simkar has the
recessed fixtures you need.
![](asset-a.png)
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
8
FLUORESCENT - RECESSED
Simkar’s Altus™ is one of the shallowest
and most extensive families of T5 recessed
luminaires on the market today. Altus is
available in Center, Dual, and Side microperf
basket configurations.
For Center basket models, Simkar has an
exclusive, adjustable basket system that
allows you to lower the basket and lamps
two additional positions to change the light
distribution pattern, output, and look of the
fixture. You can now have versatility within
your lighting environments with a simple,
positive lock adjustment. Our modular basket
system provides the additional flexibility of
creating numerous configurations to fulfill
your lighting needs.
• 3.25” Low profile housing for shallow plenums.
• Low profile housings are lighter; easier to handle
and install.
• Exclusive adjustable basket/lamp system for
customized performance, distribution, versatility,
and aesthetics.
• Innovative adjustable basket/lamp system can
be set in three positions: above the ceiling,
partially below the ceiling, and 1-1/8” below the
ceiling (ALC only).
• Rigid unibody construction for strength and ease
of installation.
• Architectural low-profile design projects a clean,
modern look.
• All microperf shields come with a diffuse, white
translucent inlay for visual comfort.
• Shields are securely held in place and hinge
from either side for easy lamp replacement.
• Precise optical design ensures optimal
performance and distributes high quality direct/
indirect light to achieve uniformity and comfort
throughout your work area.
• Housing, reflectors and shields are post painted
with a 5-stage, non-glare, high reflectance
powder coat finish for performance, durability,
and aesthetics.
• Built-in earthquake brackets.
• Built-in four-corner tether hanging provisions.
• Variety of center basket styles to meet individual
needs and tastes.
• Ballast access from below.
• T5 rotor-lock sockets for positive lamp retention.
• TT5 Twin Tube lamp sockets with double contact
construction and lamp support clips.
• Access plate for easy and convenient
supply wiring.
• Completely wired electronic ballasts: Class P,
Thermally Protected with auto resetting, HPF,
sound rated A is standard.
Three Height Settings
Three Basket Styles For Center Configurations
Full Microperf Shield Split Microperf Shield Louvered Microperf Shield
Recessed Mid Extended
Altus Adjustable Recessed Direct/Indirect Lighting
NEW
Features & Benefits
![](asset-b.png)
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
9
FLUORESCENT - RECESSED
Altus Adjustable Recessed Direct/Indirect Lighting
Also Available (Non-adjustable)
2x2 And 2x4 Configurations (Adjustable)
2X2 Center
2X2 Dual
2X2 Side
2X4 Center
2X4 Dual
2X4 Side
Altus Ordering Information
Series Size Diffuser # Lamps Lamp Type Ballast Voltage
ALC = Adjustable
Center Perf Shield
ALD = Dual Perf Shield
ALS = Side Perf Shield
22 = 2’ X 2’
24 = 2’ X 4’
ALC, ALD, ALS
P = Perf Shield
ALC Only
SP = Split Perf Shield
LP = Louvered Perf Shield
2
4 (2’ x 4’ only,
with TT5 lamps; not
adjustable in AEC)
22 Size: 2’ x 2’
14T5 = 14W T5, 22”
24T5H = 24W T5HO, 22”
40TT5 = 40W TT5, 22”
50TT5 = 50W TT5, 22”
24 Size: 2’ x 4’
28T5 = 28W T5, 46”
54T5H = 54W T5HO, 46”
40TT5 = 40W TT5, 22”*
50TT5 = 50W TT5, 22”*
E = Electronic
D = Dimming
U1 = 120-277V
347 = 347V
480 = 480V
* ALC and ALD models only
Options Accessories Order Separately
BP = Bulk Pack, Palletized
ELS1 = Emergency Lighting (low lumens; for 28W T5 only)
ELS2 = Emergency Lighting (medium lumens)
ELS3 = Emergency Lighting (high lumens)
FL4 = 3/8”, 6’ flex with two #18, one ground and two con nec tors
FL5 = 3/8”, 6’ flex with three #18, one ground and two con nec tors
M = Master; includes 9’ intertie and snap-in connector
S = Satellite; includes snap-in connector
L = Lamps Installed (Specify Lamps)
GCK22 = Sheetrock/Plaster Grid Kit for 2’x2’ units
GCK24 = Sheetrock/Plaster Grid Kit for 2’x4’ units
![](asset-c.png)
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
10
FLUORESCENT - RECESSED
NEW
The Altus™ Energy is Simkar’s latest
addition to our successful Altus family of T5
Direct/Indirect luminaires. With the push
towards more green solutions, we have
responded with a lens design that has all
the advantages of the original Altus, but
allows more light to be transmitted through
the “direct” component of the system to
produce a high efficiency fixture. The white
translucent lenses have been carefully
engineered to refract uniform light in a
wide distribution pattern while allowing a
low glare, high transmission solution. Unlike
some competitive lensed fixtures, we have
retained the indirect component of the design
to boost efficiency and enhance aesthetics.
This new offering comes in two models:
Center and Dual. Like its Altus sister, the
center model has the exclusive, adjustable
basket system that allows you to lower the
lens two additional positions to increase the
light output, change the light distribution
pattern, and alter the look of the fixture. You
have control over your lighting environments
with a simple, positive lock adjustment.
You now have two lighting solutions for the
architectural recessed market: a perf design
and a lens design!
• Low profile housing for shallow plenums.
• Low profile housings are lighter and easier to
handle and install.
• Rigid, unibody construction for strength and ease
of installation.
• Architectural, low profile design projects a clean,
modern look.
• White translucent, refracting lens for visual
comfort, uniformity, and efficiency.
• Lenses are securely held in place and hinge from
either side for easy lamp replacement.
• Precise optical design ensures optimal
performance and distributes high quality direct
and indirect light to achieve great uniformity
throughout your work area. Careful attention
was paid to balancing this mixture of light to
produce visual comfort and performance.
• Exclusive, Center Adjustable Lens/Lamp system
for customized performance, distribution, and
aesthetics.
• Innovative Center Adjustable Lens/Lamp system
can be set in three positions: above the ceiling,
partially below the ceiling, and 1” below the
ceiling.
• Housing and Reflectors are post painted with a
5-stage, Non-glare, High Reflectance powder
coat paint for performance, durability, and
aesthetics.
• Built-in earthquake brackets.
• Built-in four-corner tether hanging provisions
included.
• Ballast access from below.
• T5 rotor-lock sockets for positive lamp retention.
• TT5 Twin Tube lamp sockets with double contact
construction and lamp support clips.
• Access plate for easy and convenient supply
wiring.
• Completely wired electronic ballasts: Class P,
Thermally Protected with auto resetting, HPF,
sound A-rated
• Patent Pending
Features & Benefits
Altus Energy Adjustable Recessed Direct/Indirect Lighting
Three Height Settings
Recessed Mid Extended
2X2 Dual 2X4 Center
![](asset-d.png)
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
11
FLUORESCENT - RECESSED
Altus Energy Ordering Information
Series Size Diffuser # Lamps Wattage / Type Ballast Voltage
AEC = Center Lens
AED = Dual Lens
22 = 2’ X 2’
24 = 2’ X 4’
A = acrylic,
white translucent
(standard)
2 = 2 Lamps
4 = 4 Lamps (2’ x 4’ only,
with TT5 lamps; not
adjustable in AEC)
22 Size: 2’ x 2’
14T5 =14W T5, 22”
24T5H = 24W T5HO, 22”
40TT5 = 40W TT5, 22”
50TT5 = 50W TT5, 22”
24 Size: 2’ x 4’
28T5 = 28W T5, 46”
54T5H = 54W T5HO, 46”
40TT5 = 40W TT5, 22”
50TT5 = 50W TT5, 22”
E = Electronic
D = Dimming
U1 = 120-277V
347 = 347V
480 = 480V
Options Accessories Order Separately
BP = Bulk Pack, Palletized
ELS1 = Emergency Lighting (low lumens)
ELS2 = Emergency Lighting (medium lumens)
ELS3 = Emergency Lighting (high lumens)
FL4 = 3/8”, 6’ flex with two #18, one ground and two con nec tors
FL5 = 3/8”, 6’ flex with three #18, one ground and two con nec tors
M = Master; includes 9’ intertie and snap-in connector
S = Satellite; includes snap-in connector
L = Lamps Installed (Specify Lamps)
GCK22 = Sheetrock/Plaster Grid Kit for 2’x2’ units
GCK24 = Sheetrock/Plaster Grid Kit for 2’x4’ units
Housing
Housing to 3-1/4” deep, die-formed code gauge
steel housing with high reflectance, non-glare white
powder coat finish (90% minimum reflectance) over
rust inhibiting phosphate coat. Wiring access plate
provided with two knockouts and ground screw.
Electrical
T5 and T5HO technology: Ballast to be electronic,
Program Start, fully wired with quick-disconnect
device: Universal voltage 120 – 277VAC, 50/60Hz,
Starting temperature 0°F (-18°C), < 15% THD,
High-Power Factor, Thermally protected, Automatic
resetting, Class P, Sound rating A.
Optics
Reflector to be die-formed, heavy gauge steel with
post-painted high reflectance, non-glare white
powder coat finish (90% minimum reflectance). Lens
to be white translucent acrylic engineered optical
uniformity and non-glare with a wave prism design.
Lens to be tool-free removable and hingable from
either side. AEC center lens model to be adjustable
for Recessed, Mid, and Extended positions to allow
for customized performance, distribution, and
aesthetic flexibility.
Mounting
Mounting to be (T) Lay-in for NEMA type G, T-bar
ceilings. Optional Sheetrock/Plaster Grid Kits
available.
Altus Energy Adjustable Recessed Direct/Indirect Lighting
![](asset-e.png)
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
12
FLUORESCENT - RECESSED
SIDE CONFIGURATION (NOT AVAILABLE ON ALTUS ENERGY)
7/8 KNOCK-OUT
23.70
22.60
ACCESS
PLATE
23.70
23.70
22.60
7/8 KNOCK OUT
T5 LAMP POSITION
TWIN TUBE LAMP POSITION
BACK PLAN
20.15
DUAL CONFIGURATION
T5 LAMP POSITION
TWIN TUBE LAMP POSITION
20.12
1.35
3.25
3.25
23.70
1.61
22.60
7/8 KNOCK OUT
9.81
3.25
23.70
1.34
7/8 KNOCK-OUT
23.70
22.60
9.81
1.06
3.25
ACCESS
PLATE
23.70
23.70
BACK PLAN
7/8 KNOCK-OUT
23.70
22.60
3.25
1.57 2.76
7/8 KNOCK-OUT
23.70
22.60
2.76
1.13
3.25 0.43
ACCESS
PLATE
23.70
23.70
BACK PLAN
1.88
7/8 KNOCK-OUT
23.70
22.60
3.25
1.33
2.71
7/8 KNOCK-OUT
23.70
22.60
1.13
3.25
0.19
2.71
T5 LAMP POSITION
ADJUSTMENT UP
TWIN TUBE LAMP POSITION
ADJUSTMENT UP
T5 LAMP POSITION
ADJUSTMENT 100% DOWN
TWIN TUBE LAMP POSITION
ADJUSTMENT 100% DOWN
CENTER CONFIGURATION
ACCESS
PLATE
47.70
23.70
BACK PLAN
ACCESS
PLATE
47.70
23.70
BACK PLAN
ACCESS
PLATE
47.70
23.70
BACK PLAN
1.88
3.31 3.31
3.31 3.31
3.31 3.31
Altus and Altus Energy Dimensions
Altus Adjustable Recessed Direct/Indirect Lighting
![](asset-f.png)
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
13
FLUORESCENT - RECESSED
Housing
Not visible from below ceiling line. Die-formed
heavy-gauge steel; prepainted, rust-inhibited, high-
gloss white enamel. Access plate provided with 2 KOs
and ground screw.
Shielding
Micro-per fo rat ed screens with opaline acrylic inlay;
stag gered hole pattern. White powder-coat finish.
Reflector: Matte white powder-coat finish.
Anjelus Direct/Indirect Lighting
TD Direct/Indirect fluorescent fixtures provide
con tem po rary lighting effects by balancing direct
and re flect ed illu mi na tion. Efficient, twin-tube, T5
or T8 lamps are con cealed by at trac tive micro-
perforated screens with opaline acrylic inlays. The
TDPW is only 4” deep and comes in 2 x 2 and 2 x 4
con fig u ra tions.
Electrical
Fully wired for UNV 120-277V, 50-60Hz operation
with thermally protected, automatic resetting Class
P, sound rated A electronic ballast as standard unless
otherwise specified. UL listed.
Mounting
Lay-in (T). A con ver sion kit (GCK) is available for
NEMA type F ceilings. See page 91.
Anjelus Series Ordering Information
Series Diffuser Size # of Lamps Lamps
TD PW = Dual perforated shields
CW = Center perforated shield
SW = Side perforated shields
242 = 2x2
244 = 2x4
2
3
4
17 = 17W 24” T8
32 = 32W 48” T8
54 = 54W T5HO
40 = 40W 22” TT
50 = 50W 22” TT
ELS Options Ballast Switching Voltage
ELS1 = Emergency Lighting (low lumens)
ELS2 = Emergency Lighting (medium lumens)
ELS3 = Emergency Lighting (high lumens)
B11 = Electronic T8
B11HP(X) = HPT8*
B12 = Electronic T5
B14 = Electronic TT
For 3 and 4 lamp units
Blank = dual ballasts
3L = (1) 3-lamp ballast
4L = (1) 4-lamp ballast
For 2 lamp units
Blank = single ballast
2/1L = (2) 1-lamp ballasts
UNV = 120-277V
120 = 120V
277 = 277V
*CEE listed T8; specify (L)ow, (N)ormal, or (H)igh ballast factor. Contact factory for NEMA Premium.
Accessories
GCK (Grid Conversion Kits)
GCK 22 = 2’ x 2’
GCK 24 = 2’ X 4’
Dimensions
"2/15
23 3/4”
"2/15
PW
CW
SW
A
"4/332
"6"6
![](asset-10.png)
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
14
FLUORESCENT - RECESSED
11 7/8"
5 3/4"
TEP & FEP Deep Parabolic
TEP-244 32 Cell
23 7/ 8"
5 3/4"
25 13/16"
(Flange)
5 3/4"
Housing
Die-formed heavy gauge steel with high-gloss, baked
white enamel finish over rust inhibiting phosphate
coat. Full black reveal and hinged louver for easy
relamping. Access plate provided with 2 KOs and
ground screw.
Shielding
Low iridescence, anodized, semi-specular aluminum
parabolic, nominal 3” deep-cell louver held securely
by steel latches. “T” hinges allow access from either
side.
TEP and FEP Series Ordering Information
Series Size # Lamps Lamp type Air Handling Cell Conguration
TEP = Lay-in 3” deep cell,
semi-specular
FEP = Flanged 3” deep cell,
semi-specular
124 = 1 x 4
242 = 2 x 2
244 = 2 x 4
2
3
4
14 = 14W T5
17 = 17W T8
24 = 24W T5HO
28 = 28W T5
32U = 32W U6” T8*
32 = 32W T8
40TT = 40W TT
54 = 54W T5HO
Static (standard)
AC = Vented on all sides
AH = Vented on 2’ side
AS = Vented on 4’ side
8C = 1x4 (1 row of 8)
9C = 2x2 (3 rows of 3)
12C = 2x2 (3 rows of 4)
12C = 2x4 (2 rows of 6)
16C = 2x2 (4 rows of 4)
18C = 2x4 (3 rows of 6)
24C3X8 = 2x4 (3 rows of 8)
24C4X6 = 2x4 (4 rows of 6)
27C = 2x4 (3 rows of 9)
32C = 2x4 (4 rows of 8)
* For 1 5/8” please specify
Louver Finish Options Ballast Switching Voltage
Semi Specular
(standard)
G = Gold
W = White
S = Specular
SR = Specular reflector**
WR = White reflector**
ELS1 = Emergency Lighting
(low lumens)
ELS2 = Emergency Lighting
(medium lumens)
ELS3 = Emergency Lighting
(high lumens)
B11 = Electronic T8
B11HP(x) = HPT8*
B12 = Electronic T5
B14 = Electronic TT
D = Dimming
(specify ballast)
For 3 and 4 lamp units
Blank = dual ballasts
3L = (1) 3-lamp ballast
4L = (1) 4-lamp ballast
For 2 lamp units
Blank = single ballast
2/1L = (2) 1-lamp ballasts
UNV = 120-277V
120 = 120V
277 = 277V
*CEE listed T8; specify (L)ow, (N)ormal, or (H)igh ballast factor. Contact factory for NEMA Premium.
**Contact factory for availability
Options Accessories
L = Lamps Installed (Specify Lamps) (U-lamp and TT lamps not installed)
FL4 = 3/8”, 6’ flex with two #18, one ground and two con nec tors*
FL5 = 3/8”, 6’ flex with three #18, one ground and two con nec tors*
M = Master; includes 9’ intertie and snap-in connector
S = Satellite; includes snap-in connector
FB = Fast Blow Fuse
SB = Slow Blow Fuse
BP = Bulk Pack
EC515 = Earth quake Clip
GCK (Grid Conversion Kits)
GCK 14 = 1’ x 4’
GCK 22 = 2’ x 2’
GCK 24 = 2’ X 4’
*Contact factory for other available options
Dimensions
TEP and FEP Deep Cell Parabolics are at trac tive
high-ef fi cien cy fix tures that pro duce uniform low
bright ness in the 60°- 90° zone.
Electrical
Fully wired for UNV 120-277V, 50-60Hz operation
with thermally protected, automatic resetting Class
P, sound rated A ballast as standard unless otherwise
specified. UL listed.
Mounting
Optional EC515 Earth quake Clip for lay-in TEP grid
ceilings. Specify FEP for flange unit or use GCK kit.
(See page 91.) Flanged units require field as sem bly.
AVAILABLE
TEP
FEP
FEP
![](asset-11.png)
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
15
FLUORESCENT - RECESSED
TEP and FEP Series Ordering Information
Series Size # Lamps Lamp type Air Handling Cell Conguration
TEP = Lay-in 3” deep cell,
semi-specular
FEP = Flanged 3” deep cell,
semi-specular
124 = 1 x 4
242 = 2 x 2
244 = 2 x 4
2
3
4
14 = 14W T5
17 = 17W T8
24 = 24W T5HO
28 = 28W T5
32U = 32W U6” T8*
32 = 32W T8
40TT = 40W TT
54 = 54W T5HO
Static (standard)
AC = Vented on all sides
AH = Vented on 2’ side
AS = Vented on 4’ side
8C = 1x4 (1 row of 8)
9C = 2x2 (3 rows of 3)
12C = 2x2 (3 rows of 4)
12C = 2x4 (2 rows of 6)
16C = 2x2 (4 rows of 4)
18C = 2x4 (3 rows of 6)
24C3X8 = 2x4 (3 rows of 8)
24C4X6 = 2x4 (4 rows of 6)
27C = 2x4 (3 rows of 9)
32C = 2x4 (4 rows of 8)
* For 1 5/8” please specify
TE2P Series Ordering Information
Series Size Lamps
TE2P = Lay-in
FE2P = Flange
242 = 2 x 2
244 = 2 x 4
317 = (3) 17W 24” T8
332 = (3) 32W 48” T8
340TT = (3) 40W TT
Cell Cong/3 Rows Options Ballast Switching Voltage
12C = 12 cell specular
(2x2)
18C = 18 cell specular
(2x4)
27C = 27 cell specular
(2x4)
SR = Specular Reflector
ELS1 = Emergency Lighting
(low lumens)
ELS2 = Emergency Lighting
(medium lumens)
ELS3 = Emergency Lighting
(high lumens)
B11 = Electronic T8
B11HP(x) = HPT8*
B14 = Electronic TT
D = Dimming
(specify ballast)
Blank = dual
ballasts
3L = (1) 3-lamp
ballast
UNV = 120-277V
120 = 120V
277 = 277V
347 = 347V
*CEE listed T8; specify (L)ow, (N)ormal, or (H)igh ballast factor. Contact factory for NEMA Premium.
Para-Spec® fixtures feature parabolic louvers
man u fac tured to exacting engineering, materials and
quality spec i fi ca tions to ensure superior performance
and service life.
Para-Spec®II TE2P Deep Cell Parabolics are
precision en gi neered to eliminate glare. In particular,
optimal positioning of the lamps provides high-
efficien cy fix tures with uni form low bright ness in the
60°- 90° zone. The TE2P com plies with RP1.
TE2P Precision Parabolic
Housing embossed
for rigidity.
TE2P-27 cell controls light at glare producing
angles and meets IES RP1 preferred criteria.
23 7/8"
6"
TE2P 2x2 12 Cell
TE2P Precision Parabolics with full black reveal
create a float ing louver ap pear ance and hinged
louver allows easy relamping. Op tions in clude flex,
mas ter/satellite wiring and heat return functions.
Protective poly sheet keeps louver clean during ship-
ment and installation.
Dimensions
AVAILABLE
Housing
Die-formed heavy gauge steel with high-gloss, baked
white enamel finish over rust inhibiting phosphate
coat. Access plate provided with two KOs and ground
screw.
Shielding
Precision engineered, low iridescent, anodized
specular aluminum parabolic 4.25” deep cell louver
equipped with T-hinges and spring latches to enable
access from either side.
Precision design “cut-off” louver effectively eliminates glare in key zones.
Electrical
Fully wired for UNV 120-277V, 50-60Hz operation
with thermally protected, automatic resetting Class
P, sound rated A ballast as standard unless otherwise
specified. UL listed.
Mounting
Optional EC515 Earthquake clip (page 91) for extra
security for TE2P in T-Bar ceilings. Flanged units use
trim kits (GCK) that require field assembly. See page
page 91.
Options Accessories
L = Lamps Installed (Specify Lamps)
FL4 = 3/8”, 6’ flex with two #18, one ground and two con nec tors
FL5 = 3/8”, 6’ flex with three #18, one ground and two con nec tors
M = Master; includes 9’ intertie and snap-in connector
S = Satellite; includes snap-in connector
FB = Fast Blow Fuse
SB = Slow Blow Fuse
BP = Bulk Pack
EC515 = Earth quake Clip (Specify FEP for flange unit or
use GCK kit)
GCK (Grid Conversion Kits)
GCK 22 = 2’ x 2’
GCK 24 = 2’ X 4’
![](asset-12.png)
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
16
FLUORESCENT - RECESSED
TE3P Shallow Plenum Parabolic
Housing
Die-formed heavy gauge steel with high-gloss, baked
white enamel finish over rust inhibiting phosphate
coat. Knockouts and/or access plate provided.
Shielding
Excellent VCP; meets IES RP-1. Low ir i des cence,
an od ized semi-specular or specular aluminum par-
a bol ic louver is installed in flush steel door frame
(black) with mitered corners that can be hinged from
either side. Swing-action cam latches provide positive
fit. Light traps standard. High-reflectance white
reflector stan dard.
A low-ir i des cence, semi-spec u lar 57-cell louver is
stan dard; specular aluminum is optional. Louvers
are installed in a flush, black steel door to create an
at trac tive floating appearance. The door hing es from
either side with a swing-action cam latch for easy
relamping.
TE3P Series Ordering Information
Series Spec Door Size Lamps Cell Cong/3 Rows
TE3P = Lay-in
FE3P = Flange
Black steel, standard
WF = Flat steel,
white
242 = 2 x 2
244 = 2 x 4
317 = (3) 17W 24” T8
332 = (3) 32W 48” T8
27C = 27 cell semi-Specular
(2x2)
27CS = 27 cell specular (2x2)
57C = 57 cell semi-Specular
(2x4)
57CS = 57 cell specular (2x4)
Options Ballast Switching Voltage
SR = Specular Reflector
ELS1 = Emergency Lighting
(low lumens)
ELS2 = Emergency Lighting
(medium lumens)
ELS3 = Emergency Lighting
(high lumens)
B11 = Electronic T8
B11HP(x) = HPT8*
D = Dimming
(specify ballast)
Blank = dual ballasts (2x4 only)
3L = (1) 3-lamp ballast
UNV = 120-277V
120 = 120V
277 = 277V
347 = 347V
*CEE listed T8; specify (L)ow, (N)ormal, or (H)igh ballast factor. Contact factory for NEMA Premium.
Electrical
Fully wired for UNV 120-277V, 50-60Hz operation
with thermally protected, automatic resetting Class
P, sound rated A ballast as standard unless otherwise
specified. UL listed.
Mounting
Lay-in (T) or Flange (F) troffer with access plate
provided with 2 KOs and ground screw. 2 x 2 and
2 x 4 flanged fixtures require field assembly.
Optional EC515 Earth quake Clip for lay-in grid
ceilings. Specify FE3P for flange unit or use GCK kit.
(see page 91) Flanged units require field as sem bly.
TE3P Parabolic
TE3P Parabolic is a shallow plenum par a bol ic
specifically designed to provide exceptional visual
comfort. Its low brightness and overall pho to met ric
performance comply with IES RP-1. The TE3P is only
3 3/4” high and can be installed in NEMA type “F”
or “G” ceilings.
23 3/4"
47 3/4"
2 3/8"
1 3/8"
23 3/4"
3 3/4"
Dimensions
AVAILABLE
Options Accessories
L = Lamps Installed (Specify Lamps)
FL4 = 3/8”, 6’ flex with two #18, one ground and two con nec tors
FL5 = 3/8”, 6’ flex with three #18, one ground and two con nec tors
M = Master; includes 9’ intertie and snap-in connector
S = Satellite; includes snap-in connector
FB = Fast Blow Fuse
SB = Slow Blow Fuse
BP = Bulk Pack
EC515 = Earth quake Clip (Specify FEP for flange unit or
use GCK kit)
GCK (Grid Conversion Kits)
GCK 22 = 2’ x 2’
GCK 24 = 2’ X 4’
![](asset-13.png)
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
17
FLUORESCENT - RECESSED
Housing
Die-formed heavy gauge steel with high-gloss, baked
white enamel finish over rust inhibiting phosphate
coat. Access plate providing two KOs and ground
screw.
Shielding
Specular aluminum par a bol ic louver, cell size
nominal 2” deep, 8” wide. Installs to housing with
torsion springs; access from either side. Choice of 16
cell or 12 cell.
TEP94 Vertical Precision Parabolic
4 29/32"
7 13/16"
8 3/4"
9"
2"
4 1/4"
6 1/4"
TEP94
TEP94 Series Ordering information
Series Lamps Conguration Cell Cong
TEP94 = 9” x 48” Lay-in 2” deep louver
blade, nominal 8” wide
132 = (1) 32W 48” T8
232 = (2) 32W 48” T8
O/U = Over/under stacked
lamps (delete for
single lamp model)
Specify switching.
12C = 12 cells
16C = 16 cells
Options Ballast Switching Voltage
ELS1 = Emergency Lighting
(low lumens)
ELS2 = Emergency Lighting
(medium lumens)
ELS3 = Emergency Lighting
(high lumens)
B11 = Electronic T8
B11HP(x) = HPT8*
D = Dimming (specify ballast)
For 2 lamp units
Blank = single ballast (standard)
2/1L = (2) 1-lamp ballasts
UNV = 120-277V
120 = 120V
277 = 277V
*CEE listed T8; specify (L)ow, (N)ormal, or (H)igh ballast factor. Contact factory for NEMA Premium.
Dimensions
Electrical
Fully wired for UNV 120-277V, 50-60Hz operation
with thermally protected, automatic resetting Class
P, sound rated A ballast as standard unless otherwise
specified. UL listed.
Mounting
Lay-in grid ceiling.
AVAILABLE
![](asset-14.png)
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
18
FLUORESCENT - RECESSED
TY Lensed Troffers
Housing
Die-formed heavy gauge steel with high-gloss, baked
white enamel finish over rust inhibiting phosphate
coat. Flush white steel door frame with mitered
corners that can be hinged from either side. Swing-
action cam latches provide positive fit. Light traps
standard. Access plate providing 2 KOs and ground
screw.
Shielding
Clear prismatic acrylic lens is standard. Other lens
options available.
Versatile Troffer And Lens Ordering Information
Series Diffuser Door Frame Size
T = Lay-In
F = Flange
XF = Powder coat, flange
XT = Powder coat, lay-in
Y = Clear prismatic acrylic (standard)
B = .125 clear prismatic polycarbonate
C = .200 clear prismatic acrylic
K = .125 clear prismatic acrylic
O = .140 high impact
P = acrylic drop dish
U = .156 clear prismatic acrylic
W = White acrylic
Z = Other - Contact Factory
Steel, white (standard)
FW = Flush, aluminum, white
RW = Regressed, aluminum, white
122 = 1 x 2
124 = 1 x 4
242 = 2 x 2
244 = 2 x 4
Electrical
Fully wired for UNV 120-277V, 50-60Hz operation
with thermally protected, automatic resetting Class
P, sound rated A ballast as standard unless otherwise
specified. UL listed.
Mounting
Lay-in (T) or Flange (F) troffer.
TY-244
4 1/8" 4 1/8"5 1/2"
2 1/4"
20 1/4"
21"
22"
23 3/4"
6" 6"
2 1/4"
23 3/4"
6 7/8" 6 7/8"
2 1/4"
23 3/4"
9 5/8"
2 1/4"
23 3/4"
4 1/8" 4 1/8"5 1/2"
2 1/4"
21 3/4"
23 3/4"
TS
TT
TA TY, TK, TB
4 1/8" 4 1/8"5 1/2"
2 1/4"
20 1/4"
21"
22"
23 3/4"
6" 6"
2 1/4"
23 3/4"
6 7/8" 6 7/8"
2 1/4"
23 3/4"
9 5/8"
2 1/4"
23 3/4"
4 1/8" 4 1/8"5 1/2"
2 1/4"
21 3/4"
23 3/4"
TS
TT
TA TY, TK, TB
4 1/8" 4 1/8"5 1/2"
2 1/4"
20 1/4"
21"
22"
23 3/4"
6" 6"
2 1/4"
23 3/4"
6 7/8" 6 7/8"
2 1/4"
23 3/4"
9 5/8"
2 1/4"
23 3/4"
4 1/8" 4 1/8"5 1/2"
2 1/4"
21 3/4"
23 3/4"
TS
TT
TA TY, TK, TB
Dimensions
AVAILABLE
# Lamps Lamp Type Options Ballast Switching Voltage
2
3
4
14 = 14W 24” T5
24 = 24W 24” T5HO
28 = 28W 48” T5
32 = 32W 48” T8
32U = 32W U6” T8***
40TT = 40W 22” TT**
54 = 54W 48” T5HO
SR = Specular Reflector
ELS1 = Emergency Lighting
(low lumens)
ELS2 = Emergency Lighting
(medium lumens)
ELS3 = Emergency Lighting
(high lumens)
B11 = Electronic T8
B11HP(x) = HPT8*
B12 = Electronic T5
B14 = Electronic TT
D = Dimming
(specify ballast)
For 3 and 4 lamp units
Blank = dual ballasts
3L = (1) 3-lamp ballast
4L = (1) 4-lamp ballast
For 2 lamp units
Blank = single ballast
2/1L = (2) 1-lamp
ballasts
UNV = 120-277V
120 = 120V
277 = 277V
347 = 347V
*CEE listed T8; specify (L)ow, (N)ormal, or (H)igh ballast factor. Contact factory for NEMA Premium.
**Requires dedicated voltage ballast on 3-lamp models
***For 1-5/8” please specify.
Options Accessories
L = Lamps Installed (Specify Lamps) (U-lamp and TT lamps not installed)
FL4 = 3/8”, 6’ flex with two #18, one ground and two con nec tors
FL5 = 3/8”, 6’ flex with three #18, one ground and two con nec tors
M = Master; includes 9’ intertie and snap-in connector
S = Satellite; includes snap-in connector
FB = Fast Blow Fuse
SB = Slow Blow Fuse
BP = Bulk Pack
LG = Lens Gasketing
LDG = Lens and Door Gasketing
LDFG = Lens, Door, and Frame Gasketing
M4 = MIRO 4 reflector (93% reflectivity)
EC = Earth quake Clip, 4-pack
FTI (Flange Trim Kits)
FTI 12 = 1’ x 2’
FTI 14 = 1’ x 4’
FTI 22 = 2’ x 2’
FTI 24 = 2’ X 4’
Features & Benefits
• Top embossments for strength.
• Ballast embossment provides full contact for superior
heat dissipation.
• Strengthening ribs on sides.
• Full access plate with double KOs. Screws in cluded.
• Two built in T-bar clips on 2’ wide models.
• End plate attachment with screws, not tabs.
• Upturned side rail edge for rigidity and
safer han dling.
• Mitered door corners for better fit than overlap
corners.
• Improved large cam latches open door with ease. No
tools needed!
• Full depth 1/2” door accepts 1/2” louver without
notching.
• Built-in lens retainers.
• Door end screws — not tabs! — for strength and
easy lens replacement.
• Built-in door hinge on side rail. No pop rivets.
• Ballast cover tabs prevent pinched wires.
• Metal light traps instead of gasket that deteriorates.
• Passes torque test for strength and min i mal overall
sag.
• Su perb lamp spac ing: 4 1/8” cen ters on 4-lamp
fixtures. Allows lamp removal in any order.
• Lamp-pin slots for ease of lamp in stal la tion.
• Socket bar held in place with slot tab — removable
from inside fixture.
• Hemmed end plate. Double-thick fold adds strength
and eliminates sharp edge.
• Machine-installed shunts eliminate loose socket bar
connections on electronic troffers.
![](asset-15.png)
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
19
FLUORESCENT - RECESSED
# Lamps Lamp Type Options Ballast Switching Voltage
2
3
4
14 = 14W 24” T5
24 = 24W 24” T5HO
28 = 28W 48” T5
32 = 32W 48” T8
32U = 32W U6” T8***
40TT = 40W 22” TT**
54 = 54W 48” T5HO
SR = Specular Reflector
ELS1 = Emergency Lighting
(low lumens)
ELS2 = Emergency Lighting
(medium lumens)
ELS3 = Emergency Lighting
(high lumens)
B11 = Electronic T8
B11HP(x) = HPT8*
B12 = Electronic T5
B14 = Electronic TT
D = Dimming
(specify ballast)
For 3 and 4 lamp units
Blank = dual ballasts
3L = (1) 3-lamp ballast
4L = (1) 4-lamp ballast
For 2 lamp units
Blank = single ballast
2/1L = (2) 1-lamp
ballasts
UNV = 120-277V
120 = 120V
277 = 277V
347 = 347V
*CEE listed T8; specify (L)ow, (N)ormal, or (H)igh ballast factor. Contact factory for NEMA Premium.
**Requires dedicated voltage ballast on 3-lamp models
***For 1-5/8” please specify.
XT Spec Grade Post-Painted Deep Recessed Troffer
4 1/4"
11 3/4"
2 1/16"
4 1/4"
23 3/4"
2 5/16"
4 1/4"
23 3/4"
2 5/16"
Housing
High quality 22 gauge CRS con struc tion. Unit is 4
1/2” deep. All metal parts receive durable high gloss
powder coat post painted fin ish over rust inhibiting
phosphate coat. Minimum reflectance is 90%.
Shielding
Clear acrylic prismatic lens with .125” deep cut
#12 pattern in stalled in steel door with overlapping
mi tered corners, T-type hinges and pos i tive-fit cam
latches. Light traps and gasketing installed.
XT Series Ordering Information
Series Diffuser Depth Size # Lamps Lamp Type
XT = Powder-coat,
lay-in
K = .125 clear prismatic
acrylic (standard)
B = .125 clear prismatic
polycarbon ate
U = .156 prismatic acrylic
Y = .090 prismatic acrylic
P = 4 1/2” 124 = 1x4
242 = 2x2
244 = 2x4
2
3
4
32 = (2) 32W 48” T8
32U = 32W U6” T8*
40TT = 40W 22” TT
For T5, Contact Factory
* For 1 5/8” please specify
Options Ballast Voltage Switching
SR = Specular Reflector
ELS1 = Emergency Lighting
(low lumens)
ELS2 = Emergency Lighting
(medium lumens)
ELS3 = Emergency Lighting
(high lumens)
B11 = Electronic T8
B11HP(x) = HPT8*
B14 = Electronic TT
UNV = 120-277V
120 = 120V
277 = 277V
For 3 and 4 lamp units
Blank = dual ballasts
3L = (1) 3-lamp ballast
4L = (1) 4-lamp ballast
For 2 lamp units
Blank = single ballast
2/1L = (2) 1-lamp ballasts
*CEE listed T8; specify (L)ow, (N)ormal, or (H)igh ballast factor. Contact factory for NEMA Premium.
Options Accessories
L = Lamps Installed (Specify Lamps) (U-lamp and TT lamps not installed)
FL4 = 3/8”, 6’ flex with two #18, one ground and two con nec tors
FL5 = 3/8”, 6’ flex with three #18, one ground and two con nec tors
LG = Lens Gasketing
LDG = Lens and Door Gasketing
LDFG = Lens, Door, and Frame Gasketing
M = Master; includes 9’ intertie and snap-in connector
S = Satellite; includes snap-in connector
EC = Earthquake clips, 4-pack
Dimensions
XT Specification Grade Troffers are equipped
with 4 1/2” deep housing with 2 5/16” lens-to-lamp
spacing to balance light diffusion and reduce lamp
image.
Electrical
Fully wired for UNV 120-277V, 50-60Hz operation
with thermally protected, automatic resetting Class
P, sound rated A ballast as standard unless otherwise
specified. UL listed.
Mounting
Lay-in troffer for NEMA type G T-bar ceilings.
Integral earthquake clips. GCK kit available for
sheetrock ceilings (page 91).
![](asset-16.png)
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
20
FLUORESCENT - RECESSED
T Series Louvered Troffers
Housing
Die-formed heavy gauge steel with high-gloss, baked
white enamel finish over rust inhibiting phosphate
coat. Flush white steel door frame with mitered
corners that can be hinged from either side. Swing-
action cam latches provide positive fit. Light traps
standard. Access plate pro vid ing two KOs and ground
screw.
Louver Options
Silver and Gold finishes available. Louvers with white
transmission overlays also available.
Benefits
• Top embossments for strength.
• Ballast embossment provides full contact for superior
heat dissipation.
• Strengthening ribs on sides.
• Full access plate with double KOs. Screws in cluded.
• Integral T-bar clips on 2’ wide models.
• End plate attachment with screws, not tabs.
• Upturned side rail edge for rigidity and
safer han dling.
• Mitered door corners for better fit than overlap
corners.
• Improved large cam latches open door with ease. No
tools needed!
• Full depth 1/2” door accepts 1/2” louver without
notching.
• Built-in lens retainers.
• Door end screws — not tabs! — for strength and
easy lens replacement.
• Built-in door hinge on side rail. No pop rivets.
• Ballast cover tabs prevent pinched wires.
• Passes torque test for strength and min i mal overall
sag.
• Su perb lamp spac ing: 4 1/8” cen ters on 4-lamp
fixtures. Allows lamp removal in any order.
• Lamp-pin slots for ease of lamp in stal la tion.
• Socket bar held in place with slot tab — removable
from inside fixture.
• Hemmed end plate. Double-thick fold adds strength
and eliminates sharp edge.
• Machine-installed shunts eliminate loose socket bar
connections on electronic troffers.
TT 244
Electrical
Fully wired for UNV 120-277V, 50-60Hz operation
with thermally protected, automatic resetting Class
P, sound rated A ballast as standard unless otherwise
specified. UL listed.
Mounting
Lay-in (T) or Flange (F) troffer. 2 x 2 and 2 x 4
flanged fixtures require field assembly. For flange kit
(FTI) see page 91. Optional Earth quake Clip (EC) for
lay-in grid ceilings.
AVAILABLE
TS, FS series 1 1/2” supercube louver: 1 1/2” x 1 1/2” x 1” cell spec u lar silver parabolic louver, PL2.
38° shield ing from all angles, excellent brightness control.
TA, FA series SMALL CELL louver: 1/2” x 1/2” x 1/2” cell spec u lar silver parabolic louver, PL1.
44° shield ing from all angles, excellent brightness control.
TE, XTE, FE, XFE SERIES parabolic: Semi-spec u lar aluminum parabolic louver, 3 1/2” square.
![](asset-17.png)
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
21
FLUORESCENT - RECESSED
T Series Louvered Troffers
TT, FT High Visual Comfort Louver:
3/4” x 3/4” x 1/2” cell spec u lar silver parabolic
louver, PL3 with high trans mis sion overlay directs
light down to work surface while overlay reduces
glare. 36° shield ing from all angles.
TJ, FJ Double Wedge Parabolic:
3/4” x 3/4” x 1/2” cell spec u lar silver parabolic
louver, PL3, efficiently directs
light to work surface. Double wedge cell.
35° shield ing from all angles.
T Series Ordering Information
Series Louver Door Frame Size # Lamps
F = Flange
T = Lay-in
XF = Powder coat,
flange
XT = Powder coat,
lay-in
A = 1/2” x 1/2” x 1/2” cell
E = (Semi specular aluminum)
1 x 4 with 26 cells (2 rows of 13)
2 x 2 with 36 cells (6 rows of 6)
2 x 4 with 78 cells (6 rows of 13)
J = 3/4” x 3/4” x 1/2” cell
L = 1/2” x 1/2” x 1/2” egg crate, white*
S = 1-1/2” x 1-1/2” x 1”
T = 3/4” x 3/4” x 1/2” cell with overlay
Steel, white (standard)
FW = Flush, aluminum, white
RW = Regressed, aluminum, white
124 = 1 x 4
242 = 2 x 2
244 = 2 x 4
2
3
4
*Only available with standard door frame
Lamp Type Louver Finish Options Ballast Switching
14 = 14W 24” T5
24 = 24W 24” T5HO
28 = 28W 48” T5
32 = 32W 48” T8
32U = 32W U6” T8*
40TT = 40W 22” TT**
54 = 54W 48” T5HO
S = Silver specular
(standard)
G = Gold
SR = Specular Reflector
ELS1 = Emergency Lighting
(low lumens)
ELS2 = Emergency Lighting
(medium lumens)
ELS3 = Emergency Lighting
(high lumens)
B11 = Electronic T8
B11HP(x) = HPT8***
B12 = Electronic T5
B14 = Electronic TT
D = Dimming (specify
ballast)
For 3 and 4 lamp units
Blank = dual ballasts
3L = (1) 3-lamp ballast
4L = (1) 4-lamp ballast
For 2 lamp units
Blank = single ballast
2/1L = (2) 1-lamp ballasts
*For 1-5/8” please specify.
**Requires dedicated voltage ballast on 3-lamp models.
***CEE listed T8; specify (L)ow, (N)ormal, or (H)igh ballast factor. Contact factory for NEMA Premium.
4 1/8" 4 1/8"5 1/2"
2 1/4"
20 1/4"
21"
22"
23 3/4"
6" 6"
2 1/4"
23 3/4"
6 7/8" 6 7/8"
2 1/4"
23 3/4"
9 5/8"
2 1/4"
23 3/4"
4 1/8" 4 1/8"5 1/2"
2 1/4"
21 3/4"
23 3/4"
TS
TT
TA TY, TK, TB
4 1/8" 4 1/8"5 1/2"
2 1/4"
20 1/4"
21"
22"
23 3/4"
6" 6"
2 1/4"
23 3/4"
6 7/8" 6 7/8"
2 1/4"
23 3/4"
9 5/8"
2 1/4"
23 3/4"
4 1/8" 4 1/8"5 1/2"
2 1/4"
21 3/4"
23 3/4"
TS
TT
TA TY, TK, TB
4 1/8" 4 1/8"5 1/2"
2 1/4"
20 1/4"
21"
22"
23 3/4"
6" 6"
2 1/4"
23 3/4"
6 7/8" 6 7/8"
2 1/4"
23 3/4"
9 5/8"
2 1/4"
23 3/4"
4 1/8" 4 1/8"5 1/2"
2 1/4"
21 3/4"
23 3/4"
TS
TT
TA TY, TK, TB
4 1/8" 4 1/8"5 1/2"
2 1/4"
20 1/4"
21"
22"
23 3/4"
6" 6"
2 1/4"
23 3/4"
6 7/8" 6 7/8"
2 1/4"
23 3/4"
9 5/8"
2 1/4"
23 3/4"
4 1/8" 4 1/8"5 1/2"
2 1/4"
21 3/4"
23 3/4"
TS
TT
TA TY, TK, TB
4 1/8" 4 1/8"5 1/2"
2 1/4"
20 1/4"
21"
22"
23 3/4"
6" 6"
2 1/4"
23 3/4"
6 7/8" 6 7/8"
2 1/4"
23 3/4"
9 5/8"
2 1/4"
23 3/4"
4 1/8" 4 1/8"5 1/2"
2 1/4"
21 3/4"
23 3/4"
TS
TT
TA TY, TK, TB
Dimensions
Voltage Options Accessories
UNV = 120-277V
120 = 120V
277 = 277V
L = Lamps Installed (Specify Lamps) (U-lamp and TT lamps not installed)
FL4 = 3/8”, 6’ flex with two #18, one ground and two con nec tors
FL5 = 3/8”, 6’ flex with three #18, one ground and two con nec tors
M = Master; includes 9’ intertie and snap-in connector
S = Satellite; includes snap-in connector
FB = Fast Blow Fuse
SB = Slow Blow Fuse
BP = Bulk Pack
LG = Lens Gasketing
LDG = Lens and Door Gasketing
LDFG = Lens, Door, and Frame Gasketing
EC = Earth quake Clip, 4-pack
FTI (Flange Trim Kits)
FTI 12 = 1’ x 2’
FTI 14 = 1’ x 4’
FTI 22 = 2’ x 2’
FTI 24 = 2’ X 4’
![](asset-18.png)
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
22
FLUORESCENT - RECESSED
Housing
Die-formed heavy gauge steel with high-gloss, baked
white enamel finish over rust inhibiting phosphate
coat. Access plate (topside) provided with two KOs
and ground screw.
Reflector
Downward throw asymmetric reflector with semi-
specular finish offers high optical per for mance,
pro duc ing even light to vertical surface from single
twin-tube lamp.
Contact factory for ad di tion al
photomet ric data.
30-DEG
0-DEG
90-DEG PLANE
60-DEG
100-DEG PLANE
0-DEG PLANE
30-DEG
90-DEG
7 13/16"
6 15/32"
KO
4 1/8"
4 5/8"
TWW Lay-In Wall Washer
TWW Series Ordering Information
Series Size Lamps Ballast Voltage
TWW 82 = 8” x 2’
84 = 8” x 4’
140 = (1) 40W 22 1/2” twin tube (2’ model)
240 = (2) 40W 22 1/2” twin tube (4’ model)
250 = (2) 50W 22 1/2” twin tube (4’ model)
B14 = Electronic TT UNV = 120-277V
120 = 120V
277 = 277V
Dimensions
Electrical
Fully wired for UNV 120-277V, 50-60Hz operation
with thermally protected, automatic resetting Class
P, sound rated A ballast as standard unless otherwise
specified. UL listed.
Mounting
Recommended mounting position 36” from
wall. Includes integral hang tabs. Offset ends for
continuous row mount ing.
![](asset-19.png)
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
23
FLUORESCENT - RECESSED
Housing
Die-formed heavy gauge steel with high-gloss, baked
white enamel finish over rust inhibiting phosphate
coat. End knockouts for through wire.
Shielding
Pattern A-12 prismatic acrylic lens standard.
Simkar’s TY66 Cube is a recessed 6” x 6” troffer,
with either an acrylic prismatic diffuser or aluminum
baffle louver, ideal for lobbies and corridors.
Electrical
Fully wired for UNV 120-277V, 50-60Hz operation
with thermally protected, automatic resetting Class
P, sound rated A ballast as standard unless otherwise
specified. UL listed damp location.
Mounting
Lay-in for T-bar ceilings.
TY66 Series Ordering Information
Series Diffuser Size Lamps
T Y = acrylic prismatic (standard)
E = Aluminum baffle, semi-specular
66 = 6” x 6” 217 = (2) 17W 24” T8
232 = (2) 32W 48” T8
Emergency Lighting Ballast Voltage
ELS1 = Emergency Lighting (low lumens)
ELS2 = Emergency Lighting (medium lumens)
ELS3 = Emergency Lighting (high lumens)
B11 = Electronic T8
B11HP(x) = HPT8*
UNV = 120-277V
120 = 120V
277 = 277V
*CEE listed T8; specify (L)ow, (N)ormal, or (H)igh ballast factor. Contact factory for NEMA Premium.
6"
24"
4"
48"
5 3/4"
6"
5 3/4"
6"
6"
24"
4"
48"
5 3/4"
6"
5 3/4"
6"
6"
24"
4"
48"
5 3/4"
6"
5 3/4"
6"
Dimensions
TY66 Cube
AVAILABLE
![](asset-1a.png)
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
24
FLUORESCENT - SURFACE
![](asset-1b.png)
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
25
FLUORESCENT - SURFACE
Fluorescent
SURFACE
There are many reasons why a surface mounted fixture is desired ranging from
replacement of an existing fixture or decorative element to installation because of
limited access to the plenum.
Simkar offers a full range of surface mount fixtures including wraps, flat lensed and
parabolics in T8 and T5 versions with options that include occupancy sensors and
multiple ballasts to meet switching requirements or for additional energy saving in
stairways and corridors. Surface mount fixtures can be mounted in continuous rows or
individually and are available in low profile versions as well as decorative suspended
models.
Whether you need CFL, U, or linear fluorescent surface mount fixtures, Simkar is the
solution.
![](asset-1c.png)
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
26
FLUORESCENT - SURFACE
SEP Surface Parabolic
24"
5 1/2"
3"
12"
5 1/2"
3"
24"
5 1/2"
3"
Housing
Die-formed heavy gauge steel with high-gloss,
baked white post-painted enamel finish over rust
inhibiting phosphate coat. Optional KOs available for
continuous row mounting.
Shielding
Uniform low brightness in 60°-90° zone achieved
with 3” deep low iridescence, anodized semi-specular
aluminum parabolic louver. Hinged louver also
available in white and gold.
SEP Ordering Information
Series Size # Lamps Lamp Type Cell Conguration Louver Finish
SEP 124 = 1 x 4
242 = 2 x 2
244 = 2 x 4
2
3
4
14 = 14W 24” T5
17 = 17W 24” T8
32 = 32W 48” T8
32U = 32W U6” T8*
40TT = 40W 22” TT
8C = (1 x 4) 1 row of 8
9C = (2 x 2) 3 rows of 3
12C = (2 x 4) 2 rows of 6
18C = (2 x 4) 3 rows of 6
24C3X8 = 2x4 (3 rows of 8)
24C4X6 = 2x4 (4 rows of 6)
32C = (2 x 4) 4 rows of 8
G = Gold
S = Specular Aluminum
W = White
*For 1 5/8” please specify; required for 3 lamp 32U.
Options Ballast Switching Voltage
ELS1 = Emergency Lighting (low lumens)
ELS2 = Emergency Lighting (medium
lumens)
ELS3 = Emergency Lighting (high lumens)
B11 = Electronic T8
B11HP(x) = HPT8*
B14 = Electronic TT
For 3 and 4 lamp units
Blank = dual ballasts
3L = (1) 3-lamp ballast
4L = (1) 4-lamp ballast
For 2 lamp units
Blank = single ballast
2/1L = (2) 1-lamp ballasts
UNV = 120-277V
120 = 120V
277 = 277V
*CEE listed T8; specify (L)ow, (N)ormal, or (H)igh ballast factor. Contact factory for NEMA Premium.
Options
L = Lamps Installed (Specify Lamps)
SR = Specular reflector
SEP Surface Parabolic is the solution for spaces
where recessed units cannot be used. The SEP is ideal
for retail or commercial environments, providing a
touch of character and style.
Electrical
Fully wired for UNV 120-277V, 50-60Hz operation
with thermally protected, automatic resetting Class
P, sound rated A ballast as standard unless otherwise
specified. UL listed.
Mounting
Surface mount. Four stems required for suspension
mounting.
Dimensions
![](asset-1d.png)
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
27
FLUORESCENT - SURFACE
SYLP Low Profile Surface Series
24"
4"
Housing
Die-formed heavy gauge steel with high-gloss, baked
white enamel finish over rust inhibiting phosphate
coat. Knockouts provided.
Shielding
A-12 pattern clear acrylic or polycarbonate pris mat-
ic lens and cubed louvers installed in flush white
steel door that can be hinged from either side.
Slide-action latches provide positive fit. Light seal
standard.
SYLP Series Ordering Information
Series Diffuser Depth Size
S Y = Clear prismatic acrylic (standard)
A = 1/2” x 1/2” x 1/2” cell
J = 3/4” x 3/4” x 1/2” cell
L = 1/2” x 1/2” x 1/2” egg crate, white
B = .125 clear prismatic polycarbonate
K = .125 clear prismatic acrylic
P = Drop dish
W = Flat white acrylic
LP = Low profile (3”) 124 = 1 x 4
242 = 2 x 2
244 = 2 x 4
# Lamps Lamps Options Ballast Switching
1
2
3
4
17 = 17W 24” T8
28 = 28W 48” T5
32 = 32W 48” T8
32U = 32W U6” T8*
54 = 54W 48” T5HO
ELS1 = Emergency Lighting
(low lumens)
ELS2 = Emergency Lighting
(medium lumens)
ELS3 = Emergency Lighting
(high lumens)
B11 = Electronic T8
B11HP(x) = HPT8
(NBF)**
B12 = Electronic T5
D = Dimming
(specify ballast)
For 3 and 4 lamp units
Blank = dual ballasts
3L = (1) 3-lamp ballast
4L = (1) 4-lamp ballast
For 2 lamp units
Blank = single ballast
2/1L = (2) 1-lamp ballasts
* For 1-5/8” please specify
**CEE listed T8; specify (L)ow, (N)ormal, or (H)igh ballast factor. Contact factory for NEMA Premium.
Voltage Options Accessories
UNV = 120-277V
120 = 120V
277 = 277V
SR = Specular reflector PM(x) = Pendant Mount, white stem
- specify length in inches
(24, 36, 48, 60, 72)
C = Single White Canopy
1x4 models require 2 stems
2x2 and 2x4 models require 4 stems
Dimensions
SYLP Shallow Surface Series utilizes a shallow
3” housing for surface or pendant mount to
provide an unassuming light source in any retail or
commercial environment.
Electrical
Fully wired for UNV 120-277V, 50-60Hz operation
with thermally protected, automatic resetting Class
P, sound rated A ballast as standard unless otherwise
specified. UL listed.
Mounting
Surface or stem mount. Use four stems per 2x2 or
2x4, two for 1x4 unit. White canopies available.
![](asset-1e.png)
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
28
FLUORESCENT - SURFACE
SY66 (6” depth) surface fixture
SY Surface Module
24"
4"
Housing
Die-formed heavy gauge steel with high-gloss, baked
white enamel finish over rust inhibiting phosphate
coat. Knockouts provided.
Shielding
Cubed louvers installed in flush white steel door that
can be hinged from either side. Slide-action latches
provide positive fit. Light seal standard.
SY Ordering Information
Series Louver Size # Lamps Lamps
S E = (Semi specular aluminum)
1 x 4 with 26 cells (2 rows of 13)
2 x 2 with 36 cells (6 rows of 6)
2 x 4 with 78 cells (6 rows of 13)
S = 1-1/2” x 1-1/2” x 1”
124 = 1 x 4
242 = 2 x 2
244 = 2 x 4
1
2
3
4
14 = 14W 24” T5
17 = 17W 24” T8
32 = 32W 48” T8
32U = 32W U6” T8
SY66 Ordering Information
Series Lens/Louver Size # Lamps Lamp Type
S = Surface mounted Y = Clear prismatic acrylic (standard)
E = Semi specular aluminum*
66 = 6”x6” 1
2
17 = 17W 24” T8
25 = 25W 36” T8
32 = 32W 48” T8
*Contact factory
Options Ballast Voltage Accessories
ELS1 = Emergency Lighting (low lumens)
ELS2 = Emergency Lighting (medium lumens)
ELS3 = Emergency Lighting (high lumens)
SR = Specular reflector
B11 = Electronic T8
B11HP(x)* = HPT8
UNV = 120-277V
120 = 120V
277 = 277V
PM(x) = Pendant Mount, white stem -
specify length in inches (24,
36, 48, 60, 72)
C = Single White Canopy
1x4 models require 2 stems
2x2 and 2x4 models require 4 stems
*CEE listed T8; specify (L)ow, (N)ormal, or (H)igh ballast factor. Contact factory for NEMA Premium.
Ballast Voltage
B11 = Electronic T8
B11HP(x) = HPT8*
UNV = 120-277V
120 = 120V
277 = 277V
* CEE listed T8; specify (L)ow, (N)ormal, or (H)igh ballast factor. Contact factory for NEMA Premium.
Dimensions
SY Series utilizes a 4” housing for surface or
pendant mount to provide an unassuming light
source in any retail or commercial environment.
Electrical
Fully wired for UNV 120-277V, 50-60Hz operation
with thermally protected, automatic resetting Class
P, sound rated A ballast as standard unless otherwise
specified. UL listed.
Mounting
Surface or stem mount (PM2). Use four stems per
2x2 or 2x4, two for 1x4 or 6x6 unit.
![](asset-1f.png)
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
29
FLUORESCENT - SURFACE
Wall model shown with
WMB wall bracket.
Housing
Sturdy steel body.
Shielding
acrylic prismatic diffuser (WY), shielding (WE), or
open bottom, open top.
Electrical
Fully wired for UNV 120-277V, 50-60Hz operation
with thermally protected, automatic resetting Class
P, sound rated A ballast as standard unless otherwise
specified. UL listed.
Mounting
Surface wall mount de signed for horizontal
mounting.
5 3/4"
6"
1"
T w o Light
Fixture provides both uplight and down-
ward il lu mi na tion.
WY66-DI shown with standard pris mat ic diffuser.
WY66 And WE66 Surface Mount Task Lighting
WY66 and WE66 Wall Task Lighting Ordering Information
Series Feature Lamps
WY66 = Prismatic bottom
WE66 = Aluminum louver bottom
DI = Direct/indirect down/uplight
LN = Less lens for open bottom
217 = (2) 17W 24” T8
232 = (2) 32W 48” T8
Ballast Voltage
B11 = Electronic T8
B11HP(x) = HPT8*
UNV = 120-277V
120 = 120V
277 = 277V
*CEE listed T8; specify (L)ow, (N)ormal, or (H)igh ballast factor. Contact factory for NEMA Premium.
Dimensions
WY66 and WE66 Series wall-mounted fixtures
provide versatile direct/indirect illumination for a
range of task lighting applications.
6"
24"
4"
48"
5 3/4"
6"
5 3/4"
6"
6"
24"
4"
48"
5 3/4"
6"
5 3/4"
6"
![](asset-20.png)
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
30
FLUORESCENT - SURFACE
SY920 Low Profile Wraparound
14 1/2"
3 1/4"
4 3/4"2 1/2" 2 1/2"
14 1/2"
3 1/4"
4 5/8" 4 5/8"
9"
2 3/4"
4 1/4"
Housing
Die-formed heavy gauge steel with high-gloss, baked
white enamel finish over rust inhibiting phosphate
coat. Standard white ends are injection molded.
Knockouts provided.
Shielding
Clear DR acrylic prismatic lens; smooth white also
available. Lens hinges from either side.
SY920 Series Ordering Information
Series # Lamps Lamp Type
SY920 = prismatic lens (standard)
SW920 = smooth white lens
2
3
4
22 = Tandem, 4 lamps
14 = 14W 24” T5
17 = 17W 24” T8
20 = 20W 24” T12
24 = 24W 24” T5HO
25 = 25W 36” T8
28 = 28W 48” T5
32 = 32W 48” T8
40 = 34 or 40W 48” T12
54 = 54W 48” T5HO
Options Ballast Switching Voltage
SR = Specular reflector
ELS1 = Emergency Lighting (low lumens)
ELS2 = Emergency Lighting (medium lumens)
ELS3 = Emergency Lighting (high lumens)
NOTE: 3 lamp models require low profile
emergency ballast
B5
B11 = Electronic T8
B11HP(x) = HPT8*
B12 = Electronic T5
B22 = LPF T8/T12
For 3 and 4 lamp units
Blank = dual ballasts
3L = (1) 3-lamp ballast
4L = (1) 4-lamp ballast
For 2 lamp units
Blank = single ballast
2/1L = (2) 1-lamp ballasts
UNV = 120-277V
120 = 120V
277 = 277V
*CEE listed T8; specify (L)ow, (N)ormal, or (H)igh ballast factor. Contact factory for NEMA Premium.
Accessories
CR = Continuous row mounting band
STBK - Stabilizer Bracket Kit
Dimensions
SY920 Low Profile Wraparound utilizes a
shallow 3 1/4” housing. Self-spacing unit is suitable
for low-density cellulose fiberboard ceilings.
Electrical
Fully wired for UNV 120-277V, 50-60Hz operation
with thermally protected, automatic resetting Class
P, sound rated A ballast as standard unless otherwise
specified. UL listed damp location.
Mounting
Ceiling surface mount individual or con tin u ous row
(with CR bands). Only one CR band supplied with
every tandem unit. For continuous row mounting,
additional CR bands are needed. Tandem two-lamp
model avail able. Use stabilizer bracket kit for four-
lamp pendant hung models.
AVAILABLE
![](asset-21.png)
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
31
FLUORESCENT - SURFACE
4 3/8"
3 1/4"
8 3/4"
13 1/8"
SY950 Wraparound
Housing
Die-formed heavy gauge steel with high-gloss, baked
white enamel finish over rust inhibiting phosphate
coat. Hinges from either side for easy maintenance.
Shielding
Clear DR acrylic prismatic lens for improved impact
resistance.
SY950 Ordering Information
Series # Lamps Lamp Type
SY950 2
3
4
22 = Tandem, 4 lamps
14 = 14W 24” T5
17 = 17W 24” T8
24 = 24W 24” T5HO
28 = 28W 48” T5
32 = 32W 48” T8
54 = 54W 48” T5HO
Options Ballast Voltage
SR = Specular reflector
ELS1 = Emergency Lighting (low lumens)
ELS2 = Emergency Lighting (medium lumens)
ELS3 = Emergency Lighting (high lumens)
NOTE: 3 lamp models require low profile emergency ballast
B11 = Electronic T8
B11HP(x) = HPT8*
B12 = Electronic T5
UNV = 120-277V
120 = 120V
277 = 277V
*CEE listed T8; specify (L)ow, (N)ormal, or (H)igh ballast factor. Contact factory for NEMA Premium.
Dimensions
SY950 Wraparound with clear prismatic lens is
avail able in 2, 3, or 4-lamp models and tandem
configurations, with T5 or T8 lamps. All models are
suitable for low-density ceiling mount applications.
Electrical
Fully wired for UNV 120-277V, 50-60Hz operation
with thermally protected, automatic resetting Class
P, sound rated A ballast as standard unless otherwise
specified. UL listed.
Mounting
Individual or con tin u ous row (CR), surface mount.
Only one CR band supplied with every tandem unit.
For continuous row mounting, additional CR bands
are needed.
AVAILABLE
2 Lamp
4 Lamp
Accessories
CR = Continuous row mounting band
![](asset-22.png)
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
32
FLUORESCENT - SURFACE
15 5/8"
4 1/4"
Holophane SO Unit 13 1/2" Wide
15 5/8"
4 1/4"
Holophane SO Unit 13 1/2" Wide
10 5/8"
4 1/4"
Holophane SO Unit 8 5/8" Wide
Simkar’s SN990 Glare Reducing Wraparound fixture
is equipped with injection-molded acrylic basket
diffuser with a flat bottom and vertical sides to
provide uniform, low surface bright ness.
Dimensions
Housing
Die-formed heavy gauge steel with high-gloss, baked
white enamel finish over rust inhibiting phosphate
coat. Knockouts provided.
Shielding
Injection molded acrylic patterned prismatic for
low surface glare is standard. Enhanced optics lens
(SO990) also available.
SN990 Ordering Information
Series # Lamps Lamp Type Options
SN990 = Standard Lens
2L is 10 5/8” wide
3 and 4L are 15 5/8” wide
SO990* = Holophane® Lens
2L is 8 5/8” wide
3 and 4L are 13 1/2”
wide
2
3
4
22 = Tandem, 4 lamps
32 = 32W 48” T8 ELS1 = Emergency Lighting (low lumens)
ELS2 = Emergency Lighting (medium lumens)
ELS3 = Emergency Lighting (high lumens)
*Consult factory for availability
Ballast Voltage Accessories
B11 = Electronic T8
B11HP(x) = HPT8*
UNV = 120-277V
120 = 120V
277 = 277V
PM(x) = Pendant Mount, white stem - specify length in inches (24, 36, 48, 60, 72)
C = Single White Canopy
*CEE listed T8; specify (L)ow, (N)ormal, or (H)igh ballast factor. Contact factory for NEMA Premium.
Electrical
Fully wired for UNV 120-277V, 50-60Hz operation
with thermally protected, automatic resetting Class
P, sound rated A ballast as standard unless otherwise
specified. UL listed.
Mounting
Individual stem or surface mount.
SN990 Glare Reducing Wraparound
AVAILABLE
![](asset-23.png)
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
33
FLUORESCENT - SURFACE
Dimensions
SY130 Clear Prismatic Flat Lens Narrow
Wraparound is available in single-lamp 2’, 3’, 4’
and 8’ tandem. A two-lamp model is available in 2’,
4’ and 8’ tandem T5 and T8. SY130 is intended for
ceiling mount applications.
SY130
4 5/8"
5 5/8"
SY130 Narrow Wraparound
Housing
Die-formed heavy gauge steel with high-gloss, baked
white enamel finish over rust inhibiting phosphate
coat. Knockouts provided.
Shielding
Clear DR acrylic prismatic lens for improved impact
resistance.
SY130 Series Ordering Information
Series # Lamps Lamps Options
SY130 1
2
21 = Tandem, 2 lamps
22 = Tandem, 4 lamps
14 = 14W 24” T5
17 = 17W 24” T8
24 = 24W 24” T5HO
25 = 25W 36” T8
28 = 28W 48” T5
32 = 32W 48” T8
54 = 54W 48” T5HO
ELS1 = Emergency Lighting (low lumens)
ELS2 = Emergency Lighting (medium lumens)
ELS3 = Emergency Lighting (high lumens)
Ballast Voltage Accessories
B11 = Electronic T8
B11HP(x) = HPT8*
UNV = 120-277V
120 = 120V
277 = 277V
PM(x) = Pendant Mount, white stem - specify length in inches (24, 36, 48, 60, 72)
C = Single White Canopy
CR = Continuous row mounting band
*CEE listed T8; specify (L)ow, (N)ormal, or (H)igh ballast factor. Contact factory for NEMA Premium.
Electrical
Fully wired for UNV 120-277V, 50-60Hz operation
with thermally protected, automatic resetting Class
P, sound rated A ballast as standard unless otherwise
specified. UL listed damp location.
Mounting
Individual or con tin u ous row stem or surface mount.
Only one CR band supplied with every tandem unit.
For continuous row mounting, additional CR bands
are needed.
AVAILABLE
![](asset-24.png)
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
34
FLUORESCENT - SURFACE
SP175 Smooth White acrylic Wraparound is
available in single-lamp, 2’, 3’, 4’ and 8’ tandem T8.
Unit is dust proof and suitable for wall mount.
SP175 Series Ordering Information
Series # Lamps Lamps
SP175 1
21 = Tandem, 2 Lamps (32W only)
17 = 17W 24” T8
25 = 25W 36” T8
32 = 32W 48” T8
ELS Option Ballast Voltage
ELS1 = Emergency Lighting (low lumens)
ELS2 = Emergency Lighting (medium lumens)
ELS3 = Emergency Lighting (high lumens)
B11 = Electronic T8
B11HP(x) = HPT8*
UNV = 120-277V
120 = 120V
277 = 277V
*CEE listed T8; specify (L)ow, (N)ormal, or (H)igh ballast factor. Contact factory for NEMA Premium.
Housing
Die-formed heavy gauge steel with high-gloss, baked
white enamel finish over rust inhibiting phosphate
coat. Knockouts provided.
Shielding
Milk white acrylic.
Electrical
Fully wired for UNV 120-277V, 50-60Hz operation
with thermally protected, automatic resetting Class
P, sound rated A ballast as standard unless otherwise
specified. UL listed damp location.
Mounting
Individual or con tin u ous row. Stem or surface mount.
Order accessory CR-SP175 for continuous row
mounting.
SP175 Corridor Wraparound
SP175
4 1/2"
4 5/8"
Dimensions
AVAILABLE
Accessories
PM(x) = Pendant Mount, white stem - specify length in inches (24, 36, 48, 60, 72)
C = Single White Canopy
CR-SP175 = Continuous row mounting band
![](asset-25.png)
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
35
FLUORESCENT - SURFACE
SLP Low Profile
Housing
Die-formed heavy gauge steel with high-gloss, baked
white enamel finish over rust inhibiting phosphate
coat. Ends are hand finished to a stainless steel look.
Inside is grooved to accept acrylic lens and avoid
light loss.
Shielding
Smooth milk white formed acrylic.
10 1/8"
4 1/4"
5 7/8"
1 1/4"
2 7/8"
Cable Mounting
SLP Low Profile combines a sleek low-profile
design, smooth white acrylic lens and die-cast
brushed metal ends to create a high-tech designer
appearance. The unit can be surface mounted or
cable hung with 1/16” aircraft cable, as shown. The
SLP is ideal for office, residential and light com mer-
cial space.
Electrical
Fully wired for UNV 120-277V, 50-60Hz operation
with thermally protected, automatic resetting Class
P, sound rated A electronic ballast as standard unless
otherwise specified. UL listed.
Mounting
Flush mounted or cable hung with CACC Suspension
Kit. CACC Suspension Kit includes white cord, white
canopies and 1/16” aircraft cable. Individual
mounting only. See page 91.
SLP Series Ordering Information
Series Ends Lamps Ballast Voltage
SLP M = Brushed metal
W = White
217 = (2) 17W 24” T8
232 = (2) 32W 48” T8
B11 = Electronic T8
B11HP(x) = HPT8*
B22 = LPF T8/T12
UNV = 120-277V
120 = 120V
277 = 277V
*CEE listed T8; specify (L)ow, (N)ormal, or (H)igh ballast factor. Contact factory for NEMA Premium.
ELS Options Accessories
ELS1 = Emergency Lighting (low lumens)
ELS2 = Emergency Lighting (medium lumens)
ELS3 = Emergency Lighting (high lumens)
CACC(xx) = Cable Kit, includes 2 cables, mounting
hardware, white power cord and canopies;
specify length in inches (48 or 72)
Dimensions
AVAILABLE
![](asset-26.png)
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
36
FLUORESCENT - SURFACE
Housing
Die-formed heavy gauge steel with high-gloss, baked
white enamel finish over rust inhibiting phosphate
coat.
Shielding
Frameless white acryl ic diffuser with D.R. for added
durability and even ef fi cient il lu mi na tion on SMC
and SMCLP units. SMCLP shielding is only 3 1/2”
deep. SMCW model uses brass caps to hold diffuser
in place.
SMC Clouds
5.5"
11.5"
17"
5"
4.59"
SMC fixtures are available in 28” and 52” models.
SMCLP fixtures, available in 52” length only, are
2/3 the depth of traditional clouds.
SMCW fixtures are available in 27”, 39” and 51”
models.
SMC Cloud
SMCLP Low Profile Cloud
SMCW Wall Mini Cloud
11 1/8" (2 Light)
16 1/2" (3 or 4 Light)
3 1/2"
SMC Clouds, SMCW Mini Clouds, and SMCLP
Low Profile Clouds provide soft, even, diffused
light from a flawless white acrylic diffuser. SMC and
SMCLP Lift and Shift diffuser for easy relamping
and cleaning without tools. Coordinated ceiling and
wall models unify separate rooms and living spaces.
SMCLP hugs close to the ceiling with a depth of only
3 1/2”.
Electrical
Fully wired for UNV 120-277V, 50-60Hz operation
with thermally protected, automatic resetting Class
P, sound rated A ballast as standard unless otherwise
specified. UL listed.
Mount ing
SMC and SMCLP (ceiling) and SMCW (wall).
SMC Series Ordering Information
Series # Lamps Lamps ELS Options***
SMC = Cloud
SMCW = Wall Mini Cloud
(2 lamp only)
SMCLP = Low Profile Cloud*
2
3
4
17 = 17W 24” T8**
20 = 20W 24” T12
32 = 32W 48” T8
40 = 34 or 40W 48” T12
54 = 54W T5HO
ELS1 = Emergency Lighting (low lumens)
ELS2 = Emergency Lighting (medium lumens)
ELS3 = Emergency Lighting (high lumens)
*Low Profile available in 48” electronic T8 only.
**SMCW Only
***SMCLP 3-lamp units require low profile emergency battery packs.
Ballast Voltage
B5 = Electronic T12
B11 = Electronic T8
B11HP(x) = HPT8*
B22 = LPF T8/T12
UNV = 120-277V
120 = 120V
277 = 277V
*CEE listed T8; specify (L)ow, (N)ormal, or (H)igh
ballast factor. Contact factory for NEMA Premium.
Dimensions
AVAILABLE
![](asset-27.png)
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
37
FLUORESCENT - SURFACE
LDI Direct/Indirect
14 1/4"
4 7/8" 4 7/8"
2 3/8"
5 1/4"
3 3/4"
1 1/8"
Linear Row
Mounting
End Plate Joiner Plate
End Plate
Housing
One-piece steel housing with high-gloss, baked white
enamel finish over rust inhibiting phosphate coat.
Continuous row end plates designed for easy linear
mounting.
Reflector
Perforated housing with translucent milk white
acrylic overlay allows ambient light distribution.
Individually mounted units supplied with formed
plastic end plates that will not fade or discolor.
Electrical
Fully wired for UNV 120-277V, 50-60Hz operation
with thermally protected, automatic resetting Class
P, sound rated A electronic ballast as standard unless
otherwise specified. UL listed.
Mounting
Individual or continuous row pendant mount with
aircraft cable or stem/canopies. Continuous row
fixtures include joiner plate to eliminate light
leak, order LDIJP and LDIEC separately. Row units
available in 4’ and 8’ increments only.
LDI Linear Direct/Indirect fixtures have a bold,
yet practical, look ideal for commercial environments
and schools. One-piece housing ensures no sagging.
Time saving “keyhole” end plate design for lift and
slide continuous row installation. Electronic ballast
saves energy and has no hum and no flicker.
LDI Series Ordering Information
Series Lamps Options
LDI
LDII = individual with 2 end caps
232 = (2) 32W 48” T8
254 = (2) 54W 48” T5HO
2232 = (4) Tandem 32W 48” T8
2254 = (4) Tandem 54W 48” T5HO
ELS1 = Emergency Lighting (low lumens)
ELS2 = Emergency Lighting (medium lumens)
ELS3 = Emergency Lighting (high lumens)
Ballast Voltage Accessories
B11 = Elec tron ic T8
B11HP(x) = HPT8*
B12 = Electronic T5
UNV = 120-277V LDIJP = Linear Direct/Indirect Joiner Plate, order one less than number of fixtures.
LDIEC = Linear Direct/Indirect End Cap, order 1 pair for each row.
LDIPM(x)** = Pendant Mount Kit, includes 2 white stems, mounting brackets and canopies -
specify length in inches (24, 36, 48, 60, 72)
CACC(xx)** = Cable Kit, includes 2 cables, mounting hardware, white power cord and
canopies; specify length in inches (48 or 72)
*CEE listed T8; specify (L)ow, (N)ormal, or (H)igh ballast factor. Contact factory for NEMA Premium.
**Requires 1 Pendant Mount or Cable Kit per 4’ or 8’ tandem unit
Dimensions
AVAILABLE
![](asset-28.png)
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
38
FLUORESCENT - INDUSTRIAL
![](asset-29.png)
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
39
FLUORESCENT - INDUSTRIAL
Fluorescent
INDUSTRIAL,
STRIPS & CHANNELS
Simkar is proud to introduce the most
innovative and comprehensive Industrial
Lighting offering available. Our product
range covers applications from basic
strips to super efficient and innovative
Fluorescent Hi-bays combining the best
materials with energy efficient electronics
and light sources to provide not just a
solution but the best solution for almost
any environment.
Adjust-a–Bay fluorescent bay lighter
combines energy efficient T5 or T8 lamps
with a unique, adjustable socket bracket
that positions the lamps to provide three
different beam patterns. The tool-less
adjusting knobs allow the fixture to
be used in hi-bay, mid-bay or low-bay
applications as needs change. Combined
with reflect-a-bay Simkar has a solution
for every fluorescent bay-lighting need.
EN2 and EN3 provide superior
performance in harsh environments.
Latitude adds a decorative flair in areas
where form and function are both a
factor.
![](asset-2a.png)
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
40
FLUORESCENT - INDUSTRIAL
Light Distribution Settings
The narrow setting provides uniform illumination for tall, vertical surfaces like racking and increased horizontal
illumination for aisles below. The middle setting is excellent for mounting heights above 20 feet, while the
wide setting provides glare-free illumination at lower mounting heights (below 20 feet). Use the multi-purpose
Adjust-a-Bay to light an entire facility to simplify installation and maintenance.
Electrical
Fully wired for 120-277V, 50-60 Hz operation with
thermally protected, automatic resetting, Class P,
Sound rated A, programmed-start, electronic T5 HO
ballast. The 6 lamp unit contains 1-(2) lamp and
1-(4) lamp T5 HO ballast. The 4 lamp unit contains
1- (4) lamp T5 HO ballast as standard. Switch from
6-4, 6-2, 6-0, 4-2, 4-0. Low voltage, high-2-low
control on six lamp unit. System watts are 224W
(ADJUST 454) and 360W (654). UL listed.
Reflector
The Adjust-a-Bay incorporates computer designed,
faceted, extra wide and deep, highly reflective
MIRO 4 reflectors which offer 95% reflectance.
Sharp cut-off produces maximum usable lumens and
minimizes glare. Slotting is available on all reflectors
for cooler operation and uplight. Seven slots are
located on each reflector. Each slot measures 1/2”
wide x 5” long.
Mounting Options
A variety of mounting options are available:
surface, pendant, chain hanger assembly, adjustable
cable, mono-point hook or slide box. Please order
mounting accessories separately.
Housing
Fixture has a die formed heavy gauge steel ballast
channel with a high-gloss baked white enamel
finish over rust-inhibiting phosphate coat. Die-cast
aluminum ends have galvanized steel side rails. A
hinged ballast channel cover with captive hardware
can be opened without tools. Fixture is shipped fully
wired. Ample knockouts provided.
Adjustable Optics
Tool-free, adjustable optics assembly provides three
user-selectable light distribution patterns: narrow for
aisle lighting; medium for high bay; and wide for
low bay applications. Easily change the position of
the lamp assembly within the reflectors utilizing two
thumb screws located on each end cap.
Adjust-a-Bay Three-in-One Fluorescent High Bay
29.7
16.0
48.4 49.2
4
Dimensions
Fixture Fixture Fixture Approx.
Length Width Height Ship Wt.
432/454
48.4” 19” 4” 21 lbs.
632/654
48.4” 29.7” 4” 28 lbs.
This energy-efficient new product has the flexibility
to provide lighting in industrial, educational, or
retail applications. Adjust-a-Bay offers 3-way
user adjustability to perform as a low bay, high bay
or aisle lighter. Units are available with T5 or T8
lamps in a four or six lamp configuration. Optional
uplight provides the ultimate in design flexibility.
T5 Fixture: 55° C Ambient Temperature
T8 Fixture: 35° C Ambient Temperature
Listed for Damp Locations
Consult Factory for CUL Availability
AVAILABLE
MIRO™ is a registered trademark of Alanod
![](asset-2b.png)
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
41
FLUORESCENT - INDUSTRIAL
Adjust-a-Bay Three-in-One Fluorescent High Bay
Adjust-a-Bay Ordering Information
Series # Lamps Lamp Type Aperture Options Ballast
ADJUST 4
6
28 = 28W 48” T5
54 = 54W 48” T5HO
32 = 32W 48” T8
Solid reflector is standard
A = Aperture; uplight ranges
from 7% to 12%
ELS1 = Emergency Lighting (low lumens)
ELS2 = Emergency Lighting (medium lumens)
ELS3 = Emergency Lighting (high lumens)
B11 = Elec tron ic T8
B11HP(x) = HPT8*
B11VHO = T8 Very High Output
B12 = T5
*CEE listed T8; specify (L)ow, (N)ormal, or (H)igh ballast factor. Contact factory for
NEMA Premium.
Ballast Options Switching Voltage Options
HBF = High Ballast Factor
HT = High Temperature (Not available with HBF)
PS = Program Start (Recommended for use with occupancy sensor)
For 4 lamp units
4L = (1) 4-lamp ballast
(standard)
2/2L = (2) 2-lamp ballasts
For 6 lamp units
Blank = (1) 4-lamp ballast
and (1) 2-lamp ballast
(standard)
2/3L = (2) 3-lamp ballasts
UNV = 120-277V
U34 = 347-480V
347 = 347V
480 = 480V
OS(x) = Occupancy Sensor
(specify # of lamps controlled - 2, 4, 6 or 8)
OSI(x) = Occupancy Sensor; factory-installed
(specify # of lamps controlled - 2, 4, 6 or 8)
OSDL(x) = Daylight Sensor
(specify # of lamps controlled - 2, 4, 6 or 8)
FB* = Fast blow fuse
SB* = Slow blow fuse
BP = Bulk Pack
6’ Cord and Plug
CPT(x)
1 = 120V
2 = 277V
3 = 208V
4 = 340V
5 = 480V
CP3 = Cord & Plug - 120V Straight Blade 5-15P
Mounting Accessories
CA24 = Chain Hanger Assembly - (2) 18” chains, (2) “V” hooks, (2) “S” hooks for total drop 24”
PM(x) = Twin Pendant Mount - 2 white stem kits - specify length (24”, 36”, 48”, 60”, 72”)
SN = Snapper Bracket - 1-3/4” for surface mounting or twist and lock onto T-Bar (order 2)
HKSC = Hook & Chain Assembly - Monopoint mount to four point suspension. (Includes hook, chain, and mounting plate)
CAB72 = Adjustable Cables - includes (4) 6-foot steel aircraft cables, toolless adjusters and mounting hardware.
AWG4 = 4 Lamp Heavy-Duty Wire Guard
AWG6 = 6 Lamp Heavy-Duty Wire Guard
AWG4T = 4 Lamp Heavy-Duty Wire Guard - Top (Recommended for gym applications)
AWG6T = 6 lamp heavy-duty wire guard - Top (Recommended for gym applications)
ADJ4 = 4 Light acrylic Lens (Lift And Shift)
ADJ6 = 6 Light acrylic Lens (Lift And Shift)
WADJ4 = 4 Light acrylic Lens And Heavy Duty Wire Guard Combo
WADJ6 = 6 Light acrylic Lens And Heavy Duty Wire Guard Combo
![](asset-2c.png)
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
42
FLUORESCENT - INDUSTRIAL
See the light ... see the difference in your energy bills
The Adjust-a-Bay offers the following unique
features to provide non-stop energy savings and
lower installation & maintenance costs:
• Adjustable optics; three settings
• Energy saving; electronic
T5 HO and T8 systems
• Exposed reflectors for
cooler, cleaner operation
• Extra deep and wide
reflectors for superior
light control
• Tool-less ballast access
• Flexible mounting options
Put Light Where You Want It
Three user-selectable beam patterns for maximum illumination from a minimum
number of fixtures.
Superior Illumination
Extra deep and wide MIRO 4 reflectors punch
light downward for maximum horizontal and
vertical illumination with less glare.
Same Light at a Lower Cost
Control-friendly, energy efficient programmed
start ballast minimizes input watts and optimizes
lamp life. Combine with optional motion sensor to
increase savings. Nothing saves like turning the
lights off!
Runs Cooler, Stays Cleaner
Thermally efficient, fully exposed reflectors
maximize lumen output at higher ambient
temperatures and repel dirt. Self-cleaning
convective airflow keeps the fixture cool.
Easy to Access
Tool-less ballast access via captive
thumbscrew for quick installation and
servicing. Don’t waste valuable labor and
equipment time fiddling with screws.
Circulating convective airflow
NO SCREWS
MIRO™ is a registered trademark of Alanod
Adjust-a-Bay Three-in-One Fluorescent High Bay
![](asset-2d.png)
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
43
FLUORESCENT - INDUSTRIAL
Efficiency 93.9%
Spacing criterion
0° = 1.2
90° = 1.0
0°
90°
Efficiency 94.3%
Spacing criterion
0° = 1.2
90° = 1.0
0°
90°
9.2% uplight
Efficiency 93.9%
Spacing criterion
0° = 1.2
90° = 1.0
0°
90°
Efficiency 94.3%
Spacing criterion
0° = 1.2
90° = 1.3
0°
90°
9.2% uplight
Efficiency 94.9%
Spacing criterion
0° = 1.2
90° = 1.4
0°
90°
Efficiency 94.7%
Spacing criterion
0° = 1.2
90° = 1.4
0°
90°
7.2% uplight
Efficiency 94.9%
Spacing criterion
0° = 1.2
90° = 1.4
0°
90°
Efficiency 94.7%
Spacing criterion
0° = 1.2
90° = 1.4
0°
90°
7.2% uplight
Efficiency 95.3%
Spacing criterion
0° = 1.2
90° = 2.0
0°
90°
Efficiency 95.4%
Spacing criterion
0° = 1.2
90° = 2.0
0°
90°
5.9% uplight
Efficiency 95.3%
Spacing criterion
0° = 1.3
90° = 2.0
0°
90°
Efficiency 95.4%
Spacing criterion
0° = 1.2
90° = 2.1
0°
90°
5.9% uplight
Efficiency 98.4%
Spacing criterion
0° = 1.2
90° = .8
0°
90°
Efficiency 92.4%
Spacing criterion
0° = 1.2
90° = .9
0°
90°
11.6% uplight
Efficiency 98.4%
Spacing criterion
0° = 1.2
90° = .8
0°
90°
Efficiency 92.4%
Spacing criterion
0° = 1.2
90° = .9
0°
90°
11.6
Efficiency 99.0%
Spacing criterion
0° = 1.3
90° = 1.1
0°
90°
Efficiency 95.3%
Spacing criterion
0° = 1.2
90° = 1.2
0°
90°
8.6% uplight
Efficiency 99.0%
Spacing criterion
0° = 1.2
90° = 1.1
0°
90°
Efficiency 93.5%
Spacing criterion
0° = 1.2
90° = 1.2
0°
90°
8.6% uplight
Efficiency 99.0%
Spacing criterion
0° = 1.2
90° = 1.8
0°
90°
Efficiency 94.0%
Spacing criterion
0° = 1.2
90° = .8
0°
90°
6.8% uplight
Efficiency 99.4%
Spacing criterion
0° = 1.3
90° = 1.8
0°
90°
Efficiency 94.0%
Spacing criterion
0° = 1.2
90° = 1.8
0°
90°
6.8% uplight
T5HO Programmed Start, Electronic Ballast
T8, Electronic Ballast
Adjust
654HOB12
6 Light T5 H0
Adjust
654AH0B12
6 Light T5 H0 with uplight
Adjust
454H0B12
4 Light T5 H0
Adjust
454AH0B12
4 Light T5 H0 with uplight
Adjust
632B11
6 Light T8
Adjust
632AB11
6 Light T8 with uplight
Adjust
432B11
4 Light T8
Adjust
432AB11
4 Light T8 with uplight
Adjust-a-Bay Three-in-One Fluorescent High Bay
![](asset-2e.png)
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
44
FLUORESCENT - INDUSTRIAL
Reflect-A-Bay 4, 6, or 8 lamp T5/T8
Simkar’s new Reflect-a-Bay™ is the perfect
complement to our innovative Adjust-a-Bay series
of product. Reflect-a-Bay™ incorporates the same
attention to quality and detail as its predecessor,
offering both T5 and T8 in four, six, and eight lamp
configurations. Coupled with a wide array of options
and accessories, Reflect-a-Bay™ is the perfect
choice for manufacturing, warehouse, retail or
institutional applications, be they new installations
or retro-fits.
Housing
Die formed heavy gauge steel housing with high-
gloss baked white enamel finish over rust inhibiting
phosphate coat. Fixture is shipped fully wired. Ample
knockouts provided.
Reflector
The Reflect-A-Bay is available with an 85% specular
reflector for narrow to medium distribution, or a
white reflector for wide distribution, perfect for
low bay applications.
Mounting Options
A variety of mounting options are available - please
see next page for details.
More light. Lower costs. Easier to install.
Uplighting available on all models•
Save up to 20% in energy when •
used in place of traditional HID
Instant-on•
Choose from 7 mounting options, •
from a chain hanger to a center
mount slidebox that’s great for
HID retrofits
4, 6, and 8 lamp versions•
For use with T5 or T8 lamps•
Choice of reflectors:
85% specular with medium to •
narrow distribution
White reflector for wide •
distribution – great for lowbay
applications
AVAILABLE
Electrical
Fully wired for 120-277V, 60 Hz AC operation with
ETL-CBM, thermally protected, automatic resetting,
Class P, sound rated A, programmed-start, electronic
T5 HO or T8 ballast. High ballast factor T8 ballasts
are also available. 8 lamp unit contains 2 - (4) lamp
ballasts.The 6 lamp unit contains 1-(2) lamp and
1-(4) lamp ballast. The 4 lamp unit contains 1- (4)
lamp ballast as standard. UL listed.
![](asset-2f.png)
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
45
FLUORESCENT - INDUSTRIAL
Reflect-A-Bay 4, 6, or 8 lamp T5/T8
Reflect-A-Bay Series Ordering Information
Series # Lamps Lamp Type Aperture Reector Options Ballast Switching Voltage
REF 4
6
8
32 = F32T8
54 = F54T5HO
A = Aperture
S = Solid
SR = Specular Aluminum
WR = White
ELS1 = Emergency Lighting (low lumens)
ELS2 = Emergency Lighting (medium lumens)
ELS3 = Emergency Lighting (high lumens)
NOTE: ELS2 AND ELS3 FOR T8 OPERATE ONE OR
TWO LAMPS. ALL OTHERS OPERATE ONE LAMP ONLY.
B11 = T8
B11HP(x) = HPT8*
B12 = T5 HO
For 4 lamp units
4L = (1) 4-lamp ballast
(standard)
2/2L = (2) 2-lamp ballasts
For 6 lamp units
Blank = (1) 4-lamp ballast
and (1) 2-lamp ballast
(standard)
2/3L = (2) 3-lamp ballasts
For 8 lamp units
Blank = (2) 4-lamp ballasts
(standard)
UNV = 120-277V
347 = 347V
480 = 480V
*CEE listed T8; specify (L)ow, (N)ormal, or (H)igh ballast factor. Contact factory for NEMA Premium.
12.75
3.0
48.0
12.75
3.0
48.0
18.75
3.0
48.0
Reflect-A-Bay 6 light
Reflect-A-Bay 4 light
24.75
3.0
48.0
Reflect-A-Bay 8 light
Options Mounting Accessories (Order Separately) Accessories (Order Separately)
OS(x) = Occupancy Sensor
(specify # of lamps controlled - 2, 4, 6 or 8)
OSI(x) = Occupancy Sensor; factory-installed
(specify # of lamps controlled - 2, 4, 6 or 8)
OSDL(x) = Daylight Sensor
(specify # of lamps controlled - 2, 4, 6 or 8)
FB = Fast blow fuse
SB = Slow blow fuse
BP = Bulk Pack
6’ Cord and Plug
CPT(x)
1 = 120V
2 = 277V
3 = 208V
4 = 240V
5 = 480V
CP3 = Cord & Plug - 120V Straight Blade 5-15P
CA24 = Chain Hanger Assembly - (2) 18” chains, (2) “V” hooks, (2) “S”
hooks for total drop 24”
CS24 = S-hook Chain Hanger Assembly - (2) 18” chains, (2) “V” hooks,
(2) “S” hooks for total drop 24”
PM(x) = Twin Pendant Mount - 2 white stems - specify length (24”, 36”,
48”, 60”, 72”)
HKSC = Hook & Chain Assembly - Monopoint mount to four point
suspension. (Includes hook, chain, and mounting plate)
CAB(x)72 = Adjustable Cables - includes 6-foot steel aircraft cables,
toolless adjusters and mounting hardware. Specify “2” for 2
cables & Y-hanger or “4” for 4 cables.
SBH = Slide Box with hook - Level adjustable for mono-point hook mount.
SBP(x) = Slide Box & Single Pendant Mount- Level adjustable for mono-
point pendant mount - specify length (24”, 36”,
48”, 60”, 72”). Other lengths available.
RWG(x) = Heavy Duty Wire Guard
REF(x) = acrylic Lens
WREF(x) = acrylic Lens And Heavy Duty Wire Guard Combo
For above, please specify # of lamps (4, 6, or 8)
Mountings
Chain Hanger
Assembly
Ordering Code
CA24
“S” Hook (4)
Chain Hanger
Assembly
Ordering Code
CS24
Adjustable
Aircraft
Cables
Ordering Code
CAB72
Hook & Chain
Assembly
Ordering Code
HKSC
Center Mount Slide
Box w/Hook Assembly
Ordering Code
SBH
Center Mount Slide Box
w/ Pendant Mount
Ordering Code
SBP
Twin Pendant Mount
Ordering Code
PM2
![](asset-30.png)
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
46
FLUORESCENT - INDUSTRIAL
MIRO® Premium Specular Industrial
Housing
Die-formed heavy gauge steel with high-gloss, baked
white enamel finish over rust inhibiting phosphate
coat. 7/8” knock outs for easy in stal la tion.
Reflector
Specular reflector manufactured from MIRO 4
aluminum in 4’ sections to maximize light output
and control beam spread. 95% reflectance.
Electrical
Fully wired for UNV 120-277V, 50-60Hz operation
with thermally protected, automatic resetting Class
P, sound rated A ballast as standard unless otherwise
specified. UL listed damp location.
Mounting
Ceiling surface mount (HO and VHO units must be
suspended at least 6” from ceiling for cooler op er a-
tion and longer bal last life), spacing available with
Snapper Bracket (SN), CA24 chain kit or stem mount
in di vid u al or con tin u ous row. AC aligner clips avail-
able for continuous runs.
3 7/8"
11 1/2"
Dimensions
The MIRO® Industrial, designed to replace
conventional HID lighting in commercial, industrial,
educational and retail applications, combines a
performance-boosting MIRO 4 aluminum reflector
(95% reflectivity) with the proven energy efficiencies
of T5HO or T8 linear fluorescent lamps. This provides
increased light levels, improved color rendition,
and excellent uniformity while using up to 75% less
energy. The MIRO Industrial, available in a choice of
sizes, lamp configurations, and mounting, is a cost-
effective solution for areas traditionally illuminated
using HID fixtures.
MIE Premium Specular Industrial Ordering Information
Series # Lamps Lamps Reector Options Options
MIE 1
2
3
21 = Tandem, 2 lamps
22 = Tandem, 4 lamps
23 = Tandem, 6 lamps
28 = 28W 48” T5
32 = 32W 48” T8
48 = 48” Slimline
96 = 96” Slimline
High Output
48 = 48” HO
54 = 54W T5HO
96 = 96” HO
Very High Output
48 = 48” VHO
96 = 96” VHO
Solid is standard
A = Aperture 12% uplight
ELS1 = Emergency Lighting
(low lumens)
ELS2 = Emergency Lighting
(medium lumens)
ELS3 = Emergency Lighting
(high lumens)
Ballast Switching Voltage
HOB5 = High Output Electronic T12
B11 = Electronic T8
B11HP(x) = HPT8*
HOB11 = High Output Electronic T8
B12 = Electronic T5
HO = High Output
VHO = Very High Output
For 2 lamp units
Blank = single ballast
2/1L = (2) 1-lamp ballasts
For 3 and 4 lamp units
Blank = dual ballasts
3L = (1) 3-lamp ballast
4L = (1) 4-lamp ballast
For 6 lamp tandem units
2/3L = (2) 3-lamp ballasts
2L4L = (1) 2-lamp and (1)
4-lamp ballast
UNV = 120-277V
120 = 120V
277 = 277V
*CEE listed T8; specify (L)ow, (N)ormal, or (H)igh ballast factor. Contact factory for NEMA Premium.
Accessories
SN - Snapper Brackets
CA24 = Chain Hanger Assembly - (2) 18” chains, (2) “V” hooks,
(2) “S” hooks for total drop 24”
CS24 = S-hook Chain Hanger Assembly - (2) 18” chains, (2) “V”
hooks, (2) “S” hooks for total drop 24”
HKSC - Hook & Chain Assembly (24” total drop; 4’ xtures only)
LG48 - 48” wire guard
AC - Aligner Clip / Joiner
CHJ - Connector Joiner
AVAILABLE
MIRO™ is a registered trademark of Alanod
![](asset-31.png)
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
47
FLUORESCENT - INDUSTRIAL
IE Industrial
3 7/8"
11 1/2"
Housing
Die-formed heavy gauge steel with high-gloss, baked
white enamel finish over rust inhibiting phosphate
coat. 7/8” knock outs for easy in stal la tion.
Reflector
Strong, rigid, die-embossed solid white reflector in 4’
sections, standard. Optional “A” ap ertures for 12%
uplight.
IE Industrial Ordering Information
Series # Lamps Lamps Reector Options
IE 1
2
3
21 = Tandem, 2 lamps
22 = Tandem, 4 lamps
23 = Tandem, 6 lamps
28 = 28W 48” T5
32 = 32W 48” T8
48 = 48” Slimline
96 = 96” Slimline
High Output
48 = 48” HO
54 = 54W T5HO
96 = 96” HO (1 or 2 lamp only)
Very High Output
48 = 48” VHO (1 or 2 lamp only)
96 = 96” VHO (1 or 2 lamp only)
Solid is standard
A = Aperture 12% uplight
Options Ballast Switching Voltage
ELS1 = Emergency Lighting
(low lumens)
ELS2 = Emergency Lighting
(medium lumens)
ELS3 = Emergency Lighting
(high lumens)
B5 = Electronic T12
HOB5 = High Output Electronic T12
B11 = Electronic T8
B11HP(x) = HPT8*
HOB11 = High Output Electronic T8
B12 = Electronic T5
HO = High Output
VHO = Very High Output
For 2 lamp units
Blank = single ballast
2/1L = (2) 1-lamp ballasts
For 3 and 4 lamp units
Blank = dual ballasts
3L = (1) 3-lamp ballast
4L = (1) 4-lamp ballast
For 6 lamp tandem units
2/3L = (2) 3-lamp ballasts
2L4L = (1) 2-lamp and (1)
4-lamp ballast
UNV = 120-277V
120 = 120V
277 = 277V
*CEE listed T8; specify (L)ow, (N)ormal, or (H)igh ballast factor. Contact factory for NEMA Premium.
Accessories
SN - Snapper Brackets
CA24 - Chain Hanger Assembly (24” total drop)
CS24 - “S” Hook (4) Chain Hanger Assembly (24” total drop)
HKSC - Hook & Chain Assembly (24” total drop; 4’ xtures only)
LG48 - 48” wire guard
AC - Aligner Clip
CHJ - Housing Joiner
Dimensions
IE Industrial Fluorescent models come
standard with patented labor-saving pre-wired
flip-up socket bars.
Electrical
Fully wired for UNV 120-277V, 50-60Hz operation
with thermally protected, automatic resetting Class
P, sound rated A ballast as standard unless otherwise
specified. UL listed damp location.
Mounting
Ceiling surface mount (HO and VHO units must
be suspended at least 6” from ceiling for cooler
op era tion and longer bal last life), spacing available
with Snapper Bracket (SN), CA24 in kit or stem
mount in di vid u al or con tin u ous row. AC aligner clips
available for continuous runs.
AVAILABLE
![](asset-32.png)
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
48
FLUORESCENT - INDUSTRIAL
IF Premium Turret Industrial
Op tion al reflector end, RE
4 1/4"
6 1/4"
12 3/4"
6"
4 1/4"
12 3/4"
6 1/4"
4 1/4"
12 3/4"
6 1/4"
Dimensions
Simkar IF Premium Turret Industrial specification-
grade fixtures feature spring-loaded lamp holders to
provide positive lamp contact and re ten tion.
IF Premium Turret Industrial Ordering Information
Series # Lamps Lamps Reector Options
IF 2
3
4
22 = Tandem, 4 lamps
23 = Tandem, 6 lamps
24 = Tandem, 8 lamps
28 = 28W 48” T5
32 = 32W 48” T8
48 = 48” Slimline
96 = 96” Slimline
High Output
48 = 48” HO
54 = 54W T5HO
96 = 96” HO
Very High Output
48 = 48” VHO
96 = 96” VHO
A = Aperture, 15% uplight
Housing
Die-formed heavy gauge steel with high-gloss, baked
white enamel finish over rust inhibiting phosphate
coat. 7/8” knock outs for easy in stal la tion. Two-lamp
model has 6” on-center lamp spac ing.
Reflector
Heavy gauge, rigid, die-em bossed reflector with
transverse beads, in 4’ sections; high-gloss white
reflector, or optional “A” apertures for 15% uplight.
High reflectance specular aluminum insert (SR)
available.
Options Ballast Switching Voltage
SR = Specular Reflector
ELS1 = Emergency Lighting
(low lumens)
ELS2 = Emergency Lighting
(medium lumens)
ELS3 = Emergency Lighting
(high lumens)
B5 = Electronic T12
B11 = Electronic T8
B11HP(x) = HPT8*
HOB11 = High Output Electronic T8
B12 = Electronic T5
HO** = High Output
VHO** = Very High Output
For 2 lamp units
Blank = single ballast
2/1L = (2) 1-lamp ballasts
For 3 and 4 lamp units
Blank = dual ballasts
3L = (1) 3-lamp ballast
4L = (1) 4-lamp ballast
For 6 lamp tandem units
Blank = single ballast
2/3L = (2) 3-lamp ballasts
2L/4L = (1) 2-lamp and (1) 4-lamp ballast
UNV = 120-277V
120 = 120V
277 = 277V
*CEE listed T8; specify (L)ow, (N)ormal, or (H)igh ballast factor. Contact factory for NEMA Premium.
** Must be spaced at least 6” from ceiling
Options Accessories
CORD AND PLUG
CPT (x) (twist + lock)
1= 120V
2 = 277V
CP3 = Cord & Plug - 120V Straight Blade 5-15P
RE = Reflector end
WG = Wire Guards (page 93)
IF JOINER = For continuous run
Electrical
Fully wired for UNV 120-277V, 50-60Hz operation
with thermally protected, automatic resetting Class
P, sound rated A ballast as standard (except Slimline
and HO models) unless otherwise specified. UL listed
damp location.
Mounting
Ceiling surface mount (HO and VHO units must be
suspended at least 6” from ceiling for cooler op er a-
tion and longer bal last life), spacing available with
Snapper Bracket (SN), CA24 chain kit or stem mount
in di vid u al or con tin u ous row.
AVAILABLE
2 Lamp
3 Lamp
4 Lamp
![](asset-33.png)
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
49
FLUORESCENT - INDUSTRIAL
IF Premium Turret Industrial Ordering Information
Series # Lamps Lamps Reector Options
IF 2
3
4
22 = Tandem, 4 lamps
23 = Tandem, 6 lamps
24 = Tandem, 8 lamps
28 = 28W 48” T5
32 = 32W 48” T8
48 = 48” Slimline
96 = 96” Slimline
High Output
48 = 48” HO
54 = 54W T5HO
96 = 96” HO
Very High Output
48 = 48” VHO
96 = 96” VHO
A = Aperture, 15% uplight
IDP Industrial Decorative with Perforated Shielding
14 1/4"
2 3/8"
5 1/4"
3 3/4"
1 1/8"
IDP Industrial Decorative fixtures are ideal
for spaces where a more refined look is desired.
Finished end plates allow for attractive individual
mounting.
Dimensions
Housing
Die-formed heavy gauge steel with high-gloss, baked
white enamel finish over rust inhibiting phosphate
coat. 7/8” knockouts provided for easy installation.
Wired flip-up socket bars standard.
Reflector
Strong, rigid, die-formed white reflector in 4’
sections. Optional perforated reflector for ambient
uplight available.
IDP Industrial Decorative Ordering Information
Series Lamps
IDP 232 = (2) 32W 48” T8
Ballast Voltage Accessories
B11 = Electronic T8
B11HP(x) = HPT8*
UNV =
120-277V
PM(x) = Twin Pendant Mount, 2 white stems - specify length in inches (24, 36, 48, 60, 72)
CACC(xx) = Cable Kit, includes 2 cables, mounting hardware, white power cord and canopies; specify
length in inches (48 or 72)
C = Single white canopy
*CEE listed T8; specify (L)ow, (N)ormal, or (H)igh ballast factor. Contact factory for NEMA Premium.
Electrical
Fully wired for UNV 120-277V, 50-60Hz operation
with thermally protected, automatic resetting Class
P, sound rated A ballast as standard unless otherwise
specified. UL listed.
Mounting
Surface mount or pendant mount with aircraft cable
or stem/canopies. Individual mounting only.
FLUORESCENT
AVAILABLE
![](asset-34.png)
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
50
FLUORESCENT - INDUSTRIAL
Latitude Louvered Industrial Fluorescent
Introducing Latitude
Rugged elegance best describes the Latitude series
of fixtures. We begin with an industrial reflector in
either white (LAW) or specular finished (LAM) and
add a parabolic aluminum louver in your choice of
two finishes: white or semi specular and complete it
by offering T5 or T8 lamps in 4’ and 8’ lengths.
The combination of the rugged industrial reflector
and control of the louvers produces a simply elegant
fixture with the hardiness of an industrial fixture
married with the soft, cut-off performance of high-
end, high-tech louvered luminaries. Latitude fixtures
are available with a solid reflector or with apertures
for an added element of uplighting to get the look
you want with the performance you need.
The ability to mount the Latitude series individually
or in continuous rows add the versatility and comfort
desired in today’s fast moving retail, commercial and
educational environments.
Housing
Die–Formed heavy gauge steel with high gloss
baked white enamel finish over rust-inhibiting
phosphate coat. 7/8” knockouts for easy
installation.
Dimensions
Reflector
LAW: Strong, rigid, die-embossed solid white
painted steel “S” reflector in 4’ sections is standard.
Optional “A” reflector available with 12% uplight.
LAM: Strong, rigid, die-embossed solid MIRO™ 4
specular aluminum “S” reflector in 4’ sections is
standard. Optional “A” reflector available with 12%
up-light.
Louvers
Louvers provided in 4’ sections.
S: Die-formed, parabolic louver made of semi-
specular aluminum.
W: Die-formed, parabolic louver made of white
painted aluminum.
Electrical
Fully wired for 120-277V, 50-60Hz operation with
thermally protected, automatic resetting Class P,
sound rated A ballast as standard unless otherwise
specified. UL listed damp location. Optional ballasts
and configurations are available upon request.
Mounting
Ceiling, surface or suspended mounting options are
available for individual units or continuous rows.
White end caps included (packaged separately).
Contact factory for continuous row applications.
AVAILABLE
The Latitude series is the perfect choice for
offices, commercial or industrial applications
where a high end, high tech look and
superior performance is required.
3.875"
12.00"
2"
6.00"
48.00"
0.875" K.O. (4)
1.00" 2.00"
1.125"
1.125”
NOT TO SCALE
NEW
LATITUDE
LOUVERED INDUSTRIAL FLUORESCENT LIGHTING
MIRO™ is a registered trademark of Alanod
![](asset-35.png)
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
51
FLUORESCENT - INDUSTRIAL
Latitude Louvered Industrial Fluorescent
Latitude Series Ordering Information
Series Size Uplighting Louver # Lamps Lamp Type
LAW = Latitude White
LAM = Latitude with MIRO 4
reflector
4 = 4’
8 = 8’
A = Aperture
S = Solid (none)
S = Semi Specular parabolic
W = White painted parabolic
Note: 1 per 4’ Section
1
2
3
2T = 2 lamps, Tandem
4T = 4 lamps, Tandem
6T = 6 lamps, Tandem
28T5 = F28 T5
32T8 = F32 T8
54T5H = F54 T5 HO
Emergency Lighting Ballast Switching Voltage
ELS1 = Emergency Lighting (low lumens)
ELS2 = Emergency Lighting (medium lumens)
ELS3 = Emergency Lighting (high lumens)
E = Electronic
E(x) = Electronic HPT8*
PS = Program Start (recommended for use with occupancy sensors;
standard on T5)
For 2 lamp units
Blank = single ballast
2/1L = (2) 1-lamp ballasts
For 3 and 4 lamp units
Blank = dual ballasts
3L = (1) 3-lamp ballast
4L = (1) 4-lamp ballast
For 6 lamp tandem units
2/3L = (2) 3-lamp ballasts
2L4L = (1) 2-lamp and (1) 4-lamp ballast
U1 = 120-277
U3 = 347-480V
347 = 347V
480 = 480V
*CEE listed HPT8 (32W only); specify (L)ow, (N)ormal, or (H)igh ballast factor
Options* Accessories
Plug-in Systems
Ballast wired to Black:
PL1 BK - one circuit, two wires
PL2 BK - two circuits, three wires
PL3 BK - three circuits, four wires
Ballast wired to Red:
PL2 RD - two circuits, three wires
PL3 RD - three circuits, four wires
Ballast wired to Blue:
PL3 BL - three circuits, four wires
Cord and Plug Options
CPT(x) =, “x” = voltage
12 = 120V L5-15P
20 = 208V
24 = 240V
27 = 277V L7-15P
34 = 347V
48 = 480V
CP3 = Cord & Plug - 120V Straight Blade 5-15P
ECW = End caps (white, set of 2)
ECS = End caps (silver, set of 2)
WO = Without endcaps
AC = Alignment clips
FB = Fast blow fuse
SB = Slow blow fuse
BP = Bulk pack
CA24 = Chain hanger assembly - (2) 18” chains, (2) “V” hooks, (2) “S” hooks for total drop 24”
CS24 = S-hook chain hanger assembly - (2) 18” chains, (2) “V” hooks, (2) “S” hooks for total drop 24”
PM(x) = Twin pendant mount - 2 white stems - specify length (24”, 36”, 48”, 60”, 72”)
HKSC = Hook & chain assembly - monopoint mount to four point suspension.
(Includes hook, chain, and mounting plate)
CAB(x)72 = Adjustable cables - includes 6-foot steel aircraft cables, toolless adjusters and
mounting hardware. Specify “2” for 2 cables & Y-hanger or “4” for 4 cables.
CACC(xx) = Cable Kit, includes 2 cables, mounting hardware, white power cord and canopies; specify
length in inches (48 or 72)
![](asset-36.png)
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
52
FLUORESCENT - INDUSTRIAL
Introducing Latitude Contour
With its distinctive curved blade and rugged
construction, Latitude Contour is the perfect fixture
for retail, commercial and educational applications.
Unlike the standard Latitude with parabolic louvers,
Contour has a die formed, post painted, one piece
louver with latches to secure the hinged louver to
the housing.
Contour is available in 1,2,3, and 4 lamp versions
in 4’ and 2, 4, 6 and 8 lamp 8’ models for 28 and
54 Watt T5 lamps and 32 Watt T8 lamps making
Contour not only decorative but practical as well.
Housing:
Die-formed heavy gauge steel with high gloss
post-painted baked white enamel finish over rust
inhibiting phosphate coat. 7/8” knockouts for easy
installation.
Reflectors
Strong, rigid, die-embossed solid white post-painted
steel “S” reflector in 4’ or 8’ sections is standard.
Optional “A” reflector available with 12% up-light.
AVAILABLE
The Latitude series is the perfect choice for
offices, commercial or industrial applications
where a high end, high tech look and
superior performance is required.
Latitude Contour Louvered Industrial Fluorescent
NEW
LATITUDE
LOUVERED INDUSTRIAL FLUORESCENT LIGHTING
Louver
Die-formed, curved blade louver made of white
painted steel with die-formed latches for easy
opening and re-lamping. Louvers provided in 4’
sections.
Electrical:
Fully wired for 120-277V, 50-60Hz operation with
an thermally protected, automatic resetting class “P”
electronic ballast. Other ballasts and configurations
are available upon request.
Mounting
Ceiling surface or suspended mounting options are
available for individual units or continuous rows.
4’ Model
Dimensions
48.00”
11.10”
11.10”
7/8” KO 3 PLACES
7/8” KO 3 PLACES
ACCESS PLATE
ACCESS PLATE
4.90”
4.90”
1.5”
1.5”
2.25”
11.10”
4.9”
96.00”
CHAIN HANGER HOLES
CHAIN HANGER HOLES
48.00”
11.10”
11.10”
7/8” KO 3 PLACES
7/8” KO 3 PLACES
ACCESS PLATE
ACCESS PLATE
4.90”
4.90”
1.5”
1.5”
2.25”
11.10”
4.9”
96.00”
CHAIN HANGER HOLES
CHAIN HANGER HOLES
Cross Section
(4' and 8' units)
![](asset-37.png)
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
53
FLUORESCENT - INDUSTRIAL
Latitude Contour Louvered Industrial Fluorescent
Latitude Contour Ordering Information
Series Size Uplighting # Lamps Lamp Type
LAC 4 = 4’
8 = 8’
A = Aperture
S = Solid
(none)
1= 1 lamp
2 = 2 lamps
3 = 3 lamps
4 = 4 lamps
2T = 2 lamps, Tandem
4T = 4 lamps, Tandem
6T = 6 lamps, Tandem
8T = 8 lamps, Tandem
28T5 = F28 T5
32T8 = F32 T8
54T5H = F54 T5 HO
Emergency Lighting Ballast Switching Voltage
ELS1 = Emergency Lighting (low lumens)
ELS2 = Emergency Lighting (medium
lumens)
ELS3 = Emergency Lighting (high lumens)
E = Electronic
E(x) = Electronic HPT8*
PS = Program Start (recommended for use with occupancy sensors;
standard on T5)
For 2 lamp units
Blank = single ballast
2/1L = (2) 1-lamp ballasts
For 3 and 4 lamp units
Blank = dual ballasts
3L = (1) 3-lamp ballast
4L = (1) 4-lamp ballast
For 6 lamp tandem units
2/3L = (2) 3-lamp ballasts
2L4L = (1) 2-lamp and (1) 4-lamp ballast
U1 = 120-277
U3 = 347-480V
347 = 347V
480 = 480V
*CEE listed HPT8 (32W only); specify (L)ow, (N)ormal, or (H)igh ballast factor
Options* Accessories
Plug-in Systems
Ballast wired to Black:
PL1 BK - one circuit, two wires
PL2 BK - two circuits, three wires
PL3 BK - three circuits, four wires
Ballast wired to Red:
PL2 RD - two circuits, three wires
PL3 RD - three circuits, four wires
Ballast wired to Blue:
PL3 BL - three circuits, four wires
Cord and Plug Options
CPT(x) = Twist and lock, “x” = voltage
12 = 120V L5-15P
20 = 208V
24 = 240V
27 = 277V L7-15P
34 = 347V
48 = 480V
CP3 = Cord & Plug - 120V Straight Blade 5-15P
FB = Fast blow fuse
SB = Slow blow fuse
BP = Bulk pack
CA24 = Chain hanger assembly - (2) 18” chains, (2) “V” hooks, (2) “S” hooks for total drop 24”
CS24 = S-hook chain hanger assembly - (2) 18” chains, (2) “V” hooks, (2) “S” hooks for total drop 24”
PM(x) = Twin pendant mount - 2 white stems - specify length (24”, 36”, 48”, 60”, 72”)
HKSC = Hook & chain assembly - monopoint mount to four point suspension.
(Includes hook, chain, and mounting plate)
CAB(x)72 = Adjustable cables - includes 6-foot steel aircraft cables, toolless adjusters and
mounting hardware. Specify “2” for 2 cables & Y-hanger or “4” for 4 cables.
CACC(xx) = Cable Kit, includes 2 cables, mounting hardware, white power cord and canopies; specify
length in inches (48 or 72)
ENTS = Tamperproof screws
ENTSD = Tamperproof screwdriver
Dimensions
Tandem Model
48.00”
11.10”
11.10”
7/8” KO 3 PLACES
7/8” KO 3 PLACES
ACCESS PLATE
ACCESS PLATE
4.90”
4.90”
1.5”
1.5”
2.25”
11.10”
4.9”
96.00”
CHAIN HANGER HOLES
CHAIN HANGER HOLES
![](asset-38.png)
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
54
FLUORESCENT - INDUSTRIAL
EN2 Enclosed gasketed weatherproof
Simkar is proud to announce a family of demanding
environment T5/T8 luminaires that will stand up to
the forces of wind, water, temperature extremes,
dust, salt, and abuse.
The EN2 series is an indoor/outdoor, corrosion
proof, enclosed and gasketed fixture that does it all.
Simkar’s weatherproof EN2 Series luminaires are
a low profile design and comes in 2’, 4’, and 8’
lengths. The 2’ and 4’ units come in 4” and 6.8”
widths and the 8” unit is 6.8” wide.
You have choices of 1, 2, or 3 lamp versions to meet
your lighting needs.
The housings are made of custom reinforced,
thermal-set polyester that is corrosion resistant and
will withstand extreme abuse and neglect.
The horizontally ribbed diffuser lenses were
engineered for superior strength, ease of cleaning,
and optical uniformity. These tough lenses are
available in injection molded, clear, UV stabilized
polycarbonate (2’ and 4’ units) or 100% certified
High Impact acrylic versions (4’ and 8’ units).
The sealing flanges of the lenses were designed to
work in conjunction with our custom formulated
foam-in-place, non-reticulated polyurethane gasket.
This gasket is a seamless gasket that chemically
attaches to the housing and is robotically applied to
ensure consistency, accuracy, and reliability.
As a result of this design system, we have been able
to achieve IP65 ratings for the 2’ units (dust free
with hose down) and IP67 ratings for the 4’ and 8’
units (dust free with temporary submersion under
water for 30 minutes). The 2’, 4’, and 8’ units are
also certified for NSF high pressure wash down
splash zone areas.
Our innovative latching and optional mounting
hardware make installation and maintenance a
breeze.
Ideal for demanding environments where
reliability and performance are paramount.
2’
4’
8’ Tandem
Features & Benefits
Top rated UL fire resistant housing: •
UL 94, 5VA reinforced thermal set
polyester housing
IP65 and IP67 ratings•
UL 746C rated f1 housing material •
meets outdoor UV and Water
Immersion requirements
Optional, simple, non-intrusive, •
external mounting hardware
system available
Securely attached, over-center •
latching system that are tamper
proof ready
Rugged, impact resistant 100% •
certified high impact acrylic or
polycarbonate lenses
Superior sealing system produces •
a dust free, wash down fixture with
an IP65 rating for 2’ units and
IP67 for temporary immersion for
the 4’ and 8’ units.
NSF high pressure wash down •
approved for splash zone areas.
Available with fluorescent T5, •
T5HO, T8, HPT8, or T8HO
Available in 2’, 4’ and 8’ lengths •
with 1, 2, or 3 lamps systems plus
tandem configurations for the 8’
units
Certifications:
UL, cUL wet location, 25° C ambient
UL, cUL recognized components
NSF Certified for high pressure wash down splash zone areas
IP65 certified; 2’ units: Dust-free, low pressure wash down
IP67 certified; 4’ and 8’ units: Dust-free, temporary immersion for 30 minutes
NEW
AVAILABLE
4.13”
4.13”
7.33”
4.56”
MIRO™ is a registered trademark of Alanod
RESISTANT
VANDAL
![](asset-39.png)
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
55
FLUORESCENT - INDUSTRIAL
EN2 Enclosed gasketed weatherproof
Housing
Housing to be 1-piece, custom reinforced thermal-
set polyester that is corrosion proof and will
withstand extreme abuse and neglect. Housing
material to be UL 5VA and f1 rated. Gasket to
be a seamless, custom formulated foam-in-place,
urethane gasket, chemically attached to the housing
and robotically applied to ensure consistency,
accuracy, and reliability. All models are NSF Splash
Zone rated for high pressure wash down. 2’ unit to
be IP65 rated for dust-free and wash down; 4’ and
8’ units to be IP67 rated for dust-free and water-
free ingress protection (temporary submersion for
30 minutes).
Electrical
T8 and HPT8 technology: Ballast to be electronic,
Instant Start, fully wired with quick-disconnect
device: Universal voltage 120 – 277VAC, 50/60Hz,
Starting temperature 0°F (-18°C),
< 15% THD, High-Power Factor, Thermally
protected, Automatic resetting, Class P, Sound rating
A.
T5 and T5HO technology: Ballast to be electronic
Program Start, fully wired with quick-disconnect
device: Universal voltage 120 – 277VAC, 50/60Hz,
Starting temperature 0°F (-18°C), < 15% and <
20% THD, High-Power Factor, Thermally protected,
Automatic resetting, Class P, Sound rating A.
Optics
Reflector to be die-formed, heavy gauge steel with
high-gloss, baked white polyester finish over rust
inhibiting phosphate coat or Miro 4 specular with
95% reflectivity. 2’ Lens to be clear, ribbed, UV
stabilized polycarbonate; 4’ Lenses to be injection
molded clear, ribbed, UV stabilized polycarbonate
or 100% High Impact acrylic; 8’ lens to be injection
molded clear, ribbed, 100% High Impact acrylic
engineered for superior strength, ease of cleaning,
and optical uniformity.
Mounting/Latching
Mounting to be surface, ceiling, or wall capable.
Optional stainless steel brackets or swivel brackets
available without drilling into the housing. Safety
strap included. Lens latches to be tool-free UV
stabilized polycarbonate, positive lock over-center
design, tamper-proof ready. Optional stainless steel
latches available.
Certifications
Ballast: UL, CSA. Luminaire: UL Wet Location, IP65
(2’ unit), IP67 (4’ and 8’ units), UL-cUL Recognized
components; NSF Certified for splash zone areas.
EN2 Ordering Information
Series Size Lens Reector # Lamps Lamp Type
EN2 2 = 2’ (IP65)
4 = 4’ (IP67)
8 = 8’ (IP67)
2’ Size
RP = Ribbed polycarbonate
vacuum formed lens
4’ Size
RP = Ribbed polycarbonate
injection molded lens
RA = Ribbed acrylic injection
molded lens: 100%
High Impact acrylic
8’ Size
RA = Ribbed acrylic injection
molded lens: 100%
High Impact acrylic
WR = White
M4 = Miro 4
1
2
3
2T = 2 lamps tandem
4T = 4 lamps tandem
6T = 6 lamps tandem
T5
14T5 = 14 watt T5, 2’ unit
24T5H = 24 watt T5HO, 2’ unit
28T5 = 28 watt T5, 4’ unit or 8’ Tandem
54T5H = 54 watt T5HO, 4’ unit or 8’ Tandem
(not available with 3 lamps or 6T Tandem)
T8
17T8 = 17 watt T8, 2’ unit
32T8 = 32 watt T8, 4’ unit or 8’ Tandem
32HP8 = 32 watt HPT8, 4’ unit or 8’ Tandem
86T8H = 86 watt T8HO, F96, 8’ unit (not available with 3 lamps)
Ballast Switching Voltage Options Accessories
E = Electronic
E(x)* = Electronic HPT8*
D = Dimming (Specify Ballast)
For 2 lamp units
Blank = single ballast
2/1L = (2) 1-lamp ballasts
For 4 lamp units
Blank = (2) 2-lamp ballasts
4L = (1) 4-lamp ballast
For 6 lamp tandem units
2/3L = (2) 3-lamp ballasts
2L/4L = (1) 2-lamp and (1)
4-lamp ballast
U1 = 120V – 277V
U3 = 347V – 480V
347 = 347V
480 = 480V
BP = Bulk Pack
ELS1 = Emergency Lighting (low lumens)
ELS2 = Emergency Lighting (medium lumens)
ELS3 = Emergency Lighting (high lumens)
EN2 Requires damp location emergency ballast
ENTS = Tamperproof screws
ENTSD = Tamperproof screwdriver
SSL = Stainless Steel Latch
OS(x) = Individual Fixture PIR Occupancy Sensor;
(specify number of lamps controlled: 1, 2, 3, 4, 5, or 6)**
CP3 = Cord & Plug - 120V Straight Blade with 6’ Cord**
CPT(xx) = Cord & Plug: Twist + Lock with 6’ Cord; (specify voltage:
12 = 120, 20 = 208, 24 = 240, 27 = 277, 34 = 347, or 48 = 480)**
For cords without plugs, please contact factory.
FB = Lay-in Fast-Blow Fusing
SB = Lay-in Slow-Blow Fusing
Lamps installed (Specify)
**Damp Location
EN2TS = Tamperproof screws
EN2TSD = Tamperproof screwdriver
EN2MB = 2 Stainless steel Mounting
Brackets
EN2SMB = 2 Swivel Mounting
Brackets
*Specify Ballast Factor: L = Low; N = Normal or H = High
![](asset-3a.png)
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
56
FLUORESCENT - INDUSTRIAL
EN3 Enclosed gasketed weatherproof
3
Simkar is proud to announce a family of demanding
environment T5/T8 luminaires that will stand up
to the nasty forces of wind, water, temperature
extremes, dust, salt, and abuse. Simkar’s
weatherproof EN3 Series luminaires are a low
profile design and are 14-1/2” wide and 52” long
and are perfect for areas that need high light levels
or high mounting heights. You have choices of 4
or 6 lamp versions to meet your lighting needs.
The housings are made of custom reinforced,
thermal-set polyester that is corrosion resistant
and will withstand extreme abuse and neglect. A
tough injection molded, clear, 100% certified High
Impact acrylic gives you a tough, non-yellowing
lens that will exceed your expectations. An optional
injection molded, UV stabilized polycarbonate lens
is also available. The sealing flanges of the injected
molded lenses were designed to work in conjunction
with our custom formulated foam-in-place, closed
cell polyurethane gasket. This gasket is a seamless
gasket that chemically attaches to the housing
and is robotically applied to ensure consistency,
accuracy, and reliability. As a result of this design
system, we have been able to achieve a number of
impressive certifications: IP67 rating for a dust free
luminaire capable of temporary submersion under
water for 30 minutes, NEMA 4X ideal for marine
environments, and NSF high pressure wash down for
splash zone food processing areas.
Features & Benefits
Top rated UL fire resistant housing: UL 94, 5VA
reinforced thermal set polyester housing
UL 746C rated f1 housing material meets outdoor
UV and Water Immersion requirements
Two external mounting system available
Securely attached, over-center, stainless steel
latching system that is tamper proof ready
Tool-free, hinged gear tray for ease of maintenance
and convenience
Rugged, impact resistant lenses: non-yellowing,
100% certified High Impact acrylic
Superior sealing system produces a dust proof, wash
down fixture with an IP67rating
NSF high pressure wash down approved for Splash
and Non-Food Zone Processing Areas
Available with Fluorescent T5, T5HO, T8, or HPT8
technologies
Available in a 4’ housing with 4 or 6 lamp
configurations
Certifications:
UL, cUL wet location•
UL, CSA recognized components•
NSF Certified for high pressure wash down •
splash zone processing areas
NEMA 4X•
IP66/67 certified: Dust-free, high pressure •
washdown/temporary immersion for 30
minutes
AVAILABLE
51.91”14.61”
5.95”
NEW
Finally, an Indoor/Outdoor, corrosion proof, enclosed and
gasketed fixture that does it all.
RESISTANT
VANDAL
![](asset-3b.png)
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
57
FLUORESCENT - INDUSTRIAL
Housing
Custom blend, UL 5VA and f1 rated fiberglass
reinforced thermal-set polyester
SMC manufacturing process for strength, reliability,
fit and finish.
Optics
High reflectance, White reflector or minimum 92%
high reflectance Specular aluminum reflectors
Injection molded, 100% certified High Impact acrylic
Lens; Optional injection molded, UV stabilized
polycarbonate lens available.
Lamp/Ballast/Sockets
Technologies
Lamps: T5, T5HO, T8, or HPT8 (not included unless
ordered)
Ballasts: Electronic Instant Start T5, T8, and HPT8;
Program Start T5HO
Universal voltages: 120-277 volt 50/60Hz or
347-480V 50/60Hz; Straight voltages: 347V 60Hz;
480V 60Hz; contact factory for other available
voltages.
All ballasts are electronic, thermally protected with
auto-resetting, Class P, sound rated A, high power
factor, <15% harmonic distortion.
T5 and T5HO technology: Ballast to be electronic
Program Start, Universal voltage 120 – 277VAC,
50/60Hz, Starting temperature 0°F (-18°C), <
15% and < 20% THD, High-Power Factor, Thermally
protected, Automatic resetting, Class P, Sound rating
A.
Rotational locking sockets ensure lamps are securely
held in place.
Mounting and Latching
Two external mounting systems available: V-hook
mounting or cables.
Stainless steel, positive-lock, over-center latches that
are tamperproof ready.
EN3 Enclosed gasketed weatherproof
EN3 Ordering Information
Series Reector # Lamps Lamps Ballast
EN3 WR = White Reflector
SR = Specular Reflector
4 = 4 lamps
6 = 6 lamps
T5
28T5 = 28W T5
54T5H = 54W T5HO
T8
32T8 = 32W T8
32HP8 = 32W HPT8
E = Electronic
E(x) = Electronic HPT8*
D = Dimming (Specify Ballast)
*Specify Ballast Factor: L = Low; N = Normal or H = High
Switching Voltage Mounting Options
FOR 6 LAMP UNITS
Blank = dual ballasts (4L/2L)
FOR 4 LAMP UNITS
Blank = dual ballasts
4L = (1) 4-lamp ballast
U1 = 120V – 277V
U3 = 347V – 480V
347 = 347V
480 = 480V
VHM = V-Hook Mounting Kit
CMB = Cable Mounting Kit (cable not included)
BP = Bulk Pack Palletized
PCL = polycarbonate Lens
EN3TS = Tamperproof screws
EN3TSD = Tamperproof screwdriver
ELS1 = Emergency Lighting (low lumens)
ELS2 = Emergency Lighting (medium lumens)
ELS3 = Emergency Lighting (high lumens)
EN3 Requires damp location emergency ballast
CP3 = Cord & Plug - 120V Straight Blade with 6’ Cord*
CPT(xx) = Cord & Plug: with 6’ Cord; (specify voltage: 12 = 120, 20 = 208,
24 = 240, 27 = 277, 34 = 347, 48 = 480)*
For cords without plugs, please contact factory.
FB = Lay-in Fast-Blow Fusing
SB = Lay-in Slow-Blow Fusing
OS(x) = PIR Occupancy Sensor; (specify number of lamps controlled: 1, 2, 3,
4, 5, or 6)*
Lamps installed (Specify)
*Damp Location
Accessories
CAB472 = (for use with CMB) Adjustable Cables: includes (4) 72”
steel aircraft cables with tool-free adjusters
WLH = 1 Wet Location wire Hub
ENTS = Tamperproof screws
ENTSD = Tamperproof screwdriver
EN3LTK = Lens tether kit
![](asset-3c.png)
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
58
FLUORESCENT - INDUSTRIAL
8 1/4" 12 3/8"
5 1/2"
2 3/4"
8 1/4" 12 3/8"
5 1/2"
2 3/4"
Two Light
Four Light
OV410 Enclosed gasketed fixture is equipped
with a pressure-lock cam latch to tightly seal out
vapor, mois ture and dust. Available in 4’ and 8’
lengths as well as T8, T12, and high output.
Dimensions
OV410 Enclosed and Gasketed Striplite
Housing
Heavy-gauge steel with welded corners and com-
press ible gasketing. KOs provided top and ends.
Shielding
Standard with clear acrylic prismatic lens.
Options
Popular options include wet location label (suffix WL)
for ceiling mount only (includes RTV silicone seal).
OV410 Gasketed Striplite Ordering Information
Series # Lamps Lamp Type ELS Options
OV410 2
4
22 = Tandem, 4 lamps
32 = 32W 48” T8
48 = 48” T12 HO
96 = 96” T8/T12 Slimline / HO
ELS1 = Emergency Lighting (low lumens)
ELS2 = Emergency Lighting (medium lumens)
ELS3 = Emergency Lighting (high lumens)
Ballast Switching Voltage Options
B5 = Electronic T12
B11 = Electronic T8
B11HP(x) = HPT8*
HO = High Output
FOR 2 LAMP UNITS
Blank = single 2-lamp ballast (standard)
2/1L = (2) one-lamp ballasts
FOR 4 LAMP UNITS
Blank = (2) 2-lamp ballasts
4L = (1) 4-lamp ballast
UNV = 120-277V
120 = 120V
277 = 277V
WL = Wet Location (Ceiling mount only)
FB* = Lay-in Fast-Blow Fusing
SB* = Lay-in Slow-Blow Fusing
*CEE listed T8; specify (L)ow, (N)ormal, or (H)igh ballast factor. Contact factory for NEMA Premium.
Electrical
Fully wired for UNV 120-277V, 50-60Hz operation
with thermally protected, automatic resetting Class
P, sound rated A ballast as standard unless otherwise
specified (except HO models). U.L. listed.
Mounting
Surface or stem, individual or con tin u ous rows.
AVAILABLE
![](asset-3d.png)
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
59
FLUORESCENT - INDUSTRIAL
Ballast Switching Voltage Options
B5 = Electronic T12
B11 = Electronic T8
B11HP(x) = HPT8*
HO = High Output
FOR 2 LAMP UNITS
Blank = single 2-lamp ballast (standard)
2/1L = (2) one-lamp ballasts
FOR 4 LAMP UNITS
Blank = (2) 2-lamp ballasts
4L = (1) 4-lamp ballast
UNV = 120-277V
120 = 120V
277 = 277V
WL = Wet Location (Ceiling mount only)
FB* = Lay-in Fast-Blow Fusing
SB* = Lay-in Slow-Blow Fusing
*CEE listed T8; specify (L)ow, (N)ormal, or (H)igh ballast factor. Contact factory for NEMA Premium.
OV450 Wet Location Enclosed and Gasketed
Stain less steel latches, specify SSTP
High strength thermoplastic latches, standard
Housing
Rigid, one-piece (ASTM D635-74) reinforced
polyester fiberglass, accepted by NSF and USDA.
Robotically applied gasketing – 98% compression
recovery, no seams, no porosity – forms moisture
seal to diffuser. Celcon latches standard; stainless
latches optional (OV450). OV451 supplied with high
streng
Shielding
Rigid, one-piece, self-ex tin guish ing (ASTM D635-74)
re in forced polyester fiberglass, ac cept ed by NSF
and USDA. Robotically applied gasketing – 98%
compres sion recovery, no seams, no porosity – forms
moisture seal to D.R. acrylic diffuser or optional
poly car bon ate. Thermoplastic latches standard;
stainless latches optional.
Dimensions A B C Length
32W and 48” models 7 5/8” 4 1/2” 3” 49 13/16”
96” and tandem models 7 5/8” 5 5/8” 3” 97 13/16”
A
B
C
OV450 Wet Location Enclosed Striplite Ordering
Information
Series # Lamps Lamp Type
OV450 = 15% DR Crepe/Stipple Lens
OV451 = polycarbonate lens
1
2
21 = Tandem, two lamps
22 = Tandem, four lamps
32 = 32W 48” T8
48 = 48” T12 HO
96 = 96” T8/T12 Slimline / HO
54T5H = 54 watt T5HO
Options Ballast Switching Voltage
ELS1 = Emergency Lighting
(low lumens)
ELS2 = Emergency Lighting
(medium lumens)
ELS3 = Emergency Lighting
(high lumens)
B5 = Electronic T12
HOB5 = High Output Electronic T12
B11 = Electronic T8
B11HP(x) = HPT8*
HOB11 = High Output Electronic T8
For 2 lamp units
Blank = single 2-lamp ballast (standard)
2/1L = (2) one-lamp ballasts
For 4 lamp units
Blank = (2) 2-lamp ballasts
4L = (1) 4-lamp ballast
UNV = 120-277V
120 = 120V
277 = 270V
*CEE listed T8; specify (L)ow, (N)ormal, or (H)igh ballast factor. Contact factory for NEMA Premium.
Options Accessories
HAD = High-abuse 50% DR lens (OV450 only)
SSTP = Stainless steel tamperproof latch
CA24 = Chain Hanger Assembly - (2) 18” chains, (2) “V” hooks, (2) “S”
hooks for total drop 24”
CASP = Support plate for chain hanger assembly
PM(x) = Pendant Mount, white stem - specify length in inches (24, 36,
48, 60, 72)
C = Single white canopy (for use with pendant mount)
TSD(x) = Tamper-proof screw driver (Specify quantity)
Dimensions
OV450 is UL listed for wet locations
Options
Poly car bon ate lens, stainless or tamperproof (SSTP)
latches and wet location fittings.
Electrical
Fully wired for UNV 120-277V, 50-60Hz operation
with thermally protected, automatic resetting Class
P, sound rated A ballast as standard unless otherwise
specified (except T8 HO models). UL listed wet
location.
Mounting
Surface, stem, chain kit; individual or continuous
rows. CA24 Chain Hanger as sem bly with support
plate. Single canopy and stem set, hardware and 24”
stem. WLF Fitting for use with water tight conduit,
field installed. One each. See page 92.
AVAILABLE
Celcon® is a registered trademark of Ticona Engineering Polymers
RESISTANT
VANDAL
![](asset-3e.png)
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
60
FLUORESCENT - INDUSTRIAL
4 1/8"
6 11/16"
Housing
Die-formed, totally enclosed, fully gasketed,
corrosion resistant aluminum hous ing. KOs pro vid ed.
Shielding
Extruded clear wrap around acrylic snap-in diffuser
that will not discolor.
OG Aluminum Enclosed Light
OG Aluminum Enclosed Light Ordering Information
Series # Lamps Lamps Ballast Voltage
OG 1 = Single
21 = Tandem, 2 Lamps
48 = 48”
72 = 72”
96 = 96”
HO = High Output
HOB5 = High Output Electronic T12
HOB11 = High Output Electronic T8
UNV = 120-277V
120 = 120V
277 = 277V
Accessories
OG-CB = Continuous row adapter
PM(x) - Twin Pendant Mount - 2 white stems - specify length (24”,
36”, 48”, 60”, 72”)
Dimensions
OG’s narrow width and 4’ to 16’ length options
make it ideal for parking garages and other outdoor
applications where space is limited.
Electrical
Fully wired for UNV 120-277V, 50-60Hz operation
with thermally protected, automatic resetting Class
P, sound rated A ballast as standard unless otherwise
specified (except HO models). U.L. damp location
listed.
Mounting
Surface mount or stem hang, individual or
continuous rows with OG-CB adapt er.
![](asset-3f.png)
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
61
FLUORESCENT - INDUSTRIALFLUORESCENT
Housing
Totally enclosed, fully assembled, corrosion
resistant aluminum housings. Two splice boxes and
endcaps included. Die-cast alu minum splice box
tapped 3/4” -14 N.P. All hardware is cor ro sion
re sis tant stain less steel. Gasketed sockets; use with
remote ballast. KOs provided top and ends.
Shielding
Extruded clear wrap around acrylic snap-in diffuser
that will not discolor.
OS Directional Sign Light Ordering Information
Series # Lamps Lamp Type Ballast Voltage
OS 1
2
21 = Tandem, Two Lamps
48 = 48” T12, 50.5” conduit centers
72 = 72” T12, 74.5” conduit centers
96 = 96” T12, 98.5” conduit centers
HO = High Output
VHO = Very High Output
120 = 120V
277* = 277V
L/B = Less Ballast
*Non-weatherproof ballast only.
Accessories
OS SPLICE BOX = Splice Box for continuous row mounting
Electrical
Fully wired for 120V, 60Hz operation. All units
are supplied with remote, low tem per ature,
weatherproof 120V ballast, unless otherwise
specified.
Mounting
Run conduit (not supplied) from remote ballast to
individual fixtures, continuous rows or end-of-row
fixtures.
NOTE: Add 2 1/2” to total overall length
for continuous runs. See dimensional drawings.
Lip on flat lens allows unit
to be aimed upward.
Continuous run
2 1/2"
(2) NEOPRENE
GASKETS CONDUIT 3/4" THREAD
SPLICE CAP
END
CAP
Continuous run
2 1/2"
(2) NEOPRENE
GASKETS CONDUIT 3/4" THREAD
SPLICE CAP
END
CAP
3 1/4"
6"
OS Directional Sign Light offers 360° swivel for
precision aiming of light. Lip on flat lens allows unit
to be aimed upward while still main tain ing the UL
listing for wet locations.
Dimensions
OS Directional Sign Light
![](asset-40.png)
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
62
FLUORESCENT - INDUSTRIAL
CH Original Patented Striplite
Flip-up sockets Patent
#4,422,132
CHTT
2 5/8"
1 7/8"
2 3/4"
2 5/8"
3 13/16"
1 7/8"
4 1/4"
3 13/16"
1 7/8"
Dimensions
The CH Series is ideal for general purpose lighting
in retail stores and commercial environments.
Available in 2’, 3’, and 4’ individual lengths as well
as continuous row mounting.
Housing
Die-formed heavy gauge steel with high-gloss, baked
white enamel finish over rust inhibiting phosphate
coat with re mov able wireway access panel. Ample
knock outs provided on side, back and ends. Shipped
fully wired and assembled, including socket saddle.
Simply flip up socket bar and attach wireway cover
with turn fastener provided. Machine installed shunts
eliminate loose socket bar connections on electronic
strips.
Options
Modular wiring, white or silver asymmetric or
symmetric re flec tors, and emergen cy lighting battery
packs are available options.
CH Original Patented Striplite Ordering Information
Series # Lamps Lamps
CH 1
2
4
21 = Tandem, two lamps
22 = Tandem, four lamps
14 = 14W 15” T12
14 = 14W 24” T5
15 = 15W 18” T8/T12
17 = 17W 24” T8
20 = 20W 24” T12
21 = 21W 36” T5
24 = 24W 24” T5HO
25 = 25W 36” T8
28 = 28W T5
30 = 30W 36” T12
32 = 32W 48” T8
39 = 39W 36” T5HO
40 = 34/40W 48” T12
40TT = 40W 22” TT
54 = 54W T5HO
ELS Options Ballast Switching Voltage
ELS1 = Emergency Lighting (low lumens)
ELS2 = Emergency Lighting (medium lumens)
ELS3 = Emergency Lighting (high lumens)
B5 = Electronic T12
B11 = Electronic T8
B11HP(x) = HPT8*
B12 = Electronic T5
B14 = Electronic TT
B22 = LPF Electronic T8/T12
D = Dimming (specify ballast)
For 4 lamp units
Blank = dual ballasts
4L = (1) 4-lamp ballast
For 2 lamp units
Blank = single ballast
2/1L = (2) 1-lamp ballasts
UNV = 120-277V
120 = 120V
277 = 277V
*CEE listed T8; specify (L)ow, (N)ormal, or (H)igh ballast factor. Contact factory for NEMA Premium.
Electrical
Fully wired for UNV 120-277V, 50-60Hz operation
with thermally protected, automatic resetting Class
P, sound rated A ballast as standard unless otherwise
specified. UL listed damp location.
Mounting
Combination end plate/joiner connect units for
contin u ous row or wire through, see CHJ on page 93.
Optional plug-in wiring system de scribed in detail on
page 92.
AVAILABLE
Options Accessories
Cord and Plug
CPT (x) (Twist + Lock)
1= 120V
2 = 277V
CP3 = Cord & Plug - 120V
Straight Blade 5-15P
Plug-in Connectors
Ballast wired to Black:
PL1 - one circuit, two wires
PL2 BK - two circuits, three wires
Ballast wired to Red:
PL2 RD - two circuits, three wires
FB = Fast blow fuse
SB = Slow blow fuse
BP = Bulk Pack
Reectors (Not compatible with wire guards)
Symmetric
SR(x)(y)20 = 24”
SR(x)(y)30 = 36” (Order 2 for tandem 72” units)
SR(x)(y)40 = 48” (Order 2 for tandem 96” units)
Asymmetric
AR(x)20 = 24”
AR(x)30 = 36” (Order 2 for tandem 72” units)
AR(x)40 = 48” (Order 2 for tandem 96” units)
(x) Enter (W) for white or (S) for specular aluminum
(y) Enter # lamps (1 or 2)
AC = Alignment Clips
CA24 = Chain Hanger Assembly - (2) 18” chains, (2) “V” hooks, (2) “S” hooks for total drop 24”
CS24 = “S” Hook (4) Chain Hanger Assembly (24” total drop)
PM(x) = Pendant Mount, white stem - specify length in inches (24, 36, 48, 60, 72)
C = Single white canopy (for use with pendant mount)
CHJ = Housing Joiner
SN = Snapper Brackets
WG(x)20 = 24” (Specify # Lamps) (1 or 2)
WG(x)30 = 36” (Specify # Lamps) (1 or 2)
WG(x)40 = 48” (Specify # Lamps) (1 or 2)
![](asset-41.png)
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
63
FLUORESCENT - INDUSTRIAL
CHX Slimline And High Output Channel
*HO and VHO are 4 5/8” deep
4 1/4"
1 7/8"
3 13/16"*
Dimensions
Slimline and High Output Channels are ideal
for maximum illumination in retail stores and
commercial environments. Available in 4’, 6’, and
8’ individual lengths as well as continuous row
mounting.
Housing
High-gloss, baked white enamel finish on steel
housing with re mov able wireway access panel.
Fixture is shipped fully wired and as sem bled.
CHX models have patented (#4,422,132) flip-up
socket bar and turn fastener for attaching wireway
cover.
Options
Options include modular wiring, plug-in systems and
wire guards.
CHX Slimline And High Output Channel Ordering Information
Series # Lamps Lamp Length
(nominal)
ELS Options
CHX 1
2
3
4
21 = Tandem, Two Lamps
48 = 48”
72 = 72”
96 = 96”
ELS1 = Emergency Lighting (low lumens)
ELS2 = Emergency Lighting (medium lumens)
ELS3 = Emergency Lighting (high lumens)
Ballast Voltage
B5 = Electronic T12
HOB5 = High Output Electronic T12
B11 = Electronic T8
HOB11 = High Output Electronic T8
HO* = High Output T12
VHO* = Very High Output T12
UNV = 120-277V
120 = 120V
277 = 277V
*Must be mounted at least 6” from surface
Electrical
Fully wired for 120V, 60Hz operation with thermally
protected, automatic resetting, Class P, high-power-
factor ballast, unless otherwise spec i fied. UL listed,
damp location.
Mounting
Combination end plate/joiner connects units for
continuous row or wire through. Heavy duty joiner
plate available. Surface or pendant mount, high
output model must be suspended at least 6” from
ceiling for cooler operation.
Options Accessories
Cord and Plug
CPT (x)
1= 120V
2 = 277V
CP3 = Cord & Plug - 120V Straight
Blade 5-15P
Plug-in Connectors
Ballast wired to Black:
PL1 - one circuit, two wires
PL2 BK - two circuits, three wires
Ballast wired to Red:
PL2 RD - two circuits, three wires
FB = Fast blow fuse
SB = Slow blow fuse
Reectors*
(x) Enter (W) for white or (S) for specular aluminum
Symmetric
SR(x)30 = 36” (Order 2 for 72” units)
SR(x)40 = 48” (Order 2 for 96” units)
Asymmetric
AR(x)30 = 36” (Order 2 for 72” units)
AR(x)40 = 48” (Order 2 for 96” units)
AC = Alignment Clips
CA24 = Chain Hanger Assembly - (2) 18” chains, (2) “V” hooks, (2) “S” hooks for total drop 24”
CS24 = “S” Hook (4) Chain Hanger Assembly (24” total drop)
PM(x) = Pendant Mount, white stem - specify length in inches (24, 36, 48, 60, 72)
C = Single white canopy (for use with pendant mount)
CHJ = Housing Joiner
SN = Snapper Brackets
WG230 = 36” (Order 2 for 72” units)
WG240 = 48” (Order 2 for 96” units)
*Not compatible with wire guards
![](asset-42.png)
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
64
FLUORESCENT - INDUSTRIAL
CHA and CHS Striplites
Housing
Die-formed heavy gauge steel with high-gloss, baked
white enamel finish over rust inhibiting phosphate
coat with removable wireway access panel. Fixture
is shipped fully wired. Secure wireway cover with
screw. Ample knockouts provided.
Options
Options include modular wiring and master unit
ballast driving multiple fixtures, e.g., CHS232 B11
4L-M will drive the second fixture CHS232-S (less
ballast). Optional plug-in wiring system de scribed in
detail on page 92.
CHA and CHS Striplites Ordering Information
Series # Lamps Lamps ELS Options
CHA = Lamps mount at 90°
CHS = Side-mount lamp(s)
1 (CHS only)
2
3 (CHA only)
21 = Tandem, 2 lamps
(CHS Only)
17 = 17W 24” T8
20 = 20W 24” T12
25 = 25W 36” T8
30 = 30W 36” T12
32 = 32W 48” T8
40 = 34 or 40W 48” T12
96 = 96” T8 Slimline (CHS 1-lamp only)*
ELS1 = Emergency Lighting
(low lumens)
ELS2 = Emergency Lighting
(medium lumens)
ELS3 = Emergency Lighting
(high lumens)
*CHS196 is 4” wide x 3” deep
Ballast Switching Voltage
B5 = Electronic T12
B11 = Electronic T8
B11HP(x) = HPT8**
D = Dimming (specify ballast)
FOR 3 LAMP UNITS
Blank = dual ballasts
3L = (1) 3-lamp ballast
UNV = 120-277V
120 = 120V
277 = 277V
**CEE listed T8; specify (L)ow, (N)ormal, or (H)igh ballast factor. Contact factory for NEMA Premium.
Electrical
Fully wired for UNV 120-277V, 50-60Hz operation
with thermally protected, automatic resetting Class
P, sound rated A ballast as standard unless otherwise
specified. UL listed damp location.
Mounting
Individual or con tin u ous row.
CHA - Two or three lamps
mounted at 90°
24”, 36”, 48”
4 3/8"
2 13/16"
3 7/16"
1 7/8"
1 7/8"
4 1/2" 2"
6 1/2"
2 3/4"
CHS One Lamp
24” to 96”
CHS Two Lamp
24” to 48”
Dimensions
CHA and CHS Striplites are ideal for
custom lighting in retail stores and commercial
environments.
AVAILABLE
CHS
CHA
Options
CORD AND PLUG
CPT (x)
1= 120V
2 = 277V
CP3 = Cord & Plug - 120V Straight Blade 5-15P
PLUG-IN CONNECTORS
Ballast wired to Black:
PL1 - one circuit, two wires
PL2 BK - two circuits, three wires
Ballast wired to Red:
PL2 RD - two circuits, three wires
FB = Fast blow fuse
SB = Slow blow fuse
![](asset-43.png)
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
65
FLUORESCENT - INDUSTRIAL
LP5 and LS5 Low Profile T5 Strip
Housing
Die formed heavy gauge steel chemically treated to
ensure superior adhesion of post production applied
high reflectance powder coating.
LP5 Low Profile Ordering Information
Series # Lamps Lamps Ballast Voltage
LP5 1Preheat
06 = F6T5 (9”) 120V Only
08 = F8T5 (12”) 120V Only
Standard
14 = F14T5 (22”)
21 = F21T5 (34”)
28 = F28T5 (46”)
HO
24H = F24T5HO (22”)
39H = F39T5HO (34”)
54H = F54T5HO (46”)
E = Electronic U1 = 120-277V
120 = 120V
LS5 Low Profile Side-Mount Ordering Information
Series # Lamps Lamps Ballast Voltage
LS5 1Standard
14 = F14T5 (22”)
21 = F21T5 (34”)
28 = F28T5 (46”)
HO
24H = F24T5HO (22”)
39H = F39T5HO (34”)
54H = F54T5HO (46”)
E = Electronic U1 = 120-277V
Electrical
Fully wired for electronic T5, UNV 120-277V,
50-60Hz operation with thermally protected,
automatic resetting Class P, sound rated A ballast as
standard unless otherwise specified. UL listed.
Mounting
Ceiling or surface mount. 3/8” feed connector
is included for use with steel flex conduit. Not
recommended for through wiring.
Dimensions
Introducing the new LP5 and LS5 series, a
revolutionary Low Profile line of Single lamp T5
open strips. LP5 is an open strip with a distinctly low
profile (7/8”) and even with lamp is a mere 1 5/8”
high. The width is a slim 1 1/4” making the LP5
the thinnest and lowest profile strip on the market.
Perfect for accent and task lighting. Both also include
exclusive tabbed lamp holders for ease of changing
lamps and assurance that the lamp is properly
seated in the socket.
NEW
1.339"
1.264"
2.092"
1.264"
1.339"
X
114 / 124H models: X=22.402"
121 / 134H models: X=34.213"
128 / 154H models: X=45.984"
1.339"
1.264"
2.092"
1.264"
1.339"
X
114 / 124H models: X=22.402"
121 / 134H models: X=34.213"
128 / 154H models: X=45.984"
LS5 Side MountLP5 Standard Mount
![](asset-44.png)
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
66
FLUORESCENT - INDUSTRIAL
WS Slim Striplite
1 13/16"
5/8"
1 3/4"
Dimensions
WS Series Slim Striplite and remote ballast box
fixture are ideal for tight areas requiring multiple
fixtures.
18” ballast box ordering information
Box # Lamps Driven* Ballast Voltage
WSRB 1
2
3
4
B11 = Electronic T8
B11HP(x) =
HPT8**
UNV = 120-277V
*Specify number of lamps to be driven by one ballast to a maximum of 4.
** CEE listed T8; specify (L)ow, (N)ormal, or (H)igh ballast factor. Contact factory for NEMA Premium.
Flex connectors
Series Length* # Wires + Ground* Connector (end 1) Connector (end 2)
WSFL 6 = 6’(standard) 3W = 3 wire (red, green, blue) STR = Straight
90 = 90˚
STR = Straight
90 = 90˚
*Contact factory for other lengths and wire configurations
Hous ing
Die-formed heavy gauge steel with high-gloss, baked
white enamel finish over rust inhibiting phosphate
coat. Re mov able front panel al lows ac cess for wiring
with snap-in conduit fittings on site. Quick as sem-
bly to back panel with screws provided. Em bossed
mount ing holes through fixture speed up mounting
to surface and allow remote assembly, if required.
Striplite is shipped sep a rate from remote ballast box
and flex assemblies.
Electrical
Ballast and flex prepared as specified. Fully
wired for UNV 120-277V, 50-60Hz operation with
thermally protected, automatic resetting Class P,
sound rated A ballast as standard unless otherwise
specified. UL listed.
WS Series Slim Striplite Ordering Information
Series Lamp
WS = Single lamp Slim Channel, one conduit hole
WSWT = Channel for wire thru, conduit hole on each end = add 2” length
117 = 17W T8 (26” fixture length)
125 = 25W T8 (38” fixture length)
132 = 32W T8 (50” fixture length)
Mounting and Ballast Box
One 18” bal last box can comfortably handle up to
4 striplites, utilizing the four standard knockouts.
Ballast box access cover is held in place with tab and
quarter-turn fastener.
AVAILABLE
![](asset-45.png)
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
67
FLUORESCENT - INDUSTRIAL
STC Staggered Striplites
Housing
Die-formed heavy gauge steel with high-gloss, baked
white enamel finish over rust inhibiting phosphate
coat with removable wireway access panel. Fixture
is shipped fully wired. Secure wireway cover with
screw. KOs provided.
Options
Optional plug-in wiring system de scribed in detail on
page 92.
STC Staggered Series
Single Lamp Length Double Lamp Length
24” 27”
36” 39”
48” 51”
93” (2 lamp) 99” (4 lamp)
STC Ordering Information
Series # Lamps Lamp Type ELS Options
STC 1
2
21 = Tandem two Lamps
22 = Tandem four Lamps
17 = 17W 24” T8
20 = 20W 24” T12
25 = 25W 36” T8
30 = 30W 36” T12
32 = 32W 48” T8
40 = 34 or 40W 48” T12
ELS1 = Emergency Lighting (low lumens)
ELS2 = Emergency Lighting (medium lumens)
ELS3 = Emergency Lighting (high lumens)
Ballast Voltage Options
B5 = Electronic T12
B11 = Electronic T8
B11HP(x) = HPT8*
D = Dimming (specify ballast)
UNV = 120-277V
120 = 120V
277 = 277V
CORD AND PLUG
CPT (x)
1= 120V
2 = 277V
CP3 = Cord & Plug - 120V Straight
Blade 5-15P
PLUG-IN CONNECTORS
Ballast wired to Black:
PL1 - one circuit, two wires
PL2 BK - two circuits, three wires
Ballast wired to Red:
PL2 RD - two circuits, three wires
FB = Fast blow fuse
SB = Slow blow fuse
*CEE listed T8; specify (L)ow, (N)ormal, or (H)igh ballast factor. Contact factory for NEMA Premium.
Electrical
Fully wired for UNV 120-277V, 50-60Hz operation
with thermally protected, automatic resetting Class
P, sound rated A ballast as standard unless otherwise
specified. UL listed damp location.
Mounting
Individual or con tin u ous row. STC features staggered
ends to eliminate shadows at overlap.
4 1/4"
2 1/8"
1 11/16"
3 5/8"
Dimensions
STC Staggered Striplites are ideal for
custom lighting in retail stores and commercial
environments. Striplites are available in 2’, 3’, 4’,
and 8’ Tandem as well as continuous row mounting.
AVAILABLE
![](asset-46.png)
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
68
FLUORESCENT - INDUSTRIAL
ST5 T5 Staggered Strip
NEW
Dimensions
ST5 Ordering Information
Series Size # Lamps Lamp Type
ST5 2 = 2’ nominal length 26” overall length
3 = 3’ nominal length 38” overall length
4 = 4’ nominal length 50” overall length
214 = 14 watt T5 (2’ unit)
21 = 21 watt T5 (3’ unit)
28 = 28 watt T5 (4’ unit)
54H = 54 watt T5HO (4’ unit)
Ballast Voltage
E = Electronic U1 = 120-277V
The ST5 is a low profile staggered strip for T5 and
T5HO lamps. The ST5 series is specifically designed
to fit into small areas and coves, and with an
overlap of up to 4”, provides smooth and attractive
illumination. It can be used in conjunction with the
SA5 to assure that cove lighting reaches the entire
length of the run.
Housing:
Die formed heavy gauge steel with high gloss
powder coat finish. Removable wire-way access
panel. Knockouts provided on ends and back for
through or direct wiring. Lamp holders are “Tab”
type for ease of relamping and to assure lamp is
properly seated in the sockets.
Electrical:
ST5 fixtures are electronic T5, 120-277V 50-60Hz
and are UL/cUL listed.
Mounting:
ST5 can be directly mounted in a cove or
undercabinet in continuous rows.
26 3⁄8”
22 3⁄8”
4”
2-½”
2’ Model
![](asset-47.png)
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
69
FLUORESCENT - INDUSTRIAL
SA5 T5 Staggered Adjustable Strip
NEW
Dimensions
SA5 Ordering Information
Series Size # Lamps Lamp Type
SA5 2 = 2’ nominal length adjusts to 30”
3 = 3’ nominal length adjusts to 50”
4 = 4’ nominal length adjusts to 65”
214 = 14 watt T5 (2’ unit)
21 = 21 watt T5 (3’ unit)
28 = 28 watt T5 (4’ unit)
54H = 54 watt T5HO (4’ unit)
Ballast Voltage
E = Electronic U1 = 120-277V
The SA5 is a low profile adjustable staggered strip
for T5 and T5HO lamps. The SA5 series is specifically
designed to fit into small areas and coves and
compliments the ST5 series overlap that can be field
adjusted to end a run or can be extended to 1 ½
times its closed length to reduce fixtures required to
light a cove with smooth and attractive illumination.
The SA5 can also be used as a two lamp T5 strip.
Housing:
Die formed heavy gauge steel with high gloss
powder coat finish. Removable wire-way access
panel. Knockouts provided on ends and back for
through or direct wiring. Lamp holders are “Tab”
type for ease of relamping and to assure lamp is
properly seated in the sockets.
Electrical:
SA5 fixtures are electronic T5, 120-277V 50-60Hz
and are UL/cUL listed.
Mounting:
SA5 can be directly mounted in a cove or
undercabinet in continuous rows.
SA52 Models: X = 22 ⁄” - 31” Y = 0” - 8 ⁄”
SA53 Models: X = 34 ¼” - 49” Y = 0” - 14 ¾”
SA54 Models: X = 46” - 66” Y = 0” - 20”
34 ¼”
2 ½”
X
Y
3’ Model
![](asset-48.png)
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
70
FLUORESCENT - INDUSTRIAL
SKDL and SKDDL Docklight
Housing
Heavy gauge steel with high-gloss baked “safety”
yellow enamel finish over rust inhibiting phosphate
coat. Single strut (SKDL) mounting arm units are
equipped with a folding knuckle joint allowing
for horizontal and vertical adjustment. Double
strut (SKDDL) mounting arm units provide greater
strength and durability. All units supplied with
lightweight, corrosion resistant polycarbonate lamp
head.
Electrical
6’ 120V 18-3 cord, plug, and rocker switch supplied.
UL listed.
Mounting
Horizontal mount. Two piece wall mounting bracket
provided.
SKDL and SKDDL Series Ordering Information
Series Lamp Arm Length* Lamp Head
SKDL = Single strut
SKDDL = Double strut
HPS = 50W High pressure sodium
(Leave blank for R40 or PAR38 150W max)
40 = 40”
60 = 60”
P = Polycarbonate
* For 24” or 90” arm lengths contact factory.
Accessories
SKWG8P = Stainless steel wireguard to protect lamp. Mounts
easily to holes provided in polycarbonate lamp head.
SKDLFAN* - Fan
Replacement Lamp Heads
SKINC-HEAD = For incandescent models
SKHPS-HEAD = For high pressure sodium models
* Available with SKDDL, double strut only. Lamp provided.
Dimensions
DL-40 49"
DL-60 68"
DL-40 23"
DL-60 33"
DL-40 17"
DL-60 21"
DDL-60 64-1/2"
DDL-40 46"
DDL-60 32-1/4"
DDL-40 22-1/4"
14"
24"L
3-Conductor Cord
DL-40 49"
DL-60 68"
DL-40 23"
DL-60 33"
DL-40 17"
DL-60 21"
DDL-60 64-1/2"
DDL-40 46"
DDL-60 32-1/4"
DDL-40 22-1/4"
14"
24"L
3-Conductor Cord
The docklight series uses polycarbonate heads for
resistance to dents, breaks, bends and stays cool to
the touch. Double strut arms (SKDDL) on the HID
model provides sturdy, durable construction. High
pressure sodium option is available for long lamp
life and lower starting temperature.
![](asset-49.png)
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
71
FLUORESCENT - INDUSTRIAL
![](asset-4a.png)
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
72
FLUORESCENT - SPECIALTY
![](asset-4b.png)
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
73
FLUORESCENT - SPECIALTY
Fluorescent
SPECIALTY
When special needs arise, Simkar has the solution. We offer a large number of
fixtures that are designed to meet specific requirements ranging from conventional
fixtures in 20 gauge to architectural fixtures designed to meet the needs of the
healthcare industry.
We offer a full line of fluorescent under-cabinet fixtures in T12, T8, and T5 to fit in
shallow spaces and provide task lighting where it is needed most.
Our line of Bath-Bars are decorative as well as functional with a virtual rainbow of
accent colors and finishes to compliment any décor.
When vandal resistance is a concern, Simkar offers CFL and linear fluorescent products
that are as attractive as they are durable.
![](asset-4c.png)
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
74
FLUORESCENT - SPECIALTY
WEC Bath Bars And Sconce
Housing
Die-formed heavy gauge steel with high-gloss, baked
white enamel finish over rust inhibiting phosphate
coat. Knockouts provided on back.
Diffuser
Consists of a UV acrylic clear ribbed, white ribbed, or
smooth white lens, mated to one of a variety of end
caps. The end caps are available in wide and narrow
versions in a range of colors and textures. Diffuser is
secured to housing with spring clips. ADA Compliant.
Nom. 2', 3' or 4' Nom. 2', 3' or 4' 4 3/4"
4"
Nom. 2', 3' or 4' Nom. 2', 3' or 4' 4 3/4"
4"
Nom. 2', 3' or 4' Nom. 2', 3' or 4' 4 3/4"
4"
Model WECW - End cap, wide (1 1/2” wide)
Model WECN - End cap, narrow (1/2” wide)
Available
Colors
and Textures
WEC Series Ordering Information
Series Size Color Diffuser
WECN = 1/2” end cap
WECW = 1 1/2” end cap
2 = 25.5”
3 = 37.5”
4 = 49.5”
AL = Alabaster
BW = Bone White
IV = Ivory Mar ble
PM = Peach Mar ble
SW = Solid White
TO = Tor toise
VG = Verde Green
WM = White Marble
CR = Clear ribbed
WR = White ribbed
WS = White smooth
Trim Lamps Ballast Voltage
B = Brass (WECW only)
C = Chrome (WECW only)
N = None
217 = (2) 17W 24” T8
225 = (2) 25W 36” T8
232 = (2) 32W 48” T8
B11 = Elec tron ic T8
B11HP(x) = HPT8*
B22 = LPF T8/T12
UNV = 120-277V
120 = 120V
277 = 277V
*CEE listed T8; specify (L)ow, (N)ormal, or (H)igh ballast factor. Contact factory for NEMA Premium.
WECN and WECW End Cap Bath Bars are versatile,
stylish fixtures that can be used in many applications
to complete a room. Range of colors, textures, trim
options, and sizes to meet all decorating schemes
and lighting requirements. Superior fit and finish
– no exposed metal work or open joints to trap
dust. Energy-efficient T8 lamps with improved color
rendering bring out natural colors in fabrics, wall
treatments, and skin tones. Quick installation for
ceiling or wall applications.
Electrical
Fully wired for UNV 120-277V, 50-60Hz operation
with thermally protected, automatic resetting Class
P, sound rated A ballast as standard unless otherwise
specified. UL listed.
Mounting
Surface mount wall or ceiling, vertical or horizontal.
Dimensions
AVAILABLE
ADA Compliant
AL-Alabaster BW-Bone White
IV-Ivory Marble PM-Peach Marble
SW-Solid White TO-Tortoise VG-Verde Green
WM-White Marble
![](asset-4d.png)
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
75
FLUORESCENT - SPECIALTY
OM Health Care
OH and OM Series fixtures are designed for patient-
care facilities with features care-givers require, such
as swit ch able general or task lighting levels, or use
of built-in night light and convenient outlet.
Two lamp OM Series in white finish.
4 1/2"
4 3/8"
4 1/2"
5 5/8"
Dimensions
OM Series White or Walnut Finish fixtures
are designed with switchable general or task lighting
levels, built-in night light and convenience outlet.
Housing
Die-formed heavy gauge steel with high-gloss, baked
white enamel finish over rust inhibiting phosphate
coat. 3’ or 4’ enclosed units. Available in white or
walnut. Standard model has front baffle, center
baffle, con ve nience outlet, night light with push
switch, and four-position T-rated pull switch for up or
down light selection.
Shielding
Acrylic diffuser and linear prism provides glare-free
illumination and efficient light distribution
OM Health Care Series
Ordering Information
Series # Lamps Lamp Type
OMG = Walnut tone on steel
OMW = White
2
3
17 = 17W 24” T8
25 = 25W 36” T8
32 = 32W 48” T8
Ballast Dual Switching Options Voltage Options
B11HP(x) = HPT8*
B11 = Electronic T8
1DN 1UP = 1 down 1 up
2DN 1UP = 2 down, 1 up
1DN 2UP = 1 down, 2 up
UNV = 120-277V
120 = 120V
LA = Less switch, nightlight and outlet
LCO = Less convenience outlet
LIB = Less internal baffle
LSF = Less fascia for milk white translucent front
LPSW = Less pull switch
LNL = Less night light
*CEE listed T8; specify (L)ow, (N)ormal, or (H)igh ballast factor. Contact factory for NEMA Premium.
Electrical
Fully wired for UNV 120-277V, 50-60Hz operation
with thermally protected, automatic resetting Class
P, sound rated A ballast as standard unless otherwise
specified. UL listed.
Mounting
Surface wall mount hor i zon tal.
AVAILABLE
![](asset-4e.png)
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
76
FLUORESCENT - SPECIALTY
Housing
Die-formed heavy gauge steel with high-gloss, baked
white enamel finish over rust inhibiting phosphate
coat. 3’ or 4’ enclosed units. Standard model has
center baffle, con ve nience outlet, night light with
pull switch, and four-position T-rated pull switch for
up or down light selection.
Shielding
acrylic diffuser pro vides glare-free il lu mi na tion and
efficient light dis tri bu tion.
Electrical
Fully wired for UNV 120-277V, 50-60Hz operation
with thermally protected, automatic resetting Class
P, sound rated A ballast as standard unless otherwise
specified. UL listed.
Mounting
Surface wall mount hor i zon tal.
Fixtures are available in a variety of styles and
finishes.
AWAL 325 B11 (ADA Compliant)
AWSHM 325 B11
• Translucent faux alabaster or real wood accented
fascias.
• Classic shaker design available in 3 popular wood
tones.
• Fully enclosed unit for easy cleaning.
• Decorative rounded brass set screws for quick
access.
• Flush horizontal wall mount.
• Electronic instant start T8 ballast.
• U.L. listed.
Mahogany Finish Cherry Finish
Lengths are 31”, 43”, 56”
4”4-1/2”
5”
Architectural Health Care Ordering Information
Series Fascia # Lamps Lamp type Ballast Switching**
AW AL = Alabaster*
SHM = Maple
SHC = Cherry
SHMH = Mahogany
2
3
17 = 17W 24” T8
25 = 25W 36” T8
32 = 32W 48” T8
B11 = Electronic T8 For 3 lamp units
Blank = dual ballasts
3L = (1) 3-lamp ballast
For 2 lamp units
Blank = single ballast
2/1L = (2) 1-lamp ballasts
*Alabaster unit is ADA Compliant
**For 4-way switching, dual ballasts are required.
Minimum quantities may apply. Contact factory.
Voltage Options
UNV = 120-277V
120 = 120V
277 = 277V
LPSW = Less Pull Switch
LNL = Less Night Light
LCO = Less Convenience Outlet
AW Architectural Health Care
Dimensions
5-1/4”
AWALAWSH
![](asset-4f.png)
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
77
FLUORESCENT - SPECIALTY
UW Task Lighting
5"
1 1/8"
5"
1 3/4"
5"
1 1/4"
5"
1 3/4"
5"
1 1/4"
Housing
Heavy gauge steel with flush ends. KOs provided
top, side and back. Baked white enamel over rust
inhibiting phosphate coat, white interior.
Shielding
Snap-in D.R. acrylic diffuser for longer life and
less breakage. Ribbed linear prisms for even light
distribution. Translucent milk white is standard.
Options
White grounded 6’ cordset, grounded convenience
outlet, cool white lamp included, and rocker switch
are available options.
UW Task Lighting Ordering Information
Series Lamps Ballast Voltage
UW 117 = (1) 17W 24” T8
125 = (1) 25W 36” T8
132 = (1) 32W 48” T8
20 = 20W 24” T12
30 = 30W 36” T12
B11 = Electronic T8
B11HP(x) = HPT8*
B22 = Electronic T8/T12 LPF
UNV** = 120-277V
120 = 120V
*CEE listed T8; specify (L)ow, (N)ormal, or (H)igh ballast factor. Contact factory for NEMA Premium.
**UNV only available when unit is less outlet and switch
Options
Standard with outlet and turn switch.
LA = Less outlet and turn switch
C = 120V 6’ white 3-wire cord and plug
RSW = 120V Rocker switch
LCO = Less convenience outlet
LSW = Less turn switch
Dimensions
UW Task Lighting provides uniform, efficient
illumination. UW series is shipped with outlet and
turn switch, optional cord and plug available.
Electrical
Fully wired for 120V, 50-60Hz operation with
thermally protected, automatic resetting Class P,
sound rated A ballast as standard unless otherwise
specified. UL listed.
Mounting
Individual or con tin u ous rows.
![](asset-50.png)
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
78
FLUORESCENT - SPECIALTY
KW, JBH and OW Task Lighting
7 13/16"
5 3/8"
2 1/8"
7/8" DIA. KO
7/16 DIA. KO
EACH END
7/8 DIA. KO - EACH END
5 1/8"
1 3/4"
2 15/16"
2 1/2"
7"
1 15/16"
3/16 DIA. THRU
1/2 DEPRESSION - 1/16 DP
BOTH ENDS
7/8 DIA. KO
BOTH ENDS
JBH
KW
OW
Dimensions
OW
JBH
KW
Housing
Heavy gauge steel with baked white enamel over
rust inhibiting phosphate coat, deburred, flush
ends. Flattened KOs provided, top, back, and sides.
Forward throw angled housing (JBH). JBUY has
1-5/8” uplight cutouts for snap-in diffuser.
Shielding
Snap-in clear pattern 12 prismatic acrylic. Viewing
edge is linear prism for enhanced side lighting (OW).
Options
6’ white 3 wire cord and plug, hardware/conduit
connector, grounded convenience outlet, fast blow
fuse, slow blow fuse, and rocker switch are available.
KW, JBH And OW Task Lighting Ordering Information
Series # Lamps Lamp Type Ballast Voltage
OW = Prismatic Front and Side
OWU = OW with Uplight
JBH = Forward Throw
JBUY = Forward Throw with Uplight Diffuser
KW = (1 lamp only) Solid front
1
2
17 = 17W 24” T8
20 = 20W 24” T12
25 = 25W 36” T8
30 = 30W 36” T12
32 = 32W 48” T8
40 = 34/40W
48” T12
B11 = Electronic T8
B22 = LPF Electronic T8/T12
B11HP(x) = HPT8*
UNV** = 120-277V
120 = 120V
*CEE listed T8; specify (L)ow, (N)ormal, or (H)igh ballast factor. Contact factory for NEMA Premium.
**UNV only when unit is less outlet and turn switch
Options
C = 120V 6’ white 3-wire cord and plug
CO = Grounded convenience outlet
SB = Slow Blow Fuse
FB = Fast Blow Fuse
RSW = 120V Rocker switch
SW = 120V Turn Switch
Options only available on 120V units
Electrical
Factory wired for 120V operation, thermally
protected, Class P, sound rated A electronic ballast.
UL listed.
Mounting
Individual or continuous rows. OW and JBH units are
intended for surface wall mount, horizontal use.
![](asset-51.png)
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
79
FLUORESCENT - SPECIALTY
MINI Features & Benefits
• Miniature profile 1” H x 3.5” W is ideal for use in
confined areas.
• High performance electronic ballast and T5 lamp(s)
produce instant-on, quiet, flicker-free light.
• Stay white, snap fit, damage resistant white ribbed
acrylic lens provides even illumination.
• Fastener-free housing is post-painted after
fabrication to ensure a high quality finish.
• Includes conduit connector and mounting
hardware.
• Hingeable service tray for quick installation
and maintenance.
• Rocker switch and grounded convenience
available as field installed kit. Order part number
(SWCO-KIT).
• U.L. listed.
The ultra-compact, MINI series, with an integral
micro-electronic T5 ballast provides maximum design
flexibility for demanding home and office projects
where excellent color rendering, long lamp life and
superior lamp efficacy are essential. The MINI’s tiny,
trim profile mounts neatly out of view.
Miniature Electronic T5 Task
• The MINI’s shadow-free illumination is ideal
for intricate tasks like cutting.
• Designed to meet stringent energy codes
like TITLE 24, the MINI’s T5 lighting system
produces more light using less energy.
• The MINI’s high CRI lamps create color
correct illumination.
• 4100K T5 lamps included
T5 Fluorescent MINI Series Ordering Information 4100K T5 lamps included (standard)
Series Lamps Ballast H L W Input Wattage
MINI 8L1 = (1)-8WT5
13L1 = (1)-13WT5
28L1= (2)-8WT5
813L1 = (1)-8WT5 & (1)13WT5
213L1 = (2)-13WT5
Electronic, Instant Start NPF 120V
Electronic, Instant Start NPF 120V
Electronic, Instant Start NPF 120V
Electronic, Instant Start NPF 120V
Electronic, Instant Start NPF 120V
1”
1”
1”
1”
1”
12-1/4”
21-5/16”
24-1/2”
33-1/2”
42-1/2”
3-1/2”
3-1/2”
3-1/2”
3-1/2”
3-1/2”
6.5
11.8
17.1
21.2
25.2
Accessories
SWCO-KIT = Rocker switch and outlet (field install)
MINI13
Just 3.5” Wide
Miniature 1” x 3.5” profile is ideal
for space restricted areas.
Great For Tight Spaces
T5 Fluorescent MINI
Dimensions
![](asset-52.png)
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
80
FLUORESCENT - SPECIALTY
All Purpose Undercabinet
• The SLIM series is built to provide task
lighting for assembly and workstations.
• The SLIM series accomodates popular lamp
types.
• Available in 4 lengths, the SLIM can be
specified with T8 or T12 lamps to fit any
application.
SLIM20TS
CLOSET15PH
Complies with NEC Code
requirements for closet lighting.
SLIM Features & Benefits
• Shallow, unobtrusive 1-7/8” depth provides a
discreet source of functional illumination.
• Available in 4 lengths and accomodates popular T8
and T12 lamps.
• Stay white, snap fit, damage resistant white ribbed
acrylic lens provides even illumination.
• Housing is post-painted after fabrication to ensure
a high quality finish.
• Includes conduit connector and mounting
hardware.
• Hingeable service tray for quick installation and
maintenance.
• Meets National Electric Code for closet lighting.
Includes on/off pull chain, F15T8 lamp and
special knockout pattern for J box mounting
(CLOSET15PH).
• Rocker switch and grounded convenience available
as field installed kit. Order part number (SWCO-
KIT).
• U.L. listed.
The SLIM series, rugged design for commercial and
industrial applications, is available in 4 lengths and
accomodates all popular T8 and T12 lamp types
commonly found in other luminaries in commercial
facilities, reducing the number of lamps on the
maintenance schedule.
T8 & T12 Fluorescent SLIM
Dimensions
T8 & T12 Fluorescent SLIM Series Ordering Information
Series Lamps (not included) Ballast H L W Input Wattage
CLOSET15PH
SLIM15TS
SLIM20TS
SLIM30
SLIM40
SLIM17B11
SLIM25B11
SLIM32B11
(1)-15W T8
(1)-15W T12
(1)-20W T12
(1)-30W T12
(1)-34/40W T12
(1)-17W T8
(1)-25W T8
(1)-32W T8
Magnetic Preheat, NPF 120V
Magnetic Trigger Start, NPF 120V
Magnetic Trigger Start, NPF 120V
Magnetic Rapid Start, NPF 120V
Magnetic Rapid Start, NPF 120V
Electronic, Instant Start HPF 120V
Electronic, Instant Start HPF 120V
Electronic, Instant Start HPF 120V
1-3/8”
1-7/8”
1-7/8”
1-7/8”
1-7/8”
1-7/8”
1-7/8”
1-7/8”
18-1/8”
18-1/8”
24-1/8”
36”
48”
24-1/8”
36”
48”
4-5/8”
5-1/4”
5-1/4”
5-1/4”
5-1/4”
5-1/4”
5-1/4”
5-1/4”
15
28
30
30
34/40
20
25
31
Accessories
SWCO-KIT = Rocker switch and outlet (field install)
![](asset-53.png)
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
81
FLUORESCENT - SPECIALTY
20
GAUGE
Parabolics - 20 Gauge
Housing
Die-formed 20 gauge steel with high-gloss, baked
white enamel finish over rust inhibiting phosphate
coat. Full black reveal and hinged louver for easy
relamping. Access plate provided with 2 KOs and
ground screw.
Shielding
Low iridescence, anodized, semi-specular aluminum
parabolic, nominal 3” deep-cell louver held securely
by steel latches. “T” hinges allow access from either
side.
TEP 20 Gauge Series Ordering Information
Series Size # Lamps Lamp type Cell Conguration Louver Finish
TEP 124 = 1 x 4
242 = 2 x 2
244 = 2 x 4
2
3
4
14 = 14W T5
17 = 17W T8
24 = 24W T5HO
28 = 28W T5
32U = 32W U6” T8*
32 = 32W T8
40TT = 40W TT
54 = 54W T5HO
8C = 1x4 (1 row of 8)
9C = 2x2 (3 rows of 3)
12C = 2x2 (3 rows of 4)
12C = 2x4 (2 rows of 6)
16C = 2x2 (4 rows of 4)
18C = 2x4 (3 rows of 6)
24C3X8 = 2x4 (3 rows of 8)
24C4X6 = 2x4 (4 rows of 6)
27C = 2x4 (3 rows of 9)
32C = 2x4 (4 rows of 8)
G = Gold
W = White
S = Specular
* For 1 5/8” please specify
Options Ballast Switching Voltage Housing
ELS1 = Emergency Lighting
(low lumens)
ELS2 = Emergency Lighting
(medium lumens)
ELS3 = Emergency Lighting
(high lumens)
B11 = Electronic T8
B11HP(x) = HPT8 *
B12 = Electronic T5
B14 = Electronic TT
FOR 3 AND 4 LAMP UNITS
Blank = dual ballasts
3L = (1) 3-lamp ballast
4L = (1) 4-lamp ballast
FOR 2 LAMP UNITS
Blank = single ballast
2/1L = (2) 1-lamp ballasts
UNV = 120-277V
120 = 120V
277 = 277V
20GA = 20 Gauge
* CEE listed T8; specify (L)ow, (N)ormal, or (H)igh ballast factor. Contact factory for NEMA Premium.
TEP Deep Cell Parabolics are at trac tive high-
efficien cy fix tures that pro duce uniform low
brightness in the 60°- 90° zone.
Electrical
Fully wired for UNV 120-277V, 50-60Hz operation
with thermally protected, automatic resetting Class
P, sound rated A ballast as standard unless otherwise
specified. UL listed.
Mounting
Optional EC515 Earth quake Clip for lay-in grid
ceilings. For flanged unit use GCK kit. (See page 91)
Flanged units require field as sem bly.
AVAILABLE
Options Accessories
L = Lamps Installed (Specify Lamps) (U-lamp and TT lamps not installed)
FL4 = 3/8”, 6’ flex with two #18, one ground and two con nec tors
FL5 = 3/8”, 6’ flex with three #18, one ground and two con nec tors
M = Master; includes 9’ intertie and snap-in connector
S = Satellite; includes snap-in connector
EC515 = Earth quake Clip
Grid Conversion Kits
GCK 14 = 1’ x 4’
GCK 22 = 2’ x 2’
GCK 24 = 2’ X 4’
23 -3/4”
47-3/4”
5”
Dimensions
![](asset-54.png)
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
82
FLUORESCENT - SPECIALTY
20
GAUGE
TY Troffers - 20 Gauge
Housing
Die-formed 20 gauge steel with high-gloss, baked
white enamel finish over rust inhibiting phosphate
coat. Flush white steel door frame with mitered
corners that can be hinged from either side. Swing-
action cam latches provide positive fit. Light traps
standard. Access plate providing 2 KOs and ground
screw.
Shielding
Clear prismatic acrylic lens is standard. Other lens
options available.
TY 20 Gauge Troffer Ordering Information
Series Lens Size
T
XT = Powder coat
Y = .090 prismatic acrylic (standard)
K = .125 clear prismatic acrylic
B = .125 clear prismatic polycarbon ate
U = .156 prismatic acrylic
124 = 1 x 4
242 = 2 x 2
244 = 2 x 4
Electrical
Fully wired for UNV 120-277V, 50-60Hz operation
with thermally protected, automatic resetting Class
P, sound rated A ballast as standard unless otherwise
specified. UL listed.
Mounting
Lay-in (T) or Flange (F) troffer.
# Lamps Lamp Type Options Ballast Switching
2
3
4
14 = 14W 24” T5
24 = 24W 24” T5HO
28 = 28W 48” T5
32 = 32W 48” T8
32U = 32W U6” T8*
40TT = 40W 22” TT**
54 = 54W 48” T5HO
ELS1 = Emergency Lighting
(low lumens)
ELS2 = Emergency Lighting
(medium lumens)
ELS3 = Emergency Lighting
(high lumens)
B11 = Electronic T8
B11HP(x) = HPT8***
B12 = Electronic T5
B14 = Electronic TT
FOR 3 AND 4 LAMP UNITS
Blank = dual ballasts
3L = (1) 3-lamp ballast
4L = (1) 4-lamp ballast
FOR 2 LAMP UNITS
Blank = single ballast
2/1L = (2) 1-lamp ballasts
*For 1-5/8” please specify.
**Requires dedicated voltage ballast.
***CEE listed T8; specify (L)ow, (N)ormal, or (H)igh ballast factor. Contact factory for NEMA Premium.
Voltage Housing Options
UNV = 120-277V
120 = 120V
277 = 277V
20GA = 20 Gauge L = Lamps Installed (Specify Lamps) (U-lamp and TT lamps not installed)
FL4 = 3/8”, 6’ flex with two #18, one ground and two con nec tors
FL5 = 3/8”, 6’ flex with three #18, one ground and two con nec tors
M = Master; includes 9’ intertie and snap-in connector
S = Satellite; includes snap-in connector
Accessories
EC = Earth quake Clip, 4-pack
FTI (Flange Trim Kits)
FTI 14 = 1’ x 4’
FTI 22 = 2’ x 2’
FTI 24 = 2’ X 4’
Dimensions
AVAILABLE
23 -3/4”
47-3/4”
4 1/4”
![](asset-55.png)
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
83
FLUORESCENT - SPECIALTY
AVAILABLE
TY Louvered Troffers - 20 Gauge
20
GAUGE
Housing
Die-formed 20 gauge steel with high-gloss, baked
white enamel finish over rust inhibiting phosphate
coat. Flush white steel door frame with mitered
corners that can be hinged from either side. Swing-
action cam latches provide positive fit. Light traps
standard. Access plate providing 2 KOs and ground
screw.
Shielding
Clear prismatic acrylic lens is standard. Other lens
options available.
Electrical
Fully wired for UNV 120-277V, 50-60Hz operation
with thermally protected, automatic resetting Class
P, sound rated A ballast as standard unless otherwise
specified. UL listed.
Mounting
Lay-in (T) or Flange (F) troffer.
Ordering Information
Series Louver Size
F = Flange
T = Lay-in
XF = Powder coat, flange
XT = Powder coat, lay-in
A = 1/2” x 1/2” x 1/2” cell
J = 3/4” x 3/4” x 1/2” cell
L = 1/2” x 1/2” x 1/2” egg crate, white
S = 1-1/2” x 1-1/2” x 1”
124 = 1 x 4
242 = 2 x 2
244 = 2 x 4
# Lamps Lamps Louver Finish Options Ballast
2
3
4
14 = 14W 24” T5
24 = 24W 24” T5HO
28 = 28W 48” T5
32 = 32W 48” T8
32U = 32W U6” T8*
40TT = 40W 22” TT**
54 = 54W 48” T5HO
S = Silver specular (standard)
G = Gold
ELS1 = Emergency Lighting
(low lumens)
ELS2 = Emergency Lighting
(medium lumens)
ELS3 = Emergency Lighting
(high lumens)
B11 = Electronic T8
B11HP(x) = HPT8***
B12 = Electronic T5
B14 = Electronic TT
*For 1-5/8” please specify.
**Requires dedicated voltage ballast.
***CEE listed T8; specify (L)ow, (N)ormal, or (H)igh ballast factor. Contact factory for NEMA Premium.
Switching Voltage Housing
For 3 and 4 lamp units
Blank = dual ballasts
3L = (1) 3-lamp ballast
4L = (1) 4-lamp ballast
For 2 lamp units
Blank = single ballast
2/1L = (2) 1-lamp ballasts
UNV = 120-277V
120 = 120V
277 = 277V
20GA = 20 Gauge
Options Accessories
L = Lamps Installed (Specify Lamps) (U-lamp and TT lamps not installed)
FL4 = 3/8”, 6’ flex with two #18, one ground and two con nec tors*
FL5 = 3/8”, 6’ flex with three #18, one ground and two con nec tors*
M = Master; includes 9’ intertie and snap-in connector
S = Satellite; includes snap-in connector
EC = Earth quake Clip, 4-pack
FTI (Flange Trim Kits)
FTI 12 = 1’ x 2’
FTI 14 = 1’ x 4’
FTI 22 = 2’ x 2’
FTI 24 = 2’ X 4’
*Contact factory for other available options
Dimensions
23 -3/4”
47-3/4”
4 1/4”
![](asset-56.png)
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
84
FLUORESCENT - SPECIALTY
20
GAUGE
CH 20 Gauge Striplite
CHTT
2 5/8"
1 7/8"
2 3/4"
2 5/8"
3 13/16"
1 7/8"
Dimensions
Striplite Series is ideal for general purpose
lighting in retail stores and commercial
environments. Available in 2’, 3’, and 4’ individual
lengths as well as continuous row mounting.
Housing
Die-formed heavy 20 gauge steel with high-gloss,
baked white enamel finish over rust inhibiting
phosphate coat with re mov able wireway access
panel. Ample knock outs provided on side, back and
ends. Shipped fully wired and assembled, including
socket saddle. Simply attach wireway cover with turn
fastener provided.
Options
Modular wiring and emergen cy lighting battery
packs are available options.
Electrical
Fully wired for UNV 120-277V, 50-60Hz operation
with thermally protected, automatic resetting Class
P, sound rated A ballast as standard unless otherwise
specified (except slimline and HO models). UL listed
damp location.
Mounting
Optional plug-in wiring system de scribed in detail on
page 92.
AVAILABLE
CH 20 Gauge Striplite Ordering Information
Series # Lamps Lamps ELS Options
CH 1
2
21 = Tandem, two lamps
22 = Tandem, four lamps
15 = 15W 18” T8
17 = 17W 24” T8
25 = 25W 36” T8
32 = 32W 48” T8
40TT = 40W 22” TT
54 = 54W T5HO
ELS1 = Emergency Lighting
(low lumens)
ELS2 = Emergency Lighting
(medium lumens)
ELS3 = Emergency Lighting
(high lumens)
Ballast Switching Voltage Housing
B11 = Electronic T8
B11HP(x) = HPT8*
B12 = Electronic T5
B14 = Electronic TT
For 4 lamp units
Blank = dual ballasts
4L = (1) 4-lamp ballast
For 2 lamp units
Blank = single ballast
2/1L = (2) 1-lamp ballasts
UNV = 120-277V
120 = 120V
277 = 277V
20GA = 20 Gauge
*CEE listed T8; specify (L)ow, (N)ormal, or (H)igh ballast factor. Contact factory for NEMA Premium.
Options Accessories
Cord and Plug
CPT (x)
1= 120V
2 = 277V
CP3 = Cord & Plug - 120V Straight
Blade 5-15P
PLUG-IN CONNECTORS
Ballast wired to Black:
PL1 - one circuit, two wires
PL2 BK - two circuits, three wires
Ballast wired to Red:
PL2 RD - two circuits, three wires
CA24 = Chain Hanger Assembly - (2) 18” chains, (2) “V” hooks, (2) “S” hooks for total drop 24”
CS24 = “S” Hook (4) Chain Hanger Assembly (24” total drop)
PM(x) = Pendant Mount, white stem - specify length in inches (24, 36, 48, 60, 72)
C = Single white canopy (for use with pendant mount)
SN = Snapper Brackets
Wire Guards
WG(x)20 = 24” (Specify # Lamps) (1 or 2)
WG(x)30 = 36” (Specify # Lamps) (1 or 2)
WG(x)40 = 48” (Specify # Lamps) (1 or 2)
![](asset-57.png)
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
85
FLUORESCENT - SPECIALTY
CHX 20 Gauge Slimline And High Output Channel
Dimensions
Slimline and High Output Channels are ideal
for maximum illumination in retail stores and
commercial environments. Available in 4’, 6’, and
8’ individual lengths as well as continuous row
mounting.
Housing
High-gloss, baked white enamel finish on steel
housing with re mov able wireway access panel.
Fixture is shipped fully wired and as sem bled.
CHX models have patented (#4,422,132) flip-up
socket bar and turn fastener for attaching wireway
cover.
Options
Options include modular wiring, plug-in systems and
wire guards.
CHX Slimline And High Output Channel Ordering Information
Series # Lamps Lamps Options Ballast
CHX 1
2
21 = Tandem, Two Lamps
48 = 48”
72 = 72”
96 = 96”
ELS1 = Emergency Lighting
(low lumens)
ELS2 = Emergency Lighting
(medium lumens)
ELS3 = Emergency Lighting
(high lumens)
B5 = Electronic T12
HOB5 = High Output Electronic T12
B11 = Electronic T8
HOB11 = High Output Electronic T8
HO = High Output
VHO = Very High Output
Electrical
Fully wired for 120V, 60Hz operation with thermally
protected, automatic resetting, Class P, high-power-
factor ballast, unless otherwise spec i fied. UL listed,
damp location.
Mounting
Surface or pendant mount, high output model must
be suspended at least 6” from ceiling for cooler
operation.
Voltage Options Accessories
UNV = 120-277V
120 = 120V
277 = 277V
6’ CORD AND PLUG
CPT (x)
1= 120V
2 = 277V
CP3 = Cord & Plug - 120V
Straight Blade 5-15P
Plug-in Connectors
Ballast wired to Black:
PL1 - one circuit, two wires
PL2 BK - two circuits, three
wires
Ballast wired to Red:
PL2 RD - two circuits, three
wires
CA24 = Chain Hanger Assembly - (2) 18” chains, (2) “V” hooks, (2) “S” hooks for
total drop 24”
CS24 = “S” Hook (4) Chain Hanger Assembly (24” total drop)
PM(x) = Pendant Mount, white stem - specify length in inches (24, 36, 48, 60, 72)
C = Single white canopy (for use with pendant mount)
SN = Snapper Brackets
Wire Guards
WG230 = 36” (Order 2 for 72” units)
WG240 = 48” (Order 2 for 96” units)
4 7/8”
5”
4 7/8”
2”
3”
”2/13
5”
5”
STANDARD
HO / VHO
20
GAUGE
![](asset-58.png)
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
86
FLUORESCENT - SPECIALTY
V4000 Vandal Resistant
Housing
Marine Grade A, heavy-gauge alu mi num with
gasketing for maximum corrosion resistance, offered
with optional back boxes. Models with painted parts
receive high-gloss baked enamel ap plied after pre-
treatment to ensure superior paint adhesion and rust
re sis tance. Fixtures have white housing.
Shielding
High-impact, UV Treated, multipatterned polycar bon-
ate for remarkable impact strength.
Horizontal Illuminance Analysis: Model V4232 Scale
and Surface: .25” to 1’ (1’ Grid) Units: Footcandles
10'
4.9
4.9
4.3
4.3
3.7
3.7
3.0
3.0
2.4
2.4
4.9
4.9
4.3
4.3
3.7
3.7
3.0
3.0
2.4 2
2
468
10
4
6
8
10
2.4
2
2
4
6
8
10
4
6
8
10
50.5"
26"
3 1/2"
8"
5"
4 1/2"
6"
7 7/8"
Corner Box
with Back Box
V4000 Series Ordering Information
Series Lamp Type Housing Ballast
V4
VC4 = Vandal Resistant, steel corner box
217 = (2) 17W 24” T8
232 = (2) 32W 48” T8
A = Aluminum (standard) B11 = Electronic T8
B11HP(x) = HPT8*
*CEE listed T8; specify (L)ow, (N)ormal, or (H)igh ballast factor. Contact factory for NEMA Premium.
Voltage Options Accessories
UNV = 120-277V
120 = 120V
277 = 277V
MS = Maximum security
(Tamperproof screws)
L1 = Lamps
V401A20 = Aluminum back box for 1/2” conduit for 20W unit
V401A40 = Aluminum back box for 1/2” conduit for 40W unit
TSD = Tamper-proof screwdriver
Dimensions
V4000 marine Grade A aluminum housing keeps out
moisture, preventing rust, and also promotes longer
lamp life and longer ballast life due to better heat
dissipation and cooler operating temperatures. High
abuse fluorescent fixture for T8 available in two
lamp models.
Electrical
Fully wired for UNV 120-277V, 50-60Hz operation
with thermally protected, automatic resetting Class
P, sound rated A ballast as standard unless otherwise
specified. UL listed, wet location ceiling mount, damp
location wall mount.
Mounting
Wall or ceiling, indoor. Corner mount available.
AVAILABLE
RESISTANT
VANDAL
![](asset-59.png)
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
87
FLUORESCENT - SPECIALTY
RESISTANT
VANDAL
Housing
Marine Grade A, heavy-gauge alu mi num with
gasketing for maximum corrosion resistance. Models
with painted parts receive high-gloss baked enamel
applied after pre-treatment to ensure superior paint
adhesion and rust resistance. Incandescent and
Compact fluorescent fixtures have white housings.
Shielding
High-impact, UV Treated, clear prismatic
polycarbonate for remarkable impact strength.
V1000 Vandal Resistant
V1000 Series Ordering Information
Series Lamp Type Housing
V10
00 = (2) 60W A19
18 = (2) 9W CFL
26 = (2) 13W CFL
26Q = (1) 26W Quad
52Q = (2) 26W Quad
See page 212 for HID model (GCS)
A = Aluminum (standard)
Voltage Options Accessories
UNV = 120-277V
120 = 120V
277 = 277V
MS = Maximum Security
(Tamperproof screws)
L1 = Lamps
V101A = Aluminum back box for 1/2” conduit, white
TSD = Tamper-proof screwdriver
V1000 marine Grade A aluminum housing keeps out
moisture, preventing rust, and also promotes longer
lamp life and longer ballast life due to better heat
dissipation and cooler operating temperatures. The
long life span of the ballast on CFL results in lower
maintenance costs.
Dimensions
Electrical
Incandescent fixtures have medium base socket.
Fluorescent models are wired for 120V, 60Hz
operation. For HID model, see page 212.
Mounting
Ceiling Mount.
12" 12.5"
8.5"
![](asset-5a.png)
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
88
FLUORESCENT - SPECIALTY
Horizontal Illuminance Analysis: Model V5014A
Scale and Surface: .25” to 1’ (1’ Grid)
Units: Footcandles
Housing
Marine Grade A heavy-gauge alu mi num with
gasketing for maximum corrosion resistance. Models
with painted parts receive high-gloss baked enamel
ap plied after pre-treatment to ensure superior paint
adhesion and rust re sis tance. Fixture housing is
white. V501A aluminum back box has a white finish.
Shielding
High-impact poly car bon ate for remarkable impact
strength.
7'
1.4
1.1
.94 .77
.60
.44
.27
1.4
1.1
.94 .77
.60
.44
.27
0
02468
2
4
6
8
10
10
8
6
4
2
7.75"
5.75" 5.25"
4"
V5000 Vandal Resistant
V5000 Series Ordering Information
Series Lamp Type Housing Voltage
V50 00 = (1) 60W or 75W A19
07 = (1) 7W CFL
14 = (2) 7W CFL
A = Aluminum (standard) 120 = 120V
277* = 277V
*Back box may be required for 277V models
Options Accessories
MS = Maximum security
(Tamperproof screws)
W = White polycarbonate lens
L1 = Lamps
V501A = Aluminum back box for 1/2” conduit, white
TSD = Tamper-proof screwdriver
V5000 marine Grade A aluminum housing keeps
out moisture, preventing rust, and also promotes
longer lamp life and longer ballast life due to better
heat dissipation and cooler operating temperatures.
The long life span of the ballast on TT models results
in lower maintenance costs. 4” deep models meet
ADA requirements.
Dimensions
Electrical
Incandescent fixtures have medium base socket. Flu-
o res cent models are wired for 120V, 60Hz operation.
UL listed, wet lo ca tion: 60W max., damp location:
ceiling - 60W max., wall - 75W max.
Mounting
Incandescent base up wall mount. See in di vid u al
models for ratings for ceiling mount.
RESISTANT
VANDAL
![](asset-5b.png)
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
89
FLUORESCENT - SPECIALTY
Housing
Marine Grade A heavy-gauge alu mi num with
gasketing for maximum corrosion resistance. Models
with painted parts receive high-gloss baked enamel
ap plied after pre-treatment to ensure superior paint
adhesion and rust re sis tance. Fixture housing is
white. All units are Maximum Security (tamperproof
screws).
Shielding
High-impact poly car bon ate for remarkable impact
strength.
10.5"
6"
4.12"
V6000 Vandal Resistant
V6000 Series Ordering Information
Series Lamps Housing Voltage
V6 009 = (1) 9W CFL
018 = (2) 9W CFL
013 = (1) 13W CFL
026 = (2) 13W CFL
018Q = (1) 18W Quad
100 = Max 100W A
A = Aluminum (standard) 120 = 120V
277 = 277V
Options Accessories
MS = Maximum security
(Tamperproof screws)
L1 = Lamp
TSD = Tamper-proof screwdriver
Dimensions
V6000 marine Grade A aluminum housing keeps
out moisture, preventing rust, and also promotes
longer lamp life and longer ballast life due to better
heat dissipation and cooler operating temperatures.
The long life span of the ballast on CFL models
results in lower maintenance costs. New design
features Quad lamp models.
Electrical
Incandescent fixtures have medium base socket. Flu-
o res cent models are wired for 120V, 60Hz operation.
UL listed, wet lo ca tion.
Mounting
Incandescent base up wall mount. See individual
models for ratings for ceiling mount.
RESISTANT
VANDAL
![](asset-5c.png)
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
90
FLUORESCENT - SPECIALTY
Horizontal Illuminance Analysis: Model V9026
Scale and Surface: .125” to 1’ (1’ Grid)
Units: Footcandles
Housing
Marine Grade A heavy-gauge alu mi num, painted
black, with gasketing for maximum corrosion
resistance. Models with painted parts receive high-
gloss baked enamel ap plied after pre-treatment to
ensure superior paint adhesion and rust re sis tance.
Shielding
White polycarbonate, high-impact, UV stabilized lens.
L
5" 3"*
3.75"**
13"
*V9013, V9014
**V9026
16 12 84048
16
.081
.33
.57 .82
1.1 .081
.33
.57 .82
1.1
12
8'
16 12 84048
16
12
L
V9000 Vandal Resistant
V9000 Series Ordering Information
Series Lamp Type Lens
V90 13 = (1) 13W CFL
14 = (2) 7W CFL
26 = (2) 13W CFL
W = White polycarbonate lens (standard)
Voltage Housing Options Accessories
120 = 120V
277 = 277V
A = Aluminum (standard) L1 = Lamps TSD = Tamper-proof screwdriver
Dimensions
Electrical
Wired for 120V, 60Hz operation. UL listed, wet
lo ca tion.
Mounting
Wall, ceiling, indoor, out door.
RESISTANT
VANDAL
![](asset-5d.png)
91
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
FLUORESCENT
Fits CHX and CH Models — One or Two Lamp
ARW 20 – 24”
ARW 30 – 36”
ARW 48 – 48” (order two for 96” units)
Must be ordered as an accessory. Apply AR for aluminum or SR for silver.
AR = Aluminum Reflector, white
SR = Specular Reflector, silver
Fits CHX and CH ModelsSRW(x) 120 – 24”
SRW(x) 130 – 36”
SRW(x) 140 – 48” (order two for 96” units)
SRW(x) 48 – 48” (two-lamp or wide body, order two for 96” units)
Specify (x) One or Two Lamp
20 = One Lamp
30 = Two Lamp
Must be ordered as an accessory. Apply AR for aluminum or SR for silver.
AR = Aluminum Reflector, white
SR = Specular Reflector, silver
Symmetric Reflectors for Striplites
Reflector width = 4 3/4” (2 lamp), 3 1/8” (1 lamp)
Reflector height = 2”, total height = 3 7/8”
ARW Asymmetric Reflectors for Striplites
Reflector width = 2”, reflector height = 4 9/16”, total height = 6 7/16”
Popular Reflectors For Simkar Fixtures
Grid Conversion Kits
An alternative to flanged fixtures. Complete in di vid u al ceiling-mount kits set
up for in de pen dent sus pen sion. Allows in stal la tion of regular lay-in fixtures in
sheetrock or plaster ceilings without the use of flange, level lugs or plaster frames
PFI. White extruded steel with mitered cor ners. Easy in stal la tion. Bulk packed as
required. Not for continuous rows. Check available ple num swing clearance on
deep fixtures.
Catalog # Size Frame Out
For Parabolics
GCK 12 1’ x 2’ 12.5” x 24.5”
GCK 14 1’ x 4’ 12.5” x 48.5”
GCK 22 2’ x 2’ 24.5” X 24.5”
GCK 24 2’ X 4’ 24.5” X 48.5”
For Troffers
FTI 12 1’ X 2’ 12.5” X 24.5”
FTI 14 1’ X 4’ 12.5” X 48.5”
FTI 22 2’ X 2’ 24.5” X 24.5”
FTI 24 2’ X 4’ 24.5” X 48.5”
Plas ter Frame Kit
PFE
Plaster Frame Kit
Catalog Number* Nominal Size Make Ceiling Opening†‡
PF(x)14 = 14” 1’ x 4’ 12 1/4” x 48 3/8”
PF (x)22 = 22” 2’ x 2’ 24 1/4” X 24 3/8”
PF (x)24 = 24” 2’ X 4’ 24 1/4” X 48 3/8”
†Add only 24” or 48” for fixture in con tin u ous rows.
*Insert “I” for Individual kit; insert “C” for Continuous row; insert “E” for End row kit, e.g. PFI.
‡Add 1/4” if using plaster frame or FTI kit.
Type F Level
Lug Bracket
GCK
FTI
![](asset-5e.png)
92
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
FLUORESCENT
6’ Flex and Leads (Suf fix FL)
Specify desired flex:
FL1 = 3/8” flex with two #18, one ground and one con nec tor
FL2 = 3/8” flex with three #18, one ground and one con nec tor
FL3 = 1/2” flex with three #18, one ground and one con nec tor
FL4 = 3/8” flex with two #18, one ground and two con nec tors (standard)
FL5 = 3/8” flex with three #18, one ground and two con nec tors
FL6 = 1/2” flex with three #18, one ground and two con nec tors
Plug-In Connectors
Specify optional modular wiring for your system:
Ballast wired to Black:
PL1 = one circuit, two wires
PL2 = two circuits, three wires
PL3 BK = three circuits, four wires
Ballast wired to Red:
PL2 RD = two circuits, three wires
PL3 RD = three circuits, four wires
Ballast wired to Blue:
PL3 BL = three circuits, four wires
Modular Wiring
Factory will modify standard products to accept customer-supplied systems.
Contact factory for layouts, wiring recommendations, and costs.
Mas ter/Satellite (Suf fix M or S)
The Mas ter/Sat el lite option offers energy saving by switches or con trols allowing
center lamp and outside lamps to be in di vid u al ly op er at ed with fewer ballasts
and con nec tions.
Example: For three-lamp troffers, order a four-lamp and two-lamp ballast in
master unit, prewired at the fac to ry and ready to snap into position on ac cess
plate with 11’ of intertie to satellite fixture. Both master and satellite units are
prewired with snap-in connectors.
The four-lamp bal last drives outboard lamps and the two-lamp bal last drives
in board lamps. Stan dard intertie length is 11’, other lengths available. Master
unit avail able with op tion al flex and lead.
Emergency Lighting (Suffix ELS)
Available on a variety of fixtures, will upgrade the se lect ed fixture to respond
to power failure with one lamp op er a tion al for 90 minutes. UL listed, in cluding
indicator light and test but ton. Bodine emer gen cy packs may also be spec i fied.
Example: Flex with two connectors TEP-244-332-B11-FL4
(or FL5 for inboard/outboard switching).
Wiring Options
ELS (Emergency Lighting Systems)
ELS1 = low lumens
ELS2 = medium lumens
ELS3 = high lumens
Contact factory for ballast and lumen specifications.
TY244-332-B11 ELS
Master Satellite
TY244-332 B11 4L + 2L M
3 lamp master with two and four
lamp ballast
Op tion al FL
s
PL
Intertie
TY244-332 S
3 lamp satellite
less ballasts
![](asset-5f.png)
93
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
FLUORESCENT
SN – Snapper Bracket. Snaps onto T-bar to hold fixture and main tain 1 3/4”
space from ceiling on HO body or 2 5/8” on slimline. Can also be used
on standard ceilings with proper sup port. Use with CH, CHX, IE, IF. Tabs
ad just to high output housing.
TBH – T-Bar Grid Mount ing Clip. Twists and clips onto grid and
provides thread to mount hous ing, which is sup port ed by turn fas ten er. Avail able
bulk or pack aged in sets of two. Two clips will support fix-
tures up to 48” x 15” wide.
Wireguards – 14 Gauge Security Cage.
For Channels:
WG(x)20 = 24” for CH. (Specify # Lamps)
WG(x)30 = 36” for CH. (Specify # Lamps)
WG(x)40 = 48” for CH. (Specify # Lamps) use 2 for 96” length.
For Industrials:
LG48 = 48” hinged wire lamp guard for IE In dus tri al (use 2 for 96” length).
LGIF48 = 48” hinged wire lamp guard for IF In dus tri al.
For high bay fluorescent fixtures:
RWG(x) = Heavy Duty Wire Guard
REF(x) = acrylic Lens WREF(x) = acrylic Lens And Heavy Duty Wire Guard
Combo
For above, please specify # of lamps (4, 6, or 8)
Options and Accessories
AC – Aligner Clips. Hold re flec tors
in alignment.
CACC – Suspension kit includes white cord, white can o pies, and 1/16” aircraft
cable. In di vid u al mounting only. Standard length is 48”.
CA (Chain Hanger Assembly) – Hang ing
Kit. Includes two 18” chains, two “V” hooks,
and two “S” hooks for a total drop of 24”.
Ad di tion al chain length avail able.
CHJ – Con nec tor Joiner and Hex Head
Screws. Con nect long rows of CH, CHX,
IE or IF 4 1/2” hous ings.
CP3 – Cord and Plug. Six-foot 18-3 SJ cord and plug wired with strain relief to
fixture. Black standard; W=White. Specify color and cord at tach ment point, e.g.
end or side.
CS – Ceiling Spacer. Main tains 2 1/2” space between
top of fixture and ceiling. Hollow stem. Use with any
surface fixture.
FB or SB – Fast-Blow or Slow-Blow Fusing.
One required per ballast.
OLS – Clear poly car bon ate lamp guard. Con tains glass from shat tered lamps.
Recom mend ed for ef fi cient cold weather op er a tion. May be re quired in food
service ar eas. Order by length and lamp type:
OLS32 = 48” T8 lamp.
OLS40 = 48” T12 lamp.
![](asset-60.png)
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
94
LIGHT COMMERCIAL & RESIDENTIAL
![](asset-61.png)
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
95
LIGHT COMMERCIAL & RESIDENTIAL
Combining form with the function of advanced fluorescent technology, Simkar
delivers a compelling array of energy efficient lighting that offers stylish, yet practical
lighting solutions for every room in your home. Check out our innovative lighting
designs, latest decorative patterns, and customizable finishes that satisfy every design
preference.
Partnering with the ENERGY STAR program, Simkar offers a unique selection of
energy-efficient lighting products that add drama – or something more demure – to
beautify your home.
Fluorescent
LIGHT COMMERCIAL
& RESIDENTIAL
![](asset-62.png)
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
96
LIGHT COMMERCIAL & RESIDENTIAL
Decorative Crowns
• Crown profile matches cabinetry and ceiling
molding.
• Lift and shift diffuser for easy, tool-free cleaning
and relamping.
• Shallow, gasketed, flush mount frame.
• Electronic instant start T8 ballast.
• U.L. listed.
Our “Tight to the Ceiling” Crowns are designed
to match the popular crown moldings of ceilings
and kitchen cabinetry.
Crown Profile
4”
16” (2 light 1 x 4)
22-3/16” (3 light 1-1/2 x 4)
Length is 53”
Crown Ordering Information
Series Finish Lens Size Lamps
CRWN W = White finish
O = Oak finish
124 = 1 x 4
184 = 1-1/2 x 4
232 = (2) 32W 48” T8
332 = (3) 32W 48” T8
Ballast Switching Voltage
B11 = Electronic T8
B11 RES = Residential Electronic T8
B22 = LPF T8/T12*
FOR 3 LAMP UNITS
Blank = dual ballasts
3L = (1) 3-lamp ballast
FOR 2 LAMP UNITS
Blank = single ballast
2/1L = (2) 1-lamp ballasts
UNV = 120-277V
120 = 120V
277 = 277V**
*Dual ballasts required for 3 lamp models
**B11 only
Dimensions
![](asset-63.png)
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
97
LIGHT COMMERCIAL & RESIDENTIAL
Oak Grid
Dimensions
• Solid oak frame with integral lattice grid.
• Hand rubbed, medium oak stain.
• Low profile for seamless ceiling line.
• Translucent, milk white acrylic diffuser.
• Flush mount frame.
• U.L. listed.
Oak Grid Ordering Information
Series Lamps Ballast Switching Voltage
WGCO 217 = (2) 17W 24” T8
232 = (2) 32W 48” T8
417 = (4) 17W 24” T8
432 = (4) 32W 48” T8
B11 = Electronic T8
B11 RES = Residential Electronic T8
B22* = LPF T8/T12
FOR 4 LAMP UNITS
Blank = dual ballasts
4L = (1) 4-lamp ballast
FOR 2 LAMP UNITS
Blank = single ballast
2/1L = (2) 1-lamp ballasts
UNV = 120-277V
120 = 120V
277 = 277V**
*Dual ballasts required for 4 lamp models
**B11 Only
11-3/4” (2 light)
19” (4 light)
Lengths are 25” and 49”
3-1/2”
The Oak Grid fixture combines European style with
fluorescent efficiency. The solid oak housing and
grids allows the fixture to be an attractive addition
to many decors. The 2’ or 4’ versions are suited to
high end kitchens, hallways and offices.
![](asset-64.png)
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
98
LIGHT COMMERCIAL & RESIDENTIAL
WCFO 217
WCFO 232
WCFO 432
• Solid oak frame.
• Hand rubbed, medium oak stain.
• Low profile for seamless ceiling line.
• Translucent, milk white acrylic, drop dish diffuser.
• Flush mount frame.
• U.L. listed.
11-3/4” (2 light)
19” (4 light)
Lengths are 25” and 49”
3-1/2”
Oak Drop Dish
Dimensions
Oak Drop Dish Ordering Information
Series Lamps Ballast Switching Voltage
WCFO 217 = (2) 17W 24” T8
232 = (2) 32W 48” T8
417 = (4) 17W 24” T8
432 = (4) 32W 48” T8
B11 = Electronic T8
B11 RES = Residential Electronic T8
B22* = LPF T8/T12
FOR 4 LAMP UNITS
Blank = dual ballasts
4L = (1) 4-lamp ballast
FOR 2 LAMP UNITS
Blank = single ballast
2/1L = (2) 1-lamp ballasts
UNV = 120-277V
120 = 120V
277 = 277V**
*Dual ballasts required for 4 lamp models
**B11 Only
Add the warmth of wood with the efficiency of
fluorescent lighting with the Oak Drop Dish fixture.
The drop design combines with the Oak finisnh in 2’
and 4’ lengths to provides a low profile solution that
are perfect for kitchens, hallways, foyers, offices and
any application where stylish low profile illumination
is needed.
![](asset-65.png)
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
99
LIGHT COMMERCIAL & RESIDENTIAL
Available with a glare-reducing diffuser,
Wraparounds can be individually or continuous-row
mounted. Non-yellowing acrylic prismatic lens
keeps the light bright.
• Shallow 3-1/4” depth is ideal for low ceilings.
• V-shaped acrylic diffuser distributes light evenly
and reduces glare.
• Lift and shift lens hinges from either side for easy,
tool-free cleaning and relamping.
• Solid oak ends (WRCO) add a decorative touch.
• Die-formed, heavy gauge, steel housing.
• Flush, ceiling mount – stem, individual or
continuous row.
• U.L. listed.
SY 920/WRW
WRCO
Lengths are 24” and 48”
9” (2 light)
14” (3 or 4 light)
3-1/4”
Commercial Wraparounds Ordering Information
Series Lamps Ballast Switching Voltage
SY920 217 = (2) 17W 24” T8
232 = (2) 32W 48” T8
332 = (3) 32W 48” T8
417 = (4) 17W 24” T8
432 = (4) 32W 48” T8
B11 = Electronic T8 FOR 3 AND 4 LAMP UNITS
Blank = dual ballasts
3L = (1) 3-lamp ballast
4L = (1) 4-lamp ballast
UNV = 120-277V
120 = 120V
277 = 277V
Residential Wraparounds Ordering Information
Series Lamps Ballast Voltage
WRW = White ends
WRCO = Oak ends
217 = (2) 17W 24” T8
24 = (2) 34/40W 48” T12
417 = (4) 17W 24” T8
44* = (4) 34/40W 48” T12
B22 = LPF T8/T12 120V 120 = 120V
*Dual ballasts required
Wraparounds
Dimensions
Electrical
Fully wired for UNV 120-277V, 50-60Hz operation
with thermally protected, automatic resetting Class
P, sound rated A ballast as standard unless otherwise
specified. UL listed damp location.
![](asset-66.png)
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
100
LIGHT COMMERCIAL & RESIDENTIAL
Low Profile Cloud
Dimensions
With our Low Profile Cloud, you see the light, not
the fixture. These all-purpose fixtures hug close to
the ceiling, providing soft diffused light.
• Only 2/3 the depth of standard clouds.
• Soft, contoured milk white acrylic diffuser for a
flawless look.
• Fully luminous fixture for maximum brightness.
• Lift and shift diffuser hinges from either side for
easy, tool-free cleaning and relamping.
• Offset, ceiling mount provides subtle uplight.
• Electronic instant start T8 ballast.
• U.L. listed.
Low Profile Cloud Ordering Information
Series Lamps Ballast Switching Voltage
SMCLP 232 = (2) 32W 48” T8
332 = (3) 32W 48” T8
432 = (4) 32W 48” T8
B11 = Electronic T8
B11 RES = Residential Electronic T8
B22* = LPF T8/T12 120V
For 3 and 4 lamp units
Blank = dual ballasts
3L = (1) 3-lamp ballast
4L = (1) 4-lamp ballast
For 2 lamp units
Blank = single ballast
2/1L = (2) 1-lamp ballasts
UNV = 120-277V
120 = 120V
277 = 277V**
*Dual ballasts required for 3 and 4 lamp models
**B11 Only
Standard Cloud
5-1/2”
Low Profile Cloud
3-1/2”
Length is 52”
11-1/8” (2 light)
16 -1/2” (3 or 4 light)
Low profile clouds provide the same advantages
of Full Size Clouds with a shallower housing and
diffuser. Low Profile Clouds are available in 4’
lengths and are a great solution where mounting
restrictions or regulations call for a low profile
fixture.
![](asset-67.png)
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
101
LIGHT COMMERCIAL & RESIDENTIAL
SMC 432
SMC 232
SMC 417
• Soft, contoured milk white acrylic diffuser for a
flawless look.
• Fully luminous fixture for maximum brightness.
• Lift and shift diffuser hinges from either side for
easy, tool-free cleaning and relamping.
• Offset, ceiling mount provides subtle uplight.
• U.L. listed.
11-1/2” (2 light)
17” (3 or 4 light)
5-1/2”
Lengths are 28” and 52”
SMC Ordering Information
Series # Lamps Lamp Type Ballast Switching Voltage
SMC 2
3
4
17 = 17W 24” T8
32 = 32W 48” T8
B11 = Electronic T8
B11 RES = Residential Electronic T8
B22* = LPF T8/T12 120V
For 3 and 4 lamp units
Blank = dual ballasts
3L = (1) 3-lamp ballast
4L = (1) 4-lamp ballast
For 2 lamp units
Blank = single ballast
2/1L = (2) 1-lamp ballasts
UNV = 120-277V
120 = 120V
277 = 277V**
*Dual ballasts required for 3 and 4 lamp models
**B11 only
Full Size Clouds
Dimensions
Enjoy the efficiency and brightness of fluorescent
lighting in a classic soft look. Full size clouds are
available in 2’ and 4’ lengths with 2,3,or 4 lamps
and are perfect for kitchens, hallways, foyers and
closets.
![](asset-68.png)
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
102
LIGHT COMMERCIAL & RESIDENTIAL
The economical choice to illuminate smaller areas
like foyers, hallways and closets.
• Contoured, translucent, milk white diffuser for a
flawless look.
• Fully luminous fixture for maximum illumination.
• Brass set screws (CPO, CPL) or turn latches (SQC)
for easy access.
• Flush, wall or ceiling mount.
• U.L. listed.
SQC 54
CPL 54
CPO 54
19”
4-3/8”
CPO
19”
3”
Compact Clouds (drum and round) Ordering Information
Series Lamps / Housing diameter Voltage Option
CPL = Drum
CPO = Round
18-11 = 11” (2) 9W CFL
22-11 = 11” 22W Circline
22-14 = 14” 22W Circline
26-14 = 14” (2) 13W CFL
26-19 = 19” (2) 13W CFL
32 = 32W Circline (14”only)
54 = 22W & 32W Circlines (14” only)
72 = 32W & 40W Circlines (19” only)
120 = 120V L1 = Lamps Included
Compact Clouds (square) Ordering Information
Series Lamps / Housing size Voltage Option
SQC 22-12 = 12” (1) 22W Circline
22-15 = 15” (1) 22W Circline
26-15 = 15” (2) 13W CFL
32-15 = 15” (1) 32W Circline
54-15 = 15” 22W & 32W Circlines
54-19 = 19” 22W & 32W Circlines
72-19 = 19” 32W & 40W Circlines
120 = 120V L1 = Lamps Included
Compact Clouds
Dimensions
4”
CPL
3”
11” or 14”
CPL
3”
12”
SQC - 13W CFL, 22W
3”
15”
SQC - 22W, 26W CFL, 32W, 54W
Electrical
Fully wired for 120V, 60Hz operation with thermally
protected, automatic resetting Class P, sound rated
A ballast as standard unless otherwise specified. UL
listed.
![](asset-69.png)
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
103
LIGHT COMMERCIAL & RESIDENTIAL
Circline Basics
Dimensions
• Economical lighting – great for utility areas.
• Choice of chrome or white housing.
• Flush, wall or ceiling mount.
• U.L. listed.
C 54
PC 555 22
C 22W
Depth for PC 555 is 5”
C Series is 2-1/2”
9” (22W)
12” (32W, 54W)
Circline Basics Ordering Information
Series Lamps Voltage Housing Option
C = Bare Bulb
PC 555* = Shade
22 = (1) 22W Circline
32 = (1) 32W Circline
54 = 22W & 32W Circlines
120 = 120V Blank for Chrome
W = White
L1 = Lamps Included
*White housing only
Electrical
Fully wired for UNV 120V, 50-60Hz operation with
thermally protected, automatic resetting Class P,
sound rated A ballast as standard unless otherwise
specified. UL listed.
![](asset-6a.png)
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
104
LIGHT COMMERCIAL & RESIDENTIAL
• Choice of six decorative end caps to match décor.
• Lift and shift diffuser hinges from either side for
easy, tool-free cleaning and relamping.
• Single-piece diffuser and end cap construction
eliminates light leaks.
• Offset, ceiling mount provides subtle uplight.
• Electronic instant start T8 ballast.
• Companion sconce available.
• U.L. listed.
Length is 53-1/2”
6”
3-5/8”
11-1/2”
IV-Ivory Marble AL-Alabaster
BW-Bone White PM-Peach Marble VG-Verde Green
WM-White Marble
SAC Ordering Information
Series End Finish Lamps Ballast
SAC AL = Alabaster
BW = Bone White
IV = Ivory Marble
PM = Peach Marble
WM = White Marble
VG = Verde Green
232 = (2) 32W 48” T8
332 = (3) 32W 48” T8
B11 = Electronic T8
B11 RES = Residential Electronic T8
B22* = LPF T8/T12 120V
*Dual ballasts required for 3 lamp model
Switching Voltage
FOR 3 LAMP UNITS
Blank = dual ballasts
3L = (1) 3-lamp ballast
FOR 2 LAMP UNITS
Blank = single ballast
2/1L = (2) 1-lamp ballasts
UNV = 120-277V
120 = 120V
277 = 277V**
**B11 Only
Accent Cloud
Dimensions
![](asset-6b.png)
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
105
LIGHT COMMERCIAL & RESIDENTIAL
SLP Low Profile
Housing
Die-formed heavy gauge steel with high-gloss, baked
white enamel finish over rust inhibiting phosphate
coat. Ends are hand finished to a stainless steel look.
Inside is grooved to accept acrylic lens and avoid
light loss.
Shielding
Smooth milk white formed acrylic.
SLP Low Profile combines a sleek low-profile
design, smooth white acrylic lens and die-cast white
or brushed metal ends to create a high-tech designer
appearance. The unit can be surface mounted or
pendant hung with 1/16” aircraft cable, as shown.
The SLP is ideal for office, residential and light
commer cial space.
Electrical
Fully wired for UNV 120-277V, 50-60Hz operation
with thermally protected, automatic resetting Class
P, sound rated A electronic ballast as standard unless
otherwise specified. UL listed.
Mounting
Flush mounted or pendant hung with CACC
Suspension Kit. CACC Suspension Kit includes white
cord, white canopies and 1/16” aircraft cable.
Individual mounting only.
SLP Series Ordering Information
Series Ends Lamps Ballast Voltage
SLP M = Brushed metal
W = White
217 = (2) 17W 24” T8
232 = (2) 32W 48” T8
B11 = Electronic T8
B22 = LPF T8/T12
UNV = 120-277V
120 = 120V
277 = 277V*
*B11 only
Accessories
CACC(xx)** = Cable Kit, includes 2 cables, mounting
hardware, white power cord and canopies;
specify length in inches (48 or 72)
Dimensions
Length is 25” (SLPM 217)
Length is 49” (SLPM 232)
10-1/8”
2-7/8”
![](asset-6c.png)
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
106
LIGHT COMMERCIAL & RESIDENTIAL
Fixtures are available in a variety of styles and
finishes that complement cabinetry, tiling and
countertops.
AVAL Series
(ADA Compliant)
AVSHM Series
Maple finish
AVS(xx) AVAC
• Translucent faux alabaster or real wood accented
fascias.
• Classic shaker design available in 3 popular wood
tones.
• Fully enclosed unit for easy cleaning.
• Decorative rounded brass set screws for quick
access.
• Flush horizontal wall mount.
• Electronic instant start T8 ballast.
• U.L. listed.
Mahogany Finish Cherry Finish
Lengths are 31”, 43”, 56”
4”
4-1/2”
5” 5-1/4”
AV Ordering Information
Series Fascia Lamps Ballast Voltage Option
AV AL = Alabaster
SHM = Maple
SHC = Cherry
SHMH = Mahogany
217 = (2) 17W 24” T8
225 = (2) 25W 36” T8
232 = (2) 32W 48” T8
B11 = Electronic T8 UNV = 120-277V
120 = 120V
277 = 277V
PSW = Pull Switch for
on/off operation
For additional switching and wiring options, see Architectural Health Care unit on page 76.
Architectural Vanity
Dimensions
Housing
Die-formed heavy gauge steel with high-gloss, baked
white enamel finish over rust inhibiting phosphate
coat. Knockouts provided on back.
Diffuser
The AV series include translucent faux alabaster
acrylic fascias or white acrylic lenses with real wood,
Shaker style fascias to create both up and down light
components. Diffusers are attached to the housing
with brass set screws for quick access.
Electrical
Fully wired for UNV 120-277V, 50-60Hz operation
with thermally protected, automatic resetting Class
P, sound rated A ballast as standard unless otherwise
specified. UL listed.
Mounting
Flush horizontal wall mount.
The AV series bath bars are a ruggedly constructed,
versatile, and attractive solution to many
applications. Whether in a bath, hallway, or over
a bed, the sleek and stylish deisgns complement a
wide variety of decors. With ADA compliant models
available as well as a pull-chain options, the AV
series is perfect for use in homes, healthcare, and
senior living facilities.
![](asset-6d.png)
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
107
LIGHT COMMERCIAL & RESIDENTIAL
Bath Bars
Dimensions
AL-Alabaster BW-Bone White
IV-Ivory Marble PM-Peach Marble
SW-Solid White TO-Tortoise VG-Verde Green
WM-White Marble
Nom. 2’, 3’ or 4’
WECW 1-1/2” End Caps
WEC Ordering Information
Series Size Color Diffuser
WECN = 1/2” end cap
WECW = 1 1/2” end cap
2 = 25.5”
3 = 37.5”
4 = 49.5”
AL = Alabaster
BW = Bone White
IV = Ivory Mar ble
PM = Peach Mar ble
SW = Solid White
TO = Tor toise
VG = Verde Green
WM = White Marble
CR = Clear ribbed
WR = White ribbed
WS = Smooth white
Trim Lamps Ballast Voltage
B = Brass (WECW only)
C = Chrome (WECW only)
N = None
217 = (2) 17W 24” T8
225 = (2) 25W 36” T8
232 = (2) 32W 48” T8
B11 = Elec tron ic T8
B22 = LPF T8/T12 120V
UNV = 120-277V
120 = 120V
• 8 popular end cap colors and 3 diffuser styles.
• Fully enclosed unit with no exposed hardware for
easy cleaning.
• Spring clip attachment for quick access.
• Flush, wall or ceiling mount.
• Electronic T8 instant start ballast.
• ADA compliant.
• Companion sconce available.
• U.L. listed damp location.
Nom. 2’, 3’ or 4’
WECW 1/2” End Caps
4-3/4”
4”
Housing
Die-formed heavy gauge steel with high-gloss, baked
white enamel finish over rust inhibiting phosphate
coat. Knockouts provided on back.
Diffuser
Consists of a UV acrylic clear ribbed, white ribbed, or
smooth white lens, mated to one of a variety of end
caps. The end caps are available in wide and narrow
versions in a range of colors and textures. Diffuser is
secured to housing with spring clips. ADA Compliant.
WECN and WECW End Cap Bath Bars are versatile,
stylish fixtures that can be used in many applications
to complete a room. Range of colors, textures, trim
options, and sizes to meet all decorating schemes
and lighting requirements. Superior fit and finish
– no exposed metal work or open joints to trap
dust. Energy-efficient T8 lamps with improved color
rendering bring out natural colors in fabrics, wall
treatments, and skin tones. Quick installation for
ceiling or wall applications.
Electrical
Fully wired for UNV 120-277V, 50-60Hz operation
with thermally protected, automatic resetting Class
P, sound rated A ballast as standard unless otherwise
specified. UL listed.
Mounting
Surface mount wall or ceiling, vertical or horizontal.
ADA Compliant
Available
Colors
and Textures
![](asset-6e.png)
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
108
LIGHT COMMERCIAL & RESIDENTIAL
• Soft, contoured milk white acrylic diffuser for a
flawless look.
• Fully enclosed unit for easy cleaning.
• Decorative, rounded brass acorn nut for quick
access.
• Flush, wall mount.
• Companion ceiling units available (see page 93).
SMCW Ordering Information
Series Lamps Ballast Voltage
SMCW 217 = (2) 17W 24” T8
225 = (2) 25W 36” T8
232 = (2) 32W 48” T8
B11 = Electronic T8
B22 = LPF T8/T12 120V
UNV = 120-277V
120 = 120V
SMCW Wall Cloud
Housing
Die-formed heavy gauge steel with high-gloss, baked
white enamel finish over rust inhibiting phosphate
coat.
Shielding
Frameless white acryl ic diffuser with D.R. for added
durability and even ef fi cient il lu mi na tion. SMCW
model uses brass caps to hold diffuser in place.
5"
4.59"
SMCW fixtures are available in 27”, 39” and 51”
models.
Electrical
Fully wired for UNV 120-277V, 50-60Hz operation
with thermally protected, automatic resetting Class
P, sound rated A ballast as standard unless otherwise
specified. UL listed.
Mount ing
Wall mounting.
Dimensions
![](asset-6f.png)
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
109
LIGHT COMMERCIAL & RESIDENTIAL
FCO 1 Lamp
2-5/8”
4-1/4”
• Choice of chrome or white ends.
• Wraparound, translucent, milk white acrylic
diffuser.
• Fully enclosed unit for easy cleaning.
• Grounded convenience outlet and push switch
included. (120V only)
• Flush, wall mount.
• U.L. listed damp location.
FCO 230
ACO 230
ACO, FCO (2 Lamp), PCO and WBT lengths are
18-1/4”, 24-1/4”, 36-1/4” and 48-1/4”. FCO 1
lamp lengths are 18-3/8”, 24-3/8” and 48-3/8”.
Wall Brackets Ordering Information
Series # Lamps Lamp Type Ends
ACO
FCO
PCO*
WBT
1
2
15 = 15W 18” T8
17 = 17W 12” T8
20 = 20W 24” T12
25 = 25W 36” T8
30 = 30W 36” T12
32 = 32W 48” T8
40 = 34/40W 48” T12
Leave blank for chrome
WE = White ends
*PCO fixtures are available with 1-lamp only
Ballast Voltage Options
B11 = Electronic T8
B22 = LPF T8/T12 120V
UNV = 120-277V*
120 = 120V
Push Switch and Outlet (Standard)
CO = Convenience Outlet only
SW = Switch only
LA = Less switch and outlet
*UNV only available when unit is less outlet and switch
Wall Brackets
Dimensions
ACO 2 Lamp
3-1/16”
5-5/8”
WBT 2 Lamp
4-1/2”
4-1/2”
PCO 1 Lamp
2-9/16”
4-1/4”
FCO 2 Lamp
3-1/4”
5-5/8”
![](asset-70.png)
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
110
LIGHT COMMERCIAL & RESIDENTIAL
Xenon & Halogen XLINE & HLINE Series
• Xenon and halogen tasks create crisp bright
white light for dramatic illumination.
• Xenon and halogen tasks can be dimmed to set
the mood
• Xenon and halogen tasks produce directional,
color correct illumination that makes
merchandise sparkle.
Available In Plated Finishes
Satin
Nickel
Bronze
Cooling
Convective Airow
Air circulates
through and
around the fixture
and exhausts out for
cooler operation and
longer lamp life.
Lamps Included:
Includes 120V halogen or longer
lasting xenon lamp(s).
Xenon & Halogen XLINE & HLINE Series Ordering Information
Catalog No. Lamps* Finish Dimensions Input Wattage
H L W
XLINE1WH120V
XLINE1BZ120V
XLINE1SN120V
XLINE2WH120V
XLINE2BZ120V
XLINE2SN120V
XLINE3WH120V
XLINE3BZ120V
XLINE3SN120V
XLINE4WH120V
XLINE4BZ120V
XLINE4SN120V
HLINE1WH120V
HLINE2WH120V
HLINE3WH120V
HLINE4WH120V
(1)-20W xenon
(1)-20W xenon
(1)-20W xenon
(2)-20W xenon
(2)-20W xenon
(2)-20W xenon
(3)-20W xenon
(3)-20W xenon
(3)-20W xenon
(4)-20W xenon
(4)-20W xenon
(4)-20W xenon
(1)-35W halogen
(2)-35W halogen
(3)-35W halogen
(4)-35W halogen
White
Bronze
Satin Nickel
White
Bronze
Satin Nickel
White
Bronze
Satin Nickel
White
Bronze
Satin Nickel
White
White
White
White
1-1/4”
1-1/4”
1-1/4”
1-1/4”
1-1/4”
1-1/4”
1-1/4”
1-1/4”
1-1/4”
1-1/4”
1-1/4”
1-1/4”
1-1/4”
1-1/4”
1-1/4”
1-1/4”
8”
8”
8”
16”
16”
16”
24”
24”
24”
33”
33”
33”
8”
16”
24”
33”
4-3/4”
4-3/4”
4-3/4”
4-3/4”
4-3/4”
4-3/4”
4-3/4”
4-3/4”
4-3/4”
4-3/4”
4-3/4”
4-3/4”
4-3/4”
4-3/4”
4-3/4”
4-3/4”
20
20
20
40
40
40
60
60
60
80
80
80
35
70
105
140
* Lamp(s) Included.
XL20 = 20W, 120V Xenon replacement lamp.
HL35 = 35W, 120V Halogen replacement lamp.
The line voltage, xenon and halogen task lights
provide crisp, bright white light that is fully
dimmable. With increased luminous intensity and
concentrated, downward focused beam spread,
xenon and halogen task lights dramatically
illuminate counter tops, workstations and showcases.
XLINE units are available in darker, plated finishes
to reduce product image reflections on dark, shiny
surfaces.
XLINE & HLINE Features
• Produces fully dimmable, bright white light.
• Includes 120V Halogen or longer life Xenon
lamp(s).
• Low profile, contoured housing creates a discreetly
hidden light source.
• Frosted glass lens for even light distribution.
• Thermally efficient, self-cooling housing extends
lamp life.
• Hinged lens held positively by spring clips for tool-
less relamping.
• Three-way switch - change from task to mood
lighting.
• Three finishes; post painted white and plated bronze
and satin nickel (XLINE only).
• U.L. listed.
Dimensions
![](asset-71.png)
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
111
LIGHT COMMERCIAL & RESIDENTIAL
CH Strip Lights
Our multi-purpose Strip Lights are offered in a
variety of sizes and lamp configurations for a
custom lighting design. Patented, laborsaving, flip-
up sockets simplify installation.
• Patented, flip-up sockets save installation time.
• Fully wired and assembled.
• Combination end plate/joiner easily connect units
for continuous row or wire through.
• Die-formed heavy gauge, steel housing.
• Surface or pendant mount; individual, tandem or
continuous rows.
• U.L. listed, damp location.
Flip up sockets
CH Strip Lights Ordering Information
Series # Lamps Lamp Type Ballast Voltage
CH 1
2
21 = Tandem, two lamps
22 = Tandem, four lamps
14 = 14W 15” T12
15 = 15W 18” T8/T12
17 = 17W 24” T8
20 = 20W 24” T12
25 = 25W 36” T8
30 = 30W 36” T12
32 = 32W 48” T8
40 = 34/40W 48” T12
40TT = 40W 22” TT
B11 = Electronic T8
B5 = Electronic T12
B14 = Electronic TT
B22 = LPF T8/T12 120V
UNV = 120-277V
120 = 120V
277 = 277V
See page 62 for commercial options and accessories
CH240TT
CHTT
CH
2 5/8"
1 7/8"
2 3/4"
2 5/8"
3 13/16"
1 7/8"
4 1/4"
3 13/16"
1 7/8"
Dimensions
Housing
Die-formed heavy gauge steel with high-gloss, baked
white enamel finish over rust inhibiting phosphate
coat with re mov able wireway access panel. Ample
knock outs provided on side, back and ends. Shipped
fully wired and assembled, including socket saddle.
Simply flip up socket bar and attach wireway cover
with turn fastener provided. Machine installed shunts
eliminate loose socket bar connections on electronic
strips.
Electrical
Fully wired for UNV 120-277V, 50-60Hz operation
with thermally protected, automatic resetting Class
P, sound rated A ballast as standard unless otherwise
specified. UL listed damp location.
AVAILABLE
![](asset-72.png)
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
112
LIGHT COMMERCIAL & RESIDENTIAL
CHX Slimline And High Output Channel
*HO and VHO are 4 5/8” deep
4 1/4"
1 7/8"
3 13/16"*
Dimensions
Slimline and High Output Channels are ideal
for maximum illumination. Available in 4’, 6’, and
8’ individual lengths as well as continuous row
mounting.
Housing
High-gloss, baked white enamel finish on steel
housing with re mov able wireway access panel.
Fixture is shipped fully wired and as sem bled.
CHX models have patented (#4,422,132) flip-up
socket bar and turn fastener for attaching wireway
cover.
Electrical
Fully wired for 120V, 60Hz operation with thermally
protected, automatic resetting, Class P, high-power-
factor ballast, unless otherwise spec i fied. Sound rated
A electronic ballast, except slimline and high-output
models. UL listed, damp location.
CHX Slimline And High Output Channel Ordering Information
Series # Lamps Lamps Ballast Voltage
CHX 1
2
48 = 48”
72 = 72”
96 = 96”
B5 = Electronic T12
HOB5 = High Output Electronic T12
B11 = Electronic T8
HOB11 = High Output Electronic T8
HO = High Output
UNV = 120-277V
120 = 120V
277 = 277V
Mounting
Combination end plate/joiner connects units for
continuous row or wire through. Surface or pendant
mount, high output model must be suspended at
least 6” from ceiling for cooler operation.
Flip up sockets
• Patented, flip-up sockets save installation time.
• Fully wired and assembled.
• Combination end plate/joiner easily connect units
for continuous row or wire through.
• Die-formed heavy gauge, steel housing.
• Surface or pendant mount; individual, tandem or
continuous rows.
• U.L. listed, damp location.
![](asset-73.png)
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
113
LIGHT COMMERCIAL & RESIDENTIAL
FY 124
Troffers are ideal for grid, drywall and plaster
ceilings. Choose from a wide selection of ballast,
lamp configurations and lenses.
TY 244
• Shallow 3-3/4” depth fits suspended or plaster
ceilings.
• Metal light traps prevent light leak.
• Swing action cam latches for easy, tool-free access.
• Integral door hinges allow door to hinge or latch
from either side.
• Built in T-Bar clips securely hold fixture to
T-Bar grid.
• Die-formed, heavy gauge, steel housing.
• U.L. listed.
3-3/4”
11-3/4”
Troffers Ordering Information
Series Size Lamps
TY = Lay-In
FY = Flange
124 = 1 x 4
242 = 2 x 2
244 = 2 x 4
232U = (2) 32W U6” T8**
232 = (2) 32W 48” T8
240 = (2) 34 or 40W 48” T12
332 = (3) 32W 48” T8
340 = (3) 34 or 40W 48” T12
417 = (4) 17W 24” T8
432 = (4) 32W 48” T8
440 = (4) 34 or 40W 48” T12
** For 1-5/8”, please specify
Options Ballast Switching Voltage
ELS1 = Emergency Lighting
(low lumens)
ELS2 = Emergency Lighting
(medium lumens)
ELS3 = Emergency Lighting
(high lumens)
B11 = Electronic T8
B22 = LPF T8/T12 120V
For 3 and 4 lamp units
Blank = dual ballasts
3L = (1) 3-lamp ballast
4L = (1) 4-lamp ballast
UNV = 120-277V
120 = 120V
277 = 277V
Options
L = Lamps Installed (Specify Lamps) (U-lamp and TT lamps not installed)
FL4 = 3/8”, 6’ flex with two #18, one ground and two con nec tors
FL5 = 3/8”, 6’ flex with three #18, one ground and two con nec tors
Troffers
Dimensions
4-1/8” 4-1/8”
5-1/2”
21-3/4”
23-3/4”
3-3/4” 2-1/4”
![](asset-74.png)
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
114
LIGHT COMMERCIAL & RESIDENTIAL
TEP Series Deep Parabolic
23 7/ 8"
5 3/4"
25 13/16"
(Flange)
5 3/4"
Housing
Die-formed heavy gauge steel with high-gloss, baked
white enamel finish over rust inhibiting phosphate
coat. Full black reveal and hinged louver for easy
relamping. Access plate provided with 2 KOs and
ground screw.
Shielding
Low iridescence, anodized, semi-specular aluminum
parabolic, nominal 3” deep-cell louver held securely
by steel latches. “T” hinges allow access from either
side.
TEP Series Ordering Information
Series Size # Lamps Lamp type Cell Conguration
TEP 124 = 1 x 4
242 = 2 x 2
244 = 2 x 4
2
3
4
32U = 32W U6” T8*
32 = 32W T8
9C = 2x2 (3 rows of 3)
18C = 2x4 (3 rows of 6)
32C = 2x4 (4 rows of 8)
* For 1-5/8”, please specify
Options Ballast Voltage
ELS1 = Emergency Lighting (low lumens)
ELS2 = Emergency Lighting (medium lumens)
ELS3 = Emergency Lighting (high lumens)
B11 = Electronic T8 UNV = 120-277V
120 = 120V
277 = 277V
Options
L = Lamps Installed (Specify Lamps) (U-lamps not installed)
FL4 = 3/8”, 6’ flex with two #18, one ground and two con nec tors
FL5 = 3/8”, 6’ flex with three #18, one ground and two con nec tors
Dimensions
TEP Deep Cell Parabolics are at trac tive high-
efficiency fix tures that pro duce uniform low
brightness in the 60°- 90° zone.
Electrical
Fully wired for UNV 120-277V, 50-60Hz operation
with thermally protected, automatic resetting Class
P, sound rated A ballast as standard unless otherwise
specified. UL listed.
Mounting
Optional EC515 Earth quake Clip for lay-in TEP grid
ceilings.
AVAILABLE
![](asset-75.png)
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
115
LIGHT COMMERCIAL & RESIDENTIAL
Dimensions
EN2 Enclosed gasketed weatherproof
Simkar is proud to announce a family of demanding
environment T8 luminaires that will stand up to the
forces of wind, water, temperature extremes, dust,
salt, and abuse.
The EN2 series is an indoor/outdoor, corrosion
proof, enclosed and gasketed fixture that does it all.
Simkar’s weatherproof EN2 Series luminaires are
a low profile design and comes in 2’, 4’, and 8’
lengths. The 2’ and 4’ units come in 4” and 6.8”
widths and the 8” unit is 6.8” wide.
You have choices of 1 or 2 lamp versions to meet
your lighting needs.
The housings are made of custom reinforced,
thermal-set polyester that is corrosion resistant and
will withstand extreme abuse and neglect.
The horizontally ribbed diffuser lenses were
engineered for superior strength, ease of cleaning,
and optical uniformity. These tough lenses are
available in injection molded, clear, UV stabilized
polycarbonate (2’ and 4’ units) or 100% certified
High Impact acrylic versions (4’ and 8’ units).
The sealing flanges of the lenses were designed to
work in conjunction with our custom formulated
foam-in-place, non-reticulated polyurethane gasket.
This gasket is a seamless gasket that chemically
attaches to the housing and is robotically applied to
ensure consistency, accuracy, and reliability.
Our new, innovative latching and mounting
hardware make installation and maintenance a
breeze.
Ideal for demanding environments where
reliability and performance is paramount.
2’
4’
8’ Tandem
Features & Benefits
Corrosion proof, UL 5VA (f1) flame resistant,
reinforced thermal set polyester housing
Simple, non-intrusive, external mounting hardware
system
Securely attached, cam latching system that are
tamper proof ready
Rugged, impact resistant lenses: UV stabilized
polycarbonate or 100% certified High Impact acrylic
Available in 2’, 4’ and 8’ lengths
NEW
2 and 3 lamp models
Housing
Housing to be 1-piece, custom reinforced thermal-set
polyester that is corrosion proof and will withstand
extreme abuse and neglect. Housing material to be
UL 94, 5VA and UL 746C rated f1. Gasket to be a
seamless, custom formulated foam-in-place, non-
reticulated polyurethane gasket, chemically attached
to the housing and robotically applied to ensure
consistency, accuracy, and reliability.
Electrical
Fully wired for UNV 120-277V, 50-60Hz operation
with thermally protected, automatic resetting Class
P, sound rated A ballast as standard unless otherwise
specified. UL listed damp location.
Mounting/Latching
Mounting to be surface, ceiling, or wall capable.
Optional stainless steel Mounting Brackets (4’ and
8’ units only) or Swivel Mounting Brackets will
eliminate drilling into the housing. Safety strap
included. Lens latches to be tool-free UV stabilized
polycarbonate, over-center design. Optional Stainless
Steel Latches are available.
EN2 Ordering Information
Series Code Size # Lamps Lamp Type
EN2 2 = 2’
4 = 4’
8 = 8’
1 = 1 lamp
2 = 2 lamps
2T = 2 lamps Tandem
4T = 4 lamps Tandem
17T8 = 17 watt T8, 2’ unit
32T8 = 32 watt T8, 4’ unit or 8’ Tandem
Ballast Voltage
E = Electronic U1 = Universal 120V – 277V
![](asset-76.png)
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
116
LIGHT COMMERCIAL & RESIDENTIAL
Residential Shop Light
Dimensions
Perfect for garages and workshops, our highly
versatile Shop Lights are available in All
Temperature models to give life to any work area.
SL2 Residential Shop Light
• Magnetic, rapid start ballast.
• 5’ cord and plug.
• Hanging hardware included.
• U.L. listed.
SL 65232 All Temperature
Shop Light
• Works down to 0° F.
• Electronic T8 ballast starts the light instantly.
• Locking sockets hold bulbs securely.
• 5’ cord and plug.
• On/off pull switch and hanging hardware
included.
• U.L. listed.
7”
2-3/4”
Length is 49”.
6”
2-3/4”
Length is 49”.
SL2
SL 65232
SL 65232
SL2
![](asset-77.png)
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
117
LIGHT COMMERCIAL & RESIDENTIAL
![](asset-78.png)
SIMKAR EXIT AND EMERGENCY
![](asset-79.png)
EXIT AND
EMERGENCY
![](asset-7a.png)
Call (800) 523-3602 • Fax (215) 831-7703 • www.simkar.com
120
NFPA 101 Life Safety Code
All of Simkar’s Exit and Emergency products pass UL 924 as well as NFPA 101 Life
Safety Code requirements.
NFPA 101 2006 requirements include physical and performance criteria crafted to
promote safe egress, clear directions and adequate visibility.
Emergency lighting must be provided for at least 1 ½ hours in the event of a
power failure. Emergency lighting must be arranged to provide an average >1.0
fc (10.8 lux) with a minimum > 0.1 fc (1.1 lux) at any point along the egress
path at floor level. Illumination is allowed to decline up to 40% at the end of the
1 ½ hour time period. Max/min uniformity ratio of 40/1 can not be exceeded.
Existing battery-operated emergency lights shall use only reliable types of
rechargeable batteries with suitable facilities for maintaining them in properly
charged conditions. These batteries must be approved for their use and comply
with NFPA 70, National Electrical Code.
Floor proximity EXIT signs shall be placed not less than 6” nor more than 18”
above the floor and be used in addition to signs required for doors and corridors.
For EXIT doors the signs must be placed on the door or adjacent to the door with
the closest edge within 4” of the door frame.
Where floor proximity egress marking is used, the system must be installed
no more than 18” above the floor and be continuous with the exceptions of
doorways, hallways, corridors or other architectural features.
Externally illuminated EXIT signs must be lit to a level of 5fc (54 lux) and have a
contrast ratio of not less than 0.5.
Internally illuminated EXIT signs must pass UL924, Standard for Safety Emergency
Lighting and Power Equipment.
New signs require letters that are at least 6” high with the principal strokes of the
letters at least ¾” wide. Existing signs may have lettering 4” high. Chevrons must
be visible at 40’.
Simkar is proud to offer emergency lighting systems and EXIT signs that meet or
exceed the minimum NFPA101 Life Safety Code requirements and UL924. Simkar
solutions for a safe environment.
Exit & Emergency
![](asset-7b.png)
121
Call (800) 523-3602 • Fax (215) 831-7703 • www.simkar.com
Self-Diagnostics
EXIT & EMERGENCY
Self-Diagnostic (SD) Option
Our high quality, reliable exit and emergency
products are now even easier to maintain when
equipped with the Self-Diagnostic (SD) option.
SIMKAR’s Self Diagnosing option employs a
programmed integrated circuit chip to continuously
monitor and test the system to ensure proper
performance in the event of an emergency.
The SD system also automatically performs the
required NFPA and NEC code compliant testing of
15-minute battery discharge every 30 days and
90-minute full discharge every 12 months. The SD
system automatically recharges the unit’s battery and
displays a system diagnosis via an LED indicator light.
SD also eliminates the physical test of emergency
products. Since the LED indicator light provides
a visual display, documentation of emergency
lighting performance is as easy as a monthly walk
through the building. SD is an economical solution
to comply with safety codes and ensure emergency
preparedness.
Look for the SD option on the following products:
SLED LED Exit Lights, SREL Recessed Edge-lit LED Exit
Lights, SDC Die-Cast Exit Lights, SCLI Combo LED Exit/
Emergency Lights, and SEM Twin Head Emergency
Lights.
Look for this icon to
indicate availability of
Self-Diagnostic
(SD) option
Steady Green = Normal
Steady Red = Battery disconnected
Double-Pulse Red = Battery failure
Red/Green Flash = HI charge
Not Illuminated = Emergency Mode
NOT SHOWN: Four-Pulse Red = Lamp Failure
Two-Pulse Green = 15 Minute Discharge
![](asset-7c.png)
Call (800) 523-3602 • Fax (215) 831-7703 • www.simkar.com
122
Housing
Injection-molded, V-O flame retardant, high-impact,
thermoplastic low profile housing, white
or black finish.
Provided with two faces and back plate as standard.
ADA compliant for flush mounting.
Illumination
Energy efficient red or green LED with life of 25 years
plus – energy consumption of less than 3 watts!
Options
Self-Diagnostic (option SD) continuously diagnoses
unit performance and tests system (15-minute battery
discharge every 30 days and 90-minute full discharge
every 12 months) to ensure reliable operation and to
meet electrical and life safety codes.
Battery
Emergency battery backup (option B) equipped with
4.8V nickel-cadmium, maintenance-free, rechargeable
battery.
LED Exit Light illuminated by long
lasting, ultra-efficient light emitting diodes,
is inexpensive to operate and virtually
maintenance-free.
Canopy
mount
EXIT & EMERGENCY
Self-Diagnostic (SD)
option available
Back plate mount
Transfer/Charging Circuitry
Internal solid-state transfer switch automatically
connects the internal battery to lamp heads for
minimum 90-minute emergency illumination.
Fully automatic solid-state, two-rate charger
initiates battery charging to recharge a discharged
battery in 24 hours (battery back up units).
Electrical
Dual 120/277V voltage.
Dual circuit operation (option 2CIRCUIT) provides two
transformers to meet special code requirements. (AC
units only)
Charge rate/power on LED indicator light and push-
to-test switch for mandated code compliance testing.
LVD (low voltage disconnect) prevents battery
from deep discharge.
UL, C-UL (tested to C860), and ETL Damp location
listed. Salida signage is ETL listed. Meets UL924, NFPA
101 Life Safety Code, and NEC requirements.
Mounting
Side, top, or back mounting with universal mounting
canopy or easy connect back plate, which fit most
standard junction boxes.
Warranty
Five year warranty on all electronics and housing.
Dimensions
12”
7.5”
1.5”
SLED LED Exit Light
![](asset-7d.png)
123
Call (800) 523-3602 • Fax (215) 831-7703 • www.simkar.com
SLED LED Exit Light
Also available in Spanish
(SALIDA)
EXIT & EMERGENCY
Back plate mount
Self-Diagnostic (SD)
option available
5
YEAR
WARRANTY
SLED Series Ordering Information
Series Options Lettering Housing Signage Options
SLED A = AC
B = Battery Backup
G = Green
R = Red
B = Black
W = White
(Blank) = Exit
SALIDA = Salida
2 CIRCUIT = Dual Circuit
SD = Self-Diagnostic
![](asset-7e.png)
Call (800) 523-3602 • Fax (215) 831-7703 • www.simkar.com
124
Housing
Natural finish recessed aluminum back box with
galvanized steel adjustable bar hanger assembly and
visible polished satin aluminum trim plate.
Illumination
Clear acrylic panel with beveled lettering for
maximum light reflectance and press-on directional
arrows provided with protective film to ensure
flawless finish after installation.
Energy efficient red or green LED with life of 25 years
plus – energy consumption of less than 3 watts!
Battery
Emergency battery backup (option B) equipped with
4.8V Ni-CD, sealed lead acid, maintenance-free,
rechargeable battery.
Transfer/Charging Circuitry
Internal solid-state transfer switch automatically
connects the internal battery to lamp heads for
minimum 90-minute emergency illumination.
Fully automatic solid-state, two-rate charger initiates
battery charging to recharge a discharged battery in
SREL Recessed Edge Lit LED Exit Light
provides a pleasing architectural look with the
recessed housing and virtually floating exit stencil.
Press-on
arrows
EXIT & EMERGENCY
For directional
indicator, place
provided
CHEVRON
STICKER
inside this
template.
Then remove
Template.
used, simply remove template.
Press-on directional arrows
• Allow for placement with right arrow, left
arrow, both arrows or no arrow
• No special ordering requirements
• Simply press on arrow and peel off
template
24 hours (battery back up units).
Electrical
Dual 120/277V voltage.
Dual circuit operation (option 2CIRCUIT) provides two
transformers to meet special code requirements. (AC
units only)
Charge rate/power on LED indicator light and push-
to-test switch for mandated code compliance testing.
LVD (low voltage disconnect) prevents battery from
deep discharge.
ETL listed. Meets UL924, NFPA 101 Life Safety Code,
and NEC requirements.
Mounting
Recessed ceiling mount, accessible above the plenum.
Easy-Install template provided for accurate ceiling
cut-out ensures flush fit, proper seal and eliminates
light leak.
Warranty
Five year warranty on all electronics and housing.
Dimensions
12.6875”
14.875”
7.875”
3.25”
1.375”
14.375”
4”
1.875”
2.875”
4.125”
SREL Recessed Edge Lit LED Exit Light
Self-Diagnostic (SD)
option available
![](asset-7f.png)
125
Call (800) 523-3602 • Fax (215) 831-7703 • www.simkar.com
SREL Recessed Edge Lit LED Exit Light
EXIT & EMERGENCY
Recessed back box for a high-style,
aesthetically appealing design
5
YEAR
WARRANTY
SREL Series Ordering Information
Series Options Faces Lettering Trim Plate Options
SREL A = AC
B = Battery Backup
1 = Single
2 = Double
G = Green
R = Red
B = Black
W = White
A = Aluminum
2 CIRCUIT = Dual Circuit
SD = Self-Diagnostic
Self-Diagnostic (SD)
option available
![](asset-80.png)
Call (800) 523-3602 • Fax (215) 831-7703 • www.simkar.com
126
Housing
Natural finish aluminum or white housing.
ADA compliant for flush mounting.
Illumination
Clear acrylic panel with beveled lettering for
maximum light reflectance and press-on directional
arrows provided with protective film to ensure
flawless finish after installation.
Energy efficient red or green LED with life of 25 years
plus – energy consumption of less than 3 watts!
Battery
Emergency battery backup (option B) equipped with
4.8V Ni-CD, sealed lead acid, maintenance-free,
rechargeable battery.
Transfer/Charging Circuitry
Internal solid-state transfer switch automatically
connects the internal battery to lamp heads for
minimum 90-minute emergency illumination.
Fully automatic solid-state, two-rate charger initiates
battery charging to recharge a discharged battery in
Tri-mount canopy for
flush, side, or ceiling
installation
SEL Edge Lit LED Exit Light offers an elegant
look that is easy to install.
Press-on
arrows
EXIT & EMERGENCY
24 hours (battery back up units).
Electrical
Dual 120/277V voltage.
Dual circuit operation (option 2CIRCUIT) provides two
transformers to meet special code requirements. (AC
units only)
Charge rate/power on LED indicator light and push-
to-test switch for mandated code compliance testing.
LVD (low voltage disconnect) prevents battery from
deep discharge.
ETL and UL listed. Meets UL924, NFPA 101 Life Safety
Code, and NEC requirements.
Mounting
Tri-mount canopy for side, ceiling or flush installation.
Warranty
Five year warranty on all electronics and housing.
Batteries are pro-rated warranted for 5 years.
For directional
indicator, place
provided
CHEVRON
STICKER
inside this
template.
Then remove
Template.
used, simply remove template.
Press-on directional arrows
• Allow for placement with right arrow,
left arrow, both arrows or no arrow
• No special ordering requirements
• Simply press on arrow and peel off
template
SEL1GA
Dimensions
13”
10.75”
1.75”
SEL Edge Lit LED Exit Light
![](asset-81.png)
127
Call (800) 523-3602 • Fax (215) 831-7703 • www.simkar.com
SEL Edge Lit LED Exit Light
EXIT & EMERGENCY
Tri-mount canopy
flush installation
Tri-mount canopy
side installation
Tri-mount canopy
ceiling installation
5
YEAR
WARRANTY
SEL Series Ordering Information
Series Options Faces Lettering Housing Options
SEL A = AC
B = Battery Backup
1 = Single
2 = Double
G = Green
R = Red
A = Aluminum
W = White
2 CIRCUIT = Dual Circuit
![](asset-82.png)
Call (800) 523-3602 • Fax (215) 831-7703 • www.simkar.com
128
Housing
Injection-molded, V-O flame retardant, high-impact,
thermoplastic low profile (ADA compliant) housing
with rounded corners, die-cast brushed aluminum or
powder coated black or white finish.
Completely sealed, vandal-resistant, explosion-proof
housing, which is resistant to corrosion and vapors.
Options
Green, red, black or white faceplates with cover-up
directional arrows.
Electrical
Uses no electricity, no operating costs.
Self-luminous with letter-shaped light tubes
manufactured from borosilicate (hard) glass,
internally coated with zinc sulfide phosphor and filled
with tritium gas.
ETL listed. Meets UL924 and NFPA101 Life Safety
Code. Suitable for wet locations.
Self-Luminous Exit Light equipped with
letter shaped luminous light tubes, is ideal for
harsh locations and where electrical wiring is
difficult or cost prohibitive.
Cover up
arrows
Self-luminous
light tubes
EXIT & EMERGENCY
Cover up directional arrows
• Allow for placement with right arrow,
left arrow, both arrows or no arrow
• No special ordering requirements
Mounting
Concealed mounting bracket included for top, back or
side installation.
Suitable for floor proximity mounting.
ADA compliant for flush mounting.
Warranty
Ten or twenty year warranty on illumination and
housing (depending upon model).
Dimensions
12.75”
1”
8.25”
SSL Self Luminous Exit Light
10
20
YEAR WARRANTY
![](asset-83.png)
129
Call (800) 523-3602 • Fax (215) 831-7703 • www.simkar.com
SSL Self Luminous Exit Light
EXIT & EMERGENCY
Light tubes operate from
10 to 20 years without an
external power source
10
20
YEAR WARRANTY
10
20
YEAR WARRANTY
SSL Series Ordering Information
Series Life Faces Face Housing
SSL 10 = 10 years
20 = 20 years
1 = Single
2 = Double
G = Green
R = Red
B = Black
W = White
A = Brushed aluminum
B = Black
W = White
![](asset-84.png)
Call (800) 523-3602 • Fax (215) 831-7703 • www.simkar.com
130
Housing
Die-cast aluminum low profile (ADA compliant)
housing, brushed aluminum, black or white finish.
Brushed aluminum, black or white finish faceplates
with concealed snap out directional arrows.
Faceplates are tethered to the fixture housing for
quicker installation.
Illumination
Energy efficient red or green LED with life of 25 years
plus – energy consumption of less than 3 watts!
Options
Self-Diagnostic (option SD) continuously diagnoses
unit performance and tests system (15-minute battery
discharge every 30 days and 90-minute full discharge
every 12 months) to insure reliable operation and to
meet electrical and life safety codes.
Battery
Emergency battery backup (option B) equipped with
4.8V nickel-cadmium, maintenance-free, rechargeable
battery.
Dual circuit operation (option 2CIRCUIT) provides two
transformers to meet special code requirements. (AC
units only)
Self-diagnostic
option available
Transfer/Charging Circuitry
Internal solid-state transfer switch automatically
connects the internal battery to lamp heads for
minimum 90-minute emergency illumination.
Fully automatic solid-state, two-rate charger initiates
battery charging to recharge a discharged battery in
24 hours (battery back up units).
Electrical
Dual 120/277V voltage.
Charge rate/power on LED indicator light and push-
to-test switch for mandated code compliance testing.
LVD (low voltage disconnect) prevents battery from
deep discharge.
ETL damp location listed. Meets UL924, NFPA 101 Life
Safety Code, and NEC requirements.
Mounting
Side, top, or back mounting with die-cast aluminum
universal mounting canopy or easy connect back
plate, which fit most standard junction boxes.
Warranty
Five year warranty on all electronics and housing.
Batteries are pro-rated warranted for 5 years.
Concealed Snap-fit Directional Arrows
• Allow for placement with right arrow,
left arrow, both arrows or no arrow
• No special ordering requirements
• Simply snap out the arrow
Snap-fit
arrows
EXIT & EMERGENCY
Dimensions
SDC Die-Cast Aluminum LED Exit Light
equipped with snap-fit directional arrows and
SIMKAR’s easy connect installation feature, is
available with multiple finishes for an upscale
appearance.
12.5”
8.5”
4.875”
2”
SDC Die-Cast Aluminum LED Exit Light
![](asset-85.png)
131
Call (800) 523-3602 • Fax (215) 831-7703 • www.simkar.com
SDC Die-Cast Aluminum LED Exit Light
EXIT & EMERGENCY
Self-Diagnostic (SD)
option available
5
YEAR
WARRANTY
SDC Series Ordering Information
Series Options Faces Lettering Housing Face Color Options
SDC A = AC
B = Battery Backup
1 = Single
2 = Double
G = Green
R = Red
A = Brushed aluminum
B = Black
W = White
A = Brushed
aluminum
B = Black
W = White
2 CIRCUIT = Dual Circuit
SD = Self-Diagnostic
![](asset-86.png)
Call (800) 523-3602 • Fax (215) 831-7703 • www.simkar.com
132
Housing
Polycarbonate and fiberglass enclosure resistant
to corrosive atmospheres, non-hazardous dust
environments and to water spray, splashing water or
where hose downs frequently occur.
Exit light provided with one face with snap-in
directional arrows.
Illumination
Energy efficient red or green LED with life of 25
years plus – energy consumption of less than 3
watts!
Battery
Emergency battery backup (option B) equipped
with 4.8V nickel-cadmium, maintenance-free,
rechargeable battery.
Transfer/Charging Circuitry
Internal solid-state transfer switch automatically
connects the internal battery to lamp heads for
minimum 90-minute emergency illumination.
Fully automatic solid-state, two-rate charger initiates
battery charging to recharge a discharged battery in
24 hours (battery back up units).
Electrical
Dual 120/277V voltage.
Charge rate/power on LED indicator light and push-
to-test switch for mandated code compliance testing.
LVD (low voltage disconnect) prevents battery from
deep discharge.
ETL Wet location (0°- 50°C) listed. Meets UL924,
NFPA 101 Life Safety Code, and NEC requirements.
Mounting
Back plate fits most standard junction boxes.
Warranty
Five year warranty on all electronics and housing.
Batteries are pro-rated warranted for 5 years.
SWLED Wet Location LED Exit Light
SWLED Wet Location LED Exit Light fully
enclosed, durable housing is ideal for applications
where it will be exposed to the elements.
EXIT & EMERGENCY
Dimensions
5.375”
12”
11.75”
5
YEAR
WARRANTY
Enclosure is resistant to corrosive atmospheres, non-hazardous dust
environments, and to water spray, splashing water, or where hose downs
frequently occur.
SWLED Series Ordering Information
Series Options Lettering Housing
SWLED A = AC
B = Battery Backup
G = Green
R = Red
W = White
![](asset-87.png)
Call (800) 523-3602 • Fax (215) 831-7703 • www.simkar.com
133
Housing
Polycarbonate and fiberglass enclosure resistant
to corrosive atmospheres, non-hazardous dust
environments and to water spray, splashing water or
where hose downs frequently occur.
Exit light provided with one face with snap-in
directional arrows.
Illumination
Two fully adjustable 5.4 watt, glare-free lighting
heads.
Energy efficient red or green LED with life of 25
years plus – energy consumption of less than 3
watts!
Battery
6V nickel-cadmium, maintenance-free, rechargeable
battery.
Transfer/Charging Circuitry
Internal solid-state transfer switch automatically
connects the internal battery to lamp heads for
minimum 90-minute emergency illumination.
Fully automatic solid-state, two-rate charger initiates
battery charging to recharge a discharged battery in
24 hours.
Electrical
Dual 120/277V voltage.
Charge rate/power on LED indicator light and push-
to-test switch for mandated code compliance testing.
LVD (low voltage disconnect) prevents battery from
deep discharge.
ETL Wet location (0°- 50°C) listed. Meets UL924,
NFPA 101 Life Safety Code, and NEC requirements.
Mounting
Integral mounting holes allow for flush mounting to
walls while retaining water-tight integrity.
Warranty
Five year warranty on all electronics and housing.
Batteries are pro-rated warranted for 5 years.
12”
6”
6.875”
12”
18”
12”
6”
6.875”
12”
18”
CSWLED The Wet Location Combination
Exit and Emergency Light is the ideal solution
for stairwell and corridor egress lighting where
splashing, dripping or hose downs of non corrosive
liquids can occur.
CSWLED Wet Location LED Exit And Emergency Light
EXIT & EMERGENCY
Dimensions
5
YEAR
WARRANTY
Enclosure is resistant to corrosive atmospheres, non-hazardous dust
environments, and to water spray, splashing water, or where hose downs
frequently occur.
CSWLED Series Ordering Information
Series Lettering Housing
CSWLED G = Green
R = Red
W = White
![](asset-88.png)
Call (800) 523-3602 • Fax (215) 831-7703 • www.simkar.com
134
Housing
Injection-molded, V-O flame retardant, high-impact,
thermoplastic low profile housing, white or black
finish. Exit light provided with one face with snap-in
directional arrows.
Illumination
Two fully adjustable 5.4 watt, glare-free lighting
heads. High performance smooth thermoplastic
reflector and polycarbonate lens for optimal light
distribution and resistance to discoloration. Energy
efficient red or green LED with life of 25 years plus –
energy consumption of less than 3 watts!
Options
Remote capable (option REM) for operation of up to
two additional lighting heads.
Self-Diagnostic (option SD) continuously diagnoses
unit performance and tests system (15-minute battery
discharge every 30 days and 90-minute full discharge
every 12 months) to insure reliable operation and to
meet electrical and life safety codes.
Battery
6V, 4.5AhH sealed lead acid, maintenance-free,
rechargeable battery.
SCLI combines an LED exit light and emergency
light in one shallow profile unit making it ideal for
use above doorways.
EXIT & EMERGENCY
Easy Connect Feature
1. Simply pull supply wires in junction
box through the canopy or backplate
knockout
2. Secure the canopy or backplate to the
junction box. Wire fixture with both
hands free!
3. Snap the entire fixture right onto
the canopy
Canopy
mount
Fully adjustable
heads
Dimensions
Transfer/Charging Circuitry
Internal solid-state transfer switch automatically
connects the internal battery to lamp heads for
minimum 90-minute emergency illumination.
Fully automatic solid-state, two-rate charger initiates
battery charging to recharge a discharged battery in
24 hours.
Electrical
Dual 120/277V voltage.
Charge rate/power on LED indicator light and push-
to-test switch for mandated code compliance testing.
LVD (low voltage disconnect) prevents battery from
deep discharge.
ETL Damp location listed. Red LED unit is C-UL (tested
to C860) listed. Meets UL924, NFPA101 Life Safety
Code, and NEC requirements.
Mounting
Side, top, or back mounting with universal mounting
canopy or easy connect back plate, which fit most
standard junction boxes.
Warranty
Five year warranty on all electronics and housing.
Batteries are pro-rated warranted for 5 years.
22”
11”
5”
10”
2.75”
13”
SCLI Combination Emergency Exit Light
360
Self-diagnostic
option available
![](asset-89.png)
135
Call (800) 523-3602 • Fax (215) 831-7703 • www.simkar.com
SCLI Combination Emergency Exit Light
Two fully adjustable lighting heads for 360°
coverage provide maximum illumination
anywhere you need it!
Also available in Spanish
(SALIDA)
EXIT & EMERGENCY
Photometric Data
5
YEAR
WARRANTY
360
SCLI Series Ordering Information
Series Faces Lettering Housing Signage Options
SCLI 2 = Double G = Green
R = Red
B = Black
W = White
(Blank) = Exit
SALIDA = Salida
REM = Remote capable
SD = Self-Diagnostic
7 = 7.2W lamps
MR16 = MR16 lamps
![](asset-8a.png)
136
Call (800) 523-3602 • Fax (215) 831-7703 • www.simkar.com
Housing
Heavy gauge steel case, white powder coat finish.
Illumination
EB100 perates one lamp at 450 initial lumens.
EB60 and EB50 can operate one or two lamps at 450,
700, or 1400 initial lumens.
Compatible with most 1, 2, 3, and 4-lamp electronic,
standard, energy saving and dimming AC ballasts.
Battery
Sealed nickel-cadmium, maintenance-free,
rechargeable with life expectancy of 7 to 10 years.
Electrical
Dual 120/277V voltage.
Charge rate/power on LED indicator light and push-
to-test switch for code compliance.
UL listed, damp location, for retrofit/field installation
to UL924 and C-UL, NFPA 101 Life Safety Code, and
NEC requirements.
Mounting
Inside, on top of, or remote mount from existing
fluorescent fixtures.
Remote mounting distance of emergency ballasts
should not exceed half the AC ballast manufacturer’s
recommended remote mounting distance from the
lamps for standard AC ballasts, or 50 feet, whichever
is less.
Warranty
Five year warranty on all electronics and case.
EB100, EB60, & EB50 Fluorescent Emergency Ballasts
EB50
EB60
EB100
EB100
Damp Location
EXIT & EMERGENCY
8.875”
1.875”
1.5”
2.4375”
0.9375”
9.375”
8.875”
1.875”
1.5”
2.4375”
0.9375”
9.375”
1.875”
1.5”
2.4375”
0.9375”
12.8125”
13.3125”
5
YEAR
WARRANTY
EB Series Ordering Information
Series Options
EB 100 = Operates one lamp, 450 maximum lumen output
60 = Operates one or two lamps, 700 maximum lumen output
50 = Operates one or two lamps, 1400 maximum lumen output
![](asset-8b.png)
Call (800) 523-3602 • Fax (215) 831-7703 • www.simkar.com
137
LED Energy Savings
Upgrade to LED
SIMKAR’s exits are equipped with energy efficient
high output LEDs. Light emitting diodes or LEDs are
semiconductors that convert applied voltage to light.
LEDs offer a cost effective alternative to short-lived,
high maintenance incandescent or fluorescent units.
Changing out ONE incandescent exit sign to a newer
Simkar LED version can result in savings of over $240
annually. Using efficient LEDs, annual cost savings are
substantial. Replace 5 exit signs - realize a savings of
$1,210, 10 Exit signs - realize a savings of $2,420
and so on. The costs add up and in large facilities,
with as many as 50 exit lights, savings of $12,100
are possible. Using Simkar’s LED exits will also reduce
peak kWh demand.
Safety is another reason for upgrading incandescent
exit signs to Simkar LED exit signs if incandescent exit
sign lamps are not relamped as soon as they burn
out. Even in the best-maintained facilities, it is not
uncommon to find as many as 25% of bulbs installed
in incandescent exit lights to be burned out. Not only
does this compromise a safe evacuation in the event
of an emergency but valuable employee or contractor
time must be utilized replacing burned out exit bulbs.
EXIT & EMERGENCY
LED vs. Incandescent Annual Savings
Exit Signs Lamp Life
in Hours
Re-Lamp
Over Life
of LED
Annual
kWh
Usage
Annual
Energy
Cost*
Lifetime
Energy
Cost**
Lifetime
Maint.
Cost***
Lifetime
Operating
Cost
Incandescent (2) 11 watt Incandescent
bulbs 19,000 6 193 $19.27 $101.42 $171.00 $272.42
LED
2.8 watt LEDs
or
2.8 watt Retrofit LED Kit 100,000 0 25 $2.45 $27.96 $0.00 $30.41
Savings Savings by switching out
one LED Exit Sign — — 168 kWh $16.82 $73.46 $171.00 $242.01
* Based on 24 hrs/365 days (8,760 hrs) @ $0.10/kWh
** Based on 100,000 (life of LED) @ $0.10/kWh
*** Based on bulb cost of $3.00 ea., Labor at $45.00/hr for 30 min. per fixture ($22.50) over the life of the LED (100,000 hrs).
![](asset-8c.png)
138
Call (800) 523-3602 • Fax (215) 831-7703 • www.simkar.com
Housing
Injection-molded, V-O flame retardant, high-impact,
thermoplastic housing.
Illumination
One or two fully adjustable glare-free lighting heads
(specify wattage in part number).
High performance smooth thermoplastic reflector and
polycarbonate lens for optimal light distribution and
resistance to discoloration.
Options
Weatherproof (option WP) is available.
Electrical
ETL listed. Weatherproof unit is ETL Wet Location
Listed. Meets UL924, NFPA101 Life Safety Code, and
NEC requirements.
Mounting
Surface mount, fits most standard junction boxes.
Warranty
Five year warranty on all electronics and housing.
REM2
REM1
REMWP
REMR16-1
REM2WP
REMR16-2
REM2WP
REM Remote Heads whether installed alone
or in conjunction with other quality exit and
emergency products are an economical way to
light the path of egress.
Photometric Data
4.75”
4.5”
8.5”
9”
6”
4.25”
4.25”
6”
5.25”
4.25”
5.25”
6”
4.25”
9”
6”
REM Remote Heads
EXIT & EMERGENCY
5
YEAR
WARRANTY
Available in both
incandescent and MR16
REM Series Ordering Information
Series Number of Heads Options
REM = Remote 5.4W Incandescent Head
REMR16 = Remote 5W MR16 Head
1 = One
2 = Two
WP = Weatherproof
6 = 6V
12 = 12V
5 = 5.4W lamps
7 = 7.2W lamps
9 = 9W lamps
![](asset-8d.png)
Call (800) 523-3602 • Fax (215) 831-7703 • www.simkar.com
139
PS 1
Polycarbonate shield For SLED Exit signs and SEM
Emergency lights.
7.5” x 21” x 13”
SW1 / SW2
Durable stainless steel construction. Specify suffix 1
for SEM, SDC, SFOEM, SLED and SSL Exit & Emergency
lights
13.5” x 15” x 6”
Specify suffix 2 for SCLI Exit Signs
13.5” x 30” x 6”
LED RET AD
For 120V applications. 2.8 watts per kit.
For retrofitting incandescent exits only.
Red (LED RET AD)
Green (LED RET AD G)
For screw in units.
Socket adapters supplied (for signs with bayonet,
intermediate, or candelabra bases). Each unit is 5
1/8” tall by 1 5/8” wide (add 1/8” when using
adapters). ETL listed.
LED RET HW
Red LED Retrofit Kit. For hard wire in units. For
use with red lettered exits. For 120V or 277V
applications. Energy efficient - 2.8 watts per kit. Kits
come complete with mounting bracket and double
face tape. ETL listed.
BAT1
6V, 4.5AhH sealed lead acid battery for SEM, SEMR16,
SFOEM, and SCLI units.
SLED BAT
4.8V nickel-cadmium battery for SLED and SDC Exit
Signs.
Retrofit Kits Upgrade incandescent to LEDs.
Replacement Batteries Replacement power sources
for our most popular emergency and exit products.
Protective Barriers Heavy duty wireguards
offer protection for emergency and exit products
in vandal or high abuse applications.
SW1
SW2
PS 1
LED RET HW
LED RET AD
BAT1
SLED BAT
EXIT & EMERGENCY
Accessories
![](asset-8e.png)
Call (800) 523-3602 • Fax (215) 831-7703 • www.simkar.com
140
Housing
Injection-molded, V0 flame retardant, high-impact,
thermoplastic low profile housing, white or black
finish.
Illumination
Two fully adjustable 5.4 watt, glare-free lighting
heads.
High performance smooth thermoplastic reflector and
polycarbonate lens for optimal light distribution and
resistance to discoloration.
Options
3 foot 3-wire cord and plug available (option C3).
Remote capable (option REM) for operation of up to
two additional 5.4 watt lighting heads.
Self-Diagnostic (option SD) continuously diagnoses
unit performance and tests system (15-minute battery
discharge every 30 days and 90-minute full discharge
every 12 months) to insure reliable operation and to
meet electrical and life safety codes.
SEM Twin head emergency light with
two fully adjustable lighting heads, is as
flexible as it is economical
Self-Diagnostic (SD)
option available
Two fully adjustable
lighting heads for
180° coverage.
EXIT & EMERGENCY
Battery
6V, 4.5Ah, sealed lead acid, maintenance-free,
rechargeable battery.
Transfer/Charging Circuitry
Internal solid-state transfer switch automatically
connects the internal battery to lamp heads for
minimum 90-minute emergency illumination.
Fully automatic solid-state, two-rate charger initiates
battery charging to recharge a discharged battery in
24 hours.
Electrical
Dual 120/277V voltage.
Charge rate/power on LED indicator light and push-
to-test switch for mandated code compliance testing.
LVD (low voltage disconnect) prevents battery from
deep discharge.
UL, C-UL (tested to C860), and ETL Damp location
listed. Meets UL924, NFPA 101 Life Safety Code, and
NEC requirements.
Mounting
Surface mount, wall or ceiling, via easy connect
back plate, which fits most standard junction boxes
and snaps into place making internal electrical
connections.
Warranty
Five year warranty on all electronics and housing.
Batteries are pro-rated warranted for 5 years.
Dimensions
11.75”
16”
5”
SEM Twin Head Emergency Light
180
Easy Connect Feature
1. Simply pull supply wires in junction
box through the canopy or backplate
knockout
2. Secure the canopy or backplate to the
junction box. Wire fixture with both
hands free!
3. Snap the entire fixture right onto
the canopy
![](asset-8f.png)
141
Call (800) 523-3602 • Fax (215) 831-7703 • www.simkar.com
SEM Twin Head Emergency Light
Two fully adjustable lighting
heads for 180° coverage
EXIT & EMERGENCY
Self-Diagnostic (SD)
option available
Photometric Data
180
5
YEAR
WARRANTY
SEM Series Ordering Information
Series Housing Option
SEM B = Black
W = White
C3 = 3’ Cord & Plug
SD = Self-Diagnostic
![](asset-90.png)
Call (800) 523-3602 • Fax (215) 831-7703 • www.simkar.com
142
Housing
Injection-molded, V0 flame retardant, high-impact,
thermoplastic low profile housing, white or black
finish.
Illumination
Two fully adjustable glare-free lighting heads
equipped with 5 watt MR16 tungsten halogen lamps.
High performance smooth thermoplastic reflector and
polycarbonate lens for optimal light distribution and
resistance to discoloration.
Options
3 foot 3-wire cord and plug available (option C3).
Remote capable (option REM) for operation of up to
two additional 5 watt lighting heads.
Battery
6V, 4.5Ah, sealed lead acid, maintenance-free,
rechargeable battery.
Transfer/Charging Circuitry
Internal solid-state transfer switch automatically
connects the internal battery to lamp heads for
minimum 90-minute emergency illumination.
Fully automatic solid-state, two-rate charger initiates
battery charging to recharge a discharged battery in
24 hours.
SEMR16 Twin MR16 Emergency Light
incorporates the concentrated beam spread and
higher luminous intensity of MR16 lamps in
attractive mini swivel heads.
EXIT & EMERGENCY
Two fully adjustable
lighting heads for
180° coverage
Dimensions
Electrical
Dual 120/277V voltage.
Charge rate/power on LED indicator light and push-
to-test switch for mandated code compliance testing.
LVD (low voltage disconnect) prevents battery from
deep discharge.
UL, C-UL (tested to C860), and ETL Damp location
listed. Meets UL924, NFPA 101 Life Safety Code, and
NEC requirements.
Mounting
Surface mount, wall or ceiling, via easy connect
back plate, which fits most standard junction boxes
and snaps into place making internal electrical
connections.
Warranty
Five year warranty on all electronics and housing.
Batteries are pro-rated warranted for 5 years.
11.75”
14.5”
5” 3.625”
SEMR16 Twin MR16 Head Emergency Light
180
Easy Connect Feature
1. Simply pull supply wires in junction
box through the canopy or backplate
knockout
2. Secure the canopy or backplate to the
junction box. Wire fixture with both
hands free!
3. Snap the entire fixture right onto
the canopy
![](asset-91.png)
143
Call (800) 523-3602 • Fax (215) 831-7703 • www.simkar.com
SEMR16 Twin MR16 Head Emergency Light
Migrate
towards lamp
wall.
Halogen gas
collides and
chemically bonds
with the evapo-
rated tungsten.
The bonded
particles gravitate
towards the hot
filament.
The filament heat
breaks apart the
particle depositing
the tungsten back
to the filament.
Argon and
halogen gas is
freed to circulate
back towards
lamp wall.
Tungsten
particles
evaporate from
the hot filament.
Halogen Cycle
Why halogen lamps last longer
The halogen cycle of the MR16 prevents
blackening resulting in higher lumen
maintenance and extended lamp life
MR16 lamps provide
• increased luminous intensity
• higher lumen maintenance
• longer life
EXIT & EMERGENCY
Two fully adjustable lighting
heads for 180° coverage
180
5
YEAR
WARRANTY
SEMR16 Series Ordering Information
Series Housing Options
SEMR16 B = Black
W = White
C3 = 3’ Cord & Plug
REM = Remote capable
![](asset-92.png)
Call (800) 523-3602 • Fax (215) 831-7703 • www.simkar.com
144
Housing
Injection-molded, V-O flame retardant, high-impact,
thermoplastic low profile (ADA compliant) housing,
white or black finish.
Illumination
High performance smooth thermoplastic reflector and
polycarbonate lens for optimal light distribution and
resistance to discoloration.
Options
4 foot or 7 foot, 3-wire cord and plug available
(Option C4 or C7).
Battery
6V, 4.5Ah, sealed lead acid, maintenance-free,
rechargeable battery.
Transfer/Charging Circuitry
Internal solid-state transfer switch automatically
connects the internal battery to lamp heads for
minimum 90-minute emergency illumination.
Fully automatic solid-state, two-rate charger initiates
battery charging to recharge a discharged battery in
24 hours.
SFOEM Fixed Optics Emergency Light
is ideal for applications where economical
emergency illumination along the path of
egress is desired.
EXIT & EMERGENCY
Electrical
Dual 120/277V voltage.
Charge rate/power on LED indicator light and push-
to-test switch for mandated code compliance testing.
LVD (low voltage disconnect) prevents battery from
deep discharge.
ETL Damp location listed. Meets UL924, NFPA 101
Life Safety Code, and NEC requirements.
Mounting
Surface mount, wall or ceiling, via easy connect
back plate, which fits most standard junction boxes
and snaps into place making internal electrical
connections.
Warranty
Five year warranty on all electronics and housing.
Batteries are pro-rated warranted for 5 years.
Dimensions
5”
2.5”
12”
SFOEM Fixed Optics Emergency Light
Easy Connect Feature
1. Simply pull supply wires in junction
box through the canopy or backplate
knockout
2. Secure the canopy or backplate to the
junction box. Wire fixture with both
hands free!
3. Snap the entire fixture right onto
the canopy
![](asset-93.png)
145
Call (800) 523-3602 • Fax (215) 831-7703 • www.simkar.com
SFOEM Fixed Optics Emergency Light
EXIT & EMERGENCY
Photometric Data
5
YEAR
WARRANTY
SFOEM Series Ordering Information
Series Housing Options
SFOEM B = Black
W = White
C4 = 4’ Cord & Plug
C7 = 7’ Cord & Plug
![](asset-94.png)
Dimensions
Call (800) 523-3602 • Fax (215) 831-7703 • www.simkar.com
146
Housing
Injection-molded, V-O flame retardant, high-impact
thermoplastic housing and lighting heads in neutral
finish. Side and top knockouts provided.
Illumination
Two fully adjustable glare-free lighting heads. 6V
units supplied with 7.2 watt oval type lamps, 12V
units with 9 watt.
High performance parabolic reflector and internally
prismatic glass lens with smooth exterior provide
optimal light distribution, resistance to discoloration.
Options
Power additional or remote heads up to designated
wattage of unit specified in part number.
Battery
6V 10AH, sealed lead acid, maintenance-free,
rechargeable battery for 6V and 12V systems.
Fully adjustable heads
• Two fully adjustable lighting heads for
360° coverage
• Serrated teeth lock the head into position
for dependable performance
SHDEM Heavy Duty Emergency Light is the
powerhouse with the highest wattage capacity of
our offering.
EXIT & EMERGENCY
Fully adjustable
heads
Transfer/Charging Circuitry
Internal solid-state transfer switch automatically
connects the internal battery to lamp heads for
minimum 90-minute emergency illumination.
Fully automatic solid-state, two-rate charger initiates
battery charging to recharge a discharged battery in
24 hours.
Electrical
Dual 120/277V voltage.
Charge rate/power on LED indicator light and push-
to-test switch for mandated code compliance testing.
LVD (low voltage disconnect) prevents battery from
deep discharge.
ETL listed. Meets UL924, NFPA 101 Life Safety Code,
and NEC requirements.
Mounting
Integral back plate with keyhole slots fits most
standard junction boxes.
Warranty
Five year warranty on all electronics and housing.
Batteries are pro-rated warranted for 5 years.
3”
6”
8”
14”
12.5”
5”
100W50W
SHDEM Heavy Duty Emergency Light
360
360
![](asset-95.png)
147
Call (800) 523-3602 • Fax (215) 831-7703 • www.simkar.com
SHDEM Heavy Duty Emergency Light
EXIT & EMERGENCY
Photometric Data
5
YEAR
WARRANTY
SHDEM Series Ordering Information
Series Wattage Battery Voltage Options
SHDEM 28 = 28 watt capacity
36 = 36 watt capacity
50 = 50 watt capacity
72 = 72 watt capacity
100 = 100 watt capacity
12 = 12V
6 = 6V
REM = Remote Capable
![](asset-96.png)
Call (800) 523-3602 • Fax (215) 831-7703 • www.simkar.com
148
Housing
Injection-molded, UV coated, V-O flame retardant,
high-impact, thermoplastic enclosure resistant
to corrosive atmospheres, non-hazardous dust
environments and to water spray, splashing water or
where hose downs frequently occur.
Illumination
Two fully adjustable 7.2 watt, glare-free lighting
heads.
High performance parabolic reflector and glass lens
for optimal light distribution and resistance.
Options
Remote capable (option REM) for operation of up to
two additional 5.4 watt lighting heads.
Battery
6V, sealed lead acid, maintenance-free, rechargeable
battery.
Transfer/Charging Circuitry
Internal solid-state transfer switch automatically
connects the internal battery to lamp heads for
minimum 90-minute emergency illumination.
Fully automatic solid-state, two-rate charger initiates
battery charging to recharge a discharged battery in
24 hours (battery back up units).
SWLEM Wet Location Emergency Light
is designed for durability and provides
emergency illumination through most
weather conditions.
EXIT & EMERGENCY
Fully adjustable
heads
ETL wet location
listed
Fully adjustable Heads
• Two fully adjustable lighting heads for
360° coverage
• Serrated teeth lock the head into position
for dependable performance
Electrical
Dual 120/277V voltage.
Charge rate/power on LED indicator light and push-
to-test switch for mandated code compliance testing.
LVD (low voltage disconnect) prevents battery from
deep discharge.
ETL Wet location (0°- 50°C) listed. Meets UL924,
NFPA101 Life Safety Code, and NEC requirements.
Mounting
Back plate fits most standard junction boxes.
Warranty
Five year warranty on all electronics and housing.
Batteries are pro-rated warranted for 5 years.
Dimensions
12.5”
8.5”
6”
6.5”
6.5”
SWLEM Wet Location Emergency Light
360
360
![](asset-97.png)
149
Call (800) 523-3602 • Fax (215) 831-7703 • www.simkar.com
SWLEM Wet Location Emergency Light
ETL wet location listed
• Fully gasketed wet location enclosure
withstands the elements
• Hinged access for easy hands-free
wiring
EXIT & EMERGENCY
Photometric Data
5
YEAR
WARRANTY
SWLEM Series Ordering Information
Series Wattage Battery Voltage Options
SWLEM 14 = 2x7.2W 6 = 6V REM = Remote Capable
![](asset-98.png)
150
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
HID LIGHTING – HIGH BAYS & LOW BAYS
![](asset-99.png)
151
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
HID LIGHTING – HIGH BAYS & LOW BAYS
Simkar’s line of high and low bay fixtures provide an excellent value for your energy
dollar and are an effective solution for applications such as warehouses/distribution
centers, gymnasiums/multi-purpose rooms, parking garages, retail stores, factories and
transportation terminals.
The Y-Pod Series features clean lines and subtle heat dissipating vertical fins of the cast-
aluminum housing and cover which reduces the collection of airborne particles and retains
a new appearance. Lamps are easy to replace and the optics are adjustable with Simkar’s
patented Twist-N-Lock™ feature - an easy 7- position optic adjustment.
HID Lighting
HIGH AND LOW BAYS
Probe Start Metal Halide discontinuation notice
The Energy Independence and Security Act of 2007 (HR6) bans the manufacture of virtually all Probe Start Metal Halide fixtures
between 150W – 500W as of January 1, 2009. Only certified Pulse Start Metal Halide fixtures will be manufactured after that time.
Those fixtures will be identified with a “circle-E” logo on the packaging and ballast:
Existing Probe Start Metal Halide Fixtures manufactured before January 1, 2009 can be sold until the inventory is depleted. Some
MH fixtures are exempt, but the vast majority will be eliminated. To review a copy of the law, refer to Section 324, Metal Halide
Lamp Fixtures in the above act. Probe Start MH ballast kits will still be available and are not affected by the law.
![](asset-9a.png)
152
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
HID LIGHTING – HIGH BAYS & LOW BAYS
Adjustable Distribution
The patented spring-loaded Twist-N-Lock™ reflector
attachment system allows for complete tool-free
reflector installation. Simply pull open the
spring-loaded locking pins and snap-lock the
reflector in place.
Mounting Options
A direct hard wire slide box or a Hook, Cord &
Plug mounting is available. The slide box has an
adjustable hook assembly for fixture balancing.
Also, the easy-access wiring chamber provides
additional room for wiring make-up.
Features
Ballast
This true sinusoidal, high frequency, fully-dimmable
electronic highbay is available with 250W, 320W,
350W and 400W metal halide lamps. The electronic
ballast features auto voltage input from 208 - 277V,
50/60Hz, end-of-life protection and shut down circuit,
thermal protection and has a sound rating of A.
Lamps
The ZC series is supplied with 250 - 400W pulse start
metal halide lamps. Open rated pulse start metal
halide systems are provided with an open rated
mogul socket.
Reflector
The 17” and 22” hard anodized faceted aluminum
reflector resists dirt buildup, cleans easily with water
and provides high light levels with very low glare.
Dimensions
Fixture Fixture Approx.
Length Width Ship Wt.
ZCS Series
22” 17” 7 lbs.
ZCL Serie
s 22” 22” 7 lbs.
Spacing Criteria:
0.7 - 1.8
L
W
ZC Series 17” & 22” Electronic/Faceted Reflector
Twist-N-LockTM - Locked Twist-N-LockTM - Open
Photometric Data
(Isofootcandle Plots)
17” Faceted
Cat #: ZCS0840
Lamp: 400W Clear MH/PS
Lumens: 44,000
Socket Position: 5
Certified Test Report: 35-174981-00
IES File: ECS440M.IES
Spacing Criteria: 1.5 max.
22” Faceted
Cat #: ZCL0840
Lamp: 400W Clear MH/PS
Lumens: 50,000
Socket Position: 4
Certified Test Report: LTL06458
IES File: ECL440M.IES
Spacing Criteria: 1.5 max.
-60'
-65'
-55'
-50'
-45'
-40'
-30'
-35'
-25'
-15'
-20'
-5'
-10'
5
20
30
50
80
10
5' 10' 15'20' 25'30' 35'
-40'
-70'
-65'
-60'
-55'
-50'
-45'
-30'
-35'
-25'
-20'
-15'
-10'
-5'
10
5
20
30
50
80
15'5' 10' 20' 25' 30'
The heavy-duty ZC Series is designed for
commercial and industrial applications.
Electronic ballast technology offers shortened
start-up time, faster restrike, maintained color
uniformity and improved lumen maintenance
over the life of the lamp.
55 °C Ambient Rated
Lamp Included
Wattage Range:
320 - 400 W
Listed for Damp Locations
Consult Factory for CUL Availability
C
O
N
T
R
A
C
T
O
R
F
R
I
E
N
D
L
Y
Electronic
Technology
Inside
![](asset-9b.png)
153
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
HID LIGHTING – HIGH BAYS & LOW BAYS
Mountings and Accessories
ZC Series 17” & 22” Electronic/Faceted Reflector
Slide Box
Ordering
Code 0
Ordering
Code 2
Hook, Cord
& Plug
ZC Series Ordering Information
Series Reector
Size
Wattage
Lamp
Enclosed Rated
Lamp / Slide-Box
Enclosed Rated Lamp,
Hook, Cord & Plug
Open Rated
Lamp, Slide-Box
Open Rated Lamp
Hook, Cord & Plug
ZCS 17” 250W MH/PS ZCS0825-(a)L(b)* ZCS2825-(a)L(b)* ZCS0925-(a)L(b)* ZCS2925-(a)L(b)*
320W MH/PS ZCS0832-(a)L(b)* ZCS2832-(a)L(b)* ZCS0932-(a)(b) ZCS2932-(a)(b)
350W MH/PS ZCS0835-(a)L(b)* ZCS2835-(a)L(b)* ZCS0935-(a)(b) ZCS2935-(a)(b)
400W MH/PS ZCS0840-(a)L(b)* ZCS2840-(a)L(b)* ZCS0940-(a)(b) ZCS2940-(a)(b)
ZCL 22” 320W MH/PS ZCL0832-(a)L(b)* ZCL2832-(a)L(b)* ZCL0932-(a)(b) ZCL2932-(a)(b)
350W MH/PS ZCL0835-(a)L(b)* ZCL2835-(a)L(b)* ZCL0935-(a)(b) ZCL2935-(a)(b)
400W MH/PS ZCL0840-(a)L(b)* ZCL2840-(a)L(b)* ZCL0940-(a)(b) ZCL2940-(a)(b)
Voltage (a) Options (b) (Factory Installed) Accessories (Field Installed)
A = Auto Voltage Input (standard)
200-277V
For units with hook, cord & plug,
specify voltage:
1 = 120V
2 = 277V
3 = 208V
4 = 240V
C = Coated Lamp
L = Flat lens assembly included on * fixtures
Q = Quartz Standby
Flat Glass Lens - 17” & 22”
Options & Accessories on page 188
Wire Guard - 17”& 22”
Options & Accessories on page 188
A HK SC = Mounting Hook - 3/4” Thread with Safety
Snap-Lock™
DMC-1 = Dimming Module Electronic Controllers on page
156
CX-100 = Passive infrared occupancy sensor on page 157
B-120E-P = 120V Power Supply Electronic Controllers on
page 159
B-277E-P = 277V Power Supply Electronic Controllers on
page 159
See page 188 for complete listing of all lens assemblies and guard options.
* Includes bottom lens assembly plus appropriate cost adder
Example
ZCS 0 8 25 2 Q
Series Mounting Light Source Wattage Voltage Options
Z CS = 17”
Reflector
0 = Slide box 8 = Enclosed MH/PS* 25 = 250W 2 = 277 Volt Q = Quartz Standby
![](asset-9c.png)
154
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
HID LIGHTING – HIGH BAYS & LOW BAYS
Mounting Options
A direct hard wire slide box or a Hook, Cord & Plug
mounting is available. The slide box has an adjustable
hook assembly for fixture balancing. Also, the easy-
access wiring chamber provides additional room for
wiring make-up.
Features
Ballast
This true sinusoidal, high frequency, full dimmable
electronic highbay is available with 250W, 320W,
350W and 400W metal halide lamps. The electronic
ballast features auto voltage input from 208 - 277V,
50/60Hz, end-of-life protection and shut down circuit,
thermal protection and has a sound rating of A.
Lamps
The ZL series is supplied with 250 - 400W pulse
start metal halide lamps. Open rated fixtures are
supplied with restricted sockets and open rated
lamps. The 320W, 350W and 400W lamps cannot be
enclosed in the ZLS Series.
Refractor
The ZL Series refractor is available in 16”, 22” and
25” diameters. The clear acrylic prismatic refractor
provides over 90% efficiency and approximately
15% - 20% uplight.
Adjustable Distribution
The patented spring-loaded Twist-N-Lock™ reflector
attachment system allows for complete tool-free
reflector installation. Simply pull open the
spring-loaded locking pins and snap-lock the
reflector in place.
Dimensions
Fixture Fixture Approx.
Length Width Ship Wt.
ZLS Series
22.1” 16” 16 lbs.
ZLM Series
24.7” 22” 17 lbs.
ZLL Series
25.1 25” 20 lbs.
Spacing Criteria:
0.9 - 2.0
L
W
ZL Series 16”, 22” & 25” Electronic/Prismatic Refractor
Twist-N-LockTM - Locked Twist-N-LockTM - Open
Photometric Data
(Isofootcandle Plots)
16” Prismatic
Cat #: ZLS0935
Lamp: 350W Coated MH/PS
Lumens: 33,400
Socket Position: 7
Certified Test Report: LSI7875
IES File: ELS440N.IES
Spacing Criteria: 2.2
22” Prismatic
Cat #: ZLM0240
Lamp: 400W Coated MH/PS
Lumens: 42,000
Socket Position: 4
Certified Test Report: ITL37107
IES File: ELM440FM.IES
Spacing Criteria: 2.0
-40'
-30'
-35'
-25'
-15'
-20'
-5'
-10'
30
50
80
20
10
5
15'
5' 10' 20' 25' 30'
-5'
-10'
-15'
-20'
-25'
-30'
-35'
-40'
-45'
5' 10' 15' 20' 25' 30'
80
50
30
20
10
5
25” Prismatic
Cat #: ZLL0840
Lamp: 400W Coated MH/PS
Lumens: 47,500
Socket Position: 3
Certified Test Report: ITL42314
IES File: ELL0440.IES
Spacing Criteria: 1.88
-10'
-15'
-20'
-25'
-30'
-35'
-40'
-45'
-50'
-55'
5' 10' 15' 20'25' 30'35'
80
50
30
20
10
5
-5'
C
O
N
T
R
A
C
T
O
R
F
R
I
E
N
D
L
Y
Electronic
Technology
Inside
The high-performance optics of this prismatic
refractor luminaire, combined with electronic
ballast technology, make the ZL Series ideal
for industrial plants, warehouses, gymnasiums,
retail stores and showrooms.
40°C , 55°C
Ambient Rated
Lamp Included
Wattage Range:
320 - 400 W
Listed for Damp Locations
Consult Factory for CUL Availability
![](asset-9d.png)
155
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
HID LIGHTING – HIGH BAYS & LOW BAYS
Mountings and Accessories
ZL Series 16”, 22” & 25” Electronic/Prismatic Refractor
Slide Box
Hook, Cord
& Plug
ZL Series Ordering Information
Series Refractor
Size
Wattage /
Lamp
Enclosed Rated
Lamp Slide-Box
Enclosed Rated Lamp
Hook, Cord & Plug
Open Rated Lamp
Slide-Box
Open Rated Lamp
Hook, Cord & Plug
ZLS 16” 250W MH/PS ZLS0825-(a)L(b)* ZLS2825-(a)L(b)* ZLS0925-(a)(b) ZLS2925-(a)(b)
320W MH/PS ZLS0932-(a)(b) ZLS2932-(a)(b)
350W MH/PS ZLS0935-(a)(b) ZLS2935-(a)(b)
400W MH/PS ZLS0940-(a)(b) ZLS2940-(a)(b)
ZLM 22” 320W MH/PS ZLM0832-(a)
L(b)* ZLM2832-(a)L(b)* ZLM0932-(a)(b) ZLM2932-(a)(b)
350W MH/PS ZLM0835-(a)
L(b)* ZLM2835-(a)L(b)* ZLM0935-(a)(b) ZLM2935-(a)(b)
400W MH/PS ZLM0840-(a)
L(b)* ZLM2840-(a)L(b)* ZLM0940-(a)(b) ZLM2940-(a)(b)
ZLL 25” 350W MH/PS ZLL0835-(a)L(b)* ZLL2835-(a)L(b)* ZLL0935-(a)(b) ZLL2935-(a)(b)
400W MH/PS ZLL0840-(a)L(b)* ZLL2840-(a)L(b)* ZLL0940-(a)(b) ZLL2940-(a)(b)
* Includes bottom lens assembly plus appropriate cost adder
Voltage Sufx Key (a) Options (b) (Factory Installed) Options and Accessories (Field Installed)
A = Auto Voltage Input (standard)
120-277V (250)
200-277V (320-400)
For units with hook, cord & plug,
specify voltage:
1 = 120V
2 = 277V
3 = 208V
4 = 240V
C = Coated Lamp*
Q = Quartz Standby
*Coated lamps are recommended.
Maximum effectiveness is achieved
through the use of coated lamps that
reduce glare.
Options & Accessories on page 188
Conical Lens - 22” & 25”
Flat Acrylic Lens -22”
Acrylic Drop Lens - 22” (up to 400W)
Aislelighter Lens - 25” (ZLL up to 400W only)
Wire Guard - 16”, 22” & 25”
Full Wire Guard - 16”, 22” & 25”
Drop Lens w/Wire Guard - 22”
A HK SC = Mounting Hook - 3/4” Thread with Safety Snap-Lock™
DMC-1 = Dimming Module Electronic Controllers on page 156
CX-100 = Passive infrared occupancy sensor on page 157
B-120E-P = 120V Power Supply Electronic Controllers on page 159
B-277E-P = 277V Power Supply Electronic Controllers on page 159
Example
ZLS 0 8 25 2 Q
Series Mounting Light Source Wattage Voltage Options
ZLS = 16” Reflector 0 = Slide box 8 = Enclosed MH/PS* 25 = 250W 2 = 277 Volt Q = Quartz Standby
Ordering
Code 0
Ordering
Code 2
![](asset-9e.png)
156
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
HID LIGHTING – HIGH BAYS & LOW BAYS
DMC-1 Dimming Control
Interface Options
The DMC-1 has a number of leads to incorporate
a variety of controls including the LS-301 Light
Harvester (see page 159), computer, etc.
Mounting Options
The module can be used as a surface or wall mount,
manual-dimming module. It is typically mounted on
a wall so the user can easily make adjustments.
Sensor
The DMC-1 Dimming control offers manual control
of lighting levels with a rotary button from one
control point, resulting in optimal lighting for
the specific application while maximizing energy
savings. Integrated pushbutton allows for on/off
functionality. Controls any 0-10V dimming scheme
for fluorescent and compatible with electronic HID up
to 250V/6 amps. When used for dimming control,
only up to 50 electronic HID 0-10V ballasts per
channel can be operated. Internally fused.
Power Supply
The DMC-1 requires a 24V DC power supply to
provide an adjustable 0 to 10V DC dimming signal to
the electronic ballast.
DMC-1 Components
Designed as an easy-to-use lighting controller
for a wide variety of applications, the DMC-1
Dimming Control can control up to 50 fixtures
simultaneously. Mountable on walls or
surfaces, the dimmer is specifically designed
to be unobtrusive when installed in any retail,
commercial or industrial setting. Applications
include any situation in which lighting levels
need to be controlled in a continuously
variable range.
Listed
![](asset-9f.png)
157
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
HID LIGHTING – HIGH BAYS & LOW BAYS
CX-100 Passive Infrared Occupancy Sensor
Swivel Bracket
A swivel-mounting bracket (see drawing) allows the
sensor to be angled for convenient corner mounting to
wall or ceiling. Grooves on the bracket help to achieve
desired angle for coverage. The swivel bracket comes
standard with the CX Series Sensors.
Mounting Brackets
Used with mounting brackets MB2 and MB1.
Features
In addition to ASIC technology that reduces the
number of components while enhancing unit
reliability, the CX-100 Passive Infrared Occupancy
Sensor features Pulse Count processing that eliminates
false offs without reducing sensitivity. Detection
Signature Analysis eliminates false triggers and
provides immunity to RFI and EMI. Multi-level Fresnel
lens offers superior desktop occupancy detection
that is signaled with a red LED. The CX-100 contains
isolated relay with N/O and N/C outputs. Units are
rated for 1 amp at 24V DC.
Adjustable Time Delays
An adjustable digital time delay functions through
the highly accurate digital times built into the sensor.
Programming is executed through DIP switches that
can be set from 15 seconds through 30 minutes by
two-minute increments.
Sensor Selection
Sensors come standard with a dense wide angle lens
(CX-100). A one-sided aisleway sensor (CX-100-4),
a two-sided aisleway sensor (CX-100-3), or a long-
range, one-sided aisleway sensor (CX-100-1) are
optionally available. Mounting hardware is available
for attaching sensors to a fixture reflector/refractor
or building.
Dimensions
3.3”L x 3.3”W x 2.1”D
(83.8 mm x 83.8 mm x 53.3 mm
MB 2
MB 1
Fixture Mount Bracket
Ordering Code MB 1
Used for installing the sensors to ceilings or fixtures
in industrial settings such as warehouses.
Industrial Mount Bracket
Ordering Code MB 2
Direct mount to acrylic and aluminum optics
This dual-element, temperature-compensated
pyroelectric sensor operates in conjunction
with the B120E-P/8277E-P Power Supply (see
page 159), which provides 24V DC power
to the sensor. A red LED indicates occupancy
detection.
Listed
Ordering Information
Catalog Number Description
CX-100 Passive Infrared Occupancy Sensor
MB 1 Fixture Mount Bracket
MB 2 Industrial Mount Bracket
![](asset-a0.png)
158
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
HID LIGHTING – HIGH BAYS & LOW BAYS
LS-301 Occupancy Sensors
Features
In addition to ASIC technology that reduces the
number of components while enhancing unit
reliability, the CI-200 Round Motion Sensor features
Pulse Count processing that eliminates false offs
without reducing sensitivity. Detection Signature
Analysis also eliminates false triggers and provides
immunity to RFI and EMI.
Adjustable Time Delays
An adjustable digital time delay functions through
the highly accurate digital times built into the sensor.
Programming is executed through DIP switches that
can be set from 15 seconds through 30 minutes
by two-minute increments. Sensitivity is also
programmed through the DIP switches, which have
four settings from minimum to maximum.
Sensor Models
Sensing coverage is 1200 SF for the CI-200 module,
while coverage is optimal at 500SF using the high-
density lens for walking motion with the CI-200-1
module.
Dimensions
3.3” diameter x 2.2” deep (85 mm x 56 mm)
Extends approximately 0.36” from ceiling
Mounting Brackets
Various mounting options are available including MB1
and MB2 mounting brackets.
Industrial Mount Bracket
Ordering Code MB 2
Direct mount to acrylic and aluminum optics
Fixture Mount Bracket
Ordering Code MB 1
Used for installing the sensors
to ceilings or fixtures in
industrial settings such as
warehouses.
This dual-element, temperature-compensated
pyroelectric sensor is ideal for areas requiring
360° sensor coverage. Typically used in
open areas without racking, the low-profile
sensor operates in conjunction with the
B120E-P/8277E-P Power Supply (see page
159), which provides 24V DC power to the
sensor. Installation of the low voltage (24V
DC) system is simple using a two-pair twisted,
low voltage wire between the bi-level module
and the sensor. Multi-level Fresnel lens offers
superior desktop occupancy detection that is
signaled with a red LED The CI-200 contains
isolated relay with N/O and N/C outputs.
Units are rated for 1 amp at 24V DC.
C1-200
Round Motion Sensor
Listed
![](asset-a1.png)
159
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
HID LIGHTING – HIGH BAYS & LOW BAYS
LS-301 Light Harvester & Power Supply
Adjustment via Handheld
Remote Control
All LS-301 adjustments are made with one of two
handheld remotes. The LSR-301-S provides five
buttons for initial set-up, which is easily completed by
first raising or lowering electric light levels to desired
levels, then programming this target level into the
photosensor. The LSR-301-P provides three buttons
for occupants to adjust light levels. With this optional
tool, users can increase target light levels by up to
25% or reduce them to the lamp/ballast minimum
level. Pressing the “Auto” button returns the control
to programmed levels.
Applications
The LS-301 is designed to blend into its surroundings
when installed in any environment. It provides one
zone of daylighting control in a private office or
classroom. In these applications, the LS-301 can
be combined with an occupancy sensor. Often, it is
possible for the LS-301 to share a single power pack
with occupancy sensor(s).
Operation
The LS-301 mounts on a ceiling and utilizes a
spectral filtering system to measure daylight and
electric light levels. A closed loop daylighting system,
the LS-301 measures the total light level from
daylight and electric light in the controlled area
to adjust electric lighting levels. As the daylight
contribution increases, the lights dim down. The
photosensor utilizes sliding setpoint control, which
responds to the different spatial distribution
qualities of electric light and daylight. The LS-301
calculates the required light level for current daylight
contribution based on two setpoints. One represents
the target level when no daylight is present (night
setpoint) and the other when significant daylight is
present (day setpoint).
• Separate handheld remote controls for setup and
occupant adjustment to prevent tampering
• Boosts energy savings by reducing maximum lamp
output, often resulting in a 20% reduction or more
compared with lights at full output
• Achieves lumen maintenance by holding target light
level as lamp output decreases over time
Features
• Provides precise control of lighting to maintain
desired light level
• Extremely linear photocell response with greater
than 1% accuracy
• Designed to measure light as the human
eye perceives it, eliminating “overreporting”
illumination levels provided by daylight
This dual-element, temperature-compensated
pyroelectric sensor operates in conjunction with the
B120E-P/8277E-P Power Supply (see page 159),
which provides 24V DC power to the sensor. A red
LED indicates occupancy detection.
Power supplies provide 24V DC operating voltage
to sensors and the DMC-1 Dimming Control (see
page 156). Low voltage leads are Teflon coated for
use in plenum applications.
LS-301
Dimming
Photosensor
B-120E-P / B-277E-P
120V/277V Power Supply
Listed
![](asset-a2.png)
160
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
HID LIGHTING – HIGH BAYS & LOW BAYS
Mounting Options
A direct hard wire with slide box or hook, cord & plug
mounting is available. The slide box has an adjustable
hook assembly for fixture balancing. Also, the easy-
access wiring chamber provides additional room for
wiring make-up. Optional swivel pendant mount is
available.
Photometric Data
(Isofootcandle Plots)
Features
Housing
The heavy-duty die cast aluminum ballast housing
comes standard in a white polyester powder coating.
Consult factory for other color options.
Ballast
The ballast housing has heat-dissipating fins to extend
ballast life and is rated at 65°C ambient (see table).
All fixtures are supplied with a high power factor high
reactance or constant wattage ballast.
Lamps
The JB Series is available with 175 - 1000W metal
halide, 400W and 1000W super high output metal
halide, 100 - 1000W pulse start metal halide or 250
- 1000W high pressure sodium lamps. Open rated
fixtures are supplied with restricted sockets and open
rated lamps.
Reflector
The 14”, 16” and 22” aluminum reflectors produce
a smooth, even beam pattern with an 80% efficiency
rating. The 16” and 22” fixtures can be totally
enclosed.
Adjustable Distribution
The patented spring-loaded Twist-N-Lock™ reflector
attachment system allows for complete tool-free
reflector installation. Simply pull open the spring-
loaded locking pins and snap-lock the reflector in
place.
Dimensions
Fixture Length Fixture Approx.
Min. Max. Width Ship Wt.
JBM Series
19.8” 22.8 14” 25 lbs.
JBR Series
20.1” 23.1” 16” 25 lbs.
JBL Series
22.1” 25.1” 22” 37 lbs.
Spacing Criteria:
.7 - 1.7
L
W
JB Series 14”, 16” & 22” High Bay
14” Reflector Spun Aluminum
Cat #: JBM0240, JBM0440 Certified Test Report: ITL44732
Lamp: 400W Clear MH IES File: EBM740M.IES
Lumens: 38,000 Spacing Criteria: 1.6
Socket Position: 5
16” Reflector Spun Aluminum
Cat #: JBR0240, JBR0440 Certified Test Report: ITL04142
Lamp: 400W Clear MH IES File: EBR0440M.IES
Lumens: 38,000 Spacing Criteria: 2.5
Socket Position: 4
-5'
-10'
-15'
-20'
-25'
-30'
-35'
-40'
-45'
-50'
5' 10' 15' 20' 25' 30'
50
30
20
10
5
22” Reflector Spun Aluminum
Cat #: JBL0499 Certified Test Report: ITL45159
Lamp: 1000W Clear MH IES File: EBL499M.IES
Lumens: 110,000 Spacing Criteria: 1.9
Socket Position: 3
-5'
-10'
-15'
-20'
-25'
-30'
-35'
-40'
-45'
-50'
-55'
-60'
5' 10' 15' 20' 25' 30' 35' 40' 45' 50'
50
30
20
10
5
-5'
-10'
-15'
-20'
-25'
-30'
-35'
5' 10' 15' 20' 25' 30'
50
30
20
10
5
The heavy-duty JB Series High Bay is designed
for commercial and industrial applications. Its
high-efficiency reflector delivers consistent high
light levels with low glare and little reflector
maintenance.
55 °C, 65 °C
Ambient Rated
Lamp Included
Listed for Damp Locations
Consult Factory for CUL Availability
Twist-N-LockTM - Locked Twist-N-LockTM - Open
C
O
N
T
R
A
C
T
O
R
F
R
I
E
N
D
L
Y
JB Series Ambient
Temperature Ratings
Fixture Open Enclosed
Wattage 55°C 65°C 55°C 65°C
175W yes1yes1yes yes
250W yes1yes1yes yes
320W yes1yes1yes yes
350W yes1yes1yes yes
JBR/JBL JBR/JBL JBL only
400W yes1yes1yes yes
JBR/JBL JBR/JBL JBL only
450W yes1yes1 yes yes
JBR/JBL JBR/JBL JBR/JBL JBL only
1000W yes1yes1yes2yes2
JBL only JBL only JBL only JBL only
1 HPS or Open Rated MH
2 Glass Lens & Reduced Jacket Lamp Only
![](asset-a3.png)
161
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
HID LIGHTING – HIGH BAYS & LOW BAYS
Mountings and Accessories
JB Series 14”, 16” & 22” High Bay
Accessory Code
SP-18
Order Code @
Replace dash (-)
in order code to
indicate Distributor
PakTM. Available only
with hard wire or hook,
cord & plug.
Not available
with options.
Slide Box
Hook, Cord &
Plug
Swivel Pendant
Distributor PakTM
Packaging (-) Voltage (a) Options (b) (Factory Installed) Accessories: (Field Installed)
@ = Distributor PakTM
(optics, pod and
lamp in one carton)
M = Multi-tap
(tapped @ 277V)
M5 = 120 - 480V
400W MH only
(tapped @ 480V)
5 = 480 Volt
For hook, cord & plug,
specify voltage:
1 = 120V*
2 = 277V*
3 = 208V*
4 = 240V*
5 = 480V
*Supplied with Multi-tap
ballasts
Fusing
(x)F = Single - Specify voltage (x):
1 = 120V; 2 = 277V
(x)J = Dual - Specify voltage (x):
3 = 208V; 4 = 240V; 5 = 480V
Lens Option
K = Conical Lens Assembly (16” & 22” only)
L = Flat Lens Assembly
D = Drop Lens Assembly (16” & 22” only)
Quartz Standby (includes Quartz Lamp)
Q = Quartz Standby
Other
C = Coated Lamp
H = High-2-Low Option (400 - 1000W MH,
320 - 400W MH/PS) ††
G = Totally Enclosed Dust Tight (16” & 22” only)
W = Wet Location (16” & 22” only)
†† Must be used with High-2-Low, 190
A HK SC = Mounting Hook - 3/4” Thread
with Safety Snap-Lock™
SC-6 = Ballast/Reflector Safety Chain 6’
SP-18 = Swivel Pendant Mount 3/4” x 18”
(other lengths available upon request)
See page 188 for complete listing of lens and
guard options.
JB Series Ordering Information
Series Reector
Size
Wattage Lamp Enclosed Rated Lamp
Slide-Box
Enclosed Rated
Lamp
Hook, Cord & Plug
Open Rated Lamp
Slide-Box
Open Rated Lamp
Hook, Cord & Plug
JBM 14” 100W MH/PS JBM0810-(a)L(b)* JBM2810-(a)L(b)*
150W MH/PS JBM0815-(a)L(b)* JBM2815-(a)L(b)*
175W MH JBM0417-(a)L(b)* JBM2417-(a)L(b)*
175W MH/PS JBM0817-(a)L(b)* JBM2817-(a)L(b)*
200W MH/PS JBM0820-(a)L(b)* JBM2820-(a)L(b)* JBM0920-(a)(b) JBM2920-(a)(b)
250W MH JBM0425-(a)L(b)* JBM2425-(a)L(b)* JBM0225-(a)(b) JBM2225-(a)(b)
250W MH/PS JBM0825-(a)L(b)* JBM2825-(a)L(b)* JBM0925-(a)(b) JBM2925-(a)(b)
320W MH/PS JBM0832-(a)L(b)* JBM2832-(a)L(b)* JBM0932-(a)(b) JBM2932-(a)(b)
350W MH/PS JBM0835-(a)L(b)* JBM2835-(a)L(b)* JBM0935-(a)(b) JBM2935-(a)(b)
400W MH JBM0440-(a)L(b)* JBM2440-(a)L(b)* JBM0240-(a)(b) JBM2240-(a)(b)
400W MH/PS JBM0840-(a)L(b)* JBM2840-(a)L(b)* JBM0940-(a)(b) JBM2940-(a)(b)
400W MH/MS JBM0740-(a)L(b)* JBM2740-(a)L(b)*
450W MH/PS JBM0845-(a)L(b)* JBM2845-(a)L(b)* JBM0945-(a)(b) JBM2945-(a)(b)
250W HPS JBM0525-(a)(b) JBM2525-(a)(b)
400W HPS JBM0540-(a)(b) JBM2540-(a)(b)
JBR 16” 175W MH JBR0417-(a)L(b)* JBR2417-(a)L(b)*
175W MH/PS JBR0817-(a)L(b)* JBR2817-(a)L(b)*
200W MH/PS JBR0820-(a)L(b)* JBR2820-(a)L(b)* JBR0920-(a)(b) JBR2920-(a)(b)
250W MH JBR0425-(a)L(b)* JBR2425-(a)L(b)* JBR0225-(a)(b) JBR2225-(a)(b)
250W MH/PS JBR0825-(a)L(b)* JBR2825-(a)L(b)* JBR0925-(a)(b) JBR2925-(a)(b)
320W MH/PS JBR0832-(a)L(b)* JBR2832-(a)L(b)* JBR0932-(a)(b) JBR2932-(a)(b)
350W MH/PS JBR0835-(a)L(b)* JBR2835-(a)L(b)* JBR0935-(a)(b) JBR2935-(a)(b)
400W MH JBR0440-(a)L(b)* JBR2440-(a)L(b)* JBR0240-(a)(b) JBR2240-(a)(b)
400W MH/PS JBR0840-(a)L(b)* JBR2840-(a)L(b)* JBR0940-(a)(b) JBR2940-(a)(b)
400W MH/MS JBR0740-(a)L(b)* JBR2740-(a)L(b)*
450W MH/PS JBR0845-(a)L(b)* JBR2845-(a)L(b)* JBR0945-(a)(b) JBR2945-(a)(b)
250W HPS JBR0525-(a)(b) JBR2525-(a)(b)
400W HPS JBR0540-(a)(b) JBR2540-(a)(b)
JBL 22” 400W MH JBL0440-(a)L(b)* JBL2440-(a)L(b)* JBL0240-(a)(b) JBL2240-(a)(b)
400W MH/PS JBL0840-(a)L(b)* JBL2840-(a)L(b)* JBL0940-(a)(b) JBL2940-(a)(b)
450W MH/PS JBL0845-(a)L(b)* JBL2845-(a)L(b)* JBL0945-(a)(b) JBL2945-(a)(b)
750W MH/PS JBL0875-(a)L(b)* JBL2875-(a)L(b)*
1000W MH JBL0499-(a)L(b)* JBL2499-(a)L(b)* JBL0299-(a)(b) JBL2299-(a)(b)
1000W MH/PS JBL0899-(a)L(b)* JBL2899-(a)L(b)*
1000W MH/MS JBL0799-(a)L(b)* JBL2799-(a)L(b)*
1000W HPS JBL0599-(a)(b) JBL2599-(a)(b)
* Flat lens assembly included on all metal halide fixtures
Ordering
Code 0
Ordering
Code 2
![](asset-a4.png)
162
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
HID LIGHTING – HIGH BAYS & LOW BAYS
Dimensions
Fixture Length Fixture Approx.
Min. Max. Width Ship Wt.
JCS Series
20.1” 23.1” 17” 24 lbs.
JCL Series
20.3” 23.3” 22” 38 lbs.
Spacing Criteria:
.7 - 1.8
L
W
JC Series 17” & 22” Faceted Reflector
The heavy-duty JC Series is designed for
commercial and industrial applications. Its high-
efficiency, hard anodized faceted reflector delivers
consistent high light levels with low glare and little
reflector maintenance.
55 °C, 65 °C
Ambient Rated
Lamp Included
Wattage Range:
175 to 1000 W
Listed for Damp Locations
Consult Factory for CUL Availability
Mounting Options
A direct hard wire with slide box or a hook, cord &
plug mounting is available. The slide box has an
adjustable hook assembly for fixture balancing. Also,
the easy-access wiring chamber provides additional
room for wiring make-up. Optional swivel pendant
mount is available.
Photometric Data
(Isofootcandle Plots)
Features
Housing
The heavy-duty, die cast aluminum ballast housing
comes standard in a white polyester powder coating.
Consult factory for other color options.
Ballast
The ballast housing has heat-dissipating fins to extend
ballast life and is rated at 65°C ambient (see table).
All fixtures are supplied with a high power factor high
reactance or constant wattage ballast.
Lamps
The JC Series is available with 175 - 1000W metal
halide, 400W and 1000W super high output metal
halide, 175 - 1000W pulse start metal halide or 250
- 1000W high-pressure sodium lamps. Open rated
fixtures are supplied with restricted sockets and open
rated lamps.
Reflector
The 17” and 22” hard anodized faceted reflector
resists dirt buildup, cleans easily with water and
provides high light levels with very low glare.
Adjustable Distribution
The patented spring-loaded Twist-N-Lock™ reflector
attachment system allows for complete tool-free
reflector installation. Simply pull open the spring-
loaded locking pins and snap-lock the reflector in
place.
17” Faceted
Cat #: JCS0240, JCS0440 Certified Test Report: 35-174981-00
Lamp: 400W Clear MH IES File: ECS440M.IES
Lumens: 38,000 Spacing Criteria: 1.5 max.
Socket Position: 5
22” Faceted
Cat #: JCL0499 Certified Test Report: 35-174989-00
Lamp: 1000W Clear MH IES File: ECl499M.IES
Lumens: 110,000 Spacing Criteria: 1.5 max.
Socket Position: 5
-5'
-10'
-15'
-20'
-25'
-30'
-35'
-40'
-45'
-50'
-55'
5' 10' 15' 20' 25' 30' 35'
5
-60'
50
30
20
10
Twist-N-LockTM - Locked Twist-N-LockTM - Open
C
O
N
T
R
A
C
T
O
R
F
R
I
E
N
D
L
Y
JC Series Ambient
Temperature Ratings
Fixture Open Enclosed
Wattage 55°C 65°C 55°C 65°C
175W yes1yes1yes yes
250W yes1yes1yes yes
320W yes1yes1yes yes
350W yes1yes1yes yes
JBR/JBL JBR/JBL JBL only
400W yes1yes1yes yes
JBR/JBL JBR/JBL JBL only
450W yes1yes1 yes yes
JBR/JBL JBR/JBL JBR/JBL JBL only
1000W yes1yes1yes2yes2
JBL only JBL only JBL only JBL only
1 HPS or Open Rated MH
2 Glass Lens & Reduced Jacket Lamp Only
-75'
-80'
-85'
-90'
-5'
-10'
-15'
-20'
-25'
-30'
-35'
-40'
-45'
-50'
-55'
-60'
-65'
-95'
10
15' 20' 25' 30' 35' 40' 45' 50'
20
10'5'
-70'
50
30
5
![](asset-a5.png)
163
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
HID LIGHTING – HIGH BAYS & LOW BAYS
Mountings and Accessories
JC Series 17” & 22” Faceted Reflector
Accessory Code
SP-18
Slide Box
Hook, Cord &
Plug
Swivel Pendant
Voltage (a) Options (b) (Factory Installed) Accessories: (Field Installed)
5 = 480 Volt
M = Multi-tap
(tapped @ 277V)
M5 = 120 - 480V
400W MH only
(tapped @ 480V)
For hook, cord & plug,
specify voltage:
1 = 120V*
2 = 277V*
3 = 208V*
4 = 240V*
5 = 480V
*Supplied with Multi-tap
ballasts
C = Coated Lamp
G = Totally Enclosed Dust Tight
(16” & 22” only)
H = High-2-Low Option
(400 - 1000W MH,
320 - 400W MH/PS) ††
L = Flat Lens Assembly
Fusing
(x)F = Single - Specify voltage (x):
1 = 120V; 2 = 277V
(x)J = Dual - Specify voltage (x):
3 = 208V; 4 = 240V; 5 = 480V
Q = Quartz Standby
W = Wet Location (16” & 22” only)
†† Must be used with High-2-Low, 190
A HK SC = Mounting Hook - 3/4” Thread
with Safety Snap-Lock™
SC-6 = Ballast/Reflector Safety Chain 6’
SP-18 = Swivel Pendant Mount 3/4” x 18”
(other lengths available upon request)
See page 188 for complete listing of lens and
guard options.
JC Series Ordering Information
Series Reector
Size
Wattage Lamp Enclosed Rated Lamp
Slide-Box
Enclosed Rated Lamp
Hook, Cord & Plug
Open Rated Lamp
Slide-Box
Open Rated
Lamp Hook, Cord
& Plug
JCS 17” 175W MH JCS0417-(a)L(b)* JCS2417-(a)L(b)*
175W MH/PS JCS0817-(a)L(b)* JCS2817-(a)L(b)*
200W MH/PS JCS0820-(a)L(b)* JCS2820-(a)L(b)*
250W MH JCS0425-(a)L(b)* JCS2425-(a)L(b)* JCS0225-(a)(b) JCS2225-(a)(b)
250W MH/PS JCS0825-(a)L(b)* JCS2825-(a)L(b)* JCS0925-(a)(b) JCS2925-(a)(b)
320W MH/PS JCS0832-(a)L(b)* JCS2832-(a)L(b)* JCS0932-(a)(b) JCS2932-(a)(b)
350W MH/PS JCS0835-(a)L(b)* JCS2835-(a)L(b)* JCS0935-(a)(b) JCS2935-(a)(b)
400W MH JCS0440-(a)L(b)* JCS2440-(a)L(b)* JCS0240-(a)(b) JCS2240-(a)(b)
400W MH/PS JCS0840-(a)L(b)* JCS2840-(a)L(b)* JCS0940-(a)(b) JCS2940-(a)(b)
400W MH/MS JCS0740-(a)L(b)* JCS2740-(a)L(b)*
450W MH/PS JCS0845-(a)L(b)* JCS2845-(a)L(b)* JCS0945-(a)(b) JCS2945-(a)(b)
250W HPS JCS0525-(a)(b) JCS2525-(a)(b)
400W HPS JCS0540-(a)(b) JCS2540-(a)(b)
JCL 22” 175W MH/PS JCL0817-(a)L(b)* JCL2817-(a)L(b)* JCL0917-(a)(b) JCL2917-(a)(b)
320W MH/PS JCL0832-(a)L(b)* JCL2832-(a)L(b)* JCL0932-(a)(b) JCL2932-(a)(b)
350W MH/PS JCL0835-(a)L(b)* JCL2835-(a)L(b)* JCL0935-(a)(b) JCL2935-(a)(b)
400W MH JCL0440-(a)L(b)* JCL2440-(a)L(b)* JCL0240-(a)(b) JCL2240-(a)(b)
400W MH/PS JCL0840-(a)L(b)* JCL2840-(a)L(b)* JCL0940-(a)(b) JCL2940-(a)(b)
400W MH/MS JCL0740-(a)L(b)* JCL2740-(a)L(b)*
450W MH/PS JCL0845-(a)L(b)* JCL2845-(a)L(b)* JCL0945-(a)(b) JCL2945-(a)(b)
750W MH/PS JCL0875-(a)L(b)* JCL2875-(a)L(b)*
1000W MH JCL0499-(a)L(b)*+ JCL2499-(a)L(b)*+ JCL0299-(a)(b) JCL2299-(a)(b)
1000W MH/PS JCL0899-(a)L(b)*+ JCL2899-(a)L(b)*+
1000W MH/MS JCL0799-(a)L(b)*+ JCL2799-(a)L(b)*+
400W HPS JCL0540-(a)(b) JCL2540-(a)(b)
1000W HPS JCL0599-(a)(b) JCL2599-(a)(b)
* Flat lens assembly included on all metal halide fixtures
+ Reduced Jacketed Lamp required to enclose
Example
JCS 0 8 25 2 Q
Series Mounting Light Source Wattage Voltage Options
JCS = 17” Reflector 0 = Slide box 4 = MH 25 = 250W 2 = 277 Volt Q = Quartz Standby
Ordering
Code 0
Ordering
Code 2
![](asset-a6.png)
164
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
HID LIGHTING – HIGH BAYS & LOW BAYS
Mounting Options
Several mountings are available. The ballast slide
box has an adjustable hook assembly for fixture
balancing. The easy-access wiring compartment
provides ample room for the primary connections to
the ballast.
Remote Shade Assemblies
Three additional mountings are available for this
versatile Mini High Bay, including the rigid pendant,
cord pendant and cord spiral pendant. All can be
mounted to a ballast pod or as a remote fixture.
(Remote Shade Assembly information on 286.
Remote Ballast information on 284.)
Photometric Data
(Isofootcandle Plots)
12” Prismatic
Cat #: JLC0217
Lamp: 175W Coated MH/Open Burn
Lumens: 15,000
Certified Test Report: ITL41131
IES File: JLC417D.IES
Spacing Criteria: 2.4
Features
Housing
Cast-aluminum housing is designed with exterior fins
to dissipate heat. Polyester powder coating is standard
in white . Consult factory for other color options.
Lamps
The JLC Series comes standard with a clear medium
based lamp.
Reflector
The clear acrylic prismatic refractor provides over
90% lighting efficiency.
Lens
A variety of lens types are available: flat acrylic
prismatic, conical and clear domed. Lens is secured to
housing using an aluminum ring with a spring latch.
Options
The ballast housing can be remotely mounted. The
optical assembly can be pendant-mounted using SOW
cord, spiral cord or 1/2” pipe. Specify length required
in 6” increments.
Dimensions
Fixture Fixture Approx.
Height Width Ship Wt.
JLC Series
16.25” 12.375” 12 lbs.
L
W
JLC Series 12” Mini Acrylic High Bay
-5
-10
-15
-20
-25
510 15 20
50
30
20
10
5
The high-performance optics of our prismatic
refractor luminaries, combined with the heat-
dissipating cooling fins of the cast aluminum
ballast housing, make the JLC Series perfect
for low-mount industrial plants, warehouses,
retail stores, showrooms and outlet stores.
Available in versatile mountings.
40 °C, 55 °C
Ambient Rated
Lamp Included
Wattage Range:
50 to 175 W
Listed for Damp Locations
Consult Factory for CUL Availability
JLC Series Ambient
Temperature Ratings
Fixture Open Enclosed
Wattage 40°C 55°C 40°C 55°C
100W yes yes yes no
150W yes yes no no
175W yes yes no no
![](asset-a7.png)
165
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
HID LIGHTING – HIGH BAYS & LOW BAYS
Mountings and Accessories
JLC Series 12” Mini Acrylic High Bay
Ordering Code 6
Slide Box
Ordering
Code 0
Hook, Cord &
Plug
Ordering
Code 2
Cord Pendant
Ordering
Code 9
Spiral Cord
Pendant
Ordering
Code 7
Rigid Pendant
Ordering
Code 8
Swivel Pendant
JLC Series Ordering Information
Series Reector Size Wattage Lamp Enclosed Rated Lamp Open Rated Lamp
JLC 12” 50W MH/PS JLC(**)805-(a)(b) JLC(**)905-(a)(b)
70W MH/PS JLC(**)807-(a)(b) JLC(**)907-(a)(b)
100W MH/PS JLC(**)810-(a)(b) JLC(**)910-(a)(b)
150W MH/PS JLC(**)915-(a)(b)
175W MH JLC(**)217-(a)(b)
35W HPS JLC(**)503-1(b)
50W HPS JLC(**)505-(a)(b)
70W HPS JLC(**)507-(a)(b)
100W HPS JLC(**)510-(a)(b)
150W HPS JLC(**)515-(a)(b)
(**) Mounting: Indicate mounting in space (**)
Description
No Mount Hook, Cord Cord Pendant* Spiral Cord* Rigid Pendant* Swivel Pendant*
Slide Box and Plug Mount Pendant Mount Mount Mount
0 2 6 7 8 9
*Specify Pendant Mount Length per options (b) below
Voltage (a) Options (b) (Factory Installed) Mounting Options and
Accessories: (Field Installed)
5 = 480 Volt
175W only
M = Multi-tap
(tapped @ 277V)
For hook, cord & plug,
specify voltage:
1 = 120V*
2 = 277V*
3 = 208V*
4 = 240V*
5 = 480V (175W only)
*Supplied with Multi-tap
ballasts
C = Coated Lamp
Coated lamps are recommended. Maximum effectiveness is
achieved through the use of coated lamps that reduce glare.
Lens Options
L = Flat Acrylic Lens (100W max)
K = Conical Lens (100W max)
D = Dome Lens (100W max)
Fusing
(x)F = Single - Specify voltage (x):
1 = 120V; 2 = 277V
(x)J = Dual - Specify voltage (x):
3 = 208V; 4 = 240V; 5 = 480V
Q = Quartz standby
Pen dant Mount Lengths
0(xx) = xx”
(please order in increments of 6” up to 60”)
Examples:
018 = 18”
024 = 24”
A HK SC = Mounting Hook - 3/4” Thread
with Safety Snap-Lock™
SC-6 =Ballast/Reflector Safety Chain 6’
Example
JLC 0 5 05 2 C
Series Mounting Light Source Wattage Voltage Options
JLC = 12” Reflector 0 = Slide box 5 =HPS 05 = 50W 2 = 277 Volt C = Coated Lamp
![](asset-a8.png)
166
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
HID LIGHTING – HIGH BAYS & LOW BAYS
Dimensions
Fixture Length Fixture Approx.
Min. Max. Width Ship Wt.
JLS Series
19.1” 22.1” 16” 25 lbs.
JLM Series
21.7” 24.7” 22” 28 lbs.
JLL Series
22.1” 25.1” 25” 30 lbs.
Spacing Criteria:
.9 - 2.0
L
W
JL Series 16”, 22” & 25” Prismatic Refractor
The high-performance optics of this prismatic
refractor luminaire, combined with the heat-
dissipating cooling fins of the white cast
aluminum ballast housing, make the JL Series
perfect for industrial plants, warehouses,
gymnasiums, retail stores and showrooms.
An Aislelighter lens option is ideal for
merchandising and floor lighting.
40 °C, 55 °C
Ambient Rated
Lamp Included
Wattage Range:
100 to 1000 W
Listed for Damp Locations
Consult Factory for CUL Availability
Mounting Options
A direct hard wire with slide box or a hook, cord
& plug mounting is available. The slide box has an
adjustable hook assembly for fixture balancing. The
easy-access wiring chamber provides additional room
for wiring make-up. Optional swivel pendant mount
is available.
Photometric Data
(Isofootcandle Plots)
Features
Refractor
The JL Series refractor is available in 16”, 22” and
25” diameters. The clear acrylic prismatic refractor
provides over 90% efficiency and approximately
15 - 20% uplight.
Ballast
All fixtures are supplied with a high power factor,
high reactance or constant wattage ballast in multi-
tap or 480 volt.
Lamps
Open rated fixtures are supplied with restricted
sockets and open rated lamps. The 320W, 350W and
400W lamps cannot be enclosed in the JLS Series.
Adjustable Distribution
The patented spring-loaded Twist-N-Lock™ reflector
attachment system allows for complete tool-free
reflector installation. Simply pull open the spring-
loaded locking pins and snap-lock the reflector in
place.
Aislelighter
When lighting long, narrow aisles stocked with
merchandise, the Aislelighter lens option delivers
uplight in a 360° distribution. The vertical surface
light is ideal for merchandising and customer traffic
(specify option A).
Twist-N-LockTM - Locked Twist-N-LockTM - Open
C
O
N
T
R
A
C
T
O
R
F
R
I
E
N
D
L
Y
JL Series Ambient
Temperature Ratings
Fixture Open Enclosed
Wattage 40°C 55°C 40°C 55°C
175W yes1yes1yes yes
250W yes1yes1yes yes
320W yes1yes1yes yes
JLM/JLL JLL only
350W yes1yes1yes yes
JLM/JLL JLM/JLL JLL only
400W yes1yes1yes
JLM/JLL JLM/JLL JLM/JLL yes
450W
1000W n/a n/a n/a n/a
1 HPS or Open Rated MH
16” Prismatic
Cat #: JLS0225, JLS0425 Certified Test Report: ITL36501
Lamp: 250W Coated MH IES File: ELS425FM.IES
Lumens: 25,000 Spacing Criteria: 2.2
Socket Position: 4
22” Prismatic
Cat #: JLM0240, JLM0440 Certified Test Report: ITL37107
Lamp: 400W Coated MH IES File: ELM440FM.IES
Lumens: 36,000 Spacing Criteria: 2.0
Socket Position: 5
-5'
-10'
-15'
-25'
-30'
5' 10' 15' 20' 25'
-35'
50 30
20
10
5
25” Prismatic
Cat #: JLL0499 Certified Test Report: ITL41525
Lamp: 1000W Coated MH IES File: ELL0499F.IES
Lumens: 107,000 Spacing Criteria: 1.7
Socket Position: 3
-5'
-10'
-15'
-20'
-25'
-30'
-35'
-40'
-45'
-50'
-55'
-60'
5' 10' 15' 20' 25' 30' 35'
50
30
20
10
5
-5'
-10'
-15'
-20'
-25'
-30'
-35'
-40'
5' 10' 15' 20' 25' 30'
50
30
20
5
10
![](asset-a9.png)
167
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
HID LIGHTING – HIGH BAYS & LOW BAYS
Mountings and Accessories
JL Series 16”, 22” & 25” Prismatic Refractor
Accessory Code
SP-18
Slide Box
Hook, Cord &
Plug
Swivel Pendant
Order Code @
Replace dash (-)
in order code to indicate
Distributor PakTM.
Available only with
hard wire or hook, cord
& plug.
Not available
with options.
Distributor PakTM
C
O
N
T
R
A
C
T
O
R
F
R
I
E
N
D
L
Y
Packaging (-) Voltage (a) Options (b) (Factory Installed) Accessories: (Field Installed)
@ = Distributor PakTM
(optics, pod and
lamp in one carton)
M = Multi-tap
(tapped @ 277V)
M5 = 120 - 480V
400W MH only
(tapped @ 480V)
5 = 480 Volt
For hook, cord & plug,
specify voltage:
1 = 120V*
2 = 277V*
3 = 208V*
4 = 240V*
5 = 480V
*Supplied with Multi-tap
ballasts
A = Aislelighter Lens (25” only)
C = Coated Lamp
D = Drop Lens Assembly
(16” & 22 “ only)
G = Totally Enclosed Dust Tight
(16” & 22” only)
H = High-2-Low Option
(400 - 1000W MH,
320 - 400W MH/PS) ††
K = Conical Lens Assembly
L = Flat Lens Assembly
W = Wet Location (16” & 22” only)
Fusing
(x)F = Single - Specify voltage (x):
1 = 120V; 2 = 277V
(x)J = Dual - Specify voltage (x):
3 = 208V; 4 = 240V; 5 = 480V
Q = Quartz Standby
A HK SC = Mounting Hook - 3/4” Thread
with Safety Snap-Lock™
SC-6 = Ballast/Reflector Safety Chain 6’
SP-18 = Swivel Pendant Mount 3/4” x 18”
(other lengths available upon request)
See page 188 for complete listing of lens and
guard options.
†† Must be used with High-2-Low, 190
JL Series Ordering Information
Series Reector
Size
Wattage Lamp Enclosed Rated
Lamp; Slide-Box
Enclosed Rated Lamp
Hook, Cord & Plug
Open Rated Lamp
Slide-Box
Open Rated Lamp
Hook, Cord & Plug
JLS 16” 100W MH/PS JLS0810-(a)L(b)* JLS2810-(a)L(b)*
150W MH/PS JLS0815-(a)L(b)* JLS2815-(a)L(b)*
175W MH JLS0417-(a)L(b)* JLS2417-(a)L(b)*
175W MH/PS JLS0817-(a)L(b)* JLS2817-(a)L(b)*
200W MH/PS JLS0820-(a)L(b)* JLS2820-(a)L(b)* JLS0920-(a)(b) JLS2920-(a)(b)
250W MH JLS0425-(a)L(b)* JLS2425-(a)L(b)* JLS0225-(a)(b) JLS2225-(a)(b)
250W MH/PS JLS0825-(a)L(b)* JLS2825-(a)L(b)* JLS0925-(a)(b) JLS2925-(a)(b)
320W MH/PS JLS0932-(a)(b) JLS2932-(a)(b)
350W MH/PS JLS0935-(a)(b) JLS2935-(a)(b)
400W MH JLS0240-(a)(b) JLS2240-(a)(b)
400W MH/PS JLS0940-(a)(b) JLS2940-(a)(b)
150W HPS JLS0515-(a)(b) JLS2515-(a)(b)
250W HPS JLS0525-(a)(b) JLS2525-(a)(b)
400W HPS JLS0540-(a)(b) JLS2540-(a)(b)
JLM 22” 250W MH/PS JLM0825-(a)L(b)* JLM2825-(a)L(b)* JLM0925-(a)(b) JLM2925-(a)(b)
320W MH/PS JLM0832-(a)L(b)* JLM2832-(a)L(b)* JLM0932-(a)(b) JLM2932-(a)(b)
350W MH/PS JLM0835-(a)L(b)* JLM2835-(a)L(b)* JLM0935-(a)(b) JLM2935-(a)(b)
400W MH JLM0440-(a)L(b)* JLM2440-(a)L(b)* JLM0240-(a)(b) JLM2240-(a)(b)
400W MH/PS JLM0840-(a)L(b)* JLM2840-(a)L(b)* JLM0940-(a)(b) JLM2940-(a)(b)
400W MH/MS JLM0740-(a)L(b)* JLM2740-(a)L(b)*
450W MH/PS JLM0945-(a)(b) JLM2945-(a)(b)
400W HPS JLM0540-(a)(b) JLM2540-(a)(b)
JLL 25” 350W MH/PS JLL0835-(a)L(b)* JLL2835-(a)L(b)* JLL0935-(a)(b) JLL2935-(a)(b)
400W MH JLL0440-(a)K(b)* JLL2440-(a)K(b)* JLL0240-(a)(b) JLL2240-(a)(b)
400W MH/PS JLL0840-(a)L(b)* JLL2840-(a)L(b)* JLL0940-(a)(b) JLL2940-(a)(b)
400W MH/MS JLL0740-(a)K(b)* JLL2740-(a)K(b)*
450W MH/PS JLL0945-(a)(b) JLL2945-(a)(b)
1000W MH † JLL0299-(a)(b) JLL2299-(a)(b)
400W HPS JLL0540-(a)(b) JLL2540-(a)(b)
1000W HPS † JLL0599-(a)(b) JLL2599-(a)(b)
* Flat lens assembly included on all metal halide fixtures
† 25°C Ambient, Open bottom only
Example
JLS 0 8 10 2 C
Series Mounting Light Source Wattage Voltage Options
JLS = 16” Reflector 0 = Slide box 8 =MH/PS 10 = 100W 2 = 277 Volt C = Coated lamp
Ordering
Code 0
Ordering
Code 2
![](asset-aa.png)
168
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
HID LIGHTING – HIGH BAYS & LOW BAYS
Mounting Options
A direct hard wire with slide box or a hook, cord
& plug mounting is available. The slide box has an
adjustable hook assembly for fixture balancing. The
easy-access wiring chamber provides additional room
for wiring make-up.
Packaging
When specified, units are packaged in a Distributor-
Pak™ or in two separate boxes for easy inventory
and shipping.
Features
Housing
Unlike ballast housings made from sheet metal, the
JTC Series die-cast aluminum housing is designed for
construction sites with abusive environments.
Lamps
Metal halide luminaries are available in 400W only. A
strong, plated steel cage shields lamps from damage
while allowing light distribution for a full 360°. Open
rated fixtures are supplied with restricted sockets and
open rated lamps.
Ballast
Supplied standard with a multi-tap or
5-tap CWA ballast, the Temp-Lite™ can be easily
hooked up to any available voltage.
Ratings
The JTC Series retains its UL listing when converted
to a standard high or low bay optical assembly. The
fixture also conforms to OSHA standards for light
levels.
Dimensions
Fixture Fixture Approx.
Length Width Ship Wt.
JTC Series
24.5” 9.25” 24 lbs.
L
W
JTC Series TempLiteTM Jobsite Fixture
JTC TempLiteTM
Cat #: JTC2440
Lamp: 400W Clear MH
Lumens: 38,000
Certified Test Report: B2013
IES File: ETC440.IES
-5'
-10'
-15'
-20'
5'
10'
15'
20' 5' 10' 15' 20' 25' 30'
50
30 20
10
5
Photometric Data
(Isofootcandle Plots)
The JTC Series Temp-Lite™ Jobsite Fixture
replaces approximately two to three strings
of temporary lights and can be converted to a
permanent standard high bay/low bay with the
addition of the desired optical assembly.
55 °C, 65 °C
Ambient Rated
Lamp Included
Wattage Range:
400 W
Listed for Damp Locations
Consult Factory for CUL Availability
![](asset-ab.png)
169
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
HID LIGHTING – HIGH BAYS & LOW BAYS
Mountings and Accessories
JTC Series TempLiteTM Jobsite Fixture
Packaging (-) Voltage (a) Options (b) (Factory Installed) Replacement Guard
@ = Distributor PakTM
(optics, pod and
lamp in one carton)
CP3 = 120 Volt
(Straight Blade)
M = Multi-tap
(tapped @ 277V)
M5 = 120 - 480V
400W MH only
(tapped @ 480V)
5 = 480 Volt
For hook, cord & plug,
specify voltage:
1 = 120V*
2 = 277V*
3 = 208V*
4 = 240V*
5 = 480V
*Supplied with Multi-tap
ballasts
C = Coated Lamp (Recommended)
Fusing
(x)F = Single - Specify voltage (x):
1 = 120V; 2 = 277V
(x)J = Dual - Specify voltage (x):
3 = 208V; 4 = 240V; 5 = 480V
LG = Cylindrical Guard with Adjustable Top
Steel Clamp
JTC Series Ordering Information
Series Wattage Lamp Enclosed Rated Lamp
Slide Box
Enclosed Rated Lamp
Hook, Cord & Plug
Open Rated Lamp
Slide-Box
Open Rated Lamp
Hook, Cord & Plug
JTC 400W MH JTC0440-(a)(b) JTC2440-(a)(b) JTC0240-(a)(b) JTC2240-(a)(b)
Distributor Pak™ JTC0440@(a)(b) JTC2440@(a)(b) JTC0240@(a)(b) JTC2240@(a)(b)
Slide Box
Hook, Cord &
Plug
Order Code @
Replace dash (-)
in order code to indicate
Distributor PakTM.
Available only with
hard wire or hook, cord
& plug.
Not available
with options.
Distributor PakTM
C
O
N
T
R
A
C
T
O
R
F
R
I
E
N
D
L
Y
Ordering
Code 0
Ordering
Code 2
![](asset-ac.png)
170
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
HID LIGHTING – HIGH BAYS & LOW BAYS
Features
Housing
The heavy-duty die cast aluminum ballast housing
has heat-dissipating fins (refer to photo on next
page) to extend ballast life that is rated at 65°C
ambient. Ballast pod is supplied in a white polyester
powder coat finish. Cover attaches to housing with
four screws for easy internal access. Segmented
ballast compartment for heat sink. Center-balanced
ballast and components ensure unit hangs straight.
Unique Y-pod design has a minimal horizontal
surface, which reduces collection of airborne particles
to retain new appearance.
Ballast
All fixtures are supplied with a high power factor
constant wattage ballast in multi-tap or 480 volt.
Lamps
The YB Series is available with 250-400W metal
halide, 400W super high output metal halide,
250-400W pulse start metal halide or 250-400W
high-pressure sodium lamps. Open rated fixtures
are supplied with restricted sockets and open rated
lamps.
Reflector
The 14”, 16” and 22” aluminum reflectors produce
a smooth, even beam pattern with an 80% efficiency
rating. Contoured facets and a rounded body result
in smooth, even beam patterns. Reflector design
allows for ventilation, which cleans contaminants
from system.
Adjustable Distribution
The patented spring-loaded Twist-N-Lock™ reflector
attachment system allows for complete tool-free
reflector installation and seven-optic position
adjustment. Simply pull open the spring-loaded
locking pins and snap-lock the reflector in place.
Mounting Options
A direct hard wire or hook, cord & plug mounting is
available. A 2/3” threaded conduit hub is standard.
The hook, cord and plug option is furnished with a
die-cast aluminum Safety Snap-Lock hook that has
3/4” NPT threads, 6’ SOW16/3 cord and NEMA Twist
+ Lock plug.
Dimensions
Fixture Length Fixture Ceiling
Min. Max. Width Height
YBM Series
23” 28” 14” 20’ - 30’
YBR Series
25.3” 26.3” 16” 20’ - 30’
YBL Series
25.3” 26.3” 22.4” Over 30’
YB Series 14”, 16” & 22” Econobay High Bay
14” Reflector Spun Aluminum
Cat #: YBM0240, YBM0440 Certified Test Report: ITL44732
Lamp: 400W Clear MH IES File: EBM740M.IES
Lumens: 38,000 Spacing Criteria: 1.6
Socket Position: 5
16” Reflector Spun Aluminum
Cat #: YBR0240, YBR0440 Certified Test Report: ITL04142
Lamp: 400W Clear MH IES File: EBR0440M.IES
Lumens: 38,000 Spacing Criteria: 2.5
Socket Position: 4
-5'
-10'
-15'
-20'
-25'
-30'
-35'
-40'
-45'
-50'
5' 10' 15' 20' 25' 30'
50
30
20
10
5
22” Reflector Spun Aluminum
Cat #: YBL0240, YBL0440 Certified Test Report: LTL06534
Lamp: 400W Clear MH IES File: EBR0440M.IES
Lumens: 38,000 Spacing Criteria: 2.0
Socket Position: 4
-40'
-35'
-30'
-25'
-20'
-15'
-5'
-10'
10
20
30
50
30'25'20'15'10'5'
5
-5'
-10'
-15'
-20'
-25'
-30'
-35'
5' 10' 15' 20' 25' 30'
50
30
20
10
5
Photometric Data
(Isofootcandle Plots)
L
W
The economical YB Series fixture is designed
for commercial and industrial applications. Its
Y-Pod design is aesthetically pleasing, with
no exposed components or vents that trap
contaminants. Its high- efficiency reflector
delivers consistent high light levels with even
beam patterns, low glare and minimal reflector
maintenance.
35 °C Ambient Rated
Lamp Included
Wattage Range:
250 to 400 W
Listed for Damp Locations
Consult Factory for CUL Availability
Twist-N-LockTM - Locked Twist-N-LockTM - Open
C
O
N
T
R
A
C
T
O
R
F
R
I
E
N
D
L
Y
![](asset-ad.png)
171
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
HID LIGHTING – HIGH BAYS & LOW BAYS
YB Series 14”, 16” & 22” Econobay High Bay
Heat Dissipating
Fins
The ballast
housing has
heat-dissipating
fins that release
heat into the air,
extending fixture
life.
Conduit Mount
Hook, Cord &
Plug
Order Code @
Replace dash (-)
in order code to indicate
Distributor PakTM.
Available only with
hard wire or hook, cord
& plug.
Not available
with options.
Distributor PakTM
C
O
N
T
R
A
C
T
O
R
F
R
I
E
N
D
L
Y
Packaging (-) Voltage (a) Options (b) (Factory Installed) Accessories: (Field Installed)
@ = Distributor PakTM
(optics, pod and
lamp in one carton)
M = Multi-tap
(tapped @ 277V)
M5 = 120 - 480V
400W MH only
(tapped @ 480V)
5 = 480 Volt
For hook, cord & plug,
specify voltage:
1 = 120V*
2 = 277V*
3 = 208V*
4 = 240V*
5 = 480V
*Supplied with Multi-tap
ballasts
C = Coated Lamp
D = Drop Lens Assembly
(available on 16” & 22 “ only)
K = Conical Lens Assembly
(available on 16” & 22 “ only)
L = Flat Lens Assembly
Quartz Standby (includes Quartz Lamp)
Q = Quartz Standby
A HK SC = Hook Only
SC-6 = Ballast/Reflector Safety Chain 6’
See page 188 for complete listing of lens and
guard options.
* Flat lens assembly included on all metal halide fixtures
YB Series Ordering Information
Series Reector
Size
Wattage Lamp Enclosed Rated Lamp
Conduit Mount
Enclosed Rated Lamp
Hook, Cord & Plug
Open Rated Lamp
Conduit Mount
Open Rated Lamp
Hook, Cord & Plug
YBM 14” 250 MH YBM0425-(a)L(b)* YBM2425-(a)L(b)* YBM0225-(a)(b) YBM2225-(a)(b)
250 MH/PS YBM0825-(a)L(b)* YBM2825-(a)L(b)* YBM0925-(a)(b) YBM2925-(a)(b)
320 MH/PS YBM0832-(a)L(b)* YBM2832-(a)L(b)* YBM0932-(a)(b) YBM2932-(a)(b)
350 MH/PS YBM0835-(a)L(b)* YBM2835-(a)L(b)* YBM0935-(a)(b) YBM2935-(a)(b)
400 MH YBM0440-(a)L(b)* YBM2440-(a)L(b)* YBM0240-(a)(b) YBM2240-(a)(b)
400 MH/MS YBM0740-(a)L(b)* YBM2740-(a)L(b)*
400 MH/PS YBM0840-(a)L(b)* YBM2840-(a)L(b)* YBM0940-(a)(b) YBM2940-(a)(b)
250 HPS YBM0525-(a)(b) YBM2525-(a)(b)
400 HPS YBM0540-(a)(b) YBM2540-(a)(b)
YBR 16” 250 MH YBR0425-(a)L(b)* YBR2425-(a)L(b)* YBR0225-(a)(b) YBR2225-(a)(b)
250 MH/PS YBR0825-(a)L(b)* YBR2825-(a)L(b)* YBR0925-(a)(b) YBR2925-(a)(b)
320 MH/PS YBR0832-(a)L(b)* YBR2832-(a)L(b)* YBR0932-(a)(b) YBR2932-(a)(b)
350 MH/PS YBR0835-(a)L(b)* YBR2835-(a)L(b)* YBR0935-(a)(b) YBR2935-(a)(b)
400 MH YBR0440-(a)L(b)* YBR2440-(a)L(b)* YBR0240-(a)(b) YBR2240-(a)(b)
400 MH/MS YBR0740-(a)L(b)* YBR2740-(a)L(b)*
400 MH/PS YBR0840-(a)L(b)* YBR2840-(a)L(b)* YBR0940-(a)(b) YBR2940-(a)(b)
250 HPS YBR0525-(a)(b) YBR2525-(a)(b)
400 HPS YBR0540-(a)(b) YBR2540-(a)(b)
YBL 22” 250 MH YBL0425-(a)L(b)* YBL2425-(a)L(b)* YBL0225-(a)(b) YBL2225-(a)(b)
250 MH/PS YBL0825-(a)L(b)* YBL2825-(a)L(b)* YBL0925-(a)(b) YBL2925-(a)(b)
320 MH/PS YBL0832-(a)L(b)* YBL2832-(a)L(b)* YBL0932-(a)(b) YBL2932-(a)(b)
350 MH/PS YBL0835-(a)L(b)* YBL2835-(a)L(b)* YBL0935-(a)(b) YBL2935-(a)(b)
400 MH YBL0440-(a)L(b)* YBL2440-(a)L(b)* YBL0240-(a)(b) YBL2240-(a)(b)
400 MH/MS YBL0740-(a)L(b)* YBL2740-(a)L(b)*
400 MH/PS YBL0840-(a)L(b)* YBR2840-(a)L(b)* YBL0940-(a)(b) YBL2940-(a)(b)
250 HPS YBL0525-(a)(b) YBL2525-(a)(b)
400 HPS YBL0540-(a)(b) YBL2540-(a)(b)
For all Hook, Cord & Plug units (both enclosed and open rated lamp), specify voltage (a) for plug.
Example
YBR 0 4 40 M C
Series Mounting Light Source Wattage Voltage Options
YBR = 16” Reflector 0 = Slide box 4 = MH 400 = 400W M = Multi-Tap C = Coated lamp
Ordering
Code 0
Ordering
Code 2
![](asset-ae.png)
172
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
HID LIGHTING – HIGH BAYS & LOW BAYS
Features
Housing
The heavy-duty die-cast aluminum ballast housing
has heat-dissipating fins (refer to photo on next
page) to extend ballast life that is rated at 65°C
ambient. Ballast pod is supplied in a white polyester
powder coat finish. Cover attaches to housing with
four screws for easy internal access. Segmented
ballast compartment for heat sink. Center-balanced
ballast and components ensure unit hangs straight.
Unique Y-pod design has a minimal horizontal
surface, which reduces collection of airborne particles
to retain new appearance.
Ballast
All fixtures are supplied with a high power factor
constant wattage ballast in multi-tap or 480 volt.
Lamps
The YL Series is furnished with 250-400W mogul
base lamps. Open rated fixtures are supplied with
restricted sockets and open rated lamps.
Reflector
The 16”, 22” and 25” UV stabilized, high-
performance clear prismatic acrylic refractor provides
over 90% efficiency and approximately 15 to 20%
uplight. Reflector design allows for ventilation,
which cleans contaminants from system.
Adjustable Distribution
The patented spring-loaded Twist-N-Lock™ reflector
attachment system allows for complete tool-free
reflector installation and seven-optic position
adjustment. Simply pull open the spring-loaded
locking pins and snap-lock the reflector in place.
Mounting Options
Direct hard wire or hook, cord & plug mounting is
available. A 2/3” threaded conduit hub is standard.
The hook, cord and plug option is furnished with a
die-cast aluminum Safety Snap-Lock hook that has
3/4” NPT threads, 6’ SOW16/3 cord and NEMA Twist
+ Lock plug.
Dimensions
Fixture Length Fixture Ceiling
Min. Max. Width Height
YLS Series
20.1” 23.1” 16” 20’ - 30’
YLM Series
22.7” 25.7” 22” 20’ - 30’
YLL Series
23.1” 25.1” 25” 20’ - 30’
YL Series 16”, 22” & 25” Prismatic Acrylic
16” Prismatic
Cat #: YLS0225, YLS0425 Certified Test Report: ITL36501
Lamp: 250W Coated MH IES File: ELS425FM.IES
Lumens: 25,000 Spacing Criteria: 2.2
Socket Position: 4
22” Prismatic
Cat #: YLM0240, YLM0440 Certified Test Report: ITL37107
Lamp: 400W Coated MH IES File: ELM440FM.IES
Lumens: 36,000 Spacing Criteria: 2.0
Socket Position: 5
-5'
-10'
-15'
-25'
-30'
5' 10' 15' 20' 25'
-35'
50 30
20
10
5
25” Prismatic
Cat #: YLL0240, YLL0440 Certified Test Report: ITL42314
Lamp: 400W Coated MH IES File: ELM440FM.IES
Lumens: 36,000 Spacing Criteria: 1.9
Socket Position: 3
-40'
-50'
-45'
30
-35'
-30'
-25'
-20'
-15'
-5'
-10'
10
20
50
30'25'20'15'10'5'
5
-5'
-10'
-15'
-20'
-25'
-30'
-35'
-40'
5' 10' 15' 20' 25' 30'
50
30
20
5
10
Photometric Data
(Isofootcandle Plots)
L
W
The economical YL Series fixture is designed
for commercial and industrial applications. Its
Y-Pod design is aesthetically pleasing, with no
exposed components or vents that can trap
contaminants. Its high-performance, clear
prismatic acrylic refractor produces a smooth,
even beam pattern with over a 90% efficiency
rate and approximately 15 to 20% uplight.
35 °C Ambient Rated
Lamp Included
Wattage Range:
250 to 400 W
Listed for Damp Locations
Consult Factory for CUL Availability
Twist-N-LockTM - Locked Twist-N-LockTM - Open
C
O
N
T
R
A
C
T
O
R
F
R
I
E
N
D
L
Y
![](asset-af.png)
173
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
HID LIGHTING – HIGH BAYS & LOW BAYS
YL Series 16”, 22” & 25” Prismatic Acrylic
Heat Dissipating
Fins
The ballast
housing has
heat-dissipating
fins that release
heat into the air,
extending fixture
life.
Conduit Mount
Hook, Cord &
Plug
Order Code @
Replace dash (-)
in order code to indicate
Distributor PakTM.
Available only with
hard wire or hook, cord
& plug.
Not available
with options.
Distributor PakTM
C
O
N
T
R
A
C
T
O
R
F
R
I
E
N
D
L
Y
Packaging (-) Voltage (a) Options (b) (Factory Installed) Accessories: (Field Installed)
@ = Distributor PakTM
(optics, pod and
lamp in one carton)
M = Multi-tap
(tapped @ 277V)
M5 = 120 - 480V
400W MH only
(tapped @ 480V)
5 = 480 Volt
For hook, cord & plug,
specify voltage:
1 = 120V*
2 = 277V*
3 = 208V*
4 = 240V*
5 = 480V
*Supplied with Multi-tap
ballasts
A = Aislelighters (25” only)
C = Coated Lamp*
D = Drop Lens Assembly
(available on 16” & 22 “ only)
K = Conical Lens Assembly
L = Flat Lens Assembly
Quartz Standby (includes Quartz Lamp)
Q = Quartz Standby
*Coated lamps are recommended.
Maximum effectiveness is achieved
through the use of coated lamps that
reduce glare.
A HK SC = Hook Only
SC-6 = Ballast/Reflector Safety Chain 6’
See page 188 for complete listing of lens and
guard options.
* Flat lens assembly included on all metal halide fixtures
YL Series Ordering Information
Series Reector
Size
Wattage
Lamp
Enclosed Rated Lamp
Conduit Mount
Enclosed Rated Lamp
Hook, Cord & Plug
Open Rated Lamp
Conduit Mount
Open Rated Lamp
Hook, Cord & Plug
YLS 16” 250 MH YLS0425-(a)L(b)* YLS2425-(a)L(b)* YLS0225-(a)(b) YLS2225-(a)(b)
250 MH/PS YLS0825-(a)L(b)* YLS2825-(a)L(b)* YLS0925-(a)(b) YLS2925-(a)(b)
320 MH/PS YLS0932-(a)(b) YLS2932-(a)(b)
350 MH/PS YLS0935-(a)(b) YLS2935-(a)(b)
400 MH YLS0240-(a)(b) YLS2240-(a)(b)
400 MH/PS YLS0940-(a)(b) YLS2940-(a)(b)
250 HPS YLS0525-(a)(b) YLS2525-(a)(b)
400 HPS YLS0540-(a)(b) YLS2540-(a)(b)
YLM 22” 250 MH YLM0425-(a)L(b)* YLM2425-(a)L(b)* YLM0225-(a)(b) YLM2225-(a)(b)
250 MH/PS YLM0825-(a)L(b)* YLM2825-(a)L(b)* YLM0925-(a)(b) YLM2925-(a)(b)
320 MH/PS YLM0832-(a)L(b)* YLM2832-(a)L(b)* YLM0932-(a)(b) YLM2932-(a)(b)
350 MH/PS YLM0835-(a)L(b)* YLM2835-(a)L(b)* YLM0935-(a)(b) YLM2935-(a)(b)
400 MH YLM0440-(a)L(b)* YLM2440-(a)L(b)* YLM0240-(a)(b) YLM2240-(a)(b)
400 MH/MS YLM0740-(a)L(b)* YLM2740-(a)L(b)*
400 MH/PS YLM0840-(a)L(b)* YLM2840-(a)L(b)* YLM0940-(a)(b) YLM2940-(a)(b)
250 HPS YLM0525-(a)(b) YLM2525-(a)(b)
400 HPS YLM0540-(a)(b) YLM2540-(a)(b)
YLL 25” 250 MH YLL0425-(a)L(b)* YLL2425-(a)L(b)* YLL0225-(a)(b) YLL2225-(a)(b)
250 MH/PS YLL0825-(a)L(b)* YLL2825-(a)L(b)* YLL0925-(a)(b) YLL2925-(a)(b)
320 MH/PS YLL0832-(a)L(b)* YLL2832-(a)L(b)* YLL0932-(a)(b) YLL2932-(a)(b)
350 MH/PS YLL0835-(a)L(b)* YLL2835-(a)L(b)* YLL0935-(a)(b) YLL2935-(a)(b)
400 MH YLL0440-(a)K(b)* YLL2440-(a)K(b)* YLL0240-(a)(b) YLL2240-(a)(b)
400 MH/PS YLL0840-(a)L(b)* YLL2840-(a)L(b)* YLL0940-(a)(b) YLL2940-(a)(b)
250 HPS YLL0525-(a)(b) YLL2525-(a)(b)
400 HPS YLL0540-(a)(b) YLL2540-(a)(b)
For all Hook, Cord & Plug units (both enclosed and open rated lamp), specify voltage (a) for plug.
Ordering
Code 0
Ordering
Code 2
Example
YLS 0 4 40 M C
Series Mounting Light Source Wattage Voltage Options
YLS = 16” Reflector 0 = Slide box 4 = MH 400 = 400W M = Multi-Tap C = Coated lamp
![](asset-b0.png)
174
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
HID LIGHTING – HIGH BAYS & LOW BAYS
Mounting Options
Direct hard wire, hook or hook, cord & plug
mounting is available. A 2/3” threaded conduit
hub is standard. The hook, cord and plug option is
furnished with a die-cast aluminum Safety Snap-Lock
hook that has 3/4” NPT threads, 6’ SOW16/3 cord
and NEMA Twist + Lock plug. Consult factory for
straight blade plug. To install lamp guard, simply
slide bracket to socket and tighten.
Packaging
When specified, units are packaged in a convenient
Distributor-Pak™ for easy inventory and shipping.
Features
Housing
The heavy-duty die-cast aluminum ballast housing
has heat-dissipating fins (refer to photo on next
page) to extend ballast life. Ballast pod is supplied in
a white polyester powder coat finish. Cover attaches
to housing with four screws for easy internal access.
Segmented ballast compartment for heat sink.
Center-balanced ballast and components ensure unit
hangs straight. Unique Y-pod design has a minimal
horizontal surface, which reduces collection of
airborne particles to retain new appearance.
Ballast
All fixtures are supplied with a high power factor
constant wattage ballast.
Lamps
All YTC fixtures are furnished with mogul base lamps.
Open rated fixtures are supplied with restricted
sockets and open rated lamps.
Optics
Chrome-plated steel wire guard protects lamps in
jobsites or other sites needing temporary lighting,
while allowing full light distribution.
Dimensions
Fixture Fixture Ceiling
Length Width Height
YTC Series
25.2” 9.25” Over 15’
L
W
YTC (TEMP-O) Series Temporary Jobsite Fixture
YTC Temporary Jobsite Fixture
Cat #: YTC2440
Lamp: 400W Clear MH
Lumens: 38,000
Certified Test Report: B2013
IES File: DTC440.IES
-5'
-10'
-15'
-20'
5'
10'
15'
20' 5' 10' 15' 20' 25' 30'
50
30 20
10
5
Photometric Data
(Isofootcandle Plots)
The YTC Series fixture offers a longer life and
cost-effective solution to incandescent string
lights. Heavy-duty construction withstands
repeated use. Fixture can be converted to a
permanent standard high bay/low bay with
the addition of the desired optical assembly.
Its Y-Pod design is aesthetically pleasing, with
no exposed components or vents that can trap
contaminants. Compatible with standard Y-pod
optical configurations.
35 °C Ambient Rated
Lamp Included
Wattage Range:
250 to 400 W
Listed for Damp Locations
Consult Factory for CUL Availability
TEMPORARY JOBSITE LIGHTING
OPEN RATED
![](asset-b1.png)
175
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
HID LIGHTING – HIGH BAYS & LOW BAYS
YTC (TEMP-O) Series Temporary Jobsite Fixture
Heat Dissipating
Fins
The ballast
housing has
heat-dissipating
fins that release
heat into the air,
extending fixture
life.
Conduit Mount
Hook, Cord &
Plug
Order Code @
Replace dash (-)
in order code to indicate
Distributor PakTM.
Available only with
hard wire or hook, cord
& plug.
Not available
with options.
Distributor PakTM
C
O
N
T
R
A
C
T
O
R
F
R
I
E
N
D
L
Y
Packaging (-) Voltage (a) Options (b) (Factory Installed) Accessories: (Field Installed)
@ = Distributor PakTM
(optics, pod and
lamp in one carton)
5 = 480 Volt
M = Multi-tap
(tapped @ 277V)
M5 = 120 - 480V
400W MH only
(tapped @ 480V)
For hook, cord & plug, specify
voltage:
1 = 120V*
2 = 277V*
3 = 208V*
4 = 240V*
5 = 480V
*Supplied with Multi-tap
ballasts
CP3 = 120 Volt
(Straight Blade)
C = Coated Lamp (Recommended)
LG = Replacement Guard
A HK SC = Hook Only
SC-6 = Ballast/Reflector Safety Chain 6’
YTC Series Ordering Information
Series Housing
Size
Wattage
Lamp
Enclosed Rated
Lamp
Conduit Mount
Enclosed Rated
Lamp
Hook Only
Enclosed Rated
Lamp
Hook, Cord &
Plug
Open Rated Lamp
Conduit Mount
Open Rated
Hook Only
Open Rated
Lamp
Hook, Cord &
Plug
YTC 11” 400 MH YTC0440-(a)(b) YTC1440-(a)(b) YTC2440-(a)(b) YTC0240-(a)(b) YTC1240-(a)(b) YTC2240-(a)(b)
250 HPS YTC0525-(a)(b) YTC1525-(a)(b) YTC2525-(a)(b)
400 HPS YTC0540-(a)(b) YTC1540-(a)(b) YTC2540-(a)(b)
Example
YTC 0 4 40 M C
Series Mounting Light Source Wattage Voltage Options
YTC = 11” Wire Guard 0 = Conduit Mount 4 = MH 40 = 400W M = Multi-tap C = Coated lamp
Ordering
Code 0
Ordering
Code 2
![](asset-b2.png)
176
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
HID LIGHTING – HIGH BAYS & LOW BAYS
Mounting Options
A direct hard wire with slide box or a hook, cord
& plug mounting is available. The slide box has an
adjustable hook assembly for fixture balancing. The
easy-access wiring chamber provides additional room
for wiring make-up.
Features
Housing
The heavy-duty die cast aluminum ballast housing
dissipates heat through cooling fins and comes
standard in a white polyester powder coating. Consult
factory for other color options.
Ballast
All fixtures are supplied with a high power factor high
reactance or constant wattage ballast in multi-tap or
480 volt.
Lamps
The LJS Series uses mogul base metal halide (175 -
400W), super high-output metal halide (400W) and
HPS (150 - 400W) lamps.
Optics
The compact 16” reflector covers a wide area with
both vertical and horizontal footcandles required for
most lighting tasks. The drop lens assembly is easily
snapped into place with a ring and stainless steel clips.
For dirty environments, special charcoal filter optics
are available to keep the inside refractor clean and
efficient.
Ratings
The LJS Series retains its UL listing for damp locations
and comes standard as a totally enclosed luminaire.
Wet location UL listing is available as an option.
Dimensions
Fixture Fixture Approx.
Length Width Ship Wt.
LJS Series
21.9” 16.0” 22 lbs.
Spacing Criteria:
1.3 - 2.0
L
W
LJS Series 16” Low Bay
16” Low Bay
Cat #: LJS0425, LJS2425
Lamp: 250W Clear MH
Lumens: 26,000
Certified Test Report: ITL45980
IES File: LBS425.IES
Spacing Criteria: 1.5
-5
-10
-15
-20
-25
-30
-35
0
510 15 20
50
30
20
10
5
Photometric Data
(Isofootcandle Plots)
This compact 16” low bay luminaire can be
used to minimize shadows, reduce fixture
glare and still deliver high light levels at low
mounting heights.
40 °C, 55 °C
Ambient Rated
Lamp Included
Wattage Range:
150 - 400 W
Listed for Damp Locations
Consult Factory for CUL Availability
LJ Series Ambient
Temperature Ratings
Fixture Enclosed Only
Wattage 25°C 40°C 55°C
175W yes yes yes
250W yes yes LJM/LJL
320W yes LJM/LJL LJL only
350W yes LJM/LJL LJL only
400W yes LJM/LJL LJL only
450W LJM/LJL LJM/LJL LJL only
![](asset-b3.png)
177
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
HID LIGHTING – HIGH BAYS & LOW BAYS
Mountings and Accessories
LJS Series 16” Low Bay
Accessory Code
SP-18
Swivel Pendant
Slide Box
Hook, Cord &
Plug
Order Code @
Replace dash (-)
in order code to indicate
Distributor PakTM.
Available only with
hard wire or hook, cord
& plug.
Not available
with options.
Distributor PakTM
C
O
N
T
R
A
C
T
O
R
F
R
I
E
N
D
L
Y
Packaging (-) Voltage (a) Options (b) (Factory Installed) Accessories: (Field Installed)
@ = Distributor PakTM
(optics, pod and
lamp in one carton)
M = Multi-tap
(tapped @ 277V)
M5 = 120 - 480V
400W MH only
(tapped @ 480V)
5 = 480 Volt
For hook, cord & plug,
specify voltage:
1 = 120V*
2 = 277V*
3 = 208V*
4 = 240V*
5 = 480V
*Supplied with Multi-tap
ballasts
Fusing
(x)F = Single - Specify voltage (x):
1 = 120V; 2 = 277V
(x)J = Dual - Specify voltage (x):
3 = 208V; 4 = 240V; 5 = 480V
Q = Quartz Standby
G = Totally Enclosed with Air Filter
W = Wet Location (Hardwire Only)
A HK SC = Mounting Hook - 3/4” Thread
with Safety Snap-Lock™
SC-6 = Ballast/Reflector Safety Chain - 6’
SP-18 = Swivel Pendant Mount 3/4” x
18” long (other lengths available
upon request)
†† Must be used with High-2-Low, 190
LJS Series Ordering Information
Series Reector Size Wattage Lamp Enclosed Rated Lamp
Slide-Box
Enclosed Rated Lamp
Hook, Cord & Plug
LJS 16” 175W MH LJS0417-(a)(b) LJS2417-(a)(b)
175W MH/PS LJS0817-(a)(b) LJS2817-(a)(b)
200W MH/PS LJS0820-(a)(b) LJS2820-(a)(b)
250W MH LJS0425-(a)(b) LJS2425-(a)(b)
250W MH/PS LJS0825-(a)(b) LJS2825-(a)(b)
320W MH/PS* LJS0832-(a)(b) LJS2832-(a)(b)
350W MH/PS* LJS0835-(a)(b) LJS2835-(a)(b)
400W MH* LJS0440-(a)(b) LJS2440-(a)(b)
400W MH/PS* LJS0840-(a)(b) LJS2840-(a)(b)
400W MH-MS* LJS0740-(a)(b) LJS2740-(a)(b)
150W HPS LJS0515-(a)(b) LJS2515-(a)(b)
250W HPS LJS0525-(a)(b) LJS2525-(a)(b)
400W HPS LJS0540-(a)(b) LJS2540-(a)(b)
* Reduced Jacketed Lamp Required
Example
LJS 0 4 40 M C
Series Mounting Light Source Wattage Voltage Options
LJS = 16” Low Bay 0 = Slide Box 4 = MH 40 = 400W M = Multi-tap C = Coated lamp
Ordering
Code 0
Ordering
Code 2
![](asset-b4.png)
178
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
HID LIGHTING – HIGH BAYS & LOW BAYS
Mounting Options
A direct hard wire with slide box or a hook, cord
& plug mounting is available. The slide box has an
adjustable hook assembly for fixture balancing. The
easy-access wiring chamber provides additional room
for wiring make-up.
Features
Housing
The heavy-duty die cast aluminum ballast housing
dissipates heat through cooling fins and comes
standard in a white polyester powder coating.
Consult factory for other color options.
Ballast
All fixtures are supplied with a high power factor
constant wattage ballast in multi-tap or 480 volt.
Lamps
The LJM Series uses mogul base metal halide (175 -
400W), super high-output metal halide (400W) and
HPS (250 - 400W) lamps.
Optics
The compact 22” reflector is totally enclosed. The
drop lens assembly is easily snapped into place with
four clips and is hinged to provide tool-free lamp
access. The refractor is made of virgin, color-resistant
acrylic. For dirty environments, special charcoal filter
optics are available to keep the inside refractor clean
and efficient (option G).
Ratings
The LJM Series retains its UL listing for damp
locations and comes standard as a totally enclosed
luminaire. Wet location UL listing is available as an
option.
Dimensions
Fixture Fixture Approx.
Length Width Ship Wt.
LJM Series
23.8” 22.0” 24 lbs.
Spacing Criteria:
1.8
L
W
LJM Series 22” Low Bay
22” Low Bay
Cat #: LJM0440, LJM2440
Lamp: 400W Clear MH
Lumens: 38,000
Certified Test Report: ITL45177
IES File: LBM440SE.IES
Spacing Criteria: 1.8
-5
-10
-15
-20
-25
-30
-35
-40
05 10 15 20 25
50
30
20
10
10 5
Photometric Data
(Isofootcandle Plots)
The LJM Series is perfect for both commercial
and industrial applications that require high
light levels, superior spacial perception and a
wide beam pattern at low mounting heights.
40 °C, 55 °C
Ambient Rated
Lamp Included
Wattage Range:
175 - 450 W
Listed for Damp Locations
Consult Factory for CUL Availability
LJ Series Ambient
Temperature Ratings
Fixture Enclosed Only
Wattage 25°C 40°C 55°C
175W yes yes yes
250W yes yes LJM/LJL
320W yes LJM/LJL LJL only
350W yes LJM/LJL LJL only
400W yes LJM/LJL LJL only
450W yes LJM/LJL LJL only
![](asset-b5.png)
179
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
HID LIGHTING – HIGH BAYS & LOW BAYS
LJM Series 22” Low Bay
Optical Chamber
Air Filter
Ordering
Code G
The granular
charcoal air
filter can be
mounted on top
of the reflector
to prevent dirt
contaminants.
Mountings and Accessories
Accessory Code
SP-18
Swivel Pendant
Slide Box
Hook, Cord &
Plug
Order Code @
Replace dash (-)
in order code to indicate
Distributor PakTM.
Available only with
hard wire or hook, cord
& plug.
Not available
with options.
Distributor PakTM
C
O
N
T
R
A
C
T
O
R
F
R
I
E
N
D
L
Y
Packaging (-) Voltage (a) Options (b) (Factory Installed) Accessories: (Field Installed)
@ = Distributor PakTM
(optics, pod and
lamp in one carton)
M = Multi-tap
(tapped @ 277V)
M5 = 120 - 480V
400W MH only
(tapped @ 480V)
5 = 480 Volt
For hook, cord & plug,
specify voltage:
1 = 120V*
2 = 277V*
3 = 208V*
4 = 240V*
5 = 480V
*Supplied with Multi-tap
ballasts
Fusing
(x)F = Single - Specify voltage (x):
1 = 120V; 2 = 277V
(x)J = Dual - Specify voltage (x):
3 = 208V; 4 = 240V; 5 = 480V
Q = Quartz Standby
G = Totally Enclosed with Air Filter
W = Wet Location (Hardwire Only)
A HK SC = Mounting Hook - 3/4” Thread
with Safety Snap-Lock™
SC-6 = Ballast/Reflector Safety Chain - 6’
SP-18 = Swivel Pendant Mount 3/4” x 18”
long (other lengths available
upon request)
LJM Series Ordering Information
Series Reector Size Wattage Lamp Enclosed Rated Lamp
Slide-Box
Enclosed Rated Lamp Hook,
Cord & Plug
LJM 22” 175W MH LJM0417-(a)(b) LJM2417-(a)(b)
175W MH/PS LJM0817-(a)(b) LJM2817-(a)(b)
200W MH/PS LJM0820-(a)(b) LJM2820-(a)(b)
250W MH LJM0425-(a)(b) LJM2425-(a)(b)
250W MH/PS LJM0825-(a)(b) LJM2825-(a)(b)
320W MH/PS LJM0832-(a)(b) LJM2832-(a)(b)
350W MH/PS LJM0835-(a)(b) LJM2835-(a)(b)
400W MH LJM0440-(a)(b) LJM2440-(a)(b)
400W MH/PS LJM0840-(a)(b) LJM2840-(a)(b)
400W MH/MS LJM0740-(a)(b) LJM2740-(a)(b)
450W MH/PS LJM0845-(a)(b) LJM2845-(a)(b)
250W HPS LJM0525-(a)(b) LJM2525-(a)(b)
400W HPS LJM0540-(a)(b) LJM2540-(a)(b)
Example
LJM 0 4 17 M Q
Series Mounting Light Source Wattage Voltage Options
LJS = 16” Reflector 0 = Slide Box 4 = MH 17 = 175W M = Multi-tap Q = Quartz Standby
Ordering
Code 0
Ordering
Code 2
![](asset-b6.png)
180
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
HID LIGHTING – HIGH BAYS & LOW BAYS
Mounting Options
A direct hard wire with slide box or a hook, cord
& plug mounting is available. The slide box has an
adjustable hook assembly for fixture balancing. The
easy-access wiring chamber provides additional room
for wiring make-up.
Features
Housing
The heavy-duty die cast aluminum ballast housing
dissipates heat through cooling fins and comes
standard in a white polyester powder coating.
Consult factory for other color options.
Ballast
All fixtures are supplied with a high power factor
constant wattage ballast in multi-tap or 480 volt.
Lamps
The LJL Series uses mogul base metal halide (175 -
400W), super high-output metal halide (400W) and
HPS (250 - 400W) lamps.
Optics
The totally enclosed 30” aluminum reflector spreads
light evenly and with minimum glare. The drop lens
assembly is easily snapped into place with four clips
and is hinged to provide tool-free lamp access. The
refractor is made of virgin, color-resistant acrylic.
For dirty environments, special charcoal filter optics
are available to keep the inside refractor clean and
efficient (option G).
Ratings
The LJL Series retains its UL listing for damp
locations and comes standard as a totally enclosed
luminaire. Wet location UL listing is available as an
option.
Dimensions
Fixture Fixture Approx.
Length Width Ship Wt.
LJL Series
21.0” 30.0” 26 lbs.
Spacing Criteria:
1.3 - 2.0
L
W
LJL Series 30” Low Bay
30” Low Bay
Cat #: LJL0440, LJL2440
Lamp: 400W Clear MH
Lumens: 38,000
Certified Test Report: LTL03846
IES File: LBL0440.IES
Spacing Criteria: 1.5
0
-5
-10
-15
-20
-25
-30
-35
-40
510 15 20 25 30
50 30 20
10
5
Photometric Data
(Isofootcandle Plots)
Designed for both commercial and industrial
applications, the LJL Series features a wide
30” optics that delivers virtually glare-free
lighting with excellent fixture efficiency at
low mounting heights.
40 °C, 55 °C
Ambient Rated
Lamp Included
Wattage Range:
175 - 450 W
Listed for Damp Locations
Consult Factory for CUL Availability
LJ Series Ambient
Temperature Ratings
Fixture Enclosed Only
Wattage 25°C 40°C 55°C
175W yes yes yes
250W yes yes LJM/LJL
320W yes LJM/LJL LJL only
350W yes LJM/LJL LJL only
400W yes LJM/LJL LJL only
450W yes LJM/LJL LJL only
![](asset-b7.png)
181
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
HID LIGHTING – HIGH BAYS & LOW BAYS
Mountings and Accessories
LJL Series 30” Low Bay
Optical Chamber
Air Filter
Ordering
Code G
The granular
charcoal air
filter can be
mounted on top
of the reflector
to prevent dirt
contaminants.
Accessory Code
SP-18
Swivel Pendant
Slide Box
Hook, Cord &
Plug
Voltage (a) Options (b) (Factory Installed) Accessories: (Field Installed)
M = Multi-tap
(tapped @ 277V)
M5 = 120 - 480V
400W MH only
(tapped @ 480V)
5 = 480 Volt
For hook, cord & plug,
specify voltage:
1 = 120V*
2 = 277V*
3 = 208V*
4 = 240V*
5 = 480V
*Supplied with Multi-tap
ballasts
G = Totally Enclosed with Air Filter
H = High-2-Low Option (250-400W
MH, 320-400W MH/PS)††
(CWA only)
W = Wet Location (Hardwire Only)
Fusing
(x)F = Single - Specify voltage (x):
1 = 120V; 2 = 277V
(x)J = Dual - Specify voltage (x):
3 = 208V; 4 = 240V; 5 = 480V
Quartz Standby (includes Quartz Lamp)
Q = Quartz Standby
A HK SC = Mounting Hook - 3/4” Thread
with Safety Snap-Lock™
SC-6 = Ballast/Reflector Safety Chain - 6’
SP-18 = Swivel Pendant Mount 3/4” x 18”
long (other lengths available
upon request)
†† Must be used with High-2-Low, 190
LJL Series Ordering Information
Series Reector Size Wattage Lamp Slide Box Hook, Cord & Plug
LJL 30” 175W MH LJL0417-(a)(b) LJL2417-(a)(b)
175W MH/PS LJL0817-(a)(b) LJL2817-(a)(b)
200W MH/PS LJL0820-(a)(b) LJL2820-(a)(b)
250W MH LJL0425-(a)(b) LJL2425-(a)(b)
250W MH/PS LJL0825-(a)(b) LJL2825-(a)(b)
320W MH/PS LJL0832-(a)(b) LJL2832-(a)(b)
350W MH/PS LJL0835-(a)(b) LJL2835-(a)(b)
400W MH LJL0440-(a)(b) LJL2440-(a)(b)
400W MH/PS LJL0840-(a)(b) LJL2840-(a)(b)
400W MH/MS LJL0740-(a)(b) LJL2740-(a)(b)
450W MH/PS LJL0845-(a)(b) LJL2845-(a)(b)
250W HPS LJL0525-(a)(b) LJL2525-(a)(b)
400W HPS LJL0540-(a)(b) LJL2540-(a)(b)
Example
LJL 0 4 32 M Q
Series Mounting Light Source Wattage Voltage Options
LJL = 30” Reflector 0 = Slide Box 4 = MH 32 = 320W M = Multi-tap Q = Quartz Standby
Ordering
Code 0
Ordering
Code 2
![](asset-b8.png)
182
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
HID LIGHTING – HIGH BAYS & LOW BAYS
Mounting Options
Direct hard wire or hook, cord & plug mounting is
available. A 2/3” threaded conduit hub is standard.
The hook, cord and plug option is furnished with a
die-cast aluminum Safety Snap-Lock hook that has
fl” NPT threads, 6’ SOW16/3 cord and NEMA Twist
+ Lock plug. Simple keyhole installation of optical
assembly.
Features
Housing
The heavy-duty die-cast aluminum housing dissipates
heat through cooling fins. Ballast pod is supplied in
a white polyester powder coat finish. Cover attaches
to housing with four screws for easy internal access.
Segmented ballast compartment for heat sink.
Center-balanced ballast and components ensure unit
hangs straight. Unique Y-pod design has a minimal
horizontal surface, which reduces collection of
airborne particles to retain new appearance.
Ballast
All fixtures are supplied with a high power factor high
reactance or constant wattage ballast in multi-tap or
480 volt.
Lamps
The LYS Series is available with 250-400W metal
halide, 400W super high output metal halide,
250-400W pulse start metal halide or 150-400W
high-pressure sodium mogul lamps.
Optics
The compact 16” reflector covers a wide area with
both vertical and horizontal footcandles required for
most lighting tasks. The drop lens assembly is easily
snapped into place with a ring and stainless steel
clips.
Dimensions
Fixture Fixture Approx.
Length Width Ship Wt.
LYS Series
25” 16.6” Below 20’
L
W
LYS Series 16” Low Bay Y Pod
16” Low Bay
Cat #: LYS0425, LYS2425
Lamp: 250W Clear MH
Lumens: 26,000
Certified Test Report: ITL45980
IES File: LBS425.IES
Spacing Criteria: 1.5
-5
-10
-15
-20
-25
-30
-35
0
510 15 20
50
30
20
10
5
Photometric Data
(Isofootcandle Plots)
This compact LYS Series16” low bay luminaire
incorporates a Y-pod design that is aesthetically
pleasing and functional. A minimal horizontal
surface reduces the collection of airborne
particles to retain its new appearance. Fixtures
can be used to minimize shadows, reduce
fixture glare and still deliver high light levels
at low mounting heights. Recommended for
temperatures exceeding
35 degrees.
Lamp Included
Wattage Range:
150 - 400 W
Listed for Damp Locations
Consult Factory for CUL Availability
![](asset-b9.png)
183
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
HID LIGHTING – HIGH BAYS & LOW BAYS
Mountings and Accessories
LYS Series 16” Low Bay Y Pod
Conduit Mount
Hook, Cord &
Plug
Order Code @
Replace dash (-)
in order code to indicate
Distributor PakTM.
Distributor PakTM
C
O
N
T
R
A
C
T
O
R
F
R
I
E
N
D
L
Y
LYS Series Ordering Information
Series Reector Size Wattage Lamp Conduit Mount Hook, Cord & Plug
LYS 16” 250W MH LYS0425-(a)(b) LYS2425-(a)(b)
250W MH/PS LYS0825-(a)(b) LYS2825-(a)(b)
320W MH/PS * LYS0832-(a)(b) LYS2832-(a)(b)
350W MH/PS * LYS0835-(a)(b) LYS2835-(a)(b)
400W MH * LYS0440-(a)(b) LYS2440-(a)(b)
400W MH/PS * LYS0840-(a)(b) LYS2840-(a)(b)
400W MH-MS * LYS0740-(a)(b) LYS2740-(a)(b)
150W HPS LYS0515-(a)(b) LYS2515-(a)(b)
250W HPS LYS0525-(a)(b) LYS2525-(a)(b)
400W HPS LYS0540-(a)(b) LYS2540-(a)(b)
* Reduced Jacketed Lamp Required
Packaging (-) Voltage (a) Options (b) (Factory Installed) Accessories: (Field Installed)
@ = Distributor PakTM
(optics, pod and
lamp in one carton)
M = Multi-tap
(tapped @ 277V)
M5 = 120 - 480V
400W MH only
(tapped @ 480V)
5 = 480 Volt
For hook, cord & plug,
specify voltage:
1 = 120V*
2 = 277V*
3 = 208V*
4 = 240V*
5 = 480V
*Supplied with Multi-tap
ballasts
Quartz Standby (includes Quartz Lamp)
Q = Quartz Standby
A HK SC = Mounting Hook - 3/4” Thread
with Safety Snap-Lock™
SC-6 = Ballast/Reflector Safety Chain - 6’
SP-18 = Swivel Pendant Mount 3/4” x 18”
long (other lengths available
upon request)
Example
LYS 0 4 25 M Q
Series Mounting Light Source Wattage Voltage Options
LYS = 16” Reflector 0 = Slide Box 4 = MH 25 = 250W M = Multi-tap Q = Quartz Standby
Ordering
Code 0
Ordering
Code 2
![](asset-ba.png)
184
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
HID LIGHTING – HIGH BAYS & LOW BAYS
Mounting Options
Direct hard wire or hook, cord & plug mounting is
available. A 2/3” threaded conduit hub is standard.
The hook, cord and plug option is furnished with a
die-cast aluminum Safety Snap-Lock hook that has
3/4” NPT threads, 6’ SOW16/3 cord and NEMA Twist
+ Lock plug. Simple keyhole installation of optical
assembly.
Features
Housing
The heavy-duty die-cast aluminum housing dissipates
heat through cooling fins. Ballast pod is supplied in
a white polyester powder coat finish. Cover attaches
to housing with four screws for easy internal access.
Segmented ballast compartment for heat sink.
Center-balanced ballast and components ensure unit
hangs straight. Unique Y-pod design has a minimal
horizontal surface, which reduces collection of
airborne particles to retain new appearance.
Ballast
All fixtures are supplied with a high power factor
constant wattage ballast in multi-tap or 480 volt.
Lamps
The LYM/LYL Series is available with 250-400W
metal halide, 400W super high output metal halide,
250-400W pulse start metal halide or 250-400W
high-pressure sodium mogul lamps.
Optics
The compact reflector covers a wide area with both
vertical and horizontal footcandles required for
most lighting tasks. The drop lens assembly is easily
snapped into place with a ring and stainless steel
clips. For dirty environments, special charcoal filter
optics are available to keep the inside refractor clean
and efficient. (Option G)
Dimensions
Fixture Fixture Ceiling
Length Width Height
LYM Series
27” 22 Below 20’
LYL Series
24.2” 30” Below 20’
LYM/LYL Series 22” & 30” Low Bay
30” Low Bay
Cat #: LYL0440, LYL2440 Certified Test Report: LTL03846
Lamp: 400W Clear MH IES File: LBL0440.IES
Lumens: 38,000 Spacing Criteria: 1.5
0
-5
-10
-15
-20
-25
-30
-35
-40
510 15 20 25 30
50 30 20
10
5
22” Low Bay
Cat #: LYM0440, LYM2440 Certified Test Report: ITL45177
Lamp: 400W Clear MH IES File: LBM440SE.IES
Lumens: 38,000 Spacing Criteria: 1.8
-5
-10
-15
-20
-25
-30
-35
-40
05 10 15 20 25
50
30
20
10
10 5
Photometric Data
(Isofootcandle Plots)
L
L
W
W
LYM Series
LYL Series
LYM Series
LYL Series
The LYL/LYM Series are perfect for both
commercial and industrial applications that
require high light levels, superior spacial
perception and a wide beam pattern at
low mounting heights. The Y-pod design
is aesthetically pleasing, with a minimal
horizontal surface that reduces the collection
of airborne particles. The LYL Series features
a wide 30” optics that delivers virtually glare-
free lighting.
Lamp Included
Wattage Range:
250 - 400 W
Listed for Damp Locations
Consult Factory for CUL Availability
![](asset-bb.png)
185
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
HID LIGHTING – HIGH BAYS & LOW BAYS
Mountings and Accessories
LYM/LYL Series 22” & 30” Low Bay
Conduit Mount
Hook, Cord &
Plug
Order Code @
Replace dash (-)
in order code to indicate
Distributor PakTM.
Available only with
hard wire or hook, cord
& plug.
Not available
with options.
Distributor PakTM
C
O
N
T
R
A
C
T
O
R
F
R
I
E
N
D
L
Y
LY Series Ordering Information
Series Reector Size Wattage Lamp Conduit Mount Hook, Cord & Plug
LYM 22” 250W MH LYM0425-(a)(b) LYM2425-(a)(b)
250W MH/PS LYM0825-(a)(b) LYM2825-(a)(b)
320W MH/PS LYM0832-(a)(b) LYM2832-(a)(b)
350W MH/PS LYM0835-(a)(b) LYM2835-(a)(b)
400W MH LYM0440-(a)(b) LYM2440-(a)(b)
400W MH/PS LYM0840-(a)(b) LYM2840-(a)(b)
400W MH/MS LYM0740-(a)(b) LYM2740-(a)(b)
250W HPS LYM0525-(a)(b) LYM2525-(a)(b)
400W HPS LYM0540-(a)(b) LYM2540-(a)(b)
LYL 30” 250W MH LYL0425-(a)(b) LYL2425-(a)(b)
250W MH/PS LYL0825-(a)(b) LYL2825-(a)(b)
320W MH/PS LYL0832-(a)(b) LYL2832-(a)(b)
350W MH/PS LYL0835-(a)(b) LYL2835-(a)(b)
400W MH LYL0440-(a)(b) LYL2440-(a)(b)
400W MH/PS LYL0840-(a)(b) LYL2840-(a)(b)
400W MH/MS LYL0740-(a)(b) LYL2740-(a)(b)
250W HPS LYL0525-(a)(b) LYL2525-(a)(b)
400W HPS LYL0540-(a)(b) LYL2540-(a)(b)
Packaging (-) Voltage (a) Options (b) (Factory Installed) Accessories: (Field Installed)
@ = Distributor PakTM
(optics, pod and
lamp in one carton)
M = Multi-tap
(tapped @ 277V)
M5 = 120 - 480V
400W MH only
(tapped @ 480V)
5 = 480 Volt
For hook, cord & plug,
specify voltage:
1 = 120V*
2 = 277V*
3 = 208V*
4 = 240V*
5 = 480V
*Supplied with Multi-tap
ballasts
Quartz Standby (includes Quartz Lamp)
Q = Quartz Standby
A HK SC = Mounting Hook - 3/4” Thread
with Safety Snap-Lock™
SC-6 = Ballast/Reflector Safety Chain - 6’
SP-18 = Swivel Pendant Mount 3/4” x 18”
long (other lengths available
upon request)
Example
LYM 0 4 25 M Q
Series Mounting Light Source Wattage Voltage Options
LYM = 22” Reflector 0 = Slide Box 4 = MH 25 = 250W M = Multi-tap Q = Quartz Standby
Ordering
Code 0
Ordering
Code 2
![](asset-bc.png)
186
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
HID LIGHTING – HIGH BAYS & LOW BAYS
Hook, Cord & Plug
Fixture mounting hook with Safety Snap-Lock™. Furnished with a 6’ cord and NEMA
standard Twist + Lock plug for voltage specified.
Approx. shipping weight: 1 lb.
Slide Box
A 3/4” threaded conduit entry is standard for rigid conduit.
Thru-Feed: (2) 1/2” knockouts are available for through-feed wiring.
Approx. shipping weight: 1 lb.
Ordering Code A HK SC
Mounting Hook
The 3/4” threaded mounting safety hook comes standard with the Safety Snap-Lock™ feature.
Ordering Code PH (specify voltage - see below)
Power Hook
For use with any of the Industrial fixtures with Hook, Cord & Plug mounting. Provides
three threaded knockouts for 3/4” conduit entry, an eye hanger to support the fixture,
and a Twist + Lock receptacle to accommodate appropriate plug.
Available for 120, 208, 240, 277 & 480V.
Ordering codes are as follows: PH120, PH250 (208-240V), PH277, PH480
Approx. shipping weight: 1.5 lbs.
Ordering Code PHA
Power Hook Adaptor
The Power Hook Adaptor attaches to the Power Hook and allows fastening to a flat surface
using the four holes provided on the bracket.
Ordering Code SC-6
Ballast / Reflector Safety Chain
6’ long ballast/safety chain provides added security for either Hook, Cord & Plug or Slide Box
mounted fixtures. A 12” reflector safety chain section is used for securing the reflector to the
ballast housing.
Options & Accessories
![](asset-bd.png)
187
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
HID LIGHTING – HIGH BAYS & LOW BAYS
Ordering Code SP-18
Swivel Pendant
3/4” x 18” long pipe is attached to a swivel for mounting to 4” round conduit box only (other lengths are
available upon request. Special lengths may require couplers and/or longer lead times.) Lengths include
threaded ends (1/2” to 3/4” per end).
Approx. shipping weight: 2.5 lbs.
Ordering Code F (Single)
Ordering Code J (Dual)
External Fuse
Fusing can help troubleshoot a short or overload in the circuit. A single fuse is used for fixtures with a 120
or 277V ballast. A dual fuse is used for fixtures with a 208, 240, or 480V.
Quartz Standby
Ordering Code Q (Hot/Cold)
Supplies auxiliary lighting after momentary power outage and will automatically extinguish after HID lamp has
come up to full power. Available for up to 400 and 1000W for both metal halide and HPS lamps. Uses 150W
double jacketed DC-based halogen lamp up to 400W fixtures & 250W DC halogen for 1000W fixtures.
Ordering Code G
Granular Charcoal Air Filter
Granular Charcoal Air Filter can be mounted on top of the reflector on all low bays and most high bays. Helps
prevent dirt contaminants from entering the optical chamber.
Ordering Code See Below
Twist + Lock Receptacle
A NEMA standard Twist + Lock receptacle is available for use with any Industrial light with Hook, Cord &
Plug mounting. Catalog number specifies voltage, as follows:
Ordering Code H
J-Series High-2-LowTM Option
Low voltage switching module shown attached to fixture. See page 190 for full details.
Options & Accessories
Voltage NEMA Type
120 L5-15R
208 or 240 L6-15R
277 L7-15R
480 L8-20R
![](asset-be.png)
188
JBM & YBM Reflector JBR & YBR Reflector JBL & YBL Reflector JCS & ZCS Reflector JCL & ZCL Reflector
Description EB14 EB16 EB22 SDC17 SDC22
Flat glass lens / ring EB14LA-HR EB16LA EB22GLA SD17LA SDC22LA
assembly
Wire Guard for flat EB14G EB16DG EB22DG SDC17LA/SDC17DG* SDC22LA/EB22DG*
glass assembly
*Pre-assembled wire
guard & lens
assembly
Flat acrylic lens/ring EB22FLA
assembly Up to 450W only
Wire guard for flat EB22DG
acrylic lens assembly
Conical acrylic EB16CLA EB22CLA
prismatic lens/ring
assembly
Wire guard EB22WG EB22WG
Snaps into place
Fits all 22” shades
with or without
lens assembly
Drop acrylic EB16DLA EB22DLA
prismatic lens/ring
assembly
Wire guard for drop EB22WG
lens assembly
Wire guard EB14G-HR EB16WG EB22DG-R SDC17WG
without lens
For use with open
rated lamps
Full wire guard cage 822FWG 822FWG 822FWG 822FWG 822FWG
for complete optics
assembly
HID LIGHTING – HIGH BAYS & LOW BAYS
Reflector Options & Accessories
![](asset-bf.png)
189
JLC Refractor JLS, YLS & ZLS Refractor JLM, YLM & ZLM Refractor JLL & ZLL Refractor
Description LEX812 LEX816 LEX822 LEX825
Flat glass lens / ring
assembly
Wire Guard for flat
glass assembly
Flat acrylic 812FLA 816FLA 822FLA
lens/ring assembly
Wire guard for 816WG
flat acrylic lens
assembly
Conical acrylic 812CLA 816CLA 822CLA-HR 825S-CLA
or asymmetrical or
Aislelighter prismatic 825A-CLA for Aislelighter
lens/ring assembly
Wire guard EB22WG
Snaps into place
Fits all 22” shades
without lens
assembly
Drop acrylic prismatic 812DLA* 816DLA 822DLA-HR
lens/ring assembly
*812DLA is not
prismatic
Wire guard 816DG-R 822WG 8225G-R
without lens
For use with
open rated lamps
Full wire guard cage 822FWG 822FWG 822FWG
for complete optics
assembly
HID LIGHTING – HIGH BAYS & LOW BAYS
Refractor Options & Accessories
(450W Max on JLL)
![](asset-c0.png)
190
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
HID LIGHTING – HIGH BAYS & LOW BAYS
sensor (CX-105-1) are optionally available. Mounting
hardware is available for attaching sensors to a
fixture reflector/refractor or building.
Dimensions
3.3”L x 3.3”W x 2.1”D
(83.8 mm x 83.8 mm x 53.3 mm)
Mounting Options
Swivel Bracket
A swivel-mounting bracket (see
drawing) allows the sensor to
be angled for convenient corner
mounting to wall or ceiling. Grooves
on the bracket help to achieve
desired angle for coverage. The
swivel bracket comes standard with
the CX Series Sensors.
Mounting Brackets
Used with mounting brackets MB2 and MB1.
Ordering
For ordering information, refer to page 193.
can be set from 15 seconds through 30 minutes
by two-minute increments. Sensitivity is also
programmed through the DIP switches, which have
four settings from minimum to maximum.
Sensor Models
Sensing coverage is 1200 SF for the CI-205 module,
while coverage is optimal at 500SF using the high-
density lens for walking motion with the CI-205-1
module.
Dimensions
3.3” diameter x 3.3” deep
(85 mm x 56 mm)
Extends approximately 0.36” from ceiling
Mounting Options
Various mounting options are available including MB1
and MB2 mounting brackets.
Ordering
For ordering information, refer to page 193.
Ordering Code MB2
Industrial Mount Bracket
Direct mount to acrylic
and aluminum optics
Ordering Code MB1
Fixture Mount Bracket
Used for installing the sensors
to ceilings or fixtures in
industrial settings such as
warehouses.
Features
In addition to ASIC technology that reduces the
number of components while enhancing unit
reliability, the CX-105 Passive Infrared Occupancy
Sensor features Pulse Count processing that
eliminates false offs without reducing sensitivity.
Detection Signature Analysis eliminates false triggers
and provides immunity to RFI and EMI. Multi-level
Fresnel lens offers superior desktop occupancy
detection that is signaled with
a red LED.
Adjustable Time Delays
An adjustable digital time-delay functions through
the highly accurate digital timer built into the sensor.
Programming is executed through DIP switches that
can be set from 15 seconds through 30 minutes
by two-minute increments. Sensitivity is also
programmed through the DIP switches, which have
four settings from minimum to maximum.
Sensor Selection
Sensors come standard with a dense wide-angle lens
(CX-105). A one-sided aisleway sensor
(CX-105-4), a two-sided aisleway sensor
(CX-105-3), or a long-range, one-sided aisleway
Features
In addition to ASIC technology that reduces the
number of components while enhancing unit
reliability, the CI-205 Round Motion Sensor features
Pulse Count processing that eliminates false offs
without reducing sensitivity. Detection Signature
Analysis also eliminates false triggers and provides
immunity to RFI and EMI. Multi-level Fresnel lens
offers superior desktop occupancy detection that is
signaled with a red LED.
Adjustable Time Delays
An adjustable digital time delay functions through
the highly accurate digital times built into the sensor.
Programming is executed through DIP switches that
High-2-LowTM Lighting System
This dual-element, temperature-compensated
pyroelectric sensor is ideal for operating in
conjunction with the SDM-100 Bi-Level Electronic
Control Module (see 190), which provides 24V DC
power to the sensor.
Mounting Brackets
CX-105
Passive Infrared Occupancy Sensor
This dual-element, temperature-compensated
pyroelectric sensor is ideal for areas requiring 360°
sensor coverage. Typically used in open areas
without racking, the low-profile sensor operates in
conjunction with the SDM-100 Bi-Level Electronic
Control Module (see page 190). Installation of the
low voltage (24V DC) system is simple using a two-
pair twisted, low voltage wire between the bi-level
module and the sensor.
CI-205
Round Motion Sensor
Industrial Mount
Bracket
Ordering Code
MB2
Fixture Mount Bracket
Ordering Code
MB1
Listed
![](asset-c1.png)
191
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
HID LIGHTING – HIGH BAYS & LOW BAYS
Mounting Brackets
High-2-LowTM Lighting System
Ordering Code MB1
Fixture Mount Bracket
Used for installing the
sensors to ceilings or fixtures
in industrial settings such as
warehouses.
Fixture Mount Bracket
Ordering Code MB1
SD
LED Indicator
Mounting
Holes
Sensitivity
Adjustment
Deadband
Adjustment
Sensor
Window
Bypass Pin
Socket
Time Adjustment
(on back)
Controller Models
Controllers are available in two modules:
Model LS100XA: Light levels of 10 -100 footcandles
Model LS100XB: Light levels of 50 -1000
footcandles
Dimensions
2.5”L x 2.5”W x 7.5”D
(64 mm x 64 mm x 21 mm)
Mounting Options
Mounting Brackets
Mounting bracket MB1 is used for installing the
controllers to ceilings or fixtures in industrial settings
such as warehouses.
Ordering
For ordering information, refer to page 193.
Ordering
For ordering information, refer to page 193.
Mounting Installation
Features
This solid-state system integrates with the full line of
High-2-Low™ Lighting Control Systems. Units feature
an adjustable “On” light level setting and “Off” dead
band that avoids cycling. Controllers provide a control
output of 120mA current maximum. A dual-color LED
displays unit status.
Adjustable Time Delays
An adjustable digital time delay functions through
the highly accurate digital timer built into the sensor.
Programming is executed through DIP switches that
can be set from 15 seconds through 30 minutes by
two-minute increments.
Features
This highly dependable switch incorporates a custom
microcontroller that enhances reliability. Time-out
adjustments range from 5 minutes to 12 hours. A
liquid crystal display shows timer countdown. An
optional beep warning sounds an alert every five
seconds during the last minute of countdown. An
optional one-second light flash warning activates one
minute before timer runs out (for use with lighting
loads). Time-scrolling options available for overriding
preset time. A simple reset feature returns the switch
to its original preset amount.
Electronics
The Digital Time Switch operates at 24V AC or DC,
with a current draw of 12mA DC or 41mA AC. No
minimum load is required. A single pole, double
throw isolated relay is rated for 1A @ 30V DC.
Dimensions
2.68”L x 1.69”W x 1.50”D
(68 mm x 43 mm x 38 mm)
The LS-100 controller can be connected to function
in unison with the motion sensor to stop activation
when ambient or superficial lighting meet preset
requirements. Units are ideal for use in warehouses
that have skylights. Fixtures can remain in the low
setting even though motion is sensed.
LS-100
Light Saving Controller
This dual-element, temperature-compensated
pyroelectric sensor is ideal for areas requiring 360°
sensor coverage. Typically used in open areas
without racking, the low-profile sensor operates in
conjunction with the SDM-100 Bi-Level Electronic
Control Module (see page 190). Installation of the
low voltage (24V DC) system is simple using a two-
pair twisted, low-voltage wire between the bi-level
module and the sensor.
TS-200-24
Digital Time Switch
LCD
ON/OFF
Switch
Beeper
Listed
Listed
![](asset-c2.png)
192
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
HID LIGHTING – HIGH BAYS & LOW BAYS
Specifications
Lamps
MH, Pulse Start MH
Load Ratings
Metal Halide 250W - 1000W
Pulse Start Metal Halide 320W - 400W
Relay Ratings
10A @ 250V AC
(zero crossing high to low and low to high)
Total Current Output
15mA@24V DC
Maintained Signal Voltage to Trigger
(Low to High)
12 micro-amps
Lamp Warm-up Upon Power-up
15 minutes
Operating Temperature Range
-10° to 104°F (-23° to 40°C)
Operating Humidity Range
0% to 95% relative, non-condensing
Weight
<1 lb.
Dimensions
1.8” H x 3.8” W x 4.6” L
(45.7 x 96.5 x 116.8 mm)
Note: For indoor use only. For use with CWA
(Constant Wattage Autotransformer) ballast only
Ordering
Ordering Code H
Note: Ordering suffix code for high-2-low add H to
the catalog number. (ex: JLM 0835-MH)
Features
The module offers the potential for significant
energy savings by allowing lighting fixtures to
operate in the low mode (about 50% reduction in
power) until the area is in actual use. A fifteen-
minute timer, built into the module, prevents the
fixture from switching to the low mode until the
lamp has been fully energized. The fixture will
remain in the high mode if the space is occupied and
switch to the low mode when unoccupied.
Electronics
The SDM-100 module is multi-voltage and
multi-wattage (depending on the capacitor used
inside the fixture) due to innovative no-load
switching circuitry. The module will only operate with
a CWA-type MH ballast. Presetting is not required
between 120V and 480V or 250W through 1000W
metal halide.
Energy Saving
Significant cost savings in both energy and system
maintenance are achieved by operating the fixtures
at 40 - 50% of full power and light output and
immediately switching to full light when needed
through the use of motion sensors, timing devices,
light level monitors and computer controls.
Wiring
The SDM-100 module can be factory-installed on any
400W - 1000W MH High Bay or Low Bay fixture.
Installation is simple and fast using a two-pair
twisted low voltage wire. As all signals are generated
at 24V DC, no special wiring is required. The module
can be linked to operate in conjunction with as many
fixtures as required - there is no limit! Alternately,
fixtures can operate individually using a module and
sensor on each fixture (see diagram).
High-2-LowTM Lighting System
The SDM-100 Bi-Level Electronic Control Module
switches HID lamps from high to low mode and
back again to high mode. Signals are received
from a control device such as an occupancy sensor,
time switch or controller, which activates the relay
to switch to low or high mode. Ideal applications
for the module are large distribution centers,
warehouses, outdoor service areas and buildings
that rely on a combination of natural light
and HID lighting.
SDM-100 Module
High Bay with
SDM-100
1
2
3
4
5
BLACK
RED
BLUE
55
2
1
3
4
2
1
3
4
BLUE
BLACK
RED
55
2
1
4
3
2
1
3
4
5 55
2
1
3
4
22
1 1
3
4
3
4
BLACK
RED
BLUE
SDM-100 CONNECTION EXAMPLE
HID LAMP
+24V DC OUTPUT
CONTROL OUTPUT
CONTROL IN #2
CONTROL IN #1
RETURN
SDM-100
5
4
3
2
1
Listed
![](asset-c3.png)
193
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
HID LIGHTING – HIGH BAYS & LOW BAYS
High-2-LowTM Lighting System
IT-100 Software
The IT-100 software lists all log entries from the
IT-100 sensor, including entry number, entry date
and time as well as lighting and occupancy status.
Users can set the energy cost per kWh, the size of
the controlled load and the site name. The software
generates reports that display daily graphs of the
occupancy and lighting data as well as lighting /
occupancy analysis reports that project potential
dollar savings and statistical information. HVAC adder
accounts evaluate the potential savings resulting from
the reduced expenses of cooling to remove heat from
lighting. Data can be saved for future analysis and/
or exported for use in other software applications.
While connected, the software can reset the logger in
preparation for a new logging session.
Operation
Operated by lithium battery, the Pro-Logger uses
passive infrared technology to detect occupancy. The
module must be installed so that its lens has a clear
view of the workspace and that its light pipe is aimed
towards the monitored natural light. (Adjustable light
pipe observes lighting levels.) During set-up, a test
button activates LEDs for 90 seconds, during which
time the sensitivity can be set and proper location for
occupancy detection verified. This saves battery life
after the unit is adjusted and in place. Once correctly
installed, the IT-100 records a log entry every time
there is a change in either occupancy or lighting
status. A red LED blinks during occupancy detection. A
green LED blinks when lighting is detected. The area
is recorded as vacant when no motion is detected for
five minutes. The historical data is stored and detailed
for retrieval by an IBM-compatible PC via a standard
RS-23 serial port.
Features
The Pro-Logger offers coverage up to 150SF and
stores a maximum of 2000 entries. It stores site
name to identify the area under observation. A
recessed reset switch restores original settings.
Easy Installation
The IT-100 installs quickly and conveniently and
requires no wiring. It attaches to a surface with
a bracket and double stick tape. The Pro-Logger
connects to computer for data retrieval via connector
cable IT-Pro Software.
Developed to establish the energy savings potential
in a given area, the Pro-Logger records the time
that a space was occupied or unoccupied, or,
alternately, the time that the light levels exceeded
the required minimum light levels as well as the
time that light fell below those levels.
IT-100
Pro-Logger
IT-100
Pro-Logger
Listed
High-2-LowTM Lighting System Ordering Information
High-2-LowTM Components
Catalog Number Description Coverage
CX-105 PIR Sensor with dense wide angle lens Up to 2000 square feet
CX-105-1 PIR Sensor, long range Up to 90 linear feet
CX-105-3 PIR Sensor with 2-sided aisleway lens Up to 120 linear feet
CX-105-4 PIR Sensor with 1-sided aisleway lens Up to 50 linear feet
CI-205 PIR Sensor with 360° Standard density lens Up to 1200 sq feet 360°
CI-205-1 PIR Sensor 360° High density lens Up to 500 sq feet 360°
MB-1 Industrial mount bracket for CX/CI & LS-100 sensor
MB-2 Fixture mount bracket for CX/CI sensor for acrylic & aluminum optics
LS-100XA Light saver / Light sensor Range: 10-200FC
LS-100XB Light saver / Light sensor Range: 50-1000FC
TS-200-24 Digital timer switch; 24V AC/DC with cover plate
IT-100-PC Light logger with software for PC
PC-Cable Connector cable for IT-100 to PC
![](asset-c4.png)
194
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
HID LIGHTING – HIGH BAYS & LOW BAYS
Simkar’s modular wiring systems and fixtures
work together to provide a total lighting solution
for today’s commercial and residential buildings.
User-friendly and cost-effective, the Flex Modular
Wiring systems save time, money and manpower
when used for high bay fixture installations in
warehouse and distribution centers. Designed
and engineered to meet the most demanding
quality standards, every Simkar modular wiring
component meets rigorous ISO 9001 guidelines.
Retrofit Flexibility/Adaptability
Because the Flex Series Modular Wiring systems
provide the highest flexibility and versatility in
fixture retrofits, changing lighting configurations
in retail and commercial applications are simple
and efficient. Installation in a project construction
phase can be easily modified to adapt to the final
phase of the project’s finished fixture needs. Units
also offer a 30% cost savings over traditional
hardwire installation costs.
Distribution Cable
The first component of the Simkar modular wiring
system, the Distribution Cable is installed through a
1/2” knockout, with power connected by conventional
hard wiring. The output receptacle connects to the
next modular wiring component.
Double Headed Distribution Cable
The first component of the Simkar modular wiring
system, the Double Headed Distribution Cable is
installed through a 1/2” knockout, with power
connected by conventional hard wiring. The two
output receptacles allow the circuit to divide into two
different directions with the next components.
Extender Cable
Drop Cords
Rated for use on 20-ampere branch circuits, the fixture cord drop is manufactured from S.E.O. cord. Top
conductors are 105°C insulated, #12 AWG, stranded copper. Units feature a pin and sleeve connector design
and are UL listed and labeled.
Drop Cord
The Drop Cord comes attached to the specified voltage
leads on a fixture’s ballast. It typically measures
six feet long. The Drop Cord plugs into the phase
selected output on the Phase Selector.
Flex Modular Wiring
The Extended Cable carries the circuit between
fixtures. It has a single input plug and single
output receptacle.
Double Headed Extender Cable
The Double Headed Extender Cable also carries
the circuit between fixtures. It has a single input
plug and two output receptacles that allow the
circuit to divide into two different directions with
the next components.
Cables
Simkar cables are manufactured from Type MC Cable featuring 90°C insulated, #12 AWG, insulated solid
copper conductors and a solid copper ground. Units feature a pin and sleeve connector design and are rated for
use on 20-ampere branch circuits. UL listed and labeled.
Listed
![](asset-c5.png)
195
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
HID LIGHTING – HIGH BAYS & LOW BAYS
Flex Modular Wiring
Flex Series Ordering Information
Voltage Catalog Number Description
Distribution Cable
120V 1DC15 15 ft (Standard Length)
208&240V 1DC15-HV 3-Phase Dist. Cbl.
277V 2DC15
480V 2DC15-HV
Double Headed
Distribution Cable
120V 1DDC15 15 ft (Standard Length)
208&240V 1DDC15-HV 3-Phase Dbl-Head Dist. Cbl.
277V 2DDC15
480V 2DDC15-HV
Extender Cable
120,208&240V 1EC15-HV 15 ft 3-Phase Ext. Cbl.
1EC20-HV 20 ft 3-Phase Ext. Cbl.
1EC25-HV 25 ft 3-Phase Ext. Cbl.
1EC30-HV 30 ft 3-Phase Ext. Cbl.
277&480V 2EC15-HV 15 ft 3-Phase Ext. Cbl.
2EC20-HV 20 ft 3-Phase Ext. Cbl.
2EC25-HV 25 ft 3-Phase Ext. Cbl.
2EC30-HV 30 ft 3-Phase Ext. Cbl.
2EC35-HV 35 ft 3-Phase Ext. Cbl.
Double Headed
Extender Cable
120,208&240V 1EEC15-HV 15 ft 3-Phase Dbl-Head Ext. Cbl.
1EEC20-HV 20 ft 3-Phase Dbl-Head Ext. Cbl.
1EEC25-HV 25 ft 3-Phase Dbl-Head Ext. Cbl.
1EEC30-HV 30 ft 3-Phase Dbl-Head Ext. Cbl.
277&480V 2EEC15-HV 15 ft 3-Phase Dbl-Head Ext. Cbl.
2EEC20-HV 20 ft 3-Phase Dbl-Head Ext. Cbl.
2EEC25-HV 25 ft 3-Phase Dbl-Head Ext. Cbl.
2EEC30-HV 30 ft 3-Phase Dbl-Head Ext. Cbl.
2EEC35-HV 35 ft 3-Phase Dbl-Head Ext. Cbl.
Drop Cord
120V 1CEA-W6-SC1 6 ft Drop Cord (Fixture Alpha Code: A)*
277V 2CEA-W6-SC1 6 ft Drop Cord (Fixture Alpha Code: N)*
208&240V 1CEAD-W6-SC1-HV 6 ft Drop Cord (Fixture Alpha Code: G)*
480V 2CEAD-W6-SC1-HV 6 ft Drop Cord (Fixture Alpha Code: U)*
* Insert the appropriate alpha code per voltage selection when ordering drop cord attached to fixture.
Ex: JLMA835-1, is a 350W MH/PS, 120V, J-series, 22” acrylic high bay with 1CEA-W6-SC1 drop cord and hook with safety clip.
Note: Other lengths and configurations available. Consult factory for complete system details and ordering information.
![](asset-c6.png)
196
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
HID LIGHTING – WALLPACKS & GARAGE LIGHTERS
![](asset-c7.png)
197
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
HID Lighting
WALLPACKS &
GARAGE LIGHTERS
![](asset-c8.png)
198
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
HPS-70 Watt/Clear
Mounting Height: 10’
Number of Fixtures: 2
Lamp Lumens: 6,300
The WSS Series photometric data is based on a 70 watt clear HPS lamp rated at 6,300 lamp lumens. Footcandle values
for other wattages are obtained by multiplying the chart values by the following factors:
WSS Series 11” Wallpack
Dimensions
Fixture Fixture Fixture Approx.
Height Width Depth Ship Wt.
WSS Series
11” 6.9” 5.25” 5 lbs.
H
W
D
13W & 2-13W: 32°F
Temperature Rated*
18 - 32W Quad: 20°F
Temperature Rated*
(*minimum starting temperatures)
Features
Housing
The compact WSS luminaire is weatherproof and
rated for outdoor use. Features a cast aluminum
base plate and a polycarbonate injection molded
refractor. Housing is available in either bronze or
white. Access to all internal components requires the
removal of only two screws. Tamperproof screws are
available.
Ballast / Lamp
The high-pressure sodium version of the WSS fixture
is available in 35 - 70 watt utilizing a 120V NPF
ballast and a medium based lamp. The 13 watt twin
tube compact fluorescent design comes standard with
a bi-pin lamp and a 120V NPF ballast, while the 18
- 32 watt version is supplied with a 4-pin lamp and a
120 or 277V electronic ballast.
Mounting Options
The WSS Series can be surface mounted directly
over a 4” recessed outlet box. Convenient conduit
access on fixture base allows for easy surface
mounting. Optional internal photocell is available.
Recommended mounting height is 12’ and below.
Photometric Data
(Isofootcandle Plots)
Economical and cost-effective to own and operate,
the WSS Series Wallpacks are designed for
both residential and commercial applications with
mounting heights of 12’ and below.
Lamp Included
Wattage Range:
HPS 35 - 70W
CFL 13 - 32W
Listed for Wet Locations
Consult Factory for CUL Availability
WSS Wallpack Ordering Information
Mounting Position Wattage Lamp Catalog Number
Wall 35W HPS WSS0503-1*(b)
50W HPS WSS0505-1*(b)
70W HPS WSS0507-1*(b)
13W CFL WSS0313-1*(b)
18W CFL WSS0318-U*(b)
26W CFL WSS0326-U*(b)
32W CFL WSS0332-U*(b)
(2) 13W CFL WSS0323-1*(b)
*See Voltage below
Voltage Options (b) (Factory
Installed)
Accessories: (Field Installed)
1 = 120V NPF only
U = 120-277 CFL
B = Button Photocell
WT = White Housing
WSS-TS = Tamperproof Screws
WSS-TSD = Tamperproof Screwdriver & Screws
Lamp/Wattage Factor
70W HPS 1
50W HPS .64
35W HPS .36
0
0
10
10
20
20
30
30
10'10'20'20' 30'30'
1.5
1.5 .2
70W HPS Wallpack at 10’ mounting height.
11” WSS
HID LIGHTING – WALLPACKS & GARAGE LIGHTERS
A
V
A
I
L
A
B
L
E
CFL
![](asset-c9.png)
199
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
Example
WPS 0 4 25 2 WT Q
Series Mounting Light Source Wattage Voltage Options Accessories
WPS = 13” Die Cast
Aluminum Wallpack
0 = Hard wire 4 = MH 25 = 250W 2 = 277 Volt WT = White
Housing
Q = Quartz Standby
Dimensions
Fixture Fixture Fixture Approx.
Height Width Depth Ship Wt.
WPS Series
13.0” 7.83” 5.5” 10 lbs.
W
D
WPS Series 13” Die Cast Aluminum Wallpack
Features
Housing
This stylish cast aluminum housing
incorporates a borosilicate glass refractor, siliconed in
place to provide a watertight assembly. The housing
is finished in a polyester powder coat in white or
bronze.
Ballast / Lamp
High-pressure sodium fixtures are
supplied with either a 120V NPF reactor ballast
(optional HPF available) or high-reactance multi-tap
ballast. Metal Halide fixtures are provided with high-
reactance or CWA multi-tap ballasts. All fixtures are
supplied with medium-base lamps.
Mounting Options
The cast aluminum base plate mounts directly over a
recessed outlet box or can be surface mounted using
the convenient conduit access on the fixture base.
Photometric Data
(Isofootcandle Plots)
H
WPS Wallpack Ordering Information
Mounting Position Wattage Lamp Catalog Number
Wall 35W HPS WPS0503-1*(b)NPF
50W HPS WPS0505-1*(b)NPF
50W HPS WPS0505-M*(b)
70W HPS WPS0507-1*(b)NPF
70W HPS WPS0507-M*(b)
100W HPS WPS0510-1*(b)NPF
100W HPS WPS0510-M*(b)
50W PS/MH WPS0805-M*(b)
70W PS/MH WPS0807-M*(b)
100W PS/MH WPS0810-M*(b)
*See Voltage below
Voltage Options (b) (Factory Installed) Accessories: (Field Installed)
1 = 120V (NPF only)
M = Multi-tap
WT = White Housing
HPF = High Power Factor
(120V only - change NPF to HPF)
B = Button Photocell (Must designate voltage - change
“M” to “1” for 120V or “2” for 277V)
WPS-WG = Wire Guard
0' 25' 50' 75' 100'
0'
25'
50'
75'
100'
25'50'100'
25'
75'
5
3
1
.5
.3
.1
100W Metal Halide Wallpack at 15’ mounting height.
13” WPS
This specification grade compact wallpack is
designed for both commercial and residential
applications with wall mounting height
requirements of 15’ and below.
Lamp Included
Wattage Range:
HPS 35 - 100W
MH 50 - 100W
Listed for Wet Locations
Consult Factory for CUL Availability
HID LIGHTING – WALLPACKS & GARAGE LIGHTERS
![](asset-ca.png)
200
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
-30'
-20'
-25'
-15'
.5
.3
-10'
-5'
0
2
05'
1
-25' 15'10'-20' -5'-10'-15' 20' 25'
WPC Series 9” Polycarbonate Wallpack
Dimensions
Fixture Fixture Fixture Approx.
Height Width Depth Ship Wt.
WPC Series
9.5” 9.0” 7.5” 10 lbs.
H
W
D
Features
Housing
The stylish cast aluminum housing incorporates
a polycarbonate refractor, which is sealed to the
housing using a silicon gasket and stainless steel
screws that provide a watertight lens assembly. The
housing is finished in a bronze polyester powder
coat.
Ballast / Lamp
High-pressure sodium fixtures are supplied with
either a 120V NPF reactor ballast (optional HPF
available) or high-reactance multi-tap ballast. Metal
Halide fixtures are provided with high-reactance or
CWA multi-tap ballasts. All fixtures are supplied with
medium-based lamps. CFL fixtures include 120/277V
electronic ballasts.
Lens
Impact-resistant polycarbonate lens comes standard
with a UV inhibitor.
Options
The WPC Series is available with a factory-installed
button photocell for 120V or 277V.
Mounting Options
The cast aluminum base plate mounts directly over a
recessed outlet box or can be surface mounted using
the convenient conduit access on the fixture base.
Photometric Data
(Isofootcandle Plots)
70W Metal Halide Wall Pack at 12’ mounting height.
This specification grade compact wallpack is
designed for both commercial and residential
applications with wall mounting height
requirements of 12’ and below.
Lamp Included
Wattage Range:
HPS 35 - 100W
MH 50 - 70W
CFL 26-42W
Listed for Wet Locations
Consult Factory for CUL Availability
WPC Wallpack Ordering Information
Mounting Position Wattage Lamp Catalog Number
Wall 35W HPS WPC0503-1*(b)NPF
50W HPS WPC0505-1(b)NPF
50W HPS WPC0505-M(b)
70W HPS WPC0507-1(b)NPF
70W HPS WPC0507-M(b)
100W HPS WPC0510-1(b)NPF
100W HPS WPC0510-M(b)
50W PS/MH WPC0805-M(b)
70W PS/MH WPC0807-M(b)
26W CFL WPC0326-D
32W CFL WPC0332-D
42W CFL WPC0342-D
*See Voltage below
Voltage Options (b) (Factory Installed)
1 = 120V
2 = 277V
M = Multi-tap
D = Dual-tap 120/277V (CFL only)
HPF = High Power Factor
(120V only - change NPF to HPF)
B = Button Photocell (Must designate voltage - change
“M” to “1” for 120V or “2” for 277V)
9” WPC
HID LIGHTING – WALLPACKS & GARAGE LIGHTERS
A
V
A
I
L
A
B
L
E
CFL
![](asset-cb.png)
201
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
Example
WPG 0 5 05 M B
Series Mounting Light Source Wattage Voltage Options
WPG = 9” Compact
Glass Prismatic
Wallpack
0 = Hard wire 5 = HPS 05 = 50W M = Multi-tap B = Button photocell
Dimensions
Fixture Fixture Fixture Approx.
Height Width Depth Ship Wt.
WPG Series
9.5” 9.0” 7.5” 10 lbs.
W
1
-35'
-30'
-25'
-20'
.3
.5
-5'
-15'
-10'
0
-30' -25'
3
-20' -15' -10' -5' 05' 10' 15' 20' 25' 30'
WPG Series 9” Compact Glass Prismatic Wallpack
100W Metal Halide Wall Pack at 14’ mounting height.
Features
Housing
The stylish cast aluminum housing incorporates a
borosilicate glass refractor, which is siliconed in place
to provide a watertight lens assembly. The housing is
finished in a bronze polyester powder coat.
Ballast / Lamp
High-pressure sodium fixtures are
supplied with either a 120V NPF reactor ballast
(optional HPF available) or high-reactance multi-tap
ballast. Metal Halide fixtures are provided with high-
reactance or CWA multi-tap ballasts. All fixtures are
supplied with medium-based lamps.
Options
The WPG fixture is available with a factory-installed
button photocell for 120V or 277V.
Mounting Options
The cast aluminum base plate mounts directly over a
recessed outlet box or can be surface mounted using
the convenient conduit access on the fixture base.
Photometric Data
(Isofootcandle Plots)
H
D
WPG Wallpack Ordering Information
Mounting Position Wattage Lamp Catalog Number
Wall 35W HPS WPG0503-1*(b)NPF
50W HPS WPG0505-1*(b)NPF
50W HPS WPG0505-M*(b)
70W HPS WPG0507-1*(b)NPF
70W HPS WPG0507-M*(b)
100W HPS WPG0510-1*(b)NPF
100W HPS WPG0510-M*(b)
50W PS/MH WPG0805-M*(b)
70W PS/MH WPG0807-M*(b)
100W PS/MH WPG0810-M*(b)
*See Voltage below
Voltage (a) Options (b) (Factory Installed)
1 = 120V
2 = 277V
M = Multi-tap
HPF = High Power Factor
(120V only - change NPF to HPF)
B = Button Photocell (Must designate voltage - change
“M” to “1” for 120V or “2” for 277V)
9” WPG
This specification-grade compact wallpack is
designed for both commercial and residential
applications with wall mounting height
requirements of 14’ and above.
Lamp Included
Wattage Range:
HPS 35 - 100W
MH 50 - 100W
Listed for Wet Locations
Consult Factory for CUL Availability
HID LIGHTING – WALLPACKS & GARAGE LIGHTERS
![](asset-cc.png)
202
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
WPL Wallpack Ordering Information
Mounting Position Wattage Lamp Catalog Number
Wall 150W PS/MH WPL0815-(a)(b)
175W MH WPL0417-(a)(b)
200W PS/MH WPL0820-(a)(b)
250W MH WPL0425-(a)(b)
250W PS/MH WPL0825-(a)(b)
320W PS/MH WPL0832-(a)(b)
350W PS/MH WPL0835-(a)(b)
400W MH WPL0440-(a)(b)
400W PS/MH WPL0840-(a)(b)
150W HPS WPL0515-(a)(b)
250W HPS WPL0525-(a)(b)
400W HPS WPL0540-(a)(b)
Voltage (a) Options (b) (Factory Installed) Accessories (Field Installed)
1 = 120V
2 = 277V
3 = 208V
4 = 240V
5 = 480V
BK = Black Housing
WT = White Housing
(Custom Colors Available: Consult factory for pricing
and delivery)
PT-20 = Photocell
15” WPL
Photometric Data
(Isofootcandle Plots)
WPL Series 15” Square Wallpack
Dimensions
Fixture Fixture Fixture Approx.
Height Width Depth Ship Wt.
WPL Series
15.75” 15.75” 7.25” 25 lbs.
H
W
D
Features
Housing
Compact cast aluminum housing is designed to
provide maximum wattage in a small package.
Ballast
All fixtures come standard with a CWA high-power
factor multi-tap or a 480V metal halide ballast. Pulse
start metal halide and high-pressure sodium ballasts
are available.
Lamps
A compact, heat-dissipating design allows up to 400W
metal halide, pulse start metal halide and high-
pressure sodium lamps.
Mounting Options
The WPL Series has convenient conduit access on all
sides for easy surface wiring. Rear 1/2” knockouts
allow for mounting over a 3” or 4” recessed outlet
box. Units wall mount or surface mount to concrete,
brick, or steel using additional knockouts.
0
25'
50'
75'
100'
100' 75' 50' 25' 0 25' 50' 75' 100'
5
3
1
.5 .3
.1
400W Metal Halide Wallpack at 20’ mounting height.
This all-weather fixture provides maximum
wattage in a small package. In addition to being
an effective security or accent light, the slim-line
design of the WPL Series makes it aesthetically
pleasing. Specially-designed optics provide
maximum light spread, making the WPL Series
an extremely efficient and powerful wallpack.
Lamp Included
Wattage Range:
150 - 400W
Listed for Wet Locations
Consult Factory for CUL Availability
HID LIGHTING – WALLPACKS & GARAGE LIGHTERS
![](asset-cd.png)
203
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
HID LIGHTING – WALLPACKS & GARAGE LIGHTERS
Building Exteriors
Area Horizontal Illuminance Vertical Illuminance
Active entrances (pedestrian and/or conveyance) 5 3
Inactive entrances (normally locked, infrequently used) 3 3
Prominent Structures 5 3
Parking Garages
Area Horizontal Illuminance
(min) Vertical Illuminance (min) Horizontal Uniformity Ratio
(max/min)
Basic 1 0.5 10/1
Ramps
Day 2 1 10/1
Night 1 0.5 10/1
Entrance Areas
Day 50 25
Night 1 .5 10/1
Pedestrian Walkways
Classification Minimum Average
Horizontal Illuminance
Minimum Average Vertical Levels
for Special Pedestrian Security
Sidewalks and Type A bikeways
Commercial Areas 1 2.2
Intermediate Areas 0.6 1.1
Residential Areas 0.2 0.5
Walkways distant from roadways
and Type B bikeways
Walkways, bikeways, and stairways 0.5 0.5
Pedestrian Tunnels 4.3 5.4
Service Stations
Area Horizontal Illuminance Vertical Illuminance
Light Surrounding
Approach 2 0.5
Driveway 2 0.5
Pump Island area 5 3
Building Faces (exclusive of glass) 3 3
Service Areas 3 3
Landscape Highlights 2 0.5
Dark Surrounding
Approach 1.5 0.5
Driveway 1.5 0.5
Pump Island area 3 3
Building Faces (exclusive of glass) 2.0 0.5
Service Areas 2.0 0.5
Landscape Highlights 1.0 0.3
General illumination guidelines in footcandles
The above guidelines are based on IES recommendations only.
![](asset-ce.png)
204
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
WSM Series 13” Wallpack
Dimensions
Fixture Fixture Fixture Approx.
Height Width Depth Ship Wt.
WSM Series
9” 13” 7.5” 15 lbs.
H
W
D
Features
Housing
The bronze die-cast aluminum housing, thick
prismatic glass refractor and stainless steel hardware
together make the WSM Series resistant to weather
and vandalism.
Ballast
The 50-150W pulse start metal halide fixtures utilize
a multi-tap high reactance ballast. The 175W metal
halide fixture is provided with either a constant
wattage multi-tap or 480V ballast. HPS fixtures can
be ordered with a 120V NPF reactor ballast or a
multi-tap high reactance HPF ballast. 120V reactor
ballasts can be ordered with optional HPF. 150W
high pressure sodium fixtures are also available with
480V ballasts.
Lamps
The WSM Series comes standard with a medium base
lamp. The 175 watt metal halide can be ordered
with an optional mogul base lamp.
Lens
Both the door and prismatic glass lens utilize
weatherproof silicone gasketing to seal out
contaminants.
Access / Wiring
The side-hinged door opens easily using two
captive stainless steel screws to provide easy access
to internal components. Wiring options include
25' 20' 15' 10' 5' 0' 5' 10' 15' 20' 25' 30' 35' 40' 45' 50' 55' 60' 65'
30'
35'
40'
45'
50'
55'
60'
65'
05
1015 2025 30
35 40
45 50 55 60 65
70
15' 2 fc
1 fc
.5 fc
.3 fc
.2 fc
Minimum
Footcandle
Values
mounting over a 4” recessed junction box or surface
mounting using convenient conduit entries located on
side and bottom of fixture. Additional knockouts are
provided for optional photocell.
Mounting Options
The recommended wall mounting height is 12’ to 18’.
Photometric Data
(Isofootcandle Plots)
MH-175 Watt/Clear
Mounting Height: 15’
Number of Fixtures: 2
Lamp Lumens: 12,800
The WSM Series photometric data is based on a 175 watt clear MH lamp rated at 12,800 lamp lumens.
Footcandle values for other wattages are obtained by multiplying the chart values by the following factors:
40°C Ambient Rated
Designed for 12 to 18 foot mounting heights,
the WSM Wallpack efficiently lights walkways,
building exteriors, loading docks, bridges and
most security areas with a wide light distribution.
Lamp Included
Wattage Range:
MH 50 - 175W
CFL 26-84W
Listed for Wet Locations
Consult Factory for CUL Availability
Lamp/Wattage Factor Lamp/Wattage Factor
150W PS/MH .90 100W HPS .71
100W PS/MH .58 70W HPS .47
70W PS/MH .31 50W HPS .30
50W PS/MH .25
10
60
40
20
0
20
40
60
7
3
.1
.3
.5
1
60' 40' 20' 0 20' 40' 60'
175W MH Wallpack at 15’ mounting height.
13” WSM
HID LIGHTING – WALLPACKS & GARAGE LIGHTERS
A
V
A
I
L
A
B
L
E
CFL
![](asset-cf.png)
205
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
Example
WSM 0 5 05 M WT
Series Mounting Light Source Wattage Voltage Options
WSM = 13” Wallpack 0 = Hard wire 5 = HPS 05 = 50W M = Multi-tap WT = White housing
WSM Series 13” Wallpack
Accessories
Wire Guard
Ordering Code
WGM
Vandal Shield
Ordering Code
PGM
Glare Shield Side
Cutoff
Ordering Code
WSM-GS
Full Cutoff Shield
Ordering Code
WSM-GSF
WSM Wallpack Ordering Information
Mounting Position Wattage Lamp Catalog Number
Wall 50W PS/MH WSM0805-M*(b)
70W PS/MH WSM0807-M*(b)
100W PS/MH WSM0810-D*(b)
150W PS/MH WSM0815-M*(b)
175W MH WSM0417-M*(b)
175W MH (MOGUL) WSM9417-M*(b)
50W HPS 120V (NPF) WSM0505-1*(b) NPF
50W HPS WSM0505-M*(b)
70W HPS 120V (NPF) WSM0507-1*(b) NPF
70W HPS WSM0507-M*(b)
100W HPS 120V (NPF) WSM0510-1*(b) NPF
100W HPS WSM0510-M*(b)
150W HPS 120V (NPF) WSM0515-1*(b) NPF
150W HPS WSM0515-M*(b)
26W CFL WSM0326-D*
32W CFL WSM0332-D*
42W CFL WSM0342-D*
(2) 26W CFL WSM0352-D*
(2) 32W CFL WSM0364-D*
(2) 42W CFL WSM0384-D*
*See Voltage below
Voltage Options (b) (Factory Installed) Accessories (Field Installed)
1NPF = 120V (HPS only)
5 = 480V (available only in 175W MH &
150W HPS)
D = Dual Voltage 120/277Vs (CFL only)
M = Multi-tap, tapped @ 277V
HPF = High Power Factor
(HPS 120V only - change NPF to HPF)
WT = White Housing
BK = Black Housing
(x)B = Button Photocell
Designate voltage (x):
1 = 120V
2 = 277V
3 = 208V
4 = 240V
WGM = Wire Guard
PGM = Polycarbonate Guard (Vandal Shield)
WSM-TS = Tamperproof Screws (not shown)
WSM-TSD = Tamperproof Screws &
Screwdriver (not shown)
Glare Shields
WSM-GS = Side Cutoff
WSM-GSF = Full Cutoff
HID LIGHTING – WALLPACKS & GARAGE LIGHTERS
![](asset-d0.png)
206
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
WSL Series 18” Wallpack
Dimensions
Fixture Fixture Fixture Approx.
Height Width Depth Ship Wt.
WSL Series
9” 18” 13” 26 lbs.
H
W
D
Features
Housing
The bronze die-cast aluminum housing, thick
prismatic glass refractor and stainless steel hardware
together make the WSL Series Wallpacks resistant to
both weather and vandalism.
Ballast
All HID fixtures come standard with a CWA high-
power factor, multi-tap or 480V ballast. CFL fixtures
include 120/277V electronic ballasts.
Lamps
The WSL luminaire uses mogul base, metal halide
lamps (175 - 400W) and HPS (250-400W) lamps.
(Note: To increase light levels by 20%, specify a pin-
oriented socket using a MS400/HOR.) CFL Fixtures
include 4-pin quad lamps.
Access / Wiring
The side-hinged door opens easily using two
captive stainless steel screws to provide easy access
to internal components. Wiring options include
mounting over a 4” recessed junction box or surface
mounting using convenient conduit entries located on
side and bottom of fixture. Additional knockouts are
provided for optional photocell.
25' 20' 15' 10' 5' 0' 5' 10' 15' 20' 25' 30' 35' 40' 45' 50' 55' 60' 65'
30'
35'
40'
45'
50'
55'
60'
65'
20' 10 fc
5 fc
2 fc
1 fc
.5 fc
Minimum
Footcandle
Values
0
5
10
15
20
25
30
35
40
45
50
55
60
65
70
Mounting Options
The recommended wall mounting height is 18’ to 24’.
Units include rear 1/2” conduit points access with drill
points for mounting.
Photometric Data
(Isofootcandle Plots)
40°C Ambient Rated
Designed for 18 to 24 foot mounting heights,
the WSL Wallpack delivers high light levels over
a very large area for offices, schools, shopping
complexes, garages and walkways.
Lamp Included
Listed for Wet Locations
Consult Factory for CUL Availability
MH-400 Watt/Clear
Mounting Height: 20’
Number of Fixtures: 2
Lamp Lumens: 32,000
The WSL Series photometric data is based on a 400 watt clear MH lamp rated at 32,000 lamp lumens.
Footcandle values for other wattages are obtained by multiplying the chart values by the following factors:
Lamp/Wattage Factor Lamp/Wattage Factor
400W MH/HOR 1.20
400W MH 1.00 400W HPS 1.56
250W MH .63 250W HPS .91
0
0
20
20
40
40
60
60
20'20' 40'40' 60'60'
10
3
1
.5
.3
7
400W MH Wall Pack at 20’ mounting height.
18” WSL
HID LIGHTING – WALLPACKS & GARAGE LIGHTERS
A
V
A
I
L
A
B
L
E
CFL
![](asset-d1.png)
207
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
Example
WSL 0 4 17 M WT
Series Mounting Light Source Wattage Voltage Options
WSL = 18” Wallpack 0 = Hard wire 4 = MH 17 = 175W M = Multi-tap WT = White Housing
WSL Series 18” Wallpack
Accessories
Wire Guard
Ordering Code
WGL
Vandal Shield
Ordering Code
PGL
Glare Shield Side
Cutoff
Ordering Code
WSL-GS
Full Cutoff Shield
Ordering Code
WSL-GSF
WSL Wallpack Ordering Information
Mounting Position Wattage Lamp Catalog Number
Wall 175W MH WSL0417-(a)(b)
200W PS/MH WSL0820-(a)(b)
250W MH WSL0425-(a)(b)
250W PS/MH WSL0825-(a)(b)
320W PS/MH WSL0832-(a)(b)
350W PS/MH WSL0835-(a)(b)
400W MH WSL0440-(a)(b)
400W PS/MH WSL0840-(a)(b)
400W MS/HOR WSL0740-(a)(b)
Position-oriented socket
250W HPS WSL0525-(a)(b)
400W HPS WSL0540-(a)(b)
(2) 26W CFL WSL0352-D*
(2) 32W CFL WSL0364-D*
(2) 42W CFL WSL0384-D*
*Dual-tap 120/277V (CFL only)
Voltage (a) Options (b) (Factory Installed) Accessories (Field Installed)
5 = 480V
M = Multi-tap tapped @ 277V
M5 = 120 - 480V
400 W MH Only
D = Dual-tap 120/277V (CFL only)
(x)B = Button Photocell -designate voltage (x):
1 = 120V
2 = 277V
3 = 208V
4 = 240V
WT = White Housing
BK = Black Housing
WGL = Wire Guard
PGL = Polycarbonate Guard (Vandal Shield)
PT-20 = External Photocell
WSL-TS = Tamperproof Screws (not shown)
WSL-TSD = Tamperproof Screws &
Screwdriver (not shown)
Glare Shields
WSL-GS = Side Cutoff
WSL-GSF = Full Cutoff
HID LIGHTING – WALLPACKS & GARAGE LIGHTERS
![](asset-d2.png)
208
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
W Series 13” & 18” Full Cutoff Wallpack
Dimensions
Fixture Fixture Fixture Approx.
Height Width Depth Ship Wt.
WFM Series
9” 13” 11.5” 15 lbs.
WFL Series
9” 18” 17.2” 26 lbs.
Features
Housing
The bronze die-cast aluminum housing, thick
prismatic glass refractor and stainless steel hardware
together make the WFM & WFL Series Full Cutoff
Wallpacks resistant to both weather and vandalism.
Dark sky compliant.
Ballast
The 50-150W pulse start metal halide fixtures utilize
a multi-tap high reactance ballast. The 175W metal
halide fixture is provided with either a constant
wattage multi-tap or 480V ballst. HPS fixtures can
be ordered with a 120V NPF reactor ballast or a
multi-tap high reactance HPF ballast. 120V reactor
ballasts can be ordered with optional HPF. 150W high
pressure sodium fixtures are also available with 480V
ballasts. All sizes of the WFL Wallpacks are supplied
with a constant wattage HPF multi-tap or 480V
ballast. CFL fixtures include 120/277V electronic
ballasts.
Lamps
The WFM luminaire uses a medium base metal halide
lamp (50 - 175W) or a medium base HPS lamp (50
- 150W). The WFL luminaire uses mogul base, metal
halide lamps (175 - 400W) and HPS (250-400W)
lamps. CFL Fixtures include 4-pin quad lamps.
Lens
Both the door and prismatic glass lens utilize
weatherproof silicone gasketing to seal
out contaminants.
Access / Wiring
The side-hinged door opens easily using two captive
stainless steel screws to provide easy access to
internal components. Wiring options include mounting
over a 4” recessed junction box or surface mounting
using convenient conduit entries located on side and
Both the WFM and WFL Series fixtures can be pointed up or down to
provide directed lighting in specific areas.
bottom of fixture. Additional knockouts are provided
for optional photocell.
Mounting Options
The recommended wall mounting height of the
WFM Wallpack is 12’ to 18’. The recommended wall
mounting height of the WFL Series is 18’ to 24’.
Units include rear 1/2” conduit holes access with
drill points for mounting.
WFM Series
WFL Series
H
H
W
D
W
D
40°C Ambient Rated
The WFM/WFL Series Wallpacks offer a wide
light distribution with controlled light spillage.
These versatile fixtures can be mounted up or
down to direct lighting to specific areas. The
WFM model is designed for 12’ to 18’ mounting
heights while the WFL can be mounted at
heights of 18’ - 24’.
Lamp Included
Listed for Wet Locations
Consult Factory for CUL Availability
HID LIGHTING – WALLPACKS & GARAGE LIGHTERS
A
V
A
I
L
A
B
L
E
CFL
DARK SKY
Dark Sky compliant when
mounted in down position
![](asset-d3.png)
209
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
Example
WFL 0 4 17 M WT
Series Mounting Light Source Wattage Voltage Options
WFL = 18” Full Cutoff
Wallpack
0 = Hard wire 4 = MH 17 = 175W M = Multi-tap WT = White Housing
W Series Wallpack Ordering Information
Series Wattage Lamp Catalog Number
WFM Series 13” Wallpack
Wall 50W PS/MH WFM0805-M*(b)
70W PS/MH WFM0807-M*(b)
100W PS/MH WFM0810-M*(b)
150W PS/MH WFM0815-M*(b)
175W MH WFM0417-M*(b)
175W MH (MOGUL) WFM9417-M*(b)
50W HPS 120V (NPF) WFM0505-1*(b) NPF
50W HPS WFM0505-(a)(b)
70W HPS 120V (NPF) WFM0507-1*(b) NPF
70W HPS WFM0507-(a)(b)
100W HPS 120V (NPF) WFM0510-1*(b) NPF
100W HPS WFM0510-(a)(b)
150W HPS 120V (NPF) WFM0515-1*(b) NPF
150W HPS WFM0515-M*(b)
(2) 26W CFL WFM0352-D*
(2) 32W CFL WFM0364-D*
(2) 42W CFL WFM0384-D*
WFL Series 18” Wallpack
Wall 175W MH WFL0417-(a)(b)
200W PS/MH WFL0820-(a)(b)
250W MH WFL0425-(a)(b)
250W PS/MH WFL0825-(a)(b)
320W PS/MH WFL0832-(a)(b)
350W PS/MH WFL0835-(a)(b)
400W MH WFL0440-(a)(b)
400W PS/MH WFL0840-(a)(b)
250W HPS WFL0525-(a)(b)
400W HPS WFL0540-(a)(b)
(2) 32W CFL WFL0364-D*
(2) 42W CFL WFL0384-D*
*See Voltage below
Voltage (a) Options (b) (Factory Installed)
1 = 120V
2 = 277V
3 = 208V
4 = 240V
5 = 480V (150W and above only)
M = Multi-tap; tapped @ 277V
D = Dual-tap 120/277V (CFL only)
HPF = High Power Factor (HPS 120V only - change NPF to HPF)
WT = White Housing
BK = Black Housing
B = Button Photocell (Must designate voltage - change M to “1”
for 120 V or “2” for 277 V)
HID LIGHTING – WALLPACKS & GARAGE LIGHTERS
W Series 13” & 18” Full Cutoff Wallpack
![](asset-d4.png)
210
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
18” WCM
.1
.2
.5
1
2
5
10
20
Calculations based on published IES Methods and recommendations.
Results derived from content of manufacturers IES format photometric file.
Page 6
3
2
1
0
1
2
3
4
5
0 1 2 3 4 5 6 7
WCM Series 18” Stargazer Wallpack
Dimensions
Fixture Fixture Fixture Approx.
Height Width Depth Ship Wt.
WCM Series
7.1” 18” 9.25” 12.87 lbs.
Features
Housing
Heavy-duty die cast aluminum housing is powder-
coated in a dark architectural bronze color. Silicone
rubber prevents any leakage due to outside elements.
Ballast
The 175W MH version is furnished with a high power
factor, constant wattage multi-tap ballast. The 100W
MH and 150W HPS versions are furnished with a high
power factor, high reactance multi-tap ballast.
Lamps
Fixtures are supplied with medium base lamps.
Reflector
One-piece anodized aluminum designed reflector for
best light efficiency.
Mounting Options
The WCM series wallpack is easy to install directly
to a 4” recessed outlet box or 1/2” surface conduit
into a 1/2” threaded bushing. Built-in level for easy,
accurate installation.
Photometric Data
(Isofootcandle Plots)
Distance in Units of Mounting Height
Values Based On 10 Foot Mounting Height
1/2 Maximum Candela Trace Shown as Dashed Curve
(+) = Maximum Candela Point
Cat. # WCM0417-M
18”
9.25”
7.1”
This crescent-shaped, surface mount wallpack is
ideal for parking areas, entrances, walkways,
underpasses, loading docks, recreation areas and
tunnels.
Lamp Included
Wattage Range:
100W and 175 MH
150W HPS and PS/MH
Listed for Wet Locations
Consult Factory for CUL Availability
HID LIGHTING – WALLPACKS & GARAGE LIGHTERS
DARK SKY
Dark Sky compliant when
mounted in down position
![](asset-d5.png)
211
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
WCM Series 18” Stargazer Wallpack
WCM Mounting Procedure
A B
D E
C
WCM Series Ordering Information
Mounting Position Wattage Lamp Catalog Number
100 watt PS/MH WCM0810-M*
Wall 175 watt MH WCM0417-M *
150 watt HPS WCM0515-M*
150 watt PS/MH WCM0815-M*
*Multi-tap tapped @277
HID LIGHTING – WALLPACKS & GARAGE LIGHTERS
Remove mounting screws
from fixture
Gently pull the mounting plate and
gasket from the housing
Install plate to the mounting surface
utilizing the integrated level
Connect wires and mount fixture to
the plate
Reinstall mounting screws
INTEGRATED LEVEL
![](asset-d6.png)
212
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
12” GVV
8” GCS
70W HPS GCS Series at 10’ mounting height. 150W HPS GVV Series at 15’ mounting height.
Photometric Data
(Isofootcandle Plots)
GCS/GVV Series 8” & 12” Square Canopy Lighters
Dimensions
Approx.
A B C D E Ship Wt.
GCS Series 8.6” 8.6” 8” 9” 7.4” 15 lbs.
GVV Series
12” 12” 12” 12.5” 8.5” 17 lbs.
B
C
D
A
E
Features
Housing
Housings are made of a die-cast heavy aluminum,
coated with a polyester powder coat. Available with
either standard or tamperproof screws.
Ballast
High-pressure sodium fixtures are supplied with
either a 120V NPF reactor ballast (optional HPF
available) or high-power factor multi-tap ballast.
Metal halide fixtures are provided with high-
reactance or CWA multi-tap ballasts. A 480V ballast
is available in 175 wall metal halide only. The
fluorescent utilizes a 120V normal power factor
ballast for the 13W version. All other CFL fixutures
are supplied with a 120/277V electronic Ballast.
Lamps
The GCS Series utilizes twin 9W fluorescent or
medium base HPS or metal halide lamps. The GVV
Series uses twin 13W fluorescent, 4-pin quad CFL,
medium base HPS or metal halide lamps.
Optics
The clear prismatic polycarbonate refractor, with UV
inhibitors, minimizes discoloration.
Mounting Options
The GCS and GVV fixtures are designed for ceiling
mounting to concrete and steel only and are UL
listed for wet locations.
8” Square Prismatic
Photometric Data
Curve #: GCS507.IES
Lamp: High Pressure Sodium
Wattage: 70W
Lumens: 6,300
Lens: Polycarbonate
90
70
80
60
40
50
30 10 20 0
750
1000
1250
500
250
0
12” Square Prismatic
Photometric Data
Curve #: GVV515.IES
Lamp: High Pressure Sodium
Wattage: 150W
Lumens: 16,000
Lens: Polycarbonate
90
70
80
60
40
50
30 10 20 0
1800
2400
3000
1200
600
0
The rugged and tamperproof design of the GCS
and GVV Series Canopy Lighters make them
ideal for schools, recreation areas, garages,
hotels/motels and institutions.
Lamp Included
Wattage Range:
GCS 35 - 70W
GCS 18-24W CFL
GVV 50 - 175W
GVV 26-84W CFL
Listed for Wet Locations
Consult Factory for CUL Availability
HID LIGHTING – WALLPACKS & GARAGE LIGHTERS
A
V
A
I
L
A
B
L
E
CFL
![](asset-d7.png)
213
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
Example
GCS 3 3 26 D
Series Mounting Light Source Wattage Voltage
GCS = 8” Square
Canopy Lighter
3 = Ceiling 3 = CFL 26 = 26W D = Dual tap
GCS Series Ordering Information
Housing Size (sq.) Wattage Lamp Catalog Number
8” 50W PS/MH GCS3805-M*
70W PS/MH GCS3807-M*
35W HPS (NPF) GCS3503-1*(b) NPF
50W HPS GCS3505-(a)(b)
70W HPS GCS3507-(a)(b)
(2) 9W CFL GCS3329-1*
26W CFL GCS3326-D*
32W CFL GCS3332-D*
42W CFL GCS3342-D*
*See Voltage below
GVV Series Ordering Information
Housing Size (sq.) Wattage Lamp Catalog Number
12” 50W PS/MH GVV3805-M*(b)
70W PS/MH GVV3807-M*(b)
100W PS/MH GVV3810-M*(b)
150W PS/MH GVV3815-M*(b)
175W MH GVV3417-M*(b)
50W HPS GVV3505-(a)(b)
70W HPS GVV3507-(a)(b)
100W HPS GVV3510-(a)(b)
150W HPS GVV3515-(a)(b)
(2) 13W CFL (120V only) GVV3323-1*
(2) 26W CFL GVV3352-D*
(2) 32W CFL GVV3364-D*
(2) 42W CFL GVV3384-D*
*See Voltage below
Voltage (a) Options (b) (Factory Installed) Accessories: (Field-Installed)
1 = 120V HPS Only (NPF)
M = Multi-tap tapped @ 277V
D = Dual-tap 120/277V (CFL only)
HPF = High Power Factor (120V HPS only) GCS-TS = Tamperproof Screws (not shown)
GCS-TSD = Tamperproof Screwdriver & Screws
(not shown)
Voltage (a) Options (b) (Factory Installed) Accessories: (Field-Installed)
1 = 120V (HPS, NPF only)
5 = 480V (175W MH only)
M = Multi-tap; tapped @ 277V
D = Dual-tap 120/277V (CFL only)
HPF = High Power Factor (120V HPS only)
Q = Quartz Standby - Hot/Cold Type
(50W - 150W only)
WT = White
GVV-TS = Tamperproof Screws (not shown)
GVV-TSD = Tamperproof Screwdriver & Screws
(not shown)
HID LIGHTING – WALLPACKS & GARAGE LIGHTERS
GCS/GVV Series 8” & 12” Square Canopy Lighters
![](asset-d8.png)
214
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
15” GRM
11” GRS
0 10'10' 20'20' 3030'
10'
20'
30'
0'
10'
20'
30'
3
1
.5
.3
.1
50W HPS GRS Series at 8’ mounting height.
0 10'10' 20'20' 3030'
10'
20'
30'
0'
10'
20'
30'
.3
1
3
7
.5
150W HPS GRM Series at 15’ mounting height.
GR Series 11” & 15” Round Canopy Lighters
Dimensions
Approx.
A B C D E Ship Wt.
GRS Series
11” 11” 9.5” 11” 7.375” 14 LBS.
GRM Series
15” 15” 13.06” 15” 8” 16 LBS.
B
C
D
A
E
Features
Housing
Housings are constructed of heavy gauge steel and
finished with a five-stage powder coat finish in
bronze. A neoprene gasket seals out moisture, dust,
and insects.
Ballast
High-pressure sodium fixtures are supplied with
either a 120V NPF reactor ballast (optinal HPF
available) or high-power factor multi-tap ballast.
Metal halide fixtures are provided with high-
reactance or CWA multi-tap ballasts. The fluorescent
utilizes a 120V normal power factor ballast.
Lamps
Medium base lamps are provided on all high-
pressure sodium and metal halide fixtures. The lamp
is mounted horizontally. Twin fluorescent lamps are
also available: 9W for the GRS and 13W for the
GRM.
Optics
The multi-patterned injection molded polycarbonate
refractor contains ultra violet inhibitors that
minimize discoloration. Tamperproof screws
available.
Mounting Options
Primarily utilized in ceiling mounted applications
requiring a UL wet label certification.The GRS and
GRM Series fixtures can also be wall mounted with
UL damp label certification. A 1/2” knock out near
the center of the housing back, as well as four 1/2”
knock outs evenly spaced around sidewalls, provide
conduit access for wiring.
11” Round Prismatic
Photometric Data
Curve #: GRS505.IES
Lamp: High Pressure Sodium
Wattage: 50W
Lumens: 4,000
Lens: Polycarbonate
15” Round Prismatic
Photometric Data
Curve #: GRM515.IES
Lamp: High Pressure Sodium
Wattage: 150W
Lumens: 16,000
Lens: Polycarbonate
90
70
80
60
40
50
30 10 20 0
1800
2400
3000
1200
600
0
90
70
80
60
40
50
30 10 20 0
1800
2400
3000
1200
600
0
Photometric Data
(Isofootcandle Plots)
Spreading illumination efficiently at low to
medium mounting heights (8 to 15’), the GRS
and GRM Series Canopy Lighters’ round design
blends easily into most architectural elements.
Lamp Included
Wattage Range:
GRS 35 - 70W
GRM 35 - 150W
Listed for Wet Locations
HID LIGHTING – WALLPACKS & GARAGE LIGHTERS
![](asset-d9.png)
215
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
Example
GRS 0 8 05 M WT
Series Mounting Light Source Wattage Voltage Options
GRS = 11” Round
Canopy Lighter
0 = Hard wire 8 = PS/MH 05 = 50W M = Multi-tap WT = White Housing
GR Series 11” & 15” Round Canopy Lighters
Mountings
Ceiling
Wall
GR Series Ordering Information
Housing Size (sq.) Wattage Lamp Wall Mount
Catalog Number
Ceiling Mount
Catalog Number
GRS 11” 50W PS/MH GRS0805-M*(b) GRS3805-M*(b)
70W PS/MH GRS0807-M*(b) GRS3807-M*(b)
35W HPS GRS0503-1*(b) NPF GRS3503-1*(b) NPF
50W HPS GRS0505-1*(b) NPF GRS3505-1*(b) NPF
70W HPS GRS0507-1*(b) NPF GRS3507-1*(b) NPF
GRM 15” 50W PS/MH GRM0805-M*(b) GRM3805-M*(b)
70W PS/MH GRM0807-M*(b) GRM3807-M*(b)
100W PS/MH GRM0810-M*(b) GRM3810-M*(b)
150W PS/MH GRM0815-M*(b) GRM3815-M*(b)
35W HPS GRM0503-1*(b) NPF GRM3503-1*(b) NPF
50W HPS GRM0505-1*(b) NPF GRM3505-1*(b) NPF
70W HPS GRM0507-1*(b) NPF GRM3507-1*(b) NPF
100W HPS GRM0510-1*(b) NPF GRM3510-1*(b) NPF
150W HPS GRM0515-1*(b) NPF GRM3515-1*(b) NPF
*See Voltage below
Voltage Options (b) (Factory Installed) Accessories: (Field-Installed)
1 = 120V (30-150 HPS only (NPF))
M = Multi-tap tapped @ 277V
HPF = High Power Factor (120V HPS only)
WT = White Housing
GRS
GRS-TS = Tamperproof Screws
GRS-TSD = Tamperproof Screwdriver & Screws
GRM
GRM-TS = Tamperproof Screws
GRM-TSD = Tamperproof Screwdriver & Screws
HID LIGHTING – WALLPACKS & GARAGE LIGHTERS
![](asset-da.png)
216
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
12” GLX
0 20'20' 40'40' 6060'
20'
40'
60'
0'
20'
40'
60'
3
1
.5
.3
.1
150W HPS GLX Series at 15’ mounting height.
Photometric Data
(Isofootcandle Plots)
GLX Series 12” Garage Lighter
Dimensions
Lens Fixture Fixture Approx.
Width Width Height Ship Wt.
GLX Series
8” 12.7” 12” 15 LBS.
12”
Top View
8”
12.7”
Features
Housing
The bronze die-cast aluminum housing has a
polyester powder coat finish that resists corrosion as
well as the dirt and oil compounds normally found in
parking garages.
Ballast
All fixtures are supplied with a high-power factor,
high-reactance or CWA ballast.
Lamps
The GLX Series is available in 175W metal halide,
50 - 175W pulse start metal halide and 50W - 150W
HPS lamp types. All lamps are supplied in a medium
base.
Optics
The strong acrylic prismatic refractor delivers light
consistently in a 360° pattern and its vertical burn
lamp provides maximum light output. The extra
thick non-yellowing acrylic lens resists the abuse
typical of parking facilities. The 175W metal halide
lens is high-temperature acrylic.
Mounting Options
The exclusive adjustable slide box mounts directly
to a 3/4” threaded conduit or a standard 4”
round box. This allows the GLX series fixture to be
safely disconnected from the junction box, making
maintenance and/or replacement both quick
and easy.
12” Prismatic Photometric Data
Curve #: 36-123-01
Lamp: High Pressure Sodium
Wattage: 150W
Lumens: 16,000
Lens: Acrylic
IES Distribution
Type II (narrow)
0º 10º 20º 30º
40º
50º
60º
80º
90º
100º
110º
120º140º150º160º170º 130º
70º
180º
0
2,000
4,000
6,000
55°C Ambient Rated
While only 12” high, the GLX Series Garage
Lighter delivers maximum light distribution
from its acrylic refractor. Designed for the low
profile needs of parking garages, it is the perfect
security fixture.
Lamp Included
Wattage Range:
50 - 175W
Listed for Wet Locations
Consult Factory for CUL Availability
HID LIGHTING – WALLPACKS & GARAGE LIGHTERS
![](asset-db.png)
217
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
Example
GLX 0 8 05 M WT
Series Mounting Light Source Wattage Voltage Options
GLX = 11” Round
Canopy Lighter
0 = Hard wire 8 = PS/MH 05 = 50W M = Multi-tap WT = White Housing
Mountings
Slide Box on
Fixture Top
Hook, Cord
& Plug
Pendant Mount
Ordering Code
GLX-PM06
Accessories
GLX Series Ordering Information
Housing Size (sq.) Wattage Lamp Catalog Number
Slide Box
Catalog Number
Hook, Cord & Plug
12” 175W MH GLX0417-(a)(b) GLX2417-(a)(b)
50W PS/MH GLX0805-(a)(b) GLX2805-(a)(b)
70W PS/MH GLX0807-(a)(b) GLX2807-(a)(b)
100W PS/MH GLX0810-(a)(b) GLX2810-(a)(b)
150W PS/MH GLX0815-(a)(b) GLX2815-(a)(b)
175W PS/MH GLX0817-(a)(b) GLX2817-(a)(b)
50W HPS GLX0505-(a)(b) GLX2505-(a)(b)
70W HPS GLX0507-(a)(b) GLX2507-(a)(b)
100W HPS GLX0510-(a)(b) GLX2510-(a)(b)
150W HPS GLX0515-(a)(b) GLX2515-(a)(b)
Voltage (a) Options (b) (Factory Installed) Accessories: (Field-Installed)
For hook, cord & plug, specify voltage:
1 = 120V*
2 = 277V*
3 = 208V*
4 = 240V*
5 = 480V
5 = 480V (175W only)
M = Multi-tap (tapped @ 277V)
Q = Quartz Standby (100-175W only)
WT = White Housing
GLX-PM06 = Pendant Mount 6”*
A HK SC = Hook
*Contact factory for other lengths
HID LIGHTING – WALLPACKS & GARAGE LIGHTERS
GLX Series 12” Garage Lighter
Ordering
Code 0
Ordering
Code 2
![](asset-dc.png)
218
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
12” GBX
Photometric Data
(Isofootcandle Plots)
GBX Series 12” Garage Lighter
Dimensions
Lens Fixture Fixture Approx.
Width Width Height Ship Wt.
GBX Series
11.2” 12.7” 12.37” 15 lbs.
Top View
12.7
”
Features
Housing
The bronze die-cast aluminum housing has a
polyester powder coat finish that resists corrosion as
well as the dirt and oil compounds normally found in
parking garages.
Ballast
All fixtures are supplied with a high-power factor,
high-reactance or CWA ballast.
Lamps
The GBX Series is available in 175W metal halide,
50 - 175W pulse start metal halide and 50W - 150W
HPS lamp types. All lamps are supplied in a medium
base.
Optics
The prismatic glass lens, in conjunction with the
vertical burn lamp, provides maximum light
distribution and output. The extra thick prismatic
glass lens is tempered.
Mounting Options
The exclusive adjustable slide box mounts directly
to a 3/4” threaded conduit or a standard 4”
round box. This allows the GBX series fixture to be
safely disconnected from the junction box, making
maintenance and/or replacement both quick and
easy. The 6” wall mount arm option incorporates a
5” x 5” flange for surface mounting. A 105°C lead
wire is provided to connect inside a junction box.
SL FIXTURES
GBX0417-M
CAST ALUMINUM HOUSING,
FORMED WHITE ENAMEL
STEEL REFLECTOR
CLEAR PRISMATIC C73 GLASS LENS
ONE CLEAR VENTURE
MH175/U/MED 175 WATT ED17
METAL HALIDE RATED
AT 14,000 LUMENS
Horizontal footcandles
Scale 1 square = 10 feet
Light Loss Factor 1.00
Total Lumens per Luminaire 14,000
Mounting Height 12 feet
Maximum Calculated Value 13.72 Fc
Arrangement Single
11.20”
12.37
”
While only 12” high, the GBX Series Garage
Lighter delivers maximum light distribution
from its acrylic refractor. Designed for the low
profile needs of parking garages, it is the perfect
security fixture.
55°C Ambient Rated
Lamp Included
Wattage Range:
50 - 175W
Listed for Wet Locations
Consult Factory for CUL Availability
HID LIGHTING – WALLPACKS & GARAGE LIGHTERS
![](asset-dd.png)
219
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
Example
GBX 0 5 07 M WT
Series Mounting Light Source Wattage Voltage Options
GB X = 12” Garage
Lighter
0 = Hard wire 5 = HPS 07 = 70W M = Multi-tap WT = White Housing
GBX Series 12” Garage Lighter
Mountings
Slide Box on
Fixture Top
Hook, Cord
& Plug
Pendant Mount
Ordering Code
GBX-PM
6” Wall
Mount Arm
Accessories
GBX Series Ordering Information
Housing Size (sq.) Wattage Lamp Catalog Number
Slide Box
Catalog Number
Hook, Cord & Plug
Catalog Number 6”
Wall Mount Arm
12” 175W MH GBX0417-(a)(b) GBX2417-(a)(b) GBX4417-(a)(b)
50W PS/MH GBX0805-(a)(b) GBX2805-(a)(b) GBX4805-(a)(b)
70W PS/MH GBX0807-(a)(b) GBX2807-(a)(b) GBX4807-(a)(b)
100W PS/MH GBX0810-(a)(b) GBX2810-(a)(b) GBX4810-(a)(b)
150W PS/MH GBX0815-(a)(b) GBX2815-(a)(b) GBX4815-(a)(b)
175W PS/MH GBX0817-(a)(b) GBX2817-(a)(b) GBX4817-(a)(b)
50W HPS GBX0505-(a)(b) GBX2505-(a)(b) GBX4505-(a)(b)
70W HPS GBX0507-(a)(b) GBX2507-(a)(b) GBX4507-(a)(b)
100W HPS GBX0510-(a)(b) GBX2510-(a)(b) GBX4510-(a)(b)
150W HPS GBX0515-(a)(b) GBX2515-(a)(b) GBX4515-(a)(b)
Voltage (a) Options (b) (Factory Installed) Accessories: (Field-Installed)
For hook, cord & plug, specify voltage:
1 = 120V*
2 = 277V*
3 = 208V*
4 = 240V*
*Supplied with Multi-tap ballasts
5 = 480V
175W only
M = Multi-tap
tapped @ 277V
Q = Quartz Standby (100-175W only)
WT = White Housing
GBX-PM = Pendant Mount 6”
A HK SC = Hook
HID LIGHTING – WALLPACKS & GARAGE LIGHTERS
Ordering
Code 0
Ordering
Code 2
![](asset-de.png)
220
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
0 10'10' 20'20' 3030'
10'
20'
30'
0'
10'
20'
30'
20
7
10
3
1
.5
400W MH CF Series at 15’ mounting height.
CF Series 12” & 16” Canopy Fixture
W
D
L
Features
Housing
The seamless, die cast aluminum housing is standard
with a weather-resistant bronze polyester powder
topcoat. The doorframe fits flush with the housing.
Complete silicon gasketing between door and
housing provides a watertight seal. Removable
hinged door supports easy maintenance.
Ballast
All fixtures are standard with high-power factor
multi-tap or 480V ballasts.
Lamps
The M Series utilizes mogul base lamps. To increase
light levels by 20%, specify a position-oriented
socket using an MS400/HOR lamp. The CFS utilizes
medium base lamps.
Lens
All CF Series fixtures are supplied with C73 prismatic
glass for ideal performance and light distribution.
Optics
The CF Series reflector comes standard with
hammertone aluminum optics.
Wiring
A knockout is located in the ballast compartment of
the CFM housing. Additional knockouts are located
on the sidewalls of the CFM housing. The CFS housing
has multiple knockouts for mounting to junction
boxes.
Special Gasket and Knockout
features on the Canopy Fixtures
make for easy adaptability and
fixture placement.
Dimensions
Fixture Fixture Fixture Approx.
Length Width Depth Ship Wt.
CFS Series
12.4” 12.4” 5.25” 18 lbs.
CFM Series
16.4” 16.4” 7.0” 32 lbs.
CF
Photometric Data
(Isofootcandle Plots)
Mounting Options
Three knockouts located in the base of the cast
aluminum housing are provided to mount the fixture
to steel, concrete ceiling or canopy. Not suitable for
mounting to ceilings with combustible material.
Ideally suited for indoor parking areas, canopies
or walkways with a mounting height above 15’.
Also ideal for building-mounted security lighting.
Lamp Included
Wattage Range:
50 - 400W
Listed for Wet Locations
Consult Factory for CUL Availability
HID LIGHTING – WALLPACKS & GARAGE LIGHTERS
DARK SKY
Dark Sky compliant when
mounted in down position
![](asset-df.png)
221
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
Example
CFS 0 5 07 M WT
Series Mounting Light Source Wattage Voltage Options
CFS = 12” Canopy
Fixture
0 = Hard wire 5 = HPS 07 = 70W M = Multi-tap WT = White Housing
CF Series 12” & 16” Canopy Fixture
Mountings
Accessories
Ceiling Mount
Wire Guard
Ordering Code 12”:
WG-12
16”: WG-16
Vandal Shield
Ordering Code
12”: VS-12
16”: VS-16
CF Series Canopy Fixture Ordering Information
Housing Size (sq.) Wattage Lamp Catalog Number
12” 50W PS/MH CFS0805-(a)(b)
70W PS/MH CFS0807-(a)(b)
100W PS/MH CFS0810-(a)(b)
150W PS/MH CFS0815-(a)(b)
175W MH CFS0417-(a)(b)
50W HPS CFS0505-(a)(b)
70W HPS CFS0507-(a)(b)
100W HPS CFS0510-(a)(b)
150W HPS CFS0515-(a)(b)
16” 175W MH CFM0417-(a)(b)
200W PS/MH CFM0820-(a)(b)
250W MH CFM0425-(a)(b)
250W PS/MH CFM0825-(a)(b)
320W PS/MH CFM0832-(a)(b)
350W PS/MH CFM0835-(a)(b)
400W MH CFM0440-(a)(b)
400W PS/MH CFM0840-(a)(b)
400W MS/HOR CFM0740-(a)(b)
70W HPS CFM0507-(a)(b)
100W HPS CFM0510-(a)(b)
150W HPS CFM0515-(a)(b)
250W HPS CFM0525-(a)(b)
400W HPS CFM0540-(a)(b)
Note: Not suitable for mounting to ceilings with combustible material.
Voltage (a) Options (b) (Factory Installed) Accessories: (Field-Installed)
5 = 480V
M = Multi-tap tapped @ 277V
Fusing
(x)F = Single - Specify voltage (x):
1 = 120V; 2 = 277V
(x)J = Dual - Specify voltage (x):
3 = 208V; 4 = 240V; 5 = 480V
Q = Quartz Standby (Includes Q lamp) Non
delay-relay type
WT = White Housing (Custom Colors Available:
Consult factory for pricing and delivery.)
Note: HID wattage must be higher than quartz
standby wattage.
WG-12 = 12” Wire Guard
VS-12 = 12” Vandal Shield
WG-16 = 16” Wire Guard
VS-16 = 16” Vandal Shield
HID LIGHTING – WALLPACKS & GARAGE LIGHTERS
![](asset-e0.png)
222
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
HID LIGHTING – FLOODLIGHTS
![](asset-e1.png)
223
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
HID LIGHTING – FLOODLIGHTS
Simkar floodlights and parking/roadway fixtures feature cast aluminum
housings for excellent ruggedness and durability - and are designed with
radiused corners to achieve reduced EPA ratings. In fact, Simkar’s low
profile FVL 23” Square Vertical Burn Floodlight reports the lowest EPA rating
in the industry.
Be sure to try Simkar’s new Ground Post Spike for use with floodlights and
landscape lighting fixtures with 1/2” threaded hubs - such as the FMS Micro
Floodlight, the FMM Mini Floodlight and the FMR Roundback Floodlight. All
Simkar floodlighting systems - including the 12”, 16” and 23” fixtures - are
available with a wide variety of mounting brackets and accessories, such
as slip fitters, yoke mounts, arm mounts, wishbone mounts and custom
solutions for pole mounts.
For more information about poles and applicable fixture configurations,
please reference the pole section of the catalog. EPA rating information and
a wind map are also available in that section.
HID Lighting
FLOODLIGHTS
![](asset-e2.png)
224
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
HID LIGHTING – FLOODLIGHTS
Features
Housing
Finished with a bronze or white polyester powder
coat, the architecturally appealing housing is built to
retain its attractive appearance for many years.
Optics
Utilizing a unique multi-surface shielded reflector
design, a top and side shield hood and a medium
base HPS lamp, the FMS Series floodlight is both
flexible and energy efficient, providing low fixture
visibility and a high light level. NEMA 6 X 6
distribution.
Ballast
The FMS Series comes with a normal power factor
(NPF) 120V HPS reactor ballast. CFL fixtures include
120/277V electronic ballasts.
Lamps
Available only in high-pressure sodium, the FMS
Series utilizes a medium base lamp in wattages 35W
through 150W.
EPA Ratings
Not Required
Mounting Options
The 1/2” adjustable fitter allows the FMS floodlight
to be mounted on a standard box and aimed to any
vertical degree setting. Designed for wall, ceiling or
ground mount. For uplighting, fixture must have a
FMS Series 9” Micro Floodlight with Hood
minimum 1° tilt so that contaminants do not create a
hot spot and damage the lens.
Maintenance
A top-mounted stainless steel latch provides quick
tool-free access to the lamp compartment. The front
lens door is pin-hinged on the bottom for easy
removal.
Photometric Data
(Isofootcandle Plots)
Designed for residential and low wattage
industrial and commercial applications, the
FMS Series is a powerful yet compact die cast
aluminum floodlight.
Wattage Range:
26 to 150 W
Dimensions
Fixture Fixture Fixture Approx.
Height Width Depth Ship Wt.
FMS Series 6” 9” 8” 6 lbs.
9”
6”
8”
25' 20' 15' 10' 5' 0' 5' 10' 15' 20' 25' 30' 35' 40' 45' 50' 55' 60'
30'
35'
40'
45'
50'
55'
60'
12' 2 fc
1 fc
.5 fc
.3 fc
Minimum
Footcandle
Values
0
5
10
15
20
25
30
35
40
45
50
55
60
65
70
Lamp Included
Listed for Wet Locations
Consult Factory for CUL
Availability
HPS-70 Watt/Clear
Mounting Height: 12’
Number of Fixtures: 2
Aiming Angle: 45°
The FMS Series photometric data is based on a 70 watt clear HPS lamp rated at 6,300 lamp lumens.
Footcandle values for other wattages are obtained by multiplying the chart values by the following factors:
5
3
1
.5
.3
.1
10
10' 20' 30' 40' 50'
10'
20'
30'
40'
50'
60'
70'
80'
0
10'
20'
010'20'30'40'50'
9” FMS
70W HPS FMS floodlight at 12’ mounting height, and 45° vertical tilt.
Lamp/Wattage Factor Lamp/Wattage Factor
35W HPS .36 70W HPS 1.00
50W HPS .64 100W HPS 1.5
150W HPS 2.5
A
V
A
I
L
A
B
L
E
CFL
![](asset-e3.png)
225
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
HID LIGHTING – FLOODLIGHTS
Accessories - Order Separately
Mountings
1/2”
Adjustable
Fitter
Ordering Code
MA6-FMS
(included)
1/2” Tenon
Adaptor
Ordering Code
MA6-TA
Ground Post
Accessory Code
SPIKE
Options Accessories
WT = White Housing MA6-FMS = 1/2” Adjustable Fitter (Replacement Mounting)
MA6-TA = 1/2” Tenon Adaptor
SPIKE = Ground Post
FMS Ordering Information
Series Mounting Light Source Lamp Wattage Voltage
FMS = 9” Housing 6 = 1/2” Adj. Fitter 3 = CFL
5 = HPS
HID
03 = 35W
05 = 50W
07 = 70W
10 = 100W
15 = 150W
Compact Fluorescent
26 = 26W CFL
32 = 32W CFL
42 = 42W CFL
1 = 120 (HPS Only)
D = Dual-Tap 120/277 (CFL Only)
FMS Series 9” Micro Floodlight with Hood
![](asset-e4.png)
226
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
HID LIGHTING – FLOODLIGHTS
Features
Housing
Constructed of rugged corrosion-resistant, die-cast
aluminum in an architectural bronze or white
polyester powder coat finish, the FMM Series Mini
Floodlight blends perfectly with most architectural
settings.
Optics
Lower wattage (100W and below) have a NEMA beam
pattern of 5H x 4V; 150W and above have a wider
6H x 5V pattern.
Ballast
Metal halide is high reactance only. The 50 - 150W
high-pressure sodium versions utilize both multi-tap
HPF and 120V NPF. Reactor ballasts are available in
35 - 150W with optional HPF. CFL fixtures include
120/277V electronic ballasts.
Lamps
Available in both metal halide and high-pressure
sodium, the FMM Series utilizes a medium base lamp
for all wattages.
EPA Ratings
Not required.
Mounting Options
Utilizing a 1/2” adjustable fitter, the FMM floodlight
mounts on a standard box and aims to any vertical
degree setting. Designed for wall, ceiling or ground
mount. For uplighting, fixture must have a minimum
FMM Series 9” Mini Floodlight
1° tilt so that contaminants do not create a hot spot
and damage the lens.
Maintenance
The front lens door is easily opened by two top
captive screws and is pin-hinged for easy lamp
replacement.
Photometric Data
(Isofootcandle Plots)
With its compact size and powerful wide beam,
the FMM Series Mini Floodlight is a versatile
and economic light source for building, sign and
landscape lighting.
Wattage Range:
26 to 175 W
Dimensions
Fixture Fixture Fixture Approx.
Height Width Depth Ship Wt.
FMM Series 9” 9” 8” 13 lbs.
Listed for Wet Locations
Consult Factory for
CUL Availability
HPS-150 Watt/Clear
Mounting Height: 15’ • Number of Fixtures: 2 • Aiming Angle: 65°
The FMM Series photometric data is based on a 150 watt clear HPS lamp rated at 15,800 lamp lumens.
Footcandle values for other wattages are obtained by multiplying the chart values by the following factors:
25' 20' 15' 10' 5' 0' 5' 10' 15' 20' 25' 30' 35' 40' 45' 50' 55' 60'
30'
35'
40'
45'
50'
55'
60'
15' 2 fc
1 fc
.5 fc
.2 fc
Minimum
Footcandle
Values
0
5
10
15
20
25
30
35
40
45
50
55
60
65
70
9”
9”
8”
Lamp Included
150W HPS FMM floodlight at 15’ mounting height, and 65°
vertical tilt.
9” FMM
0 25'25' 50'50' 75'75'
75'
100'
125'
150'
50'
25'
0'
10
5
3
1
.5
.3
.1
Lamp/Wattage Factor Lamp/Wattage Factor
35W HPS .14 50W MH .21
50W HPS .25 70W MH .35
70W HPS .4 100W MH .57
100W HPS .6 150W MH .85
150W HPS 1.0 175W MH .91
A
V
A
I
L
A
B
L
E
CFL
![](asset-e5.png)
227
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
HID LIGHTING – FLOODLIGHTS
Mountings
Accessories - Order Separately
1/2”
Adjustable
Fitter
Ordering Code
MA6-FMM
(included)
Accessory Code
FMM-GS
Accessory Code
FMM-VS
Accessory Code
SPIKE
1/2” Tenon
Adaptor
Ordering Code
MA6-TA
Glare Shield
Vandal Shield
Ground Post
Accessories
MA6-FMM = 1/2” Adjustable Fitter (Replacement Mounting)
MA6-TA = 1/2” Tenon Adaptor
FMM-GS = Glare Shield
FMM-VS = Vandal Shield
SPIKE = Ground Post
FMM Ordering Information
Series Light Source Lamp Wattage
FMM 6 = 9” Housing with 1/2” Adj. Fitter 3 = CFL
4 = MH
5 = HPS
8 = MH/PS
HID
03 = 35W (HPS 120V only)
05 = 50W
07 = 70W
10 = 100W
15 = 150W
17 = 175W (MH only)
Compact Fluorescent
26 = 26W
32 = 32W
42 = 42W
Voltage Options
1 = 120V NPF1 (HPS only)
2 = 277V
3 = 208V
4 = 240V
5 = 480V 175W (MH only)
D = Dual-Tap 120/277 (CFL only)
M = Multi-tap (tapped @ 277)
(x)B = Photo Cell - (Internal Button Type Only) (Specify voltage)
HPF1
= High Power Factor (HPF) (120V Only) - (change NPF to HPF)
WT = White Housing
1All NPF fixtures can be ordered as High Power Factor
FMM Series 9” Mini Floodlight
![](asset-e6.png)
228
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
HID LIGHTING – FLOODLIGHTS
Features
Housing
Constructed of die-cast aluminum in an architectural
bronze polyester powder coat finish for outdoor
applications.
Optics
Specular bright aluminum reflector is designed to
provide a wide flood beam pattern.
Ballast
50 - 175W MH, high reactance and
CWA Quad or 480V
35 - 150W HPS, NPF, high reactance CWA Quad
Lamps
50 - 175W medium base MH lamps or
35 - 150W HPS medium base lamps
Lens
The front lens is 1/8” tempered glass. The lens is
sealed into the lens frame using silicone. Each FMR
fixture has silicon gasketing, providing a watertight
housing.
EPA Ratings
Not required.
Mounting Options
Comes standard with a heavy-duty 1/2” adjustable
fitter mount for both ground and wall mount. For
uplighting, fixture must have a minimum 1° tilt
so that contaminants do not create a hot spot and
damage the lens.
Maintenance
The front lens door is pin-hinged for easy lamp
replacement.
Photometric Data
(Isofootcandle Plots)
Dimensions
Fixture Fixture Fixture Approx.
Height Width Depth Ship Wt.
FMR Series 8.5” 11” 7.75” 15 lbs.
025 50
25
50
75
2550
25
0
5
3
1
.5
.3
.1
175W MH FMR roundback flood at 15’ mounting height,
and 45° tilt.
11
”
8.5
”
8.5
”
7.75”
11”
FMR Series 11” Roundback Floodlight
Designer series cast aluminum rounded features
with heat-dissipating fins make this floodlight ideal
for areas where aesthetics are important. The stylish
curves of the FMR Series fixture blend perfectly
with the environment
Wattage Range:
35 to 175 W
Listed for Wet Locations
Consult Factory for
CUL Availability
Lamp Included
![](asset-e7.png)
229
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
HID LIGHTING – FLOODLIGHTS
Mountings
Accessories - Order Separately
1/2”
Adjustable
Fitter
Ordering Code
MA6-FMR
(included)
Accessory Code
SPIKE
1/2” Tenon
Adaptor
Ordering Code
MA6-TA
Ground Post
Options (b) (Factory Installed) Accessories
HPF1
= High Power Factor (120V HPS Only) - (change NPF to HPF)
BK = Black
WT = White
VG = Verde Green
MA6-FMR = 1/2” Adjustable Fitter
(Replacement Mounting)
MA6-TA = 1/2” Tenon Adaptor
PT-20 = External Photocell
FMR-GS = Glare Shield
SPIKE = Ground Post
1All NPF fixtures can be ordered as High Power Factor
FMR Ordering Information
Series Light Source Lamp Wattage Voltage (a)
FMR6 = 11” with 1/2” Adj. Fitter 4 = MH
5 = HPS
8 = MH/PS
03 = 35W (HPS 120V only)
05 = 50W
07 = 70W
10 = 100W
15 = 150W
17 = 175W (MH only)
1 = 120V NPF1 (HPS only)
2 = 277V
3 = 208V
4 = 240V
5 = 480V
M = Multi-tap 120V-227V
(tapped @ 277)
1All NPF fixtures can be ordered as High Power Factor
FMR Series 11” Roundback Floodlight
![](asset-e8.png)
230
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
HID LIGHTING – FLOODLIGHTS
Maintenance
A wiring compartment (see picture) provides easy access
to wiring without opening the fixture.
Photometric Data
(Isofootcandle Plots)
Features
Housing
Housings are constructed of rugged
corrosion-resistant, die-cast aluminum with an
architectural bronze polyester powder coat finish.
Optics
The reflector is made from high-quality specular
aluminum. NEMA 7 x 7 distribution.
Ballast
All fixtures come standard with a high-power factor,
multi-tap or 480V ballast. All units are supplied with
a 36” SOW 16/3 cord. If no voltage is specified,
cord is connected to highest voltage.
Lamps
Available in either metal halide (175 - 400W) or
high-pressure sodium (70 - 400W), the FBD Series
Compact Floodlight utilizes mogul base lamps. (320 -
400W use standard MH T15 lamps.)
Lens
The front lens is hinged and silicone gasketed to seal
out contaminants.
EPA Ratings
EPA Ratings are listed on page 252.
Mounting Options
Comes standard with a yoke mount and pre-wired
cord. A trunnion mount and a 2-3/8” tenon mount
adaptor are available. For uplighting, fixture must
have a minimum 1° tilt so that contaminants do not
create a hot spot and damage the lens.
Dimensions
Fixture Fixture Fixture Approx.
Height Width Depth Ship Wt.
FBD Series
9.7” 16.2” 10.6” 35 lbs
-100'
-125'
-50'
-75'
-75'
0
-25'
25'
-100' -50' -25'
.1
.3
.5
3
1
5
25'
050' 100'75'
400W MH FBD floodlight at 25’ mounting height, and 65°
vertical tilt.
Labor-saving wiring compartment
16.2”
10.6”
9.7
”
8.25
”
C
O
N
T
R
A
C
T
O
R
F
R
I
E
N
D
L
Y
FBD Series 16” Compact Floodlight
The FBD Series Compact Floodlight punches
out up to 400W of light from a well-designed
reflector ideally suited for mounting on sides of
buildings, on poles, or as a ground mount. Its
compact size makes this the most economical
and powerful floodlight in its range.
Wattage Range:
70 to 400 W
Listed for Wet Locations
Consult Factory for
CUL Availability
Lamp Included
16” FBD
![](asset-e9.png)
231
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
HID LIGHTING – FLOODLIGHTS
Mountings and Accessories
Accessory Code
FBD-GS
Accessory Code
FBD-WG
Tenon Mount
Ordering Code
FBD-TM
Trunnion Mount
Ordering Code
FBD-TR
Glare
Shield
Wire Guard
FBD Series 16” Compact Floodlight
Options Accessories (order separately)
(x)P = Photo Control (Specify voltage)
(Twist lock receptacle & matching
photocell supplied)
FBD-TM = Tenon Mount
FBD-TR = Trunnion Mount
FBD-GS = Glare Shield
FBD-WG = Wire Guide
FBD-VS = Vandal Shield (Not Shown)
FBD Ordering Information
Series Light Source Lamp Type Voltage
FBD4 = 16” Housing with yoke mount 4 = MH
5 = HPS
8 = MH/PS
17 = 175W
(MH & PS/MH only)
25 = 250W
32 = 320W (PS/MH only)
35 = 350W (PS/MH only)
40 = 400W
1 = 120V
2 = 277V
3 = 208V
4 = 240V
5 = 480V
M = Multi-tap (tapped @ 277V)
120-480V (400W MH only)
M5 = 5 Tap 120/277/208/240/480 (400W
MH Only)
![](asset-ea.png)
232
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
HID LIGHTING – FLOODLIGHTS
Features
Housing
Housings are available in polyester powder coated
bronze, black or white. Other colors available upon
request. The 16” and 23” housings can be rotated.
(See Optics)
Optics
The IES NEMA 6 x 7 FB Series is typically installed
with a 45° to 60° vertical tilt to provide a wide
coverage of illumination. The 16” and 23” housings
have mounting knockouts on three sides that allow
the housing to be rotated 90 degrees either right
or left.
Ballast
All fixtures come standard with a high-power factor
multi-tap or 480V ballast. All units are supplied with
a 36” SOW 16/3 cord. If no voltage is specified,
cord is connected to highest voltage.
Lamps
12” housing: 35 - 175W medium base lamp
16” housing: 70 - 400W mogul base lamp
23” housing: Uses up to 1000W mogul base lamp
Lens
A clear, tempered glass lens is held securely in a die
cast door frame.
EPA Ratings
Because of its unique design, lower EPA levels are
obtained, resulting in lower pole costs. EPA Ratings
are listed on page 252.
Mounting Options
Refer to page 247 for a complete description of
mounting options. For uplighting, fixture must have
a minimum 1° tilt so that contaminants do not
create a hot spot and damage the lens.
0'
25' 50' 75'
25'
50'
75'
100'
0'
25'
50'
75'
25'
125'
5.0
3.0
1.0
.5
.3
.1
FB Series Standard Floodlight
0'
25' 50' 75' 100' 125' 150'
0'
25'
50'
75'
100'
125'
150'
175'
200'
225'
250'
25'
50'
25'
50'
75'
100'
150' 125'
5
3
1
.5
.3
.1
10
0' 25' 50' 75' 100'
0'
25'
50'
75'
100'
125'
150'
25'
50'
75'
100'
25'
50'
5.0
3.0
1.0
.5
.3
.1
Offering a wide coverage of illumination,
the FB Series Standard Floodlight is ideal for
parking areas, building floodlighting and in
various sports lighting applications. Featuring a
sleek square design with rounded edges, the FB
Series is offered with either a 12”, 16” or 23”
die cast aluminum housing. A flush door frame
is standard with every unit.
Wattage Range:
35 to 1000 W
Dimensions
Fixture Fixture Fixture Approx.
Length Width Depth Ship Wt.
FBS Series 12.4” 12.4” 5.25” 25 lbs.
FBM Series 16.4” 16.4” 7.0” 33 lbs.
FBL Series 23.4” 23.4” 10.25” 68 lbs.
L
W
D
Listed for Wet Locations
Consult Factory for
CUL Availability
Lamp Included
12” FBS
175W MH Standard Floodlight at 15’ mounting
height with 60° vertical tilt.
400W MH Standard Floodlight at 25’
mounting height with 60° vertical tilt.
400W MH Standard Floodlight at 25’
mounting height with 60° vertical tilt.
16” FBM
23” FBL
1000W MH Standard Floodlight at 30’
mounting height with 60° vertical tilt.
Standard Floodlight Pole Spacing Selection Guide
Lamp Desired Tilt Design Catalog
Type Mounting Height Angle Footcandles Number
Metal Halide
175W 12’ 60 9.5 FBS8417
400W 20’ 60 9.3 FBM8440
400W 25’ 60 5.9 “
1000W 30’ 60 15.7 FBL8499
1000W 35’ 60 11.2 “
High-Pressure Sodium
250W 20’ 60 9.3 FBM8525
400W 25’ 60 10.7 FBM8540
1000W 30’ 60 18.0 FBL8599
1000W 35’ 60 13.0 “
Criteria:
Floodlight FB Series
Mounting Height: 25’
Wattage: 400W
Mounting: 2” Adjustable Slip Fitter
Pole Spacing: 4 times mounting height
1 assuming 4 floodlights/pole
Average
Design
Footcandles1
HID LIGHTING – FLOODLIGHTS
Photometric Data
(Isofootcandle Plots)
![](asset-eb.png)
233
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
HID LIGHTING – FLOODLIGHTS
MA2T10
6” Arm - 10° Tilt
MA5T10
12” Arm - 10° Tilt
10° & 20° Arms - Order Separately
Mountings
2” Adjustable
Slip Fitter
Ordering Code
MA3
Yoke Mount
Ordering Code
MA4
Wishbone
Mount
(16” & 23” only)
See 247
MA2T20
6” Arm - 20° Tilt
MA5T20
12” Arm - 20° Tilt
FB Series Standard Floodlight
FB 12” Series Ordering Information
Series Mounting Light Source Wattage, Type Voltage
FBS = 12” Housing 8 = Without Mounting 4 = MH
5 = HPS
8 = MH/PS*
05 = 50W (MH/PS, HPS)
07 = 70W (MH/PS, HPS)
10 = 100W (MH/PS, HPS)
15 = 150W (MH/PS, HPS)
17 = 175W (MH)
1 = 120
2 = 277
3 = 208
4 = 240
5 = 480
M = Multi-Tap
* MH/PS lamps must be operated in a ±15° vertical or horizontal burning position
FB 16” Series Ordering Information
Series Mounting Light Source Wattage, Type Voltage
FBM = 16” Housing 8 = Without Mounting 4 = MH
5 = HPS
8 = MH/PS*
07 = 70W (MH/PS, HPS)
10 = 100W (MH/PS, HPS)
15 = 150W (MH/PS, HPS)
17 = 175W (MH)
25 = 250W (MH, MH/PS, HPS)
32 = 320W (MH/PS)
35 = 350W (MH/PS)
40 = 400W (MH, MH/PS, HPS)
1 = 120
2 = 277
3 = 208
4 = 240
5 = 480
M = Multi-Tap (120-277V)
M5 = 5 Tap
120/277/208/240/480
(400W MH Only)
* MH/PS lamps must be operated in a ±15° vertical or horizontal burning position
FB 23” Series Ordering Information
Series Mounting Light Source Wattage, Type Voltage
FBL = 23” Housing 8 = Without Mounting 4 = MH
5 = HPS
8 = MH/PS*
40 = 400W (MH, MH/PS, HPS)
75 = 750W (MH/PS)
99 = 1000W (MH, HPS)
1 = 120
2 = 277
3 = 208
4 = 240
5 = 480
M = Multi-Tap (120-277V)
M5 = 5 Tap 120/277/208/240/480
(400W and 1000W MH Only)
* MH/PS lamps must be operated in a ±15° vertical or horizontal burning position
Options (Factory Installed) Accessories (Field Installed)
Fusing
(x)F = Single - Specify voltage (x):
1 = 120V; 2 = 277V
(x)J = Dual - Specify voltage (x):
3 = 208V; 4 = 240V; 5 = 480V
Q = Quartz Standby
(x)P = Photo Control - Specify Voltage
(Twist lock receptacle & matching photocell
supplied.) 16” & 23” ONLY
WT = White Housing (Custom Colors Available: Consult
factory for pricing and delivery.)
BK = Black Housing (Custom Colors Available: Consult
factory for pricing and delivery.)
12” housing
WG-12 = Wire Guard
VS-12 = Vandal Shield
16” housing
WG-16 = Wire Guard
VS-16 = Vandal Shield
WBR161 = Wishbone Mount for 4” Round Pole
WBS161 = Wishbone Mount for 4” Square Pole
23” housing
WG-23 = Wire Guard
VS-23 = Vandal Shield
WBR231 = Wishbone Mount for 4” Round Pole
WBS231 = Wishbone Mount for 4” Square Pole
Mounting
MA3 = 2” Adjustable Slip Fitter
MA4 = Yoke Mt.
MA4H = Yoke Mt. for 23”
1 See page 247 for restrictions.
![](asset-ec.png)
234
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
HID LIGHTING – FLOODLIGHTS
Features
Housing
The die cast aluminum housing with flush doorframe
and rounded edges are standard with bronze, black
or white polyester powder topcoat. Other colors
available upon request. The 16” and 23” housings
can be rotated. (See Optics)
Optics
The IES NEMA 7 x 7 cutoff luminaire, while
minimizing light spill, is generally positioned with a
15° to 25° vertical tilt to reduce glare and obtain
optimum performance. The 16” and 23” housings
have mounting knockouts on three sides that allow
the housing to be rotated 90 degrees either right
or left.
Ballast
All fixtures come standard with a high-power factor
multi-tap or 480V ballast. All units are supplied with
a 36” SOW 16/3 cord. If no voltage is specified,
cord is connected to highest voltage.
Lamps
12” housing: 35 - 175W medium base lamp
16” housing: 150 - 400W mogul base lamp
23” housing: Up to 1000W mogul base lamps
Lens
A clear, tempered glass lens is held securely in a die
cast doorframe. Complete silicone gasketing around
lens frame and at mounting provide a watertight
seal.
EPA Ratings
Because of its unique design, lower EPA levels are
obtained, resulting in lower pole costs. EPA Ratings
are listed on page 252.
Mounting Options
Refer to page 247 for a complete description of
mounting options.
0' 25' 50' 75'
0'
25'
50'
75'
100'
25'
25'
50'
75'
5.0
3.0
1.0
.5
.3
.1
FC Series Cutoff Floodlight
0
25' 50' 75' 100' 125'
0
25'
50'
75'
100'
125'
150'
175'
25'
50'
25'
50'
75'
100'
125'
5.0
3.0
1.0
.5 .3
.1
10.0
25' 50' 75' 100'
25'
50'
75'
100'
125'
150'
0'
25'
100' 75' 50' 25' 0'
5
3
1
.5
.3
.1
Photometric Data
(Isofootcandle Plots)
The FC Series provides concentrated, general
lighting in larger areas with controlled light
spillage. Featuring a sleek square design
with rounded edges, these floodlights are
offered with either a 12”, 16” or 23” die cast
aluminum housing.
Wattage Range:
35 to 1000 W
Dimensions
Fixture Fixture Fixture Approx.
Length Width Depth Ship Wt.
FCS Series
12.4” 12.4” 5.25” 18 lbs.
FCM Series
16.4” 16.4” 7.0” 38 lbs.
FCL Series
23.4” 23.4” 10.25” 68 lbs.
Cutoff Floodlight Pole Spacing Selection Guide
Lamp Desired Tilt Design Catalog
Type Mounting Height Angle Footcandles Number
Metal Halide
175W 15’ 20 14.6 FCS8417
400W 20’ 25 17.4 FCM8440
400W 25’ 20 11.2 “
1000W 30’ 25 20.6 FCL8499
1000W 35’ 25 14.8 “
High-Pressure Sodium
250W 20’ 20 14.1 FCM8525
400W 25’ 25 14.8 FCM8540
400W 30’ 20 10.5 “
1000W 30’ 20 26.0 FCL8599
1000W 35’ 20 18.9 “
L
W
D
Criteria:
Floodlight FC Series
Mounting Height: 25’
Wattage: 400W
Mounting: 2” Adjustable Slip Fitter
Pole Spacing: 4 times mounting height
1 assuming 4 floodlights/pole
Average
Design
Footcandles1
Isofootcandle plot of 175W MH Cutoff Floodlight at
15’ mounting height, and 20° vert. tilt.
Isofootcandle plot of 400W MH Cutoff Floodlight at 25’
mounting height, and 30° vert. tilt.
Isofootcandle plot of 1000W MH Cutoff Floodlight at 30’
mounting height, and 20° vert. tilt.
Listed for Wet Locations
Consult Factory for CUL Availability
Lamp Included
12” FCS
16” FCM
23” FCL
![](asset-ed.png)
235
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
HID LIGHTING – FLOODLIGHTS
MA2T10
6” Arm - 10° Tilt
MA5T10
12” Arm - 10° Tilt
10° & 20° Arms - Order Separately
Mountings
2” Adjustable
Slip Fitter
Ordering Code
MA3
Yoke Mount
Ordering Code
MA4
MA2T20
6” Arm - 20° Tilt
MA5T20
12” Arm - 20° Tilt
FC 12” Series Ordering Information
Series Mounting Light Source Wattage, Type Voltage
FCS = 12” Housing 8 = Without Mounting 4 = MH
5 = HPS
8 = MH/PS*
05 = 50W (MH/PS, HPS)
07 = 70W (MH/PS, HPS)
10 = 100W (MH/PS, HPS)
15 = 150W (MH/PS, HPS)
17 = 175W (MH)
1 = 120
2 = 277
3 = 208
4 = 240
5 = 480
M = Multi-Tap
* MH/PS lamps must be operated in a ±15° vertical or horizontal burning position
FC 16” Series Ordering Information
Series Mounting Light Source Wattage, Type Voltage
FCM = 16” Housing 8 = Without Mounting 4 = MH
5 = HPS
8 = MH/PS*
07 = 70W (MH/PS, HPS)
10 = 100W (MH/PS, HPS)
15 = 150W (MH/PS, HPS)
17 = 175W (MH)
25 = 250W (MH, MH/PS, HPS)
32 = 320W (MH/PS)
35 = 350W (MH/PS)
40 = 400W (MH, MH/PS, HPS)
1 = 120
2 = 277
3 = 208
4 = 240
5 = 480
M = Multi-Tap (120-277V)
M5 = 5 Tap
120/277/208/240/480
(400W MH Only)
* MH/PS lamps must be operated in a ±15° vertical or horizontal burning position
FC 23” Series Ordering Information
Series Mounting Light Source Wattage, Type Voltage
FCL = 23” Housing 8 = Without Mounting 4 = MH
5 = HPS
8 = MH/PS*
40 = 400W (MH, MH/PS, HPS)
75 = 750W (MH/PS)
99 = 1000W (MH, HPS)
1 = 120
2 = 277
3 = 208
4 = 240
5 = 480
M = Multi-Tap (120-277V)
M5 = 5 Tap
120/277/208/240/480
(400W and 1000W MH Only)
* MH/PS lamps must be operated in a ±15° vertical or horizontal burning position
Options (Factory Installed) Accessories (Field Installed)
Fusing
(x)F = Single - Specify voltage (x):
1 = 120V; 2 = 277V
(x)J = Dual - Specify voltage (x):
3 = 208V; 4 = 240V; 5 = 480V
Q = Quartz Standby
(x)P = Photo Control - (Specify Voltage)
(Twist lock receptacle & matching photocell supplied.)
16” & 23” ONLY
WT = White Housing
BK = Black Housing
Custom colors available; consult factory for pricing and delivery.
12” housing
WG-12 = Wire Guard
VS-12 = Vandal Shield
16” housing
WG-16 = Wire Guard
VS-16 = Vandal Shield
23” housing
WG-23 = Wire Guard
VS-23 = Vandal Shield
Mounting
MA3 = 2” Adjustable Slip Fitter
MA4 = Yoke Mt.
MA4H = Yoke Mt. for 23”
FC Series Cutoff Floodlight
![](asset-ee.png)
236
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
HID LIGHTING – FLOODLIGHTS
Features
Housing
Die cast aluminum housing with flush doorframe and
rounded edges are standard with bronze, black or
white polyester powder topcoat. Other colors available
upon request. The 16” and 23” housings can be
rotated. (See Optics)
Optics
This compact Type IV forward-throw reflector has
a main beam of 60°+ from vertical (30° from
horizontal), providing a wide lateral distribution and
improved uniformities. A supplied backlight shield
permits precise cutoff adjustability. The 16” and 23”
housings have mounting knockouts on three sides
that allow the housing to be rotated 90 degrees either
right or left.
Ballast
All fixtures come standard with a high-power factor
multi-tap or 480V ballast. All units are supplied with a
36” SOW 16/3 cord. If no voltage is specified, cord is
connected to highest voltage.
Lamps
12” housing: 35 - 175W medium base lamp
16” housing: 150 - 400W mogul base lamp
23” housing: 400 - 1000W mogul base lamps
(An ED28 lamp is standard in the 320 - 400W MH
16” fixtures; a BT37 lamp is standard with the
1000W fixtures.)
Lens
A clear, tempered glass lens is held securely in a die
cast doorframe. Complete silicon gasketing around
the lens frame and at mounting points provide a
watertight seal.
EPA Ratings
Because of its unique design, lower EPA levels are
obtained, resulting in lower pole costs. EPA Ratings
are listed on page 252.
0' 25' 50'
0'
25'
50'
25'
25'
50'
5.0
3.0
1.0 .5
.3
.1
10.0
0' 25' 50' 75' 100' 125'
0'
25'
50'
75'
100'
25'
50'
25'50'
75'
100'
125'
5.0
3.0 1.0
.5 .3
.1
10.0
15.0
0' 25' 50' 75'
0'
25'
50'
75'
25'
50'75'
25'
50'
5.0
3.0
1.0 .5
.3
.1
Mounting Options
Refer to page 247 for a complete description of
mounting options.
Photometric Data
(Isofootcandle Plots)
Dimensions
Fixture Fixture Fixture Approx.
Length Width Depth Ship Wt.
FFS Series
12.4” 12.4” 5.25” 18 lbs.
FFM Series
16.4” 16.4” 7.0” 38 lbs.
FFL Series
23.4” 23.4” 10.25” 68 lbs.
Forward Throw Floodlight Pole Spacing
Selection Guide
Lamp Desired Design Catalog
Type Mounting Height Footcandles Number
Metal Halide
175W 12’ 19.6 FFS8817
400W 20’ 13.5 FFM8440
400W 25’ 8.3 “
1000W 30’ 20.0 FFL8499
1000W 35’ 14.5 “
High-Pressure Sodium
250W 20’ 12.2 FFM8525
400W 25’ 13.7 FFM8540
400W 30’ 9.1 “
1000W 30’ 27.4 FFL8599
1000W 35’ 19.8 “
L
W
D
Criteria:
Floodlight FF Series, 0° vertical tilt
Mounting Height: 25’
Wattage: 400W
Mounting: 12” Extended Pole Mount
Pole Spacing: 4 times mounting height
1 assuming 4 floodlights/pole
Isofootcandle plot of 175W MH Forward-Throw
Floodlight at 15’ mount height, 0° vertical tilt.
Isofootcandle plot of 400W MH Forward-Throw
Floodlight at 25’ mount height, 0° vertical tilt.
Isofootcandle plot of 1000W MH Forward-Throw
Floodlight at 30’ mount height, 0° vertical tilt.
Lamp Included
12” FFS
16” FFM
23” FFL
Average
Design
Footcandles1
Listed for Wet Locations
Consult Factory for CUL Availability
Wattage Range:
35 to 1000 W
Featuring a sleek square
design with rounded edges, the FF Series is
offered with either a 12”, 16” or 23” die cast
aluminum housing.
FF Series Forward Throw Floodlight
DARK SKY
Dark Sky compliant when
mounted in down position
![](asset-ef.png)
237
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
HID LIGHTING – FLOODLIGHTS
Mountings
1-1/2” Close
Pole Mount
Ordering Code
MA1
6” Extended Pole
Mount
Ordering Code
MA2
2” Adjustable
Slip Fitter
Ordering Code
MA3
Yoke Mount
Ordering Code
MA4
12” Extended
Pole Mount
Ordering Code
MA5
MA2T10
6” Arm - 10° Tilt
MA5T10
12” Arm - 10° Tilt
10° & 20° Arms - Order Separately
MA2T20
6” Arm - 20° Tilt
MA5T20
12” Arm - 20° Tilt
FF 12” Series Ordering Information
Series Mounting Light Source Wattage, Type Voltage
FFS = 12” Housing 8 = Without Mounting 4 = MH
5 = HPS
8 = MH/PS*
05 = 50W (MH/PS, HPS)
07 = 70W (MH/PS, HPS)
10 = 100W (MH/PS, HPS)
15 = 150W (MH/PS, HPS)
17 = 175W (MH)
1 = 120
2 = 277
3 = 208
4 = 240
5 = 480
M = Multi-Tap
* MH/PS lamps must be operated in a ±15° vertical or horizontal burning position
FF 16” Series Ordering Information
Series Mounting Light Source Wattage, Type Voltage
FFM = 16” Housing 8 = Without Mounting 4 = MH
5 = HPS
8 = MH/PS*
07 = 70W (MH/PS, HPS)
10 = 100W (MH/PS, HPS)
15 = 150W (MH/PS, HPS)
17 = 175W (MH)
25 = 250W (MH, MH/PS, HPS)
32 = 320W (MH/PS)
35 = 350W (MH/PS)
40 = 400W (MH, MH/PS, HPS)
1 = 120
2 = 277
3 = 208
4 = 240
5 = 480
M = Multi-Tap (120-277V)
M5 = 5 Tap
120/277/208/240/480
(400W MH Only)
* MH/PS lamps must be operated in a ±15° vertical or horizontal burning position
FF 23” Series Ordering Information
Series Mounting Light Source Wattage, Type Voltage
FFL = 23” Housing 8 = Without Mounting 4 = MH
5 = HPS
8 = MH/PS*
40 = 400W (MH, MH/PS, HPS)
75 = 750W (MH/PS)
99 = 1000W (MH, HPS)
1 = 120
2 = 277
3 = 208
4 = 240
5 = 480
M = Multi-Tap (120-277V)
M5 = 5 Tap
120/277/208/240/480
(400W and 1000W MH Only)
* MH/PS lamps must be operated in a ±15° vertical or horizontal burning position
Options (Factory Installed) Accessories (Field Installed)
(x)P = Photo Control - Specify voltage
(Twist lock receptacle & matching photocell supplied.) 16” & 23”
ONLY
WT = White Housing
BK = Black Housing
Quartz Standby (includes Quartz Lamp)
Q = Quartz Standby
Fusing
(x)F = Single - Specify voltage (x):
1 = 120V; 2 = 277V
(x)J = Dual - Specify voltage (x):
3 = 208V; 4 = 240V; 5 = 480V
Custom Colors Available: Consult factory for pricing and delivery.
12” housing
WG-12 = Wire Guard
VS-12 = Vandal Shield
16” housing
WG-16 = Wire Guard
VS-16 = Vandal Shield
23” housing
WG-23 = Wire Guard
VS-23 = Vandal Shield
Mounting
MA1 = 1-1/2” Close Pole Mt.
MA2 = 6” Extended Pole Mt.
MA3 = 2” Adjustable Slip Fitter
MA4 = Yoke Mount
MA4H = Yoke mount for 23’’
MA5 = 12” Extended Pole Mt.
FF Series Forward Throw Floodlight
![](asset-f0.png)
238
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
HID LIGHTING – FLOODLIGHTS
Features
Housing
Die cast aluminum housing with flush doorframe
and rounded edges are standard with bronze, black
or white polyester powder topcoat. Other colors
available upon request. The 16” and 23” housings
can be rotated. (See Optics)
Optics
The 16” and 23” housings come standard with
Type III asymmetric distribution. Ideally suited for
roadway applications, parking areas or building
mounted security lighting. The 16” and 23” housings
have mounting knockouts on three sides that allow
the housing to be rotated 90 degrees either right
or left.
Ballast
All fixtures come standard with a high-power factor
multi-tap or 480V ballast. All units are supplied with
a 36” SOW 16/3 cord. If no Voltage is specified,
cord is connected to highest Voltage.
Lamps
12” housing: 35 - 175W medium base lamp
16” housing: 70 - 400W mogul base lamp
23” housing: 750 - 1000W mogul base lamps
Lens
A clear, tempered glass lens is held securely in a die
cast doorframe. Complete silicon gasketing around
the lens frame and at mounting points provide a
watertight seal.
EPA Ratings
Because of its unique design, lower EPA levels are
obtained, resulting in lower pole costs. EPA Ratings
are listed on page 252.
Mounting Options
Refer to page 247 for a complete description of
mounting options.
25'
50'
0'
25'
50'
25' 50'
0'
25'
50'
5.0
3.0
1.0
.5
.3
.1
10.0
0'
25' 50' 75 100' 125'
0'
25'
50'
75'
100'
25'
50'
75'
100'
25'
50'
75
100'
125'
3.0
1.0.5
.3
.1
5.0
10.0
0'
25' 50' 75'
0'
25'
50'
75'
25'
50'
75'
25'
50'
100'
5.00
3.00
1.00
.5
.3
.1
Photometric Data
(Isofootcandle Plots)
The FP Series is ideally suited for roadway
applications, parking areas or for building-
mounted security lighting. Units feature a
sleek square design with rounded edges in
either a 12”, 16” or 23” die cast aluminum
housing.
Dimensions
Fixture Fixture Fixture Approx.
Length Width Depth Ship Wt.
FPS Series
12.4” 12.4” 5.25” 18 lbs.
FPM Series
16.4” 16.4” 7.0” 33 lbs.
FPL Series
23.4” 23.4” 10.25” 68 lbs.
L
W
D
Isofootcandle plot of 175W MH Parking/Roadway
Floodlight at 15’ mounting height, and 0° vertical tilt.
Isofootcandle plot of 400W MH Parking/Roadway
Floodlight at 25’ mounting height, and 0° vertical tilt.
Isofootcandle plot of 1000W MH Forward-Throw
Luminaire at 30’ mount height, 0° vertical tilt.
FP Series Parking/Roadway Floodlight
Lamp Included
Wattage Range:
35 to 1000 W
Listed for Wet Locations
Consult Factory for CUL Availability
12” FPS
16” FPM
23” FPL
Parking/Roadway Floodlight Pole
Spacing Selection Guide
Lamp Desired Design Catalog
Type Mounting Height Footcandles Number
Metal Halide
175W 12’ 25.0 FPS8417
400W 20’ 16.8 FPM8440
400W 25’ 10.5 “
1000W 30’ 19.8 FPL8499
1000W 35’ 14.3 “
High-Pressure Sodium
250W 20’ 13.3 FPM8525
400W 25’ 15.0 FPM8540
400W 30’ 10.2 “
1000W 30’ 26.9 FPL8599
1000W 35’ 19.5 “
Average
Design
Footcandles1
Criteria:
Floodlight FP Series, 0° vertical tilt
Mounting Height: 30’
Wattage: 400W
Mounting: 12” Extended Pole Mount
Pole Spacing: 4 times mounting height
1 assuming 4 floodlights/pole
![](asset-f1.png)
239
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
HID LIGHTING – FLOODLIGHTS
Mountings
1-1/2” Close
Pole Mount
Ordering Code
MA1
6” Extended Pole
Mount
Ordering Code
MA2
12” Extended
Pole Mount
Ordering Code
MA5
Wishbone Mount
See Accessories
for Code
FP Series Parking/Roadway Floodlight
FP 12” Series Ordering Information
Series Mounting Light Source Wattage, Type Voltage
FPS = 12” Housing 8 = Without Mounting 4 = MH
5 = HPS
8 = MH/PS*
05 = 50W (MH/PS, HPS)
07 = 70W (MH/PS, HPS)
10 = 100W (MH/PS, HPS)
15 = 150W (MH/PS, HPS)
17 = 175W (MH)
1 = 120
2 = 277
3 = 208
4 = 240
5 = 480
M = Multi-Tap
* MH/PS lamps must be operated in a ±15° vertical or horizontal burning position
FP 16” Series Ordering Information
Series Mounting Light Source Wattage, Type Voltage
FPM = 16” Housing 8 = Without Mounting 4 = MH
5 = HPS
8 = MH/PS*
07 = 70W (MH/PS, HPS)
10 = 100W (MH/PS, HPS)
15 = 150W (MH/PS, HPS)
17 = 175W (MH)
25 = 250W (MH, MH/PS, HPS)
32 = 320W (MH/PS)
35 = 350W (MH/PS)
40 = 400W (MH, MH/PS, HPS)
1 = 120
2 = 277
3 = 208
4 = 240
5 = 480
M = Multi-Tap (120-277V)
M5 = 5 Tap
120/277/208/240/480
(400W MH Only)
* MH/PS lamps must be operated in a ±15° vertical or horizontal burning position
FP 23” Series Ordering Information
Series Mounting Light Source Wattage, Type Voltage
FPL = 23” Housing 8 = Without Mounting 4 = MH
5 = HPS
8 = MH/PS*
40 = 400W (MH, MH/PS, HPS)
75 = 750W (MH/PS)
99 = 1000W (MH, HPS)
1 = 120
2 = 277
3 = 208
4 = 240
5 = 480
M = Multi-Tap (120-277V)
M5 = M5 = 5 Tap 120/277/208/240/480
(400W and 1000W MH Only)
* MH/PS lamps must be operated in a ±15° vertical or horizontal burning position
Options (Factory Installed) Accessories (Field Installed)
(x)P = Photo Control - Specify voltage
(Twist lock receptacle & matching photocell supplied.) 16” & 23” ONLY
WT = White Housing
BK = Black Housing
Fusing
(x)F = Single - Specify voltage (x):
1 = 120V; 2 = 277V
(x)J = Dual - Specify voltage (x):
3 = 208V; 4 = 240V; 5 = 480V
Quartz Standby (includes Quartz Lamp)
Q = Quartz Standby
Custom Colors Available: Consult factory for pricing and delivery.
12” housing
WG-12 = Wire Guard
VS-12 = Vandal Shield
16” housing
WG-16 = Wire Guard
VS-16 = Vandal Shield
WBR161 = Wishbone Mount for 4” Round Pole
WBS161 = Wishbone Mount for 4” Square Pole
23” housing
WG-23 = Wire Guard
VS-23 = Vandal Shield
WBR231 = Wishbone Mount for 4” Round Pole
WBS231 = Wishbone Mount for 4” Square Pole
Mounting
MA1 = 1-1/2” Close Pole Mt.
MA2 = 6” Extended Pole Mt.
MA5 = 12” Extended Pole Mt.
1 See page 247 for restrictions.
![](asset-f2.png)
240
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
HID LIGHTING – FLOODLIGHTS
Features
Housing
The housing is polyester powder coated in bronze,
black or white as standard. Other colors available
upon request. The hinged doorframe closes flush
with the housing using two stainless steel screws.
Optics
Multifaceted, segmented ultra bright anodized
aluminum provides a forward throw beam pattern
with a 76% efficiency. The reflector can rotate with
the housing to provide directable lighting. NEMA
Type II/III distribution.
Ballast
All fixtures come standard with a high-power factor
multi-tap or 480V ballast. All units are supplied with
a 36” SOW 16/3 cord. If no voltage is specified,
cord is connected to highest voltage.
Lamps
The compact size housing allows for use of either
metal halide or high-pressure sodium mogul base
lamps ranging in wattage from 400 to 1000W.
(Reduced jacket 1000W lamps are required.)
Lens
A 3/16” thick tempered sag glass is sealed with
a silicon rubber gasket to the cast aluminum door
frame.
EPA Ratings
EPA Ratings are listed on page 252.
Mounting Options
Refer to page 247 for a complete description of
mounting options.
Maintenance
The drop down hinged door provides easy access to
the lamp and ballast chambers. Neoprene gasketing
on the door frame seals out contaminants.
5
10
20
30
40
45 30 15 0 15 30 45
45
30
15
0
15
30
45
5
10
20
30
40
80
45 30 15 0 15 30 45
45
30
15
0
15
30
45
Photometric Data
(Isofootcandle Plots)
23.4"
23.4"
10.25"
4.0"
23.4"
23.4"
10.25"
4.0"
The low profile, compact cast aluminum
housing, with rounded edges, has a low
EPA. Utilizing specially-designed segmented,
ultra-bright anodized aluminum, the vertical
burn reduced jacket lamps provide a forward
throw type 2/3 beam pattern that is ideal for
automotive dealerships and perimeter parking
areas.
Dimensions
Fixture Fixture Fixture Approx.
Length Width Depth Ship Wt.
FAL Series
23.4” 23.4” 10.25” 80 lbs.
23.4”
23.4”
10.25”
4.0”
Single Fixture – 1000W MH
Initial Lumens At 25’ Mounting Height
Double Fixture – 1000W MH
Initial Lumens At 25’ Mounting Height
FAL Series 23” Square Automotive/Parking Floodlight
Lamp Included
Wattage Range:
400 to 1000 W
FAL Single Fixture
FAL Single Fixture
Listed for Wet Locations
Consult Factory for CUL Availability
![](asset-f3.png)
241
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
HID LIGHTING – FLOODLIGHTS
Accessories
6” Extended Pole
Mount
Ordering Code
MA2
12” Extended
Pole Mount
Ordering Code
MA5
Glare Shield
Accessory
Code
GSH-23
Wishbone Mount
See
Accessories
Mountings
FAL Series 23” Square Automotive/Parking Floodlight
FAL 23” Series Ordering Information
Series Mounting Light Source Wattage, Type Voltage
FAL 8 = Without Mounting 4 = MH
5 = HPS
40 = 400W (MH, HPS)
99 = 1000W (MH, HPS)
1 = 120
2 = 277
3 = 208
4 = 240
5 = 480
M = Multi-Tap (120-277V)
M5 = 5 Tap 120/277/208/240/480
(400W and 1000W MH Only)
Options (Factory Installed) Accessories (Field Installed)
(x)P = Photo Control - Specify voltage
(Twist lock receptacle & matching photocell supplied.) 16” & 23” ONLY
WT = White Housing
BK = Black Housing
Quartz Standby (includes Quartz Lamp)
Q = Quartz Standby
Custom Colors Available: Consult factory for pricing and delivery.
GSH-23 = Glare shield
WBR231 = Wishbone Mount for 4” Round Pole
WBS231 = Wishbone Mount for 4” Square Pole
Mounting
MA2 = 6” Extended Pole Mt.
MA5 = 12” Extended Pole Mt.
1 See page 247 for restrictions.
![](asset-f4.png)
242
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
HID LIGHTING – FLOODLIGHTS
Features
Housing
The housing is polyester powder coated in bronze,
black or white as standard. Other colors available
upon request.
Optics
Multifacted, ultra-bright anodized segmented
aluminum provides a Type V distribution pattern
using a vertical burn lamp.
Ballast
All fixtures come standard with a high-power factor
multi-tap or 480V ballast. All units are supplied with
a 36” SOW 16/3 cord. If no voltage is specified,
cord is connected to highest voltage.
Lamps
The compact housing allows for use of either metal
halide or high-pressure sodium mogul base lamps
ranging in wattage from 320 to 1000W. Standard
sized lamps are utilized through 400W. (Reduced
jacket 750W & 1000W lamps are required.)
Lens
The fixture has a drop down hinged door containing
a 4” sag glass lens.
EPA Ratings
Units offer the lowest EPA in the industry. EPA
Ratings are listed on page 252.
Mounting Options
Refer to page 247 for a complete description of
mounting options.
Maintenance
The drop down hinged door provides easy access
to the lamp and ballast chambers. The hinged
doorframe closes flush with the housing using two
stainless steel screws. Neoprene gasketing on the
doorframe seals out contaminants.
0'
0'
50'
50'
100'
100'
150'
150'
50'50' 100'100' 150'
150'
10
7
1
.3
.5
.1
3
Photometric Data
(Isofootcandle Plots)
Dimensions
Fixture Fixture Fixture Approx.
Length Width Depth Ship Wt.
FAL Series
23.4” 23.4” 10.25” 80 lbs.
23.4”
23.4”
10.25”
4.0”
1000W MH Vertical Burn Floodlight at 30’ mount
height, 0° vertical tilt.
The low profile and compact cast aluminum
housing, with rounded edges, has a low EPA
rating. Utilizing specially-designed segmented,
ultra-bright anodized aluminum, the vertical
burn reduced jacket lamps provide a
symmetrical Type V square pattern.
FVL Series 23” Square Vertical Burn Floodlight
Lamp Included
Wattage Range:
320 to 1000 W
Listed for Wet Locations
Consult Factory for CUL Availability
FVL
![](asset-f5.png)
243
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
HID LIGHTING – FLOODLIGHTS
Accessories
6” Extended Pole
Mount
Ordering Code
MA2
12” Extended
Pole Mount
Ordering Code
MA5
Glare Shield
Accessory
Code
GSH-23
Wishbone Mount
See
Accessories
Mountings
FVL Series 23” Square Vertical Burn Floodlight
FVL 23” Series Ordering Information
Series Mounting Light Source Wattage, Type Voltage
FVL = 23” Housing 8 = Without Mounting 4 = MH
5 = HPS
8 = MH/PS*
32 = 320W (MH/PS)
35 = 350W (MH/PS)
40 = 400W (MH, MH/PS, HPS)
75 = 750W (MH/PS)
99 = 1000W (MH, MH/PS, HPS)
1 = 120
2 = 277
3 = 208
4 = 240
5 = 480
M = Multi-Tap (120-277V)
M5 = 5 Tap 120/277/208/240/480
(400W and 1000W MH Only)
* MH/PS lamps must be operated in a ±15° vertical or horizontal burning position
Options (Factory Installed) Accessories (Field Installed)
(x)P = Photo Control - Specify voltage
(Twist lock receptacle & matching photocell supplied.) 16” & 23” ONLY
WT = White Housing
BK = Black Housing
Custom Colors Available: Consult factory for pricing and delivery.
GSH-23 = Glare Shield
WBR231 = Wishbone Mount for 4” Round Pole
WBS231 = Wishbone Mount for 4” Square Pole
Mounting
MA2 = 6” Extended Pole Mt.
MA5 = 12” Extended Pole Mt.
1 See page 247 for restrictions.
![](asset-f6.png)
244
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
HID LIGHTING – FLOODLIGHTS
Features
Housing
Die cast aluminum housings come standard in a light
gray polyester powder coat.
Optics
The anodized faceted aluminum reflector is available
in a NEMA Type 3, 4, 5 or 6 reflector. The reflector is
field installed using a twist-on feature to a thermally
separated socket housing with 3-position 5KV mogul
socket.
Ballast
Fixtures come standard with a super CWA multi-
voltage ballast. The ballast is heat sunk, using a
uniquely designed “hold down” wedge, to provide
thermal separation between the socket and lamp.
All units are supplied with a 6’ SOW 16/3 cord and
watertight strain relief bushing. The 1500W fixture,
when tapped at 120V, requires a SOW 14/3 cord,
supplied by others.
Lamps
The SLF Series utilizes three-position 5KV mogul
socket for 1000 - 1500W lamp.
Lens
The clear tempered-glass lens is silicone gasketed
and secured to the reflector with four stainless steel
latches for tool-free access.
EPA Ratings
EPA: 2.7 sq. ft.
Mounting Options
Heavy-duty trunnion mounts to cross arms, poles
and walls. For tenon mounting, order SLF-TM. CA1
accessory is available for cross arm mounting. The
fixture includes a hardware kit containing galvanized
bolts and nuts for attaching to most cross arms or
poles.
Dimensions
Fixture Fixture Fixture Approx.
Length Width Depth Ship Wt.
SLF Series
31” 21” 20” 70 lbs.
Catalog Number: SLF7495-M4
Lamp: 1500W BT56 MH
Lumens: 155,000
NEMA Type: 4H x 4V
50% Max Candela:
20.6°H x 21.0°V
10% Max Candela:
47.4°H x 47.5°V
Catalog Number: SLF7495-M3
Lamp: 1500W BT56 MH
Lumens: 155,000
NEMA Type: 3H x 3V
50% Max Candela:
18.6°H x 18.7°V
10% Max Candela:
36.3°H x 36.4°V
Catalog Number: SLF7495-M5
Lamp: 1500W BT56 MH
Lumens: 155,000
NEMA Type: 5H x 5V
50% Max Candela:
49.0°H x 46.5°V
10% Max Candela:
81.3°H x 80.7°V
Catalog Number: SLF7495-M6
Lamp: 1500W BT56 MH
Lumens: 155,000
NEMA Type: 6H x 6V
50% Max Candela:
59.8°H x 63.1°V
10% Max Candela:
105.9°H x 108.4°V
SLF 7495-M3
SLF 7495-M4
SLF 7495-M5
SLF 7495-M6
20
”
21
”
31
”
4.4”
2.6”
Hole Pattern for Yoke/Trunnion
Ø1.125”
R .19”
Constructed to withstand elements of the
weather and wind, the SLF Series is ideal for
illuminating buildings, signs and sports fields.
SLF Series 21” Sports Floodlight
Lamp Included
Wattage Range:
750 to 1500W
Listed for Wet Locations
Consult Factory for CUL Availability
Photometric Data
(Isofootcandle Plots)
![](asset-f7.png)
245
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
HID LIGHTING – FLOODLIGHTS
Mountings & Accessories
Tenon Mount
Ordering Code
SLF-TM
Cross Arm Mount
Ordering Code
CA1
Use with trunnion
or yoke mount to
mount to wood or
steel crossarms.
Four-Light Cross
Arm Mount
Ordering Code
S4-T4-WPG
Use with trunnion
or yoke mount
when mounting
on 2-3/8”
tenon mount.
Two-Light Cross
Arm Mount
Ordering Code
S2-T2-WPG
Three-Light Cross
Arm Mount
Ordering Code
S3-T3-WPGM
SLF Series 21” Sports Floodlight
Options (Factory Installed) Accessories
NEMA Type
3 = 3 X 3
4 = 4 X 4
5 = 5 X 5
6 = 6 X 6
Fusing
(x)F = Single - Specify voltage (x):
1 = 120V; 2 = 277V
(x)J = Dual - Specify voltage (x):
3 = 208V; 4 = 240V; 5 = 480V
SLF-GS = Glare Shield
SLF-TM = Tenon Mount
CA1 = Cross Arm Mount
S2-T2-WPG = Two-Light Cross Arm Mount (for wood poles only)
S3-T3-WPGM = Three-Light Cross Arm Mount (for wood poles only)
S4-T4-WPG = Four-Light Cross Arm Mount (for wood poles only)
Other crossarm brackets available for steel poles. Please contact factory.
SLF 21” Series Ordering Information
Series Mounting Light Source Wattage, Type Voltage
SLF 8 = Without Mounting 4 = MH
5 = HPS
8 = MH/PS*
75 = 750W (MH/PS)
99 = 1000W (MH, HPS)
95 = 1500W (MH)
5 = 480V
M = Multi-tap
(tapped @ 277)
M5 = 120-480V
(1000 W MH only)
* MH/PS lamps must be operated in a ±15° vertical or horizontal burning position
![](asset-f8.png)
246
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
HID LIGHTING – FLOODLIGHTS
Dusk to Dawn Yard Lites
• Heavy duty twist lock photocontrol for automatic dusk to dawn operation.
DTDCFL65 has button photocell.
• Durable die-cast aluminum housing in natural finish.
• Faceted aluminum reflector for maximum light reflectance.
• Wide 12” linear prismatic acrylic refractor for even light distribution.
• Porcelain 4KV pulse rated mogul socket.
• Sturdy 24” curved steel mounting arm (1-5/8” dia).
• Foam packaging protects fixture
during shipping and handling.
• Wall or pole mount, mounting
hardware included.
• Lamp included.
17”
12”
14”
13”
12”
DUSK
TO
DAWN
PHOTOCELL INCLUDED
DTDPS100
HPS 70
Housing:
Durable die-cast aluminum in natural finish.
Electrical:
HPS model comes standard with a 120 NPF reactor
ballast. Metal Halide model is supplied with a high
reactance 120V NPF ballast. CFL model supplied with
120V electronic ballast.
The HPS and Metal Halide units are supplied with
medium-base lamps. CFL utilizes 4U mogul-base
lamp.
Mounting:
Mounting hardware included; HPS and Metal Halide
models include 24” steel mounting arm. Wall or pole
mount.
Dimensions
Ordering code Description
DTDCFL65
HPS 70
DTDPS100
65W 120V CFL 10” Yard Lite w/PC
70W 120V HPS 12” Yard Lite w/PC & 24” Arm
100W 12V PSMH 12” Yard Lite w/PC & 24” Arm
HID
CFL
A
V
A
I
L
A
B
L
E
CFL
![](asset-f9.png)
247
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
HID LIGHTING – FLOODLIGHTS
Ordering Code MA1
Close Pole Mount (1 1/2”)
For 12”, 16” & 23” Housings
Extruded aluminum mounting arm attaches fixture to
the side of a square pole. The 5/16” tie rods thread
into the housing from the outside and mount to the
pole using washers and hex nuts. The arm measures
1.5” L X 4.0” H.
Approximate shipping weight: 2 lbs.
Ordering Code MA2
Extended Pole Mount (6”)
For 12”, 16” & 23” Housings
Extruded aluminum mounting arm attaches fixture
in a fixed horizontal position to the side of a square
pole. The 5/16” tie rods thread into the housing from
the outside and mount to the pole using washers and
hex nuts. The arm measures 6” L X 4” H.
Approximate shipping weight: 2 lbs.
Ordering Code MA3
2” Adjustable Slip Fitter
Slip-fits over a 2” pole or tenon (2.375” O.D.). Allows
vertical tilt in 2.5° increments, as well as lateral
rotation. Threaded knockout provided for field-
installed button photocell.
Approximate shipping weight: 2 lbs.
Ordering Code MA4
Yoke Mount
Ideal for wall, ground, roof or wood pole mounting;
bolts directly to almost any surface. Mounts to fixture
housing from outside using 5/16” X 1” bolts. Allows
vertical tilt to any angle, and double locks at 0°,
20°, 30°, 60°, 70° or 90° tilt angle. Use RSY4 pole
bracket, page 266, for tenon mounting.
Approximate shipping weight: 3 lbs.
Ordering Code MA5
Extended Pole Mount (12”)
Extruded aluminum mounting arm attaches the fixture
in a fixed horizontal position to the side of a square
pole. The 5/16” tie rods thread into the housing from
the outside and mount to the pole using washers and
hex nuts. The arm is 12” L X 4” H.
Approximate shipping weight: 4 lbs.
Ordering Code MA6
1/2” Adjustable Fitter
Standard on all FMS, FMM & FMR compact floodlights,
the NPSM threaded nipple end mounts directly to the
junction box. (Only available with FMS, FMM & FMR
fixtures.)
Shipping weight is included in fixture weight.
Ordering Code WBR16, WBR23,
WBS16, WBS23
Wishbone Mounting
SOW16/3 cord supplied.Horizontal mounted fixtures
centered directly over the pole top utilize the
wishbone. 16” & 23” housing.
WBR16 - requires 2 3/8” tenon
WBR23 - requires 2 3/8” tenon
WBS16 - The square base with internal tenon
mount is designed to slip into either a standard 4”
square, non-tapered steel or aluminum pole or a
square pole with 2 3/8” tenon.
Approximate shipping weight is 22 lbs.
WBS23 - The square base with internal tenon
mount is designed to slip into either a standard 4”
square, non-tapered steel or aluminum pole or a
square pole with 2 3/8” tenon.
Approximate shipping weight is 23lbs.
Mounting Code MA2R
Radius Extended Pole Mount (6”)
Extruded aluminum mounting arm attaches fixture
in a fixed horizontal position to a 4” round pole.
The 5/16” tie rods thread into the housing from
the outside and mount to the pole using washers
and hex nuts. The arm measures 6” L X 4” H. Not
recommended for use on round tapered poles.
Approximate shipping weight: 2 lbs.
Mounting Code MA5R
Radius Extended Pole Mount (12”)
Extruded aluminum mounting arm attaches fixture
in a fixed horizontal position to a 4” round pole.
The 5/16” tie rods thread into the housing from
the outside and mount to the pole using washers
and hex nuts. The arm measures 12” L X 4” H. Not
recommended for use on round tapered poles.
Approximate shipping weight: 4 lbs.
Mounting Code MA2T10
10° Arm Mount
Extruded aluminum mounting arm attaches fixture
in a 10° above horizontal position to a square pole.
The 5/16” tie rods thread into the housing from the
outside and mount to the pole using washers and
hex nuts. The arm measures 6” L X 4” H.
Approximate shipping weight: 2 lbs.
Mounting Code MA5T10
10° Arm Mount
Extruded aluminum mounting arm attaches fixture
in a 10° above horizontal position to a square pole.
The 5/16” tie rods thread into the housing from the
outside and mount to the pole using washers and
hex nuts. The arm measures 12” L X 4” H.
Approximate shipping weight: 5 lbs.
MA1 WBR16, WBR23, WBS16,
WBS23
MA2R, MA5R
MA3 MA2T10, MA5T10
MA4 MA2T20, MA5T20
MA5
MA6
MA2
Outdoor Fixture Mounting Options
![](asset-fa.png)
248
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
HID LIGHTING – FLOODLIGHTS
BAF-16, BAF-23 B
WG-12, WG-16,
WG-23
P
GSH-12, GSH-16,
GSH-23
SPIKE
VS-12, VS-16,
VS-23
TR-23
BLS-16, BLS-23
Mounting Code MA2T20
20° Arm Mount
Extruded aluminum mounting arm attaches fixture
in a 20° above horizontal position to a square pole.
The 5/16” tie rods thread into the housing from the
outside and mount to the pole using washers and hex
nuts. The arm measures 6” L X 4” H.
Approximate shipping weight: 2 lbs.
Mounting Code MA5T20
20° Arm Mount
Extruded aluminum mounting arm attaches fixture
in a 20° above horizontal position to a square pole.
The 5/16” tie rods thread into the housing from the
outside and mount to the pole using washers and hex
nuts. The arm measures 12” L X 4” H.
Approximate shipping weight: 5 lbs.
Accessory Code BAF-16, BAF-23
Deep Baffle
Steel baffle allows precise control of light direction
while maintaining full side cutoff. Attaches to lens
frame with number 8 supplied fasteners. Available
for 16” & 23” housing sizes. Finished with a bronze
powder coat paint. Order separately.
Approximate shipping weights: BAF-16: 3 lbs.,
BAF-23: 5 lbs.
Accessory Code WG-12,
WG-16, WG-23
Wire Guard
Steel guard protects the optical system of the 12”,
16” or 23” housing. Attaches easily to lens frame
with number 8 supplied fasteners. Finished with black
powder coat paint. Order separately.
Approximate shipping weights: WG-12: 1 lb.,
WG-16:1 lb., WG-23: 2 lbs.
Accessory Code GSH-12,
GSH-16, GSH-23
Glare Shield
Steel shield deters second story brightness and holds
forward brightness to a minimum for eye-level
fixture. Attaches easily to lens frame with number
8 supplied fasteners. Available for 12”, 16” & 23”
housing sizes. Finished with a bronze powder coat
paint. Use with FP Series to eliminate backlight
trespass. (Glare shield is not recommended for the
FC Series Cutoff Floodlight. Consult factory if use
of Glare Shield with Polycarbonate Vandal Shield is
intended). Order separately.
Approximate shipping weights: GSH-12: 1 lb.,
GSH-16: 1 lb., GSH-23: 2 lbs.
Accessory Code VS-12,
VS-16, VS-23
Polycarbonate Vandal Shield
Clear polycarbonate shield 0.19” thick provides
protection to optical system of any size floodlight or
commercial fixture. Attaches easily to lens frame with
number 8 supplied fasteners. Consult factory if use
of Polycarbonate Vandal Shield with Glare Shield is
intended. Order separately.
Approximate shipping weights: VS-12: 2 lbs., VS-16:
2 lbs., VS-23: 3 lbs.
Accessory Code BLS-16, BLS-23
Backlight Shield
This prefinished anodized aluminum shield provides
backlight cutoff for floodlights. It mounts easily
inside the fixture lens and can be position adjusted.
The Backlight Shield is available for 16” & 23”
housing sizes (it is standard on the FF Series). Order
separately.
Approximate shipping weights: BLS-16: 1 lb., BLS-23:
1.5 lbs.
Accessory Code B
Button Photocell
Use Button Photocell w/120,208,240 and 277V
ballast (except 480V).
Approximate shipping weight: 2 ozs.
Accessory Code P
Twist Lock Photocell
A twist-lock receptacle and photocell is supplied for
all mountings except for a 2” Adjustable Slip Fitter
(mounting number MA3) when a photo control is
requested. Factory installed.
Approx. shipping weight: 2 ozs.
Accessory Code SPIKE
Ground Post Spike
Rigid, lightweight black PVC post recommended for
use with floodlight and landscape lighting fixtures
with 1/2” threaded hub including FMS Micro
Floodlight, FMM Mini Floodlight and FMR Roundback
Floodlight. Arched post base provides ample room for
UF cable or conduit entry. Measures 19” H.
Approximate shipping weights: 4.25 lbs. (single unit),
12.75 lbs. (master pack of 6)
Accessory Code TR-23
Trunnion Mount for 23” Floods
Heavy duty stamped steel yoke with textured bronze
finish. Adjustable to six positions. Mounting hardware
included. Measures 24.13”L X 14.5” H
Approximate shipping weight: 15 lbs.
Outdoor Fixture Accessories
![](asset-fb.png)
249
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
HID LIGHTING – FLOODLIGHTS
![](asset-fc.png)
250
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
HID LIGHTING – POLES
1. Values are fastest-mile speeds at 33 ft. (10m) above ground.
2. Linear interpolation between wind speed contours is acceptable.
3. Alaska and/or special wind regions require caution in application of wind
speed information.
70 MPH Basic Wind Speed
80 MPH Basic Wind Speed
90 MPH Basic Wind Speed
100 MPH Basic Wind Speed
110 MPH Basic Wind Speed
Wind Map
![](asset-fd.png)
251
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
HID LIGHTING – POLES
No matter the application, Simkar provides an assortment of round and square steel
poles, tenons and mounting accessories. Simkar’s poles feature materials and finishes
resistant to chemicals, corrosion and abrasion which will enhance the pole’s aesthetic
appeal and service life.
It is important to select pole(s) according to the structural requirement and to suit the
specific application. Effective Projected Area (EPA) ratings on page 252 are listed for
each pole and cover the full range of available fixtures with various mounting options.
EPA ratings take into account a gust factor of 1.3 to ensure adequate wind loading
under extreme conditions.
EPA is the exposed surface area of both the fixture and the bracket with some
variation depending on the shape of the surface. Pole selection should also take into
account the wind regions shown on the wind map. Base the EPA rating of the pole on
the wind speed of each specific area.
When placing your order, it is also important to consider the total weight of the
fixture(s) to be mounted on each pole. Simply add the total weight of all the fixtures
and reference the maximum fixture weight listed on the pole ordering information
table for each model as shown below.
HID Lighting
Poles
Example:
Round Tapered Steel Pole Ordering Information
Pole Height Catalog Number
Base Outer
Diameter
Pole EPA Ratings
Base Wind Velocity (MPH)
With 1.3 Wind Gust Factor
Maximum
Fixture
Weight (lbs)
@ 80MPH Weight (lbs)
80 90 100
11 Gauge
20’ RTSP-590A200P2-(a)(b) 5.9 19.3 15.1 12.2 482 140
RTSP-650A200P2-(a)(b) 6.5 24.2 19.3 15.6 605 160
25’ RTSP-590A250PL-(a)(b) 5.9 12.5 9.9 8 312 155
RTSP-700A250P2-(a)(b) 7 20.3 16.2 13.1 507 200
30’ RTSP-660A300PL-(a)(b) 6.6 11.7 9.3 7.5 292 200
RTSP-800A300P2-(a)(b) 8 18.9 14.9 12 473 265
35’ RTSP-730A350PL-(a)(b) 7.3 11.2 8.9 7.1 280 250
RTSP-850A350P2-(a)(b) 8.5 18.9 15.1 12.2 472 315
RTSP-950A350P2-(a)(b) 9.5 23.2 18.2 14.5 580 370
![](asset-fe.png)
252
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
HID LIGHTING – POLES
Use these charts to calculate the correct type of pole to be used with fixtures and mounting
arms selected.
• Select the chart applicable to the xture
• Select the chart applicable to the mounting arm to be used and the angle of the xture
• Check the wind speed in the area of the country the xtures will be used.
• Calculate the total weight of the xtures and mounting arms on each pole.
• Select the pole from the pole chart based on the total EPA and total weight, using the wind
speed column. Allow a minimum of a 10% safety factor.
• Please Note: These are guidelines only — consult the factory if you are unsure.
EPA Ratings Effective Projected Area Rating for Fixtures
12” Square Housings With Adjustable Fitters (MA3)
Catalog # # Fixtures 0° 20° 30° 45° 60° 70° 90°
SPB14 1 0.66 0.91 1.03 1.21 1.26 1.31 1.32
SPB24 2 in-line 2.93 3.42 3.52 3.64 4.05 4.31 4.35
SPB34 3 in-line 4.84 5.54 5.70 6.02 6.54 6.80 6.85
SPB44180 4 in-line 6.74 7.65 7.79 8.40 8.71 9.32 9.38
SPB15 1 0.66 0.91 1.03 1.21 1.26 1.31 1.32
Catalog # # Fixtures 0° 20° 30° 45° 60° 70° 90°
RT1 1 1.00 1.21 1.27 1.33 1.57 1.62 1.67
MP1T* 1 1.10 1.25 1.30 1.40 1.60 1.65 1.70
MP2T* 2 2.20 2.50 2.60 2.80 3.20 3.30 3.40
Catalog # # Fixtures 0° 20° 30° 45° 60° 70° 90°
BH2 2 in-line 2.93 3.42 3.52 3.64 4.05 4.31 4.35
BH3 3 in-line 4.84 5.54 5.70 6.02 6.54 6.80 6.85
BH3T 3 @ 120 4.55 5.21 5.36 5.66 6.15 6.39 6.44
BH4 4 in-line 6.74 7.65 7.79 8.40 8.71 9.32 9.38
BH490 4 @ 90 4.02 4.40 4.45 4.59 4.68 4.79 4.83
16” Square Housings With Adjustable Fitters (MA3)
Catalog # # Fixtures 0° 20° 30° 45° 60° 70° 90°
SPB14 1 1.00 1.50 1.70 2.00 2.10 2.20 2.30
SPB24 2 in-line 3.60 4.50 4.70 4.90 5.60 5.80 6.00
SPB34 3 in-line 5.80 7.10 7.40 7.90 8.80 9.30 9.50
SPB4490 4 @ 90° 5.00 5.60 5.70 5.90 6.10 6.30 6.50
SPB44180 4 in-line 8.00 9.70 10.00 10.90 11.60 12.60 12.90
SPB15 1 1.00 1.50 1.70 2.00 2.10 2.20 2.30
Catalog # # Fixtures 0° 20° 30° 45° 60° 70° 90°
RT1 1 1.30 1.70 1.80 1.90 2.30 2.40 2.50
MP1T* 1 1.40 1.75 1.90 2.00 2.25 2.50 2.60
MP2T* 2 2.80 3.50 3.80 4.00 4.50 5.00 5.20
Catalog # # Fixtures 0° 20° 30° 45° 60° 70° 90°
BH2 2 in-line 3.60 4.50 4.70 4.90 5.60 5.80 6.00
BH3 3 in-line 5.80 7.10 7.40 7.90 8.80 9.30 9.50
BH3T 3 @ 120 5.40 6.40 6.60 6.90 7.50 7.80 8.00
BH4 4 in-line 8.00 9.70 10.00 10.90 11.60 12.60 12.90
BH490 4 @ 90 5.00 5.60 5.70 5.90 6.10 6.30 6.50
23” Square Housings With Adjustable Fitters (MA3)
Catalog # # Fixtures 0° 20° 30° 45° 60° 70° 90°
SPB14 1 2.00 2.70 2.90 3.70 3.80 4.00 4.20
SPB24 2 in-line 6.00 7.70 7.90 8.40 9.70 10.00 10.40
SPB34 3 in-line 9.70 12.00 12.50 13.50 15.40 15.80 16.20
SPB4490 4 @ 90° 8.50 9.10 9.30 9.90 10.50 10.70 10.90
SPB44180 4 in-line 13.10 15.60 16.00 18.40 19.90 21.60 22.00
SPB15 1 2.00 2.70 2.90 3.70 3.80 4.00 4.20
Catalog # # Fixtures 0° 20° 30° 45° 60° 70° 90°
RT1 1 2.10 2.80 3.00 3.30 3.90 4.10 4.20
MP1T* 1 2.20 3.00 3.25 3.50 4.00 4.25 4.50
MP2T* 2 4.40 6.00 6.50 7.00 8.00 8.50 9.00
Catalog # # Fixtures 0° 20° 30° 45° 60° 70° 90°
BH2 2 in-line 6.00 7.50 7.90 8.40 9.70 10.00 10.40
BH3 3 in-line 9.70 12.00 12.50 13.50 15.40 15.80 16.20
BH3T 3 @ 90 9.10 10.50 10.90 11.70 13.00 13.30 13.60
BH4 4 in-line 13.10 15.60 16.00 18.40 19.90 21.60 22.00
BH490 4 @ 90 8.50 9.00 9.30 9.90 10.50 10.70 10.90
90
70
60
45
30
20
0
90
70
60
45
30
20
0
90
70
60
45
30
20
0
90
70
60
45
30
20
0
90
70
60
45
30
20
0
90
70
60
45
30
20
0
90
70
60
45
30
20
0
Fixture Mount Height
Total Pole Height
* Multiply EPA Rating by = Adjusted EPA Rating
![](asset-ff.png)
253
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
HID LIGHTING – POLES
MA1 EPA Ratings for xtures with In-Line Bracket (Only)
Catalog # SSB24 SSB34
SSB 12” sq. housing 1.70 2.64
SSB 16” sq. housing 2.30 3.40
SSB 23” sq. housing 3.70 5.40
MA2 EPA ratings for 12”, 16” & 23” housing with 6” Mounting Arms
Fixture
Size
STA &
RTA1
STA &
RTA2180
STA &
RTA290
STA &
RTA390
STA &
RTA 3120
STA &
RTA4
12” 0.58 1.22 0.98 1.51 1.56 2.08
16” 1.00 2.10 1.70 2.60 2.70 3.60
23” 2.00 4.10 n/a n/a n/a n/a
MA5 EPA ratings for 12”, 16” & 23” housing with 12” Mounting Arms
Fixture
Size
STA &
RTA1
STA &
RTA2180
STA &
RTA290
STA &
RTA390
STA &
RTA 3120
STA &
RTA4
12” 0.68 1.20 1.43 1.71 1.82 2.28
16” 1.20 2.50 3.00 3.00 3.20 4.00
23” 2.20 4.40 4.00 5.50 5.90 7.50
MA2T10 EPA ratings for 12”, 16” & 23” housing with 10°/20° tilt - 6” Arms
Fixture
Size STA1T20 STA2180T20 STA290T20 STA390T20 STA3120T20 STA4T20
12” 0.70 1.15 1.20 1.70 1.80 2.40
16” 1.30 2.10 2.20 2.30 3.10 4.40
23” 2.50 3.60 n/a n/a n/a n/a
*Note:For MA2T20 EPA, Refer to 20° Column on Table to Left.
EPA ratings for xtures with Wishbone Mount (WB) (0° tilt) w/at lens
WBR WBS
12” sq. housing n/a n/a
16” sq. housing 1.10 1.10
23” sq. housing 2.20 2.20
EPA ratings for FBD Series Floodlight
Degree Tilt 0° 20° 30° 45° 60° 70° 90°
Yoke Mount 1.30 1.70 1.80 1.90 2.30 2.40 2.50
Tenon Mount (FBD-TM) 1.40 1.80 1.90 2.00 2.40 2.50 2.60
Trunnion Mount
(FBD-TR) 1.40 1.80 1.90 2.00 2.40 2.50 2.60
EPA ratings for 23” FAL/FVL Series Luminaire (0° tilt) Vertical w/sag lens
Number of Fixtures 1 2@90 2@180 3@90 3@120 4@90
6” Ext. Pole Mount arm (MA2):
23” sq. housing 2.20 n/a 4.30 n/a n/a n/a
12” Ext. Pole Mount arm (MA5):
23” sq. housing 2.40 4.20 4.60 5.70 6.10 7.70
Wishbone Mount (WB):
23” sq. housing 2.40 n/a n/a n/a n/a n/a
EPA Ratings Effective Projected Area Rating for Fixtures
0
90
45
0
90
45
0
90
45
![](asset-100.png)
254
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
HID LIGHTING – POLES
SSP Series Square Steel Poles
Square Steel Pole Ordering Information
Pole Height Catalog Number Pole EPA Ratings
Base Wind Velocity (MPH)
With 1.3 Wind Gust Factor
Maximum
Fixture
Weight (lbs)
@ 80MPH
Weight (lbs)
80 90 100
4” Square - 11 Gauge
10’ SSP-400Q100-(a)(b) 30.6 23.8 18.9 765 75
12’ SSP-400Q120-(a)(b) 24.4 18.8 14.8 610 90
14’ SSP-400Q140-(a)(b) 19.9 15.1 11.7 498 100
16’ SSP-400Q160-(a)(b) 15.9 11.8 8.9 398 115
18’ SSP-400Q180-(a)(b) 12.6 9.2 6.7 315 125
20’ SSP-400Q200-(a)(b) 9.6 6.7 4.5 240 140
25’ SSP-400Q250-(a)(b) 4.8 2.6 1 150 170
4” Square - 7 Gauge
25’ SSP-400W250-(a)(b) 10.8 7.7 5.4 270 245
5” Square - 11 Gauge
20’ SSP-500Q200-(a)(b) 17.7 12.7 9.4 443 185
25’ SSP-500Q250-(a)(b) 9.8 6.3 3.7 245 225
30’ SSP-500Q300-(a)(b) 4.7 2 n/a 150 265
5” Square - 7 Gauge
20’ SSP-500W200-(a)(b) 28.1 21.4 16.2 703 265
25’ SSP-500W250-(a)(b) 18.5 13.3 9.5 463 360
30’ SSP-500W300-(a)(b) 10.7 6.7 3.9 267 380
35’ SSP-500W350-(a)(b) 5.9 n/a 2.5 150 740
6” Square - 7 Gauge
30’ SSP-600W300-(a)(b) 19 13.2 9 475 520
35’ SSP-600W350-(a)(b) 12.4 7.6 4.2 310 540
40’ SSP-600W400-(a)(b) 7.2 3 n/a 180 605
Other sizes available upon request.
Pole Finish (a)
P = Prime BZ = Bronze BK = Black GLV = Galvanized
Mounting Code (b) See detail next page.
Mounting
Height
Mounting Hole
Detail
18”
Hand Hole
Base Plate
Ø0.375
Ø0.750
Ø0.375
2"
Features
Shaft
Fabricated from high-grade structural steel tube,
the shaft conforms to ASTM specifications. It meets
or exceeds minimum yield strength of 55,000 PSI.
Wall thickness is either 11 GA (0.120 wall) or 7 GA
(0.180 wall) as specified (see ordering information).
A reinforced hand hole is furnished with cover.
Base Plate
Fabricated from structural-quality, hot rolled steel, the
base plate meets or exceeds minimum yield strength
of 36,000 PSI. Bolt holes are slotted to provide
flexibility on either side of bolt circle centerline.
Anchorage
Anchor bolts are made of hot rolled steel bar, having
a minimum yield strength of 50,000 PSI. Bolts have
a 90° bend on one end and are threaded on the
other end. Bolts are galvanized 12” from the top of
the thread and are furnished with two nuts and two
washers.
Base Cover
ABS plastic is supplied. The two-piece cover
conceals base.
Finishes
The SSP Series is available in a choice of three
finishes: galvanized, electrostatically applied red
oxide prime coat over two-stage cleaning process, or
optional color powder coating (please specify color).
Powder coat colors offer a finish that is resistant to
chemicals, corrosion and abrasion, which will enhance
the pole’s aesthetic appeal and service life.
Fixture Mounting
Two sides of the SSP Series poles are pre-drilled.
Optional 2-3/8” tenon and other mounting brackets
are also available. See next page for mounting codes
and mounting hole detail.
![](asset-101.png)
255
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
HID LIGHTING – POLES
Mountings
2-3/8” Tenon
Mount for 4” Pole
(11 gauge only)
Ordering Code
SPB14
2-3/8” Tenon
Mount for 5” Pole
(11 gauge only)
Ordering Code
SPB15
One Fixture
Ordering Code
DM10
Two Fixtures
90°
Ordering Code
DM290
Two Fixtures
180°
Ordering Code
DM2180
Three Fixtures
120°
Ordering Code
RTA3120
(Requires
SPB14 Adaptor)
Three Fixtures
90°
Ordering Code
DM390
Four Fixtures
90°
Ordering Code
DM490
SSP Series Square Steel Poles
Ø0.375
Ø0.750
2"
3"
4" Pole
5" Pole
Ø0.375
2"
BC = Bolt Circle Diameter
BP = Bolt Projection (6” of thread)
D = Anchor Bolt Diameter
L = Anchor Bolt Length
W = Anchor Bolt Width
Mounting Hole Detail
Hole pattern on two sides
Square Steel Pole Ordering Information
Mounting Code (b)
Options
2 = 2-3/8” Tenon (SPB14 or SPB15 can be used when tenon unavailable)
DM10 = One Fixture - Direct Mount
DM290 = Two Fixtures @ 90° - Direct Mount
DM2180 = Two Fixtures @ 180° - Direct Mount
DM390 = Three Fixtures @ 90° - Direct Mount
DM490 = Four Fixtures @ 90° - Direct Mount
Accessories
SPB14 = 2-3/8” Retrofit Tenon for 4” Pole
SPB15 = 2-3/8” Retrofit Tenon for 5” Pole
RTA3120 2-3/8” Tenon Mount for 4” Pole (Requires SPB14)
![](asset-102.png)
256
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
HID LIGHTING – POLES
Features
Shaft
The shaft is fabricated from coil stock, weldable
grade, hot rolled commercial-quality carbon steel,
with a guaranteed minimum yield strength of 55,000
PSI. The shaft has uniform taper of approximately
0.14” per foot and a wall thickness of 11 GA. (0.120
wall) or 7 GA. (0.180 wall) as specified. The flushed,
reinforced hand hole is furnished with a cover. A
ground lug is located inside the pole on the wall
opposite of the hand hole.
Base Plate
Fabricated from structural-quality, hot rolled steel, the
RTSP Series meets or exceeds minimum yield strength
of 36,000 PSI. The base telescopes into the pole and
is circumferentially welded to the pole shaft. Bolt
holes are slotted to provide flexibility on either side
of the bolt circle centerline.
Anchorage
The four anchor bolts are fabricated from hot rolled
steel bar, having a minimum yield strength of 50,000
RTSP Series Round Tapered Steel Poles
PSI. Bolts have a 90° bend on one end and are
threaded on the other end. Bolts are galvanized 12”
from the top of the thread and are furnished with two
nuts and two washers. See next page for anchor bolt
specifications.
Base Cover
Fabricated from heavy gauge quality carbon steel, the
two-piece cover conceals the base.
Finishes
The RTSP Series is available in a choice of three
finishes: galvanized, electrostatically applied red
oxide prime coat over two-stage cleaning process, or
optional color powder coating (please specify color).
Powder coat colors offer a finish that is resistant to
chemicals, corrosion and abrasion, which will enhance
the pole’s aesthetic appeal and service life.
Fixture Mounting
RTSP Series mounting options use either a 2-3/8” or
a 2-7/8” tenon. See next page for mounting codes.
Round Tapered Steel Pole Ordering Information
Pole
Height
Catalog Number Base
Outer
Diameter
Pole EPA Ratings
Base Wind Velocity (MPH)
With 1.3 Wind Gust Factor
Maximum
Fixture
Weight (lbs)
@ 80MPH
Weight (lbs)
80 90 100
11 Gauge
20’ RTSP-590A200P2-(a)(b) 5.9 19.3 15.1 12.2 482 140
RTSP-650A200P2-(a)(b) 6.5 24.2 19.3 15.6 605 160
25’ RTSP-590A250PL-(a)(b) 5.9 12.5 9.9 8 312 155
RTSP-700A250P2-(a)(b) 7 20.3 16.2 13.1 507 200
30’ RTSP-660A300PL-(a)(b) 6.6 11.7 9.3 7.5 292 200
RTSP-800A300P2-(a)(b) 8 18.9 14.9 12 473 265
35’ RTSP-730A350PL-(a)(b) 7.3 11.2 8.9 7.1 280 250
RTSP-850A350P2-(a)(b) 8.5 18.9 15.1 12.2 472 315
RTSP-950A350P2-(a)(b) 9.5 23.2 18.2 14.5 580 370
39’ RTSP-782A389PL-(a)(b) 7.8 10.7 8.5 6.6 267 285
RTSP-900A389P2-(a)(b) 9 17.2 13.5 10.8 430 355
45’ RTSP-T00A450P2-(a)(b) 10 17.4 13.5 10.6 435 450
50’ RTSP-T00A500P2-(a)(b) 10 13.2 10.6 8.3 330 475
7 Gauge
30’ RTSP-800E300P2-(a)(b) 8 33.5 27 22 838 380
39’ RTSP-900E389P2-(a)(b) 9 28.5 23 19 715 515
50’ RTSP-T00E500P2-(a)(b) 10 20.5 16.5 13.6 512 680
RTSP-E00E500P4-(a)(b) 11 29.9 23.5 18.6 748 812
RTSP-H00E500P4-(a)(b) 13 50.4 39.7 31.4 1260 1020
3 Gauge
50’ RTSP-H00J500P4-(a)(b) 13 69.2 55 44.2 1730 1335
Other sizes available upon request.
Mounting
Height
18”
Hand Hole
Base Plate
Pole Finish (a)
P = Prime BZ = Bronze BK = Black GLV = Galvanized
Mounting Code (b) See detail next page.
![](asset-103.png)
257
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
HID LIGHTING – POLES
Round Tapered Steel Pole Ordering Information
Mounting Code (b)
Options
2 = 2-3/8” Tenon
3 = 2-7/8” Tenon
Accessories
RTA1 = One Fixture
RTA290 (RTA290M for 23”) = Two Fixtures @ 90°
RTA2180 = Two Fixtures @ 180°
RTA3120 = Three Fixtures @ 120°
RTA390 (RTA390M for 23”) = Three Fixtures @ 90°
RTA4 (RTA4M for 23”) = Four Fixtures @ 90°
Mountings
RTSP Series Round Tapered Steel Poles
BC = Bolt Circle Diameter
BP = Bolt Projection (6” of thread)
D = Anchor Bolt Diameter
L = Anchor Bolt Length
W = Anchor Bolt Width
2-3/8” Tenon
Ordering Code
2
2-7/8” Tenon
Ordering Code
3
One Fixture
Ordering Code
RTA1
Two Fixtures
90°
Ordering Code
RTA290
Two Fixtures
180°
Ordering Code
RTA2180
Three Fixtures
120°
Ordering Code
RTA3120
Three Fixtures
90°
Ordering Code
RTA390
Four Fixtures
90°
Ordering Code
RTA4
![](asset-104.png)
258
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
HID LIGHTING – POLES
Features
Shaft
The STSP Series pole shaft conforms to ASTM A595
Grade-A and is supplied in either an 11 or 7 gauge
thickness. The shaft includes a peripherally reinforced
hand hole furnished with a cover and ground lug.
Base Plate
The base plate is fabricated from structural-quality,
hot rolled carbon steel plate conforming to ASTM A36.
The structurally-engineered base includes eight heavy
wall reinforcing vertical gussets. The base telescopes
and is circumferentially welded to the shaft at both
the outside top and inside bottom of the base.
Anchorage
The four anchor bolts are fabricated from hot rolled
steel bar, having a minimum yield strength of 50,000
PSI. Bolts have a 90° bend on one end and are
threaded on the other end. Bolts are galvanized 12”
from the top of the thread and are furnished with two
STSP Series Square Tapered Steel Poles
nuts and two washers. See next page for anchor bolt
specifications and a diagram.
Base Cover
The base cover is fabricated from heavy wall
aluminum construction. The two-piece cover entirely
conceals the base.
Finishes
The STSP Series is available in a choice of three
finishes: galvanized, electrostatically applied red
oxide prime coat over two-stage cleaning process, or
optional color powder coating (please specify color).
Powder coat colors offer a finish that is resistant to
chemicals, corrosion and abrasion, which will enhance
the pole’s aesthetic appeal and service life.
Fixture Mounting
STSP Series mounting options use either a 2-3/8” or
a 2-7/8” tenon. See next page for mounting codes.
Mounting
Height
18”
Hand Hole
Base Plate
Square Tapered Steel Pole Ordering Information
Pole
Height
Catalog Number Base
Outer
Diameter
Pole EPA Ratings
Base Wind Velocity (MPH)
With 1.3 Wind Gust Factor
Maximum
Fixture
Weight (lbs)
@ 80MPH
Weight (lbs)
80 90 100
11 Gauge
20’ STSP-525A200-(a)(b) 5.25 18 13.8 10.7 452 155
25’ STSP-600A250-(a)(b) 6 16.8 12.6 9.5 422 205
30’ STSP-641A300-(a)(b) 6.41 13.6 9.8 7 340 260
35’ STSP-681A350-(a)(b) 6.81 10.7 7.3 4.8 269 305
39’ STSP-718A389-(a)(b) 7.18 8.6 5.4 3 215 345
7 Gauge
20’ STSP-550E200-(a)(b) 5.5 30.5 24 19 764 235
25’ STSP-641E250-(a)(b) 6.41 28.5 22.5 18.2 713 310
30’ STSP-641E300-(a)(b) 6.41 23.6 17.9 13.7 590 375
STSP-713E300-(a)(b) 7.13 27.4 21.6 17.3 687 431
35’ STSP-713E350-(a)(b) 7.13 23.4 17.4 13 585 475
STSP-788E350-(a)(b) 7.88 25.7 18.8 13.8 643 540
39’ STSP-713E389-(a)(b) 7.13 19.3 14.2 10.4 483 500
45’ STSP-788E450-(a)(b) 7.88 16 11.1 7.4 400 620
STSP-875E450-(a)(b) 8.75 23.5 16.6 11.4 588 730
50’ STSP-881E500-(a)(b) 8.81 19.4 13.2 8.7 485 780
Other sizes available upon request.
Pole Finish (a)
P = Prime BZ = Bronze BK = Black GLV = Galvanized
Mounting Code (b) See detail next page.
![](asset-105.png)
259
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
HID LIGHTING – POLES
Mountings
STSP Series Square Tapered Steel Poles
Ø0.375
Ø0.750
2"
3"
4" Pole
5" Pole
Ø0.375
2"
BC = Bolt Circle Diameter
BP = Bolt Projection (6” of thread)
D = Anchor Bolt Diameter
L = Anchor Bolt Length
W = Anchor Bolt Width
Mounting Hole Detail
Hole pattern on two sides
2-3/8” Tenon
Ordering Code
2
One Fixture
Ordering Code
DM10
Two Fixtures
90°
Ordering Code
DM290
Two Fixtures
180°
Ordering Code
DM2180
Three Fixtures
90°
Ordering Code
DM390
Four Fixtures
90°
Ordering Code
DM490
Square Tapered Steel Pole Ordering Information
Mounting Code (b)
Options
2 = 2-3/8” Tenon
DM10 = One Fixture - Direct Mount
DM290 = Two Fixtures @ 90° - Direct Mount
DM2180 = Two Fixtures @ 180° - Direct Mount
DM390 = Three Fixtures @ 90° - Direct Mount
DM490 = Four Fixtures @ 90° - Direct Mount
Accessories
RTA3120 = Adaptor for Three Fixtures @ 120° (Requires option #2, 2-3/8” tenon)
Three Fixtures
120°
Ordering Code
RTA3120
(Requires option #2,
2-3/8” tenon)
![](asset-106.png)
260
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
HID LIGHTING – POLES
Features
Shaft
Fabricated from high-grade structural steel tube, the
shaft conforms to ASTM specifications. It meets or
exceeds minimum yield strength of 55,000 PSI. A
reinforced hand hole is furnished with cover.
Base Plate
Fabricated from structural-quality, hot rolled steel,
the base plate meets or exceeds a minimum yield
strength of 36,000 PSI. Bolt holes are slotted
to provide flexibility on either side of bolt circle
centerline.
Anchorage
Anchor bolts are made of hot rolled steel bar, having
a minimum yield strength of 50,000 PSI. Bolts have a
90° bend on one end and are threaded on the other
end. Bolts are galvanized 12” from the top
of the thread and are furnished with two nuts and
two washers.
RNTP Series Round Non-Tapered Steel Poles
Base Cover
Fabricated from heavy gauge quality carbon steel, the
two-piece cover conceals the base.
Finishes
The RNTP Series is available in a choice of three
finishes: galvanized, electrostatically applied red
oxide prime coat over two-stage cleaning process, or
optional color powder coating (please specify color).
Powder coat colors offer a finish that is resistant to
chemicals, corrosion and abrasion, which will enhance
the pole’s aesthetic appeal and service life.
Fixture Mounting
RNTP Series mounting options use either a 2-3/8” or
a 2 7/8” tenon. See next page for mounting codes.
Mounting
Height
Base Plate
18”
Hand Hole
Round Non-Tapered Steel Pole Ordering Information
Pole
Height
Catalog Number Base
Outer
Diameter
Pole EPA Ratings
Base Wind Velocity (MPH)
With 1.3 Wind Gust Factor
Maximum
Fixture
Weight (lbs)
@ 80MPH
Weight (lbs)
80 90 100
10’ RNTP-300V100-(a)(b) 3 10 7.7 6 250 55
RNTP-400V100-(a)(b) 4 19.1 15 12.2 480 70
RNTP-450V100-(a)(b) 4.5 24.5 19.5 15.8 615 75
12’ RNTP-300V120-(a)(b) 3 7.7 5.8 4.4 195 60
RNTP-400V120-(a)(b) 4 15 11.8 9.5 390 80
RNTP-450V120-(a)(b) 4.5 19.8 15.7 12.7 495 85
14’ RNTP-300V140-(a)(b) 3 6 4.4 3.3 175 70
RNTP-400V140-(a)(b) 4 12.2 9.4 7.6 305 90
RNTP-450V140-(a)(b) 4.5 16.2 12.8 10.3 405 95
16’ RNTP-300V160-(a)(b) 3 4.6 3.2 2.3 125 80
RNTP-400V160-(a)(b) 4 9.6 7.4 5.9 250 100
RNTP-450V160-(a)(b) 4.5 13.1 10.2 8.2 330 105
18’ RNTP-300V180-(a)(b) 3 3.4 2.3 1.4 90 90
RNTP-400V180-(a)(b) 4 7.6 5.7 4.5 190 110
RNTP-450V180-(a)(b) 4.5 10.5 8.2 6.5 265 115
20’ RNTP-300V200-(a)(b) 3 2.4 1.4 100 100
RNTP-400V200-(a)(b) 4 6 4.45 3.45 150 120
RNTP-450V200-(a)(b) 4.5 8.5 6.6 5.2 215 130
RNTP-500V200-(a)(b) 5 11.75 9.1 7.25 300 145
25’ RNTP-400V250-(a)(b) 4 2.85 1.95 1.35 100 145
RNTP-450V250-(a)(b) 4.5 4.8 3.6 2.7 130 155
RNTP-500V250-(a)(b) 5 7.25 5.5 4.25 180 180
30’ RNTP-450V300-(a)(b) 4.5 2.3 1.5 1 80 185
RNTP-500V300-(a)(b) 5 4.2 3 2.25 150 210
Other sizes available upon request.
Pole Finish (a)
P = Prime BZ = Bronze BK = Black GLV = Galvanized
Mounting Code (b) See detail next page.
![](asset-107.png)
261
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
HID LIGHTING – POLES
Round Non-Tapered Steel Pole Ordering Information
Mounting Code (b)
Options
2 = 2-3/8” Tenon
3 = 2-7/8” Tenon
Accessories
RTA1 = One Fixture
RTA290 (RTA290M for 23”) = Two Fixtures @ 90°
RTA2180 = Two Fixtures @ 180°
RTA3120 = Three Fixtures @ 120°
RTA390 (RTA390M for 23”) = Three Fixtures @ 90°
RTA4 (RTA4M for 23”) = Four Fixtures @ 90°
Mountings
RNTP Series Round Non-Tapered Steel Poles
BC = Bolt Circle Diameter
BP = Bolt Projection (6” of thread)
D = Anchor Bolt Diameter
L = Anchor Bolt Length
W = Anchor Bolt Width
2-3/8” Tenon
Ordering Code
2
2-7/8” Tenon
Ordering Code
3
One Fixture
Ordering Code
RTA1
Two Fixtures
90°
Ordering Code
RTA290
Two Fixtures
180°
Ordering Code
RTA2180
Three Fixtures
120°
Ordering Code
RTA3120
Three Fixtures
90°
Ordering Code
RTA390
Four Fixtures
90°
Ordering Code
RTA4
HID LIGHTING – POLES
![](asset-108.png)
262
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
HID LIGHTING – POLES
Dual Mount Square Series
Square Internal Mount and
2-3/8” Tenon Mount
This patented unique feature allows you to use all
square series mounting options on square poles
with or without 2-3/8” tenon.
SPB Series
The SPB Series is designed for use with the MA3
2” adjustable slip fitter. The tenon diameter is
2-3/8”. All brackets are finished in bronze acrylic
powder coating for long life. All tenons are spaced
26” apart.
SPB & SSB Series Square Pole Mounting Brackets
SSB Series – In Line Mount
The SSB Series has the same features as the SPB
Series and comes standard with the 1-1/2” close
mount arm for side mounting the 12”, 16” and
23” fixtures.
Finish
All brackets are finished with a polyester bronze
powder coating for longer life.
Mounting Bracket Ordering Information
Vertical Tenons
Catalog Number/Description Weight (lbs)
SPB14 = Single Mount 4”
SPB15 = Single Mount 5”
SPB24 = Twin Mount 4”
SPB34 = Triple Mount 4”
SPB44180 = 180° Quad 4”
SPB4490 = 90° Quad 4”
5
7
29
45
67
46
For 5” square pole internal mount use STR54 reducer.
Side Mounting Brackets
Catalog Number/Description Weight (lbs)
SSB24 = Twin Mount
SSB34 = Triple Mount
27
45
For 5” square pole internal mount use STR54 reducer.
Patent # 6,116,556 Patent # 6,116,556
2-3/8” Tenon Mount Square Internal Mount (11 gauge only)
Mountings
26”
26”
26”
26”
78”Typical
52”
26”
26”
52”
Single
(Internal mount
for 11 gauge
only)
Ordering Code
SPB14 for 4”
SPB15 for 5”
Twin
Ordering Code
SPB24
Triple
Ordering Code
SPB34
180° Quad
Ordering Code
SPB44180
90° Quad
Ordering Code
SPB4490
Twin Side Mount
Ordering Code
SSB24
Triple Side Mount
Ordering Code
SSB34
![](asset-109.png)
263
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
HID LIGHTING – POLES
Square Internal Mount Horizontal
Tenons
ST Series Square
The square base, with internal tenon mount, is
designed to slip into either a standard 4” square,
11 gauge non-tapered steel or aluminum pole
or onto a square pole with a 2-3/8” tenon.
Do not use ST290, ST390 or ST4 with
23” square fixtures. Use the STR54 5” - 4”
Reducer to adapt to internal mount on 5” pole
with the ST Series brackets.
STA Series With Arms
The square base, with internal tenon mount, is
designed to slip into either a standard 4” square,
11 gauge non-tapered steel or aluminum pole
or onto a square pole with a 2-3/8” tenon.
Available with either 6” or 12” extension arms
for direct mounting to the fixture. 12” arms are
required for 23” housings. For 5” poles, use
STR54 Reducer.
Finish
All brackets are finished with a polyester bronze
powder coating for longer life.
ST & STA Series Square Pole Mounting Brackets
ST1 STA1
ST290 STA290
ST2180 STA2180
ST390 STA390
ST4 STA4
Drop-In Mount Tenon Adaptor Ordering
Information
ST Series Mount Tenon Adaptors
Catalog Number/Description Weight (lbs)
ST1 = Single Mount 4” Pole (not shown)
ST290 = 90° Twin Mount 4” Pole
ST2180= 180° Twin Mount 4” Pole
ST390 = 90° Triple Mount 4” Pole
ST4 = 90° Quad Mount 4” Pole
12
14
14
16
18
For 5” square pole internal mount use STR54 reducer.
STA Series Mount Tenon Adaptors With Arms
Catalog Number/Description Weight (lbs)
STA1= Single Mount 4” Pole - 6” Arm
STA1M = Single Mount 4” Pole - 12” Arm
STA290 = 90° Twin Mount 4” Pole - 6” Arm
STA290M = 90° Twin Mount 4” Pole - 12” Arm
STA2180 = 180° Twin Mount 4” Pole - 6” Arm
STA2180M = 180° Twin Mount 4” Pole - 12” Arm
STA390 = 90° Triple Mount 4” Pole - 6” Arm
STA390M = 90° Triple Mount 4” Pole - 12” Arm
STA4 = 90° Quad Mount 4” Pole - 6” Arm
STA4M = 90° Quad Mount 4” Pole - 12” Arm
12
14
14
16
14
16
16
19
18
20
For 5” square pole internal mount use STR54 reducer.
STR Series Reducers
Catalog Number/Description Weight (lbs)
STR54 = 5-4” Reducer 12
Mountings
Single
Ordering Code
ST1
STA1
90° Twin
Ordering Code
ST290
STA290
180° Twin
Ordering Code
ST2180
STA2180
90° Triple
Ordering Code
ST390
STA390
90° Quad
Ordering Code
ST4
STA4
5” - 4” Reducer
(11 gauge only)
Ordering Code
STR54
STA4
![](asset-10a.png)
264
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
HID LIGHTING – POLES
Round External Mount
Horizontal Tenon
The cast aluminum RT1 mounting bracket is
designed to mount on 2-3/8” - 3” tenons on
round poles. Use the RT1 tenon adaptor for
converting 2-7/8” pole tenons to 2-3/8”.
Mounting
Uses six 5/16” allen head high-tensile strength
screws for attaching to tenon. Removable wiring
cover is gasketed.
Finish
All brackets are finished with an polyester bronze
powder coating for longer life.
Round External Mount
With 6” or 12” Arms
Designed to fit snuggly to 2-3/8” tenons. The
RTA Series uses 6” or 12” arms for direct mount
to 12”, 16” and 23” square fixtures. 12” arms
are required for mounting 23” square fixtures at
90° and 120°.
Mounting
Uses four 5/16” allen head high tensile strength
screws for securing to tenon. Cover cap snaps off
for easy wiring access.
Finish
All brackets are finished with an polyester bronze
powder coating for longer life.
RTA and RT Series Round Pole Mounting Brackets
Catalog Number/Description Weight (lbs)
RT1 = Single Mount 4
External Mount Tenon Adaptor Ordering Information
Catalog Number/Description Weight (lbs)
RTA1= Single Mount 6” Arm
RTA1M = Single Mount 12” Arm
RTA290 = 90° Twin Mount 6” Arm
RTA290M = 90° Twin Mount 12” Arm
RTA2180 = 180° Twin Mount 6” Arm
RTA2180M = 180° Twin Mount 12” Arm
RTA390 = 90° Triple Mount 6” Arm
RTA390M = 90° Triple Mount 12” Arm
RTA3120 = 120° Triple Mount 6” Arm
RTA3120M = 120° Triple Mount 12” Arm
RTA4 = 90° Quad Mount 6” Arm
RTA4M = 90° Quad Mount 12” Arm
13
15
15
19
15
19
17
23
17
23
19
27
Arms for RTA Series
Catalog Number/Description Weight (lbs)
MA2R = 6”
MA5R = 12”
3
4
All arms supplied with mounting hardware.
Presized for use with 4” Non-Tapered Poles Only – Not recommended for use with tapered poles.
Mountings
Single
Ordering Code
6” Arm:
RTA1
12” Arm:
RTA1M
90° Twin
Ordering Code
6” Arm:
RTA290
12” Arm:
RTA290M
180° Triple
Ordering Code
6” Arm:
RTA2180
12” Arm:
RTA2180
90° Triple
Ordering Code
6” Arm:
RTA390
12” Arm:
RTA390M
120° Triple
Ordering Code
6” Arm:
RTA3120
12” Arm:
RTA3120M
90° Quad
Ordering Code
S6” Arm:
RTA4
12” Arm:
RTA4M
Single
Ordering Code
RT1
![](asset-10b.png)
265
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
HID LIGHTING – POLES
Pole Top Luminaire Mounting
Adaptors
For use with steel 2-3/8” O.D. tenon. Bull Horns
come with a standard rust-resistant bronze finish.
BH Series Bull Horns
Standard Finishes
All bullhorns come standard with a polyester
powder coat finish in bronze. Please consult factory
for other color options.
36”
30”
30”
24”
30”
30”
48”
2 Arm
Ordering Code
BH2
3 Arm - Straight
Ordering Code
BH3
3 Arm - 120°
Ordering Code
BH3T
4 Arm - Straight
Ordering Code
BH4
4 ARM - 90°
Ordering Code
BH490
Bull Horn Ordering Information
Catalog Number/Description Weight (lbs)
BH2= 2 Arm, EPA Rating of 1.6
BH3= 3 Arm, EPA Rating of 2.3
BH3T = 3 Arm - 120°, EPA Rating of 1.6
BH4 = 4 Arm - Straight, EPA Rating of 2.6
BH490 = 4 Arm - 90°, EPA Rating of 1.9
30
44
39
59
55
![](asset-10c.png)
266
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
HID LIGHTING – POLES
Mid-Pole Bracket Tenon Adaptor
Ordering Code MP1T
Two 3” X 11” square steel arms bolt securely to the
side of a square steel pole and provide a 2-3/8”
O.D. vertical tenon to mount a floodlight with our
MA3 2” Adjustable Slip Fitter. Two 1/2” bolts (not
furnished) are recommended to mount the bracket
to the pole. Bolt centers are 4-1/2”. A friction-fit end
cap is provided to enclose the wiring chamber. NOTE:
The pole must be field-drilled before installation of
the Mid-Pole Bracket. Approximate shipping weight
is 8 lbs.
Wall Mount Horizontal Tenon
Ordering Code WP2
Using the MA3 2” Adjustable Fitter, the WP2 mounts
directly on a flat structure using four 3/8” bolts (not
included).
Wall Mount Bracket
Ordering Code WP3A
The WP3A Series Bracket attaches an outdoor light,
over a junction box, to any flat surface. Measures 5”
X 5”. Add MA1, MA2 or MA5 arms for spacing the
fixture.
Two-Piece Wall Mount Bracket
Ordering Code WP3
This two-piece wall mount bracket allows you to
mount the 5” X 7” flat steel plate to the wall. The
other half is premounted to the fixture using either
the MA1, MA2 or MA5 arms for different spacing.
(Please order arm separately). The two parts then
slip together for easy installation.
Wall Mount Bracket
For 12” Square Housing Only
Ordering Code WP3S
Developed for the 12” FS Series shoebox fixtures,
this bracket is ideal for close mounting to a vertical
structure. Supplied with 1-1/2” spacer and mounting
hardware (wall mount bolts not included). Size is 5”
X 7-1/2”.
Wall Mount Vertical Tenon
Ordering Code WP4
Use with the MA3 2” Adjustable Fitter for mounting
any 12”, 16” or 23” housing to a flat structure (9”
from wall). Recommend using four 3/8” bolts (not
included).
Pole Bracket for Yoke Mount
Ordering Code RSY4
Use with MA4 yoke mount. Adapts to any 2-3/8”
tenon. Approximate shipping weight is 5 lbs.
Cross Arm Mount Bracket
Ordering Code CA1
Designed to be used on wooden or steel cross arms
when using a trunnion or yoke mount fixture.
Tenon Mount Adaptor for FBD
Ordering Code FBD-TM
Designed to be used with the FBD flood light to adapt
to any 2-3/8” tenon.
1/2” Tenon Adaptor
Ordering Code MA6-TA
1/2” Adaptor for 2-3/8” tenon: MA6-TA used on
FMS, FMM & FMR to mount on standard 2-3/8”
tenon. Approximate shipping weight is 1lb.
2” Adjustable Slip Fitter
Ordering Code MA3
Slip-fits over a 2” pole or tenon (2.375” O.D.).
Allows vertical tilt in 2.5˚ increments, as well as
lateral rotation. Threaded knockout provided for
field-installed button photocell. Approx. 2 lbs.
Yoke Mount
Ordering Code MA4
Ideal for wall, ground, roof, or wood pole mounting;
bolts directly to almost any surface. Mounts to fixture
housing from outside using 5/16” x 1” bolts. Allows
vertical tilt to any angle, and double locks at 0˚,
20˚, 30˚, 60˚, 70˚, or 90˚ tilt angle. Use RSY4 pole
bracket for tenon mounting. Approx. weight 3 lbs.
Outdoor Fixture Mounting Alternatives
MP1T WP3S
WP2 WP4
WP3 RSY4
MA3 MA4
WP3A CA1
FBD-TM MA6-TA
All brackets on this page are standard with our weather guard finish bronze polyester powder topcoat. Consult
factory for availability of other finish colors.
Outdoor Mounting Alternatives Ordering
Information
Catalog Number / Description
MP1T = Mid-Pole Bracket for single fixture
WP2= Wall Mount Brackets - Horizontal 2 3/8” Tenon
WP3A = Wall Mount for Arm
WP3 = Two Piece Wall Mount for Arm
WP3S = Wall Mounting Bracket for 12” Sq Housing Only
WP4 = Vertical 2 3/8” Tenon
RSY4 = Pole Bracket for Yoke Mount
CA1 = Cross Arm Adaptor (Use with MA4 Yoke & SLF Fixture)
FBD-TM = Tenon Mount Adaptor for FBD
MA6-TA = Tenon Adaptor for FFS, FFM, & FMR
MA3 = 2” Adjustable Slip Fitter
MA4 = Yoke Mount
HID LIGHTING – POLES
![](asset-10d.png)
Important notice regarding probe start metal halide fixtures
The Energy Independence and Security Act of 2007 (HR6) bans the sale of virtually
all probe start metal halide fixtures from 150W to 500W as of January 1, 2009. Only
certified pulse start metal halide fixtures will be manufactured at that time. Those fixtures will be
identified with a “circle-E” logo on the packaging and ballast as shown here:
Existing probe start metal halide fixtures manufactured before that date can be sold until
inventories are depleted. Some metal halide fixtures are exempt, but the vast majority are
banned.
Technical Review
Starting January 1, 2009, lighting fixtures manufactured for operation with metal halide lamps
from 150W to 500W must contain ballasts as follows:
Exemptions
The standards do not apply to:
•Fixtureswithregulatedlagballasts;
•Fixturesthatuseelectronicballaststhatoperateat480V;or
•Fixturesratedonlyfor150Wlamps,foruseinwetlocations,andcontainaballastratedto
operate at ambient air temperatures above 50°C.
If you wish to review a copy of the law, refer to:
Energy Independence and Security Act of 2007 (HR6)
Subtitle B—Lighting Energy Efficiency
H. R. 6—3
Section 324, Metal Halide Lamp Fixtures
Ballast Minimum ballast efficiency
Pulse-start metal halide ballast 88%
Magnetic probe-start ballast* 94%
Electronic ballast (not pulse-start) 90% if <250W
92% if >250W
* Industry cannot meet efficiency standard with present day technology
E
267
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
HID LIGHTING – POLES
![](asset-10e.png)
268
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
SPECIALTY LIGHTING
![](asset-10f.png)
269
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
SPECIALTY LIGHTING
Simkar continuously strives to provide innovative technology and unique designs
for specialized applications. Whether seeking a lighting solution for billboard
signage, a landscape design, or a poultry house - Simkar offers the answer.
The round and square Bollards are architecturally designed fixtures that can be
used for walkways, drives, entrances and other public areas. Available in three
heights, these fixtures feature a removable top section that allows for ease of
relamping - and are UL listed for wet locations.
Simkar’s RMVG Series fixtures are typically used in low-height areas that require
high quality illumination - ideal for office, commercial, or retail settings such as
automotive showrooms. These fixtures feature potted ballasts for quiet sound
during operation and are available with recessed louvers or lenses.
The R-CAD Series prismatic refractors and aluminum reflectors are designed
to increase light levels by upgrading all mogul-based, highbay fixtures. R-CAD
units deliver 20 to 25% increased light levels by replacing existing deteriorated
shades. The R-CAD Series are perfect solutions for retail stores, gymnasiums,
manufacturing centers, and warehouse areas.
HID
SPECIALTY LIGHTING
![](asset-110.png)
270
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
SPECIALTY LIGHTING
Thermal Protection
All fixtures are fitted with a thermal protector to
avoid overheating.
Mounting Options
Designed to fit a standard 2’ x 2’ grid, using a
T-type ceiling support bracket.
Features
Housing
The 20-gauge steel housing is coated with a high-
reflectance white finish.
Ballast
A potted magnetic multi-tap ballast is supplied.
Please specify voltage for factory wiring.
Lamps
Available with 175W, 250W and 400W MH and
250-400W Pulse Start MH lamps or 150W - 400W
HPS mogul based, vertical burn open rated lamps.
Coated lamps are standard.
Optics
Semi-specular parabolic 9-cell or 16-cell
louvers are available. See photometric data below.
The HID 2 x 2 Recessed is typically used in areas
that require high quality illumination. Fixture is
ideal for showroom, commercial, or retail settings.
Wattage Range:
175 - 400W (Magnetic)
Dimensions
Fixture Fixture Approx.
Height Width Ship Wt.
RMVG Series
15” 23.75” 40 lbs.
40 °C Ambient Rated
Listed for Recessed /Damp Locations
Contact Factory for CUL Availability
Shown is RMVG housing with 16-cell louver.
Lamp Included
9 Cell Louver
Lamp: 350W Coated MH/PS
Lumens: 35,000
5' 10' 15' 20' 25'
-5'
-10'
-15'
-20'
-25'
-30'
-35'
-40'
-45'
50
30
20
10
5
16 Cell Louver
Lamp: 350W Coated MH/PS
Lumens: 35,000
5' 10' 15' 20'
-5'
-10'
-15'
-20'
-25'
-30'
-35'
-40'
-45'
50
30
20
10
5
Photometric Data
(Isofootcandle Plots)
W
H
RMVG Series 2 x 2 Recessed Louver
20
GAUGE
![](asset-111.png)
271
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
SPECIALTY LIGHTING
Louver Options
9 Cell Lens
Ordering Code
L9
16 Cell Lens
Ordering Code
L16
Voltage (a) Options (b) (Factory Installed)
1 = 120V
2 = 277V
3 = 208V
4 = 240V
5 = 480V
Q = Quartz Standby (Includes Quartz Lamp)
L9 = 9 Cell Louver
L16 = 16 Cell Louver
Recessed Fixture Order Information
Housing Size Lamp Type Catalog Number
24” Square 175W MH RMVG217-(a)(b)
Grid Mount 250W MH RMVG225-(a)(b)
250W MH/PS RMVG925-(a)(b)
320W MH/PS RMVG932-(a)(b)
350W MH/PS RMVG935-(a)(b)
400W MH RMVG240-(a)(b)
400W MH/PS RMVG940-(a)(b)
150W HPS RMVG515-(a)(b)
250W HPS RMVG525-(a)(b)
400W HPS RMVG540-(a)(b)
RMVG Series 2 x 2 Recessed Louver
Example
RMVG 2 17 2
Series Light Source Wattage Voltage
RMVG = 2 x 2
Recessed Louver
2 = Open Rated MH 17 = 175W 2 = 277V
![](asset-112.png)
272
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
SPECIALTY LIGHTING
Optics
Fixtures are supplied with one of a variety of
lenses in either flat or drop style. Flat versions are
available in clear glass, C73 prismatic glass, acrylic
or polycarbonate. Drop versions are available in
polycarbonate or acrylic.
Thermal Protection
All fixtures are equipped with a thermal protector to
avoid overheating.
Mounting Options
Designed to fit a standard 2’ x 2’ grid, using a T-type
ceiling support bracket.
Features
Housing
The 20-gauge steel housing is coated with a high-
reflectance white finish.
Ballast
A potted magnetic CWA multi-tap ballast is supplied.
Please specify voltage for factory wiring.
Lamps
Available with 175W, 250W and 400W MH and
175-400W Pulse Start MH lamps or 150W - 400W
HPS mogul based, vertical burn lamps. Coated lamps
are standard.
The HID 2 x 2 Recessed is typically used in areas
that require high quality illumination. Fixture
is ideal for showroom, commercial, or retail
settings.
Wattage Range:
175 - 400W (Magnetic)
Dimensions
Fixture Fixture Approx.
Height Width Ship Wt.
RMVG Series
15” 23.75” 40 lbs.
W
H
Shown is RMVG housing with F73 flat
prismatic glass lens.
Lamp Included
Acrylic / Polycarbonate Drop Lens
Lamp: 350W Coated MH/PS
Lumens: 35,000
5' 10' 15' 20'
-5'
-10'
-15'
-20'
-25'
-30'
-35'
50
30
20
10
5
Flat Prismatic Glass Lens (C73)
Lamp: 350W Coated MH/PS
Lumens: 35,000
5' 10' 15' 20' 25'
-5'
-10'
-15'
-20'
-25'
-30'
-35'
-40'
50
30
20
10
5
Flat Clear Acrylic Lens
Flat Polycarbonate Lens
Flat Clear Glass Lens
Lamp: 350W Coated MH/PS
Lumens: 35,000
5' 10' 15' 20' 25'
-5'
-10'
-15'
-20'
-25'
-30'
-35'
-40'
50
30
20
10
5
Photometric Data
(Isofootcandle Plots)
40 °C Ambient Rated
Listed for Recessed /Damp Locations
Contact Factory for CUL Availability
RMVG Series 2 x 2 Recessed Lens
20
GAUGE
![](asset-113.png)
273
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
SPECIALTY LIGHTING
Lens Options
RMVG Series 2 x 2 Recessed Lens
Drop Lens
Ordering Code
DAL (Acrylic)
DPL (Polycarbonate)
Clear Flat Glass
Lens
Ordering Code
FAL (Acrylic)
FPL (Polycarbonate)
FGL (Glass)
Flat Prismatic
Glass Lens
Ordering Code
F73
Voltage (a) Options (b) (Factory Installed)
1 = 120V
2 = 277V
3 = 208V
4 = 240V
5 = 480V
Q = Quartz Standby (Quartz Lamp Included)
F73 = Flat Prismatic Glass Lens (C73)
FAL = Clear Flat Acrylic Lens
FPL = Clear Flat Polycarbonate Lens
FGL = Clear Flat Glass Lens
DAL = Drop Acrylic Lens
DPL = Drop Polycarbonate Lens
Recessed Fixture Order Information
Housing Size Lamp Type Catalog Number
24” Square 175W MH RMVG417-(a)(b)
Grid Mount 175W MH/PS RMVG817-(a)(b)
250W MH RMVG425-(a)(b)
250W MH/PS RMVG825-(a)(b)
320W MH/PS RMVG832-(a)(b)
350W MH/PS RMVG835-(a)(b)
400W MH RMVG440-(a)(b)
400W MH/PS RMVG840-(a)(b)
150W HPS RMVG515-(a)(b)
250W HPS RMVG525-(a)(b)
400W HPS RMVG540-(a)(b)
Example
RMVG 2 17 2
Series Light Source Wattage Voltage
RMVG = 2 x 2
Recessed Louver
2 = MH 17 = 175W 2 = 277V
![](asset-114.png)
274
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
SPECIALTY LIGHTING
Mounting Options
Each bollard is furnished with a heavy-duty aluminum
base plate which mounts to the ground using the
included 3-3/8” x 6” anchor bolts and leveling nuts.
Features
Housing
Designed from durable seamless extruded
aluminum, bollards are offered in three pole heights
in either round or square styles. A removable top
section allows for ease of relamping. A bronze
polyester powder coat is standard on all bollards,
but optional white or black may be ordered. Contact
factory for other color options.
Ballast
Metal halide fixtures are supplied with high
reactance, high power factor multi-tap ballasts. All
high pressure sodium fixtures are provided with a
120V reactor ballast (optional HPF available) or a
high reactance, high power factor multi-tap ballast.
Lamps
High pressure sodium fixtures in 35W, 50W and 70W
come standard with a medium base lamp. Metal
halide fixtures are provided with open rated medium
base lamps.
BL Series Round & Square Bollards
The BL Series are architecturally designed
round and square bollards that can be used for
walkways, drives, entrances and other public
areas.
Wattage Range:
35 - 70W
Dimensions
Fixture Fixture Fixture Approx.
Pole Size Top Size Height Ship Wt.
BLR Series
6” 7” 24”/36”/42” 28 lbs.
BLS Series
6” 7” 24”/36”/42” 25 lbs.
8”
Height
8”
Width
BLS Top BLR Top
Dia.
Lamp Included
Listed for Wet Locations
Contact Factory for CUL Availability
BLR Series
BLS Series
Height
BL Series Fixture Heights and Options
Fixture Height (x) Options (b) (Factory Installed)
A = 24” total fixture height
B = 36” total fixture height
C = 42” total fixture height
HPF = High Power Factor (120V HPS only)
WT = White Housing
BK = Black Housing
BLR Series Round Bollard Order Information
Pole Diameter Lamp Type Catalog Number
6” round pole 50W MH/PS BLR(x)905-M*(b)
70W MH/PS BLR(x)907-M*(b)
35W HPS (120V NPF) BLR(x)503-1*(b)
50W HPS (120V NPF) BLR(x)505-1*(b)
50W HPS BLR(x)505-M*(b)
70W HPS (120V NPF) BLR(x)507-1*(b)
70W HPS BLR(x)507-M*(b)
* M = Multi-tap tapped @ 277V; 1 = 120V (30-150 HPS only (NPF))
BLS Series Square Bollard Order Information
Pole Diameter Lamp Type Catalog Number
6” square pole 50W MH/PS BLS(x)905-M*(b)
70W MH/PS BLS(x)907-M*(b)
35W HPS (120V NPF) BLS(x)503-1*(b)
50W HPS (120V NPF) BLS(x)505-1*(b)
50W HPS BLS(x)505-M*(b)
70W HPS (120V NPF) BLS(x)507-1*(b)
70W HPS BLS(x)507-M*(b)
* M = Multi-tap tapped @ 277V; 1 = 120V (30-150 HPS only (NPF))
![](asset-115.png)
275
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
SPECIALTY LIGHTING
Mounting Options
A stainless steel hook is standard for hanging the
fixture from a structure.
Features
Housing
The cast aluminum housing is electrostatically
powder coated to withstand extreme environments
associated with poultry houses.
Ballast
The fixture includes a normal power factor (NPF)
ballast.
Lamps
The Producer comes standard with HPS lamps.
Optics
A heavy-duty prismatic borosilicate bell glass is
mounted to the housing using a cast aluminum ring
with stainless steel hardware.
Wiring
All units are supplied with a 6’ SOW 16/3 cord. A
120V plug is available in twist-lock or straight blade.
Gasket
The Producer incorporates watertight neoprene
gaskets for use in wet locations.
PR Series The Producer
Available in 120V, The Producer is a versatile and
durable fixture designed for difficult and harsh
environments such as poultry houses and wash
down, heavy-duty applications.
Wattage Range:
70 to 150 W
Dimensions
Fixture Fixture Fixture
Height Width Diameter
PR Series
13.5” 9.3” 9.3”
Typical Poultry House
PR Series
100W High Pressure Sodium
Mounting Height: 15’
Spacing: 20’
Average 7 footcandles
150W High Pressure Sodium
Mounting Height: 15’
Spacing: 20’
Average 10 footcandles
Lamp Included
2”
13.5”
7”
Ø 9.3”
Ø 6.6”
40 °C Ambient Rated
Listed for Wet Locations
Contact Factory for CUL Availability
Number of Fixtures Per Circuit (Maximum)
Based On
Operating Amps Nominal Amps
Lamp Type Voltage Power Factor Fixtures 20 (A) Circuit 30 (A) Fixture Oper. Amps Amps Start. Amps
LU70 120 NPF 9 14 1.7 3.2
120 HPF 20 30 0.8 2.1
LU100 120 NPF 6 10 2.3 4.8
120 HPF 13 20 1.2 2.5
LU150 120 NPF 4 6 3.5 4.8
120 HPF 9 14 1.7 4.1
Options (b) (Factory Installed)
SB = Straight Blade Plug (120V)
TL = Twist + Lock Plug (120V NEMA L5-15P)*
*Standard on fixtures with hook, cord, & plug
PR Series Order Information
Housing Size Lamp Type Hook & Cord Hook, Cord, & Plug
9” 70W PR1507-1* PR2507-1*(b)
100W PR1510-1* PR2510-1*(b)
150W PR1515-1* PR2515-1*(b)
*120V
![](asset-116.png)
276
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
SPECIALTY LIGHTING
Lamps
All FSM Series fixtures are supplied with a 175-400W
mogul base lamp.
Gasket
Complete silicone gasketing around lens frame
and at mounting provide a watertight seal. Fixture
is recommended to have a minimum 1° tilt on
luminaire face.
EPA Ratings
Because of its unique design, lower EPA ratings are
achieved, resulting in lower pole costs. See page 252
for EPA Ratings.
Mounting Options
For a complete description of mounting options, refer
to information beginning on page 254.
Features
Housing
The sleek square 16” die cast aluminum housing
with flush doorframe and rounded edges comes
standard with a bronze polyester powder coat. Other
colors are available upon request.
Ballast
All fixtures are supplied with a high power factor
constant wattage ballast in multi-tap or 480V. All
units are supplied with a 36” SOW 16/3 cord. If no
voltage is specified, cord is connected to the highest
voltage.
Optics
An IES Type IV narrow cutoff distribution that
minimizes light spill.
FSM Series Sign Light
This narrow cutoff luminaire is designed to
illuminate signs or billboards with minimum
light spill.
Wattage Range:
175 to 400 W
Dimensions
Fixture Fixture Fixture Approx.
Length Width Depth Ship Wt.
FSM Series
16.4” 16.4” 7.0” 38 lbs.
L
D
W
16” Sign Light
Cat #: FSM3440
Lumens: 32,000
Mounting Distance: 5’
Certified Test Report: LTL06474
IES File: FSM440.IES
Tilt: 1100
100
-15'
-5'
5'
0
15'
10'
30
-10' -5'
10
550
05' 15'10'
Photometric Data
(Isofootcandle Plots)
Lamp Included
55 °C Ambient Rated
Listed for Wet Locations
Contact Factory for CUL Availability
![](asset-117.png)
277
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
SPECIALTY LIGHTING
FSM Series Sign Light
Mountings and Accessories
2” Adjustable Slip
Fitter
Ordering Code
MA3
Yoke Mount
Ordering Code
MA4
Wire Guard
Ordering Code
WG-16
Vandal Shield
Ordering Code
VS-16
Sign Light Order Information
Housing Size (sq.) Lamp Type Catalog Number Mountings (order separately)
16” 175W MH FSM8417-(a)(b) MA3 = 2” Adjustable Slip Fitter
250W MH FSM8425-(a)(b) MA4 = Yoke Mount
400W MH FSM8440-(a)(b)
200W MH/PS FSM8820-(a)(b)
250W MH/PS FSM8825-(a)(b)
320W MH/PS FSM8832-(a)(b)
350W MH/PS FSM8835-(a)(b)
400W MH/PS FSM8840-(a)(b)
250W HPS FSM8525-(a)(b)
400W HPS FSM8540-(a)(b)
Sign Light Voltage, Options, and Accessories
Voltage (a) Options (b) (Factory Installed) Accessories: (Field Installed)
5 = 480V
M = Multi-tap
(tapped @ 277)
M5 = 120 - 480V
400W MH only
(tapped @ 480V)
Q = Quartz Standby (includes lamp)
P = Photo Control - Specify Voltage in Suffix (a)
(Twist + Lock receptacle & matching photocell
supplied.)
WT = White Housing
BK = Black Housing
Custom Colors Available; contact factory for pricing and
delivery.
Fusing
(x)F = Single - Specify voltage (x):
1 = 120V; 2 = 277V
(x)J = Dual - Specify voltage (x):
3 = 208V; 4 = 240V; 5 = 480V
WG-16 = Wire Guard for 16” housing
BLS-16 = Backlight Shield for 16” housing
(not shown)
VS-16 = Vandal Shield for 16” housing
Example
FMS 8 8 32 M
Series Mounting Light Source Wattage Voltage
FMS = Sign Light 8 = No Mounting 8 = MH/PS 32 = 320W M = Multi-tap
![](asset-118.png)
278
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
SPECIALTY LIGHTING
The R-CAD™ Series Prismatic Refractor is designed
to increase light levels by upgrading all mogul-
based, high bay fixtures, especially those currently
using metal reflectors. Units deliver 20% higher
light levels with a smooth and even light distribution,
making them ideal for retail stores, gymnasiums,
distribution centers, manufacturing centers and
aisleways.
The R-CAD™ SDC Series Faceted Reflector is
designed to increase light levels by 20 to 25%
by replacing deteriorated aluminum reflectors of
existing fixtures with a hard anodized faceted
aluminum high-efficiency designed reflector.
An effective and low cost lighting upgrade, the
R-CAD™ SDC Series is ideal for retail stores,
gymnasiums, manufacturing centers and warehouse
areas.
The R-CAD™ EB Series is designed to increase
light levels by 20 to 25% by replacing deteriorated
reflectors of existing fixtures with an aluminum
reflector that provides a smooth, even beam pattern
with an 80% efficiency rate. An effective and low
cost lighting upgrade, the R-CAD™ EB Series are
ideal for retail stores, gymnasiums, manufacturing
centers and warehouse areas.
R-CADTM SDC Series
Faceted Reflector
R-CADTM 800 Series
Prismatic Refractor
R-CADTM
R-CADTM EB Series
Spun Aluminum Reflector
Features
Refractor
The clear acrylic prismatic refractor provides over
90% efficiency, with approximately 15 - 20%
uplight. Flat and conical drop type lens enclosures
are available. The Series 822 and 825 units are
optionally available in a totally enclosed design.
Optics
Optics are available in 16”, 22” and 25”. The
socket position is available in a non-adjustable (NA)
mode or fully adjustable mode using the patented
Twist-N-Lock™ system that allows for a choice of
light distribution patterns. With its 15 - 20% uplight
capability, the visual brightness of most areas is
greatly increased while shadows virtually disappear.
Features
Reflector
Available in 17” and 22”, the R-CAD™ SDC faceted
reflector is glass-lined to resist dirt build-up and
simplify cleaning with just water. A glass lens and
a dust-tight design are available. A totally enclosed
design is available when using either the SDC-17
Glass or SDC-22 Glass options.
Optics
Optics are available in 17” and 22”. The socket
position is available in a non-adjustable (NA) mode
or fully adjustable mode using the patented Twist-N-
Lock™ system (see photo) that allows for a choice of
light distribution patterns. With the wide spread beam
pattern (1.7 space to mounting height ratio) and
reduced glare faceted reflector, the
R-CAD™ delivers light over a wide area with
minimized fixture visibility.
Mounting Options
The patented C40 and C41screw-in adaptor makes
retrofitting a snap. No mounting hardware is
required. Simply remove the existing reflector and
screw-in the RCADTM to the mogul-based socket.
Features
Reflector
The R-CAD™ EB Series is a spun aluminum reflector
with a glass lens option.
Optics
Optics are available in 14”, 16” and 22”. The
socket position is available in a non-adjustable (NA)
mode or fully adjustable mode using the patented
Twist-N-Lock™ system (see photo) that allows for a
choice of light distribution patterns.
Mounting Options
The patented C40 and C41 makes retrofitting a snap.
No mounting hardware is required.The compact size
of the R-CAD™ Series allows installation in most
cases without the necessity of removing the existing
reflector. If necessary, simply remove the existing
reflector and screw the R-CAD™ into the mogul-
based socket.
Please contact the factory for further technical information.
![](asset-119.png)
279
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
SPECIALTY LIGHTING
R-CADTM SDC Series
Faceted Reflector
R-CADTM 800 Series
Prismatic Refractor
Fixture Fixture w/ Drop
Height Width Lens -
Min.1 Max.2 Add
816 Series
14.8” 18.4” 16” 3.5” TO H
822 Series
17.4” 21.0” 22” 3.0” TO H
825 Series
18.0” 21.6” 25” 3.0” TO H
1 Lowest Socket Position
2 Highest Socket Position
H
W
Fixture Fixture Approx.
Height Width Ship
Min.1 Max.2 Wt.
SDC17 Series
17.75” 18.75” 17” 2 lbs.
SDC22 Series
17.75” 18.75” 22” 2 lbs.
1 Lowest Socket Position
2 Highest Socket Position
H
W
Fixture Fixture Approx.
Height Width Ship
Min.1 Max.2 Wt.
EB14 Series
17.25” 18.25” 14” 2 lbs.
EB16 Series
17.55” 18.55” 16” 2 lbs.
EB22 Series
19.5” 20.5” 22” 2 lbs.
1 Lowest Socket Position
2 Highest Socket Position
H
W
Dimensions
R-CADTM
R-CADTM EB Series
Spun Aluminum Reflector
Socket Support Bracket
Bracket / Set Screw
C40 / C41 (Upper)
Acrylic Refractor
Adjustable Bracket
C40 / C41 (Lower)
Collar Assembly (800 series only)
Lamp
Please contact the factory for further technical information.
Typical installation of R-CAD series reflectors
C41 Socket Adaptor
A standard socket accepts both open- and enclosed-
rated lamps. Our patented C41 adaptor restricts
existing fixtures to operate with open-rated lamps
only. This feature eliminates the danger asociated
with improper lamp usage or violent end-of-life lamp
risks. (Option V)
Twist-N-LokTM - Locked Twist-N-LokTM - Open
![](asset-11a.png)
280
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
SPECIALTY LIGHTING
R-CAD™ 816, 822 & 825 Series Order Information
Refractor Size Lamp Wattage Catalog Number Lamp NOT Included
16” 175-400W*+RCAD816-(a) with adjustable bracket
175-400W*+RCAD816NA-(a) without adjustable bracket
22” 250-400W* RCAD822-(a) with adjustable bracket
250-400W* RCAD822NA-(a) without adjustable bracket
25” 250-1000W* †† RCAD825-(a) with adjustable bracket
250-1000W* †† RCAD825NA-(a) without adjustable bracket
* Enclosed Rated Lamps require a bottom lens + Do Not Enclose Over 250W
†† Do Not Enclose Over 400W, 1000W Open Bottom Only & 25°C Ambient Maximum
Options (a) Accessories (Field Installed)
V = C41 Adaptor for Restricted Lamps
G = Enclosed & Dust-Tight (22” & 25” Only 400W Max)
16” Accessories
816WG-R = 16” wrap-around wire guard assembly
816FLA = Flat acrylic lens for 816 with ring (250 watt maximum) (not shown)
816DLA = Drop lens with ring (250 watt maximum)
816CLA = Conical lens with ring (250 watt maximum)
22” Accessories
822WG = 22” Wire guard, with relamping door
822FLA-HR = Flat acrylic for 822 with ring (400 watt maximum) (not shown)
822DLA-HR = Drop lens for 822 with ring (400 watt maximum)
822CLA-HR = Conical lens with ring (400 watt maximum)
25” Accessories
825S-CLA = Inverted conical lens with ring (400 watt maximum) (not shown)
825A-CLA = Aislelighter lens with ring (RCAD825 up to 400W only) (not shown)
R-CAD™ SDC17 & SDC22 Series Order Information
Refractor Size Lamp Wattage Catalog Number Lamp NOT Included
17” 175-400W* RCADSDC17-(a) Faceted reflector w/ C40 screw-in conversion adaptor
175-400W* RCADSDC17NA-(a) Faceted reflector (Non-adjustable)
22” 320-1000W*+RCADSDC22-(a) Faceted reflector w/C40 screw-in conversion adaptor
320-1000W*+RCADSDC22NA-(a) Faceted reflector (Non-adjustable)
Options (a) Accessories (Field Installed)
V = C41 Adaptor for Restricted Lamps
G = Enclosed & Dust-Tight (22” & 25” Only 400W Max)
17” Accessories
SDC17LA = Flat Glass Lens - 17”
SDC17LA / SDC17DG = Guard for SDC17 (lens assembly required)
SDC17WG = Wrap guard for SDC17
22” Accessories
SDC22LA = Flat Glass Lens - 22”
SDC22LA / EB22DG = Guard for SDC22 (lens assembly required)
EB22WG = Wrap guard for SDC22
R-CAD™ EB Series Order Information
Refractor Size Lamp Wattage Catalog Number Lamp NOT Included
14” 175-400W* RCADEB14-(a) Faceted reflector w/ C40 screw-in conversion adaptor
175-400W* RCADEB14NA-(a) Faceted reflector (Non-adjustable)
16” 175-450W* RCADEB16-(a) Faceted reflector w/C40 screw-in conversion adaptor
175-450W* RCADEB16NA-(a) Faceted reflector (Non-adjustable)
22” 400-1000W* RCADEB22-(a)
400-1000W* RCADEB22NA-(a)
Options (a) Accessories (Field Installed)
V = C41 Adaptor for Restricted Lamps
G = Enclosed & Dust-Tight (22” & 25” Only 400W Max)
14” Accessories
EB14G-HR = Wire Guard for RCAD EB14 (with ring)
EB14LA-HR = Glass Lens for RCAD EB14
16” Accessories
EB16WG = Wire Guard for RCAD EB16
EB16LA = Glass Lens for RCAD EB16
22” Accessories
EB22DG-R = Wire Guard for RCAD EB22 (with ring)
EB22GLA = Glass Lens for RCAD EB22
*Enclosed Rated Lamps Require Bottom Lens + Enclosed 1000W Must use Reduced Jacketed (BT37) Lamp with Glass lens accessory
See page 188 for complete listing of lens assemblies
and guard options.
Coated Lamps Recommended; Metal Halide and Pulse
Start Open Rated Lamps (using V-Option) are Available.
Refer to page 178 for Ambient Temperature Rating.
R-CADTM
![](asset-11b.png)
281
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
RETROFIT
Lamp and Ballast Kit Order Information
Series Light Source Option Wattage Special Requirement Voltage Pulse Start
RK M = Metal Halide
S = High Pressure Sodium
H = Mercury Vapor
RCADEB14-(a) 35 = 35W
50 = 50W
70 = 70W
100 = 100W
150 = 150W
175 = 175W
200 = 200W
250 = 250W
300 = 300W
320 = 320W
350 = 350W
400 = 400W
450 = 450W
750 = 750W
875 = 875W
1000 = 1000W
1500 = 1500W
Mogul Base (standard)
MED = Medium Base
SX = High Output
SXH = High Output Horizontal Burn
Reduced Jacketed Lamp, consult factory.
120 = 120V
277 = 277V
480 = 480V
M = 120/208/240/277 Volt
M5 = 120/208/240/277/480 Volt
PS = Pulse Start
(only available on RKM)
For our complete Lamp/Ballast Kit offering, please contact your Simkar representative.
HID Lamp/Ballast Kits
• Completekitensurescompatiblelamp
andballast.
• Ergonomiccarryinghandles.
• Stackableoutercartontsintocompact
areasforbetterspacemanagementand
easytransporting.
• Pre-wiredcapacitorandignitor(if
necessary)eliminatecommonwiringerrors.
• Highqualitylong-lifeHIDlamp.
• Durablesteelmountingbracketstmany
mountingcongurations.
• Colorcodedforquicklampsource
identication.
• ULrecognizedcomponents.
HID Lamp/Ballast Kits
RETROFIT
Save Money • Save Energy
Simkar offers a range of products intended to upgrade or
replace your current technology with the goals of ease of
installation, cost efficiency, and energy savings.
![](asset-11c.png)
282
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
SPECIALTY LIGHTING
Wiring
Two 3/4” holes are provided at one end of the
ballast enclosure for wiring. When water-tight
connections are used, the ballast enclosure is UL
listed for wet locations.
Mounting Options
A notched heavy gauge aluminum strap is attached
to the back of all enclosures to aid installation on
vertical surfaces.
Features
Housing
The anodized, extruded aluminum housing
is designed with heat dissipating fins and is
environmentally sealed. UL listed for damp locations.
UL listed for wet locations must be special ordered.
Ballast
175 - 1000W metal halide
50 - 450W Pulse Start metal halide
35 - 400W high-pressure sodium
RC Series Remote Ballast Enclosure (Indoor or Outdoor Use)
The RC Series is ideal for use with the JLC remote
shade assemblies or any RSA Optical assembly.
Listed for Damp and Wet Locations
Contact Factory for CUL Availability
Lamp not included
L
W
D
Dimensions
Fixture Fixture Fixture Approx.
Length Width Depth Ship Wt.
9” RC Series
35W-150W 9” 6.5” 5” 20 lbs.
11” RC Series
50W-175W 11” 6.5” 5” 25 lbs.
14” RC Series
250W-1000W 14” 6.5” 5” 30 lbs.
Metal Halide Distance Gauge*
Up to 50 ft. 16
50 to 100 ft. 14
100 to 200 ft. 12
200 to 300 ft. 10
*Recommended wire gauge to remote lamp
![](asset-11d.png)
283
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
SPECIALTY LIGHTING
RC Series Remote Ballast Enclosure (Indoor or Outdoor Use)
Remote Ballast Enclosure Order Information
Lamp Type Ordering Code Watts Volts Max Btl Distance Housing Size
Metal Halide
RCMX17M*(b) 175 MT * 11”
RCMX175*(b) 175 480 * 11”
RCMX25M*(b) 250 MT * 14”
RCMX255*(b) 250 480 * 14”
RCMX40M*(b) 400 MT * 14”
RCMX405*(b) 400 480 * 14”
RCMX99M*(b) 1000 MT * 14”
RCMX995*(b) 1000 480 * 14”
Pulse Start Metal Halide
RCPX05M*(b) 50 MT 50’ 11”
RCPX07M*(b) 70 MT 50’ 11”
RCPX10M*(b) 100 MT 50’ 11”
RCPX15M*(b) 150 MT 50’ 11”
RCPX17M*(b) 175 MT 10’ 11”
RCPX20M*(b) 200 MT 10’ 11”
RCPX205*(b) 200 480 10’ 11”
RCPX25M*(b) 250 MT 10’ 14”
RCPX255*(b) 250 480 10’ 14”
RCPX32M*(b) 320 MT 15’ 14”
RCPX325*(b) 320 480 10’ 14”
RCPX35M*(b) 350 MT 15’ 14”
RCPX355*(b) 350 480 15’ 14”
RCPX40M*(b) 400 MT 15’ 14”
RCPX405*(b) 400 480 15’ 14”
RCPX45M*(b) 450 MT 15’ 14”
RCPX455*(b) 450 480 15’ 14”
High Pressure Sodium
RCSX031*(b) 35 120 10’ 9”
RCSX051*(b) 50 120 10’ 9”
RCSX05M*(b) 50 MT 10’ 11”
RCSX071*(b) 70 120 10’ 9”
RCSX07M*(b) 70 MT 10’ 11”
RCSX101*(b) 100 120 10’ 9”
RCSX10M*(b) 100 MT 10’ 11”
RCSX151*(b) 150 120 10’ 9”
RCSX15M*(b) 150 MT 10’ 11”
RCSX25M*(b) 250 MT 25’ 14”
RCSX255*(b) 250 480 25’ 14”
RCSX40M*(b) 400 MT 25’ 14”
RCSX405*(b) 400 480 25’ 14”
*See Voltage below
Remote Ballast Enclosure Voltages, and Options
Voltage Accessories (Field Installed)
1 = 120V
2 = 277V
3 = 208V
4 = 240V
5 = 480V
tapped @ 480V
M = Multi-Tap
tapped @ 277V
P = Twist + Lock Plug (change M to desired voltage on Multi-Tap)
W = Wet location
HPF = High Power Factor
(x)(x) = Power/Lamp Cord (specify length in feet)
See page 286 for complete listing of lens assemblies and guard options.
*Enclosed Rated Lamps Require Bottom Lens
![](asset-11e.png)
284
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
SPECIALTY LIGHTING
Mounting Options
A hook, cord and plug or pendant mount is available
for remote mounting from optical assembly. Also
works with JLC Remote Shade Assemblies (see page
286 for available wattages in JLC Remote Shade
Assemblies)
Features
Housing
Heavy-duty cast aluminum housing features heat-
dissipating fins. Available in two sizes.
Ballast
175 - 1000W metal halide
50 - 450W Pulse Start metal halide
35 - 1000W high-pressure sodium
Wiring
Ballasts can be supplied with a 3/16 SOW 105° C
cord to any specified length.
Optics
RJ Series must be used with an RSA optical assembly
adaptor to operate with all high bay and low bay
shades. See page 287 for more information. For use
with the mini high bay shade (JLC), see page 286.
RJ Series Remote Ballast J-Pod
The RJ Series is ideal for use where heat is a
problem and ballast must be operated separately
from the light source. (See chart for maximum
distance.)
55 °C, 65 °C Ambient Rated
Recognized for Damp Locations
Contact Factory for CUL Availability
Lamp not included
Dimensions
Approx.
A B C D Ship Wt.
Z M Series
8.5” 9.3” 7.5” 3” 15 lbs.
RJL Series
10.0” 13.2” 7.5” 3” 25 lbs.
C
B
A
D
Metal Halide Distance Gauge*
Up to 50 ft. 16
50 to 100 ft. 14
100 to 200 ft. 12
200 to 300 ft. 10
*Recommended wire gauge to remote lamp
![](asset-11f.png)
285
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
SPECIALTY LIGHTING
RJ Series Remote Ballast J-Pod
RSA Mogul
Socket Assembly
(To be used with
remote ballast)
Remote Ballast Enclosure Order Information
Lamp Type Ordering Code Watts Volts Max Btl Distance Housing Size
Metal Halide
RJMM17M*(b) 175 MT * MED
RJMM175*(b) 175 480 * MED
RJMM25M*(b) 250 MT * MED
RJMM255*(b) 250 480 * MED
RJMM40M*(b) 400 MT * MED
RJMM405*(b) 400 480 * MED
RJLM99M*(b) 1000 MT * LARGE
RJLM995*(b) 1000 480 * LARGE
Pulse Start Metal Halide
RJMP05M*(b) 50 MT 50’ MED
RJMP07M*(b) 70 MT 50’ MED
RJMP10M*(b) 100 MT 50’ MED
RJMP15M*(b) 150 MT 50’ MED
RJMP17M*(b) 175 MT 10’ MED
RJMP20M*(b) 200 MT 10’ MED
RJMP205*(b) 200 480 10’ MED
RJMP25M*(b) 250 MT 10’ MED
RJMP255*(b) 250 480 10’ MED
RJMP32M*(b) 320 MT 15’ MED
RJMP325*(b) 320 480 10’ MED
RJMP35M*(b) 350 MT 15’ MED
RJMP355*(b) 350 480 15’ MED
RJMP40M*(b) 400 MT 15’ MED
RJMP405*(b) 400 480 15’ MED
RJMP45M*(b) 450 MT 15’ MED
RJMP455*(b) 450 480 15’ MED
High Pressure Sodium
RJMS031*(b) 35 120 10’ MED
RJMS051*(b) 50 120 10’ MED
RJMS05M*(b) 50 MT 10’ MED
RJMS071*(b) 70 120 10’ MED
RJMS07M*(b) 70 MT 10’ MED
RJMS101*(b) 100 120 10’ MED
RJMS10M*(b) 100 MT 10’ MED
RJMS151*(b) 150 120 10’ MED
RJMS15M*(b) 150 MT 10’ MED
RJMS25M*(b) 250 MT 25’ MED
RJMS255*(b) 250 480 25’ MED
RJMS40M*(b) 400 MT 25’ MED
RJMS405*(b) 400 480 25’ MED
RJLS99M*(b) 1000 MT 10’ LARGE
RJLS995*(b) 1000 480 10’ LARGE
* See Voltage Below
Remote Ballast Enclosure Voltages, and Options
Voltages Option (b) (Factory Installed)
1 = 120V
2 = 277V
3 = 208V
4 = 240V
5 = 480V
M = Multi-Tap
tapped @ 277V
Fusing
(x)F = Single - Specify voltage (x):
1 = 120V; 2 = 277V
(x)J = Dual - Specify voltage (x):
3 = 208V; 4 = 240V; 5 = 480V
P = Twist + Lock Plug (change M to desired voltage on Multi-Tap)
Q = Quartz Standby
HPF = High Power Factor (120V HPS reactor only)
(x)(x) = Power/Lamp Cord (specify length in feet after options)
For Remote Shade Assemblies, see page 286.
![](asset-120.png)
286
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
SPECIALTY LIGHTING
JLC and RS Series Remote Shade Assemblies
Recognized for Damp Locations
Contact Factory for CUL Availability
Mounting Options
RSA Indirect Lighting
RSA-5-ND22W
RSA Acrylic Prismatic JLC-RSA
Cord Pendant Mount
Ordering Code: CP
Spiral Cord Pendant Mount
Ordering Code: CS
Rigid Pendant Mount
Ordering Code: RP
RSA-5-ND22W
The RSA-5-ND22W is supplied with a 22” diameter
white reflector that attaches to the mounting wire
guard with four stainless steel clips and a hinge.
The wire guard is designed to prevent tennis balls
from resting on top of fixture. The assembly has a
3/4” NPT thread on the junction box for mounting
to a conduit or standard hook. The assembly is to
be used with a mogul base HID lamp in the base
up position. Do not use with BT-28 size lamps. The
RSA5-5-ND22W must be used in conjunction with
either the RJ or RC Series remote ballast.
9.4”
12.4”
21”-24”
22”
RS Order Information
Shade Size Shade Type Catalog Number
12” Acrylic Prismatic JLC-(a)(b)0xx(c)
Indirect Lighting Order Information
Shade Size Shade Type Catalog Number
22” Spun Aluminum Painted White Reflector RSA-5-ND22W
Note: The RSA5-5-ND22W cannot be used with either the RJ or RC Series remote ballast. Shade is designed to
prevent tennis balls from being trapped on fixture top.
Source (a) Mounting (b)
(Factory Installed)
Pendant Mount Length Options (c)
2 = Open Rated MH
(Max 175W)
5 = HPS (Max 150W)
8 = Enclosed Rated MH/
PS (Max100W)
9 = Open Rated MH/PS
(Max150W)
CP = Cord Pendant Mount
CS = Spiral Cord Pendant
Mount
C = Spiral Cord Pendant Mount
RP = Rigid Pendant Mount
SP = Swivel Pendant Mount
Pen dant Mount Lengths
0(xx) = xx”
(please order in increments of 6”
up to 60”)
Examples:
018 = 18”
024 = 24”
Lens
L = Flat Acrylic Lens (100W max)
K = Conical Lens (100W max)
D = Drop Lens (100W max)
- = No Lens (Only for HPS, Open Rated MH &Open
Rated MH/PS)
Q = Quartz Standby (175W only)
Color (White is standard)
BK= Black
Indirect Lighting Options
Options (a)
Q = Quartz Standby
JLC Shade Assemblies are for use with the RJ Series Remote Ballast J-Pod.
See page 284.
JLC Shade Assemblies are mounted to junction box in ceiling.
![](asset-121.png)
287
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
SPECIALTY LIGHTING
RS Series Remote Shade Assemblies
RSA-Acrylic
Refractor
RSA-816, RSA-822
& RSA-825
RSA-SDC Series
Faceted Aluminum
Reflector
RSA-SDC17 & RSA-
SDC22
RSA-EB Series
Spun Aluminum
Reflector
RSA-EB14, RSA-
EB16 & RSA-EB22
RSA3 RSA3NA RSA4 & RSA5
RSA-LB Series
Low Bay Shade
RSA-LB16W, RSA-LB22W &
RSA-LB30W
RSA3 RSA4 & RSA5
Remote Shade Assembly
Available with eleven different reflector options.
The RSA3 attaches to a standard ceiling mounted
4” octagon junction box. The RS-A4 and RSA5 come
standard with the reflector, junction box, mounting
hook with safety spring clip and five feet of SOW
16/3 cord.
RSA3: 400W Max
RSA4: 450W Max
RSA5: 750 & 1000W
Optical
Adapts to all high bay and low bay reflector
assemblies including all optical accessories.
Ballast
The remote magnetic extruded aluminum and
magnetic cast aluminum housing are available.
Dimensions
Approx. Ship Wt.
RSA3/RSA4 & RSA5
5 lbs.
8.5”
2.6”
5.2
”
10.1”
4.2”
Remote Shade Assembly Order Information
Shade Size Shade Type Catalog Numbers
RSA3 RSA4 RSA5
14” Spun Aluminum Reflector RSA3(a)-(b)EB14 RSA4(a)-(b)EB14
16” Spun Aluminum Reflector RSA3(a)-(b)EB16 RSA4(a)-(b)EB16
22” Spun Aluminum Reflector RSA3(a)-(b)EB22 RSA4(a)-(b)EB22 RSA5(a)-(b)EB22
17” Faceted Aluminum Reflector RSA3(a)-(b)SDC17 RSA4(a)-(b)SDC17
22” Faceted Aluminum Reflector RSA3(a)-(b)SDC22 RSA4(a)-(b)SDC22 RSA5(a)-(b)SDC22
16” Acrylic Refractor RSA3(a)-(b)816 RSA4(a)-(b)816
22” Acrylic Refractor RSA3(a)-(b)822 RSA4(a)-(b)822
25” Acrylic Refractor RSA3(a)-(b)825 RSA4(a)-(b)825
Note: Mogul base only. Shade included. Lamp not included. Some lamps require bottom lens or open rated socket (V).
Low Bay Order Information
Shade Size Shade Type Catalog Numbers
RSA3 RSA4
16” Spun Aluminum Low Bay Reflector RSA3(a)-(b)LB16W RSA4(a)-(b)LB16W
22” Spun Aluminum Low Bay Reflector RSA3(a)-(b)LB22W RSA4(a)-(b)LB22W
30” Spun Aluminum Low Bay Reflector RSA3(a)-(b)LB30W RSA4(a)-(b)LB30W
Note: Mogul base only. Shade included. Lamp not included.
Options (a) (Factory Installed) Options (b) (Factory Installed)
V = Open Rated Socket
G = Totally Enclosed and Dust-Tight
(Not Available in 14” Spun Aluminum or 16” Acrylic)
Q = Quartz Standby (Not Available with RSA3)
NA = Non Adjustable
XX = Lamp Cord (05 feet standard)
(specify extra length - feet for XX)
Options (a) (Factory Installed) Options (b) (Factory Installed)
G = Totally Enclosed and Dust-Tight XX = Lamp Cord (05 feet standard)
(specify extra length - feet for XX)
![](asset-122.png)
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
288
SIMKAR ENERGY SOLUTIONSSIMKAR ENERGY SOLUTIONS
![](asset-123.png)
289
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
ENERGY SOLUTIONS
SIMKAR ENERGY SOLUTIONS
![](asset-124.png)
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
290
SIMKAR ENERGY SOLUTIONS
ADJUST-A-BAY PAGE 294
When you need true application flexibility, Adjust-a-Bay is the answer.
Each fixture can become a narrow, medium, or wide light distribution
fixture, perfect for an aisle, as a low bay, or as an effective energy-saving
alternative to expensive high bays.
REFLECT-A-BAY PAGE 296
A cost-effective, energy-efficient fixture with a variety of mounting options
and lamp configurations. Its highly reflective surface and optimized lamp
combinations maximize energy savings in warehouse, manufacturing,
retail, and institutional installations.
MIRO® INDUSTRIAL PAGE 298
One to three lamp and tandem configurations, with a highly reflective
MIRO® 4 reflector, deliver outstanding performance and energy savings.
Z POD PAGE 300
When a metal halide high bay is the best solution, our proven pulse start
electronic ballasted Z-Pod system provides the best energy-smart, cost-
saving solution. Available with 11 optical systems and dimming control.
EXITS PAGE 302
A wide range of LED exit signs provide increased energy efficiency,
reliability, and performance for virtually any application.
SENSORS PAGE 303
To maximize control, performance, and energy efficiency, SIMKAR offers a
wide range of advanced motion and light-sensing technology.
LAMP/BALLAST KITS PAGE 303
Don’t just replace - UPGRADE. These kits bring new efficiency to your
existing fixtures.
The is a symbol of
Simkar’s commitment to
the highest standards
in fixture design,
manufacturing, energy
efficiency, and the
environment. Our ability
to engineer systems that
combine lamp, ballast,
Look for this logo – it designates products and
services that provide energy-saving alternatives
and are designed to help reduce your costs
AVAILABLE
MIRO® is a registered trademark of ALANOD
The HPT8 program was initiated by
the Consortium for Energy Efficiency,
a national group of utilities, energy
conscious organizations, and educational
programs to identify and promote High
Performance T8 products and encourage
their use through education, rebates, and
legislation. Because of their improved
energy efficiency, HPT8 systems are
required to be eligible for certain rebate
programs.
An HPT8 ballast must have a power factor
greater than or equal to 0.9, a THD less
than 20% and operate at a frequency
between 20 and 33 kHz or greater than
40 kHz. HPT8 ballasts are available in
three levels: Low BF (less than or equal to
.85), normal BF (greater than .85 but less
than or equal to 1.0) and high (greater
than or equal to 1.01). Ballasts are
available in programmed and instant start.
Ballast factor may have a determination
on rebate qualification. HPT8 qualified
ballasts are also available in 25W and
28W energy saving versions.
For lamps, High Performance is defined
as a 32 Watt, 3100 + lumen lamp that
has a life of 24,000* hours and 94%
lumen maintenance, and Color rendering
greater than 81. For lamps with a color
temperature greater than 45K, 2950 initial
lumens is acceptable.
HPT8 systems must have a ballast and
lamp combination that delivers 90 or
greater mean lumens per watt with instant
start ballasts, or greater than 88 mean
lumens per watt with programmed start
ballasts.
Contact your local utility to determine if HPT8 products are
required in your area.
* Based on program or rapid start. Life may be less with
Instant start ballasts.
Simkar is proud to offer fixtures
that comply to the HPT8 program.
and fixture technology to
maximize energy savings
makes us unique. We
can produce fixtures
that qualify for federal,
state, and local rebate
programs, generating
an even faster ROI,
increasing profitability,
and protecting our
environment.
SIMKAR ENERGY SOLUTIONS
![](asset-125.png)
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
291
SIMKAR ENERGY SOLUTIONS
Determine your mounting height: < 25’ = Low-Bay > 25’ = High-bay
T5 lamps are available in five fluorescent color temperatures:
Warm: 2700k
Soft White: 3000k
White: 3500k
Cool: 4100k
Natural: 5000k
Daylight: 6500k
Color rendering index (CRI) is greater than 80 and average rated life is
30,000 hours based on 3 hours per start.
ADJUST-A-BAY
SELECTING THE RIGHT ENERGY SAVING FIXTURE IS AS EASY AS 1-2-3.
REFLECT-A-BAY
MIRO INDUSTRIAL
3 different distributions (high bay, low bay, aisle bay)
from a single fixture with energy efficient T5HO or T8
A high bay or low bay alternative with
efficient combinations of T5HO or T8
lamps and electronic ballasts
An industry standard in
a highly efficient lighting and value.
MIRO4 reflector delivers
maximum efficiency
Choose your lamp equivalent:
Choose your SIMKAR Fixture:
Improved energy efficiency Typical
mean lumens per watt (LPW) for
Metal Halide is 53 – 56, for T8
and T5 fluorescent it is 83 to 103
mean LPW.
Better color rendering
Typical metal halide lamps have a
Color Rendering Index (CRI) of 65.
T5 and T8 fluorescents have a
typical CRI of 85+.
Constant color
Metal halide lamps may shift color
over time while fluorescent lamps
retain their color properties
throughout their life.
Short run-up time
Conventional Metal Halide lamps
require 4-6 minutes to get to full
brightness. Fluorescent lamps reach
full brightness almost immediately.
Instant restrike
After a momentary power
interruption, Metal Halide lamps
may take up to 11 minutes to
restrike. Fluorescent lamps restrike
immediately.
Safety
Some Metal Halide lamps may
have a non-passive end of life that
could prove dangerous to people
or goods in the vicinity. For that
reason, it is recommended that
Metal Halide fixtures be relamped
at 80% rated life. Fluorescent
lamps do not have “end-of-life”
issues.
The Fluorescent Advantage
Fluorescent lighting has become the replacement source of
choice for interior warehouse and storage lighting for a
number of reasons. These include:
LAMPS LOW BAY: <25’ HIGH BAY: >25’
4 WIDE / T5HO OR T8 NARROW / T5HO
6 MEDIUM / T5HO NARROW / T5HO
4 T5HO OR T8 T5HO
6 T5HO OR T8 T5HO
8 T5HO OR T8 T5HO, T8
2 T5, T5HO OR T8 N/A
3 T5, T5HO OR T8 T5, T5HO OR T8
4 (TANDEM) T5, T5HO OR T8 T5, T5HO OR T8
6 (TANDEM) T5, T5HO OR T8 T5, T5HO OR T8
PERFORMANCE COMPARISON T5 T5HO T8
Initial Rated Light Output 2900 Lumens 5000 Lumens 2950 Lumens
Nominal Lamp Watts 28 watts 54 watts 32 watts
Initial Lamp Efficacy 104 lpw 93 lpw 92 lpw
Initial System Efficacy 89 lpw 85 lpw 80 lpw
Lumen Maintenance 97% 95% 90%
Maintained System Efficacy 86 lpw 81 lpw 72 lpw
Rated Life 30,000 hours 30,000 hours 20,000 hours
Optimum Operating Temperature 95˚F 95˚F 77˚F
1
2
3
Mean Lumen Comparison Chart
Metal
Halide
Wattage
MH Mean
Lumens
2
F32T8
3
F32T8
4
F32T8
6
F32T8
4
F28T5
6
F28T5
4
F54T5HO
6
F54T5HO
150 7900 5320 7980
175 8400 7980 10640 11600
250 11500 10640 15960 11600 16500
400 22300 19000 28500
Fluorescent
Wattage
64 96 128 192 112 168 216 324
The wattages above are lamp only and do not take into consideration significant potential metal halide ballast losses.
Fixture efficiency and distribution may also have a significant effect on light levels.
![](asset-126.png)
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
292
SIMKAR ENERGY SOLUTIONS
To qualify for the EPAct 2005
tax deductions, a commercial
building property must:
•Meetcontrol/switchingcriteria
•BelocatedintheU.S.andfall
withinthescopeofASHRAE/IES
Standard90.1-2001;and
•Receiveanupgrade/
installation of:
(1) interior lighting system, or
(2) heating/cooling/ventilation/hot
water systems, or
(3) building envelope that was put in
service between Jan. 1, 2006 and
Dec. 31, 2008.
•Becertiedasbeingan“energy-
efficient property,” defined as
one that has 50% reduction
in the total annual energy
and power costs of a building
satisfyingASHRAE/IESStandard
90.1-2001
To receive the tax deduction, the
deduction must:
•Notexceedthecostofthe
upgrade, including materials,
laboranddesign;and
•Betakeninthetaxableyearthe
property or upgrade is placed in
service (either 2006, 2007, or
2008);and
•Becalculatedbasedonthe
square footage of the upgraded
building.
– Up to $1.80/sq.ft. for “energy-
efficient property”
– Up to $0.60/sq.ft. each for interior
lighting, HVAC/hot water and
building envelope.
To claim the tax deduction, you
must be:
•Theownerorentitywhopaidto
have the commercial building
constructed or renovated
•Thepartyprimarilyresponsible
for designing the publicly owned
property
EPAct 2005 Claims
Before claiming the EPAct 2005
tax deduction, you must:
•Havetheplansandactualin-
place construction reviewed by
qualied,third-partyinspectors;
and
•Haveenergysavingsdetermined
by software certified by the
Department of Energy as meeting
criteria of consistency and
accuracy;and
•Obtainacertication,as
determined by the IRS, that the
required energy savings will be
achieved.
The qualified, third-party
inspectors:
•Arenotrelated(donothavean
employer/employeerelationship)
to the taxpayer claiming the
deduction;and
•Areengineersorcontractors
who are properly licensed
as professional engineers or
contractors in the jurisdiction in
whichthebuildingislocated;
and
•Representinwritingtothe
taxpayer that they have the
requisite qualifications to provide
thecerticationrequiredand/
or to perform the inspection
required.
Types of tax deductions
you can claim:
Whole Tax Deduction
One-timedeductionupto$1.80/
sq.ft.ifASHRAE/IESStandard
90.1- 2001 is exceeded by 50%
Partial Tax Deduction
– Not all systems achieve 50%
improvementoverASHRAE/IES
Standard 90.1-2001
– It is possible to upgrade only
portions of a building to higher
efficiency lighting, with the
deduction based on upgraded
space square footage
– One-time deduction of $0.30
to$0.60/sq.ft.forlighting
with 25-40% improvement over
ASHRAE/IESStandard
90.1-2001
State tax deductions
– There may be additional tax
deductions available.
WHAT THE MEANS TO YOU
The Energy Policy Act of 2005’s long-range energy policy became effective January 1,
2006 with the U.S. government offering significant accelerated tax incentives as a reward for
installing or retrofitting energy-efficient lighting. Since lighting represents up to 40% of the
average commercial building’s electrical costs, retrofitting with energy-efficient upgrades
can reduce operating costs by 30 to 50%. Most importantly, EPAct 2005 allows the capital
investment to be depreciated in the first year.
EPAct 2005 Qualifications NOW EXTENDED TO 2013
Simkar will assist you in providing
economic analysis, point-by-point layout
capabilities, and application expertise
to help you provide the best lighting job
while reducing energy consumption
SIMKAR ENERGY SOLUTIONS
![](asset-127.png)
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
293
SIMKAR ENERGY SOLUTIONS
TITLE 24
Title 24, Part 6, California Code
of Regulations:
California’s Energy Efficiency
Standards for Residential and
Nonresidential Buildings
The Energy Efficiency Standards
for Residential and Nonresidential
Buildings were established in
1978 in response to a legislative
mandate to reduce California’s
energy consumption. The standards
are updated periodically to
allow consideration and possible
incorporation of new energy
efficiency technologies and
methods. California’s building
efficiency standards (along
with those for energy efficient
appliances) have saved more than
$56 billion in electricity and natural
gas costs since 1978. It is estimated
the standards will save an additional
$23 billion by 2013.
ASHRAE
ASHRAE STANDARD 90.1-2001 / AMERICA SOCIETY OF
HEATING, REFRIGERATION AND
AIR-CONDITIONING ENGINEERS
ASHRAE/IESStandard90.1-2001featuresextensivepower
limits based on square footage of illuminated area or perimeter.
Standard 90.1-2001’s Section 9 details mandatory provisions
related to lighting controls, tandem wiring and exit signs.
Although lighting controls such as
occupancy sensors do not contribute to
the lighting power density savings needed
to qualify for the Commercial Buildings
Deduction, they are required as indicated
inASHRAE/IESStandard90.1-2001.
ASHRAE/IESStandard90.1-2001provisionsincludeautomatic
shut-off, space controls, exterior lighting controls and additional
controls for specialized lighting or applications. Wall switches and
ceiling-mounted occupancy sensors are convenient, cost-effective
solutions that meet these provisions while providing energy savings
and quick payback to end users.
ENERGY REGULATIONS
As of January 2007, more than 60% of U.S. states have energy codes that were written since 2003. These new
codes set strict limits on the Lighting Power Density (LPD, measured in watts per square foot) allowed and the use
ofcontrols.Themostrestrictivestateenergycodehasa1.0W/ft2 requirement for offices.
TAX dEdUCTIONS ANd REBATES
The Energy Policy Act (EPAct) of 2005 provides tax deductions
for energy savings in lighting. By exceeding ASHRAE 90.1,
2001, energy standards, you can earn up to $.60 per square
foot in tax deductions. For EPAct the most restrictive requirement
is1.3W/ft2forofces.
Additional rebates for energy savings fixtures are also available
in several states and utilities. Some utilities require the use of
High Performance T8 (HPT8) systems for rebates. These fixtures
require lamps and ballasts listed by CEE (Consortium for Energy
Efficiency). These can help to offset the cost of installation even
further.
First, talk with your accountant or energy services specialist. Then determine:
• Averagefootcandlesneededinworkareas
• Numberofwattsneeded
• Hoursofoperation
• Mountingheight
• Squarefootage
• Averageambienttemperature
Energy information, regulations,
and programs are dynamic.
Visit www.simkar.com/energy for the latest
news and information.
INFORMATION YOU’LL NEED TO GATHER
SIMKAR can help you complete the information needed above and is ready to help you find solutions to save money.
![](asset-128.png)
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
294
SIMKAR ENERGY SOLUTIONS
Adjust-a-Bay™ Series
Simkar’s revolutionary Adjust-a-
Bay™, the only adjustable
fluorescent bay lighter, is designed
to replace conventional metal
halide, mercury, and older
fluorescent lighting systems in
industrial, educational, and retail
applications. Our patent-pending
Adjust-a-Bay combines the proven
energy efficiencies of T5 or T8 linear
fluorescent lamps with the precise,
adjustable lighting control formerly
available only on HID fixtures. The
Adjust-a-Bay’s unique adjustable
optics offer multiple user-selectable
beam patterns that can be
optimized for a variety of
applications. The result is a
fluorescent bay lighter that
outperforms all others in versatility,
operation, and energy efficiency.
3 field-adjustable
user-selectable beam
patterns: narrow,
medium, wide
Adjust to your
application and achieve
desired light levels
using fewer fixtures
An aisle lighter, a high
bay, a low bay,
all in one
FEATURES BENEFITS
3 beam patterns Puts the light where you
need it
95% reflective
MIRO 4 aluminum
reflectors
Maximum light output
with less glare and
superior control
Efficient electronic
ballast with
T5 or T8 lamp
configurations
Produces up to 104
maintained lumens per
watt
Adjustable
Reflectors
Improved
horizontal & vertical
illumination
95% lumen
maintenance
Maintains constant
light level
Optional uplight Reduces “cave effect”
Instant On No waiting for light to
get to full brightness
Compatible with motion
sensors and photo cells
Instant restrike after
power interruption
Low Harmonic Distortion <10%
AVAILABLE
SIMKAR ENERGY SOLUTIONS
![](asset-129.png)
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
295
SIMKAR ENERGY SOLUTIONS
Adjust-a-Bay™ Series
LAYOUT
Fixture mounting height
Lamp & fixture data
Initial lamp lumens
Number of lamps
Initial fixture lumens
Ballast factor
Initial fixture lumens
(ballast corrected)
Lamp lumen depreciation
Luminaire dirt depreciation
Fixture efficiency
Maintained fixture lumens
Fixture watts
Fixture lumens/watt
CRI (color rendering index)
Avg. maintained footcandles
Operating Data
Number of fixtures
Cost/kWh
Total wattage
Square footage
Total installed price (est)
Watts/sq. foot
Annual oper. hrs. (365x24)
SAVINGS ANALYSIS
Annual energy costs
Annual energy savings
Savings / Fixture
PAYBACK
Existing System
400W standard
MH
25’
36,000
1
36,000
1
36,000
0.60
0.85
0.80
14,688
460
35
65
30
100
$0.10
46,000
48,000
---
0.96
8760
$40,296
existing
N/A
Proposed System
4-Light
F54T5HO
25’
5000
4
20,000
1
20,000
0.95
0.85
0.98
15,825
238
67
82
32
100
$0.10
23,800
48,000
$19,000
0.49
8760
$20,849
$19,447
$194.47
.98 Year
Save up to 50% in
energy when used in
place of traditional HID
P a y b a c k
Adjust-a-Bay Ordering Information
Series # Lamps Lamp Type Aperture Options Ballast
ADJUST 4
6
28 = 28W 48” T5
54 = 54W 48” T5HO
32 = 32W 48” T8
Solid reflector is standard
A = Aperture; uplight ranges
from 7% to 12%
ELS1 = Emergency Lighting (low lumens)
ELS2 = Emergency Lighting (medium lumens)
ELS3 = Emergency Lighting (high lumens)
B11 = Elec tron ic T8
B11HP(x) = HPT8*
B11VHO = T8 Very High Output
B12 = T5
*CEE listed T8; specify (L)ow, (N)ormal, or (H)igh ballast factor. Contact factory for NEMA Premium.
Ballast Options Switching Voltage Options
HBF = High Ballast Factor
HT = High Temperature (Not available with HBF)
PS = Program Start (Recommended for use with occupancy sensor)
For 4 lamp units
4L = (1) 4-lamp ballast
(standard)
2/2L = (2) 2-lamp ballasts
For 6 lamp units
Blank = (1) 4-lamp ballast and
(1) 2-lamp ballast (standard)
2/3L = (2) 3-lamp ballasts
UNV = 120-277V
U34 = 347-480V
347 = 347V
480 = 480V
OS(x) = Occupancy Sensor
(specify # of lamps controlled - 2, 4, 6 or 8)
OSI(x) = Occupancy Sensor; factory-installed
(specify # of lamps controlled - 2, 4, 6 or 8)
OSDL(x) = Daylight Sensor
(specify # of lamps controlled - 2, 4, 6 or 8)
FB* = Fast blow fuse
SB* = Slow blow fuse
BP = Bulk Pack
6’ Cord and Plug
CPT(x)
1 = 120V
2 = 277V
3 = 208V
4 = 340V
5 = 480V
CP3 = Cord & Plug - 120V Straight Blade 5-15P
Mounting Accessories
CA24 = Chain Hanger Assembly - (2) 18” chains, (2) “V” hooks, (2)
“S” hooks for total drop 24”
PM(x) = Twin Pendant Mount - 2 white stem kits - specify length
(24”, 36”, 48”, 60”, 72”)
SN = Snapper Bracket - 1-3/4” for surface mounting or twist and
lock onto T-Bar (order 2)
HKSC = Hook & Chain Assembly - Monopoint mount to four point
suspension. (Includes hook, chain, and mounting plate)
CAB72 = Adjustable Cables - includes (4) 6-foot steel aircraft cables,
toolless adjusters and mounting hardware.
AWG4 = 4 Lamp Heavy-Duty Wire Guard
AWG6 = 6 Lamp Heavy-Duty Wire Guard
AWG4T = 4 Lamp Heavy-Duty Wire Guard - Top
(Recommended for gym applications)
AWG6T = 6 lamp heavy-duty wire guard - Top
(Recommended for gym applications)
ADJ4 = 4 Light acrylic Lens (Lift And Shift)
ADJ6 = 6 Light acrylic Lens (Lift And Shift)
WADJ4 = 4 Light acrylic Lens And Heavy Duty
Wire Guard Combo
WADJ6 = 6 Light acrylic Lens And Heavy Duty
Wire Guard Combo
![](asset-12a.png)
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
296
SIMKAR ENERGY SOLUTIONS
Simkar’s Reflect-a-Bay™ is the
perfect complement to our
innovative Adjust-a-Bay series of
product. Reflect-a-Bay™ incorporates
all the attention to quality and
detail you’ve come to expect,
offering T5 or T8 in four, six, and
eight lamp configurations. Coupled
with a variety of options and
accessories, Reflect-a-Bay™ is the
perfect choice for new or
retrofitting manufacturing,
warehouse, retail, or institutional
applications.
T5 or T8
4, 6, or 8 lamps
Reflect-A-Bay™ Series
Choice of reflectors:
• 85% reflective with medium to
wide distribution
• White reflector available for
lowbay applications
7 mounting options
Features Benefits
Energy efficient
T5 or T8 lamps
85% reflective
aluminum
reflector
Uses up to 75%
less
energy
Maximum light
output
Efficient
electronic ballast
with T5 or T8
Produces up
to 95
maintained
lumens
per watt
Wide distribution Improved
horizontal
& vertical
illumination
95% lumen
maintenance
Stays brighter
than MH
Optional uplight Reduces “cave
effect”
Instant On Control-friendly,
combine with
optional motion
sensor & photo
cell to increase
energy savings
Low Harmonic
Distortion
<10%
AVAILABLE
SIMKAR ENERGY SOLUTIONS
![](asset-12b.png)
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
297
SIMKAR ENERGY SOLUTIONS
Save up to 50% in
energy when used in
place of traditional HID
P a y b a c k
Reflect-A-Bay™ series
LAYOUT
Fixture mounting height
Lamp & fixture data
Initial lamp lumens
Number of lamps
Initial fixture lumens
Ballast factor
Initial fixture lumens
(ballast corrected)
Lamp lumen depreciation
Luminaire dirt depreciation
Fixture efficiency
Maintained fixture lumens
Fixture watts
Fixture lumens/watt
CRI (color rendering index)
Avg. maintained footcandles
Operating Data
Number of fixtures
Cost/kWh
Total wattage
Square footage
Total installed price
Watts/sq. foot
Annual oper. hrs. (365x24)
SAVINGS ANALYSIS
Annual energy costs
Annual energy savings
Savings / Fixture
PAYBACK
Existing System
250W Low Bay
Metal Halide
20’
20,500
1
20,500
1
20,000
0.60
0.85
0.80
8364
288
29
65
23
100
$0.10
28,880
36,000
---
0.8
8760
$25,298
existing
Proposed System
4 Lamp
F32T8
20’
2,950
4
11,800
1.04
12,272
0.95
0.85
0.98
9711
136
71
82
26
100
$0.10
13,600
36,000
$19,000
0.36
8760
$11,914
$13,384
$133.84
1.41 Years
*Consult Factory
Reflect-A-Bay Series Ordering Information
Series # Lamps Lamp Type Aperture Reector Options Ballast Switching Voltage
REF 4
6
8
32 = F32T8
54 = F54T5HO
A = Aperture
S = Solid
SR = Specular Aluminum
WR = White
ELS1 = Emergency Lighting (low lumens)
ELS2 = Emergency Lighting (medium lumens)
ELS3 = Emergency Lighting (high lumens)
NOTE: ELS2 AND ELS3 FOR T8 OPERATE ONE OR
TWO LAMPS. ALL OTHERS OPERATE ONE LAMP ONLY.
B11 = T8
B11HP(x) = HPT8*
B12 = T5 HO
For 4 lamp units
4L = (1) 4-lamp ballast
(standard)
2/2L = (2) 2-lamp ballasts
For 6 lamp units
Blank = (1) 4-lamp ballast and
(1) 2-lamp ballast (standard)
2/3L = (2) 3-lamp ballasts
For 8 lamp units
Blank = (2) 4-lamp ballasts
(standard)
UNV = 120-277V
347 = 347V
480 = 480V
*CEE listed T8; specify (L)ow, (N)ormal, or (H)igh ballast factor. Contact factory for NEMA Premium.
Options Mounting Accessories (Order Separately) Accessories (Order Separately)
OS(x) = Occupancy Sensor
(specify # of lamps controlled - 2, 4, 6 or 8)
OSI(x) = Occupancy Sensor; factory-installed
(specify # of lamps controlled - 2, 4, 6 or 8)
OSDL(x) = Daylight Sensor
(specify # of lamps controlled - 2, 4, 6 or 8)
FB = Fast blow fuse
SB = Slow blow fuse
BP = Bulk Pack
6’ Cord and Plug
CPT(x)
1 = 120V; 2 = 277V; 3 = 208V; 4 = 240V; 5 = 480V
CP3 = Cord & Plug - 120V Straight Blade 5-15P
CA24 = Chain Hanger Assembly - (2) 18” chains, (2) “V” hooks, (2) “S”
hooks for total drop 24”
CS24 = S-hook Chain Hanger Assembly - (2) 18” chains, (2) “V” hooks, (2)
“S” hooks for total drop 24”
PM(x) = Twin Pendant Mount - 2 white stems - specify length (24”, 36”,
48”, 60”, 72”)
HKSC = Hook & Chain Assembly - Monopoint mount to four point
suspension. (Includes hook, chain, and mounting plate)
CAB(x)72 = Adjustable Cables - includes 6-foot steel aircraft cables, toolless
adjusters and mounting hardware. Specify “2” for 2 cables &
Y-hanger or “4” for 4 cables.
SBH = Slide Box with hook - Level adjustable for mono-point hook mount.
SBP(x) = Slide Box & Single Pendant Mount- Level adjustable for mono-
point pendant mount - specify length (24”, 36”,
48”, 60”, 72”). Other lengths available.
RWG(x) = Heavy Duty Wire Guard
REF(x) = acrylic Lens
WREF(x) = acrylic Lens And Heavy Duty Wire Guard Combo
For above, please specify # of lamps (4, 6, or 8)
![](asset-12c.png)
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
298
SIMKAR ENERGY SOLUTIONS
The MIRO Industrial, designed to replace metal halide and conventional
fluorescent lighting in commercial, industrial, educational, and retail
applications, combines a performance-boosting 95% reflective
MIRO® 4 aluminum high efficiency reflector with T5, T5HO, and T8 linear
fluorescent lamps. The result is increased light levels, improved color
rendition, and excellent uniformity while using up to 75% less energy.
Superior light quality
Save up to 75% in
energy when used in
place of
traditional HID
Great performance in an
economical package
MIRO Industrial Series
70-95 maintained
lumens/watt vs. only
30-50 for HID
Precision-engineered,
95% reflective MIRO 4
aluminum reflector
Features Benefits
Choice of lumen
packages
Uses up to 75%
less energy
95% reflective
MIRO 4
aluminum
reflector
Maximum light
output with less
glare
Efficient
electronic ballast
with T5 or T8
lamp
Produces up to
95 maintained
lumens per watt
Superior light
quality
Improved
horizontal &
vertical
illumination;
excellent CRI &
uniformity
95% lumen
maintenance
Stays brighter
longer than MH
Optional uplight Reduces
cave effect &
improves task
visibility
Instant On Control friendly,
combine with
optional motion
sensor & photo
cell to increase
energy savings
AVAILABLE
SIMKAR ENERGY SOLUTIONS
![](asset-12d.png)
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
299
SIMKAR ENERGY SOLUTIONS
P a y b a c k
MIRO Industrial Series
LAYOUT
Fixture mounting height
Lamp & fixture data
Initial lamp lumens
Number of lamps
Initial fixture lumens
Ballast factor
Initial fixture lumens
(ballast corrected)
Lamp lumen depreciation
Luminaire dirt depreciation
Fixture efficiency
Maintained fixture lumens
Fixture watts
Fixture lumens/watt
Footcandles
CRI (color rendering index)
Avg. maintained footcandles
operating data
Number of fixtures
Cost/kWh
Total wattage
Square footage
Total installed price
Watts/sq. foot
Annual oper. hrs. (365x24)
SAVINGS ANALYSIS
Annual energy costs
Annual energy savings
Savings / Fixture
PAYBACK
Existing System
150W
Metal Halide
16’
12,000
1
12,000
1
12,000
0.60
0.85
0.80
4896
173
28.3
65
61
100
$0.10
17,300
8000
---
2.2
8760
$15,155
existing
Proposed System
2 Lamp
T8
16’
2,950
2
5,900
1.18
6962
0.90
0.85
0.95
5060
77
68
85
64
100
$0.10
7700
8000
$15,000
.96
8760
$6745
$8410
$84.10
1.8 Years
MIE Premium Specular Industrial Ordering Information
Series # Lamps Lamps Reector Options Options
MIE 1
2
3
21 = Tandem, 2 lamps
22 = Tandem, 4 lamps
23 = Tandem, 6 lamps
28 = 28W 48” T5
32 = 32W 48” T8
48 = 48” Slimline
96 = 96” Slimline
High Output
48 = 48” HO
54 = 54W T5HO
96 = 96” HO
Very High Output
48 = 48” VHO
96 = 96” VHO
Solid is standard
A = Aperture 12% uplight
ELS1 = Emergency Lighting (low
lumens)
ELS2 = Emergency Lighting
(medium lumens)
ELS3 = Emergency Lighting (high
lumens)
Ballast Switching Voltage
HOB5 = High Output Electronic T12
B11 = Electronic T8
B11HP(x) = HPT8*
HOB11 = High Output Electronic T8
B12 = Electronic T5
HO = High Output
VHO = Very High Output
For 2 lamp units
Blank = single ballast
2/1L = (2) 1-lamp ballasts
For 3 and 4 lamp units
Blank = dual ballasts
3L = (1) 3-lamp ballast
4L = (1) 4-lamp ballast
For 6 lamp tandem units
2/3L = (2) 3-lamp ballasts
2L4L = (1) 2-lamp and (1)
4-lamp ballast
UNV = 120-277V
120 = 120V
277 = 277V
*CEE listed T8; specify (L)ow, (N)ormal, or (H)igh ballast factor. Contact factory for NEMA Premium.
Accessories
SN - Snapper Brackets
CA24 = Chain Hanger Assembly - (2) 18” chains, (2) “V” hooks,
(2) “S” hooks for total drop 24”
CS24 = S-hook Chain Hanger Assembly - (2) 18” chains, (2) “V”
hooks, (2) “S” hooks for total drop 24”
HKSC - Hook & Chain Assembly (24” total drop; 4’ xtures only)
LG48 - 48” wire guard
AC - Aligner Clip / Joiner
CHJ - Connector Joiner
![](asset-12e.png)
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
300
SIMKAR ENERGY SOLUTIONS
Shortened start-up time
Faster
restrike
Improved lumen
maintenance
over life of
the lamp
Maintained
color
uniformity
Dimmable
Z-Pod Series
The Z Pod lighting system is
equipped with the most
technologically advanced
electronic ballast available for
pulse start metal halide. Z Pod
offers the reliability of
microprocessor operation with
features and performance superior
to conventional pulse start metal
halide ballasts.
The electronic pulse start ballast
provides a controlled start up of
less than one minute for cold
lamps, and restrike times are
approximately four minutes, 60%
faster than conventional magnetic
ballasted metal halide.
Features Benefits
Microprocessor
ballast operation
Detects thermal &
voltage variations
Electronic HID Sound rated A
Less than 15%
haromonic distortion
Start up Less than one minute for
cold lamps to reach full
light output
Restrike time Approximately four
minutes - 1/3 the time
of conventional probe
start metal halide
Pulse start lamp
technology
Maintains color
uniformity over lamp
life & dimming range
56% increase in mean
lumens vs. probe start
metal halide
Dimming capability Virtually unlimited
continuous dimming
capabillities to 50%
of the nominal lamp
wattage and light output
Improved lumen
maintenance
50% improvement in
lumen maintenance over
conventional probe start
metal halide
ZC Series Ordering Information
Series Reector
Size
Wattage
Lamp
Enclosed Rated
Lamp / Slide-Box
Enclosed Rated Lamp,
Hook, Cord & Plug
Open Rated
Lamp, Slide-Box
Open Rated Lamp
Hook, Cord & Plug
ZCS 17” 250W MH/PS ZCS0825-(a)L(b)* ZCS2825-(a)L(b)* ZCS0925-(a)L(b)* ZCS2925-(a)L(b)*
320W MH/PS ZCS0832-(a)L(b)* ZCS2832-(a)L(b)* ZCS0932-(a)(b) ZCS2932-(a)(b)
350W MH/PS ZCS0835-(a)L(b)* ZCS2835-(a)L(b)* ZCS0935-(a)(b) ZCS2935-(a)(b)
400W MH/PS ZCS0840-(a)L(b)* ZCS2840-(a)L(b)* ZCS0940-(a)(b) ZCS2940-(a)(b)
ZCL 22” 320W MH/PS ZCL0832-(a)L(b)* ZCL2832-(a)L(b)* ZCL0932-(a)(b) ZCL2932-(a)(b)
350W MH/PS ZCL0835-(a)L(b)* ZCL2835-(a)L(b)* ZCL0935-(a)(b) ZCL2935-(a)(b)
400W MH/PS ZCL0840-(a)L(b)* ZCL2840-(a)L(b)* ZCL0940-(a)(b) ZCL2940-(a)(b)
Voltage (a) Options (b) (Factory Installed) Accessories (Field Installed)
A = Auto Voltage Input (standard)
200-277V
For units with hook, cord & plug,
specify voltage:
1 = 120V
2 = 277V
3 = 208V
4 = 240V
C = Coated Lamp
L = Flat lens assembly included on * fixtures
Q = Quartz Standby
Flat Glass Lens - 17” & 22”
Options & Accessories on page 188
Wire Guard - 17”& 22”
Options & Accessories on page 188
A HK SC = Mounting Hook - 3/4” Thread with Safety
Snap-Lock™
DMC-1 = Dimming Module Electronic Controllers on page
156
CX-100 = Passive infrared occupancy sensor on page 154
B-120E-P = 120V Power Supply Electronic Controllers on
page 157
B-277E-P = 277V Power Supply Electronic Controllers on
page 159
See page 188 for complete listing of all lens assemblies and guard options.
* Includes bottom lens assembly plus appropriate cost adder
SIMKAR ENERGY SOLUTIONS
![](asset-12f.png)
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
301
SIMKAR ENERGY SOLUTIONS
5 Optical Configurations
ZCS
17” Faceted Reflector
ZCL
22” Faceted Reflector
ZLS
16” Prismatic Reflector
ZLM
22” Prismatic Reflector
ZLL
25” PrismaticReflector
Z-Pod Series
ZL Series Ordering Information
Series Reector
Size
Wattage /
Lamp
Enclosed Rated
Lamp Slide-Box
Enclosed Rated Lamp
Hook, Cord & Plug
Open Rated Lamp
Slide-Box
Open Rated Lamp
Hook, Cord & Plug
ZLS 16” 250W MH/PS ZLS0825-(a)L(b)* ZLS2825-(a)L(b)* ZLS0925-(a)(b) ZLS2925-(a)(b)
320W MH/PS ZLS0932-(a)(b) ZLS2932-(a)(b)
350W MH/PS ZLS0935-(a)(b) ZLS2935-(a)(b)
400W MH/PS ZLS0940-(a)(b) ZLS2940-(a)(b)
ZLM 22” 320W MH/PS ZLM0832-(a)
L(b)* ZLM2832-(a)L(b)* ZLM0932-(a)(b) ZLM2932-(a)(b)
350W MH/PS ZLM0835-(a)
L(b)* ZLM2835-(a)L(b)* ZLM0935-(a)(b) ZLM2935-(a)(b)
400W MH/PS ZLM0840-(a)
L(b)* ZLM2840-(a)L(b)* ZLM0940-(a)(b) ZLM2940-(a)(b)
ZLL 25” 350W MH/PS ZLL0835-(a)L(b)* ZLL2835-(a)L(b)* ZLL0935-(a)(b) ZLL2935-(a)(b)
400W MH/PS ZLL0840-(a)L(b)* ZLL2840-(a)L(b)* ZLL0940-(a)(b) ZLL2940-(a)(b)
* Includes bottom lens assembly plus appropriate cost adder
Voltage Sufx Key (a) Options (b) (Factory Installed) Options and Accessories (Field Installed)
A = Auto Voltage Input (standard)
120-277V (250)
200-277V (320-400)
For units with hook, cord & plug,
specify voltage:
1 = 120V
2 = 277V
3 = 208V
4 = 240V
C = Coated Lamp*
Q = Quartz Standby
*Coated lamps are recommended.
Maximum effectiveness is achieved
through the use of coated lamps that
reduce glare.
Options & Accessories on page 188
Conical Lens - 22” & 25”
Flat Acrylic Lens -22”
Acrylic Drop Lens - 22” (up to 400W)
Aislelighter Lens - 25” (ZLL up to 400W only)
Wire Guard - 16”, 22” & 25”
Full Wire Guard - 16”, 22” & 25”
Drop Lens w/Wire Guard - 22”
A HK SC = Mounting Hook - 3/4” Thread with Safety Snap-Lock™
DMC-1 = Dimming Module Electronic Controllers on page 156
CX-100 = Passive infrared occupancy sensor on page 157
B-120E-P = 120V Power Supply Electronic Controllers on page 159
B-277E-P = 277V Power Supply Electronic Controllers on page 159
![](asset-130.png)
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
302
SIMKAR ENERGY SOLUTIONS
An often overlooked but simple energy saving opportunity can be found
in Exit and Emergency lighting.
A typical exit sign can use up to 40 watts and the lamps must be
changed twice per year. Our LED exit signs use less than 5 watts and
have a life expectancy of more than 10 years, saving energy and
maintenance costs.
Exit & Emergency
SLED
SCLI
SWLED
SREL
SEL
SSL
SDC
SLED Series Ordering Information
Series Options Lettering Housing Signage Options
SLED A = AC
B = Battery Backup
G = Green
R = Red
B = Black
W = White
EXIT = Exit
SALIDA = Salida
2 CIRCUIT = Dual Circuit
SD = Self-Diagnostic
SREL Series Ordering Information
Series Options Faces Lettering Trim Plate Options
SREL A = AC
B = Battery Backup
1 = Single
2 = Double
G = Green
R = Red
B = Black
W = White
A = Aluminum
2 CIRCUIT = Dual Circuit
SD = Self-Diagnostic
SEL Series Ordering Information
Series Options Faces Lettering Housing Options
SEL A = AC
B = Battery Backup
1 = Single
2 = Double
G = Green
R = Red
A = Aluminum
W = White
2 CIRCUIT = Dual Circuit
SSL Series Ordering Information
Series Life Faces Face Housing
SSL 10 = 10 years
20 = 20 years
1 = Single
2 = Double
G = Green
R = Red
B = Black
W = White
B = Black
W = White
SDC Series Ordering Information
Series Options Faces Lettering Housing Face Color Options
SDC A = AC
B = Battery Backup
1 = Single
2 = Double
G = Green
R = Red
A = Brushed Aluminum
B = Black
W = White
A = Brushed Aluminum
B = Black
W = White
2 CIRCUIT = Dual Circuit
SD = Self-Diagnostic
SWLED Series Ordering Information
Series Options Lettering Housing
SWLED A = AC
B = Battery Backup
G = Green
R = Red
W = White
SCLI Series Ordering Information
Series Faces Lettering Housing Signage Options
SCLI 2 = Double G = Green
R = Red
B = Black
W = White
EXIT = Exit
SALIDA = Salida
REM = Remote capable
SD = Self-Diagnostic
7 = 7.2W lamps
MR16 = MR16 lamps
SIMKAR ENERGY SOLUTIONS
![](asset-131.png)
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
303
SIMKAR ENERGY SOLUTIONS
As part of Simkar’s systems, we offer dimming sensors and controls for a
wide range of applications and environments, from single manual controls
to sophisticated daylight harvesting and occupancy monitoring systems.
Sensors • Lamp/Ballast Kits
The most straightforward method of
reducing lighting dollars is controlling
the light levels when alternate sources
are available or switching off the
lights or dimming an area when not in
use. These can be accomplished with
sensors and controls.
Occupancy sensors detect presence
by heat or movement and adjust the
lights accordingly. There are two
general types of sensors. Infrared and
ultrasonic. Infrared is the most common
and detects movement by reading
a heat “print”. Ultrasonic sensors
work similar to sonar where a pulse
is sent out and reflected back. When
there is a change in the time of the
reflection it is considered movement.
Depending upon the light source and
configuration, lamps may be dimmed
or turned out entirely when no one is
in the area. Sensors can also be set
for duration of illumination after the
occupant leaves the area to reduce the
number of times a fixture needs to start,
which may effect lamp life.
Controls are usually manual but can
also be a time-clock or a combination.
Controls can be used to turn lights on
and off as well as for dimming if the
system allows.
The savings gained by sensors and
controls is dependant upon the “Duty
Cycle” of the application. E.g. If an
occupancy sensor is used and turns the
lights out 50% of the time in an area,
the power consumption for that area is
cut in half.
In remote areas of warehouses, storage
facilities, and access areas such as
stairways, full light may be needed
as little as 5% of the time, creating
a great source of energy savings.
For safety reasons some areas may
allow dimming controls only. These
restrictions may be obtained through
state or local authorities and codes.
Why sensors and controls?
Simkar can help you determine the best solutions for your applications, including combining
sensor types, modular control wiring, interconnectivity, integrating daylight harvesting
technology, and preparing for special environments. Contact us to find out how we can help
you save money through the use of sensor and control technology.
Lamp/Ballast Kit ordering information
ANSI# Ordering Code Description
M136/E RKM200/M/PS* 200 watt enclosed rated lamp
M136/O RKMP200/M/PS 200 watt open rated lamp
M153/E RKM250/M/PS* 250 watt enclosed rated lamp
M153/O RKMP250/M/PS 250 watt open rated lamp
M154/E RKM320/M/PS* 320 watt enclosed rated lamp
M154/O RKMP320/M/PS 320 watt open rated lamp
M131/E RKM350/M/PS* 350 watt enclosed rated lamp
M131/O RKMP350/M/PS 350 watt open rated lamp
M155/E RKM400/M/PS* 400 watt enclosed rated lamp
M155/O RKMP400/M/PS 400 watt open rated lamp
M144/E RKM450/M/PS 450 watt enclosed rated lamp
M144/O RKMP450/M/PS 450 watt open rated lamp
* Vertical burn lamps supplied. For horizontal burn, add /HOR to ordering code
All kits listed have constant wattage multi-tap (120V, 208V, 240V, 277V) ballasts.
480 Volt kits are also available
All Simkar pulse start lamp/ballast kits come complete with:
Lamp
Ballast
Capacitor
Mounting Brackets
Ignitor
Instructions
Don’t just replace your lamp and ballast
technology... UPGRADE IT
Probe start technology is being phased out, and when it’s time to replace your
existing lamps and ballasts, choose Simkar’s Lamp and Ballast Kits.
Pulse start metal halide systems utilize a unique lamp and ballast, creating an
unparallelled energy efficient lighting solution. Pulse start systems provide more
light output, consistent color uniformity, better lumen maintenance, longer life,
and faster warmup and restrike times than traditional probe start metal halide
lamps.
![](asset-132.png)
304
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
DARK SKY
C
A
N
C
E
R
L
E
O
L
E
O
M
I
N
O
R
L
Y
N
X
U
R
S
A
M
A
J
O
R
H
H
H
H
H
H
NGC 2371
NGC 2403
NGC 2419
NGC 2420
M 44
NGC 2681
NGC 2683
NGC 2742
NGC 2768
NGC 2782
NGC 2787
NGC 2841
NGC 2859
NGC 2903
NGC 2950
NGC 2964
NGC 2976
M 82
NGC 3077
NGC 3079
NGC 3184
NGC 3190
NGC 3193
NGC 3198
NGC 3226
NGC 3245
NGC 3277
NGC 3294
NGC 3310
NGC 3344
NGC 3395
NGC 3414
NGC 3432
NGC 3486
NGC 3504
M 108
M 97
NGC 3607
NGC 3608
NGC 3610
NGC 3613
NGC 3619
NGC 3626
NGC 3631
NGC 3655
NGC 3665
NGC 3675
NGC 3686
NGC 3726
NGC 3729
NGC 3813
NGC 3877
NGC 3893
NGC 3898
NGC 3900
NGC 3912
NGC 3938
NGC 3941
NGC 3945
NGC 3949
NGC 3953
NGC 3982
M 109
NGC 3998
NGC 4026
NGC 4036
NGC 4041
NGC 4051
NGC 4085
NGC 4088
NGC 4102
NGC 4111
NGC 4143
NGC 4147
NGC 4150
NGC 4151
M 98
NGC 4203
NGC 4214
NGC 4244
NGC 4245
NGC 4251
M 106
NGC 4314
NGC 4346
NGC 4414
NGC 4448
NGC 4449
NGC 4485
NGC 4490
NGC 4618
NGC 4631
M 94
NGC 4800
M 51
NGC 5195
NGC 5322
M 101 NGC 5473
NGC 5474
Pollux
Denebola
Castor
Alioth
Cor Caroli
Alkaid
Dubhe
Chart 4: RA 8hto 12h, Declination + 65oto + 20oMagnitude:
0.0
1.0
2.0
3.0
4.0
5.0
6.0
7.0
Copyright c
2005 Andrew L. Johnson
![](asset-133.png)
305
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
DARK SKY
C
A
N
C
E
R
L
E
O
L
E
O
M
I
N
O
R
L
Y
N
X
U
R
S
A
M
A
J
O
R
H
H
H
H
H
H
NGC 2371
NGC 2403
NGC 2419
NGC 2420
M 44
NGC 2681
NGC 2683
NGC 2742
NGC 2768
NGC 2782
NGC 2787
NGC 2841
NGC 2859
NGC 2903
NGC 2950
NGC 2964
NGC 2976
M 82
NGC 3077
NGC 3079
NGC 3184
NGC 3190
NGC 3193
NGC 3198
NGC 3226
NGC 3245
NGC 3277
NGC 3294
NGC 3310
NGC 3344
NGC 3395
NGC 3414
NGC 3432
NGC 3486
NGC 3504
M 108
M 97
NGC 3607
NGC 3608
NGC 3610
NGC 3613
NGC 3619
NGC 3626
NGC 3631
NGC 3655
NGC 3665
NGC 3675
NGC 3686
NGC 3726
NGC 3729
NGC 3813
NGC 3877
NGC 3893
NGC 3898
NGC 3900
NGC 3912
NGC 3938
NGC 3941
NGC 3945
NGC 3949
NGC 3953
NGC 3982
M 109
NGC 3998
NGC 4026
NGC 4036
NGC 4041
NGC 4051
NGC 4085
NGC 4088
NGC 4102
NGC 4111
NGC 4143
NGC 4147
NGC 4150
NGC 4151
M 98
NGC 4203
NGC 4214
NGC 4244
NGC 4245
NGC 4251
M 106
NGC 4314
NGC 4346
NGC 4414
NGC 4448
NGC 4449
NGC 4485
NGC 4490
NGC 4618
NGC 4631
M 94
NGC 4800
M 51
NGC 5195
NGC 5322
M 101 NGC 5473
NGC 5474
Pollux
Denebola
Castor
Alioth
Cor Caroli
Alkaid
Dubhe
Chart 4: RA 8hto 12h, Declination + 65oto + 20oMagnitude:
0.0
1.0
2.0
3.0
4.0
5.0
6.0
7.0
Copyright c
2005 Andrew L. Johnson
Dark Sky
DARK SKY
Formed in 1988, the International Dark-Sky Association is the
authoritative voice on light pollution. IDA educates lighting
designers, manufacturers, technical committees, and the public
about light pollution abatement. The IDA recognizes that the
best way to accomplish the goal of protecting and restoring our
natural night environment and our heritage of dark skies is
through promotion of quality outdoor lighting. It is in this spirit
that they have developed the Fixture Seal of Approval (FSA)
program for dark-sky friendly fixtures.
The Fixture Seal of Approval provides objective, third-party
certification for luminaires that minimize glare, reduce light
trespass, and don’t pollute the night sky.
![](asset-134.png)
306
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
DARK SKY
Features
Housing
Die cast aluminum housing with flush doorframe
and rounded edges are standard with bronze, black
or white polyester powder topcoat. Other colors
available upon request. The 16” and 23” housings
can be rotated. (See Optics)
Optics
This compact Type IV forward-throw reflector has
a main beam of 60°+ from vertical (30° from
horizontal), providing a wide lateral distribution and
improved uniformities. A supplied backlight shield
permits precise cutoff adjustability. The 16” and 23”
housings have mounting knockouts on three sides
that allow the housing to be rotated 90 degrees either
right or left.
Ballast
All fixtures come standard with a high-power factor
multi-tap or 480V ballast. All units are supplied with a
36” SOW 16/3 cord. If no voltage is specified, cord is
connected to highest voltage.
Lamps
12” housing: 35 - 175W medium base lamp
16” housing: 150 - 400W mogul base lamp
23” housing: 400 - 1000W mogul base lamps
(An ED28 lamp is standard in the 320 - 400W MH
fixtures; a BT37 lamp is standard with the 1000W
fixtures.)
Lens
A clear, tempered glass lens is held securely in a die
cast doorframe. Complete silicon gasketing around
the lens frame and at mounting points provide a
watertight seal.
EPA Ratings
Because of its unique design, lower EPA levels are
obtained, resulting in lower pole costs. EPA Ratings
are listed on page 252.
0' 25' 50'
0'
25'
50'
25'
25'
50'
5.0
3.0
1.0 .5
.3
.1
10.0
0' 25' 50' 75' 100' 125'
0'
25'
50'
75'
100'
25'
50'
25'50'
75'
100'
125'
5.0
3.0 1.0
.5 .3
.1
10.0
15.0
0' 25' 50' 75'
0'
25'
50'
75'
25'
50'75'
25'
50'
5.0
3.0
1.0 .5
.3
.1
Mounting Options
Refer to page 318 for a complete description of
mounting options.
Photometric Data
(Isofootcandle Plots)
Dimensions
Fixture Fixture Fixture Approx.
Length Width Depth Ship Wt.
FFS Series
12.4” 12.4” 5.25” 18 lbs.
FFM Series
16.4” 16.4” 7.0” 38 lbs.
FFL Series
23.4” 23.4” 10.25” 68 lbs.
Forward Throw Floodlight Pole Spacing
Selection Guide
Lamp Desired Design Catalog
Type Mounting Height Footcandles Number
Metal Halide
175W 12’ 19.6 FFS8817
400W 20’ 13.5 FFM8440
400W 25’ 8.3
1000W 30’ 20.0 FFL8499
1000W 35’ 14.5
High-Pressure Sodium
250W 20’ 12.2 FFM8525
400W 25’ 13.7 FFM8540
400W 30’ 9.1
1000W 30’ 27.4 FFL8599
1000W 35’ 19.8
L
W
D
Criteria:
Floodlight FF Series, 0° vertical tilt
Mounting Height: 25’
Wattage: 400W
Mounting: 12” Extended Pole Mount
Pole Spacing: 4 times mounting height
1 assuming 4 floodlights/pole
Isofootcandle plot of 175W MH Forward-Throw
Floodlight at 15’ mount height, 0° vertical tilt.
Isofootcandle plot of 400W MH Forward-Throw
Floodlight at 25’ mount height, 0° vertical tilt.
Isofootcandle plot of 1000W MH Forward-Throw
Floodlight at 30’ mount height, 0° vertical tilt.
Lamp Included
12” FFS
16” FFM
23” FFL
Average
Design
Footcandles1
Listed for Wet Locations
Consult Factory for CUL Availability
Wattage Range:
35 to 1000 W
Featuring a sleek square
design with rounded edges, the FF Series is
offered with either a 12”, 16” or 23” die cast
aluminum housing.
FF Series Forward Throw Floodlight
DARK SKY
![](asset-135.png)
307
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
DARK SKY
Mountings
1-1/2” Close
Pole Mount
Ordering Code
MA1
6” Extended Pole
Mount
Ordering Code
MA2
2” Adjustable
Slip Fitter
Ordering Code
MA3
Yoke Mount
Ordering Code
MA4
12” Extended
Pole Mount
Ordering Code
MA5
MA2T10
6” Arm - 10° Tilt
MA5T10
12” Arm - 10° Tilt
10° & 20° Arms - Order Separately
MA2T20
6” Arm - 20° Tilt
MA5T20
12” Arm - 20° Tilt
FF 12” Series Ordering Information
Series Mounting Light Source Wattage, Type Voltage
FFS = 12” Housing 8 = Without Mounting 4 = MH
5 = HPS
8 = MH/PS*
05 = 50W (MH/PS, HPS)
07 = 70W (MH/PS, HPS)
10 = 100W (MH/PS, HPS)
15 = 150W (MH/PS, HPS)
17 = 175W (MH)
1 = 120
2 = 277
3 = 208
4 = 240
5 = 480
M = Multi-Tap
* MH/PS lamps must be operated in a ±15° vertical or horizontal burning position
FF 16” Series Ordering Information
Series Mounting Light Source Wattage, Type Voltage
FFM = 16” Housing 8 = Without Mounting 4 = MH
5 = HPS
8 = MH/PS*
07 = 70W (MH/PS, HPS)
10 = 100W (MH/PS, HPS)
15 = 150W (MH/PS, HPS)
17 = 175W (MH)
25 = 250W (MH, MH/PS, HPS)
32 = 320W (MH/PS)
35 = 350W (MH/PS)
40 = 400W (MH, MH/PS, HPS)
1 = 120
2 = 277
3 = 208
4 = 240
5 = 480
M = Multi-Tap
M5 = 5 Tap
120/277/208/240/480
(400W MH Only)
* MH/PS lamps must be operated in a ±15° vertical or horizontal burning position
FF 23” Series Ordering Information
Series Mounting Light Source Wattage, Type Voltage
FFL = 23” Housing 8 = Without Mounting 4 = MH
5 = HPS
8 = MH/PS*
40 = 400W (MH, MH/PS, HPS)
75 = 750W (MH/PS)
99 = 1000W (MH, HPS)
1 = 120
2 = 277
3 = 208
4 = 240
5 = 480
M = Multi-Tap
M5 = 5 Tap
120/277/208/240/480
(400W and 1000W MH Only)
* MH/PS lamps must be operated in a ±15° vertical or horizontal burning position
Options (Factory Installed) Accessories (Field Installed)
(x)P = Photo Control - Specify Voltage
(Twist lock receptacle & matching photocell supplied.) 16” & 23”
ONLY
WT = White Housing
BK = Black Housing
Quartz Standby (includes Quartz Lamp)
Q = Quartz Standby
Fusing
(x)F = Single - Specify voltage (x):
1 = 120V; 2 = 277V
(x)J = Dual - Specify voltage (x):
3 = 208V; 4 = 240V; 5 = 480V
Custom Colors Available: Consult factory for pricing and delivery.
12” housing
WG-12 = Wire Guard
VS-12 = Vandal Shield
16” housing
WG-16 = Wire Guard
VS-16 = Vandal Shield
23” housing
WG-23 = Wire Guard
VS-23 = Vandal Shield
Mounting
MA1 = 1-1/2” Close Pole Mt.
MA2 = 6” Extended Pole Mt.
MA3 = 2” Adjustable Slip Fitter
MA4 = Yoke Mount
MA4H = Yoke mount for 23’’
MA5 = 12” Extended Pole Mt.
FF Series Forward Throw Floodlight
![](asset-136.png)
308
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
DARK SKY
Features
Housing
Die cast aluminum housing with flush doorframe
and rounded edges are standard with bronze, black
or white polyester powder topcoat. Other colors
available upon request. The 16” and 23” housings
can be rotated. (See Optics)
Optics
The 16” and 23” housings come standard with
Type III asymmetric distribution. Ideally suited for
roadway applications, parking areas or building
mounted security lighting. The 16” and 23”
housings have mounting knockouts on three sides
that allow the housing to be rotated 90 degrees
either right or left.
Ballast
All fixtures come standard with a high-power factor
multi-tap or 480V ballast. All units are supplied with
a 36” SOW 16/3 cord. If no voltage is specified,
cord is connected to highest voltage.
Lamps
12” housing: 35 - 175W medium base lamp
16” housing: 70 - 400W mogul base lamp
23” housing: 750 - 1000W mogul base lamps
(Note: To increase light levels by 20%, specify a pin-
oriented socket using a MS400/HOR or MS1000/
HOR lamp.)
Lens
A clear, tempered glass lens is held securely in a die
cast doorframe. Complete silicon gasketing around
the lens frame and at mounting points provide a
watertight seal.
EPA Ratings
Because of its unique design, lower EPA levels are
obtained, resulting in lower pole costs. EPA Ratings
are listed on page 252.
Mounting Options
Refer to page 318 for a complete description of
25'
50'
0'
25'
50'
25' 50'
0'
25'
50'
5.0
3.0
1.0
.5
.3
.1
10.0
0'
25' 50' 75 100' 125'
0'
25'
50'
75'
100'
25'
50'
75'
100'
25'
50'
75
100'
125'
3.0
1.0.5
.3
.1
5.0
10.0
0'
25' 50' 75'
0'
25'
50'
75'
25'
50'
75'
25'
50'
100'
5.00
3.00
1.00
.5
.3
.1
mounting options.
Photometric Data
(Isofootcandle Plots)
The FP Series is ideally suited for roadway
applications, parking areas or for building-
mounted security lighting. Units feature a
sleek square design with rounded edges in
either a 12”, 16” or 23” die cast aluminum
housing.
Dimensions
Fixture Fixture Fixture Approx.
Length Width Depth Ship Wt.
FPS Series
12.4” 12.4” 5.25” 18 lbs.
FPM Series
16.4” 16.4” 7.0” 33 lbs.
FPL Series
23.4” 23.4” 10.25” 68 lbs.
L
W
D
Isofootcandle plot of 175W MH Parking/Roadway
Floodlight at 15’ mounting height, and 0° vertical tilt.
Isofootcandle plot of 400W MH Parking/Roadway
Floodlight at 25’ mounting height, and 0° vertical tilt.
Isofootcandle plot of 1000W MH Forward-Throw
Luminaire at 30’ mount height, 0° vertical tilt.
FP Series Parking/Roadway Floodlight
Lamp Included
Wattage Range:
35 to 1000 W
Listed for Wet Locations
Consult Factory for CUL Availability
12” FPS
16” FPM
23” FPL
Parking/Roadway Floodlight Pole
Spacing Selection Guide
Lamp Desired Design Catalog
Type Mounting Height Footcandles Number
Metal Halide
175W 12’ 25.0 FPS8417
400W 20’ 16.8 FPM8440
400W 25’ 10.5
1000W 30’ 19.8 FPL8499
1000W 35’ 14.3
High-Pressure Sodium
250W 20’ 13.3 FPM8525
400W 25’ 15.0 FPM8540
400W 30’ 10.2
1000W 30’ 26.9 FPL8599
1000W 35’ 19.5
Average
Design
Footcandles1
Criteria:
Floodlight FP Series, 0° vertical tilt
Mounting Height: 30’
Wattage: 400W
Mounting: 12” Extended Pole Mount
Pole Spacing: 4 times mounting height
1 assuming 4 floodlights/pole
DARK SKY
![](asset-137.png)
309
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
DARK SKY
Mountings
1-1/2” Close
Pole Mount
Ordering Code
MA1
6” Extended Pole
Mount
Ordering Code
MA2
12” Extended
Pole Mount
Ordering Code
MA5
Wishbone Mount
See Accessories
for Code
FP Series Parking/Roadway Floodlight
FP 12” Series Ordering Information
Series Mounting Light Source Wattage, Type Voltage
FPS = 12” Housing 8 = Without Mounting 4 = MH
5 = HPS
8 = MH/PS*
05 = 50W (MH/PS, HPS)
07 = 70W (MH/PS, HPS)
10 = 100W (MH/PS, HPS)
15 = 150W (MH/PS, HPS)
17 = 175W (MH)
1 = 120
2 = 277
3 = 208
4 = 240
5 = 480
M = Multi-Tap
* MH/PS lamps must be operated in a ±15° vertical or horizontal burning position
FP 16” Series Ordering Information
Series Mounting Light Source Wattage, Type Voltage
FPM = 16” Housing 8 = Without Mounting 4 = MH
5 = HPS
8 = MH/PS*
07 = 70W (MH/PS, HPS)
10 = 100W (MH/PS, HPS)
15 = 150W (MH/PS, HPS)
17 = 175W (MH)
25 = 250W (MH, MH/PS, HPS)
32 = 320W (MH/PS)
35 = 350W (MH/PS)
40 = 400W (MH, MH/PS, HPS)
1 = 120
2 = 277
3 = 208
4 = 240
5 = 480
M = Multi-Tap
M5 = 5 Tap
120/277/208/240/480
(400W MH Only)
* MH/PS lamps must be operated in a ±15° vertical or horizontal burning position
FP 23” Series Ordering Information
Series Mounting Light Source Wattage, Type Voltage
FPL = 23” Housing 8 = Without Mounting 4 = MH
5 = HPS
8 = MH/PS*
40 = 400W (MH, MH/PS, HPS)
75 = 750W (MH/PS)
99 = 1000W (MH, HPS)
1 = 120
2 = 277
3 = 208
4 = 240
5 = 480
M = Multi-Tap
M5 = 5 Tap 120/277/208/240/480 (400W
and 1000W MH Only)
* MH/PS lamps must be operated in a ±15° vertical or horizontal burning position
Options (Factory Installed) Accessories (Field Installed)
(x)P = Photo Control - Specify Voltage
(Twist lock receptacle & matching photocell supplied.) 16” & 23” ONLY
WT = White Housing
BK = Black Housing
Fusing
(x)F = Single - Specify voltage (x):
1 = 120V; 2 = 277V
(x)J = Dual - Specify voltage (x):
3 = 208V; 4 = 240V; 5 = 480V
Quartz Standby (includes Quartz Lamp)
Q = Quartz Standby
Custom Colors Available: Consult factory for pricing and delivery.
12” housing
WG-12 = Wire Guard
VS-12 = Vandal Shield
16” housing
WG-16 = Wire Guard
VS-16 = Vandal Shield
WBR161 = Wishbone Mount for 4” Round Pole
WBS161 = Wishbone Mount for 4” Square Pole
23” housing
WG-23 = Wire Guard
VS-23 = Vandal Shield
WBR231 = Wishbone Mount for 4” Round Pole
WBS231 = Wishbone Mount for 4” Square Pole
Mounting
MA1 = 1-1/2” Close Pole Mt.
MA2 = 6” Extended Pole Mt.
MA5 = 12” Extended Pole Mt.
1 See page 247 for restrictions.
![](asset-138.png)
310
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
DARK SKY
18” WCM
.1
.2
.5
1
2
5
10
20
Calculations based on published IES Methods and recommendations.
Results derived from content of manufacturers IES format photometric file.
Page 6
3
2
1
0
1
2
3
4
5
0 1 2 3 4 5 6 7
Dimensions
Fixture Fixture Fixture Approx.
Height Width Depth Ship Wt.
WCM Series
7.1” 18” 9.25” 12.87 lbs.
Features
Housing
Heavy-duty die cast aluminum housing is powder-
coated in a dark architectural bronze color. Silicone
rubber prevents any leakage due to outside
elements.
Ballast
The 175W MH version is furnished with a high power
factor, constant wattage multi-tap ballast. The 100W
MH and 150W HPS versions are furnished with a
high power factor, high reactance multi-tap ballast.
Lamps
Fixtures are supplied with medium base lamps.
Reflector
One-piece anodized aluminum designed reflector for
best light efficiency.
Mounting Options
The WCM series wallpack is easy to install directly
to a 4” recessed outlet box or 1/2” surface conduit
into a 1/2” threaded bushing. Remove the two
mounting screws from the fixture (see ‘A’, page 69).
Gently pull the mounting plate with gasket from
the housing (B) and install to the mounting surface
utilizing the built-in level bubble (C). Mount the
fixture to the plate (D) and reinstall the mounting
screws (E).
Photometric Data
(Isofootcandle Plots)
Distance in Units of Mounting Height
Values Based On 10 Foot Mounting Height
1/2 Maximum Candela Trace Shown as Dashed Curve
(+) = Maximum Candela Point
Cat. # WCM0417-M
18”
9.25”
7.1”
This crescent-shaped, surface mount wallpack is
ideal for parking areas, entrances, walkways,
underpasses, loading docks, recreation areas and
tunnels.
Lamp Included
Wattage Range:
100W and 175 MH
150W HPS
Listed for Wet Locations
Consult Factory for CUL Availability
WCM Series 18” Stargazer Wallpack
DARK SKY
![](asset-139.png)
311
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
DARK SKY
WCM Mounting Procedure
A B
D E
C
WCM Series Ordering Information
Mounting Position Wattage Lamp Catalog Number
100 watt MH/PS WCM0810-M*
Wall 175 watt MH WCM0417-M *
150 watt HPS WCM0515-M*
*Multi-tap tapped @277V
Remove mounting screws
from fixture
Gently pull the mounting plate and
gasket from the housing
Install plate to the mounting surface
utilizing the integrated level
Connect wires and mount fixture to
the plate
Reinstall mounting screws
INTEGRATED LEVEL
WCM Series 18” Stargazer Wallpack
![](asset-13a.png)
312
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
DARK SKY
Dimensions
Fixture Fixture Fixture Approx.
Height Width Depth Ship Wt.
WFM Series
9” 13” 11.5” 15 lbs.
WFL Series
9” 18” 17.2” 26 lbs.
Features
Housing
The bronze die-cast aluminum housing, thick
prismatic glass refractor and stainless steel hardware
together make the WFM & WFL Series Full Cutoff
Wallpacks resistant to both weather and vandalism.
Dark sky compliant when mounted in down position.
Ballast
The metal halide WFM Wallpack utilizes a multi-tap
HX or CWA HPF ballast. HPS fixtures can be ordered
with a multi-tap HX HPF ballast as an option. 120V
ballasts use reactor NPF ballasts. All sizes of the WFL
Wallpacks are supplied with a CWA HPF multi-tap
or 480V ballast. CFL fixtures include 120/277V
electronic ballasts.
Lamps
The WFM luminaire uses a medium base metal halide
lamp (50 - 175W) or a medium base HPS lamp (50
- 150W). The WFL luminaire uses mogul base, metal
halide lamps (175 - 400W) and HPS (250-400W)
lamps. (Note: To increase light levels by 20%, specify
a position-oriented socket using a MS400/HOR.) CFL
Fixtures include 4-pin quad lamps.
Lens
Both the door and prismatic glass lens utilize
weatherproof silicone gasketing to seal
out contaminants.
Access / Wiring
The side-hinged door opens easily using two captive
stainless steel screws to provide easy access to
internal components. Wiring options include mounting
over a 4” recessed junction box or surface mounting
using convenient conduit entries located on side and
bottom of fixture. Additional knockouts are provided
for optional photocell.
Mounting Options
The recommended wall mounting height of the
WFM Wallpack is 12’ to 18’. The recommended wall
mounting height of the WFL Series is 18’ to 24’.
Units include rear 1/2” conduit holes access with
drill points for mounting.
WFM Series
WFL Series
H
H
W
D
W
40°C Ambient Rated
The WFM/WFL Series Wallpacks offer a wide
light distribution with controlled light spillage.
Lamp Included
Wattage Range:
WFM 26 - 175W
WFL 64 - 400W
Listed for Wet Locations
Consult Factory for CUL Availability
W Series 13” & 18” Full Cutoff Wallpack
DARK SKY
![](asset-13b.png)
313
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
DARK SKY
W Series Wallpack Ordering Information
Series Wattage Lamp Catalog Number
WFM Series 13” Wallpack
Wall 50W MH/PS WFM0805-M*(b)
70W MH/PS WFM0807-M*(b)
100W MH/PS WFM0810-M*(b)
150W MH/PS WFM0815-M*(b)
175W MH WFM0417-M*(b)
175W MH (MOGUL) WFM9417-M*(b)
50W HPS 120V (NPF) WFM0505-1*(b) NPF
50W HPS WFM0505-(a)(b)
70W HPS 120V (NPF) WFM0507-1*(b) NPF
70W HPS WFM0507-(a)(b)
100W HPS 120V (NPF) WFM0510-1*(b) NPF
100W HPS WFM0510-(a)(b)
150W HPS 120V (NPF) WFM0515-1*(b) NPF
150W HPS WFM0515-M*(b)
(2) 26W CFL WFM0352-D*
(2) 32W CFL WFM0364-D*
(2) 42W CFL WFM0384-D*
WFL Series 18” Wallpack
Wall 175W MH WFL0417-(a)(b)
200W MH/PS WFL0820-(a)(b)
250W MH WFL0425-(a)(b)
250W MH/PS WFL0825-(a)(b)
320W MH/PS WFL0832-(a)(b)
350W MH/PS WFL0835-(a)(b)
400W MH WFL0440-(a)(b)
400W MH/PS WFL0840-(a)(b)
400W MS/HOR WFL0740-(a)(b)
Position-oriented socket
250W HPS WFL0525-(a)(b)
400W HPS WFL0540-(a)(b)
(2) 32W CFL WFL0364-D*
(2) 42W CFL WFL0384-D*
*See Voltage below
Voltage (a) Options (b) (Factory Installed)
1 = 120V
2 = 277V
3 = 208V
4 = 240V
5 = 480V (150W and above only)
M = Multi-tap; tapped @ 277V
D = Dual-tap 120/277V (CFL only)
HPF = High Power Factor (HPS 120V only - change NPF to HPF)
WT = White Housing
BK = Black Housing
B = Button Photocell (Must designate voltage - change M to “1”
for 120 V or “2” for 277 V)
W Series 13” & 18” Full Cutoff Wallpack
![](asset-13c.png)
314
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
DARK SKY
0 10'10' 20'20' 3030'
10'
20'
30'
0'
10'
20'
30'
20
7
10
3
1
.5
400W MH CF Series at 15’ mounting height.
W
L
Features
Housing
The seamless, die cast aluminum housing is standard
with a weather-resistant bronze polyester powder
topcoat. The doorframe fits flush with the housing.
Complete silicon gasketing between door and
housing provides a watertight seal. Removable
hinged door supports easy maintenance.
Ballast
All fixtures are standard with high-power factor
multi-tap or 480V ballasts.
Lamps
The M Series utilizes mogul base lamps. To increase
light levels by 20%, specify a position-oriented
socket using an MS400/HOR lamp. The CFS utilizes
medium base lamps.
Lens
All CF Series fixtures are supplied with C73 prismatic
glass for ideal performance and light distribution.
Optics
The CF Series reflector comes standard with
hammertone aluminum optics.
Wiring
A knockout is located in the ballast compartment of
the CFM housing. Additional knockouts are located
on the sidewalls of the CFM housing. The CFS housing
has multiple knockouts for mounting to junction
boxes.
Special Gasket and Knockout
features on the Canopy Fixtures
make for easy adaptability and
fixture placement.
Dimensions
Fixture Fixture Fixture Approx.
Length Width Depth Ship Wt.
CFS Series
12.4” 12.4” 5.25” 18 lbs.
CFM Series
16.4” 16.4” 7.0” 32 lbs.
CF
Photometric Data
(Isofootcandle Plots)
Mounting Options
Three knockouts located in the base of the cast
aluminum housing are provided to mount the fixture
to steel, concrete ceiling or canopy. Not suitable for
mounting to ceilings with combustible material.
Ideally suited for indoor parking areas, canopies
or walkways with a mounting height above 15’.
Also ideal for building-mounted security lighting.
Lamp Included
Wattage Range:
50 - 400W
Listed for Wet Locations
Consult Factory for CUL Availability
CF Series 12” & 16” Canopy Fixture
DARK SKY
![](asset-13d.png)
315
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
DARK SKY
Mountings
Accessories
Ceiling Mount
Wire Guard
Ordering Code
12”: WG-12
16”: WG-16
Vandal Shield
Ordering Code
12”: VS-12
16”: VS-16
CF Series Canopy Fixture Ordering Information
Housing Size (sq.) Wattage Lamp Catalog Number
12” 50W MH/PS CFS0805-(a)(b)
70W MH/PS CFS0807-(a)(b)
100W MH/PS CFS0810-(a)(b)
150W MH/PS CFS0815-(a)(b)
175W MH CFS0417-(a)(b)
50W HPS CFS0505-(a)(b)
70W HPS CFS0507-(a)(b)
100W HPS CFS0510-(a)(b)
150W HPS CFS0515-(a)(b)
16” 175W MH CFM0417-(a)(b)
200W MH/PS CFM0820-(a)(b)
250W MH CFM0425-(a)(b)
250W MH/PS CFM0825-(a)(b)
320W MH/PS CFM0832-(a)(b)
350W MH/PS CFM0835-(a)(b)
400W MH CFM0440-(a)(b)
400W MH/PS CFM0840-(a)(b)
400W MS/HOR CFM0740-(a)(b)
70W HPS CFM0507-(a)(b)
100W HPS CFM0510-(a)(b)
150W HPS CFM0515-(a)(b)
250W HPS CFM0525-(a)(b)
400W HPS CFM0540-(a)(b)
Note: Not suitable for mounting to ceilings with combustible material.
Voltage (a) Options (b) (Factory Installed) Accessories: (Field-Installed)
1 = 120V
2 = 277V
3 = 208V
4 = 240V
5 = 480V
M = Multi-tap tapped @ 277V
Fusing
(x)F = Single - Specify voltage (x):
1 = 120V; 2 = 277V
(x)J = Dual - Specify voltage (x):
3 = 208V; 4 = 240V; 5 = 480V
Q = Quartz Standby (Includes Q lamp) Non
delay-relay type
WT = White Housing (Custom Colors Available:
Consult factory for pricing and delivery.)
Note: HID wattage must be higher than quartz
standby wattage.
WG-12 = 12” Wire Guard
VS-12 = 12” Vandal Shield
WG-16 = 16” Wire Guard
VS-16 = 16” Vandal Shield
CF Series 12” & 16” Canopy Fixture
![](asset-13e.png)
316
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
Ballast Line Current Data
Wattage Volts Code Input
Watts
Open
Circuit
Voltage
Starting
Current
Operating
Current
Open
Circuit
Current
Metal Halide
175W 120 8M4M-C500K 213 310 1.23 1.80 1.70
ANSI M57 208 8M4M-C500K 213 310 0.70 1.10 1.10
240 8M4M-C500K 213 310 0.60 0.90 0.85
277 8M4M-C500K 213 310 0.52 0.78 0.75
480 8M4D-C500K 213 310 0.27 0.45 0.51
250W 120 8M5M-C500K 293 305 1.10 2.50 3.05
ANSI M58 208 8M5M-C500K 293 305 0.65 1.45 1.65
240 8M5M-C500K 293 305 0.55 1.30 1.55
277 8M5M-C500K 293 305 0.50 1.12 1.25
480 8M5D-C500K 294 280 0.25 0.65 0.65
400W 120 8M6M-C500K 458 300 2.50 4.00 3.20
ANSI M59 208 8M6M-C500K 458 300 1.40 2.30 1.80
240 8M6M-C500K 458 300 1.20 2.00 1.60
277 8M6M-C500K 458 300 1.00 1.70 1.50
480 8M6D-C500K 458 300 0.60 1.00 0.90
1000W 120 8M8M-C500K 1080 420 4.80 9.20 6.10
ANSI M47 208 8M8M-C500K 1080 420 2.40 5.30 4.90
240 8M8M-C500K 1080 420 2.30 4.60 3.10
277 8M8M-C500K 1080 420 1.95 4.00 3.00
480 8M8D-C500K 1100 440 1.30 2.40 1.50
1500 Watt 120 8M9M-C500K 1605 440 11.30 13.40 6.30
ANSI M48 208 8M9M-C500K 1605 440 6.50 7.75 3.65
240 8M9M-C500K 1605 440 5.65 6.70 3.15
277 8M9M-C500K 1605 440 4.90 5.80 2.75
480 8M9D-C500K 1625 450 3.00 3.40 1.65
Pulse Start Metal Halide
50 Watt 120 8M0M-H510K 68 250 0.87 0.60 1.16
ANSI
M110 208 8M0M-H510K 68 250 0.51 0.35 0.67
240 8M0M-H510K 68 250 0.47 0.30 0.57
277 8M0M-H510K 68 250 0.39 0.25 0.50
70 Watt 120 8M1M-H510K/PS 95 245 0.80 0.85 1.70
ANSI M98 208 8M1M-H510K/PS 95 245 0.50 0.50 1.04
240 8M1M-H510K/PS 95 245 0.43 0.43 0.87
277 8M1M-H510K/PS 95 245 0.39 0.37 0.78
480 8M1D-H510K/PS 95 245 0.19 0.23 0.50
100 Watt 120 8M2M-H510K/PS 130 250 1.20 1.15 2.30
ANSI M90 208 8M2M-H510K/PS 130 250 0.70 0.60 1.30
240 8M2M-H510K/PS 130 250 0.61 0.55 1.10
277 8M2M-H510K/PS 130 250 0.55 0.45 0.95
480 8M2D-H510K/PS 140 250 0.25 0.35 0.62
150 Watt 120 8M3M-H510K/PS 185 245 1.70 1.68 3.32
M102 208 8M3M-H510K/PS 185 245 1.00 0.98 1.93
240 8M3M-H510K/PS 185 245 0.80 0.83 1.66
277 8M3M-H510K/PS 185 245 0.77 0.75 1.48
480 8M3D-H510K/PS 180 245 0.30 0.44 1.00
175 Watt 120 8M4M-C510K/PS 208 255 1.10 1.80 1.70
M137 208 8M4M-C510K/PS 208 255 0.58 1.10 1.10
240 8M4M-C510K/PS 208 255 0.51 0.90 0.85
277 8M4M-C510K/PS 208 255 0.45 0.78 0.75
480 8M4M-C510K/PS 210 255 0.25 0.50 0.45
200 Watt 120 8M4.5M-C510K/PS 232 265 1.15 2.20 1.80
M136 208 8M4.5M-C510K/PS 232 265 0.65 1.25 1.25
240 8M4.5M-C510K/PS 232 265 0.55 1.10 1.10
277 8M4.5M-C510K/PS 232 265 0.49 0.95 0.90
480 8M4.5D-C510K/PS 232 265 0.19 0.50 0.43
Wattage Volts Code Input
Watts
Open
Circuit
Voltage
Starting
Current
Operating
Current
Open
Circuit
Current
Pulse Start Metal Halide (cont.)
250 Watt 120 8M5M-C510K/PS 294 280 1.20 2.60 2.50
M138 208 8M5M-C510K/PS 294 280 0.65 1.50 1.58
240 8M5M-C510K/PS 294 280 0.60 1.30 1.25
277 8M5M-C510K/PS 294 280 0.50 1.12 1.10
480 8M5D-C510K/PS 270 260 0.21 0.57 0.48
320 Watt 120 8M5.4M-C510K/PS 365 265 3.30 3.25 1.60
M132 208 8M5.4M-C510K/PS 365 265 1.90 1.90 1.00
240 8M5.4M-C510K/PS 365 265 1.60 1.65 0.80
277 8M5.4M-C510K/PS 365 265 1.40 1.40 0.70
277 8M5.4-R510K/PS 349 277 1.70 1.40 1.70
480 8M5.4D-C510K/PS 360 265 0.63 0.79 0.65
350 Watt 120 8M5.7M-C510K/PS 386 280 3.60 3.70 1.80
M131 208 8M5.7M-C510K/PS 386 280 2.10 2.10 1.10
240 8M5.7M-C510K/PS 386 280 1.80 1.80 0.90
277 8M5.7M-C510K/PS 386 280 1.60 1.60 0.80
277 8M5.7C-R510K/PS 380 277 1.80 1.50 1.90
480 8M5.7D-C510K/PS 400 260 0.75 0.85 0.65
400 Watt 120 8M6M-C510K/PS 458 265 3.30 4.00 2.30
M135 208 8M6M-C510K/PS 458 265 1.90 2.30 1.90
240 8M6M-C510K/PS 458 265 1.60 2.10 1.60
277 8M6M-C510K/PS 458 265 1.40 1.80 0.90
277 8M6C-R510K/PS 435 277 2.10 1.70 2.10
480 8M6D-C510K/PS 456 270 0.85 1.00 0.63
450 Watt 120 8M6.5M-C510K/PS 506 281 2.70 4.44 2.68
M144 208 8M6.5M-C510K/PS 506 281 1.56 2.56 1.67
240 8M6.5M-C510K/PS 506 281 1.35 2.22 1.44
277 8M6.5M-C510K/PS 506 281 1.17 1.92 1.25
277 8M6.5C-R510K/PS 485 277 2.30 1.90 2.30
480 8M6.5D-C510K/PS 505 260 0.65 1.10 0.60
750 Watt 120 8M7M-C510K/PS 815 370 4.80 6.80 4.60
M149 208 8M7M-C510K/PS 815 370 2.80 4.00 2.60
240 8M7M-C510K/PS 815 370 2.40 3.40 2.30
277 8M7M-C510K/PS 815 370 2.10 3.00 2.00
480 8M7D-C510K/PS 820 370 1.10 1.70 1.35
875 Watt 120 8M7.5M-C510K/PS 940 420 5.50 8.00 5.50
M166 208 8M7.5M-C510K/PS 940 420 3.20 4.50 3.20
240 8M7.5M-C510K/PS 940 420 2.75 4.00 2.75
277 8M7.5M-C510K/PS 940 420 2.40 3.45 2.40
480 8M7.5D-C510K/PS 945 480 2.45 2.00 2.75
HID GENERAL INFORMATION
![](asset-13f.png)
317
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
Ballast Line Current Data/Light Loss Factors
Wattage Volts Code Input
Watts
Open
Circuit
Voltage
Starting
Current
Operating
Current
Open
Circuit
Current
High Pressure Sodium
35 Watt 120 8S0A-R010K 43 120 1.15 0.85 n/a
S76 120 8S0A-R510K 43 120 0.40 0.40 0.68
240 8M4M-C500K 213 310 0.60 0.90 0.85
50 Watt 120 8S1A-R010K 60 120 1.50 1.18 n/a
S68 120 8S1A-R510K 60 120 0.68 0.54 0.90
120 8S1M-H510K 64 120 0.58 0.58 1.24
208 8S1M-H510K 64 120 0.35 0.33 0.60
240 8S1M-H510K 64 120 0.31 0.29 0.52
277 8S1M-H510K 64 120 0.25 0.25 0.45
70 watt 120 8S2A-R010K 83 120 2.10 1.60 n/a
S62 120 8S2A-R510K 83 120 0.90 0.75 1.30
120 8S2M-H510K 94 120 0.90 0.82 1.40
208 8S2M-H510K 94 120 0.50 0.48 0.83
240 8S2M-H510K 94 120 0.44 0.41 0.72
277 8S2M-H510K 94 120 0.35 0.36 0.62
480 8S2D-H510K 94 120 0.21 0.20 0.34
100 Watt 120 8S3A-R010K 117 120 2.90 2.10 n/a
S54 120 8S3A-R510K 117 120 1.20 1.00 1.80
120 8S3M-H510K 128 120 0.80 1.14 2.20
208 8S3M-H510K 128 120 0.55 0.66 1.40
240 8S3M-H510K 128 120 0.41 0.57 1.10
277 8S3M-H510K 128 120 0.35 0.49 0.95
480 8S3D-H510K 128 120 0.54
150 Watt 120 8S4A-R010K 171 120 4.40 3.20 n/a
S55 120 8S4A-R510K 171 120 2.20 1.50 2.40
120 8S4M-H511K 189 120 1.95 1.66 3.00
208 8S4M-H511K 189 120 1.10 0.96 1.65
240 8S4M-H511K 189 120 0.95 0.83 1.45
277 8S4M-H511K 189 120 0.88 0.72 1.25
480 8S4D-H511K 189 120 0.36 0.44 0.72
200 Watt 120 8S5M-C510K 230 175 1.30 2.00 0.78
S66 208 8S5M-C510K 230 175 0.75 1.20 0.50
240 8S5M-C510K 230 175 0.64 1.00 0.40
277 8S5M-C510K 230 175 0.56 0.88 0.34
480 8S5D-C510K 245 175 0.31 0.55 0.24
250 watt 120 8S6M-C510K 300 185 1.75 2.50 1.65
S50 208 8S6M-C510K 300 185 1.00 1.43 0.90
240 8S6M-C510K 300 185 0.85 1.25 0.80
277 8S6M-C510K 300 185 0.75 1.10 0.75
480 8S6D-C510K 285 200 0.36 0.62 0.38
400 Watt 120 8S7M-C510K 465 190 3.10 3.90 1.85
S51 208 8S7M-C510K 465 190 1.80 2.25 1.10
240 8S7M-C510K 465 190 1.60 1.95 0.90
277 8S7M-C510K 465 190 1.35 1.70 0.80
480 8S7D-C510K 465 190 0.80 1.00 0.50
1000 Watt 120 8S9M-C510K 1100 440 5.00 9.50 6.10
S52 208 8S9M-C510K 1100 440 3.00 5.50 3.50
240 8S9M-C510K 1100 440 2.60 4.80 3.10
277 8S9M-C510K 1100 440 2.20 4.10 2.70
480 8S9D-C510K 1100 440 1.30 2.40 1.50
HID GENERAL INFORMATION
Light Loss Factors
LLF = LLD x LDD x BF x HFLA
HPS High Pressure Sodium .77 .90 .9 .95 1
MH Metal Halide .59 .69 .9 .95 1
PSMH Pulse Start Metal Halide .68 .80 .9 .95 1
EPSMH Electronic PSMH .85 .90 .9 1 1.05
![](asset-140.png)
318
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
Accent Lighting
Directional lighting to emphasize a
particular object or area.
Amalgam
A mixture of mercury and other metals
used in fluorescent and HID lamps
to allow the lamps to have a stable
light output over a wide range of
temperatures and burning positions.
Ambient Lighting
General lighting, or lighting of the
surrounding area.
American National Standards
Institute (ANSI)
An organization which coordinates
voluntary standards for the physical,
electrical, and performance
characteristics of lamps, ballasts,
luminaires, and other lighting and
electrical equipment.
Amperes (amps or A)
The unit of measurement of electric
current. The equation for current related
to voltage and power is as follows:
Current (amps) = Power (watts)/Voltage
(volts).
Arc Discharge (in gas or vapor)
Electric current between two cathodes
that produces light without a filament.
Ballast
Device used with fluorescent and HID
lamps to provide necessary starting
voltage and regulate the current during
operation.
Ballast Factor (BF)
This is the percentage of a lamp’s
rated lumen output that can be
expected when operated on a specific,
commercially available ballast. Note
that the “rated output” is sometimes
measured on a reference ballast unlike
ones that actually operate the lamp in
the field.
Base
The end(s) of the lamp that inserts into
lamp socket.
Beam Spread
The angle over which the intensity of the
beam drops to 50% of its peak intensity.
Measured in degrees.
British Thermal Units (BTUs)
Measurement of heat produced unit
BTU, BTUs per hour = Watts x 3.413
Bulb
The glass outer envelope of a lamp.
Burning Position
The orientation in which a lamp is
designed to be operated
C-UL US Listing Mark
Introduced by UL in 1998. Indicates
compliance with both Canadian and US
requirements.
Canadian Standards Association
(CSA)
An organization that writes standards
and tests lighting equipment for
performance as well as electrical and
fire safety. Canadian provincial laws
generally require that all products sold
for consumer use in Canada must have
CSA or equivalent approval.
Candela
The unit of measure for intensity in a
given direction. The term has been
retained from the early days of lighting
when a standard candle of a fixed size
and composition was used as a basis
for evaluating the intensity of other light
sources.
Candlepower (CP)
An obsolete term for the intensity of a
light source in a given direction. Unit
candela, cd.
Chromaticity
See color temperature.
Class “P” Ballast
A ballast containing a thermal protective
device that deactivates the ballast when
the case reaches a certain temperature.
The device resets automatically when
the case temperature returns to a
specific temperature.
Color Rendering
The effect that the light has on the
percieved color of objects.
Color Rendering Index (CRI)
A scale from 1-100 that describes how
natural the color of objects will appear
as compared to a standard light source
(100 CRI). The standard is based on
incandescent, halogen, and natural
daylight.
Color Temperature
A term used to describe the “whiteness”
of light. It is the measurement of a
heated piece of metal in degrees Kelvin.
Unit Kelvin, K.
Compact Fluorescent Lamp (CFL)
The general term applied to families
of smaller diameter fluorescent lamps,
the mounting of which are pin-based or
have built-in ballasts and medium screw
bases.
Cove Lighting
Lighting system comprising light sources
shielded by a ledge or recess.
Dark Sky
The dark-sky movement is a campaign
by people who want to reduce light
pollution so people can see the stars, to
reduce the effects of unnatural lighting
on the environment, and to reduce
energy usage.
Diffuser
Device used to alter the distribution of
light in multiple directions.
Diffusion (scattering)
Change of the distribution of light when
it is distributed in many directions by a
surface or material.
Dimmer
A device in the electrical circuit for
varying the light output from lamps.
Direct Lighting
Illumination which travels directly to an
object or surface from the light source.
Directional Lighting
Lighting in which the light on the
working plane or on an object is
coming predominantly from one
direction.
Discharge Lamp
Lamp in which the light is produced,
directly or indirectly, by an electric arc
through a gas, a metal vapor, or a
mixture.
Discomfort Glare
Glare that causes discomfort, potentially
impairing vision. Also known as Veiling
Luminance.
Downlight (Can, High Hat)
Small luminaire that distributes the light
downward;usuallyrecessedinthe
ceiling.
Efficacy
Of a source. Efficacy is the rate at
which lamp is able to convert electrical
power (watts) into light (lumens),
expressed as lumens per watt.
Efficiency
Often misused term in lighting to
describe lumens per watt. See efficacy.
Electric Discharge
The passage of an arc through gases
and vapors resulting in light.
Electromagnetic Spectrum
“Visible Light” - A continuum of
radiation that can be characterized by
wavelength. Visible light encompasses
a small part of the electromagnetic
spectrum in the region from about 380
to 770 nanometers.
Glossary
GLOSSARY
![](asset-141.png)
319
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
Electronic Ballast
A solid-state equivalent to a magnetic
(core-coil) ballast. Electronic ballasts
typically operate lamps at frequencies
in the range of 25 - 35 kHz.
Emergency Lighting
Lighting intended for temporary use
during power failures.
Energy Policy Act (EPACT)
Comprehensive energy legislation
passed by the US Congress in 1992
and 2005. The lighting portion includes
lamp labeling and minimum energy
efficacy(lumens/watt)requirementsfor
many commonly used incandescent and
fluorescent lamp types.
Flicker
Fluctuating brightness or color.
Floodlight
A fixture or lamp with a wide beam
spread.
Fluorescent Lamp
A low-pressure mercury discharge lamp
in which light is emitted by a layer of
fluorescent phosphors excited by the
ultraviolet radiation from the discharge.
Footcandle (FC)
One candela falling on one square foot.
Fuse
Safety device to prevent excess current
flow.
General Lighting
Substantially uniform lighting of an
area, excluding task lighting.
Glare
Condition of vision in which there is
discomfort or a reduction in the ability
to see due to direct or reflected light.
Group Relamping
An economical method of replacing all
lamps at one time.
Halogen Lamp
Gas-filled lamp containing a tungsten
filament and a portion of halogen
gas to create the “halogen cycle” that
redeposits evaporated tungsten onto the
filament.
Heat
Measured in British Thermal Units
(BTUs). Unit BTUs per hour = Watts x 3.413.
High frequency lumen
adjustment factor (HFLA)
The multiplier used for compensating the
elec tron ic bal last lumen maintenance on
the lamp.
High Intensity Discharge Lamps
(HID)
HID lamps include groups of lamps
known as Mercury Vapor, Metal Halide,
and High Pressure Sodium.
High Pressure Sodium Lamps
(HPS)
An HID lamp using metallic sodium and
mercury in the discharge tube.
Hot Re-Strike Time
In HID lamps, the amount of time after a
momentary power interruption to return
of full light output. Ranges from 1-15
minutes or more, depending on lamp
type and fixture.
Illuminance (E)
The amount of light striking a surface
measured in footcandles or lux.
Illumination
The application of light.
Incandescent (electric) Lamp
Lamp in which light is produced by
heating a filament by the passage of an
electric current.
Indirect Light
The light received after reflection from
other surfaces.
Indirect Lighting
Lighting by means of indirect light.
Instant-start Lamp
Fluorescent lamp designed to start
without preheating of the electrodes.
IP Rating
Ingress Protection Rating. A rating
given to a fixture to indicate fixture
permeability by solids and liquids.
Kilowatt (Kw)
A measure of electrical power equal to
1000 watts.
Kilowatt-Hour (KwH)
Unit of electrical power consumed over
a period of time. One thousand watts
used for one hour equals one kilowatt-
hour.KwH=Watts/1000xhoursused.
Lamp
An artificial source of light commonly
referred to as a bulb.
Light Output
Amount of light produced by a light
source such as a lamp. Measured in
lumens or candlepower.
Lamp lumen depreciation (LLD)
The multiplier to be used in illumination
calculations to relate the ini tial rated
output of light sourc es to the anticipated
minimum rated output based on the
relamping program to be used.
Light loss factor (LLF)
A factor used in calculating illuminance
after a given period of time and
un der giv en conditions. It takes into
account lamp depreciation (LLD), dirt
accumulation (LDD), bal last fac tor (BF)
and high frequency lumen adjustment
(HFLA).
Louvre, Louver
Shield made of translucent or opaque
material and positioned to prevent
lamps from being directly visible at or
beyond a given angle.
Lumen
The unit of measure for the total amount
of light from a light source. Unit lumen, L.
Luminaire
A fixture or apparatus that distributes,
filters or transforms the light given by a
lamp or lamps and includes all the items
necessary for fixing and protecting
these lamps and for connecting them to
the supply circuit.
Luminaire dirt depreciation factor
(LDD)
The multiplier to be used in illuminance
calculations to re late the initial
illuminance pro vid ed by clean, new
luminaries to the reduced illumination
that they will pro vide due to dirt
collection on the luminaries at the
time at which it is anticipated that
clean ing pro ce dures will be instituted.
Luminance (L)
In a given direction, the amount of light
coming off of the surface. Unit candela per
square foot, cd/ft2.
Lux
Lumens per square meter.
Metal Halide Lamp
Discharge lamp that produces a white
light with good color rendering and
high efficacy.
Mortality Rate
The number of operating hours elapsed
before a certain percentage of the
lamps fail.
Mounting Height
The distance between fixtures and the
work plane.
NSF
NSF International, formerly National
Sanitation Foundation, is a not-for-
profit, non-governmental organization
that develops standards and provides
product certification and education in
the field of public health and safety.
GLOSSARY
Glossary
![](asset-142.png)
320
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
Open Rated
Designation given to a Metal Halide
lamp that includes an additional tube
surrounding the primary discharge
tube to contain glass and prevent lamp
breakage during a violent failure.
Operating Current
Current in amps consumed by a lamp at
rated wattage.
Operating Voltage
Voltage at rated wattage.
Parabolic
A concave surface capable of focusing
or diffusing light.
Power Factor
The ratio of watts over volts multiplied
by amperes.
Preheat Fluorescent Lamp
A lamp requiring a manual switch or a
starter to preheat the electrodes.
Probe Start
A lamp that uses a secondary cathode
to start the lamp. An arc is struck
between a primary and secondary
cathode (probe) that vaporizes metallic
elements in the discharge tube reducing
resistance between the primary
cathodes allowing the arc stream to
pass between the primary cathodes and
starting the lamp. Mercury vapor and
conventional metal halide lamps are
probe start.
Pulse Start
An HID ballast with a high voltage
ignitor to start the lamp. A term also
applied to a type of metal halide
lamp that provides improved lumen
maintenance for longer useful life and
extended relamp cycles. These products
are designed to operate specifically on
ballasts that have ignitors to help with
lamp starting.
R Lamps
Reflectorized lamps available in and
flood.
Rapid Start Fluorescent Lamp
A fluorescent lamp designed for
operation with a ballast that provides a
low-voltage winding for preheating the
electrodes and initiating the arc without
a starter or the application of high
voltage.
Recessed Luminaire
Luminaire mounted so that any visible
projection is insignificant.
Reflectance
Ratio in percent of the reflected light to
the incident light on a surface.
Reflector Lamp
Lamp in which part of the bulb is
coated with a reflective material.
Re-strike Time
The time it takes for a lamp to re-strike
after a power interruption. In most HID
lamps, if the lamp is at full brightness
and the power is removed for even a
split second, the lamp will extinguish
and will have to cool down before
it re-strikes, which can take between
1-15 minutes depending on lamp
type, wattage and fixture variables.
Fluorescent and incandescent lamps are
unaffected.
Shielding
Structural surfaces intended to prevent
direct view of the light source.
Spacing to Mounting Height
Ratio (S/M)
The ratio of the distance between
luminaire centers to the height above
the work plane. Gives the maximum
spacing of luminaires at which even
illumination will be provided.
Spotlight
A projector giving concentrated light
usually not more than 20˚ beam spread.
Standby Lighting
Emergency lighting that enables normal
activities to continue.
Starter
Device for starting a fluorescent lamp
that provides the necessary preheating
of the electrodes.
Task Lighting
Illumination intended to provide
acceptable light levels for area-specific
activities.
Transformer
Device used to regulate voltage to a
lamp.
Tungsten-Halogen Lamp
See Halogen Lamp
Underwriters’ Laboratories (UL)
A private organization which tests and
lists electrical (and other) equipment for
electrical and fire safety according to
recognized UL and other standards. A
UL listing is not an indication of overall
performance. Lamps are not UL listed
except for compact fluorescent lamp
assemblies - those with screw bases and
built-in ballasts.
Uniformity
A measure of the variation of light
over a given area expressed as either:
1) The ratio of the minimum to the
maximumilluminance;or2)Theratioof
the minimum to the average illuminance.
Valance Lighting
Lighting system comprising light sources
shielded by a panel parallel to the wall.
Warm-Up Time
The amount of time from ignition to
90% light output.
Watt (W)
The unit for measuring power.
Wavelength
Distance of a wave between two
successive points at which the phase is
the same.
Underwriter Laboratories (UL)
A private organization which tests and
lists electrical (and other) equipment
for electrical and fire safety according
to recognized UL and other standards.
A UL listing is not an indication of
overall performance. Lamps are not UL
listed except for integrated compact
fluorescent lamps - those with screw
bases and built-in ballasts.
Volt (V)
The unit for measuring electric potential.
It defines the force or pressure of
electricity.
GLOSSARY
Glossary
![](asset-143.png)
321
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
20 Gauge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
Accent Cloud . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104
Adjust-a-Bay Three-in-One Fluorescent High Bay . . . . . . . . . . . . . . . 40
Adjust-a-Bay™ Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . 294
Altus Adjustable Recessed Direct/Indirect Lighting . . . . . . . . . . . . . . . 8
Altus Energy Adjustable Recessed Direct/Indirect Lighting . . . . . . . . . . . 10
Anjelus Direct/Indirect Lighting . . . . . . . . . . . . . . . . . . . . . . . . 13
Architectural Vanity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106
AW Architectural Health Care . . . . . . . . . . . . . . . . . . . . . . . . . 76
Ballast Line Current Data . . . . . . . . . . . . . . . . . . . . . . . . . . 316
Light Loss Factors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 317
Bath Bars . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107
BH Series Bull Horns . . . . . . . . . . . . . . . . . . . . . . . . . . . 265
BL Series Round & Square Bollards . . . . . . . . . . . . . . . . . . . . . 274
CF Series 12” & 16” Canopy Fixture . . . . . . . . . . . . . . . . . . . . 220
CF Series 12” & 16” Canopy Fixture . . . . . . . . . . . . . . . . . . . . 314
CH 20 Gauge Striplite . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
CHA and CHS Striplites . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
CH Original Patented Striplite . . . . . . . . . . . . . . . . . . . . . . . . .62
CH Strip Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111
CHX 20 Gauge Slimline And High Output Channel . . . . . . . . . . . . . . . 85
CHX Slimline And High Output Channel . . . . . . . . . . . . . . . . . . . .63
CHX Slimline And High Output Channel . . . . . . . . . . . . . . . . . . . 112
Circline Basics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103
Compact Clouds . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102
CSWLED Wet Location LED Exit And Emergency Light . . . . . . . . . . . . 133
CX-100 Passive Infrared Occupancy Sensor . . . . . . . . . . . . . . . . 157
Decorative Crowns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
DMC-1 Dimming Control . . . . . . . . . . . . . . . . . . . . . . . . . 156
Dusk to Dawn Yard Lites . . . . . . . . . . . . . . . . . . . . . . . . . . 246
EB100, EB60, & EB50 Fluorescent Emergency Ballasts . . . . . . . . . . . 136
EN2 Enclosed gasketed weatherproof . . . . . . . . . . . . . . . . . . . . . 54
EN2 Enclosed gasketed weatherproof . . . . . . . . . . . . . . . . . . . . 115
EN3 Enclosed gasketed weatherproof . . . . . . . . . . . . . . . . . . . . . 56
EPA Ratings Effective Projected Area Rating for Fixtures . . . . . . . . . . 252
FAL Series 23” Square Automotive/Parking Floodlight . . . . . . . . . . . 240
FBD Series 16” Compact Floodlight . . . . . . . . . . . . . . . . . . . . . 230
FB Series Standard Floodlight . . . . . . . . . . . . . . . . . . . . . . . . 232
FC Series Cutoff Floodlight . . . . . . . . . . . . . . . . . . . . . . . . . 234
FF Series Forward Throw Floodlight . . . . . . . . . . . . . . . . . . . . . 236
Flex Modular Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . 194
FMM Series 9” Mini Floodlight . . . . . . . . . . . . . . . . . . . . . . . 226
FMR Series 11” Roundback Floodlight . . . . . . . . . . . . . . . . . . . . 228
FMS Series 9” Micro Floodlight with Hood . . . . . . . . . . . . . . . . . 224
FP Series Parking/Roadway Floodlight . . . . . . . . . . . . . . . . . . . 238
FSM Series Sign Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . 276
Full Size Clouds . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101
FVL Series 23” Square Vertical Burn Floodlight . . . . . . . . . . . . . . . 242
GBX Series 12” Garage Lighter . . . . . . . . . . . . . . . . . . . . . . . 218
GCS/GVV Series 8” & 12” Square Canopy Lighters . . . . . . . . . . . . . 212
GLX Series 12” Garage Lighter . . . . . . . . . . . . . . . . . . . . . . . 216
GR Series 11” & 15” Round Canopy Lighters . . . . . . . . . . . . . . . . 214
High-2-LowTM Lighting System . . . . . . . . . . . . . . . . . . . . . . . 190
IDP Industrial Decorative with Perforated Shielding . . . . . . . . . . . . . . 49
IE Industrial . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
IF Premium Turret Industrial . . . . . . . . . . . . . . . . . . . . . . . . . 48
JB Series 14”, 16” & 22” High Bay . . . . . . . . . . . . . . . . . . . 160
JC Series 17” & 22” Faceted Reflector . . . . . . . . . . . . . . . . . . 162
JLC and RS Series Remote Shade Assemblies . . . . . . . . . . . . . . . . 286
JLC Series 12” Mini Acrylic High Bay . . . . . . . . . . . . . . . . . . . 164
JL Series 16”, 22” & 25” Prismatic Refractor . . . . . . . . . . . . . . . 166
JTC Series TempLiteTM Jobsite Fixture . . . . . . . . . . . . . . . . . . 168
KW, JBH and OW Task Lighting . . . . . . . . . . . . . . . . . . . . . . . . 78
Latitude Contour Louvered Industrial Fluorescent . . . . . . . . . . . . . . . 52
Latitude Louvered Industrial Fluorescent . . . . . . . . . . . . . . . . . . . . 50
LDI Direct/Indirect . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
LED Energy Savings . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137
LJL Series 30” Low Bay . . . . . . . . . . . . . . . . . . . . . . . . . 180
LJM Series 22” Low Bay . . . . . . . . . . . . . . . . . . . . . . . . . 178
LJS Series 16” Low Bay . . . . . . . . . . . . . . . . . . . . . . . . . 176
Low Profile Cloud . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
LP5 and LS5 Low Profile T5 Strip . . . . . . . . . . . . . . . . . . . . . . . 65
LS-301 Light Harvester & Power Supply . . . . . . . . . . . . . . . . . 159
LS-301 Occupancy Sensors . . . . . . . . . . . . . . . . . . . . . . . . 158
LYM/LYL Series 22” & 30” Low Bay . . . . . . . . . . . . . . . . . . . 184
LYS Series 16” Low Bay Y Pod . . . . . . . . . . . . . . . . . . . . . . 182
MIRO Industrial Series . . . . . . . . . . . . . . . . . . . . . . . . . . . 298
MIRO Industrial Series . . . . . . . . . . . . . . . . . . . . . . . . . . . .46
Oak Drop Dish . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
Oak Grid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
OG Aluminum Enclosed Light . . . . . . . . . . . . . . . . . . . . . . . . . 60
OM Health Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
OS Directional Sign Light . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
OV410 Enclosed and Gasketed Striplite . . . . . . . . . . . . . . . . . . . . 58
OV450 Wet Location Enclosed and Gasketed . . . . . . . . . . . . . . . . . . 59
Parabolics - 20 Gauge . . . . . . . . . . . . . . . . . . . . . . . . . . . .81
Popular Reflectors For Simkar Fixtures . . . . . . . . . . . . . . . . . . . . 91
PR Series The Producer . . . . . . . . . . . . . . . . . . . . . . . . . . . 275
RC Series Remote Ballast Enclosure (Indoor or Outdoor Use) . . . . . . . . . 282
Reflect-A-Bay™ 4, 6, or 8 lamp T5/T8 . . . . . . . . . . . . . . . . . . . .44
Reflect-A-Bay™ series . . . . . . . . . . . . . . . . . . . . . . . . . . . 296
Reflector Options & Accessories . . . . . . . . . . . . . . . . . . . . . . . 188
REM Remote Heads . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138
Residential Shop Light. . . . . . . . . . . . . . . . . . . . . . . . . . . . 116
RJ Series Remote Ballast J-Pod . . . . . . . . . . . . . . . . . . . . . . . 284
RMVG Series 2 x 2 Recessed Lens . . . . . . . . . . . . . . . . . . . . . 272
RMVG Series 2 x 2 Recessed Louver . . . . . . . . . . . . . . . . . . . . . 270
RNTP Series Round Non-Tapered Steel Poles . . . . . . . . . . . . . . . . 260
INDEX
Index
![](asset-144.png)
322
Call 800.523.3602 • Fax 215.831.7703 • www.simkar.com
RS Series Remote Shade Assemblies . . . . . . . . . . . . . . . . . . . . . 287
RTA and RT Series Round Pole Mounting Brackets . . . . . . . . . . . . . . 264
RTSP Series Round Tapered Steel Poles . . . . . . . . . . . . . . . . . . 256
SA5 T5 Staggered Adjustable Strip . . . . . . . . . . . . . . . . . . . . . . 69
SCLI Combination Emergency Exit Light . . . . . . . . . . . . . . . . . . 134
SDC Die-Cast Aluminum LED Exit Light . . . . . . . . . . . . . . . . . . . 130
SEL Edge Lit LED Exit Light . . . . . . . . . . . . . . . . . . . . . . . . 126
Self-Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121
SEMR16 Twin MR16 Head Emergency Light . . . . . . . . . . . . . . . . 142
SEM Twin Head Emergency Light . . . . . . . . . . . . . . . . . . . . . 140
Sensors • Lamp/Ballast Kits . . . . . . . . . . . . . . . . . . . . . . . . . 303
SEP Surface Parabolic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
SFOEM Fixed Optics Emergency Light . . . . . . . . . . . . . . . . . . . 144
SHDEM Heavy Duty Emergency Light . . . . . . . . . . . . . . . . . . . 146
SKDL and SKDDL Docklight . . . . . . . . . . . . . . . . . . . . . . . . . . 70
SLED LED Exit Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122
SLF Series 21” Sports Floodlight . . . . . . . . . . . . . . . . . . . . . . 244
SLP Low Profile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
SMC Clouds . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36
SMCW Wall Cloud . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
SN990 Glare Reducing Wraparound . . . . . . . . . . . . . . . . . . . . . . 32
SP175 Corridor Wraparound . . . . . . . . . . . . . . . . . . . . . . . . . 34
SPB & SSB Series Square Pole Mounting Brackets . . . . . . . . . . . . . . 262
SREL Recessed Edge Lit LED Exit Light . . . . . . . . . . . . . . . . . . . . 124
SSL Self Luminous Exit Light . . . . . . . . . . . . . . . . . . . . . . . 128
SSP Series Square Steel Poles . . . . . . . . . . . . . . . . . . . . . . . 254
ST5 T5 Staggered Strip . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
STC Staggered Striplites . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
STSP Series Square Tapered Steel Poles . . . . . . . . . . . . . . . . . . 258
ST & STA Series Square Pole Mounting Brackets . . . . . . . . . . . . . . 263
SWLED Wet Location LED Exit Light . . . . . . . . . . . . . . . . . . . . 132
SWLEM Wet Location Emergency Light . . . . . . . . . . . . . . . . . . . . 148
SY130 Narrow Wraparound . . . . . . . . . . . . . . . . . . . . . . . . . . 33
SY920 Low Profile Wraparound . . . . . . . . . . . . . . . . . . . . . . . . 30
SY950 Wraparound . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
SYLP Low Profile Surface Series . . . . . . . . . . . . . . . . . . . . . . . . 27
SY Surface Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
T5 Fluorescent MINI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
T8 & T12 Fluorescent SLIM . . . . . . . . . . . . . . . . . . . . . . . . . . 80
TE2P Precision Parabolic . . . . . . . . . . . . . . . . . . . . . . . . . . .15
TE3P Shallow Plenum Parabolic . . . . . . . . . . . . . . . . . . . . . . . . 16
TEP94 Vertical Precision Parabolic . . . . . . . . . . . . . . . . . . . . . .17
TEP Series Deep Parabolic . . . . . . . . . . . . . . . . . . . . . . . . . . 114
T Series Louvered Troffers. . . . . . . . . . . . . . . . . . . . . . . . . . . 20
20 Gauge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
TWW Lay-In Wall Washer . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
TY66 Cube . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
TY Lensed Troffers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
TY Louvered Troffers - 20 Gauge . . . . . . . . . . . . . . . . . . . . . . . 83
TY Troffers - 20 Gauge . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
UW Task Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .77
V1000 Vandal Resistant . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
V4000 Vandal Resistant . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
V5000 Vandal Resistant . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
V6000 Vandal Resistant . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
V9000 Vandal Resistant . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
Wall Brackets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109
WCM Series 18” Stargazer Wallpack . . . . . . . . . . . . . . . . . . . . 210
WCM Series 18” Stargazer Wallpack . . . . . . . . . . . . . . . . . . . 310
WEC Bath Bars And Sconce . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Wind Map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 253
Wiring Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
WPC Series 9” Polycarbonate Wallpack . . . . . . . . . . . . . . . . . . . 200
WPG Series 9” Compact Glass Prismatic Wallpack . . . . . . . . . . . . . 201
WPL Series 15” Square Wallpack . . . . . . . . . . . . . . . . . . . . . . 202
WPS Series 13” Die Cast Aluminum Wallpack . . . . . . . . . . . . . . . 199
W Series 13” & 18” Full Cutoff Wallpack . . . . . . . . . . . . . . . . . 312
W Series 13” & 18” Full Cutoff Wallpack . . . . . . . . . . . . . . . . . . 208
WSL Series 18” Wallpack . . . . . . . . . . . . . . . . . . . . . . . . . . 206
WSM Series 13” Wallpack . . . . . . . . . . . . . . . . . . . . . . . . . . 204
WS Slim Striplite . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
WSS Series 11” Wallpack . . . . . . . . . . . . . . . . . . . . . . . . . . 198
WY66 And WE66 Surface Mount Task Lighting . . . . . . . . . . . . . . . . . 29
Xenon & Halogen XLINE & HLINE Series . . . . . . . . . . . . . . . . . . . 110
XT Spec Grade Post-Painted Deep Recessed Troffer . . . . . . . . . . . . . . 19
YB Series 14”, 16” & 22” Econobay High Bay . . . . . . . . . . . . . . 170
YL Series 16”, 22” & 25” Prismatic Acrylic . . . . . . . . . . . . . . . . 172
YTC (TEMP-O) Series Temporary Jobsite Fixture . . . . . . . . . . . . . . 174
ZC Series 17” & 22” Electronic/Faceted Reflector . . . . . . . . . . . . . . 152
ZL Series 16”, 22” & 25” Electronic/Prismatic Refractor . . . . . . . . . 154
Z-Pod Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 300
INDEX
DISCLAIMER
Simkar has worked carefully to ensure that the
content of this guide is as accurate as possible.
However, all critical specifications, requirements,
applications, installation issues, and product
information should be checked and confirmed prior
to purchase. Simkar makes no claims in regard to
the legal application, safety, or use of its products.
All questions related to such matters should be
directed to the appropriate governing bodies.
