AFL Product Catalog

For ordering assistance, please contact Customer Service at 877-529-9114 (sales@ﬁberoptic.com) or visit our website at: www.ﬁberoptic.com

SHIPPING OPTIONS

• Same day shipping for in-stock products ordered before 3PM EST.

• You choose your shipping method: UPS, FedEX, DHL or

U.S. Postal Service

• Global shipping

VALUE ADDED SERVICES

We are here to provide you with solutions and products to

fulﬁll your project needs

• Free account set up with your ﬁrst purchase

• Equipment Rentals

• Free Professional Technical Support available 9AM-5PM EST

• Chat on-line with a Professional in Real Time

• Global Training

• With Over 3,000 Products in Stock we are guaranteed to

meet any of your ﬁber optic needs

TO PLACE AN ORDER

• Web: www.ﬁberoptic.com

• E-mail: sales@ﬁberoptic.com

• Phone: 1-877-529-9114

• Fax: 1-215-689-1463

If we have your email address on ﬁle, orders will be

conﬁrmed automatically via e-mail.

HOURS OF OPERATION

FiberOptic.com has Professional Sales Representatives ready to

take your order Monday through Friday, 9AM - 5PM Eastern

Standard Time or place your order on-line through our web-site.

www.ﬁberoptic.com

The Fiber Optic Marketplace, LLC is committed to maintaining

excellent customer service and client relations. As we continue

into the future, the company will continue to offer expertise in

the ﬁeld of ﬁber optics by providing customized solutions for

our customers’ project requirements. We will continue to uphold

our status as the number one on-line provider of ﬁber optic

products, training and rental solutions.

For sales assistance

1-877-529-9114

Table of Contents

Fusion Splicers 1-3

Cleavers 4

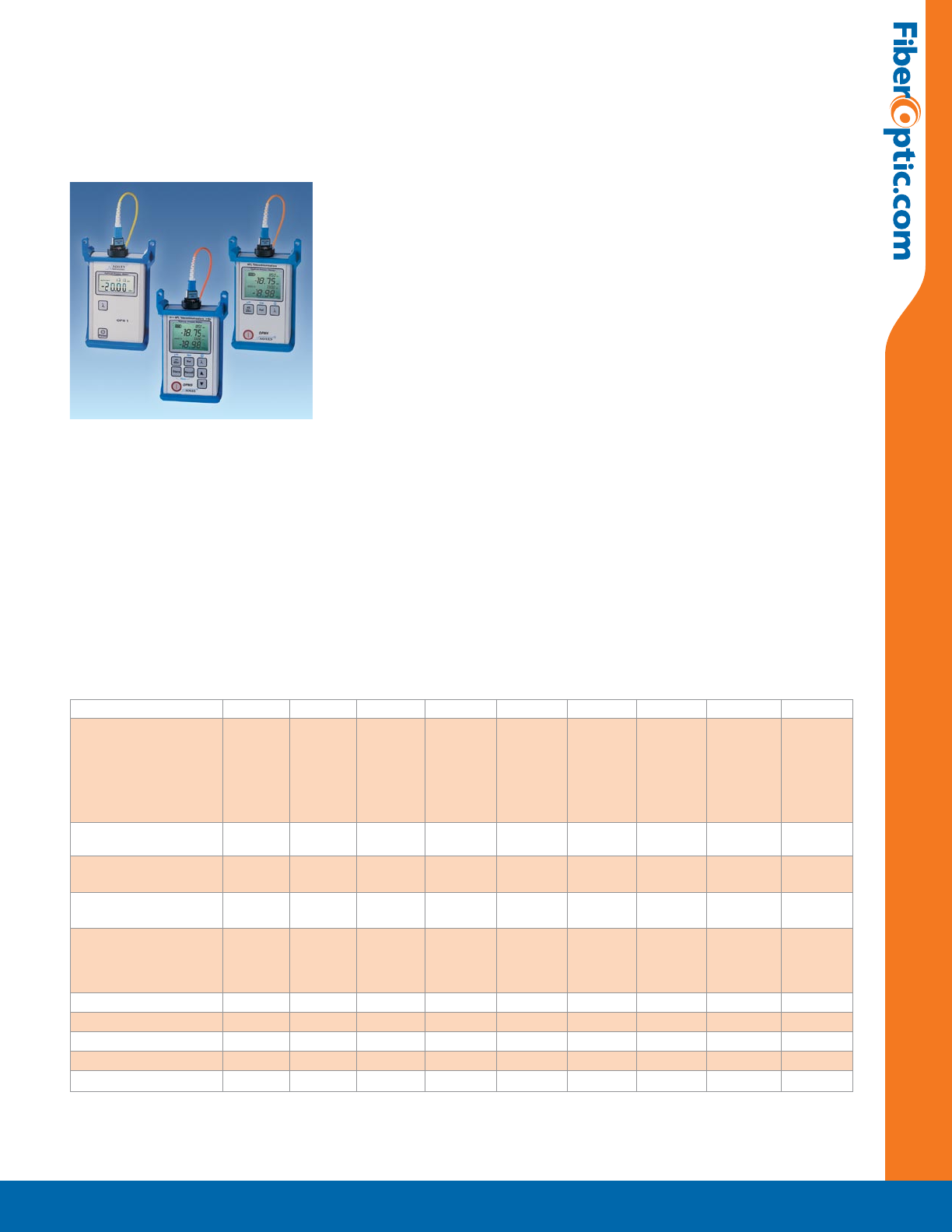

Power Meters 5

OTDRs 6-7

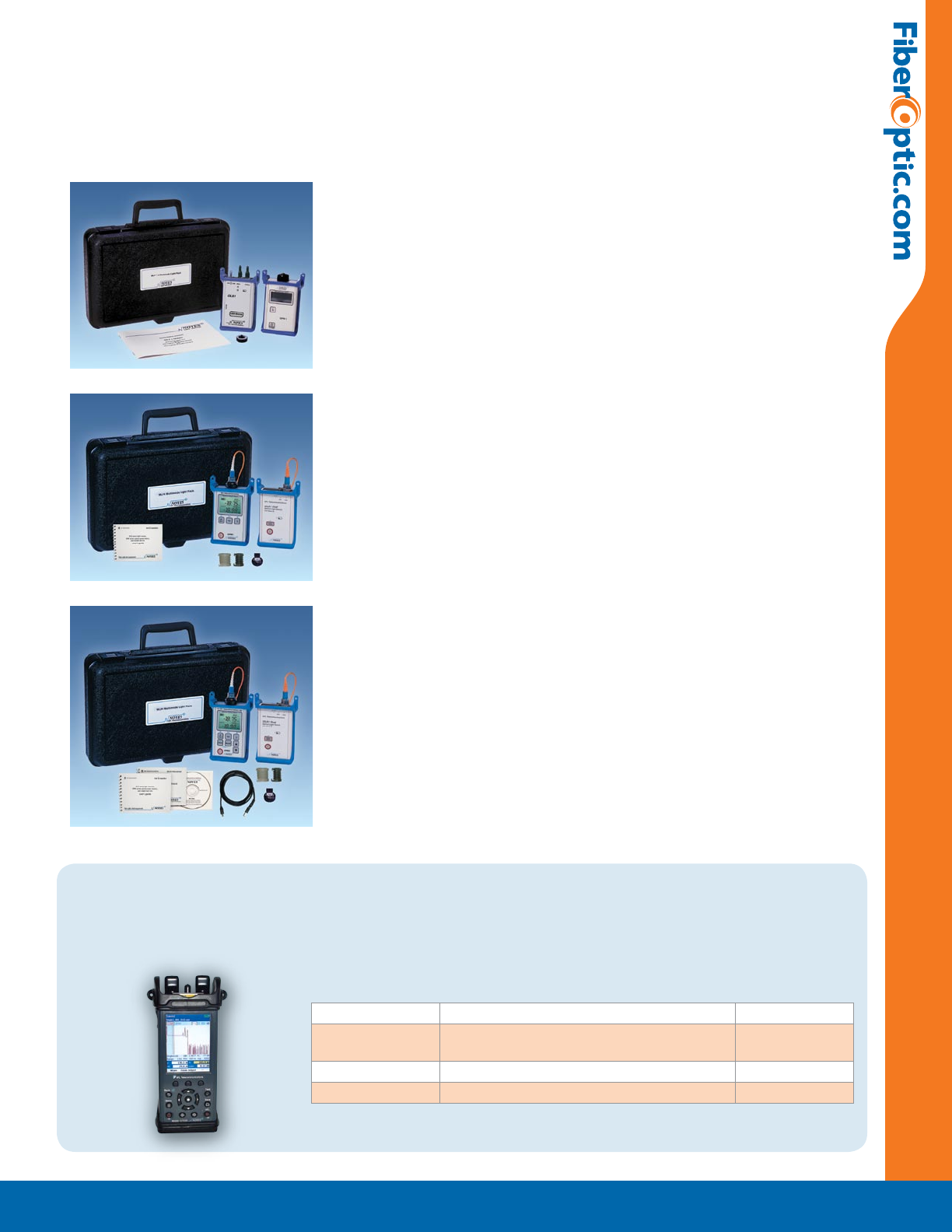

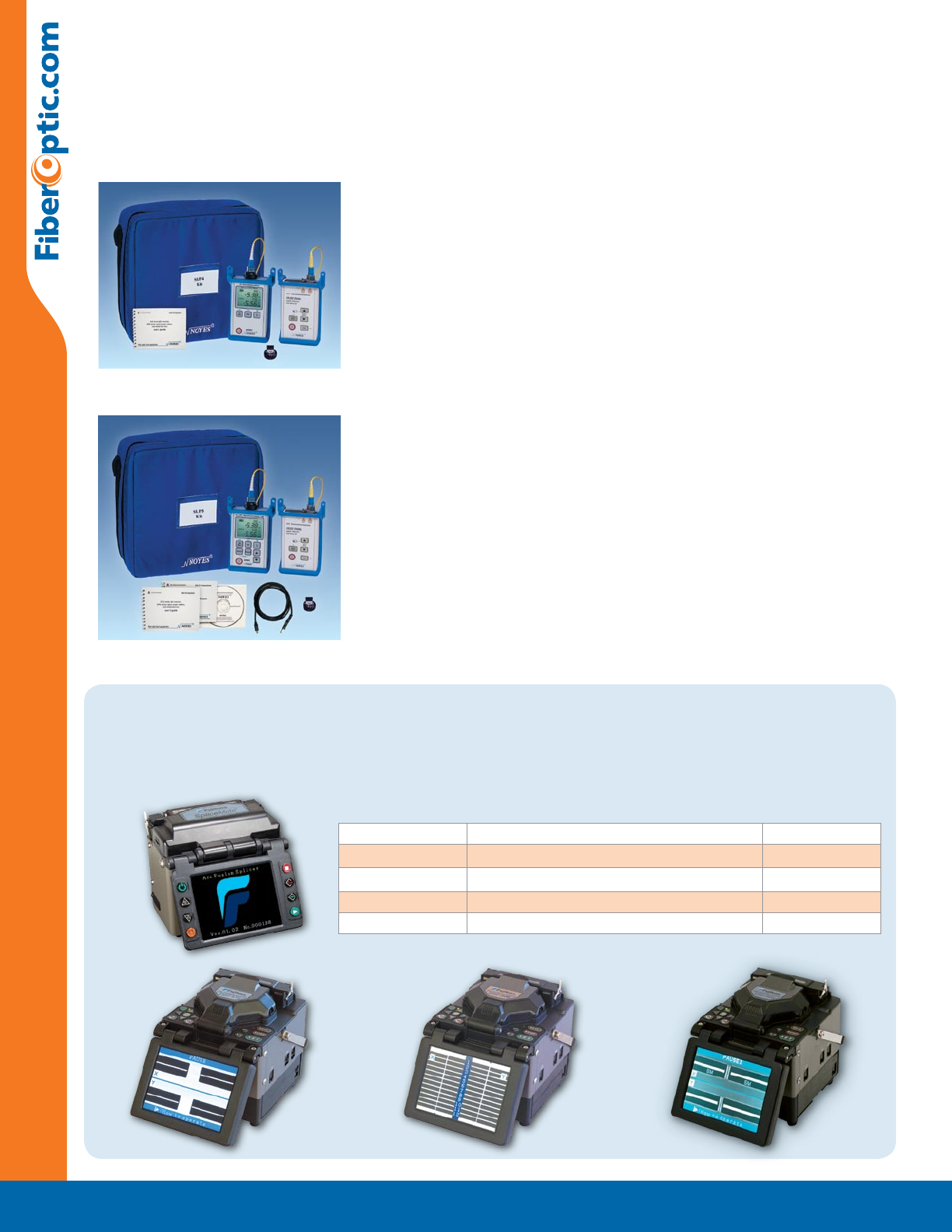

Test Kits 8-12

Microscopes 13

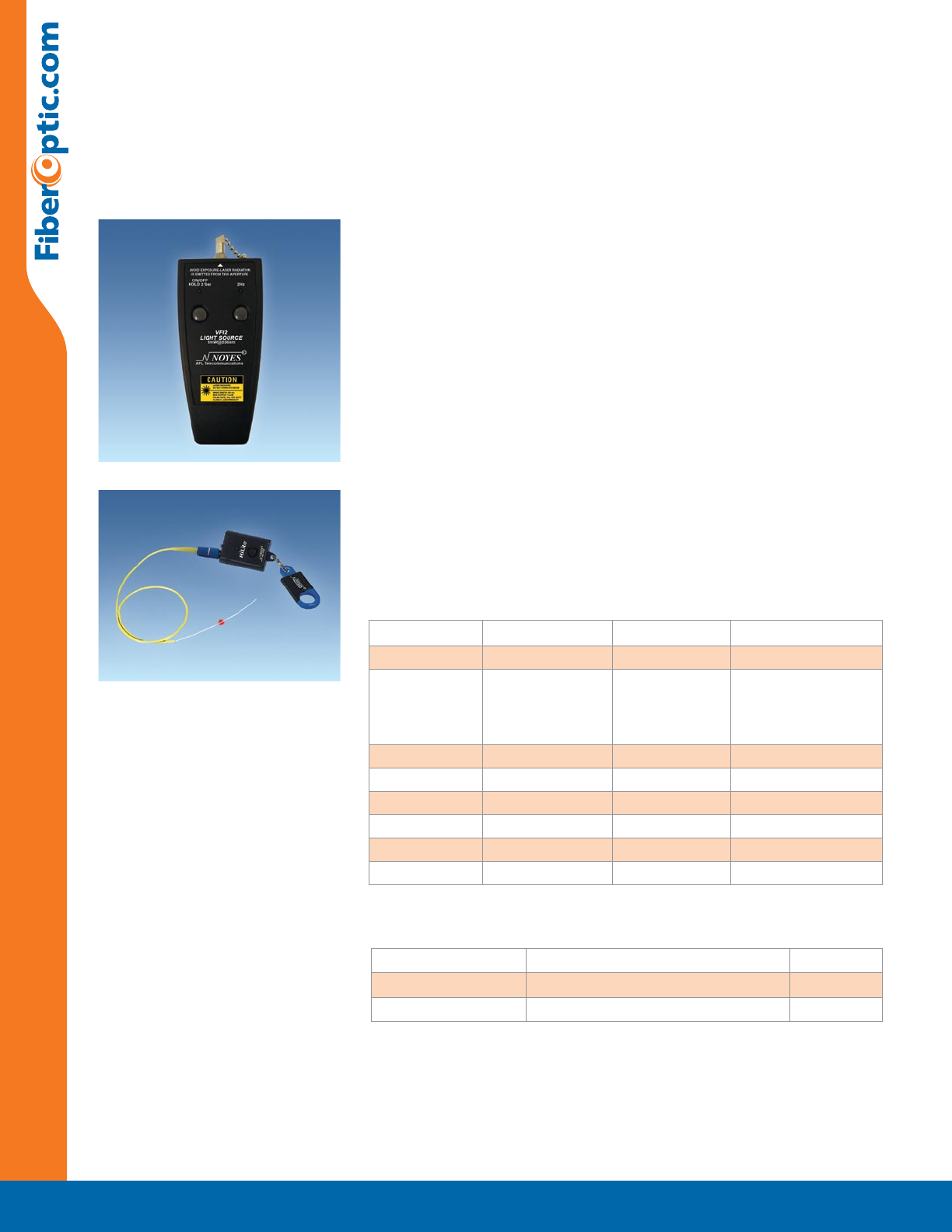

Visable Laser Sources 14

Optical Fiber Identifiers 15

Active ONT Detector 16

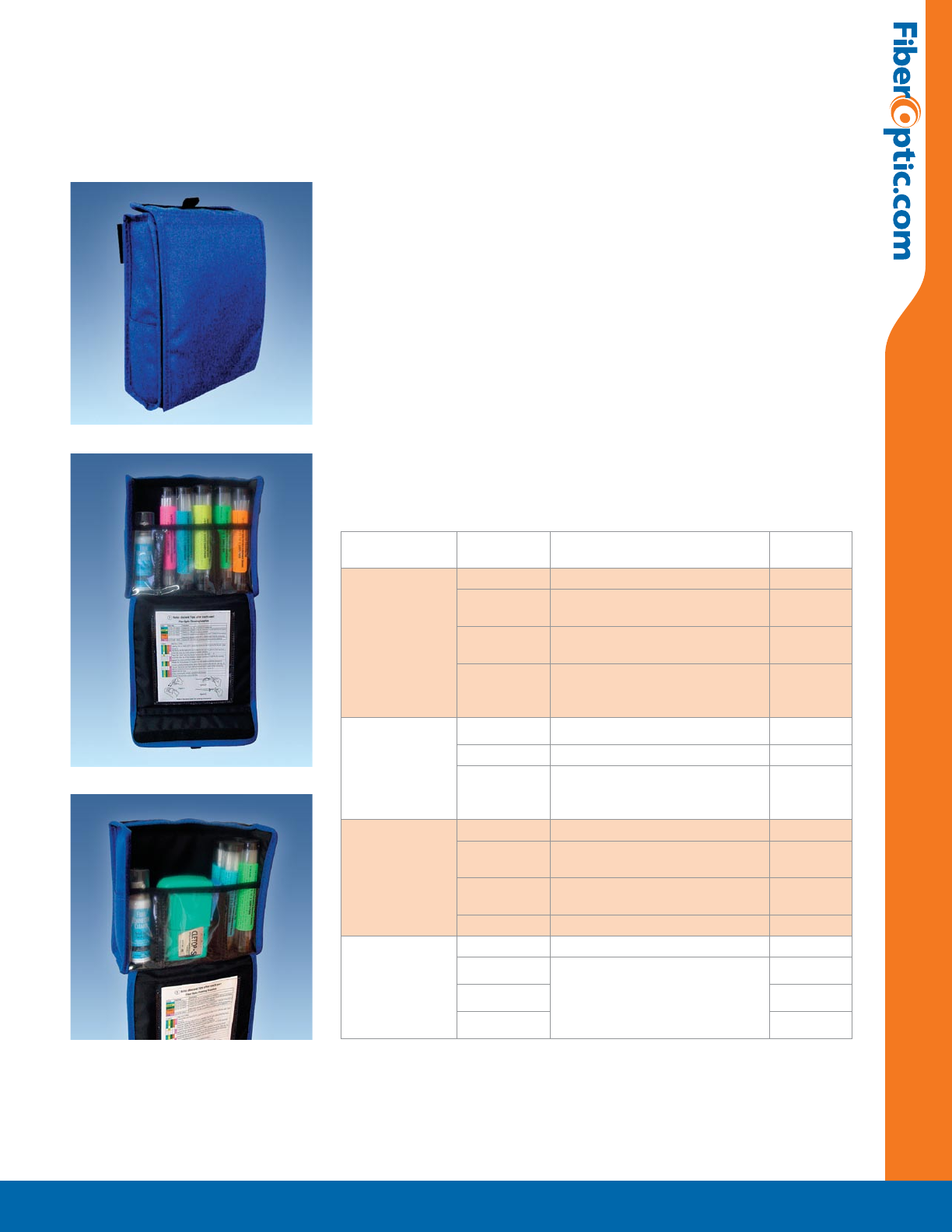

Cleaning Packs 17

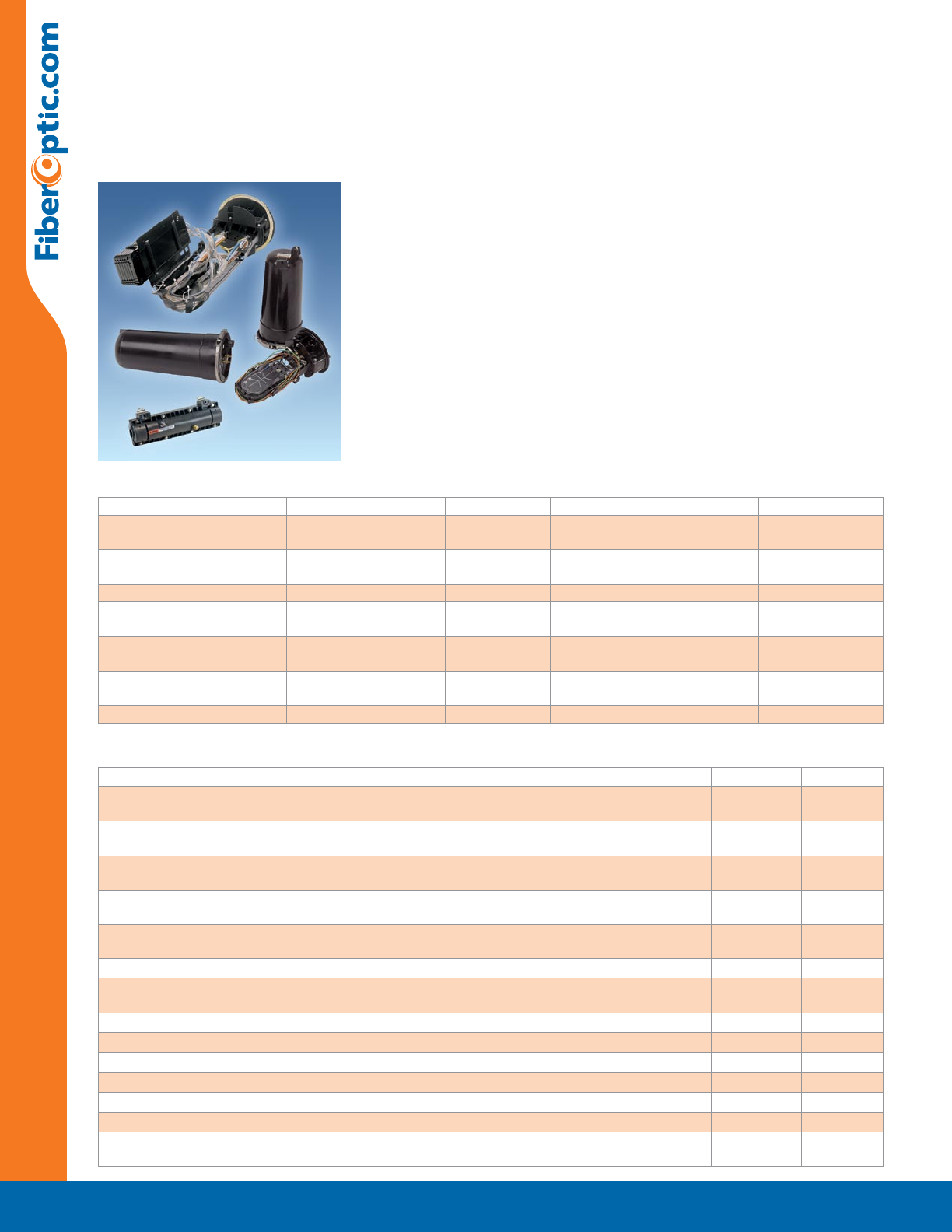

Sealed Enclosures 18

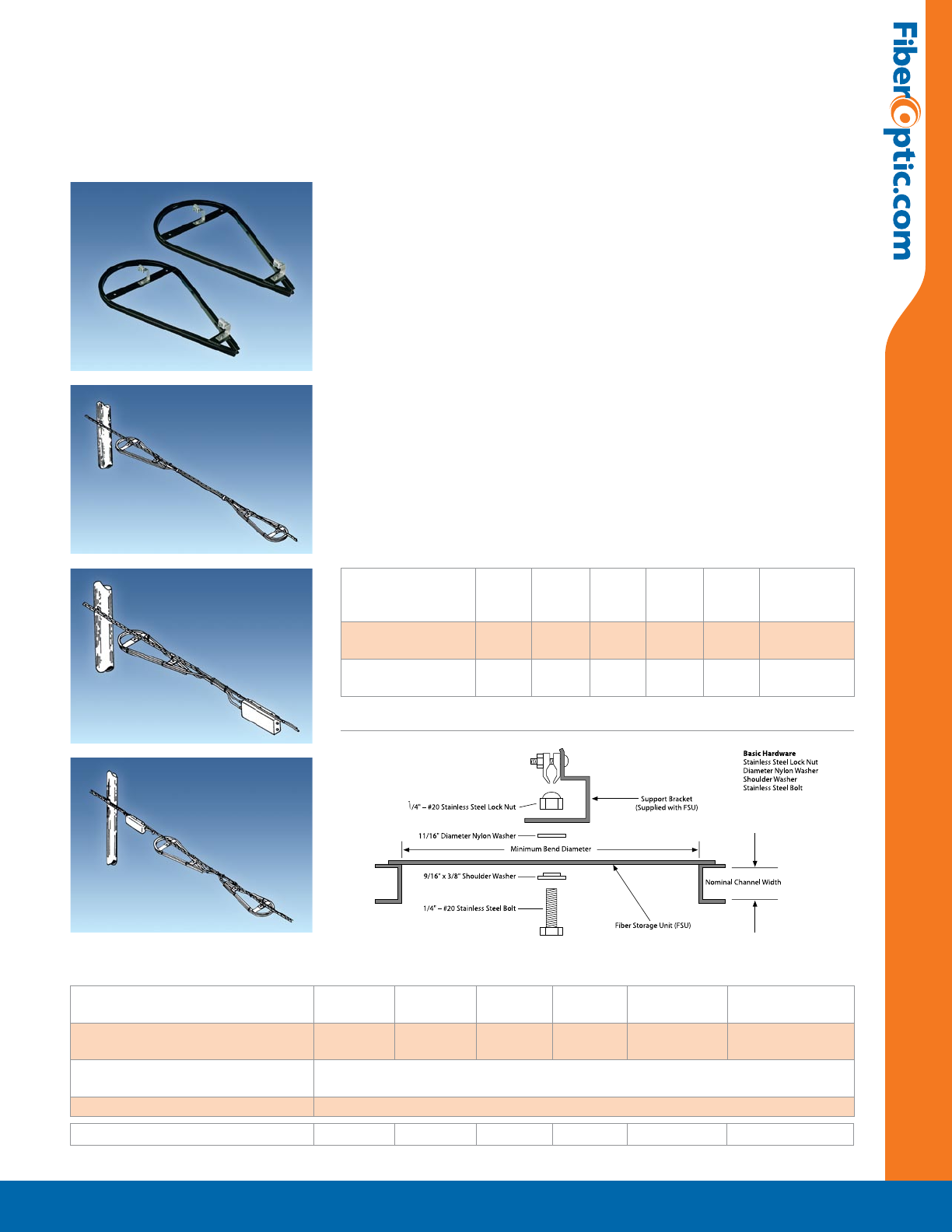

Fiber Storage Units 19

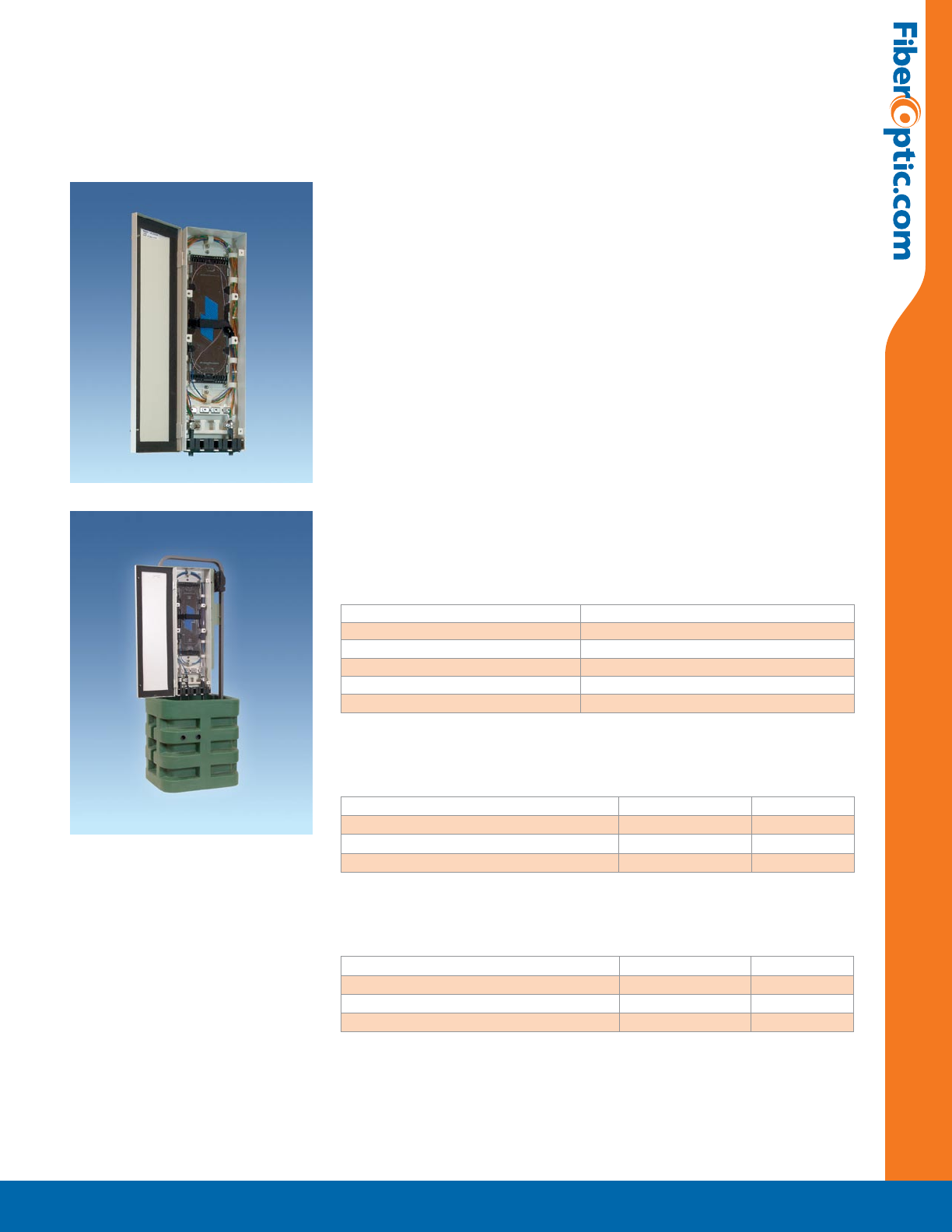

Fiber Distribution Hubs 20

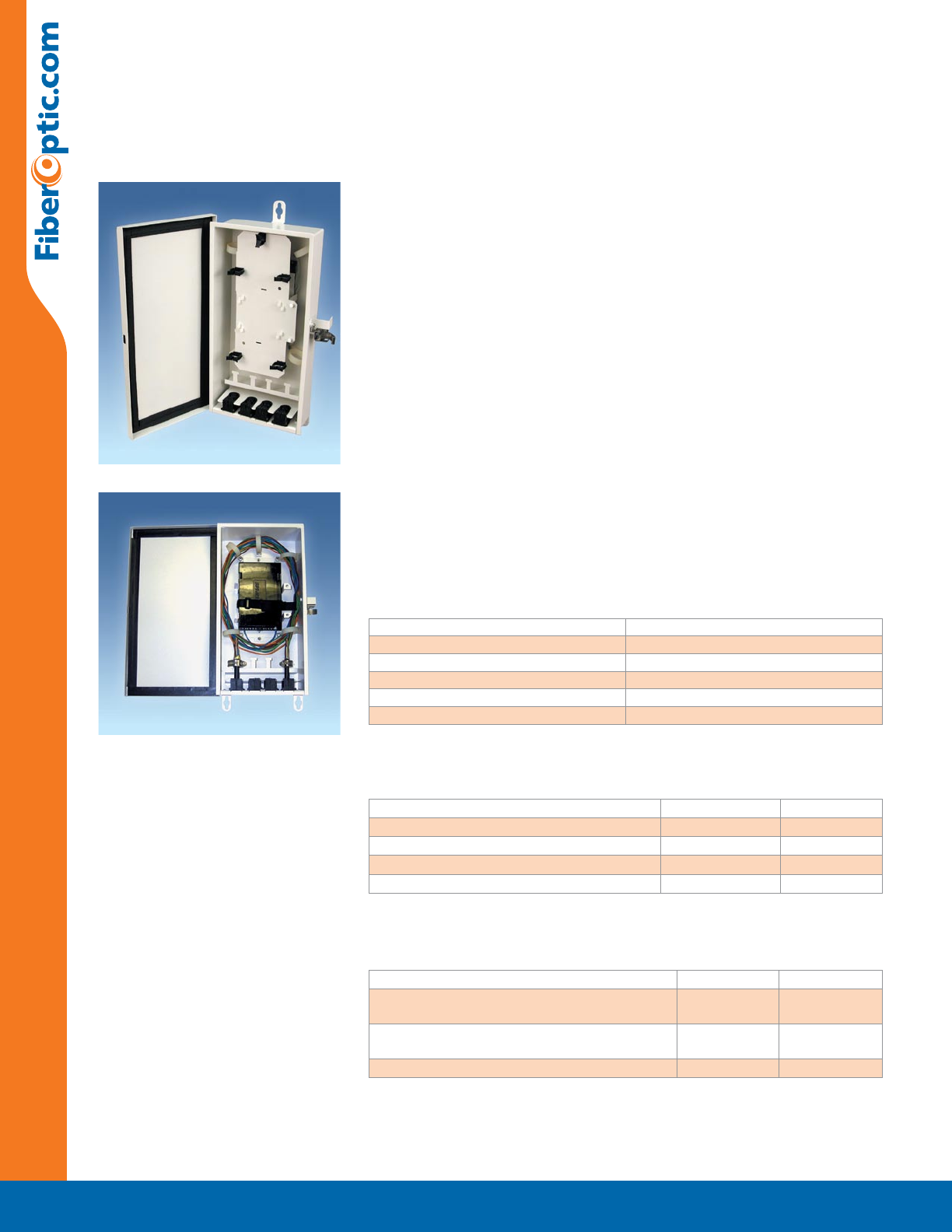

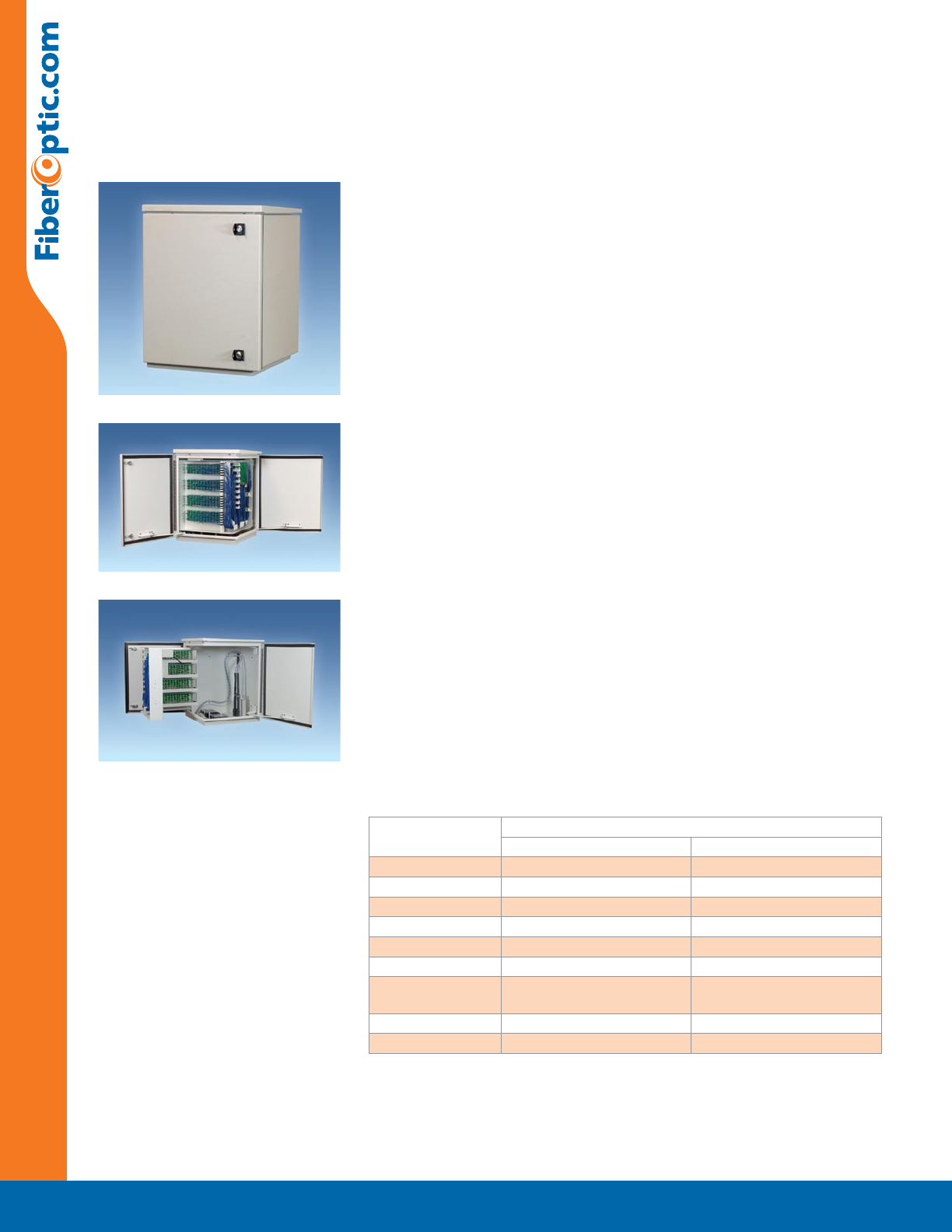

Enclosures 21,22

Patch and Splice Panels 23,24

Demarcation Closure 25

Adapter Plates 26

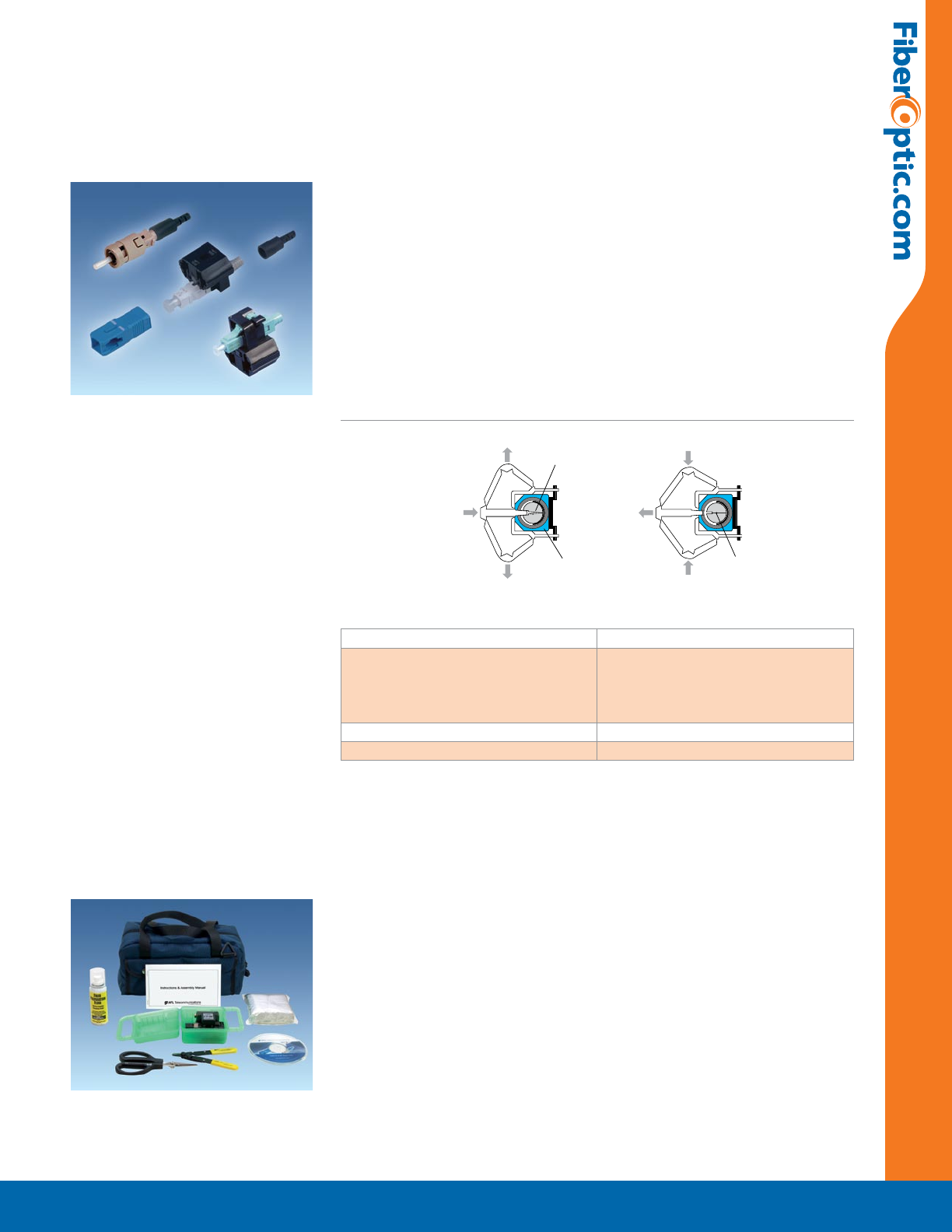

Connectors 27

Connectors and Tool Kits 27,28

Fiber Cable 29

All products are sold FOB shipping point. Items will be shipped UPS

ground, freight collect or third-party bill unless otherwise requested

by purchaser. Please advise method of shipment and preferred car-

rier when order is placed. We discourage mandatory carrier require-

ments which have an adverse effect on service and delivery. Check

your order immediately upon arrival. All damages must be noted

on delivery receipt. Any claims for damage or loss of items while in

transit must be ﬁled with the carrier.

For purchasers with established credit, terms are net 30 days from

date of shipment. Payments must be in U.S. dollars and cash dis-

counts are not allowed. Our remit to address is The Fiber Optic Mar-

ketplace, One TEK Park Suite 220, 9999 Hamilton Blvd. Breinigsville

PA 18031.

RETURN POLICy

Items being returned must ﬁrst be approved by FiberOptic.com and

must be shipped freight prepaid. Returned goods are subject to a

25% restocking fee.

Any liability for consequential or incidental damages is expressly dis-

claimed. FiberOptic.com’s liability is limited to, and shall not exceed,

the purchase price paid.

DISCLAIMER

For ordering assistance, please contact Customer Service at 877-529-9114 (sales@ﬁberoptic.com) or visit our website at: www.ﬁberoptic.com

Fusion Splicers

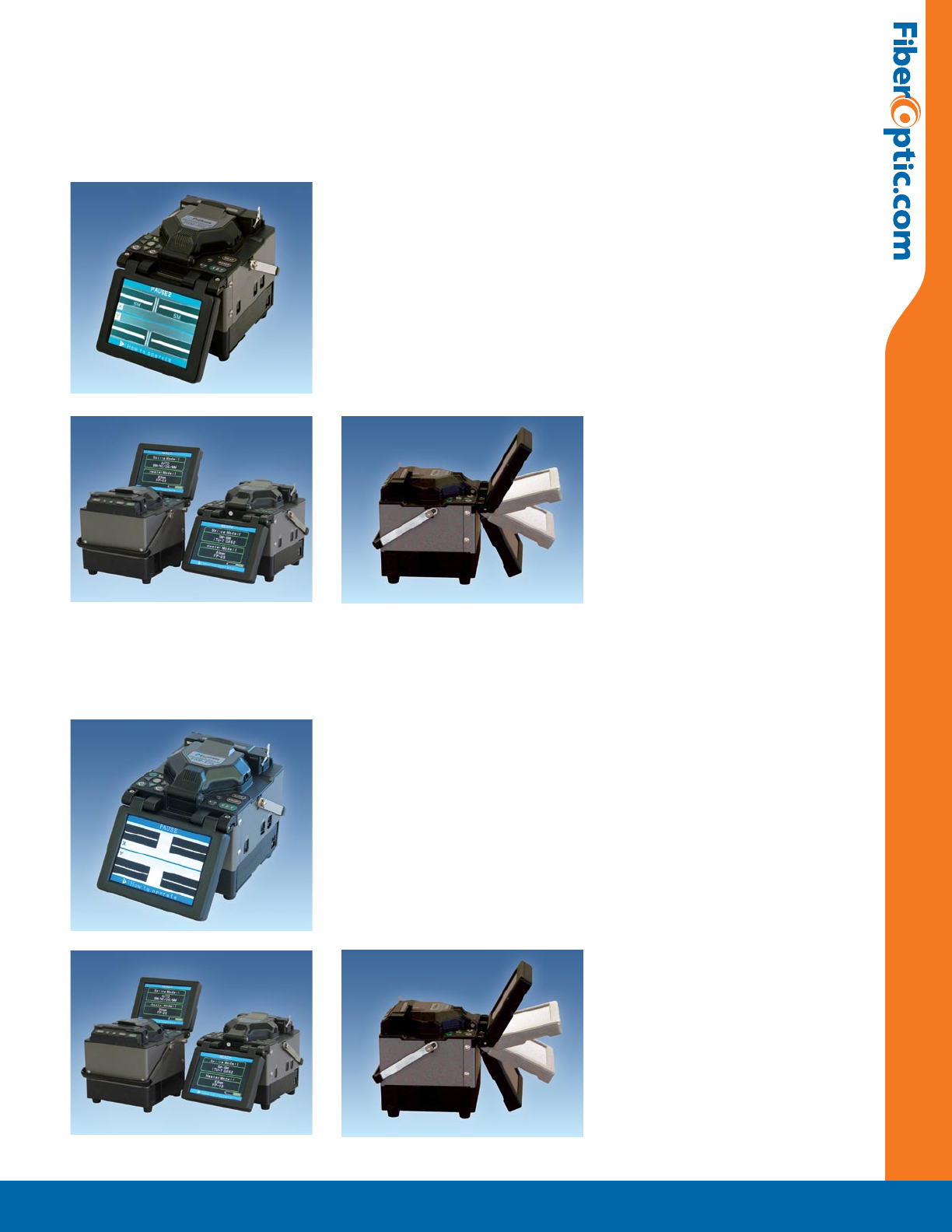

FSM-17S FUSION SPLICER

Features

• 35 second tube heater

• Dual direction monitor position

• Long life battery (up to 160 splices/

shrinks per charge)

• Automatic arc calibration

• Available in either sheath clamp or ﬁber

holder models

The FSM-17S establishes a new standard for single ﬁber “ﬁxed v-groove”

type fusion splicers with a host of improvements including a 35 second tube

heater, dual position monitor, and a longer battery life. The real time arc cali-

bration feature makes ﬁeld maintenance easier than ever. Also available now

is a version of the FSM-17S utilizing a ﬁber holder system, making the splic-

ing process extremely simple for inexperienced technicians. The FSM-17S is

well suited for FTTX applications and both models quickly attach to the newly

redesigned ASW-02 workstation, making ﬁeld portability a breeze.

Changing Monitor Positions

Top and Front Monitor Positions

FSM-50S FUSION SPLICER

Features

• Automatic core-to-core, low-loss splic-

ing regardless of ﬁber quality or age

• 9-second splicing time

• 35-second heat time (60mm sleeve)

• Dual, user selectable monitor position

• Excellent visibility in bright sunlight with

5.6” TFT Color LCD display

• Automatic arc calibration

• Long life battery (up to 160 splice/

shrink cycles per charge)

The FSM-50S Fusion Splicer sets the standard for core alignment fusion splicers. The

FSM-50S is the fastest ﬁeld splicer available, and completes a splice and tube heat

in a total of 44 seconds. Special features include its small size and weight and the

legendary ruggedness Fujikura is known for. The FSM-50S also includes user-friendly

features such as calibration-free arc adjustments, automatic ﬁber type identiﬁcation

and reduced operational steps. The FSM-50S also offers increased ﬂexibility for

various splicing tasks with user-selectable front and back monitor positioning.

Changing Monitor PositionsTop and Front Monitor Positions

For ordering assistance, please contact Customer Service at 877-529-9114 (sales@ﬁberoptic.com) or visit our website at: www.ﬁberoptic.com

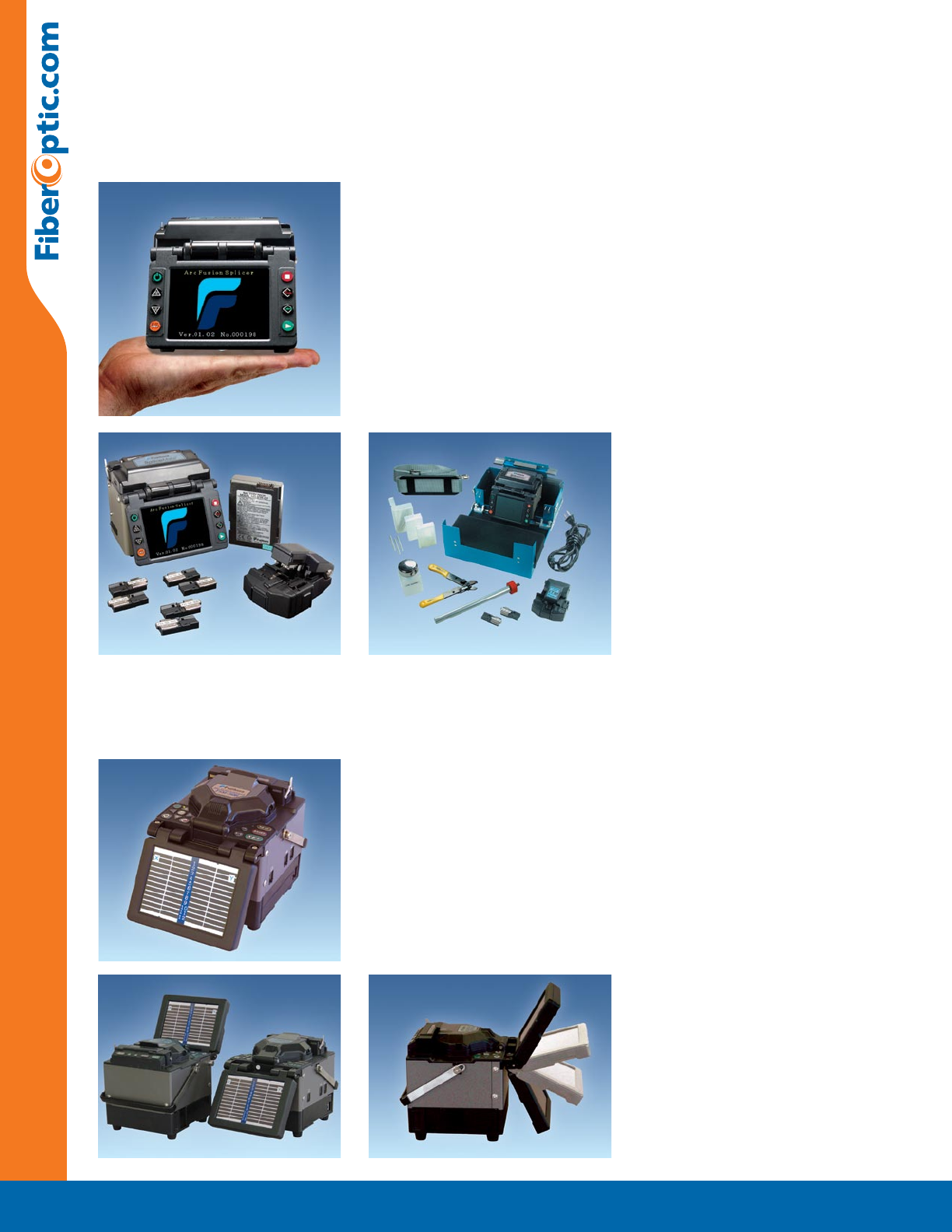

SpliceMate (FSM-11) is the world’s smallest and most portable fusion splicer and is

designed to meet the challenges posed by today’s ﬁber networks. SpliceMate ﬁts in

the palm of your hand, yet it’s smart and reliable enough to be used with conﬁ-

dence by inexperienced operators.

SpliceMate’s advanced intelligence features include two-camera ﬁber inspection to

insure the splice is right and Auto Arc Calibration...an industry ﬁrst. It’s easy to

operate and quickly makes low-loss splices with all common types of optical ﬁbers

up to 4-ﬁber ribbons. SpliceMate is available with a variety of powering options

including a battery pack and adapters to work with AC or DC power sources.

A workstation, speciﬁcally designed for the SpliceMate, is available for simpliﬁed

splicing in the ﬁeld. Whether splicing on a pole, in a bucket, or in a neighborhood...

SpliceMate is the friend to have along on the job!

Features

• Highly portable

• Dual camera inspection

• 3.5” dual direction monitor

• Single or 4-ﬁber versions available

• 40 second tube heater

• Auto arc calibration

• 30 mph wind protector

SPLICEMATE™ HANDHELD FUSION SPLICER

SpliceMate shown with kit SpliceMate shown with Portable Workstation

Fusion Splicers

FSM-50R12 FUSION SPLICER

Features

• 45 second tube heater

• Dual direction monitor position

• Long life batteries

(up to 140 splices/shrinks per charge)

• Automatic arc calibration

• Auto load ﬁber positioning

The FSM-50R12 offers numerous improvements to increase productivity and provide

additional ﬂexibility. A new “auto load” feature provides for fast and easy place-

ment of the ﬁber holders into the splicer. The FSM-50R12 also beneﬁts from a greatly

improved tube heater which shrinks a 12-ﬁber splice protection sleeve in approxi-

mately 45 seconds. Other enhancements include larger capacity batteries, dual direc-

tion monitor, and real time arc calibration. The FSM-50R12 quickly attaches to our

newly redesigned ASW-02 workstation, making ﬁeld portability a breeze.

Top and Front Monitor Positions

Changing Monitor Positions Changing Monitor Positions

For ordering assistance, please contact Customer Service at 877-529-9114 (sales@ﬁberoptic.com) or visit our website at: www.ﬁberoptic.com

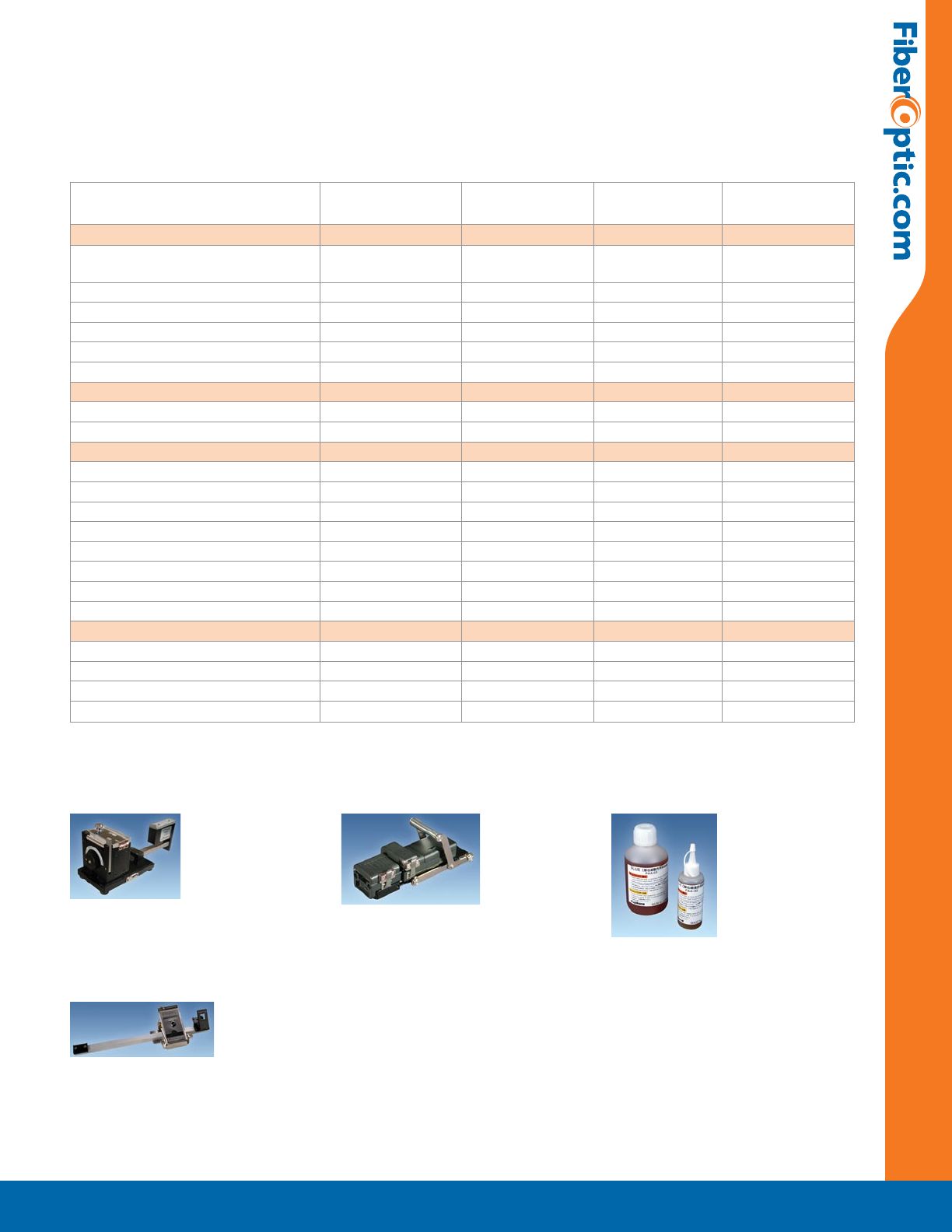

Fusion Splicing Accessories

Fiber Arrangement Tools

FUSION SPLICER ACCESSORIES

SPLICING ACCESSORIES

Hot Jacket Strippers

The HJS-02

and HJS-03-

24 hot jacket

strippers

provide

superior

ribbon and

ﬁeld-ribbonized stripping performance.

They conserve power for ﬁeld stripping

when operating under battery power.

A temperature selection switch is also

provided for easy optimization in the

ﬁeld for different ﬁbers or operating

conditions. An optional single-ﬁber

adapter may be used to provide easy

single-ﬁber capability for difﬁcult-to-

strip ﬁbers.

The FAT-02 Fiber

Arrangement

Tool is an industry

standard tool for

forming individual

250µm coated

ﬁbers into ribbons.The ﬁbers are placed

into the proper position within the

spring, eliminating the need to pre-sort

the ﬁbers and place them into the tool

in numerical sequence.

The FAT-04

features an

easy-to-use

ﬁber arrangement method utilizing

linear travel. The FAT-04 includes a

spare paste applicator to allow ribbon

making to continue even if one of the

paste applicators needs cleaning.

ACCESSORIES FSM-11S/R

(SPLICEMATE) FSM-17S FSM-50S FSM-50R

Power, Cords & Cases

DCA-02 DC Adapter for Splicemate

(needed for AC operation) •

ADC-10 AC Adapter •

BTR-06S Battery (REQUIRES DCC-10) • • •

BTR-06L Battery (REQUIRES DCC-10) • • •

DCC-10 Power Cord • • •

LC-01 Leather Case •

Electrodes

Electrodes, FSM-11S/R •

Electrodes, ELCT2-20A • • •

Fiber Holders

FH-50-250 Fiber Holders • •

FH-50-900 Fiber Holders • •

FH-50-2 Fiber Holders •

FH-50-4 Fiber Holders •

FH-50-6 Fiber Holders •

FH-50-8 Fiber Holders •

FH-50-10 Fiber Holders •

FH-50-12 Fiber Holders •

Portable Workstations

SpliceMate Portable Workstation •

Aerial Mounting Kit •

ASW-02 Splicing Workstation • • •

PRICE $8,400.00 $ 7,150.00 $17,900.00 $18,900.00

Ribbon Forming Adhesive

A key advantage

of both ﬁber

arrangement

tools is the use

of the ribbon

forming adhesive.

Ribbons formed

with this adhesive

have excellent stripability, especially

compared to ribbonizing methods

using tape. Unlike tape methods, the

paste does not “gum-up” the stripping

tool and cause broken ﬁbers. The paste

holds the stripped coating residue into

a single piece of debris that is easily

cleaned from the stripper. If needed,

the ribbon can be easily separated into

individual ﬁbers using alcohol.

For ordering assistance, please contact Customer Service at 877-529-9114 (sales@ﬁberoptic.com) or visit our website at: www.ﬁberoptic.com

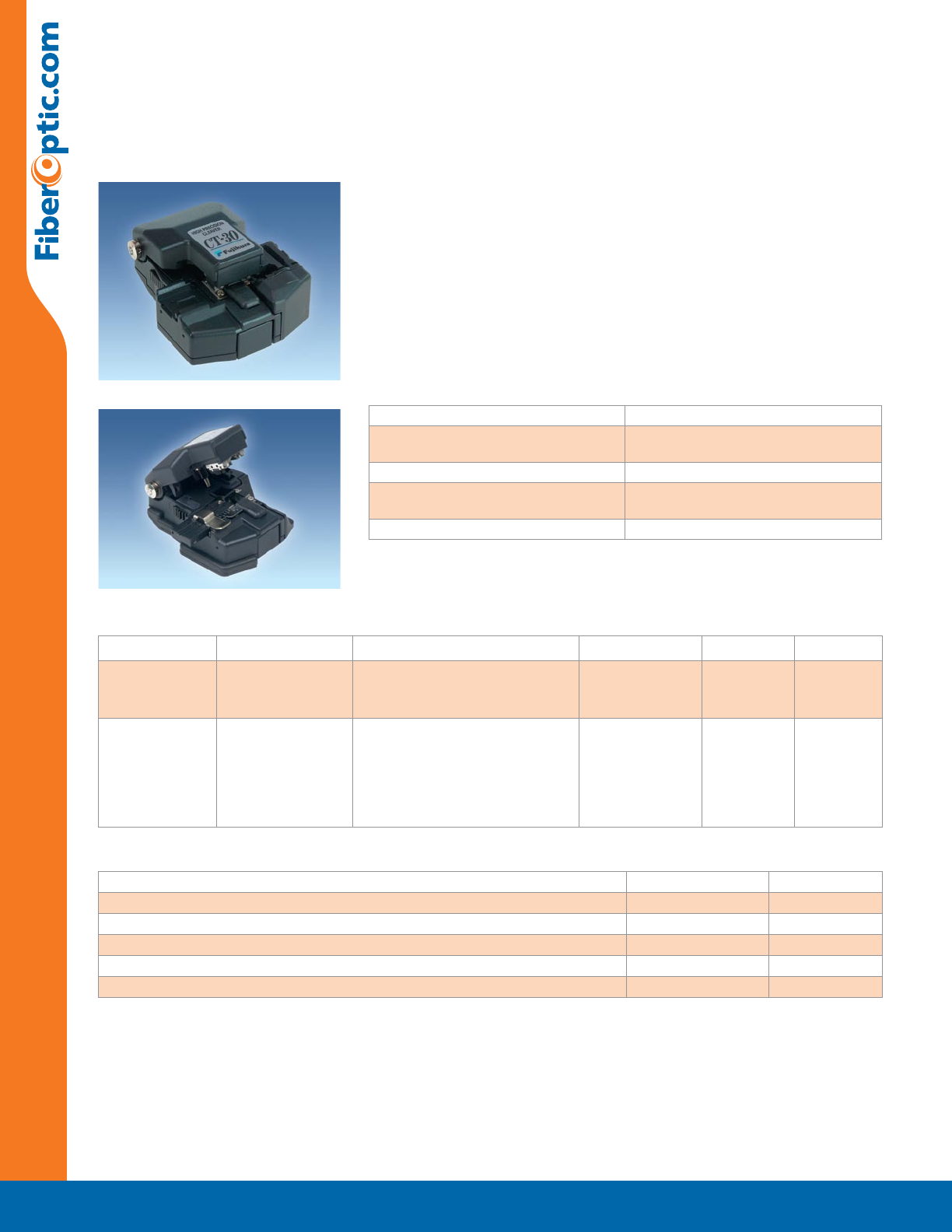

CT-30 SERIES FIBER CLEAVERS

Fiber Cleavers

SPECIFICATIONS

PARAMETER VALUE

Dimensions (W x D x H) 69mm x 82mm x 41mm (2.7” x 3.2” x

1.6”)

Weight 180g (0.4 lbs)

Blade lifetime 48,000 ﬁber cleaves (4,000 12-ﬁber

cleaves)

Cleave angle capability typically <0.5˚

The CT-30 Cleaver sets the standard for portability, reliability and ease-of-use.

Available for either single ﬁber or ribbon splicing (up to 12 ﬁber ribbons) applica-

tions, the CT-30 Cleavers are compatible with all AFL Telecommunications fusion

splicers. Designed for excellent portability, the CT-30 is equally at home in a splicing

van or in a bucket truck and is ideal for FTTx applications. The 16-position blade

yields 48,000 single-ﬁber cleaves, or 4,000 12-ﬁber ribbon cleaves before requiring

replacement, and the built-in scrap collector conveniently stores ﬁber shards until

they can be safely discarded.

ORDERING INFORMATION

MODEL NO.

APPLICATION

FIBER HANDLING SYSTEM

CLEAVE LENGTH

PART #

PRICE

CT-30

Fiber Ribbons

(up to 12 ﬁbers)

Fiber Holders for the following:

FSM-50R, FSM-17S-FH, FSM-

30R, 40R

10mm

S014076

$1,056.72

CT-30A

Single Fibers:

250µm to 900µm

coating, 125µm

cladding

AD-30A Adapter Plate

900µm:

10mm to 20mm

250µm:

6mm to 20mm

S014080

$1,113.33

ACCESSORIES

DESCRIPTION PART # PRICE

Replacement Blade for CT-30 Series Cleavers S012828 $185.00

FC-02 Fiber Collector S014092 $194.81

AD-30A Adapter Plate S014096 $92.50

AD-30B Adapter Plate S014100 $92.50

FDB-02 Fiber Collector Scrap Box S014104 $11.43

Get hands–on experience, professional training

and a FiberOptic.com Masters of Splicing Certification!

Call for more information 877-529-9114

For ordering assistance, please contact Customer Service at 877-529-9114 (sales@ﬁberoptic.com) or visit our website at: www.ﬁberoptic.com

Optical Power Meters

Optical power meters may be used to measure optical power in premises, telco, or

broadband ﬁber optic networks. When used with an LED or laser light source, an

OPM can also measure the attenuation (loss) of multimode or single-mode cables.

OPM 1 - Measures Optical Power in dBm

With only two controls – Power and Wavelength – the OPM 1 is our simplest to use

optical power meter. Optical power in dBm and the calibration wavelength setting

are displayed on an easy-to-read LCD display.

OPM 4 - Adds Wave ID and Set Reference

The OPM 4 offers automatic wavelength identiﬁcation and switching when used

with Wave ID light sources. The OPM 4 stores optical references for each calibrated

wavelength. An easy-to-read Dual Wavelength LCD display with Backlight shows

measured power [dBm or µW] or insertion loss [dB], calibrated wavelengths, tone

signal [Hz], wavelength ID, and the battery charge status.

OPM 5 - Adds Wave ID and Data Storage

The OPM 5 offers automatic wavelength identiﬁcation and switching when used

with Wave ID light sources. The OPM 5 stores optical references for each calibrated

wavelength. An easy-to-read Dual Wavelength LCD display with Backlight shows

measured power [dBm or µW] or insertion loss [dB], calibrated wavelengths, tone

signal [Hz], wavelength ID, and the battery charge status. Up to 500 records per

wavelength of power or insertion loss measurements may be stored in internal

non-volatile memory. Using the supplied Windows® compatible software and USB

connection, test records may be transferred to a PC for storage, display, printing,

and analysis.

SPECIFICATIONS

MODEL OPM 1-2C OPM 1-3C OPM 4-1D OPM 4-2D OPM 4-3D OPM 4-4D OPM 5-2D OPM 5-3D OPM 5-4D

Calibrated wavelengths

(nm)

850

1300

1310

1550

850

1300

1310

1550

660

780

850

1300

1310

1550

850

1300

1310

1550

1625

850

980

1310

1490

1550

1625

850

1300

1310

1550

850

1300

1310

1550

1625

850

980

1310

1490

1550

1625

Detector type Germanium InGaAs Silicon Germanium InGaAs Filtered

InGaAs

Germanium InGaAs Filtered

InGaAs

Measurement range

(dBm)

+6 to -60 +6 to -70 +6 to -70 +6 to -60 +6 to -70 +26 to -50 +6 to -60 +6 to -70 +26 to -50

Measurement units dBm dBm dB, dBm,

μW

dB, dBm, μW dB, dBm, μW dB, dBm, μW dB, dBm, μW dB, dBm, μW dB, dBm, μW

Power 9 volt 9 volt 2 x AA

batteries,

optional

NiMH

2 x AA

batteries,

optional

NiMH

2 x AA

batteries,

optional

NiMH

2 x AA

batteries,

optional

NiMH

2 x AA

batteries,

optional

NiMH or AC

2 x AA

batteries,

optional

NiMH or AC

2 x AA

batteries,

optional

NiMH or AC

Wavelength ID — — yes yes yes yes yes yes yes

Set reference — — yes yes yes yes yes yes yes

Tone Detect* yes yes yes yes yes yes yes

PC software & storage — — — — — — yes yes yes

PRICE $449.00 $549.00 $549.00 $449.00 $549.00 $599.00 $795.00 $895.00 $949.00

* 270 Hz, 330 Hz, 1 kHz, and 2 kHz Tone detection.

OPM SERIES OPTICAL POWER METERS

For ordering assistance, please contact Customer Service at 877-529-9114 (sales@ﬁberoptic.com) or visit our website at: www.ﬁberoptic.com

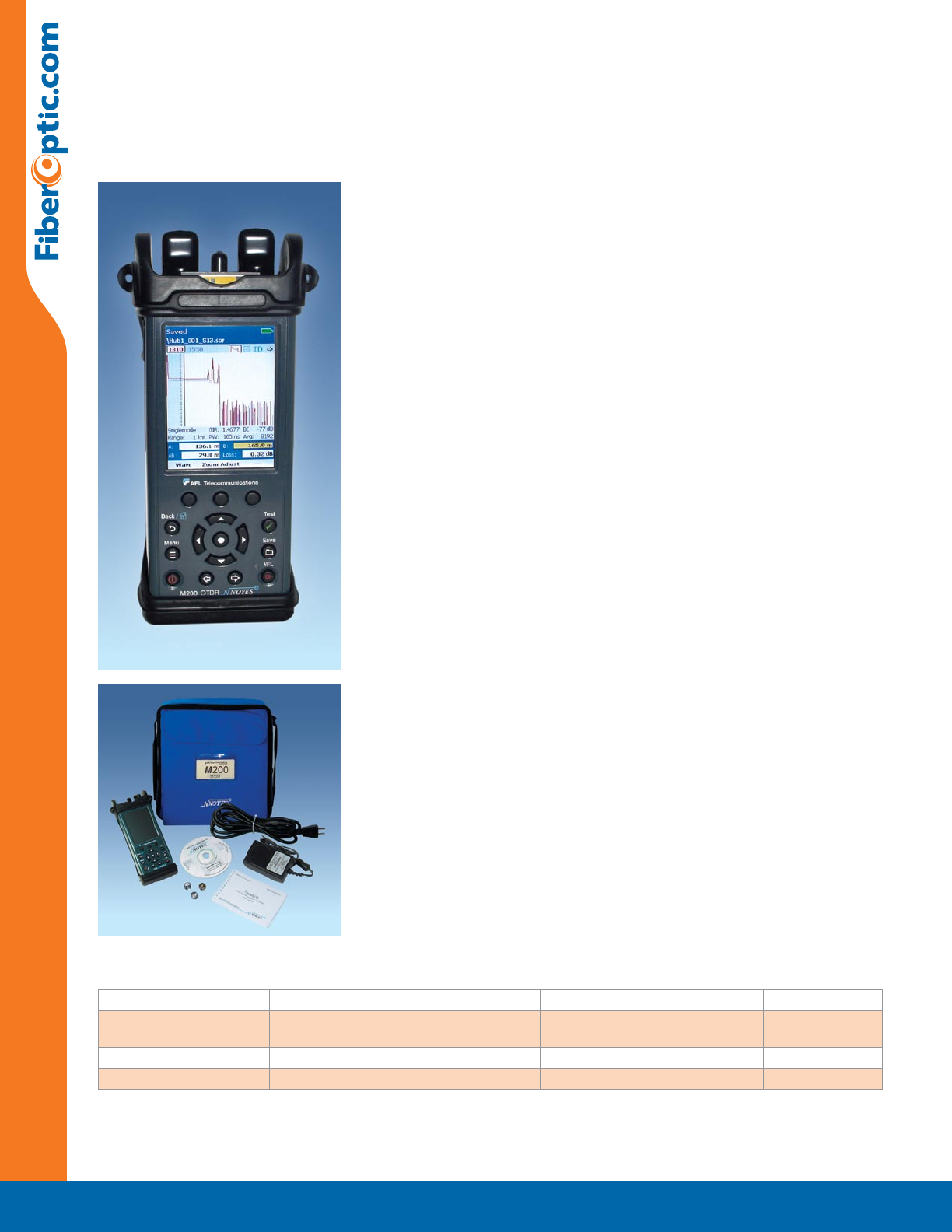

Handheld OTDRs

The Noyes M200 from AFL Telecommunications offers unmatched OTDR capabili-

ties in a handheld package weighing less than 1 kg (2 lb). Multimode, Single-mode,

and ‘Quad’ wavelength models are offered. With short dead-zone and intermediate

range speciﬁcations, the M200 is ideal for Tier 2 testing of premises (building and

campus) networks or certiﬁcation and troubleshooting of FTTX PON networks. And

its bright, transﬂective display makes it suitable for both indoor and outdoor opera-

tion.

The M200 is based on a new hardware/software platform that supports automatic

and manual setup, precision event analysis, dual-wavelength testing, ﬁber identi-

ﬁcation using Noyes ‘TR’ test receivers, rich ﬁle naming and folder setup, 6 hour

battery life, internal and removable media data storage, and USB connectivity. Test

ports are equipped with tool-free adapters, which can be changed in seconds. A

custom-designed polycarbonate case and shock-absorbing boot make it our most

rugged OTDR ever.

Results are saved as industry standard .SOR ﬁles, which can be viewed, printed, and

analyzed on a PC using free-ware available to you and your customers (go to www.

aﬂtele.com to download). Unit ﬁrmware, user settings, and test results are saved

in non-volatile memory. Thus the M200 may be stored with battery removed for an

extended period of time and still be up and running in seconds when needed.

M200 HANDHELD OTDR

Features

• Handheld, 0.9 kg (2 lb)

• 850/1300/1310/1550 nm

• 1.5 m (typ.) event dead-zone

• 22 dB (MM), 26 dB (SM) dynamic range

• Integrated VFL (650 nm)

• Tool-free, switchable adapters (ST/SC/FC)

• Bellcore (GR-196) .SOR ﬁle format

• CompactFlash™ memory card

• Tool-free LiIon battery (6 hour life)

• Transﬂective (indoor/outdoor) touch-

screen display

ORDERING INFORMATION

MODEL NUMBER DESCRIPTION TEST PORT ADAPTERS PRICE

M200-K-QUAD 850/1300 nm multimode and 1310/1550

nm single-mode OTDR

(2) ST, (2) SC, and (1) FC $8995.00

M200-K-MM 850/1300 nm multimode OTDR ST and SC $6295.00

M200-K-SM 1310/1550 nm single-mode OTDR SC and FC $5995.00

All models include a rugged, soft-sided carry case with shoulder strap, 110/220 VAC power adapter with country-speciﬁc power cord, and user guide.

Applications

• Tier 2 testing of premises networks

• FTTX PON certiﬁcation and trouble-

shooting

• Fast fault location

• Splice veriﬁcation

• Network documentation

For ordering assistance, please contact Customer Service at 877-529-9114 (sales@ﬁberoptic.com) or visit our website at: www.ﬁberoptic.com

Handheld OTDRs

Get hands–on experience, professional training

and a FiberOptic.com Masters of Testing Certification!

Call for more information 877-529-9114

SPECIFICATIONS

OTDR SPECIFICATIONS

PARAMETER MULTIMODE SINGLE-MODE

Emitter Type Laser

Safety Class Class 1 FDA 21 CFR 1040.0 & 1040.11

Center Wavelengths 850/1300 nm 1310/1550 nm

Wavelength Toleran ce ± 20 / ± 30 nm ± 20 / ± 30 nm

Dynamic Range (SNR = 1) 22 dB 26 dB

Event Dead-zone 11.5 m 1.5 m

Attenuation Dead-zone 29 m 9 m

Pulse Widths 310, 30, 100, 300 ns, 1, 3 µs 10, 30, 100, 300 ns, 1, 3, 10 µs

Range 250 m to 64 km 250 m to 208 km

Data Points Up to 16,000 Up to 16,000

Data Point Spacing 0.25 m (range < 4 km)

Range/16000 (range > 8 km)

Group Index of Refraction (GIR) 1.4000 to 1.6000

Trace File Format Bellcore GR-196 Version 1.1

Trace File Storage Medium Internal, non-volatile memory and removable Compact Flash Card

Trace File Storage Capacity > 100 internal; thousands on Compact Flash

Distance Uncertainty (m) ± (1 + 0.005% x distance + data point spacing)

VISUAL FAULT LOCATOR SPECIFICATIONS

Emitter Type Laser

Safety Class Class II FDA 21 CFR 1040.10 & 1040.11; IEC 825-1:1993, EN60825-1:1994

Wavelength 650 nm

Output Power (nominal) 0.8 mw

GENERAL SPECIFICATIONS

Size (in boot) 23 x 11 x 7 cm (8.8 x 4.3 x 2.8 inches)

Weight 0.9 kg (2 lb)

Operating Temperature -10 to +50 °C

Storage Temperature -20 to +60 °C

Relative Humidity 0 to 95% RH (non-condensing)

Power Removable LiIon or 110/220 VAC power adapter

Battery Life 6 hours

All speciﬁcations are subject to change.

1. Typical distance between the two points 1.5 dB down each side of a reﬂective spike caused by a -40 dB (Multimode) or -45 dB

(single-mode) event using 10 ns pulse width.

2. Typical distance from event location to point where trace is within 0.5 dB of backscatter.

3. 3 µs pulse width not available at 850 nm.

M200 HANDHELD OTDR

For ordering assistance, please contact Customer Service at 877-529-9114 (sales@ﬁberoptic.com) or visit our website at: www.ﬁberoptic.com

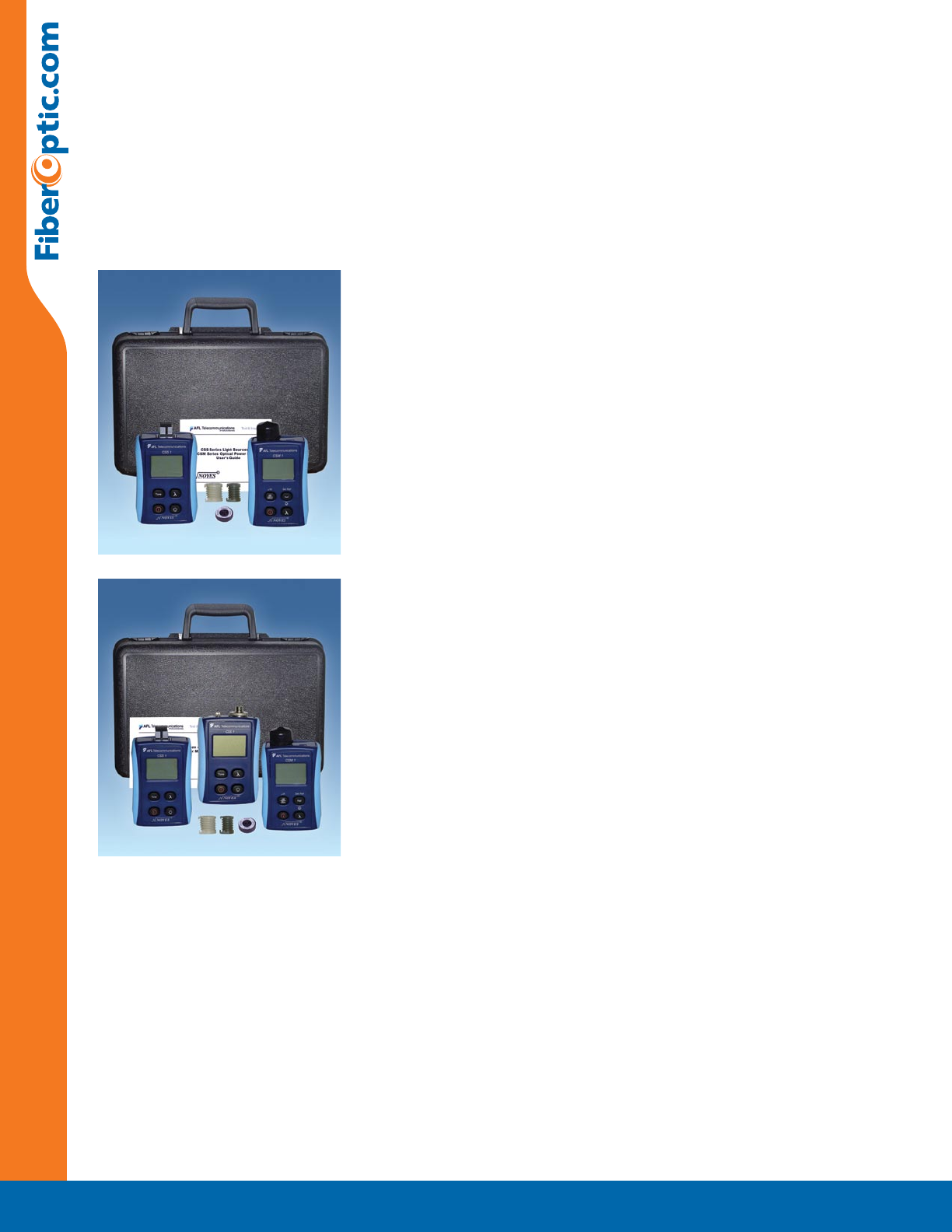

To accommodate your ﬁber optic loss testing needs, Noyes offers a variety of multimode (MLP) test kits, single-mode (SLP) test kits,

single-mode/multimode (SMLP) and Contractor Sries (CK) test kits. These kits are ideal solutions for testing and certifying a range

of networks such as LANs, WANs, IXC, CATV, and Telecom. Kits come complete with an adapter cap, software, download cable

and instructions.

CKM 2 - Contractor Series Multimode Test Kit with

Set Reference

Combining the CSM 2 optical power meter and CSS-MM Dual LED light source, the

CMK 2 is a cost-effective test kit designed for performing insertion loss measure-

ments on multimode ﬁber optic links.

CONTRACTOR SERIES LOSS TEST KITS

CKSM 2 - Contractor Series Multimode & Single-mode Test

Kit with Set Reference

Combining the CSM 2 optical power meter, CSS-MM Dual LED light source, and

CSS-SM Dual LASER source, the CKSM 2 is a cost-effective test kit designed for

performing insertion loss measurements on multimode as well as single-mode ﬁber

optic links.

Loss Test Kits

For ordering assistance, please contact Customer Service at 877-529-9114 (sales@ﬁberoptic.com) or visit our website at: www.ﬁberoptic.com

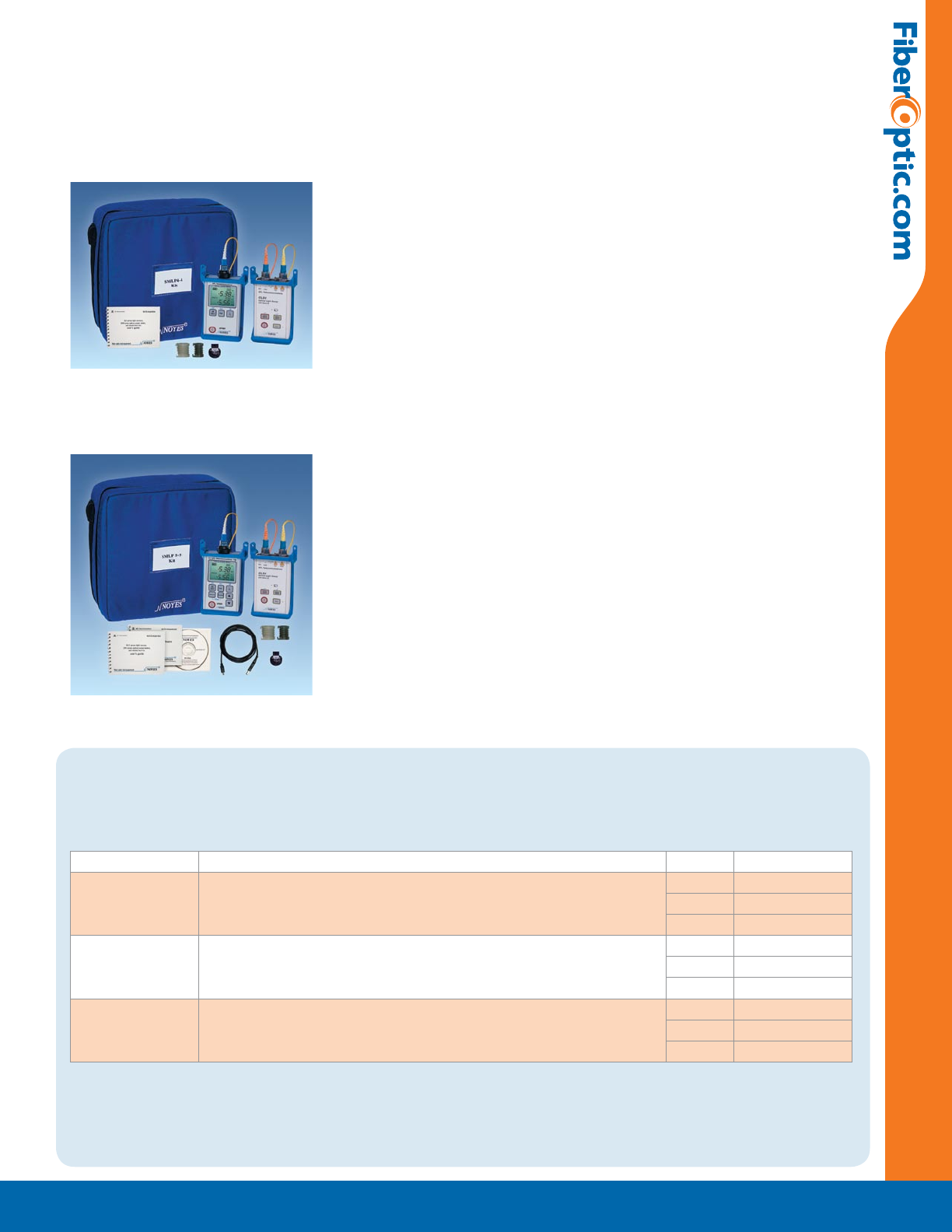

MLP SERIES LOSS TEST KITS

MLP 5-2 - Multimode Test Kit w/ Wave ID, Set Reference

and Data Storage

The MLP 5-2 test kit raises ﬁeld testing to new standards by combining our popular

OPM 5-2D optical power meter, and the OLS 1-Dual LED light source in a rugged

carrying case. Used during installations, the MLP 5-2 performs insertion loss mea-

surements on multimode ﬁber at 850 and 1300 nm, as well as measurements on

single-mode ﬁber at 1300 nm.

The OPM 5-2D stores 500 loss readings for each wavelength. In addition, the OPM

5-2D will re-measure any speciﬁc memory location without erasing or modifying

other loss readings. With the supplied PC software, saved test results can be trans-

ferred to a PC for storage, analysis, and printing.

MLP 1 - Multimode Test Kit

The MLP 1 test kits are inexpensive solutions for testing multimode and single-mode

systems. By joining the OPM 1 optical power meter and the OLS 1 optical light

source, the MLP 1 is a great kit for beginners or network owners.

MLP 4-2 - Multimode Test Kit w/ Wave ID and Set Reference

The MLP 4-2 test kit offers accurate ﬁber optic testing at an affordable price. Com-

bining the OPM 4-2D optical power meter and the OLS 1-Dual LED light source in a

rugged carry case, the MLP 4-2 is a complete test kit for ﬁber optic LANs and WANs.

Used during installations or maintenance, the MLP 4-2 performs insertion loss mea-

surements on multimode ﬁber at 850 and 1300nm, as well as single-mode ﬁber at

1300nm. The OPM 4-2D optical power meter stores reference values at each wave-

length for direct loss readings in dB.

Loss Test Kits

Finance Today!

Take advantage of FiberOptic.com’s finance packages with low monthly payments and $1 buy-

outs on AFL Test Equipment Products like:

M200 OTDRS

MODEL NUMBER DESCRIPTION PRICE

M200-K-QUAD 850/1300 nm multimode and 1310/1550 nm

single-mode OTDR

$214.00/mo.

M200-K-MM 850/1300 nm multimode OTDR $150.00/mo.

M200-K-SM 1310/1550 nm single-mode OTDR $143.00/mo.

Base upon 60 month lease with $1 Buyout

For ordering assistance, please contact Customer Service at 877-529-9114 (sales@ﬁberoptic.com) or visit our website at: www.ﬁberoptic.com

Loss Test Kits

Finance Today!

Take advantage of FiberOptic.com’s finance packages with low monthly payments and $1 buy-

outs on AFL Fusion Splicing Products like:

FUJIKURA FUSION SPLICERS

MODEL NUMBER DESCRIPTION PRICE

FSM-11S/R Hand-held V-groove Fusion Splicer $200.00/mo.

FSM-17S V-groove Fusion Splicer $170.00/mo.

FSM-50S Core Alignment Fusion Splicer $400.00/mo.

FSM-50R 12 count Ribbon Fusion Splicer $422.00/mo.

Base upon 60 month lease with $1 Buyout

FSM-11S

FSM-50S FSM-50R FSM-17S

SLP SERIES LOSS TEST KITS

SLP 4-6D Single-mode Test Kit with Wave ID and

Set Reference

The SLP 4-6D test kit combines an OPM 4-4D optical power meter and an OLS

2-Dual LASER light source and is ideally suited for testing single-mode ﬁber optic

networks. Used during installations, the SLP 4-6D performs insertion loss measure-

ments on single-mode ﬁber at 1310 and 1550 nm.

The OPM 4-4D optical power meter stores reference values at each wavelength for

direct loss readings in dB.

SLP 5-6D Single-mode Test Kit with Wave ID, Set Refer-

ence and Data Storage

The SLP 5-6D test kit combines an OPM 5-4D optical power meter and the OLS

2-Dual LASER light source and is ideally suited for testing single-mode ﬁber optic

networks. Used during installations, the SLP 5-6D performs insertion loss measure-

ments on single-mode ﬁber at 1310 and 1550 nm.

The OPM 5-4D stores 500 loss readings for each wavelength. In addition, the OPM

5-2D will re-measure any speciﬁc memory location without erasing or modifying

other loss readings. With the supplied PC software, saved test results can be trans-

ferred to a PC for storage, analysis, and printing.

For ordering assistance, please contact Customer Service at 877-529-9114 (sales@ﬁberoptic.com) or visit our website at: www.ﬁberoptic.com

SMLP SERIES LOSS TEST KITS

SMLP 5-5 Single-Mode/Multimode Test Kit with

Wave ID, Set Reference and Data Storage

The SMLP 5-5 test kit combines the OPM5-2D optical power meter and OLS 4

integrated LED and LASER light source and is ideally suited for testing ﬁber optic

networks with hybrid (single-mode and multimode) cables.

The OLS 4 features 850 nm and 1300 nm LED output from a multimode output

port and 1310 nm and 1550 nm LASER output from a single-mode output port.

This light source offers 4 modes of operation: Dual wavelengths sending ID, single

wavelength sending ID, CW, and modulated Tone.

The OPM 5-2D measures and stores loss results at 850 and 1300 nm for multimode

ﬁbers and 1310 and 1550 nm for single-mode ﬁbers. In addition, the OPM 5-2D

will re-measure any speciﬁc memory location without erasing or modifying other

loss readings. With the supplied PC software, saved test results can be transferred

to a PC for storage, analysis, and printing.

SMLP 4-4 Single-mode/Multimode Test Kit with

Wave ID and Set Reference

The SMLP 4-4 test kit combines the OPM 4-2D optical power meter and OLS 4

integrated LED and LASER light source and is ideally suited for testing ﬁber optic

networks with hybrid (single-mode and multimode) cables.

The OLS 4 features 850 nm and 1300 nm LED output from a multimode output

port and 1310 nm and 1550 nm LASER output from a single-mode output port.

This light source offers 4 modes of operation: Dual wavelengths sending ID, single

wavelength sending ID, CW, and modulated Tone.

The OPM 4-2D measures loss results at 850 and 1300 nm for multimode ﬁbers

and 1310 and 1550 nm for single-mode ﬁbers and stores reference values at each

wavelength for direct loss readings in dB.

Loss Test Kits

Rent Today!

If you only need a splicer for a week or a month at a time, there’s no sense in buying one, when

you can rent from us! Check out these great rental packages!

MODEL NUMBER INCLUDES WEEKS PRICE

FSM-17S Fujikura FSM-50S Fusion Splicer, CT-30 Fujikura High Precision Cleaver,

ADC-11 AC Adapter/Battery Charger, Battery Pack BTR-06, Power Cord,

2x 50S Electrodes, Hard Carrying Case

1$1,025.00

2$1,255.00

4$1,695.00

FSM-50S Fujikura FSM-50S Fusion Splicer, CT-30 Fujikura High Precision Cleaver,

ADC-11 AC Adapter/Battery Charger, Battery Pack BTR-06, Power Cord,

2x 50S Electrodes, Hard Carrying Case

1$1,025.00

2$1,255.00

4$1,695.00

FSM-50R Fujikura FSM-50R Fusion Splicer, CT-30 Fujikura High Precision Cleaver,

ADC-11 AC Adapter/Battery Charger, Battery Pack BTR-06, Power Cord,

2x 50R Electrodes, Hard Carrying Case

1$1,255.00

2$1,485.00

4$1,925.00

TERMS & CONDITIONS

• Cleaver and one spare set of electrodes are provided with the splicers, electrodes are

also available for purchase.

• If required, OTDRs are supplied with choice of adapter and launch cable.

• One test cable is provided with each power meter and light source.

• Rental periods are by the week from the time of shipment until the time of return.

• No cancellations will be granted after the product has been shipped.

• Renter agrees to use equipment safely and return the product in as good

condition as when originally received. If in default, renter agrees to pay the

Fiber Optic Marketplace, LLC for any loss or damage of rental equipment.

• It is the renter’s responsibility to return the rental unit via a traceable means

(e.g. UPS).

For ordering assistance, please contact Customer Service at 877-529-9114 (sales@ﬁberoptic.com) or visit our website at: www.ﬁberoptic.com

Loss Test Kits

MODEL CKM 2 CKSM 2 MLP 1-2 MLP 4-2 MLP 5-2B SLP 4-6D

Power Meter CSM 2 CSM 2 OPM 1-2C OPM 4-2D OPM 5-2D OPM 4-4D

Light Source CSS-MM CSS-MM, CSS-SM OLS 1-2C OLS 1-Dual OLS 1-Dual OLS 2-Dual

Fiber Type MM MM, SM MM, SM MM, SM MM, SM SM

Loss

Measurements (nm)

850, 1300 850, 1300

1310, 1550

850, 1300 850, 1300 850, 1300 1310, 1550

Measurement Units dB, dBm, µW dB, dBm, µW dBm dB, dBm, µW dB, dBm, µW dB, dBm, µW

Dynamic Range 40 dB @ 850 nm1

40 dB @ 1300 nm1

40 dB @ 1310 nm2

40 dB @ 1550 nm2

40 dB @ 850 nm1

40 dB @ 1300 nm1

60 dB @ 1310 nm2

60 dB @ 1550 nm2

40 dB @ 850 nm1

40 dB @ 1300 nm1

22 dB @ 1300 nm2

40 dB @ 850 nm1

40 dB @ 1300 nm1

22 dB @ 1300 nm2

40 dB @ 850 nm1

40 dB @ 1300 nm1

22 dB @ 1300 nm2

50 dB @ 1310 nm2

50 dB @ 1550 nm2

Wavelength ID — — — yes yes yes

Available

Connector Types

SC SC ST SC, ST, FC SC, ST, FC SC, ST, FC

Set Reference — yes — yes yes yes

PC Software &

Storage

— — — — yes —

PRICE $799.00 $1,649.00 $995.00 $1,195.00 $1,595.00 $2,195.00

MODEL SLP 5-6D SMLP 4-4 SMLP 5-5

Power Meter OPM 5-4D OPM 4-2D OPM 5-2D

Light Source OLS 2-Dual OLS 4 OLS 4

Fiber Type SM MM, SM MM, SM

Loss

Measurements (nm)

1310, 1550 850, 1300

1310, 1550

850, 1300,

1310, 1550

Measurement Units dB, dBm, µW dB, dBm, µW dB, dBm, µW

Dynamic Range 50 dB @ 1310 nm2

50 dB @ 1550 nm2

40 dB @ 850 nm1

40 dB @ 1300 nm1

60 dB @ 1310 nm2

60 dB @ 1550 nm2

40 dB @ 850 nm1

40 dB @ 1300 nm1

60 dB @ 1310 nm2

60 dB @ 1550 nm2

Wavelength ID yes yes yes

Available

Connector Types

SC, ST, FC SC, ST, FC SC, ST, FC

Set Reference yes yes yes

PC Software & Storage yes — yes

PRICE $2,595.00 $2,595.00 $2,995.00

SPECIFICATIONS LOSS TEST KITS

Get hands–on experience, professional training

and a FiberOptic.com Masters of Testing Certification!

Call for more information 877-529-9114

For ordering assistance, please contact Customer Service at 877-529-9114 (sales@ﬁberoptic.com) or visit our website at: www.ﬁberoptic.com

INSPECTION MICROSCOPES

SPECIFICATIONS

MODEL OFS 300-200C OFS 300-400C VS 300

Normal Magniﬁcation 200x 400x 400x

Adapter Mount Thread-on Snap-on Thread-on

Infrared Safety Filter Schott KG3 Schott KG3 not required - no optical

path to laser

Power 2 AA Alkaline 2 AA Alkaline 2 AA Alkaline

PRICE $399.00 $449.00 $795.00

Fiber inspection scopes are used to inspect optical ﬁber connectors for scratches, dirt, pits, or other problems normally associ-

ated with poor transmission performance. By using threaded adapter mounts, Noyes ﬁber scopes can inspect the ﬁber and sur-

rounding ferrule of virtually any connector style. The VFS 1, OFS 300, and VS 300 models are available for various applications.

OFS 300

Optical Microscope for Fiber Optic Connectors on Patch Cords

The OFS 300 optical microscope is designed to inspect connectors on ﬁber optic

cables, patch cords, or test jumpers. Two versions of the OFS 300 offer different

magniﬁcation power. The OFS 300-200C, with 200X magniﬁcation, is our most

popular ﬁber scope for inspection of multimode or single-mode ﬁbers. The OFS

300-400C, with 400X magniﬁcation, is ideal for critical inspection especially of

single-mode ﬁbers. Both models offer 60 hours of continuous battery life. A low

battery indicator will ﬂash when approximately 8 hours of optimum brightness

remains, reducing the risk of eyestrain.

VS 300

View Safe Video Microscope for

Fiber Optic Connectors on Patch Cords

The VS 300 view safe video microscope removes concerns for eye safety while

inspecting optical ﬁber connectors. The design eliminates the optical path to

the eye by utilizing a miniature camera and a state-of-the-art micro-display that

achieves unparalleled clarity and resolution.

The VS 300 is modeled after the functionality of our highly successful OFS 300

product line with the following improvements:

• The VS 300 has no optical path to the user’s eye.

• The VS 300 has NTSC video output.

• The VS 300 has the familiar shape and control positions of the OFS 300 but is half

the weight and has a molded easy grip case with easy access battery compartment.

The VS 300 Video Fiber Scope uses all the OFS 300-200C adapter caps and has an

energy saving automatic shutoff.

Inspection Microscopes

For ordering assistance, please contact Customer Service at 877-529-9114 (sales@ﬁberoptic.com) or visit our website at: www.ﬁberoptic.com

VISIBLE LASER SOURCES

VFI 2

HiLite

HiLite & VFI 2

The HiLite and VFI 2 are compact, but powerful, visible red laser sources designed to

troubleshoot faults on ﬁber optic cables. Light generated by these units will escape

from sharp bends and breaks in jacketed or bare ﬁbers, as well as poorly mated

connectors. They can identify faults in ﬁber optic jumper cables, distribution frames,

patch panels, and splice trays. The HiLite and VFI 2 are an excellent complement to

an OTDR because they can locate faults inside the OTDR’s dead-zone. Other appli-

cations include end-to-end continuity checks, identifying connectors in patch panels

and ﬁbers during splicing operations. The universal connector interface provides fast

operation with many connector styles without changing an adapter.

SPECIFICATIONS

MODEL VFI 2 HILITE MT TRACER SOURCE

Wavelength 650 nm 650 nm 650 nm

Optical Output

Power (into

Single-mode

ﬁber)

1 mW, 2 Hz or CW 1 mW, 2 Hz 1 mW, 2 Hz or CW

Emitter Type Laser Laser Laser

Safety Class FDA 2, IEC 2 FDA 2, IEC 2 FDA 2, IEC 2

Connector Type Universal 2.5 mm Universal 2.5 mm MTP®

Power 2 AA 1 AAA Alkaline 2 AA

Battery Life 60 hrs. 4 hrs. 40 hrs.

PRICE $379.00 $279.00 $2,795.00

Visible Laser Sources

MT Tracer (12-ﬁ ber VFI and display)

The MT Tracer kit includes an MT Tracer Source, MT Tracer Display, and carry case.

The MT Tracer Source, which may be used as a multi–ﬁber VFI, provides 12 separately

controlled visible lasers. The MT Tracer can illuminate a selected ﬁber or automatically

sequence through all 12 ﬁbers. The MT Tracer display uses passive optics to show the

light received on each ﬁber being traced. When used together, the MT Tracer Source

and Display provide a fast way to trace (verify connectivity) a 12-ﬁber link. Both

Source and Display are equipped with male (pinned) 12-ﬁber MTP® connectors.

AC ADAPTERS

MODEL DESCRIPTION PRICE

4050-00-0113 AC Adapter, 120VAC / 3VDC $35.00

4050-00-0103 AC Adapter, 220VAC / 9VDC (European) $50.00

For ordering assistance, please contact Customer Service at 877-529-9114 (sales@ﬁberoptic.com) or visit our website at: www.ﬁberoptic.com

Optical Fiber Identiﬁers

OFI OPTICAL FIBER IDENTIFIERS

Features

(OFI 200 and OFI 400models)

• Rugged, handheld, lightweight

• Accepts 250μm and 900μm coated ﬁber,

3mm jacketed ﬁber cable, and ribbon ﬁber

• No head swapping or adjustments

• Identiﬁes light carrying ﬁber

• Low insertion loss - trafﬁc remains

uninterrupted

• Indicates direction of trafﬁc

• Indicates Tone signal visually and audi-

bly

• Battery operated

• Low battery indication

(OFI 200 model)

• 2kHz Tone detection - OFI 200 models

(OFI 400 model)

• 270Hz, 330Hz, 1kHz, 2kHz Tone detection

• Easy-to-read LCD display with Backlight

• Measures ﬁber core or relative power

• Power Off and Set Reference feature

Noyes Optical Fiber Identiﬁers are rugged, handheld, and easy-to-use ﬁber optic test

instruments designed to detect optical signals transmitted through a single-mode

ﬁber without disrupting trafﬁc. It is often necessary to isolate a speciﬁc ﬁber during

installation, maintenance, rerouting, or restoration. By simply clamping an Optical

Fiber Identiﬁer onto a gently bent ﬁber, the unit will indicate if there is [No Signal],

[Tone], or [Trafﬁc] and identify signal direction.

The OFI 200 model and OFI 400 model Identiﬁers are equipped with a unique two-

position head design that can be conﬁgured to work with 250 µm, 900 µm, ribbon,

or jacketed ﬁber in seconds, without tools or adjustments. When testing coated

ﬁbers, the slim design of the OFI 200 and OFI 400 models allows easier access on a

splice tray where the amount of work space is limited. The clamping trigger is ergo-

nomically designed to ﬁt the natural motion of the operator’s hand. A high impact

molded plastic case makes the OFI models suitable for use outside plant or in the

central ofﬁce.

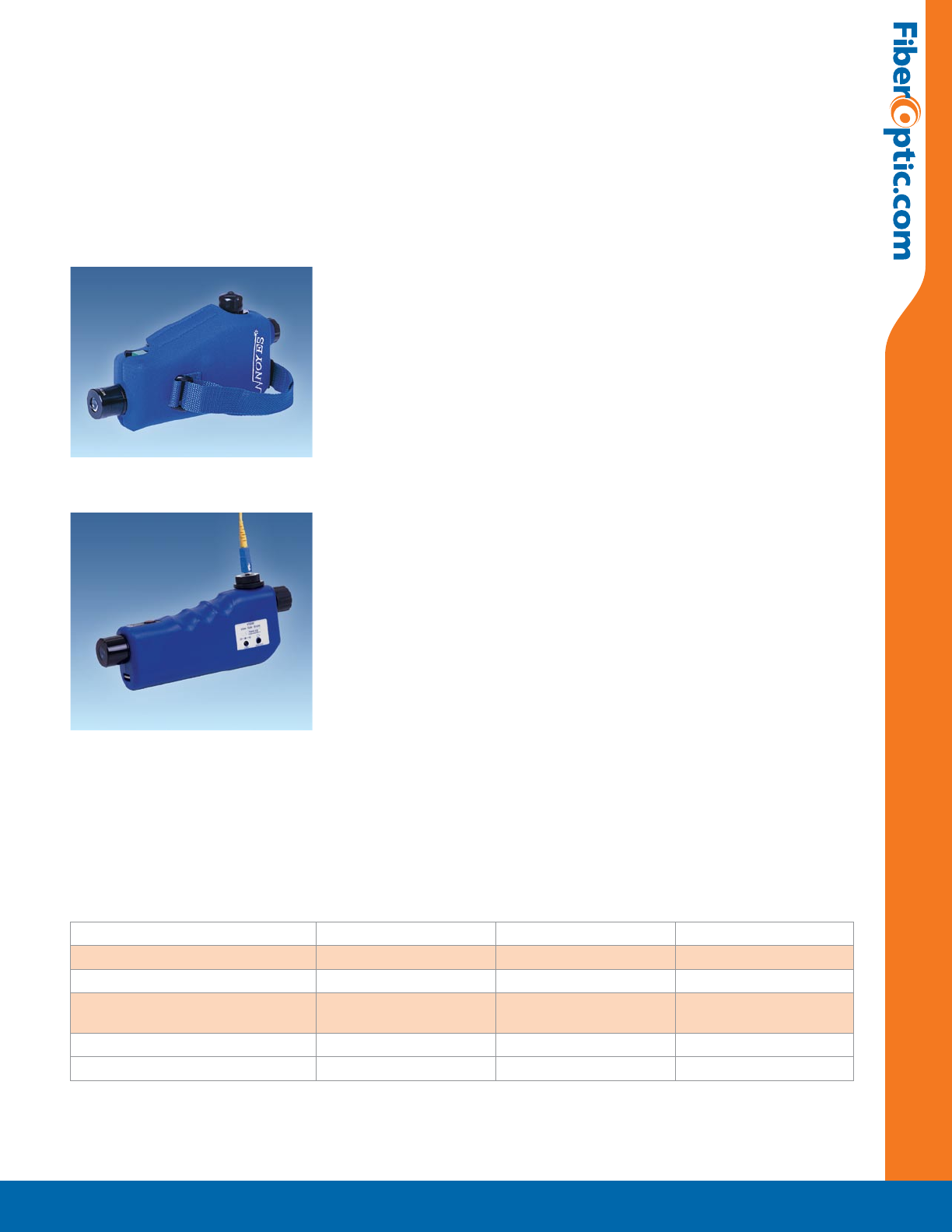

The OFI 400 model is the next generation of Noyes Optical Fiber Identiﬁers. It has

all the features of the OFI 200 model plus easy-to-read LCD display with Backlight,

multiple [TONE] signal detection (270 Hz, 330 Hz, 1 kHz, or 2 kHz), power saving

feature, and [Set Reference] feature. The OFI 400 model also measures and displays

ﬁber core power or relative power on an LCD display. Both models are battery

operated with the battery indication feature and perform thousands of tests before

battery replacement is necessary.

Applications

• Live ﬁber identiﬁcation - used during

installation, maintenance, rerouting, or

restoration to positively identify ﬁbers

prior to cutting and splicing

• Tone detection

• The OFI 400 models may also be used

for measuring core or relative power

SPECIFICATIONS

Detectable signal range

FIBER TYPE PARAMETER

WAVELENGTH,

SIGNAL

OFI

200D OFI 400

250 µm coated ﬁber

(SMF-28 with 250 µm

CPC6 coating)

Minimum detect

level

(average power,

typical)

1310 nm, CW or

Trafﬁc

1310 nm, Tone

1550 nm, CW or

Trafﬁc

1550 nm, Tone

-40 dBm

-43 dBm

-45 dBm

-50 dBm

-45 dBm

-50 dBm

Insertion loss

(typical)

1310 nm

1550 nm

0.6 dB

2.5 dB

0.6 dB

2.5 dB

3 mm jacketed ﬁber

(SMF-28 with 250 µm

CPC6 coating and 3 mm,

yellow jacket)

Minimum detect

level

(average power,

typical)

1310 nm, CW or

Trafﬁc

1310 nm, Tone

1550 nm, CW or

Trafﬁc

1550 nm, Tone

-30 dBm

-32 dBm

-33 dBm

-37 dBm

-30 dBm

-33 dBm

Insertion loss

(typical)

1310 nm

1550 nm

0.8 dB

2.5 dB

1.0 dB

2.8 dB

ORDERING INFORMATION

MODEL INCLUDES PRICE

OFI 200D User's guide and carry case $1,495.00

OFI 400 User's guide and carry case $1,495.00

OFI 200 OFI 400

For ordering assistance, please contact Customer Service at 877-529-9114 (sales@ﬁberoptic.com) or visit our website at: www.ﬁberoptic.com

Features

• Rugged, handheld, lightweight

• In-service detection of upstream

(1310 nm) activity on FTTx networks

• Determines which unparked splitter

pigtails are connected to ONTs

• Does not require travel to customer

(ONT) site

• Does not require disconnect of splitter

pigtails

• Visual and audible indicators

• Battery operated

• Low battery indication

Applications

• FACILITY RECOVERY: Harvest unparked

splitter legs and F2 ﬁbers not con-

nected to subscribers.

• TROUBLE-SHOOTING: Real-time con-

ﬁrmation of OLT to ONT connectivity at

the FDH.

ORDERING INFORMATION

MODEL INCLUDES PRICE

OFI-FTTx OFI-FTTx, user's guide, and carry case $1,495.00

SPECIFICATIONS

MODEL OFI-FTTx

Network Types FTTx BPON, GPON, EPON, ≥ 1:4 splitter ratio

Network Locations Between splitter and customer ONT

Fiber Type 2 and 3 mm jacketed SMF-28e; 2 mm jacketed, 15 mm

bend radius AFL BendLite (BIF); and equivalents

Induced Loss (Typ) < 2.5 dB (SMF-28e), < 0.8 dB (BIF) @ 1550 nm

Test Time (Typ) 1 sec

Operating Range* Loss from ONT to FDH: 0 to 7 dB (BPON), 0 to 9 dB

(GPON, EPON)

User interface Audio indicator and four red LEDs

Power 2 x AAA batteries

Battery Life 800 tests typical

Operating Temperature -10 to 40°C

Storage Temperature -20 to 50°C

Dimensions (H x W

x D)

8.5 x 1.5 x 1.25 in (22 x 3.8 x 3.2 cm)

Weight 0.5 lbs (0.23 kg)

* Maximum values are typical and depend on ﬁber type and jacket material.

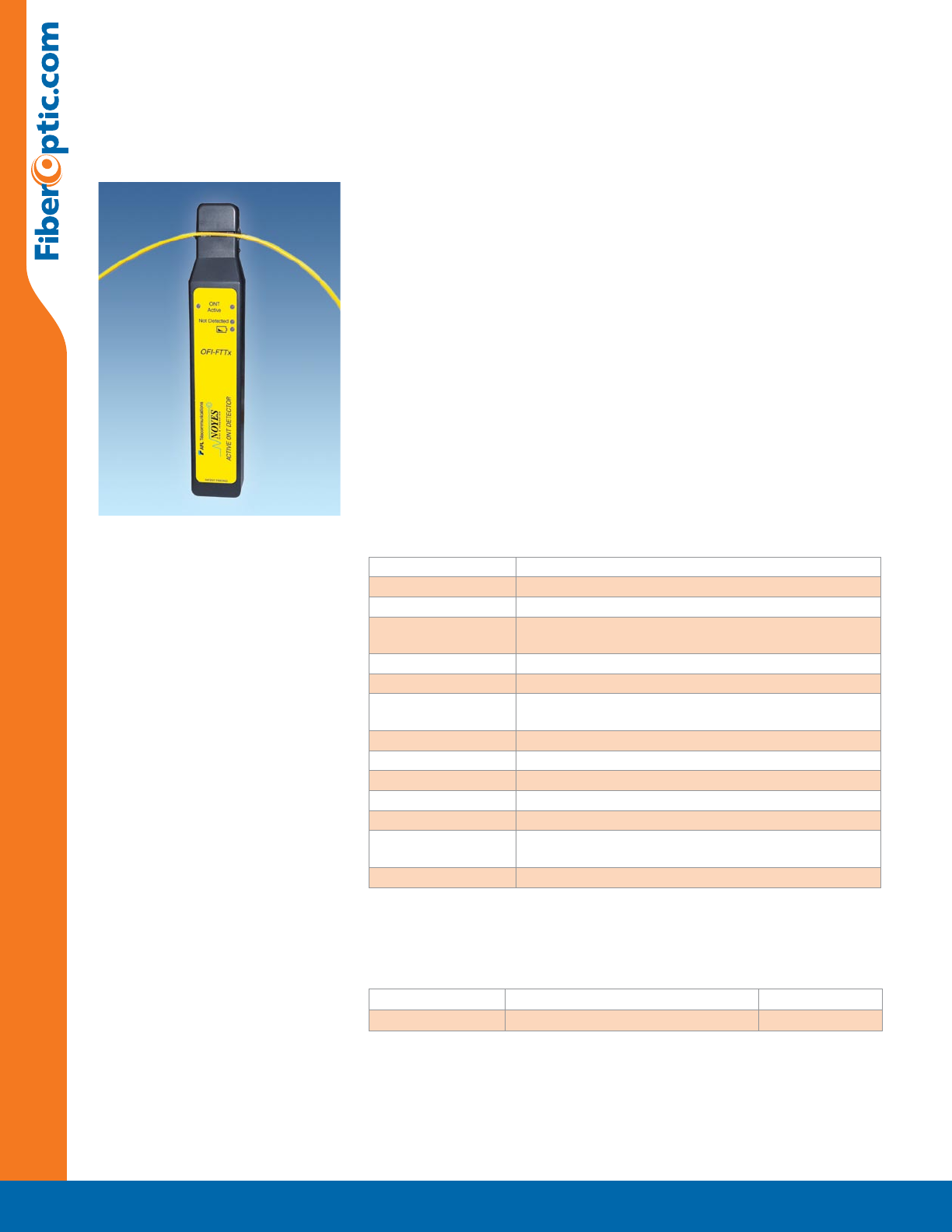

The OFI-FTTx is a rugged, hand-held optical ﬁber identiﬁer designed to identify the

presence or absence of an active Optical Network Terminal (ONT) on FTTx F2 ﬁbers

at the Fiber Distribution Hub (FDH). During a test the F2 ﬁber does not have to be

removed from service. Thus the OFI-FTTx can verify whether a splitter pigtail at the

FDH is connected to an active circuit before it is disconnected for fault location

or re-use. The OFI-FTTx can help verify FTTx network records and recover splitter

pigtails and F2 ﬁbers that are connected at the FDH but, in fact, are available for

new customers.

When applied to a splitter pigtail at the FDH, the OFI FTTx will report either that

the ONT is ‘Active’ or ‘Not Detected’. Time to complete each test is typically one

second. The OFI-FTTx is compatible with 2 or 3 mm jumper cable containing stan-

dard single-mode ﬁber, such as SMF-28e ™, or 2 mm jumper cable containing bend

insensitive ﬁber (BIF) with a 15 mm bend radius speciﬁcation, such as AFL BendLite

The OFI-FTTx is powered by two standard AAA alkaline batteries, provides a

low battery indication, and can typically be operated 800 times before battery

replacement is necessary.

Patent Pending

Optical Fiber Identiﬁers

OFI-FTTx ACTIVE ONT DETECTOR

For ordering assistance, please contact Customer Service at 877-529-9114 (sales@ﬁberoptic.com) or visit our website at: www.ﬁberoptic.com

AFL Telecommunications offers a complete selection of Noyes brand ﬁber optic

cleaning kits for ﬁeld cleaning of connector end faces in ﬁber frames, adapters

and on jumpers. Using our exclusive FCC2 non-hazardous cleaning ﬂuid and CCT

molded cleaning tips, the FCP1 Series of kits delivers compact, safe, easy-to-use,

reliable cleaning for all types of ﬁber optic connector end faces including Military

and Multiple Fiber Ferrule designs.

Choose from the following to fill a pack that’s right for you

APPLICATION

CLEANING

MATERIALS DESCRIPTION PRICE

For cleaning

connector end-

faces within

alignment

sleeves (bulkhead

adaptors,

female socket

connectors)

FCC2 Optical quality cleaning ﬂuid $11.95

CCTS-25 2.5mm cleaning tips for FC, SC, ST

type standard connectors

$39.60

CCTS-12 1.25mm cleaning tips for LC, MU

type small form factor connectors

$39.60

CCTS-16 1.6mm cleaning tips for 2.0mm

and 1.6mm termini in military

connectors and D4 connectors

$39.60

For cleaning

ferrule end-faces

that are exposed

(jumpers and

patch cords)

FCC2 Optical quality cleaning ﬂuid $11.95

Cletop Reel type cleaner $89.00

CCTP-25 Universal cleaning tip for exposed

ferrule and termini end-faces on

jumpers or military connectors

$19.80

For cleaning

alignment sleeves

FCC2 Optical quality cleaning ﬂuid. $11.95

ACT01 2.5mm swabs for FC, SC, ST type

standard connectors

$4.27

ACT02 1.25mm swabs for LC, MU type

small form factor connectors

$3.84

ACT03 2.0mm swabs for D4 connectors $5.50

Additional op-

tions

Canned air For cleaning work area $7.50

VS 300 Optical or video microscope for

end-face inspection

$795.00

OFS 300-200 $399.00

OFS 300-400 $449.00

Call 877.529.9114 for custom kit conﬁgurations

ORDERING INFORMATION

A wide variety of pre-stocked kits make ordering easy. Choose from the following

standard kits or call us at 877-529-9114 for a custom kit to meet your application

needs. Each standard kit consists of a wall or rack mountable carry case, FCC2

cleaning ﬂuid, and color-coded instructions.

Cleaning Kits

FCP1 FIBER CLEANING PACK

For ordering assistance, please contact Customer Service at 877-529-9114 (sales@ﬁberoptic.com) or visit our website at: www.ﬁberoptic.com

The AFL Telecommunications’ family of Sealed Fiber Optic Splice Closures is

designed to simplify splice management. Quality engineering reduces the instal-

lation time, training and complexity associated with ﬁber splicing in the ﬁeld.

No heat, adhesives, drills or powered equipment for installation or re-entry are

required. These durable, easy-to-install closures will increase productivity, reduce

labor expenses and last the life of your plant.

Features

• Supports loose tube, core tube, dielec-

tric and armored cable

• Installation and re-entry using common

hand tools

• Fully sealed to protect ﬁber and splices

SPECIFICATIONS

PARAMETER LG-50-U-0 LG-100-U-0 LG-200-U-0 LG-300-U-0 LG-300XL-U-0

Splice Capacity (Max.) -

Single, Mass, Mechanical 24, na, na 36, 144, na 96, 288, 36 384, 1152, 108 864, 2592, na

Number of Splice Trays (Max.)

Single, Mass, Mechanical 1, na, na 3, 3, na 4, 2, 3 12, 8, 8 9, 9, na

Cable Entrance Conﬁguration In-line / Butt Butt Butt Butt Butt

Cable Ports 2 5 5 5 (7 using dual

port washers)

5 (10 using dual

port washers)

Cable Sizes (Max. O.D.) 2 @ 0.60" (splice)

2 @ 1.10" (ground / bond)

5 @ 0.70" 5 @ 0.70" 3 @ 0.80"

2 @ 1.00"

3 @ 1.25”

2 @ 1.35”

Dimensions - (L x D) in. (cm) 14.00 x 4.00

(35.60 x 10.16)

18.25 x 8.75

(46.36 x 22.23)

19.00 x 8.75

(48.26 x 22.23)

28.00 x 10.00

(71.12 x 25.40)

31.00 x 12.00

(78.74 x 30.48)

Weight - lbs. (kg) 3.0 (1.36) 10.5 (4.76) 11.5 (5.23) 14 (6.35) 25 (11.34)

ORDERING INFORMATION – STANDARD CONFIGURATIONS

MODEL # DESCRIPTION PART # PRICE

LG-50-U-0 Inline and Butt Style Closure, 24 fusion splice capable, 2 cable kits for sealing retention, 1 Dual Cable Entry Port

Kit, grounding terminal. Includes 2 cable grounding kits (splice tray not included).

FC000034 $95.00

LG-100-U-0 Dome Closure, 36 Single or 144 mass fusion capable, 5 cable kits for sealing and retention, Grounding Terminal.

No cable grounding kits, hanger brackets or splice trays.

FC000001 $162.50

LG-200-U-0

Dome Closure - 96 Single or 144 mass fusion capable, 5 cable kits for sealing and retention, Grounding Terminal.

No cable grounding kits, hanger brackets or splice trays.

FC000002 $187.50

LG-300-U-0 Dome Closure, 384 Single or 1152 Mass fusion capable, 5 cable kits for sealing and retention (single and dual

conﬁgurations for Express ports), Grounding Terminal. No cable grounding kits, hanger brackets or splice trays.

FC000009 $188.60

LG-300XL-U-0 Dome Closure, 864 single or 1296 mass fusion capable, 5 cable kits for sealing and retention (single and dual

cable conﬁgurations), Grounding Terminal. No cable grounding kits, hanger brackets or splice trays.

FC000010 $525.00

LL-2450 Splice Tray for the LG-100, Stores 12 single fusion splices, base, cover, (2) six position splice holders, tie-wraps 91957-00 $8.00

LL-4850 Splice Tray for the LG-100, Stores 8 mass fusion sleeves, base, cover, (2) four position ribbon sleeve holders,

tie-wraps

91958-00 $11.00

LL-1248 Splice Tray for the LG-100, Stores 12 single fusion splices or 4 mass fusion splices / 48 ﬁbers 911221-00-00 $13.00

LL-1200 Mechanical Splice Tray - Stores 12 Mechanical splices 91712-05 $18.75

LL-2400 Single Fusion Splice Tray -Stores 24 Single fused ﬁbers 91710-06 $12.00

LL-2448 Universal Splice Tray - Stores 24 Single fusion or 4 Mass fusion sleeves / 48 ﬁbers 911289-00-02 $13.13

LL-4800 Mass Fusion Splice Tray -Stores 4 Mass fusion sleeves / 48 ﬁbers 91711-07 $13.00

LL-4848 Mass Fusion Splice Tray - Stores 12 Mass fusion sleeves 911437-00-02 $13.99

LL-4896 Universal High Density Splice Tray for the LG-300XL - Stores 96 Single fusion splices or 24 Mass fusion sleeves /

288 Fibers

911676-00-02 $22.50

• Fully kitted with all parts to install

cables

• Designed and tested to Telcordia™ GR-

771 requirements

• Rural Utilities Service (RUS) Listed

LG SERIES SEALED SPLICE CLOSURES

Splice Closures & Accessories

For ordering assistance, please contact Customer Service at 877-529-9114 (sales@ﬁberoptic.com) or visit our website at: www.ﬁberoptic.com

Fiber Storage Units are used to conveniently and safely store an extra length of

cable along the support strand for later use. Furnished as pairs (kit contains two

ﬁber storage units and two sets of hanger brackets), these FSU’s feature all alumi-

num, baked acrylic enamel ﬁnish or dielectric poypropylene with UV inhibitor. All

basic hardware for attachment to the support strand is provided. Strand mount sup-

port brackets meet Telcordia® speciﬁcation and are REA accepted. Galvanized strand

clamping devices accommodate 1/4" to 7/16" strand and meet ASTM speciﬁcations

A153 and B695.

Features

• Small proﬁle and a side facing channel to minimize ice load

• All aluminum construction with welded cross members

• Baked acrylic enamel ﬁnish/chromate pre-ﬁnish per MIL-C-5541-B

• Contains 2% carbon black as a UV inhibitor (dielectric version)

• Basic hardware (bolts, nuts and washers) and strand mount support brackets included

• Tie-wrap slots for securing cable from sliding

• Strand mount support brackets meet Telcordia speciﬁcation and are REA accepted

• Galvanized strand clamping devices accommodate 1/4" to 7/16" strand

SPECIFICATIONS

PARAMETER FSU-10 FSU-12 FSU-16 FSU-18 FSU-20

FOSP-17-

TMK

(DIELECTRIC)

Nom. Channel

Width in. (cm)

0.63

(1.60)

0.92

(2.34)

1.12

(2.84)

1.75

(4.45)

2.00

(5.08)

0.95 (2.41)

Min. Bend Diameter

in. (cm)

(25.4)

(30.48)

(40.64)

(45.72)

(50.80)

17.5 (44.45)

Reserve Cable Storage

Butt Splice

In-Line Splice

HARDWARE DIAGRAM

Splice Closures & Accessories

FSU FIBER STORAGE UNITS

ORDERING INFORMATION

DESCRIPTION FSU-10 FSU-12 FSU-16 FSU-18 FSU-20 FOSP-17-TMK

(DIELECTRIC)

FSU Kit Contains 1 pair FSU and 4

Mount Brackets

911107-00 911108-00 911109-00 911110-00 911944-00-00

FA000002

Replacement Mount Bracket (1 bracket,

4 req. per pair)

911115-00

Tie Wraps (Quantity of 10) 911117-00

PRICE

$43.00 $46.00 $48.00 $53.33 $60.00 $45.00

For ordering assistance, please contact Customer Service at 877-529-9114 (sales@ﬁberoptic.com) or visit our website at: www.ﬁberoptic.com

Fiber Outside Plant

The Future Access™ Fiber Distribution Hub (FDH) is designed to provide a local

convergence point in the Outside Plant environment, housing optical splitters that

link feeder cables from the CO to distribution cables serving customer premises. Its

compact size and modular-based platform aid in installation efﬁciency, while keep-

ing initial deployment costs down. This modular approach allows a service provider

to incrementally grow the FDH as their take rate increases. Distribution modules are

available in 72-port conﬁgurations, providing the option of incrementally populating

the FDH at the onset of deployment. This results in immediate cost savings to the

service provider since distribution and splitter modules can be installed as paying

customers take the offered services.

The ruggedly constructed enclosure features a unique, patent-pending, dual entry

door system, providing unobstructed front and side access to the inside of the

enclosure without additional movement. A Telcordia GR-3125 compliant design and

powder coated 1/8” Aluminum construction guarantee durability and reliability,

even in the harshest environmental conditions.

Intuitive ﬁber management is a key element of the Future Access™ FDH. The intui-

tive nature of the routing scheme minimizes training requirements, and allows for

the initial deployment (and any unforeseen repositioning of previously deployed

ﬁbers) to be executed with the utmost efﬁciency.

Each Future Access™ FDH features a self-locking internal swinging “L” frame,

which houses distribution and splitter modules, and provides management of all

jumper cordage installed into the FDH. in conjunction with the dual-door enclosure.

This provides unobstructed rear access for future maintenance requirements.

Central to the functionality of the Future Access™ FDH is the splitter module. This

splitter module is universal to all Future Access™ Fiber Distribution Hubs, resulting

in shorter lead times and less inventory for the provider to manage. They feature

AFL’s Bend Insensitive ﬁber, minimizing the chance of signal loss due to high trafﬁc/

densely packed patch panel routing installations. A self-locking latch securely holds

the module into the FDH, and increases efﬁciency with a tool-less installation.

Features

• Modular distribution platform allows

for incremental deployment costs and

immediate cost savings

• Small size is unobtrusive in residential

deployments

• Enhanced ﬁber management provides

simpliﬁed routing and termination of

ﬁber pigtails

• Dual-door entry allows easy access

to distribution and ﬁber management

ﬁelds

• Flexible pad, pole, and optional post

mounting options for deployment in the

most convenient location

SPECIFICATIONS

PARAMETER

VALUE

72 / 144 / 216 / 288 FIBER 360 / 432 FIBER

Conﬁguration Pad, Pole, or Post* Mount Pad, Pole, or Post* Mount

Height (pole mount) 26” 33”

Height (pad mount) 38” 45”

Dimension (W x D) 20” x 20” 20” x 20”

Connector Type SC-APC SC-APC

Cable Type Loose Tube or Ribbon Loose Tube or Ribbon

Splitter Module

Capacity 9 Modules 14 Modules

Parking Lot Capacity 64 128

Color Standard Electric Ivory Standard Electric Ivory

FDH FIBER DISTRIBUTION HUB

For ordering assistance, please contact Customer Service at 877-529-9114 (sales@ﬁberoptic.com) or visit our website at: www.ﬁberoptic.com

Fiber Outside Plant

LL-400s ENCLOSURE

SPECIFICATIONS

PARAMETER VALUE

Material Chassis – aluminum

Coatings Electrostatically applied, powder coat

Color Antique white

Dimensions (H x W x D) in. (cm) 21.63 x 6.63 x 3.25 (54.94 x 16.84 x 8.26)

Weight lbs. (kg) 4.74 (1.77)

The LL-400s Fiber Optic Splicing and Distribution Enclosure provides for organizing,

splicing, and interconnecting ﬁbers in FTTx, broadband, distribution, and building

entrance applications. Each LL-400s enclosure features a scratch resistant powder

coated aluminum base and a fully gasketed cover. A unique self-sizing grommet

design allows for express and preterminated cable installation. The LL-400s is a

butt-style enclosure equipped with four independent cable entry/exit grommets,

used for outdoor pedestal or indoor building entrance and riser splicing applica-

tions. The unit supports a maximum storage and splicing capacity of up to 72 single

or 144 mass-fused ﬁbers.

Features

• Independent cable strain relief system

• Cable entry/exit grommet seals

• Removable hinged front cover

• Fiber routing system

• Splice tray support system

• 72 single fusion splices

• 144 mass fusion splices

ORDERING INFORMATION

DESCRIPTION PART # PRICE

LL-400s FM000639

$100.00

LL-400s with (2) multi-drop grommets FM000618

$110.00

LL-4005 in 1010 Pedestal FM000777

$285.00

ACCESSORIES

DESCRIPTION PART # PRICE

LL-4848 Mass Fusion Splice Tray 911437-00-02

$13.99

LL-2448 Universal Splice Tray 911289-00-02

$13.13

LL-2400 Single Fusion Splice Tray 91710-06

$12.00

LL-400s installed in pedestal

LL-400s

For ordering assistance, please contact Customer Service at 877-529-9114 (sales@ﬁberoptic.com) or visit our website at: www.ﬁberoptic.com

Fiber Outside Plant

LL-500 ENCLOSURE

SPECIFICATIONS

PARAMETER VALUE

Material Steel

Coatings Electrostatically applied, powder coat

Color Antique white

Dimensions (H x W x D) in. (cm) 17.5 x 9.0 x 4.0 (44.45 x 22.86 x 10.16)

Weight lbs. (kg) 6.5 (2.95)

The LL-500 Optic Splicing and Distribution Enclosure provides for organizing, splic-

ing, and interconnecting ﬁbers in broadband, distribution, and building entrance

applications. The enclosure features a scratch and corrosion resistant powder paint

coating base and a fully gasketed hinged cover. A unique self-sizing grommet

design allows for express and pre-terminated cable installation. The LL-500 supports

up to ﬁve LL-2450 splice trays or three LL-4850 splice trays (not included in base

unit) and an optional 12 ﬁber, hinged Interconnect Module.

Features

• NEMA 3 rated enclosure

• Independent cable strain relief system

• Cable entry/exit grommet seals

• Fiber routing system

• Splice tray support system

• Hinged cover

• Supports optional Interconnect Modules

• Interconnect Module supports up to

12 SC bulkhead adapters

ORDERING INFORMATION

DESCRIPTION PART # PRICE

LL-500-U-0 FM000326 $100.00

LL-500 Interconnect Kit with SC UPC adapters FM000385 $60.00

LL-500 Interconnect Kit with SC APC adapters FM000407 $60.00

LL-500 Interconnect Kit without adapters FM000408 $30.00

ACCESSORIES

DESCRIPTION PART # PRICE

LL-2450 Single Fusion Splice Tray (stores 12 single

fusion splices)

91957-00 $8.00

LL-4850 Mass Fusion Splice Tray (stores 8 mass

fusion sleeves - 96 ﬁbers)

91958-00 $11.00

Dual Grommet Cable Expansion Kit (2 Grommets) 911386-00-01 $10.00

LL-500 with LL-2450 installed

• Accomodates “Field Couplers” with

optional Splitter housing Attachment

(P/N 91944-00)

• Secured with a standard padlock

• 4 cable ports with standard grommets

• 8 cable ports with optional expansion kits

LL-500

For ordering assistance, please contact Customer Service at 877-529-9114 (sales@ﬁberoptic.com) or visit our website at: www.ﬁberoptic.com

Fiber Management

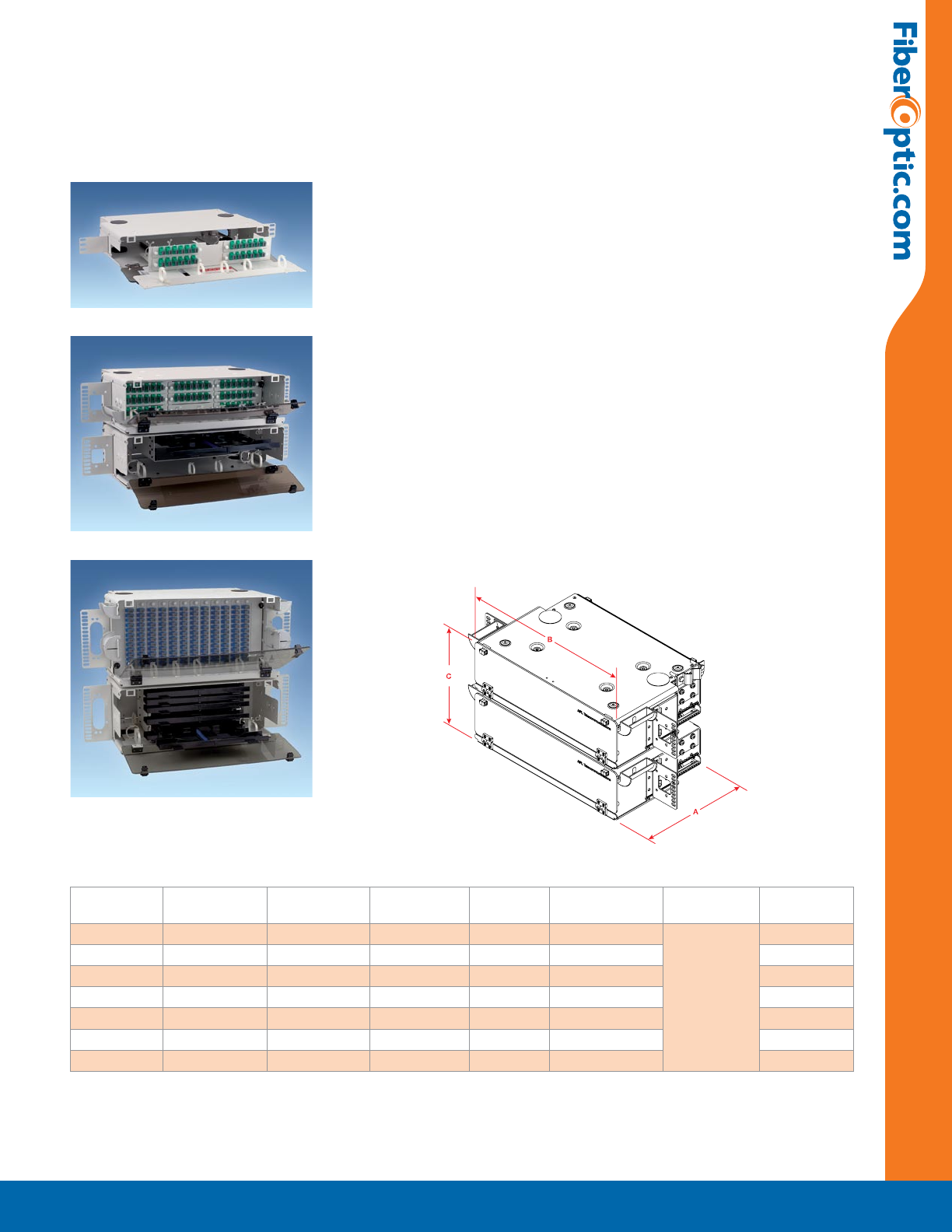

LANSYSTEM™ PATCH AND SPLICE PANELS

DIMENSIONS

MODEL

DEPTH (A)

(INCHES)

WIDTH (B)

(INCHES)

HEIGHT (C)

(INCHES)

RACK

UNITS

CAPACITY

(STD/HIGH)

MATERIAL

GAUGE PRICE

CNSØ12P 11 17 1.75 1 12/24

2.03mm

$120.95

CNSØ24P 11 17 3.50 2 24/48 $164.73

CNSØ48P 11 17 10.5 6 48/96 $295.59

CNSØ72P 11 17 12.25 7 72/144 $299.63

CNSØ96P 11 17 12.25 7 96/na $299.63

CNS144P 11 17 14 8 144/na $311.71

CNS144HD 11 17 15.75 9 288/na $311.71

CNSØ24

CNSØ48

CNS144

AFL Patch and Splice Panels are rack mountable and designed to accomodate up

to 144 ﬁber terminations (standard density) or 288 ﬁber terminations (high density)

and up to 288 single fusion splices using double density splice trays. They pro-

vide a compact and versatile method of splicing and connectivity. Standard panels

are available in empty, loaded and unloaded versions. Unloaded panels include

adapter plates, adapters and splice drawers. Loaded panels also include pigtails (< 3

Meters).

Applications

• Telecommunication Closets

• Data Centers

• Customer Premise

• Local Area Networks

• Wide Area Networks

• Central Ofﬁces

• Hubs

• Cabinets

• Remote Terminals

Specifications

• Telcordia GR-63 NEBS tested

• Aluminum Material per ASTMB209

• Central Ofﬁce White, Black, Texture

Powder Coated

• Universal Mounting Bracket - WECO, EIA

• 19” and 23” rack compatible

• Fiber storage capacity is one meter per

spliced ﬁber (3mm jacket)

• CNS-Ø12 and CNS-Ø24 have an integral

splice tray, others use STF-48 splice tray

For ordering assistance, please contact Customer Service at 877-529-9114 (sales@ﬁberoptic.com) or visit our website at: www.ﬁberoptic.com

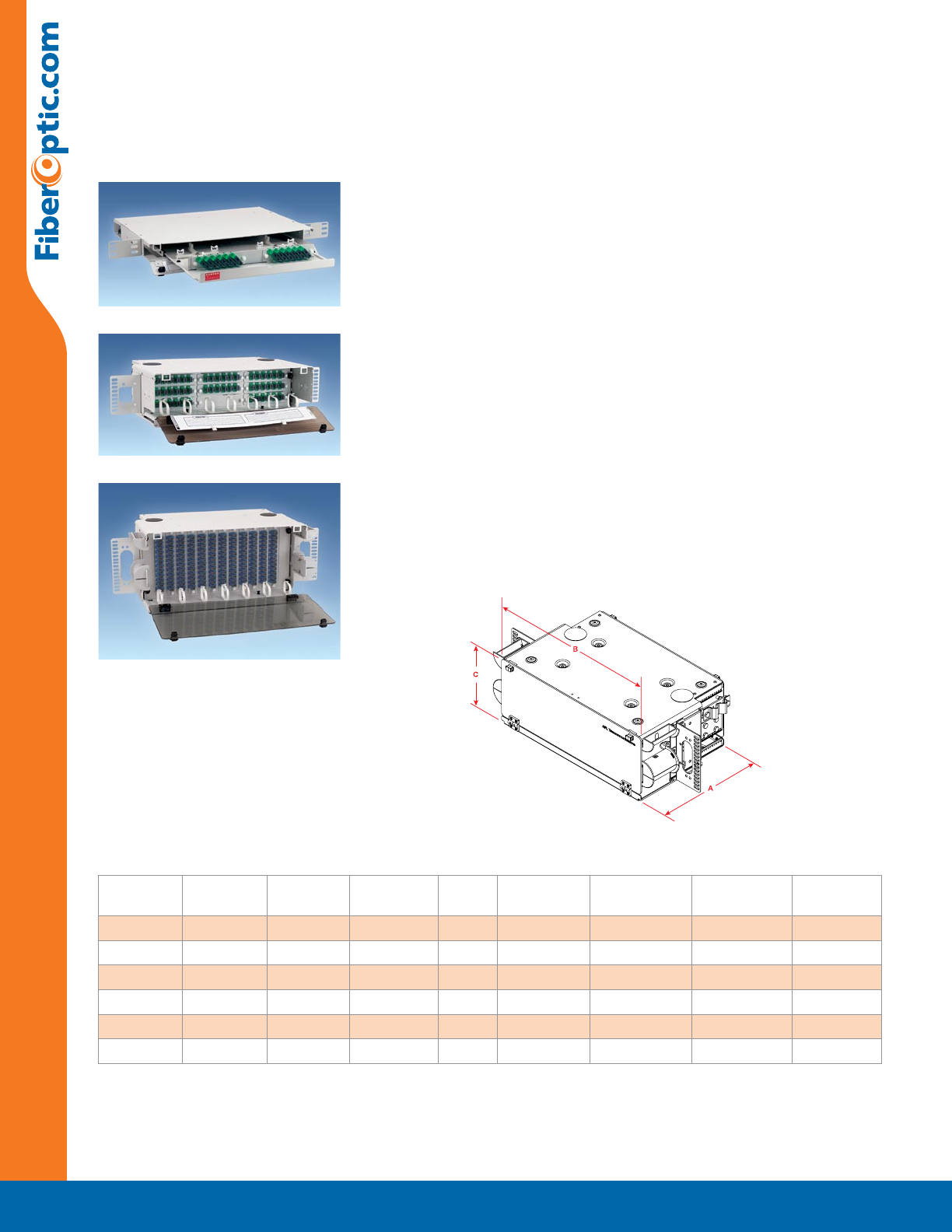

LANSYSTEM™ PATCH PANELS

AFL Fiber Termination Patch Panels are used where termination and connectivity of

up to 144 ﬁbers (standard density) or 288 (high density) is desired. The panels are

designed to accommodate LGX® (170 mm) compatible adapter plates. Standard

panels are available in empty, loaded and preterminated versions. Loaded panels

include adapters and adapter plates. Preterminated panels include adapters, adapter

plates and standard OFNR cable. The ﬁber stub for preterminated panels exits the

right rear of the unit facing up.

Specifications

• Telcordia GR-63 NEBS Tested

• Aluminum Material per ASTMB209,

Standard Front Cover Lexan

• Central Ofﬁce White or Black, Textured

Powder Coat Paint

• Universal Mounting Bracket WECO, EIA

• 19”and 23” Rack Compatible

Applications

• Telecommunication Closets

• Data Centers

• Customer Premise

• Local Area Networks

• Wide Area Networks

• Central Ofﬁces

• Hubs

• Cabinets

• Remote Terminals

DIMENSIONS

MODEL

DEPTH (A)

(INCHES)

WIDTH (B)

(INCHES)

HEIGHT (C)

(INCHES)

RACK

UNITS

CAPACITY

(STD/HIGH)

UNLOADED

WEIGHT

MATERIAL

GAUGE PRICE

CONØ12P 11 17 1.75 1 12/24 4.0 lbs. 2.03 mm $120.95

CONØ24P 11 17 3.50 2 24/48 6.2 lbs. 2.03 mm $164.73

CONØ48P 11 17 5.25 3 48/96 8.4 lbs. 2.03 mm $165.85

CONØ72P 11 17 7.00 4 72/144 9.0 lbs. 2.03 mm $167.20

CONØ96P 11 17 7.00 4 96/na 9.0 lbs. 2.03 mm $167.20

CON144P 11 17 8.75 5 144/288 9.0 lbs. 2.03 mm $178.60

CONØ12

CONØ48

CON144

Fiber Outside Plant

For ordering assistance, please contact Customer Service at 877-529-9114 (sales@ﬁberoptic.com) or visit our website at: www.ﬁberoptic.com

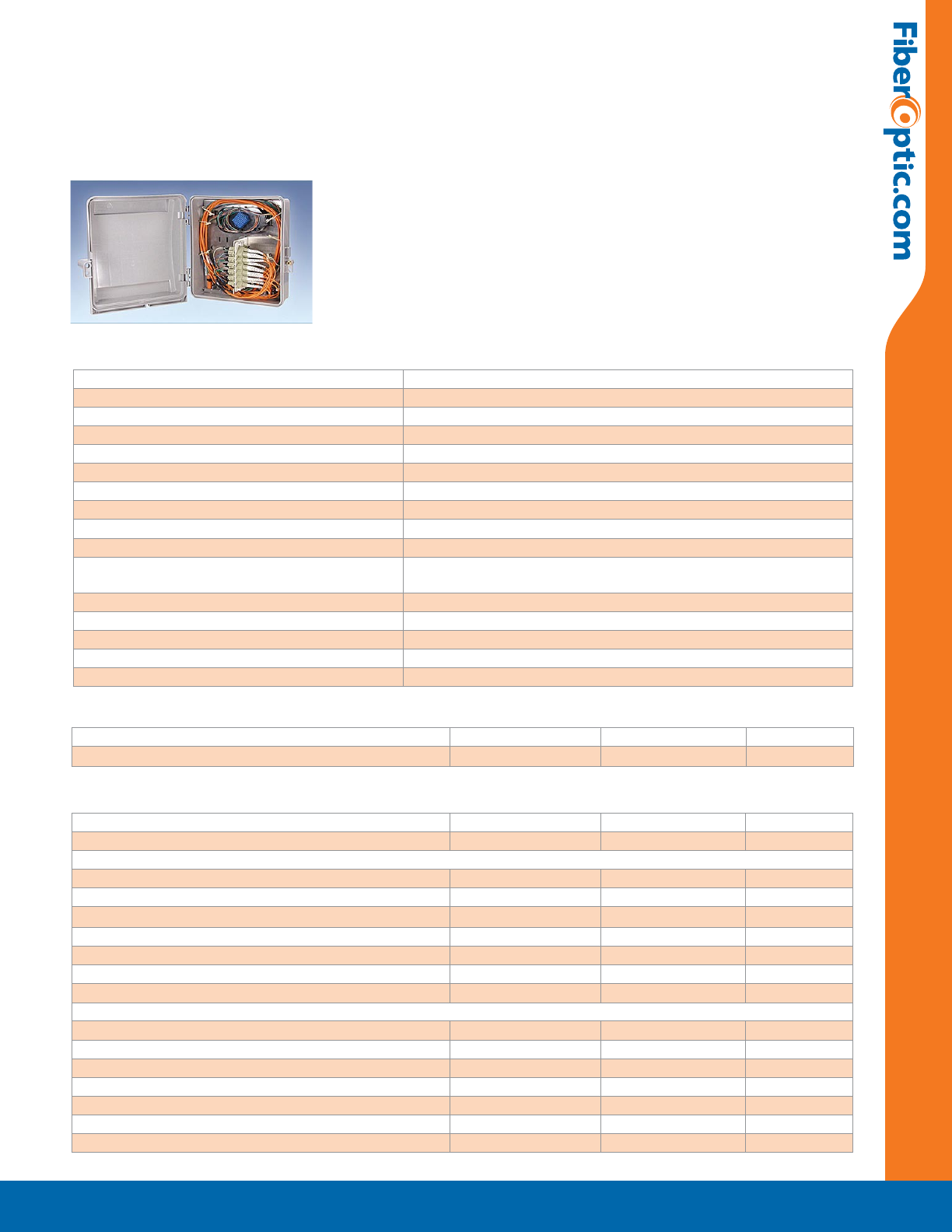

ORDERING INFORMATION

DESCRIPTION MODEL # PART # PRICE

OptiNID-1224 (includes slice tray, does not include adapter plates) OptiNID-12 SC NTT DM000183 $60.16

SPECIFICATIONS

PARAMETER VALUES

Dielectric Strength Minimum 2500 Vrms for 1 minute

High Temperature Storage/Mold Stress °F (°C) 14 days at 159 (70.55)

Temperature Cycling with Humidity °F (°C) 150 day cycling from 40-140 (4.44-60) with 95% RH

Impact Test °F (°C) -40 (-40), 5*/lbs. on all external surfaces

Drop Test °F (°C) -40 (-40), 5* (12.7 cm) onto concrete surface 4 times

Rain 24 hours at 10 psi

UV Resistance (Days Exposed) 60 per ASTM-G26-84

Salt Fog (Days Exposed) 60 per ASTM-BLL7-90

Flammability UL94-5V

Chemical Resistance

30 Days at 100 °F and 95% RH Subject to:

Resists chipping and/or cracking when subject to: house paint, wasp spray, sulfuric

acid, kerosene and sodium hydroxide

Material U.L.® listed ﬂame retardant thermoplastic alloy

Dimensions (H x W x D) in. (cm) 12.25 x 12.25 x 5.25 (22.80 x 22.80 x 7.60)

Cable Entrances in. (cm) diameter - Output 5 x 0.625 (1.5)

Cable Entrances in. (cm) diameter - Input 1 x 0.625 (1.5), 1 x 0.250 (0.6) (ground wire)

Covers Standard - molded-in snap ﬁnger and “F” termination

Features

• Capacity for up to two 118 LGX compatible adapter plates

• Weather-resistant thermoplastic alloy

• Self-latching, hinged cover design allows easy access without loose parts

• Self-sealing individual entrance ports prevent water and insects from entering

• Provider override is provided so that technician can override customer lock

• Locations available on front cover for custom logos

LIGHTLINK™

OPTINID OPN-1224 OPTICAL

DEMARCATION CLOSURE

ORDERING INFORMATION – ADAPTER PLATES

DESCRIPTION LGX 118 - WHITE LGX 118 - BLACK PRICE

Blank Filler Panel C215503 C215507 $5.16

SINGLEMODE (CERAMIC)

SCU 6-pack Simplex C215602 C215611 $31.00

SCA 6-pack Simplex C215638 C215644 $31.00

STU 6-pack Simplex C215962 C215971 $25.00

STU 12-pack Simplex C223564 C223571 $45.00

SCU 3-pack Duplex (6 Fiber) C215512 C2152521 $25.00

SCU 6-pack Duplex (12 Fiber) C219604 C220853 $48.00

LCU 6-pack Duplex (12 Fiber) C215989 C215993 $53.00

MULTIMODE (METAL)

SC 6-pack Simplex C215626 C215633 $28.00

ST 6-pack Simplex C215968 C215975 $18.00

ST 12-pack Simplex C223567 C223576 $25.00

SC 3-pack Duplex (6 Fiber) C215536 C215543 $23.00

SC 6-pack Duplex (12 Fiber) C220435 C219598 $46.00

LC 6-pack Duplex (12 Fiber) C215998 C216004 $53.00

MTRJ 6-Pack C216079 C216083 $44.00

For ordering assistance, please contact Customer Service at 877-529-9114 (sales@ﬁberoptic.com) or visit our website at: www.ﬁberoptic.com

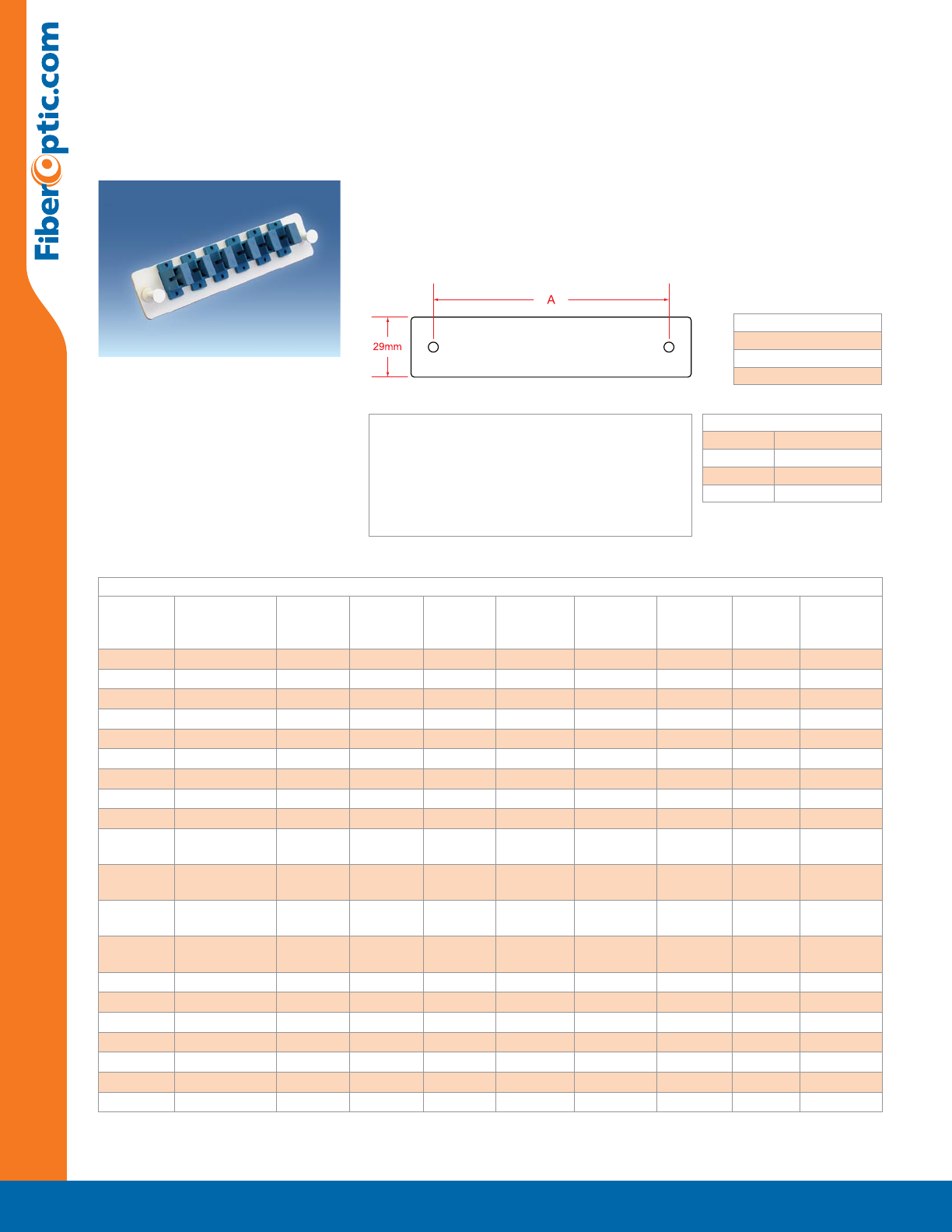

Features

• Metal Plate with Nylatches

• Polyurethane powder coated

(CO white or Black)

• LGX® compatible

LightLink Adapter Plates add versatility to the AFL Telecommunications’ panel prod-

uct line. Adapter plates are compatible with industry standard platforms allowing

for easy upgrades of existing panels. Adapter Plates come preloaded and are avail-

able in 6, 8, and 12 pack versions.

DIMENSION A

118mm LGX®

130mm LGX®

170mm LGX®

SPECIFICATIONS

ORDERING INFORMATION

LGX® COMPATIBLE PLATES

PART

NUMBER

PLATE

CAPACITY /

STYLE

PLATE

COLOR

PLATE

FOOT

ADAPTER

ORIENTA-

TION

ADAPTER

TYPE

ADAPTER

PART

NUMBER

ADAPTER

COLOR

SLEEVE

MATE-

RIAL

PRICE

C215512 3 SC Duplex White LGX 118 Vertical SC SM C092258 Blue Ceramic $25.00

C215543 3 SC Duplex Black LGX 118 Vertical SC MM C209383 Beige Metal $23.00

C215521 3 SC Duplex Black LGX 118 Vertical SC SM C092258 Blue Ceramic $25.00

C220853 6 SC Duplex Black LGX 118 Angled SC SM C096266 Blue Ceramic $43.00

C220849 6 SC Duplex White LGX 118 Angled SC SM C096266 Blue Ceramic $48.00

C219598 6 SC Duplex Black LGX 118 Angled SC MM C209383 Beige Metal $46.00

C215602 6 SC Simplex White LGX 118 Straight SC SM C028851 Blue Ceramic $31.00

C215611 6 SC Simplex Black LGX 118 Straight SC SM C028851 Blue Ceramic $31.00

C215629 6 SC Simplex Black LGX 118 Straight SC MM C209560 Beige Ceramic $31.00

C215962 6 ST Simplex White LGX 118 Straight ST SM D

Mount C094994 Plated

metal Ceramic $25.00

C215975 6 ST Simplex Black LGX 118 Straight ST MM D

Mount C096377 Plated

metal Metal $18.00

C223564 12 ST Simplex White LGX 118 Staggered ST SM D

Mount C094994 Plated

metal Ceramic $45.00

C223576 12 ST Simplex Black LGX 118 Staggered ST MM D

Mount C096377 Plated

metal Metal $25.00

FM000289 3 LC Duplex White LGX 118 Straight LC SM C178298 Blue Ceramic $30.00

FM000292 3 LC Duplex Black LGX 118 Straight LC MM C203956 Beige Metal $30.00

C215989 6 LC Duplex White LGX 118 Straight LC SM C178298 Blue Ceramic $53.00

C216004 6 LC Duplex Black LGX 118 Straight LC MM C203956 Beige Metal $53.00

C216083 6 MTRJ Black LGX 118 Straight MTRJ MM C196855 Beige N/A $44.00

C215503 Blank White LGX 118 N/A N/A N/A N/A N/A $5.00

C215507 Blank Black LGX 118 N/A N/A N/A N/A N/A $5.00

MULTIPLE UNIT ORDERING OPTION

To order multiple units of the same part, select the

base number from the ordering charts and add

the quantity extension.

Example: FM000086 – 12Z

ORDERING MULTIPLE UNITS

1 = 1 6 = 6

2 = 2 8 = 8

3 = 3 12 = 12

4 = 4 XX = Specify

LGX is a registered trademark of Furukawa Electric North America, Inc.

LIGHTLINK™ ADAPTER PLATES

For ordering assistance, please contact Customer Service at 877-529-9114 (sales@ﬁberoptic.com) or visit our website at: www.ﬁberoptic.com

FAST™ CONNECTORS

AFLs new FAST™ Connectors are pre-polished, ﬁeld installable connectors that elimi-

nate the need for hand polishing in the ﬁeld. FAST™ Connectors provide an immedi-

ate termination to either single-mode or multimode ﬁbers and are color-coded for

ease of ﬁber identiﬁcation. Connectors for Laser Optimized 50µm (10G) ﬁbers are

also available.

FAST™ Connectors feature a pre-stubbed factory-polished ferrule that couples to

the ﬁber being terminated. Precision mechanical alignment insures low loss with a

proprietary gel. A factory-installed wedge clip (included with each connector) holds

the clamping mechanism open while the ﬁber is inserted. Once the ﬁber is in place,

the wedge clip is removed and discarded. No special assembly tools required!

Features

• Easy assembly process

• Fiber can be reseated

• No expensive tools required

• No epoxy required

• Factory polishing eliminates loss

concerns

• Meets TIA/EIA 568A performance

requirements

• Meets TIA/EIA 604 (focis) connector

interface speciﬁcations

Applications

• Premise environments

• Connections at the desk for LAN

environments

• Patch panels

• Direct equipment termination

• Fiber to the Subscriber (FTTx) applications

• Repair/replacement requirements

• Equipment test leads

SPECIFICATIONS

PARAMETER VALUE

Insertion Loss: Single-mode

62.5/125

50/125

50/125 LO

Average: 0.2dB, Maximum: 0.5 dB

Average: 0.1dB, Maximum: 0.5 dB

Return Loss (Single-mode) Average: 56.4 dB, Maximum: 45 dB

Operating Temperature –40°C to +75°C

OPERATION

PUSH HERE TO

ENGAGE WEDGE

PUSH HERE TO

DISENGAGE WEDGE / LOCK FIBER

PUSH HERE TO

DISENGAGE WEDGE / LOCK FIBER

Connector Body Optical Fiber

Index Matching Gel

FAST™ CONNECTOR TOOL KIT

The FAST™ Connector Tool Kit provides all the necessary installation tools required

for ﬁber preparation of 250µm or 900µm ﬁbers applied to AFL’s new pre-polished

FAST® connectors. Included in the kit is the new Universal multimode/single-mode

cleaver (CT-30A), AFL’s premier cleaver with a 16 position blade and built-in ﬁber

scrap collector. The tool kit effectively contains all the industry standard termina-

tion tools and still permits an adequate storage area for extra FAST connectors for

on-site convenience.

Features

• Industry standard ﬁber preparation tools

• Compact design, ﬂexible but rugged case

• Complete instructions provided

Applications

• Premise environments

• LAN ﬁber to the desk environments

• Patch Panel/Wiring Closets

• FTTX applications

• Quick repair/replacement areas

CT-30A Universal Cleaver (Included in CS001201 Kit)

Field Installable Connectors

For ordering assistance, please contact Customer Service at 877-529-9114 (sales@ﬁberoptic.com) or visit our website at: www.ﬁberoptic.com

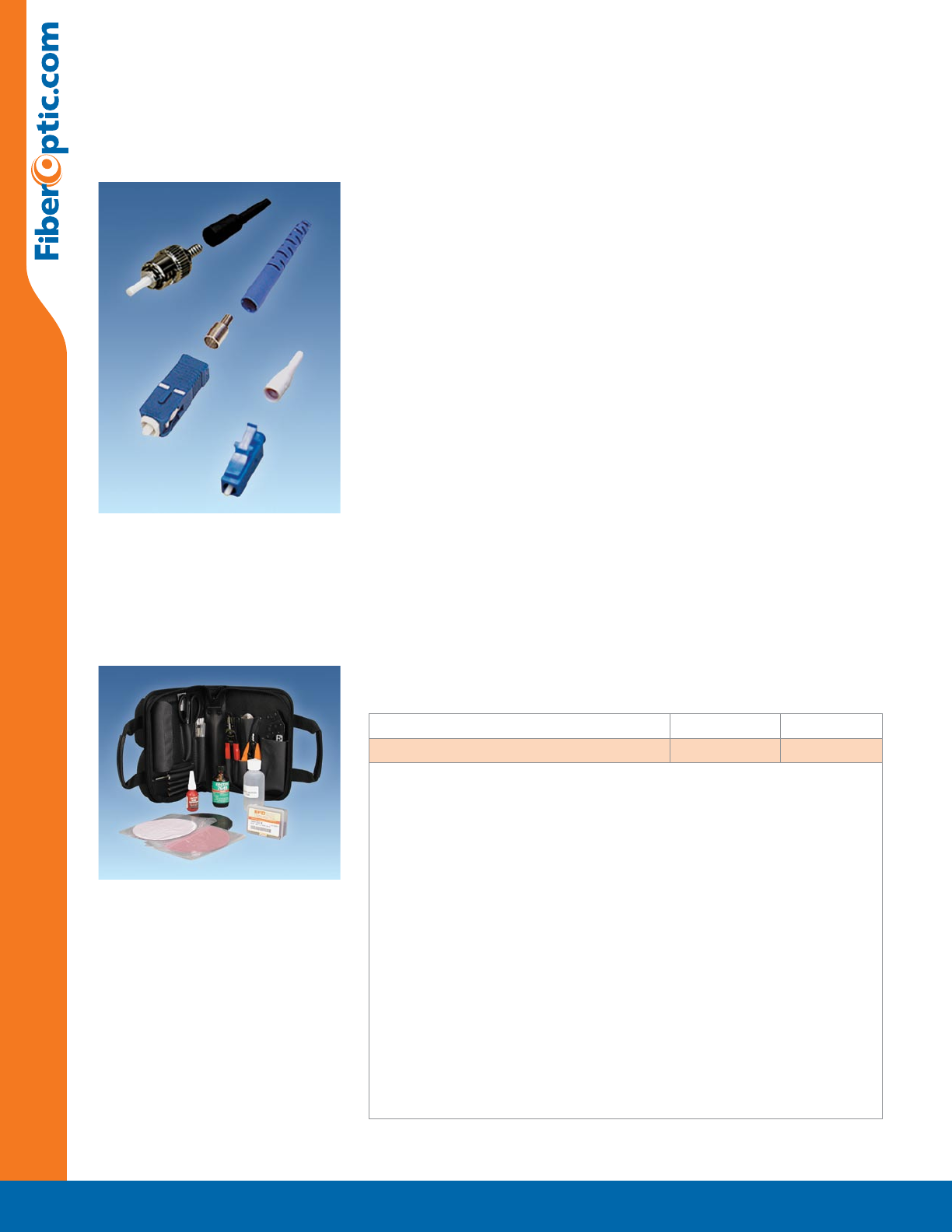

FIELD MASTER® CONNECTORS

Field Master® Connectors for ﬁeld termination of ﬁber optics feature high precision,

high reliability and low applied connector cost. Durable metal components, indus-

try-standard connector designs, and proven crimp technology give the customer

peace-of-mind that their installed network is steady and reliable. Field Master® Tool

Kits come complete with all necessary tools and consumables for the professional

installation of Field Master® Connectors.

Features

• High precision ceramic ferrules insure

ﬁber alignment and repeatable perfor-

mance.

• Rugged metal connector bodies provide

sturdy cable terminations.

• Industry standard interfaces allow

interoperability with media equipment.

• Meets EIA/TIA 568A performance

requirements.

• Field proven crimp technology improves

connector/cable tensile performance.

Applications

• Premise environments

• Desk for LAN environments

• Patch panels

• Direct equipment termination

•

Fiber to the Subscriber (FTTx) applica-

tions

• Repair / replacement requirements

FIELD MASTER® TOOL KIT

Features

• Quick and easy-to-use

• Compact

• Complete instructions included

• For use with SC, ST, and LC

Field Master® Connectors

ITEM DESCRIPTION PART NUMBER PRICE

Field Master® Tool Kit FM000065 $467.23

Kit Includes (tools and consumables):

Cable Prep Template FM000426 $6.41

Yellow polish ﬁlm, 3.0µm (10 per pack) C006907-10 $6.37

Pink polish ﬁlm, 1.0µm (10 per pack) C006913-10 $5.21

Pink diamond ﬁlm, 3.0µm C078700 $9.18

Rubber polishing pad (5”) C015407 $79.41

Sharpie® permanent marker C015830 $2.67

Jacket stripper C015687 $14.31

Buffer stripper C015296 $53.40

Kevlar cutter C095257 $76.99

Scribe tool C182635 $61.75

Polishing puck - SC, ST CS000446 $69.64

Polishing puck - LC CS000338 $69.64

Cletop stick cleaner C008812 $4.27

Fiber prepartion ﬂuid FPF1-00 $13.57

Applicator tips for adhesive C006037 $23.07

Water bottle (1 oz.) C015849 $12.81

Field installable adhesive with MSDS (1.75 oz.) C180691 $17.83

Field installable primer with MSDS (1.75 oz.) C181310 $15.43

Cloth wipes 34-155 $1.40

Field Master® Tool Kit comes with tools and consumables to professionally install

Field Master® connectors. Crimp Tool sold separately.

For ordering assistance, please contact Customer Service at 877-529-9114 (sales@ﬁberoptic.com) or visit our website at: www.ﬁberoptic.com

Fiber Cable

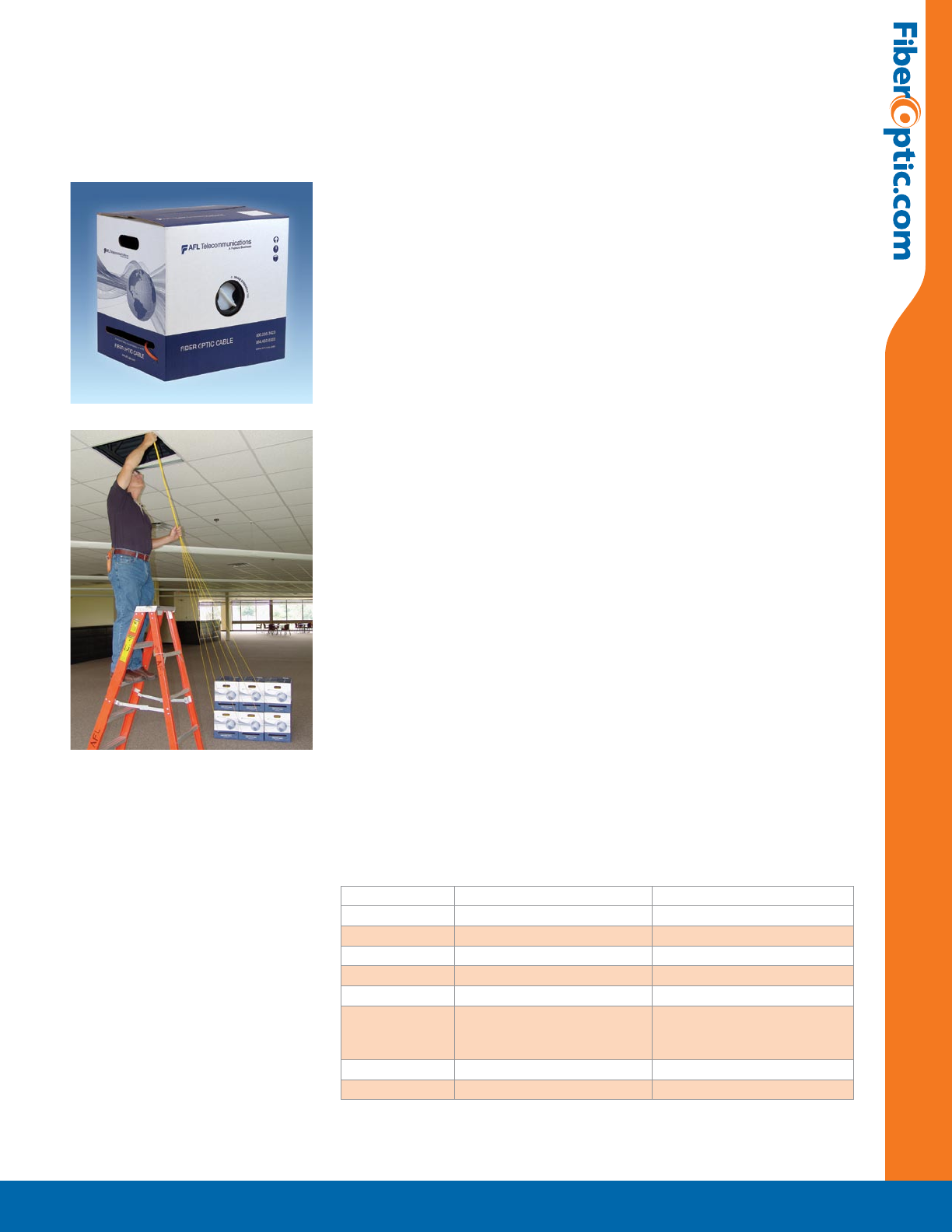

PREMISE FIBER CABLE

AFL’s “Fiber-In-A-Box” solution offers contractors lightweight, easy-to-use cable

packaging with “out of the box” disbursement of ﬁber cable. No reel supports or

pay-off’s are required. Simply set the box down in a convenient place, unlock the

built-in braking mechanism and begin pulling. Adjust the braking mechanism to

apply the amount of pulling tension required. Stack and conﬁgure boxes together

to disburse cable from several reels at the same time. Available in 1000, 2000 and

3000 foot lengths, this unique cable package solution will save contractors valuable

time and cost.

Applications

• Horizontal cabling / Fiber-to-the-Desk

• Fiber Drops within MDU’s

• Short to medium length cable runs between buildings

ORDERING INFORMATION

Add sufﬁx “-XMFBOX” to part number to specify “Fiber-In-A-Box” solution where X

indicates length of the cable in thousands of feet (1, 2, or 3).

AFL Cables available for purchase with “Fiber-In-A-Box” packaging solution:

FIBER COUNT CABLE TYPE MF – THOUSANDS OF FEET

1 Simplex, 3mm 1, 2, 3

2 Zipcord, 3mm 1, 2

2 Dual-Link (Round), 4.8mm 1

4 Quad-Link 1

6, 8, 12 Circular Premise Cable 1

2, 4, 6 Indoor/Outdoor Tight Buffered

Cable

(Plenum or Riser)

2 High Impact Indoor Cable 2

4, 6, 8, 12 High Impact Indoor Cable 1

Features/Benefits

• Easy count printing - descending marks (feet or meters) indicating amount of cable

remaining on reel

• Light weight and easy to transport with grips on both sides of the box for easy handling

• Eliminates the need for reel supports and cable spooling equipment

• Unique braking mechanism allows reel to be locked in place within carton during

transport and provides control of tension during cable pulls

• Boxes can be stacked and conﬁgured to support easy pay-off of multiple cable runs

• Wording under feed-through slot reminds installers of proper pulling methods for

optical cable

• Factory packaging ensures cable is not “over-stressed” in non-factory cable cutting

operations where personnel may not be sensitive to proper handling of ﬁber optic cable

• Available in 1000, 2000 and 3000 feet lengths, depending on cable diameter

• Easy access to reel from top allows installers to repackage excess cable pulled from box

• Easy way to organize, store and manage short lengths of excess cable

Call 877.529.9114 or email sales@fiberoptic.com for Pricing

The Fiber School has developed comprehensive,

integrated training programs to meet the needs of

designers, installers and users of fiber optic products.

Courses are structured for each application’s unique

needs: telecommunications, cable television, access,

local and wide area networks, wireless networks, intel-

ligent transportation systems (ITS) and power utilities.

FiberOptic.com offers you comprehensive around the

world training that helps you build technical solutions

and stay competitive today and in the future.

877.529.9114 • training@ﬁberoptic.com or visit us on the web www.theﬁberschool.com

Now that you have the best equipment...

...get the best training! On or Offsite!

We have the EXPERIENCE to give you the EXPERTISE with a VALUE that speaks for itself.

EXPERIENCE

• We have experience training various personnel ranging

from AT&T and Verizon to the US Military, Government

Ofﬁcials and Contractors.

• Aside from the US, we have trained in locations in

South America, Africa and the Middle East.

EXPERTISE

• BICSI Certiﬁcation

• ETA (Electronics Technician Association) Certiﬁcation

• FiberOptic.com (FOM) Certiﬁcation

VALUE

• Fair and competitive pricing.

• Custom training available.

• On-site training available.

• Courses approved for continuing education credits.

• Gain exposure to various equipment from top

manufacturers, including: Sumitomo, AFL, Fuji-

kara, Multilink, Hoffman, Fitel, EXFO and Noyes.

• Continuing relationship with FiberOptic.com pro-

vides you with project assistance, rental solutions,

tools and troubleshooting.

We will be in:

Orlando 2-18 – 2-21

Las Vegas 4-21 – 4-24

See www.thefiberschool.com

for other cities near you!

487275 Catalog

Navigation menu

Versions of this User Manual:

Views

Navigation
