www.geelectrical.com BuyLog®Catalog
Publications and Reference: See Section 22 for a
complete list of additional product-related publications
1-1
Residential
Rev. 1/10
Prices and data subject
to change without notice
Section 1
Load Centers
Q-Line Circuit Breakers– Product Features and Benefits........1-2
PowerMark Gold Load Centers—
Product Features and Benefits ........................................................1-3
PowerMark Gold and Plus Load Centers—
Product Number Guides......................................................................1-4

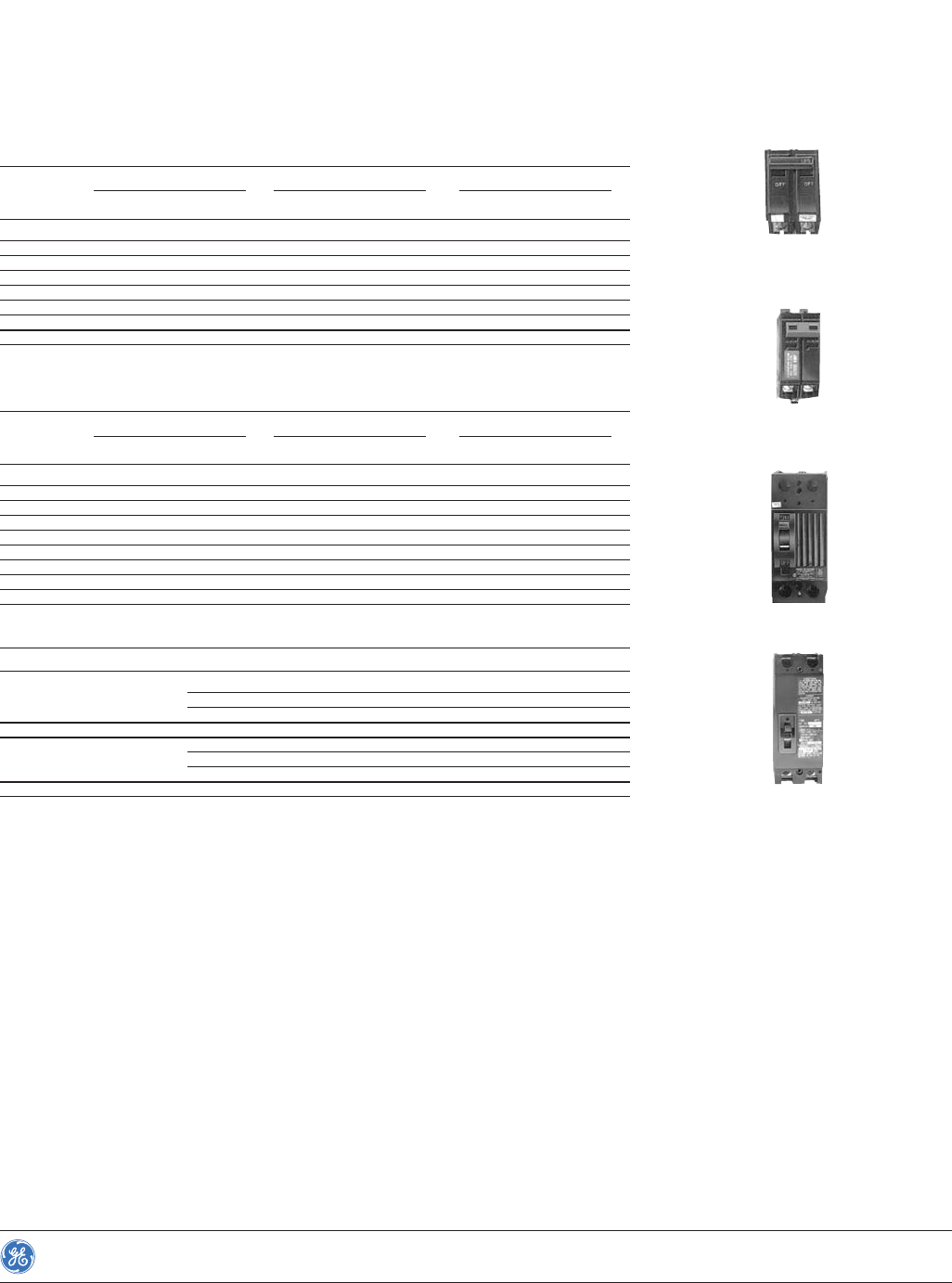

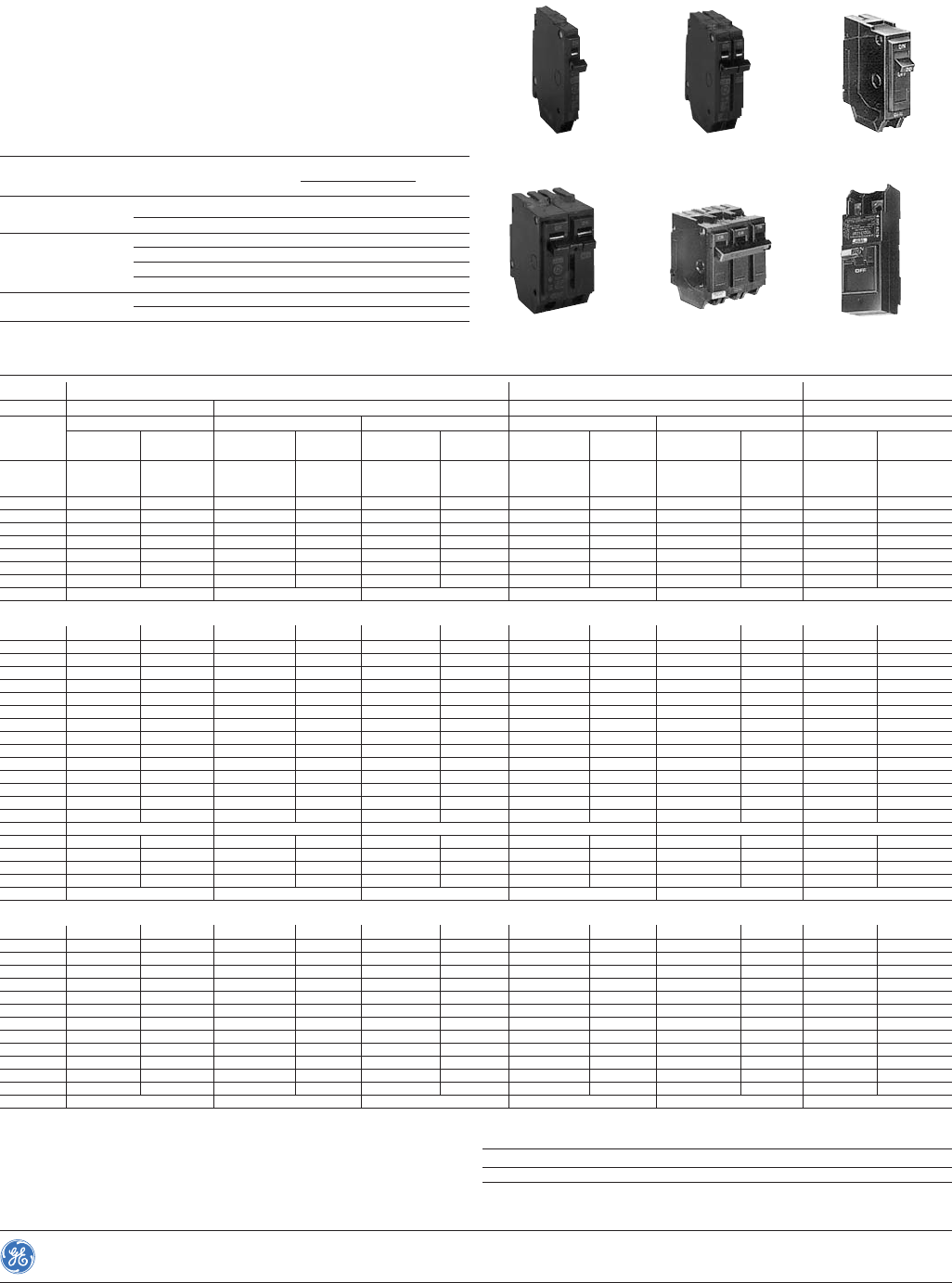

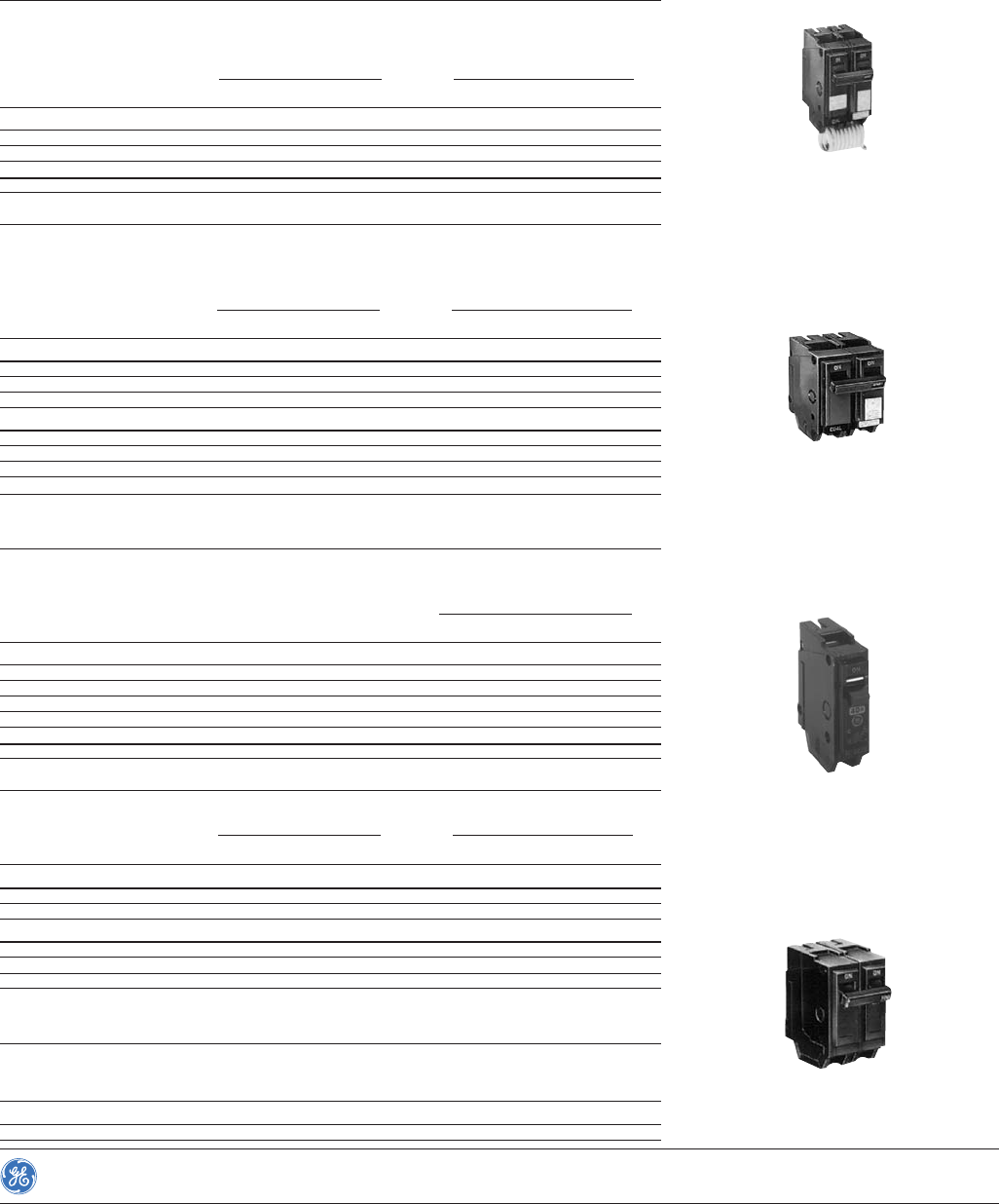

Q-Line Plug-in Circuit Breakers............................................................1-5
Special Purpose Circuit Breakers........................................................1-6

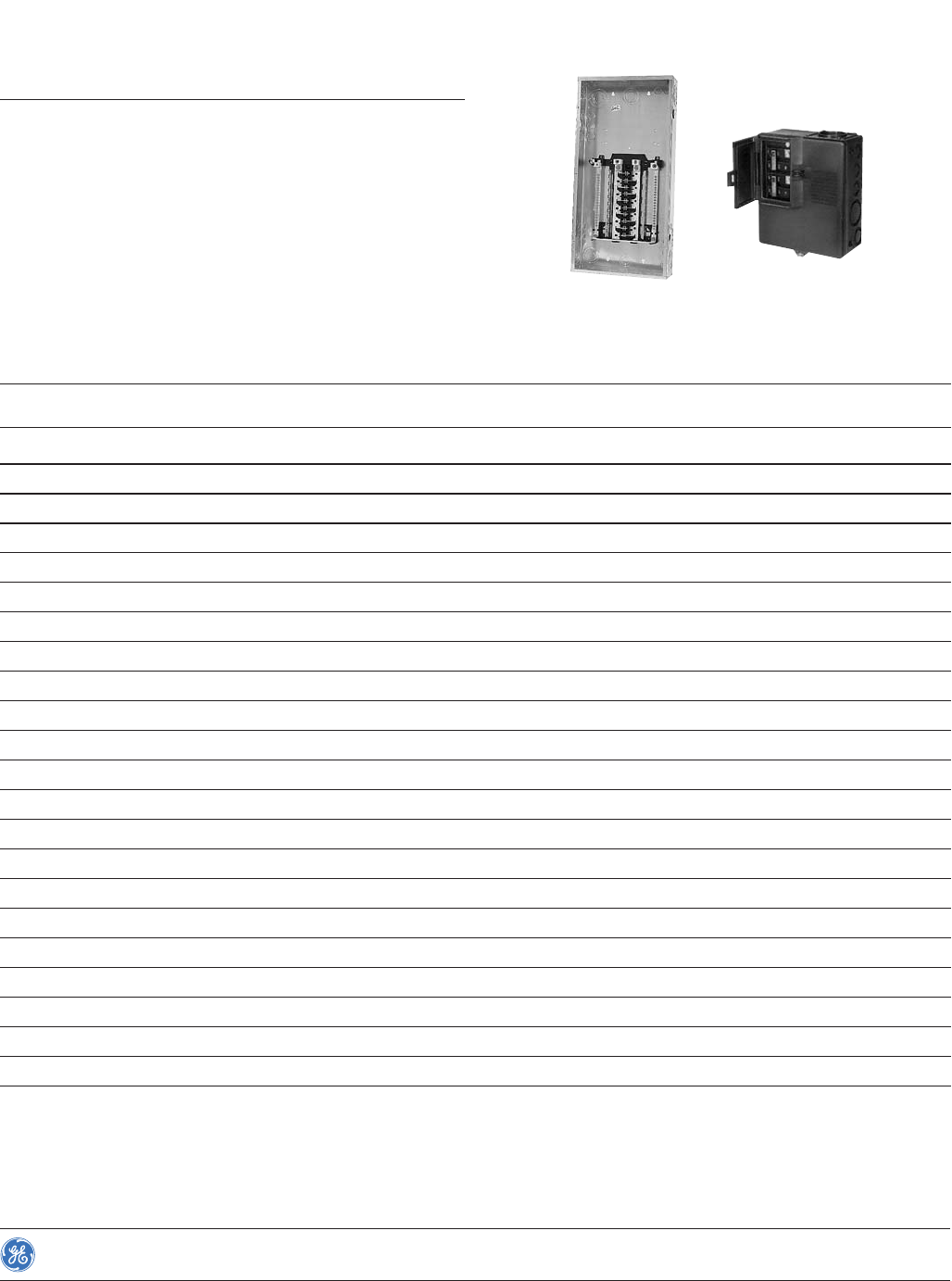

PowerMark Gold and Plus Single-Phase Load Centers—
Main Lug and Convertible Load Centers.....................................1-9
Main Breaker Factory Installed.....................................................1-12
PowerMark Plus®Three-Phase Load Centers—
Main Circuit Breakers or Main Lugs Factory Installed .......1-14

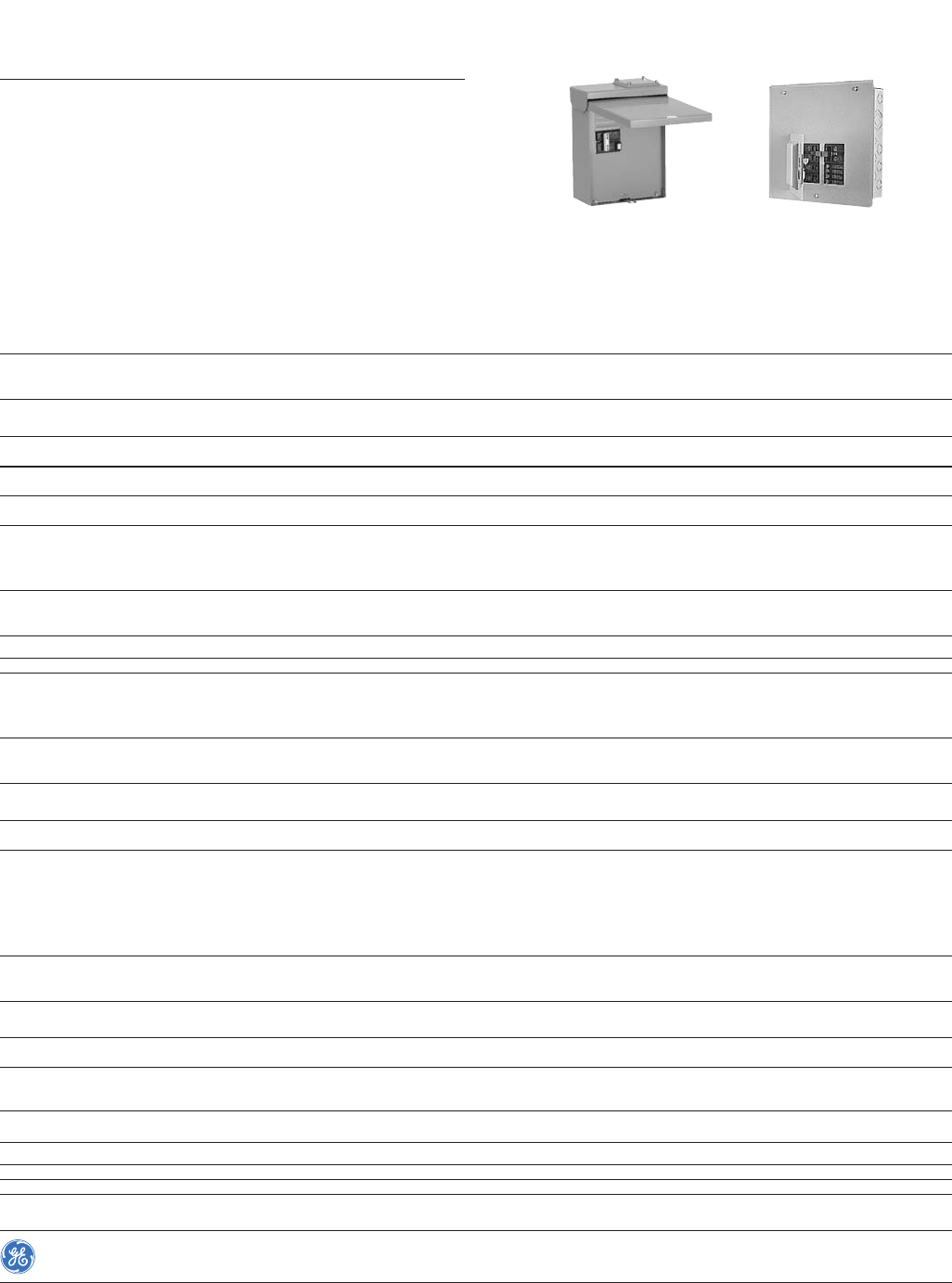

PowerMark Gold Load Centers—Specialty Panels...................1-17

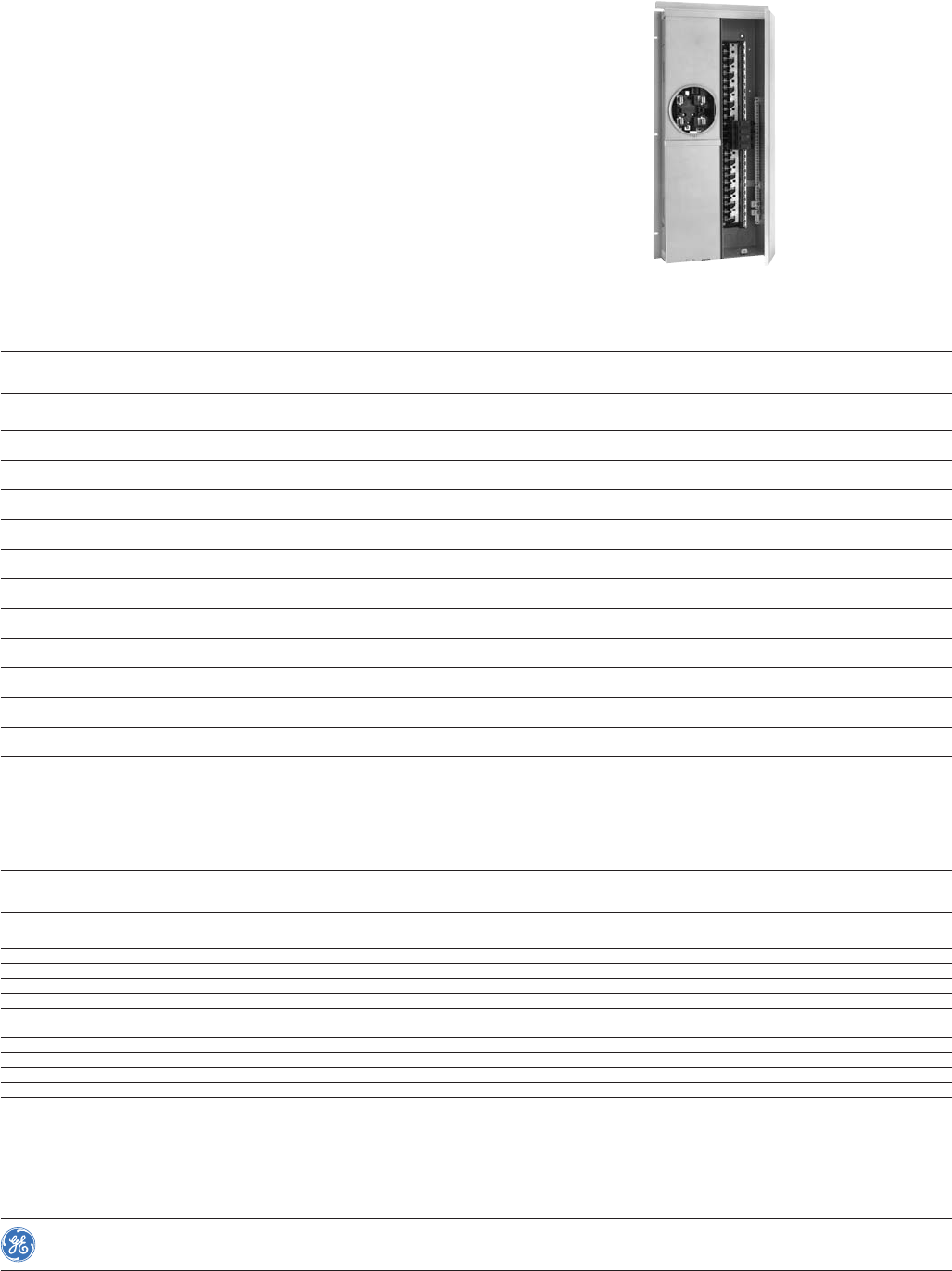

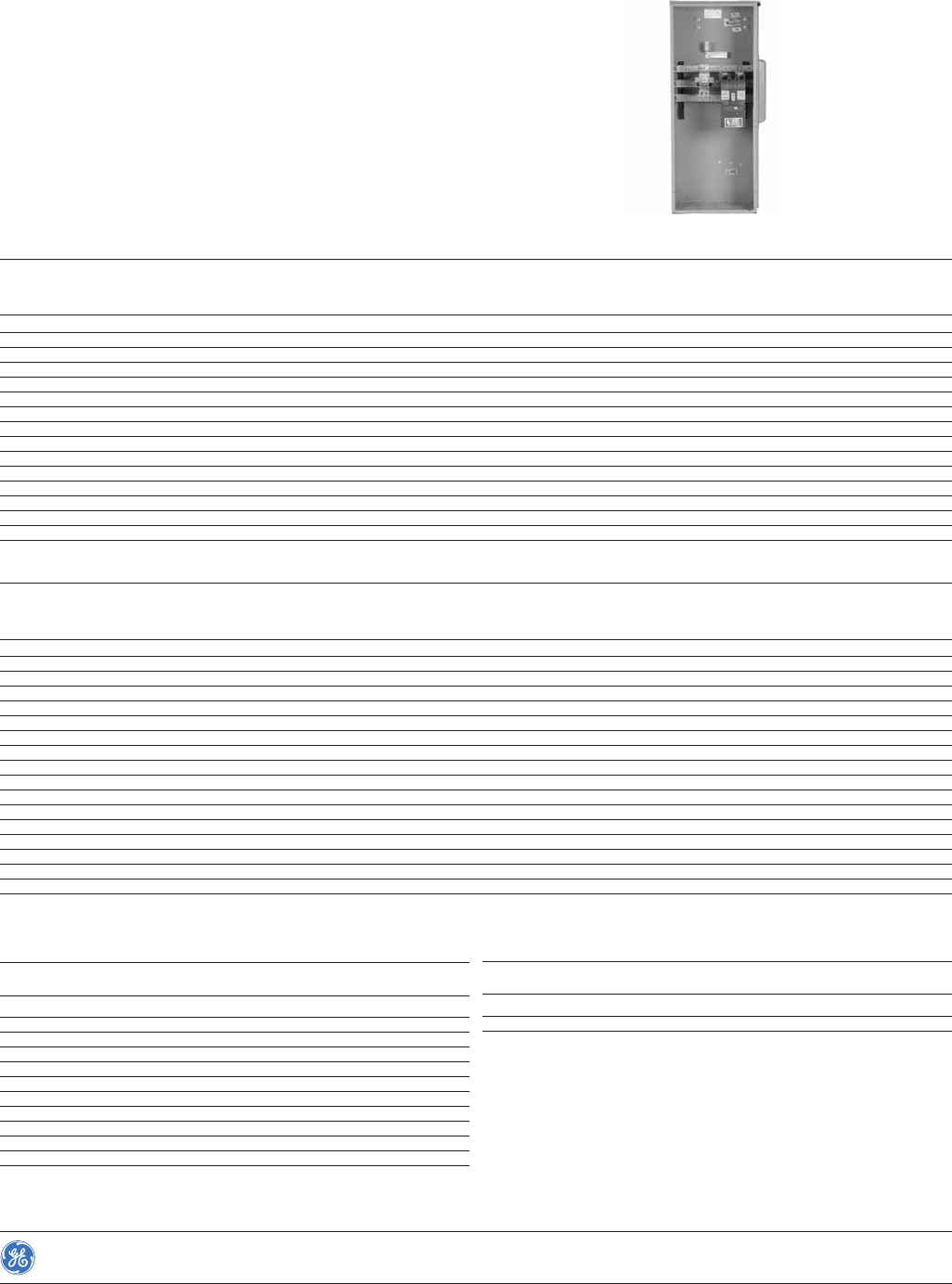

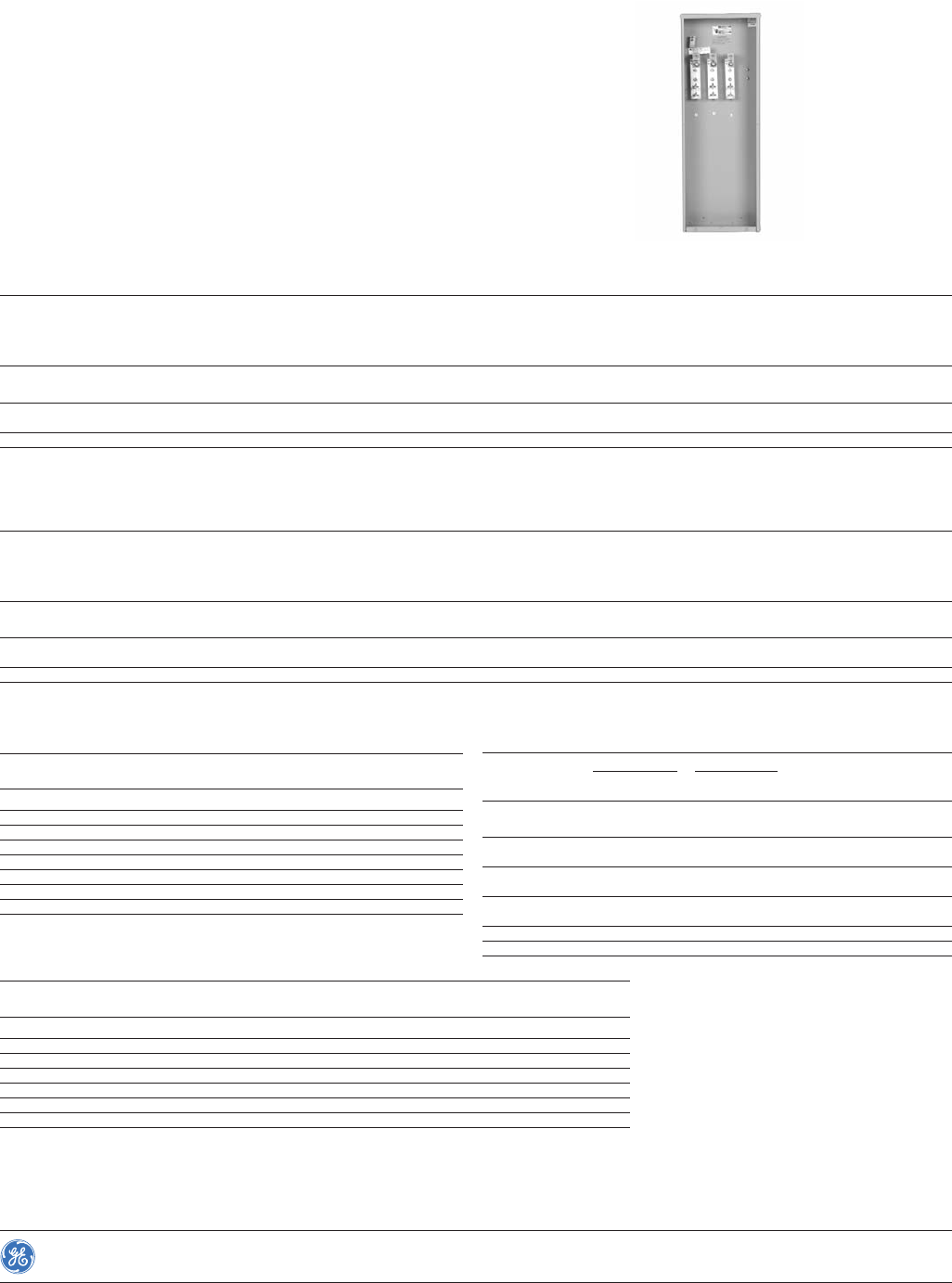

PowerMark Gold Meter Socket Load Centers ............................1-18

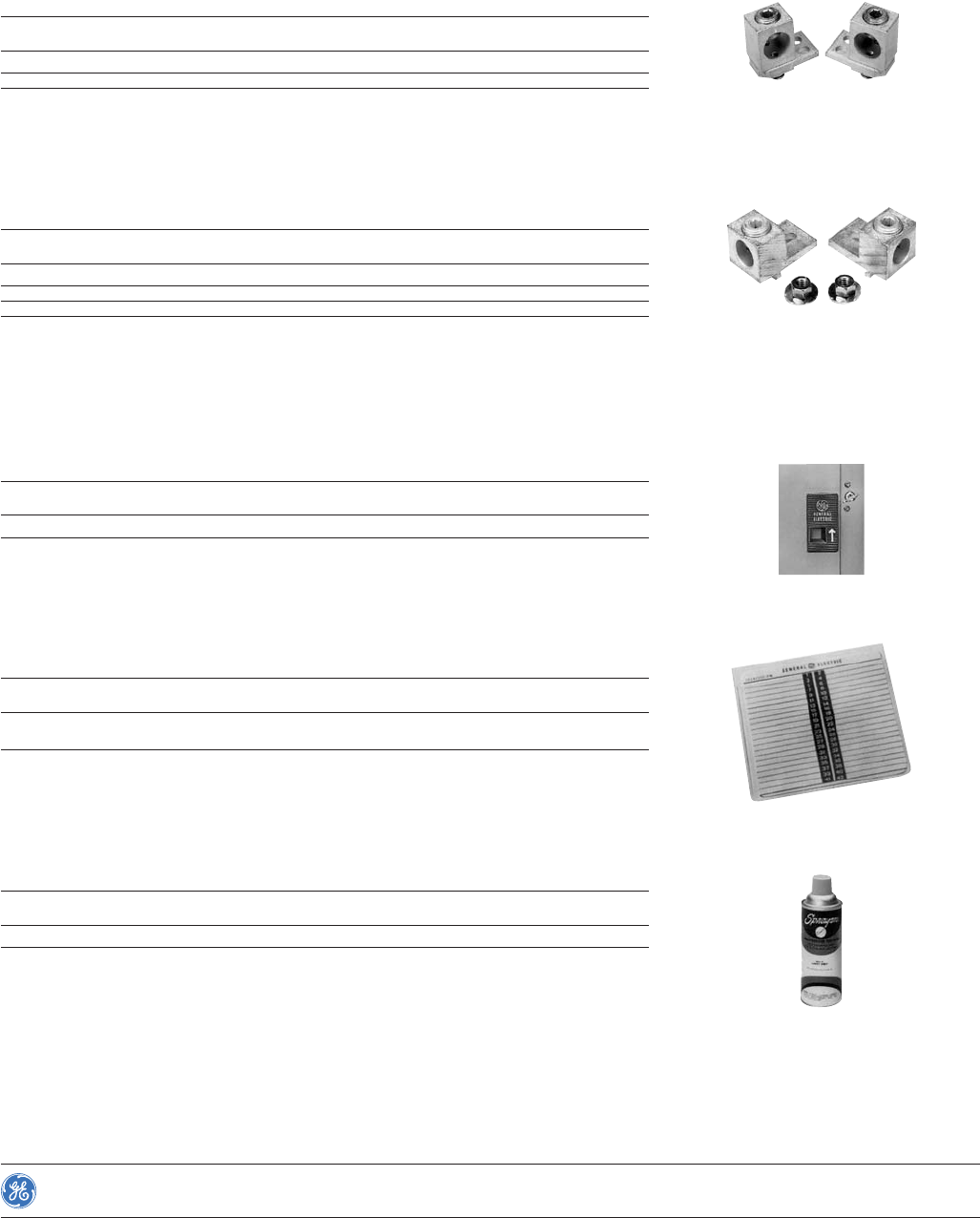

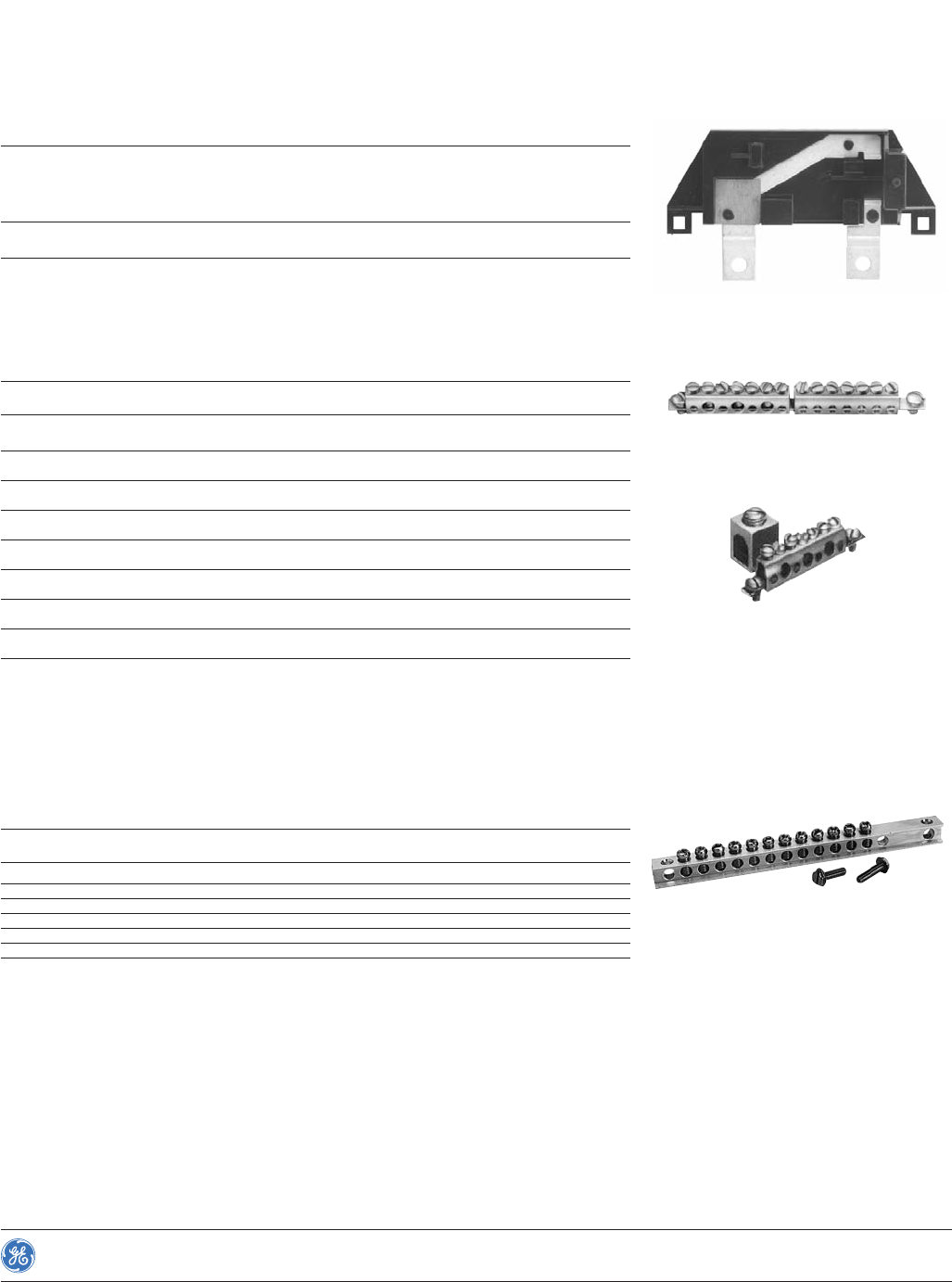

Field Installed Accessories...................................................................1-24

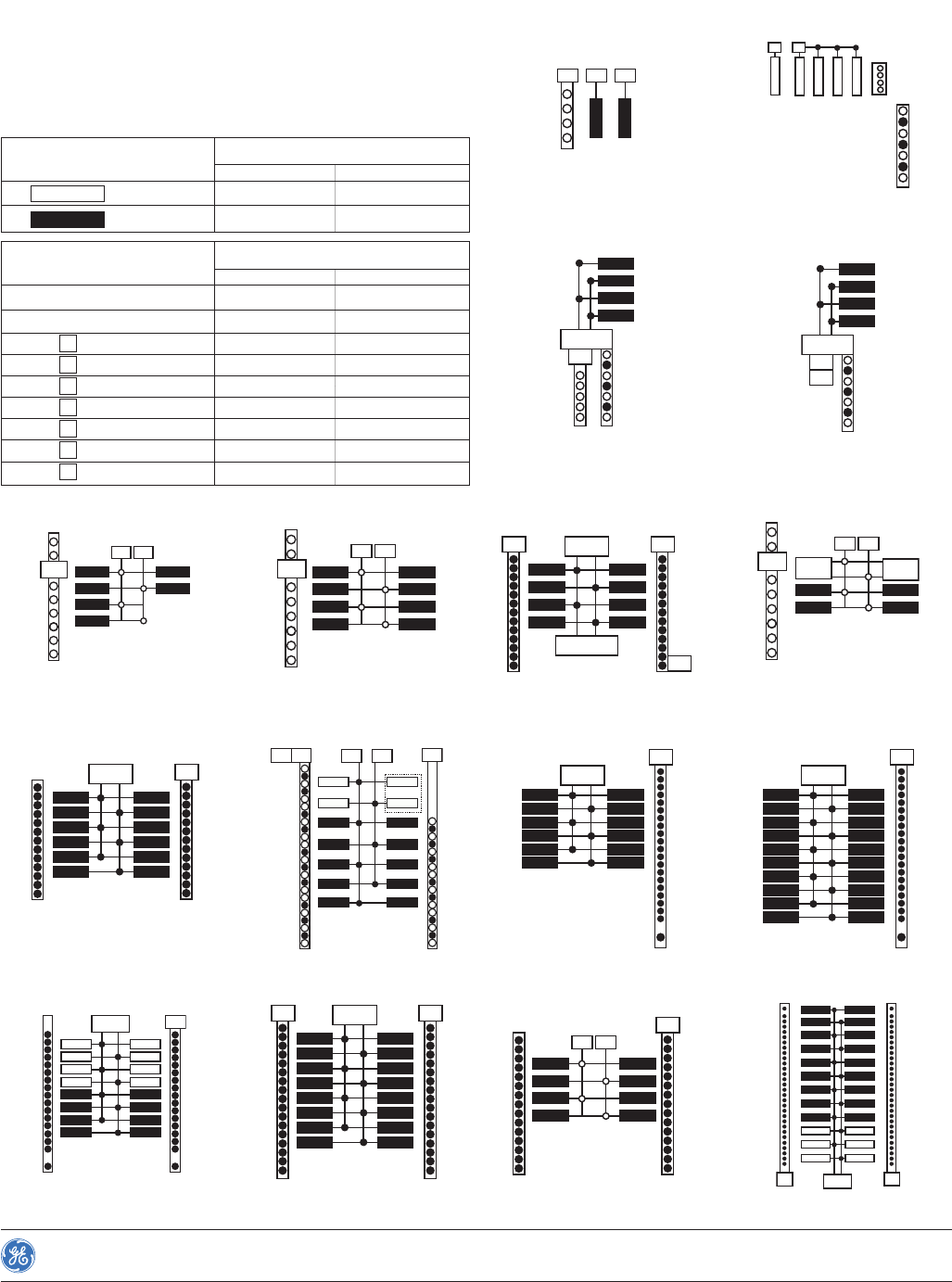

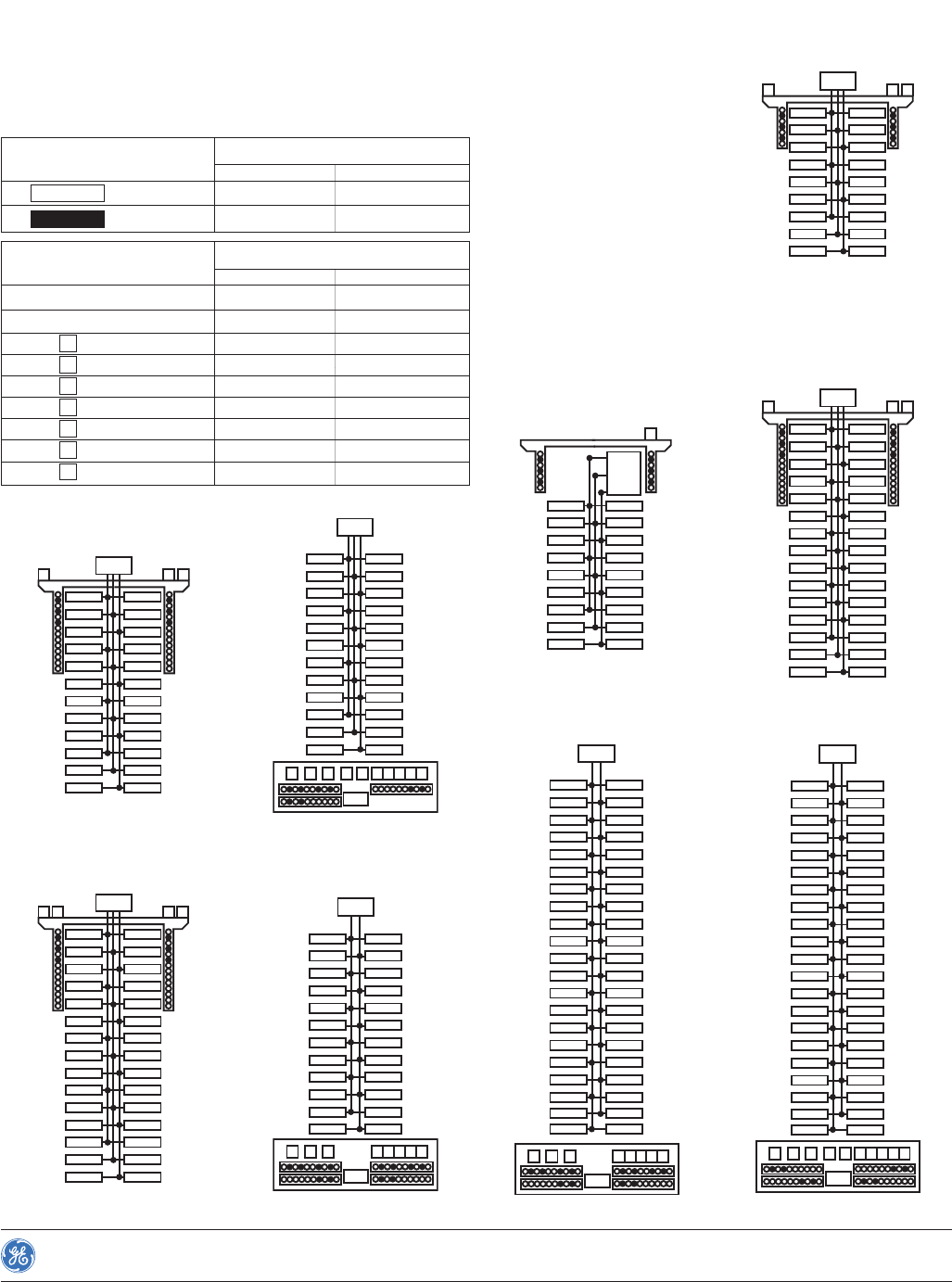

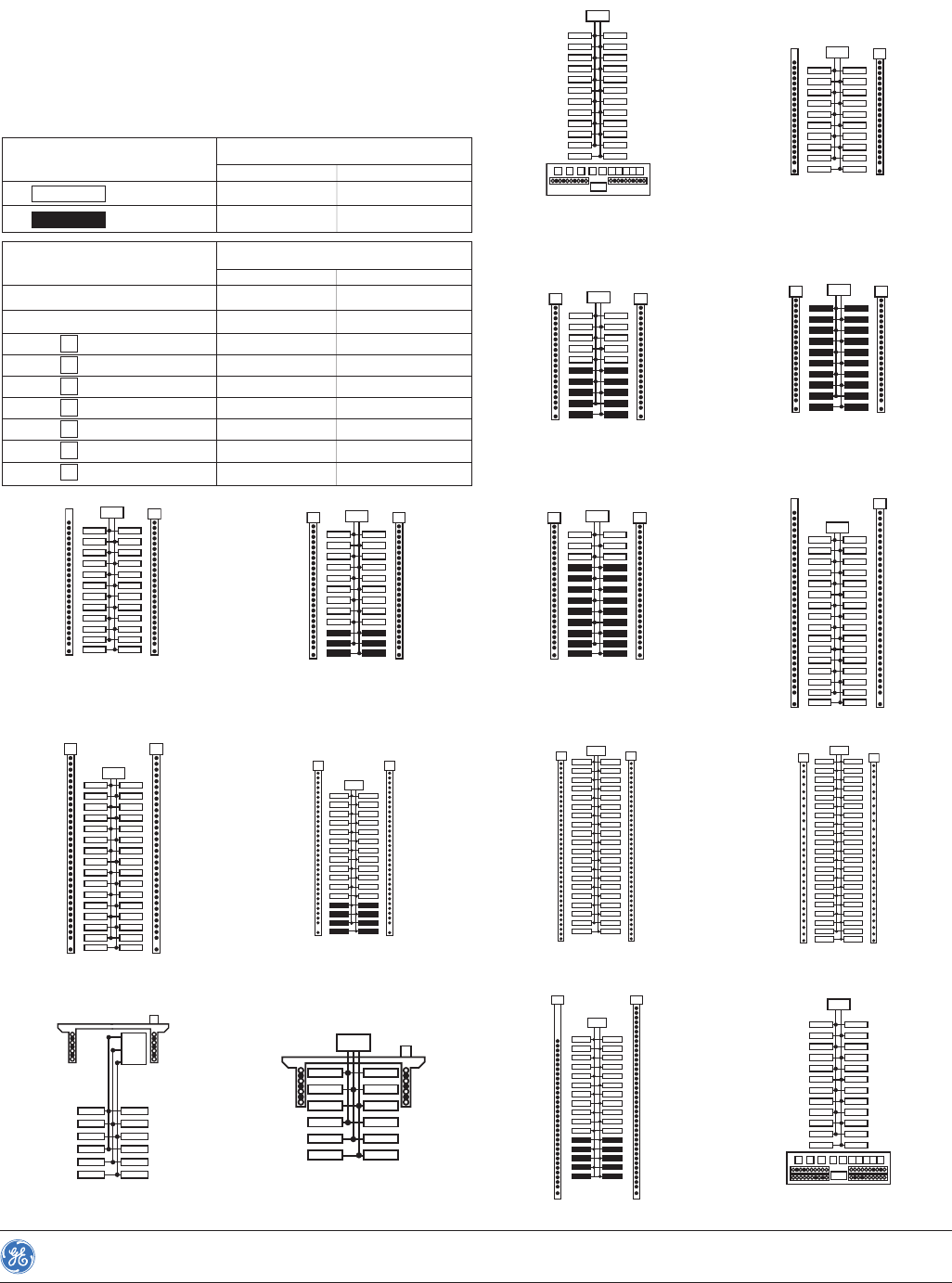

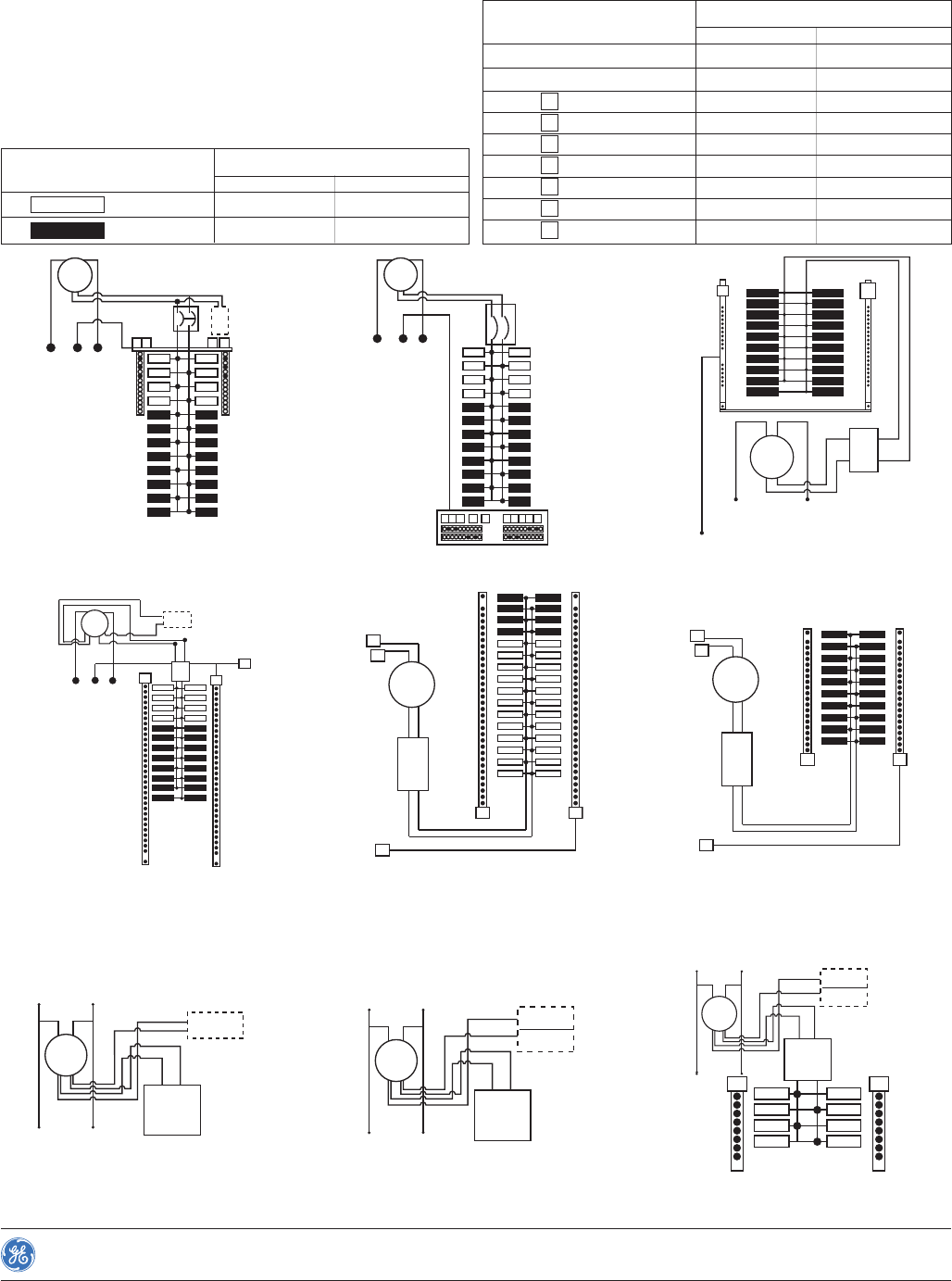

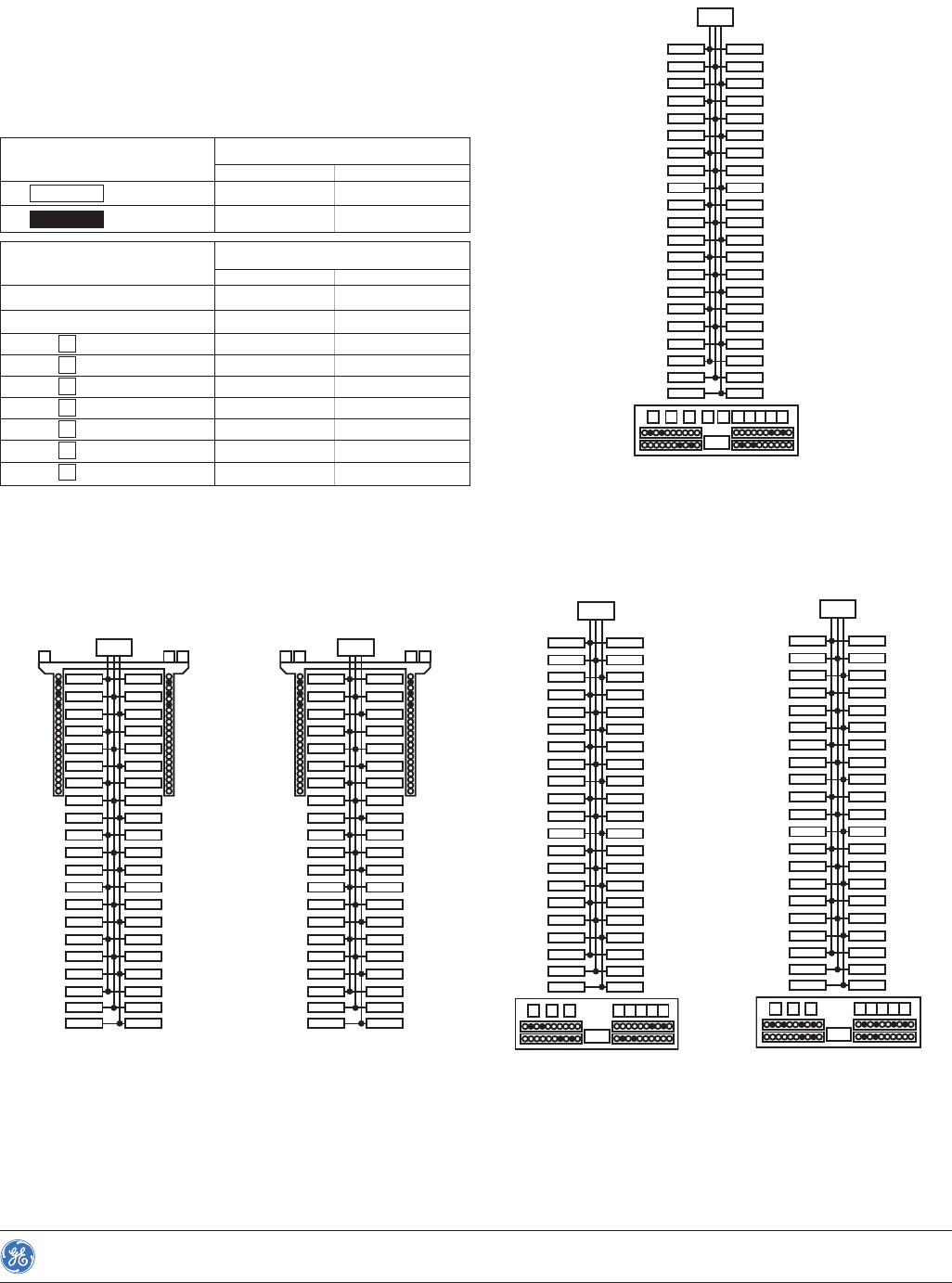

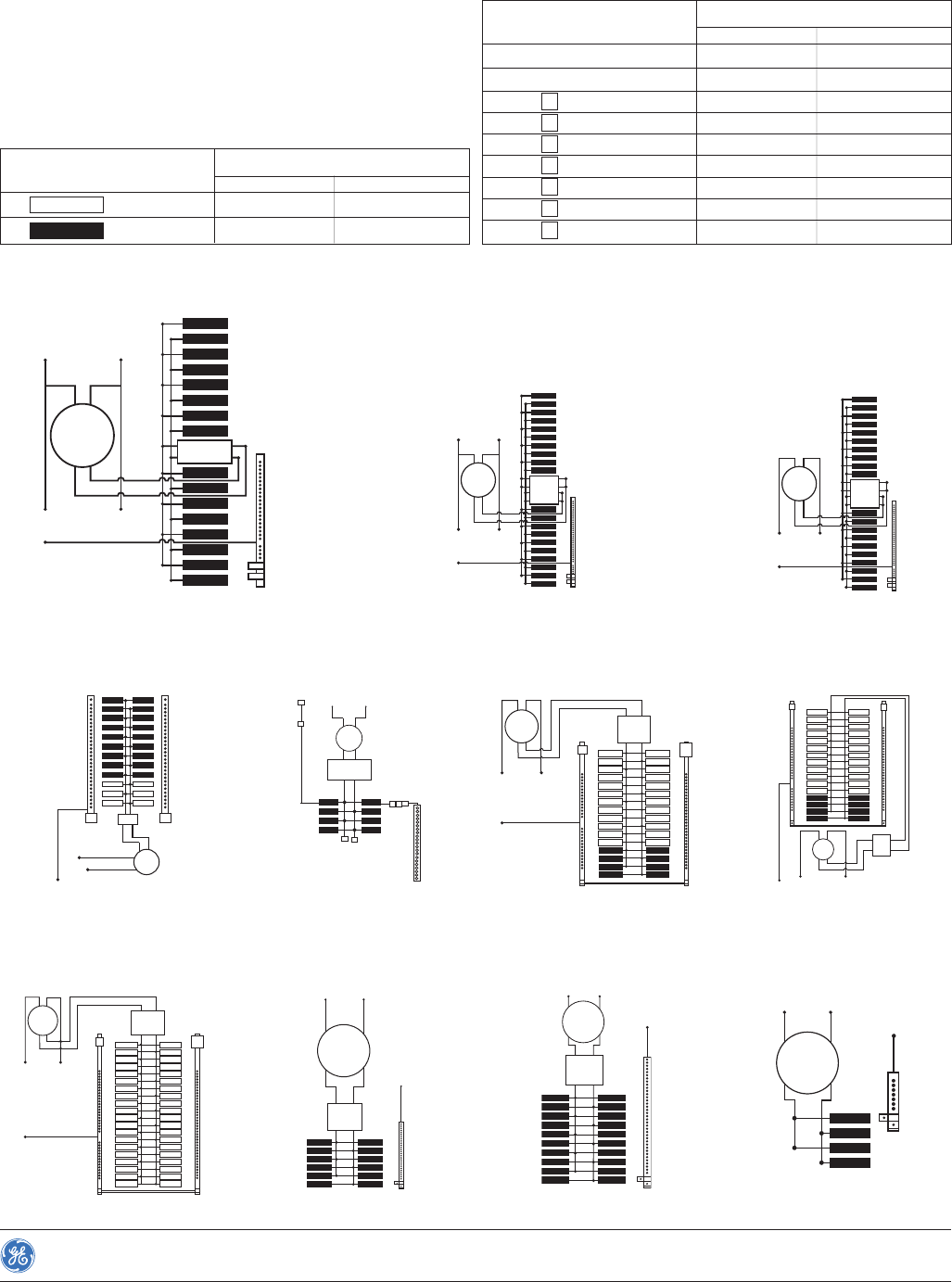

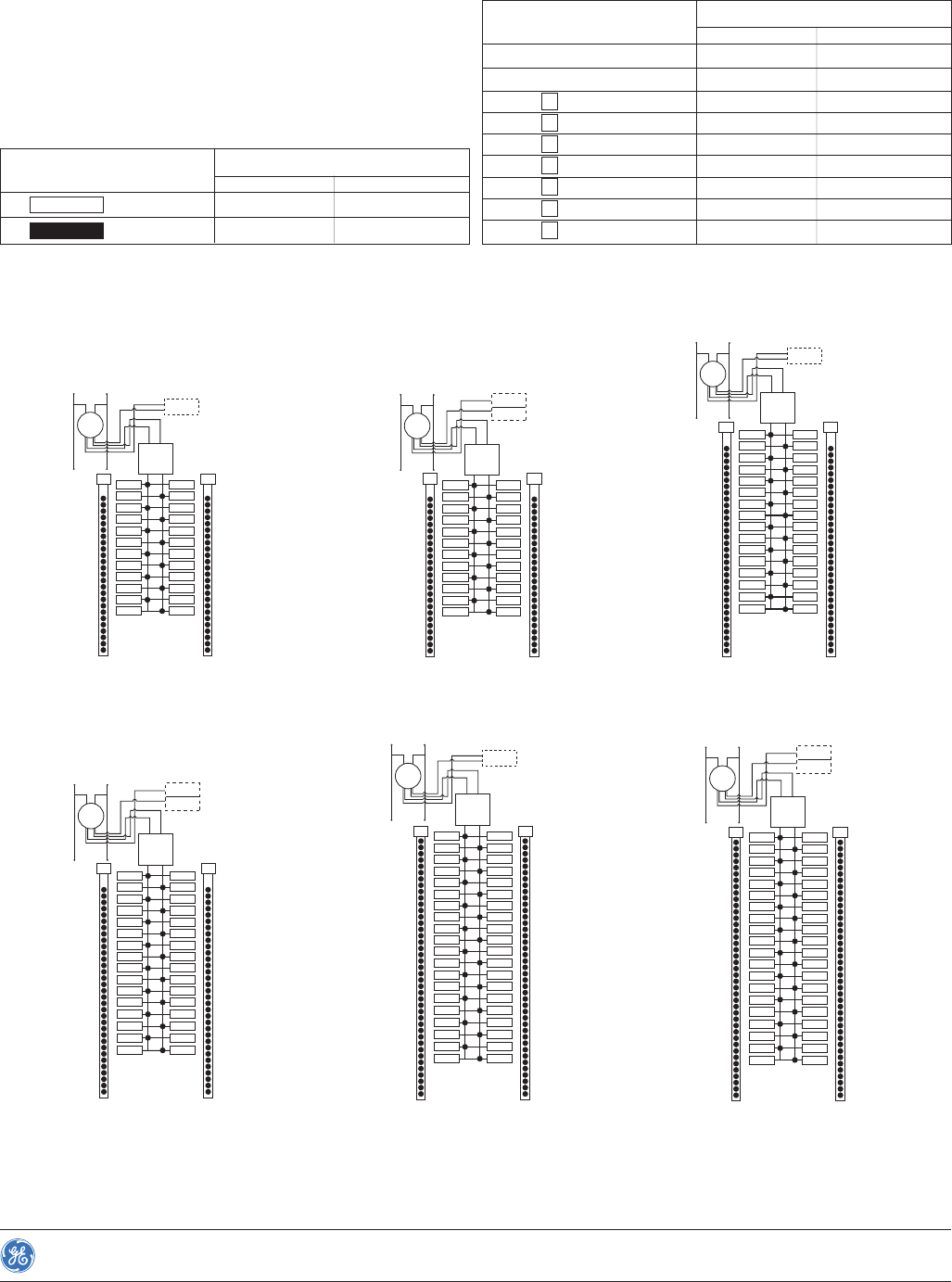

Wiring Diagrams ......................................................................................1-30

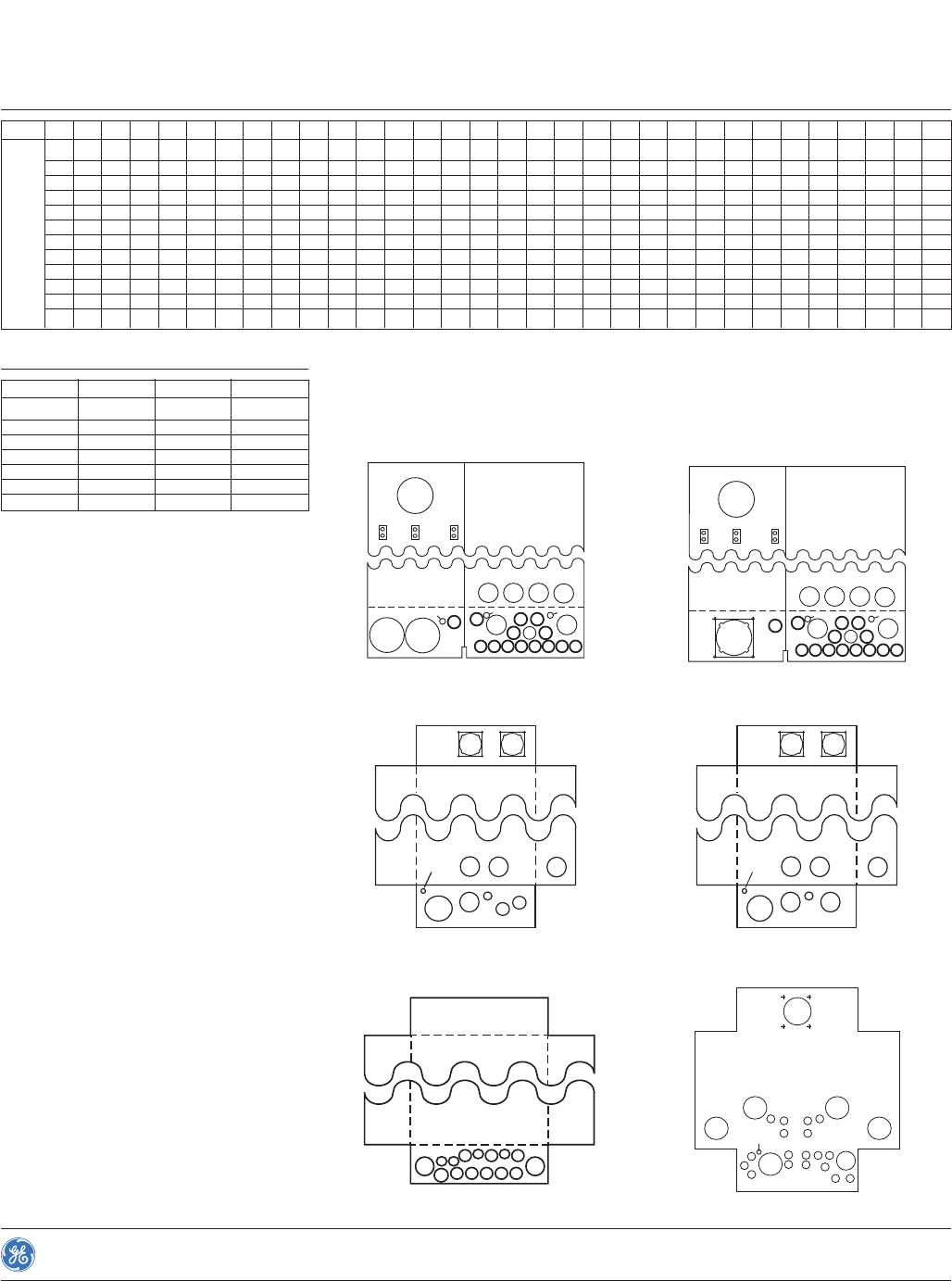

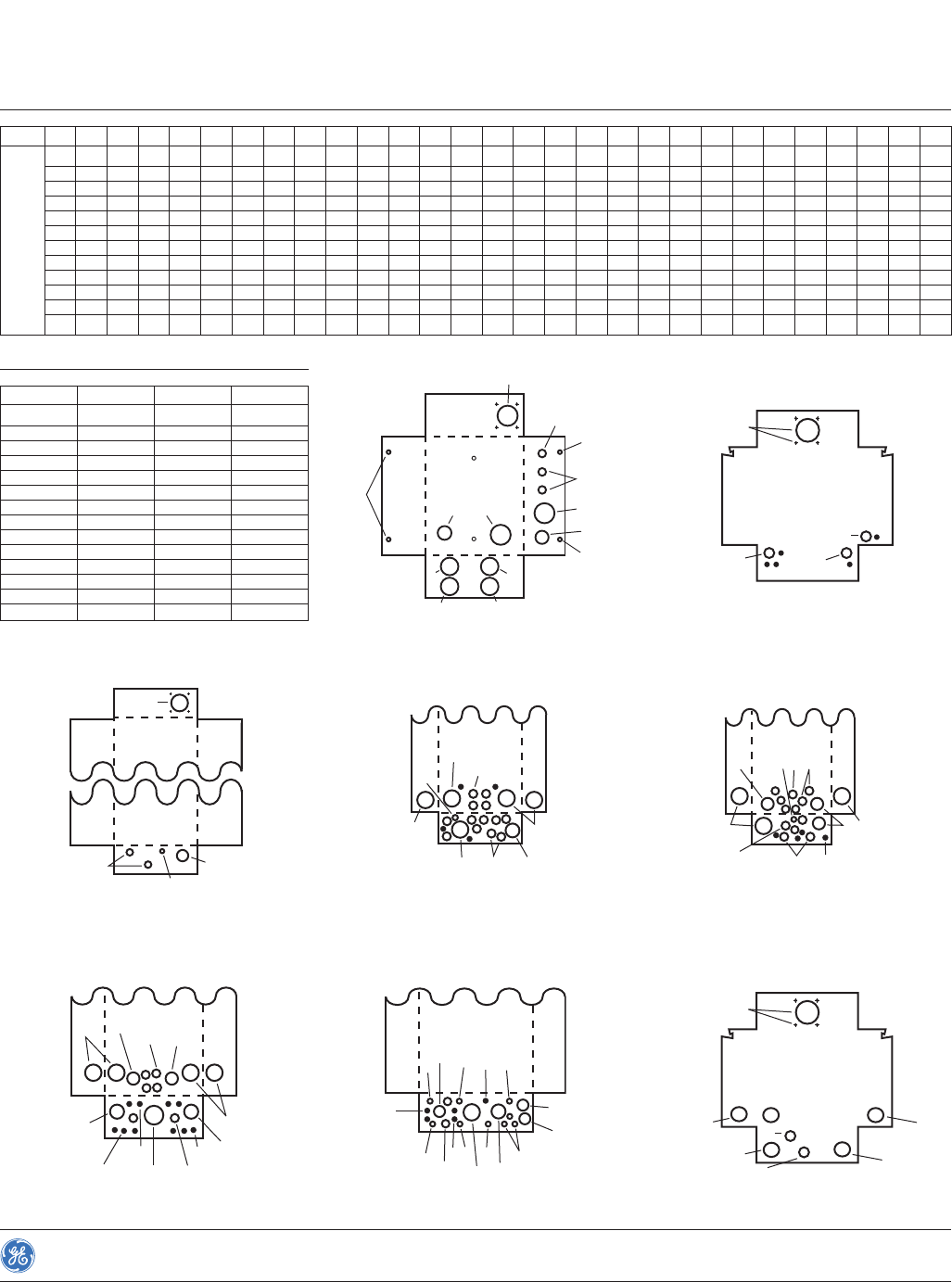

Load Centers and Meter Socket Load Centers—

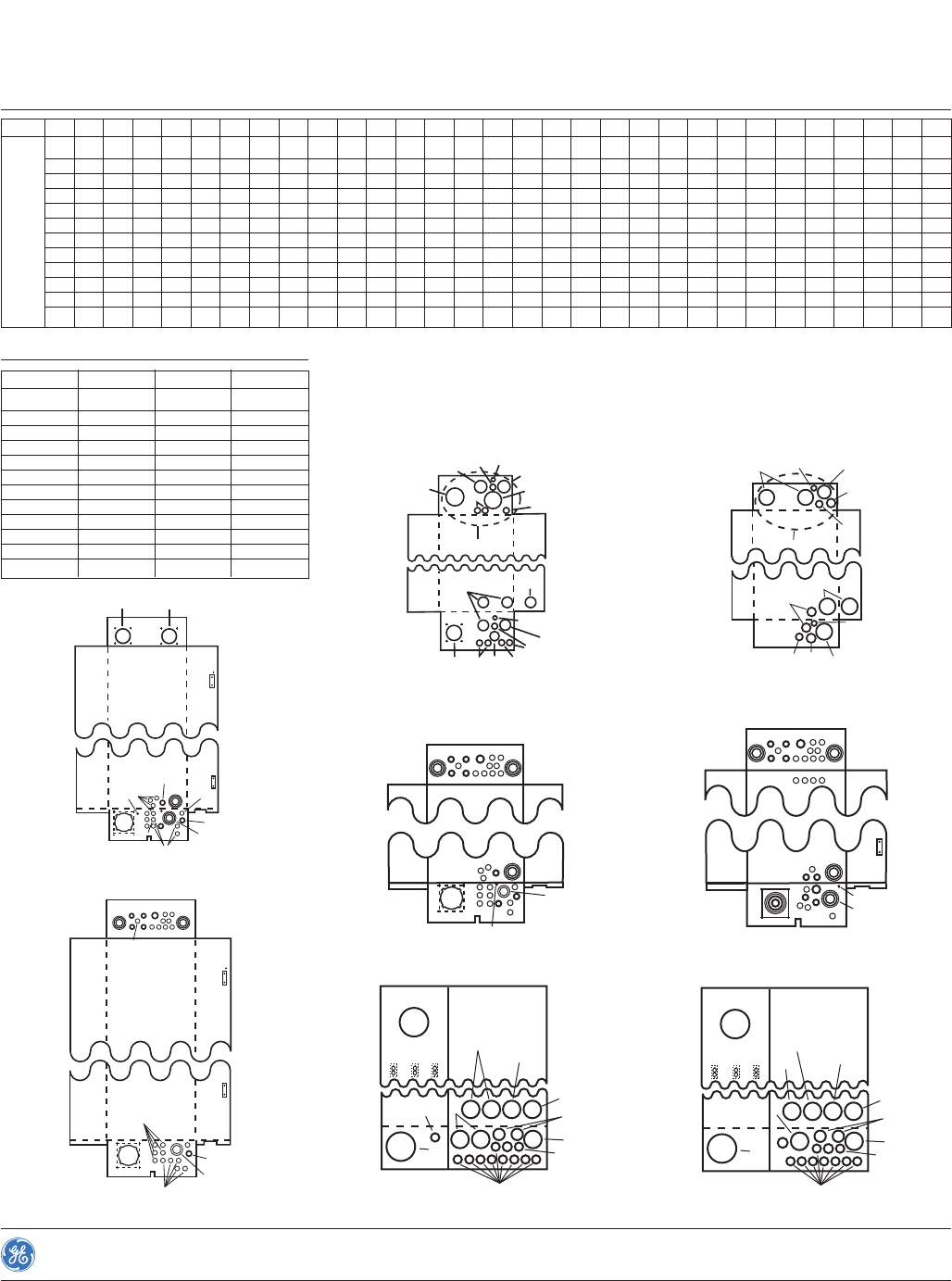

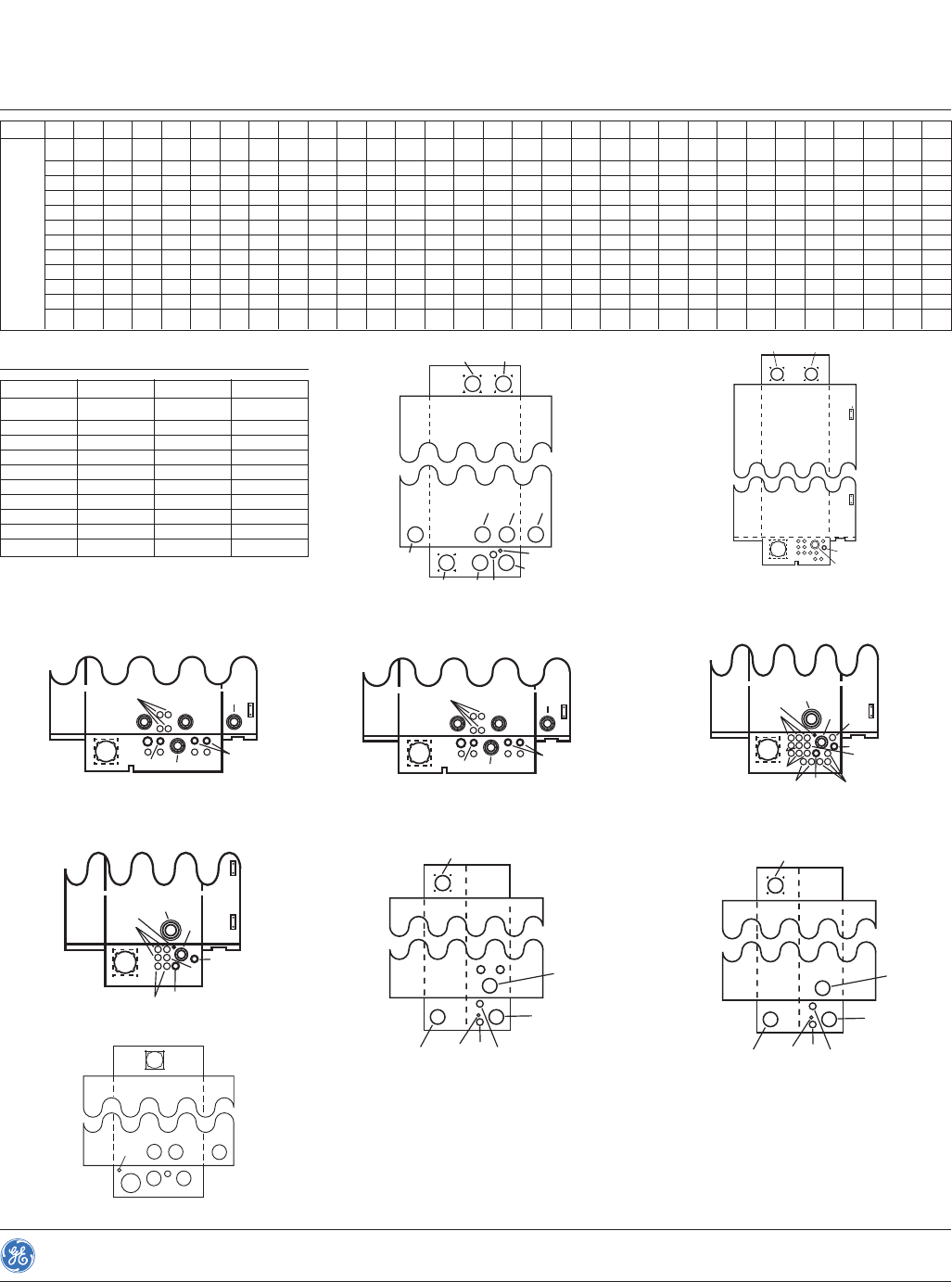

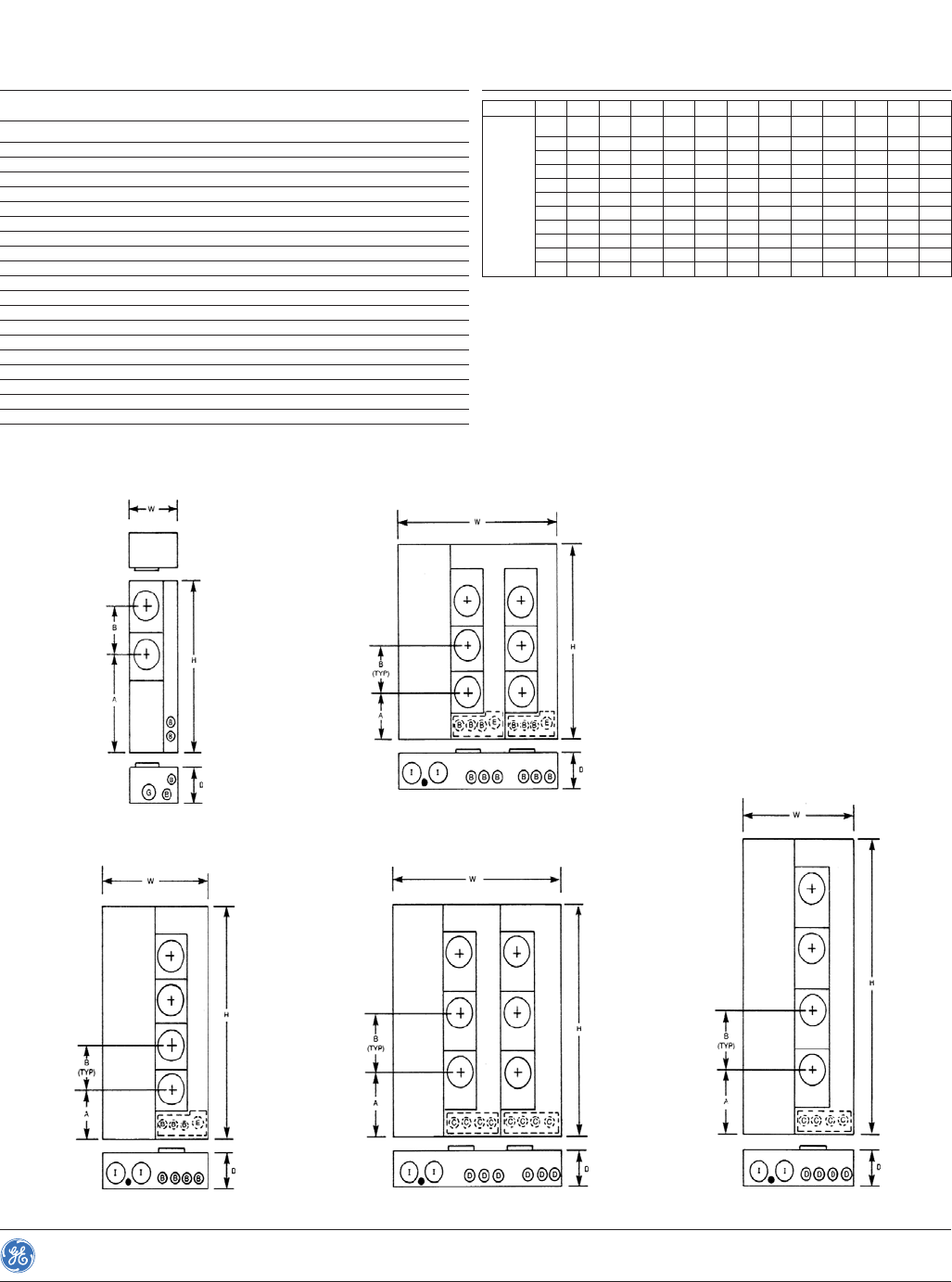

Knockouts................................................................................................1-38
Modular Metering
Meter Mod III and Mini Mod III Product Number System......1-43
Mini Mod III—Ring Type and Ringless.............................................1-44
Mini Mod III—Tenant Main Circuit Breakers.................................1-45
Mini Mod III—Factory Installed Accessories................................1-46
Mini Mod III—Field Installed Accessories ......................................1-47
Meter Mod III—How to Order; Short Circuit Ratings................1-48
Meter Mod III—Main Modules,
Single-Phase and Three-Phase.....................................................1-49
Meter Mod III—Factory Installed Accessories.............................1-52
Meter Mod III—Meter Stack Modules,
Single-Phase Plus Accessories ......................................................1-56
Meter Mod III—Meter Stack Modules,
Three-Phase plus Accessories.......................................................1-59
Meter Mod III—Meter Stack Modules,
Phase Balancing...................................................................................1-60

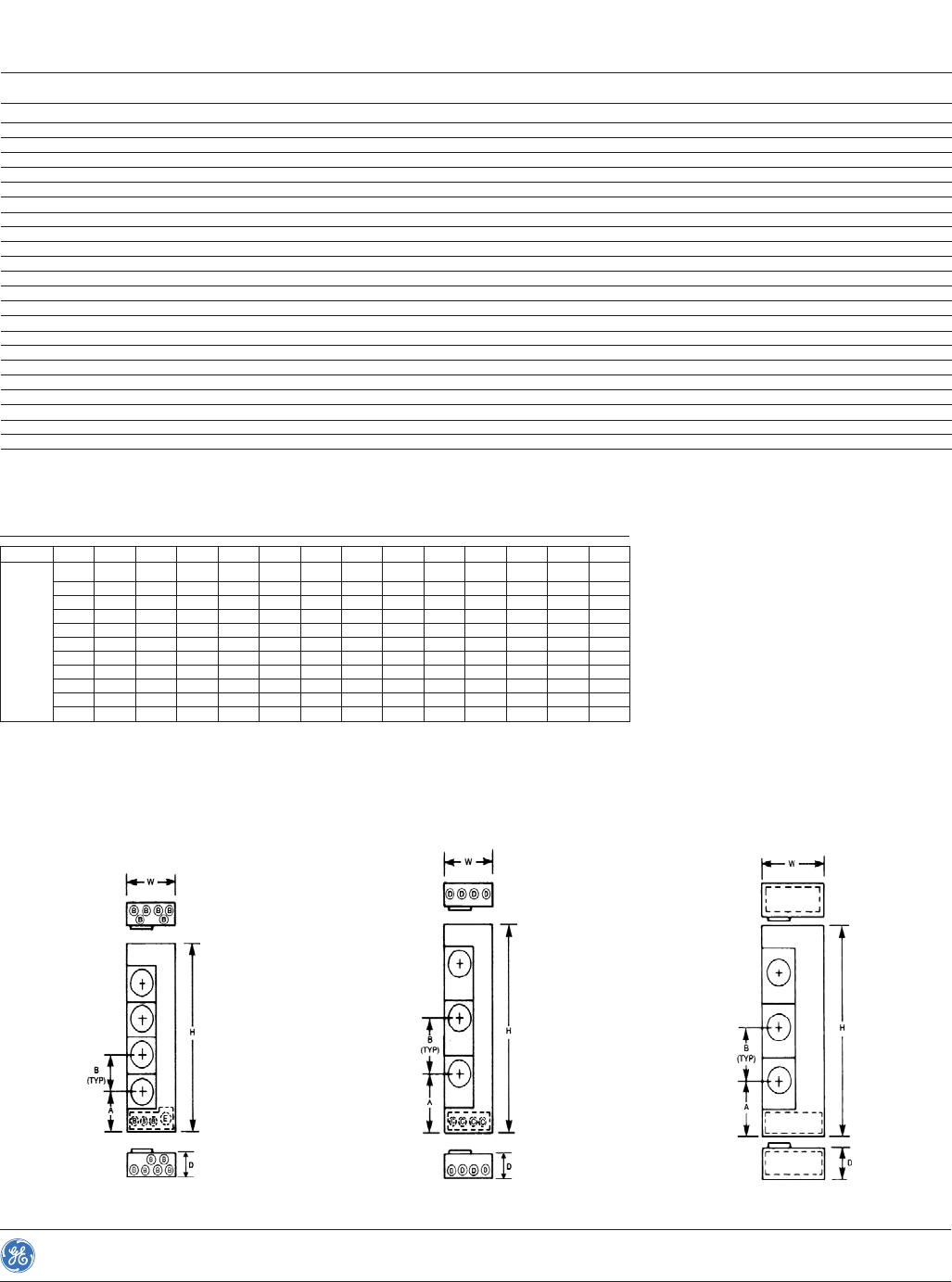

Mini Mod III—Enclosure Knockout Dimensions..........................1-61
Meter Mod III—Enclosure Knockout Dimensions......................1-62
Structured Wiring
Value Series— Wall Plate Solutions, Wall Mount Solutions,
Value 10", 15", 20" and 37" Solutions.........................................1-65
Value Series Selector Guide................................................................1-67

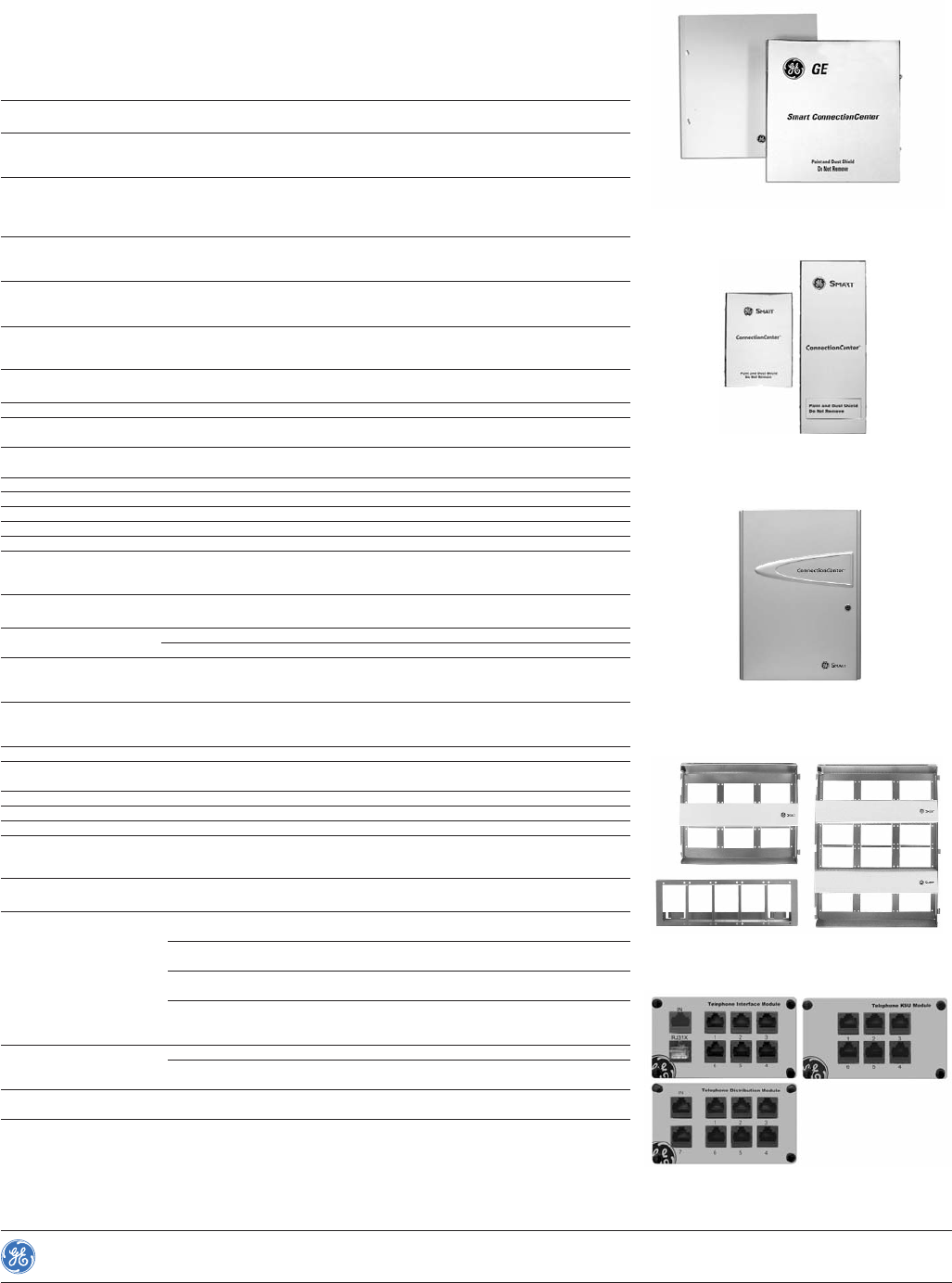

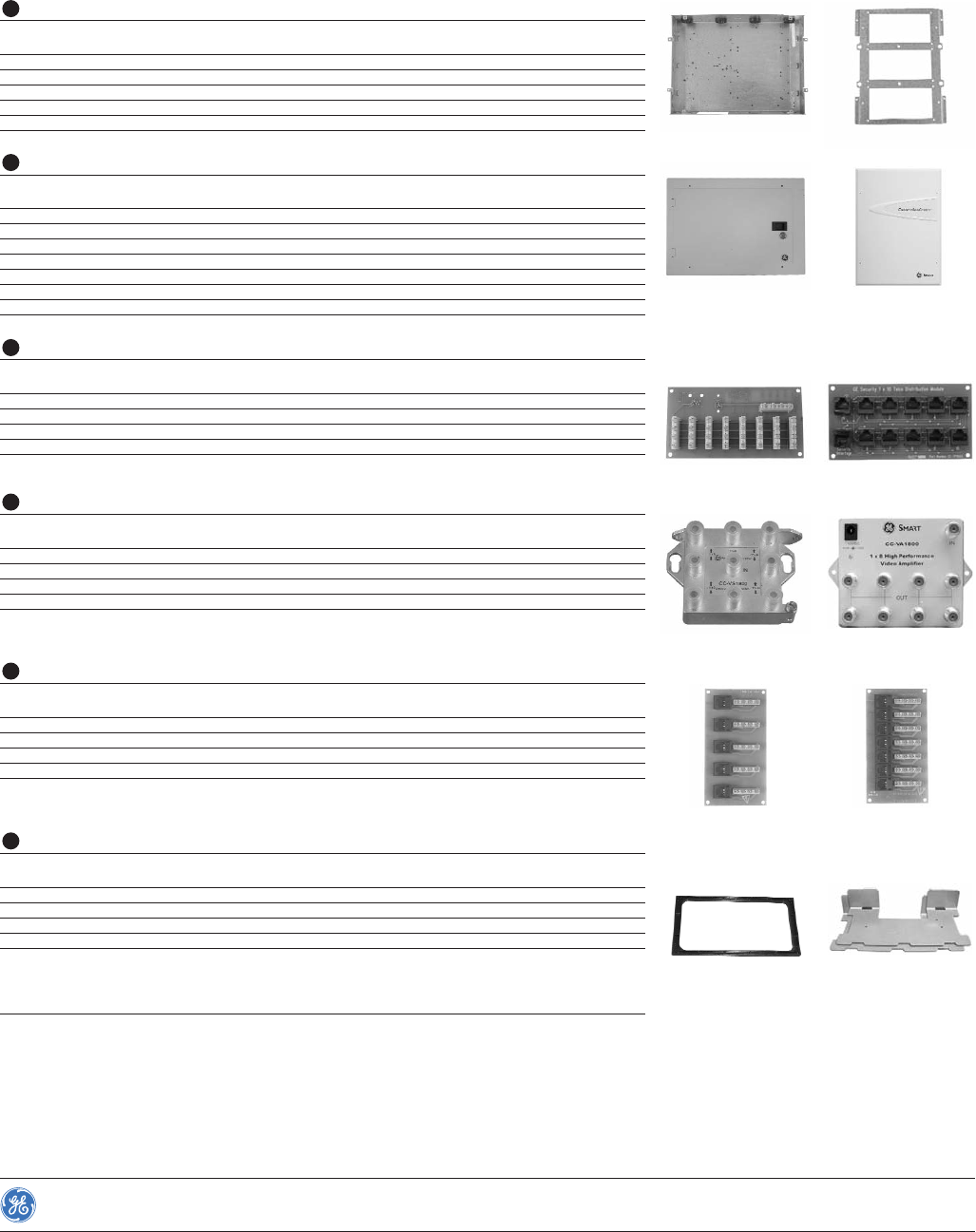

Rough-in Kits, Cover Kits/Door Kits,

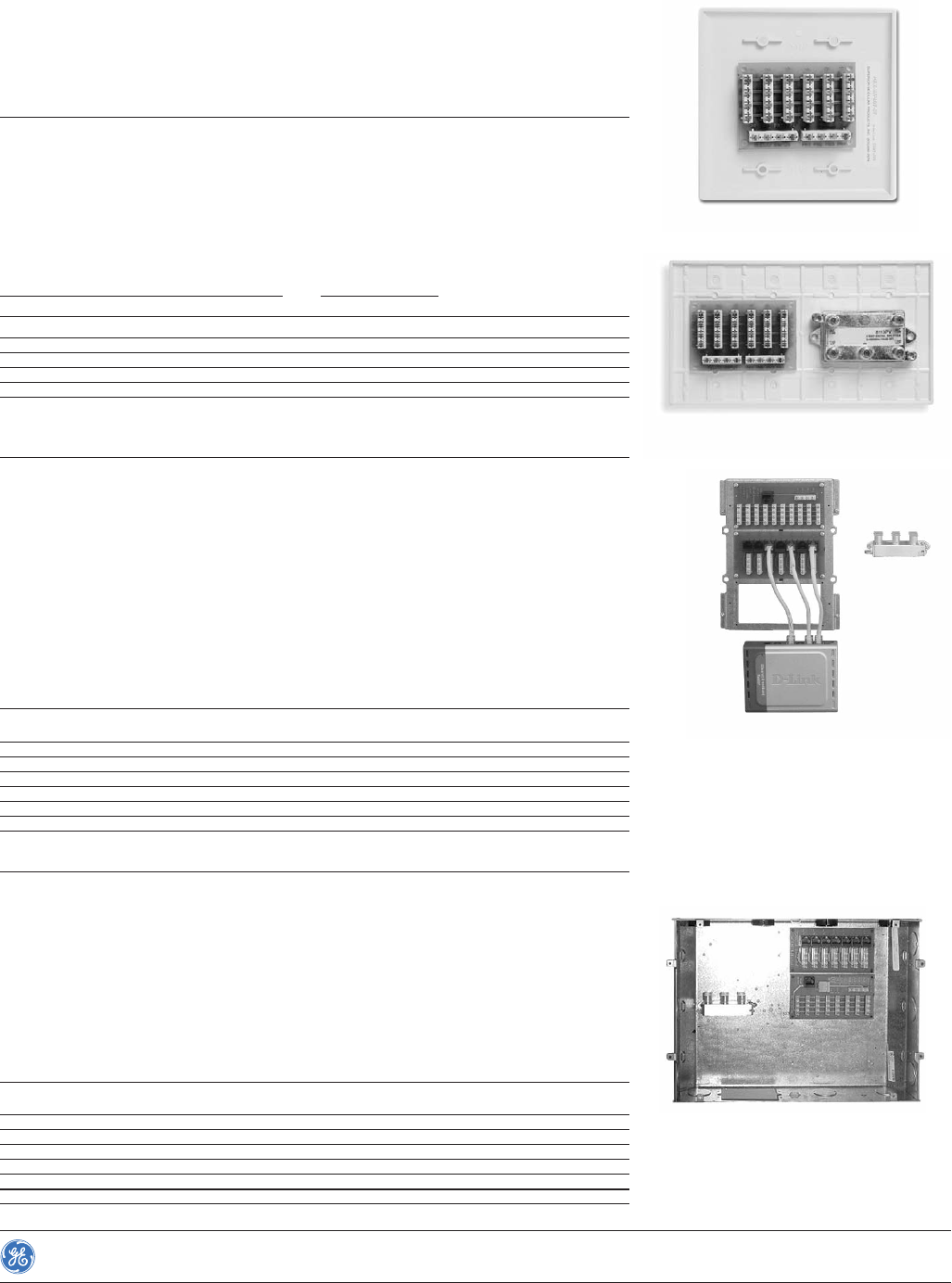

Mounting Systems, Telephone Modules...................................1-68
Video Modules—Direct Mount, Shelf Mount, Tray Mount.....1-69

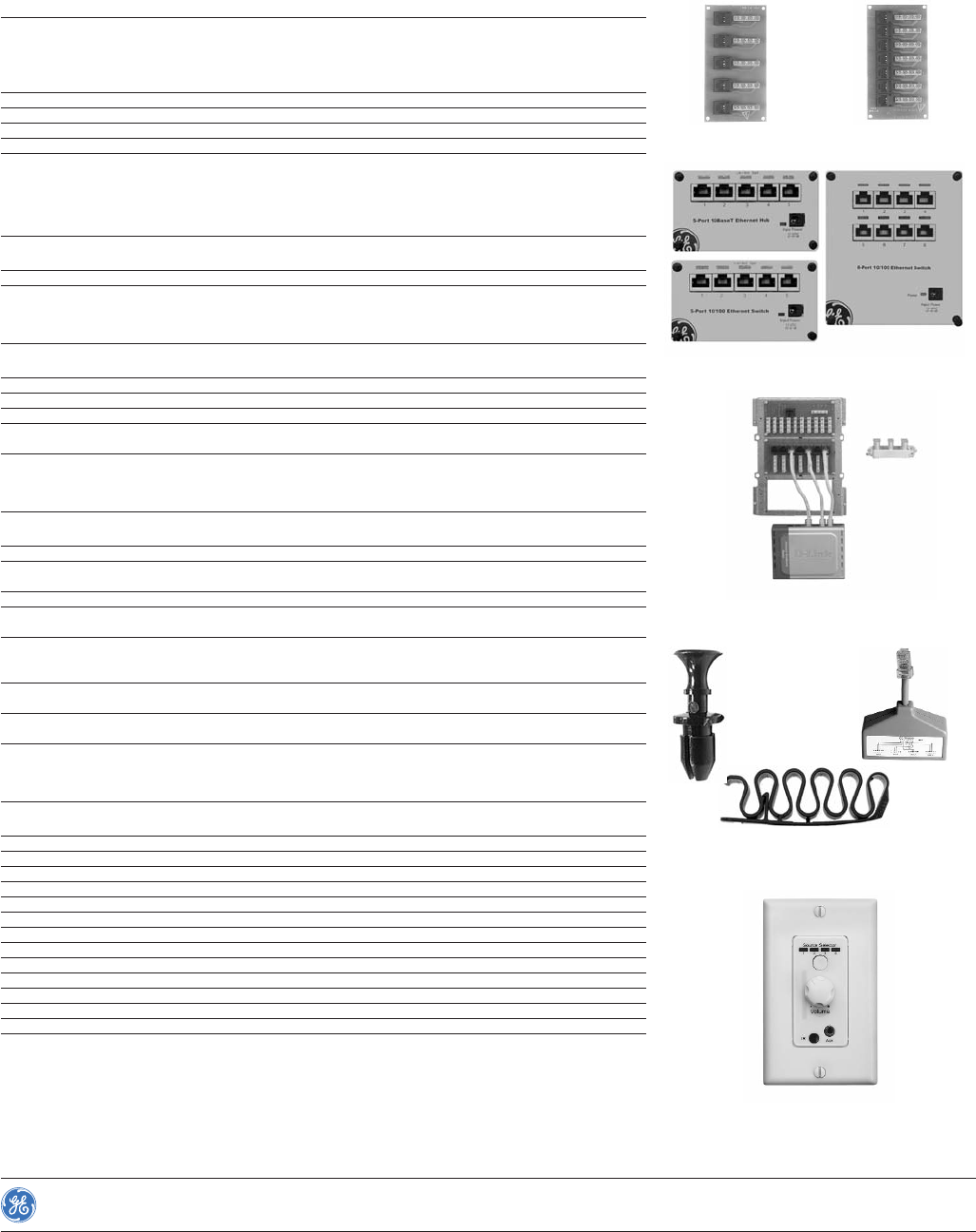

Data Modules, Computer Networking Modules
and Accessories ...................................................................................1-70
Video Cameras, NetworX Security System Kits,
Connectors and Terminators, Surge Modules .......................1-71

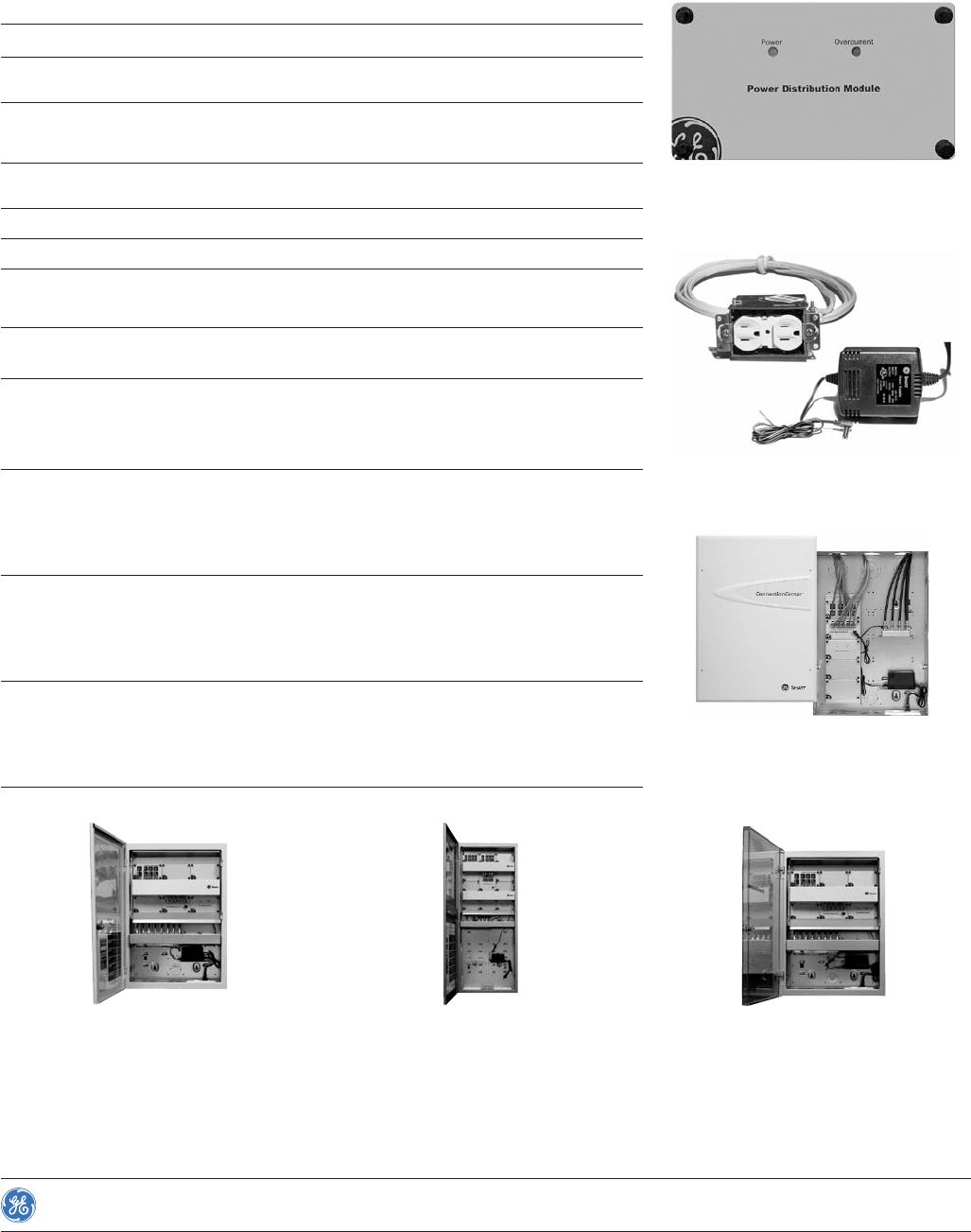

Power Modules, Demo Kits .................................................................1-72

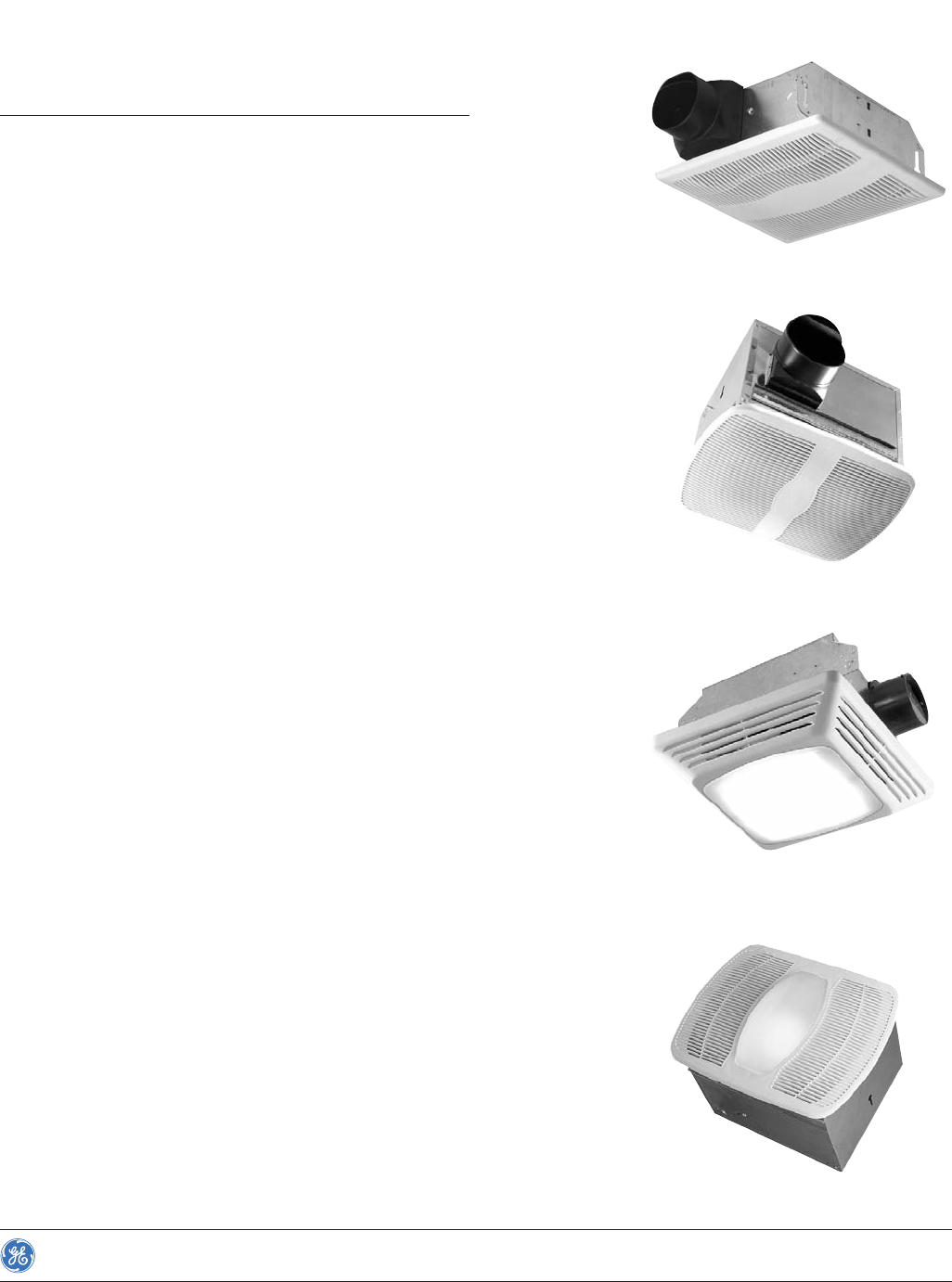

Bath Fans, Bath Fan Accessories, Door Chimes
Product Features and Benefits..........................................................1-73

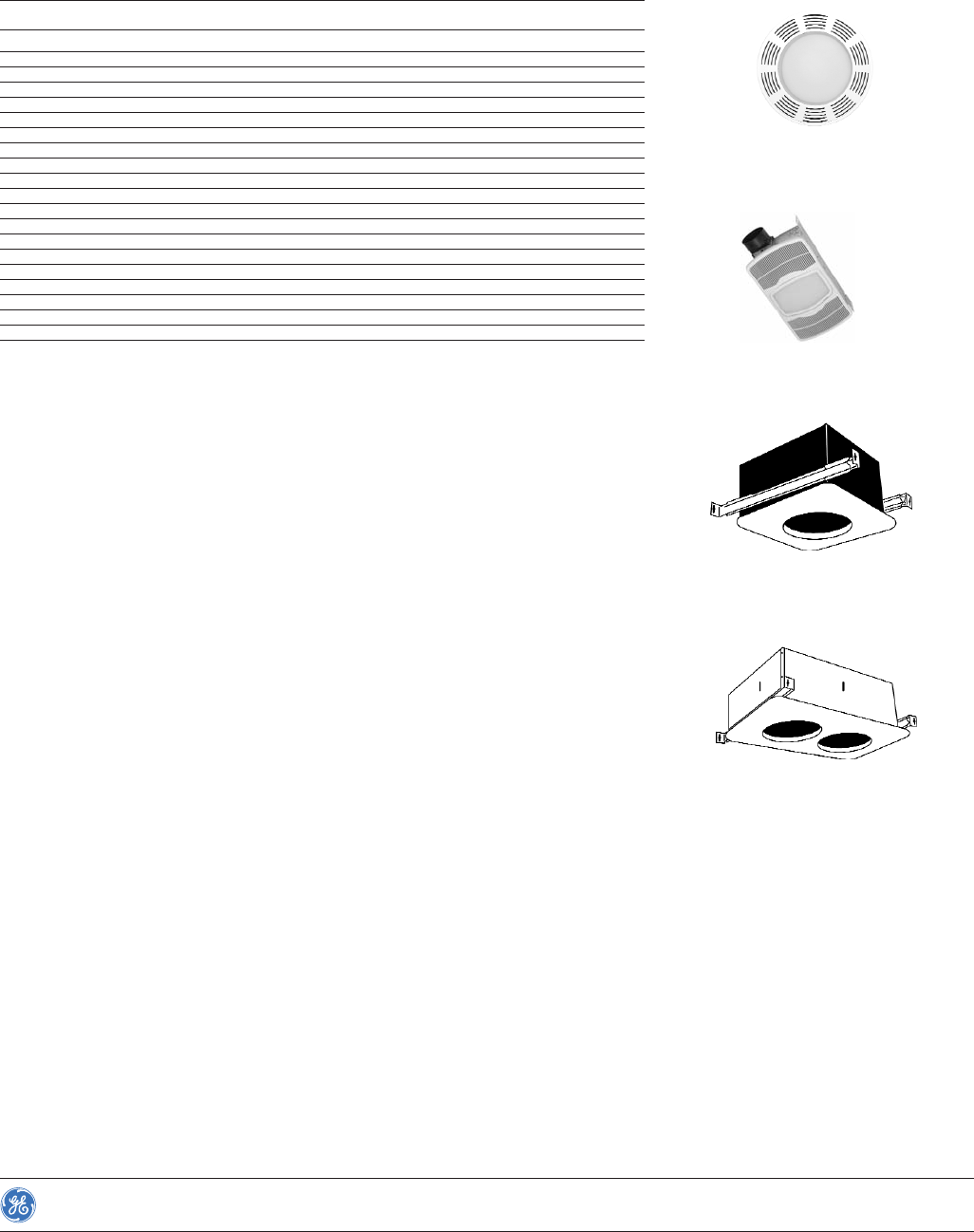

Bath Fan—Single Units..........................................................................1-74
Bath Fan—Contractor Packs ..............................................................1-76

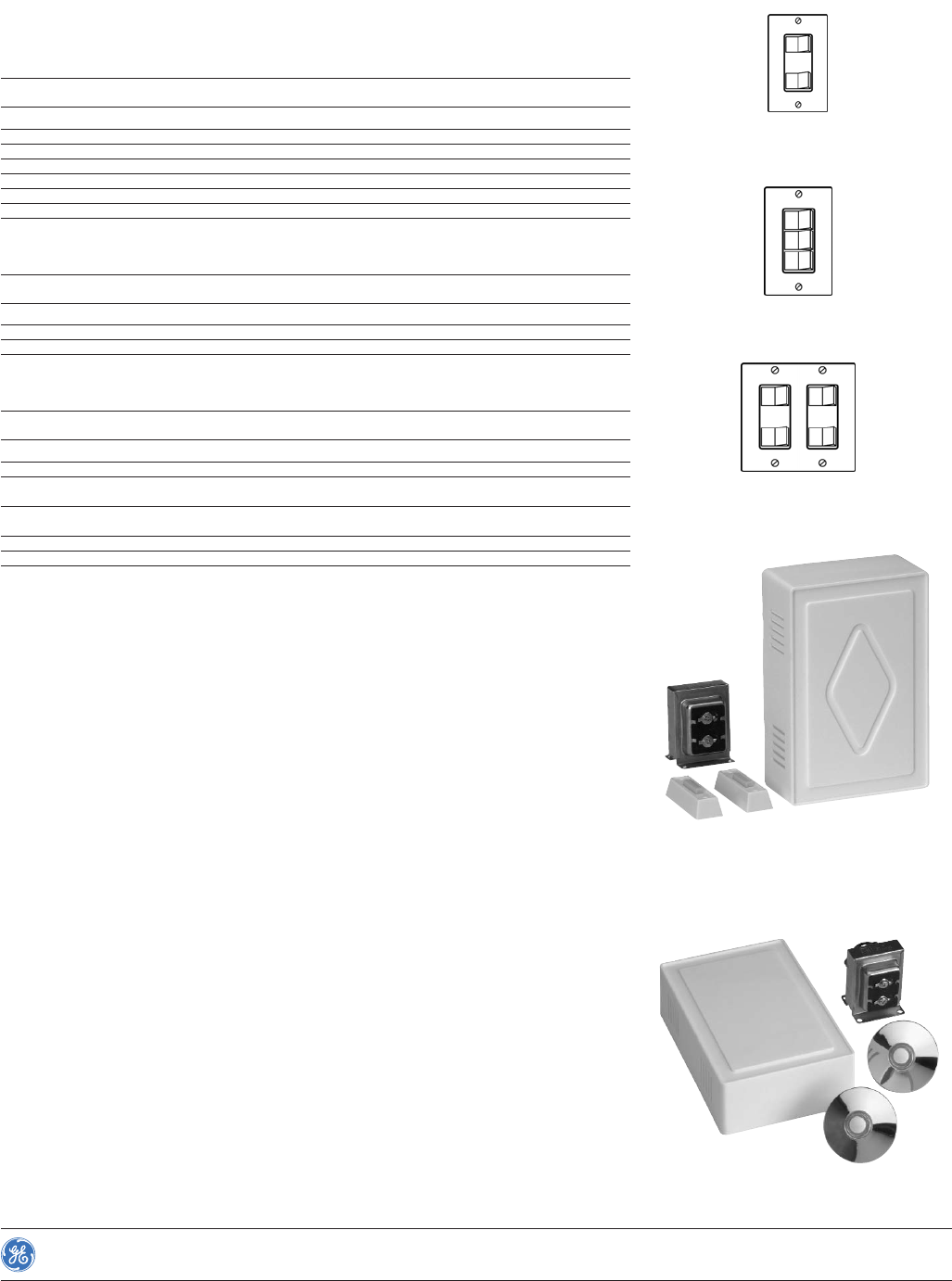

Accessories, Door Chimes ...................................................................1-76
Section Updated 04 / 2011
www.geelectrical.com Rev. 1/10
Prices and data subject
to change without notice
BuyLog®Catalog
1-2
Residential
Load Centers
Section 1
Q-Line Circuit Breakers
Reliability and Economy

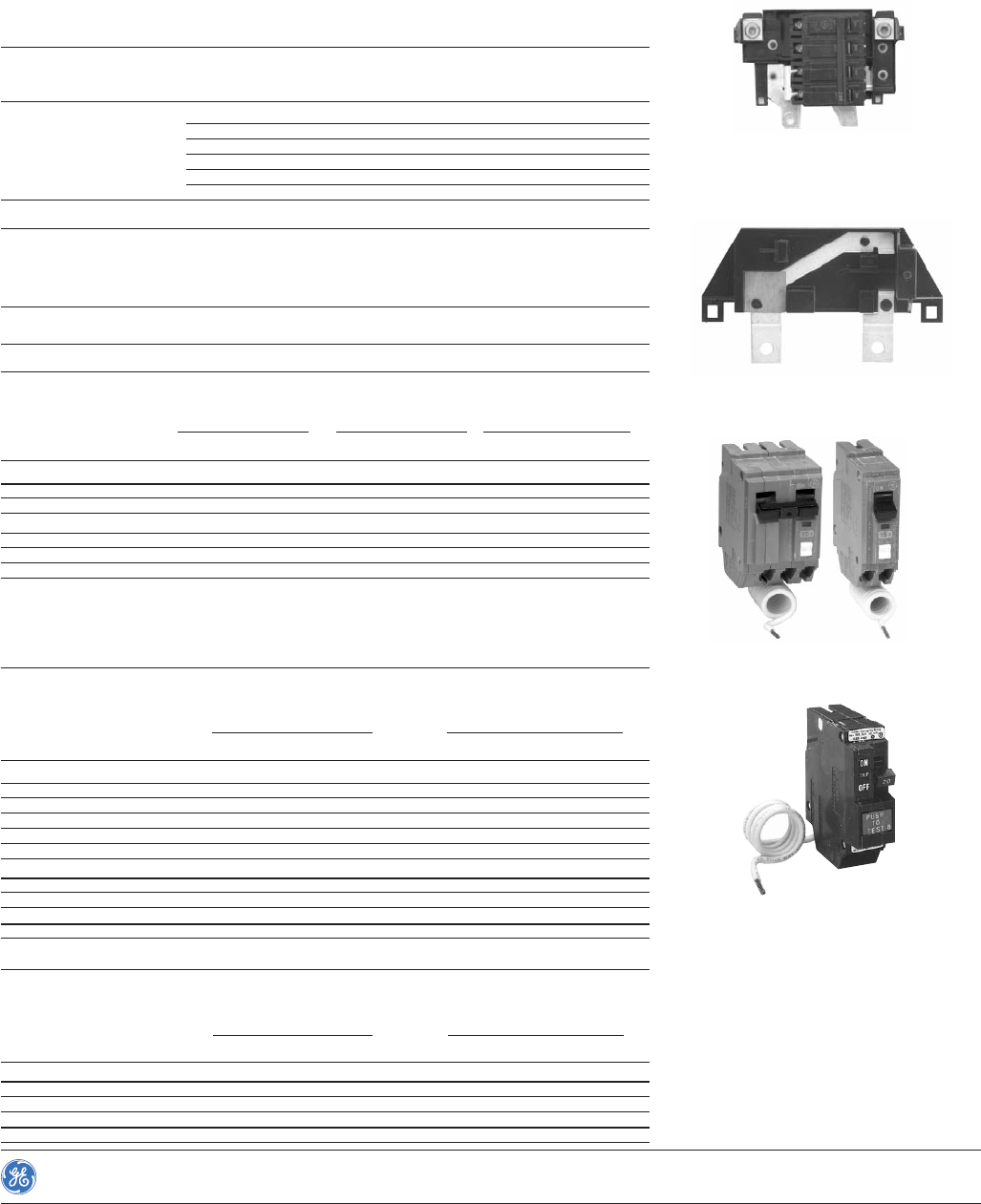

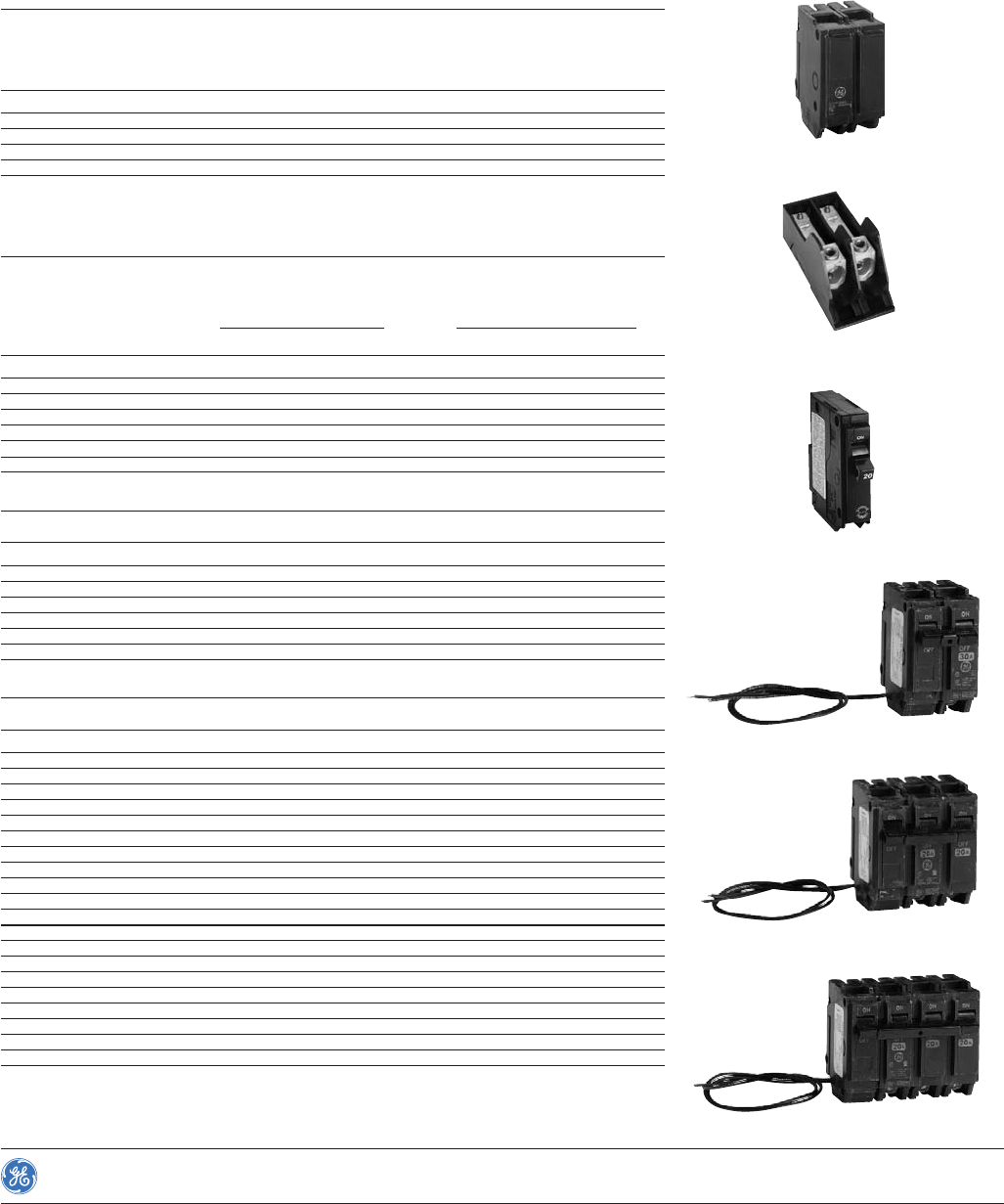

Special Purpose Circuit Breakers
—PowerMark Gold Main Circuit Breakers
—Arc Fault Circuit Interrupter
—CB3 Ground Fault Circuit Interrupter
—Switching Neutral
—HID Lighting Breaker
—High Magnetic Breaker
—Molded Case Switch
—Surge Arrester
—TQ Breaker
Copper stabs, tin-plated for corrosion resistance,
make the connection reliable and permanent.
Heat-resistant thermoset cases and covers add
stability and structural rigidity.
Trips are easy to spot because handles trip to the
center position.
The dedicated calibration screw is cemented (not
simply papered over) to prevent shifting. The result is
stable calibration for optimum trip performance.
At 1/2”, THQP breakers are half the width of standard breakers, permitting the use of smaller
load centers that save money and space in both new construction and service upgrades. They
feature the same high-performance design, and meet the same stringent standards as other Q-
Line breakers. Our 1” THQL will remain the breaker of choice for many contractors. In applica-
tions where space and cost are not critical, they’re an excellent choice. But when size and money
are driving considerations, THQP breakers are the smart choice.
Enclosed circuit
breakers make it
easy and efficient
to install exterior
main breakers.
THQLSURGE surge
arresters are easy to
install and protect the
whole house – comput-
ers, fax machines, televi-
sions, stereos, VCRs and
other sensitive electronic
equipment – from
destructive surges.
Maximum protection
against all-too-common
electrical fires comes
from the new technology
built into GE’s arc fault
circuit interrupters (AFCIs).
With its ability to detect
and interrupt arcing
caused by damaged wire
insulation or a frayed extension cord, the AFCI takes
home and family protection to a new, higher level.
The NEC requires ground fault protection of receptacles outdoors and
in garages, bathrooms and spa areas. These ground fault circuit
interrupters eliminate the need for separate GFCI receptacles, protect
against short circuits and overloads, and prevent shock by detecting
very low levels of current leaks and immediately shutting off power to
the circuit.
www.geelectrical.com BuyLog®Catalog
Publications and Reference: See Section 22 for a
complete list of additional product-related publications
1-3
Residential
Load Centers
Rev. 1/10
Prices and data subject
to change without notice
Section 1

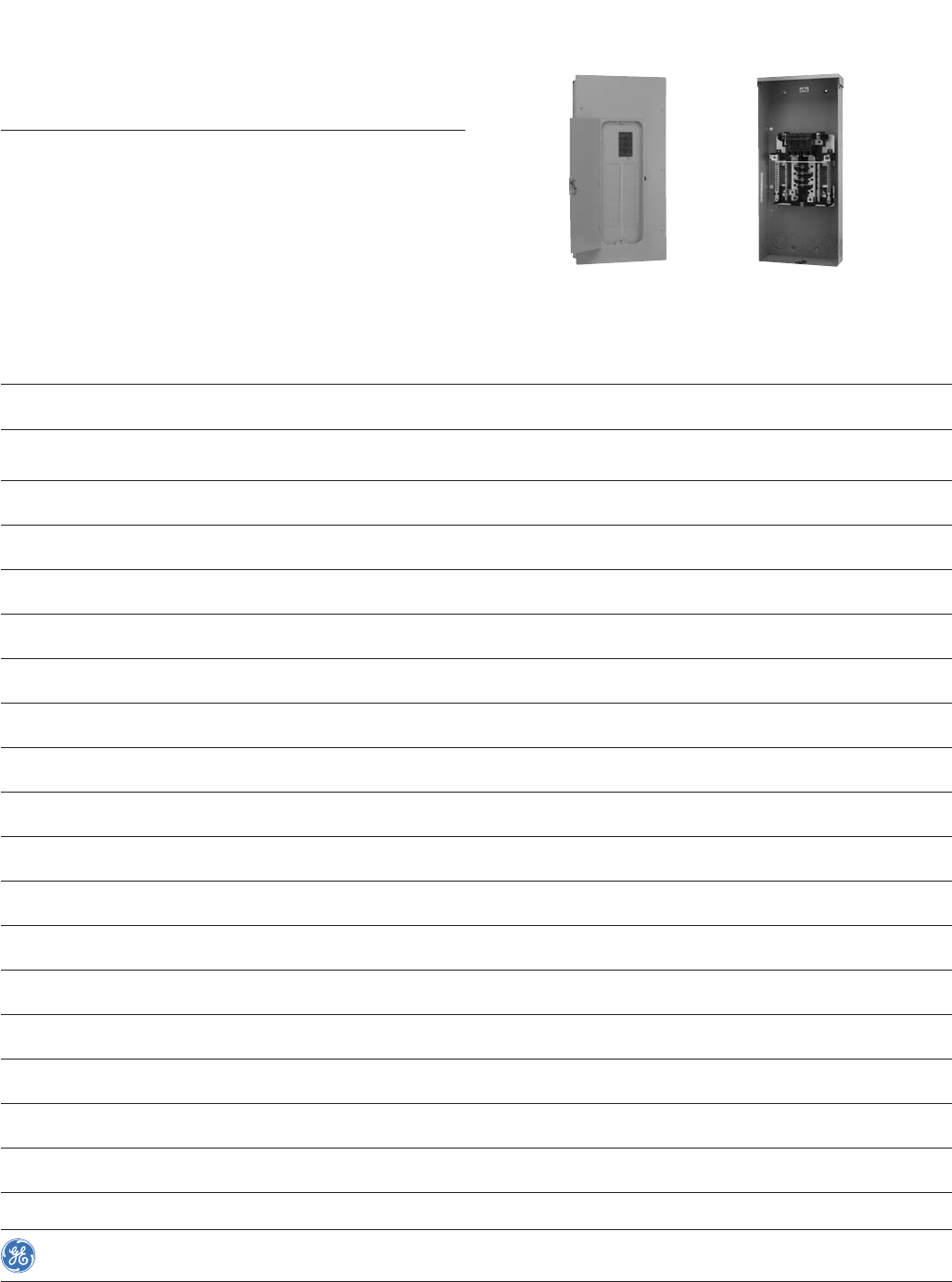

PowerMark Gold Load Centers
Highest Quality and Convenience
PowerMark Gold load centers lower your costs by making installa-
tion faster and easier, increasing application flexibility and reduc-
ing inventory requirements. At the same time, they deliver obvious
and significant advances in design, function and quality.
—Exclusive GE lifetime warranty
—UL Listed (Panelboards No. 67)
—Suitable for Use as Service Entrance Equipment when installed
in accordance with National Electrical Code
—60°C/75°C Conductor Rating
—Single phase, 40-225A, 2-42 circuits
—Main lug models field convertible to main breaker
—Main breaker 22kAIC standard - factory installed
—All load centers top or bottom feed
—Indoor and outdoor rated enclosures
—Indoor fronts combination surface/flush
—Copper bus standard
—Split neutrals extend the full length of the interior for ease of wiring
—Entire main lug line converts easily to main breaker
—Combination surface/flush front with spring-reinforced pan
—Combination slotted/Robertson square-drive screws on neutral,
ground, front and breaker lugs
—Front packed in inner carton for added protection
—Field installable feed-through lugs up to 200A
—Straight-through main wiring
—Main breaker is clearly marked and circuit numbers are stamped
on front
—Isolated ground bar is available
—Compact box maintains optimum wire-bending space
Accessories and Options
—Door lock and handle —Hardware kits
—Equipment ground kits —Main breaker retainers

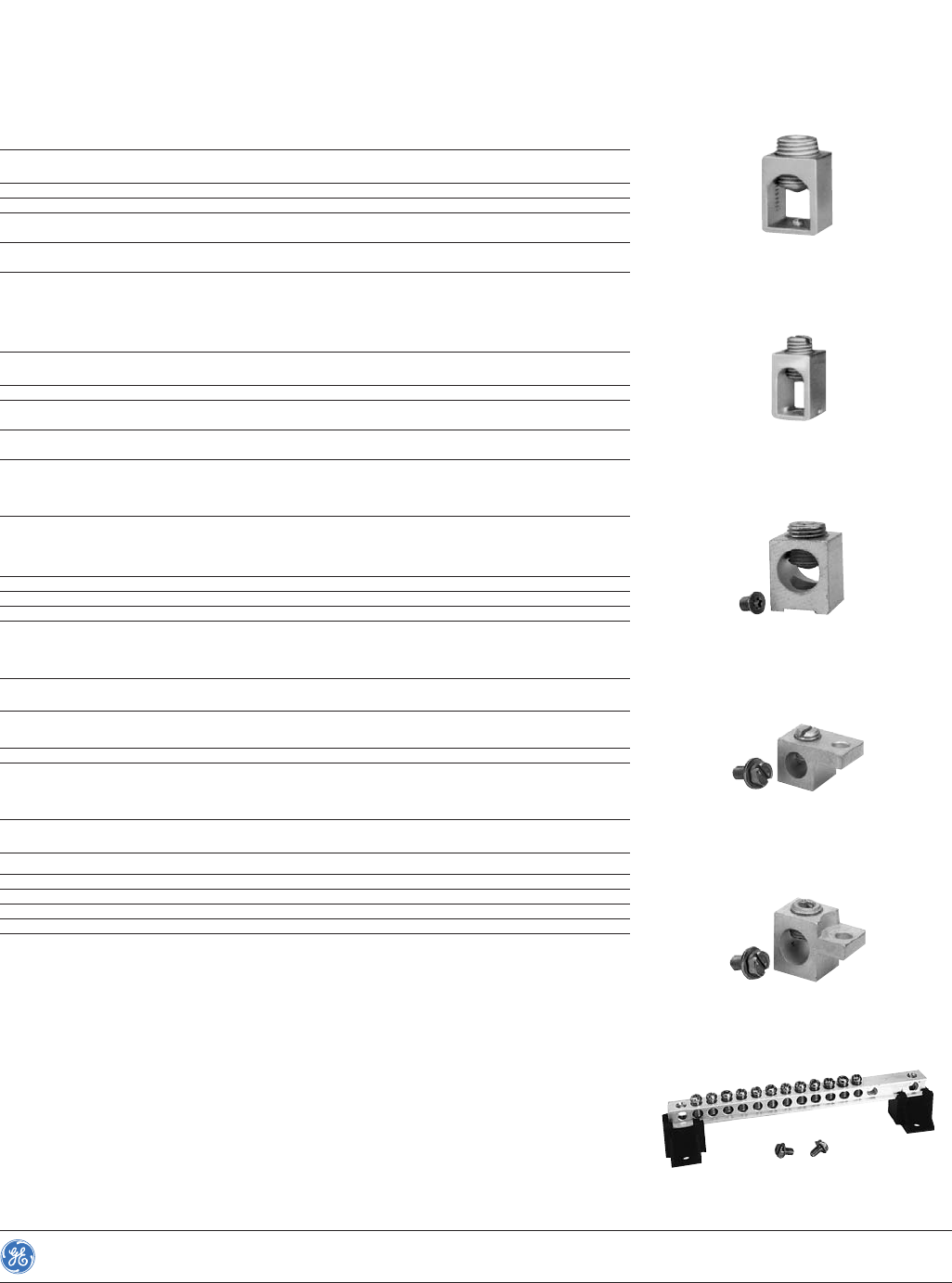

—Sub-feed and feed-thru lugs —Neutral kits
—Front filler plates —Universal raintight hubs
—Handle lock and ties
Safety accessories – convenient and easy to install
—THQLSURGE whole house surge protector
—THSACOAX coaxial cable surge protector
—THSATEL410 telephone surge protector
—Arc fault circuit interrupter breaker, 1- or 2-pole
—Ground fault circuit interrupter breaker, 5mA and 30mA
—Generator transfer panel – 30A or 60A, indoor or outdoor
—GE AC disconnects
Packaging features comprehensive
selection and application data.
Fronts are packed in inner cartons
for added protection during shipment
and at the job site.
Main lug load centers offer an economical solu-
tion for subpanels and similar applications. All
main lug units 125A and above convert easily to
main breaker.
GE’s residential load centers reach into
commercial applications as well, with riser
panels, auxiliary gutters, three-phase units
with standard 22kAIC ratings, and all the
accessories needed to complete the job.
The PowerMark Gold
line includes a wide
range of outdoor as
well as indoor units.
A complete family of meter socket load centers — ring style
and ringless, wide and narrow, meter mains, farm panels and
more — deliver specialized solutions for special situations.
Combination
slotted/Robertson
square-drive
speeds screw
wiring
All holes rated
for 14-4 wire
100% rated
split neutral
on each side
Accepts GE Q-Line branch
circuit breakers, including
GE’s exclusive 1/2" THQPs
Main breaker configura-
tion allows top or bottom
feed without modification
Steel (not plastic)
breaker mounting
rail
Tie bar may be
removed to split
neutral/ground
One-piece interior
removes and
reinstalls easily
Full-length neutrals
are easier to wire,
reducing installation
time and cost
Minimum 100%
neutral
terminations
Sturdy copper bus
and galvanized box
increase durability
and reliability
www.geelectrical.com Rev. 1/10
Prices and data subject
to change without notice
BuyLog®Catalog
1-4
Residential
Load Centers
Section 1
PowerMark Gold and Plus Load Centers
Product Number Guides
Product Number Guide for Load Centers
(Product number for illustrative purposes only)
204 C BCU42MT
GE Identification
Type
M = Main breaker
L = Main lug
LM = Convertible
PL = Main lug (Thermoplastic) Insert for PowerMark Gold
CU = Copper Bus
42 = Copper Bus Full 42 circuit panel
Maximum Number 1" Spaces
2, 4, 6…42
Insert for 3-Phase 4-Wire
Load Centers
Insert for Specials
G or T = Factory installed ground bar
B = Bottom feed main breaker
FL = Factory installed feed-through lugs
D = Optional door for 6-8 circuit panel.
(Doors standard on all units 12
circuits or greater)
Enclosure Type
C = Combination surface/flush
F = Flush
S = Surface
R = Outdoor
Bus Ampere Rating
40 = 40 Amps 20 = 200 Amps
70 = 70 Amps 22 = 225 Amps
10 = 100 Amps 30 = 300 Amps
12 = 125 Amps 40 = 400 Amps
15 = 150 Amps 60 = 600 Amps
Product Number Guide for Q-Line Plug-in Circuit Breakers
(Product number for illustrative purposes only)
1*115QLHT
GE Identification
Interrupting Rating
H = 10kAlC
HH = 22kAlC
X = 65kAlC
Ground Fault/Arc Fault Circuit Interrupter
GF = 1-pole Ground Fault Circuit Interrupter–5 mA
GF1= 2-pole Ground Fault Circuit Interrupter–5 mA
AF = 1- & 2-pole Arc Fault Circuit Interrupter
GFEP = 1- & 2-pole Ground Fault Circuit
Interrupter–30 mA
Poles (1, 2, 3)
Type
QL = 1" plug-in
QP = 1/2" plug-in
QB = 1" bolt-on
Ampere Rating
Voltage
1 = 120/240V
2 = 240V
*Omit character for THQP breakers, which are all 120/240V.
www.geelectrical.com BuyLog®Catalog
Publications and Reference: See Section 22 for a
complete list of additional product-related publications
1-5
Residential
Load Centers
Rev. 1/10
Prices and data subject
to change without notice
Section 1
Q-Line Plug-in Circuit Breakers
UL Listed (Molded Case Circuit Breakers No. 489)
Federal Government Specification Qualified (WC-375B)
60°C / 75°C Conductor Rating
Quick Make, Quick Break
Box Type Terminals
Q-Line Plug-in Circuit Breakers Specifications
Wire Size AWG/kcmil1
Breaker Type Ampere Rating Cu Al
THQP 15-25 14-8 12-8
30-50 8-4 8-4
THQL 15-30 14-8 12-8
THHQL 35-60 8-3 8-3
TXQL 70-100 6-1/0 4-1/0
110-125 2-2/0 2-2/0
TQDL 125-200 1/0-250 1/0-250
THQDL 125-200 1/0-250 1/0-250
1Solid or stranded for 14-10 AWG
THQP130
THQL2140
THQP230
THQL32015
THQL1120
TQDL21200
Q-Line Plug-in Circuit Breakers
10,000AIC 22,000AIC 65,000AIC
Type THQP 1/2-inch Module Type THQL 1-inch Module Type THHQL 1-inch Module Type TXQL 1-inch Module
120/240 Vac 120/240 Vac 240 Vac 120/240 Vac 240 Vac 120/240 Vac
Ampere Product List Price Product List Price Product List Price Product List Price Product List Price Product List Price
Rating Number GO-138A Number GO-138A Number GO-138 Number GO-138A Number GO-138 Number GO-138A
Single Pole1
152THQP115 $20.25 THQL1115 $20.25 – – THHQL1115 $40.25 – – TXQL1115 $74.75
202THQP120 $20.25 THQL1120 $20.25 – – THHQL1120 $40.25 – – TXQL1120 $74.75
25 THQP125 $20.25 THQL1125 $20.25 – – THHQL1125 $40.25 – – TXQL1125 $74.75
30 THQP130 $20.25 THQL1130 $20.25 – – THHQL1130 $40.25 – – TXQL1130 $74.75
35 THQP135 $21.25 THQL1135 $21.25 – – THHQL1135 $41.25 ––––
40 THQP140 $21.25 THQL1140 $21.25 – – THHQL1140 $41.25 ––––
45 THQP145 $21.25 THQL1145 $21.25 – – THHQL1145 $41.25 ––––
50 THQP150 $21.25 THQL1150 $21.25 – – THHQL1150 $41.25 ––––
Std. Pkg. 5 cartons of 20 5 cartons of 10 5 cartons of 10 5 cartons of 10
Two-Pole3: Incorporates Internal Common Trip Bar
15 THQP215 $46.00 THQL2115 $46.00 THQL22015 $133.00 THHQL2115 $93.00 THHQL22015 $193.00 TXQL2115 $186.00
20 THQP220 $46.00 THQL2120 $46.00 THQL22020 $133.00 THHQL2120 $93.00 THHQL22020 $193.00 TXQL2120 $186.00
25 THQP225 $46.00 THQL2125 $46.00 THQL22025 $133.00 THHQL2125 $93.00 THHQL22025 $193.00 TXQL2125 $186.00
30 THQP230 $46.00 THQL2130 $46.00 THQL22030 $133.00 THHQL2130 $93.00 THHQL22030 $193.00 TXQL2130 $186.00
35 THQP235 $47.75 THQL2135 $47.75 THQL22035 $133.00 THHQL2135 $97.00 THHQL22035 $193.00 ––
40 THQP240 $47.75 THQL2140 $47.75 THQL22040 $133.00 THHQL2140 $97.00 THHQL22040 $193.00 ––
45 THQP245 $47.75 THQL2145 $47.75 THQL22045 $133.00 THHQL2145 $97.00 THHQL22045 $193.00 ––
50 THQP250 $47.75 THQL2150 $47.75 THQL22050 $133.00 THHQL2150 $97.00 THHQL22050 $193.00 ––
60 – – THQL2160 $47.75 THQL22060 $133.00 THHQL2160 $97.00 THHQL22060 $193.00 ––
70 – – THQL2170 $95.00 THQL22070 $156.00 THHQL2170 $148.00 THHQL22070 $251.00 ––
80 – – THQL2180 $131.00 THQL22080 $221.00 THHQL2180 $210.00 THHQL22080 $277.00 ––
90 – – THQL2190 $131.00 THQL22090 $221.00 THHQL2190 $210.00 THHQL22090 $277.00 ––
100 – – THQL21100 $131.00 THQL22100 $221.00 THHQL21100 $210.00 THHQL22100 $277.00 ––
110 – – THQL21110 $284.00 – – THHQL21110 $686.00 ––––
125 – – THQL21125 $284.00 – – THHQL21125 $686.00 ––––
Std. Pkg. 5 cartons of 10 5 cartons of 5 5 cartons of 5 5 cartons of 5 5 cartons of 5 5 cartons of 5
125 – – TQDL211254$296.00 –––– – –– –
150 – – TQDL211504$296.00 –––– – –– –
175 – – TQDL211754$296.00 –––– – –– –
200 – – TQDL212004$296.00 –––– – –– –
Std. Pkg. 10 cartons of 1
Three-Pole3: Incorporates Internal Common Trip Bar
15 – – – – THQL32015 $165.00 – – THHQL32015 $251.00 TXQL32015 $348.005
20 – – – – THQL32020 $165.00 – – THHQL32020 $251.00 TXQL32020 $348.005
25 – – – – THQL32025 $165.00 – – THHQL32025 $251.00 TXQL32025 $348.005
30 – – – – THQL32030 $165.00 – – THHQL32030 $251.00 TXQL32030 $348.005
35 – – – – THQL32035 $165.00 – – THHQL32035 $251.00 ––
40 – – – – THQL32040 $165.00 – – THHQL32040 $251.00 ––
45 – – – – THQL32045 $165.00 – – THHQL32045 $251.00 ––
50 – – – – THQL32050 $165.00 – – THHQL32050 $251.00 ––
60 – – – – THQL32060 $165.00 – – THHQL32060 $251.00 ––
70 – – – – THQL32070 $216.00 – – THHQL32070 $329.00 ––
80 – – – – THQL32080 $245.00 – – THHQL32080 $359.00 ––
90 – – – – THQL32090 $245.00 – – THHQL32090 $359.00 ––
100 – – – – THQL32100 $245.00 – – THHQL32100 $359.00 ––
Std. Pkg. 5 cartons of 3 5 cartons of 3 5 cartons of 3
References:
Accessories Pages 1-24 thru 1-29
Auxiliary Switches and Shunt Trips BuyLog pages 3-39 thru 3-41.
1UL Listed as HACR (heating, air conditioning and refrigeration).
2UL Listed as SWD (switching duty). Suitable for 120 volts ac fluorescent lighting
loads.
315-100 amp UL Listed as HACR (heating air conditioning and refrigeration).
4Requires four 1-inch spaces.
5GO-138
Page Updated 02 / 2010
Arc Fault
UL Listed (Molded Case Circuit Breakers No. 489 ad Arc-Fault Circuit Interrupters
No. 1699).
1-Pole, 120/240 Volts ac11 Pole, 120/240 Volts ac22-Pole 120/240 Volts ac1
Product List Price Product List Price Product List Price
Ampere Rating Number GO-146A Number GO-146A Number GO-146A
10,000 AIC
15 THQL1115AF $170.00 THQL1115AF2 $300.00 THQL2115AF $385.00
20 THQL1120AF $170.00 THQL1120AF2 $300.00 THQL2120AF $385.00
22,000 AIC
15 THHQL1115AF $326.00 THHQL1115AF2 $500.00 THHQL2115AF $701.00
20 THHQL1120AF $326.00 THHQL1120AF2 $500.00 THHQL2120AF $701.00
Std. Pkg. 20 Cartons of 1 10 Cartons of 1
As of Jan. 1, 2008, 2005 NEC®requires combination AFCI.
1Branch/feed AFCI compliant with 2002 NEC®or earlier
2Combination AFCI compliant with 2005 and 2008 NEC®and UL1699 (Feb. 2008)
CB3 Ground Fault
UL Listed (Molded Case Circuit Breakers No. 489 and Ground Fault Circuit Interrupters No.
943). Class A (.005 ampere ground fault trip level).
1-Pole, 120/240 Volts ac 2-Pole, 120 Volts ac
Product List Price Product List Price
Ampere Rating Number GO-146 Number GO-146
10,000 AIC
15 THQL1115GF $159.00 THQL2115GF1 $282.00
20 THQL1120GF $159.00 THQL2120GF1 $282.00
30 THQL1130GF $159.00 THQL2130GF1 $282.00
40 – – THQL2140GF1 $282.00
50 – – THQL2150GF1 $702.00
22,000 AIC
15 THHQL1115GF $311.00 ––
20 THHQL1120GF $311.00 ––
30 THHQL1130GF $311.00 ––
Std. Pkg. 10 cartons of 1 10 cartons of 1
CB3 Equipment Ground Fault
UL Listed (Molded Case Circuit Breakers No. 489 and Ground Fault Circuit Interrupters No.
943) 30 milliampere ground fault trip level
1-Pole, 120/240 Volts ac 2-Pole, 120 Volts ac
Product List Price Product List Price
Ampere Rating Number GO-146 Number GO-146
10,000 AIC
15 THQL1115GFEP $271.00 THQL2115GFEP $481.00
20 THQL1120GFEP $271.00 THQL2120GFEP $481.00
30 THQL1130GFEP $271.00 THQL2130GFEP $481.00
Std. Pkg. 10 Cartons of 1 10 Cartons of 1
www.geelectrical.com Rev. 1/10
Prices and data subject
to change without notice
BuyLog®Catalog
1-6
Residential
Load Centers
Section 1
Special Purpose Circuit Breakers
60°C / 75°F Conductor Rating
Box Type Terminals
Quick-Make, Quick-Break
Multi-pole Breakers Incorporate Internal Common Trip
PowerMark Gold Main Circuit Breakers for use with 150A-225A PowerMark Gold Load
Centers (Includes mounting base)
UL Listed.
Product List Price
Description Ampere Rating Number GO-138M
100 THQMV100D $259.00
125 THQMV125D $259.00
Main Circuit Breaker Kits 150 THQMV150D $259.00
22,000 AIC 175 THQMV175D $259.00
200 THQMV200D $259.00
225 THQMV225D $259.00
THQMVXXXD
TQMH000
Arc Fault
PowerMark Gold Main Circuit Breaker Kit
For use with 125A PowerMark Gold load Centers; 22kAIC RMS symmetrical; For bottom
feed, also purchase TRL22 door handle.
Product List Price
Description Number GO-138M
Main Circuit Breaker Kit - Order appropriate THQL TQMH000 $55.50
10kAIC or THHQL 22kAIC breakers separately
THQL1120GF
Page Updated 09 / 2010
www.geelectrical.com BuyLog®Catalog
Publications and Reference: See Section 22 for a
complete list of additional product-related publications
1-7
Residential
Load Centers
Rev. 1/10
Prices and data subject
to change without notice
Section 1
Switching Neutral
UL Listed (Molded Case Circuit Breakers No. 489). 10kAIC RMS symmetrical.
Standard 1- or 2-pole automatic breaker plus one fully-rated, non-automatic pole.
1-Pole Plus Switching Neutral 2-Pole Plus Switching Neutral
120/240 Volts ac 120/240 Volts ac
Product List Price Product List Price
Ampere Rating Number GO-138A Number GO-138A
15 THQL21WY15 $74.25 THQL31WY15 $111.00
20 THQL21WY20 $74.25 THQL31WY20 $111.00
25 THQL21WY25 $74.25 THQL31WY25 $111.00
30 THQL21WY30 $74.25 THQL31WY30 $111.00
Std. Pkg. 5 cartons of 5 5 cartons of 3
"HID" Lighting
UL Listed as HID. HID breakers have been designed to handle the current and voltage
spikes that result when gaseous discharge lamps, including fluorescent and HID lamps,
are switched on and off.
1-Pole, 120/240 Volts ac 2-Pole, 120/240 Volts ac
Product List Price Product List Price
Ampere Rating Number GO-138A Number GO-138A
10,000 AIC
15 THQL1115HID1$26.00 THQL2115HID $57.00
20 THQL1120HID1$26.00 THQL2120HID $57.00
30 THQL1130HID $26.00 THQL2130HID $57.00
22,000 AIC
15 THHQL1115HID1$49.50 THHQL2115HID $119.00
20 THHQL1120HID1$49.50 THHQL2120HID $119.00
30 THHQL1130HID $49.50 THHQL2130HID $119.00
Std. Pkg. 5 cartons of 10 5 cartons of 5
1UL Listed as SWD (switching duty). Suitable for 120 volts ac fluorescent lighting loads.
High Magnetic
UL Listed (Molded Case Circuit Breakers No. 489). 10kAIC RMS symmetrical
High short circuit setting suitable for circuits with inherent high-inrush load currents.
1-Pole, 120/240 Volts ac
Product List Price
Ampere Rating Number GO-138A
15 THQL1115HM $26.00
20 THQL1120HM $26.00
25 THQL1125HM $26.00
30 THQL1130HM $26.00
40 THQL1140HM $26.75
50 THQL1150HM $26.75
Std. Pkg. 5 cartons of 10
Molded Case Switches
UL Listed (Molded Case Switches No. 1087). Without overload or short circuit protection.
2-Pole 3-Pole
Product List Price Product List Price
Ampere Rating Number GO-138A Number GO-138
120/240 Volts ac
60 TQL21Y60 $51.00 ––
100 TQL21Y100 $147.00 ––
240 Volts ac
60 TQL22Y60 $139.002TQL32Y60 $177.00
100 TQL22Y100 $235.002TQL32Y100 $266.00
Std. Pkg. 5 cartons of 5 5 cartons of 3
2GO-138
Interlocking Circuit Breakers for use in PowerMark Gold Generator Panels
Two breakers required for interlocking.
Product List Price
Poles Ampere Rating Number GO-138A
2 30 THQL2130GEN $238.75
2 60 THQL2160GEN $238.75
THQL21WY30
THQL2120HID
THQL1140HM
Special Purpose Circuit Breakers
60°C / 75°F Conductor Rating
Box Type Terminals
Quick-Make, Quick-Break
Multi-pole Breakers Incorporate Internal Common Trip
TQL21Y100
Page Updated 09 / 2010
www.geelectrical.com Rev. 1/10
Prices and data subject
to change without notice
BuyLog®Catalog
1-8
Residential
Load Centers
Section 1
Special Purpose Circuit Breakers
60°C / 75°F Conductor Rating
Box Type Terminals
Quick-Make, Quick-Break
Multi-pole Breakers Incorporate Internal Common Trip
Sub-feed and Feed-thru Lugs
UL Listed
For use in load centers to economically supply power to a subpanel.
Product List Price
Poles Ampere Rating Number GO-137A
2 125 THLK2125 $77.00
3 125 THLK3125 $107.00
2 150 THLK21501$137.00
2 200 THLK22001$158.00
3 225 THLK32252$250.00
1For use with PowerMark Gold load centers only
2For use with three-phase load centers only. Includes mounting base.
TQ Circuit Breakers
3/4" UL Classified Circuit Breakers for use in *Square D **QO Load Centers.
10 kAIC RMS symmetrical
1-Pole 2-Pole
Product List Price Product List Price
Ampere Rating Number GO-138Q Number GO-138Q
15 TQ1115 $20.25 TQ2115 $46.00
20 TQ1120 $20.25 TQ2120 $46.00
30 TQ1130 $20.25 TQ2130 $46.00
40 TQ1140 $20.25 TQ2140 $46.00
50 TQ1150 $20.25 TQ2150 $46.00
60 – – TQ2160 $46.00
Std. Pkg. 1 carton of 10 1 carton of 5
THQL 120/240 Vac, with Factory Installed Shunt
# of Ampere 120/240 Vac List Price
Poles Rating Wire Range3Interrupting Rating Product Number GO-138A
1 15 (1) 14-8 Cu/12-8 Al 10kA THQL1115ST1 $175.00
1 20 (1) 14-8 Cu/12-8 Al 10kA THQL1120ST1 $175.00
1 30 (1) 14-8 Cu/12-8 Al 10kA THQL1130ST1 $175.00
1 35 (1) 8-3 Cu/8-3 Al 10kA THQL1135ST1 $175.00
1 40 (1) 8-3 Cu/8-3 Al 10kA THQL1140ST1 $175.00
1 45 (1) 8-3 Cu/8-3 Al 10kA THQL1145ST1 $175.00
1 50 (1) 8-3 Cu/8-3 Al 10kA THQL1150ST1 $175.00
THQL 120/240 Vac, Internal Common Trip with Factory Installed Shunt
# of Ampere 240 Vac List Price
Poles Rating Wire Range3Interrupting Rating Product Number GO-138A
2 15 14-8 Cu/12-8 Al 10kA THQL2115ST1 $200.00
2 20 14-8 Cu/12-8 Al 10kA THQL2120ST1 $200.00
2 30 14-8 Cu/12-8 Al 10kA THQL2130ST1 $200.00
2 35 8-3 Cu/8-3 Al 10kA THQL2135ST1 $200.00
2 40 8-3 Cu/8-3 Al 10kA THQL2140ST1 $200.00
2 45 8-3 Cu/8-3 Al 10kA THQL2145ST1 $200.00
2 50 8-3 Cu/8-3 Al 10kA THQL2150ST1 $250.00
2 60 8-3 Cu/8-3 Al 10kA THQL2160ST1 $250.00
2 70 6-1/0 Cu/4-1/0 Al 10kA THQL2170ST1 $250.00
2 80 6-1/0 Cu/4-1/0 Al 10kA THQL2180ST1 $250.00
2 90 6-1/0 Cu/4-1/0 Al 10kA THQL2190ST1 $250.00
2 100 6-1/0 Cu/4-1/0 Al 10kA THQL21100ST1 $300.00
3 20 14-8 Cu/12-8 Al 10kA THQL32020ST1 $273.004
3 30 14-8 Cu/12-8 Al 10kA THQL32030ST1 $325.004
3 40 8-3 Cu/8-3 Al 10kA THQL32040ST1 $325.004
3 50 8-3 Cu/8-3 Al 10kA THQL32050ST1 $325.004
3 60 8-3 Cu/8-3 Al 10kA THQL32060ST1 $325.004
3 70 6-1/0 Cu/4-1/0 Al 10kA THQL32070ST1 $350.004
3 80 6-1/0 Cu/4-1/0 Al 10kA THQL32080ST1 $375.004
3 90 6-1/0 Cu/4-1/0 Al 10kA THQL32090ST1 $375.004
3 100 6-1/0 Cu/4-1/0 Al 10kA THQL32100ST1 $400.004
3Solid or stranded for 14-10 AWG.
4GO-138
THLK2125
THLK2150
TQ1120
*Square D is a registered trademark of SNA Holdings, Inc.
**QO is a registered trademark of the Square D Company.
THQL1130ST1
THQL2120ST1
THQL32020ST1
Page Updated 10 / 2010
www.geelectrical.com BuyLog®Catalog
Publications and Reference: See Section 22 for a
complete list of additional product-related publications
1-9
Residential
Load Centers
Rev. 1/10
Prices and data subject
to change without notice
Section 1
PowerMark Gold and Plus Load Centers
Main Lug and Convertible Load Centers
Product Features
—UL Listed (Panelboards No. 67)
—60°/75°C Conductor Rating
—Suitable for Use as Service Entrance Equipment when Installed
in Accordance with the National Electrical Code
—22kAIC RMS symmetrical, Except Where Noted
—6-42 circuit devices UL Listed for bottom mounted lugs by
installing complete unit (box, interior and front) upside down.
—For a listing of CSA Listed load centers, visit
www.geelectrical.com.
Single-Phase, Three-Wire, 120/240 Vac, Main Lugs Factory Installed (TLM units convertible to main breaker),
Indoor (NEMA 1) Enclosure
Main 1 Pole, 2 Pole, 1 Pole, 2 Pole, Total Main Wire Size
Ampere 1” 1” 1/2” 1/2” 1-pole Front Box (AWG/kcmil) Equipment Product List Price
Rating Spaces Spaces Spaces Spaces Spaces Type Feed Type1Number Cu-Al Ground Kit Number GO-137D
40 2 1 4 1 4 Surface Top 1A 14-4 TGK4 (order separately) TL240SCU1$41.75
Bottom
50 3 0 5 0 8 Combination Top 2 6-3 TGL1 installed TPM305CTRV6$65.25
Flush/Surface Bottom
70 2 1 4 1 4 Surface Top 1A 6-3 TGK4 (order separately) TL270SCU1$50.25
Bottom
125 4 2 8 3 8 Combination Top 2A 1-2/0 TGL1 (order separately) TL412C1,2,6 $57.25
Flush/Surface Bottom
125 4 2 8 3 8 Combination Top 2A 1-2/0 TGL1 installed TL412CT1,2,3,6 $68.25
Flush/Surface Bottom
125 4 2 8 3 8 Thermoplastic Top 2 1-2/0 TGL1 (order separately) TPL412C1,2,3,6 $67.25
Bottom
125 4 2 8 3 8 Thermoplastic Top 2 1-2/0 TGL1 installed TPL412CT1,2,3,6 $78.25
Bottom
125 6 3 12 4 12 Flush Top 3A 6-1 TGL2 (order separately) TLM612FCU4$85.00
Bottom
125 6 3 12 4 12 Flush Top 3A 6-1 TGL2 (order separately) TLM612FCUD4$85.00
Bottom
125 6 3 12 4 12 Flush Top 3A 6-1 TGL2 installed TLM612FCUDG4$105.00
Bottom
125 6 3 12 4 12 Surface Top 3A 6-1 TGL2 (order separately) TLM612SCU4$85.00
Bottom
125 6 3 12 4 12 Surface Top 3A 6-1 TGL2 (order separately) TLM612SCUD4$85.00
Bottom
125 6 3 12 4 12 Surface Top 3A 6-1 TGL2 installed TLM612SCUDG4$105.00
Bottom
125 8 4 16 8 16 Flush Top 3A 6-1 TGL2 (order separately) TLM812FCU4$113.00
Bottom
125 8 4 16 8 16 Flush Top 3A 6-1 TGL2 (order separately) TLM812FCUD4$113.00
Bottom
125 8 4 16 8 16 Surface Top 3A 6-1 TGL2 (order separately) TLM812SCU4$113.00
Bottom
125 8 4 16 8 16 Surface Top 3A 6-1 TGL2 (order separately) TLM812SCUD4$113.00
Bottom
125 8 4 16 8 16 Surface Top 3A 6-1 TGL2 installed TLM812SCUDG4$133.00
Bottom
125 14 6 20 8 24 Combination Top 18 6-2/0 TGK12 (order separately) TLM1212CCU8,9 $143.00
Flush/Surface Bottom TGK24 (order separately)
125 14 6 20 8 24 Combination Top 18 6-2/0 TGK24 installed TLM1212CCUG8,9 $156.00
Flush/Surface Bottom
125 12 6 24 10 24 Combination Top 4 6-2/0 TGK12 (order separately) TLM1212C245$300.00
Flush/Surface Bottom TGK24 (order separately)
125 12 6 24 10 24 Combination Top 4 6-2/0 TGK24 installed TLM1212C24G5$320.00
Flush/Surface Bottom
This table continued on next page
TLM2020CCU and TPL412R
Page Updated 01 / 2011
www.geelectrical.com Rev. 1/10
Prices and data subject
to change without notice
BuyLog®Catalog
1-10
Residential
Load Centers
Section 1
PowerMark Gold and Plus Load Centers
Main Lug and Convertible Load Centers
Single-Phase, Three-Wire, 120/240 Vac, Main Lugs Factory Installed (TLM units convertible to main breaker),
Indoor (NEMA 1) Enclosure
Main 1 Pole, 2 Pole, 1 Pole, 2 Pole, Total Main Wire Size
Ampere 1” 1” 1/2” 1/2” 1-pole Front Box (AWG/kcmil) Equipment Product List Price
Rating Spaces Spaces Spaces Spaces Spaces Type Feed Type Number Cu-Al Ground Kit Number GO-137D
125 16 8 16 6 24 Combination Top 4 6-2/0 TGK12 (order separately) TLM1612CCU5$185.00
Flush/Surface Bottom TGK24 (order separately)
125 24 12 0 0 24 Combination Top 7 6-2/0 TGK24 (order separately) TLM2412CCU5$242.00
Flush/Surface Bottom TGK32 (order separately)
150 20 10 20 8 30 Combination Top 8 1-3/0 (Cu), TGK32 (order separately) TLM2015CCU7$255.00
Flush/Surface Bottom 2/0-3/0 (Al)
200 16 8 32 14 32 Combination Top 7 6-250 TGK32 (order separately) TLM1620CCU7$192.00
Flush/Surface Bottom
200 16 8 32 14 32 Combination Top 7 6-250 TGK32 installed TLM1620CCUG7$216.00
Flush/Surface Bottom
200 20 10 40 18 40 Combination Top 8 6-250 TGK24 (order separately) TLM2020CCU7$245.00
Flush/Surface Bottom TGK42 (order separately)
200 20 10 40 18 40 White Combo Top 8 6-250 TGK24 (order separately) TLM2020CCUW $400.00
Flush/Surface Bottom TGK42 (order separately)
200 20 10 40 18 40 Combination Top 8 6-250 TGK42 installed TLM2020CCUG7$277.00
Flush/Surface Bottom
200 24 12 36 18 42 Combination Top 9 1-3/0 (Cu), TGK24 (order separately) TLM2420C427$450.00
Flush/Surface Bottom 2/0-3/0 (Al) TLK32 (order separately)
200 32 16 20 10 42 Combination Top 11 1-250 (Cu), TGK32 and TLK20 TLM3220C427$477.00
Flush/Surface Bottom 2/0-250 (Al) (order separately)
200 32 16 16 6 40 Combination Top 11 6-250 TGK32 (order separately) TLM3220CCU7$368.00
Flush/Surface Bottom
200 32 16 16 6 40 White Combo Top 11 6-250 TGK32 (order separately) TLM3220CCUW $545.00
Flush/Surface Bottom
200 40 20 0 0 40 Combination Top 13 6-250 TGK42 (order separately) TLM4020CCU7$477.00
Flush/Surface Bottom
200 42 20 0 0 42 Combination Top 14 1-300 (Cu), TGK42 (order separately) TLM4220CCU7$550.00
Flush/Surface Bottom 2/0-300 (Al)
225 42 20 0 0 42 Combination Top 14 1-300 (Cu), TGK42 (order separately) TLM4222CCU7$578.00
Flush/Surface Bottom 2/0-300 (Al)
1No door
210 kAIC
3125 amp maximum branch capacity.
4For main breaker, order THQLRK2 retainer kit plus 2-pole circuit breaker. See page 1-28, 100 amp max.
5For main breaker, order TQMH000. See page 1-24. Also order 2-pole THQL, THHQL, or TXQL circuit breaker. See page 1-5.
6GO-137A (PowerMark Plus®® Load Centers)
7For main breaker, order THQMVXXXD circuit breaker from page 1-6.
8For main breaker, order THQLRK3 retainer kit plus 2-pole circuit breaker. See page 1-28, 100 amp max.
9No lock provision available. Use compatible load center with the suffix C24 with a TDL106 for locking provision.
Note: See page 9-15, AL Series Lighting Panelboards as replacements for 300-600A load centers.
Page Updated 04 / 2010
www.geelectrical.com BuyLog®Catalog
Publications and Reference: See Section 22 for a
complete list of additional product-related publications
1-11
Residential
Load Centers
Rev. 1/10
Prices and data subject
to change without notice
Section 1
PowerMark Gold and Plus Load Centers
Main Lug and Convertible Load Centers
Single-Phase, Three-Wire, 120/240 Vac, Main Lugs Factory Installed (TLM units convertible to main breaker),
Outdoor (NEMA 3R) Enclosure1
Main 1 Pole, 2 Pole, 1 Pole, 2 Pole, Total Main Wire Size
Ampere 1” 1” 1/2” 1/2” 1-pole Front Feed1Box (AWG/kcmil) Equipment Product List Price
Rating Spaces Spaces Spaces Spaces Spaces Type Type Number Cu-Al Ground Kit Number GO-137D
40 2 1 4 1 4 Top R1A 14-4 TGK4 (order separately) TL240RCU2$85.00
70 2 1 4 1 4 Top R1A 6-3 TGK4 (order separately) TL270RCU2$98.00
70 5 0 0 0 5 Flush Top R41 6-3 TGL1 installed TL510RT6$110.00
125 4 2 8 3 8 Top R1A 1-2/0 TGL1 (order separately) TL412R12,3,7 $108.00
125 4 2 8 3 8 Top R1A 1-2/0 TGL1 installed TL412RT12,3,7 $118.00
125 4 2 8 3 8 Top R1B 1-2/0 TGL1 (order separately) TL412R22,3,7 $108.00
125 4 2 8 3 8 Thermoplastic Top R1 1-2/0 TGL1 (order separately) TPL412R2,3,4,7 $118.00
Front
125 4 2 8 3 8 Thermoplastic Top R1 1-2/0 TGL1 installed TPL412RT2,3,4,7 $128.00
Front
125 4 3 12 4 12 Top R2A 6-1 TGK12 (order separately) TLM612RCU2,5,8 $111.00
125 8 4 16 8 16 Top R2A 6-1 TGK12 (order separately) TLM812RCU2,5,8 $169.00
125 8 4 16 8 16 Top R3 6-1 TGK12 (order separately) TLM812RCU22,6,8 $186.00
125 12 6 24 10 24 Top R3 6-2/0 TGK12 (order separately) TLM1212RCU2,6,8 $226.00
TGK24 (order separately)
125 24 12 0 0 24 Top R4 6-2/0 TGK24 (order separately) TLM2412RCU2,6,8 $333.00
Bottom TGK32 (order separately)
150 24 12 12 4 30 Top R6 1-3/0 (Cu), TGK24 (order separately) TLM2415RCU2,8 $364.00
Bottom 2/0-3/0 (Al) TGK32 (order separately)
200 12 6 24 10 24 Top R5 6-250 TGK24 (order separately) TLM1220RCU2,8 $231.00
200 16 8 32 14 32 Top R5 6-250 TGK32 (order separately) TLM1620RCU2,8 $293.00
200 20 10 40 18 40 Top R6 6-250 TGK24 (order separately) TLM2020RCU2,8 $335.00
TGK42 (order separately)
200 24 12 36 18 42 Top R39 1-250 (Cu), TGK24 (order separately) TLM2420R42 $560.00
Bottom 2/0-250 (Al)
200 32 16 16 6 40 Top R7 1-250 (Cu), 2/0-250 (Al) TGK32 (order separately) TLM3220RCU2,8 $525.00
Bottom
200 40 20 0 0 40 Top R8 6-250 TGK42 (order separately) TLM4020RCU2,8 $626.00
Bottom
225 42 20 0 0 42 Top R8 1-300 (Cu), TGK42 (order separately) TLM4222RCU2,8 $852.00
Bottom 2/0-300 (Al)
140-225 amp single-phase devices have removable closing caps. Larger ampere devices require field-cut openings. Order hubs separately. See page 1-27.
2No door
310 kAIC.
4125 amp maximum branch capacity.
5For main breaker, order THQLRK2 retainer kit plus 2-pole circuit breaker. See page 1-28, 100 amp max.
6For main breaker, order TQMH000. See page 1-24. Also order 2-pole THQL, THHQL, or TXQL circuit breaker. See page 1-5.
7GO-137A (PowerMark Plus®® Load Centers)
8For main breaker, order THQMVXXXD circuit breaker from page 1-6.
Note: See page 9-15, AL Series Lighting Panelboards as replacements for 300-600A load centers.
Page Updated 04 / 2010
www.geelectrical.com Rev. 1/10
Prices and data subject
to change without notice
BuyLog®Catalog
1-12
Residential
Load Centers
Section 1
PowerMark Gold and Plus Main
Breaker Load Centers
Main Breaker Factory Installed
Product Features
—UL Listed (Panelboards No. 67)
—60°C/75°C Conductor Rating
—Suitable for Use as Service Entrance Equipment when Installed
in Accordance with the National Electrical Code
—22kAIC RMS symmetrical, Except Where Noted
—6-42 circuit devices UL Listed for bottom mounted lugs by
installing complete unit (box, interior and front) upside down.
—For a listing of CSA Listed load centers, visit
www.geelectrical.com.
Single-Phase, Three-Wire, 120/240 Vac, Main Breaker Factory Installed
Indoor (NEMA 1) Enclosure
Main 1 Pole, 2 Pole, 1 Pole, 2 Pole, Total Main Wire Size
Ampere 1” 1” 1/2” 1/2” 1-pole Front Feed Box (AWG/kcmil) Equipment Product List Price
Rating Spaces Spaces Spaces Spaces Spaces Type Type Number Cu-Al Ground Kit Number GO-137D
100 12 5 20 8 22 Combination Top 18 4-1/0 TGK2/TGL20 installed TM1210CCU1$277.00
Flush/Surface Bottom
Front
100 12 5 20 8 22 Combination Top 18 4-1/0 2 TGK2/TGL20 installed TM1210CCUG1$291.00
Flush/Surface Bottom
Front
100 12 6 24 10 24 Combination Top 4 4-1/0 TGK12 (order separately) TM1210C24 $450.00
Flush/Surface Bottom TGK24 (order separately)
Front
100 12 6 24 10 24 Combination Top 4 4-1/0 TGK12 (order separately TM1210C24G $475.00
Flush/Surface Bottom TGK24 (order separately)
Front
100 24 12 0 0 24 Combination Top 7 1-2/0 TGK24, TGK32 and TM2410CCU $400.00
Flush/Surface Bottom TLK20 (order separately)
Front
100 20 10 0 0 20 Combination Top 6 4-1/0 TGK24 (order separately) TM2010CCU $298.00
Flush/Surface Bottom
Front
100 32 16 0 0 32 Combination Top 11 4-1/0 TGK32 (order separately) TM3210CCU $454.00
Flush/Surface Bottom
Front
125 12 5 20 8 22 Combination Top 18 1-2/0 TGK2/TGL20 installed TM1212CCU1$440.00
Flush/Surface Bottom
Front
125 12 5 20 8 22 Combination Top 18 1-2/0 2 TGK2/TGL20 installed TM1212CCUG1$457.00
Flush/Surface Bottom
Front
125 12 12 24 10 24 Combination Top 4 1-2/0 TGK12 (order separately TM1212C24 $600.00
Flush/Surface Bottom TGK24 (order separately)
Front
125 12 12 24 10 24 Combination Top 4 1-2/0 TGK24 installed TM1212C24G $625.00
Flush/Surface Bottom
Front
125 24 12 0 0 24 Combination Top 7 1-2/0 TGK24 (order separately) TM2412CCU $542.00
Flush/Surface Bottom
Front
125 16 8 16 6 24 Combination Top 4 1-2/0 TGK12 (order separately) TM1612CCU $487.00
Flush/Surface Bottom TGK24 (order separately)
Front
125 16 8 16 6 24 Combination Top 4 1-2/0 TGK24 installed TM1612CCUG $509.00
Flush/Surface Bottom
Front
150 20 10 20 8 30 Combination Top 8 1-3/0 (Cu), TGK32 (order separately) TM2015CCU $544.00
Flush/Surface Bottom 2/0-3/0 (Al)
Front
150 16 8 32 14 32 Combination Top 7 1-3/0 (Cu), TGK24 (order separately) TM1615CCU $490.00
Flush/Surface Bottom 2/0-3/0 (Al) TGK32 (order separately)
Front
150 16 8 32 14 32 Combination Top 7 1-3/0 (Cu), TGK32 installed TM1615CCUG $515.00
Flush/Surface Bottom 2/0-3/0 (Al)
Front
This table continued on next page
TM2020CCU, TM820RCUFL
www.geelectrical.com BuyLog®Catalog
Publications and Reference: See Section 22 for a
complete list of additional product-related publications
1-13
Residential
Load Centers
Rev. 1/10
Prices and data subject
to change without notice
Section 1
PowerMark Gold and Plus Main Breaker Load Centers
Main Breaker Factory Installed
Single-Phase, Three-Wire, 120/240 Vac, Main Breaker Factory Installed
Indoor (NEMA 1) Enclosure
Main 1 Pole, 2 Pole, 1 Pole, 2 Pole, Total Main Wire Size
Ampere 1” 1” 1/2” 1/2” 1-pole Front Feed Box (AWG/kcmil) Equipment Product List Price
Rating Spaces Spaces Spaces Spaces Spaces Type Type Number Cu-Al Ground Kit Number GO-137D
150 32 16 0 0 32 Combination Top 11 1-3/0 (Cu), TGK32 (order separately) TM3215CCU $589.00
Flush/Surface Bottom 2/0-3/0 (Al)
150 24 12 36 18 42 Combination Top 9 1-3/0 (Cu), TGK24 (order separately) TM2415C42 $750.00
Flush/Surface Bottom 2/0-3/0 (Al) TLK32 (order separately)
150 32 16 20 10 42 Combination Top 11 1-3/0 (Cu), TGK32 and TLK20 TM3215C42 $776.00
Flush/Surface Bottom 2/0-3/0 (Al) (order separately)
200 14 8 32 14 32 Combination Top 7 1-250 (Cu), TGK32 (order separately) TM1620CCU $487.00
Flush/Surface Bottom 2/0-250 (Al)
200 14 8 32 14 32 Combination Top 8 1-250 (Cu), TGK32 installed TM1620CCUG $517.00
Flush/Surface Bottom 2/0-250 (Al)
200 18 10 40 18 40 Combination Top 8 1-250 (Cu), TGK24 (order separately) TM2020CCU $544.00
Flush/Surface Bottom 2/0-250 (Al) TGK42 (order separately)
200 18 10 40 18 40 White Combo Top 8 1-250 (Cu), TGK24 (order separately) TM2020CCUW $750.00
Flush/Surface Bottom 2/0-250 (Al) TGK42 (order separately)
200 18 10 40 18 40 Combination Top 8 1-250 (Cu), TGK42 installed TM2020CCUG $568.00
Flush/Surface Bottom 2/0-250 (Al)
200 18 10 40 18 40 White Combo Top 8 1-250 (Cu), TGK42 installed TM2020CCUGW $800.00
Flush/Surface Bottom 2/0-250 (Al)
200 32 16 16 6 40 Combination Top 11 1-250 (Cu), TGK32 (order separately) TM3220CCU $663.00
Flush/Surface Bottom 2/0-250 (Al)
200 40 20 0 0 40 Combination Top 13 1-250 (Cu), TGK42 (order separately) TM4020CCU $776.00
Flush/Surface Bottom 2/0-250 (Al)
200 24 12 36 18 42 Combination Top 9 1-3/0 (Cu), TGK24 or TLK32 TM2420C42 $750.00
Flush/Surface Bottom 2/0-3/0 (Al) (order separately)
200 32 16 20 10 42 Combination Top 11 1-250 (Cu), TGK32 and TLK20 TM3220C42 $776.00
Flush/Surface Bottom 2/0-250 (Al) (order separately)
200 42 20 0 0 42 Combination Top 14 1-300 (Cu), TGK42 (order separately) TM4220CCU $850.00
Flush/Surface Bottom 2/0-300 (Al)
225 42 20 0 0 42 Combination Top 14 1-300 (Cu), TGK42 (order separately) TM4222CCU $852.00
Flush/Surface Bottom 2/0-300 (Al)
1No lock provision available. Use compatible load center with the suffix C24 with a TDL106 for locking provision.
Single-Phase, Three-Wire 120/240 Vac Main Breaker Factory Installed
Outdoor (NEMA 3R) Enclosure2
Main 1 Pole, 2 Pole, 1 Pole, 2 Pole, Total Main Wire Size
Ampere 1” 1” 1/2” 1/2” 1-pole Feed Box (AWG/kcmil) Equipment Product List Price
Rating Spaces Spaces Spaces Spaces Spaces Type Number Cu-Al Ground Kit Number GO-137D
100 12 6 24 10 24 Top R3 4-1/0 TGK12 (order separately) TM1210RCU $357.00
TGK24 (order separately)
100 20 10 0 0 30 Top R4 4-1/0 TGK24 (order separately) TM2010RCU $385.00
125 12 12 24 10 24 Top R4 1-2/0 TGK12 (order separately) TM1212RCU $512.00
TGK24 (order separately)
125 24 12 0 0 24 Top R4 1-2/0 TGK24 (order separately) TM2412RCU $601.00
150 8 4 16 6 16 Top R5 1-250 (Cu), 2/0-250 (Al) TGK24 (order separately) TM815RCUFL $656.00
150 16 8 32 14 32 Top R5 1-3/0 (Cu), 2/0-3/0 (Al) TGK24 (order separately) TM1615RCU $594.00
TGK32 (order separately)
150 24 12 12 4 30 Top R6 1-3/0 (Cu), 2/0-3/0 (Al) TGK24 (order separately) TM2415RCU $732.00
TGK32 (order separately)
150 24 12 36 18 42 Top R39 1-250 (Cu), 2/0-250 (Al) TGK24 (order separately) TM2415R42 $800.00
Bottom
150 32 16 0 0 32 Top R7 1-3/0 (Cu), 2/0-3/0 (Al) TGK32 (order separately) TM3215RCU $743.00
200 8 4 16 6 16 Top R5 1-250 (Cu), 2/0-250 (Al) TGK32 (order separately) TM820RCUFL $654.00
200 20 10 40 18 40 Top R6 1-250 (Cu), 2/0-250 (Al) TGK24 (order separately) TM2020RCU $629.00
TGK42 (order separately)
200 24 12 36 18 42 Top R39 1-250 (Cu), 2/0-250 (Al) TGK24 (order separately) TM2420R42 $855.00
Bottom
200 32 16 16 6 40 Top R7 1-250 (Cu), 2/0-250 (Al) TGK32 (order separately) TM3220RCU $798.00
200 40 20 0 0 40 Top R8 1-250 (Cu), 2/0-250 (Al) TGK42 (order separately) TM4020RCU $924.00
225 8 4 16 6 16 Top R5 1-250 (Cu), 2/0-250 (Al) TGK24 (order separately) TM822RCUFL $774.00
225 42 20 0 0 42 Top R8 1-300 (Cu), 2/0-300 (Al) TGK42 (order separately) TM4222RCU $962.00
2100-225 amp devices have removable closing caps. Larger ampere devices require field-cut openings. Order hubs separately. See page 1-27.
Note: See page 9-15, AL Series Lighting Panelboards as replacements for 300-600A load centers.
Page Updated 04 / 2010
www.geelectrical.com Rev. 1/10
Prices and data subject
to change without notice
BuyLog®Catalog
1-14
Residential
Load Centers
Section 1
PowerMark Plus®® Load Centers
Three-Phase
Main Circuit Breaker or Main Lugs Factory Installed
Product Features
—UL Listed (Panelboards No. 67)
—60°/75°C Conductor Rating
—Suitable for Use as Service Entrance Equipment when Installed
in Accordance with the National Electrical Code
—22kAIC RMS symmetrical Short-circuit Rating Standard
—6-42 circuit devices UL Listed for bottom mounted lugs by
installing complete unit (box, interior and front) upside down.
—For a listing of CSA Listed load centers, visit
www.geelectrical.com.
Three-Phase, Four-Wire, 208Y/120 Vac1, Main Lugs Factory Installed
Indoor (NEMA 1) Enclosure
Main 1 Pole, 2 Pole, 3 Pole, Total Main Wire Size
Ampere 1” 1” 1” 1-pole Feed Box (AWG/kcmil) Equipment Product List Price
Rating Spaces Spaces Spaces Spaces Front Type Type Number Cu-Al Ground Kit Number GO-137
125 12 6 4 12 Combination Top 4 6-2/0 TGK12 (order separately) TL12412C2$233.00
Flush/Surface Bottom TGK24 (order separately)
Front
150 18 8 6 18 Combination Top 7 1-3/0 (Cu), TGK24 (order separately) TL18415C2$328.00
Flush/Surface Bottom 2/0-3/0 (Al) TGK32 (order separately)
Front
150 24 12 8 24 Combination Top 7 1-3/0 (Cu), TGK24 (order separately) TL24415C2$405.00
Flush/Surface Bottom 2/0-3/0 (Al) TGK32 (order separately)
Front
200 18 8 6 18 Combination Top 8 1-250 (Cu), TGK32 (order separately) TL18420C2$411.00
Flush/Surface Bottom 2/0-250 (Al)
Front
200 30 14 10 30 Combination Top 11 1-250 (Cu), TGK32 (order separately) TL30420C2$448.00
Flush/Surface Bottom 2/0-250 (Al)
Front
200 42 20 14 42 Combination Top 13 1-250 (Cu), TGK42 (order separately) TL42420C $595.00
Flush/Surface Bottom 2/0-250 (Al)
Front
225 30 14 10 30 Combination Top 15 1-300 (Cu), (2) TGL2 (order separately) TL30422C3$511.00
Flush/Surface Bottom 2/0-300 (Al)
Front
225 42 20 14 42 Combination Top 15 1-300 (Cu), (2) TGL2 (order separately) TL42422C3$628.00
Flush/Surface Bottom 2/0-300 (Al)
Front
1Also UL Listed for three-phase, four-wire 240/120 Volts ac delta and three-phase, three-wire 240 Volts ac branch breakers installed.
2Alternate main breaker: 100 Amp max. THQL three-pole, use retainer THQLRK. See page 1-28.
3Not suitable for use as service entrance equipment.
Note: See page 9-15, AL Series Lighting Panelboards as replacements for 300-600A load centers.
TM24420CB
www.geelectrical.com BuyLog®Catalog
Publications and Reference: See Section 22 for a
complete list of additional product-related publications
1-15
Residential
Load Centers
Rev. 1/10
Prices and data subject
to change without notice
Section 1
PowerMark Plus®Load Centers
Three-Phase
Main Circuit Breaker or Main Lugs Factory Installed
Three-Phase, Four-Wire, 208Y/120 Vac1, Main Lugs Factory Installed
Outdoor (NEMA 3R) Enclosure
Main 1 Pole, 2 Pole, 3 Pole, Total Main Wire Size
Ampere 1” 1” 1” 1-pole Feed Box (AWG/kcmil) Equipment Product List Price
Rating Spaces Spaces Spaces Spaces Type Number Cu-Al Ground Kit Number GO-137
125 12 6 4 12 Top R3 6-2/0 TGK12 (order separately) TL12412R2,4 $316.00
TGK24 (order separately)
150 18 8 6 18 Top R4 1-3/0 (Cu), TGK24 (order separately) TL18415R2,4 $411.00
2/0-3/0 (Al) TGK32 (order separately)
150 24 12 8 24 Top R4 1-3/0 (Cu), TGK24 (order separately) TL24415R2,4 $530.00
2/0-3/0 (Al) TGK32 (order separately)
200 18 8 6 18 Top R4 1-250 (Cu), TGK32 (order separately) TL18420R2,4 $478.00
2/0-250 (Al)
200 30 14 10 30 Top R6 1-250 (Cu), TGK32 (order separately) TL30420R2,4 $550.00
2/0-250 (Al)
200 42 20 14 42 Top R8 1-250 (Cu), TGK42 (order separately) TL42420R2,3 $929.00
2/0-250 (Al)
225 42 20 14 42 Top R8 1-300 (Cu), TGK42 (order separately) TL42422R2,3 $996.00
2/0-300 (Al)
1Also UL Listed for three-phase, four-wire 240/120 Volts ac delta and three-phase, three-wire 240 Volts ac branch breakers installed.
2100-200 Amp three-phase devices have removable closing cap. Larger Ampere devices require field cut openings. Order hubs separately. See page 1-27.
3Not suitable for use as service entrance equipment.
4Alternate main breaker: 100 Amp max. THQL three-pole, use retainer THQLRK. See page 1-28.
Three-Phase, Four-Wire, 208Y/120 Vac5, Main Breaker Factory Installed
Indoor (NEMA 1) Enclosure
Main 1 Pole, 2 Pole, 3 Pole, Total Main Wire Size
Ampere 1” 1” 1” 1-pole Feed2Box (AWG/kcmil) Equipment Product List Price
Rating Spaces Spaces Spaces Spaces Front Type Type Number Cu-Al Ground Kit Number GO-137
100 12 6 4 12 Combination Top 6 6-1/0 (Cu), TGK12 (order separately) TM12410C6$497.00
Flush/Surface Bottom 4-1/0 (Al) TGK24 (order separately)
Front
100 18 8 6 18 Combination Top 6 6-1/0 (Cu), TGK24 (order separately) TM18410C6$669.00
Flush/Surface Bottom 4-1/0 (Al) TGK32 (order separately)
Front
125 30 14 10 30 Combination Top 11 1-3/0 (Cu), TGK32 (order separately) TM30412C $1324.00
Flush/Surface 2/0-3/0 (Al)
Front
125 30 14 10 30 Combination Bottom 11 1-3/0 (Cu), TGK32 (order separately) TM30412CB $1324.00
Flush/Surface 2/0-3/0 (Al)
Front
150 24 12 8 24 Combination Top 11 1-3/0 (Cu), TGL1, TGL2, TGL20,TNG3, TM24415C $1277.00
Flush/Surface 2/0-3/0 (Al TGN6 (order separately)
Front
150 24 12 8 24 Combination Bottom 11 1-3/0 (Cu), TGK32 (order separately) TM24415CB $1277.00
Flush/Surface 2/0-3/0 (Al)
Front
150 30 14 10 30 Combination Top 11 1-3/0 (Cu), TGK32 (order separately) TM30415C $1324.00
Flush/Surface 2/0-3/0 (Al)
Front
150 30 14 10 30 Combination Bottom 11 1-3/0 (Cu), TGK32 (order separately) TM30415CB $1324.00
Flush/Surface 2/0-3/0 (Al)
Front
150 42 20 14 42 Combination Top 13 1-3/0 (Cu), TGK42 (order separately) TM42415C $1521.00
Flush/Surface 2/0-3/0 (Al)
Front
150 42 20 14 42 Combination Bottom 13 1-3/0 (Cu), TGK42 (order separately) TM42415CB $1521.00
Flush/Surface 2/0-3/0 (Al)
Front
200 24 12 8 24 Combination Top 11 1-300 (Cu), TGK32 (order separately) TM24420C $1275.00
Flush/Surface 2/0-300 (Al)
Front
200 24 12 8 24 Combination Bottom 11 1-300 (Cu), TGK32 (order separately) TM24420CB $1275.00
Flush/Surface 2/0-300 (Al)
Front
5Also UL Listed for three-phase, four-wire 240/120 Volts ac delta and three-phase, three-wire 240 Volts ac branch breakers installed.
6100 Amp indoor devices UL listed for bottom-feed by installing complete unit upside-down.
Note: See page 9-15, AL Series Lighting Panelboards as replacements for 300-600A load centers.
This table continued on next page
www.geelectrical.com Rev. 1/10
Prices and data subject
to change without notice
BuyLog®Catalog
1-16
Residential
Load Centers
Section 1
PowerMark Plus®Load Centers
Three-Phase
Main Circuit Breaker or Main Lugs Factory Installed
Three-Phase, Four-Wire, 208Y/120 Vac1, Main Breaker Factory Installed
Indoor (NEMA 1) Enclosure
Main 1 Pole, 2 Pole, 3 Pole, Total Main Wire Size
Ampere 1” 1” 1” 1-pole Feed2Box (AWG/kcmil) Equipment Product List Price
Rating Spaces Spaces Spaces Spaces Front Type Type Number Cu-Al Ground Kit Number GO-137
200 30 14 10 30 Combination Top 12 1-250 (Cu), TGK32 (order separately) TM30420C $1325.00
Flush/Surface 2/0-250 (Al)
Front
200 30 14 10 30 Combination Bottom 12 1-250 (Cu), TGK32 (order separately) TM30420CB $1325.00
Flush/Surface 2/0-250 (Al)
Front
200 42 20 14 42 Combination Top 14 1-250 (Cu), TGK42 (order separately) TM42420C $1521.00
Flush/Surface 2/0-250 (Al)
Front
200 42 20 14 42 Combination Bottom 14 1-250 (Cu), TGK42 (order separately) TM42420CB $1521.00
Flush/Surface 2/0-250 (Al)
Front
225 42 20 14 42 Combination Top 15 1-300 (Cu), (2) TGL2 (order separately) TM42422C $1597.00
Flush/Surface 2/0-300 (Al)
Front
225 42 20 14 42 Combination Bottom 15 1-300 (Cu), (2) TGL2 (order separately) TM42422CB $1597.00
Flush/Surface 2/0-300 (Al)
Front
1Also UL Listed for three-phase, four-wire 240/120 Volts ac delta and three-phase, three-wire 240 Volts ac branch breakers installed.
Three-Phase, Four-Wire, 208Y/120 Vac2, Main Breaker Factory Installed
Outdoor (NEMA 3R) Enclosure
Main 1 Pole, 2 Pole, 3 Pole, Total Main Wire Size
Ampere 1” 1” 1” 1-pole Feed2Box (AWG/kcmil) Equipment Product List Price
Rating Spaces Spaces Spaces Spaces Type Number Cu-Al Ground Kit Number GO-137
100 18 8 6 18 Top R4 6-1/0 (Cu), TGK24 (order separately) TM18410R3$792.00
4-1/0 (Al) TGK32 (order separately)
125 30 14 10 30 Top R7 1-3/0 (Cu), TGK32 (order separately) TM30412R3$1454.00
2/0-3/0 (Al)
150 24 12 8 24 Top R6 1-3/0 (Cu), TGK32 (order separately) TM24415R3$1424.00
2/0-3/0 (Al)
150 30 14 10 30 Top R7 1-3/0 (Cu), TGK32 (order separately) TM30415R3$1455.00
2/0-3/0 (Al)
200 30 14 10 30 Top R7 1-250 (Cu), TGK32 (order separately) TM30420R3$1454.00
2/0-250 (Al)
200 42 20 14 42 Top R8 1-250 (Cu), TGK42 (order separately) TM42420R3$1659.00
2/0-250 (Al)
225 42 20 14 42 Top R8 1-300 (Cu), TGK42 (order separately) TM42422R3$1871.00
2/0-300 (Al)
2Also UL Listed for three-phase, four-wire 240/120 Volts ac delta and three-phase, three-wire 240 Volts ac branch breakers installed.
3100-200 Amp three-phase devices have removable closing cap. Larger Ampere devices require field cut openings. Order hubs separately. See page 1-27.
Note: See page 9-15, AL Series Lighting Panelboards as replacements for 300-600A load centers.
www.geelectrical.com BuyLog®Catalog
Publications and Reference: See Section 22 for a
complete list of additional product-related publications
1-17
Residential
Load Centers
Rev. 1/10
Prices and data subject
to change without notice
Section 1
PowerMark Gold Load Centers
Product Features - Generator Panels
—Suitable for use in accordance with Article 702 of the National
Electrical Code, ANSI/NFPA 70
—Single-phase, 2 interlock 60A or 30A main breakers, 8 circuits
max.
—Safety and convenience when using a generator - 14,000 peak
wattage, 11,520 continuous load, 48 amps at 240 volts.
—Maintains power to such critical circuits as those for furnace,
pump, refrigerator, lights.
—Connected dual breaker mechanism ensures that only one
source is active at a time.
PowerMark Gold Load Centers Single-Phase, Three-Wire, 120/240 Vac, Two Interlocked Main Breakers Factory Installed
Indoor (NEMA 1) Enclosure
Main 1 Pole, 2 Pole, 1 Pole, 2 Pole, Total Main Wire Size
Ampere 1” 1” 1/2” 1/2” 1-pole Feed Box (AWG/kcmil) Equipment Product List Price
Rating Spaces Spaces Spaces Spaces Spaces Front Type Type Number Cu-Al Ground Kit Number GO-137D
30 4 2 8 4 8 Flush Front Top 3A 6-1 TGK12 included TM830FCUGEN $570.00
Bottom
30 4 2 8 4 8 Surface Front Top 3A 6-1 TGK12 included TM830SCUGEN $570.00
Bottom
60 4 2 8 4 8 Flush Front Top 3A 6-1 TGK12 included TM860FCUGEN $570.00
Bottom
60 4 2 8 4 8 Surface Front Top 3A 6-1 TGK12 included TM860SCUGEN $570.00
Bottom
PowerMark Gold Load Centers Single-Phase, Three-Wire, 120/240 Vac, Two Interlocked Main Breakers Factory Installed
Outdoor (NEMA 3R) Enclosure
Main 1 Pole, 2 Pole, 1 Pole, 2 Pole, Total Main Wire Size
Ampere 1” 1” 1/2” 1/2” 1-pole Feed Box (AWG/kcmil) Equipment Product List Price
Rating Spaces Spaces Spaces Spaces Spaces Type Number Cu-Al Ground Kit Number GO-137D
30 4 2 8 4 8 Top R2A 6-1 TGK12 included TM830RCUGEN $635.00
60 4 2 8 4 8 Top R2A 6-1 TGK12 included TM860RCUGEN $635.00
PowerMark Gold Load Centers Single-Phase, Three-Wire, 120/240 Vac, Riser Panel
Indoor (NEMA 1) Enclosure
Main 1 Pole, 2 Pole, 1 Pole, 2 Pole, Total Main Wire Size
Ampere 1” 1” 1/2” 1/2” 1-pole Feed Box (AWG/kcmil) Equipment Product List Price
Rating Spaces Spaces Spaces Spaces Spaces Front Type Type Number Cu-Al Ground Kit Number GO-137A
125 20 10 40 20 40 Combination Top 9A 6-2/0 TGK12 (order TLM2012CCURP $380.00
Flush/Surface Front separately)
125 12 6 24 10 24 Combination Top 4A 6-2/0 TGK12 (order TLM1212 CCURP $300.00
Flush/Surface Front separately)
Tap kits required, order separately. See page 1-29.
Auxiliary gutters available. See page 1-29.
PowerMark Gold Load Centers Single-Phase, Three-Wire 120/240 Vac, Spa Panel
Outdoor (NEMA 3R) Enclosure
Main 1 Pole, 2 Pole, 1 Pole, 2 Pole, Total Main Wire Size
Ampere 1” 1” 1/2” 1/2” 1-pole Load Center Feed Box (AWG/kcmil) Equipment Product List Price
Rating Spaces Spaces Spaces Spaces Spaces Type Type Number Cu-Al Ground Kit Number GO-137A
125 4 2 8 4 8 Factory Included Top 1-2/0 TGL1 installed TL412R250GF $925.00
50A GFCI Bottom
125 4 2 8 4 8 Factory Included Top 1-2/0 TGL1 installed TL412R260GF $925.00
60A GFCI Bottom
Twist Lock Power Inlets
Product List Price
Receptacles Amps Volts UL Number GO-137G
L14-20 20 120/240 Canada, US T020N $115.00
L14-30 30 120/240 Canada, US T030N $125.00
CS637 50 120/240 Canada, US T050N $200.00
TL412R250GF/TM830FCUGEN
www.geelectrical.com Rev. 1/10
Prices and data subject
to change without notice
BuyLog®Catalog
1-18
Residential
Load Centers
Section 1
PowerMark Gold Meter Socket
Load Centers
With Bonded Neutrals
PowerMark Gold Load Centers Single-Phase, Three-Wire, 120/240 Vac, Ring Type Meter Main
Main
Ampere 1 Pole, 2 Pole, 1 Pole, 2 Pole, Total 1-pole Enclosure Bypass UL Agency Product List Price
Rating 1” Spaces 1” Spaces 1/2” Spaces 1/2” Spaces Spaces Type Front Type Type Incoming Certification Number GO-137B
100 2 1 4 1 4 Outdoor Semi-Flush None OH/UG UL TSL210CFCU1$185.00
(NEMA 3R) EUSERC
125 4 2 6 3 6 Outdoor Semi-Flush None OH/UG UL TSL412CFCU1$218.00
(NEMA 3R) EUSERC
200 4 2 6 3 6 Outdoor Semi-Flush None OH/UG UL TSL420CFCU1$584.00
(NEMA 3R) EUSERC
100 2 1 4 1 4 Outdoor Surface2None OH/UG UL TSL210CSCU1,2,3 $185.00
(NEMA 3R) EUSERC
125 4 2 6 3 6 Outdoor Surface2None OH/UG UL TSL412CSCU1,2,3 $218.00
(NEMA 3R) EUSERC
200 4 2 6 3 6 Outdoor Surface2None OH/UG UL TSL420CSCU1,2,3 $584.00
(NEMA 3R) EUSERC
100 0 0 0 0 0 Outdoor Surface2None OH/UG UL TM10RMC2$744.00
(NEMA 3R)
125 0 0 0 0 0 Outdoor Surface2None OH/UG UL TM12RMC2$744.00
(NEMA 3R)
150 0 0 0 0 0 Outdoor Surface2None OH/UG UL TM15RMC2$744.00
(NEMA 3R)
200 0 0 0 0 0 Outdoor Surface2None OH/UG UL TM20RMC2$744.00
(NEMA 3R)
125 4 2 6 3 6 Outdoor Surface2Lever OH/UG UL TSLB412CSCU2$588.00
(NEMA 3R) Bypass EUSERC
200 4 2 6 3 6 Outdoor Surface2Lever OH/UG UL TSLB420CSCU2$953.00
(NEMA 3R) Bypass EUSERC
1Accepts field installed fifth jaw terminal in the 3 or 9 o’clock position. Product number TJAW53; order separately.
2Devices include removable closing cap. Order hub separately. See page 1-27.
3Surface mounted units have two hub provisions on top end wall.
Ring Type Meter Main
Main Wire Size
Product Box Unit Width Unit Height Depth Factory Inst. Field Inst. (AWG/kcmil) Equipment
Number Number (in inches) (in inches) (in inches) Svcs Disc Svcs Disc Cu-Al Ground Kit
TSL210CFCU R12 14 23-1/2 4-7/8 THQP/THQL 6-2/0 TGL1 installed
TSL412CFCU R12 14 23-1/2 4-7/8 THQP/THQL 6-2/0 TGL1 installed
TSL420CFCU R14 14 30-3/4 5-3/4 THQP/THQL/TQDL 1-250 TGL1 installed
TSL210CSCU R12 14 23-1/2 4-7/8 THQP/THQL 6-2/0 TGL1 installed
TSL412CSCU R12 14 23-1/2 4-7/8 THQP/THQL 6-2/0 TGL1 installed
TSL420CSCU R14 14 30-3/4 5-3/4 THQP/THQL/TQDL 1-250 TGL1 installed
TM10RMC R32 16 17 5 TQD 2-250
TM12RMC R32 16 17 5 TQD 2-250
TM15RMC R32 16 17 5 TQD 2-250
TM20RMC R32 16 17 5 TQD 2-250
TSLB412CSCU R12 14 23-1/2 4-7/8 THQP/THQL/THHQL 6-2/0 TGL1 installed
TSLB420CSCU R14 14 30-3/4 5-3/4 THQP/THQL/THHQL 1-250 TGL1 installed
TSM2020CFCU
www.geelectrical.com BuyLog®Catalog
Publications and Reference: See Section 22 for a
complete list of additional product-related publications
1-19
Residential
Load Centers
Rev. 1/10
Prices and data subject
to change without notice
Section 1
PowerMark Gold Meter Socket Load Centers
With Bonded Neutrals
PowerMark Gold Load Centers Single-Phase, Three-Wire, 120/240 Vac, Ring Type Farm Panel
Main
Ampere 1 Pole, 2 Pole, 1 Pole, 2 Pole, Total 1-pole Enclosure Front Bypass UL Agency Product List Price
Rating 1” Spaces 1” Spaces 1/2” Spaces 1/2” Spaces Spaces Type Front Type Type Incoming Certification Number GO-137B
200 4 2 8 3 8 Outdoor Surface None OH/UG UL TSF420CSCU1$685.00
(NEMA 3R) EUSERC
1Devices include removable closing cap. Order hub separately. See page 1-27.
Ring Type Farm Panel
Main Wire Size
Product Box Unit Width Unit Height Depth Factory Inst. Field Inst. (AWG/kcmil) Equipment
Number Number (in inches) (in inches) (in inches) Svcs Disc Svcs Disc Cu-Al Ground Kit
TSF420CSCU R16 16-3/4 33 6-3/16 THQMV THQL/THHQL 1-300 TGK12 (order separately)
PowerMark Gold Load Centers Single-Phase, Three-Wire, 120/240 Vac, Ring Type Feed-Thru
Main
Ampere 1 Pole, 2 Pole, 1 Pole, 2 Pole, Total 1-pole Enclosure Front Bypass UL Agency Product List Price
Rating 1” Spaces 1” Spaces 1/2” Spaces 1/2” Spaces Spaces Type Type Type Incoming Certification Number GO-137B
150 42838OutdoorSurface None OH/UG UL TSM415CSCU1$812.00
(NEMA 3R
150 42838OutdoorSurface None OH/UG UL TSMF415CSFL1$880.00
(NEMA 3R) FMG
150 8 4 16 6 16 Outdoor Surface None OH/UG UL TSM815CSCU1$685.00
(NEMA 3R)
150 8 4 16 6 16 Outdoor Surface None OH/UG UL TSM815CSFL1$910.00
(NEMA 3R)
150 8 4 16 6 16 Outdoor Surface None OH/UG UL TSMF815CSFL1$930.00
(NEMA 3R) FMG
200 42838OutdoorSurface None OH/UG UL TSM420CSCU1$812.00
(NEMA 3R)
200 42838OutdoorSurface None OH/UG UL TSMF420CSFL1$880.00
(NEMA 3R) FMG
200 8 4 16 6 16 Outdoor Surface None OH/UG UL TSM820CSCU1$685.00
(NEMA 3R
200 8 4 16 6 16 Outdoor Surface None OH/UG UL TSM820CSFL1$910.00
(NEMA 3R)
200 8 4 16 6 16 Outdoor Surface None OH/UG UL TSMF820CSFL1$930.00
(NEMA 3R) FMG
1Devices include removable closing cap. Order hub separately. See page 1-27.
Ring Type Feed-Thru
Main Wire Size
Product Box Unit Width Unit Height Depth Factory Inst. Field Inst. (AWG/kcmil) Equipment
Number Number (in inches) (in inches) (in inches) Svcs Disc Svcs Disc Cu-Al Ground Kit
TSM415CSCU R36 14 28-1/2 4-1/2 THQMV 6-350 TGL2 included
TSMF415CSFL R36A 14 28-1/2 4-1/2 THQMV 6-350 TGL2 included
TSM815CSCU R16 16-3/4 33 6-3/16 THQMV 1-300 TGK12 (order separately)
TSM815CSFL R37B 14 31-3/4 4-1/2 THQMV 6-350 TGK24 included
TSMF815CSFL R37A 14 31-3/4 4-1/2 THQMV 6-350 TGK24 included
TSM420CSCU R36 14 28-1/2 4-1/2 THQMV 6-350 TGL2 included
TSMF420CSFL R36A 14 28-1/2 4-1/2 THQMV 6-350 TGL2 included
TSM820CSCU R16 16-3/4 33 6-3/16 THQMV 6-350 TGK12 (order separately)
TSM820CSFL R37B 14 31-3/4 4-1/2 THQMV 6-350 TGK24 included
TSMF820CSFL R37A 14 31-3/4 4-1/2 THQMV 6-350 TGK24 included
Georgia Power MSLC, Single-Phase, Three-Wire, 120/240 Vac, Ring-Type
Main Ampere 1 Pole, 2 Pole, 1 Pole, 2 Pole, Total 1 Pole Enclosure Front Bypass UL Agency Product List Price
Rating 1" Spaces 1" Spaces 1/2" Spaces 1/2" Spaces Spaces Type Type Type Incoming Certification Number GO-137B
150 0 0 0 0 0 Outdoor (NEMA 3R) Enclosure Surface None OH/UG UL TM15RMCGP $845.00
200 0 0 0 0 0 Outdoor (NEMA 3R) Enclosure Surface None OH/UG UL TM20RMCGP $845.00
150 4 2 8 3 8 Outdoor (NEMA 3R) Surface None OH/UG UL TSM415CSCUGP $980.00
200 4 2 8 3 8 Outdoor (NEMA 3R) Surface None OH/UG UL TSM420CSCUGP $980.00
Georgia Power MSLC, Ring-Type
Main Wire Size Equipment
Product Box Unit Width Unit Height Depth Factory Installed Field Installed (AWG/kcmil) Ground
Number Number (in inches) (in inches) (in inches) Service Disconnect Service Disconnect Cu-AL Kit
TM15RMCGP R32A 18 7/8 18 9/16 5 THQD 0 2-250 —
TM20RMCGP R32A 18 7/8 18 9/16 5 THQD 0 2-250 —
TSM415CSCUGP R40 14 32 4 1/2 THQMV None 6-350 TGL2 included
TSM420CSCUGP R40 14 32 4 1/2 THQMV None 6-350 TGL2 included
www.geelectrical.com Rev. 1/10
Prices and data subject
to change without notice
BuyLog®Catalog
1-20
Residential
Load Centers
Section 1
PowerMark Gold Meter Socket Load Centers
With Bonded Neutrals
PowerMark Gold Load Centers Single-Phase, Three-Wire, 120/240 Vac, Ring Type Narrow
Main
Ampere 1 Pole, 2 Pole, 1 Pole, 2 Pole, Total 1-pole Enclosure Bypass UL Agency Product List Price
Rating 1” Spaces 1” Spaces 1/2” Spaces 1/2” Spaces Spaces Type Front Type Type Incoming Certification Number GO-137B
100 16 8 32 14 32 Outdoor Semi-Flush None OH/UG UL TSM1610CFCU1$491.00
(NEMA 3R) EUSERC
125 12 6 24 12 24 Outdoor Semi-Flush None OH/UG UL TSM1212CFCU1$892.00
(NEMA 3R) EUSERC
125 16 8 32 14 32 Outdoor Semi-Flush None OH/UG UL TSM1612CFCU1$1054.00
(NEMA 3R) EUSERC
200 20 10 40 18 40 Outdoor Semi-Flush None OH/UG UL TSM2020CFCU1$1261.00
(NEMA 3R) EUSERC
200 20 10 40 18 40 Outdoor Semi-Flush None UG UL TSM2020UFCU1$1261.00
(NEMA 3R) EUSERC
200 24 12 36 18 42 Outdoor Semi-Flush None UG UL TSM2420UF421$1600.00
(NEMA 3R) EUSERC
100 16 8 32 14 32 Outdoor Surface None OH/UG UL TSM1610CSCU1,2,3 $491.00
(NEMA 3R) EUSERC
125 12 6 24 12 24 Outdoor Surface None OH/UG UL TSM1212CSCU1,2,3 $892.00
(NEMA 3R) EUSERC
125 16 8 32 14 32 Outdoor Surface None OH/UG UL TSM1612CSCU1,2,3 $1054.00
(NEMA 3R) EUSERC
200 20 10 40 18 40 Outdoor Surface None OH/UG UL TSM2020CSCU1,2,3 $1261.00
(NEMA 3R) EUSERC
200 24 12 36 18 42 Outdoor Surface None UG UL TSM2420US421,2,3 $1600.00
(NEMA 3R) EUSERC
1Accepts field installed fifth jaw terminal in the 3 or 9 o’clock position. Product number TJAW53; order separately.
2Devices include removable closing cap. Order hub separately. See page 1-27.
3Surface mounted units have two hub provisions on top end wall.
Ring Type Narrow
Main Wire Size
Box Unit Width Unit Height Depth Factory Inst. Field Inst. (AWG/kcmil) Equipment
Product Number Number (in inches) (in inches) (in inches) Svcs Disc Svcs Disc Cu-Al Ground Kit
TSM1610CFCU R19 16-3/4 28-1/2 7-5/16 THHQL 12-2/0 TGK12 (order separately)
TSM1212CFCU R19 16-3/4 28-1/2 7-5/16 THHQL 12-2/0 TGK12 (order separately)
TSM1612CFCU R19 16-3/4 28-1/2 7-5/16 THHQL 12-2/0 TGK12 (order separately)
TSM2020CFCU R17 16-3/4 34-1/4 7-5/16 THQMV 1-300 TGK12 (order separately)
TSM2020UFCU R17 16-3/4 34-1/4 7-5/16 THQMV 1-4/0 TGK12 (order separately)
TSM2420UF42 R17 16-3/4 34-1/4 7-5/16 THQMV 1-4/0 TGK12 (order separately)
TSM1610CSCU R20 14-3/4 27-5/16 5-7/16 THHQL 12-2/0 TGK12 (order separately)
TSM1212CSCU R20 14-3/4 27-5/16 5-7/16 THHQL 12-2/0 TGK12 (order separately)
TSM1612CSCU R20 14-3/4 27-5/16 5-7/16 THHQL 12-2/0 TGK12 (order separately)
TSM2020CSCU R18 14-3/4 33 6-5/16 THQMV 1-300 TGK12 (order separately)
TSM2420US42 R17 16-3/4 34-1/4 7-5/16 THQMV 1-4/0 TGK12 (order separately)
PowerMark Gold Load Centers Single-Phase, Three-Wire 120/240 Vac, Ring Type Wide
Main
Ampere 1 Pole, 2 Pole, 1 Pole, 2 Pole, Total 1-pole Enclosure Bypass UL Agency Product List Price
Rating 1” Spaces 1” Spaces 1/2” Spaces 1/2” Spaces Spaces Type Front Type Type Incoming Certification Number GO-137B
200 32 16 16 6 40 Outdoor Surface None UG UL TSM3220UWCU2$1261.00
(NEMA 3R) Front EUSERC
200 40 20 0 0 40 Outdoor Surface None UG UL TSM4020UWCU2$1511.00
(NEMA 3R) Front EUSERC
2Devices include removable closing cap. Order hub separately. See page 1-27.
Ring Type Wide
Main Wire Size
Product Box Unit Width Unit Height Depth Factory Inst. Field Inst. (AWG/kcmil) Equipment
Number Number (in inches) (in inches) (in inches) Svcs Disc Svcs Disc Cu-Al Ground Kit
TSM3220UWCU R28 22-1/2 27-7/8 6-1/4 THQMV 1-300 TGK12 (order separately)
TSM4020UWCU R29 22-1/2 34-7/8 6-1/4 THQMV 1-300 TGK12 (order separately)
PowerMark Gold Load Centers Single-Phase, Three-Wire, 120/240 Vac, Ring Type Over/Under
Main
Ampere 1 Pole, 2 Pole, 1 Pole, 2 Pole, Total 1-pole Enclosure Bypass UL Agency Product List Price
Rating 1” Spaces 1” Spaces 1/2” Spaces 1/2” Spaces Spaces Type Front Type Type Incoming Certification Number GO-137B
200 32 14 16 6 40 Outdoor Semi-Flush None UG UL TSM3220UFCU $1390.00
(NEMA 3R) EUSERC
225 20 10 40 18 40 Outdoor Semi-Flush None UG UL TSM2022UFCU $1350.00
(NEMA 3R) EUSERC
225 32 14 16 6 40 Outdoor Semi-Flush None UG UL TSM3222UFCU $1410.00
(NEMA 3R) EUSERC
200 32 14 16 6 40 Outdoor Surface None UG UL TSM3220USCU1$1390.00
(NEMA 3R) EUSERC
225 20 10 40 18 40 Outdoor Surface None UG UL TSM2022USCU1$1350.00
(NEMA 3R) EUSERC
225 32 14 16 6 40 Outdoor Surface None UG UL TSM3222USCU1$1410.00
(NEMA 3R) EUSERC
1Devices include removable closing cap. Order hub separately. See page 1-27.
www.geelectrical.com BuyLog®Catalog
Publications and Reference: See Section 22 for a
complete list of additional product-related publications
1-21
Residential
Load Centers
Rev. 1/10
Prices and data subject
to change without notice
Section 1
PowerMark Gold Meter Socket Load Centers
With Bonded Neutrals
Ring Type Over/Under
Main Wire Size
Box Unit Width Unit Height Depth Factory Inst. Field Inst. (AWG/kcmil) Equipment
Product Number Number (in inches) (in inches) (in inches) Svcs Disc Svcs Disc Cu-Al Ground Kit
TSM3220UFCU R22 16-3/16 48-1/8 7-3/16 THQMV 1-300 TGK12 (order separately)
TSM2022UFCU R21 14-9/16 43-5/8 7-3/16 THQMV 1-300 TGK12 (order separately)
TSM3222UFCU R22 16-3/16 48-1/8 7-3/16 THQMV 1-300 TGK12 (order separately)
TSM3220USCU R27 14-9/16 48-1/8 6-3/16 THQMV 1-300 TGK12 (order separately)
TSM2022USCU R26 14-9/16 43-5/8 6-3/16 THQMV 1-300 TGK12 (order separately)
TSM3222USCU R27 14-9/16 48-1/8 6-3/16 THQMV 1-300 TGK12 (order separately)
PowerMark Gold Load Centers Single-Phase, Three-Wire, 120/240 Vac, Ringless
Main
Ampere 1 Pole, 2 Pole, 1 Pole, 2 Pole, Total 1-pole Enclosure Bypass UL Agency Product List Price
Rating 1” Spaces 1” Spaces 1/2” Spaces 1/2” Spaces Spaces Type Front Type Type Incoming Certification Number GO-137B
125 4 2 8 3 8 Outdoor Surface Horn Bypass OH/UG UL TSLR412CSCU1$288.00
(NEMA 3R)
125 4 2 8 3 8 Outdoor Surface Horn Bypass OH/UG UL TSMR412CSCU $950.00
(NEMA 3R) EUSERC
125 12 6 24 10 24 Outdoor Surface Horn Bypass OH/UG UL TSMR1212CSCU1$962.00
(NEMA 3R)
125 12 6 24 12 24 Outdoor Surface Lever OH/UG UL TSMB1212CSCU1$1262.00
(NEMA 3R) Bypass
150 4 2 8 3 8 Outdoor Surface Horn Bypass OH/UG UL TSMR415CSCU $950.00
(NEMA 3R) EUSERC
150 20 10 40 18 40 Outdoor Surface Horn Bypass OH/UG UL TSMR2015CSCU1$1330.00
(NEMA 3R)
150 20 10 40 18 40 Outdoor Surface Lever OH/UG UL TSMB2015CSCU1$1630.00
(NEMA 3R) Bypass
200 4 2 8 3 8 Outdoor Surface Horn Bypass OH/UG UL TSLR420CSCU1$653.00
(NEMA 3R)
200 4 2 8 3 8 Outdoor Surface Horn Bypass OH/UG UL TSMR420CSCU $953.00
(NEMA 3R) EUSERC
200 20 10 40 18 40 Outdoor Surface Horn Bypass OH/UG UL TSMR2020CSCU1$1330.00
(NEMA 3R)
200 20 10 40 18 40 Outdoor Surface Lever OH/UG UL TSMB2020CSCU1$1630.00
(NEMA 3R) Bypass
100 0 0 0 0 0 Outdoor Surface None OH/UG UL TM10RMCFMG1$744.00
(NEMA 3R) FMG
125 0 0 0 0 0 Outdoor Surface None OH/UG UL TM12RMCFMG1$744.00
(NEMA 3R) FMG
150 0 0 0 0 0 Outdoor Surface None OH/UG UL TM15RMCFMG1$744.00
(NEMA 3R) FMG
200 0 0 0 0 0 Outdoor Surface None OH/UG UL TM20RMCFMG1$744.00
(NEMA 3R) FMG
1Devices include removable closing cap. Order hub separately. See page 1-27.
Ringless
Main Wire Size
Product Box Unit Width Unit Height Depth Factory Inst. Field Inst. (AWG/kcmil) Equipment
Number Number (in inches) (in inches) (in inches) Svcs Disc Svcs Disc Cu-Al Ground Kit
TSLR412CSCU R31 14-9/16 33-9/16 6-3/16 THQP/THQL/THHQL 6-350 TGK12 (order separately)
TSMR412CSCU R31 14-9/16 33-9/16 6-3/16 THQMV 6-350 TGK12 installed
TSMR1212CSCU R30 14-9/16 40-1/2 6-3/16 THHQL 6-350 TGK12 (order separately)
TSMB1212CSCU R20 14-3/4 27-5/16 5-7/16 THHQL 12-2/0 TGK12 (order separately)
TSMR415CSCU R31 14-9/16 33-9/16 6-3/16 THQMV 6-350 TGK12 installed
TSMR2015CSCU R30 14-9/16 40-1/2 6-3/16 THQMV 6-350 TGK12 (order separately)
TSMB2015CSCU R18 14-3/4 33 6-5/16 THQMV 1-300 TGK12 (order separately)
TSLR420CSCU R31 14-9/16 33-9/16 6-3/16 THQP/THQL/THHQL 6-350 TGK12 (order separately)
TSMR420CSCU R31 14-9/16 33-9/16 6-3/16 THQMV 6-350 TGK12 installed
TSMR2020CSCU R30 14-9/16 40-1/2 6-3/16 THQMV 6-350 TGK12 (order separately)
TSMB2020CSCU R18 14-3/4 33 6-5/16 THQMV 1-300 TGK12 (order separately)
TM10RMCFMG R32 16 17 5 TQD 2-250
TM12RMCFMG R32 16 17 5 TQD 2-250
TM15RMCFMG R32 16 17 5 TQD 2-250
TM20RMCFMG R32 16 17 5 TQD 2-250
Page Updated 04 / 2011
www.geelectrical.com Rev. 1/10
Prices and data subject
to change without notice
BuyLog®Catalog
1-22
Residential
Load Centers
Section 1
PowerMark Gold Meter Socket Load Centers
With Bonded Neutrals
PowerMark Plus®Load Centers Single-Phase, Three-Wire, 120/240 Vac, Class 320
Main 1 Pole, 2 Pole, 1 Pole, 2 Pole, Total
Ampere 1” 1” 1/2” 1/2” 1-pole Enclosure Bypass UL Agency Product List Price
Rating Spaces Spaces Spaces Spaces Spaces Type Front Type Type Incoming Certification Number GO-137B
300 24 12 32 14 40 Outdoor Surf/Semi Lever Bypass UG UL TM2430RMRS1,2,3 $5600.00
(NEMA 3R) EUSERC
300 24 12 32 14 40 Outdoor Surf/Semi Lever Bypass UG UL TMH2430RMRS1,2,3 $6000.00
(NEMA 3R) EUSERC
32000000OutdoorSurf/Semi Lever Bypass UG UL TSDR032UFCU4$2850.00
(NEMA 3R)
320 24 12 12 4 30 Outdoor Surf/Semi Lever Bypass UG UL TSDR2432UFCU4$5475.00
(NEMA 3R)
320 24 12 32 14 40 Outdoor Surf/Semi K-4 Bolt-In UG UL TM2432RMKS1,2,3 $5251.00
(NEMA 3R) Meter Provision EUSERC
320 24 12 32 14 40 Outdoor Surf/Semi None UG UL TM2432RMS1,2,3 $5251.00
(NEMA 3R) EUSERC
320 24 12 32 14 40 Outdoor Surf/Semi K-4 Bolt-In UG UL TMH2432RMKS1,2,3,4 $5690.00
(NEMA 3R) Meter Provision EUSERC
320 24 12 32 14 40 Outdoor Surf/Semi None UG UL TMH2432RMS1,2,3,4 $5690.00
(NEMA 3R) EUSERC
320 32 16 16 6 40 Outdoor Surf/Semi Lever Bypass UG UL TSDR3232UFCU4$5760.00
(NEMA 3R
320 40 20 0 0 40 Outdoor Surf/Semi Lever Bypass UG UL TSDR4032UFCU4$6050.00
(NEMA 3R
40000000OutdoorSurf/Semi Lever Bypass UG UL TSDR040UFCU4$3950.00
(NEMA 3R)
300 8 4 16 6 16 Outdoor Surface Lever Bypass UG UL TSDR830USCU4$4400.00
(NEMA 3R)
400 8 4 16 6 16 Outdoor Surf/Semi Lever Bypass UG UL TSDR840UFCU4$4100.00
(NEMA 3R)
400 24 12 12 4 30 Outdoor Surf/Semi Lever Bypass UG UL TSDR2440UFCU4$5989.00
(NEMA 3R)
400 24 12 32 14 40 Outdoor Surf/Semi None UG UL TM2440RM2,3 $7372.00
(NEMA 3R) EUSERC
400 24 12 32 14 40 Outdoor Surf/Semi K-4 Bolt-In UG UL TM2440RMK2,3 $7372.00
(NEMA 3R) Meter Provision EUSERC
400 24 12 32 14 40 Outdoor Surf/Semi K-4 Bolt-In UG UL TM2440RMKS1,2,3 $5527.00
(NEMA 3R) Meter Provision EUSERC
400 24 12 32 14 40 Outdoor Surf/Semi Lever Bypass UG UL TM2440RMR2,3 $7372.00
(NEMA 3R) Meter Provision EUSERC
400 24 12 32 14 40 Outdoor Surf/Semi Lever Bypass UG UL TM2440RMRS1,2,3 $5527.00
(NEMA 3R) EUSERC
400 24 12 32 14 40 Outdoor Surf/Semi None UG UL TM2440RMS1,2,3 $5527.00
(NEMA 3R) EUSERC
400 24 12 32 14 40 Outdoor Surf/Semi K-4 Bolt-In UG UL TMH2440RMKS1,2,3,4 $5989.00
(NEMA 3R) Meter Provision EUSERC
400 24 12 32 14 40 Outdoor Surf/Semi Lever Bypass UG UL TMH2440RMRS1,2,3,4 $5989.00
(NEMA 3R) EUSERC
400 24 12 32 14 40 Outdoor Surf/Semi None UG UL TMH2440RMS1,2,3,4 $5989.00
(NEMA 3R) EUSERC
400 32 16 16 6 40 Outdoor Surf/Semi Lever Bypass UG UL TSDR3240UFCU4$6280.00
(NEMA 3R)
400 40 20 0 0 40 Outdoor Surf/Semi Lever Bypass UG UL TSDR4040UFCU4$6550.00
(NEMA 3R)
32000000OutdoorSurf/Semi None UG UL TSD032UFCU4$4300.00
(NEMA 3R)
320 24 12 12 4 30 Outdoor Surf/Semi None UG UL TSD2432UFCU4$5475.00
(NEMA 3R)
320 32 16 16 6 40 Outdoor Surf/Semi None UG UL TSD3232UFCU4$5760.00
(NEMA 3R)
320 40 20 0 0 40 Outdoor Surf/Semi None UG UL TSD4032UFCU4$6050.00
(NEMA 3R)
320 24 12 32 14 42 Outdoor Surf/Semi Link Bypass UG UL TSDA2432UC424$5705.00
(NEMA 3R) EUSERC
40000000OutdoorSurf/Semi None UG UL TSD040UFCU4$4400.00
(NEMA 3R)
400 24 12 12 4 30 Outdoor Surf/Semi None UG UL TSD2440UFCU4$5989.00
(NEMA 3R)
400 32 16 16 6 40 Outdoor Surf/Semi None UG UL TSD3240UFCU4$6280.00
(NEMA 3R)
400 40 20 0 0 40 Outdoor Surf/Semi None UG UL TSD4040UFCU4$6550.00
(NEMA 3R)
400 24 12 32 14 42 Outdoor Surf/Semi Link Bypass UG UL TSDA2440UC424$6170.00
(NEMA 3R) EUSERC
1200A main breaker factory installed. Space provided for field mounted TQD-WL sub feed. 3Stud provisions only provided.
2For semi-flush applications, order surface enclosure load center and field installed kit, 422 kAIC.
Product number SF400.
Page Updated 04 / 2011
www.geelectrical.com BuyLog®Catalog
Publications and Reference: See Section 22 for a
complete list of additional product-related publications
1-23
Residential
Load Centers
Rev. 1/10
Prices and data subject
to change without notice
Section 1
PowerMark Gold Meter Socket Load Centers
With Bonded Neutrals
Class 320
Main Wire Size
Product Box Unit Width Unit Height Depth Factory Inst. Field Inst. (AWG/kcmil) Equipment
Number Ringless Number (in inches) (in inches) (in inches) Svcs Disc Svcs Disc Cu-Al Ground Kit
TM2432RMS No R24 30-1/4 40 6 TQD THQL (1) 800 or (2) 400 compression type; (2) TGL2
(1) 1000 or (2) compression type; (order separately)
(1) 1000 or (2) 350 pressure type
TMH2432RMS No R24 30-1/4 40 6 THQD THHQL (1) 800 or (2) 400 compression type (2) TGL2
(order separately)
TM2440RM No R24 30-1/4 40 6 TJD (1) 800 or (2) 400 compression type; (2) TGL2
(1) 1000 or (2) 350 pressure type (order separately)
TM2440RMS No R24 30-1/4 40 6 TQD TQD (1) 800 or (2) 400 compression type; (2) TGL2
(1) 1000 or (2) 350 pressure type (order separately)
TMH2440RMS No R24 30-1/4 40 6 THQD THQD (1) 800 or (2) 400 compression type; (2) TGL2
(1) 1000 or (2) 350 pressure type (order separately)
TSDA2432UC42 No R24 30-1/4 40 6 THQD THQL/THHQL (1) 800 or (2) 400 compression type (2) TGL2
(order separately)
TSDA2440UC42 No R24 30-1/4 40 6 THQD TQD/THQD (1) 800 or (2) 400 compression type (2) TGL2
(order separately)
TSD032UFCU No R33 30-1/4 33 6-3/32 THQD THQL/THHQL (1) 800 or (2) 400 compression type (2) TGL2
(order separately)
TSD2432UFCU No R34 30-1/4 40 6-3/32 THQD THQL/THHQL (1) 800 or (2) 400 compression type (2) TGL2
(order separately)
TSD3232UFCU No R34 30-1/4 40 6-3/32 THQD THQL/THHQL (1) 800 or (2) 400 compression type (2) TGL2
(order separately)
TSD4032UFCU No R35 30-1/4 47 6-3/32 THQD THQL/THHQL (1) 800 or (2) 400 compression type (2) TGL2
(order separately)
TSD040UFCU No R33 30-1/4 33 6-3/32 THQD TQD/THQD (1) 800 or (2) 400 compression type (2) TGL2
(order separately)
TSD2440UFCU No R34 30-1/4 40 6-3/32 THQD TQD/THQD (1) 800 or (2) 400 compression type (2) TGL2
(order separately)
TSD3240UFCU No R34 30-1/4 40 6-3/32 THQD TQD/THQD (1) 800 or (2) 400 compression type (2) TGL2
(order separately)
TSD4040UFCU No R35 30-1/4 47 6-3/32 THQD TQD/THQD (1) 800 or (2) 400 compression type (2) TGL2
(order separately)
TM2432RMKS Yes R23 30-1/4 40 6 TQD THQL (1) 800 or (2) 400 compression type; (2) TGL2
(1) 1000 or (2) 350 pressure type (order separately)
TMH2432RMKS Yes R23 30-1/4 40 6 THQD THHQL (1) 800 or (2) 400 compression type (2) TGL2
(order separately)
TM2440RMK Yes R23 30-1/4 40 6 TJD (1) 800 or (2) 400 compression type; (2) TGL2
(1) 1000 or (2) 350 pressure type (order separately)
TM2440RMKS Yes R23 30-1/4 40 6 TQD TQD (1) 800 or (2) 400 compression type; (2) TGL2
(1) 1000 or (2) 350 pressure type (order separately)
TMH2440RMKS Yes R23 30-1/4 40 6 THQD THQD (1) 800 or (2) 400 compression type; (2) TGL2
(1) 1000 or (2) 350 pressure type (order separately)
TM2430RMRS Yes R24 30-1/4 40 6 TQD TQD (1) 800 or (2) 400 compression type (2) TGL2
(order separately)
TMH2430RMRS Yes R24 30-1/4 40 6 THQD THQD (1) 800 or (2) 400 compression type (2) TGL2
(order separately)
TM2440RMR Yes R24 30-1/4 40 6 TJD (1) 800 or (2) 400 compression type; (2) TGL2
(1) 1000 or (2) 350 pressure type (order separately)
TM2440RMRS Yes R24 30-1/4 40 6 TQD TQD (1) 800 or (2) 400 compression type; (2) TGL2
(1) 1000 or (2) 350 pressure type (order separately)
TMH2440RMRS Yes R24 30-1/4 40 6 THQD THQD (1) 800 or (2) 400 compression type; (2) TGL2
(1) 1000 or (2) 350 pressure type (order separately)
TSDR032UFCU Yes R33 30-1/4 33 6-3/32 THQD THQL/THHQL (1) 800 or (2) 400 compression type (2) TGL2
(order separately)
TSDR2432UFCU Yes R34 30-1/4 40 6-3/32 THQD THQL/THHQL (1) 800 or (2) 400 compression type (2) TGL2
(order separately)
TSDR3232UFCU Yes R34 30-1/4 40 6-3/32 THQD THQL/THHQL (1) 800 or (2) 400 compression type (2) TGL2
(order separately)
TSDR4032UFCU Yes R35 30-1/4 47 6-3/32 THQD THQL/THHQL (1) 800 or (2) 400 compression type (2) TGL2
(order separately)
TSDR040UFCU Yes R33 30-1/4 33 6-3/32 THQD TQD/THQD (1) 800 or (2) 400 compression type (2) TGL2
(order separately)
TSDR840UFCU Yes R33 30-1/4 33 6-3/32 THQD TQD/THQD (1) 800 or (2) 400 compression type (2) TGL2
(order separately)
TSDR2440UFCU Yes R34 30-1/4 40 6-3/32 THQD TQD/THQD (1) 800 or (2) 400 compression type (2) TGL2
(order separately)
TSDR3240UFCU Yes R34 30-1/4 40 6-3/32 THQD TQD/THQD (1) 800 or (2) 400 compression type (2) TGL2
(order separately)
TSDR4040UFCU Yes R35 30-1/4 47 6-3/32 THQD TQD/THQD (1) 800 or (2) 400 compression type (2) TGL2
(order separately)
www.geelectrical.com Rev. 1/10
Prices and data subject
to change without notice
BuyLog®Catalog
1-24
Residential
Load Centers
Section 1
PowerMark Gold Main Circuit Breaker Kit
For use with 125A PowerMark Gold load Centers; 22kAIC RMS symmetrical; For bottom
feed, also purchase TRL22 door handle.
Product List Price
Description Number GO-138M
Main Circuit Breaker Kit - Order appropriate THQL TQMH000 $55.50
10kAIC or THHQL 22kAIC breakers separately
PowerMark Plus®Equipment Ground Kits
Product List Price
Description Standard Package Quantity Number GO-137A
(4) 14-8Cu/12-8AL, 20 TGL11$12.00
(3) 14-4Cu/6-4AL
(4) 14-8Cu/12-8AL, 20 TGL31$12.00
(3) 14-4Cu/6-4AL
(8) 14-8Cu/12-8AL, 20 TGL22$24.00
(6) 14-4Cu/6-4AL
(8) 14-8Cu/12-8AL, 20 TGL42$24.00
(6) 14-4Cu/6-4AL
(7) 14-8Cu/12-8AL, (3) 14-4Cu/6-4AL, 20 TGL82$36.00
(2) 14-4Cu/12-4AL, (1) 14-2Cu/AL
(1) 6-2/0Cu/Al Number of Terminals, 20 TGL203$12.00
Equipment Ground Kits
(3) 10-1/0 Cu/Al Number of Terminals 1 TNG34$60.00
for 400 and 600 Amp
(6) 10-1/0 Cu/Al Number of Terminals 1 TNG64$66.75
for 400 and 600 Amp
1TGL1 and TGL3 mount interchangeably
2TGL2, TGL4 and TGL8 mount interchangeably
3Add-on Equipment Ground Lug (for use on any TGL Kit)
4Suitable for use with up to six TPLUG108 lugs or six crimp lugs per pole
PowerMark Gold Equipment Ground Kits
Product List Price
Description Standard Package Quantity Number GO-137A
4-hole Ground 1 TGK4 $15.00
12-hole Ground 1 TGK12 $25.00
16-hole Ground/1 Neutral 1 TGK8 $25.00
24-hole Ground 1 TGK24 $30.00
32-hole Ground 1 TGK32 $45.00
42-hole Ground 1 TGK42 $52.50
PowerMark Gold and Plus
Circuit Breaker Load Centers
Field Installed Accessories
TQMH000
TGL2
TGL20 combined with TGL1
TGK12
www.geelectrical.com BuyLog®Catalog
Publications and Reference: See Section 22 for a
complete list of additional product-related publications
1-25
Residential
Load Centers
Rev. 1/10
Prices and data subject
to change without notice
Section 1
PowerMark Plus®Neutral Kits
Wire Standard Product List Price
Description Range Package Quantity Number GO-137A
400 & 600 Amp PowerMark Plus®Neutral Kit (5) 14-1/0 1 TNLK11$41.75
400 & 600 Amp PowerMark Plus®Neutral Kit (3) 1-300 1 TNLK21$55.50
Add-on neutral lug for 100-200 Amp PowerMark 6-2/0 1 286A8894G1 $10.75
Plus load centers
Add-on neutral lug for 100-200 Amp PowerMark 1-300 Cu or 1 192A7663G13 $4.20
Plus load centers 2/0-300 Al
1Suitable for use with up to six TPLUG108 lugs or six crimp lugs per pole
PowerMark Gold Neutral Kits
Wire Standard Product List Price
Description Range Package Quantity Number GO-137A
PowerMark Gold Neutral Kit 6-1 Cu/Al 1 TNLK12 $12.00
PowerMark Gold Neutral Kit - 6-2/0 1 TNLK20 $11.00
Mounted on top of neutral only
PowerMark Gold Neutral Kit - 6-250 1 TNLK250 $13.00
Mounted on top of neutral only
PowerMark Gold Neutral/Ground Lug Kits
Mounted on any neutral or ground position by removing the termination screw
Wire Standard Product List Price
Description Range Package Quantity Number GO-137A
Neutral/Ground Lug Kit 6-2/0 1 TLK20 $11.00
Neutral/Ground Lug Kit 6-250 1 TLK250 $20.00
Neutral/Ground Lug Kit 6-300 1 TLK300 $20.00
Isolated Ground Bus Bars Equipment Ground Kit
Product List Price
Description Standard Package Quantity Number GO-137A
Isolated Ground Bar Kit (order with 1 TGKIS $25.00
TGK Equipment Ground Kits)
Isolated Ground Bar Feet (Order with TGK8) 1 TGKIS2 $25.00
Subfeed Lug Kits
Product List Price
Description Standard Package Quantity Number GO-137A
125A 2 Pole Plug-in 1 THLK2125 $77.00
150A 2 Pole Plug-in - For use with PowerMark Gold only 1 THLK2150 $137.00
200A 2 Pole Plug-in - For use with PowerMark Gold only 1 THLK2200 $158.00
125A 3 Pole Plug-in 1 THLK3125 $107.00
225A 3 Pole Plug-in - For use with 3 phase only 1 THLK3225 $250.00
PowerMark Gold and Plus
Circuit Breaker Load Centers
Field Installed Accessories
TNLK250
TLK20
TLK250
TGK12 with TGKIS
192A7663G13
286A8894G1
www.geelectrical.com Rev. 1/10
Prices and data subject
to change without notice
BuyLog®Catalog
1-26
Residential
Load Centers
Section 1
PowerMark Plus®Main Lug Kits
Product List Price
Description Wire Range (Cu/Al) Number GO-137A
150 Amp PowerMark Plus®Replacement Main Lug kit 2-3/0 THLK150 $31.00
200 Amp PowerMark Plus®Replacement Main Lug kit 1-250 THLK200 $65.25
PowerMark Gold Main Lug Kits
Product List Price
Description Wire Range (Cu/Al) Number GO-137A
125 Amp PowerMark Gold Replacement Main Lug kit 6-2/0 TMLK125 $23.00
200 Amp PowerMark Gold Replacement Main Lug kit 6-250 TMLK200 $37.50
225 Amp PowerMark Gold Replacement Main Lug kit 6-300 TMLK225 $61.75
For replacement of main lugs on 125 amp load centers; TLM load centers include main lugs.
Door Lock
Product List Price
Description Standard Package Quantity Number GO-137A
For all indoor load centers (Except TPL412) 10 TDL106 $35.50
Circuit Directory
Product List Price
Description Standard Package Quantity Number GO-137A
Card and holder with pressure-sensitive backing. 1 TD42 $16.25
Mounts inside the door.
Touch-up Paint
Product List Price
Description Standard Package Quantity Number GO-137A
12 3/4 oz. spray can of light gray enamel 1 TSP61 $70.00
PowerMark Gold and Plus
Circuit Breaker Load Centers
Field Installed Accessories
THLK200
PowerMark Gold main lug kits - TMLK200
TDL106
TD42
TSP61
www.geelectrical.com BuyLog®Catalog
Publications and Reference: See Section 22 for a
complete list of additional product-related publications
1-27
Residential
Load Centers
Rev. 1/10
Prices and data subject
to change without notice
Section 1
Front Filler Plates
Product List Price
Description Standard Package Quantity Number GO-137A
1/2” Front Filler Plate 100 TFH $2.50
1” Front Filler Plate 50 TQLFP1 $5.00
Covers 1/2” rectangular breaker knockouts
Covers 1” rectangular breaker knockouts
Universal Raintight Hubs
Product List Price
Description Base Size (in.) Standard Package Quantity Number GO-131A
3/4” Diameter 3 10 TC75 $24.00
1” Diameter 3 10 TC100 $24.00
1-1/4” Diameter 3 10 TC125 $24.00
1-1/2” Diameter 3 10 TC150 $24.00
2” Diameter 3 10 TC200 $40.25
2-1/2” Diameter 3 10 TC250 $67.75
3” Diameter 3 5 TC300 $100.00
Closing Cap 3 10 TCCP $2.60
2” Diameter 4 TCU27 $70.00
2-1/2” Diameter 4 TCU28 $75.00
3” Diameter 4 TCU30 $80.00
3-1/2” Diameter 4 TCU35 $85.00
4” Diameter 4 TCU401$90.00
4” Cover Plate 4 TCUP $20.00
1For 40 and 42 circuit units in R8 boxes only.
Door Handle
Product List Price
Description Standard Package Quantity Number GO-137A
Replacement Door Handle Universal 1 TRL22 $6.50
PowerMark Gold Cross Arm
Product List Price
Description Standard Package Quantity Number GO-148
Replacement cross arm for
PowerMark Gold load centers 1 LCCROSSARM $150.00
PowerMark Gold and Plus
Circuit Breaker Load Centers
Field Installed Accessories
TFH
TRL22
TC150
LCCROSSARM
Page Updated 04 / 2010
www.geelectrical.com Rev. 1/10
Prices and data subject
to change without notice
BuyLog®Catalog
1-28
Residential
Load Centers
Section 1

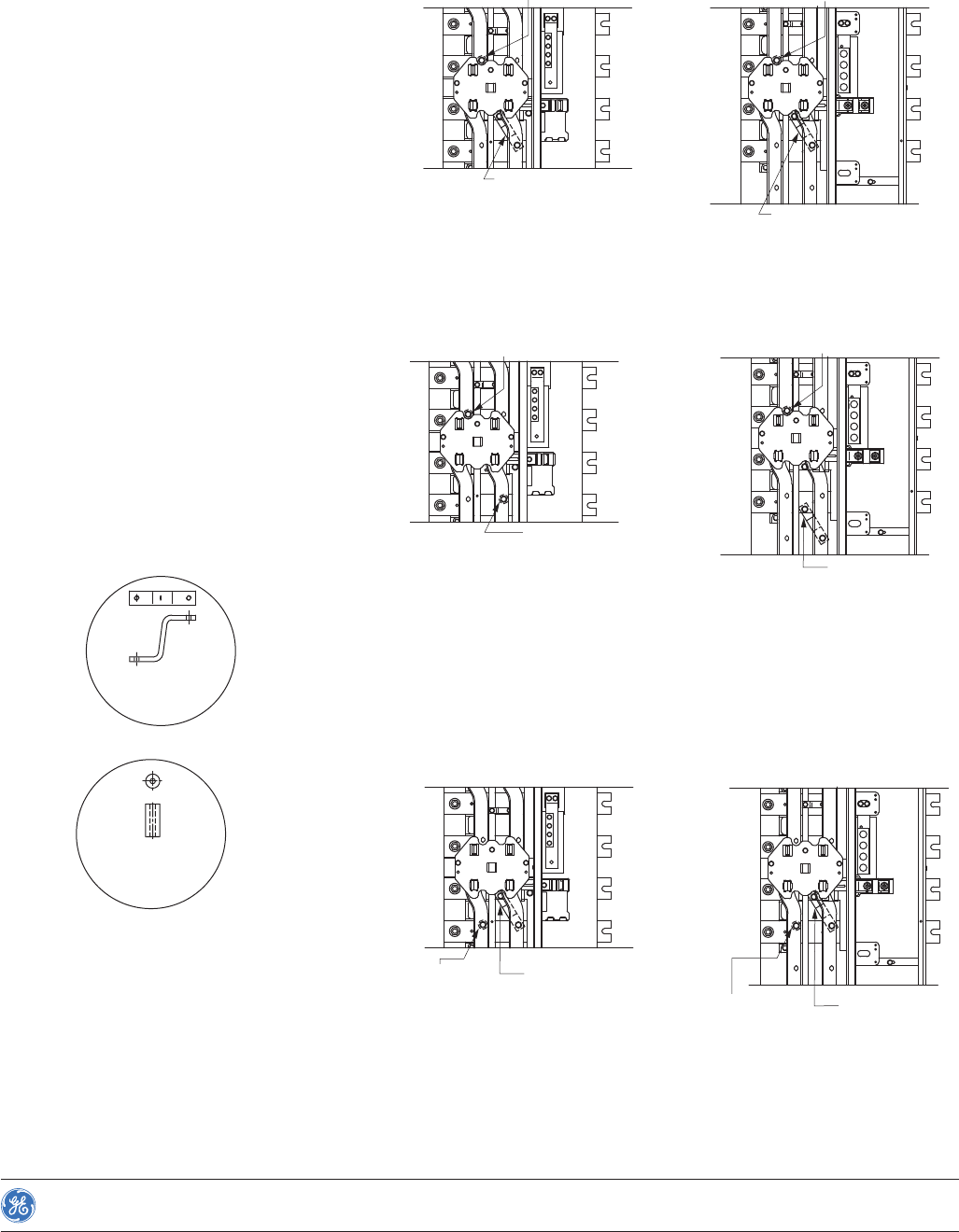

PowerMark Gold Main Breaker Retainers
Product List Price
Description Breaker Type Number GO-137A
Travel Trailer Main Breaker Retainer Kit THQP THQPSBK $8.00
for THQP Breakers
For use on PowerMark Plus®load centers with THQL THQLRK $8.00
THQL Breakers 225A max
For use with 12 - 42 circuit PowerMark Gold THQL THQLRK1 $8.00
load centers with THQL Breakers
For use with 6 - 8 circuit PowerMark Gold THQL THQLRK2 $8.00
load centers with THQL Breakers
For use with TM/TLM1212CCU Mod 2 THQL THQLRK3 $8.00
For use with 6 - 42 circuit PowerMark Gold THQL THQLRK4 $8.00
load centers with THQL Breakers. Similar to
THQLRK1 but it does not take up a breaker space.
For use with THDL Breakers 225A max TQDL TQDLRK $8.00
For main lug load centers utilizing a back fed branch breaker as a main
Handle Locks - Padlocking
Product List Price
Description Breaker Type Number GO-137A
THQP Padlocking Handle Lock THQP TQPPL $5.75
THQL Padlocking Handle Lock THQL THP100 $6.50
TQDL Padlocking Handle Lock TQDL TQDLPDL1 $17.75
TQD Padlocking Handle Lock TQD TQDPLD1 $20.75
Snap on handle lock
Padlock not included
Handle Locks - Non Padlocking
Product List Price
Description Breaker Type Number GO-137A
THQP Non Padlocking Handle Lock THQP TQPL $5.50
THQL Non Padlocking Handle Lock THQL THL103 $6.50
Snap on handle lock
Handle Ties
Product List Price
Description Breaker Type Number GO-137A
Handle Ties for THQP Breakers - Solid Snap-on THQP THT11$7.00
Trip Indicating
Handle Ties for THQP Breakers - For 2 THQPs THQP THT21$7.00
separated by 2 side-by-side THQPs
TQB
Snap-on Handle Tie - Trip Indicating TQC TQHT11$7.00
TQL
TQB
Snap-on Handle Tie - Solid TQC THT1041$7.00
TQL
Multiwire Branch Breaker TQB TQ3HTK2$25.00
TQC
Handle Tie Kits TQL TQ4HTK3$25.00
All multi-pole breakers have internal common trip
Handle ties provide manual on-off capability only between one-pole devices
1For two single-pole breakers
2For three single-pole breakers - kit includes (10) pcs.
3For four single-pole breakers - kit includes (10) pcs.
PowerMark Gold and Plus
Circuit Breaker Load Centers
Field Installed Accessories
THQLRK
THQLRK1
THL103
THT1
THT104
THT2
TQHT1
Page Updated 05 / 2010
www.geelectrical.com BuyLog®Catalog
Publications and Reference: See Section 22 for a
complete list of additional product-related publications
1-29
Residential
Load Centers
Rev. 1/10
Prices and data subject
to change without notice
Section 1
Load Center Hardware Kits Hardware
Product List Price
Description Standard Package Quantity Number GO-137A
PowerMark Plus®hardware kit: TQD THQD Main or 1 LCHDKIT $15.00
THLK main lug kit in a TLM load center, installation
instructions and front mounting screws
Powermark Gold Bond Screw Kit Screw 100 - 200A 1 TBS $11.00
Powermark Gold Bond Screw Kit 225A 1 TBS22 $13.50
Powermark Gold Hardware kit 1 THDWRKIT $16.50
containing 20 front mounting screws
Powermark Gold Hardware kit 1 THDWRKIT2 $20.00
containing 10 interior mounting screws
Generator Interlock Kit
Product List Price
Description Standard Package Quantity Number GO-137A
Load Center Generator Interlock Kit 1 THQLLX1 $200.00
MSLC Generator Interlock Kit 1 THQLLX4 $200.00
MSLC Generator Interlock Kit 1 THQLLX8CU $200.00
MSLC Generator Interlock Kit 1 THQLLX8DR $200.00
MSLC Generator Interlock Kit 1 THQLLX8FL $200.00
PowerMark Gold Auxiliary Gutter Enclosures
Product List Price
Description Number GO-137A
24” Auxiliary Gutter Enclosure TMAGB24 $180.00
28” Auxiliary Gutter Enclosure TMAGB28 $230.00
28” Auxiliary Gutter Enclosure Flush TMAGB28F $230.00
33” Auxiliary Gutter Enclosure TMAGB33 $270.00
39” Auxiliary Gutter Enclosure TMAGB39 $310.00
43” Auxiliary Gutter Enclosure TMAGB43 $350.00
43” Deep Auxiliary Gutter Enclosure TMAGB43D $350.00
PowerMark Gold Gutter Tap Kits
Product List Price
Description Number GO-137A
250 kcmil Lugs Gutter Tap Kit - one kit per phase required TMGT250 $150.00
500 kcmil Lugs Gutter Tap Kit - one kit per phase required TMGT500 $170.00
750 kcmil Lugs Gutter Tap Kit - one kit per phase required - TMGT750 $195.00
Not for use with riser panels
Meter Socket Load Center Flange Kits
Product List Price
Description Number GO-137A
Semi-Flush Kit 400A for MSLC SF400 $120.00
Semi-Flush Kit 400A for MSLC Adjustable SF400A $120.00
Semi-Flush Kit 200A for MSLC Adjustable SF200A $120.00
Surge Protectors
Product List Price
Description Number GO-138A
SurgePro AC 27KA Panel-Mount Surge Protector THQLSURGE $263.00
SurgePro Coaxial Surge Protection THSACOAX $263.00
SurgePro AC 60kA K/O Mount Surge Protector THSASURGE60 $750.00
SurgePro Telephone Surge Protection THSATEL410 $525.00
PowerMark Gold and Plus
Circuit Breaker Load Centers
Field Installed Accessories
www.geelectrical.com Rev. 1/10
Prices and data subject
to change without notice
BuyLog®Catalog
1-30
Residential
Load Centers
Section 1
PowerMark Gold and Plus
Circuit Breaker Load Centers
Wiring Diagrams
Breaker Fill
Breaker Symbol 1” THQL 1/2” THQP
1—
12
Wire Range (AWG/kcmil)
Terminal Symbol Cu Al
o 14-8 12-8
•14-4 12-4
A6-26-2
B 14-1/0 12-1/0
C 6-2/0 6-2/0
D 1-300 2/0-300
E 1-300 1-300
F6-16-1
G6-36-3
G G G
TL240SCU, RCU
TL270SCU, RCU
C
C
MAIN LUGS
TPL412CT, TL412CT
TPL412RT, TL412RT1
F F
F
TLM812FCU, SCU,
FCUD, SCUD, RCU
F F
F
TLM612FCU, SCU
FCUD, SCUD, RCU
C
MAIN
TLM1612CCU, TM1612CCU, TM1612RCU
C E
E
MAIN
BREAKER
SUB-FEED
LUGS
TM815RCUFL
TM820RCUFL
C
MAIN LUGS
TPL412C, TL412C, TPL412R, TL412R1,
TL412R2, TL412R250GF, TL412R260GF
FMAIN
BREAKER MAIN
BREAKER
TM860FCUGEN, TLM830FCUGEN,
TM860SCUGEN, TLM830SCUGEN,
TM860RCUGEN, TLM830RCUGEN
C
MAIN
TM1210C24, TM1210RCU
TM1212C24, TM1212RCU
TLM1212C24, TLM1212RCU
EC MAIN
TM1615CCU, TM1615RCU, TM1620CCU,
TLM1620CCU, TLM1620RCU
C
MAIN
TLM1212CCURP
F F
C
TLM812RCU2
MAIN
CC
TM2420R42B
E
MAIN
TLM2012CCURP
C
MAIN
C C C C
TM1210CCU, TM1212CCU, TLM1212CCU
E
AA
TL510RT
Page Updated 04 / 2010
www.geelectrical.com BuyLog®Catalog
Publications and Reference: See Section 22 for a
complete list of additional product-related publications
1-31
Residential
Load Centers
Rev. 1/10
Prices and data subject
to change without notice
Section 1
PowerMark Gold and Plus
Circuit Breaker Load Centers
Wiring Diagrams
Breaker Fill
Breaker Symbol 1” THQL 1/2” THQP
1—
12
Wire Range (AWG/kcmil)
Terminal Symbol Cu Al
o 14-8 12-8
•14-4 12-4
A6-26-2
B 14-1/0 12-1/0
C 6-2/0 6-2/0
D 1-300 2/0-300
E 1-300 1-300
F6-16-1
G6-36-3
MAIN EC
TM2020CCU, TM2020RCU
TLM2020CCU, TLM2020RCU
MAIN
C E
TM4222RCU, TLM4222CCU
TLM4222RCU, TM4222CCU
MAIN
C E
TM4020CCU, TM4020RCU
TLM4020CCU, TLM4020RCU
MAIN
EC
TM3215C42, TLM3220C42, TM3220C42
MAIN
EC
TM3220CCU, TM3220RCU, TLM3220CCU
MAIN
C E
TM2415RCU, TLM2415RCU
MAIN C
TM2410CCU, TM2412CCU
TM2412RCU, TLM2412CCU, TLM2412RCU
MAIN
MAIN
D D D C C CCCCC
TL2460
MAIN
C
TL12412
MAIN
MAIN
D D D CCCCCCC
TL2440, TM2440
MAIN EC
TLM2015CCU
MAIN
C
TM3210CCU
MAIN
EC
TM3215CCU, TM3215RCU
C
MAIN
TM12410
MAIN C
TM2010CCU, TM2010RCU
MAIN
C E
TLM2420C42, TM2420C42, TM2415C42
www.geelectrical.com Rev. 1/10
Prices and data subject
to change without notice
BuyLog®Catalog
1-32
Residential
Load Centers
Section 1
PowerMark Gold and Plus
Circuit Breaker Load Centers
Wiring Diagrams
Breaker Fill
Breaker Symbol 1” THQL 1/2” THQP
1—
12
Wire Range (AWG/kcmil)
Terminal Symbol Cu Al
o 14-8 12-8
•14-4 12-4
A6-26-2
B 14-1/0 12-1/0
C 6-2/0 6-2/0
D 1-300 2/0-300
E 1-300 1-300
F6-16-1
G6-36-3
MAIN
CCD
TL24415, TM24415
MAIN
MAIN
D D D CCCCCCC
TM4240, TM4230, TL4240
MAIN
MAIN
D D D CCCCCCC
TL24440, TM24420
MAIN
MAIN
D D D CCCCC
TL24460
MAIN
CCD
TM30412
MAIN
MAIN
D D D CCCCC
TL4260
MAIN
CC CD
TM30415, TL30420, TM30240, TL30422
C
MAIN
TM18410
MAIN
CCD
TL18415, TL18420
www.geelectrical.com BuyLog®Catalog
Publications and Reference: See Section 22 for a
complete list of additional product-related publications
1-33
Residential
Load Centers
Rev. 1/10
Prices and data subject
to change without notice
Section 1
PowerMark Gold and Plus
Circuit Breaker Load Centers
Wiring Diagrams
Breaker Fill
Breaker Symbol 1” THQL 1/2” THQP
1—
12
Wire Range (AWG/kcmil)
Terminal Symbol Cu Al
o 14-8 12-8
•14-4 12-4
A6-26-2
B 14-1/0 12-1/0
C 6-2/0 6-2/0
D 1-300 2/0-300
E 1-300 1-300
F6-16-1
G6-36-3
MAIN
CCD
TL42420, TM42415C, TM42420
MAIN
MAIN
DDD CCCCC
TL42440
MAIN
CC CD
TL42422
MAIN
MAIN
DDD CCCCC
TL42460
MAIN
MAIN
D D D CCCCCCC
TM42430, TM42440
www.geelectrical.com Rev. 1/10
Prices and data subject
to change without notice
BuyLog®Catalog
1-34
Residential
Load Centers
Section 1
PowerMark Gold and Plus
Circuit Breaker Load Centers
Wiring Diagrams
WHM
A
A
A
TSL412CSCU, TSL412CFCU
C
C
WHM
C
MAIN
BREAKER
SPACE PROVIDED
FOR 110A PARALLEL
MAIN BREAKER
TSF420CSCU
WHM
A
B
A
A
TSL420CSCU, TSL420CFCU
C
C
WHM
C
MAIN
BREAKER
TSM815CSCU, TSMF815CSCU, TSM820CSCU, TSMF820CSCU
WHM
MAIN
B
C
A
DDC
E
A
Load
Load
TSM415CSCU, TSM420CSCU, TSMF415CSFL, TSMF420CSFL,
TSM415CSCUGP, TSM420CSCUGP
C
C
WHM
MAIN
BREAKER
TSM1212CSCU, TSM1212CFCU
WHM
A
A
A
TSL210CSCU, TSL210CFCU
TM10RMC, TM12RMC, TM15RMC, TM20RMC,
TM15RMCGP, TM20RMCGP, TM10RMCFMG1, TM12RMCFMG1,
TM15RMCFMG1, TM20RMCFMG1
Breaker Fill
Breaker Symbol 1” THQL 1/2” THQP
1—
12
Wire Range (AWG/kcmil)
Terminal Symbol Cu Al
o 14-8 12-8
•14-4 12-4
A6-26-2
B 14-1/0 12-1/0
C 6-2/0 6-2/0
D 1-300 2/0-300
E 1-300 1-300
F6-16-1
G6-36-3
C
C
TPM305CTRV
1Wiring connection point “A” below incoming LINE connections
Page Updated 04 / 2011
www.geelectrical.com BuyLog®Catalog
Publications and Reference: See Section 22 for a
complete list of additional product-related publications
1-35
Residential
Load Centers
Rev. 1/10
Prices and data subject
to change without notice
Section 1
C
C
WHM
MAIN
BREAKER
TSM1610CSCU, TSM1610CFCU, TSM1612CFCU, TSM1612CSCU
MAIN
BREAKER
C
C
WHM
TSM2020CSCU, TSM2020CFCU, TSMF2020CSCU
MAIN
BREAKER
C
C
WHM
TSM2020UFCU
MAIN
CC
WHM
A
B
N
TSM2420UF42
PowerMark Gold and Plus
Circuit Breaker Load Centers
Wiring Diagrams
WHM
MAIN
BREAKER
B PHA PH
CE
NEUTRAL
TSM3220USCU, TSM322USCU, TSM3222USCU,
TSM3222UFCU
MAIN
BREAKER
WHM
TSMR2020CSCU, TSMR2015CSCU,
TSMB2020CSCU, TSMB2015CSCU
MAIN
BREAKER
WHM
CE
TSM4020UWCU
WHM
TSLR420CSCU, TSLR412CSCU,
TSLB412CSCU, TSLB420CSCU
WHM
MAIN
BREAKER
TSMR1212CSCU, TSMB1212CSCU
MAIN
BREAKER
WHM
C E
TSM3220UWCU
WHM
MAIN
DDC
C
B
E
A
Sub feed lugs
TSM815CSFL, TSM820CSFL, TSMF815CSFL,
TSMF820CSFL
Breaker Fill
Breaker Symbol 1” THQL 1/2” THQP
1—
12
Wire Range (AWG/kcmil)
Terminal Symbol Cu Al
o 14-8 12-8
•14-4 12-4
A6-26-2
B 14-1/0 12-1/0
C 6-2/0 6-2/0
D 1-300 2/0-300
E 1-300 1-300
F6-16-1
G6-36-3
Page Updated 04 / 2010
www.geelectrical.com Rev. 1/10
Prices and data subject
to change without notice
BuyLog®Catalog
1-36
Residential
Load Centers
Section 1
PowerMark Gold and Plus
Circuit Breaker Load Centers
Wiring Diagrams
Breaker Fill
Breaker Symbol 1” THQL 1/2” THQP
1—
12
Wire Range (AWG/kcmil)
Terminal Symbol Cu Al
o 14-8 12-8
•14-4 12-4
A6-26-2
B 14-1/0 12-1/0
C 6-2/0 6-2/0
D 1-300 2/0-300
E 1-300 1-300
F6-16-1
G6-36-3
CE
MAIN
Neutral
C
C
C
WHM
Line
TSM3220URCU
MAIN
C
C
C
WHM
Line
Neutral
CE
TSM2015URCU
WHM
MAIN
Dual Main
Field Installed
TSD032UFCU, TSDR032UFCU
Dual Main
Field Installed
WHM
MAIN
TSD040UFCU, TSDR040UFCU
Dual Main
Field Installed
WHM
MAIN
CE
TSDR840UFCU
CC C D
Space for
Field-installed
TQD Breaker
200A
Main
Breaker
WHM
L1 N L2
TM2440RMKS, RMRS, RMS, TMH2440RMS,
TM2432RMKS, TMH2432RMKS, TM2430RMRS,
TMH2430RMRS, TMH2440RMRS, TMH2440RMKS
WHM
L1 N L2
DDD C C CCCCC
400A
Main
Breaker
TM2440RMK, RMR, RM
Space for
Field-installed
Breaker
WHM
L1 L2
MAIN
CE
N
C
TSDA2432UC42, TSDA2440UC42
B PHA PH
CE
NEUTRAL
WHM
MAIN
BREAKER
TSM2022USCU, TSM2022UFCU
www.geelectrical.com BuyLog®Catalog
Publications and Reference: See Section 22 for a
complete list of additional product-related publications
1-37
Residential
Load Centers
Rev. 1/10
Prices and data subject
to change without notice
Section 1
PowerMark Gold and Plus
Circuit Breaker Load Centers
Wiring Diagrams
Breaker Fill
Breaker Symbol 1” THQL 1/2” THQP
1—
12
Wire Range (AWG/kcmil)
Terminal Symbol Cu Al
o 14-8 12-8
•14-4 12-4
A6-26-2
B 14-1/0 12-1/0
C 6-2/0 6-2/0
D 1-300 2/0-300
E 1-300 1-300
F6-16-1
G6-36-3
C E
WHM
MAIN
Dual Main
Field Installed
TSD2432UFCU, TSDR2432UFCU
Dual Main
Field Installed
WHM
MAIN
CE
TSD2440UFCU, TSDR2440UFCU
WHM
MAIN
Dual Main
Field Installed
CE
TSD4032UFCU, TSDR4032UFCU
Dual Main
Field Installed
WHM
MAIN
CE
TSD3240UFCU, TSDR3240UFCU
C E
WHM
MAIN
Dual Main
Field Installed
TSD3232UFCU, TSDR3232UFCU
C E
Dual Main
Field Installed
WHM
MAIN
TSD4040UFCU, TSDR4040UFCU
www.geelectrical.com Rev. 1/10
Prices and data subject
to change without notice
BuyLog®Catalog
1-38
Residential
Load Centers
Section 1
PowerMark Gold and Plus
Circuit Breaker Load Centers
Indoor Enclosures
Symbol A •BC DE F GH J K L MN PQ R ST U VWX Y Z
5/16 – – – – – – – – – – – – – – – – – – – – – – – –
–3/8–3/8––3/8––––––– –––––––––––
– 1/2 1/2 1/2 1/2 – 1/2 1/2 1/2 – – – – – – – – – – – – – – – 1/2
– – – 3/4 3/4 3/4 3/4 3/4 3/4 3/4 3/4 – – – 3/4 – – – 3/4 – – 3/4 – 3/4 3/4
Conduit–– –– –– 1 11111 1– 11 – –1 ––1– 11
Size – – – – – – – 1 1/4 1 1/4 1 1/4 1 1/4 1 1/4 1 1/4 1 1/4 – – 1 1/4 1 1/4 – – – 1 1/4 1 1/4 –
in – – – – – – – – – – 1 1/2 1 1/2 1 1/2 1 1/2 – 1 1/2 1 1/2 1 1/2 – – – – 1 1/2 1 1/2 1 1/2
inches – – – – – – – – – – – – 2 2 2 2 2 2 – 2 2 – – 2 2
– – – – – – – – – – – – – – 2 1/2 2 1/2 2 1/2 2 1/2 – 2 1/2 2 1/2 – – 2 1/2 2 1/2
–– ––––– ––––––––– –3–33––––
– – – – – – – – – – – – – – – – – – 3 1/2 3 1/2 3 1/2 – – – –
–– ––––– ––––––––– ––––4––––
Box No. Width Height Depth
1A 5 11/16 10 1/4 3 3/8
2 7 1/2 9 7/32 3 5/16
2A 7 1/4 9 3
3A 11 9/16 11 3/8 3 3/8
4 14 19 3 3/4
4A 14 19 3 3/4
6 14 23 3 3/4
7 14 24 11/16 3 3/4
8 14 26 7/16 3 3/4
9 14 28 7/16 3 3/4
9A 14 28 7/16 3 3/4
11 14 33 3/16 3 3/4
12 14 35 7/16 3 3/4
13 14 39 3/16 3 3/4
14 14 43 7/16 3 3/4
15 14 43 7/16 4 5/8
16 16 45 1/8 5 13/16
17 20 59 7/8 6 3/32
18 14 16 3 3/8
Knockouts
Dimensions (in inches)
C
C
B
BG
GZ
Z
Box 4A, 9A
AA
A
A
B
D
D
D
D
X
W
W
WX
X
X
Box 2
C
CCC
C
S
S
S
S
S
H
HA
A
A
A
A
B
B
B
B
B
B
B
B
C
C
C
C
KK
K
N
N
Box 15
K
K
G
G
B
Box 2A
A
A
AA
A
A
B
B
B
B
B
B
P
P
P
P
P
C
C
T
T
J
J
Box 16
A
DD
D
D
K
KH
H
A
A
A
Box 3A
B
B
B
B
B
B
JJ
JJ
GG
G
UV
C
CC
R
A
P
Box 17
H
H
H
H
H
Q Q
Y
Y
Y
Y M
M
A
A
A
A
A
A F D
D
D
D
D
D
Q
Box 4, 6, 7, 8, 9, 11, 12, 13, 14
A
A
A
A
A
A
H
HH
H
J
J
D
D
G
G
Box 1A
BBB
BBB
D
D
AK
D
B
B
D
D
K
K
D
D
D
D
D
D
B
B
B
B
B
D
D
D
D
D
B
B
B
B
B
D
AA
D
A
BB
K
AA
K
BDD K
B
Box 18
www.geelectrical.com BuyLog®Catalog
Publications and Reference: See Section 22 for a
complete list of additional product-related publications
1-39
Residential
Load Centers
Rev. 1/10
Prices and data subject
to change without notice
Section 1
Symbol A •BCDE FGHJ K LMNPQRS TUVWXYZAABBCCDD
9/16 – – – – – – – – – – – – – – – – – – – – – – – – – – – –
3/8–3/8–– –––– ––––– –––––––––– –– ––
– 1/2 1/2 1/2 1/2 – 1/2 1/2 1/2 – – – – – – – – 1/2 – – – – – – 1/2 – – 1/2 1/2
– – – 3/4 3/4 3/4 3/4 3/4 3/4 3/4 3/4 – – 3/4 – 3/4 – 3/4 – – – 3/4 – – 3/4 – 3/4 3/4 –
Conduit––––––1111111–11––1––1–1– –11–
Size – – – – – – 1 1/4 – 1 1/4 1 1/4 1 1/4 1 1/4 1 1/4 1 1/4 1 1/4 1 1/4 – 1 1/4 1 1/4 – – – 1 1/4 1 1/4 1 1/4 – 1 1/4 1 1/4 –
in – – – – – – 1 1/2 – – – 1 1/2 1 1/2 1 1/2 1 1/2 – 1 1/2 1 1/2 1 1/2 – – – – 1 1/2 1 1/2 1 1/2 – 1 1/2 1 1/2 1 1/2
Inches – – – – – – – – – – – – 2 2 2 2 2 2 – 2 2 – – 2 2 – 2 2 2
– – – – – – – – – – – – – – 2 1/2 2 1/2 2 1/2 2 1/2 – 2 1/2 2 1/2 – – 2 1/2 – 2 1/2 – – 2 1/2
–––––– –––– –––––––––33– ––– 3– ––
– – – – – – – – – – – – – – – – – – 3 1/2 3 1/2 3 1/2 – – – – 3 1/2 – – –
–––––– –––– ––––––––––4– ––– 4– ––
PowerMark Gold and Plus
Circuit Breaker Load Centers
Outdoor Enclosures
Knockouts
Box No. Width Height Depth
R1 7 1/2 9 7/32 3 5/16
R1A 7 1/4 10 3 3/4
R1B 7 3/8 13 3 3/4
R2A 11 1/4 11 1/8 3 1/4
R3 12 1/2 21 3/16 4 5/8
R4 14 33 3/16 4 5/8
R5 12 1/2 28 11/16 4 5/8
R6 14 35 7/16 4 5/8
R7 14 39 3/16 4 5/8
R8 14 43 11/16 5 3/4
R9 16 45 15/16 5 27/32
R10 20 48 15/16 6 7/8
R11 20 59 15/16 6 7/8
R41 7 1/2 13 1/4 4
Dimensions (in inches)
X
XX
D
D
D
A
A
W
W
W
B
A
X
Box R1
Q
Q
Q
D
DH
A
Q
Box R3, R4, R5, R6, R7
B
C
C
CC
C
CC
J
J
R
B
GVU
B
Box R10, R11
HUB
G
B
K
Box R1A
B
B
B
P
P
R
RLL
C
TJ
Box R9
Mounting provided
for universal hubs
DD
D
Box R2A
U
R
B
D
J
U
RA
KD
Box R8
Mounting provided
for universal hubs
K
B
B
K
K
K
K
Box R41
Page Updated 04 / 2010
www.geelectrical.com Rev. 1/10
Prices and data subject
to change without notice
BuyLog®Catalog
1-40
Residential
Load Centers
Section 1
PowerMark Gold and Plus
Circuit Breaker Load Centers
Meter Socket Load Centers
Symbol A • B C D E F G H J K L M N P Q R S T U V W X Y Z AA BB CC DD EE FF
5/32 – – – – – – – – – – – – – – – – – – – – – – – – – – – – – –
– 3/8 – 3/8 – – 3/8 – – – – – – – – – – – – – – – – – – – – – – – –
– 1/2 1/2 1/2 1/2 – 1/2 1/2 1/2 – – – – – – – – 1/2 – – – – – – 1/2 – – 1/2 1/2 1/2 –
– – – 3/4 3/4 3/4 3/4 3/4 3/4 3/4 3/4 – – 3/4 – 3/4 – 3/4 – – – 3/4 – 3/4 3/4 – 3/4 3/4 – 3/4 –
Conduit – – – – – – 1 1 1 1 1 1 1 – 1 1 – – 1 – – 1 – 1 – – 1 1 – 1 –
Size – – – – – – 1 1/4 – 1 1/4 1 1/4 1/1/4 1/1/4 1 1/4 1 1/4 1 1/4 1 1/4 – 1 1/4 1 1/4 – – – 1 1/4 1 1/4 1 1/4 – 1 1/4 1 1/4 – 1 1/4 1 1/4
in – – – – – – 1 1/2 – – – 1 1/2 1 1/2 1 1/2 1 1/2 – 1 1/2 1 1/2 1 1/2 – – – – 1 1/2 1 1/2 1 1/2 – 1 1/2 1 1/2 1 1/2 1 1/2 1 1/2
inches – – – – – – – – – – – – 2 2 2 2 2 2 – 2 2 – – 2 2 – 2 2 2 2 2
– – – – – – – – –– – – – – – 2 1/2 2 1/2 2 1/2 2 1/2 – 2 1/2 2 1/2 – – 2 1/2 – 2 1/2 – – 2 1/2 2 1/2 2 1/2
–––––––––––––––––––33––––3–––––
– – – – – – – – – – – – – – – – – – 3 1/2 3 1/2 3 1/2 – – – – 3 1/2 – – – – –
––––––––––––––––––––4––––4–––––
Knockouts
Box No. Width Height Depth
R12 14 23 1/2 4 7/8
R14 14 30 3/4 5 3/4
R15 16 3/4 33 6 3/16
R16 16 3/4 33 6 3/16
R17 16 3/4 34 1/4 7 5/16
R18 14 3/4 33 6 5/16
R19 16 3/4 28 1/2 7 5/16
R20 14 3/4 27 5/16 5 7/16
R21 14 9/16 43 5/8 7 3/16
R22 16 3/16 48 1/8 7 3/16
R23 30 1/4 40 6
R24 30 1/4 40 6
Dimensions (in inches)
B
B
C
K
B
B
B
BB
BB
CCG
C
C
CC CC
BBB
Box R21, R22
HUB
PUNCHING
HUB
PUNCHING
B
B
B
B
BB
B
BB
B
B
A
C
C
C
A
Box R16
AA
D
D
R
K
S
S
Z
R
G
D
Box R23
B
B
B
B
B
BB
BB
CCG
C
C
CC CC
BBB
BB
B
B
B
C
C
C
B
B
A
K
B
B
B
B
Box R17, R18
S
Z
R
K
AA
D
D
R
K
S
Z
G
Box R24
B
B
BB
BB
C
C
C
C
C
A
G
B
B
BB
C
CC
B
C
CG
C
C
CC CC
BBB
BBBB
Q
Box R19, R20
Semi-Flush Only
Y
FF
A
W
B
B
B
FF
F
EE BB
B
A
C
Box R12
Semi-Flush Only
EE
EE
AK
E
B
Q
A
C
B
F
Box R14
www.geelectrical.com BuyLog®Catalog
Publications and Reference: See Section 22 for a
complete list of additional product-related publications
1-41
Residential
Load Centers
Rev. 1/10
Prices and data subject
to change without notice
Section 1
PowerMark Gold and Plus
Circuit Breaker Load Centers
Meter Socket Load Centers
Symbol A • B C D E F G H J K L M N P Q R S T U V W X Y Z AA BB CC DD EE FF
5/32 – – – – – – – – – – – – – – – – – – – – – – – – – – – – – –
– 3/8 – 3/8 – – 3/8 – – – – – – – – – – – – – – – – – – – – – – – –
– 1/2 1/2 1/2 1/2 – 1/2 1/2 1/2 – – – – – – – – 1/2 – – – – – – 1/2 – – 1/2 1/2 1/2 –
– – – 3/4 3/4 3/4 3/4 3/4 3/4 3/4 3/4 – – 3/4 – 3/4 – 3/4 – – – 3/4 – 3/4 3/4 – 3/4 3/4 – 3/4 –
Conduit – – – – – – 1 1 1 1 1 1 1 – 1 1 – – 1 – – 1 – 1 – – 1 1 – 1 –
Size – – – – – – 1 1/4 – 1 1/4 1 1/4 1/1/4 1/1/4 1 1/4 1 1/4 1 1/4 1 1/4 – 1 1/4 1 1/4 – – – 1 1/4 1 1/4 1 1/4 – 1 1/4 1 1/4 – 1 1/4 1 1/4
in – – – – – – 1 1/2 – – – 1 1/2 1 1/2 1 1/2 1 1/2 – 1 1/2 1 1/2 1 1/2 – – – – 1 1/2 1 1/2 1 1/2 – 1 1/2 1 1/2 1 1/2 1 1/2 1 1/2
inches – – – – – – – – – – – – 2 2 2 2 2 2 – 2 2 – – 2 2 – 2 2 2 2 2
– – – – – – – – –– – – – – – 2 1/2 2 1/2 2 1/2 2 1/2 – 2 1/2 2 1/2 – – 2 1/2 – 2 1/2 – – 2 1/2 2 1/2 2 1/2
–––––––––––––––––––33––––3–––––
– – – – – – – – – – – – – – – – – – 3 1/2 3 1/2 3 1/2 – – – – 3 1/2 – – – – –
––––––––––––––––––––4––––4–––––
Knockouts
Box No. Width Height Depth
R25 14 26 4 1/2
R26 14 9/16 43 5/8 6 3/16
R27 14 9/16 48 1/8 6 3/16
R28 22 1/2 27 7/8 6 1/4
R29 22 1/2 34 7/8 6 1/4
R30 14 9/16 40 1/2 6 3/16
R31 14 9/16 33 9/16 6 3/16
R32 16 17 5
R32A 18 7/8 18 9/16 5
R40 14 32 4 1/2
Dimensions (in inches)
B
B
B
B
L
R
B
B
A
BC
C
Box R30
HUB
PUNCHING HUB
PUNCHING
BB
BB
BBBB
BB
C
K
B
Box R26, R27
L
R
A
B
B
BC
C
GG EE EE
E
CC CC CC
9/32
HUB
Box R31
Box R40
EE
G
CCB BB
B
EE
BB
BB
B
Box R28
HUB
PUNCHING
FF
FF
ABB
P
G G
HUB
PUNCHING
FF
FF
ABB
P
Box R32 Box R32A
BB
G
CCB BB
B
BB
BB
BB
B
Box R29
Z
Z
Z Z
S
SB
1/4"
S
HUB
PUNCHING
HUB
PUNCHING
Box R25
www.geelectrical.com Rev. 1/10
Prices and data subject
to change without notice
BuyLog®Catalog
1-42
Residential
Load Centers
Section 1
PowerMark Gold and Plus
Circuit Breaker Load Centers
Meter Socket Load Centers
Knockouts
Symbol A •BCDEFGHJKLMNPQRSTUVWXYZAABBCCDDEEFFGG
5/32 – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – –
– 3/8 – 3/8 – – 3/8 – – – – – – – – – – – – – – – – – – – – – – – – –
– 1/2 1/2 1/2 1/2 – 1/2 1/2 1/2 – – – – – – – – 1/2 – – – – – – 1/2 – – 1/2 1/2 1/2 – –
– – – 3/4 3/4 3/4 3/4 3/4 3/4 3/4 3/4 – – 3/4 – 3/4 – 3/4 – – – 3/4 – 3/4 3/4 – 3/4 3/4 – 3/4 – –
Conduit–– – –– –1 11 11 1 1–1 1 ––1 –– 1– 1–– 1 1–1 – –
Size – – – – – – 1 1/4 – 1 1/4 1 1/4 1/1/4 1/1/4 1 1/4 1 1/4 1 1/4 1 1/4 – 1 1/4 1 1/4 – – – 1 1/4 1 1/4 1 1/4 – 1 1/4 1 1/4 – 1 1/4 1 1/4 1 1/4
in – – – – – – 1 1/2 – – – 1 1/2 1 1/2 1 1/2 1 1/2 – 1 1/2 1 1/2 1 1/2 – – – – 1 1/2 1 1/2 1 1/2 – 1 1/2 1 1/2 1 1/2 1 1/2 1 1/2 1 1/2
inches – – – – – – – – – – – – 2 2 2 2 2 2 – 2 2 – – 2 2 – 2 2 2 2 2 2
– – – – – – – – –– – – – – – 2 1/2 2 1/2 2 1/2 2 1/2 – 2 1/2 2 1/2 – – 2 1/2 – 2 1/2 – – 2 1/2 2 1/2 2 1/2 2 1/2
––– –– –– ––– –––– – – –––33 –– ––3 – –––– 3
– – – – – – – – – – – – – – – – – – 3 1/2 3 1/2 3 1/2 – – – – 3 1/2 – – – – – –
––– –– –– ––– –––– – – ––––4 –– ––4– –––– –
Box No. Width Height Depth
R33 30 1/4 33 6 3/32
R34 30 1/4 40 6 3/32
R35 30 1/4 47 6 3/32
R36 14 28 1/2 4 1/2
R37 14 31 3/4 4 1/2
R38 14 49 1/2 10
R39 14 31 11/16 4 5/8
Dimensions (in inches)
DDD
D
DK
AA AA
KRR
K
DG
DDDDD
SSZS
3/32 3/323/32
Box R33
GG EE EE
E
CC CC CC
9/32
HUB HUB
Box R36B, R37B
DDD
D
DKK RR
K
DG
DDDDD
SSZS
3/323/32
Box R34, R35
CC
C
C
C
C
C
C
C
C
C
CCC
C
C
CC
9/32
K
EE
EE
EE
EE
EE
Box R39
D D D D D
D D
BDB
B B
LL
W
Box R38
GG EE GG
E
CC CC CC
9/32
HUB HUB
Box R36A, R37A
www.geelectrical.com BuyLog®Catalog
Publications and Reference: See Section 22 for a
complete list of additional product-related publications
1-43
Residential
Modular Metering
Rev. 1/10
Prices and data subject
to change without notice
Section 1
Meter Mod III and Mini Mod III
Product Number Systemsidential - Load Centers
Product Number Guide for Meter Stack Modules
(Product number for illustrative purposes only)
68 20 RT3MPT
GE Identification
Type
MM = Mini Mod™ Ring Type
MP = Meter Mod™ Ring Type
MPR = Meter Mod™ Ringless
MMR = Mini Mod™ Ringless
MPK = Meter Mod K-Base Socket
Horizontal Bus Rating
2 = 200A
4 = 400A
6 = 600A
8 = 800A
12 = 1200A
Insert for Tenant Breakers
Insert for 3-Phase
Enclosures
R = Type 3R rainproof
Socket Rating
12 = 125A
20 = 200A
22 = 225A
40 = 400A
Socket Positions
1-6
Product Number Guide for Main Modules
(Product number for illustrative purposes only)
F3 8 RMPT
GE Identification
Type
MP = Meter Mod III
Insert for 3-Phase
Enclosures
R = Type 3R Rainproof
CLL = Compression Lug Landing Kit Included
ST = Shunt Trip, Factory Installed
Maximum Ampere Rating
2 = 200A
4 = 400A
6 = 600A
8 = 800A
12 = 1200A
14 = 1400A
16 = 1600A
20 = 2000A
Type
SB = Main Breaker
BB = Main Breaker, Bottom Feed
BT = Main Breaker, Top Feed
FT = Main Switch, Top Feed
FB = Main Switch, Bottom Feed
L = Main Lug
U = Main Pull Box
SHB = Main Breaker, High Interrupting
www.geelectrical.com Rev. 1/10
Prices and data subject
to change without notice
BuyLog®Catalog
1-44
Residential
Modular Metering
Section 1
Mini Mod III
Basic Devices
Ring-Type and Ringless
Product Features
—UL Listed (Panelboards No. 67)
—Indoor/Outdoor Construction
—Ring-Type and Ringless Meter Sockets
—Bondable Neutral, Strap Included
—11-inch Mounting Z Rail Included
—Swing Away Mounting Feet Factory Installed
—Underground, incoming feed only
Ring Type Socket1
Main Wire Size Product List Price
Socket Amps No. of Sockets Main Ampere Rating AWG/kcmil Cu/A Service Ground Equipment Ground Number GO-136A
125 A 2 200 (1) 6 -300 6-2/0 14-4 TMM2212R3$662.00
125 A 3 400 (1) 6 -600 or (2) 2/0 -250 4-300 14-4 TMM4312R $841.00
125 A 4 400 (1) 6 -600 or (2) 2/0 -250 4-300 14-4 TMM4412R $1120.00
125 A 5 600 (2) 250 - 500 4-300 14-4 TMM6512R $1626.00
125 A 6 600 (2) 250 - 500 4-300 14-4 TMM6612R $1820.00
200 A 2 400 (2) 250 - 500 4-300 14-4 TMM4220R $1069.00
200 A 3 600 (2) 250 - 500 4-300 14-4 TMM6320R $1227.00
200 A 4 600 (2) 250 - 500 4-300 14-4 TMM6420R $1821.00
200 A 5 600 (2) 250 - 500 4-300 14-4 TMM6520R $2114.00
200 A 6 600 (2) 250 - 500 4-300 14-4 TMM6620R $2596.00
1One snap-type, aluminum sealing ring(TSR5) per socket included
3May be fed from overhead. Use hub TC300.
Ringless Type Socket2
Main Wire Size Product List Price
Socket Amps No. of Sockets Main Ampere Rating AWG/kcmil Cu/Al Service Ground Equipment Ground Number GO-136A
125 A 2 200 (1) 6 -300 6-2/0 14-4 TMMR2212R4$662.00
125 A 3 400 (1) 6 -600 or (2) 2/0 -250 4-300 14-4 TMMR4312R $841.00
125 A 4 400 (1) 6 -600 or (2) 2/0 -250 4-300 14-4 TMMR4412R $1120.00
125 A 5 600 (2) 250 - 500 4-300 14-4 TMMR6512R $1756.00
125 A 6 600 (2) 250 - 500 4-300 14-4 TMMR6612R $1949.00
200 A 2 400 (2) 250 - 500 4-300 14-4 TMMR4220R $1069.00
200 A 3 600 (2) 250 - 500 4-300 14-4 TMMR6320R $1227.00
200 A 4 600 (2) 250 - 500 4-300 14-4 TMMR6420R $1950.00
200 A 5 600 (2) 250 - 500 4-300 14-4 TMMR6520R $2244.00
200 A 6 600 (2) 250 - 500 4-300 14-4 TMMR6620R $2725.00
2Includes factory installed fifth jaw. Available with factory installed horn-type by-pass. Add HB suffix to Product Number.
4May be fed from overhead. Use hub TC300.
TMM4412R
Short Circuit Ratings — UL Listed
All Mini Mod IIIs are UL listed for the short circuit rating at 240 Vac
maximum in rms symmetrical amperes of the tenant breaker
installed, selected from table below.
The short circuit rating is limited to the lowest interrupting rating
of any tenant breaker installed.
Replacement breakers shall be of the same manufacturer and
type and shall have an interrupting rating equal to or greater than
the interrupting rating of any tenant breaker presently installed in
this device.
Tenant Main Breaker Frame UL Listed AIC Rating
TMQD 100,000
TMQL 42,000
THQD 22,000
THHQL 22,000
TQD 10,000
THQL 10,000
GE breakers rated 10,000 AIC or greater when installed on the load side of the
Mini Mod III are protected for the interrupting rating per the UL Listing marked
on the tenant breaker.
www.geelectrical.com BuyLog®Catalog
Publications and Reference: See Section 22 for a
complete list of additional product-related publications
1-45
Residential
Modular Metering
Rev. 1/10
Prices and data subject
to change without notice
Section 1
Mini Mod III
Tenant Main Circuit Breakers
THQL, THHQL
TMQL
TQD, THQD
TMQD
Tenant Main Circuit Breakers For 125 Amp Sockets
10,000 AIC 22,000 AIC 42,000 AIC
Product List Price Product List Price Product List Price
Ampere Rating Number GO-138A Number GO-138A Number GO-138A
60 THQL2160 $47.75 THHQL2160 $97.00 TMQL2160 $129.00
70 THQL2170 $95.00 THHQL2170 $148.00 TMQL2170 $174.00
80 THQL2180 $131.00 THHQL2180 $210.00 TMQL2180 $248.00
90 THQL2190 $131.00 THHQL2190 $210.00 TMQL2190 $248.00
100 THQL21100 $131.00 THHQL21100 $210.00 TMQL21100 $248.00
110 THQL21110 $284.00 THHQL21110 $686.00 ––
125 THQL21125 $284.00 THHQL21125 $686.00 TMQL21125 $964.00
1251TMQL21125SF $54.25 –– – –
1Sub-feed lug kit, no overcurrent protection.
Tenant Main Circuit Breakers For 200 Amp Sockets
10,000 AIC 22,000 AIC 100,000 AIC
Product List Price Product List Price Product List Price
Ampere Rating Number GO-135F Number GO-135F Number GO-135F
60 – – – – TMQD22060 $579.00
70 – – – – TMQD22070 $579.00
80 – – – – TMQD22080 $579.00
90 – – – – TMQD22090 $579.00
100 TQD22100 $233.00 THQD22100 $552.00 TMQD22100 $579.00
125 TQD22125 $233.00 THQD22125 $552.00 TMQD22125 $579.00
150 TQD22150 $233.00 THQD22150 $552.00 TMQD22150 $579.00
175 TQD22175 $233.00 THQD22175 $552.00 TMQD22175 $579.00
200 TQD22200 $233.00 THQD22200 $552.00 TMQD22200 $579.00
Tenant Main Lug Wire Sizes (AWG/kcmil)
Type Ampere Rating Copper Aluminum
60 8-3 8-2
THQL, THHQL 70-100 6-1/0 4-1/0
110-125 2-2/0 2-2/0
TMQL 60-125 10-1/0 10-1/0
60-90 6-1/0 6-1/0
TMQD 100-150 6-4/0 6-4/0
175-225 1/0-300 1/0-300
TQD, THQD 100-200 1-300 1-300
www.geelectrical.com Rev. 1/10
Prices and data subject
to change without notice
BuyLog®Catalog
1-46
Residential
Modular Metering
Section 1
Mini Mod III
Tenant Main Circuit Breakers
Mini Mod III Factory Installed Lug Kit
Phase Neutral
GE Lug Kit
Main Mini Mod Amp. Rating Description Wire Size Product Number Lugs Per Kit
TMM2212R 125 #6-300 #6-300 (80-6307)
TMMR2212R 125 #6-300 #6-300 (80-6307)
TMM4312R 125 (1) 2/0-600 or (2) #6-250 (1) 2/0-600 or (2) #6-250 TMMLK1 1 lug/kit, 1 lug per phase, 2 hole lug
TMMR4312R 125 (1) 2/0-600 or (2) #6-250 (1) 2/0-600 or (2) #6-250 TMMLK1 1 lug/kit, 1 lug per phase, 2 hole lug
TMM4412R 125 (1) 2/0-600 or (2) #6-250 (1) 2/0-600 or (2) #6-250 TMMLK1 1 lug/kit, 1 lug per phase, 2 hole lug
TMMR4412R 125 (1) 2/0-600 or (2) #6-250 (1) 2/0-600 or (2) #6-250 TMMLK1 1 lug/kit, 1 lug per phase, 2 hole lug
TMM6512R 125 (2) 250-500 per lug (2) 250-500 per lug TMPAL30 1 lug per kit, 1 lug per phase
TMMR6512R 125 (2) 250-500 per lug (2) 250-500 per lug TMPAL30 1 lug per kit, 1 lug per phase
TMM6612R 125 (2) 250-500 per lug (2) 250-500 per lug TMPAL30 1 lug per kit, 1 lug per phase
TMMR6612R 125 (2) 250-500 per lug (2) 250-500 per lug TMPAL30 1 lug per kit, 1 lug per phase
TMM4220R 200 (2) 250-500 per lug (2) 250-500 per lug TMPAL30 1 lug per kit, 1 lug per phase
TMMR4220R 200 (2) 250-500 per lug (2) 250-500 per lug TMPAL30 1 lug per kit, 1 lug per phase
TMM6320R 200 (2) 250-500 per lug (2) 250-500 per lug TMPAL30 1 lug per kit, 1 lug per phase
TMMR6320R 200 (2) 250-500 per lug (2) 250-500 per lug TMPAL30 1 lug per kit, 1 lug per phase
TMM6420R 200 (2) 250-500 per lug (2) 250-500 per lug TMPAL30 1 lug per kit, 1 lug per phase
TMMR6420R 200 (2) 250-500 per lug (2) 250-500 per lug TMPAL30 1 lug per kit, 1 lug per phase
TMM6520R 200 (2) 250-500 per lug (2) 250-500 per lug TMPAL30 1 lug per kit, 1 lug per phase
TMMR6520R 200 (2) 250-500 per lug (2) 250-500 per lug TMPAL30 1 lug per kit, 1 lug per phase
TMM6620R 200 (2) 250-500 per lug (2) 250-500 per lug TMPAL30 1 lug per kit, 1 lug per phase
TMMR6620R 200 (2) 250-500 per lug (2) 250-500 per lug TMPAL30 1 lug per kit, 1 lug per phase
Mini Mod III Factory Optional Lug Kit and Optional Compression Lug Kit
Phase
GE Lug Kit GE Lug Kit
Main Mini Mod Amp. Rating Wire Size Product Number Wire Size Product Number Lugs Per Kit
TMM4312R 125 (3) #4-300 TMPAL40 Compression TMM6CLL
(2) 250-500 per lug TMPAL30
TMMR4312R 125 (3) #4-300 TMPAL40 Compression TMM6CLL
(2) 250-500 per lug TMPAL30
TMM4412R 125 (3) #4-300 TMPAL40 Compression TMM6CLL
(2) 250-500 per lug TMPAL30
TMMR4412R 125 (3) #4-300 TMPAL40 Compression TMM6CLL
(2) 250-500 per lug TMPAL30
TMM6512R 125 (3) #4-300 TMPAL40 Compression TMM6CLL
(1) 2/0-600 or (2) #6-250 TMMLK1
TMMR6512R 125 (3) #4-300 TMPAL40 Compression TMM6CLL
(1) 2/0-600 or (2) #6-250 TMMLK1
TMM6612R 125 (3) #4-300 TMPAL40 Compression TMM6CLL
(1) 2/0-600 or (2) #6-250 TMMLK1
TMMR6612R 125 (3) #4-300 TMPAL40 Compression TMM6CLL
(1) 2/0-600 or (2) #6-250 TMMLK1
TMM4220R 200 (3) #4-300 TMPAL40 Compression TMM6CLL
(1) 2/0-600 or (2) #6-250 TMMLK1
TMMR4220R 200 (3) #4-300 TMPAL40 Compression TMM6CLL
(1) 2/0-600 or (2) #6-250 TMMLK1
TMM6320R 200 (3) #4-300 TMPAL40 Compression TMM6CLL
(1) 2/0-600 or (2) #6-250 TMMLK1
TMMR6320R 200 (3) #4-300 TMPAL40 Compression TMM6CLL
(1) 2/0-600 or (2) #6-250 TMMLK1
TMM6420R 200 (3) #4-300 TMPAL40 Compression TMM6CLL
(1) 2/0-600 or (2) #6-250 TMMLK1
TMMR6420R 200 (3) #4-300 TMPAL40 Compression TMM6CLL
(1) 2/0-600 or (2) #6-250 TMMLK1
TMM6520R 200 (3) #4-300 TMPAL40 Compression TMM6CLL
(1) 2/0-600 or (2) #6-250 TMMLK1
TMMR6520R 200 (3) #4-300 TMPAL40 Compression TMM6CLL
(1) 2/0-600 or (2) #6-250 TMMLK1
TMM6620R 200 (3) #4-300 TMPAL40 Compression TMM6CLL
(1) 2/0-600 or (2) #6-250 TMMLK1
TMMR6620R 200 (3) #4-300 TMPAL40 Compression TMM6CLL
(1) 2/0-600 or (2) #6-250 TMMLK1
2 studs per phase,
double stack for up to
2 conductors per phase,
kit includes 3 lug landing pads
(1 kit per device)
www.geelectrical.com BuyLog®Catalog
Publications and Reference: See Section 22 for a
complete list of additional product-related publications
1-47
Residential
Modular Metering
Rev. 1/10
Prices and data subject
to change without notice
Section 1
Mini Mod III

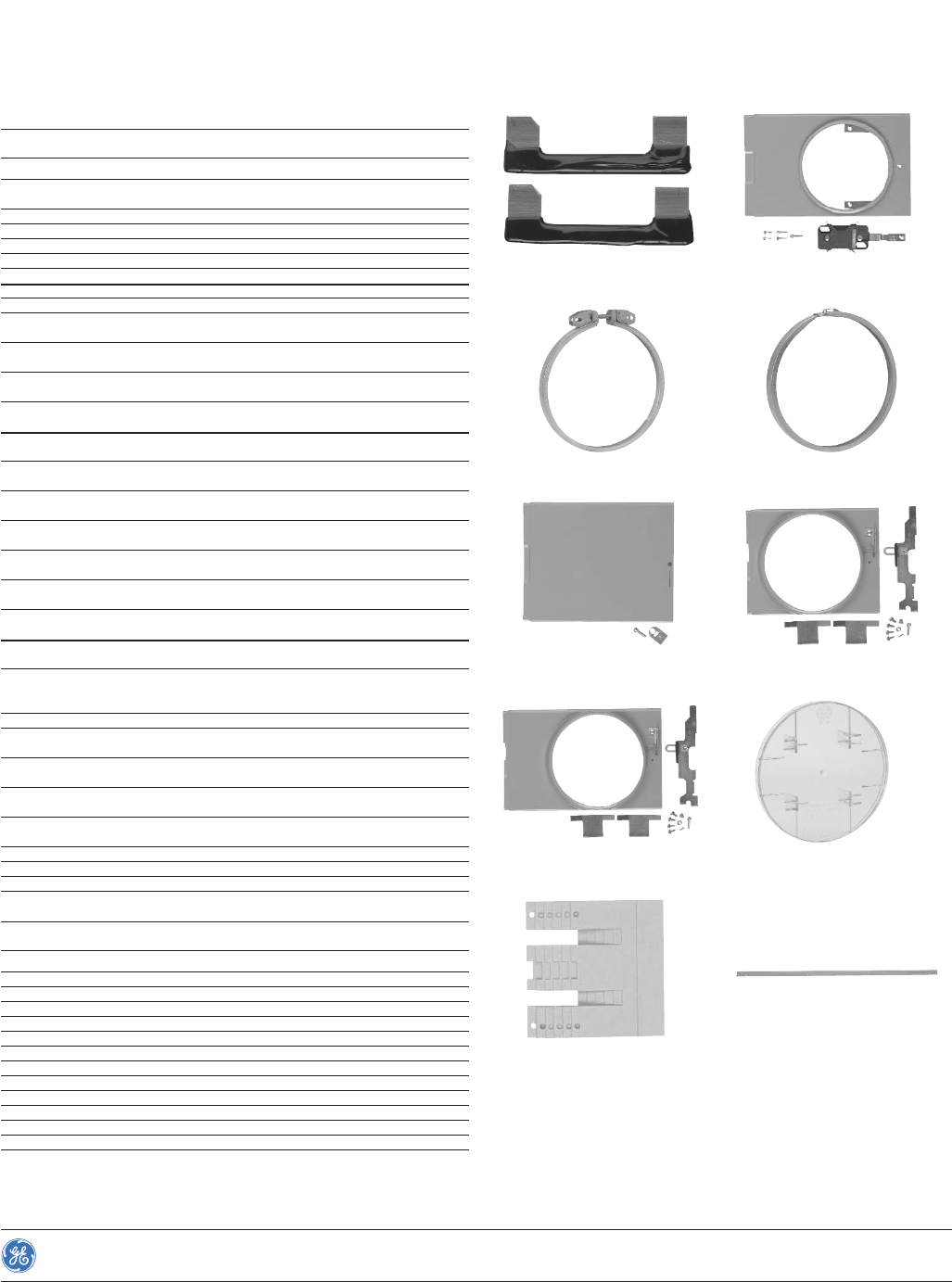

Accessories
Field Installed
Accessories - Field Installed
Product List Price
Description Number GO-136
Semi-Flush Kits
-125A Sockets -2 gang TMM12SF2 $65.50
-3 and 4 gang TMM12SF4 $83.00
-5 and 6 gang TMM12SF6 $102.00
-2 gang TMM20SF2 $65.50
-200A Sockets -3 and 4 gang TMM20SF4 $83.00
-5 and 6 gang TMM20SF6 $102.00
Compression Lug Landing Kit -600 amp TMM6CLL $101.00
Includes 3 pads each with 2 threaded stud connections
(and hardware) for compression or mechanical lugs with
NEMA 2-hole bolt configuration (lugs not furnished).
Not suitable for 2-gang
By-pass Kits
Manual Slider-Type (Ring Type Only)1
-125 amp top socket for 2, 3, 5 and 6 gang TMBPM12TA $121.00
-125 amp for all other sockets TMBPM12A $113.00
-200 amp for all sockets TMBPM20A2$113.00
Jumper Straps Type1
(use with TMCA) TMBPJ204$30.50
Cover Including Jumper Strap Type-fits all
(Ring Type Only)3TMBPC204$38.75
Horn-Type-fits all (Ringless Only)1TMBPH20A $54.25
Fifth Jaw Kits
-Bused; 3, 6, or 9 o'clock mounting: TM5JA $14.25
Order two for fifth and sixth jaw. Not suitable for 2-gang ring type
-Isolated; 3 or 9 o'clock mounting TM5JUA $14.25
Sealing Rings
-Screw-Type, Aluminum TSR1 $14.25
-Snap Type, Stainless Steel TSR3 $14.25
-Screw and Lock-Type, Aluminum TSR4 $14.25
-Snap-Type, Aluminum (Standard) TSR5 $10.505
Steel Meter Socket Covers
Blank (fits bottom position only)
-125 Amp TMCB12B $34.75
-200 Amp TMCB20B $41.25
Ringless (Field -converts ring-type to ringless)
-125 amp top socket for 2, 3, 5 and 6 gang TMCR12T $110.00
-125 amp for all other sockets TMCR12 $104.00
-200 amp for all sockets TMCR20 $113.00
Lexan Meter socket Cover Plate (without tabs) TMCA $9.75
Lexan Meter Socket Cover Plate TMCP $9.75
Equipment Ground Bar, (6) 6-2/0 TMEG $16.50
Individual Meter Socket Barrier Kit (includes 6) TMBR $16.50
Mounting Z-Rail, 4-foot TMZR $38.75
Lug Kit for (3) 4/0 cable TMPAL40 $61.00
1100 amps continuous.
2For top socket on TMM4220R, order TMBPM20TA.
3200 amps continuous.
4Not UL Listed.
5GO-148E.
www.geelectrical.com Rev. 1/10
Prices and data subject
to change without notice
BuyLog®Catalog
1-48
Residential
Modular Metering
Section 1
Meter Mod III
How to Order
Short Circuit Ratings
Product Features
—UL Listed (details below)
—Short Circuit Ratings through 100,000 Amps RMS symmetrical
—Interchangeable Single and Three-phase Main and Meter Modules
—Indoor/Outdoor Construction
—Individual Meter Covers
—11-inch Mounting Z-Rails Included
—Numerous Accessories
UL Standard Listing and File Numbers
Modular Metering Equipment UL Standard for Safety UL File No.
Meter Modules No. 67 PanelboardsE8741
Main Modules
-Breaker No. 489 Molded Case Circuit Breakers E11713
-Switch No. 98 Enclosed Switches E9565
-Lug No. 67 Panelboards E8741
-Pull Box No. 869 Service Equipment E84701
Tenant Main Breakers
-THQL, TQD No. 489 Molded Case Circuit Breakers E11592
-THHQL, THQD No. 489 Molded Case Circuit Breakers E11592
-TMQL, TMQD No. 489 Molded Case Circuit Breakers E11713
Accessories
-Meter No. 414 Meter Sockets E8741
-Other No. 67 Panelboards E8741
Ordering Guidelines
A. Determine available fault current
B. Select the following:
1. Main Module (pages 1-49 through 1-55)
a. Choose type (Breaker, Switch, Switch with Pull Box,
Lug, or Pull Box)
b. Phase
c. Main Ampere Rating
d. Short Circuit Rating
2. Meter Stack Modules (pages 1-56 through 1-59)
3. Tenant Breakers, Field Installed (pages 1-56 through 1-59)
4. Accessories (pages 1-56 through 1-59)
Modular Metering System Short Circuit Rating -UL Listed
Available Short Circuit Current rms Main Module1Meter Module Load Center Panelboard
Symmetrical Amperes @ 240 Volts AC Switch Breaker Lug Tenant Main Breaker Type Branch Breaker Type Branch Breaker Type
10,000 All All All THQL, TQD, TEB, TMQL, TMQD THQP, THQL, TQDL THQL, THQB
22,000 All All All THHQL, THQD, TMQL, TMQD THQP, THQL, TQDL THQL, THQB
42,000 All All All TMQL, TMQD THQP, THQL, TQDL THQL, THQB
65,000 All 400-600A: TMPSHB All TMQD THQP, THQL, TQDL THQL, THQB
800-1200A: TMPSB
100,000 All 400-600A: TMPSHB All TMQD THQP, THQL, TQDL THQL, THQB
1Main Pull Box Module is UL Listed for use with and at the short circuit rating of main switch and breaker modules.
Short Circuit Interrupting Ratings
These panelboards have a maximum short circuit current rating of 100,000 RMS
symmetrical amperes, 240 volts AC maximum. The actual rating depends on the branch
breakers and the main breaker, if any, installed in or ahead of the panelboard. The
correct combinations for various short circuit ratings follow. Any additional or replace-
ment breakers must be a General Electric type, as indicated, with equal or greater
interrupting capacity.
Maximum Short Circuit Rating, Main Circuit Breaker Branch Circuit Breaker
rms Symmetrical Amperes, When the breaker protecting the panelboard, And when the branch circuit breakers
240 Vac or 120/240 Vac separate or integral, is GE Type installed are GE Type
10,000 None, THQL, TQMV, SKH, THQP, THQL, THQLGF, TQD, THHQL,
SGD, SGH, SGL THQD, TMQD, TMQL
22,000 None, THHQL, THQMV, SKH, (300-1200A), THQP, THQL, THQLGF2,
SGD, SGH (125-600A) TQD, THHQL, THQD, TMQD, TMQL
42,000 TMQB, TMQL, 300V Class T Fuse (600A max.) THQP3, THQL, THQLGF2,
TQD, THHQL, THQD, TMQD, TMQL
65,000 SGD, SGH (125-600A) THQL, THHQL, TQD, THQD,
TMQB, TMQD, TMQL
100,000 TMQD, SGL (125-600A) THQP3, THQL, THQLGF2, TQD4,
THHQL, THQD4, TMQD, TMQL
100,000 300V Class T Fuse (400A max.) THQP3, THQL, THHQL, TQD5,
THQD5, TMQD, TMQL
215-30A only.
3Suitable as branch breaker when tenant main provided is: THQL, THHQL, TMQL, TQD, TMQD.
4100-200A, 2-pole only.
5125-225A, 2- and 3-pole only.
References:
Dimensions and Knockouts Pages 1-61 through 1-64
Renewal Parts Catalog DET-388
Construction Details Booklet DET-395
www.geelectrical.com BuyLog®Catalog
Publications and Reference: See Section 22 for a
complete list of additional product-related publications
1-49
Residential
Modular Metering
Rev. 1/10
Prices and data subject
to change without notice
Section 1
TMPSB4R
Main Breaker Single-Phase, Three-Wire 120/240 Vac
Breaker included, top or bottom feed. 80% Rated MCB.
Main Main Wire Size Product List Price
Ampere Rating IC Rating (Max) Main Wire Size AWG/kcmil Cu/Al - Phase AWG/kcmil Cu/Al - Neutral Number GO-136
400 42 kAIC Al :(2) 2/0 - 500 or (1) 6 -600 Cu 2/0 - 400 or (1) 6 -600 (2) 2 -600 TMPSB4R $3637.00
400 100 kAIC Al :(2) 2/0 - 500 or (1) 6 -600 Cu 2/0 - 400 or (1) 6 -600 (2) 2 -600 TMPSHB4R $4778.00
600 42 kAIC Al :(2) 2/0 - 500 or (1) 6 -600 Cu 2/0 - 400 or (1) 6 -600 (2) 2 -600 TMPSB6R $5273.00
600 100 kAIC Al :(2) 2/0 - 500 or (1) 6 -600 Cu 2/0 - 400 or (1) 6 -600 (2) 2 -600 TMPSHB6R $6421.00
800 65 kAIC Al/Cu (3) 3/0 -5001(4) 250-5002TMPSB8R $7132.00
1000 65 kAIC Al(4) 250-500 CU(4) 250/3501(4) 250-5002TMPSB10R $9832.00
1200 65 kAIC Al(4) 250-500 CU(4) 250/3501(4) 250-5002TMPSB12R $13271.00
1400 100 kAIC (4) 500-1000 kcmil Al/Cu (4) 500-1000 TMPBB14R4,7 $22190.00
1400 100 kAIC (4) 500-1000 kcmil Al/Cu (4) 500-1000 TMPBT14R5,7 $22190.00
1600 100 kAIC Al/Cu (4) 500-1000 kcmil Al/Cu (4) 500-1000 TMPBB16R4,7 $23240.00
1600 100 kAIC Al/Cu (4) 500-1000 kcmil Al/Cu (4) 500-1000 TMPBB16RST3,4,7 $24125.00
1600 100 kAIC Al/Cu (4) 500-1000 kcmil Al/Cu (4) 500-1000 TMPBT16R5,7 $23240.00
1600 100 kAIC Al/Cu (4) 500-1000 kcmil Al/Cu (4) 500-1000 TMPBT16RST3,5,7 $24125.00
2000 100 kAIC (6) #2 – 600 kcmil (6) #2 – 600 kcmil TMPBT20R5,7 $56711.00
2000 100 kAIC (6) #2 – 600 kcmil (6) #2 – 600 kcmil TMPBB20R4,7 $56711.00
Main Breaker Three-Phase, Four-Wire / Single-Phase, Three-Wire 120/240 Vac, 208Y/120 Vac
Breaker included, top or bottom feed. 80% Rated MCB
Main Main Wire Size Product List Price
Ampere Rating IC Rating (Max) Main Wire Size AWG/kcmil Cu/Al - Phase AWG/kcmil Cu/Al - Neutral Number GO-136
400 42 kAIC Al :(2) 2/0 - 500 or (1) 6 -600 Cu 2/0 - 400 or (1) 6 -600 (2) 2 -600 TMP3SB4R $3996.00
400 100 kAIC Al :(2) 2/0 - 500 or (1) 6 -600 Cu 2/0 - 400 or (1) 6 -600 (2) 2 -600 TMP3SHB4R $5435.00
600 42 kAIC Al :(2) 2/0 - 500 or (1) 6 -600 Cu 2/0 - 400 or (1) 6 -600 (2) 2 -600 TMP3SB6R $6455.00
600 100 kAIC Al :(2) 2/0 - 500 or (1) 6 -600 Cu 2/0 - 400 or (1) 6 -600 (2) 2 -600 TMP3SHB6R $7646.00
800 65 kAIC Al/Cu (3) 3/0 -5001(4) 250-5002TMP3SB8R $8663.00
1000 65 kAIC Al(4) 250-500 Cu(4) 250/3501(4) 250-5002TMP3SB10R $11381.00
1200 65 kAIC Al(4) 250-500 Cu(4) 250/3501(4) 250-5002TMP3SB12R $14545.00
1400 100 kAIC (4) 500-1000 kmcil (4) 500-1000 kmcil TMP3BB14R4,7 $26114.00
1400 100 kAIC (4) 500-1000 kmcil (4) 500-1000 kmcil TMP3BT14R5,7 $26114.00
1600 100 kAIC Al/Cu (4) 500-1000 Al/Cu (4) 500-1000 TMP3BB16R4,7 $26540.00
1600 100 kAIC Al/Cu (4) 500-1000 Al/Cu (4) 500-1000 TMP3BB16RST3,4,7 $27494.00
1600 100 kAIC Al/Cu (4) 500-1000 Al/Cu (4) 500-1000 TMP3BT16R5,7 $26540.00
1600 100 kAIC Al/Cu (4) 500-1000 Al/Cu (4) 500-1000 TMP3BT16RST3.5.7 $27494.00
2000 100 kAIC (6) #2-600 kcmil (6) #2-600 kcmil TMP3BT20R5,7 $73320.00
2000 100 kAIC (6) #2-600 kcmil (6) #2-600 kcmil TMP3BB20R4,7 $73320.00
2000 100 kAIC (6) #2-600 kcmil (6) #2-600 kcmil TMP3BT20RST3,5,7 $82886.00
2000 100 kAIC (6) #2-600 kcmil (6) #2-600 kcmil TMP3BB20RST3,4,7 $82886.00
Meter Mod III
Main Modules
Single-Phase and Three-Phase
Main Breaker Modules
Alternate Rating Plugs – Field Installed8
Product List Price
Main Ampere Rating Alternate Rating Number GO-135S
4006225 SRPG400A225 $106.00
4006250 SRPG400A250 $106.00
4006300 SRPG400A300 $106.00
4006350 SRPG400A350 $106.00
600 400 SRPG400A400 $106.00
600 450 SRPG400A450 $106.00
600 500 SRPG400A500 $106.00
800 600 SRPK800A600 $106.00
800 700 SRPK800A700 $106.00
1000 800 SRPK1200A800 $106.00
1200 1000 SRPK1200A1000 $106.00
Shunt-Trip - Field Installed
For Use on all Main Breaker Modules
Product List Price
Shunt Trip Number GO-135S
120 Vac SAST1 $363.00
240 Vac SAST2 $363.00
1Optional lug TCAL124 field installed wire range (3) 300-750 kcmil.
2Optional neutral lug field installed wire range (3) 1/0-750 kcmil.
Lug kit part number TMPL750.
3Includes 110-240 Vac shunt trip.
4Bottom feed.
5Top feed.
6Alternate for 400A frame.
7Fixed Rating Plug not Field adjustable.
8Not available for 1400, 1600, and 2000A Mains
—Single-Phase Mains have a neutral, A-Phase, B-Phase, and
Ground, and may be connected to Three-Phase horizontal bus
stacks. However, output is only single-phase.
—All Mains are center feed only when the main circuit breaker
rating is larger than the horizontal bus amperage rating.
www.geelectrical.com Rev. 1/10
Prices and data subject
to change without notice
BuyLog®Catalog
1-50
Residential
Modular Metering
Section 1
Meter Mod III
Main Modules
Single-Phase and Three-Phase
Factory Installed Lug Kit
Phase Neutral
Main Amp GE Lug Kit Total Lugs
Breaker Rating Wire Size Wire Size Product No. Lugs Per Kit Per Device
TMPSB4R 400 AL:(2) 2/0-500 or (1) 6-600 Cu 2/0-400 or (1) 6-600 (2) 2-600 TCLK265 2 lugs per kit
TMP3SB4R 400 AL:(2) 2/0-500 or (1) 6-600 Cu 2/0-400 or (1) 6-600 (2) 2-600 TCLK365 3 lugs per kit
TMPSHB4R 400 AL:(2) 2/0-500 or (1) 6-600 Cu 2/0-400 or (1) 6-600 (2) 2-600 TCLK265 2 lugs per kit
TMP3SHB4R 400 AL:(2) 2/0-500 or (1) 6-600 Cu 2/0-400 or (1) 6-600 (2) 2-600 TCLK365 3 lugs per kit
TMPSB6R 600 AL:(2) 2/0-500 or (1) 6-600 Cu 2/0-400 or (1) 6-600 (2) 2-600 TCLK265 2 lugs per kit
TMP3SB6R 600 AL:(2) 2/0-500 or (1) 6-600 Cu 2/0-400 or (1) 6-600 (2) 2-600 TCLK365 3 lugs per kit
TMPSHB6R 600 AL:(2) 2/0-500 or (1) 6-600 Cu 2/0-400 or (1) 6-600 (2) 2-600 TCLK265 2 lugs per kit
TMP3SHB6R 600 AL:(2) 2/0-500 or (1) 6-600 Cu 2/0-400 or (1) 6-600 (2) 2-600 TCLK365 3 lugs per kit
TMPSB8R 800 AL/Cu (3) 3/0-500 (4) 250-500 TCAL124 1 lug per kit
TMP3SB8R 800 AL/Cu (3) 3/0-500 (4) 250-500 TCAL124 1 lug per kit
TMPSB10R 1000 Al(4) 250-500 Cu(4) 250/350 (4) 250-500 TCAL125 1 lug per kit
TMP3SB10R 1000 Al(4) 250-500 Cu(4) 250/350 (4) 250-500 TCAL125 1 lug per kit
TMPSB12R 1200 Al(4) 250-500 Cu(4) 250/350 (4) 250-500 TCAL125 1 lug per kit
TMP3SB12R 1200 Al(4) 250-500 Cu(4) 250/350 (4) 250-500 TCAL125 1 lug per kit
TMPBB14R 1400 Al/Cu (4) 500-1000 Al/Cu (4) 500-1000 TMPL1600RD 1 lug per kit, 4 holes per lug 3 lugs per device
TMPBT14R 1400 Al/Cu (4) 500-1000 Al/Cu (4) 500-1000 TMPL1600RD 1 lug per kit, 4 holes per lug 3 lugs per device
TMP3BB14R 1400 Al/Cu (4) 500-1000 Al/Cu (4) 500-1000 TMPL1600RD 1 lug per kit, 4 holes per lug 4 lugs per device
TMP3BT14R 1400 Al/Cu (4) 500-1000 Al/Cu (4) 500-1000 TMPL1600RD 1 lug per kit, 4 holes per lug 4 lugs per device
TMPBB16R 1600 Al/Cu (4) 500-1000 Al/Cu (4) 500-1000 TMPL1600RD 1 lug per kit, 4 holes per lug 3 lugs per device
TMP3BB16R 1600 Al/Cu (4) 500-1000 Al/Cu (4) 500-1000 TMPL1600RD 1 lug per kit, 4 holes per lug 4 lugs per device
TMPBB16RST 1600 Al/Cu (4) 500-1000 Al/Cu (4) 500-1000 TMPL1600RD 1 lug per kit, 4 holes per lug 3 lugs per device
TMP3BB16RST 1600 Al/Cu (4) 500-1000 Al/Cu (4) 500-1000 TMPL1600RD 1 lug per kit, 4 holes per lug 4 lugs per device
TMPBT16R 1600 Al/Cu (4) 500-1000 Al/Cu (4) 500-1000 TMPL1600RD 1 lug per kit, 4 holes per lug 3 lugs per device
TMP3BT16R 1600 Al/Cu (4) 500-1000 Al/Cu (4) 500-1000 TMPL1600RD 1 lug per kit, 4 holes per lug 4 lugs per device
TMPBT16RST 1600 Al/Cu (4) 500-1000 Al/Cu (4) 500-1000 TMPL1600RD 1 lug per kit, 4 holes per lug 3 lugs per device
TMP3BT16RST 1600 Al/Cu (4) 500-1000 Al/Cu (4) 500-1000 TMPL1600RD 1 lug per kit, 4 holes per lug 4 lugs per device
TMPBB20R 2000 Al/Cu (6) #2-600 Al/Cu (6) #2-600 TMPL2000RD 9 lugs per kit 6 lugs per device, 3 lugs/neutral
TMP3BB20R 2000 Al/Cu (6) #2-600 Al/Cu (6) #2-600 TMPL2000RD 9 lugs per kit 9 lugs per device, 3 lugs/neutral
TMPBT20R 2000 Al/Cu (6) #2-600 Al/Cu (6) #2-600 TMPL2000RD 9 lugs per kit 6 lugs per device, 3 lugs/neutral
TMP3BT20R 2000 Al/Cu (6) #2-600 Al/Cu (6) #2-600 TMPL2000RD 9 lugs per kit 9 lugs per device, 3 lugs/neutral
Optional Lug Kit
Phase Neutral
Main Amp GE Lug Kit GE Lug GE Lug Kit
Breaker Rating Wire Size Product No. Product No. Lugs Per Kit Wire Size Product No.
TMPBB14R 1400 (6) #2-600 TMPL2000RD N/A 9 (6) #2-600 TMPL2000N
TMPBT14R 1400 (6) #2-600 TMPL2000RD N/A 9 (6) #2-600 TMPL2000N
TMP3BB14R 1400 (6) #2-600 TMPL2000RD N/A 9 (6) #2-600 TMPL2000N
TMP3BT14R 1400 (6) #2-600 TMPL2000RD N/A 9 (6) #2-600 TMPL2000N
TMPBB16R 1600 (6) #2-600 TMPL2000RD N/A 9 (6) #2-600 TMPL2000N
TMP3BB16R 1600 (6) #2-600 TMPL2000RD N/A 9 (6) #2-600 TMPL2000N
TMPBB16RST 1600 (6) #2-600 TMPL2000RD N/A 9 (6) #2-600 TMPL2000N
TMP3BB16RST 1600 (6) #2-600 TMPL2000RD N/A 9 (6) #2-600 TMPL2000N
TMPBT16R 1600 (6) #2-600 TMPL2000RD N/A 9 (6) #2-600 TMPL2000N
TMP3BT16R 1600 (6) #2-600 TMPL2000RD N/A 9 (6) #2-600 TMPL2000N
TMPBT16RST 1600 (6) #2-600 TMPL2000RD N/A 9 (6) #2-600 TMPL2000N
TMP3BT16RST 1600 (6) #2-600 TMPL2000RD N/A 9 (6) #2-600 TMPL2000N
www.geelectrical.com BuyLog®Catalog
Publications and Reference: See Section 22 for a
complete list of additional product-related publications
1-51
Residential
Modular Metering
Rev. 1/10
Prices and data subject
to change without notice
Section 1
TMPFB6R
Meter Mod III
Main Modules
Single-Phase and Three-Phase
Main Fusible Switch Single-Phase, Three-Wire 120/240 Vac
T-Fuses not included: 400-1200 amp modules accept Class T fuses (available from table on page 1-55).
Main Main Wire Size Main Wire Size Stud sets
Ampere IC Rating AWG/kcmil AWG/kcmil per Phase Compression Product List Price
Wire Entry Rating (Max) Cu/Al - Phase Cu/Al - Neutral and Neutral Lug Landing Kit2Number GO-136
Top 400 100 kAIC (1) 1/0-750 or (2) 1/0 -300 (1) 1/0-750 or (2) 1/0 -300 1 Order Separately TMPFT4R $2359.00
Top 600 100 kAIC (2) 2- 600 (2) 2- 600 1 Order Separately TMPFT6R $4185.00
Top 8002100 kAIC (4) 3/0-750 (4) 3/0-750 1 Order Separately TMPFT8R $6186.00
Top 12001100 kAIC (4) 2-500 (4) 2-500 TMPFT12R $27257.00
Bottom 400 100 kAIC (1) 1/0-750 or (2) 1/0 -300 (1) 1/0-750 or (2) 1/0 -300 1 Order Separately TMPFB4R $2359.00
Bottom 600 100 kAIC (2) 2- 600 (2) 2- 600 1 Order Separately TMPFB6R $4185.00
Bottom 8001100 kAIC (4) 3/0-750 (4) 3/0-750 1 Order Separately TMPFB8R $6186.00
Bottom 12001100 kAIC (4) 2-500 (4) 2-500 TMPFB12R $29779.00
Bottom 1200 100 kAIC (4) 2-500 (4) 2-500 TMPFB12RT3$9447.00
1Field convertible to Class L fusing, no kit required.
2Compression Lug Landing Kit, Product Number TMP3F8CLL1, List Price $182.00, GO-136.
3T-Fuse only.
Main Fusible Switch Three-Phase, Four-Wire / Single-Phase, Three-Wire 120/240 Vac, 208Y/120 Vac, 240/120 Vac
T-Fuses not included: 400-1200 amp modules accept Class T fuses (available from table on page 1-55).
Main Main Wire Size Main Wire Size Stud sets
Ampere IC Rating AWG/kcmil AWG/kcmil per Phase Compression Product List Price
Wire Entry Rating (Max) Cu/Al - Phase Cu/Al - Neutral and Neutral Lug Landing Kit2Number GO-136
Top 400 100 kAIC (1) 1/0-750 or (2) 1/0 -300 (1) 1/0-750 or (2) 1/0 -300 1 Order Separately TMP3FT4R $2637.00
Top 600 100 kAIC (2) 2- 600 (2) 2- 600 1 Order Separately TMP3FT6R $5074.00
Top 8001100 kAIC (4) 3/0-750 (4) 3/0-750 1 Order Separately TMP3FT8R $8978.00
Top 12001100 kAIC (4) 2-500 (4) 2-500 TMP3FT12R $28365.00
Top 1600 100 kAIC (5) 4-600 (5) 4-600 TMP3FT16R $29675.00
Top 2000 100 kAIC (6) 4-600 (6) 4-600 TMP3FT20R $30971.00
Bottom 400 100 kAIC (1) 1/0-750 or (2) 1/0 -300 (1) 1/0-750 or (2) 1/0 -300 1 Order Separately TMP3FB4R $2637.00
Bottom 600 100 kAIC (2) 2- 600 (2) 2- 600 1 Order Separately TMP3FB6R $5074.00
Bottom 8001, 4 100 kAIC (4) 3/0-750 (4) 3/0-750 1 Order Separately TMP3FB8R $8978.00
Bottom 12001, 4 100 kAIC (4) 2-500 or (6) 4-600 (4) 2-500 or (6) 4-600 TMP3FB12R $30971.00
Bottom 1200 100 kAIC (4) 2-500 (4) 2-500 TMP3FB12RT3$12302.00
Bottom 16006100 kAIC (8) 2-600 (8) 2-600 TMP3FB16R $32349.00
Bottom 20006100 kAIC (8) 2-600 (8) 2-600 TMP3FB20R $44358.00
Bottom 12001, 4 100 kAIC (4) 2-500 or (6) 4-600 (4) 2-500 or (6) 4-600 TMP3FB12RST5$30971.00
Bottom 16006100 kAIC (8) 2-600 (8) 2-600 TMP3FB16RST5$32349.00
Bottom 20006100 kAIC (8) 2-600 (8) 2-600 TMP3FB20RST5$44358.00
1Field convertible to Class L fusing, no kit required.
2Compression Lug Landing Kit, Product Number TMP3F8CLL1, List Price $182.00, GO-136.
3T-Fuse only.
4Either Class T or Class L Fuse.
5Product numbers ending in “ST” have shunt tripping style bolted pressure switch.
6Class L Fuse only.
—Single-Phase Mains have a neutral, A-Phase, B-Phase, and
Ground, and may be connected to Three-Phase horizontal bus
stacks. However, output is only single-phase.
—All Mains are center feed only when the main circuit breaker
rating is larger than the horizontal bus amperage rating.
www.geelectrical.com Rev. 1/10
Prices and data subject
to change without notice
BuyLog®Catalog
1-52
Residential
Modular Metering
Section 1
Meter Mod III
Main Modules
Single-Phase and Three-Phase
Factory Installed Lug Kit
Main Amp Phase Neutral GE Lug Kit Lugs
Switch Rating Wire Size Wire Size Product No. Per Kit
TMPFT4R 400 (1) 1/0-750 or (2) 1/0-300 (1) 1/0-750 or (2) 1/0-300
TMP3FT4R 400 (1) 1/0-750 or (2) 1/0-300 (1) 1/0-750 or (2) 1/0-300
TMPFT6R 600 (2) 2-600 (2) 2-600
TMP3FT6R 600 (2) 2-600 (2) 2-600
TMPFT8R 800 (4) 3/0-750 (4) 3/0-750 TMPL40 1 lug per kit, 4 holes per lug
TMP3FT8R 800 (4) 3/0-750 (4) 3/0-750 TMPL40 1 lug per kit, 4 holes per lug
TMPFT12R 1200 (4) 2-500 (4) 2-500
TMP3FT12R 1200 (4) 2-600, 2 lugs per phase (4) 2-600
TMPFB4R 400 (1) 1/0-750 or (2) 1/0-300 (1) 1/0-750 or (2) 1/0-300
TMP3FB4R 400 (1) 1/0-750 or (2) 1/0-300 (1) 1/0-750 or (2) 1/0-300
TMPFB6R 600 (2) 2-600 (2) 2-600
TMP3FB6R 600 (2) 2-600 (2) 2-600
TMP3FB8R 800 (4) 3/0-750 (4) 3/0-750 TMPL40 1 lug per kit, 4 holes per lug
TMP3FB8R 800 (4) 3/0-750 (4) 3/0-750 TMPL40 1 lug per kit, 4 holes per lug
TMPFB12R 1200 (4) 2-500 (4) 2-500
TMP3FB12R 1200 (8) 2-600, (4 lugs, 2-holes per lug)
TMPFB12RT 1200 (4) 2-600, 2 lugs per phase (4) 2-600
TMP3FB12RT 1200 (4) 2-600, 2 lugs per phase (4) 2-600
TMP3FT16R 1600 (5) 4-600 (5) 4-600
TMP3FB16R 1600 (8) 2-600 (8) 2-600
TMP3FT20R 2000 (6) 4-600 (6) 4-600
TMP3FB20R 2000 (8) 2-600 (8) 2-600
TMPFB4RCLL 400 Accepts compression lugs, 1 landings per phase
TMP3FB4RCLL 400 Accepts compression lugs, 1 landings per phase
TMPFB6RCLL 600 Accepts compression lugs, 2 landings per phase
TMP3FB6RCLL 600 Accepts compression lugs, 2 landings per phase
TMPFB8RCLL 800 Accepts compression lugs, 2 landings per phase
TMP3FB8RCLL 800 Accepts compression lugs, 2 landings per phase
TMPFB12RCLLT 1200 Accepts compression lugs, 3 landings per phase
TMP3FB12RCLLT 1200 Accepts compression lugs, 3 landings per phase
Optional Lug Kit: Phase Optional Lug Kit: Compression
Main Amp Wire GE Lug KIT Wire GE Lug Kit
Switch Rating Size Product No. Size Product No.
TMPFT4R 400 (4) 3/0-750, 4 cables per lug TMPL40 Compression TMP3F8CLL1
TMP3FT4R 400 (4) 3/0-750, 4 cables per lug TMPL40 Compression TMP3F8CLL1
TMPFT6R 600 (4) 3/0-750, 4 cables per lug TMPL40 Compression TMP3F8CLL1
TMP3FT6R 600 (4) 3/0-750, 4 cables per lug TMPL40 Compression TMP3F8CLL1
TMPFT8R 800 Not available Not available Compression TMP3F8CLL1
TMP3FT8R 800 Not available Not available Compression TMP3F8CLL1
TMPFB4R 400 (4) 3/0-750, 4 cables per lug TMPL40 Compression TMP3F8CLL1
TMP3FB4R 400 (4) 3/0-750, 4 cables per lug TMPL40 Compression TMP3F8CLL1
TMPFB6R 600 (4) 3/0-750, 4 cables per lug TMPL40 Compression TMP3F8CLL1
TMP3FB6R 600 (4) 3/0-750, 4 cables per lug TMPL40 Compression TMP3F8CLL1
TMP3FB8R 800 Not available Not available Compression TMP3F8CLL1
TMP3FB8R 800 Not available Not available Compression TMP3F8CLL1
www.geelectrical.com BuyLog®Catalog
Publications and Reference: See Section 22 for a
complete list of additional product-related publications
1-53
Residential
Modular Metering
Rev. 1/10
Prices and data subject
to change without notice
Section 1
Meter Mod III
Main Modules
Single-Phase and Three-Phase
Main Fusible Switch w/Integral Pull Box Single-Phase, Three-Wire 120/240 Vac
End or center mounting. Lugs not included. Meets EUSERC requirements. When meter stacks are to be mounted on handle side of
switch order TMPS12 spacer. All modules accept Class T fuse.
Main IC Rating Main Wire Size Main Wire Size Compression Lug Product List Price
Wire Entry Ampere Rating (Max) AWG/kcmil Cu/Al - Phase AWG/kcmil Cu/Al - Neutral Landing Kit Number GO-136
Bottom 400 100 kAIC Compression Lug Landing Kit Included Compression Lug Landing Kit Included Included TMPFB4RCLL $3320.00
(NEMA 2-Hole Spacing) (NEMA 2-Hole Spacing)
Bottom 600 100 kAIC Compression Lug Landing Kit Included Compression Lug Landing Kit Included Included TMPFB6RCLL $5405.00
(NEMA 2-Hole Spacing) (NEMA 2-Hole Spacing)
Bottom 800 100 kAIC Compression Lug Landing Kit Included Compression Lug Landing Kit Included Included TMPFB8RCLL $7409.00
(NEMA 2-Hole Spacing) (NEMA 2-Hole Spacing)
Bottom 12001100 kAIC Compression Lug Landing Kit Included Compression Lug Landing Kit Included Included TMPFB12RCLLT $8520.00
(NEMA 2-Hole Spacing) (NEMA 2-Hole Spacing)
1Center-feed only for single-phase meter modules with 800A horizontal bus rating.
Main Fusible Switch w/Integral Pull Box Three-Phase, Four-Wire / Single-Phase, Three-Wire 120/240 Vac, 208Y/120 Vac, 240/120 Vac
End or center mounting. Lugs not included. Meets EUSERC requirements. When meter stacks are to be mounted on handle side of
switch, order TMPS12 spacer. All modules accept Class T fuse.
Main IC Rating Main Wire Size Main Wire Size Compression Lug Product List Price
Wire Entry Ampere Rating (Max) AWG/kcmil Cu/Al - Phase AWG/kcmil Cu/Al - Neutral Landing Kit Number GO-136
Bottom 400 100 kAIC Compression Lug Landing Kit Included Compression Lug Landing Kit Included Included TMP3FB4RCLL $3954.00
(NEMA 2-Hole Spacing) (NEMA 2-Hole Spacing)
Bottom 600 100 kAIC Compression Lug Landing Kit Included Compression Lug Landing Kit Included Included TMP3FB6RCLL $6685.00
(NEMA 2-Hole Spacing) (NEMA 2-Hole Spacing)
Bottom 800 100 kAIC Compression Lug Landing Kit Included Compression Lug Landing Kit Included Included TMP3FB8RCLL $9155.00
(NEMA 2-Hole Spacing) (NEMA 2-Hole Spacing)
Bottom 1200 100 kAIC Compression Lug Landing Kit Included Compression Lug Landing Kit Included Included TMP3FB12RCLLT $10525.00
(NEMA 2-Hole Spacing) (NEMA 2-Hole Spacing)
Main Lug Single-Phase, Three-Wire 120/240 Vac
End or center mounting. Lugs included.
Main IC Rating2Main Wire Size Main Wire Size Stud sets per Phase Compression Lug Product List Price
Wire Entry Ampere Rating (Max) AWG/kcmil Cu/Al - Phase AWG/kcmil Cu/Al - Neutral and Neutral Landing Kit Number GO-136
Bottom / Top 400 Use 3-Phase
Bottom / Top 600 Use 3-Phase
Bottom/Top 800 100 kAIC (2) 1/0-750 or (4) 1/0 -300 (2) 1/0-750 or (4) 1/0 -300 2 Order Separately TMPL8R $853.00
Bottom/Top 1200 100 kAIC (3) 1/0-750 or (6) 1/0-300 (3) 1/0-750 or (6) 1/0 -300 3 Order Separately TMPL12R $1712.00
Bottom/Top 1600 100 kAIC (6) 250-500 (6) 250-500 3 Order Separately TMPL16R $2547.00
2Limited to the lowest marked short circuit rating of the main and meter modules used.
Main Lug Three-Phase, Four-Wire / Single-Phase, Three-Wire 120/240 Vac, 208Y/120 Vac
End or center mounting. Lugs included.
Main IC Rating2Main Wire Size Main Wire Size Stud sets per Phase Compression Lug Product List Price
Wire Entry Ampere Rating (Max) AWG/kcmil Cu/Al - Phase AWG/kcmil Cu/Al - Neutral and Neutral Landing Kit Number GO-136
Bottom/Top 400 100 kAIC (1) 6-600 or (2) 1/0-250 (1) 6-600 or (2) 1/0-250 1 Order Separately TMP3L4R $581.00
Bottom/Top 400 100 kAIC (1) 6-600 or (2) 1/0-250 (1) 6-600 or (2) 1/0-250 1 Order Separately TMP3L4RCU3$2693.33
Bottom/Top 600 100 kAIC (2) 250-500 (2) 250-500 1 Order Separately TMP3L6R $729.00
Bottom/Top 600 100 kAIC (2) 250-500 (2) 250-500 1 Order Separately TMP3L6RCU3$2760.00
Bottom/Top 800 100 kAIC (2) 1/0-750 or (4) 1/0-300 (2) 1/0-750 or (4) 1/0 -300 2 Order Separately TMP3L8R $947.00
Bottom/Top 800 100 kAIC (2) 1/0-750 or (4) 1/0-300 (2) 1/0-750 or (4) 1/0 -300 2 Order Separately TMP3L8RCU3$4186.67
Bottom/Top 1200 100 kAIC (3) 1/0-750 or (6) 1/0-300 (3) 1/0-750 or (6) 1/0 -300 2 Order Separately TMP3L12R $1910.00
Bottom/Top 1600 100 kAIC (6) 250-500 (6) 250-500 2 Order Separately TMP3L16R $3355.00
2Limited to the lowest marked short circuit rating of the main and meter modules used.
3Copper bus.
TMP3L6R
www.geelectrical.com Rev. 1/10
Prices and data subject
to change without notice
BuyLog®Catalog
1-54
Residential
Modular Metering
Section 1
Meter Mod III
Main Modules
Single-Phase and Three-Phase
Factory Installed Lug Kit
Main Lug Amp Phase Neutral GE Lug Kit Total Lugs
(Terminal Box) Rating Wire Size Wire Size Product No. Lugs Per Kit Per Device
TMP3L4R 400 (1) 2/0-600 or (2) #6-250 (1) 2/0-600 or (2) #6-250 TMMLK1(w/ instr) 1 lug/kit, 1 lug per phase, 2 hole lug
TMP3L6R 600 (2) 250-500 per lug (2) 250-500 per lug TMPAL30 1 lug per kit, 1 lug per phase
TMPL8R 800 (2) 1/0-750 or (4) 1/0-300 (2) 1/0-750 or (4) 1/0-300 TMPL750 2 lugs per phase, 3 lugs per kit
TMP3L8R 800 (2) 1/0-750 or (4) 1/0-300 (2) 1/0-750 or (4) 1/0-300 TMPL750 2 lugs per phase, 3 lugs per kit
TMPL12R 1200 (3) 1/0-750 or (6) 1/0-300 (3) 1/0-750 or (6) 1/0-300 TMPL750 3 lugs per phase, 3 lugs per kit
TMP3L12R 1200 (3) 1/0-750 or (6) 1/0-300 (3) 1/0-750 or (6) 1/0-300 TMPL750 3 lugs per phase, 3 lugs per kit
TMPL16R 1600 (6) 250-500 (6) 250-500 TMPAL30 1 lug per kit, 3 lugs per phase 9 lugs total
TMP3L16R 1600 (6) 250-500 (6) 250-500 TMPAL30 1 lug per kit, 3 lugs per phase 12 lugs total
Optional Lug Kit: Phase Optional Lug Kit: Compression
Main Lug Amp Wire GE Lug Kit Wire GE Lug Kit
(Terminal Box) Rating Size Product No. Lugs Per Kit Size Product No. Lugs Per Kit
TMP3L4R 400 (2) 250-500 per lug TMPAL30 1 lug per kit, 1 lug per phase Compression TMP3L6CLL 2 studs per phase, double stack
for up to 2 conductors per phase
TMP3L6R 600 Not available Compression TMP3L6CLL 2 studs per phase, double stack
for up to 2 conductors per phase
TMPL8R 800 (2) 250-500 TMPAL30 1 lug per kit, 1 lug per phase Compression TMP3L12CLL1 4 studs per phase, double stack
for up to 4 conductors per phase
TMP3L8R 800 (2) 250-500 TMPAL30 1 lug per kit, 1 lug per phase Compression TMP3L12CLL1 4 studs per phase, double stack
for up to 4 conductors per phase
TMPL12R 1200 (2) 250-500 TMPAL30 1 lug per kit, 1 lug per phase Compression TMP3L12CLL1 4 studs per phase, double stack
for up to 4 conductors per phase
TMP3L12R 1200 (2) 250-500 TMPAL30 1 lug per kit, 1 lug per phase Compression TMP3L12CLL1 4 studs per phase, double stack
for up to 4 conductors per phase
TMPL16R 1600 (4) 1/0-750 TMP3L16BLK 1 kit per device, 4 connector assy's
or (8) 1/0-300 w/4 lugs each (16 total lugs), 1 assy/phase Compression TMP3L16CLL1
TMP3L16R 1600 (4) 1/0-750 TMP3L16BLK 1 kit per device, 4 connector assy's
or (8) 1/0-300 w/4 lugs each (16 total lugs), 1 assy/phase Compression TMP3L16CLL1
www.geelectrical.com BuyLog®Catalog
Publications and Reference: See Section 22 for a
complete list of additional product-related publications
1-55
Residential
Modular Metering
Rev. 1/10
Prices and data subject
to change without notice
Section 1
TMPU4R
Meter Mod III
Main Modules
Single-Phase and Three-Phase
Main Pull Box Single-Phase, Three-Wire 120/240 Vac
End or center mounting. Lugs only included; cross bus not included.
Main Main Wire Size Main Wire Size Stud sets
Ampere IC Rating1AWG/kcmil AWG/kcmil per Phase Compression Lug Product List Price
Wire Entry Rating (Max) Cu/Al - Phase Cu/Al - Neutral and Neutral Landing Kit Number GO-136
Bottom/Top 400 100 kAIC (1) 1/0-750 or (1) 1/0-750 or 1 Included TMPU4R $956.00
(2) 1/0 -300 (Load) (2) 1/0 -300 (Load)
Bottom/Top 800 100 kAIC (2) 1/0-750 or (2) 1/0-750 or 2 Included TMPU8R $1227.00
(4) 1/0 -300 (Load) (4) 1/0 -300 (Load)
Bottom/Top 12002100 kAIC (4) 2-600 (Load) (4) 2-600 (Load) 3 Included TMPU12R $1612.00
1Limited to the lowest marked short circuit rating of the main and meter modules used.
2Center-feed only for single-phase meter modules with 800A horizontal bus rating.
Main Pull Box Three-Phase, Four-Wire / Single-Phase, Three-Wire 120/240 Vac, 208Y/120 Vac, 240/120 Vac
End or center mounting. Lugs only included; cross bus not included.
Main Main Wire Size Main Wire Size Stud sets
Ampere IC Rating1AWG/kcmil AWG/kcmil per Phase Compression Lug Product List Price
Wire Entry Rating (Max) Cu/Al - Phase Cu/Al - NeutraL and Neutral Landing Kit Number GO-136
Bottom/Top 400 100 kAIC (1) 1/0-750 or (1) 1/0-750 or 1 Included TMP3U4R $1317.00
(2) 1/0 -300 (Load) (2) 1/0 -300 (Load)
Bottom/Top 800 100 kAIC (2) 1/0-750 or (2) 1/0-750 or 2 Included TMP3U8R $1612.00
(4) 1/0 -300 (Load) (4) 1/0 -300 (Load)
Bottom/Top 1200 100 kAIC (4) 2-600 (Load) (4) 2-600 (Load) 3 Included TMP3U12R $2000.00
1Limited to the lowest marked short circuit rating of the main and meter modules used.
Class T Fuses
Product List Price
Frame Size Ampere Rating Number GO-136
400 250 TFUSE250 $90.00
400 300 TFUSE300 $90.00
400 350 TFUSE350 $90.00
400 400 TFUSE400 $90.00
600 500 TFUSE500 $118.00
600 600 TFUSE600 $118.00
800 800 TFUSE800 $368.00
1200 1200 A3T1200 $293.003
3GO-131F.
Lug and Neutral Kits
Product List Price
Description Number GO-136
Accepts (4) 3/0-750 mcm for use with 400 and 600 amp switch TMPL40 $124.00
(2) 250-500 mcm for use with 800 and 1200 amp main lug TMPAL30 $124.00
Neutral Kit, for 1600A and 2000A Main Breaker TMBP2000N $1818.00
Lug Kit, for 1200A Main Lug device (3) 1/0-750 or (6) 1/0-300 TMP3L12BLK $1000.00
Lug Kit, for 1600A main lug device, (8) 1/0-300 or (4)2-750 mcm TMP3L16BLK $1240.00
Crimp Lug Pad Kit(4) 1600A Main Lug TMP3L16CLL1 $964.00
Alternate Lug Kit for 1400A and 1600A Main Breaker TMPL2000RD $5313.00
1Single lug but can put up to 2 lugs per phase on main.
Factory Installed Lug Kit
Phase Neutral
Main Amp Wire GE Lug Kit
Pull Box Rating Description Size Product No. Lugs Per Kit
TMPU4R 400 (1) 1/0-750 or (1) 1/0-750 or 1 lug per phase,
(2) 1/0-300 (Load) (2) 1/0-300 (Load) TMPL750 3 lugs per kit
TMP3U4R 400 (1) 1/0-750 or (1) 1/0-750 or 1 lug per phase,
(2) 1/0-300 (Load) (2) 1/0-300 (Load) TMPL750 3 lugs per kit
TMPU8R 800 (2) 1/0-750 or (2) 1/0-750 or 2 lugs per phase,
(4) 1/0-300 (Load) (4) 1/0-300 (Load) TMPL750 3 lugs per kit
TMP3U8R 800 (2) 1/0-750 or (2) 1/0-750 or 2 lugs per phase,
(4) 1/0-300 (Load) (4) 1/0-300 (Load) TMPL750 3 lugs per kit
TMPU12R 1200 (4) 2-600 (load) (4) 2-600 (load)
TMP3U12R 1200 (4) 2-600 (load) (4) 2-600 (load)
www.geelectrical.com Rev. 1/10
Prices and data subject
to change without notice
BuyLog®Catalog
1-56
Residential
Modular Metering
Section 1
Ring Type Socket
Product List Price
Socket Amps No. of Sockets Number GO-136A
125A 2 TMP8212R $816.00
125A 3 TMP8312R $911.00
125A 4 TMP8412R $1137.00
125A 5 TMP8512R $1430.00
125A 6 TMP8612R $1636.00
200A 2 TMP8220R $1473.00
200A 3 TMP8320R $1756.00
200A 4 TMP8420R $2316.00
200A 5 TMP8520R $5054.00
200A 5 TMP8520RBUS $5054.00
One snap-type, aluminum sealing ring (TSR5) per socket included.
Ringless Type Socket (Includes 5th Jaw Standard)1
Product List Price
Socket Amps No. of Sockets Number GO-136A
125A 2 TMPR8212R $959.00
125A 3 TMPR8312R $1126.00
125A 4 TMPR8412R $1424.00
125A 5 TMPR8512R $1721.00
125A 6 TMPR8612R $2065.00
200A 2 TMPR8220R $1799.00
200A 3 TMPR8320R $2045.00
200A 4 TMPR8420R $2777.00
200A 5 TMPR8520R $5054.00
200A 5 TMPR8520RBUS $5028.00
200A 5 TMPR8520RHB2$5420.00
200A 5 TMPR8520RHBBUS2$5420.00
Product Features
—UL listed
—1200 amp, 4-wire cross bus (aluminum)
—Ring-type and Ringless Sockets
—Front Accessible Field Phase Balancing by Meter Module
—(1) 14-4 Equipment Ground per Socket, Factory Installed
Ring-Type Socket
Product List Price
Socket Amps No. of Sockets Number GO-136A
125A 2 TMP12212R $1456.00
125A 3 TMP12312R $1668.00
125A 4 TMP12412R $1932.00
125A 5 TMP12512R $2250.00
125A 6 TMP12612R $2846.00
200A 2 TMP12220R $2541.00
200A 3 TMP12320R $2924.00
200A 4 TMP12420R $3930.00
200A 5 TMP12520R $6975.00
200A 5 TMP12520BUS $7325.00
Ringless Type Socket (Includes 5th Jaw Standard)1
Product List Price
Socket Amps No. of Sockets Number GO-136A
125A 2 TMPR12212R $1628.00
125A 3 TMPR12312R $1760.00
125A 4 TMPR12412R $1945.00
125A 5 TMPR12512R $2315.00
125A 6 TMPR12612R $2991.00
125A 2 TMPR12212RHB $1760.00
125A 3 TMPR12312RHB $1932.00
125A 4 TMPR12412RHB $2263.00
125A 5 TMPR12512RHB $2739.00
125A 6 TMPR12612RHB $3203.00
200A 2 TMPR12220R $2554.00
200A 3 TMPR12320R $2884.00
200A 4 TMPR12420R $3865.00
200A 5 TMPR12520R $6975.00
200A 5 TMPR12520RHB $8230.00
200A 5 TMPR12520RBUS $7325.00
200A 5 TMPR12520RBBUS $8447.00
200A 2 TMPR12220RHB $2792.00
200A 3 TMPR12320RHB $3176.00
200A 4 TMPR12420RHB $4262.00
Ring Type Socket Factory Phase Balanced (w/Copper Bus)
Product List Price
Socket Amps No. of Sockets Number GO-136B
125A 2 TMP8212RAB $4027.00
125A 2 TMP8212RAC $4027.00
125A 2 TMP8212RBC $4027.00
125A 3 TMP8312RAB $4507.00
125A 3 TMP8312RAC $4507.00
125A 3 TMP8312RBC $4507.00
125A 4 TMP8412RAB $4667.00
125A 4 TMP8412RAC $4667.00
125A 4 TMP8412RBC $4667.00
Tenant Main Circuit Breakers 10,000 AIC
Product List Price
Socket Amps Ampere Rating Number GO-138A
125 60 THQL2160 $47.75
125 70 THQL2170 $95.00
125 80 THQL2180 $131.00
125 90 THQL2190 $131.00
125 100 THQL21100 $131.00
125 110 THQL21110 $284.00
125 125 THQL21125 $284.00
125 125 TMQL21125SF3$54.25
200 100 TQD22100 $233.00
200 125 TQD22125 $233.00
200 150 TQD22150 $233.00
200 175 TQD22175 $233.00
200 200 TQD22200 $233.00
200 225 Use TMQD
Tenant Main Circuit Breakers 22,000 AIC
Product List Price
Socket Amps Ampere Rating Number GO-138A
125 60 THHQL2160 $97.00
125 70 THHQL2170 $148.00
125 80 THHQL2180 $210.00
125 90 THHQL2190 $210.00
125 100 THHQL21100 $210.00
125 110 THHQL21110 $686.00
125 125 THHQL21125 $686.00
200 100 THQD22100 $552.00
200 125 THQD22125 $552.00
200 150 THQD22150 $552.00
200 175 THQD22175 $552.00
200 200 THQD22200 $552.00
200 225 Use TMQD
Tenant Main Circuit Breakers 42,000 AIC
Product List Price
Socket Amps Ampere Rating Number GO-138A
125 60 TMQL2160 $129.00
125 70 TMQL2170 $174.00
125 80 TMQL2180 $248.00
125 90 TMQL2190 $248.00
125 100 TMQL21100 $248.00
125 125 TMQL21125 $964.00
Tenant Main Circuit Breakers 100,000 AIC
Product List Price
Socket Amps Ampere Rating Number GO-135F
200 60 TMQD22060 $579.00
200 70 TMQD22070 $579.00
200 80 TMQD22080 $579.00
200 90 TMQD22090 $579.00
200 100 TMQD22100 $579.00
200 125 TMQD22125 $579.00
200 150 TMQD22150 $579.00
200 175 TMQD22175 $579.00
200 200 TMQD22200 $579.00
200 225 TMQD22225 $579.00
1Available with factory installed horn-type by-pass. Add HB suffix to Product
Number. Includes factory installed fifth jaw.
2Includes horn by-pass.
3Sub-feed lug, no overcurrent protection.
Meter Mod III
Meter Stack Modules
Single-Phase
Plus Accessories
Product Features
—UL listed
—800 amp, 4-wire cross bus (aluminum), except where noted below.
—Ring-type and Ringless Sockets
—Front Accessible Field Phase Balancing by Meter Module
—(1) 14-4 Equipment Ground per Socket, Factory Installed TMP8512R/TMPR8220R
www.geelectrical.com BuyLog®Catalog
Publications and Reference: See Section 22 for a
complete list of additional product-related publications
1-57
Residential
Modular Metering
Rev. 1/10
Prices and data subject
to change without notice
Section 1
Accessories — Field Installed
Product List Price
Type Description Number GO-136
By-pass Kit Jumper Strap Type TMBPJ201,3 $30.50
By-pass Kit Cover including Jumper TMBPC201$38.75
Strap Type
By-pass Kit Horn Type TMBPH20A3$54.25
By-pass Kit Manual Slider Type TMBPM12TA2$121.00
By-pass Kit Manual Slider Type TMBPM12A2$113.00
By-pass Kit Manual Slider Type TMBPM20A2$113.00
By-pass Kit Jumper Strap Type TMBPJ20 $30.50
Fifth Jaw Kit, Bused TM5JA $14.25
Fifth Jaw Kit, Isolated TM5JUA $14.25
Sealing Ring, TSR1 $13.50
Screw Type, SS
Sealing Ring, TSR3 $13.50
Snap Type, SS
Sealing Ring, Screw TSR4 $13.50
& Lock Type, AL
Sealing Ring, TSR5 $10.004
Snap Type, AL
Meter Socket TMCB12B $34.75
Cover, 125A
Meter Socket TMCB20B $41.25
Cover, 200A
Meter Socket Cover, 125A TMCR12T $110.00
Ringless
Meter Socket Cover, 125A TMCR12 $104.00
Ringless
Meter Socket Cover, 200A TMCR20 $113.00
Ringless
Meter Socket Cover TMCA $9.75
Plate without Tabs
Meter Socket TMCP $9.25
Cover Plate
Equipment TMEG $16.50
Ground Bar
Individual TMBR $16.50
Meter Socket
Barrier Kit (Includes 6)
Mounting Z Rail TMZR $38.75
Spacer 4-inch, TMPS12 $471.00
4 cross bus rated 1200A
Elbow 16 inch x 16 inch, TMPE125$1047.00
4 cross bus rated 1200A
Elbow 12 inch x 12 inch, TMPE12A5$926.00
4 cross bus rated 1200A
Main Module Door Barrier Kit, Bottom TMP3FBB $700.00
Closure Kit Feed Main
Anti-Inversion Clip TMIC $119.00
Endwall TM234BEW200 $98.00
Endwall TM56BEW200 $116.00
Replacement Rating Plugs
Main Breaker Rating Plug Product List Price
Amperage Amperage Number GO-136
1600A 800A TMP16RP08T $875.00
1600A 1000A TMP16RP10T $875.00
1600A 1200A TMP16RP12T $875.00
1600A 1250A TMP16RP125T $875.00
1600A 1400A TMP16RP14T $875.00
1600A 1500A TMP16RP15T $875.00
1600A 1600A TMP16RP16T $875.00
2000A 1000A TMP20RP10T $875.00
2000A 1200A TMP20RP12T $875.00
2000A 1250A TMP20RP125T $875.00
2000A 1400A TMP20RP14T $875.00
2000A 1600A TMP20RP16T $875.00
2000A 2000A TMP20RP20T $875.00
1Not UL listed. 4GO-148E.
2200 amps continuous. 5Indoor Type 1.
3100 amps continuous.
Meter Mod III
Meter Stack Modules
Single-Phase
Plus Accessories
TMBPJ20 TMBPM12TA
TSR1 TSR3
TMCB12B TMCR12
TMCR12T TMCP
TMBR
TMZR
www.geelectrical.com Rev. 1/10
Prices and data subject
to change without notice
BuyLog®Catalog
1-58
Residential
Modular Metering
Section 1
TMPR12122R
Ringless Type Socket w/ Lever Bypass
Product List Price
Socket Amps No. of Sockets Number GO-136A
225A 1 TMPR12122R1$1612.00
225A 2 TMPR12222R1$3012.00
225A 3 TMPR12322R1$4495.00
225A 4 TMPR12422R1$5990.00
400A 1 TMPR12140RB1,2, 11 $6171.00
400A 2 TMPR12240RB1,3, 11 $8595.00
400A 1 TMPK1214RB1$6171.00
400A 1 TMPK12140RBA1$8595.00
Ring Type Socket
Product List Price
Socket Amps No. of Sockets Number GO-136A
225A 1 TMP8120RTAB4,5 $1670.00
225A 1 TMP8120RTBC4,5 $1670.00
225A 1 TMP8120RTAC4,5 $1670.00
225A 2 TMP112220RTAB4,5 $3850.00
225A 2 TMP112220RTAC4,5 $3850.00
225A 2 TMP112220RTBC4,5 $3850.00
225A 3 TMP112320RTAB4,5 $5795.00
225A 3 TMP112320RTAC4,5 $5795.00
225A 3 TMP112320RTBC4,5 $5795.00
One snap-type, aluminum sealing ring (TSR5) per socket included.
Tenant Main Circuit Breakers 10,000 AIC
Product List Price
Socket Amps Ampere Rating Number GO-135F
225 15 TEB1220156,7 $159.00
225 20 TEB1220206,7 $159.00
225 25 TEB1220256,7 $159.00
225 39 TEB1220306,7 $159.00
225 35 TEB1220356,7 $159.00
225 40 TEB1220406,7 $159.00
225 45 TEB1220456,7 $159.00
225 50 TEB1220506,7 $159.00
225 60 TEB1220606,7 $159.00
225 70 TEB1220706,7 $261.00
225 80 TEB1220806,7 $261.00
225 90 TEB1220906,7 $261.00
225 100 TQD22100 $233.00
225 125 TQD22125 $233.00
225 150 TQD22150 $233.00
225 175 TQD22175 $233.00
225 200 TQD22200 $233.00
225 225 Use TMQD
Tenant Main Circuit Breakers 22,000 AIC
Product List Price
Socket Amps Ampere Rating Number GO-135F
200 100 THQD22100 $552.00
200 125 THQD22125 $552.00
200 150 THQD22150 $552.00
200 175 THQD22175 $552.00
200 200 THQD22200 $552.00
200 225 Use TMQD
Meter Mod III
Meter Stack Modules
Single-Phase
Plus Accessories
Product Features
—Single-Phase/Three-Wire, 120/240 Vac or Three-Phase,
Four-Wire, Horizontal Bus, 208Y/120 Vac System Voltage
—UL listed
—1200 amp, 4-wire cross bus (copper)
—Front Accessible Field Phase Balancing by Meter Socket
—(1) 14-2 Equipment Ground per Socket, Factory Installed
—Only 225A and 400 Ringless Type meter stacks, contain lever
bypass. 125A and 200A meter sockets do not contain lever
bypass
Tenant Main Circuit Breakers 100,000 AIC
Product List Price
Socket Amps Ampere Rating Number GO-135F
200 60 TMQD22060 $579.00
200 70 TMQD22070 $579.00
200 80 TMQD22080 $579.00
200 90 TMQD22090 $579.00
200 100 TMQD22100 $579.00
200 125 TMQD22125 $579.00
200 150 TMQD22150 $579.00
200 175 TMQD22175 $579.00
200 200 TMQD22200 $579.00
200 225 TMQD22225 $579.00
Accessories — Field Installed
Product List Price
Type Description Number GO-136
TEB Breaker TMTEB $30.50
Mounting Kit
Barrel Lock Bracket TMBL8$41.25
and Guard Kit
Bypass Kit Totalizing Jumper Type TMBPT3208,9 $99.00
Blank Meter
Socket Cover Fits all positions TMCB322A $135.00
Individual Meter TMBR3 $34.75
Socket Barrier Kit (Includes 6)
Insulator for Lever TMHN $20.75
By-pass Handle
Mounting Z Rail 4-foot TMZR $38.75
Spacer 4 inch, TMPS12 $471.00
4 cross bus rated, 1200A
Elbow 16 inch x 16 inch, TMPE1210 $1047.00
4 cross bus rated 1200A
Elbow 12 inch x 12 inch, TMPE12A10 $926.00
4 cross bus rated 1200A
1Only 225A and 400A are lever bypass.
2One 400A tenant breaker included.
3Two 400A tenant breakers included.
4Meets EUSERC requirements. T- suffix signifies test bypass kit. Suffixes AB, BC, AC
reflect the factory-set phase balancing.
5Included factory-installed fifth jaw (TM5JA Bused).
6Requires one TMTEB per breaker.
7GO-135B.
8Not UL listed.
9180 amps continuous.
10Indoor, Type 1.
11See Page 1-49 for alternate 400A Rating Plugs
www.geelectrical.com BuyLog®Catalog
Publications and Reference: See Section 22 for a
complete list of additional product-related publications
1-59
Residential
Modular Metering
Rev. 1/10
Prices and data subject
to change without notice
Section 1
Ringless Type Socket w/Lever Bypass
Product List Price
Socket Amps No. of Sockets Number GO-136B
225A 1 TMPR312122R $1800.00
225A 2 TMPR312222R $3345.00
225A 3 TMPR312322R $5019.00
225A 4 TMPR312422R $6693.00
400A 1 TMPR312140TR1$2927.00
400A 1 TMPR312140RB2$6171.00
400A 2 TMPR312240RB3$9408.00
400A 1 TMPK312140RB $18679.00
400A 1 TMPK312140RBA $22912.90
Ring Type Socket
Product List Price
Socket Amps No. of Sockets Number GO-136B
200A 1 TMP38120RT4$1877.00
200 A 2 TMP312220RT4$4250.00
200A 3 TMP312320RT4$6350.00
Tenant Main Circuit Breakers 10,000 AIC
Product List Price
Socket Amps Ampere Rating Number GO-135F
225/400/200 15 TEB1320155,6 $240.00
225/400/200 20 TEB1320205,6 $240.00
225/400/200 25 TEB1320255,6 $240.00
225/400/200 39 TEB1320305,6 $240.00
225/400/200 35 TEB1320355,6 $240.00
225/400/200 40 TEB1320405,6 $240.00
225/400/200 45 TEB1320455,6 $240.00
225/400/200 50 TEB1320505,6 $240.00
225/400/200 60 TEB1320605,6 $240.00
225/400/200 70 TEB1320705,6 $339.00
225/400/200 80 TEB1320805,6 $339.00
225/400/200 90 TEB1320905,6 $339.00
225/400/200 100 TEB1321005,6 $339.00
225/400/200 125 TQD32125 $617.00
225/400/200 150 TQD32150 $617.00
225/400/200 175 TQD32175 $617.00
225/400/200 200 TQD32200 $617.00
225/400/200 225 Use TMQD
Tenant Main Circuit Breakers 22,000 AIC
Product List Price
Socket Amps Ampere Rating Number GO-135F
225/400/200 100 THQD32100 $883.00
225/400/200 125 THQD32125 $883.00
225/400/200 150 THQD32150 $883.00
225/400/200 175 THQD32175 $883.00
225/400/200 200 THQD32200 $883.00
225/400/200 225 Use TMQD
Tenant Main Circuit Breakers 100,000 AIC
Product List Price
Socket Amps Ampere Rating Number GO-135F
225/400/200 60 TMQD32060 $879.00
225/400/200 70 TMQD32070 $879.00
225/400/200 80 TMQD32080 $879.00
225/400/200 90 TMQD32090 $879.00
225/400/200 100 TMQD32100 $879.00
225/400/200 125 TMQD32125 $1193.00
225/400/200 150 TMQD32150 $1193.00
225/400/200 175 TMQD32175 $1193.00
225/400/200 200 TMQD32200 $1193.00
225/400/200 225 TMQD32225 $1193.00
Accessories — Field Installed
Product List Price
Type Description Number GO-136
TEB Breaker TMTEB $30.50
Mounting Kit
Barrel Lock Bracket TMBL7$41.25
and Guard Kit
Bypass Kit Totalizing Jumper Type TMBPT3207,8 $99.00
Replacement TMPJ317$49.50
Phase Balancing
Jumper Kit
Blank Meter
Socket Cover Fits all positions TMCB322A $135.00
Individual Meter TMBR3 $34.75
Socket Barrier Kit (Includes 6)
Insulator for Lever TMHN $20.75
By-pass Handle
Mounting Z Rail 4-foot TMZR $38.75
Spacer 4 inch, TMPS12 $471.00
4 cross bus rated, 1200A
Elbow 16 inch x 16 inch, TMPE129$1047.00
4 cross bus rated 1200A
Elbow 12 inch x 12 inch, TMPE12A9$926.00
4 cross bus rated 1200A
1Requires two tenant main breakers, 400 amp maximum sum of branch ratings.
Cannot be used to serve a single 400A load.
2400 Amp tenant breaker included, 65 kAIC.
3Two 400 Amp tenant breakers included.
4Meets EUSERC requirements. “T” suffix indicates EUSERC test bypass kit included.
5Requires one TMTEB per breaker.
6GO-135B.
7Not UL listed.
8180 amps continuous.
9Indoor, Type 1, for inside corners only.
Meter Mod III
Meter Stack Modules
Three-Phase
Plus Accessories
Product Features
—Three-Phase/Four-Wire, 240-120 Vac; Three-Phase/Four-Wire,
208Y/120 Vac
—UL listed
—1200 amp, 4-wire cross bus (copper)
—Front Accessible Field Phase Balancing by Meter Socket
—(1) 14-2 Equipment Ground per Socket, Factory Installed
—Swingaway Mounting Feet Factory Installed
—Only 225A and 400A sockets, Ringless Type, contain lever
bypass. 125A + 200A meter sockets do not contain lever bypass.
TMPR312140RB
www.geelectrical.com Rev. 1/10
Prices and data subject
to change without notice
BuyLog®Catalog
1-60
Residential
Modular Metering
Section 1
Phase Balancing
All three-phase meter stack modules come fac-
tory connected to phase A and B, per Figure A.
When connected to a 208Y/120 Vac 3-phase, 4-
wire system, field phase balancing of two out of
every three stacks is required. One of every
three stacks should be phased AC, per Figure B,
and one of every three stacks should be phased
CB, per Figure C.
Examples:
—9 Total Positions—use (3) 3-position stacks and
phase one per Figure B (A-C phasing) and one
per Figure C (C-B) phasing.
—16 Total Positions—use (2) 5-position and (2) 3-
position stacks. Phase balance (1) 5-position
per figure B (A-C phasing) and (1) 5-position
per Figure C (C-B phasing).
—19 Total Positions—where 4 position maximum
height is allowed by utility, use (1) 4-position
and (5) 3-position stacks. Phase balance (2) 3-
position stacks per Figure B (A-C phasing) and
(2) e-position stacks per Figure C (C-B) phasing.
"Barrel" Shaped
Phase
Connector
Connector
"Z" Shaped
Phase
“Z” Shaped and “Barrel Shaped Phase
Connectors
A
C
B
N
A
C
B
N
A
B
FACTORY 125A A-B PHASING
125A STACKS 200A STACKS
FACTORY 200A A-B PHASING
A
C
B
N
A
C
B
N
A
B
"Barrel" Shaped
Phase Connector
"Z" Shaped
Phase Connector
"Z" Shaped
Phase Connector
"Barrel" Shaped
Phase Connector
Figure A
A
C
B
C
N
A
A
C
B
N
FIELD 125A A-C PHASING
FACTORY 200A A-C PHASING
A
C
B
N
A
C
B
N
A
C
Remove "Z" Phase Connector from "B" Phase
Horizontal Bus
Reattached at "C" Phase Horizontal Bus as Shown.
Torque to 60 lb-in (6.78 N-M)
Remove "Z" Phase Connector from "B" Phase
Horizontal Bus
Replace with "Barrel" Phase Connector supplied
with meter stack and attach to "C" Phase Bus
as shown.
Torque to 60 lb-in (6.78 N-M)
Retain "Z" Phase Connector for future use.
"Barrel" Shaped
Phase Connector
"Barrel" Shaped
Phase Connector
"Barrel" Shaped
Phase Connector
"Z" Shaped
Phase Connector
Figure B
A
C
B
B
N
C
A
C
B
N
FIELD 125A C-B PHASING
FACTORY 200A C-B PHASING
A
C
B
N
A
C
B
N
CB
Remove "Barrel" Phase Connector from "A" Phase
Horizontal Bus
Reattached at "C" Phase Horizontal Bus as shown.
Torque to 60 lb-in (6.78 N-M)
Remove "Barrel" Phase Connector from "A" Phase
Horizontal Bus
Reattached at "C" Phase Horizontal Bus as shown.
Torque to 60 lb-in (6.78 N-M)
"Z" Shaped
Phase Connector
"Barrel" Shaped
Phase Connector
"Z" Shaped
Phase Connector
"Barrel" Shaped
Phase Connector
Figure C
www.geelectrical.com BuyLog®Catalog
Publications and Reference: See Section 22 for a
complete list of additional product-related publications
1-61
Residential
Modular Metering
Rev. 1/10
Prices and data subject
to change without notice
Section 1
Dimensions
Product Figure Width Height Depth Section A Section B
Number No.1(in inches) (in inches) (in inches) (in inches) (in inches)
TMM2212R 1 11.625 34.325 5.5 18 9
TMMR2212R 1 11.625 34.325 5.5 18 9
TMM4312R 3 24.25 48.25 7 12.5 9
TMMR4312R 3 24.25 48.25 7 12.5 9
TMM4412R 3 24.25 48.25 7 12.5 9
TMMR4412R 3 24.25 48.25 7 12.5 9
TMM6512R 2 36.25 41.5 7 12.5 9
TMMR6512R 2 36.25 41.5 7 12.5 9
TMM6612R 2 36.25 41.5 7 12.5 9
TMMR6612R 2 36.25 41.5 7 12.5 9
TMM4220R 5 25.5 38 6.625 14.75 12.625
TMMR4220R 5 25.5 38 6.625 14.75 12.625
TMM6320R 5 25.5 61 6.625 14.75 12.625
TMMR6320R 5 25.5 61 6.625 14.75 12.625
TMM6420R 5 25.5 61 6.625 14.75 12.625
TMMR6420R 5 25.5 61 6.625 14.75 12.625
TMM6520R 4 38.825 48.75 6.625 14.75 12.625
TMMR6520R 4 38.825 48.75 6.625 14.75 12.625
TMM6620R 4 38.825 48.75 6.625 14.75 12.625
TMMR6620R 4 38.825 48.75 6.625 14.75 12.625
1Figures 2, 3, 4 and 5 have removable drip hood and open end wall.
Mini Mod III
Enclosure Knockout Dimensions
Symbol •ABCDEFGHIJKL
1⁄21⁄2–––––––––––
–3⁄4–––––––––––
–111–1–––––––
Conduit – – 11⁄411⁄411⁄411⁄4–––––––
Size – – 11⁄211⁄211⁄211⁄211⁄211⁄2–––––
in –––222222––––
Inches – – – – – 21⁄221⁄221⁄221⁄221⁄2–––
–––––––3333––
––––––––3
1⁄231⁄231⁄2––
–––––––––444–
––––––––––––5
Knockouts
Figure 1
Figure 3
Figure 2
Figure 4 Figure 5
Dimensions
Section A Section B
Description Product Number Figure No.1Width (in inches) Height (in inches) Depth (in inches) (in inches) (in inches)
Single-Phase, Three-Wire 125 A TMP8212R 1 12.25 41.75 6.625 12.625 9
Single-Phase, Three-Wire 125 A TMPR8212R 1 12.25 41.75 6.625 12.625 9
Single-Phase, Three-Wire 125 A TMP8312R 1 12.25 41.75 6.625 12.625 9
Single-Phase, Three-Wire 125 A TMPR8312R 1 12.25 41.75 6.625 12.625 9
Single-Phase, Three-Wire 125 A TMP8412R 1 12.25 48.5 6.625 12.625 9
Single-Phase, Three-Wire 125 A TMPR8412R 1 12.25 48.5 6.625 12.625 9
Single-Phase, Three-Wire 125 A TMP8512R 1 12.25 57.5 6.625 12.625 9
Single-Phase, Three-Wire 125 A TMPR8512R 1 12.25 57.5 6.625 12.625 9
Single-Phase, Three-Wire 125 A TMP8612R 1 12.25 66.5 6.625 12.625 9
Single-Phase, Three-Wire 125 A TMPR8612R 1 12.25 66.5 6.625 12.625 9
Single-Phase, Three-Wire 200 A TMP8220R 2 13.375 48.875 6.625 14.875 12.5
Single-Phase, Three-Wire 200 A TMPR8220R 2 13.375 48.875 6.625 14.875 12.5
Single-Phase, Three-Wire 200 A TMP8320R 2 13.375 48.875 6.625 14.875 12.5
Single-Phase, Three-Wire 200 A TMPR8320R 2 13.375 48.875 6.625 14.875 12.5
Single-Phase, Three-Wire 200 A TMP8420R 2 13.375 61 6.625 14.875 12.5
Single-Phase, Three-Wire 200 A TMPR8420R 2 13.375 61 6.625 14.875 12.5
Single-Phase, Three-Wire 225 A TMPR12122R 3 18 25.375 8.75 13 –
Single-Phase, Three-Wire 225 A TMPR12222R 3 18 52.625 8.75 27 14
Single-Phase, Three-Wire 225 A TMPR12322R 3 18 52.625 8.75 13 14
Single-Phase, Three-Wire 225 A TMPR12422R 3 18 66.625 8.75 13 14
Single-Phase, Three-Wire 225 A TMP8120RTAB 12 21.375 25 8.75 – –
Single-Phase, Three-Wire 225 A TMP8120RTAC 12 21.375 25 8.75 – –
Single-Phase, Three-Wire 225 A TMP8120RTBC 12 21.375 25 8.75 – –
Single-Phase, Three-Wire 400 A TMPR12140RB 3 18 52.625 8.75 27 –
Three-Phase, Four-Wire 225 A TMPR312122R 3 18 25.375 8.75 13 –
Three-Phase, Four-Wire 400 A TMPR312140TR 3 18 52.625 8.75 41 –
Three-Phase, Four-Wire 225 A TMPR312222R 3 18 52.625 8.75 27 14
Three-Phase, Four-Wire 225 A TMPR312322R 3 18 52.625 8.75 13 14
Three-Phase, Four-Wire 225 A TMPR312422R 3 19 66.625 8.75 13 14
Three-Phase, Four-Wire 200 A TMP312220RT 3 21.38 43.00 8.75 27 14
Three-Phase, Four-Wire 200 A TMP312320RT 3 21.38 62.44 8.75 13 14
Three-Phase, Four-Wire 400 A TMPR312140RB 3 18 52.625 8.75 27
Main Breaker Modules TMPSB4R 4 20 47.625 11.75 – –
Main Breaker Modules TMP3SB4R 4 20 47.625 11.75 – –
Main Breaker Modules TMPSB6R 4 20 47.625 11.75 – –
Main Breaker Modules TMP3SB6R 4 20 47.625 11.75 – –
Main Breaker Modules TMPSB8R 4 20 47.625 11.75 – –
Main Breaker Modules TMP3SB8R 4 20 47.625 11.75 – –
Main Breaker Modules TMPSB10R 4 20 47.625 11.75 – –
Main Breaker Modules TMP3SB10R 4 20 47.625 11.75 – –
Main Breaker Modules TMPSB12R 4 20 47.625 11.75 – –
Main Breaker Modules TMP3SB12R 4 20 47.625 11.75 – –
Main Breaker Modules TMPSHB4R 4 20 47.625 11.75 – –
Main Breaker Modules TMP3SHB4R 4 20 47.625 11.75 – –
Main Breaker Modules TMPSHB6R 4 20 47.625 11.75 – –
Main Breaker Modules TMP3SHB6R 4 20 47.625 11.75 – –
Main Switch Modules TMPFT4R 4 20 47.625 11.75 – –
Main Switch Modules TMP3FT4R 4 20 47.625 11.75 – –
Main Switch Modules TMPFT6R 4 20 47.625 11.75 – –
Main Switch Modules TMP3FT6R 4 20 47.625 11.75 – –
Main Switch Modules TMPFT8R 4 20 47.625 11.75 – –
Main Switch Modules TMP3FT8R 4 20 47.625 11.75 – –
Main Switch Modules TMPFB4R 4 20 66.5 6.625 – –
Main Switch Modules TMP3FB4R 4 20 66.5 6.625 – –
Main Switch Modules TMPFB6R 4 20 66.5 6.625 – –
Main Switch Modules TMP3FB6R 4 20 66.5 6.625 – –
Main Switch Modules TMPFB8R 4 20 66.5 6.625 – –
Main Switch Modules TMP3FB8R 4 20 66.5 6.625 – –
Main Switch Modules TMPFB12R 10 36.5 66.5 19.5 – –
Main Switch Modules TMPFT12R 10 36.5 66.5 19.5 – –
Main Switch Modules TMP3FB12R 10 36.5 66.5 19.5 – –
Main Switch Modules TMP3FT12R 10 36.5 66.5 19.5 – –
Main Switch Modules TMP3FB16R 10 36.5 66.5 19.5 – –
Main Switch Modules TMP3FT16R 10 36.5 66.5 19.5 – –
Main Switch Modules TMP3FB20R 10 36.5 66.5 19.5 – –
Main Switch Modules TMP3FT20R 10 36.5 66.5 19.5 – –
Main Switch Modules TMPFB4RCLL 4 20 61 11.75 – –
Main Switch Modules TMPFB6RCLL 4 20 61 11.75 – –
Main Switch Modules TMPFB8RCLL 4 20 61 11.75 – –
1Figures referenced are on pages 1-63 and 1-64. Figures 1 through 8 have a removable top drip hood. Figure 4 has a removable top drip hood and open end wall.
This table continued on next page.
Meter Mod III
Enclosure Knockout Dimensions
www.geelectrical.com Rev. 1/10
Prices and data subject
to change without notice
BuyLog®Catalog
1-62
Residential
Modular Metering
Section 1
www.geelectrical.com BuyLog®Catalog
Publications and Reference: See Section 22 for a
complete list of additional product-related publications
1-63
Residential
Modular Metering
Rev. 1/10
Prices and data subject
to change without notice
Section 1
Meter Mod III
Enclosure Knockout Dimensions
Dimensions
Section A Section B
Description Product Number Figure No.1Width (in inches) Height (in inches) Depth (in inches) (in inches) (in inches)
Main Switch Modules TMPFB12RCLLT 4 33.5 61 11.75 – –
Main Switch Modules TMP3FB4RCLL 4 20 61 11.75 – –
Main Switch Modules TMP3FB6RCLL 4 25.38 61 11.75 – –
Main Switch Modules TMP3FB8RCLL 4 25.38 61 11.75 – –
Main Switch Modules TMP3FB12RCLLT 33.5 61 11.875 – –
Main Switch Modules TMPFB12RT 4 33.5 52.625 11.875 – –
Main Switch Modules TMP3FB12RT 4 33.5 52.75 11.875 – –
Main Lug Modules TMP3L4R 5 13.5 48.75 7 – –
Main Lug Modules TMP3L6R 5 13.5 48.75 7 – –
Main Lug Modules TMPL8R 4 20 47.625 11.75 – –
Main Lug Modules TMP3L8R 4 20 47.625 11.75 – –
Main Lug Modules TMPL12R 4 20 47.625 11.75 – –
Main Lug Modules TMP3L12R 4 20 47.625 11.75 – –
Main Lug Modules TMPL16R 32.875 60.125 11.4375 – –
Main Lug Modules TMP3L16R 32.875 60.125 11.4375 – –
Main Pull Box Modules TMPU4R 6 16.325 44.825 7.825 – –
Main Pull Box Modules TMP3U4R 6 16.325 44.825 7.825 – –
Main Pull Box Modules TMPU8R 7 24.325 46.825 11.825 – –
Main Pull Box Modules TMP3U8R 7 24.325 46.825 11.825 – –
Main Pull Box Modules TMPU12R 8 32.5 56.825 12 – –
Main Pull Box Modules TMP3U12R 8 32.5 56.825 12 – –
Elbow TMPE12 11 16 17.5 4.938 – –
Elbow TMPE12A 11 12 17.5 4.938 – –
1Figures referenced are on pages 1-63 and 1-64. Figures 1 through 8 have a removable top drip hood. Figure 4 has a removable top drip hood and open end wall.
Figure 1 Figure 2 Figure 3
Symbol •ABCDEF GH I JK LM
1⁄21⁄2————————————
—3⁄4————————————
—11 1—1————————
Conduit — — 11⁄411⁄411⁄411⁄4————————
Size — — 11⁄211⁄211⁄211⁄211⁄211⁄2——————
in — — — 2 2 2 2 2 2 — — — — 2
Inches — — — — — 21⁄221⁄221⁄221⁄221⁄2———2
1⁄2
——————— 33 3 3——3
————————3
1⁄231⁄231⁄2——3
1⁄2
——————— ——4 4 4 —4
——————— ————— 5—
Knockouts
www.geelectrical.com Rev. 1/10
Prices and data subject
to change without notice
BuyLog®Catalog
1-64
Residential
Modular Metering
Section 1
Meter Mod III
Enclosure Knockout Dimensions
Figure 4
Figure 7
Figure 10
Figure 5
Figure 8
Figure 11
Figure 6
Figure 9
Figure 12
www.geelectrical.com BuyLog®Catalog
Publications and Reference: See Section 22 for a
complete list of additional product-related publications
1-65
Rev. 1/10
Prices and data subject
to change without notice
Section 1Residential
Structured Wiring Components
Section 1
Wall Plate CWPT700W
Value Series
Wall Plate Solutions
Wall plates are a perfect first step in achieving the most cost-effective solution for
Structured Wiring. These wall mount solutions can help you eliminate callbacks resulting
from loose connections and speed installation by eliminating cross-connect wiring of a
66 block. This is a fast and reliable way to terminate telephone, and if needed, video, to
a single location.
Mounts to wall via a low voltage rough-in plate or mug ring. Also can be mounted facing
out on a wall stud or truss in an unfinished area.
TELCO/Voice Video Product List Price
Connectivity style # of Lines Locations Inputs Outputs Number GO-132A
110 4 7 0 0 CWPT71$55.00
110 4 7 0 0 CWPT700W $65.00
110 4 7 1 4 CWPT7V4W $95.00
110 4 7 1 6 CWPT7V6W $100.00
110 4 7 1 8 CWPT7V8W $105.00
1Telco board only–can be mounted on any 2 gang blank plate using supplied 2-sided tape.
Wall Plate CWPT7V4W
Wall Mount Solutions
Value 10” Solutions
Wall Mount Solutions
Wall Mount Solutions are a perfect Structured Wiring solution when you have the ability
to mount devices on a wall in an unfinished space. These products can help you elimi-
nate callbacks resulting from loose connections and speed installation by eliminating
cross-connect wiring of a 66 block. This is a fast and reliable way to terminate tele-
phone, data, and if needed video in a single location.
CB13 holds 3 modules and mounts to the wall. Order CB13 bracket for voice/data mod-
ules. Passive video and router mount directly to the wall. See the table below for simple
pre-selected system, or build your own custom system using the Value Series Selector
Guide on page 1-67.
Complete Priced Bill of Material
Wall Mount—Up to 8 Teleco/Voice and 8 Video Locations
Product List Price
Description Number GO-132A
Box N/A
Cover N/A –
Telco CT408 $50.00
Telco bracket CB13 $12.00
Video CC-VS1800 $30.00
Total $92.00
Value 10" Solutions
The Value 10" can, known as PowerMarkCom, is built to the expectations of any electrical
contractor. It is strong, straightforward, reliable and flexible – at an affordable price. Now
with an RJ45 jack connection option for bridged telephone card and amplified video, it is
the right solution for more applications.
Order CSB and CSC (Flat Cover) or CSCD (Hinged Door). See the table below for simple
pre-selected system, or build your own custom system using the Value Series Selector
Guide on page 1-67. Voice and data PCB cards require one CB11 mounting bracket each.
Complete Priced Bill of Material
Value 10” Solutions—Up to 8 Teleco/Voice and 8 Video Locations
Product List Price
Description Number GO-132A
Box CSB $40.00
Cover CSC $35.00
Telco CT408 $50.00
Telco bracket CB11 $2.00
Video CC-VS1800 $30.00
Total $157.00
* GE STRUCTURED WIRING
SELECTOR NOW ON SPEEDI
OBSOLETE
Page Updated 12 / 2009
Residential
Structured Wiring Components
www.geelectrical.com Rev. 1/10
Prices and data subject
to change without notice
BuyLog®Catalog
1-66
Section 1
Value Series
Value 15" Solutions
The Value Series 15" steps up with additional space and the ability to add Security panel
in the can. This offering comes with a cover, and can accept a complete line of compo-
nents. The option to mount passive video on the sidewall can clear the way for a router
or additional customer supplied accessories.
Order CC-RC0015. Cover is included. Voice and data PCB mount directly to tabs in the can.
See the table below for simple pre-selected system, or build your own custom system
using the Value Series Selector Guide on page 1-67.
Complete Priced Bill of Material
Value 15” Solutions—Up to 8 Teleco/Voice and 8 Video Locations
Product List Price
Description Number GO-132A
Box CC-RC0015 $90.00
Cover N/A –
Telco CT408 $50.00
Telco bracket N/A –
Video CC-VS1800 $30.00
Total $170.00
Value 15” Solutions
Value 20” and 37” Solutions
Value 20" and 37" Solutions
The Value Series 20" and 37" enclosures can be upgraded to Basic or Premium Series
Connection Centers. Builders and installers can rough-in this enclosure and sell the
upgraded Structured Wiring components even after the homeowner is in. In Value Series
trim, there is plenty of room for installing the full range of telephone, data, router, security
and other devices.
Order CC-RK0020X or CC-RK0037X. Cover is ordered separately. Voice and data PCB
cards require 1- CB11 mounting bracket each.
See the tables below for simple pre-selected system, or build your own custom system
using the Value Series Selector Guide on page 1-67.
Complete Priced Bill of Material
Value 20” Solutions—Up to 8 Teleco/Voice and 8 Video Locations
Product List Price
Description Number GO-132A
Box CC-RK0020X $55.00
Cover CC-EC0020 $62.00
Telco CT408 $50.00
Telco bracket CB11 $2.00
Video CC-VS1800 $30.00
Total $199.00
Value 37” Solutions—Up to 8 Teleco/Voice and 8 Video Locations
Product List Price
Description Number GO-132A
Box CC-RK0037X $77.00
Cover CC-EC0037 $92.00
Telco CT408 $50.00
Telco bracket CB11 $2.00
Video CC-VS1800 $30.00
Total $251.00
OBSOLETE
Page Updated 12 / 2009
www.geelectrical.com BuyLog®Catalog
Publications and Reference: See Section 22 for a
complete list of additional product-related publications
1-67
Rev. 1/10
Prices and data subject
to change without notice
Residential
Structured Wiring Components
Section 1
Select Box/Bracket
Product List Price
Series Decription Number GO-132A
Wall mount PCB Mounting bracket - 3 position CB13 $12.00
Value 10" 10" Rough-in - Box only CSB $40.00
Value 15" 15" Rough-in Kit with Cover CC-RC0015 $90.00
Value 20" 20" Box only Rough-in Kit CC-RK0020X $55.00
Value 37" 37" Box only Rough-in Kit CC-RK0037X $77.00
Select Cover
Product List Price
Series Decription Color Number GO-132A
Value 10" Cover Flat Ivory CSC $35.00
Value 10" Door Kit Ivory CSCD $60.00
Value 10" Door Kit w/ Lock Ivory CSCDL $100.00
Value 20" Cover Embossed Beige CC-EC0020 $62.00
Value 20" Door Kit Beige CC-DK0020-W $173.00
Value 37" Cover Embossed Beige CC-EC0037 $92.00
Value 37" Door Kit Beige CC-DK0037-W $250.00
Select Telco/Voice PCB Modules
Product List Price
Connectivity style # of Lines Locations Security Jacks Mounting Notes Number GO-132A
110 4 8 0 1 CT408 $50.00
110 4 10 1 1 CC-TP0110 $55.00
110 4 12 0 1 CT412 $55.00
RJ45 4 10 1 1 CC-TP1045 $90.00
Video Splitters
Product List Price
Connectivity style Inputs Outputs Rating Mounting Notes Number GO-132A
F-Port 1 8 5-100MHz, -11db 4 CC-VS1800 $30.00
F-Port 1 4 15Hz + 3db 2,5 CC-VA1400 (8) $125.00
F-Port 1 8 15Hz + 4db 2,5 CC-VA1800 (8) $165.00
F-Port 1 16 15Hz + 2.5db 2,3,5 CC-VA1160 (8) $337.00
Data PCB Modules
Product List Price
Connectivity style Inputs Outputs Rating Mounting Notes Number GO-132A
110-RJ45 4 4 0 1 CD4 $63.00
110-RJ45 5 5 0 1 CD5 $78.00
110-RJ45 7 7 0 1 CD7 $110.00
110-RJ45 8 8 0 1 CD8 $125.00
Mounting Systems
Product List Price
Box Size Description Box Qty. Number GO-132A
10", 20", 37" Voice/Data PCB Mounting Frame - single snap in 20 CB11 (6) $2.00
10", 20", 37" Voice/Data PCB Mounting Frame (Bulk Pack of 100) 1 CB11BP (7) $100.00
10", 15", 20", 37" Video Amp & Power Supply Metal Shelves 2 CC-MS1000 $10.00
10" Video Amp & Power Supply Metal Shelves 2 CVB $10.00
Accessories for Value Series —see pages 1-70 to 1-71.
Mounting Notes
1 Order 1 CB11 per each PCB module for 10", 20" or 37" cans, CB11 not required for Wall mount, CB13, or 15" can
2 Power supply required (CC-PS1300 List $38.50)
3 Not recommended on 10" or 15" cans
4 Mounts direct to can
5 Order CC-MS1000 for mounting video amplifier in 15”, 20” and 37” cans; for 10” order CVB
6 Box std qty = 20 @ $2.00 each, $40.00 list per box – packed individually
7 Box std qty = 100 @ $100.00 per box – Frames packed loose in box
8 Amplified video splitter
Value Series Selector Guide
CT408 CC-TP1045
CC-VS1800 CC-VA1800
CD5 CD7
CB11 CC-MS1000
CSCD CC-EC0020
CSB CB13
1
2
3
4
5
6
OBSOLETE
Page Updated 12 / 2009
Residential
Structured Wiring Components
www.geelectrical.com Rev. 1/10
Prices and data subject
to change without notice
BuyLog®Catalog
1-68
Section 1
20” and 37” Rough-in Kit
20” Door Kit
Mounting Systems
Telephone Modules
15” Rough-in Kit
Rough-in Kits
Product List Price
Type Description Dimensions (WxHxD) inches Number GO-132A
10" Rough-in Kit (1) 10" Enclosure 14.25 x 15.00 x 3.75 CSB $40.00
(1) Dust Cover
(3) Grommets
15" Rough-in Kit1(1) 15" Enclosure 14.25 x 15.00 x 3.75 CC-RC0015 $90.00
(1) Dust Cover
(4) Flexible Grommets
(1) Neutral White Cover
20" Rough-in Kit (1) 20" Enclosure 14.25 x 20.00 x 3.76 CC-RC0020X $55.00
(1) Cardboard Dust Cover
(4) Flexible Grommets
37" Rough-in Kit (1) 37" Enclosure 14.25 x 37.00 x 3.75 CC-RK0037X $77.00
(1) Cardboard Dust Cover
(4) Flexible Grommets
Cover Kits/Door Kits
Product List Price
Type Description Number GO-132A
10" Flat Cover Kit Beige, cover for 10" PowerMark CSC $35.00
20" Embossed Cover Kit Cover for 20" Connection Center CC-EC0020 $62.00
with Neutral White Powder-coat finish
37" Embossed Cover Kit Cover for 37" Connection Center CC-EC0037 $92.00
with Neutral White Powder-coat finish
10" Door Kit Beige, door kit for 10" PowerMark CSCD $60.00
20" Door Kit Door kit for 20" Connection Center CC-DK0020-W $173.00
20" Door Kit with Powder-coat finish CC-DK0020-C $173.00
37" Door Kit Door kit for 37" Connection Center CC-DK0037-W $250.00
37" Door Kit with Powder-coat finish CC-DK0037-C $250.00
Mounting Systems
Product List Price
Type Description Number GO-132A
PCB Mounting Frame Attaches to the rear of 10", 20" and 37" enclosures CB11 $2.00
For mounting PCB voice and data modules, one per module CB11BP $100.00
PCB Wall Mounting Bracket Attaches to wall, studs or trusses in an unfinished area. CB13 $12.00
For mounting PCB voice and data modules.
One per 3 modules.
5-Module Tray Attaches to rear of enclosure for mounting telephone CC-MT0005 $27.00
and networking modules. May be positioned horizontally with
door kit for tray-mount video components. 20” and 37” only.
6-Module Panel Requires door kit. CC-MP0006 $62.00
12-Module Panel Fits 37" enclosure only. CC-MP0012 $62.00
Requires 37" door kit.
15” 20” 37” Metal Shelf Accommodates shelf-mount video modules. CC-MS1000 $10.00
Universal Mounting Bracket Accommodates GE and third-party PCB cards. CC-SB1000 $22.00
10” Metal Shelf Accommodates shelf-mount video modules. CVB $10.00
Telephone Modules
Product List Price
Type Description Number GO-132A
Telephone Interface PCB style, 110 punch down, 1 input, CC-TP01102$55.00
Modules 1 RJ31X security interface, 10 outputs
PCB style, RJ45 Jacks, 1 input, CC-TP10452$90.00
1 RJ31X security interface, 10 outputs
Provides 1 telephone input, 1 RJ31X security CC-TF0008 $90.00
interface and 8 regular telephone outputs.
Provides 1 telephone input, 1 RJ31X security CC-DS1006 $100.00
interface and 7 regular telephone outputs.
And DSL Filter
Telephone Distribution PCB style, 110 punch down, 1 input to 8 outputs CT4082$50.00
Modules Provides 1 telephone input, CC-TD0009 $90.00
interface and 9 regular telephone outputs.
Telephone KSU Modules For Panasonic PBX Digital Telephone Systems. CC-TK0006 $185.00
Provides 6 Panasonic telephone outputs.
1Includes cover
2Order one CB11 per each PCB module for 10", 20" or 37" cans, CB11 not required for Wall mount CB13 or 15" can
OBSOLETE
Page Updated 12 / 2009
www.geelectrical.com BuyLog®Catalog
Publications and Reference: See Section 22 for a
complete list of additional product-related publications
1-69
Rev. 1/10
Prices and data subject
to change without notice
Residential
Structured Wiring Components
Section 1
Video Modules
Video Modules
All GE High Performance Video Splitters and Amplifiers contain radial coax barrel connec-
tors with an extremely low return loss of 18dB. Use with metal shelf CC-MS1000 (order
separately). Amplifiers require 1.3A power supply (CC-PS1300) sold separately. Order
CC-MS1000 with shelf mount style splitters.
Direct Mount
Product List Price
Description Number GO-132A
1 x 8 Video Splitter CC-VS1800 $30.00
Shelf Mount
Product List Price
Type Description Number GO-132A
Passive 1 x 4 High Performance Video Splitter CC-VS1004 $25.00
1 x 8 High Performance Video Splitter CC-VS1008 $40.00
Amplified 1 x 4 High Performance Video Amplifier CC-VA1400 $125.00
1 x 8 High Performance Video Amplifier CC-VA1800 $165.00
1 x 16 High Performance Video Amplifier CC-VA1160 $337.00
Tray Mount
These components require a 20" or 37" door kit and the 5 module tray (CC-MT0005) posi-
tioned horizontally for mounting. Amplifiers require 1.3A power supply (CC-PS1300) sold
separately.
Product List Price
Type Description Number GO-132A
Cable only 1 x 4 High Performance Video Amplifier (with faceplate) CC-VA1450 $131.00
1 x 8 High Performance Video Amplifier (with faceplate) CC-VA1850 $350.00
Cable + internal 1 x 3 x 8 x 8 High Performance Distribution Amplifier CC-VA8008 $360.00
Provides 1 CATV input, 3 AUX inputs, 8 combined inputs
and 8 amplified video outputs
1 x 3 x 8 x 16 High Performance Video Distribution Amplifier CC-VA8016 $460.00
Provides 1 CATV input, 3 AUX inputs, 8 combined inputs
and 16 amplified video outputs
Cable + looped 1 x 7 x 8 Video Amplifier with Looped Satellite CC-VA8822 $400.00
satellite + internal Distributes CATV and up to 7 internal (modulated) video inputs
to 8 locations. Looped (pass-thru) connection for satellite allows
distribution to 2 locations (2 inputs and 2 outputs).
Dedicated cable modem output.
Compatible with broadband, HDTV and digital and analog TV.
1 x 6 x 16 Video Amplifier with Looped Satellite CC-VA1622 $500.00
Distributes CATV and up to 6 internal (modulated) video inputs
to 16 locations. Looped (pass-thru) connection for satellite allows
distribution to 2 locations (2 inputs and 2 outputs).
Dedicated cable modem output.
Compatible with broadband, HDTV and digital and analog TV.
Satellite Multiswitch 4 x 1 High Performance Video Combiner CC-VC4001 $54.00
Satellite + Multiswitch 1 x 14 x 3 x 8 Satellite Multi Switch and Cable Amp CC-HD4480 $750.00
+ Cable combined 4-LNB satellite is combined with cable and 3 modulated inputs.
amplifier These are then all sent to 8 outputs. Separate cable modem out
included. Diplexing at output may be required - see pub 466
Accessories Horizontal 3 x 4 Multiswitch CC-MS0304 $150.00
Satellite Multiswitch with 3 inputs and 4 outputs.
Distributes satellite signals to multiple receivers in different
locations in a home.
Diplexer CC-SD002 $30.00
Modulater - one source to VHF or CATV channels with audio CC-RM001 $200.00
Shelf Mount Video Splitters
Tray Mount Video Combiner
Shelf Mount Video Amplifiers
CC-VA8822 Video Amplifier with Loop Satellite
CC-HD4480 Satellite Multi Switch and Cable Amp
CC-VA8008 Video Amp with Aux Inputs
OBSOLETE
Page Updated 12 / 2009
Residential
Structured Wiring Components
www.geelectrical.com Rev. 1/10
Prices and data subject
to change without notice
BuyLog®Catalog
1-70
Section 1
Data Modules, Computer Networking Modules and Accessories
Data Modules
Data modules are used to land Cat5e cables for data distribution. Jumpering between
jacks or to a network device enables high-speed home networking.
Product List Price
No. of Inputs Number GO-132A
4CD4
1$63.00
5CD5
1$78.00
7CD7
1$110.00
8CD8
1$125.00
1Order one CB11 per each PCB module for 10", 20" or 37" cans, CB11 not required for Wall mount CB13 or 15" can
Patch Cord
Product List Price
Description Number GO-132A
7" patch cord, RJ45 modular, plug both ends CPC7 $15.00
Computer Networking Modules
List Price
Description Product Number GO-132A
5-Port 10BaseT Ethernet Hub CC-EH5000 $150.00
5-Port 10/100 Ethernet Switch CC-ES5000 $275.00
8-Port 10/100 Ethernet Switch CC-ES8000 $381.00
4-Port Ethernet Router;
requires metal shelf (CC-MS1000) for mounting CC-GW0604 $189.00
Accessories
Product List Price
Type Description Number GO-132A
Blank Faceplates (5 pack) Includes pushpins CC-BF0005 $31.00
Plastic Pushpins For attaching Connection Center
(100 pack) modules to module panels and trays. CC-PP0100 $44.00
Cable Guides (2 pack) For organizing RG-6 cables. CC-CG0010 $15.00
Double-Sided Velcro 1/4" Velcro used for securing products onto
(48' roll) metal shelves and for organizing cable. CC-VE0048 $10.00
Telephone For home offices. Plug the Chooser into the Cat-5e CC-TP0009 $69.00
Line Chooser phone jack. Allows for separate access to lines 1-4
for phone, fax, modem, etc.
Flexible Grommets 10" flexible grommets used to cover edges
(4 pack) in any shape knock-out. CC-FG0004 $7.00
Cable Manager Replacement part for module panels:
6-Module Panel and 12-Module Panel. CC-CM0010 $25.00
Audio Series
Product List Price
Type Description Number GO-132A
Distribution Kits 4-Zone Audio Distribution Kit w/ Audio Power Supply CC-AK4004 $1857.00
Distribution Hubs Audio Distribution Hub CC-AD4004 $568.00
Volume Control Amplified Stereo Volume Control CC-AV1000 $313.00
Input Jacks CC-AJ1000 $10.00
Cables RCA Input Cable Y w/ 2 RCA plugs to 1 stereo 3.5mm jack CC-AR1000 $29.00
Cables Digital Input Cable CC-AD1000 $29.00
Speakers 5.25" Wall Speakers (pair) CC-AS5251 $286.00
Speakers 5.25" Ceiling Speakers (pair) CC-AS5250 $190.00
Speakers 6.5" Wall Speakers (pair) CC-AS6501 $317 .00
Speakers 6.5" Ceiling Speakers (pair) CC-AS6500 $222.00
IR Emitter CC-ME0001 $36.00
Dual IR Emitter CC-ME0002 $50.00
Power Supply 60 watt2CC-PS2060 $160.00
2One 60 watt power supply per hub required. Do not use CC-PS1300 (not enough power). Do not run 60 watt
power supply through CC-PD1000 (will blow fuse).
Ethernet Hubs and Switches
CC-GWO604 4-Port Ethernet Router
Audio Input Jack
Pushpins, Cable Guide, Line Chooser
CD5 CD7
OBSOLETE
Page Updated 12 / 2009
www.geelectrical.com BuyLog®Catalog
Publications and Reference: See Section 22 for a
complete list of additional product-related publications
1-71
Rev. 1/10
Prices and data subject
to change without notice
Residential
Structured Wiring Components
Section 1
Video Cameras
Product List Price
Type Description Number GO-132A
In-Wall Mount Camera Indoor, in-wall mount black and white
(Black & White) camera - modulated, does not require
a separate modulator. CC-CA0101 $846.00
In-Wall Mount Camera Indoor, in-wall mount color camera -
(Color) modulated, does not require
a separate modulator. CC-CA0102 $942.00
Outdoor Camera Outdoor, black and white camera - modulated,
(Black & White) does not require a separate modulator. CC-CA0201 $846.00
Outdoor Camera Outdoor, color camera - modulated, does
(Color) not require a separate modulator. CC-CA0202 $942.00
Connectors and Terminators
Product List Price
Type Description Number GO-132A
RJ45 EZ Connectors Used for termination of Cat 5e runs into the
(50/package) ConnectionCenter - used with Cat 5e Crimp Tool
(CC-CT0500) CC-AC0501 $146.00
RF Low Pass Filter - Low pass filter used to block out
Channels 2-62 frequencies over channel 62. CC-AC1002 $73.00
75 Ohm Terminator Recommended for uncapped
(100/package) coaxial connections. CC-AC1003 $77.00
6dB Attenuators Attenuator to reduce signal strength by 6dB. CC-AC1004 $56.00
10dB Attenuators Attenuator to reduce signal strength by 10dB. CC-AC1005 $56.00
F56 Connectors with High performance F-Connectors to connect
O-Ring (100/package) coax runs to the ConnectionCenter. CC-AC1006 $96.001
3dB Attenuators Attenuator to reduce signal strength by 3dB. CC-AC1007 $56.00
RF Low Pass Filter - Low pass filter used to block out
Channels 2-110 frequencies over channel 110. CC-AC1008 $48.00
1$96.00 List Price is for Qty = 100. Not sold individually
Surge Modules
Product List Price
Type Description Number GO-132A
Video Modules Coax surge suppression - CATV or Satellite CC-CS1000 $100.00
Telephone Modules Telephone surge unit CC-TS0004 $170.00
Data Modules Data surge unit CC-DS0004 $170.00
Outdoor Cameras
Connectors and Terminators
Surge Modules
OBSOLETE
Page Updated 12 / 2009
Residential
Structured Wiring Components
www.geelectrical.com Rev. 1/10
Prices and data subject
to change without notice
BuyLog®Catalog
1-72
Section 1
Power Modules
Product List Price
Type Description Number GO-132A
Power Cable Extra long 24-inch power cable for CC-PC0024 $3.10
connecting powered modules to the
Power Distribution Module.
Power Distribution Module Provides low-voltage power to as CC-PD1000 $85.00
many as six Connection Center modules -
requires 1.3 Amp Power Supply (CC-PS1300),
ordered separately
Power Supply - 1.3 Amp 12v For use with Connection Center Video CC-PS1300 $38.50
Amplifiers, Ethernet Switches and
Power Distribution Module.
Power Outlet with pig tail Provides 120 volt AC to Connection CC-EA0000 $19.00
Center Box.
Power Supply - 60 watt For use directly to audio distribution hub CC-PS2060 $160.00
audio only only - 1 per hub required
Demo Kits
All Demo Kits ship assembled with cable connections.
Product List Price
Type Description Number GO-132A
Demo Kit 500 (1) 20" Connection Box with Embossed Cover; CC-DM0500 $750.00
(1) Power Assembly; (4) Flexible Grommets; (1) 5-Module Tray;
(2) Metal Shelves; (1) Telephone Distribution Module;
(1) Power Distribution Module;
(1) 1x4 High Performance Video Amplifier;
(1) 5-Port 10BaseT Ethernet Hub; (1) 1.3 Amp Power Supply
Demo Kit 1500 (1) 20" Connection Box with Trim - ring and door in Neutral White CC-DM1500 $1327.00
powder-coat finish; (1) Power Assembly; (4) Flexible Grommets;
(1) 5-Module Tray; (1) 6-Module Panel; (2) Metal Shelves;
(1) Telephone Interface Module;
(1) 1x4 High Performance Video Amplifier;
(1) 5-Port 10BaseT Ethernet Switch; (4) Cable Guides;
(1) Power Distribution Module; (1) 1.3 Amp Power Supply
Demo Kit 2000 (1) 37" Connection Box with Trim - ring and door in White CC-DM2000 $1925.00
powder-coat finish; (2) Power Assemblies; (4) Flexible Grommets;
(1) 5-Module Tray; (1) 12-Module Panel; (2) Metal Shelves;
(1) Telephone Interface Module; (1) Telephone Distribution Module;
(1) 1x3x8x8 High Performance Video Amplifier;
(1) 8-Port 10/100 Ethernet Switch; (4) Cable Guides;
(1) Power Distribution Module; (1) 1.3 Amp Power Supply
Demo Kit 2500 (1) 20" Connection Box with Trim - ring in Champagne CC-DM2500 $2210.00
(with Clear powder-coat finish and acrylic door; (1) Power Assembly;
Acrylic Door) (4) Flexible Grommets; (1) 5-Module Tray; (1) 6-Module Panel;
(2) Metal Shelves; (1) Telephone Interface Module;
(1) 1x4 High Performance Video Amplifier;
(1) 5-Port 10BaseT Ethernet Switch; (4) Cable Guides;
(1) Power Distribution Module; (1) 1.3 Amp Power Supply
Power Distribution Module
Power Supply - 1.3 Amp
Demo Kits
CC-DM2500 Demo KitCC-DM2000 Demo KitCC-DM1500 Demo Kit
OBSOLETE
Page Updated 12 / 2009
www.geelectrical.com BuyLog®Catalog
Publications and Reference: See Section 22 for a
complete list of additional product-related publications
1-73
Rev. 1/10
Prices and data subject
to change without notice
Residential
Bath Fans, Bath Fan Accessories, Door Chimes Section 1
BFL60UQ
Product Features and Benefits
—Complete selection of fans, switches and chimes
—Basic, Ultra Quiet and Silent fans
—Fans with lights and heaters
—Ceiling or wall mount fans
—Separate fan and housing contractor packs available
—Dual, triple and quadruple switches
—Single and double entry door chimes
—Best-recognized home product brand
—Equivalent or superior to industry standard products
—Contemporary design
—UL Listed
—Energy Star rated fans
—Full 1-year parts warranty
—Order with GE load centers and circuit breakers for easy
minimums
—Decorative collection now available
BF60CPA
BF80UQ
BFL125UQ
Page Updated 06 / 2010
Residential
Bath Fans, Bath Fan Accessories, Door Chimes
www.geelectrical.com Rev. 1/10
Prices and data subject
to change without notice
BuyLog®Catalog
1-74
Section 1
Product Selection—Bathroom Fan Single Units
Effective Product List Price
Fan Type Style Square Feet Sones Air Flow (CFM) Number GO-132F
Fan Only Basic 60 3 50 BF60CPA $45.50
Fan Only1Easy Mount 60 0.5 50 BF50EM $154.00
Fan Only Basic 85 5 70 BF85A $72.00
Fan Only Basic 145 4 120 BF150A $177.00
Fan Only1Ultra Quiet 100 1.5 80 BF80UQ $247.50
Fan Only1Ultra Quiet 125 2 110 BF125UQ $351.50
Fan Only1Silent 100 1 80 BF80S $327.00
Fan Only Easy Mount 125 3.5 100 BF125EM $175.00
Fan Only Wall Fan 210 6.5 180 WF180 $300.00
Fan and Light Basic 85 4 70 BFL85 $149.52
Fan and Light Ultra Quiet 60 3 50 BFL60UQ $115.00
Fan and Light1Ultra Quiet 100 1 80 BFL80UQ $603.00
Fan and Light Ultra Quiet 125 2.5 100 BFL125UQ $366.24
Fan and Light Round with Nightlight 125 3.5 100 BFL125RNL $300.00
Fan and Light Decorative 85 4 70 BFL85DRN $233.75
Fan and Light Decorative 85 4 70 BFL85DRWAF $275.00
Fan and Light Decorative 85 4 70 BFL85DRRB $275.00
Fan, Light and Heater Lexan Lens 85 3.5 70 BFLH85L $275.00
Fan, Light and Heater Single Bulb Heater 85 3.5 70 BH85SB $152.75
Fan, Light and Heater Dual Bulb Heater 85 3.5 70 BH85DB $191.75
1Energy Star rated.
BF50EM, BF125EM
BFL85DRN, BFL85DRWAF, BFL85DRRB
BFL85 BFL80UQ, BFL100UQ
BF60CPA, BF85A
WF180
BF80UQ, BF125UQ, BF80S
BF150A
Page Updated 06 / 2010
www.geelectrical.com BuyLog®Catalog
Publications and Reference: See Section 22 for a
complete list of additional product-related publications
1-75
Rev. 1/10
Prices and data subject
to change without notice
Residential
Bath Fans, Bath Fan Accessories, Door Chimes Section 1
Product Dimensions
Product Grill Dimensions Housing Dimensions Weight Carton Dimensions
Number (inches) (inches) (Lbs.) (inches)
BF60CPA 10 x 10 7-3/8 x 7-5/8 x 3-3/4 4.5 10 x 11 x 4-1/2
BF85A 10 x 10 7-3/8 x 7-5/8 x 3-3/4 4.5 10 x 11 x 4-1/2
BF150A 10 x 10 9-1/8 x 9 x 5-7/8 7.25 13 x 10-1/2 x 7-1/2
BF80UQ 11 x 13-3/4 10-3/4 x 9-1/4 x 7-7/8 10 14-1/2 x 12 x 9
BF125UQ 11 x 13-3/4 10-3/4 x 9-1/4 x 7-7/8 10 14-1/2 x 12 x 9
BF80S 11 x 13-3/4 10-3/4 x 9-1/4 x 7-7/8 10 14-1/2 x 12 x 9
BF50EM 11-2/3 x 10-3/4 9 x 8-1/2 x 4-3/4 5.25 11 x 12 x 6-3/8
BF125EM 11-2/3 x 10-3/4 9 x 8-1/2 x 4-3/4 5.2 11 x 11-3/4 x 6-1/4
WF180 11-1/2 x 11-1/2 8 x 12 x 2-1/2 cap. 13.45 10-1/4 x 15-1/4 x 10
BFL85 10-1/2 x 11 7-3/8 x 7-5/8 x 3-3/4 6 13 x 11-1/2 x 9-1/2
BFL60UQ 10-1/2 x 11 7-3/8 x 7-5/8 x 3-3/4 5.5 13 x 11-1/2 x 9-1/2
BFL80UQ 11 x 13-3/4 10-3/4 x 9-1/4 x 7-7/8 12.5 14-1/8 x 11-5/8 x 12
BFL125UQ 11 x 13-3/4 10-3/4 x 9-1/4 x 7-7/8 12.5 14 x 12 x 11-3/4
BFL125RNL 13-3/4 diameter 9-1/4 x 9-1/8 x 5-7/8 12 15 x 15 x 9-3/4
BFL85DRN 13-1/2 diameter 7-3/8 x 7-5/8 x 5-7/8 11 14 x 14 x 12-1/8
BFL85DRWAF 13-1/2 diameter 7-3/8 x 7-5/8 x 5-7/8 11 14 x 14 x 12-1/8
BFL85DRRB 13-1/2 diameter 7-3/8 x 7-5/8 x 5-7/8 11 14 x 14 x 12-1/8
BFLH85L 17-1/8 x 9-7/8 9 x 15-3/8 x 6-1/2 15 19 x 13-1/4 x 9
BH85SB 10 x 10 8-1/2 x 8-1/2 x 5-7/8 7 14-1/4 x 11-1/2 x 8
BH85DB 15-3/4 x 10 7-7/8 x 14-1/2 x 5-7/8 9 18 x 13-1/4 x 7-3/4
BH85SB
BH85DB
BFL125RNL
BFLH85L
Page Updated 06 / 2010
Residential
Bath Fans, Bath Fan Accessories, Door Chimes Section 1
www.geelectrical.com Rev. 1/10
Prices and data subject
to change without notice
BuyLog®Catalog
1-76
Product Selection—Bathroom Fan Contractor Pack-Multi Units
Weight Carton Dimensions Product List Price
Product Description Quantity (Lbs.) (inches) Number GO-132F
BF60CPA Fan Only 6 14 22.0 x 10.5 x 10.5 BF506PK $29.50 ea.
BF85A Fan Only 6 14 22.0 x 10.5 x 10.5 BF706PK $56.00 ea.
BFL60UQ Fan Only 4 14.75 22.0 x 11.5 x 14.5 BFL50UQ4PK $85.00 ea.
BFL85 Fan Only 4 14.75 22.0 x 11.5 x 14.5 BFL704PK $118.75 ea.
BF60CPA-85A, Housing Only 6 9.5 20.5 x 11.75 x 8.25 BF50/70HSG $15.83 ea.
BFL50-85, Housing Only 4 11.75 16.75 x 12.25 x 12.5 BFL50/70HSG $30.00 ea.
BF60CPA-85A, Grill Only 6 2 10.5 x 10.375 x 4 BF50G6PK $13.83 ea.
Product Selection—Bath Fan Accessory Fan Switch
Weight Carton Dimensions Product List Price
Switch Type (Lbs.) (inches) Number GO-132F
Dual 0.3 4.0 x 4.0 x 4.0 S22 $35.00
Triple 0.3 4.0 x 4.0 x 4.0 S33 $36.50
Quadruple 0.5 8.0 x 5.0 x 2.25 S44 $74.50
Product Selection—Door Chime
Weight Carton Dimensions Product List Price
Chime Type (Lbs.) Quantity (inches) Number GO-132F
Single Entry Lit 50 24 21.0 x 15.5 x 10.5 CL11 $32.75
Double Entry Lit 50 24 21.0 x 15.5 x 10.6 CL22 $38.25
Single Entry Lit, 0.5 1 5.5 x 2.25 x 10.5 CS11 $60.00
Stucco Button Only
Double Entry Lit, 0.5 1 5.5 x 2.25 x 10.5 CS22 $69.50
Stucco Button Only
Single Entry Unlit 50 24 21.0 x 15.5 x 10.5 CNL11 $31.50
Double Entry Unlit 50 24 21.0 x 15.5 x 10.6 CNL22 $37.00
S22 Fan Switch
CL11, CNL11, CL22, CNL22 Door Chimes
CS11, CS22 Door Chimes
S33 Fan Switch
S44 Fan Switch
Page Updated 06 / 2010

Navigation menu
