GE Innovation History
Nowadays GE Lighting has become one of the biggest
lighting solution suppliers in the world.
Invented double coil auto head light
in 1924
Invented Incandescent in 1879
Invented Mercury lamp in 1931
Introduced Linear Fluorescent
lamp in 1938
Introduced halogen in 1958
Invented High Pressure Sodium
in 1962
Introduced metal halide lamp
in 1964
Invented world first LED in 1969
Introduced energy saving
fluorescent lamp in 1974
Introduced low-wattage
metal halide lamp in 1982
Introduced 40W compact
fluorescent lamp in 1987
Introduced constantcolor MR16
in 1991
Introduced high-efficient compact
fluorescent lamp in 1992
Invented Genura in 1994
Promoted 2D compact fluorescent
floor lamp in 1998
Promoted Covguard fluorescent lamp
in 1999
Initiate high-wattage ceramic metal
halide lamp globally in 2002
GE Lighting invents with the vigor of its founder Thomas Edison to develop energy-efficient solutions that change
the way people light their world in commercial, industrial, municipal and residential settings. The business employs
over 16,000 people in more than 100 countries, and sells products under the Reveal and Energy Smart consumer
brands, and Evolve, GTx, Immersion, Infusion, Lumination and Tetra commercial brands, all trademarks of GE.
General Electric (NYSE: GE) works on things that matter to build a world that works better. For more information,
visit http://www.gelighting.com/LightingWeb/apac/.
To mark the Olympic Games and Paralympic Games GE Lighting has transformed London’s iconic Tower Bridge with a
new state of-the-art lighting system – designed to enhance its architectural features and replace static lights with bulbs
that can vary in intensity and colour, while at the same time cutting energy consumption considerably.
The famous landmark will also feature giant suspended Olympic Rings and Paralympic Agitos for the 45 days of the Games. GE
will be illuminating the rings, as well as smaller versions in Belfast, Edinburgh and Cardiff using its powerful LED Floodlights and
working in conjunction with all the major cities' councils to ensure that once again, the installations can be reused after the
Olympic Games come to a close.
GE Lighting also has provided energy efficient,
low impact lighting solutions for permanent
as well as temporary lighting installations that
will either continue to deliver energy savings
for years to come or allow lamps to be
re-used in projects around the city after the
Olympic & Paralympic Games end in
September 2012.
About GE Lighting
As a London 2012 Sustainability Partner and a Global Olympic 2012 sponsor,
GE Lighting has worked alongside the London Organising Committee of the
Olympic Games (LOCOG) to deliver a series of lighting projects.
Contents
Any update of data in this leaet will not be informed. Please contact GE Lighting for detailed information.
ECOMAGINATION WORDING
MAKING RENEWABLE ENERGY A REALITY.
–
4.Reduce water use
and improve water reuse
1. Continue to increase revenuse from ecomagination products 2. Double investment in R&D
3. Reduce greenhouse gas
emissions and improve
energy efficiency of GE
5.Keep the public informed
Ecomagination is a business initiative to help meet the world’s demand for more energy-efficient products
and to drive reliable growth for GE.
It’s GE’s commitment to invest in innovative solutions to environmental challenges, delivering valuable
products and services to customers while generating profitable growth for the company.
Already, GE Lighting has produced over 800 products of Ecomagination, and that number will continue to
grow with the introduction of new products in the future.
Halogen Lamps 07
Specialty Lamps 105
Compact Fluorescent Lamps 33
Ballast 115
SHOWBIZ Lamps 89

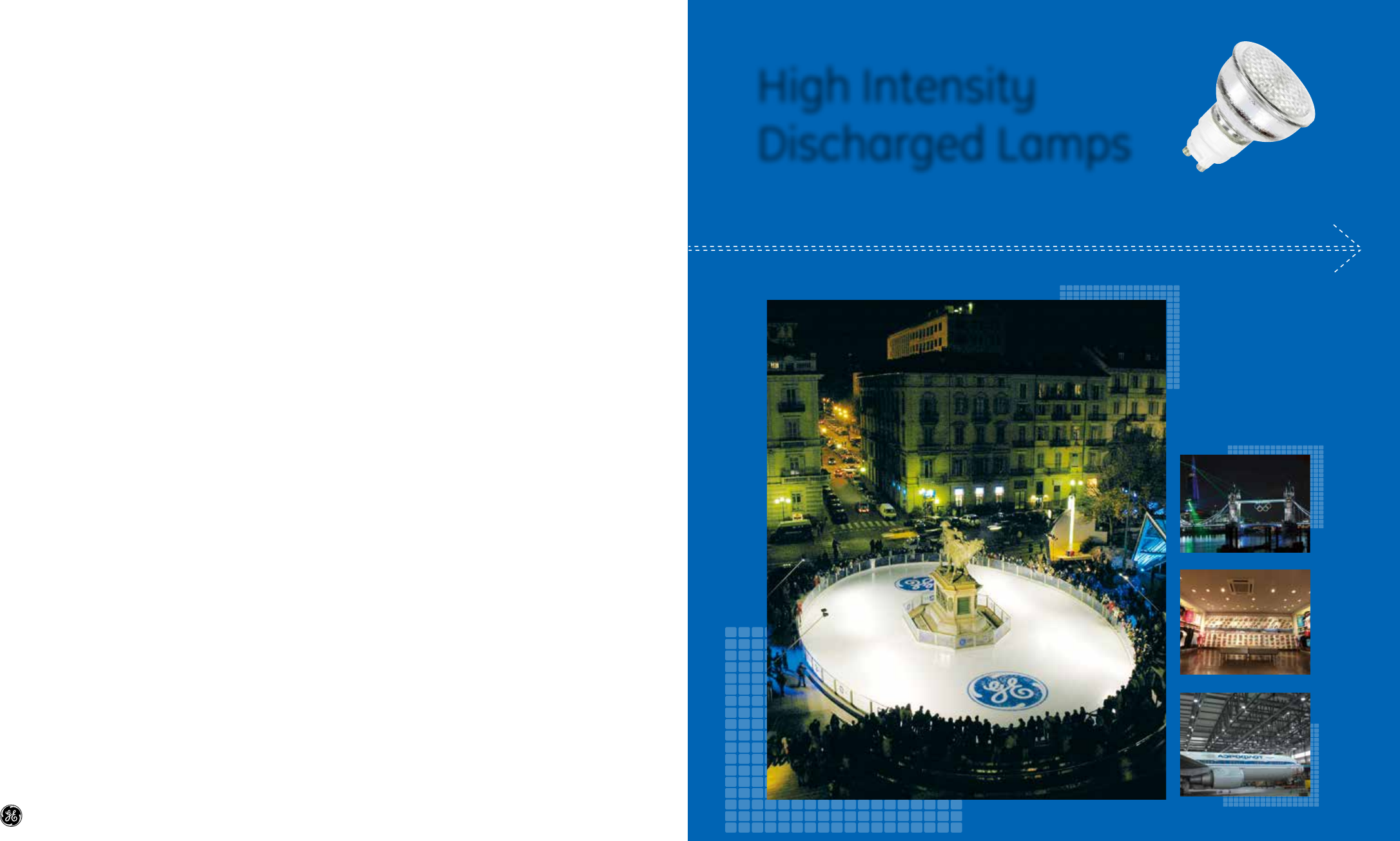

High Intensity Discharge Lamps 67
Index by product description 156
Linear Fluorescent Lamps 23
Introduction 04
Contents
4 5
Case Study Case Study
Toulouse John LewisChina Vanguard
Supermarket
Budapest Lighting
“Our products are proven to be matching the requirements
that a modern city can ask for, from energy & maintenance cost
savings to safer roads and emphasized aesthetics.”
—Phillippe Moreau,
Sales Manager of the project from GE Lighting
“By specifying GE Lighting’s CMH Ultra range, we have signi-
cantly reduced energy consumption without compromising the
look and feel of our stores.”
—Barry Ayling,
Lighting Design Manager at John Lewis Partnership
“GE’s solution meets our lighting requirement while the energy
saved is signicant.”
—Mr. Liu, Senior Engineer, Sourcing Department,
China Vanguard supermarket
Situation:
• The city decided about the renovation of ~50,000 ttings (the project will
be carried out in 4 different phases, lasting one year each)
• The key factors were: the initial investment should be low, the savings should
be signicant and the quality of light should improve residents' comfort
GE Lighting Solution:
• GE Lighting proposed the Lucalox XO Superlife and Streetwise lamps,
each for a specic place
• The LongLife version of the Lucalox XO, the solution selected for
roadways, it achieves a luminous efciency of up to 150 lumens/watt
• The Streetwise is the solution selected for sidewalks and for accident
black spots such as roundabouts and pedestrian crossings
Operating Impact
• reducing consumption and maintenance costs
• reducing replacement expenses
• the signicant reduction of maintenance costs easily covers the purchase cost
Environmental Impact
• greater lighting comfort
• the result has improved the social and functional environment without an
increase in the wattage used
Situation:
• The previous T8 system in general lighting is energy costing and needs
frequent maintenance. They require the new system to maintain the
original lighting standard while achieve energy saving by 20%. They used
local brand for signage, but want to have a better quality products to
assure the lighting level, with lumen maintained to over 70% in 5 years.
GE Lighting Solution:
• GE proposed 2*28W T5 Starcoat system for shop lighting. GE T5 system
achieved 22% energy saving and maintained illumination at 1000Lux
and 85+ CRI. The LED signage increased the panel illumination by 20%
while ensuring the ROI feasible in 3 years.
Operating Impact
• $26,607 energy savings per year
• 2.3 Year simple project payback
Environmental Impact
• 0.33MM lbs per yr Co2 emissions eliminated
=28.2 Cars off the road or
= 40.3 acres of new trees
Situation:
• Replace the traditional light sources with more efcient and attractive
products in John Lewis’agship store in Oxford Street, London as a rst
step in its country-wide refurbishment program.
GE Lighting Solution:
• GE Lighting’s CMH Ultra range has been designed specically for the
retail environment, providing high efciency, long life and superb overall
lighting quality – ideal for enhancing retail displays and optimising
merchandise illumination.
Operating Impact
• reduced energy consumption by over 50% while improving the look and
feel of their stores
Environmental Impact
• Reduced energy consumption by 50%
Situation:
• Aesthetics, safety and energy efciency - GE is providing the right lighting
solutions for the historic and forward-looking city of Budapest.
GE Lighting Solution:
• Hungarian Parliament glittering in its original magnicent blaze
• Széchenyi Chain Bridge: lighting system based on GE CFL (Compact
Fluorescent Lamps) lamps that highlights the bridge' s unique
architecture
• Innovative lighting system along the banks of the Danube river based on
GE' s latest CMH StreetWise lamps
• Erzsébet Bridge: previous HPS light sources replaced by 250W GE CMH
lamps
Operating Impact
• The greater efciency and high lumen maintenance of GE’s CMH lamps
means the city now enjoys longer mean time between failures and
signicant savings in service costs.
• The LED system offers energy saving benets of up to 40%.
Environmental Impact
• All the products used in the project increase road trafc safety and
provide an energy efcient solution.
6 7
GE invented the first halogen lamp
in the world in 1958.
Halogen
Lamps
8 9
Halogen Lamps Advanced lighting technologies
By using halogen gas which allows the
lamp to burn more brightly without
sacrificing life, they are more efficient
than incandescent lamps at converting
electricity into light, therefore giving more
light for less energy and from a smaller
physical size.
Why halogen?
• Crisp white light (CCT 2800K+)
• Excellent colour rendering, light close
to natural (100% CRI)
• Long lasting bright light – more than
90% lumen maintenance
• Instant (re-)start – full light output
immediately after switch on
• Dimmable
• Environmentally friendly technology
– mercury and lead free, no
electromagnetic emission
Popular for accent, display and general
lighting applications in a wide variety of
commercial, industrial and residential
environments.
Halogen lamps – clean, bright, white light.
Invented in 1958 by GE, halogen lamps
provide a compact, high output, crisp,
white light that delivers superior colour
reproduction.
HaloGLS, HaloCandle,
HaloSpherical, HaloReflector
Energy Efficient Halogen range (up to
C energy class). 18, 28, 42, 70, 100W
For Energy Saving
upgrade
to
Premium performance product alternatives for more efficient lighting
Infra Red MR16 – Energy Saving solution
• Up to 40% energy saving
• 5,000 hours life
• Premium quality light
• Replacement for standard MR16 lamp
C class Double Ended Linear
• Increased efficiency – C energy class
• More than 30% energy saving
• Retrofit to standard Double Ended Linear
• Full range 100-330W to replace 150-500W standard range
MR16 Standard Double Ended Linear
150, 200, 300 and 500W
Precise MR16 IR C energy class Double
Ended Linear 100, 130, 200
and 330W
For Energy Saving For Energy Saving
upgrade
to upgrade
to
Base Watt New MR16 IR
Watt Saved Watt Saved Energy Cost
through total life
35W 20W 15W 7,5 EUR
50W 35W 15W 7,5 EUR
~65W 45W 20W ~10 EUR
Base Watt New Watt Saved Watt Saved Energy Cost /
1000hrs
150W 100W 50W 5 EUR
200W 130W 70W 7 EUR
300W 200W 100W 10 EUR
500W 330W 170W 17 EUR
The ‘new incandescent’ lamps
• Exactly same size and appearance as an
incandescent lamp
• Provides full light strength at start-up
• 30% energy saving
• Dimmable
• 2,000 hours life
• Environmentally friendly – mercury and lead free
• Excellent colour rendering, light close to natural
(100% CRI)
• More than 90% lumen maintenance over life
Base Watt New Watt
25W 18W No Yes Yes No
40W 28W Yes Yes Yes Yes
60W 42W Yes Yes Yes Yes
100W 75W Yes No No Yes
150W 100W Yes No No No
10 11
Energy efficient halogen
solutions from GE
Familiar shape and light
Halogen Lamps
GE halogen IR (infrared) range of low
voltage reflector lamps provide up to 43%
energy savings over conventional MR16
lamps and – with the addition of the
patented GE reflector coating technology
– unparalleled colour rendering
throughout life.
Available in two versions, the high
performance MR16 ConstantColor IR offers
low energy use, superior lumen and color
maintenance, while the MR16 IR delivers
savings using a standard dichroic
reflector.
Halogen-IR Technology?
The Precise IR halogen capsule has multiple
layers of very durable, thin, interference
film which redirects heat, which would
otherwise be wasted, back onto the lamp
filament. This increases the filament
temperature and allows it to give off
more visible light for the same input
power.
Precise ConstantColor MR16 IR
Energy efficient low voltage dichroic mirror halogen
reflector lamps from GE
GE ConstantColor halogen lamps
have a unique glass reflector coating
technology that provide consistent
colour performance throughout their
rated life.
Conventional MR16 halogen lamps
utilize reflector coating that is gradually
degraded by the heat emitted by the
filament. Unlike any other product on
the market, the GE ConstantColor MR16
IR lamp coated with durable titania and
silica oxides withstand temperatures
of 500°C without a change in reflector
qualities. The result is close to 90%
maintained light output over life and
identical colour temperature from lamp
to lamp. With coating applied to both
inside and outside the reflector, wasted
backlight is virtually eliminated. The benefits of Precise
ConstantColor IR
• Up to 43% energy savings
compared to standard products
• Cool beam
• Long 5000 hour life, 2.5x longer
than standard MR16’s
• Eliminates backlight
• Long-term reliability
• Precise optical control
• Close to 90% lumen maintenance
• Evenly lit surfaces
• Environmentally friendly
technology
- UV control
- Mercury free
- Can be disposed with
household waste
GE’s Energy Efficient Halogen (EEH)
range is a direct replacement for
regular incandescent lamps offering
a crisp white light with 30% energy
saving and similar lumens.
Available in standard GLS, candle,
spherical and reflector shapes, GE
EEH lamps are the environmentally
friendly solution for those who
prefer the features and light quality
associated with incandescent bulbs.
• Last twice as long and consume
30% less electricity than
corresponding incandescent lamps.
• Provide instant–on, full light
output at start-up and lumens are
maintained throughout the life of
the product.
• Unlike some compact fluorescent
products, EEH lamps are
size 100% retrofit with the
incandescent lamps they replace.
• Can be used with dimming switches.
• Environmentally friendly with no
lead or mercury.
Standard GLS
40W
60W
100W
150W
Standard Candle
25W
40W
60W
Standard Spherical
25W
40W
60W
Standard R50
40W
Standard R63
60W
Standard R80
60W
100W
HaloGLS
28W
42W
70W
100W
HaloCandle
18W
28W
42W
HaloSpherical
18W
28W
42W
HaloR50
28W
HaloR63
42W
HaloR80
42W
70W
D
C
D
D
C
D
D
C
C
C
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
12 13
Halogen Lamps
G9 Mains Voltage
Clear
Cap: G9
Wattages: 25-75W
Life: 1,500-3,000Hrs
Page: 18
MR 11 Low Voltage Single Ended
Halogen Capsules
Standard
Cap: GU4
Wattages: 12-35W
Volts: 12
Beam Spread:
8-26°
Front: Open or Closed
Life: 3,500Hrs
Page: 15
Start
Cap: GU4
Wattages: 20-35W
Volts: 12
Beam Spread:
26°
Front: Closed
Life: 2,000Hrs
Page: 15
MR 16 Low Voltage
MR16 IR
Cap: GU5.3
Wattages: 20-45W
Volts: 12
Beam Spread:
10-36°
Life (hrs): 5,000Hrs
Page: 15
Alutech
Cap: GU5.3
Wattages: 20-50W
Volts: 12
Beam Spread:
36-60°
Feature:
For heat sensitive
halogen fixtures
Life: 3,000Hrs
Page: 17
Precise
ConstantColor
Cap: GU5.3
Wattages: 20-71W
Volts: 12
Beam Spread:
12-55°
Feature:
Consistent light quality
and exceptional long life
Life: 4,000-6,000Hrs
Page: 15
Precise Bright
Cap: GU5.3
Wattages: 20-50W
Volts: 12
Beam Spread:
18-60°
Feature:
Outstanding light output
in a mid range lamp
Life: 5,000Hrs
Page: 16
Start
Cap: GU5.3
Wattages: 20-50W
Volts: 12
Beam Spread:
12-55°
Feature:
Budget lamp with
reliable GE quality
Life: 2,000Hrs
Page: 16
AR111 Aluminium
Reflector
Standard
Cap: G53
Wattages: 35-100W
Volts: 12
Beam Spread:
8-45°
Life: 3,000Hrs
Page: 17
MR 16 & MR 20 Mains
Voltage GU10 Cap
Alutech
Cap: GU10
Wattages: 20-50W
Volts: 230-240
Beam Spread:
36°
Life: Up to 3,000Hrs
Page: 17
Coloured
Cap: GU10
Wattages: 50W
Volts: 240
Beam Spread:
36°
Finish:
Red, Yellow or Blue
Life: 1,500Hrs
Page: 18
Selector
Transversal
and Axial
Filament
Cap: G4 or GY6.35
Wattages: 5-100W
Life: up to 4,000Hrs
Page: 18
Low Pressure
Cap: G4 or GY6.35
Wattages: 10-75W
Life: 2,000Hrs
Page: 19
Start
Cap: G4 or GY6.35
Wattages: 10-100W
Life: 1,000Hrs
Page: 19
Double Ended
Linear
IR
Cap: R7s
Wattages: 225-375W
Life: 2,000Hrs
Page: 19
Energy Saver
Cap: R7s
Wattages: 100-330W
Life: 1,000Hrs
Page: 19
Standard and Start
Cap: R7s
Wattages: 60-2000W
Life: 1,000-2,000Hrs
Page: 20
PAR 16
Cap: E14
Wattages: 40W
Life: 2,000Hrs
Page: 20
PAR 20
Cap: E27
Wattages: 50W
Beam Choice: Spot or Flood
Life: 2,000Hrs
Page: 20
PAR 25
Cap: E27
Wattages: 75W
Beam Choice: Flood
Life: 3,000Hrs
Page: 20
PAR 30
Cap: E27
Wattages: 75-100W
Beam Choice: Spot or Flood
Life: 2,000-3,000Hrs
Page: 20
PAR 16, 20, 25, 30
Energy Efficient Halogen
Incandescent Shapes
HaloCandle
Cap: E14, E27, B15, B22
Wattages: 18-42W
Life: 2,000Hrs
Page: 22
HaloReflector
Cap: E14, E27
Wattages: 28-70W
Life: 2,000Hrs
Page: 22
HaloGLS
Cap: E27, B22
Wattages: 28-100W
Life: 2,000Hrs
Page: 21
HaloSpherical
Cap:
E14, B15, E27, B22
Wattages: 18-42W
Life: 2,000Hrs
Page: 22
14 15
17200 FTD/M262/CG 20 12 GU4 490 26 2900 2,000 35 40
17201 FTF/M199/CG 35 12 GU4 1150 26 2900 2,000 35 40
Product
Code
Product
Description
Wattage
[W]
Volts
[V]
Cap Candela
[cd]
Beam
Angle [°]
CCT
[K]
Life [h] Diameter
[mm]
Length
[mm]
19626 M62/FTD 20 12 GU4 550 26 2900 3,500 35 40
19635 M66/FTF 35 12 GU4 2300 21 2900 3,500 35 40
19634 M199/FTH 35 12 GU4 1300 26 2900 3,500 35 40
19639 M264/FTA/CG 12 12 GU4 3960 8 2900 2,000 35 45
19636 M251/FTC/CG 20 12 GU4 1800 17 2900 3,500 35 45
19625 M262/FTD/CG 20 12 GU4 490 26 2900 3,500 35 45
19627 M266/FTF/CG 35 12 GU4 2070 21 2900 3,500 35 45
20841 EYJ/CC 71 12 GU5.3 5500 25 3000 4,000 51 46
20840 EYC/CC 71 12 GU5.3 2000 42 3000 4,000 51 46
20858 ESX/CG 20 12 GU5.3 3150 15 3000 5,000 51 51
20857 BAB/CG 20 12 GU5.3 475 40 3000 5,000 51 51
20864 FRB/CG 35 12 GU5.3 7500 12 3000 5,000 51 51
20860 FRA/CG 35 12 GU5.3 3200 20 3000 5,000 51 51
20859 FMW/CG 35 12 GU5.3 900 40 3000 5,000 51 51
20872 EXT/CG 50 12 GU5.3 8400 15 3000 6,000 51 51
20871 EXZ/CG 50 12 GU5.3 2900 25 3000 6,000 51 51
20867 EXN/CG 50 12 GU5.3 1500 40 3000 6,000 51 51
20865 FNV/CG 50 12 GU5.3 850 55 3000 6,000 51 51
20876 EYF/CG 71 12 GU5.3 10400 15 3000 4,000 51 51
20874 EYJ/CG 71 12 GU5.3 4550 25 3000 4,000 51 51
20873 EYC/CG 71 12 GU5.3 2000 40 3000 4,000 51 51
Precise MR11 - Open
Precise ConstantColor MR16 - Open
Precise MR11 - Closed
Precise ConstantColor MR16 - Closed
MR11 Start - Closed
The following glossary of terms will help you when selecting lamps in this section.
Within each product line, lamps are divided into families – within these families,
lamps are listed by wattage. The Product Description can be used as a quick
reference to each product’s attributes. Where Life or Average Life are stated we
refer to the industry standard definition of how many hours of operation 50% of
a given installation will exceed.
Product identification
Halogen Lamps
lamp name: Halogen — Precise MR11/Open
lamp name: Halogen — Precise MR11/Closed
lamp name: Halogen — Precise MR11/Closed
lamp name: Halogen — Lightstream MR16/Closed
Product
Code
Product
Description
Wattage
[W] Volts [V] Cap Candela
[cd]
Beam
Angle [°] CCT [K] Life [h] Diameter
[mm]
Length
[mm] Pack Qty
19626 M62/FTD 20 12 GU4 550 26 2900 3,500 35.3 40 10
19635 M66/FTF 35 12 GU4 2300 21 2900 3,500 35.3 40 10
19634 M199/FTH 35 12 GU4 1300 26 2900 3,500 35.3 40 10
Precise MR11 - Open
Class M
Numerical
index, industry
code specifying
lamp type
FTD - ANSI code
Industry code
specifying lamps
type defined by
the American
National Standard
Institute
Product description:
The lamp’s
identification code
Product code:
It is important to
use this code when
ordering to ensure
that you receive the
exact product you
require
Watts:
Energy Used –
Nominal Watts.
To estimate energy
consumption (kWh),
multiply watts x
hours of use and
divide by 1000
Volts:
Lamp data
is based on
operation at
rated voltage
Life:
The point in time when
50% of installed lamps
are still burning
Peak Beam Candelas:
For reflector type lamps.
Luminous intensity
of the lamp beam
expressed in candelas
Length:
Lamp length in mm
CCT [K]: Colour
Temperature - Kelvins:
A measure of the visual
“warmth” or “coolness” of
the light from the lamp. The
higher the value the whiter or
“cooler” the light appears
Diameter:
Bulb diameter in mm
Pack quantity:
Number of product
units packed in a case
Beam Spread Degrees:
For reflector type lamps.
The angle of the cone
of light produced by a
reflector lamp at 50% of
its intensity
M62 / FTD
Additional parameters:
Lumens: Light output
EEC: Energy Efficiency Class
Cap:
The type of cap
fitted. See page
134-135 for cap
drawings
77900 Q20MR16HIR/CCG10 20 12 GU5.3 6000 10 2900 5000 51 51
77901 Q20MR16HIR/CCG24 20 12 GU5.3 2300 24 2900 5000 51 51
77902 Q20MR16HIR/CCG36 20 12 GU5.3 1000 36 2900 5000 51 51
79584 Q30MR16HIR/CCG10 30 12 GU5.3 10000 10 2950 5000 51 51
79585 Q30MR16HIR/CCG24 30 12 GU5.3 3350 24 2950 5000 51 51
79586 Q30MR16HIR/CCG36 30 12 GU5.3 1600 36 2950 5000 51 51
77904 Q35MR16HIR/CCG10 35 12 GU5.3 12000 10 2950 5000 51 51
77905 Q35MR16HIR/CCG24 35 12 GU5.3 4200 24 2950 5000 51 51
77906 Q35MR16HIR/CCG36 35 12 GU5.3 2000 36 2950 5000 51 51
77907 Q45MR16HIR/CCG10 45 12 GU5.3 14000 10 3000 5000 51 51
77908 Q45MR16HIR/CCG24 45 12 GU5.3 5200 24 3000 5000 51 51
77909 Q45MR16HIR/CCG36 45 12 GU5.3 2300 36 3000 5000 51 51
77657 MR16 IR 20W 12V WFL 20 12 GU5.3 1000 36 2900 5,000 51 51
77658 MR16 IR 35W 12V WFL 35 12 GU5.3 2000 36 2950 5,000 51 51
Precise ConstantColor MR16 IR
Precise MR16 IR
16 17
Halogen Lamps
88235 M269/BAB/CG 20 12 GU5.3 450 36 2900 5,000 51 51
88236 M281/FMW/CG 35 12 GU5.3 1300 36 2900 5,000 51 51
88237 M250/EXZ/CG 50 12 GU5.3 4750 18 2900 5,000 51 51
88239 M258/EXN/CG 50 12 GU5.3 2100 36 2900 5,000 51 51
88238 M280/FNV/CG 50 12 GU5.3 950 60 2900 5,000 51 51
71624 MR16 12V 20W 8D /open 5000 hours 20 12 GU5.3 4280 8 2800 5,000 50 48
71625 MR16 12V 20W 36D /BAB /open 5000 hours 20 12 GU5.3 480 36 2800 5,000 50 48
71618 MR16 12V 50W 8D /open 5000 hours 50 12 GU5.3 8560 8 3000 5,000 50 48
71619 MR16 12V 50W 18D /open 5000 hours 50 12 GU5.3 5080 18 3000 5,000 50 48
71620 MR16 12V 50W 36D /ENX /open 5000 hours 50 12 GU5.3 2250 36 3000 5,000 50 48
71621 MR16 12V 50W 60D /FNV /open 5000 hours 50 12 GU5.3 1070 60 3000 5,000 50 48
71616 MR16 12V 20W 8D /CG 5000 hours 20 12 GU5.3 4000 8 2800 5,000 50 48
71617 MR16 12V 20W 36D /BAB /CG 5000 hours 20 12 GU5.3 450 36 2800 5,000 50 48
71610 MR16 12V 50W 8D /CG 5000 hours 50 12 GU5.3 8000 8 3000 5,000 50 48
71611 MR16 12V 50W 18D /CG 5000 hours 50 12 GU5.3 4750 18 3000 5,000 50 48
71612 MR16 12V 50W 36D /ENX /CG 5000 hours 50 12 GU5.3 2100 36 3000 5,000 50 48
71613 MR16 12V 50W 60D /FNV /CG 5000 hours 50 12 GU5.3 1000 60 3000 5,000 50 48
Product
Code
Product
Description
Wattage
[W]
Volts
[V]
Cap Candela
[cd]
Beam
Angle [°]
CCT
[K]
Life
[h]
Diameter
[mm]
Length
[mm]
38012 M268/ESX/CG/EC 20 12 GU5.3 3150 12 2900 2,000 51 51
38006 M269/BAB/CG/EC 20 12 GU5.3 450 36 2900 2,000 51 51
38013 FRB/CG/EC 35 12 GU5.3 6750 12 2900 2,000 51 51
38007 M281/FMW/CG/EC 35 12 GU5.3 830 36 2900 2,000 51 51
38000 M69/BAB/EC 20 12 GU5.3 500 36 2900 2,000 51 48
38001 M81/FMW/EC 35 12 GU5.3 925 36 2900 2,000 51 48
38002 M58/EXN/EC 50 12 GU5.3 1500 36 2900 2,000 51 48
89677 Q20MR16/FL 20 12 GU5.3 500 36 2900 1,000 50 48
89678 Q20MR16/SP 20 12 GU5.3 3500 12 2900 1,000 50 48
89679 Q35MR16/FL 35 12 GU5.3 925 36 2900 1,000 50 48
89680 Q35MR16/M(FMV) 35 12 GU5.3 1950 24 2900 1,000 50 48
89681 Q50MR16/FL 50 12 GU5.3 1500 36 3000 1,000 50 48
89682 Q50MR16/M 50 12 GU5.3 3000 24 3000 1,000 50 48
MR16 Start - Open
MR16 Start - Closed
Precise Alutech MR16 - Closed
AR111 - Low Pressure Capsule With Aluminium Reflector
lamp name: Halogen — Lightstream MR16/Closed
lamp name: Halogen — Precise MR16/Open
— Lightstream MR16/Open
lamp name: Halogen — Lightstream MR16/Closed
lamp name: Halogen — Lightstream MR16/Closed
Product
Code
Product
Description
Wattage
[W]
Volts
[V] Cap Candela
[cd]
Beam
Angle [°]
CCT
[K]
Life
[h]
Diameter
[mm]
Length
[mm]
88231 M69/BAB 20 12 GU5.3 480 36 2900 5,000 51 46
88229 M81/FMW 35 12 GU5.3 1390 36 2900 5,000 51 46
88234 M58/EXN 50 12 GU5.3 2250 36 2900 5,000 51 46
88232 M80/FNV 50 12 GU5.3 1070 60 2900 5,000 51 46
Precise Bright 5000 MR16 - Open
lamp name: Halogen — Precise MR16/Open
— Lightstream MR16/Open
Precise Bright 5000 MR16 - Closed
PrecisePlus MR16 (5000hr) - Open
PrecisePlus MR16 (5000hr) - Closed
38014 M249/EXT/CG/EC 50 12 GU5.3 8550 12 2900 2,000 51 51
39611 M250/EXZ/CG/EC 50 12 GU5.3 2700 24 2900 2,000 51 51
38011 M258/EXN/CG/EC 50 12 GU5.3 1350 36 2900 2,000 51 51
39236 M280/FNV/CG/EC 50 12 GU5.3 630 55 2900 2,000 51 51
89683 Q20MR16/FL/CG 20 12 GU5.3 450 36 2800 1,000 50 48
89684 Q20MR16/SP/CG 20 12 GU5.3 3500 12 2800 1,000 50 48
89685 Q35MR16/FL/CG 35 12 GU5.3 832 36 2900 1,000 50 48
89686 Q35MR16/M(FMV) CG 35 12 GU5.3 1750 24 2900 1,000 50 48
89687 Q50MR16/FL/CG 50 12 GU5.3 1350 36 3000 1,000 50 48
89688 Q50MR16/M/CG 50 12 GU5.3 2700 24 3000 1,000 50 48
88216 M269/BAB/CG/AL 20 12 GU5.3 450 36 2900 3,000 51 51
88217 M281/FMW/CG/AL 35 12 GU5.3 1300 36 2900 3,000 51 51
88215 M258/EXN/CG/AL 50 12 GU5.3 1800 36 2900 3,000 51 51
88214 M280/FNW/CG/AL 50 12 GU5.3 700 60 2900 3,000 51 51
10774 AR111 35W12V SP 35 12 G53 14000 8 2900 2,000 111 67
10775 AR111 35W12V FL 35 12 G53 2500 24 2900 2,000 111 67
10766 AR111 50W12V SP 50 12 G53 17800 8 2900 3,000 111 67
10767 AR111 50W12V FL 50 12 G53 3500 24 2900 3,000 111 67
10768 AR111 75W12V SP 75 12 G53 23500 8 2900 3,000 111 67
10769 AR111 75W12V FL 75 12 G53 5300 24 2900 3,000 111 67
10771 AR111 75W12V WFL 75 12 G53 1700 45 2900 3,000 111 67
41915 AR111 100W12V SP 100 12 G53 40000 8 2900 3,000 111 67
41922 AR111 100W12V FL 100 12 G53 8000 24 2900 3,000 111 67
41923 AR111 100W12V WFL 100 12 G53 2300 45 2900 3,000 111 67
25152 AR111 50W 12V SP 50 12 G53 17800 8 2900 3,000 111 67
25154 AR111 50W 12V FL 50 12 G53 3500 24 2900 3,000 111 67
25155 AR111 75W 12V SP 75 12 G53 23500 8 2900 3,000 111 67
25156 AR111 75W 12V FL 75 12 G53 5300 24 2900 3,000 111 67
25157 AR111 75W 12V WFL 75 12 G53 1700 45 2900 3,000 111 67
Product
Code
Product
Description
Wattage
[W]
Volts
[V]
Cap Candela
[cd]
Beam
Angle [°]
CCT
[K]
Life
[h]
Diameter
[mm]
Length
[mm]
40402 Q50MR16/230/25° 50 230 GU10 950 25 2800 3,000 51 55
40403 Q50MR16/230/36° 50 230 GU10 600 36 2800 3,000 51 55
40404 Q50MR16/240/25° 50 240 GU10 950 25 2800 3,000 51 55
40405 Q50MR16/240/36° 50 240 GU10 600 36 2800 3,000 51 55
10898 Q20MR16/230/FL 20 230 GU10 200 36 2700 1,500 51 55
10896 Q35MR16/230/FL 35 230 GU10 400 36 2700 1,500 51 55
92729 Q50MR16/230/FL 50 230 GU10 600 36 2700 1,500 51 55
10859 Q20MR16/240/FL 20 240 GU10 200 36 2700 1,500 51 55
10857 Q35MR16/240/FL 35 240 GU10 400 36 2700 1,500 51 55
92730 Q50MR16/240/FL 50 240 GU10 600 36 2700 1,500 51 55
MR16 Mains Alutech Long Life
MR16 Mains Alutech
18 19
Product
Code
Product
Description
Colour Wattage
[W]
Volts
[V]
Cap Candela
[cd]
Beam
Angle [°]
CCT
[K]
Life
[h]
Diameter
[mm]
Length
[mm]
12988 Q50MR16/240/FL START Red 50 240 GU10 600 36 2700 1,500 51 55
12995 Q50MR16/240/FL START Blue 50 240 GU10 600 36 2700 1,500 51 55
13003 Q50MR16/240/FL START Yellow 50 240 GU10 600 36 2700 1,500 51 55
MR16 Mains Alutech - Coloured
Halogen Lamps
Product
Code
Product
Description
Wattage
[W]
Volts
[V]
Cap Lumen
[lm]
CCT
[K]
Life
[h]
Diameter
[mm]
Length
[mm]
45692 SHORTG9 25W CL 230V 25 230 G9 260 2800 1,500 13 43
22504 SHORTG9 40W CL 230V 40 230 G9 460 2800 3,000 13 43
88941 SHORTG9 25W CL 240V 25 240 G9 260 2800 1,500 13 43
22498 SHORTG9 40W CL 240V 40 240 G9 460 2800 3,000 13 43
75979 OT SHORTG9 25W CL 240V GE HFBL2/20 TRAY 25 240 G9 255 2650 2,000 12.5 41.8
88305 OT SHORTG9 40W CL 240V GE HFBL2/20 TRAY 40 240 G9 470 2700 2,000 12.5 42.8
75980 OT SHORTG9 60W CL 240V GE HFBL2/20 TRAY 60 240 G9 790 2700 1,500 12.5 44.8
75983 OT SHORTG9 75W CL 240V GE HFBL2/20 TRAY 75 240 G9 1040 2750 1,500 12.5 44.8
Product
Code
Product
Description
Wattage
[W]
Volts
[V]
Cap Lumen
[lm]
CCT
[K]
Life
[h]
Diameter
[mm]
Length
[mm]
Single ended mains voltage capsule short G9 - Clear
88311 OT SHORTG9 25W FR 240V GE HFBL2/20 TRAY 25 240 G9 240 2600 1,500 12.5 41.8
88307 OT SHORTG9 40W FR 240V GE HFBL2/20 TRAY 40 240 G9 425 2700 1,500 12.5 42.8
75982 OT SHORTG9 60W FR 240V GE HFBL2/20 TRAY 60 240 G9 730 2700 1,500 12.5 44.8
75984 OT SHORTG9 75W FR 240V GE HFBL2/20 TRAY 75 240 G9 965 2700 1,500 12.5 44.8
Single ended mains voltage capsule short G9 - frosted
34728 M42/Q10 G4 10 6 G4 140 2800 2,000 9 33
34712 M76/Q20/GY6.35 20 12 GY6.35 300 2900 3,000 11 44
34710 M75/Q35/GY6.35 35 12 GY6.35 600 2900 4,000 11 44
34703 M74/Q50/GY6.35 50 12 GY6.35 900 2900 4,000 11 44
34683 M73/Q75/GY6.35 75 12 GY6.35 1350 2900 4,000 11 44
34664 M180/Q100/GY6.35 100 12 GY6.35 2150 2900 4,000 11 44
35705 Q10T2,5/12V G4 10 12 G4 140 2800 2,000 9 33
35710 Q20T2,5/12V G4 20 12 G4 320 2900 2,000 9 33
35696 Q20T3/12V GY6.35 20 12 GY6.35 300 2900 2,000 11 44
35699 Q35T3/12V GY6.35 35 12 GY6.35 600 2900 2,000 11 44
35700 Q50T3/12V GY6.35 50 12 GY6.35 900 2900 2,000 11 44
35701 Q75T3/12V GY6.35 75 12 GY6.35 1350 2900 2,000 11 44
12708 M11/Q10/G4 ST 10 12 G4 100 2800 1,000 10 33
12711 M47/Q20/G4 ST 20 12 G4 250 2900 1,000 10 33
12712 M95/Q35/GY6.35 ST 35 12 GY6.35 480 2900 1,000 11 44
12713 M32/Q50/GY6.35 ST 50 12 GY6.35 800 2900 1,000 11 44
12718 Q100/GY6.35 ST 100 12 GY6.35 1950 2900 1,000 11 44
Single ended low voltage capsule - Axial Filament
Single ended low voltage capsule - Low Pressure, Axial Filament
Single ended low voltage capsule Start - Transversal Filament
34720 M29/Q10 G4 10 6 G4 200 2800 100 9 33
34718 M30/ESB/Q20 G4 20 6 G4 450 2900 100 9 33
34719 M34/FHE/Q20 G4 20 6 G4 350 2900 2,000 9 33
42959 M9/H5 G4 5 12 G4 60 2800 2,000 9 33
34674 M11/H10 G4 10 12 G4 140 2800 2,000 9 33
34714 M35/Q20 G4 20 12 G4 400 2900 250 9 33
34715 M47/Q20 G4 20 12 G4 380 2900 2,000 9 33
34708 M95/Q35/GY6.35 35 12 GY6.35 550 2900 3,000 11 44
34702 M32/Q50 GY6.35 50 12 GY6.35 930 2900 4,000 11 44
34682 M313/Q75/GY6.35 75 12 GY6.35 1350 2900 2,000 11 44
34676 M28/Q100 GY6.35 100 12 GY6.35 2200 2900 3,000 11 44
34663 M67/Q100 GY6.35 24V 100 24 GY6.35 2000 2900 2,000 11 44
Single ended low voltage capsule - Transversal Filament
91515 K9/Q225 T3/230V HIR 225 230 R7s 5000 3000 2,000 10 117.6 C
31598 K1/Q375 T3/230V HIR 375 230 R7s 9400 3000 2,000 10 117.6 C
43299 K9/Q225 T3/240V HIR 225 240 R7s 5000 3000 2,000 10 117.6 C
31612 K1/Q375 T3/240V HIR 375 240 R7s 9400 3000 2,000 10 117.6 C
Product
Code
Product
Description
Wattage
[W]
Volts
[V]
Cap Lumen
[lm]
CCT
[K]
Life
[h]
Diameter
[mm]
Length
[mm]
EEC
76210 K12 C100W 230V R7S 100 230 R7s 1900 2800 1,000 8 78 C
76209 K11 C130W 230V R7S 130 230 R7s 2440 2800 1,000 8 117.6 C
76208 K9 C200W 230V R7S 200 230 R7s 4000 2800 1,000 8 117.6 C
76207 K1 C330W 230V R7S 330 230 R7s 7400 2800 1,000 8 117.6 C
76530 K12 C100W 240V R7S 100 240 R7s 1900 2800 1,000 8 78 C
76529 K11 C130W 240V R7S 130 240 R7s 2440 2800 1,000 8 117.6 C
76528 K9 C200W 240V R7S 200 240 R7s 4000 2800 1,000 8 117.6 C
76527 K1 C330W 240V R7S 330 240 R7s 7400 2800 1,000 8 117.6 C
Double ended linear Halogen IR
Double ended linear Halogen Energy Saver
— Standard Double Ended Linear/w Backbone
lamp name: Halogen
— Standard Double Ended Linear/w Backbone
lamp name: Halogen
20 21
29161 K1/Q500 T2.5/CL 500 120 R7s 11000 2900 2,000 8 117.6 C
29165 K1/Q500 T2.5/CL 500 230 R7s 9800 2900 2,000 8 117.6 D
29180 K4/Q1000 T3/CL 1000 230 R7s 21000 2900 2,000 10 189.1 N/A
29184 K5/Q1500 T3/CL 1500 230 R7s 32000 2900 1,000 10 254.1 N/A
30886 K8/Q2000 T3/CL 2000 230 R7s 44000 2900 1,000 10 330.8 N/A
29168 K1/Q500 T2.5/CL 500 240 R7s 9800 2900 2,000 8 117.6 D
29181 K4/Q1000 T3/CL 1000 240 R7s 21000 2900 2,000 10 189.1 N/A
43712 K10/1000 T3/CL 1000 240 R7s 21000 2900 2,000 10 254.1 N/A
23830 K5/Q1500 T3/CL 1500 240 R7s 33000 2900 1,000 10 254.1 N/A
29187 K5/Q1500 T3/CL 1500 240 R7s 32000 2900 1,000 10 254.1 N/A
23832 K5/Q1500 T3/CL 1500 277 R7s 33000 2900 2,000 10 254.1 N/A
Halogen Lamps
Double ended linear Halogen
— Standard Double Ended Linear/w Backbone
lamp name: Halogen
lamp name: Halogen — Standard Double Ended Linear/without Backbone
Product
Code
Product
Description
Wattage
[W] Volts [V] Cap Candela
[cd]
Beam
Angle [°] CCT [K] Life [h] Diameter
[mm]
Length
[mm]
27826 40PAR16/230/FL 40 230 E14 950 25 2800 2,000 51 79
27845 40PAR16/240/FL 40 240 E14 950 25 2800 2,000 51 79
40363 50PAR20/230/SP 50 230 E27 3000 10 2800 2,000 64.5 91
40362 50PAR20/230/FL 50 230 E27 1000 25 2800 2,000 64.5 91
40364 50PAR20/240/SP 50 240 E27 3000 10 2800 2,000 64.5 91
40365 50PAR20/240/FL 50 240 E27 1000 25 2800 2,000 64.5 91
95700 50PAR20 FL-230V 50 230 E27 1000 25 2650 2,100 65 85
95701 50PAR20 SP-230V 50 230 E27 2200 10 2650 2,100 65 85
95775 50PAR20/240/SP 50 240 E27 1000 10 2600 2,100 65 85
95776 50PAR20/240/FL 50 240 E27 2200 25 2600 2,100 65 85
91775 75PAR25/230/FL 75 230 E27 1300 25 2800 3,000 81 108
92165 75PAR25/240/FL 75 240 E27 1300 25 2800 3,000 81 108
40366 75PAR30/230/SP 75 230 E27 6200 10 2800 2,000 97 90.5
40349 75PAR30/230/FL 75 230 E27 2000 30 2800 2,000 97 90.5
32484 100PAR30/230/FL 100 230 E27 3100 30 2800 3,000 97 90.5
40367 75PAR30/240/SP 75 240 E27 6200 10 2800 2,000 97 90.5
40361 75PAR30/240/FL 75 240 E27 2000 30 2800 2,000 97 90.5
32482 100PAR30/240/FL 100 240 E27 3100 30 2800 3,000 97 90.5
95702 75PAR30 FL-230V 75 230 E27 1400 30 2700 3,000 97 93
95703 75PAR30 SP-230V 75 230 E27 5800 10 2700 3,000 97 93
10302 50PAR30/110/K9N 50 110 E26NP 12000 - 2800 3,000 95 88
10301 50PAR30/110/K9N 50 110 E26NP 2800 - 2800 3,000 95 88
Product
Code
Product
Description
Wattage
[W]
Volts
[V]
Cap Lumen
[lm]
CCT
[K]
Life
[h]
Diameter
[mm]
Length
[mm]
32108 Halo T38/1000W/E40/230 1000 230 E40 21000 2900 2,000 38 280
32109 Halo T38/1000W/E40/240 1000 240 E40 21000 2900 2,000 38 280
Halogen PAR 16
Halogen PAR 30 HIR
Halogen PAR 20
Halogen PAR 25
Halogen PAR 30
lamp name: Halogen — PAR 20
lamp name: Halogen — PAR 30
HaloTubular T38
95777 75PAR30/240/SP 75 240 E27 5800 10 2700 3,000 97 93
95778 75PAR30/240/FL 75 240 E27 1400 30 2700 3,000 97 93
95779 100PAR30/240/SP 100 240 E27 8500 10 2750 2,100 97 93
95780 100PAR30/240/FL 100 240 E27 2100 30 2750 2,100 97 93
Product
Code
Product
Description
Wattage
[W]
Volts [V] Cap Lumen
[lm]
CCT [K] Life [h] Diameter
[mm]
Length
[mm]
EEC
76957 28W HALO A CL E27 230V 28 230 E27 340 2900 2,000 50 96 D
76953 42W HALO A CL E27 230V 42 230 E27 630 2900 2,000 50 96 C
76948 70W HALO A CL E27 230V 70 230 E27 1300 2900 2,000 50 96 C
76944 100W HALO A CL E27 230V 100 230 E27 1800 2900 2,000 50 104 C
76954 28W HALO A CL E27 240V 28 240 E27 340 2900 2,000 50 96 D
76950 42W HALO A CL E27 240V 42 240 E27 630 2900 2,000 50 96 C
76945 70W HALO A CL E27 240V 70 240 E27 1300 2900 2,000 50 96 C
76941 100W HALO A CL E27 240V 100 240 E27 1800 2900 2,000 50 104 C
76955 28W HALO A CL B22 240V 28 240 B22 340 2900 2,000 50 96 D
76951 42W HALO A CL B22 240V 42 240 B22 630 2900 2,000 50 96 C
76946 70W HALO A CL B22 240V 70 240 B22 1300 2900 2,000 50 96 C
76942 100W HALO A CL B22 240V 100 240 B22 1800 2900 2,000 50 104 C
Product
Code
Product
Description
Wattage
[W]
Volts
[V]
MOL
[in]
Lumen
[lm]
Life
[h]
Warning and
Caution Notices
Additional
Information
78795 29A/CL/H-2PK 29 120 4.43 310 1000 1a, 2a, 2b, 2c, 2e, 4i, 4j, 9a, 10b, 10c Clear, Halogen
78796 43A/CL/H-2PK 43 120 4.43 750 1000 1a, 2a, 2b, 2c, 2e, 4i, 4j, 9a, 10b, 10c Clear, Halogen
78797 53A/CL/H-2PK 53 120 4.43 1050 1000 1a, 2a, 2b, 2c, 2e, 4i, 4j, 9a, 10b, 10c Clear, Halogen
82137 60A/CL/H/RVL-CD 60 120 4.43 675 3000 1a, 2a, 2b, 2c, 2e, 4i, 4j, 9a, 10b, 10c Reveal Clear, Halogen, Carded
72373 60A/CRY/H/RVL-CD 60 120 4.43 800 3000 1a, 2a, 2b, 2c, 2e, 4i, 4j, 9a, 10b, 10c Reveal Crystal, Halogen, Carded
78798 72A/CL/H-2PK 72 120 4.43 1490 1000 1a, 2a, 2b, 2c, 2e, 4i, 4j, 9a, 10b, 10c Clear, Halogen
82138 75A/CL/H/RVL-CD 75 120 4.43 850 3000 1a, 2a, 2b, 2c, 2e, 4i, 4j, 9a, 10b, 10c Reveal Clear, Halogen, Carded
82139 100A/CL/H/RVL-CD 100 120 4.43 1275 3000 1a, 2a, 2b, 2c, 2e, 4i, 4j, 9a, 10b, 10c Reveal Clear, Halogen, Carded
72374 100A/CRY/H/RVL-CD 100 120 4.43 140 3000 1a, 2a, 2b, 2c, 2e, 4i, 4j, 9a, 10b, 10c Reveal Crystal, Halogen, Carded
Energy Efficient HaloGLS
A-19
22 23
Halogen Lamps
Product
Code
Product
Description
Wattage
[W]
Volts
[V]
Cap Lumen
[lm]
CCT
[K]
Life
[h]
Diameter
[mm]
Length
[mm]
EEC
98402 20W HALO C CL E14 230V 20 230 E14 235 2900 2,000 36 100 D
98398 30W HALO C CL E14 230V 30 230 E14 405 2900 2,000 36 100 D
76575 42W HALO C CL E14 230V 42 230 E14 630 2900 2,000 36 100 C
98396 30W HALO C CL E27 230V 30 230 E27 405 2900 2,000 36 100 D
76573 42W HALO C CL E27 230V 42 230 E27 630 2900 2,000 36 100 C
98399 20W HALO C CL E14 240V 20 240 E14 235 2900 2,000 36 100 D
98392 30W HALO C CL E14 240V 30 240 E14 405 2900 2,000 36 100 D
76569 42W HALO C CL E14 240V 42 240 E14 630 2900 2,000 36 100 C
98391 30W HALO C CL E27 240V 30 240 E27 405 2900 2,000 36 100 D
76568 42W HALO C CL E27 240V 42 240 E27 630 2900 2,000 36 100 C
98394 30W HALO C CL B15 240V 30 240 B15 405 2900 2,000 36 100 D
76571 42W HALO C CL B15 240V 42 240 B15 630 2900 2,000 36 100 C
98400 20W HALO C CL B22 240V 20 240 B22 235 2900 2,000 36 100 D
98393 30W HALO C CL B22 240V 30 240 B22 405 2900 2,000 36 100 D
76570 42W HALO C CL B22 240V 42 240 B22 630 2900 2,000 36 100 C
98390 20W HALO S CL E14 230V 20 230 E14 235 2900 2,000 45 78 D
98384 30W HALO S CL E14 230V 30 230 E14 405 2900 2,000 45 78 D
76553 42W HALO S CL E14 230V 42 230 E14 630 2900 2,000 45 78 C
98388 20W HALO S CL E27 230V 20 230 E27 235 2900 2,000 45 78 D
98382 30W HALO S CL E27 230V 30 230 E27 405 2900 2,000 45 78 D
76551 42W HALO S CL E27 230V 42 230 E27 630 2900 2,000 45 78 C
98385 20W HALO S CL E14 240V 20 240 E14 235 2900 2,000 45 78 D
98378 30W HALO S CL E14 240V 30 240 E14 405 2900 2,000 45 78 D
76548 42W HALOS CL E14 240V 42 240 E14 630 2900 2,000 45 78 C
98377 30W HALO S CL E27 240V 30 240 E27 405 2900 2,000 45 78 D
76547 42W HALOS CL E27 240V 42 240 E27 630 2900 2,000 45 78 C
98380 30W HALO S CL B15 240V 30 240 B15 405 2900 2,000 45 78 D
98386 20W HALO S CL B22 240V 20 240 B22 235 2900 2,000 45 78 D
98379 30W HALO S CL B22 240V 30 240 B22 405 2900 2,000 45 78 D
76549 42W HALOS CL B22 240V 42 240 B22 630 2900 2,000 45 78 C
Product
Code
Product
Description
Wattage
[W]
Volts
[V]
Cap Candela
[cd]
CCT
[K]
Life
[h]
Diameter
[mm]
Length
[mm]
76546 28W HALO R50 E14 230V 28 230 E14 220 2900 2,000 50 86
76543 42W HALO R63 E27 230V 42 230 E27 600 2900 2,000 63.5 101
76540 42W HALO R80 E27 230V 42 230 E27 230 2900 2,000 80 121
76537 70W HALO R80 E27 230V 70 230 E27 TBD 2900 2,000 80 121
76544 28W HALO R50 E14 240V 28 240 E14 220 2900 2,000 50 86
76541 42W HALO R63 E27 240V 42 240 E27 600 2900 2,000 63.5 101
76538 42W HALO R80 E27 240V 42 240 E27 230 2900 2,000 80 121
Energy Efficient HaloCandle
Energy Efficient HaloSpherical
Energy Efficient HaloReflector
— Reflector (Diffuse)/E27/63.5mm
— Coloured Reflector /E27/Red, Yellow, Green,
Blue, Amber
lamp name: Incandescent
Ever since GE promoted its first fluorescent lamp in 1938,
GE has an over-60-year experience in designing
and manufacturing fluorescent lamps.
Linear Fluorescent
Lamps
24 25
Linear Fluorescent Lamps
T5 Solutions
• 36,000 hour extra long life
• Superior lumen maintenanec - 90%
• Excellent colour rendering – 85Ra
• 5% energy savion with existion system
• 30,000 hour long life
• Reduces CO2 and other greenhouse
gas emissions
• 20,000 hour rated life
• superior lumen maintenance
GE T5 Watt-Miser GE T5 StarV
For maintenance saving
GE T5 StarCoat LongLast
For energy Saving For Best in Value
Thecharacteristicsofuorescentlamps
vary widely according to the lamp type.
Ingeneral,uorescentlampshavethe
following advantages:
• Efcient installation and reduced
running costs with our Watt-Miser
lamps
• Long life – life ratings for uorescent
lamps are now up to 42,000 hours
with our LongLast lamps, based on the
industry standard of 3-hour burning
cycles
• Light quality – high colour rendering
and high lumen maintenance
• Flexibility – many combinations of
wattage and length, provide exibility
of xture design and ceiling layout
Whether its long life, energy savings, or quality of light,
GE’s linear fluorescent lamps have your application
covered. Delivering excellent colour rendering and
high lumen maintenance, for more high quality light.
Looking to the future, we will continue to
bring you new technology and improve
the efciency and performance of
our portfolio, in line with technology
advancements.
T5
T5 Starcoat
Cap: G5
Wattages: 14-80W
Life: 30,000-36,000Hrs
Page: 27
T5 StarV
Cap: G5
Wattages: 14-80W
Life: 20,000Hrs
Page: 28
T5 Miniature
Cap: G5
Wattages: 4-13W
Life: 5,000-6,000Hrs
Page: 28
T8
T8 Polylux XLR
Cap: G13
Wattages: 15-70W
Life: 15,000-24,000Hrs
Page: 29
T8 TriTeah Plus
Cap: G13
Wattages: 18-58W
Life: 15,000Hrs
Page: 29
T8 Standard
Cap: G13
Wattages: 10-36W
Life: 10,000-15,000Hrs
Page: 30
T9 Circline
Cap: G10q
Wattages: 22-40W
Life: 6,000Hrs
Page: 31
T5 Circline
Cap: 2G × 13
Wattages: 22-55W
Life: 12,000Hrs
Page: 31
Circline
26 27
Linear Fluorescent Lamps
Product description:
Lamp reference –
describes the lamp’s
main characteristics
Product code:
It is important to
use this code when
ordering to ensure
that you receive the
exact product you
require
Watts:
Energy Used –
To estimate energy
consumption (kWh),
multiply watts x
hours of use and
divide by 1000
Length:
Lamp length
in mm
Base:
The type of
cap fitted. See
page 134-135
for Base
drawings
CRI:
Colour rendering
index, the higher the
number (1-100), the
more natural the lit
subject appears
Initial Lumen
(at 25°C):
Light output after the
initial 100 hours of
operation
Initial Lumen
(at 35°C):
Light output after the
initial 100 hours of
operation
Rated Average Life
(3-hr cycle):
The point in time
when 50% of
installed lamps
are still burning
Rated Average Life
(12-hr cycle):
The point in time
when 50% of
installed lamps
are still burning
Pack quantity:
The number of lamps
in one outer case
CCT:
Colour temperature –
Kelvin [K].
The visual warmth or
coolness of the light.
The higher the
number the whiter or
cooler the light appears
Product identification
Identifies
Lamp’s
wattage
Identifies
lamp as
fluorescent
Identifies
lamp type
Colour
temperature code
827=Extra Warm White
830=Warm White
835=White
840=Cool White
865=Daylight
F 14W T5 / 830 / WM
Identifies
the lamp as
Watt-Miser
Product
Code
Product
Description
Wattage
[W]
Length
[mm]
Base Initial
Lumen (at
35°C) [lm]
Initial
Lumen (at
25°C) [lm]
CCT
[K]
CRI
[Ra]
Rated
Average Life
(3-hr cycle) [h]
Rated
Average Life
(12-hr cycle) [h]
Pack Qty
T5 StarCoat Watt-Miser
71632 F14T5/830/WM/ECO 14 549 G5 1350 1230 3000 85 25,000 30,000 40
71633 F14T5/835/WM/ECO 14 549 G5 1350 1230 3500 85 25,000 30,000 40
71634 F14T5/841/WM/ECO 14 549 G5 1350 1230 4000 85 25,000 30,000 40
Product
Code
Product
Description
Nominal
Wattage
[W]
Actual
Wattage
[W]
Length
[mm]
Base Initial
Lumen (at
35°C) [lm]
Initial
Lumen (at
25°C) [lm]
CCT
[K]
CRI
[Ra]
Rated
Average Life
(3-hr cycle) [h]
Rated
Average Life
(12-hr cycle) [h]
Pack Qty
T5 StarCoat Watt-Miser
71632 F14T5/830/WM/ECO 14 13.0 549 G5 1350 1230 3000 85 25,000 30,000 40
71633 F14T5/835/WM/ECO 14 13.0 549 G5 1350 1230 3500 85 25,000 30,000 40
71634 F14T5/841/WM/ECO 14 13.0 549 G5 1350 1230 4000 85 25,000 30,000 40
71636 F14T5/865/WM/ECO 14 13.0 549 G5 1250 1140 6500 85 25,000 30,000 40
71637 F21T5/830/WM/ECO 21 19.7 549 G5 2100 1910 3000 85 25,000 30,000 40
71638 F21T5/835/WM/ECO 21 19.7 849 G5 2100 1910 3500 85 25,000 30,000 40
71639 F21T5/841/WM/ECO 21 19.7 849 G5 2100 1910 4000 85 25,000 30,000 40
71641 F21T5/865/WM/ECO 21 19.7 849 G5 1950 1770 6500 85 25,000 30,000 40
71642 F28T5/830/WM/ECO 28 26.4 849 G5 2900 2640 3000 85 25,000 30,000 40
71643 F28T5/835/WM/ECO 28 26.4 849 G5 2900 2640 3500 85 25,000 30,000 40
71644 F28T5/841/WM/ECO 28 26.4 1,149 G5 2900 2640 4000 85 25,000 30,000 40
71646 F28T5/865/WM/ECO 28 26.4 1,149 G5 2700 2450 6500 85 25,000 30,000 40
71627 F54T5/830/WM/ECO 54 51.1 1,149 G5 5000 4460 3000 85 25,000 30,000 40
71628 F54T5/835/WM/ECO 54 51.1 1,149 G5 5000 4460 3500 85 25,000 30,000 40
71629 F54T5/841/WM/ECO 54 51.1 1,149 G5 5000 4460 4000 85 25,000 30,000 40
71631 F54T5/865/WM/ECO 54 51.1 1,449 G5 4750 4100 6500 85 25,000 30,000 40
71647 F35T5/830/WM/ECO 35 33.0 1,449 G5 3650 3320 3000 85 25,000 30,000 40
71648 F35T5/835/WM/ECO 35 33.0 1,449 G5 3650 3320 3500 85 25,000 30,000 40
71649 F35T5/841/WM/ECO 35 33.0 1,449 G5 3650 3320 4000 85 25,000 30,000 40
71651 F35T5/865/WM/ECO 35 33.0 1,449 G5 3400 3090 6500 85 25,000 30,000 40
Product
Code
Product
Description
Wattage
[W]
Length
[mm]
Base Initial
Lumen
[lm]
Initial Lumen
(at 25°C)
[lm]
CCT
[K]
CRI
[Ra]
Rated
Average Life
(3-hr cycle) [h]
Rated
Average Life
(12-hr cycle) [h]
Pack Qty
T5 StarCoat Watt-Miser Plus
62020 F54T5/47W/830ECO 47 1149 G5 4800 1230 3000 84 30,000 36,000 40
62021 F54T5/47W/835ECO 47 1149 G5 4800 1230 3500 84 30,000 36,000 40
62022 F54T5/47W/840ECO 47 1149 G5 4800 1230 4100 84 30,000 36,000 40
62023 F54T5/47W/850ECO 47 1149 G5 4600 1140 5000 84 30,000 36,000 40
62024 F54T5/47W/865ECO 47 1149 G5 4550 1910 6500 84 30,000 36,000 40
Product Code
40 pc industrial
pack
Product Code
30 pc sleeve
pack
Product Code
30 pc sleeve pack
For Taiwan only
Product
Description
Wattage
[W]
Length
[mm]
Base Initial
Lumen (at
35°C) [lm]
Initial
Lumen (at
25°C) [lm]
CCT
[K]
CRI
[Ra]
Rated
Average Life
(3-hr cycle) [h]
Rated
Average Life
(12-hr cycle) [h]
T5 StarCoat - High Efficiency
72408 73296 73296TW F14W/T5/830/Starcoat/40 14 549 G5 1350 1230 3000 85 30,000 36,000
72409 73297 73297TW F14W/T5/840/Starcoat/40 14 549 G5 1350 1230 4000 85 30,000 36,000
72410 73298 73298TW F14W/T5/865/Starcoat/40 14 549 G5 1250 1140 6500 85 30,000 36,000
72411 73299 73299TW F21W/T5/830/Starcoat/40 21 849 G5 2100 1910 3000 85 30,000 36,000
72412 73300 73300TW F21W/T5/840/Starcoat/40 21 849 G5 2100 1910 4000 85 30,000 36,000
72413 73301 73301TW F21W/T5/865/Starcoat/40 21 849 G5 1950 1770 6500 85 30,000 36,000
72414 73302 73302TW F28W/T5/830/Starcoat/40 28 1149 G5 2900 2640 3000 85 30,000 36,000
72415 73303 73303TW F28W/T5/840/Starcoat/40 28 1149 G5 2900 2640 4000 85 30,000 36,000
72416 73304 73304TW F28W/T5/865/Starcoat/40 28 1149 G5 2700 2450 6500 85 30,000 36,000
28 29
Linear Fluorescent Lamps
T5 StarCoat - High Output
72420 F24W/T5/830/Starcoat/40 24 549 G5 2000 1750 3000 85 30,000 36,000
72421 F24W/T5/840/Starcoat/40 24 549 G5 2000 1750 4000 85 30,000 36,000
72422 F24W/T5/865/Starcoat/40 24 549 G5 1900 1600 6500 85 30,000 36,000
72423 F39W/T5/830/Starcoat/40 39 849 G5 3500 3200 3000 85 30,000 36,000
72424 F39W/T5/840/Starcoat/40 39 849 G5 3500 3200 4000 85 30,000 36,000
72425 F39W/T5/865/Starcoat/40 39 849 G5 3330 2950 6500 85 30,000 36,000
72429 F54W/T5/830/Starcoat/40 54 1149 G5 5000 4460 3000 85 30,000 36,000
72430 F54W/T5/840/Starcoat/40 54 1149 G5 5000 4460 4000 85 30,000 36,000
72431 F54W/T5/865/Starcoat/40 54 1149 G5 4750 4100 6500 85 30,000 36,000
72426 73317 73317TW F49W/T5/830/Starcoat/40 49 1449 G5 4900 4450 3000 85 30,000 36,000
72427 73318 73318TW F49W/T5/840/Starcoat/40 49 1449 G5 4900 4450 4000 85 30,000 36,000
72428 73319 73319TW F49W/T5/865/Starcoat/40 49 1449 G5 4650 4100 6500 85 30,000 36,000
72432 F80W/T5/830/Starcoat/40 80 1449 G5 7000 6450 3000 85 30,000 36,000
72433 F80W/T5/840/Starcoat/40 80 1449 G5 7000 6450 4000 85 30,000 36,000
72434 F80W/T5/865/Starcoat/40 80 1449 G5 6650 5950 6500 85 30,000 36,000
72417 F35W/T5/830/Starcoat/40 35 1449 G5 3650 3320 3000 85 30,000 36,000
72418 F35W/T5/840/Starcoat/40 35 1449 G5 3650 3320 4000 85 30,000 36,000
72419 F35W/T5/865/Starcoat/40 35 1449 G5 3400 3090 6500 85 30,000 36,000
Product Code Product Code
For Taiwan only
Product
Description
Wattage
[W]
Length
[mm]
Base Initial
Lumen (at
35°C) [lm]
Initial
Lumen (at
25°C) [lm]
CCT
[K]
CRI
[Ra]
Rated
Average Life
(3-hr cycle) [h]
Rated
Average Life
(12-hr cycle) [h]
Pack Qty
T5 StarV
62694E 62694TW F14W/830 T5/StarV/SL30 14 549 G5 1350 1230 3000 82 17,000 20,000 30
62695E 62695TW F14W/840 T5/StarV/SL30 14 549 G5 1350 1230 4000 82 17,000 20,000 30
62696E 62696TW F14W/865 T5/StarV/SL30 14 549 G5 1250 1140 6500 82 17,000 20,000 30
62697E 62697TW F21W/830 T5/StarV/SL30 21 849 G5 2100 1910 3000 82 17,000 20,000 30
62698E 62698TW F21W/840 T5/StarV/SL30 21 849 G5 2100 1910 4000 82 17,000 20,000 30
62699E 62699TW F21W/865 T5/StarV/SL30 21 849 G5 1950 1770 6500 82 17,000 20,000 30
62700E 62700TW F28W/830 T5/StarV/SL30 28 1149 G5 2900 2640 3000 82 17,000 20,000 30
62701E 62701TW F28W/840 T5/StarV/SL30 28 1149 G5 2900 2640 4000 82 17,000 20,000 30
62702E 62702TW F28W/865 T5/StarV/SL30 28 1149 G5 2700 2450 6500 82 17,000 20,000 30
39446 F4W/T5/35/SL 4 150.1 16 G5 130 White 3450 54 5,000 25
10004 F4W/T5/CW 4 150.1 16 G5 130 Cool White 4040 58 5,000 25
39442 F6W/T5/35/SL 6 226.3 16 G5 260 White 3450 54 5,000 25
39445 F6W/T5/33/SL 6 226.3 16 G5 260 Cool White 4040 58 5,000 25
10028 F6W/T5/D 6 226.3 16 G5 230 Day light 6500 75 5,000 25
37754 F8W/T5/29/SL 8 302.5 16 G5 385 Warm White 2940 51 5,000 25
T5 Miniature - Standard
lamp name: Fluorescent
— T5 Miniature
— Blacklite Blue/4-8W
Product
Code
Product
Description
Wattage
[W]
Length
[mm]
Diameter
[mm]
Base Initial
Lumen (at
25°C) [lm]
Colour Type CCT
[K]
CRI
[Ra]
Rated
Average Life
(3-hr cycle) [h]
Pack Qty
37008 F8W/T5/827/IND 8 302.5 16 G5 460 Extra Warm White 2720 80+ 5,000 100
37009 F8W/T5/840/IND 8 302.5 16 G5 460 Cool White 4040 80+ 5,000 100
39447 F13W/T5/827/SL 13 531.1 16 G5 1000 Extra Warm White 2700 80+ 6,000 25
T5 Miniature - Triphosphor
lamp name: Fluorescent
— T5 Miniature
— Blacklite Blue/4-8W
Product
Code
Product Code
For Theilard On
Product
Description
Wattage
[W]
Length
[mm]
Base Initial
Lumen
Color CCT
[K]
CRI
[Ra]
Rated
Average Life
(3-hr cycle) [h]
Rated
Average Life
(12-hr cycle) [h]
Pack Qty
T8 TriTeah Plus
79462/F F18W/T8/WW/Tri-Tech plus 18 600 G13 1350 Warm White 3000 85 15,000 18,000 25
79463/F 79463T F18W/T8/CW/Tri-Tech plus 18 600 G13 1350 Cool White 4000 85 15,000 18,000 25
79464/F 79464T F18W/T8/DL/Tri-Tech plus 18 600 G13 1250 Daylight 6500 85 15,000 18,000 25
79465/F F30W/T8/WW/Tri-Tech plus 30 900 G13 2450 Warm White 3000 85 15,000 18,000 25
79466/F F30W/T8/CW/Tri-Tech plus 30 900 G13 2450 Cool White 4000 85 15,000 18,000 25
79469/F F30W/T8/DL/Tri-Tech plus 30 900 G13 2300 Daylight 6500 85 15,000 18,000 25
79470/F F36W/T8/WW/Tri-Tech plus 36 1200 G13 3200 Warm White 3000 85 15,000 18,000 25
79471/F 79471T F36W/T8/CW/Tri-Tech plus 36 1200 G13 3200 Cool White 4000 85 15,000 18,000 25
79472/F 79472T F36W/T8/DL/Tri-Tech plus 36 1200 G13 3100 Daylight 6500 85 15,000 18,000 25
66410 F58W/T8/830/Tri-Tech 58 1500 G13 5000 Warm White 3000 85 10,000 12,000 25
66411 F58W/T8/840/Tri-Tech 58 1500 G13 5000 Cool White 4000 85 10,000 12,000 25
66412 F58W/T8/865/Tri-Tech 58 1500 G13 4930 Daylight 6500 85 10,000 12,000 25
37756 F8W/T5/35/SL 8 302.5 16 G5 385 White 3450 54 5,000 25
10059 F8W/T5/CW 8 302.5 16 G5 385 Cool White 4040 58 5,000 25
10055 F8W/T5/D 8 302.5 16 G5 330 Day light 6500 70 5,000 25
10089 F13W/T5/WW 13 531.1 16 G5 850 Warm White 2950 51 6,000 25
10086 F13W/T5/CW 13 531.1 16 G5 800 Cool White 4040 58 6,000 25
Product
Code
Product
Description
Wattage
[W]
Length
[mm]
Diameter
[mm]
Initial
Lumen (at
25°C) [lm]
Colour Type CCT
[K]
CRI
[Ra]
Rated
Average Life
(3-hr cycle) [h]
Pack Qty
T8 Polylux XLR - G13 Cap
23248 F15W/T8/830/POLYLUX 15 451.6 26 1000 Warm White 2940 85 15,000 25
78133 F15W/T8/835 POLYLUX 15 451.6 26 1000 White 3450 85 15,000 25
23249 F15W/T8/840/POLYLUX 15 451.6 26 1000 Cool White 4040 85 15,000 25
78131 F15W/T8/860/POLYLUX 15 451.6 26 900 Daylight 6400 85 15,000 25
62560 F18W/T8/827/POLYLUX 18 604 26 1350 Extra Warm White 2720 85 15,000 25
62559 F18W/T8/830/POLYLUX 18 604 26 1350 Warm White 2940 85 15,000 25
62534 F18W/T8/835/POLYLUX 18 604 26 1350 White 3450 85 15,000 25
62558 F18W/T8/840/POLYLUX 18 604 26 1350 Cool White 4040 85 15,000 25
62557 F18W/T8/860/POLYLUX 18 604 26 1300 Daylight 6400 85 15,000 25
18141 F30W/T8/830/POLYLUX 30 908.8 26 2450 Warm White 2940 85 15,000 25
78132 F30W/T8/835/POLYLUX 30 908.8 26 2450 White 3450 85 15,000 25
18142 F30W/T8/840/POLYLUX 30 908.8 26 2450 Cool White 4040 85 15,000 25
62554 F36W/T8/827/POLYLUX 36 1,213.6 26 3350 Extra Warm White 2720 85 15,000 25
62553 F36W/T8/830/POLYLUX 36 1,213.6 26 3350 Warm White 2940 85 15,000 25
62532 F36W/T8/835/POLYLUX 36 1,213.6 26 3350 White 3450 85 15,000 25
62551 F36W/T8/840/POLYLUX 36 1,213.6 26 3350 Cool White 4040 85 15,000 25
62552 F36W/T8/860/POLYLUX 36 1,213.6 26 3250 Daylight 6400 85 15,000 25
93330 F58W/T8/827/POLYLUX 58 1,514.2 26 5200 Extra Warm White 2720 85 15,000 25
93334 F58W/T8/830/POLYLUX 58 1,514.2 26 5200 Warm White 2940 85 15,000 25
93331 F58W/T8/835/POLYLUX 58 1,514.2 26 5200 White 3450 85 15,000 25
93333 F58W/T8/840/POLYLUX 58 1,514.2 26 5200 Cool White 4040 85 15,000 25
12943 F58W/T8/860/POLYLUX 58 1,514.2 26 5000 Daylight 6400 85 15,000 25
62572 F70W/T8/835/POLYLUX 70 1,778 26 6300 White 3450 85 15,000 25
62573 F70W/T8/840/POLYLUX 70 1,778 26 6300 Cool White 4040 85 15,000 25
lamp name: Fluorescent Û T8 Û Blac klite
Blue/15W
30 31
Linear Fluorescent Lamps
Product
Code
Product
Description
Wattage
[W]
Length
[mm]
Diameter
[mm]
Initial
Lumen (at
25°C) [lm]
Colour Type CCT [K] CRI [Ra] Rated
Average Life (3-hr
cycle) [h]
Pack Qty
62567 F18/T8/830/POLYLUX/LL 18 604 26 1350 Warm White 3000 85 24,000 25
62566 F18/T8/840/POLYLUX/LL 18 604 26 1350 Cool White 4000 85 24,000 25
62565 F36/T8/830/POLYLUX/LL 36 1,200 26 3350 Warm White 3000 85 24,000 25
62564 F36/T8/840/POLYLUX/LL 36 1,200 26 3350 Cool White 4000 85 24,000 25
62563 F58/T8/830/POLYLUX/LL 58 1,500 26 5200 Warm White 3000 85 24,000 25
62562 F58/T8/840/POLYLUX/LL 58 1,500 26 5200 Cool White 4000 85 24,000 25
T8 Polylux XLR LongLast - G13 Cap
Product Code Product
Description
Wattage
[W]
Length
[mm]
Base Initial
Lumen
Color CCT
[K]
CRI
[Ra]
Life Pack Qty
T8 Standard - G13 Cap
81412 F10T8/33 10 300 G13 420 Cool White 4000 60 5,000 25
17272 F10T8/54 10 300 G13 400 Day light 6500 75 5,000 25
61516 F15W/33 15 450 G13 825 Cool White 4000 60 7,500 25
61517 F15W/54 15 450 G13 700 Day light 6500 75 7,500 25
Product Code Product Code
For Taiwan only
Product
Description
Wattage
[W]
Length
[mm]
Initial Lumen
(at 35°C)
[lm]
CCT
[K]
CRI
[Ra]
Rated
Average Life
[h]
Pack Qty
T8 Standard
65152 F18T8/WW 18 600 1050 3000 51 10,000 25
73335 73335T F18T8/CW 18 600 1050 4000 58 10,000 25
73336 73336T F18T8/DL 18 600 900 6500 76 10,000 25
65153 F36T8/WW 36 900 2750 3000 51 10,000 25
73337 73337T F36T8/CW 36 900 2750 4000 58 10,000 25
73338 73338T F36T8/DL 36 900 2350 6500 76 10,000 25
Product Code Product
Description
Wattage
[W]
Base Initial
Lumen
Burn
Position
CCT
[K]
CRI
[Ra]
Life
[h]
Current
[mA]
Control Gear
T8 Standard - LongLast, G13 Cap
71255 F10W/DL XL 10 G13 377 Universal 6500 76 5000 230 T8 ELB/EMB
71256 F18W/WW XL 18 G13 1200 Universal 3000 51 15000 370 T8 ELB/EMB
71257 F18W/CW XL 18 G13 1150 Universal 4000 58 15000 370 T8 ELB/EMB
71258 F18W/DL XL 18 G13 960 Universal 6500 76 15000 370 T8 ELB/EMB
71259 F36W/WW XL 36 G13 2760 Universal 3000 51 15000 430 T8 ELB/EMB
71260 F36W/CW XL 36 G13 2650 Universal 4000 58 15000 430 T8 ELB/EMB
71261 F36W/DL XL 36 G13 2400 Universal 6500 76 15000 430 T8 ELB/EMB
Product Code Product
Description
Wattage
[W]
Length
[mm]
Diameter
[mm]
Base Initial
Lumen (at
25°C) [lm]
Colour Type CCT [K] CRI [Ra] Rated
Average Life
(3-hr cycle) [h]
Pack Qty
T5 Circline - Triphosphor
75709 FC22W/T5/830 22 225 16 2Gx13 1900 Warm White 3000 82 12,000 10
75720 FC22W/T5/840 22 225 16 2Gx13 1900 Cool White 4000 82 12,000 10
75712 FC40W/T5/830 40 300 16 2Gx13 3300 Warm White 3000 82 12,000 10
75713 FC40W/T5/840 40 300 16 2Gx13 3300 Cool White 4000 82 12,000 10
75717 FC55W/T5/830 55 300 16 2Gx13 4200 Warm White 3000 82 12,000 10
75718 FC55W/T5/840 55 300 16 2Gx13 4200 Cool White 4000 82 12,000 10
Product Code Product
Description
Wattage
[W]
Length
[mm]
Cap Initial
Lumen
Color CCT
[K]
CRI
[Ra]
Rated life
[h]
Pack Qty
T8 Standard for Philippines Only - G13 Cap
61535 F18T8/WW 18 600 G13 1150 Warm White 3000 51 10000 25
61536 F18T8/CW 18 600 G13 1100 Cool White 4000 58 10000 25
61537 F18T8/DL 18 600 G13 960 Daylight 6500 76 10000 25
61538 F30T8/WW 30 900 G13 2100 Warm White 3000 51 10000 25
61539 F30T8/CW 30 900 G13 2025 Cool White 4000 58 10000 25
61540 F30T8/DL 30 900 G13 1720 Daylight 6500 76 10000 25
61541 F36T8/WW 36 1200 G13 2760 Warm White 3000 51 10000 25
61542 F36T8/CW 36 1200 G13 2650 Cool White 4000 58 10000 25
61543 F36T8/DL 36 1200 G13 2400 Daylight 6500 76 10000 25
T12 Standard
71708S F20WT12/DL 20 600 G13 1100 Daylight 6500 76 15,000 36
71709S F40WT12/DL 40 1200 G13 2640 Daylight 6500 76 10,000 36
Product Code Product
Description
Wattage
[W]
Diam.
[mm]
Base CCT
[K]
Initial Lumens
[lm]
CRI
[Ra]
Avg.Life
[Hr]
Pack Qty.
T9 Circline - Triphosphate
61607 FCL22W/827 22 216 G10q 2700 1400 80 6000 30
61608 FCL22W/840 22 216 G10q 4000 1400 80 6000 30
61609 FCL22W/850 22 216 G10q 5000 1300 80 6000 30
24089EN FCL22/HO/DL/860 22 216 G10q 6500 1300 80 6000 30
61610 FCL32W/827 32 305 G10q 2700 2480 80 6000 30
61611 FCL32W/840 32 305 G10q 4000 2480 80 6000 30
61612 FCL32W/850 32 305 G10q 5000 2300 80 6000 30
24090EN FCL32/HO/DL/860 32 305 G10q 6500 2300 80 6000 30
61613 FCL40W/827 40 406 G10q 2700 3200 80 6000 20
61614 FCL40W/840 40 406 G10q 4000 3200 80 6000 20
61615 FCL40W/850 40 406 G10q 5000 3000 80 6000 20
24091EN FCL40/HO/DL/W/860 40 406 G10q 6500 3000 80 6000 20
Product Code Product
Description
Wattage
[W]
Diam.
[mm]
Base CCT
[K]
Initial Lumens
[lm]
CRI
[Ra]
Avg.Life
[Hr]
Pack Qty.
T9 Circline - Standard
95847EN Edison FCL22/DL 22 216 G10q 6500 1050 75 6000 30
95848EN Edison FCL32/DL 32 305 G10q 6500 1750 75 6000 30
95774EN Edison FCL40/DL 40 406 G10q 6500 2440 75 6000 20
32 33
GE's full-family CFL lamp rivals incandescent lamp in appearance,
size and light color, but surpasses in long lifetime and significant
energy-saving effect.
Compact Fluorescent
Lamps
34 35
Compact Fluorescent Lamps Non-Integrated
GE lighting has one of the most extensive
range of compact uorescent light
sources available, providing extra energy
saving with the Watt-Miser concept
and long life performance with the
LongLast range, which can be ideal for
almost every application. Since compact
uorescent bulbs use less energy,
these products save you money on
your electricity bill and help protect the
environment.
In response to the demand from the
market for a lower energy consumption
GE has developed the extra energy saving
2DM Watt-Miser.
GE Watt-Miser is a new generation of
lamp family where end users can save
additional energy versus regular compact
uorescent lamps on the market.
Currently this unique GE 2D range has
this extra feature where extra energy
saving can reach up to 12%.
GE LongLast plug-in range is over the
standard, and can last up to 20,000 hours.
The smart way for an efficient professional
lighting application with GE non-integrated
compact fluorescent lamps.
The range is wide, having this long life
performance from 10-70W in variety of
different product shapes.
GEBiaxlampsoers:
• Extra energy saving – up to 12%
• Long life – up to 20,000 hours
• High industry standard efcacy level
• Wide range of colour, wattage
• Suitable for dimming and motion
detection
• Robust technical design
• High quality product
• Low running cost
• Warranty
• Environmentally friendly
Advanced lighting technologies
Plug-In CFL
HLBX Biax L: 36/40/55W
• 6000 hrs rated life
• Compact size, high wattage
• Round tube end, no dark area
• 36W is only with GE, fitting in
600mm*600mm fixture
Application
• Down light
• Commercial & Industrial lighting
• Hotel, restaurant, airport
Biax S-2 pin Biax D-2 pin Biax D-4 pin
• 8000hr to 10000hr rated life, which is 8
to 10 time compared to Inc
• 78% energy saving compared to INC
• can change lamp or ballast separately,
save replacement cost
• Lumen maintenance keep 90% for
2000hr
• 8000hr to 10000hr rated life, which is 8
to 10 time compared to Inc
• 78% energy saving compared to INC
• can change lamp or ballast separately,
save replacement cost
• Lumen maintenance keep 90% for
2000hr
• 8000hr to 10000hr rated life, which is 8
to 10 time compared to Inc
• 78% energy saving compared to INC
• can change lamp or ballast separately,
save replacement cost
•
Lumen maintenance keep 90% for
2000hr
36 37
Compact Fluorescent Lamps Non-Integrated
2D Watt-Miser
The next generation of 2D lamps
The new 2D Watt-Miser lamps are energy saving compact fluorescent
tubes. Available in either 16W, 21W, 28W, or 38W versions, in a wide
choice of colour temperatures. These lamps are a direct replacement for
existing 2D lamps, delivering market leading life, with excellent energy
saving performance that is unique to GE!
2D Watt-Miser lamps provide similar lumen output as standard
2D lamps, with an energy saving of up to 12% dependent upon
ballast and wattage.
Key benefits
• Reduced energy consumption
• The only ‘A’ Class energy
rated 2D lamp
• Maintains market leading lumen
maintenance
• Retrofit products to existing
fittings and ballasts
• 2 and 4 pin versions
Application areas
2D Watt-Miser lamps are suitable
for a wide range of exterior and
interior applications:
• Residential
• Domestic
• Utility areas
• Task lighting
• Hotels/offices/restaurants
• Emergency lighting
• Decorative installations
Energy saving possibilities
Advanced lighting technologies
Standard Biax D&T
upgraded to LongLast
Standard 2D upgraded
to Watt-Miser
For Maintenance Saving For Energy Saving
Our new compact fluorescent LongLast lamps provide increased
service life which significantly reduces replacement and
maintenance costs. They are ultra compact energy saving
fluorescent lamps with new, innovative double and triple tube
designs giving an ideal light source for small fixtures and
downlighters.
GE LongLast guarantees the same light output in any burning
position. It can be used in closed luminaires and outdoor
applications too without significant light loss due to
GE Amalgam technology providing stable lumen performance
within a wide temperature range.
• Standard product has been upgraded to LongLast
• Retrofit – can be used with existing fittings and control gears
• 20% life increase on 2-pin and 60% life increase on
4-pin range
• Reduces replacement and maintenance costs
• Best in class versus competition – standard price at
premium performance
• Further energy saving with dimming possibilities
• Available in warm to cool temperatures (2700 – 6500K)
New 2D Watt-Miser lamps are energy saving compact
fluorescent tubes formed into a “2D” shape. All types are
available with a 4-pin cap which permits use with
conventional or electronic control gear, dimming and emergency
lighting circuits.
2D lamps use rare earth triphosphors to give high efficacy with
good colour rendering properties.
This new range of GE 2D Watt-Miser compact fluorescent lamps
give additional energy savings, even on standard
control gear.
• Direct replacements for 16-21-28-38W standard 2D range
• Unique shape suitable for broad range of applications
• Interchangeable – can be used with existing fittings and
control gear
• Excellent for circular light distribution
•
Extra 5-12% energy saving depending on lamp/gear/environment
• The only 'A' class energy 2D lamp on the market
• Highest saving of 12% using 28W in high frequency operation
– fast payback
• Best performance at the best running cost on the market! 16W 21W 28W 38W
W/
Electronic
gear
W/
Standard
gear
Lumen
W/
Electronic
gear
W/
Standard
gear
Lumen
W/
Electronic
gear
W/
Standard
gear
Lumen
W/
Electronic
gear
W/
Standard
gear
Lumen
2D Watt-Miser 14.05 14.84 1100 18.76 19.61 1350 24.24 26.74 2150 34 37.41 3000
Standard GE 2D lamp 15.4 15.75 1150 20.17 21.17 1450 27.57 28.05 2250 37.28 38.68 3000
Saving 8.8% 5.8% 7% 7.4% 12.1% 4.7% 8.8% 3.3%
38 39
Compact Fluorescent Lamps Integrated
GE’s new compact fluorescent lamps give you
the energy saving benefits you want and the
high quality lighting you expect. These lamps
are the perfect alternatives to incandescent
lamps.
Advanced lighting technologies
Save money on energy bills and lose
nothinginquality.ThebenetsofGE’s
compactuorescentrangeare:
• 80% energy efcient vs incandescent
from our ‘A’ energy labeled products
• Available in small incandescent sizes
and look-a-like shapes – they t almost
everywhere!
• Guaranteed outstanding light quality
throughout the lamps’ life, available in
various colour temperatures
• Provide quick and icker-free start, fast
warm-up
• Last long years in service from 6,000
up to 15,000 hours
• Available in a wide range of shapes –
from stick, spiral to decorative form
• Meeting specic requirements with
special lamps that offer dimmability,
dusk to dawn operation and high
switching endurance.
• Environmentally friendly solutions
– WEEE, RoHS and EUP compliant
products with minimized mercury
content.
Get Your shape back!
GE’s brand new top performance
Energy Smart compact uorescent lamp
is now your true look-a-like replacement
of a frosted incandescent bulb – providing
excellent light quality and energy savings
for up to 10 years.
Incandescent
Product Group
Compact Fluorescent
Standard Substitute
Compact Fluorescent
Premium Substitute
Compact Fluorescent
High Performance Substitute
Incandescent Upgrade
Stick T3 Mini Eco 6,000 hours
Stick T3 Mini Eco 6,000 hours
Stick T3 Mini Eco 6,000 hours
Stick T3 Extra Mini 15,000 hours*
LongLast Spiral T2 8,000 hours
Spiral T2 8,000 hours
Candle T2 6,000 hours
GLS T2 6,000 hours
GLS T2 6,000 hours
Energy Smart T2 10,000 hours
Spiral T2 8,000 hours
Spherical T2 6,000 hours
Stick T3 Mini 10,000 hours
Stick T3 Mini 10,000 hours
Stick T3 Mini 10,000 hours
GLS
Krypton
Mushroom
Globe
Candle
Spherical
These premium compact fluorescent
lamps are dimmable: this means that
lighting can be adjusted to suit mood and
also extra energy savings can be made.
Small size premium quality lamp providing
fast light and long life.
Key features
• 20W T3
• Fast warm-up
• 10,000 hours life
• Reduced mercury content <2mg
• 15-100% continuous dimming
T3 Dimmable
Key features
• Full range from 8-23W
• Fast warm-up
• 15,000 hours life
• 20,000 switching endurance
• Ecolabel certified quality
LongLast Spiral
T2 15,000 hours
Energy Smart T2 10,000 hours
Energy Smart T2 10,000 hours
Energy Smart T2 10,000 hours
Dimmable Spiral T3 10,000 hours
Dimmable Spiral T3 10,000 hours
Dimmable Spiral T3 10,000 hours
LongLast Spiral T2 15,000 hours
LongLast Spiral T2 15,000 hours
LongLast Spiral T2 15,000 hours
Spiral T2 15,000 hours
40 41
Compact Fluorescent Lamps Integrated
Miniaturized electronics developed by GE engineers are the enabling
technology of a new covered Energy Smart compact fluorescent lamp
featuring the “T2 GE Spiral” inside the glass bulb. With this new lamp –
an exclusive design achievement that GE has protected with more than
16 patents – the electronics fit in the neck of the frosted-glass bulb. The
result is a profile that’s virtually identical to a standard incandescent
light bulb – same size and shape.
The new premium Energy Smart compact fluorescent bulb is available
only from GE, has instant-on technology,
consists of eco-friendly components and provides excellent light quality
combined with massive energy savings for
up to 10 years.
Key features
• Traditional soft light bulb
• The first glass frosted compact
fluorescent lamp, compliant with
European Legislation
•9, 11, 15 and 20W versions
•80% energy saving
•10,000 hours lifetime
• Unique GE innovation using
16 patents
• Minimized mercury content, <0.8 mg
Energy Smart
At last, the NEW energy saving lamp
that everyone’s been waiting for
With a T2 tube inside
a product of
Selector
Biax S
Biax S - 2 pin
Cap: G23
Wattages: 5-7-9-11W
Colours: 2700 - 6500K
Life: 8,000Hrs
Page: 46
Biax D
Biax D - 2pin
Cap: G24d
Wattages: 10-13-18-26W
Colours: 2700 - 6500K
Life: 7,000 - 10,000Hrs
Page: 46
Biax D/E - 4pin
Cap: G24q
Wattage: 10-13-18-26W
Colors: 2700 - 6500K
Life: 7,000 - 10,000Hrs
Page: 47
Biax D-D
Biax D-D -2 pin
Cap: GR-8
Wattages: 16W
Colours: 2700 - 6500K
Life: 10,000Hrs
Page: 47
Biax D-D -4 pin
Cap: GR-10q
Wattages: 16-28-38W
Colours: 2700 - 6500K
Life: 10,000Hrs
Page: 48
Biax S
Biax S - 2pin
Cap: G23
Wattages: 5-7-9-11W
Colours: 2700 - 6500K
Life: 10,000Hrs
Page: 48
Biax S/E - 4pin
Cap: 2G7
Wattages: 5-7-9-11W
Colours: 2700 - 6500K
Life: 10,000Hrs
Page: 48
Biax D
Biax D - 2pin
Cap: G24d
Wattages: 10-13-18-26W
Colours: 2700 - 6500K
Life: 12,000Hrs
Page: 49
Biax D/E - 4pin
Cap: G24q
Wattage: 10-13-18-26W
Colors: 2700 - 6500K
Life: 20,000Hrs
Page: 49
Biax T
Biax T - 2pin
Cap: GX24d
Wattages: 13-18-26-32W
Colours: 2700 - 6500K
Life: 12,000Hrs
Page: 50
Biax T/E - 4pin
Cap: GX24q
Wattages: 13-18-26-
32-42W
Colours: 2700 - 6500K
Life: 20,000Hrs
Pages: 50
42 43
Compact Fluorescent Lamps Non-Integrated Selector
2D
Biax 2D Intergral
Cap:
GRZ10d, GRZ10t
Wattages: 18-30W
Colours: 2700 - 6000K
Life: 10,000Hrs
Page: 52
Biax Q
Biax Q/E - 4pin
Cap: GX24q
Wattages: 57-70W
Colours: 2700 - 5000K
Life: 20,000Hrs
Page: 50
Biax L
Biax L - 4pin
Cap: 2G11
Wattages: 18-26-36-
40-55W
Colours: 2700 - 6500K
Life:
12,000-20,000Hrs
Page: 51
Biax 2D - 2pin
Cap: GR8
Wattages: 16-28W
Colours: 2700 - 6000K
Life: 12,000Hrs
Page: 51
2D - 4pin
Cap: GR10q, GRY10q
Wattages: 10-16-28-
38-55W
Colours: 2700 - 6000K
Life:
8,000-15,000Hrs
Page: 52
*10W and 55W versions are not Watt-Miser type
*Range will be replaced by LongLast Spiral T2 15,000 hours in Q2 2010
T3 Spiral -
Economizer Plus
Cap: E27, E14
Wattages: 9-23W
Colours: 2700 - 6500K
Life: 6,000Hrs
Page: 60
Spiral
T2 Spiral - Tiny
Cap: E27, E14, B22,
B15
Wattages: 8-20W
Colours: 2700 - 6500K
Life: 8,000Hrs,
15,000Hrs
Page: 56
T3 Spiral - Dim-
mable
Cap: E27, B22
Wattages: 13W, 20W
Colours: 2700 - 6500K
Life: 8,000Hrs
Page: 61
T5 Spiral-High
Power
Cap: E27, B22, E40
Wattages: 45W, 60W
Colours: 2700 - 6500K
Life: 6000 - 10,000Hrs
Page: 61
T3 Spiral-
Ultralife Plus
Cap: E27, B22
Wattages: 14-24W
Colours: 2700 - 6500K
Life: 8,000Hrs
Page: 59
Stick
T3 Stick -
Ultralife
Cap: E27, E14, B22
Wattages: 6-20W
Colours: 2700 - 6500K
Life: 8,000Hrs
Page: 52
T3&T4 Econo-
mizer Plus
Cap: E27, E14
Wattages: 5-23W
Colours: 2700 - 6500K
Life: 6,000Hrs
Page: 54
T4 Stick - Sensor
Cap: E27
Wattages: 15W
Colours: 2700 - 6500K
Life: 6,000Hrs
Page: 55
T3 Mini
Cap: E27, E14, B22
Wattages: 9-23W
Colours: 2700 - 6500K
Life: 10,000Hrs
Page: 55
T3&T4 Stick -
Economizer
Cap: E27
Wattages: 9-23W
Colours: 2700 - 6500K
Life: 6,000Hrs
Page: 54
T2 Candle
Cap: E27, E14, B22, B15
Wattages: 5W, 7W
Colours: 2700 - 4000K
Life: 6,000-10,000Hrs
Page: 63
T2 REF
Cap: E27, E14, B22
Wattages: 7W, 11W
Colours: 2700 - 4000K
Life: 6,000Hrs
Page: 64
T2 Spherical
Cap: E27, E14, B22,
B15
Wattages: 5W, 7W
Colours: 2700 - 6500K
Life: 6,000-10,000Hrs
Page: 63
T2 SOFT
Cap: E27, E14, B22
Wattages: 8W, 12W
Colours: 2700K
Life: 6,000Hrs
Page: 65
PAR38
Cap: E27, B22
Wattages: 23W
Colours: 2700K
Life: 8,000Hrs
Page: 65
R80
Cap: E27, B22
Wattages: 15W
Colours: 2700K
Life: 8,000Hrs
Page: 65
Décor
T2 All Glass
Cap: E27, B22
Wattages: 9-20W
Colours: 2700 - 6500K
Life: 8,000-10,000Hrs
Page: 62
T2&T3 GLS
Cap: E27, E14, B22
Wattages: 8-20W
Colours: 2700 - 4000K
Life: 6,000Hrs
Page: 64
T2 Buglite GLS
Cap: E27, B22
Wattages: 11W
Colours: 2700K
Life: 6,000Hrs
Page: 65
T3 GG
Cap: E27
Wattages: 20W
Colours: 2700 - 6500K
Life: 6,000Hrs
Page: 65
T2 GU10
Cap: GU10
Wattages: 7W, 9W
Colours: 2700 - 4000K
Life: 6,000Hrs
Page: 65
44 45
Compact Fluorescent Lamps Integrated
Product
Code
Product
Description
Wattage
[W]
Volts [V] Cap Lumen
[lm]
CCT [K] CRI [Ra] Life [h] Diameter
[mm]
Length
[mm]
EEC Pack Qty
37654 F5BX/SPX27/827 5 35 G23 265 2700 82 10,000 32 107.5 A 10
37661 F5BX/SPX41/840 5 35 G23 265 4000 82 10,000 32 107.5 A 10
37846 F7BX/SPX27/827 7 47 G23 425 2700 82 10,000 32 136.5 A 10
Lamp’s
wattage
Biax S 2-pin, Internal Starter
The following glossary of terms will help you when selecting lamps in this section. Within
each product line, lamps are divided into families – within these families, lamps are listed
by wattage. The Product Description can be used as a quick reference to each product’s
attributes. Where Life or Average Life are stated we refer to the industry standard
definition of how many hours of operation 50% of a given installation will exceed.
All Biax CFL lamps manufactured with the high quality Polylux triphosphor technology.
Identifies
lamp as
fluorescent
Product type
Product description:
The lamp’s
identification code
Product code:
It is important to
use this code when
ordering to ensure
that you receive the
exact product you
require
Colour temperature
XX=First 2 digits
of temperature in
Kelvin - XX00K
Eg. 27 is 2700K
Colour definition
827=Extra Warm White
830=Warm White
835=White
840=Cool White
865=Daylight
Colour rendering
Ra 60-69 (group 2B)
Ra 70-79 (group 2A)
Ra 80-89 (group 1B)
Ra 90-99 (group 1A)
Watts:
Energy Used –
Nominal Watts.
To estimate energy
consumption (kWh),
multiply watts x
hours of use and
divide by 1000
Volts:
Lamp data is based on
operation at rated
voltage
Life:
The point in time when
50% of installed lamps
are still burning
CCT:
Colour temperature – Kelvin
[K]. The visual warmth or
coolness of the light. The
higher the number the whiter
or cooler the light appears
Length:
Total length including the
length of the pin in mm
Lumens:
Light output after
the initial 100 hours
of operation
Diameter:
Bulb diameter in mm
EEC:
Energy Efficiency Class
Pack quantity:
Number of product
units packed in a case
CRI:
Colour rendering index,
the higher the number
(1-100), the more natural
the lit subject appears
F 5 B X / S P X 2 7 / 8 2 7
American standard coding
of colour temperature
Cap:
The type of cap
fitted. See page
134-135 for cap
drawings
The following glossary of terms will help you when selecting lamps in this section. Within
each product line, lamps are divided into families – within these families, lamps are listed
by wattage. The Product Description can be used as a quick reference to each product’s
attributes. Where Life or Average Life are stated we refer to the industry standard definition
of how many hours of operation 50% of a given installation will exceed.
Product identification
Product
Code
Product
Description
Wattage
[W]
Volts [V] Cap Lumen [lm] CCT [K] CRI [Ra] Life [h] Diameter
[mm]
Length
[mm]
EEC Pack Qty
76153 FLE8HLX/T2/827/E14 8 220-240 E14 460 2700 80 15,000 100.5 46 A 8
76154 FLE8HLX/T2/827/E27 8 220-240 E27 460 2700 80 15,000 88.5 46 A 8
76155 FLE12HLX/T2/827/E14 12 220-240 E14 700 2700 80 15,000 112.5 53 A 6
Product description:
The lamp’s
identification code
Product code:
It is important to
use this code when
ordering to ensure
that you receive the
exact product you
require
Watts:
Energy Used –
Nominal Watts.
To estimate energy
consumption (kWh),
multiply watts x
hours of use and
divide by 1000
Volts:
Lamp data
is based on
operation at
rated voltage
Life:
The point in time when
50% of installed lamps
are still burning
CCT:
Colour temperature –
Kelvin [K]. The visual
warmth or coolness
of the light. The
higher the number
the whiter or cooler
the light appears
Length:
Lamp length in mm
Lumens:
Light output after
the initial 100 hours
of operation
Diameter:
Bulb diameter in mm
EEC:
Energy Efficiency Class
Pack quantity:
Number of product
units packed in a case
CRI:
Colour rendering index,
the higher the number
(1-100), the more natural
the lit subject appears
8 Identifies
the lamp’s
wattage
FLE
Identifies as
Fluorescent
Electronic
(Screw-in
lamp)
T2/T3/T4/T5
refers to the
size of the tube
E14/E27/B15/B22
Identifies the
lamp cap
827 Colour definition
827=Extra Warm White
830=Warm White
835=White
840=Cool White
865=Daylight
HLX Identifies as the lamp type
TBX = Triple-Biax Stick (3U)
QBX = Quad-Biax Stick (4U)
HLX = Heliax (Spiral)
CDL = Candle
SPH = Spherical
R50/R63/R80 = Reflector lamp types
AG = All Glass
FLE 8 HLX / T2 / 827 / E14
Cap:
The type of cap
fitted. See page
134-135 for cap
drawings
Electronic Spiral T2 - 15,000 hours
46 47
Compact Fluorescent Lamps Non-Integrated
Product
Code
Product
Description
Wattage
[W]
Cap Life [h] CCT [K] Lumen [lm] CRI
[Ra]
Length
[mm]
Country COO
Biax S-2 pin
47201E F7BX/NCO/840/2P/STD 7 G23 8000 4000 400 80 137 Australia China
47231E F9BX/NCO/827/2P/STD 9 G23 8000 2700 550 80 167 Australia China
47232E F9BX/NCO/840/2P/STD 9 G23 8000 4000 550 80 167 Australia China
47285E F11BX/NCO/827/2P/STD 11 G23 8000 2700 850 80 235 Australia China
47286E F11BX/NCO/840/2P/STD 11 G23 8000 4000 850 80 235 Australia China
47200N F7BX/827/2P 7 G23 8000 2700 400 80 137 MY/PH/SG/TH China
47201N F7BX/840/2P 7 G23 8000 4000 400 80 137 MY/PH/SG/TH China
47202N F7BX/865/2P 7 G23 8000 6500 400 80 137 MY/PH/SG/TH China
47231N F9BX/827/2P 9 G23 8000 2700 550 80 167 MY/PH/SG/TH China
47232N F9BX/840/2P 9 G23 8000 4000 550 80 167 MY/PH/SG/TH China
47284N F9BX/865/2P 9 G23 8000 6500 550 80 167 MY/PH/SG/TH China
47285N F11BX/827/2P 11 G23 8000 2700 850 80 235 MY/PH/SG/TH China
47286N F11BX/840/2P 11 G23 8000 4000 850 80 235 MY/PH/SG/TH China
47287N F11BX/865/2P 11 G23 8000 6500 850 80 235 MY/PH/SG/TH China
85182E F10DBX/827/2P/STD 10 G24d-1 10000 2700 560 80 112 Australia China
85183E F10DBX/840/2P/STD 10 G24d-1 10000 4000 520 80 112 Australia China
85185E F13DBX/827/2P/STD 13 G24d-1 10000 2700 760 80 136 Australia China
85186E F13DBX/840/2P/STD 13 G24d-1 10000 4000 740 80 136 Australia China
85194E F18DBX/827/2P/STD 18 G24d-2 10000 2700 1100 80 156 Australia China
85195E F18DBX/840/2P/STD 18 G24d-2 10000 4000 990 80 156 Australia China
65396E F26DBX/827/2P/G24d-3 26 G24d-3 7000 2700 1600 80 180
Australia/ID/PH/SG/MY/TH
China
65399E F26DBX/840/2P/G24d-3 26 G24d-3 7000 4000 1600 80 180
Australia/ID/PH/SG/MY/TH
China
65405E F26DBX/865/2P/G24d-3 26 G24d-3 7000 6500 1485 78 180
Australia/ID/PH/SG/MY/TH
China
47288 F10DBX/827/2P 10 G24d-1 10000 2700 560 80 112 PH China
47290 F10DBX/840/2P 10 G24d-1 10000 4000 520 80 112 PH China
47291 F10DBX/865/2P 10 G24d-1 10000 6500 505 78 112 PH China
47296 F13DBX/827/2P 13 G24d-1 10000 2700 760 80 136 PH China
47300 F13DBX/840/2P 13 G24d-1 10000 4000 740 80 136 PH China
47303 F13DBX/865/2P 13 G24d-1 10000 6500 720 78 136 PH China
47306 F18DBX/827/2P 18 G24d-2 10000 2700 1100 80 156 PH China
47318 F18DBX/840/2P 18 G24d-2 10000 4000 990 80 156 PH China
47319 F18DBX/865/2P 18 G24d-2 10000 6500 920 78 156 PH China
85194N F18DBX/827/2P 18 G24d-2 10000 2700 1100 80 156 PH China
85195N F18DBX/840/2P 18 G24d-2 10000 4000 990 80 156 PH China
85196N F18DBX/865/2P 18 G24d-2 10000 6500 920 78 156 PH China
Biax D-2 pin
Product
Code
Product
Description
Wattage
[W]
Cap Life [h] CCT
[K]
Lumen
[lm]
CRI
[Ra]
Length
[mm]
Country COO
Biax D-2 pin
85182N F10DBX/827/2P 10 G24d-1 10000 2700 560 80 112 SG/MY China
85183N F10DBX/840/2P 10 G24d-1 10000 4000 520 80 112 SG/MY China
85184N F10DBX/865/2P 10 G24d-1 10000 6500 505 78 112 SG/MY China
85185N F13DBX/827/2P 13 G24d-1 10000 2700 760 80 136 SG/MY China
85186N F13DBX/840/2P 13 G24d-1 10000 4000 740 80 136 SG/MY China
85191N F13DBX/865/2P 13 G24d-1 10000 6500 720 78 136 SG/MY China
85194N F18DBX/827/2P 18 G24d-2 10000 2700 1100 80 156 SG/MY China
85195N F18DBX/840/2P 18 G24d-2 10000 4000 990 80 156 SG/MY China
85196N F18DBX/865/2P 18 G24d-2 10000 6500 920 78 156 SG/MY China
95824EN F10DBX/827/2P 10 G24d-1 10000 2700 560 80 112 TH China
95825EN F10DBX/840/2P 10 G24d-1 10000 4000 520 80 112 TH China
95826EN F10DBX/865/2P 10 G24d-1 10000 6500 505 78 112 TH China
95827EN F13DBX/827/2P 13 G24d-1 10000 2700 760 80 136 TH China
95828EN F13DBX/840/2P 13 G24d-1 10000 4000 740 80 136 TH China
95829EN F13DBX/865/2P 13 G24d-1 10000 6500 720 78 136 TH China
95830EN F18DBX/827/2P 18 G24d-2 10000 2700 1100 80 156 TH China
95831EN F18DBX/840/2P 18 G24d-2 10000 4000 990 80 156 TH China
95832EN F18DBX/865/2P 18 G24d-2 10000 6500 920 78 156 TH China
85214E F13DBX/840/4P/STD 13 G24q-1 10000 4000 740 80 130 Australia China
85216E F13DBX/865/4P/STD 13 G24q-1 10000 6500 720 78 130 Australia China
85232E F18DBX/840/4P/STD 18 G24q-2 10000 4000 990 80 150 Australia China
85236E F18DBX/865/4P/STD 18 G24q-2 10000 6500 920 78 150 Australia China
65407E F26DBX/827/4P/G24q-3 26 G24q-3 7000 2700 1600 80 175 Australia/
ID/MY/PH/SG/TH
China
65413E F26DBX/840/4P/G24q-3 26 G24q-3 7000 4000 1600 80 175 Australia/
ID/MY/PH/SG/TH
China
65415E F26DBX/865/4P/G24q-3 26 G24q-3 7000 6500 1485 78 175 Australia/
ID/MY/PH/SG/TH
China
85197N GE F10DBX/827/4P 10 G24q-1 10000 2700 560 80 106
MY/PH/SG/TH
China
85198N GE F10DBX/840/4P 10 G24q-1 10000 4000 520 80 106
MY/PH/SG/TH
China
85199N GE F10DBX/865/4P 10 G24q-1 10000 6500 505 78 106
MY/PH/SG/TH
China
85211N GE F13DBX/827/4P 13 G24q-1 10000 2700 760 80 130
MY/PH/SG/TH
China
85214N GE F13DBX/840/4P 13 G24q-1 10000 4000 740 80 130
MY/PH/SG/TH
China
85216N GE F13DBX/865/4P 13 G24q-1 10000 6500 720 78 130
MY/PH/SG/TH
China
85221N GE F18DBX/827/4P 18 G24q-2 10000 2700 1100 80 150
MY/PH/SG/TH
China
85232N GE F18DBX/840/4P 18 G24q-2 10000 4000 990 80 150
MY/PH/SG/TH
China
85236N GE F18DBX/865/4P 18 G24q-2 10000 6500 920 78 150
MY/PH/SG/TH
China
Biax D/E-4 pin
Product
Code
Product
Description
Wattage
[W]
Cap Life [h] CCT [K] Lumen [lm] CRI [Ra] Dimension
[mm]
Country COO
Biax D-D - 2 pin
86354N F16DDT4/827/2P 16 GR8 8000 2700 950 82 141x138 SG China
86361N F16DDT4/840/2P 16 GR8 8000 4000 950 82 141x138 SG China
86376N F16DDT4/865/2P 16 GR8 8000 6500 903 82 141x138 SG China
48 49
Compact Fluorescent Lamps Non-Integrated
86391N F16DDT4/827/4P 16 GR10q 8000 2700 950 82 141x138 SG China
86406N F16DDT4/865/4P 16 GR10q 8000 6500 903 82 141x138 SG China
86421N F28DDT6/827/4P 28 GR10q 8000 2700 1950 82 207x205 SG China
86436N F28DDT6/840/4P 28 GR10q 8000 4000 1950 82 207x205 SG China
86451N F28DDT6/865/4P 28 GR10q 8000 6500 1853 82 207x205 SG China
86466N F38DDT6/827/4P 38 GR10q 8000 2700 2700 82 207x205 SG China
86481N F38DDT6/840/4P 38 GR10q 8000 4000 2700 82 207x205 SG China
86496N F38DDT6/865/4P 38 GR10q 8000 6500 2565 82 207x205 SG China
Biax D-D - 4 pin
Product
Code
Product
Description
Wattage
[W]
Volts [V] Cap Lumen
[lm]
CCT [K] CRI [Ra] Life [h] Diameter
[mm]
Length
[mm]
COO
Biax S 2-pin, Internal Starter
37654 F5BX/SPX27/827 5 35 G23 265 2700 82 10,000 32 107.5 Hungary
37661 F5BX/SPX41/840 5 35 G23 265 4000 82 10,000 32 107.5 Hungary
37846 F7BX/SPX27/827 7 47 G23 425 2700 82 10,000 32 136.5 Hungary
38930 F7BX/830 7 47 G23 425 3000 82 10,000 32 136.5 Hungary
37659 F7BX/SPX35/835 7 47 G23 425 3500 82 10,000 32 136.5 Hungary
37660 F7BX/SPX41/840 7 47 G23 425 4000 82 10,000 32 136.5 Hungary
38984 F7BX/865 7 47 G23 425 6500 82 10,000 32 136.5 Hungary
37651 F9BX/827 9 60 G23 600 2700 82 10,000 32 167 Hungary
38929 F9BX/830 9 60 G23 600 3000 82 10,000 32 167 Hungary
37652 F9BX/SPX35/835 9 60 G23 600 3500 82 10,000 32 167 Hungary
37653 F9BX/SPX41/840 9 60 G23 600 4000 82 10,000 32 167 Hungary
38985 F9BX/865 9 60 G23 600 6500 82 10,000 32 167 Hungary
37663 F11BX/827 11 91 G23 900 2700 82 10,000 32 237 Hungary
38928 F11BX/830 11 91 G23 900 3000 82 10,000 32 237 Hungary
37666 F11BX/835 11 91 G23 900 3500 82 10,000 32 237 Hungary
37664 F11BX/840 11 91 G23 900 4000 82 10,000 32 237 Hungary
38986 F11BX/840 11 91 G23 900 6500 82 10,000 32 237 Hungary
37714 F5BX/827/4P 5 35 2G7 265 2700 82 10,000 37.5 92 Hungary
37715 F5BX/840/4P 5 35 2G7 265 4000 82 10,000 37.5 92 Hungary
37658 F7BX/827/4P 7 47 2G7 425 2700 82 10,000 37.5 121 Hungary
37716 F7BX/840/4P 7 47 2G7 425 4000 82 10,000 37.5 121 Hungary
37710 F9BX/827/4P 9 60 2G7 600 2700 82 10,000 37.5 151 Hungary
37711 F9BX/840/4P 9 60 2G7 600 4000 82 10,000 37.5 151 Hungary
37717 F11BX/827/4P 11 91 2G7 900 2700 82 10,000 37.5 222 Hungary
37713 F11BX/840/4P 11 91 2G7 900 4000 82 10,000 37.5 222 Hungary
12603 F11BX/865/4P 11 91 2G7 900 6500 82 10,000 37.5 222 Hungary
Biax S/E 4-pin, External Starter Required
lamp name: Compact

lamp name: Compact — Biax D/E
Product
Code
Product
Description
Wattage
[W]
Volts [V] Cap Lumen
[lm]
CCT [K] CRI [Ra] Life [h] Diameter
[mm]
Length
[mm]
COO
Biax D/E LongLast 4-pin, External Starter Required
78217 F10DBX/T3/827/4P 10 51 G24Q-1 600 2700 82 20000 34.4 100.5 Hungary
78218 F10DBX/T3/830/4P 10 51 G24Q-1 600 3000 82 20000 34.4 100.5 Hungary
78219 F10DBX/T3/835/4P 10 51 G24Q-1 600 3500 82 20000 34.4 100.5 Hungary
78220 F10DBX/T3/840/4P 10 51 G24Q-1 600 4000 82 20000 34.4 100.5 Hungary
78231 F10DBX/T3/865/4P 10 51 G24Q-1 600 6500 82 20000 34.4 100.5 Hungary
78226 F13DBX/T3/827/4P 13 77 G24Q-1 900 2700 82 20000 34.4 131.5 Hungary
78227 F13DBX/T3/830/4P 13 77 G24Q-1 900 3000 82 20000 34.4 131.5 Hungary
78228 F13DBX/T3/835/4P 13 77 G24Q-1 900 3500 82 20000 34.4 131.5 Hungary
78229 F13DBX/T3/840/4P 13 77 G24Q-1 900 4000 82 20000 34.4 131.5 Hungary
78232 F13DBX/T3/865/4P 13 77 G24Q-1 900 6500 82 20000 34.4 131.5 Hungary
12865 F18DBX/SPX27/827/4P 18 80 G24q-2 1200 2700 82 20,000 34.4 146.5 Hungary
12866 F18DBX/SPX30/830/4P 18 80 G24q-2 1200 3000 82 20,000 34.4 146.5 Hungary
12869 F18DBX/SPX35/835/4P 18 80 G24q-2 1200 3500 82 20,000 34.4 146.5 Hungary
12870 F18DBX/SPX41/840/4P 18 80 G24q-2 1200 4000 82 20,000 34.4 146.5 Hungary
35247 F26DBX/SPX27/827/4P 26 80 G24q-3 1800 2700 82 20,000 34.4 162 Hungary
35235 F26DBX/SPX30/830/4P 26 80 G24q-3 1800 3000 82 20,000 34.4 162 Hungary
35248 F26DBX/SPX35/835/4P 26 80 G24q-3 1800 3500 82 20,000 34.4 162 Hungary
35236 F26DBX/SPX41/840/4P 26 80 G24q-3 1800 4000 82 20,000 34.4 162 Hungary
42798 F26DBX/SPX65/865/4P 26 80 G24q-3 1710 6500 82 12,000 34.40 162 Hungary
78211 F10DBX/T3/827/2P 10 64 G24D-1 600 2700 82 12000 34.4 108 Hungary
78212 F10DBX/T3/830/2P 10 64 G24D-1 600 3000 82 12000 34.4 108 Hungary
78213 F10DBX/T3/835/2P 10 64 G24D-1 600 3500 82 12000 34.4 108 Hungary
78214 F10DBX/T3/840/2P 10 64 G24D-1 600 4000 82 12000 34.4 108 Hungary
78215 F10DBX/T3/865/2P 10 64 G24D-1 600 6500 82 12000 34.4 108 Hungary
78221 F13DBX/T3/827/2P 13 91 G24D-1 900 2700 82 12000 34.4 139 Hungary
78222 F13DBX/T3/830/2P 13 91 G24D-1 900 3000 82 12000 34.4 139 Hungary
78223 F13DBX/T3/835/2P 13 91 G24D-1 900 3500 82 12000 34.4 139 Hungary
78224 F13DBX/T3/840/2P 13 91 G24D-1 900 4000 82 12000 34.4 139 Hungary
78225 F13DBX/T3/865/2P 13 91 G24D-1 900 6500 82 12000 34.4 139 Hungary
12860 F18DBXT4/SPX27/827 18 100 G24d-2 1200 2700 82 12,000 34.4 154 Hungary
12861 F18DBXT4/SPX30/830 18 100 G24d-2 1200 3000 82 12,000 34.4 154 Hungary
12863 F18DBXT4/SPX35/835 18 100 G24d-2 1200 3500 82 12,000 34.4 154 Hungary
12864 F18DBXT4/SPX41/840 18 100 G24d-2 1200 4000 82 12,000 34.4 154 Hungary
13017 F18DBXT4/SPX65/865 18 100 G24d-2 1200 6500 82 12,000 34.4 154 Hungary
35250 F26DBXT4/SPX27/827 26 105 G24d-3 1800 2700 82 12,000 34.4 169.5 Hungary
35237 F26DBXT4/SPX30/830 26 105 G24d-3 1800 3000 82 12,000 34.4 169.5 Hungary
35251 F26DBXT4/SPX35/835 26 105 G24d-3 1800 3500 82 12,000 34.4 169.5 Hungary
35252 F26DBXT4/SPX41/840 26 105 G24d-3 1800 4000 82 12,000 34.4 169.5 Hungary
35305 F26DBXT4/SPX65/865 26 105 G24d-3 1630 6500 82 12,000 34.4 169.5 Hungary
Biax D 2-pin, Internal Starter
50 51
Compact Fluorescent Lamps Non-Integrated
Biax T 2-pin with Amalgam, Internal Starter
35940 F13TBX/827/A/2P 13 91 GX24d-1 900 2700 82 12,000 49.3 112.9 Hungary
35966 F13TBX/SPX30/830/A/2P 13 91 GX24d-1 900 3000 82 12,000 49.3 112.9 Hungary
35941 F13TBX/SPX41/A/2P 13 91 GX24d-1 900 4000 82 12,000 49.3 112.9 Hungary
35945 F18TBX/SPX27/827/A/2P 18 100 GX24d-2 1200 2700 82 12,000 49.3 127.4 Hungary
35944 F18TBX/SPX30/830/A/2P 18 100 GX24d-2 1200 3000 82 12,000 49.3 127.4 Hungary
35937 F18TBX/SPX35/835/A/2P 18 100 GX24d-2 1200 3500 82 12,000 49.3 127.4 Hungary
35939 F18TBX/SPX41/840/A/2P 18 100 GX24d-2 1200 4000 82 12,000 49.3 127.4 Hungary
35959 F26TBX/SPX27/827/A/2P 26 105 GX24d-3 1800 2700 82 12,000 49.3 139.9 Hungary
35952 F26TBX/SPX30/830/A/2P 26 105 GX24d-3 1800 3000 82 12,000 49.3 139.9 Hungary
35963 F26TBX/SPX35/835/A/2P 26 105 GX24d-3 1800 3500 82 12,000 49.3 139.9 Hungary
35964 F26TBX/SPX41/840/A/2P 26 105 GX24d-3 1800 4000 82 12,000 49.3 139.9 Hungary
Biax T/E LongLast 4-pin with Amalgam, External Starter Required
34391 F13TBX/SPX27/827/A/4P 13 91 GX24q-1 900 2700 82 12,000 49.3 112.9 Hungary
34395 F13TBX/SPX30/830/A/4P 13 91 GX24q-1 900 3000 82 12,000 49.3 112.9 Hungary
34400 F13TBX/SPX35/835/A/4P 13 91 GX24q-1 900 3500 82 12,000 49.3 112.9 Hungary
34387 F13TBX/SPX41/840/A/4P 13 91 GX24q-1 900 4000 82 12,000 49.3 112.9 Hungary
34392 F18TBX/SPX27/827/A/4P 18 100 GX24q-2 1200 2700 82 12,000 49.3 127.4 Hungary
34396 F18TBX/SPX30/830/A/4P 18 100 GX24q-2 1200 3000 82 12,000 49.3 127.4 Hungary
34405 F18TBX/SPX35/835/A/4P 18 100 GX24q-2 1200 3500 82 12,000 49.3 127.4 Hungary
34385 F18TBX/SPX41/840/A/4P 18 100 GX24q-2 1200 4000 82 12,000 49.3 127.4 Hungary
34393 F26TBX/SPX27/827/A/4P 26 105 GX24q-3 1800 2700 82 12,000 49.3 139.9 Hungary
34397 F26TBX/SPX30/830/A/4P 26 105 GX24q-3 1800 3000 82 12,000 49.3 139.9 Hungary
34406 F26TBX/SPX35/835/A/4P 26 105 GX24q-3 1800 3500 82 12,000 49.3 139.9 Hungary
34381 F26TBX/SPX41/840/A/4P 26 105 GX24q-3 1800 4000 82 12,000 49.3 139.9 Hungary
Product
Code
Product
Description
Wattage
[W]
Volts [V] Cap Lumen
[lm]
CCT [K] CRI [Ra] Life [h] Diameter
[mm]
Length
[mm]
COO
Biax T/E LongLast 4-pin with Amalgam, External Starter Required
39377 F32TBX/SPX27/827/AP4P 32 100 GX24q-3 2400 2700 82 17,000 49.3 141.2 Hungary
39378 F32TBX/SPX30/830/AP4P 32 100 GX24q-3 2400 3000 82 17,000 49.3 141.2 Hungary
39379 F32TBX/SPX35/835/A/4P 32 100 GX24q-3 2400 3500 82 17,000 49.3 141.2 Hungary
39380 F32TBX/SPX41/840/A/4P 32 100 GX24q-3 2400 4000 82 17,000 49.3 141.2 Hungary
46312 F42TBX/827/A/4P 42 135 GX24q-4 3200 2700 82 17,000 49.3 163.2 Hungary
46313 F42TBX/830/A/4P 42 135 GX24q-4 3200 3000 82 17,000 49.3 163.2 Hungary
46314 F42TBX/835/A/4P 42 135 GX24q-4 3200 3500 82 17,000 49.3 163.2 Hungary
46315 F42TBX/841/A/4P 42 135 GX24q-4 3200 3000 82 17,000 49.3 163.2 Hungary
Biax Q/E LongLast 4-pin
45213 F57QBX/827/A/4P/LL 57 175 GX24q-5 4300 2700 82 20,000 58.3 180.7 Hungary
45204 F57QBX/830/A/4P/LL 57 175 GX24q-5 4300 3000 82 20,000 58.3 180.7 Hungary
45202 F57QBX/835/A/4P/LL 57 175 GX24q-5 4300 3500 82 20,000 58.3 180.7 Hungary
45201 F57QBX/840/A/4P/LL 57 175 GX24q-5 4300 4000 82 20,000 58.3 180.7 Hungary
45208 F70QBX/830/A/4P/LL 70 219 GX24q-6 5200 3000 82 20,000 58.3 208.2 Hungary
45219 F70QBX/835/A/4P/LL 70 219 GX24q-6 5200 3500 82 20,000 58.3 208.2 Hungary
45218 F70QBX/840/A/4P/LL 70 219 GX24q-6 5200 4000 82 20,000 58.3 208.2 Hungary
Product
Code
Product
Description
Wattage
[W]
Volts [V] Cap Lumen
[lm]
CCT [K] CRI [Ra] Life [h] Diameter
[mm]
Length
[mm]
COO
41744 F162D/827 16 103 GR8 1100 2700 82 12,000 138 142 Hungary
41745 F162D/835 16 103 GR8 1100 3500 82 12,000 138 142 Hungary
41746 F162D/827/4P 16 103 GR10q 1100 2700 82 12,000 138 142 Hungary
75066 F162D/830/4P 16 103 GR10q 1100 3000 82 12,000 138 142 Hungary
41747 F162D/835/4P 16 103 GR10q 1100 3500 82 12,000 138 142 Hungary
41749 F162D/860 16 103 GR8 1050 6000 82 12,000 138 142 Hungary
41794 F212D/827/4P 21 103 GR10q 1375 2700 82 12,000 138 142 Hungary
41806 F212D/835/4P 21 103 GR10q 1375 3500 82 12,000 138 142 Hungary
41808 F212D/860/4P 21 103 GR10q 1375 6000 82 12,000 138 142 Hungary
10546 F282DT5/827/2P 28 108 GR8 2150 2700 82 15,000 202 204 Hungary
10547 F282DT5/827/4P 28 108 GR10q 2150 2700 82 15,000 202 204 Hungary
75068 F282DT5/830/4P 28 108 GR10q 2150 3000 82 18,000 202 204 Hungary
10567 F282DT5/835/4P 28 108 GR10q 2150 3500 82 15,000 202 204 Hungary
10548 F282DT5/840/4P 28 108 GR10q 2150 4000 82 15,000 202 204 Hungary
10550 F382DT5/827/4P 38 110 GR10q 3000 2700 82 18,000 202 204 Hungary
75067 F382DT5/830/4P 38 110 GR10q 3000 3000 82 18,000 202 204 Hungary
10566 F382DT5/835/4P 38 110 GR10q 3000 3500 82 18,000 202 204 Hungary
2D Watt-Miser
Biax L LongLast 4-pin, External Starter Required
41087 F18BX/827 18 58 2G11 1250 2700 82 10,000 43.8 231.3 Hungary
41088 F18BX/830 18 58 2G11 1250 3000 82 10,000 43.8 231.3 Hungary
41089 F18BX/835 18 58 2G11 1250 3500 82 10,000 43.8 231.3 Hungary
41090 F18BX/840 18 58 2G11 1250 4000 82 10,000 43.8 231.3 Hungary
41128 F24BX/827 24 87 2G11 1800 2700 82 10,000 43.8 326.8 Hungary
41134 F24BX/830 24 87 2G11 1800 3000 82 10,000 43.8 326.8 Hungary
41145 F24BX/835 24 87 2G11 1800 3500 82 10,000 43.8 326.8 Hungary
41155 F24BX/840 24 87 2G11 1800 4000 82 10,000 43.8 326.8 Hungary
41163 F34BX/830 34 120 2G11 2800 3000 82 10,000 43.8 538.8 Hungary
41166 F34BX/835 34 120 2G11 2800 3500 82 10,000 43.8 538.8 Hungary
41167 F34BX/840 34 120 2G11 2800 4000 82 10,000 43.8 538.8 Hungary
41307 F36BX/827 36 106 2G11 2900 2700 82 10,000 43.8 421.8 Hungary
41168 F36BX/830 36 106 2G11 2900 3000 82 10,000 43.8 421.8 Hungary
41169 F36BX/835 36 106 2G11 2900 3500 82 10,000 43.8 421.8 Hungary
41170 F36BX/840 36 106 2G11 2900 4000 82 10,000 43.8 421.8 Hungary
75694 F36BX/865 36 106 2G11 2750 6500 82 10000 43.8 421.8 Hungary
41171 F40BX/830 40 126 2G11 3500 3000 82 20,000 43.8 538.8 Hungary
41172 F40BX/835 40 126 2G11 3500 3500 82 20,000 43.8 538.8 Hungary
41173 F40BX/840 40 126 2G11 3500 4000 82 20,000 43.8 538.8 Hungary
41174 F55BX/830 55 101 2G11 4800 3000 82 20,000 43.8 538.8 Hungary
41260 F55BX/835 55 101 2G11 4800 3500 82 20,000 43.8 538.8 Hungary
41298 F55BX/840 55 101 2G11 4800 4000 82 20,000 43.8 538.8 Hungary
75695 F55BX/865 55 101 2G11 4550 6500 82 20000 43.8 538.8 Hungary
52 53
88105 F10W/2D/827/4P 10 60 GR10q 680 2700 82 8,000 92 95 Hungary
88106 F10W/2D/835/4P 10 60 GR10q 680 3500 82 8,000 92 95 Hungary
Biax 2D
18122 FLE18W2D/827 GRZ10D 18 220-240 GRZ10d 1200 2700 80 10,000 138 142 Hungary
18123 FLE18W2D/835 GRZ10D 18 220-240 GRZ10d 1200 3500 80 10,000 138 142 Hungary
18120 FLE18W2D/840 GRZ10D 18 220-240 GRZ10d 1200 4000 80 10,000 138 142 Hungary
Biax 2D Watt-Miser with Integral Control Gear
Product
Code
Product
Description
Wattage
[W]
Volts
[V]
Cap Life [h] CCT [K] Lumen
[lm]
CRI
[Ra]
Length
[mm]
Diameter
[mm]
Country COO
T3 Stick - Ultralife
11241 FLE9TBX/827/B22/T3 BP1 9 220-240 B22 8000 2700 480 80 107 45 Australia
74663 FLE9TBX/827/E27/T3 BX 9 220-240 E27 8000 2700 480 80 107 45 Australia
74699 FLE9TBX/827/B22/T3 BX2 9 220-240 B22 10000 2700 480 82 116 44.5 Australia
74700 FLE9TBX/827/E27/T3 BX2 9 220-240 E27 10000 2700 480 82 117 44.5 Australia
95836 FLE9TBX/840/B22/T3 9 220-240 B22 8000 4000 480 80 107 45 Australia
95837 FLE9TBX/840/E27/T3 9 220-240 E27 8000 4000 480 80 107 45 Australia
74671 FLE12TBX/827/B22/T3 BX 12 220-240 B22 8000 2700 700 80 117 46 Australia
74672 FLE12TBX/827/E27/T3 BX 12 220-240 E27 8000 2700 700 80 117 46 Australia
48191 FLE12TBX/840/E27/T3 12 220-240 E27 8000 4000 700 80 117 46 Australia
48192 FLE12TBX/840/B22/T3 12 220-240 B22 8000 4000 700 80 117 46 Australia
95761P FLE15TBX/827/B22/T3 BP1 15 220-240 B22 8000 2700 872 82 138 44.5 Australia
74680 FLE15TBX/827/E27/T3 BX 15 220-240 E27 8000 2700 872 82 138 44.5 Australia
74701 FLE15TBX/827/B22/T3 BX2 15 220-240 B22 10000 2700 850 82 135 44.5 Australia
74702 FLE15TBX/827/E27/T3 BX2 15 220-240 E27 10000 2700 850 82 136 44.5 Australia
95800P FLE15TBX/840/B22/T3 15 220-240 B22 8000 4000 800 76 138 44.5 Australia
95804P FLE15TBX/840/E27/T3 15 220-240 E27 8000 4000 800 76 138 44.5 Australia
74705 FLE15TBX/840/B22/T3 BX2 15 220-240 B22 10000 4000 800 82 139 44.5 Australia
74706 FLE15TBX/840/E27/T3 BX2 15 220-240 E27 10000 4000 800 82 140 44.5 Australia
81025 FLE15TBX/865/B22/T3 15 220-240 B22 8000 6500 800 76 138 44.5 Australia
81026 FLE15TBX/865/E27/T3 15 220-240 E27 8000 6500 800 76 138 44.5 Australia
74681 FLE18TBX/827/B22/T3 BX 18 220-240 B22 8000 2700 1096 82 139 44.5 Australia
74684 FLE18TBX/827/E27/T3 BX 18 220-240 E27 8000 2700 1096 82 140 44.5 Australia
95802P FLE18TBX/840/B22/T3 18 220-240 B22 8000 4000 1010 76 151 44.5 Australia
95805P FLE18TBX/840/E27/T3 18 220-240 E27 8000 4000 1010 76 151 44.5 Australia
74703 FLE20TBX/827/B22/T3 BX2 20 220-240 B22 10000 2700 1200 82 151 44.5 Australia
74704 FLE20TBX/827/E27/T3 BX2 20 220-240 E27 10000 2700 1200 82 152 44.5 Australia
74707 FLE20TBX/840/B22/T3 BX2 20 220-240 B22 10000 4000 1152 82 151 44.5 Australia
74708 FLE20TBX/840/E27/T3 BX2 20 220-240 E27 10000 4000 1152 82 152 44.5 Australia
24879E FLE9TBX/865/E27/T3 9 220-240 E27 8000 6500 460 80 107 45 ID
24880E FLE9TBX/827/E27/T3 9 220-240 E27 8000 2700 480 80 107 45 ID
95414E FLE6DBX/827/E27/T3 6 220-240 E27 8000 2700 300 82 108 40 PH
95416E FLE6DBX/864/E27/T3 6 220-240 E27 8000 6500 280 76 108 40 PH
89584E FLE9DBX/827/E27/T3 9 220-240 E27 8000 2700 497 82 126 40 PH
89587E FLE9DBX/864/E27/T3 9 220-240 E27 8000 6500 440 76 126 40 PH
11236E FLE9TBX/827/E27 9 220-240 E27 8000 2700 480 80 107 45 PH
11238E FLE9TBX/865/E27 9 220-240 E27 8000 6500 460 80 107 45 PH
11349E FLE9TBX/827/E14 9 220-240 E14 8000 2700 480 80 109 45 PH
11350E FLE9TBX/865/E14 9 220-240 E14 8000 6500 460 80 109 45 PH
Product
Code
Product
Description
Wattage
[W]
Volts
[V]
Cap Life [h] CCT [K] Lumen
[lm]
CRI
[Ra]
Length
[mm]
Diameter
[mm]
Country COO
T3 Stick - Ultralife
95414EN FLE6DBX/827/E27 6 220-240 E27 8000 2700 300 82 108 40 SG/MY China
95416EN FLE6DBX/865/E27 6 220-240 E27 8000 6500 280 76 108 40 SG/MY China
89637EN FLE6DBX/827/E14 6 220-240 E14 8000 2700 300 82 108 40 SG/MY China
89639EN FLE6DBX/865/E14 6 220-240 E14 8000 6500 280 76 108 40 SG/MY China
89584EN FLE9DBX/827/E27 9 220-240 E27 8000 2700 497 82 126 40 SG/MY China
89585EN FLE9DBX/840/E27 9 220-240 E27 8000 4000 440 76 126 40 SG/MY China
89587EN FLE9DBX/865/E27 9 220-240 E27 8000 6500 440 76 126 40 SG/MY China
11236EN FLE9TBX/827/E27 9 220-240 E27 8000 2700 480 80 107 45 SG/MY China
11238EN FLE9TBX/865/E27 9 220-240 E27 8000 6500 460 80 107 45 SG/MY China
11349EN FLE9TBX/827/E14 9 220-240 E14 8000 2700 480 80 109 45 SG/MY China
11350EN FLE9TBX/865/E14 9 220-240 E14 8000 6500 460 80 109 45 SG/MY China
89588EN FLE11DBX/827/E27 11 220-240 E27 8000 2700 615 82 144 44.5 SG/MY China
89589EN FLE11DBX/840/E27 11 220-240 E27 8000 4000 590 76 144 44.5 SG/MY China
89590EN FLE11DBX/865/E27 11 220-240 E27 8000 6500 590 76 144 44.5 SG/MY China
89591EN FLE15TBX/827/E27 15 220-240 E27 8000 2700 872 82 138 44.5 SG/MY China
89592EN FLE15TBX/840/E27 15 220-240 E27 8000 4000 800 76 138 44.5 SG/MY China
89593EN FLE15TBX/865/E27 15 220-240 E27 8000 6500 800 76 138 44.5 SG/MY China
89594EN FLE18TBX/827/E27 18 220-240 E27 8000 2700 1096 82 151 44.5 SG/MY China
89595EN FLE18TBX/840/E27 18 220-240 E27 8000 4000 1010 76 151 44.5 SG/MY China
89596EN FLE18TBX/865/E27 18 220-240 E27 8000 6500 1010 76 151 44.5 SG/MY China
95414ET FLE6DBX/827/E27 6 220-240 E27 8000 2700 300 82 108 40 TH China
95416ET FLE6DBX/864/E27 6 220-240 E27 8000 6500 280 76 108 40 TH China
89637ET FLE6DBX/827/E14 6 220-240 E14 8000 2700 300 82 108 40 TH China
89639ET FLE6DBX/865/E14 6 220-240 E14 8000 6500 280 76 108 40 TH China
11236ET FLE9TBX/827/E27 9 220-240 E27 8000 2700 480 80 107 45 TH China
11237ET FLE9TBX/840/E27 9 220-240 E27 8000 4000 480 80 107 45 TH China
11238ET FLE9TBX/865/E27 9 220-240 E27 8000 6500 460 80 107 45 TH China
89584ET FLE9DBX/827/E27 9 220-240 E27 8000 2700 497 82 126 40 TH China
89585EN FLE9DBX/840/E27 9 220-240 E27 8000 4000 440 76 126 40 TH China
89587EN FLE9DBX/865/E27 9 220-240 E27 8000 6500 440 76 126 40 TH China
89588ET FLE11DBX/827/E27 11 220-240 E27 8000 2700 615 82 144 44.5 TH China
89589ET FLE11DBX/840/E27 11 220-240 E27 8000 4000 590 76 144 44.5 TH China
89590ET FLE11DBX/865/E27 11 220-240 E27 8000 6500 590 76 144 44.5 TH China
89591ET FLE15TBX/827/E27 15 220-240 E27 8000 2700 872 82 138 44.5 TH China
89592ET FLE15TBX/840/E27 15 220-240 E27 8000 4000 800 76 138 44.5 TH China
89593ET FLE15TBX/865/E27 15 220-240 E27 8000 6500 800 76 138 44.5 TH China
89594ET FLE18TBX/827/E27 18 220-240 E27 8000 2700 1096 82 151 44.5 TH China
89595ET FLE18TBX/840/E27 18 220-240 E27 8000 4000 1010 76 151 44.5 TH China
89596ET FLE18TBX/865/E27 18 220-240 E27 8000 6500 1010 76 151 44.5 TH China
89588E FLE11DBX/827/E27 11 220-240 E27 8000 2700 615 82 144 44.5 PH
89590E FLE11DBX/864/E27 11 220-240 E27 8000 6500 590 76 144 44.5 PH
48189EP FLE12TBX/827/E27 12 220-240 E27 8000 2700 700 80 117 46 PH
48191EP FLE12TBX/840/E27 12 220-240 E27 8000 4000 700 80 117 46 PH
48193EP FLE12TBX/865/E27 12 220-240 E27 8000 6500 650 80 117 46 PH
89591E FLE15TBX/827/E27 15 220-240 E27 8000 2700 872 82 138 44.5 PH
89593E FLE15TBX/865/E27 15 220-240 E27 8000 6500 800 76 138 44.5 PH
89594E FLE18TBX/827/E27 18 220-240 E27 8000 2700 1096 82 151 44.5 PH
89596E FLE18TBX/864/E27 18 220-240 E27 8000 6500 1010 76 151 44.5 PH
Compact Fluorescent Lamps Integrated
54 55
Compact Fluorescent Lamps Integrated
Product
Code
Product
Description
Wattage
[W]
Volts
[V]
Cap Life [h] CCT [K] Lumen
[lm]
CRI
[Ra]
Length
[mm]
Diameter
[mm]
Country COO
T3&T4 Stick - Economizer
24875E FLE9DBX/827/E27/220-240V 9 220-240 E27 6000 2700 490 80 135 42 ID China
95595EID FLE9DBX/865/E27/220-240V 9 220-240 E27 6000 6500 460 80 135 42 ID China
24876E FLE15DBX/827/E27/220-240V 15 220-240 E27 6000 2700 875 80 168 46 ID China
95596EID FLE15DBX/865/E27/220-240V 15 220-240 E27 6000 6500 810 80 168 46 ID China
95650EID FLE20TBX/827/E27/220-240V 20 220-240 E27 6000 2700 1200 80 165 49 ID China
95597EID FLE20TBX/865/E27/220-240V 20 220-240 E27 6000 6500 1120 81 165 49 ID China
24877E FLE23W/QBX/865/E27 23 220-240 E27 6000 6500 1380 80 167 56 ID China
24878E FLE23W/QBX/827/E27 23 220-240 E27 6000 2700 1380 80 167 56 ID China
11305ET FLE9DBX/827/E27/6k 9 220-240 E27 6000 2700 490 80 135 42 TH China
11321ET FLE9DBX/864/E27/6K 9 220-240 E27 6000 6500 460 80 135 42 TH China
11324ET FLE11DBX/827/E27/6K 11 220-240 E27 6000 2700 640 80 152 42 TH China
11328ET FLE11DBX/865/E27/6K 11 220-240 E27 6000 6500 590 80 152 42 TH China
11332ET FLE15TBX/827/E27/6k 15 220-240 E27 6000 2700 920 80.5 144 49 TH China
11335ET FLE15TBX/864/E27/6K 15 220-240 E27 6000 6500 830 80 144 49 TH China
11336ET FLE20TBX/827/E27 20 220-240 E27 6000 2700 1200 80 165 49 TH China
11342ET FLE20TBX/865/E27 20 220-240 E27 6000 6500 1120 81 165 49 TH China
95600ET FLE23QBX/827/E27 23 220-240 E27 6000 2700 1380 80 167 56 TH China
95602ET FLE23QBX/865/E27 23 220-240 E27 6000 6500 1380 80 167 56 TH China
Product
Code
Product
Description
Wattage
[W]
Volts
[V]
Cap Life [h] CCT [K] Lumen
[lm]
CRI
[Ra]
Length
[mm]
Diameter
[mm]
Country COO
T3&T4 Economizer Plus
78168E FLE5DBX/827/E27/T3 220-240V 5 220-240 E27 6000 2700 200 80 109 38 SG/MY/PH China
78169E FLE5DBX/865/E27/T3 220-240V 5 220-240 E27 6000 6500 180 80 109 38 SG/MY/PH China
78170E FLE8DBX/827/E27/T3 220-240V 8 220-240 E27 6000 2700 430 80 135 38 SG/MY/PH China
78171E FLE8DBX/865/E27/T3 220-240V 8 220-240 E27 6000 6500 390 80 135 38 SG/MY/PH China
78172E FLE11DBX/827/E27/T3 220-240V 11 220-240 E27 6000 2700 520 80 145 38 SG/MY/PH China
78173E FLE11DBX/865/E27/T3 220-240V 11 220-240 E27 6000 6500 480 80 145 38 SG/MY/PH China
78174E FLE14TBX/827/E27/T4 220-240V 14 220-240 E27 6000 2700 820 80 140 44 SG/MY/PH China
78175E FLE14TBX/865/E27/T4 220-240V 14 220-240 E27 6000 6500 760 80 140 44 SG/MY/PH China
78176E FLE20TBX/827/E27/T4 220-240V 20 220-240 E27 6000 2700 1100 80 160 48 SG/MY/PH China
78177E FLE20TBX/865/E27/T4 220-240V 20 220-240 E27 6000 6500 1020 80 160 48 SG/MY/PH China
78178E FLE23TBX/827/E27/T4 220-240V 23 220-240 E27 6000 2700 1260 80 170 48 SG/MY/PH China
78179E FLE23TBX/865/E27/T4 220-240V 23 220-240 E27 6000 6500 1170 80 170 48 SG/MY/PH China
64556E FLE6DBX/827/E27/T3 6 220-240 E27 6000 2700 240 80 111 40 SG/MY/PH China
64557E FLE6DBX/865/E27/T3 6 220-240 E27 6000 6500 216 80 111 40 SG/MY/PH China
64558E FLE8DBX/827/E27/T3 8 220-240 E27 6000 2700 430 80 126.5 40 SG/MY/PH China
64559E FLE8DBX/865/E27/T3 8 220-240 E27 6000 6500 390 80 126.5 40 SG/MY/PH China
64560E FLE11DBX/827/E27/T3 11 220-240 E27 6000 2700 532 80 146 44.5 SG/MY/PH China
64561E FLE11DBX/865/E27/T3 11 220-240 E27 6000 6500 480 80 146 44.5 SG/MY/PH China
64562E FLE14TBX/827/E27/T3 14 220-240 E27 6000 2700 820 80 140 44.5 SG/MY/PH China
64563E FLE14TBX/865/E27/T3 14 220-240 E27 6000 6500 760 80 140 44.5 SG/MY/PH China
64564E FLE20TBX/827/E27/T3 20 220-240 E27 6000 2700 1100 80 158 44.5 SG/MY/PH China
64565E FLE20TBX/865/E27/T3 20 220-240 E27 6000 6500 1020 80 158 44.5 SG/MY/PH China
64566E FLE23TBX/827/E27/T3 23 220-240 E27 6000 2700 1260 80 158 44.5 SG/MY/PH China
64567E FLE23TBX/865/E27/T3 23 220-240 E27 6000 6500 1170 80 158 44.5 SG/MY/PH China
95600EN FLE23QBX/827/E27 23 220-240 E27 6000 2700 1380 80 167 56 SG/MY/PH China
95601EN FLE23QBX/840/E27 23 220-240 E27 6000 4000 1380 80 167 56 SG/MY/PH China
95602EN FLE23QBX/865/E27 23 220-240 E27 6000 6500 1380 80 167 56 SG/MY/PH China
65031E FLE6DBX/827/E14/T3 6 220-240 E14 6000 2700 240 80 108.5 40 SG/MY/TH China
65032E FLE6DBX/865/E14/T3 6 220-240 E14 6000 6500 216 80 108.5 40 SG/MY/TH China
65033E FLE8DBX/827/E14/T3 8 220-240 E14 6000 2700 430 80 125.5 40 SG/MY/TH China
65034E FLE8DBX/865/E14/T3 8 220-240 E14 6000 6500 390 80 125.5 40 SG/MY/TH China
65035E FLE11DBX/827/E14/T3 11 220-240 E14 6000 2700 532 80 144.5 44.5 SG/MY/TH China
65036E FLE11DBX/865/E14/T3 11 220-240 E14 6000 6500 480 80 144.5 44.5 SG/MY/TH China
78168T FLEBX/827/E27/T3 220-240V 6 220-240 E27 6000 2700 240 80 111 40 TH China
78169T FLEBX/865/E27/T3 220-240V 6 220-240 E27 6000 6500 216 80 111 40 TH China
78170T FLE8DBX/827/E27/T3 220-240V 8 220-240 E27 6000 2700 430 80 126.5 40 TH China
78171T FLE8DBX/865/E27/T3 220-240V 8 220-240 E27 6000 6500 390 80 126.5 40 TH China
78172T FLE11DBX/827/E27/T3 220-240V 11 220-240 E27 6000 2700 532 80 146 44.5 TH China
78173T FLE11DBX/865/E27/T3 220-240V 11 220-240 E27 6000 6500 480 80 146 44.5 TH China
78174T FLE14TBX/827/E27/T3 220-240V 14 220-240 E27 6000 2700 820 80 140 44.5 TH China
78175T FLE14TBX/865/E27/T3 220-240V 14 220-240 E27 6000 6500 760 80 140 44.5 TH China
78176T FLE20TBX/827/E27/T3 220-240V 20 220-240 E27 6000 2700 1100 80 158 44.5 TH China
78177T FLE20TBX/865/E27/T3 220-240V 20 220-240 E27 6000 6500 1020 80 158 44.5 TH China
78178T FLE23TBX/827/E27/T3 220-240V 23 220-240 E27 6000 2700 1260 80 158 44.5 TH China
78179T FLE23TBX/865/E27/T3 220-240V 23 220-240 E27 6000 6500 1170 80 158 44.5 TH China
Product
Code
Product
Description
Wattage
[W]
Volts [V] Cap Lumen
[lm]
CCT [K] CRI [Ra] Life [h] Length
[mm]
Diameter
[mm]
EEC COO
Electronic Stick T3 Mini - 10,000 hours
88697 FLE9TBX/T3/827/E14 9 220-240 E14 480 2700 82 10,000 117 45 A China
88695 FLE9TBX/T3/827/E27 9 220-240 E27 480 2700 82 10,000 115 45 A China
88696 FLE9TBX/T3/827/B22 9 220-240 B22 480 2700 82 10,000 114 46 A China
88700 FLE9TBX/T3/840/E14 9 220-240 E14 455 4000 82 10,000 117 45 A China
88698 FLE9TBX/T3/840/E27 9 220-240 E27 455 4000 82 10,000 115 45 A China
88703 FLE9TBX/T3/865/E14 9 220-240 E14 455 6500 82 10,000 117 45 A China
88701 FLE9TBX/T3/865/E27 9 220-240 E27 455 6500 82 10,000 115 45 A China
78690 FLE11TBX/T3/827/E14 11 220-240 E14 660 2700 82 10,000 126 45 A China
72689 FLE11TBX/T3/827/E27 11 220-240 E27 660 2700 82 10,000 124 45 A China
72690 FLE11TBX/T3/827/B22 11 220-240 B22 660 2700 82 10,000 123 45 A China
88709 FLE11TBX/T3/840/E14 11 220-240 E14 620 4000 82 10,000 126 45 A China
88712 FLE11TBX/T3/865/E14 11 220-240 E14 620 6500 82 10,000 126 45 A China
75730 FLE11TBX/T3/865/E27 11 220-240 E27 620 6500 82 10,000 124 45 A China
72688 FLE15TBX/T3/827/E27 15 220-240 E27 850 2700 82 10,000 139.5 46 A China
88713 FLE15TBX/T3/827/B22 15 220-240 B22 850 2700 82 10,000 138.5 45 A China
88714 FLE15TBX/T3/840/E27 15 220-240 E27 800 4000 82 10,000 139.5 46 A China
T4 Stick - Sensor
66839TH FLE15TBX/827/E27 SENSOR 15 220-240 E27 6000 2700 800 80 148 56 TH China
66841TH FLE15TBX/865/E27 SENSOR 15 220-240 E27 6000 6500 800 80 148 56 TH China
Product
Code
Product
Description
Wattage
[W]
Volts
[V]
Cap Life [h] CCT [K] Lumen
[lm]
CRI
[Ra]
Length
[mm]
Diameter
[mm]
Country COO
56 57
Compact Fluorescent Lamps Integrated
88716 FLE15TBX/T3/865/E27 15 220-240 E27 800 6500 82 10,000 139.5 46 A China
88718 FLE20TBX/T3/827/E27 20 220-240 E27 1200 1200 82 10,000 153 46 A China
88719 FLE20TBX/T3/827/B22 20 220-240 B22 1200 1200 82 10,000 153 46 A China
88720 FLE20TBX/T3/840/E27 20 220-240 E27 1152 4000 82 10,000 153 46 A China
88722 FLE20TBX/T3/865/E27 20 220-240 E27 1152 6500 82 10,000 153 46 A China
88723 FLE20TBX/T3/865/B22 20 220-240 B22 1152 6500 82 10,000 153 46 A China
75039 FLE23QBX/T3/827/B22 23 220-240 B22 1450 2700 82 10,000 147 50 A China
75268 FLE23QBX/T3/827/E27 23 220-240 E27 1450 2700 82 10,000 147 50 A China
97000 FLE23QBX/T3/840/E27 23 220-240 E27 1450 4000 82 10,000 147 50 A China
97006 FLE23QBX/T3/865/E27 23 220-240 E27 1380 6500 82 10,000 147 50 A China
Product
Code
Product
Description
Wattage
[W]
Volts
[V]
Cap Life [h] CCT [K] Lumen
[lm]
CRI
[Ra]
Length
[mm]
Diameter
[mm]
Country COO
T2 Spiral - Tiny 15000Hrs
89514 FLE10HLX/827/E27/XL 10 220-240 E27 15000 2700 520 80 117 44 Australia China
89517 FLE10HLX/827/B22/XL 10 220-240 B22 15000 2700 520 80 117 44 Australia China
89520 FLE15HLX/827/E27/XL 15 220-240 E27 15000 2700 900 80 128 53 Australia China
89523 FLE15HLX/827/B22/XL 15 220-240 B22 15000 2700 900 80 128 53 Australia China
89526 FLE20HLX/827/E27/XL 20 220-240 E27 15000 2700 1200 80 127 60 Australia China
89529 FLE20HLX/827/B22/XL 20 220-240 B22 15000 2700 1200 80 127 60 Australia China
Product
Code
Product
Description
Wattage
[W]
Volts
[V]
Cap Life [h] CCT [K] Lumen
[lm]
CRI
[Ra]
Length
[mm]
Diameter
[mm]
Country COO
T2 Spiral - Tiny 8000Hrs
74658 FLE8HLX/827/B15/T2 8 220-240 B15 8000 2700 460 80 101.5 46 Australia China
74659 FLE8HLX/827/B22/T2 8 220-240 B22 8000 2700 460 80 85 46 Australia China
74660 FLE8HLX/827/E14/T2 8 220-240 E14 8000 2700 460 80 103 46 Australia China
74661 FLE8HLX/827/E27/T2 8 220-240 E27 8000 2700 460 80 85 46 Australia China
47375 FLE8HLX/840/E27/T2 8 220-240 E27 8000 4000 460 80 85 46 Australia China
47382 FLE8HLX/840/E14/T2 8 220-240 E14 8000 4000 460 80 103 46 Australia China
47385 FLE8HLX/840/B22/T2 8 220-240 B22 8000 4000 460 80 85 46 Australia China
47386 FLE8HLX/840/B15/T2 8 220-240 B15 8000 4000 460 80 101.5 46 Australia China
74668 FLE12HLX/827/B15/T2 12 220-240 B15 8000 2700 700 80 110.5 46 Australia China
74669 FLE12HLX/827/E14/T2 12 220-240 E14 8000 2700 700 80 112 46 Australia China
30472 FLE12HLX/827/E27/T2 12 220-240 E27 8000 2700 700 80 95 46 Australia China
30490 FLE12HLX/827/B22/T2 12 220-240 B22 8000 2700 700 80 95 46 Australia China
47389 FLE12HLX/840/E27/T2 12 220-240 E27 8000 4000 700 80 95 46 Australia China
47392 FLE12HLX/840/E14/T2 12 220-240 E14 8000 4000 700 80 112 46 Australia China
47393 FLE12HLX/840/B22/T2 12 220-240 B22 8000 4000 700 80 95 46 Australia China
47394 FLE12HLX/840/B15/T2 12 220-240 B15 8000 4000 700 80 110.5 46 Australia China
30474 FLE12HLX/865/E27/T2 12 220-240 E27 8000 6500 660 80 95 46 Australia China
30492 FLE12HLX/865/B22/T2 12 220-240 B22 8000 6500 660 80 95 46 Australia China
74677 FLE15HLX/827/B22/T2 15 220-240 B22 8000 2700 900 80 100 53 Australia China
74678 FLE15HLX/827/E27/T2 15 220-240 E27 8000 2700 900 80 101 53 Australia China
71040 FLE15HLX/840/E27/T2 15 220-240 E27 8000 4000 900 80 101 53 Australia China
71308 FLE15HLX/840/B22/T2 15 220-240 B22 8000 4000 900 80 100 53 Australia China
61414 FLE15HLX/865/T2/B22 15 220-240 B22 8000 6500 850 80 100 53 Australia China
61415 FLE15HLX/865/T2/E27 15 220-240 E27 8000 6500 850 80 101 53 Australia China
Product
Code
Product
Description
Wattage
[W]
Volts
[V]
Cap Life [h] CCT [K] Lumen
[lm]
CRI
[Ra]
Length
[mm]
Diameter
[mm]
Country COO
74687 FLE20HLX/827/B22/T2 20 220-240 B22 8000 2700 1100 80 104 57 Australia China
74689 FLE20HLX/827/E27/T2 20 220-240 E27 8000 2700 1100 80 105 57 Australia China
71043 FLE20HLX/840/E27/T2 20 220-240 E27 8000 4000 1100 80 105 57 Australia China
71311 FLE20HLX/840/B22/T2 20 220-240 B22 8000 4000 1100 80 104 57 Australia China
61412 FLE20HLX/865/T2/B22 20 220-240 B22 8000 6500 1040 80 104 57 Australia China
61413 FLE20HLX/865/T2/E27 20 220-240 E27 8000 6500 1040 80 105 57 Australia China
30431ID FLE8HLX/827/E27/T2 8 220~240 E27 8000 2700 460 80 85 46 ID China
30433ID FLE8HLX/865/E27/T2 8 220~240 E27 8000 6500 430 80 85 46 ID China
30472ID FLE12HLX/827/E27/T2 12 220~240 E27 8000 2700 700 80 95 46 ID China
30474ID FLE12HLX/865/E27/T2 12 220~240 E27 8000 6500 660 80 95 46 ID China
30431EP FLE8HLX/827E27/T2 8 220~240 E27 8000 2700 460 80 85 46 PH China
30433EP FLE8HLX865E27/T2 8 220~240 E27 8000 6500 430 80 85 46 PH China
47738EP FLE8HLX/827/E14/T2 8 220~240 E14 8000 2700 460 80 103 46 PH China
47740EP FLE8HLX/865/E14/T2 8 220~240 E14 8000 6500 430 80 103 46 PH China
30472EP FLE12HLX/827/E27/T2 12 220~240 E27 8000 2700 700 80 95 46 PH China
30474EP FLE12HLX/865/E27/T2 12 220~240 E27 8000 6500 660 80 95 46 PH China
47742EP FLE12HLX/827/E14/T2 12 220~240 E14 8000 2700 700 80 112 46 PH China
47755EP FLE12HLX/865/E14/T2 12 220~240 E14 8000 6500 660 80 112 46 PH China
71039EN FLE15HLX/827/T2/E27 15 220~240 E27 8000 2700 900 80 101 53 PH/SG/MY China
71040EN FLE15HLX/840/T2/E27 15 220~240 E27 8000 4000 900 80 101 53 PH/SG/MY China
71041EN FLE15HLX/865/T2/E27 15 220~240 E27 8000 6500 850 80 101 53 PH/SG/MY China
71042EN FLE20HLX/827/T2/E27 20 220~240 E27 8000 2700 1100 80 105 57 PH/SG/MY China
71043EN FLE20HLX/840/T2/E27 20 220~240 E27 8000 4000 1100 80 105 57 PH/SG/MY China
71044EN FLE20HLX/865/T2/E27 20 220~240 E27 8000 6500 1040 80 105 57 PH/SG/MY China
30431EN FLE8HLX/827/E27/T2 8 220-240 E27 8000 2700 460 80 85 46 SG/MY China
47375EN FLE8HLX/840/E27/T2 8 220-240 E27 8000 4000 460 80 85 46 SG/MY China
30433EN FLE8HLX/865/E27/T2 8 220-240 E27 8000 6500 430 80 85 46 SG/MY China
47738EN FLE8HLX/827/E14/T2 8 220-240 E14 8000 2700 460 80 103 46 SG/MY China
47382EN FLE8HLX/840/E14/T2 8 220-240 E14 8000 4000 460 80 103 46 SG/MY China
47740EN FLE8HLX/865/E14/T2 8 220-240 E14 8000 6500 430 80 103 46 SG/MY China
30472EN FLE12HLX/827/E27/T2 12 220-240 E27 8000 2700 700 80 95 46 SG/MY China
47389EN FLE12HLX/840/E27/T2 12 220-240 E27 8000 4000 700 80 95 46 SG/MY China
30474EN FLE12HLX/865/E27/T2 12 220-240 E27 8000 6500 660 80 95 46 SG/MY China
47742EN FLE12HLX/827/E14/T2 12 220-240 E14 8000 2700 700 80 112 46 SG/MY China
47392EN FLE12HLX/840/E14/T2 12 220-240 E14 8000 4000 700 80 112 46 SG/MY China
47755EN FLE12HLX/865/E14/T2 12 220-240 E14 8000 6500 660 80 112 46 SG/MY China
30431ET FLE8HLX/827/E27/T2 8 220-240 E27 8000 2700 460 80 85 46 SG/MY China
30433ET FLE8HLX/865/E27/T2 8 220-240 E27 8000 6500 430 80 85 46 SG/MY China
47738ET FLE8HLX/827/E14/T2 8 220-240 E14 8000 2700 460 80 103 46 TH China
47740ET FLE8HLX/865/E14/T2 8 220-240 E14 8000 6500 430 80 103 46 TH China
30472ET FLE12HLX/827/E27/T2 12 220-240 E27 8000 2700 700 80 95 46 TH China
30474ET FLE12HLX/865/E27/T2 12 220-240 E27 8000 6500 660 80 95 46 TH China
47742ET FLE12HLX/827/E14/T2 12 220-240 E14 8000 2700 700 80 112 46 TH China
47755ET FLE12HLX/865/E14/T2 12 220-240 E14 8000 6500 660 80 112 46 TH China
71039T FLE15HLX/827/E27/T2 15 220-240 E27 8000 2700 900 80 101 53 TH China
71040T FLE15HLX/840/E27/T2 15 220-240 E27 8000 4000 900 80 101 53 TH China
71041T FLE15HLX/865/E27/T2 15 220-240 E27 8000 6500 850 80 101 53 TH China
71042T FLE20HLX/827/E27/T2 20 220-240 E27 8000 2700 1100 80 105 57 TH China
71043T FLE20HLX/840/E27/T2 20 220-240 E27 8000 4000 1100 80 105 57 TH China
71044T FLE20HLX/865/E27/T2 20 220-240 E27 8000 6500 1040 80 105 57 TH China
58 59
Compact Fluorescent Lamps Integrated
Product
Code
Product
Description
Wattage
[W]
Volts
[V]
Cap Lumen
[lm]
CCT [K] CRI [Ra] Life [h] Length
[mm]
Diameter
[mm]
EEC COO
Electronic LongLast Spiral T2 - 15,000 hours
76153 FLE8HLX/T2/827/E14 8 220-240 E14 470 2700 80 15,000 100.5 46 A China
76154 FLE8HLX/T2/827/E27 8 220-240 E27 470 2700 80 15,000 88.5 46 A China
78156 FLE8HLX/T2/827/B22 8 220-240 B22 470 2700 80 15,000 88.5 46 A China
78157 FLE8HLX/T2/840/E14 8 220-240 E14 460 4000 80 15,000 100.5 46 A China
78188 FLE8HLX/T2/840/E27 8 220-240 E27 460 4000 80 15,000 88.5 46 A China
78189 FLE8HLX/T2/865/E27 8 220-240 E27 430 6500 80 15,000 88.5 46 A China
76155 FLE12HLX/T2/827/E14 12 220-240 E14 715 2700 80 15,000 112.5 53 A China
76157 FLE12HLX/T2/827/E27 12 220-240 E27 715 2700 80 15,000 100 53 A China
78190 FLE12HLX/T2/827/B22 12 220-240 B22 715 2700 80 15,000 100 53 A China
78191 FLE12HLX/T2/840/E14 12 220-240 E14 700 4000 80 15,000 112.5 53 A China
78192 FLE12HLX/T2/840/E27 12 220-240 E27 700 4000 80 15,000 100 53 A China
78193 FLE12HLX/T2/865/E14 12 220-240 E14 665 6500 80 15,000 112.5 53 A China
78194 FLE12HLX/T2/865/E27 12 220-240 E27 665 6500 80 15,000 100 53 A China
76156 FLE15HLX/T2/827/E27 15 220-240 E27 950 2700 80 15,000 100 53 A China
78195 FLE15HLX/T2/827/B22 15 220-240 B22 950 2700 80 15,000 100 53 A China
78196 FLE15HLX/T2/840/E27 15 220-240 E27 950 4000 80 15,000 100 53 A China
78197 FLE15HLX/T2/865/E27 15 220-240 E27 900 6500 80 15,000 100 53 A China
76158 FLE20HLX/T2/827/E27 20 220-240 E27 1220 2700 80 15,000 108 57 A China
78198 FLE20HLX/T2/827/B22 20 220-240 B22 1220 2700 80 15,000 108 57 A China
78199 FLE20HLX/T2/840/E27 20 220-240 E27 1200 4000 80 15,000 108 57 A China
78200 FLE20HLX/T2/865/E27 20 220-240 E27 1152 6500 80 15,000 108 57 A China
76159 FLE23HLX/T2/827/E27 23 220-240 E27 1500 2700 80 15,000 127 58 A China
78202 FLE23HLX/T2/840/E27 23 220-240 E27 1380 4000 80 15,000 127 58 A China
78203 FLE23HLX/T2/865/E27 23 220-240 E27 1380 6500 80 15,000 127 58 A China
Product
Code
Product
Description
Wattage
[W]
Volts
[V]
Cap Life [h] CCT [K] Lumen
[lm]
CRI
[Ra]
Length
[mm]
Diameter
[mm]
Country COO
T3 Spiral-Ultralife Plus
85940 FLE14HLX/827/B22/T3 14 220-240 B22 8000 2700 950 80 128 53 Australia China
85942 FLE14HLX/827/E27/T3 14 220-240 E27 8000 2700 950 80 128 53 Australia China
74709 FLE14HLX/827/B22/T3 BX2 14 220-240 B22 8000 2700 950 80 128 53 Australia China
74710 FLE14HLX/827/E27/T3 BX2 14 220-240 E27 8000 2700 950 80 128 53 Australia China
90147 FLE14HLX/840/E27/T3 14 220-240 E27 8000 4000 950 80 128 53 Australia China
90148 FLE14HLX/840/B22/T3 14 220-240 B22 8000 4000 950 80 128 53 Australia China
74715 FLE14HLX/840/B22/T3 BX2 14 220-240 B22 8000 4000 950 80 128 53 Australia China
74716 FLE14HLX/840/E27/T3 BX2 14 220-240 E27 8000 4000 950 80 128 53 Australia China
85956 FLE20HLX/827/B22/T3 20 220-240 B22 8000 2700 1350 80 124 60 Australia China
85966 FLE20HLX/827/E27/T3 20 220-240 E27 8000 2700 1350 80 124 60 Australia China
74711 FLE20HLX/827/B22/T3 BX2 20 220-240 B22 8000 2700 1350 80 124 60 Australia China
74712 FLE20HLX/827/E27/T3 BX2 20 220-240 E27 8000 2700 1350 80 124 60 Australia China
90145 FLE20HLX/840/E27/T3 20 220-240 E27 8000 4000 1300 80 124 60 Australia China
90146 FLE20HLX/840/B22/T3 20 220-240 B22 8000 4000 1300 80 124 60 Australia China
74717 FLE20HLX/840/B22/T3 BX2 20 220-240 B22 8000 4000 1300 80 124 60 Australia China
74718 FLE20HLX/840/E27/T3 BX2 20 220-240 E27 8000 4000 1300 80 124 60 Australia China
76598 FLE23HLX/827/B22/T2 BX2 23 220-240 B22 8000 2700 1380 80 127 57 Australia China
76599 FLE23HLX/827/E27/T2 BX2 23 220-240 E27 8000 2700 1380 80 128 57 Australia China
76600 FLE23HLX/840/B22/T2 BX2 23 220-240 B22 8000 4000 1380 80 127 57 Australia China
76601 FLE23HLX/840/E27/T2 BX2 23 220-240 E27 8000 4000 1380 80 128 57 Australia China
81262 FLE14HLX/827/E27/T3 220-240V 14 220-240 E27 8000 2700 950 80 128 53 ID China
81263 FLE14HLX/865/E27/T3 220-240V 14 220-240 E27 8000 6500 900 80 128 53 ID China
81264 FLE20HLX/827/E27/T3 220-240V 20 220-240 E27 8000 2700 1350 80 124 60 ID China
81265 FLE20HLX/865/E27/T3 220-240V 20 220-240 E27 8000 6500 1260 80 124 60 ID China
81266 FLE24HLX/827/E27/T3 220-240V 24 220-240 E27 8000 2700 1750 80 136 60 ID China
81267 FLE24HLX/865/E27/T3 220-240V 24 220-240 E27 8000 6500 1650 80 136 60 ID China
24172E FLE14HLX/827/T3 14 220-240 E27 8000 2700 950 80 128 53 PH China
24173E FLE14HLX/865/E27/T3 14 220-240 E27 8000 6500 900 80 128 53 PH China
24174E FLE20HLX/827/T3 20 220-240 E27 8000 2700 1350 80 124 60 PH China
24175E FLE20HLX/865/E27/T3 20 220-240 E27 8000 6500 1260 80 124 60 PH China
24176E FLE24HLX/827/T3 24 220-240 E27 8000 2700 1750 80 136 60 PH China
24177E FLE24HLX/E27/T3 24 220-240 E27 8000 6500 1650 80 136 60 PH China
24172EN FLE14HLX/827/E27/T3 220-240V 14 220-240 E27 8000 2700 950 80 128 53 SG/MY China
71402EN FLE14HLX/840/E27/T3 220-240V 14 220-240 E27 8000 4000 950 80 128 53 SG/MY China
24173EN FLE14HLX/865/E27/T3 220-240V 14 220-240 E27 8000 6500 900 80 128 53 SG/MY China
24174EN FLE20HLX/827/E27/T3 220-240V 20 220-240 E27 8000 2700 1350 80 124 60 SG/MY China
80961EN FLE20HLX/840/E27/T3 220-240V 20 220-240 E27 8000 4000 1300 80 124 60 SG/MY China
24175EN FLE20HLX/865/E27/T3 220-240V 20 220-240 E27 8000 6500 1260 80 124 60 SG/MY China
24176EN FLE24HLX/827/E27/T3 220-240V 24 220-240 E27 8000 2700 1750 80 136 60 SG/MY China
71400EN FLE24HLX/840/E27/T3 220-240V 24 220-240 E27 8000 4000 1700 80 136 60 SG/MY China
24177EN FLE24HLX/865/E27/T3 220-240V 24 220-240 E27 8000 6500 1650 80 136 60 SG/MY China
24172ET FLE14HLX/827/E27/T3 EDIS 14 220-240 E27 8000 2700 950 80 128 53 TH China
24173ET FLE14HLX/865/E27/T3 EDIS 14 220-240 E27 8000 6500 900 80 128 53 TH China
24174ET FLE20HLX/827/E27/T3 EDIS 20 220-240 E27 8000 2700 1350 80 124 60 TH China
24175ET FLE20HLX/865/E27/T3 EDIS 20 220-240 E27 8000 6500 1260 80 124 60 TH China
24176ET FLE24HLX/827/E27/T3 EDIS 24 220-240 E27 8000 2700 1750 80 136 60 TH China
24177ET FLE24HLX/865/E27/T3 EDIS 24 220-240 E27 8000 6500 1650 80 136 60 TH China
60 61
Compact Fluorescent Lamps Integrated
Product
Code
Product
Description
Wattage
[W]
Volts
[V]
Cap Life [h] CCT [K] Lumen
[lm]
CRI
[Ra]
Length
[mm]
Diameter
[mm]
Country COO
T3 Spiral - Economizer Plus
64568E FLE9HLX/827/E27/T3 9 220-240 E27 6000 2700 430 80 116 44 SG/MY/PH China
64569E FLE9HLX/865/E27/T3 9 220-240 E27 6000 6500 390 80 116 44 SG/MY/PH China
64570E FLE14HLX/827/E27/T3 14 220-240 E27 6000 2700 820 80 129 52 SG/MY/PH China
64571E FLE14HLX/865/E27/T3 14 220-240 E27 6000 6500 760 80 129 52 SG/MY/PH China
64572E FLE20HLX/827/E27/T3 20 220-240 E27 6000 2700 1100 80 126 59 SG/MY/PH China
64573E FLE20HLX/865/E27/T3 20 220-240 E27 6000 6500 1020 80 126 59 SG/MY/PH China
64574E FLE23HLX/827/E27/T3 23 220-240 E27 6000 2700 1320 80 139.5 59 SG/MY/PH China
64575E FLE23HLX/865/E27/T3 23 220-240 E27 6000 6500 1224 80 139.5 59 SG/MY/PH China
78180E FLE9HLX/827/E27/T3 220-240V 9 220-240 E27 6000 2700 430 80 110 52 SG/MY/PH China
78181E FLE9HLX/865/E27/T3 220-240V 9 220-240 E27 6000 6500 390 80 110 52 SG/MY/PH China
78182E FLE15HLX/827/E27/T3 220-240V 15 220-240 E27 6000 2700 820 80 126 52 SG/MY/PH China
78183E FLE15HLX/865/E27/T3 220-240V 15 220-240 E27 6000 6500 760 80 126 52 SG/MY/PH China
78184E FLE20HLX/827/E27/T3 220-240V 20 220-240 E27 6000 2700 1100 80 125 62 SG/MY/PH China
78185E FLE20HLX/865/E27/T3 220-240V 20 220-240 E27 6000 6500 1020 80 125 62 SG/MY/PH China
78186E FLE23HLX/827/E27/T3 220-240V 23 220-240 E27 6000 2700 1260 80 137 62 SG/MY/PH China
78187E FLE23HLX/865/E27/T3 220-240V 23 220-240 E27 6000 6500 1170 80 137 62 SG/MY/PH China
65037E FLE9HLX/827/E14/T3 9 220-240 E14 6000 2700 430 80 117 44 SG/MY/TH China
65038E FLE9HLX/865/E14/T3 9 220-240 E14 6000 6500 390 80 117 44 SG/MY/TH China
78180T FLE9HLX/827/E27/T3 220-240V 9 220-240 E27 6000 2700 430 80 116 44 TH China
78181T FLE9HLX/865/E27/T3 220-240V 9 220-240 E27 6000 6500 390 80 116 44 TH China
78182T FLE14HLX/827/E27/T3 220-240V 14 220-240 E27 6000 2700 820 80 129 52 TH China
78183T FLE14HLX/865/E27/T3 220-240V 14 220-240 E27 6000 6500 760 80 129 52 TH China
78184T FLE20HLX/827/E27/T3 220-240V 20 220-240 E27 6000 2700 1100 80 126 59 TH China
78185T FLE20HLX/865/E27/T3 220-240V 20 220-240 E27 6000 6500 1020 80 126 59 TH China
78186T FLE23HLX/827/E27/T3 220-240V 23 220-240 E27 6000 2700 1320 80 139.5 59 TH China
78187T FLE23HLX/865/E27/T3 220-240V 23 220-240 E27 6000 6500 1224 80 139.5 59 TH China
63406 FLE10HLX/T3/840/220-240V/E27/6H 10 220-240 E27 6000 4000 550 80 105 43 SG/MY/PH/VN China
63407 FLE10HLX/T3/840/220-240V/E14/6H 10 220-240 E14 6000 4000 550 80 105 43 SG/MY/PH/VN China
63413 FLE14HLX/T3/827/220-240V/E27/6H 14 220-240 E27 6000 2700 820 80 119 52 SG/MY/PH/VN China
63414 FLE14HLX/T3/840/220-240V/E27/6H 14 220-240 E27 6000 4000 820 80 119 52 SG/MY/PH/VN China
63428 FLE14HLX/T3/865/220-240V/E27/6H 14 220-240 E27 6000 6500 820 80 119 52 SG/MY/PH/VN China
63429 FLE18HLX/T3/827/220-240V/E27/6H 18 220-240 E27 6000 2700 1100 80 116 59 SG/MY/PH/VN China
63430 FLE18HLX/T3/840/220-240V/E27/6H 18 220-240 E27 6000 4000 1100 82 116 59 SG/MY/PH/VN China
63431 FLE18HLX/T3/865/220-240V/E27/6H 18 220-240 E27 6000 6500 1100 82 116 59 SG/MY/PH/VN China
63480 FLE23HLX/T3/827/220-240V/E27/6H 23 220-240 E27 6000 2700 1380 82 121 59 SG/MY/PH/VN China
63481 FLE23HLX/T3/840/220-240V/E27/6H 23 220-240 E27 6000 4000 1380 82 121 59 SG/MY/PH/VN China
63507 FLE23HLX/T3/865/220-240V/E27/6H 23 220-240 E27 6000 6500 1380 82 121 59 SG/MY/PH/VN China
T3 Spiral - Dimmable
30606a FLE13HLX/827/B22/DIM BP1 13 220-240 B22 8000 2700 850 80 133 60 Australia China
74674 FLE13HLX/827/E27/DIM BP1 13 220-240 E27 8000 2700 850 80 133 60 Australia China
74675 FLE13HLX/865/B22/DIM 13 220-240 B22 8000 6500 765 80 133 60 Australia China
74676 FLE13HLX/865/E27/DIM 13 220-240 E27 8000 6500 765 80 133 60 Australia China
30608a FLE20HLX/827/E27/DIM BP1 20 220-240 E27 8000 2700 1350 80 138 60 Australia China
30616A FLE20HLX/827/B22/DIM BP1 20 220-240 B22 8000 2700 1350 80 138 60 Australia China
30544A FLE20HLX/865/B22/DIM 20 220-240 B22 8000 6500 1215 80 138 60 Australia China
30540A FLE20HLX/865/E27/DIM 20 220-240 E27 8000 6500 1215 80 138 60 Australia China
30493N FLE13HLX/827/E27/T3DIM* 13 230 E27 8000 2700 850 80 133 60 SG/MY/TH China
30494N FLE13HLX/865/E27/T3DIM* 13 230 E27 8000 6500 765 80 133 60 SG/MY/TH China
30523N FLE20HLX/827/E27/T3DIM* 20 230 E27 8000 2700 1350 80 138 60 SG/MY/TH China
30540N FLE20HLX/865/E27/T3DIM* 20 230 E27 8000 6500 1215 80 138 60 SG/MY/TH China
T5 Spiral-High Power
24666EN FLE45HLX/864/E27/220-240V 45 220-240 E27 6000 6500 2900 83 211 80 Indonesia China
95495EN FLE60HLX/864/E27/220-240V 60 220-240 E27 6000 6500 3400 82 218 80 Indonesia China
24666E FLE45HLX/864/E27 45 220-240 E27 6000 6500 2900 83 211 80 PH China
24668E FLE60HLX/864/E27 60 220-240 E27 6000 6500 3400 82 218 80 PH China
95520 FLE60HLX/827/E27 220-240V 60 220-240 E27 6000 2700 3600 82 218 80 SG/MY China
95495 FLE60HLX/865/E27 220-240V 60 220-240 E27 6000 6500 3400 82 218 80 SG/MY China
61429T FLE45HLX/827/E27 220V 45 220-240 E27 6000 2700 2900 83 211 80 Thailand China
61430T FLE45HLX/865/E27 220V 45 220-240 E27 6000 6500 2900 83 211 80 Thailand China
61431T FLE60HLX/827/E27 220V 60 220-240 E27 6000 2700 3600 82 218 80 Thailand China
61432T FLE60HLX/865/E27 220V 60 220-240 E27 6000 6500 3400 82 218 80 Thailand China
69970E FLE45HLX/840/E27/T5 45 220-240 E27 10,000 4000 3250 80 233 80 SG/MY/PH China
69973E FLE45HLX/865/E27/T5 45 220-240 E27 10,000 6500 3000 80 233 80 SG/MY/PH China
69972E FLE45HLX/840/E40/T5 45 220-240 E40 10,000 4000 3250 80 244 80 SG/MY/PH China
69975E FLE45HLX/865/E40/T5 45 220-240 E40 10,000 6500 3000 80 244 80 SG/MY/PH China
69971E FLE45HLX/840/B22/T5 45 220-240 B22 10,000 4000 3250 80 233 80 SG/MY/PH China
69974E FLE45HLX/865/B22/T5 45 220-240 B22 10,000 6500 3000 80 233 80 SG/MY/PH China
Product
Code
Product
Description
Wattage
[W]
Volts
[V]
Cap Life [h] CCT [K] Lumen
[lm]
CRI
[Ra]
Length
[mm]
Diameter
[mm]
Country COO
62 63
Compact Fluorescent Lamps Integrated
Product
Code
Product
Description
Wattage
[W]
Volts
[V]
Cap Life [h] CCT [K] Lumen
[lm]
CRI
[Ra]
Length
[mm]
Diameter
[mm]
Country COO
Decor - T2 All Glass
61001E FLE9AG/T2/830/E27 9 220-240 E27
10000
3000 450 80 115.7 62 SG/MY China
61002E FLE9AG/T2/840/E27 9 220-240 E27
10000
4000 450 80 115.7 62 SG/MY China
61003E FLE9AG/T2/865/E27 9 220-240 E27
10000
6500 450 80 115.7 62 SG/MY China
61004E FLE11AG/T2/830/E27 11 220-240 E27
10000
3000 590 80 115.7 62 SG/MY China
61005E FLE11AG/T2/840/E27 11 220-240 E27
10000
4000 550 80 115.7 62 SG/MY China
61006E FLE11AG/T2/865/E27 11 220-240 E27
10000
6500 532 80 115.7 62 SG/MY China
61007E FLE15AG/T2/830/E27 15 220-240 E27
10000
3000 800 80 115.7 62 SG/MY China
61008E FLE15AG/T2/840/E27 15 220-240 E27
10000
4000 800 80 115.7 62 SG/MY China
61009E FLE15AG/T2/865/E27 15 220-240 E27
10000
6500 800 80 115.7 62 SG/MY China
61010E FLE20AG/T3/830/E27 20 220-240 E27
8000
3000 1152 80 137.9 69 SG/MY China
61011E FLE20AG/T3/840/E27 20 220-240 E27
8000
4000 1152 80 137.9 69 SG/MY China
61012E FLE20AG/T3/865/E27 20 220-240 E27
8000
6500 1152 80 137.9 69 SG/MY China
61013E FLE9AG/T2/830/B22 9 220-240 B22
10000
3000 450 80 118 62 SG/MY China
61014E FLE9AG/T2/840/B22 9 220-240 B22
10000
4000 450 80 118 62 SG/MY China
61015E FLE9AG/T2/865/B22 9 220-240 B22
10000
6500 450 80 118 62 SG/MY China
61016E FLE11AG/T2/830/B22 11 220-240 B22
10000
3000 590 80 118 62 SG/MY China
61017E FLE11AG/T2/840/B22 11 220-240 B22
10000
4000 550 80 118 62 SG/MY China
61018E FLE11AG/T2/865/B22 11 220-240 B22
10000
6500 532 80 118 62 SG/MY China
61019E FLE15AG/T2/830/B22 15 220-240 B22
10000
3000 800 80 118 62 SG/MY China
61020E FLE15AG/T2/840/B22 15 220-240 B22
10000
4000 800 80 118 62 SG/MY China
61021E FLE15AG/T2/865/B22 15 220-240 B22
10000
6500 800 80 118 62 SG/MY China
61022E FLE20AG/T3/830/B22 20 220-240 B22
8000
3000 1152 80 140.2 69 SG/MY China
61023E FLE20AG/T3/840/B22 20 220-240 B22
8000
4000 1152 80 140.2 69 SG/MY China
61024E FLE20AG/T3/865/B22 20 220-240 B22
8000
6500 1152 80 140.2 69 SG/MY China
61001T FLE9AG/T2/830/E27 9 220-240 E27
10000
3000 450 80 115.7 62 TH China
61002T FLE9AG/T2/840/E27 9 220-240 E27
10000
4000 450 80 115.7 62 TH China
61003T FLE9AG/T2/865/E27 9 220-240 E27
10000
6500 450 80 115.7 62 TH China
61004T FLE11AG/T2/830/E27 11 220-240 E27
10000
3000 590 80 115.7 62 TH China
61005T FLE11AG/T2/840/E27 11 220-240 E27
10000
4000 550 80 115.7 62 TH China
61006T FLE11AG/T2/865/E27 11 220-240 E27
10000
6500 532 80 115.7 62 TH China
61007T FLE15AG/T2/830/E27 15 220-240 E27
10000
3000 800 80 115.7 62 TH China
61008T FLE15AG/T2/840/E27 15 220-240 E27
10000
4000 800 80 115.7 62 TH China
61009T FLE15AG/T2/865/E27 15 220-240 E27
10000
6500 800 80 115.7 62 TH China
61010T FLE20AG/T3/830/E27 20 220-240 E27
8000
3000 1152 80 137.9 69 TH China
61011T FLE20AG/T3/840/E27 20 220-240 E27
8000
4000 1152 80 137.9 69 TH China
61012T FLE20AG/T3/865/E27 20 220-240 E27
8000
6500 1152 80 137.9 69 TH China
61013T FLE9AG/T2/830/B22 9 220-240 B22
10000
3000 450 80 118 62 TH China
61014T FLE9AG/T2/840/B22 9 220-240 B22
10000
4000 450 80 118 62 TH China
61015T FLE9AG/T2/865/B22 9 220-240 B22
10000
6500 450 80 118 62 TH China
61016T FLE11AG/T2/830/B22 11 220-240 B22
10000
3000 590 80 118 62 TH China
61017T FLE11AG/T2/840/B22 11 220-240 B22
10000
4000 550 80 118 62 TH China
61018T FLE11AG/T2/865/B22 11 220-240 B22
10000
6500 532 80 118 62 TH China
61019T FLE15AG/T2/830/B22 15 220-240 B22
10000
3000 800 80 118 62 TH China
61020T FLE15AG/T2/840/B22 15 220-240 B22
10000
4000 800 80 118 62 TH China
61021T FLE15AG/T2/865/B22 15 220-240 B22
10000
6500 800 80 118 62 TH China
61022T FLE20AG/T3/830/B22 20 220-240 B22
8000
3000 1152 80 140.2 69 TH China
61023T FLE20AG/T3/840/B22 20 220-240 B22
8000
4000 1152 80 140.2 69 TH China
61024T FLE20AG/T3/865/B22 20 220-240 B22
8000
6500 1152 80 140.2 69 TH China
Product
Code
Product
Description
Wattage
[W]
Volts
[V]
Cap Life [h] CCT [K] Lumen
[lm]
CRI
[Ra]
Length
[mm]
Diameter
[mm]
Country COO
Decor - Candle
88852A FLE5CDL//827/E27/T2 5 220-240 E27 10000 2700 200 80 107 38 Australia China
88853A FLE5CDL//827/B22/T2 5 220-240 B22 10000 2700 200 80 106 38 Australia China
73406A FLE5CDL//827/E14/T2 5 220-240 E14 10000 2700 200 80 110 38 Australia China
78005A FLE5CDL/827/B15/T2 5 220-240 B15 10000 2700 200 80 110 38 Australia China
73411A FLE7CDL//827/E14/T2 7 220-240 E14 10000 2700 300 80 110 38 Australia China
88855A FLE7CDL//827/E27/T2 7 220-240 E27 10000 2700 300 80 107 38 Australia China
88856A FLE7CDL//827/B22/T2 7 220-240 B22 10000 2700 300 80 106 38 Australia China
78006A FLE7CDL/827/B15/T2 7 220-240 B15 10000 2700 300 80 110 38 Australia China
79935E FLE5CDL/T2/827/E14 5 220-240 E14 10000 2700 200 80 110 38 ID/MY/SG/PH China
79936E FLE5CDL/T2/840/E14 5 220-240 E14 10000 4000 200 80 110 38 ID/MY/SG/PH China
79937E FLE5CDL/T2/827/E27 5 220-240 E27 10000 2700 200 80 107 38 ID/MY/SG/PH China
79938E FLE5CDL/T2/840/E27 5 220-240 E27 10000 4000 200 80 107 38 ID/MY/SG/PH China
79939E FLE5CDL/T2/827/B22 5 220-240 B22 10000 2700 200 80 106 38 ID/MY/SG/PH China
79940E FLE7CDL/T2/827/E14 7 220-240 E14 10000 2700 300 80 110 38 ID/MY/SG/PH China
79941E FLE7CDL/T2/840/E14 7 220-240 E14 10000 4000 300 80 110 38 ID/MY/SG/PH China
79942E FLE7CDL/T2/827/E27 7 220-240 E27 10000 2700 300 80 107 38 ID/MY/SG/PH China
79943E FLE7CDL/T2/840/E27 7 220-240 E27 10000 4000 300 80 107 38 ID/MY/SG/PH China
79944E FLE7CDL/T2/827/B22 7 220-240 B22 10000 2700 300 80 106 38 ID/MY/SG/PH China
Decor - Spherical
88839A FLE5SPH//827/E14/T2 5 220-240 E14 10000 2700 200 80 102 46 Australia China
88841A FLE5SPH//827/B22/T2 5 220-240 B22 10000 2700 200 80 90 46 Australia China
73386A FLE5SPH//827/E27/T2 5 220-240 E27 10000 2700 200 80 91 46 Australia China
78012A FLE5SPH/827/B15/T2 5 220-240 B15 10000 2700 200 80 100 46 Australia China
88842A FLE7SPH//827/E14/T2 7 220-240 E14 10000 2700 310 80 102 46 Australia China
88844A FLE7SPH//827/B22/T2 7 220-240 B22 10000 2700 310 80 90 46 Australia China
73396A FLE7SPH//827/E27/T2 7 220-240 E27 10000 2700 310 80 91 46 Australia China
78013A FLE7SPH/827/B15/T2 7 220-240 B15 10000 2700 310 80 100 46 Australia China
79945E FLE5SPH/T2/827/E14 5 220-240 E14 10000 2700 200 80 102 46 ID/MY/SG/PH China
79946E FLE5SPH/T2/840/E14 5 220-240 E14 10000 4000 200 80 102 46 ID/MY/SG/PH China
79947E FLE5SPH/T2/827/E27 5 220-240 E27 10000 2700 200 80 91 46 ID/MY/SG/PH China
79948E FLE5SPH/T2/840/E27 5 220-240 E27 10000 4000 200 80 91 46 ID/MY/SG/PH China
79949E FLE5SPH/T2/865/E27 5 220-240 E27 10000 6500 190 80 91 46 ID/MY/SG/PH China
79950E FLE5SPH/T2/827/B22 5 220-240 B22 10000 2700 200 80 90 46 ID/MY/SG/PH China
79951E FLE7SPH/T2/827/E14 7 220-240 E14 10000 2700 310 80 102 46 ID/MY/SG/PH China
79952E FLE7SPH/T2/840/E14 7 220-240 E14 10000 4000 310 80 102 46 ID/MY/SG/PH China
79953E FLE7SPH/T2/827/E27 7 220-240 E27 10000 2700 310 80 91 46 ID/MY/SG/PH China
79954E FLE7SPH/T2/840/E27 7 220-240 E27 10000 4000 310 80 91 46 ID/MY/SG/PH China
79955E FLE7SPH/T2/827/B22 7 220-240 B22 10000 2700 310 80 90 46 ID/MY/SG/PH China
64 65
Compact Fluorescent Lamps Integrated
Product
Code
Product
Description
Wattage
[W]
Volts
[V]
Cap Life [h] CCT [K] Lumen
[lm]
CRI
[Ra]
Length
[mm]
Diameter
[mm]
Country COO
Decor - GLS
45850A FLE8GLS//827/E27/T2 8 220-240 E27
6000
2700 370 80 102 53.5 Australia China
45849A FLE8GLS//827/B22 /T2 8 220-240 B22
6000
2700 370 80 101 53.5 Australia China
45848A FLE8GLS//827/E14/T2 8 220-240 E14
6000
2700 370 80 105.5 53.5 Australia China
45837A FLE12GLS//827/E27/T2 12 220-240 E27
6000
2700 625 80 112 57 Australia China
45836A FLE12GLS//827/B22/T2 12 220-240 B22
6000
2700 625 80 111 57 Australia China
45835A FLE12GLS//827/E14/T2 12 220-240 E14
6000
2700 625 80 115.5 57 Australia China
45830A FLE15GLS//827/B22/T3 15 220-240 B22
6000
2700 830 80 122 62 Australia China
45831A FLE15GLS//827/E27/T3 15 220-240 E27
6000
2700 830 80 123 62 Australia China
80375 FLE11GLS/O/B22 BP1 11 220-240 B22
6000
2700 530 80 132 62 Australia China
80376 FLE11GLS/O/E27 BP1 11 220-240 E27
6000
2700 530 80 132 62 Australia China
80389 FLE20GLS/O/B22 BP1 20 220-240 B22
6000
2700 1050 82 158 72.5 Australia China
80390 FLE20GLS/O/E27 BP1 20 220-240 E27
6000
2700 1050 82 158 72.5 Australia China
79972E FLE8GLS/T2/827/E14 8 220-240 E14
6000
2700 370 80 105.5 53.5 ID/MY/SG/PH China
79973E FLE8GLS/T2/840/E14 8 220-240 E14
6000
4000 370 80 105.5 53.5 ID/MY/SG/PH China
79974E FLE8GLS/T2/827/E27 8 220-240 E27
6000
2700 370 80 102 53.5 ID/MY/SG/PH China
79975E FLE8GLS/T2/840/E27 8 220-240 E27
6000
4000 370 80 102 53.5 ID/MY/SG/PH China
79976E FLE8GLS/T2/827/B22 8 220-240 B22
6000
2700 370 80 101 53.5 ID/MY/SG/PH China
79977E FLE12GLS/T2/827/E27 12 220-240 E27
6000
2700 625 80 112 57 ID/MY/SG/PH China
79978E FLE12GLS/T2/827/E14 12 220-240 E14
6000
2700 625 80 115.5 57 ID/MY/SG/PH China
79979E FLE12GLS/T2/840/E14 12 220-240 E14
6000
4000 600 80 115.5 57 ID/MY/SG/PH China
79980E FLE12GLS/T2/840/E27 12 220-240 E27
6000
4000 600 80 112 57 ID/MY/SG/PH China
79981E FLE12GLS/T2/827/B22 12 220-240 B22
6000
2700 625 80 111 57 ID/MY/SG/PH China
79982E FLE15GLS/T3/827/E27 15 220-240 E27
6000
2700 830 80 123 62 ID/MY/SG/PH China
79983E FLE15GLS/T3/840/E27 15 220-240 E27
6000
4000 825 80 123 62 ID/MY/SG/PH China
79984E FLE15GLS/T3/827/B22 15 220-240 B22
6000
2700 830 80 122 62 ID/MY/SG/PH China
Product
Code
Product
Description
Wattage
[W]
Volts
[V]
Cap Life [h] CCT [K] Intensity
[Cd]
Lumen
[lm]
CRI
[Ra]
Length
[mm]
Diameter
[mm]
Country COO
Decor - REF
79956E FLE7R50/T2/827/E14 7 220-240 E14
6000
2700 65 90 80 93 51 ID/MY/SG/PH China
79957E FLE7R50/T2/840/E14 7 220-240 E14
6000
4000 65 90 80 93 51 ID/MY/SG/PH China
79958E FLE7R50/T2/827/E27 7 220-240 E27
6000
2700 65 90 80 93 51 ID/MY/SG/PH China
79959E FLE7R50/T2/827/B22 7 220-240 B22
6000
2700 65 90 80 92 51 ID/MY/SG/PH China
79960E FLE11R63/T2/827/E14 11 220-240 E14
6000
2700 85 185 80 107 64 ID/MY/SG/PH China
79961E FLE11R63/T2/840/E14 11 220-240 E14
6000
4000 85 185 80 107 64 ID/MY/SG/PH China
79962E FLE11R63/T2/827/E27 11 220-240 E27
6000
2700 85 185 80 107 64 ID/MY/SG/PH China
79963E FLE11R63/T2/827/B22 11 220-240 B22
6000
2700 85 185 80 106 64 ID/MY/SG/PH China
Product
Code
Product
Description
Wattage
[W]
Volts
[V]
Cap Life [h] CCT [K] Intensity
[Cd]
Lumen
[lm]
CRI
[Ra]
Length
[mm]
Diameter
[mm]
Country COO
Decor - PAR38
72480 FLE23PAR38/827/E27 23 220-240 E27
8000
2700 339 80 157 121 Australia China
72481 FLE23PAR38/827/B22 23 220-240 B22
8000
2700 339 80 156 121 Australia China
61742T FLE23/827/E27/PAR38 220-240V 23 220-240 E27
8000
2700 339 80 157 121 Thailand China
61744T FLE23/865/E27/PAR38 220-240V 23 220-240 E27
8000
6500 288.15 80 157 121 Thailand China
Decor - R80
72478 FLE15R80/827/E27 15 220-240 E27
8000
2700 210 82 140 80 Australia China
72479 FLE15R80/827/B22 15 220-240 B22
8000
2700 210 82 139 80 Australia China
Product
Code
Product
Description
Wattage
[W]
Volts
[V]
Cap Life [h] CCT [K] Intensity
[Cd]
Lumen
[lm]
CRI
[Ra]
Length
[mm]
Diameter
[mm]
Country COO
Decor - GU10
79985E FLE7GU10/T2/827 7 220-240 GU10
6000
2700 62 75 80 86.5 51 ID/MY/SG/PH China
79986E FLE7GU10/T2/840 7 220-240 GU10
6000
4000 62 75 80 86.5 51 ID/MY/SG/PH China
79987E FLE9GU10/T2/827 9 220-240 GU10
6000
2700 96 140 80 86.5 51 ID/MY/SG/PH China
79988E FLE9GU10/T2/840 9 220-240 GU10
6000
4000 96 140 80 86.5 51 ID/MY/SG/PH China
Product
Code
Product
Description
Wattage
[W]
Volts
[V]
Cap Life [h] CCT [K] Lumen
[lm]
CRI
[Ra]
Length
[mm]
Diameter
[mm]
Country COO
Decor - Buglite GLS
74667 FLE11GLS/O/B22/BUG BX 11 220-240 E27 6000
Anti-Insect
380 80 132 62 Australia China
74666 FLE11GLS/O/E27/BUG BX 11 220-240 B22 6000
Anti-Insect
380 80 132 62 Australia China
Decor - GG
11368EN FLE20HLX/GG/827/E27 Edison 20 220-240 E27 6000 2700 1100 82 147 91 SG/MY China
11371EN FLE20HLX/GG/865/E27 Edison 20 220-240 E27 6000 6500 1000 82 147 91 SG/MY China
Product
Code
Product
Description
Wattage
[W]
Volts
[V]
Cap Life [h] CCT [K] Lumen
[lm]
CRI
[Ra]
Length
[mm]
Diameter
[mm]
Country COO
Decor - SOFT
79964E FLE8SOFT/T2/827/E14 8 220-240 E14
6000
2700 360 80 109.5 54.5 ID/MY/SG/PH China
79965E FLE8SOFT/T2/827/E27 8 220-240 E27
6000
2700 360 80 106 54.5 ID/MY/SG/PH China
79966E FLE8SOFT/T2/827/B22 8 220-240 B22
6000
2700 360 80 105 54.5 ID/MY/SG/PH China
79967E FLE12SOFT/T2/827/E14 12 220-240 E14
6000
2700 600 80 119.5 57 ID/MY/SG/PH China
79968E FLE12SOFT/T2/827/E27 12 220-240 E27
6000
2700 600 80 116 57 ID/MY/SG/PH China
79969E FLE12SOFT/T2/827/B22 12 220-240 B22
6000
2700 600 80 115 57 ID/MY/SG/PH China
79970E FLE15SOFT/T3/827/E27 15 220-240 E27
6000
2700 825 80 123 62 ID/MY/SG/PH China
79971E FLE15SOFT/T3/827/B22 15 220-240 B22
6000
2700 825 80 122 62 ID/MY/SG/PH China
66 67
In 1931, GE invented the earliest HID lamp -- Mercury. Afterwards, GE invented High
Pressure Sodium lamp in 1962 and Metal Halide lamp in 1964. GE took the lead in
launching 20W SuperMini CMH and MR16 CMH for retail display in 2006 and
35W in 2008, which has provided more creative space for lighting designers.
High Intensity
Discharged Lamps
68 69
Indoor Solutions
High Intensity Discharge Lamps
When considering lamp life, light efficiency and excellent colour rendering, GE’s Ceramic Metal Halide (CMH) range offers the per-
fect solution. From retail, decorative or industrial applications to outdoor applications the wide range of products represent the
most advanced technology to deliver unbeatable reliability and performance. GE also provides a wide range of Lucalox High Pres-
sure Sodium products for street lighting and industrial applications. GE’s Lucalox range offers outstanding efficiency, extremely
long life and reliability to meet increasing performance expectations and new regulations in these market segments.
When factors such as lamp life, light efciency, cost and colour rendering matter, GE’s Ceramic Metal Halide (CMH) range can provide
the perfect solution. Combining high quality of light with excellent energy efciency, GE CMH products offer the exibility to meet chal-
lenging design requirements across environments and applications ranging from retail, industrial and decorative to outdoor use on
oodlighting, street lighting or city beautication.
Quality of Light
Industrial
Constant Color CMH range
ConstantColor Ceramic Metal Halide (CMH) lighting offers a high quality light source for a
wide range of applications.
Available in Single Ended, Double Ended, Supermini, MR16 and reflector variations.
Retail
• Widest range from 20W to 400W
• Very efficient, up to 92LpW
• High CRI up to 90
• Outstanding long life up to
24.000hrs
Ultra-efficient light sources
Outstanding light quality and
exceptional reliability
70 71
ConstantColor CMH 3500K
Our new product family for unique color taste
Applications
• Retail and accent lighting
• General retail display
• New-added 3500K CCT offer more option to lighting
designers
• 10000 hours life, 12000 hours life for GU6.5
• High 80+ color rendering index, 90+ color rendering index
for GU6.5
• Excellent color consistency
• Multiple angles
• Create unique color to distinguish high end color
temperature
• More vivid color especially for fashion stores
Key features
Benefits
3000K 4200K
3500K
High Intensity Discharge Lamps
Outdoor Solutions
Road and
tunnel Street and
pedestrian Commercial
areas
Quality of Light Solution for Reliability
CMH – street lighting – bright, safe white light
It is generally observed that white light makes it easier for drivers
to recognize shapes and colour, particularly in the peripheral vision.
For pedestrians white light promotes a feeling of security and
confidence, much more than under yellow or orange street lighting.
Lucalox XO & XO Superlife – solution for reliability in
street lighting
GE Lucalox XO High Pressure Sodium lamps offer outstanding
luminous efficiency, lumen maintenance and long life, thus reducing
energy and maintenance costs.
• CRI up to 85
• Very efficient white light up to 110LpW
• Outstanding long life up to 24,000 hours
• luminous efficiency up to 146 LpW
• Long life up to 60,0 00 hours
72 73
GE ConstantColor
CMH StreetWise
GE ConstantColor CMH StreetWise ceramic metal halide lamps have been designed as
the easy-fit replacement for outdated technologies. They are also the logical first choice
for new installations.
They are fitted with standard E27/E40 bases and can be dimmed, they outperform most
standard HID systems and with high reliability and sustained lumen output across a
longer working life of 24,000 hours, they are supremely cost effective.
They support electronic and electromagnetic ballasts and are compatible with the major
street light ballasts, retrofitting the existing HPS systems. If you have any particular
needs please contact your GE sales representative.
When to specify StreetWise
In applications where lighting class reduction using lamps above Ra8 60 can be
considered, StreetWise is a clear leader. Its excellent Ra8 value of 70 provides improved
colour rendering over similar systems of comparable life and efficiency.
• Lowest total cost of ownership
• Wide range: 50/70/100/150 Watts
• Dimmable for all wattages (except
50W EM version) for further energy
saving
• System flexibility, operating
on both electronic and
electromagnetic ballasts
• Standard E27/E40 bases for
simplicity
• Compatible with existing HPS
fixtures and optics
• Same size and LCL as current HPS
• Horizontal burning position
• Very efficient up to 110LpW
• Outstanding long life of 24.000hrs
StreetWise ceramic
metal halide lamps are
an excellent white light
energy efficient choice,
offering:
High Intensity Discharge Lamps
High-Output High Pressure
Sodium lamps
High cost performance product family
• Superb performance and long life
• Rated average life up to 28.000 hours
• Reliable starting technology, for higher reliability
• High luminous efficiency, up to 140 lm/W
• Extra light, up to 17% more lumens than Standard HPS
 Lamps—withoutincreaseinenergyconsumption.
• Full product family, from 70W to 600W
• Reduce re-lamping cycle
Key features
74 75
High Intensity Discharge Lamps Selector
ConstantColor CMH
(Ceramic Metal Halide)
GU6.5, TC, T, TD
Single Ended Mini
Ultra, Ultra White
and Standard (TC)
Cap: G8.5
Wattages: 20 -70W
Colours: 830, 835, 930, 942
Rated life:
12,000 -18,000Hrs
Page: 78
PAR30
Cap: E27
Wattages: 20-70W
Colours: 830, 835, 942
Rated life:
10,000 -13,000Hrs
Page: 79
Tubular
Cap: E27, E40
Wattages: 70-400W
Colours: 830, 842, 942
Finish: Clear
Rated life:
10,000 -24,000Hrs
Page: 80
StreetWise
Cap: E27, E40
Wattages: 50-150W
Colours: 730
Finish: Clear
Rated life:
24,000Hrs
Page:
80
Open Rated
Tubular
Cap: E40
Wattages: 150W
Colours: 830, 942
Finish: Clear
Rated life: 12,000Hrs
Page:
80
Single Ended
Ultra, Ultra White
and Standard (T)
Cap: G12
Wattages: 20-150W
Colours: 830, 835, 930, 942
Rated life:
12,000 -18,000Hrs
Page: 78
Double Ended (TD)
Cap: RX7s or RX7s-24
Wattages: 35-150W
Colours: 830
Rated life:
15,000Hrs
Page: 78
Single Ended
Supermini Ultra and
Standard (GU6.5)
Cap: GU6.5
Wattages: 20-35W
Colours: 830, 930, 935, 942
Rated life:
10,000 -16,500Hrs
Page: 78
ConstantColor CMH (Ceramic
Metal Halide) Reflec
tors
MR16 Ultra and
Standard
Cap: GX10
Wattages: 20-35W
Colours: 830, 930, 942
Rated life:
10,000 -16,500Hrs
Page: 79
PAR20
Cap: E27
Wattages: 20-35W
Colours: 830, 942
Rated life:
10,000 -12,000Hrs
Page: 79
ConstantColor CMH (Ceramic
Metal Halide) Elliptical and Tubular
CMH Ballasts
Open Rated
Elliptical
Cap: E27
Wattages: 70-150W
Colours: 942
Finish: Clear or Diffuse
Rated life: 10,000-15,000Hrs
Page:
79
Elliptical
Cap: E27, E40
Wattages: 70-400W
Colours: 830
Finish: Clear or Diffuse
Rated life:
10,000 -24,000Hrs
Page: 80
CMH Ballasts
CMH Standard
Ballasts
A range of standard
ballasts
for 35-70W CMH lamps
Page: 80
CMH Miniature
Ballasts
A range of miniature
ballasts
for 20-35W
CMH lamps
Page: 80
Kolorarc Metal Halide
Operates from suitable mercury or metal halide
ballast rated 3.5A and metal halide ignitor
Elliptical
Cap: E40
Wattages: 400W
Colours: 4000-6000K
CRI: 65-90
Finish: Clear or Diffuse
Rated life:
14,000Hrs
Page: 82
Tubular
Cap: E40
Wattages: 400W
Colours: 6000K
CRI: 90
Finish: Clear
Rated life: 14,000Hrs
Page:
82
Sportlight Metal Halide
For sports and floodlighting
Linear
Cap: RX7s - spec
Wattages: 1500-2000W
Colours: 5200K
CRI: 65
Rated life: 6,000Hrs
Page:
83
Tubular Clear
Cap: E40
Wattages: 1000-2000W
Colours: 4000-6000K
CRI: 65-93
Rated life: 2,000 -8,000Hrs
Page: 83
Internal Ignitor
Cap: E40
Wattages: 2000W
Colours: 4000-6000K
CRI: 65-93
Rated life: 2,000-5,000Hrs
Page: 83
Double Ended
Coloured
Cap: RX7s-24
Wattages: 150W
Colours:
Green, Blue,
Orange, Magenta
Rated life: 6,000Hrs
Page: 81
Tubular
Cap: E40
Wattages: 250-400W
Colours: 4200-6000K
CRI: 70-90+
Finish: Clear
Rated life: 12,000Hrs
Page: 81
Single Ended
Cap: G12
Wattages: 70-150W
Colours: 3000-4200K
CRI: 70-80
Rated life: 6,000Hrs
Page: 81
Double Ended
Cap: Rx7s-Fc2
Wattages: 70-250W
Colours: 3000-6500K
CRI: 75-90
Rated life: 8,000-12,000Hrs
Page: 81
Elliptical
Cap: E40
Wattages: 250W
Colours: 4000-6000K
CRI: 70-90
Finish: Clear or Diffuse
Rated life:
12,000-14,000Hrs
Page: 82
Arcstream Metal Halide
Operates on suitable metal halide/high pressure
sodium ballast and metal halide ignitor
Multi-Vapour Metal Halide
Operates from CWA Control Gear
Standard – Elliptical
Cap: E40
Wattages: 250-1000W
Colours: 3700-4200K
CRI: 65-70
Finish: Clear or Diffuse
Rated life:
10,000 -20,000Hrs
Page: 82
High Output –
Elliptical
Cap: E40
Wattages: 250-400W
Colours: 3200-4200K
CRI: 65-70
Finish: Clear or Diffuse
Rated life: 20,000Hrs
Page: 82
76 77
Lucalox XO
Cap: E27, E40
Wattages: 50-600W
Feature: Extra high
lumen output
Finish:
Tubular Clear or
Elliptical Diffuse
Rated life:
28,500 -35,000Hrs
Page: 83
Lucalox
High Pressure Sodium
Lucalox
Internal Ignitor
Cap: E27
Wattages: 70W
Feature: Internal ignitor
Finish: Elliptical Clear
or Diffuse
Rated life: 17,500Hrs
Page: 84
Lucalox XO Superlife
Cap: E27, E40
Wattages: 50-400W
Feature: Extra high lumen
output and Twin
Arctubes for extra life
Finish: Tubular Clear or
Elliptical Diffuse
Rated life: 40,000 -60,000Hrs
Page: 83
Lucalox Superlife
Cap: E40
Wattages: 250-400W
Feature: Twin Arctubes
for extra life
Finish:
Elliptical Diffuse
Rated life:
55,000Hrs
Page: 84
Mercury Lamps
Kolorlux Mercury
Standard
Cap: E27, E40
Wattages: 50-400W
Rated life: 16,000-20,000Hrs
Page:
85
Kolorlux Mercury
Deluxe
Cap: E27, E40
Wattages: 50-400W
Rated life: 16,000-20,000Hrs
Page:
85
Lucalox Start
Cap: E27, E40
Wattages: 70-400W
Finish: Tubular clear
Rated life: 12,000-24,000Hrs
Page:
84
Kolorlux Mercury
Start
Cap: E27
Wattages: 125W
Rated life: 12,000 Hrs
Page: 85
Lucalox Standard
Cap: E27, E40
Wattages: 70-1000W
Finish: Tubular Clear
or Elliptical
Diffuse
Rated life:
24,000 -28,500Hrs
Page:
84
Mixed Light
Cap: E27, E40
Wattages: 160-500W
Voltage: 230-240V or
240-250V
Rated life: 8,000Hrs
Page: 85
High Intensity Discharge Lamps
The following glossary of terms will help you when selecting lamps in this section.
Within each product line, lamps are divided into families – within these families,
lamps are listed by wattage. The Product Description can be used as a quick
reference to each product’s attributes. Where Life or Average Life are stated we
refer to the industry standard definition of how many hours of operation 50% of a
given installation will exceed.
Additional parameters:
CCT [K]: Colour Temperature – Kelvins
A measure of the visual “warmth” or “coolness” of the light
from the lamp. The higher the value the whiter or “cooler”
the light appears.
CRI [Ra]: Colour Rendering Index
An indication of the ability of the lamp to render object
colours in a normal, natural way. The higher the number
(0-100), the better the colour appearence.
Product identification
Product
Code
Product
Description
Wattage
[W]
Volts
[V]
Cap Lumen
[lm]
Colour Operating
position
Rated life
(Vertical)
[h]
Rated life
(Horizon-
tal) [h]
Length
[mm]
Diameter
[mm]
Pack Qty
ConstantColor - CMH Supermini
40399 CMH20/T/UVC/830/GU6.5 20 95 GU6.5 1615 830 U 12,000 12,000 52 13 12
88656 CMH35/T/UVC/930/GU6.5 35 95 GU6.5 3400 930 U 10000* 10,000* 52 13 12
Product description:
The lamp’s
identification code
Product code:
It is important to
use this code when
ordering to ensure
that you receive the
exact product you
require
Watts:
Energy Used –
Nominal Watts.
To estimate energy
consumption (kWh),
multiply watts x
hours of use and
divide by 1000
Nominal
Volts:
Lamp data
is based on
operation at
rated voltage
Life (Vertical):
Rated average life
in vertical burning
position
Colour:
Combination of
colour rendering
and colour
temperature
Length:
Lamp length
in mm
Lumens:
Initial Lumens - light
output at 100 hours
Diameter:
Bulb diameter in mm
Life (Horizontal):
Rated average life in
horizontal burning
position
Pack quantity:
Number of product
units packed in a case
Operating position:
U - Universal
HOR - Horizontal
BU - Base Up
VBU - Vertical Base Up
(70)
Identies
Lamp’s
wattage
(CMH) Product Family
CMH -
ConstantColor CMH
ARC - Arcstream
KRC - Kolorarc
MPR/MVR - Multi-Vapor
SPL - Sportlight
LU - Lucalox
H - Mercury
ML - Blended Light
BLS - Ballast
(T) Identies the
lamp format.
TD - Double Ended
E - Elliptical Clear
D - Elliptical Diused
L - Linear
PARxx - PAR + size
T - Tubular Clear
(30) Colour
temperature
XX = First 2 digits
of temperature in
Kelvin - XX00K
Example: 30 is 3000K
(9) Colour rendering
6 - nom 60, min 57 (Group 2B)
7 - nom 70, min 67 (Group 2A)
8 - nom 80, min 77 (Group 1B)
9 - nom 90, min 87 (Group 1A)
CMH 70 / T / UVC / U / 9 30 / G12 ULTRA
(G12):
Identies the
cap type
(U)
Operating
Position
(UVC) UV
Control
Cap:
The type of cap
fitted. See page
148-149 for cap
drawings
78 79
43278 CMH35/TD/UVC/830/RX7s 35 90 RX7s 3400 830 HOR±45° - 15,000 118 21 12
36910 CMH70/TD/UVC/830/RX7s 70 90 RX7s 7000 N/A HOR±45° - 15,000 118 21 12
38698 CMH70/TD/UVC/942/RX7s 70 90 RX7s 6200 N/A HOR±45° - 15,000 118 21 12
36912 CMH150/TD/UVC/830/RX7s-24 150 96 RX7s-24 14500 N/A HOR±45° - 15,000 135 27 12
38692 CMH150/TD/UVC/942/RX7s-24 150 96 RX7s-24 12500 N/A HOR±45° - 15,000 135 27 12
99753 CMH35/T/UVC/935/GU6.5 BX1/12 35 95 GU6.5 3500 935 U 12000 12000 52 12 12
67493 CMH35/T/UVC/U/835/G8.5 35 90 G8.5 3400 835 U 10000 10000 85 14.5 12
67491 CMH35/T/UVC/U/835/G12 35 90 G12 3400 835 U 10000 10000 90 14.5 12
64950 CMH35/PAR30/UVC/835/E27/SP10 35 90 E27 2400 835 U 10000 10000 124 95.5 6
64951 CMH35/PAR30/UVC/835/E27/FL25 35 90 E27 2400 835 U 10000 10000 124 95.5 6
67494 CMH70/TC/UVC/U/835/G8.5 70 90 G8.5 6600 835 U 10000 10000 85 14.5 12
67492 CMH70/TC/UVC/U/835/G12 70 90 G12 6700 835 U 10000 10000 90 14.5 12
64952 CMH70/PAR30/UVC/835/E27/SP10 70 90 E27 4300 835 U 10000 10000 124 95.5 6
64953 CMH70/PAR30/UVC/835/E27/FL25 70 90 E27 4300 835 U 10000 10000 124 95.5 6
Product
Code
Product
Description
Wattage
[W]
Volts
[V]
Cap Lumen
[lm]
Colour Operating
position
Rated life
(Vertical)
[h]
Rated life
(Horizontal)
[h]
Length
[mm]
Diameter
[mm]
Pack
Qty
ConstantColor - CMH Supermini
40399 CMH20/TC/UVC/830/GU6.5 20 95 GU6.5 1615 830 U 12,000 12,000 52 13 12
76122 CMH35/T/UVC/V60/930/GU6.5 ULTRA 35 93 GU6.5 3500 930 V+/-60 16,500 – 52 13 12
88656 CMH35/T/UVC/930/GU6.5 35 95 GU6.5 3400 930 U 10,000 10,000 52 13 12
88657 CMH35/T/UVC/942/GU6.5 35 95 GU6.5 3400 942 U 12,000 12,000 52 13 12
73685 CMH20/TC/UVC/U/830/G8.5 PLUS 20 90 G8.5 1650 830 U 12,000 12,000 85 14.5 12
63434 CMH35/TC/UVC/U942/G8.5 35 90 G8.5 3200 942 U 18,000 18,000 85 14.5 12
73686 CMH35/TC/UVC/U/830/G8.5 PLUS 35 90 G8.5 3400 830 U 16,500 16,500 85 14.5 12
76120 CMH35/TC/V60/UVC/930/G8.5 ULTRA 35 92 G8.5 3600 930 V+/-60 16,500 – 85 14.5 12
63433 CMH70/TC/UVC/U/942/G8.5 70 90 G8.5 6200 942 U 15,000 15,000 85 14.5 12
73687 CMH70/TC/UVC/U/830/G8.5 PLUS 70 90 G8.5 6200 830 U 15,000 15,000 85 14.5 12
63595 CMH70/TC/UVC/U/930/G8.5 ULTRA WHITE 70 90 G8.5 6700 930 U 18,000 18,000 85 14.5 12
96751 CMH70/TC/UVC/U/930/G8.5 ULTRA 70 90 G8.5 6200 930 U 18,000 18,000 85 14.5 12
42708 CMH20/T/UVC/U/830/G12 PLUS 20 90 G12 1650 830 U 12,000 12,000 90 14.5 12
63437 CMH35/T/UVC/U/830/G12 PLUS 35 90 G12 3400 830 U 16,500 16,500 90 14.5 12
76121 CMH35/T/V60/UVC/930/G12 ULTRA 35 92 G12 3600 930 V+/-60 16,500 – 90 19 12
63438 CMH35/T/UVC/U/942/G12 35 90 G12 3200 942 U 18,000 18,000 90 14.5 12
63435 CMH70/T/UVC/U/830/G12 70 90 G12 6400 830 U 15,000 15,000 90 19 12
63436 CMH70/T/UVC/U/942/G12 70 90 G12 6000 942 U 15,000 15,000 90 19 12
63596 CMH70/T/UVC/U/930/G12 ULTRA WHITE 70 95 G12 6600 930 U 18,000 18,000 90 19 12
96752 CMH70/T/UVC/U/930/G12 ULTRA 70 95 G12 6400 930 U 18,000 18,000 90 19 12
20012 CMH150/T/UVC/U/830/G12 150 90 G12 14000 830 U 12,000 12,000 100 19 12
20014 CMH150/T/UVC/U/942/G12 150 90 G12 13000 942 U 12,000 12,000 100 19 12
High Intensity Discharge Lamps
ConstantColor - CMH Double Ended
ConstantColor - CMH 3500K
ConstantColor - CMH Single Ended Mini
ConstantColor - CMH Single Ended
ConstantColor CMH Lamps
Product
Code
Product
Description
Wattage
[W]
Volts
[V]
Cap Candela
[cd]
Beam
Angle
[°]
Colour Operating
position
Rated life
(Vertical)
[h]
Rated life
(Horizontal)
[h]
Length
[mm]
Diam-
eter
[mm]
Pack
Qty
40400 CMH20/MR16/UVC/830/GX10/SP 20 95 GX10 9000 12 830 U 12,000 12,000 54.5 51 12
40401 CMH20/MR16/UVC/830/GX10/FL GX10 20 95 GX10 2900 25 830 U 12,000 12,000 54.5 51 12
42691 CMH20/MR16/UVC/830/GX10/WFL GX10 20 95 GX10 1500 40 830 U 12,000 12,000 54.5 51 12
76123 CMH35/MR16/V60/UVC/930/GX10/SP Ultra 35 93 GX10 16000 12 930 V+/-60 16,500 – 54.5 51 12
76124 CMH35/MR16/V60/UVC/930/GX10/FL Ultra 35 93 GX10 5500 25 930 V+/-60 16,500 – 54.5 51 12
76125 CMH35/MR16/V60/UVC/930/GX10/WFL Ultra 35 93 GX10 3000 40 930 V+/-60 16,500 – 54.5 51 12
88658 CMH35/MR16/UVC/930/GX10/SP GX10 35 90 GX10 16000 12 930 U 10,000 10,000 54.5 51 12
88659 CMH35/MR16/UVC/930/GX10/FL GX10 35 90 GX10 5500 25 930 U 10,000 10,000 54.5 51 12
88660 CMH35/MR16/UVC/930/GX10/WFL GX10 35 90 GX10 3000 40 930 U 10,000 10,000 54.5 51 12
88661 CMH35/MR16/UVC/942/GX10/SP GX10 35 90 GX10 16000 12 942 U 12,000 12,000 54.5 51 12
88662 CMH35/MR16/UVC/942/GX10/FL GX10 35 90 GX10 5500 25 942 U 12,000 12,000 54.5 51 12
88663 CMH35/MR16/UVC/942/GX10/WFL GX10 35 90 GX10 3000 40 942 U 12,000 12,000 54.5 51 12
26478 CMH20PAR20/UVC/830/E27/SP10 20 95 E27 13000 10 830 U 12,000 12,000 92 64 15
26481 CMH20/PAR20/UVC/830/E27/FL25 20 95 E27 3750 25 830 U 12,000 12,000 92 64 15
21684 CMH35/PAR20/UVC/830/E27/SP10 35 90 E27 22000 10 830 U 10,000 10,000 92 64 15
21685 CMH35/PAR20/UVC/830/E27/FL25 35 90 E27 7500 25 830 U 10,000 10,000 92 64 15
44890 CMH35/PAR20/UVC/942/E27/SP10 35 90 E27 19450 10 942 U 10,000 10,000 92 64 15
44919 CMH35/PAR20/UVC/942/E27/FL25 35 90 E27 6950 25 942 U 10,000 10,000 92 64 15
26497 CMH20PAR30/UVC/830/E27/SP10 20 95 E27 19800 10 830 U 12,000 12,000 124 95.5 6
26518 CMH20PAR30/UVC/830/E27/FL25 20 95 E27 4900 25 830 U 12,000 12,000 124 95.5 6
63441 CMH35/PAR30/UVC/830/E27/SP10 35 90 E27 39600 10 N/A U 10,000 10,000 124 95.5 6
63442 CMH35/PAR30/UVC/830/E27/FL 25 35 90 E27 11000 25 N/A U 10,000 10,000 124 95.5 6
63443 CMH35/PAR30/UVC/942/E27/SP10 35 90 E27 36700 15 942 U 10,000 10,000 124 95.5 6
63444 CMH35/PAR30/UVC/942/E27/FL25 35 90 E27 10200 40 942 U 10,000 10,000 124 95.5 6
73683 CMH70/PAR30/UVC/830/E27/SP15 70 90 E27 42800 25 N/A U 13,000 13,000 124 95.5 6
73684 CMH70/PAR30/UVC/830/E27/FL40 70 90 E27 10000 10 N/A U 13,000 13,000 124 95.5 6
63437 CMH70/PAR30/UVC/942/E27/SP15 70 90 E27 33500 15 942 U 10,00 10,000 124 95.5 6
63440 CMH70/PAR30/UVC/942/E27/FL40 70 90 E27 9000 40 942 U 10,000 10,000 124 95.5 6
ConstantColor - CMH MR16 Precise
ConstantColor - CMH PAR 20
ConstantColor - CMH PAR 30
Product
Code
Product
Description
Wattage
[W]
Volts
[V]
Cap Lumen
[lm]
Colour Operating
position
Rated life
(Vertical)
[h]
Rated life
(Horizontal)
[h]
Length
[mm]
Diameter
[mm]
Pack Qty
97982 CMH70/E/UVC/U/830/E27/C 70 97 E27 6300 N/A U 15,000 15,000 138 54 6
97984 CMH100/E/UVC/U/830/E27/C 100 102 E27 9200 N/A U 15,000 15,000 138 54 6
ConstantColor - CMH Elliptical Clear
43285 CMH150/UVC/O/U/942/E27/C 150 95 E27 13200 942 U 15,000 15,000 138 55 6
ConstantColor - CMH Elliptical Clear, Open Rated
lamp name: Halogen — PAR 20
80 81
Product
Code
Product
Description
Colour Wattage
[W]
Volts [V] Cap Operating
position
Rated life
(Horizontal)
[h]
Length
[mm]
Diameter
[mm]
Pack Qty
12181 ARC150/UVC/TD/GREEN/RX7S-24 green 150 95 RX7S-24 HOR±45° 6,000 132 25 12
12182 ARC150/UVC/TD/BLUE/RX7S-24 blue 150 95 RX7S-24 HOR±45° 6,000 132 25 12
12183 ARC150/UVC/TD/ORANGE/RX7S-24 orange 150 95 RX7S-24 HOR±45° 6,000 132 25 12
12184 ARC150/UVC/TD/MAGENTA/RX7S-24 magenta 150 95 RX7S-24 HOR±45° 6,000 132 25 12
Arcstream Double Ended Coloured UVC
Product
Code
Product
Description
Wattage
[W]
Volts
[V]
Cap Lumen
[lm]
CCT
[K]
CRI
[Ra]
Operating
position
Rated life
(Horizontal)
[h]
Length
[mm]
Diameter
[mm]
Pack Qty
Arcstream Double Ended UVC
34530 ARC70/UVC/TD/730/Rx7s 70 95 RX7s 5500 3000 75 HOR±45° 12,000 114 19 12
34536 ARC70/UVC/TD/742/Rx7s 70 95 RX7s 5500 4200 75 HOR±45° 12,000 114 22 12
34527 ARC150/UVC/TD/732/Rx7s-24 150 95 RX7s-24 12000 3200 75 HOR±45° 8,000 132 22 12
34535 ARC150/UVC/TD/742/Rx7s-24 150 95 RX7s-24 12000 4200 75 HOR±45° 8,000 132 25 12
Arcstream Double Ended RG-3
35284 ARC150/AQUA/TD/865/Rx7s-24 150 95 RX7s-24 11000 6500 85 HOR±45° 8,000 132 25 12
93772 ARC150/TD/952/Rx7s-24 150 110 RX7s-24 11000 5200 90 HOR±45° 8,000 132 25 12
30099 ARC250/TD/832/Fc2 250 114 Fc2 20000 3200 75 HOR±45° 8,000 163 25 12
30101 ARC250/TD/842/Fc2 250 115 Fc2 20000 4200 75 HOR±45° 8,000 163 25 12
High Intensity Discharge Lamps
Product
Code
Product
Description
Wattage
[W]
Volts
[V]
Cap Lumen
[lm]
Colour Operating
position
Rated life
(Vertical)
[h]
Rated life
(Horizontal)
[h]
Length
[mm]
Diameter
[mm]
Pack
Qty
ConstantColor - CMH Tubular Clear
38752 CMH70/TT/UVC/830/E27 70 95 E27 6400 830 U 15,000 20,000 156 37 12
92478 CMH100/TT/UVC/830/E40 100 109 E40 9200 830 U 10,000 15,000 209 48 12
21514 CMH150/UVC/T/U/842/E40 150 95 E40 14500 842 U 15,000 15,000 209 48 12
38749 CMH150/TT/UVC/830/E40 150 100 E40 14000 830 U 15,000 20,000 209 48 12
10589 CMH250/TT/UVC/U/830/E40 250 117 E40 25000 830 U 24,000 24,000 260 48 12
20302 KRC250/CMH/830/T/H/E40 250 110 E40 20000 830 HOR - 24,000 260 48 12
62356 CMH250/T/U/942/E40 250 107 E40 25000 942 U 16,000* 16,000* 260 48 12
13067** CMH400/TT/UVC/U/830/E40 400 120 E40 41000 830/836 U 20,000 20,000 278 60 12
*Testing is still on-going to determine final design life
** 830 in horizontal burning position, 836 in vertical burning position
ConstantColor - CMH Tubular Clear, Open Rated
21516 CMH150/UVC/O/T/U/830/E40 150 100 E40 14000 830 U 12,000 12,000 209 48 12
ConstantColor - CMH Tubular Clear StreetWise
64982 CMH50/TT/UVC/730/E27 STREETWISE ECG 50 85 E27 5000 730 HOR±15°** - 24,000* 156 39 12
77400 CMH50/TT/UVC/730/E27 STREETWISE EM 50 85 E27 4500 730 HOR±15°** - 24,000* 156 39 12
77401 CMH70/TT/UVC/730/E27 STREETWISE 70 95 E27 7640 730 HOR±15°** - 24,000* 156 39 12
77399 CMH100/TT/UVC/730/E40 STREETWISE 100 100 E40 10900 730 HOR±15°** - 24,000* 211 48 12
77402 CMH150/TT/UVC/730/E40 STREETWISE 150 100 E40 16200 730 HOR±15° - 24,000* 211 48 12
*Testing is still on-going to determine final design life
** Universal burning position to be available in Q4
Product
Code
Product
Description
Wattage
[W]
Volts
[V]
Category Weight
[g]
Pack Qty
61487 BLS/E/35W/CMH 35 220-240 integral 350 10
61488 BLS/E/35W/CMH /R CC 35 220-240 remote cable clamp 370 10
61376 BLS/E/70W/CMH 70 220-240 integral 350 10
61569 BLS/E/70W/CMH/R CC 70 220-240 remote cable clamp 370 10
78711 BLS/E/20W/CMH 20 220-240 integral 165 12
78712 BLS/E/20W/CMH/R/CC 20 220-240 remote cable clamp 180 12
78713 BLS/E/20W/CMH/R/LP 20 220-240 remote with lead 240 12
78714 BLS/E/35W/CMH 35 220-240 integral 165 12
78715 BLS/E/35W/CMH/R/CC 35 220-240 remote cable clamp 180 12
78716 BLS/E/35W/CMH/R/LP 35 220-240 remote with lead 240 12
CMH Standard Ballast
CMH Miniature Ballast
97979 CMH70/E/UVC/U/830/E27/D 70 97 E27 6000 830 U 15,000 15,000 138 54 6
97985 CMH100/E/UVC/U/830/E27/D 100 102 E27 8700 830 U 10,000 10,000 138 54 6
10591 CMH250/E/UVC/U/830/E40/D 250 117 E40 23500 830 U 24,000 24,000 227 90 12
13087 CMH400/E/UVC/U/830/E40/D 400 120 E40 39000 830/836 U 20,000 20,000 282 120 6
43282 CMH70/UVC/O/U/940/E27/D 70 97 E27 5300 940 U 15,000 15,000 138 54 6
43286 CMH150/UVC/O/U/940/E27/D 150 95 E27 12300 940 U 15,000 15,000 138 55 6
ConstantColor - CMH Elliptical Diffuse
ConstantColor - CMH Elliptical Diffuse, Open Rated
E
D
Product
Code
Product
Description
Wattage
[W]
Volts
[V]
Cap Lumen
[lm]
CCT
[K]
CRI
[Ra]
Operating
position
Rated life
(Vertical)
[h]
Rated life
(Horizontal)
[h]
Length
[mm]
Diameter
[mm]
Pack
Qty
88654 ARC150/G12/830 150 95 G12 12000 3000 80 U 6,000 6,000 76 21.5 10
88655 ARC150/G12/842 150 95 G12 11500 4200 80 U 6,000 6,000 76 21.5 10
97286 ARC70/T/U/730/G12 70 95 G12 5200 3000 70 U 6,000 6,000 87 23 10
97287 ARC70/T/U/742/G12 70 95 G12 5200 4200 75 U 6,000 6,000 87 23 10
Arcstream Single Ended RG-2
Arcstream Single Ended UVC
Metal Halide Lamps
Product
Code
Product
Description
Wattage
[W]
Volts
[V]
Cap Lumen
[lm]
CCT
[K]
CRI
[Ra]
Operating
position
Rated life
(Vertical)
[h]
Rated life
(Horizontal)
[h]
Length
[mm]
Diameter
[mm]
Pack Qty
32664 ARC250/T/H/960/E40 250 100 E40 19000 6000 90 HOR±45° - 12,000 220 47 12
32665 ARC250/T/VBU/960/E40 250 100 E40 19000 6000 90 BU±45° 12,000 - 220 47 12
42357 ARC250/T/H/742/E40 250 112 E40 21000 4200 70 HOR±15° - 12,000 220 48 12
42369 ARC400/T/H/742/E40 400 105 E40 35000 4200 70 HOR±15° - 12,000 260 47 12
Arcstream Tubular Clear
WARNING: UV emitted from lamps in Risk Group 2 and 3. Avoid eye and skin exposure to unshielded product.
WARNING: UV emitted from lamps in Risk Group 2 and 3. Avoid eye and skin exposure to unshielded product.
The lamp shall be operated only in a luminaire provided with a protective shield.
82 83
97238 LU50/85/XO/SBY/D/E27 50 85 E27 3500 2000 25 U 40,000 156 72 12
88257 LU70/XO/SBY/D/E27 70 90 E27 6000 2000 25 U 50,000 156 71 12
88255 LU100/XO/SBY/D/E40 100 100 E40 10000 2000 25 U 60,000 186 75 12
88258 LU 70/XO/SBY/T/E27 70 90 E27 6600 2000 25 U 50,000 156 39 25
88256 LU 100/XO/SBY/T/E40 100 100 E40 10500 2000 25 U 60,000 211 48 12
78737 LU 150/XO/SBY/T/E40 150 100 E40 17500 2000 25 U 60,000 211 48 12
78738 LU 250/XO/SBY/T/E40 250 100 E40 33000 2000 25 U 55,000 260 48 12
78739 LU 400/XO/SBY/T/E40 400 100 E40 55800 2000 25 U 55,000 283 48 12
93373 LU50/85/XO/T/27 50 85 E27 4400 2100 25 U 28,500 156 39 25
93375 LU70/90/XO/T/27 70 90 E27 6600 2100 25 U 28,500 156 39 25
93376 LU100/100/XO/T/40 100 100 E40 10700 2100 25 U 35,000 211 48 12
93377 LU150/150/XO/T/40 150 100 E40 17500 2100 25 U 35,000 211 48 12
93378 LU250/XO/T/40 250 100 E40 33200 2100 25 U 32,000 260 48 12
93269 LU400/XO/T/40 400 100 E40 56500 2100 25 U 32,000 292 48 12
93270 LU600/XO/T/40 600 115 E40 88500 2100 25 U 32,000 292 48 12
Lucalox XO Tubular Clear
Lucalox XO Superlife Tubular Clear E
Lucalox XO Superlife Elliptical Diffuse
30052 KRC400/T/H/960/E40 400 130 E40 28400 6000 90 HOR±45° - 14,000 270 58 12
30704 KRC400/T/VBU/960/E40 400 130 E40 27000 6000 90 VBU±45° 14,000 - 270 58 12
10834 KRC400/D/H/960/E40 400 130 E40 26800 6000 90 HOR±45° - 14,000 282 121 6
10837 KRC400/D/VBU/960/E40 400 130 E40 25400 6000 90 VBU±45° 14,000 - 282 121 6
16872 KRC400/D/VBU/740/E40 400 135 E40 33500 4000 70 VBU±30° 14,000 - 286 122 10
16875 KRC400/D/H/740/E40 400 135 E40 38000 4000 70 HOR±15° - 14,000 286 120 10
16871 KRC400/E/VBU/645/E40 400 135 E40 33500 4500 65 VBU±30° 14,000 - 286 122 10
Kolorarc Tubular Clear
Kolorarc Elliptical Diffuse
Kolorarc Elliptical Clear
Operating from suitable mercury or metal halide ballast rated 3 5A and metal halide ignitor. Low loss ballast recommended for 400W 6000K (960) products – see lamp data sheet for details. * Enhanced lumen performance operating from special
“High Output” ballast rated 3.8A – see lamp data sheet for details. Kolorarc lamps are only suitable for operation in fully enclosed fixtures where lens/diffuser material must be able to contain fragments of hot quartz or glass (up to 1100 °C)
44542 MVR250/U/40* 250** 133 E40 20800 4200 65 U 10,000 10,000 216 89 12
43907 MVR400/U/40* 400** 135 E40 40000 4000 65 U 20,000 20,000 295 118 6
41828 MVR1000/U/40 1000** V250 H245 E40 108000 4000 65 U 15,000 15,000 385 178 6
44543 MVR250/C/U/40* 250** 133 E40 20000 3900 70 U 10,000 10,000 216 89 12
43908 MVR400/C/U/40 400** 135 E40 40000 3700 70 U 20,000 20,000 295 117 6
98778 MVR250/C/VBU/40 250 133 E40 20000 4000 65 VBU±15° 10,000 - 216 89 12
27738 MPR400/C/VBU/0/40 400* 135 E40 38000 3200 70 VBU±15° 20,000 - 295 117 6
49857 MVR400/C/VBU/40 400 135 E40 40000 3700 70 VBU±15° 20,000 - 295 117 6
98777 MVR250/VBU/40 250 133 E40 22000 4200 65 VBU±15° 10,000 - 216 89 12
49860 MVR400/VBU/40 400 135 E40 41000 4000 65 VBU±15° 20,000 - 295 117 6
Product
Code
Product
Description
Wattage
[W]
Volts
[V]
Cap Lumen
[lm]
CCT
[K]
CRI
[Ra]
Operating
position
Rated life
(Vertical)
[h]
Rated life
(Horizontal)
[h]
Length
[mm]
Diameter
[mm]
Pack Qty
16870 ARC250/D/H/740/E40 250 100 E40 19500 4000 70 HOR±15° - 14,000 227 90 10
30047 ARC250/D/H/960/E40 250 100 E40 17000 6000 90 HOR±45° - 12,000 227 91 12
32666 ARC250/D/VBU/960/E40 250 100 E40 17000 6000 90 VBU±45° 12,000 - 227 90 12
Operating from suitable metal halide / high pressure sodium (HPS) ballast and metal halide ignitor. Arcstream lamps are only suitable for operation in fully enclosed fixtures where lens/diffuser material must be able to contain fragments of
hot quartz or glass (up to 1100°C)
High Intensity Discharge Lamps
Multi-Vapor Elliptical Clear
Multi-Vapor Elliptical Diffuse
Multi-Vapor High Output Elliptical Diffuse
Multi-Vapor High Output Elliptical Clear
*Non EU Product
**Performance data claimed for vertical position
*Non EU Product
**Performance data claimed for vertical position
Operating from CWA control gear. Initial lumen values and Rated Average Life based on vertical orientation for Universal types. Multi-Vapor lamps must operated in fully enclosed fixtures except those marked *when used VBU or
VBD +/-15°. For lamps requiring enclosed fixtures, lens/diffuser material must be able to contain fragments of hot quartz or glass (up to 1100 °C). Lamps operated in the vertical position that are not designated
“Enclosed Fixtures only” lamp may be used in an open or enclosed lighting fixture depending upon the application and operating environment. For example, if the lamp is located near combustible material or in
an area which is unoccupied for extended periods, an enclosed fixture which can contain fragments of hot quartz or glass is recommended. For more information contact your fixture manufacturer.
Arcstream Elliptical Diffuse
Metal Halide Lamps (continued)
16920 SPL1500/L/H/652/Rx7SM 1500 250 RX7SM 120000 5200 65 HOR±15° - 6,000 256 24 1
16922 SPL2000/L/H/651/SPEC 2000 230 spec. 200000 5200 65 HOR±15° - 6,000 311 26 1
Sportlight Linear
88882 SPL1000/T/H/960/E40 1000 120 E40 80000 6000 93 HOR±60º - 8,000 334 65 4
36078 SPL2000/220V/T/H/640/E40 2000 125 E40 189000 4000 65 HOR±75° - 2,000 430 102 4
30102 SPL2000/380V/T/H/960/E40 2000 225 E40 170000 6000 93 HOR±60° - 5,000 430 102 4
30103 SPL2000/380V/I/T/H/960/E40 2000 225 E40 170000 6000 93 HOR±60° - 5,000 430 101 4
33148 SPL2000/380V/I/T/H/640/E40 2000 235 E40 190000 4000 65 HOR±75° - 2,000 430 101 4
Sportlight Tubular Clear
Sportlight Internal Ignitor
Please refer to technical data sheet for appropriate ballast and ignitors. Sportlight lamps are only suitable in fully enclosed fixtures, where fixture lens/diffuser material must be able to contain fragments
of hot quartz or glass (up to 1100° C)
Internal Ignitor
Product
Code
Product
Description
Wattage
[W]
Volts
[V]
Cap Lumen
[lm]
CCT
[K]
CRI
[Ra]
Operating
position
Rated life
(Vertical)
[h]
Rated life
(Horizontal)
[h]
Length
[mm]
Diameter
[mm]
Pack
Qty
I
I
Product
Code
Product
Description
Wattage
[W]
Volts
[V]
Cap Lumen
[lm]
CCT
[K]
CRI
[Ra]
Operating
position
Rated Life
[h]
Length
[mm]
Diameter
[mm]
Pack Qty
E
High Pressure Sodium Lamps
67489 LU70/90/HO/T/E27 70 90 E27 6500 2000 21 U 28000 156 39 20
67490 LU100/100/HO/T/E40 100 100 E40 10400 2000 21 U 28000 211 48 20
78659 LU150/100/HO/T/E40 150 100 E40 17400 2000 21 U 28000 211 48 12
78660 LU250/HO/T/E40 250 100 E40 32500 2000 21 U 28000 260 48 12
78661 LU400/HO/T/E40 400 100 E40 56200 2000 21 U 28000 283 48 12
78663 LU600/HO/T/E40 600 115 E40 83000 2000 21 U 24000 283 48 12
HPS HO Tubular Clear E
E
84 85
High Intensity Discharge Lamps
45696 LU50/85/XO/D/27 50 85 E27 3600 2100 25 U 28,500 156 72 12
45697 LU70/90/XO/D/27 70 90 E27 6000 2100 25 U 33,000 156 72 12
93296 LU400/XO/D/40 400 105 E40 54000 2100 25 U 32,000 292 122 6
93379 LU100/100/XO/D/40 100 100 E40 10200 2100 25 U 35,000 186 76 12
93380 LU150/100/XO/D/40 150 100 E40 16900 2100 25 U 35,000 227 91 12
93381 LU250/XO/D/40 250 100 E40 31200 2100 25 U 32,000 227 91 12
Lucalox XO Elliptical Diffuse E
E
External Ignitor, Internal Ignitor
I
46209 LU 70/90/MO/I/E27 70 90 E27 6100 2000 25 U 17,500 156 72 12
46186 LU70/90/MO/D/I/E27 70 90 E27 5750 2000 25 U 17,500 156 72 12
Lucalox Internal Ignitor Elliptical Clear
Lucalox Internal Ignitor Elliptical Diffuse
I
I
Product
Code
Product
Description
Wattage
[W]
Volts
[V]
Cap Lumen
[lm]
CCT
[K]
CRI
[Ra]
Operating
position
Rated Life
[h]
Length
[mm]
Diameter
[mm]
Pack Qty
46221 LU 70/90/MO/T/E27 70 90 E27 6100 2000 25 U 28,500 156 39 25
93767 LU100/100/MO/T/40 100 100 E40 9600 2000 25 U 28,500 211 48 12
97241 LU150/100/HO/T/E40 150 100 E40 17500 2000 25 U 24,000 283 48 12
44244 LU150/100/40* 150 100 E40 15000 2000 25 U 28,500 211 48 12
22453 LU250/T/40* 250 100 E40 28500 2000 25 U 28,500 260 48 12
97240 LU400/HO/T/E40 400 100 E40 56500 2000 25 U 24,000 260 48 12
11678 LU400/T/40* 400 100 E40 48000 2000 25 U 28,500 278 48 12
44059 LU1000/40 1000 250 E40 130000 2100 22 U 24,000 383 79 6
45751 LU1000/110/T/40 1000 110 E40 130000 2000 25 U 24,000 374 68 4
Lucalox Standard Tubular Clear E
35590 LU250/SBY/D/E40* 250 100 E40 26000 2000 25 U 55,000 227 91 12
35591 LU400/SBY/D/E40 * 400 105 E40 48000 2000 25 U 55,000 282 122 6
Lucalox Superlife Elliptical Diffuse E
* Non EU product
* Non EU product
* Non EU product
Lucalox Standard Elliptical Diffuse
46217 LU70/90/MO/D/E27 70 90 E27 5750 2000 25 U 28,500 156 72 12
93766 LU100/100/MO/D/40* 100 100 E40 9200 2000 25 U 28,500 186 76 12
44245 LU150/100/D/40* 150 100 E40 14500 2000 25 U 28,500 227 91 12
44052 LU250/D/40* 250 100 E40 26000 2000 25 U 28,500 227 91 12
44057 LU400/D/40* 400 105 E40 48000 2000 25 U 28,500 282 122 6
E
96815 LU70/90/T12/27 START* 70 90 E27 5100 2000 21 U 12,000 156 39 25
96808 LU150/100/T/40 START* 150 100 E40 15000 2000 21 U 24,000 211 48 12
96810 LU250/T/40 START* 250 100 E40 28000 2000 21 U 24,000 260 48 12
96813 LU400/T/40 START* 400 105 E40 48000 2000 21 U 24,000 292 48 12
Lucalox Start Tubular Clear
* Non EU product
E
E
External Ignitor, Internal Ignitor
I
Product
Code
Product
Description
Wattage
[W]
Volts
[V]
Cap Lumen
[lm]
CCT
[K]
CRI
[Ra]
Operating
position
Rated Life
[h]
Length
[mm]
Diameter
[mm]
Pack Qty
Kolorlux Mercury Standard
74171 H50/27 50 95 E27 1800 4000 40 U 16,000 130 55 24
74172 H80/27 80 115 E27 3800 4000 45 U 20,000 156 70 24
73736 H125/27 125 125 E27 6300 4000 45 U 20,000 170 75 24
73737 H250/40 250 130 E40 13000 4000 40 U 20,000 227 90 12
74174 H400/40 400 135 E40 22500 4000 40 U 20,000 292 120 12
Kolorlux Mercury Deluxe
77055 H50 DX E27 50 95 E27 1800 3700 52 U 16,000 130 55 24
77056 H80 DX E27 80 115 E27 3800 3600 53 U 20,000 156 70 24
77057 H125 NDX E27 125 125 E27 6500 3500 53 U 20,000 170 75 24
77058 H250 NDX E40 250 130 E40 13800 3400 45 U 20,000 227 90 12
77061 H400 DX E40 400 135 E40 24400 3400 47 U 20,000 292 120 12
Mixed Light
96724 ML160/230-240V E27 160 230-240 E27 3100 4200 52 VBU±30 8,000 170 76 24
96728 ML160/240-250V E27 160 240-250 E27 3100 4200 52 VBU±30 8,000 170 76 24
96723 ML250/230-240V E40 250 230-240 E40 5500 3800 52 U 8,000 227 91 12
96725 ML250/230-240V E27 250 230-240 E27 5500 3800 52 U 8,000 227 91 12
96726 ML250/240-250V E40 250 240-250 E40 5500 3800 52 U 8,000 227 91 12
96713 ML500/230–240V E40 500 230-240 E40 14000 3800 45 U 8,000 292 121 10
Kolorlux Mercury Start
44180 H125/E27/GE/START 125 125 E27 5800 4000 40 U 12,000 178 76 24
High Pressure Mercury Lamps
86 87
High Intensity Discharge Lamps Brand cross reference
Arcstream
ARC70/T/U/730/G12 HQI T 70/WDL – HSI-T 70W/WDL –
ARC70/T/U/742/G12 HQI T 70/NDL – HSI-T 70W/NDL –
ARC150/G12/830 HQI T 150/WDL – HSI-T 150W/WDL HIT 150W/G12/UVS/3K
ARC150/G12/842 HQI T 150/NDL – HSI-T 150W/NDL HIT 150W/G12/UVS/4K
ARC70/UVC/TD/730/Rx7s HQI TS 70/WDL UVS – HSI-TD 75W/WDL 3K UVS MH-DE 70W/UVS/3K
ARC70/UVC/TD/742/Rx7s HQI TS 70/NDL UVS – HSI-TD 75W/NDL 4K UVS MH-DE 70W/UVS/4K
ARC150/UVC/TD/732/Rx7s-24 HQI TS 150/WDL UVS – HSI-TD 150W/WDL 3K UVS MH-DE 150W/UVS/3K
ARC150/UVC/TD/742/Rx7s-24 HQI TS 150/NDL UVS – HSI-TD 150W/NDL 4K UVS MH-DE 150W/UVS/4K
ARC150/TD/952/Rx7s-24 HQI TS 150/D UVS – HSI-TD 150W/D 5K UVS –
ARC150/UVC/AQUA/TD/865/Rx7s-24 – – – MH-DE 150W/UVS/FS/6K
ARC250/TD/832/Fc2 HQI TS 250/WDL UVS – HSI-TD 250W/NDL 3K UVS MH-DE 250W/UVS/3K/Fc2
ARC250/TD/842/Fc2 HQI TS 250/NDL UVS – HSI-TD 250W/NDL 4K UVS MH-DE 250W/UVS/4K/Fc2
ARC150/UVC/TD/GREEN/RX7S-24 – – – MH-DE 150W/UVS/GDX
ARC150/UVC/TD/BLUE/RX7S-24 – – – MH-DE 150W/UVS/BDX
ARC150/UVC/TD/ORANGE/RX7S-24 ––––
ARC150/UVC/TD/MAGENTA/RX7S-24 – – – MH-DE 150W/UVS/MDX
ARC250/T/VBU/960/E40 HQI-T 250/D* – HSI-T 250W / 6K* –
ARC250/T/H/960/E40 – – HSI-T 250W / 6K* –
ARC400/T/H/742/E40 HQI-T 400/N* MASTER HPI-T Plus 400W/645 E40 1SL* HSI-TSX 400W* HIT 400W/U/EURO/4K*
ARC250/D/H/740/E40 –MASTER HPI Plus 250W/745 BU E40 1SL* HSI-SX 250W/CO* –
ARC250/D/H/960/E40 HQI-E 250/D* – – –
ARC250/D/VBU/960/E40 HQI-E 250/D* MASTER HPI Plus 250W/767 BU E40 1SL* – –
Kolorarc
KRC400/T/H/960/E40 HQI-BT 400/D* – HSI-T 400W / 6K* HIT 400W/U/LU/6.5K*
KRC400/T/VBU/960/E40 HQI-BT 400/D* – HSI-T 400W / 6K* HIT 400W/U/LU/6.5K*
KRC400/E/VBU/645/E40 HQI-E 400/N CLEAR* – HSI-HX 400W CL* HIE 400W/BU/EURO/4K*
KRC400/D/VBU/740/E40 HQI-E 400/N* MASTER HPI Plus 400W/745 BU E40 1SL* HSI-HX 400W CO* HIE 400W/C/V/DU/4.5K*
KRC400/D/H/740/E40 HQI-E 400/N* – HSI-HX 400W CO* HIE 400W/C/U/EURO/4K*
KRC400/D/VBU/960/E40 –MASTER HPI Plus 250W/767 BU E40 1SL* – –
KRC400/D/H/960/E40 ––––
Multi-vapor
MVR250/U/40 ––––
MVR400/U/40 ––––
MVR1000/U/40 – – – HIE 1000W/U/4K*
MVR250/C/U/40 ––––
MVR400/C/U/40 ––––
MVR400/VBU/40 ––––
MVR400/C/VBU/40 ––––
MPR400/C/VBU/0/40 ––––
ConstantColor CMH
CMH50/TT/UVC/730/E27 STREETWISE – CDO-TT 50W/828 E27 – –
CMH70/TT/UVC/830/E27 HCI-T/P 70W/830 WDL PB E27 – – CM-PLUS TT 70W/U/UVS/830
CMH70/TT/UVC/730/E27 STREETWISE – CDO-TT 70W /828 E27 – –
CMH100/TT/UVC/830/E40 HCI-TT 100/830 WDL PB E40 – – CM-PLUS TT 100W/U/UVS/830
CMH100/TT/UVC/730/E40 STREETWISE – CDO-TT 100W /828 E27 – –
CMH150/TT/UVC/830/E40 HCI-T/P 150W/830 WDL PB E40 – – CM-PLUS TT 150W/U/UVS/830
CMH150/TT/UVC/730/E40 STREETWISE – CDO-TT 150W/828 E40 – –
CMH150/UVC/T/U/842/E40 HCI-TT 150/830 WDL PB E40 – – CM-PLUS TT 150W/U/UVS/942
CMH150/UVC/O/T/U/830/E40 HCI-T/P 150W/830 NDL PB E40 – – –
CMH150/T/UVC/O/U/942/E40 HCI-T/P 150W/942 NDL PB E40 – – –
CMH250/TT/UVC/U/830/E40 HCI-T 250W/830 WDL PB E40 CDO-TT 250W /828 E27 – –
KRC250/CMH/830/T/H/E40 – – – –
CMH400/TT/UVC/U/830/E40 – – – –
Sportlight
SPL1500/L/H/652/Rx7SM ––––
SPL2000/L/H/654 ––––
SPL2000/T/H/960/E40 HQI-T 2000/D* – – –
SPL2000/I/T/H/640/E40 HQI-T 2000 /N* HPI-T 2000W/642 E40 380V CRP* HSI-T 2000W-S4K 380V/I* –
SPL2000/I/T/H/960/E40 HQI-T 2000 /D/I* – – –
SPL1000/T/H/960/E40 1/4 HQI-T 1000/D* – – –
GE OSRAM PHILIPS Havells Sylvania Venture
GE OSRAM PHILIPS Havells Sylvania Venture
ConstantColor CMH
CMH20/TC/UVC/830/GU6.5 HCI-TF 20W/830 WDL PB GU6.5 CDM-Tm Mini GU6.5 20W/830 CMI-Tmini 20W/WDL UVS –
CMH35/T/UVC/930/GU6.5 HCI-TF 35/930 WDL PB GU6.5 - – –
CMH35/T/UVC/930/GU6.5 Ultra - CDM-Tm Elite Mini GU6.5 35W/930 – –
CMH35/T/UVC/942/GU6.5 - - – –
CMH20/TC/UVC/U/830/G8.5 Plus HCI-TC 20W/830 WDL PB G8.5 CDM-TC 20W/830 G8.5 –
CMH35/TC/UVC/U/830/G8.5 Plus HCI-TC 35W/830 WDL PB G8.5 CDM-TC 35W/830 G8.5 CMI-TC 35W/WDL UVS –
CMH35/TC/UVC/U/930/G8.5 Ultra HCI-TC 35/930 WDL PB Shop G8.5 CDM-TC Elite 35W/930 G8.5 – –
CMH35/TC/UVC/U/942/G8.5 HCI-TC 35W/942 NDL PB UVS G8.5 CDM-TC 35W/942 G8.5 – –
CMH70/TC/UVC/U/830/G8.5 Plus HCI-TC 70W/830 WDL PB G8.5 CDM-TC 70W/830 G8.5 – –
CMH70/TC/UVC/U/942/G8.5 HCI-TC 70W/942 NDL PB G8.5 CDM-TC 70W/942 G8.5 CMI-TC 70W/WDL UVS –
CMH70/TC/UVC/U/930/G8.5 Ultra / Ultra White HCI-TC 70/930 WDL PB Shop G8.5* CDM-TC Elite 70W/930 G8.5 – –
CMH20/T/UVC/U/830/G12 Plus – CDM-T 20W/830 G12 – –
CMH35/T/UVC/U/830/G12 Plus HCI-T 35W/830 WDL PB G12 CDM-T 35W/830 G12 CMI-T 35W/WDL UVS CM-PLUS T 35W/U/UVS/G12/830
CMH35/T/UVC/U/930/G12 Ultra HCI-T 35/930 WDL PB Shop G12 CDM-T Elite 35W/930 G12 – –
CMH35/T/UVC/U/942/G12 HCI-T 35W/942 NDL PB UVS G12 CDM-T 35W/942 G12 CMI-T 70W/WDL UVS CM-PLUS T 35W/U/UVS/G12/942
CMH70/T/UVC/U/830/G12 HCI-T 70W/830 WDL PB G12 CDM-T 70W/830 G12 CMI-T 70W/NDL UVS CM-PLUS T 70W/U/UVS/G12/830
CMH70/T/UVC/U/942/G12 HCI-T 70W/942 NDL PB UVS G12 CDM-T 70W/942 G12 – CM-PLUS T 70W/U/UVS/G12/942
CMH70/T/UVC/U/930/G12 Ultra / Ultra White HCI-TC 70/930 WDL PB Shop G12 CDM-T Elite 70W/930 G12 – –
CMH150/T/UVC/U/830/G12 HCI-T 150W/830 WDL PB G12 CDM-T 150W/830 G12 CMI-T 150W/WDL UVS CM-PLUS T 150W/U/UVS/G12/830
CMH150/T/UVC/U/942/G12 HCI-T 150/NDL PB UVS G12 CDM-T 150W/942 G12 CMI-T 150W/NDL UVS CM-PLUS T 150W/U/UVS/G12/942
CMH35/TD/UVC/830/RX7s – – CMI-T 35W/WDL UVS –
CMH70/TD/UVC/830/Rx7s HCI-TS 70W/830 WDL PB UVS RX7S CDM-TD 70W/830 RX7s CMI-T 70W/WDL UVS CM-PLUS TD 70W/U/UVS/RX7s/830
CMH70/TD/UVC/942/Rx7s HCI-TS 70W/942 NDL PB UVS RX7S CDM-TD 70W/942 RX7s CMI-T 70W/NDL UVS CM-PLUS TD 70W/U/UVS/RX7s/942
CMH150/TD/UVC/830/Rx7s-24 HCI-TS 150W/830 WDL PB RX7S-24 CDM-TD 150W/830 RX7s-24 CMI-T 150W/WDL UVS CM-PLUS TD 150W/U/UVS/RX7s/830
CMH150/TD/UVC/942/Rx7s-24 HCI-TS 150W/942 NDL PB RX7S-24 CDM-TD 150W/942 RX7s-24 CMI-T 150W/NDL UVS CM-PLUS TD 150W/U/UVS/RX7s/942
CMH20/MR16/UVC/830/GX10/SP12 – CDM-Rm Mini 20W/830 GX10 MR16 10D – –
CMH20/MR16/UVC/830/GX10/FL25 – CDM-Rm Mini 20W/830 GX10 MR16 25D – –
CMH20/MR16/UVC/830/GX10/WFL40 – CDM-Rm Mini 20W/830 GX10 MR16 40D – –
CMH35/MR16/UVC/930/GX10/SP 12 – - – –
CMH35/MR16/UVC/930/GX10/FL 25 – - – –
CMH35/MR16/UVC/930/GX10/WFL40 – - – –
CMH35/MR16/UVC/930/GX10/SP12 Ultra – CDM-Rm Elite Mini 35W/930 GX10 MR16 10D – –
CMH35/MR16/UVC/930/GX10/FL25 Ultra – CDM-Rm Elite Mini 35W/930 GX10 MR16 25D – –
CMH35/MR16/UVC/930/GX10/WFL40 Ultra – CDM-Rm Elite Mini 35W/930 GX10 MR16 40D – –
CMH35/MR16/UVC/942/GX10/SP12 – - – –
CMH35/MR16/UVC/942/GX10/FL25 – - – –
CMH35/MR16/UVC/942/GX10/WFL40 – - – –
CMH20/PAR20/UVC/830/E27/SP10 – – – –
CMH20/PAR20/UVC/830/E27/FL25 – – – –
CMH35/PAR20/830/E27/SP HCI-PAR20 35W/830 WDL SP E27 CDM-R 35W/830 E27 PAR20L10D – –
CMH35/PAR20/830/E27/FL HCI-PAR20 35W/830 WDL FL E27 CDM-R 35W/830 E27 PAR20L30D – –
CMH35/PAR20/UVC/942/E27/SP10 - CDM-R 35W/942 E27 PAR20L10D – –
CMH35/PAR20/UVC/942/E27/FL25 - CDM-R 35W/942 E27 PAR20L30D – –
CMH20/PAR30/UVC/830/E27/SP10 HCI-PAR30 20W/830 WDL SP E27 – – –
CMH20/PAR30/UVC/830/E27/FL25 HCI-PAR30 20W/830 WDL FL E27 – – –
CMH35/PAR30/UVC/830/E27/SP10 HCI-PAR30 35W/830 WDL SP E27 CDM-R 35W/830 E27 PAR20L10D – –
CMH35/PAR30/UVC/830/E27/FL25 HCI-PAR30 35W/830 WDL FL E27 CDM-R 35W/830 E27 PAR20L30D – –
CMH35/PAR30/UVC/942/E27/SP10 - – – –
CMH35/PAR30/UVC/942/E27/FL25 - – – –
CMH70/PAR30/UVC/830/E27/SP HCI-PAR30 70W/830 WDL SP E27 CDM-R 70W/830 E27 PAR30L10D – –
CMH70/PAR30/UVC/830/E27/FL HCI-PAR30 70W/830 WDL FL E27 CDM-R 70W/830 E27 PAR30L40D – –
CMH70/E/UVC/U/830/E27/C HCI-E/P 70/830 WDL PB E27 clear CDM-ET 70W /830 E27 CM-PLUS ED 70W/U/UVS/830
CMH100/E/UVC/U/830/E27/C HCI-E/P 100/830 WDL PB clear CDM-ET 100W /830 E40 – CM-PLUS ED 100W/U/UVS/830
CMH150/UVC/O/U/942/E27/C HCI-E/P 150W/942 NDL PBMO CL E27 – – –
CMH70/E/UVC/U/830/E27/D HCI-E/P 70W/830 NDL PB COE27 CDO-ET Coated 70W/828 E27 – –
CMH70/UVC/O/U/940/E27/D HCI-E/P 70W/942 NDL Coated E27 – – –
CMH100/E/UVC/U/830/E27/D HCI-E/P 100W/830 WDL PB Coated E27 CDO-ET Coated 100W/828 E40 – –
CMH150/UVC/O/U/940/E27/D HCI-E/P 150W/942 NDL PB MO E27 CDO-ET Coated 150W/828 E40 – –
CMH250/E/UVC/U/830/E40/D HCI-E 250W/830 WDL PB E40 – – –
CMH400/E/UVC/U/830/E40/D – – – –
The following pages show GE and alternative brand Order Codes. These cross references are provided as a quick guide and may only
represent a near equivalent to other brands. The table contains data from alternative brands’ catalogues and website.
88 89
High Intensity Discharge Lamps
Mixed Light
ML 160/230-240V E27 HWL 160 235V ML 160W E27 235-245 HSB-BW 160W 230V E27 –
ML 160/240-250V HWL 160 240V ML 160W E27 235-245 HSB-BW 160W 240 –
ML 250/230-240V E40 HWL 250 235V ML 250W E27 225-235 HSB-BW 250W 240V E40 –
ML 250/230-240V E27 – ML 250W E40 225-235 HSB-BW 250W 240V E27 –
ML 250/ 240-250V E40 HWL 250 240V ML 250W E40 235-245 HSB-BW 250W 240 –
ML 500/230-240V E40 HWL 500 235V ML 500W E40 225-235 HSB-BW 500W 240V E40 –
*Similar product, please contact your local sales representative for more details
GE OSRAM PHILIPS Havells Sylvania Venture
Lucalox Standard
LU70/90/D/27 NAV-E 70/E SON E 70W SHP 70W/CO-E –
LU100/100/MO/D/40 NAV-E 100 SON E 100W SHP 100W –
LU150/100/D/40 NAV-E 150 SON E 150W SHP 150W –
LU250/D/40 NAV-E 250 SON E 250W SHP 250W –
LU400/D/40 NAV-E 400 SON E 400W SHP 400W –
LU70/90/T12/27 NAV-T 70 SON- T 70W SHP-T 70W –
LU100/100/MO/T/40 NAV-T 1000 SON- T 100W – –
LU150/100/T /40 NAV-T 150 SON-T 150W SHP-T 150W –
LU250/T/40 NAV-T 250 SON-T 250W SHP-T 150W –
LU400/T/40 NAV-T 400 SON-T 400W SHP-T 400W –
LU1000/110/T/40 NAV-T 1000 SON-T 1000W SHP-T 1000W –
Lucalox XO
LU50/85/XO/D/27 NAV-T 50 SUPER 4Y – SHP S 50W –
LU70/90/XO/D/27 NAV-T 70 SUPER 4Y MASTER SON PIA PLUS 70W SHP S 70W –
LU100/100/XO/D/40 NAV-E 100 SUPER 4Y MASTER SON PIA PLUS 100W SHP S 100W –
LU250/XO/D/40 NAV-E 250 SUPER 4Y MASTER SON PIA PLUS 250W SHP S 250W –
LU400/XO/D/40 NAV-E 400 SUPER 4Y MASTER SON PIA PLUS 400W SHP S 400W –
LU50/85/XO/T/27 NAV-T 50 SUPER 4Y MASTER SON-T PIA PLUS 50W SHP TS 50W –
LU70/90/XO/T/27 NAV-T 70 SUPER 4Y MASTER SON-T PIA PLUS 70W SHP TS 70W –
LU100/100/XO/T/40 NAV-T 100 SUPER 4Y MASTER SON-T PIA PLUS 100W SHP TS 100W –
LU150/150/XO/T/40 NAV-T 150 SUPER 4Y MASTER SON-T PIA PLUS 150W SHP TS 150W –
LU250/XO/T/40 NAV-T 250 SUPER 4Y MASTER SON-T PIA PLUS 250W SHP TS 250W –
LU400/XO/T/40 NAV-T 400 SUPER 4Y MASTER SON-T PIA PLUS 400W SHP TS 400W –
LU600/XO/T/40 NAV-T 600 SUPER 4Y MASTER SON-T PIA PLUS 600W SHP TS 600W –
Lucalox l
LU50/85/D/I/27 NAV-E 50/I SON 50W I SHP 50W/CO-I –
LU70/90/D/I/27 NAV-E 70/I SON 70W I SHP 70W/CO-I –
LU70/90/I/27 – – SHP 70W/CL-I –
Lucalox E-Z lux
LUH110/D/27 - SHx NAV-E 110 SON-H Pro 110W SHx 110W E27 –
Lucalox SUPERLIFE
LU70/90/XO/SBY/T12/E27 – – SHP-TS 70W TWinarc –
LU100/100/XO/SBY/T/E40 – – SHP-TS 100W TWinarc –
LU150/XO/SBY/T/E41 – – SHP-TS 150W TWinarc –
LU250/XO/SBY/T/E42 – – SHP-TS 250W TWinarc –
LU400/XO/SBY/T/E43 – – SHP-TS 400W TWinarc –
LU50/85/X0/SBY/D/27 – – –
LU70/90/XO/SBY/D/E27 – – SHP-S 70W TWinarc –
LU100/100/XO/SBY/D/E40 – – SHP-S 100W TWinarc –
LU250/SBY/D/40 – – SHP-S 250W TWinarc –
LU400/SBY/D/40 – – SHP-S 400W TWinarc –
Kolorlux Standard
H50/27 HQL 50 HPL-N 50W HSL-BW 50W E27 –
H80/27 HQL 80 HPL-N 80W HSL-BW 80W E27 –
H125/27 HQL 125 HPL-N 125W HSL-BW 125W E27 –
H250/40 HQL 250 HPL-N 250W HSL-BW 250W E40 –
H400/40 HQL 400 HPL-N 400W HSL-BW 400W E40 –
GE is the leading supplier of showbiz in the world.
SHOWBIZ
Lamps
90 91
SHOWBIZ Lamps
GE is a full line supplier to the
entertainment industry offering a
range of lamp technologies for use in
applications including stage, studio,
lm and event lighting.
This section details the current range
available, however as GE continues its
pioneering work in the development of
new and innovative light sources some
new lamps may not appear.
Discharge Lamps
• Full range of single and double ended
lamps
• Wattages from 125 to 24,000 Watts
• UV control lamps with easy identiable
blue base
• Reliable compact double ended range
for both lm and event lighting
• Cold start lamps for event lighting
• Cinema uorescent for studio and lm
GE SHOWBIZ lamps – performance tested,
performance proven.
PAR Lamps
• GE PAR lamps for all events
• Robust, exible lighting solution
• Extensive range from PAR36 to PAR64
• European made 1000W PAR64 (CP60,
CP61 & CP62)
Single Ended Studio Halogen Lamps
• Extensive range of Quartzline lamps
• Full range up to 24,000 Watts
• Range of bases to meet the needs
of OEM’s
• Chromised seal protection to 500° C
Linear Halogen Lamps
• A range from 650 to 2,000W
CSR TAL Lamps
New ‘Turn And Lock’ Technology
for Easier Lamp Installation
These single–ended metal halide lamps are especially useful
for moving–light applications that call for high colour
temperatures and brighter light sources.
The ‘Turn And Lock’ technology provides easy installation.
These products offer a very short arc gap which allow for
higher beam intensity. This enables good system performance,
colour stability and superior lumen maintenance over life. A
range of power options are available to meet the needs of
fixture designers.
Key benefits
•Easy release base (Turn And Lock)
enabling quick lamp change
at events
•High lumen output
•Range
- CSR 1500/TAL PGJX50
- CSR 700/TAL PGJX50
- CSR700/TAL PGJX28
- CSR 300/TAL PGJX28
•Outstanding beam performance
92 93
Product
Code
Product
Description
Wattage
[W]
Volts
[V]
Cap Lumen
[lm]
CCT
[K]
Operating
position
Life
[h]
Length
[mm]
Pack Qty
48461 CSR125/SE/HR 125 80 GZX9.5 9,400 5600 U 200 75 10
48462 CSR200/SE/HR 200 80 GZY9.5 15,000 5600 U 200 80 10
21853 CSR400/SE/HR 400 70 GZZ9.5 32,000 5900 U 750 110 10
Discharge - Single Ended Hot Restrike
The following glossary of terms will help you when selecting lamps in this section.
Within each product line, lamps are divided into families – within these families,
lamps are listed by wattage.
(CSR) High
Intensity
Discharge
lamp brand
name code
(125) Identifies
the lamp’s
wattage
Hot
Restrike
Product description:
The lamp’s
identification code
Product code:
It is important to
use this code when
ordering to ensure
that you receive the
exact product you
require
Watts:
Energy Used –
To estimate energy
consumption (kWh),
multiply watts x
hours of use and
divide by 1000
Volts:
Lamp data
is based on
operating
voltage
Life:
Rated average life
CCT [K]:
Colour Temperature -
Kelvins
A measure of the visual
“warmth” or “coolness”
of the light from the
lamp. The higher
the value the whiter
or “cooler” the light
appears
Length:
Lamp length in mm
Lumens:
Initial amount of
light output
Pack quantity:
Number of product
units packed in a case
Operating position:
U - Universal
HOR - Horizontal
VBD - Vertical Base Down
BDTH - Base Down to
Horizontal
BDTHCH - Base Down to
Horizontal with filament
coil axis horizontal
BD45 - within 45° of
vertical base down
Product identification
Identifies
the lamp
as single
ended
CSR125 / SE / HR
SHOWBIZ Lamps
Additional parameters:
LIF Code: common lamp ID within Europe
ANSI Code: common lamp ID within North America
Cap:
The type of cap
fitted. See page
134-135 for cap
drawings
CSR & CSD 94
Cinema Fluorescent 95
Blacklight Blue 96
PAR Halogen 96
Single Ended Halogen 98
Double Ended Halogen 101
Projection 101
94 95
Product
Code
Product
Description
Wattage
[W]
Volts
[V]
Cap Lumen
[lm]
CCT
[K]
Operating
position
Life
[h]
Length
[mm]
Pack Qty
48461 CSR125/SE/HR 125 80 GZX9.5 9,800 5400 U 200 75 10
48462 CSR200/SE/HR/UV-C 200 70 GZY9.5 17,500 5600 U 200 80 10
21853 CSR400/SE/HR/UV-C 400 70 GZZ9.5 32,000 6000 U 750 110 10
45238 CSR400/SE/HR/75 400 70 GZZ9.5 28,000 7500 U 750 110 10
48463 CSR575/SE/HR 575 95 G22 50,000 5600 U 750 145 10
40460 CSR575/SE/HR/UV-C 575 95 G22 48,000 5600 U 750 145 10
22495 CSR800/SE/HR/UV-C 800 95 G22 64,000 5600 U 750 145 6
48464 CSR1200/SE/HR 1200 100 G38 105,000 5600 U 750 200 6
27764 CSR1200/SE/HR/UV-C 1200 100 G38 110,000 5600 U 750 200 6
77390 CSR1800/SE/HR/UV-C 1800 140 G38 165,000 6000 U 750 200 4
48465 CSR2500/SE/HR 2500 115 G38 220,000 6000 U 500 240 6
40482 CSR2500/SE/HR/UV-C 2500 115 G38 220,000 5600 U 500 240 6
48466 CSR4000/SE/HR 4000 200 G38 370,000 6000 U 500 260 6
27765 CSR4000/SE/HR/UV-C 4000 200 G38 380,000 5600 U 500 260 6
48467 CSR6000/SE/HR 6000 130 G38 540,000 5900 U 300 360 6
40492 CSR6000/SE/HR/UV-C 6000 130 G38 540,000 5600 U 300 360 6
48468 CSR12000/SE/HR 12000 160 G38 1,100,000 6000 U 250 450 4
22496 CSR18000/SE/HR 18000 225 G51 1,650,000 6000 U 250 470 1
27817 CSD250/2/SE 250 94 GY9.5 17,700 9000 U 3,000 108 10
21328 CSD250/2/SE BULK 250 94 GY9.5 17,700 9000 U 3,000 108 100
49492 CSR575/2/T/SE 575 97 GX9.5 42,000 7500 U 1,000 125 10
15378 CSR575/2/SE 575 97 GX9.5 46,000 7200 U 1,000 125 10
49491 CSR700/2/SE 700 70 G22 55,000 6500 U 1,000 155 10
49490 CSR1200/2/SE 1200 100 G22 110,000 7000 U 800 175 6
76160 CSR300/2/TAL 300 95 PGJX28 23,000 7800 U 750 126 4
76161 CSR700/TAL/60/PGJX50 700 70 PGJX50 59,000 6000 U 750 130 4
78718 CSR700/TAL/60/PGJX28 700 70 PGJX28 59,000 6000 U 750 130 4
74873 CSR1500/TAL/60/S 1500 100 PGJX50 TBA 6000 U 750 130 4
Discharge - Single Ended Hot Restrike
Discharge - Single Ended Cold Start
Discharge - CSR Turn and Lock (TAL)
48450 CSR200/DE 200 80 X515 15,000 5600 HOR±15° 300 75 10
45232 CSR400/S/DE/90 400 49 SFc 10-4 Sl/M4 24,000 9000 U 750 138 10
22478 CSR400/S/DE/70 400 49 SFc 10-4 Sl/M4 26,000 7000 U 1000 138 10
70979 CSR575/DE 575 95 SFc 10-4 SI/M4 40,000 7000 U 750 138 10
70978 CSR575/DE/70 BULK 575 95 SFc 10-4 SI/M4 40,000 7000 U 750 138 100
45231 CSR575/SS/DE/75 575 100 SFc 10-4 Sl/M4 44,000 7500 HOR±15° 500 92 10
22493 CSR700/S/DE/60 700 70 SFc 10-4 Sl/M4 59,000 6000 U 750 138 10
41357 CSR700/S/DE/72 700 70 SFc 10-4 Sl/M4 51,000 7200 U 750 138 10
22494 CSR1200S/DE/60 1200 100 SFc 10-4 Sl/M4 110,000 6000 U 750 138 10
96802 CSR1200/S/DE/60/STB 1200 100 SFc 10-4 Sl/M4 105,000 6000 U 750 135 10
96800 CSR1500/S/DE/STB 1500 115 SFc 10-4 Sl/M4 132,000 6000 HOR±15° 500 138 10
48453 CSR1200/DE 1200 100 SFc 10-5-6 Sl/M6 110,000 6000 HOR±15° 750 220 10
48454 CSR2500/DE 2500 115 SFa21-12 240,000 6000 HOR±15° 500 355 6
48455 CSR4000/DE 4000 200 SFa21-12 400,000 6000 HOR±15° 500 405 6
48456 CSR6000/DE 6000 125 25X51 Cyl 165mm 570,000 6000 HOR±15° 300 450 10
48457 CSR12000/DE 12000 160 30x70 Cyl 165mm 1,100,000 6000 HOR±15° 300 470 10
48459 CSR18000/DE 18000 225 30x70 Cyl 165mm 1,650,000 5600 HOR±15° 500 500 4
78710 CSR24000/DE 24000 270 30x70 Cyl 165mm 2,300,000 6000 HOR±15° 500 500 1
Discharge - Double Ended Hot Restrike
CSR & CSD
SHOWBIZ Lamps
Product
Code
Product
Description
Wattage
[W]
Volts
[V]
Cap Lumen
[lm]
CCT
[K]
Operating
position
Life
[h]
Length
[mm]
Pack Qty
15380 CSR700SA 700 70 GY9.5 58,000 6200 U 500 85 10
45234 CSR700SA/72 700 70 GY9.5 58,000 7200 U 500 85 10
21849 CSR1200SA 1200 100 GY22 100,000 5800 U 750 135 6
21801 CSR2000SA 1800 100 GY22 155,000 6000 U 750 135 6
73579 CMH400/932/GX9.5 400 135 GX9.5 40,000 3200 U 5,000 135 4
73580 CMH400/941/GX9.5 400 135 GX9.5 40,000 4100 U 5,000 135 4
Product
Code
Product
Description
Wattage
[W]
Volts
[V]
Cap Candela
[cd]
Beam
Type
Beam
10%
Beam
50%
CCT
[K]
Operating
position
Life
[h]
Length
[mm]
Pack Qty
88545 CMH150/PAR64/830/GX16d/SP 150 95 GX16d 154,000 Narrow 9x9 4x4 3000 U 8,000 152 6
88537 CMH150/PAR64/830/GX16d/MFL 150 95 GX16d 47,000 Medium 18x15 13x11 3000 U 8,000 152 6
16960 CMH150/PAR64/830/GX16d/WFL 150 95 GX16d 16,000 WFL 62x36 46x23 3000 U 3,000 152 6
88543 CMH150/PAR64/942/GX16d/SP 150 100 GX16d 154,000 Narrow 9x9 4x4 4200 U 8,000 152 6
88542 CMH150/PAR64/942/GX16d/MFL 150 100 GX16d 47,000 Medium 18x15 13x11 4200 U 8,000 152 6
88541 CMH150/PAR64/942/GX16d/WFL 150 100 GX16d 16,000 Wide 25x20 18x15 4200 U 8,000 152 6
Product
Code
Product
Description
Wattage
[W]
Volts
[V]
Cap Lumen
[lm]
Beam
10%
Beam
50%
CCT
[K]
Operating
position
Life
[h]
Length
[mm]
Pack Qty
88495 99-0201 CSI 400 100 Special 32,000 - - 4000±400 VBD±90 500 55 1
88494 99-0221 CSI 1000 77 G22 90,000 - - 4000±400 VBD±90 500 115 1
88514 99-1222 CSI CS 1000 77 G38 1,350,000 18 6 3800±500 U 3,500 80 1
88513 99-1422 CSI HR 1000 77 G38 1,350,000 18 6 3800±500 U 3,500 80 1
88493 99-0222 CID 1000 77 G22 70,000 - - 5500±400 BDTH 500 115 1
Product Code Product
Description
Wattage
[W]
Cap Lumen
[lm]
CCT
[K]
Operating
position
Life
[h]
Length
[mm]
Pack Qty
41869 F55BX/StudioBiax32 55 2G11-4 Pin 4,100 3200 U 8,000 55 10
41873 F55BX/StudioBiax56 55 2G11-4 Pin 4,100 5600 U 8,000 55 10
41903 F55BX/CINPLUS/32 55 2G11-4 Pin 2,400 3200 U 2,000 55 10
41911 F55BX/CINPLUS/55 55 2G11-4 Pin 2,400 5600 U 2,000 55 10
Discharge - Short Arc
ConstantColor - CMH Single Ended GX9.5
ConstantColor CMH - PAR64
CSI/CID
Cinema Studio Biax
Cinema Plus Biax
Product
Code
Product
Description
Wattage
[W]
Volts
[V]
Cap Lumen
[lm]
CCT
[K]
Operating
position
Life
[h]
Length
[mm]
Pack Qty
88485 CSS150/850/GY9.5 140 85 GY9.5 10,000 5000 VBD±90 1,000 48 10
CSS
96 97
SHOWBIZ Lamps
Product
Code
Product
Description
Wattage
[W]
Cap Lumen [lm] CCT [K] Operating
position
Life [h] Length
[mm]
Diameter
[mm]
Pack Qty
72658 F24T8CINEMA32/CVG 28 G-13 Med BiPin 1,250 3200 U 2,000 600 26 24
72659 F24T8CINEMA55/CVG 28 G-13 Med BiPin 1,200 5500 U 2,000 600 26 24
81207 F48T8/Cinema32/CVG 55 G-13 Med BiPin 2,750 3200 U 2,000 1200 26 24
81208 F48T8/Cinema55/CVG 55 G-13 Med BiPin 2,750 5500 U 2,000 1200 26 24
Product Code Product
Description
Wattage
[W]
Volts [V] Cap Operating
position
Life
[h]
Length
[mm]
Diameter
[mm]
Pack Qty
34747 F20T12/BLB 20 57 G-13 Med BiPin U 9000 600 38 6
25618 F40T12/BLB 40 101 G-13 Med BiPin U 20000 1,200 38 6
88832 F18T8/BLB 18 57 G-13 Med BiPin U 12,000 600 26 25
88833 F36T8/BLB 36 103 G-13 Med BiPin U 12,000 1200 26 25
15775 F20T12/CINEMA32/HO/CVG 35 G-13 Med BiPin 1,130 3200 U 2,000 600 38 24
15776 F20T12/CINEMA55/HO/CVG 35 G-13 Med BiPin 1,100 5500 U 2,000 600 38 24
15782 F40T12/CINEMA32/HO/CVG 75 G-13 Med BiPin 2,900 3200 U 2,000 1200 38 30
15783 F40T12/CINEMA55/HO/CVG 75 G-13 Med BiPin 2,820 5500 U 2,000 1200 38 30
Cinema T8
Blacklight Blue
Cinema T12
lamp name: Fluorescent Û T8 Û Blac klite
Blue/15W
lamp name: Fluorescent Û T8 Û Blac klite
Blue/15W
lamp name: Fluorescent — T12 — Blacklite
Blue/20-40W
— Watt-Miser
lamp name: Fluorescent — T12 — Blacklite
Blue/20-40W
— Watt-Miser
Product
Code
Product
Description
Wattage
[W]
Volts
[V]
Cap ANSI
Code
Candela
[cd]
Beam
Type
Beam
10%
Beam
50%
CCT
[K]
Operating
position
Life
[h]
Length
[mm]
Diameter
[mm]
Pack Qty
41673 FCX 650 120 Ferrule FCX 24,000 MFL - 40 X 30 3200 HOR±15° 100 69.8 114.3 12
14553 25PAR36 25 5.5 Scr. Term. - 30,000 VNSP - 5 x 5 3000 U 1,000 69.8 114.3 12
14555 25PAR36/WFL 25 12 Scr. Term. - 500 WFL 49 x 41 37 x 26 - U 2,000 69.8 114.3 12
24425 4405 30 12.8 Scr. Term. - 50,000 VNSP 6 x 5 - - U 100 69.8 114.3 12
24663 4511 30 6.2 Scr. Term. - 2,300 - - - - U 300 69.8 114.3 12
15133 H4515 30 6.4 Scr. Term. - 67,000 VNSP 5.5 x 4 - - U 100 69.8 114.3 12
24673 4515 30 6.4 Scr. Term. - 55,000 VNSP 5 x 5 - - U 100 69.8 114.3 12
43576 H7604 50 12.8 Scr. Term. - 100,000 NSP 7 x 5 - - U 100 69.8 114.3 12
12892 50PAR36/VNSP 50 12 Scr. Term. - 25,000 VNSP - 6 x 6 - U 2,000 69.8 114.3 12
16540 50PAR36/NSP 50 12 Scr. Term. - 9,200 NSP - 10 x 10 - U 2,000 69.8 114.3 12
16541 50PAR36/WFL 50 12 Scr. Term. - 1,300 WFL 48 x 41 36 x 28 - U 2,000 69.8 114.3 12
19880 50PAR36/WFL/H 50 12 Scr. Term. - 1,300 WFL - 30 x 30 3050 U 4,000 69.8 114.3 12
16542 50PAR36/VWFL 50 12 Scr. Term. - 600 VWFL - 55 x 55 - U 2,000 69.8 114.3 12
24627 4502 50 28 Scr. Term. - 10,000 WFL 40 x 7 - - U 400 69.8 114.3 12
24640 4505 50 28 Scr. Term. - 45,000 NSP 11 x 5 - - U 400 69.8 114.3 12
24650 4509 100 13 Scr. Term. - 110,000 NSP 12 x 6 - - U 25 69.8 114.3 12
41503 4509X 100 13 Scr. Term. - 110,000 NSP 12 x 6 - - U 25 69.8 114.3 12
24887 4593 50 28 Scr. Term. - 1,500 VWFL 80 x 30 - - U 400 69.8 114.3 12
24891 4594 100 28 Scr. Term. - 70,000 NSP 13 x 7 - - U 300 69.8 114.3 12
24964 4626 150 28 Scr. Term. - 25,000 WFL 40 x 9 - - U 300 69.8 114.3 12
24966 4627 100 28 Scr. Term. - 3,000 VWFL 80 x 30 - - U 300 69.8 114.3 12
24867 4587 250 28 Scr. Term. - 4,000 WFL 40 x 13 - - U 25 69.8 114.3 12
24898 4596 250 28 Scr. Term. - 150,000 NSP 11 x 12 - 3000 U 25 69.8 114.3 12
41667 DWE 650 120 Scr. Term. DWE 24,000 MFL - 40 X 30 3200 HOR±15° 100 69.8 114.3 12
41671 FBO 650 120 Scr. Term. FBO 75,000 SP - 25 X 15 3400 HOR±15° 30 69.8 114.3 12
PAR 36
Product
Code
Product
Description
Wattage
[W]
Volts
[V]
Cap Candela
[cd]
Beam
Type
Beam
10%
Beam
50%
CCT [K] Operating
position
Life
[h]
Length
[mm]
Diameter
[mm]
Pack Qty
24768 4545 100 12 Scr. Term 225,000 NSP - 9 x 5 - U 100 127 177.8 12
19024 120PAR56/MFL 120 12 Scr. Term 19,000 MFL 18 x 9 29 x 15 - U 2,000 127 177.8 12
19025 120PAR56/WFL 120 12 Scr. Term 5,625 WFL 35 x 18 50 x 25 - U 2,000 127 177.8 12
20122 200PAR 200 30 Scr. Term 270,000 SP - 9 x 9 - U 350 127 177.8 12
20575 240PAR56/VNSP 240 12 Scr. Term 140,000 VNSP 9 x 6 7 x 10 - U 2,000 127 177.8 12
20577 240PAR56/WFL 240 12 Scr. Term 13,000 WFL 35 x 18 50 x 27 - U 2,000 127 177.8 12
23427 300PAR56/WFL 300 12 Scr. Term NA WFL - - - U 1,000 127 177.8 12
20803 300PAR56/NSP 300 120 Mog End Pr GX16d 68,000 NSP 10 x 8 20 x 14 2750 U 2,000 127 177.8 12
20836 300PAR56/MFL 300 120 Mog End Pr GX16d 24,000 MFL 23 x 11 34 x 19 2750 U 2,000 127 177.8 12
20849 300PAR56/WFL 300 120 Mog End Pr GX16d 11,000 WFL 37 x 18 57 x 27 2750 U 2,000 127 177.8 12
20853 300PAR56/NSP 300 230 ExMogEndPr GX16d 40,000 NSP - - - U 2,000 127 177.8 12
20852 300PAR56/MFL 300 230 ExMogEndPr GX16d 30,000 MFL - - - U 2,000 127 177.8 12
20854 300PAR56/WFL 300 230 ExMogEndPr GX16d 10,000 WFL - - - U 2,000 127 177.8 12
18676 300PAR56/NSP 300 240 ExMogEndPr GX16d 40,000 NSP - - - U 2,000 127 177.8 12
18677 300PAR56/MFL 300 240 ExMogEndPr GX16d 30,000 MFL - - - U 2,000 127 177.8 12
18678 300PAR56/WFL 300 240 ExMogEndPr GX16d 10,000 WFL - - - U 2,000 127 177.8 12
43494 Q500PAR56/NSP 500 120 Mog End Pr GX16d 96,000 NSP 13 x 8 32 x 15 2950 U 4,000 127 177.8 6
43495 Q500PAR56/MFL 500 120 Mog End Pr GX16d 43,000 MFL 26 x 10 42 x 20 2950 U 4,000 127 177.8 6
43496 Q500PAR56/WFL 500 120 Mog End Pr GX16d 19,000 WFL 44 x 20 66 x 34 2950 U 4,000 127 177.8 6
PAR 56
Product
Code
Product
Description
Wattage
[W]
Volts
[V]
Cap Candela
[cd]
Beam Type Beam 50% Operating
position
Life
[h]
Length
[mm]
Diameter
[mm]
Pack Qty
43591 H7635 50 12.8 Scr. Term 160,000 VNSP 6.5 x 4 U 100 95.2 146 12
40822 4537-2 100 13 Scr. Term 200,000 SP 11 x 6 U 25 95.2 146 12
24799 4553 250 28 Scr. Term 300,000 SP 11 x 12 U 25 95.2 146 12
24859 4580 450 28 Scr. Term 400,000 SP 13 x 14 U 10 95.2 146 12
24862 4581 450 28 Scr. Term 400,000 SP 13 x 14 U 10 95.2 146 12
37706 Q4554 450 28 Scr. Term 65,000 WFL 50 x 11 U 100 95.2 146 12
36271 Q4681 450 28 Scr. Term 310,000 SP 15 x 9 U 50 95.2 146 12
PAR 46
98 99
SHOWBIZ Lamps
Product
Code
Product
Description
Wattage
[W]
Volts
[V]
Cap LIF
Code
ANSI
Code
Candela
[cd]
Beam
Type
Beam
10%
Beam
50%
CCT
[K]
Operating
position
Life
[h]
Length
[mm]
Diameter
[mm]
Pack
Qty
40576 4552 250 28 Scr. Term - - 500,000 SP - 7 X 8 - U 25 152.4 203.2 12
40578 4559 600 28 Scr. Term - - 600,000 SP - 11 X 12 - U 25 152.4 203.2 12
40579 Q4559 600 28 Scr. Term - - 600,000 SP - 12 X 8 - U 100 152.4 203.2 12
42552 Q4559X 600 28 Scr. Term - - 765,000 SP 11x7.5 - - U 100 152.4 203.2 12
73581 CP86 PAR64/VNSP 500 230 GX16d CP86 - 240,000 VNSP 16x13 10x7 3200 U 300 152.4 203.2 6
99944 CP86 PAR64/VNSP 500 240 GX16d CP86 - 240,000 VNSP 16x13 10x7 3200 U 300 152.4 203.2 6
25504/99945 CP87 PAR64/NSP 500 230 GX16d CP87 - 140,000 NSP 19x16 11x9 3200 U 300 152.4 203.2 6
99946 CP87 PAR64/NSP 500 240 GX16d CP87 - 140,000 NSP 19x16 11x9 3200 U 300 152.4 203.2 6
99947 CP88 PAR64/MFL 500 230 GX16d CP88 - 65,000 MFL 32x19 21x10 3200 U 300 152.4 203.2 6
99948 CP88 PAR64/MFL 500 240 GX16d CP88 - 65,000 MFL 32x19 21x10 3200 U 300 152.4 203.2 6
39411 500/PAR64/MFL 500 230 ExMogEndPr GX16d - - - MFL 21 X 10 32 x 19 2700 U 2,000 152.4 203.2 12
39414 500/PAR64/W FL 500 230 ExMogEndPr GX16d - - - WFL 42 X 20 55 x 32 2700 U 2,000 152.4 203.2 12
88425 CP60 EXC SUPER 1000 230 GX16d CP60 - 352,000 VNSP 12x9 20x17 3200 U 300 152.4 203.2 6
88551 CP60 EXC SUPER 1000 240 GX16d CP60 - 352,000 VNSP 12x9 20x17 3200 U 300 152.4 203.2 6
88535 CP61 EXD SUPER 1000 230 GX16d CP61 - 297,000 NSP 14x10 22x20 3200 U 300 152.4 203.2 6
88550 CP61 EXD SUPER 1000 240 GX16d CP61 - 297,000 NSP 14x10 22x20 3200 U 300 152.4 203.2 6
88549 CP62 EXE SUPER 1000 230 GX16d CP62 - 138,000 MFL 24x11 38x20 3200 U 300 152.4 203.2 6
88536 CP62 EXE SUPER 1000 240 GX16d CP62 - 138,000 MFL 24x11 38x20 3200 U 300 152.4 203.2 6
88511 CP95 1000 230 ExMogEndPr GX16d CP95 - 15,000 VWFL 70 X 70 125 x 95 3200 U 300 152.4 203.2 6
88510 CP95 1000 240 ExMogEndPr GX16d CP95 - 15,000 VWFL 70 X 70 125 x 95 3200 U 300 152.4 203.2 6
88480 EXG/PAR64/WFL 1000 230 ExMogEndPr GX16d - EXG 38,000 WFL 57 X 21 73 x 36 3200 U 300 152.4 203.2 6
88479 EXG/PAR64/WFL 1000 240 ExMogEndPr GX16d - EXG 38,000 WFL 57 X 21 73 x 36 3200 U 300 152.4 203.2 6
39409 500PAR64/MFL 500 120 ExMogEndPr GX16d - - 37,000 MFL 23 X 11 35 x 19 2800 U 2,000 152.4 203.2 12
13233 FFN 1000 120 ExMogEndPr GX16d - FFN 400,000 VNSP 12 X 6 24 x 10 3200 U 800 152.4 203.2 6
13229 FFP 1000 120 ExMogEndPr GX16d - FFP 330,000 NSP 14 X 7 26 x 14 3200 U 800 152.4 203.2 6
13228 FFR 1000 120 ExMogEndPr GX16d - FFR 125,000 MFL 28 X 12 44 x 21 3200 U 800 152.4 203.2 6
13227 FFS 1000 120 ExMogEndPr GX16d - FFS 40,000 WFL 48 X 24 71 x 45 3200 U 800 152.4 203.2 6
43497 Q1000PAR64/NSP 1000 120 ExMogEndPr GX16d NA NA 200,000 NSP 15 X 8 31 X 14 3000 U 4,000 152.4 203.2 6
43498 Q1000PAR64/MFL 1000 120 ExMogEndPr GX16d - - 80,000 MFL 28 X 12 45 x 22 3000 U 4,000 152.4 203.2 6
43499 Q1000PAR64/WFL 1000 120 ExMogEndPr GX16d - - 33,000 WFL 48 X 24 72 x 45 3000 U 4,000 152.4 203.2 6
PAR 64
Product
Code
Product
Description
Wattage
[W]
Volts [V] Cap Lumen [lm] CCT [K] Operating
position
Life [h] Length
[mm]
Diameter
[mm]
Pack Qty
88478 HPL 575 575 230 G9.5/Heat Sink 14,900 3200 U 300 106 19 12
88477 HPL 575 575 240 G9.5/Heat Sink 14,900 3200 U 300 106 19 12
88436 HPL 575-C 575 120 G9.5/Heat Sink 16,520 3250 U 300 106 19 12
88438 HPL 575-C 575 115 G9.5/Heat Sink 16,520 3250 U 300 106 19 12
88476 HPL 575-X LL 575 230 G9.5/Heat Sink 11,780 3050 U 1,500 106 19 12
88475 HPL 575-X LL 575 240 G9.5/Heat Sink 11,780 3050 U 1,500 106 19 12
88434 HPL 575-C LL-X 575 120 G9.5/Heat Sink 12,360 3050 U 2,000 106 19 12
88435 HPL 575-C LL-X 575 115 G9.5/Heat Sink 12,360 3050 U 2,000 106 19 12
88474 HPL 750 750 230 G9.5/Heat Sink 19,750 3200 U 300 106 19 12
88473 HPL 750 750 240 G9.5/Heat Sink 19,750 3200 U 300 106 19 12
88437 HPL 750-C 750 115 G9.5/Heat Sink 22,000 3250 U 300 106 19 12
88428 HPL 750-C-XLL 750 115 G9.5/Heat Sink 16,400 3050 U 2,000 106 19 12
88430 HPL 750-X-LL 750 230 G9.5/Heat Sink 15,600 3050 U 1,500 106 19 12
88429 HPL 750-X-LL 750 240 G9.5/Heat Sink 15,600 3050 U 1,500 106 19 12
Single Ended Halogen - HPL
Product
Code
Product
Description
Wattage
[W]
Volts
[V]
Cap LIF Code ANSI Code Lumen
[lm]
CCT
[K]
Operating
position
Life
[h]
Length
[mm]
Pack Qty
88624 EHD 500 120 G9.5 - EHD 10,000 2900 U 2,000 105 24
88548 FLK 575 115 G9.5 - FLK 16,500 3200 U 300 105 24
88452 FLK-LL 575 115 G9.5 - EHD 10,000 3100 U 2000 105 50
88448 GKV 600 230 G9.5 - GKV 14,000 3200 U 250 105 24
88447 GKV 600 240 G9.5 - GKV 14,000 3200 U 250 105 24
88446 GKV/LL 600 230 G9.5 - GKV 11,000 3000 U 1,500 105 24
88445 GKV/LL 600 240 G9.5 - GKV 11,000 3000 U 1,500 105 24
88450 FKR 650 230-240 G9.5 - FKR 15,000 3100 U 300 105 24
88627 EHF 750 120 G9.5 - EHF 20,000 3200 U 300 105 24
88626 EHG 750 120 G9.5 - FLK 16,500 3000 U 300 105 24
88432 HX800 800 230-240 G9.5 HX800 - 20,000 3200 U 250 105 24
88625 FEL 1000 120 G9.5 CP77 FEL 27,500 3200 U 300 105 24
88449 CP77 FEP 1000 230-240 G9.5 CP77 FEP 25,000 3200 U 300 105 24
88443 CP81 FKW 300 120 GY9.5 CP81 FKW 6,900 3200 BDTH 50 90 24
88433 CP81 FSL 300 230 GY9.5 CP81 FSL 6,900 3200 BDTH 150 90 24
88444 CP81 FSK 300 240 GY9.5 CP81 FSK 6,900 3200 BDTH 150 90 24
88467 CP82 FRG 500 120 GY9.5 CP82 FRG 13,000 3200 BDTH 150 90 24
88466 CP82 FRH 500 230 GY9.5 CP82 FRH 12,500 3200 BDTH 150 90 24
88464 CP82 FRJ 500 240 GY9.5 CP82 FRJ 12,500 3200 BDTH 150 90 24
88465 T18 GCW 500 230-240 GY9.5 T18 GCW 11,000 3050 BDTH 400 90 24
88470 T25 GCW 500 230-240 GY9.5 T25 GCW 11,000 3000 BDTH 360 90 24
88469 T27 GCS 650 230-240 GY9.5 T27 GCS 14,500 3050 BDTH 400 90 24
88463 T26 GCS 650 230-240 GY9.5 T26 GCS 15,500 3100 BDTH 400 90 24
88462 CP89 FRK 650 120 GY9.5 CP89 - 16,900 3200 BDTH 200 90 24
88461 CP89 FRM 650 230-240 GY9.5 CP89 FRM 16,250 3200 BDTH 150 90 24
88504 FMR 600 120 GY9.5 FMR - 12,600 3050 BDTHCH 2,000 85 24
Single Ended Halogen
100 101
SHOWBIZ Lamps
Product
Code
Product
Description
Wattage
[W]
Volts [V] Cap LIF Code ANSI Code Lumen
[lm]
CCT
[K]
Operating
position
Life
[h]
Length
[mm]
Pack Qty
88431 T12 650 230-240 GX9.5 T12 - 13,500 3000 BDTH 750 110 12
72680 CP23 650 230 GX9.5 CP23 - 16,900 3200 BDTH 100 110 12
88455 CP23 650 230-240 GX9.5 CP23 - 16,900 3200 BDTH 100 110 12
88459 CP24 1000 230-240 GX9.5 CP24 - 26,000 3200 BDTH 200 110 12
88515 T11 Q1000T8/CL 1000 115/120 GX9.5 T11 - 23,500 3050 BDTH 750 110 24
88456 T11 1000 240 GX9.5 T11 - 23,000 3050 BDTH 750 110 12
88457 T19 FWR 1000 230-240 GX9.5 T19 FWR 21,000 3050 BDTH 750 110 12
88472 CP70 FVA 1000 230 GX9.5 CP70 FVA 25,000 3200 BDTH 200 110 12
88471 CP70 FVA 1000 240 GX9.5 CP70 FVB 25,000 3200 BDTH 200 110 12
88454 T29 FWT 1200 230-240 GX9.5 T29 FWT 29,000 3050 BDTH 400 110 12
88453 CP90 1200 230-240 GX9.5 CP90 - 33,000 3200 BDTH 200 110 12
96735 CP43 FTL 2000 230 GY16 CP43 FTM 54,000 3200 BDTH 400 145 12
88533 CP43 FTL 2000 230-240 GY16 CP43 FTL 54,000 3200 BDTH 400 145 12
88503 CP79 2000 230-240 GY16 CP79 - 54,000 3200 BDTH 350 145 12
88439 CP110 OC1200 1200 80 G22 - - 37,500 3300 BDTH 300 140 12
88509 EGN 500 120 G22 - EGN 13,000 3200 BDTH 150 140 12
88531 CP39 FKH 650 230-240 G22 CP39 FKH 16,900 3200 BDTH 100 140 12
88622 EGT 1000 120 G22 - EGT 28,500 3200 BDTH 250 127 12
88458 CP40 FKJ 1000 230 G22 CP40 FKJ 26,000 3200 BDTH 200 140 12
88538 CP40 FKJ 1000 240 G22 CP40 FKJ 26,000 3200 BDTH 200 140 12
88508 CP93 1200 230-240 G22 CP93 - 33,000 3200 BDTH 200 140 12
88507 CP92 2000 120 G22 CP92 - 55,000 3200 BDTH 400 175 12
88506 CP92 2000 230-240 G22 CP92 - 52,000 3200 BDTH 400 175 12
88505 CP91 2500 230-240 G22 CP91 - 67,500 3200 BDTH 400 175 12
88617 EGE 500 120 P28s - EGE 10450 2950 U 2,000 152 12
88546 BTM 500 120 P28s - BTM 13000 3200 BDTH 150 130 12
88498 T17 FKF 500 230-240 P28s T17 - 9,500 2950 BDTH 750 130 12
88451 T28 500 230-240 P28s T28 - 11,000 3000 BDTH 300 130 12
88497 T13 FKB 650 230-240 P28s T13 - 13,500 3000 BDTH 750 130 12
88530 CP51 FKM 650 240 P28s CP51 - 16900 3200 BDTH 200 130 12
88615 EGJ 1000 120 P28s - EGJ 27500 3200 U 500 152 12
88529 T14 FKD 1000 230-240 P28s T14 - 23,000 3050 BDTH 750 130 12
88499 FKE 1000 230-240 P28s T15 FKE 23,000 3050 BDTH 750 160 12
88496 CP52 FKN 1000 230-240 P28s CP52 FKN 26,000 3200 BDTH 200 121 12
88610 CYX 2000 120 G38 HX270 CYX 59000 3200 BDTH 400 216 6
88489 CP41 FKK 2000 230 G38 CP41 FKK 54,000 3200 BDTH 400 216 12
88488 CP41 FKK 2000 240 G38 CP41 FKK 54,000 3200 BDTH 400 216 12
88502 CP94 2500 230-240 G38 CP94 - 67500 3200 BDTH 400 210 12
88874 HX48 3000 230-240 G38 HX48 - 82000 3200 BDTH 400 210 12
88875 CP29 5000 230 G38 CP29 - 135000 3200 BDTH 500 279 12
88876 CP29 5000 240 G38 CP29 - 135,000 3200 BDTH 500 279 12
12036 CP83 10000 220-230 G38 CP83 - 280,000 3200 BDTH 250 405 1
12037 CP83 10000 240 G38 CP83 - 280,000 3200 BDTH 250 405 1
48771 Q12MT26/4CL 12000 230 GX38 - - 420,000 3400 BD45 130 410 1
48779 Q12MT26/4CL 12000 240 GX38 - - 420,000 3400 BD45 130 410 1
48773 BCM-020MT324CL 20000 230 GX38 - BCM 580,000 3200 BD45 400 560 1
48774 BCM-020MT324CL 20000 240 GX38 - BCM 580,000 3200 BD45 400 560 1
48777 Q24MT32/4CL 24000 240 GX38 - - 800,000 3400 BD45 150 560 1
Single Ended Halogen
Product
Code
Product
Description
Wattage
[W]
Volts
[V]
Cap LIF Code ANSI Code Lumen
[lm]
CCT
[K]
Operating
position
Life
[h]
Length
[mm]
Pack Qty
88880 CP105 1250/650 230-240 GX38q CP105 - 27000/13000 3050 BD45 250 220 1
88877 CP30 1250/1250 230-240 GX38q CP30 - 27M/56M 3200 BD45 300 220 1
88878 CP58 1250/2500 230-240 GX38q CP58 - 27M/91M 3200 BD45 300 220 1
88879 CP32 2500/2500 230-240 GX38q CP32 - 5900/127000 3200 BD45 300 220 1
88512 CP59 2000 240 R7s FAD - 16,500 3200 U 100 191 1
19926 DKZ/DSE 1000 120 E39 - DSE 28,000 3200 U 750 330 10
88500 T16 1500 120 P40s T16 DTA 41000 3200 BDTH 750 180 6
88532 CP53 2000 230-240 P40s CP53 - 54,000 3200 BDTH 400 200 12
30325 FAD 650 120 R7s P2/6 FAD 16,500 3200 U 100 80 24
36952 DXX 800 230 R7s P2/13 DXX 21,400 3200 U 75 80 24
36953 DXX 800 240 R7s P2/13 DXX 21,400 3200 U 75 80 24
30157 DXW 1000 120 R7s - DXW 28,000 3200 U 150 95 24
30374 FBY 1000 120 R7s - FBY 26,000 3200 U 150 95 24
23756 EJG 750 120 R7s - EJG 20,600 3200 HOR±15° 400 119 12
23760 P2/11 EME/Clear 800 240 R7s P2/11 EME 22,000 3200 HOR±15° 150 119 12
23761 P2/11 EMF/Frosted 800 240 R7s P2/11 EMF 21,400 3200 HOR±15° 150 119 12
23797 P2/28 FCM 1000 120 R7s P2/28 FCM 28,000 3200 HOR±15° 400 119 12
88482 P2/27 FEX 2000 230 R7s P2/27 FEX 50,000 3200 HOR±15° 300 143 12
88481 P2/27 FEX 2000 240 R7s P2/27 FEX 50,000 3200 HOR±15° 300 143 12
88629 FEY 2000 120 R7s P2/27 FEY 57,000 3200 HOR±15° 400 143 12
19697 P2/10 625 230 R7s P2/10 - 16,900 3200 HOR±15° 300 189 12
19698 P2/10 625 240 R7s P2/10 - 16,900 3200 HOR±15° 300 189 12
20249 P2/7 EKM 1000 230 R7s P2/7 EKM 28,000 3200 HOR±15° 300 189 12
20253 P2/7 EKM 1000 240 R7s P2/7 EKM 28,000 3200 HOR±15° 300 189 12
19695 P2/12 1250 230 R7s P2/12 - 35,000 3200 HOR±15° 300 189 12
19696 P2/12 1250 240 R7s P2/12 - 35,000 3200 HOR±15° 300 189 12
37346 DZA 30 10.8 G5.3 - DZA 530 3100 BDTHCH 400 51 24
18234 BRL A1/220 50 12 G6.35 A1/220 BRL 1,400 3400 BDTH 50 44 100
14876 FCR A1/215 100 12 GY6.35 A1/215 FCR 3,500 3300 BDTH 50 44 100
18235 BRJ/EVB A1/234 150 15 G6.35 A1/234 BRJ/EVB 5,000 3400 BDTH 50 44 100
37695 DZE/FDS A1/262 150 24 GZ9.5 A1/262 DZE/FDS 5,000 3250 BDTH 100 68 24
13598 FCS A1/216 150 24 G6.35 A1/216 FCS 4,500 3300 BDTH 50 51 100
14874 EHJ A1/223 250 24 G6.35 A1/223 EHJ 9,000 3400 BDTH 50 57 100
18241 FNT 275 24 G6.35 – FNT 10,000 3400 BDTH 50 57 100
41164 EVD A1/239 400 36 GY6.35 A1/239 EVD 16,000 3200 BDTH 50 60 25
26895 DYR A1/233 650 240 GZ9.5 A1/233 DYR 16,500 3200 U 50 64 24
88484 HX185 800 230-240 GX9.5 HX185 - 19,000 3050 BDTH 300 100 24
88492 A1/248 150 230-240 G6.35 A1/248 - 3,000 NA BDTH 50 62 50
88491 A1/249 300 230-240 G6.35 A1/249 - 7,200 NA BDTH 50 62 50
88460 A1/244 500 230-240 GY9.5 A1/244 - 13,000 NA BDTH 75 62 24
Single Ended Halogen
Double Ended Quartzline
Specialist Projector
102 103
SHOWBIZ Lamps
Product
Code
Product
Description
Wattage
[W]
Volts
[V]
Cap LIF Code Lumen
[lm]
CCT
[K]
Operating
position
Life
[h]
Length
[mm]
Pack Qty
34720 M29/ESA 10 6 G4 M29/ESA 200 3200 BDTH 100 30 20
34718 M30/ESB 20 6 G4 M30/ESB 450 3200 BDTH 100 30 20
34702 M32 50 12 GY6.35 M32 930 3000 BDTH 4,000 44 20
34676 M28/EVA 100 12 GY6.35 M28/EVA 2,400 3000 BDTH 2,000 44 20
34768 M33 250 24 G6.35 M33 8,600 3000 BDTH 300 55 100
88516 M36 250 24 G6.35 M36 5,750 3000 BDTH 2,000 58 100
88442 M38 300 230-240 GY9.5 M38 5,000 2900 BDTH 2,000 80 24
78343 M38 300 120 GY9.5 M38 TBA 2900 BDTH 2,000 80 24
88468 M40 500 230-240 GY9.5 M40 8,500 2900 BDTH 2,000 85 24
Product Code Product
Description
Wattage
[W]
Volts
[V]
Cap LIF Code ANSI Code CCT
[K]
Operating
position
Life
[h]
Pack Qty
36902 EKZ 30 10.8 GX5.3 – EKZ 3100 BDTH 200 20
43988 DDS 80 21 GX5.3 – DDS 3125 BDTH 1000 20
43950 DED 85 13.8 GX5.3 – DED 3150 BDTH 1000 20
43537 DDL 150 20 GX5.3 – DDL 3150 BDTH 500 20
38306 ELD/EJN 150 21 GX5.3 – ELD/EJN 3350 BDTH 40 20
35200 EKE 150 21 GX5.3 – EKE 3250 BDTH 200 20
29150 EJL A1/252 200 24 GX5.3 A1/252 EJL 3400 BDTH 50 20
37462 ELC A1/259 250 24 GX5.3 A1/259 ELC 3400 BDTH 50 20
15377 ELC500 250 24 GY5.3 – ELC500 3250 BDTH 500 20
38686 ENH 250 120 GY5.3 – ENH 3250 BDTH 175 20
38476 ELH 300 120 GY5.3 – ELH 3350 BDTH 35 10
32882 EJA 150 21 GX5.3 – EJA 3350 BDTH 40 20
Single Ended Tungsten Halogen
Multi-Mirror Quartzline Projection - MR16
Product Code Product
Description
Wattage
[W]
Volts
[V]
Cap ANSI Code CCT
[K]
Operating
position
Life
[h]
Pack Qty
41729 EPT 42 10.8 GX5.3 EPT 2900 BDTH 8000 20
25475 ENL 50 12 GX5.3 ENL 3050 BDTH 4000 20
41882 EPV 90 14.5 GX5.3 EPV 3150 BDTH 500 20
42614 EPX 90 14.5 GX5.3 EPX 3150 BDTH 500 20
41874 ERV 340 36 GX5.3 ERV 3300 BDTH 75 20
41705 ENX 360 82 GY5.3 ENX 3300 BDTH 75 20
21613 FXL 410 82 GY5.3 FXL 3300 BDTH 38 20
12097 EXY 250 82 GX5.3 EXY 3200 BDTH 200 10
12092 EXR 300 82 GX5.3 EXR 3350 BDTH 35 10
25261 FLT 28 13.8 GZ4 FLT 3050 BDTH 500 10
Multi-Mirror Quartzline Projection - MR16
Multi-Mirror Quartzline Projection - MR13
Multi-Mirror Quartzline Projection - MR11
GE OSRAM PHILIPS
Discharge CSR/CSD (Daylight) Metal Halide, Turn and Lock GE Product Code
CSR300/2/TAL 76160 - MSR 300/2 MiniFastFit
CSD300/2/TAL TBA HSD300W/80/P28 MSD 300/2 MiniFastFit
CSR700/TAL/60/PGJX50 76161 HTI 700W/75/P50 MSR 700 FastFit
CSR700/TAL/60/PGJX28 78718 HTI 700W/75/P28 MSR 700/2 MiniFastFit
CSR1500/TAL/60/S 74873 HTI 1500W/60/P50 MSR 1500 FastFit
Discharge CSR/CSD (Daylight) Metal Halide, Single End Cold Start
CSD250/2/SE 27817 HSD250/80 MSD250/2
CSR575/2/T/SE 49492 - -
CSR575/2/SE 15378 HSR575/2 MSR575/2
CSR700/2/SE 49491 HSR700/2 MSR700/2
CSR1200/2/SE 49490 HSR1200/2 MSR1200/2
Discharge CSR (Daylight) Metal Halide, Single End Short Arc
CSR700/SA 15380 HTI705W/SE MSR700/SA
CSR700/SA/72 45234 - -
CSR1200/SA 21849 HTI1200W/SE MSR1200/SA
CSR2000/SA 21801 HTI1800W/SE MSR2000/SA
Discharge CSR (Daylight) Metal Halide, Single End Hot Restrike
CSR125/SE/HR 48461 HMI125W MSR125/HR
CSR400/SE/HR/75 45238 - -
CSR575/SE/HR 48463 HMI575W/SE MSR575/HR
CSR1200/SE/HR 48464 HMI1200W/SE MSR1200/HR
CSR2500/SE/HR 48465 HMI2500W/SE MSR2500/HR
CSR4000/SE/HR 48466 HMI4000W/SE MSR4000/HR
CSR6000/SE/HR 48467 HMI6000W/SE MSR6000/HR
CSR12000/SE/HR 48468 HMI12000W/SE MSR12000/HR
CSR18000/SE/HR 22496 HMI18000W/SE MSR18000/HR
Discharge CSR (Daylight) Metal Halide, Single End Hot Restrike, UV Control
CSR200/SE/HR/UVC 48462 HMI200W/SE MSR200/HR
CSR400/SE/HR/UVC 21853 HMI400W/SE MSR400/HR
CSR575/SE/HR/UVC 40460 HMI575W/SE MSR575/HR
CSR800/SE/HR/UVC 22495 - -
CSR1200/SE/HRUVC 27764 HMI1200W/SE MSR1200/HR
CSR1800/SE/HRUVC 77390 HMI1800W/SE/XS -
CSR2500/SE/HRUVC 40482 HMI2500W/SE MSR2500/HR
CSR4000/SE/HRUVC 27765 HMI4000W/SE MSR4000/HR
CSR6000/SE/HRUVC 40492 HMI6000W/SE MSR6000/HR
The following pages show GE and alternative brand Order Codes. These cross references are provided as a quick guide and may only
represent a near equivalent to other brands. The table contains data from alternative brands’ catalogues and website.
Discharge CSR (Daylight) Metal Halide, Linear Double End Hot Restrike
CSR200/DE 48450 HMI200W -
CSR400/S/DE/70 22478 HTI400W/D3/75 MSR400/SA/2/DE
CSR400/S/DE/90 45232 - -
CSR575/S/DE/70 70979 HTI575W/D4/75 MSR575/SA/2/DE
CSR575/SS/DE/75 45231 - -
CSR700/S/DE/60 22493 HTI700W/D4/60 -
CSR700/S/DE/72 41357 HTI700W/D4/75 MSR700/SA/2/DE
CSR1200/S/DE/60 22494 HTI1200W/D7/60 MSR1200/SA/DE
CSR1200/S/DE/72 41361 HTI1200W/D7/75 MSR1200/SA/2/DE
CSR1200/S/DE/60/STB 96802 - -
CSR200/DE 48453 HMI1200W/GS MSI1200
CSR1500/S/DE/60/STB 96800 HTI1500 D7/60 -
CSR2500/DE 48454 HMI2500W/GS MSI2500
CSR4000/DE 48455 HMI4000W/GS MSI4000
CSR6000/DE 48456 HMI6000W MSI6000
CSR12000/DE 48457 HMI12000W/GS MSI12000
CSR18000/DE 48459 HMI18000W -
CSR24000/DE 78710 HMI24000W/DXS -
105104
GE's specialty lighting provides the most suitable lamp products for
professional users in fields including healthcare, aviation, municipality
and semi-product with its specialized high-tech and reliability.
Specialty Lamps
106 107
Specialty Lamps
GE UV Lamps
GE provides the very best in product innovation, reliability, and
quality. As one of the largest lamp manufacturers in the world,
we offer customers our extensive knowledge and a
comprehensive portfolio of UV lamps.
As our society demands a cleaner
environment to live and work in, GE
provides a safer and more efficient
sterilisation technique. UVC
Germicidal lamps’ special glass
transmits a spectral band of UV light
effective for sterilisation. The UVC
wavelength of 254 nm is proven to
destroy air-borne bacteria, viruses,
and mold spores by preventing DNA
replication, effective even if the
organism has become immune to
other disinfection methods.
Blacklight lamps consist of a regular
fluorescent tube with a special
phosphor coating to emit in the UVA
range.
These phosphors contain rare earth
components that enable the lamp to
last over a complete insect season.
Blacklight Blue lamps are made of
cobalt blue glass which absorbs
most visible light.
Application areas
•Sterilisation
•Insecttraps
•Nightclubsandevents
•Diazocopymachines
•Marine/aquarium
•Filmmaking
Application areas
•Healthcare
•HVACSystemsincommercial
buildings
•Foodprocessing
•Scientificlabs
•Industrial,municipal,and
residential water and pond
treatment
•Biotechindustry
Application areas
•Specialeffectsinnightclubs
and events
•Insecttraps
•Inspectionandauthentication
•Foodprocessingplants
•Supermarkets/butchers/bakeries
•Restaurants
UVC Germicidal, UVA Blacklight,
Blacklight Blue
UVC Germicidal
Water, air, and surface
sterilisation
Blacklight & Blacklight Blue
GE has a wide range of lamps for
a variety of special applications.
These applications include:
Fly and insect control
• Special Phosphor – Black Light (BL)
• UVA 315-400nm
• Lamps to attract y and insects
• Effect UV irradiance over life
• For use in y traps
• Common use in food production areas
Inspectionandeect
• Special Phosphor – Black Light
Blue (BLB)
• UVA lamps with special Blue
cobalt glass
• Used where ne detail or trace
evidence is examined
• Create glow effect for club and
event lighting
Bacterial destruction
• UVC 200-280 nm
• For water, air and surface sterilisation
• Destroys micro-organisms via
absorption of UV light
Shatter protection
• Lamp encased in high quality
plastic sleeve
• Used where avoidance of glass
contamination is critical
Aquarium
• Various colours and UV outputs
• Promotes coral, invertebrate and
plant growth
• For use with tropical sh and reptiles
Space and industrial heating
• Turning light to heat
• Directional instant radiant heat
• Heats objects and people not the
air between
• Ideal for space heating outside bars
and restaurants
• Many industrial applications from paint
drying to plastic bottle making
Aireld
• Range of lamps for use on airelds
• Runway and taxiway lighting
108 109
Specialty Lamps
Blacklight Blue 110
UVA & UVC Germicidal 110
covRguard 111
Aquarium 112
Quarts Heat 113
Aireld Lighting 114
Product Code Product
Description
Wattage
[W]
Volts
[V]
Cap Peak Wavelength
[nm]
Life
[h]
Length
[mm]
Pack Qty
39882 F4W/BLB 4 29 G5 368 5,000 150 25
39883 F6W/BLB 6 42 G5 368 5,000 225 25
39884 F8W/BLB 8 57 G5 368 5,000 300 25
Blacklight Blue T5
The following glossary of terms will help you when selecting lamps in this section.
Within each product line, lamps are divided into families – within these families,
lamps are listed by wattage. The Product Description can be used as a quick
reference to each product’s attributes. Where Life or Average Life are stated we
refer to the industry standard definition of how many hours of operation 50% of
a given installation will exceed.
(F) Identifies
the lamp as
Fluorescent
(4W)
Identifies
the lamp’s
wattage
(BLB)
Identifies
product
type
Product description:
The lamp’s
identification code
Product code:
It is important to
use this code when
ordering to ensure
that you receive the
exact product you
require
Watts:
Energy Used –
Nominal Watts.
To estimate energy
consumption (kWh),
multiply watts x
hours of use and
divide by 1000
Volts:
Lamp data
is based on
operating
voltage
Life:
Rated average life
Length:
Lamp length in mm
Pack quantity:
Number of product
units packed in a case
Peak Wavelength [nm]
Product identification
F4W / BLB
Additional parameters:
UV Output [Watts]: The initial UV Output at 100 hours
Initial UVA Irradiance [mW/cm2 @ 20cm]: UV Output at
1 m after 100 hours
Lumens: Initial amount of light output
CCT [K]: Colour Temperature - Kelvins
A measure of the visual “warmth” or “coolness” of the light
from the lamp. The higher the value the whiter or “cooler”
the light appears.
CRI [Ra]: Colour Rendering Index
An indication of the ability of the lamp to render object
colours in a normal, natural way. The higher the number
(0-100), the better the colour appearance.
Cap:
The type of cap
fitted. See page
134-135 for cap
drawings
110 111
Specialty Lamps
Product
Code
Product
Description
Wattage
[W]
Volts
[V]
Cap UV Output
[Watts]
Life
[h]
Length
[mm]
Pack Qty
11078 G15T8 15 55 G13 Medium Bi-pin 4.8 8,000 451 24
11082 G25T8 25 46 G13 Medium Bi-pin 6.9 8,000 451 24
11080 G30T8 30 90 G13 Medium Bi-pin 12.4 8,000 908 24
15875 G55T8HO 55 83 G13 Medium Bi-pin 18 8,000 908 24
40695 GBX5/UVC G23 5 35 G23 2-pin 1.0 8,000 85 10
40696 GBX9/UVC G23 9 59 G23 2-pin 2.4 8,000 145 10
40700 GBX11/UVC G23 11 89 G23 2-pin 3.6 8,000 215 10
40703 GBX13/UVC GX23 13 59 GX23 2-pin 3.6 8,000 170 10
40704 GBX18/UVC/2G11 18 58 2G11 4-pin 5.3 8,000 225 10
40705 GBX36/UVC/2G11 36 106 2G114-pin 12 8,000 415 10
40706 GBX55/UVC/2G11 55 101 2G114-pin 16.5 8,000 535 10
72761 G15T8/CVG 15 55 G13 Medium Bi-pin 4.8 8,000 451 24
72762 G25T8/CVG 25 46 G13 Medium Bi-pin 6.9 8,000 451 24
72763 G30T8/CVG 30 90 G13 Medium Bi-pin 12.4 8,000 908 24
72764 G55T8/CVG 55 83 G13 Medium Bi-pin 18 8,000 908 24
Product
Code
Product
Description
Wattage
[W]
Cap Lumen
[lm]
CCT
[K]
CRI
[Ra]
Life
[h]
Length
[mm]
Pack Qty
17203 F18W/830CVG 18 G13 1300 2950 85 15,000 600 25
17204 F18W/835CVG 18 G13 1300 3400 85 15,000 600 25
17205 F18W/840CVG 18 G13 1300 4000 85 15,000 600 25
17208 F36W/830CVG 36 G13 3250 2950 85 15,000 1200 25
17202 F36W/835CVG 36 G13 3250 3400 85 15,000 1200 25
17209 F36W/840CVG 36 G13 3250 4000 85 15,000 1200 25
12403 F58W/830CVG 58 G13 5050 2950 85 15,000 1500 25
12405 F58W/835CVG 58 G13 5050 3400 85 15,000 1500 25
12407 F58W/840CVG 58 G13 5050 4000 85 15,000 1500 25
12423 F70W/835CVG 70 G13 6100 3400 85 15,000 1800 25
12424 F70W/840CVG 70 G13 6100 4000 85 15,000 1800 25
Germicidal T8
T8 covRguard Polylux XLR
Germicidal T4 Biax
Germicidal T6 Biax
covRguard Germicidal
lamp name: Fluorescent Û T8 Û Blac klite
Blue/15W
lamp name: Fluorescent Û T8 Û Blac klite
Blue/15W
lamp name: Compact

Product Code Product
Description
Wattage
[W]
Volts
[V]
Cap Peak Wavelength
[nm]
Life
[h]
Length
[mm]
Pack Qty
39882 F4W/T5/BLB 4 29 G5 368 5,000 150 25
39883 F6W/T5/BLB 6 42 G5 368 5,000 225 25
39884 F8W/T5/BLB 8 57 G5 368 5,000 300 25
88832 F18/T8/BLB 18 57 G13 368 12,000 600 25
88833 F36/T8/BLB 36 103 G13 368 12,000 1,200 25
34747 F20W/T12/BLB 20 57 G13 368 9,000 600 6
25618 F40W/T12/BLB 40 101 G13 368 20,000 1200 6
16941 F15WBL 350 15 55 G13 350 7,500 450 25
72939 F15WBLCVG 15 55 G13 368 7,500 450 6
Blacklight Blue T5
Blacklight Blue T8
Blacklight Blue T12
Black Light T8
covRguard Blacklight
Product Code Product
Description
Wattage
[W]
Volts
[V]
Cap Initial UVA Irradiance1
[mW/cm2
@ 20cm]
Peak
Wavelength
[nm]
Life
[h]
Length
[mm]
Pack Qty
42935 F9BX BL G23 9 60 G23 440 368 440 167 10
42936 F11BX BL G23 11 91 G23 670 368 670 237 10
42937 F13BX BL GX23 13.4 58 GX23 630 368 630 177.5 10
42939 F24BX BL 2G11 24 87 2G11 980 368 980 326.8 10
42940 F36BX BL 2G11 36 107 2G11 1280 368 1,280 421.8 10
42941 F55BX BL 2G11 55 101 2G11 1630 368 1,630 541.8 10
UVA Blacklight Biax - Internal Starter
UVA Blacklight Biax L - External Starter
lamp name: Fluorescent
— T5 Miniature
— Blacklite Blue/4-8W
lamp name: Fluorescent Û T8 Û Blac klite
Blue/15W
lamp name: Fluorescent Û T8 Û Blac klite
Blue/15W
lamp name: Fluorescent — T12 — Blacklite
Blue/20-40W
— Watt-Miser
Product Code Product
Description
Wattage
[W]
Volts [V] Cap UV Output
[Watts]
Peak Wavelength
[nm]
Life
[h]
Length
[mm]
Pack Qty
15872 G4T5 4 29 Miniature Bi-pin 0.8 254 6,000 150 24
15873 G6T5 6 42 Miniature Bi-pin 1.7 254 6,000 226 24
11077 G8T5 8 57 Miniature Bi-pin 2.3 254 8,000 302 24
29495 G11T5 11 37 Miniature Bi-pin 2.2 254 8,000 226 24
16494 G16T5 16 50 Miniature Bi-pin 3.2 254 8,000 302 24
15874 G36T5 39 107 Single-pin (Fa8) 12 254 9,000 865 24
15864 G64T5 65 180 Single-pin (Fa8) 18 254 7,500 1575 24
29504 G64T5/4P/SE 65 250 Single 4 pin end cap 25 NA 8,000 1556 24
Germicidal T5
lamp name: Fluorescent
— T5 Miniature
— Blacklite Blue/4-8W
112 113
Specialty Lamps
Product
Code
Product
Description
Wattage
[W]
Volts
[V]
Cap CCT
[K]
Life
[h]
Length
[mm]
Pack Qty
21788 QH500T3/CL 500 120 Slv 2400 5,000 223.8 12
21787 QH500T3/CL/7 500 120 R7S 2400 5,000 220.5 12
22355 QH1000T3/CL 1000 200-220 Slv 2400 5,000 351 12
22357 QH1000T3/CL 1000 230-250 Slv 2400 5,000 351 12
21377 QH1MT3/CL/R/MS-235V 1000 235 Slv 2500 5,000 483 12
22357 QH1000T3/CL 1000 230-250 Slv 2400 5,000 351 12
22531 QH1200T3/CL 1200 144 Slv 2450 5,000 223.8 12
22532 QH1200T3/CL/HT 1200 144 Slv 2450 5,000 223.8 12
22691 QH1600T3/CL/7 1600 230-250 R7S 2400 5,000 498.4 12
22688 QH1600T3/CL 1600 230-250 Slv 2400 5,000 503 12
22789 QH2M/T3/1CL/HT 2000 230 Slv 2450 5,000 303 12
15551 QH2M/T3/1CL/HT/VB 2000 230-250 Slv 2450 5,000 303 12
18668 QH2MT3/CL/VB 2000 220-250 Slv 2450 5,000 350.5 12
22790 QH2M/T3/CL/HT 2000 230-250 Slv 2450 5,000 350.8 12
12716 QH2MT3/CL/HT/R 2000 230-250 CER 2450 5,000 352.5 12
22838 QH2500T3/CL 2500 460-500 Slv 2400 5,000 731 12
10872 QH3650/CL/5 3650 480 Slv 2500 5,000 1057 6
22875 QH3800/CL 3800 550-600 Slv 2500 5,000 1062 6
22900 QH5M/T3/1CL/HT 5000 575-625 Slv 2500 5,000 731.8 12
Product Code Product
Description
Wattage
[W]
Volts
[V]
Cap CCT
[K]
Life
[h]
Length
[mm]
Pack Qty
20092 HH 451 1500W RUBY 230-240V 1500 230-240 Special 2450 5,000 348 10
20093 HH 804 2000W RUBY 230-240V 2000 230-240 Special 2450 5,000 348 10
40723 QH 750W 230-240V Ruby Slim 750 230-240 RX7s 2450 5000 202.8 10
42740 QH 1300W 230-240V Ruby Slim 1300 230-240 RX7s 2450 5000 254 10
Quartz Heat
Jacketed Quartz Heat
Infrared Quartz Heat – Ruby Slim
Product
Code
Product
Description
Wattage
[W]
Cap Lumen
[lm]
CCT
[K]
CRI
[Ra]
Life
[h]
Length
[mm]
Pack Qty
71000 F24W/T5/830/ECO/CVG 24 G5 1950 3000 85 30,000 549 40
70998 F24W/T5/835/ECO/CVG 24 G5 1950 3500 85 30,000 549 40
70997 F24W/T5/841/ECO/CVG 24 G5 1950 4100 85 30,000 549 40
70999 F24W/T5/850/ECO/CVG 24 G5 1850 5000 85 30,000 549 40
70996 F24W/T5/865/ECO/CVG 24 G5 1800 6500 85 30,000 549 40
70995 F39W/T5/830/ECO/CVG 39 G5 3400 3000 85 30,000 849 40
70994 F39W/T5/835/ECO/CVG 39 G5 3400 3500 85 30,000 849 40
70993 F39W/T5/841/ECO/CVG 39 G5 3400 4100 85 30,000 849 40
70991 F39W/T5/850/ECO/CVG 39 G5 3250 5000 85 30,000 849 40
70990 F39W/T5/865/ECO/CVG 39 G5 3200 6500 85 30,000 849 40
48433 F54T5/830/HO/ECO/CVG 54 G5 4560 3000 85 30,000 1149 40
48436 F54T5/835/HO/ECO/CVG 54 G5 4560 3500 85 30,000 1149 40
48458 F54T5/841/HO/ECO/CVG 54 G5 4560 4100 85 30,000 1149 40
80311 F54T5/850/HO/ECO/CVG 54 G5 4465 5000 85 30,000 1149 40
48469 F54T5/865/HO/ECO/CVG 54 G5 4465 6500 85 30,000 1149 40
72985 F54T5/830//ECO/WM/CVG 54 G5 4330 3000 85 25,000 1149 40
72986 F54T5/835//ECO/WM/CVG 54 G5 4330 3500 85 25,000 1149 40
72987 F54T5/841/ECO/WM/CVG 54 G5 4330 4100 85 25,000 1149 40
72988 F54T5/850//ECO/WM/CVG 54 G5 4120 5000 85 25,000 1149 40
72989 F54T5/865//ECO/WM/CVG 54 G5 3980 6500 85 25,000 1149 40
Product
Code
Product
Description
Wattage
[W]
Cap Additional Informa-
tion
Lumen
[lm]
CCT
[K]
CRI
[Ra]
Life
[h]
Length
[mm]
Pack Qty
44212 F15T8 F&SA 15 G13 Fresh & Salt Aqua 700 10000 60 9,000 450 6
16987 /44230 F15T8 SW 15 G13 Salt Water 210 - - 7,500 450 10/6
44239 F15T8 REP 15 G13 Reptile 400 6400 82 7,500 450 6
44213 F18T8 F&SA 18 G13 Fresh & Salt Aqua 950 10000 60 10,000 450 6
44231 F18T8 SW 18 G13 Salt Water 430 - - 9,000 600 6
44240 F18T8 REP 18 G13 Reptile 550 6400 82 7,500 600 6
16968 F25T8 F&SA 25 G13 Fresh & Salt Aqua 1350 10000 60 15,000 760 10
16991 F25T8 SW 25 G13 Salt Water 430 - - 7,500 762 10
16969 /44218 F30T8 F&SA 30 G13 Fresh & Salt Aqua 1700 10000 60 15,000 910 10/6
16992 /44235 F30T8 SW 30 G13 Salt Water 540 - - 7,500 910 10/6
44241 F30T8 REP 30 G13 Reptile 1100 6400 82 7,500 910 6
16970 /44219 F36T8 F&SA 36 G13 Fresh & Salt Aqua 2350 10000 60 15,000 1200 10/6
16995 /44236 F36T8 SW 36 G13 Salt Water 700 - - 7,500 1200 10/6
44242 F36T8 REP 36 G13 Reptile 1250 6400 82 7,500 1200 6
44220 F38T8 F&SA 38 G13 Fresh & Salt Aqua 2200 10000 60 15,000 1060 6
16984 F38T8 FA 38 G13 Fresh Aqua 1320 5000 70 7,500 1060 10
16999 F38T8 SW 38 G13 Salt Water 650 - - 7,500 1060 10
T5 covRguard Starcoat High Output (HO)
T8 Aquarium and Reptile*
T5 Watt-Miser covRguard
lamp name: Fluorescent Û T8 Û Blac klite
Blue/15W
lamp name: Fluorescent Û T8 Û Blac klite
Blue/15W
*This range is in transition from a 10 pack to a 6 pack.
lamp name: Fluorescent
— T5 Miniature
— Blacklite Blue/4-8W
115114
Specialty Lamps
GE's ballast products include ballasts for HID, CFL and LFL. The matching use
of GE lamp and ballast produces longer lifetime and better performance.
Ballast
Product
Code
Product
Description
Wattage
[W]
Volts
[V]
Cap Lumen
[lm]
Life
[h]
Length
[mm]
Pack Qty
11478 EXL 30 6.6A Gz9.5 2 Pin 375 1000 44.5 24
11482 EXM 45 6.6A Gz9.5 2 Pin 750 1000 44.5 24
80583 Q6.6A45PK30d male 45 6.6A PK30d 800 1000 13.5 10
88420 AF6/2 6.6A 45W 45 6.6A Mycalex cap & Prefocus collar 760 600 54 100
32917 Q65T2 1/2/1/CL 65 6.6A Special 1200 1000 200
88417 AF 6/5T 6.6A 100W 100 6.6A Mycalex cap & Prefocus collar 2100 600 60 100
80584 Q6.6A100PK30d male 100 6.6A PK30d 2700 1000 13.5 10
80588 Q6.6A100PK30d female 100 6.6A PK30d 2700 1000 13.5 10
80585 Q6.6A150PK30d male 150 6.6A PK30d 3600 1000 13.5 10
80589 Q6.6A150PK30d female 150 6.6A PK30d 3600 1000 13.5 10
80586 Q6.6A200PK30d male 200 6.6A PK30d 4800 1000 13.5 10
80590 Q6.6A200PK30d female 200 6.6A PK30d 4800 1000 13.5 10
23857 Q6.6A/T4/5CL 200 6.6A Special 1" Ribbon Leads 5000 500 76 12
23860 Q6.6AT4/DCR 200 6.6A D.C.Bay 5150 500 64 12
33279 Q6.6A/PAR56/3 200 6.6A Scrw Term NA 1000 114 12
88413 AF7/2 6.6A 200W 200 6.6A Mycalex cap & Prefocus collar 4800 600 54 100
15482 Q20A/PAR56/C 300 20A Mog End Pr GX16d NA 500 127 12
23863 Q20A/PAR56/3 499 20A Scrw Term NA 500 114 12
88525 IM T20BP 1000 120 G38 Mog BiPost 22000 500 241 12
88523 1200T20 1200 115 G38 Mog BiPost 29600 750 241 12
Airfield Lighting
116 117
1. IEC Electromagnetic Ballast &
Control Gear for HID Lamp
Ballast
1.1.1 HID Electromagnetic Ballast
(with thermal protector)
1.1 HID Electromagnetic Ballast
Features:
• Full voltage range offering for
Asia countries
• MSB for IEC HPS/MH lamp use
• MHB for IEC HPM/MH lamp use
• Long life, high reliability, Tw 130°C
• With thermal protection to
prevent overheat of ballast at the
end of lamp life
• Low loss, low temperature rise,
superior silicon steel sheet, 180°C
copper wire
• Compact size, suitable for various
fixture design, easy installation
• PF>0.9 with capacitor (working
with standard lamp)
Applications:
• Roadway, Tunnel
• Factory, Warehouse
• Architect flood lighting, Sports
• Department store, High Bay
1.1.2 HID Electromagnetic Ballast
(without thermal protector)
Features:
• Full voltage range offering for Asia countries
• MSB for IEC HPS/MH lamp use
• MHB for IEC HPM/MH lamp use
• Long life, high reliability, Tw 130°C
• Low loss, low temperature rise, superior silicon steel
sheet, 180°C copper wire
• Compact size, suitable for various fixture design, easy
installation
• PF>0.9 with capacitor (working with standard lamp)
Applications:
• Roadway, Tunnel
• Factory, Warehouse
• Architect flood lighting, Sports
• Department store, High Bay
Certifications & Regulations:
• Harmonic: IEC 61000-3-2
• EMI: CISPR15
• Safety: IEC 61347-2-9, IEC 61347-1
Certifications & Regulations:
• CCC, CB
• Harmonic: IEC 61000-3-2
• EMI: CISPR15
• Safety: IEC 61347-2-9, IEC 61347-1
1.1.3 CSI Electromagnetic Ballast
Features:
• Designed for CSI/CID MH Lamp
• Full voltage range offering for Asia countries
• Long life, high reliability, Tw 130°C
• Low loss, low temperature rise, superior silicon steel
sheet, 180°C copper wire
• PF>0.9 with capacitor (working with standard lamp)
Certifications & Regulations:
• CCC, CB
• Harmonic: IEC 61000-3-2
• EMI: CISPR15
• Safety: IEC 61347-2-9, IEC 61347-1
1.1.4 HID Electromagnetic Ballast
(Al Line)
Features:
• Different voltage range for 220V/50Hz, 230V/50Hz
• MSB for IEC HPS/MH lamp use
• MHB for IEC HPM/MH lamp use
• Long life, high reliability, Tw 130°C
• With thermal protection to prevent overheat of bal-
last at the end of lamp life
• Low loss, low temperature rise, superior silicon steel
sheet, 180°C copper wire
• Compact size, suitable for various fixture design,
easy installation
• PF>0.9 with capacitor (working with standard lamp)
Applications:
• Roadway, Tunnel
• Architect flood lighting, Sports
• Department store, High Bay
Certifications & Regulations:
• CCC, CE, CB
• Harmonic: IEC 61000-3-2
• EMI: CISPR15
• Safety: IEC 61347-2-9, IEC 61347-1
Certifications & Regulations:
• CQC, CE
• Safety: IEC 61048
1.2.1 Capacitor with line
1.2 HID Capacitor
Features:
• Working with HID Electromagnetic Ballast
• Plastic case, over temperature protection device
• Easy installation with 25cm length heat-resistance
wiring
• Wide ambient temperature range: -40°C-105°C
118 119
3. CWA Electromagnetic Ballast &
Control Gear for HID Lamp
1.3 Ignitor
Features:
• Interactive multi-pulse design to guarantee lamp start
• Ignite both HPS and MH Lamp
• Series connection, safe design by preventing harm to
ballast during ignition
• Max case temperature: 105°C
• MSI series
MSI 400, for ballast wattage <=400W;
MSI 1000, for ballast wattage <=1000W;
Ballast
• MSI/L series, Long Distance Ignitor
MSI 400/L, for ballast wattage <=400W;
MSI 1000/L, for ballast wattage <=1000W;
Certifications & Regulations:
• CQC, CE
• Safety: IEC 61347-2-1, IEC 61347-1
1.2.2 Capacitor with clamp
Features:
• Working with HID Electromagnetic Ballast
• Clamp connector, suitable for various situation
• Self-healing, low loss
• Highly reliable aluminum case, anti-explosion design
• Wide ambient temperature range: -40°C-105°C
Certifications & Regulations:
• CQC, CE
• Safety: IEC 61048
2. Bi-Level for HPS
Electromagnetic System
Features:
• Auto/Manual switch
• Save energy and money by low-
ing down the wattage of the HPS
lamp in appropriate period of time
• Two different control methods and
systems
Certifications & Regulations:
• CCC, CB
• Harmonic: IEC 61000-3-2
• EMI: CISPR15
• Safety: IEC 61347-2-8, IEC 61347-1
Systems
Systems Independent control
• Bi-level Ballast
• Ignitor
• Capacitor
• Power Switch
Feature
• Preset timer for single lamp,
wattage transition after 5 hours
(customization available)
• Simple system, no extra controls
and wirings
• Accurate wattage transition
time control, easy operation and
maintenance.
Centralized control
• Bi-level Ballast
• Ignitor
• Capacitor
• Power Switch
• Timer
Feature
• Lamp group control mode
• Auto/Manual Switch, adjustable
transition timing
• Need control line (embedded)
Certifications & Regulations:
• Harmonic: IEC 61000-3-2
• EMI: CISPR15
• Safety: IEC 61347-2-8, IEC 61347-1
3.1 CWA Electromagnetic Ballast
Features:
• GE special design
• Stable power output , excellent
choice for high line voltage fluc-
tuation areas
• PF>0.9 with capacitor
• Low start current, minimized
disturbing to line voltage
• Ignitor not required, saving cost
for system
Applications:
• Factory, Warehouse
• Architect flood lighting, Sports
• Harbor, Square
Certifications & Regulations:
• CCC, CB
• Harmonic: IEC 61000-3-2
• EMI: CISPR15
• Safety: IEC 61347-2-8, IEC 61347-1
120 121
Ballast
Features:
• Working with HID Electromagnetic Ballast
• Highly reliable aluminum case, anti-explosion design
• Easy installation with 25cm length heat-resistance
wiring
3.2.1 Capacitor with line
3.2 CWA Capacitor
3.2.2 Capacitor with clamp
Features:
• Working with HID Electromagnetic Ballast
• Clamp connector, suitable for various situation
• Self-healing, low loss
• Highly reliable aluminum case, anti-explosion design
4. Electronic Ballast for HID Lamp
Features:
• Bright new design with more
compact size, ideal selection
for delicate lighting fixtures and
various system needs, maximum
flexibility to lighting design
• Up to 15% energy saving vs.
standard magnetic control gear,
and up to 70% energy savings vs.
standard HAL/transformer system
• Flicker-free to bring lighting com-
fort and excellence
• Constant electronically controlled
output to resist fluctuations of line
voltage and prolong lamp life
• High power factor, low power loss,
‘Green’ product
• Potting technology to enhance
thermal emission performance
and to prolong ballast life
• Lamp EOL (End of life) shutdown
protection, and short circuit
protection
• Working with GE star product
CMH lamp to provide competitive
lamp/eHID system
• Rated voltage 220-240V,50/60Hz
• Design life 50,000 hours
Applications:
• Retail
• Department store, Display
• Super market, Hotel
• Airport
4.1 Miniature eHID
• Wide ambient temperature range: -40°C-105°C
Certifications & Regulations:
• CQC, CE
• Safety: IEC 61048
• Wide ambient temperature range: -40°C-105°C
Certifications & Regulations:
• CQC, CE
• Safety: IEC 61048
Certifications & Regulations:
• CQC, CE, CB, S-MARK, KC
• Harmonic: IEC 61000-3-2 , IEC
61000-3-3
• EMC: IEC 61547
• EMI: CISPR15
• Safety: IEC 61347-2-12, IEC
61347-1
• Housing meets UL94V0 flame
retardant
• RoHS Compliance
Warning:
• Don’t connect either output lead
to neutral/common or earth/
safety ground
• The ballast case temperature
must be less than the indicated
Tc temperature
• Neutral line is required to be
flawlessly connected when use
AC power
122 123
Ballast
Features:
• GE designed eHID product brings
both guaranteed long life and
compact size, to give the most
maintenance-free system and
excellent design flexibility.
• Up to 15% energy saving vs.
standard magnetic control gear,
and up to 70% energy savings vs.
standard HAL/transformer system
• Flicker-free to bring lighting com-
fort and excellence
• Constant electronically controlled
output to resist fluctuations of line
voltage and prolong lamp life
• High power factor, low power loss,
‘Green’ product
• Potting technology to enhance
thermal emission performance
and to prolong ballast life
4.2 Standard eHID
Features:
• Bright new design with more
compact size, ideal selection
for delicate lighting fixtures and
various system needs, maximum
flexibility to lighting design
• Up to 15% energy saving vs.
standard magnetic control gear,
and up to 70% energy savings vs.
standard HAL/transformer system
• Flicker-free to bring lighting com-
fort and excellence
• Constant electronically controlled
output to resist fluctuations of line
voltage and prolong lamp life
• High power factor, low power loss,
‘Green’ product
• Potting technology to enhance
4.3 Economics eHID
• Lamp EOL (End of life) shutdown pro-
tection, and short circuit protection
• Working with GE star product
CMH lamp to provide competitive
lamp/eHID system
• Rated voltage 220-240V,50/60Hz
• Design life 50,000 hours
Applications:
• Retail
• Department store, Display
• Super market, Hotel
• Airport
Certifications & Regulations:
• CQC, CE, CB, S-MARK, KC
• Harmonic: IEC 61000-3-2 , IEC
61000-3-3
• EMC: IEC 61547
• EMI: CISPR15
• Safety: IEC 61347-2-12, IEC 61347-1
• Housing meets UL94V0 flame
retardant
• RoHS Compliance
Warning:
• Don’t connect either output lead
to neutral/common or earth/
safety ground
• The ballast case temperature
must be less than the indicated Tc
temperature
• Neutral line is required to be
flawlessly connected when use
AC power
thermal emission performance
and to prolong ballast life
• Lamp EOL (End of life) shutdown pro-
tection, and short circuit protection
• Working with GE star product
CMH lamp to provide competitive
lamp/eHID system
• Rated voltage 220-240V,50/60Hz
• Design life 50,000 hours
Applications:
• Retail
• Department store, Display
• Super market, Hotel
Certifications & Regulations:
• CQC, CE, CB
• Harmonic: IEC 61000-3-2 , IEC
61000-3-3
• EMC: IEC 61547
• EMI: CISPR15
• Safety: IEC 61347-2-12, IEC 61347-1
• Housing meets UL94V0 flame
retardant
• RoHS Compliance
Warning:
• Don’t connect either output lead
to neutral/common or earth/
safety ground
• The ballast case temperature
must be less than the indicated Tc
temperature
• Neutral line is required to be
flawlessly connected when use
AC power
Features:
• Pre-heated start ballasts increase lamp life significantly,
especially when used in frequent on/off applications
• High power factor up to 0.98, low THD
(<10%), ideally suitable for mega public
buildings like airport, subway and rail-
way stations
• ‘Green’ product, Energy Efficiency Index meets A2 class
• High frequency operation, Flicker-free to bring lighting
comfort
• Working with T5 LFL to offer efficient and long life Linear
lighting system solution
• Lamp EOL (End of Life) shutdown protection and re-
lamp auto restarting
• Rated voltage 220~240V, 50/60Hz
• Design life 50,000 hours
5.1 High Performance T5 Electronic Ballast
Applications:
• Commercial Ceiling: Office, Hospital, Supermarket
• Industrial: Factory, Warehouse
• Public Building: Airport, Subway, Railway Station
Certifications & Regulations:
• CCC, CE, CB
• Harmonic: IEC 61000-3-2
• EMC: IEC 61547
• EMI: CISPR15
• Safety: IEC 61347-2-3,
IEC 61347-1
Features:
• Metal case design with good thermal performance and
high reliability
• High power factor 0.98
• Lamp EOL (End of Life) shutdown protection and re-
lamp auto restarting
• Working with T5 LFL to offer efficient and stable Linear
lighting system solution
• High frequency operation, Flicker-free to bring lighting
comfort
• Rated voltage 220~240Vac, 50/60Hz
• Design life 20,000 hours
Applications:
• Commercial Ceiling: Office, Hospital, Supermarket
• Industrial: Factory, Warehouse
• Public Building: Airport, Subway, Railway Station
Certifications & Regulations:
• CCC, CE, CB
• Harmonic: IEC 61000-3-2
• EMC: IEC 61547
• EMI: CISPR15
• Safety: IEC 61347-2-3, IEC 61347-1
5.2 Economic Electronic T5 Ballast
5. IElectronic Ballast for T5 LFL
124 125
Ballast
6. Ballast for T8/T10 LFL
Features:
• Pre-heated start ballasts increase lamp life significantly,
especially when used in frequent on/off applications
• High power factor , low THD
• High frequency operation, Flicker-free to bring lighting
comfort
• Working with T8/T10 LFL to offer efficient and long life
Linear lighting system solution
• Lamp EOL (End of Life) shutdown protection and re-
lamp auto restarting
• Rated voltage 220~240V, 50/60Hz
• Design life 30,000 hours
Applications:
• Commercial Ceiling: Office, Hospital, Supermarket
• Industrial: Factory, Warehouse
• Public Building: Airport, Subway, Railway Station
Certifications & Regulations:
• CCC, CE, CB
• Harmonic: IEC 61000-3-2
• EMC: IEC 61547
• EMI: CISPR15
• Safety: IEC 61347-2-3, IEC 61347-1
6.1 High Performance T8/T10 Electronic Ballast
6.2 Economic T8/T10 Electronic Ballast
Features:
• Metal case design with good thermal performance and
high reliability
• High power factor 0.98
• Lamp EOL (End of Life) shutdown protection and re-
lamp auto restarting
• Working with T8/T10 LFL to offer efficient and stable
Linear lighting system solution
• High frequency operation, Flicker-free to bring lighting
comfort
• Rated voltage 220~240Vac, 50/60Hz
• Design life 20,000 hours
Applications:
• Commercial Ceiling: Office, Hospital, Supermarket
• Industrial: Factory, Warehouse
• Public Building: Airport, Subway, Railway Station
Certifications & Regulations:
• CCC, CE, CB
• Harmonic: IEC 61000-3-2
• EMC: IEC 61547
• EMI: CISPR15
• Safety: IEC 61347-2-3, IEC 61347-1
6.3 High Performance T8/T10 Electromagnetic Ballast
Features:
• Stable power output , excellent
choice for high line voltage
fluctuation areas
• Fireproof materials ensures safe
and reliable operation
• Low Loss, efficient
• Vacuum saturation technology,
keep noise level within 25db
6.4 Standard Performance T8/T10
Electromagnetic Ballast
Features:
• Fireproof materials ensures safe
and reliable operation
• Stable power output , excellent
choice for high line voltage
fluctuation areas
• Vacuum saturation technology,
keep noise level within 25db
• Rated voltage 220,50Hz
• Temp rise:△t55°C, Tw130°C
• Rated voltage 220,50Hz
• Temp rise:△t55°C, Tw130°C
Applications:
• Commercial Ceiling: Office, Hospi-
tal, Supermarket
• Industrial: Factory, Warehouse
• Public Building: Airport, Subway,
Railway Station
Certifications & Regulations:
• CCC
• Harmonic: IEC 61000-3-2
• EMI: CISPR15
• Safety: IEC 61347-2-3, IEC 61347-1
Applications:
• Commercial Ceiling: Office, Hospi-
tal, Supermarket
• Industrial: Factory, Warehouse
• Public Building: Airport, Subway,
Railway Station
Certifications & Regulations:
• CCC
• Harmonic: IEC 61000-3-2
• EMI: CISPR15
• Safety: IEC 61347-2-3, IEC 61347-1
6.5 Starter
Features:
• Voltage: 220-240V
• Lamp wattage: 4-65W/4-22W
• Starters: 20,000
Certifications & Regulations:
• VDE, UL, CE
126 127
Ballast
Features:
• Stable power output , excellent
choice for high line voltage
fluctuation areas
• Low temperate rise, long life
design
• Low Loss, efficient
• Working with plug-in CFL 2 pin
• Vacuum saturation technology,
7.1 Plug-in CFL Electromagnetic Ballast
7. Ballast for Plug-in CFL
keep noise level within 25db
• Fireproof materials ensures safe
and reliable operation
• Compact size, easy for installation
Applications:
• Office, Hospital
• Shop, Hotel, Supermarket
• Airport, Subway, Railway Station
Certifications & Regulations:
• CCC
• Harmonic: IEC 61000-3-2
• EMI: CISPR15
• Safety: IEC 61347-2-3, IEC 61347-1
Features:
• High power factor 0.98
• Working with plug-in CFL to offer
efficient and stable Linear lighting
system solution
• High frequency operation, Flicker-
free to bring lighting comfort
• Lamp EOL (End of Life) shutdown
protection and re-lamp auto
restarting
• Rated voltage 220~240V, 50/60Hz
• Design life 20,000 hours
Applications:
• Office, Hospital
• Shop, Hotel, Supermarket
• Airport, Subway, Railway Station
7.2 Plug-in CFL Electronic Ballast
8. 12V Electronic Transformer
Features:
• Terminal connector to shorten operation lead time
• Brand new design of compact size, idea selection for
delicate lighting fixture
• High efficiency, high reliability
• High power factor, low THD
• Design life 20,000 hours
Applications:
• Office, Hospital
• Shop, Hotel, Supermarket
• Airport, Subway, Railway Station
Certifications & Regulations:
• CE, CB
• Harmonic: IEC 61000-3-2
• EMC: IEC 61547
• EMI: CISPR15
• Safety: IEC 61347-1, IEC 61347-2-3
Who needs a ballast?
LFL CFL
HID
LED
Halogen
Power line
input
High
efficiency
ballast
Automative
Certifications & Regulations:
• CCC
• Harmonic: IEC 61000-3-2
• EMC: IEC 61547
• EMI: CISPR15
• Safety: IEC 61347-1, IEC 61347-2-3
128 129
Ballast
Bi-Level for HPS Electromag-
netic System
IElectronic Ballast for T5 LFL
CWA Electromagnetic Ballast &
Control Gear for HID Lamp
Ballast for Plug-in CFL
12V Electronic Transformer
Electronic Ballast for HID Lamp
Capacitor with line
Voltage: 540V
Frequency: 50-60Hz
Page:
Plug-in CFL Electronic
Ballast
Lamp type: Plug-in CFL 4pin
Voltage: 220V
Frequency: 50-60Hz
Power Factor: 0.98
Page:
Standard eHID
Lamp type: CMH/QMH
Voltage: 220-240V
Frequency: 50-60Hz
Power Factor: 0.95
Page:
Capacitor with clamp
Voltage: 540V
Frequency: 50-60Hz
Page:
Economics eHID
Lamp type: CMH/QMH
Voltage: 220-240V
Frequency: 50-60Hz
Power Factor: 0.95
Page:
HID Electromagnetic Ballast
(with thermal protector
Voltage: 220-415V
Frequency: 50/60Hz
Page:
High Performance T8/
T10 Electronic Ballast
Lamp type: T8/T10
Voltage: 220-240V
Frequency: 50-60Hz
Power Factor: 0.98
Page:
Bi-Level for HPS Electro-
magnetic System
Voltage: 220-240V
Frequency: 50/60Hz
Page:
High Performance T5
Electronic Ballast
Lamp type: T5
Voltage: 220-240V
Frequency: 50-60Hz
Power Factor: 0.98
Page:
Economic Electronic T5
Ballast
Lamp type: T5
Voltage: 220-240V
Frequency: 50-60Hz
Power Factor: 0.98
Page:
CWA Electromagnetic
Ballast
Voltage: 220-240V
Frequency: 50/60Hz
Page:
Plug-in CFL Electromag-
netic Ballast
Lamp type: Plug-in CFL 4pin
Voltage: 220V
Frequency: 50Hz
Power Factor: 0.35-0.48
Page:
12V Electronic Trans-
former
Lamp type: Halogen
Voltage: 220-240V
Frequency: 50/60Hz
Power Factor: 0.97
Page:
Miniature eHID
Lamp type: CMH
Voltage: 220-240V
Frequency: 50-60Hz
Power Factor: 0.95
Page:
HID Electromagnetic Ballast
(without thermal protector)
Voltage: 220-380V
Frequency: 50/60Hz
Page:
Economic Electronic T8/
T10 Ballast
Lamp type: T8/T10
Voltage: 220-240V
Frequency: 50-60Hz
Power Factor: 0.98
Page:
Starter
Voltage: 220-240V
Wattage: 4-22/4-66W
Page:
CSI Electromagnetic
Ballast
Voltage: 220-240V
Frequency: 50/60Hz
Page:
High Performance T8/
T10 Electromagnetic
Ballast
Lamp type: T8/T10
Voltage: 220V
Frequency: 50Hz
Power Factor: 0.33-0.51
Page:
HID Electromagnetic
Ballast (Al Line)
Voltage: 220-230V
Frequency: 50Hz
Page:
Standard Performance
T8/T10 Electromagnetic
Ballast
Lamp type: T8/T10
Voltage: 220V
Frequency: 50Hz
Power Factor: 0.33-0.51
Page:
HID Electromagnetic Ballast
Ballast for T8/T10 LFL
HID Capacitor
Capacitor with line
Voltage: 250/540V
Frequency: 50-60Hz
Page:
Capacitor with
clamp
Voltage: 250V
Frequency: 50-60Hz
Page:
Ignitor
Voltage: 220-240V
Frequency: 50-60Hz
Page:
130 131
Product
Code
Description Voltage/
Frequency
Lamp
Type
Lamp
Wattage
Dimensions (mm) Carton Quantity
(PCS)
Carton Weight
(Kg)
Package Size
(mm)
A B C D E F
70981C MSB35/220V/50Hz/T 220V/50Hz MH 35W 108 86 60 36 52 R3 8 7.4 255*150*170
70982C MSB50/220V/50Hz/T 220V/50Hz HPS 50W 108 86 60 36 52 R3 8 8.5 255*150*170
Product
Code
Description Lamp
current
(A)
Cosφ≥0.9 Max Loss
(W)
System
Power
(W)
Ignitor Temp
Rise
(K)
Max Operating
Temp (°C)
Wiring
Diagram
Start
Current (A)
Circuit
Current(A)
Capacitor
(μF)
70981C MSB35/220V/50Hz/T 0.53 0.30 0.23 6 8.0 45 MSI/400 70 130 A
70982C MSB50/220V/50Hz/T 0.76 0.39 0.30 8 12 60 MSI/400 70 130 A
Product code:
It is important to
use this code when
ordering to ensure
that you receive the
exact product you
require
Voltage/Frequency:
The ballast’s Rated
input voltage and
frequency
Lamp Wattage:
The rated wattage of
ballast’s matching lamp
Carton Quantity:
Number of product
units packed in a case
Package Size:
Dimmension of
carton in mm
Lamp Type:
The ballast’s
matching lamp type
Dimensions:
Ballast dimensions
in mm
Carton Weight:
Gross weight of
one carton
Cosφ≥0.9:
working with capacitor, the
power factor (Cosφ)≥0.9
Circuit Current:
The ballast’s input current
System Power:
System power
consuming
Temp Rise:
The potential allowable
maximum temperature
rise under normal
operation condition
or rated voltage or
maximum value of rated
voltage range
Wiring Diagram:
The ballast’s wiring
diagram
Description:
The ballast’s
identification code
Lamp current:
lamp working
current
Max Loss:
The max power
loss of ballast
Ignitor:
The bsllast’s
matching Ignitor
Max Operating Temp:
The max operation case
temperature
Product Identification
Product
Code
Description Voltage/
Frequency
Lamp
Type
Lamp
Wattage
Dimensions (mm) Carton Quantity
(PCS)
Carton Weight
(Kg)
Package Size
(mm)
A B C D E F
70981C MSB35/220V/50Hz/T 220V/50Hz MH 35W 108 86 60 36 52 R3 8 7.4 255*150*170
70982C MSB50/220V/50Hz/T 220V/50Hz HPS 50W 108 86 60 36 52 R3 8 8.5 255*150*170
70983C MSB70/220V/50Hz/T 220V/50Hz HPS/MH 70W 108 86 60 36 52 R3 8 9.0 255*150*170
70986C MSB100/220V/50Hz/T 220V/50Hz HPS/MH 100W 117 86 60 36 52 R3 8 10.4 255*150*170
70987C MSB150/220V/50Hz/T 220V/50Hz HPS/MH 150W 126 104 75 45 64.5 R3 6 11.2 255*150*170
70988C MSB250/220V/50Hz/T 220V/50Hz HPS/MH 250W 150 128 75 45 64.5 R3 6 16.5 260*175*170
70989C MSB400/220V/50Hz/T 220V/50Hz HPS/MH 400W 165 143 96 61 82 R3 4 17.5 210*190*198
70991C MSB600/220V/50Hz/T 220V/50Hz HPS 600W 165 143 96 61 82 R3 4 18.5 210*190*198
70992C MSB1000/220V/50Hz/T 220V/50Hz HPS/MH 1000W 200 178 114 81 97 R3 2 18.0 260*220*115
25816C MHB80/220V/50Hz/T 220V/50Hz HPM 80W 108 86 60 36 52 R3 8 9.4 255*150*170
25817C MHB125/220V/50Hz/T 220V/50Hz HPM 125W 117 86 60 36 52 R3 8 10.9 255*150*170
25818C MHB250/220V/50Hz/T 220V/50Hz HPM/MH 250W 126 104 75 45 64 R3 6 12.0 255*150*170
70990C MHB400/220V/50Hz/T 220V/50Hz HPM/MH 400W 150 104 75 45 64 R3 6 17.0 260*175*170
Product
Code
Description Lamp
current
(A)
Cosφ≥0.9 Max Loss
(W)
System
Power
(W)
Ignitor Temp
Rise
(K)
Max Operating
Temp (°C)
Wiring
Diagram
Start
Current (A)
Circuit
Current(A)
Capacitor
(μF)
70981C MSB35/220V/50Hz/T 0.53 0.30 0.23 6 8.0 45 MSI/400 70 130 A
70982C MSB50/220V/50Hz/T 0.76 0.39 0.30 8 12 60 MSI/400 70 130 A
70983C MSB70/220V/50Hz/T 0.98 0.56 0.43 12 14 86 MSI/400 70 130 A
70986C MSB100/220V/50Hz/T 1.20 0.78 0.58 12 17 114 MSI/400 70 130 A
70987C MSB150/220V/50Hz/T 1.80 1.12 0.86 20 21 170 MSI/400 70 130 A
70988C MSB250/220V/50Hz/T 3.00 1.82 1.40 32 35 277 MSI/400 70 130 A
70989C MSB400/220V/50Hz/T 4.60 3.08 2.20 50 54 435 MSI/400 70 130 A
70991C MSB600/220V/50Hz/T 6.20 4.58 3.27 60 65 647 MSI/1000 80 130 A
70992C MSB1000/220V/50Hz/T 10.30 6.46 5.38 100 98 1065 MSI/1000 80 130 A
25816C MHB80/220V/50Hz/T 0.80 0.70 0.45 8 11 90 N/A 70 130 B
25817C MHB125/220V/50Hz/T 1.15 1.10 0.71 10 18 140 N/A 70 130 B
25818C MHB250/220V/50Hz/T 2.15/2.10 2.12 1.37 20 21 272 N/A for HPM 70 130 B
2.15/2.10 2.12 1.37 20 21 272 MSI/400 for MH 70 130 A
70990C MHB400/220V/50Hz/T 3.25 3.35 2.16 28 31 428 N/A for HPM 70 130 B
3.25 3.35 2.16 28 31 428 MSI/400 for MH 70 130 A
Dimension (mm)
Wiring Diagram
A
B
220V/50Hz
Ballast
Product
Code
Description Lamp
current
(A)
Cosφ≥0.9 Max Loss
(W)
System
Power
(W)
Ignitor Temp
Rise
(K)
Max Operating
Temp (°C)
Start
Current (A)
Circuit
Current(A)
Capacitor
(μF)
78671 MSB35/220V/60Hz/T 0.53 0.30 0.23 6 8 45 MSI/400 70 170
28810 MSB70/220V/60Hz/T 0.98 0.60 0.43 12 14 86 MSI/400 70 130
78672 MSB100/220V/60Hz/T 1.20 0.87 0.58 12 17 114 MSI/400 70 170
28812 MSB150/220V/60Hz/T 1.80 1.12 0.86 20 21 170 MSI/400 70 130
28814 MSB250/220V/60Hz/T 3.00 1.88 1.39 32 35 276 MSI/400 70 130
78673 MSB400/220V/60Hz/T 4.60 2.97 2.20 50 54 436 MSI/400 70 170
99720 MSB1000/220V/60Hz/T 10.30 6.73 5.38 100 98 1065 MSI/1000 80 130
220V/60Hz
Dimension (mm)
132 133
Ballast
Product
Code
Description Voltage/
Frequency
Lamp
Type
Lamp
Wattage
Dimensions (mm) Carton Quantity
(PCS)
Carton Weight
(Kg)
Package Size
(mm)
A B C D E F
78671 MSB35/220V/60Hz/T 220V/60Hz MH 35W 108 86 60 36 52 R3 8 7 255*150*170
28810 MSB70/220V/60Hz/T 220V/60Hz HPS/MH 70W 108 86 60 36 52 R3 8 8.6 255*150*170
78672 MSB100/220V/60Hz/T 220V/60Hz HPS/MH 100W 117 86 60 36 52 R3 8 10.8 255*150*170
28812 MSB150/220V/60Hz/T 220V/60Hz HPS/MH 150W 126 104 75 45 64.5 R3 6 11.2 255*150*170
28814 MSB250/220V/60Hz/T 220V/60Hz HPS/MH 250W 150 128 75 45 64.5 R3 6 15.6 260*175*170
78673 MSB400/220V/60Hz/T 220V/60Hz HPS/MH 400W 165 143 96 61 82 R3 4 17 210*190*198
99720 MSB1000/220V/60Hz/T 220V/60Hz HPS/MH 1000W 200 178 114 81 97 R3 2 17.6 260*220*115
Wiring Diagram
Product
Code
Description Voltage/
Frequency
Lamp
Type
Lamp
Wattage
Dimensions (mm) Carton Quantity
(PCS)
Carton Weight
(Kg)
Package Size
(mm)
A B C D E F
28789 MSB35/230V/50Hz/T 230V/50Hz MH 35W 108 86 60 36 52 R3 8 7.5 250*150*170
95859T MSB50/230V/50Hz/T 230V/50Hz HPS 50W 108 86 60 36 52 R3 8 8.7 250*150*170
28790 MSB70/230V/50Hz/T 230V/50Hz HPS/MH 70W 108 86 60 36 52 R3 8 9.0 250*150*170
28796 MSB100/230V/50Hz/T 230V/50Hz HPS/MH 100W 117 86 60 36 52 R3 8 10.7 250*150*170
28797 MSB150/230V/50Hz/T 230V/50Hz HPS/MH 150W 126 104 75 45 64.5 R3 6 11 250*150*170
28798 MSB250/230V/50Hz/T 230V/50Hz HPS/MH 250W 150 128 75 45 64.5 R3 6 16.8 260*175*170
95864C MSB400/230V/50Hz/T 230V/50Hz HPS/MH 400W 165 143 96 61 82 R3 4 17.5 210*190*198
95866T MSB600/230V/50Hz/T 230V/50Hz HPS 600W 165 143 96 61 82 R3 4 18.5 210*190*198
99721 MSB1000/230V/50Hz/T 230V/50Hz HPS/MH 1000W 200 178 114 81 97 R3 2 19.3 260*220*115
25819T MHB80/230V/50Hz/T 230V/50Hz HPM 80W 108 86 60 36 52 R3 8 9 255*150*170
25822T MHB125/230V/50Hz/T 230V/50Hz HPM 125W 117 86 60 36 52 R3 8 10.9 255*150*170
25823T MHB250/230V/50Hz/T 230V/50Hz HPM/MH 250W 126 104 75 45 64 R3 6 13.2 255*150*170
95865C MHB400/230V/50Hz/T 230V/50Hz HPM/MH 400W 155 133 75 45 64 R3 6 19.2 260*175*170
Product
Code
Description Lamp
current (A)
Cosφ≥0.9 Max Loss
(W)
System
Power
(W)
Ignitor Temp
Rise
(K)
Max Operating
Temp (°C)
Wiring
Diagram
Start
Current (A)
Circuit
Current(A)
Capacitor
(μF)
28789 MSB35/230V/50Hz/T 0.53 0.28 0.23 6 9 45 MSI/400 70 130 A
95859T MSB50/230V/50Hz/T 0.76 0.41 0.30 8 13 60 MSI/400 70 130 A
28790 MSB70/230V/50Hz/T 0.98 0.58 0.43 12 15 86 MSI/400 70 130 A
28796 MSB100/230V/50Hz/T 1.2 0.78 0.58 12 18 114 MSI/400 70 130 A
28797 MSB150/230V/50Hz/T 1.8 1.08 0.86 20 22 170 MSI/400 70 130 A
28798 MSB250/230V/50Hz/T 3 1.82 1.40 32 37 278 MSI/400 70 130 A
95864C MSB400/230V/50Hz/T 4.6 2.97 2.20 50 45 436 MSI/400 70 130 A
95866T MSB600/230V/50Hz/T 6.2 4.40 3.26 60 69 645 MSI/1000 80 130 A
99721 MSB1000/230V/50Hz/T 10.3 6.46 5.38 100 104 1065 MSI/1000 for HPS 80 130 A
9.5 6.46 5.38 100 104 1065 MSI/1000 for MH 80 130 A
25819T MHB80/230V/50Hz/T 0.8 0.68 0.45 8 12 90 N/A 70 130 B
25822T MHB125/230V/50Hz/T 1.15 1.07 0.71 10 19 140 N/A 70 130 B
25823T MHB250/230V/50Hz/T 2.15 2.04 1.36 20 23 270 N/A for HPM 70 130 B
2.1 2.04 1.36 20 23 270 MSI/400 for MH 70 130 A
95865C MHB400/230V/50Hz/T 3.25 3.24 2.16 25 33 428 N/A for HPM 70 130 B
3.25 3.24 2.16 25 33 428 MSI/400 for MH 70 130 A
230V/50Hz
Dimension (mm)
Wiring Diagram
A
B
Product
Code
Description Voltage/
Frequency
Lamp
Type
Lamp
Wattage
Dimensions (mm) Carton Quantity
(PCS)
Carton Weight
(Kg)
Package Size
(mm)
A B C D E F
28815 MSB70/230V/60Hz/T 230V/60Hz HPS/MH 70W 108 86 60 36 52 R3 8 9 255*150*170
28817 MSB150/230V/60Hz/T 230V/60Hz HPS/MH 150W 126 104 75 45 64.5 R3 6 11.2 255*150*170
28818 MSB250/230V/60Hz/T 230V/60Hz HPS/MH 250W 150 128 75 45 64.5 R3 6 15.8 260*175*170
Product
Code
Description Lamp
current
(A)
Cosφ≥0.9 Max Loss
(W)
System
Power
(W)
Ignitor Temp
Rise
(K)
Max Operating
Temp (°C)
Start
Current (A)
Circuit
Current(A)
Capacitor
(μF)
28815 MSB70/230V/60Hz/T 0.98 0.57 0.42 12 15 86 MSI/400 70 130
28817 MSB150/230V/60Hz/T 1.80 1.11 0.82 20 22 170 MSI/400 70 130
28818 MSB250/230V/60Hz/T 3.00 1.88 1.34 32 37 278 MSI/400 70 130
230V/60Hz
Dimension (mm)
Wiring Diagram
Product
Code
Description Voltage/
Frequency
Lamp
Type
Lamp
Wattage
Dimensions (mm) Carton Quantity
(PCS)
Carton Weight
(Kg)
Package Size
(mm)
A B C D E F
28800 MSB35/240V/50Hz/T 240V/50Hz MH 35W 108 86 60 36 52 R3 8 7.5 255*150*170
28801 MSB70/240V/50Hz/T 240V/50Hz HPS/MH 70W 108 86 60 36 52 R3 8 9.4 255*150*170
28807 MSB100/240V/50Hz/T 240V/50Hz HPS/MH 100W 117 86 60 36 52 R3 8 10.8 255*150*170
28808 MSB150/240V/50Hz/T 240V/50Hz HPS/MH 150W 126 104 75 45 64.5 R3 6 11.2 255*150*170
28809 MSB250/240V/50Hz/T 240V/50Hz HPS/MH 250W 150 128 75 45 64.5 R3 6 18.3 260*175*170
95874C MSB400/240V/50Hz/T 240V/50Hz HPS/MH 400W 165 143 96 61 82 R3 4 17.7 210*190*198
99722 MSB1000/240V/50Hz/T 240V/50Hz HPS/MH 1000W 220 198 114 81 97 R3 2 21.4 260*240*115
95875C MHB400/240V/50Hz/T 240V/50Hz HPM/MH 400W 160 138 75 45 64 R3 6 19.2 260*175*170
Product
Code
Description Lamp
current
(A)
Cosφ≥0.9 Max Loss
(W)
System
Power
(W)
Ignitor Temp
Rise
(K)
Max Operating
Temp (°C)
Wiring
Diagram
Start
Current (A)
Circuit
Current(A)
Capacitor
(μF)
28800 MSB35/240V/50Hz/T 0.53 0.28 0.21 6 10 45 MSI/400 70 130 A
28801 MSB70/240V/50Hz/T 0.98 0.56 0.40 12 16 86 MSI/400 70 130 A
28807 MSB100/240V/50Hz/T 1.20 0.77 0.53 12 19 114 MSI/400 70 130 A
28808 MSB150/240V/50Hz/T 1.80 1.03 0.79 20 23 171 MSI/400 70 130 A
28809 MSB250/240V/50Hz/T 3.00 1.68 1.29 32 39 278 MSI/400 70 130 A
95874C MSB400/240V/50Hz/T 4.60 2.83 2.02 50 60 436 MSI/400 70 130 A
99722 MSB1000/240V/50Hz/T 10.30 6.16 4.93 100 111 1065 MSI/400 80 130 A
95875C MHB400/240V/50Hz/T 3.25 3.17 1.98 25 36 428 N/A for HPM 70 130 B
3.25 3.17 1.98 25 36 428 MSI/400 for MH 70 130 A
240V/50Hz
Dimension (mm)
Wiring Diagram
A
B
134 135
Product
Code
Description Voltage/
Frequency
Lamp
Type
Lamp
Wattage
Dimensions (mm) Carton Quantity
(PCS)
Carton Weight
(Kg)
Package Size
(mm)
A B C D E F
28819 MSB70/240V/60Hz/T 240V/60Hz HPS/MH 70W 108 86 60 36 52 R3 8 8.7 255*150*170
28821 MSB150/240V/60Hz/T 240V/60Hz HPS/MH 150W 126 104 75 45 64.5 R3 6 10.9 255*150*170
28823 MSB250/240V/60Hz/T 240V/60Hz HPS/MH 250W 150 128 75 45 64.5 R3 6 16.3 260*175*170
Product
Code
Description Lamp
current (A)
Cosφ≥0.9 Max Loss
(W)
System
Power
(W)
Ignitor Temp
Rise
(K)
Max Operating
Temp (°C)
Start
Current (A)
Circuit
Current(A)
Capacitor
(μF)
28819 MSB70/240V/60Hz/T 0.98 0.52 0.40 12 16 86 MSI/400 70 130
28821 MSB150/240V/60Hz/T 1.80 1.08 0.80 20 23 173 MSI/400 70 130
28823 MSB250/240V/60Hz/T 3.00 1.68 1.29 32 39 278 MSI/400 70 130
240V/60Hz
Dimension (mm)
Wiring Diagram
Product
Code
Description Lamp
current
(A)
Cosφ≥0.9 Max Loss
(W)
System
Power
(W)
Ignitor Temp
Rise
(K)
Max Operating Temp
(°C)
Start
Current (A)
Circuit
Current(A)
Capacitor
(μF)
99719 MHB2000/380V/50Hz/T 11.3 8.49 6.29 60 164 2150 MSI/2000 85 130
99723 MHB2000/380V/60Hz/T 11.3 7.98 6.14 60 164 2100 MSI/2000 85 130
99724 MHB2000/400V/50Hz/T 11.3 8.75 5.83 60 164 2100 MSI/2000 80 130
99725 MHB2000/415V/50Hz/T 11.3 8.43 5.62 60 185 2100 MSI/2000 80 130
Product
Code
Description Voltage/
Frequency
Lamp
Type
Lamp
Wattage
Picture Dimensions (mm) Carton
Quantity (PCS)
Carton
Weight (Kg)
Package Size
(mm)
A B C D E F G H
99719 MHB2000/380V/50Hz/T 380V/50Hz SPL 2000W A235 213 127 94 112 R3 - - 1 15.7 255*150*135
99723 MHB2000/380V/60Hz/T 380V/60Hz SPL 2000W A235 213 127 94 112 R3 - - 1 15.8 255*150*135
99724 MHB2000/400V/50Hz/T 400V/50Hz SPL 2000W B153 125 98 176 148 147 195 R4 1 17.5 260*175*170
99725 MHB2000/415V/50Hz/T 415V/50Hz SPL 2000W B153 125 98 176 148 147 195 R4 1 18.9 260*175*170
(others)
Dimension (mm)
Wiring Diagram
A
B
Ballast
Product
Code
Description Voltage/
Frequency
Lamp
Type
Lamp
Wattage
Dimensions (mm) Carton Quantity
(PCS)
Carton Weight
(Kg)
Package Size
(mm)
A B C D E F
70981 MSB35/220V/50Hz 220V/50Hz MH 35W 108 86 60 36 52 R3 8 7.4 255*150*170
70982 MSB50/220V/50Hz 220V/50Hz HPS 50W 108 86 60 36 52 R3 8 8.5 255*150*170
70983 MSB70/220V/50Hz 220V/50Hz HPS/MH 70W 108 86 60 36 52 R3 8 9 255*150*170
70986 MSB100/220V/50Hz 220V/50Hz HPS/MH 100W 117 86 60 36 52 R3 8 10.4 255*150*170
70987 MSB150/220V/50Hz 220V/50Hz HPS/MH 150W 126 104 75 45 64.5 R3 6 11.2 255*150*170
70988 MSB250/220V/50Hz 220V/50Hz HPS/MH 250W 150 128 75 45 64.5 R3 6 16.5 260*175*170
70989 MSB400/220V/50Hz 220V/50Hz HPS/MH 400W 165 143 96 61 82 R3 4 17.5 210*190*198
70991 MSB600/220V/50Hz 220V/50Hz HPS 600W 165 143 96 61 82 R3 4 18.5 210*190*198
70992 MSB1000/220V/50Hz 220V/50Hz HPS/MH 1000W 200 178 114 81 97 R3 2 18 260*220*115
25816 MHB80/220V/50Hz 220V/50Hz HPM 80W 108 86 60 36 52 R3 8 9.4 255*150*170
25817 MHB125/220V/50Hz 220V/50Hz HPM 125W 117 86 60 36 52 R3 8 10.9 255*150*170
25818 MHB250/220V/50Hz 220V/50Hz HPM/MH 250W 126 104 75 45 64 R3 6 12 255*150*170
70990 MHB400/220V/50Hz 220V/50Hz HPM/MH 400W 150 104 75 45 64 R3 6 17 260*175*170
Product
Code
Description Lamp
current (A)
Cosφ≥0.9 Max Loss
(W)
System
Power
(W)
Ignitor Temp
Rise
(K)
Wiring
Diagram
Start
Current (A)
Circuit
Current(A)
Capacitor
(μF)
70981 MSB35/220V/50Hz 0.53 0.30 0.23 6 8 45 MSI/400 70 A
70982 MSB50/220V/50Hz 0.76 0.39 0.30 8 12 60 MSI/400 70 A
70983 MSB70/220V/50Hz 0.98 0.56 0.43 12 14 86 MSI/400 70 A
70986 MSB100/220V/50Hz 1.2 0.78 0.58 12 17 114 MSI/400 70 A
70987 MSB150/220V/50Hz 1.8 1.12 0.86 20 21 170 MSI/400 70 A
70988 MSB250/220V/50Hz 3 1.82 1.40 32 35 277 MSI/400 70 A
70989 MSB400/220V/50Hz 4.6 3.08 2.20 50 54 435 MSI/400 70 A
70991 MSB600/220V/50Hz 6.2 4.58 3.27 60 65 647 MSI/1000 80 A
70992 MSB1000/220V/50Hz 10.3 6.46 5.38 100 98 1065 MSI/1000 80 A
25816 MHB80/220V/50Hz 0.8 0.70 0.45 8 11 90 N/A 70 B
25817 MHB125/220V/50Hz 1.25 1.10 0.71 10 18 140 N/A 70 B
25818 MHB250/220V/50Hz 2.15 2.12 1.37 18 21 272 N/A for HPM 70 B
2.1 2.12 1.37 18 21 272 MSI/400 for MH 70 A
70990 MHB400/220V/50Hz 3.25 3.35 2.16 25 31 428 N/A for HPM 70 B
3.25 3.35 216.00 25 31 428 MSI/400 for MH 70 A
220V/50Hz
Dimension (mm)
Wiring Diagram
A
B
Product
Code
Description Lamp
current
(A)
Cosφ≥0.9 Max Loss
(W)
System
Power
(W)
Ignitor Temp
Rise
(K)
Wiring
Diagram
Start
Current (A)
Circuit
Current(A)
Capacitor
(μF)
78669 MSB35/220V/60Hz 0.53 0.30 0.23 6 8 45 MSI/400 70 A
11212 MSB70/220V/60Hz 0.98 0.60 0.43 12 14 86 MSI/400 70 A
78670 MSB100/220V/60Hz 1.20 0.87 0.58 12 17 114 MSI/400 70 A
11215 MSB150/220V/60Hz 1.80 1.12 0.86 20 21 170 MSI/400 70 A
11221 MSB250/220V/60Hz 3.00 1.88 1.39 32 35 276 MSI/400 70 A
11222 MSB400/220V/60Hz 4.60 2.97 2.20 50 54 436 MSI/400 70 A
25827 MHB400/220V/60Hz 3.25 3.35 2.16 25 31 427 N/A for HPM 70 B
3.25 3.35 2.16 25 31 427 MSI/400 for MH 70 A
220V/60Hz
Dimension (mm)
136 137
Ballast
Product
Code
Description Voltage/
Frequency
Lamp
Type
Lamp
Wattage
Dimensions (mm) Carton Quantity
(PCS)
Carton Weight
(Kg)
Package Size
(mm)
A B C D E F
95858 MSB35/230V/50Hz 230V/50Hz MH 35W 108 86 60 36 52 R3 8 7.5 250*150*170
95859 MSB50/230V/50Hz 230V/50Hz HPS 50W 108 86 60 36 52 R3 8 8.7 250*150*170
95860 MSB70/230V/50Hz 230V/50Hz HPS/MH 70W 108 86 60 36 52 R3 8 9.0 250*150*170
95861 MSB100/230V/50Hz 230V/50Hz HPS/MH 100W 117 86 60 36 52 R3 8 10.7 250*150*170
95862 MSB150/230V/50Hz 230V/50Hz HPS/MH 150W 126 104 75 45 64.5 R3 6 11 250*150*170
95863 MSB250/230V/50Hz 230V/50Hz HPS/MH 250W 150 128 75 45 64.5 R3 6 16.8 260*175*170
95864 MSB400/230V/50Hz 230V/50Hz HPS/MH 400W 165 143 96 61 82 R3 4 17.5 210*190*198
95866 MSB600/230V/50Hz 230V/50Hz HPS 600W 165 143 96 61 82 R3 4 18.5 210*190*198
95867 MSB1000/230V/50Hz 230V/50Hz HPS/MH 1000W 200 178 114 81 97 R3 2 19.3 260*220*115
25819 MHB80/230V/50Hz 230V/50Hz HPM 80W 108 86 60 36 52 R3 8 9 255*150*170
25822 MHB125/230V/50Hz 230V/50Hz HPM 125W 117 86 60 36 52 R3 8 10.9 255*150*170
25823 MHB250/230V/50Hz 230V/50Hz HPM/MH 250W 126 104 75 45 64 R3 6 13.2 255*150*170
95865 MHB400/230V/50Hz 230V/50Hz HPM/MH 400W 155 133 75 45 64 R3 6 19.2 260*175*170
Product
Code
Description Lamp
current
(A)
Cosφ≥0.9 Max Loss
(W)
System
Power
(W)
Ignitor Temp
Rise
(K)
Wiring
Diagram
Start
Current (A)
Circuit
Current(A)
Capacitor
(μF)
95858 MSB35/230V/50Hz 0.53 0.28 0.23 6 9 45 MSI/400 70 A
95859 MSB50/230V/50Hz 0.76 0.41 0.30 8 13 60 MSI/400 70 A
95860 MSB70/230V/50Hz 0.98 0.58 0.43 12 15 86 MSI/400 70 A
95861 MSB100/230V/50Hz 1.2 0.78 0.58 12 18 114 MSI/400 70 A
95862 MSB150/230V/50Hz 1.8 1.08 0.86 20 22 170 MSI/400 70 A
95863 MSB250/230V/50Hz 3 1.82 1.40 32 37 278 MSI/400 70 A
95864 MSB400/230V/50Hz 4.6 2.97 2.20 50 45 436 MSI/400 70 A
95866 MSB600/230V/50Hz 6.2 4.40 3.26 60 69 645 MSI/1000 80 A
95867 MSB1000/230V/50Hz 10.3 6.46 5.38 100 104 1065 MSI/1000 for HPS 80 A
9.5 6.46 5.38 100 104 1065 MSI/1000 for MH 80 A
25819 MHB80/230V/50Hz 1.15 0.68 0.45 8 12 90 N/A 70 B
25822 MHB125/230V/50Hz 1.25 1.07 0.71 10 19 140 N/A 70 B
25823 MHB250/230V/50Hz 2.15 2.04 1.36 20 23 270 N/A for HPM 70 B
2.15 2.04 1.36 20 23 270 MSI/400 for MH 70 A
95865 MHB400/230V/50Hz 3.25 3.24 2.16 25 33 428 N/A for HPM 70 B
3.25 3.24 2.16 25 33 428 MSI/400 for MH 70 A
230V/50Hz
Dimension (mm)
Wiring Diagram
A
B
Dimension (mm)
Wiring Diagram
A
B
Product
Code
Description Voltage/
Frequency
Lamp
Type
Lamp
Wattage
Dimensions (mm) Carton Quantity
(PCS)
Carton Weight
(Kg)
Package Size
(mm)
A B C D E F
11049 MSB70/230V/60Hz 230V/60Hz HPS/MH 70W 108 86 60 36 52 R3 8 8.6 255*150*170
11050 MSB150/230V/60Hz 230V/60Hz HPS/MH 150W 126 104 75 45 64.5 R3 6 11.2 255*150*170
11053 MSB250/230V/60Hz 230V/60Hz HPS/MH 250W 150 128 75 45 64.5 R3 6 15.6 260*175*170
11223 MSB400/230V/60Hz 230V/60Hz HPS/MH 400W 165 143 96 61 82 R3 4 17 210*190*198
25828 MHB400/230V/60Hz 230V/60Hz HPM/MH 400W 150 128 75 45 64 R3 6 19.2 260*175*170
Product
Code
Description Lamp
current
(A)
Cosφ≥0.9 Max Loss
(W)
System
Power
(W)
Ignitor Temp
Rise
(K)
Wiring
Diagram
Start
Current (A)
Circuit
Current(A)
Capacitor
(μF)
11049 MSB70/230V/60Hz 0.98 0.567 0.42 12 15 86 MSI/400 70 A
11050 MSB150/230V/60Hz 1.80 1.107 0.82 20 22 170 MSI/400 70 A
11053 MSB250/230V/60Hz 3.00 1.876 1.34 32 37 278 MSI/400 70 A
11223 MSB400/230V/60Hz 4.60 3.08 2.2 50 57 435 MSI/400 70 A
25828 MHB400/230V/60Hz 3.25 3.348 2.16 25 33 428 N/A for HPM 70 B
3.25 3.348 2.16 25 33 428 MSI/400 for MH 70 A
230V/60Hz
Product
Code
Description Voltage/
Frequency
Lamp
Type
Lamp
Wattage
Dimensions (mm) Carton Quantity
(PCS)
Carton Weight
(Kg)
Package Size
(mm)
A B C D E F
78669 MSB35/220V/60Hz 220V/60Hz MH 35W 108 86 60 36 52 R3 8 7 255*150*170
11212 MSB70/220V/60Hz 220V/60Hz HPS/MH 70W 108 86 60 36 52 R3 8 8.6 255*150*170
78670 MSB100/220V/60Hz 220V/60Hz HPS/MH 100W 117 86 60 36 52 R3 8 10.8 255*150*170
11215 MSB150/220V/60Hz 220V/60Hz HPS/MH 150W 126 104 75 45 64.5 R3 6 11.2 255*150*170
11221 MSB250/220V/60Hz 220V/60Hz HPS/MH 250W 150 128 75 45 64.5 R3 6 15.6 260*175*170
11222 MSB400/220V/60Hz 220V/60Hz HPS/MH 400W 165 143 96 61 82 R3 4 17 210*190*198
25827 MHB400/220V/60Hz 220V/60Hz HPM/MH 400W 150 128 75 45 64 R3 6 17 260*175*170
Wiring Diagram
A
B
Product
Code
Description Lamp
current (A)
Cosφ≥0.9 Max Loss
(W)
System
Power
(W)
Ignitor Temp
Rise
(K)
Wiring
Diagram
Start
Current (A)
Circuit
Current(A)
Capacitor
(μF)
95868 MSB35/240V/50Hz 0.53 0.30 0.23 6 9 45 MSI/400 70 A
95869 MSB50/240V/50Hz 0.76 0.39 0.30 8 13 60 MSI/400 70 A
95870 MSB70/240V/50Hz 0.98 0.56 0.43 12 16 86 MSI/400 70 A
95871 MSB100/240V/50Hz 1.20 0.78 0.58 12 19 114 MSI/400 70 A
95872 MSB150/240V/50Hz 1.80 1.12 0.86 20 23 171 MSI/400 70 A
95873 MSB250/240V/50Hz 3.00 1.82 1.40 32 39 278 MSI/400 70 A
95874 MSB400/240V/50Hz 4.60 3.08 2.20 50 60 436 MSI/400 70 A
95876 MSB600/240V/50Hz 6.20 4.58 3.27 60 73 647 MSI/1000 80 A
95877 MSB1000/240V/50Hz 10.30 6.46 5.38 100 111 1065 MSI/1000 for HPS 80 A
9.50 6.46 5.38 100 111 1065 MSI/1000 for MH 80 A
25824 MHB80/240V/50Hz 0.80 0.70 0.45 8 13 90 N/A 70 B
25825 MHB125/240V/50Hz 1.25 1.10 0.71 10 20 140 N/A 70 B
25826 MHB250/240V/50Hz 2.15 2.12 1.37 18 25 272 N/A for HPM 70 B
2.10 2.12 1.37 18 25 272 MSI/400 for MH 70 A
95875 MHB400/240V/50Hz 3.25 3.35 2.16 25 36 428 N/A for HPM 70 B
3.25 3.35 2.16 25 36 428 MSI/400 for MH 70 A
240V/50Hz
Dimension (mm)
Wiring Diagram
A
B
138 139
Product
Code
Description Voltage/
Frequency
Lamp
Type
Lamp
Wattage
Dimensions (mm) Carton Quantity
(PCS)
Carton Weight
(Kg)
Package Size
(mm)
A B C D E F
95868 MSB35/240V/50Hz 240V/50Hz MH 35W 108 86 60 36 52 R3 8 7.5 255*150*170
95869 MSB50/240V/50Hz 240V/50Hz HPS 50W 108 86 60 36 52 R3 8 8.5 255*150*170
95870 MSB70/240V/50Hz 240V/50Hz HPS/MH 70W 108 86 60 36 52 R3 8 9.4 255*150*170
95871 MSB100/240V/50Hz 240V/50Hz HPS/MH 100W 117 86 60 36 52 R3 8 10.8 255*150*170
95872 MSB150/240V/50Hz 240V/50Hz HPS/MH 150W 126 104 75 45 64.5 R3 6 11.2 255*150*170
95873 MSB250/240V/50Hz 240V/50Hz HPS/MH 250W 150 128 75 45 64.5 R3 6 18.3 260*175*170
95874 MSB400/240V/50Hz 240V/50Hz HPS/MH 400W 165 143 96 61 82 R3 4 17.7 210*190*198
95876 MSB600/240V/50Hz 240V/50Hz HPS 600W 165 143 96 61 82 R3 4 18.5 210*190*198
95877 MSB1000/240V/50Hz 240V/50Hz HPS/MH 1000W 200 198 114 81 97 R3 2 21.4 260*240*115
25824 MHB80/240V/50Hz 240V/50Hz HPM 80W 108 86 60 36 52 R3 8 9.4 255*150*170
25825 MHB125/240V/50Hz 240V/50Hz HPM 125W 117 86 60 36 52 R3 8 10.9 255*150*170
25826 MHB250/240V/50Hz 240V/50Hz HPM/MH 250W 126 104 75 45 64 R3 6 12 255*150*170
95875 MHB400/240V/50Hz 240V/50Hz HPM/MH 400W 160 138 75 45 64 R3 6 17 260*175*170
Ballast
Product
Code
Description Voltage/
Frequency
Lamp
Type
Lamp
Wattage
Dimensions (mm) Carton Quantity
(PCS)
Carton Weight
(Kg)
Package Size
(mm)
A B C D E F
11224 MSB70/240V/60Hz 240V/60Hz HPS/MH 70W 108 86 60 36 52 R3 8 8.7 255*150*170
11225 MSB150/240V/60Hz 240V/60Hz HPS/MH 150W 126 104 75 45 64.5 R3 6 10.9 255*150*170
11226 MSB250/240V/60Hz 240V/60Hz HPS/MH 250W 150 128 75 45 64.5 R3 6 16.3 260*175*170
11227 MSB400/240V/60Hz 240V/60Hz HPS/MH 400W 165 143 96 61 82 R3 4 17.5 210*190*198
25839 MHB400/240V/60Hz 240V/60Hz HPS/MH 400W 150 128 75 45 64 R3 6 17 260*175*170
Product
Code
Description Lamp
current
(A)
Cosφ≥0.9 Max Loss
(W)
System Power
(W)
Ignitor Temp
Rise
(K)
Start
Current (A)
Circuit
Current(A)
Capacitor
(μF)
11224 MSB70/240V/60Hz 0.98 0.52 0.40 12 14 86 MSI/400 70
11225 MSB150/240V/60Hz 1.80 1.08 0.80 20 23 173 MSI/400 70
11226 MSB250/240V/60Hz 3.00 1.68 1.29 32 39 278 MSI/400 70
11227 MSB400/240V/60Hz 4.60 3.08 2.20 50 60 435 MSI/400 70
25839 MHB400/240V/60Hz 3.25 3.35 2.16 25 36 428 MSI/400 70
240V/60Hz
Dimension (mm)
Wiring Diagram
Product
Code
Description Voltage/
Frequency
Lamp
Type
Lamp
Wattage
Dimensions (mm) Carton Quantity
(PCS)
Carton Weight
(Kg)
Package Size
(mm)
A B C D E F
89192 MHB1000/380V/50Hz 380V/50Hz SPL 1000W 185 163 114 81 97 R3 2 25.4 285*220*135
89191 MHB1500/380V/50Hz 380V/50Hz SPL 1500W 200 178 127 94 112 R3 2 17.2 260*220*115
89190 MHB2000/380V/50Hz 380V/50Hz SPL 2000W 235 213 127 94 112 R3 1 15.1 255*150*135
Product
Code
Description Lamp
current
(A)
Cosφ≥0.9 Max Loss
(W)
System Power
(W)
Ignitor Temp
Rise
(K)
Start
Current (A)
Circuit
Current(A)
Capacitor
(μF)
89192 MHB1000/380V/50Hz 4.2 4.65 3.10 21 60 1050 MSI/2000 80
89191 MHB1500/380V/50Hz 6.7 7.35 4.90 35 86 1680 MSI/2000 80
89190 MHB2000/380V/50Hz 10.3 9.15 6.10 60 130 2100 MSI/2000 80
380V/50Hz
Dimension (mm)
Wiring Diagram
Dimension (mm)
Wiring Diagram
Product
Code
Description Voltage/
Frequency
Lamp
Type
Lamp
Wattage
Picture Dimensions (mm) Carton
Quantity (PCS)
Carton Weight
(Kg)
Package Size
(mm)
A B C D E F G H
99664 CSI 1000/220V/50Hz 220V/50Hz CSI&CID MH 1000W 153 125 98 176 148 147 195 195 R4 1 15.5 260*175*170
89186 CSI 1000/220V/60Hz 220V/60Hz CSI&CID MH 1000W 153 125 98 176 148 147 195 195 R4 1 15.4 260*175*170
89187 CSI 1000/230V/50Hz 230V/50Hz CSI&CID MH 1000W 153 125 98 176 148 147 195 195 R4 1 15.6 260*175*170
89188 CSI 1000/230V/60Hz 230V/60Hz CSI&CID MH 1000W 153 125 98 176 148 147 195 195 R4 1 15.5 260*175*170
89189 CSI 1000/240V/50Hz 240V/50Hz CSI&CID MH 1000W 153 125 98 176 148 147 195 195 R4 1 15.7 260*175*170
CSI Electromagnetic Ballast
Product
Code
Description Lamp
current
(A)
Cosφ≥0.9 Max Loss
(W)
System
Power
(W)
Ignitor Temp
Rise
(K)
Max Operating
Temp
(°C)
Start
Current (A)
Circuit
Current(A)
Capacitor
(μF)
99664 CSI 1000/220V/50Hz 15 6.3 5.5 160 119 1090 MSI/1000/CSI 80 CCC, CB
89186 CSI 1000/220V/60Hz 15 6.2 5.4 160 119 1090 MSI/1000/CSI 80 CB
89187 CSI 1000/230V/50Hz 15 6.0 5.2 160 126 1090 MSI/1000/CSI 80 CCC, CB
89188 CSI 1000/230V/60Hz 15 6.0 5.2 160 126 1090 MSI/1000/CSI 80 CB
89189 CSI 1000/240V/50Hz 15 5.8 5.0 160 132 1090 MSI/1000/CSI 80 CCC, CB
Product
Code
Description Lamp
current
(A)
Cosφ≥0.9 Max Loss
(W)
System
Power
(W)
Ignitor Temp
Rise
(K)
Wiring
Diagram
Start
Current (A)
Circuit
Current(A)
Capacitor
(μF)
65869 MSB35/220V/50Hz/A/T 0.53 0.30 0.25 6 9.3 46 MSI/150 or MSI/400 70 A
65870 MSB50/220V/50Hz/A/T 0.76 0.42 0.32 8 10 60 MSI/150 or MSI/400 70 A
65871 MSB70/220V/50Hz/A/T 0.98 0.60 0.46 12 16 86 MSI/150 or MSI/400 70 A
65872 MSB100/220V/50Hz/A/T 1.2 0.82 0.63 12 17 117 MSI/150 or MSI/400 70 A
65873 MSB150/220V/50Hz/A/T 1.8 1.20 0.92 20 22 172 MSI/150 or MSI/400 70 A
65874 MSB250/220V/50Hz/A/T 3 1.95 1.50 32 30 280 MSI/400 80 A
65875 MSB400/220V/50Hz/A/T 4.6 3.04 2.34 50 37 437 MSI/400 70 A
65876 MSB600/220V/50Hz/A/T 6.2 4.52 3.48 60 50 650 MSI/1000 80 A
65877 MHB50/220V/50Hz/A/T 0.62 0.46 0.32 8 10 60 N/A 70 B
65878 MHB80/220V/50Hz/A/T 0.8 0.71 0.49 8 11 91 N/A 70 B
65879 MHB125/220V/50Hz/A/T 1.15 1.09 0.75 10 15 140 N/A 70 B
65880 MHB175/220V/50Hz/A/T 1.5 1.49 1.03 12 17 192 N/A 70 B
65881 MHB250/220V/50Hz/A/T 2.1 2.13 1.47 20 24 274 MSI/400 for MH 70 A
2.15 2.13 1.47 20 24 274 N/A for HPM 70 B
65882 MHB400/220V/50Hz/A/T 3.25 3.35 2.31 28 32 432 MSI/400 for MH 80 A
3.25 3.35 2.31 28 32 432 N/A for HPM 80 B
65883 MSB100/70/220V/50Hz/A/T 1.2/1.0 0.75 0.62/0.43 12 17 117/86 MSI/400 70 C
65884 MSB150/100/220V/50Hz/A/T 1.8/1.4 1.10 0.92/0.68 20 22 172/120 MSI/400 70 C
65885 MSB250/150/220V/50Hz/A/T 3.0/2.2 1.80 1.49/0.90 32 30 280/178 MSI/400 70 C
65886 MSB400/250/220V/50Hz/A/T 4.6/3.6 2.80 2.33/1.43 50 37 437/285 MSI/400 70 C
220V/50Hz
Dimension (mm)
140 141
Wiring Diagram
Product
Code
Description Voltage/
Frequency
Lamp
Type
Lamp
Wattage
Dimensions (mm) Carton Quantity
(PCS)
Carton Weight
(Kg)
Package Size
(mm)
A B C D E F
65869 MSB35/220V/50Hz/A/T 220V/50Hz MH 35W 117 95 60 36 52 R3 8 6.9 255*150*170
65870 MSB50/220V/50Hz/A/T 220V/50Hz HPS 50W 117 95 60 36 52 R3 8 9 255*150*170
65871 MSB70/220V/50Hz/A/T 220V/50Hz HPS/MH 70W 117 95 60 36 52 R3 8 9.5 255*150*170
65872 MSB100/220V/50Hz/A/T 220V/50Hz HPS/MH 100W 140 118 60 36 52 R3 6 11.8 260*175*170
65873 MSB150/220V/50Hz/A/T 220V/50Hz HPS/MH 150W 126 104 75 45 64.5 R3 6 15.5 255*150*170
65874 MSB250/220V/50Hz/A/T 220V/50Hz HPS/MH 250W 155 133 75 45 64.5 R3 4 20.8 260*175*170
65875 MSB400/220V/50Hz/A/T 220V/50Hz HPS/MH 400W 165 143 96 61 82 R3 2 19.3 210*190*198
65876 MSB600/220V/50Hz/A/T 220V/50Hz HPS 600W 200 178 96 61 82 R3 8 12.4 240*220*104
65877 MHB50/220V/50Hz/A/T 220V/50Hz HPM 50W 117 95 60 36 52 R3 8 8.5 255*150*170
65878 MHB80/220V/50Hz/A/T 220V/50Hz HPM 80W 117 95 60 36 52 R3 8 9 255*150*170
65879 MHB125/220V/50Hz/A/T 220V/50Hz HPM 125W 140 118 60 36 52 R3 8 11.6 260*175*170
65880 MHB175/220V/50Hz/A/T 220V/50Hz HPM/MH 175W 126 104 75 45 64.5 R3 6 8.9 255*150*170
65881 MHB250/220V/50Hz/A/T 220V/50Hz HPM/MH 250W 150 128 75 45 64.5 R3 6 16.5 260*175*170
65882 MHB400/220V/50Hz/A/T 220V/50Hz HPM/MH 400W 160 138 75 45 64.5 R3 6 17.9 260*175*170
65883 MSB100/70/220V/50Hz/A/T 220V/50Hz HPS 100W 126 104 75 45 64.5 R3 6 9.6 255*150*170
65884 MSB150/100/220V/50Hz/A/T 220V/50Hz HPS 150W 150 128 75 45 64.5 R3 6 14.1 260*175*170
65885 MSB250/150/220V/50Hz/A/T 220V/50Hz HPS 250W 165 143 96 61 82 R3 4 13.3 210*190*198
65886 MSB400/250/220V/50Hz/A/T 220V/50Hz HPS 400W 200 178 96 61 82 R3 2 12.3 240*220*104
A
B
C
Ballast
Product
Code
Description Lamp
current
(A)
Cosφ≥0.9 Max Loss
(W)
System
Power
(W)
Ignitor Temp
Rise
(K)
Wiring
Diagram
Start
Current (A)
Circuit
Current(A)
Capacitor
(μF)
65890 MSB35/230V/50Hz/A/T 0.53 0.280 0.230 6 9.3 46 MSI/150 or MSI/400 70 A
65891 MSB50/230V/50Hz/A/T 0.76 0.390 0.300 8 10 60 MSI/150 or MSI/400 70 A
65892 MSB70/230V/50Hz/A/T 0.98 0.550 0.420 12 16 86 MSI/150 or MSI/400 70 A
65893 MSB100/230V/50Hz/A/T 1.2 0.750 0.580 12 17 117 MSI/150 or MSI/400 70 A
65894 MSB150/230V/50Hz/A/T 1.8 1.110 0.850 20 22 172 MSI/150 or MSI/400 70 A
65895 MSB250/230V/50Hz/A/T 3 1.790 1.380 32 30 280 MSI/400 70 A
65896 MSB400/230V/50Hz/A/T 4.6 2.810 2.160 50 37 437 MSI/400 70 A
65897 MSB600/230V/50Hz/A/T 6.2 4.170 3.210 60 50 650 MSI/1000 80 A
65898 MHB50/230V/50Hz/A/T 0.62 0.440 0.300 8 10 60 N/A 70 B
65899 MHB80/230V/50Hz/A/T 0.8 0.650 0.450 8 11 91 N/A 70 B
65900 MHB125/230V/50Hz/A/T 1.15 1.000 0.690 10 15 140 N/A 70 B
65901 MHB175/230V/50Hz/A/T 1.5 1.380 0.950 12 17 192 N/A 70 B
65902 MHB250/230V/50Hz/A/T 2.13 1.960 1.350 20 24 274 MSI/400 for MH 70 A
2.13 1.960 1.350 20 24 274 N/A for HPM 70 B
65904 MHB400/230V/50Hz/A/T 3.25 3.090 2.130 25 32 432 MSI/400 for MH 70 A
3.25 3.090 2.130 25 32 432 N/A for HPM 70 B
65905 MSB100/70/230V/50Hz/A/T 1.2/1.0 0.690 0.58/0.41 12 17 117/86 MSI/400 70 C
65906 MSB150/100/230V/50Hz/A/T 1.8/1.4 1.020 0.85/0.57 20 22 172/120 MSI/400 70 C
65907 MSB250/150/230V/50Hz/A/T 3.0/2.2 1.660 1.38/0.85 32 30 280/178 MSI/400 70 C
65908 MSB400/250/230V/50Hz/A/T 4.6/3.6 2.590 2.16/1.37 50 37 437/285 MSI/400 70 C
230V/50Hz
Product
Code
Description Voltage/
Frequency
Lamp
Type
Lamp
Wattage
Dimensions (mm) Carton Quantity
(PCS)
Carton Weight
(Kg)
Package Size
(mm)
A B C D E F
65890 MSB35/230V/50Hz/A/T 230V/50Hz MH 35W 117 95 60 36 52 R3 8 8.5 255*150*170
65891 MSB50/230V/50Hz/A/T 230V/50Hz HPS 50W 117 95 60 36 52 R3 8 9 255*150*170
65892 MSB70/230V/50Hz/A/T 230V/50Hz HPS/MH 70W 117 95 60 36 52 R3 8 9.8 255*150*170
65893 MSB100/230V/50Hz/A/T 230V/50Hz HPS/MH 100W 140 118 60 36 52 R3 8 12.9 260*175*170
65894 MSB150/230V/50Hz/A/T 230V/50Hz HPS/MH 150W 126 104 75 45 64.5 R3 6 12.2 255*150*170
65895 MSB250/230V/50Hz/A/T 230V/50Hz HPS/MH 250W 165 143 96 61 82 R3 4 12.6 260*175*170
65896 MSB400/230V/50Hz/A/T 230V/50Hz HPS/MH 400W 170 148 96 61 82 R3 4 10.3 210*190*198
65897 MSB600/230V/50Hz/A/T 230V/50Hz HPS 600W 200 178 96 61 82 R3 2 12.8 240*220*104
65898 MHB50/230V/50Hz/A/T 230V/50Hz HPM 50W 117 95 60 36 52 R3 8 8.5 255*150*170
65899 MHB80/230V/50Hz/A/T 230V/50Hz HPM 80W 117 95 60 36 52 R3 8 9.5 255*150*170
65900 MHB125/230V/50Hz/A/T 230V/50Hz HPM 125W 140 118 60 36 52 R3 8 11 260*175*170
65901 MHB175/230V/50Hz/A/T 230V/50Hz HPM 175W 126 104 75 45 64.5 R3 6 11.1 255*150*170
65902 MHB250/230V/50Hz/A/T 230V/50Hz HPM/MH 250W 150 128 75 45 64.5 R3 6 14.3 260*175*170
65904 MHB400/230V/50Hz/A/T 230V/50Hz HPM/MH 400W 165 143 96 61 82 R3 4 12.6 260*175*170
65905 MSB100/70/230V/50Hz/A/T 230V/50Hz HPS 100W 126 104 75 45 64.5 R3 6 10.2 255*150*170
65906 MSB150/100/230V/50Hz/A/T 230V/50Hz HPS 150W 150 128 75 45 64.5 R3 6 14.9 260*175*170
65907 MSB250/150/230V/50Hz/A/T 230V/50Hz HPS 250W 165 143 96 61 82 R3 4 14.3 210*190*198
65908 MSB400/250/230V/50Hz/A/T 230V/50Hz HPS 400W 200 178 96 61 82 R3 2 12.3 240*220*104
Dimension (mm)
Wiring Diagram
A
B
C
Dimension (mm)
Product
Code
Description Capacitance
(μF)
Voltage/
Frequency
Mounting
(mm)
Case
Temp(°C)
Dimensions (mm) Carton Quantity
(PCS)
Carton Weight
(Kg)
Package Size
(mm)
Case
A B C D E
70993 6μF/250V 6 250V/50-60Hz M8 -40~100 62 12 350 30 M8 80 5.7 453*292*184 A
70994 8μF/250V 8 250V/50-60Hz M8 -40~100 62 12 350 30 M8 80 5.7 453*292*184 A
82017 10μF/250V 10 250V/50-60Hz M8 -40~100 82 12 350 35 M8 40 4.1 453*292*184 A
70995 12μF/250V 12 250V/50-60Hz M8 -40~100 82 12 350 35 M8 40 4.18 453*292*184 A
70996 18μF/250V 18 250V/50-60Hz M8 -40~100 82 12 350 35 M8 40 4.66 453*292*184 A
71009 25μF/250V 25 250V/50-60Hz M8 -40~100 82 12 350 45 M8 40 6.2 453*292*184 A
70997 32μF/250V 32 250V/50-60Hz M8 -40~100 82 12 350 45 M8 40 6.42 453*292*184 A
72090 36μF/250V 36 250V/50-60Hz M8 -40~100 92 12 350 50 M8 40 8.15 453*292*184 A
70998 50μF/250V 50 250V/50-60Hz M8 -40~100 92 12 350 50 M8 40 8.37 453*292*184 A
89197 25μF/540V 25 540V/50-60Hz M8 -40~105 105 10 250 55 M8 28 8.4 453*292*184 B
89200 35μF/540V 35 540V/50-60Hz M8 -40~105 105 10 250 60 M8 28 9.4 453*292*184 B
Capacitor with line
Product
Code
Description Capacitance
(μF)
Voltage/
Frequency
Mounting
(mm)
Case
Temp(°C)
Dimensions (mm) Carton Quantity
(PCS)
Carton Weight
(Kg)
Package Size
(mm)
A B C D E F
28243 6μF/250V/C 6 250V/50-60Hz M8 -40~105 63 10 12 40 M8 16 80 9.6 453*292*184
28244 8μF/250V/C 8 250V/50-60Hz M8 -40~105 63 10 12 40 M8 16 80 9.5 453*292*184
28246 10μF/250V/C 10 250V/50-60Hz M8 -40~105 63 10 12 40 M8 16 40 9.5 453*292*184
28253 12μF/250V/C 12 250V/50-60Hz M8 -40~105 73 10 12 40 M8 16 40 6 453*292*184
28255 18μF/250V/C 18 250V/50-60Hz M8 -40~105 83 10 12 40 M8 16 40 6.5 453*292*184
28256 25μF/250V/C 25 250V/50-60Hz M8 -40~105 83 10 12 45 M8 18 40 7.5 453*292*184
28257 32μF/250V/C 32 250V/50-60Hz M8 -40~105 93 10 12 45 M8 18 40 8.5 453*292*184
28258 50μF/250V/C 50 250V/50-60Hz M8 -40~105 103 10 12 50 M8 18 40 10 453*292*184
Capacitor with clamp Dimension (mm)
142 143
Ignitor
Product
Code
Description Voltage/
Frequency
Lamp Type Lamp Wattage Max load
Capacitor(pF)
Max current
(A)
Wiring
Diagram
65954 MSI/150 220V-240V/50-60Hz HPS/MH 35-150W 20 2 A
11233 MSI/400 220V-240V/50-60Hz HPS/MH 35-400W 150 5 A
11234 MSI/1000 220V-240V/50-60Hz HPS/MH 600-1000W/575-1000W 150 12 A
11235 MSI/400/L 220V-240V/50-60Hz HPS/MH 35-400W 150 5 A
95883 MSI/1000/L 220V-240V/50-60Hz HPS/MH 600-1000W/575-1000W 1000 12 A
81303* MSIA1000 220V-240V/50-60Hz S52 1000W 1000 12 B
89193 MSI/1000/CSI/Aluminum 220V-240V/50-60Hz CSI 1000W 100 18 A
89195 MSI/2000 380V/50Hz HPS/MH 1000W/1000-2000W 100 12 A
Product
Code
Dimensions (mm) Max casing temperature
(°C)
Carton Quantity
(PCS)
Carton Weight
(Kg)
Package Size
(mm)
Certication
Picture A B C D E
65954 C 17 51 12 29 32 105 100 15 385*190*180 CQC
11233 A 65 82 32 29 - 105 100 15.8 385*190*180 CQC, CE
11234 A 76 93 48 40 - 105 50 18.5 270*225*240 CQC
11235 A 65 82 32 29 - 105 100 15.8 385*190*180 CQC
95883 A 76 93 48 40 - 105 50 18.5 270*225*240 CQC
81303* A 65 82 32 29 - 105 100 12.3 385*210*210 CQC
89193 B 20 85 14 M12 60 105 36 27.5 385*260*210 CE
89195 B 21 75 70 M8 50 105 50 19.3 283*230*280 CE
Dimension (mm)
Wiring Diagram
A
A
B
B C
* Suitable for the CWA1000 Lamp
* Suitable for the CWA1000 Lamp
Ballast
Product
Code
Description Lamp
current
(A)
Cosφ≥0.9 Max
Loss
(W)
System
Power
(W)
Ignitor* Temp
Rise
(K)
Max
Operating
Temp (°C)
Certication
Start
Current (A)
Circuit
Current(A)
Capacitor
(μF)
89165 MSB100/70/220V/50Hz/T 1.2/0.98 0.70/0.56 0.59/0.42 12 17/14 116/84 MSI/400 70 130 CCC, CB
89160 MSB150/100/220V/50Hz/T 1.8/1.4 1.03/0.77 0.86/0.57 20 21/16 170/116 MSI/400 70 130 CCC, CB
89155 MSB250/150/220V/50Hz/T 3/2.5 1.69/1.16 1.40/0.86 32 35/24 278/174 MSI/400 70 130 CCC, CB
89144 MSB400/250/220V/50Hz/T 4.6/3.4 2.64/1.89 2.20/1.40 50 54/40 435/283 MSI/400 70 130 CCC, CB
89168 MSB100/70/220V/60Hz/T 1.2/0.98 0.70/0.56 0.59/0.42 12 17/14 116/84 MSI/400 70 130 CB
89163 MSB150/100/220V/60Hz/T 1.8/1.4 1.03/0.77 0.86/0.57 20 21/16 170/116 MSI/400 70 130 CB
99658 MSB250/150/220V/60Hz/T 3/2.5 1.69/1.16 1.40/0.86 32 35/24 278/174 MSI/400 70 130 CB
89153 MSB400/250/220V/60Hz/T 4.6/3.4 2.64/1.89 2.20/1.40 50 54/40 435/283 MSI/400 70 130 CB
89166 MSB100/70/230V/50Hz/T 1.2/0.98 0.67/0.54 0.56/0.40 12 18/15 116/84 MSI/400 70 130 CB
89161 MSB150/100/230V/50Hz/T 1.8/1.4 0.99/0.74 0.82/0.55 20 22/17 170/116 MSI/400 70 130 CB
89156 MSB250/150/230V/50Hz/T 3/2.5 1.61/1.11 1.34/0.82 32 27/28 278/174 MSI/400 70 130 CB
89151 MSB400/250/230V/50Hz/T 4.6/3.4 2.52/1.80 2.10/1.33 50 57/42 435/283 MSI/400 70 130 CB
89169 MSB100/70/230V/60Hz/T 1.2/0.98 0.67/0.54 0.56/0.40 12 18/15 116/84 MSI/400 70 130 CB
89164 MSB150/100/230V/60Hz/T 1.8/1.4 0.99/0.74 0.82/0.55 20 22/17 170/116 MSI/400 70 130 CB
99659 MSB250/150/230V/60Hz/T 3/2.25 1.61/1.11 1.34/0.82 32 37/28 278/174 MSI/400 70 130 CB
89154 MSB400/250/230V/60Hz/T 4.6/3.4 2.52/1.80 2.10/1.33 50 57/42 435/283 MSI/400 70 130 CB
89167 MSB100/70/240V/50Hz/T 1.2/0.98 0.64/0.51 0.54/0.38 12 19/16 116/84 MSI/400 70 130 CB
99660 MSB150/100/240V/50Hz/T 1.8/1.4 0.94/0.71 0.79/0.53 20 23/18 170/116 MSI/400 70 130 CB
89157 MSB250/150/240V/50Hz/T 3/2.5 1.54/1.06 1.29/0.79 32 39/29 278/174 MSI/400 70 130 CB
89152 MSB400/250/240V/50Hz/T 4.6/3.4 2.42/1.73 2.00/1.29 50 60/44 435/283 MSI/400 70 130 CB
Bi-Level Electromagnetic Ballast
Dimension (mm)
*Ignitor details in HID Ignitor Group
Wiring Diagram
144 145
Product
Code
Description Voltage/
Frequency
Lamp
Type
Lamp
Wattage
Dimensions (mm) Carton Quantity
(PCS)
Carton Weight
(Kg)
Package Size
(mm)
A B C D E F
89165 MSB100/70/220V/50Hz/T 220V/50Hz HPS 100W 126 104 75 45 64 R3 6 10.8 255*150*170
89160 MSB150/100/220V/50Hz/T 220V/50Hz HPS 150W 126 104 75 45 64 R3 6 13.7 255*150*170
89155 MSB250/150/220V/50Hz/T 220V/50Hz HPS 250W 130 108 96 61 82 R3 4 12.8 210*190*205
89144 MSB400/250/220V/50Hz/T 220V/50Hz HPS 400W 145 123 114 81 97 R3 2 10.4 260*185*115
89168 MSB100/70/220V/60Hz/T 220V/60Hz HPS 100W 126 104 75 45 64 R3 6 10.7 255*150*170
89163 MSB150/100/220V/60Hz/T 220V/60Hz HPS 150W 126 104 75 45 64 R3 6 13.4 255*150*170
99658 MSB250/150/220V/60Hz/T 220V/60Hz HPS 250W 130 108 96 61 82 R3 4 12.7 210*190*205
89153 MSB400/250/220V/60Hz/T 220V/60Hz HPS 400W 145 123 114 81 97 R3 2 10.3 260*185*115
89166 MSB100/70/230V/50Hz/T 230V/50Hz HPS 100W 126 104 75 45 64 R3 6 10.9 255*150*170
89161 MSB150/100/230V/50Hz/T 230V/50Hz HPS 150W 126 104 75 45 64 R3 6 13.6 255*150*170
89156 MSB250/150/230V/50Hz/T 230V/50Hz HPS 250W 130 108 96 61 82 R3 4 13.1 210*190*205
89151 MSB400/250/230V/50Hz/T 230V/50Hz HPS 400W 145 123 114 81 97 R3 2 10.5 260*185*115
89169 MSB100/70/230V/60Hz/T 230V/60Hz HPS 100W 126 104 75 45 64 R3 6 10.8 255*150*170
89164 MSB150/100/230V/60Hz/T 230V/60Hz HPS 150W 126 104 75 45 64 R3 6 13.7 255*150*170
99659 MSB250/150/230V/60Hz/T 230V/60Hz HPS 250W 130 108 96 61 82 R3 4 12.8 210*190*205
89154 MSB400/250/230V/60Hz/T 230V/60Hz HPS 400W 145 123 114 81 97 R3 2 10.4 260*185*115
89167 MSB100/70/240V/50Hz/T 240V/50Hz HPS 100W 126 104 75 45 64 R3 6 11.4 255*150*170
99660 MSB150/100/240V/50Hz/T 240V/50Hz HPS 150W 126 104 75 45 64 R3 6 14 255*150*170
89157 MSB250/150/240V/50Hz/T 240V/50Hz HPS 250W 130 108 96 61 82 R3 4 13.2 210*190*205
89152 MSB400/250/240V/50Hz/T 240V/50Hz HPS 400W 145 123 114 81 97 R3 2 11.3 260*185*115
Product
Code
Description Loss
(W)
Max Operating
Temp (°C)
Dimension
Diagram
Wiring
Diagram
Dimensions (mm) Carton
Quantity(PCS)
Carton
Weight (Kg)
Package
Size (mm)
A B C D E F
89170 MSB/Dual/PS 3 80 A D 132 102 10 M8 φ45 - 50 18.6 283*242*265
75251 MSB/Dual/PS/Timer 3 80 B E 65 75 84 M8 32 29 100 10 385*190*180
89176 Timer/PS 3 -30~50 C F 125 70 50 - - - 1 0.354 125*70*157
Bi-Level Electromagnetic Ballast
Power Switch/Timer
Dimension (mm)
Wiring Diagram
A
A
B C
B C
Ballast
Dimension (mm)
Wiring Diagram
Product
Code
Description Lamp
current
(A)
Cosφ≥0.9 Loss
(W)
System Power
(W)
Ignitor Temp
Rise
(K)
Max Start
Current (A)
Circuit
Current(A)
Capacitor
(μF)
10987 CWA175/220V/50Hz 1.5 0.88 1.03 13 38 210 N/A 75
10988 CWA250/220V/50Hz 2.1 1.22 1.44 19 45 295 N/A 80
10989 CWA400/220V/50Hz 3.25 1.89 2.23 28 58 458 N/A 80
10991 CWA1000/220V/50Hz 4.1 4.50 5.30 30 85 1085 N/A 80
10992 CWA1500/220V/50Hz 6.2 6.70 7.90 41 125 1625 N/A 80
220V/50Hz
Product
Code
Description Voltage/
Frequency
Lamp
Type
Lamp
Wattage
Dimensions (mm) Carton Quantity
(PCS)
Carton Weight
(Kg)
Package Size
(mm)
A B C D E F
10987 CWA175/220V/50Hz 220V/50Hz ANSI MH 175W 130 108 114 81 97 R3 2 7.7 210*190*250
10988 CWA250/220V/50Hz 220V/50Hz ANSI MH 250W 145 123 114 81 97 R3 2 10.2 260*185*115
10989 CWA400/220V/50Hz 220V/50Hz ANSI MH 400W 168 146 114 81 97 R3 2 14.2 260*185*115
10991 CWA1000/220V/50Hz 220V/50Hz ANSI MH 1000W 200 178 127 94 112 R3 2 22.9 285*220*135
10992 CWA1500/220V/50Hz 220V/50Hz ANSI MH 1500W 235 213 127 94 112 R3 1 14.3 255*150*135
Ballast
Dimension (mm)
Wiring Diagram
Product
Code
Description Lamp
current
(A)
Cosφ≥0.9 Loss
(W)
System Power
(W)
Ignitor Temp
Rise
(K)
Max Start
Current (A)
Circuit
Current(A)
Capacitor
(μF)
95878 CWA175/230V/50Hz 1.5 0.830 0.98 13 38 210 N/A 80
95879 CWA250/230V/50Hz 2.1 1.170 1.38 19 45 295 N/A 80
95880 CWA400/230V/50Hz 3.25 1.830 2.15 28 60 460 N/A 80
95881 CWA1000/230V/50Hz 4.1 4.300 5.07 30 85 1085 N/A 80
95882 CWA1500/230V/50Hz 6.2 6.500 7.64 41 135 1635 N/A 90
230V/50Hz
Product
Code
Description Voltage/
Frequency
Lamp
Type
Lamp
Wattage
Dimensions (mm) Carton Quantity
(PCS)
Carton Weight
(Kg)
Package Size
(mm)
A B C D E F
95878 CWA175/230V/50Hz 230V/50Hz ANSI MH 175W 130 108 114 81 97 R3 2 7.4 210*190*250
95879 CWA250/230V/50Hz 230V/50Hz ANSI MH 250W 145 123 114 81 97 R3 2 8.6 260*185*115
95880 CWA400/230V/50Hz 230V/50Hz ANSI MH 400W 168 146 114 81 97 R3 2 14.2 260*185*115
95881 CWA1000/230V/50Hz 230V/50Hz ANSI MH 1000W 200 178 127 94 112 R3 2 22.9 285*220*135
95882 CWA1500/230V/50Hz 230V/50Hz ANSI MH 1500W 235 213 127 94 112 R3 1 14.3 255*150*135
Product
Code
Description Lamp
current
(A)
Cosφ≥0.9 Loss
(W)
System Power
(W)
Ignitor Temp
Rise
(K)
Max Start
Current (A)
Circuit
Current(A)
Capacitor
(μF)
11228 CWA175/240V/50Hz 1.5 0.85 0.94 13 35 210 N/A 80
11229 CWA250/240V/50Hz 2.1 1.10 1.32 19 45 295 N/A 80
11230 CWA400/240V/50Hz 3.25 1.75 2.06 28 60 460 N/A 80
11231 CWA1000/240V/50Hz 4.1 4.10 4.86 30 85 1085 N/A 80
11232 CWA1500/240V/50Hz 6.2 6.50 7.30 41 135 1635 N/A 90
240V/50Hz
Dimension (mm)
146 147
Wiring Diagram
Product
Code
Description Voltage/
Frequency
Lamp
Type
Lamp
Wattage
Dimensions (mm) Carton Quantity
(PCS)
Carton Weight
(Kg)
Package Size
(mm)
A B C D E F
11228 CWA175/240V/50Hz 240V/50Hz ANSI MH 175W 130 108 114 81 97 R3 2 7.4 210*190*250
11229 CWA250/240V/50Hz 240V/50Hz ANSI MH 250W 145 123 114 81 97 R3 2 8.6 260*185*115
11230 CWA400/240V/50Hz 240V/50Hz ANSI MH 400W 168 146 114 81 97 R3 2 14.2 260*185*115
11231 CWA1000/240V/50Hz 240V/50Hz ANSI MH 1000W 200 178 127 94 112 R3 2 22.9 285*220*135
11232 CWA1500/240V/50Hz 240V/50Hz ANSI MH 1500W 235 213 127 94 112 R3 1 14.3 255*150*135
Dimension (mm)
Wiring Diagram
Product
Code
Description Lamp
current
(A)
Cosφ≥0.9 Loss
(W)
System Power
(W)
Ignitor* Temp
Rise
(K)
Max Start
Current (A)
Circuit
Current(A)
Capacitor
(μF)
81302 CWA1000/S52/220V/50Hz 4.7 4.20 5.20 30 115 1100 MSIA/1000 80
85922 CWA1000/S52/220V/60Hz 4.7 3.60 5.10 26 105 1085 MSIA/1000 80
85923 CWA1000/S52/230V/50Hz 4.7 4.00 5.00 30 115 1100 MSIA/1000 80
85926 CWA1000/S52/230V/60Hz 4.7 3.40 4.90 26 105 1085 MSIA/1000 80
85921 CWA1000/S52/240V/50Hz 4.7 3.80 4.80 30 115 1100 MSIA/1000 80
CWA1000
Product
Code
Description Voltage/
Frequency
Lamp
Type
Lamp
Wattage
Dimensions (mm) Carton Quantity
(PCS)
Carton Weight
(Kg)
Net Weight
(Kg)
Package Size
(mm)
A B C D E F
81302 CWA1000/S52/220V/50Hz 220V/50Hz ANSI HPS 1000W 108 163 108 98 136 152 1 14.4 14 210*190*160
85922 CWA1000/S52/220V/60Hz 220V/60Hz ANSI HPS 1000W 95 150 108 98 136 152 1 12.67 12.27 210*190*160
85923 CWA1000/S52/230V/50Hz 230V/50Hz ANSI HPS 1000W 108 163 108 98 136 152 1 14.01 13.71 210*190*160
85926 CWA1000/S52/230V/60Hz 230V/60Hz ANSI HPS 1000W 95 150 108 98 136 152 1 12.63 12.23 210*190*160
85921 CWA1000/S52/240V/50Hz 240V/50Hz ANSI HPS 1000W 108 163 108 98 136 152 1 14.07 13.67 210*190*160
*Ignitor details in HID Ignitor Group
Ballast
Dimension (mm) Product
Code
Description Capacitance
(μF)
Voltage/
Frequency
Case Temp
(°C)
Dimensions (mm) Carton Quantity
(PCS)
Carton Weight
(Kg)
Package Size
(mm)
A B C D E
10993 13μF/540V 13 540V/50~60Hz -40~105 95 10 250 45 M8 40 8 453*292*184
10994 19μF/540V 19 540V/50~60Hz -40~105 95 10 250 50 M8 40 10 453*292*184
10995 28μF/540V 28 540V/50~60Hz -40~105 105 10 250 55 M8 28 8.5 453*292*184
10996 30μF/540V 30 540V/50~60Hz -40~105 115 10 250 55 M8 28 9 453*292*184
10997 41μF/540V 41 540V/50~60Hz -40~105 115 10 250 60 M10 28 10.5 453*292*184
89625 26μF/540V 26 540V/50~60Hz -40~105 105 10 250 55 M8 28 8 453*292*184
Capacitor with line
Product
Code
Description Input Power
(W)
Input Current
(A)
SPower Factor
(PF)
EEI Tc Point
(°C)
Ambient
Temperature
Range (°C)
THD Case
78711 BLS/E/20W/CMH 23 0.1 0.95 A2 80 -20~55 <15% A
78712 BLS/E/20W/CMH/R CC 23 0.1 0.95 A2 80 -20~55 <15% B
78713 BLS/E/20W/CMH/R LP 23 0.1 0.95 A2 80 -20~55 <15% C
78714 BLS/E/35W/CMH 44 0.19 0.95 A2 85 -20~55 <15% A
78715 BLS/E/35W/CMH/R CC 44 0.19 0.95 A2 85 -20~55 <15% B
78716 BLS/E/35W/CMH/R LP 44 0.19 0.95 A2 85 -20~55 <15% C
Miniature eHID
Product
Code
Description Lamp
Type
Lamp
Wattage
Lamp
Quantity
Voltage/Frequency Dimensions (mm) Carton Quantity
(PCS)
Unit Weight
(g)
L W H
78711 BLS/E/20W/CMH CMH 20W 1 220-240V/50-60Hz 97.3 43.3 30 12 165
78712 BLS/E/20W/CMH/R CC CMH 20W 1 220-240V/50-60Hz 162 43.3 30 12 180
78713 BLS/E/20W/CMH/R LP CMH 20W 1 220-240V/50-60Hz 162 43.3 30 12 240
78714 BLS/E/35W/CMH CMH 35W 1 220-240V/50-60Hz 97.3 43.3 30 12 165
78715 BLS/E/35W/CMH/R CC CMH 35W 1 220-240V/50-60Hz 162 43.3 30 12 180
78716 BLS/E/35W/CMH/R LP CMH 35W 1 220-240V/50-60Hz 162 43.3 30 12 240
Case Wiring Diagram
A
B
C
NOTE
Terminal Wire
Cross-section: 0.75 to 1.5 mm2
Strip Length: 6-7 mm
Dimension (mm)
Product
Code
Description Capacitance
(μF)
Voltage/
Frequency
Case Temp
(°C)
Dimensions (mm) Carton Quantity
(PCS)
Carton Weight
(Kg)
Package Size
(mm)
A B C D E F
31599 13μF/540V/C 13 540V/50~60Hz -40~105 93 10 12 45 M8 18 40 8 453*292*184
31614 19μF/540V/C 19 540V/50~60Hz -40~105 93 10 12 50 M8 18 40 10 453*292*184
31625 28μF/540V/C 28 540V/50~60Hz -40~105 103 10 12 55 M8 20 28 8.5 453*292*184
31638 30μF/540V/C 30 540V/50~60Hz -40~105 113 10 12 55 M8 20 28 9 453*292*184
31647 41μF/540V/C 41 540V/50~60Hz -40~105 113 10 12 60 M10 20 28 10.5 453*292*184
Capacitor with clamp
148 149
Ballast
NOTE
Terminal Wire
Cross-section: 0.75 to 1.5 mm2
Strip Length: 6-7 mm
Wiring DiagramCase
A
B
Product Code Description Lamp Type Lamp
Wattage
Lamp
Quantity
Voltage/Frequency Dimensions (mm) Carton Quantity
(PCS)
Unit Weight
(g)
L W H
61487 BLS/ES/35W/CMH CMH/QMH 35W 1 220-240V/50-60Hz 110 70 31 10 350
61488 BLS/ES/35W/CMH/R CC CMH/QMH 35W 1 220-240V/50-60Hz 140 70 31 10 370
61376 BLS/ES/70W/CMH CMH/QMH 70W 1 220-240V/50-60Hz 110 70 31 10 350
61569 BLS/ES/70W/CMH/R CC CMH/QMH 70W 1 220-240V/50-60Hz 140 70 31 10 370
Product Code Description Input Power
(W)
Input Current
(A)
Power Factor
(PF)
THD EEI Tc Point
(°C)
Ambient Temperature
Range (°C)
Case
61487 BLS/ES/35W/CMH 44 0.19 0.95 < 10% A2 85 -20~55 A
61488 BLS/ES/35W/CMH/R CC 44 0.19 0.95 < 10% A2 85 -20~50 B
61376 BLS/ES/70W/CMH 81 0.35 0.95 < 10% A2 85 -20~55 A
61569 BLS/ES/70W/CMH/R CC 81 0.35 0.95 < 10% A2 85 -20~50 B
Standard eHID
Case Wiring Diagram NOTE
Terminal Wire
Cross-section: 0.75 to 1.5 mm2
Strip Length: 8.5-9.5 mm
Product Code Description Lamp Type Lamp
Wattage
Lamp
Quantity
Voltage/Frequency Dimensions (mm) Carton Quantity
(PCS)
Unit Weight
(g)
L W H
67554C BLS/ED/35W/CMH CMH 35W 35W 1 220-240V/50-60Hz 110 75 32 10 300
67555C BLS/ED/70W/CMH CMH 70W 70W 1 220-240V/50-60Hz 110 75 32 10 310
Product Code Description Input Power
(W)
Input Current
(A)
Power Factor
(PF)
THD EEI Tc Point (°C) Ambient Temperature
Range (°C)
67554C BLS/ED/35W/CMH 44 0.19 0.95 <10% A2 75 -20~55
67555C BLS/ED/70W/CMH 80 0.35 0.95 <10% A2 75 -20~50
Economics eHID
Dimension (mm)
Wiring Diagram
Product Code Description Lamp Type Lamp Wattage Lamp
Quantity
Voltage/Frequency Dimensions (mm) Carton Quantity
(PCS)
Unit Weight
(g)
L M W H D
61386 ELB114S T5 14W 1 220-240V/50-60Hz 288 276.5 30 27 4.5 30 250
61387 ELB214S T5 14W 2 220-240V/50-60Hz 288 276.5 30 27 4.5 30 250
61395 ELB314S T5 14W 3 220-240V/50-60Hz 360 348.5 30 27 4.5 30 350
61396 ELB414S T5 14W 4 220-240V/50-60Hz 288 276.5 30 27 4.5 30 290
61394 ELB121S T5 21W 1 220-240V/50-60Hz 288 276.5 30 27 4.5 30 250
61388 ELB128S T5 28W 1 220-240V/50-60Hz 288 276.5 30 27 4.5 30 250
61389 ELB228S T5 28W 2 220-240V/50-60Hz 288 276.5 30 27 4.5 30 290
61390 ELB328S T5 28W 3 220-240V/50-60Hz 425 413.5 30 26 4.5 20 420
61391 ELB135S T5 35W 1 220-240V/50-60Hz 288 276.5 30 27 4.5 30 250
61392 ELB235S T5 35W 2 220-240V/50-60Hz 359 347.5 30 21 4.5 30 320
62107 ELB149S T5 49W 1 220-240V/50-60Hz 288 276.5 30 27 4.5 30 280
62108 ELB249S T5 49W 2 220-240V/50-60Hz 359 347.5 30 27 4.5 30 340
61393 ELB154S T5 54W 1 220-240V/50-60Hz 288 276.5 30 27 4.5 30 250
61385 ELB254/258S T5 54/58W* 2 220-240V/50-60Hz 359 347.5 30 27 4.5 30 330
Product Code Description Start Type Input Power
(W)
Input Current
(A)
Power Factor
(PF)
THD EEI Tc Point
(°C)
Temperature
Range (°C)
Wiring
Diagram
61386 ELB114S Preheat Start 16.5 0.07 0.98 < 10% A2 70 -15~50 A
61387 ELB214S Preheat Start 31.5 0.14 0.98 < 10% A2 70 -15~50 B
61395 ELB314S Preheat Start 48 0.21 0.98 < 10% A2 70 -15~50 C
61396 ELB414S Preheat Start 62 0.27 0.98 < 10% A2 70 -15~50 F
61394 ELB121S Preheat Start 24 0.11 0.98 < 10% A2 70 -15~50 A
61388 ELB128S Preheat Start 31.5 0.14 0.98 < 10% A2 70 -15~50 A
61389 ELB228S Preheat Start 62 0.27 0.98 < 10% A2 70 -15~50 B
61390 ELB328S Program Start 92 0.41 0.98 < 10% A2 70 -15~50 E
61391 ELB135S Preheat Start 38 0.17 0.98 < 10% A2 70 -15~50 A
61392 ELB235S Program Start 77 0.34 0.98 < 10% A2 70 -15~50 B
62107 ELB149S Preheat Start 53 0.23 0.98 < 10% A2 70 -15~50 A
62108 ELB249S Program Start 106 0.46 0.98 < 10% A2 70 -15~50 D
61393 ELB154S Preheat Start 57 0.25 0.98 < 10% A2 70 -15~50 A
61385 ELB254/258S Program Start 105 0.45 0.98 < 10% A2 70 -15~50 D
High Performance T5 Electronic Ballast
Dimension (mm)
* Work with both T5 54W and T8 58W lamp
150 151
Ballast
Product Code Description Lamp Type Lamp
Wattage
Number of
Lamps
Voltage/Frequency Dimensions (mm) Carton Quantity
(PCS)
Unit Weight
(g)
L M W H D
62623 ELB114E T5 14W 1 220-240V/50~60Hz 265 254 30.5 29 4.5 20 260
62624 ELB214E T5 14W 2 220-240V/50~60Hz 280 270 38 29 4.5 20 350
62625 ELB314E T5 14W 3 220-240V/50~60Hz 280 270 38 29 4.5 20 350
62626 ELB414E T5 14W 4 220-240V/50~60Hz 280 270 42 29 4.5 20 380
62627 ELB121E T5 21W 1 220-240V/50~60Hz 264 254 30.5 29 4.5 20 260
62630 ELB224E T5 24W 2 220-240V/50~60Hz 280 270 38 29 4.5 20 350
62628 ELB128E T5 28W 1 220-240V/50~60Hz 264 254 30.5 29 4.5 20 260
62629 ELB228E T5 28W 2 220-240V/50~60Hz 362 352 30.5 30 4.5 20 320
Product Code Description Start Type Input Power
(W)
Input Current
(A)
Power Factor
(PF)
THD EEI Tc Point
(°C)
Ambient Temperature
Range (°C))
Wiring
Diagram
62623 ELB114E Instant Start 15.5 0.07 0.98 < 15% A3 70 -10~50 A
62624 ELB214E Instant Start 32 0.14 0.98 < 15% A3 70 -10~50 B
62625 ELB314E Instant Start 46 0.21 0.98 < 15% A3 70 -10~50 D
62626 ELB414E Instant Start 64 0.29 0.98 < 15% A3 70 -10~50 E
62627 ELB121E Instant Start 24 0.11 0.98 < 15% A3 70 -10~50 A
62630 ELB224E Instant Start 52 0.23 0.98 < 15% A3 70 -10~50 C
62628 ELB128E Instant Start 31 0.14 0.98 < 15% A3 70 -10~50 A
62629 ELB228E Instant Start 61 0.27 0.98 < 15% A3 70 -10~50 B
Economic Electronic T5 Ballast
Dimension (mm) Wiring Diagram
Dimension (mm) Wiring Diagram
Product Code Description Lamp
Type
Lamp
Wattage*
Lamp
Quantity
Voltage/Frequency Dimensions (mm) Carton Quantity
(PCS)
Unit Weight
(g)
L M W H D
61378 ELB118S T8/T10 18W 1 220-240V/50~60Hz 251 239.5 30 27 4.5 30 200
61379 ELB218S T8/T10 18W 2 220-240V/50~60Hz 288 276.5 30 27 4.5 30 250
61380 ELB318S T8/T10 18W 3 220-240V/50~60Hz 360 348.5 30 27 4.5 30 330
61381 ELB136S T8/T10 36W 1 220-240V/50~60Hz 251 239.5 30 27 4.5 30 200
61382 ELB236S T8/T10 36W 2 220-240V/50~60Hz 288 276.5 30 27 4.5 30 250
61383 ELB336S T8/T10 36W 3 220-240V/50~60Hz 360 348.5 30 27 4.5 30 380
61384 ELB158S T8/T10 58W 1 220-240V/50~60Hz 251 239.5 30 27 4.5 30 200
61385 ELB254/258S T8/T10 54/58W** 2 220-240V/50~60Hz 359 347.5 30 27 4.5 30 330
Product Code Description Start Type Input Power
(W)
Input Current
(A)
Power Factor
(PF)
THD EEI Tc Point
(°C)
Temperature
Range (°C)
Wiring
Diagram
61378 ELB118S Preheat Start 18 0.08 0.98 < 10% A3 70 -10~50 A
61379 ELB218S Preheat Start 36 0.16 0.98 < 10% A3 70 -10~50 B
61380 ELB318S Instant Start 54 0.24 0.98 < 10% A3 70 -10~50 C
61381 ELB136S Preheat Start 36 0.16 0.98 < 10% A3 70 -10~50 A
61382 ELB236S Preheat Start 72 0.32 0.98 < 10% A3 70 -10~50 B
61383 ELB336S Instant Start 108 0.48 0.98 < 10% A3 70 -10~50 C
61384 ELB158S Preheat Start 57 0.26 0.98 < 10% A3 70 -10~50 A
61385 ELB254/258S Program Start 105 0.45 0.98 < 10% A3 70 -10~50 D
High Performance T8/T10 Electronic Ballast
*T8 lamp wattage
*Work with both T5 54W and T8 58W lamp
153152
Ballast
Dimension (mm) Wiring Diagram
Product
Code
Description Lamp
Type
Lamp
Wattage
Lamp
Quantity
Voltage/Frequency Dimensions (mm) Carton Quantity
(PCS)
Unit Weight
(g)
L M W H D
62640 ELB118E T8/T10 18W 1 220-240V/50-60Hz 264 254 30.5 29 4.5 20 260
62641 ELB218E T8/T10 18W 2 220-240V/50-60Hz 264 254 30.5 29 4.5 20 260
62642 ELB318E T8/T10 18W 3 220-240V/50-60Hz 280 270 38 29 4.5 20 350
62643 ELB418E T8/T10 18W 4 220-240V/50-60Hz 280 270 42 29 4.5 20 380
62644 ELB136E T8/T10 36W 1 220-240V/50-60Hz 264 254 30.5 29 4.5 20 230
62645 ELB236E T8/T10 36W 2 220-240V/50-60Hz 280 270 38 29 4.5 20 295
Product
Code
Description Start Type Input Power
(W)
Input Current
(A)
Power Factor
(PF)
THD EEI Tc Point
(°C)
Temperature
Range (°C)
Wiring
Diagram
62640 ELB118E Instant Start 18.5 0.08 0.98 < 15% A3 70 -10~50 A
62641 ELB218E Instant Start 36 0.16 0.98 < 15% A3 70 -10~50 B
62642 ELB318E Instant Start 54 0.24 0.98 < 15% A3 70 -10~50 D
62643 ELB418E Instant Start 70 0.31 0.98 < 15% A3 70 -10~50 E
62644 ELB136E Instant Start 36 0.16 0.98 < 15% A3 70 -10~50 A
62645 ELB236E Instant Start 72 0.32 0.98 < 15% A3 70 -10~50 C
Economic Electronic Ballast For T8/T10 LFL
Product
Code
Description Voltage/Frequency Lamp
Type
Lamp
Wattage
Power
Factor
Capacitor
(μF)
Max Loss
(W)
Temp
Rise(K)
76509 MB15/220V/50Hz 220V/50Hz T8/T10 15W 0.33 4 8 55
76510 MB18/20/220V/50Hz 220V/50Hz T8/T10 18/20W 0.33 4 8 55
76511 MB30/220V/50Hz 220V/50Hz T8/T10 30W 0.45 4 9 55
76512 MB36/40/220V/50Hz 220V/50Hz T8/T10 36/40W 0.51 4.7 9 55
76514 MB58/65/220V/50Hz 220V/50Hz T8/T10 58/65W 0.51 6 11 55
76515 MB22/220V/50Hz 220V/50Hz T8/T10 22W 0.33 4 9 55
76516 MB32/220V/50Hz 220V/50Hz T8/T10 32W 0.45 5 9 55
High Performance T8/T10 Electromagnetic Ballast
Product
Code
Description Max Operating
Temp(°C)
Dimensions (mm) Carton Quantity
(PCS)
Carton Weight
(Kg)
Net Weight
(Kg)
A B C D E
76509 MB15/220V/50Hz 130 150 130 41 26.5 55 20 10.5 10.2
76510 MB18/20/220V/50Hz 130 150 130 41 26.5 55 20 10.22 9.92
76511 MB30/220V/50Hz 130 150 130 41 26.5 60 20 11.12 10.82
76512 MB36/40/220V/50Hz 130 150 130 41 26.5 65 20 12.08 11.78
76514 MB58/65/220V/50Hz 130 190 170 41 26.5 110 20 18.82 18.52
76515 MB22/220V/50Hz 130 150 130 41 26.5 62 20 11.38 11.08
76516 MB32/220V/50Hz 130 150 130 41 26.5 65 20 11.94 11.64
Dimension (mm)
Wiring Diagram
Product
Code
Description Max Operating
Temp(°C)
Dimensions (mm) Carton Quantity
(PCS)
Carton Weight
(Kg)
Net Weight
(Kg)
A B C D E
76517 EMB18/20/220V/50Hz 120 150 130 41 26.5 55 20 10.32 10.02
76518 EMB30/220V/50Hz 120 150 130 41 26.5 60 20 11.04 10.74
76519 EMB36/40/220V/50Hz 120 150 130 41 26.5 65 20 12.02 11.72
76520 EMB22/220V/50Hz 120 150 130 41 26.5 62 20 11.4 11.1
76521 EMB32/220V/50Hz 120 150 130 41 26.5 65 20 11.9 11.6
Dimension (mm)
Wiring Diagram
Product
Code
Description Voltage/
Frequency
Lamp
Type
Lamp
Wattage
Power
Factor
Capacitor
(μF)
Max Loss
(W)
Temp Rise
(K)
76517 EMB18/20/220V/50Hz 220V/50Hz T8/T10 18/20W 0.33 4 8 60
76518 EMB30/220V/50Hz 220V/50Hz T8/T10 30W 0.45 4 8.5 60
76519 EMB36/40/220V/50Hz 220V/50Hz T8/T10 36/40W 0.51 4.7 9 60
76520 EMB22/220V/50Hz 220V/50Hz T8/T10 22W 0.33 4 9 60
76521 EMB32/220V/50Hz 220V/50Hz T8/T10 32W 0.45 4.4 9 60
Standard Performance T8/T10 Electromagnetic Ballast
154 155
Product
Code
Description Voltage
(V)
Wattage
(W)
Case Carton Quantity
(PCS)
Carton Weight
(Kg)
Avg. cycle life
(switching cycles)
Package
24975 Starter FU 10 (155/500 4-65W 220-240V) 220-240 4-65 PP 1500 12 8000 color
81024 FU10 155/500 4W-65W 220-240V 220-240 4-65 PP 1500 12 8000 color
81850 STARTERS FU10 155/500 4-65W 220-240V PC 220-240 4-65 PC 1500 12 8000 Industrial
89698 STARTERS FU10 155/200 4-22W 220-240V Series RoHS 220-240 4-22 PC 1500 12 8000 color
89699 STARTERS FU10 155/200 4-22W 220-240V Series 220-240 4-22 PC 2000 15 8000 Industrial
Lamp type Lamp Wattage (W) Nominal Dimension (mm)
T5 Linear
4 16*150
6 16*225
8 16*300
13 16*525
T8 Linear
15 26*450
18 26*600
30 26*900
36 26*1200
58 26*1500
T10 Linear 20 32*600
40 32*1200
T12 Linear
20 38*600
40 38*1200
65 38*1500
Circular
22 28*210
32 28*298
40 28*400
Lamp type Lamp Wattage (W) Nominal Dimension (mm)
T5 Linear
4 16*150
6 16*225
8 16*300
T8 Linear 15 26*450
18 26*600
T10 Linear 20 32*600
T12 Linear 20 38*600
Circular 22 28*210
Starter
155/500 (4-65W) Starter suitable for lamps 155/500 (4-22W) Starter suitable for lamps
Dimension (mm)
Wiring Diagram
Product
Code
Description Max Operating
Temp(°C)
Dimensions (mm) Carton Quantity
(PCS)
Carton Weight
(Kg)
Net Weight
(Kg)
A B C D E
76522 EMB10/220V/50Hz 120 86 66 41 26.5 33 40 13.26 12.96
76523 EMB13/220V/50Hz 120 86 66 41 26.5 33 40 13.22 12.92
76524 EMB18/220V/50Hz 120 86 66 41 26.5 33 40 16.5 16.2
Product
Code
Description Voltage/Frequency Lamp Type Lamp
Wattage
Power
Factor
Capacitor
(μF)
Loss
(W)
Temp Rise
(K)
76522 EMB10/220V/50Hz 220V/50Hz Plug-in CFL 2Pin 10W 0.35 2 5 60
76523 EMB13/220V/50Hz 220V/50Hz Plug-in CFL 2Pin 13W 0.48 2 6 60
76524 EMB18/220V/50Hz 220V/50Hz Plug-in CFL 2Pin 18W 0.40 2 7 60
Plug-in CFL Electromagnetic Ballast
Ballast
Dimension (mm)
Wiring Diagram
Product
Code
Description Lamp Type Lamp
Wattage
Lamp
Quantity
Voltage/Frequency Dimensions (mm) Carton Quantity
(PCS)
Unit Weight
(g)
L1 L2 W W1 H
62660 CEB110E Plug-in CFL 4pin 10W 1 220V/50-60Hz 103 91 80 74 33 30 140
62662 CEB111E Plug-in CFL 4pin 11W 1 220V/50-60Hz 103 91 80 74 33 30 140
62663 CEB211E Plug-in CFL 4pin 11W 2 220V/50-60Hz 103 91 80 74 33 30 180
79050 CEB113E Plug-in CFL 4pin 13W 1 220V/50-60Hz 103 91 80 74 33 30 150
79051 CEB213E Plug-in CFL 4pin 13W 2 220V/50-60Hz 103 91 80 74 33 30 150
79052 CEB118E Plug-in CFL 4pin 18W 1 220V/50-60Hz 103 91 80 74 33 30 140
79053 CEB218E Plug-in CFL 4pin 18W 2 220V/50-60Hz 103 91 80 74 33 30 160
62661 CEB210E Plug-in CFL 4pin 20W 2 220V/50-60Hz 103 91 80 74 33 20 180
62666 CEB126E Plug-in CFL 4pin 26W 1 220V/50-60Hz 103 91 80 74 33 30 150
62667 CEB226E Plug-in CFL 4pin 26W 2 220V/50-60Hz 103 91 80 74 33 30 190
62668 CEB132E Plug-in CFL 4pin 32W 1 220V/50-60Hz 103 91 80 74 33 30 135
62669 CEB232E Plug-in CFL 4pin 32W 2 220V/50-60Hz 103 91 80 74 33 30 290
Product
Code
Description Start Type Input Power
(W)
Input Current
(A)
Power Factor
(PF)
THD EEI Tc Point
(°C)
Temperature
Range (°C)
Wiring
Diagram
62660 CEB110E Instant Start 11 0.05 0.98 < 15% A3 70 -10~50 A
62662 CEB111E Instant Start 12.5 0.06 0.98 < 15% A3 70 -10~50 A
62663 CEB211E Instant Start 24 0.11 0.98 < 15% A3 70 -10~50 B
79050 CEB113E Instant Start 14 0.07 0.98 < 15% A3 70 -10~50 A
79051 CEB213E Instant Start 28 0.13 0.98 < 15% A3 70 -10~50 B
79052 CEB118E Instant Start 18 0.09 0.98 < 15% A3 70 -10~50 A
79053 CEB218E Instant Start 36 0.17 0.98 < 15% A3 70 -10~50 B
62661 CEB210E Instant Start 23 0.11 0.98 < 15% A3 70 -10~50 B
62666 CEB126E Instant Start 27 0.13 0.98 < 15% A3 70 -10~50 A
62667 CEB226E Instant Start 52 0.24 0.98 < 15% A3 70 -10~50 B
62668 CEB132E Instant Start 32 0.15 0.98 < 15% A3 70 -10~50 A
62669 CEB232E Instant Start 64 0.3 0.98 < 15% A3 70 -10~50 B
Plug-in CFL Electronic Ballast
Product
Code
Description Laod Range
(W)
THD Input Voltage Range for
Safety Operation (V)
Input Power
(W)
Max Power loss
(W)
Power
Factor
Operating
Frequency (KHz)
Dimmer Dimming
range
65631 SET60LV 20-60 < 15% 176-264 58.5 4 0.97 40-55 Traiing edge 20-60W
65632 SET60LTD 20-60 < 15% 176-264 58.5 4 0.97 40-55 Traiing&Leading edge 20-60W
Dimension (mm) Wiring Diagram
Max distance between transformer
and the lamp is: 2m
Terminal wire cross section: 0.75-
1.5mm2
Product
Code
Description Lamp
Type
Lamp Wattage
(W)
Voltage/Frequency Dimensions (mm) Carton Quantity
(PCS)
Unit Weight
(g)
A B C D
65631 SET60LV Halogen 20W-60W 220V-240V 50/60Hz 109 40 20.5 103.6 50 76
65632 SET60LTD Halogen 20W-60W 220V-240V 50/60Hz 109 40 20.5 103.6 126 76
12V Electronic Transformer
156 157
Index By Product Description
71632 F14T5/830/WM/ECO 27
71633 F14T5/835/WM/ECO 27
71634 F14T5/841/WM/ECO 27
71636 F14T5/865/WM/ECO 27
71637 F21T5/830/WM/ECO 27
71638 F21T5/835/WM/ECO 27
71639 F21T5/841/WM/ECO 27
71641 F21T5/865/WM/ECO 27
71642 F28T5/830/WM/ECO 27
71643 F28T5/835/WM/ECO 27
71644 F28T5/841/WM/ECO 27
71646 F28T5/865/WM/ECO 27
71627 F54T5/830/WM/ECO 27
71628 F54T5/835/WM/ECO 27
71629 F54T5/841/WM/ECO 27
71631 F54T5/865/WM/ECO 27
71647 F35T5/830/WM/ECO 27
71648 F35T5/835/WM/ECO 27
71649 F35T5/841/WM/ECO 27
71651 F35T5/865/WM/ECO 27
62020 F54T5/47W/830ECO 27
62021 F54T5/47W/835ECO 27
62022 F54T5/47W/840ECO 27
62023 F54T5/47W/850ECO 27
62024 F54T5/47W/865ECO 27
72408 F14W/T5/830/Starcoat/40 27
72409 F14W/T5/840/Starcoat/40 27
72410 F14W/T5/865/Starcoat/40 27
72411 F21W/T5/830/Starcoat/40 27
72412 F21W/T5/840/Starcoat/40 27
72413 F21W/T5/865/Starcoat/40 27
72414 F28W/T5/830/Starcoat/40 27
72415 F28W/T5/840/Starcoat/40 27
72416 F28W/T5/865/Starcoat/40 27
72417 F35W/T5/830/Starcoat/40 28
72418 F35W/T5/840/Starcoat/40 28
72419 F35W/T5/865/Starcoat/40 28
72420 F24W/T5/830/Starcoat/40 28
72421 F24W/T5/840/Starcoat/40 28
72422 F24W/T5/865/Starcoat/40 28
72423 F39W/T5/830/Starcoat/40 28
72424 F39W/T5/840/Starcoat/40 28
72425 F39W/T5/865/Starcoat/40 28
72429 F54W/T5/830/Starcoat/40 28
72430 F54W/T5/840/Starcoat/40 28
72431 F54W/T5/865/Starcoat/40 28
72426 F49W/T5/830/Starcoat/40 28
72427 F49W/T5/840/Starcoat/40 28
72428 F49W/T5/865/Starcoat/40 28
72432 F80W/T5/830/Starcoat/40 28
72433 F80W/T5/840/Starcoat/40 28
72434 F80W/T5/865/Starcoat/40 28
62694E F14W/830 T5/StarV/SL30 28
62695E F14W/840 T5/StarV/SL30 28
62696E F14W/865 T5/StarV/SL30 28
62697E F21W/830 T5/StarV/SL30 28
62698E F21W/840 T5/StarV/SL30 28
62699E F21W/865 T5/StarV/SL30 28
62700E F28W/830 T5/StarV/SL30 28
62701E F28W/840 T5/StarV/SL30 28
62702E F28W/865 T5/StarV/SL30 28
37008 F8W/T5/827/IND 28
37009 F8W/T5/840/IND 28
39447 F13W/T5/827/SL 28
39446 F4W/T5/35/SL 28
10004 F4W/T5/CW 28
39442 F6W/T5/35/SL 28
39445 F6W/T5/33/SL 28
10028 F6W/T5/D 28
37754 F8W/T5/29/SL 28
37756 F8W/T5/35/SL 29
10059 F8W/T5/CW 29
10055 F8W/T5/D 29
10089 F13W/T5/WW 29
10086 F13W/T5/CW 29
79462/F F18W/T8/WW/Tri-Tech plus 29
79463/F F18W/T8/CW/Tri-Tech plus 29
79464/F F18W/T8/DL/Tri-Tech plus 29
79465/F F30W/T8/WW/Tri-Tech plus 29
79466/F F30W/T8/CW/Tri-Tech plus 29
79469/F F30W/T8/DL/Tri-Tech plus 29
79470/F F36W/T8/WW/Tri-Tech plus 29
79471/F F36W/T8/CW/Tri-Tech plus 29
79472/F F36W/T8/DL/Tri-Tech plus 29
66410 F58W/T8/830/Tri-Tech 29
66411 F58W/T8/840/Tri-Tech 29
66412 F58W/T8/865/Tri-Tech 29
23248 F15W/T8/830/POLYLUX 29
78133 F15W/T8/835 POLYLUX 29
23249 F15W/T8/840/POLYLUX 29
78131 F15W/T8/860/POLYLUX 29
62560 F18W/T8/827/POLYLUX 29
62559 F18W/T8/830/POLYLUX 29
62534 F18W/T8/835/POLYLUX 29
62558 F18W/T8/840/POLYLUX 29
62557 F18W/T8/860/POLYLUX 29
18141 F30W/T8/830/POLYLUX 29
78132 F30W/T8/835/POLYLUX 29
18142 F30W/T8/840/POLYLUX 29
62554 F36W/T8/827/POLYLUX 29
19626 M62/FTD 15
19635 M66/FTF 15
19634 M199/FTH 15
19639 M264/FTA/CG 15
19636 M251/FTC/CG 15
19625 M262/FTD/CG 15
19627 M266/FTF/CG 15
77900 Q20MR16HIR/CCG10 15
77901 Q20MR16HIR/CCG24 15
77902 Q20MR16HIR/CCG36 15
79584 Q30MR16HIR/CCG10 15
79585 Q30MR16HIR/CCG24 15
79586 Q30MR16HIR/CCG36 15
77904 Q35MR16HIR/CCG10 15
77905 Q35MR16HIR/CCG24 15
77906 Q35MR16HIR/CCG36 15
77907 Q45MR16HIR/CCG10 15
77908 Q45MR16HIR/CCG24 15
77909 Q45MR16HIR/CCG36 15
77657 MR16 IR 20W 12V WFL 15
77658 MR16 IR 35W 12V WFL 15
20841 EYJ/CC 15
20840 EYC/CC 15
20858 ESX/CG 15
20857 BAB/CG 15
20864 FRB/CG 15
20860 FRA/CG 15
20859 FMW/CG 15
20872 EXT/CG 15
20871 EXZ/CG 15
20867 EXN/CG 15
20865 FNV/CG 15
20876 EYF/CG 15
20874 EYJ/CG 15
20873 EYC/CG 15
88231 M69/BAB 16
88229 M81/FMW 16
88234 M58/EXN 16
88232 M80/FNV 16
71624 MR16 12V 20W 8D /open 5000 hours 16
71625 MR16 12V 20W 36D /BAB /open 5000 hours 16
71618 MR16 12V 50W 8D /open 5000 hours 16
71619 MR16 12V 50W 18D /open 5000 hours 16
71620 MR16 12V 50W 36D /ENX /open 5000 hours 16
71621 MR16 12V 50W 60D /FNV /open 5000 hours 16
71616 MR16 12V 20W 8D /CG 5000 hours 16
71617 MR16 12V 20W 36D /BAB /CG 5000 hours 16
71610 MR16 12V 50W 8D /CG 5000 hours 16
71611 MR16 12V 50W 18D /CG 5000 hours 16
71612 MR16 12V 50W 36D /ENX /CG 5000 hours 16
71613 MR16 12V 50W 60D /FNV /CG 5000 hours 16
88235 M269/BAB/CG 16
88236 M281/FMW/CG 16
88237 M250/EXZ/CG 16
88239 M258/EXN/CG 16
88238 M280/FNV/CG 16
38000 M69/BAB/EC 16
38001 M81/FMW/EC 16
38002 M58/EXN/EC 16
89677 Q20MR16/FL 16
89678 Q20MR16/SP 16
Halogen Lamps
89679 Q35MR16/FL 16
89680 Q35MR16/M(FMV) 16
89681 Q50MR16/FL 16
89682 Q50MR16/M 16
38012 M268/ESX/CG/EC 16
38006 M269/BAB/CG/EC 16
38013 FRB/CG/EC 16
38007 M281/FMW/CG/EC 16
38014 M249/EXT/CG/EC 17
39611 M250/EXZ/CG/EC 17
38011 M258/EXN/CG/EC 17
39236 M280/FNV/CG/EC 17
89683 Q20MR16/FL/CG 17
89684 Q20MR16/SP/CG 17
89685 Q35MR16/FL/CG 17
89686 Q35MR16/M(FMV) CG 17
89687 Q50MR16/FL/CG 17
89688 Q50MR16/M/CG 17
88216 M269/BAB/CG/AL 17
88217 M281/FMW/CG/AL 17
88215 M258/EXN/CG/AL 17
88214 M280/FNW/CG/AL 17
10774 AR111 35W12V SP 17
10775 AR111 35W12V FL 17
10766 AR111 50W12V SP 17
10767 AR111 50W12V FL 17
10768 AR111 75W12V SP 17
10769 AR111 75W12V FL 17
10771 AR111 75W12V WFL 17
41915 AR111 100W12V SP 17
41922 AR111 100W12V FL 17
41923 AR111 100W12V WFL 17
25152 AR111 50W 12V SP 17
25154 AR111 50W 12V FL 17
25155 AR111 75W 12V SP 17
25156 AR111 75W 12V FL 17
25157 AR111 75W 12V WFL 17
40402 Q50MR16/230/25° 17
40403 Q50MR16/230/36° 17
40404 Q50MR16/240/25° 17
40405 Q50MR16/240/36° 17
10898 Q20MR16/230/FL 17
10896 Q35MR16/230/FL 17
92729 Q50MR16/230/FL 17
10859 Q20MR16/240/FL 17
10857 Q35MR16/240/FL 17
92730 Q50MR16/240/FL 17
12988 Q50MR16/240/FL START 18
12995 Q50MR16/240/FL START 18
13003 Q50MR16/240/FL START 18
45692 SHORTG9 25W CL 230V 18
22504 SHORTG9 40W CL 230V 18
88941 SHORTG9 25W CL 240V 18
22498 SHORTG9 40W CL 240V 18
75979
OT SHORTG9 25W CL 240V GE HFBL2/20 TRAY
18
88305
OT SHORTG9 40W CL 240V GE HFBL2/20 TRAY
18
75980
OT SHORTG9 60W CL 240V GE HFBL2/20 TRAY
18
75983
OT SHORTG9 75W CL 240V GE HFBL2/20 TRAY
18
88311
OT SHORTG9 25W FR 240V GE HFBL2/20 TRAY
18
88307
OT SHORTG9 40W FR 240V GE HFBL2/20 TRAY
18
75982
OT SHORTG9 60W FR 240V GE HFBL2/20 TRAY
18
75984
OT SHORTG9 75W FR 240V GE HFBL2/20 TRAY
18
34720 M29/Q10 G4 18
34718 M30/ESB/Q20 G4 18
34719 M34/FHE/Q20 G4 18
42959 M9/H5 G4 18
34674 M11/H10 G4 18
34714 M35/Q20 G4 18
34715 M47/Q20 G4 18
34708 M95/Q35/GY6.35 18
34702 M32/Q50 GY6.35 18
34682 M313/Q75/GY6.35 18
34676 M28/Q100 GY6.35 18
34663 M67/Q100 GY6.35 24V 18
34728 M42/Q10 G4 19
34712 M76/Q20/GY6.35 19
34710 M75/Q35/GY6.35 19
34703 M74/Q50/GY6.35 19
34683 M73/Q75/GY6.35 19
34664 M180/Q100/GY6.35 19
35705 Q10T2,5/12V G4 19
35710 Q20T2,5/12V G4 19
35696 Q20T3/12V GY6.35 19
35699 Q35T3/12V GY6.35 19
35700 Q50T3/12V GY6.35 19
35701 Q75T3/12V GY6.35 19
12708 M11/Q10/G4 ST 19
12711 M47/Q20/G4 ST 19
12712 M95/Q35/GY6.35 ST 19
12713 M32/Q50/GY6.35 ST 19
12718 Q100/GY6.35 ST 19
76210 K12 C100W 230V R7S 19
76209 K11 C130W 230V R7S 19
76208 K9 C200W 230V R7S 19
76207 K1 C330W 230V R7S 19
76530 K12 C100W 240V R7S 19
76529 K11 C130W 240V R7S 19
76528 K9 C200W 240V R7S 19
76527 K1 C330W 240V R7S 19
91515 K9/Q225 T3/230V HIR 19
31598 K1/Q375 T3/230V HIR 19
43299 K9/Q225 T3/240V HIR 19
31612 K1/Q375 T3/240V HIR 19
29161 K1/Q500 T2.5/CL 20
29165 K1/Q500 T2.5/CL 20
29180 K4/Q1000 T3/CL 20
29184 K5/Q1500 T3/CL 20
30886 K8/Q2000 T3/CL 20
29168 K1/Q500 T2.5/CL 20
29181 K4/Q1000 T3/CL 20
43712 K10/1000 T3/CL 20
23830 K5/Q1500 T3/CL 20
29187 K5/Q1500 T3/CL 20
23832 K5/Q1500 T3/CL 20
32108 Halo T38/1000W/E40/230 20
32109 Halo T38/1000W/E40/240 20
27826 40PAR16/230/FL 20
27845 40PAR16/240/FL 20
40363 50PAR20/230/SP 20
40362 50PAR20/230/FL 20
40364 50PAR20/240/SP 20
40365 50PAR20/240/FL 20
95700 50PAR20 FL-230V 20
95701 50PAR20 SP-230V 20
95775 50PAR20/240/SP 20
95776 50PAR20/240/FL 20
91775 75PAR25/230/FL 20
92165 75PAR25/240/FL 20
40366 75PAR30/230/SP 20
40349 75PAR30/230/FL 20
32484 100PAR30/230/FL 20
40367 75PAR30/240/SP 20
40361 75PAR30/240/FL 20
32482 100PAR30/240/FL 20
95702 75PAR30 FL-230V 20
95703 75PAR30 SP-230V 20
95777 75PAR30/240/SP 21
95778 75PAR30/240/FL 21
95779 100PAR30/240/SP 21
95780 100PAR30/240/FL 21
10302 50PAR30/110/K9N 21
10301 50PAR30/110/K9N 21
76957 28W HALO A CL E27 230V 21
76953 42W HALO A CL E27 230V 21
76948 70W HALO A CL E27 230V 21
76944 100W HALO A CL E27 230V 21
76954 28W HALO A CL E27 240V 21
76950 42W HALO A CL E27 240V 21
76945 70W HALO A CL E27 240V 21
76941 100W HALO A CL E27 240V 21
76955 28W HALO A CL B22 240V 21
76951 42W HALO A CL B22 240V 21
76946 70W HALO A CL B22 240V 21
76942 100W HALO A CL B22 240V 21
78795 29A/CL/H-2PK 21
78796 43A/CL/H-2PK 21
78797 53A/CL/H-2PK 21
82137 60A/CL/H/RVL-CD 21
72373 60A/CRY/H/RVL-CD 21
78798 72A/CL/H-2PK 21
82138 75A/CL/H/RVL-CD 21
82139 100A/CL/H/RVL-CD 21
72374 100A/CRY/H/RVL-CD 21
98402 20W HALO C CL E14 230V 22
98398 30W HALO C CL E14 230V 22
76575 42W HALO C CL E14 230V 22
98396 30W HALO C CL E27 230V 22
76573 42W HALO C CL E27 230V 22
98399 20W HALO C CL E14 240V 22
98392 30W HALO C CL E14 240V 22
76569 42W HALO C CL E14 240V 22
98391 30W HALO C CL E27 240V 22
76568 42W HALO C CL E27 240V 22
98394 30W HALO C CL B15 240V 22
76571 42W HALO C CL B15 240V 22
98400 20W HALO C CL B22 240V 22
98393 30W HALO C CL B22 240V 22
76570 42W HALO C CL B22 240V 22
98390 20W HALO S CL E14 230V 22
98384 30W HALO S CL E14 230V 22
76553 42W HALO S CL E14 230V 22
98388 20W HALO S CL E27 230V 22
98382 30W HALO S CL E27 230V 22
Product
Code Product Description Page
No.
Product
Code Product Description Page
No.
Product
Code Product Description Page
No.
Product
Code Product Description Page
No.
Product
Code Product Description Page
No.
Product
Code Product Description Page
No.
Product
Code Product Description Page
No.
Linear Fluorescent Lamps
76551 42W HALO S CL E27 230V 22
98385 20W HALO S CL E14 240V 22
98378 30W HALO S CL E14 240V 22
76548 42W HALOS CL E14 240V 22
98377 30W HALO S CL E27 240V 22
76547 42W HALOS CL E27 240V 22
98380 30W HALO S CL B15 240V 22
98386 20W HALO S CL B22 240V 22
98379 30W HALO S CL B22 240V 22
76549 42W HALOS CL B22 240V 22
76546 28W HALO R50 E14 230V 22
76543 42W HALO R63 E27 230V 22
76540 42W HALO R80 E27 230V 22
76537 70W HALO R80 E27 230V 22
76544 28W HALO R50 E14 240V 22
76541 42W HALO R63 E27 240V 22
76538 42W HALO R80 E27 240V 22
158 159
75713 FC40W/T5/840 31
75717 FC55W/T5/830 31
75718 FC55W/T5/840 31
95804P FLE15TBX/840/E27/T3 52
74705 FLE15TBX/840/B22/T3 BX2 52
74706 FLE15TBX/840/E27/T3 BX2 52
81025 FLE15TBX/865/B22/T3 52
81026 FLE15TBX/865/E27/T3 52
74681 FLE18TBX/827/B22/T3 BX 52
74684 FLE18TBX/827/E27/T3 BX 52
95802P FLE18TBX/840/B22/T3 52
95805P FLE18TBX/840/E27/T3 52
74703 FLE20TBX/827/B22/T3 BX2 52
74704 FLE20TBX/827/E27/T3 BX2 52
74707 FLE20TBX/840/B22/T3 BX2 52
74708 FLE20TBX/840/E27/T3 BX2 52
24879E FLE9TBX/865/E27/T3 52
24880E FLE9TBX/827/E27/T3 52
95414E FLE6DBX/827/E27/T3 52
95416E FLE6DBX/864/E27/T3 52
89584E FLE9DBX/827/E27/T3 52
89587E FLE9DBX/864/E27/T3 52
11236E FLE9TBX/827/E27 52
11238E FLE9TBX/865/E27 52
11349E FLE9TBX/827/E14 52
11350E FLE9TBX/865/E14 52
89588E FLE11DBX/827/E27 53
89590E FLE11DBX/864/E27 53
48189EP FLE12TBX/827/E27 53
48191EP FLE12TBX/840/E27 53
48193EP FLE12TBX/865/E27 53
89591E FLE15TBX/827/E27 53
89593E FLE15TBX/865/E27 53
89594E FLE18TBX/827/E27 53
89596E FLE18TBX/864/E27 53
95414EN FLE6DBX/827/E27 53
95416EN FLE6DBX/865/E27 53
89637EN FLE6DBX/827/E14 53
89639EN FLE6DBX/865/E14 53
89584EN FLE9DBX/827/E27 53
89585EN FLE9DBX/840/E27 53
89587EN FLE9DBX/865/E27 53
11236EN FLE9TBX/827/E27 53
11238EN FLE9TBX/865/E27 53
11349EN FLE9TBX/827/E14 53
11350EN FLE9TBX/865/E14 53
89588EN FLE11DBX/827/E27 53
89589EN FLE11DBX/840/E27 53
89590EN FLE11DBX/865/E27 53
89591EN FLE15TBX/827/E27 53
89592EN FLE15TBX/840/E27 53
89593EN FLE15TBX/865/E27 53
89594EN FLE18TBX/827/E27 53
89595EN FLE18TBX/840/E27 53
89596EN FLE18TBX/865/E27 53
95414ET FLE6DBX/827/E27 53
95416ET FLE6DBX/864/E27 53
89637ET FLE6DBX/827/E14 53
89639ET FLE6DBX/865/E14 53
11236ET FLE9TBX/827/E27 53
11237ET FLE9TBX/840/E27 53
11238ET FLE9TBX/865/E27 53
89584ET FLE9DBX/827/E27 53
89585EN FLE9DBX/840/E27 53
89587EN FLE9DBX/865/E27 53
89588ET FLE11DBX/827/E27 53
Index By Product Description
62553 F36W/T8/830/POLYLUX 29
62532 F36W/T8/835/POLYLUX 29
62551 F36W/T8/840/POLYLUX 29
62552 F36W/T8/860/POLYLUX 29
93330 F58W/T8/827/POLYLUX 29
93334 F58W/T8/830/POLYLUX 29
93331 F58W/T8/835/POLYLUX 29
93333 F58W/T8/840/POLYLUX 29
12943 F58W/T8/860/POLYLUX 29
62572 F70W/T8/835/POLYLUX 29
62573 F70W/T8/840/POLYLUX 29
62567 F18/T8/830/POLYLUX/LL 30
62566 F18/T8/840/POLYLUX/LL 30
62565 F36/T8/830/POLYLUX/LL 30
62564 F36/T8/840/POLYLUX/LL 30
62563 F58/T8/830/POLYLUX/LL 30
62562 F58/T8/840/POLYLUX/LL 30
81412 F10T8/33 30
17272 F10T8/54 30
61516 F15W/33 30
61517 F15W/54 30
65152 F18T8/WW 30
73335 F18T8/CW 30
73336 F18T8/DL 30
65153 F36T8/WW 30
73337 F36T8/CW 30
73338 F36T8/DL 30
71255 F10W/DL XL 30
71256 F18W/WW XL 30
71257 F18W/CW XL 30
71258 F18W/DL XL 30
71259 F36W/WW XL 30
71260 F36W/CW XL 30
71261 F36W/DL XL 30
61535 F18T8/WW 31
61536 F18T8/CW 31
61537 F18T8/DL 31
61538 F30T8/WW 31
61539 F30T8/CW 31
61540 F30T8/DL 31
61541 F36T8/WW 31
61542 F36T8/CW 31
61543 F36T8/DL 31
71708S F20WT12/DL 31
71709S F40WT12/DL 31
95847EN Edison FCL22/DL 31
95848EN Edison FCL32/DL 31
95774EN Edison FCL40/DL 31
61607 FCL22W/827 31
61608 FCL22W/840 31
61609 FCL22W/850 31
24089EN FCL22/HO/DL/860 31
61610 FCL32W/827 31
61611 FCL32W/840 31
61612 FCL32W/850 31
24090EN FCL32/HO/DL/860 31
61613 FCL40W/827 31
61614 FCL40W/840 31
61615 FCL40W/850 31
24091EN FCL40/HO/DL/W/860 31
75709 FC22W/T5/830 31
75720 FC22W/T5/840 31
75712 FC40W/T5/830 31
Product
Code Product Description Page
No.
Product
Code Product Description Page
No.
47201E F7BX/NCO/840/2P/STD 46
47231E F9BX/NCO/827/2P/STD 46
47232E F9BX/NCO/840/2P/STD 46
47285E F11BX/NCO/827/2P/STD 46
47286E F11BX/NCO/840/2P/STD 46
47200N F7BX/827/2P 46
47201N F7BX/840/2P 46
47202N F7BX/865/2P 46
47231N F9BX/827/2P 46
47232N F9BX/840/2P 46
47284N F9BX/865/2P 46
47285N F11BX/827/2P 46
47286N F11BX/840/2P 46
47287N F11BX/865/2P 46
85182E F10DBX/827/2P/STD 46
85183E F10DBX/840/2P/STD 46
85185E F13DBX/827/2P/STD 46
85186E F13DBX/840/2P/STD 46
85194E F18DBX/827/2P/STD 46
85195E F18DBX/840/2P/STD 46
65396E F26DBX/827/2P/G24d-3 46
65399E F26DBX/840/2P/G24d-3 46
65405E F26DBX/865/2P/G24d-3 46
47288 F10DBX/827/2P 46
47290 F10DBX/840/2P 46
47291 F10DBX/865/2P 46
47296 F13DBX/827/2P 46
47300 F13DBX/840/2P 46
47303 F13DBX/865/2P 46
47306 F18DBX/827/2P 46
47318 F18DBX/840/2P 46
47319 F18DBX/865/2P 46
85194N F18DBX/827/2P 46
85195N F18DBX/840/2P 46
85196N F18DBX/865/2P 46
85182N F10DBX/827/2P 47
85183N F10DBX/840/2P 47
85184N F10DBX/865/2P 47
85185N F13DBX/827/2P 47
85186N F13DBX/840/2P 47
85191N F13DBX/865/2P 47
85194N F18DBX/827/2P 47
85195N F18DBX/840/2P 47
85196N F18DBX/865/2P 47
95824EN F10DBX/827/2P 47
95825EN F10DBX/840/2P 47
95826EN F10DBX/865/2P 47
95827EN F13DBX/827/2P 47
95828EN F13DBX/840/2P 47
95829EN F13DBX/865/2P 47
95830EN F18DBX/827/2P 47
95831EN F18DBX/840/2P 47
95832EN F18DBX/865/2P 47
85214E F13DBX/840/4P/STD 47
Product
Code Product Description Page
No.
Compact Fluorescent Lamps
85216E F13DBX/865/4P/STD 47
85232E F18DBX/840/4P/STD 47
85236E F18DBX/865/4P/STD 47
65407E F26DBX/827/4P/G24q-3 47
65413E F26DBX/840/4P/G24q-3 47
65415E F26DBX/865/4P/G24q-3 47
85197N GE F10DBX/827/4P 47
85198N GE F10DBX/840/4P 47
85199N GE F10DBX/865/4P 47
85211N GE F13DBX/827/4P 47
85214N GE F13DBX/840/4P 47
85216N GE F13DBX/865/4P 47
85221N GE F18DBX/827/4P 47
85232N GE F18DBX/840/4P 47
85236N GE F18DBX/865/4P 47
86354N F16DDT4/827/2P 47
86361N F16DDT4/840/2P 47
86376N F16DDT4/865/2P 47
86391N F16DDT4/827/4P 48
86406N F16DDT4/865/4P 48
86421N F28DDT6/827/4P 48
86436N F28DDT6/840/4P 48
86451N F28DDT6/865/4P 48
86466N F38DDT6/827/4P 48
86481N F38DDT6/840/4P 48
86496N F38DDT6/865/4P 48
37654 F5BX/SPX27/827 48
37661 F5BX/SPX41/840 48
37846 F7BX/SPX27/827 48
38930 F7BX/830 48
37659 F7BX/SPX35/835 48
37660 F7BX/SPX41/840 48
38984 F7BX/865 48
37651 F9BX/827 48
38929 F9BX/830 48
37652 F9BX/SPX35/835 48
37653 F9BX/SPX41/840 48
38985 F9BX/865 48
37663 F11BX/827 48
38928 F11BX/830 48
37666 F11BX/835 48
37664 F11BX/840 48
38986 F11BX/840 48
37714 F5BX/827/4P 48
37715 F5BX/840/4P 48
37658 F7BX/827/4P 48
37716 F7BX/840/4P 48
37710 F9BX/827/4P 48
37711 F9BX/840/4P 48
37717 F11BX/827/4P 48
37713 F11BX/840/4P 48
12603 F11BX/865/4P 48
78211 F10DBX/T3/827/2P 49
78212 F10DBX/T3/830/2P 49
78213 F10DBX/T3/835/2P 49
78214 F10DBX/T3/840/2P 49
78215 F10DBX/T3/865/2P 49
78221 F13DBX/T3/827/2P 49
78222 F13DBX/T3/830/2P 49
78223 F13DBX/T3/835/2P 49
78224 F13DBX/T3/840/2P 49
78225 F13DBX/T3/865/2P 49
12860 F18DBXT4/SPX27/827 49
Product
Code Product Description Page
No.
12861 F18DBXT4/SPX30/830 49
12863 F18DBXT4/SPX35/835 49
12864 F18DBXT4/SPX41/840 49
13017 F18DBXT4/SPX65/865 49
35250 F26DBXT4/SPX27/827 49
35237 F26DBXT4/SPX30/830 49
35251 F26DBXT4/SPX35/835 49
35252 F26DBXT4/SPX41/840 49
35305 F26DBXT4/SPX65/865 49
78217 F10DBX/T3/827/4P 49
78218 F10DBX/T3/830/4P 49
78219 F10DBX/T3/835/4P 49
78220 F10DBX/T3/840/4P 49
78231 F10DBX/T3/865/4P 49
78226 F13DBX/T3/827/4P 49
78227 F13DBX/T3/830/4P 49
78228 F13DBX/T3/835/4P 49
78229 F13DBX/T3/840/4P 49
78232 F13DBX/T3/865/4P 49
12865 F18DBX/SPX27/827/4P 49
12866 F18DBX/SPX30/830/4P 49
12869 F18DBX/SPX35/835/4P 49
12870 F18DBX/SPX41/840/4P 49
35247 F26DBX/SPX27/827/4P 49
35235 F26DBX/SPX30/830/4P 49
35248 F26DBX/SPX35/835/4P 49
35236 F26DBX/SPX41/840/4P 49
42798 F26DBX/SPX65/865/4P 49
35940 F13TBX/827/A/2P 50
35966 F13TBX/SPX30/830/A/2P 50
35941 F13TBX/SPX41/A/2P 50
35945 F18TBX/SPX27/827/A/2P 50
35944 F18TBX/SPX30/830/A/2P 50
35937 F18TBX/SPX35/835/A/2P 50
35939 F18TBX/SPX41/840/A/2P 50
35959 F26TBX/SPX27/827/A/2P 50
35952 F26TBX/SPX30/830/A/2P 50
35963 F26TBX/SPX35/835/A/2P 50
35964 F26TBX/SPX41/840/A/2P 50
34391 F13TBX/SPX27/827/A/4P 50
34395 F13TBX/SPX30/830/A/4P 50
34400 F13TBX/SPX35/835/A/4P 50
34387 F13TBX/SPX41/840/A/4P 50
34392 F18TBX/SPX27/827/A/4P 50
34396 F18TBX/SPX30/830/A/4P 50
34405 F18TBX/SPX35/835/A/4P 50
34385 F18TBX/SPX41/840/A/4P 50
34393 F26TBX/SPX27/827/A/4P 50
34397 F26TBX/SPX30/830/A/4P 50
34406 F26TBX/SPX35/835/A/4P 50
34381 F26TBX/SPX41/840/A/4P 50
39377 F32TBX/SPX27/827/AP4P 50
39378 F32TBX/SPX30/830/AP4P 50
39379 F32TBX/SPX35/835/A/4P 50
39380 F32TBX/SPX41/840/A/4P 50
46312 F42TBX/827/A/4P 50
46313 F42TBX/830/A/4P 50
46314 F42TBX/835/A/4P 50
46315 F42TBX/841/A/4P 50
45213 F57QBX/827/A/4P/LL 50
45204 F57QBX/830/A/4P/LL 50
45202 F57QBX/835/A/4P/LL 50
45201 F57QBX/840/A/4P/LL 50
Product
Code Product Description Page
No.
45208 F70QBX/830/A/4P/LL 50
45219 F70QBX/835/A/4P/LL 50
45218 F70QBX/840/A/4P/LL 50
41087 F18BX/827 51
41088 F18BX/830 51
41089 F18BX/835 51
41090 F18BX/840 51
41128 F24BX/827 51
41134 F24BX/830 51
41145 F24BX/835 51
41155 F24BX/840 51
41163 F34BX/830 51
41166 F34BX/835 51
41167 F34BX/840 51
41307 F36BX/827 51
41168 F36BX/830 51
41169 F36BX/835 51
41170 F36BX/840 51
75694 F36BX/865 51
41171 F40BX/830 51
41172 F40BX/835 51
41173 F40BX/840 51
41174 F55BX/830 51
41260 F55BX/835 51
41298 F55BX/840 51
75695 F55BX/865 51
41744 F162D/827 51
41745 F162D/835 51
41746 F162D/827/4P 51
75066 F162D/830/4P 51
41747 F162D/835/4P 51
41749 F162D/860 51
41794 F212D/827/4P 51
41806 F212D/835/4P 51
41808 F212D/860/4P 51
10546 F282DT5/827/2P 51
10547 F282DT5/827/4P 51
75068 F282DT5/830/4P 51
10567 F282DT5/835/4P 51
10548 F282DT5/840/4P 51
10550 F382DT5/827/4P 51
75067 F382DT5/830/4P 51
10566 F382DT5/835/4P 51
88105 F10W/2D/827/4P 52
88106 F10W/2D/835/4P 52
18122 FLE18W2D/827 GRZ10D 52
18123 FLE18W2D/835 GRZ10D 52
18120 FLE18W2D/840 GRZ10D 52
11241 FLE9TBX/827/B22/T3 BP1 52
74663 FLE9TBX/827/E27/T3 BX 52
74699 FLE9TBX/827/B22/T3 BX2 52
74700 FLE9TBX/827/E27/T3 BX2 52
95836 FLE9TBX/840/B22/T3 52
95837 FLE9TBX/840/E27/T3 52
74671 FLE12TBX/827/B22/T3 BX 52
74672 FLE12TBX/827/E27/T3 BX 52
48191 FLE12TBX/840/E27/T3 52
48192 FLE12TBX/840/B22/T3 52
95761P FLE15TBX/827/B22/T3 BP1 52
74680 FLE15TBX/827/E27/T3 BX 52
74701 FLE15TBX/827/B22/T3 BX2 52
74702 FLE15TBX/827/E27/T3 BX2 52
95800P FLE15TBX/840/B22/T3 52
Product
Code Product Description Page
No.
Product
Code Product Description Page
No.
160 161
64570E FLE14HLX/827/E27/T3 60
64571E FLE14HLX/865/E27/T3 60
64572E FLE20HLX/827/E27/T3 60
64573E FLE20HLX/865/E27/T3 60
64574E FLE23HLX/827/E27/T3 60
64575E FLE23HLX/865/E27/T3 60
78180E FLE9HLX/827/E27/T3 220-240V 60
78181E FLE9HLX/865/E27/T3 220-240V 60
78182E FLE15HLX/827/E27/T3 220-240V 60
78183E FLE15HLX/865/E27/T3 220-240V 60
78184E FLE20HLX/827/E27/T3 220-240V 60
78185E FLE20HLX/865/E27/T3 220-240V 60
78186E FLE23HLX/827/E27/T3 220-240V 60
78187E FLE23HLX/865/E27/T3 220-240V 60
65037E FLE9HLX/827/E14/T3 60
65038E FLE9HLX/865/E14/T3 60
78180T FLE9HLX/827/E27/T3 220-240V 60
78181T FLE9HLX/865/E27/T3 220-240V 60
78182T FLE14HLX/827/E27/T3 220-240V 60
78183T FLE14HLX/865/E27/T3 220-240V 60
78184T FLE20HLX/827/E27/T3 220-240V 60
78185T FLE20HLX/865/E27/T3 220-240V 60
78186T FLE23HLX/827/E27/T3 220-240V 60
78187T FLE23HLX/865/E27/T3 220-240V 60
63406 FLE10HLX/T3/840/220-240V/E27/6H 60
63407 FLE10HLX/T3/840/220-240V/E14/6H 60
63413 FLE14HLX/T3/827/220-240V/E27/6H 60
63414 FLE14HLX/T3/840/220-240V/E27/6H 60
63428 FLE14HLX/T3/865/220-240V/E27/6H 60
63429 FLE18HLX/T3/827/220-240V/E27/6H 60
63430 FLE18HLX/T3/840/220-240V/E27/6H 60
63431 FLE18HLX/T3/865/220-240V/E27/6H 60
63480 FLE23HLX/T3/827/220-240V/E27/6H 60
63481 FLE23HLX/T3/840/220-240V/E27/6H 60
63507 FLE23HLX/T3/865/220-240V/E27/6H 60
30606a FLE13HLX/827/B22/DIM BP1 61
74674 FLE13HLX/827/E27/DIM BP1 61
74675 FLE13HLX/865/B22/DIM 61
74676 FLE13HLX/865/E27/DIM 61
30608a FLE20HLX/827/E27/DIM BP1 61
30616A FLE20HLX/827/B22/DIM BP1 61
30544A FLE20HLX/865/B22/DIM 61
30540A FLE20HLX/865/E27/DIM 61
30493N FLE13HLX/827/E27/T3DIM* 61
30494N FLE13HLX/865/E27/T3DIM* 61
30523N FLE20HLX/827/E27/T3DIM* 61
30540N FLE20HLX/865/E27/T3DIM* 61
24666EN FLE45HLX/864/E27/220-240V 61
95495EN FLE60HLX/864/E27/220-240V 61
24666E FLE45HLX/864/E27 61
24668E FLE60HLX/864/E27 61
95520 FLE60HLX/827/E27 220-240V 61
95495 FLE60HLX/865/E27 220-240V 61
61429T FLE45HLX/827/E27 220V 61
61430T FLE45HLX/865/E27 220V 61
61431T FLE60HLX/827/E27 220V 61
61432T FLE60HLX/865/E27 220V 61
69970E FLE45HLX/840/E27/T5 61
69973E FLE45HLX/865/E27/T5 61
69972E FLE45HLX/840/E40/T5 61
69975E FLE45HLX/865/E40/T5 61
69971E FLE45HLX/840/B22/T5 61
69974E FLE45HLX/865/B22/T5 61
61001E FLE9AG/T2/830/E27 62
61002E FLE9AG/T2/840/E27 62
61003E FLE9AG/T2/865/E27 62
61004E FLE11AG/T2/830/E27 62
61005E FLE11AG/T2/840/E27 62
61006E FLE11AG/T2/865/E27 62
61007E FLE15AG/T2/830/E27 62
61008E FLE15AG/T2/840/E27 62
61009E FLE15AG/T2/865/E27 62
61010E FLE20AG/T3/830/E27 62
61011E FLE20AG/T3/840/E27 62
61012E FLE20AG/T3/865/E27 62
61013E FLE9AG/T2/830/B22 62
61014E FLE9AG/T2/840/B22 62
61015E FLE9AG/T2/865/B22 62
61016E FLE11AG/T2/830/B22 62
61017E FLE11AG/T2/840/B22 62
61018E FLE11AG/T2/865/B22 62
61019E FLE15AG/T2/830/B22 62
61020E FLE15AG/T2/840/B22 62
61021E FLE15AG/T2/865/B22 62
61022E FLE20AG/T3/830/B22 62
61023E FLE20AG/T3/840/B22 62
61024E FLE20AG/T3/865/B22 62
61001T FLE9AG/T2/830/E27 62
61002T FLE9AG/T2/840/E27 62
61003T FLE9AG/T2/865/E27 62
61004T FLE11AG/T2/830/E27 62
61005T FLE11AG/T2/840/E27 62
61006T FLE11AG/T2/865/E27 62
61007T FLE15AG/T2/830/E27 62
61008T FLE15AG/T2/840/E27 62
61009T FLE15AG/T2/865/E27 62
61010T FLE20AG/T3/830/E27 62
61011T FLE20AG/T3/840/E27 62
61012T FLE20AG/T3/865/E27 62
61013T FLE9AG/T2/830/B22 62
61014T FLE9AG/T2/840/B22 62
61015T FLE9AG/T2/865/B22 62
61016T FLE11AG/T2/830/B22 62
61017T FLE11AG/T2/840/B22 62
61018T FLE11AG/T2/865/B22 62
61019T FLE15AG/T2/830/B22 62
61020T FLE15AG/T2/840/B22 62
61021T FLE15AG/T2/865/B22 62
61022T FLE20AG/T3/830/B22 62
61023T FLE20AG/T3/840/B22 62
61024T FLE20AG/T3/865/B22 62
88852A FLE5CDL//827/E27/T2 63
88853A FLE5CDL//827/B22/T2 63
73406A FLE5CDL//827/E14/T2 63
78005A FLE5CDL/827/B15/T2 63
73411A FLE7CDL//827/E14/T2 63
88855A FLE7CDL//827/E27/T2 63
88856A FLE7CDL//827/B22/T2 63
78006A FLE7CDL/827/B15/T2 63
79935E FLE5CDL/T2/827/E14 63
79936E FLE5CDL/T2/840/E14 63
79937E FLE5CDL/T2/827/E27 63
79938E FLE5CDL/T2/840/E27 63
79939E FLE5CDL/T2/827/B22 63
79940E FLE7CDL/T2/827/E14 63
79941E FLE7CDL/T2/840/E14 63
71308 FLE15HLX/840/B22/T2 56
61414 FLE15HLX/865/T2/B22 56
61415 FLE15HLX/865/T2/E27 56
74687 FLE20HLX/827/B22/T2 57
74689 FLE20HLX/827/E27/T2 57
71043 FLE20HLX/840/E27/T2 57
71311 FLE20HLX/840/B22/T2 57
61412 FLE20HLX/865/T2/B22 57
61413 FLE20HLX/865/T2/E27 57
30431ID FLE8HLX/827/E27/T2 57
30433ID FLE8HLX/865/E27/T2 57
30472ID FLE12HLX/827/E27/T2 57
30474ID FLE12HLX/865/E27/T2 57
30431EP FLE8HLX/827E27/T2 57
30433EP FLE8HLX865E27/T2 57
47738EP FLE8HLX/827/E14/T2 57
47740EP FLE8HLX/865/E14/T2 57
30472EP FLE12HLX/827/E27/T2 57
30474EP FLE12HLX/865/E27/T2 57
47742EP FLE12HLX/827/E14/T2 57
47755EP FLE12HLX/865/E14/T2 57
71039EN FLE15HLX/827/T2/E27 57
71040EN FLE15HLX/840/T2/E27 57
71041EN FLE15HLX/865/T2/E27 57
71042EN FLE20HLX/827/T2/E27 75
71043EN FLE20HLX/840/T2/E27 57
71044EN FLE20HLX/865/T2/E27 57
30431EN FLE8HLX/827/E27/T2 57
47375EN FLE8HLX/840/E27/T2 57
30433EN FLE8HLX/865/E27/T2 57
47738EN FLE8HLX/827/E14/T2 57
47382EN FLE8HLX/840/E14/T2 57
47740EN FLE8HLX/865/E14/T2 57
30472EN FLE12HLX/827/E27/T2 57
47389EN FLE12HLX/840/E27/T2 57
30474EN FLE12HLX/865/E27/T2 57
47742EN FLE12HLX/827/E14/T2 57
47392EN FLE12HLX/840/E14/T2 57
47755EN FLE12HLX/865/E14/T2 57
30431ET FLE8HLX/827/E27/T2 57
30433ET FLE8HLX/865/E27/T2 57
47738ET FLE8HLX/827/E14/T2 57
47740ET FLE8HLX/865/E14/T2 57
30472ET FLE12HLX/827/E27/T2 57
30474ET FLE12HLX/865/E27/T2 57
47742ET FLE12HLX/827/E14/T2 57
47755ET FLE12HLX/865/E14/T2 57
71039T FLE15HLX/827/E27/T2 57
71040T FLE15HLX/840/E27/T2 57
71041T FLE15HLX/865/E27/T2 57
71042T FLE20HLX/827/E27/T2 57
71043T FLE20HLX/840/E27/T2 57
71044T FLE20HLX/865/E27/T2 57
76153 FLE8HLX/T2/827/E14 58
76154 FLE8HLX/T2/827/E27 58
78156 FLE8HLX/T2/827/B22 58
78157 FLE8HLX/T2/840/E14 58
78188 FLE8HLX/T2/840/E27 58
78189 FLE8HLX/T2/865/E27 58
76155 FLE12HLX/T2/827/E14 58
76157 FLE12HLX/T2/827/E27 58
78190 FLE12HLX/T2/827/B22 58
78191 FLE12HLX/T2/840/E14 58
78192 FLE12HLX/T2/840/E27 58
78193 FLE12HLX/T2/865/E14 58
78194 FLE12HLX/T2/865/E27 58
76156 FLE15HLX/T2/827/E27 58
78195 FLE15HLX/T2/827/B22 58
78196 FLE15HLX/T2/840/E27 58
78197 FLE15HLX/T2/865/E27 58
76158 FLE20HLX/T2/827/E27 58
78198 FLE20HLX/T2/827/B22 58
78199 FLE20HLX/T2/840/E27 58
78200 FLE20HLX/T2/865/E27 58
76159 FLE23HLX/T2/827/E27 58
78202 FLE23HLX/T2/840/E27 58
78203 FLE23HLX/T2/865/E27 58
85940 FLE14HLX/827/B22/T3 59
85942 FLE14HLX/827/E27/T3 59
74709 FLE14HLX/827/B22/T3 BX2 59
74710 FLE14HLX/827/E27/T3 BX2 59
90147 FLE14HLX/840/E27/T3 59
90148 FLE14HLX/840/B22/T3 59
74715 FLE14HLX/840/B22/T3 BX2 59
74716 FLE14HLX/840/E27/T3 BX2 59
85956 FLE20HLX/827/B22/T3 59
85966 FLE20HLX/827/E27/T3 59
74711 FLE20HLX/827/B22/T3 BX2 59
74712 FLE20HLX/827/E27/T3 BX2 59
90145 FLE20HLX/840/E27/T3 59
90146 FLE20HLX/840/B22/T3 59
74717 FLE20HLX/840/B22/T3 BX2 59
74718 FLE20HLX/840/E27/T3 BX2 59
76598 FLE23HLX/827/B22/T2 BX2 59
76599 FLE23HLX/827/E27/T2 BX2 59
76600 FLE23HLX/840/B22/T2 BX2 59
76601 FLE23HLX/840/E27/T2 BX2 59
81262 FLE14HLX/827/E27/T3 220-240V 59
81263 FLE14HLX/865/E27/T3 220-240V 59
81264 FLE20HLX/827/E27/T3 220-240V 59
81265 FLE20HLX/865/E27/T3 220-240V 59
81266 FLE24HLX/827/E27/T3 220-240V 59
81267 FLE24HLX/865/E27/T3 220-240V 59
24172E FLE14HLX/827/T3 59
24173E FLE14HLX/865/E27/T3 59
24174E FLE20HLX/827/T3 59
24175E FLE20HLX/865/E27/T3 59
24176E FLE24HLX/827/T3 59
24177E FLE24HLX/E27/T3 59
24172EN FLE14HLX/827/E27/T3 220-240V 59
71402EN FLE14HLX/840/E27/T3 220-240V 59
24173EN FLE14HLX/865/E27/T3 220-240V 59
24174EN FLE20HLX/827/E27/T3 220-240V 59
80961EN FLE20HLX/840/E27/T3 220-240V 59
24175EN FLE20HLX/865/E27/T3 220-240V 59
24176EN FLE24HLX/827/E27/T3 220-240V 59
71400EN FLE24HLX/840/E27/T3 220-240V 59
24177EN FLE24HLX/865/E27/T3 220-240V 59
24172ET FLE14HLX/827/E27/T3 EDIS 59
24173ET FLE14HLX/865/E27/T3 EDIS 59
24174ET FLE20HLX/827/E27/T3 EDIS 59
24175ET FLE20HLX/865/E27/T3 EDIS 59
24176ET FLE24HLX/827/E27/T3 EDIS 59
24177ET FLE24HLX/865/E27/T3 EDIS 59
64568E FLE9HLX/827/E27/T3 60
64569E FLE9HLX/865/E27/T3 60
78172T FLE11DBX/827/E27/T3 220-240V 55
78173T FLE11DBX/865/E27/T3 220-240V 55
78174T FLE14TBX/827/E27/T3 220-240V 55
78175T FLE14TBX/865/E27/T3 220-240V 55
78176T FLE20TBX/827/E27/T3 220-240V 55
78177T FLE20TBX/865/E27/T3 220-240V 55
78178T FLE23TBX/827/E27/T3 220-240V 55
78179T FLE23TBX/865/E27/T3 220-240V 55
66839TH FLE15TBX/827/E27 SENSOR 55
66841TH FLE15TBX/865/E27 SENSOR 55
88697 FLE9TBX/T3/827/E14 55
88695 FLE9TBX/T3/827/E27 55
88696 FLE9TBX/T3/827/B22 55
88700 FLE9TBX/T3/840/E14 55
88698 FLE9TBX/T3/840/E27 55
88703 FLE9TBX/T3/865/E14 55
88701 FLE9TBX/T3/865/E27 55
78690 FLE11TBX/T3/827/E14 55
72689 FLE11TBX/T3/827/E27 55
72690 FLE11TBX/T3/827/B22 55
88709 FLE11TBX/T3/840/E14 55
88712 FLE11TBX/T3/865/E14 55
75730 FLE11TBX/T3/865/E27 55
72688 FLE15TBX/T3/827/E27 55
88713 FLE15TBX/T3/827/B22 55
88714 FLE15TBX/T3/840/E27 55
88716 FLE15TBX/T3/865/E27 56
88718 FLE20TBX/T3/827/E27 56
88719 FLE20TBX/T3/827/B22 56
88720 FLE20TBX/T3/840/E27 56
88722 FLE20TBX/T3/865/E27 56
88723 FLE20TBX/T3/865/B22 56
75039 FLE23QBX/T3/827/B22 56
75268 FLE23QBX/T3/827/E27 56
97000 FLE23QBX/T3/840/E27 56
97006 FLE23QBX/T3/865/E27 56
89514 FLE10HLX/827/E27/XL 56
89517 FLE10HLX/827/B22/XL 56
89520 FLE15HLX/827/E27/XL 56
89523 FLE15HLX/827/B22/XL 56
89526 FLE20HLX/827/E27/XL 56
89529 FLE20HLX/827/B22/XL 56
74658 FLE8HLX/827/B15/T2 56
74659 FLE8HLX/827/B22/T2 56
74660 FLE8HLX/827/E14/T2 56
74661 FLE8HLX/827/E27/T2 56
47375 FLE8HLX/840/E27/T2 56
47382 FLE8HLX/840/E14/T2 56
47385 FLE8HLX/840/B22/T2 56
47386 FLE8HLX/840/B15/T2 56
74668 FLE12HLX/827/B15/T2 56
74669 FLE12HLX/827/E14/T2 56
30472 FLE12HLX/827/E27/T2 56
30490 FLE12HLX/827/B22/T2 56
47389 FLE12HLX/840/E27/T2 56
47392 FLE12HLX/840/E14/T2 56
47393 FLE12HLX/840/B22/T2 56
47394 FLE12HLX/840/B15/T2 56
30474 FLE12HLX/865/E27/T2 56
30492 FLE12HLX/865/B22/T2 56
74677 FLE15HLX/827/B22/T2 56
74678 FLE15HLX/827/E27/T2 56
71040 FLE15HLX/840/E27/T2 56
89589ET FLE11DBX/840/E27 53
89590ET FLE11DBX/865/E27 53
89591ET FLE15TBX/827/E27 53
89592ET FLE15TBX/840/E27 53
89593ET FLE15TBX/865/E27 53
89594ET FLE18TBX/827/E27 53
89595ET FLE18TBX/840/E27 53
89596ET FLE18TBX/865/E27 53
24875E FLE9DBX/827/E27/220-240V 54
95595EID FLE9DBX/865/E27/220-240V 54
24876E FLE15DBX/827/E27/220-240V 54
95596EID FLE15DBX/865/E27/220-240V 54
95650EID FLE20TBX/827/E27/220-240V 54
95597EID FLE20TBX/865/E27/220-240V 54
24877E FLE23W/QBX/865/E27 54
24878E FLE23W/QBX/827/E27 54
11305ET FLE9DBX/827/E27/6k 54
11321ET FLE9DBX/864/E27/6K 54
11324ET FLE11DBX/827/E27/6K 54
11328ET FLE11DBX/865/E27/6K 54
11332ET FLE15TBX/827/E27/6k 54
11335ET FLE15TBX/864/E27/6K 54
11336ET FLE20TBX/827/E27 54
11342ET FLE20TBX/865/E27 54
95600ET FLE23QBX/827/E27 54
95602ET FLE23QBX/865/E27 54
78168E FLE5DBX/827/E27/T3 220-240V 54
78169E FLE5DBX/865/E27/T3 220-240V 54
78170E FLE8DBX/827/E27/T3 220-240V 54
78171E FLE8DBX/865/E27/T3 220-240V 54
78172E FLE11DBX/827/E27/T3 220-240V 54
78173E FLE11DBX/865/E27/T3 220-240V 54
78174E FLE14TBX/827/E27/T4 220-240V 54
78175E FLE14TBX/865/E27/T4 220-240V 54
78176E FLE20TBX/827/E27/T4 220-240V 54
78177E FLE20TBX/865/E27/T4 220-240V 54
78178E FLE23TBX/827/E27/T4 220-240V 54
78179E FLE23TBX/865/E27/T4 220-240V 54
64556E FLE6DBX/827/E27/T3 54
64557E FLE6DBX/865/E27/T3 54
64558E FLE8DBX/827/E27/T3 54
64559E FLE8DBX/865/E27/T3 54
64560E FLE11DBX/827/E27/T3 54
64561E FLE11DBX/865/E27/T3 54
64562E FLE14TBX/827/E27/T3 54
64563E FLE14TBX/865/E27/T3 54
64564E FLE20TBX/827/E27/T3 54
64565E FLE20TBX/865/E27/T3 54
64566E FLE23TBX/827/E27/T3 54
64567E FLE23TBX/865/E27/T3 54
95600EN FLE23QBX/827/E27 55
95601EN FLE23QBX/840/E27 55
95602EN FLE23QBX/865/E27 55
65031E FLE6DBX/827/E14/T3 55
65032E FLE6DBX/865/E14/T3 55
65033E FLE8DBX/827/E14/T3 55
65034E FLE8DBX/865/E14/T3 55
65035E FLE11DBX/827/E14/T3 55
65036E FLE11DBX/865/E14/T3 55
78168T FLEBX/827/E27/T3 220-240V 55
78169T FLEBX/865/E27/T3 220-240V 55
78170T FLE8DBX/827/E27/T3 220-240V 55
78171T FLE8DBX/865/E27/T3 220-240V 55
Index By Product Description
Product
Code Product Description Page
No.
Product
Code Product Description Page
No.
Product
Code Product Description Page
No.
Product
Code Product Description Page
No.
Product
Code Product Description Page
No.
Product
Code Product Description Page
No.
162 163
79985E FLE7GU10/T2/827 65
79986E FLE7GU10/T2/840 65
79987E FLE9GU10/T2/827 65
79988E FLE9GU10/T2/840 65
74667 FLE11GLS/O/B22/BUG BX 65
74666 FLE11GLS/O/E27/BUG BX 65
11368EN FLE20HLX/GG/827/E27 Edison 65
11371EN FLE20HLX/GG/865/E27 Edison 65
72480 FLE23PAR38/827/E27 65
72481 FLE23PAR38/827/B22 65
61742T FLE23/827/E27/PAR38 220-240V 65
61744T FLE23/865/E27/PAR38 220-240V 65
72478 FLE15R80/827/E27 65
72479 FLE15R80/827/B22 65
79942E FLE7CDL/T2/827/E27 63
79943E FLE7CDL/T2/840/E27 63
79944E FLE7CDL/T2/827/B22 63
88839A FLE5SPH//827/E14/T2 63
88841A FLE5SPH//827/B22/T2 63
73386A FLE5SPH//827/E27/T2 63
78012A FLE5SPH/827/B15/T2 63
88842A FLE7SPH//827/E14/T2 63
88844A FLE7SPH//827/B22/T2 63
73396A FLE7SPH//827/E27/T2 63
78013A FLE7SPH/827/B15/T2 63
79945E FLE5SPH/T2/827/E14 63
79946E FLE5SPH/T2/840/E14 63
79947E FLE5SPH/T2/827/E27 63
79948E FLE5SPH/T2/840/E27 63
79949E FLE5SPH/T2/865/E27 63
79950E FLE5SPH/T2/827/B22 63
79951E FLE7SPH/T2/827/E14 63
79952E FLE7SPH/T2/840/E14 63
79953E FLE7SPH/T2/827/E27 63
79954E FLE7SPH/T2/840/E27 63
79955E FLE7SPH/T2/827/B22 63
45850A FLE8GLS//827/E27/T2 64
45849A FLE8GLS//827/B22 /T2 64
45848A FLE8GLS//827/E14/T2 64
45837A FLE12GLS//827/E27/T2 64
45836A FLE12GLS//827/B22/T2 64
45835A FLE12GLS//827/E14/T2 64
45830A FLE15GLS//827/B22/T3 64
45831A FLE15GLS//827/E27/T3 64
80375 FLE11GLS/O/B22 BP1 64
80376 FLE11GLS/O/E27 BP1 64
80389 FLE20GLS/O/B22 BP1 64
80390 FLE20GLS/O/E27 BP1 64
79972E FLE8GLS/T2/827/E14 64
79973E FLE8GLS/T2/840/E14 64
79974E FLE8GLS/T2/827/E27 64
79975E FLE8GLS/T2/840/E27 64
79976E FLE8GLS/T2/827/B22 64
79977E FLE12GLS/T2/827/E27 64
79978E FLE12GLS/T2/827/E14 64
79979E FLE12GLS/T2/840/E14 64
79980E FLE12GLS/T2/840/E27 64
79981E FLE12GLS/T2/827/B22 64
79982E FLE15GLS/T3/827/E27 64
79983E FLE15GLS/T3/840/E27 64
79984E FLE15GLS/T3/827/B22 64
79956E FLE7R50/T2/827/E14 64
79957E FLE7R50/T2/840/E14 64
79958E FLE7R50/T2/827/E27 64
79959E FLE7R50/T2/827/B22 64
79960E FLE11R63/T2/827/E14 64
79961E FLE11R63/T2/840/E14 64
79962E FLE11R63/T2/827/E27 64
79963E FLE11R63/T2/827/B22 64
79964E FLE8SOFT/T2/827/E14 65
79965E FLE8SOFT/T2/827/E27 65
79966E FLE8SOFT/T2/827/B22 65
79967E FLE12SOFT/T2/827/E14 65
79968E FLE12SOFT/T2/827/E27 65
79969E FLE12SOFT/T2/827/B22 65
79970E FLE15SOFT/T3/827/E27 65
79971E FLE15SOFT/T3/827/B22 65
76125 CMH35/MR16/V60/UVC/930/GX10/WFL Ultra 79
88658 CMH35/MR16/UVC/930/GX10/SP GX10 79
88659 CMH35/MR16/UVC/930/GX10/FL GX10 79
88660 CMH35/MR16/UVC/930/GX10/WFL GX10 79
88661 CMH35/MR16/UVC/942/GX10/SP GX10 79
88662 CMH35/MR16/UVC/942/GX10/FL GX10 79
88663 CMH35/MR16/UVC/942/GX10/WFL GX10 79
26478 CMH20PAR20/UVC/830/E27/SP10 79
26481 CMH20/PAR20/UVC/830/E27/FL25 79
21684 CMH35/PAR20/UVC/830/E27/SP10 79
21685 CMH35/PAR20/UVC/830/E27/FL25 79
44890 CMH35/PAR20/UVC/942/E27/SP10 79
44919 CMH35/PAR20/UVC/942/E27/FL25 79
26497 CMH20PAR30/UVC/830/E27/SP10 79
26518 CMH20PAR30/UVC/830/E27/FL25 79
63441 CMH35/PAR30/UVC/830/E27/SP10 79
63442 CMH35/PAR30/UVC/830/E27/FL 25 79
63443 CMH35/PAR30/UVC/942/E27/SP10 79
63444 CMH35/PAR30/UVC/942/E27/FL25 79
73683 CMH70/PAR30/UVC/830/E27/SP15 79
73684 CMH70/PAR30/UVC/830/E27/FL40 79
63437 CMH70/PAR30/UVC/942/E27/SP15 79
63440 CMH70/PAR30/UVC/942/E27/FL40 79
97982 CMH70/E/UVC/U/830/E27/C 79
97984 CMH100/E/UVC/U/830/E27/C 79
43285 CMH150/UVC/O/U/942/E27/C 79
97979 CMH70/E/UVC/U/830/E27/D 80
97985 CMH100/E/UVC/U/830/E27/D 80
10591 CMH250/E/UVC/U/830/E40/D 80
13087 CMH400/E/UVC/U/830/E40/D 80
43282 CMH70/UVC/O/U/940/E27/D 80
43286 CMH150/UVC/O/U/940/E27/D 80
64982 CMH50/TT/UVC/730/E27 STREETWISE ECG 80
77400 CMH50/TT/UVC/730/E27 STREETWISE EM 80
77401 CMH70/TT/UVC/730/E27 STREETWISE 80
77399 CMH100/TT/UVC/730/E40 STREETWISE 80
77402 CMH150/TT/UVC/730/E40 STREETWISE 80
38752 CMH70/TT/UVC/830/E27 80
92478 CMH100/TT/UVC/830/E40 80
21514 CMH150/UVC/T/U/842/E40 80
38749 CMH150/TT/UVC/830/E40 80
10589 CMH250/TT/UVC/U/830/E40 80
20302 KRC250/CMH/830/T/H/E40 80
62356 CMH250/T/U/942/E40 80
13067** CMH400/TT/UVC/U/830/E40 80
21516 CMH150/UVC/O/T/U/830/E40 80
21517 CMH150/UVC/O/T/U/942/E40 80
61487 BLS/E/35W/CMH 80
61488 BLS/E/35W/CMH /R CC 80
61376 BLS/E/70W/CMH 80
61569 BLS/E/70W/CMH/R CC 80
78711 BLS/E/20W/CMH 80
78712 BLS/E/20W/CMH/R/CC 80
78713 BLS/E/20W/CMH/R/LP 80
78714 BLS/E/35W/CMH 80
78715 BLS/E/35W/CMH/R/CC 80
78716 BLS/E/35W/CMH/R/LP 80
88654 ARC150/G12/830 81
88655 ARC150/G12/842 81
97286 ARC70/T/U/730/G12 81
97287 ARC70/T/U/742/G12 81
34530 ARC70/UVC/TD/730/Rx7s 81
34536 ARC70/UVC/TD/742/Rx7s 81
Index By Product Description
Product
Code Product Description Page
No.
Product
Code Product Description Page
No.
Product
Code Product Description Page
No.
High Intensity Discharge
Lamps
40399 CMH20/TC/UVC/830/GU6.5 78
76122 CMH35/T/UVC/V60/930/GU6.5 ULTRA 78
88656 CMH35/T/UVC/930/GU6.5 78
88657 CMH35/T/UVC/942/GU6.5 78
73685 CMH20/TC/UVC/U/830/G8.5 PLUS 78
63434 CMH35/TC/UVC/U942/G8.5 78
73686 CMH35/TC/UVC/U/830/G8.5 PLUS 78
76120 CMH35/TC/V60/UVC/930/G8.5 ULTRA 78
63433 CMH70/TC/UVC/U/942/G8.5 78
73687 CMH70/TC/UVC/U/830/G8.5 PLUS 78
63595 CMH70/TC/UVC/U/930/G8.5 ULTRA WHITE 78
96751 CMH70/TC/UVC/U/930/G8.5 ULTRA 78
42708 CMH20/T/UVC/U/830/G12 PLUS 78
63437 CMH35/T/UVC/U/830/G12 PLUS 78
76121 CMH35/T/V60/UVC/930/G12 ULTRA 78
63438 CMH35/T/UVC/U/942/G12 78
63435 CMH70/T/UVC/U/830/G12 78
63436 CMH70/T/UVC/U/942/G12 78
63596 CMH70/T/UVC/U/930/G12 ULTRA WHITE 78
96752 CMH70/T/UVC/U/930/G12 ULTRA 78
20012 CMH150/T/UVC/U/830/G12 78
20014 CMH150/T/UVC/U/942/G12 78
43278 CMH35/TD/UVC/830/RX7s 78
36910 CMH70/TD/UVC/830/RX7s 78
38698 CMH70/TD/UVC/942/RX7s 78
36912 CMH150/TD/UVC/830/RX7s-24 78
38692 CMH150/TD/UVC/942/RX7s-24 78
99753 CMH35/T/UVC/935/GU6.5 BX1/12 78
67493 CMH35/T/UVC/U/835/G8.5 78
67491 CMH35/T/UVC/U/835/G12 78
64950 CMH35/PAR30/UVC/835/E27/SP10 78
64951 CMH35/PAR30/UVC/835/E27/FL25 78
67494 CMH70/TC/UVC/U/835/G8.5 78
67492 CMH70/TC/UVC/U/835/G12 78
64952 CMH70/PAR30/UVC/835/E27/SP10 78
64953 CMH70/PAR30/UVC/835/E27/FL25 78
40400 CMH20/MR16/UVC/830/GX10/SP 79
40401 CMH20/MR16/UVC/830/GX10/FL GX10 79
42691 CMH20/MR16/UVC/830/GX10/WFL GX10 79
76123 CMH35/MR16/V60/UVC/930/GX10/SP Ultra 79
76124 CMH35/MR16/V60/UVC/930/GX10/FL Ultra 79
Product
Code Product Description Page
No.
34527 ARC150/UVC/TD/732/Rx7s-24 81
34535 ARC150/UVC/TD/742/Rx7s-24 81
35284 ARC150/AQUA/TD/865/Rx7s-24 81
93772 ARC150/TD/952/Rx7s-24 81
30099 ARC250/TD/832/Fc2 81
30101 ARC250/TD/842/Fc2 81
12181 ARC150/UVC/TD/GREEN/RX7S-24 81
12182 ARC150/UVC/TD/BLUE/RX7S-24 81
12183 ARC150/UVC/TD/ORANGE/RX7S-24 81
12184 ARC150/UVC/TD/MAGENTA/RX7S-24 81
32664 ARC250/T/H/960/E40 81
32665 ARC250/T/VBU/960/E40 81
42357 ARC250/T/H/742/E40 81
42369 ARC400/T/H/742/E40 81
16870 ARC250/D/H/740/E40 82
30047 ARC250/D/H/960/E40 82
32666 ARC250/D/VBU/960/E40 82
44542 MVR250/U/40* 82
43907 MVR400/U/40* 82
41828 MVR1000/U/40 82
44543 MVR250/C/U/40* 82
43908 MVR400/C/U/40 82
98777 MVR250/VBU/40 82
49860 MVR400/VBU/40 82
98778 MVR250/C/VBU/40 82
27738 MPR400/C/VBU/0/40 82
49857 MVR400/C/VBU/40 82
30052 KRC400/T/H/960/E40 82
30704 KRC400/T/VBU/960/E40 82
16871 KRC400/E/VBU/645/E40 82
10834 KRC400/D/H/960/E40 82
10837 KRC400/D/VBU/960/E40 82
16872 KRC400/D/VBU/740/E40 82
16875 KRC400/D/H/740/E40 82
16920 SPL1500/L/H/652/Rx7SM 83
16922 SPL2000/L/H/651/SPEC 83
88882 SPL1000/T/H/960/E40 83
36078 SPL2000/220V/T/H/640/E40 83
30102 SPL2000/380V/T/H/960/E40 83
30103 SPL2000/380V/I/T/H/960/E40 83
33148 SPL2000/380V/I/T/H/640/E40 83
67489 LU70/90/HO/T/E27 83
67490 LU100/100/HO/T/E40 83
78659 LU150/100/HO/T/E40 83
78660 LU250/HO/T/E40 83
78661 LU400/HO/T/E40 83
78663 LU600/HO/T/E40 83
88258 LU 70/XO/SBY/T/E27 83
88256 LU 100/XO/SBY/T/E40 83
78737 LU 150/XO/SBY/T/E40 83
78738 LU 250/XO/SBY/T/E40 83
78739 LU 400/XO/SBY/T/E40 83
97238 LU50/85/XO/SBY/D/E27 83
88257 LU70/XO/SBY/D/E27 83
88255 LU100/XO/SBY/D/E40 83
93373 LU50/85/XO/T/27 83
93375 LU70/90/XO/T/27 83
93376 LU100/100/XO/T/40 83
93377 LU150/150/XO/T/40 83
93378 LU250/XO/T/40 83
93269 LU400/XO/T/40 83
93270 LU600/XO/T/40 83
45696 LU50/85/XO/D/27 84
45697 LU70/90/XO/D/27 84
93296 LU400/XO/D/40 84
93379 LU100/100/XO/D/40 84
93380 LU150/100/XO/D/40 84
93381 LU250/XO/D/40 84
35590 LU250/SBY/D/E40* 84
35591 LU400/SBY/D/E40 * 84
46221 LU 70/90/MO/T/E27 84
93767 LU100/100/MO/T/40 84
97241 LU150/100/HO/T/E40 84
44244 LU150/100/40* 84
22453 LU250/T/40* 84
97240 LU400/HO/T/E40 84
11678 LU400/T/40* 84
44059 LU1000/40 84
45751 LU1000/110/T/40 84
46217 LU70/90/MO/D/E27 84
93766 LU100/100/MO/D/40* 84
44245 LU150/100/D/40* 84
44052 LU250/D/40* 84
44057 LU400/D/40* 84
96815 LU70/90/T12/27 START* 84
96808 LU150/100/T/40 START* 84
96810 LU250/T/40 START* 84
96813 LU400/T/40 START* 84
46209 LU 70/90/MO/I/E27 84
46186 LU70/90/MO/D/I/E27 84
74171 H50/27 85
74172 H80/27 85
73736 H125/27 85
73737 H250/40 85
74174 H400/40 85
77055 H50 DX E27 85
77056 H80 DX E27 85
77057 H125 NDX E27 85
77058 H250 NDX E40 85
77061 H400 DX E40 85
44180 H125/E27/GE/START 85
96724 ML160/230-240V E27 85
96728 ML160/240-250V E27 85
96723 ML250/230-240V E40 85
96725 ML250/230-240V E27 85
96726 ML250/240-250V E40 85
96713 ML500/230–240V E40 85
Product
Code Product Description Page
No.
Product
Code Product Description Page
No.
Product
Code Product Description Page
No.
48461 CSR125/SE/HR 94
48462 CSR200/SE/HR/UV-C 94
21853 CSR400/SE/HR/UV-C 94
45238 CSR400/SE/HR/75 94
48463 CSR575/SE/HR 94
40460 CSR575/SE/HR/UV-C 94
22495 CSR800/SE/HR/UV-C 94
48464 CSR1200/SE/HR 94
27764 CSR1200/SE/HR/UV-C 94
77390 CSR1800/SE/HR/UV-C 94
48465 CSR2500/SE/HR 94
40482 CSR2500/SE/HR/UV-C 94
48466 CSR4000/SE/HR 94
Product
Code Product Description Page
No.
SHOWBIZ Lamps
27765 CSR4000/SE/HR/UV-C 94
48467 CSR6000/SE/HR 94
40492 CSR6000/SE/HR/UV-C 94
48468 CSR12000/SE/HR 94
22496 CSR18000/SE/HR 94
27817 CSD250/2/SE 94
21328 CSD250/2/SE BULK 94
49492 CSR575/2/T/SE 94
15378 CSR575/2/SE 94
49491 CSR700/2/SE 94
49490 CSR1200/2/SE 94
76160 CSR300/2/TAL 94
76161 CSR700/TAL/60/PGJX50 94
78718 CSR700/TAL/60/PGJX28 94
74873 CSR1500/TAL/60/S 94
48450 CSR200/DE 94
45232 CSR400/S/DE/90 94
22478 CSR400/S/DE/70 94
70979 CSR575/DE 94
70978 CSR575/DE/70 BULK 94
45231 CSR575/SS/DE/75 94
22493 CSR700/S/DE/60 94
41357 CSR700/S/DE/72 94
22494 CSR1200S/DE/60 94
96802 CSR1200/S/DE/60/STB 94
96800 CSR1500/S/DE/STB 94
48453 CSR1200/DE 94
48454 CSR2500/DE 94
48455 CSR4000/DE 94
48456 CSR6000/DE 94
48457 CSR12000/DE 94
48459 CSR18000/DE 94
78710 CSR24000/DE 94
15380 CSR700SA 95
45234 CSR700SA/72 95
21849 CSR1200SA 95
21801 CSR2000SA 95
73579 CMH400/932/GX9.5 95
73580 CMH400/941/GX9.5 95
88545 CMH150/PAR64/830/GX16d/SP 95
88537 CMH150/PAR64/830/GX16d/MFL 95
16960 CMH150/PAR64/830/GX16d/WFL 95
88543 CMH150/PAR64/942/GX16d/SP 95
88542 CMH150/PAR64/942/GX16d/MFL 95
88541 CMH150/PAR64/942/GX16d/WFL 95
88485 CSS150/850/GY9.5 95
88495 99-0201 CSI 95
88494 99-0221 CSI 95
88514 99-1222 CSI CS 95
88513 99-1422 CSI HR 95
88493 99-0222 CID 95
41869 F55BX/StudioBiax32 95
41873 F55BX/StudioBiax56 95
41903 F55BX/CINPLUS/32 95
41911 F55BX/CINPLUS/55 95
72658 F24T8CINEMA32/CVG 96
72659 F24T8CINEMA55/CVG 96
81207 F48T8/Cinema32/CVG 96
81208 F48T8/Cinema55/CVG 96
15775 F20T12/CINEMA32/HO/CVG 96
15776 F20T12/CINEMA55/HO/CVG 96
15782 F40T12/CINEMA32/HO/CVG 96
15783 F40T12/CINEMA55/HO/CVG 96
164 165
23797 P2/28 FCM 101
88482 P2/27 FEX 101
88481 P2/27 FEX 101
88629 FEY 101
19697 P2/10 101
19698 P2/10 101
20249 P2/7 EKM 101
20253 P2/7 EKM 101
19695 P2/12 101
19696 P2/12 101
37346 DZA 101
18234 BRL A1/220 101
14876 FCR A1/215 101
18235 BRJ/EVB A1/234 101
37695 DZE/FDS A1/262 101
13598 FCS A1/216 101
14874 EHJ A1/223 101
18241 FNT 101
41164 EVD A1/239 101
26895 DYR A1/233 101
88484 HX185 101
88492 A1/248 101
88491 A1/249 101
88460 A1/244 101
34720 M29/ESA 102
34718 M30/ESB 102
34702 M32 102
34676 M28/EVA 102
34768 M33 102
88516 M36 102
88442 M38 102
78343 M38 102
88468 M40 102
36902 EKZ 102
43988 DDS 102
43950 DED 102
43537 DDL 102
38306 ELD/EJN 102
35200 EKE 102
29150 EJL A1/252 102
37462 ELC A1/259 102
15377 ELC500 102
38686 ENH 102
38476 ELH 102
32882 EJA 102
41729 EPT 102
25475 ENL 102
41882 EPV 102
42614 EPX 102
41874 ERV 102
41705 ENX 102
21613 FXL 102
25261 FLT 102
12097 EXY 102
12092 EXR 102
Index By Product Description
34747 F20T12/BLB 96
25618 F40T12/BLB 96
88832 F18T8/BLB 96
88833 F36T8/BLB 96
41673 FCX 96
14553 25PAR36 96
14555 25PAR36/WFL 96
24425 4405 96
24663 4511 96
15133 H4515 96
24673 4515 96
43576 H7604 96
12892 50PAR36/VNSP 96
16540 50PAR36/NSP 96
16541 50PAR36/WFL 96
19880 50PAR36/WFL/H 96
16542 50PAR36/VWFL 96
24627 4502 96
24640 4505 96
24650 4509 96
41503 4509X 96
24887 4593 96
24891 4594 96
24964 4626 96
24966 4627 96
24867 4587 96
24898 4596 96
41667 DWE 96
41671 FBO 96
43591 H7635 97
40822 4537-2 97
24799 4553 97
24859 4580 97
24862 4581 97
37706 Q4554 97
36271 Q4681 97
24768 4545 97
19024 120PAR56/MFL 97
19025 120PAR56/WFL 97
20122 200PAR 97
20575 240PAR56/VNSP 97
20577 240PAR56/WFL 97
23427 300PAR56/WFL 97
20803 300PAR56/NSP 97
20836 300PAR56/MFL 97
20849 300PAR56/WFL 97
20853 300PAR56/NSP 97
20852 300PAR56/MFL 97
20854 300PAR56/WFL 97
18676 300PAR56/NSP 97
18677 300PAR56/MFL 97
18678 300PAR56/WFL 97
43494 Q500PAR56/NSP 97
43495 Q500PAR56/MFL 97
43496 Q500PAR56/WFL 97
40576 4552 98
40578 4559 98
40579 Q4559 98
42552 Q4559X 98
73581 CP86 PAR64/VNSP 98
99944 CP86 PAR64/VNSP 98
25504/99945 CP87 PAR64/NSP 98
99946 CP87 PAR64/NSP 98
Product
Code Product Description Page
No.
Product
Code Product Description Page
No.
Product
Code Product Description Page
No.
Product
Code Product Description Page
No.
Product
Code Product Description Page
No.
Product
Code Product Description Page
No.
99947 CP88 PAR64/MFL 98
99948 CP88 PAR64/MFL 98
39411 500/PAR64/MFL 98
39414 500/PAR64/W FL 98
88425 CP60 EXC SUPER 98
88551 CP60 EXC SUPER 98
88535 CP61 EXD SUPER 98
88550 CP61 EXD SUPER 98
88549 CP62 EXE SUPER 98
88536 CP62 EXE SUPER 98
88511 CP95 98
88510 CP95 98
88480 EXG/PAR64/WFL 98
88479 EXG/PAR64/WFL 98
39409 500PAR64/MFL 98
13233 FFN 98
13229 FFP 98
13228 FFR 98
13227 FFS 98
43497 Q1000PAR64/NSP 98
43498 Q1000PAR64/MFL 98
43499 Q1000PAR64/WFL 98
88478 HPL 575 98
88477 HPL 575 98
88436 HPL 575-C 98
88438 HPL 575-C 98
88476 HPL 575-X LL 98
88475 HPL 575-X LL 98
88434 HPL 575-C LL-X 98
88435 HPL 575-C LL-X 98
88474 HPL 750 98
88473 HPL 750 98
88437 HPL 750-C 98
88428 HPL 750-C-XLL 98
88430 HPL 750-X-LL 98
88429 HPL 750-X-LL 98
88624 EHD 99
88548 FLK 99
88452 FLK-LL 99
88448 GKV 99
88447 GKV 99
88446 GKV/LL 99
88445 GKV/LL 99
88450 FKR 99
88627 EHF 99
88626 EHG 99
88432 HX800 99
88625 FEL 99
88449 CP77 FEP 99
88443 CP81 FKW 99
88433 CP81 FSL 99
88444 CP81 FSK 99
88467 CP82 FRG 99
88466 CP82 FRH 99
88464 CP82 FRJ 99
88465 T18 GCW 99
88470 T25 GCW 99
88469 T27 GCS 99
88463 T26 GCS 99
88462 CP89 FRK 99
88461 CP89 FRM 99
88504 FMR 99
88431 T12 100
72680 CP23 100
88455 CP23 100
88459 CP24 100
88515 T11 Q1000T8/CL 100
88456 T11 100
88457 T19 FWR 100
88472 CP70 FVA 100
88471 CP70 FVA 100
88454 T29 FWT 100
88453 CP90 100
96735 CP43 FTL 100
88533 CP43 FTL 100
88503 CP79 100
88439 CP110 OC1200 100
88509 EGN 100
88531 CP39 FKH 100
88622 EGT 100
88458 CP40 FKJ 100
88538 CP40 FKJ 100
88508 CP93 100
88507 CP92 100
88506 CP92 100
88505 CP91 100
88617 EGE 100
88546 BTM 100
88498 T17 FKF 100
88451 T28 100
88497 T13 FKB 100
88530 CP51 FKM 100
88615 EGJ 100
88529 T14 FKD 100
88499 FKE 100
88496 CP52 FKN 100
88610 CYX 100
88489 CP41 FKK 100
88488 CP41 FKK 100
88502 CP94 100
88874 HX48 100
88875 CP29 100
88876 CP29 100
12036 CP83 100
12037 CP83 100
48771 Q12MT26/4CL 100
48779 Q12MT26/4CL 100
48773 BCM-020MT324CL 100
48774 BCM-020MT324CL 100
48777 Q24MT32/4CL 100
88880 CP105 101
88877 CP30 101
88878 CP58 101
88879 CP32 101
88512 CP59 101
19926 DKZ/DSE 101
88500 T16 101
88532 CP53 101
30325 FAD 101
36952 DXX 101
36953 DXX 101
30157 DXW 101
30374 FBY 101
23756 EJG 101
23760 P2/11 EME/Clear 101
23761 P2/11 EMF/Frosted 101
39882 F4W/T5/BLB 110
39883 F6W/T5/BLB 110
39884 F8W/T5/BLB 110
Product
Code Product Description Page
No.
Specialty Lamps
72987 F54T5/841/ECO/WM/CVG 112
72988 F54T5/850//ECO/WM/CVG 112
72989 F54T5/865//ECO/WM/CVG 112
44212 F15T8 F&SA 112
16987 /44230
F15T8 SW 112
44239 F15T8 REP 112
44213 F18T8 F&SA 112
44231 F18T8 SW 112
44240 F18T8 REP 112
16968 F25T8 F&SA 112
16991 F25T8 SW 112
16969 /44218
F30T8 F&SA 112
16992 /44235
F30T8 SW 112
44241 F30T8 REP 112
16970 /44219
F36T8 F&SA 112
16995 /44236
F36T8 SW 112
44242 F36T8 REP 112
44220 F38T8 F&SA 112
16984 F38T8 FA 112
16999 F38T8 SW 112
21788 QH500T3/CL 113
21787 QH500T3/CL/7 113
22355 QH1000T3/CL 113
22357 QH1000T3/CL 113
21377 QH1MT3/CL/R/MS-235V 113
22357 QH1000T3/CL 113
22531 QH1200T3/CL 113
22532 QH1200T3/CL/HT 113
22691 QH1600T3/CL/7 113
22688 QH1600T3/CL 113
22789 QH2M/T3/1CL/HT 113
15551 QH2M/T3/1CL/HT/VB 113
18668 QH2MT3/CL/VB 113
22790 QH2M/T3/CL/HT 113
12716 QH2MT3/CL/HT/R 113
22838 QH2500T3/CL 113
10872 QH3650/CL/5 113
22875 QH3800/CL 113
22900 QH5M/T3/1CL/HT 113
20092 HH 451 1500W RUBY 230-240V 113
20093 HH 804 2000W RUBY 230-240V 113
40723 QH 750W 230-240V Ruby Slim 113
42740 QH 1300W 230-240V Ruby Slim 113
11478 EXL 114
11482 EXM 114
80583 Q6.6A45PK30d male 114
88420 AF6/2 6.6A 45W 114
32917 Q65T2 1/2/1/CL 114
88417 AF 6/5T 6.6A 100W 114
80584 Q6.6A100PK30d male 114
80588 Q6.6A100PK30d female 114
80585 Q6.6A150PK30d male 114
80589 Q6.6A150PK30d female 114
80586 Q6.6A200PK30d male 114
80590 Q6.6A200PK30d female 114
23857 Q6.6A/T4/5CL 114
23860 Q6.6AT4/DCR 114
33279 Q6.6A/PAR56/3 114
88413 AF7/2 6.6A 200W 114
15482 Q20A/PAR56/C 114
23863 Q20A/PAR56/3 114
88525 IM T20BP 114
88523 1200T20 114
88832 F18/T8/BLB 110
88833 F36/T8/BLB 110
34747 F20W/T12/BLB 110
25618 F40W/T12/BLB 110
16941 F15WBL 350 110
72939 F15WBLCVG 110
42935 F9BX BL G23 110
42936 F11BX BL G23 110
42937 F13BX BL GX23 110
42939 F24BX BL 2G11 110
42940 F36BX BL 2G11 110
42941 F55BX BL 2G11 110
15872 G4T5 110
15873 G6T5 110
11077 G8T5 110
29495 G11T5 110
16494 G16T5 110
15874 G36T5 110
15864 G64T5 110
29504 G64T5/4P/SE 110
11078 G15T8 111
11082 G25T8 111
11080 G30T8 111
15875 G55T8HO 111
40695 GBX5/UVC G23 111
40696 GBX9/UVC G23 111
40700 GBX11/UVC G23 111
40703 GBX13/UVC GX23 111
40704 GBX18/UVC/2G11 111
40705 GBX36/UVC/2G11 111
40706 GBX55/UVC/2G11 111
72761 G15T8/CVG 111
72762 G25T8/CVG 111
72763 G30T8/CVG 111
72764 G55T8/CVG 111
17203 F18W/830CVG 111
17204 F18W/835CVG 111
17205 F18W/840CVG 111
17208 F36W/830CVG 111
17202 F36W/835CVG 111
17209 F36W/840CVG 111
12403 F58W/830CVG 111
12405 F58W/835CVG 111
12407 F58W/840CVG 111
12423 F70W/835CVG 111
12424 F70W/840CVG 111
71000 F24W/T5/830/ECO/CVG 112
70998 F24W/T5/835/ECO/CVG 112
70997 F24W/T5/841/ECO/CVG 112
70999 F24W/T5/850/ECO/CVG 112
70996 F24W/T5/865/ECO/CVG 112
70995 F39W/T5/830/ECO/CVG 112
70994 F39W/T5/835/ECO/CVG 112
70993 F39W/T5/841/ECO/CVG 112
70991 F39W/T5/850/ECO/CVG 112
70990 F39W/T5/865/ECO/CVG 112
48433 F54T5/830/HO/ECO/CVG 112
48436 F54T5/835/HO/ECO/CVG 112
48458 F54T5/841/HO/ECO/CVG 112
80311 F54T5/850/HO/ECO/CVG 112
48469 F54T5/865/HO/ECO/CVG 112
72985 F54T5/830//ECO/WM/CVG 112
72986 F54T5/835//ECO/WM/CVG 112
166 167
Index By Product Description
Ballast
65876 MSB600/220V/50Hz/A/T 139
65877 MHB50/220V/50Hz/A/T 139
65878 MHB80/220V/50Hz/A/T 139
65879 MHB125/220V/50Hz/A/T 139
65880 MHB175/220V/50Hz/A/T 139
65881 MHB250/220V/50Hz/A/T 139
65882 MHB400/220V/50Hz/A/T 139
65883 MSB100/70/220V/50Hz/A/T 139
65884 MSB150/100/220V/50Hz/A/T 139
65885 MSB250/150/220V/50Hz/A/T 139
65886 MSB400/250/220V/50Hz/A/T 139
65890 MSB35/230V/50Hz/A/T 140
65891 MSB50/230V/50Hz/A/T 140
65892 MSB70/230V/50Hz/A/T 140
65893 MSB100/230V/50Hz/A/T 140
65894 MSB150/230V/50Hz/A/T 140
65895 MSB250/230V/50Hz/A/T 140
65896 MSB400/230V/50Hz/A/T 140
65897 MSB600/230V/50Hz/A/T 140
65898 MHB50/230V/50Hz/A/T 140
65899 MHB80/230V/50Hz/A/T 140
65900 MHB125/230V/50Hz/A/T 140
65901 MHB175/230V/50Hz/A/T 140
65902 MHB250/230V/50Hz/A/T 140
65904 MHB400/230V/50Hz/A/T 140
65905 MSB100/70/230V/50Hz/A/T 140
65906 MSB150/100/230V/50Hz/A/T 140
65907 MSB250/150/230V/50Hz/A/T 140
65908 MSB400/250/230V/50Hz/A/T 140
70993 6μF/250V 141
70994 8μF/250V 141
82017 10μF/250V 141
70995 12μF/250V 141
70996 18μF/250V 141
71009 25μF/250V 141
70997 32μF/250V 141
72090 36μF/250V 141
70998 50μF/250V 141
89197 25μF/540V 141
89200 35μF/540V 141
28243 6μF/250V/C 141
28244 8μF/250V/C 141
28246 10μF/250V/C 141
28253 12μF/250V/C 141
28255 18μF/250V/C 141
28256 25μF/250V/C 141
28257 32μF/250V/C 141
28258 50μF/250V/C 141
65954 MSI/150 142
11233 MSI/400 142
11234 MSI/1000 142
11235 MSI/400/L 142
95883 MSI/1000/L 142
81303* MSIA1000 142
89193 MSI/1000/CSI/Aluminum 142
89195 MSI/2000 142
89165 MSB100/70/220V/50Hz/T 143
89160 MSB150/100/220V/50Hz/T 143
89155 MSB250/150/220V/50Hz/T 143
89144 MSB400/250/220V/50Hz/T 143
89168 MSB100/70/220V/60Hz/T 143
70981C MSB35/220V/50Hz/T 131
70982C MSB50/220V/50Hz/T 131
70983C MSB70/220V/50Hz/T 131
70986C MSB100/220V/50Hz/T 131
70987C MSB150/220V/50Hz/T 131
70988C MSB250/220V/50Hz/T 131
70989C MSB400/220V/50Hz/T 131
70991C MSB600/220V/50Hz/T 131
70992C MSB1000/220V/50Hz/T 131
25816C MHB80/220V/50Hz/T 131
25817C MHB125/220V/50Hz/T 131
25818C MHB250/220V/50Hz/T 131
70990C MHB400/220V/50Hz/T 131
78671 MSB35/220V/60Hz/T 131
28810 MSB70/220V/60Hz/T 131
78672 MSB100/220V/60Hz/T 131
28812 MSB150/220V/60Hz/T 131
28814 MSB250/220V/60Hz/T 131
78673 MSB400/220V/60Hz/T 131
99720 MSB1000/220V/60Hz/T 131
28789 MSB35/230V/50Hz/T 132
95859T MSB50/230V/50Hz/T 132
28790 MSB70/230V/50Hz/T 132
28796 MSB100/230V/50Hz/T 132
28797 MSB150/230V/50Hz/T 132
28798 MSB250/230V/50Hz/T 132
95864C MSB400/230V/50Hz/T 132
95866T MSB600/230V/50Hz/T 132
99721 MSB1000/230V/50Hz/T 132
25819T MHB80/230V/50Hz/T 132
25822T MHB125/230V/50Hz/T 132
25823T MHB250/230V/50Hz/T 132
95865C MHB400/230V/50Hz/T 132
28815 MSB70/230V/60Hz/T 133
28817 MSB150/230V/60Hz/T 133
28818 MSB250/230V/60Hz/T 133
28800 MSB35/240V/50Hz/T 133
28801 MSB70/240V/50Hz/T 133
28807 MSB100/240V/50Hz/T 133
28808 MSB150/240V/50Hz/T 133
28809 MSB250/240V/50Hz/T 133
95874C MSB400/240V/50Hz/T 133
99722 MSB1000/240V/50Hz/T 133
95875C MHB400/240V/50Hz/T 133
28819 MSB70/240V/60Hz/T 134
28821 MSB150/240V/60Hz/T 134
28823 MSB250/240V/60Hz/T 134
99719 MHB2000/380V/50Hz/T 134
99723 MHB2000/380V/60Hz/T 134
99724 MHB2000/400V/50Hz/T 134
99725 MHB2000/415V/50Hz/T 134
70981 MSB35/220V/50Hz 135
70982 MSB50/220V/50Hz 135
70983 MSB70/220V/50Hz 135
70986 MSB100/220V/50Hz 135
70987 MSB150/220V/50Hz 135
70988 MSB250/220V/50Hz 135
70989 MSB400/220V/50Hz 135
70991 MSB600/220V/50Hz 135
70992 MSB1000/220V/50Hz 135
25816 MHB80/220V/50Hz 135
25817 MHB125/220V/50Hz 135
25818 MHB250/220V/50Hz 135
70990 MHB400/220V/50Hz 135
78669 MSB35/220V/60Hz 135
11212 MSB70/220V/60Hz 135
78670 MSB100/220V/60Hz 135
11215 MSB150/220V/60Hz 135
11221 MSB250/220V/60Hz 135
11222 MSB400/220V/60Hz 135
25827 MHB400/220V/60Hz 135
95858 MSB35/230V/50Hz 136
95859 MSB50/230V/50Hz 136
95860 MSB70/230V/50Hz 136
95861 MSB100/230V/50Hz 136
95862 MSB150/230V/50Hz 136
95863 MSB250/230V/50Hz 136
95864 MSB400/230V/50Hz 136
95866 MSB600/230V/50Hz 136
95867 MSB1000/230V/50Hz 136
25819 MHB80/230V/50Hz 136
25822 MHB125/230V/50Hz 136
25823 MHB250/230V/50Hz 136
95865 MHB400/230V/50Hz 136
11049 MSB70/230V/60Hz 137
11050 MSB150/230V/60Hz 137
11053 MSB250/230V/60Hz 137
11223 MSB400/230V/60Hz 137
25828 MHB400/230V/60Hz 137
95868 MSB35/240V/50Hz 137
95869 MSB50/240V/50Hz 137
95870 MSB70/240V/50Hz 137
95871 MSB100/240V/50Hz 137
95872 MSB150/240V/50Hz 137
95873 MSB250/240V/50Hz 137
95874 MSB400/240V/50Hz 137
95876 MSB600/240V/50Hz 137
95877 MSB1000/240V/50Hz 137
25824 MHB80/240V/50Hz 137
25825 MHB125/240V/50Hz 137
25826 MHB250/240V/50Hz 137
95875 MHB400/240V/50Hz 137
11224 MSB70/240V/60Hz 138
11225 MSB150/240V/60Hz 138
11226 MSB250/240V/60Hz 138
11227 MSB400/240V/60Hz 138
25839 MHB400/240V/60Hz 138
89192 MHB1000/380V/50Hz 138
89191 MHB1500/380V/50Hz 138
89190 MHB2000/380V/50Hz 138
99664 CSI 1000/220V/50Hz 139
89186 CSI 1000/220V/60Hz 139
89187 CSI 1000/230V/50Hz 139
89188 CSI 1000/230V/60Hz 139
89189 CSI 1000/240V/50Hz 139
65869 MSB35/220V/50Hz/A/T 139
65870 MSB50/220V/50Hz/A/T 139
65871 MSB70/220V/50Hz/A/T 139
65872 MSB100/220V/50Hz/A/T 139
65873 MSB150/220V/50Hz/A/T 139
65874 MSB250/220V/50Hz/A/T 139
65875 MSB400/220V/50Hz/A/T 139
Product
Code Product Description Page
No.
Product
Code Product Description Page
No.
Product
Code Product Description Page
No.
Product
Code Product Description Page
No.
89163 MSB150/100/220V/60Hz/T 143
99658 MSB250/150/220V/60Hz/T 143
89153 MSB400/250/220V/60Hz/T 143
89166 MSB100/70/230V/50Hz/T 143
89161 MSB150/100/230V/50Hz/T 143
89156 MSB250/150/230V/50Hz/T 143
89151 MSB400/250/230V/50Hz/T 143
89169 MSB100/70/230V/60Hz/T 143
89164 MSB150/100/230V/60Hz/T 143
99659 MSB250/150/230V/60Hz/T 143
89154 MSB400/250/230V/60Hz/T 143
89167 MSB100/70/240V/50Hz/T 143
99660 MSB150/100/240V/50Hz/T 143
89157 MSB250/150/240V/50Hz/T 143
89152 MSB400/250/240V/50Hz/T 143
89170 MSB/Dual/PS 144
75251 MSB/Dual/PS/Timer 144
89176 Timer/PS 144
10987 CWA175/220V/50Hz 145
10988 CWA250/220V/50Hz 145
10989 CWA400/220V/50Hz 145
10991 CWA1000/220V/50Hz 145
10992 CWA1500/220V/50Hz 145
95878 CWA175/230V/50Hz 145
95879 CWA250/230V/50Hz 145
95880 CWA400/230V/50Hz 145
95881 CWA1000/230V/50Hz 145
95882 CWA1500/230V/50Hz 145
11228 CWA175/240V/50Hz 145
11229 CWA250/240V/50Hz 145
11230 CWA400/240V/50Hz 145
11231 CWA1000/240V/50Hz 145
11232 CWA1500/240V/50Hz 145
81302 CWA1000/S52/220V/50Hz 146
85922 CWA1000/S52/220V/60Hz 146
85923 CWA1000/S52/230V/50Hz 146
85926 CWA1000/S52/230V/60Hz 146
85921 CWA1000/S52/240V/50Hz 146
10993 13μF/540V 146
10994 19μF/540V 146
10995 28μF/540V 146
10996 30μF/540V 146
10997 41μF/540V 146
89625 26μF/540V 146
31599 13μF/540V/C 147
31614 19μF/540V/C 147
31625 28μF/540V/C 147
31638 30μF/540V/C 147
31647 41μF/540V/C 147
78711 BLS/E/20W/CMH 147
78712 BLS/E/20W/CMH/R CC 147
78713 BLS/E/20W/CMH/R LP 147
78714 BLS/E/35W/CMH 147
78715 BLS/E/35W/CMH/R CC 147
78716 BLS/E/35W/CMH/R LP 147
61487 BLS/ES/35W/CMH 148
61488 BLS/ES/35W/CMH/R CC 148
61376 BLS/ES/70W/CMH 148
61569 BLS/ES/70W/CMH/R CC 148
67554C BLS/EE/35W/CMH 148
67555C BLS/EE/70W/CMH 148
Product
Code Product Description Page
No.
Product
Code Product Description Page
No.
61386 ELB114S 149
61387 ELB214S 149
61395 ELB314S 149
61396 ELB414S 149
61394 ELB121S 149
61388 ELB128S 149
61389 ELB228S 149
61390 ELB328S 149
61391 ELB135S 149
61392 ELB235S 149
62107 ELB149S 149
62108 ELB249S 149
61393 ELB154S 149
61385 ELB254/258S 149
62623 ELB114E 150
62624 ELB214E 150
62625 ELB314E 150
62626 ELB414E 150
62627 ELB121E 150
62630 ELB224E 150
62628 ELB128E 150
62629 ELB228E 150
61378 ELB118S 151
61379 ELB218S 151
61380 ELB318S 151
61381 ELB136S 151
61382 ELB236S 151
61383 ELB336S 151
61384 ELB158S 151
61385 ELB254/258S 151
62640 ELB118E 152
62641 ELB218E 152
62642 ELB318E 152
62643 ELB418E 152
62644 ELB136E 152
62645 ELB236E 152
76509 MB15/220V/50Hz 152
76510 MB18/20/220V/50Hz 152
76511 MB30/220V/50Hz 152
76512 MB36/40/220V/50Hz 152
76514 MB58/65/220V/50Hz 152
76515 MB22/220V/50Hz 152
76516 MB32/220V/50Hz 152
76517 EMB18/20/220V/50Hz 153
76518 EMB30/220V/50Hz 153
76519 EMB36/40/220V/50Hz 153
76520 EMB22/220V/50Hz 153
76521 EMB32/220V/50Hz 153
24975 Starter FU 10 (155/500 4-65W 220-240V) 154
81024 FU10 155/500 4W-65W 220-240V 154
81850
STARTERS FU10 155/500 4-65W 220-240V PC
154
89698
STARTERS FU10 155/200 4-22W 220-240V Series RoHS
154
89699
STARTERS FU10 155/200 4-22W 220-240V Series
154
76522 EMB10/220V/50Hz 154
76523 EMB13/220V/50Hz 154
76524 EMB18/220V/50Hz 154
62660 CEB110E 155
62662 CEB111E 155
62663 CEB211E 155
79050 CEB113E 155
79051 CEB213E 155
79052 CEB118E 155
79053 CEB218E 155
62661 CEB210E 155
62666 CEB126E 155
62667 CEB226E 155
62668 CEB132E 155
62669 CEB232E 155
65631 SET60LV 155
65632 SET60LTD 155
168 169
Printing Code: C-ALL0-1-EN-2013Q1

Navigation menu
