Wireless
Pg 15
PoE Switches Pg 34
300’ IR PTZ
Pg 27
See What’s New
2013
2
Luxon Universi t y i s an ex t r a onli n e re s o urc e to h e lp i n c rease yo u r knowledge
of C C T V syste m s . You w i l l find v i d e o t u t o r ials, p o w e r p o i nt pr e s e ntations, a n d
in f o r m a tio n f o r c e r ti f i c ation. Lo o k fo r “ L u x o n U n i versit y ” at w w w.l u x o nvideo. c o m
• Lens Calculators
• Hard Drive Calculators
• Voltage Drop Calculators
• Product Spec Sheets and Manuals
• CCTV Glossary
• Images
• Order Tracking
• Video Image Comparison
Visit
WWW.LUXONVIDEO.COM
for:
• ONE CALL FOR EVERYTHING CCTV
• LIVE AND RECORDED TRAININGS
• TRAINING ON DEMAND
• HASSLE FREE WARRANTY
• SYSTEM DESIGN SUPPORT
• NEW VIDEO TRAININGS
• INTUITIVE WEBSITES for LEARNING
Learn the Surveillance Industry from us!
• WWW.LUXONVIDEO.COM
• WWW.LUXONUNIVERSITY.COM
P r i ce s s u b j ec t to ch a n g e wi t h o u t n o tic e
3
Contents
2013 Product Catalog
Network (IP) Cameras
2 Mega Pixel IP Cameras, Wireless IP Solutions, Solar Power Solutions
Hybrid (Analog/IP) Video Recorders
32/16/8/4 Channel Network & Hybrid Video Recorders, Software
Analog Cameras
Varifocal Indoor Domes, Weatherproof Vandal Domes, Fixed Indoor
Domes, Wide Dynamic Range Domes, Long Range WDR IR, Weatherproof
IR’s, Box, License Plate Recognition, Covert, Value Line IR’s, PTZ’s
Accessories
IR Illuminators, LCD Monitors, Monitor Mounts, Camera Mounts and
Housings, Lenses, PoE Switches, Power Supplies & Surge Protection

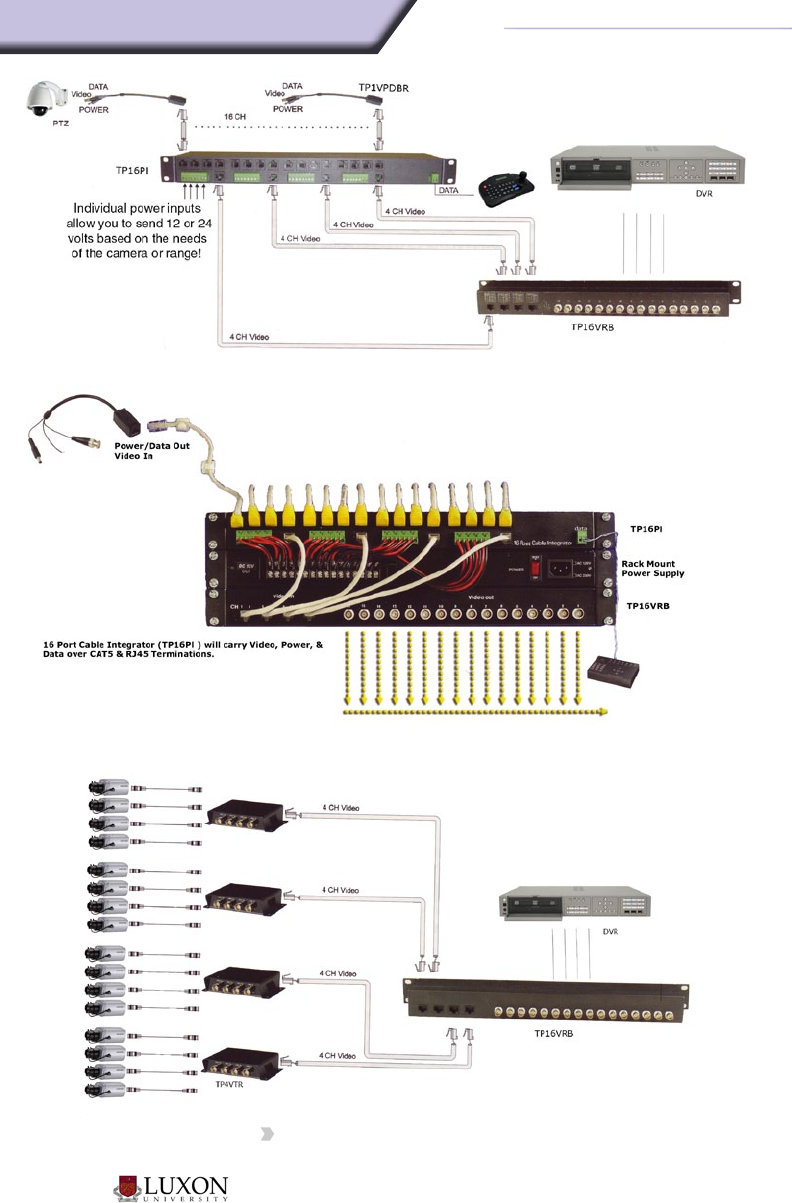

Unshielded Twisted Pair (UTP)
Passive UTP Baluns, Passive UTP Hubs, Active UTP Hubs,
UTP Application Guide
04
10
16
28
36
Glossary & Images / INDEX
Glossary & Images, Part Number and Page
41
— www.luxonvideo.com —
4
LUXO N VID EO — 2013 PR O DU CT CATALOG
NEW!
32/16 CHANNEL HYBRID RECORDERS
*See Luxon Video’s Warranty Policy
No IP License Fees!
NEW 3 Year Warranty!*
NVRH1- 3 2 S ERIE S
MODEL # LIST DESCRIPTION
NVRH1-32-3TB $7533 32 Channel NVR, 960/960 fps, 3TB HD
NVRH1-32-6TB $8763 32 Channel NVR, 960/960 fps, 6TB HD
NVRH1-32-9TB $9400 32 Channel NVR, 960/960 fps, 9TB HD
NVRH1-32-12TB $9995 32 Channel NVR, 960/960 fps, 12TB HD
NVRH1-32
— 32 Ch Analog/IP Recorder
RecoRds up to 32 Ip oR 16 Ip and 16 analog
cameRas. softwaRe featuRes on next page.
For complete Specs and Capabilities go to www.luxonvideo.com
Record up to 80 Mega Pixels of IP Resolution!
— 1-800-844-9937 — 5
2013 PRO DU CT CATALOG — LUXO N VIDEO 8/16 CHANNEL HYBRID RECORDER
Optional Accessories
• Rack Mount Ears (LINRACKEARS)
$24
• Remote Control (REMOTE2)
$50
• 16 CH Loop out Cable (LINDVI)
$72.50
• 16 CH Audio Cable (LINAUDIOCABLE16)
$50
LIN8
— 8 Ch Analog/IP Recorder
LIN 8 SER I E S
MODEL # LIST DESCRIPTION
LIN8-240-500GB $2290 8 Channel NVR, 240/240 fps, 500GB HD
LIN8-240-1TB $2478 8 Channel NVR, 240/240 fps, 1TB HD
LIN8-240-2TB $2713 8 Channel NVR, 240/240 fps, 2TB HD
LIN8-240-4TB $3328 8 Channel NVR, 240/240 fps, 4TB HD
LIN16 SER I E S
MODEL # LIST DESCRIPTION
LIN16-480-1TB $3178 16 Channel NVR, 480/480 fps, 1TB HD
LIN16-480-3TB $3500 16 Channel NVR, 480/480 fps, 3TB HD
LIN16-480-6TB $4028 16 Channel NVR, 480/480 fps, 6TB HD
2 Year Warranty!*
--- For Software Capabilities see pgs 8-9
IP Recording Ability
RecoRd up to 8 mega pIxels of
Ip ResolutIon!
LIN16
— 16 Ch Analog/IP Recorder
IP Recording Ability
RecoRd up to 16 mega pIxels
of Ip ResolutIon!
For complete Specs and Capabilities go to www.luxonvideo.com
*See Luxon Video’s Warranty Policy
Record up to 80 Mega Pixels of IP Resolution!
— www.luxonvideo.com —
6
LUXO N VID EO — 2013 PR O DU CT CATALOG
4/8/16 CHANNEL HYBRID RECORDER
--- For Full Software Capabilities see pgs 7-9
IP Recording Ability
RecoRd up to 4 Ip cameRas at 8
mega pIxels of Ip ResolutIon!
LIN10 4M S ERIES
MODEL # LIST DESCRIPTION
LIN104M-120-500GB $782 4 Channel Hybrid, 120 fps, 500GB HD
LIN104M-120-1TB $876 4 Channel Hybrid, 120 fps, 1TB HD
LIN104M-120-2TB $1144 4 Channel Hybrid, 120 fps, 2TB HD
LIN104M-120-3TB $1294 4 Channel Hybrid, 120 fps, 3TB HD
LIN104M
— 4 Ch Analog/IP
Recorder
LIN10 8M S E R I ES
MODEL # LIST DESCRIPTION
LIN108M-240-500GB $1110 8 Channel Hybrid, 240 fps, 500GB HD
LIN108M-240-1TB $1198 8 Channel Hybrid, 240 fps, 1TB HD
LIN108M-240-2TB $1466 8 Channel Hybrid, 240 fps, 2TB HD
LIN108M-240-3TB $1616 8 Channel Hybrid, 240 fps, 3TB HD
LIN108M
— 8 Ch Analog/IP
Recorder
LIN116 M S ERIES
MODEL # LIST DESCRIPTION
LIN116M-480-1TB $1900 16 Channel Hybrid, 480 fps, 1TB HD
LIN116M-480-2TB $2050 16 Channel Hybrid, 480 fps, 2TB HD
LIN116M-480-3TB $2200 16 Channel Hybrid, 480 fps, 3TB HD
LIN116M
— 16 Ch Analog/IP
Recorder
Two Year Warranty!*
*See Luxon Video’s Warranty Policy
— 1-800-844-9937 — 7
2013 PRO DU CT CATALOG — LUXO N VIDEO
• Supports 60+ IP Camera Brands
• Industry Leading Software - Powerful yet extremely easy to
use and navigate
• Simple playback & export of video locally and remotely
• Comprehensive mobile access through iPhone & Android
• Automated email motion/sensor alerts with attached JPEG
image and custom message.
• E-maps - showcasing camera, sensor and relay positions
• Simultaneously view live video during playback
• Unified Software Platform for all LIN/NVR series. Same look
and feel locally and remotely
• Automated PTZ preset upon motion/sensor
• Up to 256 user accounts with individually assigned
passwords and user privileges
• Free Software Suite that includes Remote ibackup (automated
backup of remote system), iEnhance (Optimizes video and can
convert to popular formats), Remote isetup (Access many
more system settings remotely and make changes) and more!
• Free CMS central management software included to provide
total remote command of 16 remote systems and up to 1000
remote systems with CMSGOLD from one central location
LIN M IN I SERI ES S OF T WA RE FE AT URES
For the complete Spec Sheet go to www.luxonvideo.com
LIN M SOFTWARE
The new budget friendly 4-8 and 16 Channel LIN MINI Series Hybrid recorders are not only a great price, but come with the many
great features including hybrid functionality, a robust Graphic User Interface, and expanded remote management capabilities.
The user-friendly operation, low maintenance, essential surveillance functions, and great value, make these units perfect for
deployments in smaller facilities.
H.264 - Revolution in Quality
Industry leading H.264 compression ensures
that the LIN Mini’s drastically reduce video file
sizes while maintaining the integrity and qual-
ity of images. Amplifying the benefits of H.264
is the LIN’s Hardware Compression that en-
hances system performance by utilizing very
little PC CPU and RAM resources.
Hybrid - The Power of Choice
The LIN104M, LIN108M, & LIN116M can be
connected to either analog or IP Cameras
(Maximum 8 Megapixels of IP Resolution).
With support for over 60+ brands of IP Cam-
eras you can have confidence about camera
compatibility. There are no hidden or added
licensing fees, and no fees on IP channels the
LIN Mini’s truly define hybrid and the next gen-
eration of video surveillance.
Mobility that Really Goes the
Distance
Login and view your system by app through
your iPhone, iPad, or Android device. You
can also view through a remote computer, or
laptop. If you have internet connection - you
have video! One of the biggest advantages of
the LIN Mini’s is that they record and replay
simultaneously and can be remotely viewed
by a number of independent authorized users.
The Features - Specialized Settings for Special Needs
Offices facing busy streets-just one example of facilities whose motion based recordings could
eat up valuable storage space. One of the many solutions the LIN Mini’s offer is Masking through
which users can partition off areas from triggering motion based recordings. Other features
include: Smart recording features which allow users to maximize storage while recording
continuously, multiple event responses and much more.
The GUI - Built for Efficiency
As opposed to typical and laborious menu
driven interfaces, the LIN Mini Series Graph-
ical User Interface (GUI) maximizes user
effectiveness while minimizing training time.
The visual layouts and intuitive controls of
the LIN Mini’s GUI, ensures that users can
simply point-and-click to see who is enter-
ing the building, search through alarms for
the week, or take immediate command of an
unraveling event!
— www.luxonvideo.com —
8
LUXO N VID EO — 2013 PR O DU CT CATALOG
NVR & LIN HYBRID SOFTWARE
Main Monitor View
NVR & LIN SOFT WAR E FEATUR ES
MONITORING
For environments that depend on live video, the NVR Software
offers many features for fast and responsive event management:
• Video - up to 32 analog (BNC Connectors) and /or IP cameras
• Audio - up to 32 channel in and 1 channel out
• Spot Monitor - Analog AND IP video transmission; user can
select any combination of channels to output with auto scan
and 1, 4, 8, 9, 13 and 16 screen split modes
• 8 sensors & relays (NVR)
• E-maps showcasing camera, sensor and relay positions
• Simultaneously view live video during playback
• Integrated Auto Gain Control (AGC) balances image noise (NVR)
Live Display
• Most Advanced Graphical User Interface (GUI) with:
- Advanced GUI mode for easy access to system tools
- Compact GUI mode for maximum image display
• Channel Auto scan with 1, 4, 8, 9, 13 & 16 screen splits
• Digital zoom incorporated for greater detail in live video
• Noise reduction filter enabled for crisper images (NVR)
Alarm/Notifications
• Starting video recording on multiple cameras
• Sending footage to spot monitor
• PTZ tracking and enlarging triggered video (NVR)
• Following sensor with relay protocols (e.g. locking gates etc.)
• Launching the triggered channel’s corresponding Emap
• Sending emails, snapshots and files to FTP, SMS/MMS
• Customizable warning sounds
• Sending video to Central Management System
INTELLIGENCE- NVRH1-32 only
To reduce security staffing and/or to manage high-volume video,
software also provides intelligence that is triggered by:
• Search by Scene Change, Missing Object, Suspicious Object
• Intelligent Search
• Video loss or HDD failure; initiates “Watchdog” function if
needed to bring system back from faulty to normal operation
RECORDING
• Continuous, Motion, Event, or Audio recording
• Smart - Activity based escalation of recording fps (low - high)
• Video Mask - prevent high activity regions from triggering
motion based recording
• Video Shield - prevent recording of unwanted or restricted areas
• System will auto recycle storage space when disk is full
• Two types of de-interlace method (for analog cameras)
The Easiest Playback/Search Interface in the Industry!
— 1-800-844-9937 — 9
2013 PRO DU CT CATALOG — LUXO N VIDEO
*Features may vary between series
NVR & LIN HYBRID SOFTWARE
FORENSICS
For rapid retrieval/export of pertinent data this NVR software
provides:
Search
• Defined parameter search by date, time, camera, area,
event, and event log file
• Visual Search that breaks down video by day, hour,
minute, 10 seconds and second
• Time search to scroll through by moments
• Easy retrieval and playback of footage by “Book marking”
significant segments
• Advanced event log search by event, operation, system and
network activities
Playback
• Built-in sensitive playback controls (including frame-by-frame)
• Digital zoom incorporated for greater detail in playback video
• System can save up-to-10 seconds of pre-alarm footage
from temporary to permanent storage
Backup
• Easily export/backup to DVD-RW/ CD-RW, flash memory,
external HDD, NAS, SAN and RAID (NVR)
• Software ensures easy backup and playback
• System starts automatic back up of footage when external
storage devices are inserted
• Direct burn to CD/DVD-RW during backup
• Export single images to BMP files or segments to AVI files
• Saved images “Watermarked” to validate authenticity (NVR)
REMOTE
Multicasting
• Multicast video streams to drastically lower network, server
and camera loads for effective remote viewing
• Remote backup capability
Viewing
From laptops to cell phones, you can track video whenever
and wherever
• Remote Access with DDNS function
- Windows, iPhone, & Android mobile devices
CMS
With CMS (central management software), you have total
remote command of up to 1000 remote systems from one
central location
• Monitor with E-maps, record and playback
• Control sensors and relays
• Setup and modify your recorders configurations
• 2-way audio
USER ACCESS
• Up to 256 user accounts with individually assigned passwords
and user privileges
Object Counting
Search & Playback
Scene Change, Missing Object,
Suspicious Object
Software included with every NVR & LIN Recorder!*
— www.luxonvideo.com —
10
LUXO N VID EO — 2013 PR O DU CT CATALOG
MEGA PIXEL BULLET IR CAMERAS
MIPB5V MIPB1600V MIPB1.3V
LIST Coming 2014! $740 $590
Image Sensor 1/3.2” 5 Megapixel CMOS 1/2.7” 2 Megapixel CMOS 1/4” Megapixel CMOS
Resolution
2592 x 1945 (5MP) @ 15fps
2048 x 1536 (3MP) @ 15fps
1920 x 1080 (1080p) @ 30fps
1920 x 1080 (1080p) @ 30fps
1280 x 720 (720P) @ 30fps
640 x 480 (VGA) @ 30fps
1280 x 800 (1.3MP) @ 30fps
1280 x 720 (720P) @ 30fps
640 x 480 (VGA) @ 30fps
Weather Rating Weather Proof (IP66) (
-22°F to 125°F)
Compression H.264/ M-JPEG/ MPEG4 (3GPP)
Lens 3.6mm-16mm F1.2 3.6mm-16mm F1.2 3.3mm-12mm F 1.4
IR Distance 35 LEDs 75’ IR 35 LEDs 75’ IR 35 LEDs 60’ IR
Min. Illumination Color (0.5),
B/W (0.00 with IR)
Color (0.1),
B/W (0.00 with IR)
Color (1.0),
B/W (0.00 with IR)
Angle of View 19° ~ 64° (H), 14° ~ 45° (V) 24° ~ 98° (H), 14° ~ 52° (V) 24° ~ 60° (H), 15° ~ 38° (V)
Features:
(adjustable)
Digital WDR, Day/Night w/IR, Brightness, Contrast, Hue, Saturation, Sharpness, Shutter Speed, AGC,
Sense-Up, Flip, Mirror, Noise reduction, White Balance, Motion Detection, Privacy Mask
Camera Dimensions Ø83mm x 175 mm (H) Ø83mm x 117mm (H)
Power 12VDC/600mA or POE 802.3af (7W)
High Denition in Complete Darkness!
Bullet IP Cameras
Weatherproof with IR & Varifocal Lens
Full 30fps @ 1080P
NEW!
F E AT U R ES
• External Varifocal Lens Adjustment
• IP66 Weatherproof
(
-22°F to 125°F)
• Wide Dynamic (digital) and 3-DNR
• Mechanical IR Cut Filter (ICR)
• Cable Concealed Mounting Bracket
• PoE - IEEE 802.3af Class 0
• Micro SD Card (backup 10 sec. files)
• Alarm In/Out
• Triple Streaming
• Three Level Motion Detection and Alarm
• Controllable frame rate and bandwidth
• Audio In/Out Cable (not with MIPB1.3V)
• BNC Service Cable for easy focus
(not with MIPB1.3V)
MIPB1.3V
MIPB1600V
— 1-800-844-9937 — 11
2013 PRO DU CT CATALOG — LUXO N VIDEO MEGA PIXEL DOME CAMERAS
Bullet IP Cameras
MIPVD1600V MIPD2V MIPD1.3
LIST $870 $700 $340
Style Vandal/ Weatherproof
Varifocal Lens with IR
Indoor Varifocal Lens
with IR Indoor Fixed Lens
Image Sensor 1/2.7” 2 Megapixel CMOS 1/2.7” 2 Megapixel CMOS 1/4” Megapixel CMOS
Resolution
1920 x 1080 (1080p) @ 30fps
1280 x 720 (720P) @ 30fps
640 x 480 (VGA) @ 30fps
1920 x 1080 (1080p) @ 30fps
1280 x 720 (720P) @ 30fps
640 x 480 (VGA) @ 30fps
1280 x 800 (1.3MP) @ 30fps
1280 x 720 (720P) @ 30fps
640 x 480 (VGA) @ 30fps
Weather Rating Weather Proof (IP66)
(
-22°F to 125°F) Indoor Only Indoor Only
Compression H.264/ M-JPEG/ MPEG4 (3GPP)
Lens 3mm-9mm F1.8 3mm-9mm F1.8 4mm F 1.4
IR Distance 18 LEDs 45’ IR 18 LEDs 45’ IR NA
Min. Illumination Color (0.1), B/W (0.00 with IR) Color (1)
Angle of View 36° ~ 127° (H), 22° ~ 69° (V) 50° (H), 30° (V)
Features:
(adjustable)
Digital WDR, Day/Night w/IR, Brightness, Contrast, Hue, Saturation, Sharpness, Shutter Speed, AGC,
Sense-Up, Flip, Mirror, Noise reduction, White Balance, Motion Detection, Privacy Mask
Camera Dimensions Ø137mm x 102 mm (H) Ø132mm x 108 mm (H) Ø110mm x 90mm (H)
Power 12VDC/600mA or POE 802.3af (7W)
IP Dome Cameras
Outdoor and Indoor with IR & Varifocal Lens
NEW!
MIPVD1600V MIPD2V
F E AT U R ES
(MIPVD1600V & MIPD2V only)
• Varifocal Lens Adjustment
• IR Cut Filter (ICR), IR LEDs, 3-DNR
• BNC Service Cable for easy focus
• Alarm In/Out, Audio In/Out
• IP66 Weatherproof
(
-22°F to 125°F) (VD only)
(All above IP Cameras)
• Wide Dynamic (digital)
• PoE - IEEE 802.3af Class 0
• Triple Streaming
• Three Level Motion Detection and Alarm
• Controllable frame rate and bandwidth
MIPD1.3
— www.luxonvideo.com —
12
LUXO N VID EO — 2013 PR O DU CT CATALOG
MEGA PIXEL IP (Continued)
IP Mega Pixel Cameras
MIPFVD2 MIPW2 MIPC2
LIST $390 $420 $580
Style Vandal/ Weatherproof Flat Dome Indoor Wireless Cube Box Camera
Image Sensor 1/3” progressive scan CMOS 1/2.7” 2 Megapixel CMOS 1/2.7” 2 Megapixel CMOS
Resolution
1600 x 1200 (2MP) @ 12.5fps
1280 x 960 @ 25fps
1280 x 720 (720P) @ 25fps
1920 x 1080 (1080p) @ 30fps
1280 x 720 (720P) @ 30fps
640 x 480 (VGA) @ 30fps
1920 x 1080 (1080p) @ 30fps
1280 x 720 (720P) @ 30fps
640 x 480 (VGA) @ 30fps
Weather Rating Weather Proof (IP66)
(
-22°F to 140°F) Indoor Only Indoor Only unless placed
in an Outdoor Housing
Compression H.264/ M-JPEG/ MPEG4
Lens 4mm (3-Axis Rotation) 4.2mm @ F1.6 Lens not included. Use lens
part # MVL358MI or MVL550MI
Min. Illumination Color (0.05), B/W (0.1) Color (0.5) Color (0.1), B/W (0.05)
Angle of View 68° (H), 35° (V) 53° (H), 30° (V) Determined by your Lens
Features:
(adjustable)
Digital Day/Night, Brightness,
Contrast, Hue, Saturation, Motion
Detection, Tampering Alarm, Network
Disconnect , IP Address Conflict
Digital WDR, Day/Night w/IR, Brightness, Contrast, Hue, Saturation,
Sharpness, Shutter Speed, AGC, Sense-Up, Flip, Mirror, Noise
reduction, White Balance, Motion Detection, Privacy Mask
Camera
Dimensions Ø 100mm x 97mm x 46 mm 59mm (W) x 94mm (H)
x 46mm (D)
65mm (W) x 58mm (H)
x 132mm (L)
Power 12VDC/500mA or POE 802.3af (5W)
NEW!
MIPC2
MIPFVD2
MIPW2
F E AT U R ES
(MIPW2 & MIPC2 only)
•
1/2.7” 2 Megapixel CMOS
•
H.264/ M-JPEG/ MPEG4
• IR Cut Filter (ICR) (MIPC2 only)
•
Digital WDR
• ONVIF Compliant
•
POE 802.3af (5W) or 12VDC/500mA
(lens not included)
F E AT U R ES
(MIPFVD2 only)
• 1/3” Progressive Scan CMOS
•
H.264 / MJPEG / MPEG4
• Electronic Day/Night
• IP66 Weatherproof
(
-22°F to 140°F)
• ONVIF Compliant
•
POE 802.3af (4W) or 12VDC/500mA
— 1-800-844-9937 — 13
2013 PRO DU CT CATALOG — LUXO N VIDEO
2 Mega Pixel IP PTZ
2 MEGA PIXEL IP PTZ
IP Mega Pixel Cameras
Mount Options
• Wall Mount (MIPZ2 - WMOUNT)
$80
• 8”Ceiling Mount (MIPZ2-CMOUNT)
$80
• Corner Mount (MIPZ2-CM)
$80
• Pole Mount (MIPZ2-PM)
$80
MIPZ2
LIST $2400
Image Sensor
1/3” Progressive Scan CMOS
Resolution
1920 x 1080 (1080p) @ 25fps
1280 x 960 @ 25fps
1280 x 720 (720P) @ 25fps
Weather Rating Weather Proof (IP66)
(
-22°F to 150°F)
Compression H.264 / MJPEG / MPEG4
Focal Length / Zoom 320x Zoom ~ 5mm - 94mm
(20x Optical,16x Digital)
Day/Night / WDR Day/Night (ICR),
DWDR
Min. Illumination Color (0.05), B/W (0.005), (0.00with IR)
Angle of View 3° ~ 58° (H) (V)
Features:
(adjustable)
Day/Night w/IR, DWDR, Contrast, Hue, Saturation,
Sharpness, Shutter Speed, AGC, Sense-Up, Flip, Mirror,
Noise reduction, AWB, Motion Detection, Privacy Mask
Camera Dimensions Ø 220 × 325mm (H)
Weight 5Kg (11.02Ibs)
Power 24 VAC, 40W (Heater On), 20W(Heater Off)
Wall Mount
Ceiling Mount
Pole Mount with
Wall Mount attached
Corner Mount with
Wall Mount attached
NEW LOWER PRICE !
F E AT U R ES
• 1/3” Progressive Scan CMOS
• 320x Zoom (20x Optical, 16x Digital)
• Day/Night with (ICR)
• Wide Dynamic (digital) and 3D-DNR
•
H.264 / MJPEG / MPEG4
• IP66 Weatherproof
(
-25°F to 150°F)
• 24VAC / 3A
• ONVIF Compliant
• Scheduled PTZ Movement
• Dual Streaming
• Preset Speed up to 400°/sec
• Alarm In/Out, Audio In/Out Cable
• BNC Service Cable for easy focus
• 360° Endless Pan with Auto Flip
— www.luxonvideo.com —
14
LUXO N VID EO — 2013 PR O DU CT CATALOG
WIRELESS IP SOLUTIONS
100-120 VAC In
200-240 VAC In
IP Camera In
Power Converter
Antenna
Out
Wireless Antennas
(Sold Seperately by
Vorp Energy)
Camera, Pole, Wireless
Antennas not included
NEMA 4X Rugged White Cast Aluminum Enclosure,
(10”x 8”x 3”) includes wall/pole mounts.
Pre-wired Electronics - Converts high voltage
to low. PoE devices convert different DC
voltages, inject power, & connect your IP
Camera & Wireless Antenna.
Wireless Solutions
F E AT U R ES
• Industrial Rated Electronics (-40°F to 150°F)
• Weather Proof NEMA 4X Enclosure, Powder Coated White
to help lower inside temperature in Direct Sunlight
• Pre-wired Electronics - Just plug in your IP Camera & Antenna
to power by PoE and connect together.
• Mount to a Wall or Light Pole
• 2.4GHz / 5GHz Wireless Antennas - (See VORP ENERGY for Antenna options)
• Input Power: 100-120VAC / 200-240VAC
• Output Power: Standard 802.3af & a
t
PoE for cameras
24VDC PoE for Antenna
24VAC for IP PTZ with heater/blower
IND U STRIAL P O E A N T E N N A / CA ME R A POW E R S O LU T I O N
MODEL # LIST ENCLOSURE TYPE
# POWER
OUTPUTS FOR
CAMERAS
OUTPUT POWER
FOR CAMERA
OUTPUT
VOLTAGE FOR
ANTENNA
SPB-1AF-24 $510 Cast Aluminum 1 PoE 802.3af 24 VDC PoE
SPB-1AT-24 $596 Cast Aluminum 1 PoE 802.3at24 VDC PoE
SPB-24VAC-24 $596 Cast Aluminum 1 24VAC @ 2A 24 VDC PoE
SPB-4AF-24 $1050 Powder Coated Steel 4 PoE 802.3af/at24 VDC PoE
Applications:
Parking Lot Light Poles
Warehouses & Farms
Outpost Buildings
Anywhere you need to transmit video!
Transmit IP Video for Miles
NEW!
— 1-800-844-9937 — 15
2013 PRO DU CT CATALOG — LUXO N VIDEO IP SOLAR POWER SOLUTIONS
Camera, Pole, &
Antenna Not Included
F E AT U R ES
• Transmit Video 24 hours a day and up to 5 days of backup power
• Industrial Rated Electronics (-40°F to 150°F)
• Weather Proof NEMA 4X Enclosure, Powder Coated Steel
• Pre-wired Electronics - Just mount panel and enclosure to pole
then plug in your IP Camera & Antenna into included electronics
• Designed to Mount to a 4” Pole or a Wall
• Output Power: (Antenna) 24VDC PoE
(Camera) 802.3af & a
t
PoE or 24VAC
• Kit Includes:
- Solar Panel & Pole Mount
- Powder Coated Steel Enclosure with Pole Mount
- Charge Control, Converters, Injectors, Switches
• Kit Does Not Include:
- IP Camera (Sold Seperately)
- Batteries (Sold Seperately)
- 2.4GHz / 5GHz Wireless Antennas
(See VORP ENERGY for Antenna options)
IP Solar Power Solutions
IND U STRIAL P O E A N T E N N A / CA ME R A POW E R S O LU T I O N
MODEL # LIST
SIZED
FOR
ZONE
SOLAR
PANEL
SIZE
POWER
FOR #
CAMERAS
# POWER
OUTPUTS FOR
CAMERA
MINIMUM
BATTERY
REQUIRED
SS120-16W $2570 1, 2 120 Watt 1 PoE 802.3af (1) 12V 100AHr
SS240-30W-2IP $3585 1, 2 240 Watt 2 (2) PoE 802.3af (2) 12V 100AHr
SS240-30W-1AT $3157 1, 2, 3
@ > +35°F 240 Watt 1 PoE 802.3 aT (1) 12V 100AHr
SS240-16W $3157 3, 4, 5 240 Watt 1 PoE 802.3af (2) 12V 100AHr
ADD ITIO N A L POW E R OUTPU T O PT I O NS
MODEL # LIST TERMINATION OUTPUT
VOLTAGE
INPUT
VOLTAGE AMPS / WATTS
CV-12DC24AC $240 Screw Terminal 24VAC 12VDC 1.7A, 40W
CV-24DC24AC $240 Screw Terminal 24VAC 24VDC 1.7A, 40W
VE-DC/DC-18 $170 PoE 18 VDC PoE 9-36 VDC 1.0A, 18W
VE-DC/DC-24 $170 PoE 24 VDC PoE 9-36 VDC 0.8A, 19W
VE-DC/DC-48M $170 PoE 48 VDC PoE 9-36 VDC 0.5A, 24W
Transmit IP Video up to 20 Miles
Battery Options
If you choose to purchase your Batteries locally be sure to use Sealed Lead
Acid (AGM) or GEL type. Systems that use the 240 Watt Solar Panel must
wire (2) of the same AHr Batteries in Series to get the needed 24VDC output.
• 12VDC 50Ah AGM Battery (B1250)
$200
• 12VDC 100Ah AGM Battery (B12100)
$400
NEW!
— www.luxonvideo.com —
16
LUXO N VID EO — 2013 PR O DU CT CATALOG
Indoor Varifocal Dome
Three Year Warranty!*
INDOOR VARIFOCAL DOME
Super Low Light and Digital Wide Dynamic!
D7VDN D7VIR
LIST $238 $270
Resolution (TVL) 650 Color / 720 B/W
WDR Day/Night DWDR 40db, Day/Night, ICR
Lens 2.8mm-12mm Varifocal
Min. Illumination
(in Lux)
Color (0.001), B/W (0.0001), (0.00 with IR)
D7VIR Smart IR with Distance @ 75’
Features
OSD, Digital Wide Dynamic up to 40db,
Privacy & Motion Zones, SDNR, BLC, AGC,
AWB, Super Low Light Sense up (1024x)
Power 24VAC/200mA
12VDC/350mA
24VAC/300mA
12VDC/600mA
F E AT U R ES
• 1/3” SONY Super HAD II CCD
• Base/Dome Size: 110/85mm
• Extra Video-Out Port (RCA) for
easy focus after installation
• 3-Axis Camera Mount (Tri-Axis)
• Weight (.6 lbs )
(D7VDN)
(D7VIR)
— 1-800-844-9937 — 17
2013 PRO DU CT CATALOG — LUXO N VIDEO WEATHERPROOF VANDAL DOME
VD7VDN VD7VIR
LIST $306 $350
Resolution (TVL) 650 Color / 720 B/W
WDR Day/Night DWDR 40db, Day/Night, ICR
Lens 2.8mm-12mm Varifocal
Min. Illumination
(in Lux)
Color (0.001), B/W (0.0001), (0.00 with IR)
VD7VIR Smart IR with Distance @ 75’
Features
OSD, Digital Wide Dynamic up to 40db,
Privacy & Motion Zones, SDNR, BLC, AGC,
AWB, Super Low Light Sense up (1024x)
Power 24VAC/200mA
12VDC/350mA
24VAC/300mA
12VDC/600mA
Weatherproof Vandal Domes
F E AT U R ES
• 1/3” SONY Super HAD II CCD
• Flush or Surface Mount
• Base/Dome Size: 118/85mm
• Extra Video-Out Port (RCA) for easy
focus after installation
• 3-Axis Camera Mount (Tri-Axis)
• Optional Wall Mount (WMOUNT1)
• Optional Ceiling Mount (CMOUNT1)
• Optional Flush Mount (FLUSHMOUNT1)
• Weight (1.2 lbs )
• Operating Temperature (-25°F to 130°F)
• Vandal/Weatherproof Housing
(IP 67) Rated
Three Year Warranty!*
Super Low Light and Digital Wide Dynamic!
(VD7VDN)
(VD7VIR)
— www.luxonvideo.com —
18
LUXO N VID EO — 2013 PR O DU CT CATALOG
*See Luxon Video’s Warranty Policy
Wide Dynamic Range Domes
INDOOR FIXED DOMES
D6B1 D6B1IR D6W1 D6W1IR
LIST $114 $138 $114 $138
Dome Color Black Black White White
Resolution (TVL) 600 Color / 700 B/W
Day/Night No Day/Night with IR No Day/Night with IR
Lens 3.6 mm 3.6 mm 3.6 mm 3.6 mm
Min. Illumination
(in Lux) Color (0.1) Color (0.1), (0.00 with IR) Color (0.1) Color (0.1), (0.00 with IR)
Illumination Distance NA 75’ NA 75”
Features AGC, BLC, AWB, Flickerless
Base/Dome Size 112mm/81mm
Power DC12V/300mA DC12V/500mA DC12V/300mA DC12V/500mA
Fixed Indoor Dome
F E AT U R ES
• 1/3” High Sensitive CCD
• Base/Dome Size: 112mm/81mm
• 3.6mm Lens
• 3-Axis Camera Mount (Tri-Axis)
• (IR Camera only) IR distance 75’
• Weight (0.5 lbs )
• 12 VDC
Three Year Warranty!
(D6B1 / D6B1IR) (D6W1 / D6W1IR)
— 1-800-844-9937 — 19
2013 PRO DU CT CATALOG — LUXO N VIDEO WIDE DYNAMIC RANGE DOMES
VD7VWD D7VWD
LIST $430 $390
Housing Weather/ Vandal
Dome (IP67) Indoor Dome
Resolution (TVL) 600 Color / 700 B/W
WDR Day/Night True WDR 80db, Day/Night, ICR
Lens 2.8mm-12mm Varifocal
Min. Illumination
(in Lux) Color (0.01), B/W (0.0003), (0.00 with IR)
Features
OSD, Digital Wide Dynamic up to 80db,
Privacy & Motion Zones, 3D-DNR, BLC, AGC,
AWB, Digital Zoom, Low Light Sense up
Base/Dome Size 150mm/100mm 130mm/100mm
Power 24VAC/300mA 12VDC/600mA
Wide Dynamic Range Domes
F E AT U R ES
• 1/3” SONY Super HAD II CCD
• Extra Video-Out Port (RCA) for easy
focus after installation
• 3-Axis Camera Mount (Tri-Axis)
VD7VWD only:
• Optional Wall Mount (WMOUNT2)
• Optional Ceiling Mount (CMOUNT2)
• Optional Tray Base (TBASE2)
• Weight (1.2 lbs )
• Operating Temperature (-25°F to 130°F)
• Vandal/Weatherproof Housing (IP 67)
80db Wide Dynamic
TBASE2
(VD7VWD)
F E AT U R ES
• 1/3” High Sensitive CCD
• Base/Dome Size: 112mm/81mm
• 3.6mm Lens
• 3-Axis Camera Mount (Tri-Axis)
• (IR Camera only) IR distance 75’
• Weight (0.5 lbs )
• 12 VDC
Three Year Warranty!
(VD7VWD)
(D7VWD)
(D7VWD)
— www.luxonvideo.com —
20
LUXO N VID EO — 2013 PR O DU CT CATALOG
*See Luxon Video’s Warranty Policy
LONG RANGE WDR IR CAMERA
Long Range WDR IR Camera
As you zoom in on a subject, your
field of view gets more narrow.
BIR6V5-50
LIST $560
Resolution
(TVL) 600
Day/Night Day/Night, ICR
Lens 5-50mm
Illumination
Distance 220’
Additional
OSD, Shading, Privacy, D-WDR, Intel-
legent IR, DNR, Test Video Out, ICR,
External Zoom Control, BLC
Power
DC12V/700 mA
F E AT U R ES
• 1/3” SONY Super HAD II CCD
• Weight (2.80 lbs )
• Weatherproof Housing (IP 66)
• OSD (On Screen Display Controls)
• External Zoom Control
• Intelligent IR
• D-WDR, Day/Night, ICR
• Extra Video-Out Port (RCA) for easy
focus after installation
• Privacy, Shading, D-WDR
• Built in LED’s & Sensor
• Operating Temp (-22°F to 122°F)
• 12 VDC/700mA
— 1-800-844-9937 — 21
2013 PRO DU CT CATALOG — LUXO N VIDEO WEATHERPROOF IR CAMERAS
*See Luxon Video’s Warranty Policy
BIR61 BIR6D1 BIR6V1
LIST $174 $206 $296
Resolution (TVL) 600 Color / 700 BW
Illumination
Distance 90’ 90’ 140’
Lens 3.6mm 6mm 2.8mm-12mm
Diameter 68mm 68mm 80mm
Features AGC, BLC, Flickerless
Power
DC12V/300 mA DC12V/500mA,
AC24V/250mA
Weatherproof IR Cameras
BIR6V
(BIR61 / BIR6D1)
(BIR6V1)
F E AT U R ES
• 1/3” SONY CCD
• Weight (0.70 lbs )
• Weatherproof Housing (IP 67)
• Built in LED’s & Sensor
• Intelligent IR (600TVL models only)
• Operating Temp (-25°F to 125°F)
(BIR61 / BIR6D1)
(BIR6V1)
— www.luxonvideo.com —
22
LUXO N VID EO — 2013 PR O DU CT CATALOG
BOX CAMERAS
C7DN C7WD
LIST $190 $330
Sensor 1/3” Sony Super HAD II 1/3” PIXIM Seawolf
Resolution (TVL) 650 Color / 720 B/W 690 TVL
Wide Dynamic DWDR WDR 120db
Day/Night Super Low Light, Day/Night, ICR
Min. Illumination
(in Lux)
Color (0.01),
B/W (0.0003, DSS on)
(0.00 with IR)
Color (0.01),
B/W (0.001, DSS on)
(0.00 with IR)
Features OSD, DSS, Digital Zoom, Sense up, 3DNR,
Privacy and Motion Zone Functions, AWB, BLC
Power AC24V/250mA
DC12V/500 mA
AC24V/250mA
DC12V/500 mA
Box Cameras
F E AT U R ES
• 1/3” SONY Super HAD II or Pixim Seawolf
• Weight (0.66 lbs)
• Dual Voltage - Non Polarity Sensitive
• Super Low Light Day/Night
• Lens Not Included
• Use Auto Iris Lenses
Three Year Warranty!
Wide Dynamic OFF Wide Dynamic ON
— 1-800-844-9937 — 23
2013 PRO DU CT CATALOG — LUXO N VIDEO LICENSE PLATE RECOGNITION
License Plate Recognition
The LPC8000 is designed to capture license plate images with exceptional image quality.
The advanced special filter+IR+DSP design is optimized for license plate capture under
any circumstances. The LPC8000 combines an extremely high sensitive CCD and smart
IR to provide a high contrast license plate image from vehicles moving up to 50 mph.
F E AT U R ES
• 1/3” Sony Exview HAD II CCD
• 700 TVL Resolution
• Reflective filter and IR LED provide
maximum legibility under headlight glare
• Plate capture up to 50mph
• License plate capture distance 16ft ~ 100ft
• Weatherproof (IP67 Rating)
• 24VAC Power
LPC8000
LIST $1190
700 TVL
— www.luxonvideo.com —
24
LUXO N VID EO — 2013 PR O DU CT CATALOG
COVERT CAMERAS
CO M PARE M O DE L S
CVTSMOKE600 CVTFIRE420
LIST $148 $300
Description Smoke Detector Camera Ceiling Sprinkler Camera
Resolution
(TVL) 600 420
Lens Size 3.8mm 3.7mm Pinhole
Min. Illumination
(in Lux)
Color (0.3) Color (0.1)
Power DC12V/300 mA DC12V/150 mA
CO M PARE M O DE L S
CVTPIR580 CVTPIR420
LIST $188 $109
Description PIR Camera PIR Camera
Resolution
(TVL) 580 420
Lens Size 3.8mm Pinhole 3.7mm Pinhole
Min. Illumination
(in Lux) Color (0.05) Color (0.8)
Power DC12V/300 mA DC12V/150 mA
(CVTSMOKE600)
(CVTPIR580 & CVTPIR420)
(CVTFIRE420)
Covert Cameras
— 1-800-844-9937 — 25
2013 PRO DU CT CATALOG — LUXO N VIDEO VALUE LINE IR CAMERAS
CO M PARE M O DE L S
Model # LIST Resolution (TVL) Lens Illumination
Distance Features Additional
VLBIR600
$120 600 3.6mm 50’ Weatherproof Cable inside Bracket
VLBIR600V
$240 600 2.8-12mm 130’ Weatherproof Cable inside Bracket
VLBIR650V5-50
$440 650 5-50mm 200’ Weatherproof Cable inside Bracket
VLVDTIR600
$118 600 3.6mm 50’ Weatherproof Vandal Resistant
VLVDTIR600V
$196 600 2.8-12mm 90’ Weatherproof Vandal Resistant
Value Line IR Cameras
(VLBIR600V)
(VLVDTIR600)
(VLVDTIR600V)
(VLBIR600)
NEW!
(VLBIR650V5-50)
— www.luxonvideo.com —
26
LUXO N VID EO — 2013 PR O DU CT CATALOG
In/Outdoor PTZ 18x/36x
CO M PARE M O DE L S
Z18W Z18C Z36W Z36C
LIST $1180 $1580
Mount Wall Ceiling Wall Ceiling
Sensor 1/3” Sony Exview HAD CCD 1/4” Sony Super HAD II CCD
Resolution (TVL) 650 Color / 700 B/W 650 Color / 700 B/W
Day/Night, WDR Day/Night, ICR Wide Dynamic, Day/Night, ICR
Zoom
216x Zoom,
18x Optical - 4.5mm ~ 85mm
12x Digital
1,152x Zoom,
36x Optical - 3.3mm ~ 122mm
32x Digital
Min. Illumination
(in Lux)
Color (0.2), B/W (0.02)
B/W (0.00, IR LED on)
Color (0.001), B/W (0.0003)
B/W (0.00, IR LED on)
Shutter Speed 1-32 degree adjustable Auto, x512 (DSS)
Features OSD, DNR, 2DNR, 3DNR, Backlight, Day/Night, WDR (36x only),
8 Privacy Zones, 128 presets, Auto flip, Alarm in/out
F E AT U R ES
• 1/4” or 1/3” SONY Chipset
• 650 TVL Color / 700 TVL B/W
• Junction Box for easy clean install
• Day/Night ICR (36x has Wide Dynamic)
• Weatherproof Vandal Housing (IP 67)
with Heater and Fan
• Operating Temp (-25°F ~ 140°F)
• Dome Size: 150mm
• Weight (10.5 lbs)
• Up to 400°/sec
• 24 VAC / 1.5A
Optional Mounts
• Corner Mount (ZCM)
$80
• Pole Mount (ZPM)
$80
IN/OUTDOOR PTZ 18x/36x
PTZ Controller
(PTZCONTROL)
$567
*See Luxon Video’s Warranty Policy
NEW!
— 1-800-844-9937 — 27
2013 PRO DU CT CATALOG — LUXO N VIDEO
CO M PARE M O DE L S
Z18W Z18C Z36W Z36C
LIST $1180 $1580
Mount Wall Ceiling Wall Ceiling
Sensor 1/3” Sony Exview HAD CCD 1/4” Sony Super HAD II CCD
Resolution (TVL) 650 Color / 700 B/W 650 Color / 700 B/W
Day/Night, WDR Day/Night, ICR Wide Dynamic, Day/Night, ICR
Zoom
216x Zoom,
18x Optical - 4.5mm ~ 85mm
12x Digital
1,152x Zoom,
36x Optical - 3.3mm ~ 122mm
32x Digital
Min. Illumination
(in Lux)
Color (0.2), B/W (0.02)
B/W (0.00, IR LED on)
Color (0.001), B/W (0.0003)
B/W (0.00, IR LED on)
Shutter Speed 1-32 degree adjustable Auto, x512 (DSS)
Features OSD, DNR, 2DNR, 3DNR, Backlight, Day/Night, WDR (36x only),
8 Privacy Zones, 128 presets, Auto flip, Alarm in/out
300’ IR PTZ 18x/36x
*See Luxon Video’s Warranty Policy *See Luxon Video’s Warranty Policy
300’ IR PTZ 18x/36x
F E AT U R ES
• 1/4” or 1/3” SONY Chipset
• 650 TVL Color / 700 TVL B/W
• 6 High Power OSRAM LEDs (300’ range)
• Wiper Blade
• Junction Box for easy clean install
• Day/Night ICR (36x has Wide Dynamic)
• Weatherproof Vandal Housing (IP 67)
with Heater and Fan
• Operating Temp (-31°F ~ 140°F)
• Dome Size: 150mm
• Weight (10 lbs)
• Up to 400°/sec
• 24 VAC / 1.5A
Optional Mounts
• Corner Mount (ZCM)
$80
• Pole Mount (ZPM)
$80
IR Range 300’
CO M PARE M O DE L S
Z18IRW Z18IRC Z36IRW Z36IRC
LIST $1580 $1990
Mount Wall Ceiling Wall Ceiling
Sensor 1/3” Sony Exview HAD CCD 1/4” Sony Super HAD II CCD
Resolution (TVL) 650 Color / 700 B/W 650 Color / 700 B/W
Day/Night, WDR Day/Night, ICR Wide Dynamic, Day/Night, ICR
Zoom
216x Zoom,
18x Optical - 4.5mm ~ 85mm
12x Digital
432x Zoom,
36x Optical - 3.3mm ~ 122mm
12x Digital
Features OSD, DNR, 2DNR, 3DNR, Backlight, Day/Night, WDR (36x only),
8 Privacy Zones, 128 presets, Auto flip, Alarm in/out
NEW!
— www.luxonvideo.com —
28
LUXO N VID EO — 2013 PR O DU CT CATALOG
IR Illuminators
—Infrared Light
Light up the Night!
Up to 250’
Use a D/N camera with an ICR (IR cut
filter) & DSS and you can see in total
darkness up to 250’.
IR ILLUMINATORS
30mm @ 400’ with C7WD (DSS on)
using IR Illuminator
60mm @ 400’ with C7WD (DSS on)
using IR Illuminator
IR Distance rating based on Camera using Digital Slow Shutter (DSS)
IR180 IR250
LIST $194 $230
IR Distance 180’ 250’
Spread 30° 15°
IP Rated 66 66
Power 12VDC (2000mA) 12VDC (2000mA)
— 1-800-844-9937 — 29
2013 PRO DU CT CATALOG — LUXO N VIDEO
LCD19A LCD26PV
LIST $618 $1550
Monitor 19” LCD 26” Public View w/built in WDR camera
Resolution 1280x1024 1366 x 768 @ 60Hz
Dimensions 16.9 x 14.4 x 2.8in 25.6 x 18.3 x 4in
Weight 14 lbs 35 lbs
Features
2x BNC in/out, VGA, Looping BNC Video Input,
Audio Input, 2D Comb Filter, UL, Multi-lingual
Rated at 50,000 hours.
Metal Case with built-in Wide Dynamic Camera, BNC In,
VGA In, BNC Out for Built in Camera, OSD
LCD Monitors
LCD MONITORS
VGALCD19 VGALCD23
LIST $298 $460
Monitor 19” VGA LCD 23” VGA LCD
Resolution 1440 x 900 1920 x1080 (1080P)
Dimensions 18 x 14 x 2in 22 x 16 x 3in
Weight 10 lbs 11 lbs
Features
VGA Input VGA & DVI Inputs
— www.luxonvideo.com —
30
LUXO N VID EO — 2013 PR O DU CT CATALOG
MONITOR MOUNTS
(LCD301)
($48)
Articulating LCD Mount Tilting LCD Mount
Monitor Mounts
(Hold up to 33 lbs)
Tilting Wall Mount
(M140)
($168)
(LCD101)
($78)
(MC105)
($150)
(Hold up to 150 lbs)
(Hold up to 50 lbs)
34” to 62” Extension
Adjustable Ceiling Mount
— 1-800-844-9937 — 31
2013 PRO DU CT CATALOG — LUXO N VIDEO LENSES
Lenses C O M PARE M O DE L S
VL2812AI VL660AI VL5100IR MVL2812AI MVL550AI
LIST $86 $114 $143 $95 $394
Focal Length
(mm) 2.8-12mm 6-60mm 5-100mm 2.8-12mm 5-50mm
Iris Range 1.4-360 1.4-360 1.8-360 1.4-360 1.4-360
Mount Format CS - 1/3” CS - 1/3” CS - 1/3” CS - 1/3” CS - 1/3”
Image @ 100’
WxH
157’x117’
@ 2.8mm
36’x27’
@ 12mm
73’x55’
@ 6mm
7’x5’
@ 60mm
88’x66’
@ 5mm
4’x3’
@ 100mm
157’x117’
@ 2.8mm
36’x27’
@ 12mm
88’x66’
@ 5mm
10’x7’
@ 50mm
Iris DC Auto Iris DC Auto Iris DC Auto Iris Auto Iris Auto Iris
6mm @ 115’
12mm @ 115’
60mm @ 115’
— www.luxonvideo.com —
32
LUXO N VID EO — 2013 PR O DU CT CATALOG
Camera Mounts & Housings
HO US ING S
MODEL # LIST DESCRIPTION Use this Mount Model #
OH $31 Outdoor Housing MOUNT1 or MOUNT4
OHHF $46 Outdoor Housing with Heater and Blower (24VAC) MOUNT1 or MOUNT4
OHHF1 $79 Outdoor Housing with Heater and Blower (24VAC) MOUNT5
OHHF2 $93 Heavy Duty Outdoor Housing with Heater and Blower (24VAC) MOUNT5
MO UNT S F O R O H & O HH F
MODEL # LIST DESCRIPTION
MOUNT1 $12 Mount for Outdoor Housing (OH & OHHF)
MOUNT5 $18 Mount for Outdoor Housing (OHHF1 & OHHF2)
MOUNT4 $48 Ceiling J-Mount for Outdoor Housing (OH & OHHF)
(OH & OHHF) (OHHF1) (OHHF2)
(MOUNT1)
(MOUNT4)
CAMERA MOUNTS & HOUSINGS
— 1-800-844-9937 — 33
2013 PRO DU CT CATALOG — LUXO N VIDEO
(MOUNT5)
(MOUNT2)
(IPODWMOUNT)
MO UNT F O R OHH F1 & O HH F 2
MODEL # LIST DESCRIPTION
MOUNT5 $18 Mount for Outdoor Housing (OHHF1 & OHHF2)
OT HER M O UN T S
MODEL # LIST DESCRIPTION
MOUNT2 $12 T-Bar, Ceiling, Pedestal Camera Mount
PMOUNT1 $20 Pole Mount Adapter for Outdoor Housing (OH, OHHF)
IPODWMOUNT $55 Wall Mount for IP Vandal Dome Camera (MIPVD1600V)
WMOUNT1 $70 Wall Mount Bracket for VD7VDN & VD7VIR (White)
CMOUNT1 $90 Ceiling Mount Bracket for VD7VDN & VD7VIR (White)
FLUSHMOUNT1 $20 Flush Mount Bracket for VD7VDN & VD7VIR
TBASE2 $40 Optional Base for VD7VWD (See VD7VWD page for image)
WMOUNT2 $70 Wall Mount Bracket for VD7VWD (White)
CMOUNT2 $90 Ceiling Mount Bracket for VD7VWD (White)
CORNERMOUNT2 $45 Corner Mount Bracket for VD7VWD Use with Part # WMOUNT1
CAMERA MOUNTS & HOUSINGS
(CMOUNT1)
(CMOUNT2)
(WMOUNT1)
(WMOUNT2)
— www.luxonvideo.com —
34
LUXO N VID EO — 2013 PR O DU CT CATALOG
POE SWITCHES
MODEL # POE4 POE8 POE16
LIST $150 $270 $700
Network Protocol &
Standard
IEEE 802.3af Power over Ethernet
IEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-T Fast Ethernet
IEEE 802.3 NWay Auto-Negotiation
IEEE 802.3af Power over Ethernet
IEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3x Full Duplex Flow Control
Ports 10/100Mbps: x 5
PoE Power: x 4
10/100Mbps: x 8
PoE Power: x 8
10/100Mbps: x 16
PoE Power: x 16
Data Transfer Rate Ethernet: 10Mbps (half-duplex), 20Mbps (full-duplex)
Fast Ethernet: 100Mbps (half-duplex), 200Mbps (full-duplex)
Network Cables 10BASE-T: 2-pair UTP Cat 3, 4, 5 up to 100 meters
100BASE-Tx: 2-pair UTP Cat 5, 5e up to 100 meters
Number of Ports
(auto-MDIX)
5 x 10/100Mbps RJ-45 ports
with 4 PoE enabled ports
8x 10/100Mbps RJ-45 ports
with 8 PoE enabled ports
16 x 10/100Mbps RJ-45 ports
with 16 PoE enabled ports
PoE power on RJ-45 Power + : pin 3 & pin 6 Power – : pin 1 & pin 2
AC to DC power supply Input: 110V ~ 240VAC
Output: 48VDC / 1.5A
Input: 110V ~ 240VAC
Output: 48VDC / 2.5A
Input: 110V ~ 240VAC
Output: 48VDC / 300W
Total PoE power 56 Watts max 112 Watts max 246 Watts max
Total Power
Consumption 60 Watts max 120Watts max 300 Watts max
PoE Power Up to 15.4 watts max per port
for all ports 2 - 5
Up to 15.4 watts max per port for
all ports 1-8
Up to 15.4 watts max per port
for all ports 1 – 16
Dimensions / Weight 115mm (W) x 86mm (D) x
26mm (H) / 1 Kg
172mm (W) x 95mm (D) x
32mm (H) / 1.5 Kg
430mm (W) x 256mm (D) x
66mm (H) / 7.0 Kg
Temperature Operation: 0 ºC ~ 40 ºC or 32 ºF ~ 104 ºF (Relative Humidity 5% ~ 95%)
Storage: -10 ºC ~ 70 ºC or 14 ºF ~ 158 ºF
MAC Address Learning Automatic Update
Power Over Ethernet Switches
POE16
POE4 POE8
NEW!
— 1-800-844-9937 — 35
2013 PRO DU CT CATALOG — LUXO N VIDEO
(SP1VPD24)
(SP1VP12)
Power Supplies & Surge Protection
M U LTI - CA M E R A P O W E R S U P PLI E S
MODEL # LIST VOLT-
AGE INPUTS AMPS MOUNT PTC
DC4ULB $98 12 4 3.7 WALL YES
DC9ULB $130 12 9 5.4 WALL YES
DC16ULB $198 12 16 8 WALL YES
P-16DCUL $300 12 16 12 WALL YES
RM-DC16 $415 12 16 8 RACK YES
AC4ULB $90 24 4 4 WALL YES
AC9ULB $110 24 9 4 WALL YES
AC16ULB $190 24 16 8 WALL YES
P-AC16UL $290 24 16 15 WALL YES
RM-AC16 $386 24 16 12 RACK YES
PTZ-AC4UL $250 24 4 8.4 WALL YES
SIN G L E C A M E R A P OWER S U PP L I ES
MODEL # LIST VOLTAGE INPUTS AMPS MOUNT
DC2A $14 12 1 2 TRANSFORMER
AC40VA $14 24 1 1.6 TRANSFORMER
OD-AC1UL $188 24 1 4 WALL
POW E R A C C ESSO R IES
MODEL # LIST DESCRIPTION
1TO4P $18 DC Pigtail Power Adapter 1 to 4 (use DC2A)
CABLE60 $24 RG59 (with BNC) + Power Cable (with connectors), 60ft.
FDCPG $3 DC Female Pigtail Adapter (24”)
MDCPG $3 DC Male Pigtail Adapter (24”)
SP1VP12 $57
Over Voltage and Current protection for Video and 12 VDC
Power. In/Out (1 video - BNC & Power - Screw Terminals)
15Volt RMS, Self-Reseting
SP1VPD24 $90
Over Voltage and Current protection for Video and 24 VAC
Power & Data. In/Out (1 video - BNC & Power/Data - Screw
Terminals) 28 Volt RMS, Self-Reseting
(1TO4P)
(CABLE 60)
(TRANSFORMERS)
(RACK MOUNT)
(WALL MOUNT)
(OD-AC1UL)
POWER & SURGE SUPPLIES
— www.luxonvideo.com —
36
LUXO N VID EO — 2013 PR O DU CT CATALOG
(MBALUNL)
Passive UTP Baluns
—Transmit your Video over Twisted Pair!
F E AT U R ES
• Transmit (B/W 400M), (Color 300M)
• Cable: CAT5/5e (AWG 24)
• No Power Required
(TP1VPDBR)
BA LU N S
MODEL # LIST DESCRIPTION FEATURES
MBALUN $10 Mini Balun 47mm x 17mm x 14mm
MBALUNL $10 Mini Balun with Pigtail Includes 6 1/2” BNC Lead
47mm x 17mm x 14mm
TP1VPBR $23 Balun for Video & Power BNC Male To RJ45 Female With Power Cord
Use with 12 or 24 Volt Power Only
TP1VPDBT $34 Balun for Video, Power, & Data
Terminal Termination
Video/Power & Data over Cat5
Use with 12 or 24 Volt Power Only
TP1VPDBR $34 Balun for Video, Power, & Data
RJ45 Termination
Video/Power & Data over Cat5
Use with 12 or 24 Volt Power Only
(MBALUN)
(TP1VPDBR)
(TP1VPDBT)
PASSIVE UTP BALUNS
(TP1VPBR)
Use MDCPG adapter
for this power end!
— 1-800-844-9937 — 37
2013 PRO DU CT CATALOG — LUXO N VIDEO PASSIVE UTP HUBS
Passive UTP Hubs
— Transmit Multiple Video Signals
F E AT U R ES
• Transmit (B/W 400M), (Color 300M)
• Cable: CAT5 (AWG 24)
PASSIVE H U B S
MODEL # LIST DESCRIPTION FEATURES
TP4VTR $60 4 Channel Video Hub Transmit 4 Channels of Video thru 1 CAT5 Cable
Input: (4) BNC - Output: (1) RJ-45 and (8) Terminal
TP4VPRR $68 4 Channel Video Hub Transmit 4 Channels of Video thru 1 CAT5 Cable
Input: (4) RJ-45, (1) Power - Output: (1) RJ-45
TP4VDBR $72 4 Channel Video Hub
or 3 Video with 1 Data
Transmit 4 Channels of Video and Data thru 1 CAT5 Cable
Input: (4) BNC, (1) Terminal Block - Output: (1) RJ-45
TP16VRB $500
16 Channel Video Hub
RJ45 Termination
16 Passive Baluns in a 1U Rackmount Hub
Input: (4) RJ-45 - Output: (16) BNC
TP16VTB $550 16 Channel Video Hub
Terminal Termination
16 Passive Baluns in a 1U Rackmount Hub
Input: 4-8 Pin Terminal Blocks - Output: (16) BNC
CA14VBB $66 BNC Video Distributor 1 BNC Input to 4 BNC Outputs, Turns 1 Channel of Video
into 4
TP16PI $300 16 Cable Integrator Hub
(Video, Power, Data)
Individual Power Inputs for Different Voltages
Built in Surge Protection for Data, 1U Rackmount Case
(TP16VTB)
(TP16VRB)
(TP4VTR)
(TP4VPRR)
(TP4VDBR)
— www.luxonvideo.com —
38
LUXO N VID EO — 2013 PR O DU CT CATALOG
Active UTP Hubs
— Transmit Video & Data up to 1 Mile!
AC T IVE H U B S
MODEL # LIST DESCRIPTION FEATURES
TA1VT $70 Active Video & Data Transmitter Transmit Video & Data (RS422, RS485) up to 1 Mile
Built in Transient Protection and Ground Lifting
TA1VR $80 Active Video & Data Receiver Receive Video & Data (RS422, RS485) up to 1 Mile
Built in Transient Protection and Ground Lifting
TA1AVDT $84 Active Video, Audio & Data Transmitter Transmit Video, Audio & Data (RS422, RS485) up to 1
Mile Built in Transient Protection and Ground Lifting
TA1AVDR $95 Active Video, Audio & Data Receiver Receive Video, Audio & Data (RS422, RS485) up to 1
Mile Built in Transient Protection and Ground Lifting
M U LTI - CHA N N E L A C T IVE H U B S
MODEL # LIST DESCRIPTION FEATURES
TA8VTB $750 8 Channel Video Hub Transmitter Transmit Video & Data (RS422, RS485) up to 1 Mile
Built in Transient Protection and Ground Lifting
TA16VTB $1246 16 Channel Video Hub Transmitter Receive Video & Data (RS422, RS485) up to 1 Mile
Built in Transient Protection and Ground Lifting
(TA8VTB) (TA16VTB)
(TA1VT) (TA1VR)
ACTIVE UTP HUBS
(TA1AVDT) (TA1AVDR)
— 1-800-844-9937 — 39
2013 PRO DU CT CATALOG — LUXO N VIDEO APPLICATION GUIDE
— www.luxonvideo.com —
40
LUXO N VID EO — 2013 PR O DU CT CATALOG
APPLICATION GUIDE
View the UTP Training at www.luxonvideo.com
2013 PRO DU CT CATALOG — LUXO N VIDEO GLOSSARY & IMAGES
— 1-800-844-9937 — 41
Auto White Balance (AWB):
Electronic circuitry in a color camera that helps yield perfect color pictures in different types of
lighting.
Automatic Gain Control (AGC):
Electronic circuitry in a camera that helps it improve performance in low light conditions.
Back Light Compensation (BLC):
Ability of a camera to balance the lighting in a scene from a bright background such as sunlight.
Not to be confused with Wide Dynamic Range (WDR).
Charge Coupled Device (CCD):
The device in a camera that “captures” the picture and converts it into Electronic Signals.
Day/Night:
A feature of a camera that displays color pictures in good lighting conditions, and automatically
switches to B/W in low light conditions.
Digital Video Recorder (DVR) (HVR) (NVR):
A device that records IP or analog camera video signals on to built in Hard Drives.
Depth of Field:
The portion of a video picture that is in focus.
Field of View:
Area covered by the camera.
Focal Length:
The coverage of the lens in mm. Smaller numbers give a wider area of coverage.
Ground Loop:
When a camera and monitor are powered from sources using different grounds with different
ground potentials or if a path for current flow (other than the coax) exist, then ground loops are
possible. This can be fixed by installing a ground loop corrector or power all cameras from the
same source as the monitor.
— www.luxonvideo.com —
42
LUXO N VID EO — 2013 PR O DU CT CATALOG
GLOSSARY & IMAGES
Wide Dynamic OFF Wide Dynamic ON
LUX:
A measure of light equaling 1/10th of a foot-candle.
Resolution:
The measure of a camera’s ability to reproduce details by way of TV Lines or Pixels.
Analog Camera Measurement - TV Lines are measured by way of horizontal lines of resolution.
IP Camera Measurement - is usually measured as width x height with units in pixels: for example,
1280 x 1024 which is approximately the same as (1.3 mega pixel).
Wide Dynamic Range (WDR):
The WDR function of a camera is intended to provide clear images even under back light
circumstances where intensity of illumination can vary excessively, namely when there are both
very bright and very dark areas simultaneously in the field of view of the camera. WDR enables
the capture and display of both bright and dark areas in the same frame, in a way that there are
details in both areas, such as bright areas are not saturated, and dark areas are not too dark.
For more glossary terms see luxonvideo.com
PART # pg. PART # pg. PART # pg. PART # pg.
1TO4P 35 LIN104M-120-3TB 6 MVL550MI 31 TP4VDBR 37
AC16ULB 35 LIN104M-120-500GB 6 NVRH1-32-12TB 4 TP4VPRR 37
AC40VA 35 LIN108M-240-1TB 6 NVRH1-32-3TB 4 TP4VTR 37
AC4ULB 35 LIN108M-240-2TB 6 NVRH1-32-6TB 4 VD7VDN 17
AC9ULB 35 LIN108M-240-3TB 6 NVRH1-32-9TB 4 VD7VIR 17
BIR61 21 LIN108M-240-500GB 6 OD-AC1UL 35 VD7VWD 19
BIR6D1 21 LIN116M-480-1TB 6 OH 32 VE-DC/DC-18 15
BIR6V1 21 LIN116M-480-2TB 6 OHHF 32 VE-DC/DC-24 15
BIR6V5-50 20 LIN116M-480-3TB 6 OHHF1 32 VE-DC/DC-48 15
C7DN 22 LIN16-480-1TB 5 OHHF2 32 VGALCD19 29
C7WD 22 LIN16-480-3TB 5 P-16DCUL 35 VGALCD23 29
CA14VBB 37 LIN16-480-6TB 5 P-AC16UL 35 VL2812AI 31
CABLE60 35 LIN8-240-1TB 5 PMOUNT1 33 VL5100IR 31
CMOUNT1 33 LIN8-240-2TB 5 POE16 34 VL660AI 31
CMOUNT2 33 LIN8-240-4TB 5 POE4 34 VLBIR600 25
CORNERMOUNT2 33 LIN8-240-500GB 5 POE8 34 VLBIR600V 25
CV-12DC24AC 15 LINAUDIOCABLE16 5 PTZ-AC4UL 35 VLBIR650V5-50 25
CV-24DC24AC 15 LINDVI 5 REMOTE2 5 VLVDTIR600 25
CVTFIRE420 24 LINRACKEARS 5 RM-AC16 35 VLVDTIR600V 25
CVTPIR420 24 LPC8000 23 RM-DC16 35 WMOUNT1 33
CVTPIR580 24 M140 30 SP1VP12 35 WMOUNT2 33
CVTSMOKE600 24 MBALUN 36 SP1VPD24 35 Z18C 26
D6B1 18 MBALUNL 36 SPB-1AF-24 14 Z18IRC 27
D6B1IR 18 MC105 30 SPB-1AT-24 14 Z18IRW 27
D6W1 18 MDCPG 35 SPB-24VAC-24 14 Z18W 26
D6W1IR 18 MIPB1.3V 10 SPB-4AF-24 14 Z36C 26
D7VDN 16 MIPB1600V 10 SS120-16W 15 Z36IRC 27
D7VIR 16 MIPB5V 10 SS240-16W 15 Z36IRW 27
D7VWD 19 MIPC2 12 SS240-30W-1AT 15 Z36W 26
DC16ULB 35 MIPD1.3 11 SS240-30W-1AT 15
DC2A 35 MIPD2V 11 SS240-30W-2IP 15
DC4ULB 35 MIPFVD2 12 TA16VTB 38
DC9ULB 35 MIPVD1600V 11 TA1AVDR 38
FDCPG 35 MIPW2 12 TA1AVDT 38
FLUSHMOUNT1 33 MIPZ2 13 TA1VR 38
IPODWMOUNT 33 MIPZ2-CM 13 TA1VT 38
IR180 28 MIPZ2-CMOUNT 13 TA8VTB 38
IR250 28 MIPZ2-PM 13 TBASE2 33
LCD101 30 MIPZ2-WMOUNT 13 TP16PI 37
LCD19A 29 MOUNT1 32 TP16VRB 37
LCD26PV 29 MOUNT2 33 TP16VTB 37
LCD301 30 MOUNT4 32 TP1VPBR 36
LIN104M-120-1TB 6 MOUNT5 32 TP1VPDBR 36
LIN104M-120-2TB 6 MVL2812MI 31 TP1VPDBT 36
For more glossary terms see luxonvideo.com
Phone: 800-844-9937 ∙ Fax: 208-356-0162 ∙ www.luxonvideo.com
4774 South HWY 191, Suite #1 ∙ Rexburg ∙ ID ∙ 83440
8-13
EVERYTHING YOU NEED TO KNOW ABOUT THE
VIDEO SURVEILLANCE WORLD IS AVAILABLE AT
LUXON UNIVERSITY!
fR e e tRaInIngs
@
www.luxonuniversity.com

Navigation menu
