20 Lamp Specification Guide 2012–2013
Philips ALTO II Technology
Philips T8 Fluorescent Lamps featuring ALTO II Technology
Better for your business, better for the environment
ALTO lamps with green endcaps have become synonymous with environmental
responsibility and low mercury. Since the launch of ALTO Lamp Technology in 1995,
2.0 billion Philips fluorescent lamps with ALTO Lamp Technology have been produced
with over 20 tons less mercury than previous non-ALTO lamps
1.
Philips launched ALTO II Technology in 2007. ALTO II Technology has 50% less
mercury than prior T8 lamps featuring ALTO Technology, making these lamps the
most sustainable linear fluorescents available. Best of all, these lamps offer the same
performance levels as ALTO lamps (life, energy, and light output).
Philips T8 Lamp Family—Life ratings
1) [1994 industry average (22.8mg)—PLC average (4.0mg)] x 2 billion lamps. Convert to pounds by dividing by 464. Convert to tons by dividing by 2000.
2) Conditions apply—Based on maximum annual burn hours of 5110. Please contact Philips for warranty conditions for use of other equipment, including sensors.
3) Warranty Periods: 700 & 800 Series T8–30 months; Energy Advantage T8–36 months; PLUS T8–36 months; and Advantage T8–36 months; Extra Long Life T8–48 months; Energy Advantage Extra Long Life T8–48 months.
4) Average life under engineering data on instant start ballast with lamps turned off and restarted once every 3 or 12 operating hours as indicated.
5) Average life under engineering data on programmed start ballast with lamps turned off and restarted once every 3 or 12 operating hours as noted.
Philips Lamp
Instant Start4Programmed Start5
3 hours 12 hours 3 hours 12 hours
T8 700 and 800 Series 24,000 30,000 30,000 36,000
Advantage T8 32W High Lumen 24,000 30,000 30,000 36,000
PLUS T8 32W 30,000 36,000 38,000 44,000
Energy Advantage and Value Energy Advantage 25W and 32W 32,000 38,000 38,000 44,000
T8 32W Extra Long Life (XLL) 40,000 46,000 46,000 52,000
Energy Advantage T8 25W and 28W (XLL) Extra Long Life 40,000 46,000 46,000 52,000
Did you know?
• ALTO II T8 lamps have warranty
periods ranging from 2
1
⁄
2
–4 years3
• ALTO II T8 lamps require no burn
in before dimming
• ALTO II T8 lamps can contribute
to LEED-EB certification. For more
information, go to ww.usgbc.org
Philips T8 Lamp Warranty Periods
2
Philips Lamp Instant Start
Warranty
(3hr/12hr starts)
Programmed
Start Warranty
(3hr/12hr starts)
T8 700 and 800 Series 30/30 Months 30/36 Months
Advantage T8 32W High Lumen 30/30 Months 36/36 Months
PLUS T8 32W 36/42 Months 42/48 Months
Energy Advantage and Value Energy
Advantage 25W and 32W 36/42 Months 48/54 Months
T8 32W Extra Long Life (XLL) 42/48 Months 48/60 Months
Energy Advantage T8 25W and
28W (XLL) Extra Long Life 42/48 Months 48/60 Months
T8 Medium Bipin
Lamp Specification Guide 2012–2013 21
120
110
100
90
80
70
60
50
40
30
20
10
Relative Lumens (%)
0 10203040506070
25W 28W 32W TL80
Nom. Rated Average Life Approx. Design
Product Symbols, Ordering Pkg. Length 3 Hr. 12 Hr. Initial Lumens Lumens
Watts Number Footnotes Code Qty. Description (In.) Start
(202)
Start
(241)
(203,204)
(208)
CRI
Energy Advantage T8 25 Watt Fluorescent Lamps
T8 Medium Bipin Featuring ALTO II Technology
25 28204-6 $
†
F32T8/ADV830/XEW/ALTO 25 Watt 30 Advantage 830, 3000K 48 32,000 38,000 2500 2450 85
28209-5 $
†
F32T8/ADV835/XEW/ALTO 25 Watt 30 Advantage 835, 3500K 48 32,000 38,000 2500 2450 84
28078-4 $
†
F32T8/ADV841/XEW/ALTO 25 Watt 30 Advantage 841, 4100K 48 32,000 38,000 2500 2450 82
15238-9 $ F32T8/ADV841/XEW/ALTO 25 Watt 10 Advantage 841, 4100K, 10PK 48 32,000 38,000 2500 2450 82
28079-2 $
†
F32T8/ADV850/XEW/ALTO 25 Watt 30 Advantage 850, 5000K 48 32,000 38,000 2400 2350 82
Energy Advantage T8 28 Watt Fluorescent Lamps
T8 Medium Bipin Featuring ALTO II Technology
28 28101-4 $
†
F32T8/ADV830/EW/ALTO 28 Watt 30 Advantage 830, 3000K 48 32,000 38,000 2725 2645 85
28102-2 $
†
F32T8/ADV835/EW/ALTO 28 Watt 30 Advantage 835, 3500K 48 32,000 38,000 2725 2645 84
28103-0 $
†
F32T8/ADV841/EW/ALTO 28 Watt 30 Advantage 841, 4100K 48 32,000 38,000 2725 2645 82
28105-5 $
†
F32T8/ADV850/EW/ALTO 28 Watt 30 Advantage 850, 5000K 48 32,000 38,000 2675 2595 82
Fluorescent Lamps
Energy Advantage T8 Lamps
Cost of Ownership Savings
Energy Advantage T8 fluorescent lamps vs. standard T8 lamps.
General Overview
Energy Advantage 25W T8 fluorescent lamps provide energy
savings of up to 25% versus standard 32W T8, so the benefits
and financial impact can be significant.
Benefits
By using Energy Advantage 25W T8 lamps the energy savings of 7
watts per lamp can be achieved instantly by simply changing the lamp.
Financial Impact
Energy Savings per Lamp 7 W
Operating Hours per Year 8760 hours, continuous burn
Cost per kWh $ .10
Cost of Ownership Savings = $6.13 per lamp per year
** 4380 hours are based on operating the lamps 12 hours per day/7 days per week.
8760 hours are based on operating the lamps 24 hours per day/7 days per week.
For the most current product information, go to the e-catalog on www.philips.com
Fluorescent symbols and footnotes located on page 40
Rated Average Life
32,000
38,000
38,000
44,000

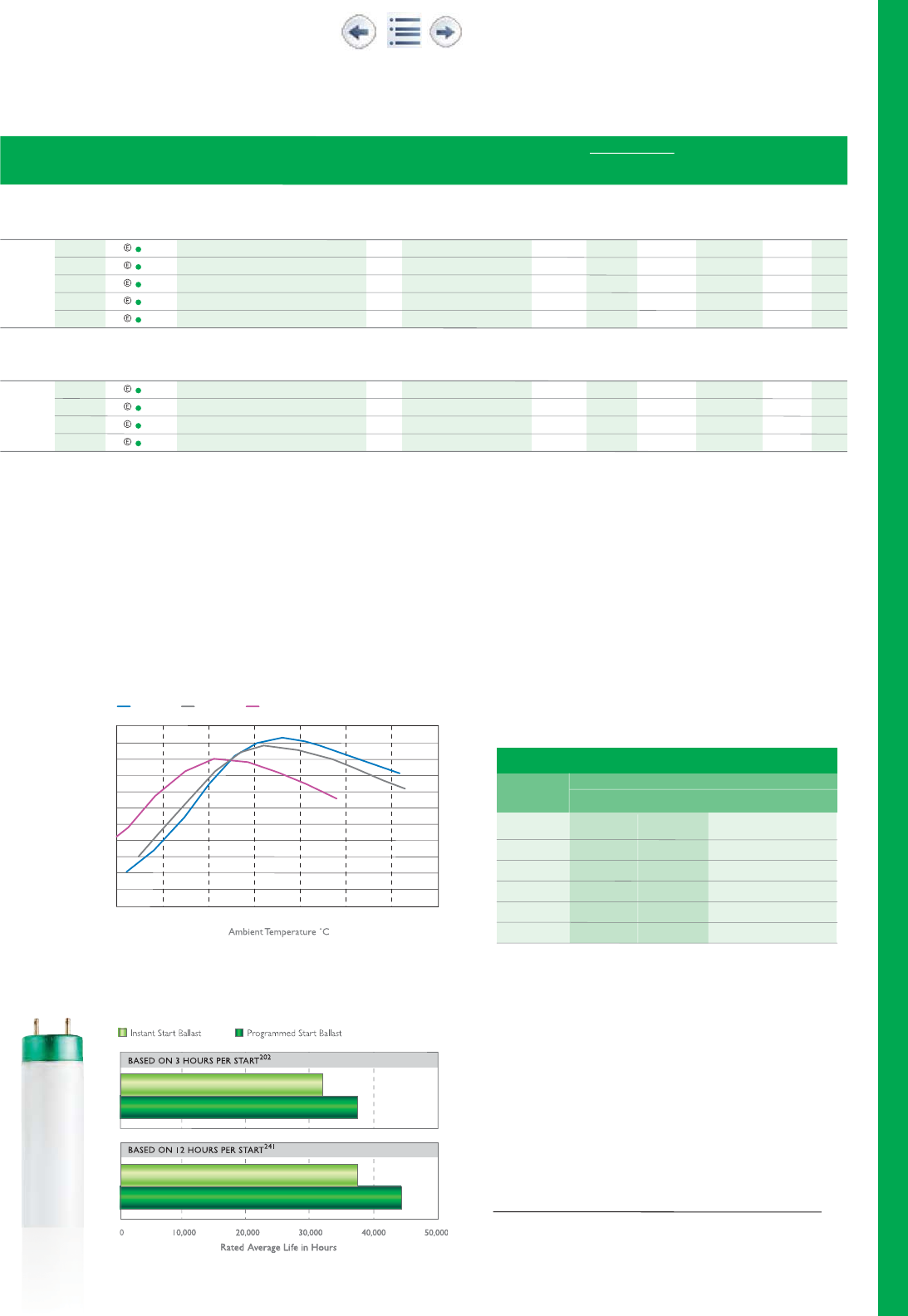

Relative Light Output vs. Ambient Temperature
4' T8 Lamps —0.88 BF Ballast
Relative light output with respect to 25ºC rated temperature
Energy Advantage 25W T8 Savings
7 watts per
lamp saved
Save 7 Watts Instantly
Energy Savings Calculator
Annual Operating Hours
**
Savings Over Lamp Life
KWH Rate 4380 8760 38,000 hrs.
$0.06 $1.84 $3.68 $15.96
$0.08 $2.45 $4.90 $20.28
$0.10 $3.07 $6.13 $26.60
$0.12 $3.68 $7.36 $31.92
$0.20 $6.13 $12.26 $53.20
T8 Medium Bipin

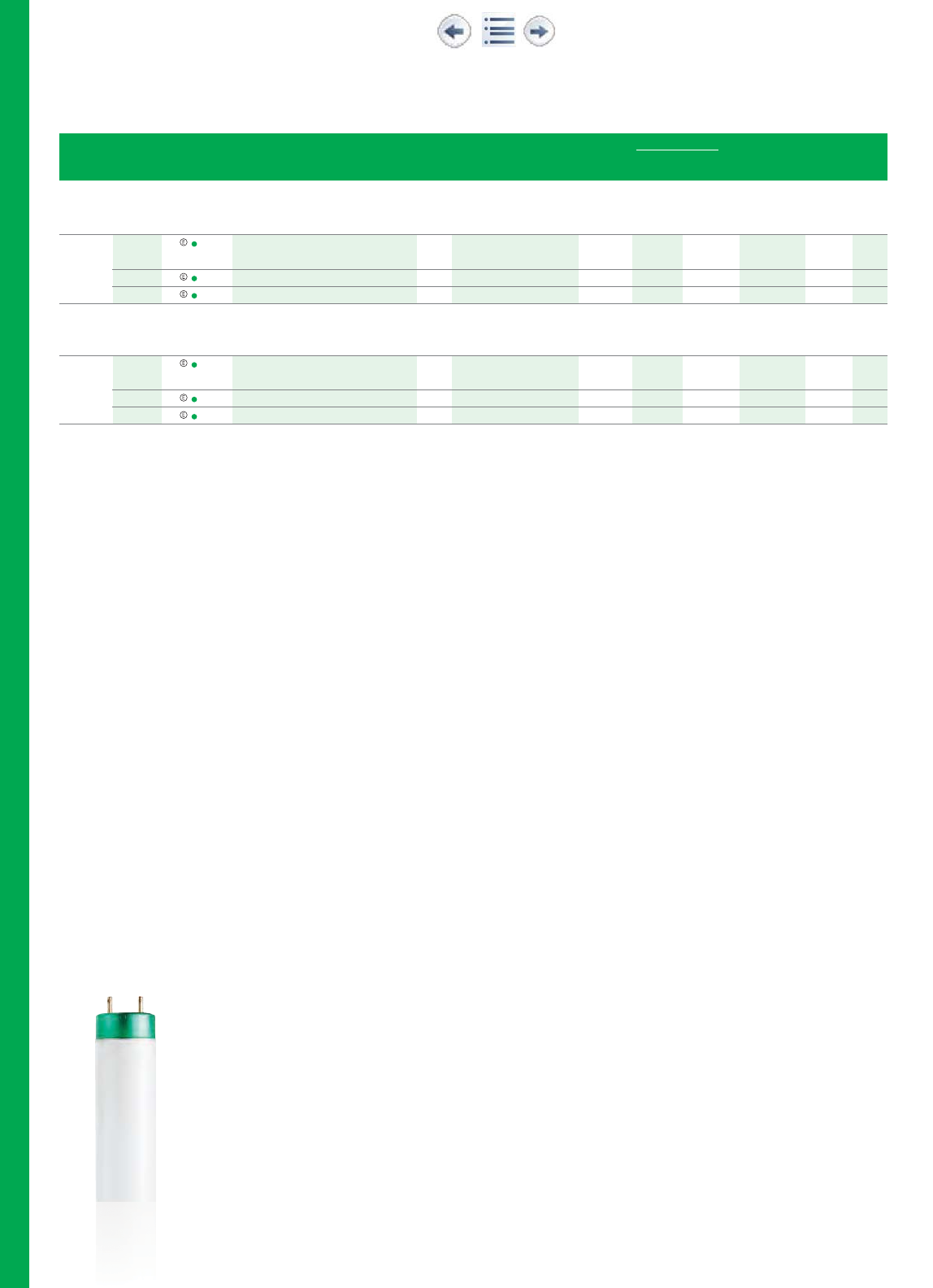

22 Lamp Specification Guide 2012–2013
Nom. Rated Average Life Approx. Design
Product Symbols, Ordering Pkg. Length 3 Hr. 12 Hr. Initial Lumens Lumens
Watts Number Footnotes Code Qty. Description (In.) Start (202) Start (241) (203,204) (208, 239) CRI
Fluorescent Lamps
Value Energy Advantage T8 Lamps
For the most current product information, go to the e-catalog on www.philips.com
Fluorescent symbols and footnotes located on page 40
Energy Advantage T8 Value 25 Watt Fluorescent Lamps
T8 Medium Bipin Featuring ALTO II Technology
25 42418-4 $
†
F32T8/VEA835/XEW/ALTO 25W 30 Value Energy Advantage 48 32,000 38,000 2300 2250 82
835, 3500K
42420-0 $
†
F32T8/VEA841/XEW/ALTO 25W 30 Value Advantage 841, 4100K 48 32,000 38,000 2300 2250 82
42422-6 $
†
F32T8/VEA850/XEW/ALTO 25W 30 Value Advantage 850, 5000K 48 32,000 38,000 2300 2250 82
Energy Advantage T8 Value 28 Watt Fluorescent Lamps
T8 Medium Bipin Featuring ALTO II Technology
28 42417-6 $
†
F32T8/VEA835/EW/ALTO 28W 30 Value Energy Advantage 48 32,000 38,000 2600 2550 82
835, 3500K
42419-2 $
†
F32T8/VEA841/EW/ALTO 28W 30 Value Advantage 841, 4100K 48 32,000 38,000 2600 2550 82
42421-8 $
†
F32T8/VEA850/EW/ALTO 28W 30 Value Advantage 850, 5000K 48 32,000 38,000 2600 2550 82
T8 Medium Bipin

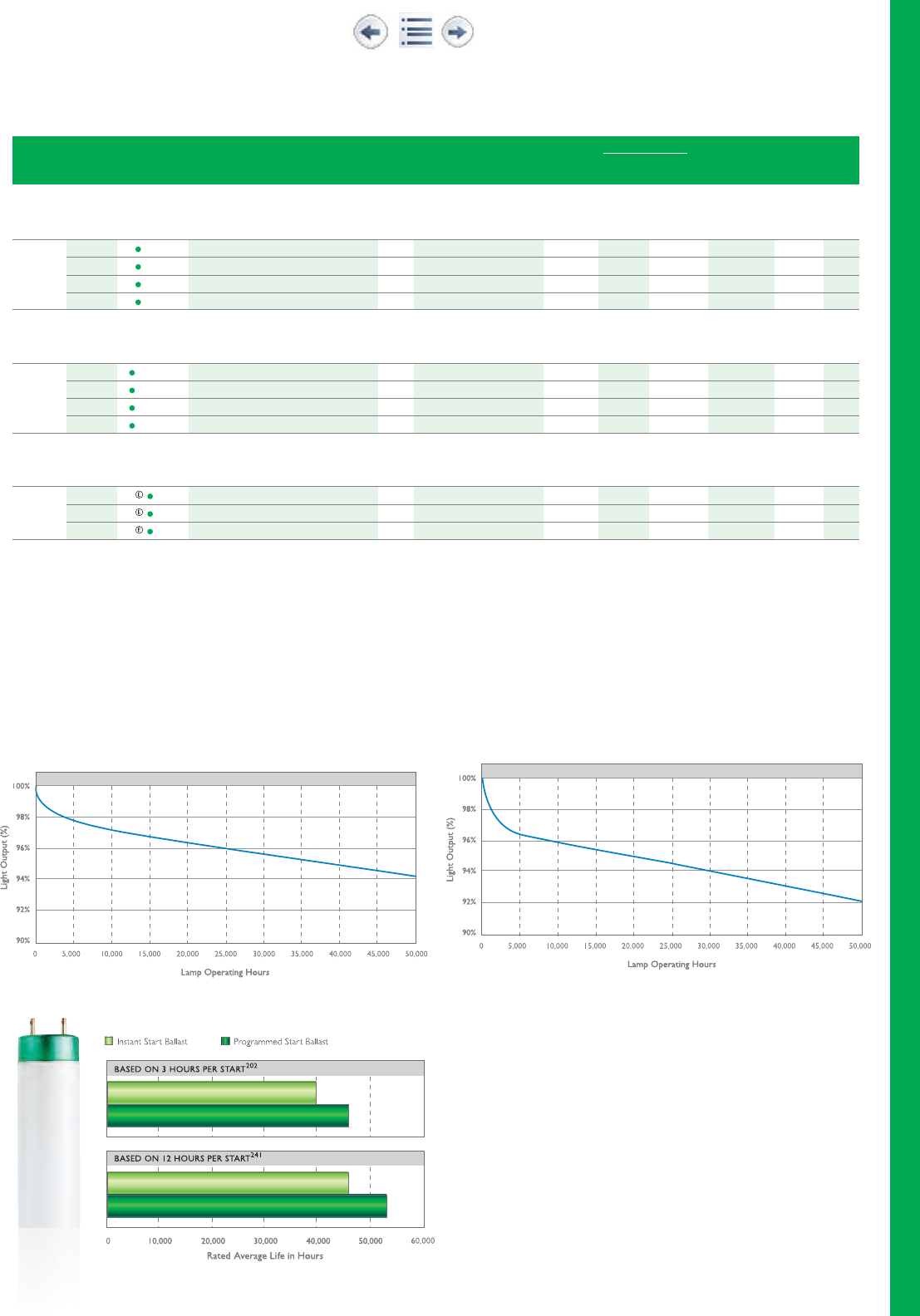

97% Lumen Maintenance
Philips Energy Advantage T8 25W and 28W XEW and XLL Lamps
95% Lumen Maintenance
Philips T8 32W XLL Lamps
Nom. Rated Average Life Approx. Design
Product Symbols, Ordering Pkg. Length 3 Hr. 12 Hr. Initial Lumens Lumens
Watts Number Footnotes Code Qty. Description (In.) Start (202) Start (241) (203,204) (208) CRI
Fluorescent Lamps
Extra Long Life (XLL) T8 Lamps
Extra Long Life Energy Advantage 25 Watt T8 Fluorescent Lamp
T8 Medium Bipin Featuring ALTO II Technology
25 28121-2 $
†
F32T8/ADV830/XLL/ALTO 25 Watt 30 Advantage 830, 3000K 48 40,000 46,000 2400 2330 85
28122-0 $
†
F32T8/ADV835/XLL/ALTO 25 Watt 30 Advantage 835, 3500K 48 40,000 46,000 2400 2330 84
28123-8 $
†
F32T8/ADV841/XLL/ALTO 25 Watt 30 Advantage 841, 4100K 48 40,000 46,000 2400 2330 82
28125-3 $
†
F32T8/ADV850/XLL/ALTO 25 Watt 30 Advantage 850, 5000K 48 40,000 46,000 2350 2280 82
Extra Long Life Energy Advantage 28 Watt T8 Fluorescent Lamp
T8 Medium Bipin Featuring ALTO II Technology
28 28146-9
†
F32T8/ADV830/XLL/ALTO 28 Watt 30 Advantage 830, 3000K 48 40,000 46,000 2675 2595 85
28148-5
†
F32T8/ADV835/XLL/ALTO 28 Watt 30 Advantage 835, 3500K 48 40,000 46,000 2675 2595 84
28127-9
†
F32T8/ADV841/XLL/ALTO 28 Watt 30 Advantage 841, 4100K 48 40,000 46,000 2675 2595 82
28128-7
†
F32T8/ADV850/XLL/ALTO 28 Watt 30 Advantage 850, 5000K 48 40,000 46,000 2625 2545 82
Extra Long Life 32 Watt T8 Fluorescent Lamps
T8 Medium Bipin Featuring ALTO II Technology
32 28115-4 $
†
F32T8/TL835/XLL/ALTO 30 TL 835, 3500K 48 40,000 46,000 2950 2800 84
28116-2 $
†
F32T8/TL841/XLL/ALTO 30 TL 841, 4100K 48 40,000 46,000 2950 2800 82
28120-4 $
†
F32T8/TL850/XLL/ALTO 30 TL 850, 5000K 48 40,000 46,000 2850 2700 82
40,000
46,000
46,000
52,000
Rated Average Life
For the most current product information, go to the e-catalog on www.philips.com
Fluorescent symbols and footnotes located on page 40
Lamp Specification Guide 2012–2013 23
T8 Medium Bipin
24 Lamp Specification Guide 2012–2013
Nom. Rated Average Life Approx. Design
Product Symbols, Ordering Pkg. Length 3 Hr. 12 Hr. Initial Lumens Lumens
Watts Number Footnotes Code Qty. Description (In.) Start (202) Start (241) (203,204) (208, 239) CRI
Fluorescent Lamps
Advantage T8 Lamps
Advantage T8 High Lumen Fluorescent Lamps
T8 Medium Bipin Featuring ALTO II Technology
17 28130-3 $
†
F17T8/ADV830/ALTO 30 Advantage 830, 3000K 24 24,000 30,000 1500 1450 85
28131-1 $
†
F17T8/ADV835/ALTO 30 Advantage 835, 3500K 24 24,000 30,000 1500 1450 84
28132-9 $
†
F17T8/ADV841/ALTO 30 Advantage 841, 4100K 24 24,000 30,000 1500 1450 82
25 28140-2 $
†
F25T8/ADV835/ALTO 30 Advantage 835, 3500K 36 24,000 30,000 2380 2300 84
28142-8 $
†
F25T8/ADV841/ALTO 30 Advantage 841, 4100K 36 24,000 30,000 2380 2300 82
32 28080-0 ¥$
†
F32T8/ADV830/ALTO 30 Advantage 830, 3000K 48 24,000 30,000 3100 3000 85
28081-8 ¥$
†
F32T8/ADV835/ALTO 30 Advantage 835, 3500K 48 24,000 30,000 3100 3000 84
28085-9 ¥$
†
F32T8/ADV841/ALTO 30 Advantage 841, 4100K 48 24,000 30,000 3100 3000 82
28089-1 ¥$
†
F32T8/ADV850/ALTO 30 Advantage 850, 5000K 48 24,000 30,000 3000 2910 82

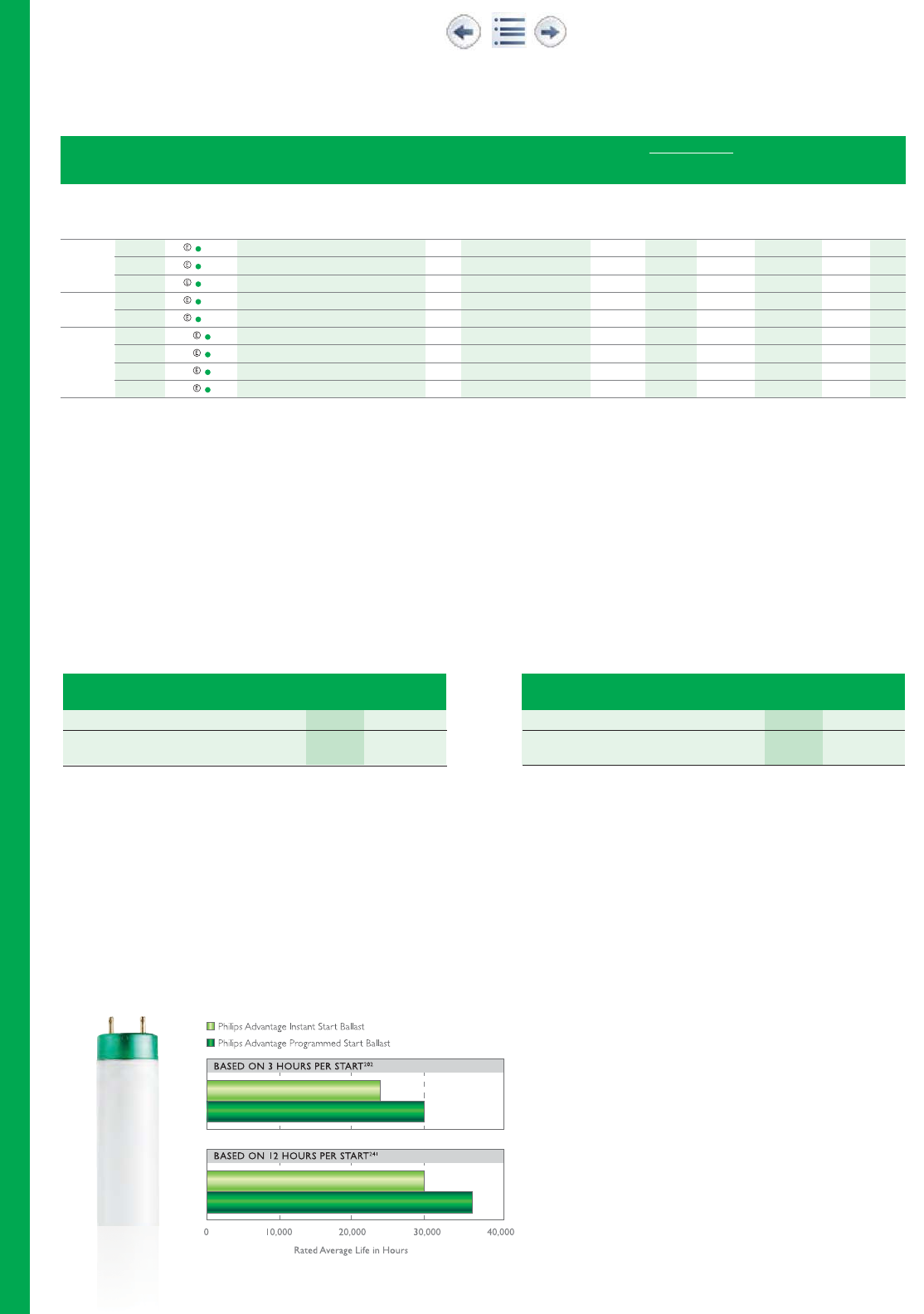

Combine Advantage T8 lamps with reduced light
output electronic ballasts, with these results:
• Saves 7 system watts vs. standard T8 system
• Saves $2.80 per fixture per year
• Energy savings based on 4000 hrs/yr @ $.10 kw/hr
Combine advantage T8 lamps with increased light output
ballasts. A two lamp advantage T8 system vs. a three lamp
standard T8 system will:
• Save 10 system watts
• Save $4.00 per fixture per year
• Save energy based on 4000 hrs/yr @ $.10 kw/hr
• Reduce lighting installation costs (lamps, ballasts, fixtures and labor)
• Operate on ballast with ballast factors up to 1.32 with warranty intact
Energy Savings: Two Lamp vs. Three Lamp System
Electronic Ballast No. of Lamp Standard Advantage System
Ballast Factor Lamps Watts T8 Lumens T8 Lumens Watts Savings
Standard T8 0.87 3 32 2850 — 88 —
Increased Light
Output T8 1.20 2 32 — 3100 78 $4.00/yr
Energy Savings: Two Lamp vs. Two Lamp System
Electronic Ballast No. of Lamp Standard Advantage System
Ballast Factor Lamps Watts T8 Lumens T8 Lumens Watts Savings
Standard T8 0.87 2 32 2850 — 58 —
Reduced Light
Output T8 0.75 2 32 — 3100 51 $2.80/yr
24,000
30,000
30,000
36,000
Rated Average Life
For the most current product information, go to the e-catalog on www.philips.com
Fluorescent symbols and footnotes located on page 40
T8 Medium Bipin

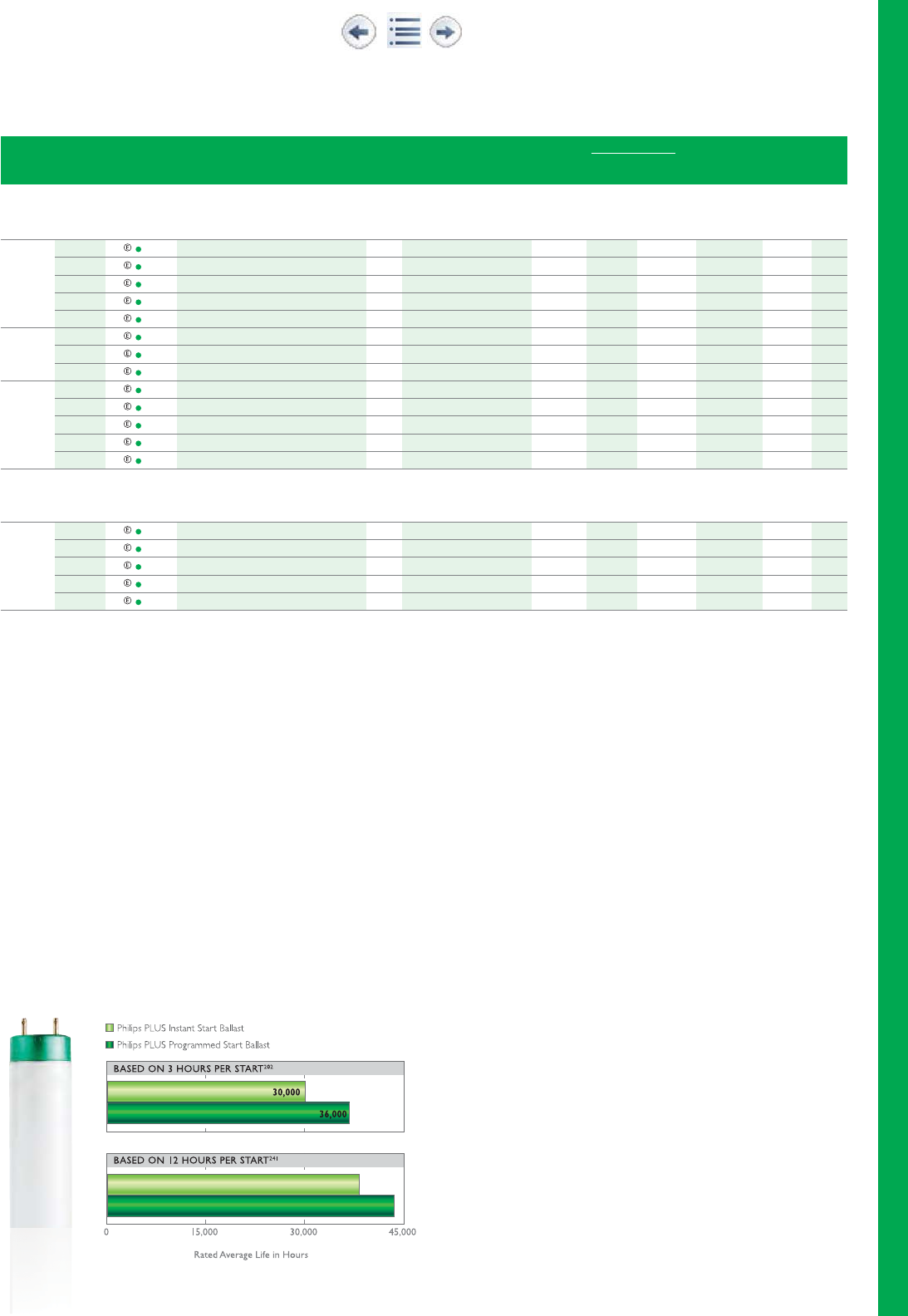

Lamp Specification Guide 2012–2013 25
Nom. Rated Average Life Approx. Design
Product Symbols, Ordering Pkg. Length 3 Hr. 12 Hr. Initial Lumens Lumens
Watts Number Footnotes Code Qty. Description (In.) Start (202) Start (241) (203,204) (208, 239) CRI
Fluorescent Lamps
PLUS 800 Series T8 Lamps, PLUS 700 Series T8 Lamps
PLUS 800 Series Long Life T8 Fluorescent Lamps
T8 Medium Bipin Featuring ALTO II Technology
17 29093-3 $
†
F17T8/TL830/PLUS/ALTO 30 TL 830, 3000K 24 30,000 36,000 1400 1330 85
28094-1 $
†
F17T8/TL835/PLUS/ALTO 30 TL 835, 3500K 24 30,000 36,000 1400 1330 85
28095-8 $
†
F17T8/TL841/PLUS/ALTO 30 TL 841, 4100K 24 30,000 36,000 1400 1330 85
28096-6 $
†
F17T8/TL850/PLUS/ALTO 30 TL 850, 5000K 24 30,000 36,000 1325 1260 82
28193-1 $
†
F17T8/TL865/PLUS/ALTO 30 TL 865, 6500K 24 30,000 36,000 1275 1210 82
25 28097-4 $
†
F25T8/TL830/PLUS/ALTO 30 TL 830, 3000K 36 30,000 36,000 2225 2115 85
28098-2 $
†
F25T8/TL835/PLUS/ALTO 30 TL 835, 3500K 36 30,000 36,000 2225 2115 85
28099-0 $
†
F25T8/TL841/PLUS/ALTO 30 TL 841, 4100K 36 30,000 36,000 2225 2115 85
32 28165-9 $
†
F32T8/TL830/PLUS/ALTO 30 TL 830, 3000K 48 30,000 36,000 2950 2800 85
28167-5 $
†
F32T8/TL835/PLUS/ALTO 30 TL 835, 3500K 48 30,000 36,000 2950 2800 85
28179-0 $
†
F32T8/TL841/PLUS/ALTO 30 TL 841, 4100K 48 30,000 36,000 2950 2800 85
20277-0 $ F32T8/TL841/PLUS/ALTO 10 TL 841, 4100K, 10 PK 48 30,000 36,000 2950 2800 85
28181-6 $
†
F32T8/TL850/PLUS/ALTO 30 TL 850, 5000K 48 30,000 36,000 2850 2710 82
PLUS 700 Series Long Life T8 Fluorescent Lamps
T8 Medium Bipin Featuring ALTO II Technology
32 28182-4 $
†
F32T8/TL730/PLUS/ALTO 30 TL 730, 3000K 48 30,000 36,000 2800 2660 78
28183-2 $
†
F32T8/TL735/PLUS/ALTO 30 TL 735, 3500K 48 30,000 36,000 2800 2660 78
28184-0 $
†
F32T8/TL741/PLUS/ALTO 30 TL 741, 4100K 48 30,000 36,000 2800 2660 78
28185-7 $
†
F32T8/TL750/PLUS/ALTO 30 TL 750, 5000K 48 30,000 36,000 2700 2550 78
42306-1 $
†
F32T8/TL765/PLUS/ALTO 30 TL 765, 6500K 48 30,000 36,000 2750 2610 78
For the most current product information, go to the e-catalog on www.philips.com
Fluorescent symbols and footnotes located on page 40
38,000
44,000
Rated Average Life
T8 Medium Bipin

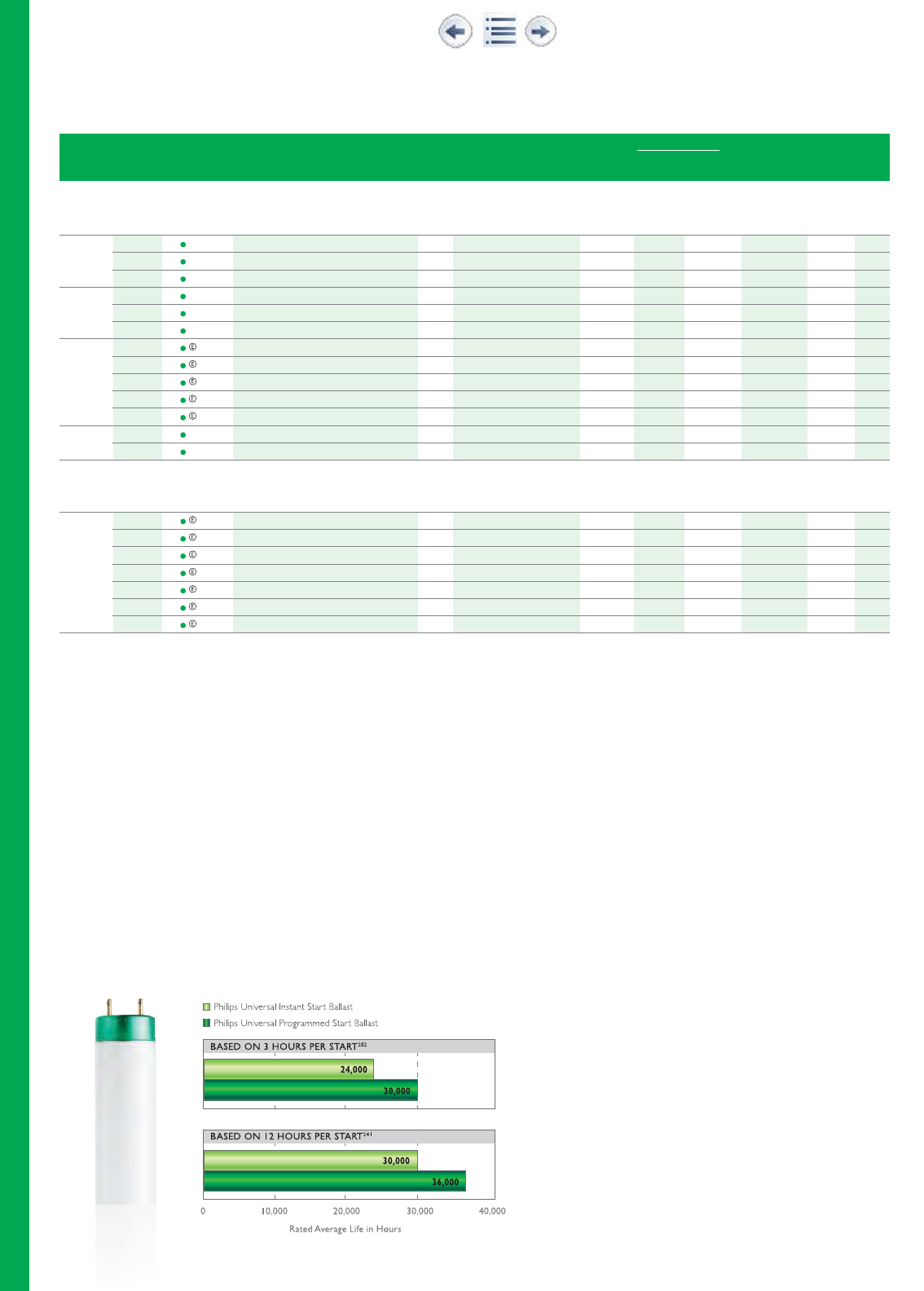

26 Lamp Specification Guide 2012–2013
Nom. Rated Average Life Approx. Design
Product Symbols, Ordering Pkg. Length 3 Hr. 12 Hr. Initial Lumens Lumens
Watts Number Footnotes Code Qty. Description (In.) Start (202) Start (241) (203,204) (208, 239) CRI
Fluorescent Lamps
800 Series T8 Lamps, 700 Series T8 Lamps
800 Series T8 Fluorescent Lamps
T8 Medium Bipin Featuring ALTO II Technology
17 28188-1 $
†
F17T8/TL835/ALTO 30 TL 835, 3500K 24 24,000 30,000 1350 1280 84
28189-9 $
†
F17T8/TL841/ALTO 30 TL 841, 4100K 24 24,000 30,000 1350 1280 82
28090-9 $
†
F17T8/TL850/ALTO 30 TL 850, 5000K 24 24,000 30,000 1300 1235 82
25 28190-7 $
†
F25T8/TL835/ALTO 30 TL 835, 3500K 36 24,000 30,000 2150 2040 85
28191-5 $
†
F25T8/TL841/ALTO 30 TL 841, 4100K 36 24,000 30,000 2150 2040 84
28092-5 $
†
F25T8/TL850/ALTO 30 TL 850, 5000K 36 24,000 30,000 2150 2040 82
32 28151-9 $
†
F32T8/TL830/ALTO 30 TL 830, 3000K 48 24,000 30,000 2850 2710 85
28153-5 $
†
F32T8/TL835/ALTO 30 TL 835, 3500K 48 24,000 30,000 2850 2710 84
28155-0 $
†
F32T8/TL841/ALTO 30 TL 841, 4100K 48 24,000 30,000 2850 2710 82
27235-1 $
†
F32T8/TL841/ALTO PLZ 1350 TL 841, 4100K 48 24,000 30,000 2850 2710 82
28156-8 $
†
F32T8/TL850/ALTO 30 TL 850, 5000K 48 24,000 30,000 2850 2710 82
40 36834-0 $
†
F40T8/TL835/ALTO 25 TL 835, 3500K 60 24,000 30,000 3725 3500 84
36847-2 $
†
F40T8/TL841/ALTO 25 TL 841, 4100K 60 24,000 30,000 3725 3500 82
700 Series T8 Fluorescent Lamps
T8 Medium Bipin Featuring ALTO II Technology
32 28162-6 $
†
F32T8/TL730 ALTO 30 TL 730, 3000K 48 24,000 30,000 2700 2565 78
28161-8 $
†
F32T8/TL735/ALTO 30 TL 735, 3500K 48 24,000 30,000 2700 2565 78
27259-1 $
†
F32T8/TL735/ALTO PLZ 1350 TL 735, 3500K 48 24,000 30,000 2700 2565 78
28157-6 $
†
F32T8/TL741/ALTO 30 TL 741, 4100K 48 24,000 30,000 2700 2565 78
38351-3 $
†
F32T8/TL741/ALTO 10 TL 741, 4100K, 10PK 48 24,000 30,000 2700 2565 78
27255-9 $
†
F32T8/TL741/ALTO PLZ 1350 TL 741, 4100K 48 24,000 30,000 2700 2565 78
28163-4 $
†
F32T8/TL750/ALTO 30 TL 750, 5000K 48 24,000 30,000 2600 2470 78
For the most current product information, go to the e-catalog on www.philips.com
Fluorescent symbols and footnotes located on page 40
Rated Average Life
T8 U-Bent Lamp
Medium Bipin
T8 1
5
⁄
8
" U-Bent Lamp
Medium Bipin

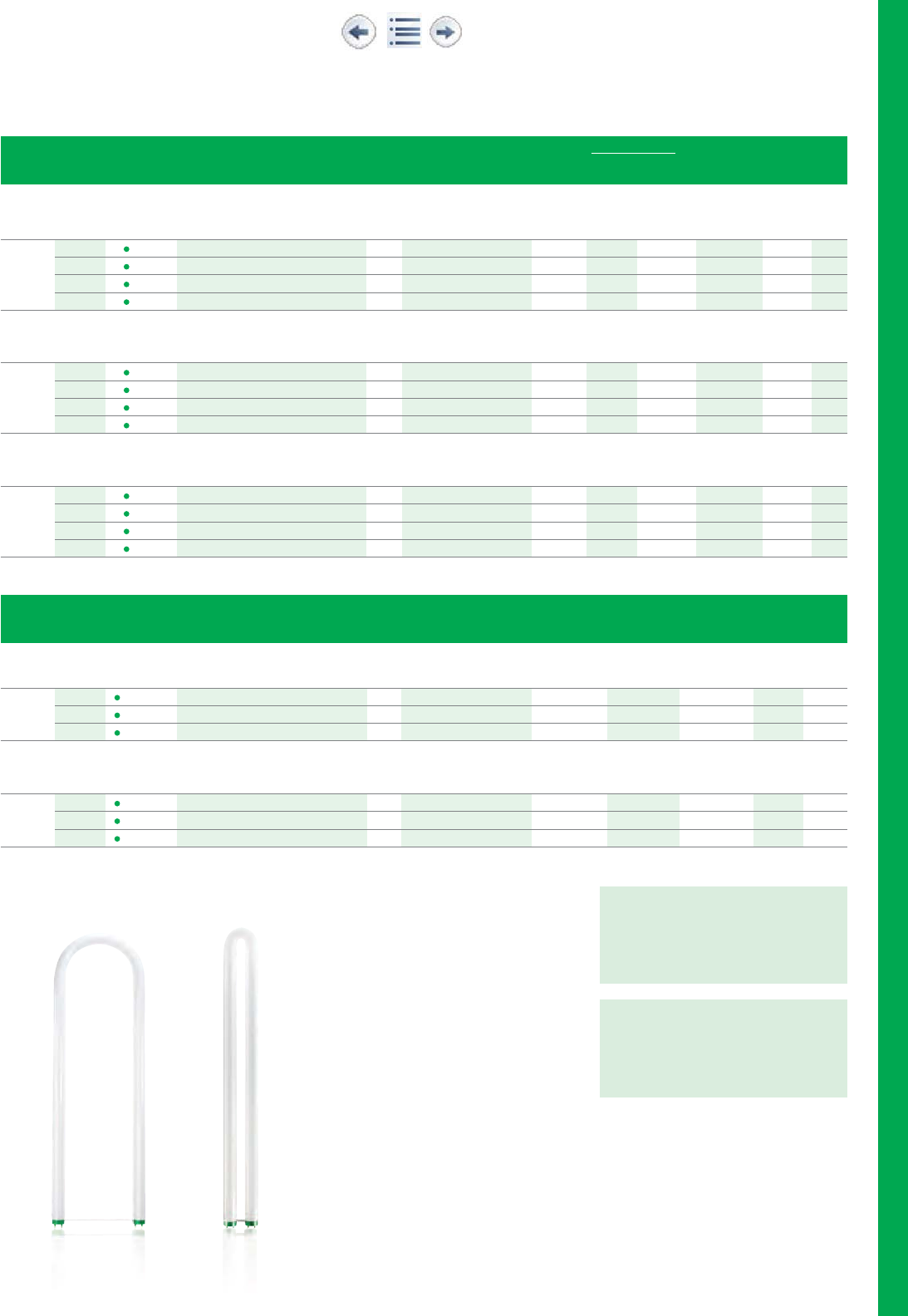

Lamp Specification Guide 2012–2013 27
Fluorescent Lamps
T8 U-Bent Lamps
Nom. Rated Average Life Approx. Design
Product Symbols, Ordering Pkg. Length 3 Hr. 12 Hr. Initial Lumens Lumens
Watts Number Footnotes Code Qty. Description (In.) Start (202) Start (241) (203,204) (208) CRI
Energy Advantage U-Bent 6" T8 Fluorescent Lamps
T8 Medium Bipin with 6'' Wide Spacing (212)
25 20420-6 $ FB32T8/ADV830/6/XEW/ALTO 25 WATT 20 TL 830, 3000K 227⁄16 24,000 30,000 2400 2330 85
20421-4 $ FB32T8/ADV835/6/XEW/ALTO 25 WATT 20 TL 835, 3500K 227⁄16 24,000 30,000 2400 2330 85
20423-0 $ FB32T8/ADV841/6/XEW/ALTO 25 WATT 20 TL 841, 4100K 227⁄16 24,000 30,000 2400 2330 85
20424-8 $ FB32T8/ADV850/6/XEW/ALTO 25 WATT 20 TL 850, 5000K 227⁄16 24,000 30,000 2350 2280 82
800 Series U-Bent Rapid Start T8 Fluorescent Lamps
T8 Medium Bipin with 6'' Wide Spacing (212)
32 37897-6 $ FB32T8/TL830/6/ALTO 20 TL 830, 3000K 227⁄16 24,000 30,000 2800 2535 85
37900-8 $ FB32T8/TL835/6/ALTO 20 TL 835, 3500K 227⁄16 24,000 30,000 2800 2535 85
37902-4 $ FB32T8/TL841/6/ALTO 20 TL 841, 4100K 227⁄16 24,000 30,000 2800 2535 85
37880-2 $ FB32T8/TL850/6/ALTO 20 TL 850, 5000K 227⁄16 24,000 30,000 2700 2450 82
700 Series U-Bent Rapid Start T8 Fluorescent Lamps
T8 Medium Bipin with 6'' Wide Spacing (212)
32 37892-7 $ FB32T8/TL730/6/ALTO 20 TL 730, 3000K 227⁄16 20,000 24,000 2650 2370 78
37893-5 $ FB32T8/TL735/6/ALTO 20 TL 735, 3500K 227⁄16 20,000 24,000 2650 2370 78
37894-3 $ FB32T8/TL741/6/ALTO 20 TL 741, 4100K 227⁄16 20,000 24,000 2650 2370 78
37882-8 $ FB32T8/TL750/6/ALTO 20 TL 750, 5000K 227⁄16 20,000 24,000 2600 2325 78
Nom. Rated Approx. Design
Product Symbols, Ordering Pkg. Length Avg. Life Initial Lumens Lumens
Watts Number Footnotes Code Qty. Description (In.) (Hrs.)(202) (203,204) (208) CRI
Energy Advantage U-Bent 1
5
⁄
8
" T8 Fluorescent Lamps
T8 Medium Bipin with 15⁄8'' Wide Spacing (212)
29 22675-3 FB29T8/TL830/EA/ALTO 15 TL 830, 3000K 223⁄5 24,000 2600 2470 85
22676-1 FB29T8/TL835/EA/ALTO 15 TL 835, 3500K 223⁄5 24,000 2600 2470 85
22677-9 FB29T8/TL841/EA/ALTO 15 TL 841, 4100K 223⁄5 24,000 2600 2470 85
800 Series U-Bent 1
5
⁄
8
" T8 Fluorescent Lamps
T8 Medium Bipin with 15⁄8'' Wide Spacing (212)
31 22671-2 FB31T8/TL830/ALTO 15 TL 830, 3000K 223⁄5 24,000 2775 2636 85
22672-0 FB31T8/TL835/ALTO 15 TL 835, 3500K 223⁄5 24,000 2775 2636 85
22674-6 FB31T8/TL841/ALTO 15 TL 841, 4100K 223⁄5 24,000 2775 2636 85
For the most current product information, go to the e-catalog on www.philips.com
Fluorescent symbols and footnotes located on page 40
Philips Standard and
1
5
⁄
8
" U-Bent T8
Warranty Period: 24 months
*
Philips Energy
Advantage U-Bent T8
Warranty Period: 36 months
*
* Certain limitations and conditions apply.
See Philips for further warranty details.
T8 Medium Bipin
28 Lamp Specification Guide 2012–2013
Fluorescent Lamps
Rapid Start T8 Lamps, Preheat T8 Lamps
Nom. Rated Average Life Approx. Design
Product Symbols, Ordering Pkg. Length 3 Hr. 12 Hr. Initial Lumens Lumens
Watts Number Footnotes Code Qty. Description (In.) Start (202) Start (241) (203,204) (208) CRI
Rapid Start T8 Fluorescent Lamps
T8 Medium Bipin; High CRI
17 20905-6 $ F32T8/TL950 25 TL 950, 5000K 48 20,000 20,000 2000 1860 98
TL-D Rapid Start T8 Fluorescent Lamps—for Operation on European Ballast
T8 Medium Bipin; High CRI
36 29189-8 TLD36W/840NG 25 TL840, 4000K 48 20,000 — 3350 3100 82
58 29184-9 TLD58W/840NG 25 TL840, 4000K 60 20,000 — 5200 4300 82
70 29186-4 TLD70W/840NG 25 TL840, 4000K 72 20,000 — 6200 5100 82
Preheat T8 Fluorescent Lamps
T8 Medium Bipin Linear Fluorescent Lamps; Requires Use of Starters (202)
15 40720-5 F15T8D 25 Daylight, 6500K 18 7500 — 750 660 73
40719-7 F15T8/CW 25 Cool White, 4100K 18 7500 — 870 765 59
36436-4 F15T8/CW BULK 96 Cool White, 4100K 18 7500 — 850 750 59
39226-6 F15T8/PLANT 6 Plant Lite, Sleeved 18 7500 — 410 N/A N/A
30 28147-7
†
F30T8/CW/ALTO 25 Cool White, 4100K 36 7500 — 2200 2000 59
For the most current product information, go to the e-catalog on www.philips.com
Fluorescent symbols and footnotes located on page 40
T8 Single Pin
Lamp Specification Guide 2012–2013 29
Fluorescent Lamps
Slimline T8 Lamps
Nom. Rated Average Life Approx. Design
Product Symbols, Ordering Pkg. Length 3 Hr. 12 Hr. Initial Lumens Lumens
Watts Number Footnotes Code Qty. Description (In.) Start (202) Start (241) (203,204) (208) CRI
Energy Advantage T8 Slimline 8-Ft Fluorescent Lamps
T8 Single Pin; Featuring ALTO Lamp Technology; Instant Start
51 16321-2 ¥$ F96T8/ADV835/XEW/ALTO 51W 25 TL 835, 3500K 96 24,000 30,000 5300 4940 85
16331-1 ¥$ F96T8/ADV841/XEW/ALTO 51W 25 TL 841, 4100K 96 24,000 30,000 5300 4940 85
16457-4 ¥$ F96T8/ADV850/XEW/ALTO 51W 25 TL 850, 5000K 96 24,000 30,000 5200 4840 82
PLUS Slimline T8 8-Ft Fluorescent Lamps
T8 Single Pin; Featuring ALTO Lamp Technology; Instant Start
59 23684-4 ¥$ F96T8/TL835/PLUS/ALTO 25 TL 835, 3500K 96 24,000 30,000 5900 5490 85
23685-1 ¥$ F96T8/TL841/PLUS/ALTO 25 TL 841, 4100K 96 24,000 30,000 5900 5490 85
23686-9 ¥$ F96T8/TL850/PLUS/ALTO 25 TL 850, 5000K 96 24,000 30,000 5780 5375 82
23681-0 ¥$ F96T8/TL735/PLUS/ALTO 25 TL 735, 3500K 96 24,000 30,000 5700 5190 78
23682-8 ¥$ F96T8/TL741/PLUS/ALTO 25 TL 741, 4100K 96 24,000 30,000 5700 5190 78

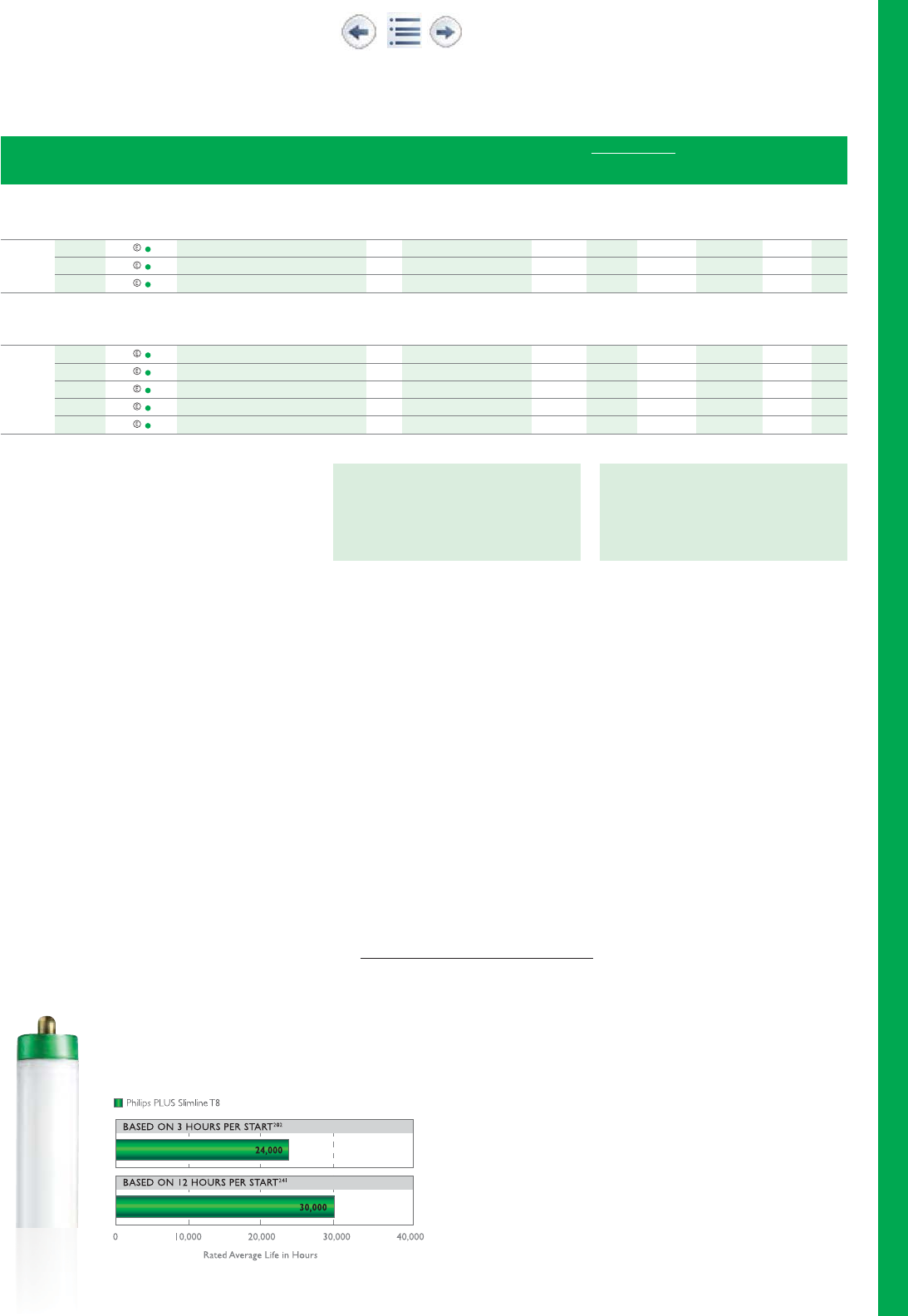

PLUS Slimline T8 8-Ft Cost of Ownership Savings
PLUS Slimline 8-foot T8 Fluorescent Lamps vs.
Standard 8-foot T8 Lamps
General Overview
PLUS Slimline 8-foot T8 fluorescent lamps may
provide up to 60% longer life than standard
8-foot T8 products. With an incremental cost as
little as $1.00 per lamp, benefits and financial
impact can be significant.
Benefits
By using PLUS Slimline 8-foot T8 lamps, the
lamp replacement and labor costs are
extended by an extra 2 years on a facility that
operates an average of 4000 hours per year.
For example, a standard 8-foot T8 product,
with a rated average life expectancy of 15,000
hours, will last nearly 4 years (15,000 hours rated
average life/4000 hours per year = 33⁄4years).
Conversely, PLUS Slimline 8-foot T8 lamps will
operate for 6 years due to their rated average
life expectancy of 24,000 hours (24,000 hours
rated average life/4000 hours per year = 6 years).
Financial Impact
With the extended life expectancy of
2 years and the benefits of Philips exclusive
TCLP-compliant low mercury technology,
the positive financial impact of installing PLUS
Slimline 8-foot T8 lamps may provide cost
of ownership savings per lamp as follows:
Incremental Cost $ (1.00)
Material Cost Avoidance A $ 4.00
Labor Cost Avoidance B $ 3.72
Disposal Cost Avoidance C $ 0.72
Cost of Ownership Savings $ 7.44
AMaterial Cost Avoidance is the annualized acquisi-
tion cost per lamp (average cost per lamp of $7.50
for standard 8-Foot T8 product / 3 3/4 years =
$2.00 per year). By installing PLUS Slimline 8-Foot
T8 lamps, a material cost per lamp of $4.00 is
avoided due to the extra 2 years of life expectancy.
Note that the average cost per lamp may vary.
BLabor Cost Avoidance is the annualized labor
replacement cost per lamp (labor replacement cost
per lamp of $7.00 / 3 years = $1.86 per year). By
installing PLUS Slimline 8-Foot T8 lamps, a labor
replacement cost per lamp of $3.72 is avoided due
to the extra 2 years life expectancy. Note that the
labor replacement cost per lamp may vary.
CDisposal Cost Avoidance is based on an average of
$.09 per foot for lamp recycling or $.72 per 8-foot
lamp. Philips Lighting Company encourages the
recycling of all fluorescent lamps.
Philips XEW Slimline T8
Warranty Period: 30 months
*
Philips PLUS Slimline T8
Warranty Period: 24 months
*
Rated Average Life
For the most current product information, go to the e-catalog on www.philips.com
Fluorescent symbols and footnotes located on page 40
* Certain limitations and conditions apply.
See Philips for further warranty details.
T8 Recessed DC T12 Medium Bipin T12 U-Bent
Medium Bipin

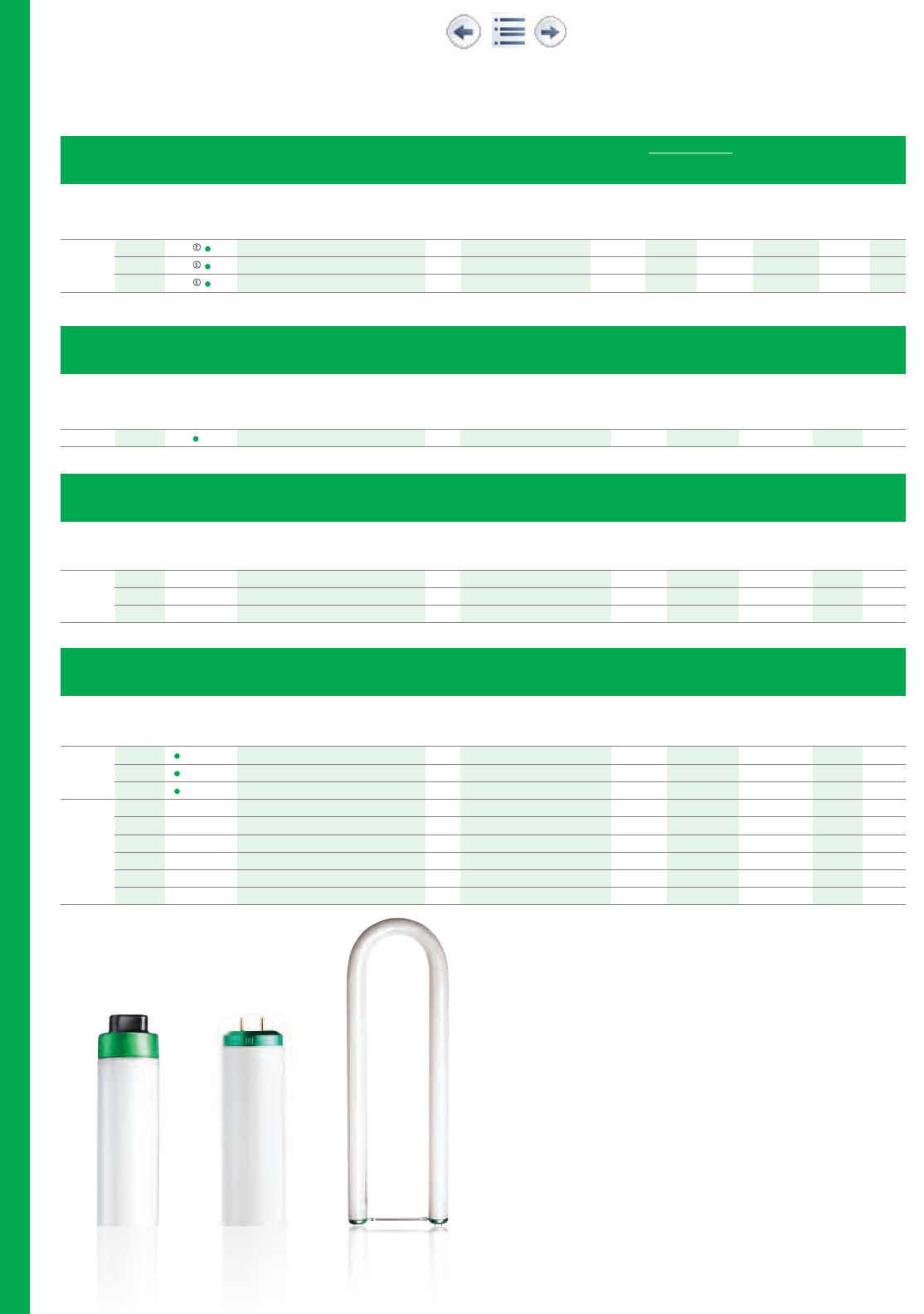

30 Lamp Specification Guide 2012–2013
Nom. Rated Average Life Approx. Design
Product Symbols, Ordering Pkg. Length 3 Hr. 12 Hr. Initial Lumens Lumens
Watts Number Footnotes Code Qty. Description (In.) Start (202) Start (241) (203,204) (208) CRI
Nom. Rated Approx. Design
Product Symbols, Ordering Pkg. Length Avg. Life Initial Lumens Lumens
Watts Number Footnotes Code Qty. Description (In.) (Hrs.)(202) (203,204) (208) CRI
PLUS High Output (HO) T8 8-Foot Fluorescent Lamps
T8 Recessed D.C.; Featuring ALTO Lamp Technology, Use on proper Programmed Start Ballasts Only
*
86 23687-7 ¥$ F96T8/TL835/HO/PLUS/ALTO 25 TL 835, 3500K 96 24,000 30,000 8200 7625 85
23688-5 ¥$ F96T8/TL841/HO/PLUS/ALTO 25 TL 841, 4100K 96 24,000 30,000 8200 7625 85
23689-3 ¥$ F96T8/TL850/HO/PLUS/ALTO 25 TL 850, 5000K 96 24,000 30,000 8100 7550 82
Fluorescent Lamps
High Output T8 Lamps, U-Bent T12 Lamps, Rapid Start T12 Lamps
High Output (HO) T8 Fluorescent Lamps—4 foot
T8 Recessed D.C.; Featuring ALTO Lamp Technology, Use on proper Programmed Start Ballasts Only
*
44 23679-4 ¥$ F48T8/TL841/HO/ALTO 25 TL 841, 4100K 48 18,000 4000 3600 85
U-Bent T12 Fluorescent Lamps
T12 Medium Bipin
40 42309-5 FB40/T12/NX/6 12 Neutral Deluxe, 3500K 227⁄16 18,000 2300 1955 90
42308-7 FB40/T12/CWSupreme/6 12 Cool White Supreme, 4100K 227⁄16 18,000 2300 1955 90
21993-1 FB40/DX/6 12 Daylight Deluxe, 6500K 227⁄16 18,000 2250 1950 90
Rapid Start T12 Fluorescent Lamps
T12 Medium Bipin
30 37649-1 F30T12/D/RS/ALTO 30 Daylight, 6500K 36 18,000 1950 1700 73
27242-7 F30T12/CW/RS/ALTO 30 Cool White, 4100K 36 18,000 2250 1900 59
13221-7 F30T12/WW/RS/ALTO 30 Warm White, 3000K 36 18,000 2300 1950 49
40 42318-6 F40T12/NX/ALTO 30 Neutral Deluxe, 3500K 48 20,000 2550 2200 88
42389-9 F40T12/CWSupreme/ALTO 30 Cool White Supreme, 4100K 48 20,000 2600 2250 89
42312-9 F40T12/CWSupreme/PLUS/ALTO 30 Cool White Supreme, 4100K 48 24,000 2550 2220 89
42389-7 F40T12/C50Supreme/ALTO 30 Color Tone 50 Supreme, 5000K 48 20,000 2500 2175 90
27359-9 F40/DX/ALTO 30 Daylight Deluxe, 6500K 48 20,000 2325 2025 90
39228-2 F40/PLANT 6 Plant Light, Sleeved 48 20,000 1600 1360 —
For the most current product information, go to the e-catalog on www.philips.com
Fluorescent symbols and footnotes located on page 40
Nom. Rated Approx. Design
Product Symbols, Ordering Pkg. Length Avg. Life Initial Lumens Lumens
Watts Number Footnotes Code Qty. Description (In.) (Hrs.)(202) (203,204) (208) CRI
Nom. Rated Approx. Design
Product Symbols, Ordering Pkg. Length Avg. Life Initial Lumens Lumens
Watts Number Footnotes Code Qty. Description (In.) (Hrs.)(202) (203,204) (208) CRI
* Per ANSI C78.81, this lamp is designed for programmed start operation with high frequency operating currents of 400mA (nominally) to achieve the rated lumens and life
* Per ANSI C78.81, this lamp is designed for programmed start operation with high frequency operating currents of 400mA (nominally) to achieve the rated lumens and life
T8 Single PinT8 Medium Bipin
36 Lamp Specification Guide 2012–2013
Fluorescent Lamps
Consumer Lamps
Nom. Rated Approx. Design
Product Symbols, Ordering Pkg. Length Avg. Life Initial Lumens Lumens
Watts Number Footnotes Code Qty. Description (In.) (Hrs.)(202) (203,204) (208) CRI
For the most current product information, go to the e-catalog on www.philips.com
Fluorescent symbols and footnotes located on page 40
T8 Fluorescent Lamps
Medium Bipin & Single Pin Linear Fluorescent Lamps
15 39212-6 F15T8/Soft White 1 3000K Individually Sleeved 18 7500 1000 900 85
39207-6 F15T8/Cool White Plus 1 4100K Individually Sleeved 18 7500 870 765 59
39108-6 F15T8/Cool White Plus 1 4100K Individually Sleeved 24 7500 1175 1035 59
39226-6 F15T8/Plant 1 Individually Sleeved 18 7500 410 — —
15760-2 F15T8/Blacklight 6/1 Individually Sleeved 18 7500 — — —
17 28126-1
†
F17T8/Soft White UPC 30 3000K 30 Pk Case 24 20,000 1400 1300 85
30 39216-7 F30T8/Soft White 6/1 3000K Individually Sleeved 36 7500 2500 2250 85
28145-1
†
F30T8/CW ALTO UPC 30 4100K Individually Sleeved 36 7500 2200 1760 59
32 40943-3 F32T8/SOFT WHITE ALTO 10 3000K 10 Pk Case 48 24,000 2950 2800 85
40986-0 F32T8/TL735/ALTO 15/2 15/2 3500K 2 Pk 48 24,000 2700 2565 78
20545-0 F32T8/TL735 ALTO 10PK 10 3500K 10 Pk Case 48 24,000 2700 2565 78
40944-1 F32T8/TL741/ALTO TG 10 Safety Coated 4100K 10 Pk 48 24,000 2700 2565 78
38351-3 F32T8/TL741 ALTO 10PK 10 4100K 10 Pk Case 48 24,000 2700 2565 78
15238-9 F32T8/ADV841/XEW/ALTO 25W 10 4100K 10 Pk Case 48 30,000 2500 2425 85
20278-8 F32T8/TL841/XLL/ALTO 10PK 10 4100K 10 Pk Case 48 36,000 2950 2800 85
20504-7 F32T8/TL850 ALTO 10PK 10 5000K 10 Pk Case 48 24,000 2850 2710 82
42294-9
†
F32T8/Daylight Deluxe/ALTO 1/10 10 6500K 10 Pk Case 48 30,000 2750 2600 78
28200-4
†
F32T8/TL735/ALTO 30 3500K 30 Pk Case 48 24,000 2700 2565 78
28197-2
†
F32T8/TL741/ALTO 30 4100K 30 Pk Case 48 24,000 2700 2565 78
28199-8
†
F32T8/TL850/ALTO 30 5000K 30 Pk Case 48 24,000 2850 2710 82
42295-5
†
F32T8/Daylight Deluxe/ALTO 1/30 30 6500K 30 Pk Case 48 30,000 2750 2600 78
40966-4 F32T8/TL850/ALTO 15/2 5000K 2 Pk 48 24,000 2850 2710 82
22682-9 F32T8/SOFT WHITE /ALTO 36/2 36/2 3000K 2 Pk 48 24,000 2950 2800 84
22679-5 F32T8/COOL WHITE PLUS 36/2 36/2 4100K 2 Pk 48 24,000 2800 2660 78
42296-3
†
F32T8/Daylight Deluxe/ALTO 36/2 36/2 6500K 2 Pk 48 30,000 2750 2600 78
75 42279-0
†
F96T12/NX/ALTO 8/2 8/2 Neutral Deluxe, 3500K 96 12,000 5000 4250 88
42277-4
†
F96T12/CWSupreme/ALTO 1/15 1/15 Cool White Supreme, 4100K 96 12,000 5000 4250 89
42278-2
†
F96T12/CWSupreme/ALTO 8/2 8/2 Cool White Supreme, 4100K 96 12,000 5000 4250 89
42398-7
†
F96T12/C50 Natural Supreme 8/2 8/2 Natural Light, 5000K 96 12,000 4800 4350 90
Lamp Specification Guide 2012–2013 39
Fluorescent Lamps
Base Types and Bulb Shapes
Base Types (Not Actual Sizes)
Miniature
Bipin T5
Min. Bipin
Medium
Bipin T8/T12
Med. Bipin
Recessed Double
Contact T8/T12
Recessed D.C.
Slimline
Single Pin
T8/T12
T5 Circular
Bulb Shapes (Not Actual Sizes)
The size and shape of a bulb is designated by a letter or letters followed by a number. The letter indicates the shape of the bulb, while the number indicates the
diameter of the bulb in eighths of an inch. For example, “T12” indicates a tubular shaped bulb having a diameter of 12⁄8or 11⁄2inches. The following illustrations
show some of the more popular bulb shapes and sizes.
T9 Circline 4-Pin
T5 Circular T9 Circline 4-Pin
T8 Medium Bipin U-Bent Lamp
T8 Medium Bipin 15⁄8" U-Bent Lamp
T12 Single Pin Slimline
T8 Single Pin Slimline
T12 Recessed Double Contact
T12 Medium Bipin
T8 Medium Bipin
T5 Miniature Bipin
T8 Recessed Double Contact
T12 Medium Bipin U-Bent Lamp (3")
T12 Medium Bipin U-Bent Lamp (6")
40 Lamp Specification Guide 2012–2013
For the most current product information, go to the
e-catalog on www.philips.com
¥Exclusive to Philips Lighting Company
$Energy Saving Product
This lamp is better for the environment because of its
reduced mercury content. All Philips ALTO lamps give you
end-of-life options, which can simplify and reduce your
lamp disposal costs, depending on your state and local
regulations. ALTO II Lamps have only 1.7mg of mercury.
This Bulb Meets US Federal Minimum Efficiency Standard.
Philips designs and manufactures fluorescent lamps to the
following lighting industry standard: NEMA Standard LSD
26—Measurement Methods and Performance Tolerances
for Verification Testing of General Purpose Incandescent
and Fluorescent Lamps
†New since last printing
(202) Average life under specified test conditions with lamps
turned off and restarted no more frequently than once every
3 operating hours. Lamp life is appreciably longer if lamps are
started less frequently.
(203) Approximate initial lumens. The lamp lumen output is
based upon lamp performance after 100 hours of operating
life, when the output is measured during operation on a
reference ballast under standard laboratory conditions.
(204) For expected lamp lumen output, commercial ballast
manufacturers can advise the appropriate ballast factor for
each of their ballasts when they are informed of the designated
lamp. The ballast factor is a multiplier applied to the designated
lamp lumen output.
(207) Approximate initial lumens are for 800 ma. operation.
For 1000 ma. operation, lumens are approximately 10% higher
and watts approximately 15% higher.
(208) Design lumens are the approximate lamp lumen output
at 40% of the lamp’s rated average life. This output is based
upon measurements obtained during lamp operation on a
reference ballast under standard laboratory conditions.
(212) Nominal length measured from face of base to maximum
distant outside point of U. Measurement does not include base
pins. Leg spacing center to center approximately 6", for /6 and
35⁄8" for /3 lamps.
(214) Econ-o-watt lamps are only recommended for use on
high power factor lead, indoor ballasts that meet ANSI standards.
The lamps are not recommended for use in drafty areas, or
locations where the ambient temperature is less than 60°F,
except as noted. Also they should not be operated on low
power factor ballasts, reduced light or reduced current ballasts,
dimming ballasts or emergency system inverter ballasts.
(223) Meets the National Energy Policy Act of 1992
exemption for outdoor or cold temperature applications only.
(226) T5 nominal lamp lengths are shorter than standard sizes.
See chart on page 27 for details.
(239) Design lumens rated at 3 hours per start on Instant
Start ballast.
(241) Average life under engineering data with lamps turned
off and restarted once every 12 operating hours.
Fluorescent Lamps
Symbols and Footnotes
Lamp Specification Guide 2012–2013 41
Fluorescent Lamps
Cross Reference Guide
Philips GE OSI
F15T8/CW/24/ALTO F24"T8/CW/4 F18T8/CW/K/24
F16T8/CW/26 F26"T8/CW/4 F18T8/CW/K/26
F17T8/CW/28 F28"T8/CW/4 F18T8/CW/K/28
F18T8/CW/30 F30"T8/CW/4 F18T8/CW/K/30
F20T12/CW/ALTO (6PK) F20T12/CW (6 Pack) F20T12/CW/6
F25T12/CW F25T12/CW/33 F25T12/CW/33
F30T12/CW/RS/EW/ALTO F30T12/CW/RS/WM F30T12/CW/RS/SS
TL 70 Trimline Octron
F17T8/TL741/ALTO F17T8/SP41/RS FO17/741
F25T8/TL741/ALTO F25T8/SP41/RS FO25/741
F32T8/TL741/ALTO F32T8/SP41/RS FO32/741
F40T8/TL741/ALTO F40T8/SP41/RS FO40/741
F96T8/TL741/ALTO F96T8/SP41 FO96T8/741
FB32T8/TL741/ALTO F32T8/SP41/U/6 FB032/741/6
TL 80
F17T8/TL841/ALTO F17T8/SPX41 FO17/841
F25T8/TL841/ALTO F25T8/SPX41 FO25/841
F32T8/TL841/ALTO F32T8/SPX41 FO32/841
F40T8/TL841/ALTO F40T8/SPX41 FO40/841
F96T8/TL841/ALTO F96T8/SPX41 FO96/841
FB32T8/TL841/ALTO F32T8/SPX41/U/6 FBO32/841/6
Long Life XL EXTRA-LIFE XP
F17T8/TL841/PLUS/ALTO F17T8/XL/SPX41/ECO FO17/841/XP/ECO
F25T8/TL841/PLUS/ALTO F25T8/XL/SPX41/ECO FO25/841/XP/ECO
F32T8/TL841/PLUS/ALTO F32T8/XL/SPX41/ECO FO32/841/XP/ECO
Energy Savings WATTMISER/ULTRAMAX SS
F32T8/ADV841/EW/ALTO 30 Watt F32T8/XL/SP41/WM/ECO FO30/841/XP/SS/ECO
F32T8/ADV841/EW/ALTO 28 Watt F28T8/XL/SP41/WM/ECO FO28/841/XP/SS/ECO
F32T8/ADV841/XEW/ALTO 25 Watt NA NA
F40CW/RS/EW/ALTO F40CW/RS/WM F40CW/RS/SS
F40LW/RS/EW/ALTO F40LW/RS/WM F40LW/RS/SS
F40T12/841/ALTO F40/SP41 F40/D41
F40T12/ADV41/ALTO F40/SPX41 F40/D841
F96T12/CW/EW/ALTO F96T12/CW/WM F96T12/CW/SS
F96T12/CW/HO/EW/ALTO F96T12/CW/HO/WM F96T12/CW/HO/SS
F96T12/CW/HO-O/ALTO F96T12/CW/HO/CT F96T12/CW/HO/COLD TEMP
F96T12/CW/VHO/EW/ALTO F96PG17/CW/WM F96T12/CW/VHO/SS
FB40CW/6/EW/ALTO F40CW/U/6/WM FB40CW/6/SS
F48T12/CW/VHO F48T12/CW/1500 F48T12/CW/VHO
F72T12/CW/VHO F72T12/CW/1500 F72T12/CW/VHO
F96T12/CW/VHO F96T12/CW/1500 F96T12/CW/VHO
F48T12/CW/VHO-O F48T12/CW/1500/0 F48T12/CW/VHO/LT
F60T12/CW/VHO-O F60T10/CW —
F72T12/CW/VHO-O F72T12/CW/1500/0 F72T12/CW/VHO/LT
F96T12/CW/VHO-O F96T12/CW/1500/0 F96T12/CW/VHO/LT
42 Lamp Specification Guide 2012–2013
Fluorescent Lamps
Cross Reference Guide
Color Cross Reference Guide
Philips GE OSI
SPEC
SPEC 30 or 730 SP 30 D 30
SPEC 35 or 735 SP 35 D 35
SPEC 41 or 741 SP 41 D 41
Ultralume Designer 800
27 or 27U SPX 27 27K
30U or 830 SPX 30 D 830
35U or 835 SPX 35 D 835
41U or 841 SPX 41 D 841
C50 C50 DSGN50
Light Source Color Chart
Fluorescent Color Light Output CIE Color Coordinates
Color Abbreviation Atmosphere (%) In 4' Lamp CCT CRI X Y
Cool White CW Cool 100 4100K 62 0.38 0.38
Deluxe Cool White CWX Cool 72 4100K 89 0.376 0.367
Daylight D Cool Daylight 85 6500K 79 0.313 0.337
Daylight Deluxe DX Cool Daylight 76 6500K 84 0.314 0.341
Lite White LW Cool 104 4200K 51 0.376 0.386
Natural N Neutral 69 3700K 90 0.384 0.357
3000K, SPEC30 SPEC30 Warm 105 3000K 70 0.444 0.409
3500K, SPEC35 SPEC35 Neutral 105 3500K 73 0.41 0.395
4100K, SPEC41 SPEC41 Cool 105 4100K 70 0.382 0.385
Advantage T12 30 ADV30 Warm 118 3000K 82 0.444 0.409
Advantage T12 35 ADV35 Neutral 118 3500K 82 0.41 0.395
Advantage T12 41 ADV41 Cool 118 4100K 82 0.382 0.385
Advantage T12 50 ADV50 Daylight 118 5000K 82 0.346 0.36
Warm White WW Warm 102 3000K 53 0.44 0.403
Colortone 50 C50 Daylight 72 5000K 92 0.345 0.359
Colortone 75 C75 Daylight Plus 66 7500K 95 0.299 0.316
3000K, Ultralume 30U Warm 108 3000K 85 0.444 0.409
3500K, Ultralume 35U Neutral 108 3500K 85 0.413 0.395
4100K, Ultralume 41U Cool 108 4100K 85 0.382 0.385
5000K, Ultralume 50U Daylight 93 5000K 85 0.346 0.356
3000K, TL 70 TL730 Warm 93 3000K 78 0.439 0.402
3500K, TL 70 TL735 Neutral 93 3500K 78 0.41 0.395
4100K, TL 70 TL741 Cool 93 4100K 78 0.382 0.385
5000K, TL 70 TL750 Daylight 90 5000K 76 0.346 0.356
3000K, TL 80 TL830 Warm 98 3000K 86 0.439 0.402
3500K, TL 80 TL835 Neutral 98 3500K 86 0.41 0.395
4100K, TL 80 TL841 Cool 98 4100K 86 0.382 0.385
5000K, TL 80 TL850 Daylight 97 5000K 86 0.346 0.356
3000K, TL 90 TL930 Warm 66 3000K 95 0.438 0.399
5000K, TL 90 TL950 Daylight 66 5000K 98 0.344 0.355
Advantage T8 830 ADV830 Warm 105 3000K 86 0.444 0.409
Advantage T8 835 ADV835 Neutral 105 3500K 86 0.41 0.395
Advantage T8 841 ADV841 Cool 105 4100K 86 0.382 0.385
Advantage T8 850 ADV850 Daylight 105 5000K 86 0.346 0.36
Lamp Specification Guide 2012–2013 43
Fluorescent Lamps
Cross Reference Guide
Residential Applications Light Source Color Chart
Lighted Appearance
Fluorescent Light Output Light Output CIE Color Coordinates
Color Atmosphere (%) In 4' Lamp CCT CRI X Y
Cool White Plus Cool 105 4100K 62-70 0.382 0.385
Natural Sunshine Daylight 72 5000K 92 0.345 0.359
Soft White Warm 108 3000K 85 0.444 0.409
Correlated Color Temperature, CCT, describes the apparent color, or chromaticity, of a light source. Fluorescent light sources of 3000K, for example, Warm White or 3000K
Ultralume, have a warm chromaticity, while 5000K lamps such as Colortone®50 or 5000K Ultralume have a higher blue content and are considered to be cooler in color.
Color Rendering Index, CRI, is a relative value that indicates the color rendering quality of illumination provided by a light source. The higher the index number, the better the quality
of illumination. While one lamp may have the same apparent color in CCT as another, its ability to render colors properly may be more or less than another light source.
For example, Warm White 3000K 53 CRI lamps will not render colors of objects in an illuminated space as well as 3000K Ultralume 85 CRI lamps.
Both CCT and CRI should be cited together when properly describing light source color attributes.
