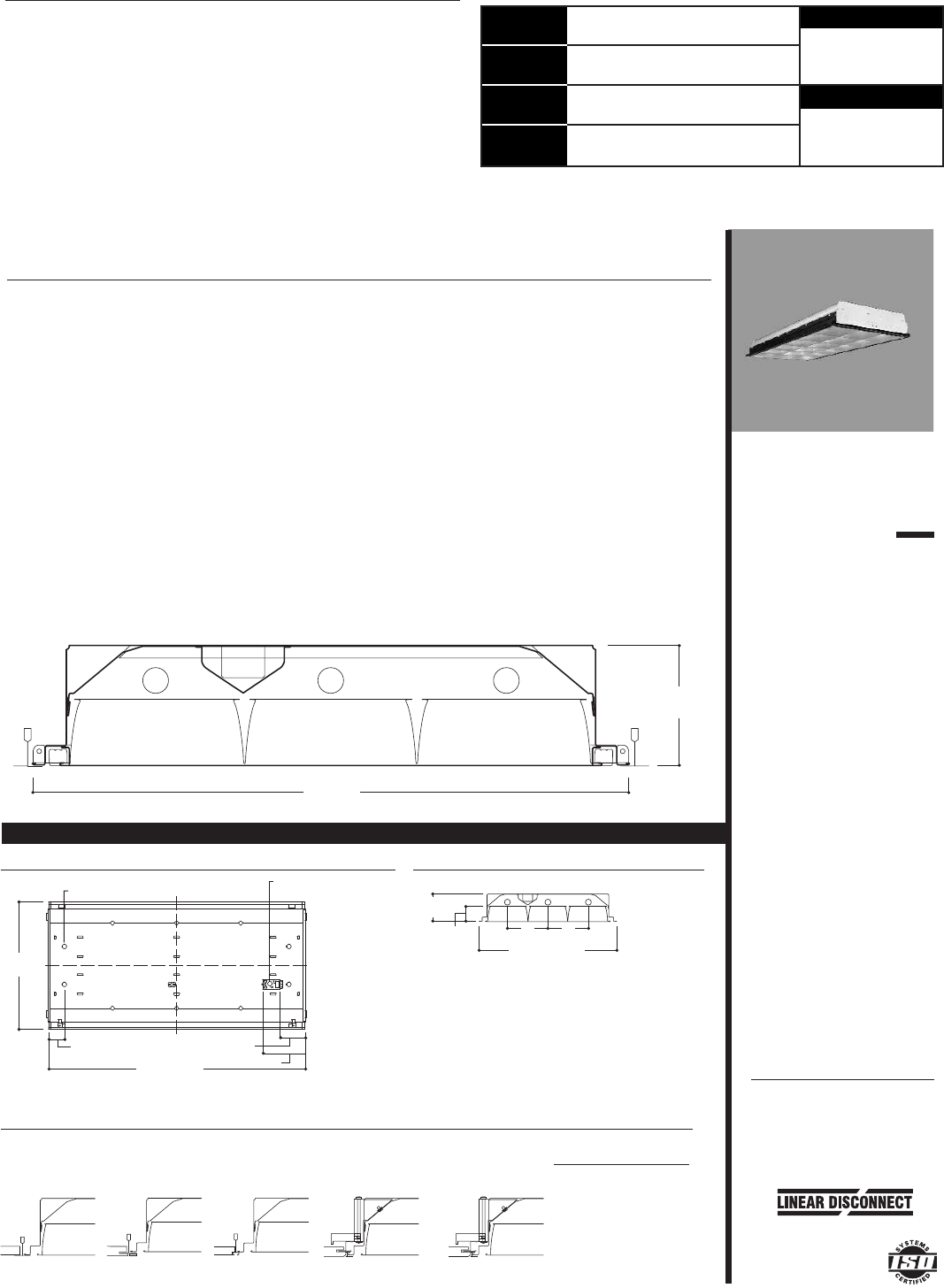

COOPER LIGHTING - METALUX®

COOPER LIGHTING

DESCRIPTION

The Paralux III Series features recessed aesthetics and the latest in

energy efficient technology. The luminaire incorporates a nominal

3" deep precision cell louver into a 4-3/4" deep para-contoured

fixture housing. This combination creates a total high performance

parabolic optical assembly for optimum performance. The series is

compatible with all of today’s popular ceiling systems and is

available with a number of options and accessories for application

versatility. 2EP3-IC is rated for installations when the housing is in

direct contact with insulation. The high performance luminaire is

designed to offer maximum efficiency and performance for today’s

unique interior specifications. The Paralux III series is an excellent

choice for commercial office spaces, schools, hospitals or retail

merchandising areas.

EB Ballast & STD Lamps

328T8 (67)

332 (81)

Luminaire Efficacy Rating

LER = FP-77

Catalog Number: 2EP3GAX-IC-

332S36I

Yearly Cost of 1000 lumens,

3000 hrs at .08 KWH = $3.11

**Reference the lamp/ballast data in the

Technical Section for specific lamp/ballast

requirements.

2EP3GAX-IC

328T8

332

18, 24 Cell

2' X 4' PARABOLIC

3 T8 LAMPS

SEMI-SPECULAR,

SPECULAR OR WHITE

PAINTED LOUVER

Paralux III

Recessed Static or

Air Supply Troffer

For Use in

Insulated Ceilings

ADF110378

ENERGY DATA

Input Watts:

SPECIFICATION FEATURES

Construction

4-3/4" deep, para-contoured housing,

die formed of code gauge, prime cold

rolled steel. Die embossed housing has

full length die formed stiffeners for

added strength. Contoured ballast/wire-

way cover is easily removed without

tools. Die formed captive lampholder

bracket fully encloses lampholder wiring

permitting easy lampholder replace-

ment. Heavy end plates are securely

attached with interlocking tabs and

screws. Four auxiliary fixture end sus-

pension points provided. KOs for contin-

uous row wiring. End plates have labor

saving integral Grid-Lock feature for

safety and convenience.

Electrical**

Ballasts are CBM/ETL Class

“P” and are positively

secured by mounting bolts.

Pressure lock lampholders.

UL/CUL listed for Type IC

Recessed Luminaire (Rated

for direct contact with

insulation). Suitable for

damp locations.

Finish

Lighting grade, baked white

enamel finish. Multistage,

iron phosphate pretreatment

ensures maximum bonding

and rust inhibition.

Hinging/Latching

Positive spring loaded, self locking,

steel latches. Safety lock T-hinges

allow hinging and latching from

either side.

Louver

Die formed of low iridescent, verti-

cal grain anodized aluminum.

Finish is Anodic oxide coating.

Accurate precision parabolic cells

are held in place with interlocking

feature. True-cut mitered corners.

Black reveal with integral mechani-

cal light seal around entire perime-

ter of louver. Louver protected

from construction contaminants

by polyethylene cover.

Catalog # Type

Date

Project

Comments

Prepared by

LAMPS CONTAIN MERCURY. DISPOSE ACCORDING TO LOCAL,

STATE OR FEDERAL LAWS

Safe and con ven ient mean s of

disconnecting power.

MOUNTING DATA LAMP CONFIGURATIONS

7/8" [22mm] K.O. (4)

Access Plate

7/8" [22mm] K.O.

48" [1217mm] 7-7/8" [201mm]

4-5/8" [119mm]

3" [77mm]

23-3/4"

[603mm]

4-3/4"

[121mm]

2-5/8"

[67mm]

23-3/4" [603mm]

7"

[178mm]

7"

[178mm]

4-3/4"

[121mm]

23-3/4"

[603mm]

3 LAMP 3 LAMP – 18/24 CELL

CEILING COMPATIBILITY

G

Grid/Lay-in

Standard

G

Concealed T

G

Slot Grid

F

Aluminum Flange Trim

With Supporting

Swing Gates

MZ

Modular Trim

With Supporting

Swing Gates

Ceiling Trim

Type Type

Exposed Grid G

Concealed T G

Slot Grid G

Flange F

Concealed “T” or ”Z“ MZ

Metal Pan MZ

(Verify compatibility/ consult

factory.)

Visit our web site at www.cooperlighting.com

Customer First Center 1121 Highway 74 South Peachtree City, GA 30269 770.486.4800 FAX 770.486.4801 6/12 ADF110378

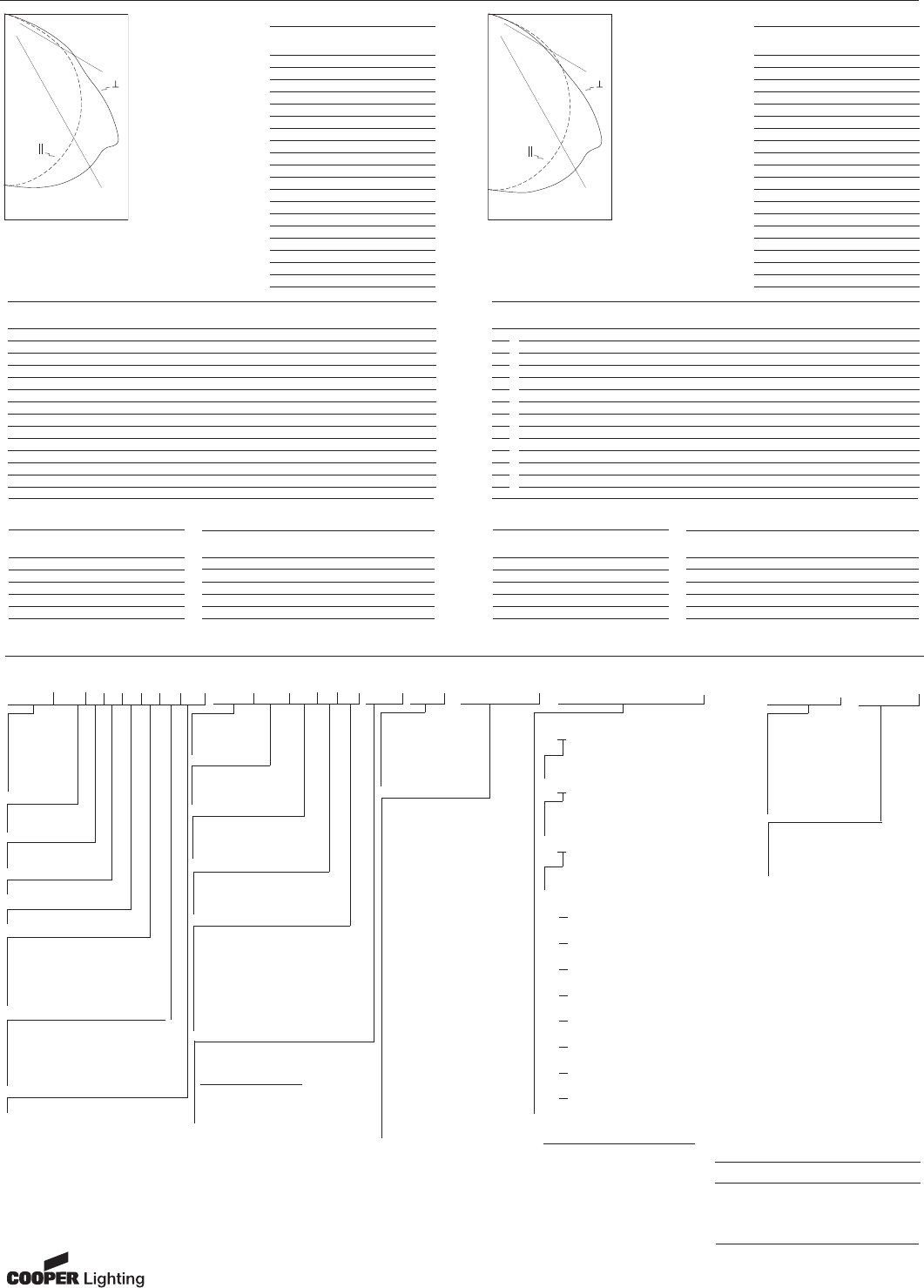

PHOTOMETRICS

2EP3GAX-IC T8

Coefficients of Utilization

Effective floor cavity reflectance 20%

rc 80% 70% 50% 30% 10% 0%

rw 70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10 0

RCR

0

1

2

3

4

5

6

7

8

9

10

Zonal Lumen Summary

Zone Lumens %Lamp %Fixture

0-30

0-40

0-60

0-90

0-180

Candlepower

Angle Along II 45° Across ⊥

0

5

10

15

20

25

30

35

40

45

50

55

60

65

70

75

80

85

90

2EP3GX-IC-332S38I

Electronic Ballast

F32T8/35K Lamps

3100 Lumens

Spacing criterion:

(II) 1.2 x mounting

height, (⊥) 1.5 x

mounting height

Efficiency 66.3%

Test Report:

2EP3-IC-332S38I.IES

LER = FP-74

Yearly Cost of 1000

lumens, 3000 hrs at

.08 KWH = $3.24

2238 2238 2238

2239 2252 2270

2198 2250 2306

2135 2227 2333

2051 2185 2343

1955 2123 2329

1845 2041 2287

1719 1941 2211

1574 1817 2246

1414 1689 2060

1248 1536 1678

1064 1220 1258

846 818 1043

546 506 756

250 255 421

101 106 143

47 48 54

16 16 16

0 0 0

79 79 79 79 77 77 77 77 74 74 74 71 71 71 68 68 68 66

73 70 68 66 71 69 67 65 66 64 63 64 62 61 61 60 59 58

67 62 58 55 66 61 57 54 59 56 53 57 54 52 55 53 51 49

62 55 50 46 60 54 50 46 52 48 45 50 47 44 49 46 44 42

57 49 44 39 55 48 43 39 47 42 39 45 41 38 44 40 38 36

52 44 38 34 51 43 38 34 42 37 34 41 36 33 39 36 33 32

48 40 34 30 47 39 34 30 38 33 29 37 32 29 36 32 29 28

45 36 30 26 43 35 30 26 34 30 26 33 29 26 33 29 26 24

41 33 27 23 40 32 27 23 31 27 23 31 26 23 30 26 23 22

39 30 25 21 38 30 25 21 29 24 21 28 24 21 27 24 21 20

36 28 22 19 35 27 22 19 27 22 19 26 22 19 25 22 19 18

1830 19.7 29.7

3053 32.8 49.5

5433 58.4 88.1

6167 66.3 100.0

6167 66.3 100.0

Typical VCP Percentages

Height Along Height Across

Room Size (Ft.) 8.5’ 10.0’ 8.5’ 10.0’

20 x 20

30 x 30

30 x 60

60 x 30

60 x 60

69 68 65 64

74 71 70 67

76 73 73 71

79 76 76 72

80 76 77 74

Coefficients of Utilization

Effective floor cavity reflectance 20%

rc 80% 70% 50% 30% 10% 0%

rw 70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10 0

RCR

0

1

2

3

4

5

6

7

8

9

10

Zonal Lumen Summary

Zone Lumens %Lamp %Fixture

0-30

0-40

0-60

0-90

0-180

Candlepower

Angle Along II 45° Across ⊥

0

5

10

15

20

25

30

35

40

45

50

55

60

65

70

75

80

85

90

2EP3GX-IC-332S36I-

EB82

Electronic Ballast

F32T8/35K Lamps

3100 Lumens

Spacing criterion:

(II) 1.3 x mounting

height, (⊥) 1.5 x

mounting height

Efficiency 69.1%

Test Report:

2EP3-IC-332S36I

LER = FP-77

Yearly Cost of 1000

lumens, 3000 hrs at

.08 KWH = $3.11

2243 2243 2243

2246 2258 2275

2213 2263 2311

2160 2248 2340

2084 2215 2354

1992 2163 2342

1884 2089 2303

1762 1998 2231

1619 1880 2268

1463 1759 2080

1298 1619 1670

1120 1310 1244

921 891 1052

673 583 771

373 339 432

128 132 148

54 54 55

19 18 15

0 0 0

82 82 82 82 80 80 80 80 77 77 77 74 74 74 71 71 71 69

76 73 71 68 74 72 69 67 69 67 65 66 65 63 64 62 61 60

70 65 60 57 68 63 59 56 61 58 55 59 56 53 57 54 52 51

64 57 52 48 62 56 51 47 54 50 46 52 49 46 50 47 45 43

59 51 45 41 57 50 44 40 48 43 40 46 42 39 45 42 39 37

54 45 39 35 52 45 39 35 43 38 34 42 37 34 41 37 34 32

50 41 35 31 48 40 34 30 39 34 30 38 33 30 37 33 30 28

46 37 31 27 45 36 31 27 35 30 27 34 30 26 33 29 26 25

43 34 28 24 42 33 28 24 32 27 24 31 27 24 31 27 23 22

40 31 25 21 39 30 25 21 30 25 21 29 24 21 28 24 21 20

37 28 23 19 37 28 23 19 27 23 19 27 22 19 26 22 19 18

1850 19.9 28.8

3102 33.4 48.3

5569 59.9 86.6

6428 69.1 100.0

6428 69.1 100.0

Typical VCP Percentages

Height Along Height Across

Room Size (Ft.) 8.5’ 10.0’ 8.5’ 10.0’

20 x 20

30 x 30

30 x 60

60 x 30

60 x 60

69 68 65 64

74 71 70 67

76 73 73 71

79 76 76 72

80 76 77 74

ORDERING INFORMATION

SAMPLE NUMBER: 2EP3GAX-IC-332S36I-120V-EB81-U

Number

of Lamps

3=3 Lamps(3)

Wattage (Length)

28T8=28W T8 (48")

32=32W T8 (48")

Voltage (4)

120V=120 Volt

277V=277 Volt

347V=347 Volt

UNV=Universal

Voltage 120-277(5)

Louver Color

S=Silver

W=White

Cell Configuration

36=3 Rows of 6, 18 Cell

38=3 Rows of 8, 24 Cell

Louver Finish

I=Semi-Specular/Haze

(Low Iridescent)

Standard (Silver Only)

MI=Specular/Mirrored

(Low Iridescent) (Silver

Only)

P=Painted (White only)

Options

GL=Single Element

Fuse

GM=Double Element

Fuse

WTR=White Reveal

Flex=Flex Installed

(Reference Flex ordering

information)

EL=Emergency

Installed(6)

Lamps Installed

Blank=No Lamps

Installed

L8830=T8 Lamp, 28W

and 32W, 3000K

L8835=T8 Lamp, 28W

and 32W, 3500K

L8841=T8 Lamp, 28W

and 32W, 4100K

L8835HL=T8 Lamp,

32W, 3500K, 3100

Lumens

L8841HL=T8 Lamp,

32W, 4100K, 3100

Lumens

NOTES: (1) Integral end plate grid lock feature not available in heat removal. (2)An EQ Grid Clip is recommended for all 9/16"

ceiling systems. Four required per fixture. (3)Standard off-center ballast on 3-lamp fixtures. (4)Products also available in non-US

voltages and frequencies for international markets. (5)Not available when specifying emergencies, voltage must be specific.

(6)Fixtures equipped with “EL” option have 5-1/2" housing depth. (7)Louver is recessed by 5/16" in Concealed T or Slot Grid T.

(8)Specify row configuration, type in catalog number when ordering complete fixture.

For complete product data, reference the Fluorescent Specification binder. Specifications & dimensions subject to change without

notice. Consult your Cooper Lighting Representative for availability and ordering information.

Option – Aluminum Flange Trim(8)

Blank=SW (Single White)

Type Color

‘S’ Single ‘N’ Natural

‘R’ In Row ‘W’ White

‘E’ End of Row

ACCESSORIES

EQ-CLIP-U=T-BAR Safety

Earthquake Clips(2)

Ballast Type

EB8 =T8 Electronic Start.

Total Harmonic Distortion < 10%

EB8 /PLUS= T8 Electronic Start.

Total Harmonic Distortion < 10%

High Ballast Factor >1.15

ER8 =T8 Electronic Program Rapid Start.

Total Harmonic Distortion < 10%

High Performance T8 Ballasts

HB8 =T8 Electronic Instant Start. Total Harmonic Distortion < 10%.

Standard Ballast Factor .86 – .88

HB8 L=T8 Electronic Instant Start. Total Harmonic Distortion < 10%.

Low Ballast Factor .77 – .82

HB8 N=T8 Electronic Instant Start. Total Harmonic Distortion < 10%.

Normal Ballast Factor 1.0

HB8 H=T8 Electronic Instant Start. Total Harmonic Distortion < 10%.

High Ballast Factor 1.15 – 1.20

HR8 T8 Electronic Program Rapid Start. Total Harmonic Distortion < 10%.

Standard Ballast Factor .86 – .88

HR8 DIM=T8 Electronic Program Rapid Start. Total Harmonic Distortion < 10%.

Step Dimming. Ballast Factor .88

HR8 L=T8 Electronic Program Rapid Start. Total Harmonic Distortion < 10%.

Low Ballast Factor .71 – .79

HR8 H=T8 Electronic Program Rapid Start. Total Harmonic Distortion < 10%.

High Ballast Factor 1.15 – 1.20

No. of Ballast

1, 2 or 3

No. of

Ballast

1, 2 or 3

No. of Ballast

1, 2 or 3

Options

PAF=Painted

After Fabrication

RIF1=Radio

Interference

Suppressor

REP=Riveted

Endplates

Packaging

U=Unit Pack

PAL=Job Pack, out of carton

PALC=Job Pack, in carton

HR=Heat

Removal(1)

EP=Paralux Louver

Width

2=2' Width

Trim Type

G=Grid/Lay-in (Standard)

G=Concealed T/Slot Grid (7)

F=Aluminum Flange Trim (8)

MZ=Modular Trim

AX=Air Supply Floating Louver

X=Blank Side/Floating Louver -

Non-Air Supply (Omit A)

AVX=Air Supply Floating Louver

with Directional Air Vane (Add V)

3=3" Louver Depth

Rating

Blank=

Standard

ATW-SW4=

Chicago

Rated

IC=IC Rated

2EP3GAX-IC-332S36I 42 lbs.

2EP3GAX-IC-328T8S36I 42 lbs.

2EP3GAX-IC-332S38I 42 lbs.

2EP3GAX-IC-328T8S38I 42 lbs.

SHIPPING INFORMATION

Catalog No. Wt.
