4L-P-ID
MOD™ 4 LED Pendant Indirect/Direct
Quick Find litecontrol.com 4L-P-ID

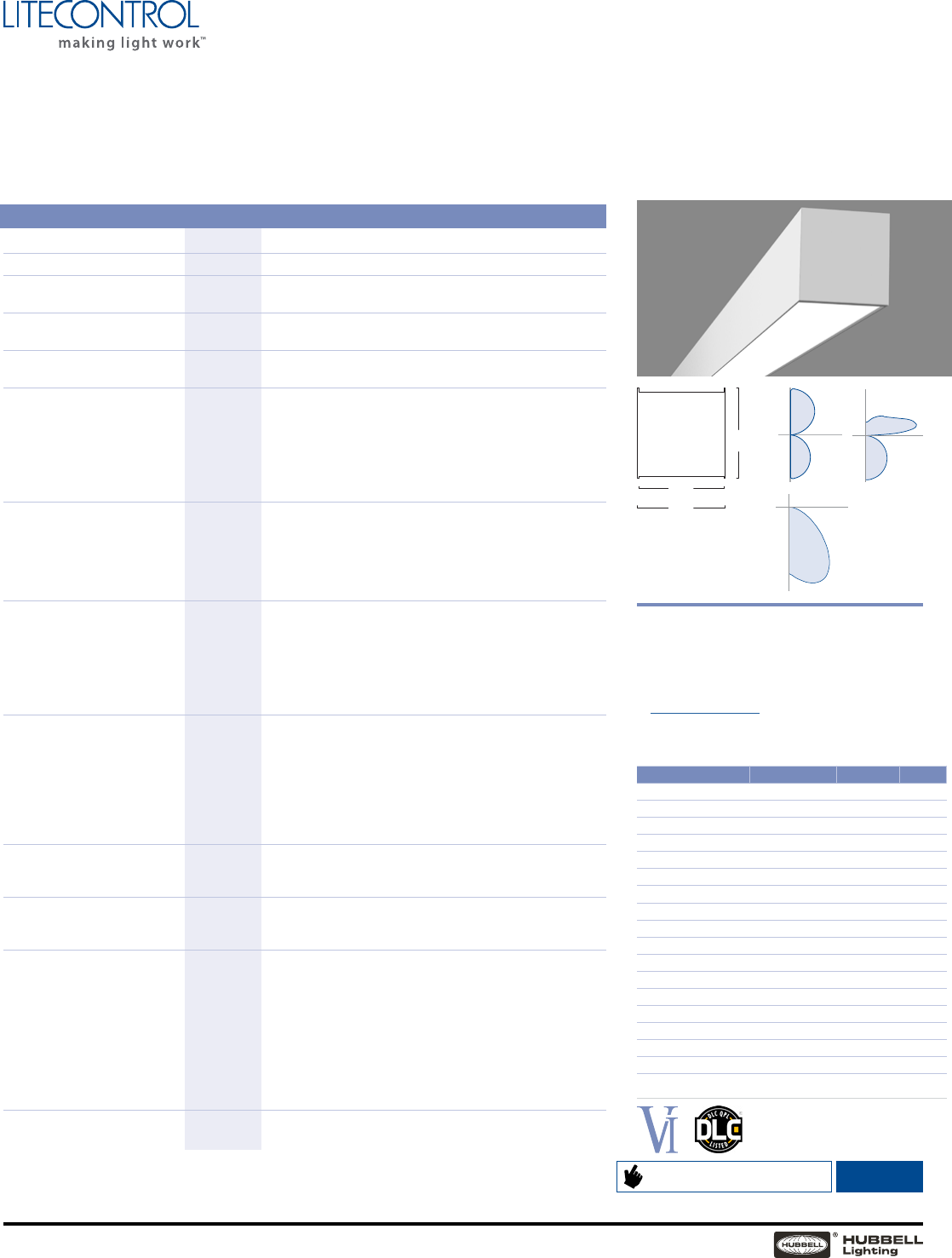

Ordering Guide
Fixture Type:
Project Name:
Feature Code Options Description
Series 4L MOD
Mounting P Pendant
Fixture distribution ID Indirect/Direct
IAD Indirect/asymmetric Direct
Uplight distribution STD Standard
LPA Low Peak Angle
Row length (in feet) ___’ Enter in foot increments.
Note xture lengths below.
Max length in row 02 2’, 609mm
03 3’, 914mm
04 4’, 1219mm
05 5’, 1524mm*
06 6’, 1829mm
08 8', 2438mm
*Not available for row mounting
Downlight diuser SOF Soft Diuse Lens
REG Regressed Diuse Lens*
BWO Blade Bae with Overlay*
ASYM Asymmetric Diuse Lens*/**
*Not Available with Patterns
**Must be ordered with AID
Finish/Color C1 Matte White (Default)
C2 Textured Matte White
C3 Light Silver
C4 Machined Aluminum
C5 Carbon Black
C6 Textured Camera Black
CC Custom Color
Color temperature 30K 3000K
35K 3500K
40K 4000K
2230TD 2200K-3000K SpectraSync™ Dim-to-Warm*
2750T 2700K-5000K SpectraSync™ Tunable White*
2765T 2700K-6500K SpectraSync™ Tunable White*
*Must be ordered with D05 Driver option;
excludes 2' and 3' lengths
Indirect output/ft I030 300 (not available in 2')
(speciable in I120 1200
50 lumens/ft increments)
Direct output/ft D030 300
(speciable in D110 110 0
50 lumens/ft increments)
Driver NDM Non Dimming
D10 10% Dimming, 0-10V
D05 5% Dimming, 0-10V
D01 1% Dimming, 0-10V*
LEC Hi-lume 1% EcoSystem LED driver
LHI Hi-lume 1% 3-wire LED driver
LTW Hi-lume 1% 2-wire LED driver(120V forward
phase only)
DALI DALI
*Contact Factory
Circuiting 1C 1 Circuit
2C 2 Circuit- Uplight/Downlight
Key Features
• Variable Intensity technology provides speciable
uplight and downlight light levels
• End cap design eliminates visible diuser seams/gaps
• 2 SDCM color variation
• DesignLights Consortium (DLC) qualied, see
www.designlights.org for specic product oerings
Performance
Nomenclature Lumens/ft W/ft Ecacy
Uplight (STD Distribution)
I030 (min) 300 2.4 126
I050 500 3.9 128
I075 750 6.0 126
I100 1000 8.2 123
I120 (max) 1200 10.1 119
Uplight (LPA Distribution)
I030 300 2.5 118
I050 500 4.2 119
I075 750 6.5 115
I100 1000 9.0 111
I120( max) 1200 11.2 107
Downlight
D030 (min) 300 2.9 104
D050 500 4.3 104
D075 750 7.4 101
D110 1100 10.2 98
(wattage may vary up to 5% from published)
4.25"
(108mm)
4.43”
(113mm)
4.5”
(114mm)
LED / 4L-P-IDPage 2/7 Rev. 10/10/17
© 2017 Litecontrol, a division of Hubbell Lighting, Inc. Specications subject to change without notice.
65 Spring Street Plympton, MA 02367 / Tel 781.294.0100 / Website www.litecontrol.com
4L-P-ID
MOD™ 4 LED Pendant Indirect/Direct
Quick Find litecontrol.com 4L-P-ID
Ordering Guide (continued)
Voltage UNV Universal Voltage
120 120 Volt
277 277 Volt
347 347 Volt*
*Excludes Emergency Battery Pack 'EF' Option.
Excludes DALI and Lutron (LTW/LHI/LEC)
Dimming Drivers
Suspension kit FA1 Suspension Kit, 51”
FA2 Suspension Kit, 87”
FA3 Suspension Kit, 219”
FA4 Suspension Kit, 363”
* Add sux /V to replace all 2" non-feed
canopy covers with 5" canopy covers.
FA1/V = 51" suspension kit w/ 5" canopies;
Stems (where applicable), canopies, and feed
cord are supplied in white regardless of xture
color unless otherwise specied
Optional Features Code Options Description
Nightlight _NL Nightlight Circuit Required. Enter quantity.
2NL = 2 nightlight circuits/row
Emergency ICP7 Emergency Battery. Integral-Iota CP-07.
Enter quantity.
Example: 2ICP7 = 2 Emergency batteries/row.
*Not available for 2' or 3'
Thru-wiring W1 No Thru Wire
W2 Provide Normal and Emergency Thru Wiring*
W3 Provide Normal Thru Wiring Only
*Only applicable when specied with emergency
Patterns PTRN Contact Factory for pattern congurations.
Approval drawings required. See page 5.
Sensors SD1 Daylight Sensor Required. Enter quantity.
2SD1=2 daylight sensors/row
SO1 Occupancy Sensor Required. Enter quantity.
2SO1=2 occupany sensors/row
Dust Cover L1 Clear Acrylic Dust Cover Lens
T-Bar Clips CB1 T-bar clip - 15/16"
CB2 T-bar clip - 9/16"
CB3 T-bar clip - 9/16" SS
*To be ordered with Luminaire Canopy Box, see
page 3 for details
LED / 4L-P-IDPage 3/7 Rev. 10/10/17
© 2017 Litecontrol, a division of Hubbell Lighting, Inc. Specications subject to change without notice.
65 Spring Street Plympton, MA 02367 / Tel 781.294.0100 / Website www.litecontrol.com
4L-P-ID
MOD™ 4 LED Pendant Indirect/Direct
Quick Find litecontrol.com 4L-P-ID
Output Exceptions
Value
Indirect
Output-
Total lm/ft
Indirect Drivers
I030 300
Excludes 2' xture lengths.
3' xture lengths: Excludes LEC, LHI, LTW, DALI Dimming Drivers, D01, and 347V
4' xture lengths: Excludes DALI Dimming Drivers, D01, and 347V
I035 350 Excludes 2' xture lengths.
3'-4' xture lengths: Excludes DALI Dimming Drivers, D01, and 347V
I040 400
2' xture lengths: Excludes LEC, LHI, LTW, DALI Dimming Drivers, D01, and 347V
3' xture lengths: Excludes DALI Dimming Drivers, D01, and 347V
4' xtures lengths: Excludes D01
I045 450 2' xture lengths: Excludes LEC, LHI, LTW, DALI Dimming Drivers, D01, and 347V
3' xture lengths: Excludes DALI Dimming Drivers, D01, and 347V
I050 500 2' xture lengths: Excludes LEC, LHI, LTW, DALI Dimming Drivers, D01, and 347V
3' xture lengths: Excludes D01
I055 550 2' xture lengths: Excludes DALI Dimming Drivers, D01, and 347V
I060 600 2' xture lengths: Excludes DALI Dimming Drivers, D01, and 347V
I065 650 2' xture lengths: Excludes DALI Dimming Drivers, D01, and 347V
I070 700 2' xture lengths: Excludes DALI Dimming Drivers, D01, and 347V
Value
Direct
Output-
Total lm/ft
Direct Drivers
D030 300
2' xture lengths: Excludes LEC, LHI, LTW, D01, DALI Dimming Drivers, and 347V
3' xture lengths: Excludes DALI Dimming Drivers, D01, and 347V
4' xture lengths: Excludes D01
D035 350 2' xture lengths: Excludes LEC, LHI, LTW, D01, DALI Dimming Drivers, and 347V
3' xture lengths: Excludes D01, DALI Dimming Drivers, and 347V
D040 400 2' xture lengths: Excludes LEC, LHI, LTW, D01, DALI Dimming Drivers, and 347V
3' xture lengths: Excludes D01
D045 450 2' xture lengths: Excludes DALI Dimming Drivers, D01, and 347V
3' xture lengths: Excludes D01
D050 500 2' xture lengths: Excludes D01, DALI Dimming Drivers, and 347V
D055 550 2' xture lengths: Excludes D01, DALI Dimming Drivers, and 347V
D060 600 2' xture lengths: Excludes D01
D065 650 2' xture lengths: Excludes D01
LED / 4L-P-IDPage 4/7 Rev. 10/10/17
© 2017 Litecontrol, a division of Hubbell Lighting, Inc. Specications subject to change without notice.
65 Spring Street Plympton, MA 02367 / Tel 781.294.0100 / Website www.litecontrol.com
4L-P-ID
MOD™ 4 LED Pendant Indirect/Direct
Quick Find litecontrol.com 4L-P-ID
Details
Construction:
Housing-extruded aluminum with extruded aluminum end headers.
End caps- Die cast aluminum with magnetic interface. Overlaps diuser at
each xture end to elimate gaps/ LED visibility
Downlight diuser:
SOF-Soft diuse acrylic lens.
REG- Regressed softglo lens with painted steel inserts. Ouput multiplier (.77").
BWO- White blade bae with softglo lens overlay. Ouput multiplier (.70").
ASYM- Highly transmissive diuse acrylic lens with linear prisms
3', 4', 6', & 8' lengths available.
Finish/Color:
Visit www.litecontrol.com/nishes for details.
CCT:
30K-3000K output multiplier (.975)
35K-3500K output multiplier (1.0)
40K-4000K output multiplier (1.05)
Color Variation:
2 step MacAdam ellipse
Output (VI technology):
Variable Intensity (VI) technology allows precise specication of xture
output/wattage. Fixture will be programmed and labeled to specication.
Indirect and direct hemispheres can be independently specied. Specify
each in 50 lumen increments/ft within the below range:
Lumens/ft Nomenclature
Direct
Min: 300 D030
Ma x: 1100 D110
Indirect
Min: 300 D030
Max: 1200 D120
Field Accessibility:
LED boards and drivers can be accessed and removed from xture, while
installed. LED boards can be replaced either individually or as part of 2'
module.
Circuiting:
1C (1 Circuit) Fixture wired for a single circuit.
2C (2 Circuit uplight/downlight) Uplight and downlight switched/ dimmed
separately. Two power feeds required.
Driver:
NDM: Non-dimming. Fixture will be wired for xed light output.
D10: 100%-10% dimming range. Fixture will be wired for low voltage
0-10V dimming control.
D01: 100%-1% dimming range. Fixture will be wired for low voltage
0-10V dimming control. Contact factory.
D05: Osram 5% Dimming, 0-10V. Only option if either 2230TD, 2750T or
2765T is selected.
LEC: 100 %- 1% dimming range. Lutron Ecosystem compatible using
Lutron A-Series driver.
LHI: 100%-1% dimming range. Lutron Hi-Lume 3 wire dimming
compatible using Lutron A-Series driver.
LTW: Lutron Hi-Lume 2-Wire dimming using Lutron A-Series driver.
DALI: DALI compatible.
*See driver limitations in Output section above.
Suspension Kit:
3/64” diameter eld-adjustable aircraft cable. Ship separately. Suspension
required at every row joint. Low prole cable gripper limits visibility while
providing maximum horizontal balance adjustment.
Canopy covers:
Non-feed-2” diameter (unless 5” non-feed cover is specied).
Feed cord:
4-wire, 7 amps max; 5-wire, 5 amps max.
Nightlight:
See separate LC-Nightlight spec sheet for additional details.
Emergency:
Inverter-Compatible. Provided by others.
Integral-IOTA CP7
See separate LC-Emergency spec sheet for additional details.
Thru wiring:
See separate LC-Thruwire spec sheet for additional details.
Sensors:
Daylight sensor(Wattstopper part #FD301. Installs between diusers.
Occupancy sensor(Wattstopper FS-305 with FS-L6 lens). Installs between
diusers.
See separate LC-Controls spec sheet for additional details.
Luminaire Canopy Box:
See separate LC instructions for additional details
*For use with Grid Ceilings only
T-Bar Clips:
See separate LC instructions for additional details
*For use with Grid Ceilings only

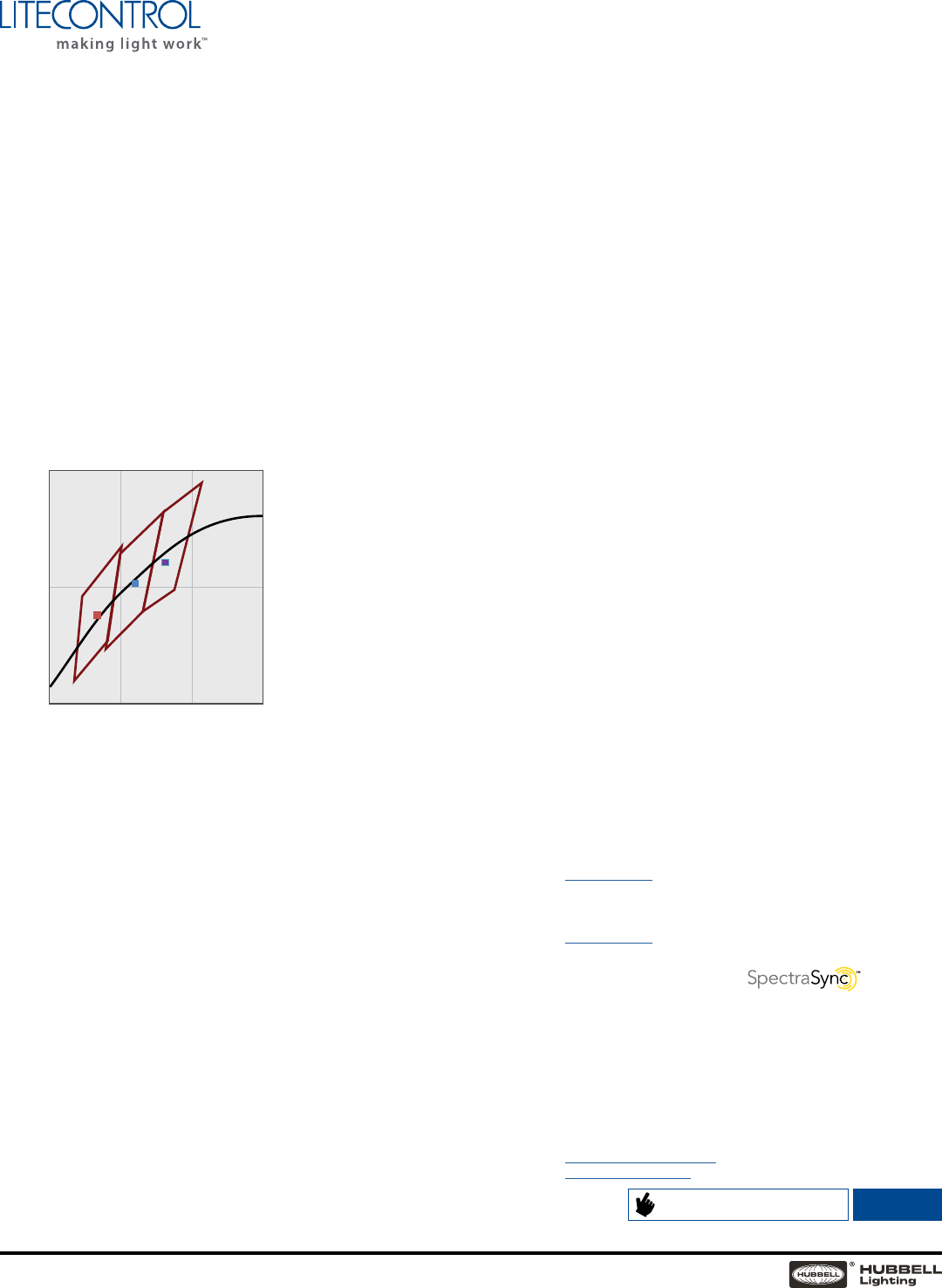

SpectraSync™ Color Tuning Technology:
Control your space based on the needs of the application, specic activities
throughout the day and preferences of the occupants with two distinct
SpectraSync™ Color Tuning Technology.
Dim to Warm: Dim to Warm mimics the familiar warming eect that
occurs with traditional incandescent sources as they are
dimmed. (Available with 2200K-3000K).
Tunable White: Tunable White oers users the ability to tailor CCT to
their personal preference, enhancing task visibility,
material and colors or the aesthetics of the space.
(Available with 2700K-5000K or 2700K-6500K).
See separate SpectraSync™ Tech Sheet for additional details.
See separate NX™ Solutions Guide for additional details.
Y
.35
.40
0.43
X
.35 .40 .45 .50
ANSI 4000K
ANSI 3500K
ANSI 3000K
Color Tuning Technology
LED / 4L-P-IDPage 5/7 Rev. 10/10/17
© 2017 Litecontrol, a division of Hubbell Lighting, Inc. Specications subject to change without notice.
65 Spring Street Plympton, MA 02367 / Tel 781.294.0100 / Website www.litecontrol.com
4L-P-ID
MOD™ 4 LED Pendant Indirect/Direct
Quick Find litecontrol.com 4L-P-ID
Details (continued)
Dust cover:
Clear acrylic lens with magnetic interface.
System Connectors:
90° corners available. One piece construction, ready to install, with diusers
that match adjoining xtures. Corner system connectors must be used to
form patterns. The length of each outside or inside lighted 90° corner is 12".
Rated Life (LED Board):
Tested in accordance to LM79-2008 & derived from EPA TM-21 calculator
L70: 280,000 (calculated per TM-21 extrapolated curve)
L70: >61,000 (reported per TM-21/LM80 6x’s limitation)
L90: 72,000 (calculated per TM-21 extrapolated curve)
L90: >61,000 (reported per TM-21/LM80 6x's limitation)

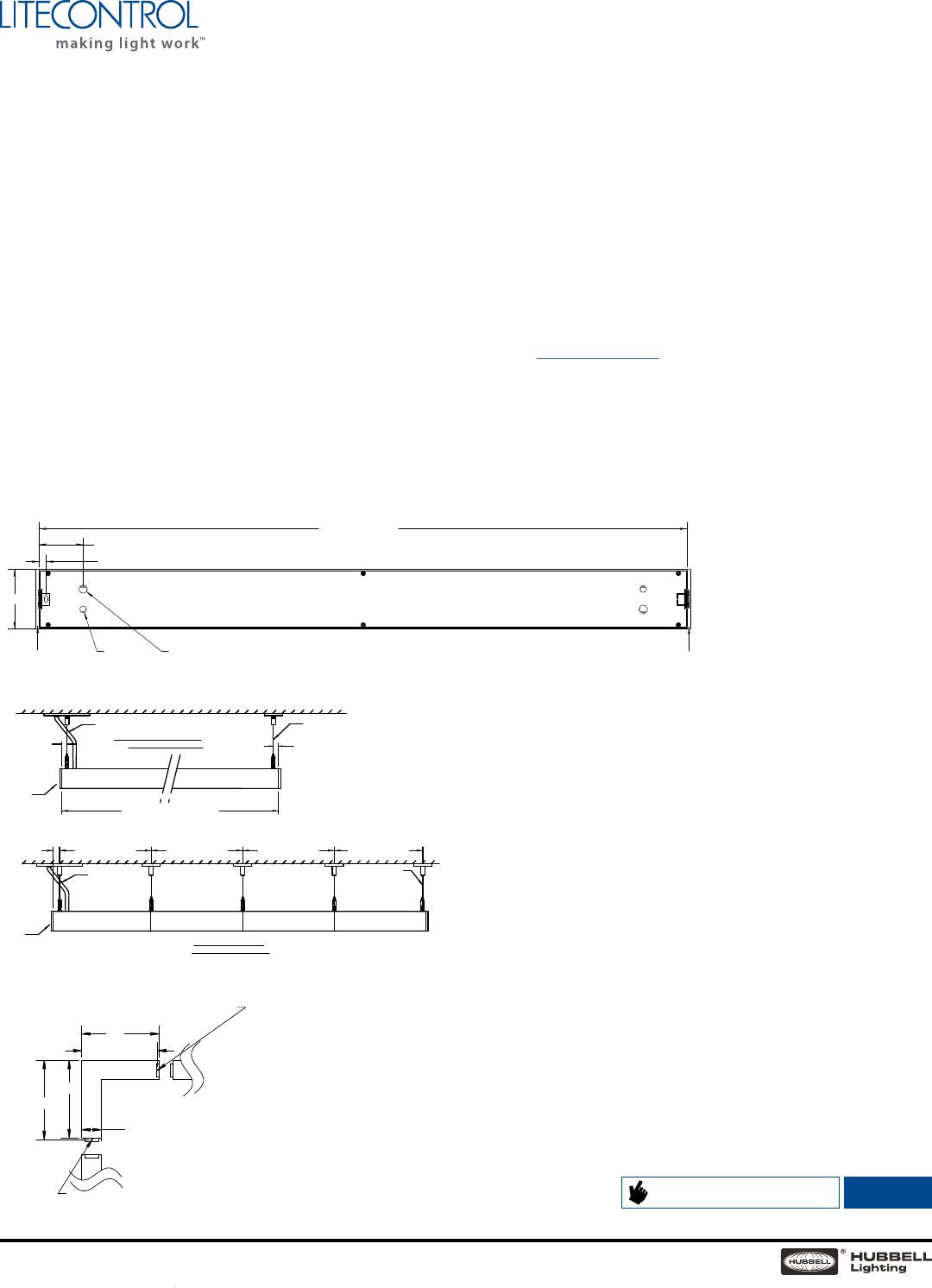

Planning for installation :
Suspension Mounting Locations
Pendant locations at ends of rows (or individual xtures) are 3/8" from
xture ends. Pendant attachment allows for horizontal adjustment to "ne-
tune" side-to-side leveling.
Individual Mounting:
Row Mounting:
Patterns:
Rated Life (Driver):
Standard = 100,000 hours
Lutron = 50,000 hours
Fixture weight:
3 lbs/ft.
Ratings:
CSA listed for damp locations. IBEW. AF of L.
Warranty:
5 years. See www.litecontrol.com for details.
D
C
B
A
B
C
D
2
3
4
5
6
7
8
87654321
1
A
SCALE: 1:4
SHEET 1 OF 1
4L-P
ANGULAR: DECIMAL:
± 1 °
.XX
±
.01 .XXX
± .005
UNLESS OTHERWISE SPECIFIED:
DIMENSIONS ARE IN INCHES
THIRD ANGLE PROJECTION
65 SPRING STREET PLYMPTON, MA 02367
CONFIDENTIAL - THIS PRINT IS THE PROPERTY OF LITECONTROL CORP AND IS
LOANED ON CONDITION THAT IT WILL NOT BE USED IN ANY WAY DETRIMENTAL
TO OUR INTERESTS AND IS SUBJECT TO RETURN UPON DEMAND.
DESCRIPTION
DRAWN MATERIAL
APPROVED FINISH
SIZE DWG. NO. REV
INITIAL ECN:
B
PART NUMBER: 4L-P-D-04 4'
FIXTURE LENGTH +1/2”
3 1/4"
1/2"
1/2" KO 5/8" KO
4 7/16"
1/4" 1/4"
SIDE VIEW - INDIVIDUAL MOUNTED
PENDANT MOUNTED FIXTURE
SIDE VIEW - ROW MOUNTED
PENDANT MOUNTED FIXTURES
DO NOT MODIFY OR ALTER THIS PRODUCT IN ANY WAY, OR INSTALL IN ANY FASHION
WHICH IS CONTRARY TO THE INSTRUCTIONS CONTAINED HEREIN.
IF YOU HAVE ANY QUESTIONS REGARDING THIS PRODUCT OR THE INSTALLATION OF IT,
PLEASE CALL LITECONTROL ENGINEERING AT 781-294-0100.
LITECONTROL
P/C
PG. OF
FORM B520140-4
FIXTURE TYPE_______
INSTRUCTIONS
INSTALLATION
FAI/ACC/F FAI/ACC
END CAP
1
FAI/ACC/F FAI/ACC
END CAP
24",36",48",60",72",96"
1/2"
1/2"
FIXTURE LENGTH
MINUS 1/2"
FIXTURE LENGTH FIXTURE LENGTH FIXTURE LENGTH
MINUS 1/2"
1/2"
2
P-D & S-D-0200
FIXTURE ASSEMBLY
510531-3000
FIXTURE
AT END OF ROW
FIXTURE
AT END OF ROW
INT FIXTURE INT FIXTURE
SIDE VIEW - INDIVIDUAL MOUNTED
PENDANT MOUNTED FIXTURE
SIDE VIEW - ROW MOUNTED
PENDANT MOUNTED FIXTURES
DO NOT MODIFY OR ALTER THIS PRODUCT IN ANY WAY, OR INSTALL IN ANY FASHION
WHICH IS CONTRARY TO THE INSTRUCTIONS CONTAINED HEREIN.
IF YOU HAVE ANY QUESTIONS REGARDING THIS PRODUCT OR THE INSTALLATION OF IT,
PLEASE CALL LITECONTROL ENGINEERING AT 781-294-0100.
LITECONTROL
P/C
PG. OF
FORM B520140-4
FIXTURE TYPE_______
INSTRUCTIONS
INSTALLATION
FAI/ACC/F FAI/ACC
END CAP
1
FAI/ACC/F FAI/ACC
END CAP
24",36",48",60",72",96"
1/2"
1/2"
FIXTURE LENGTH
MINUS 1/2"
FIXTURE LENGTH FIXTURE LENGTH FIXTURE LENGTH
MINUS 1/2"
1/2"
2
P-D & S-D-0200
FIXTURE ASSEMBLY
510531-3000
FIXTURE
AT END OF ROW
FIXTURE
AT END OF ROW
INT FIXTURE INT FIXTURE
12
12
3 3/16" (3L)
4 7/16" (4L)
6 7/16" (6L)
11 21/32"
12 11/32"
12
12
3 3/16" (3L)
4 7/16" (4L)
6 7/16" (6L)
2 5/16"
SCREW DIRECTION LABEL
suspension cable location on male end
suspension cable location on female end
surface mount location
on the linear xture
male end of row
female end of row
12
12
3 3/16" (3L)
4 7/16" (4L)
6 7/16" (6L)
11 21/32"
12 11/32"
12
12
3 3/16" (3L)
4 7/16" (4L)
6 7/16" (6L)
2 5/16"
LED / 4L-P-IDPage 6/7 Rev. 10/10/17
© 2017 Litecontrol, a division of Hubbell Lighting, Inc. Specications subject to change without notice.
65 Spring Street Plympton, MA 02367 / Tel 781.294.0100 / Website www.litecontrol.com
4L-P-ID
MOD™ 4 LED Pendant Indirect/Direct
Quick Find litecontrol.com 4L-P-ID

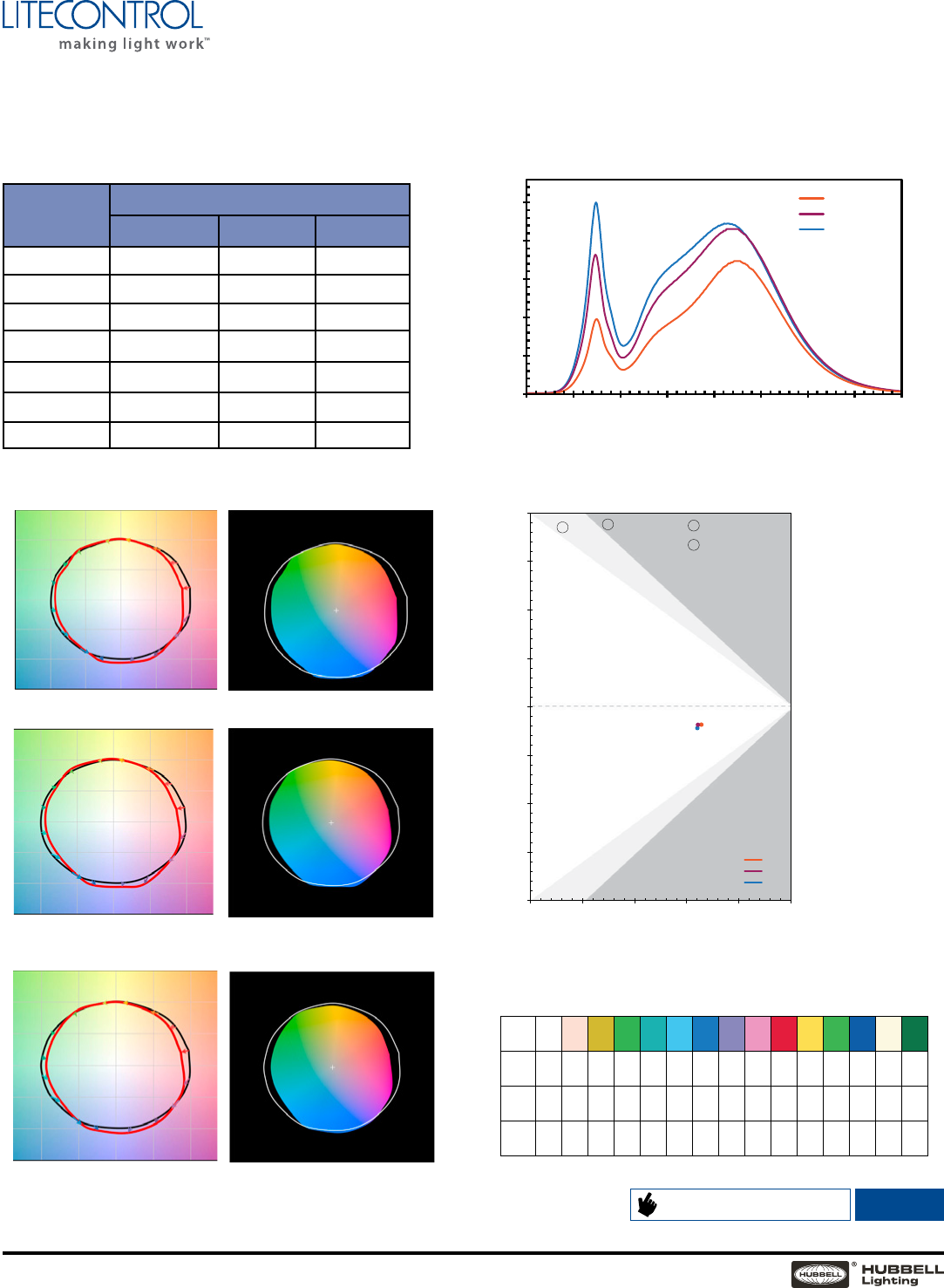

Color Characteristics:
Color Vector Graphic:
30K:
35K:
40K:
Spectral Distribution:
Color Gamut/Fidelity Plot
CRI:
80 minimum
Value Ordering Code
30K 35K 40K
Rf 83 82 82
Rg 96 96 96
CCT (K) 3009 3494 3975
Duv -0.0009 -0.0004 -0.0003
x 0.435 0.4052 0.3814
y 0.4012 0.3898 0.3768
CIE Ra 83 83 84
CCT CRI R1 R2 R3 R4 R5 R6 R7 R8 R9 R10 R11 R12 R13 R14
30K 83 82 91 97 81 82 89 84 62 13 79 79 69 84 99
35K 83 81 89 95 81 81 85 86 65 13 73 79 62 83 97
40K 84 82 90 94 82 82 85 87 68 17 74 80 60 84 97
Details (continued)
Relative Power
30K
35K
40K
Wavelength (nm)
0%
20%
40%
60%
80%
100%
380 430 480 530 580 630 680 730 780
SPECTRAL POWER DISTRIBUTION COMPARISON
60
70
80
90
100
110
120
130
140
50 60 70 80 90 100
Gamut Index, Rg
Fidelity Index, Rf
121
2
Approx. limits for sources on
the Planckian locus.
Approx. limits for practical
light sources.
Rf-RgPlot
30K
35K
40K
Relative Power
30K
35K
40K
Wavelength (nm)
0%
20%
40%
60%
80%
100%
380 430 480 530 580 630 680 730 780
SPECTRAL POWER DISTRIBUTION COMPARISON
60
70
80
90
100
110
120
130
140
50 60 70 80 90 100
Gamut Index, Rg
Fidelity Index, R
f
121
2
Approx. limits for sources on
the Planckian locus.
Approx. limits for practical
light sources.
Rf-RgPlot
30K
35K
40K
LED / 4L-P-IDPage 7/7 Rev. 10/10/17
© 2017 Litecontrol, a division of Hubbell Lighting, Inc. Specications subject to change without notice.
65 Spring Street Plympton, MA 02367 / Tel 781.294.0100 / Website www.litecontrol.com
4L-P-ID
MOD™ 4 LED Pendant Indirect/Direct
Quick Find litecontrol.com 4L-P-ID

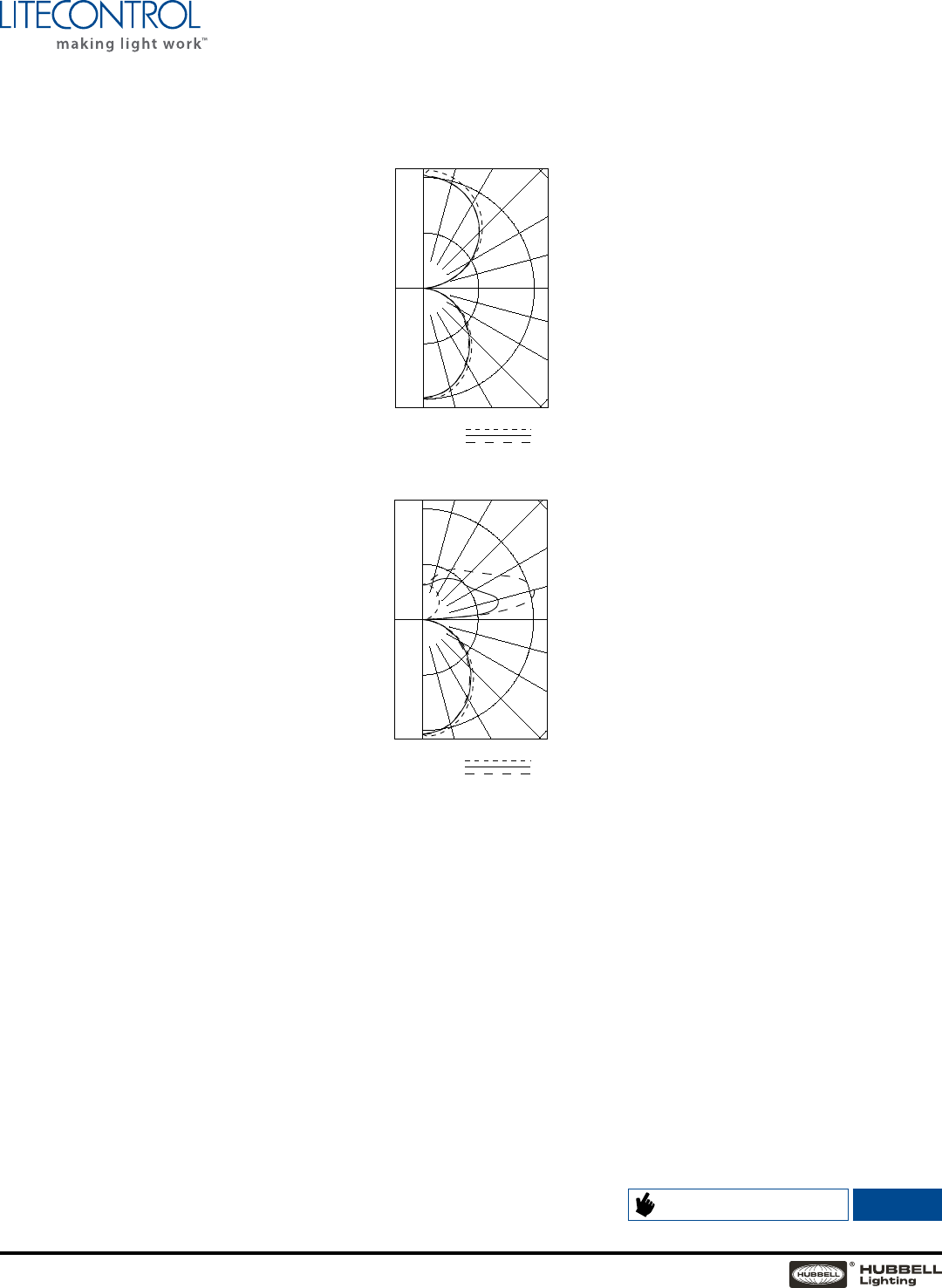

Photometry
Fixture: 4L-P-ID-XX-XX-SOF-CX-35K-I100-D100
CCT: 3500K
Output: I100/D100
Nominal lumens: 2000 lumens/ft
Efficacy: 109 lm/W
Test report: 4L-P-ID-STD-04-SOF-CX-35K-I100-D100.IES
701 Millennium Blvd
Greenville, SC 29607
www.hubbelllighting.com NVLAP LAB CODE: 201003-0
®
THIS REPORT IS BASED ON PUBLISHED INDUSTRY PROCEDURES. FIELD PERFORMANCE MAY DIFFER FROM LABORATORY PERFORMANCE.
REPORT NUMBER: 16.00103 PAGE: 3 OF 8
ISSUE DATE: 02/16/16
PREPARED FOR: LITECONTROL
CATALOG NUMBER: 4L-P-ID-STD-4-04-SOF-IND-C1-35K-I160/D133
LUMINAIRE: 4"x4' white extruded aluminum housing. STD up-light
reflector with single row of LEDs & STD down-light
reflector with 2 rows of LEDs
LAMP CAT. NO.: 757DRT-V1
LAMP: 282- Nichia 3500K LEDs
BALLAST CAT. NO.: OT50W/PRG1400D/UNV/DIM/L
BALLAST: 2- OSRAM - Programmed to: Up-Light 1400mA, Down-Light 1400mA
REFLECTOR: Up-light: PPW, Down-light: PPO
REFRACTOR: White Acrylic
MOUNTING: Pendant
NOTE: DATA SHOWN IS ABSOLUTE FOR THE SAMPLE PROVIDED.
CANDELA DISTRIBUTION FLUX
0.0 22.5 45.0 67.5 90.0
0 2077 2077 2077 2077 2077
5 2105 2059 2049 2064 2064 196
15 2004 1960 1946 1956 1949 552
25 1818 1774 1755 1754 1745 813
35 1567 1527 1502 1490 1477 944
45 1273 1244 1215 1196 1183 942
55 958 941 918 899 889 822
65 640 633 616 598 589 609
75 328 327 319 312 305 339
85 67 74 76 76 74 89
90 0 2 2 2 2
95 77 88 87 89 85 107
105 440 432 432 434 434 459
115 850 843 833 832 821 825
125 1245 1201 1196 1193 1185 1073
135 1579 1513 1494 1495 1491 1164
145 1835 1762 1742 1744 1742 1100
155 2033 1948 1928 1932 1928 898
165 2166 2072 2049 2061 2054 585
175 2232 2137 2113 2125 2119 203
180 2146 2146 2146 2146 2146
ZONAL LUMEN SUMMARY
ZONE LUMENS %FIXT
0- 30 1561 13.3
0- 40 2505 21.4
0- 60 4270 36.4
0- 90 5306 45.3
90-120 1391 11.9
90-130 2464 21.0
90-150 4729 40.3
90-180 6415 54.7
0-180 11721 100.0
TOTAL INPUT WATTS = 115.9
EFFICACY = 101.1 Lm/W
CIE TYPE - DIRECT-INDIRECT
PLANE : 0-DEG 90-DEG
SPACING CRITERIA : 1.2 1.2
LEGEND:
0-deg:
45-deg:
90-deg:
1050
2100
1050
2100
0˚ 15˚ 30˚ 45˚
60˚
75˚
90˚
180˚ 165˚ 150˚ 135˚
120˚
105˚
90˚
Zonal Lumens
Zone Lumens Lamp %
0-40 1885.8 23.6%
0-60 3214.6 40.2%
0-90 4000.1 50.0%
90-180 3998.6 50.0%
0-180 7998.7 100.0%
Fixture: 4L-P-ID-XX-XX-SOF-CX-35K-I100-D100
CCT: 3500K
Output: I100/D100
Nominal lumens: 2000 lumens/ft
Efficacy: 104 lm/W
Test report: 4L-P-ID-LPA-04-SOF-CX-35K-I100-D100.IES
701 Millennium Blvd
Greenville, SC 29607
www.hubbelllighting.com NVLAP LAB CODE: 201003-0
®
THIS REPORT IS BASED ON PUBLISHED INDUSTRY PROCEDURES. FIELD PERFORMANCE MAY DIFFER FROM LABORATORY PERFORMANCE.
REPORT NUMBER: 16.00107 PAGE: 3 OF 10
ISSUE DATE: 02/25/16
PREPARED FOR: Litecontrol
CATALOG NUMBER: 4L-P-ID-LPA-4-04-SOF-IND-C1-35K-I147/D133
LUMINAIRE: 4"x4" white extruded aluminum housing. LPA uplight reflector
with Stucco, with two row, vertically mounted facing each other
LED board and direct reflector with 2 row LED board.
LAMP CAT. NO.: 757DRT-V1
LAMP: 384- Nichia 3500K LEDs
BALLAST CAT. NO.: OT50W/PRG1400D/UNV/DIM/L
*(SEE PAGE 4 FOR MORE INFORMATION)*
CANDELA DISTRIBUTION FLUX
0.0 22.5 45.0 67.5 90.0
0 2068 2068 2068 2068 2068
5 2098 2051 2040 2056 2056 195
15 1998 1953 1945 1953 1940 551
25 1815 1777 1748 1746 1731 811
35 1568 1528 1493 1482 1462 941
45 1274 1247 1210 1192 1174 939
55 970 939 915 894 874 821
65 644 637 614 598 579 609
75 332 333 322 311 298 340
85 72 79 80 77 73 92
90 2 6 5 5 2
95 41 551 1000 1132 1154 722
105 125 649 1401 1901 2078 1315
115 221 626 1180 1637 1816 1111
125 325 654 1026 1328 1439 876
135 421 666 979 1156 1225 703
145 505 660 901 1068 1122 540
155 572 639 809 927 964 365
165 619 634 692 768 788 200
175 639 632 631 640 641 61
180 628 628 628 628 628
ZONAL LUMEN SUMMARY
ZONE LUMENS %FIXT
0- 30 1557 13.9
0- 40 2498 22.3
0- 60 4258 38.0
0- 90 5299 47.3
90-120 3149 28.1
90-130 4025 36.0
90-150 5267 47.1
90-180 5893 52.7
0-180 11192 100.0
TOTAL INPUT WATTS = 113.0
EFFICACY = 99.0 Lm/W
CIE TYPE - DIRECT-INDIRECT
PLANE : 0-DEG 90-DEG
SPACING CRITERIA : 1.2 1.2
LEGEND:
0-deg:
45-deg:
90-deg:
1000
2000
1000
2000
0˚ 15˚ 30˚ 45˚
60˚
75˚
90˚
180˚ 165˚ 150˚ 135˚
120˚
105˚
90˚
Zonal Lumens
Zone Lumens Lamp %
0-40 1885.8 23.6%
0-60 3214.6 40.2%
0-90 4000.1 50.0%
90-180 3999.9 50.0%
0-180 7999.9 100.0%
