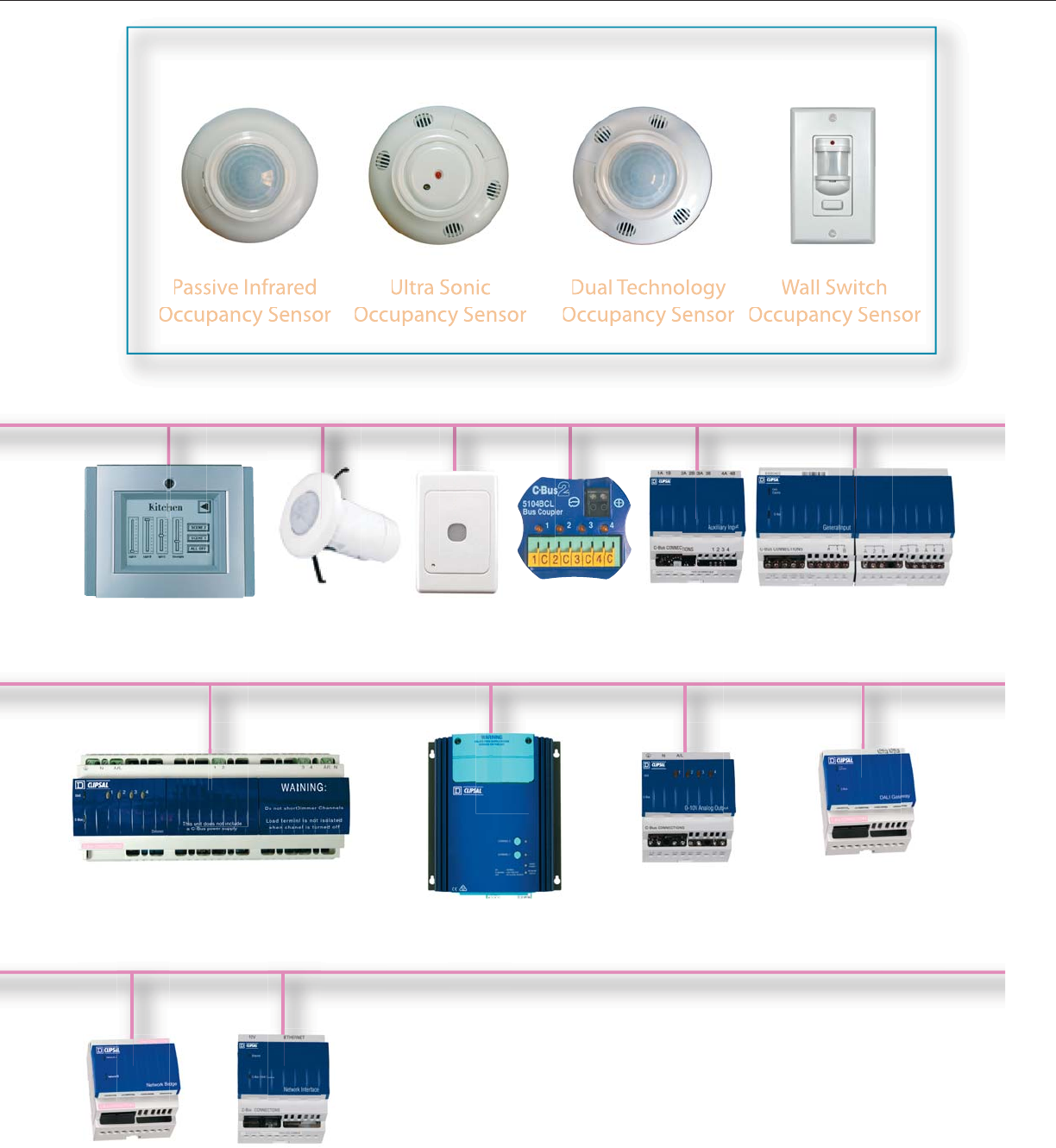

Introduction to

Occupancy Sensors

Square D® occupancy sensors help building owners achieve energy savings and energy code compliance with sensors that are easy to select, install and commission.

Employing passive infrared (PIR), ultrasonic and dual technology to accurately detect occupancy and control lighting loads, Square D occupancy sensors automatically

shuto lighting in unoccupied areas – eliminating waste, reducing energy costs, and meeting code requirements.

Square D innovations help building owners not only comply with energy codes, but they also maximize energy savings.

• Integral light level sensors maximize energy savings in day-lit areas by holding o arti cial lighting when adequate natural light is available.

• Walk-through mode detects brief periods of occupancy in private o ces, allowing the sensor to shuto lighting with less time delay.

• Lamp Saver mode alternates the A and B loads in rooms using 50/50 bi-level lighting control to maximize lamp life and reduce maintenance.

• Isolated relays may be used to communicate with other control systems, such as building automation and energy management systems that control other building

systems, like HVAC and lighting, to further maximize energy savings.

Square D makes lighting control easy with a full line of versatile occupancy sensors that are easy to select, install and commission. For most applications, the sensors may be

installed right out of the box with no adjustment. When adjustment is needed, adjustments are simple to understand and easy to access, making commissioning a breeze.

Square D occupancy sensors were designed to interface with other systems, including Powerlink® and Clipsal® Lighting Control Systems, using normally-open and normally-

closed contacts. As lighting control needs change and more sophisticated lighting control is desired, Square D occupancy sensors interface with other systems to maximize

energy savings and enhance occupant satisfaction.

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com

SQUARE D® OCCUPANCY SENSORS | WALL SWITCH OCCUPANCY SENSORS

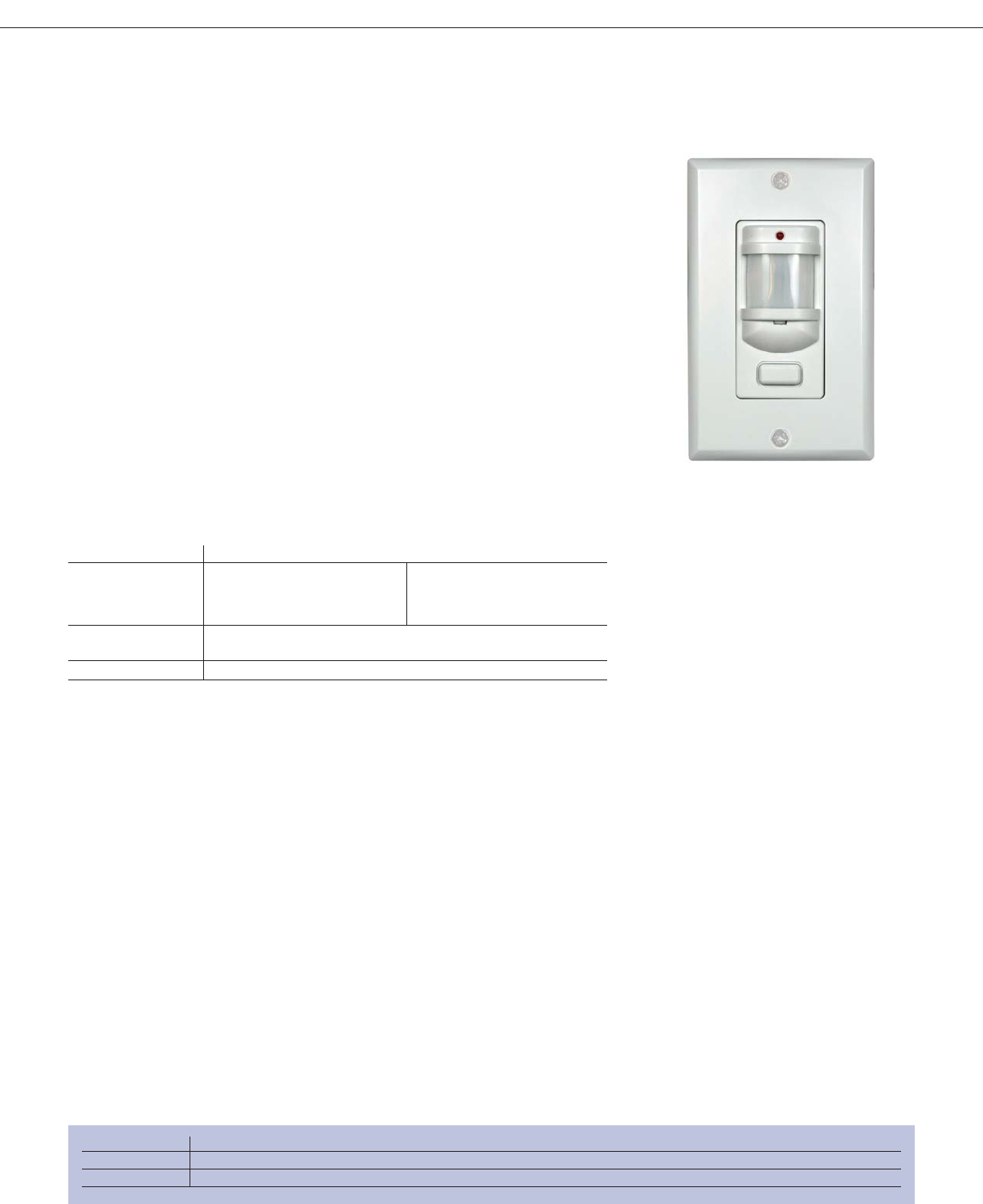

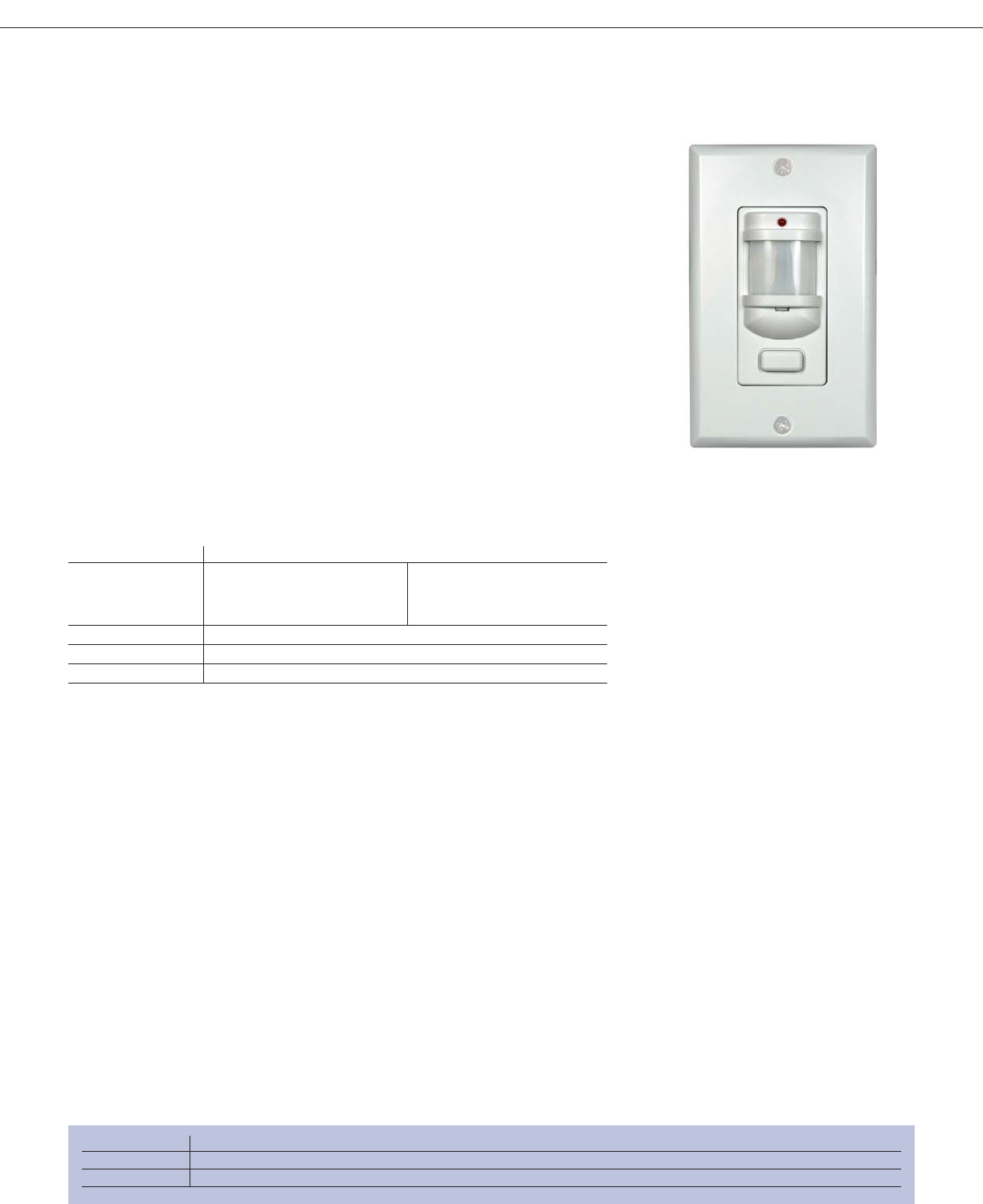

Square D® Wall Switch Occupancy Sensor

Square D® Wall Switch Occupancy Sensors employ the latest passive infrared (PIR) technology to automatically control

lighting in o ces, private restrooms and employee break rooms.

Each Sensor employs a special 180° multi-segmented lens and PIR motion detector circuit to detect motion. This unit

will automatically switch the lights o after a preset delay if no motion is detected.

The Square D Wall Switch Occupancy Sensor  ts in place of existing wall switches, connecting to existing active line and

ground wiring similar to a typical wall switch. No neutral or minimum load is required.

To assure long relay life, Square D has developed a low energy switch circuit to assure maximum contact life. These

sensors are compatible with electronic and magnetic ballast loads, and require no minimum load.

CATALOG NUMBER DESCRIPTION

SLSPWS1277AI Wall Switch Occupancy Sensor (ivory)

SLSPWS1277AW Wall Switch Occupancy Sensor (white)

Wall Switch Replacement Occupancy Sensor

PRODUCT FEATURES

• Available in white and ivory with matching decorator wall

plate cover

• Auto On / Auto O

• Manual bypass

• 120 or 277Vac input (no neutral required)

• No power pack required

• No minimum load

• 180°  eld of view (Up to 1000 sq. ft.)

• User adjustable time delay from 15 sec - 30 minutes

• Red LED motion indicator blinks to indicate motion detection

• Suitable for use on all electronic and magnetic ballasts

• Furnished with (3) x 6 inch external wires (pig tails)

• UL and cUL Listed

• Five-year warranty

TECHNICAL INFORMATION

Input 120 or 277Vac 60 Hz

Output 120Vac 277Vac

1000 W max. incandescent load

1000 VA max. ballast load 1800 VA max. ballast load

¼ hp max. motor load

Operating Temperature 32 - 122° F (0 - 50°C)

Humidity 90% max. relative humidity non-condensing

Standards UL and cUL Listed FCC Part 15, Home and O ce Use (Class B) Title 24 Certi ed

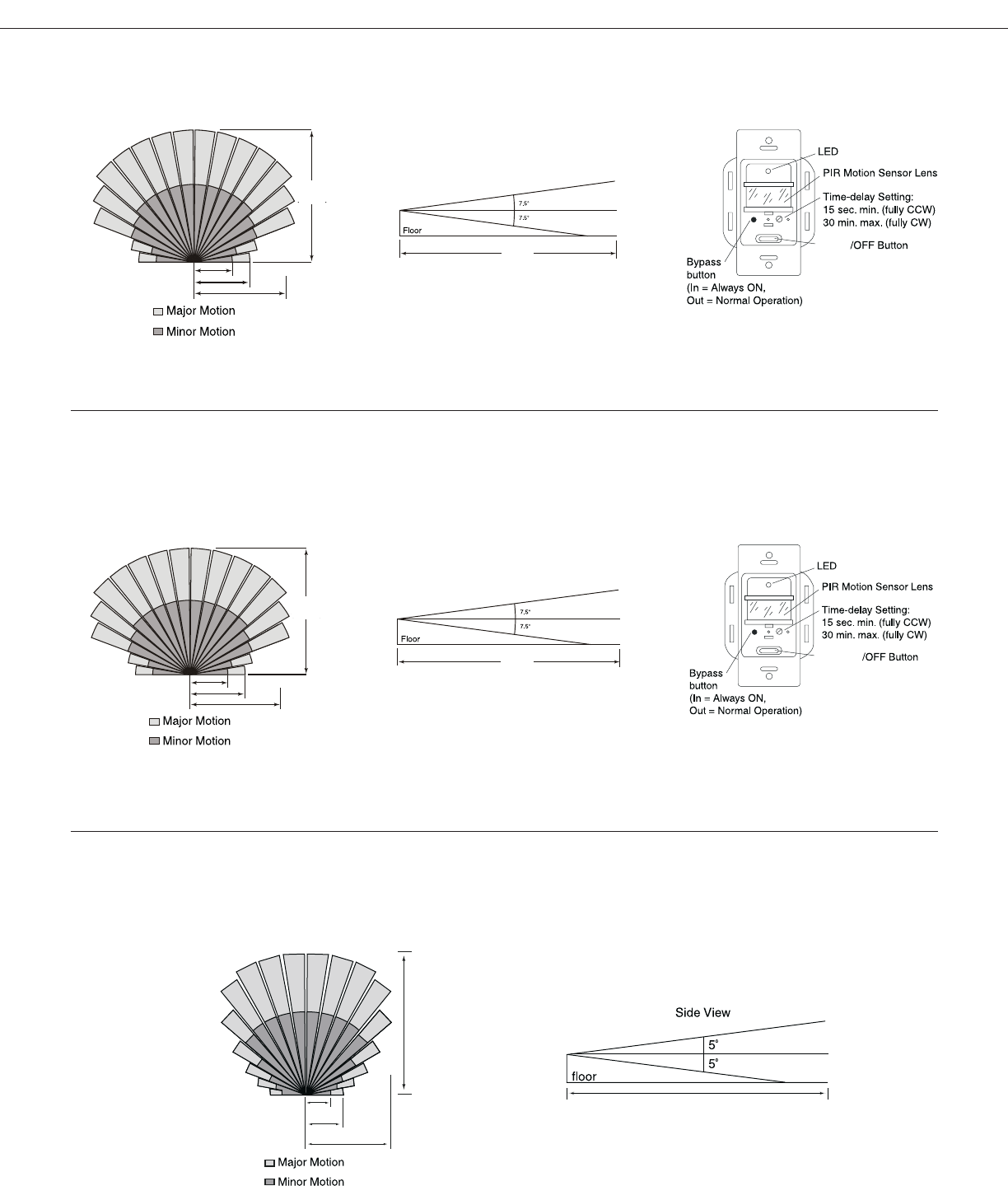

*For Diagram see technical section page 10

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com

SQUARE D® OCCUPANCY SENSORS | WALL SWITCH OCCUPANCY SENSORS

Square D® Wall Switch Occupancy Sensor With Manual On

Square D® Wall Switch Occupancy Sensor with Manual-On employs the latest passive infrared (PIR) technology to

automatically control lighting in o ces, employee break rooms and utility rooms.

For maximum energy savings, the Square D Wall Switch Occupancy Sensor with Manual-On requires the user to

switch on lighting manually by pressing the button on the front. Employing a special 180° multi-segmented lens and

PIR motion sensor, the sensor reliably detects occupancy to keep lights on while the room is occupied. This unit will

automatically switch the lights o after a pre-set delay if no motion is detected.

The Square D Wall Switch Occupancy Sensor is easy to install. Connecting to existing active line and ground wiring

similar to a typical wall switch, the Wall Switch Occupancy Sensor is the simplest way to achieve energy-saving lighting

control with minimal installation time.

To assure long relay life, Square D has developed a low energy switch circuit to assure maximum contact life. These

sensors are compatible with electronic and magnetic ballast loads, and require no minimum load.

CATALOG NUMBER DESCRIPTION

SLSPWS1277MW Wall Switch Occupancy Sensor With Manual On (white)

SLSPWS1277MI Wall Switch Occupancy Sensor With Manual On (ivory)

TECHNICAL INFORMATION

Input 120 or 277Vac 60 Hz

Output 120Vac 277Vac

1000 W max. incandescent load

1000 VA max. ballast load 1800 VA max. ballast load

¼ hp max. motor load

Operating Temperature 32 - 122° F (0 - 50°C)

Humidity 90% max. relative humidity non-condensing

Standards UL and cUL Listed FCC Part 15, Home and O ce Use (Class B) Title 24 Certi ed

*For Diagram see technical section page 10

Wall Switch Replacement Occupancy Sensor

with Manual On

PRODUCT FEATURES

• Available in white and ivory with matching decorator wall

plate cover

• Manual On / Auto O

• Manual bypass

• 120 or 277Vac input (no neutral required)

• No power pack required

• No minimum load

• 180°  eld of view (Up to 1000 sq. ft.)

• User adjustable time delay from 15 sec. - 30 minutes

• Red LED motion indicator blinks to indicate motion detection

• Suitable for use on all electronic and magnetic ballasts

• Furnished with (3) 6 inch external wires (pig tails)

• UL and cUL Listed

• Five-year warranty

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com

SQUARE D® OCCUPANCY SENSORS | WALL SWITCH OCCUPANCY SENSORS

Single Circuit Wall Switch Occupancy Sensor

The Square D® Single Circuit PIR Wall Switch Occupancy Sensor with Light Level features passive infrared (PIR)

technology to conveniently control lighting in o ces, private bathrooms, utility rooms and employee break rooms. Low

pro le sensor available in white, ivory, gray, light almond and black with color-matched segmented lens to meet any

décor need.

Light Level Sensor Mode: Each sensor includes an adjustable light level sensor to hold o arti cial lighting when

adequate natural light is present. When natural light levels drop below the threshold, the sensor will turn on arti cial

lighting in occupied spaces.

Walk-Through Mode: To maximize energy savings and reduce waste, the sensor detects when areas are brie y

occupied as a result of an occupant walking through and turns o lighting based on a shorter time delay.

The sensor does not require a neutral connection or minimum load, making it great for retro ts. Easily replaces an

existing wall switch using existing wiring – no wiring modi cations required. Matching wall switch cover plate makes

retro ts clean and simple.

Square D® Commercial Grade PIR Single Circuit

Wall Switch Occupancy Sensor

CATALOG NUMBER DESCRIPTION

SLSPWS1277UW White

SLSPWS1277UI Ivory

SLSPWS1277UG Gray

SLSPWS1277UL Light Almond

SLSPWS1277UB Black

PRODUCT FEATURES

• Available in white, ivory, gray, light almond and black

with matching wall switch cover plate

• Color matching multi-segmented lens

• Selectable auto-on and manual-on modes

• 120-277Vac 50/60Hz input

• 180°  eld of view

• 1000 sq. ft. major motion and 300 sq. ft. minor

motion coverage area

• Light level sensor

• Walk-through mode

• Adjustable light level, time delay and sensitivity

• Red LED motion indicator

• For use with electronic and magnetic ballasts

• No neutral connection, minimum load or power pack required

• UL and cUL Listed for United States and Canada

• Test mode (15 second time delay)

• Five-year warranty

TECHNICAL INFORMATION

Input 120-277Vac +/-10% 50/60 Hz

Output 120Vac 277Vac

1000 W max. tungsten

incandescent load

¼ hp max. motor load 277Vac

1000 VA max. ballast load 1800 VA max. ballast load

Operating Temperature 32 - 122° F (0 - 50°C)

Humidity 0 - 90% RH Non-condensing

Time Delay Adjustment

Normal 0.5 - 30 minutes

Walk Through Mode 2 minutes if no activity is detected after 30 seconds

Test Mode 15 seconds

Light Level adjustment 0.5 - 250 FC

Detection 180° passive infrared (PIR)

Audible Alert Selectable

Service Switch OFF / Auto / ON

Manual Operation Pushbutton ON/OFF

Lens Impact Resistant

Relay Switching 0° +/- 500uS

Standards UL and cUL Listed FCC Part 15, Home and O ce Use (Class B) Title 24 Certi ed

*For Diagram see technical section page 10

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com

SQUARE D® OCCUPANCY SENSORS | WALL SWITCH OCCUPANCY SENSORS

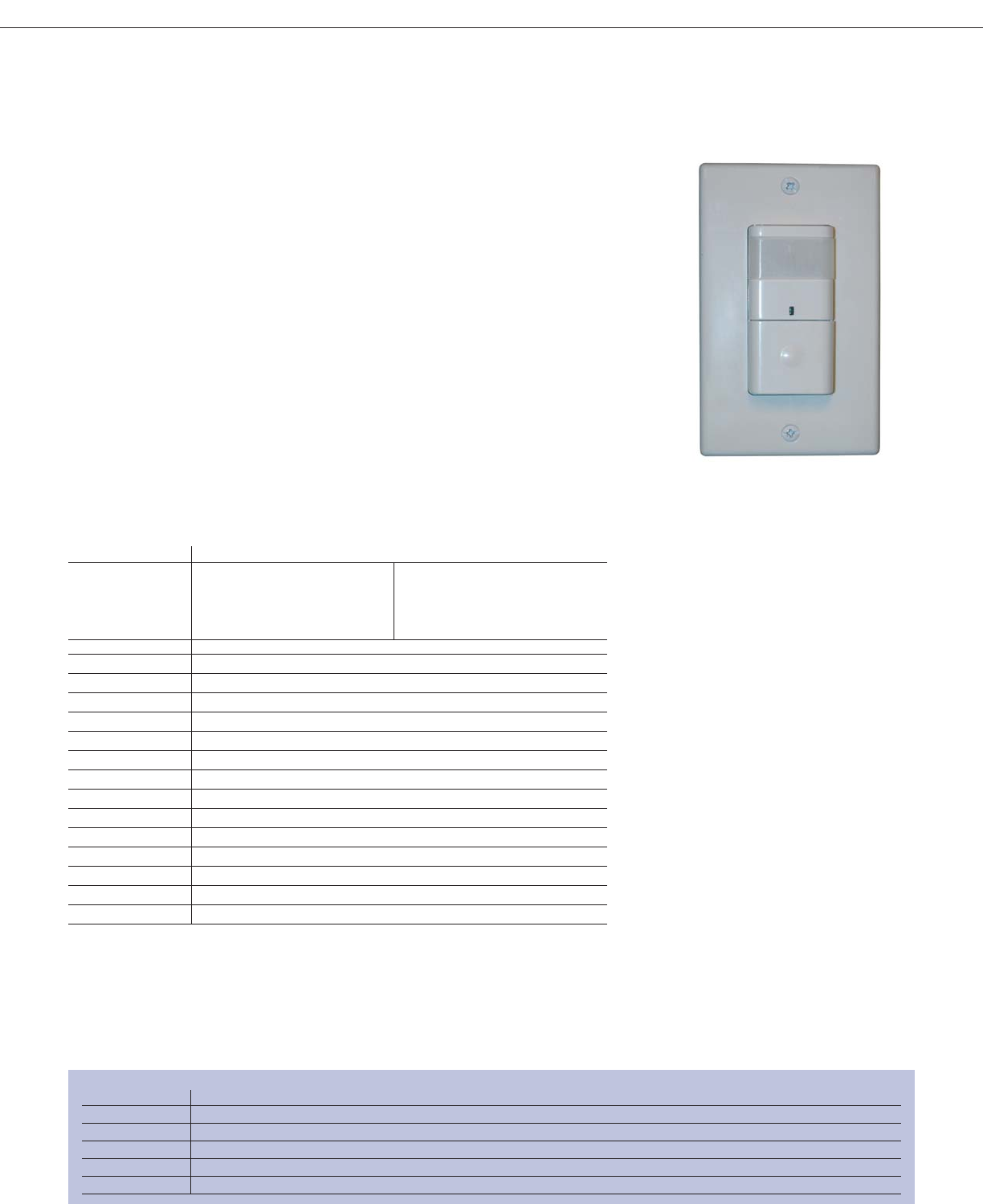

Dual Circuit Wall Switch Occupancy Sensor

TECHNICAL INFORMATION

Input 120-277Vac 50/60 Hz

Output 120Vac 277Vac

1000 W max. incandescent load

1000 VA max. ballast load 1800 VA max. ballast load

¼ hp max. motor load

Operating Temperature 32 - 122° F (0 - 50°C)

Humidity 90% max. RH Non-condensing

Standards UL and cUL Listed FCC Part 15, Home and O ce Use (Class B) Title 24 Certi ed

*For Diagram see technical section page 10

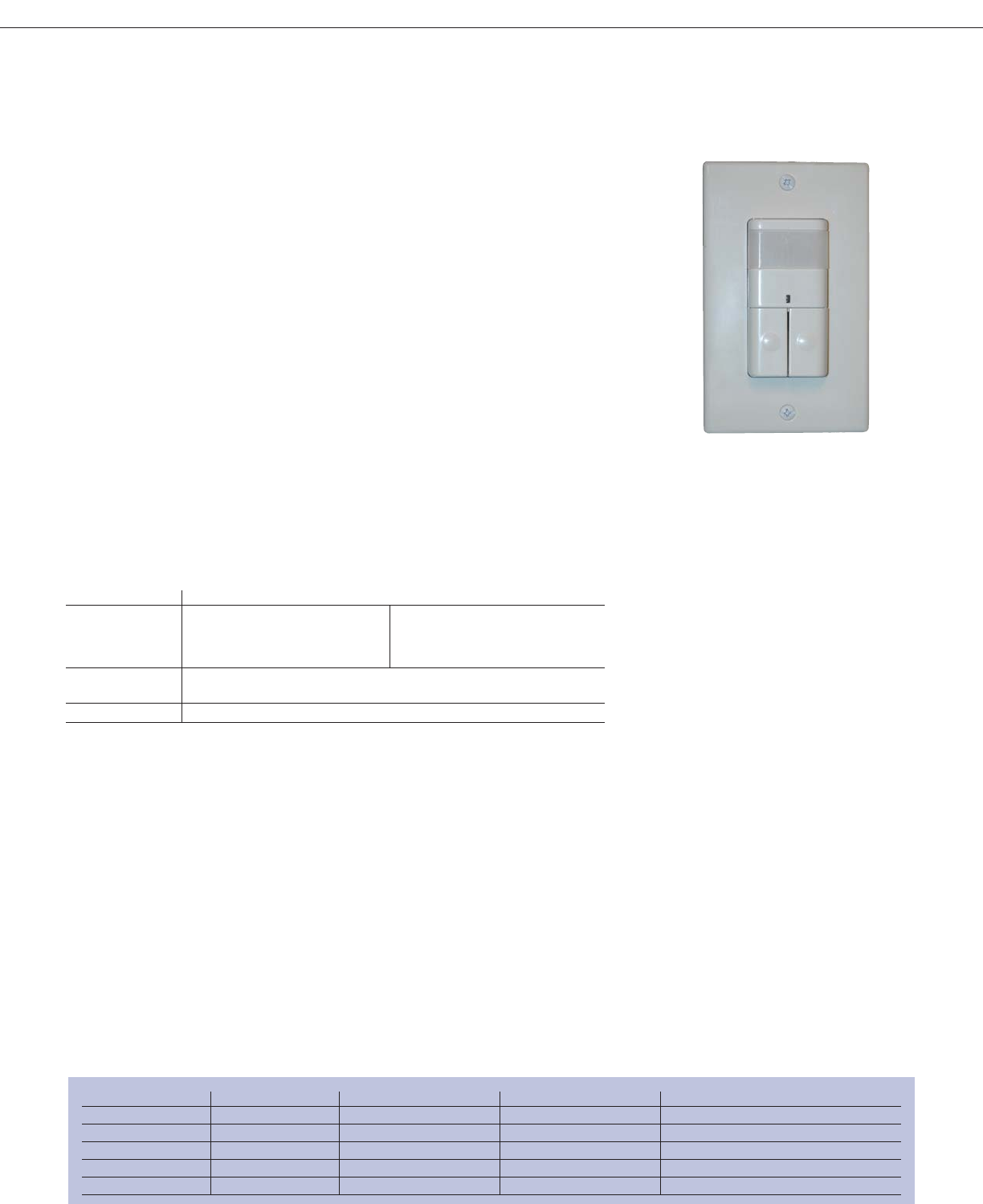

Square D® Dual Circuit Wall Switch Occupancy Sensors independently control two lighting circuits with bi-level switching

to reduce lighting by 50% which may be required by energy codes. The dual circuit wall switch occupancy sensor

employs passive infrared (PIR) technology and a 180 degree segmented lens to achieve minor motion coverage up to

300 square feet (27.87 sq. meters) to reliably control lighting in o ces, conference rooms and employee break rooms.

Light Level Sensor Mode: Each sensor includes an adjustable light level sensor to hold o arti cial lighting when

adequate natural light is present. When natural light levels drop below the threshold, the sensor will turn on arti cial

lighting in occupied spaces.

Walk-Through Mode: To maximize energy savings, the sensor detects when areas are brie y occupied as a result of a

person walking through and turns o lighting based on a shorter time delay.

Lamp Saver Mode: When the lamp saver feature is enabled, the sensor automatically alternates which circuit

responds to motion. The result is more predictable lamp life and reduced maintenance.

The sensor easily replaces two wall switches using existing wiring with no wiring modi cations required. Optional

2-gang wall switch cover plates available in matching colors.

CATALOG NUMBER DESCRIPTION BLANK CATALOG NUMBER TOGGLE CATALOG NUMBER DESCRIPTION

SLSPWD1277UW White SLSPWP2DBW SLSPWP2DTW White

SLSPWD1277UI Ivory SLSPWP2DBI SLSPWP2DTI Ivory

SLSPWD1277UG Gray SLSPWP2DBG SLSPWP2DTG Gray

SLSPWD1277UL Light Almond SLSPWP2DBL SLSPWP2DTL Light Almond

SLSPWD1277UB Black SLSPWP2DBB SLSPWP2DTB Black

Square D® Commercial Grade PIR Dual Circuit

Wall Switch Occupancy Sensor

PRODUCT FEATURES

• Available in white, ivory, gray, light almond and black

with matching wall switch cover plate

• Color matching multi-segmented lens

• Selectable auto-on and manual-on modes

• 120-277Vac 50/60Hz input

• 180°  eld of view

• 1000 sq. ft. major motion and 300 sq. ft. minor

motion coverage area

• Light level sensor

• Walk-through mode

• Adjustable light level, time delay and sensitivity

• Red LED motion indicator

• For use with electronic and magnetic ballasts

• No neutral connection, minimum load or power pack required

• UL and cUL Listed for United States and Canada

• Test mode (15 second time delay)

• Five-year warranty

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com

SQUARE D® OCCUPANCY SENSORS | CEILING MOUNTED OCCUPANCY SENSORS

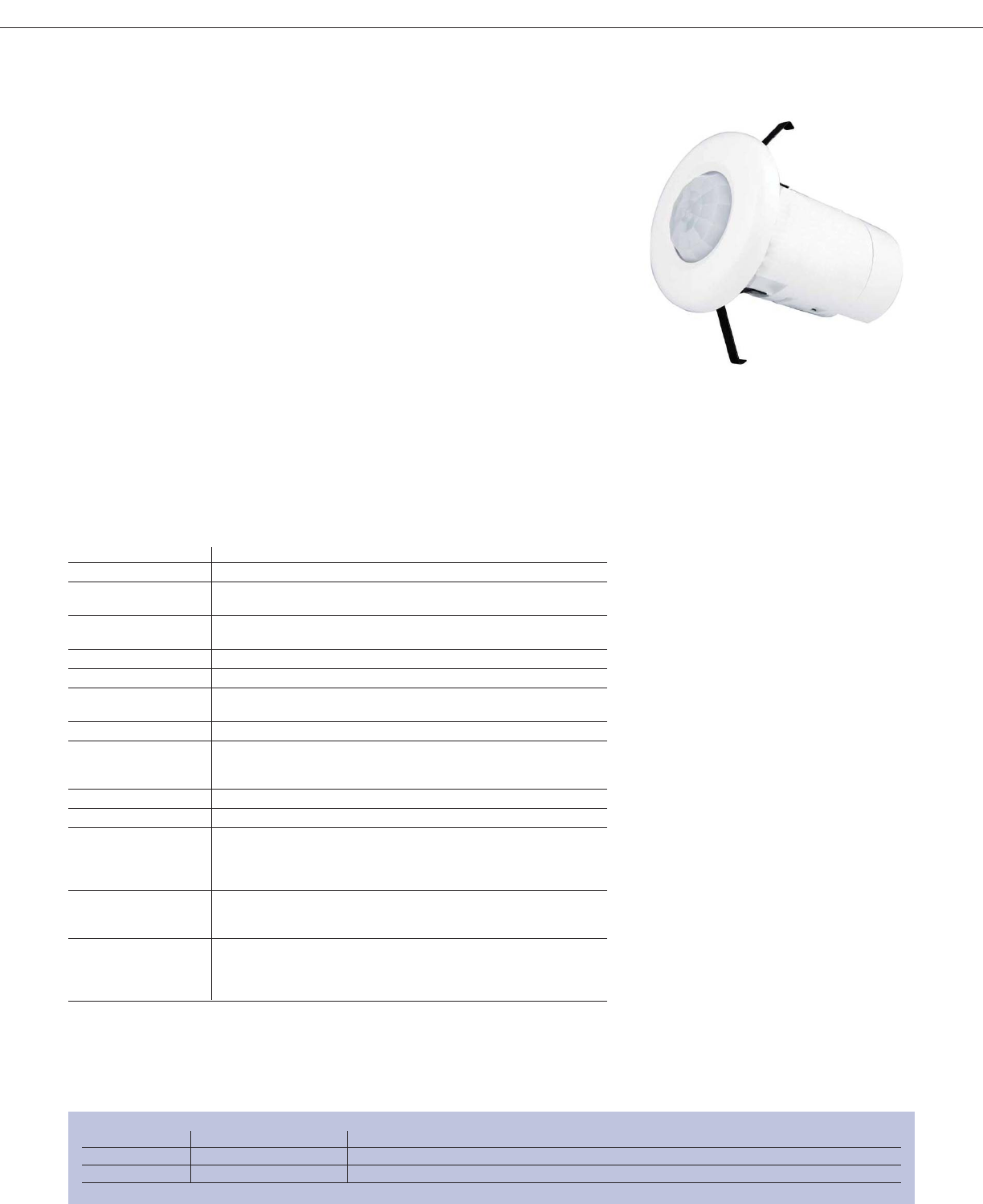

Square D® Ceiling Mounted PIR Occupancy Sensor

Square D® Ceiling Mounted Passive Infrared (PIR) Occupancy Sensor accurately detects occupancy and automatically

switches lighting on and o as needed. This low pro le sensor is ceiling mounted for superior motion detection.

With a 360 degree  eld of view and up to 1000 square feet (92.90 sq. meters) of coverage area, the Square D Ceiling

Mounted PIR Occupancy Sensor is ideal for o ces, break rooms and copier rooms.

Ceiling mount sensors also incorporate an integral light level sensor to prevent lighting from switching On when

su cient ambient light is present, such as is commonly found in windowed areas.

Installation and con guration is simple. The sensor readily mounts to drop ceilings and features front located

adjustments for setting sensitivity and time delay. Features an isolated relay for use with building automation, security

and HVAC systems.

CATALOG NUMBER DESCRIPTION

SLSCPS1000 Ceiling Mounted PIR Occupancy Sensor

SLSPP1277 Power Pack (required)

SLSSP24 Auxiliary Relay

TECHNICAL INFORMATION

Current Consumption @ 24Vdc 21mA Nominal

Supply Voltage 24Vdc or 24Vac

Isolated Relay 1A @ 24Vdc Resistive

Operating Temperature 32 - 122° F (0 - 50°C)

Max. Humidity 90% RH Non-condensing

Standards UL and cUL Listed FCC Part 15, Home and O ce Use (Class B) Title 24 Certi ed

*For Diagram see technical section page 11

PRODUCT FEATURES

• 1000 sq. ft. (92.90 sq. meters) coverage area

• 24Vac for use with BAS systems

• 360 degree  eld of view

• Light Level Sensing (from 0.5 to 250 foot-candles)

• Adjustable Time Delay (pre-set time delays from 15 seconds

(test) to 30 minutes)

• Adjustable Sensitivity (from 60 to 100%)

• Isolated Relay (1A at 24Vdc NO and NC Form C Relay)

• Red LED Motion Indicator

• Adjustment compartment cover equipped with retention clip

• UL/cUL Listed

• Manual Bypass

• Five-year warranty

Ceiling Mounted PIR Occupancy Sensor

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com

SQUARE D® OCCUPANCY SENSORS | CEILING MOUNTED OCCUPANCY SENSORS

Square D® Ceiling Mounted Ultrasonic Occupancy Sensor

The Square D® Ceiling Mounted Ultrasonic Occupancy Sensor accurately detects occupancy and automatically switches

lighting On and O as needed. This low pro le sensor is ceiling mounted for superior motion detection over partitions

and other common obstructions.

With a 360 degree  eld of view and up to 2000 square feet (185.8 sq. meters) of coverage area, the Square D Ceiling

Mounted Ultrasonic Occupancy Sensor is ideal for storage rooms, multi-stalled bathrooms and open o ce areas.

Ceiling mount sensors also incorporate an integral light level sensor to prevent lighting from switching On when

su cient ambient light is present, such as is commonly found in windowed areas.

Installation and con guration is simple. The sensor readily mounts to drop ceilings and features front located

adjustments for setting sensitivity and time delay. Features an isolated relay for use with building automation, security

and HVAC systems.

TECHNICAL INFORMATION

Current Consumption @ 24Vdc1 34mA Nominal (125mA maximum)

Supply Voltage 24Vdc or 24Vac

Isolated Relay 1A @ 24Vdc Resistive

OperatingTemperature 32 - 122° F (0 - 50°C)

Max. Humidity 90% RH Non-condensing

Standards UL and cUL Listed FCC Part 15, Home and O ce Use (Class B) Title 24 Certi ed

*For Diagram see technical section page 11

CATALOG NUMBER DESCRIPTION

SLSCUS2000 Ceiling Mounted Ultrasonic Occupancy Sensor

SLSPP1277 Power Pack (required)

SLSSP24 Auxiliary Relay

PRODUCT FEATURES

• 2000 sq. ft. (185.8 sq. meters) coverage area

• 360 degree  eld of view

• 24Vac input for use with building automation systems

• Light Level Sensing (from 0.5 to 250 foot-candles)

• Adjustable Time Delay (pre-set time delays from 15 seconds

(test) to 30 minutes)

• Adjustable Sensitivity (from 60 to 100%)

• Isolated Relay (1A at 24Vdc NO and NC Form C Relay)

• Red LED Motion Indicator

• Adjustment compartment cover equipped with retention clip

• UL/cUL Listed

• Manual Bypass

• Five-year warranty

Ceiling Mounted Ultrasonic Occupancy Sensor

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com

SQUARE D® OCCUPANCY SENSORS | CEILING MOUNTED OCCUPANCY SENSORS

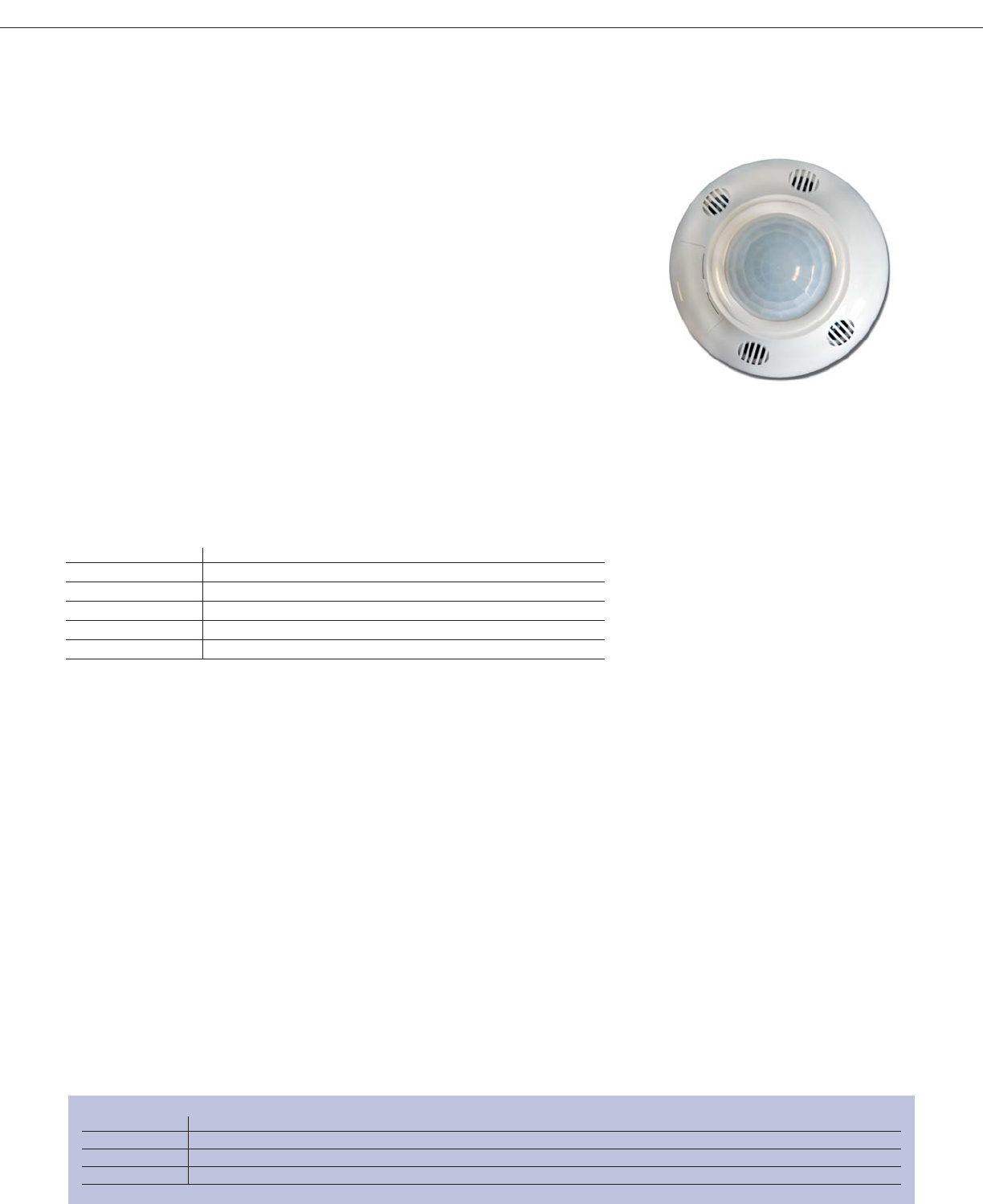

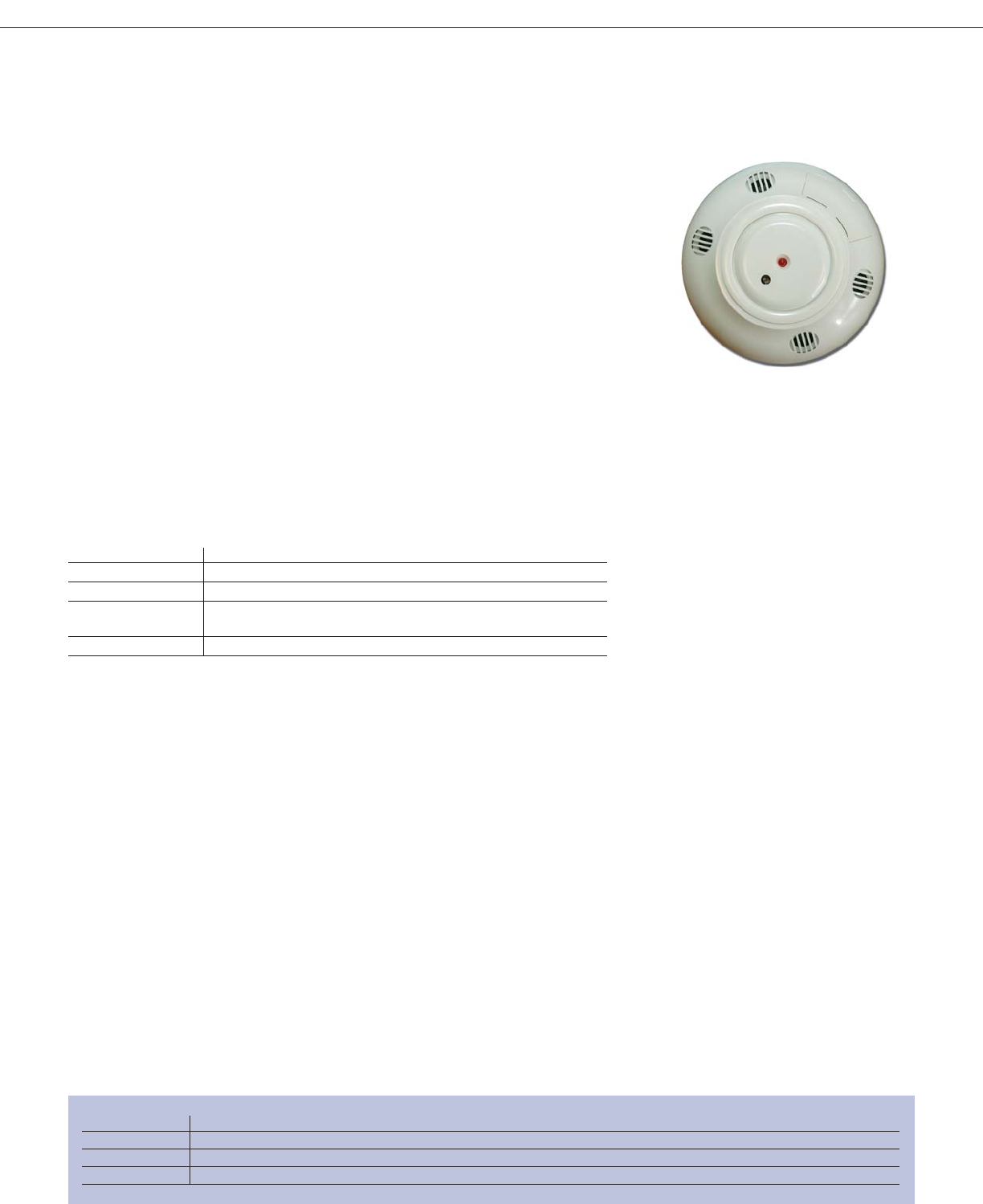

Ceiling Mounted Dual Technology Occupancy Sensor

Square D® Ceiling Mounted Dual Technology

Occupancy Sensor

The Square D® Ceiling Mounted Dual Technology Occupancy Sensor employs both passive infrared (PIR) and ultrasonic

technology to accurately detect occupancy and automatically turn on lighting.

To reduce the occurrence of false-on events, this sensor employs PIR technology to detect major motion. Once lighting

has been turned on, it employs highly sensitive PIR and ultrasonic technology to detect minor motion and keep lighting

on while the area remains occupied. When the room or area is no longer occupied, the sensor turns o lighting after a

pre-set time delay.

The low pro le sensor is ceiling mounted for greatest sensitivity to detect motion in large areas with obstructions. With

a 360 degree  eld of view and up to 2000 square feet (185.8 sq. meters) of coverage area, the Ceiling Mounted Dual

Technology Occupancy Sensor is ideal for conference rooms, classrooms and large meeting rooms.

These ceiling mount sensors also incorporate an integral light level sensor to prevent lighting from switching On when

su cient ambient light is present, such as is commonly found in windowed areas.

Installation and con guration is simple. The sensor readily mounts to drop ceilings and features front-located

adjustments for setting sensitivity and time delay. The sensor also features an isolated relay for use with building

automation and HVAC systems.

CATALOG NUMBER DESCRIPTION

SLSCDS2000 Ceiling Mounted Dual Technology Occupancy Sensor

SLSPP1277 Power Pack (required)

SLSSP24 Auxiliary Relay

PRODUCT FEATURES

• 2000 sq. ft. (185.8 sq. meters) coverage area

• 24Vac for use with BAS systems

• 360 degree  eld of view

• Light Level Sensing (from 0.5 to 250 foot-candles)

• Adjustable Time Delay (pre-set time delays from 15 seconds

(test) to 30 minutes)

• Adjustable Sensitivity (from 60 to 100%)

• Isolated Relay (1A at 24Vdc NO and NC Form C Relay)

• Adjustment compartment cover equipped

with retention clip

• LED Motion Indicators (Red-PIR/Green-Ultrasonic)

• UL/cUL Listed

• Manual Bypass

• Five-year warranty

TECHNICAL INFORMATION

Current Consumption 37mA Nominal

Supply Voltage 24Vdc or 24Vac

Isolated Relay 1A @ 24Vdc Resistive

Operating Temperature 32 - 122° F (0 - 50°C)

Max. Humidity 90% RH Non-condensing

Standards UL and cUL Listed FCC Part 15, Home and O ce Use (Class B) Title 24 Certi ed

*For Diagram see technical section page 11

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com

SQUARE D® OCCUPANCY SENSORS | POWER PACK AND AUXILIARY RELAY

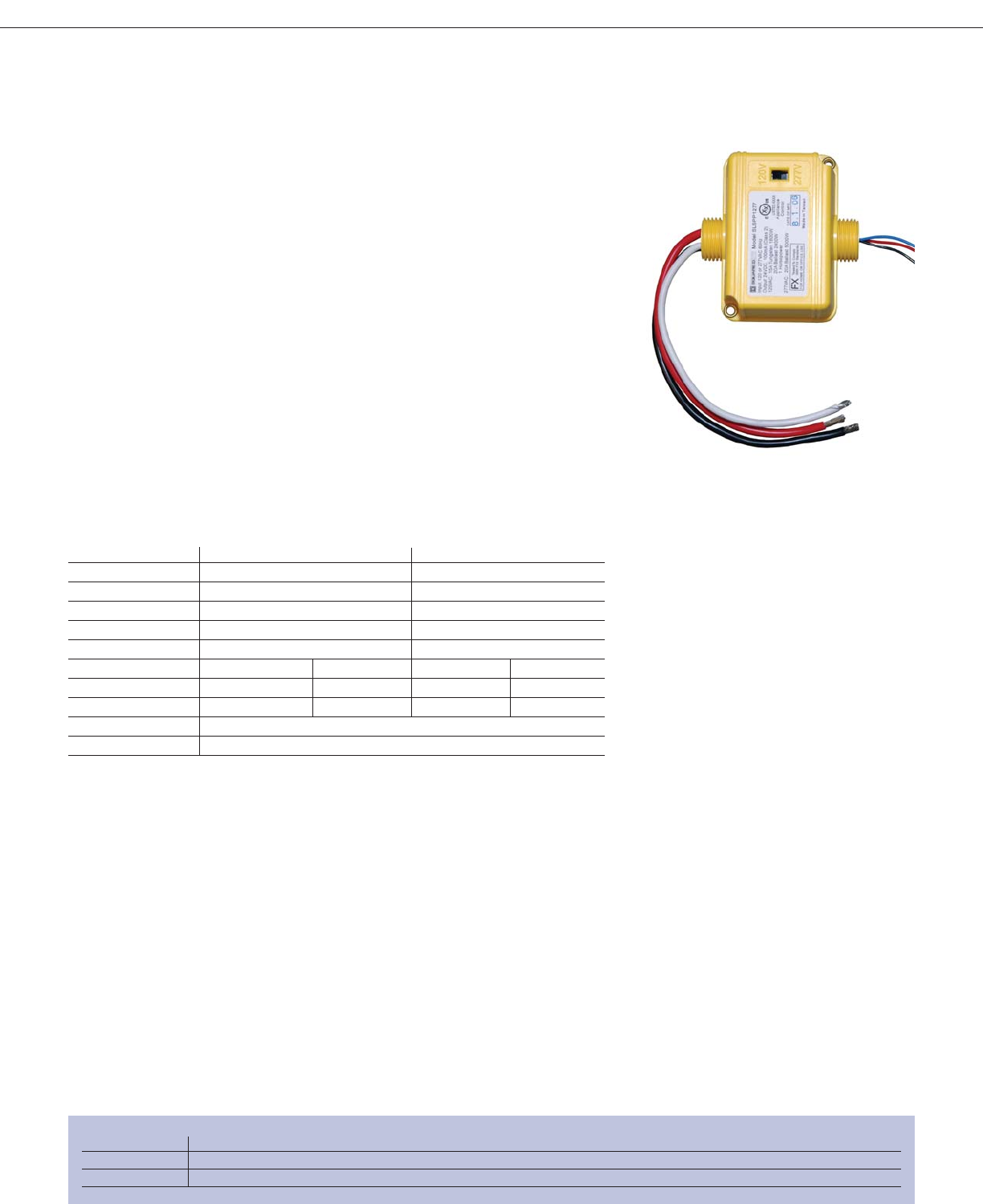

Power Pack

The Square D® Power Pack supplies low voltage power to Square D ceiling and wall mounted occupancy sensors,

and employs a heavy duty 20A relay to switch lighting and HVAC loads based on a control signal received from the

occupancy sensor. The power pack accepts both 120V and 277V input and supplies up to 100 mA at 24Vdc

The power pack employs a micro-controller that switches loads at minimum voltage, protecting relay contacts from

high in-rush current common when switching electronic ballasts. This switching method reduces the stress across the

relay contacts, preventing arc-over and assuring long reliable contact life.

Similar to the power pack, the auxiliary relay does not supply power, but switches lighting and HVAC loads based on a

control signal from the occupancy sensor.

Both the power pack and auxiliary relay are housed in a rugged plenum rated enclosure. Flexible mounting scheme

allows for installation inside or outside a standard 4 x 4 inch junction box.

Square D® Power Pack and Auxiliary Relay

CATALOG NUMBER DESCRIPTION

SLSPP1277 Ceiling Mounted Occupancy Sensor Power Pack

SLSSP24 Ceiling Mounted Occupancy Sensor Auxiliary Relay

PRODUCT FEATURES

• 120V & 277V Input

• Plenum Rated

• Flexible Mounting Options

• UL and cUL Listed

• FCC Part 15, Class B

• Heavy duty relay rated to switch electronic ballast loads

• External color coded leads for quick installation

• Mounts to a standard 4 in. (101 mm) x 4 in.

(101 mm) junction box using a ½ in. (12.7 mm)

threaded EMT nipple

TECHNICAL INFORMATION

Item Power Pack Auxiliary Relay

Storage Temp -20°F to 150°F (-29C to 65C) -20°F to 150°F (-29C to 65C)

Operating Temperature 32°F to 104°F (0C to 40C) 32°F to 104°F (0C to 40C)

Max. Humidity 90% RH Non-condensing 90% RH Non-condensing

Input 120 or 277Vac / 60Hz 24Vdc / 36 mA

Output 24Vdc/100 mA Nominal No Power Supply

Max Load Ratings 120Vac/60Hz 277Vac/60Hz 120Vac/60Hz 277Vac/60Hz

Tungsten 15A/1800W 15A/1800W 15A/1800W 15A/1800W

Ballast 20A 20A 20A 20A

AC Motor 1HP at 120Vac/ No HP rating at 277Vac

Dimensions 3 in. (76mm) tall x 2.25 in. (57mm) wide x 1.75 in. ( 44mm) deep

*For Diagram see technical section page 11

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com

SQUARE D® OCCUPANCY SENSORS | TECHNICAL SECTION

Sensor features

Sensor  eld of view

Auto

Sensor featuresSide view of sensor  eld of view

Side view of sensor  eld of view

Manual

Square D® Wall Switch Occupancy Sensor

Square D® Wall Switch Occupancy Sensor With Manual On

Square D® Commercial Grade Single and Dual Circuit PIR Wall Switch Occupancy Sensors

35 ft.

(10.7 m)

35 ft.

(10.7 m)

10 ft. (3.1 m)

15 ft. (4.6 m)

25 ft. (7.6 m)

4 ft.

(31.2 m)

35 ft.

(10.7 m)

10 ft. (3.1 m)

15 ft. (4.6 m)

25 ft. (7.6 m)

35 ft.

(10.7 m)

4 ft.

(31.2 m)

6 ft. (1.83 m)

9 ft. (2.74 m)

21 ft. (6.4 m)

35 ft.

(10.7 m)

35 ft.

(10.7 m)

4 ft.

(1.2 m)

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com

SQUARE D® OCCUPANCY SENSORS | TECHNICAL SECTION

Side view of ceiling mounted sensor

48 ft.

42 ft.

24 ft.

30 ft.

Side view of sensor

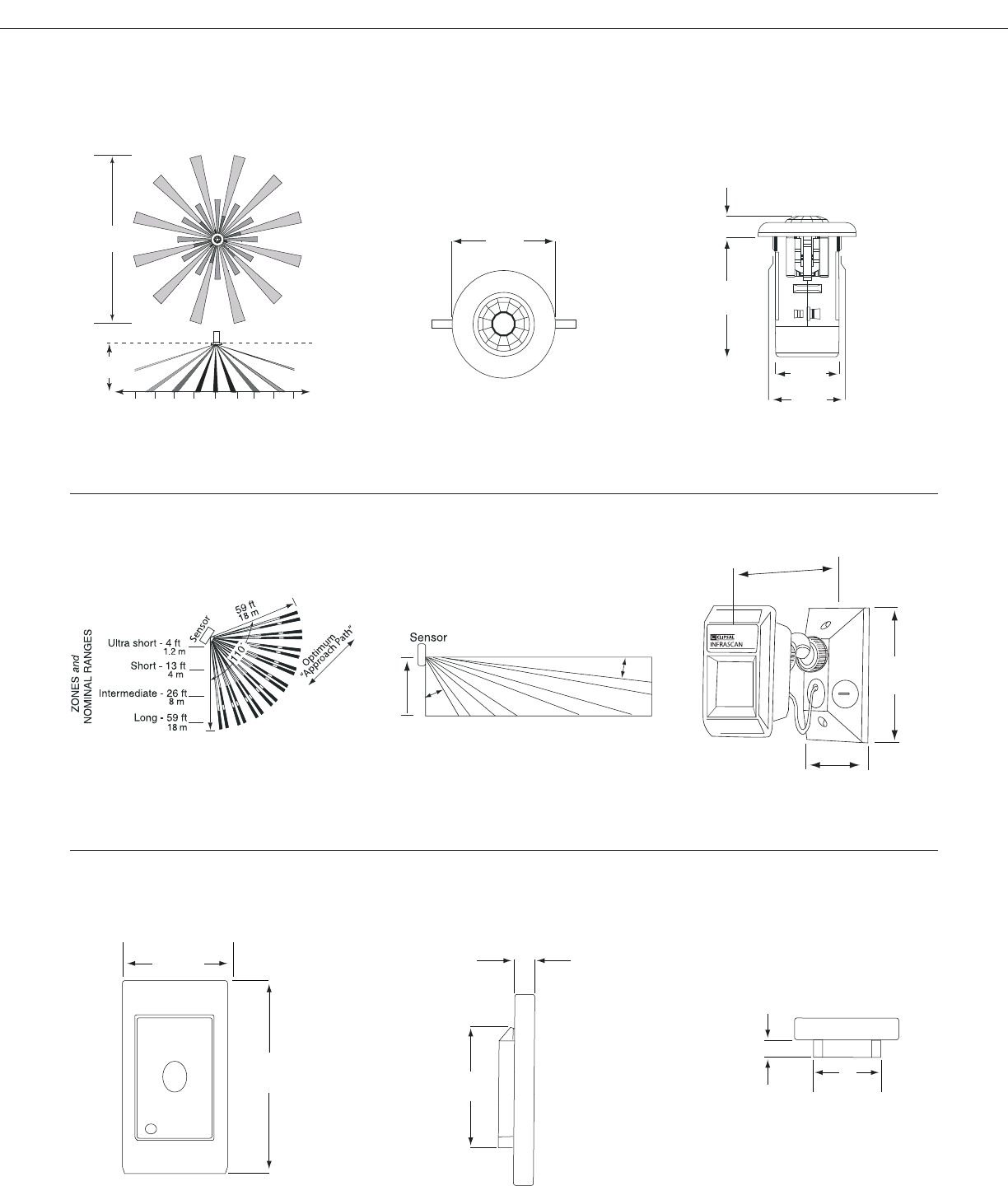

Flexible Mounting System DiagramFront View Dimensions

Square D® Ceiling Mounted Ultrasonic Occupancy Sensor

Square D® Power Pack and Auxiliary Relay

Square D® Ceiling Mounted Dual Technology Occupancy Sensor

Side view of PIR sensor

Square D® Ceiling Mounted PIR Occupancy Sensor

Side view of sensor  eld of view

Major Motion

Minor Motion

Ultrasonic Major Motion

Ultrasonic Minor Motion

PIR Major Motion

PIR Minor Motion

(7.62 m)

(9.75 m)

25 ft.

32 ft. (9.75 m)

(7.62 m)

(9.75 m)

(2.74 m)

25 ft.

32 ft. (9.75 m)

(7.62 m)

9 ft.

(2.74 m)

4.5 in.(115 mm)

1.75 in.

(44 mm)

4.5 in.(115 mm)

1.75 in.

(44 mm)

3 in. (76 mm)

2.25 in. (57 mm)

3 in.

(76 mm)

1.25 in.

(31 mm)

48 ft.

42 ft.24 ft.

30 ft.

25 ft.

32 ft.

48 ft.

25 ft.

30 ft.

32 ft.

24 ft. 42 ft.

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com

Track-Limiting

Panels

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com

Introduction to

Track-Limiting Panels

Energy codes typically require lighting power density calculations for track lighting to be based on the linear feet of installed track. Some codes stipulate multipliers as low as 30W/

foot while others use a multiplier as high as 70W/foot. When energy e cient lighting is used, the connected load is typically much less than the per-foot multipliers given in the

energy codes. This penalizes lighting designs that employ track lighting and wastes available lighting watts that could be applied more e ectively.

Many codes also provide provisions to compute the luminaire wattage based o the maximum wattage that the circuit can provide. For example, CA Title 24, 130(c)3 states:

“Luminaire wattage incorporated into the installed lighting power shall be determined in accordance with the following criteria . . . The wattage of line-voltage lighting track and

plug-in busway which allows the addition or relocation of luminaires without altering the wiring of the system shall be the volt-ampere rating of the branch circuits feeding the

luminaires . . .”

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com

SQUARE D® TRACKLIMITING PANELS |

AVAILABLE

EARLY

2008

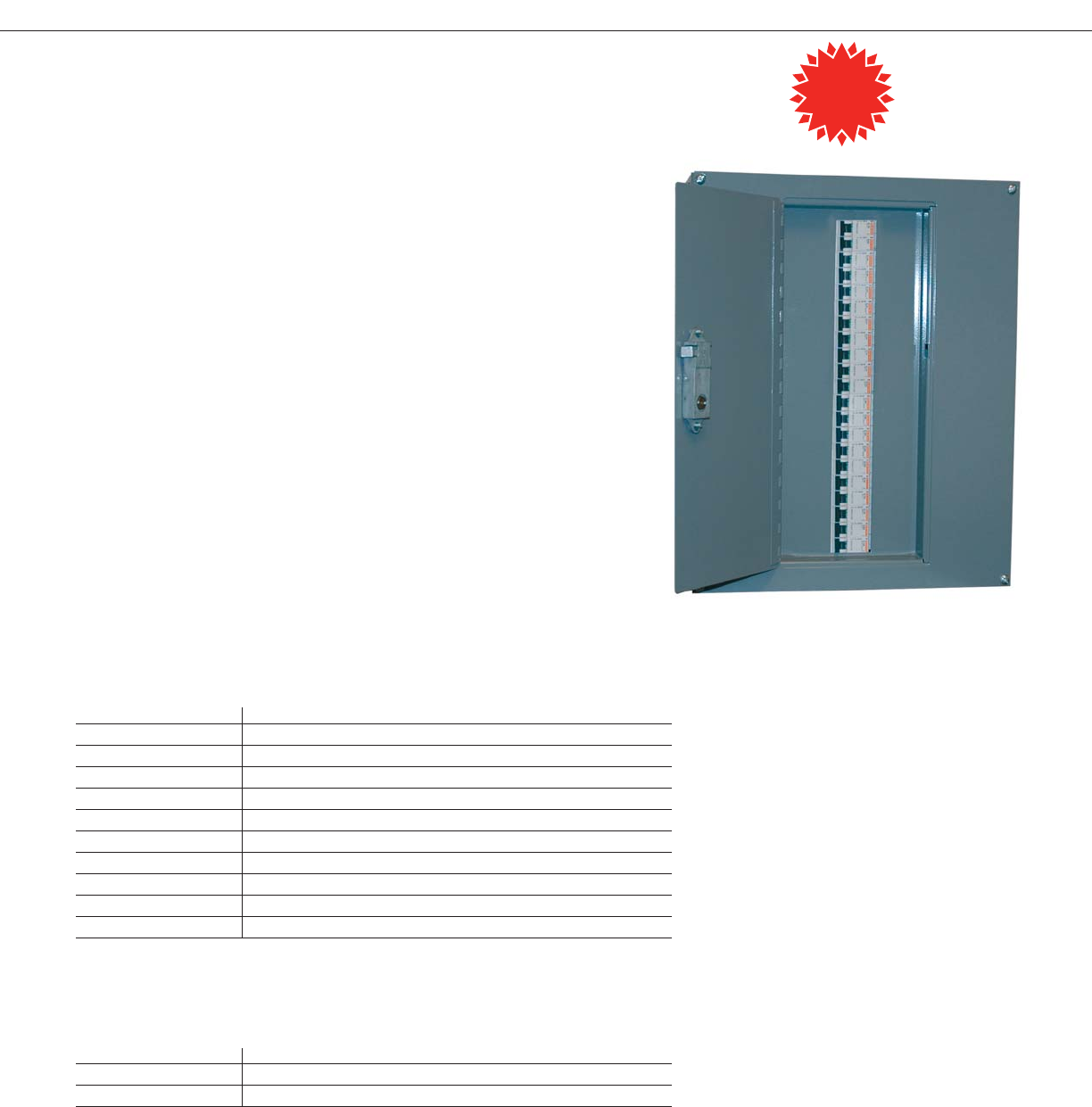

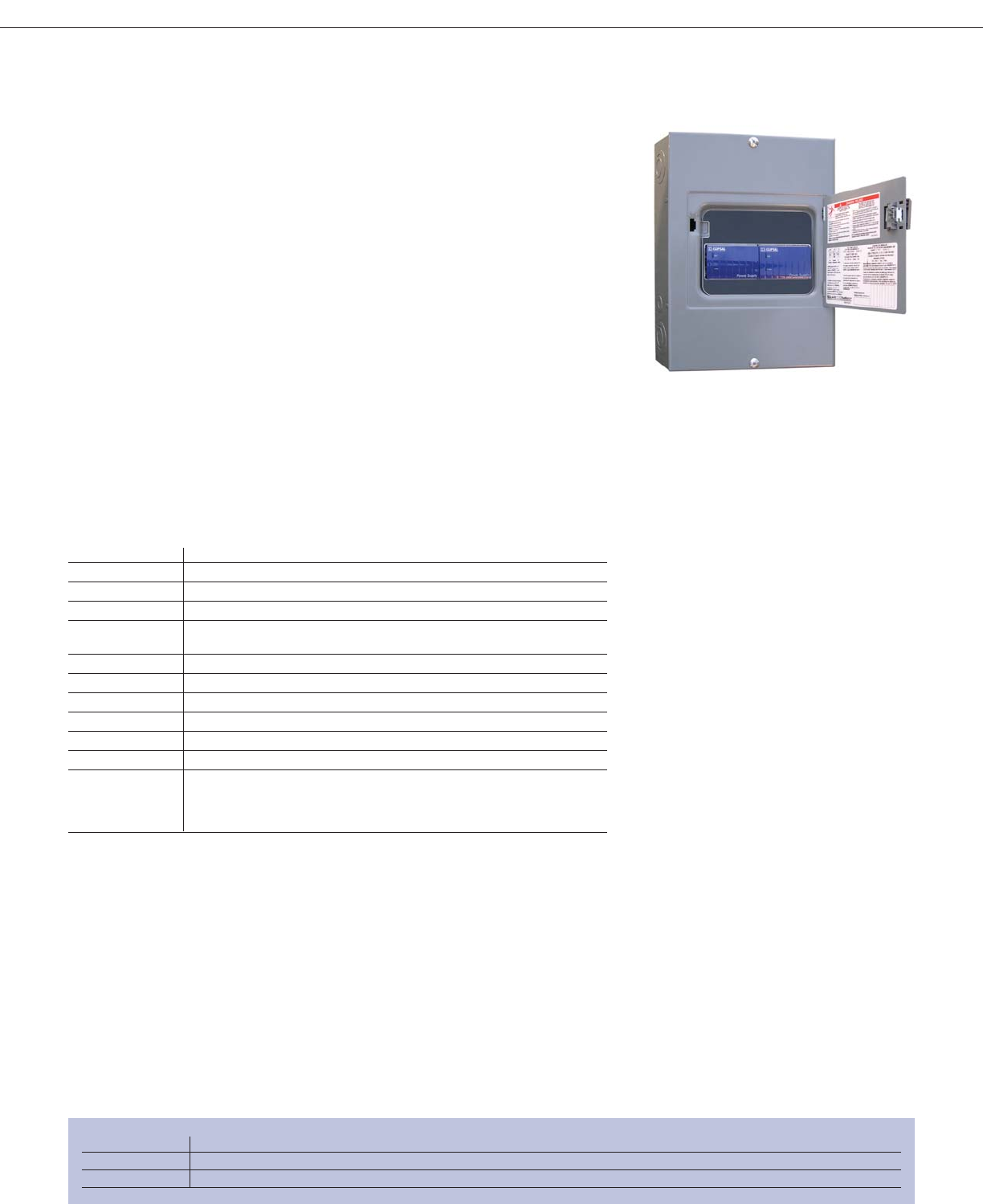

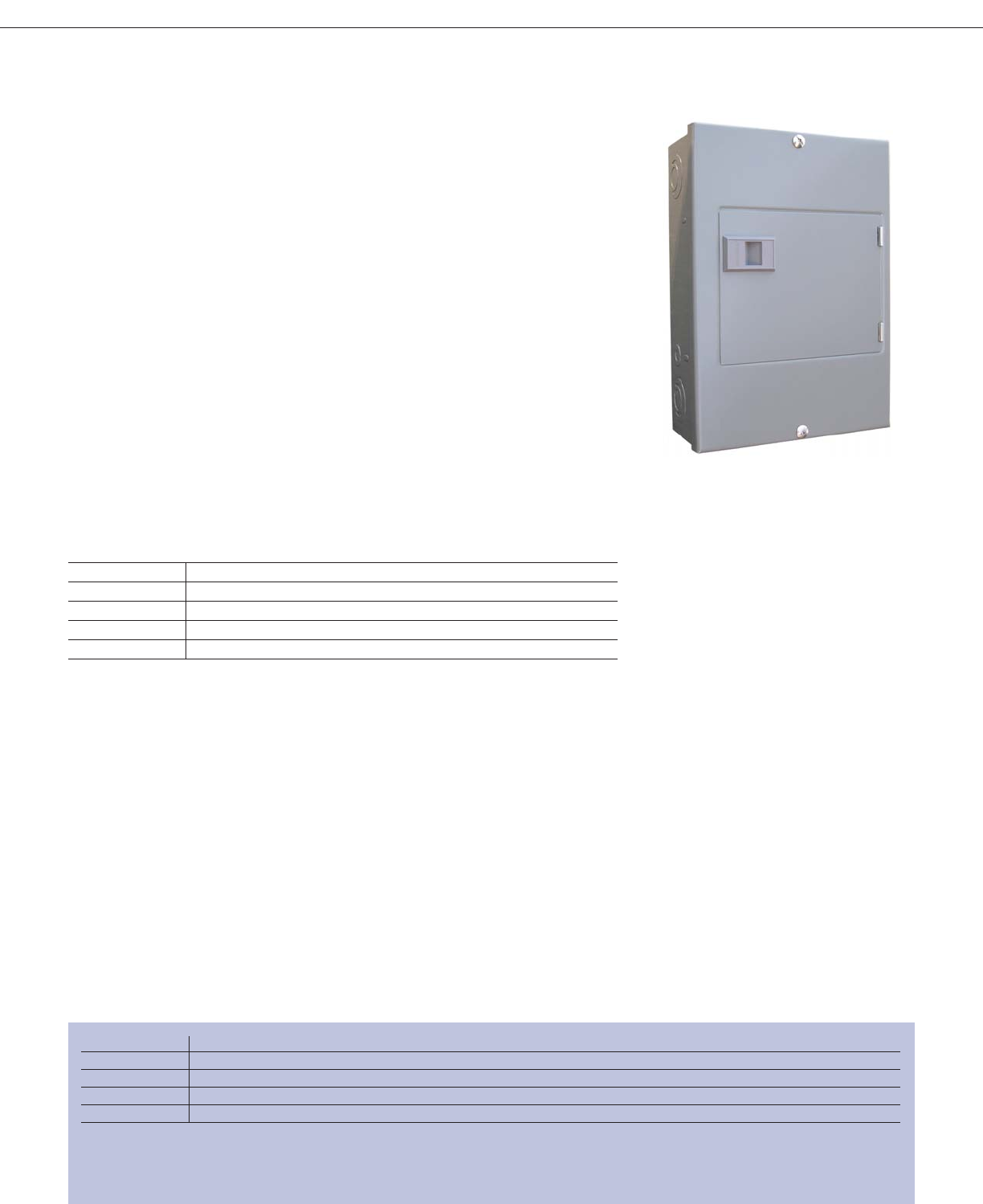

Square D® Track-Limiting Panels

PRODUCT FEATURES

• Readily accessible panel mounted enclosures

• Flush or surface mounting

• Hinged door with key-locking latch

• Up to 42 circuit breakers per enclosure

• Circuit breakers rated 0.5A – 16A

• Factory assembled, tested, and labeled

• CA Title 24 compliant

Square D® Track-Limiting Panels eases the burden of meeting today’s stringent energy codes like California Title

24. Typically used for track lighting applications, these panels limit the power available to a lighting branch

circuit by incorporating a special circuit breaker into the branch circuit.

Because the Track-Limiting panel limits the available power to a speci ed level, designers can better re ect the

actual power requirements into their load density calculations. Power level will be substantially lower than by

using the standard multipliers given for track lighting.

Panels are readily accessible providing easy access for inspection and maintenance. These panels also

incorporate circuit breakers rated for the higher available fault currents found on many 120V systems. In

addition, the use of supplementary protectors provides a convenient means for isolating individual track circuits.

TECHNICAL INFORMATION

Item Track-Limiting Panel

Type NEMA 1 Indoor

Box Galvanized steel

Finish ANSI 49 Gray

Voltage Rating 120Vac

Short Circuit Current Rating 10,000A

Branch Circuit Ampere Ratings 0.5A, 1A, 2A, 3A, 4A, 5A, 6A, 7A, 8A, 10A, 15A, 16A

Branch Circuit Terminals Box lugs: #18-4 AWG (1-25mm2)

Operating Environment 77°F (25°C)

Standards UL1077, UL508A

Listings/Certi cations/Compliance California Title 24, ASHRAE 90.1 compliant

Enclosures are available for mounting up to 21 or 42 circuits. Both enclosures are available for  ush or surface mounting.

Enclosure Enclosure Cabinet Dimensions

21M Mounted 14.25 x 3.75 x 17.92 in. (362 x 95 x 455mm)

42M Mounted 14.25 x 3.75 x 33.78 in. (362 x 95 x 858mm)

Track-Limiting Panel

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com

SQUARE D® TRACKLIMITING PANELS |

Energy codes typically calculate track lighting loads based on linear feet of installed track. Some codes use a multiplier as low as 30 watts/foot while others use a

multiplier as high as 70 watts/foot. When using the energy e cient lighting technologies available today, the connected load is typically much less than the per-foot

multipliers used by most energy codes. This penalizes lighting designs that employ track lighting and wastes available lighting watts that could be used more e ectively.

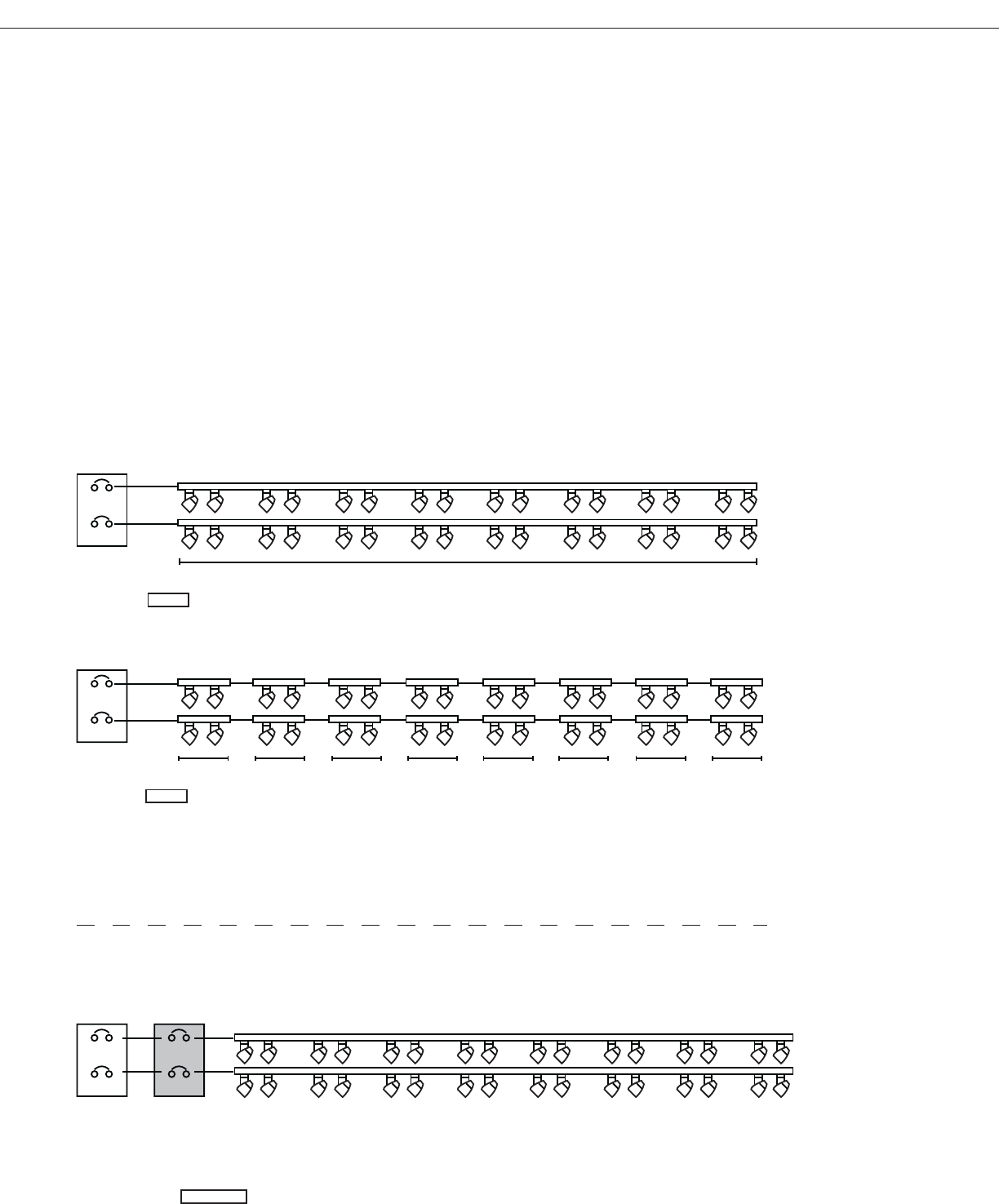

Below is a typical track lighting example. The Standard Layout consists of two 50’ runs of single circuit track, each with sixteen 39W track heads for a total connected load

of 1376W. The Revised Layout Using Short Track Segments has the same 1376W connected load but uses sixteen short 4’ track segments (64’), each fed separately, to help

minimize the impact of the watts per foot multiplier. The scenario with the Track-Limiting Panel uses the original two 50’ runs of single circuit track, with each monitored by

a 6 Amp current limiting circuit breaker that is closely matched to the actual connected load of 1376W. This results in the minimum calculated watts per the energy codes.

The Square D Track-Limiting Panel installs between the branch circuit breaker and the track lighting, solving

the energy code calculation discrepancy, making the wattage calculation independent of track length.

20A

Branch Circuit

Breaker Panel

Track-Limiting

Panel

With the Track-Limiting Panel

Same 100 ft. of track: 6A @ 120V = 720W

6A @ 120V - 720W

1440W total

20A

Standard Layout

Revised Layout Using Short Track Segments

Track length determines wattage calculation

20A

Branch Circuit

Breaker Panel

Branch Circuit

Breaker Panel

100 ft of track = 4500W*

64 ft of track = 2880W*

*Based on 45W/ft multiplier of California Title 24

(plus significantly higher

installed costs and reduced

layout flexibility)

WITH THE TRACKLIMITING PANEL

WITHOUT THE TRACKLIMITING PANEL

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com

Powerlink

Lighting Control

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com

For many designers, the engineering of a suitable lighting control system has become a daunting task. The designer must balance space constraints, equipment and installation costs,

maintenance, and operational concerns, while ensuring a code-compliant installation. Fortunately, the Square D® Powerlink® G3 Lighting Control System addresses concerns by:

• Using standard lighting panelboards: All Square D Powerlink G3 components mount in the panel just like a standard circuit breaker. Documenting your control system layout is as simple as

indicating which branch circuits are to be controlled.

• Saving space: Since the lighting control system is located inside the lighting panelboard, valuable wall and  oor space is available for more productive uses. Square D also o ers

space-saving, column-width panelboards and  exible modular panelboard systems.

• Complying with codes: With today’s high available fault currents, it’s extremely important that your system meets code requirements. The Square D Powerlink G3 system is fully UL Listed

and meets NEC 110.10 requirements.

Introduction to

Powerlink® Lighting Control

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com

POWERLINK® LIGHTING CONTROL |

Innovative Square D® remote-operated

circuit breakers combine the protective

features of conventional circuit breakers

with the switching functions of a

contactor.

Conventional ECB circuit breakers can

be readily incorporated into a G3 panel.

The intelligence of the Powerlink G3

system comes from its microprocessor-

based controller. It processes many

signals that originate externally from

control devices, such as switches or

sensors, or from its powerful internal

time scheduler that switches breakers

according to prede ned daily

schedules.

Plug-on control bus strips act as the

bridge between the circuit breakers and

the electronic control components of a

Powerlink G3 system.

A self-contained power supply

furnishes the power for remotely

operated circuit breaker switching

and for the system’s electronics.

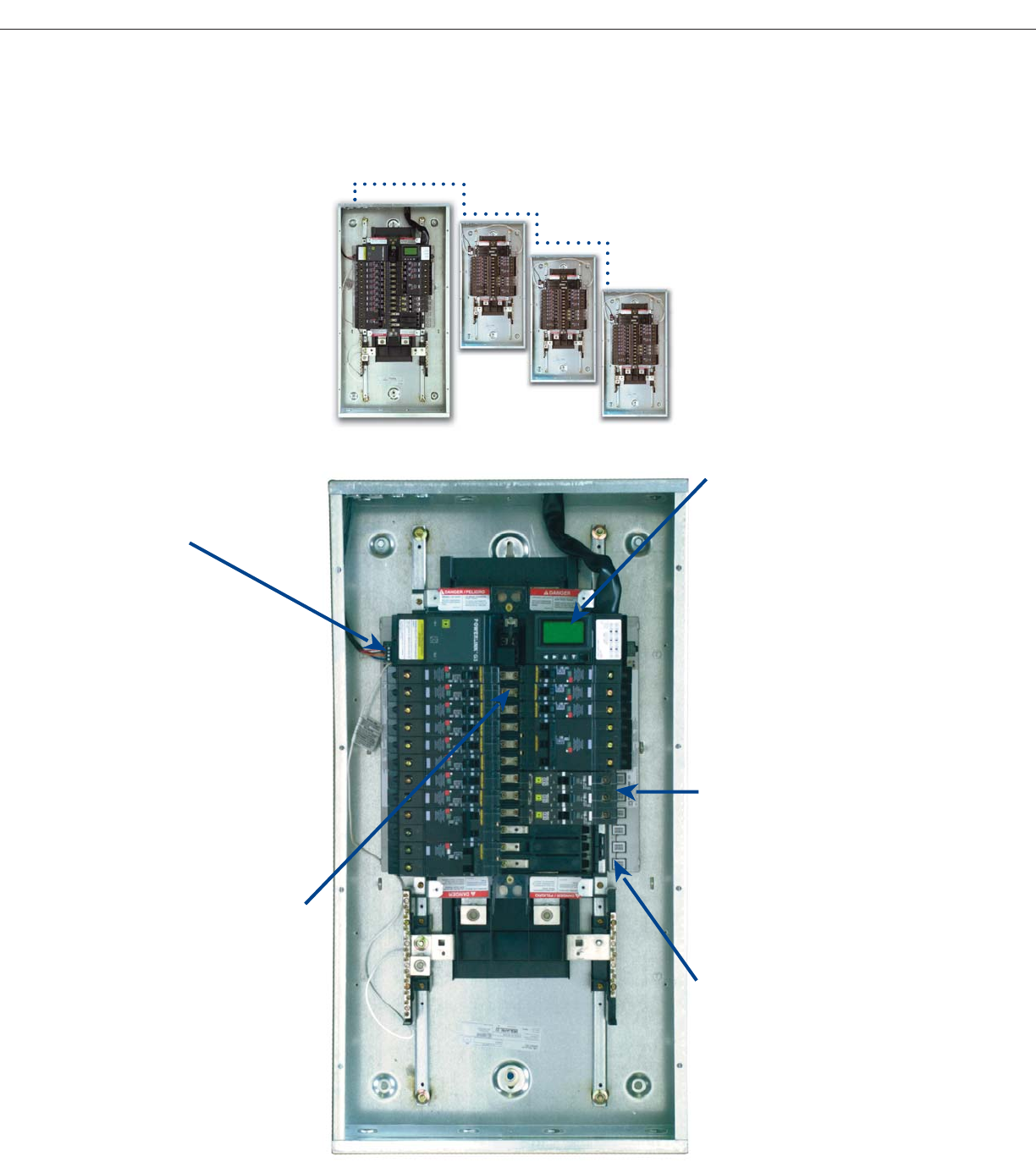

Powerlink® G3 Panel Mounted Components

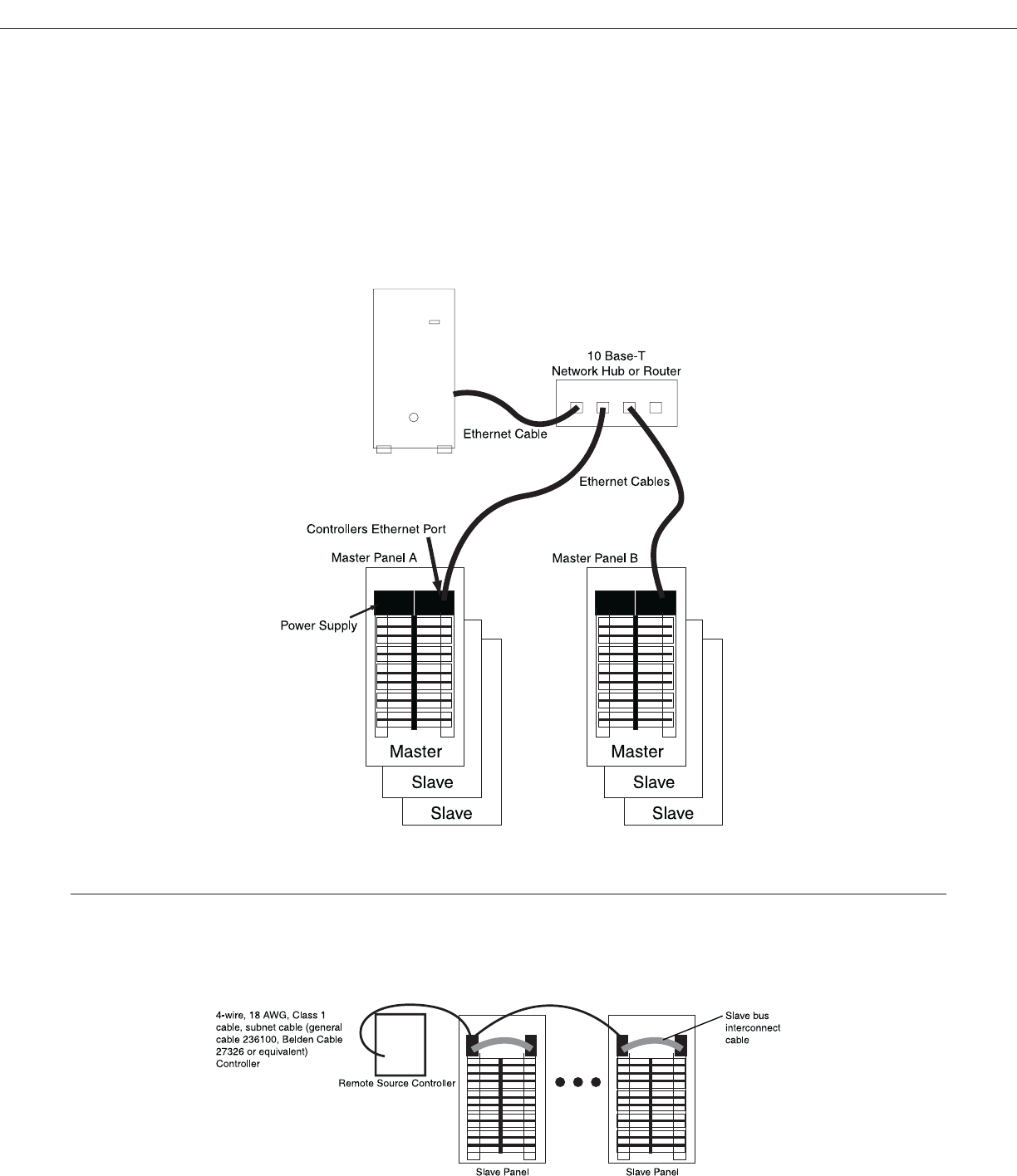

Up to eight panels can be operated from a single controller.

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com

POWERLINK® LIGHTING CONTROL | PANEL BOARDS

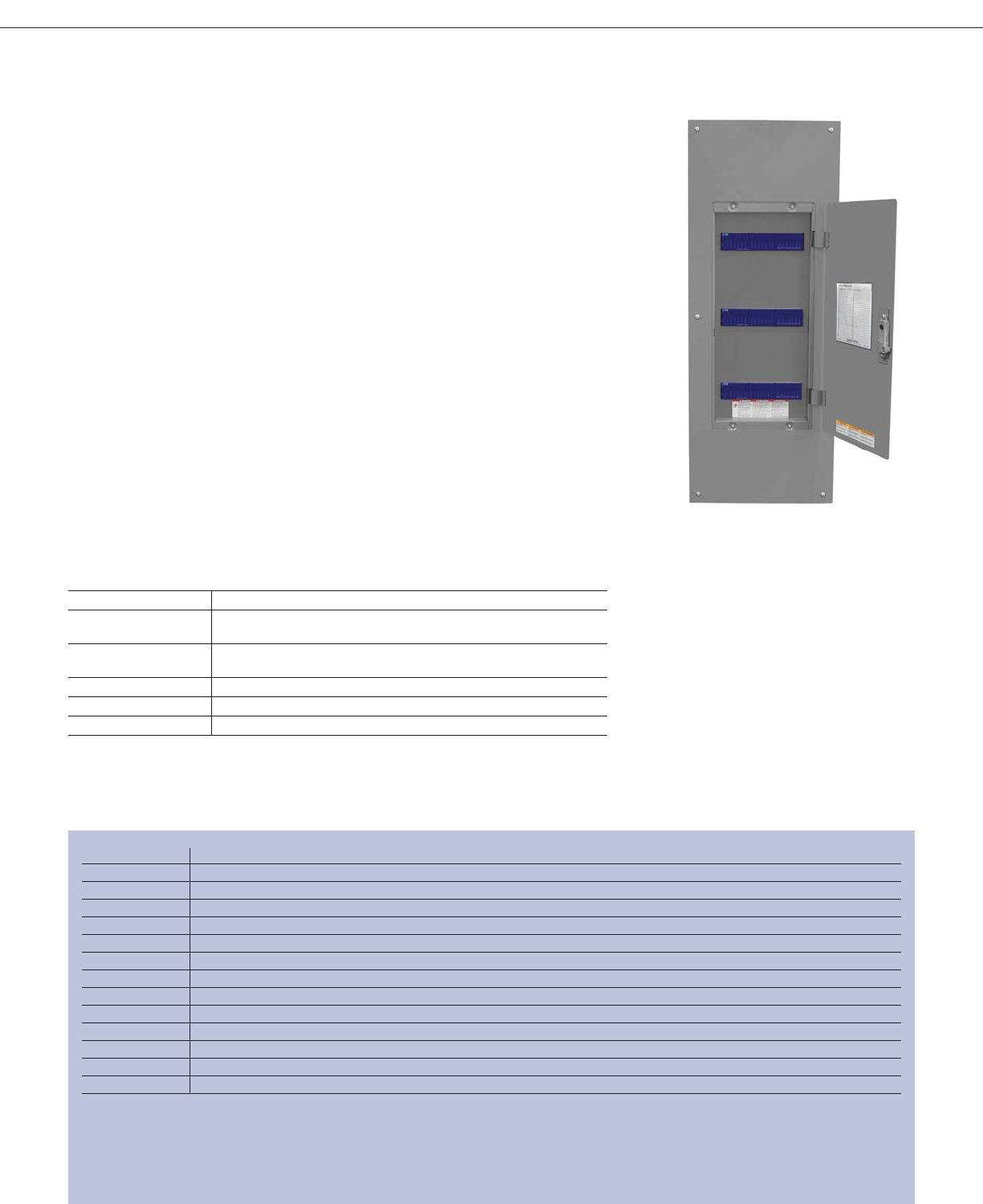

The NF Panelboard o ers superior performance and application  exibility for commercial and industrial electrical systems

up to 480Y/277V. Square D is the only lighting control supplier that o ers a full range of enclosure options including NEMA

Type 3R, 5 and 12. The following designs are available to suit your needs:

• Standard – The NF Panelboard o ers superior performance and application  exibility for commercial and industrial

electrical systems up to 480Y/277V. This versatile lighting and power distribution panelboard features a wide selection of

circuit breakers, accessories, and ready-to-install kits, as well as 200% rated neutrals for non-linear loads.

• Column-width – These innovative panels are designed to  t into a standard size W, H, or I-beam support columns

commonly found in distribution and industrial facilities. Column-width panelboards can also be wall mounted, saving

valuable  oor and wall space where tight equipment space is a concern.

• Modular Panelboard Systems (MPS) – This panel system bundles electrical distribution equipment into a single, factory

assembled and wired integrated system. This approach replaces the traditional method of independently mounting each

panelboard and lighting control system, which saves space and reduces installation time. Modular panelboard systems are

tailored to speci cations and are available with a mix of Square D NQOD, NF, NF Column-width and Square D Powerlink

interiors, as well as optional power and control wiring, dry type transformers, lighting contactors, transient voltage surge

suppression (TVSS) units, and enclosure space for  eld installed equipment. All MPS panelboards are Underwriters

Laboratories (UL) Listed under File E33139 (Panelboard UL67).

• Integrated Power Center (IPC) – This integrated system o ers the wide range of factory assembled and wired panelboards

interiors, dry type transformers, and lighting control as o ered with the MPS line. In addition, the IPC o ers factory

installed and programmed building management systems, automatic transfer switches, and motor starters. Regardless of

your system complexity, Square D has the expertise to integrate your requirements into one optimized, cost e ective, space

saving solution. IPCs are Underwriters Laboratories (UL) Listed under  le E83877 (Dead-Front Switchboard UL891).

NF Panelboards, Column Width

& Custom Panel Boards

NF Column Width Panelboard

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com

POWERLINK® LIGHTING CONTROL | CIRCUIT BREAKERS

Square D® Powerlink®

Remotely Operated ECB-G3 Circuit Breakers

CATALOG NUMBER One-Pole CATALOG NUMBER Two-Pole CATALOG NUMBER Three-Pole

ECB14015G3* 15 Amp ECB24015G3* 15 Amp ECB34015G3* 15 Amp

ECB14020G3* 20 Amp ECB24020G3* 20 Amp ECB34020G3* 20 Amp

ECB14030G3 30 Amp ECB24030G3 30 Amp ECB32030G3 30 Amp

Square D® Powerlink® G3 remotely operated circuit breakers are designed for installation in Square D NF Lighting

Panelboards as part of the Square D Powerlink G3 Lighting Control System. These circuit breakers provide the same

overcurrent protection as found in standard circuit breakers.

THE BEST IN REMOTE OPERATION

• Robust 24Vdc motor and highly e ective trip mechanism provide unequaled remote operation capability

in terms of compact size, electrical ratings, and mechanical life.

• Motor and drive train can open and close the contacts when the circuit breaker handle is in the ON position.

• Contacts cannot be closed remotely when the handle is in the OFF position or the circuit breaker is tripped.

• Manual override selector located on the front of the breaker provides by-pass of automated control command

• In manual mode, the motor drive train is disconnected from the contact, allowing the circuit breaker handle to

operate the contacts like a conventional circuit breaker.

• Remote contact status indication – determines the presence or absence of voltage on the load side terminal of

the circuit breaker.

TRIPPING SYSTEM WITH TRUE RMS SENSING

• Square D Powerlink ECB-G3 circuit breakers have a permanent trip unit that contains a factory preset thermal

(overload) trip element and a magnetic (short circuit) trip element in each pole.

• The thermal trip element – true RMS sensing and is calibrated to carry the continuous current rating of the circuit

breaker at 140°F (40°C) free air ambient temperature.

• In accordance with the National Electrical Code® (NEC) Square D Powerlink ECB – G3 circuit breakers are intended

to be applied at up to 80 percent of their continuous current rating.

ECB-G3 Series Remotely Operated Circuit Breakers

PRODUCT FEATURES

• 200,000 load endurance

• Remote and local status

• Manual override

• Extra large load terminal

TECHNICAL INFORMATION

Voltage 120Vac 240Vac 480/277Vac

Interrupting Capacity 65 kAIR 65 kAIR 14 kAIR

Terminals (1) #14 - 8 AL or (1) #14 - 8 CU

Standards UL Listed 489, NEMA Standard AB-1-1986, CSA Standard 22.5

*For series connector ratings, see page 31

All are listed as HACR type for use with air conditioning, heating and refrigeration equipment having motor group combinations and marked for use with HACR type circuit breakers. UL listed as HID

rated for use with high intensity discharge lighting systems. * UL listed as SWD rated

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com

POWERLINK® LIGHTING CONTROL | CIRCUIT BREAKERS

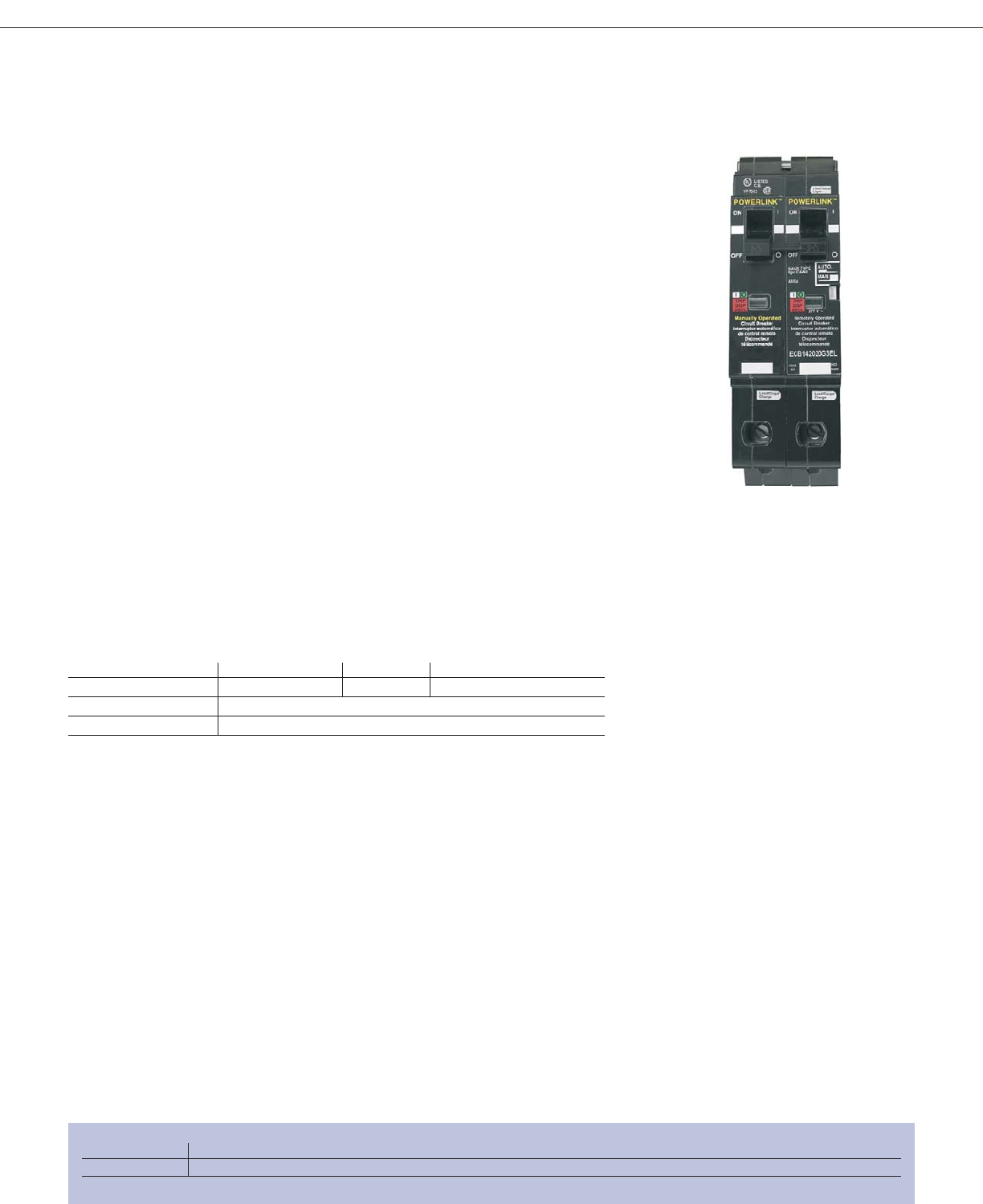

ECB-G3EL Remotely Operated Circuit Breakers

for Emergency Lighting Circuits

Square D® Powerlink® ECB-G3EL circuit breakers provide a means to comply with the requirements of the NEC,

700.12(E). The circuit breaker contains both a remotely operated switched circuit for controlling the luminaires, and

a manually operated unswitched circuit, which provides power to the unit emergency equipment’s charging and

detection circuit. Both circuits are electrically tied to the same source via a single common bolt-on connection that

receives its supply from the panelboard bus.

Both circuits of the ECB-G3EL breaker contain a thermal-magnetic trip mechanism that protects their associated

conductors from overcurrent. The circuit breaker provides a common trip function ensuring that both circuits will open

whenever a fault occurs on either of the circuits. It also provides a common handle tie to ensure that both circuits are

manually switched together.

CATALOG NUMBER AMPERE RATING

ECB142020G3EL 20 Amp

ECB-G3EL Remotely Operated Circuit Breakers

for Emergency Lighting Circuits

PRODUCT FEATURES

• 200,000 load endurance

• Remote and local status

• Manual override

• Extra large load terminal

TECHNICAL INFORMATION

Voltage 120Vac 240Vac 480/277Vac

Interrupting capacity 65 kAIR 65 kAIR 14 kAIR

Terminals (1) #14 - 8 AL or (1) #14 - 8 CU

Standards UL Listed 489, NEMA Standard AB-1-1986, CSA Standard 22.5

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com

POWERLINK® LIGHTING CONTROL | CONTROL BUS

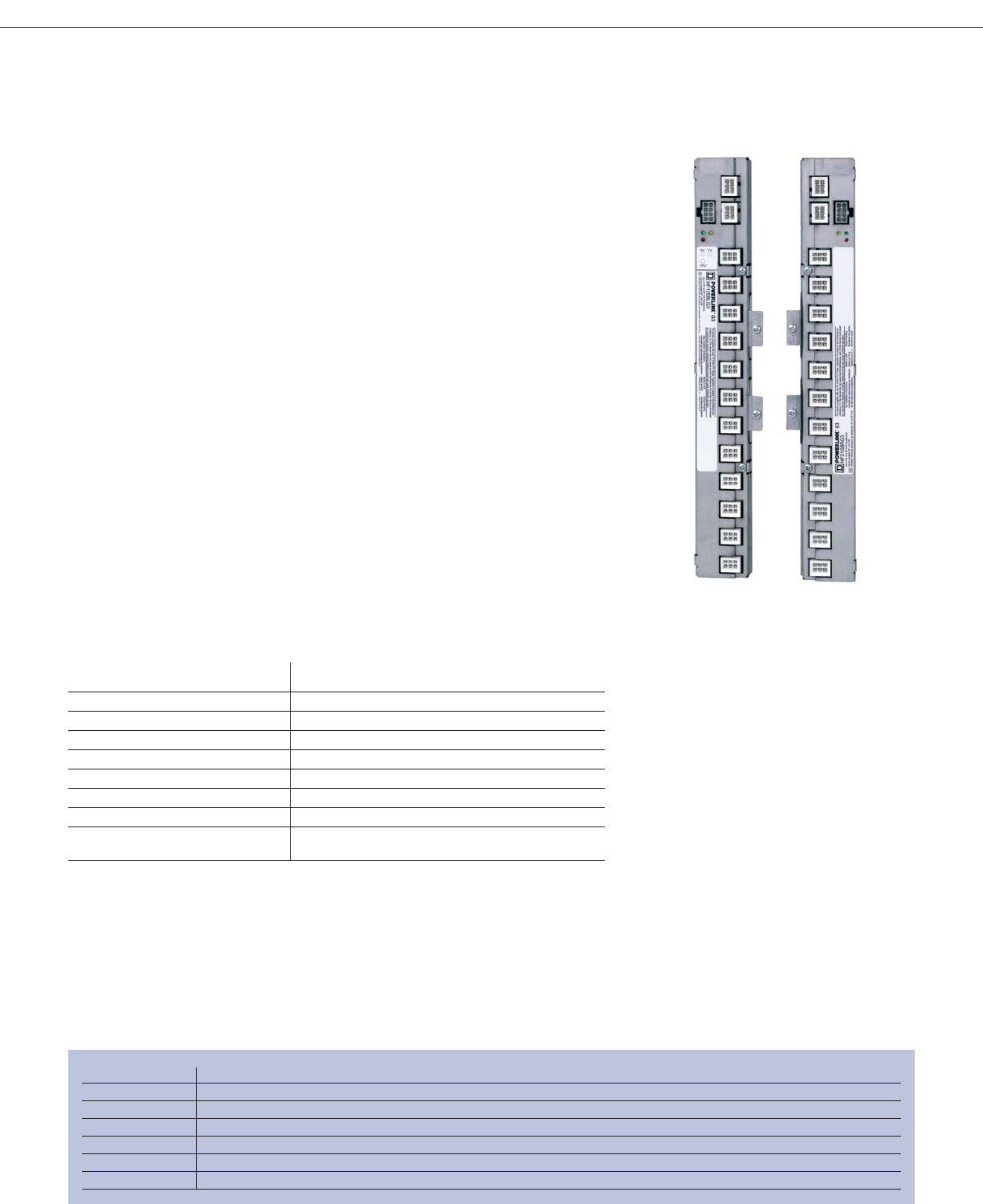

Square D® Powerlink® G3 Control Bus

Square D Powerlink G3 Control Buses provide the interface between the system controller and remotely operated

circuit breakers. Speci cally, they distribute 24Vdc switching power and control signals to switch remotely operated

circuit breakers and report circuit breaker status back to the system controller.

One to four control bus strips can be mounted in a single panelboard. If only one control bus is required, it

is always mounted on the left-hand side of a standard panelboard or at the top of a column-width panelboard.

CATALOG NUMBER Max. Control circuits Orientation

NF12SBLG3 12 Left

NF12SBRG3 12 Right

NF18SBLG3 18 Left

NF18SBRG3 18 Right

NF21SBLG3 21 Left

NF21SBRG3 21 Right

PRODUCT FEATURES

• Attaches to NF Panelboard interior mounting rail

• Modular connectors provide secure plug-in

connections for remotely operated circuit breakers

and control electronics.

• LEDs to indicate operational status.

• Dust caps provided to protect unused connections

G3 Control Bus

TECHNICAL INFORMATION

Operating Temperature 23°F to 104°F (-5°C to 40 °C)

(external panelboard ambient)

Storage Temperature -4°F to 185°F (–20°C to 85°C)

Operating Humidity 5% to 95% (non-condensing)

ESD Immunity IEC 1000, Level 4

RF Susceptibility IEC 1000, Level 3

Electrical Fast Transient Susceptibility IEC 1000, Level 3

Electrical Surge Susceptibility, power line IEC 1000, Level 4

Electrical Surge Susceptibility, interconnection lines IEC 1000, Level 3

Standards FCC Part 15, Class A; UL Listed

916 Energy Management Equipment

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com

POWERLINK® LIGHTING CONTROL | POWER SUPPLY

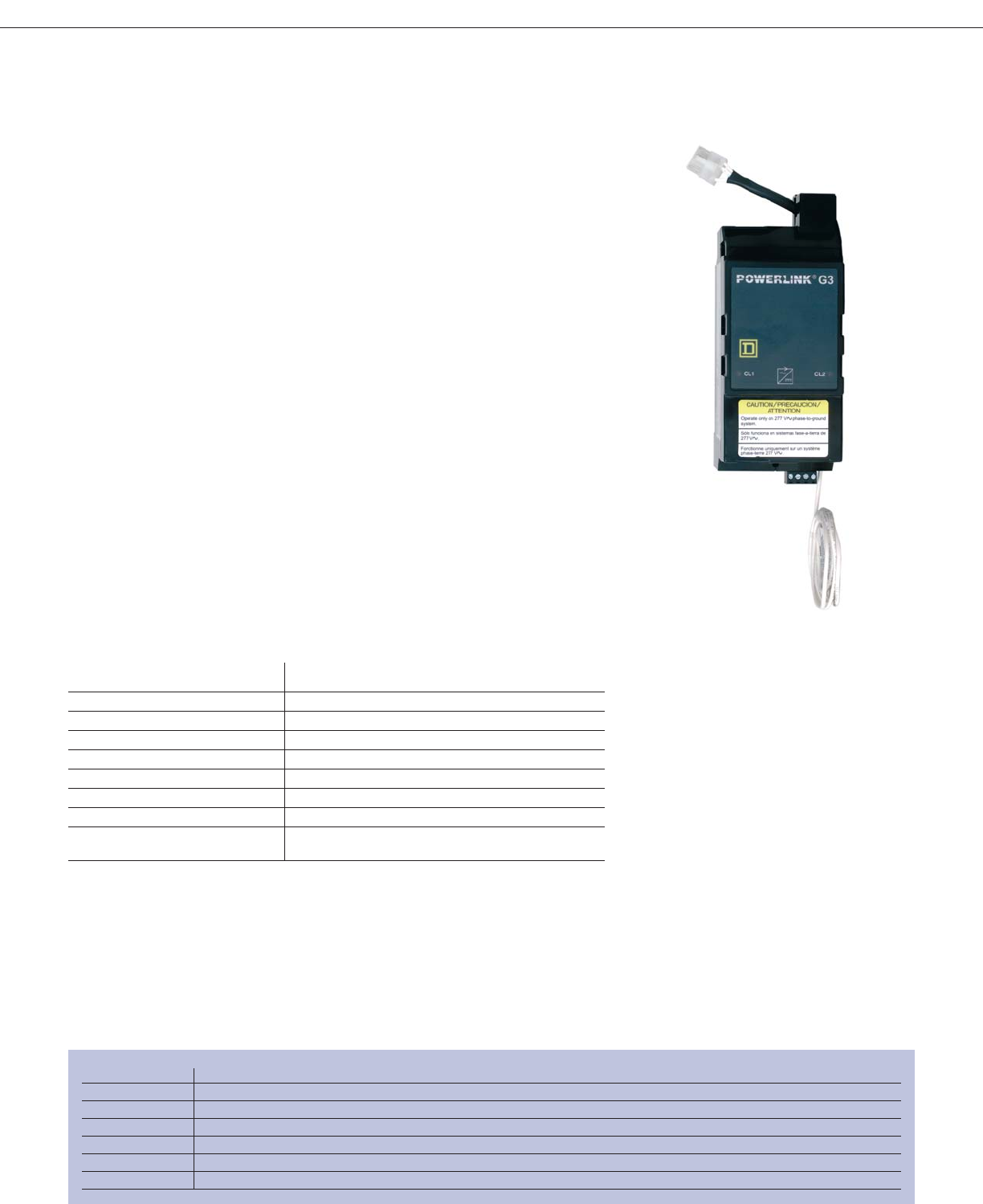

Square D® Powerlink® Power Supply

The Square D Powerlink G3 Power Supply provides power to operate the controller, control buses and remotely operated

circuit breakers. The power supply attaches to an NF Panelboard interior in the same manner as a standard 3-pole circuit

breaker.

The power supply derives its power from the panelboard interior bus and converts the line voltage into two separate

supplies: one supply furnishes the controller with a 24Vdc, Class 2 source; the other supply furnishes the control bus and

subnet with a 24Vdc, Class 1 source.

An optional type of power supply, furnished with primary leads, is available for use with a separately derived primary power

source. This option is often used in applications where the system must remain operational during power outages. In such

applications, the external leads are connected to an uninterruptible power supply (UPS) or alternate power source.

In 20-inch (508 mm) wide panels, the power supply is always located in the upper left-hand corner of the interior. The

controller is mounted adjacent to the power supply on the right-hand side.

CATALOG NUMBER VOLTAGE PRIMARY SOURCE

NF120PSG3 120V Panel Bus

NF240PSG3 240V Panel Bus

NF277PSG3 277V Panel Bus

NF120PSG3L 120V External Leads

NF240PSG3L 240V External Leads

NF277PSG3L 277V External Leads

PRODUCT FEATURES

• Attaches to panelboard interior, occupies three adjacent

pole spaces.

• External lead for connection to panel neutral.

• Modular connectors provide secure plug-in

connections for connection to left-hand side control

bus and controller.

• LED indication of Class 1 and Class 2 voltage sources

operational status.

• Removable communication terminal block for making

subnet connections.

• Internally self-protected against short circuits and

electrical surges.

• Low continuous power draw, less than 20VA.

• Optional external leads for connection to remote

power source.

Power Supply

TECHNICAL INFORMATION

Operating Temperature 23°F to 104°F (-5°C to 40 °C)

(external panelboard ambient)

Storage Temperature -4°F to 185°F (–20°C to 85°C)

Operating Humidity 5% to 95% (non-condensing)

ESD Immunity IEC 1000, Level 4

RF Susceptibility IEC 1000, Level 3

Electrical Fast Transient Susceptibility IEC 1000, Level 3

Electrical Surge Susceptibility, power line IEC 1000, Level 4

Electrical Surge Susceptibility, interconnection lines IEC 1000, Level 3

Standards FCC Part 15, Class A; UL Listed

916 Energy Management Equipment

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com

POWERLINK® LIGHTING CONTROL | CONTROLLERS

NEW!

CATALOG NUMBER CONTROLLER TYPE

NF500G3 500 Level Powerlink G3 Controller

NF1000G3 1000 Level Powerlink G3 Controller

NF1000G3N2 1000 Level Powerlink G3 Controller w/N2 Protocol

NF2000G3 2000 Level Powerlink G3 Controller

NF3000G3 3000 Level Powerlink G3 Controller

NF3000G3C 3000 Level Powerlink G3 Controller w/C-Bus Capabilities

Controller

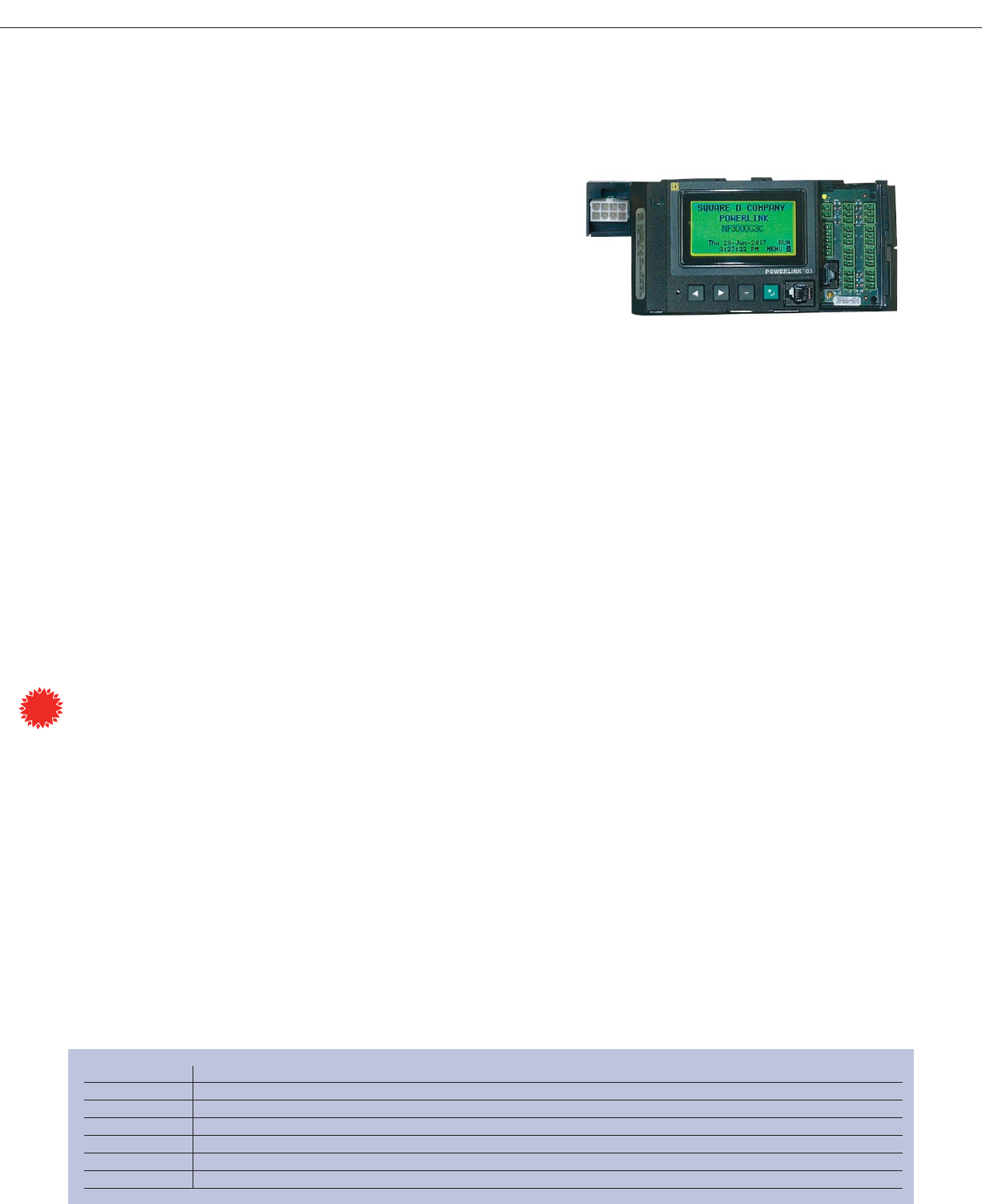

The Square D® Powerlink® G3 product line o ers a simple, cost-e ective means for controlling branch lighting circuits.

Four distinct systems provide a variety of capabilities to meet virtually any need.

500 LEVEL SYSTEM

• Designed to be used in conjunction with other control devices such as:

External time clocks, access readers, occupancy sensors, or other building systems.

• Control devices provide either dry-contact closures or digital serial communications.

• Incorporates internal programmable timers.

• Controller responds to commands from control devices by automatically switching a programmed

group of lighting circuits.

1000 LEVEL SYSTEM

• Includes all the features of the 500 level system.

• Incorporates a  exible time scheduler that eliminates the need for external time clocks. Includes many control features

not found in traditional, mechanical time clocks or energy management systems.

• Ideally suited for stand-alone systems in retail, o ce, institutional, and industrial facilities.

2000 LEVEL SYSTEM

• Combines the control, input, and scheduling features with the added bene t of embedded Ethernet connectivity.

• Peer-to-peer (P2P) control network connectivity allows di erent controllers to share input signals, schedules, and

lighting zone states.

• Ethernet connectivity reduces network installation costs by eliminating the need for a dedicated lighting control network.

3000 LEVEL SYSTEM

• Combines control, input, and scheduling features of the 2000 level controller plus:

• Embedded web server for remote access without dedicated software

• Automated alarms notify users via email when pre-de ned events occur (eg: trip breakers)

3000C LEVEL SYSTEM

• 3000C controller adds all the features of the 3000 level controller, plus the ability to integrate with Clipsal® C-BusTM

devices on the C-Bus network

BACNET CAPABILITY

The Building Automation and Control network (BACnet) communication protocol is being incorporated into the existing

Powerlink® G3 controller design, and will be available in the  rst quarter 2008. The addition of the BACnet protocol

will allow Powerlink panels to be easily integrated into a Building Automation System (BAS) employing this open

communication standard without the need for communication bridges or gateways.

CONTROLLER MODELS  The following Powerlink G3 controller models will support ‘native’ BACnet

communications:

• NF2000G3 - Ethernet communications, shared remote inputs, network time synchronization

• NF3000G3 - Email upon alarm, onboard web pages for status/control/con guration

• NF3000G3C - C-Bus communications (ability to interface with a Clipsal® lighting control network)

Square D® Powerlink® Controllers

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com

POWERLINK® LIGHTING CONTROL | CONTROLLERS

Controller Feature Comparison

Input Terminals

2-wire 8 16 16 16

2-wire with status feedback 8 8 8 8

3-wire 8 8 8 8

Input Types

2-wire normally open (NO) or normally closed (NC) X X X X

2-wire NO or NC, with automatic blink noti cation X X X X

2-wire maintained toggle X X X X

2-wire momentary toggle X X X X

2-wire momentary ON or momentary OFF X X X X

3-wire momentary X X X X

Input timers (1 sec. up to 18 hours) X X X X

Input synchronization - X X X

Sentry® Switch support X X X X

ON delay/OFF delay X X X X

Time Scheduler

Independent schedules - 16 16 16

ON-OFF periods/schedule - 24 24 24

7-day 24-hour repeating schedule - X X X

32 special event/holiday periods - X X X

Automatic daylight savings - X X X

Sunrise/sunset with o sets - X X X

Network time synchronization (requires TCP connection) - - X X

Network Variables

Communications inputs (network accessible) 64 64 64 64

Remote sources (per controller) - - 32 32

Maximum subscriptions - - 256 256

Zones

Maximum number 64 64 64 64

Maximum sources per zone 1 2 4 4

Con gurable source logic (OR, AND, XOR, XNOR, NOR, NAND, LAST EVENT) - - X X

Maximum remotely operated circuit breakers (per subnet) 168 168 168 168

Blink notice (single, double, delay no blink) X X X X

ON-time - X X X

Networking

RS-232 port/RS-485 port X X X X

Ethernet (10BaseT port) - - X X

Protocols

BACnet - - X X

C-Bus - - - X †

Modbus® ASCI/RTU X X X X

Modbus TCP - - X X

Johnson Controls N2 - X - -

DMX512 - X X X

Front Panel

LED display with cover X - - -

Backlit LCD display - X X X

Password or front panel disable X X X X

Memory

Non-volatile memory for programs and con guration X X X X

On-board capacitor to power clock chip during power outage - X X X

Flash memory for  rmware upgrade x x x x

Viewing Options

Event Log - + X X

Strike Counter - X X X

Alarm viewing via Event Log - + X X

Alarm viewing via e-mail - - - X

Web-based setup, control and status monitoring - - - X

Feature System Level

500 1000 2000 3000

Terminals accept 24-18 AWG conductors Order NF1000G3N2 controller for use with Johnson Controls.

7.5mA maximum load per input terminal. + Not available with NF1000G3N2 controllers.

Requires PCS con guration software for setup. † 3000G3C controller

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com

POWERLINK® LIGHTING CONTROL | CONTROLLERS

CATALOG NUMBER Voltage

RSC16G3120 120V

RSC16G3240 244V

RSC16G3277 277V

TECHNICAL INFORMATION

Dimensions 12” x 12” x 6” (304.8 mm x 304.8 mm x 152.4 mm)

Mounting Wall mount

Ethernet Port (1) 10BaseT port

Inputs (16) dedicated 2-wire inputs or (8) 3-wire inputs

Outputs (8) outputs (max of 60mA total for all outputs combined)

Auxiliary Power 24Vdc (100 mA max)

Terminal Wire Range #24-18AWG

Input Voltage 120/240/277Vac

Input Power Requirements 20VA max

Standards UL Listed 916 Energy Management Equipment

*For Diagram see technical section page 34

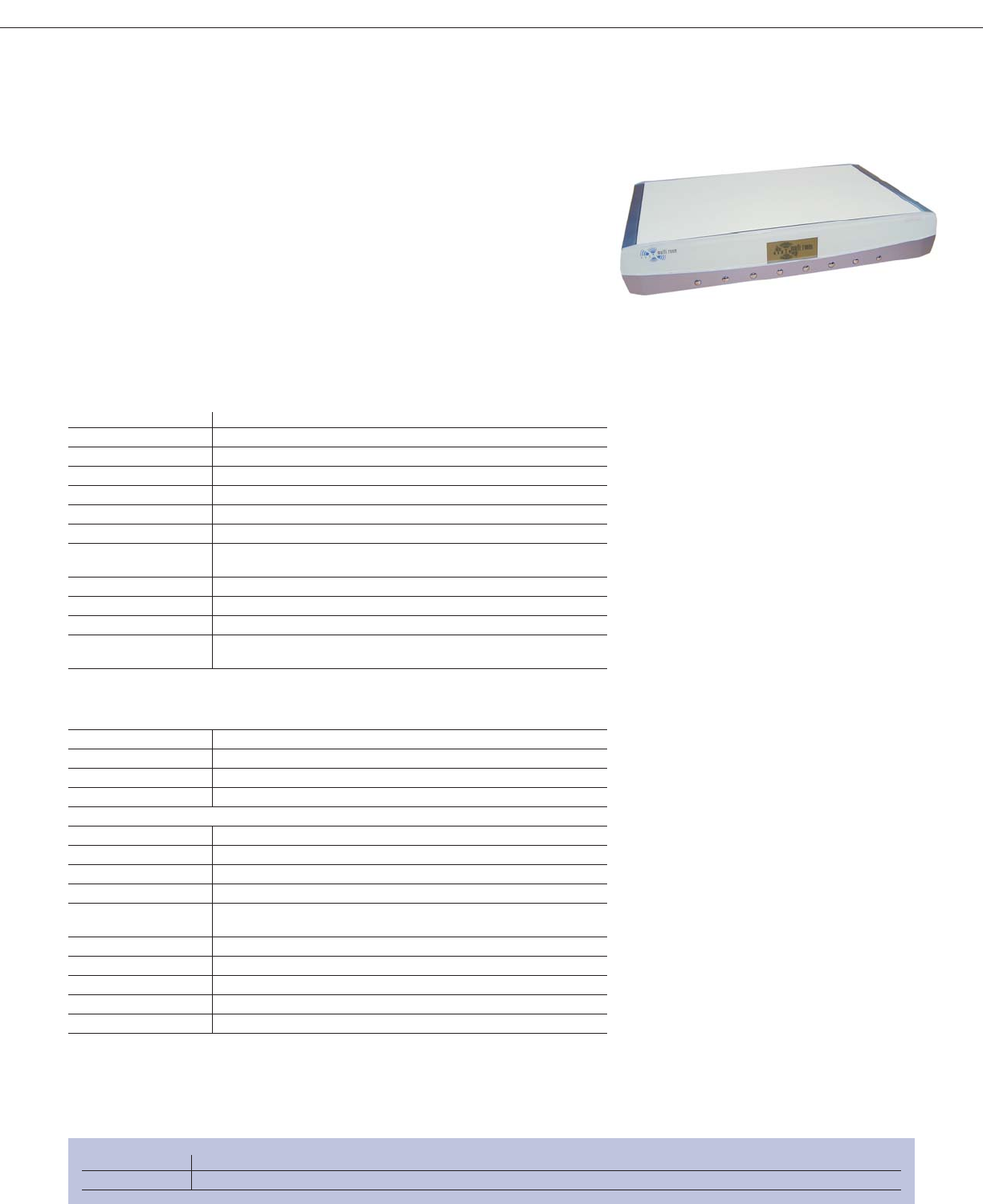

The Square D Powerlink Remote Source Controller (RSC) provides additional scheduling and dry-contact inputs via

high speed Ethernet connectivity that links a wide variety of input devices to a 2000 or 3000 level Square D Powerlink

system.

PRODUCT FEATURES

• High Speed Connectivity

• Ethernet communication eliminates bottlenecks typically associated with serial devices.

• Uses existing LAN infrastructure to reduce input wiring cost.

• Uses convenient radial feeds to independent input devices; this avoids pitfalls that are typically associated

with daisy-chained network digital switches.

POWERFUL CONTROL CAPABILITY

• Supports (16) 2-wire inputs, (8) 2-wire inputs with status output, or (8) 3-wire inputs.

• Fully con gurable from LCD display/keypad or via PCS software.

• Speci cally designed to operate in conjunction with 2000 and 3000 level controllers. Any RSC input can be set up to

control any remotely operated circuit breaker connected to the system.

• Assignable input timers, input synchronization, and programmable behavior according to speci ed time period.

• Provides an additional (16) independent time schedules that can be con gured to operate any circuit breaker

or zone con gured on the system.

Square D® Powerlink® Remote Source Controller

PRODUCT FEATURES

• NEMA Type 1 enclosure w/knockouts

• UL Listed

Remote Source Controller

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com

POWERLINK® LIGHTING CONTROL | ACCESSORIES

Accessories

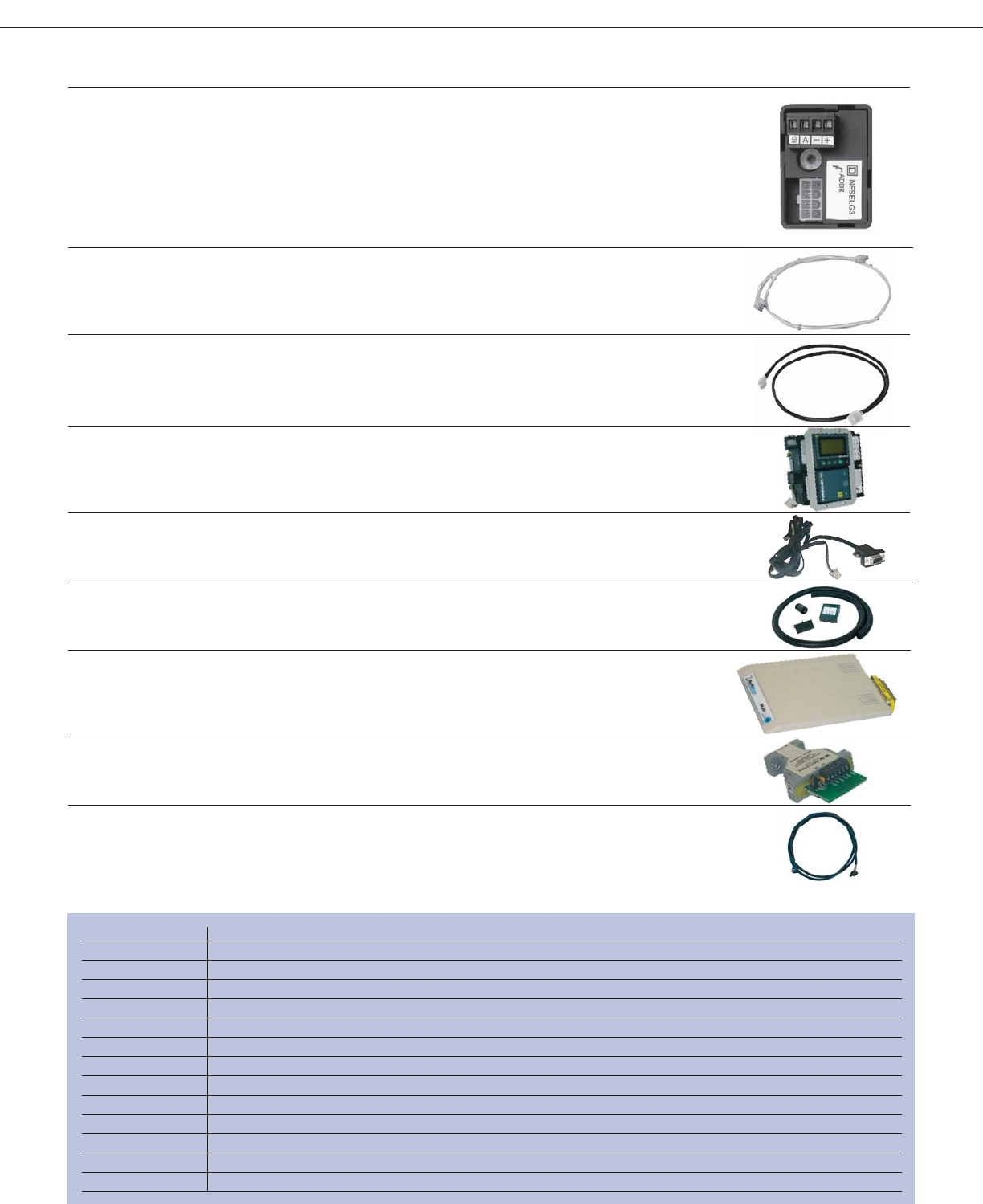

SLAVE ADDRESS SELECTOR

The Slave Address Selector is required for each slave panel connected to a subnet. The slave address selector establishes a unique system address for

the panel that is both essential for system operation and useful when the system is accessed from a remote location. The slave address selector plugs

directly onto control buses.

• Rotary operated switch labeled 0–7 for addressing panels

• Removable terminal block for connecting subnet cable

• Modular plug for connecting the Slave Address Selector to smart bus using the Slave Bus Connect Harness

SLAVE BUS CONNECT HARNESS ASSEMBLY

The Slave Bus Connect Harness assemblies are required in slave panels furnished with two control buses.

The harness contains modular plugs on each end.

COLUMNWIDTH CONTROLLER CABLE

A Column-width Controller Cable is required to connect the power supply to the controller when used in an

NF Column-width Panelboard.

REMOTE MOUNTING ADAPTER

The Remote Mounting Adapter provides a means for mounting a Powerlink controller and power supply in a separate enclosure. This bracket is ideal

for retro t applications where all 42 circuit spaces in the panelboard are required for branch circuit breakers.

CONTROLLER FRONT PANEL SERIAL CABLE

The Controller Front Panel Serial Cable is used to make direct RS-232 connections from the controller to a PC or laptop computer.

CUSTOM BARRIER KIT

The custom barrier kit provides a heavy-duty barrier for separating class II control circuits from power wiring.

MODEM KIT

This kit, which is designed speci cally for Square D Powerlink G3 controllers, contains all the necessary components for use

with the controller.

RS485/RS232 CONVERTER KIT

The RS-485/RS-232 converter kit allows connection from the RS-485 port of the controller to the serial port of a personal computer.

SUBNET CABLE

Four wire cable for connecting panels together in a subnet con guration

CATALOG NUMBER DESCRIPTION

NFSELG3 Slave address selector

NF2HG3 Slave bus connect harness

NFCW3G Column width controller cable

NFADAPTERG3 Remote mounting adaptor

NFFPC3G Controller front panel serial cable

NFASBKG3 Custom barrier kit

6382G3MODEM Modem kit

6382RS485G3KIT RS-485 converter kit

Subnet Cable

NFSN06 6’ (1.83 m) sub-net cable

NFSN10 10’ (3.05 m) sub-net cable

NFSN25 25’ (7.62 m) sub-net cable

NFSN50 50’ (15.24 m) sub-net cable

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com

POWERLINK® LIGHTING CONTROL | POWER SUPPLY

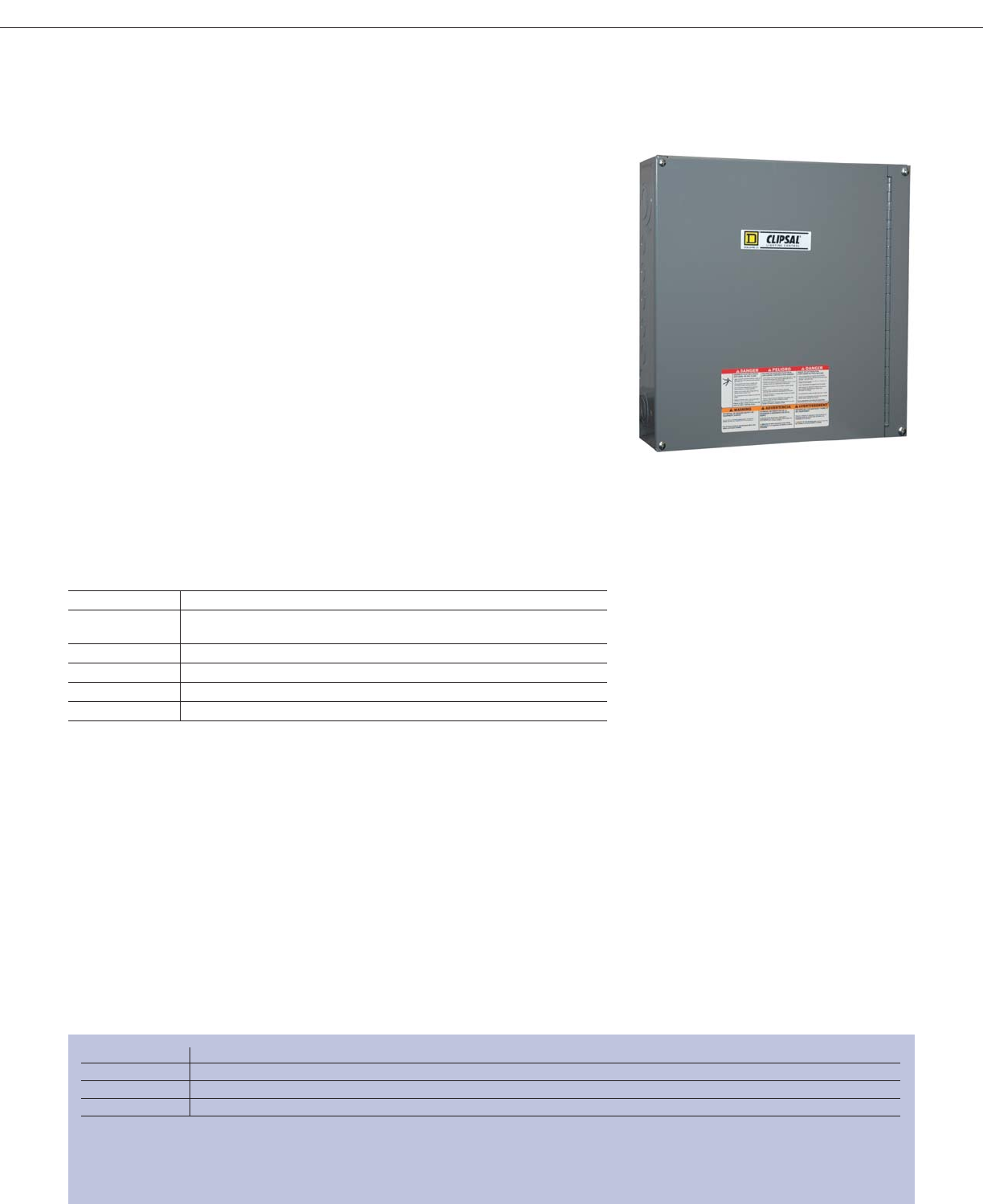

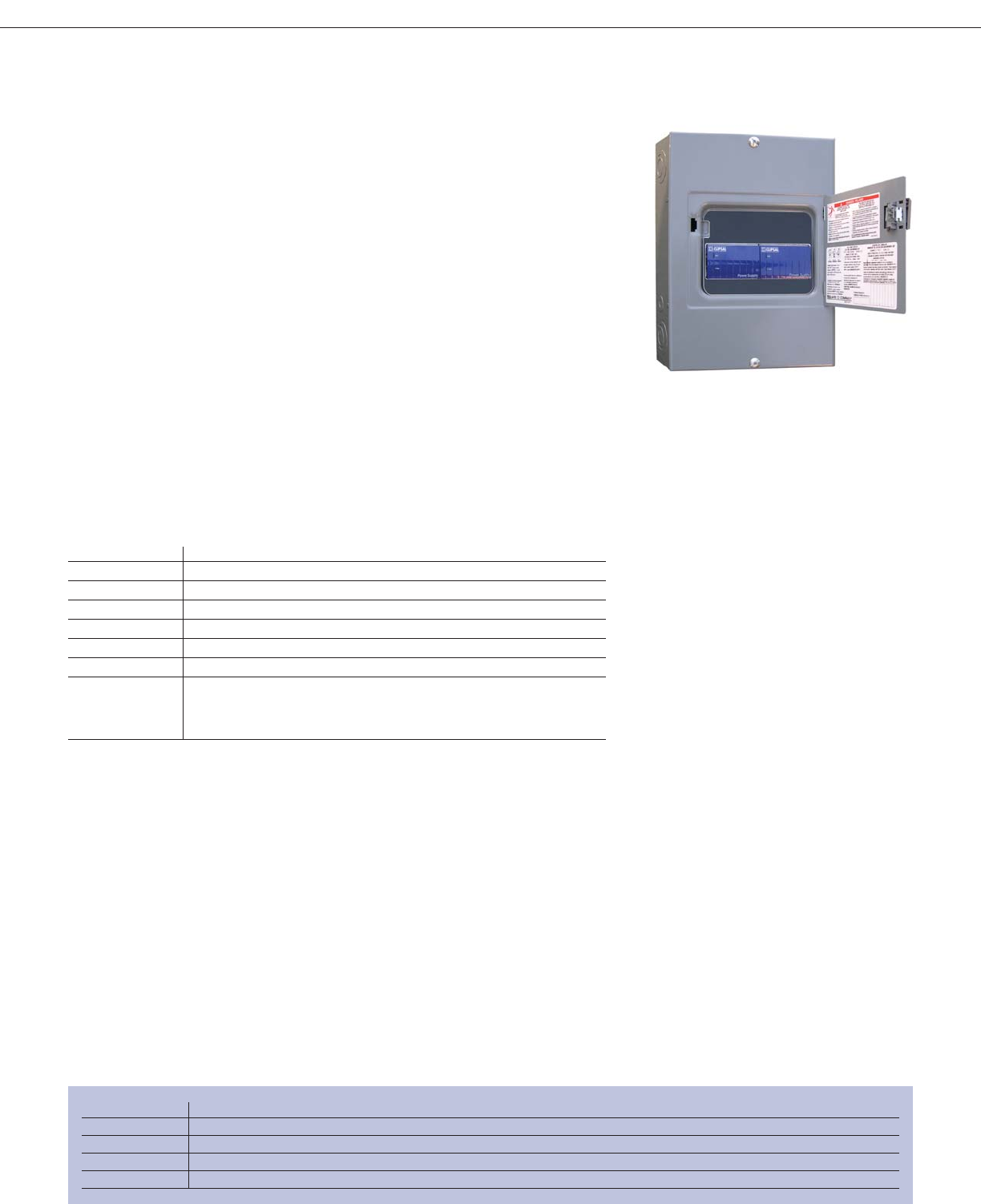

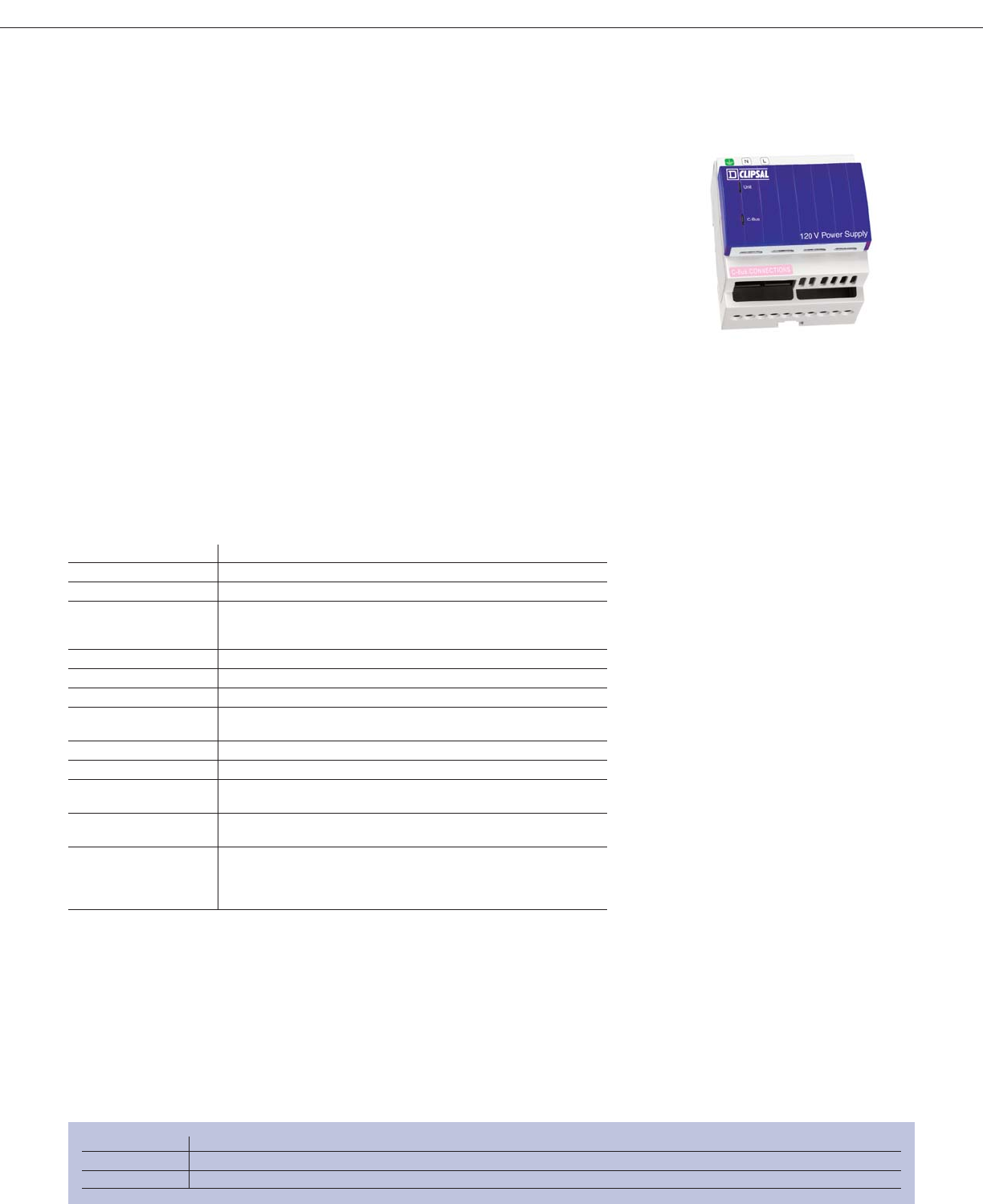

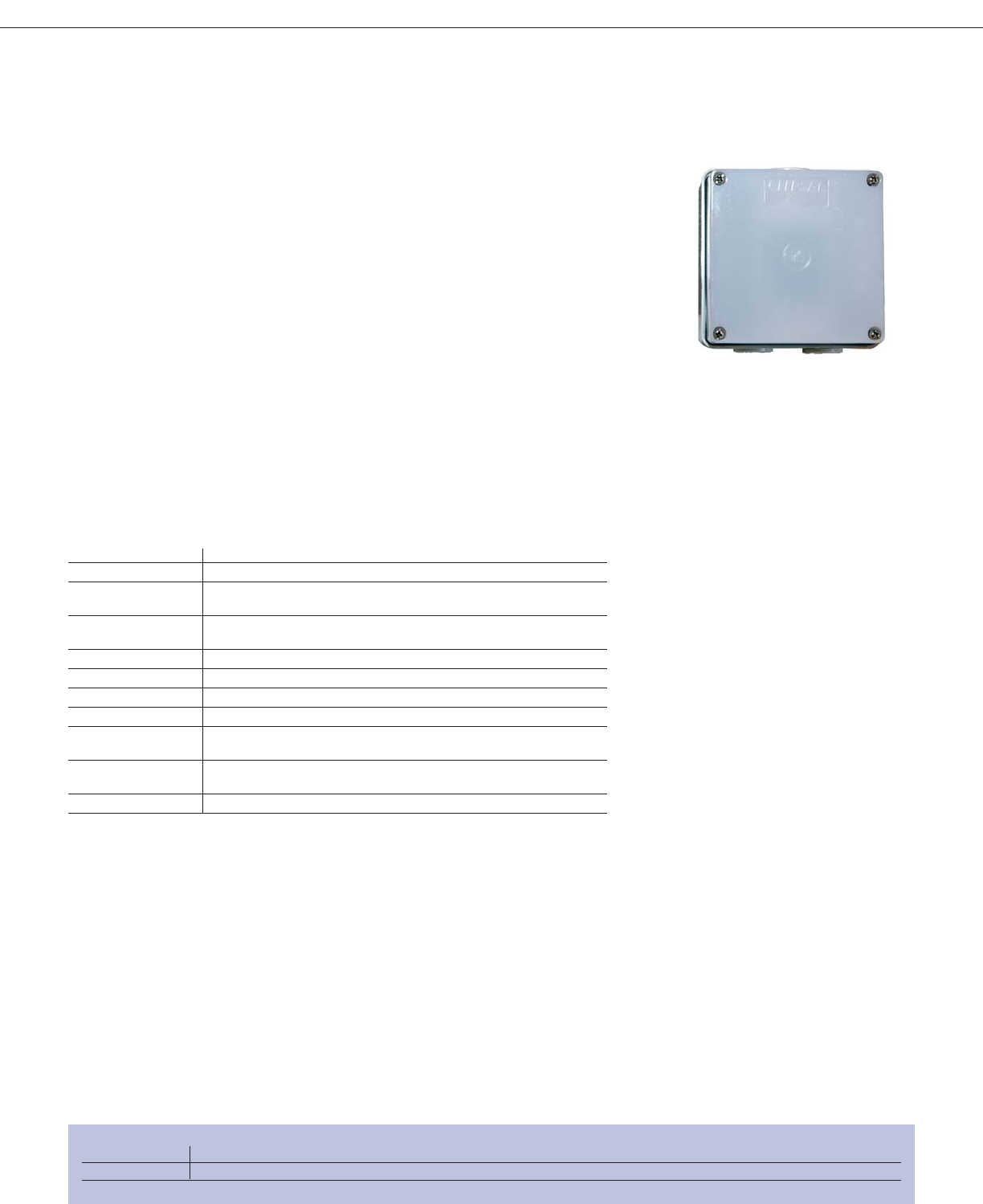

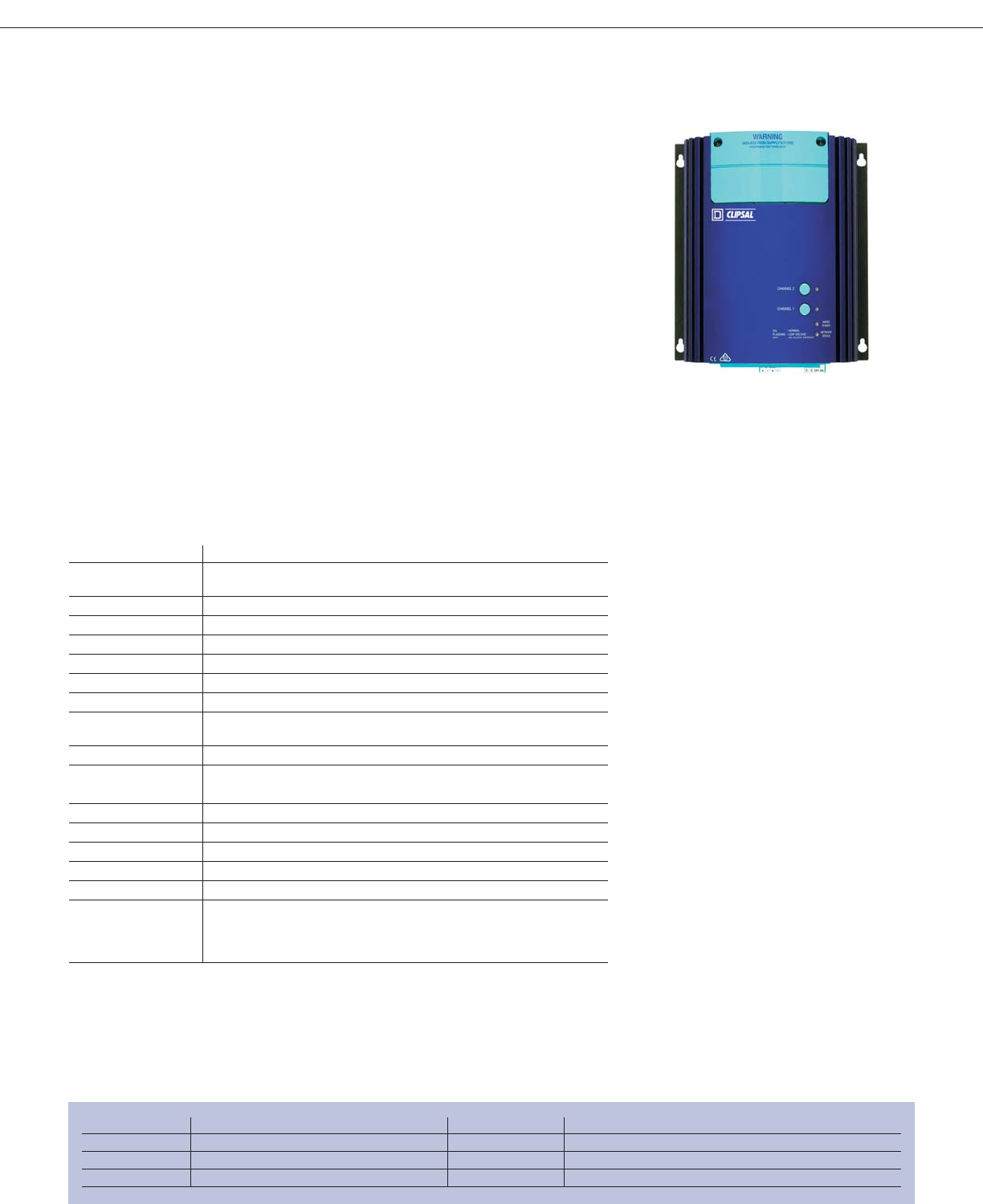

Square D® Powerlink® Device Power Supply

The Square D® Powerlink® Device Power Supply is used to distribute power on a C-BusTM network. Placed on the network,

device power supplies will provide the current necessary for operating a variety of passive Square D Clipsal® devices.

A Device Power Supply consists of a Clipsal 8M enclosure containing one or two Clipsal Power Supplies

(120 or 277Vac).

PRODUCT FEATURES

• Surface-mount NEMA Type 1 enclosure with cover

• Unit and C-Bus LEDs indicate the status of the line voltage

and the network

• Sources up to 700 mA (dual power supplies) to the

C-Bus network

• 120 or 277Vac models available

• UTP connection jumper included for dual supply

CATALOG NUMBER DESCRIPTION

NFDP1120G3C 120V Powerlink Single Power Supply

NFDP2120G3C 120V Powerlink Dual Power Supply

NFDP1277G3C 277V Powerlink Single Power Supply

NFDP2277G3C 277V Powerlink Dual Power Supply

TECHNICAL INFORMATION

Nominal Line Voltage Operates at 120 or 277Vac, ± 10%, with a frequency range from 50–60 Hz

Maximum Line Current 9.9 mA for 120V power supply 4.3 mA for 277V power supply

Electrical Isolation 3.75 kV RMS from C-Bus to the line

Current Output 350 mA (single power supply unit) 700 mA (dual power supply unit)

Dimensions 12.57 in. (L) x 8.88 in. (W) x 3.8 in. (D) [319 mm (L) x 226 mm (W) x 97 mm (D)]

Weight One power supply: 8.84 lb (4.01 kg) Two power supplies: 9.28 lb (4.21 kg)

Operating Environment Temp.: 32°F to 113°F (0°C to 45°C) RH: 95%, noncondensing

Standards UL: Listed 508A Industrial Control Equipment

CSA 22.2 Spec 205 Signal Equipment

FCC: Part 15.101, Class B Digital Device

EN61000-4-2 Immunity to ESD

*For Diagram see technical section page 30

Powerlink Device Power Supply

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com

POWERLINK® LIGHTING CONTROL | DEVICE ROUTER

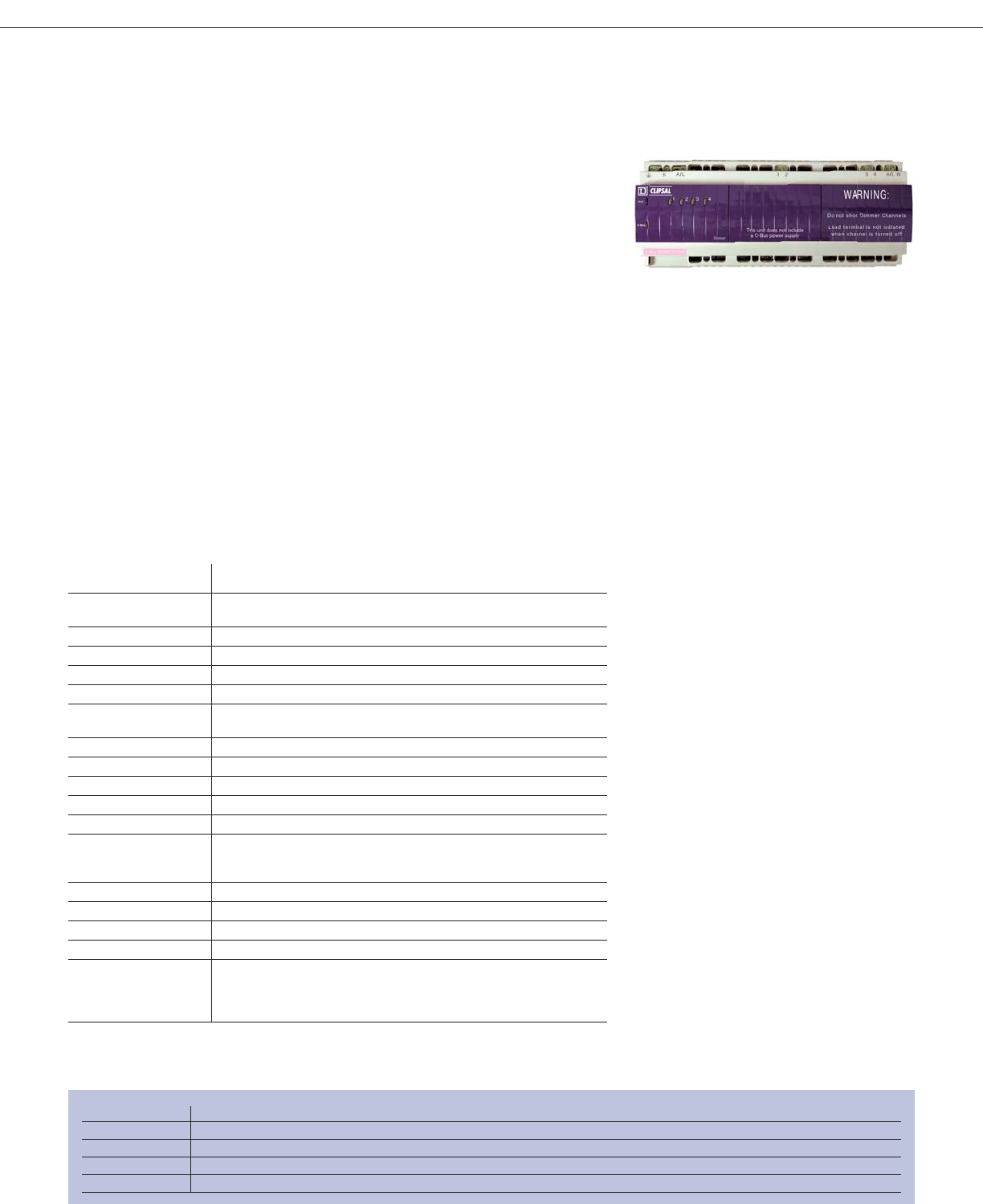

Square D® Powerlink® Device Router

The Square D® Powerlink® Device Router allows the exchange of data between a Powerlink NF3000G3C controller and

Square D® Clipsal® devices.

The bidirectional device router can receive data from the Clipsal input devices and send the data to the Powerlink panel/

network. It can also recieve data such as a contact closure from the Powerlink input and send that data to a Clipsal

output/network.

The device router consists of a Clipsal 8M enclosure containing a Clipsal PC Interface and a Clipsal Power Supply (120Vac or

277Vac). Communication between the device router and the NF3000G3C controller is made with the included 50-foot

serial cable.

PRODUCT FEATURES

• Surface-mount NEMA 1 enclosure, with cover

• Unit, Unit/Comms, and C-Bus LEDs indicate the status of data

transmission and power to the unit and the network

• System network clock for synchronizing communications data

• Network power source, supplying up to 350 mA

• 120 or 277Vac models available

CATALOG NUMBER DESCRIPTION

NFDR120G3C 120V Powerlink Device Router

NFDR277G3C 277V Powerlink Device Router

TECHNICAL INFORMATION

Nominal Line Voltage Operates at 120 or 277Vac, ± 10%, with a frequency range from 50–60 Hz

Maximum Line Current 9.9 mA for 120V device router 4.3 mA for 277V device router

Electrical Isolation 3.75 kV RMS from C-Bus to the line

Current Output 350 mA to the C-Bus network

Status Indicators Unit and Unit/Comms: Line voltage, unit power, and data transmission

C-Bus: Power levels and presence of C-Bus clock

Serial Connection (1) 9-pin RS-232 D-type serial connector; (2) RS-232 RJ-45 connectors

C-Bus Connection (2) RJ-45 sockets for connection to the C-Bus network

Data Cable 50 ft serial

Dimensions 12.57 in. (L) x 8.88 in. (W) x 3.8 in. (D) [319 mm (L) x 226 mm (W) x 97 mm (D)]

Weight 9.1 lbs (4.13 kg)

Operating Environment Temp.: 32° to 113°F (0° to 45°C) RH: 95%, noncondensing

Standards UL: Listed 508A Industrial Control Equipment

CSA 22.2 Spec 205 Signal Equipment

FCC: Part 15.101, Class B Digital Device

EN61000-4-2 Immunity to ESD

*For Diagram see technical section page 30

Powerlink Device Router

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com

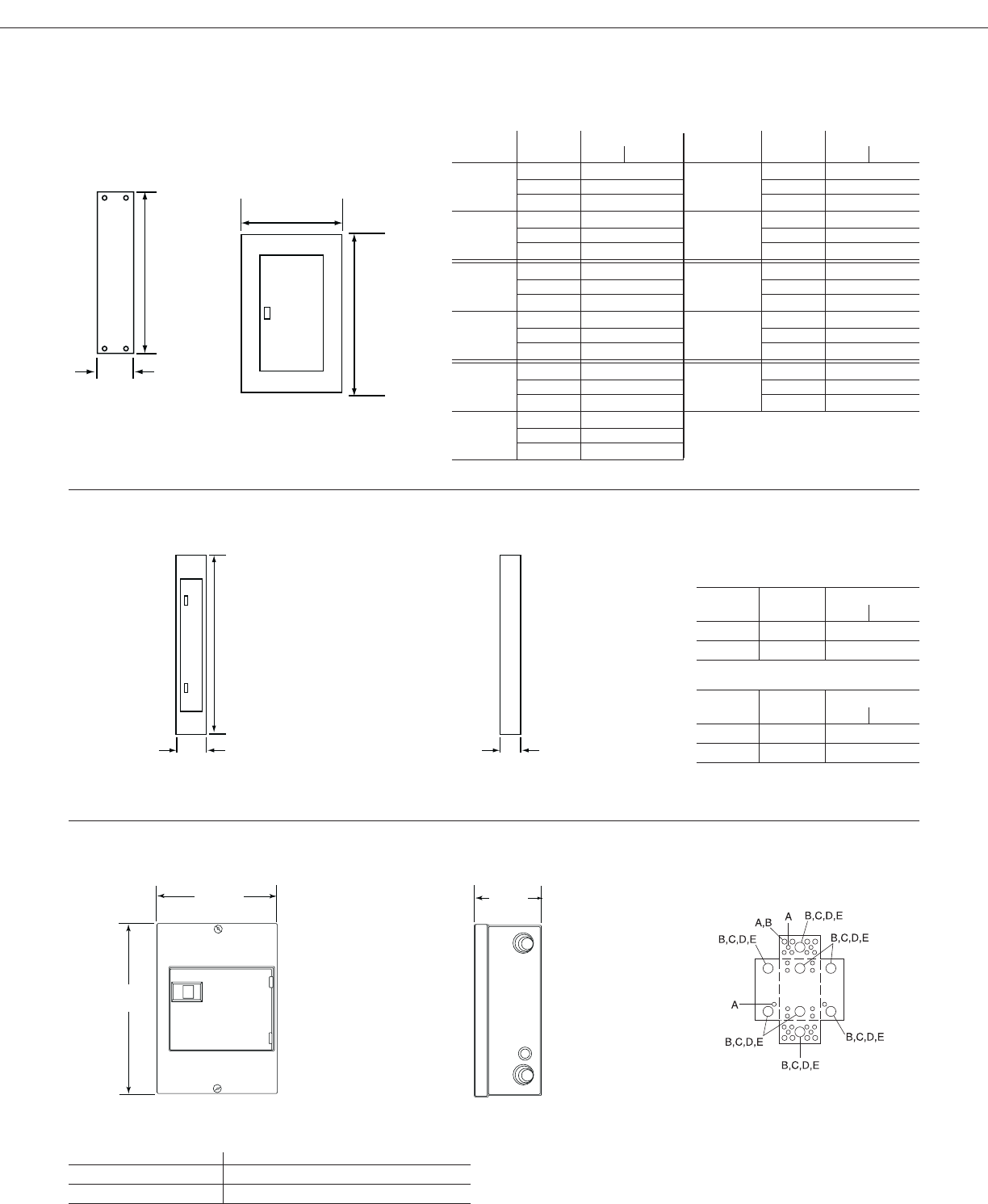

POWERLINK® LIGHTING CONTROL | TECHNICAL SECTION

Typical Enclosure Front View

NF Panelboard (indoor enclosure)

Column Width Panelboard

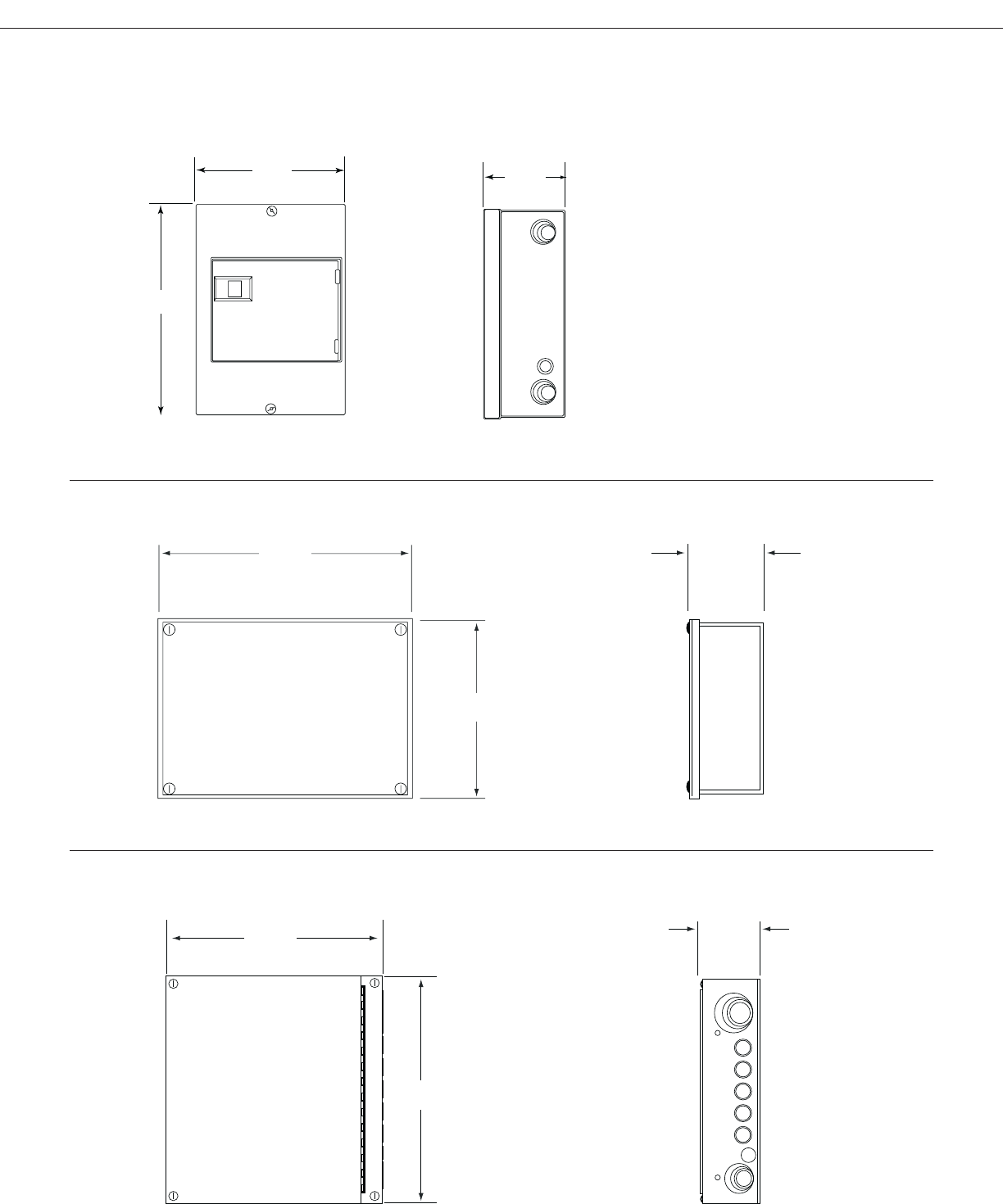

DIMENSIONAL DRAWINGS

Typical Enclosure Front View

59 in.

(1.4 m)

9.69 in.

(246 mm)

Typical Enclosure Side View

5.60 in.

(142 mm)

Typical Enclosure Side View

Flush Mounting W + 1.50 (38mm)

Surface Mounting W + 0.12 (3mm)

Flush Mounting W + 1.50 (38mm)

Surface Mounting W + 0.12 (3mm)

5.75 in.

(146 mm)

Conduit knockouts for the 8M enclosure

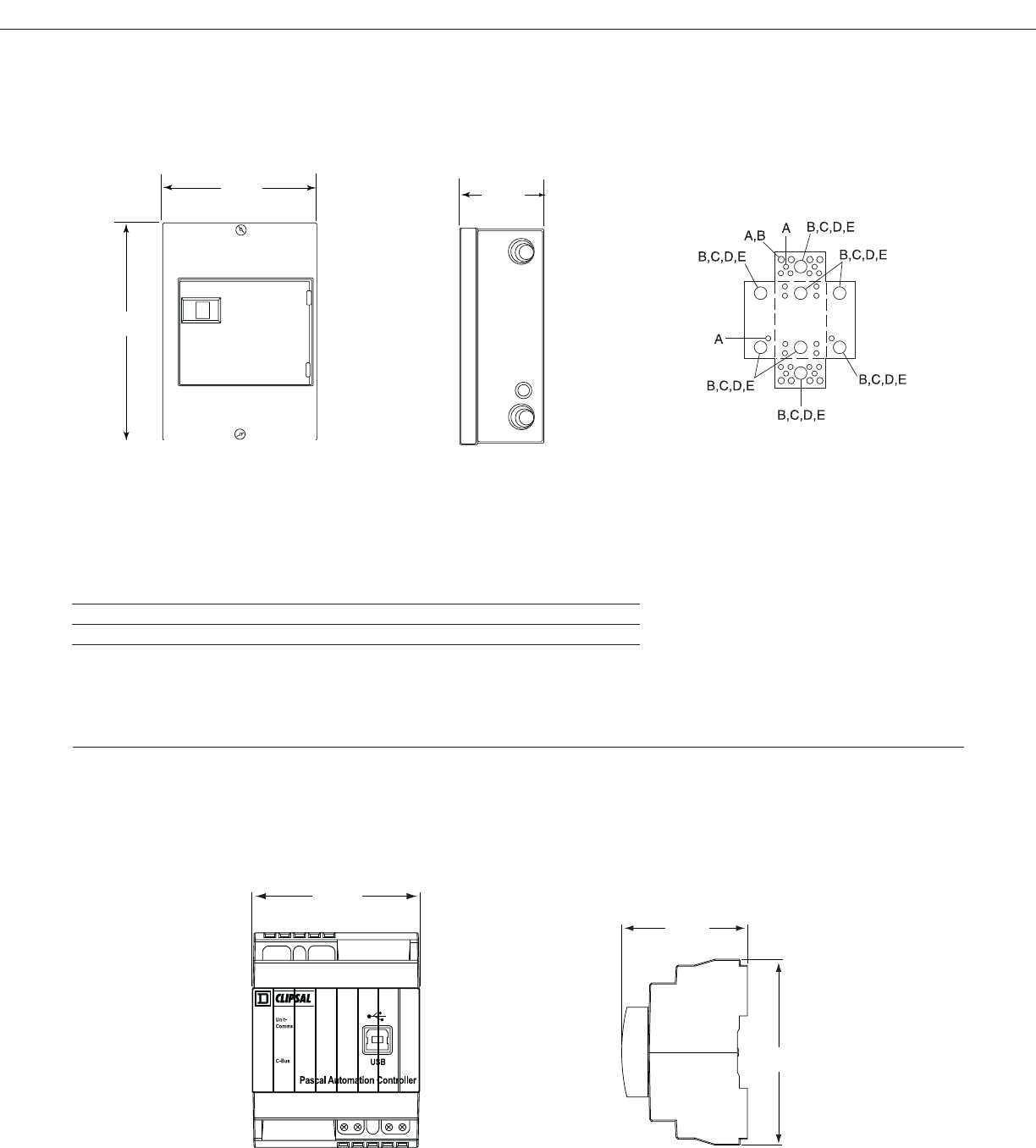

Square D® Powerlink® Device Power Supply/Device Router

Side view showing depth

3.8 in.

97 mm

3.8 in.

(97 mm)

Front view showing height and width

8.9 in.

226 mm

12.57 in.

319 mm

8.9 in.

(226 mm)

12.57 in.

(319 mm)

Clipsal 8M Enclosure Knockouts

Symbol A B C D E

Conduit Size ½ ¾ 1 1¼ 1½

125A 12 26 660

18 26 660

30† 32 813

250A 30 38 965

42 44 1118

54 50 1270

100A 12 38 965

(FIL) 18 38 965

30† 44 1118

250A 30 50 1270

(JDL, JGL, 42 56 1422

JJL, JLL) 54 62 1575

800A* 30 50 1270

42 56 1422

54 62 1575

400A 30 62 1575

(LAL, LHL) 42 68 1727

54 74 1880

†3Φ4W only *800A Panelboards are 8¾ in. deep

Max. Main Lug Max. Number (H) Enclosure Height

Ampere Rating of Circuits In. mm

125A 18 32 813

(EDB, EGB, EJB) 30 38 965

42 44 1118

100A 12 38 965

(HDL, HGL, 18 38 965

HJL, HLL) 30† 44 1118

400A 30 50 1270

42 56 1422

54 62 1575

600A 30 50 1270

42 56 1422

54 62 1575

400/600A 30 68 1727

(LCL, LIL) 42 74 1880

54 80 2032

Max. Main Lug Max. Number (H) Enclosure Height

Ampere Rating of Circuits In. mm

30 125A 59 1499

42 225A 71 1803

Max. Number Max. Main Lug (H) Enclosure Height

of Circuits Ampere Rating In. mm

Ready-to-Assemble (Also Available Factory Assembled)

Column Width - Main Lugs Only

30 125A 59 1499

42 225A 71 1803

Max. Number Max. Main Lug (H) Enclosure Height

of Circuits Ampere Rating In. mm

Column Width - Main Circuit Breaker

*These dimensions are standard. Please consult factory for special requirements.

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com

POWERLINK® LIGHTING CONTROL | TECHNICAL SECTION

SHORT CIRCUIT RATING TABLE

EDB, EDB-EPD

ECB-G3

EDB, EDB-EPD, EGB

ECB-G3

EDB, EDB-EPD, EGB, ECB-G3

EDB, EDB-EPD, EGB, EJB

ECB-G3

EDB, EDB-EPD

ECB-G3

EDB, EDB-EPD, EGB

ECB-G3

EDB, EDB-EPD, EGB, EJB

ECB-G3

EDB, EDB-EPD, EGB, EJB, ECB-G3

EG, FH, FG, KH, LH, MH, MX, HG, JG

EJ, FC, FJ, KC, LC, LX, HJ, JJ

EJ, FC, KC, HJ, JJ

HL, JL

FI, KI, LI, LXI

FI, KI

Class J or T (600 V) 200 A max. fuses

EG, FG, HG, JG, KH, LH

EG, HG, JG

EJ, FC, FJ, KC, LC, LX, HJ, JJ

EJ, FC, KC, HJ, JJ

HL, JL

400 A max. fuses

FI, KI, LI, LXI

FI, KI

200 A max. fuses

65,000

100,000

125,000

200,000

35,000

65,000

100,000

200,000

120 120/240 240

277

480Y/277

Max. System Voltage Max. Short Circuit Current Rating Integral or Remote Main Circuit Breaker Square D Branch Circuit Breaker Catalog Designation

RMS Symmetrical Amperes

NF Panelboard SCCR Ratings

This table lists the UL short-circuit current ratings for NF panelboards including ECB-G3 circuit breakers. The ratings apply to an integral main located in the same enclosure or a remote main

located in a separate enclosure.

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com

POWERLINK® LIGHTING CONTROL | TECHNICAL SECTION

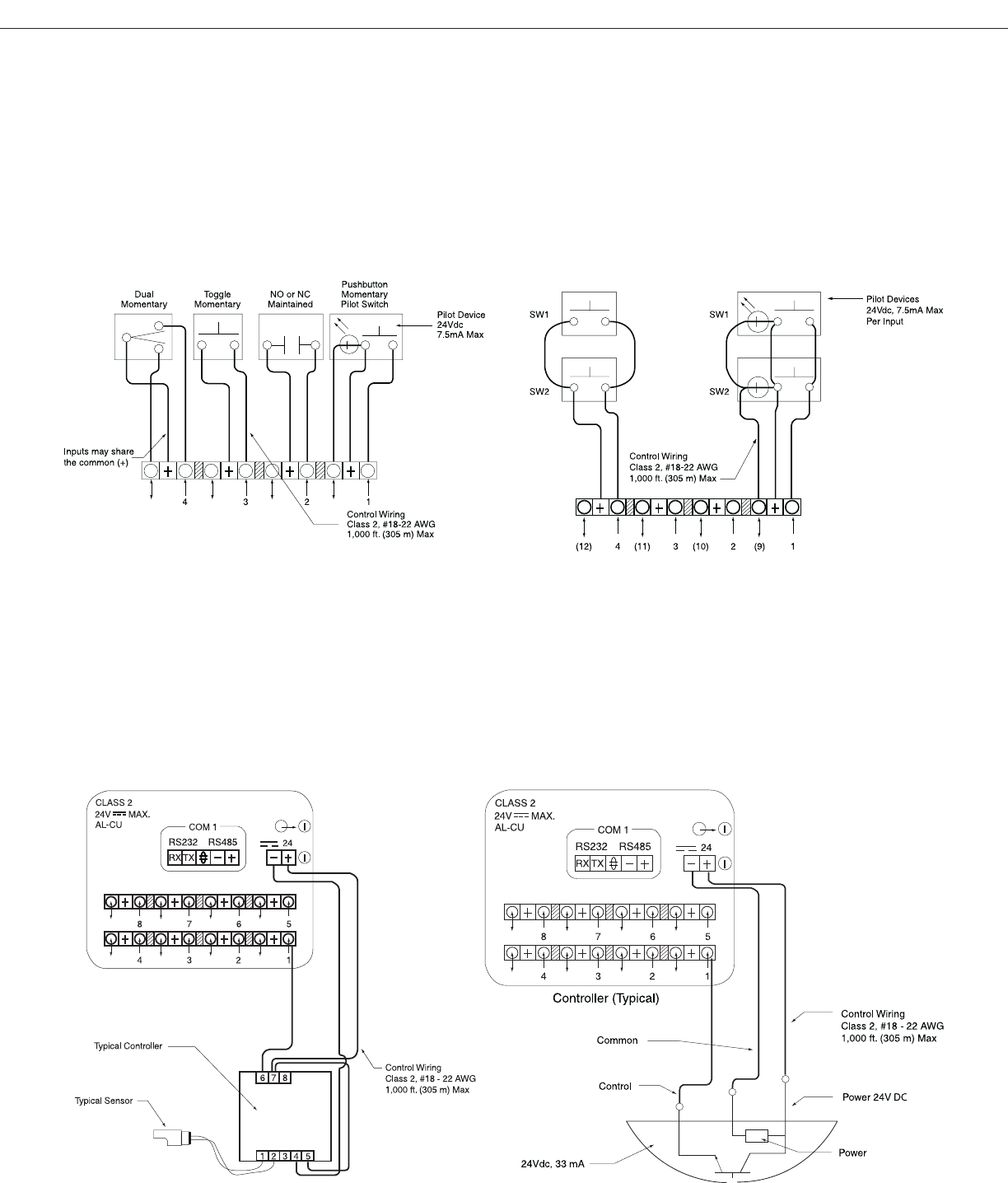

WIRING DIAGRAMS

This section contains wiring diagrams for the Square D Powerlink G3 systems

TYPICAL SWITCH TYPES WIRED IN PARALLEL

VARIOUS LOW VOLTAGE SWITCH TYPES

TYPICAL LOW VOLTAGE INPUT CONNECTIONS

TYPICAL PHOTO CONTROLLER WIRING DIAGRAM

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com

POWERLINK® LIGHTING CONTROL | TECHNICAL SECTION

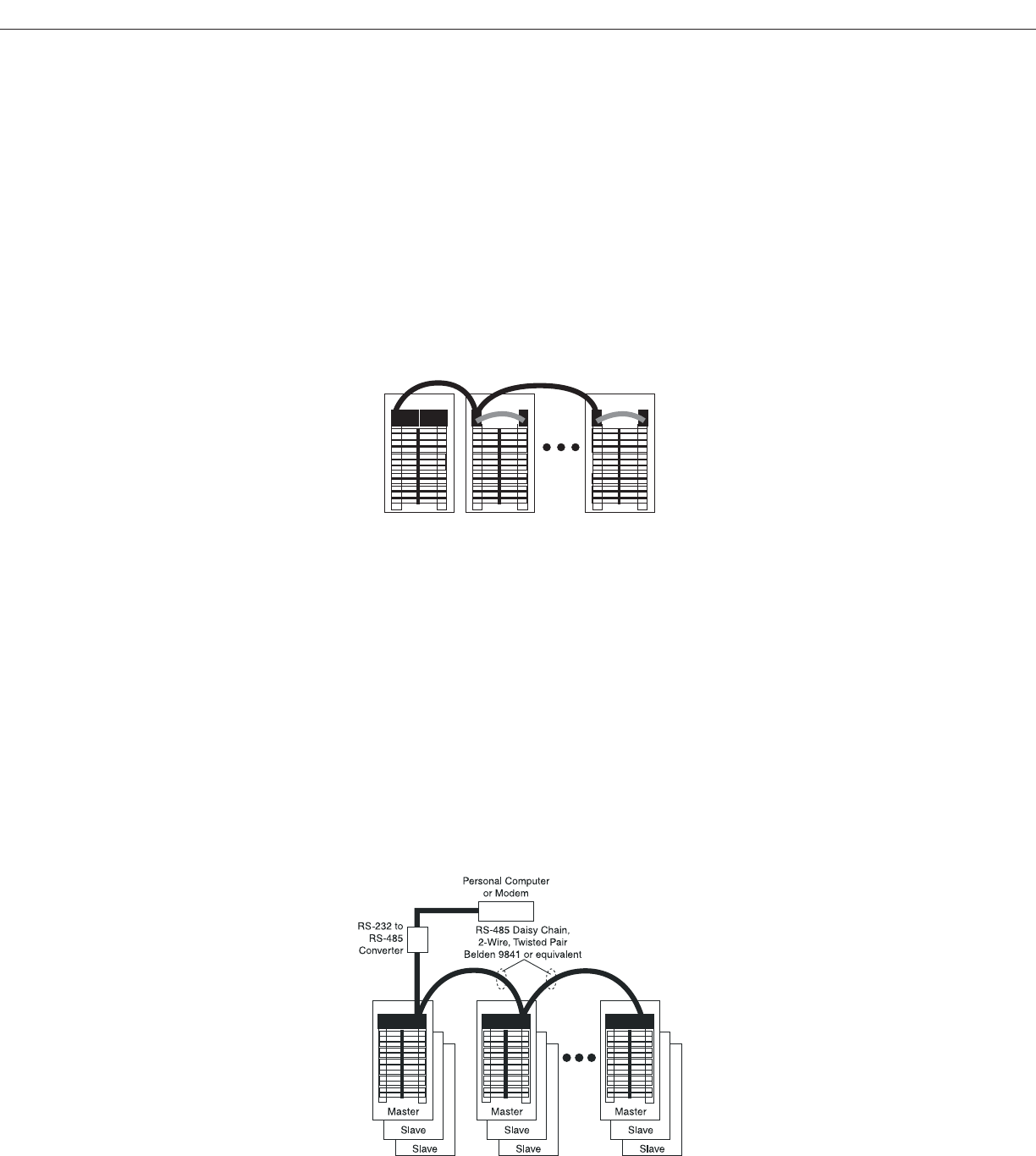

Subnet communications allow one controller to

operate up to 168 remotely operated branch circuits.

Automation networks provide remote access to the lighting control system over an

RS-485 network. An RS-485 network consists of low cost, 2-wire, Class 2

communications cable, Belden 9841 or equivalent.

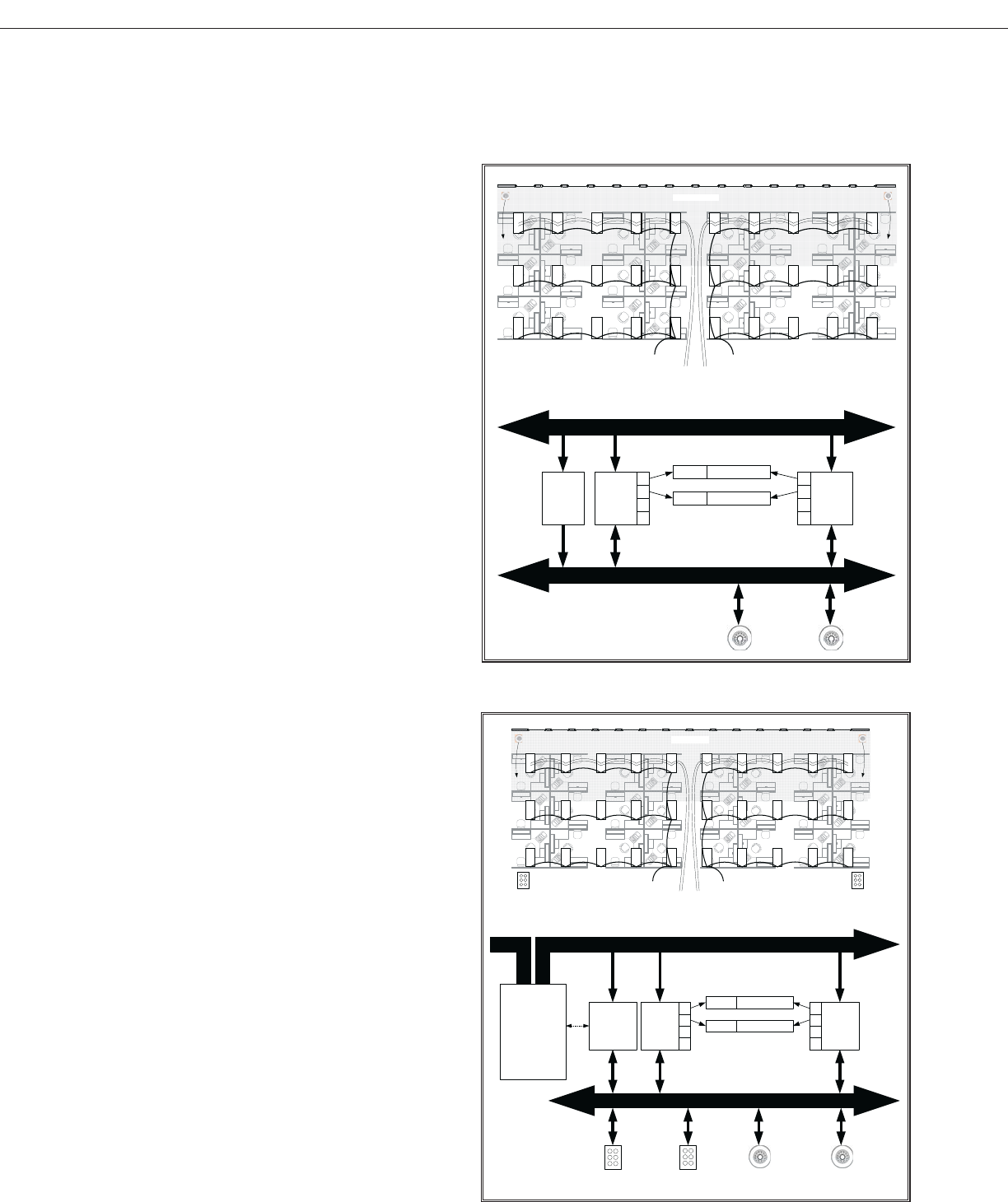

SYSTEM ARCHITECTURE

Three levels of communications are provided that can be easily tailored to individual application requirements.

SUBNET COMMUNICATIONS

• Each Square D Powerlink G3 Controller can directly operate up to eight control buses.

• Controller signals the control buses to switch the associated branch circuits and polls each Square D® Powerlink® G3 Circuit Breaker to determine its actual status.

• Communications between the controller and the control buses are made with a 4-wire, Class 1 communications cable (Belden 27326 or equivalent).

• Slave panels (those containing control buses and remotely operated circuit breakers, but no controller) may be mounted up to 400 feet away from the master panel that contains the controller.

AUTOMATION NETWORK

• Each controller provides both RS-485 and RS-232 serial ports. Provides access up to 247 controllers using an RS-485 multi-drop con guration.

• An automation level network can also be used to communicate with other building systems such as energy management systems and card access controllers. The automation network uses

widely accepted and supported industrial-proven protocols used by many building automation manufacturers and systems integrators

- Modbus® ASCII/RTU open protocol in all Square D Powerlink G3 Controllers

- DMX512 protocol in automation level network for theatrical lighting applications in 1000, 2000, and 3000 level controllers

- Optional JCI-N2 protocol for 1000 level controllers

- Optional C-Bus™ Network capability with NF3000G3C controller and device router

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com

POWERLINK® LIGHTING CONTROL | TECHNICAL SECTION

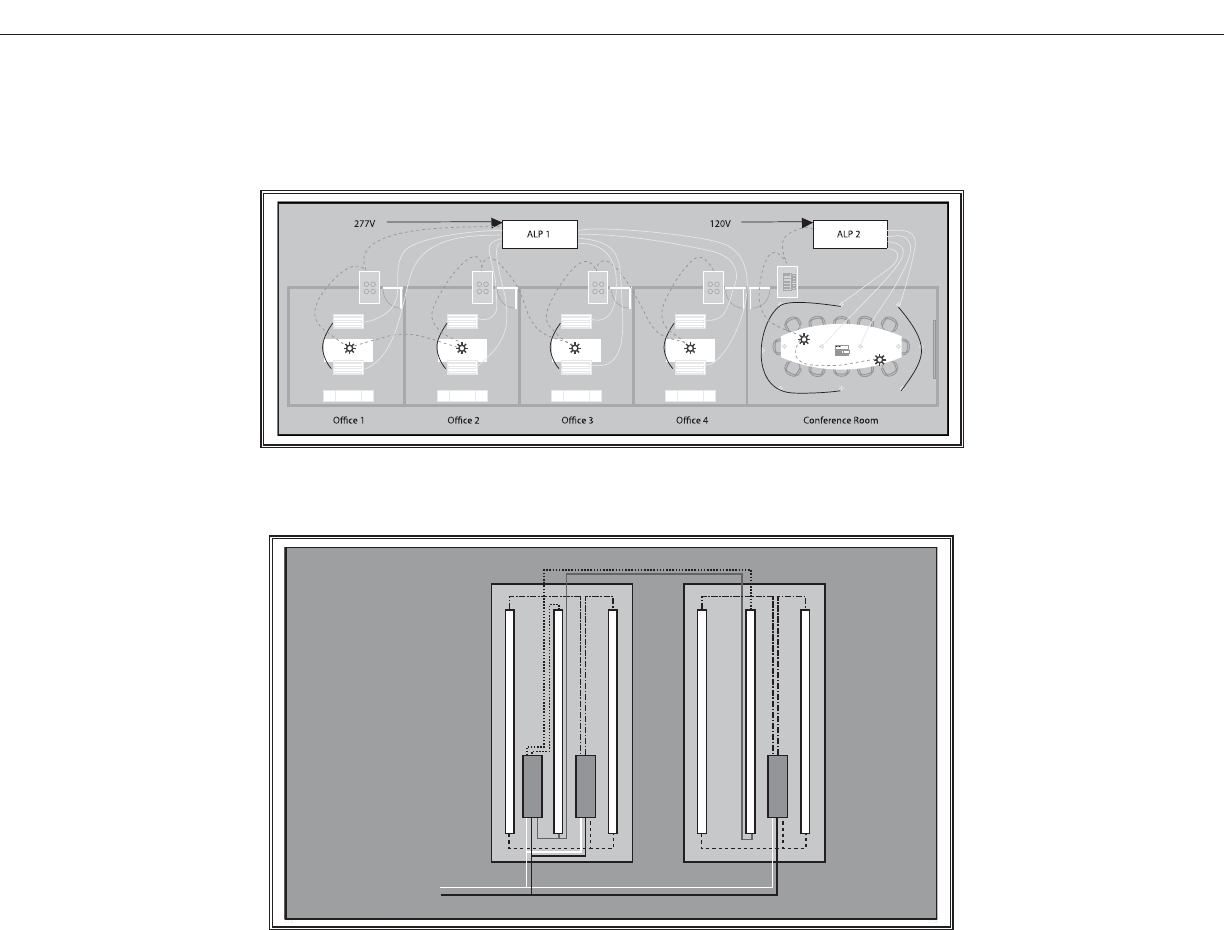

ETHERNET CONNECTIVITY

Square D Powerlink G3 2000 and 3000 level controllers have integrated onboard Ethernet capability. In addition to providing high-speed Ethernet access, these controllers allow fast

peer-to-peer (P2P) connectivity between panels. With 2000 and 3000 level systems, master panels can share inputs, schedules, and zone status.

Square D® Powerlink® Remote Source Controller

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com

POWERLINK® LIGHTING CONTROL | TECHNICAL SECTION

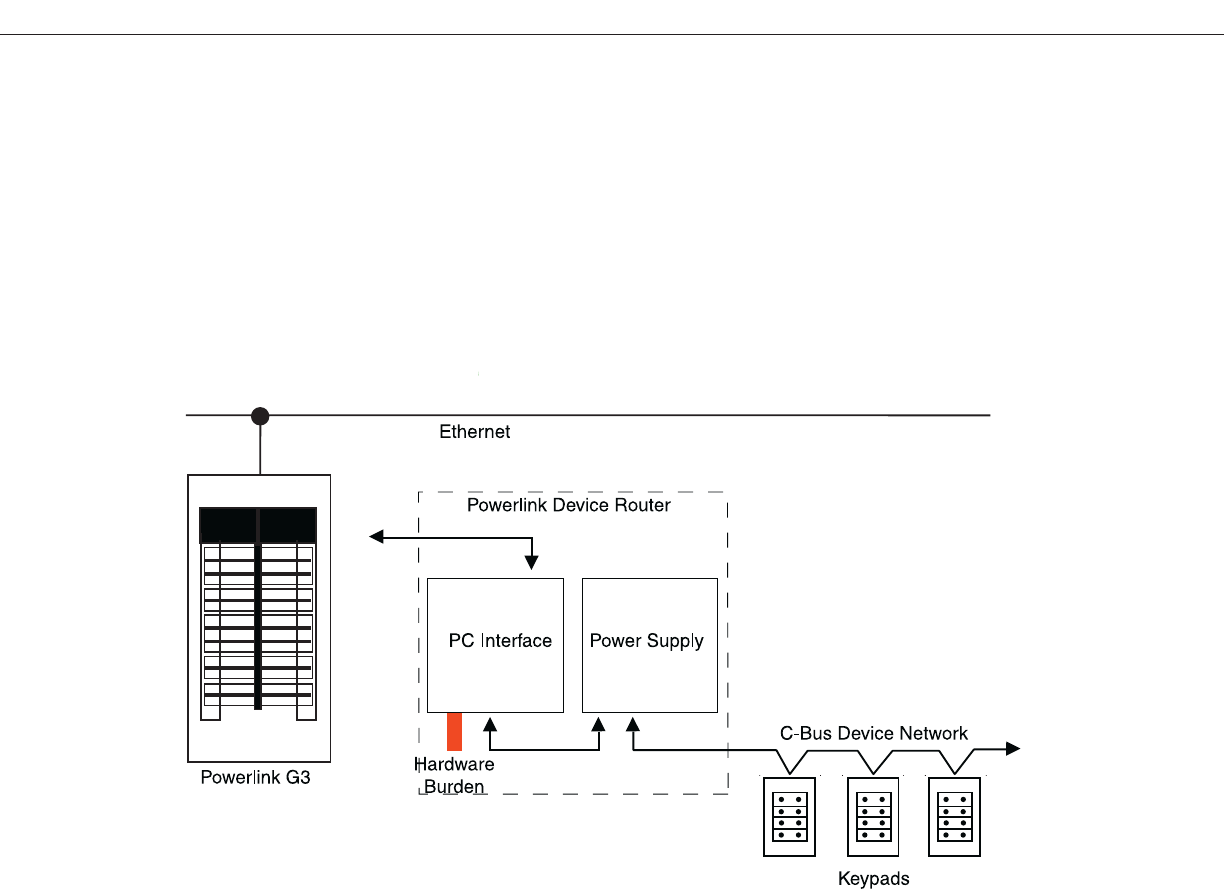

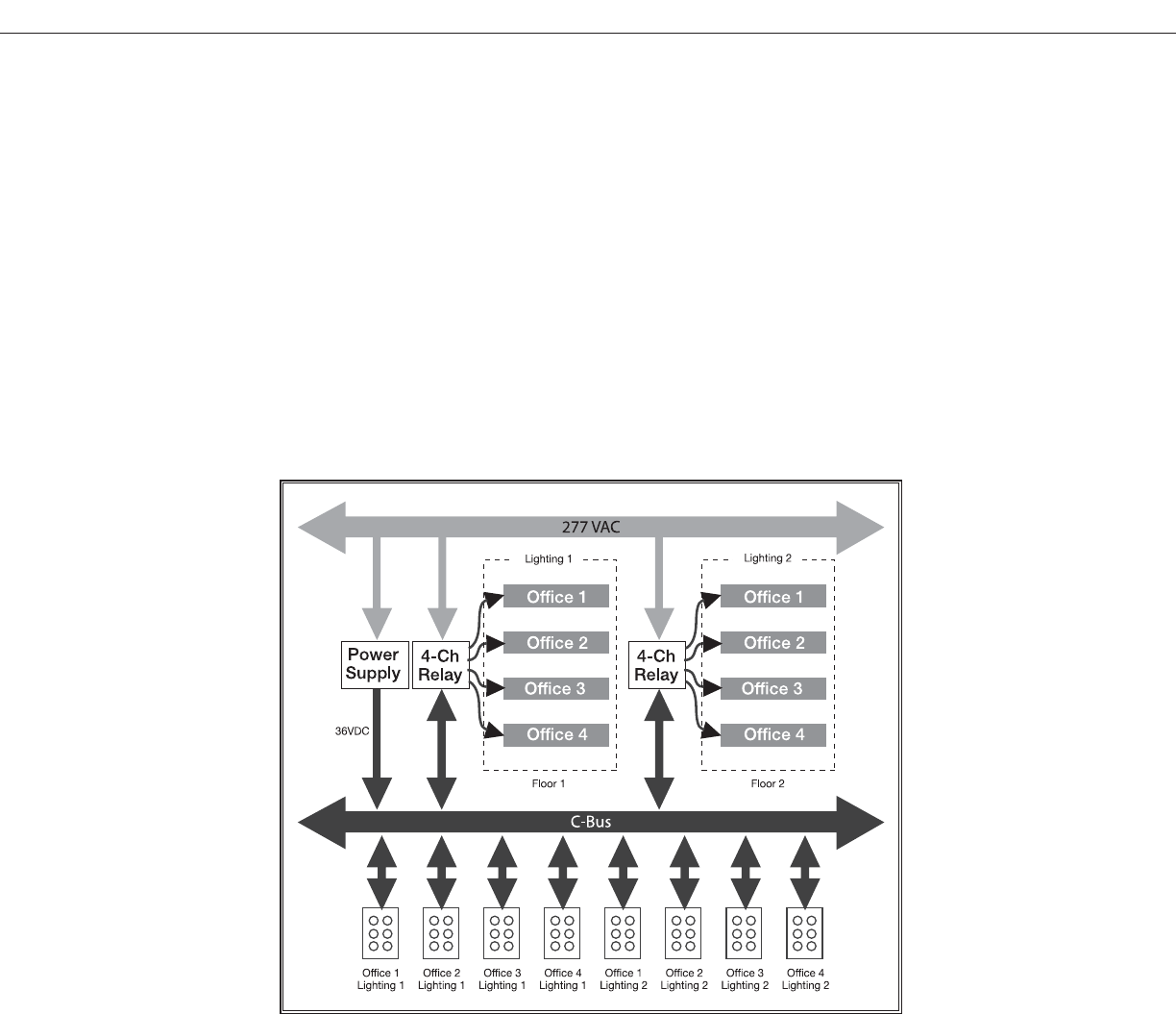

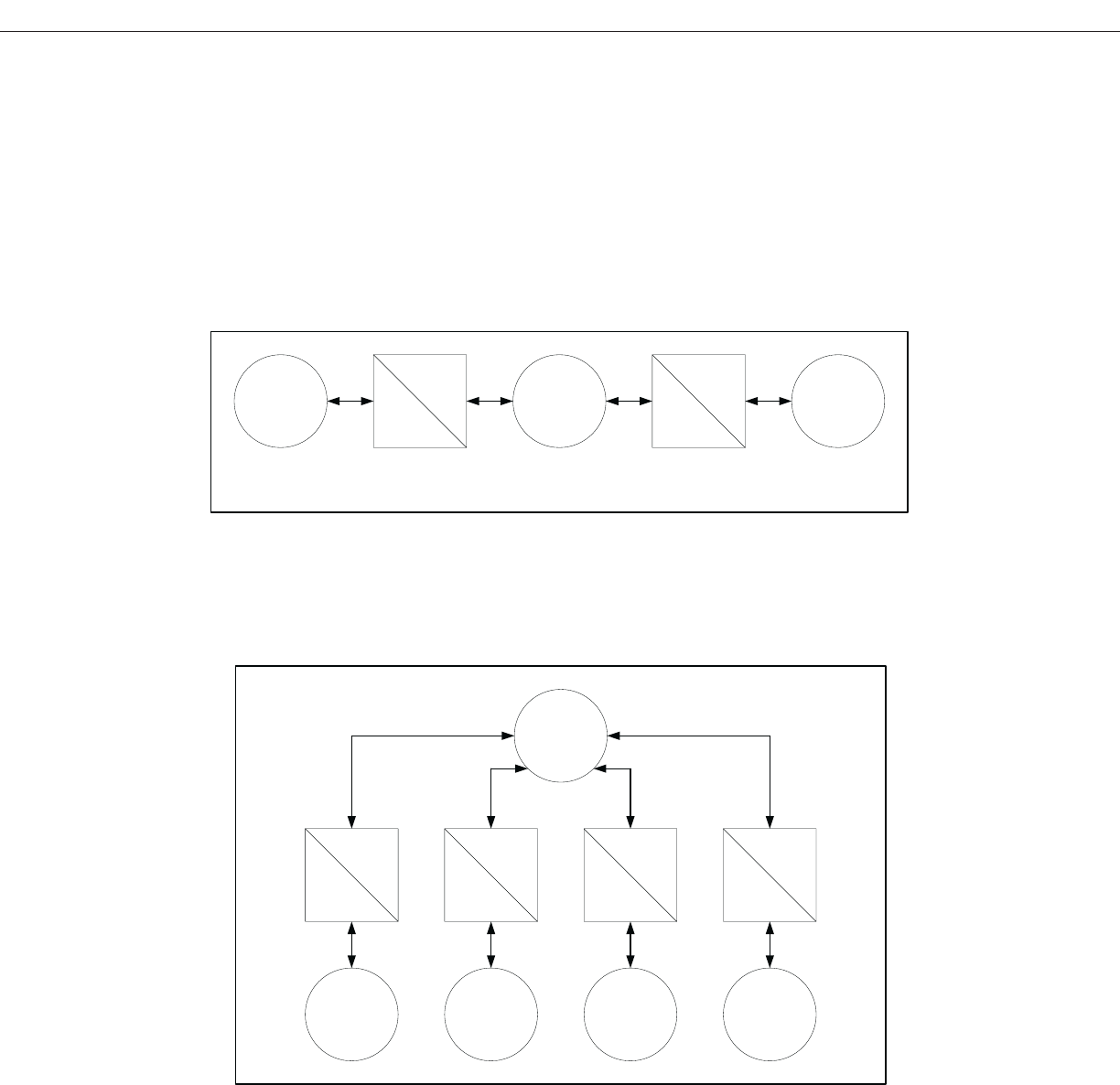

Below is a typical one-line diagram for creating a local area network using the C-Bus Network capability of level 3000G3C controllers. All cables shown below are CAT-5.

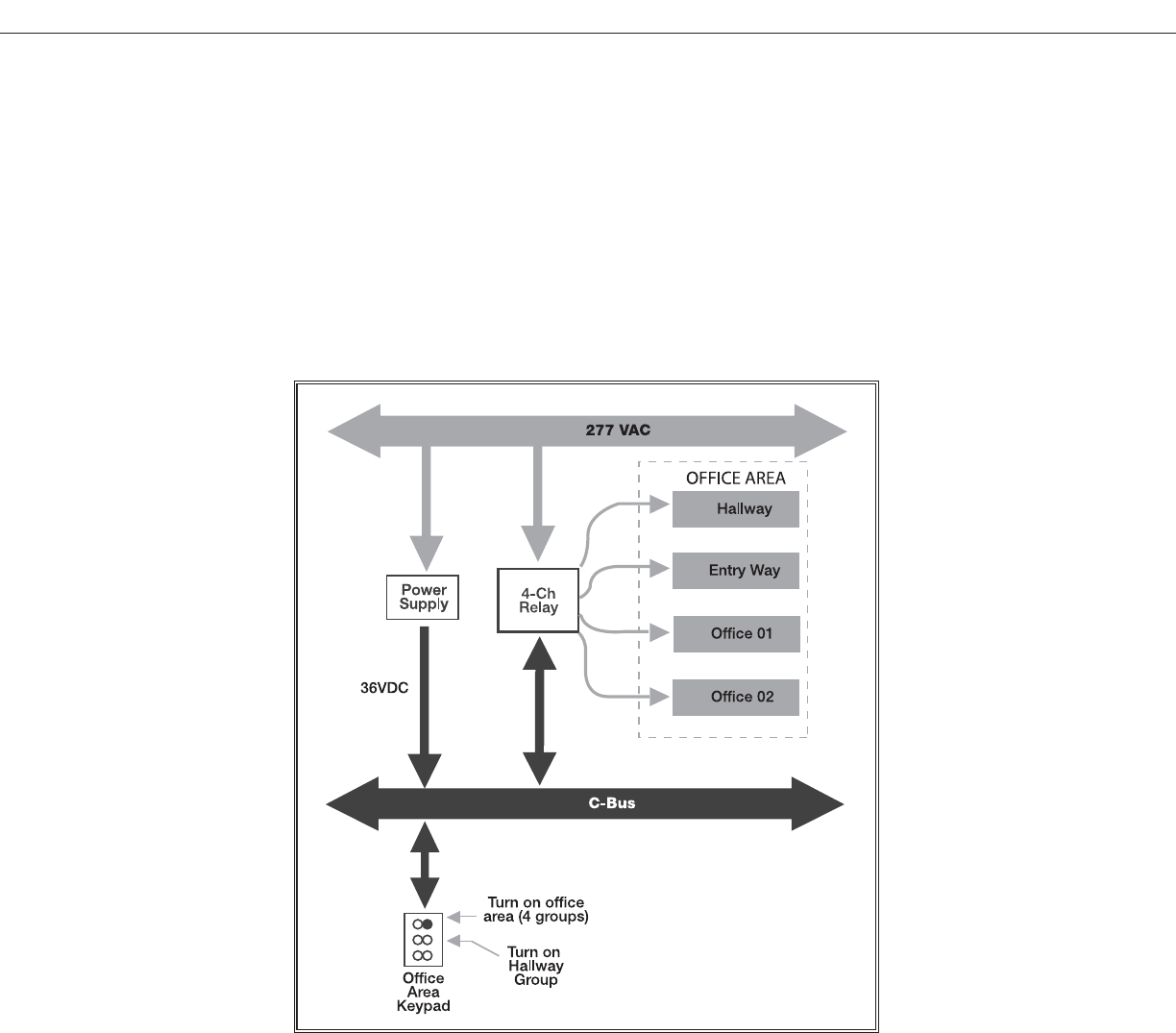

C-BUSTM NETWORK

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com

Square D®

Clipsal® Lighting

Control

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com

Introduction to

Square D® Clipsal® Lighting Control

The availability of low cost, powerful microprocessors for building and home control and management systems has created unprecedented customer expectations for increased control,

connectivity and integration of electrical and low voltage systems.

Sophisticated styling - Square D® Clipsal® brings a distinctly sophisticated look to lighting applications. Clean lines. Sleek glass. Every detail and surface of these keypads and touch

screens are designed to complement contemporary commercial and residential environments.

System simplicity - With its unique distributed system, installation couldn’t be easier. You can place relays and dimmers in various locations and connect them directly to the network

– eliminating the need to run cable back to a separate enclosure near centrally located processors. Keeping the design simple also adds up to greater system reliability.

Since the Square D Clipsal system uses standard Cat 5 cabling, there’s no special cable to order or keep in supply. So it’s much easier to address last-minute change orders or to

complete a job without wondering if you have the right materials on hand.

Fully scalable solution - Whether you’re creating a lighting control system for a single room or a whole facility, Square D lighting control o ers scalable systems to  t your exact

needs. Our C-Bus™ solutions are designed around the size and requirements of your application. All this with a common platform and easy installation practices. Talk about  exibility.

Clipsal® keypads - These aesthetically pleasing faceplates lend a sophisticated look to virtually any space. They’re as elegant as they are well-engineered.

Clipsal touch screens - Our uni ed wall-mounted panels allow you to control lighting systems and accessories with the touch of a  nger. Designed with versatility in mind, these

sleek touch screens are easy to install, customize and use. They’re compact yet powerful. Simple to operate yet highly  exible. A desktop model is available when wall space is limited

or for added convenience.

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com

SQUARE D® CLIPSAL® LIGHTING CONTROL | KEYPADS

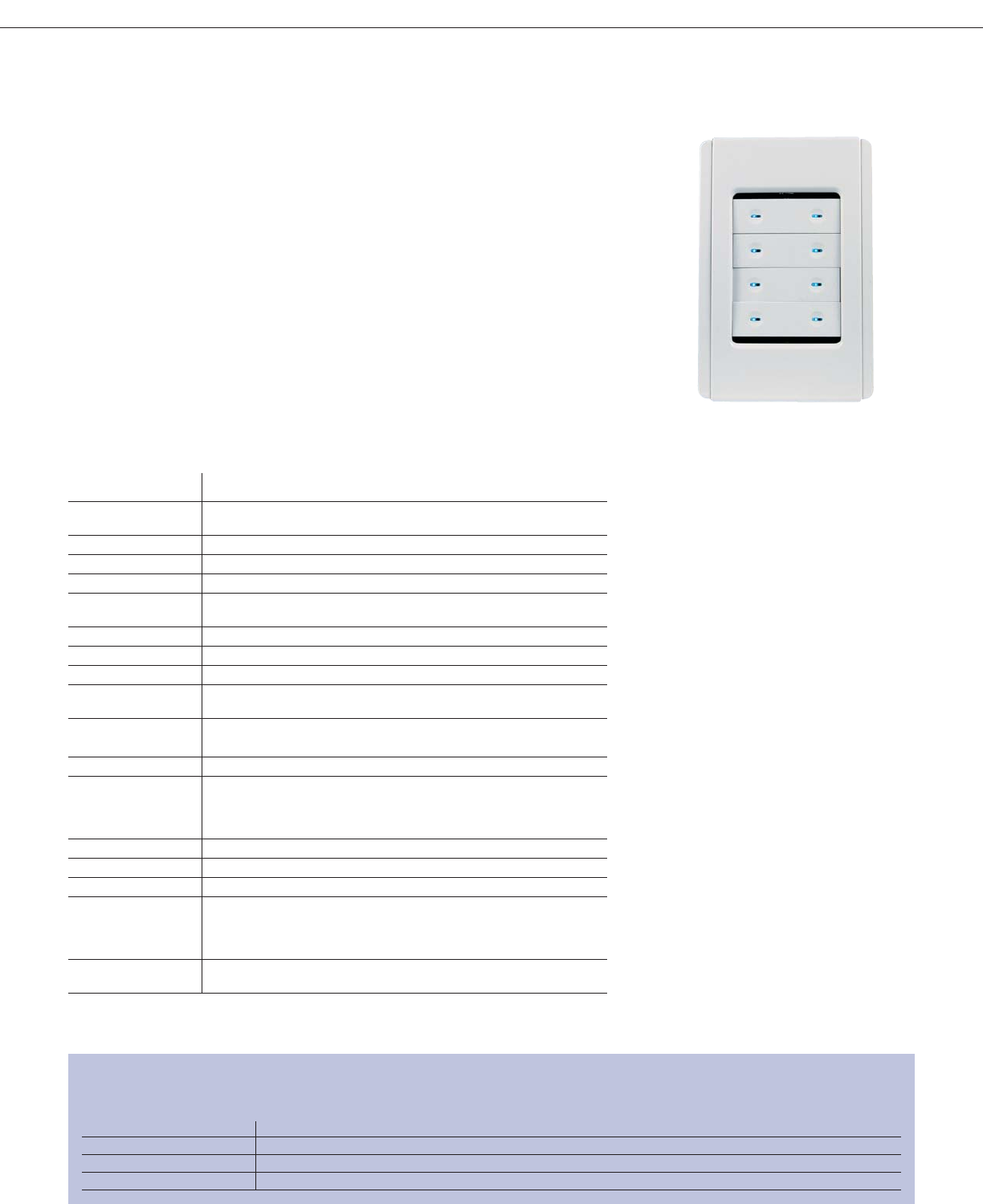

Square D® Clipsal® Neo™ Keypads

Square D® Clipsal® Neo™ Keypads o er localized  nger-tip control of lighting and other electrical devices. With over

1,000 custom color combinations available, these elegant keypads are suitable for virtually any decor.

One compact Neo keypad can take the place of many single switches, ON/OFF toggles, dimmers, and timers. Available

in your choice of a two-, four-, or eight-button keypad, Neo’s modern style is complemented by orange and blue LEDs

that instantly show the status of controlled devices.

PRODUCT FEATURES

• Button con gurations include multi-point switching and

dimming, master ON/OFF switching, and scene settings

• Scene control includes ten group addresses per scene, four

scenes per keypad

• Independent timers available for each button

• Standard built-in infrared receiver permits keypad control

at a distance with an optional infrared handheld remote

(Sold Separately)

• Dual-color LED windows on each button can glow in cool

blue, orange, or combinations of both, indicating when a

controlled device is ON or OFF

• Auto “fallback” can dim button LEDs at a set time after the last

key press

• Locator LEDs can illuminate the top and bottom of the button

area in cool blue, helping a user  nd the keypad in dim light

FUNCTIONAL AESTHETICS

• Clean-lined low-pro le keypads are wall mounted without

external  ttings

• Optional button covers have ID windows, enabling quick

identi cation of lighting scenes or controlled devices

(Sold Separately)

• Distinctively designed multi-layer cover plate consists of

button covers, an outer surround, and an inner surround

• Color schemes are easily customized and modi ed to suit

personal taste or the decor

DISTRIBUTED INTELLIGENCE

• Compatible with all Clipsal devices and Powerlink®

NF3000G3C controllers

• Con gured by using Learn Mode or a personal computer

connected to the network

TECHNICAL INFORMATION

Voltage Requirements 15–36Vdc @ 22 mA required for normal operation,

drawn from the C-Bus network

Number of Units on a Network Calculated with the C-Bus Calculator, a software utility used to

evaluate the total network current load

Electrical Isolation 3.75 kV RMS from C-Bus to power (provided externally)

Control Functions Load switching, dimming, timing, scene control

Status Indicators Two-color (orange and blue) user-configurable LEDs

Locator Option User-configurable, adjustable blue LED illumination for locating

the unit in darkness, with “ignore first button press” option

Scene Control Up to four scenes per keypad, ten addresses per scene

Timers 1 sec–18 hr, 1 sec intervals

Response Time 200 msec or less

C-Bus Connection One terminal block to accommodate 24–16 AWG (0.2–15 mm2),

CAT 5 UTP cable required

Dimensions 4.57 in. (L) x 2.95 in. (W) x 0.87 in. (D) [116 mm

(L) x 75 mm (W) x 22 mm (D)]

Mounting: Centers 3.31 in. (84 mm)

Enclosure (Not Provided) Plaster mud ring (Raco 8771 or equal) w/

minimum internal width 2.05 in. (52 mm) (not provided)

Single gang box (Carlon A58381D-CAR or equal) w/minimum

internal width 2.05 in. (52 mm) (not provided)

Weight 2.7 oz (77 g)

Operating Environment Temp.: 32°F to 113°F (0°C to 45°C) • RH: 95%, noncondensing

Storage Environment Temp.: 14°F to 140°F (–10°C to 60°C) • RH: 95%, noncondensing

Standards: UL: Listed 916 Energy Management

CSA 22.2 Spec 205 Signal Equipment

FCC: Part 15.101, Class B Digital Device

EN61000-4-2 Immunity to ESD

Color Options Slate, white, cream, gold, black, brown,

soft gray, desert sand and brushed aluminum

** For additional ordering information see technical section page 79

Neo Style 8 Button Keypad

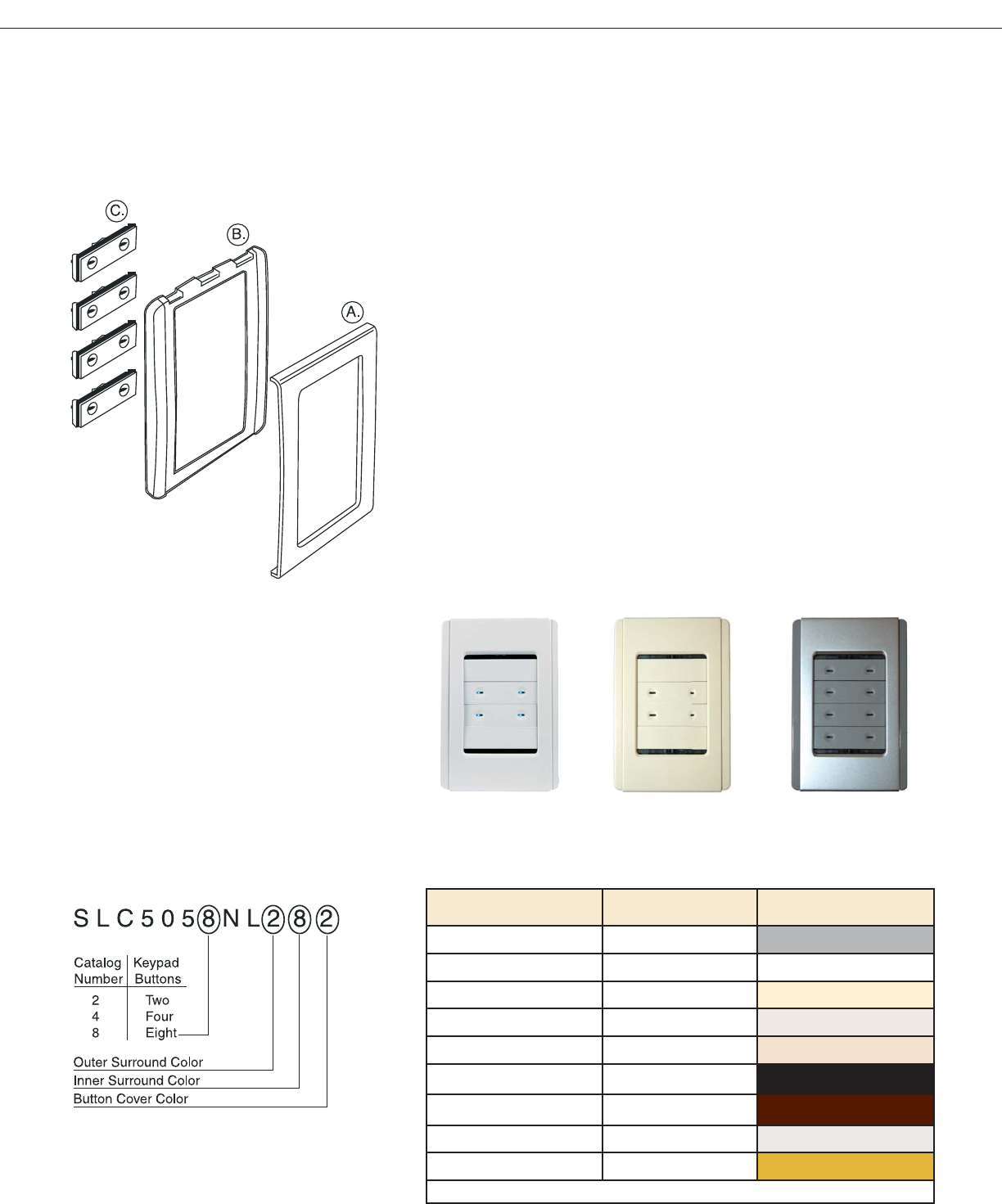

CATALOG NUMBER DESCRIPTION

SLC5052NL( ) Number of Buttons (2) Neo Keypad Assembly Button Covers SLC5052NRP( ) - 2 button keypads (5 pack) Button Covers SLC5052NRI( ) with ID Windows

SLC5054NL( ) Number of Buttons (4) (2, 4, or 8 buttons) Button Covers SLC5054NRP( ) - 4 button keypads (5 pack) Inner Surround SLC5050IS( ) (pack of 5)

SLC5058NL( ) Number of Buttons (8) Button Covers SLC5058NRP( ) - 8 button keypads (5 pack) Outer Surround SLC5050OS( ) (pack of 5)

Order numbers for the Neo Keypad assemblies indicate the number of buttons desired on the keypad and the color of each customizable component (inner surround, outer surround, and button cover).

Color numbers are taken from the “Neo Colors” table (page 78) and must be given in the following order: outer surround, inner surround, and button covers.

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com

SQUARE D® CLIPSAL® LIGHTING CONTROL | KEYPADS

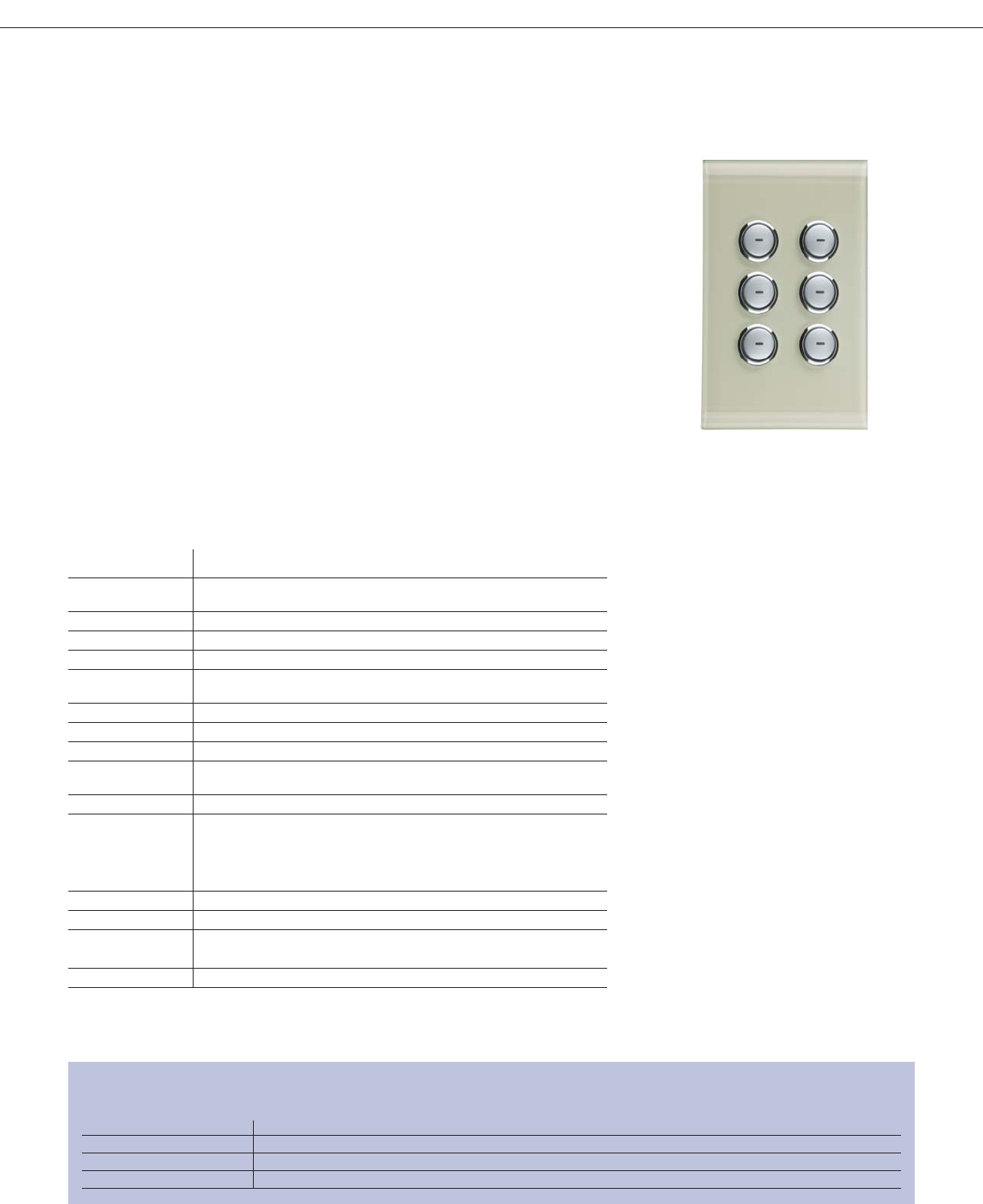

Square D® Clipsal® Saturn Keypads

Square D® Clipsal® Saturn Keypads o er localized  nger-tip control of lighting and electrical services. These elegant

keypads incorporate a unique glass cover plate that is easy to install, customize, and use.

By virtue of the variety of button con gurations available, one compact Saturn keypad can take the place of many single

operation switches, ON/OFF toggles, dimmers, and timers.

Available in a two-, four-, or six-button keypad, Saturn’s modern style is complemented by orange and blue LEDs that

can instantly show the status of controlled devices.

PRODUCT FEATURES

• Button con gurations include multi-point switching and

dimming, master ON/OFF switching, and scene settings

• Scene control includes up to ten group addresses per scene

and four scenes per keypad

• Independent timers available for each button

• Dual-color LED windows on each button can glow in cool

blue, orange, or combinations of both, indicating when a

controlled device is ON or OFF

• Auto “fallback” can dim button LEDs at a set time after the last

button press

• Locator LED can illuminate the keypad, helping a user  nd it

in dim light

FUNCTIONAL AESTHETICS

• Distinctively designed transparent impact-resistant glass

cover plate with silver buttons that can glow blue or orange

• Clean-lined keypads are wall mounted without external

 ttings

• Low-pro le keypad extends only 0.5 in. out from the wall

• Colors are easily modi ed to suit personal taste or the décor

• Optional button covers with labels, enabling quick

identi cation of lighting scenes or controlled devices

DISTRIBUTED INTELLIGENCE

• Compatible with all Clipsal devices and Powerlink®

NF3000G3C controllers

• Con gured by using Learn Mode or a personal computer

connected to the network

TECHNICAL INFORMATION

Voltage Requirements 15–36Vdc @ 22 mA required for normal operation,

drawn from the C-Bus network

Number of Units Determined with the C-Bus Calculator, a software utility

on a Network used to evaluate the total network current load

Electrical Isolation 3.75 kV RMS from C-Bus to power (provided externally)

Control Functions Load switching, dimming, timing, scene control

Status Indicators Two-color (orange and blue) user-configurable LEDs

Locator User-configurable, adjustable LED to help locate the unit in

Option darkness, has “ignore first button press” option

Scene Control Up to four scenes per keypad, ten addresses per scene

Timers 1 sec–18 hr, 1 sec intervals

Response Time 200 msec or less

C-Bus Connection One terminal block to accommodate 24-16 AWG

(0.2–1.31 mm2), CAT 5 UTP cable required

Dimensions 4.57 in. (L) x 2.95 in. (W) x 1.1 in. (D) [116 mm (L) x 75 mm (W) x 28 mm (D)]

Mounting Plaster mud ring (Raco 8771 or equal) w/

minimum internal width 2.05 in. (52 mm) (not provided)

Single gang box (Carlon A58381DCAR or equal) w/minimum

internal width 2.05 in. (52 mm) (not provided)

Weight 4.66 oz (132 g)

Operating Environment Temp.: 32°F to 113°F (0°C to 45°C) RH: 95%, noncondensing

Standards UL: Listed 916 Energy Management, CSA 22.2 Spec 205 Signal Equipment

FCC: Part 15.101, Class B Digital Device, EN61000-4-2 Immunity to ESD

Color Options White, cream, black, and mocha

*For Diagram see technical section page 79

CATALOG NUMBER DESCRIPTION ACCESSORIES

SLC5082NL( ) Number of Buttons (2) Saturn Keypad Assembly SLC5080LC8

SLC5084NL( ) Number of Buttons (4) (2, 4, or 6 buttons) Pre-labeled button caps (1 ea. of 66 frequently used labels such as Lounge, Meeting, Scene 1, etc.)

SLC5086NL( ) Number of Buttons (6)

Order numbers for the Saturn keypad assemblies indicate the number of buttons desired on the keypad and the color of the cover plate. White (WE), Black (BK), Mocha (BR)

For example, SLC5086NLBK represents an order for a Saturn keypad with six buttons and a black cover plate. The order number for a two-button keypad in mocha would be SLC5082NLBR

Saturn Style 6 Button Keypad

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com

SQUARE D® CLIPSAL® LIGHTING CONTROL | KEYPADS

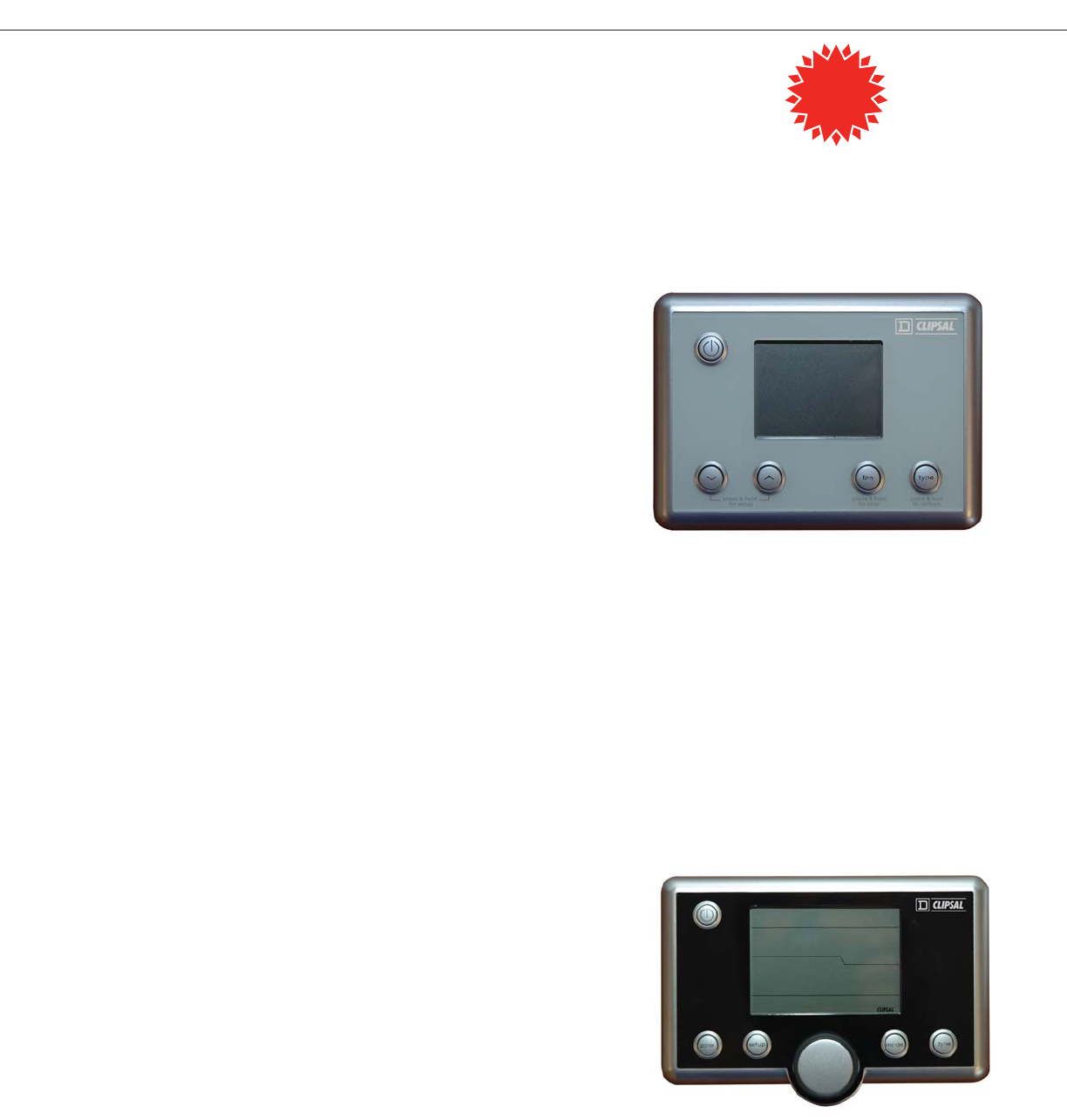

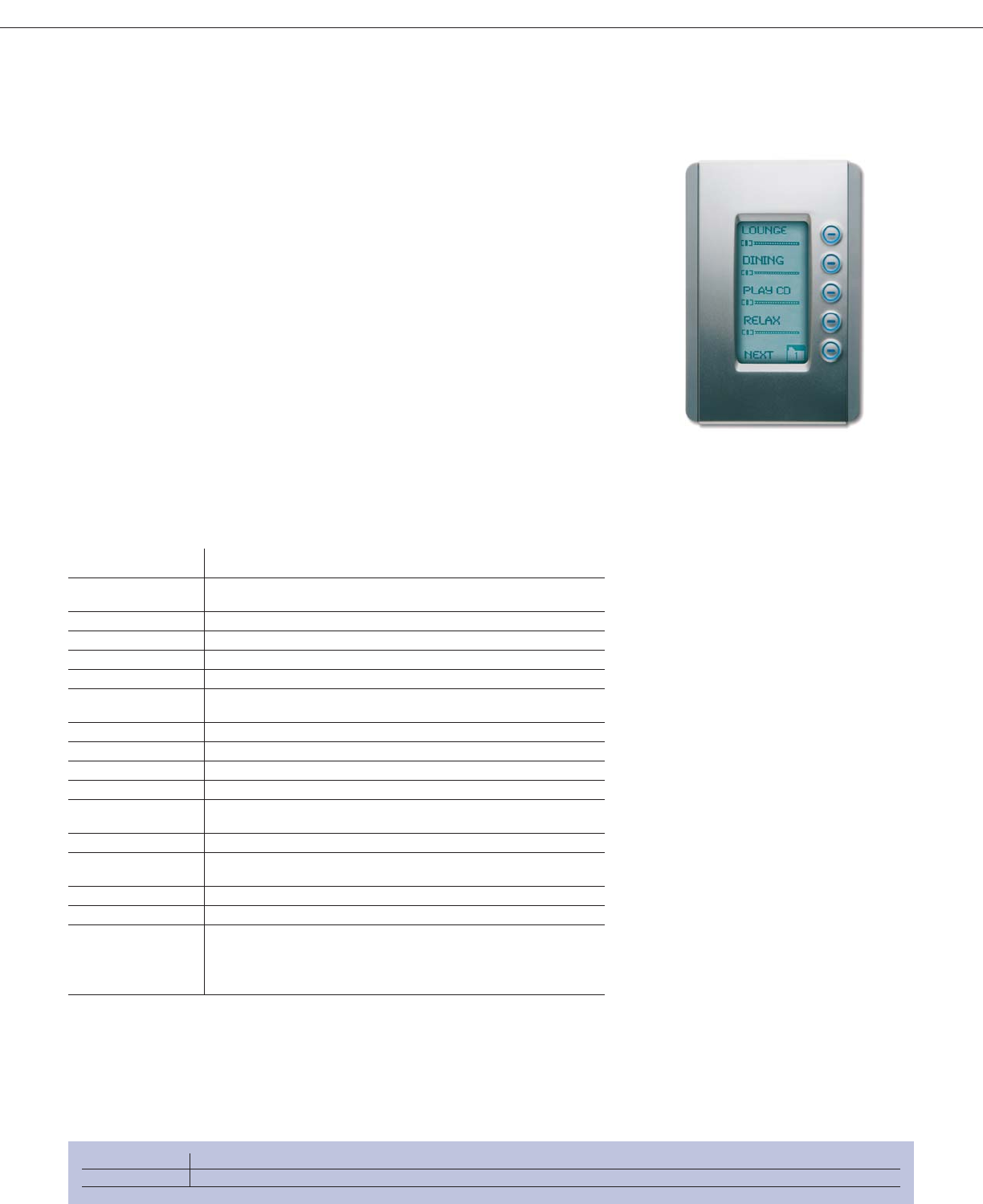

Square D® Clipsal® Neo™ Keypads

with Dynamic Labeling Technology™

TECHNICAL INFORMATION

Voltage 15–36Vdc @ 22 mA required for normal operation,

Requirements drawn from the C-Bus network

Number of Units Use the C-Bus Calculator, a software utility, to determine

on a Network the total network current load

Electrical Isolation 3.75 kV RMS from C-Bus to power (provided externally)

Control Functions Load switching, dimming, timing, scene control

Status Indicators Blue, one dimmable LED per button

Backlight White, dimmable, user configurable

Locator User-configurable, adjustable blue LED for locating the unit in darkness,

Option with “ignore first button press” option

Scene Control 4 scenes per keypad, 10 addresses per scene

Timers 1 sec–18 hr, 1 second intervals

Screen 64 x 128 pixels LCD

Response Time 200 msec or less

C-Bus Connection One terminal block to accommodate 24–16 AWG (0.2–1.31 mm2),

CAT 5 UTP cable required

Dimensions 4.57 in. (L) x 2.95 in. (W) x 1.20 in. (D) [116 mm (L) x 76 mm (W) x 32 mm (D)]

Mounting Standard plaster (mud) ring or wall box (not provided), minimum internal

width 2.05 in. (52 mm) Centers: 3.31 in. (84 mm)

Weight 3.35 oz (95 g)

Operating Environment Temp.: 32°F to 113°F (0°C to 45°C) RH: 95%, noncondensing

Standards UL: Listed 916 Energy Management Equipment

CSA 22.2 Spec 205 Signal

FCC: Part 15.101, Class B Digital Device

EN61000-4-2 Immunity to ESD

*For Diagram see technical section page 79

PRODUCT FEATURES

• Button con gurations include multi-point switching and

dimming, master ON/OFF switching, and scene settings

• Keypads have  ve physical buttons–four control buttons and

one scroll/page button–combined with two screens of labels,

for a total of eight control buttons and two scroll/page buttons

• Scene control includes ten group addresses per scene, four

scenes per keypad

• Independent timers available for each button

• Button LEDs can be used as locator lights in the dark

• Time clock can be displayed at the bottom of the screen

• Displays up to 8 languages from a set of more than 65

FUNCTIONAL AESTHETICS

• 64 x 128 pixel LCD screen with a white backlight

• Editable LCD labels, available for each button or control group,

can display text, symbols, and graphics

• Dynamic graphic displays, such as bar graphs, can be enabled

or disabled

• Bitmaps can be downloaded for each group address or scene

• Clean-lined low-pro le keypads are wall mounted without

external  ttings

• Distinctive two-layer cover plate consists of an outer surround

and an inner surround

DISTRIBUTED INTELLIGENCE

• Compatible with all Clipsal devices and the Square D®

Powerlink® NF3000G3C controller

• Easily con gured by using Learn Mode or a personal

computer connected to the network

Square D® Clipsal® Neo™ Keypads with Dynamic Labeling Technology™ (DLT) combine a Neo style cover plate,

programmable keypad buttons, and easily customized labels on a backlit LCD screen that eliminates the need for

custom labels.

These keypads are designed to be easy to install, customize, and use. By virtue of the variety of button con gurations

available, one compact DLT keypad can take the place of many single operation switches, ON/OFF toggles, dimmers,

and timers.

Cool blue LEDs light the  ve keypad buttons, complementing the keypad’s sleek lines and instantly showing the status

of controlled devices.

CATALOG NUMBER DESCRIPTION

SLC5055DL Neo Keypad with DLT in slate and brushed aluminum

Neo Style DLT Keypad

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com

SQUARE D® CLIPSAL® LIGHTING CONTROL | KEYPADS

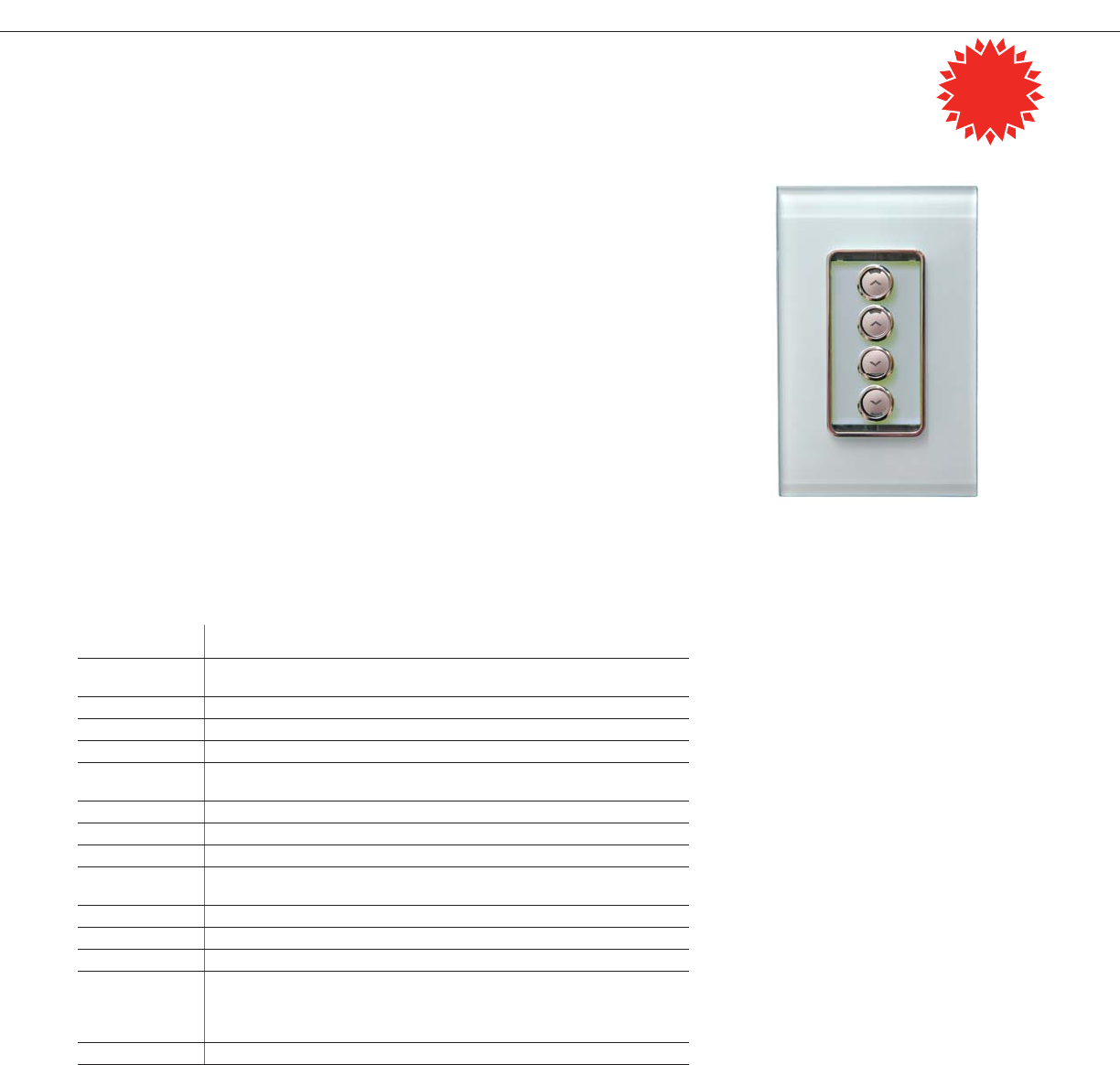

Square D® Clipsal® Saturn™ Keypads with

Dynamic Labeling Technology™

Square D® Clipsal® Saturn™ Dynamic Labeling Technology™ (DLT) Keypads combine a Saturn style glass cover plate,

programmable keypad buttons, and easily customized labels on a backlit LCD screen that eliminates the need for

custom labels.

These keypads are designed to be easy to install, customize, and use. By virtue of the variety of button con gurations

available, one compact Saturn Keypad with DLT can take the place of many single operation switches, ON/OFF toggles,

dimmers, and timers. The  ve keypad buttons are lit with cool blue LEDs that complement the keypad’s sleek lines and

show the status of controlled devices.

PRODUCT FEATURES

• Button con gurations include multi-point switching and

dimming, master ON/OFF switching, and scene settings

• Keypads have  ve physical buttons-four control buttons and

one scroll/page button-combined with two screens of labels,

for a total of eight control buttons and two scroll/page buttons

• Scene control includes ten group addresses per scene, four

scenes per keypad

• Independent timers available for each button

• Button LEDs can be used as locator lights in the dark

• Time clock can be displayed at the bottom of the screen

• Displays up to 8 languages from a set of more than 65

FUNCTIONAL AESTHETICS

• 64 x 128 pixel LCD screen with a white backlight

• Editable LCD labels, available for each button or control

group, can display text, symbols, and graphics.

• Dynamic graphic displays, such as bar graphs, can be enabled

or disabled

• Bitmaps can be downloaded for each group address or scene

• Clean-lined low-pro le keypads are wall mounted without

external  ttings

DISTRIBUTED INTELLIGENCE

• Compatible with all Clipsal devices and the Square D®

Powerlink® NF3000G3C controller

• Easily con gured by using Learn Mode or a personal

computer connected to the network

TECHNICAL INFORMATION

Voltage Requirements 15–36Vdc @ 22 mA required for normal operation, drawn from the C-Bus network

Number of Units Use the C-Bus Calculator, a software utility, to determine

on a Network the total network current load

Electrical Isolation 3.75 kV RMS from C-Bus to power (provided externally)

Control Functions Load switching, dimming, timing, scene control

Status Indicators Blue, one dimmable LED per button

Backlight White, dimmable, user con gurable

Locator User-con gurable, adjustable blue LED illumination for locating the unit

Option in darkness, with “ignore  rst button press” option

Scene Control 4 scenes per keypad, 10 addresses per scene

Timers 1 sec–18 hr, 1 second intervals

Screen 64 x 128 pixels LCD

Response Time 200 msec or less

C-Bus One terminal block to accommodate 24–16 AWG (0.2–1.31 mm2),

Connection CAT 5 UTP cable required

Dimensions 4.57 in. (L) x 2.95 in. (W) x 1.20 in. (D) [116 mm (L) x 75 mm (W) x 30.4 mm (D)]

Mounting Standard plaster (mud) ring or wall box (not provided), minimum internal

width 2.05 in. (52 mm) Centers: 3.31 in. (84 mm)

Weight 5.29 oz (150 g)

Operating Environment Temp.: 32°F to 113°F (0°C to 45°C) RH: 95%, noncondensing

Standards UL: Listed 916 Energy Management Equipment, CSA 22.2 Spec 205 Signal Equipment

FCC: Part 15.101, Class B Digital Device, EN61000-4-2 Immunity to ESD

Cover-Plate Colors White, cream, black, mocha

*For Diagram see technical section page 80

CATALOG NUMBER DESCRIPTION

SLC5085DL ( ) Saturn Keypad with DLT in

white (WE), cream (CM), black (BK),or mocha (BR)

Order numbers for the Saturn DLT keypads include the stock number (SLC5085DL) and the code for the color of the cover plate: Black (BK), Mocha (BR), White (WE) and Cream (CM)

For example, SLC5085DLBR represents a complete catalog number for a Saturn DLT keypad with a mocha cover plate.

Saturn Style DLT Keypad

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com

SQUARE D® CLIPSAL® LIGHTING CONTROL | KEYPADS

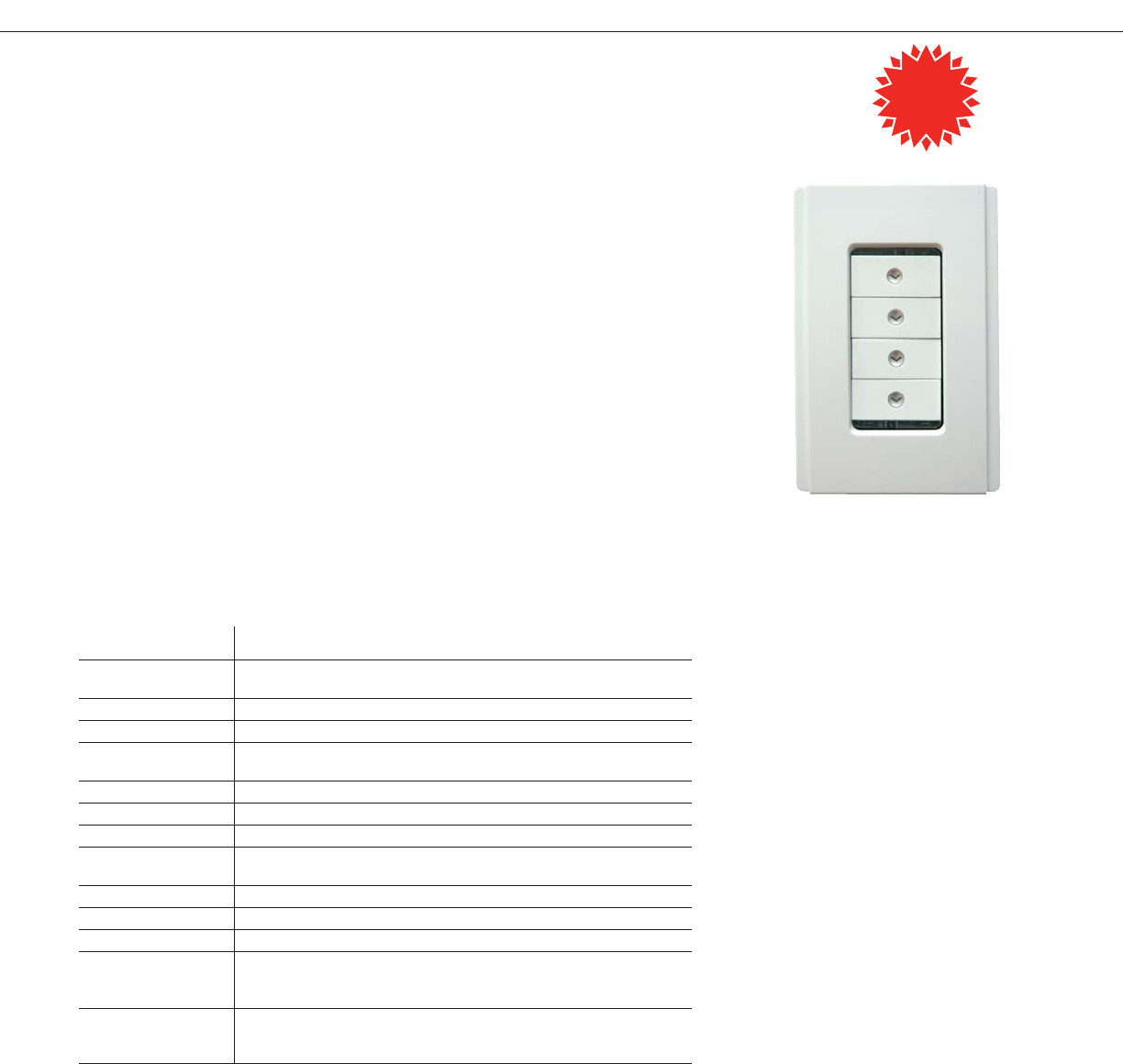

Square D® Clipsal® Neo™ Decorator Style Keypads AVAILABLE

EARLY

2008

Square D® Clipsal® Decorator Style NeoTM Keypads o er localized  nger-tip control of lighting and electrical services.

These elegant keypads incorporate a unique cover plate (ordered separately) that is easy to install, customize, and use.

These Decorator style keypads are ordered without a face plate and can  t in any existing Decorator style keypad face

plate. Matching face plates are also available in a variety of colors.

By virtue of the variety of button con gurations available, one compact Neo Decorator style keypad can take the place of

many single operation switches, ON/OFF toggles, dimmers, and timers.

Available in a one-, two-, three- or four- button keypad, Neo’s modern style is complemented by blue LEDs that can

instantly show the status of controlled devices.

Neo 4 Button Decorator Style Keypad

MULTIFUNCTIONAL CAPABILITIES

• Button con gurations include multi-point switching and

dimming, master ON/OFF switching, and scene settings

• Scene control includes up to ten group addresses per scene

and four scenes per keypad

• Independent timers available for each button

• LED windows on each button can glow in cool blue or orange,

indicating when a controlled device is ON or OFF

• Auto “fallback” can dim button LEDs at a set time after the

last button press

• Locator LED can illuminate the keypad, helping a user

 nd it in dim light

• Has infra red remote capabilities with Square D Clipsal remotes

FUNCTIONAL AESTHETICS

• Distinctively designed cover plate with silver buttons that can

glow blue or orange

• Clean-lined keypads are wall mounted without external

 ttings

• Low-pro le keypad extends only 0.5 in. out from the wall

• Colors are easily modi ed to suit personal taste or the décor

DISTRIBUTED INTELLIGENCE

• Compatible with all Clipsal devices and Powerlink®

NF3000G3C controllers

• Con gured by using Learn Mode or C-BusTM software

TECHNICAL INFORMATION

Voltage 15–36Vdc @ 22 mA required for normal operation,

Requirements drawn from the C-Bus network

Number of Units Determined with the C-Bus Calculator, a software utility

on a Network used to evaluate the total network current load

Electrical Isolation 3.75 kV RMS from C-Bus to power (provided externally)

Control Functions Load switching, dimming, timing, scene control

Locator User-configurable, adjustable LED to help locate the unit in darkness,

Option has “ignore first button press” option

Scene Control Up to 4 scenes per keypad, 10 addresses per scene

Timers 1 sec–18 hr, 1 second intervals

Response Time 200 msec or less

C-Bus Connection One terminal block to accommodate 24–16 AWG (0.2–1.31 mm2),

CAT 5 UTP cable required

Dimensions 4.57 in. (L) x 3.0 in. (W) x .91 in. (D) [116 mm (L) x 76 mm (W) x 23 mm (D)]

Weight 2.9 oz (82 g)

Operating Environment Temp.: 32°F to 113°F (0°C to 45°C) RH: 95%, noncondensing

Standards UL: Listed 916 Energy Management Equipment

CSA 22.2 Spec 205 Signal

FCC: Part 15.101, Class B Digital Device

Color Options Slate, White, Cream, Gold, Brown, Black, Soft Grey,

Desert Sand and Brushed Aluminum

(Light Almond and Ivory available in late 2008)

*For Diagram see technical section page 80

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com

SQUARE D® CLIPSAL® LIGHTING CONTROL | KEYPADS

Square D® Clipsal® Saturn™ Decorator Style Keypads AVAILABLE

EARLY

2008

Square D® Clipsal® Decorator Style SaturnTM Keypads o er localized  nger-tip control of lighting and electrical

services. These elegant keypads incorporate a unique glass face plate that is aesthetically pleasing with silver buttons

that glow blue or amber. Also, these Decorator style keypads can be ordered seperately without a face plate to  t in

any existing Decorator style keypad cover plate.

By virtue of the variety of button con gurations available, one compact Saturn Decorator style keypad can take the

place of many single operation switches, ON/OFF toggles, dimmers, and timers.

Available in a one-, two-, three- or four- button keypad, Saturn’s modern style is complemented by orange and blue

LEDs that can instantly show the status of controlled devices.

MULTIFUNCTIONAL CAPABILITIES

• Button con gurations include multi-point switching and

dimming, master ON/OFF switching, and scene settings

• Scene control includes up to ten group addresses per scene

and four scenes per keypad

• Independent timers available for each button

• Standard built-in infrared receiver permits keypad control at a

distance with an optional infrared handheld universal remote

• Dual-color LED windows on each button can glow in cool

blue, amber, or combinations of both, indicating when a

controlled device is ON or OFF

• Auto “fallback” can dim button LEDs at a set time after the last

button press

• Locator LED can illuminate the keypad, helping a user  nd it

in dim light

FUNCTIONAL AESTHETICS

• Distinctively designed transparent impact-resistant glass cover

plate with silver buttons that can glow blue or orange

• Low-pro le keypad extends only 0.5 in. out from the wall

• Colors are easily modi ed to suit personal taste or the décor

DISTRIBUTED INTELLIGENCE

• Compatible with all Clipsal devices and Powerlink®

NF3000G3C controllers

• Con gured by using Learn Mode or C-BusTM software

Saturn 4 Button Decorator Style Keypad

TECHNICAL INFORMATION

Voltage 15–36Vdc @ 22 mA required for normal operation,

Requirements drawn from the C-Bus network

Number of Units Determined with the C-Bus Calculator, a software utility

on a Network used to evaluate the total network current load

Electrical Isolation 3.75 kV RMS from C-Bus to power (provided externally)

Control Functions Load switching, dimming, timing, scene control

Status Indicators Two-color (orange and blue) user-configurable LEDs

Locator User-configurable, adjustable LED to help locate the unit in darkness,

Option has “ignore first button press” option

Scene Control Up to 4 scenes per keypad, 10 addresses per scene

Timers 1 sec–18 hr, 1 second intervals

Response Time 200 msec or less

C-Bus Connection One terminal block to accommodate 24–16 AWG (0.2–1.31 mm2),

CAT 5 UTP cable required

Dimensions 4.57 in. (L) x 3.0 in. (W) x .91 in. (D) [116 mm (L) x 76 mm (W) x 23 mm (D)]

Weight 2.9 oz (82 g)

Operating Environment Temp.: 32°F to 113°F (0°C to 45°C) RH: 95%, noncondensing

Standards UL: Listed 916 Energy Management Equipment

CSA 22.2 Spec 205 Signal

FCC: Part 15.101, Class B Digital Device

EN61000-4-2 Immunity to ESD

Color Options White, Cream, Brown and Black (Light Almond and Ivory available in late 2008)

*For Diagram see technical section page 80

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com

SQUARE D® CLIPSAL® LIGHTING CONTROL | TOUCH SCREENS

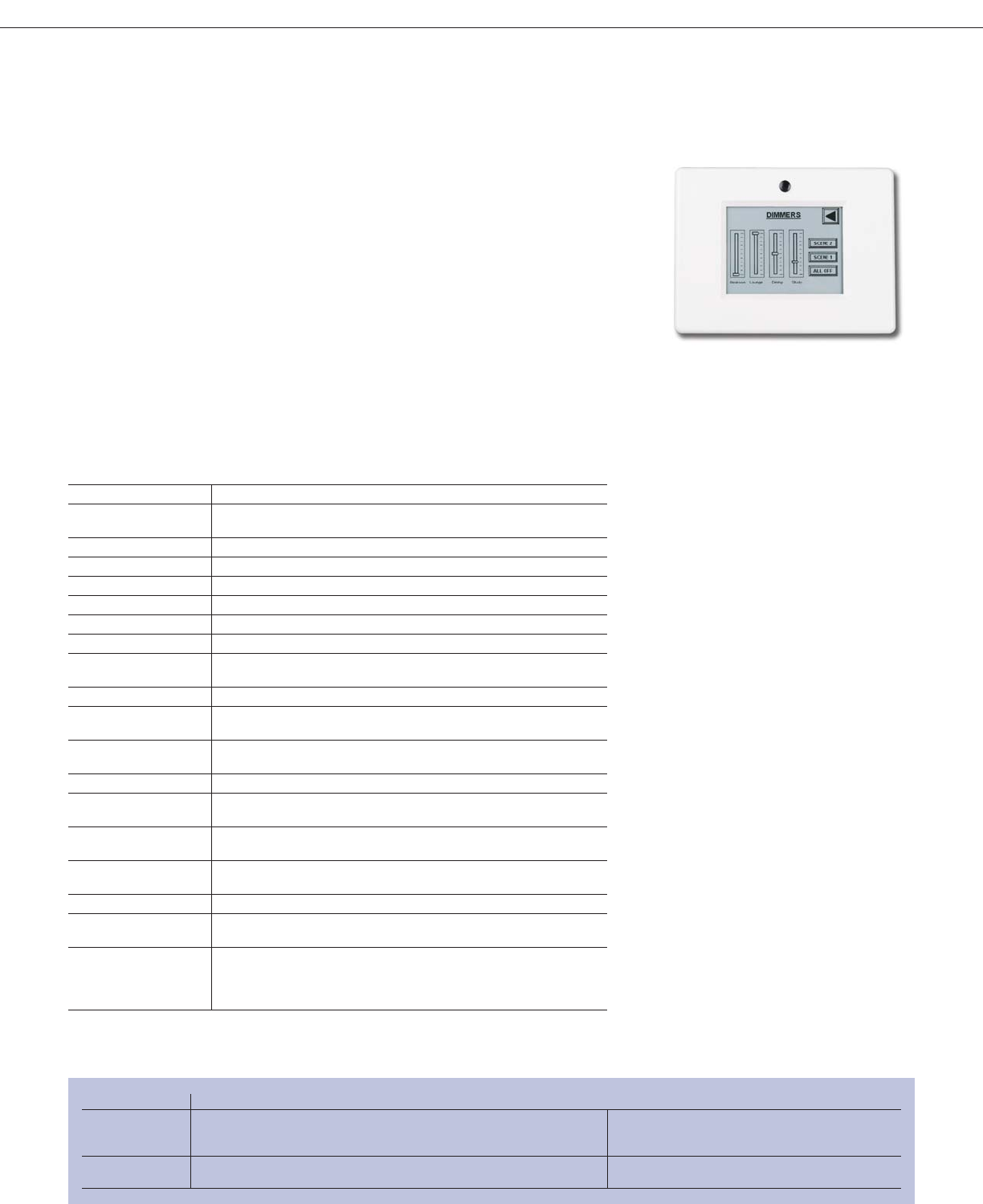

Square D® Clipsal® Monochrome Touch Screen

PRODUCT FEATURES

• Multiple control screens can include multi-point switching

and dimming, master ON/OFF switching, schedules, and

scenes with multiple loads

• Preset scenes and functions automates the task of adjusting

lighting levels to di erent lamps and  xtures.

• Standard real-time clock enables schedules for lighting and

other tasks

• Variable dimming fade rates can be con gured according to

load or lighting zone

• Locator option can be con gured to help users  nd the screen

in dim light

• Standard built-in infrared receiver allows operation at a

distance with the included handheld remote control

• Astronomical clock

FUNCTIONAL AESTHETICS

• Clean-lined low-pro le touch screen can be wall-mounted

without external  ttings

• Optional Neo cover plate to match Neo keypads

• Display and controls can be con gured with symbols, images,

clocks and time, and text in multiple languages

• Area plans and other scenes can be graphically depicted

DISTRIBUTED INTELLIGENCE

• Compatible with all Clipsal devices and Powerlink®

NF3000G3C controllers

• Easily con gured by using the Clipsal PICED software

program

The Square D® Clipsal® Monochrome Touch Screen is a uni ed wall-mounted panel for controlling lighting systems and

accessories with the touch of a  nger.

Designed with versatility in mind, these sleek touch screens are easy to install, customize, and use. Compact yet

powerful, the touch screen has numerous con gurations available, making it an attractive alternative to multiple single

operation switches, ON/OFF toggles, dimmers, and timers which can clutter up even the nicest wall.

The touch screen’s elegant white cover plate can be replaced with an optional brushed aluminum Neo style cover plate.

A desktop model is available when wall space is limited, or when a desktop location is more convenient.

TECHNICAL INFORMATION

Screen

Type LCD active matrix

Size 3.94 in. (100 mm) diagonal

3.13 in. x 2.38 in. (80 mm x 62 mm)

Resolution VGA, 240 x 320 pixels

Pixel Pitch 0.01 in. (H) x 0.01 in. (V) [0.24 (H) x 0.24 mm (V)]

Viewing Area 3.22 (H) x 2.44 in. (V) [81.8 mm (H) x 62.0 mm (V)]

Touch Overlay Type Resistive

Viewing Angle Typical horizontal: 35° left and right / Typical vertical: 42° up, 35° down

Luminance 60 cd/m2

Backlight Four white LEDs can be configured to help locate unit in darkness.

Light sensor automates backlight level control.

Memory Storage for 100 pages

Voltage 15–36Vdc @ 40 mA required for normal

Requirements operation, drawn from the C-Bus network

Number of Units Determined with the C-Bus Calculator,

per Network a software utility for evaluating the total network current load

Electrical Isolation 3.75 kV RMS from C-Bus to power (provided externally)

RS-232 Connector (1) RJ-45 connector for high-speed programming and

6.5 ft of RS-232 cable (DB9 to RJ-45)

C-Bus Connection Two terminal blocks to accommodate 24-16

AWG (0.2-1.31 mm2), CAT 5 UTP cable required

Overall Dimensions 5.98 in. (W) x 4.53 in. (H) x 1.65 in. (D)

[152 mm (W) x 115 mm (H) x 42 mm (D)]

Weight 48.5 oz (365 g), excluding cover

Operating Environment Temp.: 50°F to 86°F (10°C to 30°C)

RH: 95%, noncondensing

Standards UL: Listed 916 Energy Management Equipment

CSA 22.2 Spec 205 Signal Equipment

FCC: Part 15.101, Class B Digital Device

EN61000-4-2 Immunity to ESD

*For Diagram see technical section page 81

CATALOG NUMBER DESCRIPTION ACCESSORIES

SLCSC5000CT Monochrome Touch Screen, wall mounted, with white cover plate. Comes with SLC5000CTWB Wall Box

a 6.5 ft RS-232 cable, a handheld infrared remote controller, and a mounting bracket

for installing the touch screen. The touch screen can also be mounted with an optional Wall Box

SLC5000CTDGB Monochrome Touch Screen and desktop stand in stainless steel and gray. Comes SLC5050CTS Neo style cover plate in brushed

with a 16 ft lead, a 6.5 ft RS-232 cable, and a handheld infrared remote controller. aluminum and slate

Monochrome Touch Screen

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com

SQUARE D® CLIPSAL® LIGHTING CONTROL | TOUCH SCREENS

Power supply for color touch screen

(sold separately)

CATALOG NUMBER DESCRIPTION REQUIRED ACCESSORIES DESCRIPTION

SLC5050CTC Neo™ style, Color Touch Screen, 6.4 inch screen, with Brushed Aluminum cover plate: SLC5000CTCPS * Color Touch Screen Power Supply

SLC5080CTC2WE Saturn™ Style White SLC5000CTCWB * * Color Touch Screen Wall Box

SLC5080CTC2BK Saturn Style Black SLC5000CTCNA* * Color Touch Screen Wall Nail Bracket

SLC5080CTC2BR Saturn Style Mocha SLC5000CTCRM* * Color Touch Screen Wall Plaster Board Bracket

SLC5080CTC2CR Saturn Style Cream * Note: Required for every color touch screen installation.

** Note: Color touch screen must be mounted with one of these options

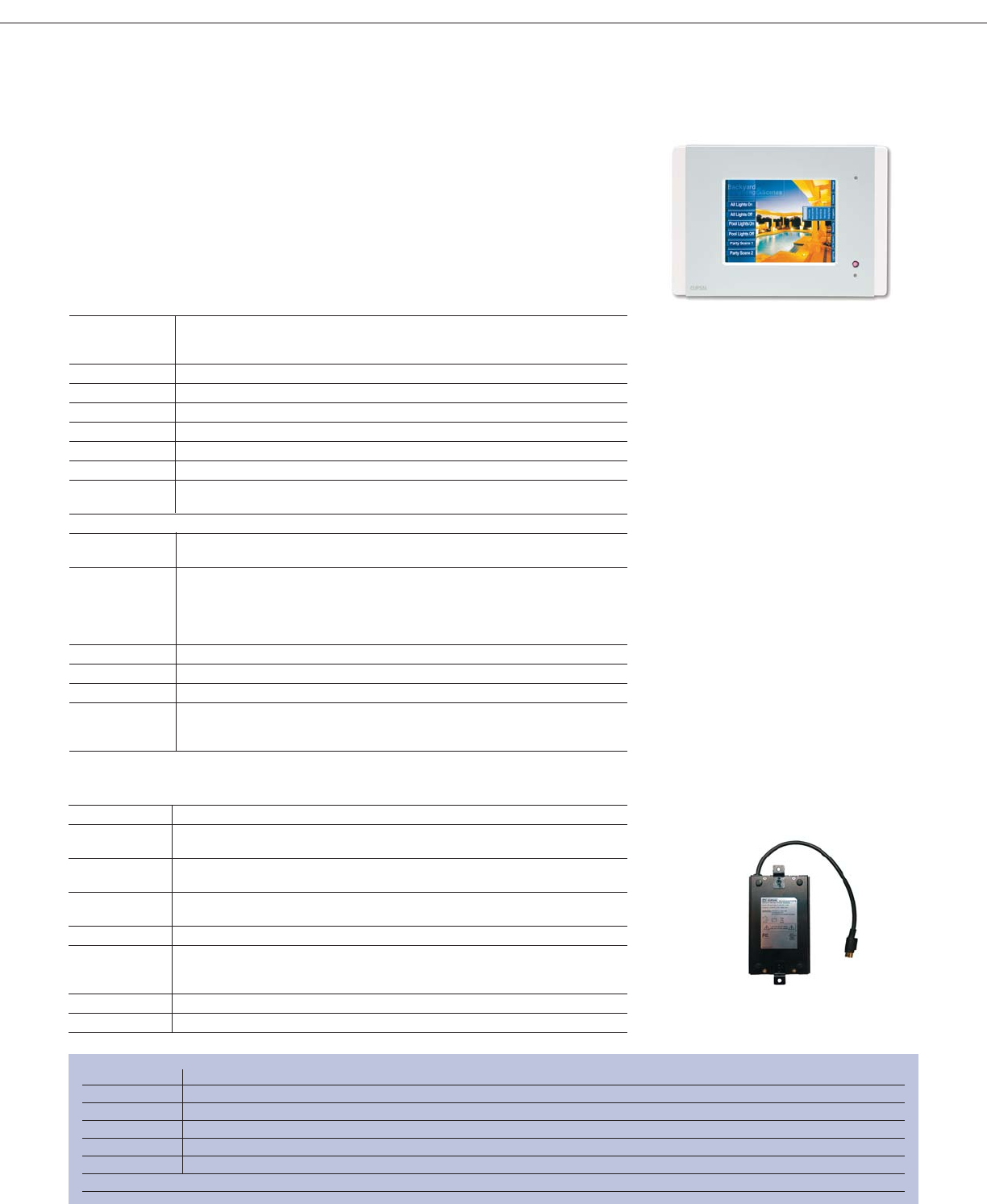

Square D® Clipsal® Color Touch Screen

The Square D® Clipsal® Color Touch Screen is a uni ed panel for controlling lighting systems and accessories with the touch

of a  nger.

The touch screen's sophisticated appearance re ects the underlying craftsmanship of its design. Among its many capabilities,

this powerful PC-based system supports graphical depiction of area plans, monitoring of various Clipsal devices, scheduling

of lighting and other loads,  nger-tip control of preset scenes, and operation from the touch screen or by remote controller.

PRODUCT FEATURES

• Ability to con gure controls including scenes, schedules, state

changes and graphic animation

• Ability to customize buttons, sliders, photos and drawings

• Audio tools support use of custom WAV  les for audible

feedback and voice prompts

• Internal ampli ed speaker has volume control and external

speaker terminal

• Built-in RJ-45 Ethernet and C-Bus network, RS-232, and USB

terminals

• Infrared receiver for remote control and infrared input for

accessories

• Controls can be password protected at multiple levels

• Astronomical and real time clocks

FUNCTIONAL AESTHETICS

• Touch sensitive 6.4 inch (640 x 480) color LCD panel

• Light sensor for automatic backlight control

• Flush wall-mount design

• Cover plates available in Neo and Saturn styles

• Five color schemes available, complementing any décor

DISTRIBUTED INTELLIGENCE

• Compatible with Powerlink® G3 3000C controller and all

Clipsal components, including keypads, sensors,

and dimmers

TECHNICAL INFORMATION

Screen

Type LCD active matrix

Size 6.4 in. (diagonal)

Resolution VGA, 640 x 480 pixels

Pixel Pitch 0.01 in. (H) x 0.01 in. (V) [0.204 mm (H) x 0.202 mm (V)]

Viewing Area 5.14 in. (H) x 3.82 in. (V) [130.6 mm (H) x 97.0 mm (V)]

Touch Overlay Type Resistive membrane

Viewing Angle Typical horizontal: 70° left and right / Typical vertical: 40° up, 70° down

Luminance 300 cd/m2

Backlight Cold cathode with light sensor for automatic backlight level control

Memory 256 MB compact Flash memory, pre-programmed with panel firmware

Backup: Lithium battery retains current date and time for 5 years.

Components and Connectors

Front Ethernet 10/100/RJ-45 terminal (hidden)

Speaker (hidden), Infrared receiver, RS-232 via DB 9 terminal

Rear C-Bus RJ-45 terminals (2) • Ethernet 10/100/RJ-45 terminal

Composite video output via RCA terminal (75 ohm) • RS-232 via DB 9 terminal

USB type A terminals (2) for future software support

Remote infrared (IR) terminal (hardwired via a 3.5 mm mini-jack)

External speaker/headphone terminal (3.5 mm mini-jack)

Overall Dimensions 9.8 in. (W) x 6.9 in. (H) x 2.9 in. (D) [246 mm (W) x 173 mm (H) x 72.5 mm (D)]

Weight 3.02 lbs. (1375 g) (excluding cover plate)

Operating Environment Temp.: 50°F to 86°F (10°C to 30°C) / RH: 95% noncondensing

Standards UL Listed 916 Energy Management Equipment

CSA 22.2 Spec. 205 Signal Equipment

FCC: Part 15.101, Class B Digital Device • EN61000-4-2 Immunity to ESD

REQUIRED ACCESSORIES

Power Supply (Sold Separately)

Operating Environment Temp.: 32°F to 140°F (0°C to 60°C) / RH: approx. 90%, noncondensing

Storage Temp.: -4°F to approx. 185°F (-20°C to approx. 85°C)

Environment RH: approx. 95%, noncondensing

Power Supply 6.9 in. (L) x 3.1 in. (W) x 1.8 in. (H)

Dimensions 175 mm (L) x 80 mm (W) x 45 mm (H)

Adaptor Box 5.2 in. (L) x 2 in. (W) x .4 in. (H)

Dimensions 113 mm (L) x 50 mm (W) x 11 mm (H)

Weight 4.2 lb (1.925 kg)

Standards UL: Listed 60950 Information Technology Equipment - Safety:

General Requirements • CSA 22.2 Spec. 205 Signal Equipment

FCC: Part 15.101, Class B Digital Device • EN61000-4-2 Immunity to ESD

Output Cable 65.6 ft (20 m)

DC Plug 7 pin, DIN, male

*For Diagram see technical section page 81

Color Touch Screen

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com

SQUARE D® CLIPSAL® LIGHTING CONTROL | SYSTEMS UNITS

Square D® Clipsal® Ethernet Network Interface

CATALOG NUMBER DESCRIPTION

SLC5500CN Ethernet Network Interface

The Square D® Clipsal® C-Bus™ Ethernet Network Interface unit is a C-Bus system support device designed to provide an

isolated communications path between an Ethernet Network and a C-Bus Network.

The following functions can be achieved through this interface: programming C-Bus Units, issuing commands to a

C-Bus Network including scheduled activities as well as monitoring and data logging of activities on a C-Bus Network.

The C-Bus Ethernet Network Interface may also generate the system clock for communications data synchronization on

the C-Bus Network and provide a software selectable Network Burden.

For ease of installation the unit is DIN rail mounted.

PRODUCT FEATURES

• Programming C-Bus Units

• Issuing commands to a C-Bus Network, including scheduled

activities

• Monitoring and Data Logging of activities on a C-Bus Network

• Software selectable C-Bus System Clock

DISTRIBUTED INTELLIGENCE

• Compatible with all Clipsal devices and Powerlink®

NF3000G3C controllers

• Easily con gured by using the C-Bus Toolkit software

TECHNICAL INFORMATION

C-Bus Voltage Requirements 15–36Vdc

Supply Current 300 mA

External Power Supply 12Vdc @ 500 mA

Electrical Isolation 500V RMS continuous C-Bus/RS-232

Status Indicators Ethernet LED/Comms LED

C-Bus System Clock Software selectable

C-Bus Network Burden Software selectable

Ethernet Connection RJ-45 socket for connection to Ethernet

Dimensions 3.35 in. (H) x 2.83 in. (W) x 2.56 in. (D)

[85 mm (H) x 72 mm (W) x 65 mm (D)]

Weight 4.59 oz (130 g)

Operating Temp.: 32°F to 113°F (0°C to 45°C)

Environment RH: 95%, noncondensing

Storage Environment Temp.: 14°F to 140°F (-10°C to 60°C)

RH: 95%, noncondensing

Standards UL: Listed 916 Energy Management Equipment

CSA 22.2 Spec 205 Signal Equipment

*For Diagram see technical section page 81

Ethernet Network Interface

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com

SQUARE D® CLIPSAL® LIGHTING CONTROL | SYSTEMS UNITS

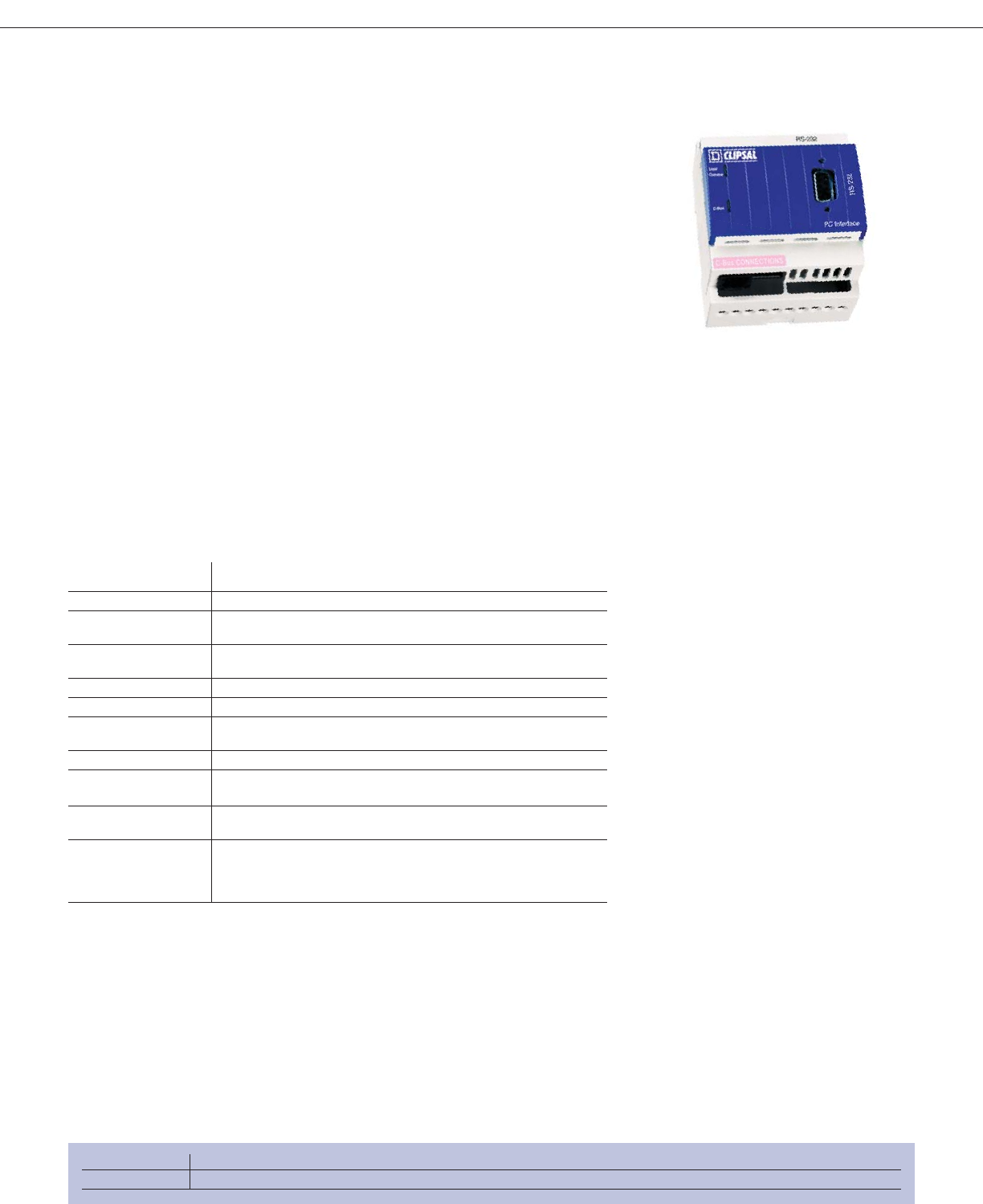

Square D® Clipsal® PC Interface

CATALOG NUMBER DESCRIPTION

SLC5500PC PC Interface

The Square D® Clipsal® PC Interface (PCI) expands options for con guring, controlling, and monitoring C-BusTM networks

by providing an interface between the network and a personal computer (PC) or other external device.

The Clipsal PCI module easily mounts to a DIN rail and connects to external devices through its built-in connector ports.

Power to the unit is provided through the C-Bus network.

PRODUCT FEATURES

•

Unit/Comms LED shows the status of the unit’s power and of any

data transmissions

• C-Bus LED shows the status of the network at the unit,

including the level of network power and the presence

of the C-Bus clock

• System network clock for synchronizing communications data

• Three RS-232 serial connectors for connecting to a PC or to

external devices: (1) 9-pin D-type serial connector (female)

and (2) 8-pin RJ-45 connectors

• Two C-Bus network connector ports: RJ-45 sockets

• Data cable for connecting PCI and personal computer,

including DB9 connectors

DISTRIBUTED INTELLIGENCE

•

Compatible with all Clipsal devices and the Square D® Powerlink®

NF3000G3C controller

TECHNICAL INFORMATION

Voltage 15–36Vdc @ 32 mA required for normal operation,

Requirements drawn from the C-Bus network

Electrical Isolation 500V RMS continuous C-Bus/RS-232

Status Unit/Comms: Unit power and data transmission

Indicators C-Bus: Power levels and presence of C-Bus clock

Serial (1) 9-pin RS-232 D-type serial connector

Port (2) RS-232 RJ-45 connectors

Cable 6.6 ft (2 m), with DB9 connectors

C-Bus Connection (2) RJ-45 sockets for connection to a C-Bus network

Dimensions 2.84 in. (H) x 3.35 in. (W) x 2.60 in. (D)

[72 mm (H) x 85 mm (W) x 66 mm (D)]

Mounting DIN rail, 4M wide

Serial Termination Temp.: 32°F to 113°F (0°C to 45°C)

RH: 95%, noncondensing

Storage Environment Temp.: 14°F to 140°F (-10°C to 60°C)

RH: 95%, noncondensing

Standards UL: Listed 916 Energy Management Equipment

CSA 22.2 Spec 205 Signal Equipment

FCC: Part 15.101, Class B Digital Device

EN61000-4-2 Immunity to ESD

*For Diagram see technical section page 82

PC Interface

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com

SQUARE D® CLIPSAL® LIGHTING CONTROL | SYSTEMS UNITS

Square D® Clipsal® Network Bridge

CATALOG NUMBER DESCRIPTION

SLC5500NB Network Bridge

The Square D® Clipsal® Network Bridge provides a communication channel between Clipsal units on separate networks,

expanding the total number of units that can be con gured, controlled, and monitored.

PRODUCT FEATURES

• Increases transmission distances by acting as a repeater

station for data transmission

• Expands the total number of Clipsal devices that can operate

on the system by isolating devices to individual networks

[In parallel: 50 networks (50 network bridges) In series: 7

networks (6 network bridges)]

• Indicates each network’s status level

• Stores operating status in non-volatile memory for recovery

from a power outage

• Uses built-in connectors to connect to a C-BusTM network

DISTRIBUTED INTELLIGENCE

• Compatible with all Clipsal devices and Powerlink®

NF3000G3C controllers

• Easily con gured by using the C-Bus Tool Kit software

TECHNICAL INFORMATION

Voltage 15–36Vdc @ 18 mA required for normal operation,

Requirements drawn from each connected C-Bus network

Electrical Isolation 3.5 kV RMS for 1 min (between networks)

Status Network A, Network B

Indicators Power ON, Communications in progress

Power OFF - Not connected/insufficient power

Propagation Delay 250 ms (delay for message transfer between two adjacent C-Bus Networks)

Interconnect In parallel: 51 networks (50 network bridges)

Capacity In series: 7 networks (6 network bridges)

C-Bus System Clock Software selectable

C-Bus Network Burden Software selectable

C-Bus Connection (2) pair of RJ-45 sockets for connection

to C-Bus networks

Dimensions 2.84 in. (H) x 3.35 in. (W) x 2.60 in. (D) [72 mm (H) x 85 mm (W) x 66 mm (D)]

Weight 3.35 oz (95 g)

Operating Environment Temp.: 32°F to 113°F (0°C to 45°C) RH: 95%, noncondensing

Standards UL: Listed 916 Energy Management Equipment

CSA 22.2 Spec 205 Signal Equipment

FCC: Part 15.101, Class B Digital Device

EN61000-4-2 Immunity to ESD

*For Diagram see technical section page 82

Network Bridge

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com

SQUARE D® CLIPSAL® LIGHTING CONTROL | SYSTEMS UNITS

Square D® Clipsal® Power Supply

CATALOG NUMBER DESCRIPTION

SLC5500TPS 120Vac Power Supply

SLC5500HPS 277Vac Power Supply

The Square D® Clipsal® Power Supply is speci cally designed to operate with the C-BusTM network as a power source for

passive Clipsal devices.

The power supply mounts to a DIN rail and connects to the C-Bus network through built-in RJ-45 connectors.

These devices are UL listed as Class 2 power supplies and are suitable for parallel operation. Up to  ve power supplies

can be connected to a single C-Bus network.

PRODUCT FEATURES

• Available in 120 and 277Vac models

• Regulating power supply compensates for line voltage and

frequency variations, so there is constant output

• Sources up to 350 mA to the C-Bus network

• UL listed to operate in parallel with other Clipsal power

supplies, up to  ve on a single C-Bus network

• Incorporates short circuit and reverse polarity protection

• Indicates the line voltage status with a Unit LED

• Indicates the network status, including the network power

and the presence of the C-Bus clock, with a C-Bus LED

• Standard built-in C-Bus network connectors: (2) RJ-45

TECHNICAL INFORMATION

Nominal Line Voltage Operates at 120 or 277Vac, ± 10%, with a frequency range from 50–60 Hz

Electrical Isolation 3.75 kV RMS from C-Bus to the line

Current Output 350 mA to the C-Bus network

Status Indicators Unit: Unit power

C-Bus: Network voltage level and

presence of system clock

Power Supplies per Network Up to five power supplies on a single C-Bus network

C-Bus Connection (2) RJ-45 sockets for connection to the C-Bus network

Cable (1) 15.75 in. (400 mm) patch lead included

Dimensions 3.35 in. (H) x 2.84 in. (W) x 2.60 in. (D)

[85 mm (H) x 72 mm (W) x 66 mm (D)]

Mounting DIN rail, 4M wide

Weight 7 oz (200 g)

Operating Temp.: 32°F to 104°F (0°C to 40°C)

Environment RH: 95%, noncondensing

Storage Temp.: 14°F to 140°F (–10°C to 60°C)

Environment RH: 95%, noncondensing

Standards UL: Listed 916 Energy Management Equipment

CSA 22.2 Spec 205 Signal Equipment

FCC: Part 15.101, Class B Digital Device

EN61000-4-2 Immunity to ESD

*For Diagram see technical section page 82

Power Supply

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com

SQUARE D® CLIPSAL® LIGHTING CONTROL | SYSTEMS UNITS

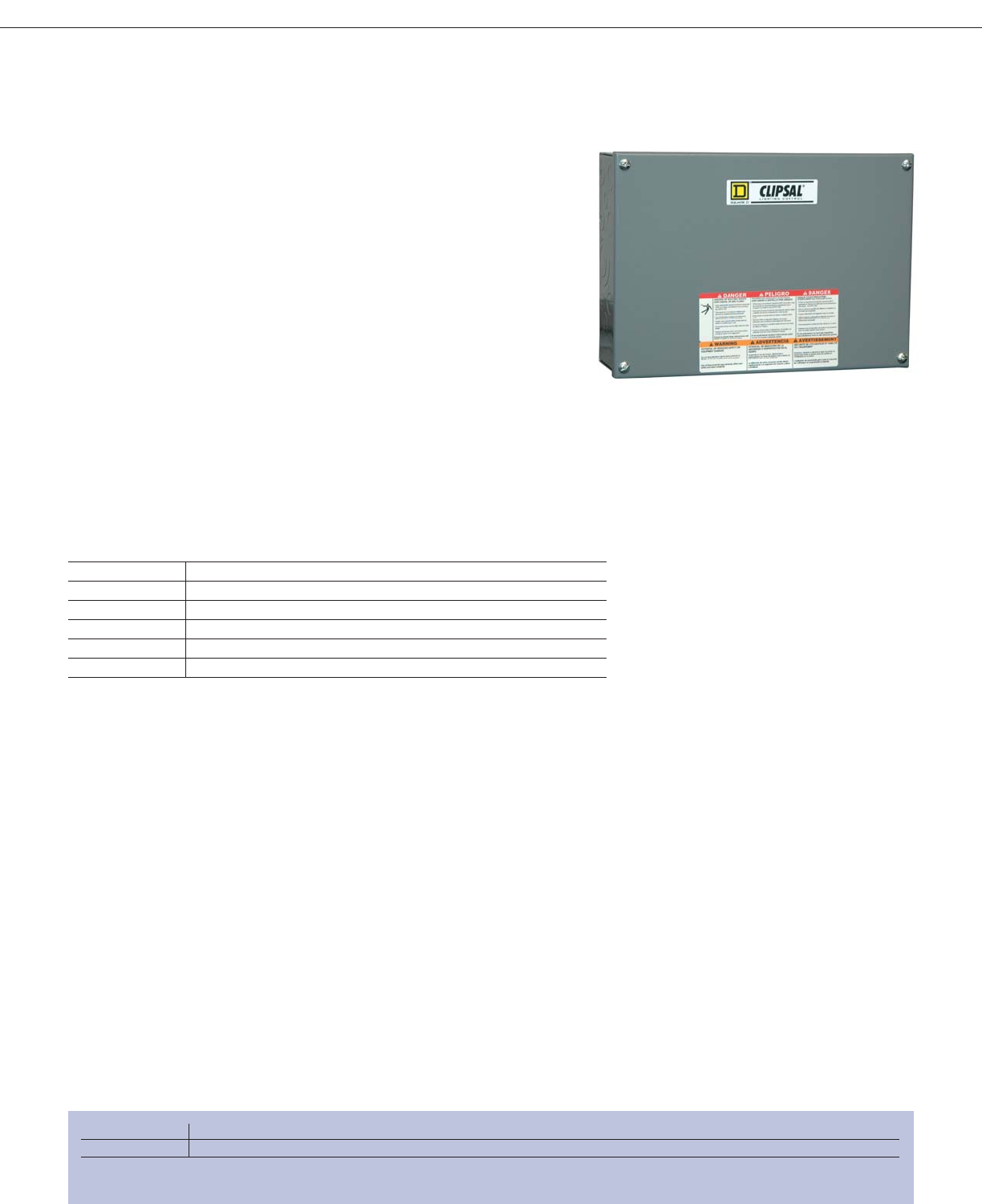

Square D® Powerlink® Device Power Supply

The Square D® Powerlink® Device Power Supply is used to distribute power on a C-BusTM network. Placed at critical points

on the network, device power supplies will provide the current necessary for operating a variety of passive Square D®

Clipsal® devices.

A Powerlink Device Power Supply consists of a Clipsal 8M enclosure containing one or two 4M Clipsal Power Supplies.

PRODUCT FEATURES

• Surface-mount NEMA 1 enclosure with trim assembly

• Unit and C-Bus LEDs indicate the status of the line voltage

and the network

• Sources up to 700 mA (dual power supplies) to the

C-Bus network

• 120 or 277Vac models available

• UTP connection jumper included for dual supply

CATALOG NUMBER DESCRIPTION

NFDP1120G3C 120V Powerlink Single Power Supply

NFDP2120G3C 120V Powerlink Dual Power Supply

NFDP1277G3C 277V Powerlink Single Power Supply

NFDP2277G3C 277V Powerlink Dual Power Supply

TECHNICAL INFORMATION

Nominal Line Voltage Operates at 120 or 277Vac, ± 10%, with a frequency range from 50–60 Hz

Maximum Line Current 9.9 mA for 120V power supply 4.3 mA for 277V power supply

Electrical Isolation 3.75 kV RMS from C-Bus to the line

Current Output 350 mA (single power supply unit) 700 mA (dual power supply unit)

Dimensions 12.57 in. (L) x 8.88 in. (W) x 3.8 in. (D) [319 mm (L) x 226 mm (W) x 97 mm (D)]

Weight One power supply: 8.84 lb (4.01 kg) Two power supplies: 9.28 lb (4.21 kg)

Operating Environment Temp.: 32°F to 113°F (0°C to 45°C) RH: 95%, noncondensing

Standards UL: Listed 508A Industrial Control Equipment

CSA 22.2 Spec 205 Signal Equipment

FCC: Part 15.101, Class B Digital Device

EN61000-4-2 Immunity to ESD

*For Diagram see technical section page 83

Powerlink Device Power Supply

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com

SQUARE D® CLIPSAL® LIGHTING CONTROL | SYSTEMS UNITS

Square D® Powerlink® Device Router

The Square D® Powerlink® Device Router allows the exchange of data between a Powerlink NF3000G3C controller and

Square D® Clipsal® devices.

The bidirectional device router can receive data from Clipsal input devices and send the data to the Powerlink panel/

network. It can also recieve data such as a contact closure from the Powerlink input and send that data to a Clipsal

output/network.

The device router consists of a Clipsal 8M enclosure containing a Clipsal PC Interface and a Clipsal Power Supply.

Communication between the device router and the NF3000G3C controller is made with the included 50-foot serial cable.

PRODUCT FEATURES

• Surface-mount NEMA 1 enclosure with trim assembly

• Unit, Unit/Comms, and C-Bus LEDs indicate the status of data

transmission and power to the unit and the network

• System network clock for synchronizing communications data

• Network power source, supplying up to 350 mA

• 120 or 277Vac models available

CATALOG NUMBER DESCRIPTION

NFDR120G3C 120V Powerlink Device Router

NFDR277G3C 277V Powerlink Device Router

TECHNICAL INFORMATION

Nominal Line Voltage Operates at 120 or 277Vac, ± 10%, with a frequency range from 50–60 Hz

Maximum Line Current 9.9 mA for 120V device router 4.3 mA for 277V device router

Electrical Isolation 3.75 kV RMS from C-Bus to the line

Current Output 350 mA to the C-Bus network

Status Indicators Unit and Unit/Comms: Line voltage, unit power, and data transmission

C-Bus: Power levels and presence of C-Bus clock

Serial Connection (1) 9-pin RS-232 D-type serial connector (2) RS-232 RJ-45 connectors

C-Bus Connection (2) RJ-45 sockets for connection to the C-Bus network

Data Cable 50 ft serial

Dimensions 12.57 in. (L) x 8.88 in. (W) x 3.8 in. (D) [319 mm (L) x 226 mm (W) x 97 mm (D)]

Weight 9.1 lbs (4.13 kg)

Operating Environment Temp.: 32° to 113°F (0° to 45°C) RH: 95%, noncondensing

Standards UL: Listed 508A Industrial Control Equipment

CSA 22.2 Spec 205 Signal Equipment

FCC: Part 15.101, Class B Digital Device

EN61000-4-2 Immunity to ESD

*For Diagram see technical section page 83

Powerlink device router

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com

SQUARE D® CLIPSAL® LIGHTING CONTROL | SYSTEMS UNITS

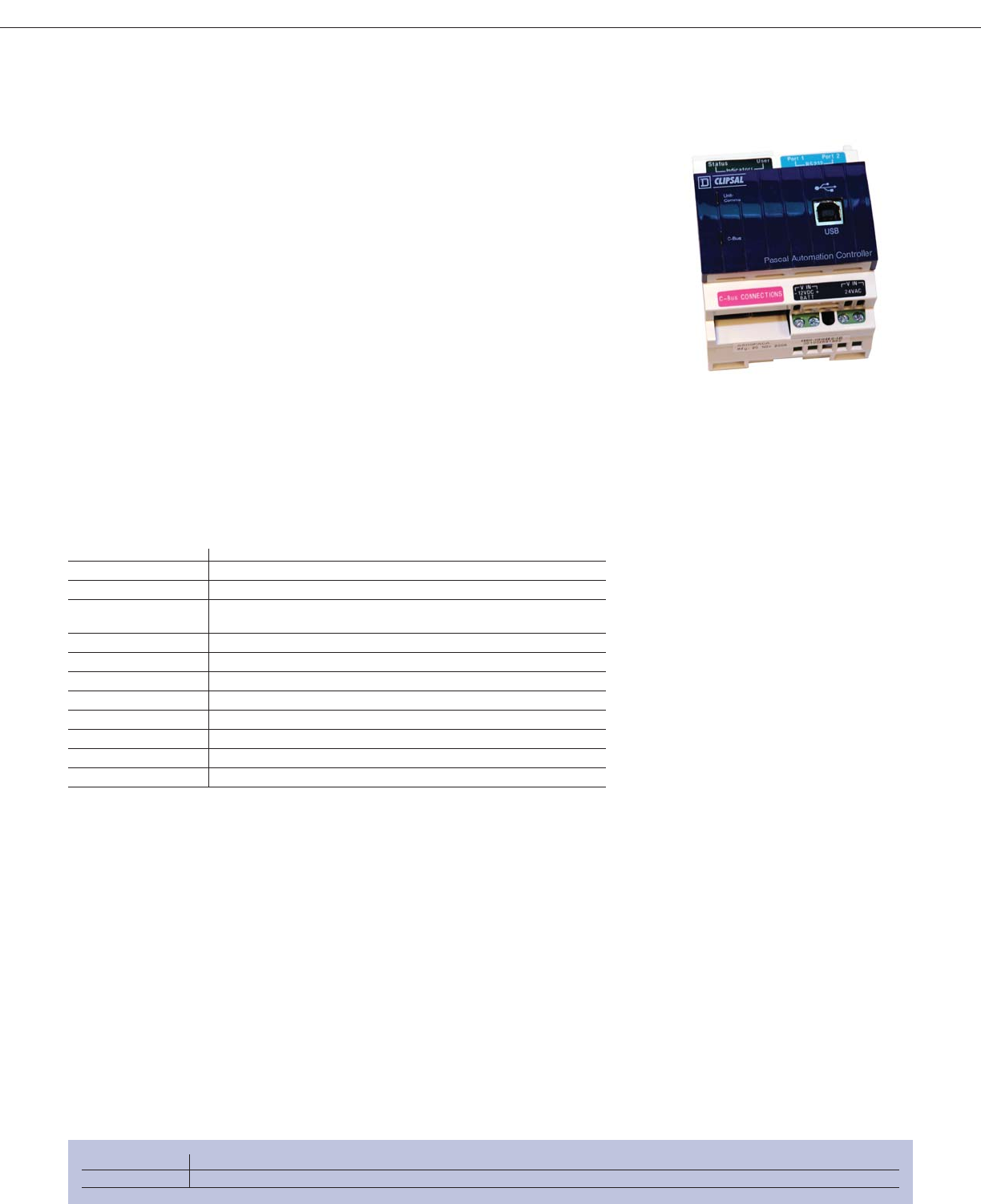

Square D® Clipsal® Pascal Automation Controller

CATALOG NUMBER DESCRIPTION

SLC5500PACA Pascal Automation Controller

Square D® Clipsal® Pascal Automation Controller (PAC) provides extended conditional and real-time event programming

to C-BusTM systems. The PAC supports a full range of programming commands including conditional logic,  ow control,

variables and scheduling.

Systems integrators will appreciate the built-in scheduling tools, scene tools, and wizards for creating basic logic

programs. Full programming capabilities can be achieved utilizing the free-form script editor based o the PASCAL

programming language.

The PAC directly connects to a wired C-Bus system. Programs are downloaded from a personal computer through a USB

connection.

PRODUCT FEATURES

• Conditional and real-time events programming for C-Bus.

• Connects directly to C-Bus network

• Powered from the C-Bus network

• USB port for connection to personal computer

• (2) RS-232 ports for third party device control

• Real time, astronomical and C-Bus system clock included

with 24 hour internal capacitor backup and external 12Vdc

battery terminals

PROGRAMMING CAPABILITIES INCLUDING:

• Conditional logic (if, then, and, or, not, etc.)

• Flow Control (for, repeat, while)

• Variables (integer, real, Boolean, character, string)

• Control and monitoring of group addresses

• Control and monitoring of scenes

DISTRIBUTED INTELLIGENCE

• Compatible with all Clipsal devices and the Square D®

Powerlink® NF3000G3C controller

• Easily con gured with the C-Bus Toolkit Software

TECHNICAL INFORMATION

Clipsal C-BusTM Supply Voltage 15-36Vdc @ 32 mA Drawn from the C-Bus network

RS-232 Supply Voltage 24Vac @ 20 mA (power source not provided)

Battery Backup Supply Voltage 12Vdc @ 30 mA (power source not provided)

Connections 2 C-Bus RJ-45 sockets (in parallel), 2 RS-232 RJ-45 sockets, 1 USB type B socket,

screw terminals for 12Vdc battery and 24Vac power

C-Bus System Clock Software selectable

Network Burden Software selectable

Status Indicators Unit/Comms, C-Bus, Status and User

Dimensions 2.83 x 3.62 x 2.48 inches (72 x 92 x 63mm)

Weight 5.29 oz (150g)

Mounting DIN 4M wide

Operating Environment 32°F to 113°F (0°C to 45°C) 10% - 95% RH, noncondensing

Standards CSA 22.2 Spec 205 Signal Equipment

*For Diagram see technical section page 83

Pascal Automation Controller

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com

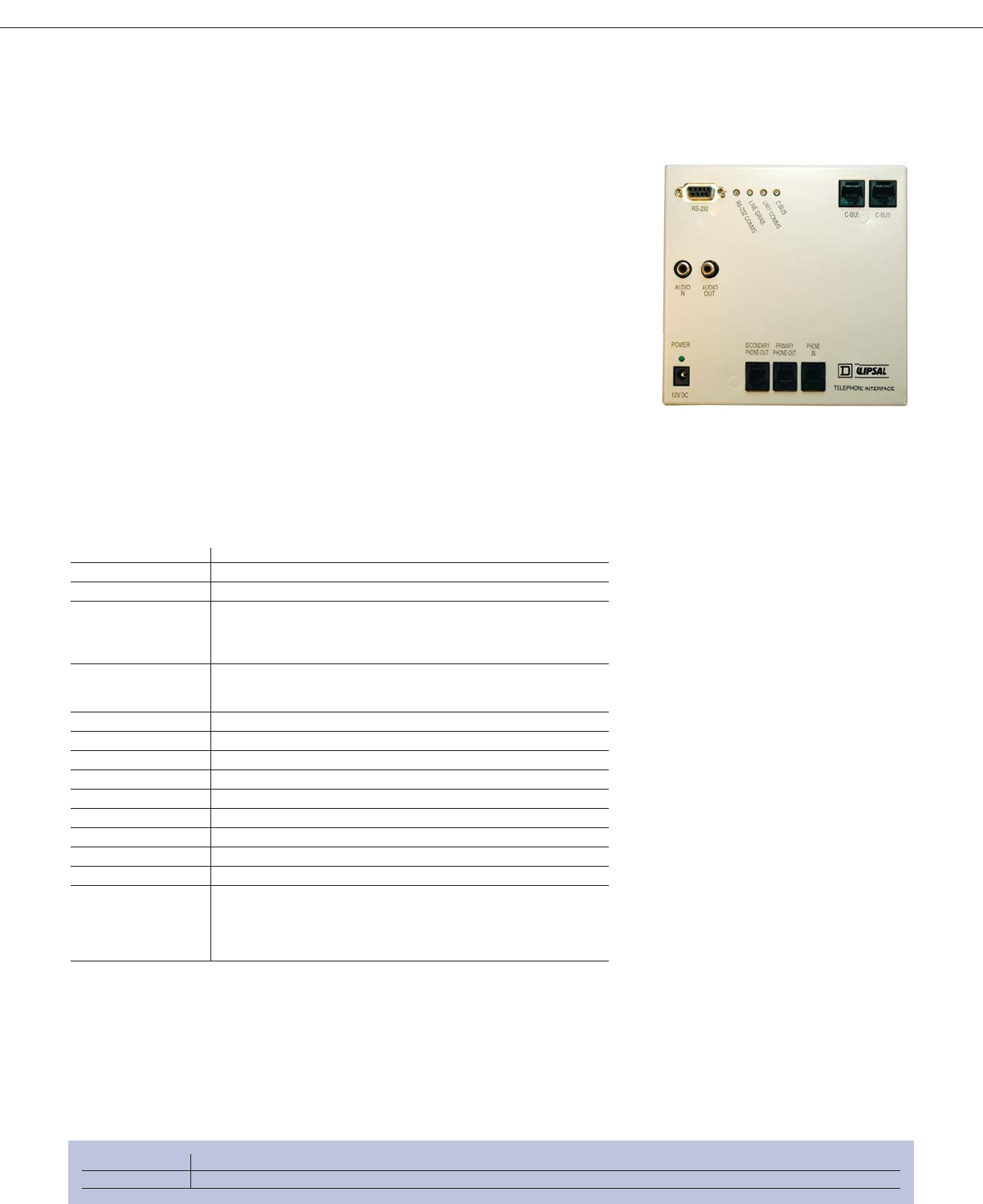

SQUARE D® CLIPSAL® LIGHTING CONTROL | SYSTEMS UNITS

CATALOG NUMBER DESCRIPTION

SLC5100TUS Telephone Interface Unit

PRODUCT FEATURES

• Audio OUT

• Local or remote site access to C-Bus system

• 12Vdc power pack

• RS-232 connection

• 1 RJ45 patch lead

• 2 RJ12 patch leads

• Software available via website download

TECHNICAL INFORMATION

C-Bus Supply Voltage 15 36Vdc @ 18 mA Nominal

DC Plug Pack 12Vdc @ 300-500 mA, 2.1mm plug with Center pin +VE

Audio Output Line output, 1 Vp-p (nominal) into 10K Ohms

Control Functions Dial in and Dial out functionality, control and status monitoring for a

C-Bus system. Audio output. Standard C-Bus PCI allowing remote dial in

and operation as a PCI with modem connection for remote

operation of installation software

Status Indicators Green LED- Power

Orange LED-RS232 Comms, Line Grab

Unit Comms and C-Bus

Start Up Time 10 seconds nominal after Power Up

Storage Temperature 32° to 140°F (0° to 60°C)

Operating Temperature Range 32° to 113°F (0° to 45°C)

Operating Humidity Range 0° to 95% RH, noncondensing

C-Bus Input Terminals RJ45 sockets

Color White with Black lettering and markings

Dimensions 5.8 x 5.7 x 1.2 in. (146.5 x 145 x 30mm)

Weight 1.31 lbs. (580g)

Mounting Centers 3.2 in. (80mm)

Standards UL916 Energy Management Equipment

CSA 22.2 Spec. 205 Signal Equipment

FCC Part 15.101, Class B Digital

FCC Part 68 Connections of Terminal Equipment

to the Telephone Network

*For Diagram see technical section page 84

The C-Bus™ Telephone Interface o ers a dial-in and dial-out functionality, permitting control and status monitoring for

a C-Bus system. It also includes an audio output, so that C-Bus events can be audibly announced.

The Telephone Interface is programmed using a connection to a PC running special con guration software. The interface

can also act as a C-Bus PC Interface. In this way C-Bus can be programmed and con gured either locally or from a

remote site using a data modem.

The Telephone Interface is suitable for connection to the telephone network using a RJ31X connection, in parallel, or by

insertion into a local circuit.

Square D® Clipsal® Telephone Interface Unit

Telephone Interface Unit

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com

SQUARE D® CLIPSAL® LIGHTING CONTROL | INPUT UNITS

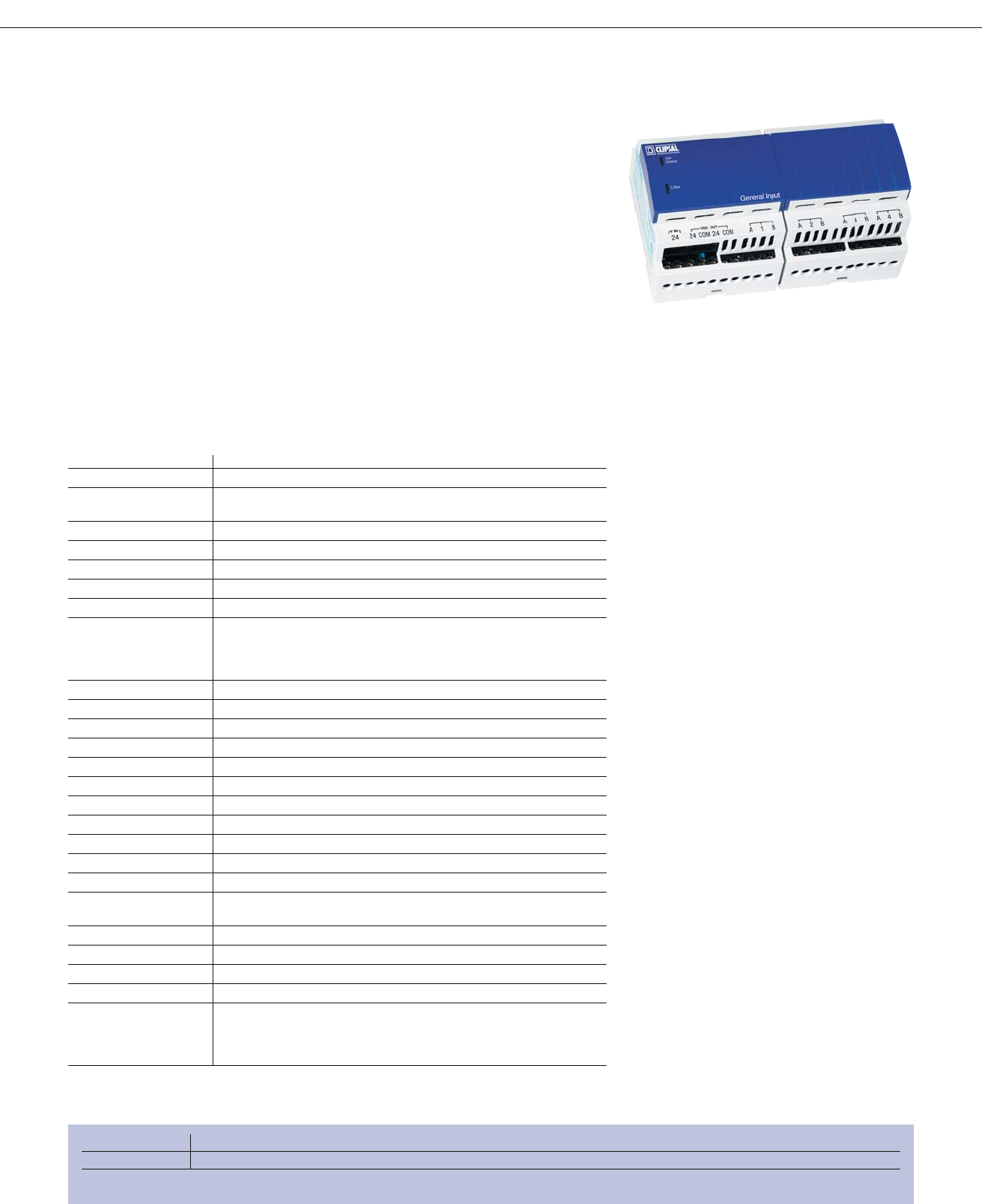

Square D® Clipsal® General Input Unit

Square D® Clipsal® Four-Channel General Input Units are DIN-rail mounted devices that measure TTL digital and

real-world analog quantities and generate messages about the measurements to the C- BusTM network. By acting as an

interface with various external sensors, the general input unit enables integration of the C-Bus network with a variety of

system types, such as those for HVAC and for power monitoring.

Con guration options include selectable input types, eight adjustable decision thresholds per channel, de nable

actions, selectable  ltering, broadcast rates, and a separate hysteresis value per channel.

CATALOG NUMBER DESCRIPTION

SLCE5504TGI Four Channel General Input Unit

TECHNICAL INFORMATION

Nominal Voltage Requirements 15-36 volts @18 mA from the C-Bus network

Nominal 120Vac

Nominal Supply Voltage 16-27V AC/DC, +/- 10%, 50-60 Hz,

provided by an external power supply (included)

AC Input Impedance 100 kOhm @ 1 kHz

External Power Supply 24Vac @ 500 mA

Electrical Isolation 500 V RMS per input

Nominal 24Vdc Output Voltage 24Vdc @ 250 mA, ±10% General Input

Digital Sensor Input TTL, 5V from external source

Analog Sensor Inputs:

Voltage Ranges 0–1, 0–5, 0–10, 0–20Vdc

Input Current Ranges 0–20 mA DC, 4–20 mA DC

Resistance Ranges 0–500 ohm, 0–1000 ohm, 0–3000 ohm, 0–10000 ohm

Maximum Input Voltages -20 V to 60Vdc

Input Voltage Range Impedance At least 100 kOhm

Current Sense Impedance 249 ohm

Resistance Range Injection Current 500 A

Basic Accuracy after Calibration 0.5% of full scale

Maximum Input Frequency 10 Hz

Broadcast Rates 2–1024 sec

Number of Units per Network 10

C-Bus Connections (2) RJ-45 connectors, CAT 5 UTP cable required

Cable 15.75 in. (400 mm) patch lead included

Terminals Accommodate 16–12 AWG cable (2 x 1.31 mm2 or 1 x 3.31 mm2)

Status Indicators Unit/Comms: Unit power and data transmission

C-Bus: Power levels and presence of C-Bus clock

Dimensions 5.7 in. (L) x 3.4 in. (W) x 2.6 in.(H) [144 mm (L) x 85 mm (W) x 65 mm (H)]

Weight 7 oz (190 g)

Mounting DIN rail, 8M wide

Operating Environment 32°F to 113°F (0°C to 45°C) RH: 95%, noncondensing

Standards CSA 22.2 Spec 205 Signal Equipment

FCC: Part 15.101, Class B Digital

EN61000-4-2 Immunity to ESD

UL Listed 916 Energy Management Equipment

*For Diagram see technical section page 84

General Input Unit

PRODUCT FEATURES

• Measures TTL digital quantities including voltage, current, or

resistance from external sensors such as light level, pressure,

and temperature

• Four channels of input, each with an adjustable hysteresis

value, eight decision thresholds, and a software-selectable

input value transformation in the form y = ax +b

• Input channels are compatible with a range of third-party

sensors

• Look-up table with interpolation

• Capable of threshold switching or broadcasting values onto

the network

• Control functions include load switching, dimming, trigger

applications, enable control applications, and measurement

applications

• Measures input signals up to 10 Hz and has an adjustable

input-signal  lter to reduce susceptibility to impulse and noise

• Supplies 250 mA to external sensors

• LEDs indicate the status of the network at the unit and the

unit’s power and data transmissions

• Software-selectable network burden and C-Bus system clock

• Standard built-in C-Bus network connectors: (2) RJ-45

• Non-volatile memory stores operating status for recovery

from a power outage

• Includes 120V/24V AC power pack

DISTRIBUTED INTELLIGENCE

• Compatible with all Clipsal devices and the

Square D® Powerlink® NF3000G3C controller

• Easily con gured with the C-Bus™ Toolkit Software

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com

SQUARE D® CLIPSAL® LIGHTING CONTROL | INPUT UNITS

Square D® Clipsal® Bus Coupler

Square D® Clipsal® Bus Couplers are non-isolated input devices that provide an interface between dry-contact

mechanical switches and a C-Bus network. The bus coupler increases the versatility of the C-Bus network by facilitating

remote access with any dry-contact switch mechanism o ered by Schnieder Electric and other manufacturers.

A system’s  exibility can be further enhanced by using the bus coupler with various other switch types, including reed,

pressure, or micro switches.

Available in two- and four-channel models, the bus coupler is small enough to be used in restricted spaces.

Con guration options include standard control functions such as ON/OFF, toggle, dimmers, and timers.

PRODUCT FEATURES

• Provides two or four non-isolated inputs for external volt-

age-free mechanical switches. Two-channel units feature

independent remote LED outputs

• Control options include ON/OFF, toggle, dimmer, or timer

• Orange LED for each channel to indicate operational status

• Two-way removable terminal block for the C-Bus connection

• Terminal block allows connection of up to four external

switches (four-channel coupler) or two external switches

and two external LEDs (two-channel coupler)

• Small size for adaptation to restricted spaces

• Non-volatile memory stores operating status for recovery

from a power outage

• Receives data and power over a network, so it does not

require power packs or line voltage connections

DISTRIBUTED INTELLIGENCE

• Compatible with all Clipsal devices and the Square D®

Powerlink® NF3000G3C controller

• Easily con gured by using Learn Mode or the C-Bus™

Toolkit Software

CATALOG NUMBER DESCRIPTION

SLC5102BCLEDL Two-Channel Bus Coupler

SLC5104BCL Four-Channel Bus Coupler

Four-Channel Bus Coupler

5104BCL

Bus Coupler

124

CLIPSAL

TECHNICAL INFORMATION

Nominal Voltage 15-36Vdc @ 18 mA, drawn from the

Requirements C-Bus network

Electrical Isolation None

Voltage Across Input External Switch Opens: 5Vdc

External Switch Closes: 0Vdc

Current–Switch Closed Less than 50 A

Distance Between 2-Channel Coupler: Up to 1 ft (0.3 m) each

Switch and Bus Coupler 4-Channel Coupler: Up to 3 ft (1 m) each

LED Drive Output 2-Channel Coupler only: 2 mA @ 12 V

Maximum Input Voltages -20 to 60Vdc

Number of Units Use the C-Bus Calculator, a software utility, to determine

per Network the total network current load

C-Bus Connections Two-way removable screw-type terminals accommodating

24–16 AWG cable (0.2–1.31 mm2)

Channel Input Spring-loaded terminal block accommodating

Connections 24–12 AWG cable (0.2–3.31 mm2)

Status Indicators Channel (2 or 4)

Timers 1 sec–18 hr, 1 sec intervals

Dimensions 2.2 in. (L) x 1.9 in. (W) x 0.7 in.(H) [55 mm (L) x 49 mm (W) x 18 mm (H)]

Weight 1.1 oz (32 g)

Operating Environment 32°F to 113°F (0°C to 45°C) RH: 95%, noncondensing

Standards UL: Listed 916 Energy Management Equipment

CSA 22.2 Spec 205 Signal Equipment

FCC: Part 15.101, Class B Digital,

EN61000-4-2 Immunity to ESD

*For Diagram see technical section page 84

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com

SQUARE D® CLIPSAL® LIGHTING CONTROL | INPUT UNITS

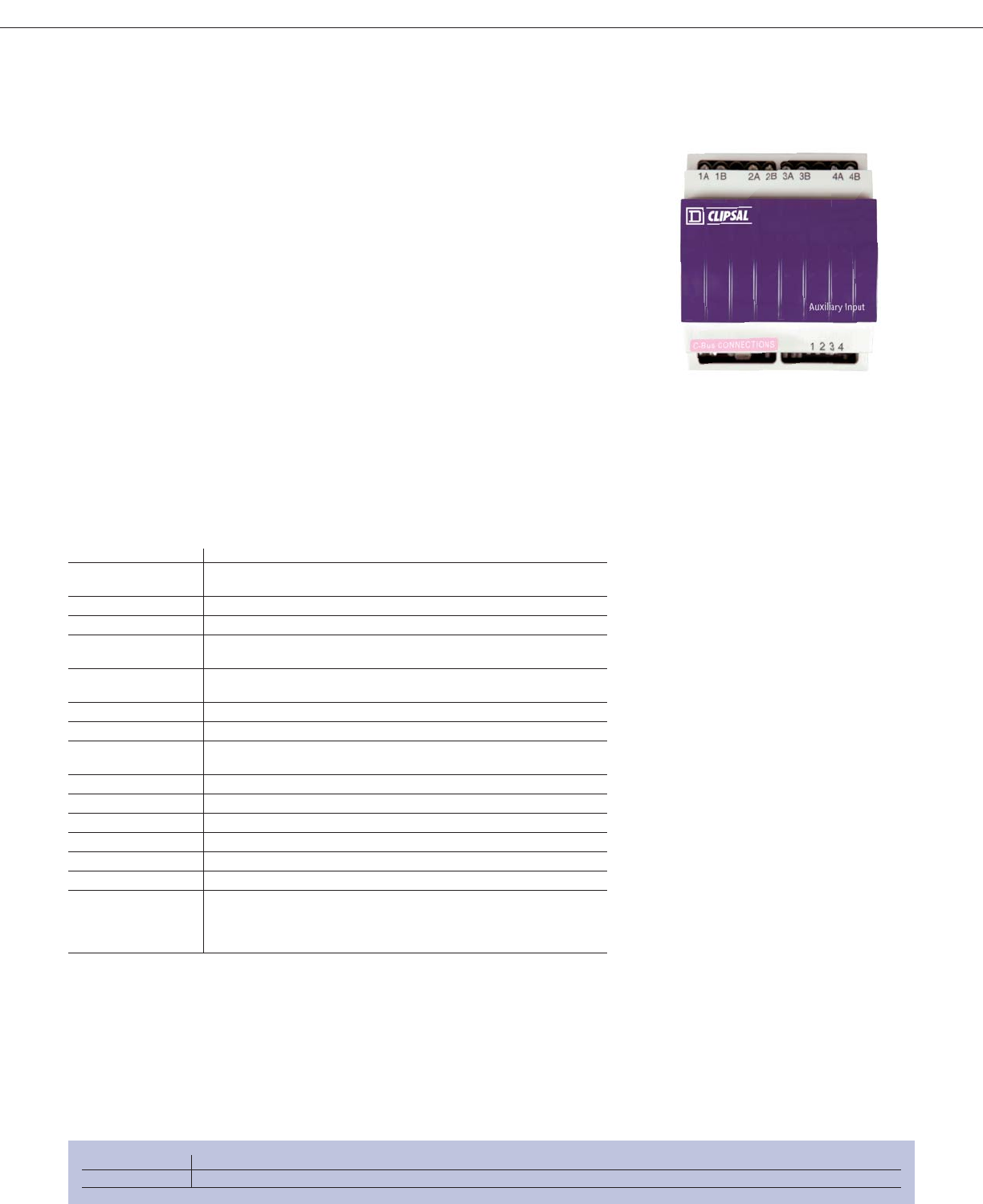

Square D® Clipsal® Four-Channel Auxiliary Input

Square D® Clipsal® Four-Channel Auxiliary Inputs are isolated four-channel input units that provide an interface

between voltage-free mechanical switches and a C-Bus™ network. An auxiliary unit increases the versatility of the

C-Bus network by facilitating remote access with any dry-contact switch mechanism o ered by Schneider Electric

or other manufacturers.

DIN-rail mounted for quick installation, the auxiliary unit can be con gured with standard C-Bus control functions

such as remote scene triggering, ON/OFF, toggle, dimmer, or timer.

PRODUCT FEATURES

• Provides four isolated inputs for external voltage-free

mechanical switches

• Control options include remote scene triggering, ON/OFF,

toggle, dimmer, or timer operations

• Orange LEDs indicate operational status, one for each channel

• Standard built-in C-Bus network connectors: (2) RJ-45

• Non-volatile memory stores operating status for recovery

from a power outage

DISTRIBUTED INTELLIGENCE

• Compatible with all Clipsal devices and the Square D®

Powerlink® NF3000G3C controller

• Easily con gured by using Learn Mode or the C-Bus™

Toolkit Software

CATALOG NUMBER DESCRIPTION

SLCLE5504AUX Four-Channel Auxiliary Input Unit

TECHNICAL INFORMATION

Nominal Voltage Requirements 15-36Vdc @ 18 mA, drawn from the C-Bus network

Electrical Isolation C-Bus/Remote Input: 500 V RMS

Remote Input: 500 V RMS

Voltage Across Input External Switch Opens: 5Vdc External Switch Closes: 0Vdc

Current–Switch Closed 0.4 mA

Switch Resistance Up to 1000 ohm, including cable resistance (26.5 ohms per km

resistance for #18 copper wire coated DC current resistance)

Number of Units Use the C-Bus Calculator, a software utility,

per Network to determine the total network current load

C-Bus Connections (2) RJ-45 connectors, CAT 5 UTP cable required

Cable 15.75 in. (400 mm) patch lead included

Terminals Accommodate one 12 or two 14-22 AWG cables

(1 x 3.1 mm2) or 2 x 2.0-0.3 mm2)]

Status Indicators Channel: (4) orange LEDs to indicate the load status for each channel

Timers 1 sec–18 hr, 1 sec intervals

Dimensions 3.4 in. (L) x 2.8 in. (W) x 2.6 in.(H) [85 mm (L) x 72 mm (W) x 65 mm (H)]

Weight 4.6 oz (130 g)

Mounting DIN rail, 4M wide

Operating Environment 32°F to 113°F (0°C to 45°C) RH: 95%, noncondensing

Standards UL: Listed 916 Energy Management Equipment

CSA 22.2 Spec 205 Signal Equipment

FCC: Part 15.101, Class B Digital Device

EN61000-4-2 Immunity to ESD

*For Diagram see technical section page 85

Four-Channel Auxiliary Input unit

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com

POWERLINK LIGHTING CONTROL | CIRCUIT BREAKERS

SQUARE D® CLIPSAL® LIGHTING CONTROL | SENSORS

PRODUCT FEATURES

• Indoor use, wall or ceiling-mounted unit with a 90°  eld

of view and a detection area of 400 square feet

• LED can be con gured to indicate motion detection

• Light-level sensor has Sunrise/Sunset settings, clock

overrides, and adjustable sensitivity ranging from

0.1 foot candle to full sunlight

• Advanced circuitry to help prevent false triggering, including

electrostatic and electromagnetic shields, dual element

detectors, pyroelectric ceramic sensors, and an optical

band pass  lter

• Controls up to four C-Bus group addresses that can be

individually scheduled

• Non-volatile memory stores operating status for recovery

from a power outage

• Receives data and power over a network, so the sensor

does not require power packs or line voltage connections

DISTRIBUTED INTELLIGENCE

• Compatible with all Clipsal devices and the Square D®

Powerlink® NF3000G3C controller

• Easily con gured by using Learn Mode or the C-Bus™

Toolkit Software and a personal computer connected

to the C-Bus network

CATALOG NUMBER DESCRIPTION

SLC5751L 90° Indoor PIR Occupancy Sensor

The Square D® Clipsal® Indoor PIR Occupancy Sensor provides reliable thermal-radiation-based control of lighting and

other C-Bus output devices.

Suitable for wall or ceiling mounting, this sensor o ers a continuous detection  eld of 400 square feet and a 90°  eld of

view. The entire detection  eld has uniform sensitivity and no dead zones, making it an ideal lighting-control solution

for o ces, corridors, and conference rooms.

Con guration options include an adjustable light-level sensor that can be set to automatically turn o lights when

ambient light levels are su cient or turn on lights when ambient light levels are insu cient.

Indoor PIR Occupancy Sensor

Square D® Clipsal® Indoor PIR Occupancy Sensor

TECHNICAL INFORMATION

Nominal Voltage Requirements 15-36Vdc @ 18 mA, drawn from the C-Bus network

Field of View 90°

PIR Detection Field Typically 400 sq ft (37 sq m)

Light-Level inhibit Threshold 0.1 footcandle (1 lux) to full sunlight

Timer Delay Range 0 sec-18 hr, 1 sec interval

Number of Units Use the C-Bus Calculator, a software utility, to

per Network determine the total network current load

C-Bus Connection Screw-type terminals, input terminals accomodate

24-16 AWG cable (0.2-1.31 mm2)

Status Indicators LED can be configured to turn on when movement is detected

Dimensions 3.9 in. (W) x 2.2 in. (H) [100 mm (W) x 57 mm (H)]

Weight 4.4 oz (125 g)

Mounting Surface: Ceiling or wall

Ht: 8 ft (2.4 m) above floor

Operating Environment Indoor 32°F to 122°F (0°C to 50°C)

Standards UL: Listed 916 Energy Management Equipment

CSA 22.2 Spec 205 Signal Equipment

FCC: Part 15.101, Class B Digital Device

EN61000-4-2 Immunity to ESD

*For Diagram see technical section page 85

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com

SQUARE D® CLIPSAL® LIGHTING CONTROL | SENSORS

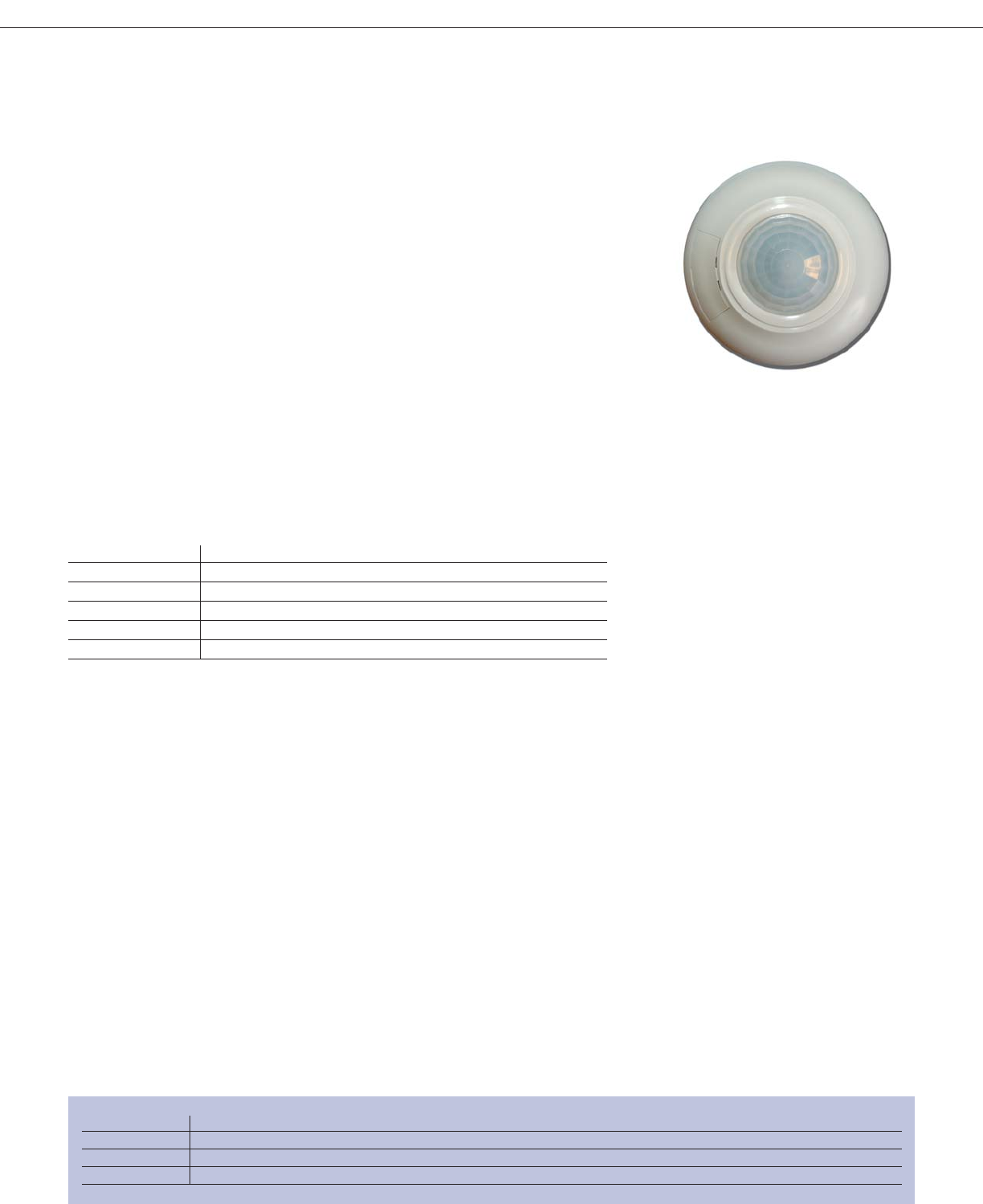

Square D® Clipsal® 360° PIR Occupancy Sensor

PRODUCT FEATURES

• 360° detection pattern, indoor use

• E ective coverage area is more than 800 square feet when unit

is mounted 8 feet above the  oor

• Dual element detectors minimize false triggering

• LEDs indicate movement detection and status of the IR receiver,

and the light-level sensor

• Can control up to four scenes or group addresses that can be

individually scheduled

• Adjustable light-level sensor with Sunrise/Sunset and clock

overrides

• Attractive, low pro le unit can be  ush mounted on ceiling or

suspended from wall tiles where it is unobtrusive, with a face

diameter of only 2.8 inches

• Non-volatile memory stores operating status for recovery from

a power outage

• Receives data and power over a network. No power packs or

line voltage connections required

DISTRIBUTED INTELLIGENCE

• Compatible with all Clipsal devices and the Powerlink®

NF3000G3C controller

• Easily con gured by using Learn Mode or the C-Bus™ Toolkit

Software and a personal computer connected to the C-Bus

network

CATALOG NUMBER DESCRIPTION

SLC5753L 360° PIR Occupancy Sensor

The Square D® Clipsal® 360° Indoor PIR Occupancy Sensor combines a passive infrared receiver (PIR) for occupancy

sensing and a light-level sensor into a small, highly versatile unit. The multi-sensor’s 2.8 inch face diameter makes it

unobtrusive and ideally suited for  ush mounting on the ceiling.

This sensor has a 360 degree  eld of view with an e ective coverage pattern of more than 800 feet, so it is ideally suited

for o ces, copier rooms, closets, and restrooms. Multiple sensors can be connected to the same C-Bus network to

provide larger coverage patterns.

Con guration options include adjustable time delays for automatic shut-o following a preset time period without

detected motion and an adjustable light-level sensor that can be set to automatically turn o lights when ambient light

levels are su cient or turn on lights when ambient light levels are insu cient.

360° PIR Occupancy Sensor

TECHNICAL INFORMATION

Nominal Voltage Requirements 15-36Vdc @ 18 mA, drawn from the C-Bus network

Field of View 360°

PIR Rated Typically 800 sq ft (74 sq m) when sensor is

Detection Field mounted 8 ft (2.4 m) above floor

Light-Level inhibit Threshold 0.1 footcandle (1 lux) to full sunlight

Timer Delay 0 sec to 18 hr

Number of Units Use the C-Bus Calculator, a software utility, to

per Network determine the total network current load

C-Bus Connection Two removable terminal blocks, requires CAT 5 data cable

Status Indicators LED can be configured to turn on when movement is detected

Dimensions 4.1 in. (L) x 2.8 in. (W) [103 mm (L) x 72 mm (W)]

Weight 4.4 oz (125 g)

Mounting Surface: Ceiling

Ht: 8 ft (2.4 m) above floor

Max. Ht: 12 ft (3.7 m) above floor

Min. Ceiling Thickness: 0.4 - 0.75 in. (10 - 19.1 mm)

Operating Indoor only

Environment 32°F to 113°F (0°C to 45°C)

RH: 95%, noncondensing

Standards UL: Listed 916 Energy Management Equipment

CSA 22.2 Spec 205 Signal Equipment

FCC: Part 15.101, Class B Digital Device

EN61000-4-2 Immunity to ESD

*For Diagram see technical section page 85

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com

POWERLINK LIGHTING CONTROL | CIRCUIT BREAKERS

SQUARE D® CLIPSAL® LIGHTING CONTROL | SENSORS

Square D® Clipsal® 360° PIR Multi-Sensor

PRODUCT FEATURES

• 360° detection pattern, indoor use

• E ective detection area of occupancy sensor is more than

800 square feet when unit is mounted 8 feet above the  oor.

E ective IR coverage is 800 square feet.

• Dual element detectors minimize false triggering

• LEDs indicate movement detection and status of the IR

receiver, the occupancy sensor, and the light-level sensor

• Can control up to eight C-Bus scenes or directly control up

to eight C-Bus group addresses that can be individually

scheduled

• Adjustable light-level sensor has Sunrise/Sunset and clock

overrides

• Attractive, low pro le unit can be  ush mounted on ceiling or

suspended from wall tiles where it is unobtrusive, with a face

diameter of only 2.8 inches

• Optional handheld remote controller (SLC5084TX, SLC5088TX)

• Non-volatile memory stores operating status for recovery from

a power outage

• Receives data and power over a network, so the sensor does

not require power packs or line voltage connections

DISTRIBUTED INTELLIGENCE

• Compatible with all Clipsal devices and the Square D®

Powerlink® NF3000G3C controller

• Easily con gured by using Learn Mode or the C-Bus™ Toolkit

Software and a personal computer connected to the C-Bus

network

CATALOG NUMBER DESCRIPTION ACCESSORIES

SLC5753PEIRL 360° PIR Multi-Sensor SLC5084TX IR 4-Button Remote Controller (ordered separately)

SLC5088TX IR 8-Button Remote Controller (ordered separately)

TECHNICAL INFORMATION

Nominal Voltage Requirements 15-36Vdc @ 18 mA, drawn from the C-Bus network

Field of View 360°

PIR Rated Typically 800 sq ft (74 sq m) when sensor is

Detection Field mounted 8 ft (2.4 m) above floor

IR Receiver Rated Typically 800 sq ft (74 sq m) when sensor is

Detection Field mounted 8 ft (2.4 m) above floor

Light-Level inhibit Threshold 0.1 footcandle (1 lux) to full sunlight

Timer Delay 0 sec to 18 hr

Number of Units Use the C-Bus Calculator, a software utility, to

per Network determine the total network current load

C-Bus Connection Two removable terminal blocks, requires CAT 5 data cable

Status Indicators PIR Sensor or IR Receiver (activity)

PIR Sensor (enabled/disabled)

Light Level Maint. (enabled/disabled)

Dimensions 4.1 in. (L) x 2.8 in. (W) [103 mm (L) x 72 mm (W)]

Weight 4.4 oz (125 g)

Mounting Surface: Ceiling

Ht: 8 ft (2.4 m) above floor

Max. Ht: 12 ft (3.7 m) above floor

Min. Ceiling Thickness: 0.4 - 0.75 in. (10 - 19.1 mm)

Operating Indoor only

Environment 32°F to 113°F (0°C to 45°C)

RH: 95%, noncondensing

Standards UL: Listed 916 Energy Management Equipment

CSA 22.2 Spec 205 Signal Equipment

FCC: Part 15.101, Class B Digital Device

EN61000-4-2 Immunity to ESD

*For Diagram see technical section page 86

The Square D® Clipsal® 360° PIR Multi-Sensor combines a passive infrared receiver (PIR) for occupancy sensing, a

light-level sensor, and an infrared remote receiver into a small, highly versatile unit. The sensor’s 2.8 inch face diameter

makes it unobtrusive and ideally suited for  ush mounting on the ceiling.

Con guration options for the occupancy sensor include adjustable time delays for automatic shut-o following a preset

time period without detected motion and an adjustable light-level sensor to turn on lights automatically when ambient

light levels are low or turn o lights when ambient light levels are su cient. The built-in IR receiver accepts commands

from an optional handheld remote controller, making the sensor ideal for classrooms and conference room areas.

360° PIR Multi-Sensor

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com

SQUARE D® CLIPSAL® LIGHTING CONTROL | SENSORS

The Square D® Clipsal® Outdoor PIR Motion Sensor combines reliable thermal-radiation-based control of lighting with

rugged construction suitable for outdoor requirements. The unit’s advanced circuits and  at multi-segmented lens

provide coverage of up to 3000 square feet in a 110°  eld of view.

The detection area incorporates a multi-faceted lens, which ensures fast response to motion and few dead zones.

Electrostatic and electromagnetic shields, dual element detectors, an optical bandpass  lter, and pyroelectric ceramic

sensors are used to reduce the incidence of false triggering.

Con guration options include an adjustable light-level sensor that can be set to automatically turn o lights when

ambient light levels are su cient or turn on lights when ambient light levels are insu cient.

PRODUCT FEATURES

• Outdoor use, wall or ceiling-mounted unit with a 110°

 eld of view and a detection area up to 3000 square feet in

diameter

• Lens has 12 overlapping zones on each of 4 levels, forming a

continuous detection  eld

• Rugged construction and pre-wired  exible cord

• LED indicates motion detection

• Light-level sensor has Sunrise/Sunset settings, clock over-

rides, and adjustable sensitivity ranging from 0.1 footcandle

to full sunlight

• Controls up to four C-Bus group addresses that can be

individually scheduled

• Non-volatile memory stores operating status for recovery

from a power outage

• Receives data and power over a network, so the sensor does

not require power packs or line voltage connections

DISTRIBUTED INTELLIGENCE

• Compatible with all Clipsal devices and the Powerlink®

NF3000G3C controller

• Easily con gured by using Learn Mode or the C-Bus™ Toolkit

Software and a personal computer connected to the C-Bus

network

CATALOG NUMBER DESCRIPTION

SLC5750WPL 110° Outdoor PIR Motion Sensor

Square D® Clipsal® Outdoor Motion Sensor

Outdoor PIR Motion Sensor

TECHNICAL INFORMATION

Nominal Voltage Requirements 15-36Vdc @ 18 mA, drawn from the C-Bus network

Field of View 110°

PIR Detection Field Typically 3000 sq ft (279 sq m)

Light-Level inhibit Threshold 0.1 footcandle (1 lux) to full sunlight

Number of Detection Zones 18 Long Range, 16 Intermediate Range, 10 Short Range, 4 ultra Short

Timer Delay Range 0 sec to 18 hr

Number of Units Use the C-Bus Calculator, a software utility, to

per Network determine the total network current load

C-Bus Connection One terminal block

Status Indicators LED can be configured to turn on when movement is detected

Dimensions 4.5 in. (L) x 2.9 in. (W) x 5.5 in. (D) [114 mm (L) x 74 mm (W) x 140 mm (D)]

Weight 8 oz (227 g)

Mounting Standard plate/box with 3.3 in. (84 mm) mounting centers

Surface: Ceiling or wall

Ht: 8 ft (2.4 m) above floor

Operating Outdoor only

Environment 32°F to +122°F (0°C to +50°C)

Standards UL: Listed 916 Energy Management Equipment

CSA 22.2 Spec 205 Signal Equipment

FCC: Part 15.101, Class B Digital Device

EN61000-4-2 Immunity to ESD

*For Diagram see technical section page 86

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com

POWERLINK LIGHTING CONTROL | CIRCUIT BREAKERS

SQUARE D® CLIPSAL® LIGHTING CONTROL | SENSORS

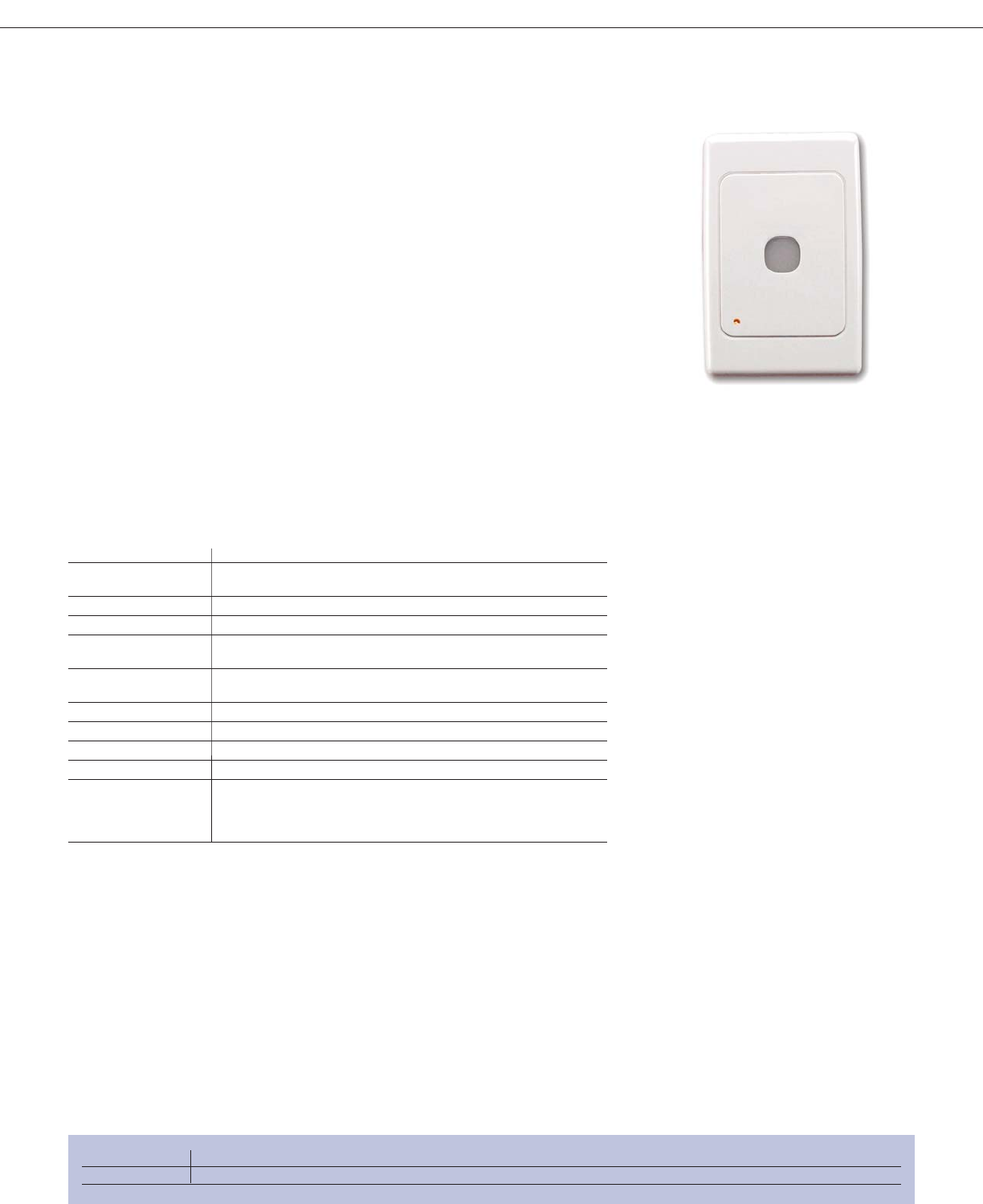

Square D® Clipsal® Light-Level Sensor

PRODUCT FEATURES

• Can maintain constant illumination levels of

5-150 footcandles

• Controls up to two C-Bus group addresses, one set for

ON/OFF operations and one set for ramping operations

• 180°  eld of view

• Can be enabled or disabled over the C-Bus network

• Stores operating status in non-volatile memory for recovery

from a power outage

• Receives data and power over a single C-Bus twisted pair

cable

• Veri es status of input and output devices on same C-Bus

application address, updating input status if necessary

• LED can be con gured to indicate current status of any C-Bus

group address

• Attractive, wall-mounted, low-pro le unit

DISTRIBUTED INTELLIGENCE

• Compatible with all Clipsal devices and the Powerlink®

NF3000G3C controller

• Easily con gured by using the C-Bus™ Toolkit Software and

a personal computer connected to the C-Bus network

TECHNICAL INFORMATION

Nominal Voltage Requirements 15-36Vdc @ 18 mA, drawn from the C-Bus network

Light Level Reads: 2-278 footcandles (20-3000 lux)

Controls: 5-148 footcandles (40-1600 lux)

Field of View 180°

C-Bus Connection Accommodates 6 x 24 AWG cable (6 x 0.2 mm2)

Status Indicators Can be configured to report state of any one

of three group addresses: Enabled, ON/OFF, or Ramp

Dimensions 4.57 in. (L) x 2.99 in. (W) x 1.93 in. (D)

[116 mm (L) x 76 mm (W) x 49 mm (D)]

Weight 3 oz (85 g)

Operating Indoor only

Environment 32°F to 122°F (0°C to 50°C)

RH: 95%, noncondensing

Standards UL: Listed 916 Energy Management Equipment

CSA 22.2 Spec 205 Signal Equipment

FCC: Part 15.101, Class B Digital Device

EN61000-4-2 Immunity to ESD

*For Diagram see technical section page 86

The Square D® Clipsal® Light-Level Sensor measures ambient light levels and automatically issues ON, OFF, or ramp

commands over a C-Bus network. The light-level sensor can control relays, dimmers, or remotely operated circuit

breakers, changing their status according to pre-set ambient lighting levels.

The Clipsal light-level sensor has a dynamic range between 5-150 footcandles, and compensates for noise and rapid

light intensity  uctuations by using  ltering and hysteresis.

The light-level sensor can control up to two C-Bus group addresses: one address controls the switching ON/OFF of a

lamp circuit according to the amount of ambient light, while the other is used to continuously regulate the light-level

output of any number of lamps.

CATALOG NUMBER DESCRIPTION

SLC5031PE Light-Level Sensor

Light Level Sensor

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com

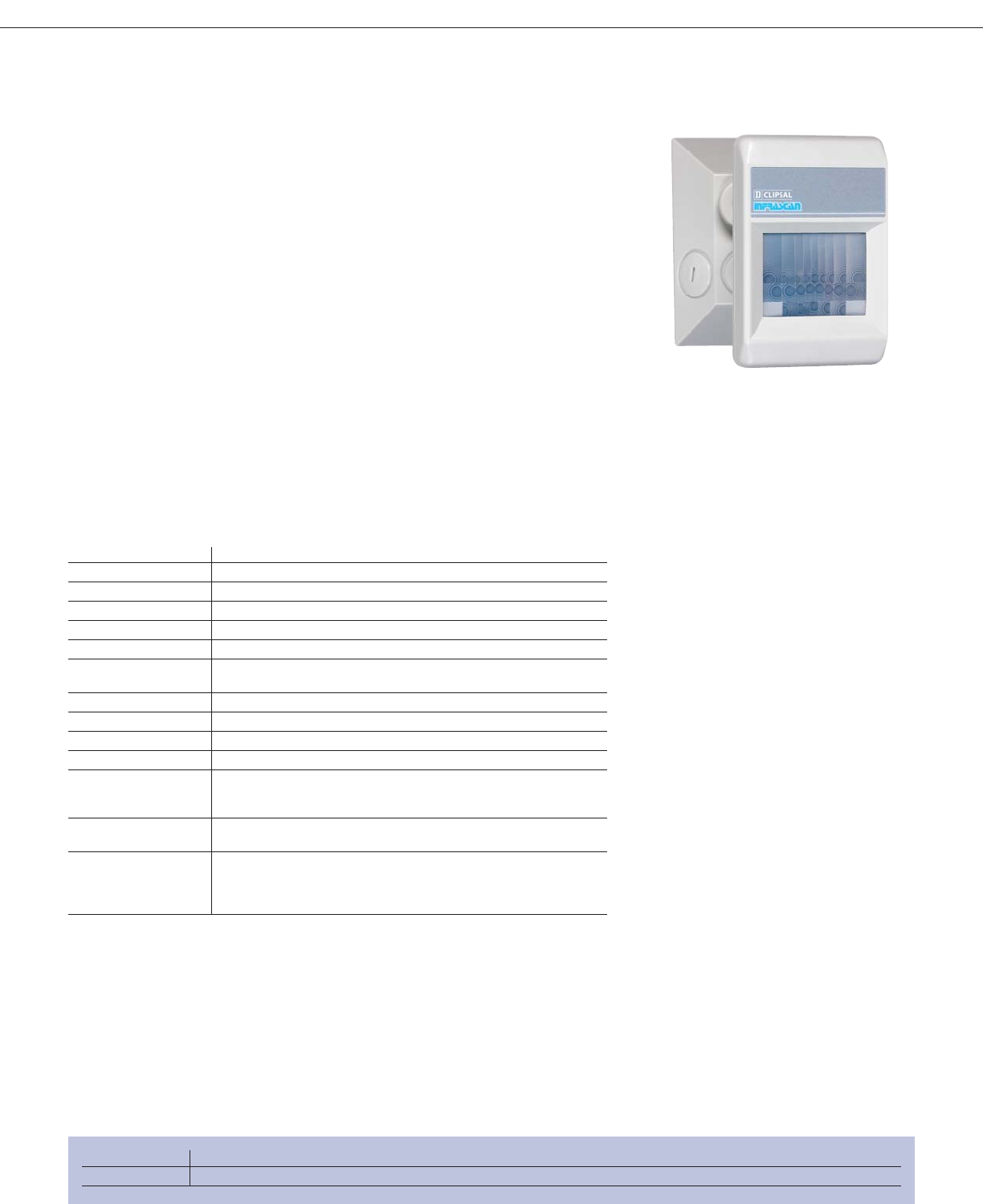

SQUARE D® CLIPSAL® LIGHTING CONTROL | SENSORS

CATALOG NUMBER DESCRIPTION

SLC5031PEWP Outdoor Light-Level Sensor

Square D® Clipsal® Outdoor Light-Level Sensor

TECHNICAL INFORMATION

Nominal Voltage Requirements 15–36Vdc @ 18 mA, drawn from the C-Bus network

Field of View 180°

Light-Level Range Reads: 2-278 footcandles (20-3000 lux)

Controls: 5-148 footcandles (40-1600 lux)

C-Bus Connection Screw-type input terminals accommodate 6 x 24 AWG cable (6 x 0.2 mm)

Connection requires CAT 5 data cable

Max. Units/Network Based on the total network current load and available power

Conduit Openings Sized for 20 mm and 25 mm conduit fittings

Dimensions 4 in. (L) x 4 in. (W) x 2.5 in. (D) [102 mm (L) x 102 mm (W) x 65 mm (D)]

Weight 10.8 oz (305 g)

Mounting Indoor or outdoor, wall or ceiling

Indoor Height: At least 6.5 ft (1.9 m) above floor

Operating Environment Outdoor or indoor –22°F to 122°F (–30°C to 50°C)

RH: 95%, noncondensing

Standards FCC: Part 15.101, Class B Digital Device

*For Diagram see technical section page 87

The Square D® Clipsal® light-level sensor measures ambient light levels and automatically issues ON/OFF or ramp

commands over a C-BusTM network to maintain outdoor lighting levels. Primarily designed for outdoor use, this light-

level sensor is also suitable for indoor settings in which a water resistant casing is desirable.

PRODUCT FEATURES

• Outdoor use, wall- and ceiling-mounted

low-pro le unit

• Can maintain a constant illumination level

of 5-150 footcandles

• Control of up to two C-Bus group addresses

• Sensors receive data and power over a single

C-Bus twisted-pair cable, so they do not require

power packs or line-voltage connections

• 180°  eld of view

Outdoor Light Level Sensor

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com

SQUARE D® CLIPSAL® LIGHTING CONTROL | OUTPUT UNITS

Square D® Clipsal® Professional Series Dimmer

Square D® Clipsal® Professional Dimmers are designed to control incandescent and compatible low-voltage lighting.

These dimmers are ideal for tight space applications where traditional rack mounted assemblies are not practical.

Professional dimmer units are available in 5 A (4 channels), 10 A (two channels), and 20 A (one channel) models. Each

channel provides independent dimming and incorporates thermal overload and over-current protection. These dimmer

units automatically compensate for voltage and frequency  uctuations and employ advanced phase-control techniques

to reduce  icker and increase lamp life.

The aluminum enclosure acts as a heat sink and is designed for easy wall mounting, including keyhole mounts

and removable terminals for the C-Bus and override connections. An optional terminal box is available for conduit

connections.

Con guration options include network monitoring of the channel load and network voltages, adjustable delays for

dimming levels, and master override.

PRODUCT FEATURES

• Suitable for use with resistive and inductive loads and low-

voltage lamps utilizing iron core or electronic transformers

• Quick-mounting design, including keyhole mounts, front

and rear cable access, and removable terminals for C-Bus

connections

• Specialized dimming modes–soft turn on/o and linearized

brightness control

• Built-in power supply sources 60 mA to the C-Bus network

• Compensates for  uctuations in frequency and voltage of

power source

• Monitors load current by channel

• Integral thermal overload protection on each channel

• Individual channels can be turned On/O at the unit or via

C-Bus commands

• LEDs indicate the status of the network at the unit and the

status of the unit’s load and power

• Optional terminal box for connecting conduit

• Non-volatile memory stores operating status for recovery from

a power outage

DISTRIBUTED INTELLIGENCE

• Compatible with all Clipsal devices and the Square D®

Powerlink® NF3000G3C controller

• Easily con gured with the C-Bus™ Toolkit Software

CATALOG NUMBER DESCRIPTION ACCESSORIES DESCRIPTION

SLC5104TD5 Professional Dimmer 5A, 4 Channel, 120Vac SLCU5100TB Terminal Box

SLC5102TD10 Professional Dimmer 10A, 2 Channel, 120Vac

SLC5101TD20 Professional Dimmer 20A, 1 Channel 120Vac

TECHNICAL INFORMATION

Nominal Voltage Requirements C-Bus voltage 15–36Vdc

Nominal Line Supply 110–120Vac, ±10%, 50/60 Hz

Voltage and Frequency

Useable Output Current 60 mA

Frequency Drift 3 Hz per minute, maximum

Frequency Step Change 0.1 Hz (maximum)

Minimum Load 100 W per channel

Current Sensing 5–100% of full-rated load, 5% accuracy

E ciency 98%

Number of Units per Network Use the C-Bus Calculator, a software utility,

to determine the total network current load

C-Bus Connections Four-way removable screw terminals, CAT 5 UTP cable required

Load Terminals Accommodates one #12 or up to two #14 AWG cable

[(3.31 mm2 - 1.3 mm2)]

Auxiliary Contacts 2.5 A @ 120Vac, normally open, voltage free, resistive

Status Indicators Channel, Unit and C-Bus

Dimensions 9.45 in. (L) x 7.95 in. (W) x 2.95 in.(H) [240 mm (L) x 202 mm (W) x 75 mm (H)]

Weight 4.85 lb (2.2 kg)

Operating Environment 32°F to 113°F (0°C to 45°C) RH: 95%, noncondensing

Standards UL508 Industrial Control Equipment

CSA 22.2 Spec 205 Signal Equipment

FCC: Part 15.101, Class B Digital Device

EN61000-4-2 Immunity to ESD

*For Diagram see technical section page 87

10A, 2-Channel Professional Dimmer Unit

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com

SQUARE D® CLIPSAL® LIGHTING CONTROL | OUTPUT UNITS

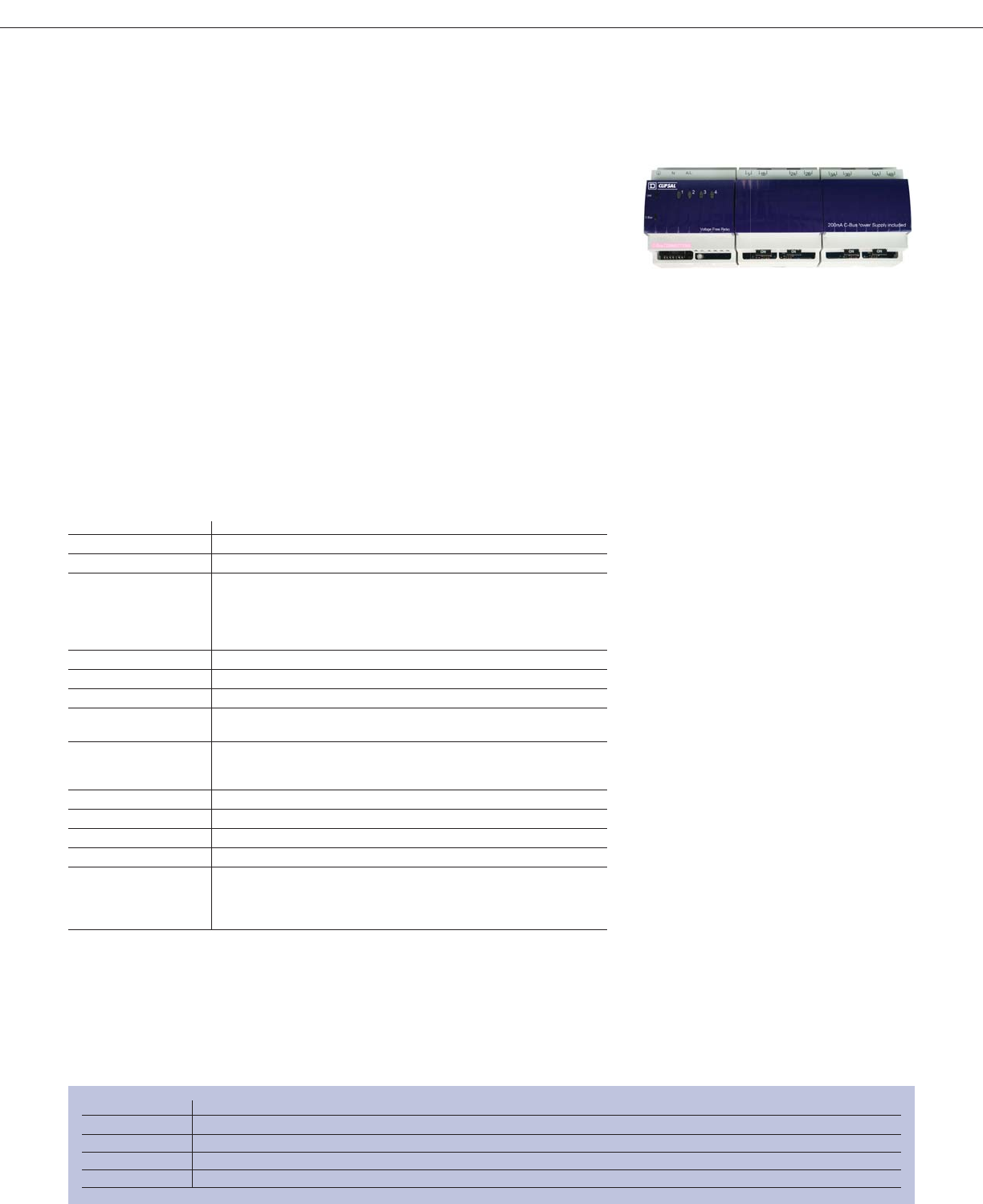

Square D® Clipsal® Phase Angle Dimmers

Square D® Clipsal® Phase Angle Dimmers are C-Bus controlled output units suitable for incandescent and compatible

low-voltage lighting. These units are designed to be rack mounted in suitable DIN style enclosures.

Each of the unit’s channels can independently control loads to create dynamic lighting scenes. These dimmer units

automatically compensate for voltage and frequency  uctuations and employ advanced phase-control techniques to

reduce  icker and increase lamp life.

PRODUCT FEATURES

• Suitable for use with incandescent lamps and low-voltage

lamps utilizing iron core or electronic transformers

• Specialized dimming modes - soft turn On/O and linearized

brightness control.

• Can supply up to 200 mA to the C-Bus network (models

SLC5504TD4A and SLC5508TD2A with built-in power supply)

• Integral thermal overload protection on each channel

• Individual channels can be turned ON/OFF at unit or via C-Bus

commands

• LEDs indicate the status of the network at the unit, the status

of the unit’s load and power, and the status of each channel

• Non-volatile memory stores operating status for recovery

from a power outage

DISTRIBUTED INTELLIGENCE

• Compatible with all Clipsal devices and the Square D®

Powerlink® NF3000G3C controller

• Easily con gured with the C-Bus™ Toolkit Software

CATALOG NUMBER DESCRIPTION

SLC5504TD4A Four-Channel 4A Dimmer, with power supply

SLC5504TD4AP Four-Channel 4A Dimmer, without power supply

SLC5508TD2A Eight-Channel 2A Dimmer, with power supply

SLC5508TD2AP Eight-Channel 2A Dimmer, without power supply

TECHNICAL INFORMATION

Nominal Voltage Requirements 15–36Vdc @ 18 mA from the C-Bus network

when there is no external power source

Nominal Line Supply Voltage 110 - 120Vac, ±10%, 50–60 Hz

and Frequency

C-Bus Source Current 200 mA (Models: SLC5508TD2A, SLC5504TD4A)

Load Rating per Channel 2A (SLC5508TD2A), 4A (SLC5504TD4A)

Minimum Load 15 W per channel

E ciency 98%

Number of Units per Network Use the C-Bus Calculator, a software utility,

to determine the total network current load

C-Bus Connections (2) RJ-45 connectors, CAT 5 UTP cable required

Cable 15.75 in. (400 mm) patch lead included

Remote Override Connection RJ-45 connector

Power Terminals Accommodate 16–12 AWG cable

Load Terminals [2 x #16 guage (2 x 1.31 mm2) or 1 x #14 guage (1 x 2.08 mm2)]

Status Indicators Channel: (1) per channel

Unit (1): Unit power

C-Bus (1): Power levels and presence of C-Bus clock

Dimensions 8.5 in. (L) x 3.6 in. (W) x 2.5 in.(H) [216 mm (L) x 92 mm (W) x 63 mm (H)]

Weight 23 oz (647 g)

Mounting DIN rail, 12M wide

Operating Environment 32°F to 113°F (0°C to 45°C) RH: 95%, noncondensing

Standards UL508 Industrial Control Equipmenth

CSA 22.2 Spec 205 Signal Equipment

FCC: Part 15.101, Class B Digital Device

EN61000-4-2 Immunity to ESD

*For Diagram see technical section page 87

Phase Angle Dimmer Unit with Power Supply

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com

SQUARE D® CLIPSAL® LIGHTING CONTROL | OUTPUT UNITS

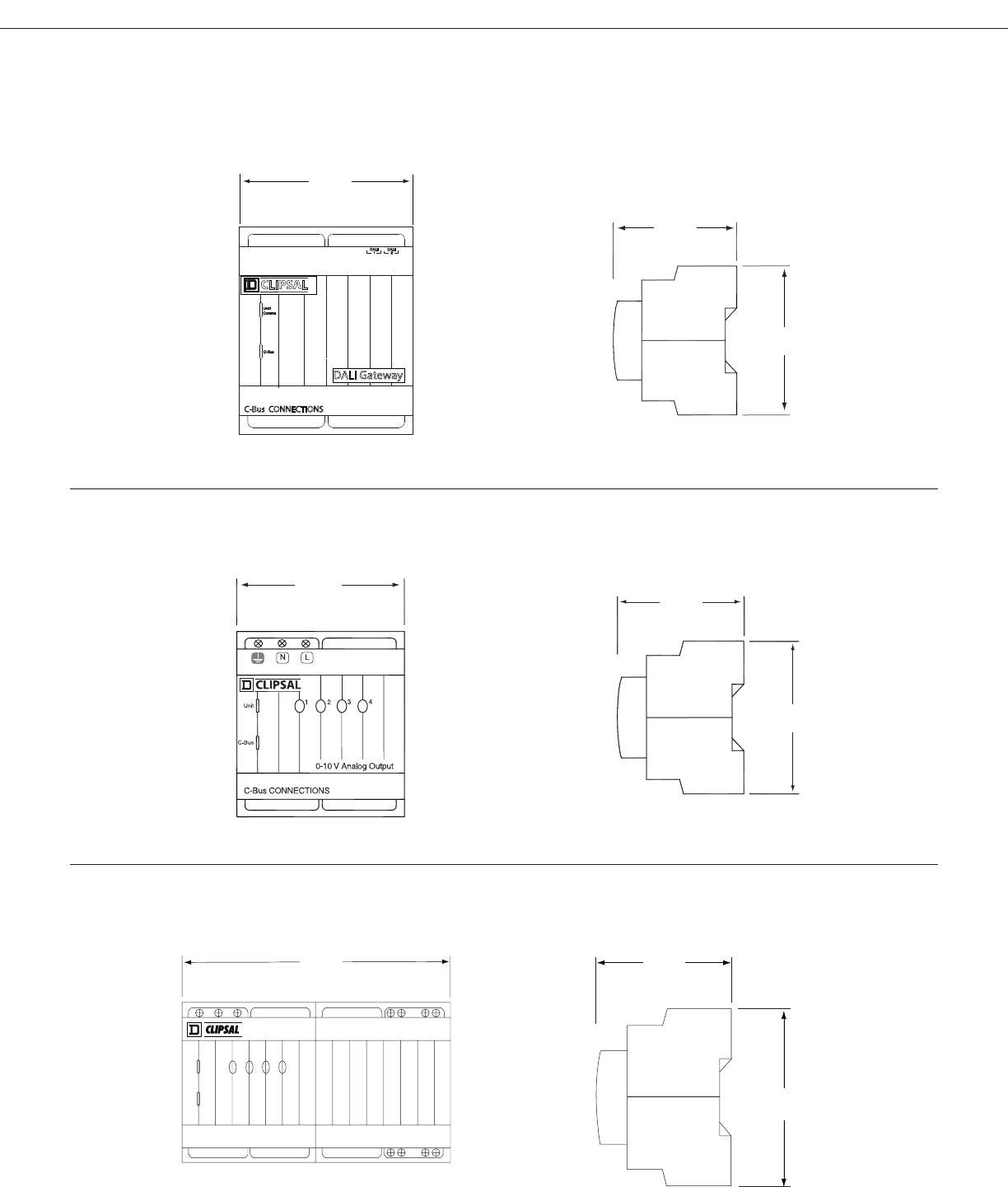

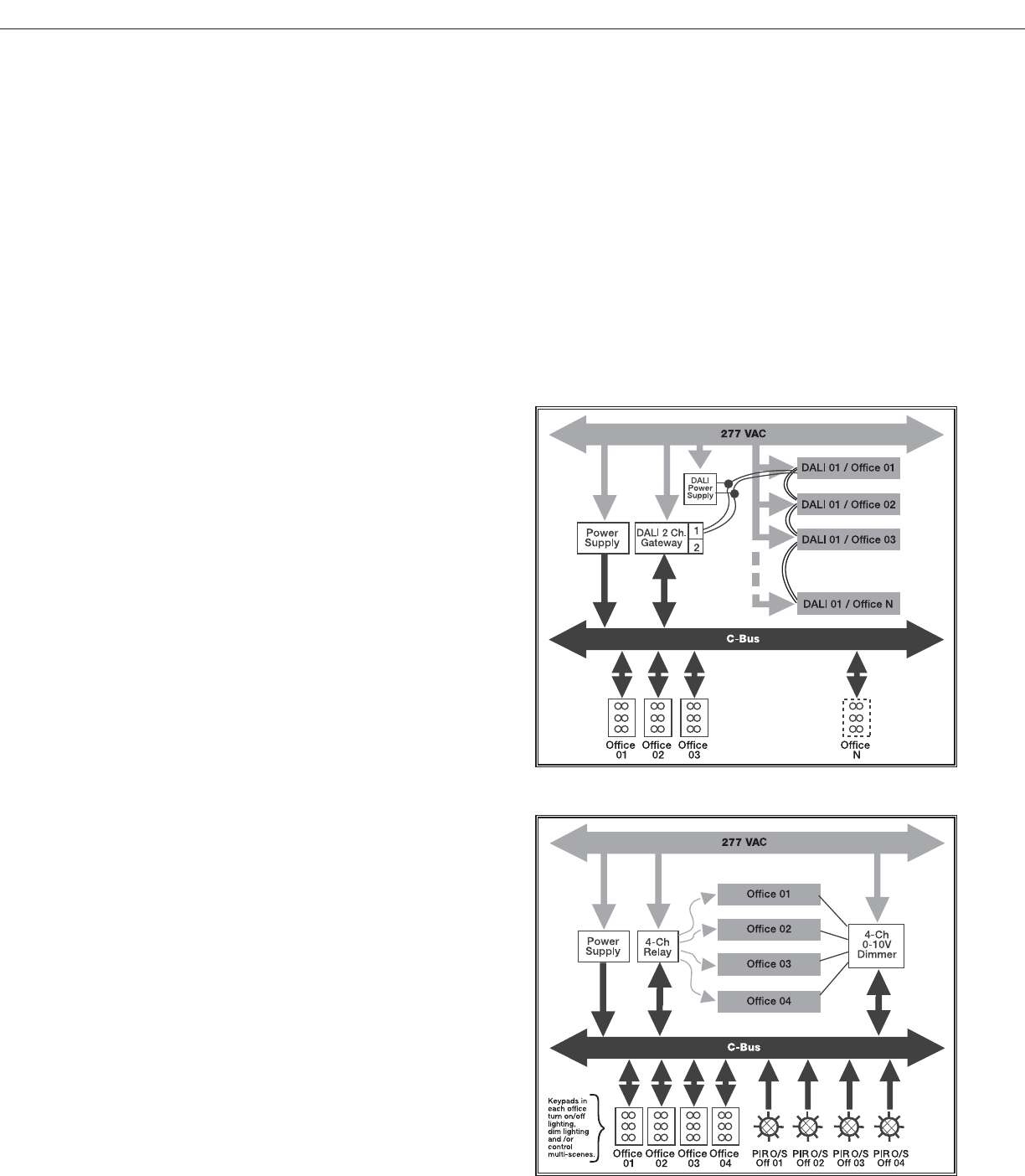

Square D® Clipsal® 2 Channel DALI Gateway

The Square D® Clipsal® Digital Addressable Lighting Interface (DALI) Gateway provides an isolated two-way

communications path between a C-Bus network and two DALI networks, making it possible to use the C-Bus network

to control and monitor DALI ballasts.

The DALI gateway constantly monitors both DALI networks and can detect and report faulty lamps in  uorescent

ballasts or non-functional DALI ballasts.

PRODUCT FEATURES

• Provides two-way communications between C-Bus and DALI

networks, routing selected messages from one to the other

• Unit is transparent and invisible to DALI ballasts

• Pre-programmed C-Bus to DALI and DALI to C-Bus address-

ing structure

• Unit/Comms and C-Bus LEDs show the status of data

transmissions, the unit’s power, the C-Bus network’s power,

and the presence of the C-Bus clock

• Software-selectable network burden and network clock

• Standard built-in C-Bus network connectors: (2) RJ-45

• Non-volatile memory to store operating status for recovery

from a power outage

• Receives data and power over the network, so the unit does

not require power packs or line-voltage connections

DISTRIBUTED INTELLIGENCE

• Compatible with all Clipsal devices and the Square D®

Powerlink® NF3000G3C controller

• C-Bus side of interface is easily con gured with the C-Bus™

Toolkit Software

TECHNICAL INFORMATION

Nominal Voltage Requirements 15-36Vdc @ 32 mA, drawn from the C-Bus network

Electrical Isolation 3.75 kV RMS, from interface to C-Bus network

Number of Units Use the C-Bus Calculator, a software utility,

per Network to determine the total network current load

C-Bus Connections Built-in RJ-45 sockets (2) for connection to the C-Bus network

DALI Connections Two screw-type terminal blocks accommodating 16–12 AWG cable

(2 x 1.31 mm2 or 1 x 2.5 mm2)

Cable (1) 15.75 in. (400 mm) patch lead included

Status Indicators Unit/Comms: Unit power and data transmission

C-Bus: Power levels and presence of C-Bus clock

Dimensions 3.4 in. (L) x 2.8 in. (W) x 2.6 in.(H) [85 mm (L) x 72 mm (W) x 65 mm (H)]

Weight 4.6 oz (130 g)

Mounting DIN rail, 4M wide

Operating Environment 32°F to 113°F (0 °C to 45 °C) RH: 95%, noncondensing

Standards UL: Listed 916 Energy Management Equipment

CSA 22.2 Spec 205 Signal Equipment

FCC: Part 15.101, Class B Digital Device

EN61000-4-2 Immunity to ESD

*For Diagram see technical section page 88

CATALOG NUMBER DESCRIPTION

SLC5502DAL Two-Channel DALI Gateway

DALI Gateway

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com

SQUARE D® CLIPSAL® LIGHTING CONTROL | OUTPUT UNITS

Square D® Clipsal® 4 Channel 0-10V

Fluorescent Ballast Dimmer

The Square D® Clipsal® 4 Channel 0-10V Fluorescent Ballast Dimmer provides four channels of analog 0-10Vdc that

can be used as the control signals for various peripheral devices, including electronically dimmable  uorescent lighting

ballasts.

This analog output unit can sink or source current as appropriate for the connected load, and produces 0-10 V in

response to commands from the C-Bus network.

Each channel can be individually turned ON or OFF at the unit or by C-Bus commands, and each can drive multiple

loads. All channels also can be turned ON or OFF remotely without C-Bus network communication.

PRODUCT FEATURES

• Produces four independently controllable channels of 0-10Vdc

for controlling dimmable lighting ballasts or other loads

• Each channel can sink or source current and drive multiple

loads

• Two RJ-45 connectors facilitate quick connections to the C-Bus

network and between similar units

• Individual channels can be turned ON/OFF at unit, via C-Bus

commands, and through a remote override option

• Unit and C-Bus LEDs show the status of the unit and the

network

• Non-volatile memory stores operating status for recovery from

a power outage

• 120 or 277Vac models available

DISTRIBUTED INTELLIGENCE

• Compatible with all Clipsal devices and the Powerlink®

NF3000G3C controller

• Easily con gured by using Learn Mode or the C-Bus™ Toolkit

software and a personal computer connected to the C-Bus

network

CATALOG NUMBER DESCRIPTION

SLCLE5504TAMP Analog Output Unit, 0-10V, 120V

SLCLE5504HAMP Analog Output Unit, 0-10V, 277V

TECHNICAL INFORMATION

Power Requirements C-Bus: 15–36Vdc @ 22 mA required for normal operation.

Power: 120V or 277Vac connection, 10 W

Number of Units Use the C-Bus Calculator, a software utility, to

per Network determine the total network current load

Electrical Isolation 3.5 kV RMS from C-Bus to the line

Output Voltage Range 0-10Vdc (±0.5)

Output Rating Sourcing: 2.5 mA (minimum of 4 kohm)

Sinking: 15 mA at Vout = 0V

8 mA at Vout = 10V

[i.e., I = 15-(0.7 x Vout)mA]

Status Indicators Unit: Unit power

C-Bus: Network voltage level and presence of system clock

C-Bus Connection (2) RJ-45 terminals

Cable (1) 15.75 in. (400 mm) CAT 5 patch lead with pre-terminated RJ-45 connectors

Output Terminals Accomodates 2 X 16 AWG or 1 X 12 AWG cable (2 x 1.3 mm2 or 1 x 3.3 mm2)

Mounting DIN rail, 4M wide

Dimensions 3.35 in. (L) x 2.83 in. (W) x 2.56 in. (D) [85 mm (L) x 72 mm (W) x 65 mm (D)]

Weight 8.64 oz (245 g)

Operating Environment 32°F to 122°F (0°C to 50°C) RH: 95%, noncondensing

Standards UL: Listed 916 Energy Management Equipment

CSA 22.2 Spec 205 Signal Equipment

FCC: Part 15.101, Class B Digital Device

EN61000-4-2 Immunity to ESD

*For Diagram see technical section page 88

4 channel 0-10V Fluorescent Ballast Dimmer

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com

SQUARE D® CLIPSAL® LIGHTING CONTROL | OUTPUT UNITS

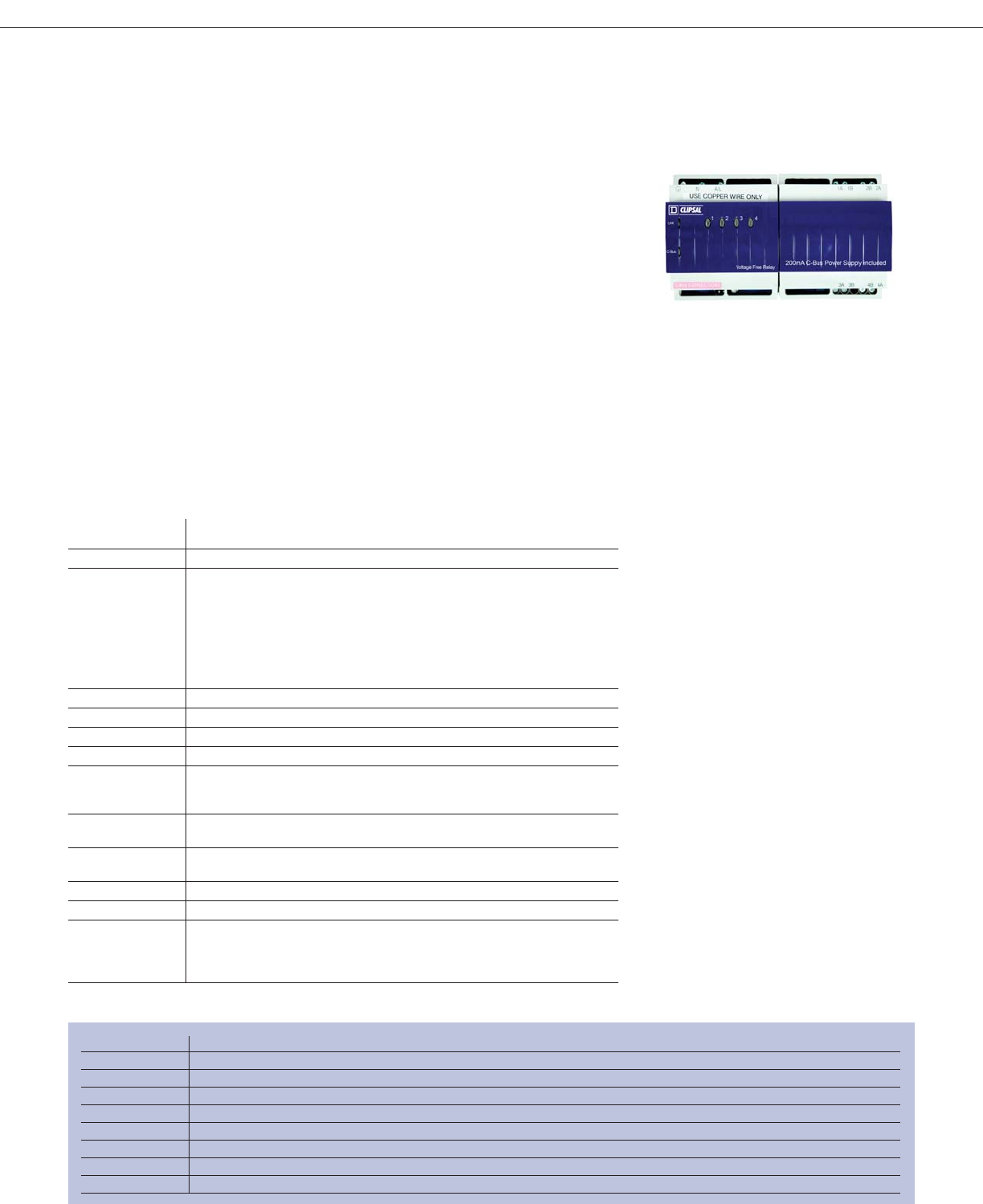

Square D® Clipsal® 10 Amp Relay Unit

Square D® Clipsal® Relays are DIN-rail mounted units with four or twelve independent, voltage free, relay contacts for

general switching applications. They are suitable for use with resistive, inductive, incandescent and  uorescent loads.

Each channel is independently con gurable and features a zero crossing magnetically latching relay designed for

switching the harsh electrical loads associated with today’s high e ciency lighting systems. Local toggle buttons are

provided on each unit to allow individual channels to be toggled at each unit or via Clipsal C-BusTM network commands.

Remote ON and OFF facilities are available, permitting all channels to be turned ON or OFF without C-Bus Network

communications.

PRODUCT FEATURES

• Four or twelve independently operating voltage free relay

contacts

• Two convenient built-in C-Bus network connectors (RJ-45)

• Units available both with and without a 200 mA power supply

• Non-volatile memory stores operating status for recovery from

power outage

• LED Indicators show the status of the network and the unit

• Load Rating (4 and 12 channel 10 Amp rated relay)

Resistive-10A

Inductive-10A

Fluorescent -10A

Motor -2A

DISTRIBUTED INTELLIGENCE

• Compatible with all Clipsal devices and the Square D®

Powerlink® NF3000G3C controller

• Easily con gured with the C-Bus Toolkit Software

TECHNICAL INFORMATION

Nominal Supply Voltage 110-120V (SLC5504TRVF, SLC5504TRVFP, SLC5512TRVF and SLC5512TRVFP)

277V (SLC5504HRVF, SLC5504HRVFP, SLC5512HRVF and SLC5512HRVFP)

Frequency Range(s) 50 - 60Hz

Clipsal C-Bus 15–36Vdc @ 18 mA required for programming

Supply Voltage when electrical power source is not connected

Sources 200 mA to the C-Bus Network

with electrical power source connected (non-power supply versions)

15–36Vdc @ 0 mA is required for programming

when electrical power source is connected

Electrical isolation 3.75 kV RMS from C-Bus to power source

Contact Type Voltage Free, magnetically latched

C-Bus Connections 2 RJ-45 connectors, CAT 5 UTP cable req.

Electrical Terminals Accommodates (1) #12 or up to (2) #14 - 16 AWG (3.31mm2 - (2) x 2.08 - 1.31mm2)

Status Indicators C-Bus Indicator

Unit Status Indicator

Load Indicator

Dimensions 4 Channel - 5.67 x 3.35 x 2.56 inches (144 x 85 x 65mm)

12 Channel - 8.46 x 3.35 x 2.56 inches (215 x 85 x 65mm)

Weight 4 Channel - 14 oz (400g) (w/o Power Supply) 18 oz (510g) (w/Power Supply)

12 Channel - 21 oz (600g) (w/o Power Supply) 28 oz (800g) (w/Power Supply)

Mounting DIN rail, 4 Channel - 8M wide 12 Channel - 12M wide

Operating Environment 32°F to 113°F (0°C to 45°C) RH: 95%, noncondensing

Standards UL: Listed 508 Industrial Control Equipment

CSA 22.2 No. 14 Industrial Control Equipment

FCC: Part 15, Class B Digital Device

EN61000-4-2 Immunity to ESD

*For Diagram see technical section page 88

CATALOG NUMBER DESCRIPTION

SLC5504TRVF 4 Channel, 120V, 10A w/power supply

SLC5504TRVFP 4 Channel, 120V, 10A w/o power supply

SLC5504HRVF 4 Channel, 277V, 10A w/ power supply

SLC5504HRVFP 4 Channel, 277V, 10A w/o power supply

SLC5512TRVF 12 Channel, 120V, 10A w/power supply

SLC5512TRVFP 12 Channel, 120V, 10A w/o power supply

SLC5512HRVF 12 Channel, 277V, 10A w/power supply

SLC5512HRVFP 12 Channel, 277V, 10A w/o power supply

4 Channel 10 Amp Relay

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com

SQUARE D® CLIPSAL® LIGHTING CONTROL | OUTPUT UNITS

Square D® Clipsal® 20 Amp Relay Units

Square D® Clipsal® 20 Amp Relays are DIN-rail mounted units with four independent, voltage free, relay contacts. They are

suitable for use with resistive, inductive, incandescent and  uorescent loads.

Each channel is independently con gureable and features a zero crossing magnetically latching relay designed for

switching the harsh electrical loads associated with today’s high e ciency lighting systems. Local toggle buttons are

provided on each unit to allow individual channels to be toggled at each unit or via Clipsal C-BusTM network commands.

Remote ON and OFF facilities are available, permitting all channels to be turned ON or OFF without C-Bus Network

communications.

PRODUCT FEATURES

• Four independently operating voltage free relay contacts

• Two convenient built-in C-Bus network connectors (RJ-45)

• Units available both with and without a 200mA power supply

• Non-volatile memory stores operating status for recovery from

power outage

• LED Indicators show the status of the network and the unit

• Remote ON/OFF override capabilities

• Load Rating (4 channel 20 Amp rated relay)

Resistive 20A

Inductive 20A

Fluorescent 20A

Motor 4A

DISTRIBUTED INTELLIGENCE

• Compatible with all Clipsal devices and the Square D®

Powerlink® NF3000G3C controller

• Easily con gured with the C-Bus Toolkit Software

CATALOG NUMBER DESCRIPTION

SLC5504TRVF20 4 Channel, 120V, 20A with power supply

SLC5504TRVF20P 4 Channel, 120V, 20A without power supply

SLC5504HRVF20 4 Channel, 277V, 20A with power supply

SLC5504HRVF20P 4 Channel, 277V, 20A without power supply

TECHNICAL INFORMATION

Nominal Supply Voltage 110-120V (SLC5504TRVF20 and SLC5504TRVF20P)

277V (SLC5504HRVF20 and SLC5504HRVF20P)

Frequency Range(s) 50 - 60Hz

Clipsal C-Bus Supply Voltage 15–36Vdc @ 18 mA required for programming

when electrical power source is not connected.

Sources 200 mA to the C-Bus Network with

electrical power source connected.

Electrical isolation 3.75 kV RMS from C-Bus to power source

Contact Type Voltage Free, magnetically latched

C-Bus Connections 2 RJ-45 connectors, CAT 5 UTP cable req.

Electrical Terminals Accommodates (1) #12 or up to (2) #14 - 16 AWG

(2 x 1.3 mm2 or 1 x 3.3 mm2)

Status Indicators C-Bus Indicator

Unit Status Indicator

Load Indicator

Dimensions 8.46 x 3.35 x 2.56 inches (215 x 85 x 65mm)

Weight 20.46 oz (580g)

Mounting DIN rail, 12M wide

Operating Environment 32°F to 113°F (0°C to 45°C) RH: 95%, noncondensing

Standards UL508 Industrial Control Equipment

CSA 22.2 Spec 205 Signal Equipment

FCC: Part 15.101, Class B Digital Device

EN61000-3-2 Low Frequency Emissions

*For Diagram see technical section page 89

4 Channel 20A Relay

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com

SQUARE D® CLIPSAL® LIGHTING CONTROL | OUTPUT UNITS

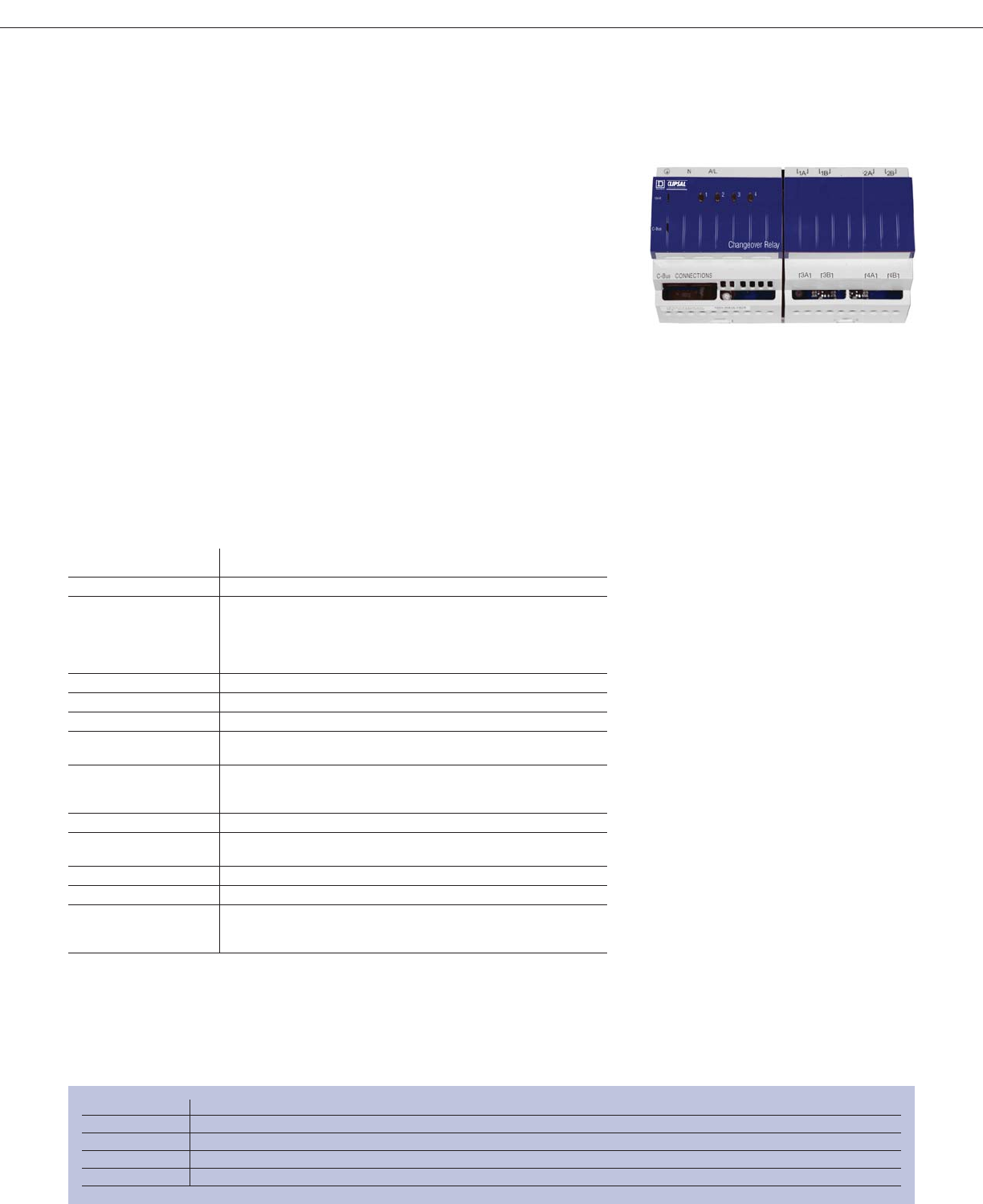

Square D® Clipsal® Changeover Relay Units

Square D® Clipsal® Changeover Relays are DIN-rail mounted devices with four independent, voltage free, changeover

relay contacts.

Square D Clipsal Changeover Relays are designed to operate three-speed motors and two-way motor control devices.

Some of their most common applications include operating motorized blinds, shutters, curtains and skylights (open/

closed) where they provide a much simpler alternative to traditional and obtrusive relay interlocking systems.

PRODUCT FEATURES

• Four (4) isolated independently operating relay channels

• Two (2) convenient built-in Clipsal C-Bus™ network

connectors (RJ-45)

• Non-volatile memory stores operating status for recovery from

power outage

• LED Indicators show the status of the network and the unit

• Changeover Relays ratings: (120V AC Max)

• 2A Exhaust fans (shaded pole induction motors)

• 2A Ceiling fans (split-phase induction motors)

DISTRIBUTED INTELLIGENCE

• Compatible with all Clipsal devices and the Square D®

Powerlink® NF3000G3C controller

• Easily con gured with the C-Bus Toolkit Software

CATALOG NUMBER DESCRIPTION

SLC5504TRVFC 4 Channel changeover relay unit 120Vac, with power supply

SLC5504TRVFCP 4 Channel changeover relay unit 120Vac, without power supply

SLC5504HRVFC 4 Channel changeover relay unit 277Vac, with power supply

SLC5504HRVFCP 4 Channel changeover relay unit 277Vac, without power supply

Changeover Relay Unit

TECHNICAL INFORMATION

Nominal Supply Voltage 110-120V (SLC5504TRVFC and SLC5504TRVFCP)

250-277V (SLC5504HRVFC and SLC5504HRVFCP)

Frequency Range(s) 50 - 60Hz

Clipsal C-Bus Supply Voltage 15–36Vdc @ 18 mA required for programming

when electrical power source is not connected.

Sources 200 mA to the C-Bus Network

with electrical power source connected.

Electrical isolation 3.75 kV RMS from C-Bus to power source

Contact Type Changeover, Non-latching

C-Bus Connections 2 RJ-45 connectors, CAT 5 UTP cable req.

Electrical Terminals Accommodates (1) #12 or up to (2) #14 - 16 AWG

(2 x 1.3 mm2 or 1 x 3.3 mm2)

Status Indicators C-Bus Indicator

Unit Status Indicator

Load Indicator

Dimensions 5.67 x 3.35 x 2.60 inches (144 x 85 x 65mm)

Weight 13 oz (370g) (With Power Supply)

17 oz (490g) (Without Power Supply)

Mounting DIN rail, 8M wide

Operating Environment 32°F to 113°F (0°C to 45°C) RH: 95%, noncondensing

Standards UL: Listed 508 Industrial Control Equipment

CSA 22.2 No. 14 Industrial Control Equipment

FCC: Part 15, Class B Digital Device

*For Diagram see technical section page 89

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com

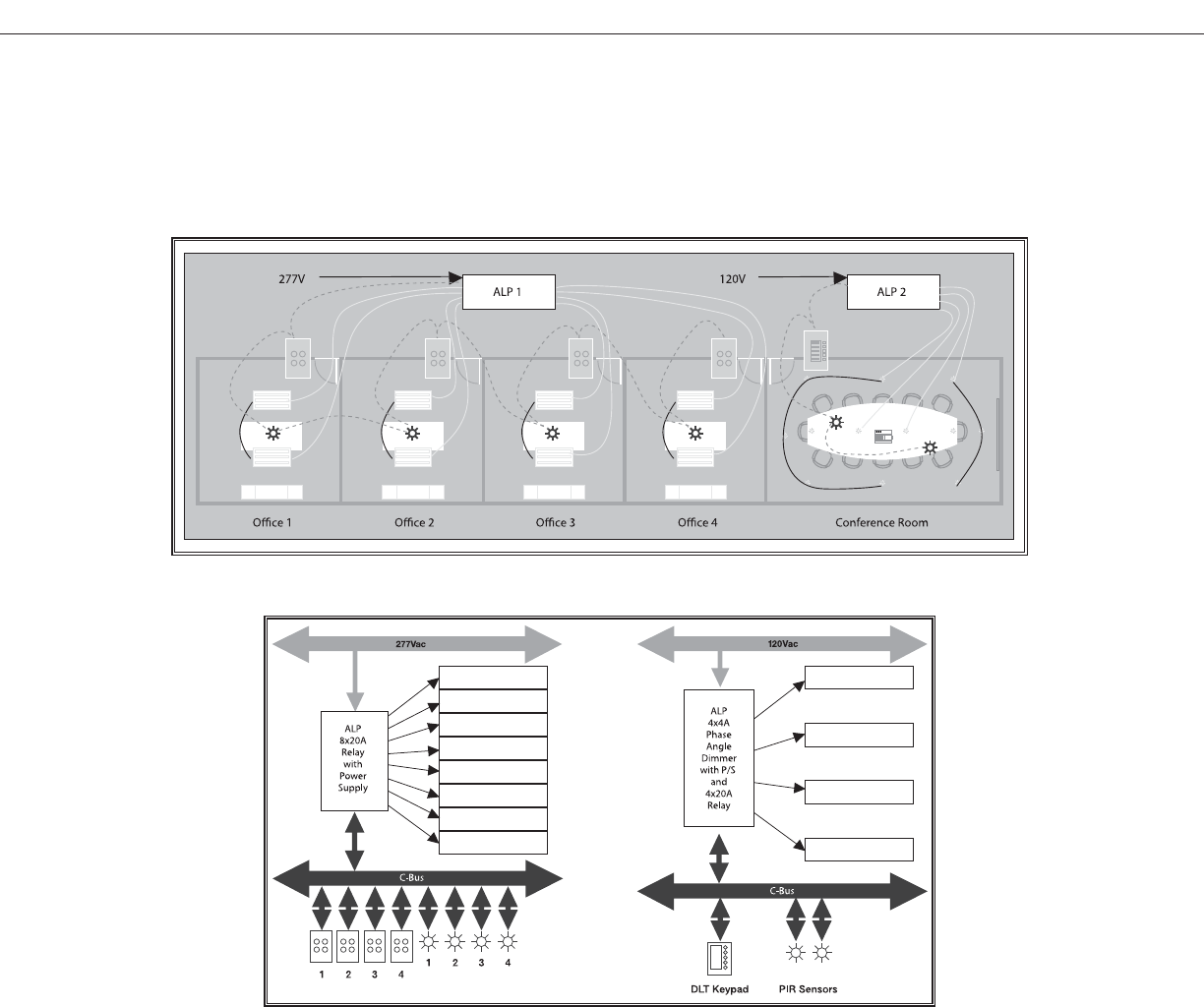

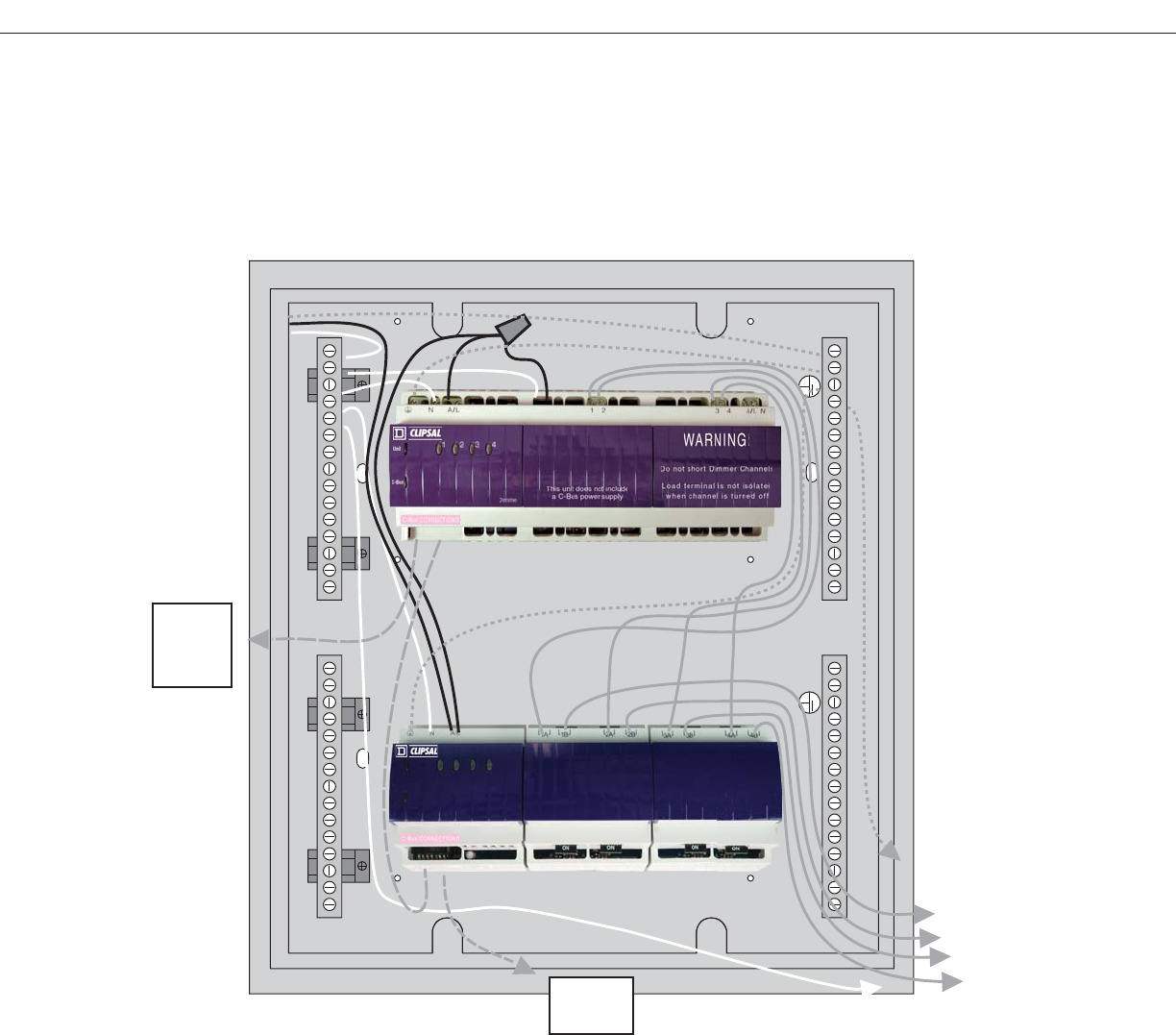

Introduction to

Area Lighting Panels

Square D® Clipsal® Area Lighting Panels from Schneider Electric are a simple, convenient way to realize daylight harvesting schemes in an individual conference room or suite within a

commercial building. They are ideally suited to meet energy code requirements related to reduction in lighting loads by integrating natural light with arti cial light.

Area Lighting Panels o er the  exibility of being set up as a stand-alone system or connected as a part of a larger Square D Clipsal network. A simple Cat 5 cable connection gives the

pre-engineered enclosed panels the ability to integrate light-level detection, occupancy detection, keypads and switching. Along with ease of network connectivity and simpli ed

programming, Area Lighting Panels also provide easy installation and reduced  eld-wiring costs.

Out tting a conference room or suite with a Square D Clipsal light-level sensor allows an Area Lighting Panel to automatically dim lights to capitalize on available natural light. When

using Square D Clipsal occupancy sensors, the panel automatically turns lights o after everyone leaves. Additionally, various pre-programmed lighting scenes can be automatically

executed by the panel by pressing a button on a Square D Clipsal lighting control keypad.

Area Lighting Panels provide unparalleled installation  exibility for electrical contractors. They provide the ability to integrate Square D Clipsal keypads and Square D Clipsal light-level

and occupancy sensors without the complexity of line voltage wiring connections. A single Cat 5 cable is all that is required in most applications to connect the inputs to a panel,

which may be mounted in either an electrical closet or ceiling space. Power is distributed to the panel from a single home-run connection to the power source. Consultants will  nd

that designing rooms in a commercial building with a focus on energy savings and tasteful lighting scenes is easier, because there is less wiring complexity.

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com

SQUARE D® CLIPSAL® LIGHTING CONTROL | AREA LIGHTING PANELS

Square D® Clipsal® Area Lighting Panels are ideally suited to meet lighting control energy code requirements in

classrooms, o ces and other small spaces. These devices provide the ability to integrate keypads, occupancy sensing,

light level detection, and switching without the mess of complex control wiring. A simple CAT-5 cable is all that is

required to connect sensors and keypads.

Clipsal Area Lighting Panels can operate as independent stand-alone islands or as part of an entire facility wide lighting

control system. Enclosures can easily be mounted in electrical closets or in ceiling spaces. They include all necessary

connections and are UL Listed. Area Lighting Panels can also be used in conjunction with Powerlink® panels.

Clipsal Area Lighting Panels can be used for on/o switching, stepped dimming or continuous dimming applications.

All relays feature rugged 20A rated contacts for switching electronic ballast loads. Models with continuous dimming

capabilities are rated for either NEC Class 1 or Class 2 wiring.

PRODUCT FEATURES

• Relay models: Four or eight relay outputs, rated 20A

• 0-10V outputs for control of 0-10V dimmable  uorescent

ballast (suitable for use with MARK 7®, Sylvania Quicktronic®,

and Universal SuperDim®)

• Integral neutral and ground bar terminal strips

• Plenum-rated for ceiling applications

• Bypass mode to facilitate quick start up

• Meets NEC Article 409

• UL Listed 508A, SCCR current ratings: 65kA (120V), 14kA

(277V)

• Surface Mount NEMA 1 Enclosure

DISTRIBUTED INTELLIGENCE

• Compatible with all Clipsal devices and the Square D®

Powerlink® NF3000G3C controller

• Easily con gured with Learn Mode or with C-Bus™ Toolkit

software

TECHNICAL INFORMATION

Rated Voltage 120V & 277V 50/60Hz

Number of Units Use the C-Bus calculator, a software utility to

per Network determine total network current load or Toolkit software

Electrical isolation 3.5kV RMS from C-Bus to the line

Relays 20A

Short Circuit Current Rating 65kA (120V), 14kA (277V)

C-Bus Connections RJ45

Dimensions

12M Enclosure 12.78 in. x 9.09 in. x 4.0 in.

24M Enclosure 14.50 in. x 14.94 in. x 4.0 in.

Standards UL: Listed 508A, FCC part 15.101, Class B Device

EN61000-4-2 Immunity to ESD

*For Diagram see technical section page 89

Square D® Clipsal® Area Lighting Panels

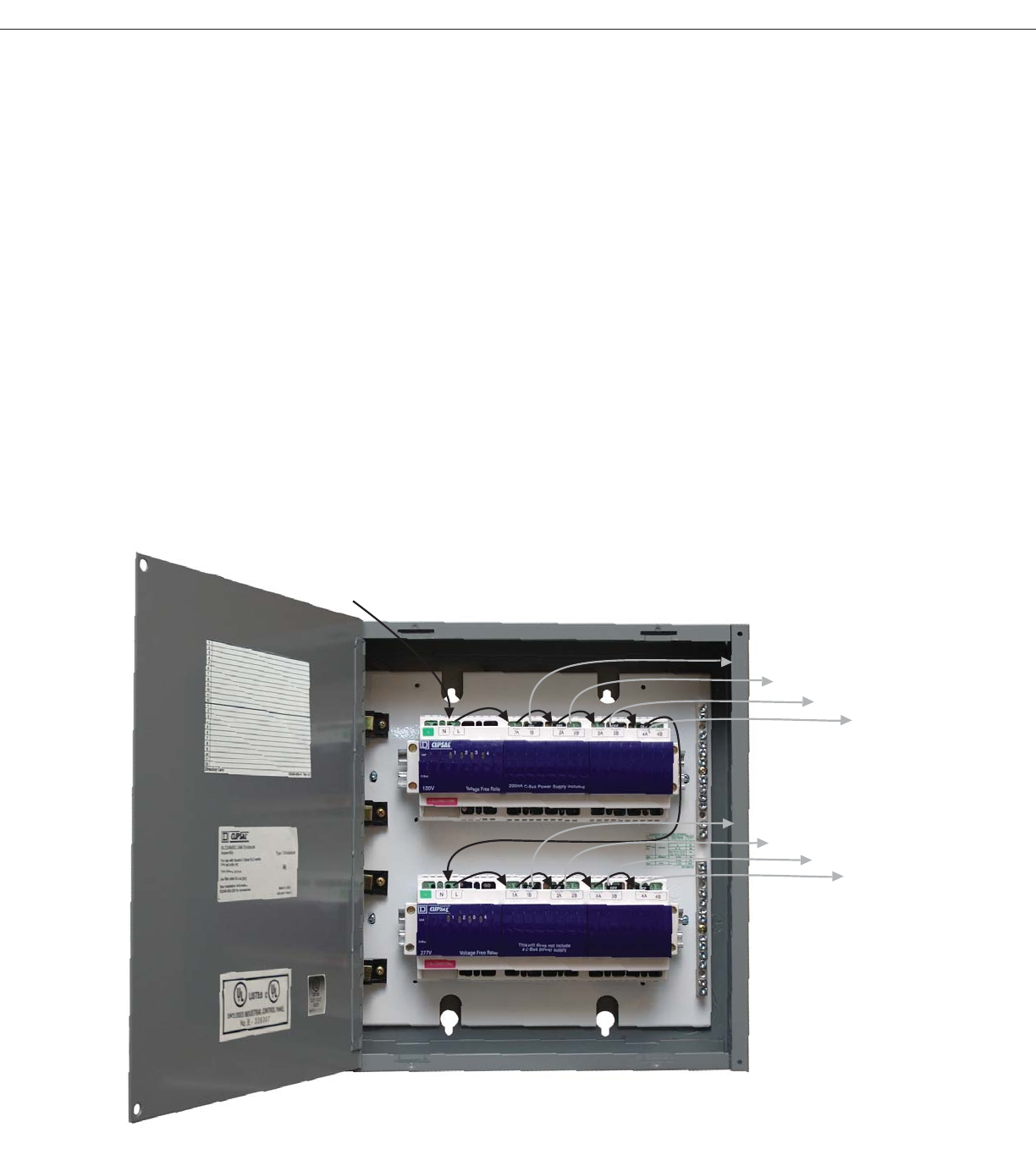

8 channel 20A Relay Area Lighting Panel

CATALOG NUMBER ENCLOSURE DESCRIPTION

4 Channel 20A Relay Models

SLCZ042000T 12M 4 Channel 20A Relay @ 120V with power supply*

SLCZ042000H 12M 4 Channel 20A Relay @ 277V with power supply*

SLCZ042000TP 12M 4 Channel 20A Relay @ 120V without power supply

SLCZ042000HP 12M 4 Channel 20A Relay @ 277V without power supply

8 Channel 20A Relay Models

SLCZ082000T 24M 8 Channel 20A Relay @ 120V with power supply*

SLCZ082000H 24M 8 Channel 20A Relay @ 277V with power supply*

SLCZ082000TP 24M 8 Channel 20A Relay @ 120V without power supply

SLCZ082000HP 24M 8 Channel 20A Relay @ 277V without power supply

4 Channel 20A Relay Models with 0-10V Output Units

SLCZ04204AT 24M 4 Channel 20A Relay @ 120V with power supply and 4 Channel 0-10V Output Unit*

SLCZ04204AH 24M 4 Channel 20A Relay @ 277V with power supply and 4 Channel 0-10V Output Unit*

SLCZ04204ATP 24M 4 Channel 20A Relay @ 120V without power supply and 4 Channel 0-10V Output Unit

SLCZ04204AHP 24M 4 Channel 20A Relay @ 277V without power supply and 4 Channel 0-10V Output Unit

4 Channel Phase Angle Dimmer Models

SLCZ00004DT 12M 4 Channel Phase Angle Dimmer @ 120V with power supply

SLCZ00004DTP 12M 4 Channel Phase Angle Dimmer @ 120V without power supply

4 Channel 20A Relay Models with Phase Angle Dimmer Units

SLCZ04204DT 24M 4 Channel 20A Relay @ 120V with power supply and 4 channel phase angle dimmer unit

SLCZ04204DTP 24M 4 Channel 20A Relay @ 120V without power supply and 4 channel phase angle dimmer unit

* For stand-alone applications order unit with power supply

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com

SQUARE D® CLIPSAL® LIGHTING CONTROL | ENCLOSURES

Square D® Clipsal® 8M Enclosure

Square D® Clipsal® Enclosures provide a housing for various Clipsal DIN-mounted devices. The 8M enclosure is

speci cally designed for distributed applications that require physical proximity between DIN units and keypads, sensors

or controlled loads.

Suitable for surface mounting, the 8M enclosure consists of a box with a cover and a DIN rail for mounting one 8M or

two 4M Clipsal units. The enclosure also has provisions for mounting neutral and ground bars.

PRODUCT FEATURES

• Surface-mount NEMA 1 enclosure

• Welded sheet steel with knockouts

• Gray baked enamel, electrodeposited over cleaned,

phosphatized steel

• Triple-lead cover screws for fast installation of cover

• DIN rail, suitable for mounting one 8M or two

4M Clipsal DIN modules

• UL Listed

TECHNICAL INFORMATION

8M Enclosure

Type NEMA 1

DIN Module Capacity One 8M or two 4M Clipsal units

Dimensions 12.57 in. (L) x 8.88 in. (W) x 3.8 in. (D) [319 mm (L) x 226 mm (W) x 97 mm (D)]

Mounting DIN rail

Weight 8.4 lb (3.81 kg)

*For Diagram see technical section page 90

CATALOG NUMBER DESCRIPTION

SLC8M 8M DIN Enclosure*

PK7GTA Ground/Neutral Bar†

PKGTAB Neutral Insulator Kit†

SLC4CSF8 Filler Plate, 4M

* Includes one ground bar, one  ller plate, cable ties and mounts for wire management.

† Additional terminal bar and insulator for devices that require neutral connection points for loads, such as a relay unit.

Note: The Clipsal 8M Enclosure will accept one additional terminator bar (PK7GTA) intended for load neutral connections. This is to be used when the Clipsal unit mounted inside requires neutral connec-

tion points for loads, i.e. a relay unit. Use in conjunction with a Neutral Insulator Kit (PKGTAB)

8M Enclsoure

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com

SQUARE D® CLIPSAL® LIGHTING CONTROL | ENCLOSURES

Square D® Clipsal® 12M Enclosure

Square D® Clipsal® Enclosures provide a housing for various Clipsal DIN-mounted devices. The 12M

enclosure is speci cally designed for distributed applications that require physical proximity between

DIN units and keypads, sensors or controlled loads.

Suitable for surface mounting, the 12M enclosure consists of a box with a cover and a DIN rail for

mounting three 4M Clipsal units, one 8M unit plus one 4M unit or one 12M unit. The enclosure also has

factory mounted neutral and ground bars.

PRODUCT FEATURES

• Surface-mount NEMA 1 enclosure

• Welded sheet steel with knockouts

• Gray baked enamel, electrodeposited over cleaned,

phosphatized steel

• Triple-lead cover screws for fast installation of cover

• DIN rail, suitable for mounting one 12M or three 4M or one

8M and one 4M Clipsal DIN module

• UL Listed

CATALOG NUMBER DESCRIPTION

SLC12MSG 12M DIN Enclosure*

* Includes one DIN rail, one ground bar, and one insulated neutral terminal bar preinstalled on the mounting pan. Also included are 2 ft. of  exible, Class 2 barrier, four pan mounting screws, four cover

mounting screws, and two DIN rail stops.

12M Enclsoure

TECHNICAL INFORMATION

12M Enclosure

Type NEMA 1

DIN Module Capacity One 12M, one 8M + one 4M or three 4M Clipsal units

Dimensions 12.78 in. (W) x 9.09 in. (T) x 4.0 in. (D) [325 mm (L) x 231 mm (W) x 102 mm (D)]

Standard UL Standard 50 Enclosures for electrical equipment

Mounting DIN rail

Weight 11.7 lb (5.3 kg)

*For Diagram see technical section page 90

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com

SQUARE D® CLIPSAL® LIGHTING CONTROL | ENCLOSURES

Square D® Clipsal® 24M Enclosure

Square D® Clipsal® Enclosures provide a housing for various Clipsal DIN-mounted devices. The 24M enclosure is

speci cally designed for distributed applications that require physical proximity between DIN units and keypads, sensors

or controlled loads.

Suitable for surface mounting, the 24M enclosure consists of a box with a hinged door and two rows for mounting

Clipsal DIN-mounted C-Bus™ units. Each row can hold one 12M unit, one 8M unit plus one 4M unit, or three 4M units.

The enclosure also has provisions for additional neutral and ground bars.

PRODUCT FEATURES

• Surface-mount NEMA 1 enclosure

• Welded sheet steel with knockouts

• Gray baked enamel, electrodeposited over cleaned,

phosphatized steel

• Triple-lead cover screws for fast installation of cover

• Hinged trim for easy access

• DIN rail, suitable for mounting Clipsal DIN-mounted C-Bus

units. Each row can hold one 12M unit, one 8M unit plus one

4M unit, or three 4M units.

• UL Listed

CATALOG NUMBER DESCRIPTION

SLC24MSG 24M DIN Enclosure*

PK7GTA Ground/Neutral Bar†

PKGTAB Neutral Insulator Kit†

* The enclosure comes with two DIN rails, two ground bars, and two insulated neutral terminal bars pre-installed on the mounting pan. Also included are 2 ft. of  exible, Class 2 barrier, four pan

mounting screws, and four door mounting screws, and four DIN rail stops.

† Additional terminal bar and insulator for devices that require neutral connection points for loads, such as a relay unit.

Note: The Clipsal 24M Enclosure will accept one additional terminator bar (PK7GTA) intended for load neutral connections. This is to be used when the Clipsal unit

mounted inside requires neutral connection points for loads, i.e. a relay unit. Use in conjunction with a Neutral Insulator Kit (PKGTAB)

24M Enclsoure

TECHNICAL INFORMATION

24M Enclosure

Type NEMA 1

DIN Module Capacity Two rows for mounting Clipsal DIN-mounted C-Bus™ units. Each row can

hold one 12M unit, one 8M unit plus one 4M unit, or three 4M units

Dimensions 14.50 in. (W) x 14.94 in. (T) x 4.0 in. (D) [368 mm (L) x 379 mm (W) x 102 mm (D)]

Mounting DIN rail

Standard UL Standard 50 Enclosures for electrical equipment

Weight 18.9 lb (8.6 kg)

*For Diagram see technical section page 90

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com

SQUARE D® CLIPSAL® LIGHTING CONTROL | ENCLOSURES

Square D® Clipsal® 36M Enclosures

Square D® Clipsal® Enclosures provide a multi-purpose means for housing various Clipsal DIN-mounted devices. Suitable

for  ush or surface mounting, the enclosure consists of a cabinet, a mounting pan assembly, and a cover assembly. The

cabinet can be ordered separately, allowing for its installation with the rough-in of  eld wiring. The mounting pan comes

with one L barrier, four horizontal barriers, and three DIN rails pre-installed. Optional accessories are available to meet the

needs of particular installations.

The 36M enclosure provides three rows for mounting Clipsal DIN-mounted C-Bus™ units. Each row has the capacity to

hold one 12M unit, one 8M unit with one 4M unit, or three 4M units.

Square D Clipsal 36M Enclosures are speci cally designed for conventional installation near the main breaker panel. They

provide a simple means of installing Clipsal DIN-mounted units with all of the necessary wiring, neutral bar, barriers and

other components included. Once installed, the enclosure system allows for easy system maintenance with the Clipsal

units accessible.

Additional barriers provide greater  exibility to meet requirements of NEC Article 725 for separation of class 2 circuits.

PRODUCT FEATURES

• NEMA 1 enclosure suitable for  ush or surface mounting

• Welded sheet steel with knockouts

• Gray baked enamel paint, electrodeposited over cleaned,

phosphatized steel

• Triple-lead cover screws for fast installation of cover

• Three DIN rails, each suitable for mounting Clipsal DIN units in

one of the following con gurations:

One 12M unit

One 8M module with one (1) 4M unit

Three 4M units

• UL Listed

36M Enclsoure

TECHNICAL INFORMATION

36M Enclosure

Type NEMA 1

DIN Module Capacity Three DIN rails, each with the capacity for one 12M,

one 8M with one 4M, or three 4M Clipsal DIN units

Dimensions with Cover 40.6 in. (L) x 15.4 in. (W) x 3.9 in. (D)

[1031 mm (L) x 392 mm (W) x 99 mm (D)]

Standard UL Standard 50 Enclosures for electrical equipment

Module Mounting DIN rail

Total Weight 57.7 lb (26.17 kg)

*For Diagram see technical section page 91

CATALOG NUMBER DESCRIPTION

SLC36C Enclosure Cabinet, 40 in.

SLC36MFG Mounting pan with gray  ush-mount cover

SLC36MSG Mounting pan with gray surface-mount cover

SLC36MFW Mounting pan with white  ush-mount cover

PK18GTA Neutral bar, 18 terminal1,2,3

PKGTAB Neutral insulator kit

PK23GTA Ground bar, 23 terminal4

SLCNT10 Isolated neutral terminal strip (10 position)3, 5

SDM4AC Two duplex power receptacles

SDM8AC Four duplex power receptacles

PK4FL Door latch, locking

SLC4CSF8 Filler plate, 4M

SLC36LB L barrier6

1 For use as a neutral bar; requires one grounding bar insulator kit (PKGTAB).

2 Maximum of four neutral terminal bars (two at top, two at bottom). Use neutral terminal bars in common neutral applications.

3 Mixing of neutral terminal bars and isolated neutral terminal strips is permitted. Mixing permits an additional bar at both top and bottom (three at top and three at bottom).

One ground bar is provided as standard. The pan will accept up to two additional ground bars.

5 Maximum of four isolated neutral terminal strips (two at top, two at bottom). Isolated neutral terminal strips allow individual neutrals to be maintained.

A second L barrier is required when neutral terminal bars or strips are mounted in both ends of the enclosure. A second L barrier cannot be used if a duplex power outlet

(SDM4AC or SDM8AC) is installed.

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com

SQUARE D® CLIPSAL® LIGHTING CONTROL | ENCLOSURES

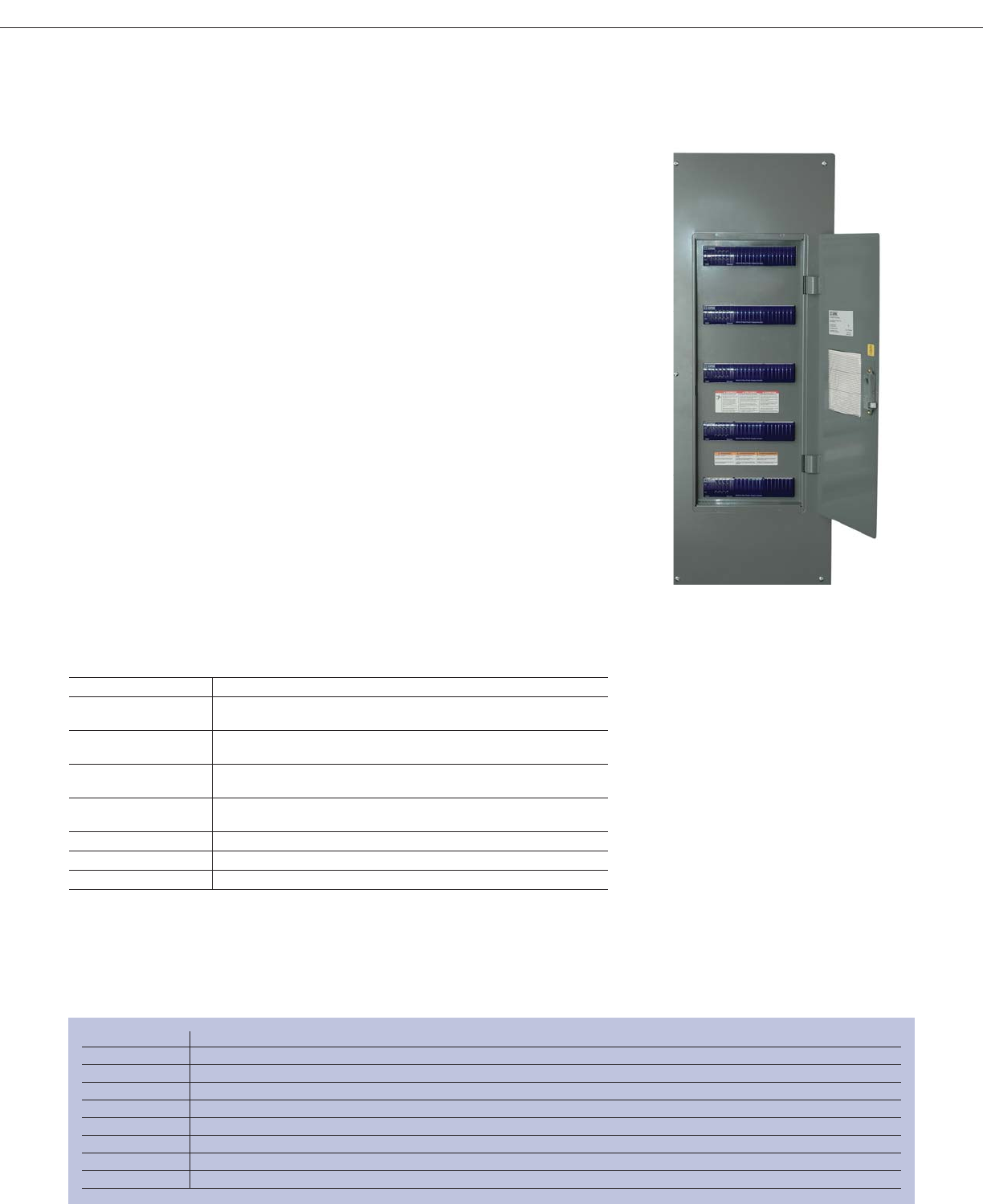

Square D® Clipsal® 60M Enclosures

Square D® Clipsal® Enclosures provide a multi-purpose means for housing various Clipsal DIN-mounted devices. Suitable

for  ush or surface mounting, the enclosure consists of a cabinet, a mounting pan assembly, and a cover assembly. The

cabinet can be ordered separately, allowing for its installation with the rough-in of  eld wiring. Options are available to

meet the needs of particular installations.

The 60M enclosure provides  ve rows for mounting Clipsal DIN-mounted C-Bus™ units. Each row has the capacity to hold

one 12M unit, one 8M unit with one 4M unit or three 4M units.

Square D Clipsal 60M Enclosures are speci cally designed for conventional installation near the main breaker panel. They

provide a simple means of installing Clipsal DIN-mounted units with all of the necessary wiring, neutral bar, barriers and

other components included. Once installed, the enclosure system allows for easy system maintenance with the Clipsal

units accessible.

PRODUCT FEATURES

• NEMA Type 1 enclosure suitable for  ush or surface mounting

• Welded sheet steel with knockouts

• ANSI Gray #49 baked enamel paint, electrodeposited over

cleaned, phosphatized steel

• Triple-lead cover screws for fast installation of cover

• UL listed, 600V rated Class 2 barrier included

• (3) pre-installed 23 position ground bars and (5) 12 position

isolated neutral assemblies included

• Five DIN rails, each suitable for mounting Clipsal DIN units in

one of the following con gurations:

One 12M unit

One 8M unit with one (1) 4M unit

Three 4M units

• UL Listed

CATALOG NUMBER DESCRIPTION

SLC36C Enclosure Cabinet, 40 in.

SLC60MFG Mounting pan with gray  ush-mount cover

SLC60MSG Mounting pan with gray surface-mount cover

SLC60MFW Mounting pan with white  ush-mount cover

SDM4AC Two duplex power receptacles

SLC5100TUS Telephone interface unit

PK4FL Door latch, locking

SLC4CSF8 Filler plate, 4M

TECHNICAL INFORMATION

60M Enclosure

Type NEMA Type 1

DIN Module Capacity Five DIN rails, each with the capacity for

one 12M, one 8M with one 4M, or three 4M Clipsal DIN units

Dimensions with 40.6 in. (L) x 15.4 in. (W) x 3.9 in. (D)

Cover ( ush mount) [1031 mm (L) x 392 mm (W) x 99 mm (D)]

Dimensions with 39.4 in. (L) x 14.2 in. (W) x 3.9 in. (D)

Cover (surface mount) [1000 mm (L) x 360 mm (W) x 99 mm (D)]

Dimensions of 39.4 in. (L) x 14.2 in. (W) x 3.69 in. (D)

Enclosure Cabinet [1000 mm (L) x 360 mm (W) x 99.8 mm (D)]

Standard UL Standard 50 Enclosures for electrical equipment

Module Mounting DIN rail

Total Weight 57.7 lb (26.17 kg)

*For Diagram see technical section page 91

60M Enclosure

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com

SQUARE D® CLIPSAL® LIGHTING CONTROL | TECHNICAL SECTION

KEYPAD ASSEMBLIES

Order numbers for the Neo Keypad assemblies indicate the number of buttons desired on the keypad and the

color of each customizable component (inner surround, outer surround, and button cover).

Color numbers are taken from the “Neo Colors” table and must be given in the following order: outer surround,

inner surround, and button covers.

For example, in the diagram below, SLC5058NL282 represents an order for a Neo Keypad with eight buttons, a

white (#2) outer surround, a brushed aluminum (#8) inner surround, and white (#2) button covers.

KEYPAD ASSEMBLIES STANDARD

For easy ordering there are 3 standard keypad colors available.

White: SLC505( )NLWE

Cream: SLC505( )NLCM

Brushed Aluminum w/Slate: SLC505( )NLGB

( ) - designates space for button con guration

Name Color Number Color

Slate 1

White 2

Cream 3

Soft Gray 4

Desert Sand 5

Black 6

Brown 7

Brushed Aluminum* 8

Gold* 9

*Only the inner surround is available in Brushed Aluminum and Gold

NeoTM Keypad - Specifying Colors When Ordering

Components of the Neo Keypad cover plate:

A. Inner Surround, B. Outer Surround,

C. Button Covers

SLC505( )NLWE SLC505( )NLCM SLC505( )NLGB

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com

SQUARE D® CLIPSAL® LIGHTING CONTROL | TECHNICAL SECTION

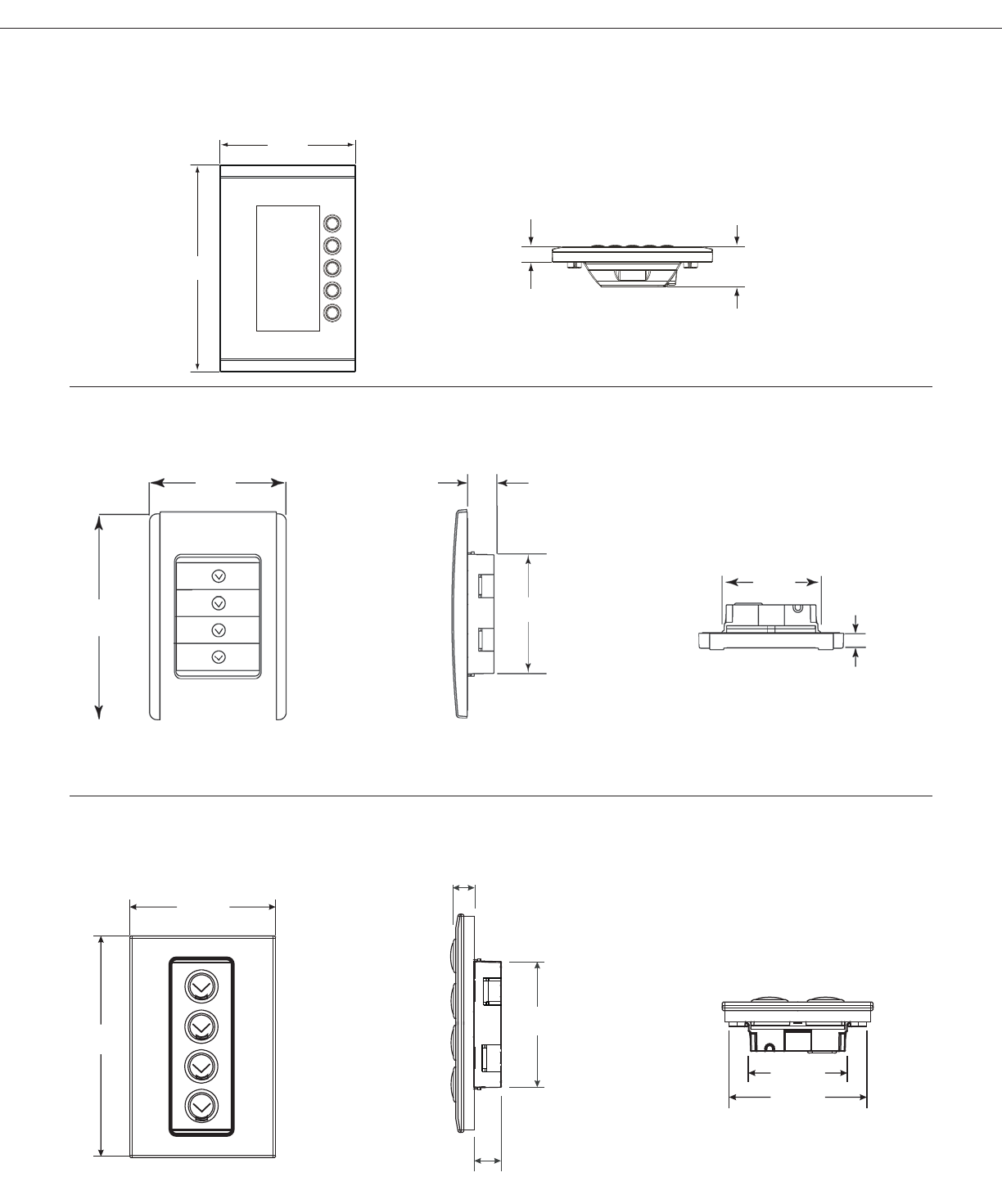

Front view of keypad, including external

height and width measurements of case

Side view of keypad, including height and

depth requirements for insertion into wall

Bottom view of keypad, including measurements

for width of unit and depth case extends from wall

Top view of keypad showing widthFront view of keypad, including external

height and width measurements of case

Side view of keypad, including height and depth

requirements for insertion into wall

Square D® Clipsal® Neo™ Keypads

Square D® Clipsal® SaturnTM Keypads

Square D® Clipsal® Neo™ Keypads with Dynamic Labeling Technology™

Top-side view of the Neo DLT keypad illustrates the

depth the case extends into and out of a wall

Front view of keypad, including external

height and width measurements of case

.63 in.

16 mm

2.64 in.

67 mm

2.05 in.

52 mm

.24 in.

6 mm

3.0 in.

76 mm

4.57 in.

116 mm

3.0 in.

76 mm

4.57 in.

116 mm

3.0 in.

76 mm

4.57 in.

116 mm

0.51 in.

13 mm

0.71 in.

18 mm

2.05 in.

52 mm

2.7 in.

69 mm

0.51 in.

13 mm

2.6 in.

66 mm

0.6 in.

15 mm

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com

SQUARE D® CLIPSAL® LIGHTING CONTROL | TECHNICAL SECTION

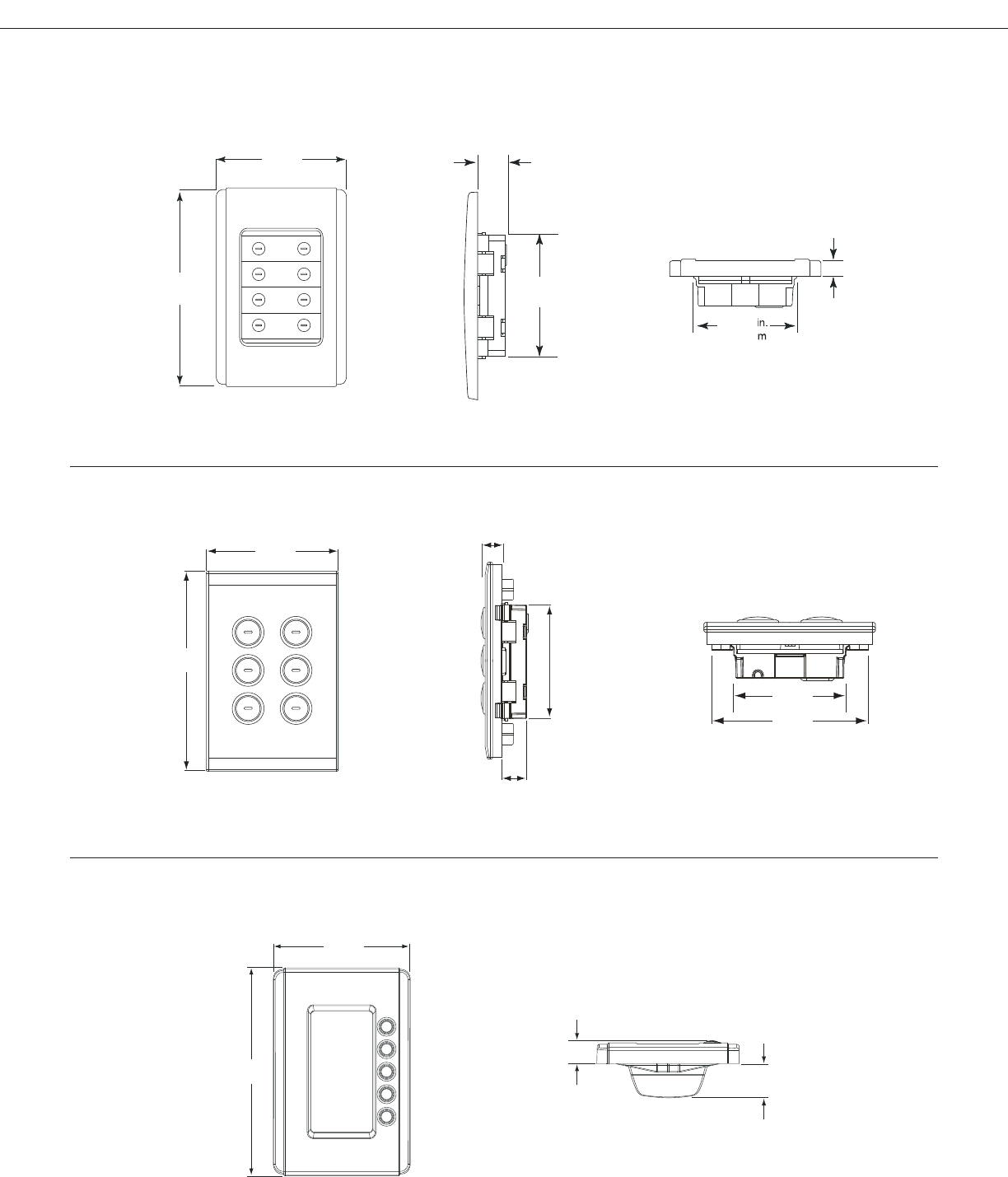

Front view of keypad, including external height

and width measurements of face plate

Top view of keypad showing width

Square D® Clipsal® Saturn™ Style Decorator Keypads

Square D® Clipsal® Saturn™ Keypads with Dynamic Labelling Technology™

Square D® Clipsal® Neo™ Style Decorator Keypads

Front and top-side views of the Saturn DLT keypad illustrate its length

and width and the depth the case extends into and out of a wall

.43 in.

10.8 mm 1.13 in.

28.8 mm

3.0 in.

76 mm

4.57 in.

116 mm

2.87 in.

73 mm

42 mm

1.65 in.

42 mm

2.87 in.

73 mm

2.99 in.

76 mm

4.57 in.

116 mm

2.99 in.

76 mm

4.57 in.

116 mm

Side view of keypad, including height and

depth requirements for insertion into wall

0.63 in.

16 mm

2.76 in.

70 mm

Front view of keypad, including external height

and width measurements of Faceplate

3.0 in.

76 mm

4.57 in.

116 mm

Top view of keypad, including

depth of face plate

1.69 in.

43 mm

0.28 in.

7 mm

.71 in.

18 mm

2.76 in.

70 mm

.35 in.

9 mm

0.35 in.

9 mm

2.76 in.

70 mm

0.71 in.

18 mm

Side view of keypad, including height and depth

requirements for insertion into wall

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com

SQUARE D® CLIPSAL® LIGHTING CONTROL | TECHNICAL SECTION

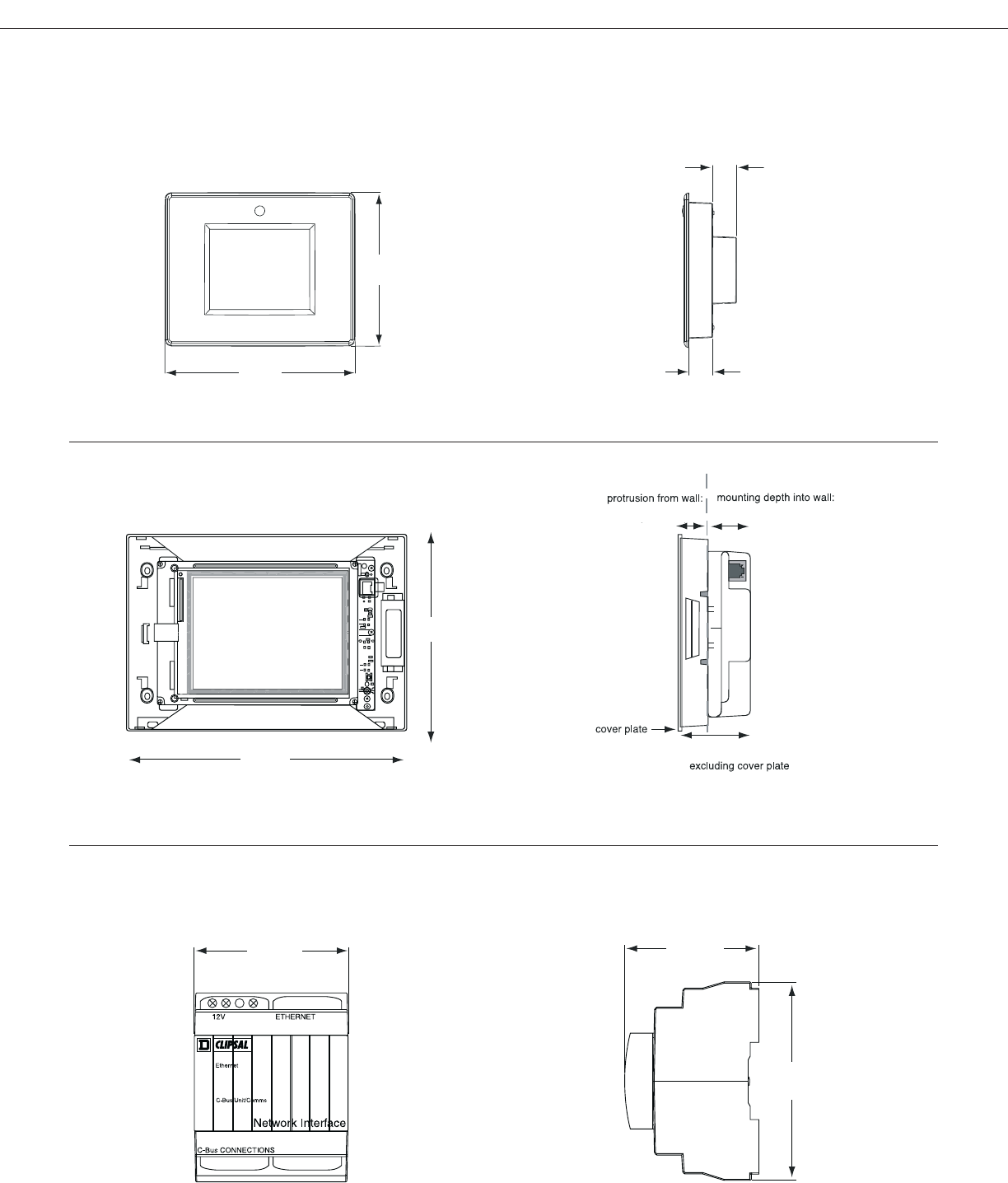

81 View of the Ethernet Network Interface showing height and depth

Side view of Monochrome Touch Screen

Side view of Color Touch ScreenFront view of Color Touch Screen

Square D® Clipsal® Ethernet Network Interface

Square D® Clipsal® Monochrome Touch Screen

Square D® Clipsal® Color Touch Screen

0.75 in.

19 mm

0.75 in.

19 mm

Front view of Monochrome Touch Screen

4.53 in.

115 mm

5.98 in.

152 mm

6.9 in. (173 mm)

9.8 in. (246 mm)

9.8 in.

246 mm

6.9 in.

173 mm

0.9 in. (23.5 mm) 2.2 in. (54 mm)

2.9 in. (72.5 mm)

View of the Ethernet Network Interface showing width

2.83 in.

72 mm

2.56 in.

65 mm

3.35 in.

85 mm

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com

SQUARE D® CLIPSAL® LIGHTING CONTROL | TECHNICAL SECTION

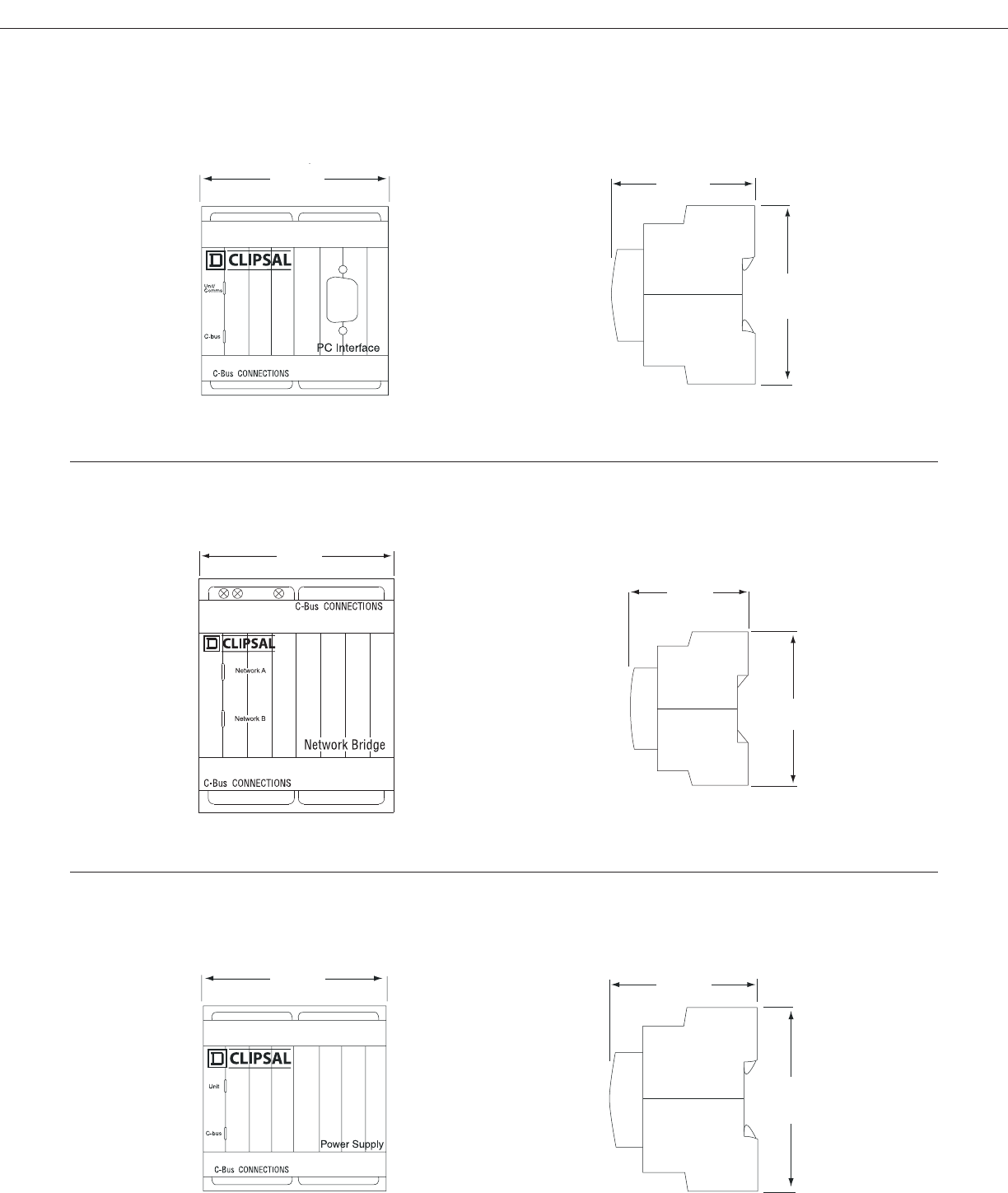

Square D® Clipsal® PC Interface

Square D® Clipsal® Power Supply

Square D® Clipsal® Network Bridge

Front view of the PC Interface showing width

2.83 in.

72 mm

Side view of the PC Interface showing height and depth

2.56 in.

65 mm

3.35 in.

85 mm

Front view of the Network Bridge showing width

2.83 in.

72 mm

Front view of a Power Supply showing width

2.83 in.

72 mm

Side view of a Power Supply showing depth and height

2.56 in.

65 mm

3.35 in.

85 mm

Side view of Network Bridge showing height and depth

2.56 in.

65 mm

3.35 in.

85 mm

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com

SQUARE D® CLIPSAL® LIGHTING CONTROL | TECHNICAL SECTION

Square D® Powerlink® Device Router/Device Power Supply

Square D® Clipsal® Pascal Automation Controller

Conduit knockouts for the 8M EnclosureFront view of 8M Enclosure box

showing height and width

Side view of 8M Enclosure

box showing depth

Front view of the Pascal Automation Controller Side view of the Pascal Automation Controller

Clipsal 8M Enclosure Knockouts

Symbol A B C D E

Conduit Size ½ ¾ 1 1 ¼ 1 ½

3.8 in.

97 mm

3.8 in.

97 mm

8.9 in.

226 mm

12.57 in.

319 mm

8.9 in.

226 mm

12.57 in.

319 mm

2.83 in.

72 mm

2.48 in.

63 mm

3.62 in.

92 mm

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com

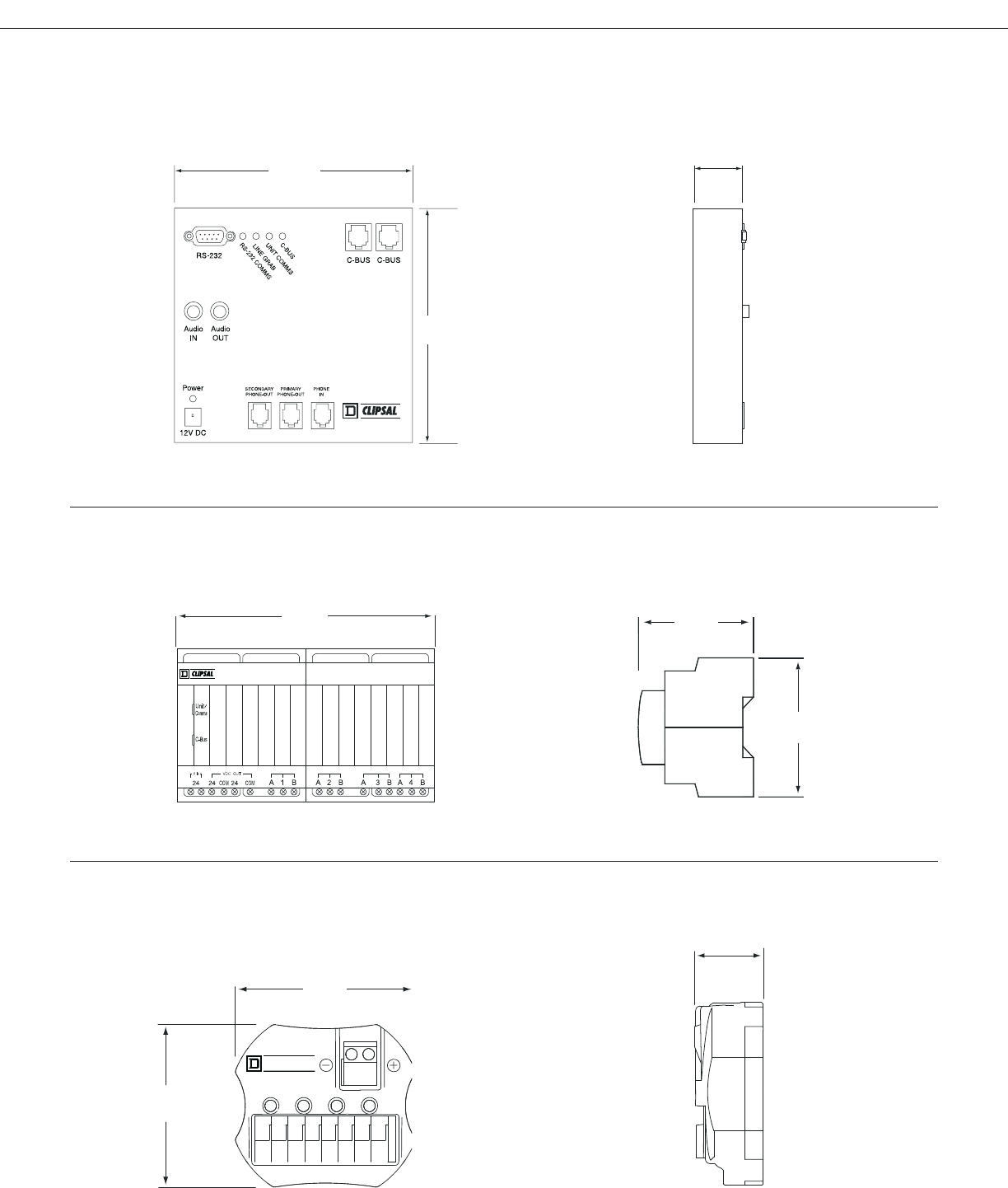

SQUARE D® CLIPSAL® LIGHTING CONTROL | TECHNICAL SECTION

Top view of General Input Unit

Front view of Telephone Interface Unit

Side view of General Input Unit

Side view of Telephone Interface Unit

Top view of Four-Channel Bus Coupler Side view of the Four-Channel Bus Coupler

Square D® Clipsal® Bus Coupler

Square D® Clipsal® Telephone Interface Unit

Square D® Clipsal® General Input Unit

TELEPHONE INTERFACE

5.77 in.

146.5 mm

5.71 in.

145 mm

General Input

5.7 in.

144 mm

0.71 in.

18 mm

0.71 in.

18 mm

2.2 in.

1.9 in.

49 mm

55 mm

5104BCL

Bus Coupler

1C34

2CCC

CLIPSAL

1234

2.2 in.

55 mm

1.9 in.

49 mm

2.6 in.

65 mm

3.4 in.

85 mm

1.18 in.

30 mm

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com

SQUARE D® CLIPSAL® LIGHTING CONTROL | TECHNICAL SECTION

Field of view from side of indoor occupancy sensor Front view of indoor occupancy sensor

Side view of Clipsal 360° PIR Occupancy Sensor

Front view of Clipsal 360° PIR Occupancy Sensor

Field of view from top and side for 360 PIR Occupancy

Sensor mounted 8 ft. above  oor

Top view of Four-Channel Auxiliary Input Unit Side view of Four-Channel Auxiliary Input Unit

Square D® Clipsal® Four-Channel Auxiliary Input Unit

Square D® Clipsal® Indoor PIR Occupancy Sensor

Square D® Clipsal® 360° PIR Occupancy Sensor

2.6 in.

65 mm

2.8 in.

72 mm

3.4 in.

85 mm

2.83 in.

72 mm

.59 in.

15 mm

3.46 in.

88 mm

1.85 in.

47 mm

1.97 in.

50 mm

26 ft

8 m

8 ft

2.4 m

13 ft

4 m

13 ft

4 m

7 ft

2 m

7 ft

2 m

28 ft

8.5 m

20 ft

6 m

28 ft

8.5 m

20 ft

6 m

2.2 in.

57 mm

3.9 in.

100 mm

8 ft

2.4 m 28 ft

8.5 m

28 ft

8.5 m

Field of view from top of indoor occupancy sensor

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com

SQUARE D® CLIPSAL® LIGHTING CONTROL | TECHNICAL SECTION

Field of view from side of Outdoor Motion SensorField of view from top of Outdoor Motion Sensor

Front view of Clipsal 360° PIR Multi-SensorField of view from top and side for 360 PIR Multi

Sensor mounted 8 ft. above  oor

Side view of Light-Level Sensor Front view of Light-Level Sensor

Square D® Clipsal® 360° PIR Multi-Sensor

Square D® Clipsal® Outdoor Motion Sensor

Square D® Clipsal® Light-Level Sensor

26 ft

8 m

8 ft

2.4 m

13 ft

4 m

13 ft

4 m

7 ft

2 m

7 ft

2 m

2.83 in.

72 mm

Side view of Clipsal 360° PIR Multi-Sensor

.59 in.

15 mm

3.46 in.

88 mm

1.85 in.

47 mm

1.97 in.

50 mm

Side view of Outdoor Motion Sensor

5.5 in.

140 mm

4.5 in.

114 mm

2.9 in.

74 mm

Top view of light-level sensor

0.49 in.

12.5 mm

1.93 in.

49 mm

0.52 in.

13 mm

2.83 in.

72 mm

2.99 in.

76 mm

4.57 in.

116 mm

8 ft

2.4 m

30°

5°

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com

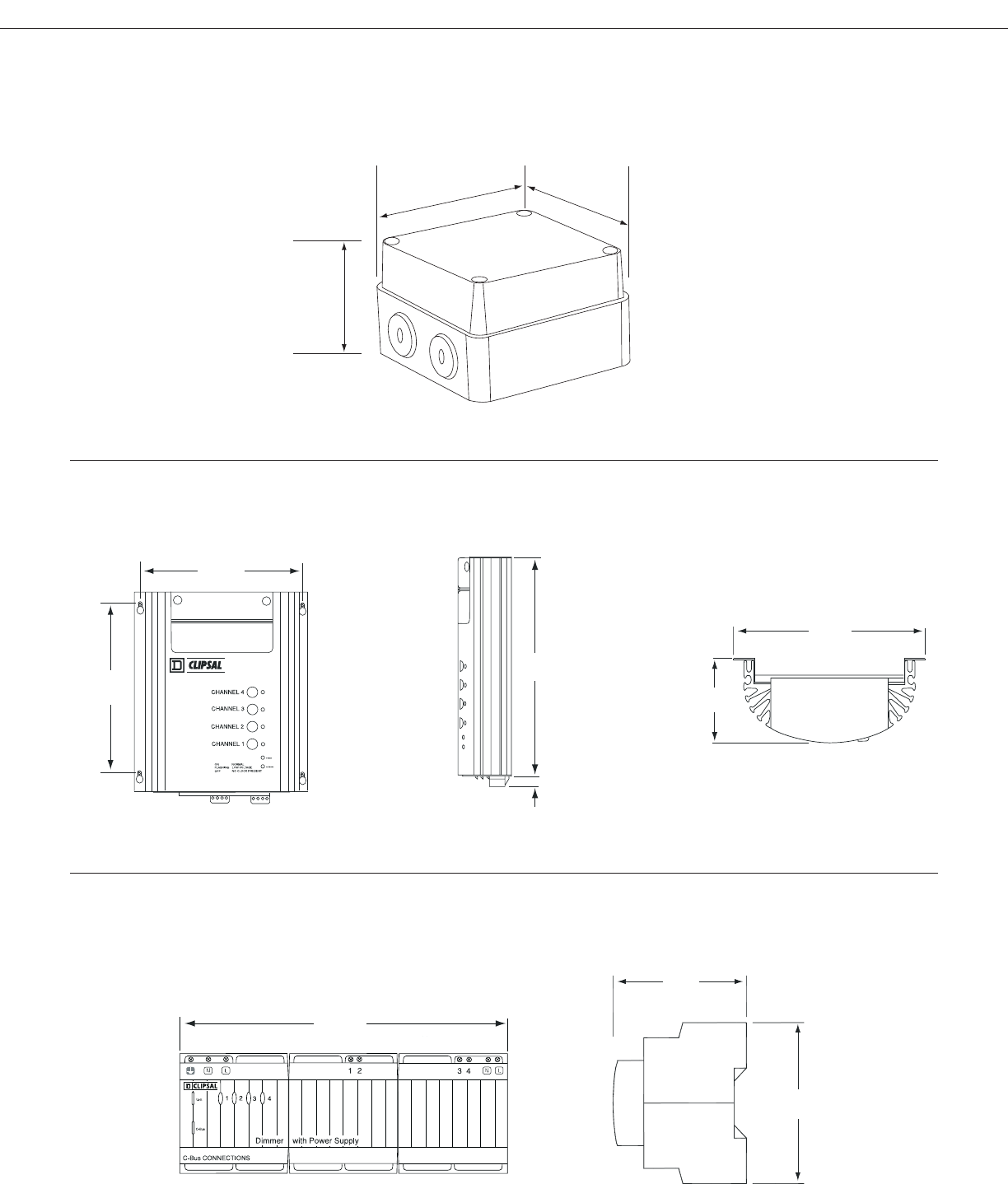

SQUARE D® CLIPSAL® LIGHTING CONTROL | TECHNICAL SECTION

Front view including mounting centers

View including height, width and depth dimensions

Side view Top view

Front view of the Phase Angle Dimmer Unit Side view of the Phase Angle Dimmer Unit

Square D® Clipsal® Outdoor Light-Level Sensor

Square D® Clipsal® Professional Series Dimmer

Square D® Clipsal® Phase Angle Dimmer Unit

POWER

NETWORK

9 in.

230 mm

0.4 in.

10 mm

8 in.

202 mm

3 in.

75 mm

8.5 in.

215 mm

2.6 in.

65 mm

3.4 in.

85 mm

7.5 in.

190 mm

7.7 in.

195 mm

2.5 in.

65 mm

4 in.

102 mm 4 in.

102 mm

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com

SQUARE D® CLIPSAL® LIGHTING CONTROL | TECHNICAL SECTION

Square D® Clipsal® 2 Channel DALI Gateway

Square D® Clipsal® 4 Channel 0-10V Fluorescent Ballast Dimmer

Square D® Clipsal® 10 Amp Relay Unit

Front view of DALI Gateway

DALI Gateway

C-Bus CONNECTIONS

2.83 in.

72 mm

CLIPSAL

Unit/

Comms

C-Bus

DALI

1DALI

2.83 in.

72 mm

65 mm

85 mm

2.6 in.

3.4 in.

Side view of DALI Gateway

2.6 in.

65 mm

3.4 in.

85 mm

Front view of the 0-10V Fluorescent Ballast Dimmer

2.83 in.

72 mm

Side view of the 0-10V Fluorescent Ballast Dimmer

2.56 in.

65 mm

3.35 in.

85 mm

Front view of a Clipsal 4 Channel 10 Amp

Relay without power supply

5.67 in.

144 mm

Side view of a Clipsal 4 Channel 10 Amp Relay

2.56 in.

65 mm

3.35 in.

85 mm

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com

SQUARE D® CLIPSAL® LIGHTING CONTROL | TECHNICAL SECTION

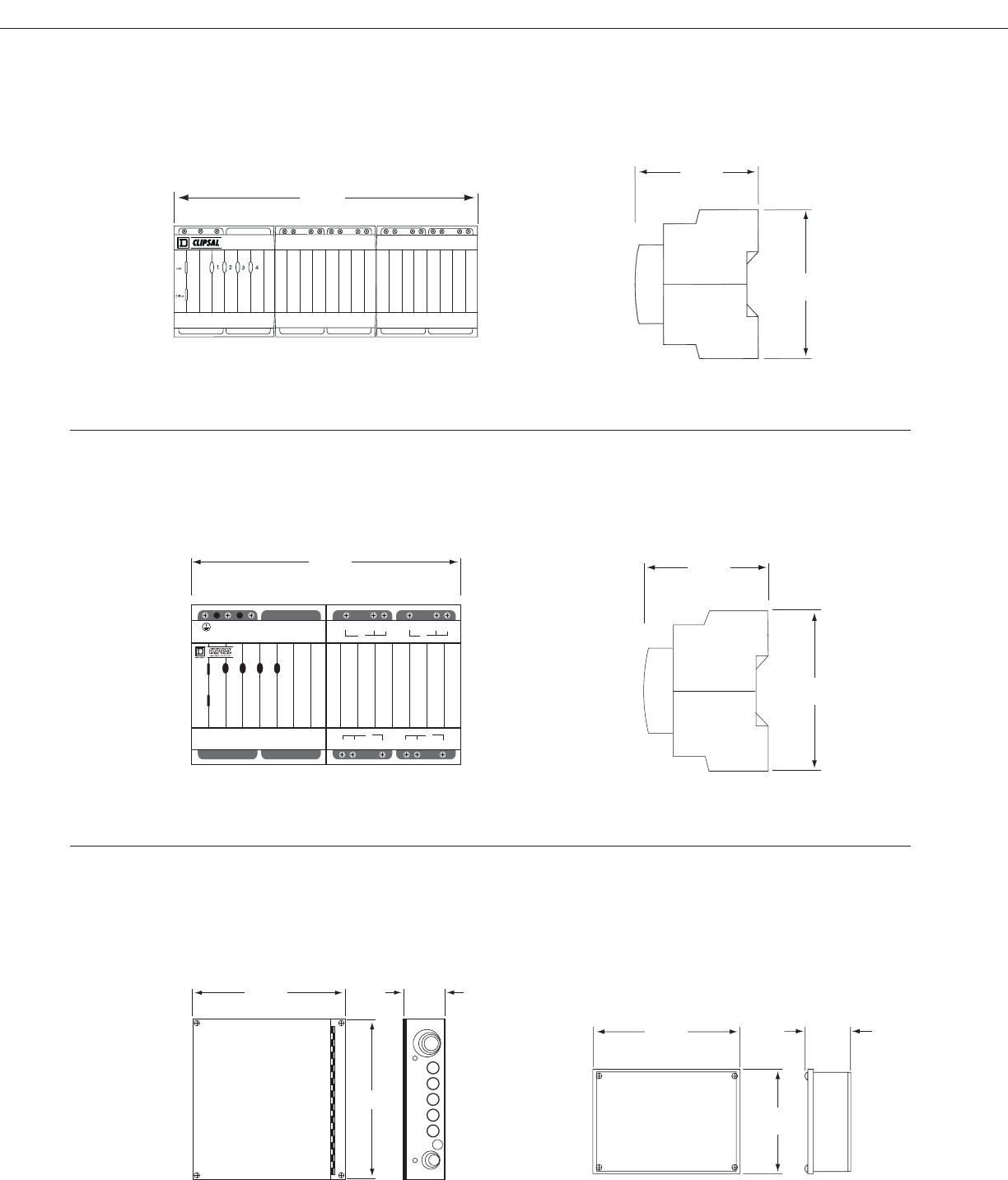

Square D® Clipsal® 20 Amp Relay Units

Square D® Clipsal® Changeover Relay Units

Square D® Powerlink® Area Lighting Panels

Front view of a Clipsal 4 Channel 20 Amp Relay with Power Supply

8.46 in.

215 mm

Side view of a Clipsal 4 Channel 20 Amp Relay

2.56 in.

65 mm

3.35 in.

85 mm

Front view of a Clipsal Changeover Relay

Changeover Relay

2341

C-Bus CONNECTIONS

Unit

C-Bus

USE COPPER WIRE ONLY

LNO NCCNO NCC

NC NONC NO CC

5.67 in.

144 mm

Side view of a Clipsal Changeover Relay

2.60 in.

66 mm

3.35 in.

85 mm

Dimensions for the 12M Enclosure

12.78 in.

325 mm

4.0 in.

102 mm

9.09 in.

231 mm

Dimensions for the 24M Enclosure

14.50 in.

368 mm

14.94 in.

380 mm

4.0 in.

102 mm

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com

SQUARE D® CLIPSAL® LIGHTING CONTROL | TECHNICAL SECTION

Square D® Clipsal® 8M Enclosure

Square D® Clipsal® 12M Enclosure

Square D® Clipsal® 24M Enclosure

Front view of 12M Enclosure box showing height and width

12.78 in.

325 mm

9.09 in.

231 mm

Front view of 24M Enclosure box showing height and width

14.50 in.

368 mm

14.94 in.

379 mm

Side view of 24M Enclosure box showing depth

4.0 in.

102 mm

Side view of 12M Enclosure box showing depth

4.0 in.

102 mm

Front view of 8M Enclosure box

showing height and width

Side view of 8M Enclosure

box showing depth

3.8 in.

97 mm

3.8 in.

97 mm

8.9 in.

226 mm

12.57 in.

319 mm

8.9 in.

226 mm

12.57 in.

319 mm

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com

SQUARE D® CLIPSAL® LIGHTING CONTROL | TECHNICAL SECTION

Square D® Clipsal® 36M Enclosure

Square D® Clipsal® 60M Enclosure

36M Knockouts

Symbol Conduit Size Symbol Conduit Size

A ½ E 1 ½

B ¾ F 2

C 1 G 2 ½

D 1 ¼

60M Knockouts

Symbol Conduit Size Symbol Conduit Size

A ½ E 1 ½

B ¾ F 2

C 1 G 2 ½

D 1 ¼

B,C,D,E A

C,D,E,F,G A,B

C,D,E,F

D,E,F,G

C,D,E,F

B,C,D,E

A,B,C,D

B,C,D,E

D,E,F,G

A,B

B,C

KnockoutsFront and side view ( ush mount)

15.4 in.

392 mm 3.9 in.

99 mm

40.6 in.

1031 mm

B,C,D,E A

C,D,E,F,G A,B

C,D,E,F

D,E,F,G

C,D,E,F

B,C,D,E

A,B,C,D

B,C,D,E

D,E,F,G

A,B

B,C

KnockoutsFront and side view ( ush mount)

15.4 in.

392 mm 3.9 in.

99 mm

40.6 in.

1031 mm

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com

Square D®

Clipsal®

Multi Room Audio

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com

Introduction to

Square D® Clipsal® Multi Room Audio

The Square D® Multi Room Audio o er provides audio distribution and control throughout an entire home - or just one room if desired - and seamlessly integrates into the Square D Clipsal®

lighting control system to form one simple, reliable control system.

The most common method of control for both the Square D Clipsal lighting control system and new Multi Room Audio is via wall-mounted keypads, such as the NeoTM and SaturnTM, and

either a black-and-white or color touchscreen. When incorporated into a Square D Clipsal system, these wall-mounted devices provide a stylish, modern alternative to the standard look of

electrical wall switches. Square D Clipsal Saturn or Neo keypads with Dynamic Labeling Technology (DLTTM) can control up to eight functions from a single keypad, including lighting or audio

controls. The Remote Ampli ers are controlled entirely by the input devices, and have no controls on their front panel. Also available is an optional Audio Distribution Unit, which allows a

single stereo audio input to be added to the digital input of the Matrix Switcher. It also allows one distributable stereo audio input to be plugged into the Ampli ers when no Matrix Switcher

is used (when Ampli ers are used in stand-alone mode).

A typical Multi Room Audio system distributes up to four analog audio inputs,  ve if an Audio Distribution Unit is used, and one optical input. These inputs are distributed to up to 8 zones,

each consisting of one or more ampli er. Additionally, each ampli er is capable of accepting a local analog audio input, providing up to seven stereo audio channels for each ampli er.

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com

CLIPSAL® LIGHTING CONTROL | MULTI ROOM AUDIO

SQUARE D® CLIPSAL® MULTI ROOM AUDIO | MULTI ROOM AUDIO

Square D® Clipsal® Matrix Switcher

CATALOG NUMBER DESCRIPTION

SLC560884T Matrix Switcher

The Square D® Clipsal® Audio Matrix Switcher provides a revolutionary means for distributing audio throughout a

home. This Matrix Switcher provides up to eight zones of audio output from four source inputs. Audio sources can

be switched via the front panel or by any Clipsal input device such as touch screen keypads.

The matrix switcher is ideally suited for multi-room audio and structured wiring systems. Keypads and other

Clipsal devices connect to the matrix switcher with CAT-5 modular jacks. Outputs to remote and desktop

ampli ers are made with low voltage wiring.

In addition to the six source inputs, two mono broadcast annunciation inputs are provided for connection to

intercoms or other systems. Broadcast annunciation input can be given priority over other source inputs and

feature fully adjustment volume and over-stepping mute features.

Audio Matrix Switcher

TECHNICAL INFORMATION

Supply Voltage 120V AC

Line Frequency Range 47 to 53 Hz and 57 to 63 Hz

AC Input Impedance 47 k

Power Consumption 200 W maximum

C-Bus™ Output Voltage 36Vdc maximum

C-Bus Output Current ≤ 330 mA DA Conversion

Network Clock/Burden Software selectable

Analogue Input Signal 2.8V p-p maximum (47 k)

Level (source inputs)

A/D Conversion 16 Bit PCM

Operating Temperature 50 - 104°F (10 to 40°C)

Operating Humidity Range 10 to 90% RH, non-condensing

Standards UL60065 - Audio, Video, and Similar Electronic Apparatus -

Safety Requirements

SYSTEM AUDIO PERFORMANCE

Parameter Matrix Switcher + Amplifier

Frequency Response 40 Hz to 20 kHz (+ 2.4/-0.75 dB)

Total Harmonic Distortion 0.16% (1 kHz, 20 W RMS into 4 ohms)

Signal to Noise Ratio > 63 dB (peak, unweighted)

Input/Outputs

Infrared Outputs (2) 3.5 mm sockets to connect to IR Emitter Leads

Mono Broadcast Inputs (2)

USB (Type B) (1) To configure Matrix Switcher

Digital Optical Output (1)

Digital Optical Output (1) Digital audio format must be 44.1 or 48 kHz stereo. Some formats

(such as surround sound) are not compatible with the Matrix Switcher

Optical Inputs (1)

Digital Zone Outputs (8)

Digital Audio Input (1)

Stereo Analog Inputs (4) RCA pairs

Mono Level Adjustment (2)

*For Diagram see technical section page 99

PRODUCT FEATURES

• Fully digital noise-free audio reproduction

• Stereo analog inputs (4 X RCA pairs)

• Two mono broadcast annunciation inputs

• One digital, one optical

• Voice annunciation of channel changes (con gurable)

• One  ber optic SPDIF input (digital audio compatible)

• One custom digital input for cascading on multiple matrix

switchers

• Eight stereo zone outputs (45m of ea. star wired output)

• Cat-5 cable jack for connection to C-BusTM network

• Reticulated IR support

• User interface LCD display and switches

• Integral C-Bus PC serial interface for connection to personal

computers

• Integral power supply for remote ampli ers

• Con gurable through serial or USB connections

DISTRIBUTED INTELLIGENCE

• Compatible with C-Bus devices

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com

SQUARE D® CLIPSAL® MULTI ROOM AUDIO | MULTI ROOM AUDIO

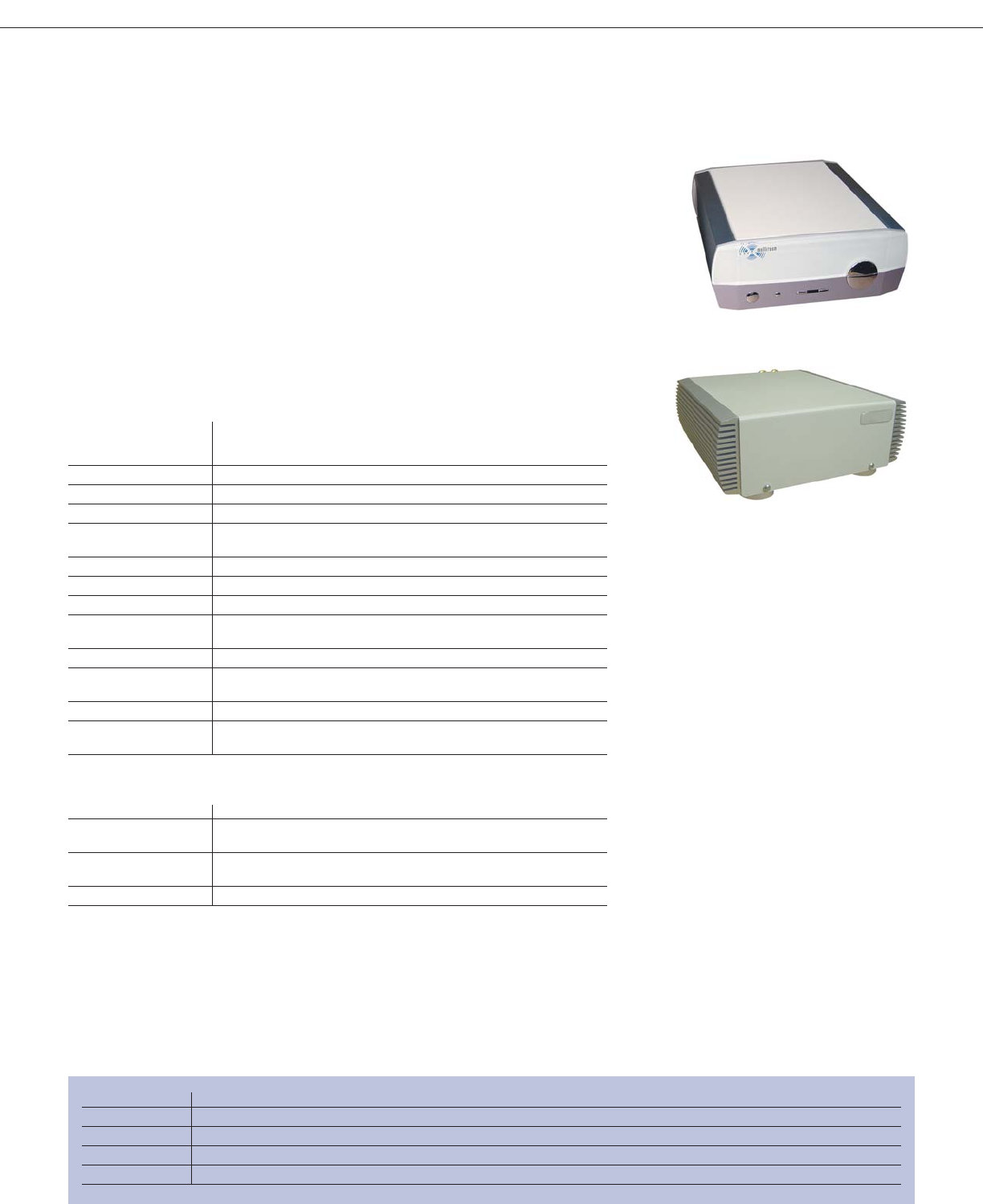

Square D® Clipsal® Multi-Room Ampli ers

CATALOG NUMBER DESCRIPTION

SLC560125D Desktop Ampli er

SLC560125R Remote Ampli er

SLC5600P243750T Audio Ampli er Power Supply

SLC561205MB Remote Ampli er Mounting Bracket

Square D® Clipsal® Multi Room Ampli ers provide e cient, high  delity audio to individual rooms. Available in either

desktop or remote mount versions, these ampli ers are speci cally designed to operate on the C-Bus™ network as an

extension of the lighting control system, without third party gateways or custom integration. This means the ability to

control ampli ers with the same keypad or touch screen used to control lighting levels.

When combined with the Clipsal Matrix Switcher (part SLC560884T), these ampli ers deliver excellent stereo sound

at 10 Watts without a separate power supply. When furnished with optional power supply these ampli ers provide 25

Watts. Connections are provided for up to two sets of 8 ohm speakers.

Both desktop and remote ampli ers provide a local input connection for attaching to CD or mp3 players, etc. In addition,

the desktop ampli er will accept remote commands via its infrared receiver. Infrared remote included.

PRODUCT FEATURES

• 10 Watt digital e cient stereo ampli er, 25 Watts when

connected to local power supply (optional)

• Super quiet design

• On board 8 ohm loudspeaker connections

• Local source input - RCA jack

• C-Bus connection (connects with CAT-5 cable)

• Volume control (desktop model)

• On-board IR receiver (desktop model)

• Stereo headphone connection (desktop model)

• Infrared remote included (desktop model only)

DISTRIBUTED INTELLIGENCE

• Compatible with C-Bus devices

TECHNICAL INFORMATION

Supply Voltage 27Vdc (powered by Matrix Switcher via digital audio connection), and/or

24Vdc @ 3.75 A (via external switch mode power supply)

or 21Vac @ 3.5 A (via external linear power supply)

C-Bus™ Supply Voltage 15 to 36Vdc @ 22 mA

Power Consumption 90 W maximum

Network Clock and Burden Software selectable

Analog Input Signal Level 2.8V p-p maximum (47 k)

(source inputs)

DA Conversion 16 Bit PCM

Maximum Power Output 28 W RMS into 4 (0.514% THD)

Frequency Response 40Hz to 20 kHz (+ 1 dB)

Total Harmonic Distortion 0.36% (using analog input)

(1 kHz, 20 W RMS into 4 ohms)

Signal to Noise Ratio > 67 dB (peak, unweighted)

Operating Desktop Amp: 50 - 104° F (10 to 40° C)

Temperature Remote Amp: 50 - 158° F (10 to 70° C)

Operating Humidity Range 0 - 95% RH, non-condensing

Standards UL60065 - Audio, Video, and Similar Electronic Apparatus -

Safety Requirements

SYSTEM AUDIO PERFORMANCE

Parameter Matrix Switcher + Amplifier Distribution Unit + Amplifier

Frequency 40Hz to 20 kHz 40Hz to 20 kHz

Response (+ 2.4/-0.75 dB) (+ 2.3 dB)

Total Harmonic Distortion 0.16% 0.20%

(1 kHz, 20 W RMS into 4 ohms)

Signal to Noise Ratio > 63 dB (peak, unweighted)

*For Diagram see technical section page 99

Desktop Audio Ampli er

Remote Mounted Audio Ampli er

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com

SQUARE D® CLIPSAL® MULTI ROOM AUDIO | MULTI ROOM AUDIO

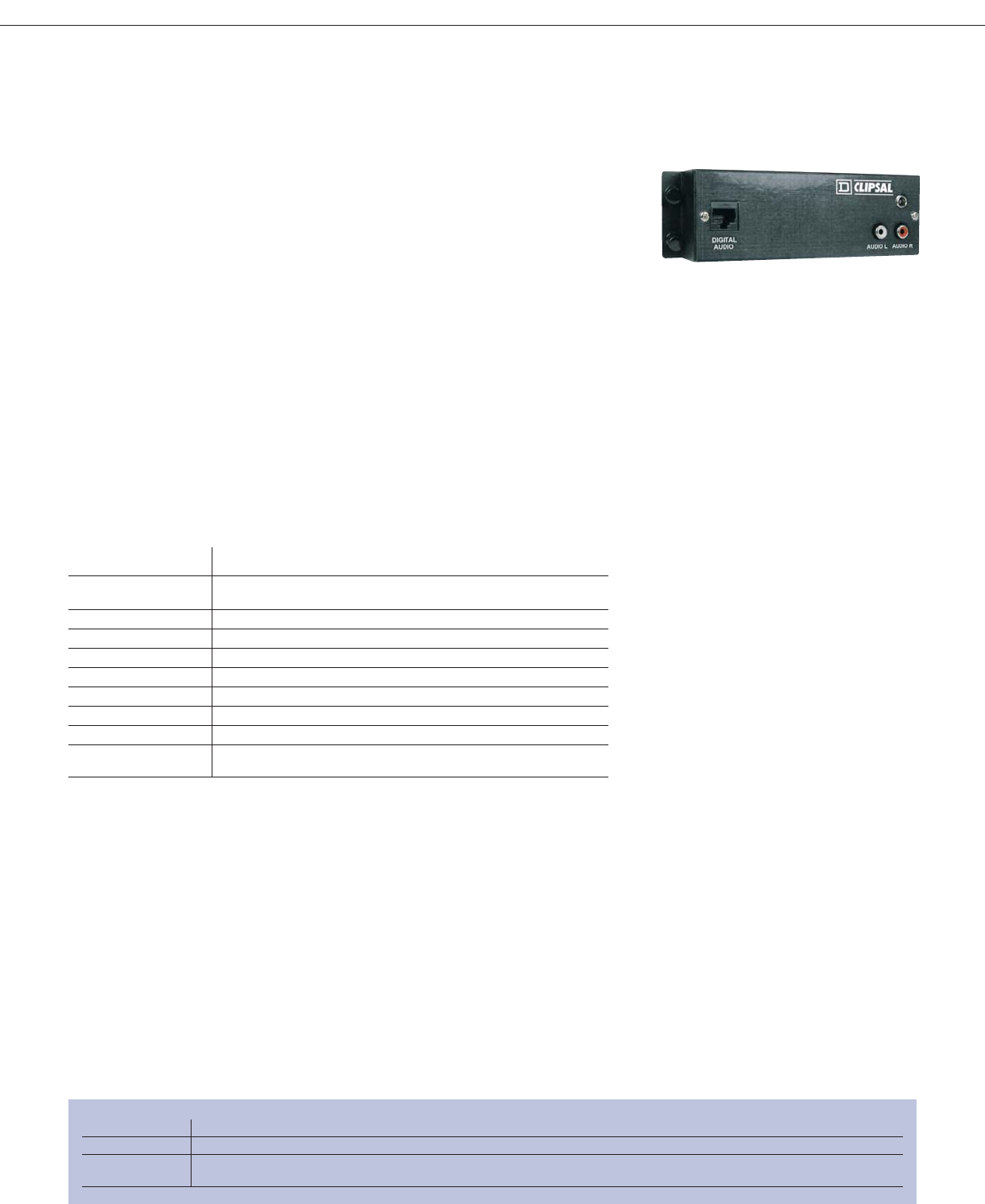

Square D® Clipsal® Audio Distribution Unit

The Square D® Clipsal® Audio Distribution Unit is an optional device that can be used in conjunction with the C-Bus™

Multi Room Audio System to further enhance Clipsal’s C-Bus enabled audio product family.

The Clipsal Audio Distribution Unit distributes a single digitized stereo audio input source to multiple locations via

ampli ers wired in a parallel format. Functions such as Volume, Bass, Treble and Balance can be adjusted from a C-Bus

input device at any of the audio output locations.

The Clipsal Audio Distribution Unit converts a single analog stereo audio input to a digital audio output. That output

can then be connected to the Matrix Switcher as an additional input or to the Clipsal Desktop or Remote Ampli er as a

stand-alone con guration.

PRODUCT FEATURES

• Distributes a single stereo audio source to C-Bus Audio

Ampli ers via a digitized signal over Cat-5 cable

• Does not require any C-Bus programming (hardware only)

• One stereo analog audio source input (2 X RCA)

• One digital audio output

• Output can be looped between C-Bus Audio Ampli ers

• IR emitter port

TECHNICAL INFORMATION

Supply Voltage 27Vdc (powered by Amplifier via digital audio connection), or

24Vdc @ 500 mA (via external power pack)

Analog Input 2.8 V p-p maximum (31 k )

Signal Level (audio inputs)

Harmonic Distortion ≤ 0.05%

Frequency Response 100 Hz to 20 kHz

Dimensions (WxHxD) 6.52 in. x 1.97 in. x 1.2 in. (165.5mm x 50mm x 30mm)

IR Port Yes

A/D Conversion 16 bit PCM

Operating Temperature 50-104OF (10-40OC)

Operating Humidity 90% RH (non-condensing)

Standard UL Listed 60065 Audio, Video and Similar

Electronic Apparatus - Safety Requirements

*For Diagram see technical section page 100

Audio Distribution Unit

CATALOG NUMBER DESCRIPTION

SLC560011 Audio Distribution Unit

SLC5600P24500S Amp External Power Supply (only needed if Audio distribution unit

is used to provide an additional digital input for the Matrix Switcher)

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com

SQUARE D® CLIPSAL® MULTI ROOM AUDIO | MULTI ROOM AUDIO

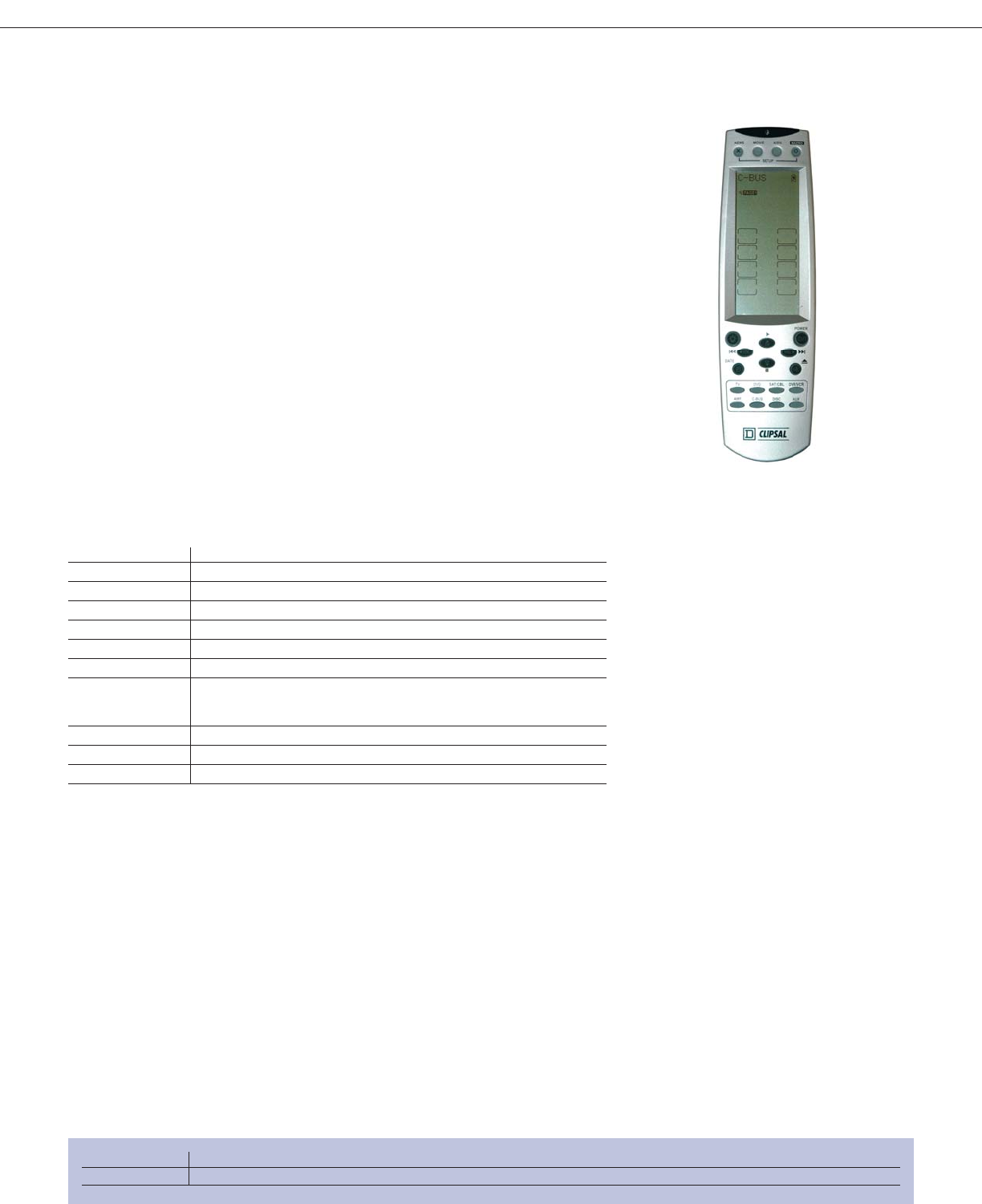

Square D® Clipsal® Universal Remote

TECHNICAL INFORMATION

LCD Screen 1.6 in. (W) x 3.6 in. (H)

Backlighting Brilliant blue LED

Learning Frequency 20 kHz to 455 kHz & pulse

Memory 512 kB flash memory

Batteries Uses 4 (AAA) alkaline batteries (not included)

Touch Screen Soft Keys 42 keys

Rubber Hard Buttons 20 buttons

Power LCD Off: 35 µA

Consumption LCD On: 420 µA

Operation: 30-150 mA (Max)

Operating Distance Approx. 32 feet

Dimensions 2.4 in. (W) x 8.3 in. (H) x 1.0 in. (D) [61 mm (W) x 210 mm (H) x 25 mm (D)]

Weight (w/o batteries) 5.3 oz (150 g)

*For Diagram see technical section page 100

PRODUCT FEATURES

• Large touch screen display with LED backlight

• Macro function (up to 60 commands per macro)

• Learns infrared codes from original equipment

remote controls

• User programmable buttons for each device

• Pre-programmed manufacturer’s codes

• Multiple timers (day of week, date and “alarm”)

to automate functions (i.e., record movies, turn on music)

• Quick channel buttons

• Favorite channels grouping

• Built in motion detector

• System set-up transmission

• Sleep mode

DISTRIBUTED INTELLIGENCE

• Compatible with CBus Devices

CATALOG NUMBER DESCRIPTION

SLC5030URC Universal Remote Control

The Square D® Clipsal® Universal Remote is a digital universal remote control that is easy to use, allowing control of

electronic devices that are equipped with an infrared remote.

The Square D Clipsal Universal Remote can control up to 16 devices, including C-BusTM devices, DVDs, TVs, VCRs and

satellite receivers.

The remote is easily con gured by using either automatic code detection or the learn option. In addition, the advanced

macro function allows the recording of a chain of up to 60 commands with the single touch of a button.

Universal Remote Control

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com

SQUARE D® CLIPSAL® MULTI ROOM AUDIO | MULTI ROOM AUDIO

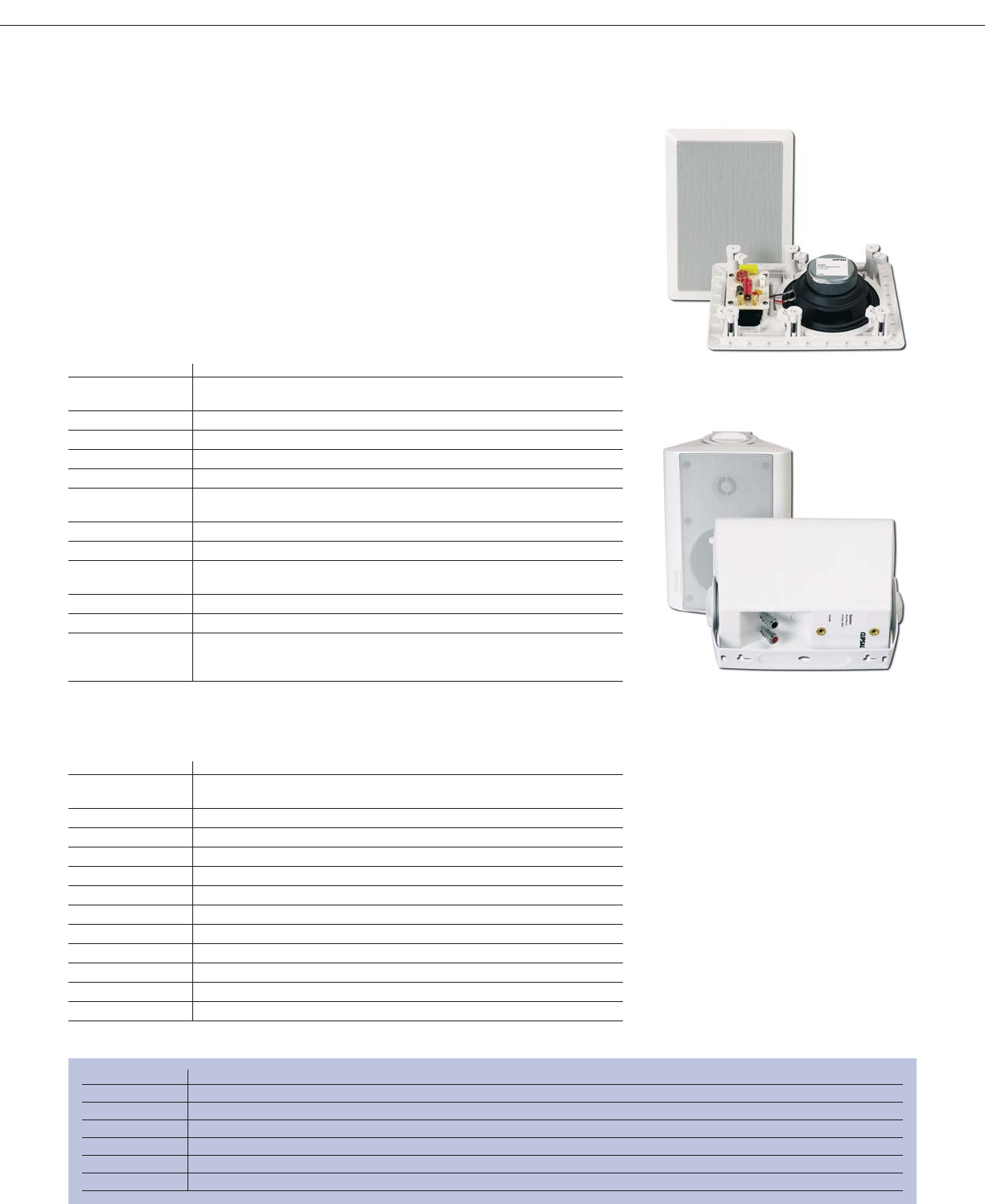

Square D® Clipsal® Audio Speakers

PRODUCT FEATURES

• Flush-mount, shelf-mount, and surface-mount models

• Indoor and outdoor models

• High-impact plastic components and powder coated metal

grills produce a long-lasting unit suitable for indoor and

outdoor use

• Available with Kevlar® (indoor units only) or polypropylene

drivers (indoor and outdoor units) for high-quality sound in

all applications

• All models are o the  oor, saving  oor space

• Convenient and reliable sound coverage, almost completely

independent of furniture or entertainment equipment layout

• Indoor/Outdoor Speakers have a pre-installed, removable

mounting bracket

• Indoor/Outdoor Speakers can be placed on a shelf or hung

from a surface by their bracket (included)

• Tracing/painting template included

CATALOG NUMBER DESCRIPTION

SLC5600IWP In-Wall Polypropylene speakers

SLC5600IWK In-Wall Kevlar speakers

SLC5600ICP In-Ceiling Polypropylene speakers

SLC5600ICK In-Ceiling Kevlar speakers

SLC5600ODPBK Outdoor Black speakers

SLC5600ODPWE Outdoor White speakers

Square D® Clipsal® Audio Speakers are available as indoor or outdoor models and are designed to be used with home

theater, multi-room, and outdoor audio applications that will accept 8 Ohm speakers, such as the Square D Clipsal

Multi-Room Audio (MRA) system.

The indoor speakers come in wall- or ceiling-mount versions that are installed with the front of the speaker  ush with

the mounting surface.

The indoor/outdoor speakers can be placed on a shelf or hung on a surface by using the included bracket.

Indoor Speakers

Outdoor Speakers

CLIPSAL INDOOR AUDIO SPEAKERS

Installation Ceiling Mount or Wall Mount

Speaker Dimensions Ceiling Mount - 9.45 in. (Dia) x 3.125 in. (D) (240 mm x 79.38 mm)

Wall Mount -12.125 in. (H) x 8.7 in. (W) x 3.125 in. (D) (308 mm x 221 mm x 79 mm)

Speaker Diameter Ceiling Mount - 6.0 in. (152 mm) Wall Mount - 6.0 in. (152 mm)

Weight Ceiling Mount - 3.31 lb. Wall Mount - (1.5 kg) 3.31 lb. (1.5 kg)

Material Kevlar®**, Polypropylene*

Operating Environment

Temperature Ceiling Mount: -13°F - 158°F (-25°C - 70°C)

Wall Mount: -13°F - 158°F (-25°C - 70°C)

Relative Humidity 20 - 90% noncondensing

Audio Performance

Frequency Response Ceiling Mount - 48 Hz-20 kHz, 58 Hz-20 kHz

Wall Mount- 65 Hz-20 kHz, 58 Hz-20 kHz

Power Rating 60 W RMS

Impedance 8 Ohm

Sensitivity 48 Hz-20 kHz, 58 Hz-20 kHz: 90 dB

65 Hz-20 kHz: 91 dB

58 Hz-20 kHz: 88 dB

**Kevlar® drivers have a fourth order 24/24 dB crossover for both tweeter and woofer

*Polypropylene drivers have a second order 12/12 dB crossover for both tweeter and woofer

CLIPSAL OUTDOOR AUDIO SPEAKERS

Installation Indoor, outdoor, shelf

Overall Dimensions 9.8 in. (H) x 6.75 in. (W/front) x 2.75 in. (W/rear) x 6 in. (D)

[248.9 mm (H) x 171.5 mm (W/f) x 69.9 mm (W/r) x 152.4 mm (D)]

Speaker Diameter 4.0 in. (102 mm)

Weight 4.41 lb. (2 kg)

Material Polypropylene*

Operating Environment

Temperature -13°F - 158°F (-25°C - 70°C)

Relative Humidity 20 - 90% noncondensing

Audio Performance

Frequency Response 70 Hz to 20 kHz

Nominal Power Rating 35 W RMS

Impedance 8 Ohm

Sensitivity 88 dB

*Polypropylene drivers have a second order 12/12 dB crossover for both tweeter and woofer

*For Diagram see technical section page 100

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com

SQUARE D® CLIPSAL® MULTI ROOM AUDIO | TECHNICAL SECTION

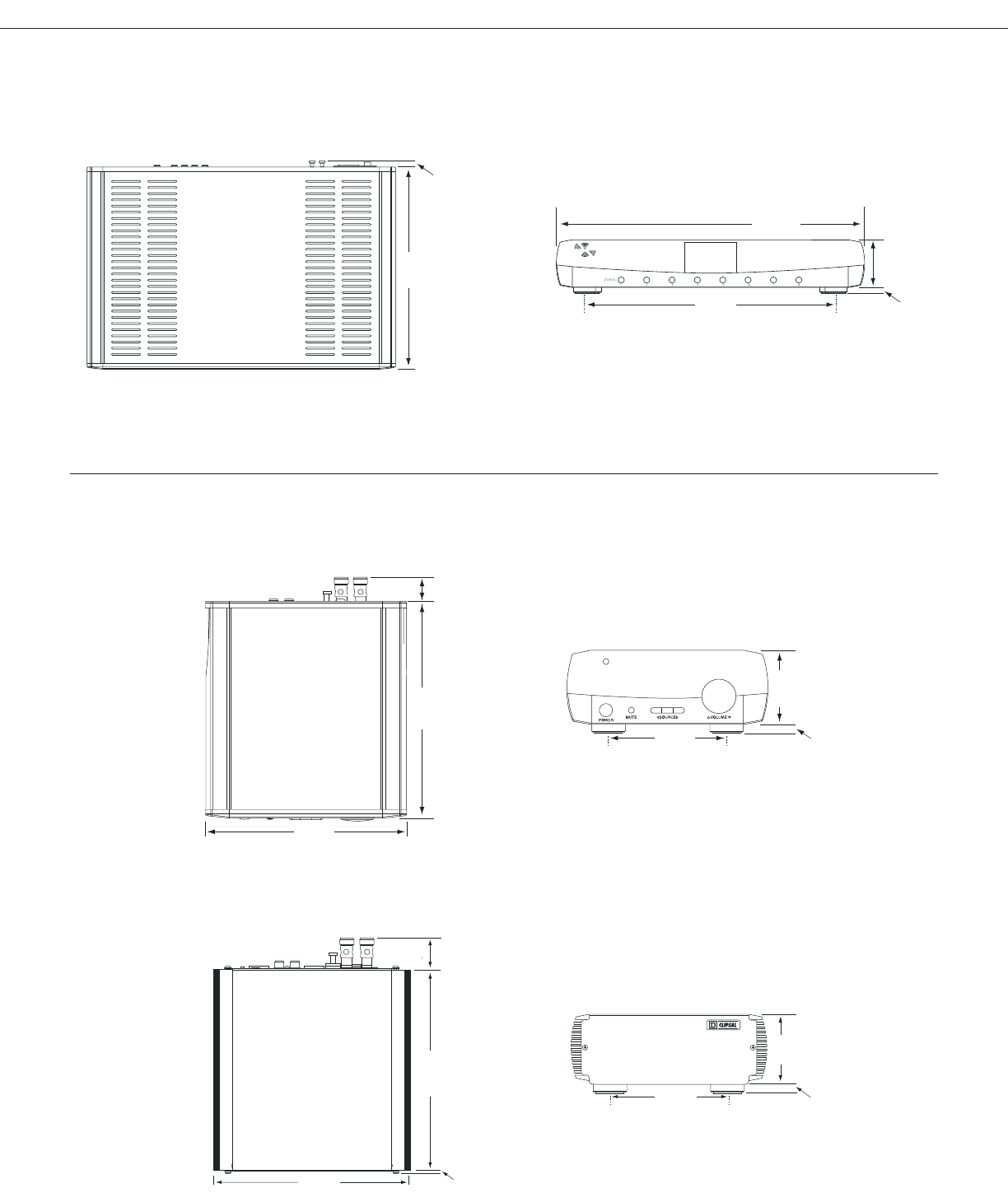

Bottom ViewTop View

Square D® Clipsal® Matrix Switcher

Square D® Clipsal® Multi-Room Ampli ers

0.33 in.

8.3 mm

11 in.

280 mm

16.7 in.

424 mm

13.6 in.

346 mm

2.6 in.

66 mm

0.3 in.

8 mm

Front View

2.6 in.

66 mm

.31 in.

8 mm

4.1 in.

105 mm

Top View

Desktop Model

Audio

Ampli er

11 in.

280 mm

7.6 in.

194 mm

7.09 in.

180 mm

Front View

2.44 in.

62 mm

4.13 in.

105 mm 0.31 in.

8 mm

Top View

Remote Model

Audio

Ampli er

1.1 in.

28 mm

1.1 in.

28 mm

.11 in.

2.9 mm

6.89 in.

175 mm

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com

100

SQUARE D® CLIPSAL® MULTI ROOM AUDIO | TECHNICAL SECTION

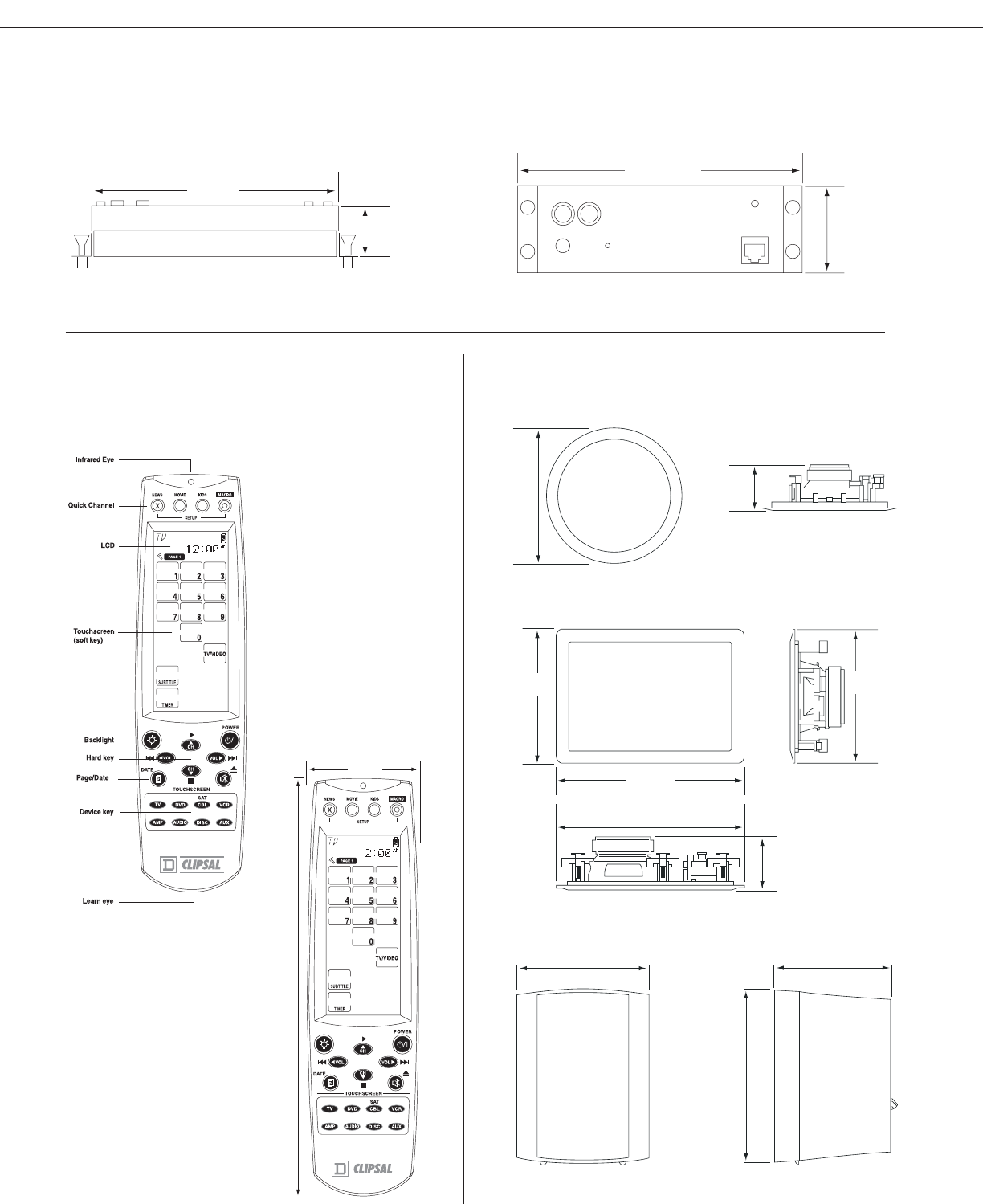

Square D® Clipsal® Audio Distribution Unit

Square D® Clipsal®

Universal Remote Square D® Clipsal® Audio Speakers

Wall Mount Speaker Dimensions

8.7 in.

221 mm

8.7 in.

221 mm

12.125 in.

308 mm

12.125 in.

308 mm

3.125 in.

79 mm

Outdoor Speaker Dimensions

6.75 in.

171 mm

6.0 in.

152 mm

9.8 in.

248 mm

Ceiling Mount Speaker Dimensions

9.45 in.

240 mm

3.125 in.

79.38 mm

2.4 in.

61 mm

8.3 in.

210 mm

Top View

5.61 in.

(142.5 mm)

1.20 in.

(30.5 mm)

5.61 in.

142.5 mm

1.20 in.

30.5 mm

Bottom

6.52 in.

(165.5 mm)

1.97 in.

(50 mm)

6.52 in.

165.5 mm

1.97 in.

50 mm

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com

Square D®

Clipsal®

Thermostats

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com

103

Coming in 2008, Square D® Clipsal® HVAC Single Zone

and 4 Zone Controllable Thermostats.

• Control of a wide range of heating/cooling system types including reverse cycle (or ‘Heat Pump’) systems, fan coil unit systems, hydronic

systems and evaporative cooling systems

• Powered from C-Bus™

• Operates as a part of a C-Bus network with information such as set point temperature, current temperature, etc., available to other C-Bus

devices (e.g., Touch Screen).

• Temperature set points can be changed from other C-Bus devices and set the thermostats

• Flexible plant control scenarios setup via C-Bus Toolkit software GUI’s

• Supports multi-stage Heating/Cooling

• RTC on-board (4 Zone unit only) or can be scheduled from a C-Bus touch screen or logic controller

• Supports multi-speed fan control

• Versions with on-board relays for direct control of the plant from the thermostat or control for remote

C-Bus relays connected to the HVAC plant

• Clear, backlit user interface including temperature set point, mode and fan speed adjustment

• Support for setback (or Economy) mode

• Available with white, black or stainless steel face plate

• Automatic heat / cool changeover

• Pulse width modulated control algorithms (variable time based pulse width) for accurate temperature control

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com

SQUARE D® CLIPSAL® CONTROLS | THERMOSTATS

104

Square D® Clipsal® Single Zone Thermostats

Square D® Clipsal® 4 Zone Thermostats

Square D® Clipsal® C-Bus™ wall mounted, Single Zone Thermostats include support for control of HVAC units via C-Bus

or the internal HVAC relays. They also allow the user to manually set the temperature and mode of operation (heating,

cooling or ventilation). The easy to use operator interface includes fan speed control, set back or economy mode and an

integral LCD to display the current temperature and mode of operation.

• Temperature adjustment from the unit

• A dedicated HVAC controller (via the on-board relays)

• A C-Bus Relay unit

• Mode button, i.e., heating, cooling, ventilation

• Manual fan speed control

• Incorporates ‘setback’ mode

• Setup via C-Bus Toolkit or from the unit itself

• Broadcasts the displayed temperature on C-Bus

Thermostats with Programmable Time Scheduling

Clipsal 4 Zone Thermostats include on board 7-day HVAC time scheduling (user programmable)

manual fan speed control, set back mode and an easy to use interface, comprising of an LCD,

manual control buttons and a rotating dial with an integral press switch. From the unit, the user can

manually adjust the temperature set point, the mode of operation (heating, cooling, ventilation)

and time schedules.

•Full 7 day programmable schedule, 4 events per day

•Accepts up to four remote temperature sensor inputs (via C-Bus)

•Four zones plus common (un-switched) zone

•Set and control via other C-Bus devices

•Supports setback temperatures

•Powered from C-Bus

•Backlit LCD and buttons

•Integral temperature sensor

•Manual fan speed control

•Zone button sets the active zones in the system

AVAILABLE

EARLY

2008

Single Zone Thermostat

4 Zone Thermostat

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com

Design

Guide

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com

SQUARE D® CLIPSAL® LIGHTING CONTROL | DESIGN GUIDE

107

Contents

I. INTRODUCTION

a. Overview

II. CAPABILITIES

a. Dimming

b. Multi-Scene Control

c. Daylighting Control

d. C-Bus with Powerlink

III. SPECIFICATIONS

a. Programming Principles

b. Addressing Conventions

i. Group Addressing

ii. Area Addressing

iii. Application Addressing

iv. Network Addressing

c. C-Bus Wiring

i. Network Topology

ii. Network Size

iii. Network Cable

iv. Power Supplies

v. Network Burden

vi. System Clock

vii. Connecting to the C-Bus Network

IV. PLANNING AND DESIGN

a. Space Considerations

b. Occupant Control Needs (Space-based)

c. Lighting Considerations

d. Occupancy Considerations

e. Energy Code Considerations

f. Map System Requirements (Space Worksheet)

g. Design Project

i. Lighting

ii. Space Control

iii. Control Points

iv. Input Unit Selection

v. Sensor Selection and Placement

vi. Output Unit Selection

vii. Output Unit Packaging

viii. Output Unit Placement

ix. Bill of Material

x. Finished Design)

V. INSTALLATION & COMMISSIONING

a. Order C-Bus Units

b. Mark Units with Part Name

c. Build Database and Mark Plans

d. Con gure Unit Addresses

e. Send Con gured Units to Site

f. Finish Development of Database

i. Functional

ii. Relational

g. Download Con guration into Installed C-Bus Network

h. Commission (troubleshoot)

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com

108

SQUARE D® CLIPSAL® LIGHTING CONTROL | DESIGN GUIDE

Introduction

Square D® Clipsal® Lighting Control employs C-Bus™ network control for commercial lighting. Compared to conventional control systems, C-Bus network controls reduce installation time,

simplify lighting control circuits, save energy and achieve greater functionality. The C-Bus network is a distributed intelligence network control system, incorporating microprocessor-based con-

trol. Each C-Bus device features an integral microcontroller to achieve a robust and reliable distributed control system. Once installed, the installer programs the operating variables and control

relationships between C-Bus devices on the network. The C-Bus network may be scaled to  t any size project from a single conference room up to a very large building.

OBJECTIVE

This guide provides lighting control designers with guidance needed to design and plan C-Bus network control systems. Additional support is available through the Square D Lighting Control

Technical Support Team at 1-888-SQUARED.

Capabilities

DIMMING

Dimming is a critical part of today’s lighting control needs. In the past, manual dimming

controls were used in o ces, conference rooms, and classrooms to allow occupants to adjust

light levels to meet the occupant needs or preferences. Now, more sophisticated lighting

control systems employ dimming to provide multi-scene control, daylighting control and

multi-level control in a variety of spaces and building types, from schools and o ces to retail

environments and warehouses, to save energy and provide more occupant-friendly control.

C-Bus includes a variety of units to achieve continuous or stepped dimming of  uorescent,

incandescent and even HID lighting.

Illustration of DALI Network Control

Illustration of 0-10V Dimming

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com

SQUARE D® CLIPSAL® LIGHTING CONTROL | DESIGN GUIDE

109

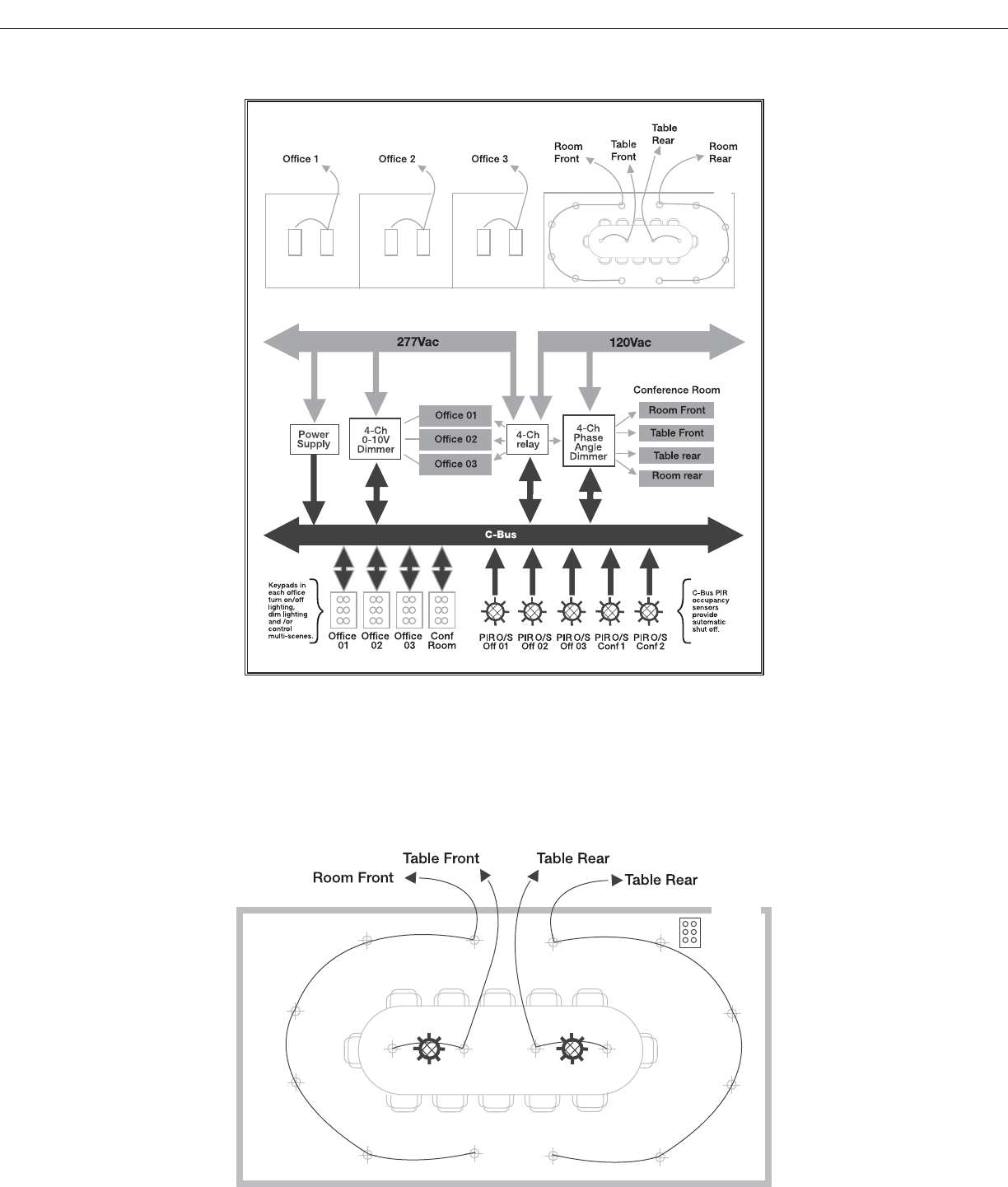

Multi-Scene Control in Conference Room

Multi-Scene Control

Presentation (scene 1)

Room Front = O

Room Rear = 50%

Table Front = 50%

Table Rear = 50%

Meeting (scene 2)

Room Front = 0%

Room Rear = 50%

Table Front = 100%

Table Rear = 100%

Up to (8) scenes with

8-button keypad or DLT

MULTISCENE CONTROL

The press of one button may control many individual loads. Loads may be turned on, o , or dimmed to a predetermined level. Depending on how a space is used, it may be necessary to

have certain lights set to various levels for di erent functions. For example, a conference room may have multiple groups of lighting where one group illuminates the table, another group

illuminates the perimeter in the back of the room and another group illuminates the perimeter in the front of the room. During a meeting, it may be desirable to have the lighting over

the table set to 100% and have the lighting around the perimeter set to 50%. This could be accomplished with a single button press to create the “meeting” scene. For presentations,

perimeter lighting in the front of the room may be turned o , lighting over the table set at 50%, and perimeter lighting in the back of the room set at 50%.

Illustration of Phase Angle

Control in Conference Room

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com

110

SQUARE D® CLIPSAL® LIGHTING CONTROL | DESIGN GUIDE

CBUS™ WITH POWERLINK®

C-Bus networks may be connected to Powerlink G3

intelligent lighting control panels utilizing the Powerlink

Device Router and the Powerlink 3000G3C controller.

Two-way communications between the C-Bus network

and the Powerlink panel allows C-Bus inputs to control

branch circuits at the Powerlink panel or override the

Powerlink schedule, and the Powerlink panel may

provide scheduled shuto of C-Bus controlled lighting.

In the Daylighting System illustrated no shut o was

provided. To shut o lighting on a schedule, connect the

C-Bus network to Powerlink 3000G3C controller via

Powerlink Device Router. The Device Router includes a

C-Bus PCI and Power Supply, and is connected to the

Powerlink panel using a serial cable between the

RS-232 port on the PCI and the 3000G3C controller.

DAYLIGHTING CONTROL

Daylighting control may be used to reduce arti cial

lighting of interior spaces when those spaces receive

adequate natural light from windows or skylights.

Daylighting controls are commonly installed in California,

where the state’s building code, Title 24, requires the use of

daylighting controls in daylit spaces. Daylighting control

may be used to save energy in schools, o ces,

warehouses, and even retail spaces. More and more

buildings, especially big box retail and schools, are taking

advantage of natural sunlight to illuminate interior spaces.

C-Bus light level sensors are easily con gured to provide

daylighting control utilizing relays for stepped dimming

function or dimmer units for continuous dimming.

Illustration of Daylighting Control

Illustration of C-Bus Connected to Powerlink G3 Panel

WINDOWS

DAYLIT AREA

Zone 1

Relay

Ch-1

Zone 2

Relay

Ch-2

C-Bus

Multi-Sensor C-Bus

Multi-Sensor

C-Bus C-Bus

Zone 1

Daylit

Area

Dimmer

Ch-1

Zone 2

Daylit

Area

Dimmer

Ch-2

277 VAC

C-Bus

DEVICE

ROUTER

PC Interface &

Power Supply

4-CH

RELAY

4-CH

0-10V

DIMMER

ZONE 1

ZONE 2

DAYLIT AREA

C-Bus

Multi-Sensors

Zone 1

Daylit

Area

Zone 2

Daylit

Area

C-Bus

Keypad C-Bus

Keypad

POWERLINK

3000G3C Controller

Serial

Cable

C-Bus

Keypads

C-Bus keypads provide

schedule override and

occupant control of

lighting in both zones

WINDOWS

DAYLIT AREA

Zone 1

Relay

Ch-1

Zone 2

Relay

Ch-2

C-Bus

Multi-Sensor C-Bus

Multi-Sensor

C-Bus C-Bus

Zone 1

Daylit

Area

Dimmer

Ch-1

Zone 2

Daylit

Area

Dimmer

Ch-2

277 VAC

C-Bus

POWER

SUPPLY

4-CH

RELAY

4-CH

0-10V

DIMMER

ZONE 1

ZONE 2

DAYLIT AREA

C-Bus

Multi-Sensors

Zone 1

Daylit

Area

Zone 2

Daylit

Area

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com

SQUARE D® CLIPSAL® LIGHTING CONTROL | DESIGN GUIDE

111

PROGRAMMING PRINCIPLES

All C-BusTM devices require programming, with the exception of power

supplies. Programming is achieved with proprietary software using

a PC. Unit programming is performed to achieve the following

objectives:

• Create and de ne units on the C-Bus network

• Identify each unit using the C-Bus addressing convention

• Create, de ne and edit control relationships between inputs and outputs

• Edit unit operating parameters

The operating parameters vary from unit to unit, depending on its type.

Keypad Functions

Timer Functions

Dimming Functions

Toggle (on/o ) Control

Preset Levels

Custom / Other Functions

Scenes - Multiple location control

• Output Switching Logic Assignments

• Power Outage Recovery Status

• Power Up Sequences

• Dimming Rates

• Indicator Options

• Sensor Switching Conditions

• Override Controls (Enable/Disable)

• Error Status Options

ADDRESSING CONVENTIONS

Once a preliminary list of hardware requirements has been created, planning of the

programming requirements may begin. The C-Bus network uses a simple addressing

scheme to identify units, groups, areas and networks. The purpose of each parameter will

be discussed in the next section.

ALPHANUMERIC CHARACTERS

Legal Alphanumeric Character Set: 0-9, a-z, A-Z, ‘ ‘, ‘_’

All descriptive addresses accept the above legal characters. Other characters may be accepted, but are not recommended. Project Names and Part Names will force capital letters.

HEXADECIMAL SYMBOLS

Hexadecimal Symbol Set: 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, A, B, C, D, E, F

At a physical level, the programming information downloaded to C-BusTM Units consists of a two digit hexadecimal number, represented be a combination of the above 16 symbols. Valid

addresses include 12, AB, FE, 5E. The descriptive addressing is not downloaded. This information is stored in a database on your PC.

A programmed C-Bus network can be scanned using the C-Bus Installation Software. If a Version 7.1 Project Database has not been de ned by the user, the software will use the

hexadecimal addressing uploaded to represent all unknown addressing.

Users should note that these hexadecimal addresses are automatically assigned. The Project and Topology Managers may be used to reference or manipulate hexadecimal address as required.

GROUP ADDRESSING

The Group Address is usually related to the load physically connected to the terminal of the output unit. Therefore, the group address should accurately describe the load being controlled.

Typically, numerical designators are used to describe lighting circuits. Up to 255 group addresses may be de ned on a single network less any de ned area addresses.

Valid groups include: O ce Lights, Hall Lights, L4-2B, A4-2L-3

The default group is “unused.”

Speci cations

PARAMETER FORMAT EXAMPLE

PROJECT NAME 8 alphanumeric characters OFFICE01

NETWORK 20 alphanumeric characters O ce Network

UNIT Three digit decimal number (000-255) 016, 067, . . . 145

OR OR

Two digit hexadecimal number (00-FF) 0A, 1A, . . . 5B

PART NAME 8 alphanumeric characters RELAY01

APPLICATION 20 alphanumeric characters Lighting (*)

AREA 20 alphanumeric characters First Floor O ces

GROUP 20 alphanumeric characters Conference Rm Lights

C-Bus Installation Software version 2.0

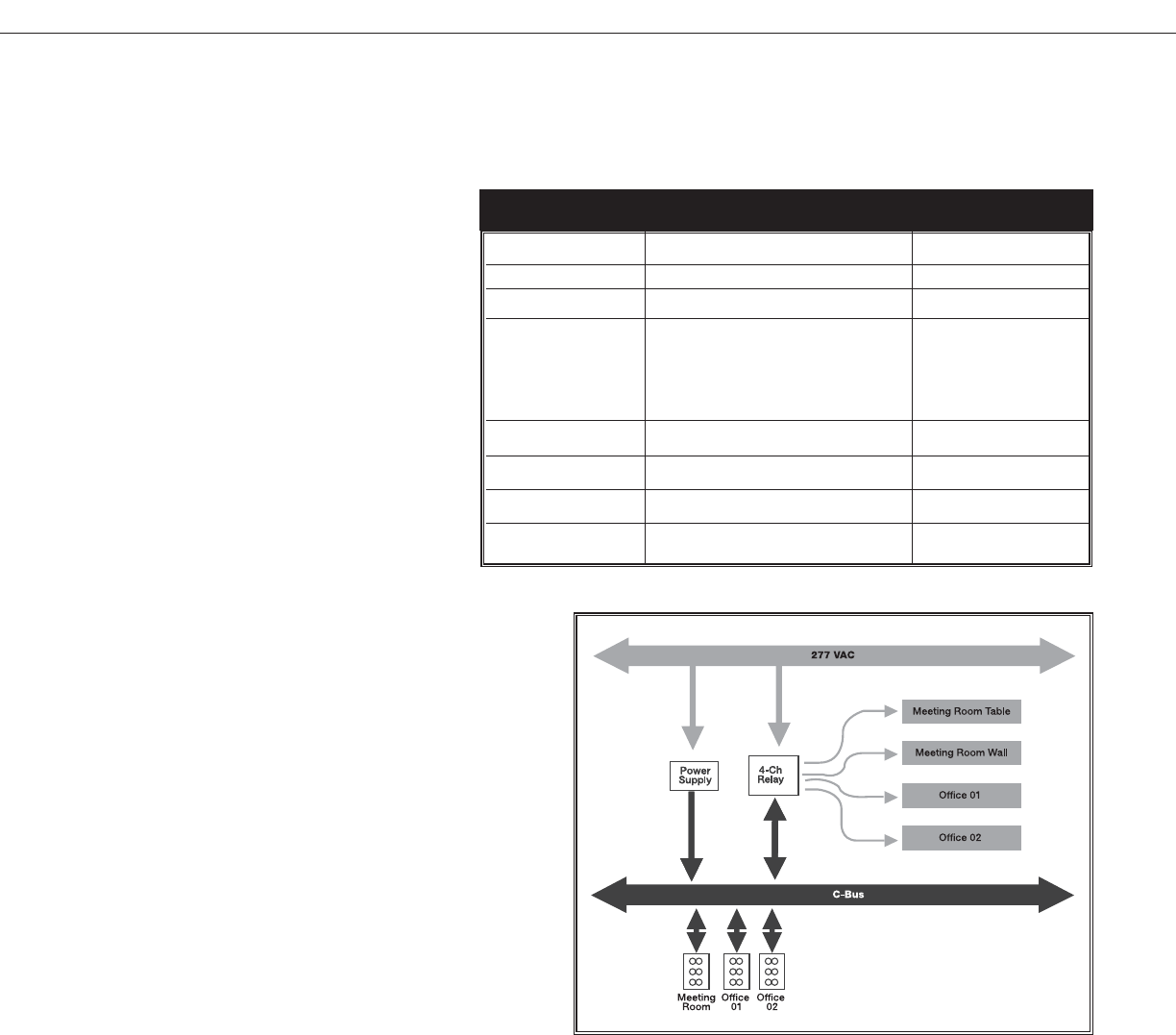

Illustration of Group Addressing

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com

SQUARE D® CLIPSAL® LIGHTING CONTROL | DESIGN GUIDE

112

AREA ADDRESSING

The area address is a convenient method of addressing multiple output channels collectively. Large areas consisting of many C-BusTM output units may be controlled from a single point

on the C-Bus network. The area address is used in the group address  eld to achieve control.

Illustration of Area Addressing

Each C-Bus input and output device in a control area must be assigned the same area address. The area address must be unique and must not be repeated as a group address in that C-Bus

network. Up to 255 areas may be de ned less the number of de ned groups.

Area address status is not included in the status report. Therefore, C-Bus input devices will follow the status of group address of output devices associated with the input device after

approximately  ve times the status request interval (approx. 15 seconds).

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com

SQUARE D® CLIPSAL® LIGHTING CONTROL | DESIGN GUIDE

113

APPLICATION ADDRESSING

Applications are used to divide the C-BusTM network into independent functional systems. All group addresses in any unit are associated with that unit’s applications, and commands

issued by a C-Bus input device will a ect only output devices with matching applications and group addresses.

Up to 255 application addresses may be used on a single C-Bus network. By default, two applications have been de ned: Lighting and Heating. Other applications may be de ned as

needed. For example, in a multi-storied building it may be desirable to have a separate application for each  oor to satisfy the need to have more than 255 group addresses on the

network, or to allow the same group addresses to be used over and over (e.g. OFFICE01, MENS01, CONF01, etc.). In this case, de ned applications might be Lighting01, Lighting02, etc.

Illustration of Application Addressing;

Where Lighting 1 and Lighting 2 are Separate Applications

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com

114

SQUARE D® CLIPSAL® LIGHTING CONTROL | DESIGN GUIDE

Unit

Address

254

Unit

Address

253

Network

Address

254

Network

Address

253

Network A

(Local)

Network B

(Remote)

Unit

Address

253

Unit

Address

252

Network

Address

252

Network C

(Remote)

C-Bus

Network

Bridge

C-Bus

Network

Bridge

Local Network

Address 254

Unit

Address

253

Unit

Address

254

Unit

Address

252

Unit

Address

254

Unit

Address

251

Unit

Address

254

Unit

Address

250

Unit

Address

254

Remote Network

Address 253

Remote Network

Address 252

Remote Network

Address 251

Remote Network

Address 250

NETWORK ADDRESSING

The network address is used to identify networks in a multi-network system. Each C-Bus network may be connected to other C-Bus networks using a C-Bus Network Bridge. The C-Bus

Network Bridge facilitates communications across networks, allowing device on one C-Bus network to issue commands to devices on another C-Bus network.

The default network name is “Local Network” and has a network address of 254. Examples of valid network names are “First Floor”, “My House”, “Movie Theatre” or “Building 12A.” Up to

255 unique networks may be connected together using C-Bus Network Bridges as shown.

For large installations where real time response is required from a central control, a C-Bus Ethernet Network Interface may be used to connect multiple C-Bus networks together using a

common Ethernet backbone. The C-Bus Ethernet Network Interface is a 10 Base T Ethernet compliant device.

Multiple C-Bus networks connected in series using C-Bus Network Bridges

Multiple remote C-Bus networks connected to local network using star topology.

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com

SQUARE D® CLIPSAL® LIGHTING CONTROL | DESIGN GUIDE

115

CBUSTM WIRING RULES

Square D® Clipsal® incorporates a distributed intelligence lighting control system that employs a low voltage network of intelligent input, output and network communication units to control line

rated loads. C-Bus network communications is achieved using proprietary C-Bus protocol over an unshielded twisted pair LAN cable (Cat-5 UTP). Some simple rules should be observed when

specifying or designing a Square D Clipsal lighting control system.

NETWORK TOPOLOGY

The Square D Clipsal lighting control system is comprised of C-Bus devices interconnected using Cat-5 UTP cable to achieve a topology-free C-Bus network. The lighting control system may

incorporate a single network or multiple networks to overcome the following C-Bus network limitations:

• Maximum cable length

• Addressing limitations

• Maximum 2A/36VDC per network

• Reduce network response time (reduce local communications tra c)

• Accommodate physical layout and building structure (network/ oor)

When connecting multiple networks together, the following guidelines should be observed:

• Minimize the depth of the network topology for faster, more e cient communications.

• Distribute C-Bus Units on separate networks proportionally to avoid communications and power supply problems. For example if 120 C-Bus Units are required, split into two networks of 60

Units each, rather than 100 Units on the  rst network and 20 Units on the second.

NETWORK SIZE

The maximum number of C-Bus units on any network shall not exceed 100 units. If the lighting control system requires more than 100 units, an additional network may be connected to the

 rst network through a C-Bus Network Bridge to allow communications between networks.

• Maximum of 100 C-Bus units per network • Maximum of 255 networks per system

NETWORK CABLE

Maximum cable length is determined by the impedance of the cable used. The resistive and capacitive impedance of network cable varies based on type. For Cat-5 UTP, the maximum length

for reliable communications is 3280 ft.

• Maximum 3280 ft. of Cat-5 UTP cable per network

• C-Bus Network Bridges should be used to split a network into two or more networks when the total cable length required exceeds 3280 ft.

POWER SUPPLIES

The C-Bus Power Supply and Output units with integral power supply provide low voltage power to C-Bus devices on the network (36VDC). Current required to operate C-Bus devices varies,

depending on the device. Refer to installation instructions for speci c C-Bus devices to determine current requirements. Each C-Bus Power Supply supplies up to 350mA and C-Bus Output units

with integral power supply will supply up to 200mA. Additional C-Bus Power Supplies may be added to maintain optimum network voltage of 15-36VDC. Distribute power supplies evenly on the

network to evenly distribute voltage drop. All power supplies on a C-Bus network evenly share the network load. Typically, no more than (5) Power Supplies should be connected to a single

network. When utilizing Output Units with an integral power supply rated at 200mA, a maximum of (10) power supplies is allowed. In no case shall the total available power exceed 2A at 36VDC.

NETWORK BURDEN

A Network Burden must be connected to a C-Bus network to achieve reliable network communications. The Network Burden is comprised of a capacitor in series with a resistor.

One hardware Network Burden is included with each PC Interface (PCI) and two hardware Network Burdens are included with each Network Bridge. The Network Burden may be

software enabled on most other DIN rail mounted C-Bus units. One, and only one, Network Burden is required for each C-Bus network. If more than one PCI or Network

Bridge is used in a network, all but one Network Burden should be disabled. For systems with multiple networks connected together via Network Bridges, each network within the

system should have only one Network Burden connected or enabled.

SYSTEM CLOCK

The C-BusTM network requires one system clock source to operate. This is not a real time clock; however, network communications are synchronized to this source. The PCI and Network

Bridge units may be used to provide the system clock. If more than one of these units is present on a network, the network automatically determines which is active. A maximum of 3

network clocks should be enabled on a C-Bus network.

CONNECTING TO THE CBUS NETWORK

The C-Bus network is designed to operate at 36VDC. The C-Bus network is optically and/or galvanically isolated from line voltage rated circuits. When installing C-Bus devices the installer

should always follow applicable NEC requirements for Class 2 wiring.

Operating at a low voltage of 36VDC allows electrical work to be performed on the C-Bus side of the system while the system is powered on. Before working on C-Bus network wiring or devices

located in enclosures where Class 1 wiring is present, turn o power to Class 1 circuits. The C-Bus network is short circuit protected to prevent damage to C-Bus devices if a short occurs. The

C-Bus network will not work as long as the network is shorted. C-Bus devices are connected in parallel on the network. Whether the devices are connected using a daisy-chain topology, a star

topology, or a combination of both topologies, the devices are always connected to the network in parallel to achieve a topology-free network. Homeruns are not recommended for C-Bus networks.

When connecting C-Bus devices to the network cable (typically Cat-5 UTP), care

should be taken to observe polarity requirements clearly marked on each device.

It is recommended that installers use a Cat-5 UTP cable with a distinguishable

color, such as pink, to distinguish C-Bus network cable from other network cable

which may be present. This simpli es later servicing of the system by allowing

service personnel to quickly identify C-Bus network cables.

Cat-5 UTP Cable Termination

Blue

Orange

Correct wiring with the twist

being maintained between the

two positive conductors and their

respective negative conductors.

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com

116

SQUARE D® CLIPSAL® LIGHTING CONTROL | DESIGN GUIDE

Planning & Design

The most important phase of any Square D® Clipsal® lighting control project is the planning and design phase. A complete plan starts with a good understanding of the lighting control

requirements. To determine what is required, start by asking the right questions.

1. WHERE IS LIGHTING CONTROL REQUIRED?

For example, a school may have both exterior and interior lighting that requires control. De ne the exterior and interior lighting that requires control, and segregate lighting by space.

2. HOW IS EACH SPACE USED?

Private o ces within a building may share the same lighting control needs. Meeting and training rooms may have the same lighting control needs, regardless of where these spaces fall within

in a building. Functionally, a classroom di ers from a restroom, so the entire site, including interior and exterior spaces, should be segregated based on the way the space is used. Similarly used

spaces may share basic lighting control needs.

3. HOW WILL OCCUPANTS WANT TO CONTROL LIGHTING TO BEST UTILIZE THE SPACE?

Consider the needs of the occupant. For example, multi-scene control may be used in classrooms, conference rooms and training rooms. Restrooms, employee break rooms, copier/mail rooms

and utility closets may only require occupancy-based control. Exterior parking lot and pathway lighting that is only needed at night may turn on and o based on time of day or sunrise and

sunset. Private o ces may require multi-scene of dimming controls, while open o ce areas may turn on and o with time of day schedule. While lighting control should save money, it should

also enhance the functionality of the space.

4. WHAT TYPE OF LIGHTING IS TO BE CONTROLLED?

If dimming is required, the type of lighting must be considered when selecting a dimmer.

5. WHEN IS LIGHTING USED?

This is important. During working hours, lighting may be used di erently than during cleaning hours, for example. Consider the lighting use on weekends and after hours. Lighting may not be

used during holidays, so it is important to de ne when lighting control will be needed giving consideration to holidays, inventory, shutdown and other events that may occur only once per year.

6. IS OCCUPANCY PREDICTABLE?

If an area has predictable days and hours of occupancy, it may be best to use a time of day schedule to control lighting in this area. For areas with less predictable occupancy patterns,

occupancy-based control may be required, or a combination of control schemes may best meet the functional needs of occupants and the energy e ciency needs of building owner. Having a

clear understanding of the occupancy patterns of the building will help the designer develop a lighting control system that is convenient for occupants and achieves energy e ciency.

7. WHAT ARE THE ENERGY CODE REQUIREMENTS?

Depending on the energy codes governing a particular building, based on its use, its location, and size, there may be speci c requirements for lighting control. Understanding the functional

requirements as de ned by the governing energy code is essential in the planning and design phase. Oversights at this point could result in costly changes later to bring lighting and lighting

control systems into compliance with building codes. In most energy codes, lighting and lighting control requirements are intermingled, with some codes providing prescriptive lighting control

requirements to bring otherwise non-complying lighting systems into compliance.

8. WHAT ARE THE FUNCTIONAL LIGHTING CONTROL REQUIREMENTS FOR EACH SPACE?

At this point in the planning process, start de ning the functional lighting control needs for each space. This will aid the designer in the product selection process. Keep in mind that spaces that

are used in similar ways may have similar or identical lighting control needs. Grouping spaces based on use may simplify this process. Lighting functions to consider are:

• Dimming or switching

• Manual or automatic

• Schedule-based shuto or occupancy-based shuto

• Mutli-scene or manual dimming control

• Manual or automatic daylighting control

• Zones or groups

9. FINALLY, WHAT CONTROL FUNCTIONS ARE NEEDED THAT INCLUDE MORE THAN ONE SPACE, ZONE, AREA OR LIGHTING GROUP?

Will the occupant want a single switch to turn on and o all lighting in the building? Will the cleaning crew require special lighting controls to turn on multiple groups or zones? What type of

automatic shuto shall be used to turn o lighting in the building when the building is unoccupied?

The planning phase usually involves mapping the system requirements, and determining the hardware needs of the system. Thought should be given to placement and packaging of hardware,

programming and cabling requirements. As planning transitions into designing, documentation of the system layout and functionality becomes more critical.

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com

SQUARE D® CLIPSAL® LIGHTING CONTROL | DESIGN GUIDE

117

SPACE LIGHTING

O ces 1-4: Tandem wired 3-lamp  uorescent luminaires (32W T8)

Lighting power density of 192W/225SF= .853 W/SF

Conf Room: Recessed 32W compact  uorescent luminaires

120V phase angle dimming ballast per luminaire

O ces 1-4: Multi-level control (0, 33%, 67%, 100%)

4-button keypad (all on, A on/o , B on/o , all o )

Occupancy sensor shuto

Conf Room: Multi-Scene control with dimming control

Dynamic Labeling Technology keypad (4-buttons x 2 pages)

(6) preset scenes (all on, meeting, presentation, lecture, dining, all o )

Dim up/down table lights

Dim up/down room lights

Occupancy sensor shuto

Equipment Selection by Space

O ces 1-4: (1) C-Bus™ PIR 360° occupancy sensor per o ce

(1) 4-Button Neo Keypad per o ce

(2) 20A relay outputs per o ce

DESIGN PROJECT

SPACE CONTROL

Offices 1-4

Tandem-Wired

3-Lamp

Luminaires

Neutral

Line

O ce & Conference Room Design Project

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com

118

SQUARE D® CLIPSAL® LIGHTING CONTROL | DESIGN GUIDE

Conf Room: (2) C-BusTM PIR 360° occupancy sensors

(1) DLTTMh NeoTM keypad

(4) 4A Phase angle dimmer outputs (1 per group)

C-Bus Input Unit Placement

O ces 1-4: - Place keypad in wall box adjacent to entry

- Place occupancy sensor in ceiling over desk for best coverage

Conf Room: - Place DLT keypad in wall box adjacent to entry

- Place (2) occupancy sensors over table for best coverage

Packaging of Output Units

O ces 1-4: In total, o ces require (2) 4-Ch 20A relay units.

Prepackaged Area Lighting Panel (ALP) SLCZ082000H

ALP 8-Ch 20A Relays SLCZ082000H

Office 1 - A

277V/20A

Branch Ckt.

Office 3 - A

Office 1 - B

Office 3 - B

Office 2 - A

Office 4 - A

Office 2 - B

Office 4 - B

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com

SQUARE D® CLIPSAL® LIGHTING CONTROL | DESIGN GUIDE

119

BILL OF MATERIAL

Catalog # Description Qty

SLC5753L C-BusTM 360° PIR Occupancy Sensor 6

SLC2042004DT C-Bus 4x20A Relay 120V No P/S 1

SLC2042004DT SQDTM Clipsal 24M Enclosure 1

SLCZ082000H SQD ClipsalTM ALP 8x20A Relay 277V with P/S 1

SLC2042004DT C-Bus 4x4A Phase Angle Dimmer with P/S 1

SLC5084NL(WE) C-Bus 4-Button SaturnTM Keypad White 4

SLC5085DL(WE) C-Bus DLT Saturn Keypad White 1

ALP with 4x20A Relay & 4x4A Phase Angle Dimmer

Conf Room: In total, requires (1) 4-Ch Phase Angle Dimmer unit and (1) 4-Ch 20A relay unit.

Custom packaged Area Lighting Panel in 24M enclosure.

C-Bus

Unit

200mA C-Bus Power Supply included

Voltage Free Relay

4321

To another

ALP or

Powerlink

Device

Router

To C-Bus

keypads and

sensors

Table Front

Table Rear

Room Front

Room Rear

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com

120

SQUARE D® CLIPSAL® LIGHTING CONTROL | DESIGN GUIDE

Illustration of Design Project Controls

INSTALLATION

Once the design phase is complete, installation may begin. Several simple steps are typically followed to achieve a fast and accurate installation of the C-BusTM network control

system.

1. Implementing programming requirements of the design on a PC. Build a database using C-Bus software that includes all the C-Bus units used in the lighting control system.

Each unit is assigned a unit address.

2. Using the PC and a PC Interface, initialize and program each C-Bus device one at a time.

Each device is assigned a unit address.

3. Packaging, cabling and electrical installation of the hardware.

4. Finalization and additional programming of C-Bus devices as required.

COMMISSIONING

Verify compliance with the speci cation and commission the system. A design review may be performed at this point in the process. Modi cations or design changes seldom

require installation of additional hardware, typically requiring only programming changes.

FINISHED DESIGN

Completed Project Layout

Table Front

Office 1 - A

Office 1 - B

Office 2 - A

Office 2 - B

Office 3 - A

Office 3 - B

Office 4 - A

Office 4 - B

Table Rear

Room Front

Room Rear

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com

Square D® Clipsal®

rlin

Inte

rate

ente

Powerlink

Integrated

Control

Center

atur

SaturnTM

Keypad

DLT

eypa

DLTTM

Keypad

NeoTM

Keypad

Modbus TCP/IP

Modbus TCP/I

Modbus TCP/IP

werlin

Route

Powerlink

Device

Router

ti C

anne

Multi Channel

Relays

owe

upp

Power

Supply

ace

Interface

Ethe

Ethernet

PC Web Browser

Input Units

Output Units

Network Units

CLIPSAL LIGHTING CONTROL

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com

Passive Infrared

Occupancy Sensor

Ultra Sonic

Occupancy Sensor

Dual Technology

Occupancy Sensor

Wall Switch

Occupancy Sensor

ALI

atewa

DALI

Gateway

Occu

anc

Occupancy

Sensor

–1

esce

immin

Uni

0–10V

Fluorescent

Dimming Unit

Genera

nput Uni

General

Input Unit

oup

Bus

Coupler

Auxi

iar

nput Unit

Auxiliary

Input Unit

Touc

cree

Touch

Screen

essiona

imme

Professional

Dimmer

ncan

escent

imming Uni

Incandescent

Dimming Unit

Ethernet

etwork

Inter

ace

Ethernet

Network

Interface

Networ

rid

Network

Bridge

ht Leve

enso

Light Level

Sensor

Square D Stand Alone Occupancy Sensors

Passive Infrared

Occupancy Sensor

Passive Infrared

Occupancy Sensor

ccu

anc

enso

Occupancy Sensor

Ultra Sonic

Occupancy Sensor

Ultra Sonic

Occupancy Sensor

ccu

anc

enso

rOccupancy Sensor

Dual Technology

Occupancy Sensor

Dual Technolo

Dua

Tec

Dual Technolo

Occupancy Sensor

ccu

anc

enso

rOccupancy Sensor

Wall Switch

Occupancy Sensor

Wall Switc

Occupancy Sensor

ccu

anc

enso

rOccupancy Sensor

quare D Stand Alone Occupancy Sensors

Square D Stand Alone Occupancy Sensors

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com

Schneider Electric - North American Operating Division

Document Number 1200CT0701 11-07 tk

1415 S. Roselle Road

Palatine, IL 60067

Tel: 1-888-SQUARED

www.squaredlightingcontrol.com

Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com

•Clips_Cat2007

Navigation menu

Versions of this User Manual:

Views

Navigation
