- Lighting Control And Integrated Home Systems

5-1

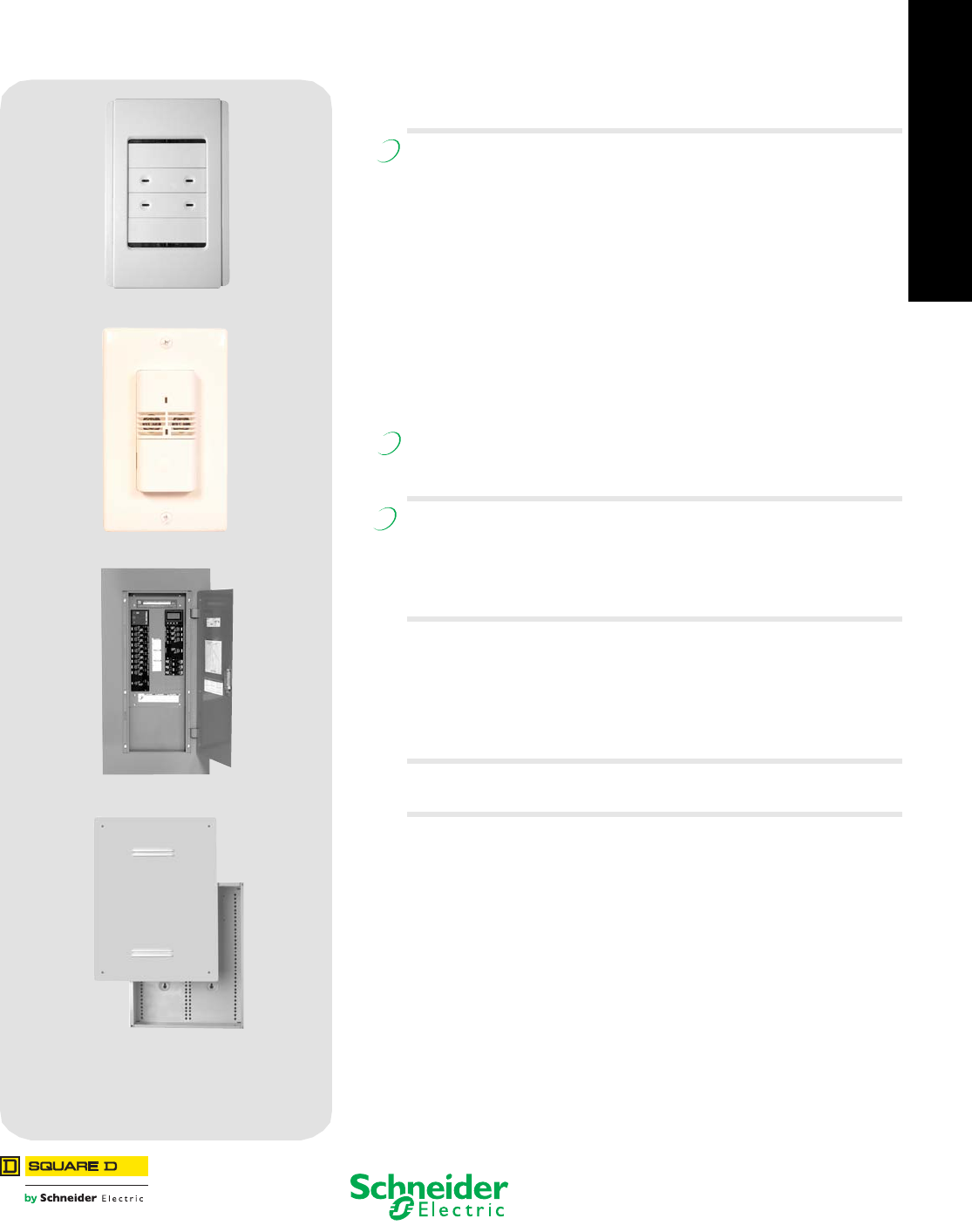

5LIGHTING CONTROL AND

INTEGRATED HOME SYSTEMS

Table of Contents

Section 5

Lighting Control And Integrated Home Systems

Clipsal Controls, page 5-4

Occupancy Sensors, page 5-21

Powerlink Lighting Control Panelboards, page 5-24

Structured Wiring Systems, page 5-28

Lighting Control Product Overview

One Line Overview 5-2, 5-3

Clipsal Keypads, Touch Screens and Accessories

Neo Keypads 5-4

Saturn Keypads 5-5

DLT Keypads 5-6

Touch Screens 5-7

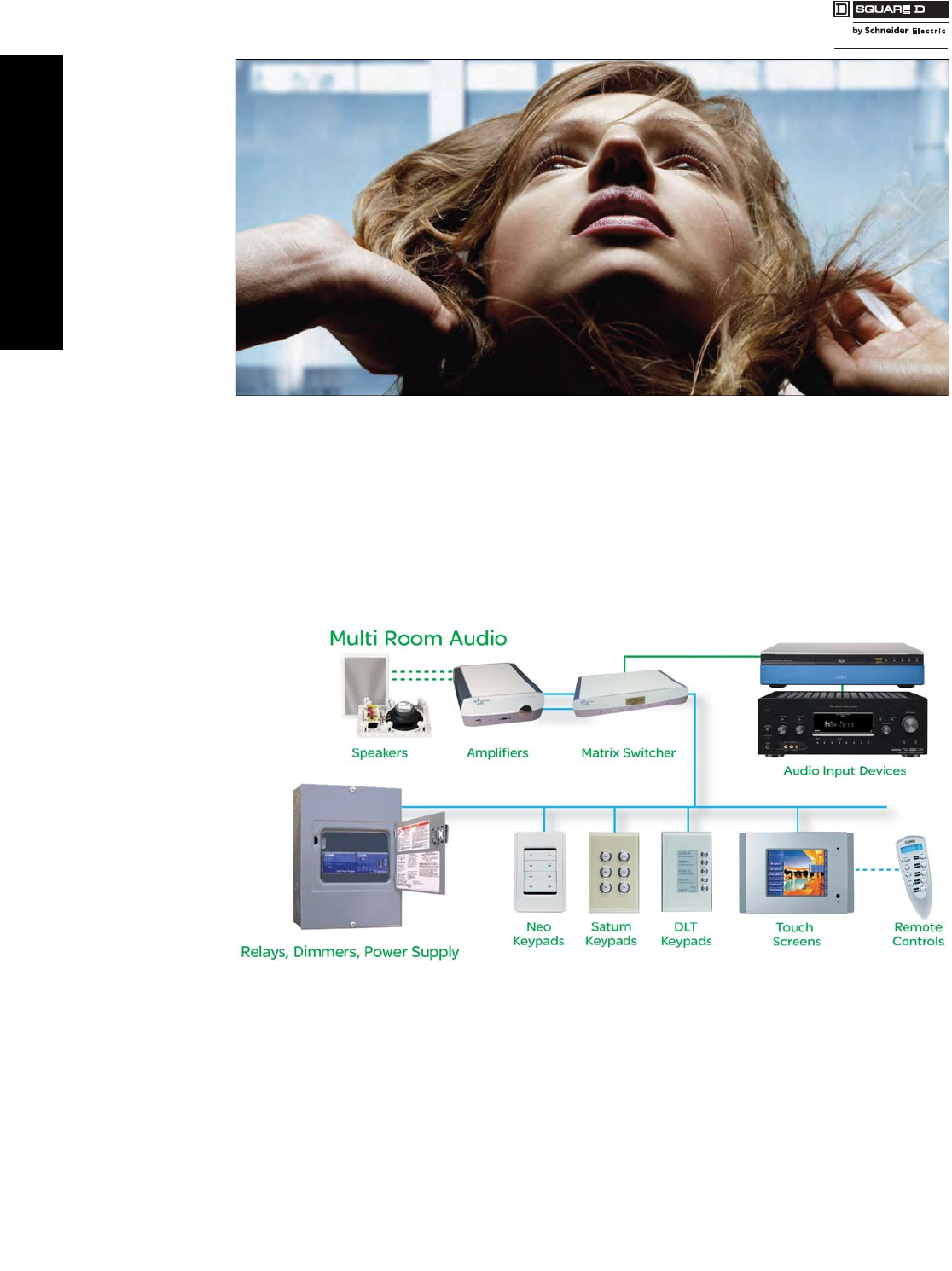

Multi Room Audio 5-8–5-10

Hand Held Remote Controls 5-10

Thermostats 5-11

Sensors 5-12

Input Units 5-13

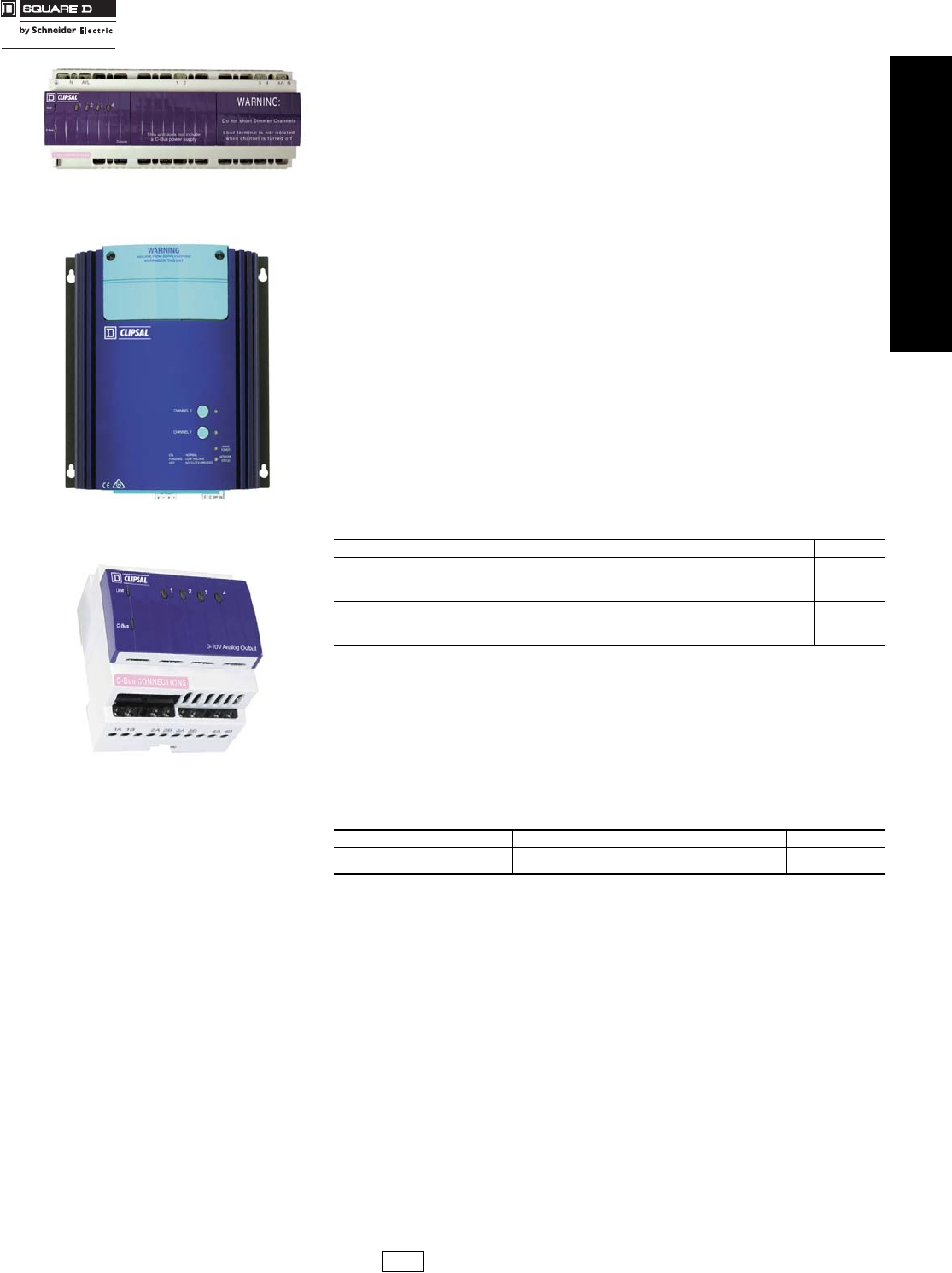

Relays 5-14

Dimmers 5-15

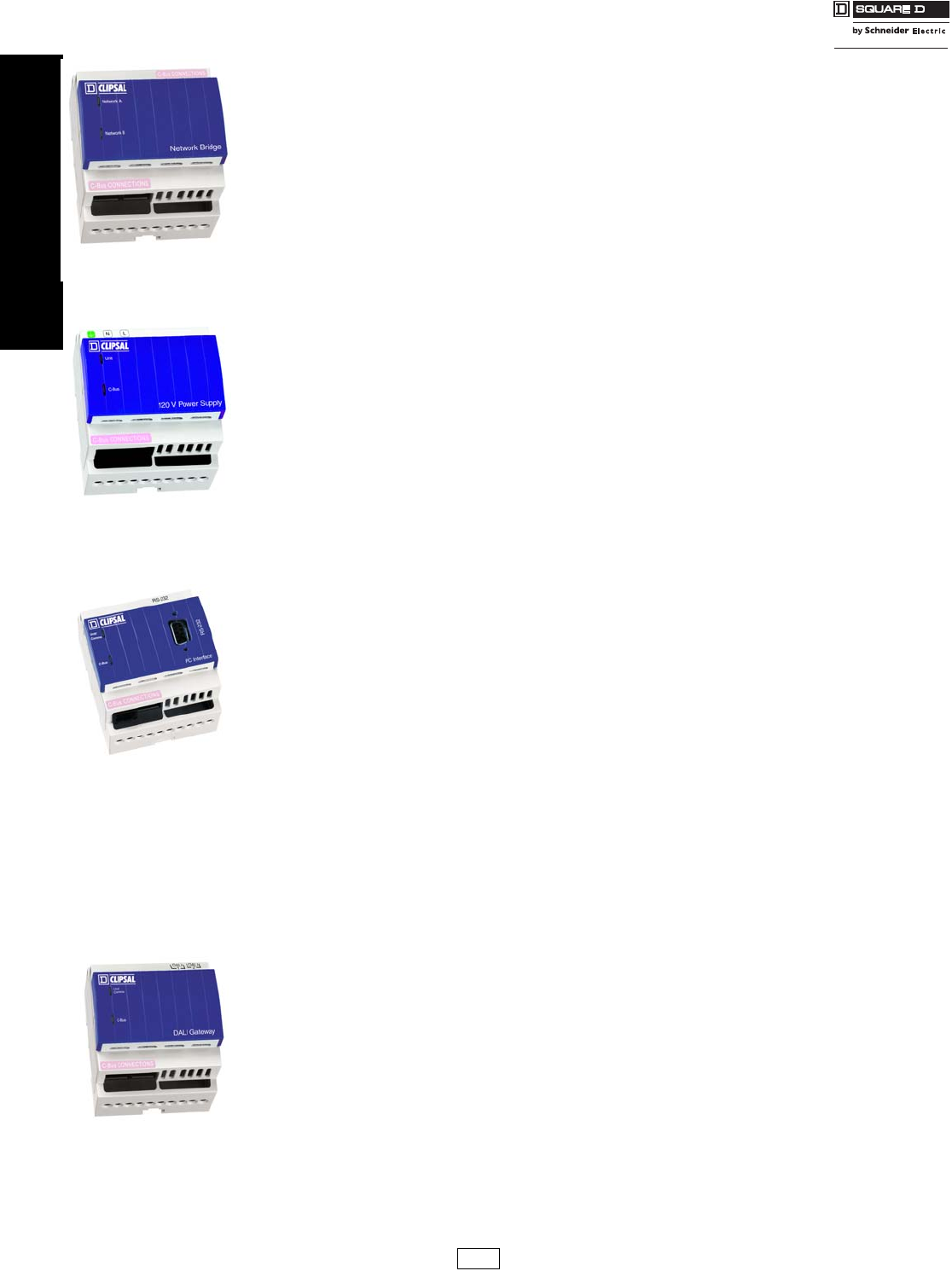

System Units 5-16, 5-17

Enclosures 5-18

Area Lighting Panels 5-19

Software 5-20

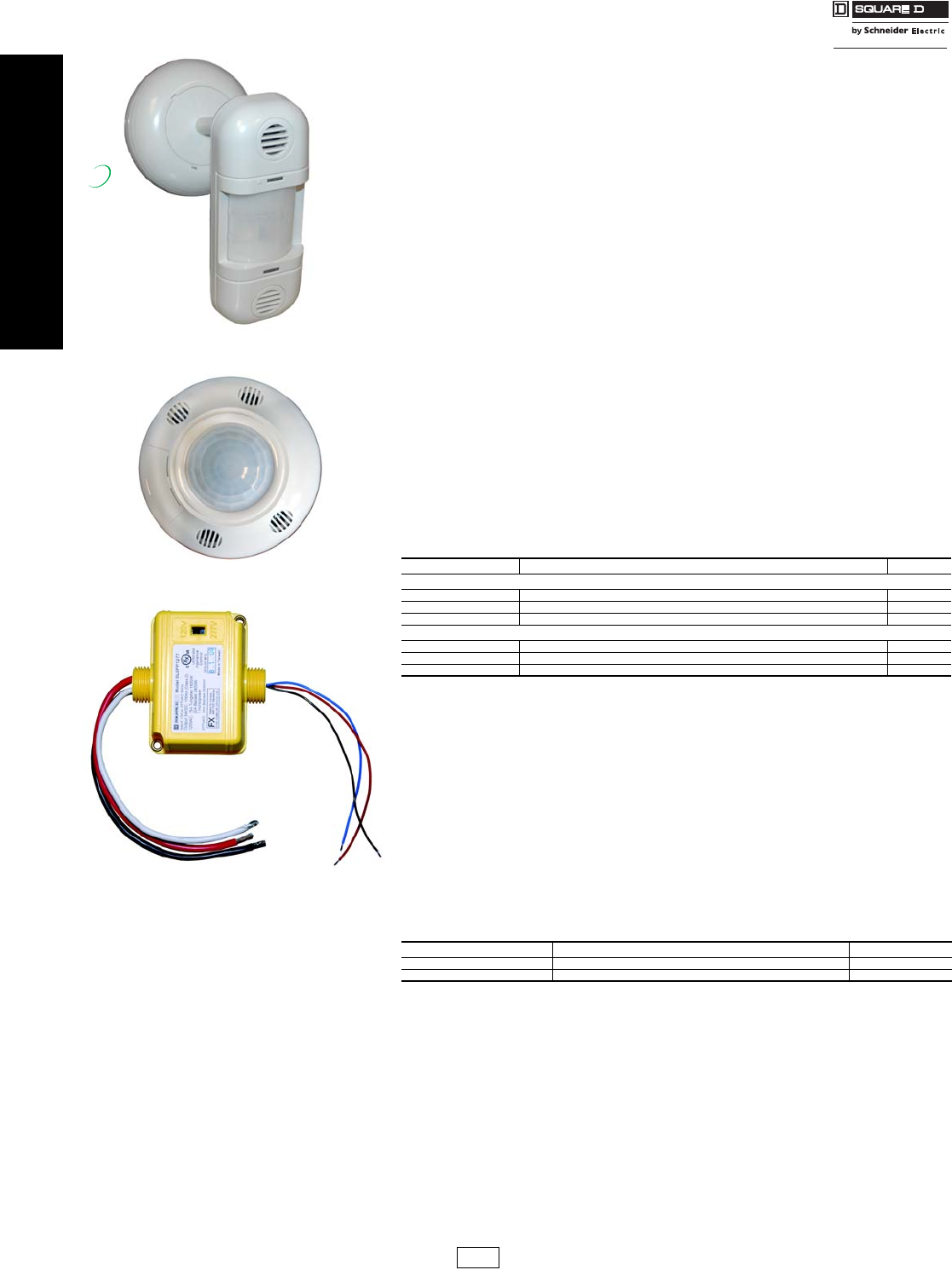

Occupancy Sensors

Wall Switch Occupancy Sensors 5-21

Ceiling Mount Occupancy Sensors 5-22

Wall Mount Occupancy Sensors 5-22

Fixture Mounted Sensors and Controls 5-23

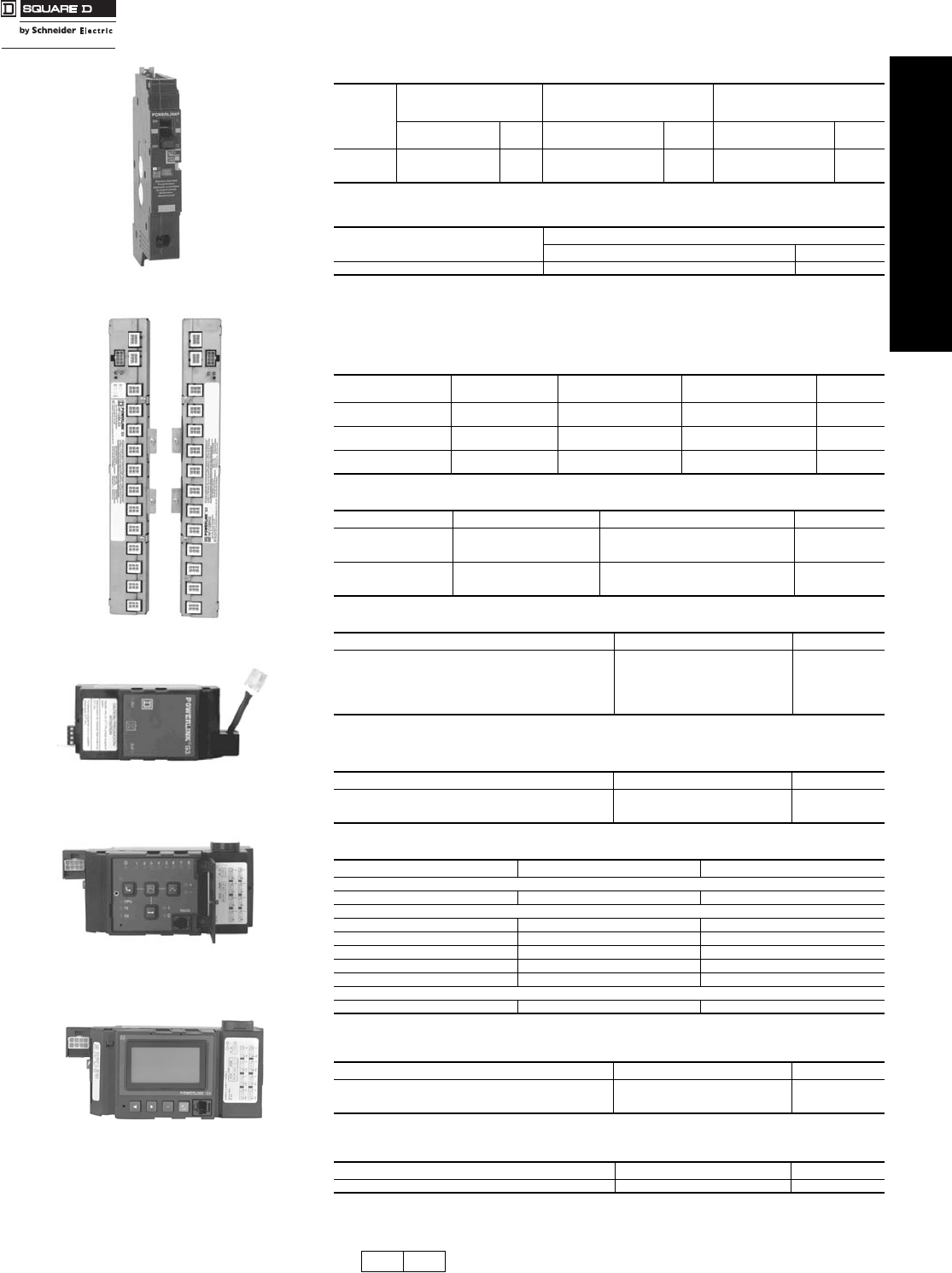

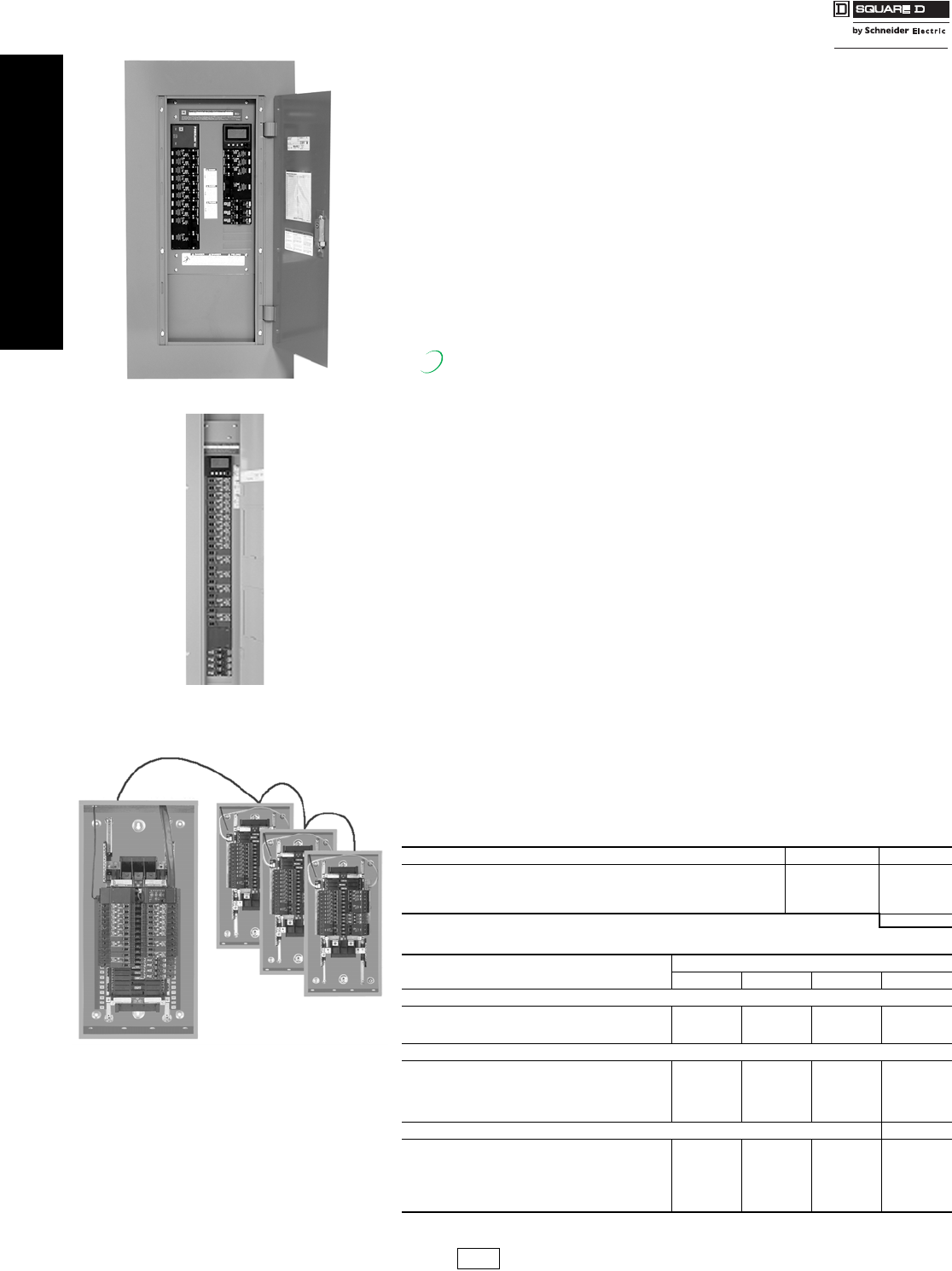

Powerlink Integrated Control Systems

Overview 5-24

Components 5-25, 5-26

Device Power Supply 5-26

Device Router 5-26

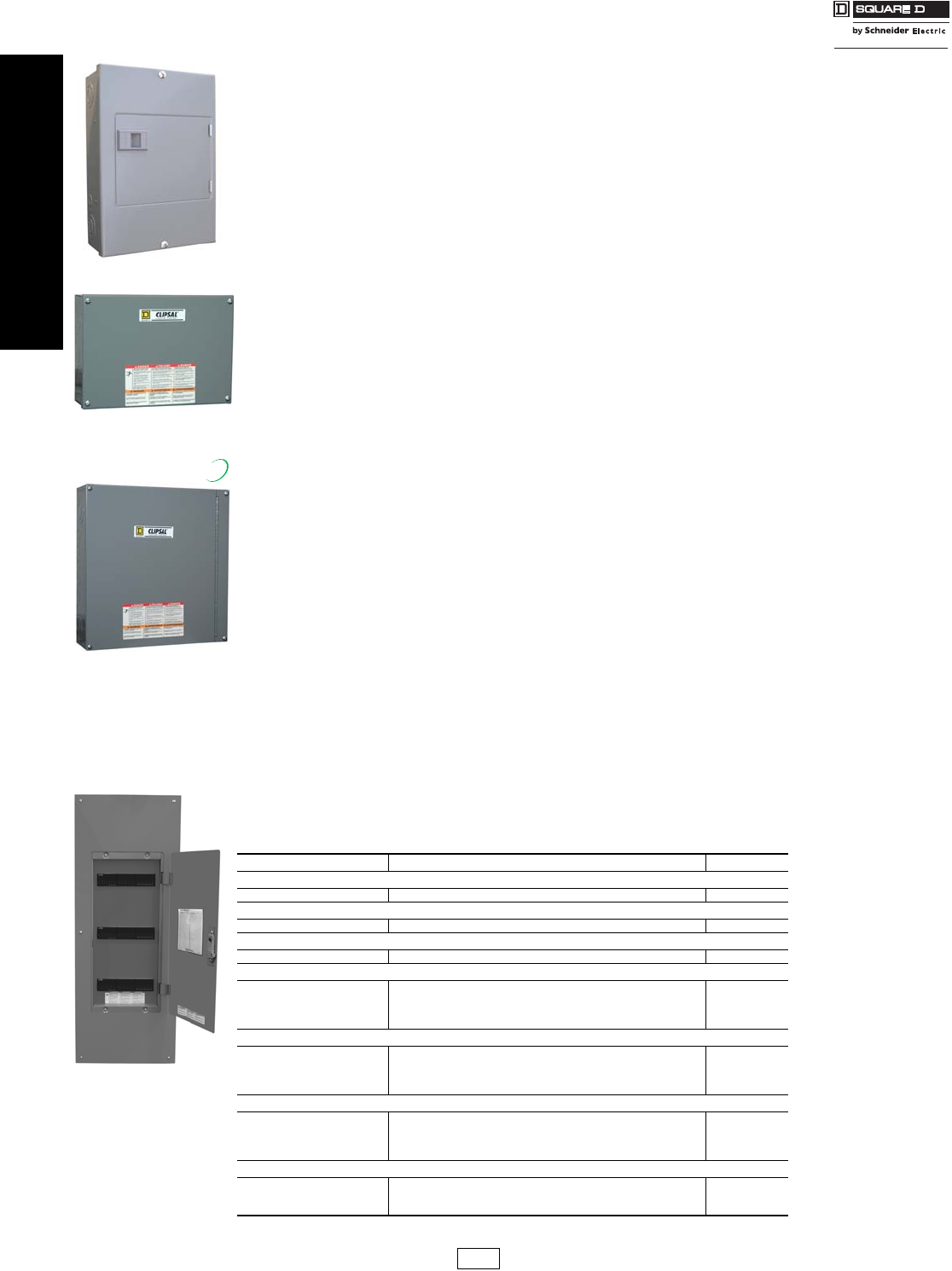

Factory Assembled Panels 5-27

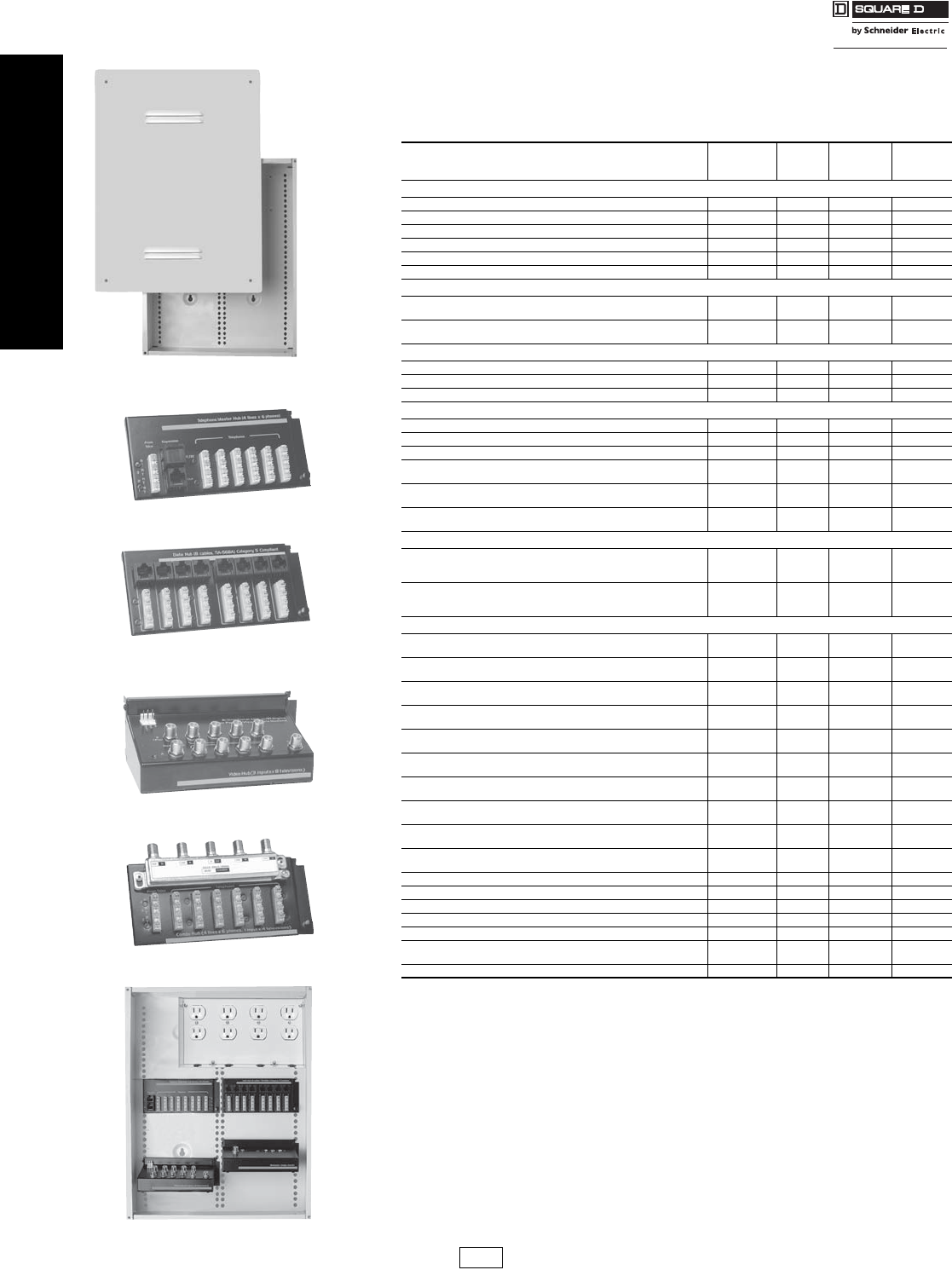

Square D Structured Wiring System

Square D Multilink Structured Wiring System 5-28

New!

Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com

5LIGHTING CONTROL AND

INTEGRATED HOME SYSTEMS

www.squaredli

htin

control.com

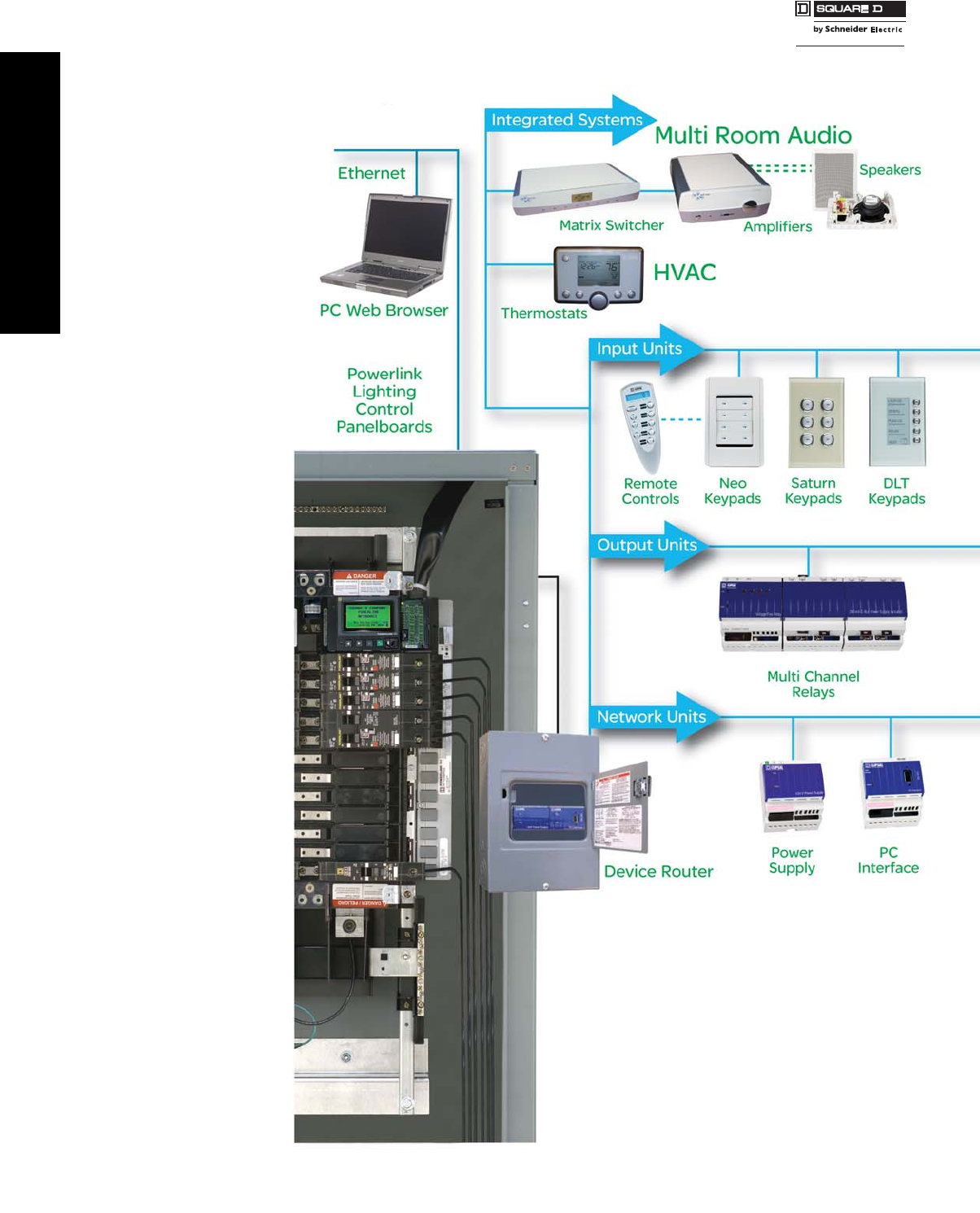

Overview Lighting Control

Square D Occupancy Sensors, Powerlink and Clipsal control systems can be used independently

or combined to provide the optimal lighting control solution for your home or business

Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com

5LIGHTING CONTROL AND

INTEGRATED HOME SYSTEMS

www.squaredli

htin

control.com

Overview Lighting Control

Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com

5LIGHTING CONTROL AND

INTEGRATED HOME SYSTEMS

www.squaredli

htin

control.com

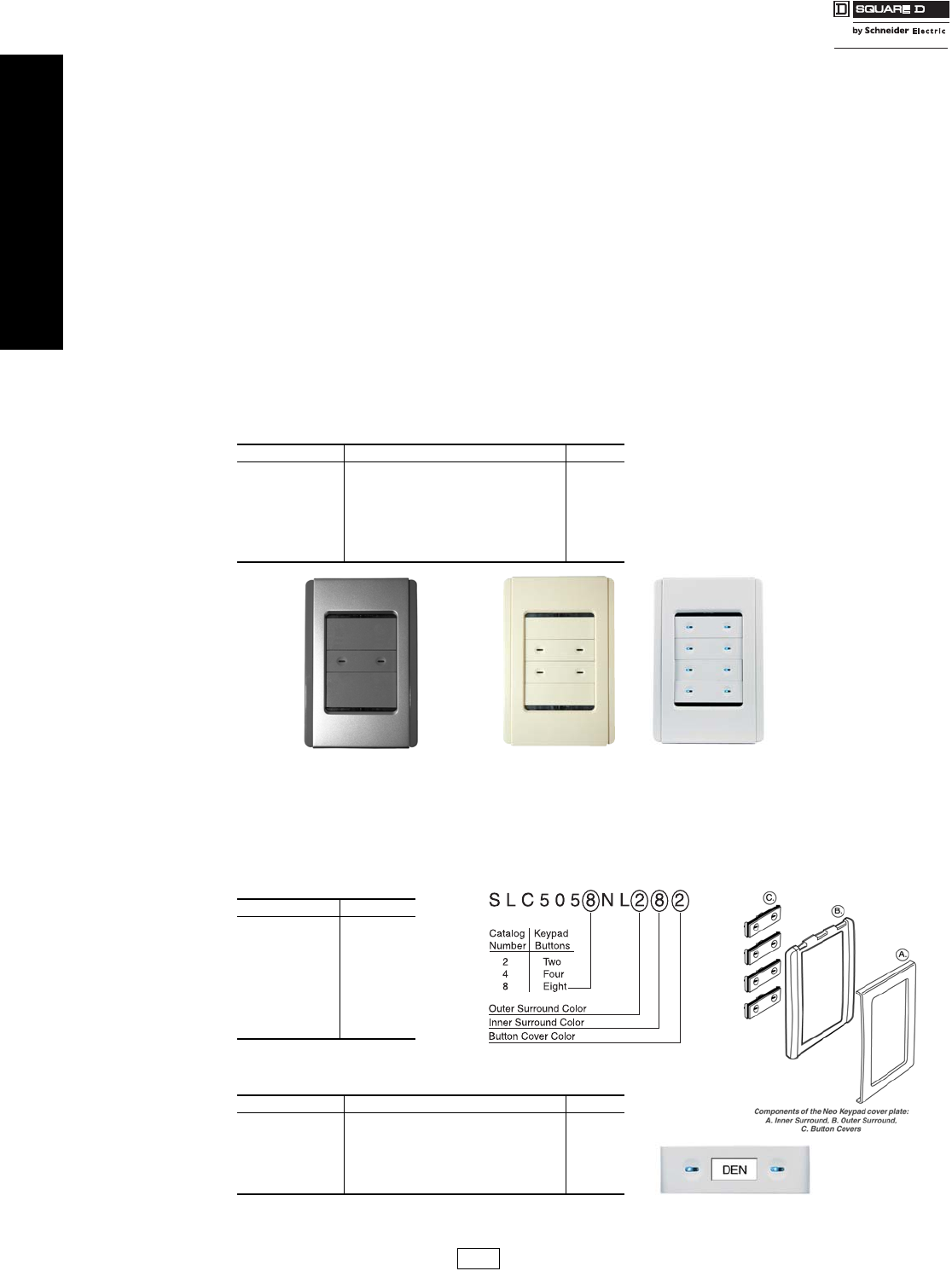

Clipsal®Lighting Control

Class 1250

Neo™ Keypads

Clipsal Neo Keypads offer localized finger-tip control of lighting and other electrical devices. With over 1,000 custom

color combinations available, these elegant keypads compliment any decor. Requires plaster mud ring or single gang

box with minimum internal width of 2.05”.

•Button configurations include multi-point switching and dimming, master ON/OFF switching, and scene settings

•Scene control includes ten group addresses per scene, four scenes per keypad

•Independent timers available for each button

•Standard built-in infrared receiver permits keypad control at a distance with an optional infrared handheld remote

•Dual-color LED windows on each button can glow in cool blue, orange, or combinations of both, indicating when a controlled device

is ON or OFF

•Auto “fallback” can dim button LEDs at a set time after the last key press

•Locator LEDs can illuminate the top and bottom of the button area in cool blue, helping a user find the keypad in dim light

•Clean-lined low-profile keypads are wall mounted without external fittings

•Optional button covers have ID windows, enabling quick identification of lighting scenes or controlled devices

•Distinctively designed multi-layer cover plate consists of button covers, an outer surround, and an inner surround

•Color schemes are easily customized and modified to suit personal taste or the décor

Standard Neo Keypads

Includes keypad, button covers, inner and outer surrounds.

White: SLC505( )NLWE

Cream: SLC505( )NLCM

Brushed Aluminum w/Slate: SLC505( )NLGB

( ) designates space for button configuration

Custom Neo Keypad Assemblies

To order custom Neo Keypad assemblies indicate the number of buttons desired on the keypad and the color of each

customizable component (inner surround, outer surround, and botton cover).

For example, in the diagram below, SLC505(8)NL(2)(8)(2) represents a Neo Keypad with eight buttons, a white (#2)

outer surround, a brushed aluminum (#8) inner surround, and white (#2) button covers.

aOnly the inner surround is available

in Brushed Aluminum and Gold.

Note: Accessories have unique catalog numbers. To specify colors for them,

(see Table 5.1) add the color number to the end of the catalog number

(Table 5.3). For example, SLC5052NR2 is the catalog number for a white button cover.

Table 5.1: Standard Neo Keypad Assemblies

Catalog No. Catalog Description $ Price

SLC5052NLGB Neo, 2 button key input brushed aluminum 460.00

SLC5052NLWE Neo, 2 button key input solid white 460.00

SLC5052NLCM Neo, 2 button key input solid cream 460.00

SLC5054NLGB Neo, 4 button key input brushed aluminum 500.00

SLC5054NLWE Neo, 4 button key input solid white 500.00

SLC5054NLCM Neo, 4 button key input solid cream 500.00

SLC5058NLGB Neo, 8 button key input brushed aluminum 560.00

SLC5058NLWE Neo, 8 button key input solid white 560.00

SLC5058NLCM Neo, 8 button key input solid cream 560.00

2 Button Keypad

Brushed Aluminum w/Slate: SLC505(2)NLGB 4 Button Keypad

Cream: SLC505(4)NLCM 8 Button Keypad

White: SLC505(8)NLWE

Table 5.2: Color Chart

Name Color Number

Slate 1

White 2

Cream 3

Soft Gray 4

Desert Sand 5

Black 6

Brown 7

Brushed Aluminuma8

Golda9

Table 5.3: Neo Keypad Accessories

Catalog No. Catalog Description $ Price

SLC5050IS( ) Neo, inner surround, (5pk) 152.00

SLC5050OS( ) Neo, outer surround, (5pk) 46.00

SLC5052NRP( ) Neo, button covers, 5052L, (5pk) 60.00

SLC5054NRP( ) Neo, button covers, 5054L, (5pk) 60.00

SLC5058NRP( ) Neo, button covers, 5058L, (5pk) 60.00

SLC5052NRI( ) Neo, button covers, with ID window, (10pk) 82.00

Neo button cover with

ID window

DE-8 Discount

Shedule

Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com

5LIGHTING CONTROL AND

INTEGRATED HOME SYSTEMS

www.squaredli

htin

control.com

Clipsal®Keypads, Touchscreens and Accessories

Class 1250

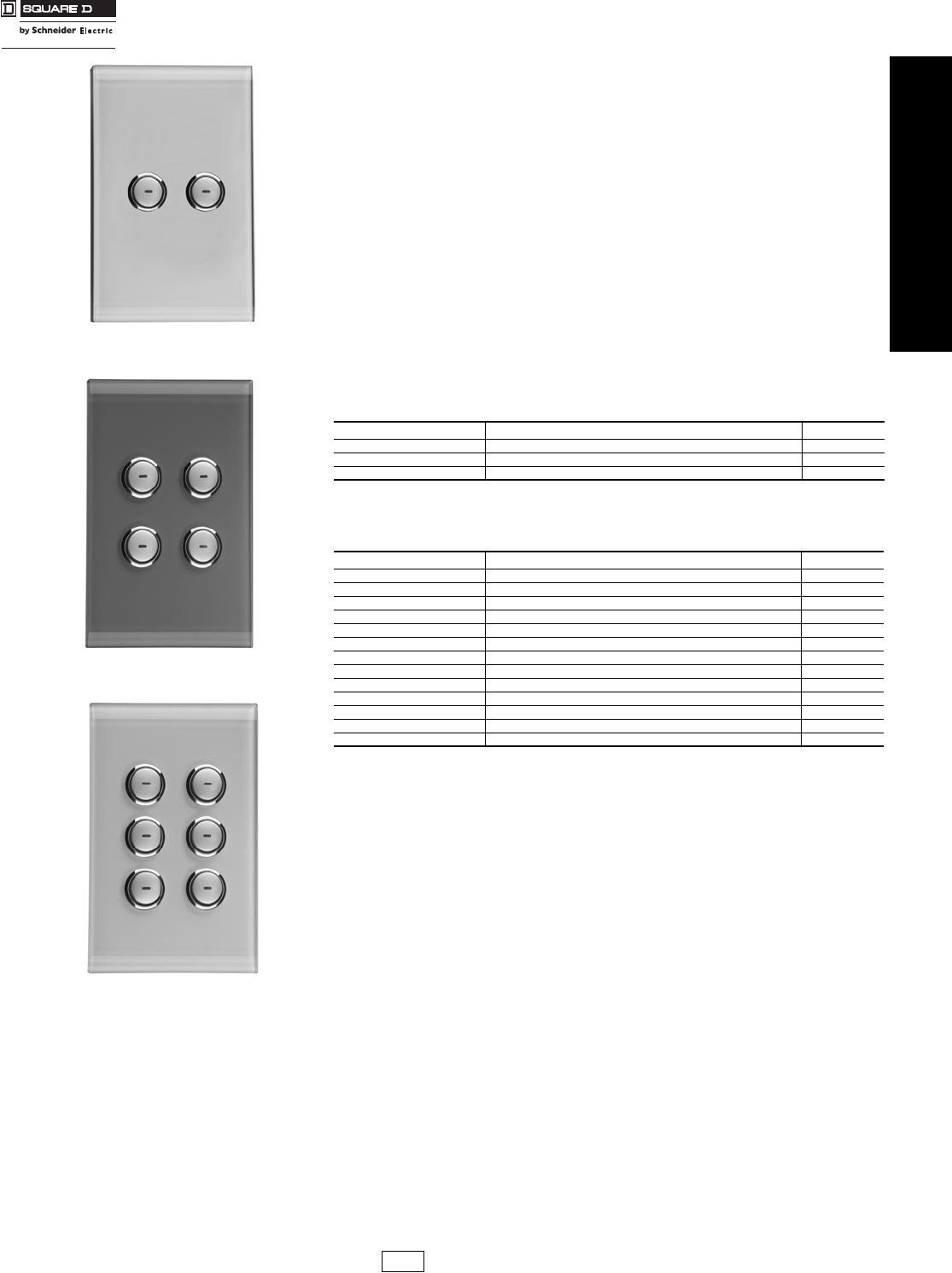

Saturn™ Keypads

Clipsal Saturn Keypads incorporate a unique glass cover plate that creates a distinctive

appearance. By virtue of the variety of button configurations available, one compact Saturn

keypad can take the place of many single operation switches, ON/OFF toggles, dimmers,

and timers. Available in two-, four-, or six-button keypads, Saturn’s modern style is

complemented by orange and blue LEDs that can instantly show the status of controlled

devices. Requires plaster mud ring or single gang box with minimum internal width of 2.05”.

•Button configurations include multi-point switching and dimming, master ON/OFF switching, and

scene settings

•Scene control includes up to ten group addresses per scene and four scenes per keypad

•Independent timers available for each button

•Dual-color LED windows on each button can glow in cool blue, orange, or combinations of both,

indicating when a controlled device is ON or OFF

•Auto “fallback” can dim button LEDs at a set time after the last button press

•Locator LED can illuminate the keypad, helping a user find it in dim light

•Clean-lined keypads are wall mounted without external fittings

•Low-profile design extends only 0.5 in. out from the wall

•Optional button covers with labels, enabling quick identification of lighting scenes or controlled

devices

Saturn Keypads

Note: Color codes are: White (WE), Black (BK), Mocha (BR), Cream (CM). The catalog number for a two-button keypad

in mocha would be SLC5082NLBR

Table 5.4: Complete Saturn Keypads

Catalog No. Catalog Description $ Price

SLC5082NL( ) Saturn Full Plate, 2 button 634.00

SLC5084NL( ) Saturn Full Plate, 4 button 668.00

SLC5086NL( ) Saturn Full Plate, 6 button 700.00

Table 5.5: Saturn Keypad Accessories

Catalog No. Catalog Description $ Price

SLC5080LC8 Saturn Button Labels 74.00

SLC5082FGF Saturn Cover Plate White, 2 button 96.00

SLC5084FGF Saturn Cover Plate White, 4 button 112.00

SLC5086FGF Saturn Cover Plate White, 6 button 128.00

SLC5082F30 Saturn Cover Plate Cream, 2 button 96.00

SLC5084F30 Saturn Cover Plate Cream, 4 button 112.00

SLC5086F30 Saturn Cover Plate Cream, 6 button 128.00

SLC5082F60 Saturn Cover Plate Black, 2 button 96.00

SLC5084F60 Saturn Cover Plate Black, 4 button 112.00

SLC5086F60 Saturn Cover Plate Black, 6 button 128.00

SLC5082F70 Saturn Cover Plate Brown, 2 button 96.00

SLC5084F70 Saturn Cover Plate Brown, 4 button 112.00

SLC5086F70 Saturn Cover Plate Brown, 6 button 128.00

Saturn 2 Button Keypad

Saturn 4 Button Keypad

Saturn 6 Button Keypad

DE-8 Discount

Schedule

Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com

www.squaredli

htin

control.com

5LIGHTING CONTROL AND

INTEGRATED HOME SYSTEMS

Clipsal®Lighting Control

Class 1250

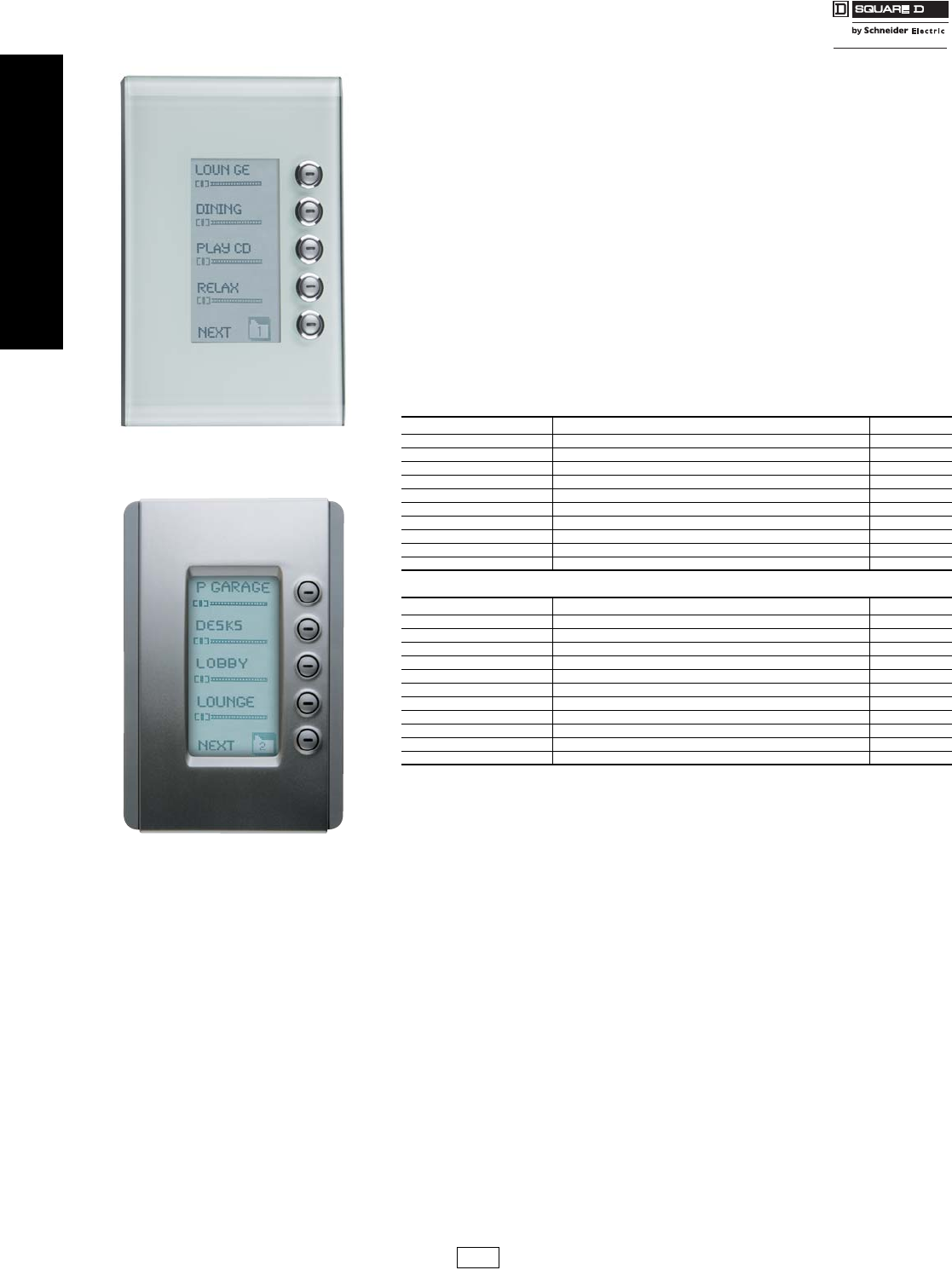

DLT Keypads

Clipsal Saturn™ Dynamic Labeling Technology™ (DLT) Keypads combine a

programmable keypad button, and easily customized labels on a backlit LCD screen that

eliminates the need for custom labels. By virtue of the variety of button configurations

available, one compact DLT keypad can take the place of many single-operation switches,

ON/OFF toggles, dimmers, and timers. The five keypad buttons incorporate blue LEDs

which complements the keypad’s sleek lines while showing the status of controlled devices.

•Button configurations include multi-point switching and dimming, master ON/OFF switching, and

scene settings

•Keypads have five physical buttons—four control buttons, and one scroll/page

button—combined with two screens of labels, for a total of eight control buttons and two scroll/page

buttons

•Scene control includes ten group addresses per scene, four scenes per keypad

•Independent timers available for each button

•Button LEDs can be used as locator lights in the dark

•64 x 128 pixel LCD screen with a white backlight

•Editable LCD labels, available for each button or control group, can display text, symbols, and

graphics.

•Dynamic graphic displays, such as bar graphs, can be enabled or disabled

•Bitmaps can be downloaded for each group address or scene

•Low-profile design, wall mounted without external fittings

Table 5.6: Saturn and Neo Style DLT Keypads

Catalog No. Catalog Description $ Price

SLC5085DLWE Saturn DLT White 966.00

SLC5085DLBK Saturn DLT Black 966.00

SLC5085DLCM Saturn DLT Cream 966.00

SLC5085DLBR Saturn DLT Mocha 966.00

SLC5055DLGB Neo DLT Brushed Aluminum 898.00

SLC5055DLWE Neo DLT White 898.00

SLC5055DLBK Neo DLT Black 898.00

SLC5055DLSG Neo DLT Soft Grey 898.00

SLC5055DLCM Neo DLT Cream 898.00

SLC5055DLDS Neo DLT Desert Sand 898.00

Table 5.7: DLT Keypad Accessories

Catalog No. Catalog Description $ Price

SLC5085DLFCM Saturn DLT cover plate, Cream 110.00

SLC5085DLFBK Saturn DLT cover plate, Black 110.00

SLC5085DLFBR Saturn DLT cover plate, Mocha 110.00

SLC5085DLFWE Saturn DLT cover plate, White 110.00

SLC5055DLFGB Neo DLT cover plate, Brushed Aluminum and Slate 12.00

SLC5055DLFBR Neo DLT cover plate, Brown 12.00

SLC5055DLFCM Neo DLT cover plate, Cream 12.00

SLC5055DLFBK Neo DLT cover plate, Black 12.00

SLC5055DLFSG Neo DLT cover plate, Soft Gray 12.00

SLC5055DLFDS Neo DLT cover plate, Desert Sand 12.00

SLC5055DLFWE Neo DLT cover plate, White 12.00

Saturn Style Keypad

Neo Style Keypad

DE-8 Discount

Schedule

Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com

5LIGHTING CONTROL AND

INTEGRATED HOME SYSTEMS

www.squaredli

htin

control.com

Clipsal®Lighting Control

Class 1250

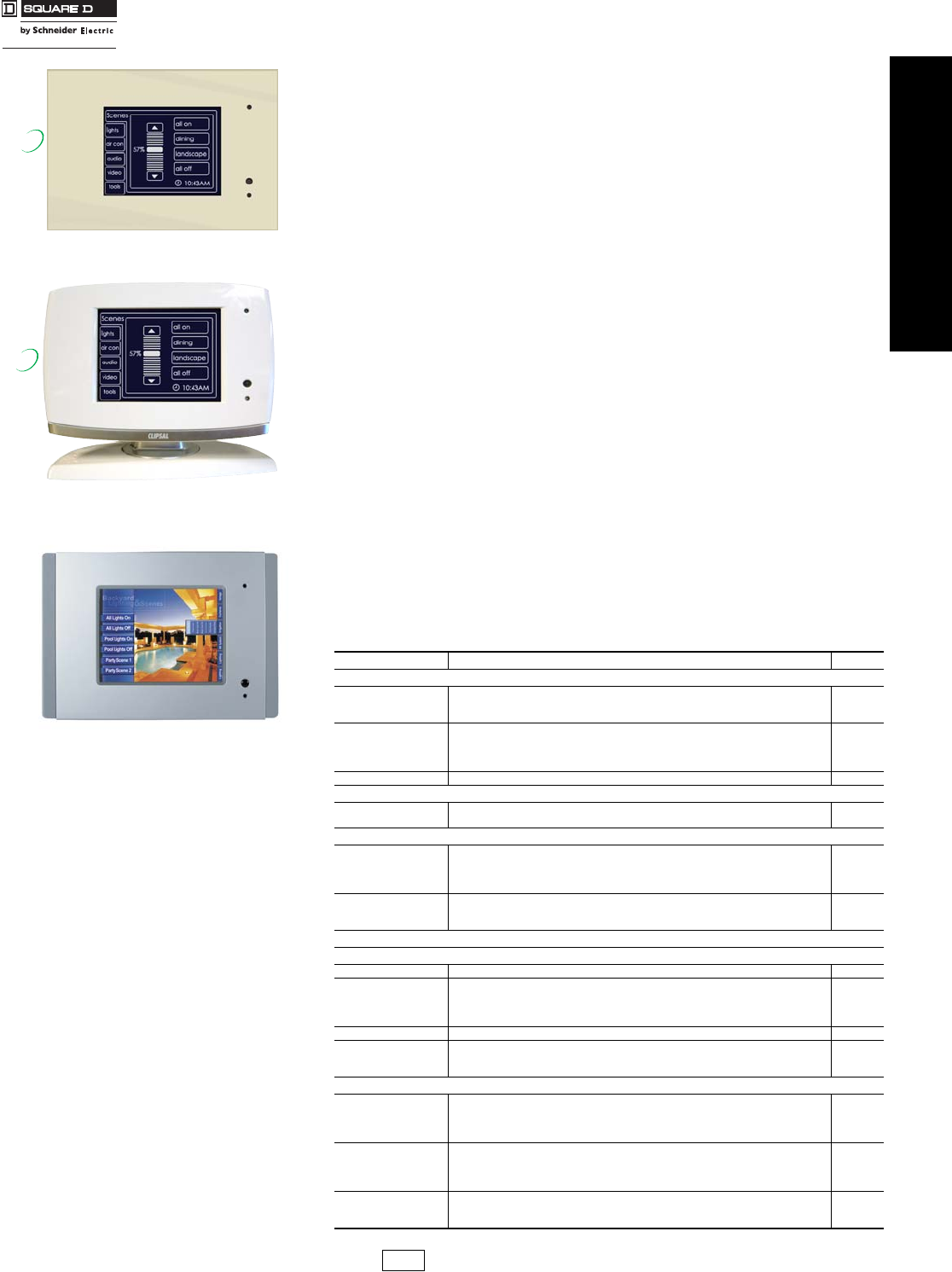

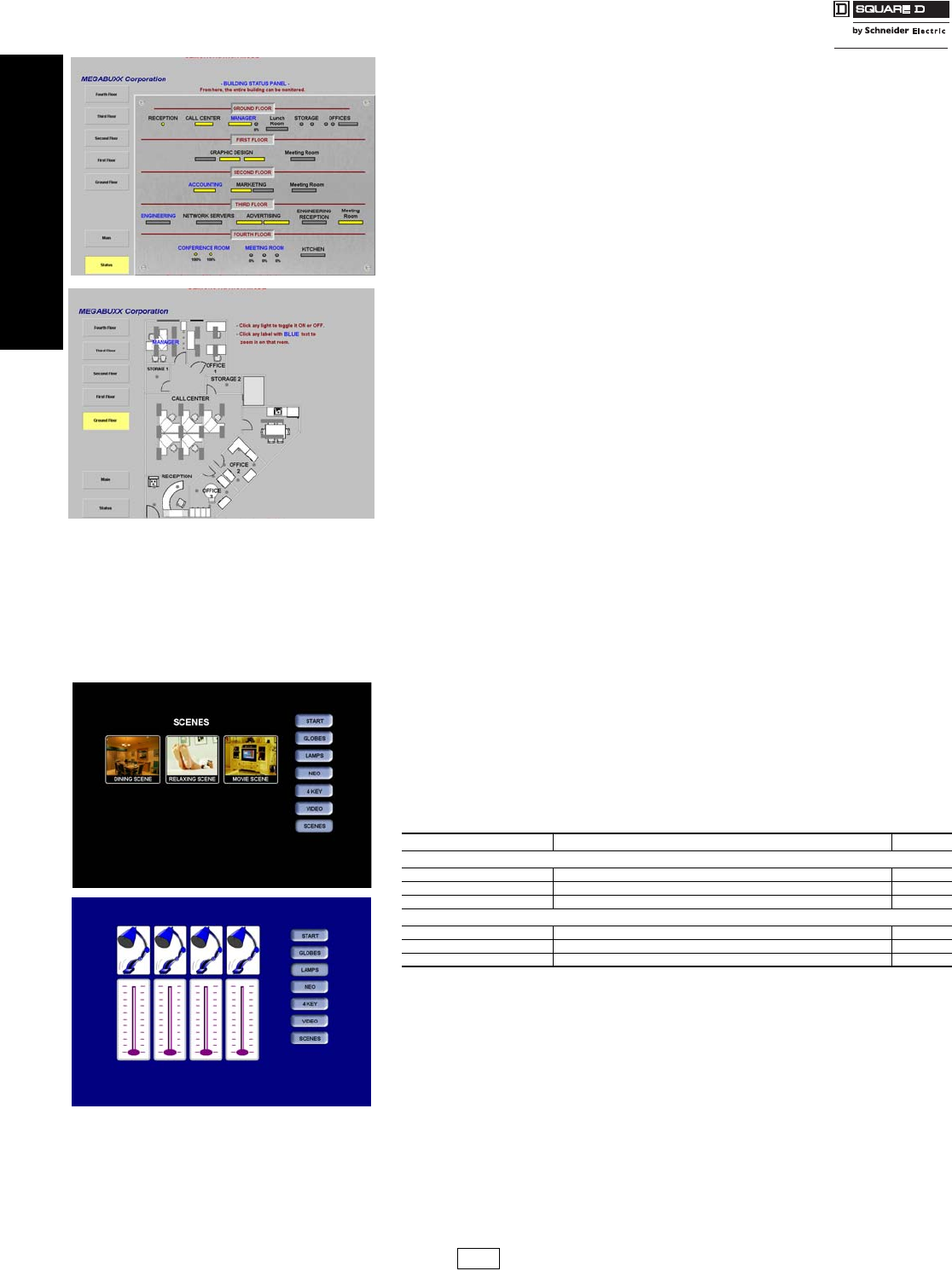

Touch screens

Clipsal Touch screens are unified wall-mounted panels for controlling lighting systems and

accessories with the touch of a finger. They come in both monochromatic (Mark II) and

color screen versions. Compact yet powerful, touch screens offer an attractive alternative

to multiple single operation switches, ON/OFF toggles, dimmers, and timers which can

clutter up even the nicest wall.

Mark II touch screen

•Control screens support multi-point switching and dimming, master ON/OFF switching, scheduling,

and scenes with multiple loads.

•Preset scenes and functions automate the task of adjusting lighting levels to different lamps and fixtures.

•RS-232 port for third party device integration

•Standard real-time and astronomical clock permits time scheduling of lighting and other tasks

•Variable dimming fade rates can be configured according to load or lighting zone

•Locator option can be configured to help users find the screen in dim light

•Clean-lined low-profile touch screen can be wall-mounted without external fittings

•Infrared receiver for remote control

Mark II touch screen (desktop model)

•Screen swivels and pivots for optimal viewing

•Control screens support multi-point switching and dimming, master ON/OFF switching, scheduling,

and scenes wtih multiple loads.

•Preset screens and functions automate the task of adjusting lighting levels to different lamps and

fixtures.

•Standard real-time and astronomical clock permits time scheduling of lighting and other tasks

•Variable dimming fade rates can be configured according to load or lighting zone

•Locator option can be configured to help users find the screen in dim light

•Infrared receiver for remote control

Color touch screen

•Built-in RJ-45 Ethernet and C-Bus network, RS-232, and USB terminals

•Touch sensitive 6.4 inch (640 x 480) color LCD panel

•Control screens support multi-point switching

•Standard real-time and astronomical clock permits time scheduling of lighting and other tasks

•Variable dimming fade rates can be configured according to load or lighting zone

•Locator option can be configured to help users find the screen in dim light

•Clean-lined low-profile touch screen can be wall-mounted without external fittings

•Infrared receiver for remote control

Table 5.8:

Catalog No. Catalog Description $ Price

Mark II Touch Screen

SLC5050CTL2WE Mark II w/Neo Style Cover Plate, White 2439.00

SLC5050CTL2GB Mark II w/Neo Style Cover Plate, Brushed Aluminum and Slate 2439.00

SLC5050CTL2BK Mark II w/Neo Style Cover Plate, Black 2439.00

SLC5080CTL2WE Mark II w/Saturn Style Cover Plate, White 2499.00

SLC5080CTL2CM Mark II w/Saturn Style Cover Plate, Cream 2499.00

SLC5080CTL2BR Mark II w/Saturn Style Cover Plate, Mocha 2499.00

SLC5080CTL2BK Mark II w/Saturn Style Cover Plate, Black 2499.00

SLC5000CTL2SS Mark II w/Stainless Steel Cover Plate 2499.00

Mark II Touch Screen Desktop Model

SLC5000CTD2WE Mark II desktop touchscreen, White 1920.00

SLC5000CTD2BK Mark II desktop touchscreen, Black 1920.00

Color Touch Screen

SLC5080CTC2WE Color touch screen w/Saturn style cover plate, White 8480.00

SLC5080CTC2BK Color touch screen w/Saturn style cover plate, Black 8480.00

SLC5080CTC2BR Color touch screen w/Saturn style cover plate, Mocha 8480.00

SLC5080CTC2CR Color touch screen w/Saturn style cover plate, Cream 8480.00

SLC5050CTCGB Color touch screen w/Neo style cover plate, Brushed Aluminum and Slate 8480.00

SLC5050CTCWE Color touch screen, w/Neo style cover plate, White 8480.00

SLC5050CTCBK Color touch screen, w/Neo style cover plate, Black 8480.00

Accessories

Mark II Accessories

SLC5000CT2WB Wall box for Mark II touch screen 68.00

SLC5080CT2FWE Replacement cover plate Saturn style, White 203.00

SLC5080CT2FCR Replacement cover plate Saturn style, Cream 203.00

SLC5080CT2FBR Replacement cover plate Saturn style, Mocha 203.00

SLC5080CT2FBK Replacement cover plate Saturn style, Black 203.00

SLC5000CT2FSS Replacement cover plate, Stainless Steel 87.00

SLC5050CT2FWE Replacement cover plate Neo style, White 16.00

SLC5050CT2FGB Replacement cover plate Neo style, Brushed Aluminum and Slate 16.00

SLC5050CT2FBK Replacement cover plate Neo style, Black 16.00

Color Touch Screen Accessories

SLC5000CTCRM Plasterboard Bracket for Color Touch Screen 90.00

SLC5000CTCNA Nail Bracket for Color Touch Screen 60.00

SLC5000CTCWB Wall box for Color Touch Screen 68.00

SLC5000CTCPS Power supply for Color Touch Screen 263.00

SLC5080CTCFBR Replacement cover plate Saturn style, Mocha 356.00

SLC5080CTCFBK Replacement cover plate Saturn style, Black 356.00

SLC5080CTCFCM Replacement cover plate Saturn style, Cream 356.00

SLC5080CTCFWE Replacement cover plate Saturn style, White 356.00

SLC5080CTCFGB Replacement cover plate Neo style, Brushed Aluminum and Slate 29.00

SLC5080CTCFWE Replacement cover plate Neo style, White 29.00

SLC5080CTCFBK Replacement cover plate Neo style, Black 29.00

Mark II touch screen

with Cream Saturn style cover plate

New!

Color touchscreen in Neo style Brushed

Aluminum and Slate

Mark II touch screen desktop model

New!

DE-8 Discount

Schedule

Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com

5LIGHTING CONTROL AND

INTEGRATED HOME SYSTEMS

www.squaredli

htin

control.com

Clipsal®Multi Room Audio

Class 1250

Clipsal® Multi Room Audio

Extend the capabilities of a Clipsal system by incorporating award winning Clipsal multi-room audio into your next

project. Multi-room audio augments a Clipsal lighting control system, providing high quality sound throughout a home or

business.

Clipsal multi-room audio readily integrates with other Clipsal controls, providing a single source for audio and lighting

from a single keypad or touch screen. Sound is distributed throughout the home through the Matrix Switcher and routed

to local amplifiers.

A typical Clipsal Multi Room Audio system distributes up to four analog audio inputs, five if an Audio Distribution Unit is

used, and one optical input. These inputs are distributed up to 8 zones, each consisting of one or more amplifier.

Additionally, each amplifier is capable of accepting a local analog audio input, providing up to seven stereo audio

channels for each amplifier.

Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com

5LIGHTING CONTROL AND

INTEGRATED HOME SYSTEMS

www.squaredli

htin

control.com

Clipsal®Multi Room Audio

Class 1250

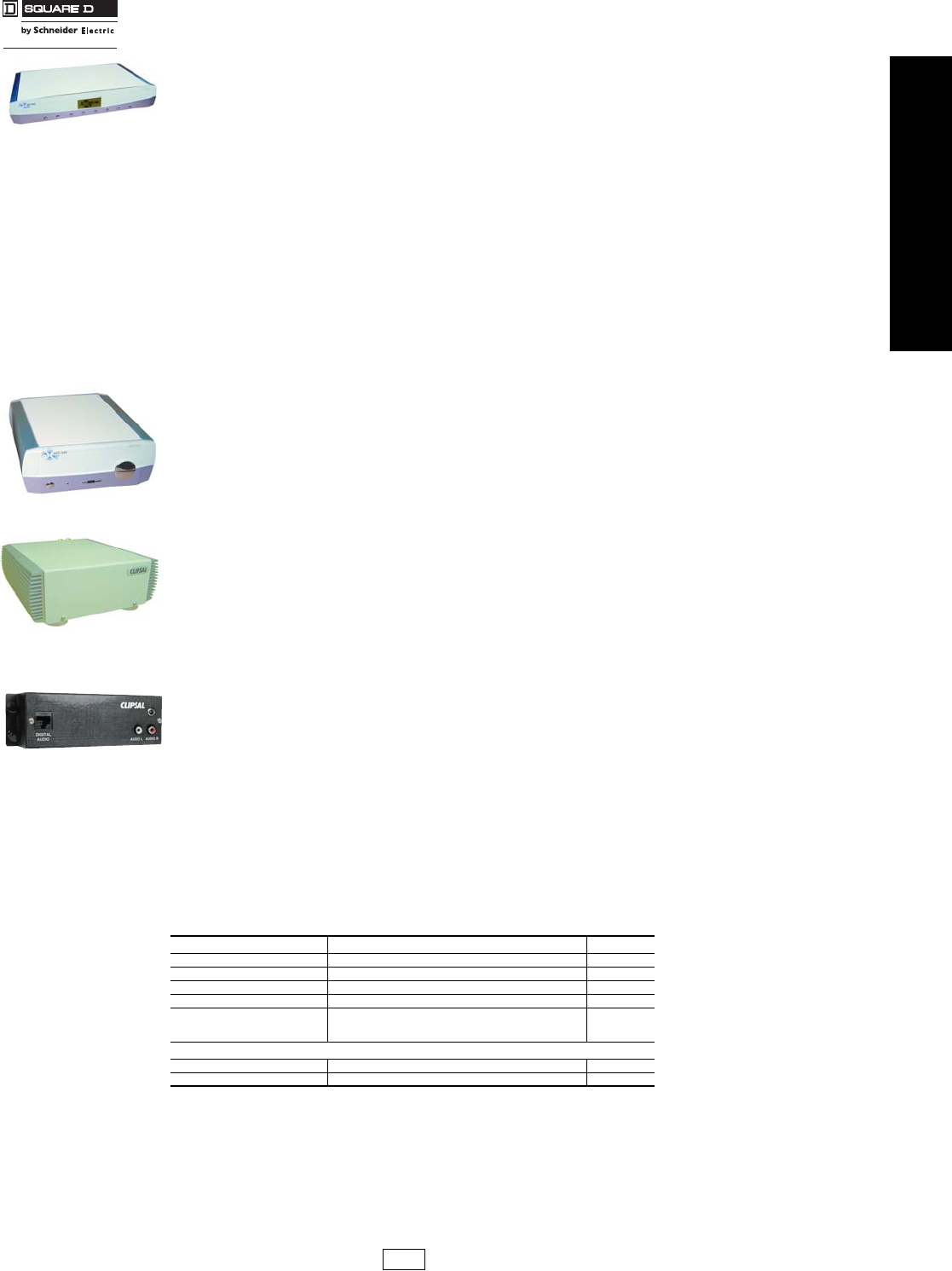

Matrix Switcher

The Clipsal Audio Matrix Switcher provides a revolutionary means for distributing audio throughout a home. This Matrix

Switcher provides eight zones of audio output from six source inputs (four analog, one optical and one digital). Audio

sources can be switched via the front panel or by any Clipsal input device such as touch screen keypads.

The matrix switcher is ideal for multi-room audio environments. Keypads and other Clipsal devices connect to the

matrix switcher with CAT-5 modular jacks. Outputs to remote and desktop amplifiers are made with low voltage wiring.

In addition to the six source inputs, two mono broadcast annunciation inputs are provided for connection to intercoms

or other systems. Broadcast annunciation input can be given priority over other source inputs and feature fully

adjustment volume and over-stepping mute features.

•Fully digital noise-free audio reproduction

•Stereo analog inputs (4 X RCA pairs)

•Two mono broadcast annunciation inputs

•Voice annunciation of channel changes (configurable)

•One fiber optic SPDIF input (digital audio compatible)

•One custom digital input for cascading on multiple matrix switchers

•Eight stereo zone outputs (45m of ea. star wired output)

•Cat-5 cable jack for connection to C-Bus™ network

•Reticulated IR support

•User interface LCD display and switches

•Integral C-Bus PC serial interface for connection to personal computers

Remote Amplifiers

Clipsal Multi Room Amplifiers provide efficient, high fidelity audio to individual rooms. Available in either desktop or

remote mount versions, these amplifiers are specifically designed to operate on the C-Bus network as an extension of

a lighting control system, without third party gateways or custom integration. This means the ability to control amplifiers

with the same keypad or touch screen used to control lighting levels.

When combined with the Clipsal Matrix Switcher, these amplifiers deliver excellent stereo sound. Connections are

provided for up to two sets of 8 ohm speakers. Both desktop and remote amplifiers provide a local input connection for

attaching to CD or mp3 players, etc. In addition, the desktop amplifier will accept remote commands via its infrared

receiver. Infrared remote included.

•10 Watt digital efficient stereo amplifier, 25 Watts when connected to local power supply (optional)

•Super quiet design

•On board 8 ohm loudspeaker connections

•Local source input - RCA jack

•C-Bus connection (connects with CAT-5 cable)

•Volume control (desktop model)

•On-board IR receiver (desktop model)

•Stereo headphone connection (desktop model)

•Infrared remote included (desktop model only)

Audio Distribution Unit

The Clipsal Audio Distribution Unit is an optional device that can be used in conjunction with the C-Bus™ Multi Room

Audio System to further enhance Clipsal’s C-Bus enabled audio product family.

The Clipsal Audio Distribution Unit distributes a single digitized stereo audio input source to multiple locations via

amplifiers wired in a parallel format. Functions such as Volume, Bass, Treble and Balance can be adjusted from a

C-Bus input device at any of the audio output locations. The Clipsal Audio Distribution Unit converts a single analog

stereo audio input to a digital audio output. That output can then be connected to the Matrix Switcher as an additional

input or to the Clipsal Desktop or Remote Amplifier as a stand-alone configuration.

•Distributes a single stereo audio source to C-Bus Audio Amplifiers via a digitized signal over Cat-5 cable

•Does not require any C-Bus programming (hardware only)

•One stereo analog audio source input (2 X RCA)

•One digital audio output

•Output can be looped between C-Bus Audio Amplifiers

•IR emitter port

Table 5.9: Clipsal Multi Room Audio Components

Catalog No. Catalog Description $ Price

SLC560884T Matrix Switcher 4274.10

SLC560125D Desktop Amplifier 1908.15

SLC560125R Remote Amplifier 1609.79

SLC560011 Audio Distribution Unit 790.41

SLC5600P24500S Amp External Power Supply (only needed if Audio

distribution unit is used to provide an additional digital input

for the Matrix Switcher) 53.22

Accessories

SLC5600P243750T Audio Amplifier Power Supply 445.93

SLC560125MB Remote Amplifier Mounting Bracket 42.24

Matrix Switcher

Desktop Amplifier

Audio Distribution Unit

Remote Amplifier

DE-8 Discount

Schedule

Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com

5LIGHTING CONTROL AND

INTEGRATED HOME SYSTEMS

www.squaredli

htin

control.com

Clipsal®Multi Room Audio

Class 1250

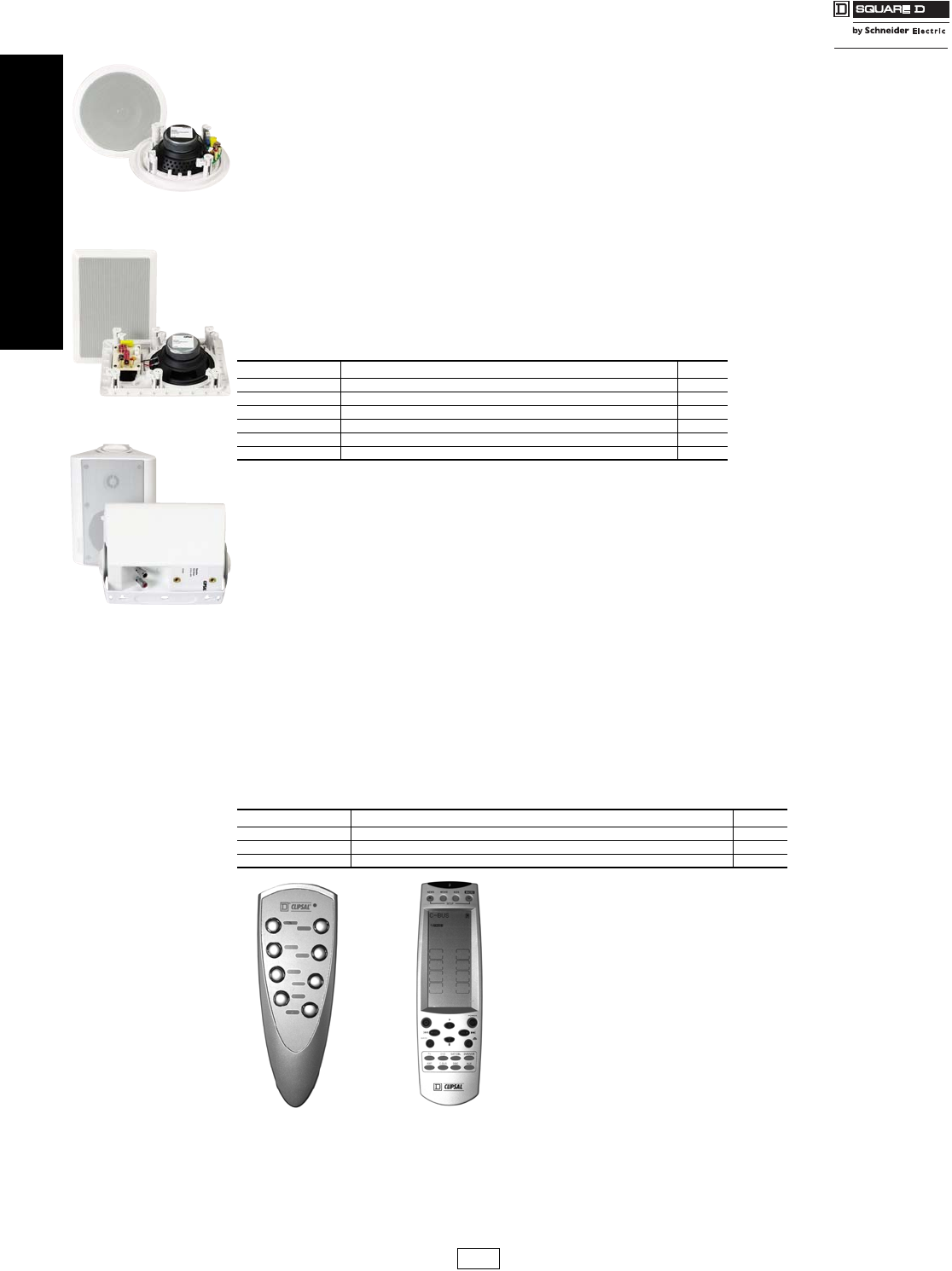

Audio Speakers

Clipsal Audio Speakers are available as indoor or outdoor models and are designed to be used with home theater,

multi-room, and outdoor audio applications.

The indoor speakers come in wall or ceiling mount versions that are installed with the front of the speaker flush with the

mounting surface.

The indoor/outdoor speakers are available in black or white and can be placed on a shelf or hung on a surface by using

the included bracket.

•Flush-mount, shelf-mount, and surface-mount models

•Indoor and outdoor models

•High-impact plastic components and powder coated metal grills produce a long-lasting unit suitable for indoor and outdoor use

•8 ohm impedance

•Available with Kevlar® (indoor units only) or polypropylene drivers (indoor and outdoor units) for high-quality sound in all

applications

•All models are off the floor, saving floor space

•Indoor/Outdoor Speakers have a pre-installed, removable mounting bracket

•Indoor/Outdoor Speakers can be placed on a shelf or hung from a surface by their bracket (included)

•Tracing/painting template included

Hand Held Remote Controls

Clipsal remote controls are designed for use with Clipsal keypads, multi-sensors, and touch screens. available in both

four and eight button versions, these remotes have a range up to 50 feet (line of sight).

The universal remote control unit allows a single remote control unit to replace various other remotes including VCRs,

CD players, DVRs, and TVs. Up to sixteen remote control codes are supported.

Table 5.10: Multi-Room Audio Speakers

Catalog No. Catalog Description $ Price

SLC5600IWP In-Wall Polypropylene speakers 429.58

SLC5600IWK In-Wall Kevlar speakers 560.00

SLC5600ICP In-Ceiling Polypropylene speakers 408.53

SLC5600ICK In-Ceiling Kevlar speakers 521.09

SLC5600ODPBK Outdoor Black speakers 468.30

SLC5600ODPWE Outdoor White speakers 468.30

Table 5.11: Handheld Remote Controls

Catalog No. Catalog Description $ Price

SLC5084TX Handheld infrared remote 4 button 200.00

SLC5088TX Handheld infrared remote 8 button 400.00

SLC5030URC Handheld universal remote control 440.00

Indoor Ceiling Mount

Speakers

Indoor Wall Mount

Speakers

Indoor/Outdoor Speakers

8 button

remote control

Universal

remote control

DE-8 Discount

Schedule

Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com

5LIGHTING CONTROL AND

INTEGRATED HOME SYSTEMS

www.squaredli

htin

control.com

Clipsal®Thermostats

Class 1250

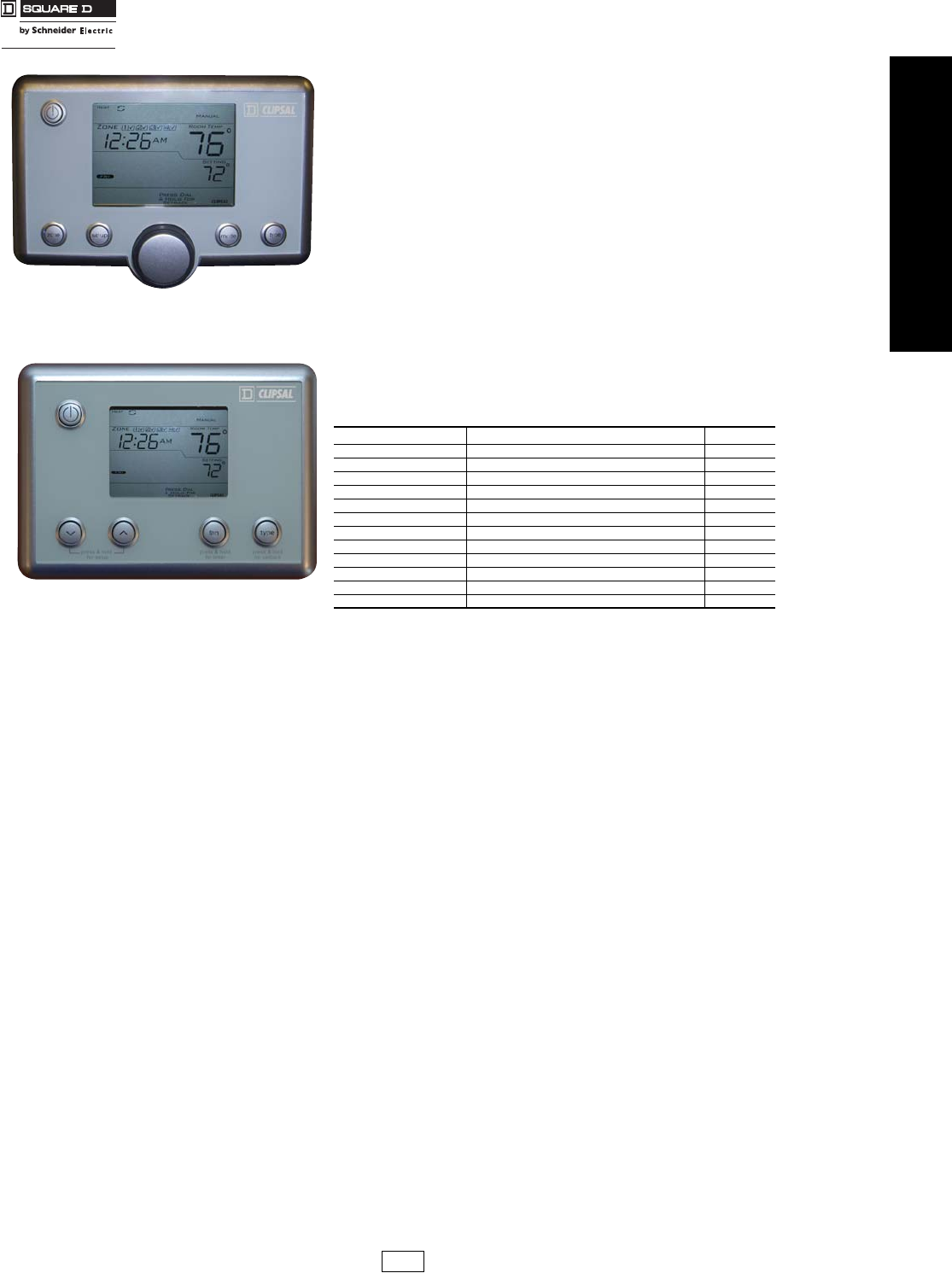

Single and 4 Zone Network Thermostats

Clipsal® Thermostats are used to regulate the air temperature of zones by controlling

heating-ventilation-air conditioning (HVAC) equipment. The air temperature is monitored by

the unit’s temperature sensor or optionally via an external C-Bus™ temperature sensor.

Clipsal single and programmable 4 Zone Thermostats may operate as stand alone devices,

or be controlled via other C-Bus devices such as wall switches or touch screens.

Programmable 4 Zone Thermostats can schedule up to four set points during a day, and

unique schedules can be programmed for each day of the week.

Both models include setback mode, (saves power by using a wider acceptable temperature

range within which heating or cooling is not performed) and temperature guard, (ensures

the temperature is maintained within a specified temperature range).

•Easy to read, large LCD display

•Control by keypads and other devices on the C-Bus network

•Available in black, white and stainless steel fascias

•Setback mode

•Temperature guard mode

•Internal Timer

•Daily schedule set points (4 Zone model)

•Display temperature in Celsius or Fahrenheit

•RWG interface (relay models only)

•Easily configured by using the Clipsal Toolkit software program

Table 5.12:

Catalog No. Catalog Description $ Price

SLC5070THBWE Single Zone, White, no relay 649.00

SLC5070THPWE 4 Zone, White, no relay 799.00

SLC5070THBBK Single Zone, Black, no relay 649.00

SLC5070THPBK 4 Zone, Black, no relay 799.00

SLC5070THBSS Single Zone, Stainless, no relay 649.00

SLC5070THPSS 4 Zone, Stainless, no relay 799.00

SLC5070THBRWE Single Zone w/relay, White 724.00

SLC5070THPRWE 4 Zone w/relay, White 899.00

SLC5070THBRBK Single Zone w/relay, Black 724.00

SLC5070THPRBK 4 Zone w/relay, Black 899.00

SLC5070THBRSS Single Zone w/relay, Stainless 724.00

SLC5070THPRSS 4 Zone w/relay, Stainless 899.00

4 Zone Thermostat

Single Zone Thermostat

DE-8 Discount

Schedule

Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com

www.squaredli

htin

control.com

5LIGHTING CONTROL AND

INTEGRATED HOME SYSTEMS

Clipsal®Sensors

Class 1250

Light Level Sensor

The Clipsal Light-Level Sensor measures ambient light levels and automatically issues ON,

OFF, or ramp commands over a C-Bus™ network. The light-level sensor can control relays,

dimmers, or remotely operated circuit breakers, changing their status according to pre-set

ambient lighting levels. The Clipsal light-level sensor has a dynamic range between 5-150

foot candles, and compensates for noise and rapid light intensity fluctuations.

Outdoor Light Level Sensor

Clipsal Outdoor Light-Level Sensor measures ambient light levels and automatically issues

ON/OFF or ramp commands over a C-Bus network to maintain outdoor lighting levels.

Primarily designed for outdoor use, this light-level sensor is also suitable for indoor setting

in which a water resistant casing is desirable.

The light-level sensor can control up to two C-Bus group addresses: one address controls

ON/OFF switching of a lamp circuit according to a pre-determined ambient light level, while

the other is used to continuously regulate the light-level output of any number of lampsl

The target light level, the margin, and other sensor options are easily configured by using

the C-Bus Toolkit software.

•Outdoor use, wall- and ceiling-mounted low-profile unit

•Can maintain a constant illumination level of 5-150 footcandles

•Adjustable lumin setpoint

•Control of up two C-Bus group addresses

•Sensors receive data and power over a single C-Bus twisted-pair cable, so they do not require

power packs or line-voltage connections

•180° field of view

Occupancy Sensors

Clipsal occupancy sensors are available for both indoor and outdoor applications. All

Clipsal sensors incorporate reliable passive infrared detection (PIR) circuits for occupancy

detection along with integral light level sensors to prevent switching of lights if sufficient

ambient light is present. Sensors feature programmable adjustments for sensitivity and

time delay, walk test LED for commissioning and optical bandpass filtering with dual

element detectors to minimize false triggering.

•90° Indoor sensors are intended for wall or ceiling mounting. These sensors have a continuous

detection field of 400 square feet and a 90° field of view.

•360° Indoor sensors are intended for flush mounting in drop ceilings. They have a minor motion

detection field of 800 square feet making them ideal for use in offices, copier rooms, closets, and

restrooms where it can be mounted in the center of the detection area.

•360° Multi-Sensors combine a passive infrared receiver (PIR) for occupancy sensing, a light-level

sensor, and an infrared remote receiver into a small, highly versatile unit. The multi-sensor’s 2.8 inch

face diameter makes it unobtrusive and ideally suited for flush mounting on the ceiling with effective

IR coverage up to 800 square feet. The built-in IR receiver accepts commands from an optional

handheld remote controller, making the sensor ideal for classrooms and conference room areas.

•Outdoor PIR Motion Sensor combines reliable thermal-radiation-based control of lighting with

rugged construction suitable for outdoor requirements. The unit’s advanced circuits and flat multi-

segmented lens provide coverage of up to 3000 square feet in a 110° field of view.

Table 5.13: Clipsal Light Level Sensor

Catalog No. Catalog Description $ Price

SLC5031PE Light level sensor, 0 - 150fc, indoor 208.00

SLC5031PEWP Light Level Sensor, 5 - 150fc, Outdoor 278.00

Table 5.14: Clipsal Occupancy Sensors

Catalog No. Catalog Description $ Price

SLC5750WPL Occupancy sensor, multi, outdoor, 110 deg 283.00

SLC5751L Occupancy sensor, PIR, indoor, 90 deg 227.00

SLC5753L Occupancy sensor, PIR, indoor, 360 deg 213.00

SLC5753PEIRL Occupancy sensor, multi, indoor, 360 deg 268.00

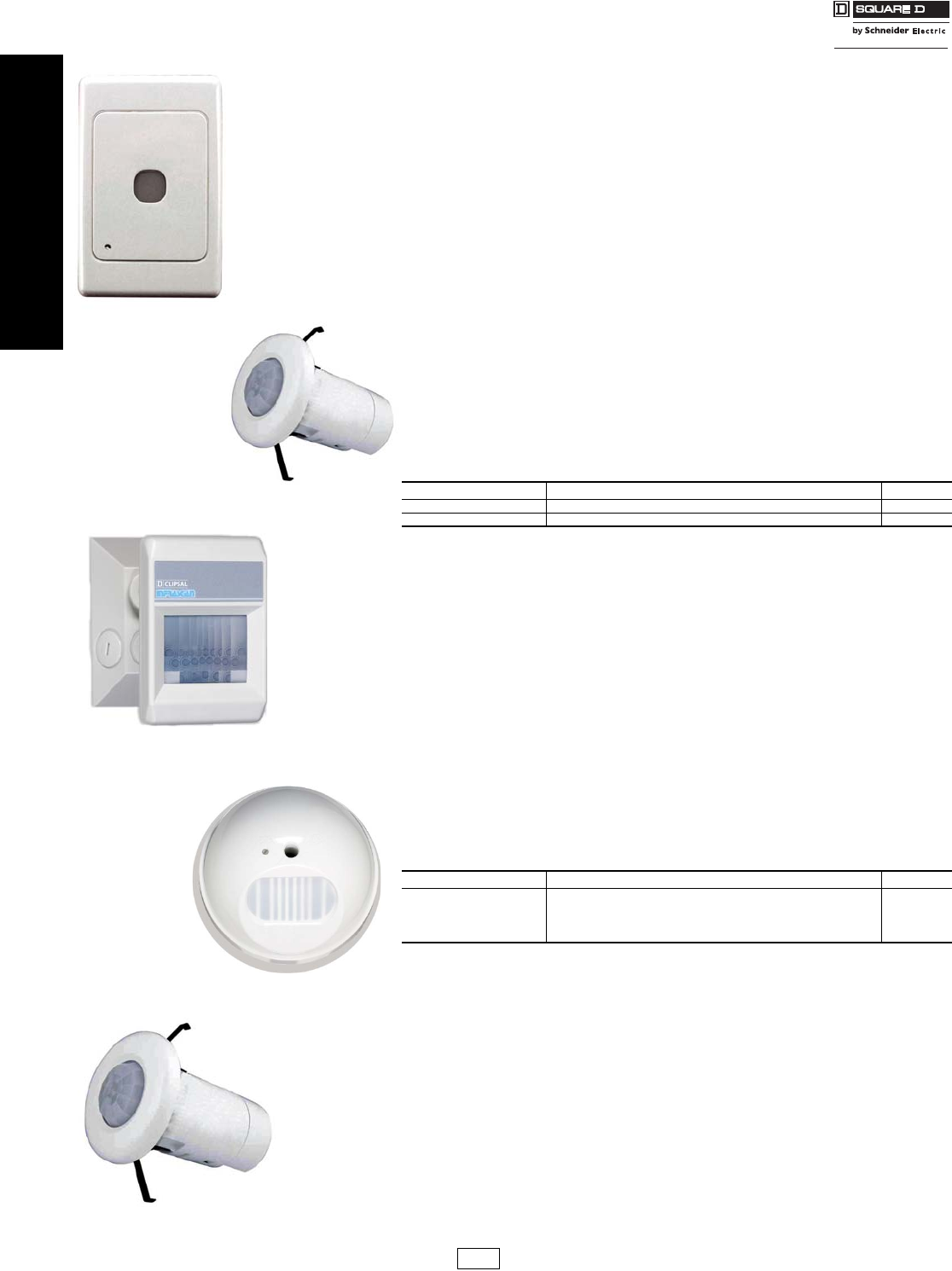

Light Level Sensor

360o Indoor PIR Sensor

Outdoor PIR Sensor

90o Indoor PIR Sensor

360o PIR Multi Sensor

DE-8 Discount

Schedule

Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com

5LIGHTING CONTROL AND

INTEGRATED HOME SYSTEMS

www.squaredli

htin

control.com

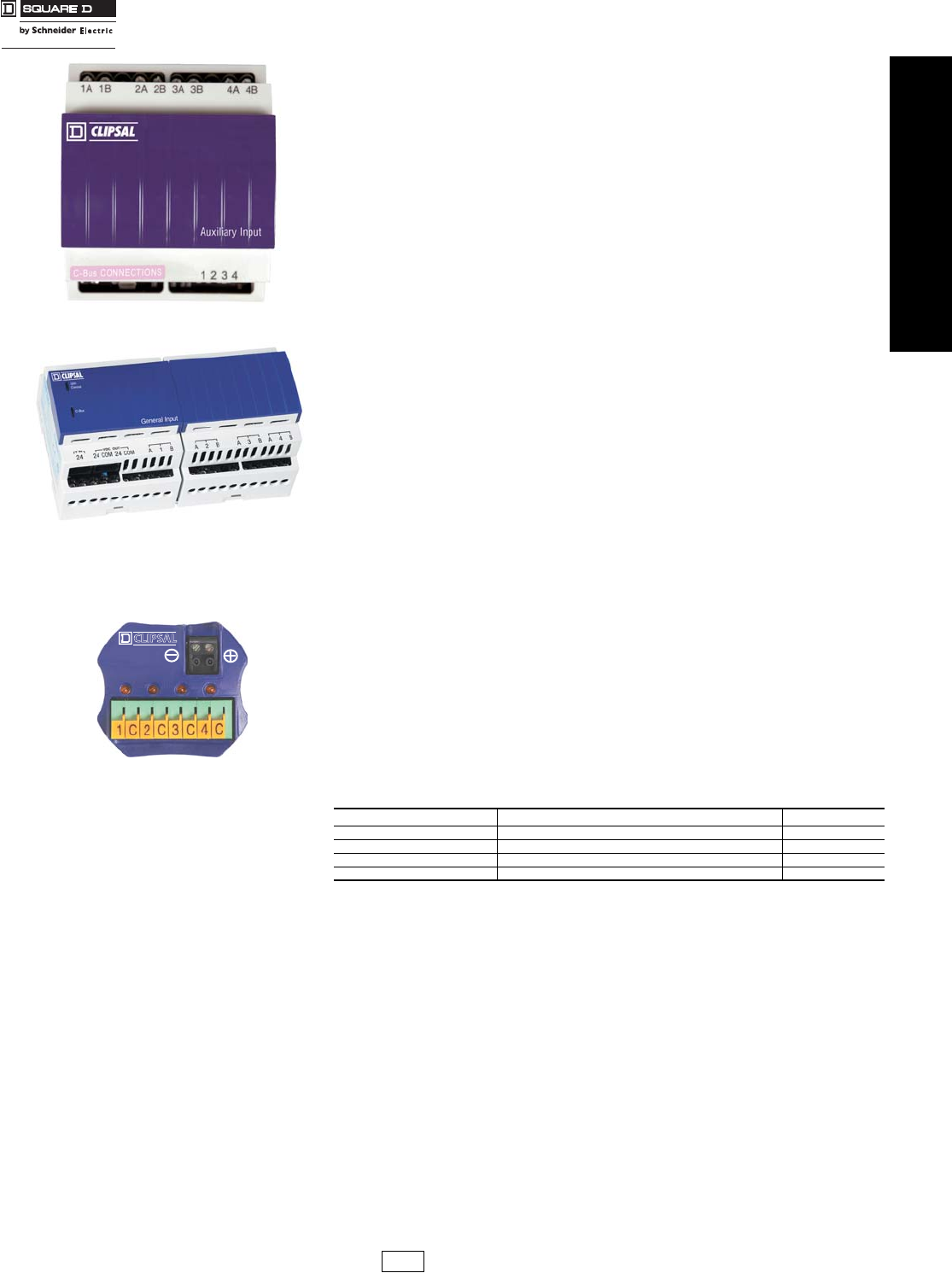

Clipsal®Input Units

Class 1250

Auxiliary Input Unit

Clipsal Four-Channel Auxiliary Input Units increase the versatility of the C-Bus network by

facilitating remote access with any dry-contact switch mechanism. DIN-rail mounted for

quick installation, the auxiliary unit can be configured with standard C-Bus control functions

such as remote scene triggering, ON/OFF, toggle, dimmer, or timer.

•Provides four isolated inputs for external voltage-free mechanical switches

•Control options include remote scene triggering, ON/OFF, toggle, dimmer, or timer operations

•LEDs indicate operational status of each channel

•Standard built-in C-Bus network connectors: (2) RJ-45

•Non-volatile memory stores operating status for recovery from a power outage

•DIN style construction 4M wide: 3.4”(L) x 2.8”(W) x 2.6”(H)

•Compatible with all Clipsal devices and the Square D Powerlink™ NF3000G3C controller

General Input Unit

Four-Channel General Input Units measure TTL digital and real-world analog quantities and

generate messages about the measurements to the C-Bus network. By acting as an

interface with Various external sensors, the general input unit enables integration of the

C-Bus network with a variety of system types, such as those for HVAC and for power

monitoring. Configuration options include selectable input types, eight adjustable decision

thresholds per channel, definable actions, selectable filtering, broadcast rates, and a

separate hysteresis value per channel.

•Measures TTL digital quantities including voltage, current, or resistance from external sensors such

as light level, pressure, and temperature

•Four channels of input, each with an adjustable hysteresis value, eight decision thresholds, and a

software-selectable input value transformation in the form y =ax +b

•Input channels are compatible with a range of third-party sensors

•Control functions include load switching, dimming, trigger applications, enable control applications,

and measurement applications

•Includes 120V/24Vdc power pack

•Dimensions: 5.67 in. (144mm) wide x 2.60 in. (66mm) deep x 3.35 in. (85mm) tall

•Compatible with all Clipsal devices and the Square D Powerlink NF3000G3C controller

Bus Couplers

Bus Couplers provide an interface between dry-contact mechanical switches and the C-Bus

network. Available in two-and four-channel models, the bus coupler is small enough to be

used in restricted spaces such as wall boxes with existing switches. Configuration options

include standard control functions such as ON/OFF, toggle, dimmers, and timers.

•Provides two or four non-isolated inputs for external voltage-free mechanical switches. Two-channel

units feature independent remote LED outputs

•Two-way removable terminal block for the C-Bus connection

•Receives data and power over a network, so it does not require power packs or line voltage

connections

•Scene capabilities

•2.2”(L) x 1.9”(W) x 0.7”(H)

•Compatible with all Clipsal devices and the Square D Powerlink NF3000G3C controller

Table 5.15: Input Units

Catalog No. Catalog Description $ Price

SLCLE5504AUX 4 Channel auxiliary input unit 544.00

SLCE5504TGI 4 Channel general input unit 1194.00

SLC5102BCLEDL 2 Channel bus coupler 212.00

SLC5104BCL 4 Channel bus coupler 243.00

Four-Channel Auxiliary Input unit

General Input unit

5104BCL

Bus Coupler

124

CLIPSAL

Four-Channel Bus Coupler

DE-8 Discount

Schedule

Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com

www.squaredli

htin

control.com

5LIGHTING CONTROL AND

INTEGRATED HOME SYSTEMS

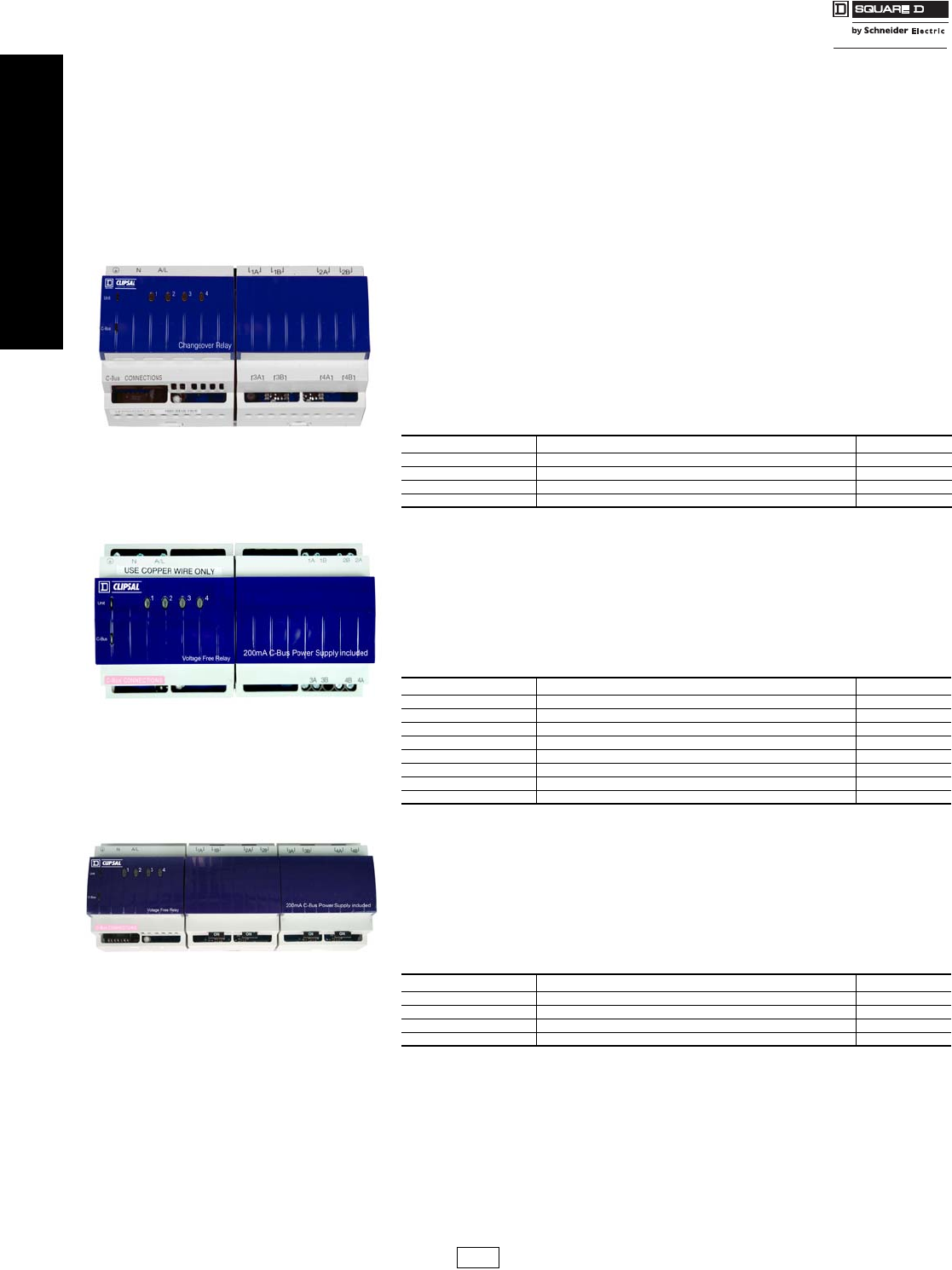

Clipsal®Relay Units

Class 1250

Relays

Clipsal Relay Units are intended for switching resistive, inductive, fluorescent and

incandescent low-voltage loads. Relay units are designed to be mounted in suitable DIN

style enclosures. Relay units feature:

•Local toggle buttons to allow individual channels to be toggled

•Remote ON and OFF facilities permitting all channels to be turned ON or OFF without C-Bus

Network communications

•Two (2) Convenient built-in C-Bus™ network connectors (RJ-45)

•LED Indicators to show the status of the network and the unit

•Units available both with and without a 200ma power supply on-board.

•Compatible with all Clipsal devices and the Square D Powerlink®

NF3000G3C controller

Changeover Relay

Clipsal 2A Changeover Relays are designed to operate three-speed motors and two-way

motor control devices. Some of their most common applications include operating

motorized blinds, shutters, curtains and skylights (open/closed) where they provide a much

simpler alternative to traditional and obtrusive relay interlocking systems.

•Four (4) isolated independently operating relay channels

•120Vac and 277Vac units

•2A motor rating

•Dimensions: 5.67 in. (144mm) wide x 2.60 in. (66mm) deep x 3.35 in. (85mm) tall

10 Amp Relay

Clipsal 10A Relays feature a zero crossing magnetically latching relay designed for

switching the harsh electrical loads associated with today’s high efficiency lighting systems.

•Four (4) or twelve (12) independently operating voltage free relay contacts

•120Vac and 277Vac units

•10A rating

•Dimensions: 5.67 in. (144mm) wide x 2.60 in. (66mm) deep x 3.35 in. (85mm) tall

20 Amp Relay

Clipsal 20A Relays feature a zero crossing magnetically latching relay designed for

switching the harsh electrical loads associated with today’s high efficiency lighting systems.

•Four (4) independently operating voltage free relay contacts

•120Vac and 277Vac units

•20A rating

•Dimensions: 8.46 in. (215mm) wide x 2.60 in. (66mm) deep x 3.35 in. (85mm) tall

Table 5.16: Changeover Relays

Catalog No. Catalog Description $ Price

SLC5504TRVFC 4 Channel Changeover Relay, 125V, with power supply 1100.00

SLC5504TRVFCP 4 Channel Changeover Relay, 125V, without power supply 1010.00

SLC5504HRVFC 4 Channel Changeover Relay, 277V, with power supply 1100.00

SLC5504HRVFCP 4 Channel Changeover Relay, 277V, without power supply 1010.00

Table 5.17: 10 Amp Relay

Catalog No. Catalog Description $ Price

SLC5512TRVF 12 Channel Relay, 120V, 10A with power supply 2168.00

SLC5512TRVFP 12 Channel Relay, 120V, 10A without power supply 1973.00

SLC5504TRVF 4 Channel Relay, 120V,10A with power supply 1043.00

SLC5504TRVFP 4 Channel Relay, 120V, 10A without power supply 843.00

SLC5512HRVF 12 Channel Relay, 277V, 10A with power supply 2168.00

SLC5512HRVFP 12 Channel Relay, 277V, 10A without power supply 1973.00

SLC5504HRVF 4 Channel Relay, 277V,10A with power supply 1043.00

SLC5504HRVFP 4 Channel Relay, 277V, 10A without power supply 843.00

Table 5.18: 20 Amp Relay

Catalog No. Catalog Description $ Price

SLC5504TRVF20 4 Channel Relay, 120V, 20A with power supply 1320.00

SLC5504TRVF20P 4 Channel Relay, 120V, 20A without power supply 1142.00

SLC5504HRVF20 4 Channel Relay, 277V, 20A with power supply 1320.00

SLC5504HRVF20P 4 Channel Relay, 277V, 20A without power supply 1142.00

Changeover Relay

4-Channel 10A Relay

4-Channel 20A Relay

DE-8 Discount

Schedule

Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com

5LIGHTING CONTROL AND

INTEGRATED HOME SYSTEMS

www.squaredli

htin

control.com

Clipsal®Dimmer Units

Class 1250

Phase Angle Dimmers

Clipsal Phase Angle Dimmers are intended for controlling incandescent and compatible

low-voltage and florescent lighting. Each of the unit’s channels can independently control

loads to create dynamic lighting scenes. These dimmer units automatically compensate for

voltage and frequency fluctuations and employ advanced phase-control techniques to

reduce flicker and increase lamp life.

•Four (4) independent channels supporting up to 4A continuous load per channel, eight (8)

independent channels supporting up to 2A continuous load per channel

•Units available both with and without a 200mA power supply on-board.

•120Vac

•Dimensions: 8.46 in. (215mm) wide x 2.60 in. (66mm) deep x 3.35 in. (85mm) tall

Professional Dimmer

Clipsal Professional Dimmers can control incandescent and compatible low-voltage and

florescent lighting. These dimmers are ideal for larger heavily loaded circuits. Each channel

provides independent dimming and incorporates thermal overload and over-current

protection. These dimmer units automatically compensate for voltage and frequency

fluctuations and employ advanced phase-control techniques to reduce flicker and increase

lamp life.

An optional terminal box is available for conduit connections. Configuration options include

network monitoring of the channel load and network voltages, adjustable delays for

dimming levels, and master override.

•Specialized dimming modes—soft turn on/off and linear brightness control

•Built-in power supply sources 60 mA to the C-Bus network

•Individual channels can be turned On/Off at the unit or via C-Bus commands

•LEDs indicate the status of the network at the unit and the status of the unit’s load

and power

•Optional terminal box for connecting conduit

•120Vac

•Dimensions: 7.5 in. (190mm) wide x 3.0 in. (75mm) deep x 7.7 in. (195mm) tall

0-10V Dimming Unit

The Clipsal Analog Output Unit provides four channels of analog 0-10Vdc for controlling

electronically dimmable fluorescent lighting ballasts.

•Produces four independently controllable channels of 0-10Vdc for controlling dimmable lighting

ballasts or other loads

•Individual channels can be turned ON/OFF at unit, via C-Bus commands, and through a remote

override option

•120V or 277Vac models available

•DIN style construction 4M wide: 3.4”(L) x 2.8”(W) x 2.6”(H)

Table 5.19: Clipsal Four Channel and Pro Dimmers

Catalog No. Catalog Description $ Price

SLC5504TD4A 4 x 4A dimmer, incan/mag,125V, 4A, with power supply 1024.00

SLC5504TD4AP 4 x 4A dimmer, incan/mag,125V, 4A, without power supply 800.00

SLC5508TD2A 8 x 2A dimmer, incan/mag,125V, 2A, with power supply 1024.00

SLC5508TD2AP 8 x 2A dimmer, incan/mag,125V, 2A, without power supply 800.00

SLC5104TD5 4 x 5A dimmer, incan/mag,125V, with power supply 1926.00

SLC5102TD10 2 x 10A dimmer, incan/mag,125V, with power supply 1926.00

SLC5101TD20 1 x 20A dimmer, incan/mag,125V, with power supply 1926.00

SLCU5100TB Termination box for SLCLU510X Series dimmer units 78.00

Table 5.20:

Catalog No. Catalog Description $ Price

SLCLE5504TAMP 4 Channel 0 - 10V Output, 120V 624.00

SLCLE5504HAMP 4 Channel 0 - 10V Output, 277V 624.00

Phase Angle Dimmer

with Power Supply

Professional Dimmer

Analog Output Unit

DE-8 Discount

Schedule

Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com

5LIGHTING CONTROL AND

INTEGRATED HOME SYSTEMS

www.squaredli

htin

control.com

Clipsal®System Units

Class 1250

Network Bridge

The Clipsal Network Bridge provides a communication channel between Clipsal units on separate networks, expanding

the total number of units that can be configured, controlled, and monitored.

•Increases transmission distances by acting as a repeater station for data transmission

•Expands the total number of Clipsal devices that can operate on the system by isolating devices to individual networks

•Indicates each network’s status level

•Uses built-in connectors to connect to a C-Bus network

•Compatible with Powerlink G3 3000C controller and all Clipsal components, including keypads, sensors, and dimmers

•DIN style construction 4M wide: 3.4”(L) x 2.8”(W) x 2.6”(H)

Power Supply

The Clipsal Power Supply is specifically designed to operate with the C-Bus network as a power source for passive

Clipsal devices. Up to five power supplies can be connected to a single C-Bus network.

•Available in 120 and 277Vac models

•Regulating power supply compensates for line voltage and frequency variations, so there is constant output

•Sources up to 350 mA to the C-Bus network

•UL listed to operate in parallel with other Clipsal power supplies, up to five on a single C-Bus network

•Incorporates short circuit and reverse polarity protection

•DIN style construction 4M wide: 3.4”(L) x 2.8”(W) x 2.6”(H)

PC Interface

The Clipsal PC Interface (PCI) expands options for configuring, controlling, and monitoring C-Bus networks by

providing an interface between the network and a personal computer (PC). The Clipsal PCI module easily mounts to a

DIN rail and connects to the C-Bus network. Power to the unit is provided through the C-Bus network.

Serial

•Unit/Comms LED shows the status of the unit’s power and of any data transmissions

•Three RS-232 serial connectors for connecting to a PC or to external devices: (1) 9-pin D-type serial connector (female) and (2) 8-

pin RJ-45 connectors

•Two C-Bus network connector ports: RJ-45 sockets

•Data cable for connecting PCI and personal computer, including DB9 connectors

USB

•Unit/Comms LED shows the status of the unit’s power and of any data transmissions

•Two C-Bus network connector ports: RJ-45 sockets

•USB PC connection

•Data cable for connecting PCI and personal computer

Pascal Automation Controller

Clipsal Pascal Automation Controller (PAC) provides extended conditional and real-time event programming to C-Bus

systems. The PAC supports a full range of programming commands including conditional logic, flow control variables

and scheduling.

Systems integrators will appreciate the built-in scheduling tools, scene tools, and wizards for creating basic logic

programs. Full programming capabilities can be achieved utilizing the free-form script editor based off the pascal

programming language.

•Connects directly to C-Bus network

•Powered from the C-Bus network

•USB port for connection to personal computer

•(2) RS232 ports for third party device control

•Real time, astronomical and C-Bus system clock included with 24 hour internal capacitor backup and external 12 Vdc battery

terminals

Programming capabilities including: i.e. Conditional logic (if, then, and, or, not, etc.), Flow Control (for, repeat, while),

Variables (integer, real, Boolean, character, string), Control and monitoring of group addresses, Control and monitoring

of scenes.

DALI Gateway

The Clipsal Digital Addressable Lighting Interface (DALI) Gateway provides an isolated two-way communications path

between a C-Bus network and two DALI networks, making it possible to use Clipsal devices to control DALI ballasts.

•Provides two-way communications between C-Bus and DALI networks, routing selected messages from one to the other

•Unit is transparent and invisible to DALI ballasts

•Receives data and power over the network, so the unit does not require power packs or line-voltage connections

•DIN style construction 4M wide: 3.4”(L) x 2.8”(W) x 2.6”(H)

Network Bridge

Power Supply

PC Interface

DALI Gateway

DE-8 Discount

Schedule

Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com

5LIGHTING CONTROL AND

INTEGRATED HOME SYSTEMS

www.squaredli

htin

control.com

Clipsal®System Units

Class 1250

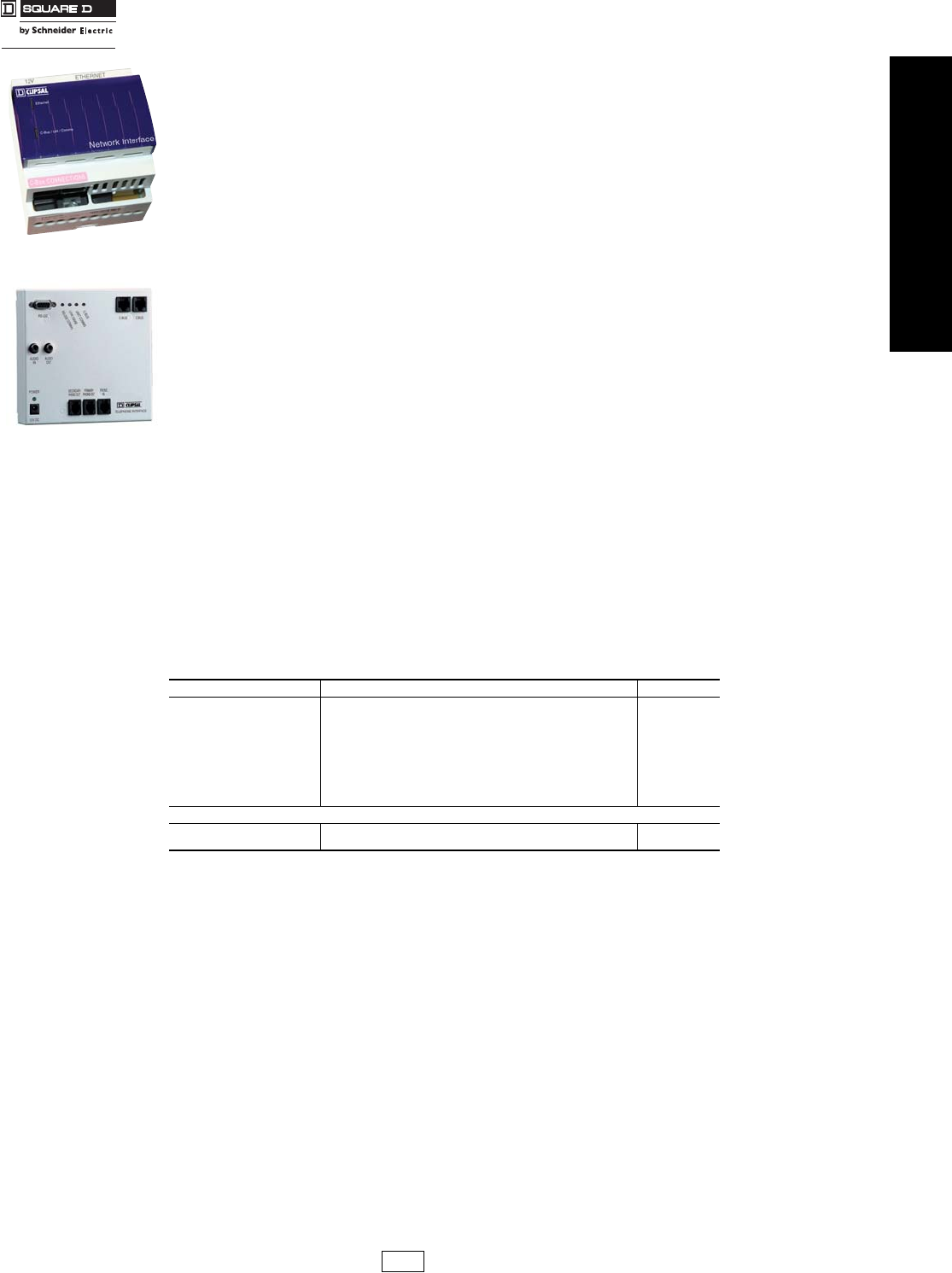

Ethernet Network Interface

The Clipsal Ethernet Network Interface unit is a C-Bus system device designed to provide an isolated communications

path between an Ethernet 10Base-T Network and a C-Bus Network. This allows high-speed control and monitoring of a

Clipsal installation via the TCP/IP protocols used in computer networks and by the Internet. System integrators and

installers will also benefit from having remote access to the system. With the Clipsal Ethernet Network Interface unit,

access to a single or multiple networks can be as close as the nearest Ethernet connection.

•Remote access to Clipsal systems

•Bridge multiple C-Bus networks together over LAN or WAN

•Fully supports all Clipsal commands

•Small size, mounts in standard DIN enclosure (4M wide)

•Includes 12 Vdc power supply

Telephone Interface Unit

Clipsal Telephone Interface Unit offers a dial-in and dial-out capability for control of a C-Bus system. Remote location

override, monitoring, diagnostics and configuration of a C-Bus system is possible with this unit. The Clipsal Telephone

Interface Unit is programmed using a connection to a PC running TICA (Telephone Interface Commissioning

Application) configuration software. The interface can also act as a C-Bus PC Interface. The Telephone Interface Unit

can be installed in a Clipsal 36 or 60M enclosure or as a wall mountable stand-alone item with connection to C-Bus.

•Remote location override

•Voice prompts and confirmation

•Password protected

•32 supported devices

•Automatic dial out on present conditions

•Local or remote site access to C-Bus system

•Audio Out

Bar Code Reader

The Clipsal Bar Code Reader allows installers and integrators to quickly scan Clipsal devices with serial numbers and

import them into Clipsal Toolkit software. Using a USB connection to a PC, users can easily identify and track Clipsal

Unit locations on a floorplan/network.

Network Analyzer

The Clipsal Analyzer is a C-Bus device designed to help an installer quickly analyze, detect, and troubleshoot potential

problems on a C-Bus network. The device analyzes the network parameters and prompts the user for appropriate

actions via its front LED (Light Emitting Diode) indicators.

Table 5.21: System Units

Catalog No. Catalog Description $ Price

SLC5500NB Network bridge 663.00

SLC5500TPS 120V Power supply, 350mA 500.00

SLC5500HPS 277V Power supply, 350mA 500.00

SLC5500PC RS-232 PC Interface 488.00

SLC5500PCU USB PC Interface 488.00

SLC5502DAL 2 Channel DALI Gateway 1014.00

SLC5500PACA Pascal Automation Controller 586.00

SLC5500CN Ethernet Network Interface 664.00

SLC5100TUS Telephone Interface Unit 898.00

Accessories

SLC5100BCS Bar Code Reader 604.00

SLC5100NA C-Bus Network Analyzer 328.00

Telephone Interface Unit

Ethernet Network Interface

DE-8 Discount

Schedule

Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com

5LIGHTING CONTROL AND

INTEGRATED HOME SYSTEMS

www.squaredli

htin

control.com

Clipsal®Enclosures

8M Enclosure

The 8M enclosure is specifically designed for distributed applications. Suitable for surface mounting, the 8M enclosure

consists of a box with a cover and a DIN rail for mounting one 8M or two 4M Clipsal units. The enclosure also has

provisions for mounting neutral and ground bars.

•Surface-mount NEMA 1 enclosure

•Welded sheet steel with knockouts

•Gray baked enamel, electrodeposited over cleaned, phosphatized steel

•Triple-lead cover screws for fast installation of cover

•DIN rail, suitable for mounting one 8M or two 4M Clipsal DIN modules

12M Enclosure

The 12M enclosure is specifically designed for distributed applications that require physical proximity between DIN

units and keypads, sensors or controlled loads. Suitable for surface mounting, the 12M enclosure consists of a box with

a cover and a DIN rail for mounting three 4M Clipsal units, one 8M unit plus one 4M unit or one 12M unit. The enclosure

also has factory mounted neutral and ground bars.

•Surface-mount NEMA 1 enclosure

•Welded sheet steel with knockouts

•Gray baked enamel, electrodeposited over cleaned, phosphatized steel

•Triple-lead cover screws for fast installation of cover

•DIN rail, suitable for mounting one 12M or three 4M Clipsal DIN modules

24M Enclosure

The 24M enclosure is specifically designed for distributed applications that require physical proximity between DIN

units and keypads, sensors or controlled loads. Suitable for surface mounting, the 24M enclosure consists of a box with

a cover and two rows for mounting Clipsal DIN-mounted C-Bus™ units. Each row can hold one 12M unit, one 8M unit

plus one 4M unit, or three 4M untis. The enclosure also has provisions for additional neutral and ground bars.

•Surface-mount NEMA 1 enclosure

•Welded sheet steel with knockouts

•Gray baked enamel, electrodeposited over cleaned, phosphatized steel

•Triple-lead cover screws for fast installation of cover

•DIN rail, suitable for mounting Clipsal DIN-mounted C-Bus units. Each row can hold one 12M unit, one 8M unit plus one 4M unit, or

three 4M units

36M and 36MS Enclosure

The 36M and 36MS enclosures provide a multi-purpose means for housing Various Clipsal DIN-mounted devices.

Suitable for flush or surface mounting, the enclosure consists of a mounting pan assembly, and a cover assembly. The

box is to be ordered separately, allowing for its installation with the rough-in of field wiring. Enclosures feature:

•NEMA 1 enclosure suitable for flush or surface mounting

•Welded sheet steel with knockouts

•Gray baked enamel paint, electrodeposited over cleaned, phosphatized steel

•Triple-lead cover screws for fast installation of cover

•3 DIN mounting rails, each accommodating up to one 12M unit, one 8M unit with one 4M unit, or three 4M units

•Complete with barriers for separation of Class 2 circuits from line voltage (36M only)

•The 36MS offers a reduced footprint than the 36M

60M Enclosure

The 60M enclosure provides a means for housing DIN style relays and dimmers. Suitable for flush or surface

mounting, the enclosure consists of a mounting pan assembly, and a cover assembly. The box is to be ordered

separately, allowing for its installation with the rough-in of field wiring. Enclosures feature:

•NEMA 1 enclosure suitable for flush or surface mounting

•Welded sheet steel with knockouts

•Gray baked enamel paint, electrodeposited over cleaned, phosphatized steel

•Triple-lead cover screws for fast installation of cover

•5 DIN mounting rails, each accommodating up to one 12M unit, one 8M unit with one 4M unit, or three 4M units

•Complete with barriers for separation of Class 2 circuits from line voltage

Table 5.22: Enclosures and Accessories

Catalog No. Catalog Description $ Price

8M Enclosure

SLC8M Clipsal single row enclosure, surface mount 110.00

12M Enclosure

SLC12MSG Clipsal single row enclosure, surface mount 120.00

24M Enclosure

SLC24MSG Clipsal dual row enclosure, surface mount 240.00

36MS Enclosure

SLC36SC Clipsal box for small three row interior 120.00

SLC36MSFG Clipsal small three row interior with flush gray cover 690.00

SLC36MSFW Clipsal small three row interior with flush white cover 690.00

SLC36MSSG Clipsal small three row interior surface mount gray cover 690.00

36M Enclosure

SLC36C Clipsal box for three and five row interiors 136.00

SLC36MFG Clipsal three row interior with gray cover, flush mount 740.00

SLC36MFW Clipsal three row interior with white cover, flush mount 740.00

SLC36MSG Clipsal three row interior surface gray 740.00

60M Enclosure

SLC36C Clipsal box for three and five row interiors 136.00

SLC60MFG Clipsal five row interior with gray cover, flush mount 1233.00

SLC60MFW Clipsal five row interior with white cover, flush mount 1233.00

SLC60MSG Clipsal five row interior surface gray 1233.00

Accessories

PK7GTA Ground/Neutral Bar 7.80

PKGTAB Neutral Insulator Kit 29.20

SLC4CSF8 Filler Plate, 4M 18.00

8M Enclosure

12M Enclosure

24M Enclosure

New!

36M Enclosure

DE-8 Discount

Schedule

Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com

5LIGHTING CONTROL AND

INTEGRATED HOME SYSTEMS

www.squaredli

htin

control.com

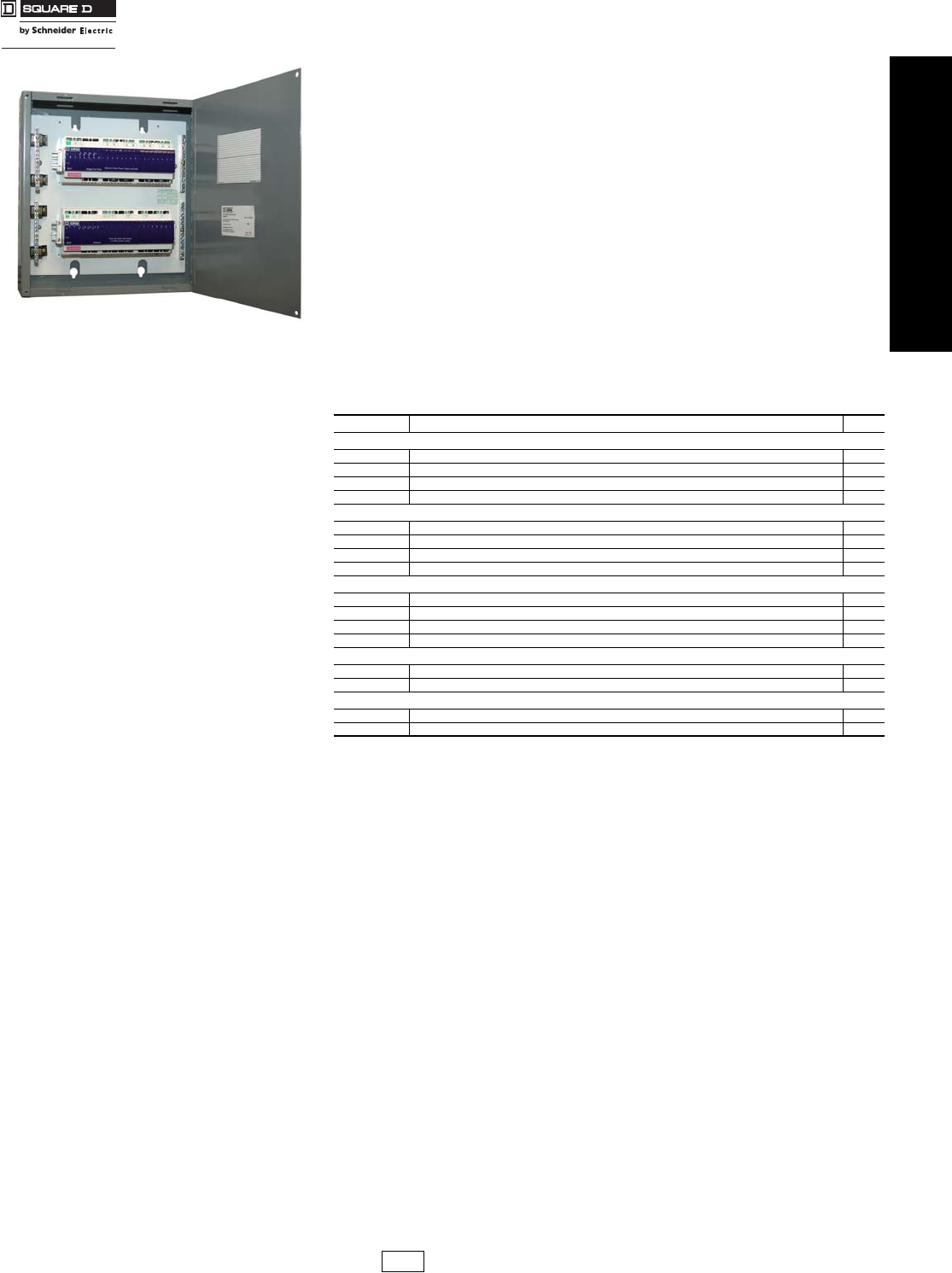

Clipsal®System Devices

Area Lighting Panels

Clipsal® Area lighting Panels are ideally suited to meet lighting control energy code

requirements in classrooms, offices and other small spaces. Area Lighting Panels are

designed to be used with Clipsal input units, including: keypads, sensors (occupancy and

light level detection) and touch screens. A simple CAT-5 cable is all that is required for

connecting of these devices.

Clipsal Area Lighting Panels provide on/off switching, stepped dimming or continuous

dimming. All relays feature rugged 20 A rated contacts for switching electronic ballast loads.

Models with continuous dimming capabilities are available with phase angle or 0–10V

control. Clipsal Area Lighting Panels can operate independently or as part of an entire

facility wide lighting control system. Enclosures can easily be mounted in electrical closets

or in ceiling spaces. They include all necessary connections and are UL® Listed. Area

Lighting Panels can also be used in conjunction with Powerlink® panels.

•Relay models: Four (4) or Eight (8) channel relay outputs, rated 20 A

•Phase Angle Dimmer Model: Four (4) channels of 4 A outputs for incandescent lighting loads.

•0–10V outputs available for control of 0–10V dimmable fluorescent ballast

•Integral neutral and ground bar terminal strips

•Meets NEC 300.22 requirements to be installed above ceilings and other spaces that handle

environmental air

•Bypass mode to facilitate quick start up

•Meets NEC Article 409

•UL Listed 508 A

aFor stand-alone applications order unit with power supply.

Table 5.23: Clipsal Area Lighting Panels

Catalog No. Description $ Price

4 Channel 20 A Relay Models

SLCZ042000T 4 Channel 20 A Relay @ 120 V with power supplya1769.00

SLCZ042000H 4 Channel 20 A Relay @ 277 V with power supplya1769.00

SLCZ042000TP 4 Channel 20 A Relay @ 120 V without power supply 1675.00

SLCZ042000HP 4 Channel 20 A Relay @ 277 V without power supply 1675.00

8 Channel 20 A Relay Models

SLCZ082000T 8 Channel 20 A Relay @ 120 V with power supplya2646.00

SLCZ082000H 8 Channel 20 A Relay @ 277 V with power supplya2646.00

SLCZ082000TP 8 Channel 20 A Relay @ 120 V without power supply 2462.00

SLCZ082000HP 8 Channel 20 A Relay @ 277 V without power supply 2462.00

4 Channel 20 A Relay Models with 0-10 V Output Units

SLCZ04204AT 4 Channel 20 A Relay @ 120 V with power supply and 4 Channel 0-10 V Output Unita2492.00

SLCZ04204AH 4 Channel 20 A Relay @ 277 V with power supply and 4 Channel 0-10 V Output Unita2492.00

SLCZ04204ATP 4 Channel 20 A Relay @ 120 V without power supply and 4 Channel 0-10 V Output Unit 2308.00

SLCZ04204AHP 4 Channel 20 A Relay @ 277 V without power supply and 4 Channel 0-10 V Output Unit 2308.00

4 Channel 20 A Phase Angle Dimmer Models

SLCZ00004DT 4 Channel 20 A Phase Angle Dimmer @ 120 V with C-Bus power supplya1144.00

SLCZ00004DTP 4 Channel 20 A Phase Angle Dimmer @ 120 V without C-bus power supply 920.00

4 Channel 20 A Relay Models with Phase Angle Dimmer Units

SLCZ04204DT 4 Channel 20 A Relay @ 120 V with C-Bus power supply and 4 Ch. Phase Angle Dimmer Unita2630.00

SLCZ04204DTP 4 Channel 20 A Relay @ 120 V without C-Bus power supply and 4 Ch. Phase Angle Dimmer Unit 2182.00

Area Lighting Panel

DE-8 Discount

Schedule

Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com

www.squaredli

htin

control.com

5LIGHTING CONTROL AND

INTEGRATED HOME SYSTEMS

Clipsal®Software Packages

Class 1250

C-Bus™ Toolkit Software

The C-Bus Toolkit Software includes the C-Bus Installation and programming Software,

Project Manager, and C-Bus Calculator. The software works under Windows™ 98, ME,

2000 and XP and supports a unique barcode scanning feature. This allows the installer to

scan the C-Bus packaging of each new unit to add the unit to the database. The software

prints adhesive labels that can be affixed to building plans. These labels include the Unit

Address and the physical location that the unit is to be installed. Labels are duplicated so

that one label can be affixed to the unit and one to the electrical plan for the installation. The

labels have barcodes on them so that units can be easily re-identified if required.

NOTE: C-Bus Toolkit Software is a free download from the Square D Lighting Control

web site, www.squaredlightingcontrol.com

Schedule Plus Software V.4

Clipsal Schedule Plus Version 4 includes a number of major features, including enhanced

scheduling features, support for monitoring load run times, load power and energy

consumed, support for fully customizable multilevel, password protected, access level

control, support for sunrise and sunset times, support for daylight saving times, support for

128 bit encrypted secure Internet connectivity allowing control and monitoring via any Web

Browser. The software also includes a graphic display as well as a fully featured

programmable logic engine. The USB Code Key works under Windows XP Home, XP

Professional, Server 2003, Vista Ultimate, Vista Business and Vista Enterprise.

NOTE: An evaluation version of Schedule Plus is available

for download from the Square D Lighting Control web site,

http://www.squaredlightingcontrol.com/downloadcenter.cfm

HomeGate Software V.4

Residential application PC control of a Clipsal C-Bus Control System. C-Bus HomeGate

Version 4 includes a number of major features, including support for 128 bit encrypted

secure Internet connectivity allowing control and monitoring via any Web Browser, irrigation

system control feature, enhanced scheduling features, support for sunrise and sunset

times, support for daylight saving times. The software also includes a fully featured

programmable logic engine. The C-Bus USB Key works under Windows XP Home, XP

Professional, Server 2003, Vista Ultimate, Vista Business and Vista Enterprise.

NOTE: An evaluation version of HomeGate is available

for download from the Square D Lighting Control web site,

http://www.squaredlightingcontrol.com/downloadcenter.cfm

Installer License Key

The C-Bus Software Installer License Key is a valuable tool for installers to

create/commission projects using C-Bus Version 4 Schedule Plus & HomeGate software.

This code key is time restricted and allows the software to operate in ‘normal’ mode for

anywhere between 48 to 72 hours per use (the software then returns to evaluation/demo

mode).

NOTE: The installer code key will also be compatible with future software releases.

Table 5.24:

Catalog No. Catalog Description $ Price

Schedule PlusV. 4

SLC5000SDSP24 License Key for 2 Networks 792.00

SLC5000SDSP104 License Key for 10 Networks 1680.00

SLC5000SDSPU4 License Key for Unlimited Networks 2665.00

HomeGate V. 4

SLC5000SDHG24 License Key for 2 Networks 352.00

SLC5000SDHG104 License Key for 10 Networks 680.00

SLC5000SDSP24 Installer key for Schedule Plus or Homegate (unlimited networks) 389.00

Schedule Plus Software Screen Captures

HomeGate Software Screen Captures

DE-8 Discount

Schedule

Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com

5LIGHTING CONTROL AND

INTEGRATED HOME SYSTEMS

www.squaredli

htin

control.com

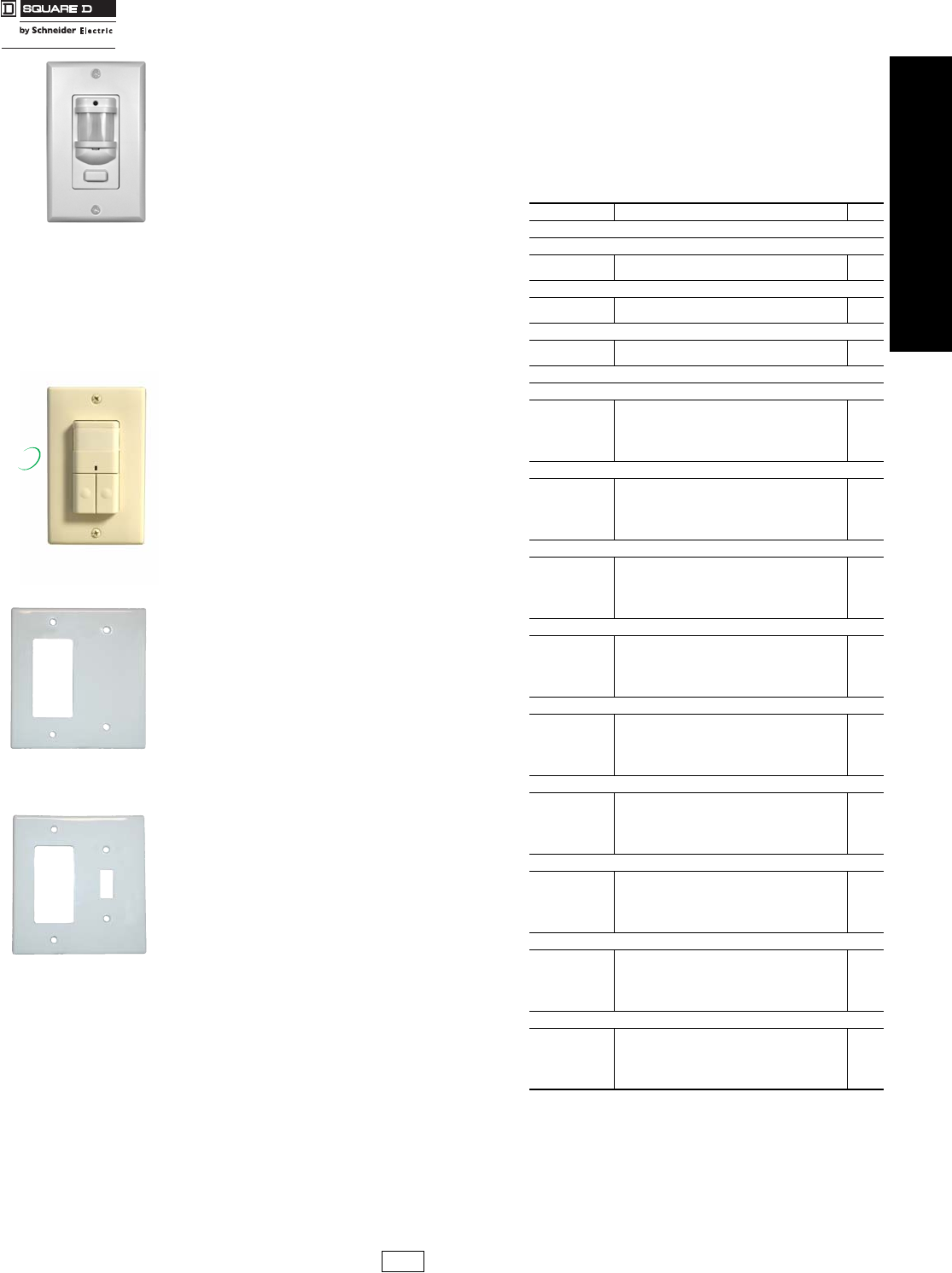

Occupancy Sensors Lighting Control

Class 1200

Square D® Basic Wall Switch Occupancy Sensors

Wall Switch Occupancy Sensors are ideally used in

commercial buildings to save energy that would otherwise

be wasted to light unoccupied rooms or spaces. These

Wall Switch Occupancy Sensors employ the latest in

passive infrared (PIR) sensing technology to accurately

sense when a room or space is occupied, then turn lights

on. When the room is unoccupied, the sensor turns lights

off after a time delay of up to 30 minutes as determined by

the user. Auto-ON and Manual-ON models available with

decorator wall plate in white or ivory. Simply mount the

sensor in place of existing single gang switch — no neutral

connection required. Special multi-segmented lens

creates a coverage pattern that accurately detects major

motion in rooms up to 1000 sq. ft.

•Input: 120/277Vac 60 Hz

•Output: 1000W Max. Load @ 120V (1000VA@120V

1800VA@277V)

•1/4 HP Max. Motor Load

•UL and cUL Listed

•For use with electronic and magnetic ballasts

•CEC Title 24 Certified

Square D Commercial Grade Wall Switch

Occupancy Sensors

Maximum energy savings in a format that will complement

any decor. Low profile sensors are available in white, ivory,

gray, light almond and black with color-matched

segmented lens.

Light Level Sensor Mode: Each sensor includes an

adjusatble light level sensor to hold off artificial lighting

when adequate natural light is present.

Walk-Through Mode: To maximize energy savings, the

sensor detects when areas are briefly occupied as a result

of a person walking through and turns off lighting based on

a shorter time delay. (Dual circuit only)

Lamp Saver Mode: When the lamp saver feature is

enabled, the sensor automatically alternates which load

responds to motion. The result is more predictable lamp

life and reduced maintenance.

Adaptive Technology: Commercial Grade dual

technology and ultrasonic wall switch occupancy sensors

feature a patented adaptive technology that significantly

reduces the learning period typically associated with

adaptive sensors. Square D adaptive sensors reduce the

occurrence of nuisance on and nuisance off while at the

same time extending lamp life and reducing maintenance.

•Available in white, ivory, gray, light almond and black with

matching cover plate (included)

•Color matching multi-segmented lens

•Audible alert

•Selectable auto-on and manual-on modes

•Red LED motion indicator

•For use with electronic and magnetic ballasts

•1000VA@120V, 1800VA@277V

•User adjustable light level, time delay, and sensitivity

•30 second grace period in the manual-on mode

Square D Residential Wall Switch Vacancy

Sensors

Square D Residential Vacancy Sensor directly replaces

standard light switches in bathrooms, garages, laundry rooms

and utility rooms in accordance with Title 24 2005

requirements for residential lighting (Sections 119(d) and 150

(k)). The Square D Vacancy Sensor operates just like a

standard light switch, requiring a button press to turn lights on.

Lights may be turned off with a button press or the sensor will

turn off lighting automatically when the area is unoccupied.

•No user time delay and sensitivity adjustments necessary

•Available in white or ivory

•Furnished with cover plate

•Manual On/Manual Off or Automatic Off operation

•No neutral or minimum load required

•Rated for both 120 V incandescent and fluorescent lighting

•Title 24 2005 Residential Lighting requirements, Sec. 150(k)

•No override on

•Manual-on only (no auto-on mode)

•30 minute time delay

Wall Switch

Occupancy

Sensor

Commercial Grade

Wall Switch

New!

Blank Cover Plate

with decorator style opening

Toggle Cover Plate

with decorator style opening

Table 5.25:

Catalog No. Catalog Description $ Price

Basic Wall Switch Occupancy Sensors

Auto-ON/Auto-OFF

SLSPWS1277AW White Wall Switch Occupancy Sensor 81.00

SLSPWS1277AI Ivory Wall Switch Occupancy Sensor 81.00

Manual-ON/Auto-OFF

SLSPWS1277MW White Wall Switch Occupancy Sensor 62.00

SLSPWS1277MI Ivory Wall Switch Occupancy Sensor 62.00

Residential Vacancy Sensor

SLSPWS120VI Wall switch vacancy sensor, ivory 42.00

SLSPWS120VW Wall switch vacancy sensor, white 42.00

Commercial Grade Wall Switch Occupancy Sensors

Single Circuit PIR

SLSPWS1277UW White 90.00

SLSPWS1277UI Ivory 90.00

SLSPWS1277UG Gray 90.00

SLSPWS1277UL Light Almond 90.00

SLSPWS1277UB Black 90.00

Dual Circuit PIR

SLSPWD1277UW White 117.00

SLSPWD1277UI Ivory 117.00

SLSPWD1277UG Gray 117.00

SLSPWD1277UL Light Almond 117.00

SLSPWD1277UB Black 117.00

Single Circuit Ultrasonic

SLSUWS1277UW White 142.00

SLSUWS1277UI Ivory 142.00

SLSUWS1277UG Gray 142.00

SLSUWS1277UL Light Almond 142.00

SLSUWS1277UB Black 142.00

Dual Circuit Ultrasonic

SLSUWD1277UW White 165.00

SLSUWD1277UI Ivory 165.00

SLSUWD1277UG Gray 165.00

SLSUWD1277UL Light Almond 165.00

SLSUWD1277UB Black 165.00

Single Circuit Dual Technology

SLSDWS1277UW White 187.00

SLSDWS1277UI Ivory 187.00

SLSDWS1277UG Gray 187.00

SLSDWS1277UL Light Almond 187.00

SLSDWS1277UB Black 187.00

Dual Circuit Dual Technology

SLSDWD1277UW White 210.00

SLSDWD1277UI Ivory 210.00

SLSDWD1277UG Gray 210.00

SLSDWD1277UL Light Almond 210.00

SLSDWD1277UB Black 210.00

Blank Cover Plates

SLSWP2DBW White 7.50

SLSWP2DBI Ivory 7.50

SLSWP2DBG Gray 7.50

SLSWP2DBL Light Almond 7.50

SLSWP2DBB Black 7.50

Toggle Cover Plates

SLSWP2DTW White 7.50

SLSWP2DTI Ivory 7.50

SLSWP2DTG Gray 7.50

SLSWP2DTL Light Almond 7.50

SLSWP2DTB Black 7.50

Buttonless Cover Plates

SLSBCW Buttonless Adjustment Access Covers, White 15.00

SLSBCI Buttonless Adjustment Access Covers, Ivory 15.00

SLSBCG Buttonless Adjustment Access Covers, Gray 15.00

SLSBCL Buttonless Adjustment Access Covers, Light Almond 15.00

SLSBCB Buttonless Adjustment Access Covers, Black 15.00

DE-8A Discount

Schedule

Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com

www.squaredli

htin

control.com

5LIGHTING CONTROL AND

INTEGRATED HOME SYSTEMS

Occupancy Sensors Lighting Control

Class 1200

Square D Wall Mount Occupancy Sensors

Square D Wall Mount Occupancy Sensors accurately detect occupancy and automatically

switch lighting on and off as needed. These sensors are wall or ceiling mounted for superior

motion detection. Sensors employ Passive Infrared (PIR) and Ultrasonic technology. Dual

Technology model features combined PIR and Ultrasonic detection for the ultimate

performance. The PIR Occupancy Sensor has 3 interchangeable lenses for custom

coverage patterns. Wide Angle, Long Range and High Bay. Wall mount sensors also

incorporate an integral light level sensor, and features an isolated relay for use with building

automation, security and HVAC systems.

•Adjustable Sensitivity

•Adjustable time delay

•UL and cUL Listed

•CEC Title 24 Certified

•FCC Part 15, Class B

•ASHRAE/IES 90.1

Square D Ceiling Mount Occupancy Sensors

Ceiling Mount Occupancy Sensors are ideal for offices, conference rooms, class rooms and

other shared areas to automatically turn lights on and off based on occupancy. Sensors

employ Passive Infrared (PIR) and Ultrasonic technology. Dual Technology model features

combined PIR and Ultrasonic detection for the ultimate performance. Requires power pack.

Set of normally closed and normally opened auxiliary contacts for use with building

automation and security systems.

•Input: 24 Vdc

•Output: +24 Vdc

•Adjustable Sensitivity

•Low Profile Housing

•Adjustable Light Level Sensor

•UL and cUL Listed

•CEC Title 24 Certified

•FCC Part 15, Class B

•ASHRAE/IES 90.1

Power Pack

For use with wall and ceiling mount sensors to supply power to sensor and switch the load

when the sensor detects occupancy. May supply power to multiple sensors and auxiliary

relays up to 100mA nominal load.

•Input: 120/277 Vac 50/60 Hz

•Output: 24 Vdc/100mA Nom.

•Relay rating: 20A Max. Ballast Load at 120Vac (20A Max. at 277V)

•UL cUL Listed

Auxiliary Relay

For use with wall and ceiling mount sensors to turn lights on when an area is occupied or off

when it is not. Requires power pack to supply input power to operate relay.

•Input: 24 Vdc/36mA Nom.

•Relay rating: 20A Max. Ballast Load at 120Vac (20A Max. at 277V)

•UL cUL Listed

Table 5.26: Wall Mount and Ceiling Mount Sensors

Catalog No. Catalog Description $ Price

Wall Mount Occupancy Sensors

SLSWPS1500 PIR occupancy sensor 161.00

SLSWUS1500 Ultrasonic occupancy sensor 191.00

SLSWDS1500 Dual Technology occupancy sensor 221.00

Ceiling Mount Occupancy Sensor

SLSCPS1000 PIR occupancy sensor 134.00

SLSCUS2000 Ultrasonic occupancy sensor 197.00

SLSCDS2000 Dual Technology occupancy sensor 231.00

Table 5.27: Power Pack and Auxiliary Relay

Catalog No. Catalog Description $ Price

SLSPP1277 Power Pack 46.50

SLSSP24 Auxiliary Relay 36.00

Dual Technology Wall Mount

New!

Dual Technology Ceiling Mount

Power Pack

DE-8A Discount

Schedule

Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com

5LIGHTING CONTROL AND

INTEGRATED HOME SYSTEMS

www.squaredli

htin

control.com

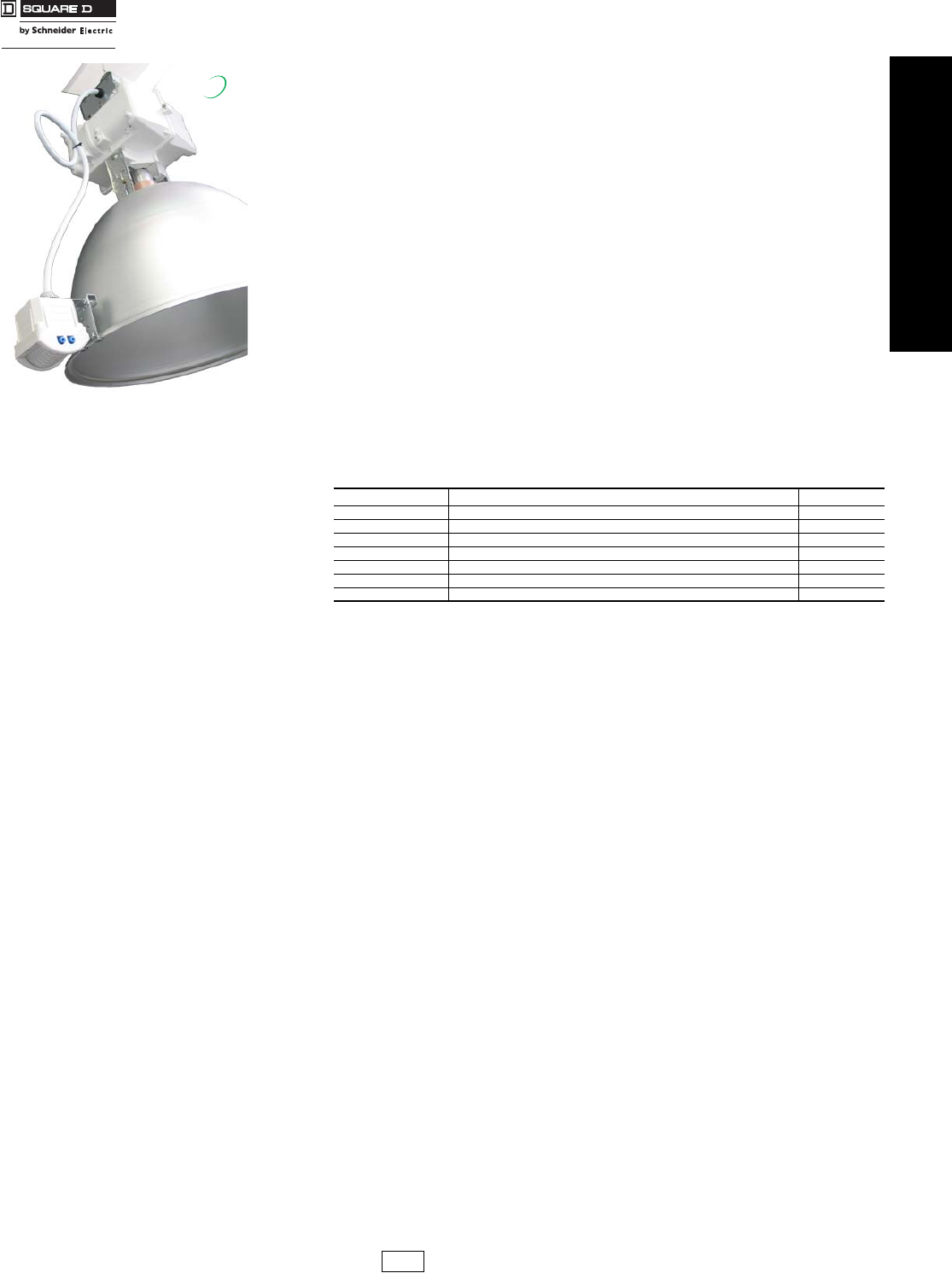

Occupancy Sensors Lighting Control

Class 1200

Square D® Fixture Mounted Sensors and Controls

Square D extends its occupancy-sensing capability with a range of line voltage sensors

based on passive infrared (PIR) technology. These sensors feature rugged housings that

resist moisture and dust typical of manufacturing and shipping dock areas. Sensors

incorporate universal power supply, relay and PIR element in a single housing ready for

direct attachment to popular high-bay and low-bay luminaires.

Sensors are available either as stand alone sensor-per-fixture devices or equipped with

connectors for low-cost plastic optical fiber cable. Plastic optical fiber connectivity between

sensors allows implementation of control zones within aisles and work areas without back-

pulling signaling wire in conduit. Each sensor acts as a network repeater, allowing 200 foot

spacing between sensors. Plastic fiber can be cut and terminated without special tools or

installer training.

•All sensors feature oversized Fresnel lenses and premium, low-noise pyroelectric elements for

reliable PIR sensing at mounting heights up to 45 feet.

•Both area- and aisle-sensing Fresnel lenses ship with each sensor. Color-coded snap-out lenses

can be swapped in the field.

•Switch packs open and close based on fiber optic commands from fiber sensors

•Universal power supply design adapts to AC line voltages 208-480VAC, 50/60Hz without jumpers or

taps.

•Single-pole/close-on-motion relays sized for switching dry contact, magnetic HID or electronic

ballast loads.

•Mounts directly to reflector with included pinch bracket or to ballast housing with ” NPT threaded

pipe nipple.

•Built-in manual override test switch and diagnostic LED to assist in installation. Diagnostic LED can

be seen at distance to assist in walk test.

•Fifteen minute power ON warm-up timer assures rated lamp life even if the fiber network is broken.

•User adjustable sensitivity and delay time settings (0-15 minutes)

Table 5.28: Table Line Voltage Occupancy Sensors

Catalog No. Catalog Description $ Price

SLSPIP210 Occupancy sensor, indoor PIR, no fiber connectivity 141.00

SLSPIP211 Occupancy sensor, indoor PIR, one fiber input, one fiber output 166.00

SLSPIP212 Occupancy sensor, indoor PIR, two fiber inputs 166.00

SLSPSP101 Fiber optic switch pack, indoor, one fiber in, one fiber output 141.00

SLSPSP102 Fiber optic switch pack, indoor, two fiber inputs 141.00

SLSPCW001 Fixture-mounted counterweight for HID 13.00

SLSPIPBRACKET Bracket for off-fixture mounting 11.00

Indoor Occupancy Sensor

New!

DE-8A Discount

Schedule

Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com

www.squaredli

htin

control.com

5LIGHTING CONTROL AND

INTEGRATED HOME SYSTEMS

Powerlink® Lighting

Control Systems

Gen 3 Products

Class 1210

Powerlink G3 systems are ideally suited for controlling lighting and

other loads in commercial, institutional, and industrial facilities. Such systems are typically

used to lower utility cost by switching branch circuits OFF during non-occupied periods

when lighting is unnecessary or during peak demand periods when a partial reduction in

load can save significant money.

These systems utilize remotely operated circuit breakers to switch branch circuits ON and

OFF via a time schedule or by an externally generated signal (typically a low voltage wall

switch, photocell, access system, fire alarm or building management system). All Powerlink

components mount inside a standard lighting panelboard to provide a compact, space

saving installation.

Powerlink G3 systems feature a powerful microprocessor based controller that provides

system intelligence for 168 remotely operated branch circuits. Master panelboards contain

the control electronics, power supply, and control bus strips for up to 42 branch circuit

breakers. Slave panels extend the capability of the system by allowing remotely operated

branch circuit breakers to be operated from the master controller via a simple, 4-wire,

sub-net connection.

All Powerlink G3 systems have the capability of being networked together and operated

from a central workstation or via a remote modem connection. PCS software allows users

to remotely configure the system, change time schedules, monitor circuit breaker or input

status, and override zones and breakers.

BACnet Capability

The Building Automation and Control network (BACnet) communication protocol is

incorporated into the Powerlink® G3 controller design. The addition of the BACnet protocol

allows Powerlink panels to be easily integrated into a Building Automation System (BAS)

employing this open communication standard without the need for communication bridges

or gateways.

Controller Models

The following Powerlink G3 controller models support ‘native’ BACnet communications:

•NF2000G3 — Ethernet communications, shared remote inputs, network time synchronization

•NF3000G3 — Email upon alarm, onboard web pages for status/control/configuration

•NF3000G3C — C-Bus communications (ability to interface with a Clipsal® lighting control network)

Factory Assembled System

The following factory engineered pricing procedure may be used to price either 240V or

480Y/277V Powerlink G3 systems:

•Select system type and interior size from Table 5.45 on 5-27. All Powerlink G3 panels are furnished

with either 1 or 2 control bus strips.

•Select panelboard base price from Table 5.46. All Powerlink G3 panels use NF type panelboard

interiors, boxes, and trims and are suitable for either 240V or 480Y/277 V systems.

•Select branch circuit breaker requirements from Table 5.47. Powerlink G3 panels can accommodate

both ECB-G3 remotely operated circuit breakers and EDB, EGB and EJB standard branch circuit

breakers.

•Refer to panelboard section for additional panelboard accessories.

•For complete price, order by description.

•Apply appropriate discount schedule.

240V Factory Assembled System Example:

500 level system with 225A MLO panelboard rated for 208Y/120V, 3Ø4W, 10kAIR, Type 1,

surface mount with ground bar and (12) 20A 1-pole bolt-on remote operated circuit

breakers.

aSpecify N2 suffix

bSpecify C suffix

Table 5.29:

Item Page No. $ Price

System Type: 500 controller with 12 ckt bus 5-25 3376.50

Panel type: 250A MLO 5-27 864.00

Branch circuit breakers: (12) 20A 1-pole 5-27 2628.00

Ground bar 5-27 28.50

Total price 6897.00

Table 5.30:

Feature System Level

500 1000 2000 3000

Inputs

2 - wire 8 16 16 16

2 - wire with status feedback 8 8 8 8

3 - wire 8 8 8 8

Time Scheduler

7 day, each configurable — 16 16 16

Daily on/off periods — 24 24 24

Holiday events — 32 32 32

Automatic daylight savings — X X X

Sunrise/sunset tracking — X X X

Networking

Modbus® ASCII/RTU XXXX

Modbus TCP — — X X

Johnson Controls N2 — Xa——

DMX —XXX

C-Bus — — — Xb

BACnet MSTP/IP — — X X

Powerlink available in

column width design

Up to eight panels can

be controlled from a single

controller.

New!

DE-8A Discount

Schedule

Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com

5LIGHTING CONTROL AND

INTEGRATED HOME SYSTEMS

www.squaredli

htin

control.com

Powerlink® Lighting

Control Systems

Gen 3 Products

Class 1210

Note: All are listed as HACR type for use with air conditioning, heating and refrigeration equipment having motor group

combinations and marked for use with HACR type circuit breakers. UL listed as HID rated for use with high intensity

discharge lighting systems. (1) #12–8 Al or (1) #10–8 Cu. Suitable for use with 75°C conductors.

cUL listed as SWD (switching duty) rated.

dRated for 240Vac only – 42,000AIR

eOne slave address selector required for each slave panel.

fDE2 Discount

Table 5.31: ECB-G3 Circuit Breakers Bolt-On Remotely Operated

Ampere

Rating

One-Pole

277Vac – 14,000AIR

120Vac – 65,000AIR

Two-Pole

480Y/277Vac – 14,000AIR

240Vac – 65,000AIR

Three-Pole

480Y/277Vac – 14,000AIR

240Vac – 65,000AIR

Catalog

Number $ Price Catalog

Number $ Price

15 ECB14015G3c237.00 ECB24015G3c558.00 ECB34015G3c890.0020 ECB14020G3cECB24020G3cECB34020G3c

30 ECB14030G3 ECB24030G3 ECB32030G3d

Table 5.32: ECB-G3 Circuit Breakers for Emergency Lighting

(requires 2-pole spaces)

Ampere Rating One-Pole 480Y/277 – 14,000AIR 240V – 65,000AIR

Catalog No. $ Price

20 ECB142020G3EL 558.00

Table 5.33: Control Bus

Max. No. of Control

Circuits Required

Interior Size Panel Orientation Catalog No. $ Price

12 30 Left NF12SBLG3 851.00

12 30 Right NF12SBRG3

18 42 Left NF18SBLG3 1065.00

18 42 Right NF18SBRG3

21 54 Left NF21SBLG3 1162.50

21 54 Right NF21SBRG3

Table 5.34: Power Supply

Voltage Primary Source Catalog No. $ Price

120V Panel Bus NF120PSG3 791.00240V Panel Bus NF240PSG3

277V Panel Bus NF277PSG3

120V External NF120PSG3L 899.00240V External NF240PSG3L

277V External NF277PSG3L

Table 5.35: Controller

Description Catalog No. $ Price

500 NF500 1946.00

1000 NF1000 3968.00

1000N2 (N2 protocol) NF1000G3N2 8288.00

2000 NF2000G3 7107.00

3000 NF3000G3 9741.00

3000C (C-bus NF3000G3C 9741.00

Table 5.36: Remote Source Controller (for additional inputs)—

Includes NEMA 1 enclosure, source controller and power supply

Voltage Catalog No. $ Price

120V RSC16G3120 3045.00

240V RSC16G3240 3045.00

277V RSC16G3277 3045.00

Table 5.37: Cables & Accessories

Description Catalog No. $ Price

Control bus cables

Harness standard panel NF2HG3 88.50

Sub-net accessories & cables

Slave address selectoreNFSELG3 172.50

6’ sub-net cable NFSN06 75.00

10’ sub-net cable NFSN10 105.00

25’ sub-net cable NFSN25 234.00

50’ sub-net cable NFSN50 405.00

Serial cables

Controller front panel cable NFFPCG3 102.00

Table 5.38: Miscellaneous Hardware

Description Catalog No. $ Price

Circuit Breaker Handle Padlock (Lock On or Off) HPAFD f25.50

Fixed Barrier NFASBKG3 177.00

Remote Mounting Adapter NFADAPTERG3 102.00

Table 5.39: Software

Description Catalog No. $ Price

Powerlink Controller Software PCS101 1523.00

Control Bus

ECB-G3 Circuit Breaker

Power Supply

NF500G3 Controller

NF1000G3 Controller

DE-8A DE2 Discount

Schedule

Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com

www.squaredli

htin

control.com

5LIGHTING CONTROL AND

INTEGRATED HOME SYSTEMS

Powerlink® Lighting

Control Systems

Gen 3 Products

Class 1210

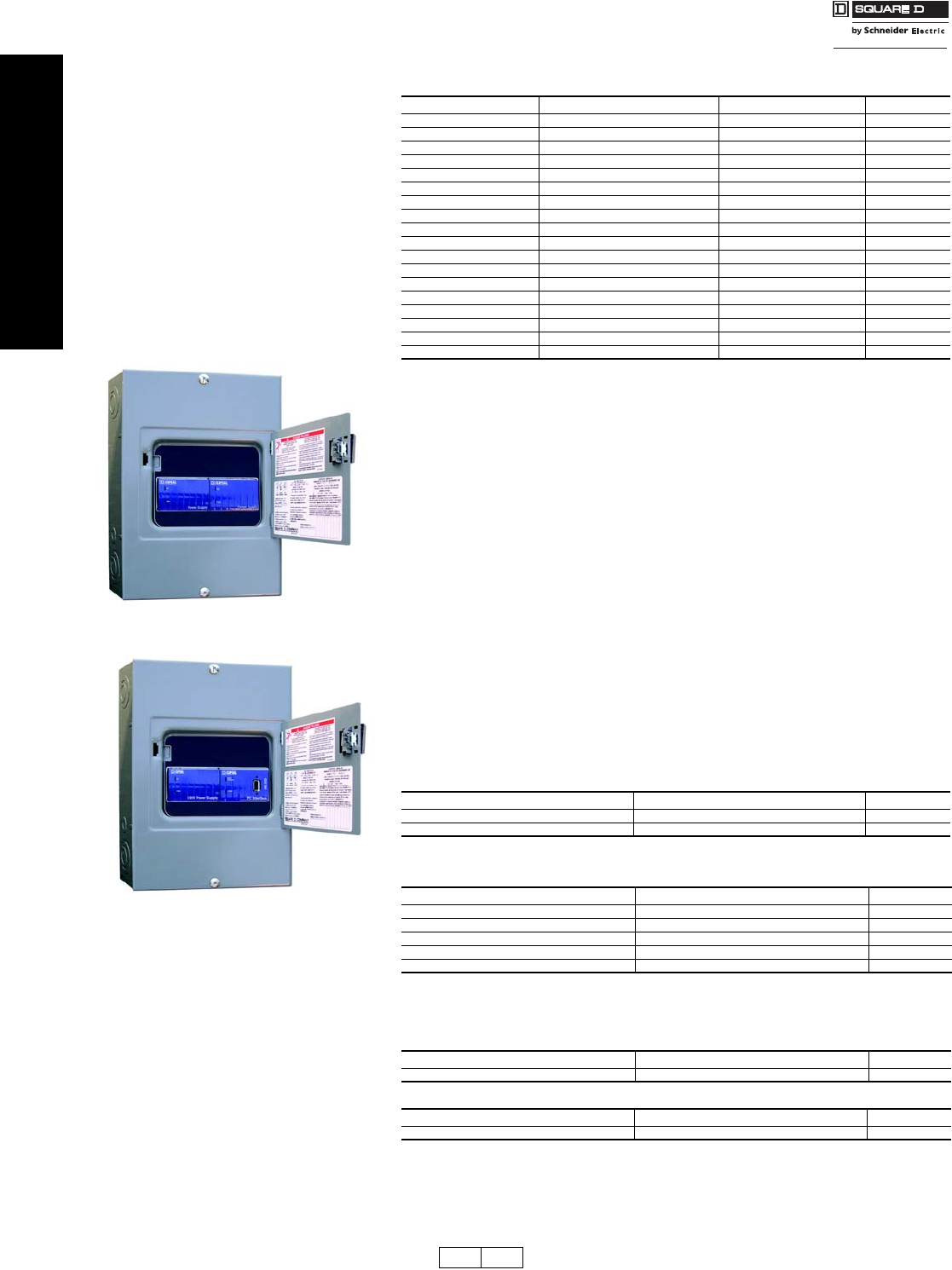

Device Power Supply

The Powerlink Device Power Supply is used to distribute power on a C-Bus network.

Placed at critical points on the network, device power supplies will provide the current

necessary for operating a variety of passive Clipsal devices. A Powerlink Device Power

Supply consists of a Clipsal 8M enclosure containing one or two 4M Clipsal Power Supplies

(120 or 277Vac).

•Surface-mount NEMA 1 enclosure, with cover

•Unit and C-Bus LEDs indicate the status of the line voltage and the network

•Sources up to 700 mA (dual power supplies) to the C-Bus network

•120V or 277Vac models available

•Dimensions: 8.9 in. (226mm) wide x 3.8 in. (97mm) deep x 12.57 (319mm) tall

Device Router

The Powerlink Device Router allows the exchange of data between a Powerlink

NF3000G3C controller and Clipsal devices. This device router receives data from Clipsal

input devices such as keypads and touchscreens and sends data to the Powerlink system

and isa versa. The device router consists of a Clipsal 8M enclosure containing a Clipsal PC

Interface and a Clipsal Power Supply (120Vac or 277Vac). Communication between the

device router and the NF3000G3C controller is made with the included 50-foot serial cable.

•Surface-mount NEMA 1 enclosure, with cover

•Unit, Unit/Comms, and C-Bus LEDs indicate the status of data transmission and power to the unit

and the network

•System network clock for synchronizing communications data

•Network power source, supplying up to 350 mA

•120Vac or 277Vac models available

•Dimensions: 8.9 in. (226mm) wide x 3.8 in. (97mm) deep x 12.57 in. (319mm) tall

aRequired for interface to Clipsal units.

bDE-8 Discount.

cExtends C-Bus power to Clipsal devices.

dDE-8 Discount.

Powerlink Network Accessories

eRequires 2000 and 3000 controller and either Analog or Ethernet modem connection to each master panel.

Table 5.40: Remote Mount Controller (for externally mounted electronics

Includes NEMA 1 enclosure, controller, and power supply

Voltage Catalog No. Controller Type $ Price

120V RMC500G3120 NF500G3 3272.00

240V RMC500G3240 NF500G3 3272.00

277V RMC500G3277 NF500G3 3272.00

120V RMC1000N2G3120 NF1000N2G3 9615.00

240V RMC1000N2G3240 NF1000N2G3 9615.00

277V RMC1000N2G3277 NF1000N2G3 9615.00

120V RMC1000G3120 NF1000G3 5294.00

240V RMC1000G3240 NF1000G3 5294.00

277V RMC1000G3277 NF1000G3 5294.00

120V RMC2000G3120 NF2000G3 8435.00

240V RMC2000G3240 NF2000G3 8435.00

277V RMC2000G3277 NF2000G3 8435.00

120V RMC3000G3120 NF3000G3 9606.00

240V RMC3000G3240 NF3000G3 9606.00

277V RMC3000G3277 NF3000G3 9606.00

120V RMC3000G3C120 NF3000G3C 9606.00

240V RMC3000G3C240 NF3000G3C 9606.00

277V RMC3000G3C277 NF3000G3C 9606.00

Table 5.41: Powerlink Device Routersa

Description Catalog No. $ Price

120V Device Router NFDR120G3Cb1632.00

277V Device Router NFDR277G3Cb1632.00

Table 5.42: Powerlink Device Power Suppliesc

Description Catalog No. $ Price

Single Supply 120V NFDP1120G3Cd900.00

Dual Supply 120V NFDP2120G3Cd1650.00

Single Supply 277V NFDP1277G3Cd900.00

Dual Supply 277V NFDP2277G3Cd1650.00

Filler Plate SLC4CSF8 27.00

Table 5.43: Powerlink Network Accessories

Description Catalog No. $ Price

RS232/485 Converter 6382RS485G3KIT 526.50

Table 5.44: Powerlink Remote Modem Supporte

Description Catalog No. $ Price

Modem Kit (for G3 Controllers) 6382G3MODEM 876.00

Powerlink Device Router

Device Power Supply

DE-8 DE-8A Discount

Schedule

Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com

5LIGHTING CONTROL AND

INTEGRATED HOME SYSTEMS

www.squaredli

htin

control.com

Powerlink® Lighting

Control Systems Class 1210

G3 NF Panelboards 240V and 480Y/277V Factory

Assembled Systems

Maximum Voltage 480Y/277Vac

aHL and JL frame circuit breakers are also available as main circuit breakers.

bBackfed Main Circuit Breaker—54 circuit only.

cCopper Bus Only.

dFor N2 protocol, add $3819.

eContact your nearest Square D/Schneider Electric sales office for MICROLOGICTM trip

main circuit breakers

Note: All EC, ED, EG and EJ branch circuit breakers are UL Listed as HACR type.

Sub-Feed Circuit Breaker

•Available on 1Ø or 3Ø, 125–800A main lugs or 125–600A main circuit breaker

interiors

•One sub-feed JD, JG, JJ or JL circuit breaker per 250A panelboard

•Two sub-feed JD, JG, JJ or JL circuit breakers per 400A panelboardf

fLC and JJ may not be combined.

gJJ and LC sub-feed circuit breakers cannot be used together.

hDimensions also for 400A LC/LI main circuit breaker panels.

i600A main lug panelboards require an 8" deep, 26” wide box.

j600A main lug panelboards require an 8.75" deep box.

k800A main lug panelboards require an 8.75” deep, 26” wide box.

To obtain pricing for the following Special Features please refer to the

Supplemental Digest.

•PowerLogic® metering

•Customer equipment space

•Increased box depth

•Box extensions top, bottom and side

•Drip hoods

•Non-standard paint

•NEMA 1 gasketed

•NEMA 4 Stainless steel enclosure

•NEMA 4X Fiberglass enclosure (NQOD and NF)

•Stainless steel trim front (NQOD, NF and I-LINE)

•Padlockable hasp

•Special locks (Corbin, Yale, Best)

•Equal height boxes

•Common trip to cover two equal height boxes

•Panelboard skirthides conduits feeding a panelboard

•Panelboard wireway for terminating conduit in wireway endwall

•Panelboard interiors and special fronts to fit existing boxes

Table 5.45: Powerlink G3 System Price

List

System Type

30 ckt Interior 42 ckt Interior 54 ckt Interior

12 ckt

bus 24 ckt

bus 18 ckt

bus 36 ckt

bus 21 ckt

bus 42 ckt

bus

Slave Panel 1650.00 3450.00 2025.00 4200.00 2370.00 4890.00

NF500G3 6753.00 8553.00 7128.00 9303.00 7473.00 10143.00

NF1000G3d10728.00 12528.00 11103.00 13278.00 11448.00 14118.00

NF2000G3 17298.00 19098.00 17673.00 19848.00 18018.00 20688.00

NF3000G3 21072.00 22872.00 21447.00 23622.00 21792.00 24462.00

Table 5.46: Panelboard Base Price (including solid neutral)

Mains

Rating

Main Lugs Main Circuit Breaker (Circuit Breaker Interrupting Rating—6-2 through 6-8)ae

Standard IC HIC Extra HIC I-Limiter®

2-pole 3-pole Circuit

Bkr. 2-pole 3-pole Circuit

Bkr. 2-pole 3-pole

100A — — EDb2454.00 2823.00 EGb3150.00 3624.00 HJ 4872.00 5397.00 FI 6375.00 7326.00

125A 1269.00 1458.00 EDb5058.00 5643.00 EGb6486.00 7464.00 ——— ———

150A — — HD 4905.00 5430.00 HG 6072.00 6597.00 HJ 6105.00 6630.00 ———

225A — — JD 6180.00 6570.00 JG 7605.00 8100.00 JJ 9930.00 10995.00 KI 10899.00 12528.00

250A 1503.00 1728.00 JD 6750.00 7710.00 JG 8985.00 9270.00 JJ 10785.00 12675.00 KI 13731.00 15783.00

400A 1989.00 2286.00 LA 7995.00 9189.00 LH 11568.00 13296.00 LC 12759.00 14664.00 LI 14025.00 16119.00

600Ac3549.00 3933.00 ——————LC 14331.00 16326.00 LI 20460.00 23517.00

800Ac5325.00 5850.00 —————— ——————

Table 5.47: Branch Circuit Breaker – Price Per Circuit Breaker

Powerlink G3—ECB Bolt-On

65 kA AIR@240Vac,

14 kA AIR@480Y/277

Standard Breakers—EDB Bolt-On

18 kA AIR 1-pole,

25 kA AIR 2 & 3-pole @ 240V,

18 kA AIR@480Y/277

Standard Breakers HIC—EGB Bolt-On

65 kA AIR@240Vac,

35 kA AIR@480Y/277

Standard Breakers Extra HIC—EJB Bolt-On

100 kA AIR@240Vac,

65 kA AIR@480Y/277

Voltage Ampere

Rating 1-pole 2-pole 3-pole Voltage Ampere

Rating 1-pole 2-pole 3-pole

240

Vac

15–20 438. 1215. 1929.

480Y/

277

Vac

15–60 288. 663. 1122.

480Y/

277

Vac

15–60 486. 1119. 1896.

480Y/

277

Vac

15–60 777. 1767. 3036.

30 438. 1215. 1929. 70 513. 1308. 1569. 70 867. 2211. 2565. 70 1386. 3540. 4245.

480Y/277

Vac

15–20 438. 1215. 1929. 80–100 — 1308. 1569. 80–100 — 2211. 2655. 80–100 — 3540. 4245.

30 438. 1215. — 110–125 — 3825. 4845. 110–125 — 6171. 7131. 110–125 — 7950. 9450.

Space Only 63. 126. 189. Space Only 63.126.189. Space Only 63. 126. 189. Space Only 63. 126. 189.

Table 5.48: Sub-Feed Circuit Breaker (150–400A)

No. of Poles JD JG JJgJL LA LH LCgSpace

22265.00 3165.00 3844.50 4230.00 2985.00 4150.50 6475.50 619.50

32527.50 3825.00 4665.00 5296.50 3687.00 4882.50 7617.00 619.50

Table 5.49: Sub-Feed Breaker Cabinet Data

Max. No. of

Branch Spaces (Does

not include sub-feed

breaker spaces)

Box Height (20" W x 5.75" D)

250A 400A LA/LH 600A 800A

Main

Lugs

Main

Circuit

Breaker

Main

Lugs

Main

Circuit

Breaker

Main

Lugsj

Main

Circuit

Breaker

Main

Lugsk

30 56 68 68 80 68 80h68

42 62 74 74 86 74 86h74

54 68 80 80 92 80 92h80

PE-1A Discount

Schedule

Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com

www.squaredli

htin

control.com

5LIGHTING CONTROL AND

INTEGRATED HOME SYSTEMS

Structured Wiring Square D® Multi-Link Structured Wiring System

Class 1400 / Refer to Catalog 1400CT0101

The Square D Multi-Link Structured Wiring System devices organize the

way a house is wired to coordinate telephone, video, and data services for unmatched

flexibility and convenience. Installed during construction, these devices increase

capabilities without adding significant cost to the home.

aTwo columns of grid mounting space, 17" of space per column.

bTwo columns of grid mounting space, 35" of space per column.

Table 5.50: System Components

Description Cat. No. $ Price Grid

Mounting

Space (in.)

Standard

Package

Mounting Brackets and Enclosures

Surface mounting bracket, 61/2"w x 10"h, white SDM10BW 22.80 10 10

Cover for SDM10BW, white SDM10CW 42.90 —1

Enclosure w/mounting grid, 14"w x 18"h, white SDM18BW 67.00 34a1

Cover for SDM18BW, white SDM18CW 24.50 —1

Enclosure w/mounting grid, 14"w x 36"h, white SDM36BW 129.00 70b1

Cover for SDM36BW, white SDM36CW 42.00 —1

Combination Video/Telephone Hubs

Combo hub, video splitter (1 input x 4 TVs) / phone (2 lines x 6 phones),

grid mount SDM26P14V 87.00 31

Combo hub, video splitter (1 input x 4 TVs) / phone (4 lines x 6 phones),

grid mount SDM46P14V 116.00 31

Telephone Hubs

Telephone master hub, 4 lines x 6 phones, grid mount SDM46P 87.00 31

Telephone expansion hub, 4 lines x 8 phones, grid mount SDM48PX 87.00 31

Telephone interface hub, 4 lines x 11 phones, grid mount, RJ45 jacks SDM412PJ 111.00 31

Video Hubs

Video splitter, (1 input x 3 TVs), grid mount SDM13VS 28.70 21

Video splitter, (1 input x 4 TVs), grid mount SDM14VS 34.40 21

Video splitter, (1 input x 8 TVs), grid mount SDM18VS 63.00 21

Video amplifier hub (1 input x 6 TVs), bi-directional CATV or antenna,

grid mount, 120 Vac power supply included SDM16VAB 144.00 31

Video amplifier hub (3 inputs x 8 TVs), bi-directional CATV, grid mount,

120 Vac power supply included SDM38VBIR 429.00 2.5 1

Video amplifier hub (3 inputs x 8 TVs), CATV or antenna, grid mount,

120 Vac power supply included SDM38VHIR 429.00 2.5 1

Data Hubs

Data termination hub provides termination point for Cat-5 wiring, 100

Base-T certified, 8 bridgeable circuits (8 - 110 punch down blocks

connected to 8 - RJ-45 jacks) SDM8D 101.00 31

Data termination hub provides termination point for Cat-5 wiring, 100

Base-T certified, 16 bridgeable circuits (16 - 110 punch down blocks

connected to 8 - RJ-45 jacks) SDM8DB 131.00 4.5 1

Accessories

AC outlet accessory, mounts in enclosures, 2 duplex receptacles

(not included) accepts 2 power supplies, UL Listed, 120 Vac SDM4AC 45.80 5.5 1

AC outlet accessory, mounts in enclosures, 4 duplex receptacles

(not included) accepts 4 power supplies, UL Listed, 120 Vac SDM8AC 55.00 11a1

Telephone surge accessory, mounts in enclosures,

4-line telephone protector with tool-less IDC terminations SDMSA4P 100.50 21

Video surge accessory, mounts in enclosures,

dual line cable TV protection SDMSA2V 100.50 21

Video surge accessory, mounts in enclosures,

dual line satellite protection SDMSA2VD 100.50 21

Adapter bracket to mount ChannelPlus 3400 or 8200 on

Square D Multi-Link grid SDM1A 28.70 21

Adapter bracket to mount RJ and type F connectors on

Square D Multi-Link grid SDM6A 28.70 21

Wire Spacer Mezzanine, Universal Grid, lifts modules 1" above grid,

providing wire management capabilities, 11.2"h x 6.5"w SDM12WS 43.80 12 1

Universal heavy duty isolation mounting bracket for non-Square D

Multi-Link products. Load rated 60 pounds. SDM1IMB 87.00 b1

Universal light duty isolation mounting bracket for non-Square D

Multi-Link products. Load rated 10 pounds. SDM2IMB 42.90 b1

Patch Cord 1 foot length, Cat-5, RJ-45 plugs on both ends SDM1DC 11.60 —1

Patch Cord 2 foot length, Cat-5, RJ-45 plugs on both ends SDM2DC 14.40 —1

Enclosure Coupling Tube for stacking enclosures, 2 inch conduit SDM2C 22.80 —1

Plastic grommet for 2" enclosure knockout, (5) pack SDM2G 4.40 —1

Cover Lock Kit SDMLK 43.80 —1

Replacement snap locks, lock Square D Multi-Link modules to grid,

black (10) pack SDM10SL 17.10 —1

Low Pass Filter, Channel 91 SDM600LPF 58.00 —1

SDM18CW and SDM18BW

SDM46P14V

SDM46P

SDM38VBIR/SDM38VHIR

SDM8D

SDM18BW with optional modules

DE7 Discount

Schedule

Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com

Schneider Electric DIGEST 175 Lighting Control And Integrated Home Systems 520561 Catalog 1

Navigation menu

Versions of this User Manual:

Views

Navigation
