REPORT NO. :E920706
Page 1 of 30
NVLAP LAB CODE: 200097-0-
FCC DoC TEST REPORT
According to
FCC Part 15 Subpart B
Test Item Print Server
Model No. PS-3103P V1.0, GP-303P
Responsible
Party
EDIMAX TECHNOLOGY CO., LTD.
Address 7, LANE 116, WU-KUNG SECOND ROAD, WU-KU
INDUSTRIAL PARK, TAIPEI HSIEN, TAIWAN, R. O. C.
Test Engineer : STEVEN CHEN
Test Date : NOV. 28, 2003
Issued Date : DEC. 03, 2003
NVLAP Signature : Peter Kao
Peter Kao / President
ΘThe test report shall not be reproduced except in full, without the written approval of
the laboratory.
ΘThe report must not be used by the client to claim product endorsement by NVLAP or any
agency of the United States government.
ΘThis report is only for item test which described in page 5.
ΘThe testing result in this report are traceable to national and international standard.
PEP TESTING LABORATORY
12-3Fl, No. 27-1, Lane 169, Kang-Ning St., Hsi-Chih,
Taipei Hsien, Taiwan, R. O. C.
TEL : 886-2-26922097 FAX : 886-2-26956236
REPORT NO. :E920706
Page 2 of 30
NVLAP LAB CODE: 200097-0-
Table of Contents
1. SCOPE 3
2. PRODUCT INFORMATION 4
3. EUT DESCRIPTION AND TEST CONCLUSION 5
4. MODIFICATION(S) 6
5. TEST SOFTWARE USED 6
6. SUPPORT EQUIPMENT USED 7
7. DESCRIPTION OF CONDUCTED EMISSIONS TEST 9
8. DESCRIPTION OF RADIATED EMISSIONS TEST 10
9. CONDUCTED EMISSIONS TEST SETUP PHOTO 13
10. CONDUCTED EMISSIONS TEST DATA 14
11. RADIATED EMISSIONS TEST SETUP PHOTOS 19
12. RADIATED EMISSIONS TEST DATA 20
13. LIST OF MEASURED INSTRUMENTS 22
14. DUTIES OF THE RESPONSIBLE PARTY 23
15. LABELING REQUIREMENTS 24
16. INFORMATION TO THE USER 25
17. EUT PHOTOGRAPHS 26
REPORT NO. :E920706
Page 3 of 30
NVLAP LAB CODE: 200097-0-
1. Scope
Measurement and determination of electromagnetic emissions (EME) of radio frequency devices
including intentional and/or unintentional radiators for compliance with the technical rules and
regulations of the Federal Communications Commission under EUT Docket 95-19 Declaration of
Conformity(DoC).
Responsible Party*: EDIMAX TECHNOLOGY CO., LTD.
Address: 7, LANE 116, WU-KUNG SECOND ROAD, WU-KU
INDUSTRIAL PARK, TAIPEI HSIEN, TAIWAN, R. O. C.
Contact Person: TRACY CHENG / ASSISTANT
Phone No.: 886-2-22995648 Fax No.: 886-2-22995647
Regulation: FCC Part 15 & Part 2; Docket 95-19
Limitation: CISPR 22 CLASS B
Test Procedure: ANSI C63.4(1992)
Test Item: Print Server
Model No.: PS-3103P V1.0, GP-303P
Serial No.: N/A
Place of Test: PEP Testing Laboratory
12-3Fl, No. 27-1, Lane 169, Kang-Ning St., Hsi-Chih.
Taipei Hsien, Taiwan, R. O. C.
TEL : 8862-2-6922097 FAX : 8862-2-6956236
Measurement Uncertainty :
The uncertainty of the testing result is given as below. The method of uncertainty
Calculation is provided in PEP Testing Lab document No. QP-T-28-A & QP-T-27-A
Frequency ( MHz ) 0.15 Д 30 30 Д 1000
Expanded Uncertainty Ӵc 1.4 (dB) 2.8 (dB)
ϡʳ 95% Confidence Level; K=2
REPORT NO. :E920706
Page 4 of 30
NVLAP LAB CODE: 200097-0-
2. Product Information
a. EUT Name: Print Server
b. Model No. PS-3103P V1.0
c. CPU Type N/A
d. CPU Frequency N/A
e. Crystal/Oscillator(s) 25 MHz
f. Chassis Used PLASTIC (ABS V0)
g. Port/Connector(s) Parallel Port × 3, RJ-45 Port × 1
h. Power Rating Adapter ----
Manufacturer : DVE
Model No. : DV-1280-3
Input : AC 120V 60Hz 16W
Output : DC 12V 1000mA
i. Condition of the EUT : ϭ Prototype Sample Engineering Sample
ʳϭ
Production Sample
j. Test Item Receipt Date : NOV 27, 2003
REPORT NO. :E920706
Page 5 of 30
NVLAP LAB CODE: 200097-0-
3. EUT Description and Test Conclusion
The equipment under test (EUT) is Print Server model PS-3103P V1.0 and GP-303P. These
two models have identical electrical design and construction except that they are different in
model number for marketing purpose. From technical point of view, we only test model
PS-3103P V1.0 that would have the same test performance to model GP-303P. Coming with
three Parallel ports and one RJ-45 port, the EUT provides multiple PCs access to three
printers on Local Area Network. AC-DC switching power adaptor supplies EUT DC 12V
from AC power source. For more detail specification about the EUT, please refer to the
user’s manual.
Test method: According to the major function designed, the EUT configuration was set up
by the following steps for test.
(A) Connect EUT RJ-45 port to PC LAN card.
(B) Install one printer to EUT one Parallel port.
(C) Plug the rest of EUT Parallel ports by data cables.
All corresponding peripherals to PC I/O ports and EUT were set to proceed
with test. The test was carried out on EUT operational condition and the
worst-case test result was recorded and provided in this report.
Conducted emission test:
The system was setup with the EMI diagnostic software running. The power line conducted
EMI tests were run on the line and neutral conductors of the power cord and the results were
recorded. The effect of varying the position of the interface cables has been investigated to
find the worst-case configuration that produces maximum emission.
At the frequencies where the peak values of the emission exceeded the quasi-peak limit, the
emissions were also measured with the quasi-peak detectors. The average detector also
measured the emission either (A) quasi-peak values were under quasi-peak limit but
exceeded average limit, or (B) peak values were under quasi-peak limit but exceeded
average limit.
Radiated emission test:
The maximum readings were found by varying the height of antenna and then rotating the
turntable. Both polarization of antenna, horizontal and vertical, are measured. The effect of
varying the position of the interface cables has been investigated to find the configuration
that produces maximum emission.
The highest emissions were also analyzed in details by operating the spectrum analyzer in
fixed tuned quasi-peak mode to determine the precise amplitude of the emissions.
REPORT NO. :E920706
Page 6 of 30
NVLAP LAB CODE: 200097-0-
4. Modification(s):
The applicant upon signing the Declaration of Conformity agrees to incorporate the following
modification(s) into all production units, please refer to the attached pages in this report.
(A) Add modification to EUT main board using copper foil shown as page 28.
5. Test Software Used
(A) EMITEST program that continuously generates a complete line of repeating “H” letter
was the software used during test.
(B) PSETUP program was the software used to operate EUT function during the test.
REPORT NO. :E920706
Page 7 of 30
NVLAP LAB CODE: 200097-0-
6. Support Equipment Used
1.Personal Computer (PC3) CPU : Intel P4 Socket 478 1.6GHz
FCC ID Declaration of Conformity(DoC)
Manufacturer LEMEL
Model Number LMIH1A2
Power Supply Switching
Power Cord Non-Shielded, Detachable, 1.8m
Data Cable N/A
2.Keyboard (KBS1 PS/2) FCC ID E5XKB5121WTH0110
Manufacturer BTC
Model Number 5121W
Power Supply +5Vdc from PS2 of PC
Power Cord N/A
Data Cable 1 > Shielded , Non-detachable,1.6m
2 > Back Shell : Metal
3.Monitor (MON1 15”) FCC ID Declaration of Conformity(DoC)
Manufacturer SAMSUNG
Model Number 550S
Power Supply Switching
Power Cord Non-Shielded, Detachable, 1.8m
Data Cable 1 > Shielded , Non-detachable,1.5m
2 > Back Shell : Metal
4.Printer (PRN1) FCC ID Declaration of Conformity(DoC)
Manufacturer Hewlett-Packard
Model Number C2642E
Power Supply Linear, 30Vdc O/P
Power Cable Non-Shielded , Detachable,1.7m
Data Cable 1 > Shielded , Detachable,1m
2 > Back Shell : Metal
REPORT NO. :E920706
Page 8 of 30
NVLAP LAB CODE: 200097-0-
5.Modem (MOD1) 2 FCC ID IFAXDM1414
Manufacturer ACEEX
Model Number 1414
Power Supply Linear, 9Vac O/P
Power Cable Non-Shielded , Detachable,1.7m
Data Cable 1 > Shielded , Detachable,1m
2 > Back Shell : Metal
6.Mouse (MOUS/1 PS/2) FCC ID DZL211106
Manufacturer ACER
Model Number M-S42
Power Supply +5Vdc from PS2 of PC
Power Cord N/A
Data Cable 1 > Shielded , Non-detachable,1.8m
2 > Back Shell : Metal
7.Printer (PRN2) FCC ID Declaration of Conformity(DoC)
Manufacturer Hewlett-Packard
Model Number 3820
Power Supply Switching
Power Cable Non-Shielded , Detachable,1.7m
Data Cable 1 > Shielded , Detachable,1m
2>Back Shell : Metal
8.Lan Card (LC1) FCC ID N/A
Manufacturer D-Link
Model Number DFE-530TX
Power Supply N/A
Power Cord N/A
Data Cable N/A
REPORT NO. :E920706
Page 9 of 30
NVLAP LAB CODE: 200097-0-
7. Description of Conducted Emissions Test
7.1 Conducted Emissions

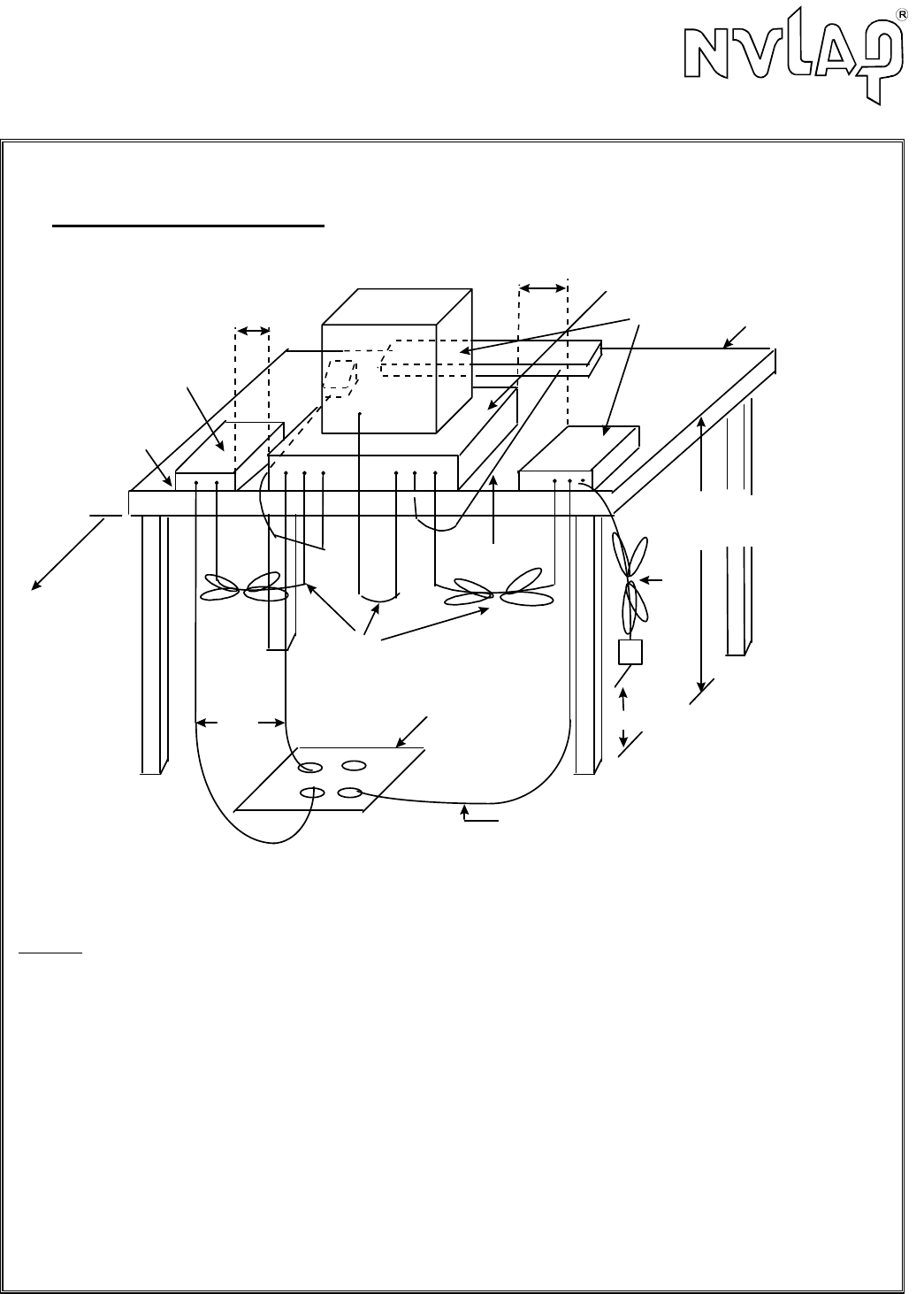

A 1m x1.5m wooden table 80 cm high is placed 40cm away from the vertical wall. Two AMN
are bonded to the grounding plane. The EUT is powered from the designated AMN and the
support equipment is powered from another designated AMN. Powers to the AMN are filtered
by a high-current high insertion loss power line filters. All electrical cables are shielded by
braided tinned copper zipper tubing with inner diameter of 1/2”. All interconnecting cables
more than 1 meter were shortened by non-inductive bundling (serpentine fashion) to a 1-meter
length.
Sufficient time for the EUT, support equipment, and test equipment was allowed in order for
them to warm up to their normal operating condition. The RF output of the AMN was
connected to the spectrum analyzer to determine the frequency producing the maximum EME
from the EUT.
The spectrum was scanned from 150kHz to 30 MHz with1.5 sec sweep time. The frequency
producing the maximum level was re-examined using Quasi-Peak adapter. The detector
function was set to CISPR quasi-peak mode. The bandwidth of the receiver was set to 10kHz.
The EUT, support equipment, and interconnecting cables were re-arranged and manipulated to
maximize each EME emission. Each emission was maximized by: switching power lines;
varying the mode of operation or resolution; clock or data exchange speed; scrolling H pattern
to the EUT and/or support equipment, and powering the monitor from the floor mounted outlet
box and the computer aux AC outlet, if applicable; whichever determined the worst-case
emission.
7.2 Conducted Emissions Limits
Frequency Maximum RF Line Voltage dB(uV)
Class A Class B
MHz QUASI-PEAK AVERAGE QUASI-PEAK AVERAGE
0.15 - 0.50 79 66 66-56 56-46
0.50 - 5.0 73 60 56 46
5.0 - 30 73 60 60 50
Remarks : In the above table, the tighter limit applies at the band edges.
REPORT NO. :E920706
Page 10 of 30
NVLAP LAB CODE: 200097-0-
8. Description of Radiated Emissions Test
8.1 Radiated Emissions
Preliminary measurements were made indoors chamber at 3 meter using broadband
antennas, broadband amplifier, and spectrum analyzer to determine the frequency
producing the maximum EME. Appropriate precaution was taken to ensure that all EME
from the EUT were maximized and investigated. The system configuration, clock speed,
mode of operation or video resolution, turntable azimuth with respect to the antenna were
noted for each frequency found. The spectrum was scanned from 30 to 1000 MHz using
logbicon antenna. Above 1GHz, linearly polarized double ridge horn antenna was used.
Final measurements were made outdoors at 10-meter test range using logbicon antenna and
horn antenna. The test equipment was placed on a wooden bench situated on a 1.5x1 meter
area adjacent to the measurement area. Sufficient time for the EUT, support equipment,
and test equipment was allowed in order for them to warm up to their normal operating
condition. Each frequency found during pre-scan measurements was re-examined and
investigated using Quasi-Peak Adapter. The detector function was set to CISPR quasi-peak
mode and the bandwidth of the receiver was set to 120kHz.
The turntable containing the system was rotated; the antenna height was varied 1 to 4
meters and stopped at the azimuth or height producing the maximum emission. Each
emission was maximized by: varying mode of operation or resolution; clock or data
exchange speed; scrolling H pattern to the EUT and/or support equipment, and powering
the monitor from the floor mounted outlet box and the computer aux AC outlet , if
applicable; and changing the polarity of the antenna, whichever determined the worst-case
emission. Photographs of the worst-case emission can be seen in radiated emission test
photo.
REPORT NO. :E920706
Page 11 of 30
NVLAP LAB CODE: 200097-0-
8.2 Test Configuration
LEGEND
1. Interconnecting cables which hang closer than 40 cm to the ground plane shall be folded back and forth forming a bundle 30 to
40 cm long. hanging approximately in the middle between ground plane and table.
2. I/O cables which are connected to a peripheral hall be bundled in center. The end of the cable may b terminated if required using
correct terminating impedance. The total length shall not exceed 1 m.
3. If LISN are kept in the test setup for radiated emissions, it is preferred that they be installed under the ground if requires
receptacle flush with the ground plane.
4. Cables of hand-operated devices, such as keyboards, KEYPADs, etc., have to be placed as close as possible to the controller.
5. Non-EUT components of EUT system being tested.
6. The rear of all components of the system under test shall be located flush with the rear of the table.
7. No vertical conducting wall used.
8. Power cords drape to the floor and are routed over to receptacle.
6
5
10
cm
3
5
10
cm
4
EUT
7
80 cm TO
GROUND PLANE
NONCONDUCTIVE
TABLE 1.5 x 1 METER
1
8
8
2
40 cm
CONDUCTING GROUND
PLANE EXTENDS AT
LEAST 0.5m BEYOND
EUT SYSTEM FOOTPRINT
REPORT NO. :E920706
Page 12 of 30
NVLAP LAB CODE: 200097-0-
8.3 Radiated Emission Limits
Limits for radiated disturbance of Class A ITE at
a measuring distance of 10 m
Frequency
MHz
Field Strength
dB(ӴV/m)
30 to 230 40
230 to 1 000 47
NOTES
1 The lower limit shall apply at the transition frequency.
2 Additional provisions may be required for cases where
interference occurs.
Limits for radiated disturbance of Class B ITE at
a measuring distance of 10 m
Frequency
MHz
Field Strength
dB(ӴV/m)
30 to 230 30
230 to 1 000 37
NOTES
1 The lower limit shall apply at the transition frequency.
2 Additional provisions may be required for cases where
interference occurs.
REPORT NO. :E920706
Page 13 of 30
NVLAP LAB CODE: 200097-0-
9. Conducted Emissions Test Setup Photo
< FRONT VIEW >
REPORT NO. :E920706
Page 14 of 30
NVLAP LAB CODE: 200097-0-

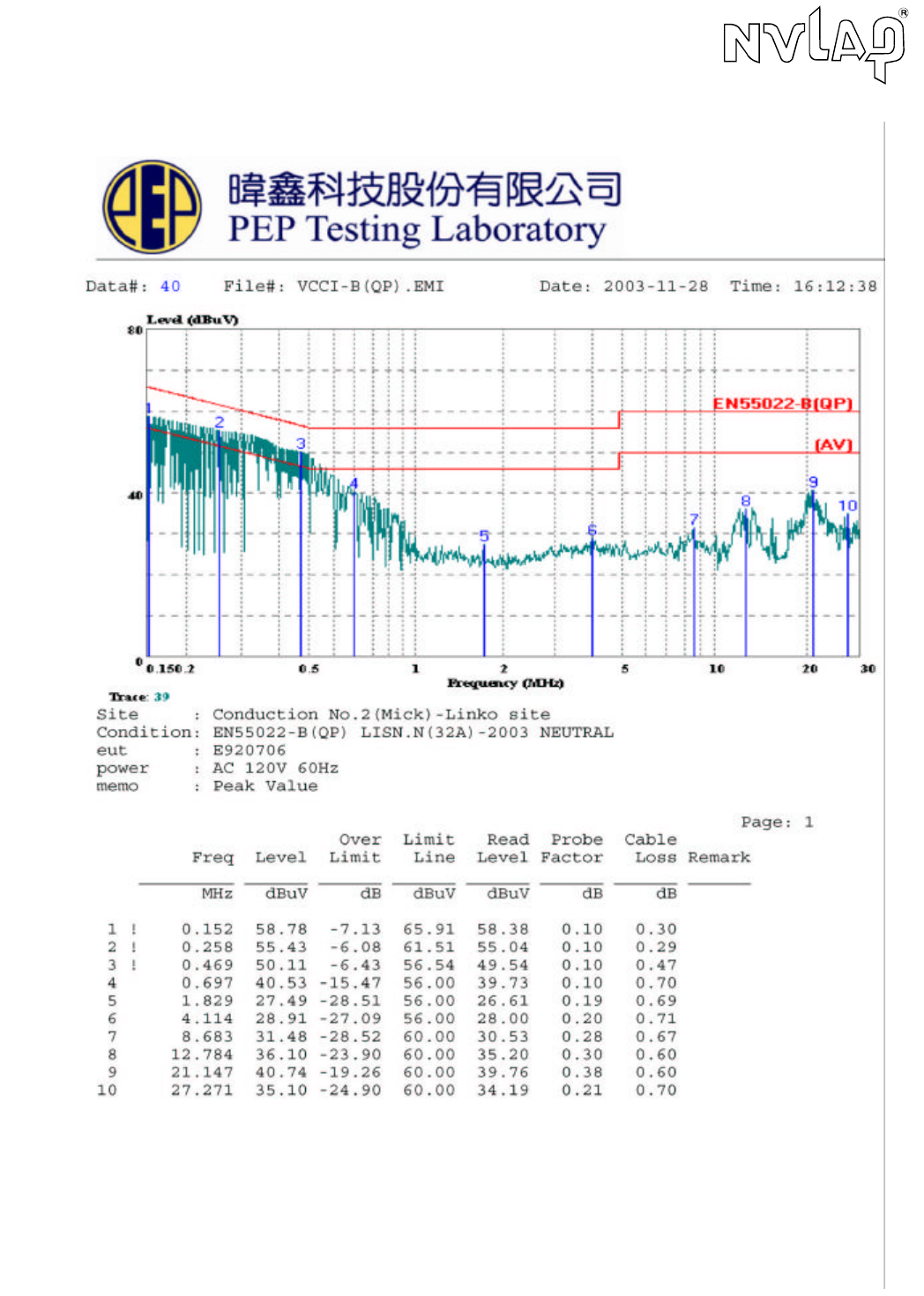

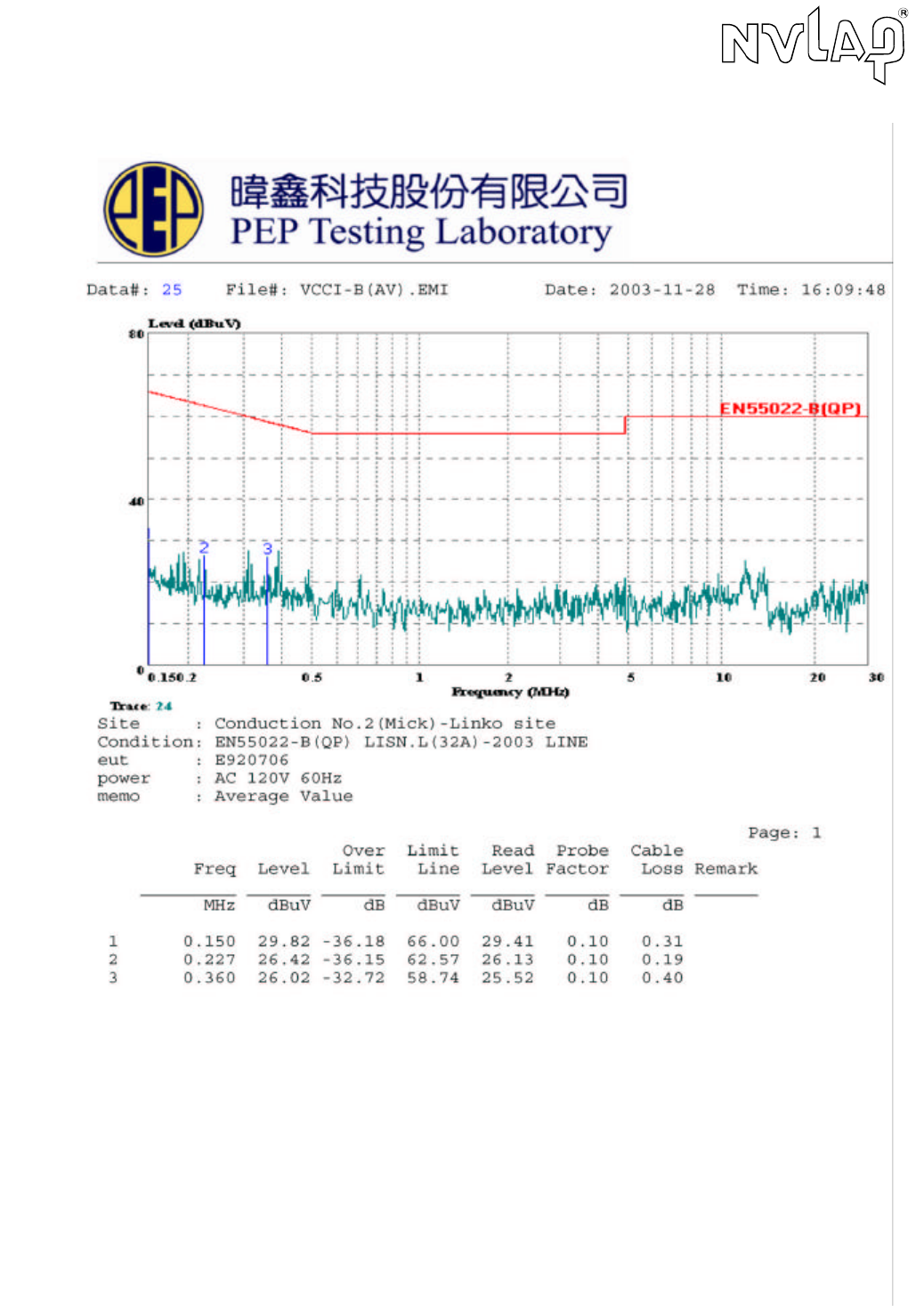

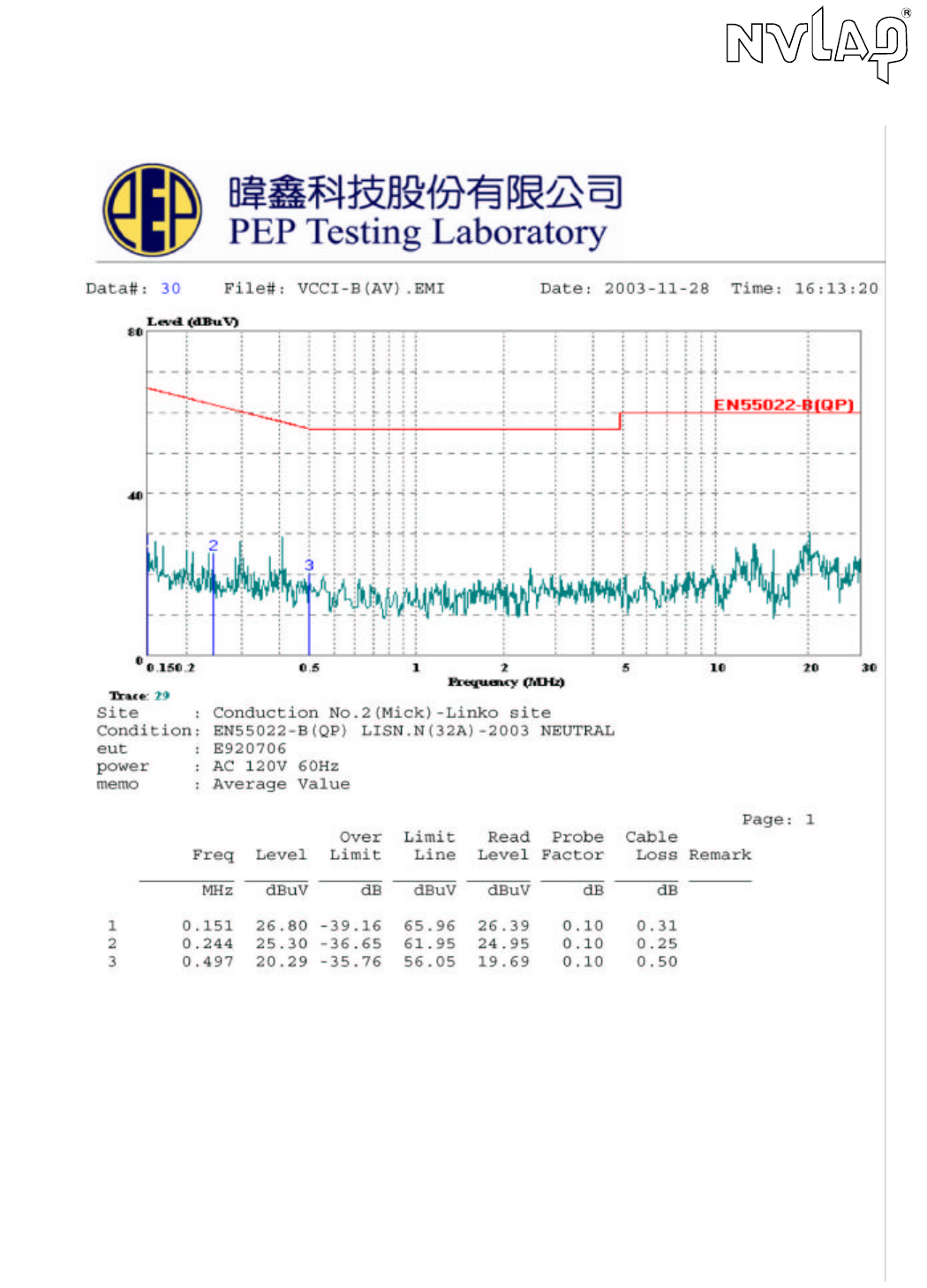

10. Conducted Emissions Test Data
Model No. : PS-3103P V1.0
Frequency range : 150KHz to 30MHz
Detector : Peak Value
Temperature : 19
Humidity : 55 %
Test Data : #35 #25 ˟˜ˡ˘ʳ
#40 #30 ˡ˘˨˧˥˔˟
Note 1. Level = Read Level + Cable Loss + Probe (LISN)
2. Over Limit = Level – Limit = Margin
Page 15 of 30
NVLAP LAB CODE: 200097-0-
!
!
Page 16 of 30
NVLAP LAB CODE: 200097-0-
!
!
!
Page 17 of 30
NVLAP LAB CODE: 200097-0-
!
!
!
Page 18 of 30
NVLAP LAB CODE: 200097-0-
!
!
!
REPORT NO. :E920706
Page 19 of 30
NVLAP LAB CODE: 200097-0-

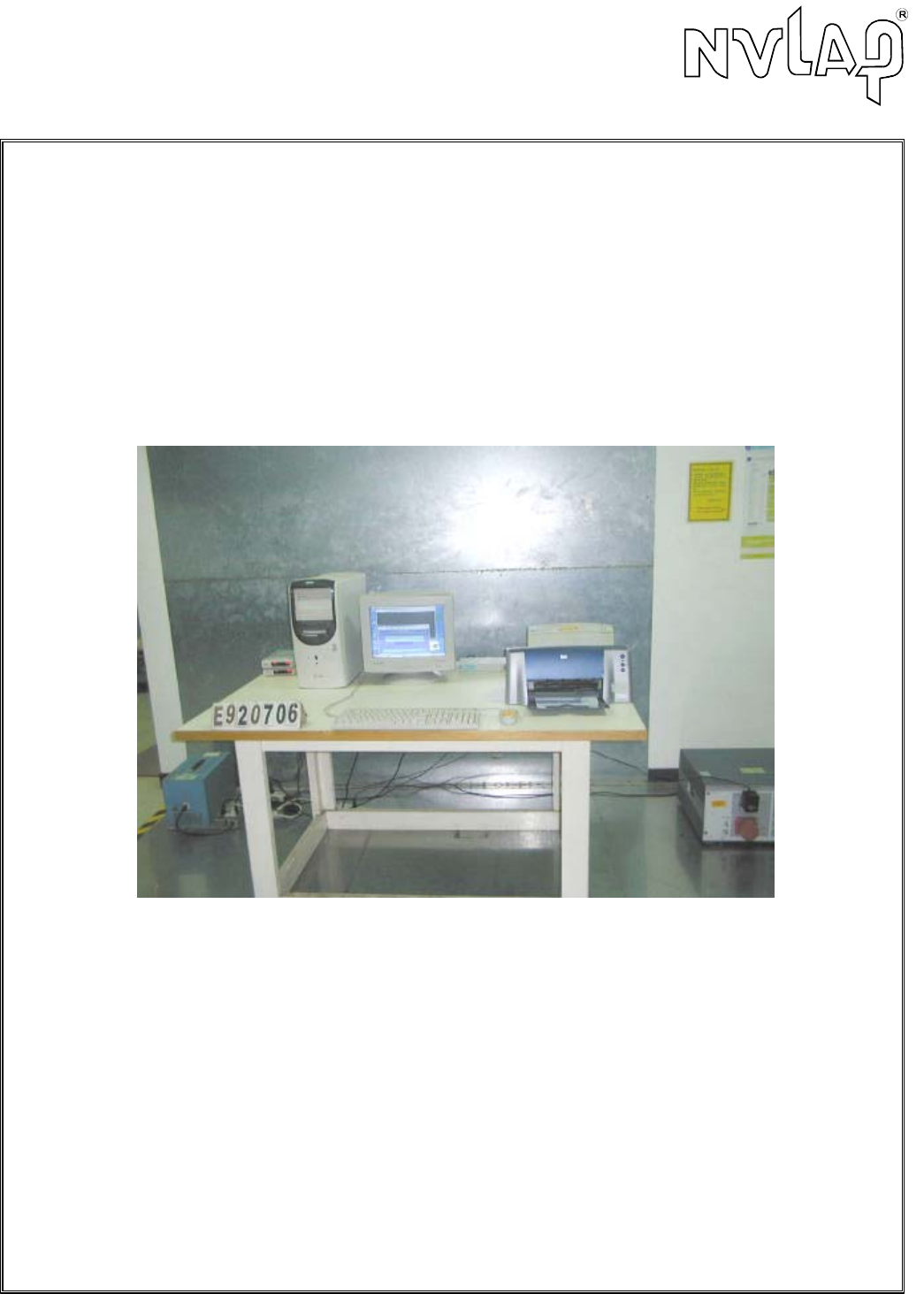

11. Radiated Emissions Test Setup Photos
< FRONT VIEW >
< REAR VIEW >
REPORT NO. :E920706
Page 20 of 30
NVLAP LAB CODE: 200097-0-
12. Radiated Emissions Test Data
Model No. : PS-3103P V1.0
Frequency range : 30MHz to 1GHz Detector : Quasi-Peak Value
Temperature : 24o C Humidity : 76 %
Antenna polarization : HORIZONTAL ; Test distance : 10m ;
Over Limit Read Antenna Cable Preamp
Freq. Level Limit Line Level Factor Loss Factor Azimuth Antenna
(MHz) (dBuV/m) (dB) (dBuV/m) (dB) (dB/m) (dB) (dB) (̓angle) High(m)
66.796 21.21 -8.79 30.00 32.75 6.90 1.65 20.09 194.0 4.0
124.964 17.97 -12.03 30.00 27.99 7.54 2.26 19.82 132.0 4.0
249.964 27.72 -9.28 37.00 31.83 12.77 3.28 20.16 208.0 3.3
374.956 29.89 -7.11 37.00 29.22 16.87 4.14 20.34 176.0 2.7
499.942 28.71 -8.29 37.00 23.72 20.10 5.14 20.25 262.0 1.3
624.947 28.91 -8.09 37.00 19.81 23.28 6.05 20.23 147.0 1.0
749.945 30.96 -6.04 37.00 20.42 24.05 6.43 19.94 233.0 1.0
Note :
1. Level = Read Level + Antenna Factor + Cable Loss – Preamp Factor
2. Over Limit = Level – Limit Line
REPORT NO. :E920706
Page 21 of 30
NVLAP LAB CODE: 200097-0-
Model No. : PS-3103P V1.0
Frequency range : 30MHz to 1GHz Detector : Quasi-Peak Value
Temperature : 24o C Humidity : 76 %
Antenna polarization : VERTICAL ; Test distance : 10m ;
Over Limit Read Antenna Cable Preamp
Freq. Level Limit Line Level Factor Loss Factor Azimuth Antenna
(MHz) (dBuV/m) (dB) (dBuV/m) (dB) (dB/m) (dB) (dB) (̓angle) High(m)
68.387 15.66 -14.34 30.00 27.16 6.90 1.68 20.08 190.0 1.0
124.964 17.06 -12.94 30.00 27.08 7.54 2.26 19.82 143.0 1.0
249.978 22.26 -14.74 37.00 26.37 12.77 3.28 20.16 249.0 1.8
374.962 25.29 -11.71 37.00 24.62 16.87 4.14 20.34 158.0 2.2
499.960 26.67 -10.33 37.00 21.68 20.10 5.14 20.25 116.0 3.7
624.962 27.23 -9.77 37.00 18.13 23.28 6.05 20.23 173.0 3.9
749.973 28.80 -8.20 37.00 18.26 24.05 6.43 19.94 247.0 4.0
Note :
1. Level = Read Level + Antenna Factor + Cable Loss – Preamp Factor
2. Over Limit = Level – Limit Line
REPORT NO. :E920706
Page 22 of 30
NVLAP LAB CODE: 200097-0-
13. List of Measured Instruments
Test Mode Instrument Model No. Serial No. Next Cal. Date Cal. Interval
HP
Spectrum 8591A 3225A03039 Jun. 10, 2004 1Year
R & S
LISN(EUT) ESH2-Z5 831886/004 Apr. 25, 2004 1Year
Kyoritsu
LISN(2nd) KNW-242 8-837-7 N/A N/A
Conduction
(No.2)
RF Cable No.4 N/A Feb. 19, 2004 1Year
R & S
Receiver ESBI 845658/003 Jul. 29, 2004 1Year
Schaffner
Pre-Amp. CPA-9232 1012 Aug. 21, 2004 1Year
SCJWARZBECL
Antenna VULB9161 D-69250 May 19, 2004 1Year
COM-Power
Horn Ant.
AH-118
(1GHz~18GHz) 10095 May 25, 2004 1Year
RF Cable No.2 N/A Feb. 19, 2004 1Year
SCHWARZBECK
Precision Dipole
Ant.
VHAP
(30MHz~1GHz)
970+971
953+954 Jun. 27, 2006 3Year
Radiation
(OP No.3)
R & S
Signal Generator SMY01 829846/038 Feb. 16, 2005 2Year
REPORT NO. :E920706
Page 23 of 30
NVLAP LAB CODE: 200097-0-
14. Duties of The Responsible Party
The responsible party upon signing or accepting the Declaration of Conformity as specified in
Section 2.906 of the FCC Rules hereby agrees to the duties listed below.
2.1073(a).
The responsible party warrants that each unit of equipment marketed under DoC is identical to the
unit tested and found acceptable with the standards and that the records maintained by the responsible
party continue to reflect the equipment being produced is within the variation that can be expected
due to quantity production and testing on a statistical bass.
2.1073(b).
The responsible party must have a written statement from the manufacturer or accredited test
laboratory that the equipment complies with the appropriate technical standards.
2.1073(c).
In case of transfer of control of equipment, as in the case of sale or merger, the new responsible party
shall bear the responsibility of continued compliance of the equipment.
2.1073(d).
Equipment shall be retested if any modifications or changes are made that could adversely affect the
emanation characteristics of the equipment.
2.1073(e).
If any modifications or changes made by anyone other than the responsible party, the party making the
modifications of changes, if located within the U.S., becomes the new responsible part. The new
responsible party must comply with all provisions for the DoC, including having test data on file
demonstrating that the product continues to comply with all of the applicable technical standards.
2.1075(a)(1).
The responsible party shall maintain records of the original design drawings and specifications and all
changes made to the product that may affect compliance.
2.1075(a)(2).
The responsible party shall maintain records of the procedures used for production inspection and
testing to insure the conformance with the FCC Rules.
2.946(a)(1).
The test report data shall be provided to the FCC within 14 days of delivery of request. The test
sample(s) shall be provided within 60 days of delivery of request.
2.946(b)
In case involving harmful interference or safety of life or property, the production sample must be
provided within 60 days, but not less than 14 days. Failure to comply with such a request with the
time frame shown may be cause for forfeiture, pursuant to Section 1.80 of Part 1 of the FCC Rules.
*The Responsible Party is the manufacturer, system integrator, or the importer as defined in Section
2.909 of the FCC Rules. The Rules. The Responsible Party for a DoC must be located within the
United States as specified in Section 2.1077.
REPORT NO. :E920706
Page 24 of 30
NVLAP LAB CODE: 200097-0-
15. Labeling Requirements
The sample label shown below shall be permanently affixed at a conspicuous location on
the device, instructions manual or pamphlet supplied to the user and be readily visible to the
purchaser at the time of purchase. However, when the device is so small wherein placement
of the label with specified statement is not practicable, only the trade name, model number,
and the FCC logo must be displayed on the device per Section ̺15.19 (b)(1)(i).
Trade Name
Model Number
REPORT NO. :E920706
Page 25 of 30
NVLAP LAB CODE: 200097-0-
16. Information To The User
For a Class B digital device or peripheral, the instructions furnished the user shall include the
following or similar statement, placed in a prominent location in the text of the manual:
Federal Communications Commission (FCC) Statement
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
- Consult the dealer or an experienced radio / TV technician for help.
REPORT NO. :E920706
Page 26 of 30
NVLAP LAB CODE: 200097-0-

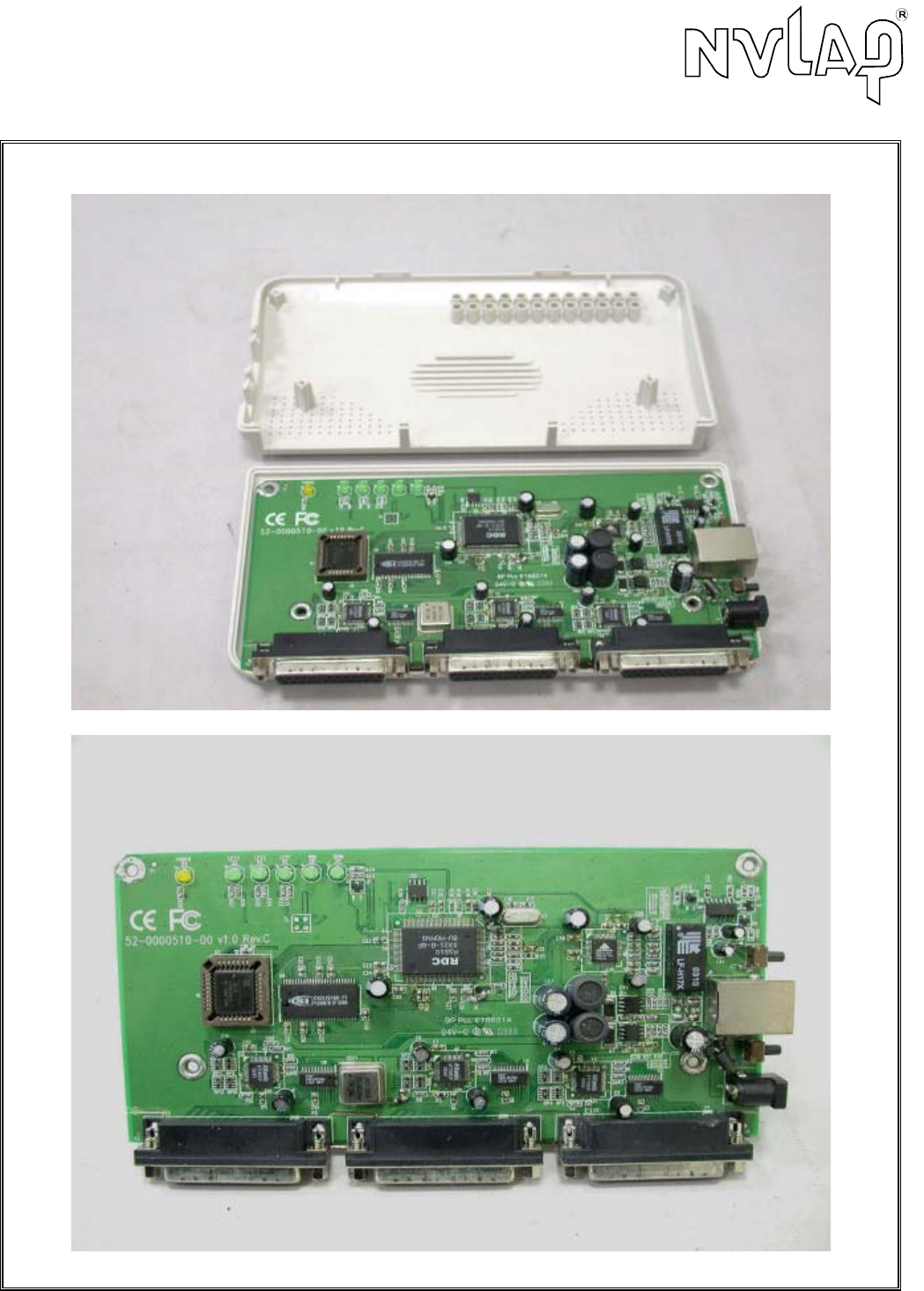

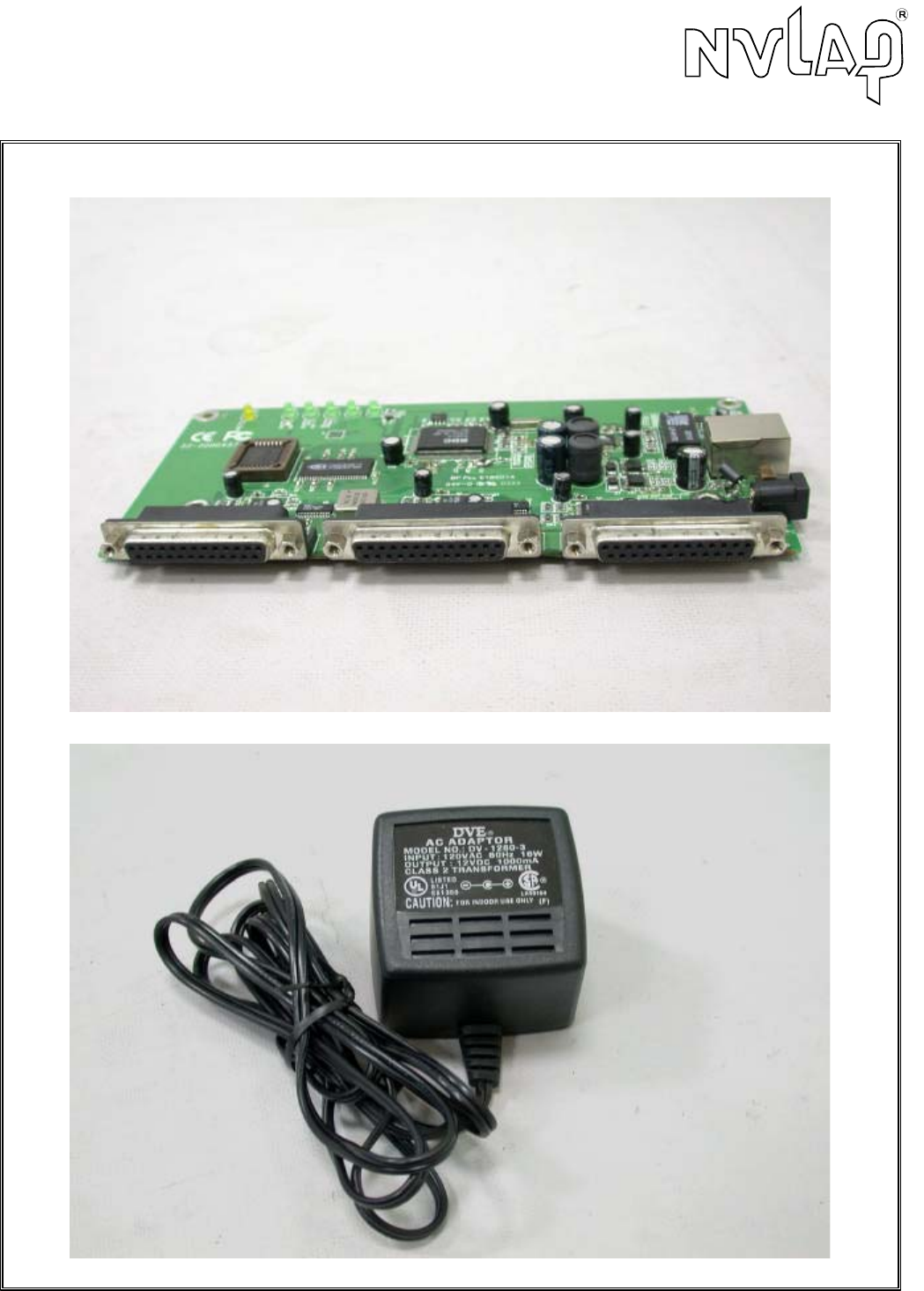

17. EUT Photographs
Model No. : PS-3103P V1.0
REPORT NO. :E920706
Page 27 of 30
NVLAP LAB CODE: 200097-0-
REPORT NO. :E920706
Page 28 of 30
NVLAP LAB CODE: 200097-0-
REPORT NO. :E920706
Page 29 of 30
NVLAP LAB CODE: 200097-0-
REPORT NO. :E920706
Page 30 of 30
NVLAP LAB CODE: 200097-0-
DECLARATION OF CONFORMITY CERTIFICATE
Responsible Party : EDIMAX TECHNOLOGY CO., LTD.
Address : 7, LANE 116, WU-KUNG SECOND ROAD, WU-KU
INDUSTRIAL PARK, TAIPEI HSIEN, TAIWAN, R. O. C.
Contact Person : TRACY CHENG / ASSISTANT
Equipment : Print Server
Model No.: PS-3103P V1.0, GP-303P
Traceability: FCC Part 15 & Part 2; Docket 95-19
Limitation: CISPR 22 CLASS B
Date of issued: DEC. 03, 2003
Report No.: E920706
The device bearing the trade name and model specified above has been shown to comply with the
applicable technical standards as indicated in the measurement report and was tested in accordance
with the measurement procedures specified in ANSI C63.4-1992. (See Test Report if any
modifications were made for compliance.)
PEP certifies that no party to this application has been denied the NVLAP benefits pursuant to
Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a).
Peter Kao/NVLAP Signatory
N
VLAP LAB CODE: 200097-0
DECLARATION OF CONFORMITY
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Responsible Party: EDIMAX TECHNOLOGY CO., LTD.
Address: 7, LANE 116, WU-KUNG SECOND ROAD, WU-KU
INDUSTRIAL PARK, TAIPEI HSIEN, TAIWAN, R. O. C.
Contact Person: TRACY CHENG / ASSISTANT
Phone No.: 886-2-22995648 Fax No.: 886-2-22995647
Equipment : Print Server
Model No. : PS-3103P V1.0, GP-303P
We hereby declare that the equipment bearing the trade name and model number
specified above was tested conforming to the applicable FCC Rules under the
most accurate measurement standards possible, and that all the necessary steps
have been taken and are in force to assure that production units of the same
equipment will continue to comply with the Commission s requirements.ġ
ġ
ġ
ġ
ġ
ġ
ġ
ġġġġ ġ
ġSignature Date

Navigation menu
