Certificate No：L2N2330L538

SPORTON LAB.

CERTIFICATE

EQUIPMENT：

150N Wireless LAN Access Point

MODEL NO. ：

EW-7215APn / EW-7215PDn / GAP-215N / GAP-PD215N

APPLICANT：

EDIMAX TECHNOLOGY CO., LTD.

No.3, Wu Chuan 3rd Road, Wu-Ku Industrial Park.

Taipei Hsien, Taiwan.

CERTIFY THAT：

THE MEASUREMENTS SHOWN IN THIS TEST REPORT WERE MADE IN

ACCORDANCE WITH THE PROCEDURES GIVEN IN EUROPEAN COUNCIL

DIRECTIVE 2006/95/EC. THE EQUIPMENT PASSED THE TEST

PERFORMED ACCORDING TO

European Standard:

IEC 60950-1:2005 (2nd Edition); Am 1:2009

EN 60950-1:2006+A11:2009+A1:2010+A12:2011

This evaluation was carried out to the best of our knowledge and ability, and our

responsibility is limited to the exercise of reasonable care. This certification is not

intended to relieve the sellers from their contractual obligations.

THE CERTIFICATE WAS CARRIED OUT ON JANUARY 11, 2013 AT SPORTON

INTERNATIONAL INC. LAB.

Hans Hsieh

Director

SPORTON INTERNATIONAL INC. EMC & SAFETY GROUP

14 Fl-2, No. 186, Jianyi Road, Zhonghe District, New Taipei City, Taiwan

Page 1 of 46 Report No.: L2N2330L538

Sporton International Inc.

LOW VOLTAGE DIRECTIVE TEST REPORT

IEC 60950-1:2005 (2nd Edition) Am 1:2009 and/or EN 60950-1:2006

Information technology equipment – Safety –

Part 1: General requirements

Report Reference No. ....................... :

L2N2330L538

Compiled by (+ signature) ................. :

Dick Lin

Engineer

Approved by (+ signature) ................. :

Peter Hsu

Reviewer

Date of Issue ..................................... :

JANUARY 11, 2013

Testing laboratory .............................. :

Sporton International Inc.

Address .............................................. :

14 Fl-2, No. 186, Jianyi Road, Zhonghe District, New Taipei City

Testing location ................................. :

Taiwan

Applicant ............................................ :

EDIMAX TECHNOLOGY CO., LTD.

Address .............................................. :

No.3, Wu Chuan 3rd Road, Wu-Ku Industrial Park. Taipei Hsien, Taiwan.

Standard ............................................ :

IEC 60950-1: 2005 (2nd Edition) Am 1:2009; and/or

EN 60950-1:2006+A11:2009+A1:2010+A12:2011

Test Report Form No. ....................... :

LVD 60950-1

Test procedure ................................. :

Sporton LVD type test approval

Procedure deviation ........................... :

N/A

Non-standard test method ................. :

N/A

Type of test object ............................. :

150N Wireless LAN Access Point

Trademark ......................................... :

EDIMAX

Model/type reference ......................... :

EW-7215APn / EW-7215PDn / GAP-215N / GAP-PD215N

Manufacturer ..................................... :

Address .............................................. :

EDIMAX TECHNOLOGY CO., LTD.

No.3, Wu Chuan 3rd Road, Wu-Ku Industrial Park. Taipei Hsien, Taiwan.

Rating ................................................. :

I/P: +5 Vdc, 1 A (supply by Adapter) (Optional)

+48 Vdc, 1 A (supply by POE) (Optional)

Page 2 of 46 Report No.: L2N2330L538

Sporton International Inc.

Test item particulars:

Equipment mobility .................................................... :

[X] movable [] hand-held [] transportable

[] stationary [] for building-in [] direct plug-in

Connection to the mains ............................................ :

[] pluggable equipment [] type A [] type B

[] permanent connection

[] detachable power supply cord

[] non-detachable power supply cord

[X] not directly connected to the mains

Operating condition ...................................................... :

[X] continuous

[] rated operating / resting time:

Access location ........................................................... :

[X] operator accessible

[] restricted access location

Over voltage category (OVC) ..................................... :

[] OVC I [] OVC II [] OVC III [] OVC IV

[X] other: N/A

Mains supply tolerance (%) or absolute mains supply

values .......................................................................... :

Not directly connected to the mains

Tested for IT power systems ...................................... :

[] Yes [X] No

IT testing, phase-phase voltage (V) ........................... :

N/A

Class of equipment ..................................................... :

[] Class I [] Class II [X] Class III

[] Not classified

Considered current rating (A) ..................................... :

N/A

Pollution degree (PD) ................................................. :

[] PD 1 [X] PD 2 [] PD 3

IP protection class ...................................................... :

IPX0

Altitude during operation (m) ...................................... :

Up to 2000 m

Altitude of test laboratory (m) ..................................... :

Not over 2000 m

Mass of equipment (Kg) ............................................. :

0.148 for model EW-7215APn

0.158 for model EW-7215PDn (POE)

Test case verdicts

Test case does not apply to the test object ................... :

N (N.A.)

Test item does meet the requirement ........................... :

P (Pass)

Test item does not meet the requirement ..................... :

F (Fail)

Testing:

- Date of receipt of test item .......................................... :

2009-11-06

- Date(s) of performance of test .................................... :

2009-11-16

General remarks:

The test result presented in this report relate only to the object(s) tested.

This report shall not be reproduced, except in full, without the written approval of the Issuing testing laboratory.

"(see appended table)" refers to a table appended to the report.

Throughout this report a comma (point) is used as the decimal separator.

Page 3 of 46 Report No.: L2N2330L538

Sporton International Inc.

Comments:

The test results are true for the test sample(s) only.

A part of this test report or certificate should not be duplicated in any way; however, the duplication of the whole

document is allowed.

This test-report includes the following documents:

Test report - ( 46 pages)

Appendix table ( 01 pages)

Photo - ( 15 pages)

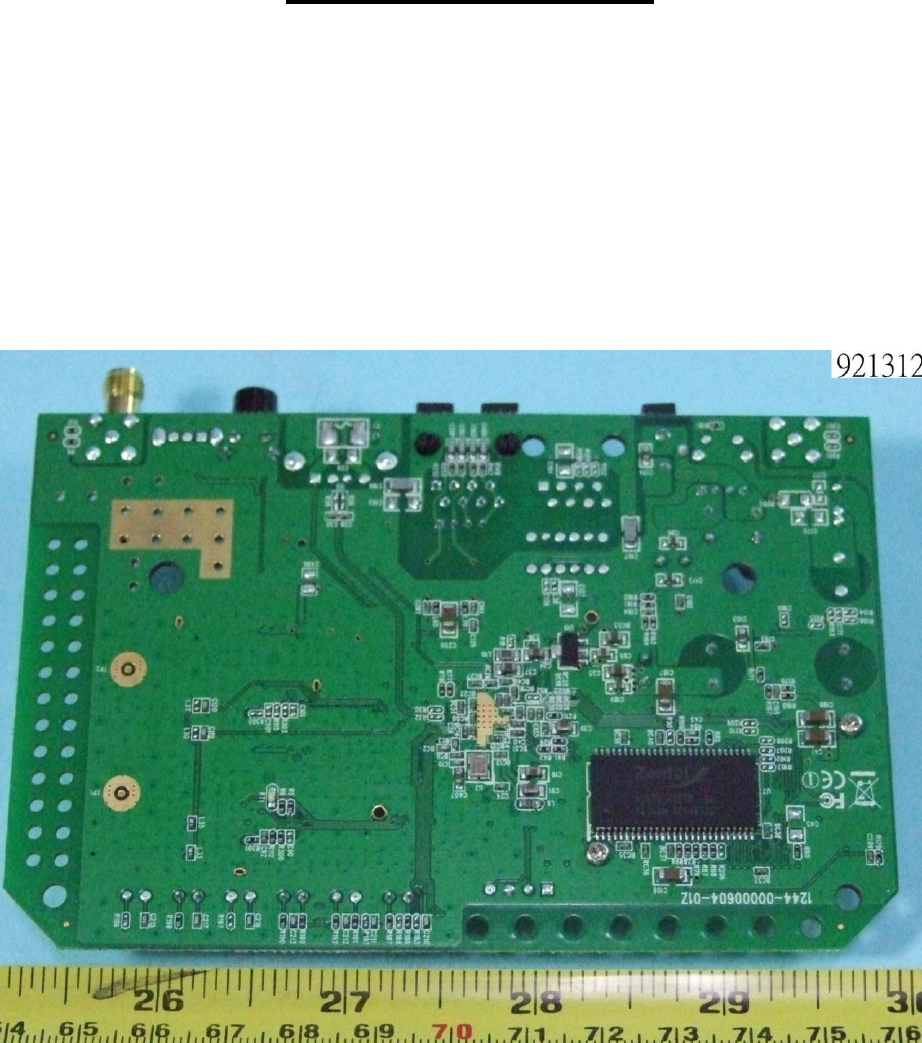

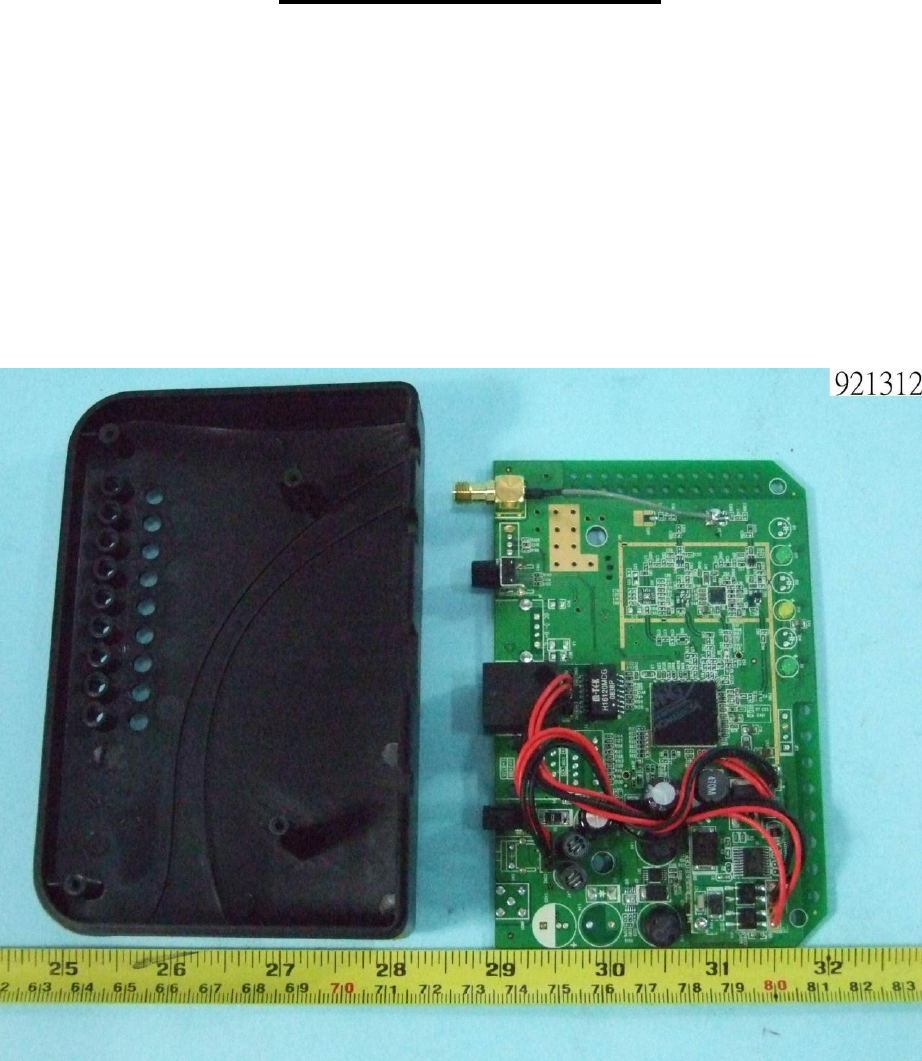

General product information:

-The equipment is a 150N Wireless LAN Access Point, intended for used with information technology equipment.

-The external power adaptor is approved product and complied with the requirements of sub-clause 2.5 as a

limited power source, see appended table 1.5.1 for detail.

-The unit of power source (POE port) is in according with the Limited Power Source (Clause 2.5).

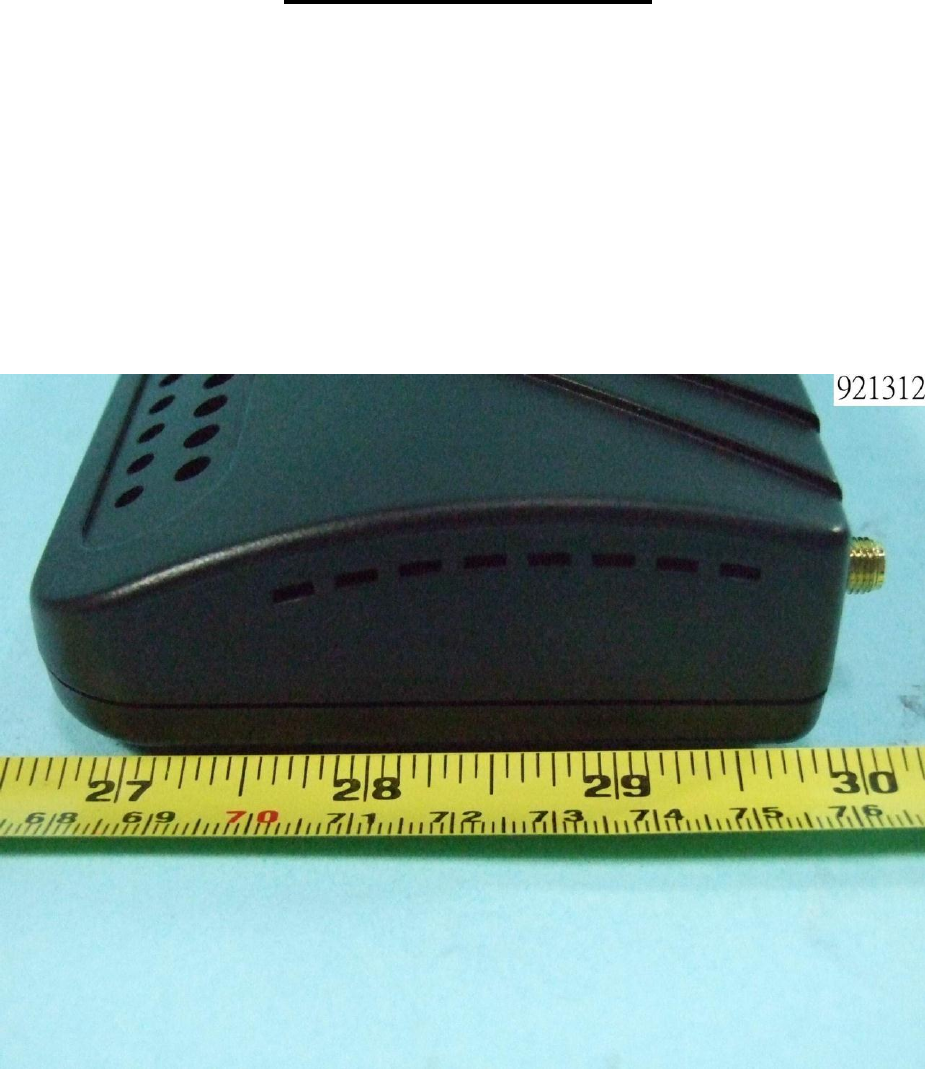

-Overall dimensions of the equipment were approximate 128 by 90.2 by 29.3 mm (model EW-7215APn), and

plastic enclosure was secured together by screw.

-Overall dimensions of the equipment were approximate 128 by 90.2 by 37 mm (model EW-7215PDn for POE),

and plastic enclosure was secured together by screw.

-The equipment was evaluated for use in a maximum air ambient of 45 ºC.

-The test sample is pre-production without serial number.

Model difference:

Supply by Adaptor with Model: EW-7215APn / GAP-215N.

Supply by POE with Model: EW-7215PDn / GAP-PD215N.

Page 4 of 46 Report No.: L2N2330L538

Sporton International Inc.

Clause

Requirement - Test

Result - Remark

Verdict

GENERAL

Pass

1.5

Components

Pass

1.5.1

Comply with IEC 60950 or relevant component

standard

Components, which were found to

affect safety aspects, comply with the

requirements of this standard or with

the safety aspects of the relevant

IEC/EN component standards.

Pass

1.5.2

Evaluation and testing of components

Components, which are certified to

IEC/EN and/or national standards, are

used correctly within their ratings or

have been evaluated during this

approval.

Pass

1.5.3

Thermal controls

N.A.

1.5.4

Transformers

N.A.

1.5.5

Interconnecting cables

N.A.

1.5.6

Capacitors bridging insulation

N.A.

1.5.7

Resistors bridging insulation

N.A.

1.5.7.1

Resistors bridging functional, basic or

supplementary insulation

N.A.

1.5.7.2

Resistors bridging double or reinforced insulation

between a.c. mains and other circuits

N.A.

1.5.7.3

Resistors bridging double or reinforced insulation

between a.c. mains and antenna or coaxial cable

N.A.

1.5.8

Components in equipment for IT power systems

N.A.

1.5.9

Surge suppressors

N.A.

1.5.9.1

General

N.A.

1.5.9.2

Protection of VDRs

N.A.

1.5.9.3

Bridging of functional insulation by a VDR

N.A.

1.5.9.4

Bridging of basic insulation by a VDR

N.A.

1.5.9.5

Bridging of supplementary, double or reinforced

insulation by a VDR

N.A.

1.6

Power interface

Pass

1.6.1

AC power distribution systems ............................. :

N.A.

1.6.2

Input current

See appended table 1.6.2.

Pass

1.6.3

Voltage limit of hand-held equipment

N.A.

1.6.4

Neutral conductor

N.A.

Page 5 of 46 Report No.: L2N2330L538

Sporton International Inc.

1.7

Marking and instructions

Pass

1.7.1

Power rating and identification markings

See below.

Pass

1.7.1.1

Power rating marking

Pass

Multiple mains supply connections....................:

N.A.

Rated voltage(s) or voltage range(s) (V) ............ :

The unit does not directly connect to

Mains supply.

(Rated voltage DC 12V or DC 48V is

optional marked)

Pass

Symbol for nature of supply, for d.c. only .............. :

no direct connection to the mains

supply (DC symbol is optional marked)

Pass

Rated frequency or rated frequency range (Hz) .... :

DC input

N.A.

Rated current (mA or A) ......................................... :

The unit does not directly connect to

Mains supply.

(Rated current 1A for DC 12V or DC

48V is optional marked)

Pass

1.7.1.2

Identification markings

See below.

Pass

Manufacturer’s name or trade-mark or

identification mark .................................................. :

See page 1.

Pass

Model identification or type reference................

See page 1.

Pass

Symbol for Class II equipment only ....................... :

Class III equipment.

N.A.

Other markings and symbols .................................. :

Additional markings and symbols do not

give rise to misunderstanding.

Pass

1.7.2

Safety instructions and marking

Operation/installation instruction is

provided with each unit.

Pass

1.7.2.1

General

N.A.

1.7.2.2

Disconnect devices

N.A.

1.7.2.3

Overcurrent protective device

N.A.

1.7.2.4

IT power distribution systems

N.A.

1.7.2.5

Operator access with a tool

N.A.

1.7.2.6

Ozone

N.A.

1.7.3

Short duty cycles

N.A.

1.7.4

Supply voltage adjustment .................................... :

N.A.

Methods and means of adjustment; reference to

installation instructions

N.A.

1.7.5

Power outlets on the equipment ........................... :

N.A.

1.7.6

Fuse identification (marking, special fusing

characteristics, cross-reference) ......................... :

N.A.

1.7.7

Wiring terminals

N.A.

1.7.7.1

Protective earthing and bonding terminals

N.A.

1.7.7.2

Terminal for a.c. mains supply conductors

N.A.

Page 6 of 46 Report No.: L2N2330L538

Sporton International Inc.

1.7.7.3

Terminals for d.c. mains supply conductors

N.A.

1.7.8

Controls and indicators

N.A.

1.7.8.1

Identification, location and marking ....................... :

N.A.

1.7.8.2

Colours ................................................................. :

N.A.

1.7.8.3

Symbols according to IEC 60417 ........................... :

N.A.

1.7.8.4

Markings using figures ......................................... :

N.A.

1.7.9

Isolation of multiple power sources ....................... :

N.A.

1.7.10

Thermostats and other regulating devices

N.A.

1.7.11

Durability

Complied.

Pass

1.7.12

Removable parts ....................................................:

No required markings placed on

removable parts.

Pass

1.7.13

Replaceable batteries

N.A.

Language(s)



1.7.14

Equipment for restricted access locations

Not intended for use in restricted

access locations.

N.A.

PROTECTION FROM HAZARDS

Pass

2.1

Protection from electric shock and energy hazards

Pass

2.1.1

Protection in operator access areas

See below.

Pass

2.1.1.1

Access to energized parts

The unit is supplied from approved

power supply that provides SELV.

Only SELV circuit inside the unit.

No electrical shock or energy hazards

Pass

Test by inspection ................................................. :

N.A.

Test with test finger (Figure 2A) ............................ :

N.A.

Test with test pin (Figure 2B) .................................... :

N.A.

Test with test probe (Figure 2C) ............................ :

N.A.

2.1.1.2

Battery compartments ............................................. :

N.A.

2.1.1.3

Access to ELV wiring

N.A.

Working voltage (Vpeak or Vrms); minimum

distance through insulation (mm)



2.1.1.4

Access to hazardous voltage circuit wiring

N.A.

2.1.1.5

Energy hazards ..................................................... :

No energy hazard in operator access

area. The connectors of the equipment

below 240VA.

Pass

2.1.1.6

Manual controls

N.A.

2.1.1.7

Discharge of capacitors in equipment

N.A.

Time-constant (s); measured voltage (V) ............... :



Page 7 of 46 Report No.: L2N2330L538

Sporton International Inc.

2.1.1.8

Energy hazards – d.c. mains supplies

N.A.

a) Capacitor connected to the d.c. mains supply ... :

N.A.

b) Internal battery connected to the d.c. mains

supply ...................................................................... :

N.A.

2.1.1.9

Audio amplifiers

N.A.

2.1.2

Protection in service access areas

N.A.

2.1.3

Protection in restricted access locations

N.A.

2.2

SELV circuits

Pass

2.2.1

General requirements

See below.

Pass

2.2.2

Voltages under normal conditions (V) .................... :

Between any SELV circuits 42.4 Vpeak

and 60 Vdc are not exceeded.

Pass

2.2.3

Voltages under fault conditions (V) ......................... :

Single fault did not cause excessive

voltage in accessible SELV circuits.

Limits of 71V peak and 120Vd.c. were

not exceeded within 0.2s and limits

42.4V peak and 60Vd.c. were not

exceeded for longer than 0.2s.

Pass

2.2.4

Connection of SELV circuits to other circuits ......... :

SELV circuit only connected to SELV

Pass

2.3

TNV circuits

N.A.

2.3.1

Limits

No TNV circuits.

N.A.

Type of TNV circuits ................................................ :



2.3.2

Separation from others circuits and from

accessible parts

N.A.

2.3.2.1

General requirements

N.A.

2.3.2.2

Protection by basic insulation

N.A.

2.3.2.3

Protection by earthing

N.A.

2.3.2.4

Protection by other constructions ............................ :

N.A.

2.3.3

Separation from hazardous voltages

N.A.

Insulation employed ................................................ :



2.3.4

Connection of TNV circuits to other circuits

N.A.

Insulation employed ................................................ :



2.3.5

Test for operating voltages generated externally

N.A.

2.4

Limited current circuits

N.A.

2.4.1

General requirements

No limited current circuits.

N.A.

2.4.2

Limit values

N.A.

Frequency (Hz)....................................................... :



Page 8 of 46 Report No.: L2N2330L538

Sporton International Inc.

Measured current (mA) .......................................... :



Measured voltage (V)…………… .......................... :



Measured capacitance (µF) ................................... :



2.4.3

Connection of limited current circuits to other

circuits

N.A.

2.5

Limited power sources

N.A.

a) Inherently limited output

N.A.

b) Impedance limited output

N.A.

c) Regulating network limited output under normal

operating and single fault condition

N.A.

d) Overcurrent protective device limited output

N.A.

Max. output voltage (V), max. output current (A),

max. apparent power (VA)



Current rating of overcurrent protective device (A)



Use of integrated circuit (IC) current limiters

N.A.

2.6

Provisions for earthing and bonding

N.A.

2.6.1

Protective earthing

Class III equipment.

N.A.

2.6.2

Functional earthing

N.A.

2.6.3

Protective earthing conductors and protective

bonding conductors

N.A.

2.6.3.1

General

N.A.

2.6.3.2

Size of protective earthing conductors

N.A.

Rated current (A), cross-sectional area (mm2),

AWG ......................................................................... :



2.6.3.3

Size of protective bonding conductors

N.A.

Rated current (A), cross-sectional area (mm2),

AWG .........................................................................:



Protective current rating (A), cross-sectional area

(mm2), AWG

N.A.

2.6.3.4

Resistance of earthing conductors and their

terminations; resistance (), voltage drop (V), test

current (A), duration (min) .........................................

N.A.

2.6.3.5

Colour of insulation ...................................................:

N.A.

2.6.4

Terminals

N.A.

2.6.4.1

General

N.A.

2.6.4.2

Protective earthing and bonding terminals

N.A.

Rated current (A), type and nominal thread

diameter (mm) ..........................................................:



Page 9 of 46 Report No.: L2N2330L538

Sporton International Inc.

2.6.4.3

Separation of the protective earthing conductor

from protective bonding conductors

N.A.

2.6.5

Integrity of protective earthing

N.A.

2.6.5.1

Interconnection of equipment

N.A.

2.6.5.2

Components in protective earthing conductors

and protective bonding conductors

N.A.

2.6.5.3

Disconnection of protective earth

N.A.

2.6.5.4

Parts that can be removed by an operator

N.A.

2.6.5.5

Parts removed during servicing

N.A.

2.6.5.6

Corrosion resistance

N.A.

2.6.5.7

Screws for protective bonding

N.A.

2.6.5.8

Reliance on telecommunication network or cable

distribution system

N.A.

2.7

Overcurrent and earth fault protection in Primary circuits

N.A.

2.7.1

Basic requirements

Class III equipment.

N.A.

Instructions when protection relies on building

installation.

N.A.

2.7.2

Faults not simulated in 5.3.7

N.A.

2.7.3

Short-circuit backup protection

N.A.

2.7.4

Number and location of protective devices .......... :

N.A.

2.7.5

Protection by several devices

N.A.

2.7.6

Warning to service personnel .................................. :

N.A.

2.8

Safety interlocks

N.A.

2.8.1

General principles

No safety interlocks.

N.A.

2.8.2

Protection requirements

N.A.

2.8.3

Inadvertent reactivation

N.A.

2.8.4

Fail-safe operation

N.A.

Protection against extreme hazard

N.A.

2.8.5

Moving parts

N.A.

2.8.6

Overriding

N.A.

2.8.7

Switches, relays and their related circuits

N.A.

2.8.7.1

Separation distances for contact gaps and their

related circuits (mm) ............................................. :

N.A.

2.8.7.2

Overload test

N.A.

2.8.7.3

Endurance test

N.A.

2.8.7.4

Electric strength test

N.A.

2.8.8

Mechanical actuators

N.A.

Page 10 of 46 Report No.: L2N2330L538

Sporton International Inc.

2.9

Electrical insulation

Pass

2.9.1

Properties of insulating materials

N.A.

2.9.2

Humidity conditioning

N.A.

Humidity (%),Temperature (ºC)

2.9.3

Grade of insulation

The unit supply from an approved

adaptor that provide SELV, only

Functional insulation in the unit.

See Clause 5.3.4.

Pass

2.9.4

Separation from hazardous voltages

N.A.

Method(s) used ........................................................ :



2.10

Clearances, creepage distances and distances through insulation

Pass

2.10.1

General

Functional Insulation only.

See Sub-Clause 5.3.4.

Pass

2.10.1.1

Frequency ................................................................ :

N.A.

2.10.1.2

Pollution degrees ..................................................... :

N.A.

2.10.1.3

Reduced values for functional insulation

See 2.10.1

Pass

2.10.1.4

Intervening unconnected conductive parts

N.A.

2.10.1.5

Insulation with varying dimensions

N.A.

2.10.1.6

Special separation requirements

N.A.

2.10.1.7

Insulation in circuits generating starting pulses

N.A.

2.10.2

Determination of working voltage

N.A.

2.10.2.1

General

N.A.

2.10.2.2

RMS working voltage

N.A.

2.10.2.3

Peak working voltage

N.A.

2.10.3

Clearances

See 2.10.1

N.A.

2.10.3.1

General

N.A.

2.10.3.2

Mains transient voltages

N.A.

a) AC mains supply ................................................. :

N.A.

b) Earthed d.c. mains supplies ................................ :

N.A.

c) Unearthed d.c. mains supplies ............................ :

N.A.

d) Battery operation ................................................. :

N.A.

2.10.3.3

Clearances in primary circuits

N.A.

2.10.3.4

Clearances in secondary circuits

N.A.

2.10.3.5

Clearances in circuits having starting pulses

N.A.

2.10.3.6

Transients from a.c. mains supply .......................... :

N.A.

2.10.3.7

Transients from d.c. mains supply .......................... :

N.A.

Page 11 of 46 Report No.: L2N2330L538

Sporton International Inc.

2.10.3.8

Transients from telecommunication networks and

cable distribution systems ....................................... :

N.A.

2.10.3.9

Measurement of transient voltage levels

N.A.

a) Transients from a mains supply

N.A.

For an a.c. mains supply ......................................... :

N.A.

For a d.c. mains supply ........................................... :

N.A.

b) Transients from a telecommunication network .... :

N.A.

2.10.4

Creepage distances

See 2.10.1

N.A.

2.10.4.1

General

N.A.

2.10.4.2

Material group and comparative tracking index

N.A.

CTI tests .................................................................... :



2.10.4.3

Minimum creepage distances

N.A.

2.10.5

Solid insulation

N.A.

2.10.5.1

General

N.A.

2.10.5.2

Distances through insulation

N.A.

2.10.5.3

Insulating compound as solid insulation

N.A.

2.10.5.4

Semiconductor devices

N.A.

2.10.5.5.

Cemented joints

N.A.

2.10.5.6

Thin sheet material – General

N.A.

2.10.5.7

Separable thin sheet material

N.A.

Number of layers (pcs)…………………………..



2.10.5.8

Non-separable thin sheet material

N.A.

2.10.5.9

Thin sheet material – standard test procedure

N.A.

Electric strength test



2.10.5.10

Thin sheet material – alternative test procedure

N.A.

Electric strength test



2.10.5.11

Insulation in wound components

N.A.

2.10.5.12

Wire in wound components

N.A.

Working voltage ....................................................... :

N.A.

a) Basic insulation not under stress ........................ :

N.A.

b) Basic, supplementary, reinforced insulation ....... :

N.A.

c) Compliance with Annex U ................................... :

N.A.

Two wires in contact inside wound component;

angle between 45 and 90 ..................................... :

N.A.

2.10.5.13

Wire with solvent-based enamel in wound

components

N.A.

Electric strength test



Routine test

N.A.

2.10.5.14

Additional insulation in wound components

N.A.

Page 12 of 46 Report No.: L2N2330L538

Sporton International Inc.

Working voltage ....................................................... :

N.A.

- Basic insulation not under stress .......................... :

N.A.

- Supplementary, reinforced insulation ................... :

N.A.

2.10.6

Construction of printed boards

N.A.

2.10.6.1

Uncoated printed boards

N.A.

2.10.6.2

Coated printed boards

N.A.

2.10.6.3

Insulation between conductors on the same inner

surface of a printed board

N.A.

2.10.6.4

Insulation between conductors on different layers

of a printed board

N.A.

Distance through insulation

N.A.

Number of insulation layers (pcs) ............................ :

N.A.

2.10.7

Component external terminations

N.A.

2.10.8

Tests on coated printed boards and coated

components

N.A.

2.10.8.1

Sample preparation and preliminary inspection

N.A.

2.10.8.2

Thermal conditioning (ºC)

N.A.

2.10.8.3

Electric strength test



2.10.8.4

Abrasion resistance test

N.A.

2.10.9

Thermal cycling

N.A.

2.10.10

Test for Pollution Degree 1 environment and

insulating compound

N.A.

2.10.11

Tests for semiconductor devices and cemented

joints

N.A.

2.10.12

Enclosed and sealed parts

N.A.

WIRING, CONNECTIONS AND SUPPLY

Pass

3.1

General

Pass

3.1.1

Current rating and overcurrent protection

All wires/conductors possess adequate

cross-sectional areas for their intended

application and Internal wiring are

adequately insulated.

Pass

3.1.2

Protection against mechanical damage

The wires are well routed away from

sharp edges, etc. and are adequately

fixed to prevent excessive strain on

wire and terminals.

Pass

3.1.3

Securing of internal wiring

The wires are positioned in such a

manner that prevents excessive strain,

loosening of terminal connections and

damage of conductor insulation.

Pass

3.1.4

Insulation of conductors

N.A.

Page 13 of 46 Report No.: L2N2330L538

Sporton International Inc.

3.1.5

Beads and ceramic insulators

N.A.

3.1.6

Screws for electrical contact pressure

N.A.

3.1.7

Insulation materials in electrical connections

N.A.

3.1.8

Self-tapping and spaced thread screws

N.A.

3.1.9

Termination of conductors

N.A.

10 N pull test

N.A.

3.1.10

Sleeving on wiring

N.A.

3.2

Connection to a mains supply

N.A.

3.2.1

Means of connection

Class III equipment.

N.A.

3.2.1.1

Connection to an a.c. mains supply

N.A.

3.2.1.2

Connection to a d.c. mains supply

N.A.

3.2.2

Multiple supply connections

N.A.

3.2.3

Permanently connected equipment

N.A.

Number of conductors, diameter (mm) of cable

and conduits ....................................................... :



3.2.4

Appliance inlets

N.A.

3.2.5

Power supply cords

N.A.

3.2.5.1

AC Power supply cords

N.A.

Type ......................................................................... :



Rated current (A), cross-sectional area (mm2),

AWG ........................................................................ :



3.2.5.2

DC power supply cords

N.A.

3.2.6

Cord anchorages and strain relief

N.A.

Mass of equipment (Kg), pull (N) ........................ :



Longitudinal displacement (mm) ........................... :



3.2.7

Protection against mechanical damage

N.A.

3.2.8

Cord guards

N.A.

Diameter or minor dimension D (mm); test mass

(g) ......................................................................... :



Radius of curvature of cord (mm) ........................... :



3.2.9

Supply wiring space

N.A.

3.3

Wiring terminals for connection of external conductors

N.A.

3.3.1

Wiring terminals

No wiring terminals.

N.A.

3.3.2

Connection of non-detachable power supply

cords

N.A.

3.3.3

Screw terminals

N.A.

Page 14 of 46 Report No.: L2N2330L538

Sporton International Inc.

3.3.4

Conductor sizes to be connected

N.A.

Rated current (A), cord/cable type,

cross-sectional area (mm2) ...................................... :



3.3.5

Wiring terminal sizes

N.A.

Rated current (A), type and nominal thread

diameter (mm) .......................................................... :



3.3.6

Wiring terminals design

N.A.

3.3.7

Grouping of wiring terminals

N.A.

3.3.8

Stranded wire

N.A.

3.4

Disconnection from the mains supply

N.A.

3.4.1

General requirement

Class III equipment.

N.A.

3.4.2

Disconnect devices

N.A.

3.4.3

Permanently connected equipment

N.A.

3.4.4

Parts which remain energized

N.A.

3.4.5

Switches in flexible cords

N.A.

3.4.6

Number of poles - single-phase and d.c.

equipment

N.A.

3.4.7

Number of poles - three-phase equipment

N.A.

3.4.8

Switches as disconnect devices

N.A.

3.4.9

Plugs as disconnect devices

N.A.

3.4.10

Interconnected equipment

N.A.

3.4.11

Multiple power sources

N.A.

3.5

Interconnection of equipment

Pass

3.5.1

General requirements

See below.

Pass

3.5.2

Types of interconnection circuits ............................. :

Interconnection circuits of SELV

through the connectors.

Pass

3.5.3

ELV circuits as interconnection circuits

N.A.

3.5.4

Data ports for additional equipments

See appended table 2.5

N.A.

PHYSICAL REQUIREMENTS

Pass

4.1

Stability

N.A.

Angle of 10

< 7 kg.

N.A.

Test: force (N) ......................................................... :

N.A.

4.2

Mechanical strength

Pass

Page 15 of 46 Report No.: L2N2330L538

Sporton International Inc.

4.2.1

General

See below

Pass

Rack-mounted equipment

N.A.

4.2.2

Steady force test, 10 N

N.A.

4.2.3

Steady force test, 30 N

N.A.

4.2.4

Steady force test, 250 N

N.A.

4.2.5

Impact test

N.A.

Fall test

N.A.

Swing test

N.A.

4.2.6

Drop test; height (mm)

N.A.

4.2.7

Stress relief test

N.A.

4.2.8

Cathode ray tubes

N.A.

Picture tube separately certified ............................ :

N.A.

4.2.9

High pressure lamps

N.A.

4.2.10

Wall or ceiling mounted equipment; force (N) ..... :

50 N.

Pass

4.2.11

Rotating solid media

N.A.

Test to cover on the door……………………….:

N.A.

4.3

Design and construction

Pass

4.3.1

Edges and corners

All edges and corners are rounded or

smoothed

Pass

4.3.2

Handles and manual controls; force (N) .............. :

N.A.

4.3.3

Adjustable controls

N.A.

4.3.4

Securing of parts

Electrical and mechanical connections

can be expected to withstand usual

mechanical stress.

Pass

4.3.5

Connection of plugs and sockets

N.A.

4.3.6

Direct plug-in equipment

N.A.

Dimensions (mm) of mains plug for direct

plug-in ...............................................................:

N.A.

Torque and pull test of mains plug for direct

plug-in; torque (Nm); pull (N) .............................:

N.A.

4.3.7

Heating elements in earthed equipment

N.A.

4.3.8

Batteries

N.A.

- Overcharging of a rechargeable battery

N.A.

- Unintentional charging of a non-rechargeable

battery

N.A.

- Reverse charging of a rechargeable battery

N.A.

- Excessive discharging rate for any battery

N.A.

4.3.9

Oil and grease

N.A.

4.3.10

Dust, powders, liquids and gases

N.A.

Page 16 of 46 Report No.: L2N2330L538

Sporton International Inc.

4.3.11

Containers for liquids or gases

N.A.

4.3.12

Flammable liquids ................................................... :

N.A.

Quantity of liquid (l) .................................................. :

N.A.

Flash point (ºC) ........................................................ :

N.A.

4.3.13

Radiation .............................................................:

See below.

Pass

4.3.13.1

General

Pass

4.3.13.2

Ionizing radiation

N.A.

Measured radiation (pA/Kg) .................................. :



Measured high-voltage (KV) .................................. :



Measured focus voltage (KV) ................................. :



CRT markings ........................................................ :



4.3.13.3

Effect of ultraviolet (UV) radiation on materials

N.A.

Part, property, retention after test, flammability

classification .......................................................... :

N.A.

4.3.13.4

Human exposure to ultraviolet (UV) radiation ....... :

N.A.

4.3.13.5

Lasers (including laser diodes) and LEDs

See below.

Pass

4.3.13.5.1

Lasers (including laser laser diodes)

N.A.

Laser class ............................................................ :



4.3.13.5.2

Light emitting diodes (LEDs)

LEDs for indicator only

Pass

4.3.13.6

Other types ............................................................ :

N.A.

4.4

Protection against hazardous moving parts

N.A.

4.4.1

General

N.A.

4.4.2

Protection in operator access areas

N.A.

Household and home/office document/media

shredders

N.A.

4.4.3

Protection in restricted access locations

N.A.

4.4.4

Protection in service access areas

N.A.

4.4.5

Protection against moving fan blades

N.A.

4.4.5.1

General

N.A.

Not considered to cause pain or injury. a)…….:

N.A.

Is considered to cause pain, not injury. b) ……:

N.A.

Considered to cause injury. c) …………………:

N.A.

4.4.5.2

Protection for users

N.A.

Use of symbol or warning ………………………:



4.4.5.3

Protection for service persons

N.A.

Use of symbol or warning ………………………:



Page 17 of 46 Report No.: L2N2330L538

Sporton International Inc.

4.5

Thermal requirements

Pass

4.5.1

General

See below

Pass

4.5.2

Temperature tests

See appended table 4.5

Pass

Normal load condition per Annex L ......................... :

See appended table 1.6.2



4.5.3

Temperature limits for materials

See appended table 4.5

Pass

4.5.4

Touch temperature limits

See appended table 4.5

Pass

4.5.5

Resistance to abnormal heat .................................. :

N.A.

4.6

Openings in enclosures

Pass

4.6.1

Top and side openings

See below

Pass

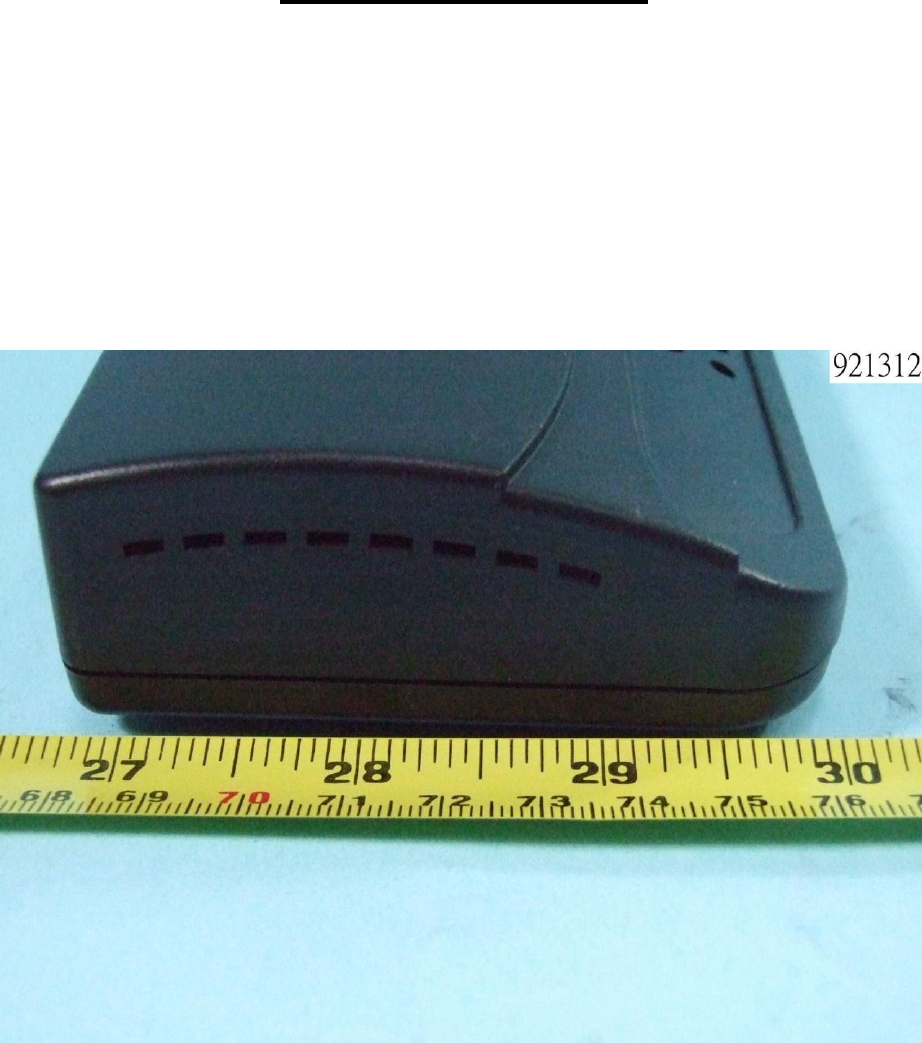

Dimensions (mm) ............................................... :

See appended table 4.6.1.



4.6.2

Bottoms of fire enclosures

See below

Pass

Construction of the bottom, dimensions (mm) ....... :

See appended table 4.6.1.



4.6.3

Doors or covers in fire enclosures

N.A.

4.6.4

Openings in transportable equipment

N.A.

4.6.4.1

Constructional design measures

N.A.

Dimensions (mm) .................................................... :



4.6.4.2

Evaluation measures for larger openings

N.A.

4.6.4.3

Use of metallized parts

N.A.

4.6.5

Adhesives for constructional purposes

N.A.

Conditioning temperature (ºC) / time (weeks)



4.7

Resistance to fire

Pass

4.7.1

Reducing the risk of ignition and spread of flame

See below.

Pass

Method 1, selection and application of

components wiring and materials

Use of materials with the required

flammability Classes.

Pass

Method 2, application of all of simulated fault

condition tests

N.A.

4.7.2

Conditions for a fire enclosure

See below.

Pass

4.7.2.1

Parts requiring a fire enclosure

N.A.

4.7.2.2

Parts not requiring a fire enclosure

With having the following parts :

- Components in secondary

(supplied by LPS).

- Components mounted on

material of flammability Class

V-1.

The fire enclosure is not required.

Pass

4.7.3

Materials

See below.

Pass

4.7.3.1

General

See appended table 1.5.1

Pass

Page 18 of 46 Report No.: L2N2330L538

Sporton International Inc.

4.7.3.2

Materials for fire enclosures

N.A.

4.7.3.3

Materials for components and other parts outside

fire enclosures

N.A.

4.7.3.4

Materials for components and other parts inside

fire enclosures

All internal materials are rated V-2 or

better or are mounted on a PWB rated

V-1 or better

Pass

4.7.3.5

Materials for air filter assemblies

N.A.

4.7.3.6

Materials used in high-voltage components

N.A.

ELECTRICAL REQUIREMENTS AND SIMULATED ABNORMAL CONDITIONS

Pass

5.1

Touch current and protective conductor current

N.A.

5.1.1

General

Class III equipment.

N.A.

5.1.2

Equipment under test (EUT)

N.A.

5.1.2.1

Single connection to an a.c. mains supply

N.A.

5.1.2.2

Redundant multiple connections to an a.c. mains

supply

N.A.

5.1.2.3

Simultaneous multiple connections to an a.c.

mains supply

N.A.

5.1.3

Test circuit

N.A.

5.1.4

Application of measuring instrument

N.A.

5.1.5

Test procedure

N.A.

5.1.6

Test measurements

N.A.

Supply voltage (V) .............................................. :



Measured touch current (mA) ............................... :



Max. allowed touch current (mA) .......................... :



Measured protective conductor current (mA) ...... :



Max. allowed protective conductor current (mA) ... :

N.A.

5.1.7

Equipment with touch current exceeding 3.5 mA :

N.A.

5.1.7.1

General .................................................................... :

N.A.

5.1.7.2

Simultaneous multiple connections to the supply

N.A.

5.1.8

Touch currents to and from telecommunication

networks and cable distribution systems and from

telecommunication networks

N.A.

5.1.8.1

Limitation of the touch current to a

telecommunication network and a cable

distribution system

N.A.

Supply voltage (V) ................................................. :



Measured touch current (mA) ............................... :



Max. allowed touch current (mA) ............................ :



Page 19 of 46 Report No.: L2N2330L538

Sporton International Inc.

5.1.8.2

Summation of touch currents from

telecommunication networks .................................. :

N.A.

a) EUT with earthed telecommunication ports ........ :

N.A.

b) EUT whose telecommunication ports have no

reference to protective earth

N.A.

5.2

Electric strength

N.A.

5.2.1

General

Class III equipment.

N.A.

5.2.2

Test procedure

N.A.

5.3

Abnormal operating and fault conditions

Pass

5.3.1

Protection against overload and abnormal

operation

See below.

Pass

5.3.2

Motors

N.A.

5.3.3

Transformers

N.A.

5.3.4

Functional insulation ............................................ :

Complied with the requirements c).

But due to

- No risk of electric shock.

- No risk of fire, all components mount

on V-1 min PWB

No test necessary.

Pass

5.3.5

Electromechanical components

N.A.

5.3.6

Audio amplifiers in ITE

N.A.

5.3.7

Simulation of faults

See append table 5.3.

Pass

5.3.8

Unattended equipment

N.A.

5.3.9

Compliance criteria for abnormal operating and

fault conditions

See below

Pass

5.3.9.1

During the tests

Neither fire the equipment nor molten

metal was emitted.

Pass

5.3.9.2

After the tests

N.A.

CONNECTION TO TELECOMMUNICATION NETWORKS

N.A.

6.1

Protection of telecommunication network service personnel, and users of other

equipment connected to the network, from hazards in the equipment

N.A.

6.1.1

Protection from hazardous voltages

N.A.

6.1.2

Separation of the telecommunication network from earth

N.A.

6.1.2.1

Requirements

N.A.

Supply voltage (V) ...............................................:



Current in the test circuit (mA) .............................. :



Page 20 of 46 Report No.: L2N2330L538

Sporton International Inc.

6.1.2.2

Exclusions ............................................................... :

N.A.

6.2

Protection of equipment users from overvoltages on telecommunication networks

N.A.

6.2.1

Separation requirements

N.A.

6.2.2

Electric strength test procedure

N.A.

6.2.2.1

Impulse test

N.A.

6.2.2.2

Steady-state test

N.A.

6.2.2.3

Compliance criteria

N.A.

6.3

Protection of telecommunication wiring system from overheating

N.A.

Max. output current (A) ........................................ :



Current limiting method ........................................... :



CONNECTION TO CABLE DISTRIBUTION SYSTEMS

N.A.

7.1

General

N.A.

7.2

Protection of cable distribution system service

persons, and users of other equipment connected

to the system, from hazardous voltages in the

equipment

N.A.

7.3

Protection of equipment users from overvoltages

on the cable distribution system

N.A.

7.4

Insulation between primary circuits and cable

distribution systems

N.A.

7.4.1

General

N.A.

7.4.2

Voltage surge test

N.A.

7.4.3

Impulse test

N.A.

Page 21 of 46 Report No.: L2N2330L538

Sporton International Inc.

ANNEX A, TESTS FOR RESISTANCE TO HEAT AND FIRE

N.A.

A.1

Flammability test for fire enclosures of movable equipment having a total mass exceeding

18 Kg, and of stationary equipment (see 4.7.3.2)

N.A.

A.1.1

Samples



Wall thickness (mm) ............................................ :



A.1.2

Conditioning of samples; temperature (C) ............ :

N.A.

A.1.3

Mounting of samples ............................................... :

N.A.

A.1.4

Test flame (see IEC 60695-11-3)

N.A.

Flame A, B, C or D .................................................. :

N.A.

A.1.5

Test procedure

N.A.

A.1.6

Compliance criteria

N.A.

Sample 1 burning time (s) .................................... :



Sample 2 burning time (s) ....................................... :



Sample 3 burning time (s) ....................................... :



A.2

Flammability test for fire enclosures of movable equipment having a total mass not

exceeding 18 Kg, and for material and components located inside fire enclosures (see

4.7.3.2 and 4.7.3.4)

N.A.

A.2.1

Samples, material



Wall thickness (mm) ............................................... :



A.2.2

Conditioning of samples; temperature (°C) ............ :

N.A.

A.2.3

Mounting of samples ............................................... :

N.A.

A.2.4

Test flame (see IEC 60695-11-4)

N.A.

Flame A, B or C ....................................................... :



A.2.5

Test procedure

N.A.

A.2.6

Compliance criteria

N.A.

Sample 1 burning time (s) ....................................... :



Sample 2 burning time (s) ....................................... :



Sample 3 burning time (s) ....................................... :



A.2.7

Alternative test acc. to IEC 60695-11-5, cl. 5 and

N.A.

Sample 1 burning time (s) ....................................... :



Sample 2 burning time (s) ....................................... :



Sample 3 burning time (s) ....................................... :



A.3

Hot flaming oil test (see 4.6.2)

N.A.

A.3.1

Mounting of samples ............................................... :

N.A.

A.3.2

Test procedure

N.A.

A.3.3

Compliance criterion................................................ :

N.A.

Page 22 of 46 Report No.: L2N2330L538

Sporton International Inc.

ANNEX B, MOTOR TESTS UNDER ABNORMAL CONDITIONS (see 4.7.2.2 and 5.3.2)

N.A.

B.1

General requirements

N.A.

Position ............................................................... :



Manufacturer .......................................................... :



Type ....................................................................... :



Rated values ....................................................... :



B.2

Test conditions

N.A.

B.3

Maximum temperatures

N.A.

B.4

Running overload test

N.A.

B.5

Locked-rotor overload test

N.A.

Test duration (days) .............................................. :



Electric strength test: test voltage (V) ................ :



B.6

Running overload test for DC motors in

secondary circuits

N.A.

B.6.1

General

N.A.

B.6.2

Test procedure

N.A.

B.6.3

Alternative test procedure

N.A.

B.6.4

Electric strength test; test voltage (V) ...................... :

N.A.

B.7

Locked-rotor overload test for DC motors in

secondary circuits

N.A.

B.7.1

General

N.A.

B.7.2

Test procedure

N.A.

B.7.3

Alternative test procedure; ....................................... :

N.A.

B.7.4

Electric strength test; test voltage (V)

N.A.

B.8

Test for motors with capacitors

N.A.

B.9

Test for three-phase motors

N.A.

B.10

Test for series motors

N.A.

Operating voltage (V) ............................................ :



ANNEX C, TRANSFORMERS (see 1.5.4 and 5.3.3)

N.A.

Position .................................................................. :



Manufacturer ......................................................... :



Type ...................................................................... :



Rated values ....................................................... :



Method of protection ..............................................



C.1

Overload test

N.A.

Page 23 of 46 Report No.: L2N2330L538

Sporton International Inc.

C.2

Insulation

N.A.

Protection from displacement of windings

N.A.

ANNEX D, MEASURING INSTRUMENTS FOR TOUCH-CURRENT TESTS

N.A.

D.1

Measuring instrument

N.A.

D.2

Alternative measuring instrument

N.A.

ANNEX E, TEMPERATURE RISE OF A WINDING (see 1.4.13)

N.A.

ANNEX F, MEASUREMENT OF CLEARANCES AND CREEPAGE DISTANCES

(see 2.10)

Pass

ANNEX G, ALTERNATIVE METHOD FOR DETERMINING MINIMUM CLEARANCES

N.A.

G.1

Clearances

N.A.

G.1.1

General

N.A.

G.1.2

Summary of the procedure for determining

minimum clearances

N.A.

G.2

Determination of mains transient voltage (V) .......:

N.A.

G.2.1

AC mains supply

N.A.

G.2.2

Earthed d.c. mains supplies

N.A.

G.2.3

Unearthed d.c. mains supplies ................................ :

N.A.

G.2.4

Battery operation ...................................................... :

N.A.

G.3

Determination of telecommunication network

transient voltage (V) ................................................ :

N.A.

G.4

Determination of required withstand voltage (V) .... :

N.A.

G.4.1

Mains transients and internal repetitive peaks ........ :

N.A.

G.4.2

Transients from telecommunication networks ........ :

N.A.

G.4.3

Combination of transients

N.A.

G.4.4

Transients from cable distribution systems

N.A.

G.5

Measurement of transient levels (V) ...................... :

N.A.

a) Transients from a mains supply

N.A.

For an a.c. mains supply

N.A.

For a d.c. mains supply

N.A.

b) Transients from a telecommunication network

N.A.

G.6

Determination of minimum clearances .................. :

N.A.

ANNEX H, IONIZING RADIATION (see 4.3.13)

N.A.

Page 24 of 46 Report No.: L2N2330L538

Sporton International Inc.

ANNEX J, TABLE OF ELECTROCHEMICAL POTENTIALS (see 2.6.5.6)

N.A.

Metal used .............................................................. :



ANNEX K, THERMAL CONTROLS (see 1.5.3 and 5.3.8)

N.A.

K.1

Making and breaking capacity

N.A.

K.2

Thermostat reliability; operating voltage (V) ......... :

N.A.

K.3

Thermostat endurance test; operating voltage

(V) ........................................................................... :

N.A.

K.4

Temperature limiter endurance; operating voltage

(V) ........................................................................... :

N.A.

K.5

Thermal cut-out reliability

N.A.

K.6

Stability of operation

N.A.

ANNEX L, NORMAL LOAD CONDITIONS FOR SOME TYPES OF ELECTRICAL

BUSINESS EQUIPMENT (see 1.2.2.1 and 4.5.2)

Pass

L.1

Typewriters

N.A.

L.2

Adding machines and cash registers

N.A.

L.3

Erasers

N.A.

L.4

Pencil sharpeners

N.A.

L.5

Duplicators and copy machines

N.A.

L.6

Motor-operated files

N.A.

L.7

Other business equipment

Pass

ANNEX M, CRITERIA FOR TELEPHONE RINGING SIGNALS (see 2.3.1)

N.A.

M.1

Introduction

N.A.

M.2

Method A

N.A.

M.3

Method B

N.A.

M.3.1

Ringing signal

N.A.

M.3.1.1

Frequency (Hz) ..................................................... :



M.3.1.2

Voltage (V) ............................................................. :



M.3.1.3

Cadence; time (s), voltage (V) ............................... :



M.3.1.4

Single fault current (mA) .......................................... :



M.3.2

Tripping device and monitoring voltage .................. :

N.A.

M.3.2.1

Conditions for use of a tripping device or a

monitoring voltage

N.A.

M.3.2.2

Tripping device

N.A.

M.3.2.3

Monitoring voltage (V) .............................................. :

N.A.

Page 25 of 46 Report No.: L2N2330L538

Sporton International Inc.

ANNEX N, IMPULSE TEST GENERATORS (see 1.5.7.2, 1.5.7.3, 2.10.3.9, 6.2.2.1, 7.3.2,

7.4.3 and Clause G.5)

N.A.

N.1

ITU-T impulse test generators

N.A.

N.2

IEC 60065 impulse test generator

N.A.

ANNEX P, NORMATIVE REFERENCES



ANNEX Q, Voltage dependent resistors (VDRs) (see 1.5.9.1)

N.A.

a) Preferred climatic categories ............................... :

N.A.

b) Maximum continuous voltage .............................. :

N.A.

c) Pulse current ........................................................ :

N.A.

ANNEX R, EXAMPLES OF REQUIREMENTS FOR QUALITY CONTROL

PROGRAMMES

N.A.

R.1

Minimum separation distances for unpopulated

coated printed boards (see 2.10.6.2)

N.A.

R.2

Reduced clearances (see 2.10.3)

N.A.

ANNEX S, PROCEDURE FOR IMPULSE TESTING (see 6.2.2.3)

N.A.

S.1

Test equipment

N.A.

S.2

Test procedure

N.A.

S.3

Examples of waveforms during impulse testing

N.A.

ANNEX T, GUIDANCE ON PROTECTION AGAINST INGRESS OF WATER (see 1.1.2)

N.A.



ANNEX U, INSULATED WINDING WIRES FOR USE WITHOUT INTERLEAVED

INSULATION (see 2.10.5.4).

N.A.



ANNEX V, AC POWER DISTRIBUTION SYSTEMAS (see 1.6.1)

N.A.

V.1

Introduction

N.A.

V.2

TN power distribution systems

N.A.

ANNEX W, SUMMATION OF TOUCH CURRENTS

N.A.

W.1

Touch current from electronic circuits

N.A.

W.1.1

Floating circuits

N.A.

Page 26 of 46 Report No.: L2N2330L538

Sporton International Inc.

W.1.2

Earthed circuits

N.A.

W.2

Interconnection of several equipments

N.A.

W.2.1

Isolation

N.A.

W.2.2

Common return, isolated from earth

N.A.

W.2.3

Common return, connected to protective earth

N.A.

ANNEX X, MAXIMUM HEATING EFFECT IN TRANSFORMER TESTS (see Clause C.1)

N.A.

X.1

Determination of maximum input current

N.A.

X.2

Overload test procedure

N.A.

ANNEX Y, ULTRAVIOLET LIGHT CONDITIONING TEST (see 4.3.13.3)

N.A.

Y.1

Test apparatus

N.A.

Y.2

Mounting of test samples

N.A.

Y.3

Carbon-arc light-exposure apparatus

N.A.

Y.4

Xenon-arc light-exposure apparatus

N.A.

ANNEX Z, OVERVOLTAGE CATEGORIES (see

2.10.3.2 and Clause G.2)

N.A.

ANNEX AA, MANDREL TEST (see 2.10.5.8)

N.A.

ANNEX BB, CHANGES IN THE SECOND

EDITION



ANNEX CC, Evaluation of integrated circuit (IC) current limiters

N.A.

CC.1

General

N.A.

CC.2

Test program 1………………………………….:

N.A.

CC.3

Test program 2………………………………….:

N.A.

ANNEX DD, Requirements for the mounting means of rack-mounted equipment

N.A.

DD.1

General

N.A.

DD.2

Mechanical strength test, variable N…………..:

N.A.

DD.3

Mechanical strength test, 250N, including end

stops………………………………………………:

N.A.

DD.4

Compliance………………………………………:

N.A.

ANNEX EE, Household and home/office document/media shredders

N.A.

EE.1

General

N.A.

Page 27 of 46 Report No.: L2N2330L538

Sporton International Inc.

EE.2

Markings and instructions

N.A.

Use of markings or symbols……………………:

N.A.

Information of user instructions, maintenance

and/or servicing instructions……………………:

N.A.

EE.3

Inadvertent reactivation test……………………:

N.A.

EE.4

Disconnection of power to hazardous moving

parts:

N.A.

Use of markings or symbols……………………:

N.A.

EE.5

Protection against hazardous moving parts

N.A.

Test with test finger (Figure 2A) ……………:

N.A.

Test with wedge probe (Figure EE1 and

EE2) ……:

N.A.

Page 28 of 46 Report No.: L2N2330L538

Sporton International Inc.

1.5.1

TABLE: list of critical components

Pass

object/part No.

manufacturer/

trademark

type/model

technical data

standard

mark(s) of

conformity

AC Adaptor

PHIHONG

PSAC05R-050

I/P : 100-240 Vac,

50/60 Hz. 0.3 A;

O/P : +5 Vdc, 1 A.

Class II, 45 C,

L.P.S.

EN 60950-1:

2006 +

A11+A1+A12

IEC 60950-1:

2005+A1

TUV Rh

CB by TUV/ Rh

PCB

Min. V-1, Min. 105

°C

UL 796

Plastic

enclosure

HB min.

UL 94

* Additional testing and evaluation may be required based on auditing agency’s discretion.

Page 29 of 46 Report No.: L2N2330L538

Sporton International Inc.

1.6.2

TABLE: electrical data (in normal conditions)

Pass

U (V)

I (A)

Irated (A)

P (W)

fuse #

Ifuse (A)

condition/status

Model : EW-7215APn

5Vdc

0.271

1.0

1.355

Max. Normal load.

supply by Adaptor

Model : EW-7215PDn (POE)

48Vdc

0.038

1.0

1.824

Max. Normal load.

supply by POE

5Vdc

0.334

1.0

1.670

Max. Normal load.

supply by Adaptor

Note(s):

2.10.3 and

2.10.4

TABLE: clearance and creepage distance measurements

Pass

clearance cl and creepage

distance dcr at/of:

(V)

U r.m.s.

(V)

required cl

(mm)

required dcr

(mm)

dcr

(mm)

Notes: Functional insulation only.

2.10.5

TABLE: distance through insulation measurements

N.A.

distance through insulation di at/of:

U r.m.s.

(V)

test voltage

(V)

required di

(mm)

Note(s):

4.3.8

TABLE: Batteries

N.A.

The tests of 4.3.8 are applicable only when appropriate battery data

is not available

N.A.

Is it possible to install the battery in a reverse polarity position?

Non-rechargeable batteries

Rechargeable batteries

Discharging

Un-intentional

charging

Charging

Discharging

Reversed charging

Meas.

current

Manuf.

Specs.

Meas.

current

Manuf.

Specs.

Meas.

current

Manuf.

Specs.

Meas.

current

Manuf.

Specs.

Max.

current

during

normal

condition

Page 30 of 46 Report No.: L2N2330L538

Sporton International Inc.

Max.

current

during fault

condition

Test results:

Verdict

- Chemical leaks

N.A.

- Explosion of the battery

N.A.

- Emission of flame or expulsion of molten metal

N.A.

- Electric strength tests of equipment after completion of tests

N.A.

Supplementary information:

Page 31 of 46 Report No.: L2N2330L538

Sporton International Inc.

4.5

TABLE: maximum temperatures

Pass

test voltage (V) ...................................................... :

(A) DC 5 V, Horizontal

(B) DC 5 V, Vertical

(D) DC 48 V, Vertical

(E) DC 5 V, Horizontal

(F) DC 5 V, Vertical



tamb1 (ºC) ................................................................ :



tamb2 (ºC) ................................................................ :



temperature rise dT of part/at:

T (ºC)

Allowed

Tmax (ºC)

Model : EW-7215APn

Test Condition

(A)

(B)

PWB near U1

63.0

62.2

105

PWB near U5

57.0

56.7

105

PWB near U7

57.0

56.7

105

C186 body

57.3

56.6

L48 Coil

57.2

56.6

105

Plastic enclosure inside near U1

52.9

52.1

Plastic enclosure outside near U1

64.1

50.1

Ambient

45.0

Model : EW-7215PDn (POE)

Test Condition

(C)

(D)

PWB near U1

67.9

67.0

105

PWB near U5

63.5

63.3

105

PWB near U7

62.7

62.3

105

C186 body

64.8

64.2

L48 Coil

63.8

62.6

105

T2 body

60.4

58.4

105

L4 Coil

73.0

71.4

105

PWB near Q1

70.8

70.0

105

Plastic enclosure inside near U1

56.5

54.8

Plastic enclosure outside near U1

51.6

49.8

Ambient

45.0

Model : EW-7215PDn (POE)

Test Condition

(E)

(F)

PWB near U1

63.3

62.8

105

PWB near U5

57.5

57.0

105

Page 32 of 46 Report No.: L2N2330L538

Sporton International Inc.

PWB near U7

57.1

56.5

105

C186 body

59.8

57.5

L48 Coil

57.1

56.3

105

T2 body

57.8

56.0

105

L4 Coil

55.7

55.1

105

PWB near Q1

55.0

54.6

105

Plastic enclosure inside near U1

52.2

51.4

Plastic enclosure outside near U1

50.2

49.2

Ambient

45.0

temperature T of winding:

R1 (Ω)

R2 (Ω)

dT (ºK)

allowed

Tmax (ºC)

insulation

class

Supplementary information:

1) All values for T (ºC) are re-calculated from Tamb respectively.

2) The maximum ambient temperature specified by manufacturer is 45 ºC (Tma)

4.5.5

TABLE: ball pressure test of thermoplastics parts

N.A.

Allowed impression diameter (mm):

 2 mm



part:

test temperature

(ºC)

impression diameter

(mm)

Note(s):

4.6.1,

4.6.2

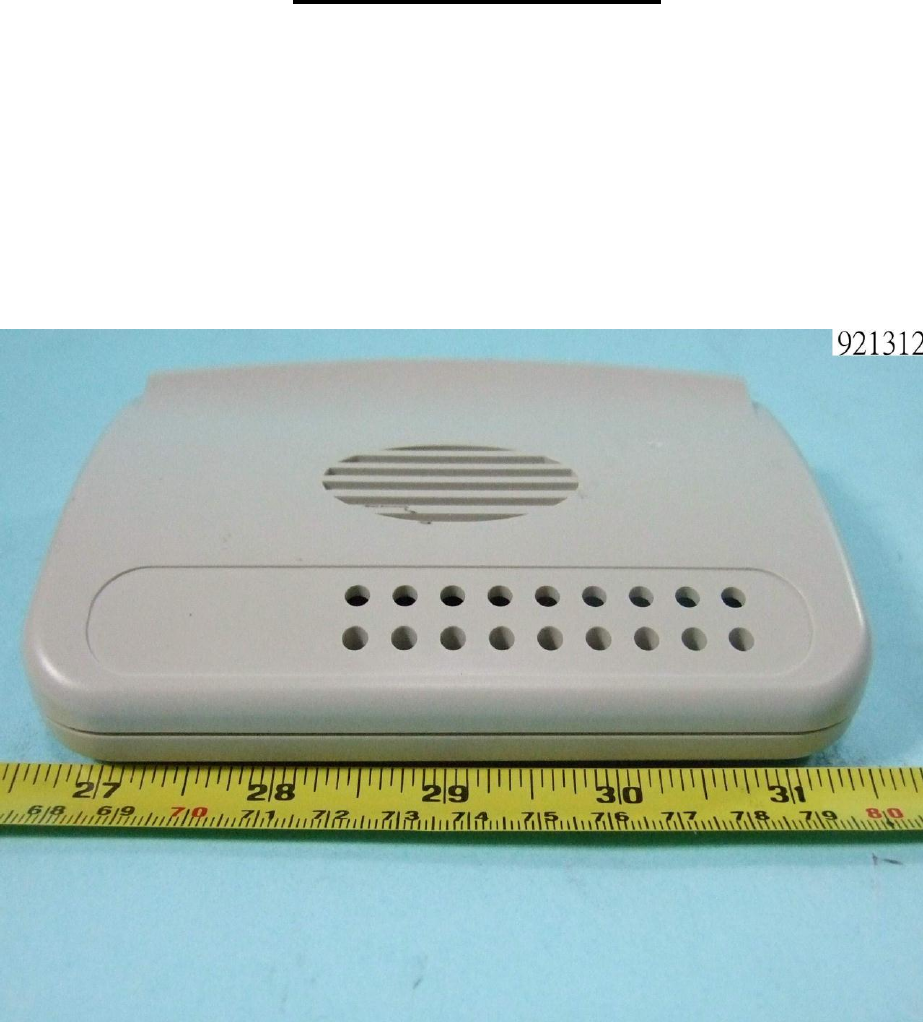

TABLE: Enclosure openings

Pass

Location

Size(mm)

Comments

Model : EW-7215APn

Top

Max, 41.3 x 2.6

Numerous oval with louver openings

Both sides

No opening

Bottom

1.4 x 10.0

Numerous rectangle openings

7.5 x 13.5

4 openings for wall mounting purpose

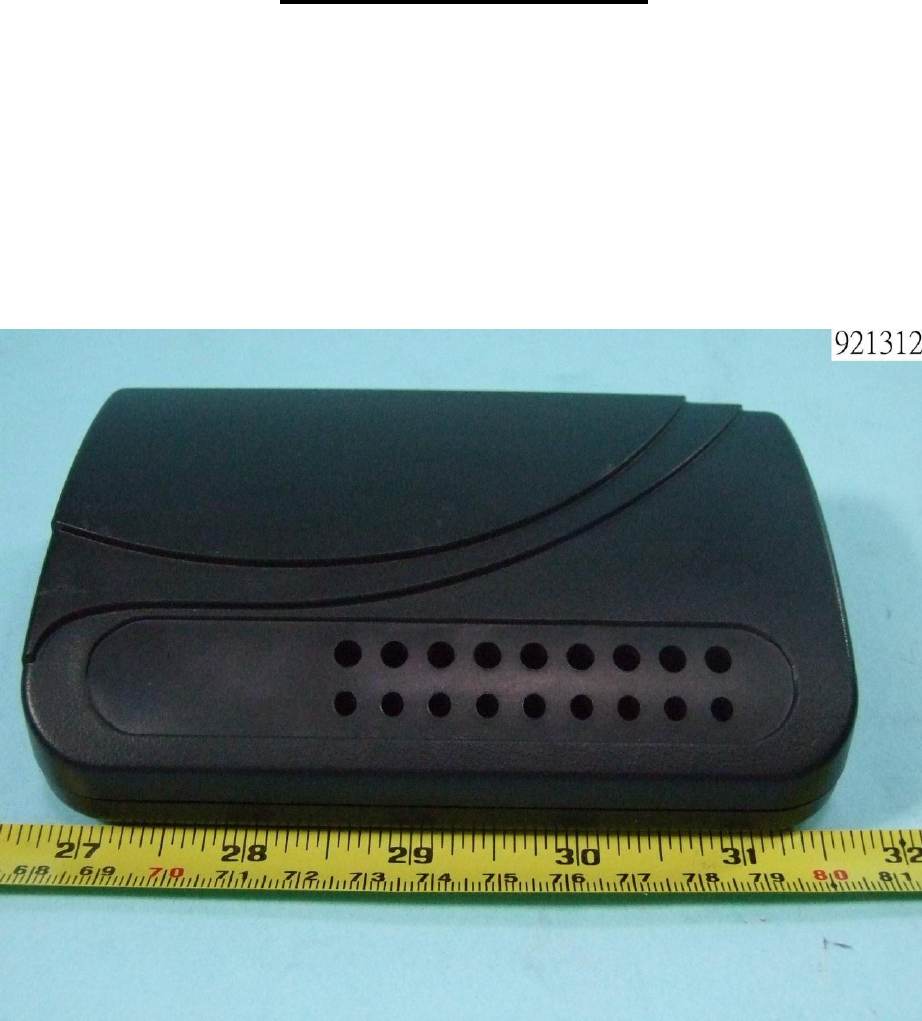

Model : EW-7215PDn (POE)

Top

No opening

Both sides

3.9 x 1.3

Numerous arc openings

Bottom

1.6 x 10.2

Numerous rectangle openings

7.5 x 13.5

4 openings for wall mounting purpose

Note(s):

Page 33 of 46 Report No.: L2N2330L538

Sporton International Inc.

4.7

TABLE: Resistance to fire

Pass

Part

Manufacturer of

material

Type of material

Thickness

(mm)

Flammability

class

Evidence

Note(s): See appended table 1.5.1

5.2

TABLE: electric strength tests, impulse tests and voltage surge tests

N.A.

test voltage applied between:

Voltage shape

(AC, DC, impulse, surge)

test voltage (V)

breakdown

Note(s):

5.3

TABLE: fault condition tests

Pass

ambient temperature (ºC) ..................................... :

See below



model/type of power supply .................................. :



manufacturer of power supply .............................. :



rated markings of power supply ........................... :



No.

component No.

fault

test voltage

(V)

test time

fuse

No.

fuse

current (A)

result

Model : EW-7215APn

Openings

(Horizontal)

Blocked

5 Vdc

4 hrs

20min

Unit normally operation,

No hazards, No damaged.

Max temp.：

PWB near U1 = 45.5ºC,

Ambient = 26.0ºC

Model : EW-7215PDn (POE)

Openings

(Horizontal)

Blocked

48 Vdc

3 hrs

25min

Unit normally operation,

No hazards, No damaged.

Max temp.：

PWB near U1 = 51.0ºC,

Ambient = 26.0ºC

Note(s):

Page 34 of 46 Report No.: L2N2330L538

Sporton International Inc.

EN 60950-1:2006 – CENELEC COMMON MODIFICATIONS

Contents

Add the following annexes:

Annex ZA (normative)

Normative references to

international publications with their corresponding European publications

Annex ZB (normative)

Special national conditions

Annex ZC (informative) A-deviations

General

Delete all the “country” notes in the reference document according to the following

list:

1.4.8 Note 2 1.5.1 Note 2 & 3 1.5.7.1 Note

1.5.8 Note 2 1.5.9.4 Note 1.7.2.1 Note 4, 5 & 6

2.2.3 Note 2.2.4 Note 2.3.2 Note

2.3.2.1 Note 2 2.3.4 Note 2 2.6.3.3 Note 2 & 3

2.7.1 Note 2.10.3.2 Note 2 2.10.5.13 Note 3

3.2.1.1 Note 3.2.4 Note 3. 2.5.1 Note 2

4.3.6 Note 1 & 2 4.7 Note 4 4.7.2.2 Note

4.7.3.1 Note 2 5.1.7.1 Note 3 & 4 5.3.7 Note 1

6 Note 2 & 5 6.1.2.1 Note 2 6.1.2.2 Note

6.2.2 Note 6. 2.2.1 Note 2 6.2.2.2 Note

7.1 Note 3 7.2 Note 7.3 Note 1 & 2

G.2.1 Note 2 Annex H Note 2

General

Delete all the “country” notes in the reference document (IEC 60950-1:2005/A1)

according to the following list:

1.5.7.1 Note 6.1.2.1 Note 2

6.2.2.1 Note 2 EE.3 Note

1.1.1

Replace the text of NOTE 3 by the following

NOTE3 The requirements of EN 60065 may also be used to meet safety requirements for

multimedia equipment. See IEC Guide 112, Guide on the safety of multimedia equipment.

For television sets EN 60065 applies.

N/A

1.5.1

Add the following NOTE:

NOTE Z1 The use of certain substances in electrical and electronic equipment is restricted

within the EU: see Directive 2002/95/EC

N/A

Page 35 of 46 Report No.: L2N2330L538

Sporton International Inc.

2.7.1

Replace the subclause as follows:

Basic requirements

To protect against excessive current, short-circuits and earth faults in PRIMARY

CIRCUITS, protective devices shall be included either as integral parts of the

equipment or as parts of the building installation, subject to the following, a), b) and

c):

a) except as detailed in b) and c), protective devices necessary to comply with the

requirements of 5.3 shall be included as parts of the equipment;

b) for components in series with the mains input to the equipment such as the

supply cord, appliance coupler, r.f.i. filter and switch, short-circuit and earth fault

protection may be provided by protective devices in the building installation;

c) it is permitted for PLUGGABLE EQUIPMENT TYPE B or PERMANENTLY

CONNECTED EQUIPMENT, to rely on dedicated overcurrent and short-circuit

protection in the building installation, provided that the means of protection, e.g.

fuses or circuit breakers, is fully specified in the installation instructions.

If reliance is placed on protection in the building installation, the installation

instructions shall so state, except that for PLUGGABLE EQUIPMENT TYPE A the

building installation shall be regarded as providing protection in accordance with the

rating of the wall socket outlet.

N/A

2.7.2

This subclause has been declared ‘void’.

N/A

3.2.3

Delete the NOTE in Table 3A, and delete also in this table the conduit sizes in

parentheses.

N/A

3.2.5.1

Replace “60245 IEC 53” by “H05 RR-F”;

“60227 IEC 52” by “H03 VV-F or H03 VVH2-F”;

“60227 IEC 53” by “H05 VV-F or H05 VVH2-F2”.

In Table 3B, replace the first four lines by the following:

| Up to and including 6 | 0,75 a) |

| Over 6 up to and including 10 | (0,75) b) 1,0 |

| Over 10 up to and including 16 | (1,0) c) 1,5 |

In the conditions applicable to Table 3B delete the words “in some countries” in

condition a).

In NOTE 1, applicable to Table 3B, delete the second sentence.

N/A

3.3.4

In Table 3D, delete the fourth line: conductor sizes for 10 to 13 A, and replace with

the following:

| Over 10 up to and including 16 | 1,5 to 2,5 | 1,5 to 4 |

Delete the fifth line: conductor sizes for 13 to 16 A.

N/A

Page 36 of 46 Report No.: L2N2330L538

Sporton International Inc.

4.3.13.6

Add the following NOTE:

NOTE Z1 Attention is drawn to:

1999/519/EC: Council Recommendation on the limitation of exposure of the general public to

electromagnetic fields 0 Hz to 300 GHz, and

2006/25/EC: Directive on the minimum health and safety requirements regarding the

exposure of workers to risks arising from physical agents (artifical optical radiation).

Standards taking into account mentioned Recommendation and Directive which demonstrate

compliance with the applicable EU Directive are indicated in the OJEC.

N/A

Annex H

Replace the last paragraph of this annex by:

At any point 10 cm from the surface of the OPERATOR ACCESS AREA, the dose

rate shall not exceed 1 μSv/h (0,1 mR/h) (see NOTE). Account is taken of the

background level.

Replace the notes as follows:

NOTE These values appear in Directive 96/29/Euratom.

Delete NOTE 2.

N/A

Biblio-graph

Additional EN standards.

Add the following note for the standard indicated:

IEC 60908 NOTE Harmonized as EN 60908



NORMATIVE REFERENCES TO INTERNATIONAL PUBLICATIONS WITH THEIR

CORRESPONDING EUROPEAN PUBLICATIONS



SPECIAL NATIONAL CONDITIONS

N/A

1.2.4.1

In Denmark, certain types of Class I appliances (see 3.2.1.1) may be provided with

a plug not establishing earthing conditions when inserted into Danish socket-outlets.

N/A

1.2.13.14

In Norway and Sweden, for requirements see 1.7.2.1 and 7.3 of this annex.

N/A

1.5.7.1

In Finland, Norway and Sweden, resistors bridging BASIC INSULATION in CLASS

I PLUGGABLE EQUIPMENT TYPE A must comply with the requirements in 1.5.7.

1. In addition when a single resistor is used, the resistor must withstand the resistor

test in 1.5.7.2.

N/A

1.5.8

In Norway, due to the IT power system used (see annex V, Figure V.7), capacitors

are required to be rated for the applicable line-to-line voltage (230 V).

N/A

1.5.9.4

In Finland, Norway and Sweden, the third dashed sentence is applicable only to

equipment as defined in 6.1.2.2 of this annex.

N/A

Page 37 of 46 Report No.: L2N2330L538

Sporton International Inc.

1.7.2.1

In Finland, Norway and Sweden, CLASS I PLUGGABLE EQUIPMENT TYPE A

intended for connection to other equipment or a network shall, if safety relies on

connection to protective earth or if surge suppressors are connected between the

network terminals and accessible parts, have a marking stating that the equipment

must be connected to an earthed mains socket-outlet.

The marking text in the applicable countries shall be as follows:

In Finland: "Laite on liitettävä suojamaadoituskoskettimilla varustettuun pistorasiaan"

In Norway: “Apparatet må tilkoples jordet stikkontakt”

In Sweden: “Apparaten skall anslutas till jordat uttag”

In Norway and Sweden, the screen of the cable distribution system is normally not

earthed at the entrance of the building and there is normally no equipotential

bonding system within the building. Therefore the protective earthing of the building

installation need to be isolated from the screen of a cable distribution system.

It is however accepted to provide the insulation external to the equipment by an

adapter or an interconnection cable with galvanic isolator, which may be provided by

e.g. a retailer.

The user manual shall then have the following or similar information in Norwegian

and Swedish language respectively, depending on in what country the equipment is

intended to be used in:

”Equipment connected to the protective earthing of the building installation

through the mains connection or through other equipment with a connection

to protective earthing – and to a cable distribution system using coaxial cable,

may in some circumstances create a fire hazard. Connection to a cable

distribution system has therfore to be provided through a device providing

electrical isolation below a certain frequency range (galvanic isolator, see EN

60728-11).”

NOTE In Norway, due to regulation for installations of cable distribution systems, and in

Sweden, a galvanic isolator shall provide electrical insulation below 5 MHz. The insulation

shall withstand a dielectric strength of 1.5 kV r.m.s., 50 Hz or 60 Hz, for 1min.

Translation to Norwegian (the Swedish text will also be accepted in Norway):

”Utstyr som er koplet til beskyttelsesjord via nettplugg og/eller via annet

jordtilkoplet utstyr – og er tilkoplet et kabel-TV nett, kan forårsake brannfare.

For å unngå dette skal det ved tilkopling av utstyret til kabel-TV nettet

installeres en galvanisk isolator mellom utstyret og kabel- TV nettet.”

Translation to Swedish:

”Utrustning som är kopplad till skyddsjord via jordat vägguttag och/eller via annan

utrustning och samtidigt är kopplad till kabel-TV nät kan i vissa fall medföra risk för

brand. För att undvika detta skall vid anslutning av utrustningen till kabel-TV nät

galvanisk isolator finnas mellan utrusningen och kabel-TV nätet.”

N/A

1.7.5

In Denmark, socket-outlets for providing power to other equipment shall be in

accordance with the Heavy Current Regulations, Section 107-2-D1, Standard Sheet

DK 1-3a, DK 1-5a or DK 1-7a, when used on Class I equipment. For STATIONARY

EQUIPMENT the socket-outlet shall be in accordance with Standard Sheet DK 1-1b

or DK 1-5a.

N/A

2.2.4

In Norway, for requirements see 1.7.2.1, 6.1.2.1 and 6.1.2.2 of this annex.

N/A

Page 38 of 46 Report No.: L2N2330L538

Sporton International Inc.

2.3.2

In Finland, Norway and Sweden there are additional requirements for the

insulation. See 6.1.2.1 and 6.1.2.2 of this annex.

N/A

2.3.4

In Norway, for requirements see 1.7.2.1, 6.1.2.1 and 6.1.2.2 of this annex.

N/A

2.6.3.3

In the United Kingdom, the current rating of the circuit shall be taken as 13 A, not

16 A.

N/A

2.7.1

In the United Kingdom, to protect against excessive currents and short-circuits in

the PRIMARY CIRCUIT of DIRECT PLUG-IN EQUIPMENT, tests according to 5.3

shall be conducted, using an external protective device rated 30 A or 32 A. If these

tests fail, suitable protective devices shall be included as integral parts of the

DIRECT PLUG-IN EQUIPMENT, so that the requirements of 5.3 are met.

N/A

2.10.5.13

In Finland, Norway and Sweden, there are additional requirements for the

insulation, see 6.1.2.1 and 6.1.2.2 of this annex.

N/A

3.2.1.1

In Switzerland, supply cords of equipment having a RATED CURRENT not

exceeding 10 A shall be provided with a plug complying with SEV 1011 or IEC

60884-1 and one of the following dimension sheets:

SEV 6532-2.1991 Plug Type 15 3P+N+PE 250/400 V, 10 A

SEV 6533-2.1991 Plug Type 11 L+N 250 V, 10 A

SEV 6534-2.1991 Plug Type 12 L+N+PE 250 V, 10 A

In general, EN 60309 applies for plugs for currents exceeding 10 A. However, a 16

A plug and socket-outlet system is being introduced in Switzerland, the plugs of

which are according to the following dimension sheets, published in February 1998:

SEV 5932-2.1998 Plug Type 25 3L+N+PE 230/400 V, 16 A

SEV 5933-2.1998 Plug Type 21 L+N 250 V, 16 A

SEV 5934-2.1998 Plug Type 23 L+N+PE 250 V, 16 A

N/A

Page 39 of 46 Report No.: L2N2330L538

Sporton International Inc.

3.2.1.1

In Denmark, supply cords of single-phase equipment having a rated current not

exceeding13 A shall be provided with a plug according to the Heavy Current

Regulations, Section 107-2-D1.

CLASS I EQUIPMENT provided with socket-outlets with earth contacts or which are

intended to be used in locations where protection against indirect contact is required

according to the wiring rules shall be provided with a plug in accordance with

standard sheet DK 2-1a or DK 2-5a.

If poly-phase equipment and single-phase equipment having a RATED CURRENT

exceeding 13 A is provided with a supply cord with a plug, this plug shall be in

accordance with the Heavy Current Regulations, Section 107-2-D1 or EN 60309-2.

N/A

3.2.1.1

In Spain, supply cords of single-phase equipment having a rated current not

exceeding 10 A shall be provided with a plug according to UNE 20315:1994.

Supply cords of single-phase equipment having a rated current not exceeding 2,5 A

shall be provided with a plug according to UNE-EN 50075:1993.

CLASS I EQUIPMENT provided with socket-outlets with earth contacts or which are

intended to be used in locations where protection against indirect contact is required

according to the wiring rules, shall be provided with a plug in accordance with

standard UNE 20315:1994.

If poly-phase equipment is provided with a supply cord with a plug, this plug shall be

in accordance with UNE-EN 60309-2.

N/A

3.2.1.1

In the United Kingdom, apparatus which is fitted with a flexible cable or cord and is

designed to be connected to a mains socket conforming to BS 1363 by means of

that flexible cable or cord and plug, shall be fitted with a ‘standard plug’ in

accordance with Statutory Instrument 1768:1994 - The Plugs and Sockets etc.

(Safety) Regulations 1994, unless exempted by those regulations.

NOTE ‘Standard plug’ is defined in SI 1768:1994 and essentially means an approved plug

conforming to BS 1363 or an approved conversion plug.

N/A

3.2.1.1

In Ireland, apparatus which is fitted with a flexible cable or cord and is designed to

be connected to a mains socket conforming to I.S. 411 by means of that flexible

cable or cord and plug, shall be fitted with a 13 A plug in accordance with Statutory

Instrument 525:1997 - National Standards Authority of Ireland (section 28) (13 A

Plugs and Conversion Adaptors for Domestic Use) Regulations 1997.

N/A

3.2.4

In Switzerland, for requirements see 3.2.1.1 of this annex.

N/A

3.2.5.1

In the United Kingdom, a power supply cord with conductor of 1,25 mm2 is allowed

for equipment with a rated current over 10 A and up to and including 13 A.

N/A

3.3.4

In the United Kingdom, the range of conductor sizes of flexible cords to be

accepted by terminals for equipment with a RATED CURRENT of over 10 A up to

and including 13 A is:

• 1,25 mm2 to 1,5 mm2 nominal cross-sectional area.

N/A

Page 40 of 46 Report No.: L2N2330L538

Sporton International Inc.

4.3.6

In the United Kingdom, the torque test is performed using a socket outlet

complying with BS 1363 part 1:1995, including Amendment 1:1997 and

Amendment 2:2003 and the plug part of DIRECT PLUG-IN EQUIPMENT shall be

assessed to BS 1363: Part 1, 12.1, 12.2, 12.3, 12.9, 12.11, 12.12, 12.13, 12.16 and

12.17, except that the test of 12.17 is performed at not less than 125 °C. Where the

metal earth pin is replaced by an Insulated Shutter Opening Device (ISOD), the

requirements of clauses 22.2 and 23 also apply.

N/A

4.3.6

In Ireland, DIRECT PLUG-IN EQUIPMENT is known as plug similar devices. Such

devices shall comply with Statutory Instrument 526:1997 - National Standards

Authority of Ireland (Section 28) (Electrical plugs, plug similar devices and sockets

for domestic use) Regulations, 1997.

N/A

5.1.7.1

In Finland, Norway and Sweden TOUCH CURRENT measurement results

exceeding 3,5 mA r.m.s. are permitted only for the following equipment:

• STATIONARY PLUGGABLE EQUIPMENT TYPE A that

○ is intended to be used in a RESTRICTED ACCESS LOCATION

where

equipotential bonding has been applied, for example, in a

telecommunication centre; and

○ has provision for a permanently connected PROTECTIVE

EARTHING

CONDUCTOR; and

○ is provided with instructions for the installation of that conductor by a

SERVICE PERSON;

• STATIONARY PLUGGABLE EQUIPMENT TYPE B;

• STATIONARY PERMANENTLY CONNECTED EQUIPMENT.

N/A

Page 41 of 46 Report No.: L2N2330L538

Sporton International Inc.

6.1.2.1

In Finland, Norway and Sweden, add the following text between the first and

second paragraph of the compliance clause:

If this insulation is solid, including insulation forming part of a component, it shall at

least consist of either

- two layers of thin sheet material, each of which shall pass the electric strength

test below, or

- one layer having a distance through insulation of at least 0,4 mm, which shall

pass the electric strength test below.

Alternatively for components, there is no distance through insulation requirements

for the insulation consisting of an insulating compound completely filling the casing,

so that CLEARANCES and CREEPAGE DISTANCES do not exist, if the component

passes the electric strength test in accordance with the compliance clause below

and in addition

- passes the tests and inspection criteria of 2.10.11 with an electric strength test of

1,5 kV multiplied by 1,6 (the electric strength test of 2.10.10 shall be performed

using 1,5 kV), and

- is subject to ROUTINE TESTING for electric strength during manufacturing,

using a test voltage of 1,5 kV.

It is permitted to bridge this insulation with an optocoupler complying with 2.10.5.4

b).

It is permitted to bridge this insulation with a capacitor complying with

EN 60384-14:2005, subclass Y2.

A capacitor classified Y3 according to EN 60384-14:2005, may bridge this

insulation under the following conditions:

- the insulation requirements are satisfied by having a capacitor classified Y3 as

defined by EN 60384-14, which in addition to the Y3 testing, is tested with an

impulse test of 2,5 kV defined in EN 60950-1:2006, 6.2.2.1;

- the additional testing shall be performed on all the test specimens as described

in EN 60384-14;

- the impulse test of 2,5 kV is to be performed before the endurance test in

EN 60384-14, in the sequence of tests as described in EN 60384-14.

N/A

6.1.2.2

In Finland, Norway and Sweden, the exclusions are applicable for

PERMANENTLY CONNECTED EQUIPMENT, PLUGGABLE EQUIPMENT TYPE B

and equipment intended to be used in a RESTRICTED ACCESS LOCATION where

equipotential bonding has been applied, e.g. in a telecommunication centre, and

which has provision for a permanently connected PROTECTIVE EARTHING

CONDUCTOR and is provided with instructions for the installation of that conductor

by a SERVICE PERSON.

N/A

Page 42 of 46 Report No.: L2N2330L538

Sporton International Inc.

7.2

In Finland, Norway and Sweden, for requirements see 6.1.2.1 and 6.1.2.2 of this

annex.

The term TELECOMMUNICATION NETWORK in 6.1.2 being replaced by the term

CABLE DISTRIBUTION SYSTEM.

N/A

7.3

In Norway and Sweden, for requirements see 1.2.13.14 and 1.7.2.1 of this annex.

N/A

A-DEVIATIONS (informative)

N/A

1.5.1

Switzerland (Ordinance on environmentally hazardous substances SR 814.081,

Annex 1.7, Mercury - Annex 1.7 of SR 814.81 applies for mercury.)

Add the following:

NOTE In Switzerland, switches containing mercury such as thermostats, relays and level

controllers are not allowed.

N/A

1.7.2.1

Germany (Gesetz über technische Arbeitsmittel und Verbraucherprodukte (Geräte-

und Produktsicherheitsgesetz – GPSG) [Law on technical labour equipment and

consumer products], of 6th January 2004, Section 2, Article 4, Clause (4), Item 2).

If for the assurance of safety and health certain rules during use, amending or

maintenance of a technical labour equipment or readymade consumer product are

to be followed, a manual in German language has to be delivered when placing the

product on the market.

Of this requirement, rules for use even only by SERVICE PERSONS are not

exempted.

N/A

1.7.13

Switzerland (Ordinance on chemical hazardous risk reduction SR 814.81, Annex

2.15 Batteries)

Annex 2.15 of SR 814.81 applies for batteries.

N/A

Page 43 of 46 Report No.: L2N2330L538

Sporton International Inc.

PROTECTION AGAINST EXCESSIVE SOUND PRESSURE FROM PERSONAL

MUSIC PLAYERS

N/A

Zx.1

General

This sub-clause specifies requirements for protection against excessive sound

pressure from personal music players that are closely coupled to the ear. It also

specifies requirements for earphones and headphones intended for use with

personal music players.

A personal music player is a portable equipment for personal use, that:

- is designed to allow the user to listen to recorded or broadcast sound or video;

and

- primarily uses headphones or earphones that can be worn in or on or around

the ears; and

- allows the user to walk around while in use.

NOTE 1 Examples are hand-held or body-worn portable CD players, MP3 audio

players, mobile phones with MP3 type features, PDA's or similar equipment.

A personal music player and earphones or headphones intended to be used with

personal music players shall comply with the requirements of this sub-clause.

The requirements in this sub-clause are valid for music or video mode only.

The requirements do not apply:

- while the personal music player is connected to an external amplifier; or

- while the headphones or earphones are not used.

NOTE 2 An external amplifier is an amplifier which is not part of the personal music

player or the listening device, but which is intended to play the music as a

standalone music player.

The requirements do not apply to:

- hearing aid equipment and professional equipment;

NOTE 3 Professional equipment is equipment sold through special sales channels.

All products sold through normal electronics stores are considered not to be

professional equipment.

- analogue personal music players (personal music players without any kind of

digital processing of the sound signal) that are brought to the market before the

end of 2015.

NOTE 4 This exemption has been allowed because this technology is falling out of

use and it is expected that within a few years it will no longer exist. This exemption

will not be extended to other technologies.

For equipment which is clearly designed or intended for use by young children, the

limits of EN 71-1 apply.

N/A

Page 44 of 46 Report No.: L2N2330L538

Sporton International Inc.

Zx.2

Equipment requirements

No safety provision is required for equipment that complies with the following:

- equipment provided as a package (personal music player with its listening

device), where the acoustic output L Aeq,T is 5 85 dBA measured while playing

the fixed "programme simulation noise" as described in EN 50332-1; and

- a personal music player provided with an analogue electrical output socket for a

listening device, where the electrical output is 5 27 mV measured as described

in EN 50332-2, while playing the fixed "programme simulation noise" as

described in EN 50332-1.

NOTE 1 Wherever the term acoustic output is used in this clause, the 30 s

A-weighted equivalent sound pressure level LAeq, T is meant. See also Zx.5 and

Annex Zx.

All other equipment shall:

a) protect the user from unintentional acoustic outputs exceeding those mentioned

above; and

b) have a standard acoustic output level not exceeding those mentioned above,

and automatically return to an output level not exceeding those mentioned

above when the power is switched off; and

c) provide a means to actively inform the user of the increased sound pressure

when the equipment is operated with an acoustic output exceeding those

mentioned above. Any means used shall be acknowledged by the user before

activating a mode of operation which allows for an acoustic output exceeding

those mentioned above. The acknowledgement does not need to be repeated

more than once every 20 h of cumulative listening time; and

NOTE 2 Examples of means include visual or audible signals. Action from the user

is always required.

NOTE 3 The 20 h listening time is the accumulative listening time, independent how

often and how long the personal music

player has been switched off.

d) have a warning as specified in Zx.3; and

e) not exceed the following:

1) equipment provided as a package (player with its listening device), the

acoustic output shall be 5 100 dBA measured while playing the fixed

"programme simulation noise" described in EN 50332-1; and

2) a personal music player provided with an analogue electrical output socket

for a listening device, the electrical output shall be 5 150 mV measured as

described in EN 50332-2, while playing the fixed "programme simulation

noise" described in EN 50332-1.

For music where the average sound pressure (long term L Aeq ,T) measured over

the duration of the song is lower than the average produced by the programme

simulation noise, the warning does not need to be given as long as the average

sound pressure of the song is below the basic limit of 85 dBA. In this case T

becomes the duration of the song.

N/A

Page 45 of 46 Report No.: L2N2330L538

Sporton International Inc.

NOTE 4 Classical music typically has an average sound pressure (long term L

Aeq,T) which is much lower than the average programme simulation noise.

Therefore, if the player is capable to analyse the song and compare it with the

programme simulation noise, the warning does not need to be given as long as the

average sound pressure of the song is below the basic limit of 85 dBA.

For example, if the player is set with the programme simulation noise to 85 dBA, but

the average music level of the song is only 65 dBA, there is no need to give a

warning or ask an acknowledgement as long as the average sound level of the song

is not above the basic limit of 85 dBA.

Zx.3

Warning

The warning shall be placed on the equipment, or on the packaging, or in the

instruction manual and shall consist of the following:

- the symbol of Figure 1 with a minimum height of 5 mm; and

- the following wording, or similar:

To prevent possible hearing damage, do not listen at high volume levels for long

periods.

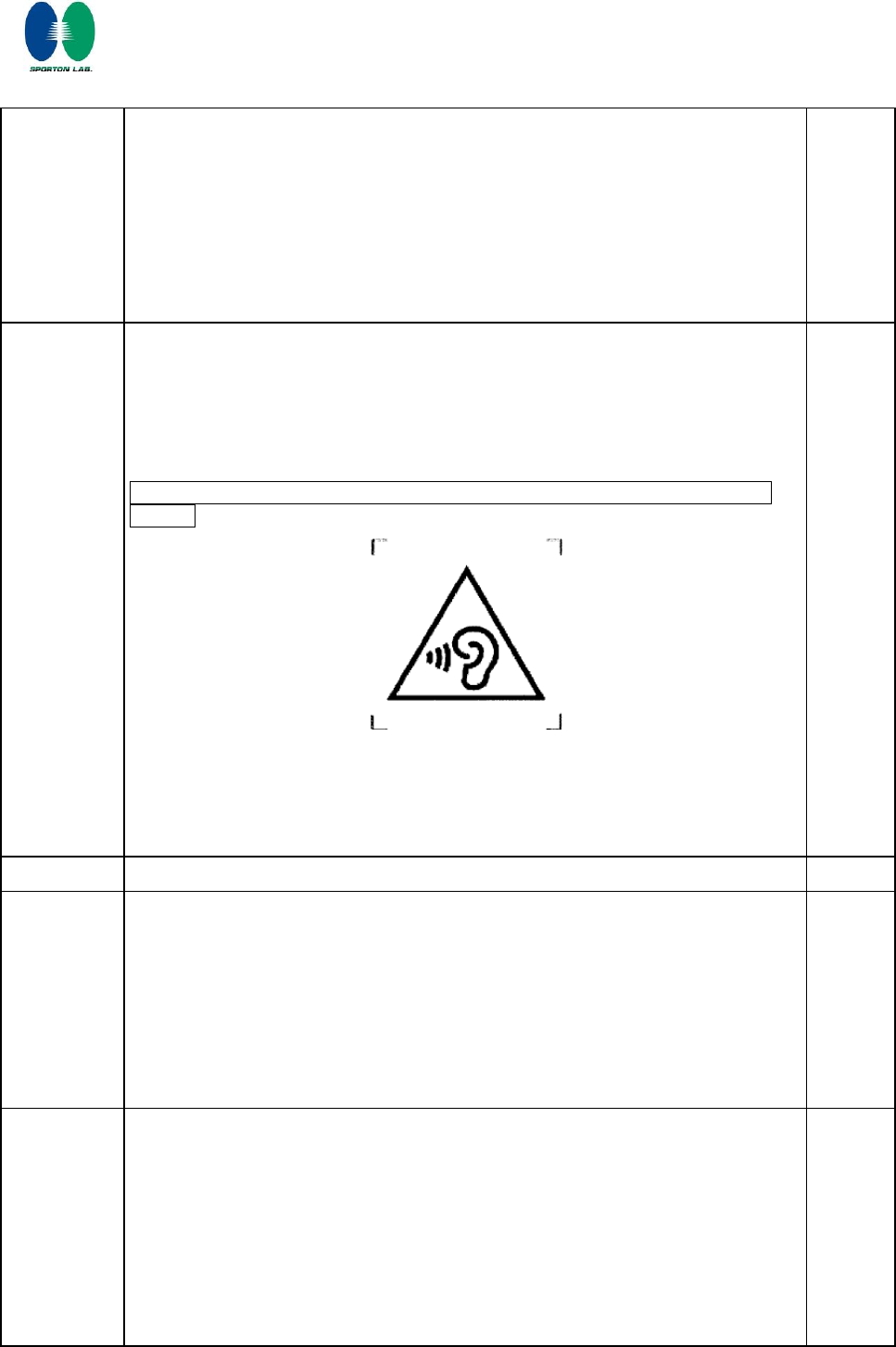

Figure 1 ─ Warning label (IEC 60417-6044)

Alternatively, the entire warning may be given through the equipment display during

use, when the user is asked to acknowledge activation of the higher level.

N/A

Zx.4

Requirements for listening devices (headphones and earphones)

N/A

Zx.4.1

Wired listening devices with analogue input

With 94 dBA sound pressure output LAeq,T, the input voltage of the fixed

"programme simulation noise" described in EN 50332-2 shall be 75 mV.

This requirement is applicable in any mode where the headphones can operate

(active or passive), including any available setting (for example built-in volume level

control).

NOTE The values of 94 dBA — 75 mV correspond with 85dBA — 27 mV and 100

dBA — 150 mV.

N/A

Zx.4.2

Wired listening devices with digital input

With any playing device playing the fixed "programme simulation noise" described in

EN 50332-1 (and respecting the digital interface standards, where a digital interface

standard exists that specifies the equivalent acoustic level), the acoustic output

LAeq,T of the listening device shall be 100 dBA.

This requirement is applicable in any mode where the headphones can operate,

including any available setting (for example built-in volume level control, additional

sound feature like equalization, etc.).

NOTE An example of a wired listening device with digital input is a USB headphone.

N/A

Page 46 of 46 Report No.: L2N2330L538

Sporton International Inc.

Zx.4.3

Wireless listening devices

In wireless mode:

- with any playing and transmitting device playing the fixed programme simulation

noise described in EN 50332-1; and

- respecting the wireless transmission standards, where an air interface standard

exists that specifies the equivalent acoustic level; and

- with volume and sound settings in the listening device (for example built-in

volume level control, additional sound feature like equalization, etc.) set to the

combination of positions that maximize the measured acoustic output for the

above-mentioned programme simulation noise,

the acoustic output LAeq,T of the listening device shall be 100 dBA.

NOTE An example of a wireless listening device is a Bluetooth headphone.

N/A

Zx.5

Measurement methods

Measurements shall be made in accordance with EN 50332-1 or EN 50332-2 as

applicable. Unless stated otherwise, the time interval T shall be 30 s.

NOTE Test method for wireless equipment provided without listening device should

be defined.

N/A

Page 1 of 1 Report No.:L2N2330L538

Appendix Table

2.5

TABLE: limited power source measurement

Pass

Limits

Measured

Verdict

Model : EW-7215APn

For Data port (LAN port pin 1-8)

According to Table 2B ( normal condition), Uoc ＝0 V

current (in A)

Pass

Apparent power (in VA)

 100

Pass

Model : EW-7215PDn (POE)

For Data port (LAN port pin 1-8)

According to Table 2B ( normal condition), Uoc ＝0 V

current (in A)

Pass

Apparent power (in VA)

 100

Pass

Note(s):

Page 1 Report No.: L2N2330L538

Sporton International Inc.

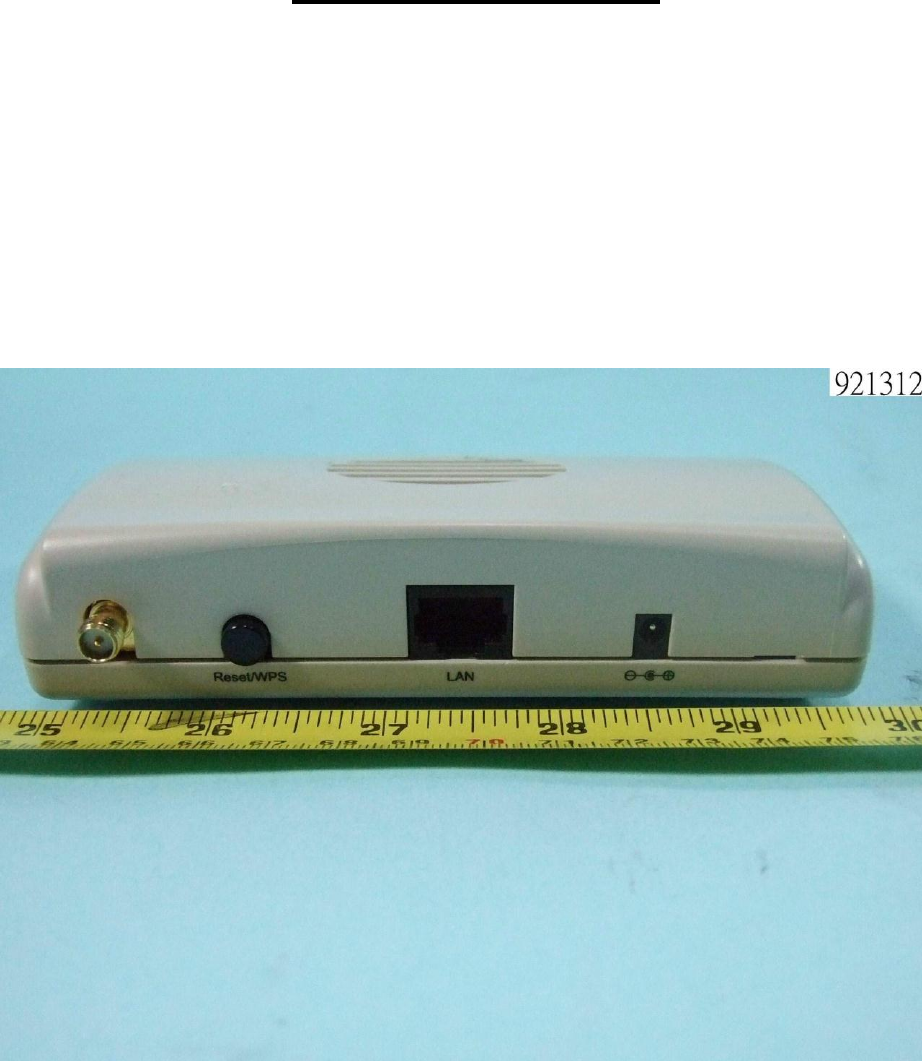

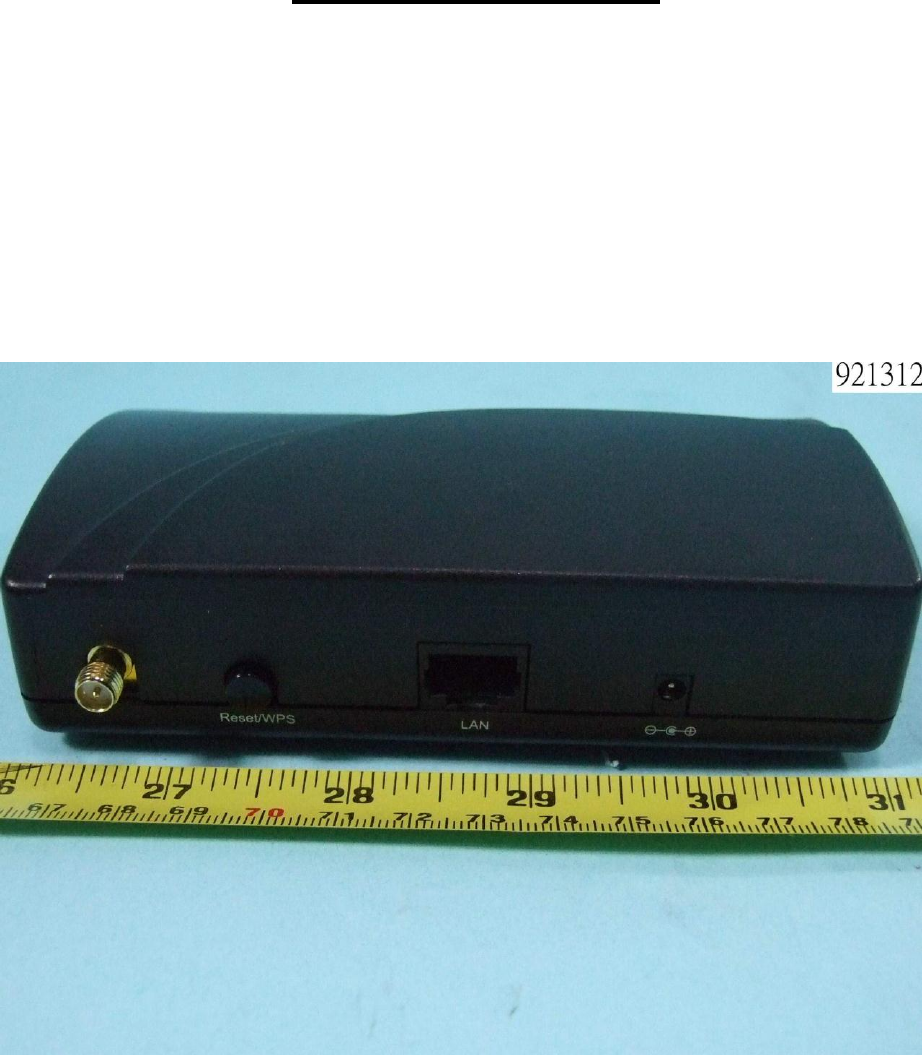

Appendix - Photo

Model : EW-7215APn

Page 2 Report No.: L2N2330L538

Sporton International Inc.

Appendix - Photo

Model : EW-7215APn

Page 3 Report No.: L2N2330L538

Sporton International Inc.

Appendix - Photo

Model : EW-7215APn

Page 4 Report No.: L2N2330L538

Sporton International Inc.

Appendix - Photo

Model : EW-7215APn

Page 5 Report No.: L2N2330L538

Sporton International Inc.

Appendix - Photo

Model : EW-7215APn

Page 6 Report No.: L2N2330L538

Sporton International Inc.

Appendix - Photo

Model : EW-7215APn

Page 7 Report No.: L2N2330L538

Sporton International Inc.

Appendix - Photo

Model : EW-7215APn

Page 8 Report No.: L2N2330L538

Sporton International Inc.

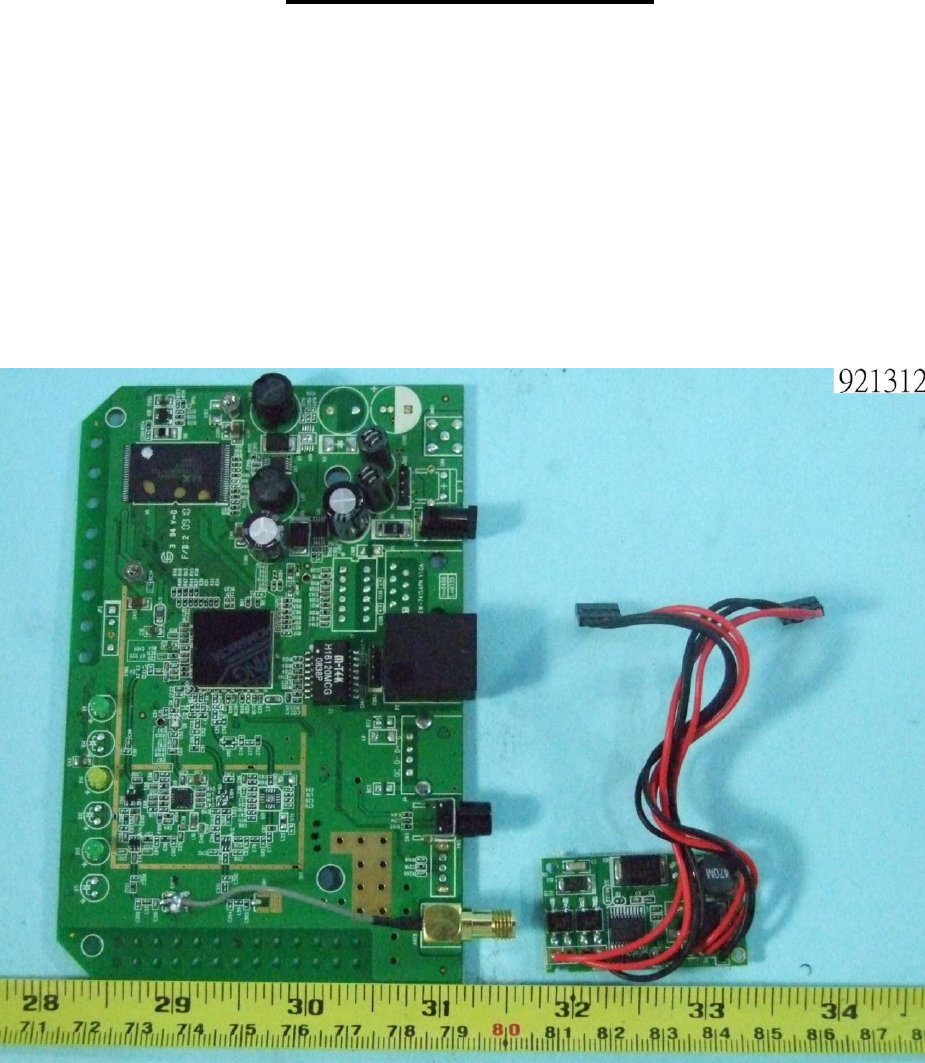

Appendix - Photo

Model : EW-7215PDn

Page 9 Report No.: L2N2330L538

Sporton International Inc.

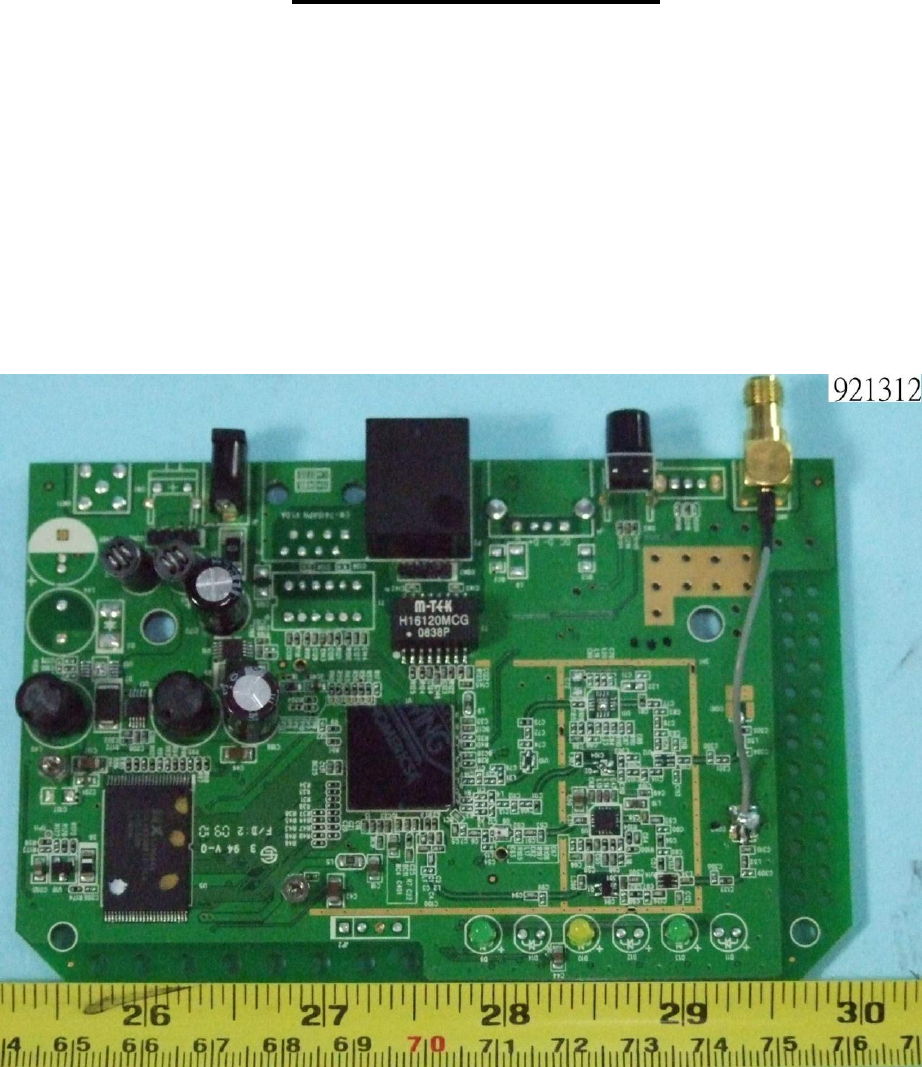

Appendix - Photo

Model : EW-7215PDn

Page 10 Report No.: L2N2330L538

Sporton International Inc.

Appendix - Photo

Model : EW-7215PDn

Page 11 Report No.: L2N2330L538

Sporton International Inc.

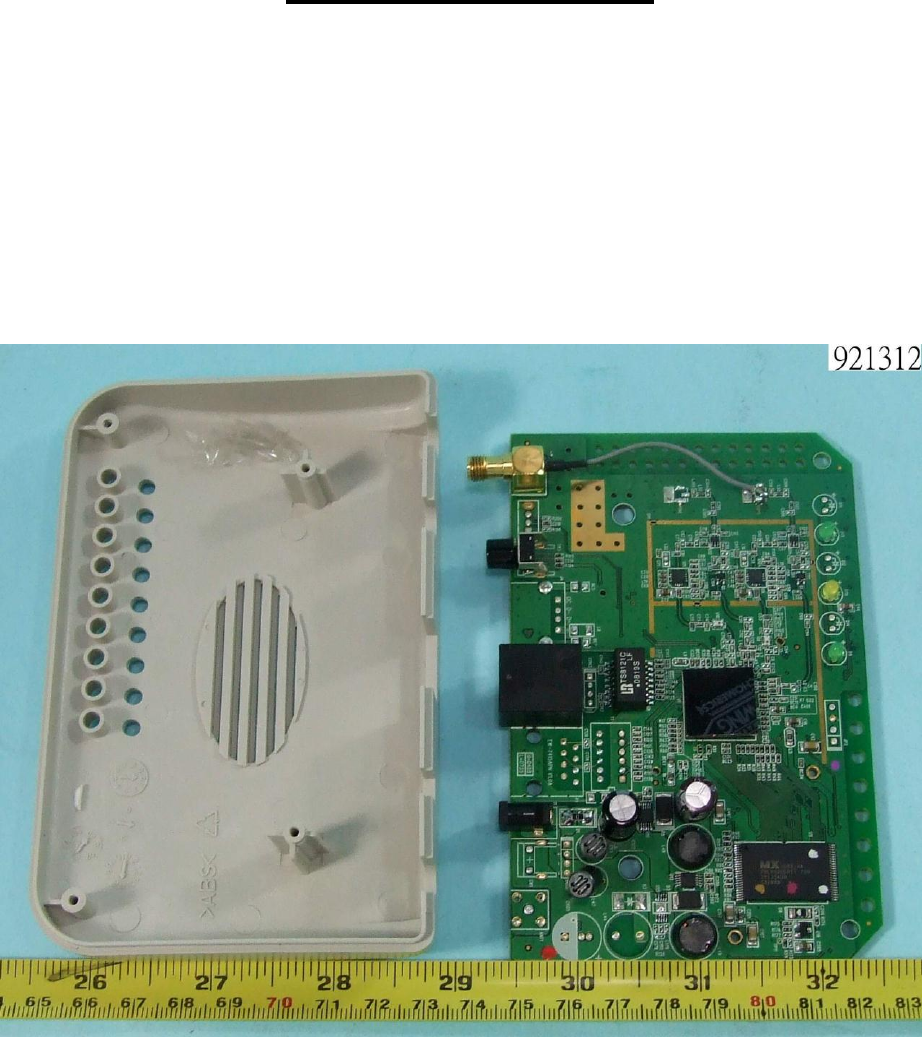

Appendix - Photo

Model : EW-7215PDn

Page 12 Report No.: L2N2330L538

Sporton International Inc.

Appendix - Photo

Model : EW-7215PDn

Page 13 Report No.: L2N2330L538

Sporton International Inc.

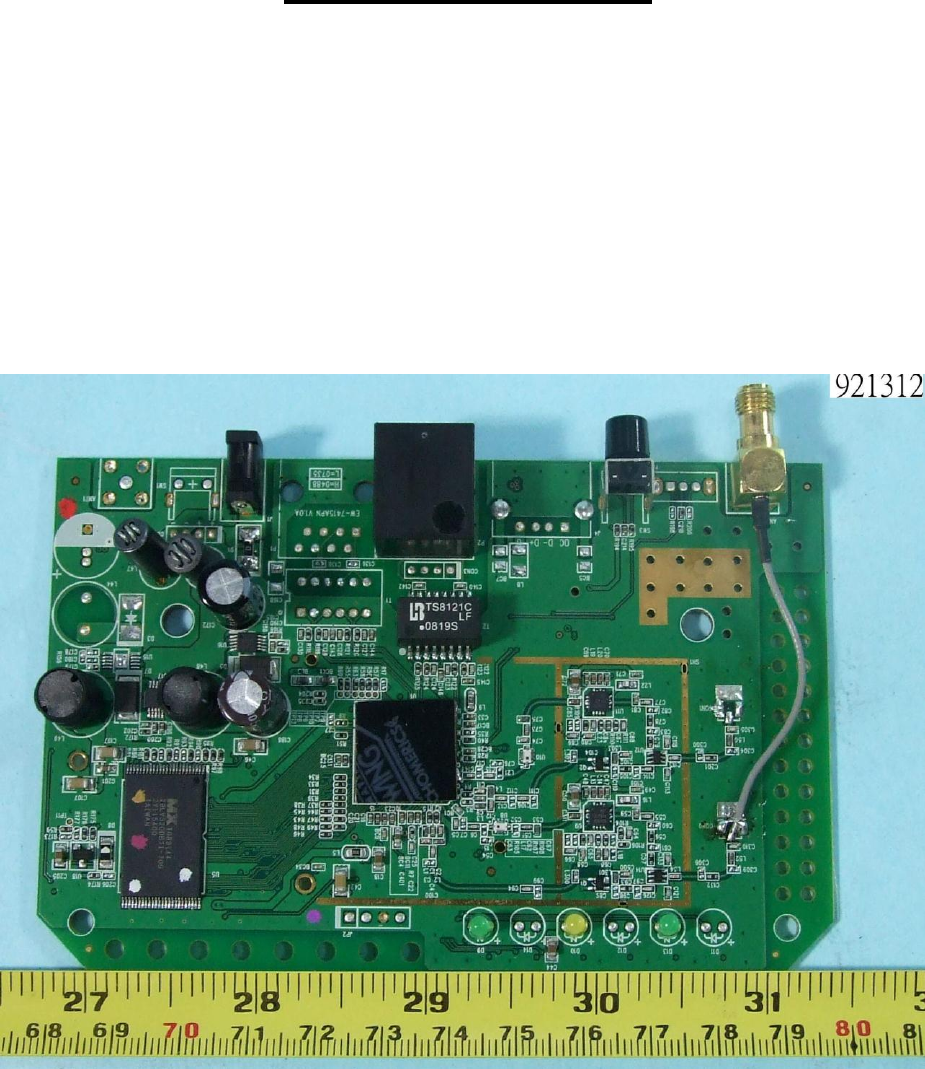

Appendix - Photo

Model : EW-7215PDn

Page 14 Report No.: L2N2330L538

Sporton International Inc.

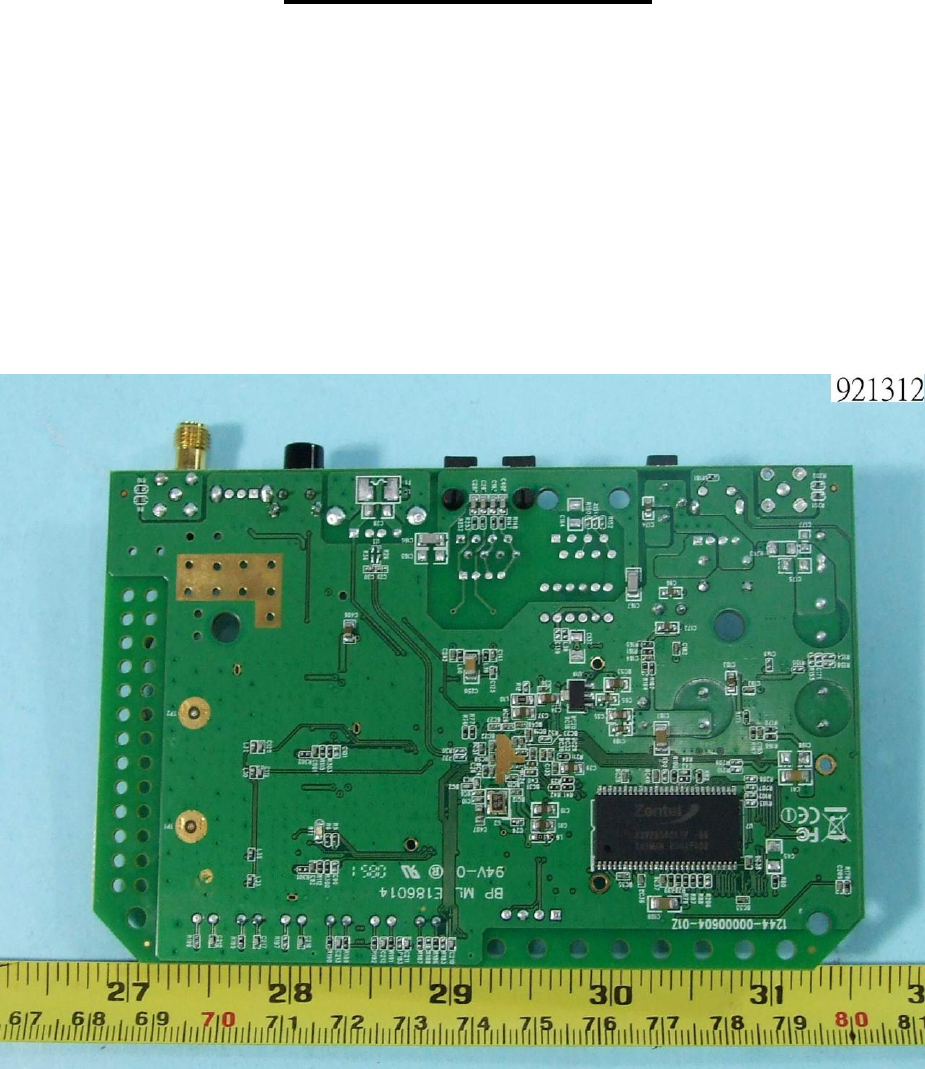

Appendix - Photo

Model : EW-7215PDn

Page 15 Report No.: L2N2330L538

Sporton International Inc.

Appendix - Photo

Model : EW-7215PDn

Certificate No： 524704 LVD Certification

Navigation menu

Versions of this User Manual:

Views

Navigation
