TRF No. IEC60950_1B_M2 STC (Dongguan) Company Limited
68 Fumin Nan Road, Dalang, Dongguan City, Guangdong province, P.R.China. (Zip Code: 523770)
Tel:(86 769)81119888 Fax:(86 769)81116222 Email:dgstc@dgstc.org Homepage:www.dgstc.org
TEST REPORT
IEC/EN 60950-1
Information technology equipment – Safety –
Part 1: General requirements
Report Number. .............................. :
DE114090
Date of issue ................................... :
2015-11-19
Total number of pages ...................
Page 1 to 49 for test report

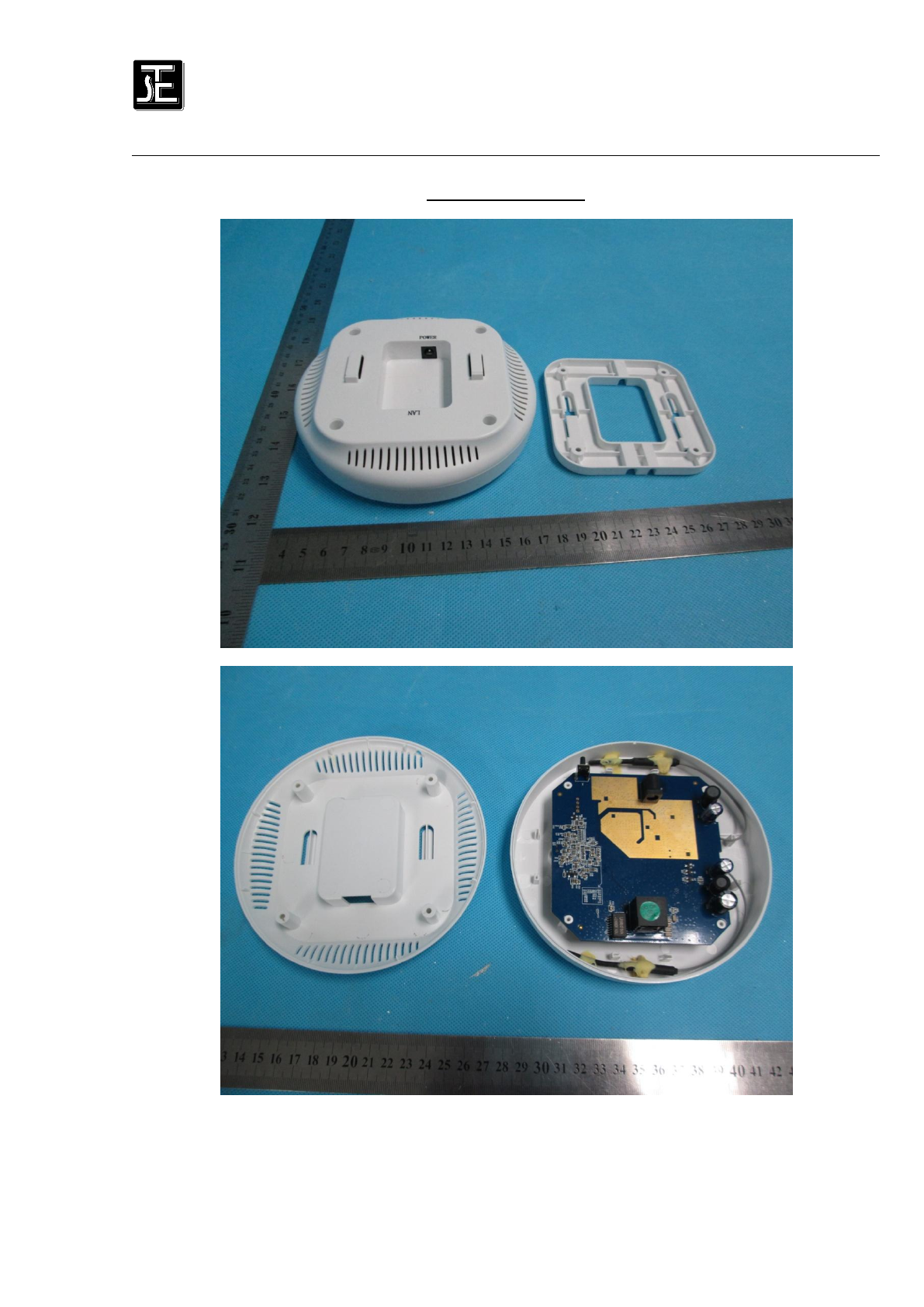

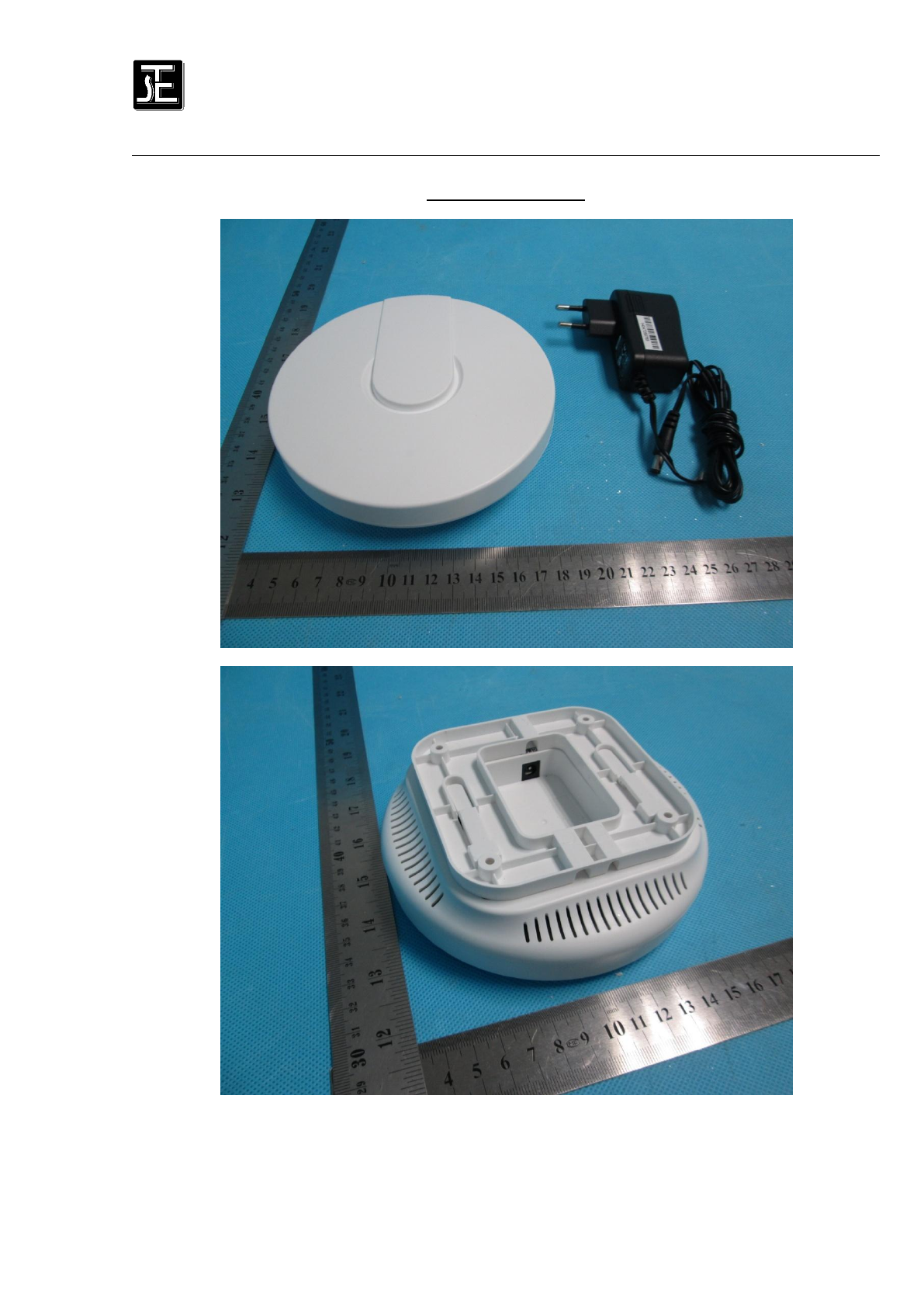

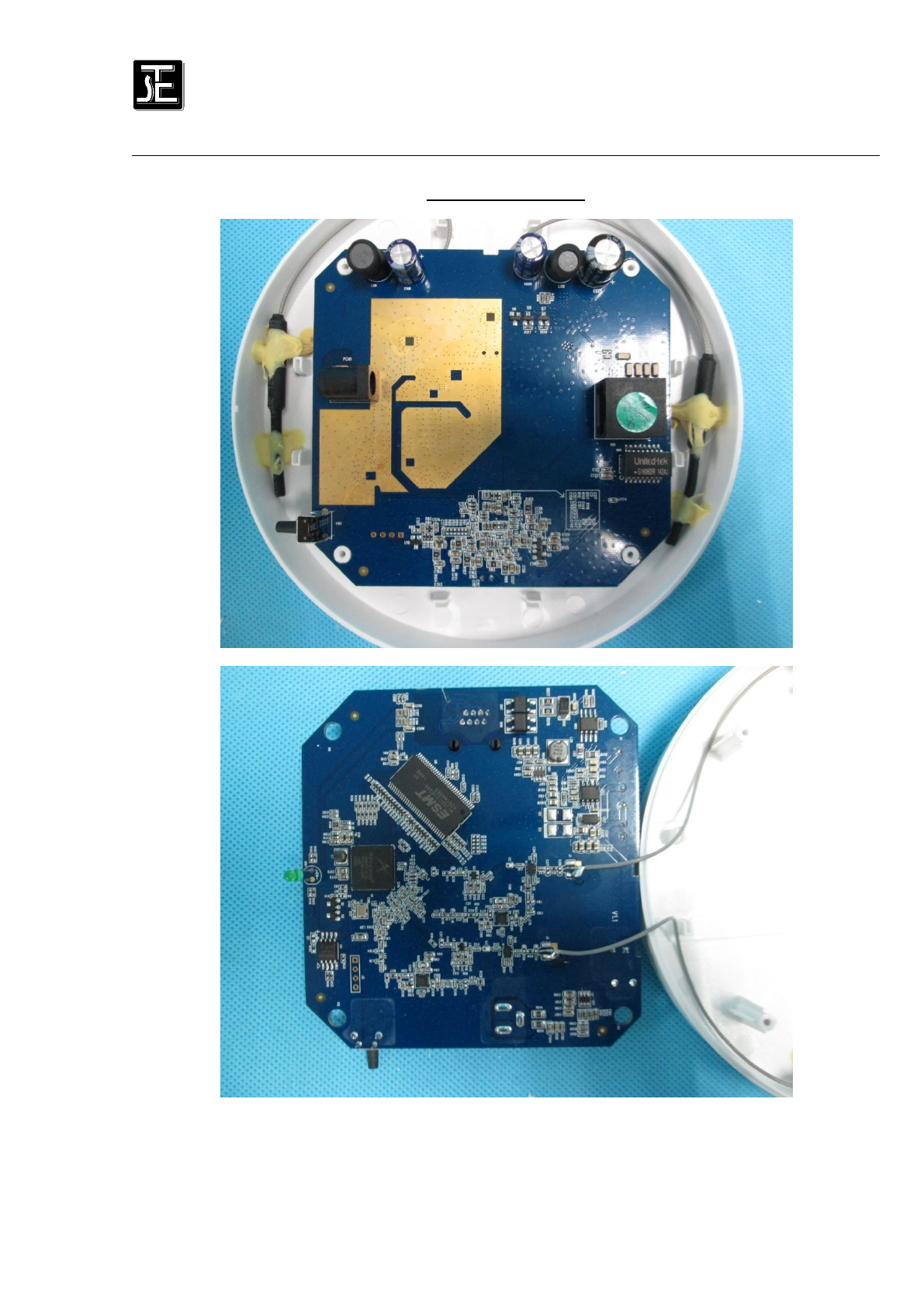

Appendix 1 to 3 for product photographs
Testing Laboratory ........................ :
STC (Dongguan) Company Limited
Address ........................................... :
68 Fumin Nan Road, Dalang, Dongguan City,Guangdong
Province, P.R.China
Applicant’s name ........................... :
Intracom Asia Co., Ltd.
Address ........................................... :
4F., No.77, Sec.1, Xintai 5th Rd., Xizhi Dist., New Taipei City 221,
Taiwan
Test specification:
Standard.......................................... :
IEC 60950-1:2005 (2nd Edition); Am 1:2009; Am 2: 2013
EN 60950-1:2006+A11:2009+A1:2010+A12: 2011+A2:2013
Test procedure ............................... :
N/A
Non-standard test method………..:
N/A
Test Report Form No. .................... :
IEC60950_1B_M2
Test Report Form(s) Originator .... :
SGS Fimko Ltd
Master TRF ..................................... :
Dated 2010-04
Modified by ..................................... :
HKSTC
Modified Date ................................. :
2013-12
Copyright © 2010 Worldwide System for Conformity Testing and Certification of Electrotechnical
Equipment and Components (IECEE), Geneva, Switzerland. All rights reserved.
This publication may be reproduced in whole or in part for non-commercial purposes as long as the IECEE is
acknowledged as copyright owner and source of the material. IECEE takes no responsibility for and will not assume
liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context.
Test item description ..................... :
Trade Mark ...................................... :
Manufacturer .................................. :
Address ........................................... :
Model/Type reference .................... :
Ratings ............................................ :
Page 3 of 49 Report No.:DE114090
TRF No. IEC60950_1B_M2 STC (Dongguan) Company Limited
68 Fumin Nan Road, Dalang, Dongguan City, Guangdong province, P.R.China. (Zip Code: 523770)
Tel:(86 769)81119888 Fax:(86 769)81116222 Email:dgstc@dgstc.org Homepage:www.dgstc.org
List of Attachments (including a total number of pages in each attachment):
Page 1 to 49 for test report
Appendix 1 to 3 for product photographs
Summary of testing:
The sample(s) tested complies with the requirements ofEN 60950-1:2006+A11:2009+A1:2010+A12:2011
+A2:2013
Tests performed (name of test and test clause):
EN 60950-
1:2006+A11:2009+A1:2010+A12:2011+A2:2013
Testing location:
68 Fumin Nan Road, Dalang, Dongguan City,
Guangdong Province, P.R.China
Summary of compliance with National Differences
List of countries addressed:EU
The product fulfils the requirements of EN 60950-1:2006+ A11:2009+ A1:2010+A12:2011+A2:2013

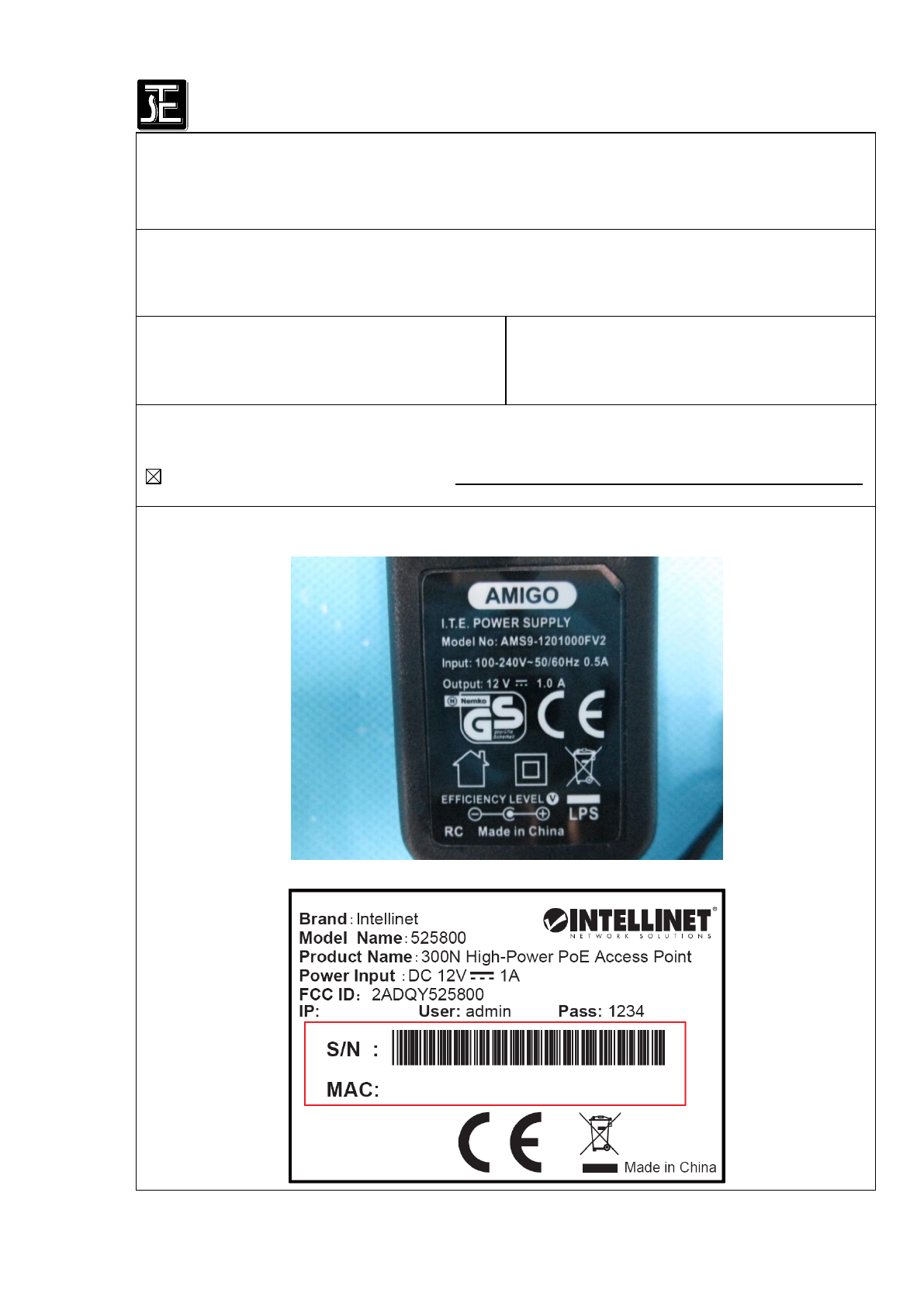

Copy of marking plate:
For I.T.E. Power Supply:
For main unit:
Page 4 of 49 Report No.:DE114090
TRF No. IEC60950_1B_M2 STC (Dongguan) Company Limited
68 Fumin Nan Road, Dalang, Dongguan City, Guangdong province, P.R.China. (Zip Code: 523770)
Tel:(86 769)81119888 Fax:(86 769)81116222 Email:dgstc@dgstc.org Homepage:www.dgstc.org
Test item particulars .................................................. :
300N High-Power PoE Access Point
Equipment mobility ................................................ :
[x] movable [] hand-held [] transportable
[] stationary [] for building-in [] direct plug-in
Connection to the mains ......................................... :
[x] pluggable equipment
[x] type A for I.T.E. Power Supply [] type B
[] permanent connection
[] detachable power supply cord
[] non-detachable power supply cord
[x] not directly connected to the mains for main unit
Operating condition ................................................. :
[x] continuous
[] rated operating / resting time:
Access location ...................................................... :
[x] operator accessible
[] restricted access location
Over voltage category (OVC) ................................. :
[] OVC I [x] OVC II [] OVC III [] OVC IV
[] other
Mains supply tolerance (%) or absolute mains
supply values .......................................................... :
I.T.E. Power Supplywas approved
Tested for IT power systems ................................. :
[] Yes [x] No
IT testing, phase-phase voltage (V) ...................... :
N/A
Class of equipment ................................................. :
[] Class I [x] Class II for I.T.E. Power Supply
[x] Class III for main unit [] Not classified
Considered current rating of protective device as
part of the building installlation (A) ...................... :
N/A
Pollution degree (PD) ............................................. :
[] PD 1 [x] PD 2 [] PD 3
IP protection class .................................................. :
IP20
Altitude during operation (m) ................................ :
2000
Altitude of test laboratory (m) ............................... :
<2000
Mass of equipment (kg) .......................................... :
0.14Kg
Possible test case verdicts:
- test case does not apply to the test object ........... :
N (N/A)
- test object does meet the requirement ................. :
P (Pass)
- test object does not meet the requirement ........... :
F (Fail)
Testing ......................................................................... :
Date of receipt of test item ........................................ :
2015-07-16
Date(s) of performance of tests ................................ :
2015-07-16 to 2015-07-29
General remarks:
The test results presented in this report relate only to the object tested.
This report shall not be reproduced, without the written approval of the Issuing testing laboratory.
"(see Enclosure #)" refers to additional information appended to the report.
"(see appended table)" refers to a table appended to the report.
Throughout this report a comma / point is used as the decimal separator.
Page 1 to 49 for test report
Appendix 1 to 3 for product photographs
Page 5 of 49 Report No.:DE114090
TRF No. IEC60950_1B_M2 STC (Dongguan) Company Limited
68 Fumin Nan Road, Dalang, Dongguan City, Guangdong province, P.R.China. (Zip Code: 523770)
Tel:(86 769)81119888 Fax:(86 769)81116222 Email:dgstc@dgstc.org Homepage:www.dgstc.org
Manufacturer‟s Declaration per sub-clause 6.2.5 of IECEE 02:
The application for obtaining a CB Test Certificate
includes more than one factory location and a
declaration from the Manufacturer stating that the
sample(s) submitted for evaluation is (are)
representative of the products from each factory has
been provided ................................................................ :
Yes
Not applicable
When differences exist; they shall be identified in the General product information section.
General product information:
The submitted unit is 300N High-Power PoE Access Point. It supplied by an approved directed plug-in
I.T.E. Power Supply or via Ethernet Port with PoE.
The max operated temperature is 40C which is specified by manufacturer
Abbreviations used in the report:
- normal conditions N.C. - single fault conditions S.F.C
- functional insulation OP - basic insulation BI
- double insulation DI - supplementary insulation SI
- between parts of opposite
- polarity BOP - reinforced insulation RI
Indicate used abbreviations (if any)
Page 6 of 49 Report No.: DE114090
IEC/EN 60950-1
Clause
Requirement + Test
Result - Remark
Verdict
TRF No. IEC60950_1B_M2 STC (Dongguan) Company Limited
68 Fumin Nan Road, Dalang, Dongguan City, Guangdong province, P.R.China. (Zip Code: 523770)
Tel:(86 769)81119888 Fax:(86 769)81116222 Email:dgstc@dgstc.org Homepage:www.dgstc.org
1
GENERAL
P
1.5
Components
P
1.5.1
General
P
Comply with IEC 60950-1 or relevant component
standard
see appended table
P
1.5.2
Evaluation and testing of components
P
1.5.3
Thermal controls
Not used
N
1.5.4
Transformers
Approved I.T.E. Power
Supply used
N
1.5.5
Interconnecting cables
No such cables
N
1.5.6
Capacitors bridging insulation
Not used
N
1.5.7
Resistors bridging insulation
No such resistors
N
1.5.7.1
Resistors bridging functional, basic or supplementary
insulation
N
1.5.7.2
Resistors bridging double or reinforced insulation
between a.c. mains and other circuits
N
1.5.7.3
Resistors bridging double or reinforced insulation
between a.c. mains and antenna or coaxial cable
N
1.5.8
Components in equipment for IT power systems
N
1.5.9
Surge suppressors
No surge suppressors
N
1.5.9.1
General
N
1.5.9.2
Protection of VDRs
No VDR
N
1.5.9.3
Bridging of functional insulation by a VDR
N
1.5.9.4
Bridging of basic insulation by a VDR
N
1.5.9.5
Bridging of supplementary, double or reinforced
insulation by a VDR
N
1.6
Power interface
P
1.6.1
AC power distribution systems
Approved I.T.E. Power
Supply used
N
1.6.2
Input current
(see appended table 1.6.2)
P
1.6.3
Voltage limit of hand-held equipment
Not such an equipment
N
1.6.4
Neutral conductor
N
1.7
Marking and instructions
P
1.7.1
Power rating and identification markings
See below
P
1.7.1.1
Power rating marking
P
Multiple mains supply connections..........................:
Single power souce
N
Rated voltage(s) or voltage range(s) (V) .............. :
12V for main unit
P
Symbol for nature of supply, for d.c. only .............. :
for main unit
P
Rated frequency or rated frequency range (Hz) ... :
N
Page 7 of 49 Report No.: DE114090
IEC/EN 60950-1
Clause
Requirement + Test
Result - Remark
Verdict
TRF No. IEC60950_1B_M2 STC (Dongguan) Company Limited
68 Fumin Nan Road, Dalang, Dongguan City, Guangdong province, P.R.China. (Zip Code: 523770)
Tel:(86 769)81119888 Fax:(86 769)81116222 Email:dgstc@dgstc.org Homepage:www.dgstc.org
Rated current (mA or A) ........................................ :
1A for main unit
P
1.7.1.2
Identification markings
See copy of marking plate
P
Manufacturer‟s name or trade-mark or identification
mark ...................................................................... :
Intellinet
P
Model identification or type reference .................... :
525800
P
Symbol for Class II equipment only ....................... :
Class III product for main unit
N
Other markings and symbols ................................ :
P
1.7.1.3
Use of graphical symbols
N
1.7.2
Safety instructions and marking
State in user manual
P
1.7.2.1
General
User manual provided to the
operator, containing
necessary instruction and
caution information. English
version checked.
P
1.7.2.2
Disconnect devices
AC plug of approved I.T.E.
Power Supply
P
1.7.2.3
Overcurrent protective device
N
1.7.2.4
IT power distribution systems
N
1.7.2.5
Operator access with a tool
N
1.7.2.6
Ozone
No ozone radiation
N
1.7.3
Short duty cycles
Continuous operation
N
1.7.4
Supply voltage adjustment ................................... :
N
Methods and means of adjustment; reference to
installation instructions ......................................... :
N
1.7.5
Power outlets on the equipment .......................... :
No such power outlets
N
1.7.6
Fuse identification (marking, special fusing
characteristics, cross-reference) .......................... :
N
1.7.7
Wiring terminals
No such wiring terminals
N
1.7.7.1
Protective earthing and bonding terminals .......... :
Class III equipment
N
1.7.7.2
Terminals for a.c. mains supply conductors
No such terminal provided
N
1.7.7.3
Terminals for d.c. mains supply conductors
No d.c. mains
N
1.7.8
Controls and indicators
No controls and indicators
can affect safety used
N
1.7.8.1
Identification, location and marking ..................... :
N
1.7.8.2
Colours ................................................................ :
No colour impairs safety
N
1.7.8.3
Symbols according to IEC 60417 ........................ :
N
1.7.8.4
Markings using figures ....................................... :
N
1.7.9
Isolation of multiple power sources ..................... :
N
1.7.10
Thermostats and other regulating devices ......... :
No such adjustable devices
N
1.7.11
Durability
Legible after test
P
1.7.12
Removable parts
No such parts
N
1.7.13
Replaceable batteries ......................................... :
No battery used
N
Page 8 of 49 Report No.: DE114090
IEC/EN 60950-1
Clause
Requirement + Test
Result - Remark
Verdict
TRF No. IEC60950_1B_M2 STC (Dongguan) Company Limited
68 Fumin Nan Road, Dalang, Dongguan City, Guangdong province, P.R.China. (Zip Code: 523770)
Tel:(86 769)81119888 Fax:(86 769)81116222 Email:dgstc@dgstc.org Homepage:www.dgstc.org
Language(s) .........................................................:
1.7.14
Equipment for restricted access locations ........... :
No hazards
N
2
PROTECTION FROM HAZARDS
P
2.1
Protection from electric shock and energy hazards
P
2.1.1
Protection in operator access areas
Approved I.T.E. Power
Supply used
N
2.1.1.1
Access to energized parts
Approved I.T.E. Power
Supply used
N
Test by inspection ................................................. :
N
Test with test finger (Figure 2A) ............................ :
N
Test with test pin (Figure 2B) ................................ :
N
Test with test probe (Figure 2C) ........................... :
N
2.1.1.2
Battery compartments
No compartments
N
2.1.1.3
Access to ELV wiring
No ELV wiring
N
Working voltage (Vpeak or Vrms); minimum distance
through insulation (mm)
2.1.1.4
Access to hazardous voltage circuit wiring
No such wires
N
2.1.1.5
Energy hazards ..................................................... :
No energy hazards.
P
2.1.1.6
Manual controls
No manual controls
N
2.1.1.7
Discharge of capacitors in equipment
SELV supplied equipment
N
Measured voltage (V); time-constant (s)................ :
2.1.1.8
Energy hazards – d.c. mains supply
N
a) Capacitor connected to the d.c. mains supply .. :
N
b) Internal battery connected to the d.c. mains supply
............................................................................... :
N
2.1.1.9
Audio amplifiers .................................................... :
N
2.1.2
Protection in service access areas
No service access area
N
2.1.3
Protection in restricted access locations
Equipment not intended
forinstallation in restricted
accesslocations
N
2.2
SELV circuits
P
2.2.1
General requirements
P
2.2.2
Voltages under normal conditions (V) ................... :
12V
P
2.2.3
Voltages under fault conditions (V) ....................... :
N
2.2.4
Connection of SELV circuits to other circuits ...... :
SELV circuits are only
connected to other SELV
circuits.
P
2.3
TNV circuits
N
2.3.1
Limits
No TNV circuits
N
Page 9 of 49 Report No.: DE114090
IEC/EN 60950-1
Clause
Requirement + Test
Result - Remark
Verdict
TRF No. IEC60950_1B_M2 STC (Dongguan) Company Limited
68 Fumin Nan Road, Dalang, Dongguan City, Guangdong province, P.R.China. (Zip Code: 523770)
Tel:(86 769)81119888 Fax:(86 769)81116222 Email:dgstc@dgstc.org Homepage:www.dgstc.org
Type of TNV circuits ............................................... :
2.3.2
Separation from other circuits and from accessible
parts
N
2.3.2.1
General requirements
N
2.3.2.2
Protection by basic insulation
N
2.3.2.3
Protection by earthing
N
2.3.2.4
Protection by other constructions .......................... :
N
2.3.3
Separation from hazardous voltages
N
Insulation employed ............................................... :
2.3.4
Connection of TNV circuits to other circuits
N
Insulation employed ............................................... :
2.3.5
Test for operating voltages generated externally
N
2.4
Limited current circuits
N
2.4.1
General requirements
Approved I.T.E. Power
Supply used
N
2.4.2
Limit values
N
Frequency (Hz) ...................................................... :
Measured current (mA) .......................................... :
Measured voltage (V) ............................................. :
Measured circuit capacitance (nF or µF) ............... :
2.4.3
Connection of limited current circuits to other
circuits
N
2.5
Limited power sources
N
a) Inherently limited output
Approved I.T.E. Power
Supply used
N
b) Impedance limited output
N
c) Regulating network limited output under normal
operating and single fault condition
N
d) Overcurrent protective device limited output
N
Max. output voltage (V), max. output current (A),
max. apparent power (VA) ..................................... :
Current rating of overcurrent protective device (A) .:
Use of integrated circuit (IC) current limiters
2.6
Provisions for earthing and bonding
N
2.6.1
Protective earthing
Approved I.T.E. Power
Supply used
N
2.6.2
Functional earthing
N
Page 10 of 49 Report No.: DE114090
IEC/EN 60950-1
Clause
Requirement + Test
Result - Remark
Verdict
TRF No. IEC60950_1B_M2 STC (Dongguan) Company Limited
68 Fumin Nan Road, Dalang, Dongguan City, Guangdong province, P.R.China. (Zip Code: 523770)
Tel:(86 769)81119888 Fax:(86 769)81116222 Email:dgstc@dgstc.org Homepage:www.dgstc.org
2.6.3
Protective earthing and protective
bondingconductors
N
2.6.3.1
General
N
2.6.3.2
Size of protective earthing conductors
N
Rated current (A), cross-sectional area (mm2),
AWG ....................................................................... :
2.6.3.3
Size of protective bonding conductors
N
Rated current (A), cross-sectional area (mm2),
AWG ....................................................................... :
Protective current rating (A), cross-sectional area
(mm2), AWG ........................................................... :
2.6.3.4
Resistance of earthing conductors and their
terminations; resistance (), voltage drop (V), test
current (A), duration (min) ...................................... :
N
2.6.3.5
Colour of insulation ................................................ :
N
2.6.4
Terminals
N
2.6.4.1
General
N
2.6.4.2
Protective earthing and bonding terminals
N
Rated current (A), type, nominal thread diameter
(mm) ....................................................................... :
2.6.4.3
Separation of the protective earthing conductor
from protective bonding conductors
N
2.6.5
Integrity of protective earthing
N
2.6.5.1
Interconnection of equipment
N
2.6.5.2
Components in protective earthing conductors and
protective bonding conductors
N
2.6.5.3
Disconnection of protective earth
N
2.6.5.4
Parts that can be removed by an operator
N
2.6.5.5
Parts removed during servicing
N
2.6.5.6
Corrosion resistance
N
2.6.5.7
Screws for protective bonding
N
2.6.5.8
Reliance on telecommunication network or cable
distribution system
N
2.7
Overcurrent and earth fault protection in primary circuits
N
2.7.1
Basic requirements
Approved I.T.E. Power
Supply used
N
Instructions when protection relies on building
installation
N
2.7.2
Faults not simulated in 5.3.7
N
2.7.3
Short-circuit backup protection
N
2.7.4
Number and location of protective devices ........... :
N
2.7.5
Protection by several devices
N
Page 11 of 49 Report No.: DE114090
IEC/EN 60950-1
Clause
Requirement + Test
Result - Remark
Verdict
TRF No. IEC60950_1B_M2 STC (Dongguan) Company Limited
68 Fumin Nan Road, Dalang, Dongguan City, Guangdong province, P.R.China. (Zip Code: 523770)
Tel:(86 769)81119888 Fax:(86 769)81116222 Email:dgstc@dgstc.org Homepage:www.dgstc.org
2.7.6
Warning to service personnel ................................ :
N
2.8
Safety interlocks
N
2.8.1
General principles
No safety interlocks
N
2.8.2
Protection requirements
N
2.8.3
Inadvertent reactivation
N
2.8.4
Fail-safe operation
N
Protection against extreme hazard
N
2.8.5
Moving parts
N
2.8.6
Overriding
N
2.8.7
Switches, relays and their related circuits
N
2.8.7.1
Separation distances for contact gaps and their
related circuits (mm) .............................................. :
N
2.8.7.2
Overload test
N
2.8.7.3
Endurance test
N
2.8.7.4
Electric strength test
(see appended table 5.2)
N
2.8.8
Mechanical actuators
N
2.9
Electrical insulation
N
2.9.1
Properties of insulating materials
ApprovedI.T.E. Power Supply
used
N
2.9.2
Humidity conditioning
N
Relative humidity (%), temperature (°C) ............... :
93%, 30°C , 48H
2.9.3
Grade of insulation
Considered.
N
2.9.4
Separation from hazardous voltages
No hazardous voltages.
N
Method(s) used ..................................................... :
2.10
Clearances, creepage distances and distances through insulation
N
2.10.1
General
Approved I.T.E. Power
Supply used
N
2.10.1.1
Frequency ............................................................. :
N
2.10.1.2
Pollution degrees .................................................. :
N
2.10.1.3
Reduced values for functional insualtion
N
2.10.1.4
Intervening unconnected conductive parts
N
2.10.1.5
Insulation with varying dimensions
N
2.10.1.6
Special separation requirements
N
2.10.1.7
Insulation in circuits generating starting pulses
N
2.10.2
Determination of working voltage
N
2.10.2.1
General
N
2.10.2.2
RMS working voltage
N
Page 12 of 49 Report No.: DE114090
IEC/EN 60950-1
Clause
Requirement + Test
Result - Remark
Verdict
TRF No. IEC60950_1B_M2 STC (Dongguan) Company Limited
68 Fumin Nan Road, Dalang, Dongguan City, Guangdong province, P.R.China. (Zip Code: 523770)
Tel:(86 769)81119888 Fax:(86 769)81116222 Email:dgstc@dgstc.org Homepage:www.dgstc.org
2.10.2.3
Peak working voltage
N
2.10.3
Clearances
N
2.10.3.1
General
N
2.10.3.2
Mains transient voltages
N
a) AC mains supply ............................................... :
N
b) Earthed d.c. mains supplies .............................. :
N
c) Unearthed d.c. mains supplies .......................... :
N
d) Battery operation ............................................... :
N
2.10.3.3
Clearances in primary circuits
N
2.10.3.4
Clearances in secondary circuits
N
2.10.3.5
Clearances in circuits having starting pulses
N
2.10.3.6
Transients from a.c. mains supply ........................ :
N
2.10.3.7
Transients from d.c. mains supply ........................ :
N
2.10.3.8
Transients from telecommunication networks and
cable distribution systems ..................................... :
N
2.10.3.9
Measurement of transient voltage levels
N
a) Transients from a mains suplply
N
For an a.c. mains supply ....................................... :
N
For a d.c. mains supply ......................................... :
N
b) Transients from a telecommunication network :
N
2.10.4
Creepage distances
N
2.10.4.1
General
N
2.10.4.2
Material group and caomparative tracking index
N
CTI tests ................................................................. :
2.10.4.3
Minimum creepage distances
N
2.10.5
Solid insulation
N
2.10.5.1
General
N
2.10.5.2
Distances through insulation
N
2.10.5.3
Insulating compound as solid insulation
N
2.10.5.4
Semiconductor devices
N
2.10.5.5.
Cemented joints
N
2.10.5.6
Thin sheet material – General
N
2.10.5.7
Separable thin sheet material
N
Number of layers (pcs) ........................................... :
2.10.5.8
Non-separable thin sheet material
N
2.10.5.9
Thin sheet material – standard test procedure
N
Electric strength test
2.10.5.10
Thin sheet material – alternative test procedure
N
Electric strength test
Page 13 of 49 Report No.: DE114090
IEC/EN 60950-1
Clause
Requirement + Test
Result - Remark
Verdict
TRF No. IEC60950_1B_M2 STC (Dongguan) Company Limited
68 Fumin Nan Road, Dalang, Dongguan City, Guangdong province, P.R.China. (Zip Code: 523770)
Tel:(86 769)81119888 Fax:(86 769)81116222 Email:dgstc@dgstc.org Homepage:www.dgstc.org
2.10.5.11
Insulation in wound components
N
2.10.5.12
Wire in wound components
N
Working voltage .................................................... :
N
a) Basic insulation not under stress ...................... :
N
b) Basic, supplemetary, reinforced insulation ....... :
N
c) Compliance with Annex U ................................. :
N
Two wires in contact inside wound component;
angle between 45 and 90 .................................... :
N
2.10.5.13
Wire with solvent-based enamel in wound
components
N
Electric strength test
Routine test
N
2.10.5.14
Additional insulation in wound components
N
Working voltage .................................................... :
N
- Basic insulation not under stress ........................ :
N
- Supplemetary, reinforced insulation ................... :
N
2.10.6
Construction of printed boards
N
2.10.6.1
Uncoated printed boards
N
2.10.6.2
Coated printed boards
N
2.10.6.3
Insulation between conductors on the same inner
surface of a printed board
N
2.10.6.4
Insulation between conductors on different layers of
a printed board
N
Distance through insulation
N
Number of insulation layers (pcs) .......................... :
N
2.10.7
Component external terminations
N
2.10.8
Tests on coated printed boards and coated
components
N
2.10.8.1
Sample preparation and preliminary inspection
N
2.10.8.2
Thermal conditioning
N
2.10.8.3
Electric strength test
N
2.10.8.4
Abrasion resistance test
N
2.10.9
Thermal cycling
N
2.10.10
Test for Pollution Degree 1 environment and
insulating compound
N
2.10.11
Tests for semiconductor devices and cemented
joints
N
2.10.12
Enclosed and sealed parts
N
3
WIRING, CONNECTIONS AND SUPPLY
P
3.1
General
N
Page 14 of 49 Report No.: DE114090
IEC/EN 60950-1
Clause
Requirement + Test
Result - Remark
Verdict
TRF No. IEC60950_1B_M2 STC (Dongguan) Company Limited
68 Fumin Nan Road, Dalang, Dongguan City, Guangdong province, P.R.China. (Zip Code: 523770)
Tel:(86 769)81119888 Fax:(86 769)81116222 Email:dgstc@dgstc.org Homepage:www.dgstc.org
3.1.1
Current rating and overcurrent protection
Approved I.T.E. Power
Supply used
N
3.1.2
Protection against mechanical damage
N
3.1.3
Securing of internal wiring
N
3.1.4
Insulation of conductors
N
3.1.5
Beads and ceramic insulators
No such parts
N
3.1.6
Screws for electrical contact pressure
No such screw
N
3.1.7
Insulating materials in electrical connections
N
3.1.8
Self-tapping and spaced thread screws
No such screw
N
3.1.9
Termination of conductors
N
10 N pull test
N
3.1.10
Sleeving on wiring
N
3.2
Connection to a mains supply
N
3.2.1
Means of connection ........................................... :
Approved I.T.E. Power
Supply used
N
3.2.1.1
Connection to an a.c. mains supply
N
3.2.1.2
Connection to a d.c. mains supply
Only a.c. mains supply
N
3.2.2
Multiple supply connections
Only for one mains
connection
N
3.2.3
Permanently connected equipment
Unit is not a permanently
connected equipment
N
Number of conductors, diameter of cable and
conduits (mm) ....................................................... :
3.2.4
Appliance inlets
N
3.2.5
Power supply cords
N
3.2.5.1
AC power supply cords
N
Type ...................................................................... :
(See appended table 1.5.1)
Rated current (A), cross-sectional area (mm2),
AWG ...................................................................... :
(See appended table 1.5.1)
3.2.5.2
DC power supply cords
N
3.2.6
Cord anchorages and strain relief
N
Mass of equipment (kg), pull (N) .......................... :
Longitudinal displacement (mm) ........................... :
3.2.7
Protection against mechanical damage
N
3.2.8
Cord guards
N
Diameter or minor dimension D (mm); test mass (g)
............................................................................... :
Radius of curvature of cord (mm) .......................... :
3.2.9
Supply wiring space
N
3.3
Wiring terminals for connection of external conductors
N
Page 15 of 49 Report No.: DE114090
IEC/EN 60950-1
Clause
Requirement + Test
Result - Remark
Verdict
TRF No. IEC60950_1B_M2 STC (Dongguan) Company Limited
68 Fumin Nan Road, Dalang, Dongguan City, Guangdong province, P.R.China. (Zip Code: 523770)
Tel:(86 769)81119888 Fax:(86 769)81116222 Email:dgstc@dgstc.org Homepage:www.dgstc.org
3.3.1
Wiring terminals
Approved I.T.E. Power
Supply used
N
3.3.2
Connection of non-detachable power supply cords
N
3.3.3
Screw terminals
N
3.3.4
Conductor sizes to be connected
N
Rated current (A), cord/cable type, cross-sectional
area (mm2) ............................................................. :
3.3.5
Wiring terminal sizes
N
Rated current (A), type, nominal thread diameter
(mm) ...................................................................... :
3.3.6
Wiring terminal design
N
3.3.7
Grouping of wiring terminals
N
3.3.8
Stranded wire
N
3.4
Disconnection from the mains supply
P
3.4.1
General requirement
Approved I.T.E. Power
Supply used
P
3.4.2
Disconnect devices
Mains plug
P
3.4.3
Permanently connected equipment
N
3.4.4
Parts which remain energized
N
3.4.5
Switches in flexible cords
N
3.4.6
Number of poles - single-phase and d.c. equipment
N
3.4.7
Number of poles - three-phase equipment
N
3.4.8
Switches as disconnect devices
N
3.4.9
Plugs as disconnect devices
N
3.4.10
Interconnected equipment
N
3.4.11
Multiple power sources
N
3.5
Interconnection of equipment
P
3.5.1
General requirements
See below.
P
3.5.2
Types of interconnection circuits ........................... :
Only SELV connected to
SELV.
P
3.5.3
ELV circuits as interconnection circuits
N
3.5.4
Data ports for additional equipment
N
4
PHYSICAL REQUIREMENTS
P
4.1
Stability
P
Angle of 10
N
Test force (N) ........................................................ :
<7kg
N
4.2
Mechanical strength
P
4.2.1
General
Approved I.T.E. Power
Supply used
P
Page 16 of 49 Report No.: DE114090
IEC/EN 60950-1
Clause
Requirement + Test
Result - Remark
Verdict
TRF No. IEC60950_1B_M2 STC (Dongguan) Company Limited
68 Fumin Nan Road, Dalang, Dongguan City, Guangdong province, P.R.China. (Zip Code: 523770)
Tel:(86 769)81119888 Fax:(86 769)81116222 Email:dgstc@dgstc.org Homepage:www.dgstc.org
Rack-mounted equipment.
N
4.2.2
Steady force test, 10 N
N
4.2.3
Steady force test, 30 N
N
4.2.4
Steady force test, 250 N
N
4.2.5
Impact test
N
Fall test
N
Swing test
N
4.2.6
Drop test; height (mm) .......................................... :
1m, 3 times
P
4.2.7
Stress relief test
N
4.2.8
Cathode ray tubes
No CRT.
N
Picture tube separately certified ............................ :
N
4.2.9
High pressure lamps
No high pressure lamps.
N
4.2.10
Wall or ceiling mounted equipment; force (N) ....... :
Not such equipments
N
4.3
Design and construction
P
4.3.1
Edges and corners
Edges and corners are
rounded or smoothed.
P
4.3.2
Handles and manual controls; force (N) ............. :
No handles or controls
provided
N
4.3.3
Adjustable controls
No adjustable controls.
N
4.3.4
Securing of parts
P
4.3.5
Connection by plugs and sockets
P
4.3.6
Direct plug-in equipment
Approved I.T.E. Power
Supply used
N
Torque .................................................................. :
Compliance with the relevant mains plug standard
.............................................................................. :
N
4.3.7
Heating elements in earthed equipment
No heating elements.
N
4.3.8
Batteries
No battery used
N
- Overcharging of a rechargeable battery
N
- Unintentional charging of a non-rechargeable
battery
N
- Reverse charging of a rechargeable battery
N
- Excessive discharging rate for any battery
P
4.3.9
Oil and grease
No oil or grease.
N
4.3.10
Dust, powders, liquids and gases
Equipment in intended
usenotconsidered to be
exposed tothese.
N
4.3.11
Containers for liquids or gases
No container for liquid or gas.
N
4.3.12
Flammable liquids ................................................ :
No flammable liquid.
N
Quantity of liquid (l) .............................................. :
N
Flash point (C) .................................................... :
N
Page 17 of 49 Report No.: DE114090
IEC/EN 60950-1
Clause
Requirement + Test
Result - Remark
Verdict
TRF No. IEC60950_1B_M2 STC (Dongguan) Company Limited
68 Fumin Nan Road, Dalang, Dongguan City, Guangdong province, P.R.China. (Zip Code: 523770)
Tel:(86 769)81119888 Fax:(86 769)81116222 Email:dgstc@dgstc.org Homepage:www.dgstc.org
4.3.13
Radiation
P
4.3.13.1
General
N
4.3.13.2
Ionizing radiation
N
Measured radiation (pA/kg) ................................. :
Measured high-voltage (kV) ................................. :
Measured focus voltage (kV) ............................... :
CRT markings ...................................................... :
4.3.13.3
Effect of ultraviolet (UV) radiation on materials
N
Part, property, retention after test, flammability
classification ......................................................... :
N
4.3.13.4
Human exposure to ultraviolet (UV) radiation ...... :
N
4.3.13.5
Lasers (including laser diodes) and LEDs
P
4.3.13.5.1
Lasers (including laser laser diodes)
N
Laser class ........................................................... :
4.3.13.5.2
Light emitting diodes (LEDs)
LED used for indication only
P
4.3.13.6
Other types .......................................................... :
N
4.4
Protection against hazardous moving parts
N
4.4.1
General
No moving parts
N
4.4.2
Protection in operator access areas .................... :
N
Household and home/office document/media
shredders
(see Annex EE)
N
4.4.3
Protection in restricted access locations .............. :
N
4.4.4
Protection in service access areas
N
4.4.5
Protection against moving fan blades
N
4.4.5.1
General
N
Not considered to cause pain or injury. a)………….:
N
Is considered to cause pain, not injury. b) …………:
N
Considered to cause injury. c) …………:
N
4.4.5.2
Protection for users
N
Use of symbol or warning ……………………………:
N
4.4.5.3
Protection for service persons
N
Use of symbol or warning ……………………………:
N
4.5
Thermal requirements
P
4.5.1
General
P
4.5.2
Temperature tests
P
Normal load condition per Annex L ...................... :
4.5.3
Temperature limits for materials
(see appended table 4.5)
P
4.5.4
Touch temperature limits
(see appended table 4.5)
P
4.5.5
Resistance to abnormal heat ............................... :
N
Page 18 of 49 Report No.: DE114090
IEC/EN 60950-1
Clause
Requirement + Test
Result - Remark
Verdict
TRF No. IEC60950_1B_M2 STC (Dongguan) Company Limited
68 Fumin Nan Road, Dalang, Dongguan City, Guangdong province, P.R.China. (Zip Code: 523770)
Tel:(86 769)81119888 Fax:(86 769)81116222 Email:dgstc@dgstc.org Homepage:www.dgstc.org
4.6
Openings in enclosures
P
4.6.1
Top and side openings
No openings
P
Dimensions (mm) ................................................. :
4.6.2
Bottoms of fire enclosures
P
Construction of the bottomm, dimensions (mm) .. :
No such hole
4.6.3
Doors or covers in fire enclosures
No doors or covers
N
4.6.4
Openings in transportable equipment
Not such equipment.
N
4.6.4.1
Constructional design measures
N
Dimensions (mm) ................................................. :
4.6.4.2
Evaluation measures for larger openings
N
4.6.4.3
Use of metallized parts
N
4.6.5
Adhesives for constructional purposes
No barrier of screen fixed by
glue inside subwoofer
N
Conditioning temperature (C), time (weeks) ....... :
4.7
Resistance to fire
P
4.7.1
Reducing the risk of ignition and spread of flame
Approved I.T.E. Power Supply
used
P
Method 1, selection and application of components
wiring and materials
(see appended table 5.3)
P
Method 2, application of all of simulated fault
condition tests
N
4.7.2
Conditions for a fire enclosure
N
4.7.2.1
Parts requiring a fire enclosure
N
4.7.2.2
Parts not requiring a fire enclosure
N
4.7.3
Materials
P
4.7.3.1
General
See appended table 1.5.1.
P
4.7.3.2
Materials for fire enclosures
N
4.7.3.3
Materials for components and other parts outside
fire enclosures
Not require fire enclosure
N
4.7.3.4
Materials for components and other parts inside fire
enclosures
N
4.7.3.5
Materials for air filter assemblies
No air filter assemblies
N
4.7.3.6
Materials used in high-voltage components
No high-voltage component
N
5
ELECTRICAL REQUIREMENTS AND SIMULATED ABNORMAL CONDITIONS
P
5.1
Touch current and protective conductor current
P
5.1.1
General
Approved I.T.E. Power
Supply used
N
5.1.2
Configuration of equipment under test (EUT)
N
5.1.2.1
Single connection to an a.c. mains supply
N
Page 19 of 49 Report No.: DE114090
IEC/EN 60950-1
Clause
Requirement + Test
Result - Remark
Verdict
TRF No. IEC60950_1B_M2 STC (Dongguan) Company Limited
68 Fumin Nan Road, Dalang, Dongguan City, Guangdong province, P.R.China. (Zip Code: 523770)
Tel:(86 769)81119888 Fax:(86 769)81116222 Email:dgstc@dgstc.org Homepage:www.dgstc.org
5.1.2.2
Redundant multiple connections to an a.c. mains
supply
N
5.1.2.3
Simultaneous multiple connections to an a.c. mains
supply
N
5.1.3
Test circuit
N
5.1.4
Application of measuring instrument
N
5.1.5
Test procedure
N
5.1.6
Test measurements
N
Supply voltage (V) ................................................ :
Measured touch current (mA) .............................. :
Max. allowed touch current (mA) ......................... :
Measured protective conductor current (mA) ...... :
Max. allowed protective conductor current (mA) .. :
5.1.7
Equipment with touch current exceeding 3.5 mA
N
5.1.7.1
General ................................................................ :
N
5.1.7.2
Simultaneous multiple connections to the supply
N
5.1.8
Touch currents to telecommunication networks and
cable distribution systems and from
telecommunication networks
N
5.1.8.1
Limitation of the touch current to a
telecommunication network or to a cable distribution
system
N
Supply voltage (V) ................................................ :
Measured touch current (mA) .............................. :
Max. allowed touch current (mA) ......................... :
5.1.8.2
Summation of touch currents from
telecommunication networks
N
a) EUT with earthed telecommunication ports ..... :
N
b) EUT whose telecommunication ports have no
reference to protective earth
N
5.2
Electric strength
N
5.2.1
General
N
5.2.2
Test procedure
N
5.3
Abnormal operating and fault conditions
P
5.3.1
Protection against overload and abnormal operation
(see appended table 5.3)
P
5.3.2
Motors
(see appended Annex B)
P
5.3.3
Transformers
N
5.3.4
Functional insulation ............................................. :
Result see appened table 5.3
P
5.3.5
Electromechanical components
No such component
N
5.3.6
Audio amplifiers in ITE ......................................... :
(see appended table 5.3)
N
Page 20 of 49 Report No.: DE114090
IEC/EN 60950-1
Clause
Requirement + Test
Result - Remark
Verdict
TRF No. IEC60950_1B_M2 STC (Dongguan) Company Limited
68 Fumin Nan Road, Dalang, Dongguan City, Guangdong province, P.R.China. (Zip Code: 523770)
Tel:(86 769)81119888 Fax:(86 769)81116222 Email:dgstc@dgstc.org Homepage:www.dgstc.org
5.3.7
Simulation of faults
(see appended table 5.3)
P
5.3.8
Unattended equipment
No such equipment
N
5.3.9
Compliance criteria for abnormal operating and fault
conditions
P
5.3.9.1
During the tests
No fire, no molten metal,
noenclosure deformation and
notemperature exceeding
thosein table 5D
P
5.3.9.2
After the tests
No any hazards
P
6
CONNECTION TO TELECOMMUNICATION NETWORKS
N
6.1
Protection of telecommunication network service
persons, and users of other equipment connected to
the network, from hazards in the equipment
N
6.1.1
Protection from hazardous voltages
N
6.1.2
Separation of the telecommunication network from
earth
N
6.1.2.1
Requirements
N
Supply voltage (V) ................................................ :
Current in the test circuit (mA) ........................... :
6.1.2.2
Exclusions ............................................................ :
N
6.2
Protection of equipment users from overvoltages on telecommunication networks
N
6.2.1
Separation requirements
N
6.2.2
Electric strength test procedure
N
6.2.2.1
Impulse test
N
6.2.2.2
Steady-state test
N
6.2.2.3
Compliance criteria
N
6.3
Protection of the telecommunication wiring system from overheating
N
Max. output current (A) ........................................ :
Current limiting method ........................................ :
7
CONNECTION TO CABLE DISTRIBUTION SYSTEMS
N
7.1
General
N
7.2
Protection of cable distribution system service
persons, and users of other equipment connected to
the system, from hazardous voltages in the
equipment
N
7.3
Protection of equipment users from overvoltages on
the cable distribution system
N
7.4
Insulation between primary circuits and cable
distribution systems
N
Page 21 of 49 Report No.: DE114090
IEC/EN 60950-1
Clause
Requirement + Test
Result - Remark
Verdict
TRF No. IEC60950_1B_M2 STC (Dongguan) Company Limited
68 Fumin Nan Road, Dalang, Dongguan City, Guangdong province, P.R.China. (Zip Code: 523770)
Tel:(86 769)81119888 Fax:(86 769)81116222 Email:dgstc@dgstc.org Homepage:www.dgstc.org
7.4.1
General
N
7.4.2
Voltage surge test
N
7.4.3
Impulse test
N
A
ANNEX A, TESTS FOR RESISTANCE TO HEAT AND FIRE
N
A.1
Flammability test for fire enclosures of movable
equipment having a total mass exceeding 18 kg,
and of stationary equipment (see 4.7.3.2)
N
A.1.1
Samples ................................................................ :
Wall thickness (mm).............................................. :
A.1.2
Conditioning of samples; temperature (C) ......... :
N
A.1.3
Mounting of samples ............................................ :
N
A.1.4
Test flame (see IEC 60695-11-3)
N
Flame A, B, C or D ............................................... :
A.1.5
Test procedure
N
A.1.6
Compliance criteria
N
Sample 1 burning time (s) ..................................... :
Sample 2 burning time (s) ..................................... :
Sample 3 burning time (s) ..................................... :
A.2
Flammability test for fire enclosures of movable equipment having a total mass not
exceeding 18 kg, and for material and components located inside fire enclosures
(see 4.7.3.2 and 4.7.3.4)
N
A.2.1
Samples, material ................................................. :
UL recognized material used.
See table 1.5.1
Wall thickness (mm).............................................. :
A.2.2
Conditioning of samples; temperature (°C) ......... :
N
A.2.3
Mounting of samples ............................................ :
N
A.2.4
Test flame (see IEC 60695-11-4)
N
Flame A, B or C ................................................... :
A.2.5
Test procedure
N
A.2.6
Compliance criteria
N
Sample 1 burning time (s) ..................................... :
Sample 2 burning time (s) ..................................... :
Sample 3 burning time (s) ..................................... :
A.2.7
Alternative test acc. to IEC 60695-11-5, cl. 5 and 9
N
Sample 1 burning time (s) ..................................... :
Sample 2 burning time (s) ..................................... :
Sample 3 burning time (s) ..................................... :
A.3
Hot flaming oil test (see 4.6.2)
N
A.3.1
Mounting of samples
N
Page 22 of 49 Report No.: DE114090
IEC/EN 60950-1
Clause
Requirement + Test
Result - Remark
Verdict
TRF No. IEC60950_1B_M2 STC (Dongguan) Company Limited
68 Fumin Nan Road, Dalang, Dongguan City, Guangdong province, P.R.China. (Zip Code: 523770)
Tel:(86 769)81119888 Fax:(86 769)81116222 Email:dgstc@dgstc.org Homepage:www.dgstc.org
A.3.2
Test procedure
N
A.3.3
Compliance criterion
N
B
ANNEX B, MOTOR TESTS UNDER ABNORMAL CONDITIONS (see 4.7.2.2 and
5.3.2)
N
B.1
General requirements
No motor used.
N
Position ................................................................ :
Manufacturer ........................................................ :
Type ..................................................................... :
Rated values ....................................................... :
B.2
Test conditions
N
B.3
Maximum temperatures
N
B.4
Running overload test
N
B.5
Locked-rotor overload test
N
Test duration (days) ............................................. :
Electric strength test: test voltage (V) .................. :
B.6
Running overload test for d.c. motors in secondary
circuits
N
B.6.1
General
N
B.6.2
Test procedure
N
B.6.3
Alternative test procedure
N
B.6.4
Electric strength test; test voltage (V) .................. :
N
B.7
Locked-rotor overload test for d.c. motors in
secondary circuits
(see appended table 5.3)
N
B.7.1
General
N
B.7.2
Test procedure
N
B.7.3
Alternative test procedure
N
B.7.4
Electric strength test; test voltage (V) ................. :
N
B.8
Test for motors with capacitors
N
B.9
Test for three-phase motors
N
B.10
Test for series motors
N
Operating voltage (V) ........................................... :
C
ANNEX C, TRANSFORMERS (see 1.5.4 and 5.3.3)
N
Position ................................................................ :
Manufacturer ........................................................ :
Type ..................................................................... :
Rated values ....................................................... :
Method of protection ............................................. :
C.1
Overload test
N
Page 23 of 49 Report No.: DE114090
IEC/EN 60950-1
Clause
Requirement + Test
Result - Remark
Verdict
TRF No. IEC60950_1B_M2 STC (Dongguan) Company Limited
68 Fumin Nan Road, Dalang, Dongguan City, Guangdong province, P.R.China. (Zip Code: 523770)
Tel:(86 769)81119888 Fax:(86 769)81116222 Email:dgstc@dgstc.org Homepage:www.dgstc.org
C.2
Insulation
N
Protection from displacement of windings ............ :
N
D
ANNEX D, MEASURING INSTRUMENTS FOR TOUCH-CURRENT TESTS
(see 5.1.4)
N
D.1
Measuring instrument
N
D.2
Alternative measuring instrument
N
E
ANNEX E, TEMPERATURE RISE OF A WINDING (see 1.4.13)
N
F
ANNEX F, MEASUREMENT OF CLEARANCES AND CREEPAGE DISTANCES
(see 2.10 and Annex G)
N
G
ANNEX G, ALTERNATIVE METHOD FOR DETERMINING MINIMUM
CLEARANCES
N
G.1
Clearances
N
G.1.1
General
N
G.1.2
Summary of the procedure for determining minimum
clearances
N
G.2
Determination of mains transient voltage (V)
N
G.2.1
AC mains supply .................................................. :
N
G.2.2
Earthed d.c. mains supplies ................................. :
N
G.2.3
Unearthed d.c. mains supplies ............................ :
N
G.2.4
Battery operation .................................................. :
N
G.3
Determination of telecommunication network
transient voltage (V) ............................................. :
N
G.4
Determination of required withstand voltage (V)
N
G.4.1
Mains transients and internal repetitive peaks .... :
N
G.4.2
Transients from telecommunication networks ..... :
N
G.4.3
Combination of transients
N
G.4.4
Transients from cable distribution systems
N
G.5
Measurement of transient voltages (V)
N
a) Transients from a mains supply
N
For an a.c. mains supply
N
For a d.c. mains supply
N
b) Transients from a telecommunication network
N
G.6
Determination of minimum clearances ................ :
N
H
ANNEX H, IONIZING RADIATION (see 4.3.13)
N
J
ANNEX J, TABLE OF ELECTROCHEMICAL POTENTIALS (see 2.6.5.6)
N
Page 24 of 49 Report No.: DE114090
IEC/EN 60950-1
Clause
Requirement + Test
Result - Remark
Verdict
TRF No. IEC60950_1B_M2 STC (Dongguan) Company Limited
68 Fumin Nan Road, Dalang, Dongguan City, Guangdong province, P.R.China. (Zip Code: 523770)
Tel:(86 769)81119888 Fax:(86 769)81116222 Email:dgstc@dgstc.org Homepage:www.dgstc.org
Metal(s) used ....................................................... :
K
ANNEX K, THERMAL CONTROLS (see 1.5.3 and 5.3.8)
N
K.1
Making and breaking capacity
N
K.2
Thermostat reliability; operating voltage (V) ........ :
N
K.3
Thermostat endurance test; operating voltage (V)
.............................................................................. :
N
K.4
Temperature limiter endurance; operating voltage
(V) ......................................................................... :
N
K.5
Thermal cut-out reliability
N
K.6
Stability of operation
N
L
ANNEX L, NORMAL LOAD CONDITIONS FOR SOME TYPES OF ELECTRICAL
BUSINESS EQUIPMENT (see 1.2.2.1 and 4.5.2)
P
L.1
Typewriters
N
L.2
Adding machines and cash registers
N
L.3
Erasers
N
L.4
Pencil sharpeners
N
L.5
Duplicators and copy machines
N
L.6
Motor-operated files
N
L.7
Other business equipment
See condition in appended
table 1.6.2
P
M
ANNEX M, CRITERIA FOR TELEPHONE RINGING SIGNALS (see 2.3.1)
N
M.1
Introduction
N
M.2
Method A
N
M.3
Method B
N
M.3.1
Ringing signal
N
M.3.1.1
Frequency (Hz) .................................................... :
M.3.1.2
Voltage (V) ........................................................... :
M.3.1.3
Cadence; time (s), voltage (V) ............................. :
M.3.1.4
Single fault current (mA) ...................................... :
M.3.2
Tripping device and monitoring voltage ............... :
N
M.3.2.1
Conditions for use of a tripping device or a
monitoring voltage
N
M.3.2.2
Tripping device
N
M.3.2.3
Monitoring voltage (V) .......................................... :
N
N
ANNEX N, IMPULSE TEST GENERATORS (see 1.5.7.2, 1.5.7.3, 2.10.3.9, 6.2.2.1,
7.3.2, 7.4.3 and Clause G.5)
N
N.1
ITU-T impulse test generators
N
Page 25 of 49 Report No.: DE114090
IEC/EN 60950-1
Clause
Requirement + Test
Result - Remark
Verdict
TRF No. IEC60950_1B_M2 STC (Dongguan) Company Limited
68 Fumin Nan Road, Dalang, Dongguan City, Guangdong province, P.R.China. (Zip Code: 523770)
Tel:(86 769)81119888 Fax:(86 769)81116222 Email:dgstc@dgstc.org Homepage:www.dgstc.org
N.2
IEC 60065 impulse test generator
N
P
ANNEX P, NORMATIVE REFERENCES
Q
ANNEX Q, Voltage dependent resistors (VDRs) (see 1.5.9.1)
N
- Preferred climatic categories ............................. :
N
- Maximum continuous voltage ............................ :
N
- Combination pulse current ................................. :
N
Body of the VDR
Test according to IEC60695-11-5 ........................ :
N
Body of the VDR.
Flammability class of material ( min V-1) ............. :
N
R
ANNEX R, EXAMPLES OF REQUIREMENTS FOR QUALITY CONTROL
PROGRAMMES
N
R.1
Minimum separation distances for unpopulated
coated printed boards (see 2.10.6.2)
N
R.2
Reduced clearances (see 2.10.3)
N
S
ANNEX S, PROCEDURE FOR IMPULSE TESTING (see 6.2.2.3)
N
S.1
Test equipment
N
S.2
Test procedure
N
S.3
Examples of waveforms during impulse testing
N
T
ANNEX T, GUIDANCE ON PROTECTION AGAINST INGRESS OF WATER
(see 1.1.2)
N
U
ANNEX U, INSULATED WINDING WIRES FOR USE WITHOUT INTERLEAVED
INSULATION (see 2.10.5.4)
N
V
ANNEX V, AC POWER DISTRIBUTION SYSTEMS (see 1.6.1)
P
V.1
Introduction
P
V.2
TN power distribution systems
P
W
ANNEX W, SUMMATION OF TOUCH CURRENTS
N
W.1
Touch current from electronic circuits
N
W.1.1
Floating circuits
N
W.1.2
Earthed circuits
N
W.2
Interconnection of several equipments
N
Page 26 of 49 Report No.: DE114090
IEC/EN 60950-1
Clause
Requirement + Test
Result - Remark
Verdict
TRF No. IEC60950_1B_M2 STC (Dongguan) Company Limited
68 Fumin Nan Road, Dalang, Dongguan City, Guangdong province, P.R.China. (Zip Code: 523770)
Tel:(86 769)81119888 Fax:(86 769)81116222 Email:dgstc@dgstc.org Homepage:www.dgstc.org
W.2.1
Isolation
N
W.2.2
Common return, isolated from earth
N
W.2.3
Common return, connected to protective earth
N
X
ANNEX X, MAXIMUM HEATING EFFECT IN TRANSFORMER TESTS
(see clause C.1)
N
X.1
Determination of maximum input current
N
X.2
Overload test procedure
N
Y
ANNEX Y, ULTRAVIOLET LIGHT CONDITIONING TEST (see 4.3.13.3)
N
Y.1
Test apparatus ..................................................... :
N
Y.2
Mounting of test samples ..................................... :
N
Y.3
Carbon-arc light-exposure apparatus .................. :
N
Y.4
Xenon-arc light exposure apparatus .................... :
N
Z
ANNEX Z, OVERVOLTAGE CATEGORIES (see 2.10.3.2 and Clause G.2)
N
AA
ANNEX AA, MANDREL TEST (see 2.10.5.8)
N
BB
ANNEX BB, CHANGES IN THE SECOND EDITION
CC
ANNEX CC, Evaluation of integrated circuit (IC) current limiters
N
CC.1
General
N
CC.2
Test program 1 ..................................................... :
N
CC.3
Test program 2 ..................................................... :
N
CC.4
Test program 3 ..................................................... :
N
CC.5
Compliance .......................................................... :
N
DD
ANNEX DD, Requirements for the mounting means of rack-mounted
equipment
N
DD.1
General
N
DD.2
Mechanical strength test, variable N………………..:
N
DD.3
Mechanical strength test, 250N, including end
stops……………………………………………………:
N
DD.4
Compliance……………………………………………:
N
EE
ANNEX EE, Household and home/office document/media shredders
N
EE.1
General
N
EE.2
Markings and instructions
N
Use of markings or symbols…………………………:
N
Page 27 of 49 Report No.: DE114090
IEC/EN 60950-1
Clause
Requirement + Test
Result - Remark
Verdict
TRF No. IEC60950_1B_M2 STC (Dongguan) Company Limited
68 Fumin Nan Road, Dalang, Dongguan City, Guangdong province, P.R.China. (Zip Code: 523770)
Tel:(86 769)81119888 Fax:(86 769)81116222 Email:dgstc@dgstc.org Homepage:www.dgstc.org
Information of user instructions, maintenance and/or
servicing instructions…………………………:
N
EE.3
Inadvertent reactivation test…………………………:
N
EE.4
Disconnection of power to hazardous moving parts:
N
Use of markings or symbols…………………………:
N
EE.5
Protection against hazardous moving parts
N
Test with test finger (Figure 2A) ……………………:
N
Test with wedge probe (Figure EE1 and EE2) ……:
N
Page 28 of 49 Report No.: DE114090
IEC/EN 60950-1
Clause
Requirement + Test
Result - Remark
Verdict
TRF No. IEC60950_1B_M2 STC (Dongguan) Company Limited
68 Fumin Nan Road, Dalang, Dongguan City, Guangdong province, P.R.China. (Zip Code: 523770)
Tel:(86 769)81119888 Fax:(86 769)81116222 Email:dgstc@dgstc.org Homepage:www.dgstc.org
1.5.1
TABLE: List of critical components
P
Object/part No.
Manufacturer/
trademark
Type/model
Technical data
Standard
(Edition /
year)
Mark(s) of
conformity1)
I.T.E. Power
Supply
Global Yeou Diann
Electric Industrial
Co., Ltd.
AMS9-120
1000FV2
Input: 100-240V~
50/60Hz, 0.5A
Output: 12V
1.0A
EN 60950-1
Nemko GS
Cert. No.:GS-
1205-208625-
000
PCB
Xin Feng Fu Chang
Fa Electronic Co.,
Ltd.
FCF-4
V-0, 130°C
UL 94,
UL 746
UL E232205
Various
Various
V-0, 130°C
UL 94,
UL 746
UL
Plastic
enclosure
Formosa Chemicals
& Fibre Corp.
Plastics Div.
AG12A0
ABS, HB, 60C
UL 94,
UL 746
UL E162823
Various
Various
ABS, HB, 60C or
better
UL 94,
UL 746
UL
Supplementary information:/
1.6.2
TABLE: Electrical data (in normal conditions)
P
Cond.
U (V)d.c.
Hz
I (A)
Irated (A)
P (W)
Fuse #
Ifuse (A)
Condition/status
01
12
--
0.193
1.0
2.316
--
--
Normal operation
Supplementary information:--
2.1.1.5 c)
1)
TABLE: max. V, A, VA test
N
Voltage (rated)
(V)
Current (rated)
(A)
Voltage (max.)
(V)
Current (max.)
(A)
VA (max.)
(VA)
--
--
--
--
--
supplementary information:--
2.1.1.5 c)
2)
TABLE: stored energy
N
Capacitance C (µF)
Voltage U (V)
Energy E (J)
--
--
--
supplementary information:
Page 29 of 49 Report No.: DE114090
IEC/EN 60950-1
Clause
Requirement + Test
Result - Remark
Verdict
TRF No. IEC60950_1B_M2 STC (Dongguan) Company Limited
68 Fumin Nan Road, Dalang, Dongguan City, Guangdong province, P.R.China. (Zip Code: 523770)
Tel:(86 769)81119888 Fax:(86 769)81116222 Email:dgstc@dgstc.org Homepage:www.dgstc.org
2.2
TABLE: evaluation of voltage limiting components in SELV circuits
P
Component (measured between)
max. voltage (V)
(normal operation)
Voltage Limiting Components
V peak
V d.c.
Output of I.T.E. Power Supply
--
12
--
Fault test performed on voltage limiting components
Voltage measured (V) in SELV circuits
(V peak or V d.c.)
--
--
Remark: approved I.T.E. Power Supply used
2.4.2
TABLE: limited current circuit measurement
N
Location
Voltage
(V)
Current
(mA)
Freq.
(kHz)
Limit
(mA)
Comments
--
--
--
--
--
--
Remark: --
2.5
TABLE: limited power sources
N
Circuit output tested:
Measured Uoc (V) with all load circuits
disconnected:
Location: --
Isc(A)
VA
Meas.
Limit
Meas.
Limit
--
--
--
--
--
supplementary information:approved I.T.E. Power Supplyused
2.10.2
Table: working voltage measurement
N
Location
RMS voltage (V)
Peak voltage (V)
Comments
--
--
--
--
supplementary information:
2.10.3 and 2.10.4
TABLE: Clearance and creepage distance measurements
N
Clearance (cl) and creepage
distance (cr) at/of/between:
U peak
(V)
U r.m.s.
(V)
Required cl
(mm)
cl
(mm)
Required cr
(mm)
cr
(mm)
--
--
--
--
--
--
--
Supplementary information: Approved I.T.E. Power Supply used
Page 30 of 49 Report No.: DE114090
IEC/EN 60950-1
Clause
Requirement + Test
Result - Remark
Verdict
TRF No. IEC60950_1B_M2 STC (Dongguan) Company Limited
68 Fumin Nan Road, Dalang, Dongguan City, Guangdong province, P.R.China. (Zip Code: 523770)
Tel:(86 769)81119888 Fax:(86 769)81116222 Email:dgstc@dgstc.org Homepage:www.dgstc.org
2.10.5
TABLE: Distance through insulation measurements
N
Distance through insulation (DTI) at/of:
U peak
(V)
U rms
(V)
Test
voltage
(V)
Required DTI
(mm)
DTI
(mm)
--
--
--
--
--
--
Supplementary information:Approved I.T.E. Power Supply used
4.3.8
TABLE: Batteries
N
The tests of 4.3.8 are applicable only when appropriate battery
data is not available
No battery used
N
Is it possible to install the battery in a reverse polarity position?
N
Non-rechargeable batteries
Rechargeable batteries
Discharging
Un-
intentional
charging
Charging
Discharging
Reversed
charging
Meas.
current
Manuf.
Specs.
Meas.
current
Manuf.
Specs.
Meas.
current
Manuf.
Specs.
Meas.
current
Manuf.
Specs.
Max.
current
during
normal
condition
--
--
--
--
--
--
--
--
--
Max.
current
during
fault
condition
--
--
--
--
--
--
--
--
--
Test results:
--
Verdict
- Chemical leaks
--
N
- Explosion of the battery
--
N
- Emission of flame or expulsion of molten metal
--
N
- Electric strength tests of equipment after completion of tests
--
N
Remark:--
Page 31 of 49 Report No.: DE114090
IEC/EN 60950-1
Clause
Requirement + Test
Result - Remark
Verdict
TRF No. IEC60950_1B_M2 STC (Dongguan) Company Limited
68 Fumin Nan Road, Dalang, Dongguan City, Guangdong province, P.R.China. (Zip Code: 523770)
Tel:(86 769)81119888 Fax:(86 769)81116222 Email:dgstc@dgstc.org Homepage:www.dgstc.org
4.3.8
TABLE: Batteries
N
Battery category .......................................... :
--
Manufacturer ............................................... :
--
Type / model ................................................ :
--
Voltage ........................................................ :
--
Capacity....................................................... :
--
Tested and Certified by (incl. Ref. No.) ....... :
--
Circuit protection diagram:
MARKINGS AND INSTRUCTIONS (1.7.12, 1.7.15)
Location of replaceable battery
--
Language(s) …………………………………….:
--
Close to the battery …………………………….:
--
In the servicing instructions ……………………:
--
In the operating instructions …………………..:
--
4.5.1
TABLE: maximum temperatures
P
Supply voltage (V) ...........................
12.0
Ambient Tmin (C) .............................
24.5
Ambient Tmax (C) .............................
25.6
Maximum measured temperature T of part/at:
T (C)
Allowed Tmax (C)
PCB near U1
38.0
130+24.5-40=114.5
PCB near U8
33.2
130+24.5-40=114.5
PCB near D06
31.5
130+24.5-40=114.5
Capacitor surface
30.1
105+24.5-40=89.5
Plastic enclosure
29.1
95+24.5-40=79.5
Temperature T of winding:
t1 (°C)
R1 ()
t2 (°C)
R2 ()
Allowed
Tmax (C)
Insulation class
--
--
--
--
--
--
Remark: The max operated temperature is 40C which is specified by manufacturer
Allowed Tmax=Tmax+Tamb–Tma, Tamb=24.5C, Tma=40C
4.5.5
TABLE: Ball pressure test of thermoplastic parts
N
Allowed impression diameter (mm) ..................... :
2 mm
Part
Test temperature
(C)
Impression diameter
(mm)
--
--
--
Supplementary information:--
Page 32 of 49 Report No.: DE114090
IEC/EN 60950-1
Clause
Requirement + Test
Result - Remark
Verdict
TRF No. IEC60950_1B_M2 STC (Dongguan) Company Limited
68 Fumin Nan Road, Dalang, Dongguan City, Guangdong province, P.R.China. (Zip Code: 523770)
Tel:(86 769)81119888 Fax:(86 769)81116222 Email:dgstc@dgstc.org Homepage:www.dgstc.org
4.7
TABLE: Resistance to fire
N
Part
Manufacturer of
material
Type of material
Thickness
(mm)
Flammability
class
Evidence
--
--
--
--
--
--
Supplementary information:--
5.1
TABLE: touch current measurement
N
Measured between:
Measured
(mA)
Limit
(mA)
Comments/conditions
--
--
--
--
supplementary information:
5.2
TABLE: Electric strength tests, impulse tests and voltage surge tests
N
Test voltage applied between:
Voltage shape
(AC, DC,
impulse, surge)
Test
voltage
(V)
Breakdown
Yes / No
--
--
--
--
Supplementary information:
5.3
TABLE: Fault condition tests
P
Ambient temperature (C) ....................................:
24.4-25.8
Power source for EUT: Manufacturer, model/type,
output rating .........................................................:
--
Component
No.
Fault
Supply
voltage (V)
Test
time
Fuse
#
Fuse
current(A)
Observation
--
Blocked
ventilation
12.0V
I=0.193A
300mins
--
--
No hazard occurred
No over heat.
Capacitor
C204
S-C
12.0V
I=0A
30mins
--
--
No hazard occurred
Unit shut down.
Capacitor
C198
S-C
12.0V
I=0.037A
30mins
--
--
No hazard occurred
Unit shut down.
Supplementary information:S-C shortcircuit. O-Lover-load. Thermocouple method was used.
Page 33 of 49 Report No.: DE114090
IEC/EN 60950-1
Clause
Requirement + Test
Result - Remark
Verdict
TRF No. IEC60950_1B_M2 STC (Dongguan) Company Limited
68 Fumin Nan Road, Dalang, Dongguan City, Guangdong province, P.R.China. (Zip Code: 523770)
Tel:(86 769)81119888 Fax:(86 769)81116222 Email:dgstc@dgstc.org Homepage:www.dgstc.org
C.2
TABLE: transformers
N
Loc.
Tested insulation
Working
voltage
peak / V
(2.10.2)
Working
voltage
rms / V
(2.10.2)
Required
electric
strength
(5.2)
Required
clearance /
mm
(2.10.3)
Required
creepage
distance /
mm
(2.10.4)
Required
distance
thr. insul.
(2.10.5)
Loc.
Tested insulation
Test
voltage/
V
Measured
clearance /
mm
Measured
creepage
dist./ mm
Measured
distance
thr. insul. /
mm;
number of
layers
supplementary information:
C.2
TABLE: transformers
N
Page 34 of 49 Report No.: DE114090
IEC/EN 60950-1
Clause
Requirement + Test
Result - Remark
Verdict
TRF No. IEC60950_1B_M2 STC (Dongguan) Company Limited
68 Fumin Nan Road, Dalang, Dongguan City, Guangdong province, P.R.China. (Zip Code: 523770)
Tel:(86 769)81119888 Fax:(86 769)81116222 Email:dgstc@dgstc.org Homepage:www.dgstc.org
EN 60950-1:2006/A11:2009/A1:2010/A12:2011/A2:2013 – CENELEC COMMON MODIFICATIONS
IEC 60950-1, GROUP DIFFERENCES (CENELEC common modifications EN)
Clause
Requirement + Test
Result - Remark
Verdict
Clauses, subclauses, notes, tables and figures which are additional to those in
IEC60950-1 and it´s amendmets are prefixed “Z”
P
Contents
(A2:2013)
Add the following annexes:
Annex ZA (normative) Normative references to international
publications with their corresponding European
publications
Annex ZB (normative) Special national conditions
Annex ZD (informative) IEC and CENELEC code designations for
flexible cords
P
General
Delete all the “country” notes in the reference document (IEC 60950-1:2005)
according to the following list:
1.4.8 Note 21.5.1 Note 2 & 3 1.5.7.1 Note
1.5.8 Note 2 1.5.9.4 Note 1.7.2.1 Note 4, 5 & 6
2.2.3 Note 2.2.4 Note 2.3.2 Note
2.3.2.1 Note 2 2.3.4 Note 2 2.6.3.3 Note 2 & 3
2.7.1 Note 2.10.3.2 Note 2 2.10.5.13 Note 3
3.2.1.1 Note 3.2.4 Note 3. 2.5.1 Note 2
4.3.6 Note 1 & 2 4.7 Note 4 4.7.2.2 Note
4.7.3.1Note 2 5.1.7.1 Note 3 & 4 5.3.7 Note 1
6 Note 2 & 5 6.1.2.1 Note 2 6.1.2.2 Note
6.2.2 Note 6.2.2.1 Note 2 6.2.2.2 Note
7.1 Note 3 7.2 Note 7.3 Note 1 & 2
G.2.1 Note 2 Annex H Note 2
P
General
(A1:2010)
Delete all the “country” notes in the reference document (IEC 60950-
1:2005/A1:2010) according to the following list:
1.5.7.1 Note 6.1.2.1 Note 2
6.2.2.1 Note 2 EE.3 Note
P
General
(A2:2013)
Delete all the “country” notes in the reference document (IEC 60950-
1:2005/A2:2013) according to the following list:
2.7.1 Note * 2.10.3.1 Note 2
6.2.2. Note
* Note of secretary: Text of Common Modification remains unchanged.
P
1.1.1
(A1:2010)
Replace the text of NOTE 3 by the following.
NOTE 3The requirements of EN 60065 may also be used to meet safety requirements for multimedia
equipment. See IEC Guide 112, Guide on the safety of multimedia equipment. For television sets EN
60065 applies.
P
Page 35 of 49 Report No.: DE114090
IEC/EN 60950-1
Clause
Requirement + Test
Result - Remark
Verdict
TRF No. IEC60950_1B_M2 STC (Dongguan) Company Limited
68 Fumin Nan Road, Dalang, Dongguan City, Guangdong province, P.R.China. (Zip Code: 523770)
Tel:(86 769)81119888 Fax:(86 769)81116222 Email:dgstc@dgstc.org Homepage:www.dgstc.org
IEC 60950-1, GROUP DIFFERENCES (CENELEC common modifications EN)
Clause
Requirement + Test
Result - Remark
Verdict
1.3.Z1
Add the following subclause:
1.3.Z1 Exposure to excessive sound pressure
The apparatus shall be so designed and constructed
as to present no danger when used for its intended
purpose, either in normal operating conditions or
under fault conditions, particularly providing
protection against exposure to excessive sound
pressures from headphones or earphones.
NOTE Z1 A new method of measurement is described in
EN 50332-1, Sound system equipment:
Headphones and earphones associated with portable
audio equipment - Maximum sound pressure level
measurement methodology and limit considerations - Part
1: General method for “one package equipment”, and in
EN 50332-2, Sound system equipment: Headphones and
earphones associated with portable audio equipment -
Maximum sound pressure level measurement
methodology and limit considerations - Part 2: Guidelines
to associate sets with headphones coming from different
manufacturers.
Not such equiipment.
N
(A12:2011)
In EN 60950-1:2006/A12:2011
Delete the addition of 1.3.Z1 / EN 60950-1:2006
Delete the definition 1.2.3.Z1 / EN 60950-1:2006
/A1:2010
N
1.5.1
(Added
info*)
Add the following NOTE:
NOTE Z1 The use of certain substances in electrical and
electronic equipment is restricted within the EU: see
Directive 2002/95/EC.
New Directive 2011/65/11 *
Added
P
1.7.2.1
(A1:2010)
In addition, for a PORTABLE SOUND SYSTEM, the
instructions shall include a warning that excessive
sound pressure from earphones and headphones can
cause hearing loss.
N
1.7.2.1
(A12.2011)
In EN 60950-1:2006/A12:2011
Delete NOTE Z1 and the addition for Portable Sound
System.
Add the following clause and annex to the existing
standard and amendments.
N
Zx Protection against excessive sound pressure from personal music players
N
Page 36 of 49 Report No.: DE114090
IEC/EN 60950-1
Clause
Requirement + Test
Result - Remark
Verdict
TRF No. IEC60950_1B_M2 STC (Dongguan) Company Limited
68 Fumin Nan Road, Dalang, Dongguan City, Guangdong province, P.R.China. (Zip Code: 523770)
Tel:(86 769)81119888 Fax:(86 769)81116222 Email:dgstc@dgstc.org Homepage:www.dgstc.org
Zx.1 General
This sub-clause specifies requirements for
protection against excessive sound pressure from
personal music players that are closely coupled to
the ear. It also specifies requirements for earphones
and headphones intended for use with personal
music players.
A personal music player is a portable equipment for
personal use, that:
is designed to allow the user to listen to
recorded or broadcast sound or video; and
primarily uses headphones or earphones that can
be worn in or on or around the ears; and
allows the user to walk around while in use.
NOTE 1 Examples are hand-held or body-worn portable CD
players, MP3 audio players, mobile phones with MP3 type
features, PDA‟s or similar equipment.
A personal music player and earphones or
headphones intended to be used with personal
music players shall comply with the requirements of
this sub-clause.
The requirements in this sub-clause are valid for
music or video mode only.
The requirements do not apply:
while the personal music player is connected to
an external amplifier; or
while the headphones or earphones are not used.
NOTE 2 An external amplifier is an amplifier which is not part of
the personal music player or the listening device, but which is
intended to play the music as a standalone music player.
The requirements do not apply to:
hearing aid equipment and professional
equipment;
NOTE 3 Professional equipment is equipment sold through
special sales channels. All products sold through normal
electronics stores are considered not to be professional
equipment.
No such equipment.
N
analogue personal music players (personal music
players without any kind of digital processing
of the sound signal) that are brought to the
market before the end of 2015.
NOTE 4 This exemption has been allowed because this
technology is falling out of use and it is expected that within a few
years it will no longer exist. This exemption will not be extended
to other technologies.
For equipment which is clearly designed or intended
for use by young children, the limits of EN 71-1
apply.
N
Page 37 of 49 Report No.: DE114090
IEC/EN 60950-1
Clause
Requirement + Test
Result - Remark
Verdict
TRF No. IEC60950_1B_M2 STC (Dongguan) Company Limited
68 Fumin Nan Road, Dalang, Dongguan City, Guangdong province, P.R.China. (Zip Code: 523770)
Tel:(86 769)81119888 Fax:(86 769)81116222 Email:dgstc@dgstc.org Homepage:www.dgstc.org
Zx.2 Equipment requirements
No safety provision is required for equipment that
complies with the following:
equipment provided as a package (personal music
player with its listening device), where
the acoustic output LAeq,Tis ≤ 85 dBA measured
while playing the fixed “programme simulation
noise” as described in EN 50332-1; and
a personal music player provided with an
analogue electrical output socket for a listening
device, where the electrical output is ≤ 27 mV
measured as described in EN 50332-2, while
playing the fixed “programme simulation noise”
as described in EN 50332-1.
NOTE 1 Wherever the term acoustic output is used in this clause,
the 30 s A-weighted equivalent sound pressure level LAeq,Tis
meant. See also Zx.5 and Annex Zx.
All other equipment shall:
a) protect the user from unintentional acoustic
outputs exceeding those mentioned above; and
b) have a standard acoustic output level not
exceeding those mentioned above, and
automatically return to an output level not
exceeding those mentioned above when the
power is switched off; and
N
Page 38 of 49 Report No.: DE114090
IEC/EN 60950-1
Clause
Requirement + Test
Result - Remark
Verdict
TRF No. IEC60950_1B_M2 STC (Dongguan) Company Limited
68 Fumin Nan Road, Dalang, Dongguan City, Guangdong province, P.R.China. (Zip Code: 523770)
Tel:(86 769)81119888 Fax:(86 769)81116222 Email:dgstc@dgstc.org Homepage:www.dgstc.org
c) provide a means to actively inform the user of
the increased sound pressure when the
equipment is operated with an acoustic output
exceeding those mentioned above. Any means
used shall be acknowledged by the user before
activating a mode of operation which allows for
an acoustic output exceeding those mentioned
above. The acknowledgement does not need to
be repeated more than once every 20 h of
cumulative listening time; and
NOTE 2 Examples of means include visual or audible signals.
Action from the user is always required.
NOTE 3 The 20 h listening time is the accumulative listening time,
independent how often and how long the personal music player
has been switched off.
d) have a warning as specified in Zx.3; and
e) not exceed the following:
1) equipment provided as a package (player
with Its listening device), the acoustic output
shall be ≤ 100 dBA measured while playing the
fixed “programme simulation noise” described
in EN 50332-1; and
2) a personal music player provided with an
analogue electrical output socket for a listening
device, the electrical output shall be ≤ 150 mV
measured as described in EN 50332-2, while
playing the fixed “programme simulation noise”
described in EN 50332-1.
For music where the average sound pressure (long
term LAeq,T) measured over the duration of the song
is lower than the average produced by the
programme simulation noise, the warning does not
need to be given as long as the average sound
pressure of the song is below the basic limit of 85
dBA. In this case T becomes the duration of the
song.
NOTE 4 Classical music typically has an average sound pressure
(long term LAeq,T) which is much lower than the average
programme simulation noise. Therefore, if the player is capable to
analyse the song and compare it with the programme simulation
noise, the warning does not need to be given as long as the
average sound pressure of the song is below the basic limit of 85
dBA.
For example, if the player is set with the programme simulation
noise to 85 dBA, but the average music level of the song is only
65 dBA, there is no need to give a warning or ask an
acknowledgement as long as the average sound level of the song
is not above the basic limit of 85 dBA.
N
Page 39 of 49 Report No.: DE114090
IEC/EN 60950-1
Clause
Requirement + Test
Result - Remark
Verdict
TRF No. IEC60950_1B_M2 STC (Dongguan) Company Limited
68 Fumin Nan Road, Dalang, Dongguan City, Guangdong province, P.R.China. (Zip Code: 523770)
Tel:(86 769)81119888 Fax:(86 769)81116222 Email:dgstc@dgstc.org Homepage:www.dgstc.org
Zx.3 Warning
The warning shall be placed on the equipment, or on
the packaging, or in the instruction manual and shall
consist of the following:
the symbol of Figure 1 with a minimum height of
5 mm; and
the following wording, or similar:
“To prevent possible hearing damage, do not listen
at high volume levels for long periods.”
Figure 1 – Warning label (IEC 60417-6044)
Alternatively, the entire warning may be given
through the equipment display during use, when the
user is asked to acknowledge activation of the
higher level.
N
Zx.4 Requirements for listening devices (headphones and earphones)
N
Zx.4.1 Wired listening devices with analogue
input
With 94 dBA sound pressure output LAeq,T, the input
voltage of the fixed “programme simulation noise”
described in EN 50332-2 shall be ≥ 75 mV.
This requirement is applicable in any mode where
the headphones can operate (active or
passive), including any available setting (for
example built-in volume level control).
NOTE The values of 94 dBA – 75 mV correspond with 85dBA –
27 mV and 100 dBA – 150 mV.
N
Zx.4.2 Wired listening devices with digital input
With any playing device playing the fixed
“programme simulation noise” described in EN
50332-1 (and respecting the digital interface
standards, where a digital interface standard exists
that specifies the equivalent acoustic level), the
acoustic output LAeq,Tof the listening device shall be
≤ 100 dBA.
This requirement is applicable in any mode where
the headphones can operate, including any
available setting (for example built-in volume level
control, additional sound feature like equalization,
etc.).
NOTE An example of a wired listening device with digital input is
a USB headphone.
N
Page 40 of 49 Report No.: DE114090
IEC/EN 60950-1
Clause
Requirement + Test
Result - Remark
Verdict
TRF No. IEC60950_1B_M2 STC (Dongguan) Company Limited
68 Fumin Nan Road, Dalang, Dongguan City, Guangdong province, P.R.China. (Zip Code: 523770)
Tel:(86 769)81119888 Fax:(86 769)81116222 Email:dgstc@dgstc.org Homepage:www.dgstc.org
Zx.4.3 Wireless listening devices
In wireless mode:
with any playing and transmitting device playing
the fixed programme simulation noise described
in EN 50332-1; and
respecting the wireless transmission standards,
where an air interface standard exists that
specifies the equivalent acoustic level; and
with volume and sound settings in the listening
device (for example built-in volume level control,
additional sound feature like equalization, etc.)
set to the combination of positions that
maximize the measured acoustic output for the
abovementioned programme simulation noise,
the acoustic output LAeq,Tof the listening device
shall be ≤ 100 dBA.
NOTE An example of a wireless listening device is a Bluetooth
headphone.
N
Zx.5 Measurement methods
Measurements shall be made in accordance with
EN 50332-1 or EN 50332-2 as applicable. Unless
stated otherwise, the time interval T shall be 30 s.
NOTE Test method for wireless equipment provided without
listening device should be defined.
N
2.7.1
Replace the subclause as follows:
Basic requirements
To protect against excessive current, short-circuits
and earth faults in PRIMARY CIRCUITS, protective
devices shall be included either as integral parts of
the equipment or as parts of the building installation,
subject to the following, a), b) and c):
a) except as detailed in b) and c), protective devices
necessary to comply with the requirements of 5.3
shall be included as parts of the equipment;
b) for components in series with the mains input to
the equipment such as the supply cord, appliance
coupler, r.f.i. filter and switch, short-circuit and earth
fault protection may be provided by protective
devices in the building installation;
N
c) it is permitted for PLUGGABLE EQUIPMENT
TYPE B or PERMANENTLY CONNECTED
EQUIPMENT, to rely on dedicated overcurrent and
short-circuit protection in the building installation,
provided that the means of protection, e.g. fuses or
circuit breakers, is fully specified in the installation
instructions.
If reliance is placed on protection in the building
installation, the installation instructions shall so
state, except that for PLUGGABLE EQUIPMENT
TYPE A the building installation shall be regarded as
providing protection in accordance with the rating of
the wall socket outlet.
Not such equipment
N
2.7.2
This subclause has been declared „void‟.
N
Page 41 of 49 Report No.: DE114090
IEC/EN 60950-1
Clause
Requirement + Test
Result - Remark
Verdict
TRF No. IEC60950_1B_M2 STC (Dongguan) Company Limited
68 Fumin Nan Road, Dalang, Dongguan City, Guangdong province, P.R.China. (Zip Code: 523770)
Tel:(86 769)81119888 Fax:(86 769)81116222 Email:dgstc@dgstc.org Homepage:www.dgstc.org
3.2.3
Delete the NOTE in Table 3A, and delete also in this
table the conduit sizes in parentheses.
N
3.2.5.1
Replace “60245 IEC 53” by “H05 RR-F”;
“60227 IEC 52” by “H03 VV-F or
H03 VVH2-F”;
“60227 IEC 53” by “H05 VV-F or
H05 VVH2-F2”.
In Table 3B, replace the first four lines by the
following:
Up to and including 6 | 0,75 a) |
Over 6 up to and including 10| (0,75) b) 1,0 |
Over 10 up to and including 16| (1,0) c) 1,5 |
In the conditions applicable to Table 3B delete the
words “in some countries” in condition a).
In NOTE 1, applicable to Table 3B, delete the
second sentence.
N
3.2.5.1
(A2:2013)
NOTE Z1 The harmonised code designations
corresponding to the IEC cord types are given in Annex ZD
N
3.3.4
In Table 3D, delete the fourth line: conductor sizes
for 10 to 13 A, and replace with the following:
Over 10 up to and including 16 | 1,5 to 2,5 | 1,5 to 4
|
Delete the fifth line: conductor sizes for 13 to 16 A
N
4.3.13.6
(A1:2010)
Replace the existing NOTE by the following:
NOTE Z1 Attention is drawn to:
1999/519/EC: Council Recommendation on the limitation
of exposure of the general public to electromagnetic fields
0 Hz to 300 GHz, and
2006/25/EC: Directive on the minimum health and safety
requirements regarding the exposure of workers to risks
arising from physical agents (artifical optical radiation).
Added
N
Standards taking into account mentioned
Recommendation and Directive which demonstrate
compliance with the applicable EU Directive are indicated
in the OJEC.
N
Annex H
Replace the last paragraph of this annex by:
At any point 10 cm from the surface of the
OPERATOR ACCESS AREA, the dose rate shall
not exceed 1 μSv/h (0,1 mR/h) (see NOTE).
Account is taken of the background level.
Replace the notes as follows:
NOTE These values appear in Directive 96/29/Euratom.
Delete NOTE 2.
Replaced
N
Bibliograph
y
Additional EN standards.
ZA
NORMATIVE REFERENCES TO INTERNATIONAL PUBLICATIONS WITH THEIR
CORRESPONDING EUROPEAN PUBLICATIONS
Page 42 of 49 Report No.: DE114090
IEC/EN 60950-1
Clause
Requirement + Test
Result - Remark
Verdict
TRF No. IEC60950_1B_M2 STC (Dongguan) Company Limited
68 Fumin Nan Road, Dalang, Dongguan City, Guangdong province, P.R.China. (Zip Code: 523770)
Tel:(86 769)81119888 Fax:(86 769)81116222 Email:dgstc@dgstc.org Homepage:www.dgstc.org
ZB ANNEX (normative)
SPECIAL NATIONAL CONDITIONS (EN)
Clause
Requirement + Test
Result - Remark
Verdict
1.2.4.1
In Denmark, certain types of Class I appliances
(see 3.2.1.1) may be provided with a plug not
establishing earthing conditions when inserted into
Danish socket-outlets.
N
1.2.13.14
(A11:2009)
In Norway and Sweden, for requirements see
1.7.2.1 and 7.3 of this annex.
N
1.5.7.1
(A11:2009)
In Finland, Norway and Sweden, resistors bridging
BASIC INSULATION in CLASS I PLUGGABLE EQUIPMENT
TYPE A must comply with the requirements in 1.5.7.1.
In addition when a single resistor is used, the
resistor must withstand the resistor test in 1.5.7.2.
N
1.5.8
In Norway, due to the IT power system used (see
annex V, Figure V.7), capacitors are required to be
rated for the applicable line-to-line voltage (230 V).
N
1.5.9.4
In Finland, Norway and Sweden, the third dashed
sentence is applicable only to equipment as defined
in 6.1.2.2 of this annex.
N
1.7.2.1
In Finland, Norway and Sweden, CLASS I
PLUGGABLE EQUIPMENT TYPE A intended for
connection to other equipment or a network shall, if
safety relies on connection to protective earth or if
surge suppressors are connected between the
network terminals and accessible parts, have a
marking stating that the equipment must be
connected to an earthed mains socket-outlet.
The marking text in the applicable countries shall be
as follows:
In Finland: "Laite on liitettävä suojakoskettimilla
varustettuun pistorasiaan"
In Norway: “Apparatet må tilkoples jordet
stikkontakt”
In Sweden: “Apparaten skall anslutas till jordat
uttag”
N
Page 43 of 49 Report No.: DE114090
IEC/EN 60950-1
Clause
Requirement + Test
Result - Remark
Verdict
TRF No. IEC60950_1B_M2 STC (Dongguan) Company Limited
68 Fumin Nan Road, Dalang, Dongguan City, Guangdong province, P.R.China. (Zip Code: 523770)
Tel:(86 769)81119888 Fax:(86 769)81116222 Email:dgstc@dgstc.org Homepage:www.dgstc.org
ZB ANNEX (normative)
SPECIAL NATIONAL CONDITIONS (EN)
Clause
Requirement + Test
Result - Remark
Verdict
1.7.2.1
(A11:2009)
NOTE In Norway, due to regulation for installations of cable
distribution systems, and in Sweden, a galvanic isolator shall
provide electrical insulation below 5 MHz. The insulation shall
withstand a dielectric strength of 1,5 kV r.m.s., 50 Hz or 60 Hz, for
1 min.
Translation to Norwegian (the Swedish text will also
be accepted in Norway):
“Utstyrsomerkoplettilbeskyttelsesjord via
nettpluggog/eller via annetjordtilkoplet
utstyr – ogertilkoplet et kabel-TV nett,
kanforårsakebrannfare. For å
unngådetteskaldetvedtilkoplingavutstyrettilkabel-TV
nettetinstalleresengalvanisk isolator
mellomutstyretogkabel- TV nettet.”
Translation to Swedish:
”Utrustningsomärkopplad till skyddsjord via
jordatvägguttagoch/eller via annan
utrustningochsamtidigtärkopplad till kabel-TV
nätkanivissa fall medfőra risk főr
brand. Főrattundvikadettaskall vid
anslutningavutrustningen till kabel-TV nät
galvanisk isolator
finnasmellanutrustningenochkabel-TV nätet.”
N
1.7.2.1
(A2:2013)
In Denmark, CLASS I PLUGGABLE EQUIPMENT
TYPE A intended for connection to other equipment
or a network shall, if safety relies on connection to
protective earth or if surge suppressors are
connected between the network terminals and
accessible parts, have a marking stating that the
equipment must be connected to an earthed mains
socket-outlet.
The marking text in Denmark shall be as follows:
In Denmark: “Apparatets stikprop skal tilsluttes en
stikkontakt med jord, som giver forbindelse til
stikproppens jord.”
N
1.7.5
1.7.5
(A11:2009)
In Denmark, socket-outlets for providing power to
other equipment shall be in accordance with the
Heavy Current Regulations, Section 107-2-D1,
Standard Sheet DK 1-3a, DK 1-5a or DK 1-7a, when
used on Class I equipment. For STATIONARY
EQUIPMENT the socket-outlet shall be in
accordance with Standard Sheet DK 1-1b or DK 1-
5a.
For CLASS II EQUIPMENTthe socket outlet shall be in
accordance with Standard Sheet DKA 1-4a.
N
Page 44 of 49 Report No.: DE114090
IEC/EN 60950-1
Clause
Requirement + Test
Result - Remark
Verdict
TRF No. IEC60950_1B_M2 STC (Dongguan) Company Limited
68 Fumin Nan Road, Dalang, Dongguan City, Guangdong province, P.R.China. (Zip Code: 523770)
Tel:(86 769)81119888 Fax:(86 769)81116222 Email:dgstc@dgstc.org Homepage:www.dgstc.org
ZB ANNEX (normative)
SPECIAL NATIONAL CONDITIONS (EN)
Clause
Requirement + Test
Result - Remark
Verdict
1.7.5
(A2:2013)
In Denmark, socket-outlets for providing power to
other equipment shall be in accordance with the DS
60884-2-D1:2011.
For class I equipment the following Standard Sheets
are applicable: DK 1-3a, DK 1-1c,
DK 1-1d, DK 1-5a or DK 1-7a, with the exception for
STATIONARY EQUIPMENT where the socket-
outlets shall be in accordance with Standard Sheet
DK 1-1b, DK 1-1c, DK 1-1d or DK 1-5a.
Socket outlets intended for providing power to Class
II apparatus with a rated current of 2,5 A shall be in
accordance with DS 60884-2-D1 standard sheet
DKA 1-4a. Other current rating socket outlets shall
be in compliance with by DS 60884-2-D1
Standard Sheet DKA 1-3a or DKA 1-3b.
Justification
the Heavy Current Regulations, 6c
N
2.2.4
In Norway, for requirements see 1.7.2.1, 6.1.2.1
and 6.1.2.2 of this annex.
No TNV
N
2.3.2
In Finland, Norway and Sweden there are
additional requirements for the insulation. See
6.1.2.1 and 6.1.2.2 of this annex.
No TNV
N
2.3.4
In Norway, for requirements see 1.7.2.1, 6.1.2.1
and 6.1.2.2 of this annex.
No TNV
N
2.6.3.3
In the United Kingdom, the current rating of the
circuit shall be taken as 13 A, not 16 A.
N
2.7.1
In the United Kingdom, to protect against
excessive currents and short-circuits in the
PRIMARY CIRCUIT of DIRECT PLUG-IN
EQUIPMENT, tests according to 5.3 shall be
conducted, using an external protective device rated
30 A or 32 A. If these tests fail, suitable protective
devices shall be included as integral parts of the
DIRECT PLUG-IN EQUIPMENT, so that the
requirements of 5.3 are met.
N
2.10.5.13
In Finland, Norway and Sweden, there are
additional requirements for the insulation, see
6.1.2.1 and 6.1.2.2 of this annex.
N
Page 45 of 49 Report No.: DE114090
IEC/EN 60950-1
Clause
Requirement + Test
Result - Remark
Verdict
TRF No. IEC60950_1B_M2 STC (Dongguan) Company Limited
68 Fumin Nan Road, Dalang, Dongguan City, Guangdong province, P.R.China. (Zip Code: 523770)
Tel:(86 769)81119888 Fax:(86 769)81116222 Email:dgstc@dgstc.org Homepage:www.dgstc.org
3.2.1.1
In Switzerland, supply cords of equipment having a
RATED CURRENT not exceeding 10 A shall be
provided with a plug complying with SEV 1011 or
IEC 60884-1 and one of the following dimension
sheets:
SEV 6532-2.1991 Plug Type 15 3P+N+PE
250/400 V, 10 A
SEV 6533-2.1991 Plug Type 11 L+N
250 V, 10 A
SEV 6534-2.1991 Plug Type 12 L+N+PE
250 V, 10 A
In general, EN 60309 applies for plugs for currents
exceeding 10 A. However, a 16 A plug and socket-
outlet system is being introduced in Switzerland, the
plugs of which are according to the following
dimension sheets, published in February 1998:
SEV 5932-2.1998: Plug Type 25 , 3L+N+PE
230/400 V, 16 A
SEV 5933-2.1998:Plug Type 21, L+N, 250 V, 16A
SEV 5934-2.1998: Plug Type 23, L+N+PE 250 V, 16
A
N
3.2.1.1
In Denmark, supply cords of single-phase
equipment having a rated current not exceeding13 A
shall be provided with a plug according to the Heavy
Current Regulations, Section 107-2-D1.
CLASS I EQUIPMENT provided with socket-outlets
with earth contacts or which are intended to be used
in locations where protection against indirect contact
is required according to the wiring rules shall be
provided with a plug in accordance with standard
sheet DK 2-1a or DK 2-5a.
If poly-phase equipment and single-phase
equipment having a RATED CURRENT exceeding
13 A is provided with a supply cord with a plug, this
plug shall be in accordance with the Heavy Current
Regulations, Section 107-2-D1 or EN 60309-2.
N
3.2.1.1
(A2:2013)
In Denmark, supply cords of single-phase
equipment having a rated current not exceeding 13
A shall be provided with a plug according to DS
60884-2-D1.
CLASS I EQUIPMENT provided with socket-outlets
with earth contacts or which are intended to be used
in locations where protection against indirect contact
is required according to thewiring rules shall be
provided with a plug in accordance with standard
sheet DK 2-1a orDK 2-5a.
If a single-phase equipment having a RATED
CURRENT exceeding 13 A or if a poly-phase
equipment is provided with a supply cord with a plug,
this plug shall be in accordance with the standard
sheets DK 6-1a in DS 60884-2-D1 or EN 60309-2.
Justification
the Heavy Current Regulations, 6c
N
Page 46 of 49 Report No.: DE114090
IEC/EN 60950-1
Clause
Requirement + Test
Result - Remark
Verdict
TRF No. IEC60950_1B_M2 STC (Dongguan) Company Limited
68 Fumin Nan Road, Dalang, Dongguan City, Guangdong province, P.R.China. (Zip Code: 523770)
Tel:(86 769)81119888 Fax:(86 769)81116222 Email:dgstc@dgstc.org Homepage:www.dgstc.org
3.2.1.1
In Spain, supply cords of single-phase equipment
having a rated current not exceeding 10 A shall be
provided with a plug according to UNE 20315:1994.
Supply cords of single-phase equipment having a
rated current not exceeding 2,5 A shall be provided
with a plug according to UNE-EN 50075:1993.
CLASS I EQUIPMENT provided with socket-outlets
with earth contacts or which are intended to be used
in locations where protection against indirect contact
is required according to the wiring rules, shall be
provided with a plug in accordance with standard
UNE 20315:1994.
If poly-phase equipment is provided with a supply
cord with a plug, this plug shall be in accordance
with UNE-EN 60309-2.
Approved I.T.E. Power
Supply used
P
3.2.1.1
In the United Kingdom, apparatus which is fitted
with a flexible cable or cord and is designed to be
connected to a mains socket conforming to BS 1363
by means of that flexible cable or cord and plug,
shall be fitted with a „standard plug‟ in accordance
with Statutory Instrument 1768:1994 - The Plugs and
Sockets etc. (Safety) Regulations 1994, unless
exempted by those regulations.
NOTE „Standard plug‟ is defined in SI 1768:1994 and
essentially means an approved plug conforming to BS
1363 or an approved conversion plug.
N
3.2.1.1
In Ireland, apparatus which is fitted with a flexible
cable or cord and is designed to be connected to a
mains socket conforming to I.S. 411 by means of
that flexible cable or cord and plug, shall be fitted
with a 13 A plug in accordance with Statutory
Instrument 525:1997 - National Standards Authority
of Ireland (section 28) (13 A Plugs and Conversion
Adaptors for Domestic Use) Regulations 1997.
N
3.2.4
In Switzerland, for requirements see 3.2.1.1 of this
annex.
N
3.2.5.1
In the United Kingdom, a power supply cord with
conductor of 1,25 mm2 is allowed for equipment with
a rated current over 10 A and up to and including 13
A.
Rated current<10A
N
3.3.4
In the United Kingdom, the range of conductor
sizes of flexible cords to be accepted by terminals
for equipment with a RATED CURRENT of over 10
A up to and including 13 A is:
• 1,25 mm2 to 1,5 mm2 nominal cross-sectional area.
Rated current<10A
N
Page 47 of 49 Report No.: DE114090
IEC/EN 60950-1
Clause
Requirement + Test
Result - Remark
Verdict
TRF No. IEC60950_1B_M2 STC (Dongguan) Company Limited
68 Fumin Nan Road, Dalang, Dongguan City, Guangdong province, P.R.China. (Zip Code: 523770)
Tel:(86 769)81119888 Fax:(86 769)81116222 Email:dgstc@dgstc.org Homepage:www.dgstc.org
4.3.6
In the United Kingdom, the torque test is performed
using a socket outlet complying with BS 1363 part
1:1995, including Amendment 1:1997 and
Amendment 2:2003 and the plug part of DIRECT
PLUG-IN EQUIPMENT shall be assessed to BS
1363: Part 1, 12.1, 12.2, 12.3, 12.9, 12.11, 12.12,
12.13, 12.16 and 12.17, except that the test of 12.17
is performed at not less than 125 °C. Where the
metal earth pin is replaced by an Insulated Shutter
Opening Device (ISOD), the requirements of clauses
22.2 and 23 also apply.
N
4.3.6
In Ireland, DIRECT PLUG-IN EQUIPMENT is known
as plug similar devices. Such devices shall comply
with Statutory Instrument 526:1997 - National
Standards Authority of Ireland (Section 28)
(Electrical plugs, plug similar devices and sockets for
domestic use) Regulations, 1997.
N
5.1.7.1
In Finland, Norway and Sweden TOUCH
CURRENT measurement results exceeding 3,5 mA
r.m.s. are permitted only for the following equipment:
• STATIONARY PLUGGABLE EQUIPMENT TYPE
A that
is intended to be used in a RESTRICTED
ACCESS LOCATION where equipotential bonding
has been applied, for example, in a
telecommunication centre; and
has provision for a permanently connected
PROTECTIVE EARTHING CONDUCTOR; and
is provided with instructions for the installation
of that conductor by a SERVICE PERSON;
• STATIONARY PLUGGABLE EQUIPMENT TYPE
B;
• STATIONARY PERMANENTLY CONNECTED
EQUIPMENT.
N
Page 48 of 49 Report No.: DE114090
IEC/EN 60950-1
Clause
Requirement + Test
Result - Remark
Verdict
TRF No. IEC60950_1B_M2 STC (Dongguan) Company Limited
68 Fumin Nan Road, Dalang, Dongguan City, Guangdong province, P.R.China. (Zip Code: 523770)
Tel:(86 769)81119888 Fax:(86 769)81116222 Email:dgstc@dgstc.org Homepage:www.dgstc.org
6.1.2.1
(A1:2010)
In Finland, Norway and Sweden, add the following
text between the first and second paragraph of the
compliance clause:
If this insulation is solid, including insulation forming
part of a component, it shall at least consist of either
- two layers of thin sheet material, each of
which shall pass the electric strength test below, or
- one layer having a distance through insulation
of at least 0,4 mm, which shall pass the electric
strength test below.
Alternatively for components, there is no distance
through insulation requirements for the insulation
consisting of an insulating compound completely
filling the casing, so that CLEARANCES and
CREEPAGE DISTANCES do not exist, if the
component passes the electric strength test in
accordance with the compliance clause below and in
addition
- passes the tests and inspection criteria of
2.10.11 with an electric strength test of 1,5 kV
multiplied by 1,6 (the electric strength test of
2.10.10 shall be performed using 1,5 kV), and
- is subject to ROUTINE TESTING for electric
strength during manufacturing, using a test voltage
of 1,5 kV.
N
It is permitted to bridge this insulation with an
optocoupler complying with 2.10.5.4 b).
It is permitted to bridge this insulation with a
capacitor complying with EN 60384-14:2005,
subclass Y2.
A capacitor classified Y3 according to EN
60384-14:2005, may bridge this insulation under the
following conditions:
- the insulation requirements are satisfied by
having a capacitor classified Y3 as defined by EN
60384-14, which in addition to the Y3 testing, is
tested with an impulse test of 2,5 kV defined in EN
60950-1:2006, 6.2.2.1;
- the additional testing shall be performed on all
the test specimens as described in EN
60384-14:
- the impulse test of 2,5 kV is to be performed
before the endurance test in EN 60384-14, in
the sequence of tests as described in EN 60384-14.
N
Page 49 of 49 Report No.: DE114090
IEC/EN 60950-1
Clause
Requirement + Test
Result - Remark
Verdict
TRF No. IEC60950_1B_M2 STC (Dongguan) Company Limited
68 Fumin Nan Road, Dalang, Dongguan City, Guangdong province, P.R.China. (Zip Code: 523770)
Tel:(86 769)81119888 Fax:(86 769)81116222 Email:dgstc@dgstc.org Homepage:www.dgstc.org
6.1.2.2
In Finland, Norway and Sweden, the exclusions
are applicable for PERMANENTLY CONNECTED
EQUIPMENT, PLUGGABLE EQUIPMENT TYPE B
and equipment intended to be used in a
RESTRICTED ACCESS LOCATION where
equipotential bonding has been applied, e.g. in a
telecommunication centre, and which has provision
for a permanently connected PROTECTIVE
EARTHING CONDUCTOR and is provided with
instructions for the installation of that conductor by a
SERVICE PERSON.
N
7.2
In Finland, Norway and Sweden, for requirements
see 6.1.2.1 and 6.1.2.2 of this annex.
The term TELECOMMUNICATION NETWORK in
6.1.2 being replaced by the term CABLE
DISTRIBUTION SYSTEM.
N
7.3
(A11:2009)
In Norway and Sweden, for requirements see
1.2.13.14 and 1.7.2.1 of this annex.
N
Annex ZD
(informative)
IEC and CENELEC code designations for flexible cords
Type of flexible cord
Code designations
IEC
CENELEC
PVC insulated cords
Flat twin tinsel cord
60227 IEC 41
H03VH-Y
Light polyvinyl chloride sheathed flexible cord
60227 IEC 52
H03VV-F
H03VVH2-F
Ordinary polyvinyl chloride sheathed flexible cord
60277 IEC 53
H05VV-F
H05VVH2-F
Rubber insulated cords
Braided cord
60245 IEC 51
H03RT-F
Ordinary tough rubber sheathed flexible cord
60245 IEC 53
H05RR-F
Ordinary polychloroprene sheathed flexible cord
60245 IEC 57
H05RN-F
Heavy polychloroprene sheathed flexible cord
60245 IEC 66
H07RN-F
Cords having high flexibility
Rubber insulated and sheathed cord
60245 IEC 86
H03RR-H
Rubber insulated, crosslinked PVC sheathed cord
60245 IEC 87
H03RV4-H
Crosslinked PVC insulated and sheathed cord
60245 IEC 88
H03V4V4-H
 End of Test Report 
Page 1 of 3 Report No.: DE114090
Appendix
STC (Dongguan) Company Limited
68 Fumin Nan Road, Dalang, Dongguan City, Guangdong province, P.R.China. (Zip Code: 523770)
Tel:(86 769)81119888 Fax:(86 769)81116222 Email:dgstc@dgstc.org Homepage:www.dgstc.org
Product Photographs
Page 2 of 3 Report No.: DE114090
Appendix
STC (Dongguan) Company Limited
68 Fumin Nan Road, Dalang, Dongguan City, Guangdong province, P.R.China. (Zip Code: 523770)
Tel:(86 769)81119888 Fax:(86 769)81116222 Email:dgstc@dgstc.org Homepage:www.dgstc.org
Product Photographs
Page 3 of 3 Report No.: DE114090
Appendix
STC (Dongguan) Company Limited
68 Fumin Nan Road, Dalang, Dongguan City, Guangdong province, P.R.China. (Zip Code: 523770)
Tel:(86 769)81119888 Fax:(86 769)81116222 Email:dgstc@dgstc.org Homepage:www.dgstc.org
Product Photographs

Navigation menu
