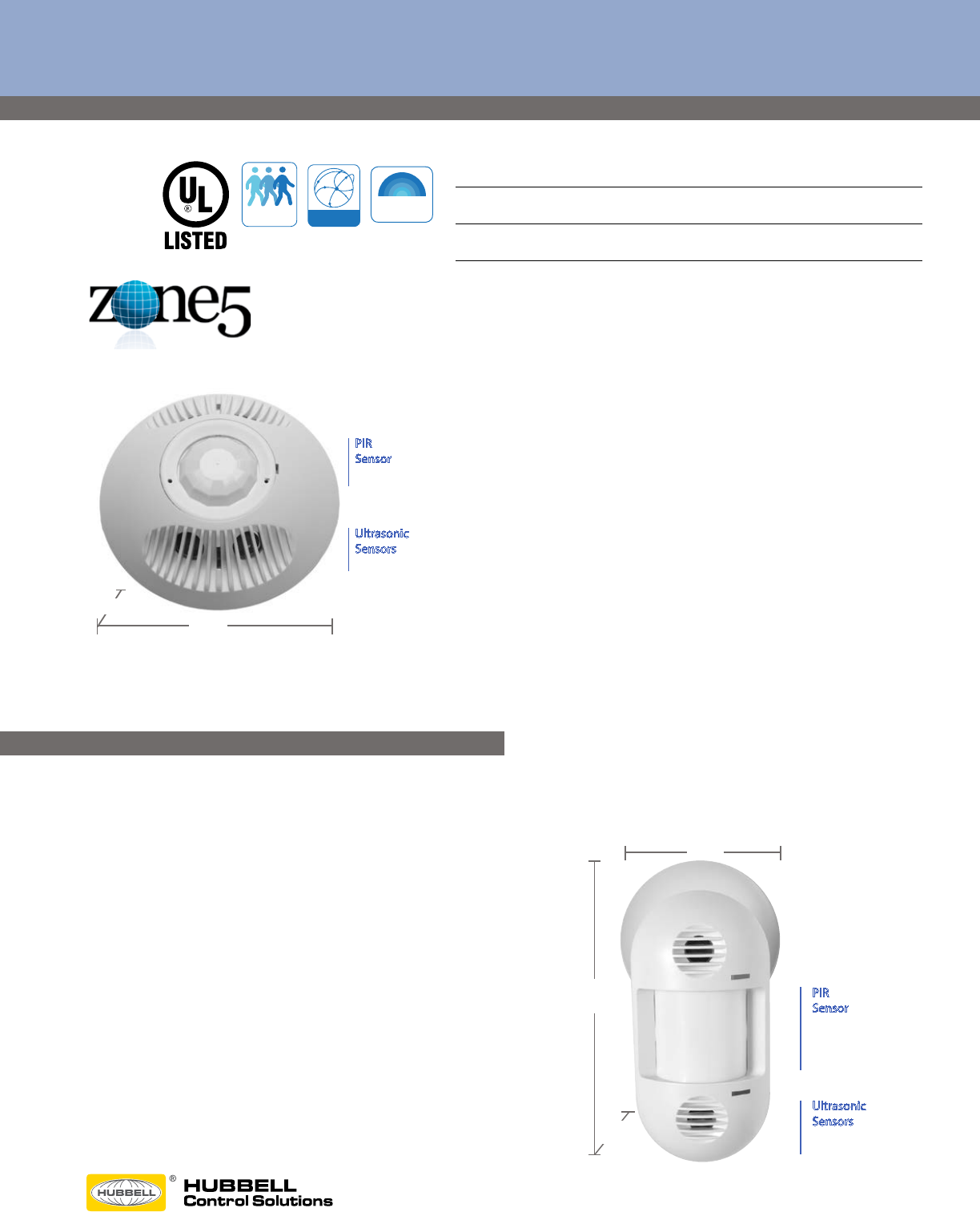

Z5-OS-OMDT2000RP
Zone5™ Ceiling and Wall Mount Occupancy Sensors
DAYLIGHT HARVESTING CONTROLS
PROJECT INFORMATION
Project Name
Catalog No. Date
The Zone5 Ceiling Mount and Wall Mount Occupancy Sensors combine
ultrasonic (US) and passive infrared (PIR) technologies to turn lighting on
and o based on occupancy. This dual technology provides accurate
turn-ons while virtually eliminating false-os.
These sensors feature Hubbell Controls' patented IntelliDAPT®
technology, which makes all the sensor adjustments automatically.
Throughout the product’s lifespan, IntelliDAPT software analyzes the
controlled area and makes digital adjustments to sensitivity and timer
settings. Occupancy sensors with IntelliDAPT technology provide a
maintenance-free install-and-forget operation.
PRODUCT FEATURES
• Occupancy Sensors for Zone5 Daylight Harvesting System
• IntelliDAPT self-adaptive technology – no manual
adjustment required
• All-digital dual technology (ultrasonic [US] and passive
infrared [PIR]) sensors
• Non-volatile memory for sensor settings
• 1,600 and 2,000 square-foot coverage area
• Form C relay with N/O + N/C outputs
• Color coded, plug and play installation
• UL and cUL listed
• Five-year limited warranty
• Low voltage device: 24 Vdc
6.58”
3.63”
3.72”
PIR
Sensor
Ultrasonic
Sensors
PIR
Sensor
4.5”
Ultrasonic
Sensors
1.5”
Z5-OS-LODTRP
TITLE
24
COMPLIANCE IntelliDAPT
OCCUPANCY
SENSING
DAYLIGHT
HARVESTING
MODEL
Z5-OS-OMDT2000RP Zone5 Occupancy Sensor, Ceiling Mount, PIR
and Ultrasonic, Form C Relay,
2000 Sq. Ft.
Z5-OS-LODTRP Zone5 Occupancy Sensor, Wall Mount, PIR and
Ultrasonic, Form C Relay, 1600 Sq. Ft.
CAT5 Cable Sold Separately
General Specications
IntelliDAPT® Technology Auto reset from test setting
Self-adjusting timer
Self-adjusting ultrasonic and passive infrared thresholds
Automatic false-on/ false-o corrections
LED lamp Red – infrared motion
Green – ultrasonic motion
Timer timeout Automatic mode: 8 – 30 min. (self adjusts based on occupancy)
Test mode: 8 seconds (for an easy check at installation)
Ultrasonic (US) output Operating frequency: 32 kHz
Passive infrared (PIR) Dual-element pyrometer and 12-element cylindrical rugged lens
Form C relay Relay: N/O + N/C contacts; SPDT; 500 mA rated @ 24VDC; three-wire isolated relay
Coverage Ceiling mount sensor: 2,000 square feet
Wall mount sensor: 1,600 square feet
Power Requirements 24VDC, 33mA Power and 24VDC active high-logic output control signal provided through plenum rated
CAT5 plug-and-play cable (ordered separately)
Operating environment Indoor use only
Operating temperature: 32° to 104°F (0° to 40°C)
Relative humidity (non-condensing): 0% to 5%
Construction Casing – rugged, high-impact, injection-molded plastic KJB ABS Cycolac (UV-945VA) ame class rating,
UV inhibitors
OMDT2000RP Dimensions 4.5” diameter, 1.5” height (114 mm diameter, 38mm height)
Weight 5.0 oz (142g)
LODTPRP Dimensions 6.58” x 3.63” x 3.72”
Weight 5.0 oz (142g)
Color O-white
Mounting Mounting base provided
Recommended mounting height: 8ft with a max mounting height of 12ft.
Certications UL and cUL listed
Warranty Five-year limited

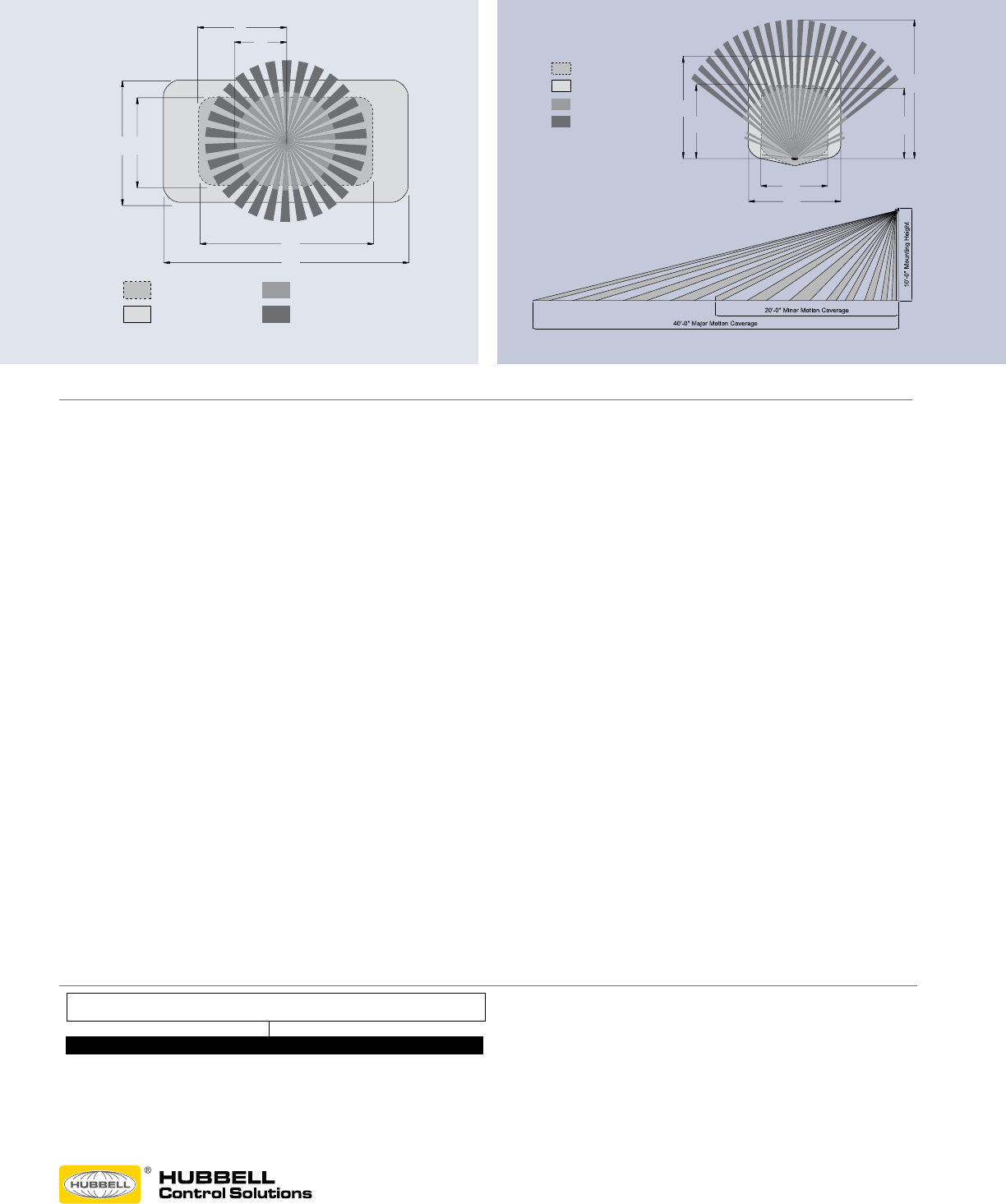

Z5-OS-OMNIDT2000RP Range Diagram Z5-OS-LODTRP Range Diagrams
9601 Dessau Road | Building One | Austin, Texas 78754 | 512-450-1100 | 512-450-1215 fax | www. hubbell-automation.com 5300A 2.3.2016
Ordering Information
32'
23'
64'
45'
12'
22'
IR Minor Motion
IR Major Motion
US Minor Motion
US Major Motion
20'
32'
23'
40'
23'
32'
IR Minor Motion
IR Major Motion
US Minor Motion
US Major Motion
20'
32'
23'
40'
23'
32'
IR Minor Motion
IR Major Motion
US Minor Motion
US Major Motion
20'
32'
23'
40'
23'
32'
IR Minor Motion
IR Major Motion
US Minor Motion
US Major Motion
