A new age of

technology

NiteBrites LED Luminaires

NiteBrites LED Family Brochure2

A constant state of change

The lighting industry has always been an ever-changing world of technological advances. When

Thomas Edison rst invented the light bulb, it was an astonishing breakthrough. Fluorescent

technology further advanced the lighting industry by offering a much more efcient light source

than the incandescent lamp. Then came HID, and it was the lamp of choice for outdoor and

extreme temperature applications. Compact Fluorescent was the most recent game changer.

It drastically reduced the energy consumed by traditional luminaires such as downlights where

incandescent had been favored. Now we nd ourselves in the age of the LED luminaire.

Although LEDs are not new in their basic technology, we are improving and advancing the

output of LEDs to be able to use them for general lighting and not just indicator lamps.

NiteBrites LED Family Brochure 3

A constant state of change

NiteBrites LED Family Brochure4

LEDs have several advantages over their light source

counterparts. They will not be affected by frequent

on-off cycling which generally causes uorescent

lamps to fail more quickly. They are instant on unlike

HID lamps which take several minutes to warm up

or restart. LEDs are not easily damaged like glass

bulb lamps. They do not fail by burning out but

simply dim over a long period of time. The total

cost of ownership (installed cost, energy cost, and

maintenance cost) can be lower for LEDs because of

their energy savings and long life.

Durability

Altering the future of lighting

NiteBrites LED Family Brochure 5

Throughout our industry, there has been an ever-increasing

importance placed upon using energy efcient sources

for lighting. Customers, contractors, engineers, architects,

manufacturers, associations, and even the U.S. government are

all optimistic about the potential of LEDs for general lighting.

According to the U.S. Department of Energy, over one-third

of all energy is used for the generation of electricity, and over

one-fth of all electricity is used for lighting. According to

their website. . .

“The U.S. Department of Energy and its partners are

working to accelerate advances in solid-state lighting

— a pivotal emerging technology that promises to

fundamentally alter lighting in the future. No other

lighting technology offers as much potential to save

energy and enhance the quality of our building

environments, contributing to our nation’s energy and

climate change solutions.”

Sustainability

The widespread use of solid-state lighting could potentially:

• Create an annual energy savings of 190 terawatt-hours

• Create an annual savings of $15 billion at today’s energy prices

• Reduce greenhouse gas emissions by 31.4 million metric tons

• Signicantly reduce the amount of mercury and other hazardous materials in landlls

Altering the future of lighting

NiteBrites LED Family Brochure6

The Philips Day-Brite family of outdoor LED luminaires will:

• Reduce energy consumption vs. traditional lamp sources by 30-50%

• Reduce maintenance costs by providing long luminaire life

• Provide excellent illumination just where it is needed

• Provide guaranteed quality and durability

Advantages of LED outdoor luminaires

NiteBrites LED Family Brochure 7

Outdoor LED Illumination

Solar Option

An ideal application for LEDs to be used for general

illumination is outdoors. HID lamps emit light in all

directions. To harness and redirect the light can be

challenging. Less expensive luminaires don’t do a

very good job of this and are generally inefficient.

Luminaires that are very efficient are typically priced

higher. LEDs are a directional light source by design.

Couple that with a secondary optical system, and

the application efficiency can far exceed that of the

HID luminaire. Put simply, LEDs let you put the light

exactly where it is needed.

Philips Day-Brite has partnered with SolarOne® to offer solar

packages with our LED luminaires. Using SO-Bright® Technology,

the luminaires can be completely self-powered with the added

benefit of advanced lighting functions that conserve stored

power over the course of the night. To learn more about

SolarOne, visit their web site at www.solarone.net. To explore

the solar options available, please contact your local Philips

Day-Brite representative.

Advantages of LED outdoor luminaires

SO BRIGHT

NiteBrites LED Family Brochure8

WRN24WLU- SC2 MC3 FWT

System Watts 21 22 21

Initial Delivered Lumens 577 518 454

@25°C Ambient

Predicted L70 Lifetime >60,000 hrs >60,000 hrs >60,000 hrs

@25°C Ambient

Predicted L70 Lifetime 50,000 hrs 50,000 hrs 50,000 hrs

@40°C Ambient

Note: L70 lifetime prediction based upon LED manufacturer’s supplied LM-80 data and in-situ

laboratory testing. Photometric values based on tests performed in compliance with LM-79.

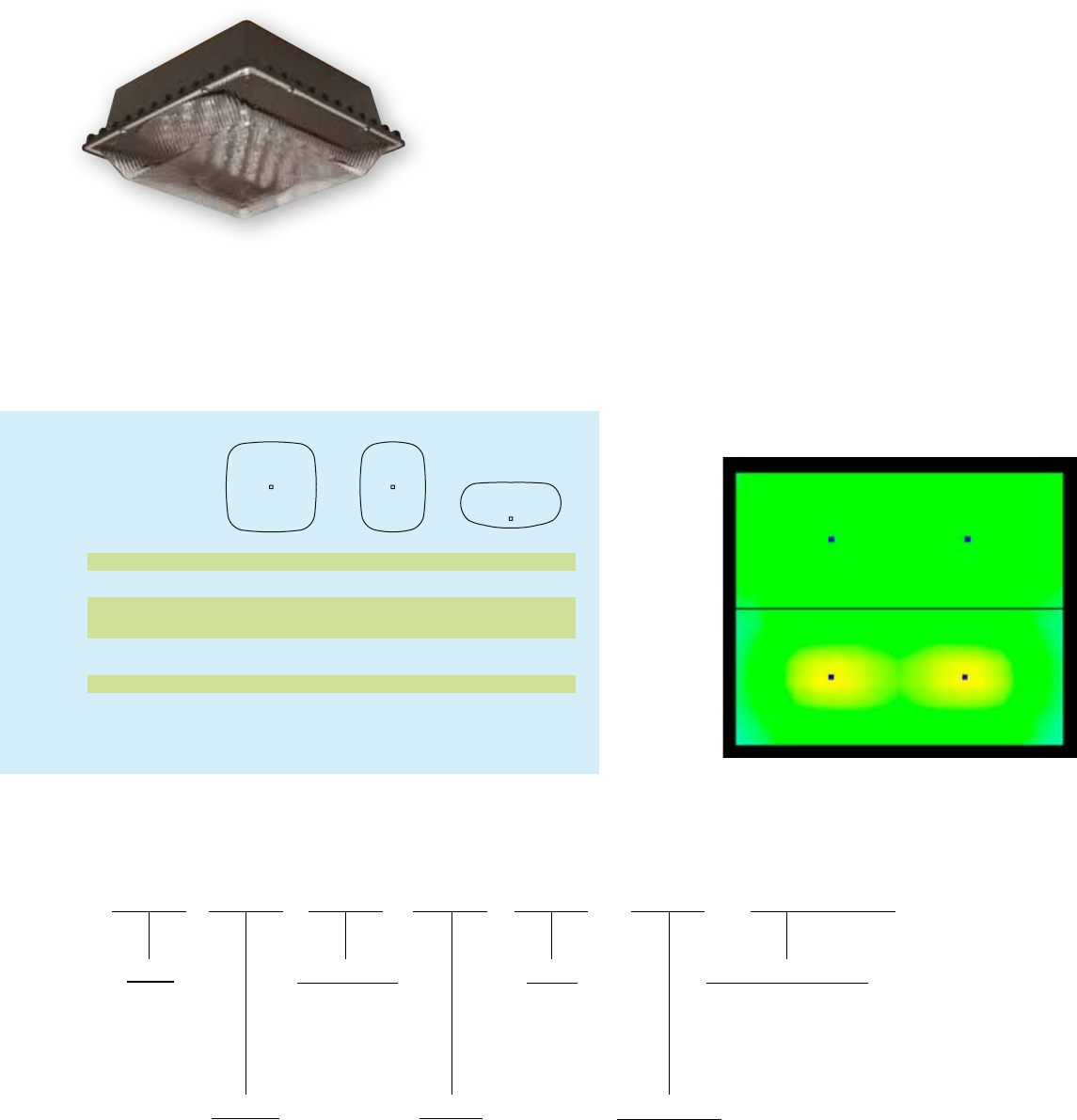

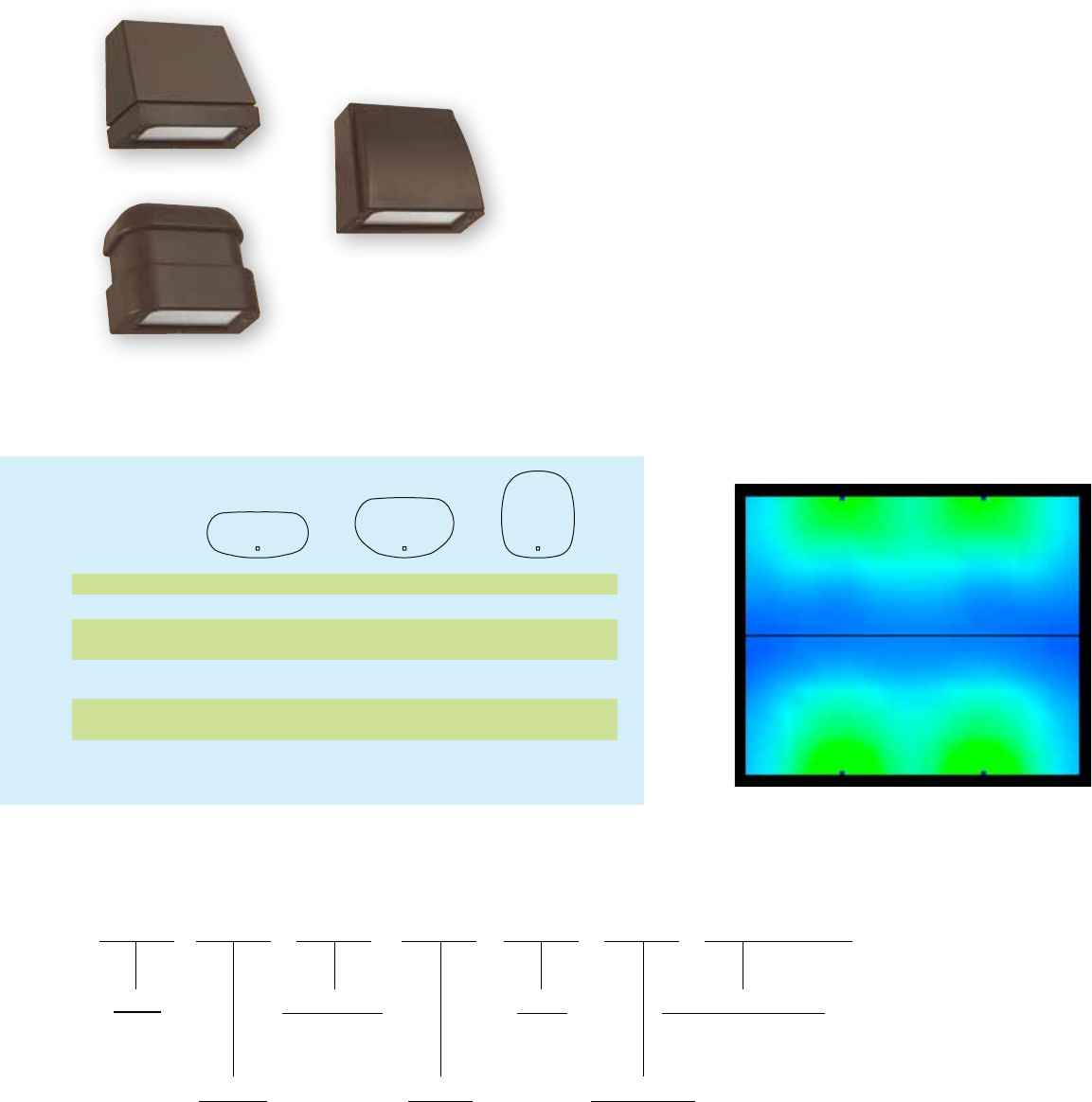

The LED Mini Wall Light uses approximately 22 Watts of energy. The design

is small and attractive. By creating a very small prole of only 4 inches, this

wall light can be used at low mounting heights. Exit doors, walkways, and

breezeways can be safely lit for both standard and emergency use. The LED

wall light can perform as well as a 50W metal halide unit or 42W compact

uorescent unit.

The LED light engine is designed for optimum thermal transfer. The die cast

aluminum housing is specically designed to allow the LED light engine to

efciently transfer heat to open air. The light controlling lenses are unique and

allow the wide angle of light emitted from the LED to be precisely narrowed

and aimed. These unique lenses are then placed in a specic array pattern

and coupled with a diffusing lens to create a controlled distribution of light.

Standard available full cutoff distributions include forward throw, medium, and

wide patterns. The LED light engine comes standard with neutral white LEDs

with a nominal CCT of 4100K. Other colors are available upon customer

request. All parts of the luminaire, including the LED light engine and the LED

driver, are completely replaceable.

LED Mini Wall Light

Ordering Information

SAMPLE CATALOG NUMBER: WTN24WLU-MC3

24W L – – –

FAMILY

WATTAGE

LAMP SOURCE

VOLTAGE PAINT COLORS

OPTICS OPTIONS (add as sufﬁx)

WTN

WRN

WBN

24W – 24W Neutral

White

(4100K)

L – LED

U – Universal 120-277

volts 50Hz or 60Hz

12DC – 12v DC

(Emergency battery

input only - no AC)

SC2 – Wide Distribution

MC3 – Medium Distribution

FWT – Forward Throw

PE – Photo Control

BLANK – Dark Bronze Textured

WT – White Textured

BK – Black Textured

AL – Silver Aluminum Textured

NP – Gray Aluminum Textured

GY – Industrial Gray Textured

CP – Metallic Copper

BM – Metallic Bronze

NK – Metallic Nickel

GS – Greystone

BS – Brownstone

(Consult factory for other colors)

WRN24WLU-SC2

10' MOUNTING HEIGHT / 25' SPACING

50W MH FULL CUTOFF WALL LIGHT

10' MOUNTING HEIGHT / 25' SPACING

WTN

WBN

WRN

NiteBrites LED Family Brochure 9

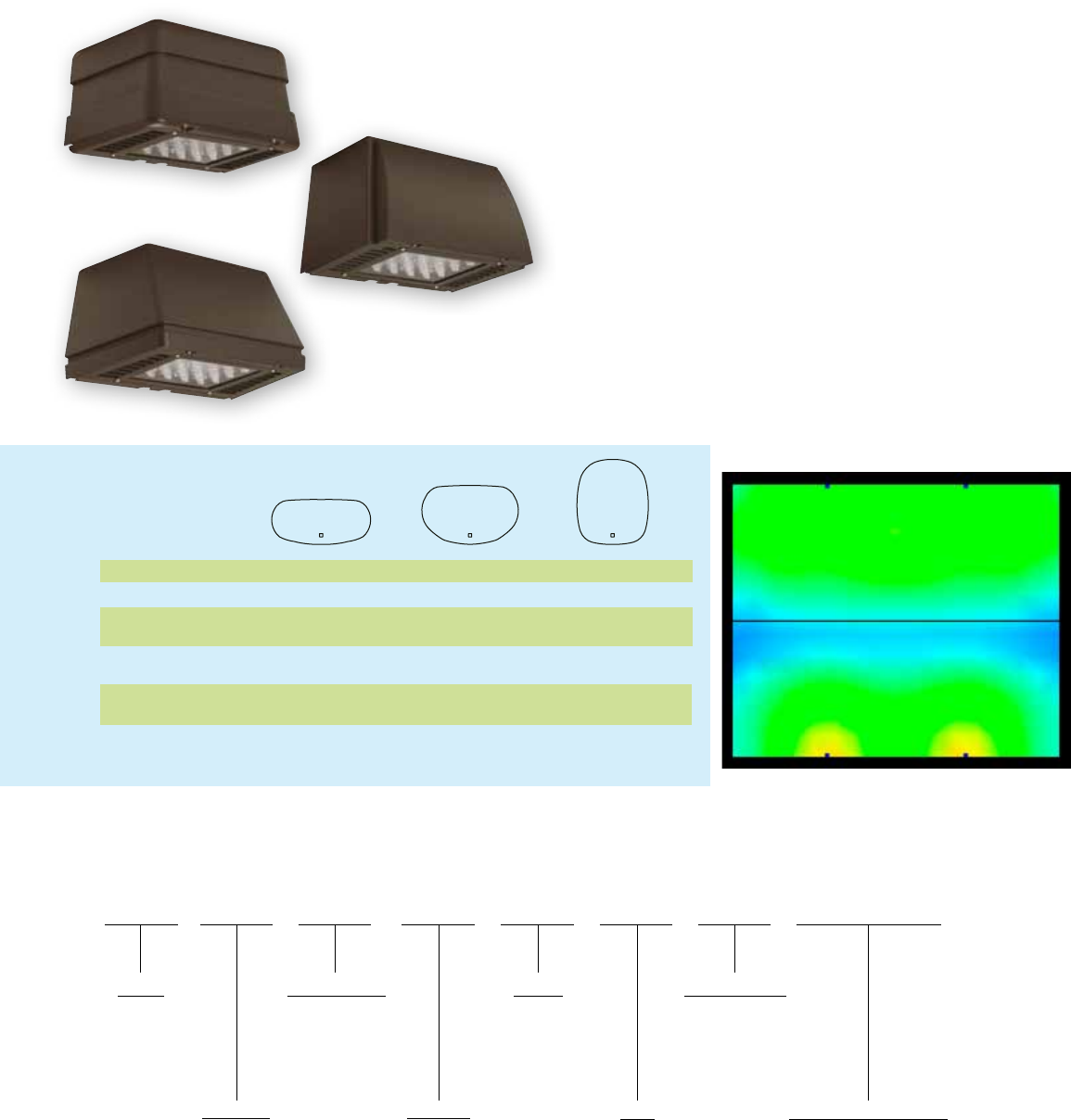

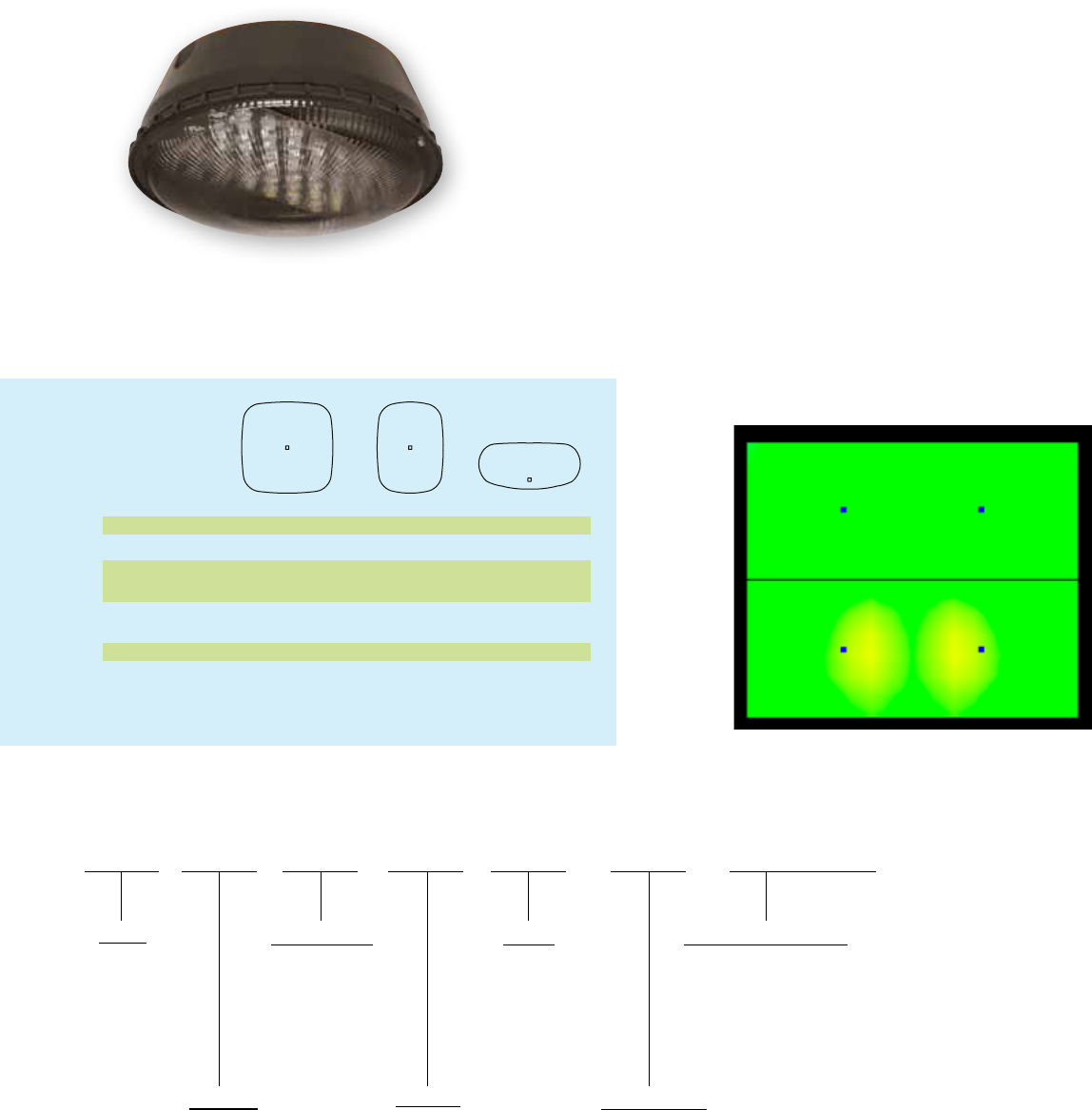

The LED Medium Wall Light is available in a 40 Watt or 60 Watt version.

The variety of shapes available allows the designer to choose between

a conservative or decorative effect. These durable and attractive units

can be used for entrances, walkways, and courtyards. The LED wall light

can perform as well as a 100W metal halide unit or 2-42W compact

uorescent unit.

The LED light engine is designed for optimum thermal transfer. The die

cast aluminum heat sink is specically designed to allow the LED light

engine to efciently transfer heat to open air. The light controlling lenses

are unique and allow the wide angle of light emitted from the LED to be

precisely narrowed and aimed. These unique lenses are then placed in a

specic array pattern to create a controlled distribution of light. Standard

available full cutoff distributions include forward throw, medium, and wide

patterns. The LED light engine comes standard with neutral white LEDs

with a nominal CCT of 4100K. Other colors are available upon customer

request. All parts of the luminaire, including the LED light engine and the

LED driver, are completely replaceable.

LED Medium Wall Light

WTM SC2 MC3 FWT

System Watts 42(40W) / 62(60W) 42(40W) / 62(60W) 42(40W) / 62(60W)

Initial Delivered Lumens 2005(40W) / 2603(60W) 1957(40W) / 2575(60W) 1934(40W) / 2634(60W)

@25°C Ambient

Predicted L70 Lifetime >60,000 hrs >60,000 hrs >60,000 hrs

@25°C Ambient

Predicted L70 Lifetime >60,000 hrs >60,000 hrs >60,000 hrs

@40°C Ambient

Note: L70 lifetime prediction based upon LED manufacturer’s supplied LM-80 data and in-situ laboratory

testing. Photometric values based on tests performed in compliance with LM-79.

SAMPLE CATALOG NUMBER: WTM60WLU-FWT-BK

Ordering Information

L– –– –

FAMILY

WATTAGE

LAMP SOURCE

VOLTAGE LENS OPTIONS (add as sufﬁx)

OPTICS PAINT COLORS

WTM

WRM

WBM

40W – 40W Neutral

White (4100K)

60W – 60W Neutral

White (4100K)

L – LED

34 – 347

U – Universal 120-277

volts 50Hz or 60Hz

SC2 – Wide Distribution

MC3 – Medium Distribution

FWT – Forward Throw

BLANK – Dark Bronze Textured

WT – White Textured

BK – Black Textured

AL – Silver Aluminum Textured

NP – Gray Aluminum Textured

GY – Industrial Gray Textured

(Consult factory for other colors)

BLANK – Clear Tempered

Glass Lens

FGS – Flat Solite Diffusing

Tempered Glass Lens

WDF – Wired Double Fuse45

WSF – Wired Single Fuse46

PCR – Photocell Receptacle13

PE – Photo Control

Footnotes:

13Order twist lock photo control

separately.

45Use with 208 and 240 volt.

46Use with 120, 277 and 347 volt.

WTM60WLU-MC3

10' MOUNTING HEIGHT / 25' SPACING

100W MH FULL CUTOFF WALL LIGHT

10' MOUNTING HEIGHT / 25' SPACING

WBM

WTM

WRM

NiteBrites LED Family Brochure10

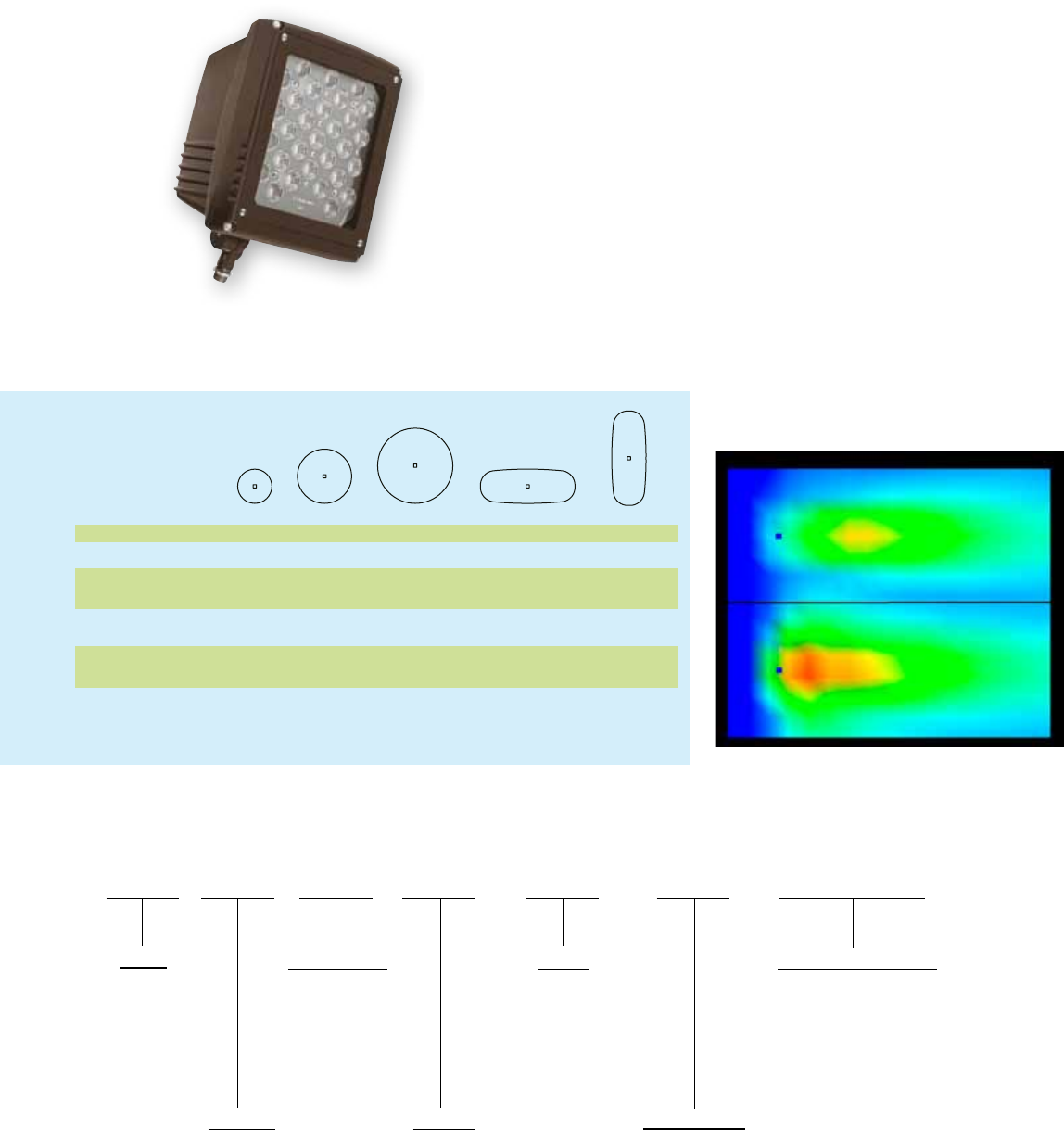

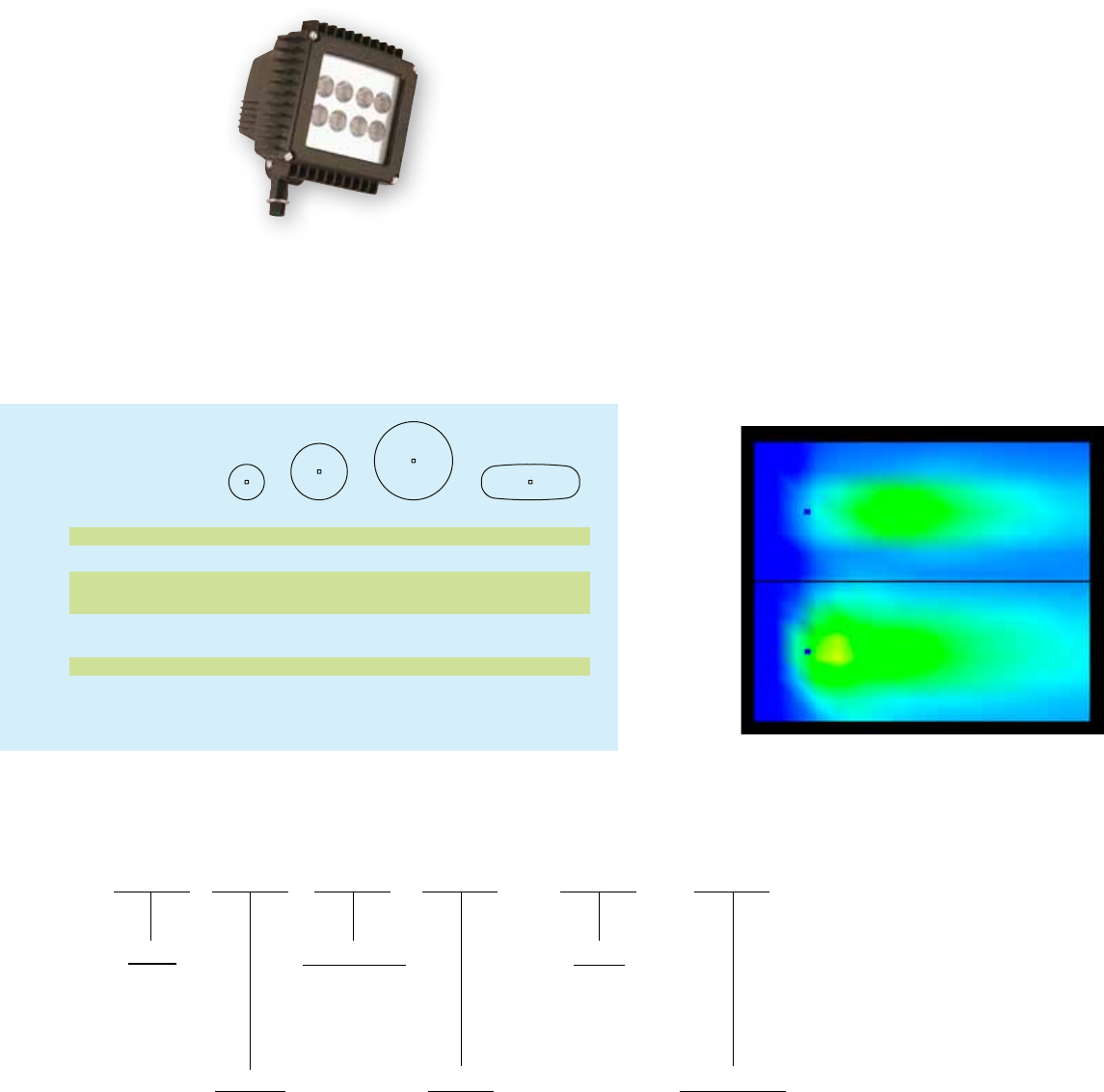

The LED Mini Floodlight uses approximately 22 Watts of energy. The small

size of this oodlight allows it to be used to create dramatic accent lighting

both indoors and outdoors. Flagpoles, landscapes, building facades, and interior

architecture can be highlighted with a variety of visual effects. Depending on

the distribution used, the light levels on the subject area are comparable to a

70W metal halide oodlight.

The LED light engine is designed for optimum thermal transfer. The die cast

aluminum heat sink is specically designed to allow the LED light engine to

efciently transfer heat to open air. Light controlling lenses are used to shape

the LED output to create narrow, medium, and wide round distributions as

well as a linear narrow by medium distribution. The LED light engine comes

standard with neutral white LEDs with a nominal CCT of 4100K. Other

colors are available upon customer request. All parts of the luminaire,

including the LED light engine and the LED driver, are completely replaceable.

LED Mini Floodlight

FSN24WLU- NHP MHP WHP NMP

System Watts 23 23 23 23

Initial Delivered Lumens 826 762 622 774

@25°C Ambient

Predicted L70 Lifetime >50,000 hrs >50,000 hrs >50,000 hrs >50,000 hrs

@25°C Ambient

Note: L70 lifetime prediction based upon LED manufacturer’s supplied LM-80 data

and in-situ laboratory testing. Photometric values based on tests performed in

compliance with LM-79.

Ordering Information

FSN L– –

FAMILY

WATTAGE

LAMP SOURCE

VOLTAGE PAINT COLORS

OPTICS

FSN

24W – 24W Neutral White

(4100K)

24A – 24W Amber

24B – 24W Blue

24G – 24W Green

24R – 24W Red

(Consult factory for other color

temperatures)

L – LED

U – Universal 120-277 volts

50Hz or 60Hz

BLANK – Dark Bronze

WT – White

BK – Black

AL – Silver Aluminum

NP – Gray Aluminum Textured

GY – Industrial Gray

(Consult factory for other colors)

NHP – Narrow Hi-perform Optics (10°)

MHP – Medium Hi-perform Optics (26°)

WHP – Wide Hi-perform Optics (36°)

NMP – Narrow x Medium Performance Optics

(9° x 36° - ﬁeld rotatable)

SAMPLE CATALOG NUMBER: FSN24WLU-NHP

FSN24WLU-NHP

GRAZING APPLICATION SHOWN

70W MH SMALL FLOODLIGHT WITH NARROW OPTICS

GRAZING APPLICATION SHOWN

NiteBrites LED Family Brochure 11

The LED Small Floodlight is available in a 40 Watt or 60 Watt version.

This oodlight is small in size, yet more powerful than the mini oodlight.

The bright beam can be used to light taller agpoles, building facades,

parking areas, and general use areas needing security at night. Depending

on the distribution used, the small oodlight can meet the illumination

levels of a 100W metal halide oodlight.

The LED light engine is designed for optimum thermal transfer. The die

cast aluminum heat sink is specically designed to allow the LED light

engine to efciently transfer heat to open air. Light controlling lenses are

used to shape the LED output to create narrow, medium, and wide round

distributions as well as a linear narrow by medium distribution. The LED

light engine comes standard with neutral white LEDs with a nominal CCT

of 4100K. Other colors are available upon customer request. All parts

of the luminaire, including the LED light engine and the LED driver, are

completely replaceable.

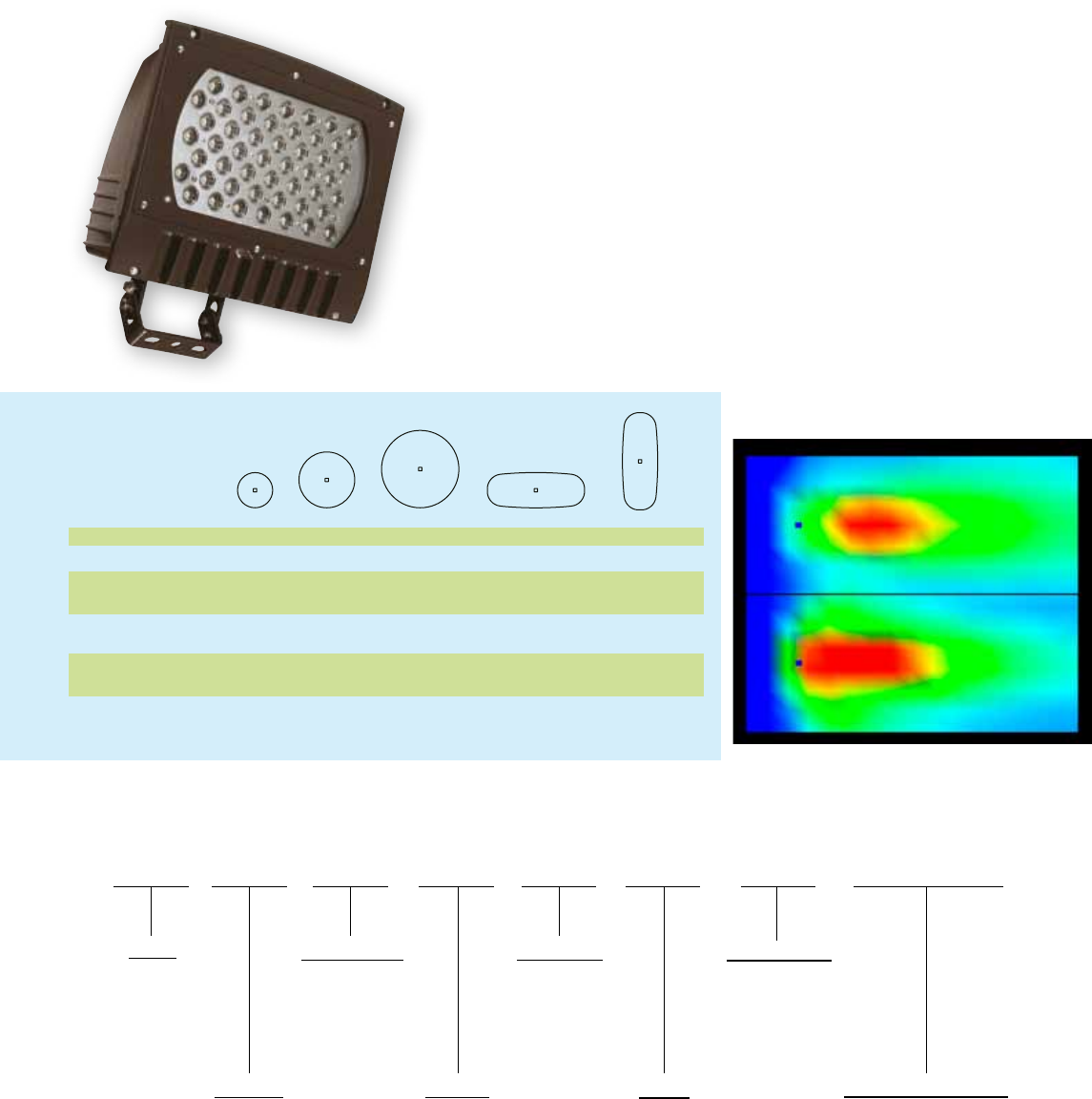

LED Small Floodlight

FSS40WLU- NHP MHP WHP NMP MNP

System Watts 42 42 42 42 42

Initial Delivered Lumens 2407 2315 2227 2239 Consult Factory

@25°C Ambient

Predicted L70 Lifetime >60,000 hrs >60,000 hrs >60,000 hrs >60,000 hrs >60,000 hrs

@25°C Ambient

Predicted L70 Lifetime >60,000 hrs >60,000 hrs >60,000 hrs >60,000 hrs >60,000 hrs

@40°C Ambient

Note: L70 lifetime prediction based upon LED manufacturer’s supplied LM-80 data and in-situ laboratory

testing. Photometric values based on tests performed in compliance with LM-79.

–

PAINT COLORS

BLANK – Dark Bronze

WT – White

BK – Black

AL – Silver Aluminum

NP – Gray Aluminum Textured

GY – Industrial Gray

(Consult factory for other colors)

Ordering Information

FSS L – –

FAMILY

WATTAGE

LAMP SOURCE

VOLTAGE

OPTIONS (add as sufﬁx)

OPTICS

FSS

40W – 40W Neutral

White (4100K)

60W – 60W Neutral

White (4100K)

(Consult factory for

other colors or color

temperatures)

L – LED

34 – 347

U – Universal 120-277

volts 50Hz or 60Hz

NHP – Narrow Hi-perform Optics (2x2)

MHP – Medium Hi-perform Optics (4x4)

WHP – Wide Hi-perform Optics (5x5)

NMP – Narrow x Medium Performance

Optics (5x3)

MNP – Medium x Narrow Performance

Optics (3x5)

PE – Photo Control

SAMPLE CATALOG NUMBER: FSS60WLU-NHP

FSS40WLU-NHP

GRAZING APPLICATION SHOWN

100W MH SMALL FLOODLIGHT WITH NARROW OPTICS

GRAZING APPLICATION SHOWN

NiteBrites LED Family Brochure12

The LED Intermediate Floodlight uses approximately 100 Watts of energy.

The versatility of this oodlight makes it a natural replacement for almost

any medium wattage HID oodlight. With the yoke mount or sliptter

mount options available, large parking areas, large building facades, building

perimeters, dock areas, and signs can be illuminated. Depending on the

distribution used, the intermediate oodlight can replace up to a 150W

metal halide oodlight.
