2009
PLUSCON circular
Industrial circular connectors M 16 – M 58 PLUSCON circular
Industrial circular connectors M 16 – M 58
EN 2009/10
PHOENIX CONTACT GmbH & Co. KG
D-32823 Blomberg
Tel.: +49 (0) 52 35 3-00
Fax: +49 (0) 52 35 3-1 07 99
E-Mail: info@phoenixcontact.com
www.phoenixcontact.com
The PLUSCON circular
catalog from Phoenix
Contact offers circular
connectors for industrial
applications from M16 to
M58. For the transmission
of analog and digital
signals, a comprehensive
product range comprising
M16, M17, M23 and M27
plug connectors is offered.
Plug connectors for the
transmission of electrical
power with up to 150 A,
max. at 630 V are available
in M17, M23, M40, and
M58 designs.
For sensor / actuator
applications, the main
PLUSCON catalog offers
M5, M8 and M12 circular
plug connectors. The
PLUSCON range also
offers industrial
connectors for data, signal
and power transmission
with an IP65/67/69K
degree of protection. The
complete range is rounded
off by the sensor/actuator
cabling.
PLUSCON circular - M16 to M58 circular connectors
for industrial applications
CLIPLINE
From the modular
terminal block to the
assembly material and
tools and through to
the complete PC-aided
project planning and
marking system, the
CLIPLINE catalog has
everything that you
need for perfect control
cabinet wiring.
COMBICON
The COMBICON
catalog provides a
complete range of
device connection
technology with
protection classes
up to IP67. Electronic
housings, plug-in card
blocks and DIN socket
strips make this catalog
a standard for every
developer.
AUTOMATION
From the serial sensor/
actuator box, through
to PC-based control
technology, right down
to visualization
software, the
AUTOMATION
catalog provides the
latest automation
components and
systems from
Phoenix Contact.
INTERFACE
With interface
modules for binary,
serial and analog
signals, power supply
units, PLC system
cabling and electronic
load relays, the
INTERFACE catalog
provides all
components around
the industrial control.
TRABTECH
With professional
surge protection
structured according
to surge protection for
power supply units,
data interfaces and
MCR applications,
Phoenix Contact
provides one of the
most comprehensive
programs on the
market.
CLIPLINE COMBICON TRABTECH INTERFACE AUTOMATION
www.phoenixcontact.com
PLUSCON
PLUSCON circular
MNR. 52004415/15.01.09-00
Printed in Germany
© PHOENIX CONTACT 2009
3PHOENIX CONTACT
Table of contents
Overview of circular connectors
Get a quick overview of the entire range of circular
connectors for signal and power applications from
M16 to M58.
PLUSCON circular 4
Modular signal plug connectors
Create your own signal plug connector with M23 or
bayonet connection individually for your application.
PLUSCON circular
RC, UC, TU series
11
Signal plug connectors
Cable, coupling and appliance plug connectors fully pre-
assembled with M16, M17, M23 and M27 - M17, optionally
with SPEEDCON quick locking.
PLUSCON circular
PV, ST, RF, HC series
39
Power connectors
Cable, coupling and appliance plug connectors fully pre-
assembled with M17, M23, M40, and M58 to 150 A - M17
and M40 optionally with SPEEDCON quick locking.
PLUSCON circular
P20, P30, P70, P150 series
83

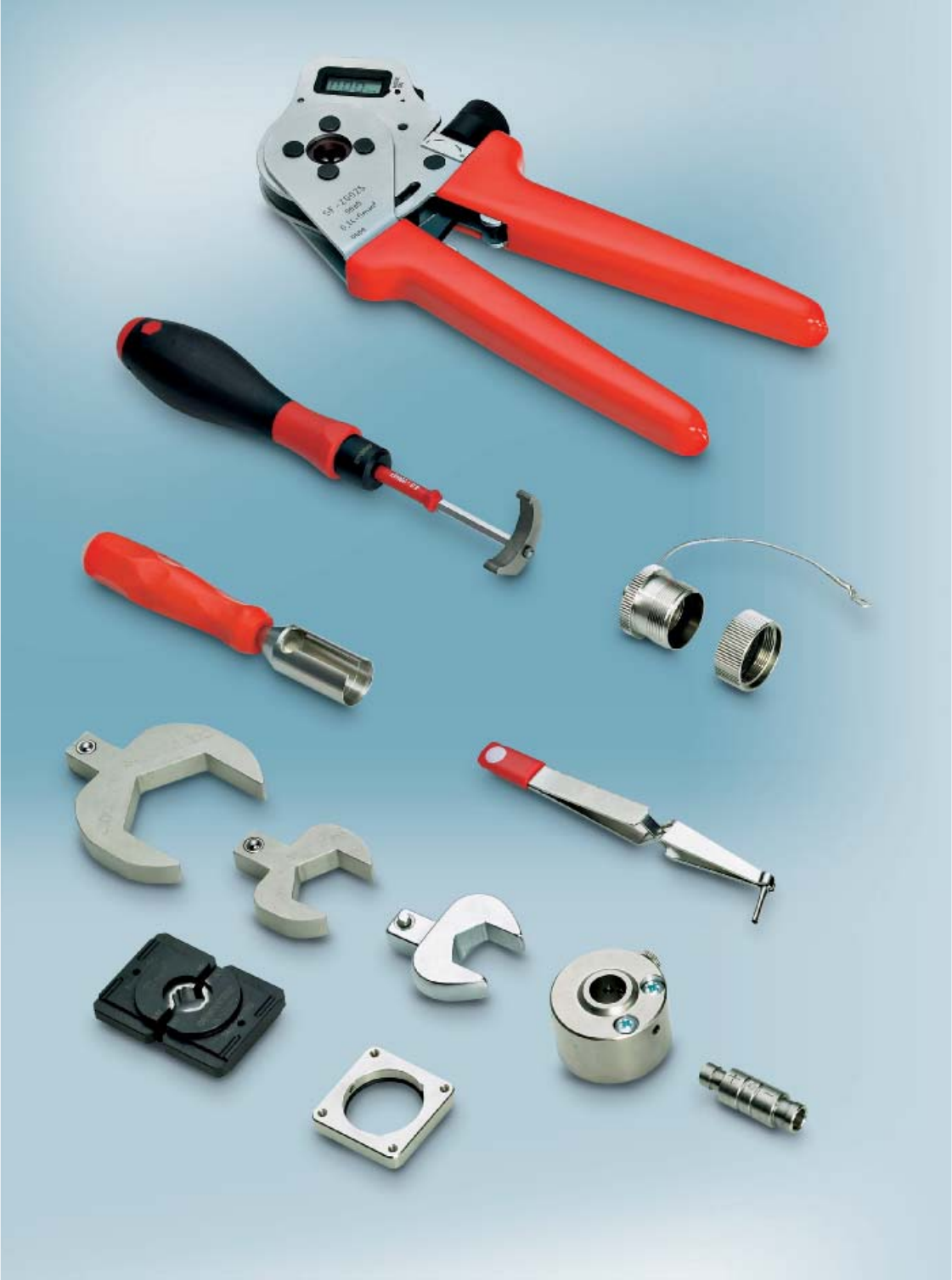

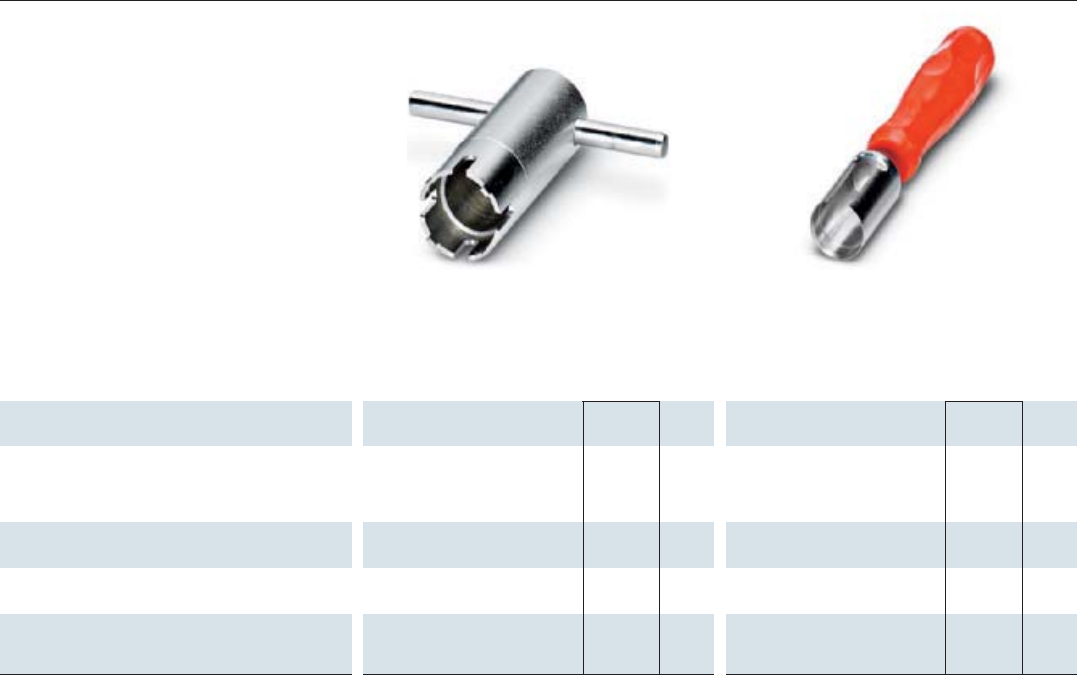

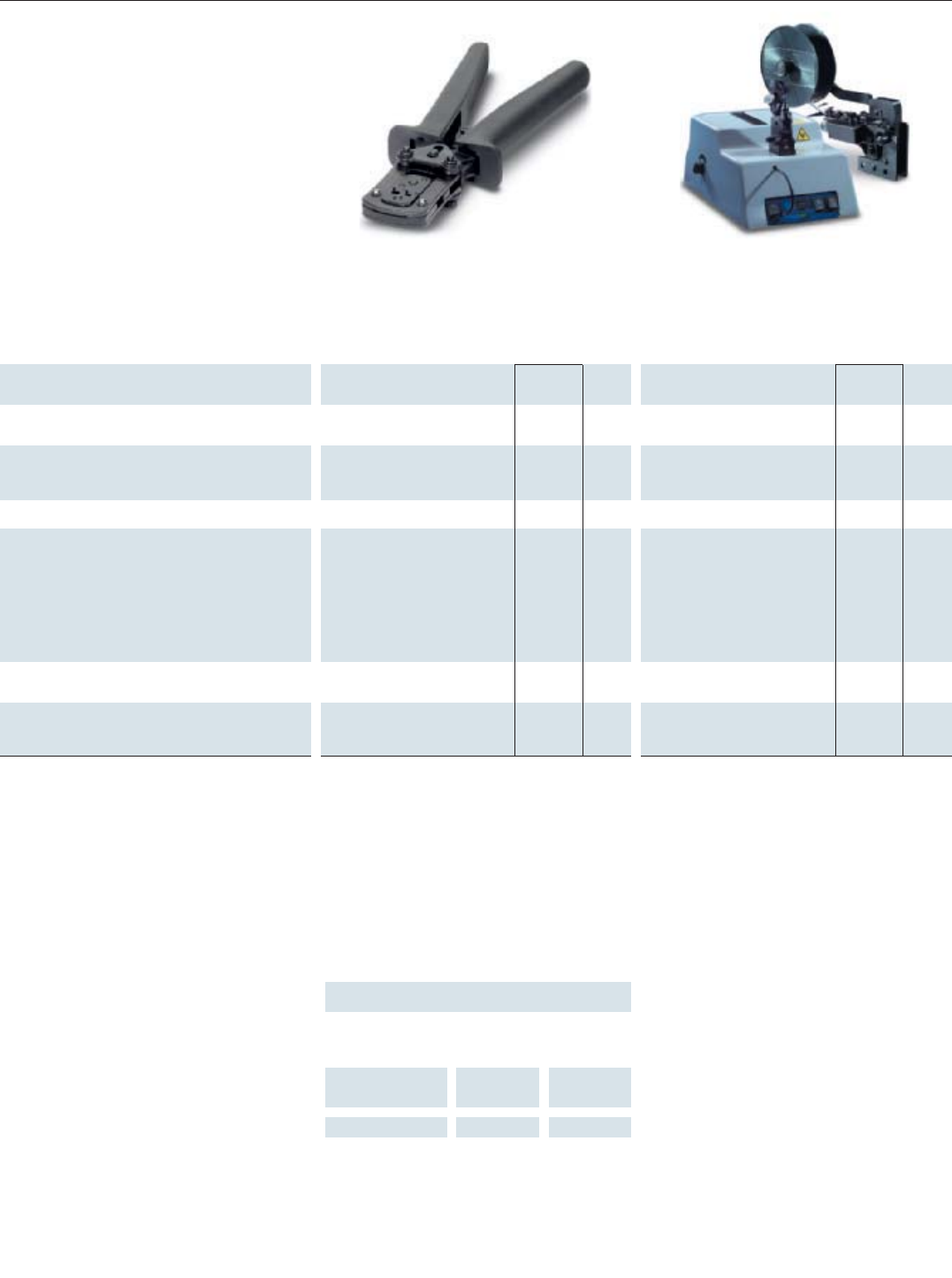

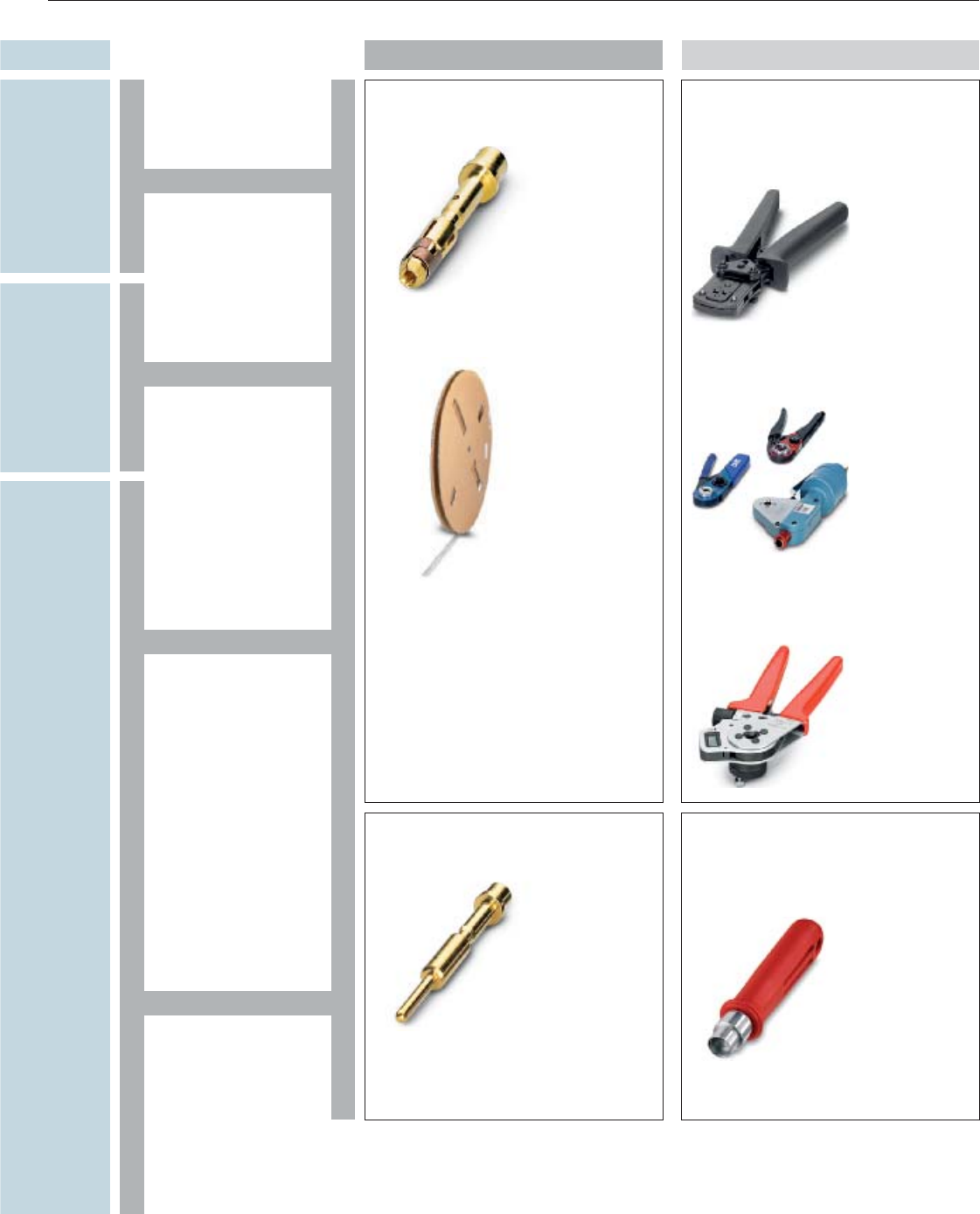

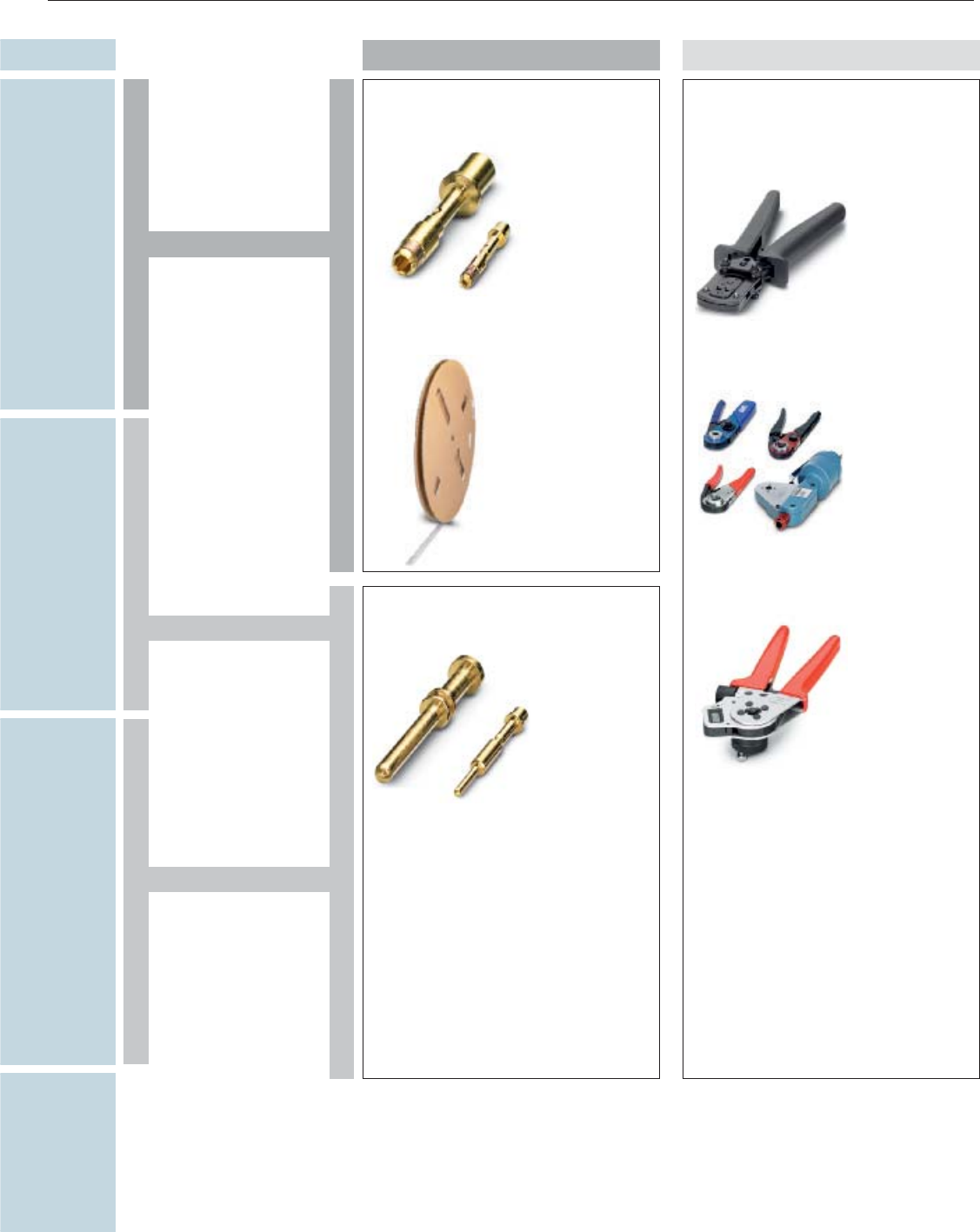

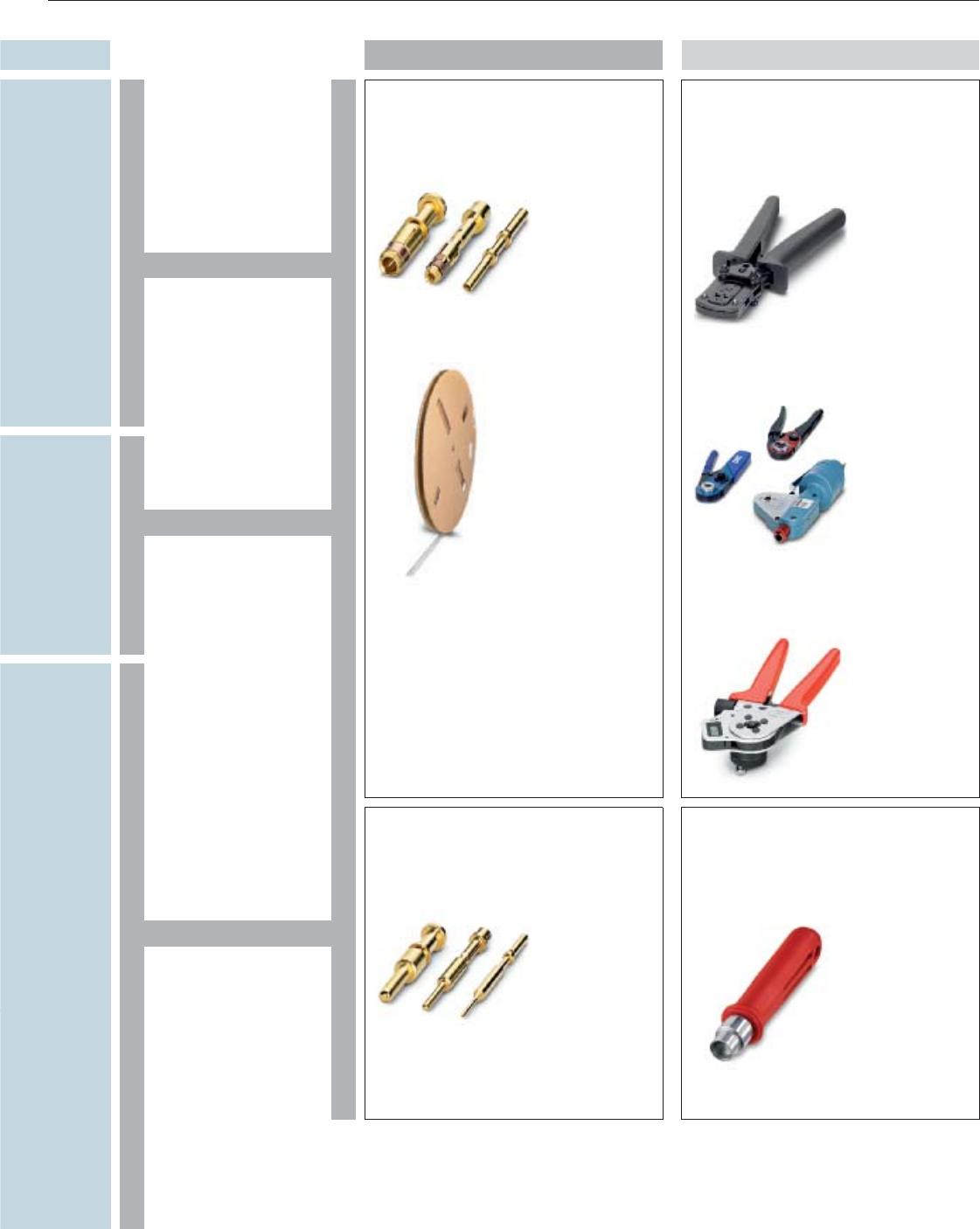

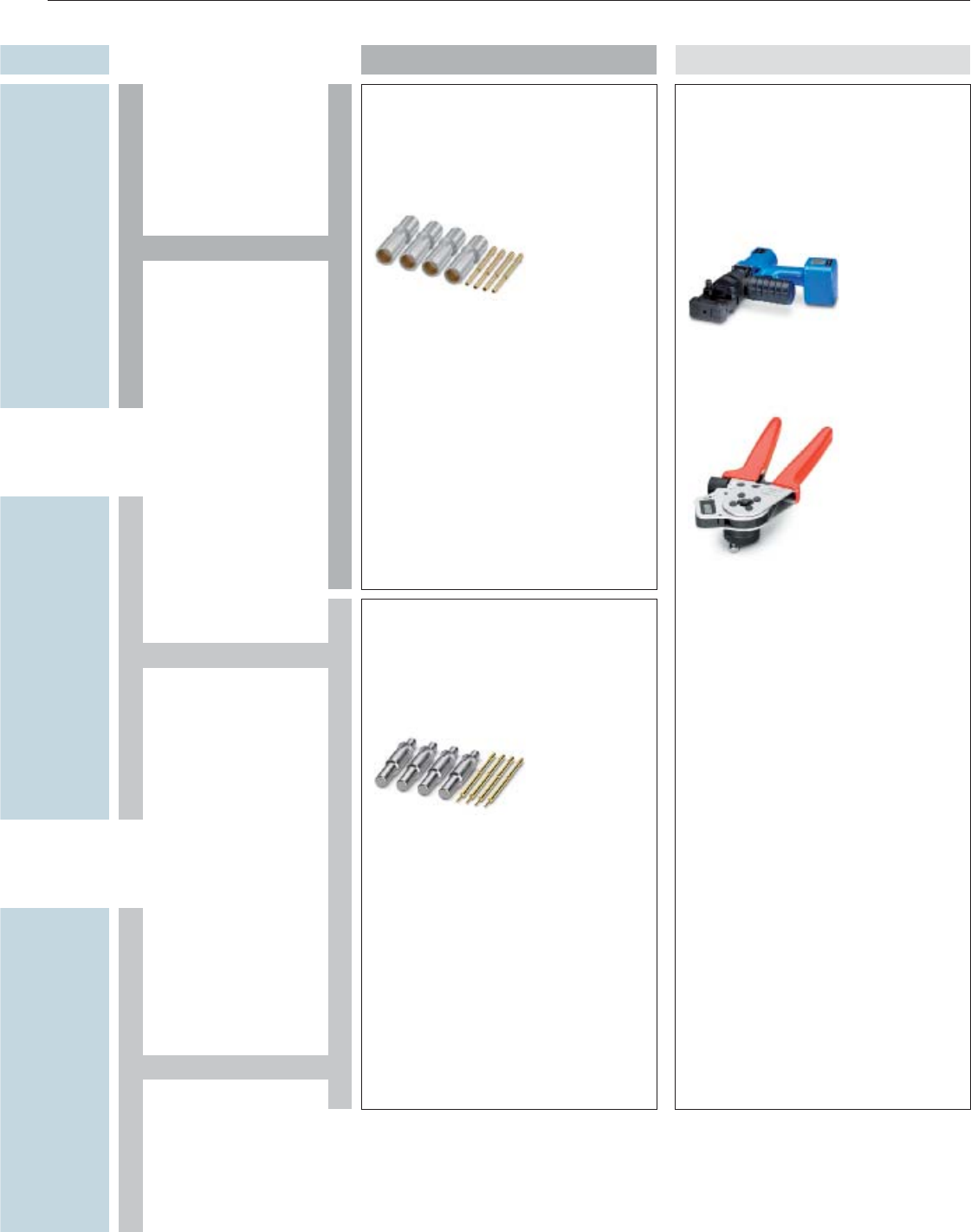

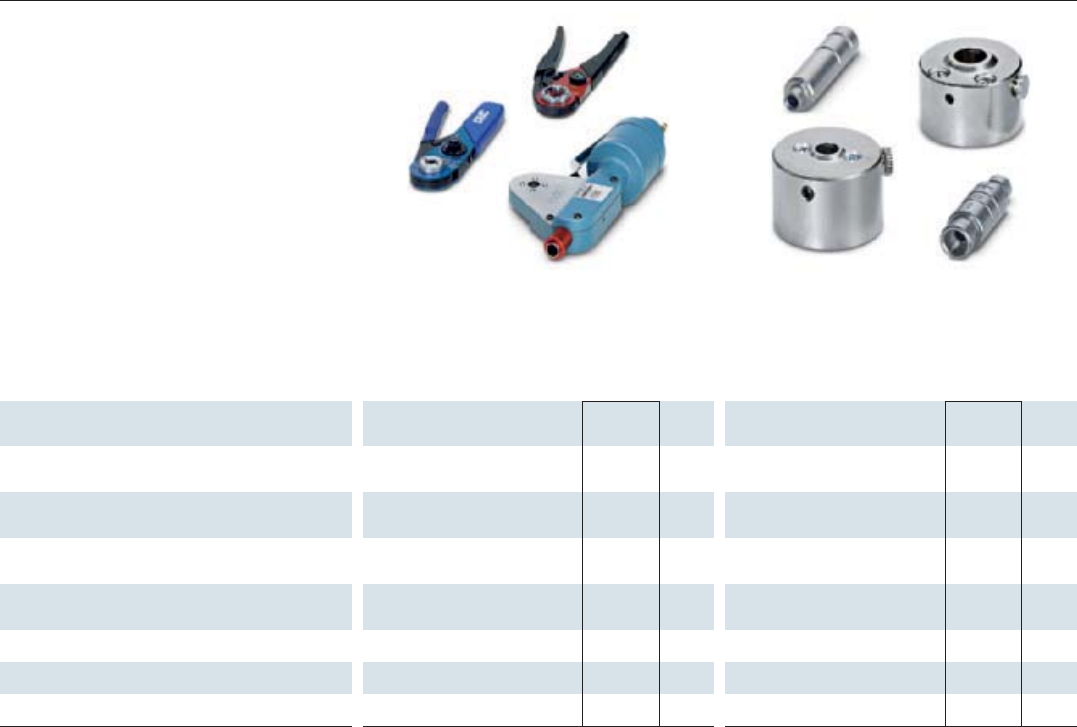

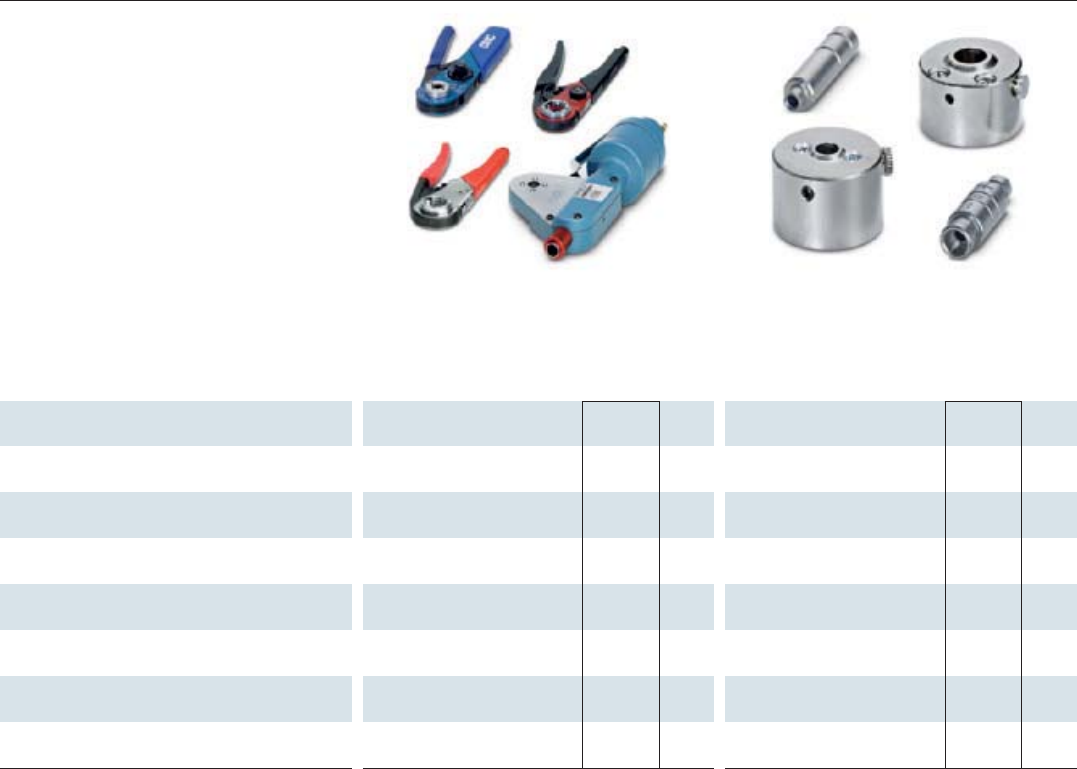

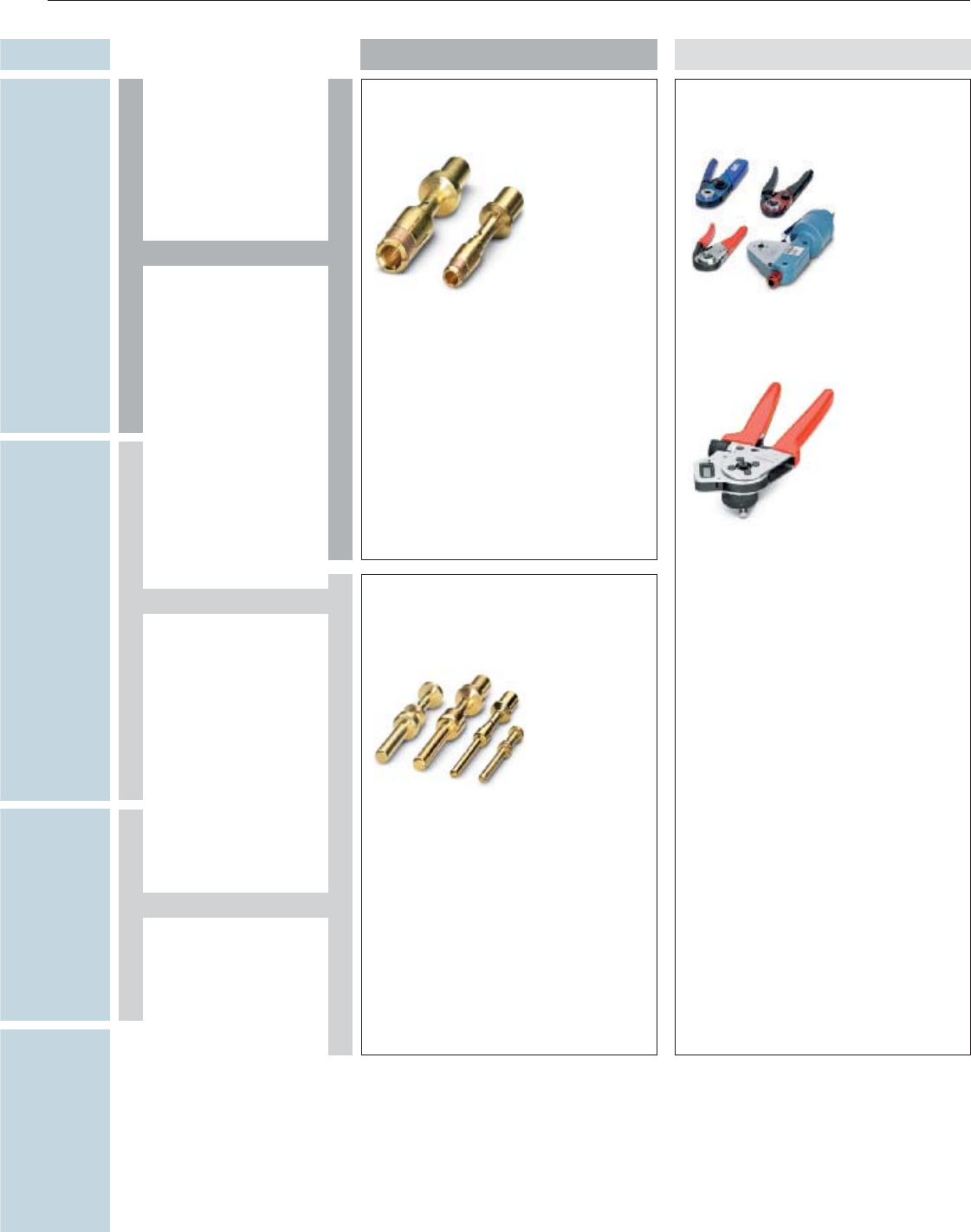

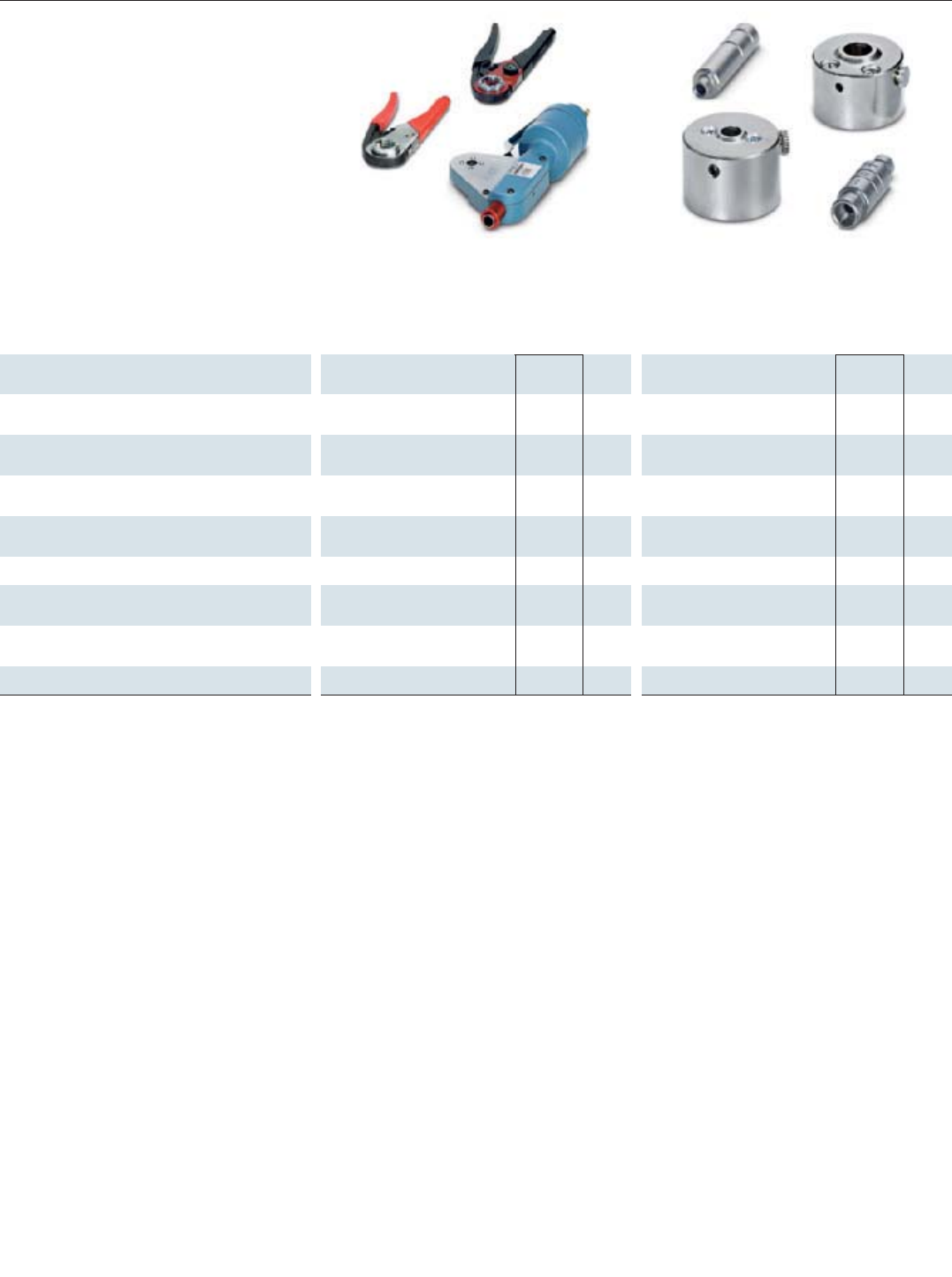

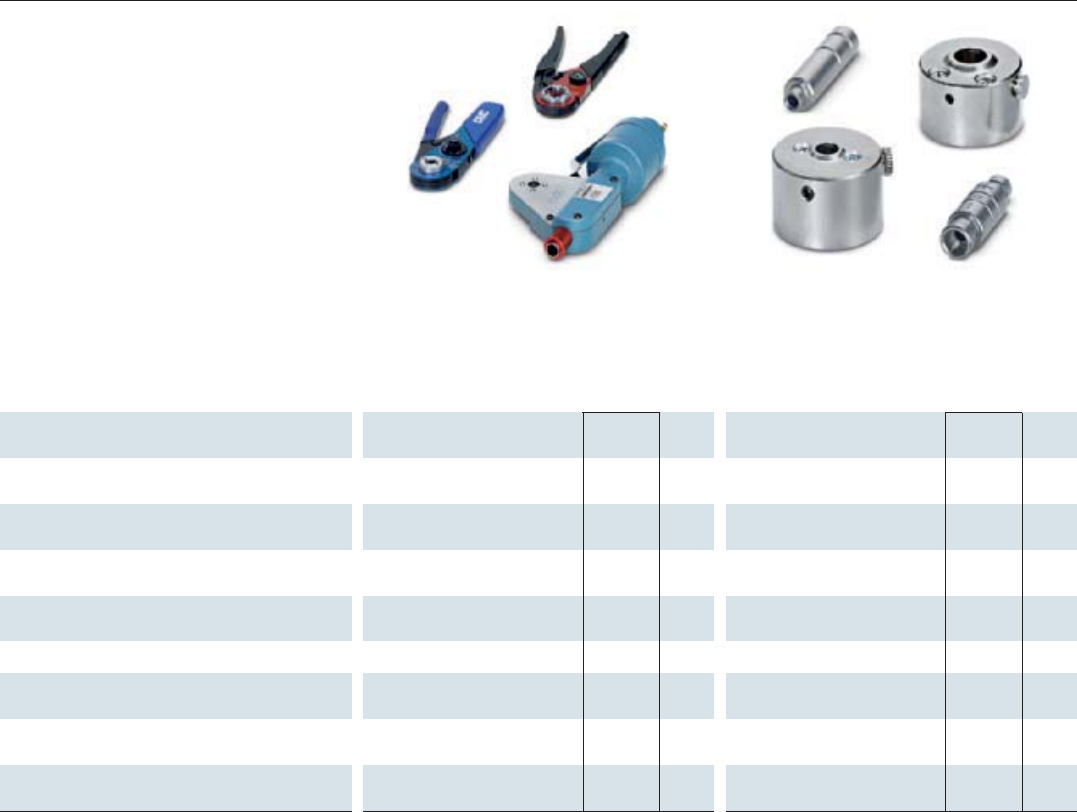

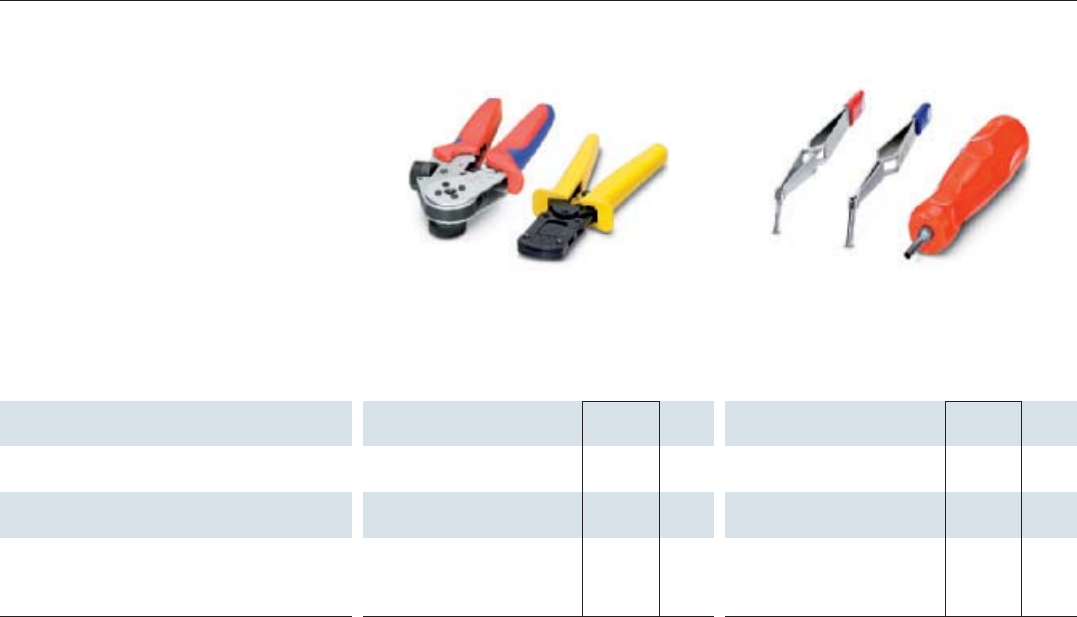

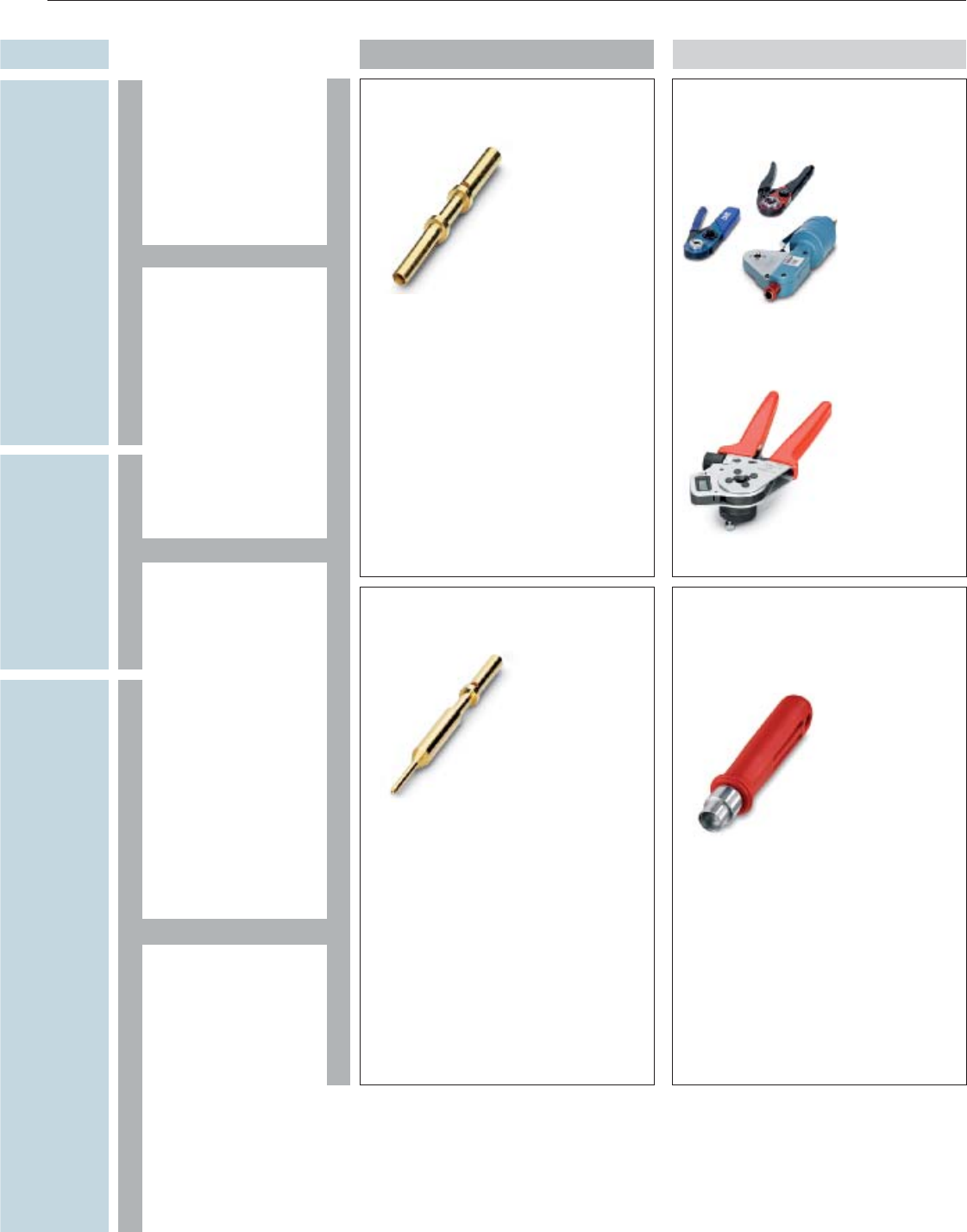

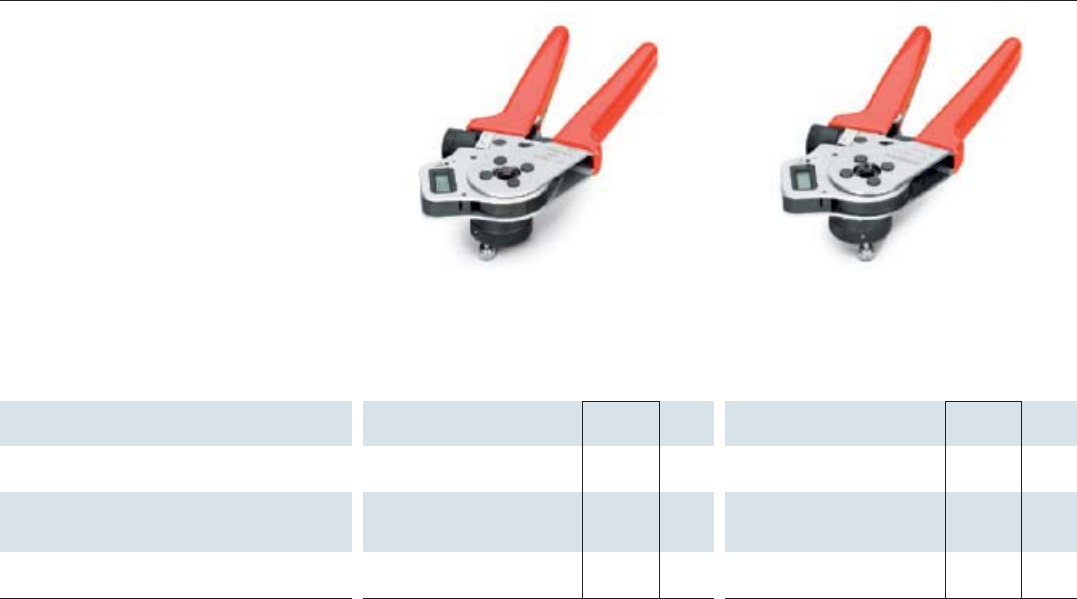

Tools and accessories

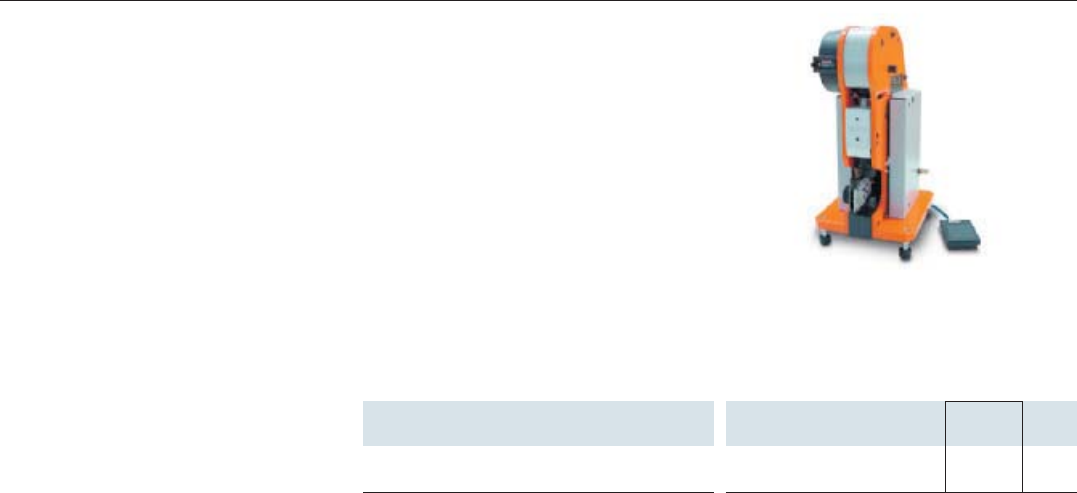

Crimping tools and automatic devices for punched-rolled
and turned contacts of all series, assembly tools and other
accessories.
139
Ordering examples and type descriptions
156
Register
Alphabetical
Numerical
162

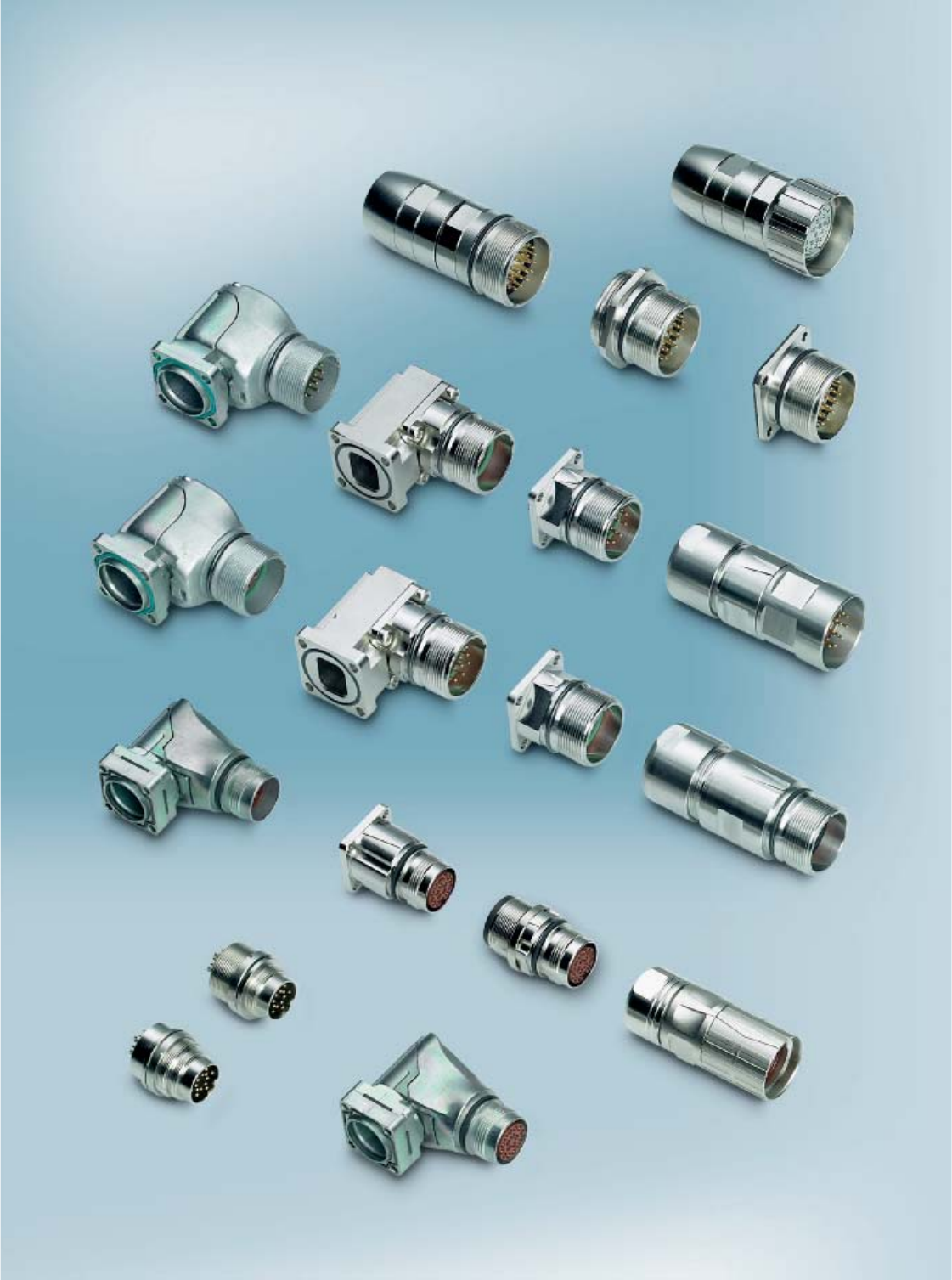

The PLUSCON circular product range from M16 to M58
Product overview - Signal plug connectors
4PHOENIX CONTACT
A wide range of connector
solutions of the M17, M23 or
M27 types are available for
signal transmission. Versions
with bayonet or SPEEDCON
locking are available for faster
connections.

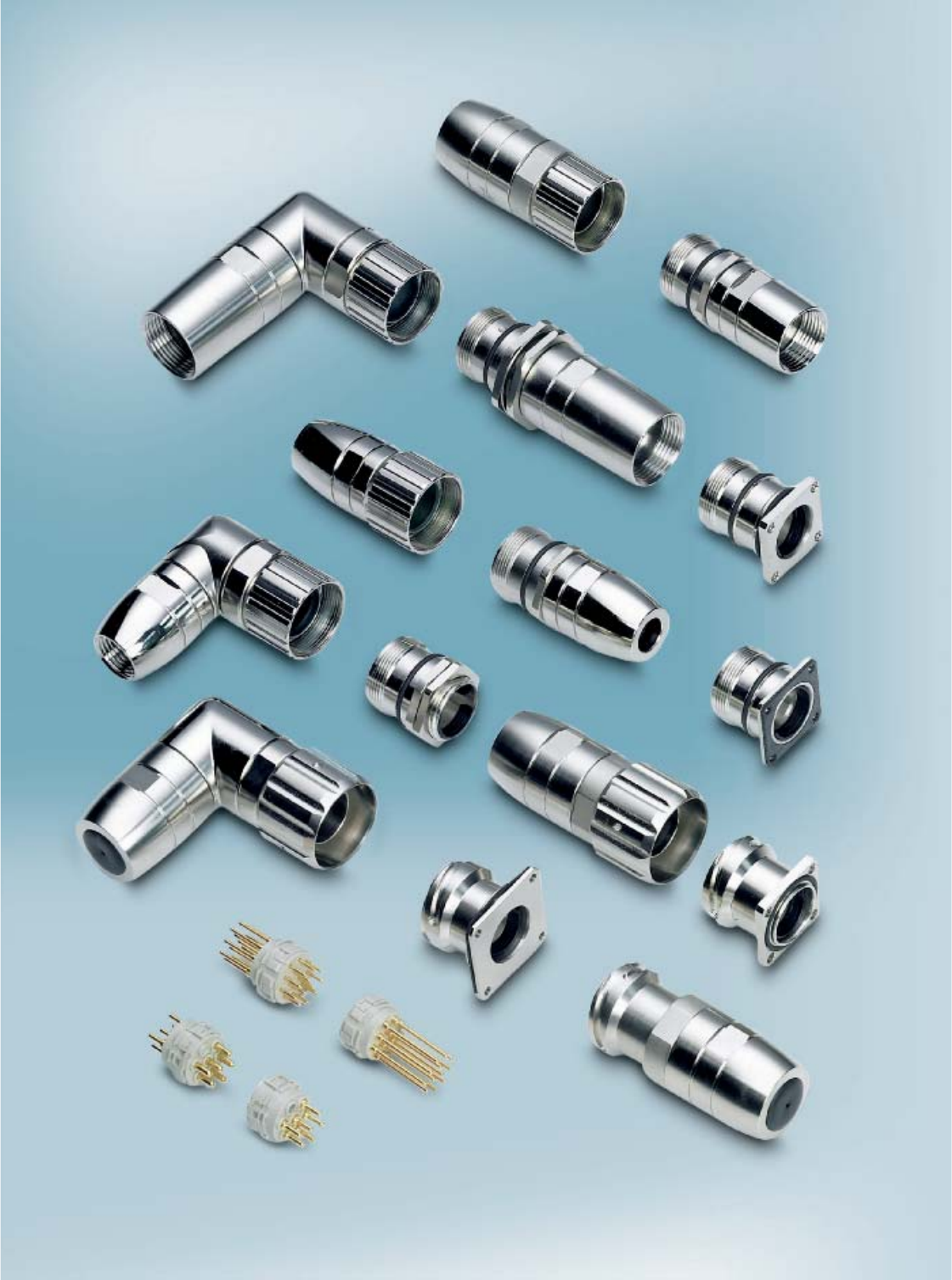

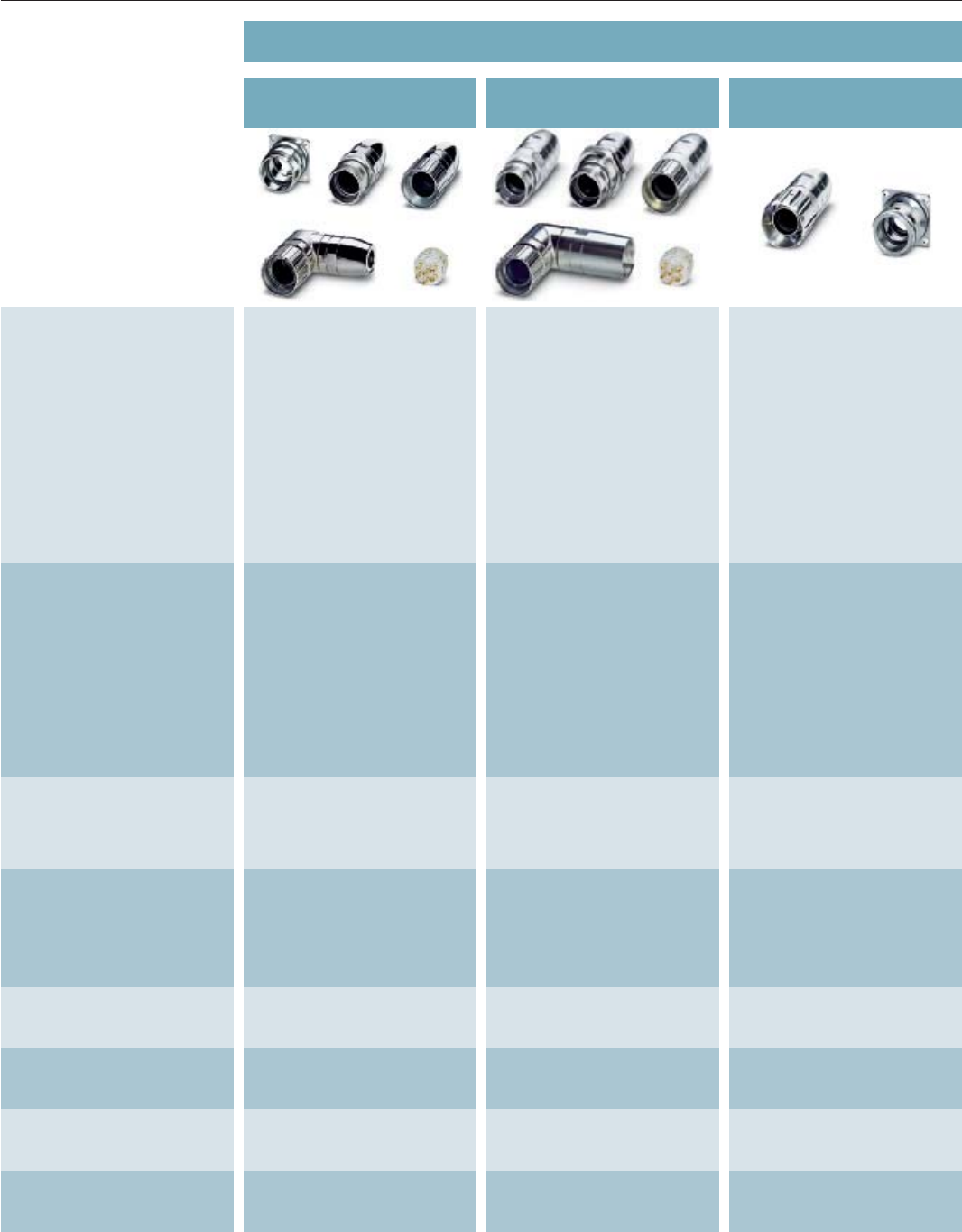

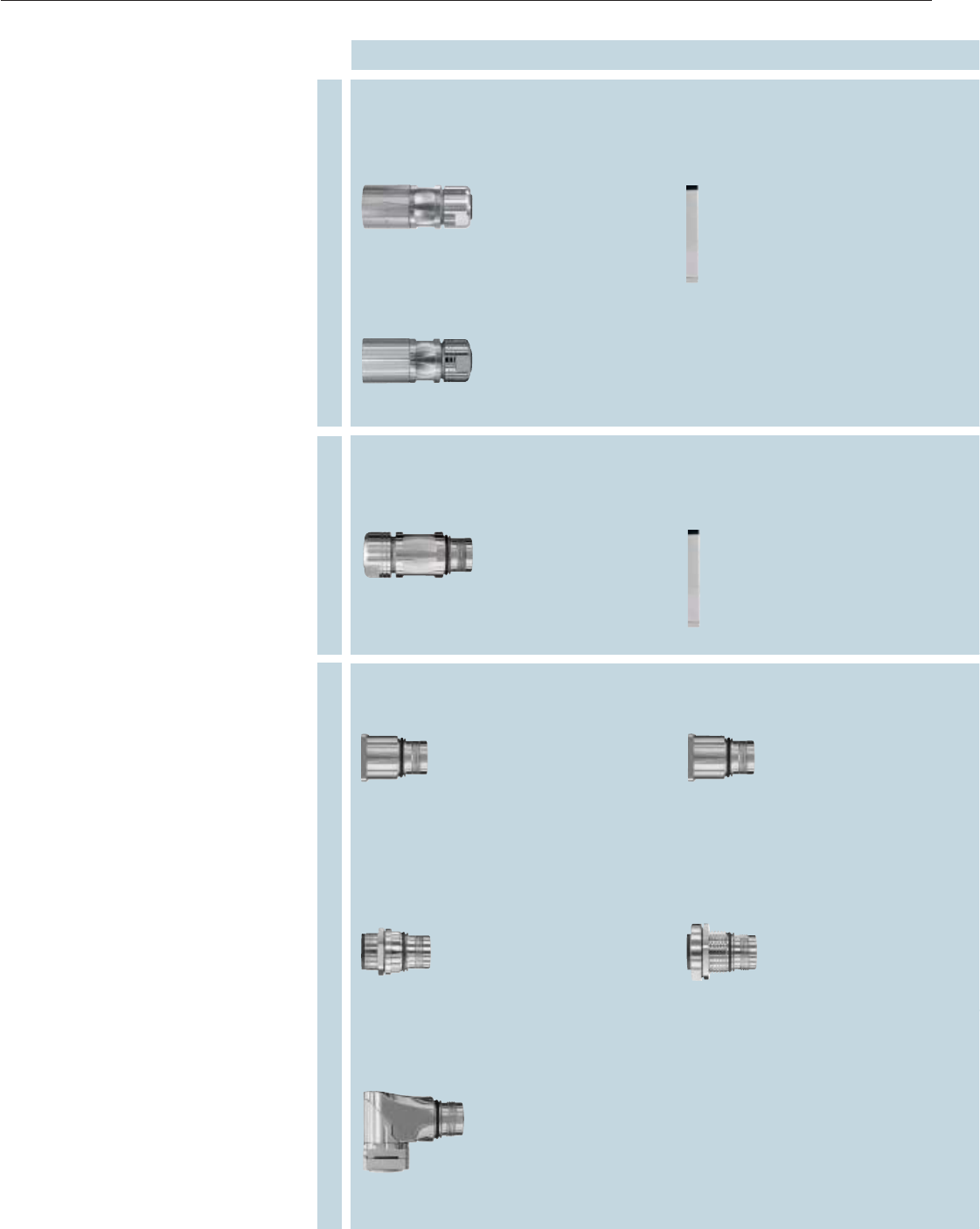

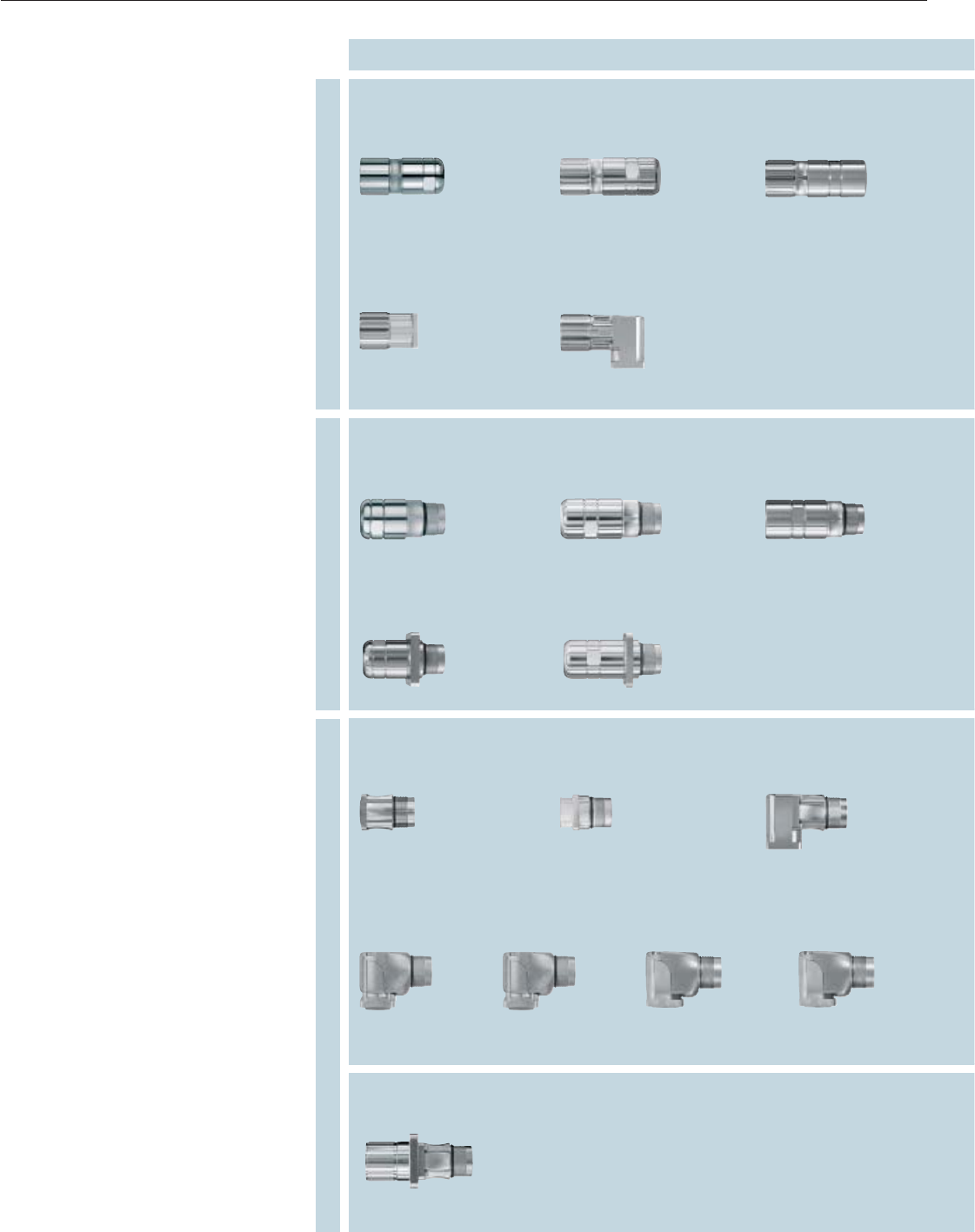

Modular signal plug connectors - PLUSCON circular
M23 - RC series
shielded / unshielded
M23 - UC series
with universal shielding
Bayonet - TU series
with universal shielding

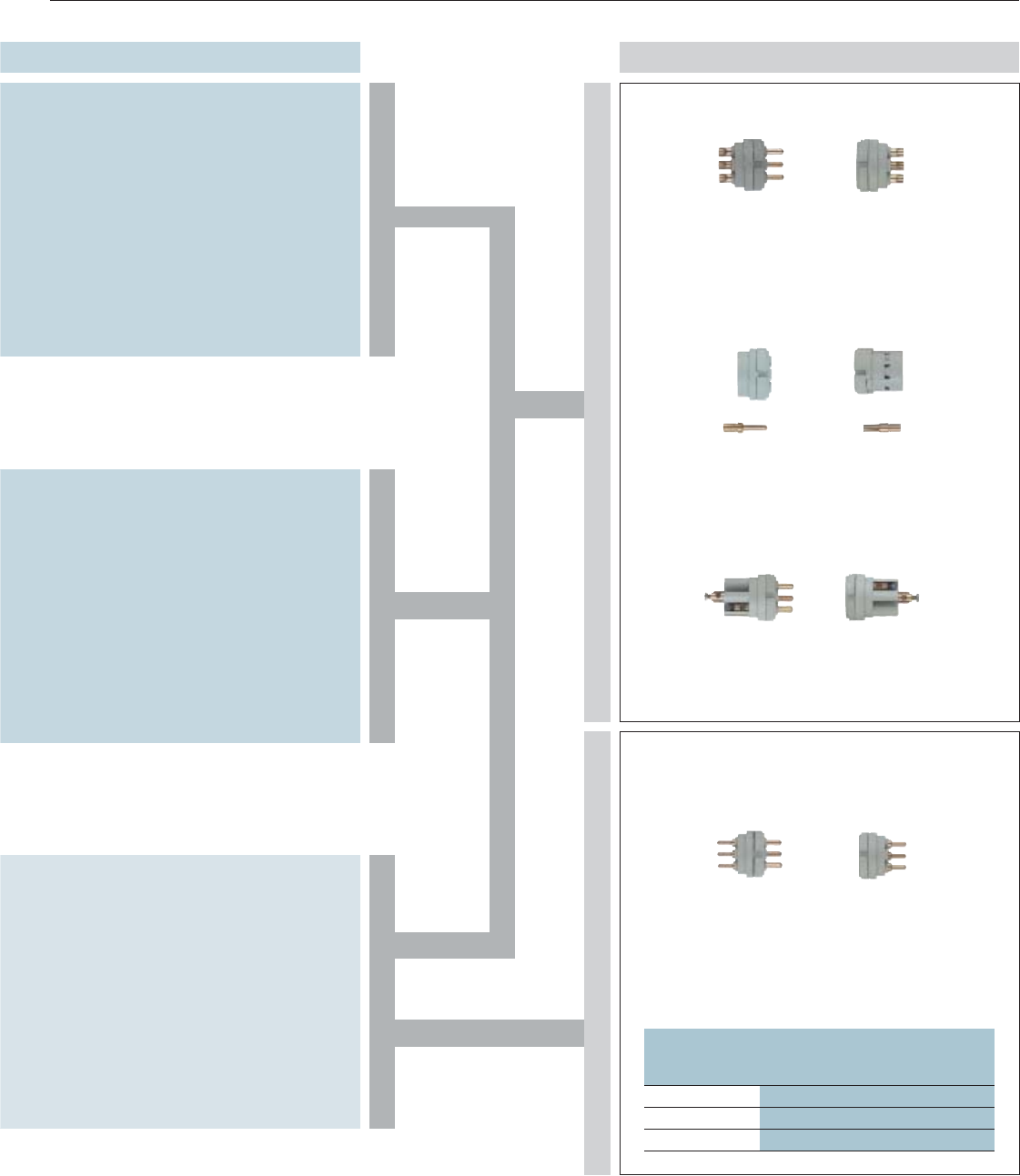

Description – Modular design
– A wide range of housing types and
connector pin assignments with
various contact connection methods
– The connectors are delivered as
individual components – housing,
EMC screw connection, contact
insert
– Cable Ø 2.0 ... 10.5 mm, shielded
– Cable Ø 4.0 ... 14.0 mm, unshielded
– Modular design
– More cabling space for larger cable
diameters
– Universal shield and cable clamping
– The connectors are delivered as
individual components - housing,
contact insert
– Cable Ø 2.0 ... 14.5 mm, shielded
– Modular design
– Easily accessible as well as rugged
bayonet locking
– The TU series is based on the UC
connectors with a larger cabling
space and a universal shield
– The connectors are delivered as
individual components - housing,
contact insert
– Cable Ø 2.0 ... 14.5 mm, shielded

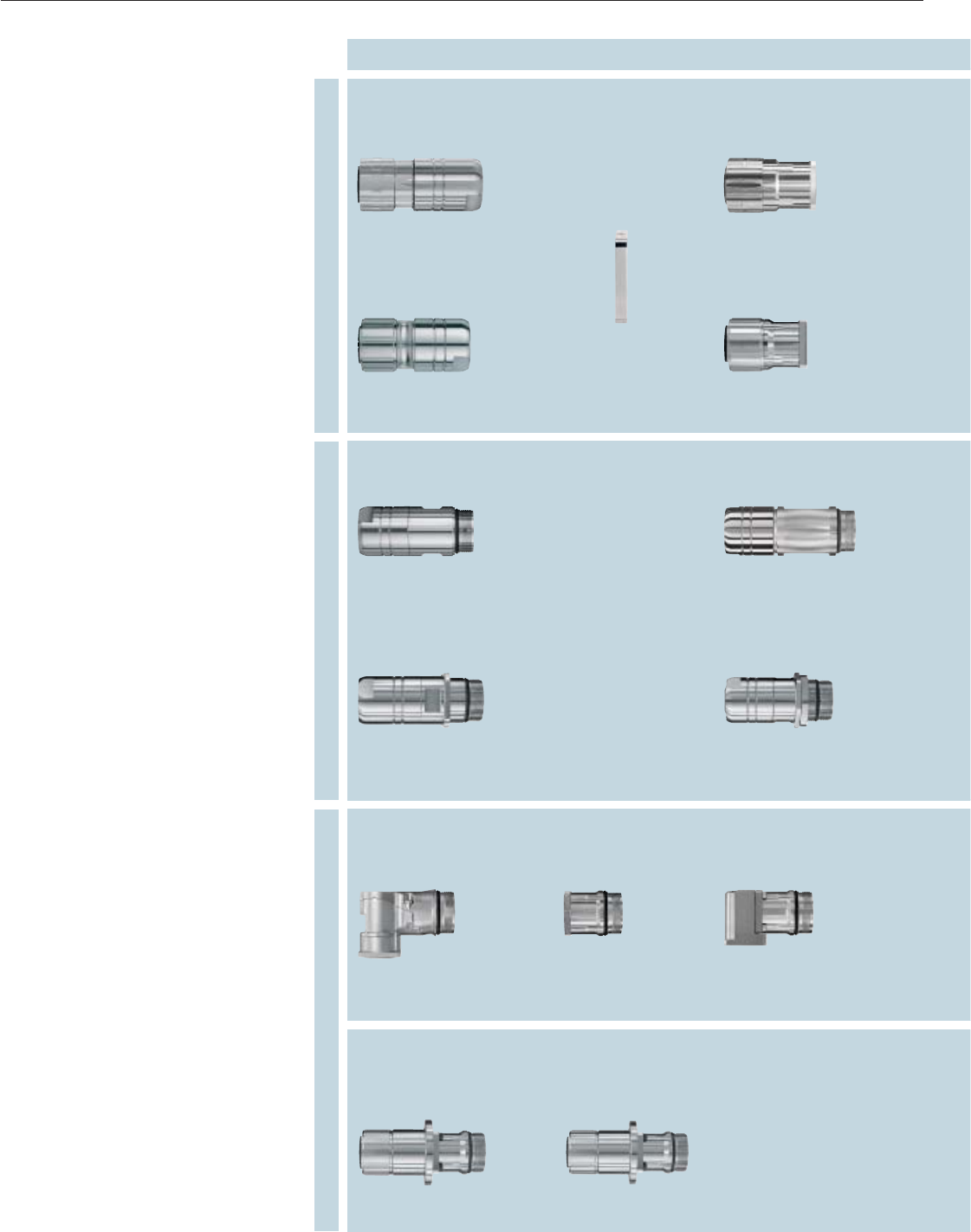

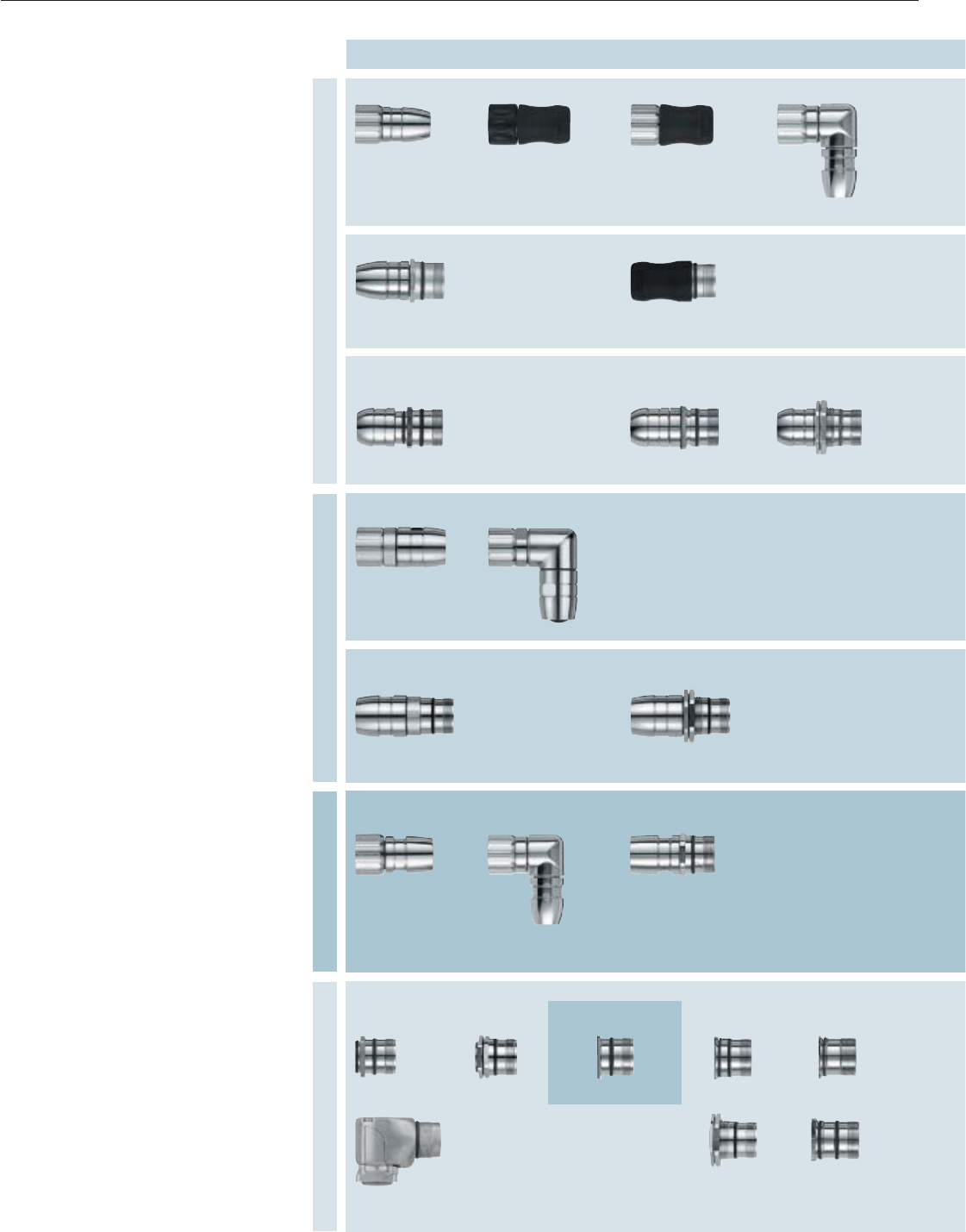

Housing types – Cable plug connectors/coupling
connectors
– Cable plug connectors, angled
– Coupling connectors for mounting
on the wall
– Appliance plug connectors for front
mounting: straight, angled rotatable
– Appliance plug connectors for rear
mounting: straight
– Cable plug connectors/coupling
connectors
– Cable plug connectors, angled
– Coupling connectors for mounting
on the wall
– Fully compatible with the RC
appliance plug connectors
– Cable plug connectors/coupling
connectors
– Coupling connectors, angled
– Appliance plug connectors for front
mounting: straight
– Appliance plug connectors for rear
mounting: straight

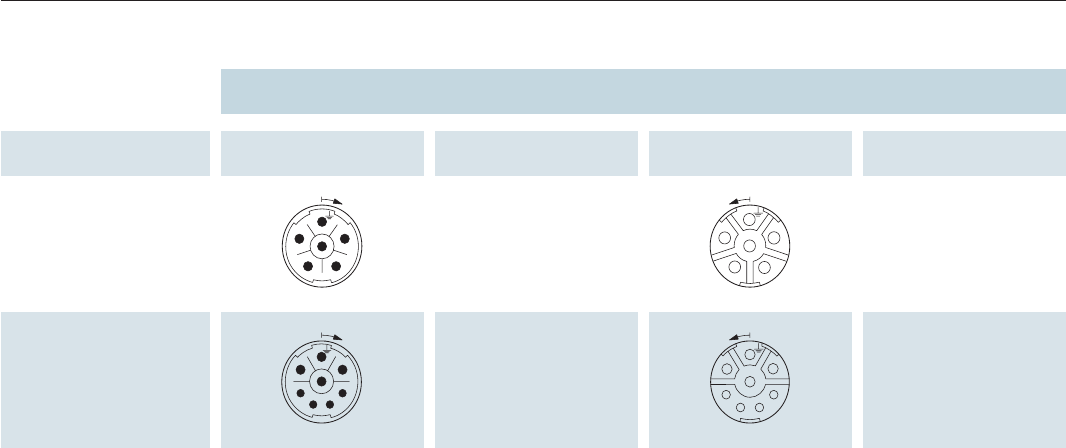

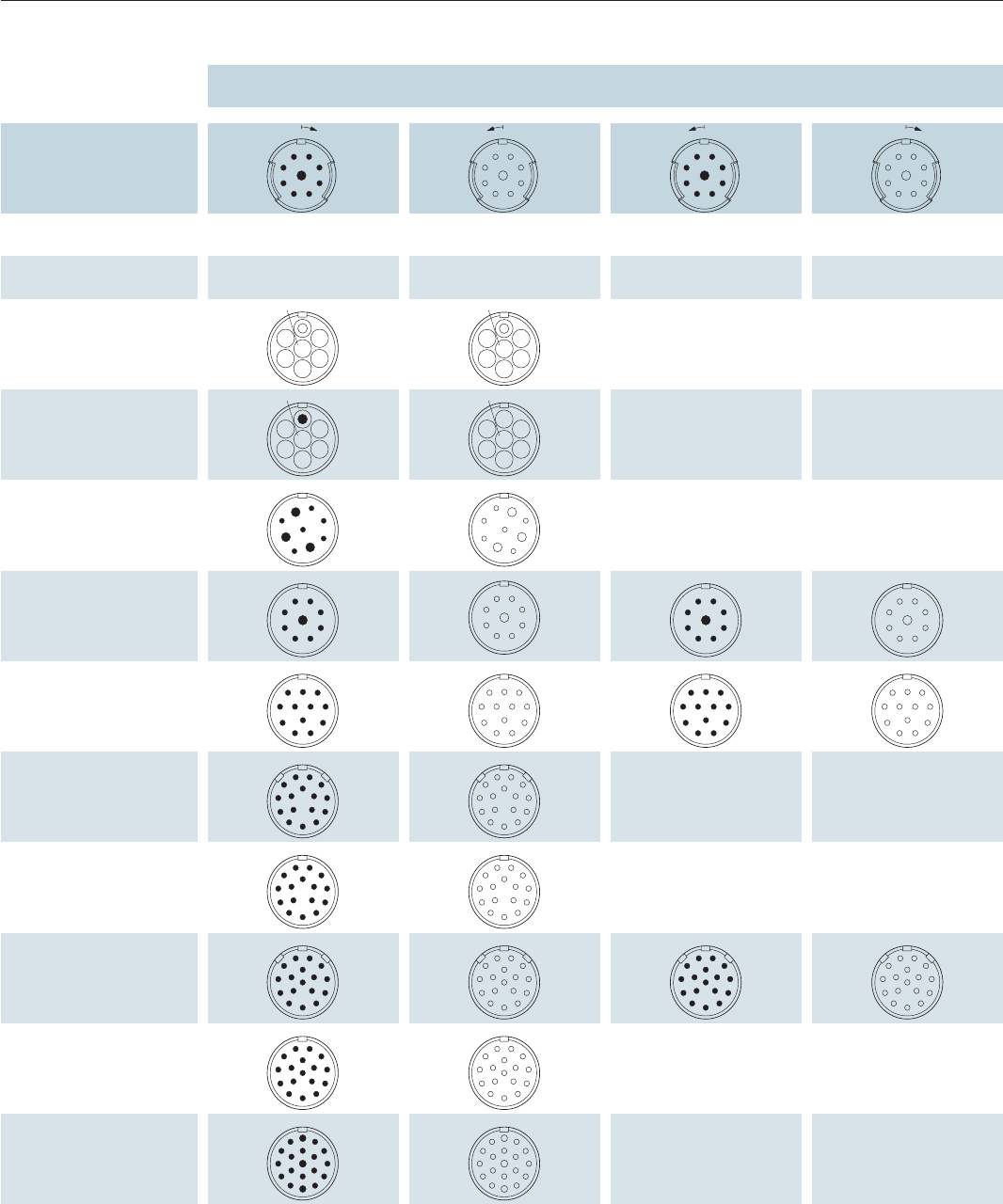

Number of positions 6 / 7 / 9 (6+3) / 9 (8+1) / 12 / 16 / 17 /
19 (16+3) / 19 (16+2+PE)
All housings can be equipped with a pin
or a socket
6 / 7 / 9 (6+3) / 9 (8+1) / 12 / 16 / 17 /
19 (16+3) / 19 (16+2+PE)
All housings can be equipped with a pin
or a socket
6 / 7 / 9 (6+3) / 9 (8+1) / 12 / 16 / 17 /
19 (16+3) / 19 (16+2+PE)
All housings can be equipped with a pin
or a socket
Contact connection Solder contacts: d 2.5 mm2 / AWG 14
Crimp contacts:
0,14 ... 2.5 mm2 / AWG 26-14
Screw contacts: d 1.0 mm2 / AWG 18
Solder-in contacts for appliance plug
connectors
Solder contacts: d 2.5 mm2 / AWG 14
Crimp contacts:
0,14 ... 2.5 mm2 / AWG 26-14
Screw contacts: d 1.0 mm2 / AWG 18
Solder contacts: d 2.5 mm2 / AWG 14
Crimp contacts:
0,14 ... 2.5 mm2 / AWG 26-14
Screw contacts: d 1.0 mm2 / AWG 18
Solder-in contacts for appliance plug
connectors
Surge voltage category
(reference: DIN EN 61984:2001)
II II II
Degree of protection (when locked) shielded IP67
unshielded IP65 - IP68
IP67 IP67
Pollution degree
(reference: DIN EN 61984:2001)
31) 31) 31)
Ordering information starting page 16 starting page 18 starting page 28
1)
The values specified require a correctly locked pair of connectors that are disconnected only for testing and maintenance. If an unlocked connector is
exposed to ambient conditions and if there is a danger of contamination, the connector should be sealed using an IP54 protective cap.
The PLUSCON circular product range from M16 to M58

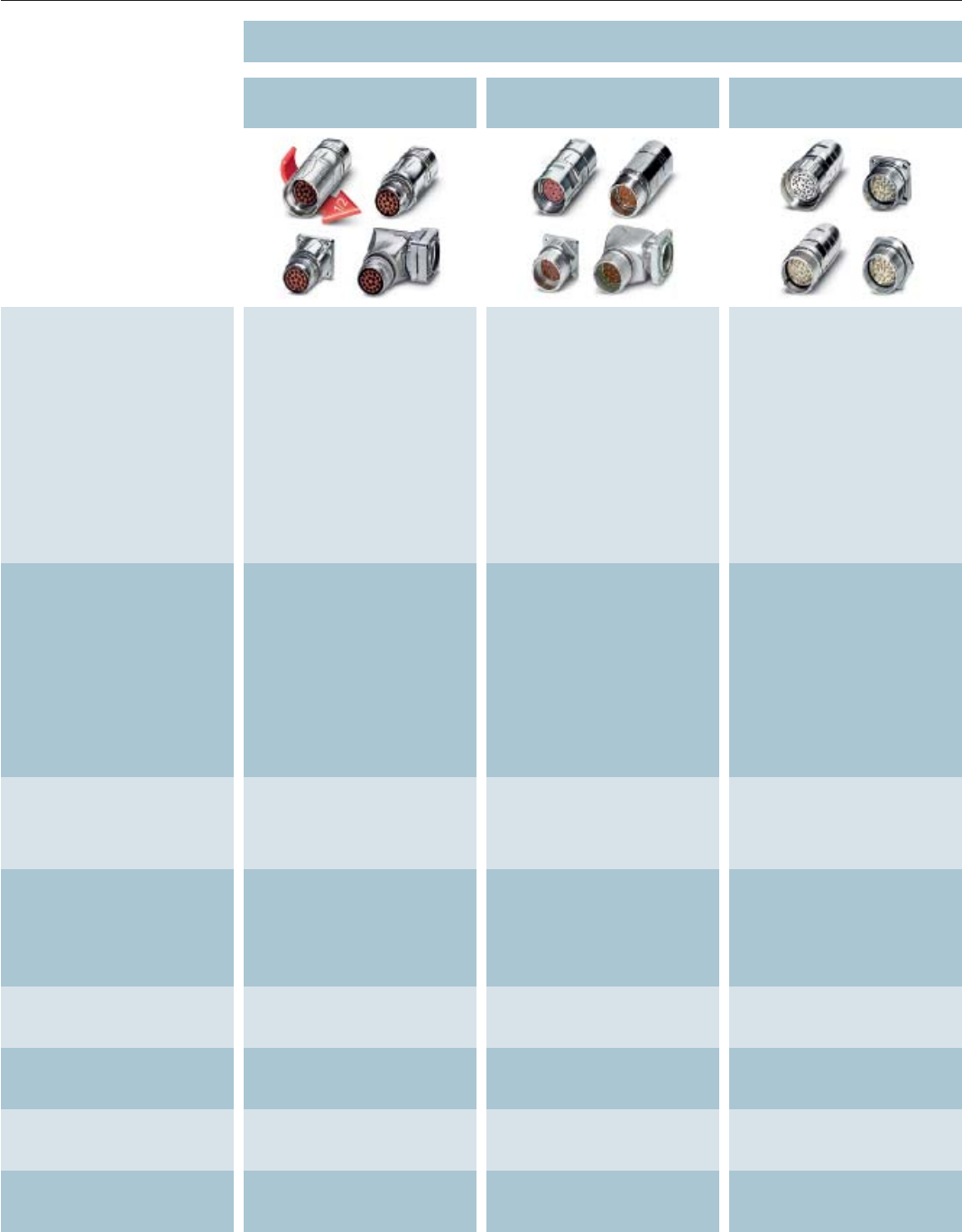

Product overview - Signal plug connectors
5PHOENIX CONTACT
Signal plug connectors - PLUSCON circular
M17 - ST series
shielded
M23 - RF series
shielded
M27 - HC series
with universal shielding
Description – Extremely compact connectors for
general industrial applications
– M17 quick locking SPEEDCON,
optionally M17 x 1 control thread
– Time-saving lateral contact clip-in
– Special tools not required
– Extremely quick shield connection
without splicing
– Cable Ø 3.5 ... 10 mm
– Universal industrial connectors
– M23 x 1 control thread (SPEEDCON
quick locking in preparation)
– Time-saving lateral contact clip-in
– Special tools not required
– Extremely quick shield connection
without splicing
– Cable Ø 3.0 ... 13.2 mm
– High-position signal plug connectors
– M27 x 1 screw locking
– Connectors are delivered with
solder, solder-in and crimp
connection
– Universal shield and cable clamping
– Cable Ø 2.0 ... 14.5 mm
Housing types – Cable plug connectors/coupling
connectors
– Appliance plug connectors for front
mounting: straight, angled fixed,
angled rotatable
– Compact flange dimensions: 21 mm x
21 mm / 25 mm x 25 mm,
– Connector Ø 21 mm
– Cable plug connectors/coupling
connectors
– Appliance plug connectors for front
mounting: straight, angled fixed,
angled rotatable
– Connector Ø 26 mm,
– Cable plug connectors and coupling
connectors as well as straight
appliance plug connectors also
available with stainless steel housings
(1.4305)
– Cable plug connectors/coupling
connectors
– Appliance plug connectors for front
and rear mounting
Number of positions 17
All housings can be equipped with a pin
or a socket
12 / 16 / 17
All housings can be equipped with a pin
or a socket
26 / 26 (25+PE) / 28
All housings can be equipped with a pin
or a socket

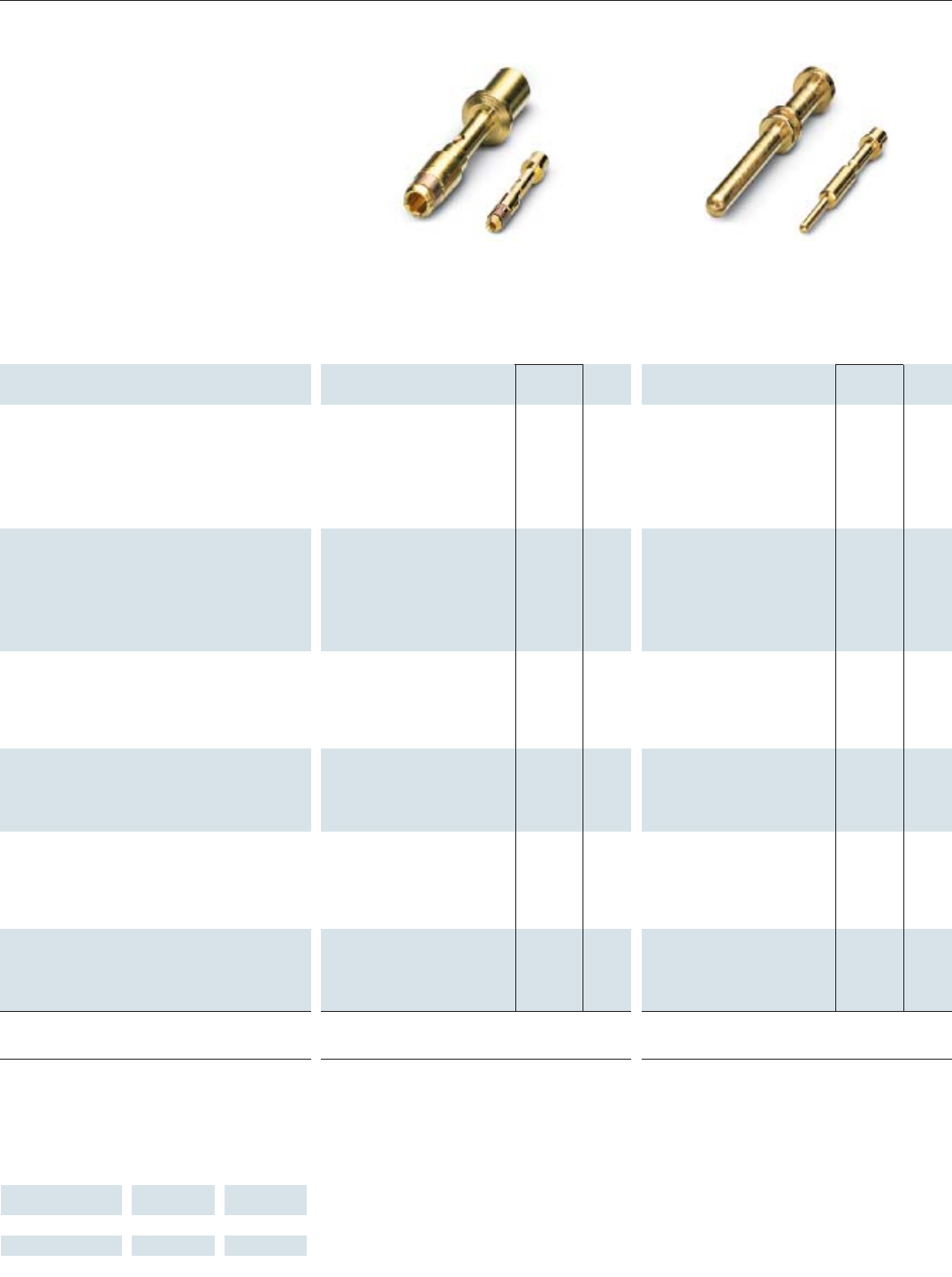

Contact connection Crimp contacts turned:
0.08 ... 0.5 mm2 / AWG 28-20
Crimp contacts turned:
0.08 ... 1.0 mm2 / AWG 28-18

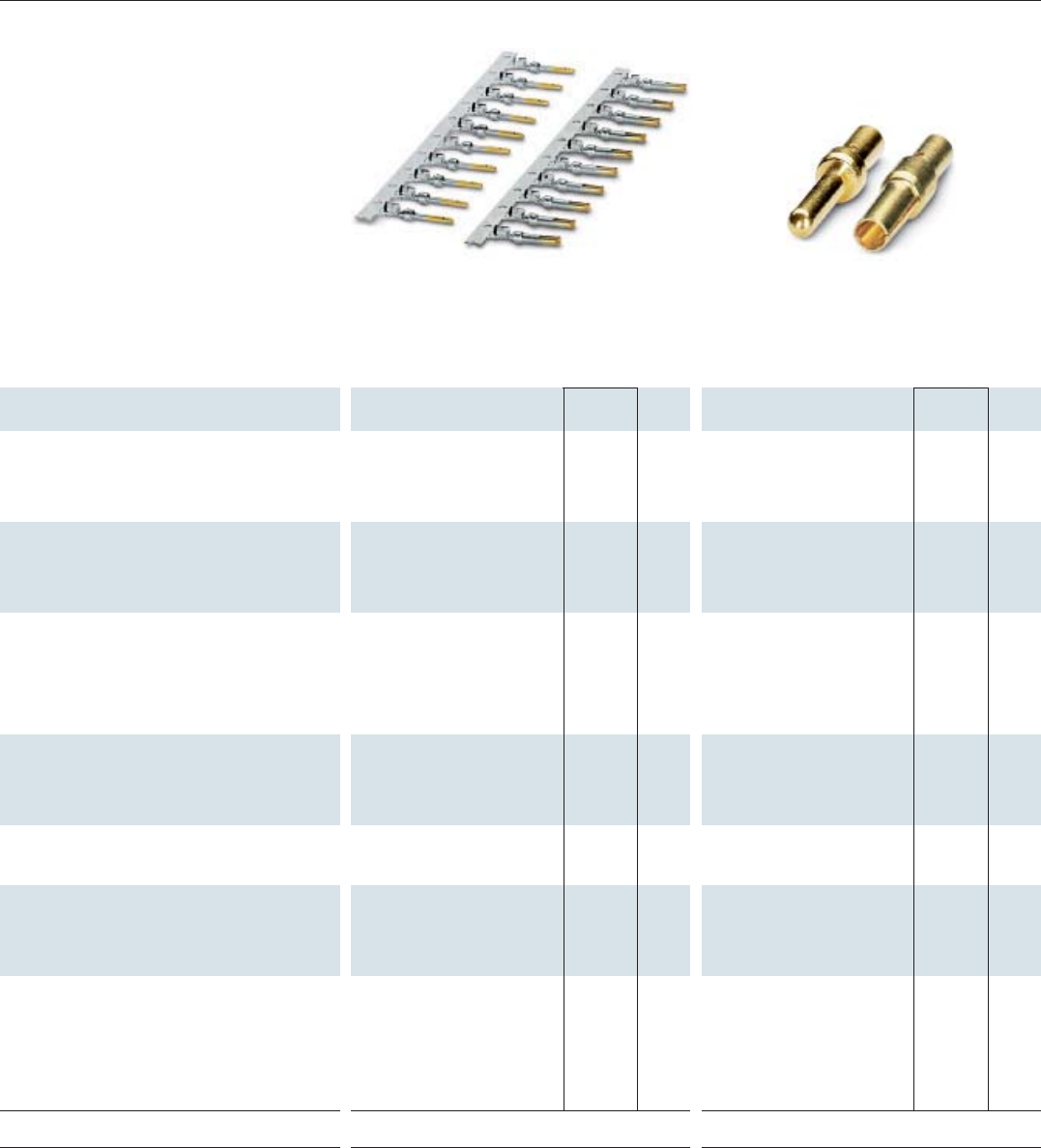

Crimp contacts punched (taped):
0.08 ... 0.56 mm2 / AWG 28-20
Crimp contacts:
0.08 ... 1.0 mm2 / AWG 28-18
Solder contacts: 1.0 mm2 / AWG 18
Surge voltage category
(reference: DIN EN 61984:2001)
III III II
Degree of protection (when locked) IP67 IP67 IP67
Pollution degree
(reference: DIN EN 61984:2001)
31) 31) 31)
Ordering information starting page 46 starting page 58 starting page 74
1)
The values specified require a correctly locked pair of connectors that are disconnected only for testing and maintenance. If an unlocked connector is
exposed to ambient conditions and if there is a danger of contamination, the connector should be sealed using an IP54 protective cap.
The PLUSCON circular product range from M16 to M58
Product overview - Power connectors
6PHOENIX CONTACT

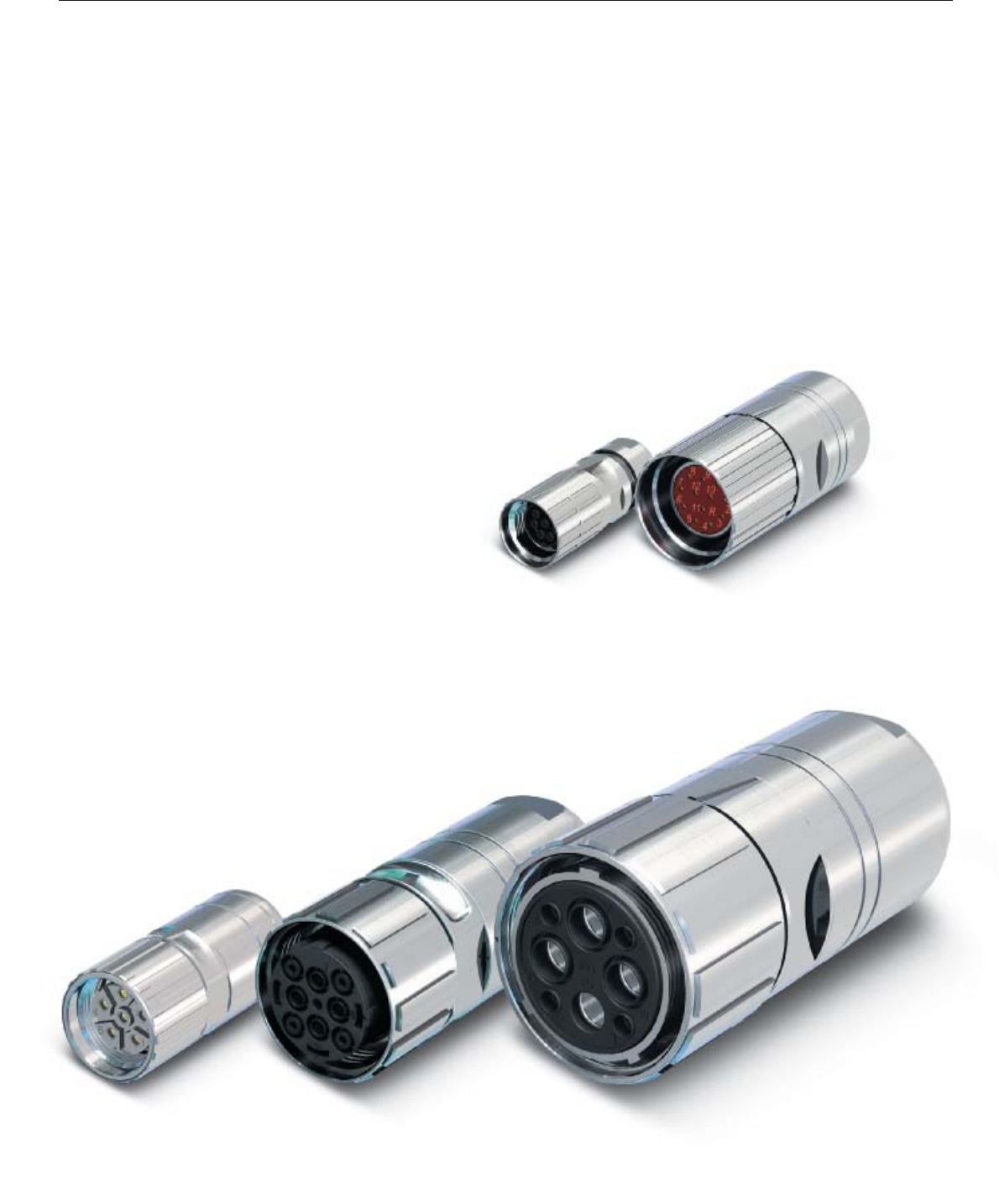

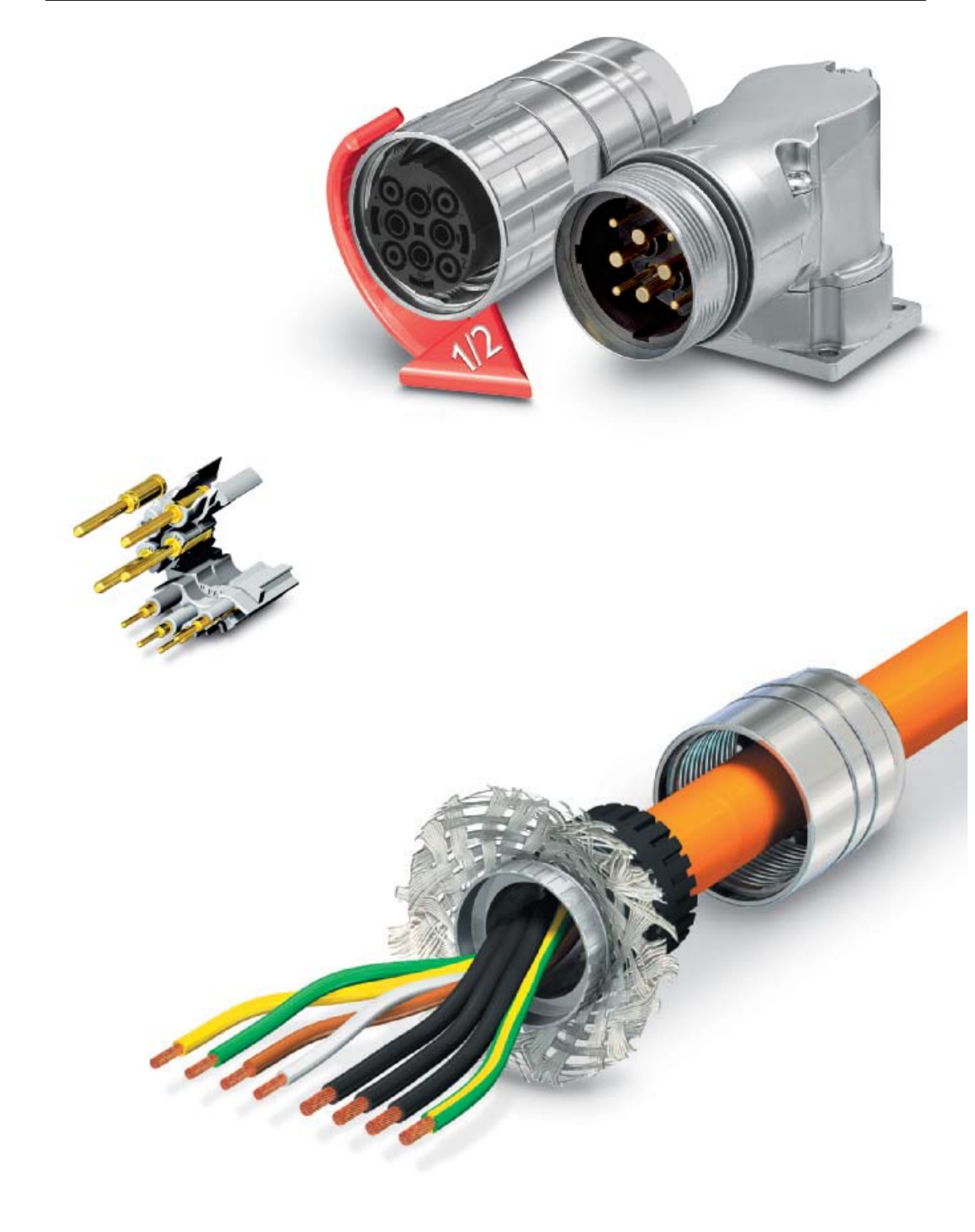

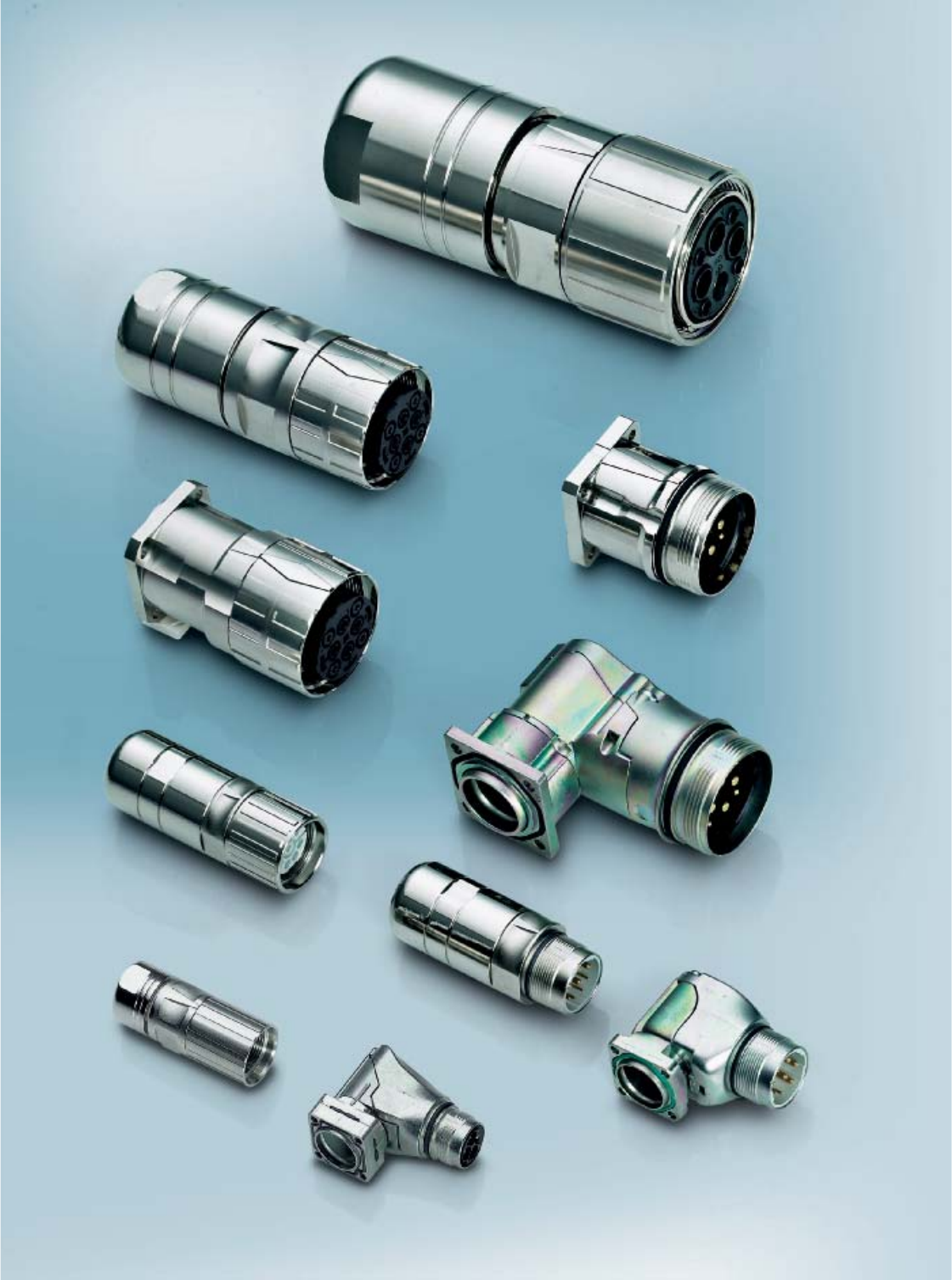

M17, M23, M40 and M58 type power
connectors are available. The range
offers ideal combinations for connecting
electrical drive components with
transmission capacities of up to 150 A
at 630 V in a short period of time.

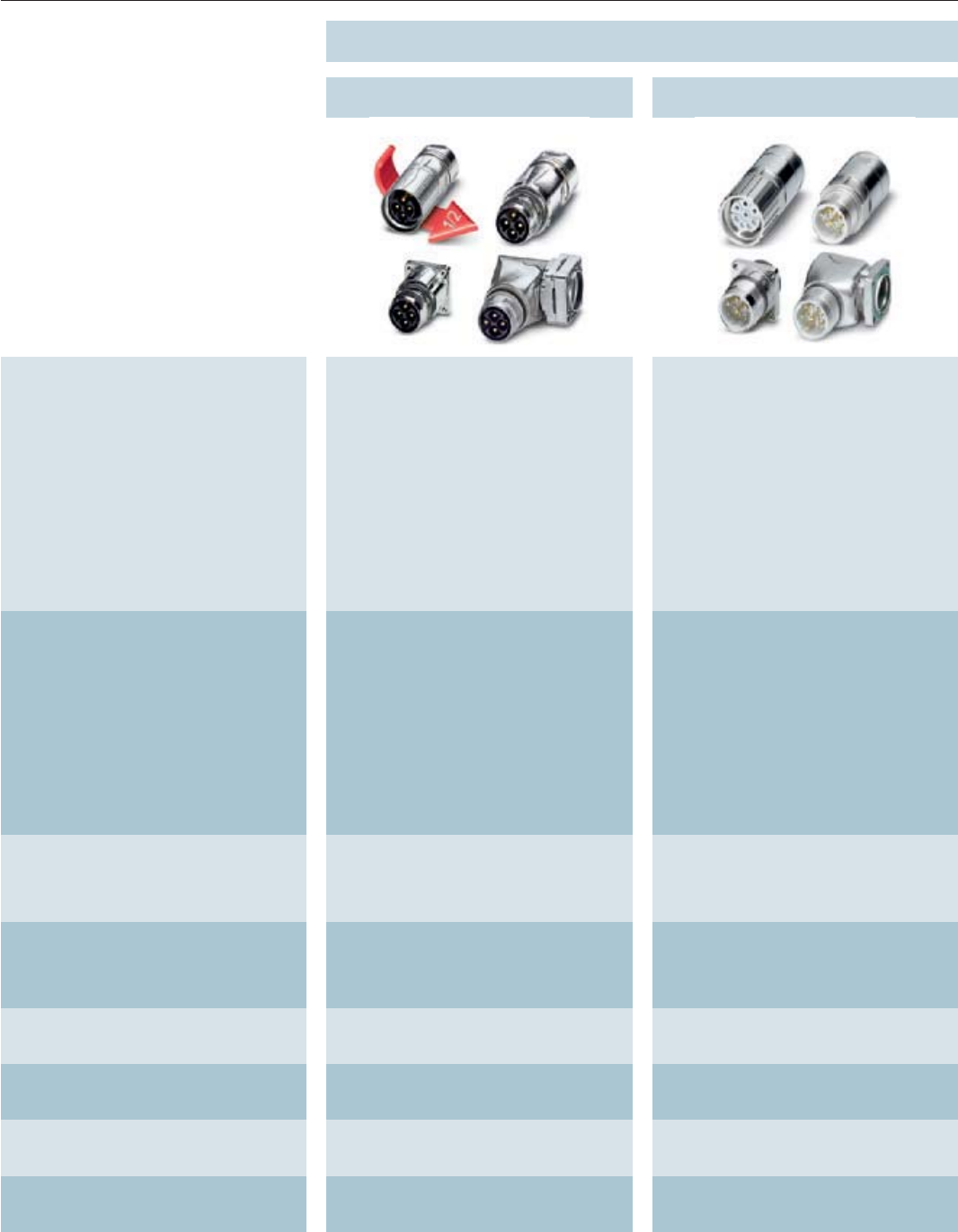

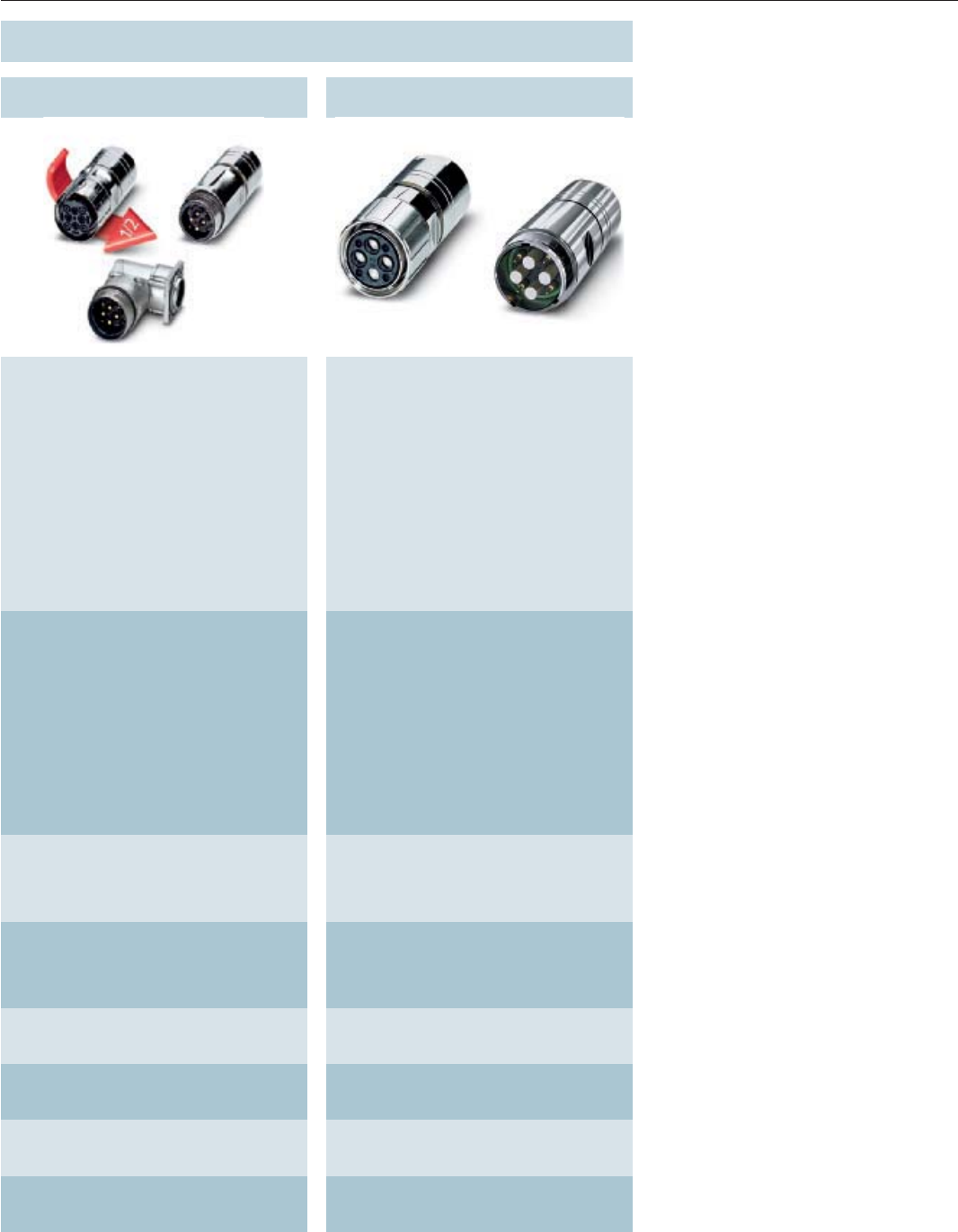

Power connectors - PLUSCON circular
M17 - P20 series M23 - P30 series
Description – Electrical capacities of up to 630 V can be
transmitted at 20 A
– Extremely compact connectors for general
industrial applications
– M17 quick locking SPEEDCON, optionally
M17 x 1 control thread
– Time-saving lateral contact clip-in
– Special tools not required
– Extremely quick shield connection without splicing
– Cable Ø 3.5 ... 10 mm
– Electrical capacities of up to 250/630 V can be
transmitted at 9/30 A
– Complete range of flexible machine and system
cabling
– M23 x 1 control thread (quick locking SPEEDCON
in preparation)
– Time-saving lateral contact clip-in
– Cable Ø 7.5 ... 18 mm
Housing types – Cable plug connectors/coupling connectors

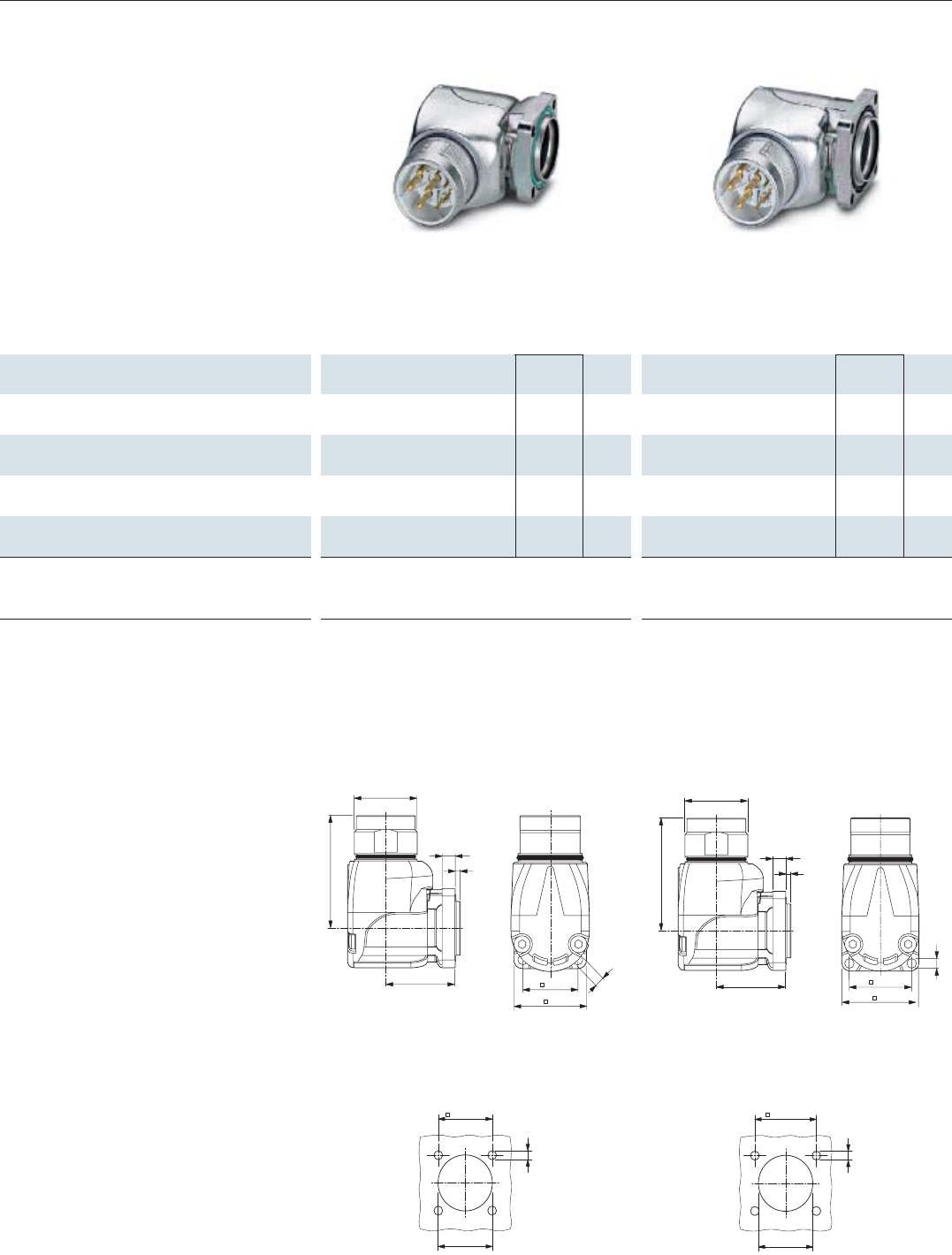

– Appliance plug connectors for front mounting:
straight, angled fixed, angled rotatable
– Compact flange dimensions: 21 mm x 21 mm /
25 mm x 25 mm
– Connector Ø 21 mm
– Cable plug connectors/coupling connectors
– Coupling connectors for mounting on the wall
– Panel feed-throughs
– Appliance plug connectors for front mounting:
straight, angled fixed, angled rotatable
Number of positions 4 (3+PE) / 6 (5+PE) / 7 (6+PE) / 8 (7+PE) / 9 (5+3+PE)
All housings can be equipped with a pin or a socket
6 (5+PE) / 8 (4+3+PE)
Contact connection Crimp contacts turned: 0.08 ... 2.5 mm2 / AWG 28-14
Crimp contacts punched (taped):
0.08 ... 0.56 mm2 / AWG 28-20
Crimp contacts turned: 0.08 ... 4.0 mm2 / AWG 28-12
Crimp contacts punched (taped):
0.08 ... 2.5 mm2 / AWG 28-14
Surge voltage category
(reference: DIN EN 61984:2001)
III III
Degree of protection (when locked) IP67 IP67
Pollution degree
(reference: DIN EN 61984:2001)
31) 31)
Ordering information starting page 90 starting page 102
1)
The values specified require a correctly locked pair of connectors that are disconnected only for testing and maintenance. If an unlocked
connector is exposed to ambient conditions and if there is a danger of contamination, the connector should be sealed using an IP54
protective cap.
The PLUSCON circular product range from M16 to M58
Product overview - Power connectors
7PHOENIX CONTACT
Power connectors - PLUSCON circular
M40 - P70 series M58 - P150 series
– Electrical capacities of up to 250/630 V can be
transmitted at 30/70 A
– Complete range of flexible machine and system
cabling
– M40 x 1.5 control thread, M40 fast locking
SPEEDCON
– Time-saving lateral contact clip-in
– Cable Ø 9.0 ... 26.5 mm
– Electrical capacities of up to 250/630 V can be
transmitted at 12/150 A
– M58 x 2 control thread
– Time-saving lateral contact clip-in
– Extremely fast shield connection
– Cable 17.0 ... 36.0 mm
– Cable plug connectors/coupling connectors
– Coupling connectors for mounting on the wall
– Panel feed-throughs
– Appliance plug connectors for front mounting:
straight, angled fixed, angled rotatable
– Cable plug connectors
–Coupling connectors
–Panel feed-throughs
– Appliance plug connectors for front mounting:
straight
6 (2+3+PE) / 8 (4+3+PE) 6 (2+3+PE) / 8 (4+3+PE)
Crimp contacts turned: 0.14 ... 10 mm2 / AWG 26-8 Crimp contacts turned: 0.75 ... 50 mm2 / AWG 18-1
III III
IP67 IP67
33
starting page 118 starting page 134
The PLUSCON circular product range from M16 to M58
Product overview - Signal and power connectors, plastic-molded
8PHOENIX CONTACT

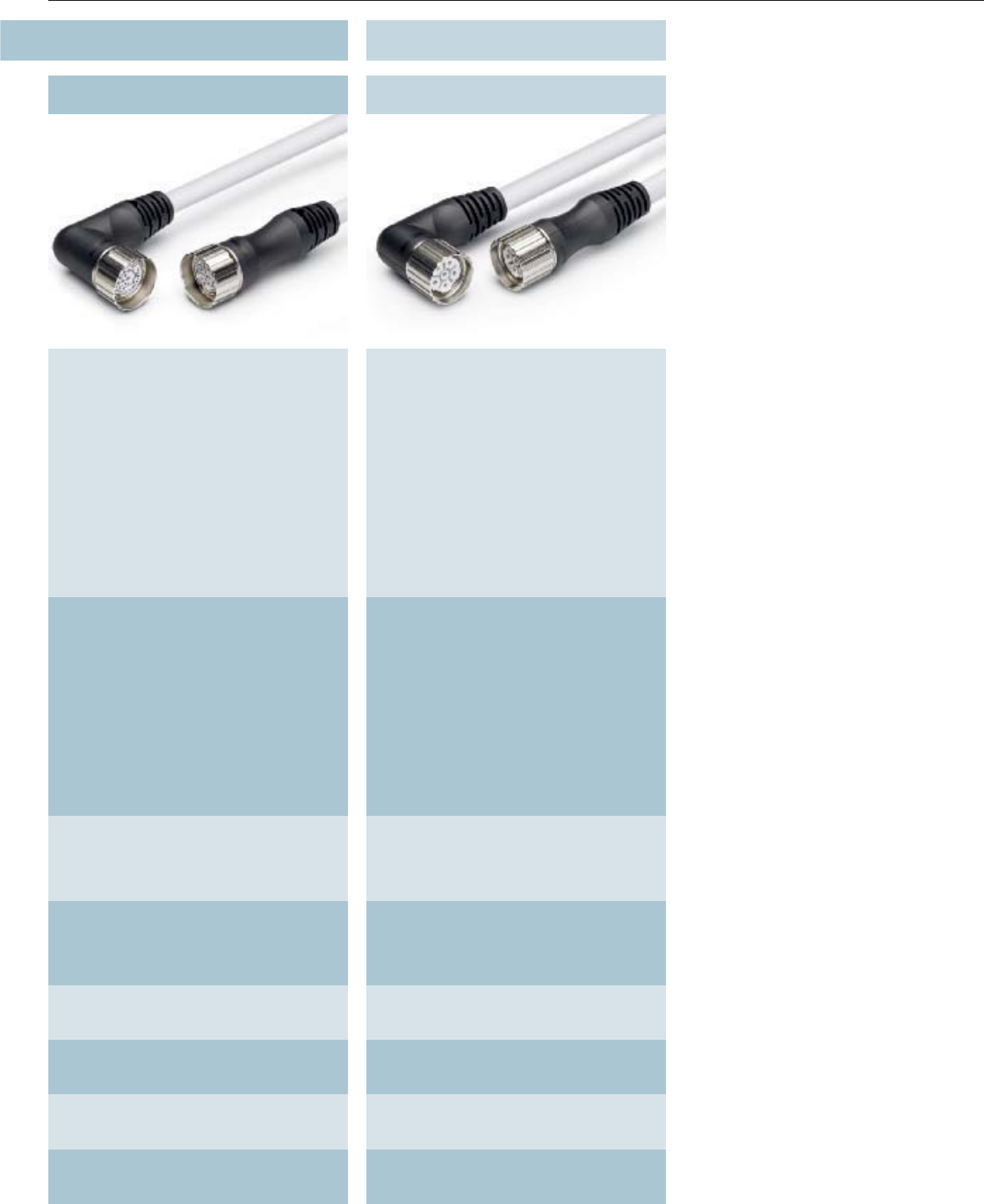

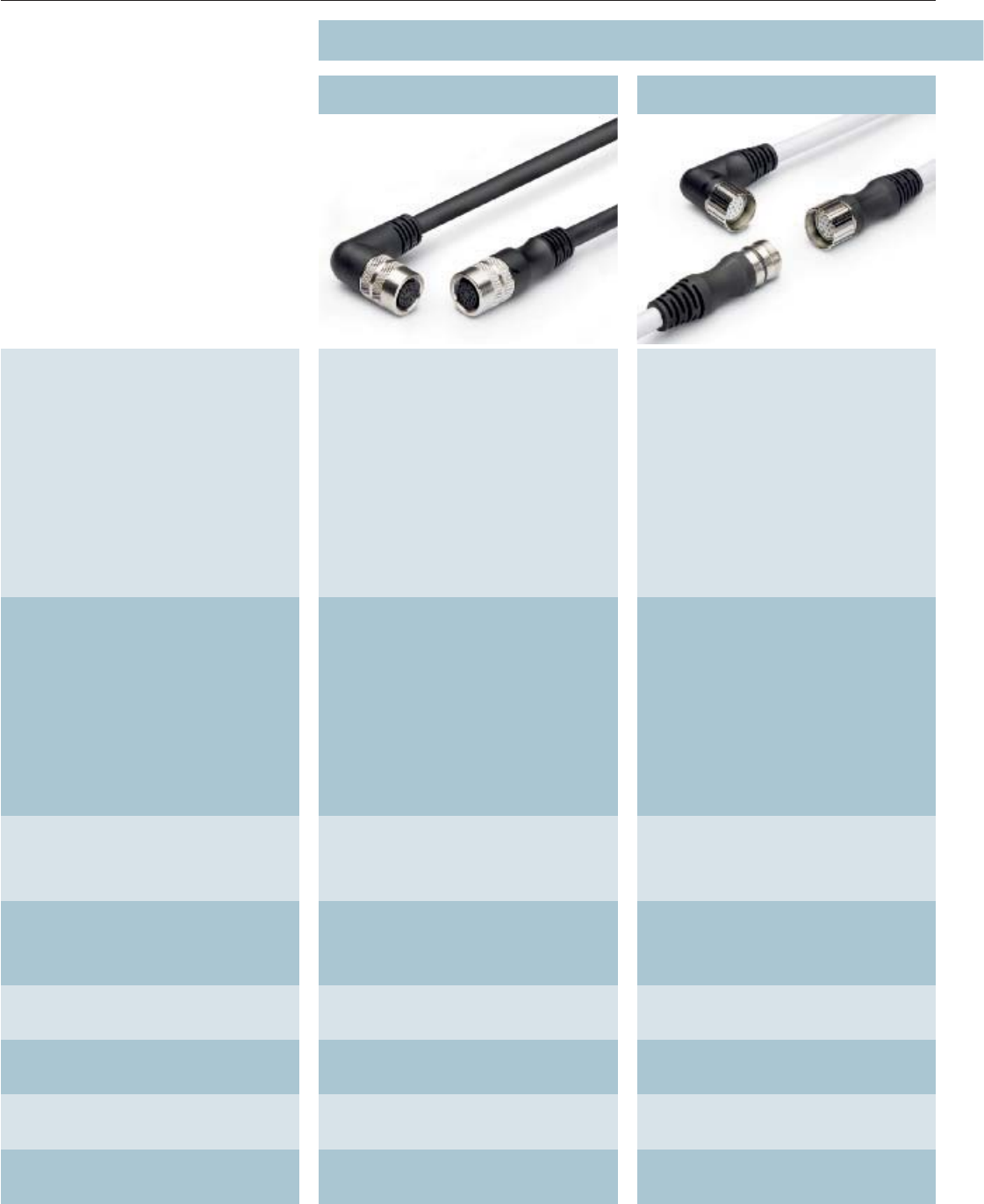

Plastic molded connectors in the M16,
M23 and M27 types are available for signal
and power transmission. Plastic molded
connectors are manufactured on request
due to the variety of conductor types that
can be used.
Signal plug connectors
M16 - KPV series M23 - KRC series
Description – Standard cable assemblies and conductor lengths
(5 m / 10 m)
– Rugged PUR molding
– M16 x 0.75 screw locking
– The connectors are delivered with ready-to-use
connecting cables, e.g. as a central plug-in
connection for distributor systems
– Cable assemblies and conductor lengths
as per customer specifications
Cable Ø approx. 4.8 ... 13.1 mm
– PUR molding on one or both ends
– M23 x 1 screw locking
– With or without EMC protection
– The connectors are delivered with ready-to-use
connecting cable
Housing types – Cable socket (female) straight,
– Cable socket (female) angled,
– Cable connector (male) straight,
– Cable connector (male) angled,
– Suitable appliance plug connector,
solder/solder-in connection PV series.
– Cable plug connectors/coupling connectors
– Cable plug connectors/coupling connectors,
angled
– Compatible with the RC series appliance plug
connectors
Number of positions 8 / 10 / 12 / 14 6 / 7 / 9 (6+3) / 9 (8+1) / 12 / 12 (11+PE) / 16 / 17 /
19 (16+3) / 19 (16+2+PE), All housings can be
equipped with a pin or a socket
Contact connection 0.34 mm2 / 0.75 mm2 / AWG 22-18 for standard cable
assembly
Solder or crimp
Surge voltage category
(reference: DIN EN 61984:2001)
II II
Degree of protection (when locked) IP67 IP67
Pollution degree
(reference: DIN EN 61984:2001)
31) 31)
Ordering information Customer-specific after consulting technicians Customer-specific after consulting technicians
1)
The values specified require a correctly locked pair of connectors that are disconnected only for testing and maintenance. If an unlocked
connector is exposed to ambient conditions and if there is a danger of contamination, the connector should be sealed using an IP54
protective cap.
The PLUSCON circular product range from M16 to M58
Product overview - Signal and power connectors, plastic-molded
9PHOENIX CONTACT
Power connectors
M27 - KHC series M23 - KSC series
– Cable assemblies and conductor lengths as
per customer specifications
Cable Ø approx. 4.8 ... 13.1 mm
– PUR molding on one or both ends
– M27 x 1 screw locking
– With or without EMC protection
– The connectors are delivered with ready-to-use
connecting cable
– Cable assemblies and conductor lengths as
per customer specifications
Cable Ø approx. 4.8 ... 13.1 mm
– PUR molding on one or both ends
– M23 x 1 screw locking
– The connectors are delivered with ready-to-use
connecting cable
– Cable plug connectors/coupling connectors
– Cable plug connectors, angled
– Suitable HC series appliance plug connectors
– Cable plug connectors/coupling connectors
– Cable plug connectors/coupling connectors,
angled
26 / 26 (25+PE) / 28 All housings can be equipped
with a pin or a socket
6 (5+PE) / 8 (4+3+PE)
Solder or crimp Crimp contacts:
0.08 ... 2.5 mm2 / AWG 28-14
II II
IP67 IP67
31) 31)
Customer-specific after consulting technicians Customer-specific after consulting technicians
10 PHOENIX CONTACT
11 PHOENIX CONTACT
The modular signal plug connectors are
suitable for industrial applications and have
an M23 locking thread. The TU series with
bayonet locking is offered as a version with
quick locking.
The modular circular signal connectors are
available with crimp, screw, solder and solder-
in connection for direct PCB mounting.
The UC series signal plug connectors, also
with M23 locking, have an extended cable
entry range and universal EMC shield
connection.
The TU series signal plug connectors are
based on the UC connectors, but have a
bayonet quick locking system.
The individual plug connector is put
together from a limited number of articles
using three components:

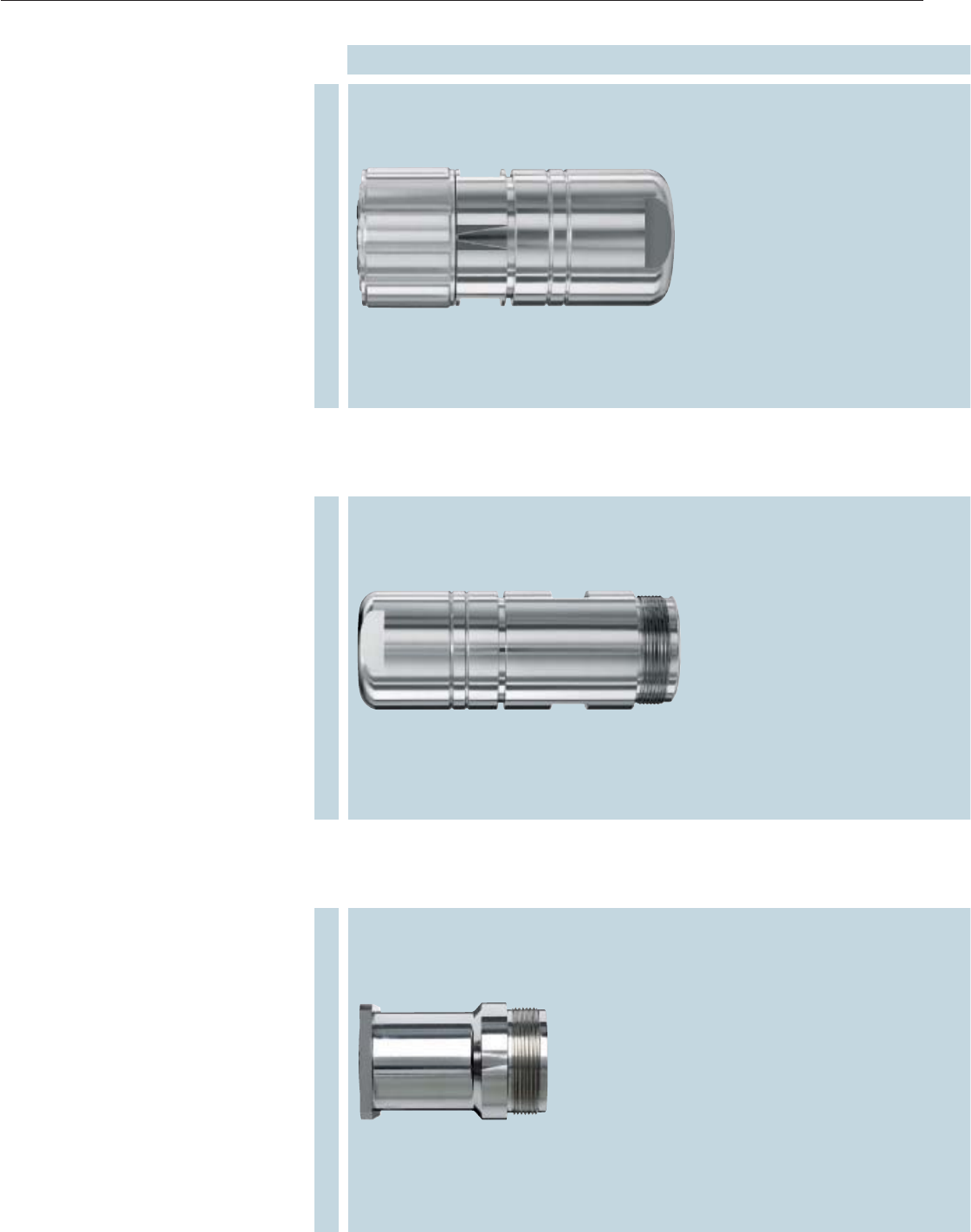

–Housing

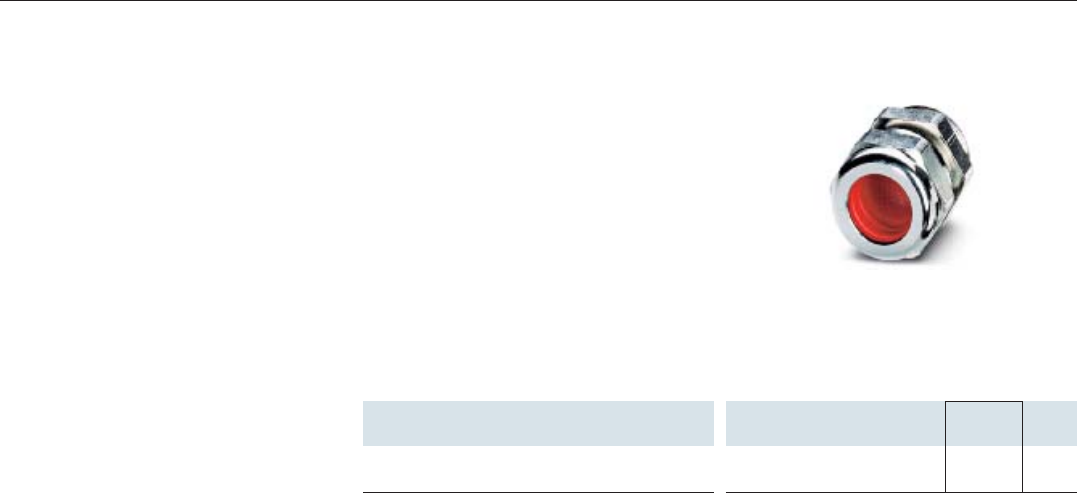

– Cable gland, including the seal, the strain
relief and the optional shield connection

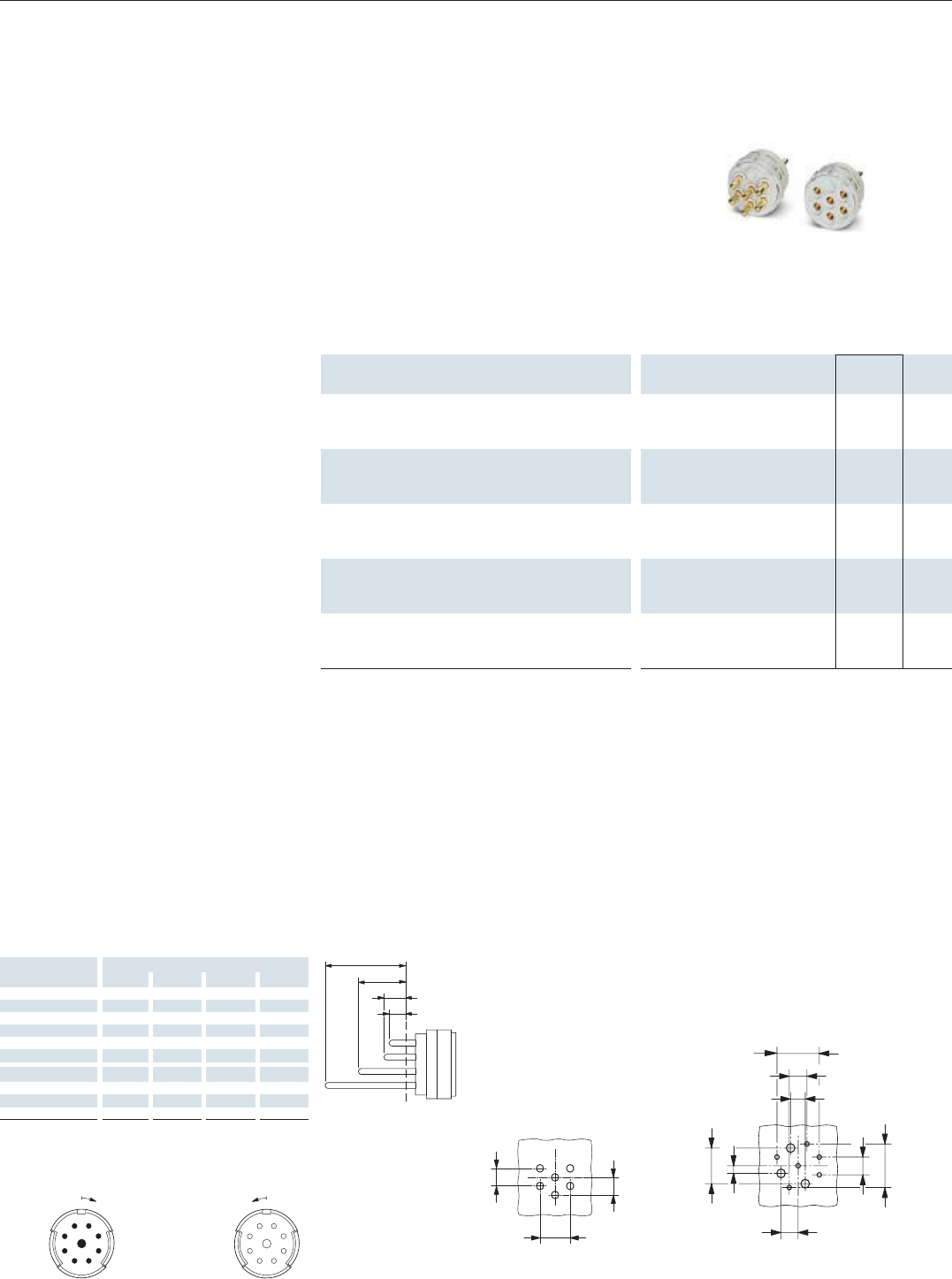

– Contact insert, including the contact
carrier and the contacts
The modular signal plug connectors are
delivered as individual components. All
housings can be equipped with male or
female contacts.
Modular signal plug connectors – PLUSCON circular
Table of contents
Mechanical and electrical data of the RC, UC and TU series 12
M23 - RC and UC series
Selection guide 14

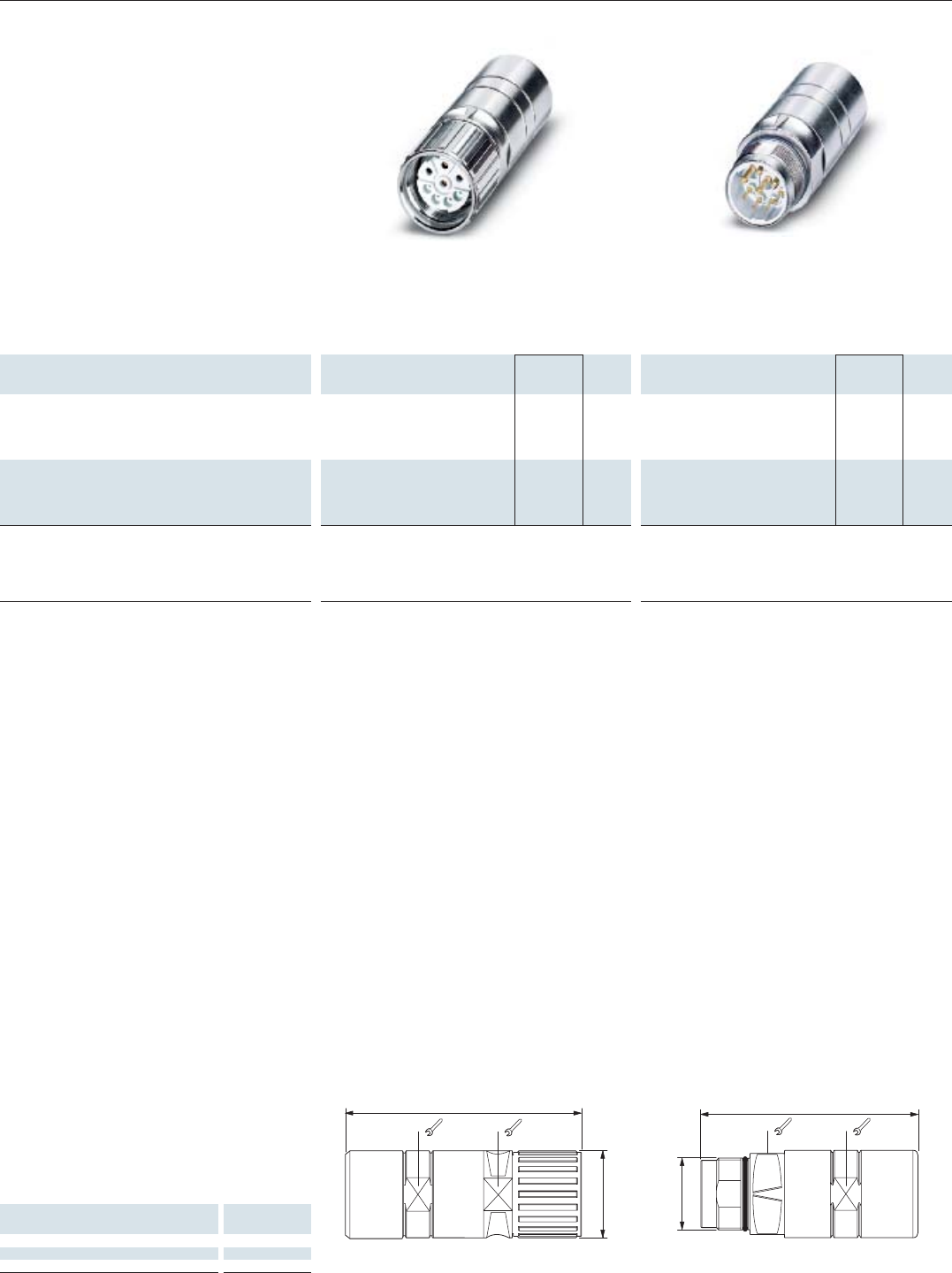

Cable plug connector and coupling connector housing 16

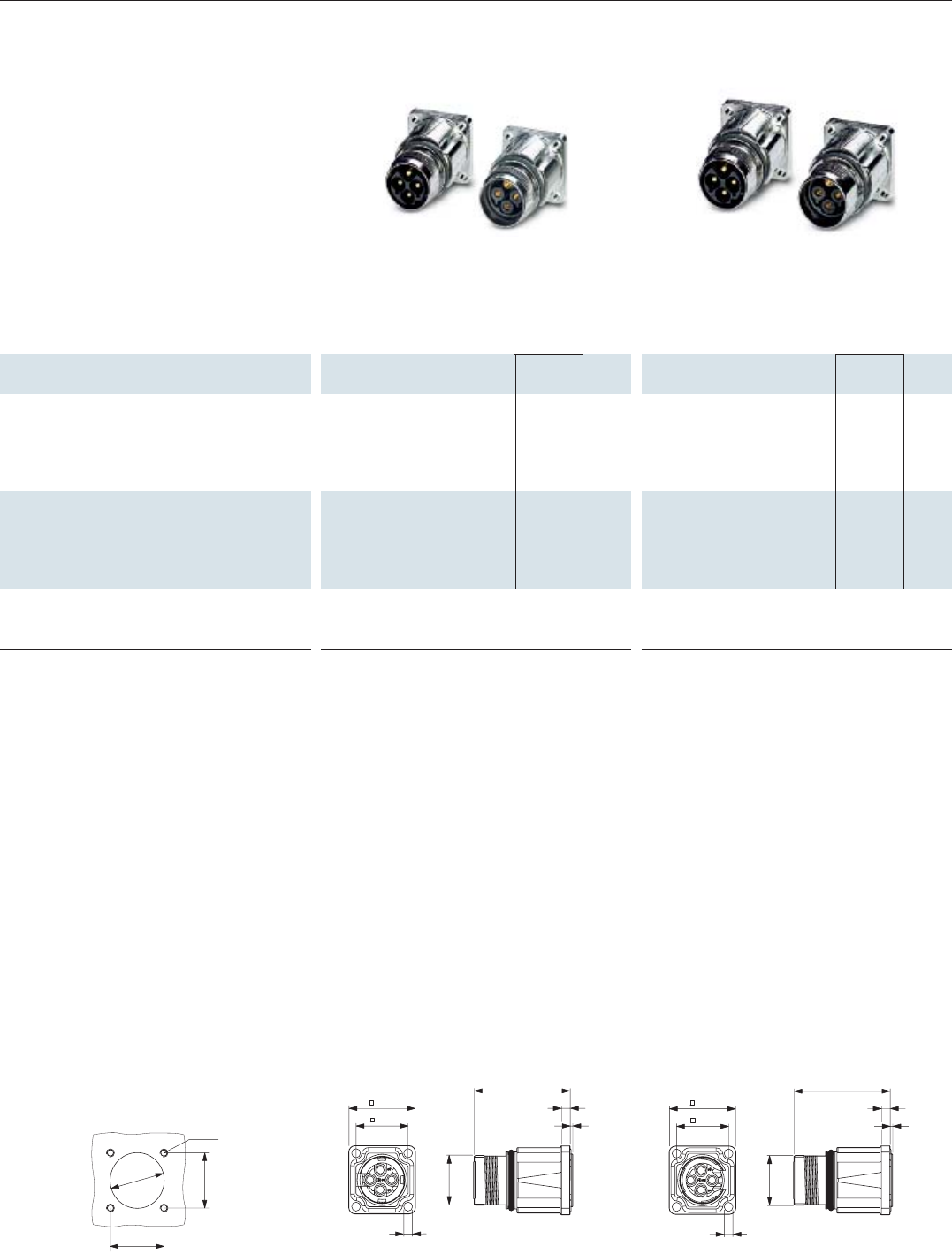

Appliance plug connector housing, front mounting 20

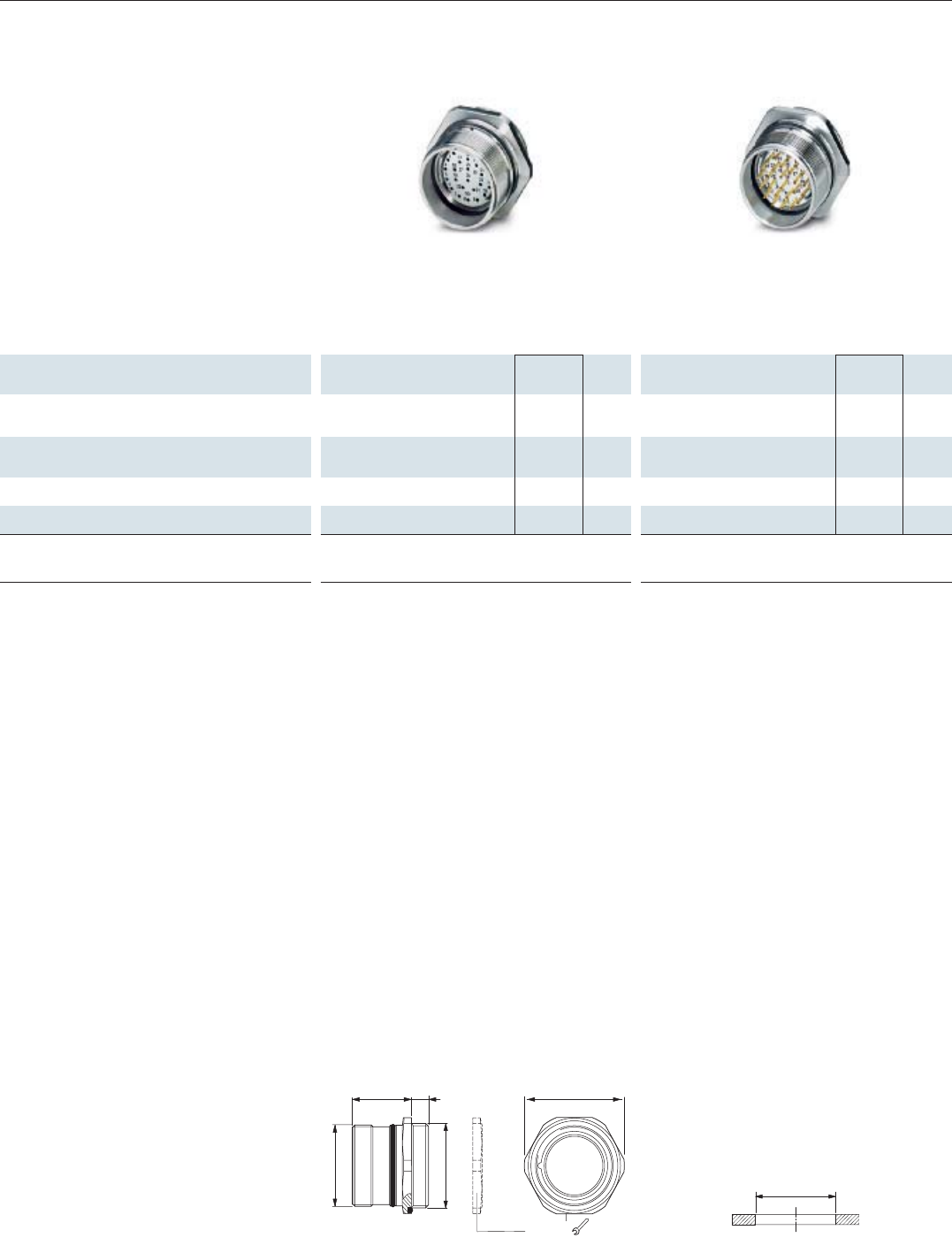

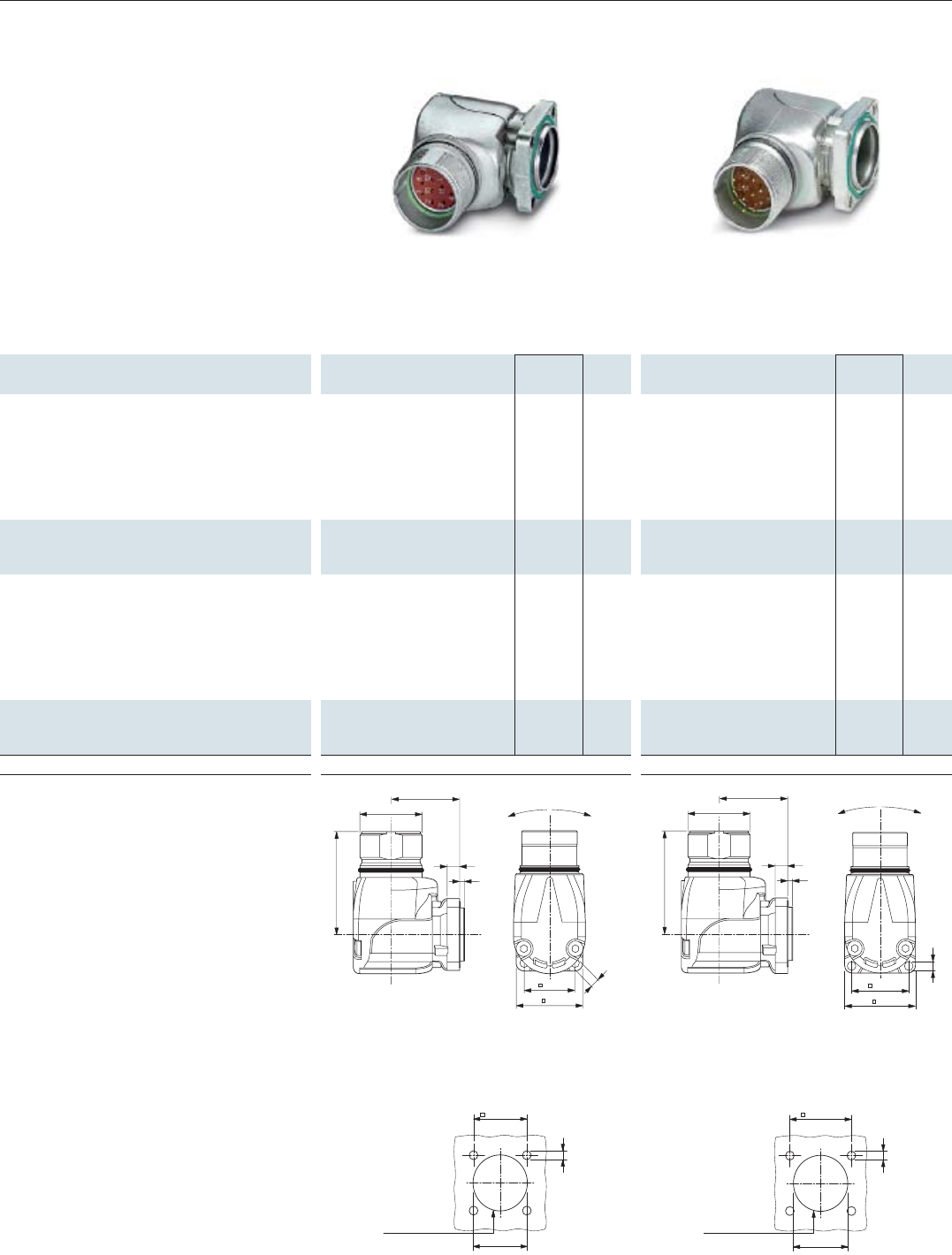

Appliance plug connector housing, rear mounting 22

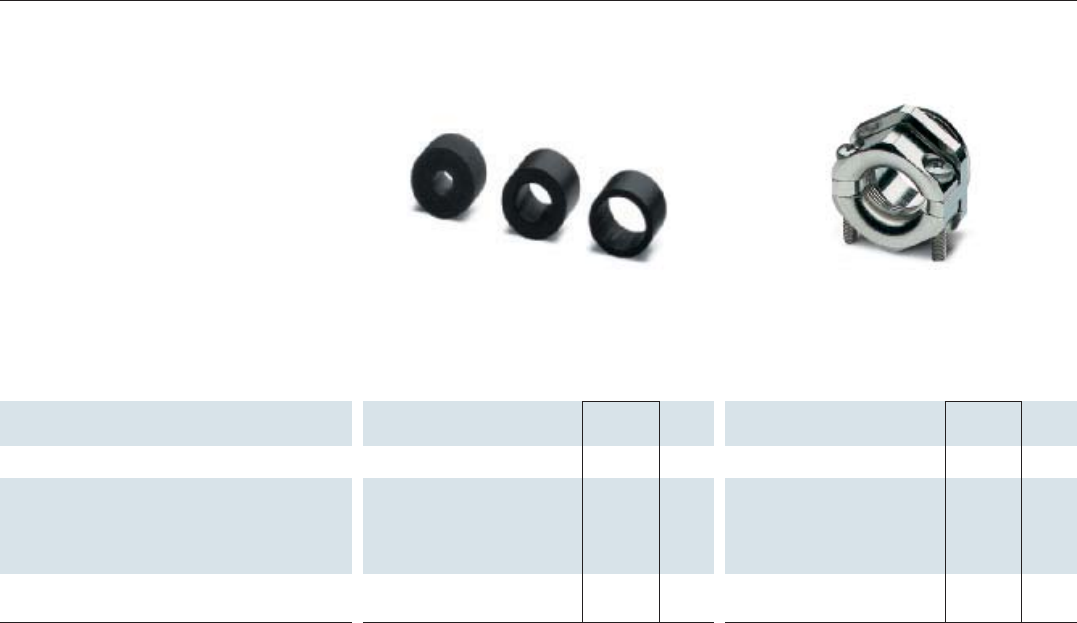

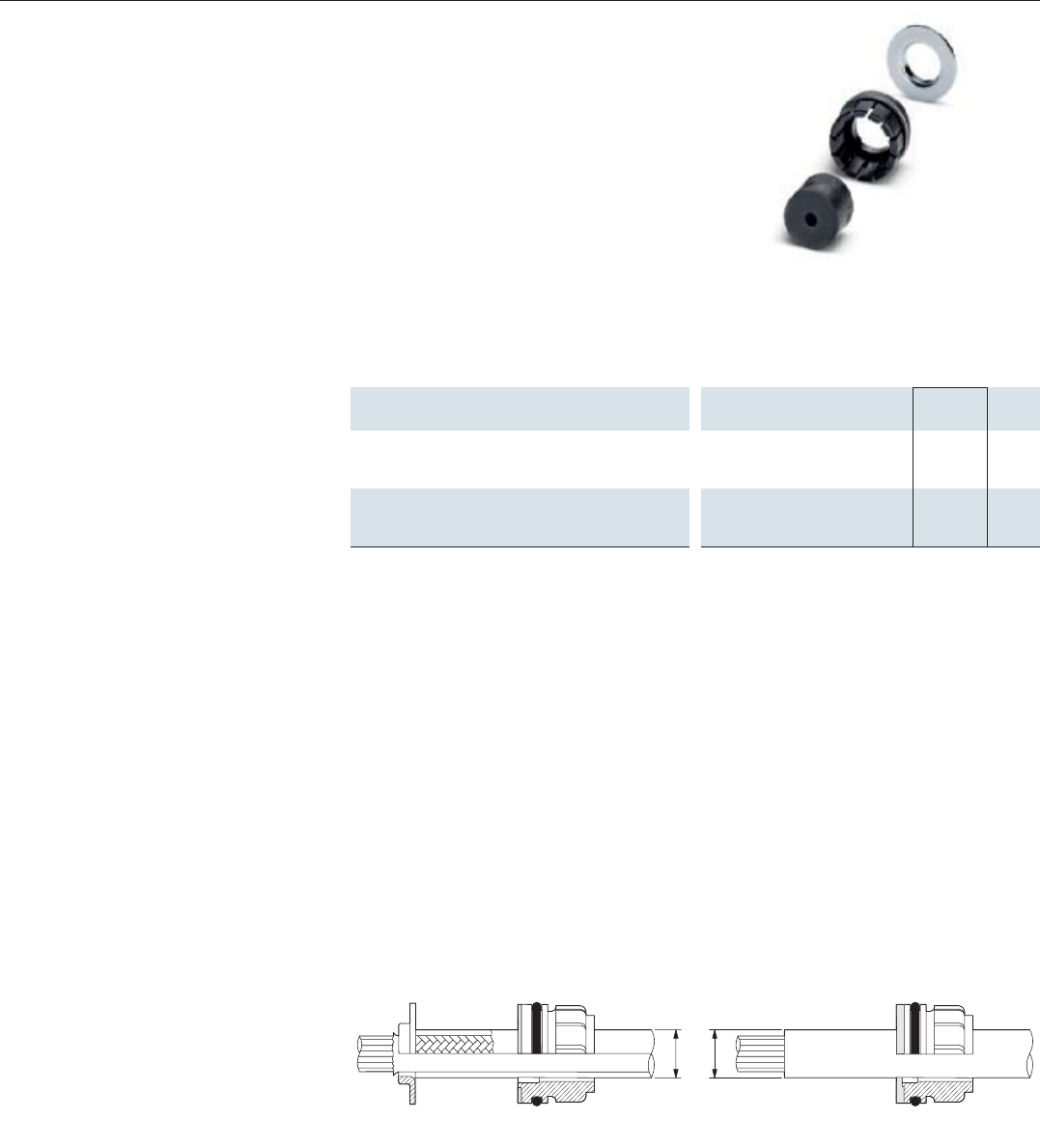

Shield accessories 23
Bayonet - TU series
Selection guide 26

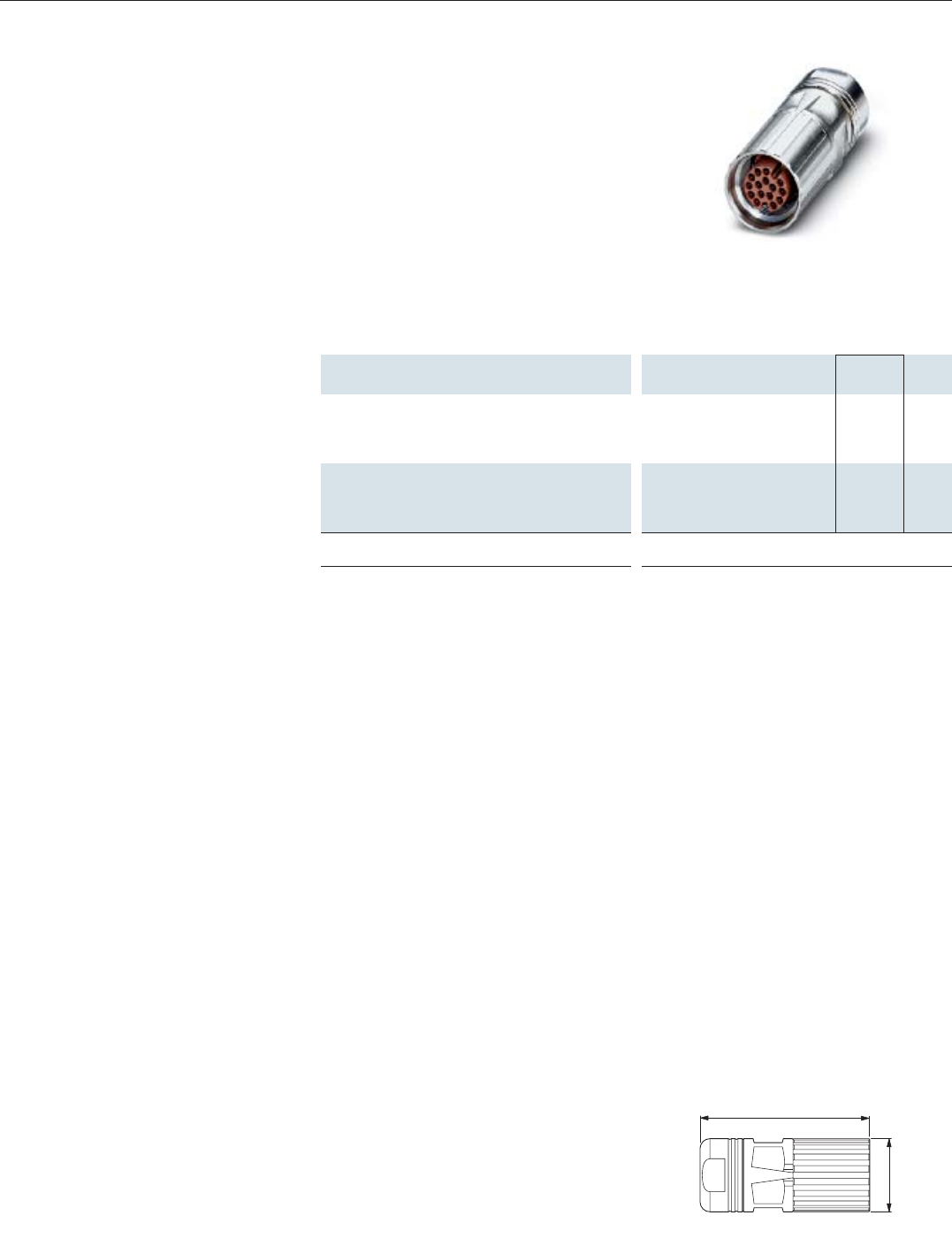

Cable plug connector and coupling connector housing 28
Appliance plug connector housing, front and rear mounting 29

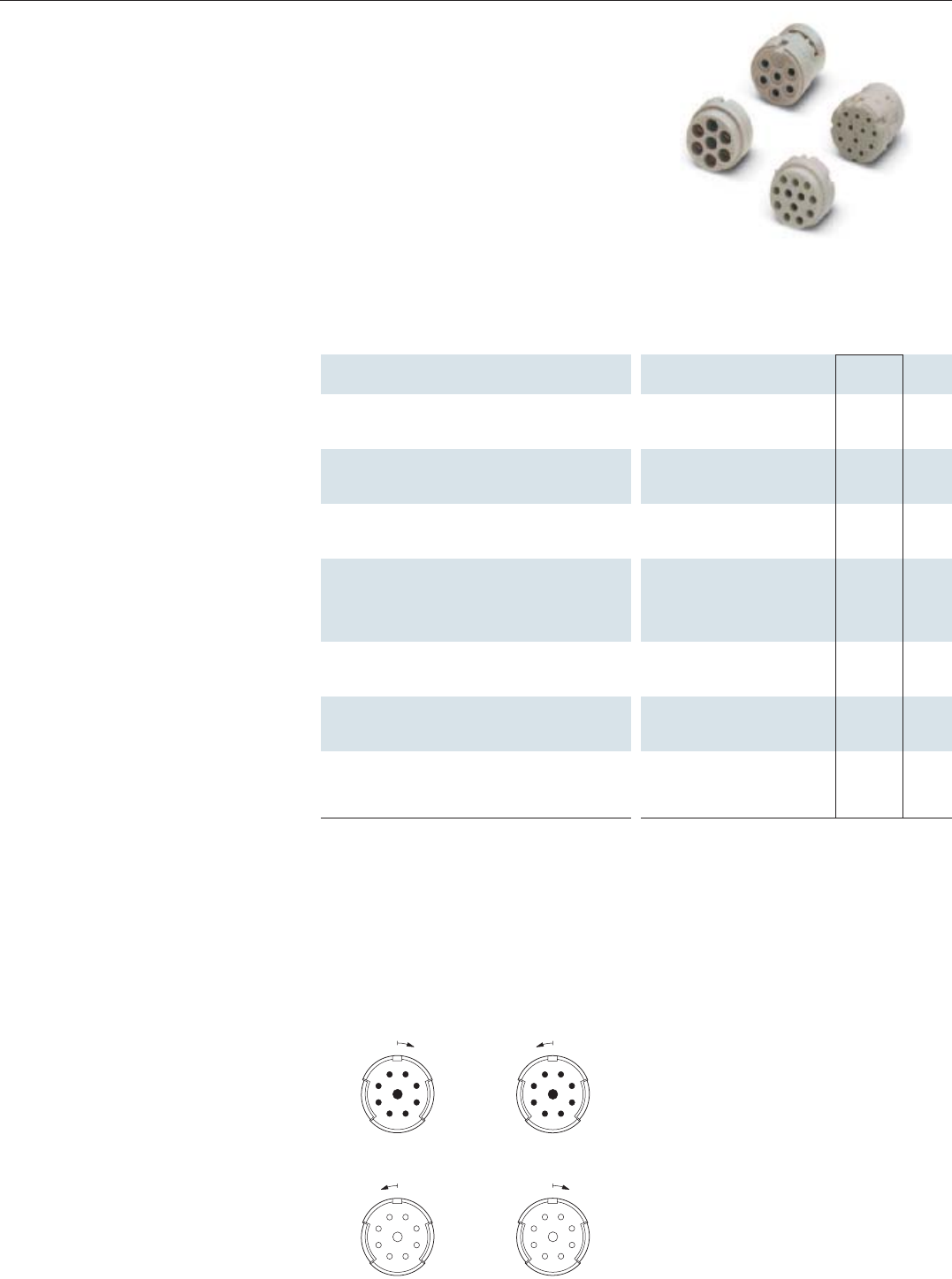

Contact inserts - RC, UC and TU series
Contact inserts with solder, screw and crimp contacts 32

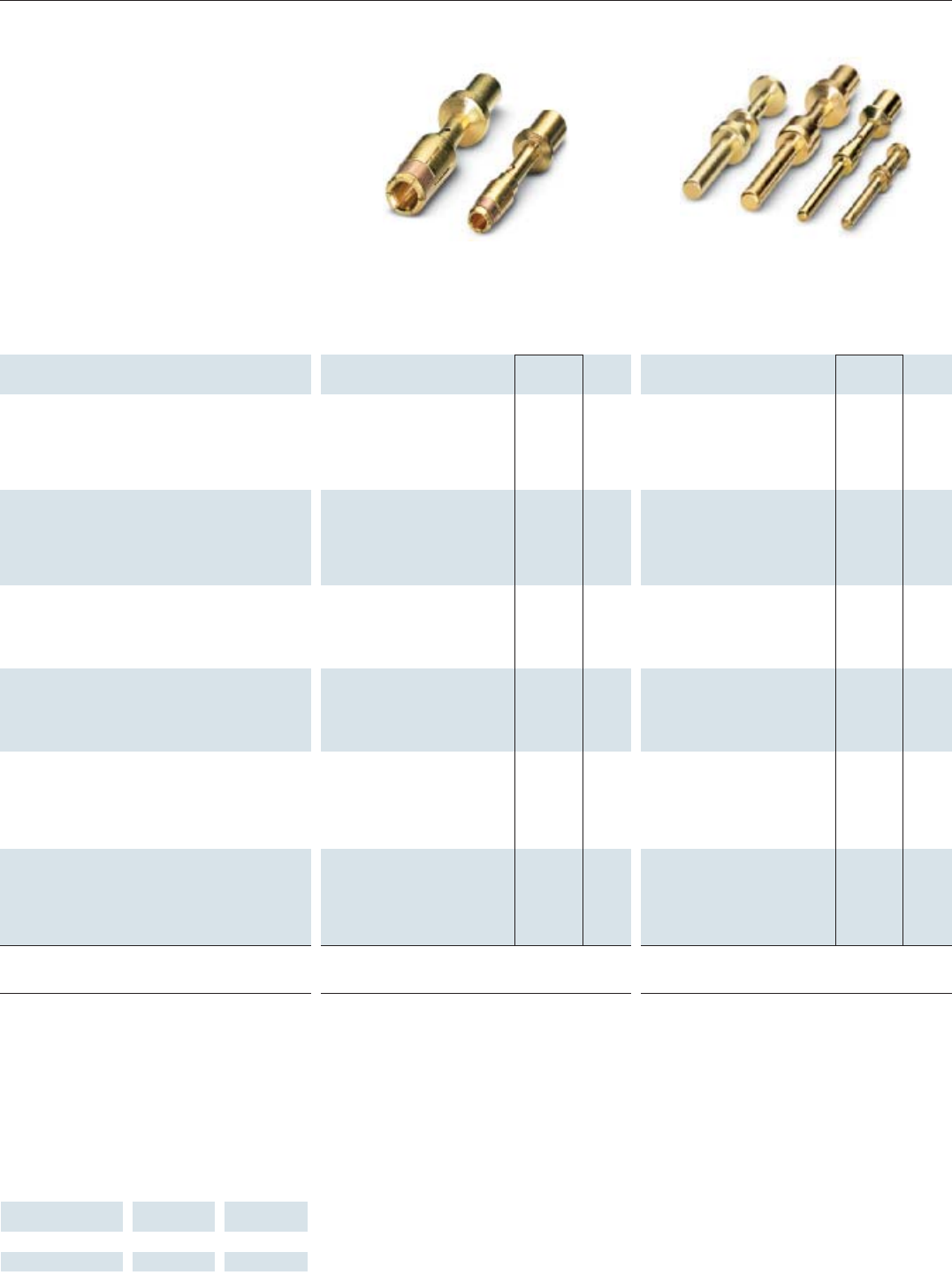

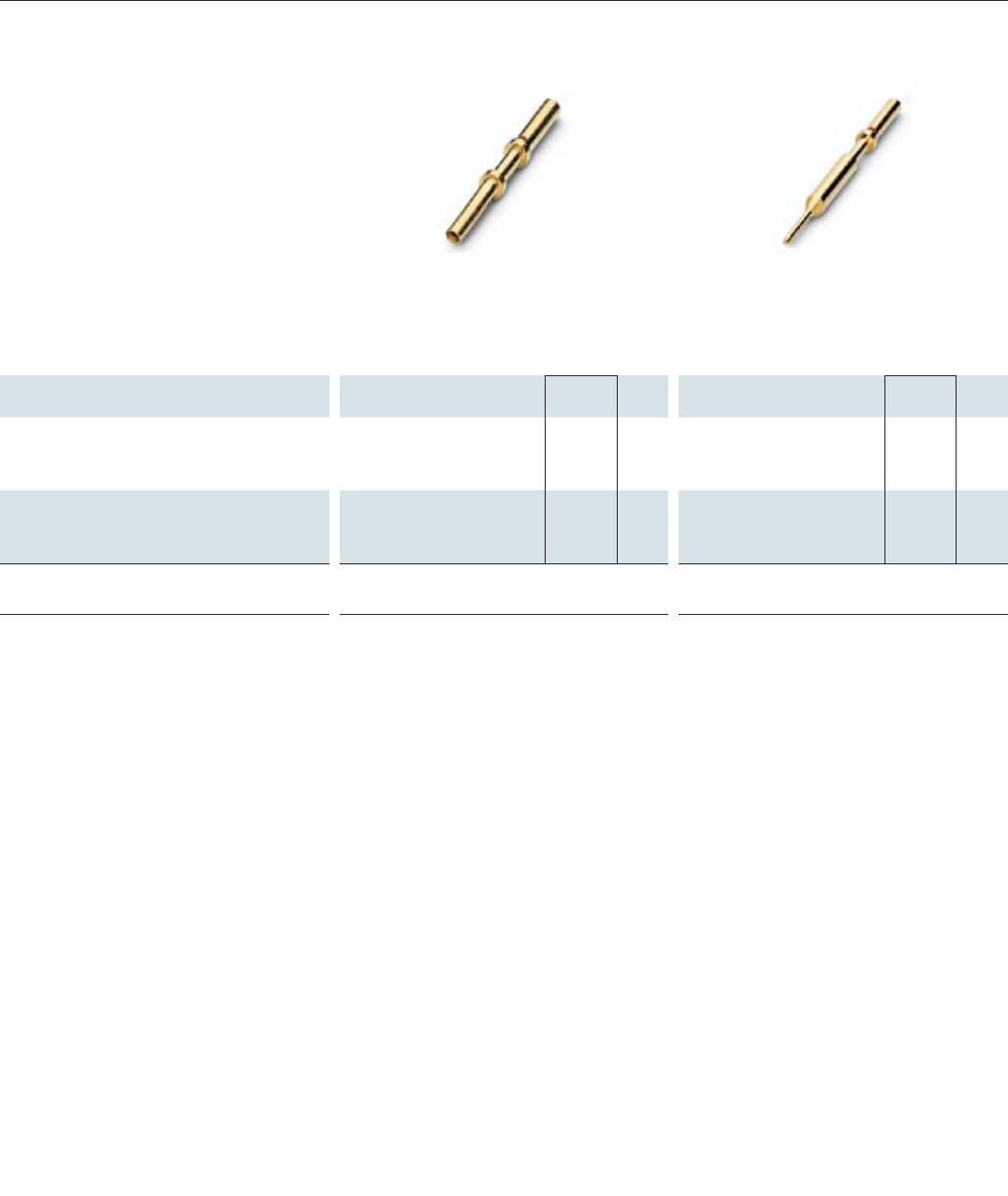

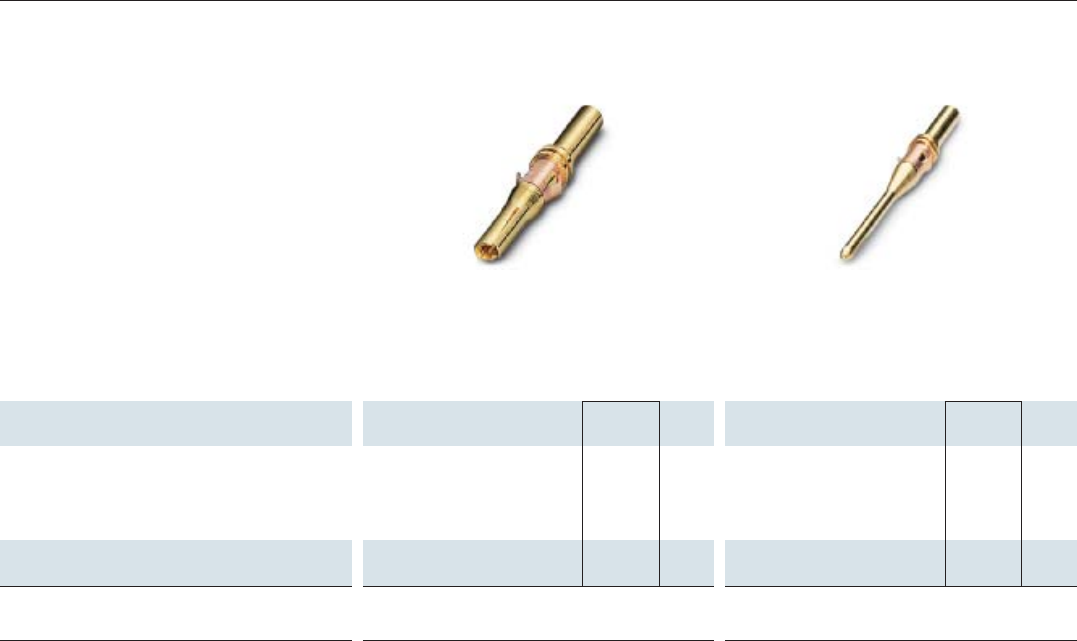

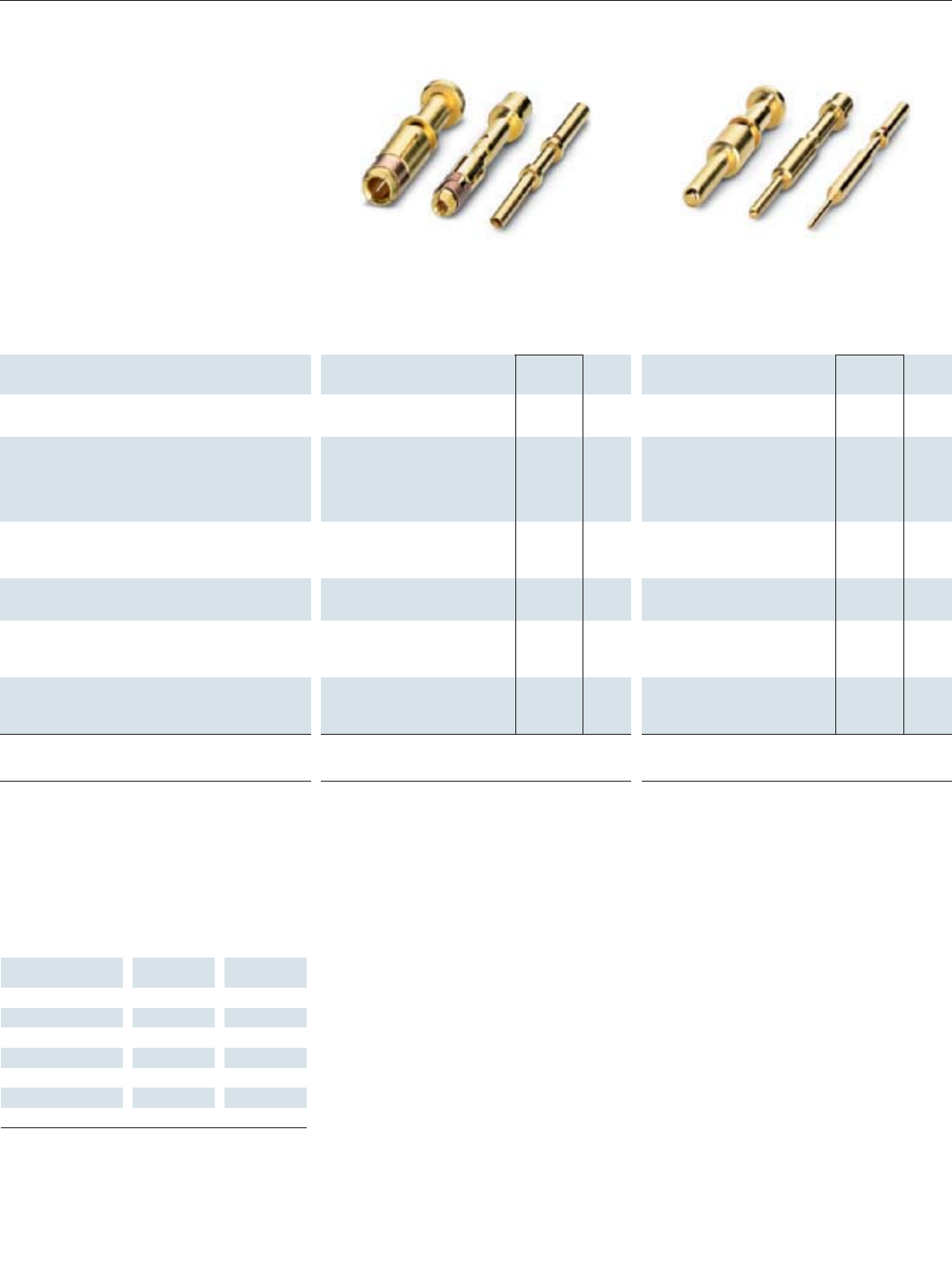

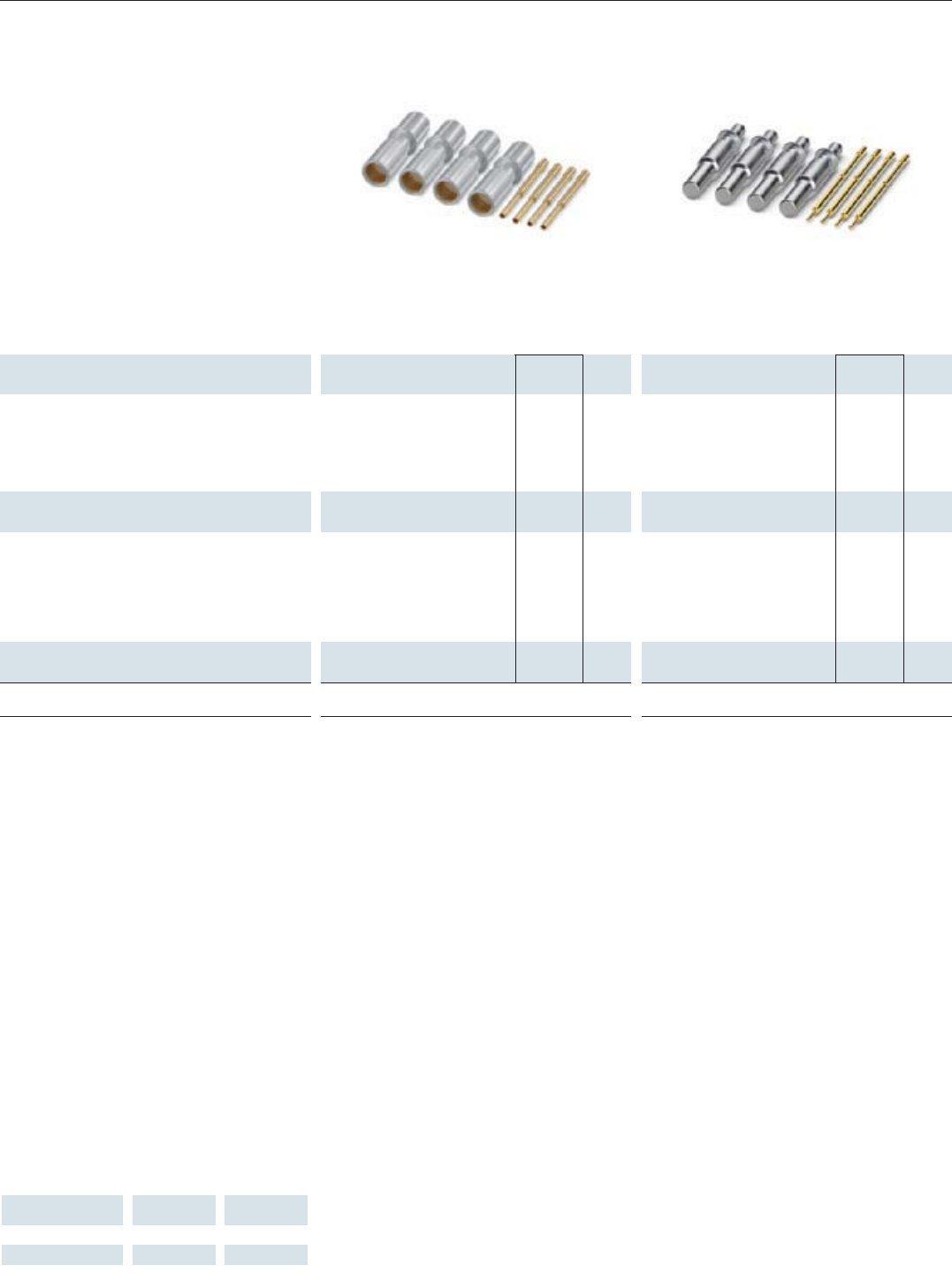

Crimp contact carriers and crimp contacts 34

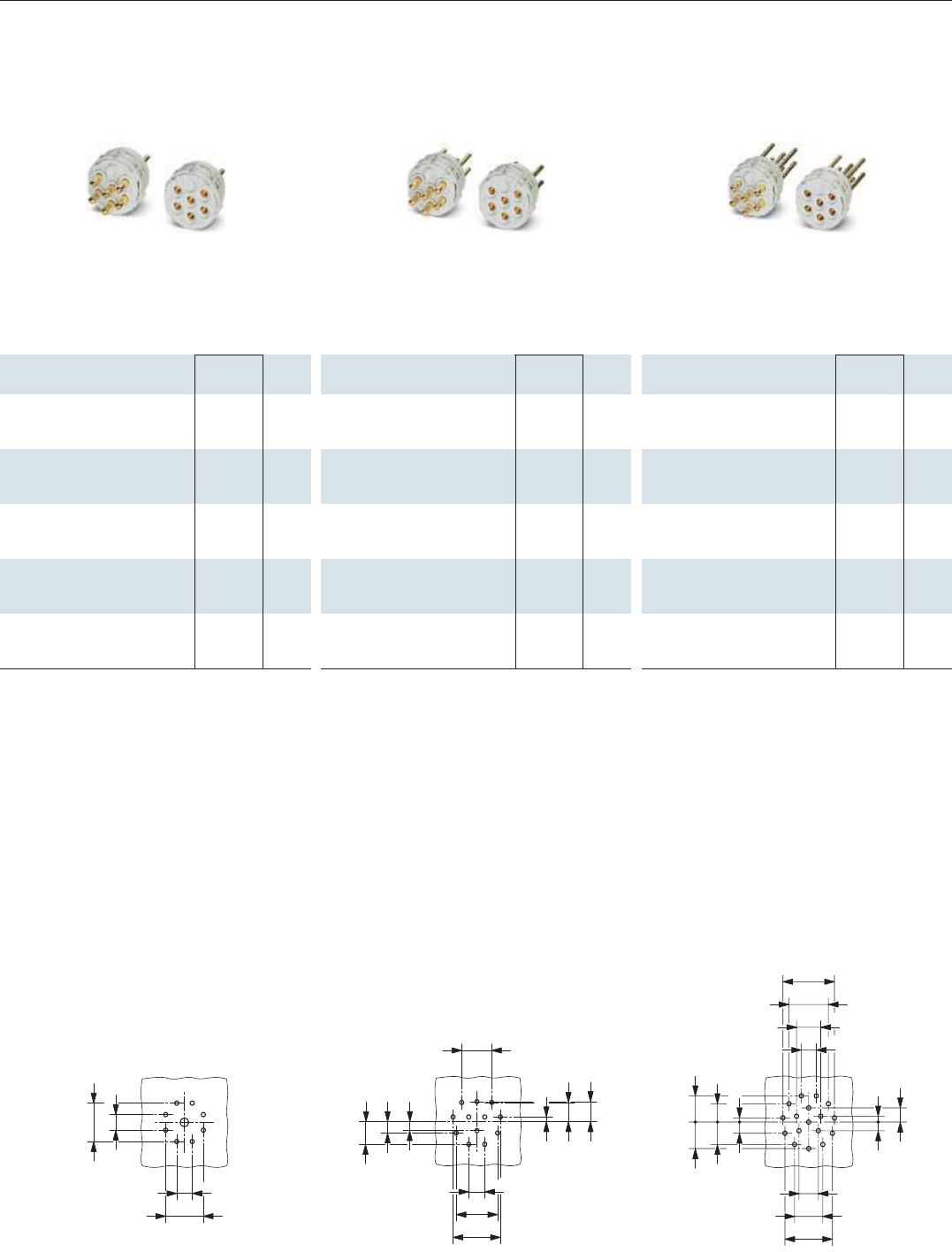

Contact inserts with solder-in contacts 36
100010010
20
80
100
40
60
0100010010
20
80
100
40
60
0
Modular signal plug connectors - PLUSCON circular
M23/bayonet - RC, UC and TU series
12 PHOENIX CONTACT
Attenuation [dB]
Frequency [MHz]
A
ttenuat
i
on
[dB]
Frequency [MHz]

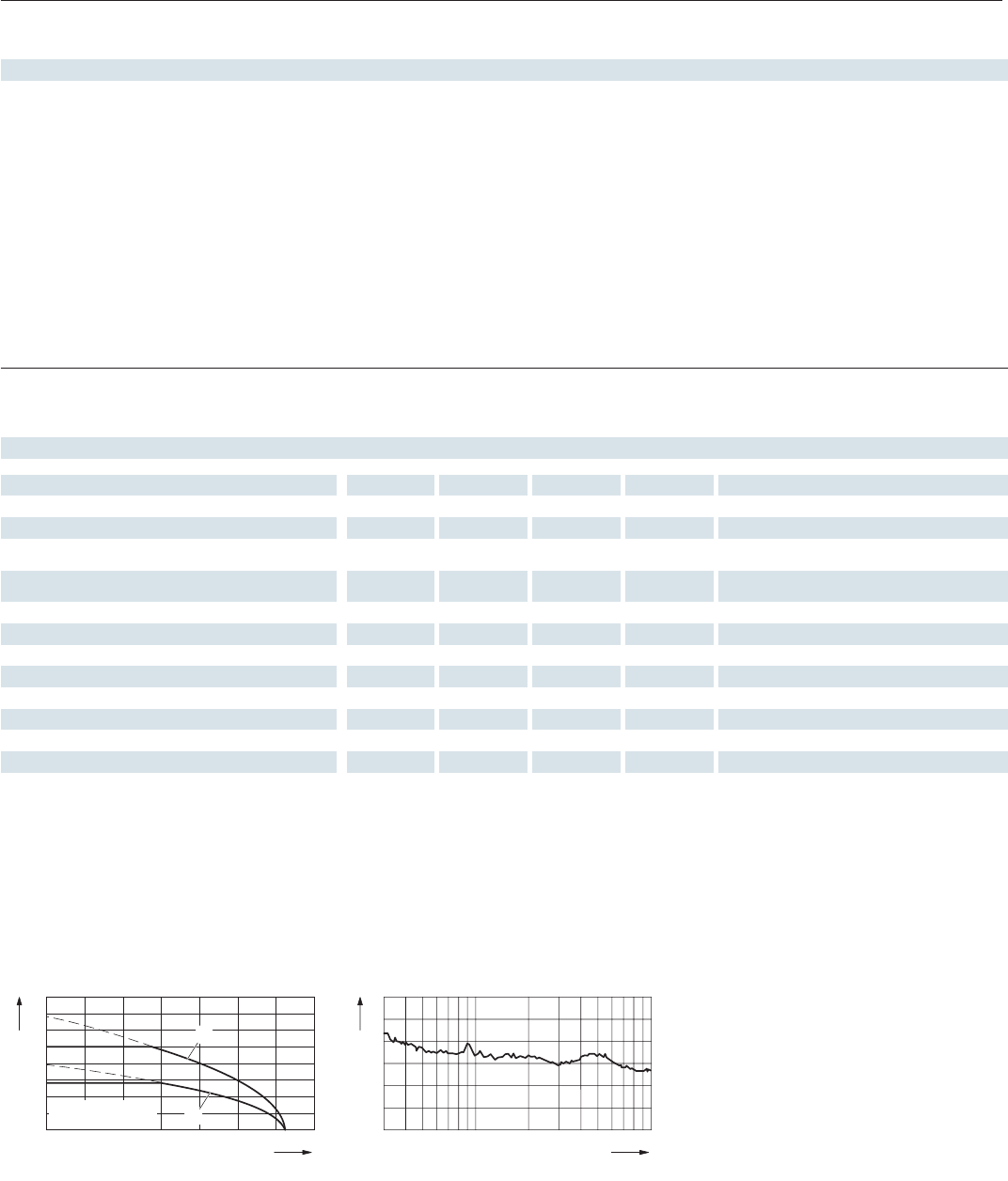

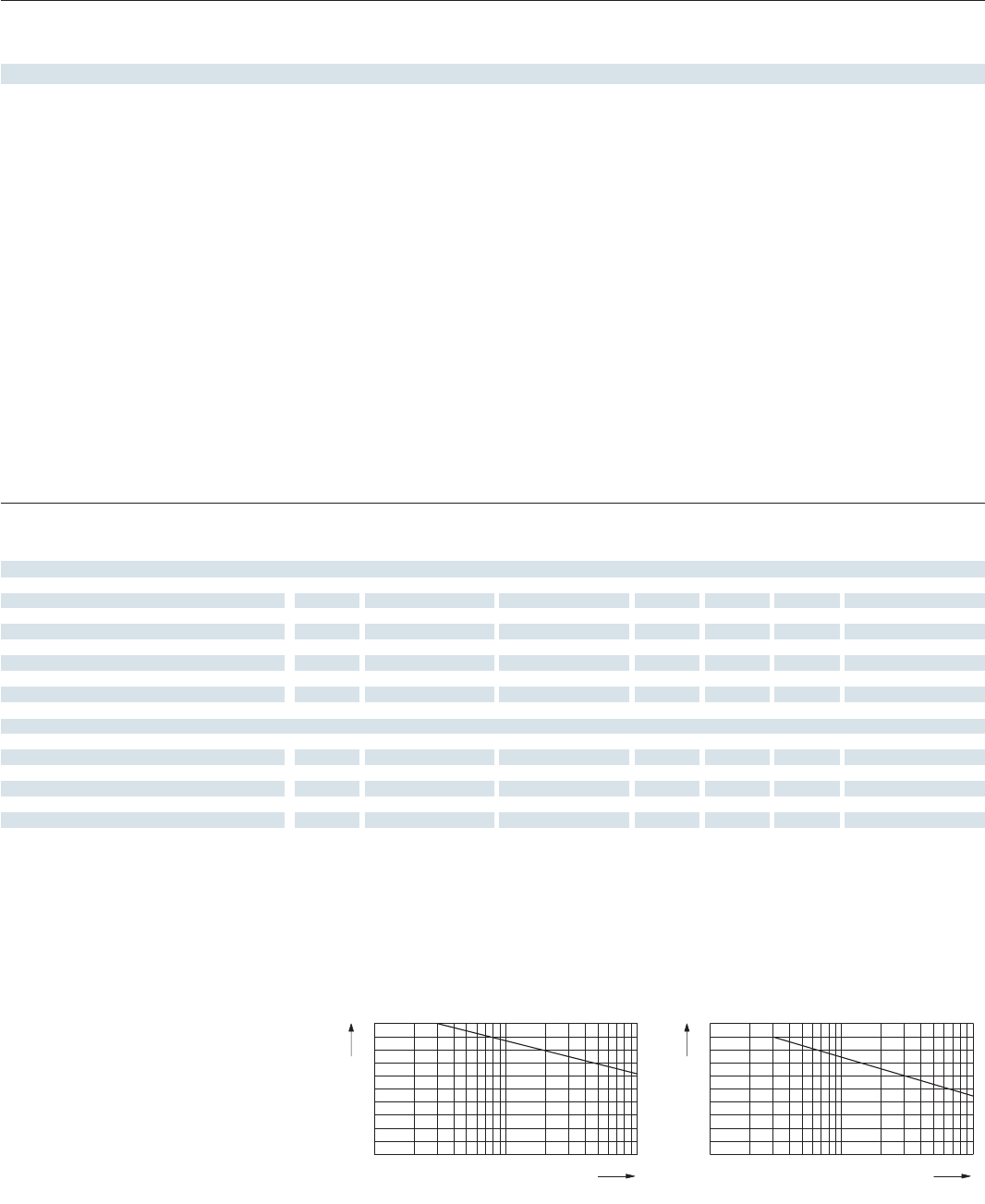

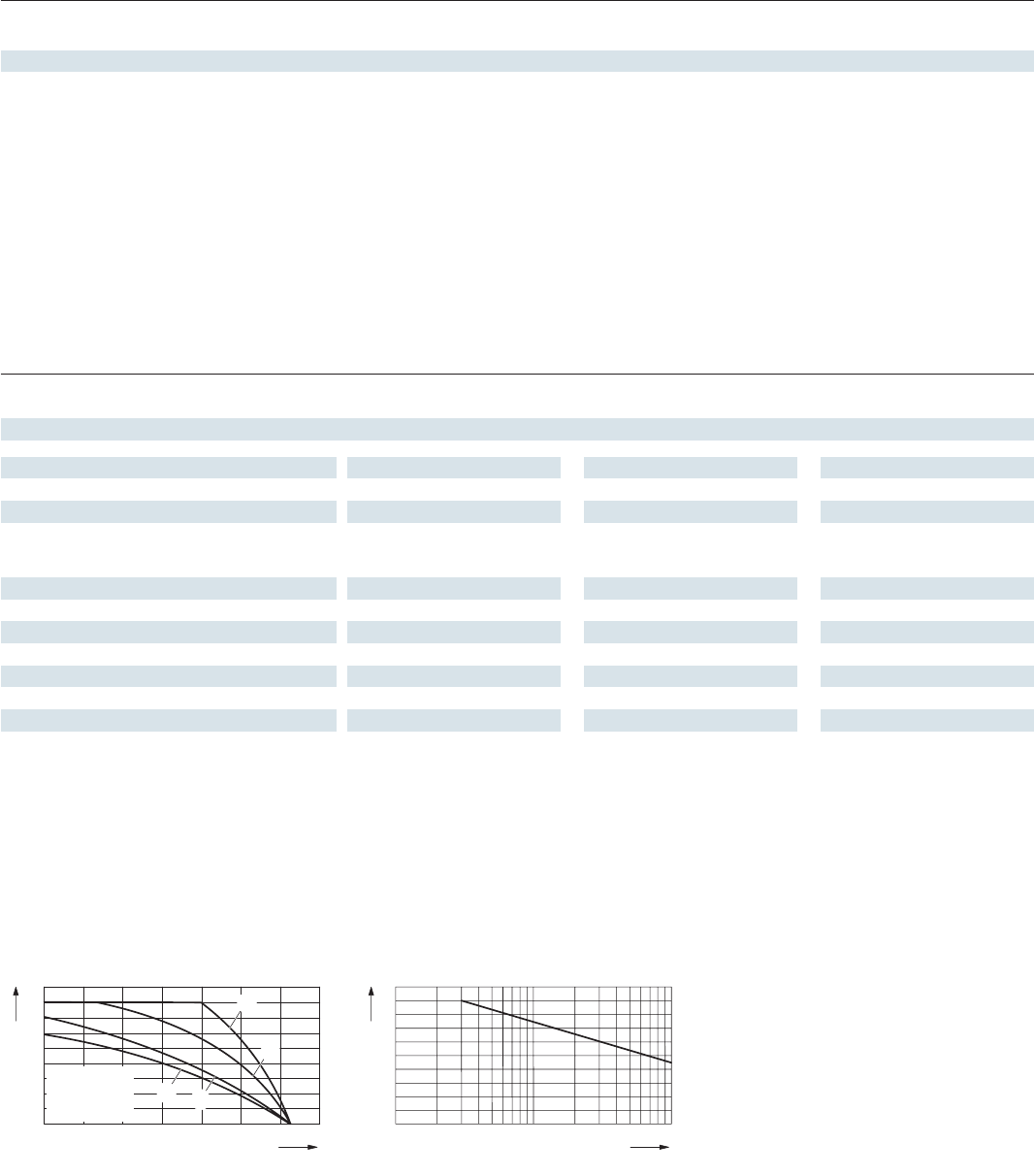

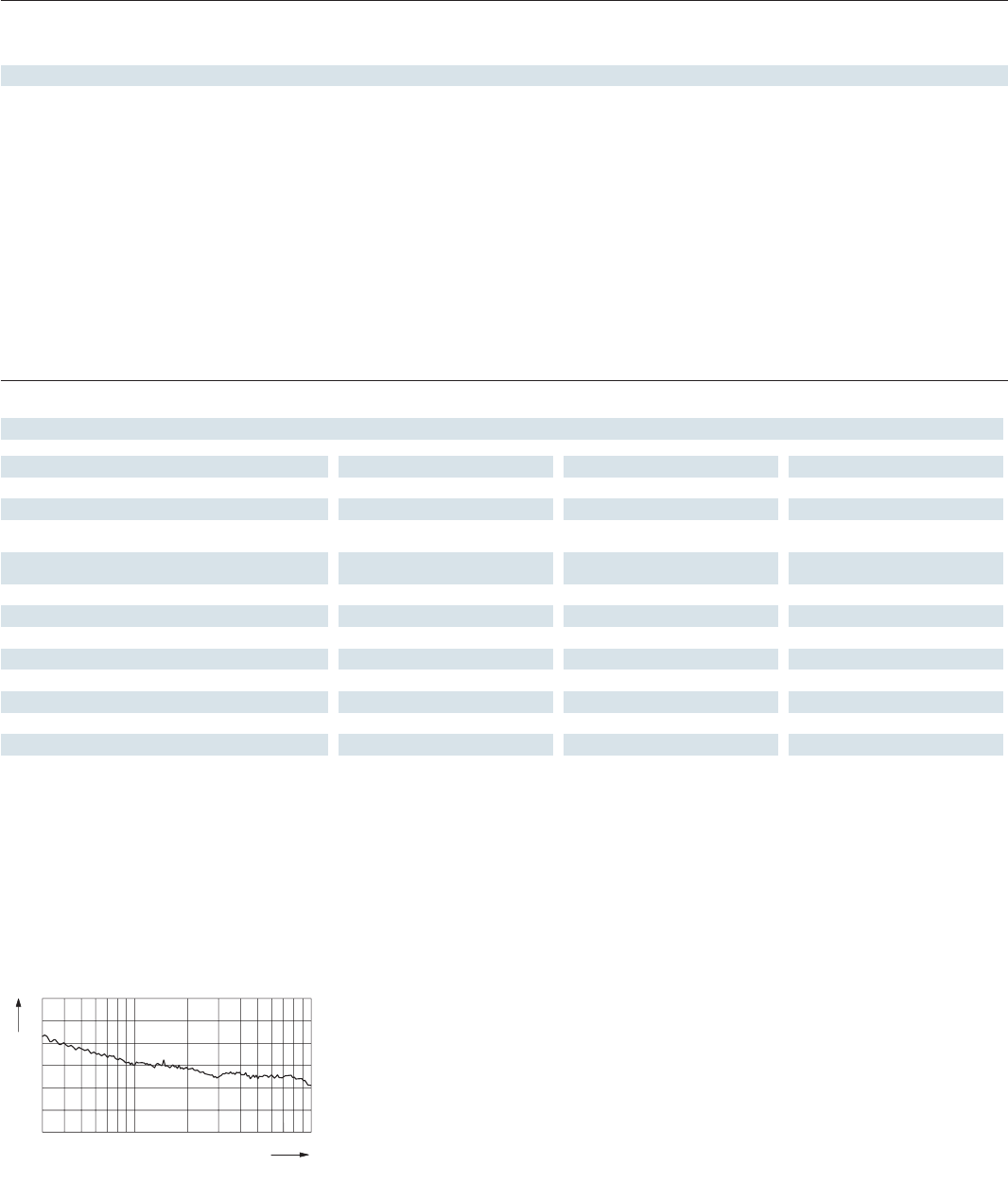

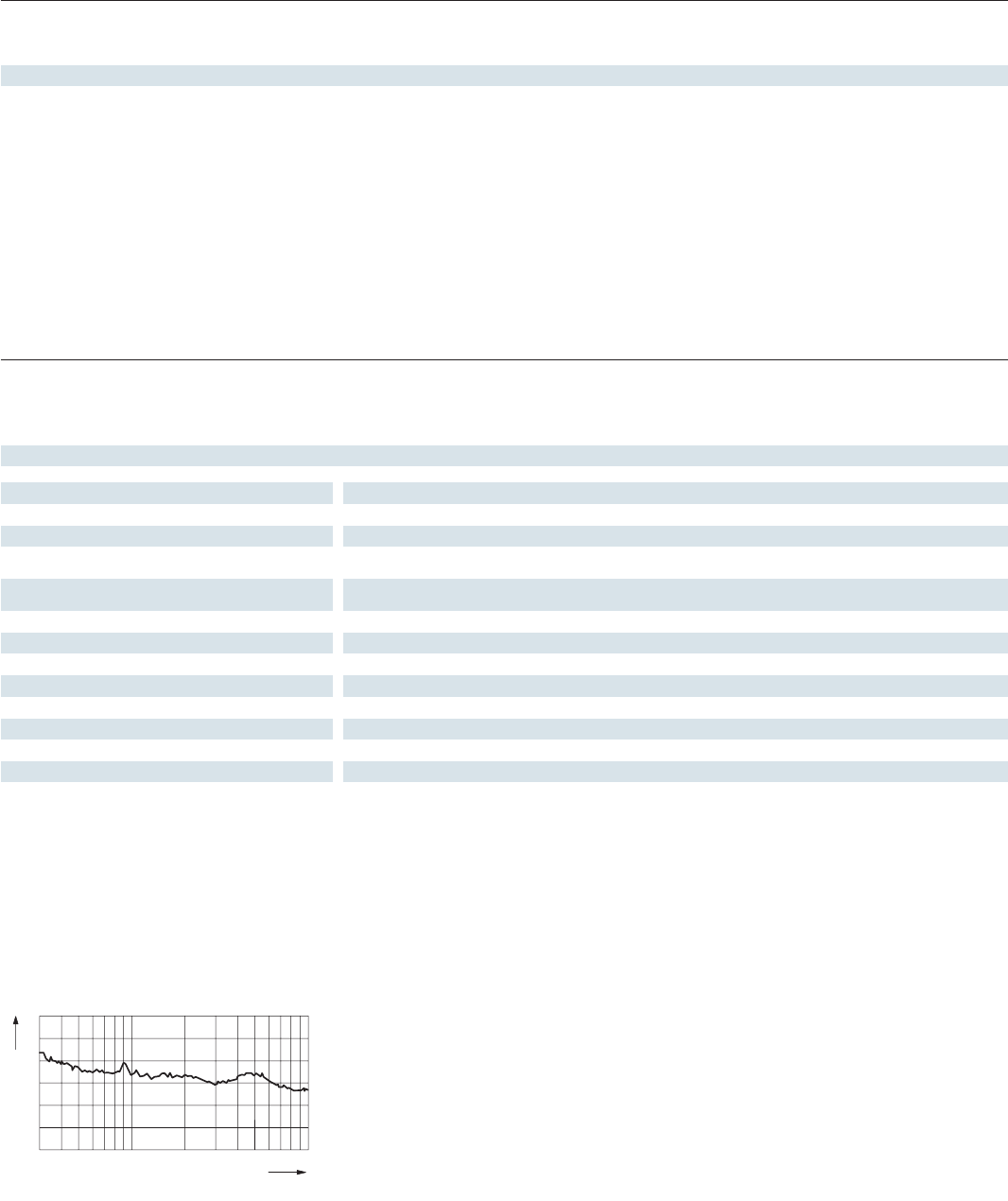

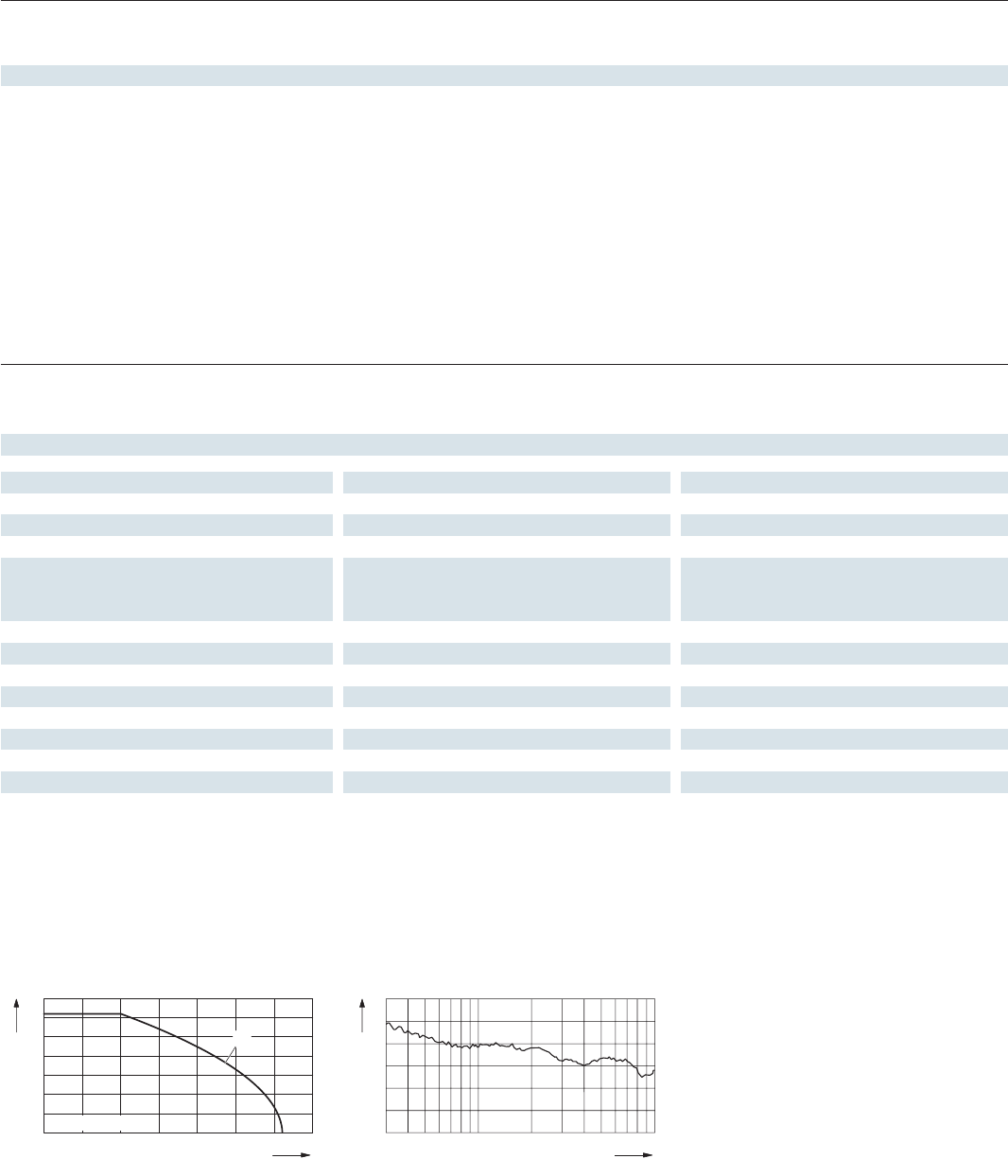

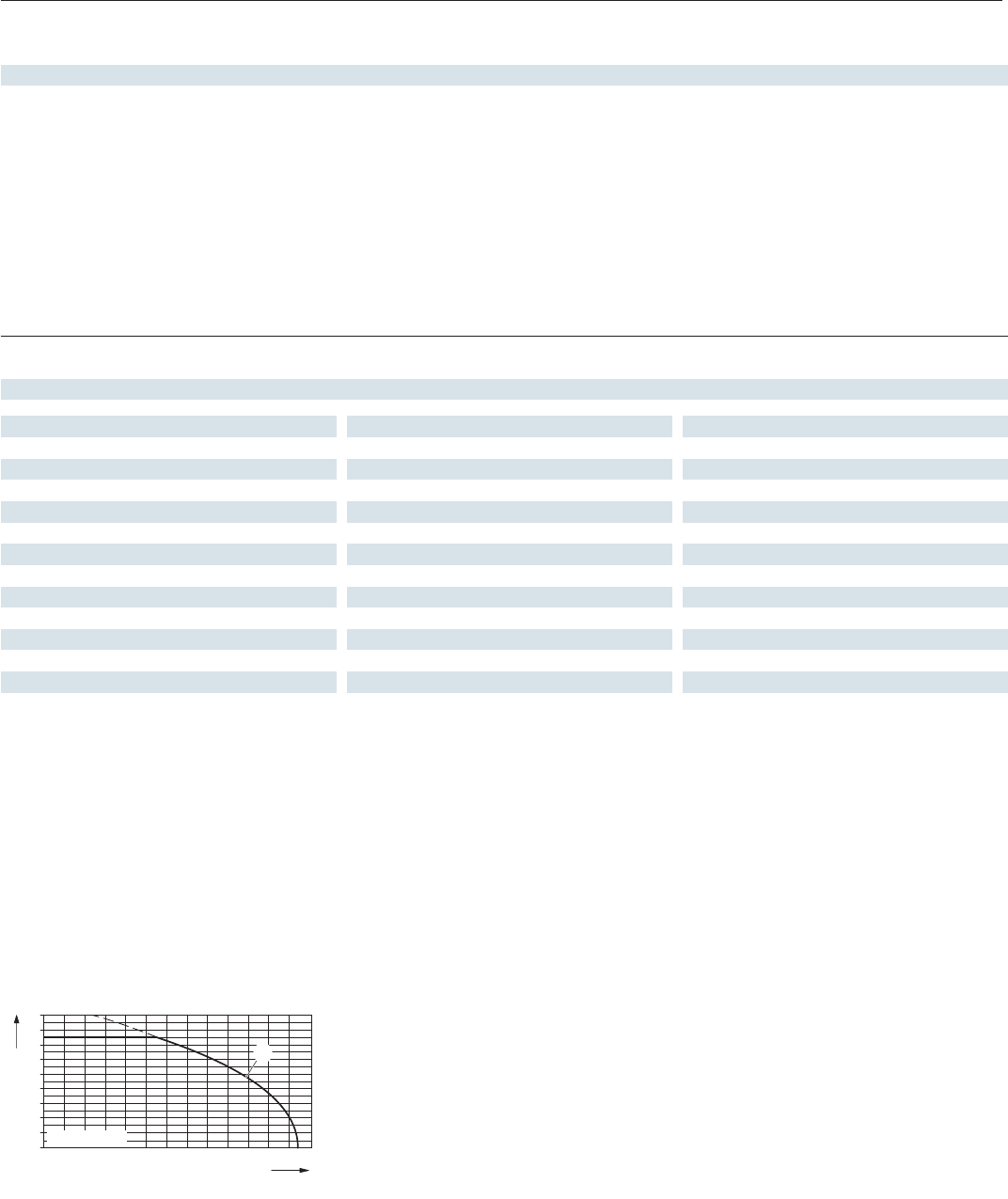

Derating curve based on DIN EN 60512-5-2 Cable plug
connector (12-pos.)
RC series shield attenuation curve based on DIN EN
50289-1-6
Current [A]
Ambient temperature [°C]
Shield attenuation curve
UC / TU series based on DIN EN 50289-1-6
Mechanical data
Housing material: Metal parts: CuZn (copper-zinc alloy) or GD-Zn (zinc die-cast),
nickel-plated or yellow passivated

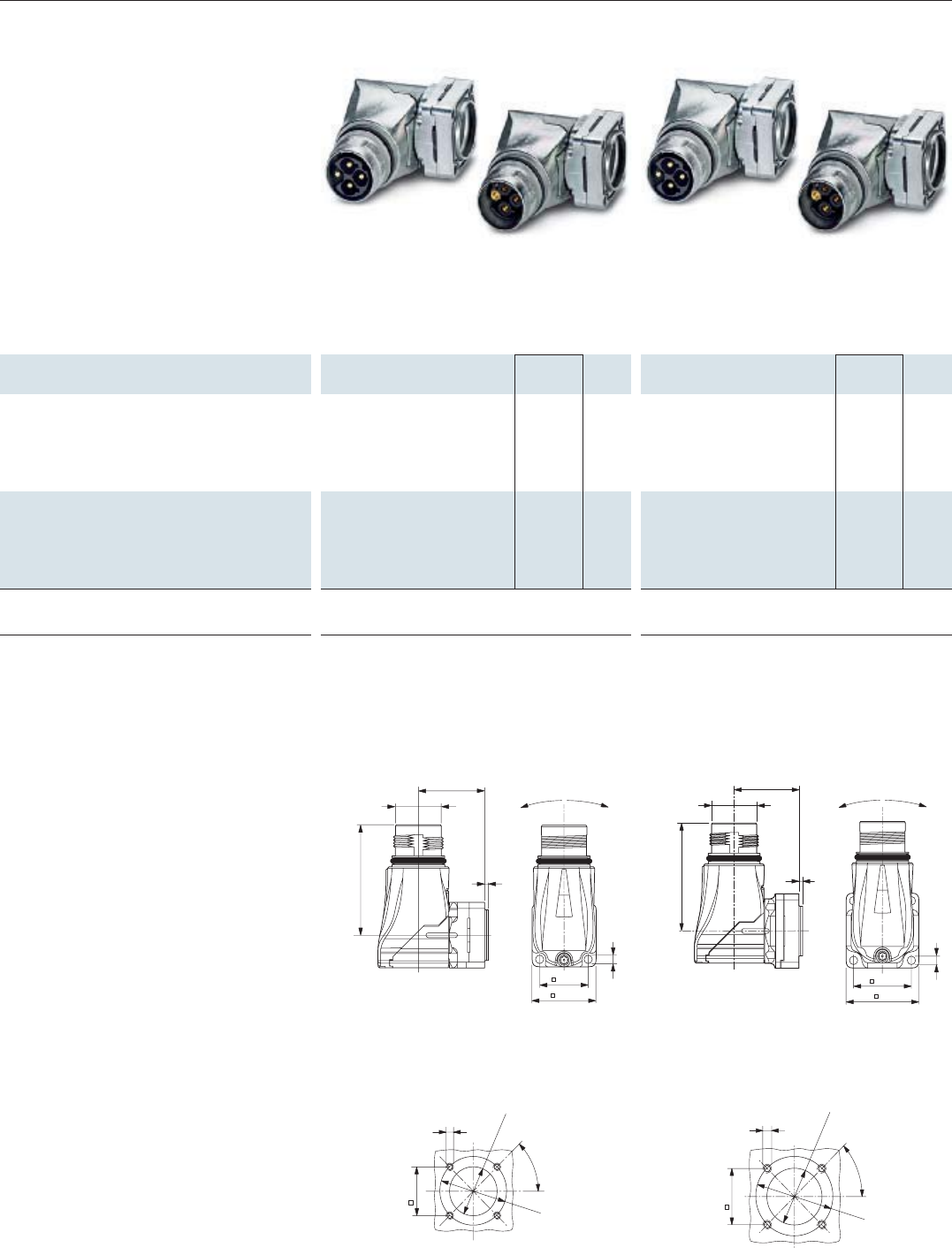

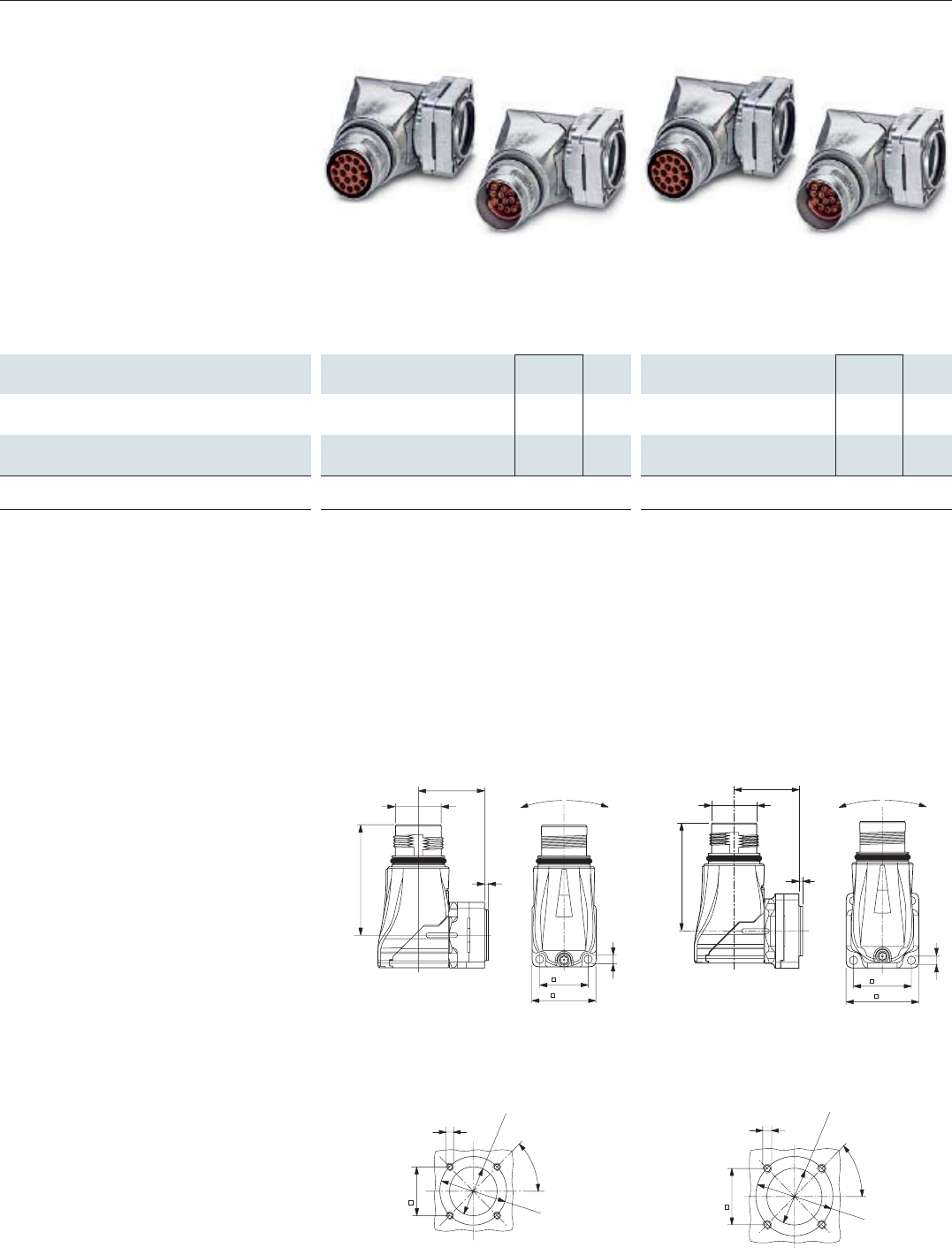

Appliance plug connector, angled rotatable: nickel-plated/thick layer passivated, can be painted over
Plastic adapter caps/plastic-sheathed metal parts: SPS (syndiotactic polystyrene)
Insulating bodies: Thermoplastic polyester (PBT), polyamide (PA 66), polycarbonate (PC)
Storage at 15 °C ... 35 °C, 40 ... 70 % rel. humidity
Contact material: Copper-zinc alloy (CuZn)
Contact surface: Nickel-plated (Ni) with a gold layer (Au)
Contact connection method: Solder cup, crimp and screw versions, solder-in pin
Gasket and O ring: Fluorine rubber (FPM)
Housing types with plastic adapter cap: perbunane (NBR) gasket
Flat gasket: Perbunane (NBR with fabric insert), fluorine rubber (FPM)
Temperature range: -20°C ... +125°C
Conductor entry: EMC version for external cable diameter 2 ... 10.5 mm,
without EMC protection for external cable diameter 4 ... 14 mm
EMC version with extended cable entry range (UC / TU series)
for external cable diameter 2 ... 14.5 mm
Locking type: M23 screw locking, TU series: bayonet locking,
bayonet ring Ø 29.3 mm
Mechanical insertion/withdrawal cycles: Standard: 50, more on request
Degree of protection (when locked): EMC version: IP67
Version without EMC protection: IP65 ... IP68 (depending on cable gland)
Approval: An overview of the listed connectors as per UL, cUL and VDE will be available on request.
Electrical data

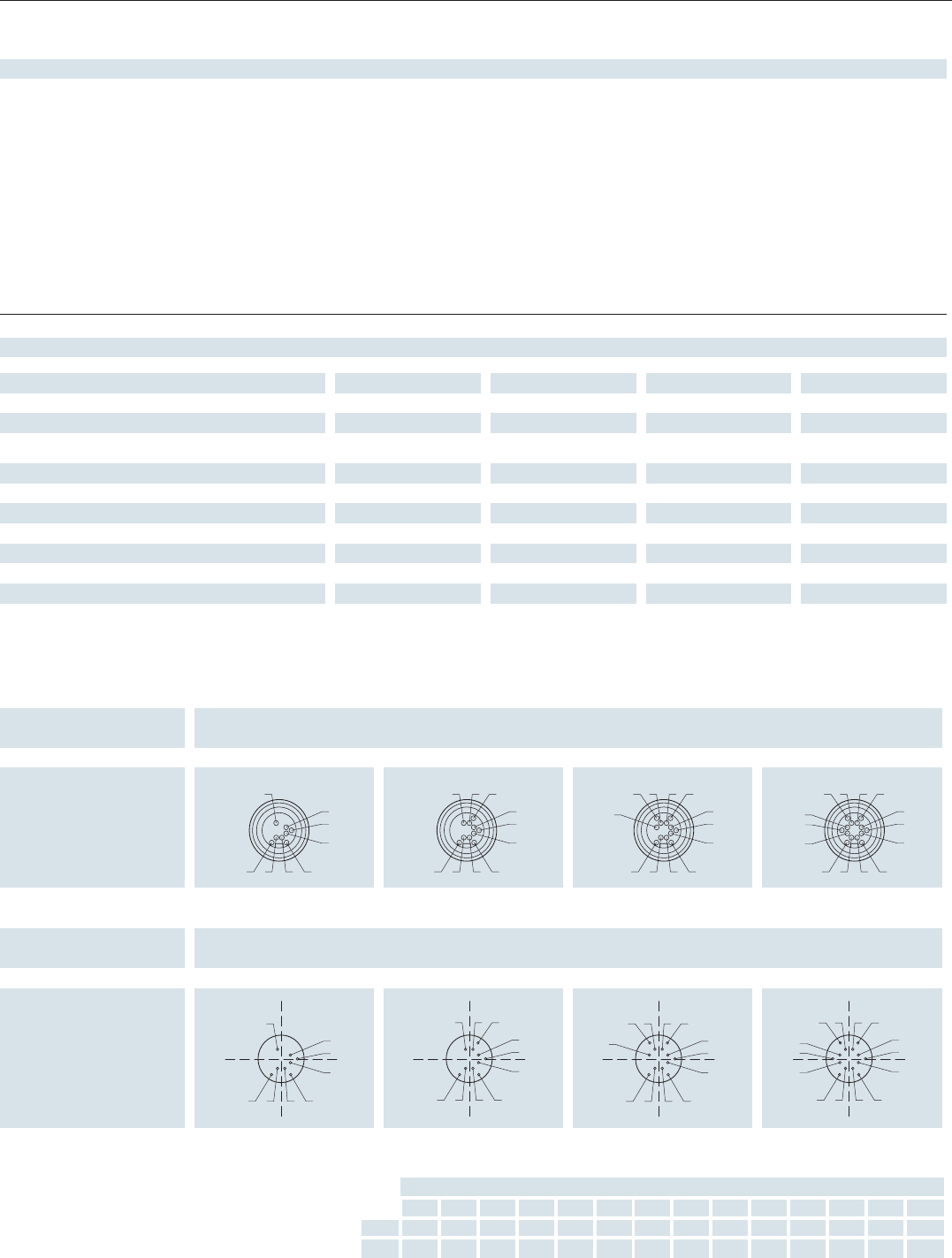

Number of positions 6, 7 9 (8+1) 9 (6+3) 12 16 17 19 (16+3)
Contacts 6, 7 8 + 1 6 + 3 12 16 17 16 + 3
Contact Ø [mm]2121211111,5
Stranded wire cross section
Solder connection: contacts x [mm
2
/AWG] max. 6 (7) x 2.5/14 8 x 1.0/18 + 1 x 2.5/14 6 x 1.0/18 + 3 x 2.5/14 12 x 2.5/14 16 x 1.0/18 17 x 1.0/18 16 x 1.0/18 + 3 x 1.0/18
Crimp connection: contacts x [mm
2
/AWG
2
] max. 6 (7) x 2.5/14 8 x 0.56/20 + 1 x 2.5/14 12 x 0.56/20 16 x 0.56/20 17 x 0.56/20 16 x 1.0/18 + 3 x 1.5/16
Screw connection: contacts x [mm
2
/AWG
2
] max. 6 (7) x 1.0/18 8 x 0.75/18 + 1 x 1.0/18
Nominal current per contact at 25 °C
1
) 208 208 208 8 8 8 10
Specifications as per DIN EN 61984:2001
Nominal/rated voltage [V] 300 300 150 150 150 150 150
Test/surge voltage [kV AC] 2,5 2,5 1,5 1,5 1,5 1,5 1,5
Surge voltage category II II II II II II II
Pollution degree
2
)3333333
Installation height [m] Up to 2,000 Up to 2,000 Up to 2,000 Up to 2,000 Up to 2,000 Up to 2,000 Up to 2,000
1)
If required, the effective current carrying capacity must be determined according to the application using a derating curve.
2)
The values specified require a correctly locked pair of connectors that are disconnected only for testing and maintenance. If an unlocked connector is exposed to ambient conditions
and if there is a danger of contamination, the connector should be sealed using a t IP 54 protective cap.
Mechanical and electrical data
Note:
Plug connectors may only be inserted or removed when
the power supply is disconnected.
Note:
The modular M23 connectors of the RC and UC series are
completely compatible. After technical clarification, these
can also be combined with the M23 complete plug
connectors of the RF series.

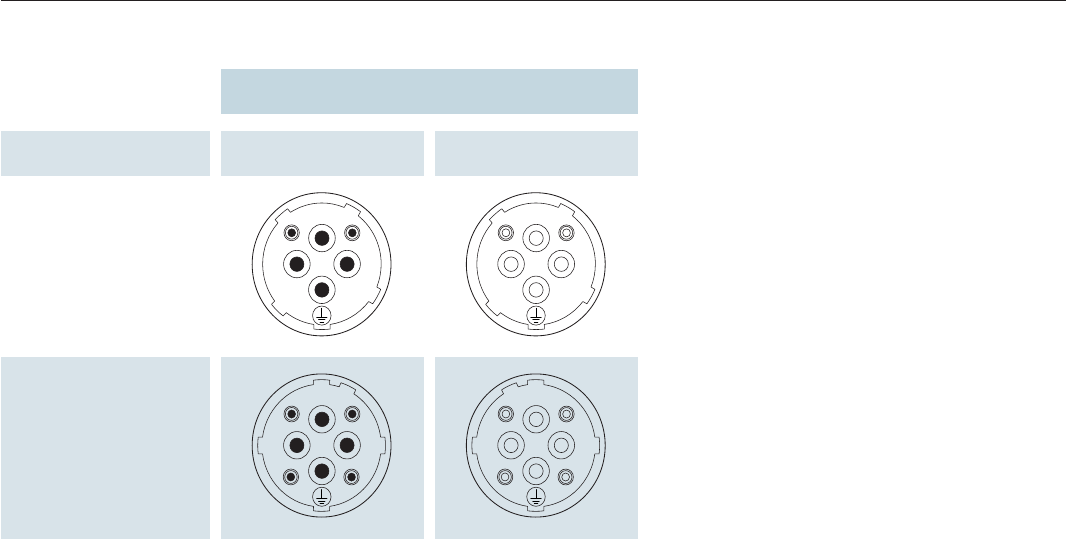

N
7
54
8
9
PO 3
2
1
6
N
2
45
1
9
SO 6
7
8
3
N
2
45
1
9
SO 6
7
8
3
N
7
54
8
9
SO 3
2
1
6
N
7
1
2
PO
3
4
5
6
N
7
5
4
SO
3
2
1
6
N
7
1
2
PO
3
4
5
6
N
7
5
4
SO
3
2
1
6
N
7
54
8
9
PO 3
2
1
6
N
7
5
4
8
9
SO
3
2
1
6
N
7
54
8
9
PO 3
2
1
6
N
2
45
1
9
SO 6
7
8
3
N
2
45
1
9
PO 6
7
8
3
N
7
54
8
9
SO 3
2
1
6
N
7
54
89
12 10
11
PO
3
2
1
6
N
2
45
19
10 12
11
SO
6
7
8
3
N
2
45
19
10 12
11
PO
6
7
8
3
N
7
54
89
12 10
11
SO
3
2
1
6
N
YX
2
4
5
1
9
10 12
13
14
15
16
11
PO
6
7
8
3
N
XY
2
4
5
1
9
10
12
13
14 15
16
11
SO
67
8
3
N
2
4
5
1
9
10 12
13
14
15
16
11
PO
6
7
8
3
N
2
4
5
1
9
10
12
13
14 15
16
11
SO
67
8
3
N
YX
2
4
5
1
9
10 12
17
13
14
15
16
11
6
7
8
3
N
XY
2
4
5
1
9
10
12
17
13
14 15
16
11
67
8
3
N
XY
2
4
5
1
9
10
12
17
13
14 15
16
11
67
8
3
N
YX
2
4
5
1
9
10 12
17
13
14
15
16
11
6
7
8
3
N
2
4
5
1
9
10 12
17
PO
13
14
15
16
11
6
7
8
3
N
2
4
5
1
9
10
12
17
SO
13
14 15
16
11
67
8
3
N
2
4
5
1
9
10
12
17 18
19
PO
13
14
15
16
11
6
7
8
3
N
2
4
5
1
9
10
12
17
18
19
SO
13
14 15
16
11
67
8
3
Modular signal plug connectors - PLUSCON circular
M23/bayonet - RC, UC and TU series
13PHOENIX CONTACT

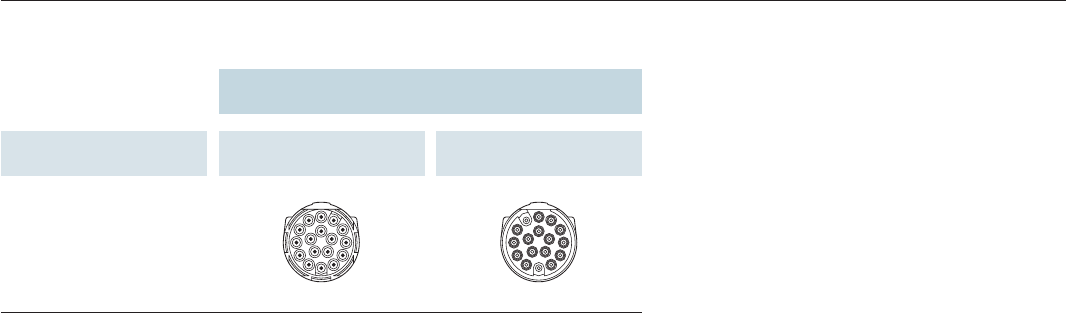

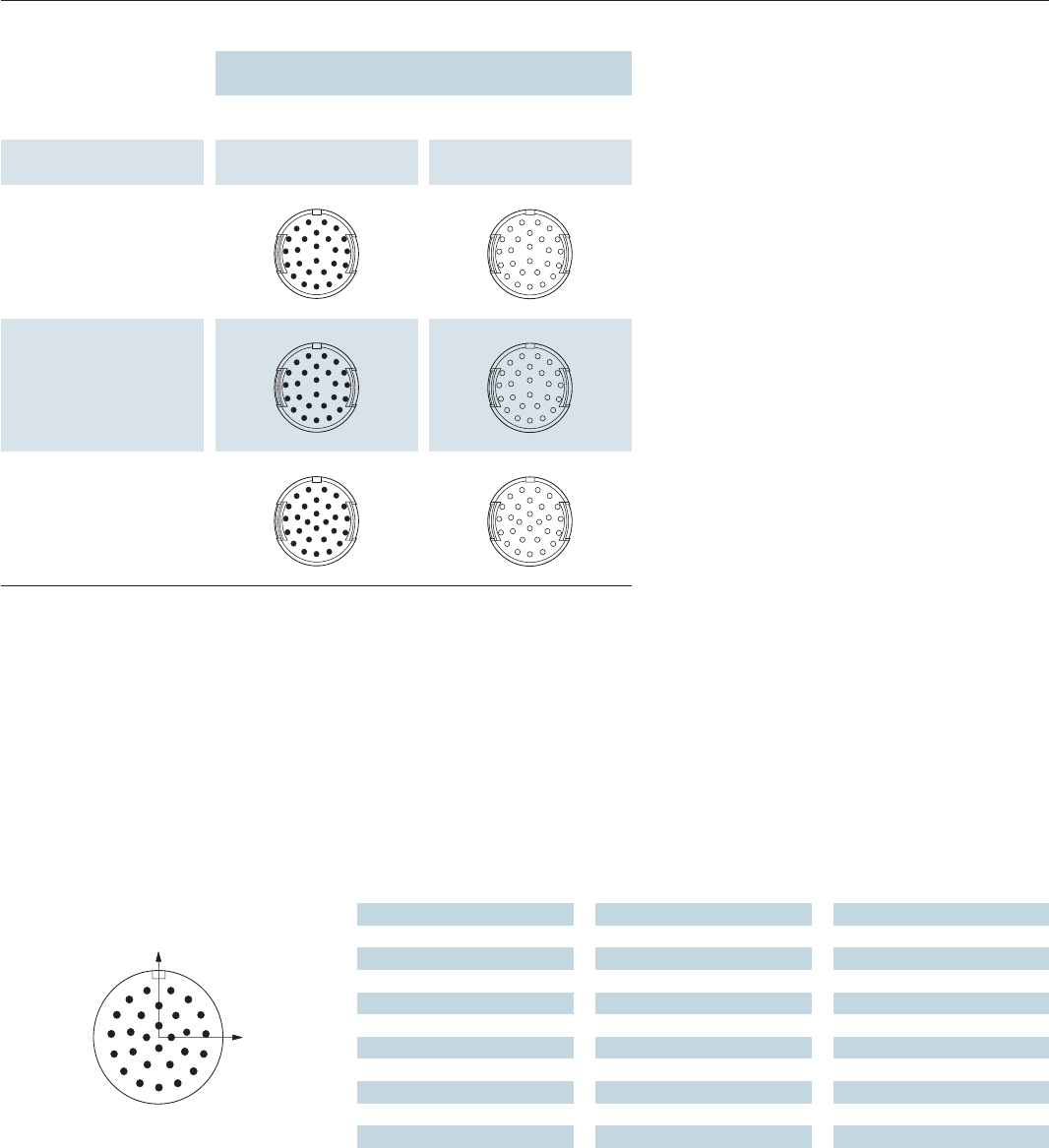

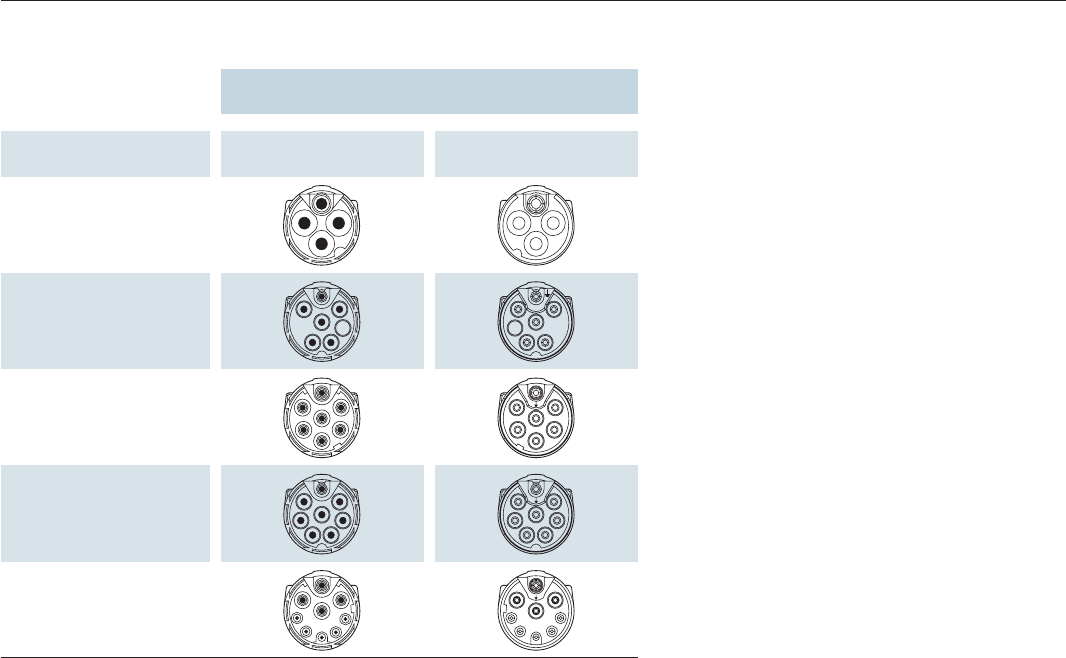

Contact insert numbering
(view of plug-in side)
Direction of rotation of contact
insert numbering
(view of plug-in side)
Clockwise (standard) Counter-clockwise (standard) Counter-clockwise (opposite) Clockwise (opposite)
Number of positions Pin Socket Pin Socket
6-pos.
Solder / crimp / screw
7-pos.
Solder / crimp / screw
9-pos. (6+3)
Solder
9-pos. (8+1)
Solder / crimp / screw
12-pos.
Solder / crimp
16-pos.
Solder
16-pos.
Crimp
17-pos.
Solder
17-pos.
Crimp
19-pos. (16+3)
Solder / crimp

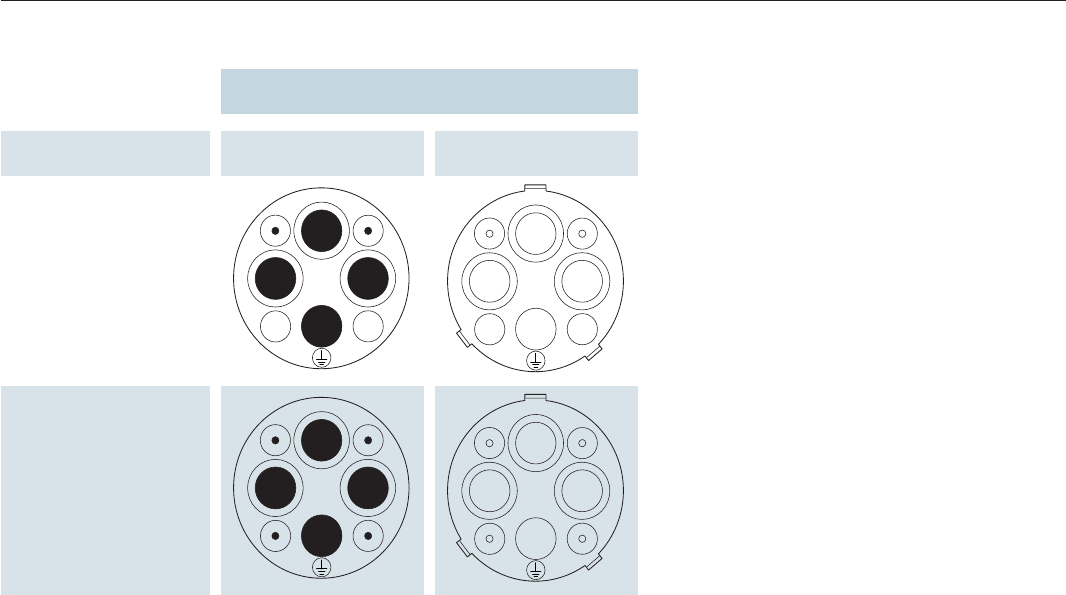

Connector pin assignments and coding
For reasons pertaining to safety, only female contacts
may be used in the live part of the connector.
Note:
Other coding versions can be configured manually or
mechanically on request.
The RC/UC/TU series connectors can be equipped with
male or female contacts according to the application.
Modular signal plug connectors - PLUSCON circular
M23 - RC, UC series
14 PHOENIX CONTACT
Coupling connector housing, page 16
Cable plug connector housing, page 16
RC-0000000T0FZ
RC-0000000M0FZ

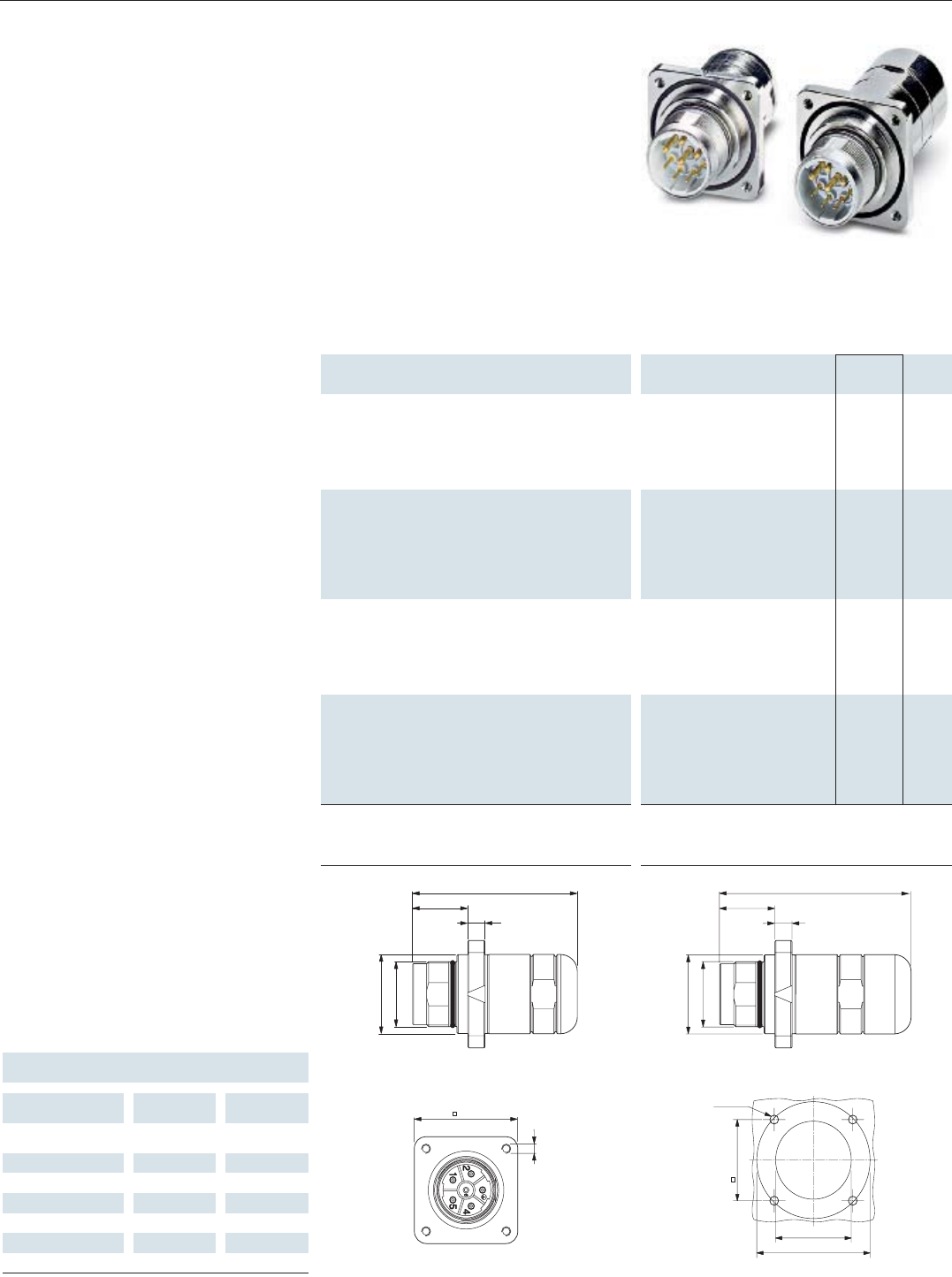

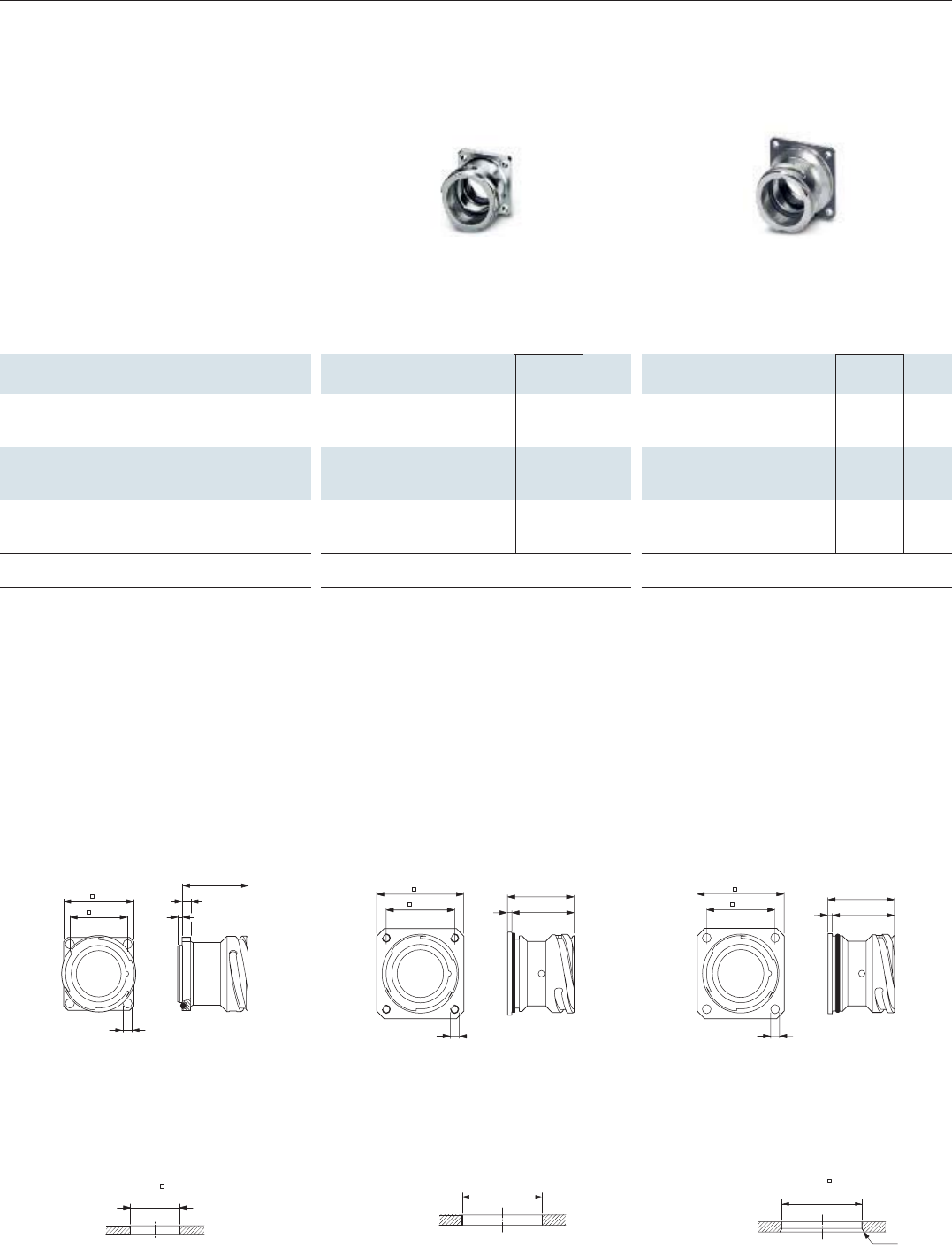

Coupling connector housing for mounting on the wall
Front mounting, from page 20 onwards Rear mounting, page 22
Cable plug connector housing, page 18
UC-00000008.DU
UC-0000000R.DU
UC-0000000T.DU
UC-0000000N.DU
Coupling connector housing,
page 19
UC-00000009.DU,
UC-0000000F.DU
Rear mounting, UC-0000000Q.DU
Coupling connector housing for wall mounting,
page 19
Cable plug connector housing, page 17
RC-0000000Z.00
Rear mounting,
RC-00000007.00
Coupling connector housing, page 17

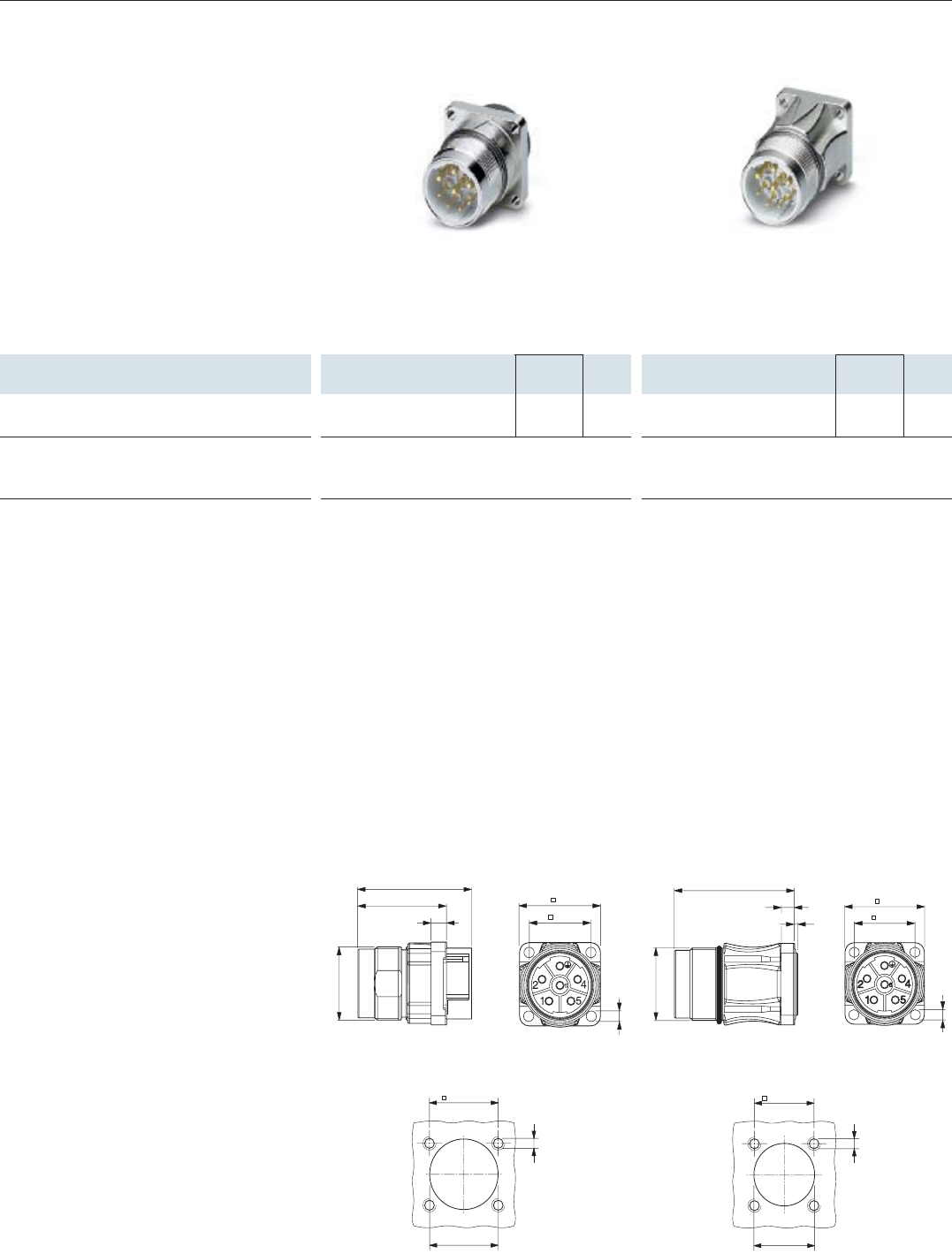

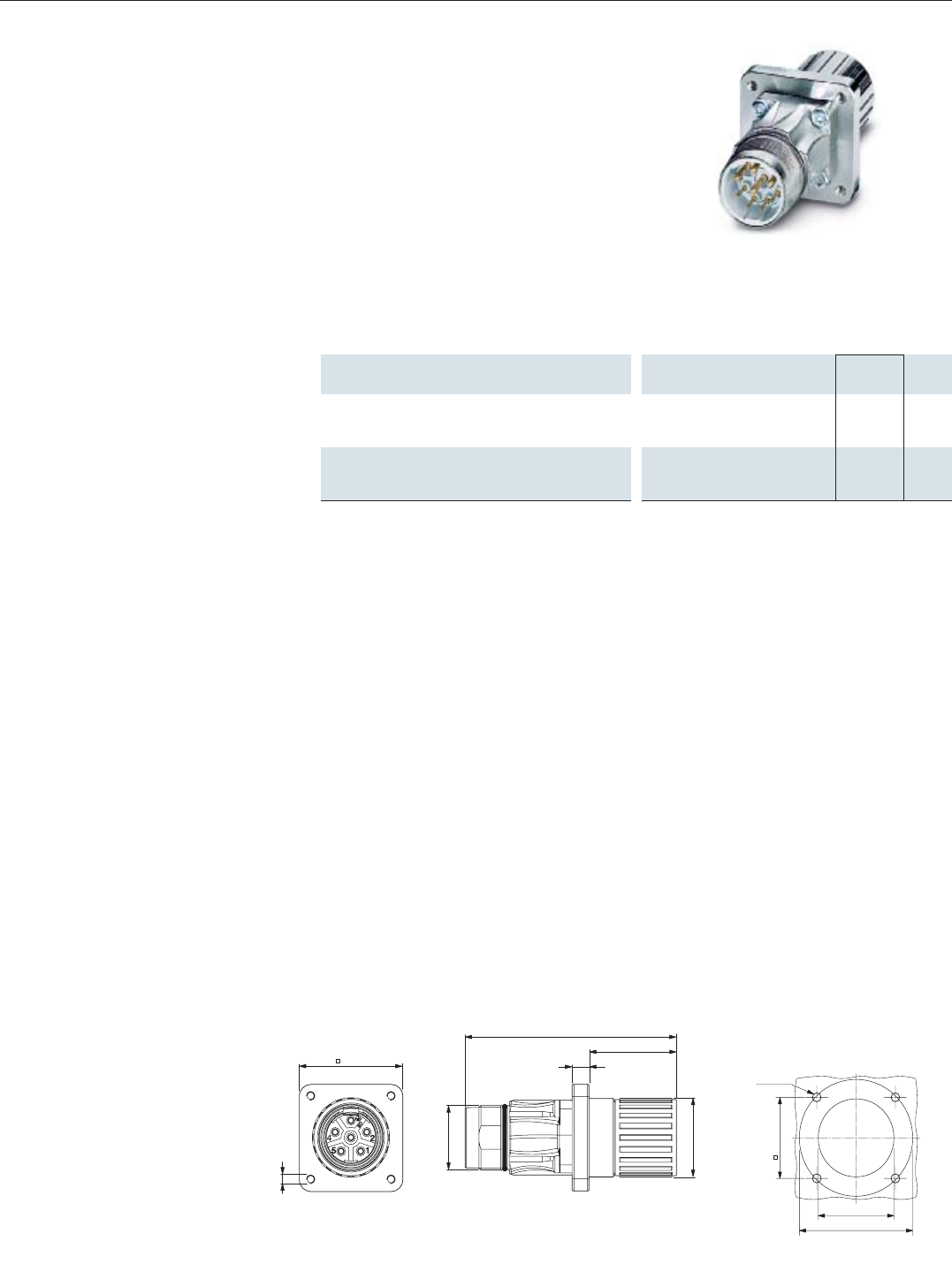

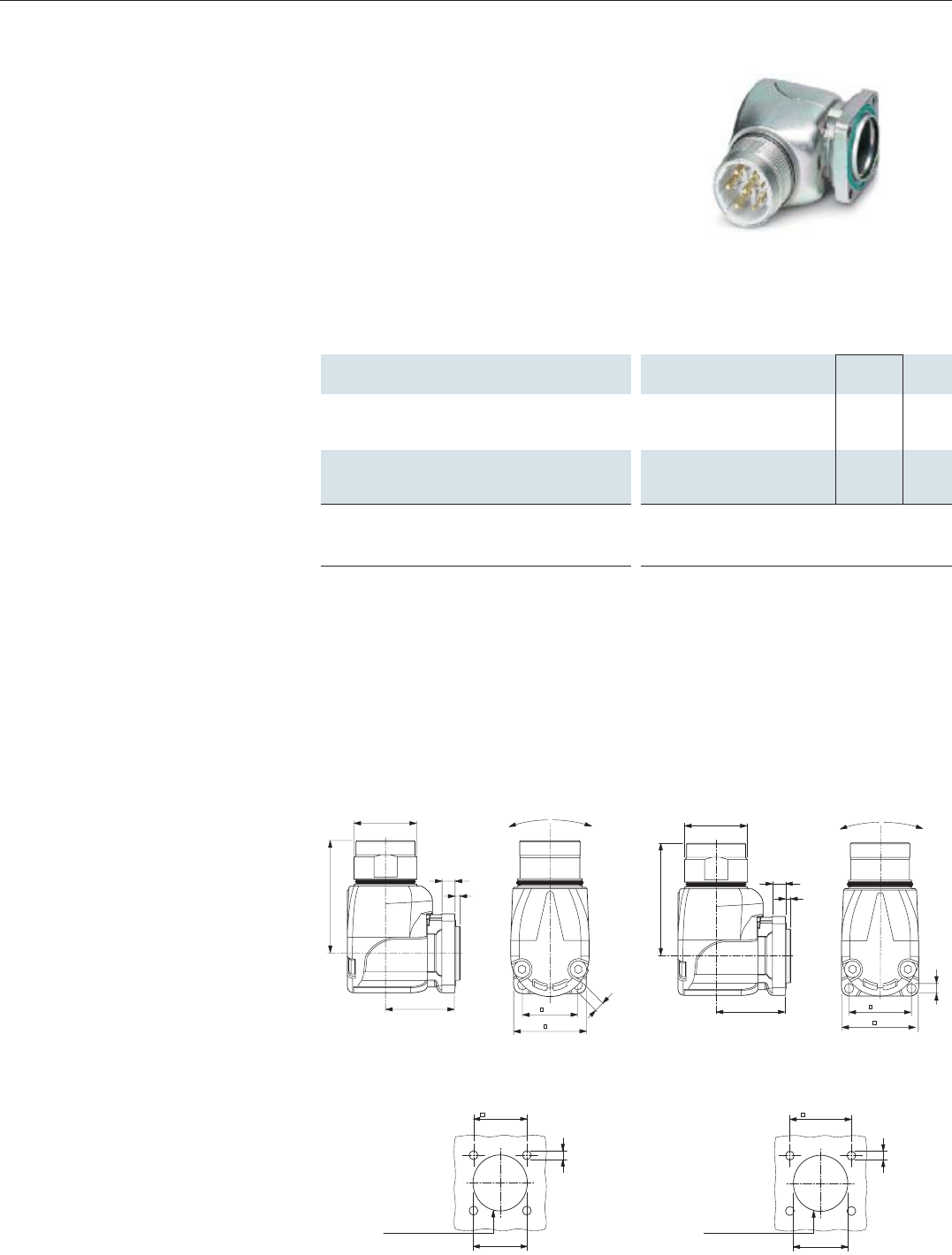

Appliance plug connector housing
RC-00000006100
RC-0000000AD00
RC-0000000C0FZ RC-0000000Q0FZRC-0000000B2FZ
Front mounting, page 20 Rear mounting, page 22
Front mounting,
unshielded, page 20

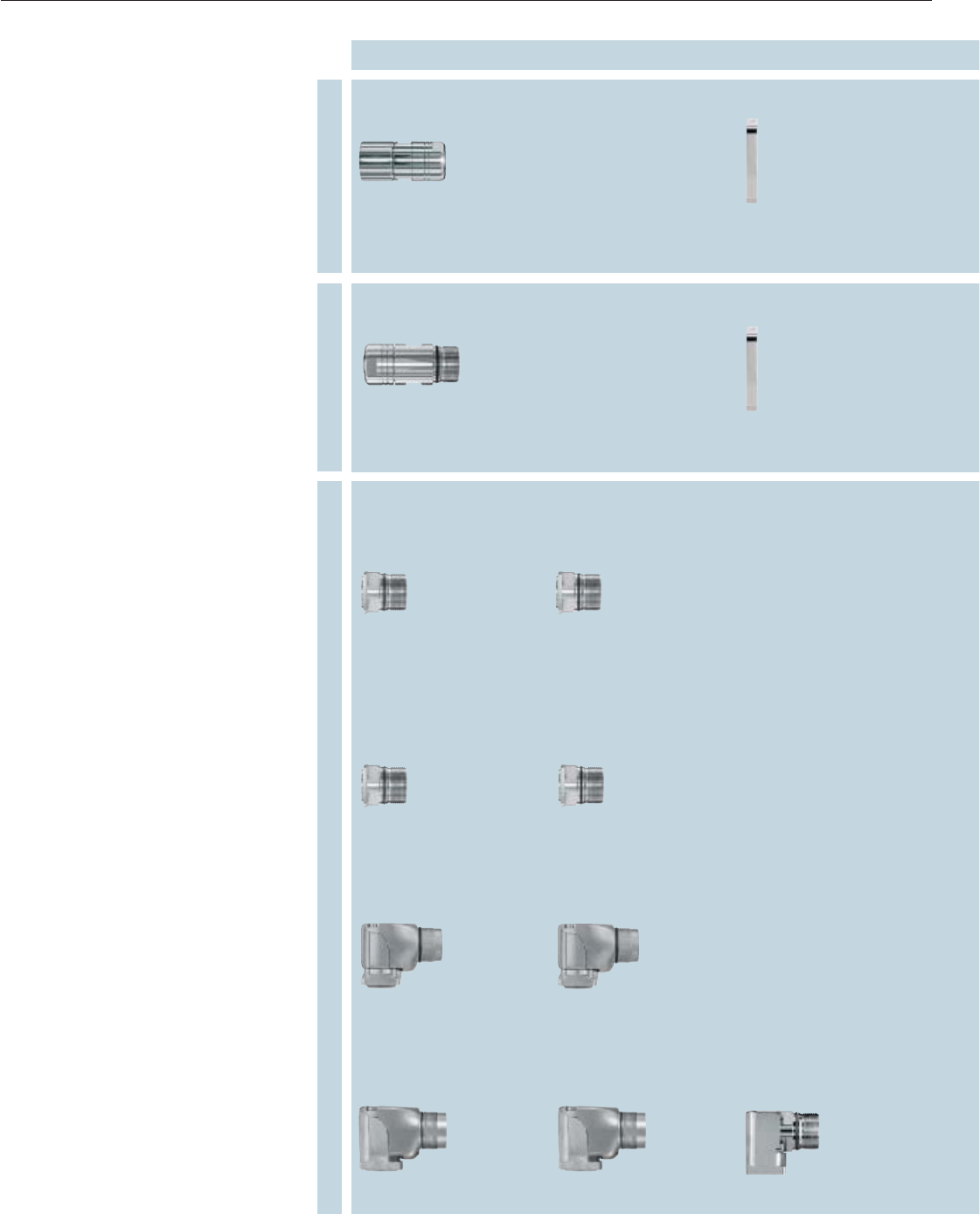

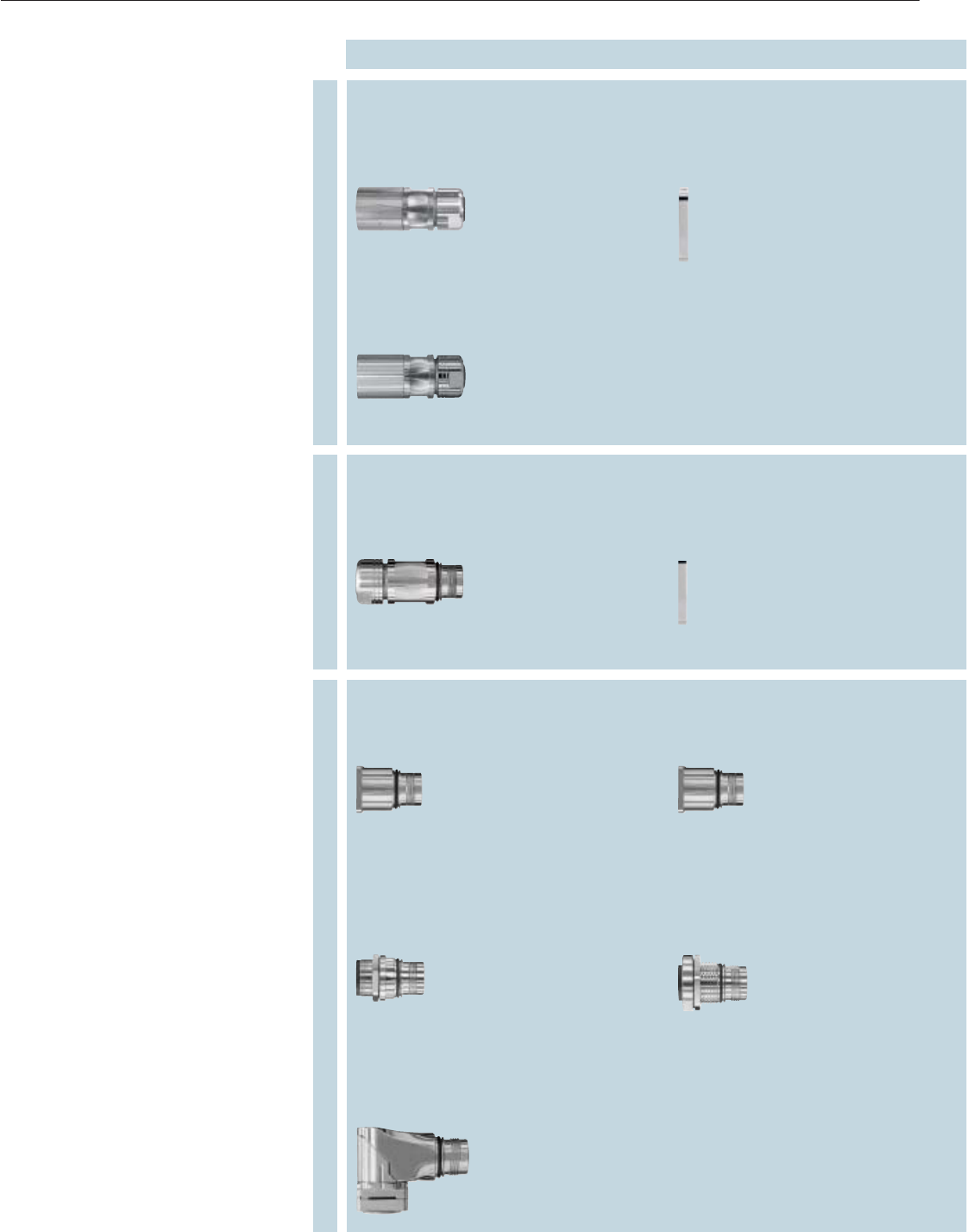

Selection guide
The product chart shows the possible
combinations of cable plug connector
housings and coupling connector or
appliance plug connector housings.
The chart differentiates between shielded
and unshielded connectors.
The modular system makes it possible
to select an individually suitable connector
from a limited number of articles. To
describe a connector for the device and
panel mounting side, the housing is
supplemented with the corresponding cable
gland and the contact insert, including the
contacts.
The product chart provides an overview
of the available components.
Housing type
RC-000000080FZ RC-0000000K0FZ NC-0000000KSFZ
RC-000000090FZ
RC-00000001.00
RC-0000000WQ00 RC-00000004200RC-00000005200RC-00000002200
RC-0000000E000RC-0000000H000
Unshielded with universal shielding ShieldedShielded
Modular signal plug connectors - PLUSCON circular
M23 - RC, UC series
14 PHOENIX CONTACT
Coupling connector housing, page 16
Cable plug connector housing, page 16
RC-0000000T0FZ
RC-0000000M0FZ
Coupling connector housing for mounting on the wall
Front mounting, from page 20 onwards Rear mounting, page 22
Cable plug connector housing, page 18
UC-00000008.DU
UC-0000000R.DU
UC-0000000T.DU
UC-0000000N.DU
Coupling connector housing,
page 19
UC-00000009.DU,
UC-0000000F.DU
Rear mounting, UC-0000000Q.DU
Coupling connector housing for wall mounting,
page 19
Cable plug connector housing, page 17
RC-0000000Z.00
Rear mounting,
RC-00000007.00
Coupling connector housing, page 17
Appliance plug connector housing
RC-00000006100
RC-0000000AD00
RC-0000000C0FZ RC-0000000Q0FZRC-0000000B2FZ
Front mounting, page 20 Rear mounting, page 22
Front mounting,
unshielded, page 20
Selection guide
The product chart shows the possible
combinations of cable plug connector
housings and coupling connector or
appliance plug connector housings.
The chart differentiates between shielded
and unshielded connectors.
The modular system makes it possible
to select an individually suitable connector
from a limited number of articles. To
describe a connector for the device and
panel mounting side, the housing is
supplemented with the corresponding cable
gland and the contact insert, including the
contacts.
The product chart provides an overview
of the available components.
Housing type
RC-000000080FZ RC-0000000K0FZ NC-0000000KSFZ
RC-000000090FZ
RC-00000001.00
RC-0000000WQ00 RC-00000004200RC-00000005200RC-00000002200
RC-0000000E000RC-0000000H000
Unshielded with universal shielding ShieldedShielded
Modular signal plug connectors - PLUSCON circular
M23 - RC, UC series
15PHOENIX CONTACT
Cable clamp type cage / shield adapter
page 24.

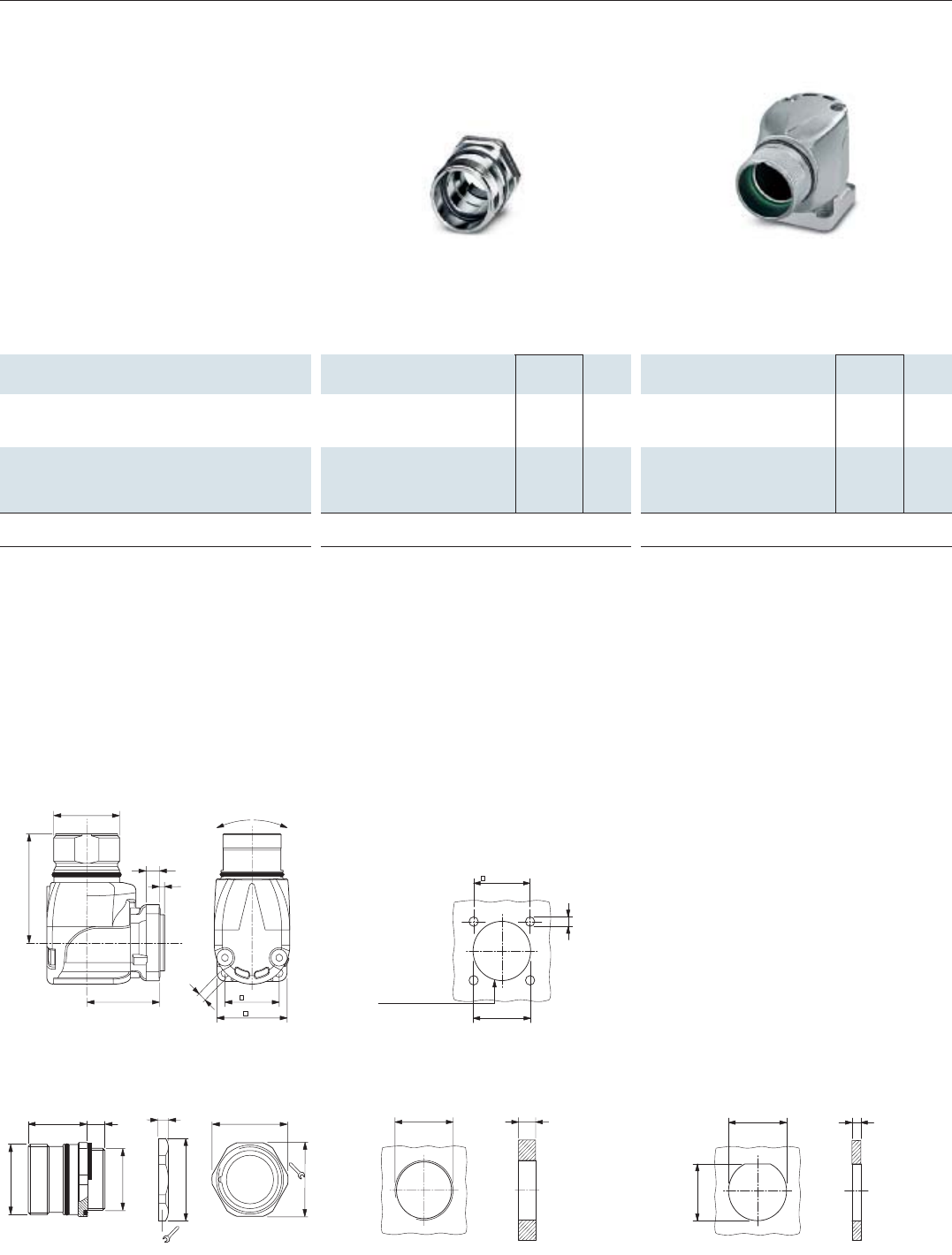

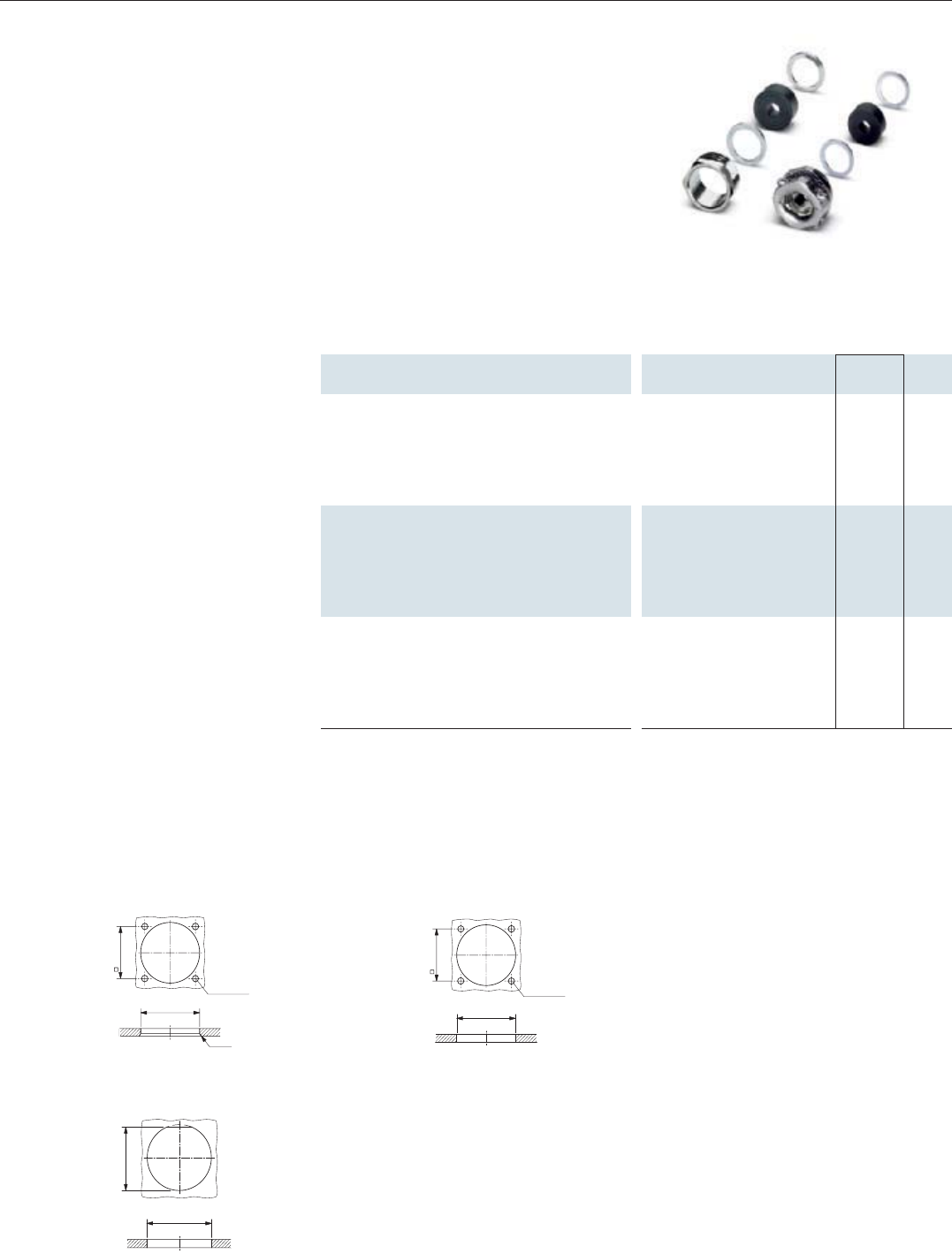

Cable glands
unshielded, page 25
with Pg and metric connecting threads
Cable glands are not required for appliance plug
connector housings.

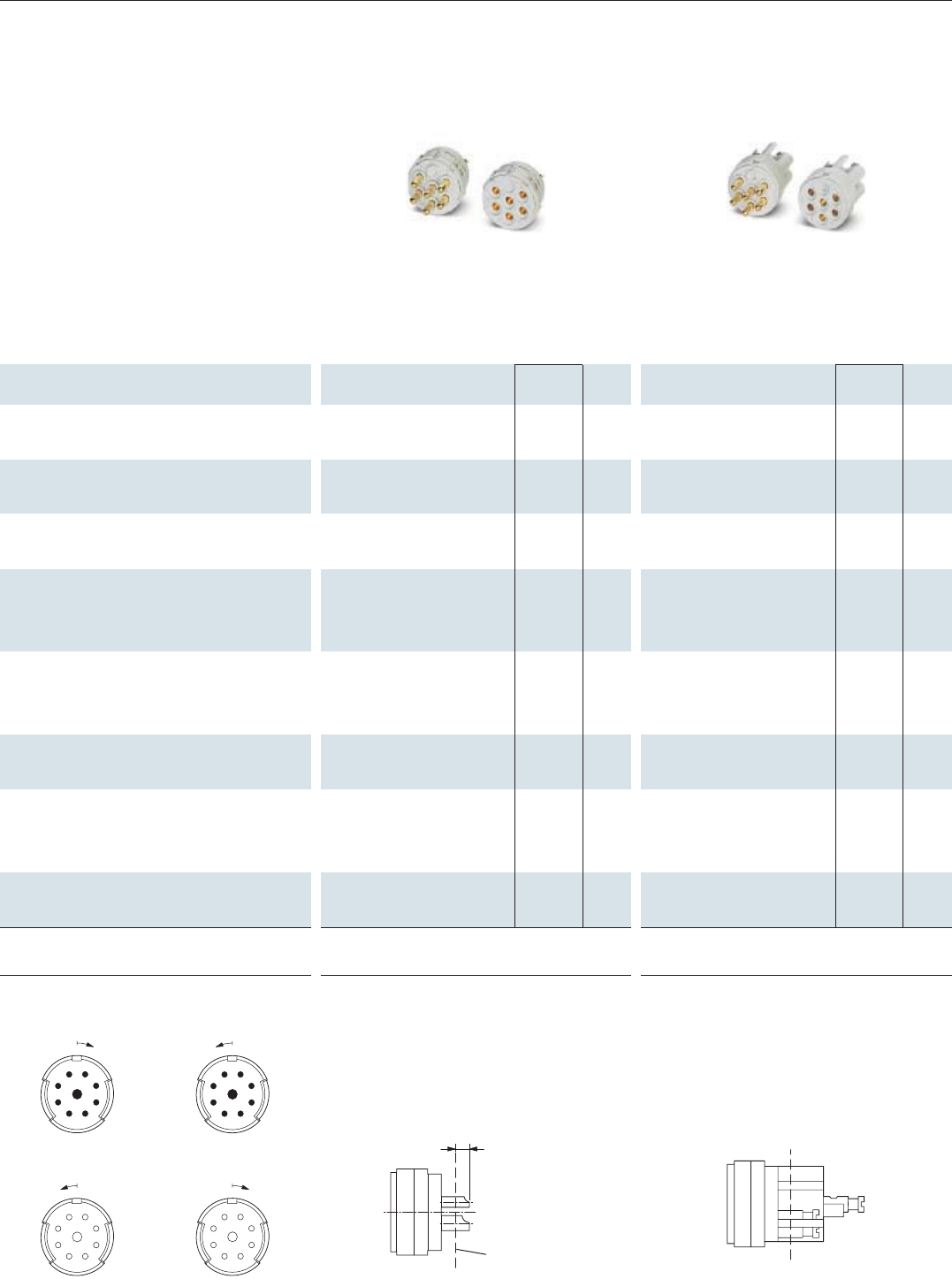

Solder contact inserts, page 32
6 to 19-pos.

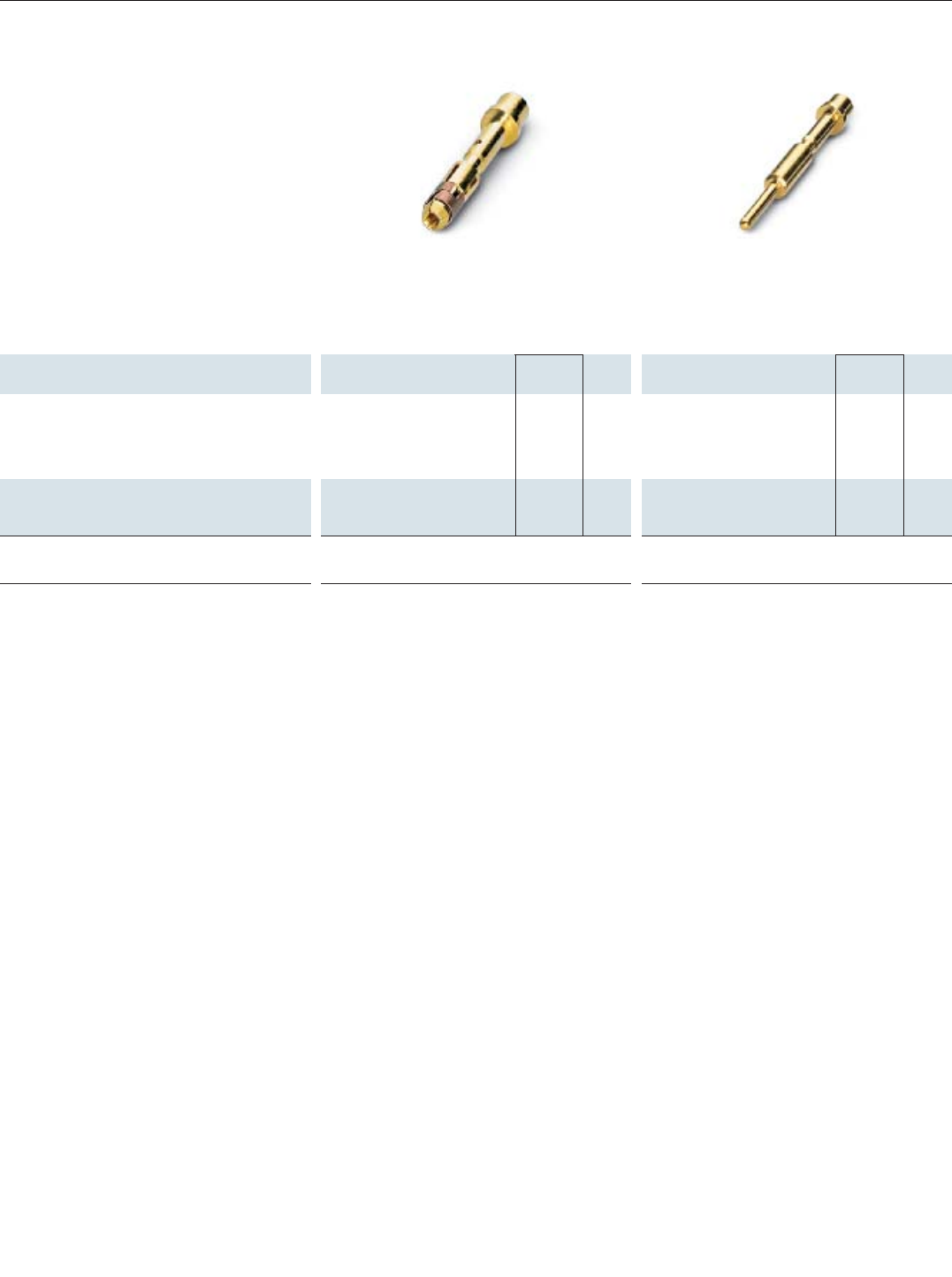

Crimp contact inserts, from page 33 onwards
6 to 19-pos.
Direct PCB connection, from page 36 onwards
with 6 to 17-pos. solder-in contacts
Housing type Free solder pin length
M23 A
[mm]
B
[mm]
C
[mm]
D
[mm]
RC-.......2200 3.5 4.5 10 17.5
RC-.......WQ00 3.5 4.5 10 17.5
RC-.......4200 3.5 4.5 10 17.5
RC-.......5200 3.5 4.5 10 17.5
RC-.......H000 ––3.511
RC-.......E000 ––3.511
Screw contact inserts, page 32
6, 7 and 9-pos.
All housings can be equipped with male or female contacts All housings can be equipped with male or female contacts
Cable glands / shield accessories Contact inserts incl. contacts
Socket
Pin
The connectors are equipped with a universal
shield connection for cable diameters of up to
14.5 mm.
Shielded cable glands with a cable clamp
type cage and shield adapters are not
required.
SocketPin
SocketPin
Pin Socket
Note:
For reasons pertaining to safety, only
female contacts may be used in the live
part of the connector.
51,1
22
26
O
52,7
26
O
20
55
20
21
M23x1
52,7
20
28
O
53,4
24 22
M23x1
60
24
22
50,5
26
O
More informations and installation instructions at: www.phoenixcontact.com
Description Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.

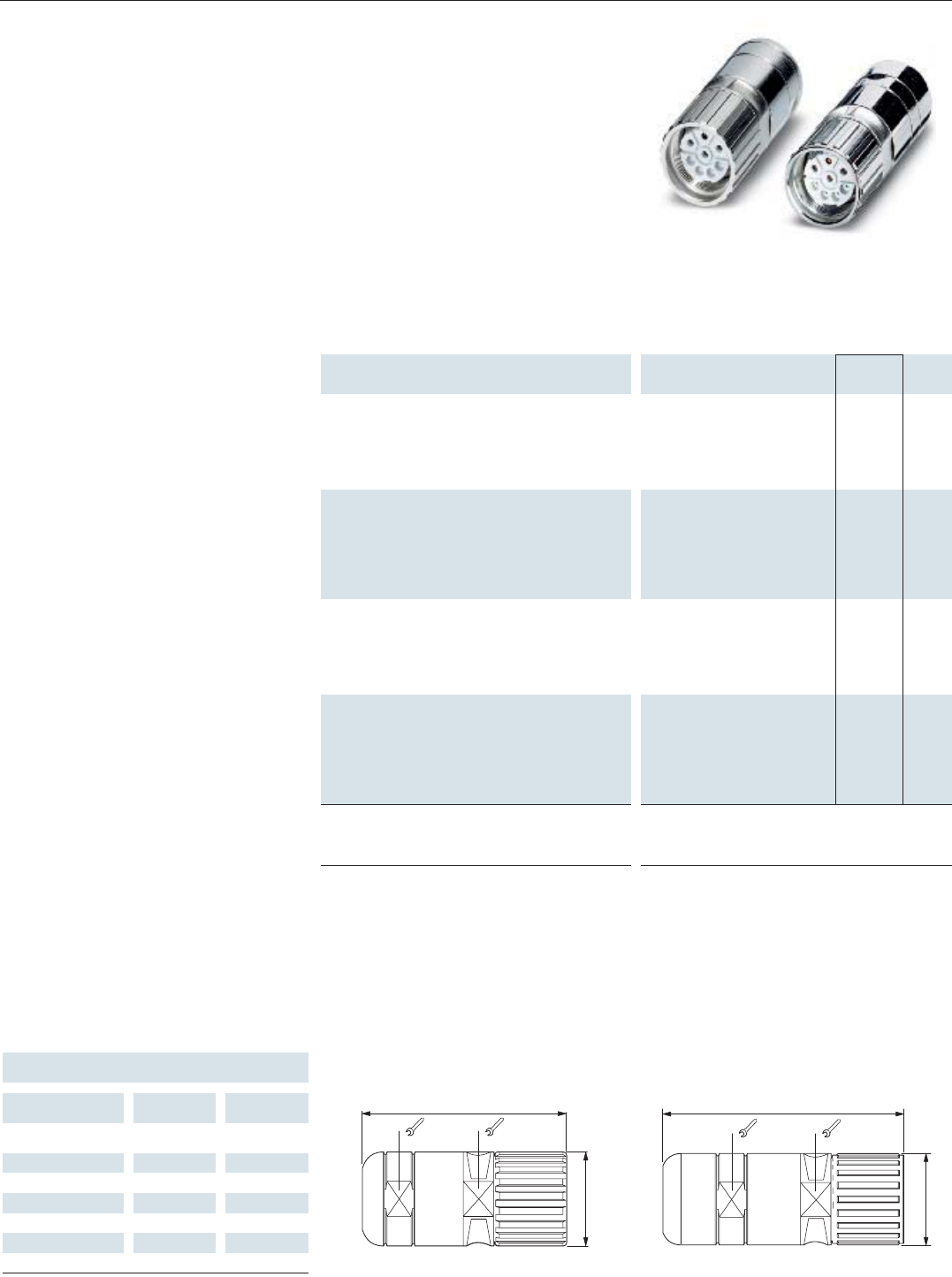

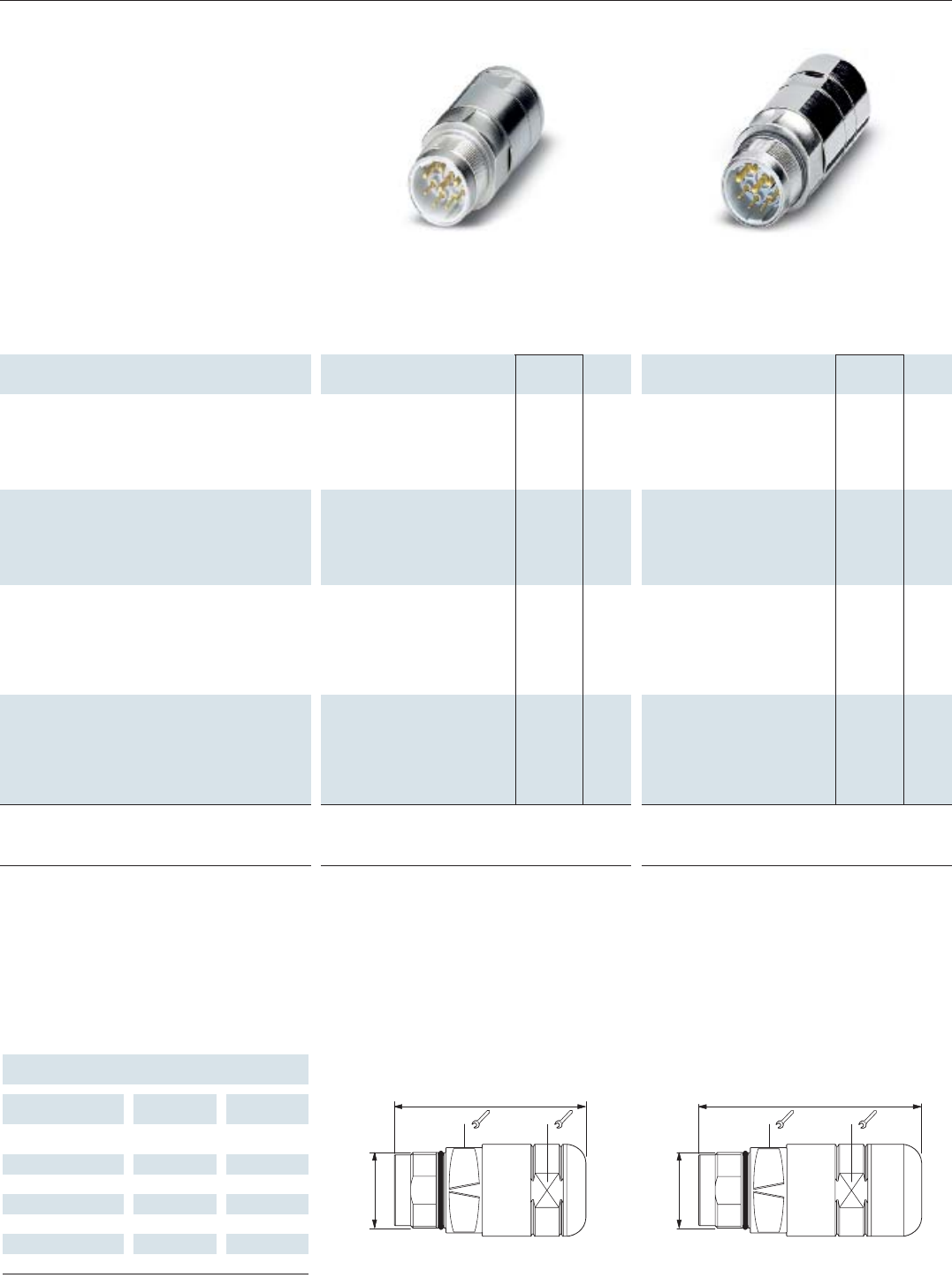

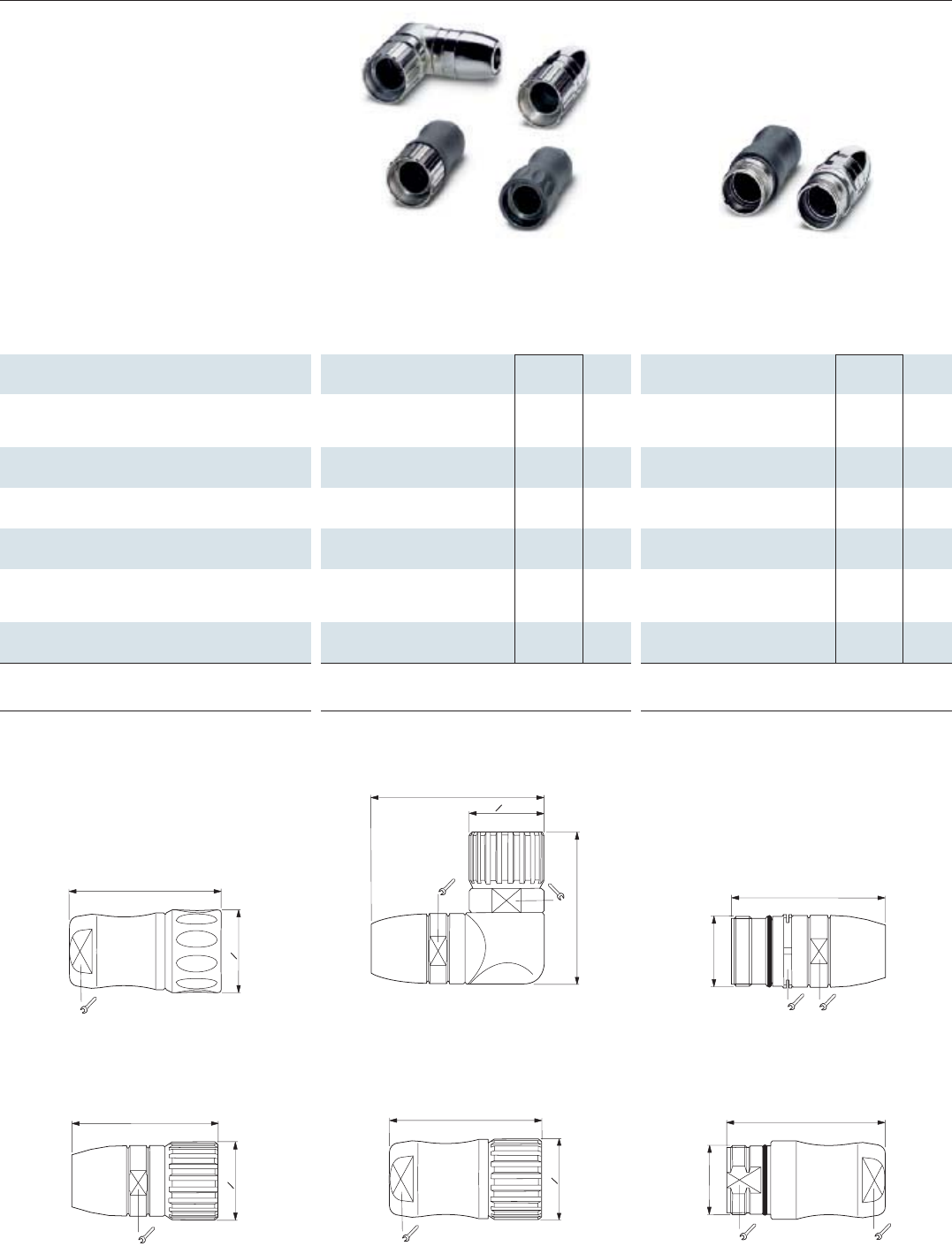

Cable plug connector housing, straight, shielded,
with plastic sheath for additional protection against accidental
contact
RC-0000000K0FZ 1592865 20
Cable plug connector housing, straight, shielded, metal
RC-000000080FZ 1592680 20
Cable plug connector housingstraight, shielded,
plastic cap
NC-0000000KSFZ 1592030 20

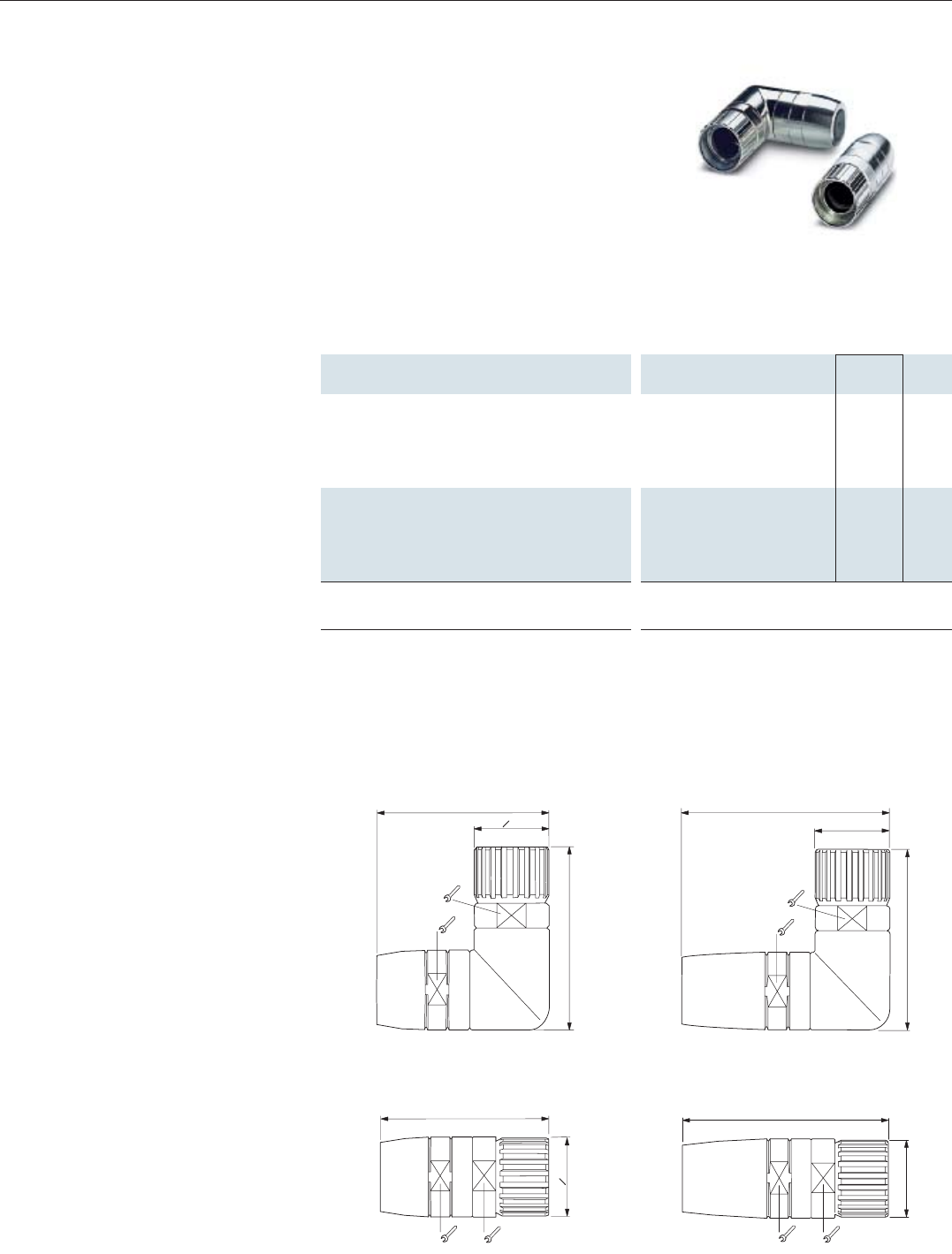

Cable plug connector housing, angled, shielded, metal
RC-0000000T0FZ 1592992 10

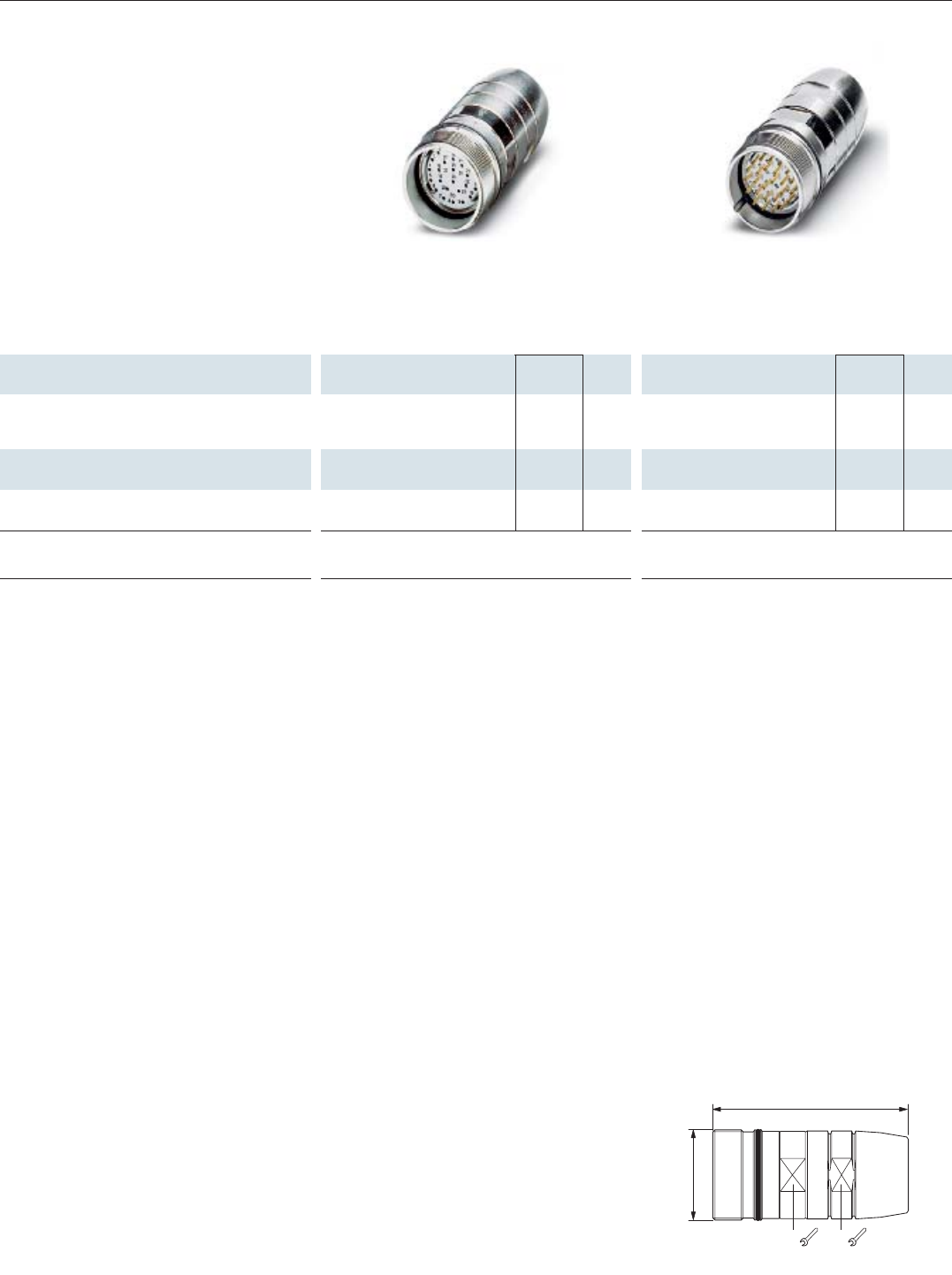

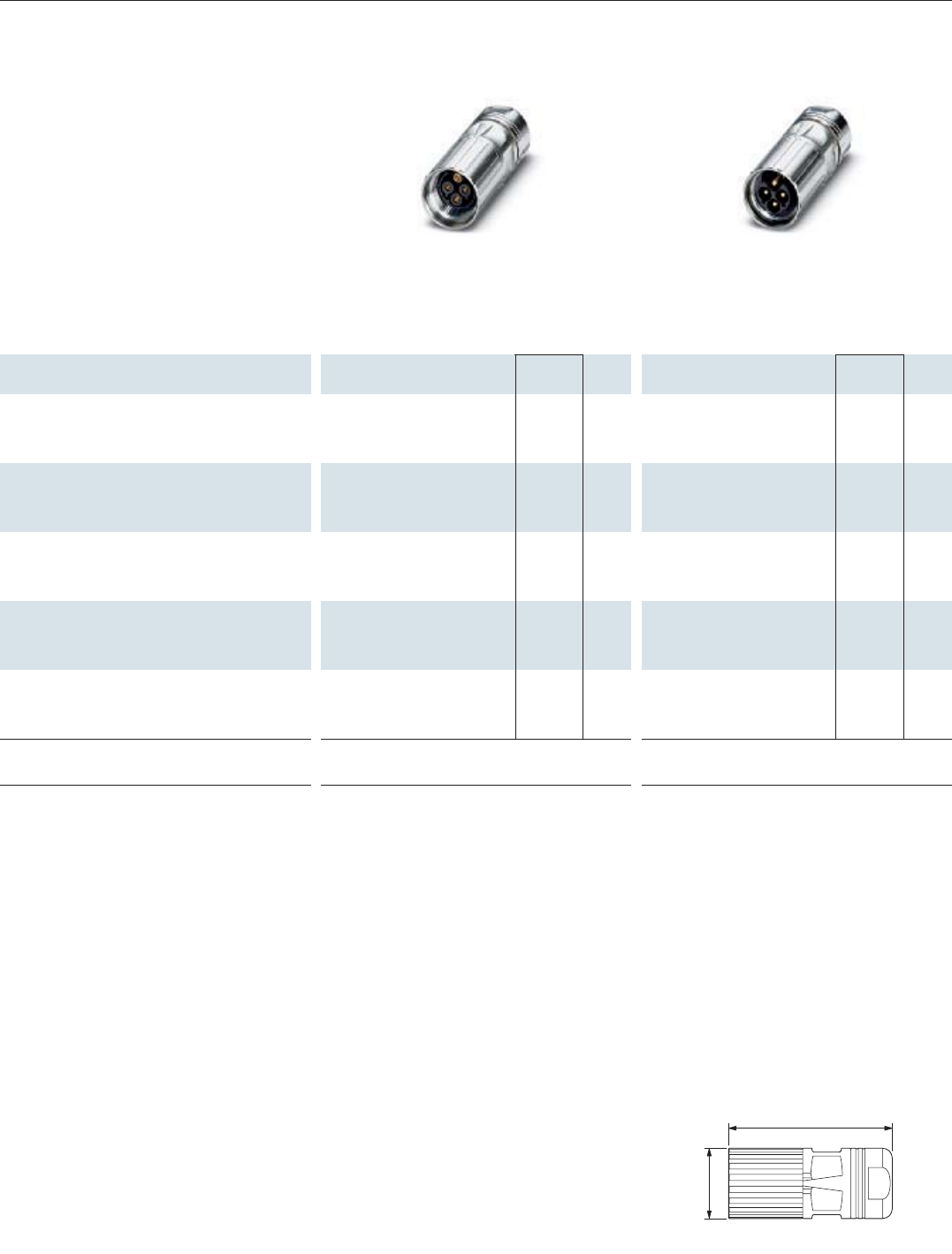

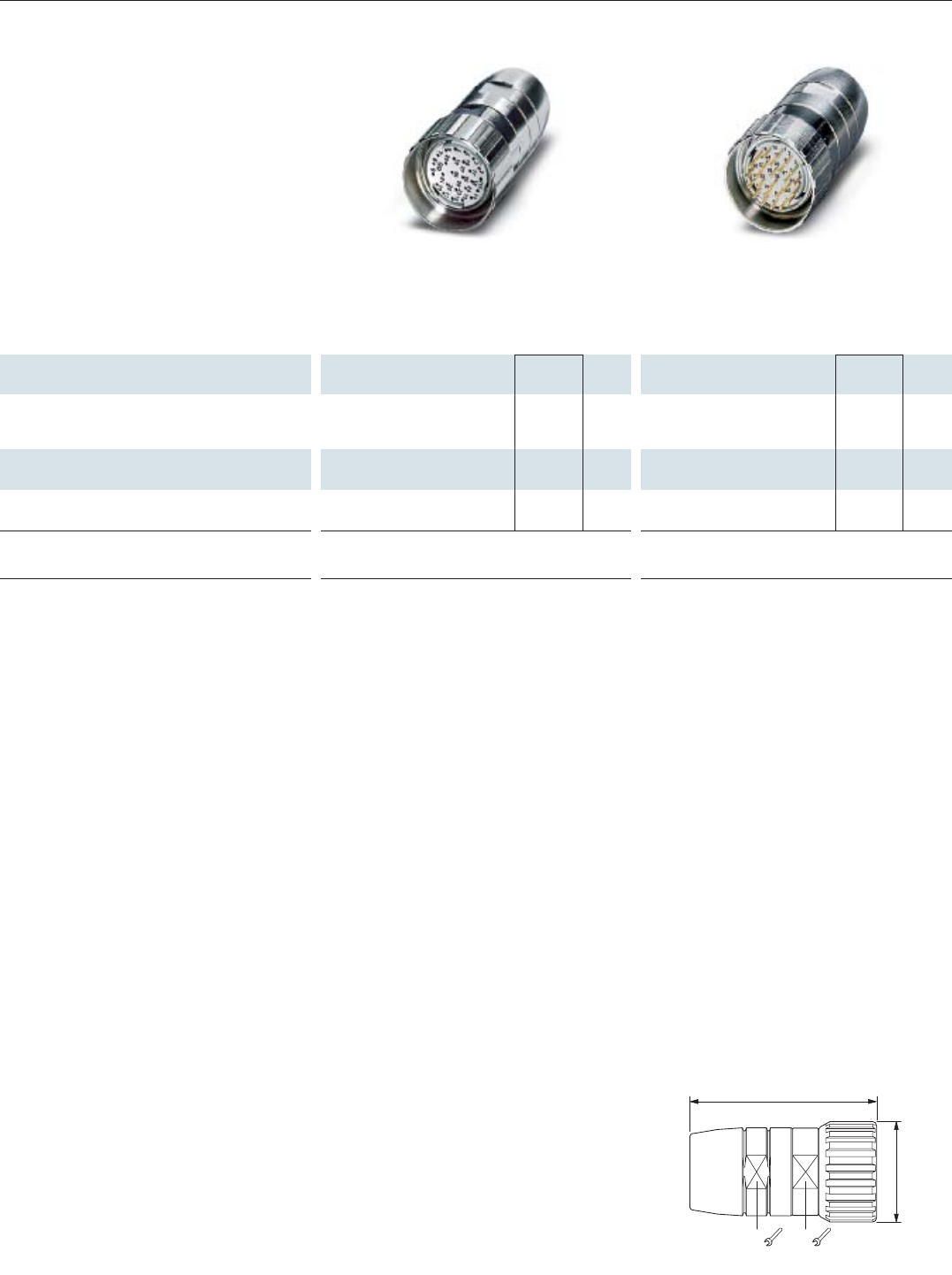

Coupling plug connector housing, straight, shielded,
with plastic sheath for additional protection against accidental
contact
RC-0000000M0FZ 1592899 20
Coupling plug connector housing, straight, shielded, metal
RC-000000090FZ 1592750 20
Contact inserts Order separately, see page 32 onwards Order separately, see page 32 onwards
Cable clamping / shield accessories Order separately, see page 23 Order separately, see page 23
RC-0000000.0FZ
Cable plug connector housing, shielded
RC-0000000.0FZ
Coupling plug connector housing, shielded
RC-000000080FZ NC-0000000KSFZ RC-0000000M0FZ
16 PHOENIX CONTACT
RC-0000000K0FZ RC-0000000T0FZ RC-000000090FZ

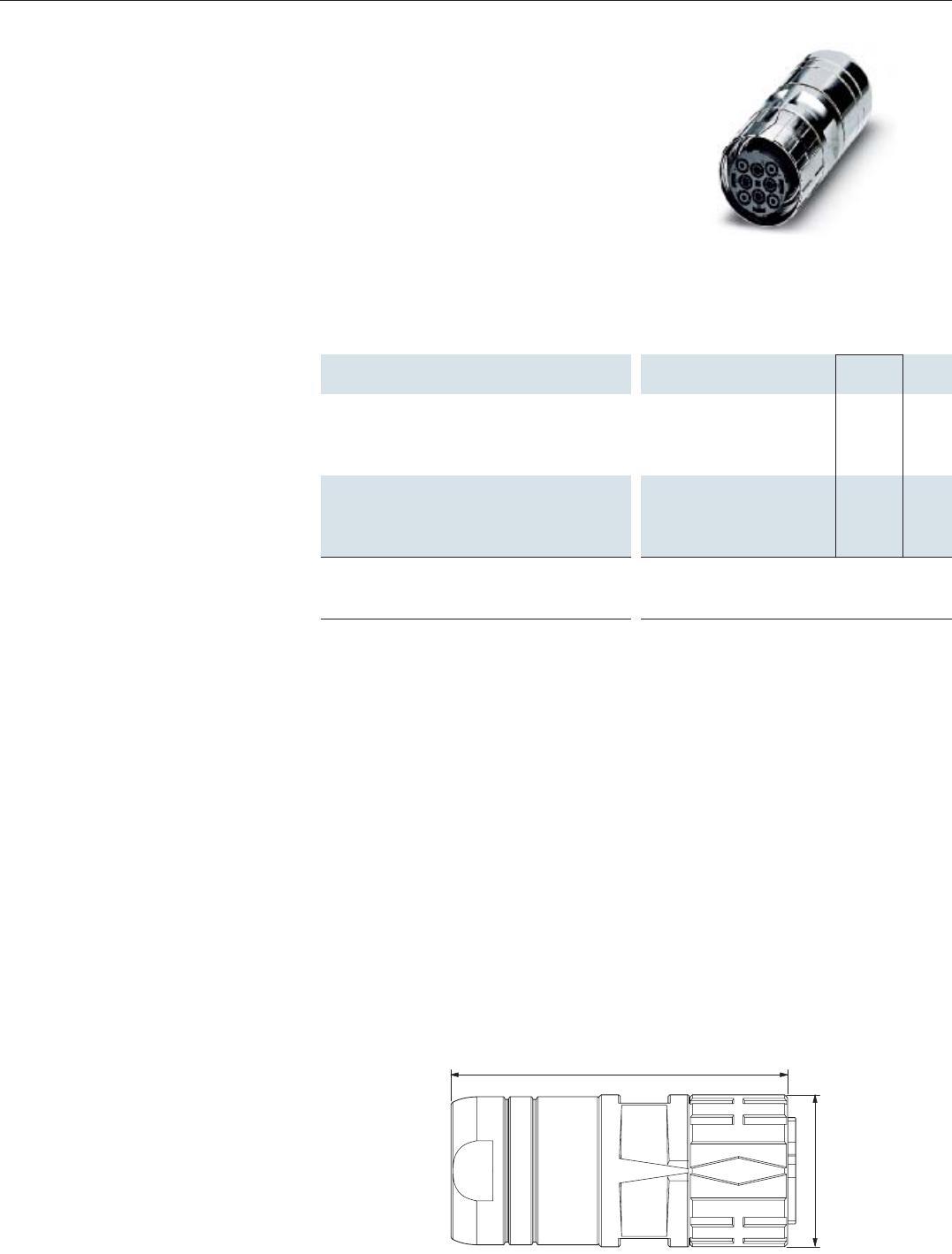

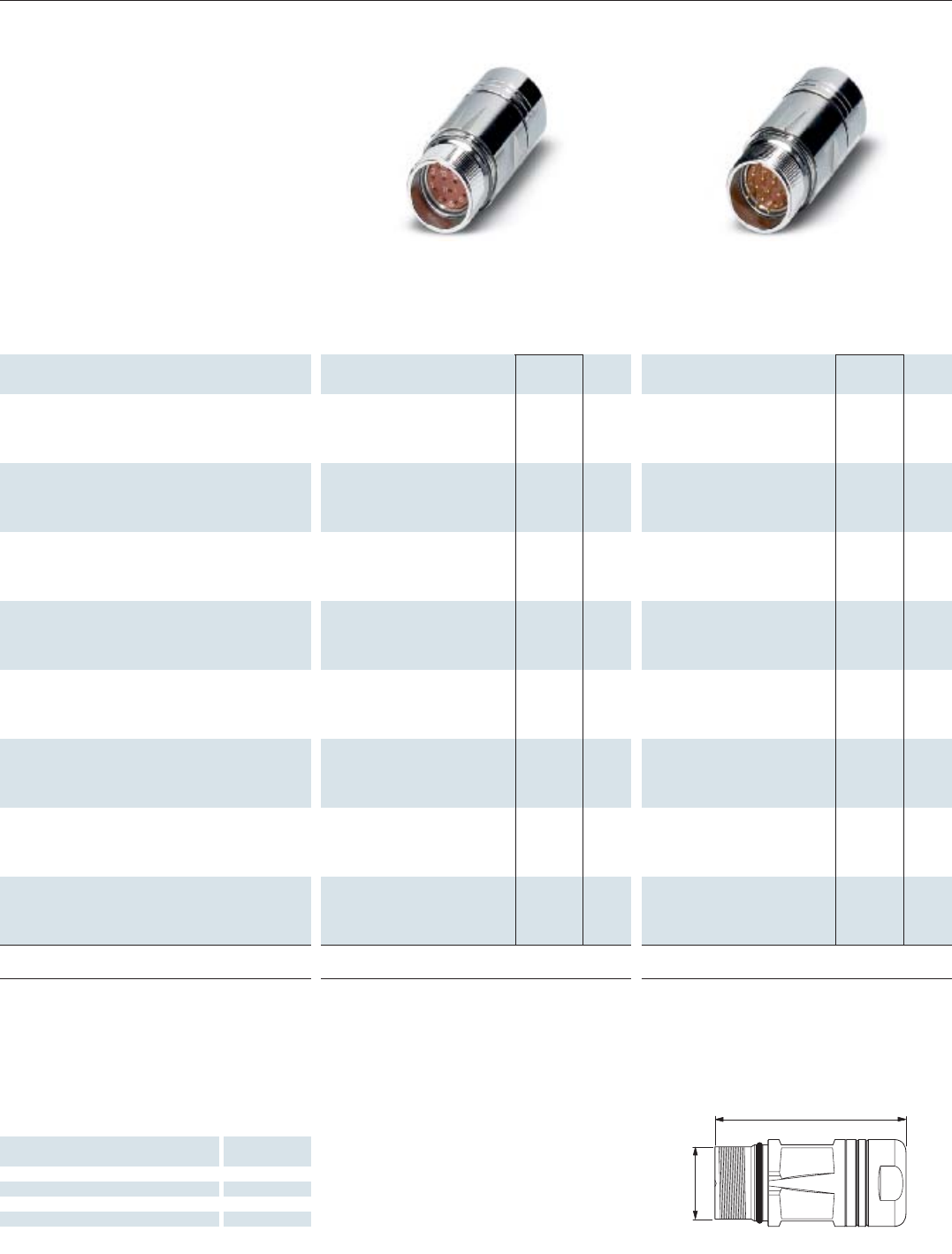

The M23 cable and coupling plug
connectors in EMC version allow the
connection of shielded cables with external
diameters of 2 mm ... 10.5 mm.
The connectors fulfill the IP67 degree of
protection when locked due to the special
cable clamping.
Cable and coupling plug connector
housings, shielded
Modular signal connectors - PLUSCON circular
M23 - RC series
58
24
50,2
26
O
20
41
20
26
O
24 24
M23x1
51,4
More informations and installation instructions at: www.phoenixcontact.com
Description Cable entry Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.

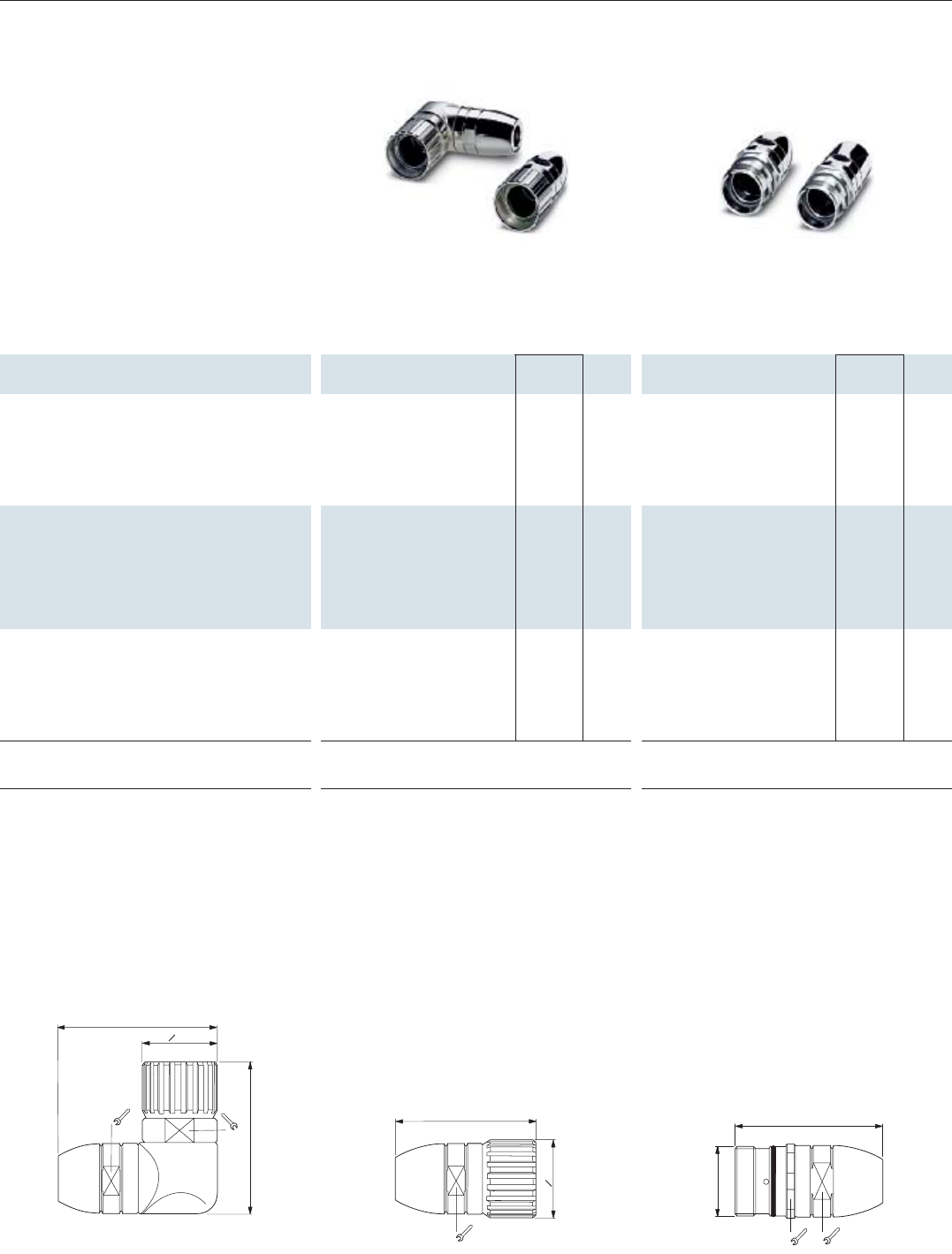

Cable plug connector housing, straight, unshielded, metal,
connection thread:
Pg9 RC-00000001100 1592535 20
Pg11 RC-00000001200 1592539 20
Pg13.5 RC-00000001300 1592546 20
M16x1.5 RM-00000001100 1607026 20
M20x1.5 RM-00000001300 1605029 20

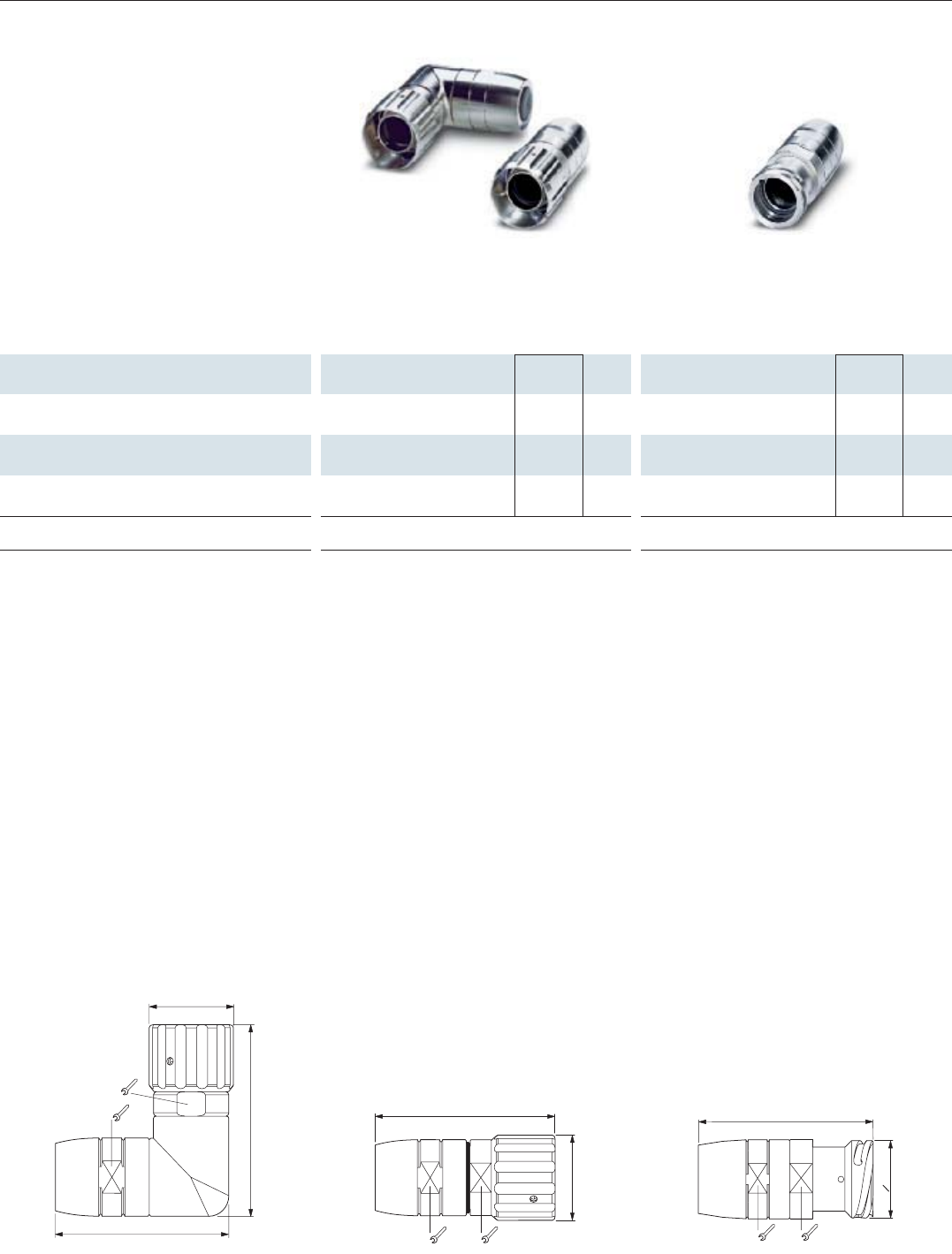

Cable plug connector housing, angled,
4 x 90° codable, unshielded, metal,
connection thread:
Pg9 RC-0000000Z100 1593037 10
Pg11 RC-0000000Z200 1593040 10
Pg13.5 RC-0000000Z300 1593044 10
M16x1.5 RM-0000000Z100 1607029 10
M20x1.5 RM-0000000Z300 1607030 10
Coupling plug connector housing, straight, unshielded, metal,
connection thread:
Pg9 RC-00000007100 1592618 20
Pg11 RC-00000007200 1592621 20
Pg13.5 RC-00000007300 1592626 20
M16x1.5 RM-00000007100 1607027 20
M20x1.5 RM-00000007300 1607028 20
Contact inserts Order separately, see page 32 onwards Order separately, see page 32 onwards
Cable clamping Order separately, see page 23 Order separately, see page 23
R.-0000000..00
Cable plug connector housing, unshielded
R.-00000007.00
Coupling plug connector housing, unshielded
17PHOENIX CONTACT
RC-0000000Z.00, RM-0000000Z.00 RC-00000001.00, RM-00000001.00 RC-00000007.00, RM-00000007.00

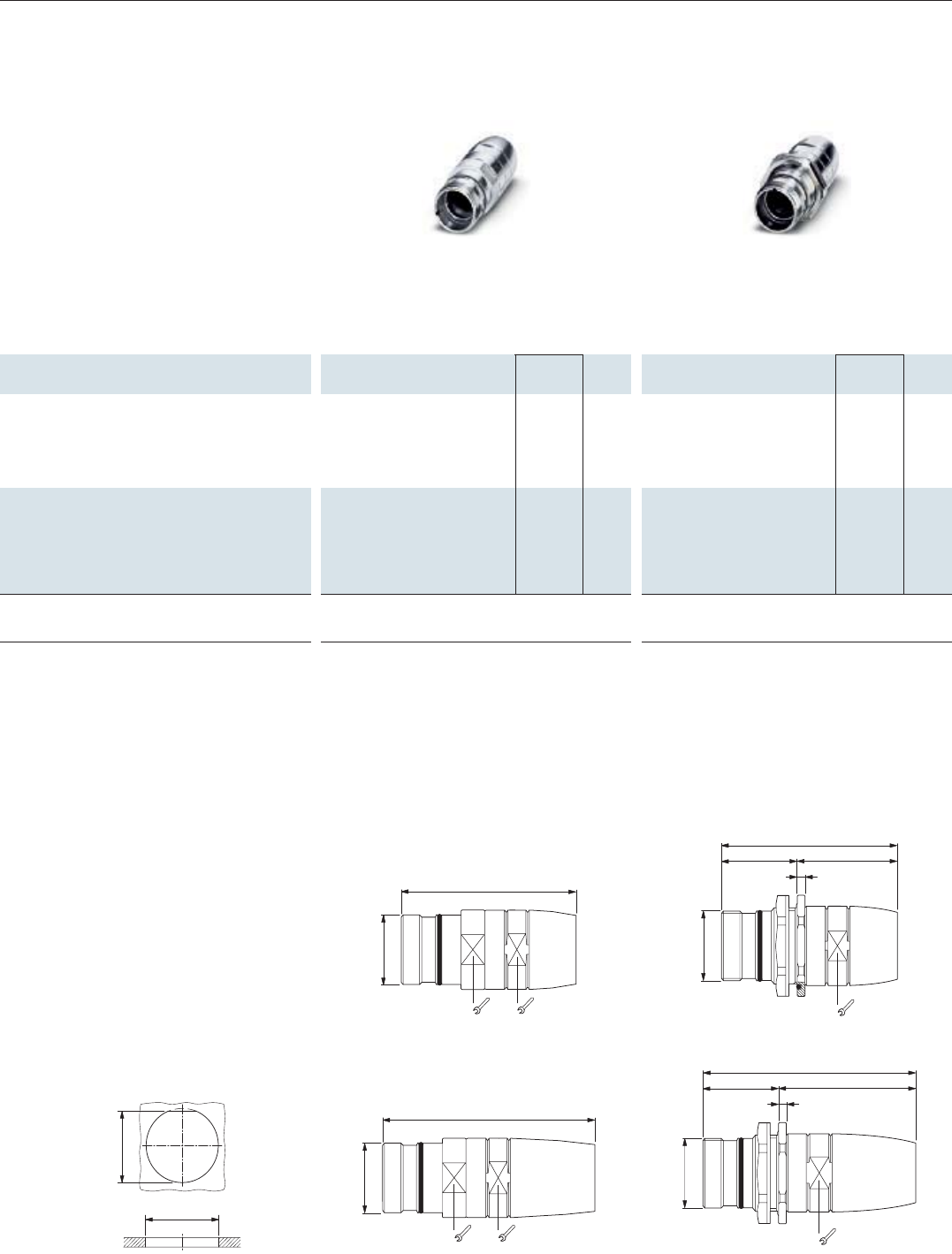

The unshielded cable and coupling plug
connector housings are supplemented by
cable glands with PG or metric threads.
These are screwed onto the adapter cover
from outside and fulfill the requirements of
the IP65 ... IP68 degree of protection
depending on the type.
Cable and coupling plug connector
housing, unshielded
Modular signal connectors - PLUSCON circular
M23 - RC series
59
24
24
26
O
24 24
26
71,5
Ø
60,2
24
24
26
72,4
Ø
59,9
24
60,2
26
O
24
More informations and installation instructions at: www.phoenixcontact.com
Description Cable entry Type Order No. Pcs. /
Pkt.

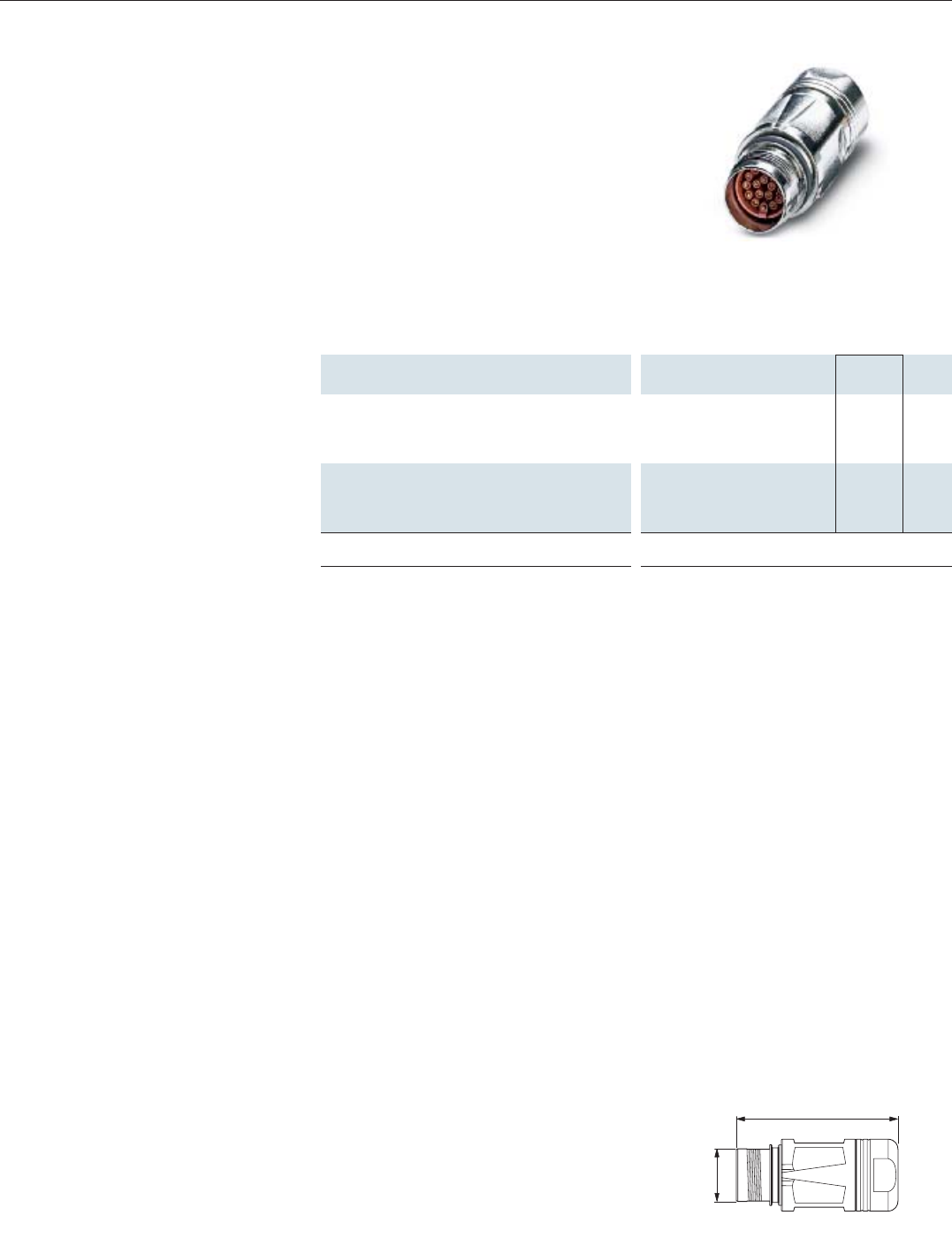

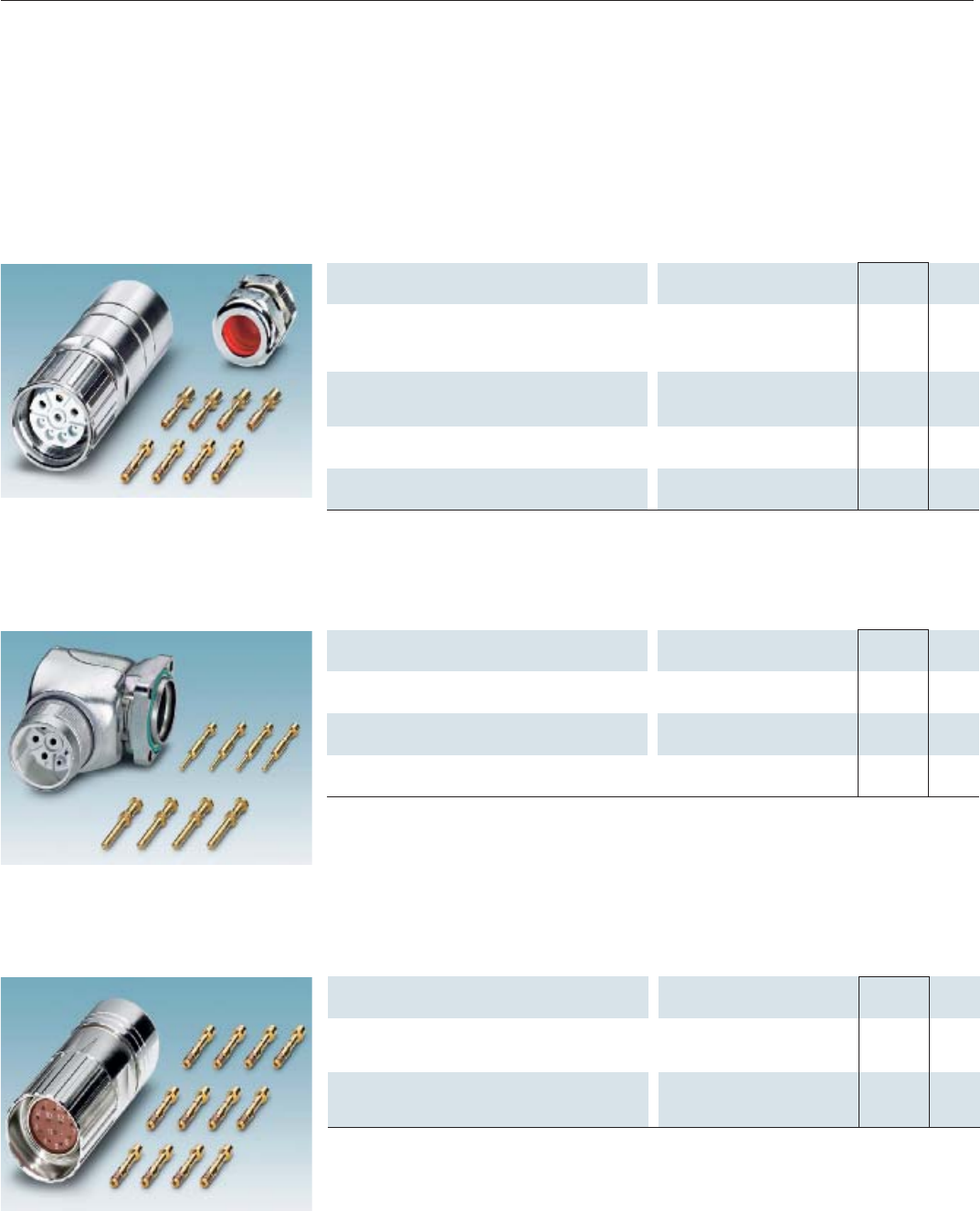

Cable plug connector housing, straight
Universal gasket, Ø 2.0 ... 14.5 mm UC-000000080DU 1606030 20
with thread for additional strain relief, Pg13.5 UC-0000000R3DU 1606058 20
with thread for additional strain relief, Pg16 UC-0000000RNDU 1606061 20
Cable plug connector housing, angled
Universal gasket, Ø 2.0 ... 14.5 mm UC-0000000T0DU 1606065 8
with thread for additional strain relief, Pg13.5 UC-0000000N3DU 1606047 8
with thread for additional strain relief, Pg16 UC-0000000NNDU 1606050 8
Contact inserts Order separately, see page 32 onwards
Cable gland (additional strain relief) Order separately, see page 23
UC-0000000..DU
Cable plug connector housing,
with universal shielding
18 PHOENIX CONTACT
Like the RC series, the UC series is
completely modular in structure. This
means that a wide variety of connectors can
be implemented from a small number of
different components. Both are M23
connectors with comparable technical
specifications.
The UC series uses the same insulation
bodies in all pin assignment versions. In
comparison to the RC series, the UC series
provides more wiring space and can
accommodate bigger cable diameters.
Unlike the RC series, the shielding function
and the cable clamping are universal. It is
not necessary to adjust the shielding
elements to the cables used. This facilitates
termination in the field.
Cable and coupling housings with an
additional thread can be equipped with
another cable strain relief (double bracket)
for exceptional loads.
Connectors in the UC series are
equipped with a universal shield connection.
Shield accessories with a cable clamp type
cage and shield sleeve are not required.
Additional strain reliefs (double bracket)
as well as fixed gaskets are ordered
separately.

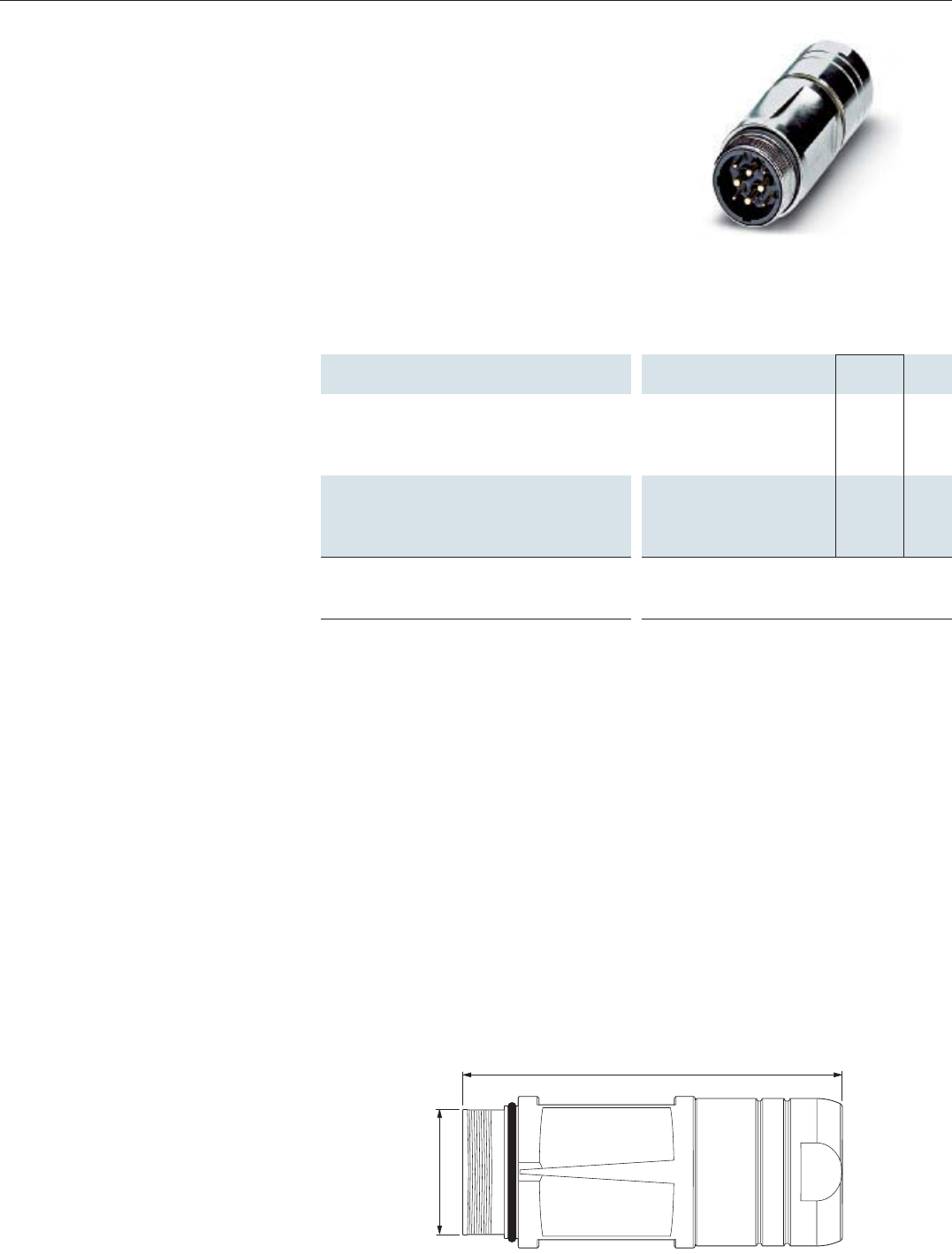

Cable plug connector housing,
universally shielded, cable entry up to
14.5 mm
Modular signal connectors - PLUSCON circular
M23 - UC series
UC-000000080DU UC-0000000R3DU, UC-0000000RNDU
UC-0000000T0DU UC-0000000N3DU, UC-0000000NNDU
Ø25+0,1
24+0,1
max. 6,5mm
73,8
M23x1
24 24
(73,8)
M23x1
2,5
47,5
26,3
24
M23x1
(61,3)
2,5
35
26,3
24
61,3
24 24
M23x1
More informations and installation instructions at: www.phoenixcontact.com
Description Cable entry Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.

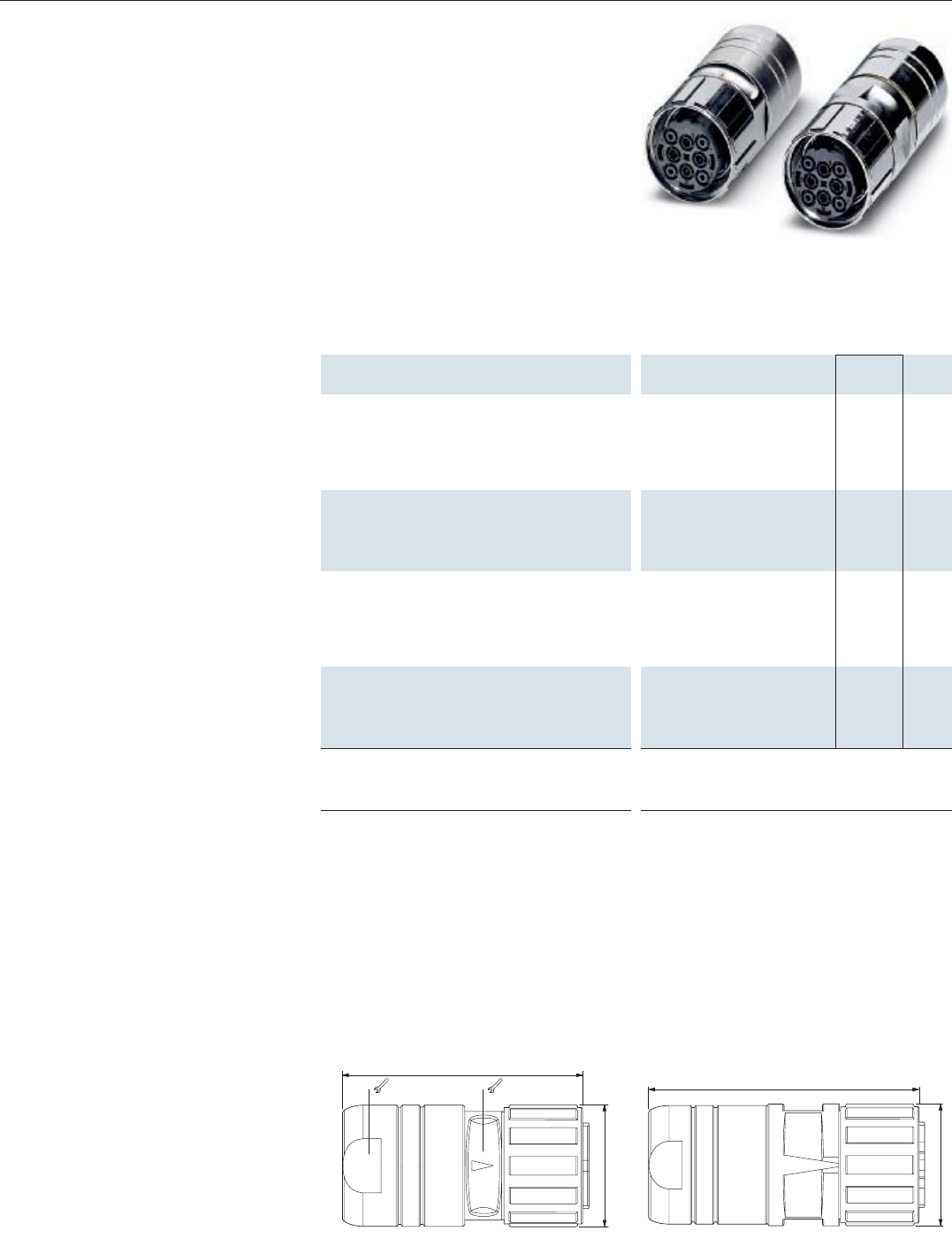

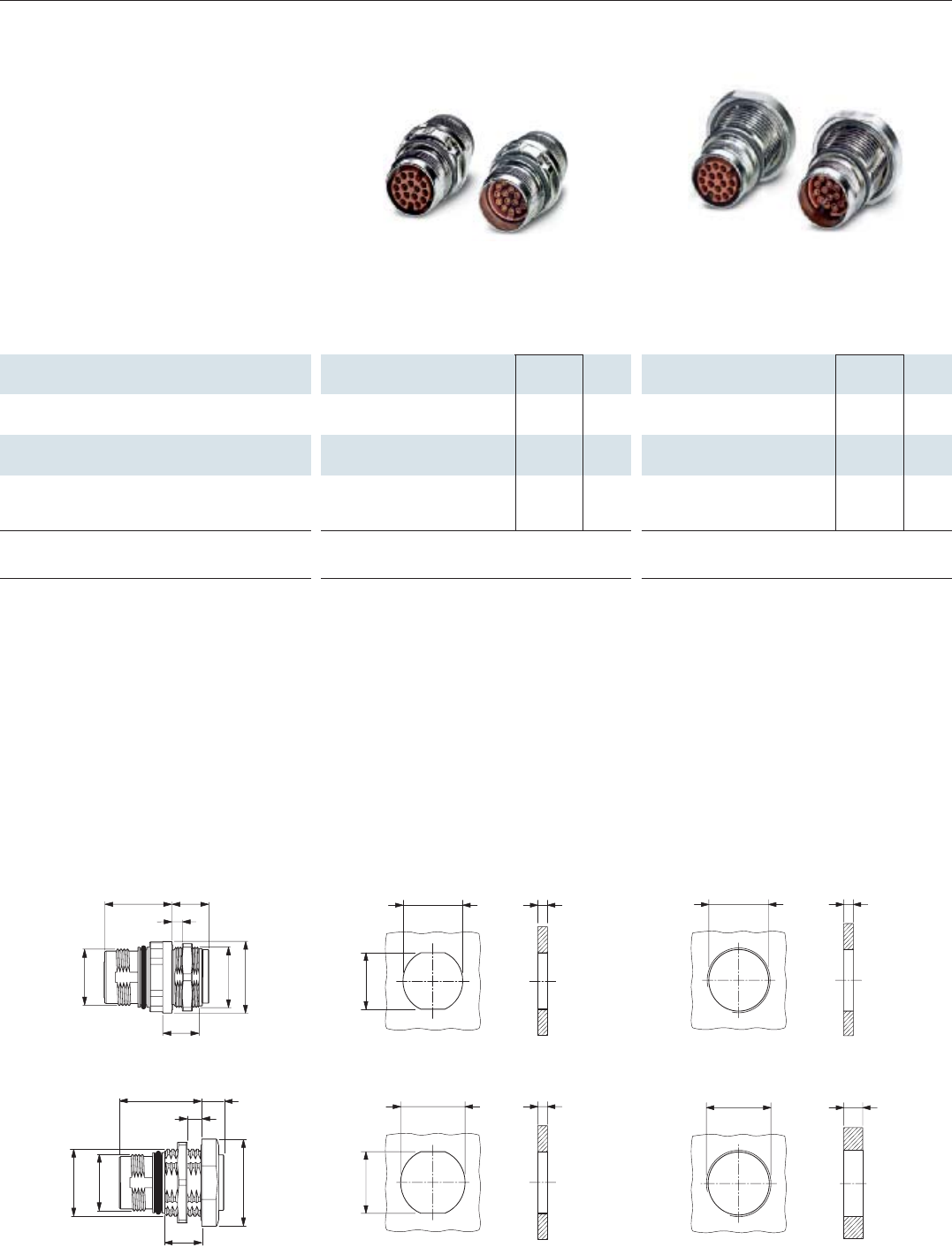

Coupling plug connector housing, straight
Universal gasket, Ø 2.0 ... 14.5 mm UC-000000090DU 1606040 20
with thread for additional strain relief, Pg13.5 UC-0000000F3DU 1607069 20
with thread for additional strain relief, Pg16 UC-0000000FNDU 1606046 20

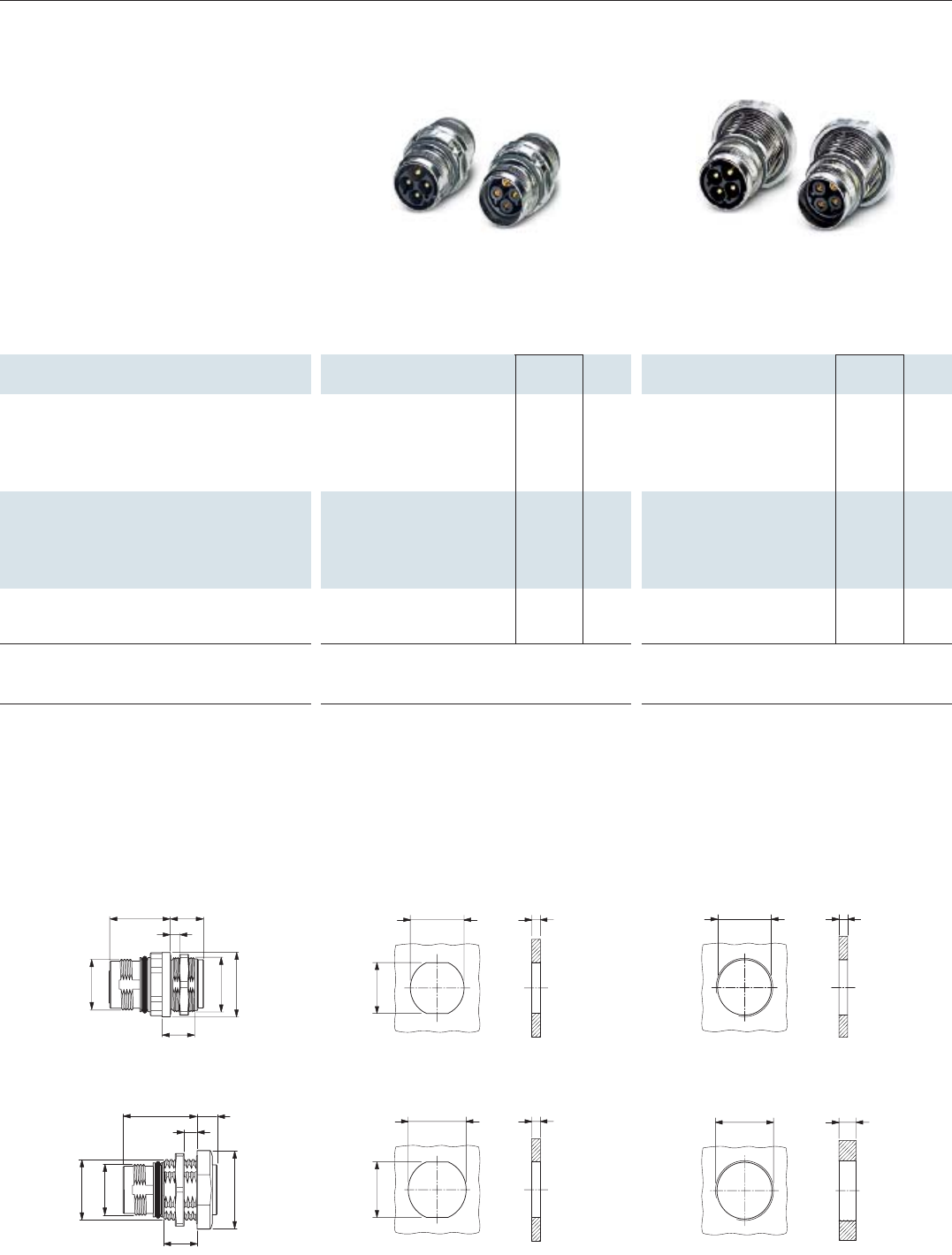

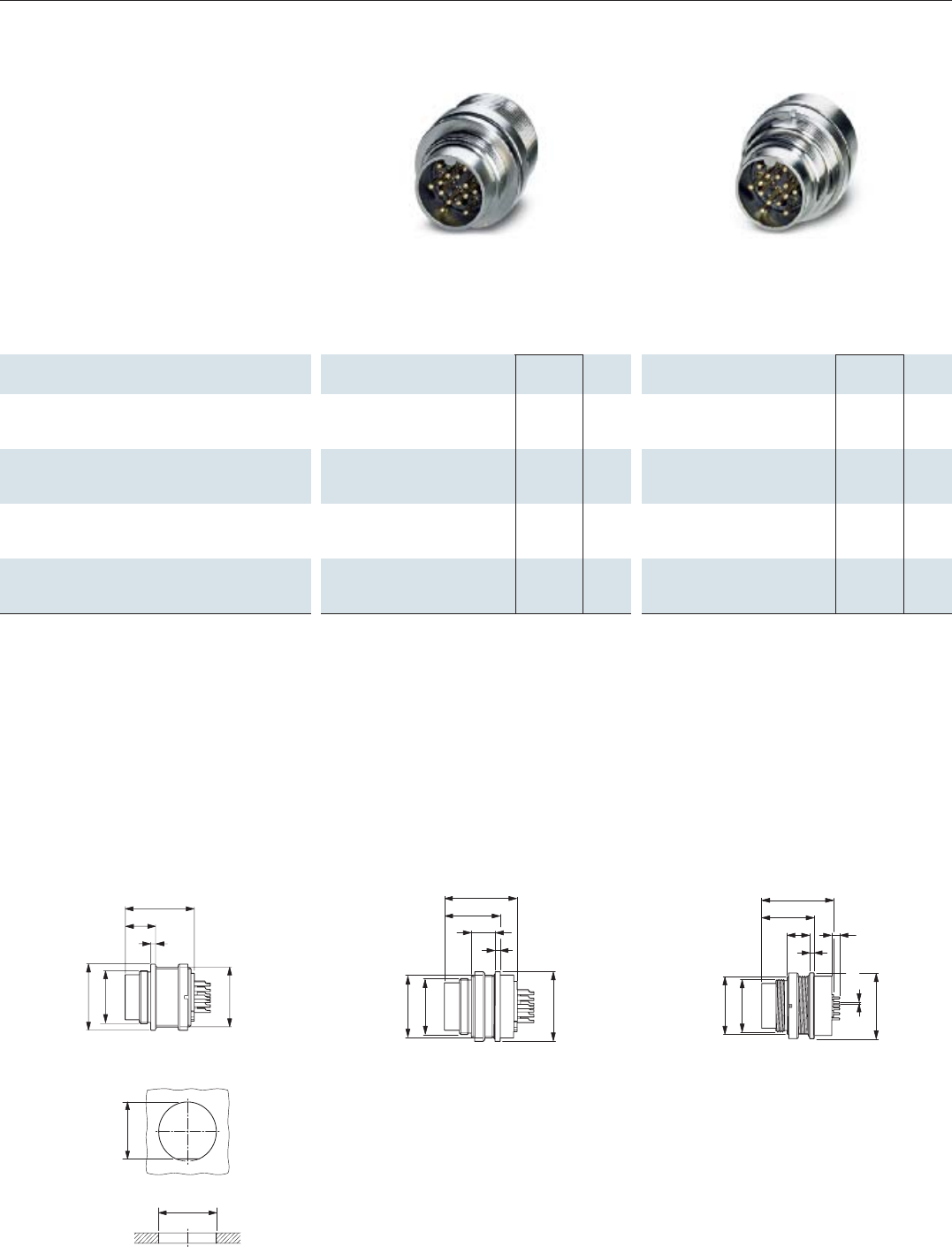

Coupling plug connector housing, straight, rear mounting,
with central fixing nut
Universal gasket, Ø 2.0 ... 14.5 mm UC-0000000Q0DU 1606053 10
with thread for additional strain relief, Pg13.5 UC-0000000Q3DU 1607070 10
with thread for additional strain relief, Pg16 UC-0000000QNDU 1607083 10
Contact inserts Order separately, see page 32 onwards Order separately, see page 32 onwards
Cable gland (additional strain relief) Order separately, see page 23 Order separately, see page 23
UC-0000000..DU
Coupling plug connector housing,
with universal shielding
UC-0000000Q.DU
Coupling plug connector housing, with universal shielding,
rear mounting
Installation dimensions: UC-0000000Q.DU
(Axial O-ring)
UC-0000000F3DU, UC-0000000FNDU UC-0000000Q3DU, UC-0000000QNDU
(Axial O-ring)
19PHOENIX CONTACT
UC-000000090DU UC-0000000Q0DU
(Axial O-ring)
Connectors in the UC series are
equipped with a universal shield connection.
Shield accessories with a cable clamp type
cage and shield sleeve are not required.
Additional strain reliefs (double bracket)
as well as fixed gaskets are ordered
separately.

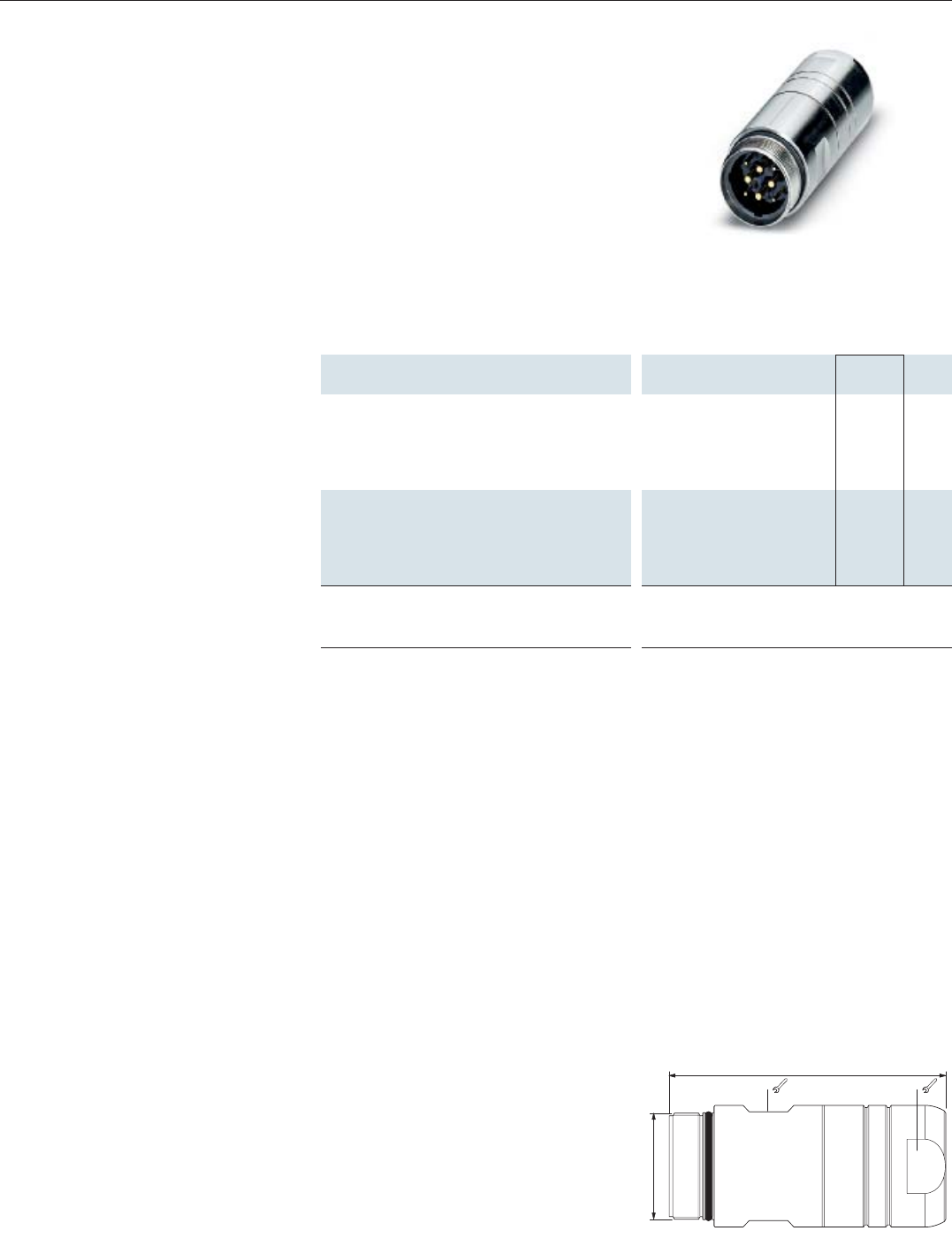

Coupling plug connector housing,
universally shielded, cable entry up to
14.5 mm
Modular signal connectors - PLUSCON circular
M23 - UC series
19,8±0,1
Ø2,7
Ø20+0,1
1x15°
min. 3mm
19,8±0,1
Ø2,7
Ø20+0,1
1x15°
min. 3mm
19,8±0,1
Ø2,7
Ø20+0,1
3
22,3 3,5
M23
25
19,8
4x2,7
Ø
1,5
1
21,3
M23
25
19,8
4x2,7
Ø
(53,4)
22
31,1
3
22,3
M23
4x2,7
25
19,8
More informations and installation instructions at: www.phoenixcontact.com
Description Wall thickness [mm] Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.

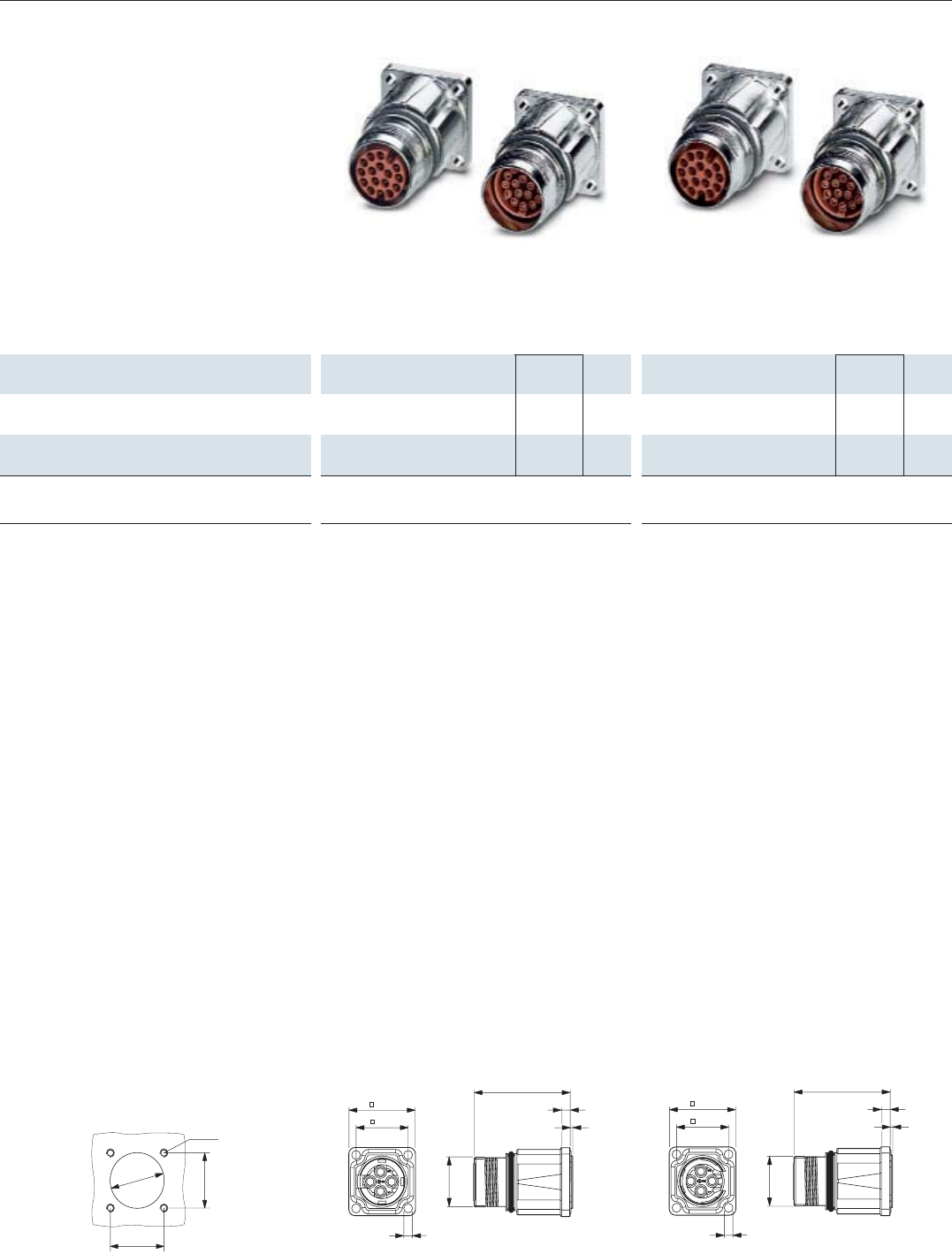

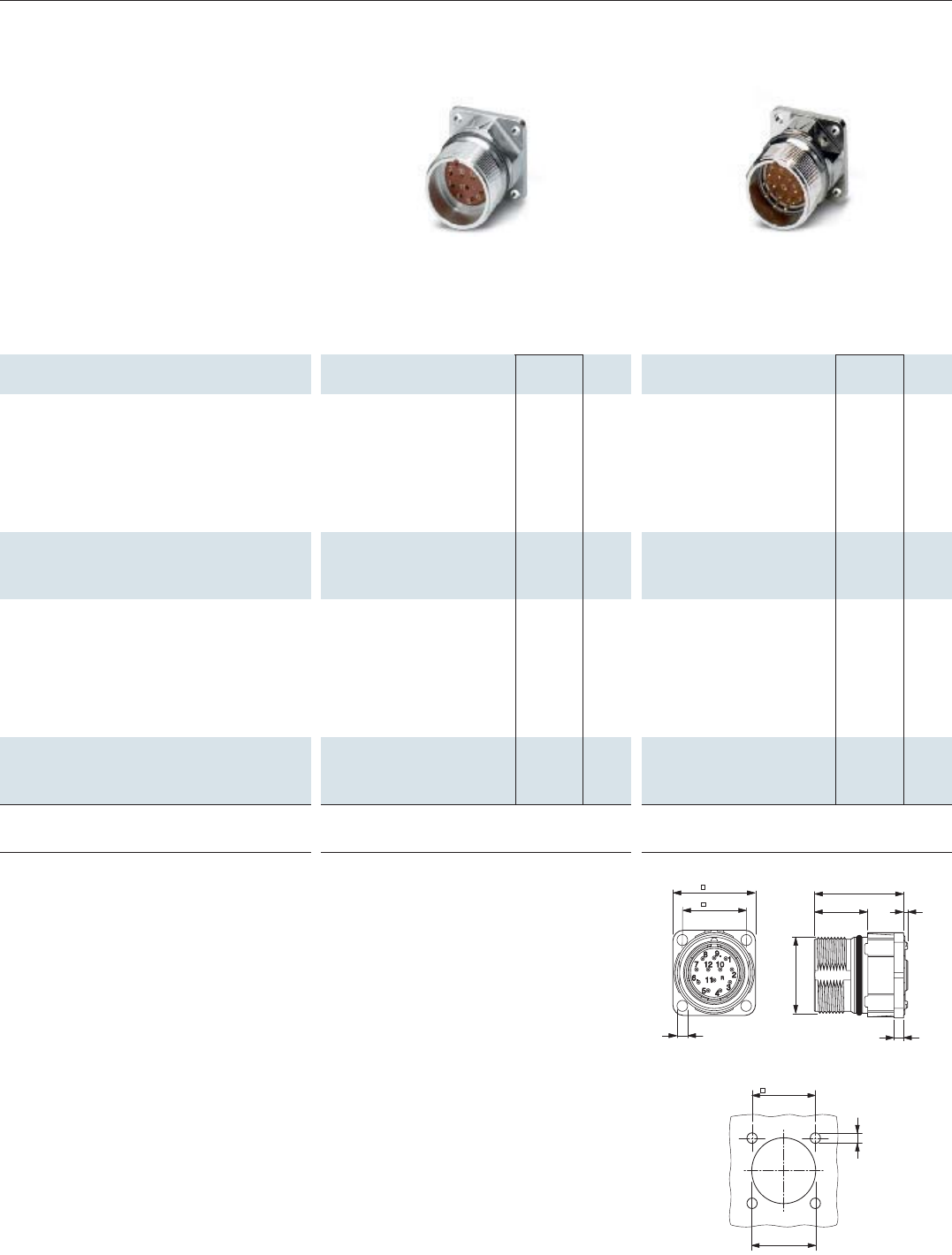

Appliance plug connector housing, front mounting, straight,
flat gasket (self-adhesive), 4-hole mounting,
for shielded applications
from 1 onwards RC-00000002200 1592574 40

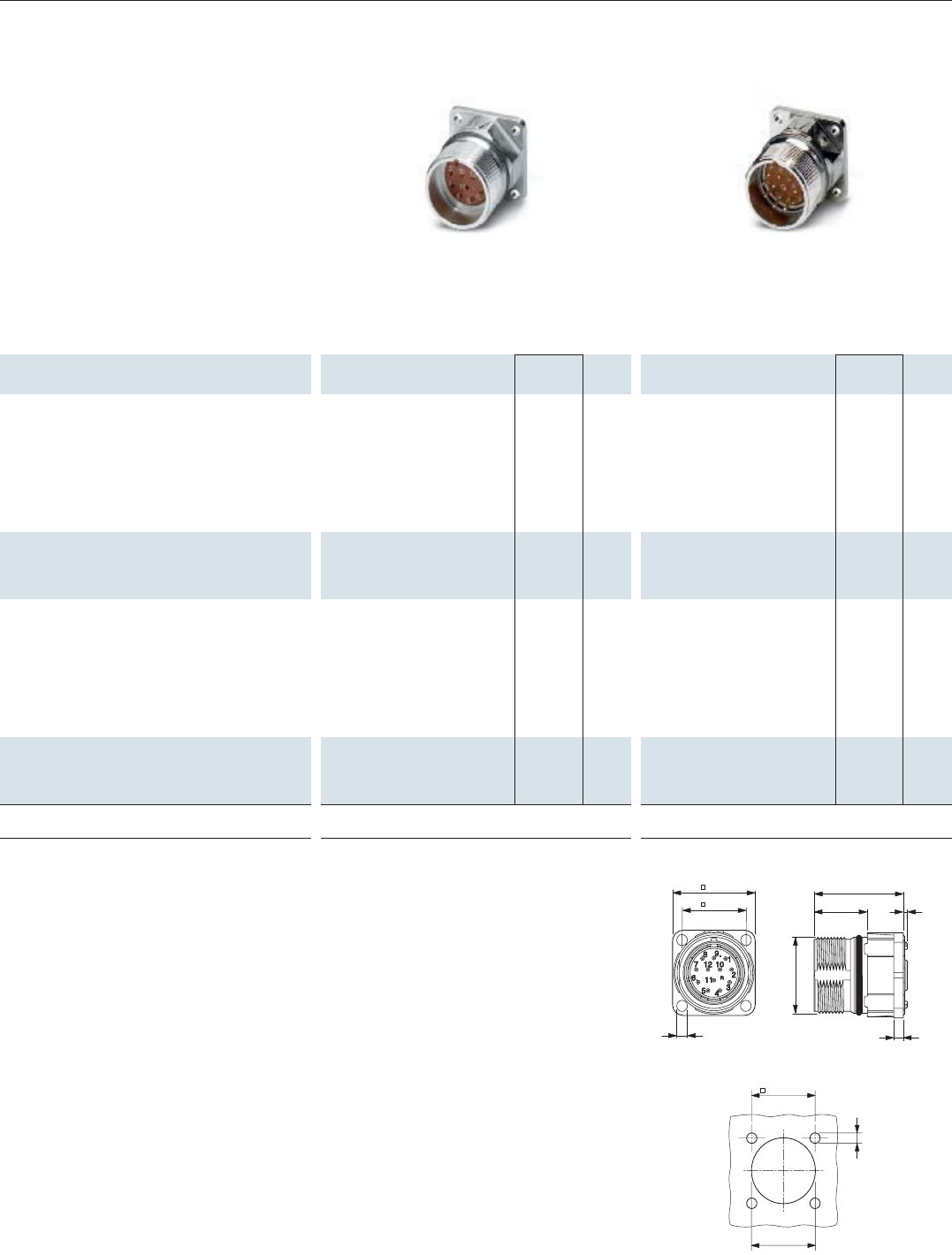

Appliance plug connector housing, front mounting, straight,
radial O-ring, 4-hole mounting, reinforced mounting flange,
for shielded applications
from 3 onwards RC-0000000WQ00 1593021 40
Coupling plug connector housing, front mounting, straight,
shielded, 4-hole mounting and O-ring,
for panel feed-through of a shielded line
3 ... 7 RC-0000000B2FZ 1592781 10
Contact inserts Order separately, see page 32 onwards Order separately, see page 32 onwards
Cable clamping / shield accessories Order separately, see page 23
RC-0000000..00
Appliance plug connector housing,
front mounting
RC-0000000B2FZ
Coupling plug connector housing,
front mounting
Installation dimensions
Radial O-ring
Installation dimensions
Radial O-ring
Installation dimensions
Flat gasket
20 PHOENIX CONTACT
RC-0000000WQ00
Radial O-ring
RC-0000000B2FZ
Radial O-ring
RC-00000002200
Flat gasket
In the case of front mounting, the panel
mounting base is fitted to the device from
outside using screws, nuts or screw-in
threads. On the device side, the contact
insert then establishes a connection to the
device.
Appliance plug connector housing,
front mounting
Modular signal connectors - PLUSCON circular
M23 - RC series, compatible to UC series
26
20,3
24
3,5
6
27
24
M23
M20x1,5
Ø
Ø
min. 3
M20x1,5 min. 0,8
Ø20+0,1
19+0,1
M23x1
25,4
26
19,8
4,65
1,85
37
212° 98°
Ø3,2
19,8±0,1
Ø20+0,1
4xM3
More informations and installation instructions at: www.phoenixcontact.com
Description Wall thickness [mm] Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.

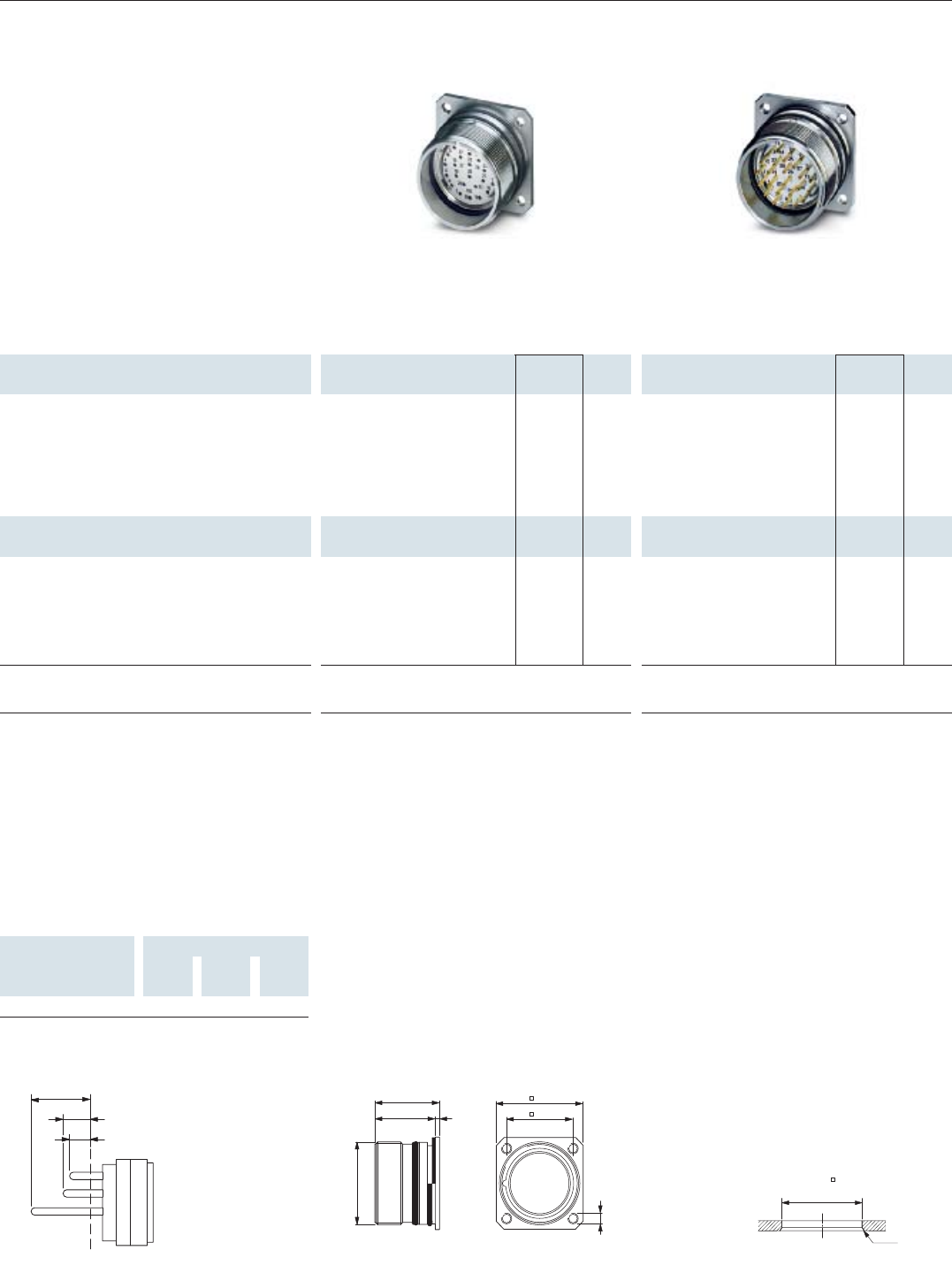

Appliance plug connector housing, front mounting, straight,
central fastening thread M20 x 1.5,
for shielded applications
min. 0.8 RC-00000006100 1592604 40

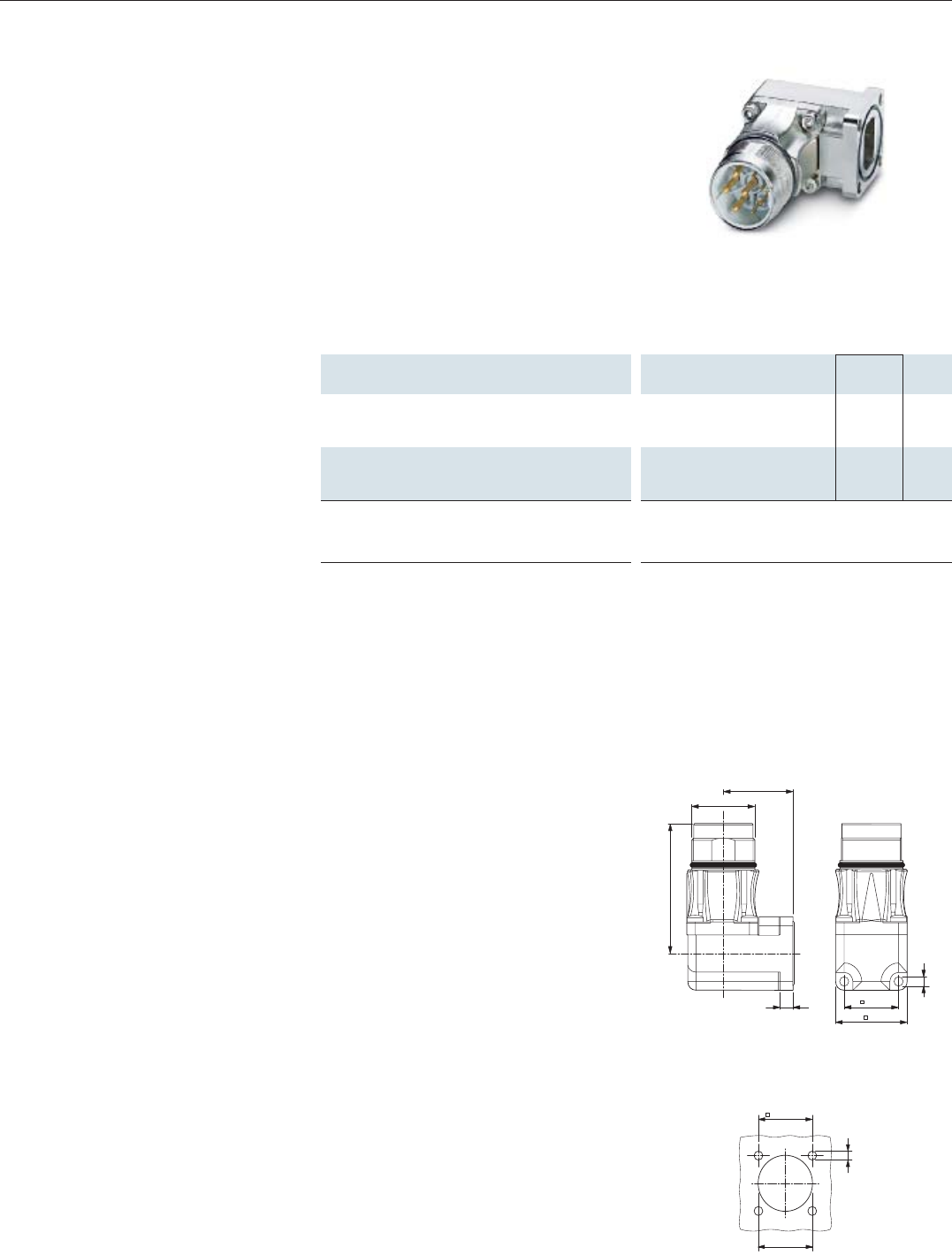

Appliance plug connector housing, front mounting, angled,
rotatable, 4-hole mounting,
for shielded applications
RC-0000000AD00 1592777 16
Contact inserts Order separately, see page 32 onwards Order separately, see page 32 onwards
RC-00000006100
Appliance plug connector housing,
front mounting
RC-0000000AD00
Appliance plug connector housing, angled, rotatable,
front mounting
RC-00000006100
Axial O-ring
RC-00000006100, mounting feed-through hole with thread
(recommended for installation in steel sheet panel)
RC-00000006100, mounting hole with polarization and locking
nut (recommended for installation in steel sheet panel)
21PHOENIX CONTACT
RC-0000000AD00
Axial O-ring
Installation dimensions: RC-0000000AD00
Edge abrasion
max.0.2
The panel mounting base, angled,
rotatable and panel mounting base with
central fixing nut cannot be combined with
solder-in contacts.
Appliance plug connector housing,
front mounting
Modular signal connectors - PLUSCON circular
M23 - RC series, compatible to UC series
(28,8)
26,3 2,5
M23
33
Ø
30
(53,4)
26,3
M23
33
27,1
30
2,5
22
Ø
(22,3)
20,8 1,5
M23
25
20,5
4xM2,5
Ø2,7
2,5
(53,4)
32,6
20,8
M23
22 4xM2,5
25
20,5
(28,8)
25,8 3
M23
25
20,5
4xM3
More informations and installation instructions at: www.phoenixcontact.com
Description Wall thickness [mm] Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.

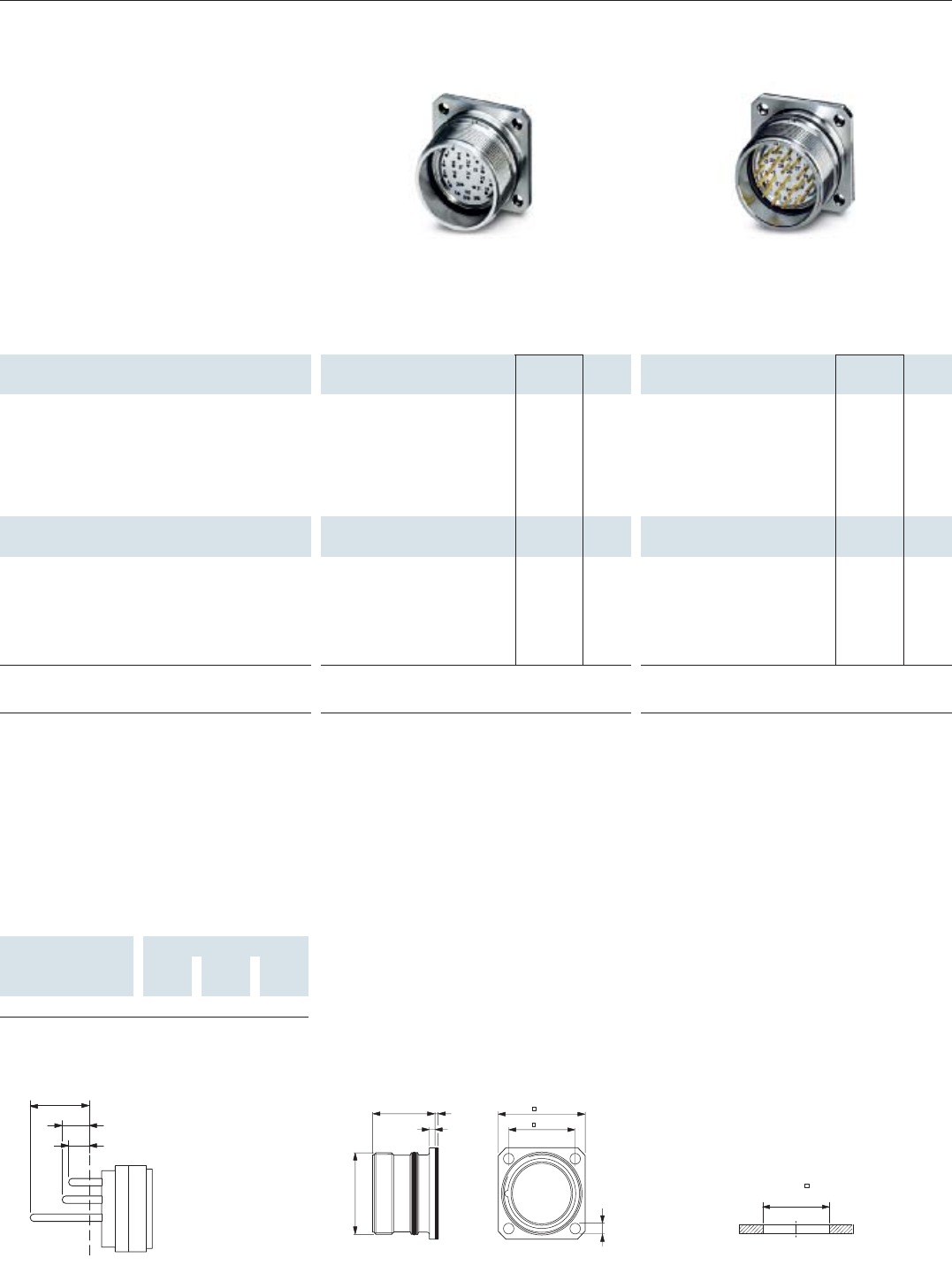

Appliance plug connector housing, rear mounting,
low design, threaded flange, radial O-ring,
4-hole thread mounting (Ø 2.5)
2.7 ... 3.5 RC-00000004200 1592589 40
Appliance plug connector housing, rear mounting,
low design, drilling flange, radial O-ring,
4-hole mounting (Ø 2.7)
2.7 ... 3.5 RC-00000005200 1592599 40
Appliance plug connector housing, rear mounting
high design, threaded flange, with 3 mm flange, radial O-ring,
4-hole thread mounting (M3)
3 ... 10,5 RC-0000000E000 1592813 40
Appliance plug connector housing, rear mounting,
high design, central fixing nuts,
axial O-ring
up to 6.5 RC-0000000H000 1592833 20
Coupling plug connector housing, rear mounting, shielded,
4-hole thread mounting (M2,5), flat gasket,
for panel feed-through of a shielded line
up to 2.5 RC-0000000C0FZ 1592790 20
Coupling plug connector housing, rear mounting, shielded,
central fixing nuts, axial O-ring,
for panel feed-through of a shielded line
up to 6.5 RC-0000000Q0FZ 1592924 10
Contact inserts Order separately, see page 32 onwards Order separately, see page 32 onwards
Cable clamping / shield accessories Order separately, see page 23
RC-0000000..00
Appliance plug connector housing,
rear mounting
RC-0000000.0FZ
Coupling plug connector housing,
rear mounting
RC-0000000H000
Axial O-ring
RC-0000000Q0FZ
Axial O-ring
22 PHOENIX CONTACT
RC-00000004200, RC-00000005200
Radial O-ring
RC-0000000E000
Radial O-ring
RC-0000000C0FZ
Flat gasket
Connector housings for rear mounting
are designed for the efficient installation of
preassembled PCBs, for instance. These
types are fed through the mounting panel
from the inside and screwed tight from the
outside.
Appliance plug connector housing,
rear mounting
Modular signal connectors - PLUSCON circular
M23 - RC series, compatible to UC series
Ø25+0,1
24+0,1
max. 6,5mm
20,5±0,1
Ø2,7/Ø3,2
M2,5
Ø23+0,1
1x15°
2,7mm–3,5mm
3mm–10,5mm
20,5±0,1
Ø2,7/Ø3,2
M2,5
Ø23+0,1
max. 2,5mm
More informations and installation instructions at: www.phoenixcontact.com
Description Cable entry / cable Ø D
[mm] Type Order No. Pcs. /
Pkt.
Cable gland for unshielded applications
in accordance with DIN 46320, IP65
Pg9 / 6 ... 10 RC-Z2091 1604242 20
Pg11 / 8 ... 12 RC-Z2092 1604245 20
Pg13,5 / 10 ... 14 RC-Z2093 1604247 20
M16 x 1.5 / 3 ... 10 RC-Z2406 1607015 20
M20 x 1,5 / 4 ... 14 RC-Z2409 1604479 20
Cable gland with double bracket strain relief,
for unshielded applications, IP65
Pg9 / 6 ... 10 RC-Z2051 1604213 20
Pg11 / 8 ... 12 RC-Z2052 1604216 20
Pg13,5 / 10 ... 14 RC-Z2053 1604218 20
M16 x 1.5 / 3 ... 10 RC-Z2407 1607016 20
M20 x 1,5 / 4 ... 14 RC-Z2410 1604481 20
Cable gland for unshielded applications,
IP68, with PVC gasket sleeve
Pg9 / 6,5 ... 9 RC-Z2191 1604334 20
Pg11 / 7 ... 10,5 RC-Z2196 1604338 20
Pg13,5 / 9 ... 13 RC-Z2202 1604345 20
M16 x 1.5 / 6.5 ... 9 RC-Z2414 1607018 20
M20 x 1,5 / 9 ... 13 RC-Z2417 1607019 20
RC-Z2...
Cable glands with Pg/metric threads
23PHOENIX CONTACT
Various cable glands with PG and metric
threads are available for unshielded
connectors. These are screwed into the
adapter cover from the outside. Suitable
versions are available for external cable
diameters from 3 mm to 14 mm.
Ordering Information:
The cable entry of the coupling and cable
plug connector housings must correspond
to the cable glands.
A 9-core, unshielded cable is to be
adapted with the RC-00000007100 coupling
housing.
– External cable diameter D = 8 mm
If a PG cable gland in accordance with
DIN 46320 is to be selected, the RC-Z2091
type corresponding to PG 9 for external
cable diameters from 6 mm to 10 mm fulfills
the requirements optimally.
Cable glands, unshielded
Modular signal connectors - PLUSCON circular
M23 - RC series, compatible to UC series
Installation dimensions: RC-...H000, RC-...Q0FZ
Axial O-ring
Installation dimensions: RC-...4200, RC-...5200
Radial O-ring
Installation dimensions: RC-...C0FZ
Flat gasket

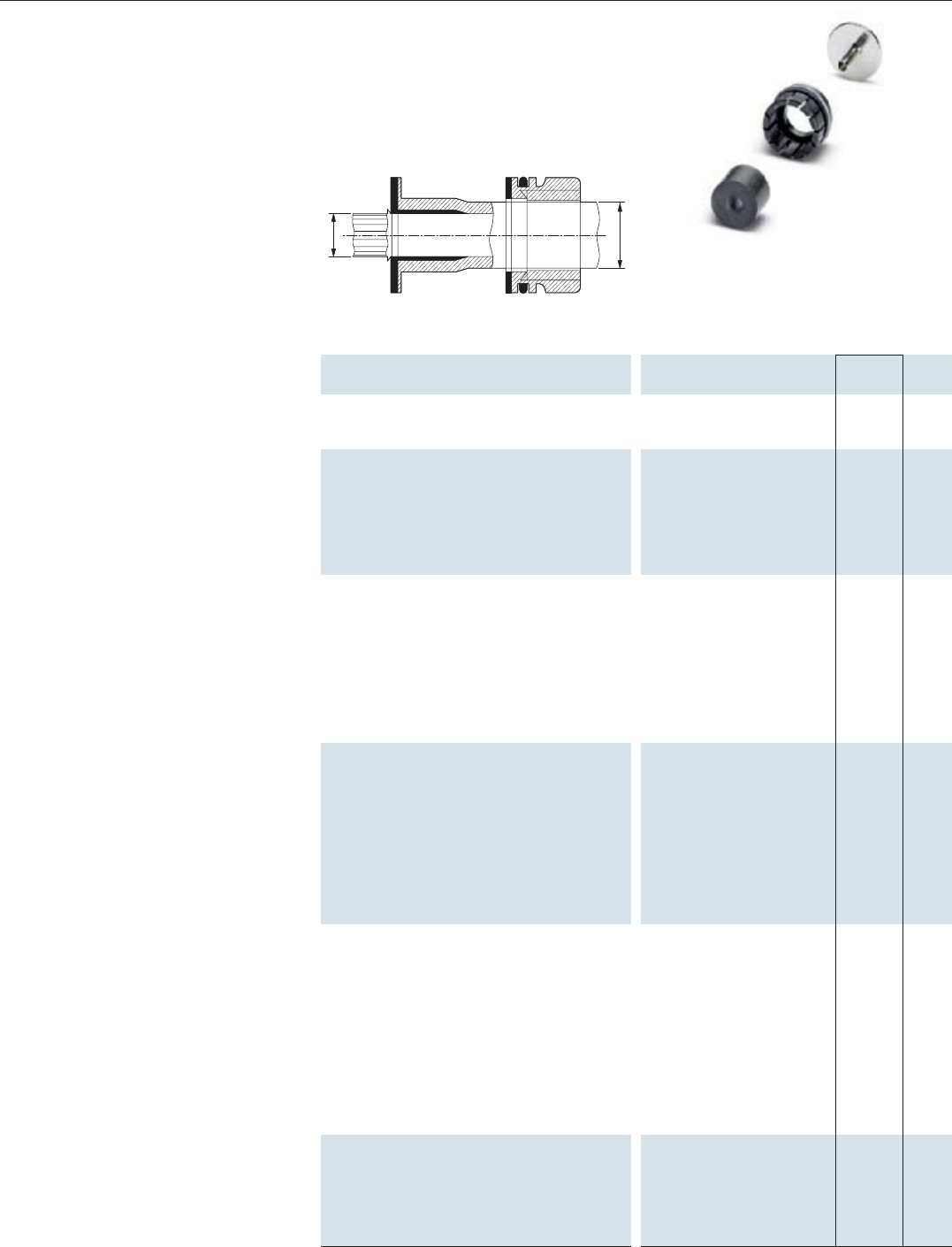

d
D
More informations and installation instructions at: www.phoenixcontact.com
Description Stranded wire
bundle Ø d [mm] Type Order No. Pcs. /
Pkt.
Cable clamp type cage and shield adapter
External cable diameter: D = 3.5 ... 4.5 mm
d ~ 2.5 mm RC-Z2425 1604491 10
d ~ 3.2 mm RC-Z2426 1604495 10
Cable clamp type cage and shield adapter
External cable diameter: D = 4.5 ... 5.5 mm
d ~ 2.5 mm RC-Z2225 1604368 10
d ~ 3.2 mm RC-Z2427 1604497 10
d ~ 3.6 mm RC-Z2428 1607021 10
d ~ 3.8 mm RC-Z2429 1604500 10
d ~ 4.1 mm RC-Z2430 1604503 10
d ~ 4.3 mm RC-Z2431 1604505 10
d ~ 4.6 mm RC-Z2432 1604506 10
Cable clamp type cage and shield adapter
External cable diameter: D = 5.5 ... 6.5 mm
d ~ 3.2 mm RC-Z2433 1607022 10
d ~ 3.6 mm RC-Z2434 1604509 10
d ~ 3.8 mm RC-Z2435 1604511 10
d ~ 4.1 mm RC-Z2222 1604364 10
d ~ 4.3 mm RC-Z2436 1604513 10
d ~ 4.6 mm RC-Z2437 1604516 10
d ~ 4.9 mm RC-Z2438 1604517 10
d ~ 5.2 mm RC-Z2439 1604519 10
d ~ 5.5 mm RC-Z2440 1604520 10
d ~ 5.8 mm RC-Z2441 1604522 10
Cable clamp type cage and shield adapter
External cable diameter: D = 6.5 ... 7.5 mm
d ~ 3.6 mm RC-Z2442 1604524 10
d ~ 3.8 mm RC-Z2443 1604526 10
d ~ 4.1 mm RC-Z2227 1604370 10
d ~ 4.3 mm RC-Z2403 1604472 10
d ~ 4.6 mm RC-Z2228 1604373 10
d ~ 4.9 mm RC-Z2395 1604458 10
d ~ 5.2 mm RC-Z2392 1604452 10
d ~ 5.5 mm RC-Z2444 1604529 10
d ~ 5.8 mm RC-Z2445 1604532 10
d ~ 6.2 mm RC-Z2396 1604460 10
d ~ 6.6 mm RC-Z2446 1604534 10
Cable clamp type cage and shield adapter
External cable diameter: D = 7.5 ... 9.5 mm
d ~ 3.8 mm RC-Z2447 1607023 10
d ~ 4.1 mm RC-Z2448 1604536 10
d ~ 4.3 mm RC-Z2449 1607024 10
d ~ 4.6 mm RC-Z2229 1604375 10
d ~ 4.9 mm RC-Z2391 1604449 10
d ~ 5.2 mm RC-Z2398 1604462 10
d ~ 5.5 mm RC-Z2450 1604539 10
d ~ 5.8 mm RC-Z2451 1604541 10
d ~ 6.2 mm RC-Z2221 1604362 10
d ~ 6.6 mm RC-Z2393 1604454 10
d ~ 7.0 mm RC-Z2394 1604456 10
d ~ 7.4 mm RC-Z2401 1604468 10
d ~ 7.7 mm RC-Z2402 1604470 10
Cable clamp type cage and shield adapter
External cable diameter: D = 9.5 ... 10.5 mm
d ~ 5.8 mm RC-Z2404 1604474 10
d ~ 6.2 mm RC-Z2452 1607025 10
d ~ 6.6 mm RC-Z2453 1604545 10
d ~ 7.0 mm RC-Z2454 1604547 10
d ~ 7.4 mm RC-Z2455 1604549 10
d ~ 7.7 mm RC-Z2399 1604465 10
RC-Z2...
Cable clamp type cage with shield adapter
24 PHOENIX CONTACT
The cables are partly fed through to the
connector housings using cable glands.
These differ according to the application
(shielded or unshielded).
Cable clamp type cages and shield
adapters are required in the case of shielded
plug connectors. They can be used to
implement a multitude of plug connection
combinations for different cable types with
a cable diameter from 3.5 mm to 10.5 mm.
The shield adapter depends on the
diameter of the core bundle under the
braided shield d and is pushed directly
under the braided shield when assembling
the connector. The shield adapter serves as
a connection element between the cable
shield and connector housing (inner sleeve
and adapter cover).
The cable clamp type cage with the seal
ensures sealing in the IP67 degree of
protection and assumes the cable strain
relief function. The specific type for each
cable depends on the external cable
diameter D of the cable.
We recommend that you try out adjacent
types for transition points between two
screw connection sizes.
Ordering Information:
A 6-core, shielded cable is to be adapted
with the RC-000000080FZ cable plug
connector housing.
– External cable diameter D = 6.0 mm
– Diameter of core bundle d = 4.7 mm
The appropriate cable gland can be found
in the category D = 5.5 mm to 6.5 mm and
in line d 4.9 mm and is RC-Z2438.
Diagram of stranded wire bundle diameter d
and external cable diameter D
Cable clamp type cage with shield
adapter
Modular signal connectors - PLUSCON circular
M23 - RC series, compatible to UC series
D
D
More informations and installation instructions at: www.phoenixcontact.com
Description Cable Ø D [mm] Type Order No. Pcs. /
Pkt.
Cable clamp type cage, universal, with shield,
cable clamp type cage, shield disc and universal seal
2 ... 10,5 RC-Z2462 1604558 10
Cable clamp type cage, universal,
cable feed-through without shield,
cable clamp type cage and universal seal
2 ... 10,5 RC-Z2463 1604561 10
RC-Z246.
Universal cable clamp type cage,
with/without shield
25PHOENIX CONTACT
Universal cable glands are available as
alternatives to the shielded cable glands in
IP67 for applications with less stringent
requirements as regards shield attenuation.
Irrespective of the diameter of the cable
or braided core screen, shielded or
unshielded lines with an outside diameter
from 2 mm to 10.5 mm can be assembled
for universal use with only one cable gland.
This simplifies storage.
Universal cable clamp type cage
Modular signal connectors - PLUSCON circular
M23 - RC series, compatible to UC series
Universal cable clamp type cagewith shield,
D = external cable diameter
Universal cable clamp type cage, cable feed-through without
shield, D=external cable diameter
Modular signal plug connectors - PLUSCON circular
Bayonet - TU series
26 PHOENIX CONTACT
TU-00000008UDU
TU-0000000TUDU
Front mounting,
page 29
Rear mounting,
page 29
Coupling connector housing, page 28
TU-00000009UDU
Appliance plug connector housing, page 29
TU-0000000WB00 TU-00000005300
TU-00000004100
Selection guide
The product chart shows the possible
combinations of cable plug connector
housings and coupling connector or
appliance plug connector housings.
The cable plug connectors and coupling
connectors are equipped with a universal
shield connection for cable diameters of
up to 14.5 mm.
The modular system makes it possible to
select an custom style connector from a
limited number of articles. To describe a
connector for the device and panel
mounting side, the housing is supplemented
with the corresponding contact insert,
including the contacts. The product chart
provides an overview of the available
components.
Housing type
Cable plug connector housing, page 28
With universal shieldingWith universal shieldingShielded
Modular signal plug connectors - PLUSCON circular
Bayonet - TU series
27PHOENIX CONTACT
The connectors are equipped with a universal
shield connection for cable diameters of up to
14.5 mm.
Shielded cable glands with a cable clamp type
cage and shield adapters are not required.
Housing type Free solder pin length
Bayonet A
[mm]
B
[mm]
C
[mm]
D
[mm]
TU-.......WB00 -- -- 9 16.5
TU-.......4100 2.5 3.5 9 16.5
TU-.......5300 2.5 3.5 9 16.5
The connectors are equipped with a universal
shield connection for cable diameters of up to
14.5 mm.
Shielded cable glands with a cable clamp type
cage and shield adapters are not required.
Solder contact inserts, page 32
6 to 19-pos.
Crimp contact inserts, from page 33 onwards
6 to 19-pos.
Screw contact inserts, page 32
6, 7 and 9-pos.
Contact inserts incl. contacts
SocketPin
SocketPin
Pin Socket
Direct PCB connection, from page 36 onwards
with 6 to 17-pos. solder-in contacts
SocketPin
All housings can be equipped with male or female contacts. All housings can be equipped with male or female contacts.
Note:
For reasons pertaining to safety, only
female contacts may be used in the live
part of the connector.
29,3
61,5
24
24
64,2
Ø
62,5
24 24
29,3
Ø
61
24
24
25,9
O
More informations and installation instructions at: www.phoenixcontact.com
Description For outer cable Ø [mm] Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
Bayonet cable plug connector housing, straight,
with universal shielding, metal
2.0 ... 14.5 TU-00000008UDU 1605886 10
Bayonet cable plug connector housing, angled,
with universal shielding, metal
2.0 ... 14.5 TU-0000000TUDU 1605891 8
Bayonet coupling plug connector housing, straight,
with universal shielding, metal
2.0 ... 14.5 TU-00000009UDU 1605888 10
Contact inserts Order separately, see page 32 onwards Order separately, see page 32 onwards
TU-0000000.UDU
Bayonet cable plug connector housing,
shielded
TU-00000009UDU
Bayonet coupling plug connector housing,
shielded
28 PHOENIX CONTACT
TU-0000000TUDU TU-00000008UDU TU-00000009UDU
Signal plug connectors of the TU series
are equipped with a bayonet locking, which
is easy to use but rugged at the same time.
Like the signal plug connectors with M23
screw locking, the TU series is also
completely modular in design and uses the
same insulation bodies/contacts.
The shielding function and the cable
clamping are universal. It is not necessary to
adapt the shielding elements to the cables
used.
Cable and coupling plug connector
housings, shielded
Modular signal connectors - PLUSCON circular
Bayonet - TU series
Ø19,6+0,1
4xØ3,2/M3/ 19,8±0,1 Ø28+0,1
max. 2,5mm
Ø28+0,1
2,7mm–3,5mm
1x15°
4xØ3,2/M3/ 24,5±0,1
23,3
1,5
3
25
19,8
4x3,2
Ø
23,3
1,5 21,8
30
24,5
4x3,2
Ø
23,3
1,5 21,8
30
24,5
4xM3
More informations and installation instructions at: www.phoenixcontact.com
Description Wall thickness [mm] Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
Appliance plug connector housing, front mounting straight,
axial O-ring, 4-hole mounting (Ø 3.2 mm),
for shielded applications
from 1.5 TU-0000000WB00 1605893 20
Appliance plug connector housing, rear mounting straight,
flat gasket, 4-hole thread mounting (M3),
for shielded applications
up to 2.5 TU-00000004100 1605881 20
Appliance plug connector housing, rear mounting straight,
radial O-ring, 4-hole mounting (Ø 3.2 mm),
for shielded applications
2.7 ... 3.5 TU-00000005300 1605885 20
Contact inserts Order separately, see page 32 onwards Order separately, see page 32 onwards
TU-0000000WB00
Appliance plug connector housing,
front mounting
TU-0000000..00
Appliance plug connector housing,
rear mounting
Installation dimensions: TU-0000000WB00 Installation dimensions: TU-00000004100 Installation dimensions: TU-00000005300
29PHOENIX CONTACT
TU-0000000WB00
Axial O-ring
TU-00000004100
Flat gasket
TU-00000005300
Radial O-ring
In the case of front mounting, the panel
mounting base is fitted to the device from
outside using screws or nuts. On the device
side, the contact insert then establishes the
connection to the device either by solder or
crimp connections.
Connector housings for rear mounting
are fed through the mounting panel from
the inside and screwed tight from the
outside.
Appliance plug connector housing,
front and rear mounting
Modular signal connectors - PLUSCON circular
Bayonet - TU series
100010010
20
80
100
40
60
0100010010
20
80
100
40
60
0
Modular signal plug connectors - PLUSCON circular
Contact inserts - RC, UC and TU series
30 PHOENIX CONTACT
Derating curve based on DIN EN 60512-5-2 Cable plug
connector (12-pos.)
RC series shield attenuation curve based on
DIN EN 50289-1-6
Note:
Plug connectors may only be inserted or removed when
the power supply is disconnected.
Shield attenuation curve
UC / TU series based on DIN EN 50289-1-6
Mechanical data
Housing material: Metal parts: CuZn (copper-zinc alloy) or GD-Zn (zinc die-cast),
nickel-plated or yellow passivated
Appliance plug connector, angled rotatable: nickel-plated/thick layer passivated, can be painted over
Plastic adapter caps/plastic-sheathed metal parts: SPS (syndiotactic polystyrene)
Insulating bodies: Thermoplastic polyester (PBT), polyamide (PA 66), polycarbonate (PC)
Storage at 15°C ... 35°C, 40 ... 70% rel. humidity
Contact material: Copper-zinc alloy (CuZn)
Contact surface: Nickel-plated (Ni) with a gold layer (Au)
Contact connection method: Solder cup, crimp and screw versions, solder-in pin
Gasket and O ring: Fluorine rubber (FPM)
Housing types with plastic adapter cap: perbunane (NBR) gasket
Flat gasket: Perbunane (NBR with fabric insert), fluorine rubber (FPM)
Temperature range: -20°C ... +125°C
Conductor entry: EMC version for external cable diameter 2 ... 10.5 mm,
without EMC protection for external cable diameter 4 ... 14 mm
EMC version with extended cable entry range (UC / TU series)
for external cable diameter 2 ... 14.5 mm
Locking type: M23 screw locking, TU series: bayonet locking,
bayonet ring Ø 29.3 mm
Mechanical insertion/withdrawal cycles: Standard: 50, more on request
Degree of protection (when locked): EMC version: IP67
Version without EMC protection: IP65 ... IP68 (depending on cable gland)
Approval: An overview of the listed connectors as per UL, cUL and VDE will be available on request.
Electrical data
Number of positions 6, 7 9 (8+1) 9 (6+3) 12 16 17 19 (16+3)
Contacts 6, 7 8 + 1 6 + 3 12 16 17 16 + 3
Contact Ø [mm]2121211111,5
Stranded wire cross section
Solder connection: contacts x [mm
2
/AWG] max. 6 (7) x 2.5/14 8 x 1.0/18 + 1 x 2.5/14 6 x 1.0/18 + 3 x 2.5/14 12 x 2.5/14 16 x 1.0/18 17 x 1.0/18 16 x 1.0/18 + 3 x 1.0/18
Crimp connection: contacts x [mm
2
/AWG] max. 6 (7) x 2.5/14 8 x 0.56/20 + 1 x 2.5/14 – – 12 x 0.56/20 16 x 0.56/20 17 x 0.56/20 16 x 1.0/18 + 3 x 1.5/16
Screw connection: contacts x [mm
2
/AWG] max. 6 (7) x 1.0/18 8 x 0.75/18 + 1 x 1.0/18 – – – – – – –
Nominal current per contact at 25 °C
1
) 208 208 208 8 8 8 10
Specifications as per DIN EN 61984:2001
Nominal/rated voltage [V] 300 300 150 150 150 150 150
Test/surge voltage [kV AC] 2,5 2,5 1,5 1,5 1,5 1,5 1,5
Surge voltage category II II II II II II II
Pollution degree
2
)3333333
Installation height [m] Up to 2,000 Up to 2,000 Up to 2,000 Up to 2,000 Up to 2,000 Up to 2,000 Up to 2,000
1)
If required, the effective current carrying capacity must be determined according to the application using a derating curve.
2)
The values specified require a correctly locked pair of connectors that are disconnected only for testing and maintenance. If an unlocked connector is exposed to ambient conditions
and if there is a danger of contamination, the connector should be sealed using a t IP 54 protective cap.
Mechanical and electrical data
Note:
The modular M23 connectors of the RC and UC series are
completely compatible. After technical clarification, these
can also be combined with the M23 complete plug
connectors of the RF series.
C
urren
t[A]
Ambient temperature [°C]
Att
enua
ti
on
[dB]
Frequency [MHz]
A
ttenuat
i
on
[dB]
Frequency [MHz]
N
7
54
8
9
PO 3
2
1
6
N
2
45
1
9
SO 6
7
8
3
N
2
45
1
9
SO 6
7
8
3
N
7
54
8
9
SO 3
2
1
6
N
7
1
2
PO
3
4
5
6
N
7
5
4
SO
3
2
1
6
N
7
1
2
PO
3
4
5
6
N
7
5
4
SO
3
2
1
6
N
7
54
8
9
PO 3
2
1
6
N
7
5
4
8
9
SO
3
2
1
6
N
7
54
8
9
PO 3
2
1
6
N
2
45
1
9
SO 6
7
8
3
N
2
45
1
9
PO 6
7
8
3
N
7
54
8
9
SO 3
2
1
6
N
7
54
89
12 10
11
PO
3
2
1
6
N
2
45
19
10 12
11
SO
6
7
8
3
N
2
45
19
10 12
11
PO
6
7
8
3
N
7
54
89
12 10
11
SO
3
2
1
6
N
YX
2
4
5
1
9
10 12
13
14
15
16
11
PO
6
7
8
3
N
XY
2
4
5
1
9
10
12
13
14 15
16
11
SO
67
8
3
N
2
4
5
1
9
10 12
13
14
15
16
11
PO
6
7
8
3
N
2
4
5
1
9
10
12
13
14 15
16
11
SO
67
8
3
N
YX
2
4
5
1
9
10 12
17
13
14
15
16
11
6
7
8
3
N
XY
2
4
5
1
9
10
12
17
13
14 15
16
11
67
8
3
N
XY
2
4
5
1
9
10
12
17
13
14 15
16
11
67
8
3
N
YX
2
4
5
1
9
10 12
17
13
14
15
16
11
6
7
8
3
N
2
4
5
1
9
10 12
17
PO
13
14
15
16
11
6
7
8
3
N
2
4
5
1
9
10
12
17
SO
13
14 15
16
11
67
8
3
N
2
4
5
1
9
10
12
17 18
19
PO
13
14
15
16
11
6
7
8
3
N
2
4
5
1
9
10
12
17
18
19
SO
13
14 15
16
11
67
8
3
Modular signal plug connectors - PLUSCON circular
Contact inserts - RC, UC and TU series
31PHOENIX CONTACT
Contact insert numbering
(view of plug-in side)
Direction of rotation of contact
insert numbering
(view of plug-in side)
Clockwise (standard) Counter-clockwise (standard) Counter-clockwise (opposite) Clockwise (opposite)
Number of positions Pin Socket Pin Socket
6-pos.
Solder / crimp / screw
7-pos.
Solder / crimp / screw
9-pos. (6+3)
Solder
9-pos. (8+1)
Solder / crimp / screw
12-pos.
Solder / crimp
16-pos.
Solder
16-pos.
Crimp
17-pos.
Solder
17-pos.
Crimp
19-pos. (16+3)
Solder / crimp
Connector pin assignments and coding
For reasons pertaining to safety, only female contacts
may be used in the live part of the connector.
Note:
Other coding versions can be configured manually or
mechanically on request.
The RC/UC/TU series connectors can be equipped with
male or female contacts depending on the application.
N
7
54
8
9
PO 3
2
1
6
N
2
45
1
9
SO 6
7
8
3
2
N
2
45
1
9
SO 6
7
8
3
N
7
54
8
9
SO 3
2
1
6
More informations and installation instructions at: www.phoenixcontact.com
Description Contacts / direction of
rotation Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
Contact insert, 6-pos.,
contacts: 6 x Ø 2.0 mm
Pin / standard RC-06P1N120000 1593072 30 RC-06P1NS20000 1593555 25
Socket / standard RC-06S1N120000 1593645 60 RC-06S1NS20000 1594164 25
Contact insert, 7-pos.,
contacts: 7 x Ø 2.0 mm
Pin / standard RC-07P1N120000 1594263 30 RC-07P1NS20000 1594515 25
Socket / standard RC-07S1N120000 1594558 60 RC-07S1NS20000 1594801 25
Contact insert, 9-pos. (6+3),
contacts: 6 x Ø 1.0 mm, 3 x Ø 2.0 mm
Pin / standard RC-63P1N120000 1603538 30
Socket / standard RC-63S1N120000 1603668 30
Contact insert, 9-pos. (8+1),
contacts: 8 x Ø 1.0 mm, 1 x Ø 2.0 mm
Pin / standard RC-09P1N120000 1594887 30 RC-09P1NS20000 1595533 25
Socket / standard RC-09S1N120000 1595791 60 RC-09S1NS20000 1596456 25
Pin / opposite RC-09P2N120000 1595600 30
Socket / opposite RC-09S2N120000 1596535 60
Contact insert, 12-pos.,
contacts: 12 x Ø 1.0 mm
Pin / standard RC-12P1N120000 1596856 30
Socket / standard RC-12S1N120000 1598466 60
Pin / opposite RC-12P2N120000 1597867 30
Socket / opposite RC-12S2N120000 1599614 60
Contact insert, 16-pos.,
contacts: 16 x Ø 1.0 mm
Pin / standard RC-16P1N120000 1600509 60
Socket / standard RC-16S1N120000 1600816 60
Contact insert, 17-pos.,
contacts: 17 x Ø 1.0 mm
Pin / standard RC-17P1N120000 1601193 30
Socket / standard RC-17S1N120000 1601799 60
Pin / opposite RC-17P2N120000 1601727 30
Socket / opposite RC-17S2N120000 1602383 60
Contact insert, 19-pos. (16+3),
contacts: 16 x Ø1.0 mm; 3 x Ø1.5 mm
Pin / standard RC-19P1N120000 1602482 30
Socket / standard RC-19S1N120000 1602749 60
Connection cross section [mm
2
]
For contact Ø 1.0 mm / 1.5 mm d 1,0 d 0,75
for contact Ø 2.0 mm d 2,5 d 1,0
RC-....N120000
Contact insert and solder contacts,
pin/socket
RC-....NS20000
Contact insert and screw contacts,
pin/socket
32 PHOENIX CONTACT
Contact inserts 6 ... 19-pos.
The contact inserts with the contact
carriers and contacts are available for the
following connection methods:
–solder technology,
– crimp system,
– Screw connection technology,
– Solder-in technology for PCBs.
Contact inserts with solder and screw
contacts
Modular signal connectors - PLUSCON circular
Contact inserts - RC, UC and TU series
Pin clockwise
(standard)
Pin counter-clockwise
(opposite)
rec
on o
ro
a
on o
con
ac
nser
num
er
ng
(view of plug-in side)
Socket counter-clockwise
(standard)
Socket clockwise
(opposite)
o
e:
Take into account the torque for the terminal block screws:
max. 0.1 Nm for screw contacts, plug-in Ø 1 mm
max. 0.2 Nm for screw contacts, plug-in Ø 2 mm
Housing termination
4
More informations and installation instructions at: www.phoenixcontact.com
Description Contacts / direction of
rotation Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
Contact insert, 6-pos.,
contacts: 6 x Ø 2.0 mm
Crimp range C: 1.5 - 2.5 mm
2
Pin / standard RC-06P1N8B0000 1593525 10
Socket / standard RC-06S1N8B0000 1594145 10
Contact insert, 6-pos.,
contacts: 6 x Ø 2.0 mm
Crimp range D: 1.0 - 1.5 mm
2
Pin / standard RC-06P1N8K0000 1606992 10
Socket / standard RC-06S1N8K0000 1606995 10
Contact insert, 7-pos.,
contacts: 7 x Ø 2.0 mm
Crimp range C: 1.5 - 2.5 mm
2
Pin / standard RC-07P1N8B0000 1594497 10
Socket / standard RC-07S1N8B0000 1594786 10
Contact insert, 7-pos.,
contacts: 7 x Ø 2.0 mm
Crimp range D: 1.0 - 1.5 mm
2
Pin / standard RC-07P1N8K0000 1606997 10
Socket / standard RC-07S1N8K0000 1606998 10
Contact insert, 9-pos. (8+1),
contacts: 8 x Ø 1.0 mm, 1 x Ø 2.0 mm
8 x crimp range B: 0.14 - 0.56 mm
2
1 x crimp range C: 1.5 - 2.5 mm
2
Pin / standard RC-09P1N8C0000 1595501 10
Socket / standard RC-09S1N8C0000 1596417 10
Contact insert, 9-pos. (8+1),
contacts: 8 x Ø 1.0 mm, 1 x Ø 2.0 mm
8 x crimp range B: 0.14 - 0.56 mm
2
1 x crimp range D: 1.0 - 1.5 mm
2
Pin / standard RC-09P1N8L0000 1607001 10
Socket / standard RC-09S1N8L0000 1607004 10
Contact insert, 12-pos.,
contacts: 12 x Ø 1.0 mm
Crimp range A: 0.22 - 0.56 mm
2
Crimp range B: 0.14 - 0.56 mm
2
Pin / standard RC-12P1N8E0000 1597641 10 RC-12P1N8D0000 1597635 10
Pin / opposite RC-12P2N8E0000 1598295 10 RC-12P2N8D0000 1598292 10
Socket / standard RC-12S1N8E0000 1599348 10 RC-12S1N8D0000 1599343 10
Socket / opposite RC-12S2N8E0000 1600234 10 RC-12S2N8D0000 1600231 10
Contact insert, 16-pos.,
contacts: 16 x Ø 1.0 mm
Crimp range B: 0.14 - 0.56 mm
2
Pin / standard RC-16P1N8D0000 1600747 10
Socket / standard RC-16S1N8D0000 1601116 10
Contact insert, 17-pos.,
contacts: 17 x Ø 1.0 mm
Crimp range A: 0.22 - 0.56 mm
2
Crimp range B: 0.14 - 0.56 mm
2
Pin / standard RC-17P1N8E0000 1601636 10 RC-17P1N8D0000 1601634 10
Socket / standard RC-17S1N8E0000 1602284 10 RC-17S1N8D0000 1602282 10
Contact insert, 19-pos. (16+2+PE),
contacts: 16 x Ø1.0 mm; 3 x Ø1.5 mm
Crimp range B: 0.14 - 0.56 mm
2
Pin / standard RC-1RP1NRM0000 1603144 10
Socket / standard RC-1RS1NRM0000 1603305 10
Crimping tool RC-Z2130 see page 140 RC-Z2504 see page 140
RC-....N8E0000
Contact insert and crimp contacts, rolled,
pin/socket
RC-....N8.0000
Contact insert and crimp contacts, turned,
pin/socket
33PHOENIX CONTACT
Crimp contact inserts with contacts are
available for the different numbers of
positions and directions of rotation. The
crimp contacts cover connection areas of
0.14 mm ... 2.5 mm depending on the
connector pin assignment.
Contact inserts with crimp contacts
Modular signal connectors - PLUSCON circular
Contact inserts - RC, UC and TU series
Notes:
Crimp contacts/contact carriers separate, see page 34
The 19-pos.crimp contact inserts RC-1RP1NRM0000 and
RC-1RS1NRM0000 cannot be combined with the angled
connector housing RC-0000000AD00.
For the 19-pos. (16+2+PE) crimp contact inserts
RC-1RP1NRM0000 and RC-1RS1NRM0000, the spacer sleeve
RC-E0146 (order no. 1603961) must be ordered separately.
This spacer sleeve ensures the PE connection with the
connector housing.
See Accessories, page 141
Housing termination
N
7
54
8
9
PO 3
2
1
6
N
2
45
1
9
SO 6
7
8
3
N
2
45
1
9
SO 6
7
8
3
N
7
54
8
9
SO 3
2
1
6
More informations and installation instructions at: www.phoenixcontact.com
Description Contacts / direction of
rotation Type Order No. Pcs. /
Pkt.
Crimp contact carriers 6-pos.,
contacts: 6 x Ø 2.0 mm
Pin / standard RC-06P1N8A0000 1593412 50
Socket / standard RC-06S1N8A0000 1594013 50
Crimp contact carriers 7-pos.,
contacts: 7 x Ø 2.0 mm
Pin / standard RC-07P1N8A0000 1594435 50
Socket / standard RC-07S1N8A0000 1594731 50
Crimp contact carriers, 9-pos. (8+1),
contacts: 8 x Ø 1.0 mm, 1 x Ø 2.0 mm
Pin / standard RC-09P1N8A0000 1595375 50
Socket / standard RC-09S1N8A0000 1596303 50
Crimp contact carriers 12-pos.,
contacts: 12 x Ø 1.0 mm
Pin / standard RC-12P1N8A0000 1597464 50
Socket / standard RC-12S1N8A0000 1599138 50
Pin / opposite RC-12P2N8A0000 1598196 50
Socket / opposite RC-12S2N8A0000 1600076 50
Crimp contact carriers 16-pos.,
contacts: 16 x Ø 1.0 mm
Pin / standard RC-16P1N8A0000 1600707 50
Socket / standard RC-16S1N8A0000 1601058 50
Crimp contact carriers 17-pos.,
contacts: 17 x Ø 1.0 mm
Pin / standard RC-17P1N8A0000 1601451 50
Socket / standard RC-17S1N8A0000 1602082 50
Crimp contact carriers, 19-pos. (16+2+PE),
contacts: 16 x Ø 1.0 mm, 2 x Ø 1.5 mm, 1 x Ø 1.5 (PE)
Pin / standard RC-1RP1NRA0000 1603066 50
Socket / standard RC-1RS1NRA0000 1603213 50
RC-....N8A...., RC-1R.1NRA...
Crimp contact carriers, separate,
pin/socket
34 PHOENIX CONTACT
The contact carriers and the male and
female crimp contacts can also be ordered
separately for 6 to 9-pos. connectors.
Further contact inserts / contacts are
available on request.
Crimp contact carriers
Modular signal connectors - PLUSCON circular
Contact inserts - RC, UC and TU series
Pin clockwise
(standard)
Pin counter-clockwise
(opposite)
Di
rec
ti
on o
f
ro
t
a
ti
on o
f
con
t
ac
t
i
nser
t
num
b
er
i
ng
(view of plug-in side)
Socket counter-clockwise
(standard)
Socket clockwise
(opposite)
N
o
t
e:
For the 19-pos. (16+2+PE) crimp contact carriers
RC-1RP1NRA0000 and RC-1RS1NRA0000, the spacer sleeve
RC-E0146 (order no. 1603961) must be ordered separately.
This spacer sleeve ensures the PE connection with the connector
housing.
See Accessories, page 141
More informations and installation instructions at: www.phoenixcontact.com
Description Contacts / connection
cross section [mm
2
]Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
Crimp contacts for contact carriers, 6-pos.,
6 x Ø2.0 mm
Pin Ø 2.0 mm / 1.0 ... 1,5 / AWG 18-16 RC-5CP2000 1603513 100
Socket Ø 2.0 mm / 1.0 ... 1,5 / AWG 18-16 RC-5CS2000 1603517 100
Pin Ø 2.0 mm / 1.5 ... 2,5 / AWG 16-14 RC-5AP2000 1603505 100
Socket Ø 2.0 mm / 1.5 ... 2,5 / AWG 16-14 RC-5AS2000 1603509 100
Crimp contacts for contact carriers, 7-pos.,
7 x Ø2.0 mm
Pin Ø 2.0 mm / 1.0 ... 1,5 / AWG 18-16 RC-5CP2000 1603513 100
Socket Ø 2.0 mm / 1.0 ... 1,5 / AWG 18-16 RC-5CS2000 1603517 100
Pin Ø 2.0 mm / 1.5 ... 2,5 / AWG 16-14 RC-5AP2000 1603505 100
Socket Ø 2.0 mm / 1.5 ... 2,5 / AWG 16-14 RC-5AS2000 1603509 100
Crimp contacts for contact carriers, 9-pos. (8+1),
8 x Ø1.0 mm, 1 x Ø2.0 mm
Pin Ø1.0 mm / 0.14 ... 0,56 / AWG 26-20 RC-12P2000 1597862 500
Socket Ø1.0 mm / 0.14 ... 0,56 / AWG 26-20 RC-12S2000 1599600 500
Pin Ø 2.0 mm / 1.5 ... 2,5 / AWG 16-14 RC-5AP2000 1603505 100
Socket Ø 2.0 mm / 1.5 ... 2,5 / AWG 16-14 RC-5AS2000 1603509 100
Pin Ø 2.0 mm / 1.0 ... 1,5 / AWG 18-16 RC-5CP2000 1603513 100
Socket Ø 2.0 mm / 1.0 ... 1,5 / AWG 18-16 RC-5CS2000 1603517 100
Crimp contacts for contact carriers, 12-pos.,
12 x Ø1.0 mm
Pin Ø1.0 mm / 0.22 ... 0,56 / AWG 24-20 RC-22P2000 1603321 100
Socket Ø1.0 mm / 0.22 ... 0,56 / AWG 24-20 RC-22S2000 1603327 100
Pin Ø1.0 mm / 0.14 ... 0,56 / AWG 26-20 RC-12P2000 1597862 500
Socket Ø1.0 mm / 0.14 ... 0,56 / AWG 26-20 RC-12S2000 1599600 500
Crimp contacts for contact carriers, 16-pos.,
16 x Ø1.0 mm
Pin Ø1.0 mm / 0.14 ... 0,56 / AWG 26-20 RC-12P2000 1597862 500
Socket Ø1.0 mm / 0.14 ... 0,56 / AWG 26-20 RC-12S2000 1599600 500
Crimp contacts for contact carriers, 17-pos.,
17 x Ø1.0 mm
Pin Ø1.0 mm / 0.22 ... 0,56 / AWG 24-20 RC-22P2000 1603321 100
Socket Ø1.0 mm / 0.22 ... 0,56 / AWG 24-20 RC-22S2000 1603327 100
Pin Ø1.0 mm / 0.14 ... 0,56 / AWG 24-20 RC-12P2000 1597862 500
Socket Ø1.0 mm / 0.14 ... 0,56 / AWG 24-20 RC-12S2000 1599600 500
Crimp contacts for contact carriers, 19-pos. (16+2+PE),
16 x Ø1.0 mm, 2 x Ø1.5 mm, 1 x Ø1.5 mm (PE)
Pin Ø1.0 mm / 0.25 ... 0,5 / AWG 24-20 RC-6LP2000 1603819 100
Socket Ø1.0 mm / 0,25 ... 0,5 / AWG 24-20 RC-6LS2000 1603823 100
Pin Ø1.5 mm / 0.75 ... 1,0 / AWG 18 RC-6EP2000 1603802 100
Socket Ø1.5 mm / 0.75 ... 1,0 / AWG 18 RC-6ES2000 1603805 100
Pin Ø1.5 mm (PE) / 0.75 ... 1,0 / AWG 18 RC-6FP2000 1603808 100
Socket Ø1.5 mm (PE) / 0.75 ... 1,0 / AWG 18 RC-6FS2000 1603811 100
Crimping tool RC-Z2130 see page 140 RC-Z2504 see page 140

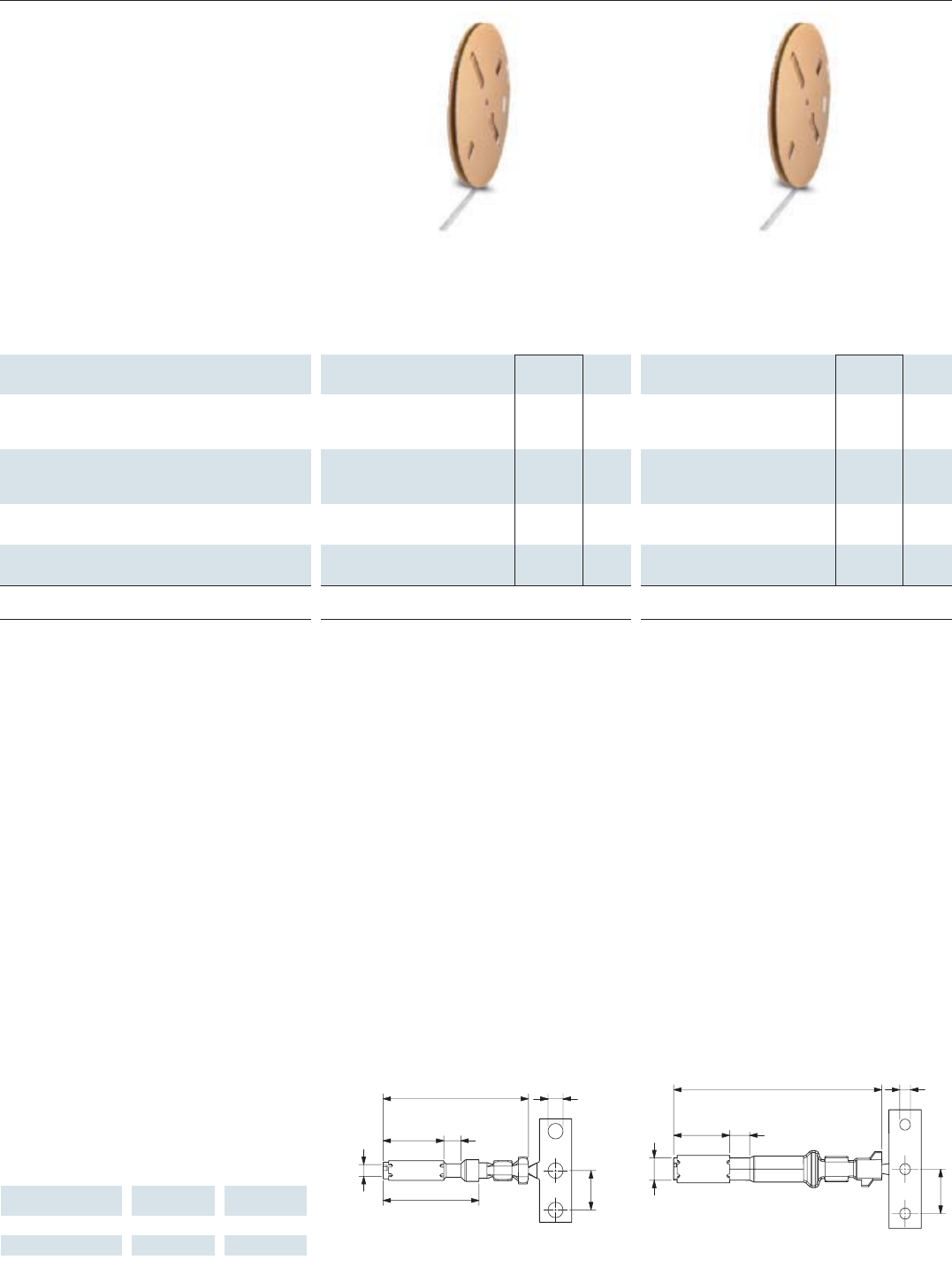

Rolled contacts
Crimp contacts, separate,
pin/socket
Turned contacts
Crimp contacts, separate,
pin/socket
35PHOENIX CONTACT
For replacement purposes - suitable for
every crimp contact carrier - male or female
crimp contacts can be ordered in the
different connection cross-sections.
Crimp contacts
Modular signal connectors - PLUSCON circular
Contact inserts - RC, UC and TU series
10,15
4,2
3,45
4,15
4,2
10,15
1,73
8,3
A
B
C
D
4,75
4,75
8,25
N
7
54
8
9
PO 3
2
1
6
N
2
45
1
9
SO 6
7
8
3
More informations and installation instructions at: www.phoenixcontact.com
Description Contacts / direction of
rotation Type Order No. Pcs. /
Pkt.
Solder-in contact insert, 6-pos.,
contacts: 6 x Ø 2.0 mm
Solder pin Ø: 1.5 mm
Pin / standard RC-06P1N220000 1593395 25
Socket / standard RC-06S1N220000 1594002 30
Solder-in contact insert, 9-pos. (6+3),
contacts: 6 x Ø 1.0 mm, 3 x Ø 2.0 mm
Solder pin Ø: 6 x 0.6 mm, 3 x 1.5 mm
Pin / standard RC-63P1N220000 1603637 25
Socket / standard RC-63S1N220000 1603764 30
Contact insert, 9-pos. (8+1),
contacts: 8 x Ø 1.0 mm, 1 x Ø 2.0 mm
Solder pin Ø: 8 x 0.6 mm, 1 x 1.5 mm
Pin / standard RC-09P1N220000 1606999 25
Socket / standard RC-09S1N220000 1596279 30
Contact insert, 12-pos.,
contacts: 12 x Ø 1.0 mm
Solder pin Ø: 0.6 mm
Pin / standard RC-12P1N220000 1597402 25
Socket / standard RC-12S1N220000 1599079 30
Contact insert, 17-pos.,
contacts: 17 x Ø 1.0 mm
Solder pin Ø: 0.6 mm
Pin / standard RC-17P1N220000 1607009 25
Socket / standard RC-17S1N220000 1607011 30
36 PHOENIX CONTACT
9 (6+3)-pos.
Housing type Free solder pin length
M23 A [mm] B [mm] C [mm] D [mm]
RC-...2200 3.5 4.5 10.0 17.5
RC-...WQ00 3.5 4.5 10.0 17.5
RC-...4200 3.5 4.5 10.0 17.5
RC-...5200 3.5 4.5 10.0 17.5
RC-...H000 3.5 11.0
RC-...E000 3.5 11.0
Bayonet A [mm] B [mm] C [mm] D [mm]
TU-...WB00 9.0 16.5
TU-...4100 2.5 3.5 9.0 16.5
TU-...5300 2.5 3.5 9.0 16.5
6-pos.
Mounting flange
Appliance plug connector housing
Pin clocwise
(standard)
Socket counter-clockwise
(standard)
Direction of rotation of contact insert numbering
(view of plug-in side)
Free solder pin length A
Contact insert and solder in contacts,
pin/socket
Contact inserts with
6 to 17-pos. solder-in contacts
Modular signal connectors - PLUSCON circular
Contact inserts - RC, UC and TU series
Contact inserts with solder-in contacts
allow efficient mounting on PCBs. Assembly
times are reduced and wiring errors are
prevented.
Ordering Information:
The first step is to determine the number
of positions and the connection method –
pin or socket.
The free solder pin length A, B, C or D is
the distance between the mounting flange
of the connector housing and the end of the
solder-in contact. In this measurement, the
housing wall thickness and air gap to the
PCB are included.
PCB hole patterns
The PCB hole-Ø must be adapted to the
solder-in pin Ø.
Further contact inserts / free solder pin
lengths are available on request.
3,6
8,7
3,6
8,7
7,2
11,1
9,8
3,8
1
4,3
4,5
2,2
2,8
5,3
11,9
9,05
5,45
3,4
3
21,25
4,5
6,5
10,9
5,75
3,95
0,85
2,5
5,05
6
More informations and installation instructions at: www.phoenixcontact.com
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
Solder pin Ø: 1.5 mm Solder pin Ø: 1.5 mm Solder pin Ø: 1.5 mm
RC-06P1N320000 1606991 25 RC-06P1NA20000 1593531 25 RC-06P1NC20000 1606993 25
RC-06S1N320000 1606994 30 RC-06S1NA20000 1594149 30 RC-06S1NC20000 1606996 30
Solder pin Ø: 6 x 1.0 mm, 3 x 1.5 mm Solder pin Ø: 6 x 1.2 mm, 3 x 1.5 mm Solder pin Ø: 6 x 1.2 mm, 3 x 1.5 mm
RC-63P1N320000 1603640 25 RC-63P1NA20000 1603645 25 RC-63P1NC20000 1603651 25
RC-63S1N320000 1603767 30 RC-63S1NA20000 1603774 30 RC-63S1NC20000 1603778 30
Solder pin Ø: 8 x 1.0 mm, 1 x 1.5 mm Solder pin Ø: 8 x 1.2 mm, 1 x 1.5 mm Solder pin Ø: 8 x 1.2 mm, 1 x 1.5 mm
RC-09P1N320000 1607000 25 RC-09P1NA20000 1595507 25 RC-09P1NC20000 1595519 25
RC-09S1N320000 1607003 30 RC-09S1NA20000 1596421 30 RC-09S1NC20000 1596434 30
Solder pin Ø: 1.0 mm Solder pin Ø: 1.2 mm Solder pin Ø: 1.2 mm
RC-12P1N320000 1607006 25 RC-12P1NA20000 1597643 25 RC-12P1NC20000 1597660 25
RC-12S1N320000 1607007 30 RC-12S1NA20000 1607008 30 RC-12S1NC20000 1599367 30
Solder pin Ø: 1.0 mm Solder pin Ø: 1.2 mm Solder pin Ø: 1.2 mm
RC-17P1N320000 1607010 25 RC-17P1NA20000 1601638 25 RC-17P1NC20000 1601647 25
RC-17S1N320000 1607013 30 RC-17S1NA20000 1607014 30 RC-17S1NC20000 1602295 30
37PHOENIX CONTACT
9 (8+1)-pos. 12-pos. 17-pos.
Free solder pin length B
Contact insert and solder in contacts,
pin/socket
Free solder pin length C
Contact insert and solder in contacts,
pin/socket
Free solder pin length D
Contact insert and solder in contacts,
pin/socket
Modular signal connectors - PLUSCON circular
Contact inserts - RC, UC and TU series
38 PHOENIX CONTACT
39PHOENIX CONTACT
Unlike modular signal plug connectors, the
circular connectors of these series are provided
fully assembled. Contacts are added only in the
case of crimp connection, depending on the
desired connection cross section.
M16 appliance plug connectors up to 14-pos.
The M16 appliance plug connectors of the
PV series provide high contact densities in
compact spaces, for instance as a central
connection for distributor boxes. Pin
versions with 8, 10, 12 and 14 positions with
solder contacts or with solder-in pins for
direct PCB connection are available.
M17 connectors for small dimensions –
optionally with SPEEDCON quick
locking
The M17 range of the ST series offers a
suitable housing version for almost every
installation situation. Thanks to compact
dimensions, the ST series is ideal for small
sizes even in narrow installation spaces.
The 17-pos. versions provide clear signal
transmission. For power transmission of up
to 20 A / 630 V, 4 to 9-pos. versions with PE
connection are available; page 86 onwards.
M23 – Generous cable clamping range
The M23 signal plug connectors of the RF
series are mainly used in areas where control
units are connected with an electrical drive.
The 12, 16 and 17-pos. basic range in metal
housing versions is adapted to these
applications. The cable clamping range is
allows for a maximum cable diameter
(shielded) of 13.2 mm.
M27 – High-position versions
The 26, 25+PE and 28-pos. signal plug
connectors of the M27 HC series are
available in male or female versions with
solder, solder-in or crimp connections. Crimp
contacts are available for stranded wire cross
sections from 0.08 mm to 1 mm / AWG 28
to 18. The cable plug connectors and
coupling connectors are equipped with a
universal cable clamping and a shield
connection for external cable diameters from
2 mm to 14.5 mm.
Signal plug connectors – PLUSCON circular
Table of contents
M16 - PV series
Mechanical and electrical data 40
Appliance plug connectors, front and rear mounting 41
M17 - ST series
Mechanical and electrical data 42
Selection guide 44
Cable plug connectors 46
Coupling connectors 48
Appliance plug connectors, front and rear mounting 49
Crimp contacts 52
M23 - RF series
Mechanical and electrical data 54
Selection guide 56
Cable plug connectors and coupling connectors 58
Appliance plug connectors, front mounting: 60
Cable plug connectors and coupling connectors, high-
grade steel 66
Appliance plug connectors, front mounting, high-grade
steel 68
Crimp contacts 70
M27 - HC series
Mechanical and electrical data 72
Cable plug connectors, coupling connectors and appliance
plug connectors 74
Crimp contacts 80
P
S
Y
Y
XX J
T
L
U
M
A
Y
Y
XX
PRG
S
J
T
L
U
M
A
Y
Y
XX
EPRG
S
J
T
L
U
M
A
O
Y
Y
XX
EPRG
S
J
T
L
U
M
A
N
C
O
EPRG
S
J
T
L
U
M
A
N
C
O
EPRG
S
J
T
L
U
M
A
O
PRG
S
J
T
L
U
M
A
P
S
J
T
L
U
M
A
More informations and installation instructions at: www.phoenixcontact.com
40 PHOENIX CONTACT
Mechanical data:
Housing material: rotating part, copper-zinc alloy (CuZn)
Housing surface: nickel-plated
Insulating bodies: polyamide (PA66)Storage at 15°C ... 35°C, 40% ... 70% rel. humidity
Contact material: copper-zinc alloy (CuZn)
Contact surface: nickel-plated (Ni) with a gold layer (Au)
Contact connection method: solder cup, solder-in pin
Gasket and O ring: fluorine rubber (FKM)
Ambient temperature: -20°C ... 125°C
Locking type: M16 screw locking
Mechanical insertion/withdrawal cycles: standard: 50, more on request
Degree of protection: IP67 when locked
ec
an
ca
an
e
ectr
ca
ata
Electrical data
Number of positions 8 10 12 14
Male contacts 8 101214
Contact Ø [mm] 1 1 1 1
Connection cross section, solder connection max.
[mm
2
/ AWG] 0.34 / 22 0.34 / 22 0.34 / 22 0.34 / 22
Nominal current per contact at 25 °C
1)
[A] 6 6 6 6
Specifications as per DIN EN 61984:2001
Nominal/operating voltage [V AC / DC] 100 100 100 100
Test/surge voltage [kV] 0.8 0.8 0.8 0.8
Surge voltage category II II II II
Pollution degree
2)
3333
Installation height [m] Up to 2,000 Up to 2,000 Up to 2,000 Up to 2,000
1)
If required, the effective current carrying capacity must be determined according to the application using a derating curve.
2)
The values specified require a correctly locked pair of connectors that are disconnected only for testing and maintenance.
If an unlocked connector is exposed to ambient conditions and if there is a danger of contamination, the connector should be sealed using a t IP54 protective cap.
Contact insert numbering
(view of plug-in side)
Number of positions 8 10 12 14
Solder contacts, pin
Solder-in contacts, pin
PCB hole patterns
(hole diameter 0.8 r 0.05 mm)
Number of positions 8 10 12 14
Solder-in contacts, pin
Note:
Plug connectors may only be inserted or removed when
the power supply is disconnected.
X/Y values of the PCB hole patterns
ACEGJ LMNOPRSTU
X -2.5 -4.25 -2.3 2.3 4.25 2.5 -0.95 -2.4 -2.4 -0.95 0.95 2.4 2.4 0.95
Y -4 0.00 4 4 0.00 -4 -2.4 -0.95 0.95 2.4 2.4 0.95 -0.95 -2.4
Signal plug connector - PLUSCON circular
M16 - PV series
More informations and installation instructions at: www.phoenixcontact.com
40 PHOENIX CONTACT
Mechanical data:
Housing material: rotating part, copper-zinc alloy (CuZn)
Housing surface: nickel-plated
Insulating bodies: polyamide (PA66)Storage at 15°C ... 35°C, 40% ... 70% rel. humidity
Contact material: copper-zinc alloy (CuZn)
Contact surface: nickel-plated (Ni) with a gold layer (Au)
Contact connection method: solder cup, solder-in pin
Gasket and O ring: fluorine rubber (FKM)
Ambient temperature: -20°C ... 125°C
Locking type: M16 screw locking
Mechanical insertion/withdrawal cycles: standard: 50, more on request
Degree of protection: IP67 when locked
ec
an
ca
an
e
ectr
ca
ata
Electrical data
Number of positions 8 10 12 14
Male contacts 8 101214
Contact Ø [mm] 1 1 1 1
Connection cross section, solder connection max.
[mm
2
/ AWG] 0.34 / 22 0.34 / 22 0.34 / 22 0.34 / 22
Nominal current per contact at 25 °C
1)
[A] 6 6 6 6
Specifications as per DIN EN 61984:2001
Nominal/operating voltage [V AC / DC] 100 100 100 100
Test/surge voltage [kV] 0.8 0.8 0.8 0.8
Surge voltage category II II II II
Pollution degree
2)
3333
Installation height [m] Up to 2,000 Up to 2,000 Up to 2,000 Up to 2,000
1)
If required, the effective current carrying capacity must be determined according to the application using a derating curve.
2)
The values specified require a correctly locked pair of connectors that are disconnected only for testing and maintenance.
If an unlocked connector is exposed to ambient conditions and if there is a danger of contamination, the connector should be sealed using a t IP54 protective cap.
Contact insert numbering
(view of plug-in side)
Number of positions 8 10 12 14
Solder contacts, pin
Solder-in contacts, pin
PCB hole patterns
(hole diameter 0.8 r 0.05 mm)
Number of positions 8 10 12 14
Solder-in contacts, pin
Note:
Plug connectors may only be inserted or removed when
the power supply is disconnected.
X/Y values of the PCB hole patterns
ACEGJ LMNOPRSTU
X -2.5 -4.25 -2.3 2.3 4.25 2.5 -0.95 -2.4 -2.4 -0.95 0.95 2.4 2.4 0.95
Y -4 0.00 4 4 0.00 -4 -2.4 -0.95 0.95 2.4 2.4 0.95 -0.95 -2.4
Signal plug connector - PLUSCON circular
M16 - PV series
Ø18+0,1
17+0,1
min. 1,5mm
max. 5,0mm
21,5
1,5
9,5
M18x0,75
20
M16x0,75
Ø
22,5
1,5
7 2,5
16,5
0,6
M18x0,75
M16x0,75
20
Ø
Ø
21,5
16,5
7
1,5
20
M18x0,75
M16x0,75
Ø
More informations and installation instructions at: www.phoenixcontact.com
Description Connection method Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
M16 appliance plug connector, 8-pos., pin
Solder PV-08P1N126100 1592490 40 PV-08P1N12HG00 1592491 40
Solder-in PV-08P1N22HG00 1609977 40
M16 appliance plug connector, 10-pos., pin
Solder PV-10P1N126100 1592493 40 PV-10P1N12HG00 1592494 40
Solder-in PV-10P1N22HG00 1609978 40
M16 appliance plug connector, 12-pos., pin
Solder PV-12P1N126100 1592496 40 PV-12P1N12HG00 1592497 40
Solder-in PV-12P1N22HG00 1609979 40
M16 appliance plug connector, 14-pos., pin
Solder PV-14P1N126100 1592499 40 PV-14P1N12HG00 1592500 40
Solder-in PV-14P1N22HG00 1592501 40
PV-..P1N126100
M16 appliance plug connector,
front mounting
PV-..P1N.2HG00
M16 appliance plug connector,
rear mounting
Installation dimensions PV-..P1N126100,
PV-..P1N.2HG00
41PHOENIX CONTACT
Solder connection: PV-..P1N126100 Solder connection: PV-..P1N12HG00 Solder-in connection: PV-..P1N22HG00
The M16 appliance plug connectors of the
PV series allow a high density of positions in
a small space, for example as central
connection for distributor boxes.
8, 10, 12 and 14-pos. male versions with
solder contacts or soldered-in pins are
available for direct PCB connection.
Appliance plug connectors for front
and rear mounting
Signal plug connector - PLUSCON circular
M16 - PV series
100010030
20
100
120
40
80
60
0
Signal plug connectors - PLUSCON circular
M17 - ST series
42 PHOENIX CONTACT
Electrical data
Number of positions 17
Contacts 17
Contact Ø [mm] 0.6
Stranded wire cross section, crimp contacts
turned [mm
2
/ AWG] 0.08 ... 0.5 / 28-20
Stranded wire cross section, C-HC crimp
contacts punched-rolled [mm
2
]–
Cable clamping range max Ø [mm] 10
Nominal current per contact at 25°C
1)
[A] 3.6
Specifications as per DIN EN 61984:2001
Nominal/operating voltage [V AC / DC] 60
Test/surge voltage [kV] 1.5
Surge voltage category III
Pollution degree
2)
3
Installation height [m] Up to 3,000
1)
If required, the effective current carrying capacity must be determined according to the application using a derating curve.
2)
The values specified require a correctly locked pair of connectors that are disconnected only for testing and maintenance. If an unlocked connector is exposed to ambient
conditions and if there is a danger of contamination, the connector should be sealed using a t IP 54 protective cap.
Mechanical and electrical data
Mechanical data
Housing material: Rotating part: copper-zinc alloy (CuZn), die-cast part: zinc (GD-Zn)
Housing surface: Nickel-plated; appliance plug connector: nickel-plated/thick layer passivated (can be painted over)
Insulating bodies: Polyamide (PA 66)
Contact material: Copper-zinc alloy (CuZn)
Contact surface: Nickel-plated (Ni) with a gold layer (Au)
Contact connection method: Crimp version
Gasket and O ring: Fluorine rubber (FKM)
Ambient temperature: -20°C ... 125°C
Conductor entry: cable plug connectors and coupling connectors for external cable diameters of 3.5 ... 10 mm, shielded
(3.5 ... 11.5 mm on request)
Locking type: Quick locking M17 SPEEDCON, cable plug connectors optionally with M17 x 1 control thread
Mechanical insertion/withdrawal cycles: Standard: 50, more on request
Degree of protection: IP67 when locked
Shield attenuation curve based on DIN EN 50289-1-6
(cable connectors and appliance connectors angled on
the base plate)
Note:
Plug connectors may only be inserted or removed when
the power supply is disconnected.
Att
enua
ti
on
[dB]
Frequency [MHz]
Signal plug connectors - PLUSCON circular
M17 - ST series
42 PHOENIX CONTACT
Electrical data
Number of positions 17
Contacts 17
Contact Ø [mm] 0.6
Stranded wire cross section, crimp contacts
turned [mm
2
/ AWG] 0.08 ... 0.5 / 28-20
Stranded wire cross section, C-HC crimp
contacts punched-rolled [mm
2
]–
Cable clamping range max Ø [mm] 10
Nominal current per contact at 25°C
1)
[A] 3.6
Specifications as per DIN EN 61984:2001
Nominal/operating voltage [V AC / DC] 60
Test/surge voltage [kV] 1.5
Surge voltage category III
Pollution degree
2)
3
Installation height [m] Up to 3,000
1)
If required, the effective current carrying capacity must be determined according to the application using a derating curve.
2)
The values specified require a correctly locked pair of connectors that are disconnected only for testing and maintenance. If an unlocked connector is exposed to ambient
conditions and if there is a danger of contamination, the connector should be sealed using a t IP 54 protective cap.
Mechanical and electrical data
Mechanical data
Housing material: Rotating part: copper-zinc alloy (CuZn), die-cast part: zinc (GD-Zn)
Housing surface: Nickel-plated; appliance plug connector: nickel-plated/thick layer passivated (can be painted over)
Insulating bodies: Polyamide (PA 66)
Contact material: Copper-zinc alloy (CuZn)
Contact surface: Nickel-plated (Ni) with a gold layer (Au)
Contact connection method: Crimp version
Gasket and O ring: Fluorine rubber (FKM)
Ambient temperature: -20°C ... 125°C
Conductor entry: cable plug connectors and coupling connectors for external cable diameters of 3.5 ... 10 mm, shielded
(3.5 ... 11.5 mm on request)
Locking type: Quick locking M17 SPEEDCON, cable plug connectors optionally with M17 x 1 control thread
Mechanical insertion/withdrawal cycles: Standard: 50, more on request
Degree of protection: IP67 when locked
Shield attenuation curve based on DIN EN 50289-1-6
(cable connectors and appliance connectors angled on
the base plate)
Note:
Plug connectors may only be inserted or removed when
the power supply is disconnected.
Att
enua
ti
on
[dB]
Frequency [MHz]
Signal plug connectors - PLUSCON circular
M17 - ST series
43PHOENIX CONTACT
Contact insert numbering
(view of plug-in side)
Number of positions Pin Socket
17-pos.
Crimp
Connector pin assignments and coding
Note:
The connectors can be equipped with male or female
contacts according to the application.
For reasons pertaining to safety, only female contacts may
be used in the live part of the connector.
Signal plug connectors - PLUSCON circular
M17 - ST series
43PHOENIX CONTACT
Contact insert numbering
(view of plug-in side)
Number of positions Pin Socket
17-pos.
Crimp
Connector pin assignments and coding
Note:
The connectors can be equipped with male or female
contacts according to the application.
For reasons pertaining to safety, only female contacts may
be used in the live part of the connector.
Signal plug connectors - PLUSCON circular
M17 - ST series
44 PHOENIX CONTACT
Selection guide
M17 signal plug connectors 17-pos.,
crimp ranges 0.08 mm
2
to 0.5 mm
2
/
AWG 28 to 20
– Cable plug connectors
– Coupling connectors
– Appliance plug connectors (device flange)
The ST series connectors are fully
assembled and the respective crimp
contacts must be ordered separately.
Every housing type can be equipped with
male or female contacts. The connectors
with a knurled nut can be optionally equipped
with SPEEDCON quick locking or with
M17 x 1 control thread. The connectors with
an external thread are fully compatible with
standard threads and with SPEEDCON quick
locking.
The product chart provides an overview
of the available components.
Connector type
shielded
shieldedshielded
SPEEDCON
Quick locking, page 46
Cable plug connectors
Coupling connectors
Device connectors
M17 x 1
Standard locking, page 47
ST-...1N8A80..S
ST-...1N8A80..
Square mounting flange for cable plug
connectors and coupling connectors for wall
mounting,
page 152
ST-...1N8A90..S
page 48 Square mounting flange for cable plug
connectors and coupling connectors for wall
mounting,
page 152
straight, page 49
ST-...1N8AWQ00S
straight, with central fastening thread,
front mounting, page 51
ST-...1N8A6100S
straight, with contact carriers for snapping in,
page 49
ST-...1N8AW400S
straight, with central fastening thread,
rear mounting, page 51
ST-...1N8AH100S
angled rotatable, page 50
ST-...1N8AAD00S,
ST-...1N8AAC00S
Signal plug connectors - PLUSCON circular
M17 - ST series
45PHOENIX CONTACT
Crimp contacts Tools / accessories
Note:
For reasons pertaining to safety, only
female contacts may be used in the live
part of the connector.
Female contacts
Turned, page 52
Crimping tools
Crimping pliers for turned crimp contacts,
page 145
Male contacts
Turned, page 52
Removal tool for contact carrier
For appliance plug connectors with contact
carriers snapping in from the device side,
page 152
All housings can be equipped with male or female crimp contacts
Crimping pliers with digital display for turned
crimp contacts,
page 150
min.52,3
21,3
O
More informations and installation instructions at: www.phoenixcontact.com
Description Cable seal Ø [mm] Type Order No. Pcs. /
Pkt.
M17 cable plug connector SPEEDCON, 17-pos.,
straight, for female contacts
3.5 ... 5 ST-17S1N8A8002S 1607640 30
5 ... 8 ST-17S1N8A8003S 1607642 30
8 ... 10 ST-17S1N8A8004S 1607644 30
M17 cable plug connector SPEEDCON, 17-pos.,
straight, for male contacts
3.5 ... 5 ST-17P1N8A8002S 1607623 30
5 ... 8 ST-17P1N8A8003S 1607625 30
8 ... 10 ST-17P1N8A8004S 1607627 30
Crimp contacts 17-pos.: Ø 0.6 mm Order separately, see page 52 onwards
ST-17.1N8A800.S
ST-17.1N8A800.S

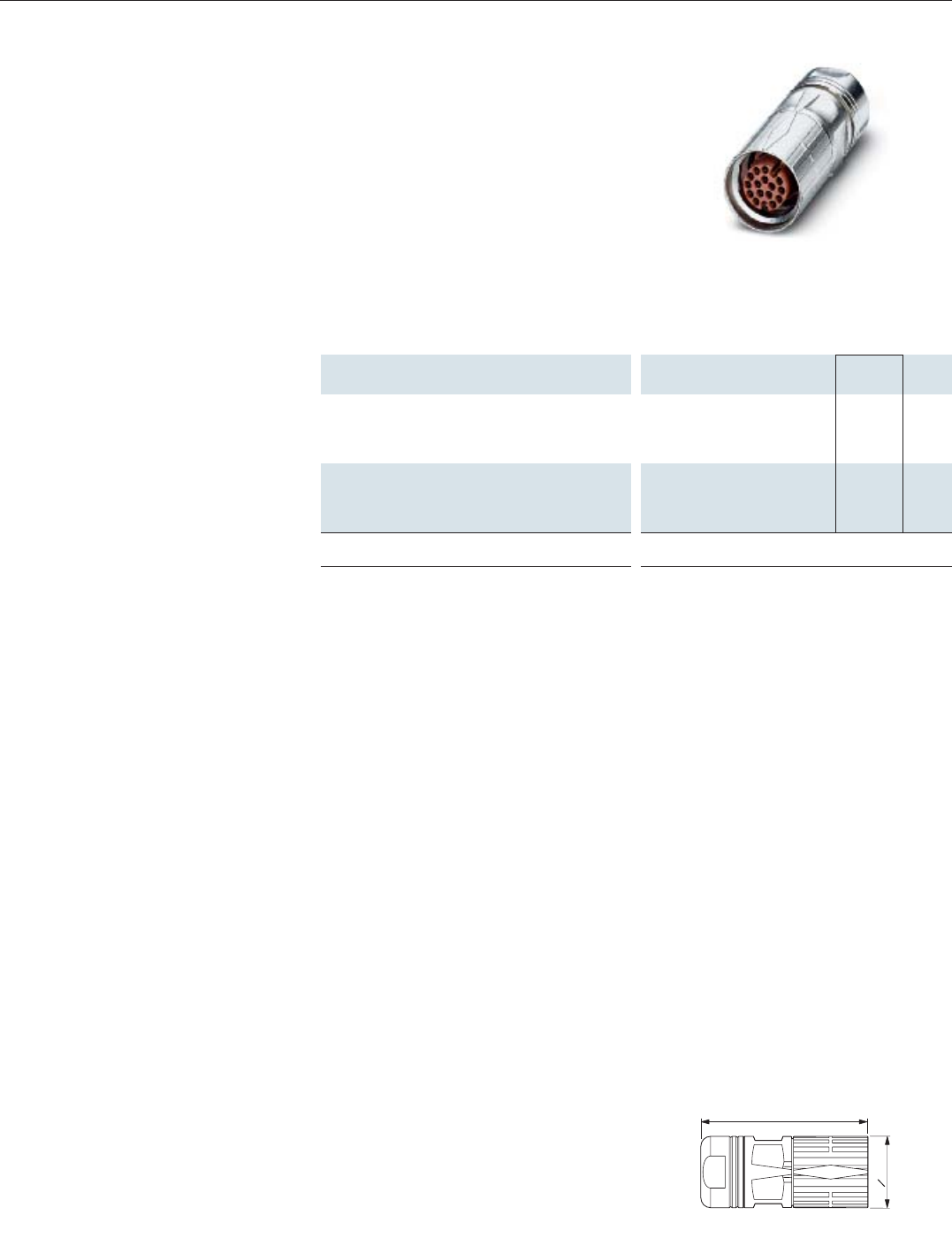

Cable plug connector
SPEEDCON quick locking
46 PHOENIX CONTACT
The SPEEDCON thread allows quick
locking of cable connector and coupling
connector or device flange. They are locked
by rotating the knurled nut clockwise until
it stops. First, the connector must be
connected to the mating connector
manually without interference of the
insertion forces. The knurled nut has a left
stop. This allows "blind" mating of the
connector.
Cable plug connectors of the ST series
are either provided with the standard M17
screw locking or with the SPEEDCON
quick locking.
Cable plug connector with
SPEEDCON quick locking, shielded
Signal plug connector - PLUSCON circular
M17 - ST series
min.52,3
21,3
Ø
More informations and installation instructions at: www.phoenixcontact.com
Description Cable seal Ø [mm] Type Order No. Pcs. /
Pkt.
M17 cable plug connector,17-pos.,
straight, for female contacts
3.5 ... 5 ST-17S1N8A8002 1607639 30
5 ... 8 ST-17S1N8A8003 1607641 30
8 ... 10 ST-17S1N8A8004 1607643 30
M17 cable plug connector,17-pos.,
straight, for male contacts
3.5 ... 5 ST-17P1N8A8002 1607621 30
5 ... 8 ST-17P1N8A8003 1607624 30
8 ... 10 ST-17P1N8A8004 1607626 30
Crimp contacts 17-pos.: Ø 0.6 mm Order separately, see page 52 onwards
ST-17.1N8A800.
ST-17.1N8A800.
Cable plug connector,
standard interlocking
47PHOENIX CONTACT
The cable plug connector is also provided
with a standard screw locking. In this
version, it is suitable for a standard screw
thread as well as a SPEEDCON external
thread of the mating connector, e.g. a
straight device flange.
A special feature is the availability of the
connector as a female version and male
version.
Cable plug connector with standard
interlocking, shielded
Signal plug connector - PLUSCON circular
M17 - ST series
min.50,5
M17
SPEEDCON
More informations and installation instructions at: www.phoenixcontact.com
Description Cable seal Ø [mm] Type Order No. Pcs. /
Pkt.
M17 coupling plug connector,17-pos.,
straight, for female contacts
3.5 ... 5 ST-17S1N8A9002S 1607646 30
5 ... 8 ST-17S1N8A9003S 1607647 30
8 ... 10 ST-17S1N8A9004S 1607649 30
M17 coupling plug connector,17-pos.,
straight, for male contacts
3.5 ... 5 ST-17P1N8A9002S 1607629 30
5 ... 8 ST-17P1N8A9003S 1607630 30
8 ... 10 ST-17P1N8A9004S 1607631 30
Crimp contacts 17-pos.: Ø 0.6 mm Order separately, see page 52 onwards
ST-17.1N8A900.S
ST-17.1N8A900.S
Coupling plug connector SPEEDCON/standard interlocking
48 PHOENIX CONTACT
The coupling plug connector is available
only with SPEEDCON thread. They can be
screwed together with the SPEEDCON
thread as well as with the full thread of the
mating connector.
The plug-in position is marked clearly
using an arrow.
Coupling plug connector, shielded
Signal plug connector - PLUSCON circular
M17 - ST series
4xM2,5
16,8
16,8
17±0,1
31
3
0,85
21,6
16,8
4x2,7
M17
SPEEDCON
Ø
31
3
0,85
21,6
16,8
4x2,7
M17
SPEEDCON
Ø
More informations and installation instructions at: www.phoenixcontact.com
Description No. of pos. Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
M17 appliance plug connector, straight,
for female contacts
17 ST-17S1N8AWQ00S 1607654 30 ST-17S1N8AW400S 1607653 30
M17 appliance plug connector, straight,
for male contacts
17 ST-17P1N8AWQ00S 1607636 30 ST-17P1N8AW400S 1607634 30
Crimp contacts 17-pos.: Ø 0.6 mm Order separately, see page 52 onwards Order separately, see page 52 onwards
Removal tool for contact carrier Order separately, see page 152
ST-17.1N8AWQ00S
Appliance plug connector, straight,
SPEEDCON/standard interlocking
ST-17.1N8AW400S
Appliance plug connector, straight,
SPEEDCON/standard interlocking
contact insert for snapping in
Installation dimensions ST-17.1N8AWQ00S ST-17.1N8AW400S
49PHOENIX CONTACT
Devices are partially supplied with
punched on and pre-assembled contact
carriers, e.g. encoder for servo motors. It is
practical in such cases to install the
insulation body into the pre-assembled
housing from behind. This version requires
a removal tool for removing the contact
carrier again from the front.
Appliance plug connector, straight,
front mounting, shielded
Signal plug connector - PLUSCON circular
M17 - ST series
4xM2,5
45°
16,8
Ø23,8
Ø17±0,1
4xM2,5
45°
19,8
Ø28
min.Ø17
max.Ø20,2
36,3
1,3
22,5
M17
SPEEDCON
4x2,7
203°
19,8
25
105°
Ø
36,3
22,5
1,3
M17
SPEEDCON
4x2,7
203°
21,6
16,8
105°
Ø
More informations and installation instructions at: www.phoenixcontact.com
Description No. of pos. Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.

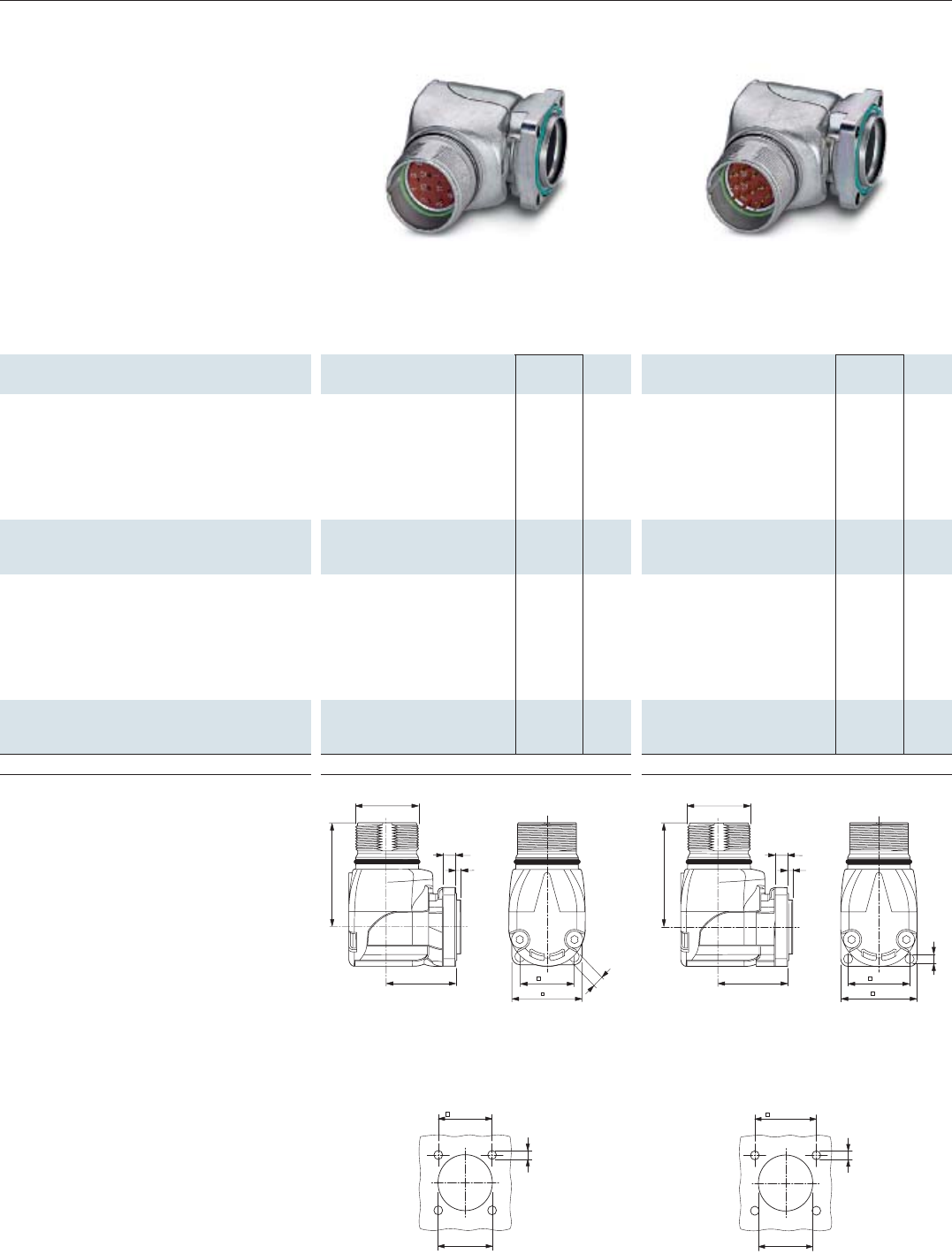

M17 appliance plug connector,
angled, rotatable, for female contacts
17 ST-17S1N8AAD00S 1607652 16 ST-17S1N8AAC00S 1607650 16
M17 appliance plug connector,
angled, rotatable, for male contacts
17 ST-17P1N8AAD00S 1607633 16 ST-17P1N8AAC00S 1607632 16
Crimp contacts 17-pos.: Ø 0.6 mm Order separately, see page 52 onwards Order separately, see page 52 onwards
ST-17.1N8AAD00S
Appliance plug connector, angled, rotatable,
SPEEDCON/standard interlocking,
flange dimension: 21.6 mm
ST-17.1N8AAC00S
Appliance plug connector, angled, rotatable,
SPEEDCON/standard interlocking,
flange dimension: 25 mm
Installation dimensions: ST-17.1N8AAD00S Installation dimensions: ST-17.1N8AAC00S
50 PHOENIX CONTACT
ST-17.1N8AAD00S ST-17.1N8AAC00S
The angled panel mounting bases are
progressively rotatable up to 308° for
optimum adjustment to the respective
application.
In addition, two flange dimension versions
with 21.6 mm x 21.6 mm or
25 mm x 25 mm are available.
Panel mounting plug connector angled,
rotatable, flange dimensions 28 x 28 mm on
request.
Appliance plug connector, angled,
rotatable, front mounting, shielded
Signal plug connector - PLUSCON circular
M17 - ST series
M17
M20x1,5
SPEEDCON
26
25,3
max.8
6,7
11,4
Ø
min. 0,8
Ø20,2+0,1
18,1+0,1
min. 3
M20x1,5
M18x0,75
M17
SPEEDCON
21,2
20,6 11,4
max.5
8
Ø
min. 1,5
M18x0,75
min. 0,8
Ø18,2+0,1
17,1+0,1
More informations and installation instructions at: www.phoenixcontact.com
Description No. of pos. Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
M17 appliance plug connector,
for female contacts
17 ST-17S1N8A6100S 1613542 30 ST-17S1N8AH100S 1613543 30
M17 appliance plug connector,
for male contacts
17 ST-17P1N8A6100S 1613540 30 ST-17P1N8AH100S 1613541 30
Locking nut, for mounting bore holes and polarization
M18 x 0.75 ST-E2015151 1613831 25
M20 x 1.5 RC-13041 1600417 25
Crimp contacts 17-pos.: Ø 0.6 mm Order separately, see page 52 onwards Order separately, see page 52 onwards
Removal tool for contact carrier Order separately, see page 152 Order separately, see page 152
ST-17.1N8A6100S
Appliance plug connector, front mounting,
SPEEDCON/standard interlocking,
central fastening thread M18 x 0.75
ST-17.1N8AH100S
Appliance plug connector, rear mounting,
SPEEDCON/standard interlocking,
central fastening thread M20 x 1.5
ST-17S1N8AH100S, ST-17P1N8AH100S,
Separate ordering for locking nut
Installation dimensions: ST-17.1N8AH100S, bore hole with polarization
and locking nut (recommended for installation in steel sheet panel)
Installation dimensions: ST-17.1N8AH100S, feed-through hole
with thread (recommended for installation in steel sheet panel)
51PHOENIX CONTACT
ST-17S1N8A6100S, ST-17P1N8A6100S,
Separate ordering for locking nut
Installation dimensions: ST-17.1N8A6100S, bore hole with polarization
and locking nut (recommended for installation in steel sheet panel)
Installation dimensions: ST-17.1N8A6100S, feed-through hole
with thread (recommended for installation in steel sheet panel)
The device flanges with central fastening
thread are screwed onto the mounting
panel from outside or inside.
The contact carriers are fastened from
the device side by clipping them in and
snapping them in place. A removal tool is
required for removing the contact carrier
again from the front.
Appliance plug connector, central
fastening thread, front and rear
mounting, shielded
Signal plug connector - PLUSCON circular
M17 - ST series
More informations and installation instructions at: www.phoenixcontact.com
Description Connection cross section
[mm
2
/ AWG] Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
Contacts, female Ø 0.6 mm, for M17 connectors
0,08 ... 0,25 / 28-24 ST-06KS010 1607580 100
0,14 ... 0,34 / 26-22 ST-06KS020 1607581 100
0,34 ... 0,5 / 22-20 ST-06KS030 1607582 100
Contacts, male Ø 0.6 mm, for M17 connectors
0,08 ... 0,25 / 28-24 ST-06KP010 1607577 100
0,14 ... 0,34 / 26-22 ST-06KP020 1607578 100
0,34 ... 0,5 / 22-20 ST-06KP030 1607579 100
Crimping tools Order separately, see page 145 onwards Order separately, see page 145 onwards
Crimping tool with digital display Order separately, see page 150 Order separately, see page 150
Notes:
Every connector housing type can be equipped with male or female
contacts.
For reasons pertaining to safety, only female contacts may
be used in the live part of the connector.
ST-06KS010
Crimp contacts
socket
ST-06KP010
Crimp contacts
pin
52 PHOENIX CONTACT
The 17 pos. signal plug connectors of the
ST series are designed for Ø 0.6 mm
contacts.
Note:
Depending on the wire used, the
connection cross-sections (crimp ranges)
can differ from the values mentioned below.
Crimp contacts, turned
Signal plug connector - PLUSCON circular
M17 - ST series
More informations and installation instructions at: www.phoenixcontact.com 53PHOENIX CONTACT
Signal plug connector - PLUSCON circular
M17 - ST series
100010030
20
100
120
40
80
60
0
Signal plug connectors - PLUSCON circular
M23 - RF series
54 PHOENIX CONTACT
Electrical data
Number of positions 12 16 17
Contacts 12 16 17
Contact Ø [mm] 1 1 1
Stranded wire cross section, crimp
contacts turned [mm
2
/ AWG] 0.08 ... 1.0 / 28-18 0.08 ... 1.0 / 28-18 0.08 ... 1.0 / 28-18
Stranded wire cross section, C-HC crimp
contacts punched-rolled [mm
2
/ AWG] 0.08 ... 0.56 / 28-20 0.08 ... 0.56 / 28-20 0.08 ... 0.56 / 28-20
Cable clamping range max Ø [mm] 13.2 13.2 13.2
Nominal current per contact at 25°C
1)
[A] 8 8 8
Specifications as per DIN EN 61984:2001
Nominal/operating voltage [V AC / DC] 150 100 100
Test/surge voltage [kV] 2.5 1.5 1.5
Surge voltage category III III III
Pollution degree
2)
333
Installation height [m] Up to 2,000 Up to 2,000 Up to 2,000
1)
If required, the effective current carrying capacity must be determined according to the application using a derating curve.
2)
The values specified require a correctly locked pair of connectors that are disconnected only for testing and maintenance. If an unlocked connector is exposed to ambient
conditions and if there is a danger of contamination, the connector should be sealed using a t IP 54 protective cap.
Mechanical and electrical data
Mechanical data
Housing material: Rotating part: copper-zinc alloy (CuZn), die-cast part: zinc (GD-Zn)
Housing surface: Nickel-plated; appliance plug connector: nickel-plated/thick layer passivated (can be painted over)
High-grade steel versions: Housing material, high-grade steel 1.4305
Insulating bodies: Polyamide (PA 66)
Contact material: Copper-zinc alloy (CuZn)
Contact surface: Nickel-plated (Ni) with a gold layer (Au)
Contact connection method: Crimp version
Gasket and O ring: Fluorine rubber (FKM)
Ambient temperature: -20°C ... 125°C
Conductor entry: Cable plug connectors and coupling connectors for external cable diameters of 3 ... 13.2 mm,
shielded
Locking type: M23 screw locking
Mechanical insertion/withdrawal cycles: Standard: 50, punched-rolled C-HC crimp contacts: up to 10,000
Degree of protection: IP67 when locked
Shield attenuation curve based on DIN EN 50289-1-6
(cable connectors and appliance connectors angled on
the base plate)
Note:
Plug connectors may only be inserted or removed when
the power supply is disconnected.
Frequency [MHz]
Att
enua
ti
on
[dB]
1
2
3
4
5
6
7
89
1012
11
N
S
1
2
3
45
6
7
8
9
10 12
11
NS
1
2
3
45
6
7
8
9
10 12
11
NS
1
2
3
4
5
6
7
89
1012
11
N
S
1
2
3
4
5
6
7
89
1012
11
R
1
2
345
6
7
8
9
10 12
11
L
1
2
345
6
7
8
9
10 12
11
L
1
2
3
4
5
6
7
89
1012
11
R
1
2
3
4
5
6
7
89
1012
11
R
1
2
345
6
7
8
9
10 12
11
L
1
2
345
6
7
8
9
10 12
11
L
1
2
3
4
5
6
7
89
1012
11
R
12
3
4
5
6
7
8
9
10
1213
1415
16
11
R
1
2
3
4
567
8
9
10
12
13
14 15
16
11
L
1
2
3
4
567
8
9
10
12
13
14 15
16
11
L
12
3
4
5
6
7
8
9
10
1213
1415
16
11
R
12
3
4
5
6
7
8
9
10 12 13
1415
16 17
11
R
1
2
3
4
567
8
9
10
12
13
14 15
16
17
11
L
1
2
3
4
567
8
9
10
12
13
14 15
16
17
11
L
12
3
4
5
6
7
8
9
10 12 13
1415
16 17
11
R
12
3
4
5
6
7
8
9
10 12 13
1415
16 17
11
R
1
2
3
4
567
8
9
10
12
13
14 15
16
17
11
L
1
2
3
4
567
8
9
10
12
13
14 15
16
17
11
L
12
3
4
5
6
7
8
9
10 12 13
1415
16 17
11
R
Signal plug connectors - PLUSCON circular
M23 - RF series
55PHOENIX CONTACT
The connectors can be equipped with male or female
contacts according to the application.
Contact insert numbering
(view of plug-in side)
Direction of rotation of contact
insert numbering
(view of plug-in side)
Clockwise (standard)
marked R
Counter-clockwise (standard)
marked L
Counter-clockwise (opposite)
marked L
Clockwise (opposite)
marked R
Number of positions Pin Socket Pin Socket
12-pos.
N coding
Crimp
12-pos.
S/N coding
Crimp
16-pos.
N coding
Crimp
17-pos.
N coding
Crimp
17-pos.
S/N coding
Crimp
(on request)
Connector pin assignments and coding
Note:
More coding versions and position numbers can be
configured on request. For reasons pertaining to safety, only female contacts
may be used in the live part of the connector.
Signal plug connectors - PLUSCON circular
M23 - RF series
56 PHOENIX CONTACT
Selection guide
M23 signal plug connectors 12 / 16 /
17-pos., N/S coding, up to 8 A / 150 V,
crimp ranges of up to 1 mm
2
/ AWG 18
– Cable plug connectors
– Coupling connectors
– Appliance plug connectors
(device flange)
The RF series connectors are fully
assembled and the respective crimp
contacts must be ordered separately.
Every housing type can be equipped
with male or female contacts.
The connectors are available with
clockwise or counter-clockwise
contact insert numbering.
N (0°) and S (20°) coding positions are
possible.
The product chart provides an overview
of the available components.
1) Cable plug connectors, coupling
connectors and straight appliance plug
connectors are also available in high-grade
steel versions, from page 66 onwards.
Connector type
shieldedshielded
Cable plug connectors
Square mounting flange for
cable plug connectors and
coupling connectors for wall
mounting, page 152
Coupling connectors
RF-.....8A90..
1)
page 59
Square mounting flange for
cable plug connectors and
coupling connectors for wall
mounting, page 152
Appliance plug connectors
RF-.....8A80..
1)
page 58
RF-.....8AWQ00
1)
straight, 4-hole mounting Ø 2.7,
page 60
RF-.....8AWA00
1)
straight, 4-hole mounting Ø 3.2,
page 60
RF-.....8AW400
Contact carriers for snapping in from the device side, straight,
4-hole mounting Ø 2.7, page 61
RF-.....8AWB00
Ø 3.2, page 61
RF-.....8AAD00
angled, rotatable
page 64
RF-.....8AAC00
angled, rotatable, larger flange
dimensions,
page 64
RF-.....8AAF00
angled, fixed
page 63
RF-.....8AAK00
angled, fixed
larger flange dimensions,
page 63
RF-.....8AA200
angled, fixed, 2-part housing for
higher loads, page 62
shielded
Signal plug connectors - PLUSCON circular
M23 - RF series
57PHOENIX CONTACT
Crimp contacts Tools / accessories
Note:
For reasons pertaining to safety, only
female contacts may be used in the live
part of the connector.
Female contacts
Turned, page 71
Crimping tools
Crimping pliers for punched-rolled C-HC crimp
contacts,
page 144
Removal tool for contact carrier
For appliance plug connectors with contact
carriers snapping in from the device side,
page 152
Crimping pliers with digital display for turned
crimp contacts,
page 150
Punched-rolled, taped,
page 70
All housings can be equipped with male or female crimp contacts
Crimping pliers for turned crimp contacts,
from page 146 onwards
Male contacts
Turned, page 71
59,1
26,1
Ø
More informations and installation instructions at: www.phoenixcontact.com
Description For cable Ø [mm] Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
M23 cable plug connector,12-pos.,
N coding, standard
(Universal seal) 3 ... 13,2 RF-12S1N8A80DU 1607276 20 RF-12P1N8A80DU 1607228 20
6 ... 10 RF-12S1N8A8002 1607273 20 RF-12P1N8A8002 1607225 20
9 ... 13,2 RF-12S1N8A8003 1607275 20 RF-12P1N8A8003 1607227 20
M23 cable plug connector,16-pos.,
N coding, standard
(Universal seal) 3 ... 13,2 RF-16S1N8A80DU 1613727 20 RF-16P1N8A80DU 1613717 20
6 ... 10 RF-16S1N8A8002 1613725 20 RF-16P1N8A8002 1613715 20
9 ... 13,2 RF-16S1N8A8003 1613726 20 RF-16P1N8A8003 1613716 20
M23 cable plug connector,17-pos.,
N coding, standard
(Universal seal) 3 ... 13,2 RF-17S1N8A80DU 1607340 20 RF-17P1N8A80DU 1607323 20
6 ... 10 RF-17S1N8A8002 1607338 20 RF-17P1N8A8002 1607320 20
9 ... 13,2 RF-17S1N8A8003 1607339 20 RF-17P1N8A8003 1607321 20
M23 cable plug connector,12-pos.,
S/N coding, standard
(Universal seal) 3 ... 13,2 RF-12S1S8A80DU 1607286 20 RF-12P1S8A80DU 1607240 20
6 ... 10 RF-12S1S8A8002 1607284 20 RF-12P1S8A8002 1607237 20
9 ... 13,2 RF-12S1S8A8003 1607285 20 RF-12P1S8A8003 1607238 20
M23 cable plug connector,12-pos.,
N coding, opposite
(Universal seal) 3 ... 13,2 RF-12S2N8A80DU 1607297 20 RF-12P2N8A80DU 1607252 20
6 ... 10 RF-12S2N8A8002 1607295 20 RF-12P2N8A8002 1607249 20
9 ... 13,2 RF-12S2N8A8003 1607296 20 RF-12P2N8A8003 1607251 20
M23 cable plug connector,16-pos.,
N coding, opposite
(Universal seal) 3 ... 13,2 RF-16S2N8A80DU 1613732 20 RF-16P2N8A80DU 1613722 20
6 ... 10 RF-16S2N8A8002 1613730 20 RF-16P2N8A8002 1613720 20
9 ... 13,2 RF-16S2N8A8003 1613731 20 RF-16P2N8A8003 1613721 20
M23 cable plug connector,17-pos.,
N coding, opposite
(Universal seal) 3 ... 13,2 RF-17S2N8A80DU 1607349 20 RF-17P2N8A80DU 1607331 20
6 ... 10 RF-17S2N8A8002 1607347 20 RF-17P2N8A8002 1607329 20
9 ... 13,2 RF-17S2N8A8003 1607348 20 RF-17P2N8A8003 1607330 20
M23 cable plug connector,12-pos.,
S/N coding, opposite
(Universal seal) 3 ... 13,2 RF-12S2S8A80DU 1607310 20 RF-12P2S8A80DU 1607264 20
6 ... 10 RF-12S2S8A8002 1607308 20 RF-12P2S8A8002 1607261 20
9 ... 13,2 RF-12S2S8A8003 1607309 20 RF-12P2S8A8003 1607262 20
Crimp contacts Ø 1.0 mm Order separately, see page 70 onwards Order separately, see page 70 onwards
RF-1.S..8A80..
M23 cable plug connector,
socket
RF-1.P..8A80..
M23 cable plug connector,
pin
RF-1.S..8A80.. , RF-1.P..8A80..
58 PHOENIX CONTACT
The RF series is designed to offer a robust
and pluggable M23 connection between
control units and electric drives. The
connector targets these applications with
its 12, 16 and 17 position offering.
Cable plug connector, shielded
Signal plug connector - PLUSCON circular
M23 - RF series
Clamping ranges Universal seals Cable Ø[mm]
State of delivery 3 ... 5
Section 1 9 ... 13,2
Section 2 6 ... 10
Section 3 5 ... 7
M23x1
59,3
More informations and installation instructions at: www.phoenixcontact.com
Description For cable Ø [mm] Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
M23 coupling plug connector,12-pos.,
N coding, standard
(Universal seal) 3 ... 13,2 RF-12S1N8A90DU 1607278 20 RF-12P1N8A90DU 1607231 20
6 ... 10 RF-12S1N8A9002 1607825 20 RF-12P1N8A9002 1607229 20
9 ... 13,2 RF-12S1N8A9003 1607277 20 RF-12P1N8A9003 1607230 20
M23 coupling plug connector,16-pos.,
N coding, standard
(Universal seal) 3 ... 13,2 RF-16S1N8A90DU 1613783 20 RF-16P1N8A90DU 1613759 20
6 ... 10 RF-16S1N8A9002 1613781 20 RF-16P1N8A9002 1613757 20
9 ... 13,2 RF-16S1N8A9003 1613782 20 RF-16P1N8A9003 1613758 20
M23 coupling plug connector,17-pos.,
N coding, standard
(Universal seal) 3 ... 13,2 RF-17S1N8A90DU 1607343 20 RF-17P1N8A90DU 1607326 20
6 ... 10 RF-17S1N8A9002 1607341 20 RF-17P1N8A9002 1607324 20
9 ... 13,2 RF-17S1N8A9003 1607342 20 RF-17P1N8A9003 1607325 20
M23 coupling plug connector,12-pos.,
S/N coding, standard
(Universal seal) 3 ... 13,2 RF-12S1S8A90DU 1607289 20 RF-12P1S8A90DU 1607243 20
6 ... 10 RF-12S1S8A9002 1607287 20 RF-12P1S8A9002 1607241 20
9 ... 13,2 RF-12S1S8A9003 1607288 20 RF-12P1S8A9003 1607242 20
M23 coupling plug connector,12-pos.,
N coding, opposite
(Universal seal) 3 ... 13,2 RF-12S2N8A90DU 1607302 20 RF-12P2N8A90DU 1607255 20
6 ... 10 RF-12S2N8A9002 1607300 20 RF-12P2N8A9002 1607253 20
9 ... 13,2 RF-12S2N8A9003 1607301 20 RF-12P2N8A9003 1607254 20
M23 coupling plug connector,16-pos.,
N coding, opposite
(Universal seal) 3 ... 13,2 RF-16S2N8A90DU 1613794 20 RF-16P2N8A90DU 1613771 20
6 ... 10 RF-16S2N8A9002 1613792 20 RF-16P2N8A9002 1613769 20
9 ... 13,2 RF-16S2N8A9003 1613793 20 RF-16P2N8A9003 1613770 20
M23 coupling plug connector,17-pos.,
N coding, opposite
(Universal seal) 3 ... 13,2 RF-17S2N8A90DU 1607352 20 RF-17P2N8A90DU 1607334 20
6 ... 10 RF-17S2N8A9002 1607350 20 RF-17P2N8A9002 1607332 20
9 ... 13,2 RF-17S2N8A9003 1607351 20 RF-17P2N8A9003 1607333 20
M23 coupling plug connector,12-pos.,
S/N coding, opposite
(Universal seal) 3 ... 13,2 RF-12S2S8A90DU 1607314 20 RF-12P2S8A90DU 1607267 20
6 ... 10 RF-12S2S8A9002 1607312 20 RF-12P2S8A9002 1607265 20
9 ... 13,2 RF-12S2S8A9003 1607313 20 RF-12P2S8A9003 1607266 20
Crimp contacts Ø 1.0 mm Order separately, see page 70 onwards Order separately, see page 70 onwards
RF-1.S..8A90..
M23 coupling plug connector,
socket
RF-1.P..8A90..
M23 coupling plug connector,
pin
RF-1.S..8A90.., RF-1.P..8A90..
59PHOENIX CONTACT
The cable clamping range for cables and
coupling plug connectors is generously
dimensioned with a maximum cable
diameter (shielded) of 13.2 mm.
Shield and cable clamping have been
consistently developed for simple and quick
cable assembly. The shield must only be
spliced slightly and can be processed quickly
without cutting off.
Coupling plug connector, shielded
Signal plug connector - PLUSCON circular
M23 - RF series
Clamping ranges Universal seals Cable Ø[mm]
State of delivery 3 ... 5
Section 1 9 ... 13,2
Section 2 6 ... 10
Section 3 5 ... 7
19,8±0,1
Ø20+0,1
4xM2,5/M3
27,7
16,5 1,1
3
25,7
19,8
4x2,7
4x3,2
M23x1
Ø
Ø
More informations and installation instructions at: www.phoenixcontact.com
Description No. of positions / direction
of rotation Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
M23 appliance plug connector, straight, N coding,
4-hole mountingØ 3.2 mm
12-pos., standard RF-12S1N8AWA00 1607283 40 RF-12P1N8AWA00 1607236 40
16-pos., standard RF-16S1N8AWA00 1613789 40 RF-16P1N8AWA00 1613766 40
17-pos., standard RF-17S1N8AWA00 1607892 40 RF-17P1N8AWA00 1607860 40
12-pos., opposite RF-12S2N8AWA00 1607307 40 RF-12P2N8AWA00 1607260 40
16-pos., opposite RF-16S2N8AWA00 1613801 40 RF-16P2N8AWA00 1613778 40
17-pos., opposite RF-17S2N8AWA00 1607901 40 RF-17P2N8AWA00 1607882 40
M23 appliance plug connector, straight, S/N coding,
4-hole mountingØ 3.2 mm
12-pos., standard RF-12S1S8AWA00 1607294 40 RF-12P1S8AWA00 1607248 40
12-pos., opposite RF-12S2S8AWA00 1607319 40 RF-12P2S8AWA00 1607272 40
M23 appliance plug connector, straight, N coding,
4-hole mountingØ 2.7 mm
12-pos., standard RF-12S1N8AWQ00 1607831 40 RF-12P1N8AWQ00 1607806 40
16-pos., standard RF-16S1N8AWQ00 1613791 40 RF-16P1N8AWQ00 1613768 40
17-pos., standard RF-17S1N8AWQ00 1607894 40 RF-17P1N8AWQ00 1607866 40
12-pos., opposite RF-12S2N8AWQ00 1607845 40 RF-12P2N8AWQ00 1607818 40
16-pos., opposite RF-16S2N8AWQ00 1613803 40 RF-16P2N8AWQ00 1613780 40
17-pos., opposite RF-17S2N8AWQ00 1607903 40 RF-17P2N8AWQ00 1607885 40
M23 appliance plug connector, straight, S/N coding,
4-hole mountingØ 2.7 mm
12-pos., standard RF-12S1S8AWQ00 1607839 40 RF-12P1S8AWQ00 1607811 40
12-pos., opposite RF-12S2S8AWQ00 1607850 40 RF-12P2S8AWQ00 1607823 40
Crimp contacts Ø 1.0 mm Order separately, see page 70 onwards Order separately, see page 70 onwards
RF-1.S..8AW.00
M23 appliance plug connector, straight,
socket
RF-1.P..8AW.00
M23 appliance plug connector, straight,
pin
Installation dimensions
60 PHOENIX CONTACT
RF-...N8AWA00, RF-...N8AWB00
Appliance plug connectors of the RF
series are available in straight and angled
versions. In the straight versions, the
contact carrier fits through the boreholing
of the housing. Reverse fastening in the
housing is ensured by a half-open plastic
screen. The contact carrier can be opened
easily without any tool. Flange versions for
M2.5 and M3 screws are available for
mounting.
Appliance plug connector, front
mounting, shielded
Signal plug connector - PLUSCON circular
M23 - RF series
19,8±0,1
Ø20+0,1
4xM2,5/M3
27,7
16,5 1,1
3
25,7
19,8
4x2,7
4x3,2
M23x1
Ø
Ø
More informations and installation instructions at: www.phoenixcontact.com
Description No. of positions / direction
of rotation Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
M23 appliance plug connector, straight,
contact carrier for snapping in,
Ncoding, 4-hole mounting Ø 3.2 mm
12-pos., standard RF-12S1N8AWB00 1607830 40 RF-12P1N8AWB00 1607804 40
16-pos., standard RF-16S1N8AWB00 1613790 40 RF-16P1N8AWB00 1613767 40
17-pos., standard RF-17S1N8AWB00 1607893 40 RF-17P1N8AWB00 1607863 40
12-pos., opposite RF-12S2N8AWB00 1607844 40 RF-12P2N8AWB00 1607817 40
16-pos., opposite RF-16S2N8AWB00 1613802 40 RF-16P2N8AWB00 1613779 40
17-pos., opposite RF-17S2N8AWB00 1607902 40 RF-17P2N8AWB00 1607883 40
M23 appliance plug connector, straight,
contact carrier for snapping in,
S/Ncoding, 4-hole mounting Ø 3.2 mm
12-pos., standard RF-12S1S8AWB00 1607837 40 RF-12P1S8AWB00 1607810 40
12-pos., opposite RF-12S2S8AWB00 1607849 40 RF-12P2S8AWB00 1607822 40
M23 appliance plug connector, straight,
contact carrier for snapping in,
Ncoding, 4-hole mounting Ø 2.7 mm
12-pos., standard RF-12S1N8AW400 1607828 40 RF-12P1N8AW400 1607803 40
16-pos., standard RF-16S1N8AW400 1613788 40 RF-16P1N8AW400 1613765 40
17-pos., standard RF-17S1N8AW400 1607891 40 RF-17P1N8AW400 1607857 40
12-pos., opposite RF-12S2N8AW400 1607843 40 RF-12P2N8AW400 1607816 40
16-pos., opposite RF-16S2N8AW400 1613800 40 RF-16P2N8AW400 1613777 40
17-pos., opposite RF-17S2N8AW400 1607900 40 RF-17P2N8AW400 1607881 40
M23 appliance plug connector, straight,
contact carrier for snapping in,
S/Ncoding, 4-hole mounting Ø 2.7 mm
12-pos., standard RF-12S1S8AW400 1607836 40 RF-12P1S8AW400 1607809 40
12-pos., opposite RF-12S2S8AW400 1607848 40 RF-12P2S8AW400 1607821 40
Crimp contacts Ø 1.0 mm Order separately, see page 70 onwards Order separately, see page 70 onwards
Removal tool for contact carrier Order separately, see page 152 Order separately, see page 152
RF-1.S..8AW.00
With contact carriers for snapping in,
4-hole mounting, socket
RF-1.P..8AW.00
With contact carriers for snapping in,
4-hole mounting, pin
Installation dimensions
61PHOENIX CONTACT
RF-1.S..8AW.00 , RF-1.P..8AW.00
One possible installation variant of the
straight device flange is by snapping the
contact carrier into the reverse device-side.
The contact carrier is removed again with
a removal tool (RF-Z0001) from the front,
i.e. from the plug-in side. The contacts are
removed without any tools. This mounting
case is particularly advantageous, if wires
are already connected to the contact carrier
or are soldered onto the PCB.
Appliance plug connector with
contact carrier for snapping-in,
front mounting, shielded
Signal plug connector - PLUSCON circular
M23 - RF series
19,8±0,1
Ø20+0,1
4xM3
34,2
4,65
25,4
M23x1
Ø4x3,2
26
19,8
More informations and installation instructions at: www.phoenixcontact.com
Description No. of positions / direction
of rotation Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
M23 appliance plug connector, angled, fixed,
2-part. Housing for higher loads, N coding
12-pos., standard RF-12S1N8AA200 1607279 16 RF-12P1N8AA200 1607232 16
16-pos., standard RF-16S1N8AA200 1613784 16 RF-16P1N8AA200 1613760 16
17-pos., standard RF-17S1N8AA200 1607344 16 RF-17P1N8AA200 1607327 16
12-pos., opposite RF-12S2N8AA200 1607303 16 RF-12P2N8AA200 1607256 16
16-pos., opposite RF-16S2N8AA200 1613795 16 RF-16P2N8AA200 1613772 16
17-pos., opposite RF-17S2N8AA200 1607353 16 RF-17P2N8AA200 1607336 16
M23 appliance plug connector, angled, fixed,
2-part. Housing for higher loads,S/N coding
12-pos., standard RF-12S1S8AA200 1607290 16 RF-12P1S8AA200 1607244 16
12-pos., opposite RF-12S2S8AA200 1607315 16 RF-12P2S8AA200 1607268 16
Crimp contacts Ø 1.0 mm Order separately, see page 70 onwards Order separately, see page 70 onwards
RF-1.S..8AA200
M23 appliance plug connector, angled, fixed,
socket
RF-1.P..8AA200
M23 appliance plug connector, angled, fixed,
pin
Installation dimensions
62 PHOENIX CONTACT
RF-1.S..8AA200 , RF-1.P..8AA200
Some applications require shock-resistant
housing versions. Robust versions of the
angled device connector are available to
meet these requirements.
The housing has a two-piece design,
consisting of a solid, fixed angular part and
the straight standard flange.
Appliance plug connector angled,
fixed, for high loads, front mounting,
shielded
Signal plug connector - PLUSCON circular
M23 - RF series
19,8±0,1
Ø20+0,1
4xM3
22,6±0,1
Ø20+0,1
4xM3
37
25,4
M23x1
4,5
1,85
Ø4x3,2
28
22,6
37
25,4
M23x1
4,65
1,85
Ø4x3,2
26
19,8
More informations and installation instructions at: www.phoenixcontact.com
Description No. of positions / direction
of rotation Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
M23 appliance plug connector, angled, fixed,
N coding, flange dimensions 26 mm x 26 mm
12-pos., standard RF-12S1N8AAF00 1607281 16 RF-12P1N8AAF00 1607234 16
16-pos., standard RF-16S1N8AAF00 1613786 16 RF-16P1N8AAF00 1613763 16
17-pos., standard RF-17S1N8AAF00 1607889 16 RF-17P1N8AAF00 1607853 16
12-pos., opposite RF-12S2N8AAF00 1607305 16 RF-12P2N8AAF00 1607258 16
16-pos., opposite RF-16S2N8AAF00 1613798 16 RF-16P2N8AAF00 1613775 16
17-pos., opposite RF-17S2N8AAF00 1607898 16 RF-17P2N8AAF00 1607875 16
M23 appliance plug connector, angled, fixed,
S/N coding, flange dimensions 26 mm x 26 mm
12-pos., standard RF-12S1S8AAF00 1607292 16 RF-12P1S8AAF00 1607246 16
12-pos., opposite RF-12S2S8AAF00 1607317 16 RF-12P2S8AAF00 1607270 16
M23 appliance plug connector, angled, fixed,
N coding, flange dimensions 28 mm x 28 mm
12-pos., standard RF-12S1N8AAK00 1607282 16 RF-12P1N8AAK00 1607235 16
16-pos., standard RF-16S1N8AAK00 1613787 16 RF-16P1N8AAK00 1613764 16
17-pos., standard RF-17S1N8AAK00 1607890 16 RF-17P1N8AAK00 1607854 16
12-pos., opposite RF-12S2N8AAK00 1607306 16 RF-12P2N8AAK00 1607259 16
16-pos., opposite RF-16S2N8AAK00 1613799 16 RF-16P2N8AAK00 1613776 16
17-pos., opposite RF-17S2N8AAK00 1607899 16 RF-17P2N8AAK00 1607878 16
M23 appliance plug connector, angled, fixed,
S/N coding, flange dimensions 28 mm x 28 mm
12-pos., standard RF-12S1S8AAK00 1607293 16 RF-12P1S8AAK00 1607247 16
12-pos., opposite RF-12S2S8AAK00 1607318 16 RF-12P2S8AAK00 1607271 16
Crimp contacts Ø 1.0 mm Order separately, see page 70 onwards Order separately, see page 70 onwards
RF-1.S..8AA.00
M23 appliance plug connector, angled, fixed,
socket
RF-1.P..8AA.00
M23 appliance plug connector, angled, fixed,
pin
Installation dimensions: RF-1.S..8AAF00 , RF-1.P..8AAF00 Installation dimensions: RF-1.S..8AAK00 , RF-1.P..8AAK00
63PHOENIX CONTACT
RF-1.S..8AAF00 , RF-1.P..8AAF00 RF-1.S..8AAK00 , RF-1.P..8AAK00
Appliance plug connector angled,
fixed, front mounting, shielded
Signal plug connector - PLUSCON circular
M23 - RF series
19,8±0,1
Ø20+0,1
4xM3
22,6±0,1
Ø20+0,1
4xM3
M23x1
25,4
4,65
1,85
37
212°
28
22,6
4x3,2
98°
Ø
M23x1
25,4
4,65
1,85
37
4x3,2
212°
26
19,8
98°
Ø
More informations and installation instructions at: www.phoenixcontact.com
Description No. of positions / direction
of rotation Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
M23 appliance plug connector, angled, rotatable,
N coding, flange dimensions 26 mm x 26 mm
12-pos., standard RF-12S1N8AAD00 1607280 16 RF-12P1N8AAD00 1607233 16
16-pos., standard RF-16S1N8AAD00 1613830 16 RF-16P1N8AAD00 1613762 16
17-pos., standard RF-17S1N8AAD00 1607345 16 RF-17P1N8AAD00 1607328 16
12-pos., opposite RF-12S2N8AAD00 1607304 16 RF-12P2N8AAD00 1607257 16
16-pos., opposite RF-16S2N8AAD00 1613797 16 RF-16P2N8AAD00 1613774 16
17-pos., opposite RF-17S2N8AAD00 1607354 16 RF-17P2N8AAD00 1607337 16
M23 appliance plug connector, angled, rotatable,
S/N coding, flange dimensions 26 mm x 26 mm
12-pos., standard RF-12S1S8AAD00 1607291 16 RF-12P1S8AAD00 1607245 16
12-pos., opposite RF-12S2S8AAD00 1607316 16 RF-12P2S8AAD00 1607269 16
M23 appliance plug connector, angled, rotatable,
N coding, flange dimensions 28 mm x 28 mm
12-pos., standard RF-12S1N8AAC00 1607827 16 RF-12P1N8AAC00 1607802 16
16-pos., standard RF-16S1N8AAC00 1613785 16 RF-16P1N8AAC00 1613761 16
17-pos., standard RF-17S1N8AAC00 1607887 16 RF-17P1N8AAC00 1607852 16
12-pos., opposite RF-12S2N8AAC00 1607842 16 RF-12P2N8AAC00 1607814 16
16-pos., opposite RF-16S2N8AAC00 1613796 16 RF-16P2N8AAC00 1613773 16
17-pos., opposite RF-17S2N8AAC00 1607896 16 RF-17P2N8AAC00 1607872 16
M23 appliance plug connector, angled, rotatable,
S/N coding, flange dimensions 28 mm x 28 mm
12-pos., standard RF-12S1S8AAC00 1607834 16 RF-12P1S8AAC00 1607808 16
12-pos., opposite RF-12S2S8AAC00 1607847 16 RF-12P2S8AAC00 1607820 16
Crimp contacts Ø 1.0 mm Order separately, see page 70 onwards Order separately, see page 70 onwards
RF-1.S..8AA.00
M23 appliance plug connector, angled rotatable,
socket
RF-1.P..8AA.00
M23 appliance plug connector, angled, rotatable,
pin
Edge abrasion
max.0.2
Installation dimensions: RF-1.S..8AAD00 , RF-1.P..8AAD00
Edge abrasion
max.0.2
Installation dimensions: RF-1.S..8AAC00 , RF-1.P..8AAC00
64 PHOENIX CONTACT
RF-1.S..8AAD00 , RF-1.P..8AAD00 RF-1.S..8AAC00 , RF-1.P..8AAC00
The angled, rotatable versions cover a
progressive swiveling range of up to 310°.
The metallic twisting mechanism provides
an EMC-effective, uninterruptible
connection of the angled flange with the
device housing.
Appliance plug connector angled,
rotatable, front mounting, shielded
Signal plug connector - PLUSCON circular
M23 - RF series
More informations and installation instructions at: www.phoenixcontact.com 65PHOENIX CONTACT
Signal plug connector - PLUSCON circular
M23 - RF series
26,1
59,1
Ø
More informations and installation instructions at: www.phoenixcontact.com
Description Cable seal Ø [mm] Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.

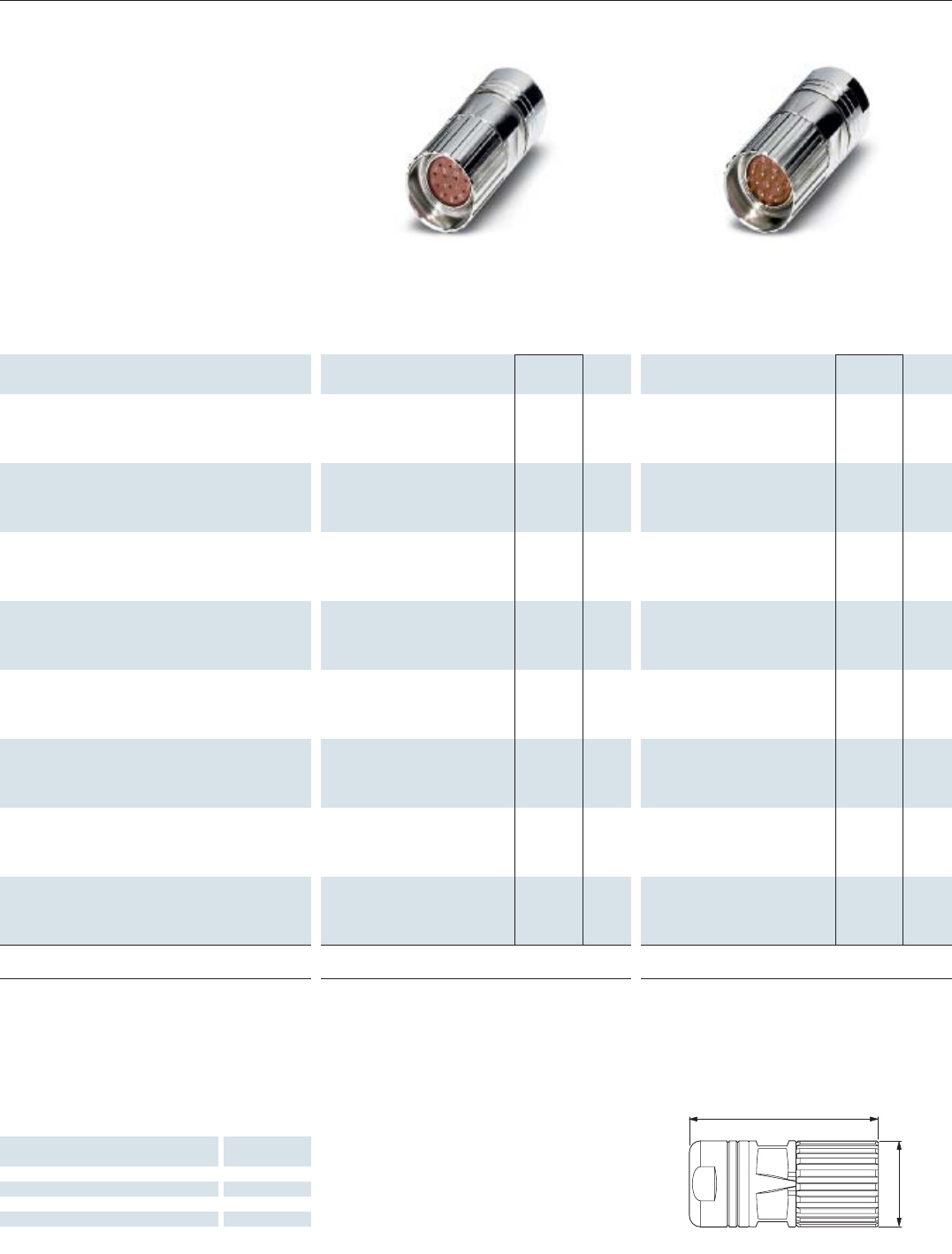

M23 high-grade steel cable plug connector,12-pos.,
N coding, standard
universal 5.5 ... 13,2 RF-12S1N8A8VDU 1614078 20 RF-12P1N8A8VDU 1614067 20
6 ... 10,0 RF-12S1N8A8V02 1614077 20 RF-12P1N8A8V02 1615239 20
9 ... 13,2 RF-12S1N8A8V03 1615240 20 RF-12P1N8A8V03 1614066 20
M23 high-grade steel cable plug connector,16-pos.,
N coding, standard
universal 5.5 ... 13,2 RF-16S1N8A8VDU 1614094 20 RF-16P1N8A8VDU 1614089 20
6 ... 10,0 RF-16S1N8A8V02 1614092 20 RF-16P1N8A8V02 1614087 20
9 ... 13,2 RF-16S1N8A8V03 1614093 20 RF-16P1N8A8V03 1614088 20
M23 high-grade steel cable plug connector,17-pos.,
N coding, standard
universal 5.5 ... 13,2 RF-17S1N8A8VDU 1614105 20 RF-17P1N8A8VDU 1614100 20
6 ... 10,0 RF-17S1N8A8V02 1614103 20 RF-17P1N8A8V02 1614098 20
9 ... 13,2 RF-17S1N8A8V03 1614104 20 RF-17P1N8A8V03 1614099 20
M23 high-grade steel cable plug connector,12-pos.,
S/N encoding, standard
universal 5.5 ... 13,2 RF-12S1S8A8VDU 1614081 20 RF-12P1S8A8VDU 1614070 20
6 ... 10,0 RF-12S1S8A8V02 1614079 20 RF-12P1S8A8V02 1614068 20
9 ... 13,2 RF-12S1S8A8V03 1614080 20 RF-12P1S8A8V03 1614069 20
M23 high-grade steel cable plug connector,12-pos.,
N coding, opposite
universal 5.5 ... 13,2 RF-12S2N8A8VDU 1615068 20 RF-12P2N8A8VDU 1614073 20
6 ... 10,0 RF-12S2N8A8V02 1614082 20 RF-12P2N8A8V02 1614071 20
9 ... 13,2 RF-12S2N8A8V03 1614083 20 RF-12P2N8A8V03 1614072 20
M23 high-grade steel cable plug connector,16-pos.,
N coding, opposite
universal 5.5 ... 13,2 RF-16S2N8A8VDU 1614097 20 RF-16P2N8A8VDU 1614091 20
6 ... 10,0 RF-16S2N8A8V02 1614095 20 RF-16P2N8A8V02 1615245 20
9 ... 13,2 RF-16S2N8A8V03 1614096 20 RF-16P2N8A8V03 1614090 20
M23 high-grade steel cable plug connector,17-pos.,
N coding, opposite
universal 5.5 ... 13,2 RF-17S2N8A8VDU 1614108 20 RF-17P2N8A8VDU 1614102 20
6 ... 10,0 RF-17S2N8A8V02 1614106 20 RF-17P2N8A8V02 1614101 20
9 ... 13,2 RF-17S2N8A8V03 1614107 20 RF-17P2N8A8V03 1615241 20
M23 high-grade steel cable plug connector,12-pos.,
S/N encoding, opposite
universal 5.5 ... 13,2 RF-12S2S8A8VDU 1614086 20 RF-12P2S8A8VDU 1614076 20
6 ... 10,0 RF-12S2S8A8V02 1614084 20 RF-12P2S8A8V02 1614074 20
9 ... 13,2 RF-12S2S8A8V03 1614085 20 RF-12P2S8A8V03 1614075 20
Crimp contacts Ø 1.0 mm Order separately, see page 70 onwards Order separately, see page 70 onwards
RF-..S..8A8V..
M23 cable plug connector, high-grade steel,
Socket
RF-..P..8A8V..
M23 cable plug connector, high-grade steel,
pin
RF-..S..8A8V.., RF-..P..8A8V..
66 PHOENIX CONTACT
For special applications, e.g. increased
corrosion resistance requirements, the RF
series cable and coupling plug connectors as
well as straight appliance plug connectors
(1,4305) are also available with stainless
steel housings.
The housing is designed with a smooth
surface to prevent build-up of
contaminants.
Cable plug connector, stainless steel
housing, shielded
Signal plug connector - PLUSCON circular
M23 - RF series
Clamping ranges Universal seals Cable Ø[mm]
State of delivery 3 ... 5
Section 1 9 ... 13,2
Section 2 6 ... 10
Section 3 5 ... 7
59,3
M23x1
More informations and installation instructions at: www.phoenixcontact.com
Description Cable seal Ø [mm] Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.

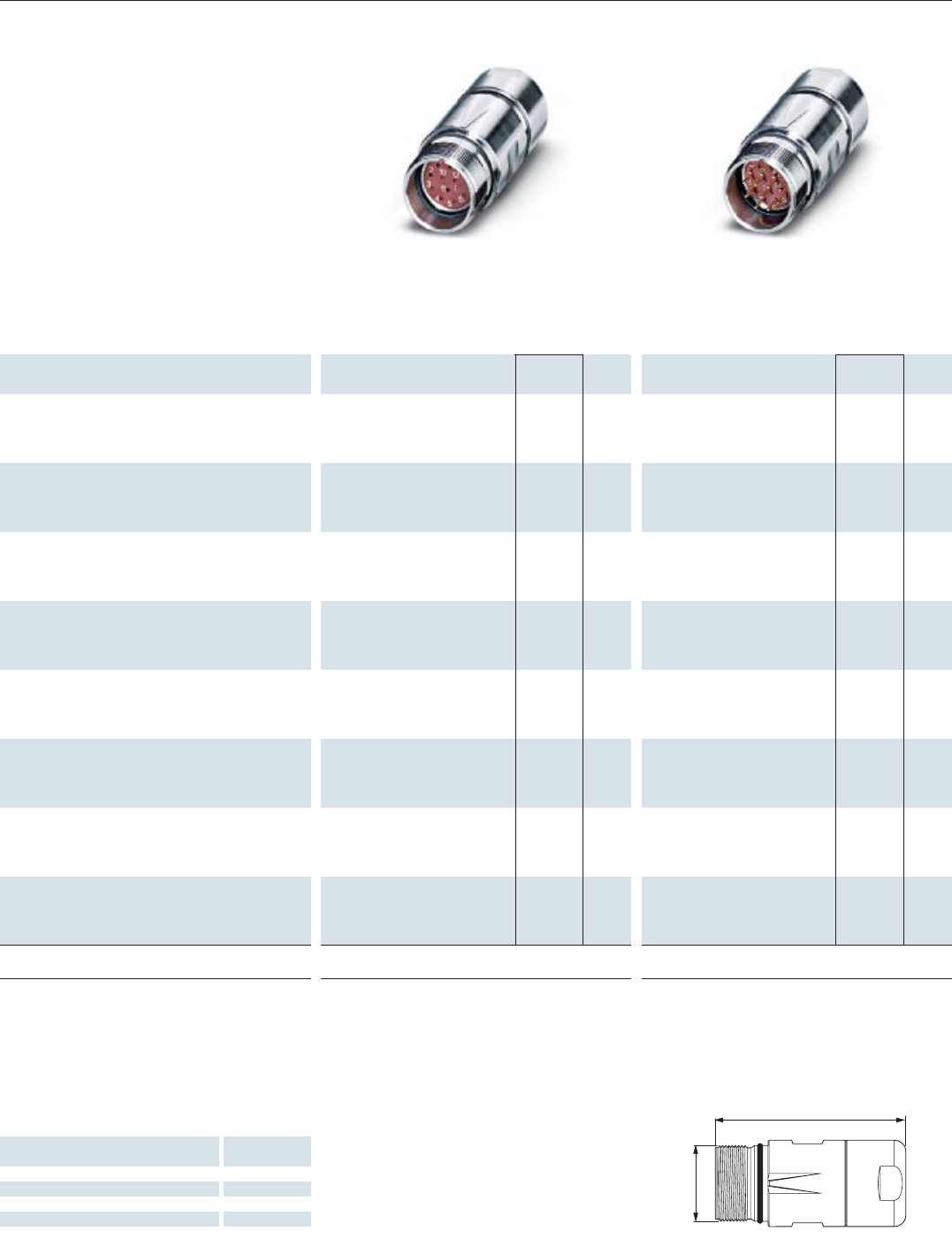

M23 high-grade steel coupling plug connector,12-pos.,
N coding, standard
universal 5.5 ... 13,2 RF-12S1N8A9VDU 1613972 20 RF-12P1N8A9VDU 1613960 20
6 ... 10,0 RF-12S1N8A9V02 1613970 20 RF-12P1N8A9V02 1613958 20
9 ... 13,2 RF-12S1N8A9V03 1613971 20 RF-12P1N8A9V03 1613959 20
M23 high-grade steel coupling plug connector,16-pos.,
N coding, standard
universal 5.5 ... 13,2 RF-16S1N8A9VDU 1613990 20 RF-16P1N8A9VDU 1613984 20
6 ... 10,0 RF-16S1N8A9V02 1613988 20 RF-16P1N8A9V02 1613982 20
9 ... 13,2 RF-16S1N8A9V03 1613989 20 RF-16P1N8A9V03 1613983 20
M23 high-grade steel coupling plug connector,17-pos.,
N coding, standard
universal 5.5 ... 13,2 RF-17S1N8A9VDU 1614002 20 RF-17P1N8A9VDU 1613996 20
6 ... 10,0 RF-17S1N8A9V02 1614000 20 RF-17P1N8A9V02 1613994 20
9 ... 13,2 RF-17S1N8A9V03 1614001 20 RF-17P1N8A9V03 1613995 20
M23 high-grade steel coupling plug connector,12-pos.,
S/N encoding, standard
universal 5.5 ... 13,2 RF-12S1S8A9VDU 1613975 20 RF-12P1S8A9VDU 1613963 20
6 ... 10,0 RF-12S1S8A9V02 1613973 20 RF-12P1S8A9V02 1613961 20
9 ... 13,2 RF-12S1S8A9V03 1613974 20 RF-12P1S8A9V03 1613962 20
M23 high-grade steel coupling plug connector,12-pos.,
N coding, opposite
universal 5.5 ... 13,2 RF-12S2N8A9VDU 1613978 20 RF-12P2N8A9VDU 1613966 20
6 ... 10,0 RF-12S2N8A9V02 1613976 20 RF-12P2N8A9V02 1613964 20
9 ... 13,2 RF-12S2N8A9V03 1613977 20 RF-12P2N8A9V03 1613965 20
M23 high-grade steel coupling plug connector,16-pos.,
N coding, opposite
universal 5.5 ... 13,2 RF-16S2N8A9VDU 1613993 20 RF-16P2N8A9VDU 1613987 20
6 ... 10,0 RF-16S2N8A9V02 1613991 20 RF-16P2N8A9V02 1613985 20
9 ... 13,2 RF-16S2N8A9V03 1613992 20 RF-16P2N8A9V03 1613986 20
M23 high-grade steel coupling plug connector,17-pos.,
N coding, opposite
universal 5.5 ... 13,2 RF-17S2N8A9VDU 1614005 20 RF-17P2N8A9VDU 1613999 20
6 ... 10,0 RF-17S2N8A9V02 1614003 20 RF-17P2N8A9V02 1613997 20
9 ... 13,2 RF-17S2N8A9V03 1614004 20 RF-17P2N8A9V03 1613998 20
M23 high-grade steel coupling plug connector,12-pos.,
S/N encoding, opposite
universal 5.5 ... 13,2 RF-12S2S8A9VDU 1613981 20 RF-12P2S8A9VDU 1613969 20
6 ... 10,0 RF-12S2S8A9V02 1613979 20 RF-12P2S8A9V02 1613967 20
9 ... 13,2 RF-12S2S8A9V03 1613980 20 RF-12P2S8A9V03 1613968 20
Crimp contacts Ø 1.0 mm Order separately, see page 70 onwards Order separately, see page 70 onwards
RF-..S..8A9V..
M23 coupling plug connector, high-grade steel,
socket
RF-..P..8A9V..
M23 coupling plug connector, high-grade steel,
pin
RF-..S..8A9V.., RF-..P..8A9V..
67PHOENIX CONTACT
Coupling plug connector, stainless
steel housing, shielded
Signal plug connector - PLUSCON circular
M23 - RF series
Clamping ranges Universal seals Cable Ø[mm]
State of delivery 3 ... 5
Section 1 9 ... 13,2
Section 2 6 ... 10
Section 3 5 ... 7
19,8±0,1
Ø20+0,1
4xM2,5/M3
27,7
16,5 1,1
3
M23x1
25,6
19,8
4x2,75
4x3,25
Ø
Ø
More informations and installation instructions at: www.phoenixcontact.com
Description No. of positions / direction
of rotation Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
M23 high-grade steel appliance plug connector, straight,
N coding, 4-hole mounting Ø 3.2 mm
12-pos., standard RF-12S1N8AWV00 1613708 40 RF-12P1N8AWV00 1613701 40
16-pos., standard RF-16S1N8AWV00 1613729 40 RF-16P1N8AWV00 1613719 40
17-pos., standard RF-17S1N8AWV00 1613740 40 RF-17P1N8AWV00 1613736 40
12-pos., opposite RF-12S2N8AWV00 1613712 40 RF-12P2N8AWV00 1614414 40
16-pos., opposite RF-16S2N8AWV00 1613734 40 RF-16P2N8AWV00 1613724 40
17-pos., opposite RF-17S2N8AWV00 1613742 40 RF-17P2N8AWV00 1613738 40
M23 high-grade steel appliance plug connector, straight,
S/N encoding, 4-hole fastening Ø 3.2 mm
12-pos., standard RF-12S1S8AWV00 1613710 40 RF-12P1S8AWV00 1613703 40
12-pos., opposite RF-12S2S8AWV00 1613714 40 RF-12P2S8AWV00 1613706 40
M23 high-grade steel appliance plug connector, straight,
N encoding, 4-hole fastening Ø 2.7 mm
12-pos., standard RF-12S1N8AWU00 1613707 40 RF-12P1N8AWU00 1613700 40
16-pos., standard RF-16S1N8AWU00 1613728 40 RF-16P1N8AWU00 1613718 40
17-pos., standard RF-17S1N8AWU00 1613739 40 RF-17P1N8AWU00 1613735 40
12-pos., opposite RF-12S2N8AWU00 1613711 40 RF-12P2N8AWU00 1613704 40
16-pos., opposite RF-16S2N8AWU00 1613733 40 RF-16P2N8AWU00 1613723 40
17-pos., opposite RF-17S2N8AWU00 1613741 40 RF-17P2N8AWU00 1613737 40
M23 high-grade steel appliance plug connector, straight,
S/N encoding, 4-hole fastening Ø 2.7 mm
12-pos., standard RF-12S1S8AWU00 1613709 40 RF-12P1S8AWU00 1613702 40
12-pos., opposite RF-12S2S8AWU00 1613713 40 RF-12P2S8AWU00 1613705 40
Crimp contacts Ø 1.0 mm Order separately, see page 70 onwards Order separately, see page 70 onwards
RF-..S..8AW.00
High-grade steel appliance plug connector, straight,
4-hole fastening, socket
RF-..P..8AW.00
High-grade steel appliance plug connector, straight,
4-hole mounting, pin
Installation dimensions
68 PHOENIX CONTACT
RF-..S..8AW.00 , RF-..P..8AW.00
The appliance plug connectors with
stainless steel housing are available in
straight version. In these versions, the
contact carrier fits through the boreholing
of the housing. Reverse fastening in the
housing is ensured by a half-open plastic
screen. The contact carrier can be opened
easily without any tool. Flange versions for
M2.5 and M3 screws are available for
mounting.
Appliance plug connector, stainless
steel housing, front mounting,
shielded
Signal plug connector - PLUSCON circular
M23 - RF series
More informations and installation instructions at: www.phoenixcontact.com 69PHOENIX CONTACT
Signal plug connector - PLUSCON circular
M23 - RF series
14,5 Ø1,5
3,8
1,7
6,05
A
Ø1
More informations and installation instructions at: www.phoenixcontact.com
Description Connection cross section
[mm
2
/ AWG] Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.

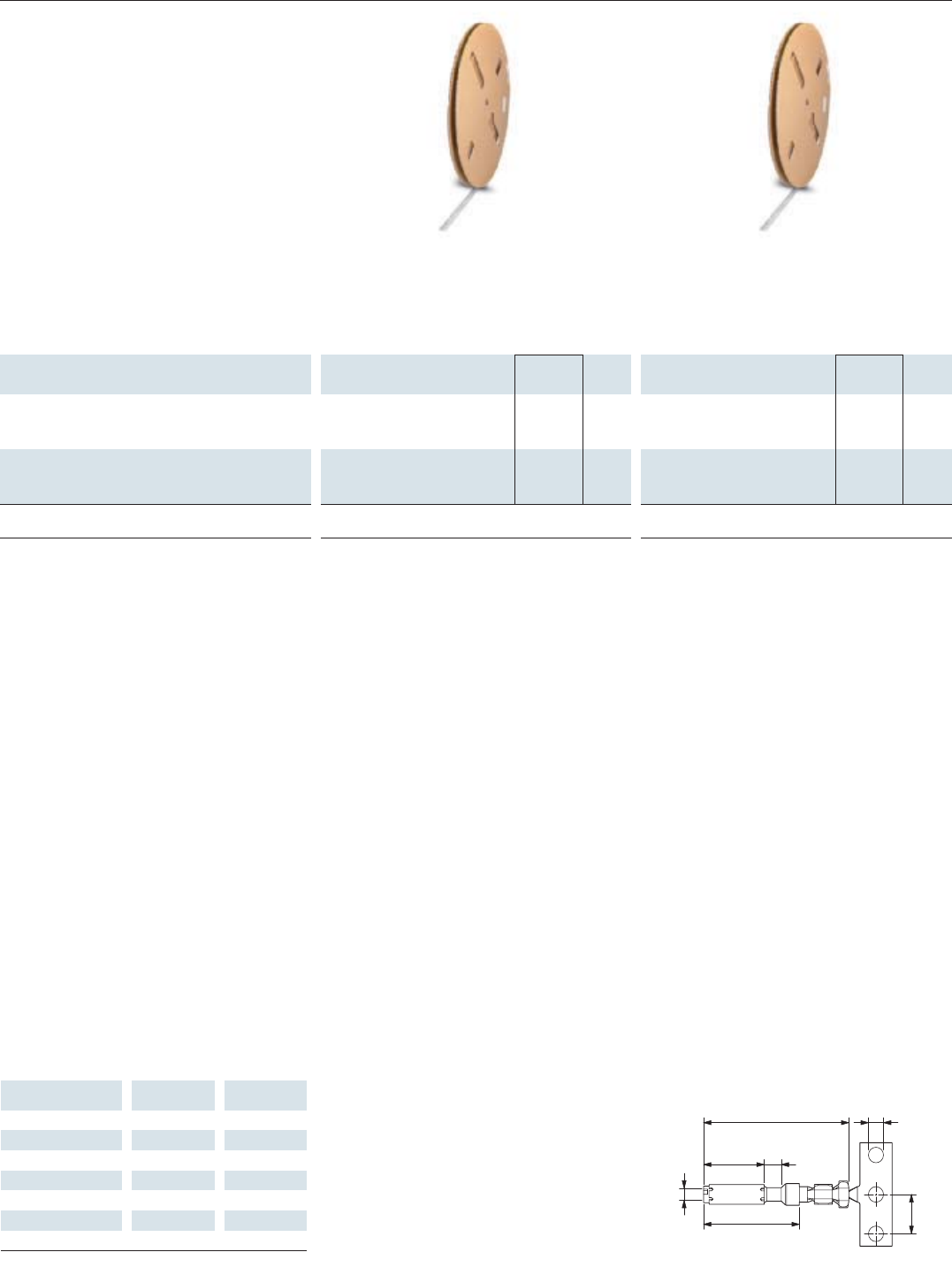

C-HC female contacts, punched-rolled,
Taped, Ø 1 mm, 2500 pieces/ roll
0,08 ... 0,2 / AWG 28-24 SF-10KS320 1607031 1
0,2 ... 0,56 / AWG 24-20 SF-10KS350 1607032 1
C-HC female contacts, punched-rolled,
Taped, Ø 1 mm, 10,000 pieces/ roll
0,08 ... 0,2 / AWG 28-24 SF-10KS330 1607358 1
0,2 ... 0,56 / AWG 24-20 SF-10KS360 1607361 1
Crimping tools for punched-rolled C-HC crimp contacts Order separately, see page 144 onwards Order separately, see page 144 onwards
SF-10KS3.0
C-HC female contacts
for processing with manual crimping machines
SF-10KS3.0
C-HC female contacts
for processing with crimping machines
C-HC female contact Ø 1 mm
A = D-SUB dimension
70 PHOENIX CONTACT
C-HC
®
are punched-rolled female
contacts with hyperboloid-shaped contact
ridges and integrated wire and insulation
crimp. The high-performance crimp
contacts are designed for up to 10,000
insertion/withdrawal cycles.
The contacts are available taped on rolls
for manual or automatic processing.
Note: Depending on the wire used, the
connection cross-sections (crimp ranges)
can differ from the values mentioned below.
Crimp contacts, punched-rolled
Signal plug connector - PLUSCON circular
M23 - RF series
Notes:
Every connector housing type can be equipped with male or female
contacts.
For reasons pertaining to safety, only female contacts may
be used in the live part of the connector.
More informations and installation instructions at: www.phoenixcontact.com
Description Connection cross section
[mm
2
/ AWG] Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
Contact socket Ø 1.0 mm
0,08 ... 0,2 / AWG 28-24 SF-6CS2000 1605562 100
0,14 ... 0,5 / AWG 26-20 SF-10KS004 1607356 100
0,5 ... 1,0 / AWG 20-18 SF-6AS2000 1605557 100
Wire spring contact, 0.14 ... 1,0 SF-10KS010 1605481 100
Contact pin Ø 1.0 mm
0,08 ... 0,2 / AWG 28-24 SF-6CP2000 1605559 100
0,14 ... 0,5 / AWG 26-20 SF-10KP004 1607355 100
0,5 ... 1,0 / AWG 20-18 SF-6AP2000 1605554 100
Crimping tools Order separately, see from page 146 onwards Order separately, see from page 146 onwards
Crimping tool with digital display Order separately, see page 150 Order separately, see page 150
SF-....00.
Crimp contacts
socket
SF-....00.
Crimp contacts
pin
71PHOENIX CONTACT
The RF series connectors are designed
for 12, 16 or 17 signal contacts Ø 1 mm of
the SF series depending on the number of
positions.
These contacts are also used as signal
contacts in the P30 power connectors. In
this way, handling and storage processes are
simplified to a great extent.
Note: Depending on the wire used, the
connection cross-sections (crimp ranges)
can differ from the values mentioned below.
Crimp contacts, turned
Signal plug connector - PLUSCON circular
M23 - RF series
Notes:
Every connector housing type can be equipped with male or female
contacts.
For reasons pertaining to safety, only female contacts may
be used in the live part of the connector.
120 140100806040200
2
8
4
6
0
1= 6 x 0,5mm²
2= 13 x 0,5mm²
3
4
= 20 x 0,5mm²
= 26 x 0,5mm²
1
2
43
100010010
20
80
100
40
60
0
Signal plug connectors - PLUSCON circular
M27 - HC series
72 PHOENIX CONTACT
Mechanical and electrical data
Mechanical data
Housing material: Rotating part: copper-zinc alloy (CuZn), die-cast part: zinc (GD-Zn)
Housing surface: Nickel-plated
Insulating bodies: Polyamide (PA66)
Storage at 15 ... 35°C, 40 ... 70% rel. humidity
Contact material: Copper-zinc alloy (CuZn)
Contact surface: Nickel-plated (Ni) with a gold layer (Au)
Contact connection method: Solder cup, crimp version, solder-in pin
Gasket and O ring: Fluorine rubber (FPM)
Flat gasket: perbunane (NBR with fabric insert) fluorine rubber (FPM)
Ambient temperature: -20°C ... 125°C
Conductor entry: EMC version for external cable diameter 2 ... 14.5 mm
Locking type: M27 screw locking
Mechanical insertion/withdrawal cycles: Standard: 50, more on request
Degree of protection: IP67 when locked
Electrical data
Number of positions 26 26 (25+PE) 28
Contacts 26 25+PE 28
Contact Ø [mm]111
Connection cross section:
Solder connection max.
Crimp connection
[mm
2
/ AWG]
[mm
2
/ AWG]
1.0 / AWG 18
0.08 ... 1.0 / AWG 28-18
–
0.08 ... 1.0 / AWG 28-18
1.0 / AWG 18
–
Nominal current per contact at 25°C
1)
[A]888
Specifications as per DIN EN 61984:2001
Nominal/operating voltage [V AC / DC] 150 150 150
Test/surge voltage [kV] 1.5 1.5 1.5
Surge voltage category II II II
Pollution degree
2)
333
Installation height [m] Up to 2,000 Up to 2,000 Up to 2,000
1)
If required, the effective current carrying capacity must be determined using a derating curve according to the application.
2)
The values specified require a correctly locked pair of connectors that are disconnected only for testing and maintenance. If an unlocked connector is exposed to ambient conditions
and if there is a danger of contamination, the connector should be sealed using a t IP 54 protective cap.
Derating curve based on DIN EN 60512-5-2 Cable plug
connector (26-pos.)
Shield attenuation curve based on DIN EN 50289-1-6
Note:
Plug connectors may only be inserted or removed when
the power supply is disconnected.
C
urren
t[A]
Ambient temperature [°C]
Att
enua
ti
on
[dB]
Frequency [MHz]
N
1
26
21 20
2
3
4
5
6
7
8
9
10
11
12
13
14 15
16 17
18
19
22
23
24 25
PO
N
1
26
21
20
2
3
4
5
6
78910
11
12
13
14
15
16
17
18
19 22
23
24
25
SO
N
1
26
21 20
2
3
4
5
6
7
8
9
10
11
12
13
14 15
16 17
18
19
22
23
24 25
PO
N
1
26
21
20
2
3
4
5
6
78910
11
12
13
14
15
16
17
18
19 22
23
24
25
SO
N
1
26
21 20
2
3
4
5
6
7
8
9
10
11
12
13
14 15
16 17
18
19
2728
22
23
24 25
PO
N
1
26
21
20
2
3
4
5
6
78910
11
12
13
14
15
16
17
18
19 22
23
24
25
SO28
27
+,00
+,00 +,00
+,00
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
+Y
+X
Signal plug connectors - PLUSCON circular
M27 - HC series
73PHOENIX CONTACT
Connector pin assignments and coding
Note:
The connectors can be equipped with male or female
contacts according to the application.
For reasons pertaining to safety, only female contacts may
be used in the live part of the connector.
Contact insert numbering
(view of plug-in side)
Clockwise
(standard)
Counter-clockwise
(standard)
Number of positions Pin Socket
26-pos.
Solder / crimp
Solder-in (only pin)
26-pos. (25+PE)
Crimp
28-pos.
Solder
Solder-in (only pin)
PCB hole pattern 26/28-pos. for PCB mounting (solder-in contacts)
Centerline deviation ± 0.1 mm
(Solder-in pin Ø, see product description, page 77).
Pos. ( X / Y ) Pos. ( X / Y ) Pos. ( X / Y )
Pos. 10 = ( 5.67 / 5.20 ) Pos. 20 = ( +1.83 / 4.17 )
Pos. 1 = ( +1.95 / +7.47 ) Pos. 11 = ( 7.28 / 2.53 ) Pos. 21 = ( 1.83 / 4.17 )
Pos. 2 = ( +4.80 / +6.05 ) Pos. 12 = ( 7.70 / +0.60 ) Pos. 22 = ( 4.20 / 2.13 )
Pos. 3 = ( +6.82 / +3.65 ) Pos. 13 = ( 6.82 / +3.65 ) Pos. 23 = ( 4.55 / +0.97 )
Pos. 4 = ( +7.70 / +0.60 ) Pos. 14 = ( 4.80 / +6.05 ) Pos. 24 = ( 2.82 / +3.60 )
Pos. 5 = ( +7.28 / 2.35 ) Pos. 15 = ( 1.95 / +7.47 ) Pos. 25 = ( 0 / +1.88 )
Pos. 6 = ( +5.67 / 5.20 ) Pos. 16 = ( 0 / +5.03 ) Pos. 26 = ( 0 / 1.60 )
Pos. 7 = ( +3.08 / 7.08 ) Pos. 17 = ( +2.82 / +3.60 ) Pos. 27 = ( +2.02 / +0.14 )
Pos. 8 = ( 0 / 7.73 ) Pos. 18 = ( +4.55 / +0.97 ) Pos. 28 = ( 2.02 / +0.14 )
Pos. 9 = ( 3.08 / 7.08 ) Pos. 19 = ( +4.20 / 2.13 )
58,8
30
Ø
24 24
More informations and installation instructions at: www.phoenixcontact.com
Description Connection method Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
M27 cable plug connector, straight, shielded, 26-pos.
Solder HC-26S1N1280DU 1590354 10 HC-26P1N1280DU 1590285 10
Crimp HC-26S1NRA80DU 1590387 10 HC-26P1NRA80DU 1590319 10
M27 cable plug connector, straight, shielded, 26-pos. (25+PE)
Crimp HC-ARS1NRA80DU 1608323 10 HC-ARP1NRA80DU 1608319 10
M27 cable plug connector, straight, shielded, 28-pos.
Solder HC-28S1N1280DU 1590432 10 HC-28P1N1280DU 1590412 10
For crimp connection:
Crimp contacts Ø 1.0 mm Order separately, see page 80 Order separately, see page 80
HC-..S1N..80DU
M27 cable plug connector, shielded,
for female contacts
HC-..P1N..80DU
M27 cable plug connector, shielded,
for male contacts
HC-..S1N..80DU , HC-..P1N..80DU
74 PHOENIX CONTACT
The 26 and 28 pos. signal plug connectors
of the HC series are available in male or
female versions with the connection
methods solder, solder-in or crimp. Crimp
contacts are available for wire cross-
sections of 0.08 mm
2
to 1 mm
2
/AWG 28
to 18.
The cable plug connectors are equipped
with a universal cable clamping and shield
connection for external cable diameters
from 2 mm to 14.5 mm.
Cable plug connector, shielded
Signal plug connector - PLUSCON circular
M27 - HC series
Note:
For higher cable strain relief requirements, the HC cable plug
connectors and coupling connectors are available on request
with Pg/metric connecting threads and double bracket strain
relief.
61,4
M27x1
24 24
More informations and installation instructions at: www.phoenixcontact.com
Description Connection method Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
M27 coupling plug connector, straight, shielded, 26-pos.
Solder HC-26S1N1290DU 1590357 10 HC-26P1N1290DU 1590289 10
Crimp HC-26S1NRA90DU 1590388 10 HC-26P1NRA90DU 1590321 10
M27 coupling plug connector, straight, shielded, 26-pos.
(25+PE)
Crimp HC-ARS1NRA90DU 1615320 10 HC-ARP1NRA90DU 1615342 10
M27 coupling plug connector, straight, shielded, 28-pos.
Solder HC-28S1N1290DU 1590434 10 HC-28P1N1290DU 1590415 10
For crimp connection:
Crimp contacts Ø 1.0 mm Order separately, see page 80 Order separately, see page 80
HC-..S1N..90DU
M27 coupling plug connector, shielded,
for female contacts
HC-..P1N..90DU
M27 coupling plug connector, shielded,
for male contacts
HC-..S1N..90DU , HC-..P1N..90DU
75PHOENIX CONTACT
The 26 and 28 pos. signal plug connectors
of the HC series are available in male or
female versions with the connection
methods solder, solder-in or crimp. Crimp
contacts are available for wire cross-
sections of 0.08 mm
2
to 1 mm
2
/ AWG 28
to 18.
The coupling plug connectors are
equipped with a universal cable clamping
and shield connection for external cable
diameters from 2 mm to 14.5 mm.
Coupling plug connector, shielded
Signal plug connector - PLUSCON circular
M27 - HC series
Note:
For higher cable strain relief requirements, the HC cable plug
connectors and coupling connectors are available on request
with Pg/metric connecting threads and double bracket strain
relief.
HC-Z 2300
35
Ø
20,3
M27x1
Pg21
6
32
Pg21
More informations and installation instructions at: www.phoenixcontact.com
Description Connection method Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
M27 appliance plug connector, 26-pos.
Solder HC-26S1N126300 1590349 24 HC-26P1N126300 1590282 24
Crimp HC-26S1NRA6300 1590383 24 HC-26P1NRA6300 1590316 24
M27 appliance plug connector, 26-pos. (25+PE)
Crimp HC-ARS1NRA6300 1615319 24 HC-ARP1NRA6300 1614648 24
M27 appliance plug connector, 28-pos.
Solder HC-28S1N126300 1590428 24 HC-28P1N126300 1590409 24
Locking nut PG21, order separately
HC-Z2300 1590498 25 HC-Z2300 1590498 25
For crimp connection:
Crimp contacts Ø 1.0 mm Order separately, see page 80 Order separately, see page 80
HC-..S1N1.6300
Axial O-ring
Installation dimensions
HC-..S1N1.6300
M27 appliance plug connector, front mounting,
central fastening Pg21, for female contacts
HC-..P1N1.6300
M27 appliance plug connector, front mounting,
central fastening Pg21, for male contacts
76 PHOENIX CONTACT
In the case of front mounting, the
connector housing is fitted to the device
from "outside" using the Pg21 screw-in
thread.
Appliance plug connector,
front mounting, central fastening
Signal plug connector - PLUSCON circular
M27 - HC series
23
1
3,2
M27x1
30
21,3
2
Ø
4xØ3,2/M3/ 23±0,1
Ø24+0,1
A
B
C
More informations and installation instructions at: www.phoenixcontact.com
Description Connection method Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
M27 appliance plug connector, 26-pos.
Solder HC-26S1N122300 1590345 24 HC-26P1N122300 1590276 24
Crimp HC-26S1NRA2300 1590381 24 HC-26P1NRA2300 1590313 24
Solder-in, pin Ø 0.6 mm, free solder pin length A: 3.5 mm HC-26P1N222300 1615308 12
Solder in, pin Ø 1.0 mm, free solder pin length B:4.5 mm HC-26P1N322300 1615309 12
Solder-in, pin Ø 0.8 mm, free solder pin length C: 10 mm HC-26P1NT22300 1590338 12
M27 appliance plug connector, 26-pos. (25+PE)
Crimp HC-ARS1NRA2300 1590467 24 HC-ARP1NRA2300 1590454 24
M27 appliance plug connector, 28-pos.
Solder HC-28S1N122300 1590427 24 HC-28P1N122300 1590407 24
Solder-in, pin Ø 0.6 mm, free solder pin length A: 3.5 mm HC-28P1N222300 1615312 12
Solder in, pin Ø 1.0 mm, free solder pin length B:4.5 mm HC-28P1N322300 1615314 12
Solder-in, pin Ø 0.8 mm, free solder pin length C: 10 mm HC-28P1NT22300 1615316 12
For crimp connection:
Crimp contacts Ø 1.0 mm Order separately, see page 80 Order separately, see page 80
HC-...1N..2300
Flat gasket
Installation dimensions
Type Free solder pin length
M27 - HC series A B C
[mm] [mm] [mm]
HC-.......2300 3.5 4.5 10
Mounting flange
Appliance plug connector housing
HC-..S1N..2300
M27 appliance plug connector, front mounting,
flat gasket, for female contacts
HC-..P1N..2300
M27 appliance plug connector, front mounting,
flat gasket, for male contacts
77PHOENIX CONTACT
The HC versions provide solder-in
contacts for an effective PCB connection.
The free solder pin length is the distance
between the mounting flange of the device
connector and end of the soldered-in pin. In
this measurement, the housing wall
thickness and distance to the PCB are
included.
Appliance plug connector,
front mounting, flat gasket
Signal plug connector - PLUSCON circular
M27 - HC series
23
22,3
3,2
M27x1
30
3,5
3
Ø
Ø24+0,1 1x15°
min. 3mm
A
B
C
More informations and installation instructions at: www.phoenixcontact.com
Description Connection method Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
M27 appliance plug connector, 26-pos.
Solder HC-26S1N12WA00 1590373 24 HC-26P1N12WA00 1590303 24
Crimp HC-26S1NRAWA00 1590403 24 HC-26P1NRAWA00 1590333 24
Solder-in, pin Ø 0.8 mm, free solder pin length C: 10 mm HC-26P1NT2WA00 1615310 12
M27 appliance plug connector, 26-pos. (25+PE)
Crimp HC-ARS1NRAWA00 1615321 24 HC-ARP1NRAWA00 1590458 24
M27 appliance plug connector, 28-pos.
Solder HC-28S1N12WA00 1590439 24 HC-28P1N12WA00 1590418 24
Solder-in, pin Ø 0.8 mm, free solder pin length C: 10 mm HC-28P1NT2WA00 1615317 12
For crimp connection:
Crimp contacts Ø 1.0 mm Order separately, see page 80 Order separately, see page 80
HC-...1N..WA00
Radial O-ring
Installation dimensions
Type Free solder pin length
M27 - HC series A B C
[mm] [mm] [mm]
HC-.......WA00 10
Mounting flange
Appliance plug connector housing
HC-..S1N..WA00
M27 appliance plug connector, front mounting,
radial O-ring, for female contacts
HC-..P1N..WA00
M27 appliance plug connector, front mounting,
radial O-ring, for male contacts
78 PHOENIX CONTACT
In the case of front mounting, the
connector housing is fitted to the device
from "outside" using screws, nuts or screw-
in threads.
Appliance plug connector,
front mounting, O-ring
Signal plug connector - PLUSCON circular
M27 - HC series
23
20,3
M3
M27x1
30
22,3
2
Ø27+0,1
2,7mm–4,5mm
1x15°
4xØ3,2/M3/ 23±0,1
A
B
C
More informations and installation instructions at: www.phoenixcontact.com
Description Connection method Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
M27 appliance plug connector, 26-pos.
Solder HC-26S1N124300 1590347 24 HC-26P1N124300 1590280 24
Crimp HC-26S1NRA4300 1590382 24 HC-26P1NRA4300 1590314 24
Solder-in, pin Ø 0.6 mm, free solder pin length A: 3.5 mm HC-26P1N224300 1590307 12
Solder in, pin Ø 1.0 mm, free solder pin length B:4.5 mm HC-26P1N324300 1590311 12
Solder-in, pin Ø 0.8 mm, free solder pin length C: 10 mm HC-26P1NT24300 1615340 12
M27 appliance plug connector, 26-pos. (25+PE)
Crimp HC-ARS1NRA4300 1615318 24 HC-ARP1NRA4300 1615341 24
M27 appliance plug connector, 28-pos.
Solder HC-28S1N124300 1607139 24 HC-28P1N124300 1590408 24
Solder-in, pin Ø 0.6 mm, free solder pin length A: 3.5 mm HC-28P1N224300 1615313 12
Solder in, pin Ø 1.0 mm, free solder pin length B:4.5 mm HC-28P1N324300 1615315 12
Solder-in, pin Ø 0.8 mm, free solder pin length C: 10 mm HC-28P1NT24300 1590423 12
For crimp connection:
Crimp contacts Ø 1.0 mm Order separately, see page 80 Order separately, see page 80
HC-...1N..4300
Radial O-ring
Installation dimensions
Type Free solder pin length
M27 - HC series A B C
[mm] [mm] [mm]
HC-.......4300 3.5 4.5 10
Mounting flange
Appliance plug connector housing
HC-..S1N..4300
M27 appliance plug connector, rear mounting,
radial O-ring, for female contacts
HC-..P1N..4300
M27 appliance plug connector, rear mounting,
radial O-ring, for male contacts
79PHOENIX CONTACT
Housings for rear mounting are fed
through the mounting panel from the inside
and screwed tight from the outside.
Appliance plug connector,
rear mounting, O-ring
Signal plug connector - PLUSCON circular
M27 - HC series
More informations and installation instructions at: www.phoenixcontact.com
Description Connection cross section
[mm
2
/ AWG] Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
Contacts Ø1.0 mm for HC contact carriers,
26-pos. and 26-pos. (25+PE)
0,08 ... 0,22 / AWG 28-24 RC-6RS2000 1603846 100 RC-6RP2000 1603836 100
0,25 ... 0,5 / AWG 24-20 RC-6LS2000 1603823 100 RC-6LP2000 1603819 100
0,5 ... 0,75 / AWG 20-18 RC-6KS2000 1603816 100 RC-6KP2000 1603814 100
0,75 ... 1,0 / AWG 18 RC-67S2000 1603800 500 RC-67P2000 1603797 500
Contact PE Ø1.0 mm, for HC contact carrier,
26-pos. (25+PE)
0,75 ... 1,0 / AWG 18 RC-6MS2000 1603829 100 RC-6MP2000 1603826 100
Crimping pliers Order separately, see page 140 Order separately, see page 140
Positioning and contact removal tool Order separately, see page 140 Order separately, see page 140
RC-...2000
Crimp contacts,
socket for M27 connectors of HC series
RC-6.P2000
Crimp contacts,
pin for M27 connectors of HC series
80 PHOENIX CONTACT
Every housing type of the M27 signal plug
connector of the HC series can be equipped
with male or female contacts.
For reasons of safety, only female
contacts may be used in the live part of the
plug.
Note: Depending on the wire used, the
connection cross-sections (crimp ranges)
can differ from the values mentioned below.
Crimp contacts, turned
Signal plug connector - PLUSCON circular
M27 - HC series
More informations and installation instructions at: www.phoenixcontact.com 81PHOENIX CONTACT
Signal plug connector - PLUSCON circular
M27 - HC series
82 PHOENIX CONTACT
83PHOENIX CONTACT
Flexible machine and system cabling also
requires device flanges and panel feed-
throughs in different versions in addition
to cable plug connectors and coupling
connectors.
All power connectors are fully assembled.
Crimp contacts are ordered separately,
depending on the conductor size.
P20 series
Power connectors up to 20 A / 630 V,
crimp ranges of up to 2.5 mm / AWG 14,
3+PE to 5+3+PE
P30 series
Power connectors up to 30 A / 630 V,
crimp ranges of up to 4 mm / AWG 12, 5+PE
/ 4+3+PE
P70 series
Power connectors up to 70 A / 630 V,
crimp ranges of up to 10 mm / AWG 8,
2+3+PE / 4+3+PE
P150 series
Power connectors up to 150 A / 630 V,
crimp ranges of up to 50 mm / AWG 1,
2+3+PE / 4+3+PE
Power connectors – PLUSCON circular
Table of contents
M17 - P20 series
Mechanical and electrical data 86
Selection guide 88
Cable plug connectors 90
Coupling connectors 92
Appliance plug connectors 93
Crimp contacts 96
M23 - P30 series
Mechanical and electrical data 98
Selection guide 100
Cable plug connectors and coupling connectors 102
Appliance plug connectors 105
Panel feed-throughs 110
Crimp contacts 112
M40 - P70 series
Mechanical and electrical data 114
Selection guide 116
Cable plug connectors and coupling connectors 118
Appliance plug connectors 120
Panel feed-throughs 124
Crimp contacts 128
M58 - P150 series
Mechanical and electrical data 130
Selection guide 132
Cable plug connectors, coupling connectors and appliance
plug connectors 134
Crimp contacts 137
The complete range
for electrical power applications
Whether signal or power – circular
connectors are the right choice for an easy
and time-saving connection of electrical
wires, with transmission capacities of up to
150 A / 630 V.
All power connectors – also the 12 and
17-pos. feedback connectors - now have
snap load contacts and a pull apart contact
carrier as a characteristic feature. This saves
installation time, is safe and quick.
For efficient processing and high insertion/
withdrawal cycles – up to 10,000 – the
range offers punched-rolled C-HC crimp
contacts in taped versions in plug-in
diameters of 1 mm and 2 mm.
Time-saving connection
P20 series:
M17 · up to 20 A/630 V,
from page 86 onwards
RF series:
M23 · signal feedback,
from page 54 onwards
P30 series:
M23 · up to 30 A/630 V,
from page 98 onwards
P70 series:
M40 · up to 70 A/630 V,
from page 114 onwards
P150 series:
M58 · up to 150 A/630 V,
from page 130 onwards
84 PHOENIX CONTACT
Power connectors - PLUSCON circular
Quick connection
Quick contact clip-in
This saves installation time: Pull apart contact carrier
and snap-in loading contacts are a characteristic
feature of all power connectors.
Quick locking
The SPEEDCON connectors are locked
with approx. a 1/2 rotation of the knurled
nut, without compromising on density and
vibration resistance. The SPEEDCON
concept also allows "blind" connection
on the device flange. This considerably
simplifies handling in narrow installation
conditions.
Quick shielding
A special feature of the power connectors is
the extremely elegant shielding that can be
carried out with minimal effort. Depending
on the design of the braided shield, shield
trimming can be avoided completely under
certain circumstances. Extra length of
braided shield is simply screwed into the
housing. This makes it much easier and
saves a considerable amount of time
especially in the case of solid wires and large
connection cross sections.
85PHOENIX CONTACT
Power connectors - PLUSCON circular
Quick connection
120100806040200
10
15
35
40
20
30
25
5
0
1
2
= 4-pos. 3x2,5mm²
= 8-pos. 3x1,0mm²
1
2
100010030
20
100
120
40
80
60
0
Power connectors - PLUSCON circular
M17 - P20 series
86 PHOENIX CONTACT
Derating curve (for 3 x 2.5 mm
2
/ 3 x 1.0 mm
2
) based on
DIN EN 60512-5-2 (cable plug connector mounted)
Shield attenuation curve based on DIN EN 50289-1-6
SPEEDCON cable connector and appliance connector,
angled on the base plate
Mechanical data
Housing material: Rotating part: copper-zinc alloy (CuZn), die-cast part: zinc (GD-Zn)
Housing surface: Nickel-plated; appliance plug connector: nickel-plated/thick layer passivated (can be painted over)
Insulating bodies: Polyamide (PA 66)
Contact material: Copper-zinc alloy (CuZn)
Contact surface: Nickel-plated (Ni) with a gold layer (Au)
Contact connection method: Crimp version
Gasket and O ring: Fluorine rubber (FKM)
Ambient temperature: -20°C ... 125°C
Conductor entry: cable plug connectors and coupling connectors for external cable diameters of 3.5 - 10 mm, shielded
(3.5 - 11.5 mm on request)
Locking type: M17 SPEEDCON quick locking, cable plug connector
optionally with M17 x 1 control thread
Mechanical insertion/withdrawal cycles: Standard: 50, punched-rolled C-HC crimp contacts: up to 10,000
Degree of protection: IP67 when locked
Mechanical and electrical data
Electrical data
Number of positions 4 (3+PE) 6 (5+PE) 7 (6+PE) 8 (7+PE) 9 (5+3+PE)
Contacts 3 + PE 5 + PE 6 + PE 7 + PE 5 + 3 + PE
Contact Ø [mm]211106 1 1
Stranded wire cross section, crimp contacts
turned [mm
2
/AWG] 0.25 ... 2.5/
24-14
0.08 ... 1.0/
28-18
0.08 ... 1.0/
28-18
0.08 ... 1.0/
28-18
0.08 ... 0.5/
28-20
0.08 ... 0.5/
28-20
0.08 ... 1.0/
28-18
Stranded wire cross section, C-HC crimp
contacts [mm
2
/AWG] – 0.08 ... 0.56/
28-20
0.08 ... 0.56/
28-20
0.08 ... 0.56/
28-20 –––
Cable clamping range max Ø [mm] 10 10 10 10 10
Nominal current per contact at 25°C
1)
20 (25)
2)
14 14 14 36 14 –
Specifications as per DIN EN 61984:2001 –
Nominal/rated voltage [V] 630 630 630 630 60 630 –
Test/surge voltage [kV AC] 4 6 6 6 15 6 –
Surge voltage category III III III III III
Pollution degree
3)
3333 3
Installation height [m] Up to 3,000 Up to 3,000 Up to 3,000 Up to 3,000 Up to 3,000
1)
If required, the effective current carrying capacity must be determined according to the application using a derating curve.
2)
25 A when occupied with 3 x 2.5 mm
2
3)
The values specified require a correctly locked pair of connectors that are disconnected only for testing and maintenance. If an unlocked connector is exposed to ambient conditions
and if there is a danger of contamination, the connector should be sealed using a t IP 54 protective cap.
Note:
Plug connectors may only be inserted or removed when
the power supply is disconnected.
C
urren
t[A]
Ambient temperature [°C]
Att
enua
ti
on
[dB]
Frequency [MHz]
PE
61
3
4
7
16
4
3
27
1
2
3
4
565
4
3
2
16
1
2
3
4
5
6
7
PE 6
5
4
3
2
1
7
Power connectors - PLUSCON circular
M17 - P20 series
87PHOENIX CONTACT
For reasons pertaining to safety, only female
contacts may be used in the live part of the
connector.
Note:
The connectors can be equipped with male or
female contacts according to the application.
Connector pin assignments and coding
Contact insert numbering
(view of plug-in side)
Number of positions Pin Socket
4-pos. (3+PE)
Crimp
6-pos. (5+PE)
(contact inserts 2+5 closed)
Crimp
7-pos. (6+PE)
Crimp
8-pos. (7+PE)
Crimp
9-pos. (5+3+PE)
Crimp
* with grounding spring
PE leading
* with grounding spring
PE leading
6 * 6 *
6 * 6 *
6 * 6 *
6 * 6 *
6 * 6 *
Power connectors - PLUSCON circular
M17 - P20 series
88 PHOENIX CONTACT
Selection guide
M17 power and feedback connectors
4 / 6 / 7 / 8 / 9-pos., up to 20 A / 630 V,
crimp ranges of 0.08 mm
2
to 2.5 mm
2
/
AWG 28 to 14
– Cable plug connectors
– Coupling connectors
– Appliance plug connectors
(device flange)
The P20 connectors are fully assembled
and the respective crimp contacts must be
ordered separately.
Every housing type can be equipped
with male or female contacts. The P20
connectors are equipped with
SPEEDCON quick locking or with
standard M17 screw thread. The
connectors with an external thread are
fully compatible with standard threads and
with the SPEEDCON quick locking.
The product chart provides an overview
of the available components.
Connector type
M17 x 1 standard locking,
page 91
Cable plug connectors
Square mounting flange for cable plug
connectors and coupling connectors for
wall mounting, page 152
Coupling connectors
page 92 Square mounting flange for cable plug
connectors and coupling connectors
for wall mounting, page 152
SPEEDCON quick locking, page 90
shieldedshieldedshielded
Appliance plug connectors
straight, page 93
straight, with central fastening thread,
front mounting, page 95
straight, with contact carriers for snapping in,
page 93
straight, with central fastening thread,
rear mounting, page 95
ST-...1N8AAD00S,
ST-...1N8AAC00S
ST-...1N8A80..S
ST-...1N8A80..
ST-...1N8A90..S
ST-...1N8AWQ00S
ST-...1N8A6100S ST-...1N8AH100S
ST-...1N8AW400S
angled rotatable, page 94
Power connectors - PLUSCON circular
M17 - P20 series
89PHOENIX CONTACT
Crimp contacts
Crimping tools
Crimping pliers for punched-rolled C-HC crimp
contacts,
page 144
Removal tool for contact carrier
For appliance plug connectors with contact
carriers snapping in from the device side,
page 152
Crimping pliers with digital display for turned
crimp contacts,
page 150
Crimping pliers for turned crimp contacts,
page 145
All housings can be equipped with male or female crimp contacts
Female contacts
Turned, page 97
Male contacts
Turned, page 97
Punched-rolled, taped,
page 96
Note:
For reasons pertaining to safety, only
female contacts may be used in the live
part of the connector.
Tools / accessories
min.52,3
21,3
O
More informations and installation instructions at: www.phoenixcontact.com
Description Cable seal Ø [mm] Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
M17 cable plug connector SPEEDCON,
4-pos. (3+PE), straight
3.5 ... 5 ST-3ES1N8A8002S 1607681 30 ST-3EP1N8A8002S 1607662 30
5 ... 8 ST-3ES1N8A8003S 1607683 30 ST-3EP1N8A8003S 1607665 30
8 ... 10 ST-3ES1N8A8004S 1607685 30 ST-3EP1N8A8004S 1607667 30
M17 cable plug connector SPEEDCON,
6-pos. (5+PE), straight
3.5 ... 5 ST-5ES1N8A8002S 1607715 30 ST-5EP1N8A8002S 1607698 30
5 ... 8 ST-5ES1N8A8003S 1607718 30 ST-5EP1N8A8003S 1607700 30
8 ... 10 ST-5ES1N8A8004S 1607720 30 ST-5EP1N8A8004S 1607702 30
M17 cable plug connector SPEEDCON,
7-pos. (6+PE), straight
3.5 ... 5 ST-6ES1N8A8002S 1613576 30 ST-6EP1N8A8002S 1613557 30
5 ... 8 ST-6ES1N8A8003S 1613578 30 ST-6EP1N8A8003S 1613559 30
8 ... 10 ST-6ES1N8A8004S 1613580 30 ST-6EP1N8A8004S 1613561 30
M17 cable plug connector SPEEDCON,
8-pos. (7+PE), straight
3.5 ... 5 ST-7ES1N8A8002S 1607753 30 ST-7EP1N8A8002S 1607734 30
5 ... 8 ST-7ES1N8A8003S 1607756 30 ST-7EP1N8A8003S 1607736 30
8 ... 10 ST-7ES1N8A8004S 1607759 30 ST-7EP1N8A8004S 1607738 30
M17 cable plug connector SPEEDCON,
9-pos. (5+3+PE), straight
3.5 ... 5 ST-8ES1N8A8002S 1613618 30 ST-8EP1N8A8002S 1613599 30
5 ... 8 ST-8ES1N8A8003S 1613620 30 ST-8EP1N8A8003S 1613601 30
8 ... 10 ST-8ES1N8A8004S 1613622 30 ST-8EP1N8A8004S 1613603 30
Crimp contacts: 4-pos.: Ø 2 mm, 6-/7-/8-pos.: Ø 1 mm,
9-pos.: Ø 1 mm / Ø 0.6 mm
Order separately, see page 96 onwards Order separately, see page 96 onwards
ST-.ES1N8A800.S
Cable plug connector SPEEDCON quick locking,
for female contacts
ST-.EP1N8A800.S
Cable plug connector SPEEDCON quick locking,
for male contacts
ST-.ES1N8A800.S , ST-.EP1N8A800.S
90 PHOENIX CONTACT
The SPEEDCON thread allows quick
locking of cable connector and coupling
connector or device flange. They are locked
by rotating the knurled nut clockwise until
it stops. The knurled nut has a left stop. This
allows "blind" connection of the connector.
Cable plug connectors of the P20 series
are either provided with the standard M17
screw locking or with the SPEEDCON
quick locking.

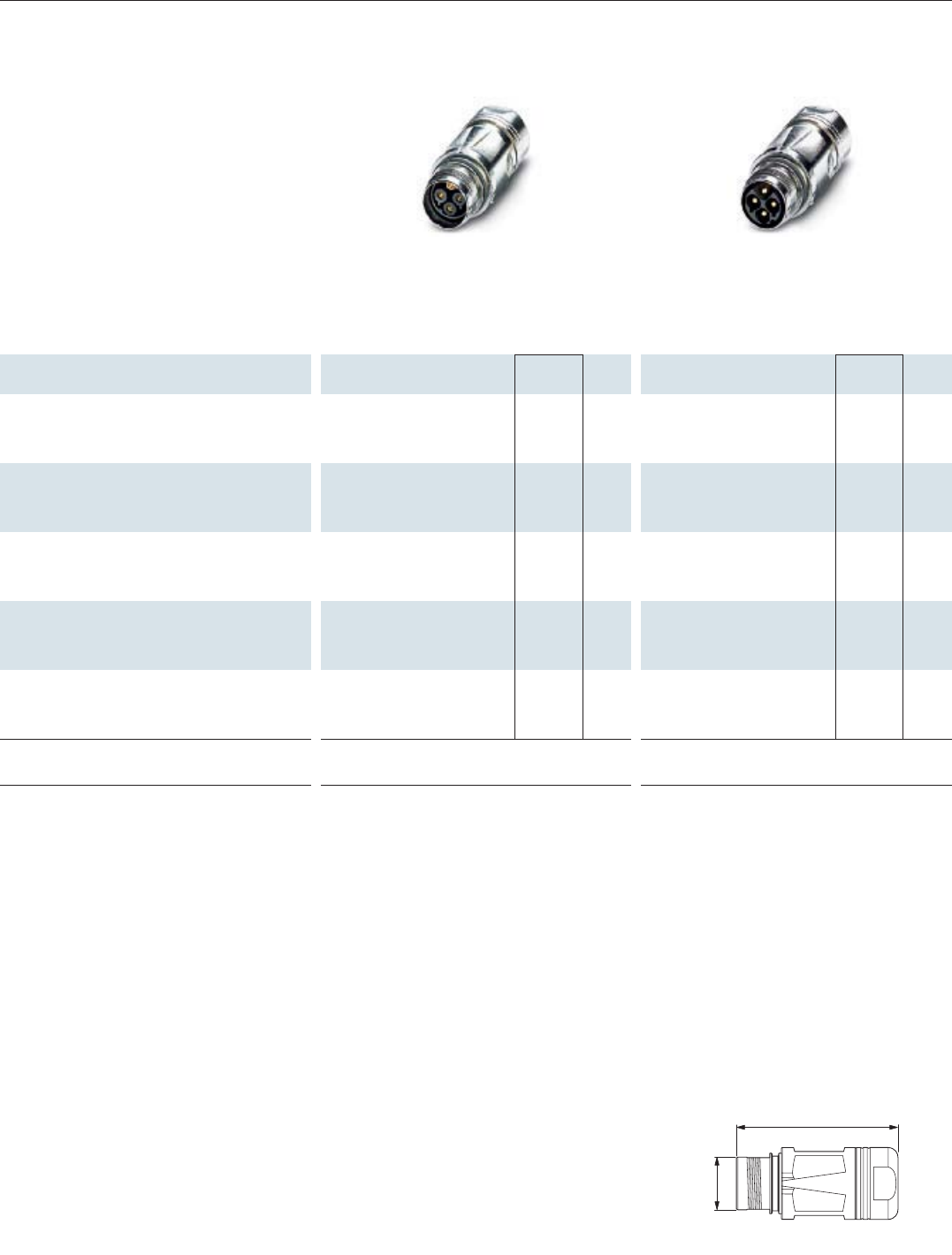

Cable plug connector with
SPEEDCON quick locking
Power connector - PLUSCON circular
M17 - P20 series
min. 52,3
Ø21,3
More informations and installation instructions at: www.phoenixcontact.com
Description Cable seal Ø [mm] Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
M17 cable plug connector, 4-pos. (3+PE), straight
3.5 ... 5 ST-3ES1N8A8002 1607679 30 ST-3EP1N8A8002 1607661 30
5 ... 8 ST-3ES1N8A8003 1607682 30 ST-3EP1N8A8003 1607663 30
8 ... 10 ST-3ES1N8A8004 1607684 30 ST-3EP1N8A8004 1607666 30
M17 cable plug connector, 6-pos. (5+PE), straight
3.5 ... 5 ST-5ES1N8A8002 1607714 30 ST-5EP1N8A8002 1607697 30
5 ... 8 ST-5ES1N8A8003 1607717 30 ST-5EP1N8A8003 1607699 30
8 ... 10 ST-5ES1N8A8004 1607719 30 ST-5EP1N8A8004 1607701 30
M17 cable plug connector, 7-pos. (6+PE), straight
3.5 ... 5 ST-6ES1N8A8002 1613575 30 ST-6EP1N8A8002 1613556 30
5 ... 8 ST-6ES1N8A8003 1613577 30 ST-6EP1N8A8003 1613558 30
8 ... 10 ST-6ES1N8A8004 1613579 30 ST-6EP1N8A8004 1613560 30
M17 cable plug connector, 8-pos. (7+PE), straight
3.5 ... 5 ST-7ES1N8A8002 1607752 30 ST-7EP1N8A8002 1607733 30
5 ... 8 ST-7ES1N8A8003 1607755 30 ST-7EP1N8A8003 1607735 30
8 ... 10 ST-7ES1N8A8004 1607758 30 ST-7EP1N8A8004 1607737 30
M17 cable plug connector,9-pos. (5+3+PE), straight
3.5 ... 5 ST-8ES1N8A8002 1613617 30 ST-8EP1N8A8002 1613598 30
5 ... 8 ST-8ES1N8A8003 1613619 30 ST-8EP1N8A8003 1613600 30
8 ... 10 ST-8ES1N8A8004 1613621 30 ST-8EP1N8A8004 1613602 30
Crimp contacts: 4-pos.: Ø 2 mm, 6-/7-/8-pos.: Ø 1 mm,
9-pos.: Ø 1 mm / Ø 0.6 mm
Order separately, see page 96 onwards Order separately, see page 96 onwards
ST-.ES1N8A800.
Cable plug connector standard interlocking,
for female contacts
ST-.EP1N8A800.
Cable plug connector standard interlocking,
for male contacts
ST-.ES1N8A800. , ST-.EP1N8A800.
91PHOENIX CONTACT
For reasons of backwards compatibility,
the cable plug connector is also provided
with a standard screw locking. In this
version, it is suitable for a standard screw
thread as well as a SPEEDCON external
thread of the mating connector, e.g. a
straight device flange.
A special feature is the availability of the
connector as a female version and male
version.
Cable plug connector with standard
interlocking
Power connector - PLUSCON circular
M17 - P20 series
min.50,5
M17
SPEEDCON
More informations and installation instructions at: www.phoenixcontact.com
Description Cable seal Ø [mm] Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
M17 coupling plug connector,4-pos. (3+PE), straight
3.5 ... 5 ST-3ES1N8A9002S 1607687 30 ST-3EP1N8A9002S 1607669 30
5 ... 8 ST-3ES1N8A9003S 1607688 30 ST-3EP1N8A9003S 1607670 30
8 ... 10 ST-3ES1N8A9004S 1607689 30 ST-3EP1N8A9004S 1607671 30
M17 coupling plug connector,6-pos. (5+PE), straight
3.5 ... 5 ST-5ES1N8A9002S 1607722 30 ST-5EP1N8A9002S 1607705 30
5 ... 8 ST-5ES1N8A9003S 1607723 30 ST-5EP1N8A9003S 1607706 30
8 ... 10 ST-5ES1N8A9004S 1607724 30 ST-5EP1N8A9004S 1607707 30
M17 coupling plug connector,7-pos. (6+PE), straight
3.5 ... 5 ST-6ES1N8A9002S 1613582 30 ST-6EP1N8A9002S 1613563 30
5 ... 8 ST-6ES1N8A9003S 1613583 30 ST-6EP1N8A9003S 1613564 30
8 ... 10 ST-6ES1N8A9004S 1613584 30 ST-6EP1N8A9004S 1613565 30
M17 coupling plug connector,8-pos. (7+PE), straight
3.5 ... 5 ST-7ES1N8A9002S 1607763 30 ST-7EP1N8A9002S 1607740 30
5 ... 8 ST-7ES1N8A9003S 1607764 30 ST-7EP1N8A9003S 1607741 30
8 ... 10 ST-7ES1N8A9004S 1607765 30 ST-7EP1N8A9004S 1607742 30
M17 coupling plug connector,9-pos. (5+3+PE), straight
3.5 ... 5 ST-8ES1N8A9002S 1613624 30 ST-8EP1N8A9002S 1613605 30
5 ... 8 ST-8ES1N8A9003S 1613625 30 ST-8EP1N8A9003S 1613606 30
8 ... 10 ST-8ES1N8A9004S 1613626 30 ST-8EP1N8A9004S 1613607 30
Crimp contacts: 4-pos.: Ø 2 mm, 6-/7-/8-pos.: Ø 1 mm,
9-pos.: Ø 1 mm / Ø 0.6 mm
Order separately, see page 96 onwards Order separately, see page 96 onwards
ST-.ES1N8A900.S
Coupling plug connector SPEEDCON/standard interlocking,
for female contacts
ST-.EP1N8A900.S
Coupling plug connector SPEEDCON/standard interlocking,
for male contacts
ST-.ES1N8A900.S , ST-.EP1N8A900.S
92 PHOENIX CONTACT
The coupling plug connector is available
only with SPEEDCON thread. They can be
screwed together with the SPEEDCON
thread as well as with the full thread of the
mating connector.
The plug-in position is marked clearly
using an arrow.
Coupling plug connector
Power connector - PLUSCON circular
M17 - P20 series
4xM2,5
16,8
16,8
17±0,1
31
3
0,85
21,6
16,8
4x2,7
M17
SPEEDCON
Ø
31
3
0,85
21,6
16,8
4x2,7
M17
SPEEDCON
Ø
More informations and installation instructions at: www.phoenixcontact.com
Description No. of pos. Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
M17 appliance plug connector, straight,
for female contacts
4(3+PE) ST-3ES1N8AWQ00S 1607694 30 ST-3ES1N8AW400S 1607692 30
6(5+PE) ST-5ES1N8AWQ00S 1607728 30 ST-5ES1N8AW400S 1607727 30
7(6+PE) ST-6ES1N8AWQ00S 1613589 30 ST-6ES1N8AW400S 1613588 30
8(7+PE) ST-7ES1N8AWQ00S 1607769 30 ST-7ES1N8AW400S 1607768 30
9(5+3+PE) ST-8ES1N8AWQ00S 1613631 30 ST-8ES1N8AW400S 1613630 30
M17 appliance plug connector, straight,
for male contacts
4(3+PE) ST-3EP1N8AWQ00S 1607675 30 ST-3EP1N8AW400S 1607674 30
6(5+PE) ST-5EP1N8AWQ00S 1607711 30 ST-5EP1N8AW400S 1607710 30
7(6+PE) ST-6EP1N8AWQ00S 1613570 30 ST-6EP1N8AW400S 1613569 30
8(7+PE) ST-7EP1N8AWQ00S 1607747 30 ST-7EP1N8AW400S 1607746 30
9(5+3+PE) ST-8EP1N8AWQ00S 1613612 30 ST-8EP1N8AW400S 1613611 30
Crimp contacts: 4-pos.: Ø 2 mm, 6-/7-/8-pos.: Ø 1 mm,
9-pos.: Ø 1 mm / Ø 0.6 mm
Order separately, see page 96 onwards Order separately, see page 96 onwards
Removal tool for contact carrier Order separately, see page 152
ST-.E.1N8AWQ00S
Appliance plug connector, straight,
SPEEDCON/standard interlocking
ST-.E.1N8AW400S
Appliance plug connector, straight,
SPEEDCON/standard interlocking
contact insert for snapping in
Installation dimensions ST-.E.1N8AWQ00S ST-.E.1N8AW400S
93PHOENIX CONTACT
Devices are partially supplied with
punched on and pre-assembled contact
carriers, e.g. encoder for servo motors. It is
practical in such cases to install the
insulation body into the pre-assembled
housing from behind. This version with
contact carrier for snapping-in requires a
removal tool for removing the contact
carrier again from the front.
Appliance plug connector, straight,
front mounting
Power connector - PLUSCON circular
M17 - P20 series
4xM2,5
45°
16,8
Ø23,8
Ø17±0,1
4xM2,5
45°
19,8
Ø28
min.Ø17
max.Ø20,2
36,3
1,3
22,5
M17
SPEEDCON
4x2,7
203°
19,8
25
105°
Ø
36,3
22,5
1,3
M17
SPEEDCON
4x2,7
203°
21,6
16,8
105°
Ø
More informations and installation instructions at: www.phoenixcontact.com
Description No. of pos. Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
M17 appliance plug connector,
angled, rotatable, for female contacts
4(3+PE) ST-3ES1N8AAD00S 1607691 16 ST-3ES1N8AAC00S 1607690 16
6(5+PE) ST-5ES1N8AAD00S 1607726 16 ST-5ES1N8AAC00S 1607725 16
7(6+PE) ST-6ES1N8AAD00S 1613586 16 ST-6ES1N8AAC00S 1613585 16
8(7+PE) ST-7ES1N8AAD00S 1607767 16 ST-7ES1N8AAC00S 1607766 16
9(5+3+PE) ST-8ES1N8AAD00S 1613628 16 ST-8ES1N8AAC00S 1613627 16
M17 appliance plug connector,
angled, rotatable, for male contacts
4(3+PE) ST-3EP1N8AAD00S 1607673 16 ST-3EP1N8AAC00S 1607672 16
6(5+PE) ST-5EP1N8AAD00S 1607709 16 ST-5EP1N8AAC00S 1607708 16
7(6+PE) ST-6EP1N8AAD00S 1613567 16 ST-6EP1N8AAC00S 1613566 16
8(7+PE) ST-7EP1N8AAD00S 1607744 16 ST-7EP1N8AAC00S 1607743 16
9(5+3+PE) ST-8EP1N8AAD00S 1613609 16 ST-8EP1N8AAC00S 1613608 16
Crimp contacts: 4-pos.: Ø 2 mm, 6-/7-/8-pos.: Ø 1 mm,
9-pos.: Ø 1 mm / Ø 0.6 mm
Order separately, see page 96 onwards Order separately, see page 96 onwards
ST-.E.1N8AAD00S
Appliance plug connector, angled, rotatable,
SPEEDCON/standard interlocking,
flange dimension: 21.6 mm
ST-.E.1N8AAC00S
Appliance plug connector, angled, rotatable,
SPEEDCON/standard interlocking,
flange dimension: 25 mm
ST-.ES1N8AAD00S , ST-.EP1N8AAD00S ST-.ES1N8AAC00S , ST-.EP1N8AAC00S
94 PHOENIX CONTACT
The angled panel mounting bases are
progressively rotatable up to 308° for
optimum adjustment to the respective
application.
In addition, two flange dimension versions
with 21.6 mm x 21.6 mm or 25 mm x
25 mm are available.
Panel mounting plug connector angled,
rotatable, flange dimensions 28 x 28 mm on
request.
Appliance plug connector, angled,
rotatable, front mounting
Power connector - PLUSCON circular
M17 - P20 series
M17
M20x1,5
SPEEDCON
26
25,3
max.8
6,7
11,4
Ø
min. 0,8
Ø20,2+0,1
18,1+0,1
min. 3
M20x1,5
M18x0,75
M17
SPEEDCON
21,2
20,6 11,4
max.5
8
Ø
min. 1,5
M18x0,75
min. 0,8
Ø18,2+0,1
17,1+0,1
More informations and installation instructions at: www.phoenixcontact.com
Description No. of pos. Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
M17 appliance plug connector,
for female contacts
4(3+PE) ST-3ES1N8A6100S 1613546 30 ST-3ES1N8AH100S 1613547 30
6(5+PE) ST-5ES1N8A6100S 1613550 30 ST-5ES1N8AH100S 1613551 30
7(6+PE) ST-6ES1N8A6100S 1613572 30 ST-6ES1N8AH100S 1613587 30
8(7+PE) ST-7ES1N8A6100S 1613592 30 ST-7ES1N8AH100S 1613593 30
9(5+3+PE) ST-8ES1N8A6100S 1613614 30 ST-8ES1N8AH100S 1613629 30
M17 appliance plug connector,
for male contacts
4(3+PE) ST-3EP1N8A6100S 1613544 30 ST-3EP1N8AH100S 1613545 30
6(5+PE) ST-5EP1N8A6100S 1613548 30 ST-5EP1N8AH100S 1613549 30
7(6+PE) ST-6EP1N8A6100S 1613553 30 ST-6EP1N8AH100S 1613568 30
8(7+PE) ST-7EP1N8A6100S 1613590 30 ST-7EP1N8AH100S 1613591 30
9(5+3+PE) ST-8EP1N8A6100S 1613595 30 ST-8EP1N8AH100S 1613610 30
Locking nut, for mounting bore holes and polarization
M18 x 0.75 ST-E2015151 1613831 25
M20 x 1.5 RC-13041 1600417 25
Crimp contacts: 4-pos.: Ø 2 mm, 6-/7-/8-pos.: Ø 1 mm,
9-pos.: Ø 1 mm / Ø 0.6 mm
Order separately, see page 96 onwards Order separately, see page 96 onwards
Removal tool for contact carrier Order separately, see page 152 Order separately, see page 152
ST-.E.1N8A6100S
Appliance plug connector, front mounting,
SPEEDCON/standard interlocking,
central fastening thread M18 x 0.75
ST-.E.1N8AH100S
Appliance plug connector, rear mounting,
SPEEDCON/standard interlocking,
central fastening thread M20 x 1.5
ST-.ES1N8AH100S , ST-.EP1N8AH100S
Separate ordering for locking nut
Installation dimensions: ST-.E.1N8AH100S, bore hole with polarization
and locking nut (recommended for installation in steel sheet panel)
Installation dimensions: ST-.E.1N8AH100S, feed-through hole
with thread (recommended for installation in steel sheet panel)
95PHOENIX CONTACT
ST-.ES1N8A6100S , ST-.EP1N8A6100S
Separate ordering for locking nut
Installation dimensions: ST-.E.1N8A6100S, bore hole with polarization
and locking nut (recommended for installation in steel sheet panel)
Installation dimensions: ST-.E.1N8A6100S, feed-through hole
with thread (recommended for installation in steel sheet panel)
The device flanges with central fastening
thread are screwed onto the mounting
panel from outside or inside.
The contact carriers are fastened from
the device side by clipping them in and
snapping them in place. A removal tool is
required for removing the contact carrier
again from the front.
Appliance plug connector,
central fastening thread,
front and rear mounting
Power connector - PLUSCON circular
M17 - P20 series
More informations and installation instructions at: www.phoenixcontact.com
Description No. of pos. Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
M17 appliance plug connector,
for female contacts
4(3+PE) ST-3ES1N8A6100S 1613546 30 ST-3ES1N8AH100S 1613547 30
6(5+PE) ST-5ES1N8A6100S 1613550 30 ST-5ES1N8AH100S 1613551 30
7(6+PE) ST-6ES1N8A6100S 1613572 30 ST-6ES1N8AH100S 1613587 30
8(7+PE) ST-7ES1N8A6100S 1613592 30 ST-7ES1N8AH100S 1613593 30
9(5+3+PE) ST-8ES1N8A6100S 1613614 30 ST-8ES1N8AH100S 1613629 30
M17 appliance plug connector,
for male contacts
4(3+PE) ST-3EP1N8A6100S 1613544 30 ST-3EP1N8AH100S 1613545 30
6(5+PE) ST-5EP1N8A6100S 1613548 30 ST-5EP1N8AH100S 1613549 30
7(6+PE) ST-6EP1N8A6100S 1613553 30 ST-6EP1N8AH100S 1613568 30
8(7+PE) ST-7EP1N8A6100S 1613590 30 ST-7EP1N8AH100S 1613591 30
9(5+3+PE) ST-8EP1N8A6100S 1613595 30 ST-8EP1N8AH100S 1613610 30
Locking nut, for mounting bore holes and polarization
M18 x 0.75 ST-E2015151 1613831 25
M20 x 1.5 RC-13041 1600417 25
Crimp contacts: 4-pos.: Ø 2 mm, 6-/7-/8-pos.: Ø 1 mm,
9-pos.: Ø 1 mm / Ø 0.6 mm
Order separately, see page 96 onwards Order separately, see page 96 onwards
Removal tool for contact carrier Order separately, see page 152 Order separately, see page 152
ST-.E.1N8A6100S
Appliance plug connector, front mounting,
SPEEDCON/standard interlocking,
central fastening thread M18 x 0.75
ST-.E.1N8AH100S
Appliance plug connector, rear mounting,
SPEEDCON/standard interlocking,
central fastening thread M20 x 1.5
ST-.ES1N8AH100S , ST-.EP1N8AH100S
Separate ordering for locking nut
Installation dimensions: ST-.E.1N8AH100S, bore hole with polarization
and locking nut (recommended for installation in steel sheet panel)
Installation dimensions: ST-.E.1N8AH100S, feed-through hole
with thread (recommended for installation in steel sheet panel)
95PHOENIX CONTACT
ST-.ES1N8A6100S , ST-.EP1N8A6100S
Separate ordering for locking nut
Installation dimensions: ST-.E.1N8A6100S, bore hole with polarization
and locking nut (recommended for installation in steel sheet panel)
Installation dimensions: ST-.E.1N8A6100S, feed-through hole
with thread (recommended for installation in steel sheet panel)
The device flanges with central fastening
thread are screwed onto the mounting
panel from outside or inside.
The contact carriers are fastened from
the device side by clipping them in and
snapping them in place. A removal tool is
required for removing the contact carrier
again from the front.
Appliance plug connector,
central fastening thread,
front and rear mounting
Power connector - PLUSCON circular
M17 - P20 series
14,5 Ø1,5
3,8
1,7
6,05
A
Ø1
More informations and installation instructions at: www.phoenixcontact.com
Description Connection cross section
[mm
2
/ AWG] Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
C-HC female contacts, punched-rolled,
Taped, Ø 1 mm, 2500 pieces/ roll
0,08 ... 0,2 / 28-24 SF-10KS320 1607031 1
0,2 ... 0,56 / 24-20 SF-10KS350 1607032 1
C-HC female contacts, punched-rolled,
Taped, Ø 1 mm, 10,000 pieces/ roll
0,08 ... 0,2 / 28-24 SF-10KS330 1607358 1
0,2 ... 0,56 / 24-20 SF-10KS360 1607361 1
Crimping tools for punched-rolled C-HC crimp contacts Order separately, see page 144 onwards Order separately, see page 144 onwards
C-HC female contact Ø 1 mm
A = D-SUB dimension
Number of positions Number of
contacts
Contact Ø
[mm]
4(3+PE) 42
6(5+PE) 61
7(6+PE) 71
8(7+PE) 81
9(5+3+PE) 5+3+PE 0,6+1+1
12 *) 12 0,6
17 17 0,6
*) in preparation
Contact diameter
SF-10KS3.0

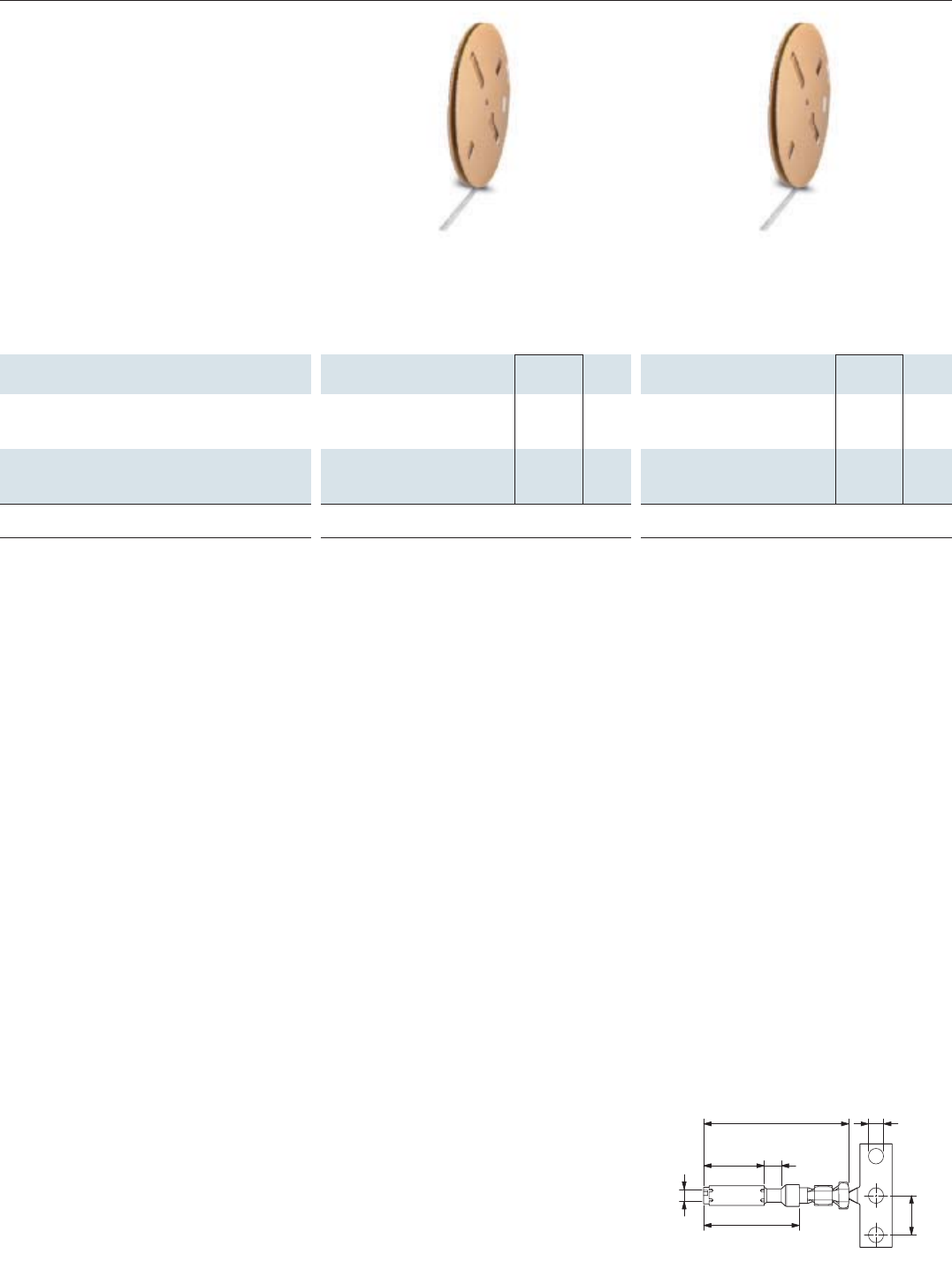

C-HC female contacts
for processing with manual crimping machines
SF-10KS3.0
C-HC female contacts
for processing with crimping machines
96 PHOENIX CONTACT
C-HC
®
are punched-rolled female
contacts with hyperboloid-shaped contact
ridges and integrated wire and insulation
crimp. The high-performance crimp
contacts are designed for up to 10,000
insertion/withdrawal cycles.
The contacts are available taped on rolls
for manual or automatic processing.
Note: Depending on the wire used, the
connection cross-sections (crimp ranges)
can differ from the values mentioned below.
Crimp contacts, punched-rolled
Power connector - PLUSCON circular
M17 - P20 series
More informations and installation instructions at: www.phoenixcontact.com
Description Connection cross section
[mm
2
/ AWG] Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
Contact socket Ø 2.0 mm
0,25 ... 1,0 / 24-18 ST-20KS010 1607657 100
1.0 ... 2.5 / 18-14 ST-20KS020 1607658 100
Contact socket Ø 1.0 mm
0,08 ... 0,2 / 24-18 SF-6CS2000 1605562 100
0,14 ... 0,5 / 26-20 SF-10KS004 1607356 100
0,5 ... 1,0 / 20-18 SF-6AS2000 1605557 100
Wire spring contact, 0.14 ... 1,0 / 26-18 SF-10KS010 1605481 100
Contact socket Ø 0.6 mm
0,08 ... 0,25 / 28-24 ST-06KS010 1607580 100
0,14 ... 0,34 / 26-22 ST-06KS020 1607581 100
0,34 ... 0,5 / 22-20 ST-06KS030 1607582 100
Contact pin Ø 2.0 mm
0,25 ... 1,0 / 24-18 ST-20KP010 1607655 100
1,0 ... 2,5 / 18-14 ST-20KP020 1607656 100
Contact pin Ø 1.0 mm
0,08 ... 0,2 / 28-24 SF-6CP2000 1605559 100
0,14 ... 0,5 / 26-20 SF-10KP004 1607355 100
0,5 ... 1,0 / 20-18 SF-6AP2000 1605554 100
Contact pin Ø 0.6 mm
0,08 ... 0,25 / 28-24 ST-06KP010 1607577 100
0,14 ... 0,34 / 26-22 ST-06KP020 1607578 100
0,34 ... 0,5 / 22-20 ST-06KP030 1607579 100
Crimping tools Order separately, see page 145 onwards Order separately, see page 145 onwards
Crimping tool with digital display Order separately, see page 150 Order separately, see page 150
Notes:
Every connector housing type can be equipped with male or female
contacts.
For reasons pertaining to safety, only female contacts may
be used in the live part of the connector.
Number of positions Number of
contacts
Contact Ø
[mm]
4(3+PE) 42
6(5+PE) 61
7(6+PE) 71
8(7+PE) 81
9(5+3+PE) 5+3+PE 0,6+1+1
12 *) 12 0,6
17 17 0,6
*) in preparation
Contact diameter
S.-....0..
Crimp contacts
socket
S.-....0..
Crimp contacts
pin
97PHOENIX CONTACT
The P20 series connectors are equipped
with contacts Ø 2 mm, Ø 1 mm or
Ø 0.6 mm depending on the number of
positions (see table below).
Note: Depending on the wire used, the
connection cross-sections (crimp ranges)
can differ from the values mentioned below.
Crimp contacts, turned
Power connector - PLUSCON circular
M17 - P20 series
100010030
20
100
120
40
80
60
0
120 140100806040200
8
32
16
24
0
1= 3 x 4mm²
2= 5 x 4mm²
1
2
Power connectors - PLUSCON circular
M23 - P30 series
98 PHOENIX CONTACT
Frequency [MHz]
Attenuation [dB]
Derating curve (for 3 x 4 mm
2
/ 5 x 4 mm
2
) based on DIN
EN 60512-5-2 (cable plug connector mounted)
Current [A]
Ambient temperature [°C]
Shield attenuation curve based on
DIN EN 50289-1-6 SPEEDCON (cable connectors and
appliance plug connectors, angled on the base plate)
Mechanical and electrical data
Mechanical data
Housing material: Rotating part: copper-zinc alloy (CuZn), die-cast part: zinc (GD-Zn)
Housing surface: Nickel-plated; appliance plug connector: nickel-plated/thick layer passivated (can be painted over)
Insulating bodies: Polyamide (PA 66)
Contact material: Copper-zinc alloy (CuZn)
Contact surface: Nickel-plated (Ni) with a gold layer (Au)
Contact connection method: Crimp version
Gasket and O ring: Fluorine rubber (FKM)
Ambient temperature: -20°C ... 125°C
Conductor entry: Cable plug connectors and coupling connectors for external cable diameters of 7.5 - 18 mm
shielded
Locking type: M23 screw locking
Mechanical insertion/withdrawal cycles: Standard: 50, punched-rolled C-HC crimp contacts: up to 10,000
Degree of protection: IP67 when locked
Approval: An overview of the listed connectors as per UL, cUL and VDE will be available on request.
Electrical data
Number of positions 6 (5+PE) 8 (4+3+PE)
Contacts 5 + PE 4 + 3 + PE
Contact Ø [mm] 2 1 2 2
Stranded wire cross sections
Short version, cable Ø max. 14 mm [mm
2
/AWG] 0.25 ... 2.5 / 24-14 0.08 ... 1.0 / 28-18 0.25 ... 2.5 / 24-14 0.25 ... 2.5 / 24-14
Long version, cable Ø max. 18 mm [mm
2
/AWG] 0.25 ... 4.0 / 24-12 0.08 ... 1.0 / 28-18 0.25 ... 4.0 / 24-12 0.25 ... 4.0 / 24-12
Appliance plug connectors [mm
2
/AWG] 0.25 ... 4.0 / 24-12 0.08 ... 1.0 / 28-18 0.25 ... 4.0 / 24-12 0.25 ... 4.0 / 24-12
Nominal current per contact at 25°C
1)
30 9 30 –
Specifications as per DIN EN 61984:2001 –
Nominal/rated voltage [V] 630
2)
250 630
2)
–
Test/surge voltage [kV AC] 6 4 6 –
Surge voltage category III III
Pollution degree
3)
3 3
Installation height [m] Up to 3,000 Up to 3,000
1)
If required, the effective current carrying capacity must be determined according to the application using a derating curve.
2)
400 V when equipped with punched-rolled C-HC contacts
3)
The values specified require a correctly locked pair of connectors that are disconnected only for testing and maintenance. If an unlocked connector is exposed to ambient conditions
and if there is a danger of contamination, the connector should be sealed using a tIP 54 protective cap.
2
5
4
6
1
2
5
4
6
1
1
3
D
CB
AA
BC
D
3
1
Power connectors - PLUSCON circular
M23 - P30 series
99PHOENIX CONTACT
Connector pin assignments and coding
Contact insert numbering
(view of plug-in side)
Number of positions Pin Socket
6-pos.
(5 + PE)
Crimp
* with grounding spring,
pos. 3 leading
* with grounding spring,
pos. 3
8-pos.
(4 + 3 + PE)
Crimp
* with grounding spring,
pos. 2
* with grounding spring,
pos. 2 leading
6 * 6 *
6 * 6 *
Power connectors - PLUSCON circular
M23 - P30 series
100 PHOENIX CONTACT
Selection guide
M23 power connectors up to 30 A /
630 V, crimp ranges of up to 4 mm
2
/
AWG 12
– Cable plug connectors
– Coupling connectors
– Appliance plug connectors
(device flange)
– Feed-throughs / panel feed-throughs
The P30 connectors are fully assembled
and the respective crimp contacts must be
ordered separately.
The product chart provides an overview
of the available components.
Connector type
long, page 102
Cable plug connectors
with M20x1.5 for ext. cable
gland, page 104
Coupling connectors
short, page 102
shieldedshieldedshielded
Appliance plug connectors
Panel feed-through
socket outside - pin inside, page 111
2-part housing for higher loads, page 109
Appliance plug connector with knurled nut
Outside panel assembly,
page 109
long, page 103 with M20x1.5 for ext. cable gland,
page 104
short, page 103
with mounting flange
long, page 110
with mounting flange
short, page 110
straight low design, page 105 2-part housing for higher loads,
page 106
SF-..P1N8AWA00
Panel feed-throughs are delivered in a fully wired
state
SF-..S1N8A80.. SF-..S1N8A8L.. SF-..S1N8AR4DU
SF-..S1N8AY000
SF-..S1N8AYW00
SF-..P1N8A90.. SF-..P1N8A9L.. SF-..P1N8AF4DU
SF-..P1N8AC0.. SF-..P1N8ACL..
straight, page 105
SF-..P1N8AWK00
SF-..P1N8AA200
SF-..E1N8AS000
rotatable, larger
flange dimensions,
page 108
rotatable, page 108 fixed, larger flange
dimensions, page 107
fixed, page 107
SF-..P1N8AAK00SF-..P1N8AAF00SF-..P1N8AAC00SF-..P1N8AAD00
Power connectors - PLUSCON circular
M23 - P30 series
101PHOENIX CONTACT
Male contacts
Male contacts
Female contacts
Crimping tools
Crimping pliers for punched-rolled C-HC crimp
contacts,
page 144
Crimping pliers with digital display for turned
crimp contacts,
page 150
Crimping pliers for turned crimp contacts,
page 147
Female contacts
Turned, page 113
Male contacts
Turned, page 113
Punched-rolled taped,
page 112
Note:
For reasons pertaining to safety, only
female contacts may be used in the live
part of the connector.
Tools / accessoriesCrimp contacts
64
Ø28
26 26
28
Ø
75
26 26
More informations and installation instructions at: www.phoenixcontact.com

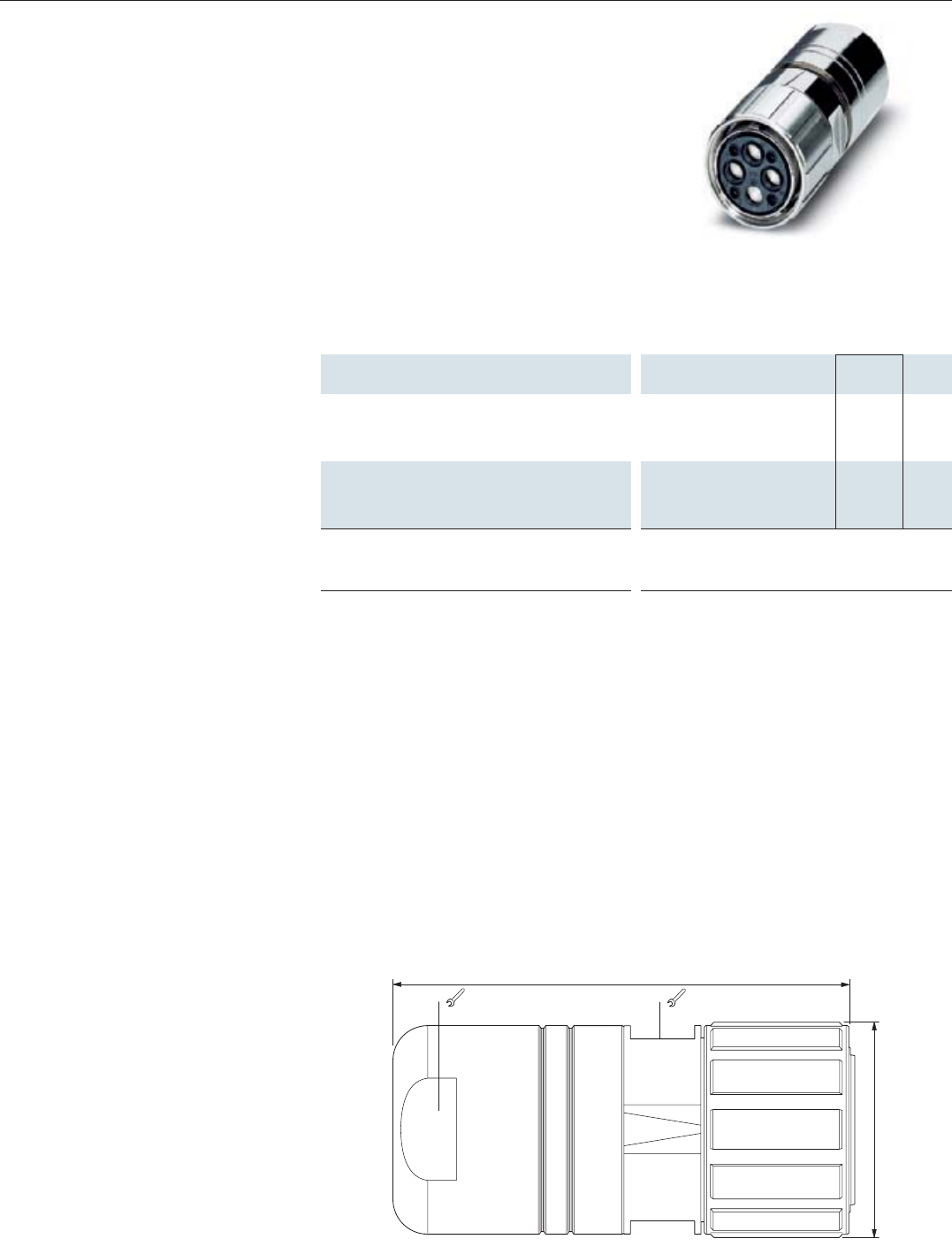

SF-.ES1N8A8...
Cable plug connector in short / long versions
102 PHOENIX CONTACT
Description Cable seal Ø [mm] Type Order No. Pcs. /
Pkt.
Cable plug connector P30, 6-pos. (5+PE), shielded, straight,
short for a Ø 7.5 mm to 14 mm cable,
connection cross section of up to 2.5 mm
2
/ AWG 14
universal 7.5 ... 14,0 SF-5ES1N8A80DU 1605532 20
7,5 ... 9,0 SF-5ES1N8A80A1 1605524 20
9,0 ... 11,0 SF-5ES1N8A80A2 1605526 20
11,0 ... 14,0 SF-5ES1N8A80A3 1605529 20
Cable plug connector P30, 6-pos. (5+PE), shielded, straight,
long for a Ø 7.5 mm to 18 mm cable,
connection cross section of up to 4 mm
2
/ AWG 12
universal 7.5 ... 18,0 SF-5ES1N8A8LDL 1605549 20
7,5 ... 9,0 SF-5ES1N8A8LB4 1605548 20
9,0 ... 12,0 SF-5ES1N8A8LB3 1605546 20
12,0 ... 15,0 SF-5ES1N8A8LB2 1605545 20
15,0 ... 18,0 SF-5ES1N8A8LB1 1605543 20
Cable plug connector P30, 8-pos. (4+3+PE), shielded, straight,
short for a Ø 7.5 mm to 14 mm cable,
connection cross section of up to 2.5 mm
2
/ AWG 14
universal 7.5 ... 14,0 SF-7ES1N8A80DU 1605602 20
7,5 ... 9,0 SF-7ES1N8A80A1 1605595 20
9,0 ... 11,0 SF-7ES1N8A80A2 1605596 20
11,0 ... 14,0 SF-7ES1N8A80A3 1605597 20
Cable plug connector P30, 8-pos. (4+3+PE), shielded, straight,
long for a Ø 7.5 mm to 18 mm cable,
connection cross section of up to 4 mm
2
/ AWG 12
universal 7.5 ... 18,0 SF-7ES1N8A8LDL 1605617 20
7,5 ... 9,0 SF-7ES1N8A8LB4 1605614 20
9,0 ... 12,0 SF-7ES1N8A8LB3 1605610 20
12,0 ... 15,0 SF-7ES1N8A8LB2 1605607 20
15,0 ... 18,0 SF-7ES1N8A8LB1 1605605 20
Crimp contacts Order separately, see page 112 onwards
Signal contacts Ø 1 mm
Power and PE contacts Ø 2 mm
SF-.ES1N8A80.. SF-.ES1N8A8L..
Cable clamping ranges, universal seals
Housing version Short Long
Cable Ø
[mm]
Cable Ø
[mm]
State of delivery 7.5 ... 9 7,5 ... 8
Section 1 11 ... 14 16 ... 18
Section 2 9 ... 11 14 ... 16
Section 3 12 ... 14
Section 4 10 ... 12
Section 5 8 ... 10
The cable and coupling plug connectors
are supplied with cable gaskets for various
conductor diameters.
Crimp contacts are ordered separately
depending on the respective connection
cross-sections.
The cable plug connectors must be
equipped with female contacts.
P30 are M23 power connectors for higher
transmission capacities and connection
cross-sections. Electrical power up to
250/630 V at 9/30 A can be transmitted
with connection cross-sections of 4 mm
2
/
AWG 12.
Two connector lengths are available for
the cable and coupling plug connectors for
power and cable-side adjustment to the
respective application:
– Short version: for connection cross-
sections up to 2.5 mm
2
/ AWG 14 and
max. cable diameter of 14 mm, shielded.
– Long version: for connection cross-
sections up to 4 mm
2
/ AWG 12and max.
cable diameter of 18 mm, shielded.
The crimp contacts can be quickly
assembled by snapping into place in the
contact carrierand allow short assembly
times.
The braided shield directly contacts the
housing over a 360° all-round contact,
irrespective of the cable diameter.
Cable plug connector - socket,
long and short type
Power connector - PLUSCON circular
M23 - P30 series
M23x1
60,1
26 26
70,9
M23x1
26 26
More informations and installation instructions at: www.phoenixcontact.com
Description Cable seal Ø [mm] Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
Coupling plug connector P30, 6-pos. (5+PE), shielded, straight,
short for a Ø 7.5 mm to 14 mm cable,
connection cross section of up to 2.5 mm
2
/ AWG 14
universal 7.5 ... 14,0 SF-5EP1N8A90DU 1605499 20
7,5 ... 9,0 SF-5EP1N8A90A1 1605494 20
9,0 ... 11,0 SF-5EP1N8A90A2 1605496 20
11,0 ... 14,0 SF-5EP1N8A90A3 1605498 20
Coupling plug connector P30, 8-pos. (4+3+PE), shielded,
straight, short for a Ø 7.5 mm to 14 mm cable,
connection cross section of up to 2.5 mm
2
/ AWG 14
universal 7.5 ... 14,0 SF-7EP1N8A90DU 1605575 20
7,5 ... 9,0 SF-7EP1N8A90A1 1605568 20
9,0 ... 11,0 SF-7EP1N8A90A2 1605570 20
11,0 ... 14,0 SF-7EP1N8A90A3 1605571 20
Coupling plug connector P30, 6-pos. (5+PE), shielded, straight,
long for a Ø 7.5 mm ... 18 mm cable,
connection cross section of up to 4 mm
2
/ AWG 12
universal 7.5 ... 18,0 SF-5EP1N8A9LDL 1605510 20
7,5 ... 9,0 SF-5EP1N8A9LB4 1605509 20
9,0 ... 12,0 SF-5EP1N8A9LB3 1605508 20
12,0 ... 15,0 SF-5EP1N8A9LB2 1605507 20
15,0 ... 18,0 SF-5EP1N8A9LB1 1605505 20
Coupling plug connector P30, 8-pos. (4+3+PE), shielded,
straight, long for a Ø 7.5 mm to 18 mm cable,
connection cross section of up to 4 mm
2
/ AWG 12
universal 7.5 ... 18,0 SF-7EP1N8A9LDL 1605583 20
7,5 ... 9,0 SF-7EP1N8A9LB4 1605582 20
9,0 ... 12,0 SF-7EP1N8A9LB3 1605581 20
12,0 ... 15,0 SF-7EP1N8A9LB2 1605580 20
15,0 ... 18,0 SF-7EP1N8A9LB1 1605578 20
Crimp contacts Order separately, see page 112 onwards Order separately, see page 112 onwards
Signal contacts Ø 1 mm
Power and PE contacts Ø 2 mm
SF-.EP1N8A90.. SF-.EP1N8A9L..
Cable clamping ranges, universal seals
Housing version Short Long
Cable Ø
[mm]
Cable Ø
[mm]
State of delivery 7.5 ... 9 7,5 ... 8
Section 1 11 ... 14 16 ... 18
Section 2 9 ... 11 14 ... 16
Section 3 12 ... 14
Section 4 10 ... 12
Section 5 8 ... 10
SF-.EP1N8A90..
Coupling plug connector,
short version
SF-.EP1N8A9L..
Coupling plug connector,
long version
103PHOENIX CONTACT
P30 coupling plug connectors are available
in two lengths:
– Short version: for connection cross-
sections up to 2.5 mm
2
/ AWG 14 and
max. cable diameter of 14 mm, shielded.
– Long version: for connection cross-
sections up to 4 mm
2
/ AWG 12 and max.
cable diameter of 18 mm, shielded.
Both versions are available in 6-pos.
(5+PE) and 8-pos (4+3+PE).
Coupling plug connector - pin,
long and short type
Power connector - PLUSCON circular
M23 - P30 series
76,4
28
Ø
26 26
M23x1
71,6
26 26
More informations and installation instructions at: www.phoenixcontact.com
Description Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
Connector P30, 6-pos. (5+PE), with additional thread
M20 x 1.5 for cable gland, for a Ø 7.5 mm to 14 mm cable,
connection cross section of up to 2.5 mm
2
/ AWG 14
SF-5ES1N8AR4DU 1605553 20 SF-5EP1N8AF4DU 1605519 20
Connector P30, 8-pos. (4+3+PE), with additional thread
M20 x 1.5 for cable gland, for a Ø 7.5 mm to 14 mm cable,
connection cross section of up to 2.5 mm
2
/ AWG 14
SF-7ES1N8AR4DU 1605621 20 SF-7EP1N8AF4DU 1605588 20
Crimp contacts Order separately, see page 112 onwards Order separately, see page 112 onwards
Signal contacts Ø 1 mm
Power and PE contacts Ø 2 mm
Additional cable gland Order separately, see page 143 Order separately, see page 143
SF-.ES1N8AR4DU SF-.EP1N8AF4DU
Clamping ranges
Universal seals
Cable Ø[mm]
State of delivery 7,5 ... 9
Section 1 11 ... 14
Section 2 9 ... 11
SF-.ES1N8AR4DU
Cable plug connector with additional thread
SF-.EP1N8AF4DU
Coupling plug connector with additional thread
104 PHOENIX CONTACT
The P30 cable and coupling plug
connector with M20 x 1.5 thread for
additional external cable glands is available
for special requirements, for example drag
chain suitability.
Cable and coupling plug connector -
socket and pin with M20 thread for
external cable gland
Power connector - PLUSCON circular
M23 - P30 series
22,6±0,1
Ø22,5+0,1
4xM3
19,8±0,1
Ø20+0,1
4xM3
1
39,4
4,65
M23x1
Ø4x3,2
26
19,8
36,9
28,4
4,7
M23x1
Ø4x3,2
28
22,6
More informations and installation instructions at: www.phoenixcontact.com
Description No. of pos. Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
Appliance plug connector P30, straight
6-position (5+PE) SF-5EP1N8AWK00 1607043 20 SF-5EP1N8AWA00 1605520 20
8-position (4+3+PE) SF-7EP1N8AWK00 1605591 20 SF-7EP1N8AWA00 1605589 20
Crimp contacts Order separately, see page 112 onwards Order separately, see page 112 onwards
Signal contacts Ø 1 mm
Power and PE contacts Ø 2 mm
SF-.EP1N8AW.00
Appliance plug connector, straight,
low design
SF-.EP1N8AW.00
Appliance plug connector, straight,
high design
Installation dimensions: SF-.EP1N8AWK00 Installation dimensions: SF-.EP1N8AWA00
105PHOENIX CONTACT
SF-.EP1N8AWK00 SF-.EP1N8AWA00
The P30 range offers various appliance
plug connectors adapted to the respective
application, e.g.: straight housing, also as a
lower type for space-saving installation.
Straight appliance plug connector,
pin, lower and higher type
Power connector - PLUSCON circular
M23 - P30 series
19,8±0,1
Ø20+0,1
4xM3
25,4
M23x1
4,65
45,9
Ø4x3,2
19,8
26
More informations and installation instructions at: www.phoenixcontact.com
Description Type Order No. Pcs. /
Pkt.
Appliance plug connector P30, 6-pos. (5+PE), angled fixed,
2-part housing for higher loads
SF-5EP1N8AA200 1607906 16
Appliance plug connector P30, 8-pos. (4+3+PE), angled fixed,
2-part housing for higher loads
SF-7EP1N8AA200 1607908 16
Crimp contacts Order separately, see page 112 onwards
Signal contacts Ø 1 mm
Power and PE contacts Ø 2 mm
SF-.EP1N8AA200
Appliance plug connector, angled fixed
106 PHOENIX CONTACT
Some applications require shock-resistant
housing versions. To meet these
requirements, a specially
robust version of the angled device
connector is available.
The housing has a two-piece design,
consisting of a solid, fixed angular part and
the straight standard flange.
Angled, fixed appliance plug
connector, pin, for higher loads,
flange dimension 26 mm
Power connector - PLUSCON circular
M23 - P30 series
Installation dimensions: SF-.EP1N8AA200
SF-.EP1N8AA200
19,8±0,1
Ø20+0,1
4xM3
22,6±0,1
Ø20+0,1
4xM3
25,4
1,85
4,65
M23x1
40
28
22,6
4x3,2
Ø
23,25
1,85
2,5
M23x1
40
Ø4x3,2
26
19,8
26
19,8
More informations and installation instructions at: www.phoenixcontact.com
Description Flange dimension: Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
Appliance plug connector P30, 6-pos. (5+PE), angled, fixed
26 mm x 26 mm SF-5EP1N8AAF00 1607036 16
Appliance plug connector P30, 8-pos. (4+3+PE), angled, fixed
26 mm x 26 mm SF-7EP1N8AAF00 1607046 16
Appliance plug connector P30, 6-pos. (5+PE), angled, fixed
28 mm x 28 mm SF-5EP1N8AAK00 1605515 16
Appliance plug connector P30, 8-pos. (4+3+PE), angled, fixed
28 mm x 28 mm SF-7EP1N8AAK00 1607047 16
Crimp contacts Order separately, see page 112 onwards Order separately, see page 112 onwards
Signal contacts Ø 1 mm
Power and PE contacts Ø 2 mm
SF-.EP1N8AAF00
Appliance plug connector, angled fixed,
flange dimension 26 mm
SF-.EP1N8AAK00
Appliance plug connector, angled fixed,
flange dimension 28 mm
Installation dimensions: SF-.EP1N8AAF00 Installation dimensions: SF-.EP1N8AAK00
107PHOENIX CONTACT
SF-.EP1N8AAF00 SF-.EP1N8AAK00
The angled appliance plug connectors are
also available with enlarged flange
dimensions for high vibration loads.
Angled, fixed appliance plug
connector, pin,
flange dimensions 26 and 28 mm
Power connector - PLUSCON circular
M23 - P30 series
19,8±0,1
Ø20+0,1
4xM3
22,6±0,1
Ø20+0,1
4xM3
25,4
1,85
4,65
M23x1
40
28
22,6
4x3,2
Ø
212°
98°
25,4
1,85
4,65
M23x1
40
Ø4x3,2
26
19,8
26
19,8
212°
98°
More informations and installation instructions at: www.phoenixcontact.com
Description Flange dimension: Type Order No. Pcs. /
Pkt.
Appliance plug connector P30, 6-pos. (5+PE), angled, rotatable
26 mm x 26 mm SF-5EP1N8AAD00 1605512 16
28 mm x 28 mm SF-5EP1N8AAC00 1607035 16
Appliance plug connector P30, 8-pos. (4+3+PE), angled,
rotatable
26 mm x 26 mm SF-7EP1N8AAD00 1605586 16
28 mm x 28 mm SF-7EP1N8AAC00 1607045 16
Crimp contacts Order separately, see page 112 onwards
Signal contacts Ø 1 mm
Power and PE contacts Ø 2 mm
SF-.EP1N8AA.00
Appliance plug connector, angled rotatable
108 PHOENIX CONTACT
The P30 range offers various appliance
plug connectors, adapted to the respective
application:
– Angled housing, rotatable and fixed, also
with enlarged flange dimension for high
vibration loads.
Angled, rotatable appliance plug
connector, pin,
flange dimensions 26 and 28 mm
Power connector - PLUSCON circular
M23 - P30 series
Edge abrasion
max.0.2
Installation dimensions: SF-.EP1N8AAD00
Edge abrasion
max.0.2
Installation dimensions: SF-.EP1N8AAC00
SF-.EP1N8AAD00 SF-.EP1N8AAC00
19,8±0,1
Ø20+0,1
4xM3
19,8±0,1
Ø20+0,1
4xM3
4,65
50,5
Ø28
Ø 4x3,2
26
19,8
44
4,65
1
Ø
Ø
4x3,2
28
26
19,8
More informations and installation instructions at: www.phoenixcontact.com
Description Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
Appliance plug connector P30, with knurled nut,
6-pos. (5+PE), straight
SF-5ES1N8AY000 1607082 20
Appliance plug connector P30, with knurled nut,
8-pos. (4+3+PE), straight
SF-7ES1N8AY000 1605622 20
Appliance plug connector P30, 6-pos. (5+PE), angled fixed,
2-part housing with knurled nut, for higher loads
SF-5ES1N8AYW00 1607405 20
Appliance plug connector P30, 8-pos. (4+3+PE), angled fixed,
2-part housing with knurled nut, for higher loads
SF-7ES1N8AYW00 1607429 20
Crimp contacts Order separately, see page 112 onwards Order separately, see page 112 onwards
Signal contacts Ø 1 mm
Power and PE contacts Ø 2 mm
SF-.ES1N8AY000
Appliance plug connector with knurled nut
SF-.ES1N8AYW00
Appliance plug connector with knurled nut, angled fixed
Installation dimensions: SF-.ES1N8AY000 Installation dimensions: SF-.ES1N8AYW00
109PHOENIX CONTACT
SF-.ES1N8AY000 SF-.ES1N8AYW00
Some applications require shock-resistant
housing versions. Robust versions of the
angled device connector are available to
meet these requirements.
The housing has a two-piece design,
consisting of a solid, fixed angular part and
the straight standard flange.
Note:
Power appliance plug connectors with
knurled nuts must be equipped with female
contacts.
Appliance plug connectors
straight/angled, fixed, socket, with
knurls, flange dimension 26 mm
Power connector - PLUSCON circular
M23 - P30 series
4xM3
37,95
Ø28,3±0,1
Ø41,6
29,4±0,1
4xØ3,2
60
,
1
20,2
6,15
M23x1
27,9
Ø
70
,
9
20,2
6,15
M23x1
27,9
Ø
More informations and installation instructions at: www.phoenixcontact.com
SF-.EP1N8AC...
Panel feed-through for inside panel mounting
110 PHOENIX CONTACT
Description Cable seal Ø [mm] Type Order No. Pcs. /
Pkt.
Panel feed-through P30, 6-pos. (5+PE), inside, 4xM3 thread
mounting, short for a Ø 7.5 mm to 14 mm cable,
connection cross section of up to 2.5 mm
2
/ AWG 14
universal 7.5 ... 14,0 SF-5EP1N8AC0DU 1605517 10
7,5 ... 9,0 SF-5EP1N8AC0A1 1605516 10
9,0 ... 11,0 SF-5EP1N8AC0A2 1607037 10
11,0 ... 14,0 SF-5EP1N8AC0A3 1607038 10
Panel feed-through P30, 6-pos. (5+PE), inside, 4xM3 thread
mounting, long for a Ø 7.5 mm to 18 mm cable,
connection cross section of up to 4 mm
2
/ AWG 12
universal 7.5 ... 18,0 SF-5EP1N8ACLDL 1605518 10
7,5 ... 9,0 SF-5EP1N8ACLB4 1607042 10
9,0 ... 12,0 SF-5EP1N8ACLB3 1607041 10
12,0 ... 15,0 SF-5EP1N8ACLB2 1607040 10
15,0 ... 18,0 SF-5EP1N8ACLB1 1607039 10
Panel feed-through P30, 8-pos. (4+3+PE), inside, 4xM3 thread
mounting, short for a Ø 7.5 mm to 14 mm cable,4
connection cross section of up to 2.5 mm
2
/ AWG 14
universal 7.5 ... 14,0 SF-7EP1N8AC0DU 1607051 10
7,5 ... 9,0 SF-7EP1N8AC0A1 1607048 10
9,0 ... 11,0 SF-7EP1N8AC0A2 1607049 10
11,0 ... 14,0 SF-7EP1N8AC0A3 1607050 10
Panel feed-through P30, 8-pos. (4+3+PE), inside, 4xM3 thread
mounting, long for a Ø 7.5 mm to 18 mm cable,
connection cross section of up to 4 mm
2
/ AWG 12
universal 7.5 ... 18,0 SF-7EP1N8ACLDL 1607056 10
7,5 ... 9,0 SF-7EP1N8ACLB4 1607055 10
9,0 ... 12,0 SF-7EP1N8ACLB3 1607054 10
12,0 ... 15,0 SF-7EP1N8ACLB2 1607053 10
15,0 ... 18,0 SF-7EP1N8ACLB1 1607052 10
Crimp contacts Order separately, see page 112 onwards
Signal contacts Ø 1 mm
Power and PE contacts Ø 2 mm
Flange dimensions: SF-.EP1N8AC0.. , SF-.EP1N8ACL.. Installation dimensions: SF-.EP1N8AC0.. , SF-.EP1N8ACL..
SF-.EP1N8AC0.. SF-.EP1N8ACL..
Cable clamping ranges, universal seals
Housing version Short Long
Cable Ø
[mm]
Cable Ø
[mm]
State of delivery 7.5 ... 9 7,5 ... 8
Section 1 11 ... 14 16 ... 18
Section 2 9 ... 11 14 ... 16
Section 3 12 ... 14
Section 4 10 ... 12
Section 5 8 ... 10
The P30 series provides a complete range
of panel feed-throughs in different versions
for flexible power cabling of machines and
systems.
Panel feed-through, pin,
long and short type
Power connector - PLUSCON circular
M23 - P30 series
Ø28,3±0,1
Ø41,6
29,4±0,1
4xØ3,2
77,7
32,2
6,2
M23x1
Ø
4xM3
28
37,95
More informations and installation instructions at: www.phoenixcontact.com
Description Type Order No. Pcs. /
Pkt.
Panel feed-through P30, 6-pos. (5+PE), outside, pin inside -
socket outside, completely wired
SF-5EE1N8AS000 1605492 1
Panel feed-through P30, 8-pos. (4+3+PE), outside, pin inside -
socket outside, completely wired
SF-7EE1N8AS000 1605567 1
SF-.EE1N8AS000
Panel feed-through for outside panel assembly
111PHOENIX CONTACT
The power panel feed-throughs for
outside panel assembly are supplied
completely wired internally and equipped
with contacts.
Panel feed-through, fully wired,
pin/socket
Power connector - PLUSCON circular
M23 - P30 series
Installation dimensionsSF-5EE1N8AS000 , SF-7EE1N8AS000
14,5 Ø1,5
3,8
1,7
6,05
A
Ø1
Ø1,5
6
29
2,87,8
Ø2
More informations and installation instructions at: www.phoenixcontact.com
Description Connection cross section
[mm
2
/ AWG] Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
C-HC female contacts, punched-rolled,
Taped, Ø 1 mm, 2,500 pieces / roll
0,08 ... 0,2 / AWG 28-24 SF-10KS320 1607031 1
0,2 ... 0,56 / AWG 24-20 SF-10KS350 1607032 1
C-HC female contacts, punched-rolled,
Taped, Ø 1 mm, 10,000 pieces/ roll
0,08 ... 0,2 / AWG 28-24 SF-10KS330 1607358 1
0,2 ... 0,56 / AWG 24-20 SF-10KS360 1607361 1
C-HC female contacts, punched-rolled,
Taped, Ø 2 mm, 1000 pieces / roll
1,0 ... 2,5 / AWG 18-14 SF-20KS350 1607034 1
C-HC female contacts, punched-rolled,
Taped, Ø 2 mm, 4000 pieces / roll
1,0 ... 2,5 / AWG 18-14 SF-20KS360 1607381 1
Crimping tools for punched-rolled C-HC crimp contacts Order separately, see page 144 Order separately, see page 144
C-HC female contact Ø 1 mm
A = D-SUB dimension
C-HC female contact Ø 2 mm
Number of positions Number of
contacts
Contact Ø
[mm]
6(5+PE) 5+PE 2+2
8(4+3+PE) 4+3+PE 1+2+2
Contact diameter
SF-.0KS3.0
C-HC female contacts
for processing with manual crimping machines
SF-10KS3.0
C-HC female contacts
for processing with crimping machines
112 PHOENIX CONTACT
C-HC
®
are punched-rolled female
contacts with hyperboloid-shaped contact
ridges and integrated wire and insulation
crimp. The high-performance crimp
contacts are designed for up to 10,000
insertion/withdrawal cycles.
The contacts are available taped on rolls
for manual or automatic processing.
Note: Depending on the wire used, the
connection cross-sections (crimp ranges)
can differ from the values mentioned below.
Crimp contacts, punched-rolled
Power connector - PLUSCON circular
M23 - P30 series
More informations and installation instructions at: www.phoenixcontact.com
Description Connection cross section
[mm
2
/ AWG] Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
Contacts, socket Ø 2.0 mm for P30 cable and appliance plug
connectors with knurled nuts, power and PE contacts
0,25 ... 1,0 / AWG 24-18 SF-7PS2000 1605636 100
0,75 ... 1,5 / AWG 18-16 SF-7NS2000 1605631 100
1.0 ... 2.5 / AWG 18-14 SF-7QS2000 1605643 100
4,0 / AWG 12 SF-7MS2000 1605628 50
Wire spring contact, 0.75 ...2.5 / AWG 18-14 SF-20KS010 1605491 100
Contacts, socket Ø 1.0 mm for P30 cable and appliance plug
connectors with knurled nuts, signal contacts
0,08 ... 0,2 / AWG 24-24 SF-6CS2000 1605562 100
0,14 ... 0,5 / AWG 26-20 SF-10KS004 1607356 100
0,5 ... 1,0 / AWG 20-18 SF-6AS2000 1605557 100
0,5 ... 1,0/1,5 / AWG 20-18 SF-6FS2000 1605566 100
Wire spring contact, 0.14 ... 1,0 / AWG 26-18 SF-10KS010 1605481 100
Contacts, pin Ø 2.0 mm for P30 coupling connector,
power and PE contacts
0,14 ... 0,25 / AWG 26-24 SF-7RP2000 1605646 100
0,25 ... 1,0 / AWG 24-18 SF-7PP2000 1605634 100
0,75 ... 1,5 / AWG 18-16 SF-20KP004 1607376 100
1.0 ... 2.5 / AWG 18-14 SF-7QP2000 1605639 100
4,0 / AWG 12 SF-7MP2000 1605626 50
Contacts, pin Ø 1.0 mm for P30 coupling connector,
signal contacts
0,08 ... 0,2 / AWG 24-24 SF-6CP2000 1605559 100
0,14 ... 0,5 / AWG 26-20 SF-10KP004 1607355 100
0,5 ... 1,0 / AWG 20-18 SF-6AP2000 1605554 100
0,5 ... 1,0/1,5 / AWG 20-18 SF-6DP2000 1607406 100
Contacts, pin Ø 2.0 mm for P30 appliance plug connector,
power and PE contacts
0,14 ... 0,25 / AWG 26-24 SF-7RP2000 1605646 100
0,25 ... 1,0 / AWG 24-18 SF-7PP2000 1605634 100
0,75 ... 1,5 / AWG 18-16 SF-20KP004 1607376 100
1.0 ... 2.5 / AWG 18-14 SF-7QP2000 1605639 100
4,0 / AWG 12 SF-7MP2000 1605626 50
Contacts, pin Ø 1.0 mm for P30 appliance plug connector,
signal contacts
0,08 ... 0,2 / AWG 28-24 SF-6CP2000 1605559 100
0,14 ... 0,5 / AWG 26-20 SF-10KP004 1607355 100
0,5 ... 1,0 / AWG 20-18 SF-6AP2000 1605554 100
0,5 ... 1,0/1,5 / AWG 20-18 SF-6DP2000 1607406 100
Crimping tools Order separately, see page 147 onwards
Crimping tool with digital display Order separately, see page 150
SF-....0..
Crimp contacts
socket
SF-....00.
Crimp contacts
pin
113PHOENIX CONTACT
The 6-pos. (5+PE) versions are equipped
with Ø 2 mm contacts. The 8-pos.
(4+3+PE) versions are equipped with four
Ø 1 mm signal contacts and four 2 mm
contacts (three power, 1 PE contact).
Note: Depending on the wire used, the
connection cross-sections (crimp ranges)
can differ from the values mentioned below.
Crimp contacts, turned
Power connector - PLUSCON circular
M23 - P30 series
Note:
Please pay attention to crimp ranges for cable plug
connectors and coupling connectors.
Short version:
for connection cross sections of up to 2.5 mm² / AWG 14 and max.
cable Ø 14 mm, shielded.
Long version:
for connection cross sections of up to 4.0 mm² / AWG 12 and max.
cable Ø 18 mm, shielded.
Number of positions Number of
contacts
Contact Ø
[mm]
6(5+PE) 5+PE 2+2
8(4+3+PE) 4+3+PE 1+2+2
Contact diameter
100010030
20
100
120
40
80
60
0
120 140100806040200
20
10
60
70
30
50
40
0
1= 3 x 10mm²
1
Power connectors - PLUSCON circular
M40 - P70 series
114 PHOENIX CONTACT
Att
enua
ti
on
[dB]
Frequency [MHz]Ambient temperature [°C]
C
urren
t[A]
Mechanical and electrical data
Mechanical data
Housing material: Rotating part: copper-zinc alloy (CuZn), die-cast part: zinc (GD-Zn)
Housing surface: Nickel-plated; appliance plug connector: nickel-plated/thick layer passivated (can be painted over)
Insulating bodies: Polyamide (PA 66)
Contact material: Copper-zinc alloy (CuZn)
Contact surface: Nickel-plated (Ni) with a gold layer (Au)
Contact connection method: Crimp version
Gasket and O ring: Fluorine rubber (FKM)
Ambient temperature: -20°C ... 125°C
Conductor entry: External cable diameter 9.0 - 26.5 mm, shielded
Locking type: M40 x 1.5 screw locking / M40 SPEEDCON quick locking
Mechanical insertion/withdrawal cycles: Standard: 50
Degree of protection: IP67 when locked
Approval: An overview of the listed connectors as per UL, cUL and VDE will be available on request.
Electrical data
Number of positions 6 (2+3+PE) 8 (4+3+PE)
Contacts 2+3+PE 4+3+PE
Contact Ø [mm] 2,0 3,6 3,6 2,0 3,6 3,6
Stranded wire cross sections
Short version, cable Ø max. 25.5 mm
[mm
2
/AWG] 0.14 ... 4.0/26-12 0.75 ... 10/18-8 0.75 ... 10/18-8 0.14 ... 4.0/26-12 0.75 ... 10/18-8 0.75 ... 10/18-8
Long version, cable Ø max. 26.5 mm
[mm
2
/AWG] 0.14 ... 4.0/26-12 0.75 ... 10/18-8 0.75 ... 10/18-8 0.14 ... 4.0/26-12 0.75 ... 10/18-8 0.75 ... 10/18-8
Appliance plug connectors
[mm
2
/AWG] 0.14 ... 4.0/26-12 0.75 ... 10/18-8 0.75 ... 10/18-8 0.14 ... 4.0/26-12 0.75 ... 10/18-8 0.75 ... 10/18-8
Nominal current per contact at 25°C
1)
[A] 30 70 – 30 70 –
Specifications as per DIN EN 61984:2001
Nominal/operating voltage [V AC / DC] 250 630 – 250 630 –
Test/surge voltage [kV] 4 6 – 4 6 –
Surge voltage category III III
Pollution degree 3 3
Installation height [m] Up to 3,000 Up to 3,000
1)
If required, the effective current carrying capacity must be determined according to the application using a derating curve.
Derating curve
for 3 x 10 mm
2
based on DIN EN 60512-5-2
(cable plug connector mounted)
Shield attenuation curve based on DIN EN 50289-1-6
SPEEDCON cable connector and appliance connector,
angled on the base plate
Note:
Plug connectors may only be inserted or removed when
the power supply is disconnected.
V
WU
+
-
V
UW
-
+
V
WU
+
-
21
V
UW
-
+
12
Power connectors - PLUSCON circular
M40 - P70 series
115PHOENIX CONTACT
Contact insert numbering
(view of plug-in side)
Number of positions Pin Socket
6-pos.
(2 + 3 + PE)
Crimp
8-pos.
(4 + 3 + PE)
Crimp
* with grounding spring
6 * 6 *
6 * 6 *
Connector pin assignments and coding
Power connectors - PLUSCON circular
M40 - P70 series
116 PHOENIX CONTACT
Selection guide
M40 power connectors up to 70 A /
630 V, crimp ranges up to 10 mm
2
/
AWG 8
– Cable plug connectors
– Coupling connectors
– Appliance plug connectors
(device flange)
– Feed-throughs / panel feed-throughs
The P70 connectors are fully assembled
and the respective crimp contacts must be
ordered separately.
P70 connectors with a knurled nut are
available with SPEEDCON quick locking
or with the M40 x 1,5 control thread.
The product chart provides an overview
of the available components.
Connector type
Mounting flange for
wall mounting,
page 148.
Cable plug connectors
SPEEDCON quick locking, page 121
Coupling connectors
SPEEDCON quick locking, page 118
shieldedshieldedshielded
Appliance plug connectors
Panel feed-through
pin inside - socket outside,
Mounting flange: 4 x Ø 4.2,
page 126
Standard locking,
page 127
Standard locking short/long,
page 122
long, page 119short, page 123
with mounting flange
short, long, page 124
with hexagonal flange short, long,
page 125
angled rotatable, page 120 angled fixed,
page 120
straight, page 120
Panel feed-throughs are
delivered in a fully wired state
Appliance plug connectors
SM-..S1N8A8L..S
SM-..S1N8A8...
SM-..S1N8AY000S
SM-..S1N8AYW00
SM-..P1N8A90.. SM-..P1N8A9L..S
SM-..P1N8AC0.., SM..P1N8ACL.. SM-..P1N8AQ0.., SM..P1N8AQL..
SM-..PWN8AAD00S SM-..PWN8AWT00 SM-..PWN8AA200
SM-..E1N8AS000 SM-..E1N8ASA00
pin inside - socket outside,
Mounting flange: 4 x M4,
page 126
Power connectors - PLUSCON circular
M40 - P70 series
117PHOENIX CONTACT
Crimp contacts
Male contacts
Male contacts
Female contacts
Crimping tools
Crimping pliers, page 148
Crimping pliers with digital display for turned
crimp contacts,
page 150
Female contacts
Turned, page 128
Male contacts
Turned, page 128
Note:
For reasons pertaining to safety, only
female contacts may be used in the live
part of the connector.
Tools / accessories
min.105
Ø46
More informations and installation instructions at: www.phoenixcontact.com
Description Cable seal Ø [mm] Type Order No. Pcs. /
Pkt.
Cable plug connector P70, SPEEDCON,
6-pos. (2+3+PE),shielded, straight, for a Ø 9.0 mm to 26.5 mm
cable, connection cross section of up to 10 mm
2
/ AWG 8
9,0 ... 14,0 SM-5ES1N8A8L32S 1613428 12
14,0 ... 20,5 SM-5ES1N8A8L33S 1613429 12
20,5 ... 26,5 SM-5ES1N8A8L34S 1613430 12
Cable plug connector P70, SPEEDCON,
8-pos. (4+3+PE), shielded, straight, for a Ø 9.0 mm to 26.5 mm
cable, connection cross section of up to 10 mm
2
/ AWG 8
9,0 ... 14,0 SM-7ES1N8A8L32S 1613434 12
14,0 ... 20,5 SM-7ES1N8A8L33S 1613435 12
20,5 ... 26,5 SM-7ES1N8A8L34S 1613436 12
Crimp contacts Order separately, see page 128
Signal contacts Ø 2 mm
Power and PE contacts Ø 3.6 mm
SM-.ES1N8A8L3.S
Cable plug connector,
SPEEDCON quick locking
118 PHOENIX CONTACT
P70 connectors with SPEEDCON quick
locking are equipped with the same
performance characteristics as the P70
connector with standard M40 locking.
The very elegant shielding function is a
special feature of the new cable plug
connectors. Splicing the shield can be totally
omitted in some cases, depending on the
version of the braided shield. Overlaying
braided shield is simply folded in. This
simplifies handling and saves a lot of time
especially in rigid wires and large connection
cross-sections.
Note:
Connectors must be plugged in or
unplugged only if the power supply is
disconnected.
Cable plug connector, socket,
SPEEDCON quick locking
Power connector - PLUSCON circular
M40 - P70 series
SM-.ES1N8A8L3.S
min.119
M40x1,5
SPEEDCON
More informations and installation instructions at: www.phoenixcontact.com
Description Cable seal Ø [mm] Type Order No. Pcs. /
Pkt.
Coupling plug connector P70, 6-pos. (2+3+PE),shielded,
straight, for a Ø 9.0 mm to 26.5 mm cable,
connection cross section of up to 10 mm
2
/ AWG 8
9,0 ... 14,0 SM-5EP1N8A9L32S 1613425 12
14,0 ... 20,5 SM-5EP1N8A9L33S 1613426 12
20,5 ... 26,5 SM-5EP1N8A9L34S 1613427 12
Coupling plug connector P70, 8-pos. (4+3+PE), shielded,
straight,for a Ø 9.0 mm to 26.5 mm cable,
connection cross section of up to 10 mm
2
/ AWG 8
9,0 ... 14,0 SM-7EP1N8A9L32S 1613431 12
14,0 ... 20,5 SM-7EP1N8A9L33S 1613432 12
20,5 ... 26,5 SM-7EP1N8A9L34S 1613433 12
Crimp contacts Order separately, see page 128
Signal contacts Ø 2 mm
Power and PE contacts Ø 3.6 mm
SM-.EP1N8A9L3.S
Coupling plug connector
SPEEDCON/standard interlocking
119PHOENIX CONTACT
A connector with SPEEDCON knurled
nut as well as a connector with M40
standard locking thread can be screwed
onto the new coupling plug connectors with
segmented external thread.
The coupling plug connectors are
designed for connection cross-sections up
to 10 mm
2
/AWG 8 and conductor
diameters of 9.0 mm to 26.5 mm.
The housings provide a generously
dimensioned cable storage space. A special
feature of the new coupling plug connectors
is the very elegant shield function, which
can be executed without a lot of force.
Splicing the shield can be totally omitted in
some cases, depending on the version of the
braided shield. Overlaying braided shield is
simply folded in. This simplifies handling and
saves a lot of time especially in solid wires
and large connection cross-sections.
Coupling plug connector, pin
Power connector - PLUSCON circular
M40 - P70 series
SM-.EP1N8A9L3.S
40
M40x1,5
SPEEDCON
4,5
4,1 0,4
71
200°
110°
Ø4x4,4
30
40
±
Ø32±0,1
30±0,1
4xØ4,4
53,7
M40x1,5
SPEEDCON
Ø4x4,2
40
30
30,2
M40x1,5
SPEEDCON
5
63,2
Ø4x4,2
30
40
Ø32±0,1
30±0,1
4xØ4,2
Ø32±0,1
30±0,1
4xØ4,2
More informations and installation instructions at: www.phoenixcontact.com
Description No. of pos. Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
Appliance plug connector P70, angled, rotatable,
connection cross section... 10 mm
2
/ AWG 8
6-position (2+3+PE) SM-5EPWN8AAD00S 1607927 6
Appliance plug connector P70, angled, rotatable,
connection cross section... 10 mm
2
/ AWG 8
8-position (4+3+PE) SM-7EPWN8AAD00S 1607931 6
Appliance plug connector P70, angled, fixed,
connection cross section... 10 mm
2
/ AWG 8
6-position (2+3+PE) SM-5EPWN8AA200 1613516 6
Appliance plug connector P70, angled, fixed,
connection cross section... 10 mm
2
/ AWG 8
8-position (4+3+PE) SM-7EPWN8AA200 1613526 6
Appliance plug connector P70, straight,
connection cross section... 10 mm
2
/ AWG 8
6-position (2+3+PE) SM-5EPWN8AWT00 1613517 12
Appliance plug connector P70, straight,
connection cross section... 10 mm
2
/ AWG 8
8-position (4+3+PE) SM-7EPWN8AWT00 1613527 12
Crimp contacts Order separately, see page 128 Order separately, see page 128
Signal contacts Ø 2 mm
Power and PE contacts Ø 3.6 mm
SM-.EPWN8AAD00S
Appliance plug connector, angled rotatable,
with SPEEDCON/standard interlocking
SM-.EPWN8A..00
Appliance plug connector, fixed,
with SPEEDCON/standard interlocking
120 PHOENIX CONTACT
A SPEEDCON cable plug connector as
well as a cable connector with standard
locking thread can be screwed onto the
appliance plug connector with segmented
external thread.
The rotatable angular housing can be
rotated progressively in the range of 310°.
Appliance plug connector, pin
(compatible to SPEEDCON and
standard interlocking)
Power connector - PLUSCON circular
M40 - P70 series
Kantenabtrag
max. 0,3
Installation dimensions: SM-.EPWN8AAD00S
Installation dimensions:SM-
.EPWN8AA200
Installation dimensions:SM-
.EPWN8AWT00
SM-.EPWN8AAD00S SM-.EPWN8AA200
SM-.EPWN8AWT00
74,5
Ø
Ø
4x4,2
46
40
30
30,2
Ø46
5
84
Ø 4x4,2
40
30
Ø32±0,1
30±0,1
4xØ4,2
More informations and installation instructions at: www.phoenixcontact.com
Description No. of pos. Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
Appliance plug connector P70, with SPEEDCON knurled nut,
straight, connection cross section... 10 mm
2
/ AWG 8
6-position (2+3+PE) SM-5ES1N8AY000S 1613524 12
8-position (4+3+PE) SM-7ES1N8AY000S 1613534 12
Appliance plug connector P70, with SPEEDCON knurled nut,
angled, connection cross section... 10 mm
2
/ AWG 8
6-position (2+3+PE) SM-5ES1N8AYW00S 1613525 6
8-position (4+3+PE) SM-7ES1N8AYW00S 1613535 6
Crimp contacts Order separately, see page 128 Order separately, see page 128
Signal contacts Ø 2 mm
Power and PE contacts Ø 3.6 mm
SM-.ES1N8AY000S
Appliance plug connector, straight,
with SPEEDCON knurled nut
SM-.ES1N8AYW00S
Appliance plug connector, angled fixed,
with SPEEDCON knurled nut
121PHOENIX CONTACT
P70 appliance plug connectors with
knurled nut make control cabinets and
system parts "pluggable". The connectors
are available in straight version and with
2-section angular housing.
Note:
Appliance plug connectors with knurled
nuts must be equipped with female
contacts.
Appliance plug connectors with
SPEEDCON knurl, socket, straight
and angled fixed
Power connector - PLUSCON circular
M40 - P70 series
o
es:
The appliance plug connectors with a SPEEDCON knurled
nut can only be screwed onto mating connectors with a
segmented thread.
Appliance plug connectors with a knurled nut must be
equipped with female contacts.
Installation dimensions
SM-.ES1N8AY000S SM-.ES1N8AYW00S
46
Ø
93,6
41 41
min.105,3
46
Ø
More informations and installation instructions at: www.phoenixcontact.com
Description Cable seal Ø [mm] Type Order No. Pcs. /
Pkt.
Cable plug connector P70, 6-pos. (2+3+PE), shielded, straight,
short, for a Ø 9.0 mm to 25.5 mm cable,
connection cross section of up to 10 mm
2
/ AWG 8
9,0 ... 12,5 SM-5ES1N8A8002 1605803 12
12,5 ... 17,0 SM-5ES1N8A8003 1605805 12
17,0 ... 21,0 SM-5ES1N8A8004 1605807 12
21,0 ... 25,5 SM-5ES1N8A8005 1605809 12
Cable plug connector P70, 6-pos. (2+3+PE), shielded, straight,
long, for a Ø 9.0 mm to 26.5 mm cable,
connection cross section of up to 10 mm
2
/ AWG 8
9,0 ... 14,0 SM-5ES1N8A8S22 1613518 12
14,0 ... 20,5 SM-5ES1N8A8S23 1613519 12
20,5 ... 26,5 SM-5ES1N8A8S24 1613520 12
Cable plug connector P70, 8-pos. (4+3+PE), shielded, straight,
short, for a Ø 9.0 mm to 25.5 mm cable,
connection cross section of up to 10 mm
2
/ AWG 8
9,0 ... 12,5 SM-7ES1N8A8002 1605851 12
12,5 ... 17,0 SM-7ES1N8A8003 1605852 12
17,0 ... 21,0 SM-7ES1N8A8004 1605854 12
21,0 ... 25,5 SM-7ES1N8A8005 1605856 12
Cable plug connector P70, 8-pos. (4+3+PE), shielded, straight,
long, for a Ø 9.0 mm to 26.5 mm cable,
connection cross section of up to 10 mm
2
/ AWG 8
9,0 ... 14,0 SM-7ES1N8A8S22 1613528 12
14,0 ... 20,5 SM-7ES1N8A8S23 1613529 12
20,5 ... 26,5 SM-7ES1N8A8S24 1613530 12
Crimp contacts Order separately, see page 128
Signal contacts Ø 2 mm
Power and PE contacts Ø 3.6 mm
SM-.ES1N8A80.. SM-.ES1N8A8S..
SM-.ES1N8A8...
Cable plug connector in short and long versions
122 PHOENIX CONTACT
The P70 cable plug connectors with
standard M40 locking threads are available
in two housing lengths depending on the
required cable storage space.
Cable plug connector, socket,
standard interlocking
Power connector - PLUSCON circular
M40 - P70 series
M40x1,5
107,5
41 41
More informations and installation instructions at: www.phoenixcontact.com
Description Cable seal Ø [mm] Type Order No. Pcs. /
Pkt.
Coupling plug connector P70, 6-pos. (2+3+PE), shielded,
straight, short, for a Ø 9.0 mm to 25.5 mm cable,
connection cross section of up to 10 mm
2
/ AWG 8
9,0 ... 12,5 SM-5EP1N8A9002 1605769 12
12,5 ... 17,0 SM-5EP1N8A9003 1605771 12
17,0 ... 21,0 SM-5EP1N8A9004 1605773 12
21,0 ... 25,5 SM-5EP1N8A9005 1605775 12
Coupling plug connector P70, 8-pos. (4+3+PE), shielded,
straight, short, for a Ø 9.0 mm to 25.5 mm cable,
connection cross section of up to 10 mm
2
/ AWG 8
9,0 ... 12,5 SM-7EP1N8A9002 1607063 12
12,5 ... 17,0 SM-7EP1N8A9003 1605826 12
17,0 ... 21,0 SM-7EP1N8A9004 1607064 12
21,0 ... 25,5 SM-7EP1N8A9005 1607065 12
Crimp contacts Order separately, see page 128
Signal contacts Ø 2 mm
Power and PE contacts Ø 3.6 mm
SM-.EP1N8A900.
SM-.EP1N8A900.
Coupling plug connector,
short version
123PHOENIX CONTACT
The P70 coupling plug connectors with
standard locking threads have a short
housing for space-saving installation.
Coupling plug connector, pin,
standard interlocking
Power connector - PLUSCON circular
M40 - P70 series
Ø42,5±0,2
37±0,1
4xØ4,2
M40x1,5
4xM4
37
50
119,1
50 41 41
M40x1,5
107,5
50 41 41
More informations and installation instructions at: www.phoenixcontact.com
Description Cable seal Ø [mm] Type Order No. Pcs. /
Pkt.
Panel feed-through P70, 6-pos. (2+3+PE), inside, short,
square flange, for a Ø 9.0 mm to 25.5 mm cable,
connection cross section of up to 10 mm
2
/ AWG 8
9,0 ... 12,5 SM-5EP1N8AC002 1605782 6
12,5 ... 17,0 SM-5EP1N8AC003 1605783 6
17,0 ... 21,0 SM-5EP1N8AC004 1605784 6
21,0 ... 25,5 SM-5EP1N8AC005 1605785 6
Panel feed-through P70, 6-pos. (2+3+PE), inside, long, square
flange, for a Ø 9.0 mm to 25.5 mm cable,
connection cross section of up to 10 mm
2
/ AWG 8
9,0 ... 12,5 SM-5EP1N8ACL02 1605786 6
12,5 ... 17,0 SM-5EP1N8ACL03 1605787 6
17,0 ... 21,0 SM-5EP1N8ACL04 1605788 6
21,0 ... 25,5 SM-5EP1N8ACL05 1605789 6
Panel feed-through P70, 8-pos. (4+3+PE), inside, short,
square flange, for a Ø 9.0 mm to 25.5 mm cable,
connection cross section of up to 10 mm
2
/ AWG 8
9,0 ... 12,5 SM-7EP1N8AC002 1605830 6
12,5 ... 17,0 SM-7EP1N8AC003 1605831 6
17,0 ... 21,0 SM-7EP1N8AC004 1605832 6
21,0 ... 25,5 SM-7EP1N8AC005 1605833 6
Panel feed-through P70, 8-pos. (4+3+PE), inside, long, square
flange, for a Ø 9.0 mm to 25.5 mm cable,
connection cross section of up to 10 mm
2
/ AWG 8
9,0 ... 12,5 SM-7EP1N8ACL02 1605834 6
12,5 ... 17,0 SM-7EP1N8ACL03 1605835 6
17,0 ... 21,0 SM-7EP1N8ACL04 1605836 6
21,0 ... 25,5 SM-7EP1N8ACL05 1605837 6
Crimp contacts Order separately, see page 128
Signal contacts Ø 2 mm
Power and PE contacts Ø 3.6 mm
SM-.EP1N8AC.0.
Panel feed-through with 50 mm mounting flange,
Inside panel mounting
124 PHOENIX CONTACT
The P70 range provides the suitable
power panel feed-throughs for cabling
machines, systems and control cabinets.
Panel feed-through, square flange,
pin, standard interlocking
Power connector - PLUSCON circular
M40 - P70 series
SM-.EP1N8AC00. Installation dimensionsSM-.EP1N8ACL0.
M40x1,5
max.7,5
119
50 50 41 41
M40x1,5
max.7,5
107,5
50 50 41 41 Ø44,2
+0,2
More informations and installation instructions at: www.phoenixcontact.com
Description Cable seal Ø [mm] Type Order No. Pcs. /
Pkt.
Panel feed-through P70, 6-pos. (2+3+PE), inside, short,
hexagonal flange, for a Ø 9.0 mm to 25.5 mm cable,
connection cross section of up to 10 mm
2
/ AWG 8
9,0 ... 12,5 SM-5EP1N8AQ002 1605790 6
12,5 ... 17,0 SM-5EP1N8AQ003 1605791 6
17,0 ... 21,0 SM-5EP1N8AQ004 1605792 6
21,0 ... 25,5 SM-5EP1N8AQ005 1605793 6
Panel feed-through P70, 6-pos. (2+3+PE), inside, long,
hexagonal flange, for a Ø 9.0 mm to 25.5 mm cable,
connection cross section of up to 10 mm
2
/ AWG 8
9,0 ... 12,5 SM-5EP1N8AQL02 1605794 6
12,5 ... 17,0 SM-5EP1N8AQL03 1605795 6
17,0 ... 21,0 SM-5EP1N8AQL04 1605796 6
21,0 ... 25,5 SM-5EP1N8AQL05 1605797 6
Panel feed-through P70, 8-pos. (4+3+PE), inside, short,
hexagonal flange, for a Ø 9.0 mm to 25.5 mm cable,
connection cross section of up to 10 mm
2
/ AWG 8
9,0 ... 12,5 SM-7EP1N8AQ002 1605838 6
12,5 ... 17,0 SM-7EP1N8AQ003 1605839 6
17,0 ... 21,0 SM-7EP1N8AQ004 1605840 6
21,0 ... 25,5 SM-7EP1N8AQ005 1605841 6
Panel feed-through P70, 8-pos. (4+3+PE), inside, long,
hexagonal flange, for a Ø 9.0 mm to 25.5 mm cable,
connection cross section of up to 10 mm
2
/ AWG 8
9,0 ... 12,5 SM-7EP1N8AQL02 1605842 6
12,5 ... 17,0 SM-7EP1N8AQL03 1605843 6
17,0 ... 21,0 SM-7EP1N8AQL04 1605844 6
21,0 ... 25,5 SM-7EP1N8AQL05 1605845 6
Crimp contacts Order separately, see page 128
Signal contacts Ø 2 mm
Power and PE contacts Ø 3.6 mm
SM-.EP1N8AQ.0.
Panel feed-through with hexagonal flange,
Inside panel mounting
125PHOENIX CONTACT
The P70 panel feed-throughs are available
in two housing lengths for the cable-side
adjustment. The long version offers more
cable storage space and the short version
provides smaller dimensions.
Panel feed-through, hexagonal flange,
pin, standard interlocking
Power connector - PLUSCON circular
M40 - P70 series
SM-.EP1N8AQL0. Installation dimensionsSM-.EP1N8AQ00.
More informations and installation instructions at: www.phoenixcontact.com
Description Cable seal Ø [mm] Type Order No. Pcs. /
Pkt.
Panel feed-through P70, 6-pos. (2+3+PE), inside, short,
hexagonal flange, for a Ø 9.0 mm to 25.5 mm cable,
connection cross section of up to 10 mm
2
/ AWG 8
9,0 ... 12,5 SM-5EP1N8AQ002 1605790 6
12,5 ... 17,0 SM-5EP1N8AQ003 1605791 6
17,0 ... 21,0 SM-5EP1N8AQ004 1605792 6
21,0 ... 25,5 SM-5EP1N8AQ005 1605793 6
Panel feed-through P70, 6-pos. (2+3+PE), inside, long,
hexagonal flange, for a Ø 9.0 mm to 25.5 mm cable,
connection cross section of up to 10 mm
2
/ AWG 8
9,0 ... 12,5 SM-5EP1N8AQL02 1605794 6
12,5 ... 17,0 SM-5EP1N8AQL03 1605795 6
17,0 ... 21,0 SM-5EP1N8AQL04 1605796 6
21,0 ... 25,5 SM-5EP1N8AQL05 1605797 6
Panel feed-through P70, 8-pos. (4+3+PE), inside, short,
hexagonal flange, for a Ø 9.0 mm to 25.5 mm cable,
connection cross section of up to 10 mm
2
/ AWG 8
9,0 ... 12,5 SM-7EP1N8AQ002 1605838 6
12,5 ... 17,0 SM-7EP1N8AQ003 1605839 6
17,0 ... 21,0 SM-7EP1N8AQ004 1605840 6
21,0 ... 25,5 SM-7EP1N8AQ005 1605841 6
Panel feed-through P70, 8-pos. (4+3+PE), inside, long,
hexagonal flange, for a Ø 9.0 mm to 25.5 mm cable,
connection cross section of up to 10 mm
2
/ AWG 8
9,0 ... 12,5 SM-7EP1N8AQL02 1605842 6
12,5 ... 17,0 SM-7EP1N8AQL03 1605843 6
17,0 ... 21,0 SM-7EP1N8AQL04 1605844 6
21,0 ... 25,5 SM-7EP1N8AQL05 1605845 6
Crimp contacts Order separately, see page 128
Signal contacts Ø 2 mm
Power and PE contacts Ø 3.6 mm
SM-.EP1N8AQ.0.
Panel feed-through with hexagonal flange,
Inside panel mounting
125PHOENIX CONTACT
The P70 panel feed-throughs are available
in two housing lengths for the cable-side
adjustment. The long version offers more
cable storage space and the short version
provides smaller dimensions.
Panel feed-through, hexagonal flange,
pin, standard interlocking
Power connector - PLUSCON circular
M40 - P70 series
SM-.EP1N8AQL0. Installation dimensionsSM-.EP1N8AQ00.
Ø46,2+0,3
56±0,1
4xØ4,2
63,7
60,7
M40x1,5
Ø46
4xM4
Ø
Ø
65
4x4,2
56
More informations and installation instructions at: www.phoenixcontact.com
Description No. of pos. Type Order No. Pcs. /
Pkt.
Panel feed-through P70, outside, pin inside - socket outside,
completely wired, mounting flange with 4 x Ø 4.2 mm
6-position (2+3+PE) SM-5EE1N8AS000 1605767 1
8-position (4+3+PE) SM-7EE1N8AS000 1605824 1
Panel feed-through P70, outside, pin inside - socket outside,
completely wired, mounting flange with 4 x M4
6-position (2+3+PE) SM-5EE1N8ASA00 1605768 1
8-position (4+3+PE) SM-7EE1N8ASA00 1605825 1
SM-.EE1N8AS.00
Panel feed-through
126 PHOENIX CONTACT
Panel feed-throughs are completely
mounted, equipped with contacts and
internally wired when supplied.
Panel feed-through, internal pin and
external socket, standard interlocking
Power connector - PLUSCON circular
M40 - P70 series
Installation dimensionsSM-.EE1N8AS000 , SM-.EE1N8ASA00
Ø32±0,1
30±0,1
4xØ4,2
74,7
Ø
Ø
4x4,2
46
40
30
30,2
46
5
82,2
Ø
Ø
4x4,2
30
40
More informations and installation instructions at: www.phoenixcontact.com
Description No. of pos. Type Order No. Pcs. /
Pkt.
Appliance plug connector P70, with knurled nut, straight,
outside, connection cross section... 10 mm
2
/ AWG 8
6-position (2+3+PE) SM-5ES1N8AY000 1605823 12
8-position (4+3+PE) SM-7ES1N8AY000 1605865 12
Appliance plug connector P70, with knurled nut, angled fixed,
outside, connection cross section... 10 mm
2
/ AWG 8
6-position (2+3+PE) SM-5ES1N8AYW00 1607532 6
8-position (4+3+PE) SM-7ES1N8AYW00 1607543 6
Crimp contacts Order separately, see page 128
Signal contacts Ø 2 mm
Power and PE contacts Ø 3.6 mm
SM-.ES1N8AY.00
Appliance plug connector with knurled nut,
Outside panel assembly
127PHOENIX CONTACT
P70 appliance plug connectors with
knurled nut make control cabinets and
system parts "pluggable". The connectors
are available in straight version and with
2-section angular housing.
Note:
Appliance plug connectors with knurled
nuts must be equipped with female
contacts.
Appliance plug connector with knurls,
standard interlocking, socket, straight
and angled fixed
Power connector - PLUSCON circular
M40 - P70 series
Installation dimensions:
SM-.ES1N8AY000,SM-.ES1N8AYW00
SM-.ES1N8AY000 SM-.ES1N8AYW00
More informations and installation instructions at: www.phoenixcontact.com
Description Connection cross section
[mm
2
/ AWG] Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
Contacts, socket Ø 3.6 mm, for P70 cable and appliance plug
connectors with knurled nuts, power and PE contacts
1.0 ... 2.5 / AWG 18-14 SM-36KS001 1605756 50
2.5 ... 4.0 / AWG 14-12 SM-36KS002 1605758 50
4,0 ... 6,0 / AWG 12-10 SM-36KS003 1605760 50
6,0 ... 10,0 / AWG 10-8 SM-36KS004 1605762 50
Contact socket Ø 2.0 mm for P70 cable and appliance plug
connectors with knurled nuts, signal contacts
0,25 ... 1,0 / AWG 24-18 SF-7PS2000 1605636 100
0,75 ... 1,5 / AWG 18-16 SF-7NS2000 1605631 100
1.0 ... 2.5 / AWG 18-14 SF-7QS2000 1605643 100
4,0 / AWG 12 SF-7MS2000 1605628 50
Contacts, pin Ø 3.6 mm, for P70 coupling plug connector,
power and PE contacts
1.0 ... 2.5 / AWG 18-14 SM-36KP005 1605749 50
2.5 ... 4.0 / AWG 14-12 SM-36KP006 1605750 50
4,0 ... 6,0 / AWG 12-10 SM-36KP008 1605754 50
6,0 ... 10,0 / AWG 10-8 SM-36KP007 1605752 50
Contacts, pin Ø 2.0 mm, for P70 coupling plug connector,
signal contacts
0,25 ... 1, / AWG 24-18 SM-20KP006 1605738 50
0,75 ... 1,5 / AWG 18-16 SM-20KP005 1605736 50
1.0 ... 2.5 / AWG 18-14 SM-20KP007 1605739 50
4,0 / AWG 12 SM-20KP008 1605741 50
Contacts, pin Ø 3.6 mm for P70 appliance plug connector,
power and PE contacts
0,75 ... 1,5 / AWG 18-16 SM-36KP001 1605743 50
1.0 ... 2.5 / AWG 18-14 SM-36KP009 1607057 50
1,0 ... 4,0 / AWG 18-12 SM-36KP002 1605744 50
4,0 ... 6,0 / AWG 12-10 SM-36KP003 1605745 50
6,0 ... 10,0 / AWG 10-8 SM-36KP004 1605747 50
Contact pin Ø 2.0 mm, for P70 appliance plug connector,
signal contacts
0,14 ... 0,25 / AWG 26-24 SF-7RP2000 1605646 100
0,25 ... 1,0 / AWG 24-18 SF-7PP2000 1605634 100
0,75 ... 1,5 / AWG 18-16 SF-20KP004 1607376 100
1.0 ... 2.5 / AWG 18-14 SF-7QP2000 1605639 100
4,0 / AWG 12 SF-7MP2000 1605626 50
Crimping tools Order separately, see page 148 onwards Order separately, see page 148 onwards
Crimping tool with digital display Order separately, see page 150 Order separately, see page 150
S.-....00.
Crimp contacts
socket
S.-....00.
Crimp contacts
pin
128 PHOENIX CONTACT
The 6-pos. (2+3+PE) versions are
equipped with two Ø 2 mm signal contacts
and four 3.6 mm contacts (three power, 1
PE contact).
The 8-pos. (4+3+PE) versions are
equipped with four 2 mm signal contacts
and four 3.6 mm contacts (three power,
1 PE contact).
Note: Depending on the wire used, the
connection cross-sections (crimp ranges)
can differ from the values mentioned below.
Crimp contacts, turned
Power connector - PLUSCON circular
M40 - P70 series
Number of positions Number of
contacts
Contact Ø
[mm]
6(2+3+PE) 2+3+PE 2+3,6+3,6
8(4+3+PE) 4+3+PE 2+3,6+3,6
More informations and installation instructions at: www.phoenixcontact.com 129PHOENIX CONTACT
Power connector - PLUSCON circular
M40 - P70 series
120100806040200
40
60
160
180
80
100
120
140
0
20
1= 3 x 50mm²
1
Power connectors - PLUSCON circular
M58 - P150 series
130 PHOENIX CONTACT
Electrical data
Number of positions 6 (2+3+PE) 8 (4+3+PE)
Contacts 2+3+PE 4+3+PE
Contact Ø [mm] 1.6 10 10 1.6 10 10
Stranded wire cross section
Crimp contacts turned [mm
2
/AWG] 0.75 ... 1.5/18-16 10 ... 50/8-1 10 ... 50/8-1 0.75 ... 1.5/18-16 10 ... 50/8-1 10 ... 50/8-1
Cable clamping range max Ø [mm] – 36 – – 36 –
Nominal current per contact at 25°C
1)
[A] 12 150 – 12 150 –
Specifications as per DIN EN 61984:2001
Nominal/operating voltage [V AC / DC] 250 630 – 250 630 –
Test/surge voltage [kV] 4 6 – 4 6 –
Surge voltage category III III
Pollution degree 33
Installation height [m] Up to 2,000 Up to 2,000
1)
If required, the effective current carrying capacity must be determined according to the application using a derating curve.
Mechanical and electrical data
Mechanical data
Housing material: Rotating part, aluminum
Housing surface: Aluminum, anodized
Insulating bodies: Polyamide (PA66)
Contact surface: Power and PE contacts: silver-plated (Ag), signal contacts: gold-plated (Au)
Contact connection method: Crimp version
Gasket and O ring: Fluorine rubber (FPM)
Ambient temperature: -20°C ... 120°C
Conductor entry: Cable plug connectors and coupling connectors for external cable diameters of 17 ... 36 mm,
shielded
Locking type: M58 x 2 screw locking
Mechanical insertion/withdrawal cycles: standard: 50, 500 on request
Degree of protection: IP67 when locked
Derating curve for 3 x 50 mm
2
based on DIN EN 60512-
5-2 (cable plug connector mounted)
Note:
Plug connectors may only be inserted or removed when
the power supply is disconnected.
C
urren
t[A]
Ambient temperature [°C]
V
WU
-+
V
UW
+-
V
WU
-+
12
V
UW
+-
21
Power connectors - PLUSCON circular
M58 - P150 series
131PHOENIX CONTACT
Contact insert numbering
(view of plug-in side)
Number of positions Pin Socket
6-pos.
(2 + 3 + PE)
Crimp
8-pos.
(4 + 3 + PE)
Crimp
* with grounding spring,
PE leading
6 * 6 *
6 * 6 *
Connector pin assignments and coding
Power connectors - PLUSCON circular
M58 - P150 series
132 PHOENIX CONTACT
Selection guide
M58 power connectors up to 150 A / 630 V,
crimp ranges of up to 50 mm
2
/ AWG 1
– Cable plug connectors
– Coupling connectors
– Appliance plug connectors, straight
The P150 connectors are fully
assembled and the respective crimp
contacts must be ordered separately.
The product chart provides an overview
of the available components.
Connector type
shieldedshieldedshielded
Cable plug connectors
SL-..S1N8A80..
page 134
Coupling connectors
SL-..P1N8A90..
page 135
Appliance plug connectors
SL-..PWN8AWA00
page 136
Power connectors - PLUSCON circular
M58 - P150 series
133PHOENIX CONTACT
Crimp contacts Tools / accessories
Note:
For reasons pertaining to safety, only
female contacts may be used in the live
part of the connector.
Female contacts
Turned, page 137
Male contacts
Turned, page 137
Female contacts
Male contacts
Male contacts
Crimping tools
Crimp device for power and PE contacts Ø 10 mm,
page 149
Crimping pliers for signal contacts Ø 1.6 mm,
page 149
65
Ø
142
55 55
More informations and installation instructions at: www.phoenixcontact.com
Description Cable seal Ø [mm] Type Order No. Pcs. /
Pkt.
Cable plug connector P150, 6-pos. (2+3+PE),shielded, straight,
for a Ø 17.0 mm to 36 mm cable,
connection cross section of up to 50 mm
2
/ AWG 1
17 ... 25 SL-5ES1N8A8002 1607503 1
25 ... 36 SL-5ES1N8A8001 1607501 1
Cable plug connector P150, 8-pos. (4+3+PE),shielded, straight,
for a Ø 17.0 mm to 36 mm cable,
connection cross section of up to 50 mm
2
/ AWG 1
17 ... 25 SL-7ES1N8A8002 1607508 1
25 ... 36 SL-7ES1N8A8001 1607507 1
Crimp contacts, female Order separately, see page 137
Signal contacts Ø 1.6 mm
Power and PE contacts Ø 10 mm
SL-.ES1N8A800.
Cable plug connector
134 PHOENIX CONTACT
P150 are 6/8 pos. power connectors for
very high transmission capacities and
connection cross-sections. Electrical power
up to 630 V and 150 A in connection cross-
sections up to 50 mm
2
/AWG 1 can be
transmitted. The cable clamping range is
specified for cable diameters from 17 mm to
36 mm.
The very elegant and quick shielding
function is a special feature. Splicing the
shield can be totally omitted in some cases,
depending on the version of the cable or
braided shield. This is a big time saving
especially in solid wires and large
conductors.
The wire stop is supported by
mechanically or pneumatically operated
crimping pliers.
Note:
The cable plug connectors must be
equipped with female contacts.
Connectors must be plugged in or
unplugged only if the power supply is
disconnected.
Cable plug connector
Power connector - PLUSCON circular
M58 - P150 series
SL-.ES1N8A800.
M58x2
164,5
55 55
More informations and installation instructions at: www.phoenixcontact.com
Description Cable seal Ø [mm] Type Order No. Pcs. /
Pkt.
Coupling plug connector P150, 6-pos. (2+3+PE), shielded,
straight, for a Ø 17 mm ... 36 mm cable,
connection cross section of up to 50 mm
2
/ AWG 1
17 ... 25 SL-5EP1N8A9002 1607500 1
25 ... 36 SL-5EP1N8A9001 1607499 1
Coupling plug connector P150, 8-pos. (4+3+PE), shielded,
straight, for a Ø 17 mm ... 36 mm cable,
connection cross section of up to 50 mm
2
/ AWG 1
17 ... 25 SL-7EP1N8A9002 1607506 1
25 ... 36 SL-7EP1N8A9001 1607505 1
Crimp contacts, male Order separately, see page 137
Signal contacts Ø 1.6 mm
Power and PE contacts Ø 10 mm
SL-.EP1N8A900.
Coupling plug connector
135PHOENIX CONTACT
Note:
The coupling and appliance plug
connectors must be equipped with male
contacts.
Coupling plug connector
Power connector - PLUSCON circular
M58 - P150 series
SL-.EP1N8A900.
100
7
M58x2
Ø4x5,4
45,2
60
Ø38,7 – Ø48
45,2±0,1
4xM5
More informations and installation instructions at: www.phoenixcontact.com
Description Connection cross section
[mm
2
/ AWG] Type Order No. Pcs. /
Pkt.
Appliance plug connector P150, 6-pos. (2+3+PE), front
mounting, straight
Up to 50 / AWG 1 SL-5EPWN8AWA00 1615686 1
Appliance plug connector P150, 8-pos. (4+3+PE), front
mounting, straight
Up to 50 / AWG 1 SL-7EPWN8AWA00 1615687 1
Crimp contacts Order separately, see page 137
Signal contacts Ø 1.6 mm
Power and PE contacts Ø 10 mm
SL-.EPWN8AWA00
Appliance plug connector for front mounting
136 PHOENIX CONTACT
Note:
The coupling and appliance plug
connectors must be equipped with male
contacts.
Appliance plug connector for front
mounting
Power connector - PLUSCON circular
M58 - P150 series
Installation dimensions
(wire Ø max. 14 mm)
SL-.EPWN8AWA00
More informations and installation instructions at: www.phoenixcontact.com
Description Connection cross section
[mm
2
/ AWG] Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
Contact socket Ø 10.0 mm for P150 cable plug connector,
power and PE contacts
10,0 / AWG 8 SL-1CKS010 1607916 10
16,0 / AWG 6 SL-1CKS020 1607917 10
25,0 / AWG 4 SL-1CKS030 1607918 5
35,0 / AWG 2 SL-1CKS040 1607919 5
50,0 / AWG 1 SL-1CKS050 1607920 5
Contact socket Ø 1.6 mm for P150 cable plug connector,
signal contacts
0,75 ... 1,5 / AWG 18-16 SL-16KS010 1607956 10
Contact pin Ø 10.0 mm for P150 coupling and appliance plug
connector, power and PE contacts
10,0 / AWG 8 SL-1CKP010 1607911 10
16,0 / AWG 6 SL-1CKP020 1607912 10
25,0 / AWG 4 SL-1CKP030 1607913 5
35,0 / AWG 2 SL-1CKP040 1607914 5
50,0 / AWG 1 SL-1CKP050 1607915 5
Contact pin Ø 1.6 mm for P150 coupling and appliance plug
connector, signal contacts
0,75 ... 1,5 SL-16KP010 1607909 10
Crimping tools Order separately, see page 149 onwards Order separately, see page 149 onwards
Number of positions Number of
contacts
Contact Ø
[mm]
6(2+3+PE) 2+3+PE 1,6+10+10
8(4+3+PE) 4+3+PE 1,6+10+10
SL-1.KS0.0
Crimp contact socket
for cable plug connector
SL-1.KP0.0
Crimp contact pin
for coupling and appliance plug connector
137PHOENIX CONTACT
The 6-pos. (2+3+PE) versions require
with two Ø 1.6 mm signal contacts and four
10 mm contacts (three power, 1 PE
contact).
The 8-pos. (4+3+PE) versions require
with four 1.6 mm signal contacts and four
10 mm contacts (three power,
1 PE contact).
Note: Depending on the wire used, the
connection cross-sections (crimp ranges)
can differ from the values mentioned below.
Crimp contacts, turned
Power connector - PLUSCON circular
M58 - P150 series
138 PHOENIX CONTACT138 PHOENIX CONTACT
139PHOENIX CONTACT
Crimping and assembly tools are available
for easy and quick assembly of circular
connectors. Accessories such as caps with
IP40 and IP67 degree of protection are
available for special applications.
There are different tools for processing
crimp contacts. In addition to manual
crimping pliers, pneumatically supported
tools simplify the contact connection,
particularly in the case of larger cross
sections. Punched-rolled C-HC contacts in
taped versions can be crimped manually or
with conventional automatic devices in an
efficient manner.
Accessories such as square flanges for
wall mounting of cable plug connectors
and coupling connectors extend the product
range of circular connectors easily and cost-
effectively.
Tools and accessories
Table of contents
Crimping tools
For rolled and turned contacts - RC series 140
For punched-rolled contacts - RF, P20, P30 series 144
For turned contacts - P20 and ST series 145
For turned contacts - RF series 146
For turned contacts - P30 series 147
For turned contacts - P70 series 148
For turned contacts - P150 series 149
With digital display for turned contacts 150
Crimping machine for turned contacts 151
Other tools and accessories
Assembly tools - RC, UC, TU, HC series 140
Cable gaskets, double bracket strain reliefs - UC series 142
Removal tool for contact carriers and square mounting
flange P20, RF, P30, P70, P150 series 152
Special screw key P20, RF, P30, P70, P150 series 153
Dust protection caps 154
More informations and installation instructions at: www.phoenixcontact.com
Description Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
Crimping pliers for rolled RC crimp contacts Ø 1 mm
Stranded wire cross-section 0.08 ... 0.56 mm
2
/ AWG 28-20 RC-Z2130 1604267 1
Crimping pliers for turned RC crimp contacts Ø 1 mm / Ø 1.5
mm / Ø 2 mm
Stranded wire cross-section 0.14 ... 2.5 mm
2
/ AWG 26-14 RC-Z2504 1613822 1
Insertion and contact removal tool for RC crimp contacts
Female / male Ø 1 mm RC-Z2494 1614123 1
Female / male Ø 1.5 mm RC-Z2274 1604409 1
Female / male Ø 2 mm RC-Z2490 1611803 1
RC-Z2...
Crimping tools for rolled / turned contacts
RC-Z2...
Contact insertion/contact removal tool
140 PHOENIX CONTACT
For RC crimp contacts, the crimping
pliers RC-Z2130 and RC-Z2504 are used
for rolled or turned contacts.
The crimping pliers RC-Z2504 with
4-arbor pressing is suitable for crimping
turned RC contacts. Detailed operating
instructions are enclosed with the packing.
Tools and accessories for the
RC, UC, TU, HC series
Tools and accessories
For signal plug connectors and power connectors
More informations and installation instructions at: www.phoenixcontact.com
Description Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
Pipe spanner
For cable plug connectors - RC, UC, TU series RC-Z2099 1604255 10
For coupling plug connectors - RC, UC, TU series RC-Z2096 1604249 10
Contact removal tool for latching rings in appliance plug
connector housings
For RC, TU series RC-Z2290 1604417 1
Spare plastic latching ring for appliance plug connector housing
For RC, TU series RC-Z2382 1604442 10
Spacer sleeve for cable and coupling plug connector in
connection with 19-pos. (16+2+PE) crimp contact insert
For series RC, UC, TU RC-E0146 1603961 50
RC-Z209.
Pipe spanner for cable and coupling plug connectors
RC-.....
Latching ring contact removal tool
for appliance plug connector housing
141PHOENIX CONTACT
The pipe spanner is used together with a
wrench to screw the inner sleeve to the
adapter cap in the cable and coupling plug
connectors.
Tools and accessories for the
RC, UC, TU, HC series
Tools and accessories
For signal plug connectors and power connectors
More informations and installation instructions at: www.phoenixcontact.com
Description Cable Ø D [mm] Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
Notched sealing ring
2.0-14.5 UC-Z2351 1606846 20
Fixed gasket
7,0-8,5 UC-Z2343 1612993 20
8,0-9,5 UC-Z2344 1606837 20
9,5-11,5 UC-Z2346 1606839 20
11,5-13,5 UC-Z2348 1606841 20
13,5-14,5 UC-Z2349 1606843 20
Double bracket strain relief
Cable entry Pg 13.5 RC-Z2036 1604206 20
Cable entry Pg 16 UC-Z2039 1606834 20
UC-Z23..
Notched sealing rings, fixed gaskets
.C-Z203.
Double bracket strain relief for connectors with additional thread
142 PHOENIX CONTACT
In addition to the universal notched
sealing rings included in the scope of supply,
fixed gaskets are also available for the cable
connector and coupling housings of the
M23 UC series. These are available to suit
the respective cable diameter.
Housings with additional thread can be
equipped with another cable strain relief for
exceptional loads.
Cable gaskets, double bracket strain
reliefs for the UC series
Tools and accessories
For signal plug connectors and power connectors
More informations and installation instructions at: www.phoenixcontact.com
Description Additional thread / cable
Ø [mm] Type Order No. Pcs. /
Pkt.
Cable gland IP68, for P30 power connectors with M20 x 1.5
additional thread
M20 x 1,5 / 9 ... 13 RC-Z2417 1607019 20
RC-Z2417
Cable glands with metric thread
143PHOENIX CONTACT
The P30 cable and coupling plug
connectors with additional thread
M20 x 1.5 can be equipped with an IP68
cable gland for exceptional loads.
Cable gland for P30 series
Tools and accessories
For signal plug connectors and power connectors
More informations and installation instructions at: www.phoenixcontact.com
Description Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
Hand crimping pliers, basic tool for individual processing
for C-HC crimp contacts SF-Z0029 1607458 1
Tool head for crimping pliers SF-Z0029, for C-HC crimp
contacts
Contacts Ø 2 mm SF-Z0030 1607459 1
Contacts Ø 1 mm SF-Z0031 1607461 1
Electrical crimp device
for C-HC crimp contacts SF-Z0032 1607462 1
Tool head for electrical crimp device SF-Z0032, for C-HC crimp
contacts, processing for taped articles
Contacts Ø 2.0 mm / connection 1.0 mm
2
/AWG 18 SF-Z0033 1607463 1
Contacts Ø 2.0 mm / connection 1.5 mm
2
/AWG 16 SF-Z0047 1614689 1
Contacts Ø 2.0 mm / connection 2.5 mm
2
/AWG 14 SF-Z0035 1607465 1
Contacts Ø 1.0 mm / connection 0.08 ... 0.2 mm
2
/AWG 28-24 SF-Z0039 1607470 1
Contacts Ø 1.0 mm / connection 0.2 ... 0.56 mm
2
/AWG 24-20 SF-Z0040 1607471 1
Media hub for elec. crimping device SF-Z0032
for accommodating rolls up to Ø 60 cm
SF-Z0052 1615413 1
Adapter for electrical crimp device SF-Z0032, for
accommodating tool heads for single processing
SF-Z0041 1607472 1
SF-Z00..
Hand crimping tools for punched-rolled C-HC crimp contacts
SF-Z00..
Electrical crimp device for punched-rolled C-HC crimp contacts
144 PHOENIX CONTACT
The punched-rolled C-HC crimp contacts
can be crimped quickly and efficiently,
manually or automatically.
The manual crimping pliers are suitable
for individual processing. An electric table
crimping device with integrated feed
mechanics is available for processing taped
products. The tool heads are adapted to the
respective contacts and connection cross-
sections.
Crimping tools for punched-rolled
crimp contacts P20, RF, P30
Tools and accessories
For signal plug connectors and power connectors
Notes:
The SF-Z0041 adapter allows the use of manual crimping pliers for
individual processing with the electrical crimp device.
Stranded wire stripping lengths for punched-rolled C-HC
crimp contacts
Connection
cross-section
[mm²]
Wire stripping
length
[mm]
Socket Ø 1 mm 0,08 ... 2 2,5
0,2 ... 0,56 2,5
Socket Ø 2 mm, 1,0 ... 2,5 5
The required settings of the crimping pliers and stripping
lengths can deviate from the specified values, depending
on the wire used.
More informations and installation instructions at: www.phoenixcontact.com
Description Stranded wire cross
section [mm² / AWG] Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
Crimping tool, pneumatic, for turned crimp contacts Ø 1 mm / Ø
2 mm
0,14 ... 6 / AWG 26-10 SF-Z0022 1607450 1
Crimping pliers for turned crimp contacts Ø 1 mm / Ø 2 mm
0,14 ... 6 / AWG 26-10 SF-Z0008 1605668 1
Crimping pliers for turned crimp contacts Ø 1 mm / Ø 0.6 mm
0,08 ... 0,25 / AWG 28-24/ // 0,5 / AWG 20 SF-Z0007 1605665 1
Crimp head for crimping pliers SF-Z0022, SF-Z0008
SF-Z0003 1605657 1
Crimp head for crimping pliersSF-Z0007
SF-Z0004 1605661 1
Positioners for crimp head SF-Z0003, contacts Ø 1 mm, Ø 2 mm
"G" marking ST-Z0011 1607939 1
Positioners for crimp head SF-Z0004, contacts Ø 1.0 mm
"C" marking SF-Z0002 1605655 1
Positioners for crimp head SF-Z0004, contacts Ø 0.6 mm
"H" marking ST-Z0010 1607938 1
SF-Z00...
Crimp tools, for turned contacts
SF-Z00..
Crimp head and positioners for crimping pliers
145PHOENIX CONTACT
Manually or pneumatically supported
crimping pliers are used for turned crimp
contacts of the P20 series connectors.
The crimping pliers are suitable for
crimping turned contacts Ø 0.6 mm,
Ø 1 mm and Ø 2 mm.
Four-arbor crimping pliers with digital
display are available as an alternative to the
manual crimping pliers with positioner and
eccentric setting, see page 150.
Crimping tools for turned contacts of
the P20 and ST series
Tools and accessories
For signal plug connectors and power connectors
More informations and installation instructions at: www.phoenixcontact.com
Description Stranded wire cross
section [mm² / AWG] Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
Crimping tool, pneumatic, for turned crimp contacts Ø 1 mm
0,14 ... 6 / AWG 26-10 SF-Z0022 1607450 1
Crimping pliers, for turned crimp contacts Ø 1 mm
0,14 ... 6 / AWG 26-10 SF-Z0008 1605668 1
Crimping pliers, for turned crimp contacts Ø 1 mm
0,08 ... 0,25 / AWG 28-24 // 0,5 / AWG 20 SF-Z0007 1605665 1
Crimp head for crimping pliers SF-Z0022, SF-Z0008
SF-Z0003 1605657 1
Crimp head for crimping pliersSF-Z0007
SF-Z0004 1605661 1
Positioners for crimping head SF-Z0003
Marking "E" SF-Z0012 1605678 1
Positioners for crimp head SF-Z0004
"C" marking SF-Z0002 1605655 1
SF-Z00...
Crimp tools, for turned contacts
SF-Z00..
Crimp head and positioners for crimping pliers
146 PHOENIX CONTACT
Manually or pneumatically supported
crimping pliers are used for turned crimp
contacts for the RF series connectors.
The crimping pliers are suitable for
crimping turned contacts Ø 1 mm.
Four-arbor crimping pliers with digital
display are available as an alternative to the
manual crimping pliers with positioner and
eccentric setting, see page 150.
Crimping tools for turned contacts,
RF series
Tools and accessories
For signal plug connectors and power connectors
More informations and installation instructions at: www.phoenixcontact.com
Description Stranded wire cross
section [mm² / AWG] Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
Crimping tool, pneumatic, for turned crimp contacts Ø 1 mm / Ø
2 mm
0,14 ... 6 / AWG 26-10 SF-Z0022 1607450 1
Crimping pliers for turned crimp contacts Ø 1 mm / Ø 2 mm
0,14 ... 6 / AWG 26-10 SF-Z0008 1605668 1
Crimping pliers, for turned crimp contacts Ø 1 mm
0,08 ... 0,25 / AWG 28-24 // 0,5 / AWG 20 SF-Z0007 1605665 1
Crimp head for crimping pliers SF-Z0022, SF-Z0008
SF-Z0003 1605657 1
Crimp head for crimping pliersSF-Z0007
SF-Z0004 1605661 1
Positioners for crimp head SF-Z0003 for appliance plug
connectors
Marking "D" SF-Z0011 1605675 1
Positioners for SF-Z0003 crimp head, for cable and coupling
connectors
Marking "E" SF-Z0012 1605678 1
Positioners for crimp head SF-Z0004
"C" marking SF-Z0002 1605655 1
SF-Z00...
Crimp tools, for turned contacts
SF-Z00..
Crimp head and positioners for crimping pliers
147PHOENIX CONTACT
Manually or pneumatically supported
crimping pliers are used for turned crimp
contacts for the P30 series.
The crimping pliers are suitable for
crimping turned contacts with Ø 1 mm and
Ø 2 mm.
Four-arbor crimping pliers with digital
display are available as an alternative to the
manual crimping pliers with positioner and
eccentric setting, see page 150.
Crimping tools for turned contacts,
P30 series
Tools and accessories
For signal plug connectors and power connectors
Notes:
For the connection cross sections of 0.08 mm² and 0.14 mm²
(SF signal contacts Ø 1 mm), use the SF-Z0007 crimping pliers.
More informations and installation instructions at: www.phoenixcontact.com
Description Stranded wire cross
section [mm² / AWG] Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
Crimping tool, pneumatic for turned crimp contacts Ø 3.6 mm
6,0 ... 16 / AWG10-6 SF-Z0014 1607446 1
Crimping tool, pneumatic, for inverted Ø 2 mm / Ø 3.6 mm crimp
contacts
0,14 ... 6 / AWG 26-10 SF-Z0022 1607450 1
Crimping pliers for turned crimp contacts Ø 3.6 mm
6 ... 10 / AWG 10-8 SF-Z0009 1605672 1
Crimping pliers for inverted Ø 2 mm / Ø 3.6 mm crimp contacts
0,14 ... 6 / AWG 26-10 SF-Z0008 1605668 1
Crimp head for crimping pliers SF-Z0014, SF-Z0022, SF-Z0009,
SF-Z0008
SF-Z0003 1605657 1
Positioners for SF-Z0003 crimp head, for appliance connectors
Marking "D" SF-Z0011 1605675 1
Positioners for SF-Z0003 crimp head, for cable and coupling
connectors
"F" marking SF-Z0013 1605681 1
SF-Z00..
Crimp tools, for turned contacts
SF-Z00..
Crimp head and positioners for crimping pliers
148 PHOENIX CONTACT
Manually or pneumatically supported
crimping pliers are used for turned crimp
contacts for the P70 series.
The crimping pliers are suitable for
crimping turned contacts with Ø 2 mm and
Ø 3.6 mm.
Four-arbor crimping pliers with digital
display are available as an alternative to the
manual crimping pliers with positioner and
eccentric setting, see page 150.
Crimping tools for turned contacts,
P70 series
Tools and accessories
For signal plug connectors and power connectors
More informations and installation instructions at: www.phoenixcontact.com
Description Connection cross section
[mm
2
/ AWG] Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
Electro-hydraulic crimping device incl. charger and
rechargeable battery, for wire cross section 10 ... 50 mm²
(power and PE contacts Ø 10 mm)
SL-Z0007 1613484 1
Crimping stamp for crimping device SL-Z0007
10 / AWG 8 SL-Z0011 1613488 1
Crimping stamp for crimping device SL-Z0007
16 / AWG 6 SL-Z0012 1613489 1
Crimping stamp for crimping device SL-Z0007
25 / AWG 4 SL-Z0013 1613490 1
Crimping stamp for crimping device SL-Z0007
35 / AWG 2 SL-Z0014 1613491 1
Crimping stamp for crimping device SL-Z0007
50 / AWG 1 SL-Z0015 1613492 1
Manual crimping pliers with digital display for turned crimp
contacts
0,08 ... 6 / AWG 28-10 SF-Z0025 1607452 1
Accessories for electro-hydraulic crimping device SL-Z0007
Replacement battery SL-Z0008 1613485 1
Table holder incl. foot actuation switch SL-Z0010 1613487 1
SL-Z0007
Crimping tools for turned contacts Ø 10 mm
SF-Z0025
Manual crimping pliers with digital display,
0.08 mm² to 6.0 mm²
149PHOENIX CONTACT
The SF-Z0025 manual crimping pliers are
used for turned Ø 1.6 mm crimp contacts of
the P150 series connectors. The electrically
operated SL-Z0007 crimping tool is
available for crimping the Ø 10 mm contacts
comfortably.
The crimping stamps for processing the
Ø 10 mm contacts are used in pairs in each
case. The stamps are adapted to the
connection cross-sections and labelled.
Crimping tools for turned contacts,
P150 series
Tools and accessories
For signal plug connectors and power connectors
Notes:
The manual crimping pliers SF-Z0025 with digital display are also
suitable for crimping turned crimp contacts ST / SF / SM.
More informations and installation instructions at: www.phoenixcontact.com
Description Stranded wire cross
section [mm² / AWG] Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
Manual crimping pliers with digital display for turned crimp
contacts
0,08 ... 6 / AWG 28-10 SF-Z0025 1607452 1
Positioners for crimping the SF-6FS2000 / SF-6DP2000 contacts
with a connection cross section of 1.5 mm
2
SF-Z0042 1613666 1
Manual crimping pliers with digital display for turned crimp
contacts
6 ... 10 / AWG 10-8 SF-Z0026 1607454 1
SF-Z0025
Manual crimping pliers with digital display,
0.08 mm² to 6.0 mm²
SF-Z0026
Manual crimping pliers with digital display,
6.0 mm² to 10.0 mm²
150 PHOENIX CONTACT
Four-arbor crimping pliers with digital
display are available as an alternative to the
manual crimping pliers with positioner and
eccentric setting.
The crimping pliers are suitable for
crimping turned contacts with Ø 1 mm, Ø 2
mm and Ø 3.6 mm.
Crimping tools with digital display for
turned contacts P20, RF, P30, P70
Tools and accessories
For signal plug connectors and power connectors
More informations and installation instructions at: www.phoenixcontact.com
Description Stranded wire cross
section [mm² / AWG] Type Order No. Pcs. /
Pkt.
Pneumatic table crimping device for turned SF / SM crimp
contacts
0,14 ... 6 / AWG 26-10 SF-Z0043 1614571 1
SF-Z0043
Pneumatic table crimping device
151PHOENIX CONTACT
The pneumatic table crimping device is
available as an alternative to the SF-Z0025
manual crimping pliers. The crimping device
offers convenient operation and saves a lot
of time, especially when crimping bigger
quantities and/or bigger connection cross-
sections.
Compressed air with 6 bar operating
pressure is required to operate the table-
top version. The crimping procedure is
activated easily using a manual or foot
switch.
The table crimping device uses the same
crimp head (locator) as the manual crimping
pliers. The adjustable parameters for turned
crimp contacts of the SF and SM series for
connection cross-sections of 0.14 mm
2
to
6mm
2
are also applicable. Detailed
operating instructions containing the crimp
settings are enclosed with the packaging.
Crimping machine for turned
contacts P20, RF, P30, P70
Tools and accessories
For signal plug connectors and power connectors
G
F
Ød
H
E
J
A
ØB
C
More informations and installation instructions at: www.phoenixcontact.com
Description Wall mounting Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
Removal tool for contact carriers snapped-in from the front
for P20 series ST-Z0001 1607770 1
for RF series RF-Z0001 1607904 1
Square mounting flange, metal, with O ring seal,
for P20 cable and coupling connector for wall mounting
4 x Ø 2.7 mm ST-Z0002 1607771 5
4 x M3 ST-Z0003 1607772 5
Square mounting flange, metal, without seal,
for P20 cable and coupling connector for wall mounting
4 x Ø 2.7 mm ST-Z0004 1607773 5
4 x M3 ST-Z0005 1607775 5
Square mounting flange, metal, without seal,
for RF cable and coupling plug connector for wall mounting
4 x M3 RF-Z0003 1607905 5
Square mounting flange, metal, with O ring seal,
for P70 cable and coupling connector for wall mounting
4 x Ø 4.3 mm SM-Z0003 1607935 5
Square mounting flange, metal, without seal,
for P70 cable and coupling plug connector for wall mounting
4 x Ø 4.3 mm SM-Z0004 1607937 5
..-Z0001
Removal tool for snap-in contact carriers
..-Z000.
Square mounting flange for cable/coupling plug connector for wall
mounting
152 PHOENIX CONTACT
The removal tool is used for those
contact carriers which are snapped into the
housing without rear support. They are
removed from the plug-in side using the
removal tool.
The square mounting flange is used for
cable and coupling plug connectors. In this
way, the product range is easily expanded
with connectors as panel feed-throughs.
Contact removal tools, square
mounting flanges for P20, RF, P70
Tools and accessories
For signal plug connectors and power connectors
Type Installation dimensions Flange dimensions
ABC dEFGHJ
ST-Z0002
4x M2.5 /
3.2
22.9
+ 0,2
22,6
±
0,1 21.6 22,6
±
0,1
4x M3 /
2.7 M2.5 28,0
±
0,1 5
ST-Z0003
ST-Z0004
ST-Z0005
RF-Z0003 4x 3.2 27.9
±
0,1
28,3
±
0,1 26.2  28,3
±
0,1 4x M3 M3 35,0 6
SM-Z0003 4x M4 /
4.2
46.1
±
0,1
42,4
±
0,1 45.0  42,4
±
0,1 4x 4.3 M3 55,0
±
0,1 5,5
SM-Z0004
Flange dimensionsInstallation dimensions
Note:
Plastic mounting flanges can be supplied on request for insulating wall mounting.
More informations and installation instructions at: www.phoenixcontact.com
Description Wrench size [mm] Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
Torque screw driver incl. hook wrench
For M23 connectors with knurled nuts SF-Z0028 1607456 1
Replacement hook spanner for torque screw driver
SF-Z0027 1607455 1
Special wrench for cable/coupling plug connectors for screwing
the adapter
for P20, SW 19 series ST-Z0012 1613667 1
for RF, SW 24 series RF-Z0007 1614347 1
for P70, SW 41 series SM-Z0012 1614349 1
for P150, SW 55 series SL-Z0016 1614348 1
Special screw keys are available for the
screw connection of the adapter cap for
cable plug connectors and coupling
connectors of the RF, P20, P70 and P150
series.
The tool can be used with conventional
torque spanners in order to tighten the
adapter cap with the specified torque.
SF-Z002.
Torque screw driver for M23 connectors with knurled nuts
..-Z00..
Special screw key for screwing the adapter
153PHOENIX CONTACT
The torque screw driver is specially
adapted to the M23 circular connectors and
simplifies the process of tightening and
loosening the knurled nut safely even in
places where space is restricted.
The tool consists of a hook spanner as
well as a torque screw driver with a set
torque of 2.5 Nm.
Special wrench for P20, RF, P30, P70,
P150 series
Tools and accessories
For signal plug connectors and power connectors
Ø1,8
Ø25
More informations and installation instructions at: www.phoenixcontact.com
Description Degree of protection
when locked Type Order No. Pcs. /
Pkt.
Plastic dust protection cap, for signal plug connector/power
connector, with M17 outer thread
IP40 ST-Z0006 1607776 25
Plastic dust protection cap, for signal plug connector/power
connector, with M17 knurled nut (SPEEDCON and standard)
IP40 ST-Z0007 1607777 25
Plastic dust protection cap with eye for signal/power connector,
series RF, P30, with M23 outer thread
IP40 SF-Z0019 1607449 25
Plastic dust protection cap, for signal plug connector/power
connector, with M23 knurled nut
IP40 RC-Z2058 1604223 25
Plastic dust protection cap, for signal plug connector/power
connector, with M23 outer thread
IP40 RC-Z2059 1604225 25
Plastic dust protection cap, anti-static, black, for signal plug
connector/power connector, with M23 knurled nut
IP40 RC-Z2468 1611796 25
Plastic dust protection cap, anti-static, black, for signal plug
connector/power connector, RF series, P30, with M23 outer
thread
IP40 RC-Z2469 1611797 25
Plastic dust protection cap for bayonet cable plug connector, TU
series
IP40 TU-Z2003 1606023 25
Plastic dust protection cap for bayonet coupling and appliance
plug connector, TU series
IP40 TU-Z2002 1607778 25
Plastic dust protection cap for signal plug connector, HC series,
with M27 outer thread
IP40 HC-Z2292 1590492 25
Plastic dust protection cap for signal plug connector, HC series,
with M27 knurled nut
IP40 HC-Z2293 1590493 25
Plastic dust protection cap for power connector, P70 series,
with M40 outer thread
IP40 SM-Z0001 1605866 10
Plastic dust protection cap for power connector, P150 series,
with M58 outer thread
IP40 SL-Z0005 1607926 1
..-Z....
Plastic dust protection caps
154 PHOENIX CONTACT
SF-Z0019, eye for fixing rope
A range of protective caps is available for
signal and power plug connectors.
These prevent penetration of dust and
humidity to unmated connectors.
Plastic protective caps enable IP40 degree
of protection when locked.
Dust protection caps, plastic
Tools and accessories
For signal plug connectors and power connectors
More informations and installation instructions at: www.phoenixcontact.com
Description Degree of protection
when locked Type Order No. Pcs. /
Pkt.
Metal dust protection cap, for power connectors series P30,
with M23 outer thread
IP67 SC-Z2319 1605456 10
Metal dust protection cap with steel wire, for power connectors
series P30, with M23 outer thread
IP67 SC-Z2320 1605457 10
Metal dust protection cap with steel wire, for power connectors
series P30, with M23 knurled nuts
IP67 SC-Z2322 1605459 10
Metal dust protection cap, for signal plug connector, with M23
outer thread
IP67 RC-Z2104 1604260 10
Metal dust protection cap with steel wire, for signal plug
connector, with M23 outer thread
IP67 RC-Z2068 1604236 10
Metal dust protection cap with steel wire, for signal plug
connector, with M23 knurled nut
IP67 RC-Z2062 1604228 10
Metal dust protection cap with steel wire, for bayonet coupling
and appliance plug connector, TU series
IP67 TU-Z2317 1606025 10
Metal dust protection cap with steel wire, for signal plug
connector HC series, with M27 outer thread
IP67 HC-Z2291 1590491 10
Metal dust protection cap with steel wire, for signal plug
connector HC series, with M27 knurled nut
IP67 HC-Z2329 1613829 10
..-Z2...
Metal dust protection caps
155PHOENIX CONTACT
Metal protective caps are available for a
higher degree of protection. These enable
IP67 when locked.
The wire is fixed to the housing panel and
prevents the metal protective caps from
being lost.
Dust protection caps, metal
Tools and accessories
For signal plug connectors and power connectors
Description Type Order No. Number
Cable plug connector housing, unshielded,
with Pg11
RC-00000001200 1592539 1
Solder contact insert incl. contacts,
17-pos. pin
RC-17P1N120000 1601193 1
Cable gland for unshielded applications,
PG 11, IP 68
RC-Z2196 1604338 2
Coupling connector housing, unshielded,
with Pg11
RC-00000007200 1592621 1
Solder contact insert incl. contacts,
17-pos. socket
RC-17S1N120000 1601799 1
Ordering examples and type descriptions
Ordering examples
The modular circular connectors are
delivered as individual components. Flexible
combination options for housings, cable
glands and contact inserts allow easy
storage.
Description Type Order No. Number
Appliance plug connector housing, straight,
front mounting
RC-00000002200 1592574 1
Solder contact carrier incl. contacts,
17-pos. socket
RC-17S1N120000 1601799 1
Description Type Order No. Number
Crimp contact carrier, pin, 6-pos.,
contact insert numbering, standard
RC-06P1N8A0000 1593412 1
Crimp contacts, pin, turned Ø 2.0 mm, crimp range of
1.0 - 1.5 mm
2
/ AWG 18-16
RC-5CP2000 1603513 6
M23 modular signal plug connectors - RC series
Ordering example: 17-pos. conductor connection (cable plug connector and coupling connector)
M23 modular signal plug connectors - RC series
Ordering example: 17-pos. appliance plug connector
Modular signal plug connectors - RC series
Ordering example: 6-pos. crimp contact carrier and crimp contacts separate
156 PHOENIX CONTACT
Ordering examples and type descriptions
Ordering examples
Description Type Order No. Number
Power cable plug connector, 8-pos. (4+3+PE), with additional
M20 x 1.5 thread for ext. cable gland, universal cable seal
Ø 7.5 ... 14 mm
SF-7ES1N8AR4DU 1605621 1
Crimp contacts turned, socket Ø 2.0 mm (power contacts and
PE contact), crimp range of 0.25 ... 1.0 mm
2
/ AWG 24-18
SF-7PS2000 1605636 4
Crimp contacts turned, socket Ø 1.0 mm (signal contacts),
crimp range of 0.08 ... 0.2 mm
2
/ AWG 28-24
SF-6CS2000 1605562 4
M20 x 1.5 cable gland, IP 68, for conductor diameter of 9 ... 13 mm
RC-Z2417 1607019 1
Plug connectors are fully assembled upon
delivery and the respective crimp contacts
must be ordered separately. These are
delivered along with the connectors in
separate packing.
Description Type Order No. Number
Power appliance plug connector,
angled, fixed, 8-pos. (4+3+PE)
SF-7EP1N8AAF00 1607046 1
Crimp contacts turned, pin Ø 2.0 mm (power contacts and PE
contact), crimp range of 4 mm
2
/ AWG 12
SF-7MP2000 1605626 4
Crimp contacts turned, pin Ø 1.0 mm (signal contacts), crimp
range of 0.5-1.0 mm
2
/ AWG 20-18
SF-6AP2000 1605554 4
Description Type Order No. Number
Signal cable plug connector, 12-pos.,
N coding, direction of rotation standard,
universal cable seal Ø 3-13.2 mm
RF-12S1N8A80DU 1607276 1
Crimp contacts turned
Socket Ø 1.0 mm,
crimp range of 0.08-0.2 mm
2
SF-6CS2000 1605562 12
M23 power connectors - P30 series
Ordering example: 8-pos. (4+3+PE) cable plug connector with additional cable gland
M23 power connectors - P30 series
Ordering example: 8-pos. (4+3+PE), appliance plug connector, angled, fixed
M23 signal plug connector - RF series
Ordering example: 12-pos. cable plug connector for the transmission of feedback signals
157PHOENIX CONTACT
Ordering examples and type descriptions
Modular signal plug connectors - PLUSCON circular
Type description
TU 00 00 0 00 8U DU
Signal plug connectors
TU Bayonet
Number of positions
00 Free,
see contact insert
Contact type/direction of rotation
00 Free,
see contact insert
Coding
0Free,
see contact insert
Contact connection
00 Free,
see contact insert
Housing type
41 Appliance plug connectors, rear mounting,
4 x M3, flat gasket
53
Appliance plug connectors, rear mounting,
4 x Ø 3.2 mm, radial O ring
8U Cable plug connectors, shielded
9U Coupling connectors, shielded
TU Cable plug connectors, angled,
shielded
WB
Appliance plug connectors, front mounting,
4 x Ø 3.2 mm, axial O ring
Cable clamping/shield accessories
00 No cable clamping
DU Universal seal/shield
Bayonet housing
TU series
Type description
RC 06 P1 N 12 00 00
Modular signal plug
connectors
RC Standard types
Number of positions
06 6 16 16
07 7 17 17
63 9 (6+3) 19 19 (16+3)
09 9 (8+1) 1R 19 (16+2+PE)
12 12
Contact type/direction of rotation
P1 Pin/standard
P2 Pin/opposite
S1 Socket/standard
S2 Socket/opposite
Coding
NN coding 0°
Contact connection
12 Solder (incl. contacts)
22 Solder-in, solder pin length A (incl. contacts)
32 Solder-in, solder pin length B (incl. contacts)
8B, 8C, 8D, 8E, 8K, 8L crimp (incl. contacts)
A2 Solder-in, solder pin length C (incl. contacts)
C2 Solder-in, solder pin length D (incl. contacts)
RM Crimp for 16+2+PE (incl. contacts)
S2 Screw (incl. contacts)
Housing type
00 Free, see housing
Cable seal
00 Free, see housing
Contact inserts incl. contacts
RC, UC, TU series
Type description
RC 06 P1 N 8
A
00 00
Modular signal plug
connectors
RC Standard types
Number of positions
06 6 16 16
07 7 17 17
09 9 (8+1) 1R 19 (16+2+PE)
12 12
Contact type/direction of rotation
P1 Pin/standard
P2 Pin/opposite
S1 Socket/standard
S2 Socket/opposite
Coding
NN coding 0°
Contact connection
RA Crimp for 16+2+PE (without contacts)
8 A Crimp (without contacts)
Housing type
00 Free, see housing
Cable seal
00 Free, see housing
Crimp contact carrier without contacts
RC, UC, TU series
Type description
RC 00 00 0 00 80 FZ
Signal plug connectors
RC M23 standard types
NC Types with plastic cap
RM Types with metric
connecting threads
UC
Types with universal
shield connection,
extended cable entry range
up to Ø 14.5 mm
Number of positions
00 Free,
see contact insert
Contact type/direction of rotation
00 Free,
see contact insert
Coding
0Free,
see contact insert
Contact connection
00 Free,
see contact insert
Housing type
see housing type table (on the right)
Cable clamping/shield accessories
00 No cable clamping
DU Universal seal/shield
FZ Depending on the cable, to be ordered separately
M23 housing
RC, UC series
Type description
80
Housing type
11 Cable plug connectors, unshielded, connecting thread
Pg9 / M16
12 Cable plug connectors, unshielded, connecting thread
Pg11
13 Cable plug connectors, unshielded, connecting thread
Pg13.5 / M20
22
Appliance plug connectors, front mounting, 4 x Ø 2.7 mm,
flat gasket
42 Appliance plug connectors, rear mounting, 4 x M2.5,
radial O ring
52
Appliance plug connectors, rear mounting, 4 x Ø 2.7 mm,
radial O ring
61 Appliance plug connectors, front mounting, central
fastening thread M20
71 Coupling connectors, unshielded, connecting thread
Pg9 / M16
72 Coupling connectors, unshielded, connecting thread
Pg11
73 Coupling connectors, unshielded, connecting thread
Pg13.5 / M20
80 Cable plug connectors, shielded
90 Coupling connectors, shielded
AD Appliance plug connectors, front mounting,
angled rotatable, 4 x Ø 3.2 mm,
axial O ring
B2 Coupling connectors, shielded (feed-through),
front mounting with mounting flange 4 x Ø 2.7 mm
C0 Coupling connectors, shielded (feed-through),
rear mounting with mounting flange 4 x Ø M2.5
E0 Appliance plug connectors, rear mounting,
reinforced flange, 4 x M3,
radial O ring
F3 Coupling connectors, shielded,
connecting thread Pg13.5
FN Coupling connectors, shielded,
connecting thread Pg16
H0 Appliance plug connectors, rear mounting,
central fixing nut, axial O ring
K0 Cable plug connectors, shielded,
plastic sheath
KS Cable plug connectors, shielded,
plastic cap
M0 Coupling connectors, shielded,
plastic sheath
N3 Cable plug connectors, angled, shielded, connecting
thread Pg13.5
NN Cable plug connectors, angled, shielded, connecting
thread Pg16
Q0 Coupling connectors, shielded (feed-through),
rear mounting with mounting flange,
central fixing nut
Q3 Coupling connectors, shielded (feed-through),
rear mounting with central fixing nut,
connecting thread Pg13.5
QN Coupling connectors, shielded (feed-through),
rear mounting with central fixing nut,
connecting thread Pg16
R3 Cable plug connectors, shielded,
connecting thread Pg13.5
RN Cable plug connectors, shielded,
connecting thread Pg16
T0 Cable plug connectors, angled,
shielded
WQ Appliance plug connectors, front mounting,
reinforced flange, 4 x Ø 2.7 mm
radial O ring
Z1 Cable plug connectors, angled, unshielded,
connecting thread Pg9 / M16
Z2 Cable plug connectors, angled, unshielded,
connecting thread Pg11
Z3 Cable plug connectors, angled, unshielded,
connecting thread Pg13.5 / M20
158 PHOENIX CONTACT
Ordering examples and type descriptions
Signal plug connectors - PLUSCON circular
Type description
PV- 08 P1 N 12 61 00
Signal plug connectors
PV
M16 appliance plug connectors
Number of positions
08 8 12 12
10 10 14 14
Contact type/direction of rotation
P1 Pin/standard
Coding
NN coding 0°
Contact connection
12 Solder (incl. contacts)
22 Solder-in (incl. contacts)
Housing type
61 Appliance plug connectors,
front mounting
HG Appliance plug connectors,
rear mounting
Cable seal
00 No cable seal
M16 signal plug connectors
PV series
Type description
ST 17 P1 N 8A 80 02 S
Signal plug connectors
ST M17
Number of positions
17 17-pos.
Contact type/direction of rotation
P1 Pin/standard
S1 Socket/standard
Coding
NN coding 0°
Contact connection
8A Crimp (without contacts)
Housing type
61 Appliance plug connectors, front mounting,
central fastening M18 x 0.75
80 Cable plug connectors, shielded
90 Coupling connectors, shielded
AC Appliance plug connectors, front mounting,
angled, rotatable,
flange dimensions 25 x 25 mm
AD
Appliance plug connectors, front mounting, angled,
rotatable,
flange dimensions 21.6 x 21.6 mm
H1 Appliance plug connectors, rear mounting,
central fastening M20 x 1.5
W4 Appliance plug connectors, front mounting,
contact insert for snapping in
WQ Appliance plug connectors
front mounting
Cable seal
00 No cable seal
02 - 04 Fixed gaskets
Locking thread
SSPEEDCON,
not occupied, M17 standard locking
M17 signal plug connectors
ST series
M23 signal plug connectors
RF series
Type description
RF 12 S1 N 8A 80 02
Signal plug connectors
RF M23
Number of positions
12 12-pos. 17 17-pos.
16 16-pos.
Contact type/direction of rotation
P1 Pin/standard
P2 Pin/opposite
S1 Socket/standard
S2 Socket/opposite
Coding
NN coding 0°
SS coding 20°/N coding 0°
Contact connection
8A Crimp (without contacts)
Housing type
80 Cable plug connectors, shielded
90 Coupling connectors, shielded
8V Cable plug connectors, shielded,
high-grade steel
9V Coupling connectors, shielded,
high-grade steel
A2 Appliance plug connectors, front mounting, angled,
fixed, 2-part housing
AC Appliance plug connectors, front mounting, angled
rotatable, flange dimensions 28 x 28 mm
AD Appliance plug connectors, front mounting, angled
rotatable, flange dimensions 26 x 26 mm
AF Appliance plug connectors, front mounting, angled
fixed, flange dimensions 26 x 26 mm
AK Appliance plug connectors, front mounting, angled
fixed, flange dimensions 28 x 28 mm
W4
Appliance plug connectors, front mounting,
4 x Ø 2.7 mm, contact carrier for snapping in
WA
Appliance plug connectors, front mounting,
4 x Ø 3.2 mm
WB
Appliance plug connectors, front mounting,
4 x Ø 3.2 mm, contact carrier for snapping in
WQ
Appliance plug connectors, front mounting,
4 x Ø 2.7 mm
WU Appliance plug connectors, front mounting,
high-grade steel, 4 x Ø 2.7 mm
WV Appliance plug connectors, front mounting,
high-grade steel, 4 x Ø 3.2 mm
Cable seal
00 No cable seal
DU Universal gasket
02 - 04 Fixed gaskets
159PHOENIX CONTACT
M27 signal plug connectors
HC series
Type description
HC 26 S1 N 12 80 DU
Signal plug connectors
HC M27
Number of positions
26 26-pos. AR 25+PE
28 28-pos.
Contact type/direction of rotation
P1 Pin/standard
S1 Socket/standard
Coding
NN coding 0°
Contact connection
12 Solder (incl. contacts)
22 Solder-in, solder pin length A (incl. contacts)
32 Solder-in, solder pin length B (incl. contacts)
T2 Solder-in, solder pin length C (incl. contacts)
RA Crimp (without contacts)
Housing type
23
Appliance plug connectors, front mounting, 4 x Ø 3.2 mm,
flat gasket
43 Appliance plug connectors, rear mounting, 4 x M3,
radial O ring
63 Appliance plug connectors, front mounting, Pg 21
central fastening, axial O ring
80 Cable plug connectors, shielded
90 Coupling connectors, shielded
WA
Appliance plug connectors, front mounting, 4 x Ø 3.2 mm,
radial O ring
Cable seal
00 No cable seal
DU Universal gasket
Ordering examples and type descriptions
Power connectors - PLUSCON circular
Type description
ST 3E P1 N 8A 80 02 S
Powerconnectors
ST P20 up to 20 A
Number of positions
3E 3+PE
5E 5+PE
6E 6+PE
7E 7+PE
8E 5+3+PE
Contact type/direction of rotation
P1 Pin/standard
S1 Socket/standard
Coding
NN coding 0°
Contact connection
8A Crimp (without contacts)
Housing type
61 Appliance plug connectors, front mounting,
central fastening M18 x 0.75
80 Cable plug connectors, shielded
90 Coupling connectors, shielded
AC Appliance plug connectors, front mounting,
angled, rotatable,
flange dimensions 25 x 25 mm
AD
Appliance plug connectors, front mounting,
angled, rotatable,
flange dimensions 21.6 x 21.6 mm
H1 Appliance plug connectors, rear mounting,
central fastening M20 x 1.5
W4 Appliance plug connectors, front mounting,
contact insert for snapping in
WQ Appliance plug connectors
front mounting
Cable seal
00 No cable seal
02 - 04 Fixed gaskets
Locking thread
SSPEEDCON,
not occupied, M17 standard locking
M17 power connectors
P20 series
M23 power connectors
P30 series
Type description
SF 5E S1 N 8A 80 DU
Powerconnectors
SF P30 up to 30 A
Number of positions
5E 5+PE
7E 4+3+PE
Contact type/direction of rotation
P1 Pin/standard
S1 Socket/standard
Coding
NN coding 0°
Contact connection
8A Crimp (without contacts)
Housing type
80 Cable plug connectors, shielded, short
90 Coupling connectors, shielded, short
8L Cable plug connectors, shielded, long
9L Coupling connectors, shielded, long
A2 Appliance plug connectors, front mounting, angled,
fixed, 2-part housing
AC Appliance plug connectors, front mounting, angled
rotatable, flange dimensions 28 x 28 mm
AD Appliance plug connectors, front mounting, angled
rotatable, flange dimensions 26 x 26 mm
AF Appliance plug connectors, front mounting, angled
fixed, flange dimensions 26 x 26 mm
AK Appliance plug connectors, front mounting, angled
fixed, flange dimensions 28 x 28 mm
C0 Panel feed-through, short, rear mounting, mounting
flange 4 x M3
CL Panel feed-through, long, rear mounting, mounting
flange 4 x M3
F4 Coupling connector, shielded, for additional cable
gland M20 x 1.5
R4 Cable plug connector, shielded, for additional cable
gland M20 x 1.5
S0 Panel feed-through,
pin inside - socket outside
WA Appliance plug connectors
front mounting
WK Appliance plug connectors,
front mounting, low design
Y0 Appliance plug connector with knurled nut, front
mounting
YW Appliance plug connector with knurled nut, front
mounting, angled
Cable seal
00 No cable seal
DU, DL Universal gasket
A1 - A3 Fixed gaskets
B1 - B4 Fixed gaskets
160 PHOENIX CONTACT
Ordering examples and type descriptions
Power connectors - PLUSCON circular
Legal notes:
– The technical data specified in this catalog refers exclusively to connectors
– All specifications are non-binding product descriptions
– No liability for typing/printing errors. Subject to change without notice
– Samples for presentation are not tested with reference to the technical properties specified in the catalog
Type description
SM 5E S1 N 8A 8L 32 S
Powerconnectors
SM P70 up to 70 A
Number of positions
5E 2+3+PE
7E 4+3+PE
Contact type/direction of rotation
P1 Pin/standard
S1 Socket/standard
PW Pin version for appliance
plug connectors/standard
Coding
NN coding
Contact connection
8A Crimp (without contacts)
Housing type
80 Cable plug connectors, shielded, short
90 Coupling connectors, shielded, short
8L Cable plug connectors, shielded,
with SPEEDCON knurl
8S Cable plug connectors, shielded, long
9L Coupling connectors, shielded,
with SPEEDCON external thread
A2 Appliance plug connectors, front mounting,
angled fixed,
2-part. housing
AD Appliance plug connectors, front mounting,
angled, rotatable
C0 Panel feed-through, short, rear mounting,
mounting flange 4 x M4
CL Panel feed-through long, rear mounting,
mounting flange 4 x M4
Q0 Panel feed-through, short, rear mounting, central
fastening
QL Panel feed-through, long, rear mounting, central
fastening
S0 Panel feed-through, pin inside - socket outside,
mounting flange 4 x Ø 4.2 mm
SA Panel feed-through, pin inside - socket outside,
mounting flange 4 x M4
WT Appliance plug connectors
front mounting
Y0 Appliance plug connectors with knurled nut, front
mounting
YW Appliance plug connectors with knurled nut, front
mounting, angled
Cable seal
00 No cable seal
02 - 34 Fixed gaskets
Locking thread
SSPEEDCON
M40 power connectors
P70 series
Type description
SL 5E S1 N 8
A
80 01
Powerconnectors
SL P150 up to 150 A
Number of positions
5E 2+3+PE
7E 4+3+PE
Contact type/direction of rotation
P1 Pin/standard
S1 Socket/standard
PW Pin version for appliance
plug connectors/standard
Coding
NN coding
Contact connection
8 A Crimp (without contacts)
Housing type
80 Cable plug connectors, shielded
90 Coupling connectors, shielded
WA Appliance plug connectors
front mounting
Cable seal
00 No cable seal
01 - 02 Fixed gaskets
M58 power connectors
P150 series
161PHOENIX CONTACT
Type Order No.Page Type Order No.Page Type Order No.Page Type Order No.Page
H
HC-26P1N122300 1590276 77
HC-26P1N124300 1590280 79
HC-26P1N126300 1590282 76
HC-26P1N1280DU 1590285 74
HC-26P1N1290DU 1590289 75
HC-26P1N12WA00 1590303 78
HC-26P1N222300 1615308 77
HC-26P1N224300 1590307 79
HC-26P1N322300 1615309 77
HC-26P1N324300 1590311 79
HC-26P1NRA2300 1590313 77
HC-26P1NRA4300 1590314 79
HC-26P1NRA6300 1590316 76
HC-26P1NRA80DU 1590319 74
HC-26P1NRA90DU 1590321 75
HC-26P1NRAWA00 1590333 78
HC-26P1NT22300 1590338 77
HC-26P1NT24300 1615340 79
HC-26P1NT2WA00 1615310 78
HC-26S1N122300 1590345 77
HC-26S1N124300 1590347 79
HC-26S1N126300 1590349 76
HC-26S1N1280DU 1590354 74
HC-26S1N1290DU 1590357 75
HC-26S1N12WA00 1590373 78
HC-26S1NRA2300 1590381 77
HC-26S1NRA4300 1590382 79
HC-26S1NRA6300 1590383 76
HC-26S1NRA90DU 1590388 75
HC-26S1NRAWA00 1590403 78
HC-28P1N122300 1590407 77
HC-28P1N124300 1590408 79
HC-28P1N126300 1590409 76
HC-28P1N1280DU 1590412 74
HC-28P1N1290DU 1590415 75
HC-28P1N12WA00 1590418 78
HC-28P1N222300 1615312 77
HC-28P1N224300 1615313 79
HC-28P1N322300 1615314 77
HC-28P1N324300 1615315 79
HC-28P1NT22300 1615316 77
HC-28P1NT24300 1590423 79
HC-28P1NT2WA00 1615317 78
HC-28S1N122300 1590427 77
HC-28S1N124300 1607139 79
HC-28S1N126300 1590428 76
HC-28S1N1280DU 1590432 74
HC-28S1N1290DU 1590434 75
HC-28S1N12WA00 1590439 78
HC-ARP1NRA2300 1590454 77
HC-ARP1NRA4300 1615341 79
HC-ARP1NRA6300 1614648 76
HC-ARP1NRA80DU 1608319 74
HC-ARP1NRA90DU 1615342 75
HC-ARP1NRAWA00 1590458 78
HC-ARS1NRA2300 1590467 77
HC-ARS1NRA4300 1615318 79
HC-ARS1NRA6300 1615319 76
HC-ARS1NRA80DU 1608323 74
HC-ARS1NRA90DU 1615320 75
HC-ARS1NRAWA00 1615321 78
HC-Z2291 1590491 155
HC-Z2292 1590492 154
HC-Z2293 1590493 154
HC-Z2300 1590498 76
HC-Z2329 1613829 155
N
NC-0000000KSFZ 1592030 16
P
PV-08P1N126100 1592490 41
PV-08P1N12HG00 1592491 41
PV-08P1N22HG00 1609977 41
PV-10P1N126100 1592493 41
PV-10P1N12HG00 1592494 41
PV-10P1N22HG00 1609978 41
PV-12P1N126100 1592496 41
PV-12P1N12HG00 1592497 41
PV-12P1N22HG00 1609979 41
PV-14P1N126100 1592499 41
PV-14P1N12HG00 1592500 41
PV-14P1N22HG00 1592501 41
R
RC-00000001100 1592535 17
RC-00000001200 1592539 17
RC-00000001300 1592546 17
RC-00000002200 1592574 20
RC-00000004200 1592589 22
RC-00000005200 1592599 22
RC-00000006100 1592604 21
RC-00000007100 1592618 17
RC-00000007200 1592621 17
RC-00000007300 1592626 17
RC-000000080FZ 1592680 16
RC-000000090FZ 1592750 16
RC-0000000AD00 1592777 21
RC-0000000B2FZ 1592781 20
RC-0000000C0FZ 1592790 22
RC-0000000E000 1592813 22
RC-0000000H000 1592833 22
RC-0000000K0FZ 1592865 16
RC-0000000M0FZ 1592899 16
RC-0000000Q0FZ 1592924 22
RC-0000000T0FZ 1592992 16
RC-0000000WQ00 1593021 20
RC-0000000Z100 1593037 17
RC-0000000Z200 1593040 17
RC-0000000Z300 1593044 17
RC-06P1N120000 1593072 32
RC-06P1N220000 1593395 36
RC-06P1N320000 1606991 37
RC-06P1N8A0000 1593412 34
RC-06P1N8B0000 1593525 33
RC-06P1N8K0000 1606992 33
RC-06P1NA20000 1593531 37
RC-06P1NC20000 1606993 37
RC-06P1NS20000 1593555 32
RC-06S1N120000 1593645 32
RC-06S1N220000 1594002 36
RC-06S1N320000 1606994 37
RC-06S1N8A0000 1594013 34
RC-06S1N8B0000 1594145 33
RC-06S1N8K0000 1606995 33
RC-06S1NA20000 1594149 37
RC-06S1NC20000 1606996 37
RC-06S1NS20000 1594164 32
RC-07P1N120000 1594263 32
RC-07P1N8A0000 1594435 34
RC-07P1N8B0000 1594497 33
RC-07P1N8K0000 1606997 33
RC-07P1NS20000 1594515 32
RC-07S1N120000 1594558 32
RC-07S1N8A0000 1594731 34
RC-07S1N8B0000 1594786 33
RC-07S1N8K0000 1606998 33
RC-07S1NS20000 1594801 32
RC-09P1N120000 1594887 32
RC-09P1N220000 1606999 36
RC-09P1N320000 1607000 37
RC-09P1N8A0000 1595375 34
RC-09P1N8C0000 1595501 33
RC-09P1N8L0000 1607001 33
RC-09P1NA20000 1595507 37
RC-09P1NC20000 1595519 37
RC-09P1NS20000 1595533 32
RC-09P2N120000 1595600 32
RC-09P2N8A0000 1595744 34
RC-09P2N8C0000 1595758 33
RC-09P2N8L0000 1607002 33
RC-09S1N120000 1595791 32
RC-09S1N220000 1596279 36
RC-09S1N320000 1607003 37
RC-09S1N8A0000 1596303 34
RC-09S1N8C0000 1596417 33
RC-09S1N8L0000 1607004 33
RC-09S1NA20000 1596421 37
RC-09S1NC20000 1596434 37
RC-09S1NS20000 1596456 32
RC-09S2N120000 1596535 32
RC-09S2N8A0000 1596706 34
RC-09S2N8C0000 1596724 33
RC-09S2N8L0000 1607005 33
RC-12P1N120000 1596856 32
RC-12P1N220000 1597402 36
RC-12P1N320000 1607006 37
RC-12P1N8A0000 1597464 34
RC-12P1N8D0000 1597635 33
RC-12P1N8E0000 1597641 33
RC-12P1NA20000 1597643 37
RC-12P1NC20000 1597660 37
RC-12P2000 1597862 35
RC-12P2N120000 1597867 32
RC-12P2N8A0000 1598196 34
RC-12P2N8D0000 1598292 33
RC-12P2N8E0000 1598295 33
RC-12S1N120000 1598466 32
RC-12S1N220000 1599079 36
RC-12S1N320000 1607007 37
RC-12S1N8A0000 1599138 34
RC-12S1N8D0000 1599343 33
RC-12S1N8E0000 1599348 33
RC-12S1NA20000 1607008 37
RC-12S1NC20000 1599367 37
RC-12S2000 1599600 35
RC-12S2N120000 1599614 32
RC-12S2N8A0000 1600076 34
RC-12S2N8D0000 1600231 33
RC-12S2N8E0000 1600234 33
RC-13041 1600417 51
RC-16P1N120000 1600509 32
RC-16P1N8A0000 1600707 34
RC-16P1N8D0000 1600747 33
RC-16S1N120000 1600816 32
RC-16S1N8A0000 1601058 34
RC-16S1N8D0000 1601116 33
RC-17P1N120000 1601193 32
RC-17P1N220000 1607009 36
RC-17P1N320000 1607010 37
RC-17P1N8A0000 1601451 34
RC-17P1N8D0000 1601634 33
RC-17P1N8E0000 1601636 33
RC-17P1NA20000 1601638 37
RC-17P1NC20000 1601647 37
RC-17P2N120000 1601727 32
RC-17S1N120000 1601799 32
RC-17S1N220000 1607011 36
RC-17S1N320000 1607013 37
RC-17S1N8A0000 1602082 34
RC-17S1N8D0000 1602282 33
RC-17S1N8E0000 1602284 33
RC-17S1NA20000 1607014 37
RC-17S1NC20000 1602295 37
RC-17S2N120000 1602383 32
RC-19P1N120000 1602482 32
RC-19S1N120000 1602749 32
RC-1RP1NRA0000 1603066 34
RC-1RP1NRM0000 1603144 33
RC-1RS1NRA0000 1603213 34
RC-1RS1NRM0000 1603305 33
RC-22P2000 1603321 35
RC-22S2000 1603327 35
RC-5AP2000 1603505 35
RC-5AS2000 1603509 35
RC-5CP2000 1603513 35
RC-5CS2000 1603517 35
RC-63P1N120000 1603538 32
RC-63P1N220000 1603637 36
RC-63P1N320000 1603640 37
RC-63P1NA20000 1603645 37
RC-63P1NC20000 1603651 37
RC-63S1N120000 1603668 32
RC-63S1N220000 1603764 36
RC-63S1N320000 1603767 37
RC-63S1NA20000 1603774 37
RC-63S1NC20000 1603778 37
RC-67P2000 1603797 80
RC-67S2000 1603800 80
RC-6EP2000 1603802 35
RC-6ES2000 1603805 35
RC-6FP2000 1603808 35
RC-6FS2000 1603811 35
RC-6KP2000 1603814 80
RC-6KS2000 1603816 80
RC-6LP2000 1603819 35
RC-6LS2000 1603823 35
RC-6MP2000 1603826 80
RC-6MS2000 1603829 80
RC-6RP2000 1603836 80
RC-6RS2000 1603846 80
RC-E0146 1603961 141
RC-Z2036 1604206 142
RC-Z2051 1604213 23
RC-Z2052 1604216 23
RC-Z2053 1604218 23
RC-Z2058 1604223 154
RC-Z2059 1604225 154
RC-Z2062 1604228 155
RC-Z2068 1604236 155
RC-Z2091 1604242 23
RC-Z2092 1604245 23
RC-Z2093 1604247 23
RC-Z2096 1604249 141
RC-Z2099 1604255 141
RC-Z2104 1604260 155
RC-Z2130 1604267 140
RC-Z2191 1604334 23
RC-Z2196 1604338 23
RC-Z2202 1604345 23
RC-Z2221 1604362 24
RC-Z2222 1604364 24
RC-Z2225 1604368 24
RC-Z2227 1604370 24
RC-Z2228 1604373 24
RC-Z2229 1604375 24
RC-Z2274 1604409 140
RC-Z2290 1604417 141
RC-Z2382 1604442 141
RC-Z2391 1604449 24
RC-Z2392 1604452 24
RC-Z2393 1604454 24
RC-Z2394 1604456 24
RC-Z2395 1604458 24
RC-Z2396 1604460 24
RC-Z2398 1604462 24
RC-Z2399 1604465 24
RC-Z2401 1604468 24
RC-Z2402 1604470 24
RC-Z2403 1604472 24
RC-Z2404 1604474 24
RC-Z2406 1607015 23
RC-Z2407 1607016 23
RC-Z2409 1604479 23
RC-Z2410 1604481 23
RC-Z2414 1607018 23
RC-Z2417 1607019 23
RC-Z2425 1604491 24
RC-Z2426 1604495 24
RC-Z2427 1604497 24
RC-Z2428 1607021 24
RC-Z2429 1604500 24
RC-Z2430 1604503 24
RC-Z2431 1604505 24
RC-Z2432 1604506 24
Index
Alphabetical
162 PHOENIX CONTACT
Type Order No. Page Type Order No. Page Type Order No. Page Type Order No. Page
Index
Alphabetical
RC-Z2433 1607022 24
RC-Z2434 1604509 24
RC-Z2435 1604511 24
RC-Z2436 1604513 24
RC-Z2437 1604516 24
RC-Z2438 1604517 24
RC-Z2439 1604519 24
RC-Z2440 1604520 24
RC-Z2441 1604522 24
RC-Z2442 1604524 24
RC-Z2443 1604526 24
RC-Z2444 1604529 24
RC-Z2445 1604532 24
RC-Z2446 1604534 24
RC-Z2447 1607023 24
RC-Z2448 1604536 24
RC-Z2449 1607024 24
RC-Z2450 1604539 24
RC-Z2451 1604541 24
RC-Z2452 1607025 24
RC-Z2453 1604545 24
RC-Z2454 1604547 24
RC-Z2455 1604549 24
RC-Z2462 1604558 25
RC-Z2463 1604561 25
RC-Z2468 1611796 154
RC-Z2469 1611797 154
RC-Z2490 1611803 140
RC-Z2494 1614123 140
RC-Z2504 1613822 140
RF-12P1N8A8002 1607225 58
RF-12P1N8A8003 1607227 58
RF-12P1N8A80DU 1607228 58
RF-12P1N8A8V02 1615239 66
RF-12P1N8A8V03 1614066 66
RF-12P1N8A8VDU 1614067 66
RF-12P1N8A9002 1607229 59
RF-12P1N8A9003 1607230 59
RF-12P1N8A90DU 1607231 59
RF-12P1N8A9V02 1613958 67
RF-12P1N8A9V03 1613959 67
RF-12P1N8A9VDU 1613960 67
RF-12P1N8AA200 1607232 62
RF-12P1N8AAC00 1607802 64
RF-12P1N8AAD00 1607233 64
RF-12P1N8AAF00 1607234 63
RF-12P1N8AAK00 1607235 63
RF-12P1N8AW400 1607803 61
RF-12P1N8AWA00 1607236 60
RF-12P1N8AWB00 1607804 61
RF-12P1N8AWQ00 1607806 60
RF-12P1N8AWU00 1613700 68
RF-12P1N8AWV00 1613701 68
RF-12P1S8A8002 1607237 58
RF-12P1S8A8003 1607238 58
RF-12P1S8A80DU 1607240 58
RF-12P1S8A8V02 1614068 66
RF-12P1S8A8V03 1614069 66
RF-12P1S8A8VDU 1614070 66
RF-12P1S8A9002 1607241 59
RF-12P1S8A9003 1607242 59
RF-12P1S8A90DU 1607243 59
RF-12P1S8A9V02 1613961 67
RF-12P1S8A9V03 1613962 67
RF-12P1S8A9VDU 1613963 67
RF-12P1S8AA200 1607244 62
RF-12P1S8AAC00 1607808 64
RF-12P1S8AAD00 1607245 64
RF-12P1S8AAF00 1607246 63
RF-12P1S8AAK00 1607247 63
RF-12P1S8AW400 1607809 61
RF-12P1S8AWA00 1607248 60
RF-12P1S8AWB00 1607810 61
RF-12P1S8AWQ00 1607811 60
RF-12P1S8AWU00 1613702 68
RF-12P1S8AWV00 1613703 68
RF-12P2N8A8002 1607249 58
RF-12P2N8A8003 1607251 58
RF-12P2N8A80DU 1607252 58
RF-12P2N8A8V02 1614071 66
RF-12P2N8A8V03 1614072 66
RF-12P2N8A8VDU 1614073 66
RF-12P2N8A9002 1607253 59
RF-12P2N8A9003 1607254 59
RF-12P2N8A90DU 1607255 59
RF-12P2N8A9V02 1613964 67
RF-12P2N8A9V03 1613965 67
RF-12P2N8A9VDU 1613966 67
RF-12P2N8AA200 1607256 62
RF-12P2N8AAC00 1607814 64
RF-12P2N8AAD00 1607257 64
RF-12P2N8AAF00 1607258 63
RF-12P2N8AAK00 1607259 63
RF-12P2N8AW400 1607816 61
RF-12P2N8AWA00 1607260 60
RF-12P2N8AWB00 1607817 61
RF-12P2N8AWQ00 1607818 60
RF-12P2N8AWU00 1613704 68
RF-12P2N8AWV00 1614414 68
RF-12P2S8A8002 1607261 58
RF-12P2S8A8003 1607262 58
RF-12P2S8A80DU 1607264 58
RF-12P2S8A8V02 1614074 66
RF-12P2S8A8V03 1614075 66
RF-12P2S8A8VDU 1614076 66
RF-12P2S8A9002 1607265 59
RF-12P2S8A9003 1607266 59
RF-12P2S8A90DU 1607267 59
RF-12P2S8A9V02 1613967 67
RF-12P2S8A9V03 1613968 67
RF-12P2S8A9VDU 1613969 67
RF-12P2S8AA200 1607268 62
RF-12P2S8AAC00 1607820 64
RF-12P2S8AAD00 1607269 64
RF-12P2S8AAF00 1607270 63
RF-12P2S8AAK00 1607271 63
RF-12P2S8AW400 1607821 61
RF-12P2S8AWA00 1607272 60
RF-12P2S8AWB00 1607822 61
RF-12P2S8AWQ00 1607823 60
RF-12P2S8AWU00 1613705 68
RF-12P2S8AWV00 1613706 68
RF-12S1N8A8002 1607273 58
RF-12S1N8A8003 1607275 58
RF-12S1N8A80DU 1607276 58
RF-12S1N8A8V02 1614077 66
RF-12S1N8A8V03 1615240 66
RF-12S1N8A8VDU 1614078 66
RF-12S1N8A9002 1607825 59
RF-12S1N8A9003 1607277 59
RF-12S1N8A90DU 1607278 59
RF-12S1N8A9V02 1613970 67
RF-12S1N8A9V03 1613971 67
RF-12S1N8A9VDU 1613972 67
RF-12S1N8AA200 1607279 62
RF-12S1N8AAC00 1607827 64
RF-12S1N8AAD00 1607280 64
RF-12S1N8AAF00 1607281 63
RF-12S1N8AAK00 1607282 63
RF-12S1N8AW400 1607828 61
RF-12S1N8AWA00 1607283 60
RF-12S1N8AWB00 1607830 61
RF-12S1N8AWQ00 1607831 60
RF-12S1N8AWU00 1613707 68
RF-12S1N8AWV00 1613708 68
RF-12S1S8A8002 1607284 58
RF-12S1S8A8003 1607285 58
RF-12S1S8A80DU 1607286 58
RF-12S1S8A8V02 1614079 66
RF-12S1S8A8V03 1614080 66
RF-12S1S8A8VDU 1614081 66
RF-12S1S8A9002 1607287 59
RF-12S1S8A9003 1607288 59
RF-12S1S8A90DU 1607289 59
RF-12S1S8A9V02 1613973 67
RF-12S1S8A9V03 1613974 67
RF-12S1S8A9VDU 1613975 67
RF-12S1S8AA200 1607290 62
RF-12S1S8AAC00 1607834 64
RF-12S1S8AAD00 1607291 64
RF-12S1S8AAF00 1607292 63
RF-12S1S8AAK00 1607293 63
RF-12S1S8AW400 1607836 61
RF-12S1S8AWA00 1607294 60
RF-12S1S8AWB00 1607837 61
RF-12S1S8AWQ00 1607839 60
RF-12S1S8AWU00 1613709 68
RF-12S1S8AWV00 1613710 68
RF-12S2N8A8002 1607295 58
RF-12S2N8A8003 1607296 58
RF-12S2N8A80DU 1607297 58
RF-12S2N8A8V02 1614082 66
RF-12S2N8A8V03 1614083 66
RF-12S2N8A8VDU 1615068 66
RF-12S2N8A9002 1607300 59
RF-12S2N8A9003 1607301 59
RF-12S2N8A90DU 1607302 59
RF-12S2N8A9V02 1613976 67
RF-12S2N8A9V03 1613977 67
RF-12S2N8A9VDU 1613978 67
RF-12S2N8AA200 1607303 62
RF-12S2N8AAC00 1607842 64
RF-12S2N8AAD00 1607304 64
RF-12S2N8AAF00 1607305 63
RF-12S2N8AAK00 1607306 63
RF-12S2N8AW400 1607843 61
RF-12S2N8AWA00 1607307 60
RF-12S2N8AWB00 1607844 61
RF-12S2N8AWQ00 1607845 60
RF-12S2N8AWU00 1613711 68
RF-12S2N8AWV00 1613712 68
RF-12S2S8A8002 1607308 58
RF-12S2S8A8003 1607309 58
RF-12S2S8A80DU 1607310 58
RF-12S2S8A8V02 1614084 66
RF-12S2S8A8V03 1614085 66
RF-12S2S8A8VDU 1614086 66
RF-12S2S8A9002 1607312 59
RF-12S2S8A9003 1607313 59
RF-12S2S8A90DU 1607314 59
RF-12S2S8A9V02 1613979 67
RF-12S2S8A9V03 1613980 67
RF-12S2S8A9VDU 1613981 67
RF-12S2S8AA200 1607315 62
RF-12S2S8AAC00 1607847 64
RF-12S2S8AAD00 1607316 64
RF-12S2S8AAF00 1607317 63
RF-12S2S8AAK00 1607318 63
RF-12S2S8AW400 1607848 61
RF-12S2S8AWA00 1607319 60
RF-12S2S8AWB00 1607849 61
RF-12S2S8AWQ00 1607850 60
RF-12S2S8AWU00 1613713 68
RF-12S2S8AWV00 1613714 68
RF-16P1N8A8002 1613715 58
RF-16P1N8A8003 1613716 58
RF-16P1N8A80DU 1613717 58
RF-16P1N8A8V02 1614087 66
RF-16P1N8A8V03 1614088 66
RF-16P1N8A8VDU 1614089 66
RF-16P1N8A9002 1613757 59
RF-16P1N8A9003 1613758 59
RF-16P1N8A90DU 1613759 59
RF-16P1N8A9V02 1613982 67
RF-16P1N8A9V03 1613983 67
RF-16P1N8A9VDU 1613984 67
RF-16P1N8AA200 1613760 62
RF-16P1N8AAC00 1613761 64
RF-16P1N8AAD00 1613762 64
RF-16P1N8AAF00 1613763 63
RF-16P1N8AAK00 1613764 63
RF-16P1N8AW400 1613765 61
RF-16P1N8AWA00 1613766 60
RF-16P1N8AWB00 1613767 61
RF-16P1N8AWQ00 1613768 60
RF-16P1N8AWU00 1613718 68
RF-16P1N8AWV00 1613719 68
RF-16P2N8A8002 1613720 58
RF-16P2N8A8003 1613721 58
RF-16P2N8A80DU 1613722 58
RF-16P2N8A8V02 1615245 66
RF-16P2N8A8V03 1614090 66
RF-16P2N8A8VDU 1614091 66
RF-16P2N8A9002 1613769 59
RF-16P2N8A9003 1613770 59
RF-16P2N8A90DU 1613771 59
RF-16P2N8A9V02 1613985 67
RF-16P2N8A9V03 1613986 67
RF-16P2N8A9VDU 1613987 67
RF-16P2N8AA200 1613772 62
RF-16P2N8AAC00 1613773 64
RF-16P2N8AAD00 1613774 64
RF-16P2N8AAF00 1613775 63
RF-16P2N8AAK00 1613776 63
RF-16P2N8AW400 1613777 61
RF-16P2N8AWA00 1613778 60
RF-16P2N8AWB00 1613779 61
RF-16P2N8AWQ00 1613780 60
RF-16P2N8AWU00 1613723 68
RF-16P2N8AWV00 1613724 68
RF-16S1N8A8002 1613725 58
RF-16S1N8A8003 1613726 58
RF-16S1N8A80DU 1613727 58
RF-16S1N8A8V02 1614092 66
RF-16S1N8A8V03 1614093 66
RF-16S1N8A8VDU 1614094 66
RF-16S1N8A9002 1613781 59
RF-16S1N8A9003 1613782 59
RF-16S1N8A90DU 1613783 59
RF-16S1N8A9V02 1613988 67
RF-16S1N8A9V03 1613989 67
RF-16S1N8A9VDU 1613990 67
RF-16S1N8AA200 1613784 62
RF-16S1N8AAC00 1613785 64
RF-16S1N8AAD00 1613830 64
RF-16S1N8AAF00 1613786 63
RF-16S1N8AAK00 1613787 63
RF-16S1N8AW400 1613788 61
RF-16S1N8AWA00 1613789 60
RF-16S1N8AWB00 1613790 61
RF-16S1N8AWQ00 1613791 60
RF-16S1N8AWU00 1613728 68
RF-16S1N8AWV00 1613729 68
RF-16S2N8A8002 1613730 58
RF-16S2N8A8003 1613731 58
RF-16S2N8A80DU 1613732 58
RF-16S2N8A8V02 1614095 66
RF-16S2N8A8V03 1614096 66
RF-16S2N8A8VDU 1614097 66
RF-16S2N8A9002 1613792 59
RF-16S2N8A9003 1613793 59
RF-16S2N8A90DU 1613794 59
RF-16S2N8A9V02 1613991 67
RF-16S2N8A9V03 1613992 67
RF-16S2N8A9VDU 1613993 67
RF-16S2N8AA200 1613795 62
RF-16S2N8AAC00 1613796 64
RF-16S2N8AAD00 1613797 64
RF-16S2N8AAF00 1613798 63
RF-16S2N8AAK00 1613799 63
RF-16S2N8AW400 1613800 61
RF-16S2N8AWA00 1613801 60
RF-16S2N8AWB00 1613802 61
RF-16S2N8AWQ00 1613803 60
RF-16S2N8AWU00 1613733 68
RF-16S2N8AWV00 1613734 68
RF-17P1N8A8002 1607320 58
RF-17P1N8A8003 1607321 58
RF-17P1N8A80DU 1607323 58
RF-17P1N8A8V02 1614098 66
RF-17P1N8A8V03 1614099 66
RF-17P1N8A8VDU 1614100 66
RF-17P1N8A9002 1607324 59
RF-17P1N8A9003 1607325 59
RF-17P1N8A90DU 1607326 59
RF-17P1N8A9V02 1613994 67
RF-17P1N8A9V03 1613995 67
RF-17P1N8A9VDU 1613996 67
RF-17P1N8AA200 1607327 62
RF-17P1N8AAC00 1607852 64
163PHOENIX CONTACT
Type Order No.Page Type Order No.Page Type Order No.Page Type Order No.Page
RF-17P1N8AAD00 1607328 64
RF-17P1N8AAF00 1607853 63
RF-17P1N8AAK00 1607854 63
RF-17P1N8AW400 1607857 61
RF-17P1N8AWA00 1607860 60
RF-17P1N8AWB00 1607863 61
RF-17P1N8AWQ00 1607866 60
RF-17P1N8AWU00 1613735 68
RF-17P1N8AWV00 1613736 68
RF-17P2N8A8002 1607329 58
RF-17P2N8A8003 1607330 58
RF-17P2N8A80DU 1607331 58
RF-17P2N8A8V02 1614101 66
RF-17P2N8A8V03 1615241 66
RF-17P2N8A8VDU 1614102 66
RF-17P2N8A9002 1607332 59
RF-17P2N8A9003 1607333 59
RF-17P2N8A90DU 1607334 59
RF-17P2N8A9V02 1613997 67
RF-17P2N8A9V03 1613998 67
RF-17P2N8A9VDU 1613999 67
RF-17P2N8AA200 1607336 62
RF-17P2N8AAC00 1607872 64
RF-17P2N8AAD00 1607337 64
RF-17P2N8AAF00 1607875 63
RF-17P2N8AAK00 1607878 63
RF-17P2N8AW400 1607881 61
RF-17P2N8AWA00 1607882 60
RF-17P2N8AWB00 1607883 61
RF-17P2N8AWQ00 1607885 60
RF-17P2N8AWU00 1613737 68
RF-17P2N8AWV00 1613738 68
RF-17S1N8A8002 1607338 58
RF-17S1N8A8003 1607339 58
RF-17S1N8A80DU 1607340 58
RF-17S1N8A8V02 1614103 66
RF-17S1N8A8V03 1614104 66
RF-17S1N8A8VDU 1614105 66
RF-17S1N8A9002 1607341 59
RF-17S1N8A9003 1607342 59
RF-17S1N8A90DU 1607343 59
RF-17S1N8A9V02 1614000 67
RF-17S1N8A9V03 1614001 67
RF-17S1N8A9VDU 1614002 67
RF-17S1N8AA200 1607344 62
RF-17S1N8AAC00 1607887 64
RF-17S1N8AAD00 1607345 64
RF-17S1N8AAF00 1607889 63
RF-17S1N8AAK00 1607890 63
RF-17S1N8AW400 1607891 61
RF-17S1N8AWA00 1607892 60
RF-17S1N8AWB00 1607893 61
RF-17S1N8AWQ00 1607894 60
RF-17S1N8AWU00 1613739 68
RF-17S1N8AWV00 1613740 68
RF-17S2N8A8002 1607347 58
RF-17S2N8A8003 1607348 58
RF-17S2N8A80DU 1607349 58
RF-17S2N8A8V02 1614106 66
RF-17S2N8A8V03 1614107 66
RF-17S2N8A8VDU 1614108 66
RF-17S2N8A9002 1607350 59
RF-17S2N8A9003 1607351 59
RF-17S2N8A90DU 1607352 59
RF-17S2N8A9V02 1614003 67
RF-17S2N8A9V03 1614004 67
RF-17S2N8A9VDU 1614005 67
RF-17S2N8AA200 1607353 62
RF-17S2N8AAC00 1607896 64
RF-17S2N8AAD00 1607354 64
RF-17S2N8AAF00 1607898 63
RF-17S2N8AAK00 1607899 63
RF-17S2N8AW400 1607900 61
RF-17S2N8AWA00 1607901 60
RF-17S2N8AWB00 1607902 61
RF-17S2N8AWQ00 1607903 60
RF-17S2N8AWU00 1613741 68
RF-17S2N8AWV00 1613742 68
RF-Z0001 1607904 152
RF-Z0003 1607905 152
RF-Z0007 1614347 153
RM-00000001100 1607026 17
RM-00000001300 1605029 17
RM-00000007100 1607027 17
RM-00000007300 1607028 17
RM-0000000Z100 1607029 17
RM-0000000Z300 1607030 17
S
SC-Z2319 1605456 155
SC-Z2320 1605457 155
SC-Z2322 1605459 155
SF-10KP004 1607355 71
SF-10KS004 1607356 71
SF-10KS010 1605481 71
SF-10KS320 1607031 70
SF-10KS330 1607358 70
SF-10KS350 1607032 70
SF-10KS360 1607361 70
SF-20KP004 1607376 113
SF-20KS010 1605491 113
SF-20KS350 (VPE150) 1607034 112
SF-20KS360 (VPE4000) 1607381 112
SF-5EE1N8AS000 1605492 111
SF-5EP1N8A90A1 1605494 103
SF-5EP1N8A90A2 1605496 103
SF-5EP1N8A90A3 1605498 103
SF-5EP1N8A90DU 1605499 103
SF-5EP1N8A9LB1 1605505 103
SF-5EP1N8A9LB2 1605507 103
SF-5EP1N8A9LB3 1605508 103
SF-5EP1N8A9LB4 1605509 103
SF-5EP1N8A9LDL 1605510 103
SF-5EP1N8AA200 1607906 106
SF-5EP1N8AAC00 1607035 108
SF-5EP1N8AAD00 1605512 108
SF-5EP1N8AAF00 1607036 107
SF-5EP1N8AAK00 1605515 107
SF-5EP1N8AC0A1 1605516 110
SF-5EP1N8AC0A2 1607037 110
SF-5EP1N8AC0A3 1607038 110
SF-5EP1N8AC0DU 1605517 110
SF-5EP1N8ACLB1 1607039 110
SF-5EP1N8ACLB2 1607040 110
SF-5EP1N8ACLB3 1607041 110
SF-5EP1N8ACLB4 1607042 110
SF-5EP1N8ACLDL 1605518 110
SF-5EP1N8AF4DU 1605519 104
SF-5EP1N8AWA00 1605520 105
SF-5EP1N8AWK00 1607043 105
SF-5ES1N8A80A1 1605524 102
SF-5ES1N8A80A2 1605526 102
SF-5ES1N8A80A3 1605529 102
SF-5ES1N8A80DU 1605532 102
SF-5ES1N8A8LB1 1605543 102
SF-5ES1N8A8LB2 1605545 102
SF-5ES1N8A8LB3 1605546 102
SF-5ES1N8A8LB4 1605548 102
SF-5ES1N8A8LDL 1605549 102
SF-5ES1N8AR4DU 1605553 104
SF-5ES1N8AY000 1607082 109
SF-5ES1N8AYW00 1607405 109
SF-6AP2000 1605554 71
SF-6AS2000 1605557 71
SF-6CP2000 1605559 71
SF-6CS2000 1605562 71
SF-6DP2000 1607406 113
SF-6FS2000 1605566 113
SF-7EE1N8AS000 1605567 111
SF-7EP1N8A90A1 1605568 103
SF-7EP1N8A90A2 1605570 103
SF-7EP1N8A90A3 1605571 103
SF-7EP1N8A90DU 1605575 103
SF-7EP1N8A9LB1 1605578 103
SF-7EP1N8A9LB2 1605580 103
SF-7EP1N8A9LB3 1605581 103
SF-7EP1N8A9LB4 1605582 103
SF-7EP1N8A9LDL 1605583 103
SF-7EP1N8AA200 1607908 106
SF-7EP1N8AAC00 1607045 108
SF-7EP1N8AAD00 1605586 108
SF-7EP1N8AAF00 1607046 107
SF-7EP1N8AAK00 1607047 107
SF-7EP1N8AC0A1 1607048 110
SF-7EP1N8AC0A2 1607049 110
SF-7EP1N8AC0A3 1607050 110
SF-7EP1N8AC0DU 1607051 110
SF-7EP1N8ACLB1 1607052 110
SF-7EP1N8ACLB2 1607053 110
SF-7EP1N8ACLB3 1607054 110
SF-7EP1N8ACLB4 1607055 110
SF-7EP1N8ACLDL 1607056 110
SF-7EP1N8AF4DU 1605588 104
SF-7EP1N8AWA00 1605589 105
SF-7EP1N8AWK00 1605591 105
SF-7ES1N8A80A1 1605595 102
SF-7ES1N8A80A2 1605596 102
SF-7ES1N8A80A3 1605597 102
SF-7ES1N8A80DU 1605602 102
SF-7ES1N8A8LB1 1605605 102
SF-7ES1N8A8LB2 1605607 102
SF-7ES1N8A8LB3 1605610 102
SF-7ES1N8A8LB4 1605614 102
SF-7ES1N8A8LDL 1605617 102
SF-7ES1N8AR4DU 1605621 104
SF-7ES1N8AY000 1605622 109
SF-7ES1N8AYW00 1607429 109
SF-7MP2000 1605626 113
SF-7MS2000 1605628 113
SF-7NS2000 1605631 113
SF-7PP2000 1605634 113
SF-7PS2000 1605636 113
SF-7QP2000 1605639 113
SF-7QS2000 1605643 113
SF-7RP2000 1605646 113
SF-Z0002 1605655 145
SF-Z0003 1605657 145
SF-Z0004 1605661 145
SF-Z0007 1605665 145
SF-Z0008 1605668 145
SF-Z0009 1605672 148
SF-Z0011 1605675 147
SF-Z0012 1605678 146
SF-Z0013 1605681 148
SF-Z0014 1607446 148
SF-Z0019 1607449 154
SF-Z0022 1607450 145
SF-Z0025 1607452 149
SF-Z0026 1607454 150
SF-Z0027 1607455 153
SF-Z0028 1607456 153
SF-Z0029 1607458 144
SF-Z0030 1607459 144
SF-Z0031 1607461 144
SF-Z0032 1607462 144
SF-Z0033 1607463 144
SF-Z0035 1607465 144
SF-Z0039 1607470 144
SF-Z0040 1607471 144
SF-Z0041 1607472 144
SF-Z0042 1613666 150
SF-Z0043 1614571 151
SF-Z0047 1614689 144
SF-Z0052 1615413 144
SL-16KP010 1607909 137
SL-16KS010 1607956 137
SL-1CKP010 1607911 137
SL-1CKP020 1607912 137
SL-1CKP030 1607913 137
SL-1CKP040 1607914 137
SL-1CKP050 1607915 137
SL-1CKS010 1607916 137
SL-1CKS020 1607917 137
SL-1CKS030 1607918 137
SL-1CKS040 1607919 137
SL-1CKS050 1607920 137
SL-5EP1N8A9001 1607499 135
SL-5EP1N8A9002 1607500 135
SL-5EPWN8AWA00 1615686 136
SL-5ES1N8A8001 1607501 134
SL-5ES1N8A8002 1607503 134
SL-7EP1N8A9001 1607505 135
SL-7EP1N8A9002 1607506 135
SL-7EPWN8AWA00 1615687 136
SL-7ES1N8A8001 1607507 134
SL-7ES1N8A8002 1607508 134
SL-Z0005 1607926 154
SL-Z0007 1613484 149
SL-Z0008 1613485 149
SL-Z0010 1613487 149
SL-Z0011 1613488 149
SL-Z0012 1613489 149
SL-Z0013 1613490 149
SL-Z0014 1613491 149
SL-Z0015 1613492 149
SL-Z0016 1614348 153
SM-20KP005 1605736 128
SM-20KP006 1605738 128
SM-20KP007 1605739 128
SM-20KP008 1605741 128
SM-36KP001 1605743 128
SM-36KP002 1605744 128
SM-36KP003 1605745 128
SM-36KP004 1605747 128
SM-36KP005 1605749 128
SM-36KP006 1605750 128
SM-36KP007 1605752 128
SM-36KP008 1605754 128
SM-36KP009 1607057 128
SM-36KS001 1605756 128
SM-36KS002 1605758 128
SM-36KS003 1605760 128
SM-36KS004 1605762 128
SM-5EE1N8AS000 1605767 126
SM-5EE1N8ASA00 1605768 126
SM-5EP1N8A9002 1605769 123
SM-5EP1N8A9003 1605771 123
SM-5EP1N8A9004 1605773 123
SM-5EP1N8A9005 1605775 123
SM-5EP1N8A9L32S 1613425 119
SM-5EP1N8A9L33S 1613426 119
SM-5EP1N8A9L34S 1613427 119
SM-5EP1N8AC002 1605782 124
SM-5EP1N8AC003 1605783 124
SM-5EP1N8AC004 1605784 124
SM-5EP1N8AC005 1605785 124
SM-5EP1N8ACL02 1605786 124
SM-5EP1N8ACL03 1605787 124
SM-5EP1N8ACL04 1605788 124
SM-5EP1N8ACL05 1605789 124
SM-5EP1N8AQ002 1605790 125
SM-5EP1N8AQ003 1605791 125
SM-5EP1N8AQ004 1605792 125
SM-5EP1N8AQ005 1605793 125
SM-5EP1N8AQL02 1605794 125
SM-5EP1N8AQL03 1605795 125
SM-5EP1N8AQL04 1605796 125
SM-5EP1N8AQL05 1605797 125
SM-5EPWN8AA200 1613516 120
SM-5EPWN8AAD00S 1607927 120
SM-5EPWN8AWT00 1613517 120
SM-5ES1N8A8002 1605803 122
SM-5ES1N8A8003 1605805 122
SM-5ES1N8A8004 1605807 122
SM-5ES1N8A8005 1605809 122
SM-5ES1N8A8L32S 1613428 118
SM-5ES1N8A8L33S 1613429 118
SM-5ES1N8A8L34S 1613430 118
SM-5ES1N8A8S22 1613518 122
SM-5ES1N8A8S23 1613519 122
SM-5ES1N8A8S24 1613520 122
SM-5ES1N8AY000 1605823 127
SM-5ES1N8AY000S 1613524 121
SM-5ES1N8AYW00 1607532 127
SM-5ES1N8AYW00S 1613525 121
SM-7EE1N8AS000 1605824 126
SM-7EE1N8ASA00 1605825 126
Index
Alphabetical
164 PHOENIX CONTACT
Type Order No. Page Type Order No. Page Type Order No. Page Type Order No. Page
SM-7EP1N8A9002 1607063 123
SM-7EP1N8A9003 1605826 123
SM-7EP1N8A9004 1607064 123
SM-7EP1N8A9005 1607065 123
SM-7EP1N8A9L32S 1613431 119
SM-7EP1N8A9L33S 1613432 119
SM-7EP1N8A9L34S 1613433 119
SM-7EP1N8AC002 1605830 124
SM-7EP1N8AC003 1605831 124
SM-7EP1N8AC004 1605832 124
SM-7EP1N8AC005 1605833 124
SM-7EP1N8ACL02 1605834 124
SM-7EP1N8ACL03 1605835 124
SM-7EP1N8ACL04 1605836 124
SM-7EP1N8ACL05 1605837 124
SM-7EP1N8AQ002 1605838 125
SM-7EP1N8AQ003 1605839 125
SM-7EP1N8AQ004 1605840 125
SM-7EP1N8AQ005 1605841 125
SM-7EP1N8AQL02 1605842 125
SM-7EP1N8AQL03 1605843 125
SM-7EP1N8AQL04 1605844 125
SM-7EP1N8AQL05 1605845 125
SM-7EPWN8AA200 1613526 120
SM-7EPWN8AAD00S 1607931 120
SM-7EPWN8AWT00 1613527 120
SM-7ES1N8A8002 1605851 122
SM-7ES1N8A8003 1605852 122
SM-7ES1N8A8004 1605854 122
SM-7ES1N8A8005 1605856 122
SM-7ES1N8A8L32S 1613434 118
SM-7ES1N8A8L33S 1613435 118
SM-7ES1N8A8L34S 1613436 118
SM-7ES1N8A8S22 1613528 122
SM-7ES1N8A8S23 1613529 122
SM-7ES1N8A8S24 1613530 122
SM-7ES1N8AY000 1605865 127
SM-7ES1N8AY000S 1613534 121
SM-7ES1N8AYW00 1607543 127
SM-7ES1N8AYW00S 1613535 121
SM-Z0001 1605866 154
SM-Z0003 1607935 152
SM-Z0004 1607937 152
SM-Z0012 1614349 153
ST-06KP010 1607577 52
ST-06KP020 1607578 52
ST-06KP030 1607579 52
ST-06KS010 1607580 52
ST-06KS020 1607581 52
ST-06KS030 1607582 52
ST-17P1N8A6100S 1613540 51
ST-17P1N8A8002 1607621 47
ST-17P1N8A8002S 1607623 46
ST-17P1N8A8003 1607624 47
ST-17P1N8A8003S 1607625 46
ST-17P1N8A8004 1607626 47
ST-17P1N8A8004S 1607627 46
ST-17P1N8A9002S 1607629 48
ST-17P1N8A9003S 1607630 48
ST-17P1N8A9004S 1607631 48
ST-17P1N8AAC00S 1607632 50
ST-17P1N8AAD00S 1607633 50
ST-17P1N8AH100S 1613541 51
ST-17P1N8AW400S 1607634 49
ST-17P1N8AWQ00S 1607636 49
ST-17S1N8A6100S 1613542 51
ST-17S1N8A8002 1607639 47
ST-17S1N8A8002S 1607640 46
ST-17S1N8A8003 1607641 47
ST-17S1N8A8003S 1607642 46
ST-17S1N8A8004 1607643 47
ST-17S1N8A8004S 1607644 46
ST-17S1N8A9002S 1607646 48
ST-17S1N8A9003S 1607647 48
ST-17S1N8A9004S 1607649 48
ST-17S1N8AAC00S 1607650 50
ST-17S1N8AAD00S 1607652 50
ST-17S1N8AH100S 1613543 51
ST-17S1N8AW400S 1607653 49
ST-17S1N8AWQ00S 1607654 49
ST-20KP010 1607655 97
ST-20KP020 1607656 97
ST-20KS010 1607657 97
ST-20KS020 1607658 97
ST-3EP1N8A6100S 1613544 95
ST-3EP1N8A8002 1607661 91
ST-3EP1N8A8002S 1607662 90
ST-3EP1N8A8003 1607663 91
ST-3EP1N8A8003S 1607665 90
ST-3EP1N8A8004 1607666 91
ST-3EP1N8A8004S 1607667 90
ST-3EP1N8A9002S 1607669 92
ST-3EP1N8A9003S 1607670 92
ST-3EP1N8A9004S 1607671 92
ST-3EP1N8AAC00S 1607672 94
ST-3EP1N8AAD00S 1607673 94
ST-3EP1N8AH100S 1613545 95
ST-3EP1N8AW400S 1607674 93
ST-3EP1N8AWQ00S 1607675 93
ST-3ES1N8A6100S 1613546 95
ST-3ES1N8A8002 1607679 91
ST-3ES1N8A8002S 1607681 90
ST-3ES1N8A8003 1607682 91
ST-3ES1N8A8003S 1607683 90
ST-3ES1N8A8004 1607684 91
ST-3ES1N8A8004S 1607685 90
ST-3ES1N8A9002S 1607687 92
ST-3ES1N8A9003S 1607688 92
ST-3ES1N8A9004S 1607689 92
ST-3ES1N8AAC00S 1607690 94
ST-3ES1N8AAD00S 1607691 94
ST-3ES1N8AH100S 1613547 95
ST-3ES1N8AW400S 1607692 93
ST-3ES1N8AWQ00S 1607694 93
ST-5EP1N8A6100S 1613548 95
ST-5EP1N8A8002 1607697 91
ST-5EP1N8A8002S 1607698 90
ST-5EP1N8A8003 1607699 91
ST-5EP1N8A8003S 1607700 90
ST-5EP1N8A8004 1607701 91
ST-5EP1N8A8004S 1607702 90
ST-5EP1N8A9002S 1607705 92
ST-5EP1N8A9003S 1607706 92
ST-5EP1N8A9004S 1607707 92
ST-5EP1N8AAC00S 1607708 94
ST-5EP1N8AAD00S 1607709 94
ST-5EP1N8AH100S 1613549 95
ST-5EP1N8AW400S 1607710 93
ST-5EP1N8AWQ00S 1607711 93
ST-5ES1N8A6100S 1613550 95
ST-5ES1N8A8002 1607714 91
ST-5ES1N8A8002S 1607715 90
ST-5ES1N8A8003 1607717 91
ST-5ES1N8A8003S 1607718 90
ST-5ES1N8A8004 1607719 91
ST-5ES1N8A8004S 1607720 90
ST-5ES1N8A9002S 1607722 92
ST-5ES1N8A9003S 1607723 92
ST-5ES1N8A9004S 1607724 92
ST-5ES1N8AAC00S 1607725 94
ST-5ES1N8AAD00S 1607726 94
ST-5ES1N8AH100S 1613551 95
ST-5ES1N8AW400S 1607727 93
ST-5ES1N8AWQ00S 1607728 93
ST-6EP1N8A6100S 1613553 95
ST-6EP1N8A8002 1613556 91
ST-6EP1N8A8002S 1613557 90
ST-6EP1N8A8003 1613558 91
ST-6EP1N8A8003S 1613559 90
ST-6EP1N8A8004 1613560 91
ST-6EP1N8A8004S 1613561 90
ST-6EP1N8A9002S 1613563 92
ST-6EP1N8A9003S 1613564 92
ST-6EP1N8A9004S 1613565 92
ST-6EP1N8AAC00S 1613566 94
ST-6EP1N8AAD00S 1613567 94
ST-6EP1N8AH100S 1613568 95
ST-6EP1N8AW400S 1613569 93
ST-6EP1N8AWQ00S 1613570 93
ST-6ES1N8A6100S 1613572 95
ST-6ES1N8A8002 1613575 91
ST-6ES1N8A8002S 1613576 90
ST-6ES1N8A8003 1613577 91
ST-6ES1N8A8003S 1613578 90
ST-6ES1N8A8004 1613579 91
ST-6ES1N8A8004S 1613580 90
ST-6ES1N8A9002S 1613582 92
ST-6ES1N8A9003S 1613583 92
ST-6ES1N8A9004S 1613584 92
ST-6ES1N8AAC00S 1613585 94
ST-6ES1N8AAD00S 1613586 94
ST-6ES1N8AH100S 1613587 95
ST-6ES1N8AW400S 1613588 93
ST-6ES1N8AWQ00S 1613589 93
ST-7EP1N8A6100S 1613590 95
ST-7EP1N8A8002 1607733 91
ST-7EP1N8A8002S 1607734 90
ST-7EP1N8A8003 1607735 91
ST-7EP1N8A8003S 1607736 90
ST-7EP1N8A8004 1607737 91
ST-7EP1N8A8004S 1607738 90
ST-7EP1N8A9002S 1607740 92
ST-7EP1N8A9003S 1607741 92
ST-7EP1N8A9004S 1607742 92
ST-7EP1N8AAC00S 1607743 94
ST-7EP1N8AAD00S 1607744 94
ST-7EP1N8AH100S 1613591 95
ST-7EP1N8AW400S 1607746 93
ST-7EP1N8AWQ00S 1607747 93
ST-7ES1N8A6100S 1613592 95
ST-7ES1N8A8002 1607752 91
ST-7ES1N8A8002S 1607753 90
ST-7ES1N8A8003 1607755 91
ST-7ES1N8A8003S 1607756 90
ST-7ES1N8A8004 1607758 91
ST-7ES1N8A8004S 1607759 90
ST-7ES1N8A9002S 1607763 92
ST-7ES1N8A9003S 1607764 92
ST-7ES1N8A9004S 1607765 92
ST-7ES1N8AAC00S 1607766 94
ST-7ES1N8AAD00S 1607767 94
ST-7ES1N8AH100S 1613593 95
ST-7ES1N8AW400S 1607768 93
ST-7ES1N8AWQ00S 1607769 93
ST-8EP1N8A6100S 1613595 95
ST-8EP1N8A8002 1613598 91
ST-8EP1N8A8002S 1613599 90
ST-8EP1N8A8003 1613600 91
ST-8EP1N8A8003S 1613601 90
ST-8EP1N8A8004 1613602 91
ST-8EP1N8A8004S 1613603 90
ST-8EP1N8A9002S 1613605 92
ST-8EP1N8A9003S 1613606 92
ST-8EP1N8A9004S 1613607 92
ST-8EP1N8AAC00S 1613608 94
ST-8EP1N8AAD00S 1613609 94
ST-8EP1N8AH100S 1613610 95
ST-8EP1N8AW400S 1613611 93
ST-8EP1N8AWQ00S 1613612 93
ST-8ES1N8A6100S 1613614 95
ST-8ES1N8A8002 1613617 91
ST-8ES1N8A8002S 1613618 90
ST-8ES1N8A8003 1613619 91
ST-8ES1N8A8003S 1613620 90
ST-8ES1N8A8004 1613621 91
ST-8ES1N8A8004S 1613622 90
ST-8ES1N8A9002S 1613624 92
ST-8ES1N8A9003S 1613625 92
ST-8ES1N8A9004S 1613626 92
ST-8ES1N8AAC00S 1613627 94
ST-8ES1N8AAD00S 1613628 94
ST-8ES1N8AH100S 1613629 95
ST-8ES1N8AW400S 1613630 93
ST-8ES1N8AWQ00S 1613631 93
ST-E2015151 1613831 51
ST-Z0001 1607770 152
ST-Z0002 1607771 152
ST-Z0003 1607772 152
ST-Z0004 1607773 152
ST-Z0005 1607775 152
ST-Z0006 1607776 154
ST-Z0007 1607777 154
ST-Z0010 1607938 145
ST-Z0011 1607939 145
ST-Z0012 1613667 153
T
TU-00000004100 1605881 29
TU-00000005300 1605885 29
TU-00000008UDU 1605886 28
TU-00000009UDU 1605888 28
TU-0000000TUDU 1605891 28
TU-0000000WB00 1605893 29
TU-Z2002 1607778 154
TU-Z2003 1606023 154
TU-Z2317 1606025 155
U
UC-000000080DU 1606030 18
UC-000000090DU 1606040 19
UC-0000000F3DU 1607069 19
UC-0000000FNDU 1606046 19
UC-0000000N3DU 1606047 18
UC-0000000NNDU 1606050 18
UC-0000000Q0DU 1606053 19
UC-0000000Q3DU 1607070 19
UC-0000000QNDU 1607083 19
UC-0000000R3DU 1606058 18
UC-0000000RNDU 1606061 18
UC-0000000T0DU 1606065 18
UC-Z2039 1606834 142
UC-Z2343 1612993 142
UC-Z2344 1606837 142
UC-Z2346 1606839 142
UC-Z2348 1606841 142
UC-Z2349 1606843 142
UC-Z2351 1606846 142
Index
Alphabetical
165PHOENIX CONTACT
Order No. Type Page Order No. Type Page Order No. Type Page Order No. Type Page
1590276 HC-26P1N122300 77
1590280 HC-26P1N124300 79
1590282 HC-26P1N126300 76
1590285 HC-26P1N1280DU 74
1590289 HC-26P1N1290DU 75
1590303 HC-26P1N12WA00 78
1590307 HC-26P1N224300 79
1590311 HC-26P1N324300 79
1590313 HC-26P1NRA2300 77
1590314 HC-26P1NRA4300 79
1590316 HC-26P1NRA6300 76
1590319 HC-26P1NRA80DU 74
1590321 HC-26P1NRA90DU 75
1590333 HC-26P1NRAWA00 78
1590338 HC-26P1NT22300 77
1590345 HC-26S1N122300 77
1590347 HC-26S1N124300 79
1590349 HC-26S1N126300 76
1590354 HC-26S1N1280DU 74
1590357 HC-26S1N1290DU 75
1590373 HC-26S1N12WA00 78
1590381 HC-26S1NRA2300 77
1590382 HC-26S1NRA4300 79
1590383 HC-26S1NRA6300 76
1590388 HC-26S1NRA90DU 75
1590403 HC-26S1NRAWA00 78
1590407 HC-28P1N122300 77
1590408 HC-28P1N124300 79
1590409 HC-28P1N126300 76
1590412 HC-28P1N1280DU 74
1590415 HC-28P1N1290DU 75
1590418 HC-28P1N12WA00 78
1590423 HC-28P1NT24300 79
1590427 HC-28S1N122300 77
1590428 HC-28S1N126300 76
1590432 HC-28S1N1280DU 74
1590434 HC-28S1N1290DU 75
1590439 HC-28S1N12WA00 78
1590454 HC-ARP1NRA2300 77
1590458 HC-ARP1NRAWA00 78
1590467 HC-ARS1NRA2300 77
1590491 HC-Z2291 155
1590492 HC-Z2292 154
1590493 HC-Z2293 154
1590498 HC-Z2300 76
1592030 NC-0000000KSFZ 16
1592490 PV-08P1N126100 41
1592491 PV-08P1N12HG00 41
1592493 PV-10P1N126100 41
1592494 PV-10P1N12HG00 41
1592496 PV-12P1N126100 41
1592497 PV-12P1N12HG00 41
1592499 PV-14P1N126100 41
1592500 PV-14P1N12HG00 41
1592501 PV-14P1N22HG00 41
1592535 RC-00000001100 17
1592539 RC-00000001200 17
1592546 RC-00000001300 17
1592574 RC-00000002200 20
1592589 RC-00000004200 22
1592599 RC-00000005200 22
1592604 RC-00000006100 21
1592618 RC-00000007100 17
1592621 RC-00000007200 17
1592626 RC-00000007300 17
1592680 RC-000000080FZ 16
1592750 RC-000000090FZ 16
1592777 RC-0000000AD00 21
1592781 RC-0000000B2FZ 20
1592790 RC-0000000C0FZ 22
1592813 RC-0000000E000 22
1592833 RC-0000000H000 22
1592865 RC-0000000K0FZ 16
1592899 RC-0000000M0FZ 16
1592924 RC-0000000Q0FZ 22
1592992 RC-0000000T0FZ 16
1593021 RC-0000000WQ00 20
1593037 RC-0000000Z100 17
1593040 RC-0000000Z200 17
1593044 RC-0000000Z300 17
1593072 RC-06P1N120000 32
1593395 RC-06P1N220000 36
1593412 RC-06P1N8A0000 34
1593525 RC-06P1N8B0000 33
1593531 RC-06P1NA20000 37
1593555 RC-06P1NS20000 32
1593645 RC-06S1N120000 32
1594002 RC-06S1N220000 36
1594013 RC-06S1N8A0000 34
1594145 RC-06S1N8B0000 33
1594149 RC-06S1NA20000 37
1594164 RC-06S1NS20000 32
1594263 RC-07P1N120000 32
1594435 RC-07P1N8A0000 34
1594497 RC-07P1N8B0000 33
1594515 RC-07P1NS20000 32
1594558 RC-07S1N120000 32
1594731 RC-07S1N8A0000 34
1594786 RC-07S1N8B0000 33
1594801 RC-07S1NS20000 32
1594887 RC-09P1N120000 32
1595375 RC-09P1N8A0000 34
1595501 RC-09P1N8C0000 33
1595507 RC-09P1NA20000 37
1595519 RC-09P1NC20000 37
1595533 RC-09P1NS20000 32
1595600 RC-09P2N120000 32
1595744 RC-09P2N8A0000 34
1595758 RC-09P2N8C0000 33
1595791 RC-09S1N120000 32
1596279 RC-09S1N220000 36
1596303 RC-09S1N8A0000 34
1596417 RC-09S1N8C0000 33
1596421 RC-09S1NA20000 37
1596434 RC-09S1NC20000 37
1596456 RC-09S1NS20000 32
1596535 RC-09S2N120000 32
1596706 RC-09S2N8A0000 34
1596724 RC-09S2N8C0000 33
1596856 RC-12P1N120000 32
1597402 RC-12P1N220000 36
1597464 RC-12P1N8A0000 34
1597635 RC-12P1N8D0000 33
1597641 RC-12P1N8E0000 33
1597643 RC-12P1NA20000 37
1597660 RC-12P1NC20000 37
1597862 RC-12P2000 35
1597867 RC-12P2N120000 32
1598196 RC-12P2N8A0000 34
1598292 RC-12P2N8D0000 33
1598295 RC-12P2N8E0000 33
1598466 RC-12S1N120000 32
1599079 RC-12S1N220000 36
1599138 RC-12S1N8A0000 34
1599343 RC-12S1N8D0000 33
1599348 RC-12S1N8E0000 33
1599367 RC-12S1NC20000 37
1599600 RC-12S2000 35
1599614 RC-12S2N120000 32
1600076 RC-12S2N8A0000 34
1600231 RC-12S2N8D0000 33
1600234 RC-12S2N8E0000 33
1600417 RC-13041 51
1600509 RC-16P1N120000 32
1600707 RC-16P1N8A0000 34
1600747 RC-16P1N8D0000 33
1600816 RC-16S1N120000 32
1601058 RC-16S1N8A0000 34
1601116 RC-16S1N8D0000 33
1601193 RC-17P1N120000 32
1601451 RC-17P1N8A0000 34
1601634 RC-17P1N8D0000 33
1601636 RC-17P1N8E0000 33
1601638 RC-17P1NA20000 37
1601647 RC-17P1NC20000 37
1601727 RC-17P2N120000 32
1601799 RC-17S1N120000 32
1602082 RC-17S1N8A0000 34
1602282 RC-17S1N8D0000 33
1602284 RC-17S1N8E0000 33
1602295 RC-17S1NC20000 37
1602383 RC-17S2N120000 32
1602482 RC-19P1N120000 32
1602749 RC-19S1N120000 32
1603066 RC-1RP1NRA0000 34
1603144 RC-1RP1NRM0000 33
1603213 RC-1RS1NRA0000 34
1603305 RC-1RS1NRM0000 33
1603321 RC-22P2000 35
1603327 RC-22S2000 35
1603505 RC-5AP2000 35
1603509 RC-5AS2000 35
1603513 RC-5CP2000 35
1603517 RC-5CS2000 35
1603538 RC-63P1N120000 32
1603637 RC-63P1N220000 36
1603640 RC-63P1N320000 37
1603645 RC-63P1NA20000 37
1603651 RC-63P1NC20000 37
1603668 RC-63S1N120000 32
1603764 RC-63S1N220000 36
1603767 RC-63S1N320000 37
1603774 RC-63S1NA20000 37
1603778 RC-63S1NC20000 37
1603797 RC-67P2000 80
1603800 RC-67S2000 80
1603802 RC-6EP2000 35
1603805 RC-6ES2000 35
1603808 RC-6FP2000 35
1603811 RC-6FS2000 35
1603814 RC-6KP2000 80
1603816 RC-6KS2000 80
1603819 RC-6LP2000 35
1603823 RC-6LS2000 35
1603826 RC-6MP2000 80
1603829 RC-6MS2000 80
1603836 RC-6RP2000 80
1603846 RC-6RS2000 80
1603961 RC-E0146 141
1604206 RC-Z2036 142
1604213 RC-Z2051 23
1604216 RC-Z2052 23
1604218 RC-Z2053 23
1604223 RC-Z2058 154
1604225 RC-Z2059 154
1604228 RC-Z2062 155
1604236 RC-Z2068 155
1604242 RC-Z2091 23
1604245 RC-Z2092 23
1604247 RC-Z2093 23
1604249 RC-Z2096 141
1604255 RC-Z2099 141
1604260 RC-Z2104 155
1604267 RC-Z2130 140
1604334 RC-Z2191 23
1604338 RC-Z2196 23
1604345 RC-Z2202 23
1604362 RC-Z2221 24
1604364 RC-Z2222 24
1604368 RC-Z2225 24
1604370 RC-Z2227 24
1604373 RC-Z2228 24
1604375 RC-Z2229 24
1604409 RC-Z2274 140
1604417 RC-Z2290 141
1604442 RC-Z2382 141
1604449 RC-Z2391 24
1604452 RC-Z2392 24
1604454 RC-Z2393 24
1604456 RC-Z2394 24
1604458 RC-Z2395 24
1604460 RC-Z2396 24
1604462 RC-Z2398 24
1604465 RC-Z2399 24
1604468 RC-Z2401 24
1604470 RC-Z2402 24
1604472 RC-Z2403 24
1604474 RC-Z2404 24
1604479 RC-Z2409 23
1604481 RC-Z2410 23
1604491 RC-Z2425 24
1604495 RC-Z2426 24
1604497 RC-Z2427 24
1604500 RC-Z2429 24
1604503 RC-Z2430 24
1604505 RC-Z2431 24
1604506 RC-Z2432 24
1604509 RC-Z2434 24
1604511 RC-Z2435 24
1604513 RC-Z2436 24
1604516 RC-Z2437 24
1604517 RC-Z2438 24
1604519 RC-Z2439 24
1604520 RC-Z2440 24
1604522 RC-Z2441 24
1604524 RC-Z2442 24
1604526 RC-Z2443 24
1604529 RC-Z2444 24
1604532 RC-Z2445 24
1604534 RC-Z2446 24
1604536 RC-Z2448 24
1604539 RC-Z2450 24
1604541 RC-Z2451 24
1604545 RC-Z2453 24
1604547 RC-Z2454 24
1604549 RC-Z2455 24
1604558 RC-Z2462 25
1604561 RC-Z2463 25
1605029 RM-00000001300 17
1605456 SC-Z2319 155
1605457 SC-Z2320 155
1605459 SC-Z2322 155
1605481 SF-10KS010 71
1605491 SF-20KS010 113
1605492 SF-5EE1N8AS000 111
1605494 SF-5EP1N8A90A1 103
1605496 SF-5EP1N8A90A2 103
1605498 SF-5EP1N8A90A3 103
1605499 SF-5EP1N8A90DU 103
1605505 SF-5EP1N8A9LB1 103
1605507 SF-5EP1N8A9LB2 103
1605508 SF-5EP1N8A9LB3 103
1605509 SF-5EP1N8A9LB4 103
1605510 SF-5EP1N8A9LDL 103
1605512 SF-5EP1N8AAD00 108
1605515 SF-5EP1N8AAK00 107
1605516 SF-5EP1N8AC0A1 110
1605517 SF-5EP1N8AC0DU 110
1605518 SF-5EP1N8ACLDL 110
1605519 SF-5EP1N8AF4DU 104
1605520 SF-5EP1N8AWA00 105
1605524 SF-5ES1N8A80A1 102
1605526 SF-5ES1N8A80A2 102
1605529 SF-5ES1N8A80A3 102
1605532 SF-5ES1N8A80DU 102
1605543 SF-5ES1N8A8LB1 102
1605545 SF-5ES1N8A8LB2 102
1605546 SF-5ES1N8A8LB3 102
1605548 SF-5ES1N8A8LB4 102
1605549 SF-5ES1N8A8LDL 102
1605553 SF-5ES1N8AR4DU 104
1605554 SF-6AP2000 71
1605557 SF-6AS2000 71
1605559 SF-6CP2000 71
1605562 SF-6CS2000 71
1605566 SF-6FS2000 113
1605567 SF-7EE1N8AS000 111
1605568 SF-7EP1N8A90A1 103
1605570 SF-7EP1N8A90A2 103
1605571 SF-7EP1N8A90A3 103
1605575 SF-7EP1N8A90DU 103
1605578 SF-7EP1N8A9LB1 103
1605580 SF-7EP1N8A9LB2 103
1605581 SF-7EP1N8A9LB3 103
1605582 SF-7EP1N8A9LB4 103
1605583 SF-7EP1N8A9LDL 103
1605586 SF-7EP1N8AAD00 108
1605588 SF-7EP1N8AF4DU 104
1605589 SF-7EP1N8AWA00 105
1605591 SF-7EP1N8AWK00 105
Index
Numerical
166 PHOENIX CONTACT
Order No. Type Page Order No. Type Page Order No. Type Page Order No. Type Page
Index
Numerical
167PHOENIX CONTACT
1605595 SF-7ES1N8A80A1 102
1605596 SF-7ES1N8A80A2 102
1605597 SF-7ES1N8A80A3 102
1605602 SF-7ES1N8A80DU 102
1605605 SF-7ES1N8A8LB1 102
1605607 SF-7ES1N8A8LB2 102
1605610 SF-7ES1N8A8LB3 102
1605614 SF-7ES1N8A8LB4 102
1605617 SF-7ES1N8A8LDL 102
1605621 SF-7ES1N8AR4DU 104
1605622 SF-7ES1N8AY000 109
1605626 SF-7MP2000 113
1605628 SF-7MS2000 113
1605631 SF-7NS2000 113
1605634 SF-7PP2000 113
1605636 SF-7PS2000 113
1605639 SF-7QP2000 113
1605643 SF-7QS2000 113
1605646 SF-7RP2000 113
1605655 SF-Z0002 145
1605657 SF-Z0003 145
1605661 SF-Z0004 145
1605665 SF-Z0007 145
1605668 SF-Z0008 145
1605672 SF-Z0009 148
1605675 SF-Z0011 147
1605678 SF-Z0012 146
1605681 SF-Z0013 148
1605736 SM-20KP005 128
1605738 SM-20KP006 128
1605739 SM-20KP007 128
1605741 SM-20KP008 128
1605743 SM-36KP001 128
1605744 SM-36KP002 128
1605745 SM-36KP003 128
1605747 SM-36KP004 128
1605749 SM-36KP005 128
1605750 SM-36KP006 128
1605752 SM-36KP007 128
1605754 SM-36KP008 128
1605756 SM-36KS001 128
1605758 SM-36KS002 128
1605760 SM-36KS003 128
1605762 SM-36KS004 128
1605767 SM-5EE1N8AS000 126
1605768 SM-5EE1N8ASA00 126
1605769 SM-5EP1N8A9002 123
1605771 SM-5EP1N8A9003 123
1605773 SM-5EP1N8A9004 123
1605775 SM-5EP1N8A9005 123
1605782 SM-5EP1N8AC002 124
1605783 SM-5EP1N8AC003 124
1605784 SM-5EP1N8AC004 124
1605785 SM-5EP1N8AC005 124
1605786 SM-5EP1N8ACL02 124
1605787 SM-5EP1N8ACL03 124
1605788 SM-5EP1N8ACL04 124
1605789 SM-5EP1N8ACL05 124
1605790 SM-5EP1N8AQ002 125
1605791 SM-5EP1N8AQ003 125
1605792 SM-5EP1N8AQ004 125
1605793 SM-5EP1N8AQ005 125
1605794 SM-5EP1N8AQL02 125
1605795 SM-5EP1N8AQL03 125
1605796 SM-5EP1N8AQL04 125
1605797 SM-5EP1N8AQL05 125
1605803 SM-5ES1N8A8002 122
1605805 SM-5ES1N8A8003 122
1605807 SM-5ES1N8A8004 122
1605809 SM-5ES1N8A8005 122
1605823 SM-5ES1N8AY000 127
1605824 SM-7EE1N8AS000 126
1605825 SM-7EE1N8ASA00 126
1605826 SM-7EP1N8A9003 123
1605830 SM-7EP1N8AC002 124
1605831 SM-7EP1N8AC003 124
1605832 SM-7EP1N8AC004 124
1605833 SM-7EP1N8AC005 124
1605834 SM-7EP1N8ACL02 124
1605835 SM-7EP1N8ACL03 124
1605836 SM-7EP1N8ACL04 124
1605837 SM-7EP1N8ACL05 124
1605838 SM-7EP1N8AQ002 125
1605839 SM-7EP1N8AQ003 125
1605840 SM-7EP1N8AQ004 125
1605841 SM-7EP1N8AQ005 125
1605842 SM-7EP1N8AQL02 125
1605843 SM-7EP1N8AQL03 125
1605844 SM-7EP1N8AQL04 125
1605845 SM-7EP1N8AQL05 125
1605851 SM-7ES1N8A8002 122
1605852 SM-7ES1N8A8003 122
1605854 SM-7ES1N8A8004 122
1605856 SM-7ES1N8A8005 122
1605865 SM-7ES1N8AY000 127
1605866 SM-Z0001 154
1605881 TU-00000004100 29
1605885 TU-00000005300 29
1605886 TU-00000008UDU 28
1605888 TU-00000009UDU 28
1605891 TU-0000000TUDU 28
1605893 TU-0000000WB00 29
1606023 TU-Z2003 154
1606025 TU-Z2317 155
1606030 UC-000000080DU 18
1606040 UC-000000090DU 19
1606046 UC-0000000FNDU 19
1606047 UC-0000000N3DU 18
1606050 UC-0000000NNDU 18
1606053 UC-0000000Q0DU 19
1606058 UC-0000000R3DU 18
1606061 UC-0000000RNDU 18
1606065 UC-0000000T0DU 18
1606834 UC-Z2039 142
1606837 UC-Z2344 142
1606839 UC-Z2346 142
1606841 UC-Z2348 142
1606843 UC-Z2349 142
1606846 UC-Z2351 142
1606991 RC-06P1N320000 37
1606992 RC-06P1N8K0000 33
1606993 RC-06P1NC20000 37
1606994 RC-06S1N320000 37
1606995 RC-06S1N8K0000 33
1606996 RC-06S1NC20000 37
1606997 RC-07P1N8K0000 33
1606998 RC-07S1N8K0000 33
1606999 RC-09P1N220000 36
1607000 RC-09P1N320000 37
1607001 RC-09P1N8L0000 33
1607002 RC-09P2N8L0000 33
1607003 RC-09S1N320000 37
1607004 RC-09S1N8L0000 33
1607005 RC-09S2N8L0000 33
1607006 RC-12P1N320000 37
1607007 RC-12S1N320000 37
1607008 RC-12S1NA20000 37
1607009 RC-17P1N220000 36
1607010 RC-17P1N320000 37
1607011 RC-17S1N220000 36
1607013 RC-17S1N320000 37
1607014 RC-17S1NA20000 37
1607015 RC-Z2406 23
1607016 RC-Z2407 23
1607018 RC-Z2414 23
1607019 RC-Z2417 23
1607021 RC-Z2428 24
1607022 RC-Z2433 24
1607023 RC-Z2447 24
1607024 RC-Z2449 24
1607025 RC-Z2452 24
1607026 RM-00000001100 17
1607027 RM-00000007100 17
1607028 RM-00000007300 17
1607029 RM-0000000Z100 17
1607030 RM-0000000Z300 17
1607031 SF-10KS320 70
1607032 SF-10KS350 70
1607034 SF-20KS350 (VPE150) 112
1607035 SF-5EP1N8AAC00 108
1607036 SF-5EP1N8AAF00 107
1607037 SF-5EP1N8AC0A2 110
1607038 SF-5EP1N8AC0A3 110
1607039 SF-5EP1N8ACLB1 110
1607040 SF-5EP1N8ACLB2 110
1607041 SF-5EP1N8ACLB3 110
1607042 SF-5EP1N8ACLB4 110
1607043 SF-5EP1N8AWK00 105
1607045 SF-7EP1N8AAC00 108
1607046 SF-7EP1N8AAF00 107
1607047 SF-7EP1N8AAK00 107
1607048 SF-7EP1N8AC0A1 110
1607049 SF-7EP1N8AC0A2 110
1607050 SF-7EP1N8AC0A3 110
1607051 SF-7EP1N8AC0DU 110
1607052 SF-7EP1N8ACLB1 110
1607053 SF-7EP1N8ACLB2 110
1607054 SF-7EP1N8ACLB3 110
1607055 SF-7EP1N8ACLB4 110
1607056 SF-7EP1N8ACLDL 110
1607057 SM-36KP009 128
1607063 SM-7EP1N8A9002 123
1607064 SM-7EP1N8A9004 123
1607065 SM-7EP1N8A9005 123
1607069 UC-0000000F3DU 19
1607070 UC-0000000Q3DU 19
1607082 SF-5ES1N8AY000 109
1607083 UC-0000000QNDU 19
1607139 HC-28S1N124300 79
1607225 RF-12P1N8A8002 58
1607227 RF-12P1N8A8003 58
1607228 RF-12P1N8A80DU 58
1607229 RF-12P1N8A9002 59
1607230 RF-12P1N8A9003 59
1607231 RF-12P1N8A90DU 59
1607232 RF-12P1N8AA200 62
1607233 RF-12P1N8AAD00 64
1607234 RF-12P1N8AAF00 63
1607235 RF-12P1N8AAK00 63
1607236 RF-12P1N8AWA00 60
1607237 RF-12P1S8A8002 58
1607238 RF-12P1S8A8003 58
1607240 RF-12P1S8A80DU 58
1607241 RF-12P1S8A9002 59
1607242 RF-12P1S8A9003 59
1607243 RF-12P1S8A90DU 59
1607244 RF-12P1S8AA200 62
1607245 RF-12P1S8AAD00 64
1607246 RF-12P1S8AAF00 63
1607247 RF-12P1S8AAK00 63
1607248 RF-12P1S8AWA00 60
1607249 RF-12P2N8A8002 58
1607251 RF-12P2N8A8003 58
1607252 RF-12P2N8A80DU 58
1607253 RF-12P2N8A9002 59
1607254 RF-12P2N8A9003 59
1607255 RF-12P2N8A90DU 59
1607256 RF-12P2N8AA200 62
1607257 RF-12P2N8AAD00 64
1607258 RF-12P2N8AAF00 63
1607259 RF-12P2N8AAK00 63
1607260 RF-12P2N8AWA00 60
1607261 RF-12P2S8A8002 58
1607262 RF-12P2S8A8003 58
1607264 RF-12P2S8A80DU 58
1607265 RF-12P2S8A9002 59
1607266 RF-12P2S8A9003 59
1607267 RF-12P2S8A90DU 59
1607268 RF-12P2S8AA200 62
1607269 RF-12P2S8AAD00 64
1607270 RF-12P2S8AAF00 63
1607271 RF-12P2S8AAK00 63
1607272 RF-12P2S8AWA00 60
1607273 RF-12S1N8A8002 58
1607275 RF-12S1N8A8003 58
1607276 RF-12S1N8A80DU 58
1607277 RF-12S1N8A9003 59
1607278 RF-12S1N8A90DU 59
1607279 RF-12S1N8AA200 62
1607280 RF-12S1N8AAD00 64
1607281 RF-12S1N8AAF00 63
1607282 RF-12S1N8AAK00 63
1607283 RF-12S1N8AWA00 60
1607284 RF-12S1S8A8002 58
1607285 RF-12S1S8A8003 58
1607286 RF-12S1S8A80DU 58
1607287 RF-12S1S8A9002 59
1607288 RF-12S1S8A9003 59
1607289 RF-12S1S8A90DU 59
1607290 RF-12S1S8AA200 62
1607291 RF-12S1S8AAD00 64
1607292 RF-12S1S8AAF00 63
1607293 RF-12S1S8AAK00 63
1607294 RF-12S1S8AWA00 60
1607295 RF-12S2N8A8002 58
1607296 RF-12S2N8A8003 58
1607297 RF-12S2N8A80DU 58
1607300 RF-12S2N8A9002 59
1607301 RF-12S2N8A9003 59
1607302 RF-12S2N8A90DU 59
1607303 RF-12S2N8AA200 62
1607304 RF-12S2N8AAD00 64
1607305 RF-12S2N8AAF00 63
1607306 RF-12S2N8AAK00 63
1607307 RF-12S2N8AWA00 60
1607308 RF-12S2S8A8002 58
1607309 RF-12S2S8A8003 58
1607310 RF-12S2S8A80DU 58
1607312 RF-12S2S8A9002 59
1607313 RF-12S2S8A9003 59
1607314 RF-12S2S8A90DU 59
1607315 RF-12S2S8AA200 62
1607316 RF-12S2S8AAD00 64
1607317 RF-12S2S8AAF00 63
1607318 RF-12S2S8AAK00 63
1607319 RF-12S2S8AWA00 60
1607320 RF-17P1N8A8002 58
1607321 RF-17P1N8A8003 58
1607323 RF-17P1N8A80DU 58
1607324 RF-17P1N8A9002 59
1607325 RF-17P1N8A9003 59
1607326 RF-17P1N8A90DU 59
1607327 RF-17P1N8AA200 62
1607328 RF-17P1N8AAD00 64
1607329 RF-17P2N8A8002 58
1607330 RF-17P2N8A8003 58
1607331 RF-17P2N8A80DU 58
1607332 RF-17P2N8A9002 59
1607333 RF-17P2N8A9003 59
1607334 RF-17P2N8A90DU 59
1607336 RF-17P2N8AA200 62
1607337 RF-17P2N8AAD00 64
1607338 RF-17S1N8A8002 58
1607339 RF-17S1N8A8003 58
1607340 RF-17S1N8A80DU 58
1607341 RF-17S1N8A9002 59
1607342 RF-17S1N8A9003 59
1607343 RF-17S1N8A90DU 59
1607344 RF-17S1N8AA200 62
1607345 RF-17S1N8AAD00 64
1607347 RF-17S2N8A8002 58
1607348 RF-17S2N8A8003 58
1607349 RF-17S2N8A80DU 58
1607350 RF-17S2N8A9002 59
1607351 RF-17S2N8A9003 59
1607352 RF-17S2N8A90DU 59
1607353 RF-17S2N8AA200 62
1607354 RF-17S2N8AAD00 64
1607355 SF-10KP004 71
1607356 SF-10KS004 71
1607358 SF-10KS330 70
1607361 SF-10KS360 70
1607376 SF-20KP004 113
1607381 SF-20KS360 (VPE4000) 112
1607405 SF-5ES1N8AYW00 109
1607406 SF-6DP2000 113
1607429 SF-7ES1N8AYW00 109
1607446 SF-Z0014 148
1607449 SF-Z0019 154
1607450 SF-Z0022 145
Order No. Type Page Order No. Type Page Order No. Type Page Order No. Type Page
1607452 SF-Z0025 149
1607454 SF-Z0026 150
1607455 SF-Z0027 153
1607456 SF-Z0028 153
1607458 SF-Z0029 144
1607459 SF-Z0030 144
1607461 SF-Z0031 144
1607462 SF-Z0032 144
1607463 SF-Z0033 144
1607465 SF-Z0035 144
1607470 SF-Z0039 144
1607471 SF-Z0040 144
1607472 SF-Z0041 144
1607499 SL-5EP1N8A9001 135
1607500 SL-5EP1N8A9002 135
1607501 SL-5ES1N8A8001 134
1607503 SL-5ES1N8A8002 134
1607505 SL-7EP1N8A9001 135
1607506 SL-7EP1N8A9002 135
1607507 SL-7ES1N8A8001 134
1607508 SL-7ES1N8A8002 134
1607532 SM-5ES1N8AYW00 127
1607543 SM-7ES1N8AYW00 127
1607577 ST-06KP010 52
1607578 ST-06KP020 52
1607579 ST-06KP030 52
1607580 ST-06KS010 52
1607581 ST-06KS020 52
1607582 ST-06KS030 52
1607621 ST-17P1N8A8002 47
1607623 ST-17P1N8A8002S 46
1607624 ST-17P1N8A8003 47
1607625 ST-17P1N8A8003S 46
1607626 ST-17P1N8A8004 47
1607627 ST-17P1N8A8004S 46
1607629 ST-17P1N8A9002S 48
1607630 ST-17P1N8A9003S 48
1607631 ST-17P1N8A9004S 48
1607632 ST-17P1N8AAC00S 50
1607633 ST-17P1N8AAD00S 50
1607634 ST-17P1N8AW400S 49
1607636 ST-17P1N8AWQ00S 49
1607639 ST-17S1N8A8002 47
1607640 ST-17S1N8A8002S 46
1607641 ST-17S1N8A8003 47
1607642 ST-17S1N8A8003S 46
1607643 ST-17S1N8A8004 47
1607644 ST-17S1N8A8004S 46
1607646 ST-17S1N8A9002S 48
1607647 ST-17S1N8A9003S 48
1607649 ST-17S1N8A9004S 48
1607650 ST-17S1N8AAC00S 50
1607652 ST-17S1N8AAD00S 50
1607653 ST-17S1N8AW400S 49
1607654 ST-17S1N8AWQ00S 49
1607655 ST-20KP010 97
1607656 ST-20KP020 97
1607657 ST-20KS010 97
1607658 ST-20KS020 97
1607661 ST-3EP1N8A8002 91
1607662 ST-3EP1N8A8002S 90
1607663 ST-3EP1N8A8003 91
1607665 ST-3EP1N8A8003S 90
1607666 ST-3EP1N8A8004 91
1607667 ST-3EP1N8A8004S 90
1607669 ST-3EP1N8A9002S 92
1607670 ST-3EP1N8A9003S 92
1607671 ST-3EP1N8A9004S 92
1607672 ST-3EP1N8AAC00S 94
1607673 ST-3EP1N8AAD00S 94
1607674 ST-3EP1N8AW400S 93
1607675 ST-3EP1N8AWQ00S 93
1607679 ST-3ES1N8A8002 91
1607681 ST-3ES1N8A8002S 90
1607682 ST-3ES1N8A8003 91
1607683 ST-3ES1N8A8003S 90
1607684 ST-3ES1N8A8004 91
1607685 ST-3ES1N8A8004S 90
1607687 ST-3ES1N8A9002S 92
1607688 ST-3ES1N8A9003S 92
1607689 ST-3ES1N8A9004S 92
1607690 ST-3ES1N8AAC00S 94
1607691 ST-3ES1N8AAD00S 94
1607692 ST-3ES1N8AW400S 93
1607694 ST-3ES1N8AWQ00S 93
1607697 ST-5EP1N8A8002 91
1607698 ST-5EP1N8A8002S 90
1607699 ST-5EP1N8A8003 91
1607700 ST-5EP1N8A8003S 90
1607701 ST-5EP1N8A8004 91
1607702 ST-5EP1N8A8004S 90
1607705 ST-5EP1N8A9002S 92
1607706 ST-5EP1N8A9003S 92
1607707 ST-5EP1N8A9004S 92
1607708 ST-5EP1N8AAC00S 94
1607709 ST-5EP1N8AAD00S 94
1607710 ST-5EP1N8AW400S 93
1607711 ST-5EP1N8AWQ00S 93
1607714 ST-5ES1N8A8002 91
1607715 ST-5ES1N8A8002S 90
1607717 ST-5ES1N8A8003 91
1607718 ST-5ES1N8A8003S 90
1607719 ST-5ES1N8A8004 91
1607720 ST-5ES1N8A8004S 90
1607722 ST-5ES1N8A9002S 92
1607723 ST-5ES1N8A9003S 92
1607724 ST-5ES1N8A9004S 92
1607725 ST-5ES1N8AAC00S 94
1607726 ST-5ES1N8AAD00S 94
1607727 ST-5ES1N8AW400S 93
1607728 ST-5ES1N8AWQ00S 93
1607733 ST-7EP1N8A8002 91
1607734 ST-7EP1N8A8002S 90
1607735 ST-7EP1N8A8003 91
1607736 ST-7EP1N8A8003S 90
1607737 ST-7EP1N8A8004 91
1607738 ST-7EP1N8A8004S 90
1607740 ST-7EP1N8A9002S 92
1607741 ST-7EP1N8A9003S 92
1607742 ST-7EP1N8A9004S 92
1607743 ST-7EP1N8AAC00S 94
1607744 ST-7EP1N8AAD00S 94
1607746 ST-7EP1N8AW400S 93
1607747 ST-7EP1N8AWQ00S 93
1607752 ST-7ES1N8A8002 91
1607753 ST-7ES1N8A8002S 90
1607755 ST-7ES1N8A8003 91
1607756 ST-7ES1N8A8003S 90
1607758 ST-7ES1N8A8004 91
1607759 ST-7ES1N8A8004S 90
1607763 ST-7ES1N8A9002S 92
1607764 ST-7ES1N8A9003S 92
1607765 ST-7ES1N8A9004S 92
1607766 ST-7ES1N8AAC00S 94
1607767 ST-7ES1N8AAD00S 94
1607768 ST-7ES1N8AW400S 93
1607769 ST-7ES1N8AWQ00S 93
1607770 ST-Z0001 152
1607771 ST-Z0002 152
1607772 ST-Z0003 152
1607773 ST-Z0004 152
1607775 ST-Z0005 152
1607776 ST-Z0006 154
1607777 ST-Z0007 154
1607778 TU-Z2002 154
1607802 RF-12P1N8AAC00 64
1607803 RF-12P1N8AW400 61
1607804 RF-12P1N8AWB00 61
1607806 RF-12P1N8AWQ00 60
1607808 RF-12P1S8AAC00 64
1607809 RF-12P1S8AW400 61
1607810 RF-12P1S8AWB00 61
1607811 RF-12P1S8AWQ00 60
1607814 RF-12P2N8AAC00 64
1607816 RF-12P2N8AW400 61
1607817 RF-12P2N8AWB00 61
1607818 RF-12P2N8AWQ00 60
1607820 RF-12P2S8AAC00 64
1607821 RF-12P2S8AW400 61
1607822 RF-12P2S8AWB00 61
1607823 RF-12P2S8AWQ00 60
1607825 RF-12S1N8A9002 59
1607827 RF-12S1N8AAC00 64
1607828 RF-12S1N8AW400 61
1607830 RF-12S1N8AWB00 61
1607831 RF-12S1N8AWQ00 60
1607834 RF-12S1S8AAC00 64
1607836 RF-12S1S8AW400 61
1607837 RF-12S1S8AWB00 61
1607839 RF-12S1S8AWQ00 60
1607842 RF-12S2N8AAC00 64
1607843 RF-12S2N8AW400 61
1607844 RF-12S2N8AWB00 61
1607845 RF-12S2N8AWQ00 60
1607847 RF-12S2S8AAC00 64
1607848 RF-12S2S8AW400 61
1607849 RF-12S2S8AWB00 61
1607850 RF-12S2S8AWQ00 60
1607852 RF-17P1N8AAC00 64
1607853 RF-17P1N8AAF00 63
1607854 RF-17P1N8AAK00 63
1607857 RF-17P1N8AW400 61
1607860 RF-17P1N8AWA00 60
1607863 RF-17P1N8AWB00 61
1607866 RF-17P1N8AWQ00 60
1607872 RF-17P2N8AAC00 64
1607875 RF-17P2N8AAF00 63
1607878 RF-17P2N8AAK00 63
1607881 RF-17P2N8AW400 61
1607882 RF-17P2N8AWA00 60
1607883 RF-17P2N8AWB00 61
1607885 RF-17P2N8AWQ00 60
1607887 RF-17S1N8AAC00 64
1607889 RF-17S1N8AAF00 63
1607890 RF-17S1N8AAK00 63
1607891 RF-17S1N8AW400 61
1607892 RF-17S1N8AWA00 60
1607893 RF-17S1N8AWB00 61
1607894 RF-17S1N8AWQ00 60
1607896 RF-17S2N8AAC00 64
1607898 RF-17S2N8AAF00 63
1607899 RF-17S2N8AAK00 63
1607900 RF-17S2N8AW400 61
1607901 RF-17S2N8AWA00 60
1607902 RF-17S2N8AWB00 61
1607903 RF-17S2N8AWQ00 60
1607904 RF-Z0001 152
1607905 RF-Z0003 152
1607906 SF-5EP1N8AA200 106
1607908 SF-7EP1N8AA200 106
1607909 SL-16KP010 137
1607911 SL-1CKP010 137
1607912 SL-1CKP020 137
1607913 SL-1CKP030 137
1607914 SL-1CKP040 137
1607915 SL-1CKP050 137
1607916 SL-1CKS010 137
1607917 SL-1CKS020 137
1607918 SL-1CKS030 137
1607919 SL-1CKS040 137
1607920 SL-1CKS050 137
1607926 SL-Z0005 154
1607927 SM-5EPWN8AAD00S 120
1607931 SM-7EPWN8AAD00S 120
1607935 SM-Z0003 152
1607937 SM-Z0004 152
1607938 ST-Z0010 145
1607939 ST-Z0011 145
1607956 SL-16KS010 137
1608319 HC-ARP1NRA80DU 74
1608323 HC-ARS1NRA80DU 74
1609977 PV-08P1N22HG00 41
1609978 PV-10P1N22HG00 41
1609979 PV-12P1N22HG00 41
1611796 RC-Z2468 154
1611797 RC-Z2469 154
1611803 RC-Z2490 140
1612993 UC-Z2343 142
1613425 SM-5EP1N8A9L32S 119
1613426 SM-5EP1N8A9L33S 119
1613427 SM-5EP1N8A9L34S 119
1613428 SM-5ES1N8A8L32S 118
1613429 SM-5ES1N8A8L33S 118
1613430 SM-5ES1N8A8L34S 118
1613431 SM-7EP1N8A9L32S 119
1613432 SM-7EP1N8A9L33S 119
1613433 SM-7EP1N8A9L34S 119
1613434 SM-7ES1N8A8L32S 118
1613435 SM-7ES1N8A8L33S 118
1613436 SM-7ES1N8A8L34S 118
1613484 SL-Z0007 149
1613485 SL-Z0008 149
1613487 SL-Z0010 149
1613488 SL-Z0011 149
1613489 SL-Z0012 149
1613490 SL-Z0013 149
1613491 SL-Z0014 149
1613492 SL-Z0015 149
1613516 SM-5EPWN8AA200 120
1613517 SM-5EPWN8AWT00 120
1613518 SM-5ES1N8A8S22 122
1613519 SM-5ES1N8A8S23 122
1613520 SM-5ES1N8A8S24 122
1613524 SM-5ES1N8AY000S 121
1613525 SM-5ES1N8AYW00S 121
1613526 SM-7EPWN8AA200 120
1613527 SM-7EPWN8AWT00 120
1613528 SM-7ES1N8A8S22 122
1613529 SM-7ES1N8A8S23 122
1613530 SM-7ES1N8A8S24 122
1613534 SM-7ES1N8AY000S 121
1613535 SM-7ES1N8AYW00S 121
1613540 ST-17P1N8A6100S 51
1613541 ST-17P1N8AH100S 51
1613542 ST-17S1N8A6100S 51
1613543 ST-17S1N8AH100S 51
1613544 ST-3EP1N8A6100S 95
1613545 ST-3EP1N8AH100S 95
1613546 ST-3ES1N8A6100S 95
1613547 ST-3ES1N8AH100S 95
1613548 ST-5EP1N8A6100S 95
1613549 ST-5EP1N8AH100S 95
1613550 ST-5ES1N8A6100S 95
1613551 ST-5ES1N8AH100S 95
1613553 ST-6EP1N8A6100S 95
1613556 ST-6EP1N8A8002 91
1613557 ST-6EP1N8A8002S 90
1613558 ST-6EP1N8A8003 91
1613559 ST-6EP1N8A8003S 90
1613560 ST-6EP1N8A8004 91
1613561 ST-6EP1N8A8004S 90
1613563 ST-6EP1N8A9002S 92
1613564 ST-6EP1N8A9003S 92
1613565 ST-6EP1N8A9004S 92
1613566 ST-6EP1N8AAC00S 94
1613567 ST-6EP1N8AAD00S 94
1613568 ST-6EP1N8AH100S 95
1613569 ST-6EP1N8AW400S 93
1613570 ST-6EP1N8AWQ00S 93
1613572 ST-6ES1N8A6100S 95
1613575 ST-6ES1N8A8002 91
1613576 ST-6ES1N8A8002S 90
1613577 ST-6ES1N8A8003 91
1613578 ST-6ES1N8A8003S 90
1613579 ST-6ES1N8A8004 91
1613580 ST-6ES1N8A8004S 90
1613582 ST-6ES1N8A9002S 92
1613583 ST-6ES1N8A9003S 92
1613584 ST-6ES1N8A9004S 92
1613585 ST-6ES1N8AAC00S 94
1613586 ST-6ES1N8AAD00S 94
1613587 ST-6ES1N8AH100S 95
1613588 ST-6ES1N8AW400S 93
1613589 ST-6ES1N8AWQ00S 93
1613590 ST-7EP1N8A6100S 95
1613591 ST-7EP1N8AH100S 95
1613592 ST-7ES1N8A6100S 95
1613593 ST-7ES1N8AH100S 95
1613595 ST-8EP1N8A6100S 95
1613598 ST-8EP1N8A8002 91
Index
Numerical
168 PHOENIX CONTACT
Order No. Type Page Order No. Type Page Order No. Type Page Order No. Type Page
Index
Numerical
169PHOENIX CONTACT
1613599 ST-8EP1N8A8002S 90
1613600 ST-8EP1N8A8003 91
1613601 ST-8EP1N8A8003S 90
1613602 ST-8EP1N8A8004 91
1613603 ST-8EP1N8A8004S 90
1613605 ST-8EP1N8A9002S 92
1613606 ST-8EP1N8A9003S 92
1613607 ST-8EP1N8A9004S 92
1613608 ST-8EP1N8AAC00S 94
1613609 ST-8EP1N8AAD00S 94
1613610 ST-8EP1N8AH100S 95
1613611 ST-8EP1N8AW400S 93
1613612 ST-8EP1N8AWQ00S 93
1613614 ST-8ES1N8A6100S 95
1613617 ST-8ES1N8A8002 91
1613618 ST-8ES1N8A8002S 90
1613619 ST-8ES1N8A8003 91
1613620 ST-8ES1N8A8003S 90
1613621 ST-8ES1N8A8004 91
1613622 ST-8ES1N8A8004S 90
1613624 ST-8ES1N8A9002S 92
1613625 ST-8ES1N8A9003S 92
1613626 ST-8ES1N8A9004S 92
1613627 ST-8ES1N8AAC00S 94
1613628 ST-8ES1N8AAD00S 94
1613629 ST-8ES1N8AH100S 95
1613630 ST-8ES1N8AW400S 93
1613631 ST-8ES1N8AWQ00S 93
1613666 SF-Z0042 150
1613667 ST-Z0012 153
1613700 RF-12P1N8AWU00 68
1613701 RF-12P1N8AWV00 68
1613702 RF-12P1S8AWU00 68
1613703 RF-12P1S8AWV00 68
1613704 RF-12P2N8AWU00 68
1613705 RF-12P2S8AWU00 68
1613706 RF-12P2S8AWV00 68
1613707 RF-12S1N8AWU00 68
1613708 RF-12S1N8AWV00 68
1613709 RF-12S1S8AWU00 68
1613710 RF-12S1S8AWV00 68
1613711 RF-12S2N8AWU00 68
1613712 RF-12S2N8AWV00 68
1613713 RF-12S2S8AWU00 68
1613714 RF-12S2S8AWV00 68
1613715 RF-16P1N8A8002 58
1613716 RF-16P1N8A8003 58
1613717 RF-16P1N8A80DU 58
1613718 RF-16P1N8AWU00 68
1613719 RF-16P1N8AWV00 68
1613720 RF-16P2N8A8002 58
1613721 RF-16P2N8A8003 58
1613722 RF-16P2N8A80DU 58
1613723 RF-16P2N8AWU00 68
1613724 RF-16P2N8AWV00 68
1613725 RF-16S1N8A8002 58
1613726 RF-16S1N8A8003 58
1613727 RF-16S1N8A80DU 58
1613728 RF-16S1N8AWU00 68
1613729 RF-16S1N8AWV00 68
1613730 RF-16S2N8A8002 58
1613731 RF-16S2N8A8003 58
1613732 RF-16S2N8A80DU 58
1613733 RF-16S2N8AWU00 68
1613734 RF-16S2N8AWV00 68
1613735 RF-17P1N8AWU00 68
1613736 RF-17P1N8AWV00 68
1613737 RF-17P2N8AWU00 68
1613738 RF-17P2N8AWV00 68
1613739 RF-17S1N8AWU00 68
1613740 RF-17S1N8AWV00 68
1613741 RF-17S2N8AWU00 68
1613742 RF-17S2N8AWV00 68
1613757 RF-16P1N8A9002 59
1613758 RF-16P1N8A9003 59
1613759 RF-16P1N8A90DU 59
1613760 RF-16P1N8AA200 62
1613761 RF-16P1N8AAC00 64
1613762 RF-16P1N8AAD00 64
1613763 RF-16P1N8AAF00 63
1613764 RF-16P1N8AAK00 63
1613765 RF-16P1N8AW400 61
1613766 RF-16P1N8AWA00 60
1613767 RF-16P1N8AWB00 61
1613768 RF-16P1N8AWQ00 60
1613769 RF-16P2N8A9002 59
1613770 RF-16P2N8A9003 59
1613771 RF-16P2N8A90DU 59
1613772 RF-16P2N8AA200 62
1613773 RF-16P2N8AAC00 64
1613774 RF-16P2N8AAD00 64
1613775 RF-16P2N8AAF00 63
1613776 RF-16P2N8AAK00 63
1613777 RF-16P2N8AW400 61
1613778 RF-16P2N8AWA00 60
1613779 RF-16P2N8AWB00 61
1613780 RF-16P2N8AWQ00 60
1613781 RF-16S1N8A9002 59
1613782 RF-16S1N8A9003 59
1613783 RF-16S1N8A90DU 59
1613784 RF-16S1N8AA200 62
1613785 RF-16S1N8AAC00 64
1613786 RF-16S1N8AAF00 63
1613787 RF-16S1N8AAK00 63
1613788 RF-16S1N8AW400 61
1613789 RF-16S1N8AWA00 60
1613790 RF-16S1N8AWB00 61
1613791 RF-16S1N8AWQ00 60
1613792 RF-16S2N8A9002 59
1613793 RF-16S2N8A9003 59
1613794 RF-16S2N8A90DU 59
1613795 RF-16S2N8AA200 62
1613796 RF-16S2N8AAC00 64
1613797 RF-16S2N8AAD00 64
1613798 RF-16S2N8AAF00 63
1613799 RF-16S2N8AAK00 63
1613800 RF-16S2N8AW400 61
1613801 RF-16S2N8AWA00 60
1613802 RF-16S2N8AWB00 61
1613803 RF-16S2N8AWQ00 60
1613822 RC-Z2504 140
1613829 HC-Z2329 155
1613830 RF-16S1N8AAD00 64
1613831 ST-E2015151 51
1613958 RF-12P1N8A9V02 67
1613959 RF-12P1N8A9V03 67
1613960 RF-12P1N8A9VDU 67
1613961 RF-12P1S8A9V02 67
1613962 RF-12P1S8A9V03 67
1613963 RF-12P1S8A9VDU 67
1613964 RF-12P2N8A9V02 67
1613965 RF-12P2N8A9V03 67
1613966 RF-12P2N8A9VDU 67
1613967 RF-12P2S8A9V02 67
1613968 RF-12P2S8A9V03 67
1613969 RF-12P2S8A9VDU 67
1613970 RF-12S1N8A9V02 67
1613971 RF-12S1N8A9V03 67
1613972 RF-12S1N8A9VDU 67
1613973 RF-12S1S8A9V02 67
1613974 RF-12S1S8A9V03 67
1613975 RF-12S1S8A9VDU 67
1613976 RF-12S2N8A9V02 67
1613977 RF-12S2N8A9V03 67
1613978 RF-12S2N8A9VDU 67
1613979 RF-12S2S8A9V02 67
1613980 RF-12S2S8A9V03 67
1613981 RF-12S2S8A9VDU 67
1613982 RF-16P1N8A9V02 67
1613983 RF-16P1N8A9V03 67
1613984 RF-16P1N8A9VDU 67
1613985 RF-16P2N8A9V02 67
1613986 RF-16P2N8A9V03 67
1613987 RF-16P2N8A9VDU 67
1613988 RF-16S1N8A9V02 67
1613989 RF-16S1N8A9V03 67
1613990 RF-16S1N8A9VDU 67
1613991 RF-16S2N8A9V02 67
1613992 RF-16S2N8A9V03 67
1613993 RF-16S2N8A9VDU 67
1613994 RF-17P1N8A9V02 67
1613995 RF-17P1N8A9V03 67
1613996 RF-17P1N8A9VDU 67
1613997 RF-17P2N8A9V02 67
1613998 RF-17P2N8A9V03 67
1613999 RF-17P2N8A9VDU 67
1614000 RF-17S1N8A9V02 67
1614001 RF-17S1N8A9V03 67
1614002 RF-17S1N8A9VDU 67
1614003 RF-17S2N8A9V02 67
1614004 RF-17S2N8A9V03 67
1614005 RF-17S2N8A9VDU 67
1614066 RF-12P1N8A8V03 66
1614067 RF-12P1N8A8VDU 66
1614068 RF-12P1S8A8V02 66
1614069 RF-12P1S8A8V03 66
1614070 RF-12P1S8A8VDU 66
1614071 RF-12P2N8A8V02 66
1614072 RF-12P2N8A8V03 66
1614073 RF-12P2N8A8VDU 66
1614074 RF-12P2S8A8V02 66
1614075 RF-12P2S8A8V03 66
1614076 RF-12P2S8A8VDU 66
1614077 RF-12S1N8A8V02 66
1614078 RF-12S1N8A8VDU 66
1614079 RF-12S1S8A8V02 66
1614080 RF-12S1S8A8V03 66
1614081 RF-12S1S8A8VDU 66
1614082 RF-12S2N8A8V02 66
1614083 RF-12S2N8A8V03 66
1614084 RF-12S2S8A8V02 66
1614085 RF-12S2S8A8V03 66
1614086 RF-12S2S8A8VDU 66
1614087 RF-16P1N8A8V02 66
1614088 RF-16P1N8A8V03 66
1614089 RF-16P1N8A8VDU 66
1614090 RF-16P2N8A8V03 66
1614091 RF-16P2N8A8VDU 66
1614092 RF-16S1N8A8V02 66
1614093 RF-16S1N8A8V03 66
1614094 RF-16S1N8A8VDU 66
1614095 RF-16S2N8A8V02 66
1614096 RF-16S2N8A8V03 66
1614097 RF-16S2N8A8VDU 66
1614098 RF-17P1N8A8V02 66
1614099 RF-17P1N8A8V03 66
1614100 RF-17P1N8A8VDU 66
1614101 RF-17P2N8A8V02 66
1614102 RF-17P2N8A8VDU 66
1614103 RF-17S1N8A8V02 66
1614104 RF-17S1N8A8V03 66
1614105 RF-17S1N8A8VDU 66
1614106 RF-17S2N8A8V02 66
1614107 RF-17S2N8A8V03 66
1614108 RF-17S2N8A8VDU 66
1614123 RC-Z2494 140
1614347 RF-Z0007 153
1614348 SL-Z0016 153
1614349 SM-Z0012 153
1614414 RF-12P2N8AWV00 68
1614571 SF-Z0043 151
1614648 HC-ARP1NRA6300 76
1614689 SF-Z0047 144
1615068 RF-12S2N8A8VDU 66
1615239 RF-12P1N8A8V02 66
1615240 RF-12S1N8A8V03 66
1615241 RF-17P2N8A8V03 66
1615245 RF-16P2N8A8V02 66
1615308 HC-26P1N222300 77
1615309 HC-26P1N322300 77
1615310 HC-26P1NT2WA00 78
1615312 HC-28P1N222300 77
1615313 HC-28P1N224300 79
1615314 HC-28P1N322300 77
1615315 HC-28P1N324300 79
1615316 HC-28P1NT22300 77
1615317 HC-28P1NT2WA00 78
1615318 HC-ARS1NRA4300 79
1615319 HC-ARS1NRA6300 76
1615320 HC-ARS1NRA90DU 75
1615321 HC-ARS1NRAWA00 78
1615340 HC-26P1NT24300 79
1615341 HC-ARP1NRA4300 79
1615342 HC-ARP1NRA90DU 75
1615413 SF-Z0052 144
1615686 SL-5EPWN8AWA00 136
1615687 SL-7EPWN8AWA00 136
CONINVERS - M16 to M58 circular connectors for industrial applications
CONINVERS GmbH, an independent
company, is the specialist for M16 to M58
circular connectors within the PHOENIX
CONTACT group of companies.
We develop and manufacture circular
connectors for the cabling of industrial
systems, electrical drives, motor
connections, manufacturing machines
and machine tools at our headquarters
in Herrenberg, located to the south of
Stuttgart.
We are there to help you.
In Germany, our products are distributed
through a network of over 70 regional sales
partners. Internationally, we support you
with more than 40 branches and over
30 agencies of the PHOENIX CONTACT
Group.
Quality is our topmost objective.
With a process-oriented, integrated
management system based on international
standards, we make sure that laws and
standards as well as customer demands are
taken into account when manufacturing our
products.
CONINVERS is certified in accordance
with:
DIN EN ISO 9001:2000,
EN ISO 14001:2005 and
OHSAS 18001:1999.

Navigation menu
