Application Selection and

Cross-Reference Guide

Residential Combustion

ESSENTIAL RESOURCE FOR ALL COUNTER PERSONNEL,

SERVICE TECHS, AND PURCHASING AGENTS

Phone:

Residential Technical Support:

1-800-468-1502

Sales Support: 1-800-328-5111

Customer Service: 1-888-793-8193

Residential Zoning: 1-800-828-8367

Online:

www.customer.honeywell.com

www.forwardthinking.honeywell.com

www.literature.honeywell.com

Contractor PRO:

Phone: 1-800-919-4835

Fax: 1-763-954-4097

Exclusive Technical Support

for Contractor PRO members:

1-877-880-3383

www.contractorpro.com

Support

Online Tools

Find everything you need to be successful in selling

Honeywell products online. Product information,

cross-references, demos and more are available at

customer.honeywell.com.

Training

Honeywell offers a variety of on-site and web-based training options

at customer.honeywell.com.

Rewards

Honeywell’s Contractor PRO™ Rewards program gives

contractors reward points ($) back on all Honeywell

purchases year round at contractorpro.com.

Customer Service

Honeywell provides toll-free access to product

application, installation and support experts.

Technical Support: 1-800-468-1502

Customer Service: 1-888-793-8193

Sales Literature

With Honeywell, you’ll have access to sales materials that you can use to

help grow your business. Visit literature.honeywell.com.

Gas Controls

Table Of Contents

Residential Combustion Overview 4

New Products 6

GAS CONTROLS

Gas Valves 8

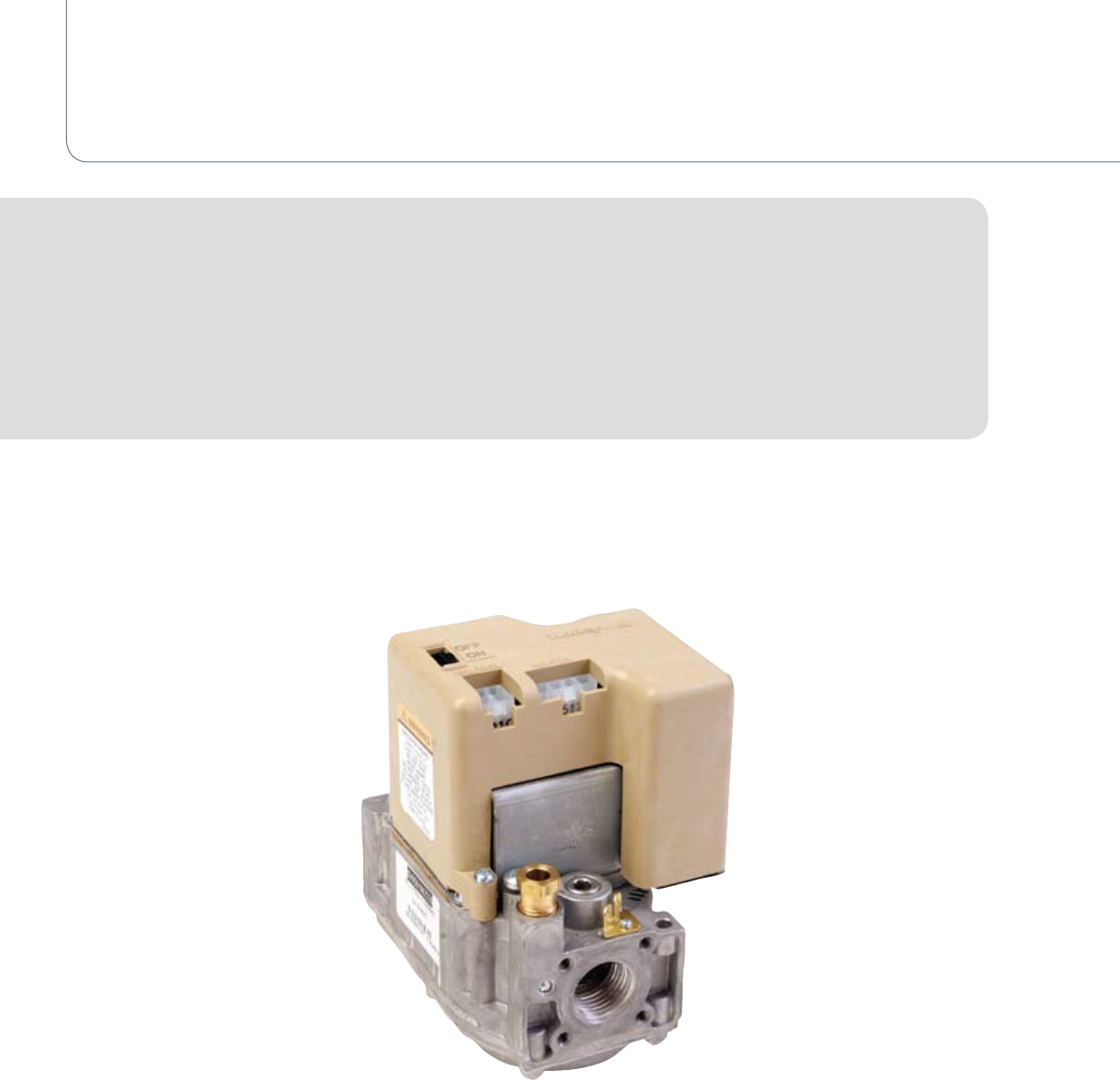

SmartValve™ System Controls 12

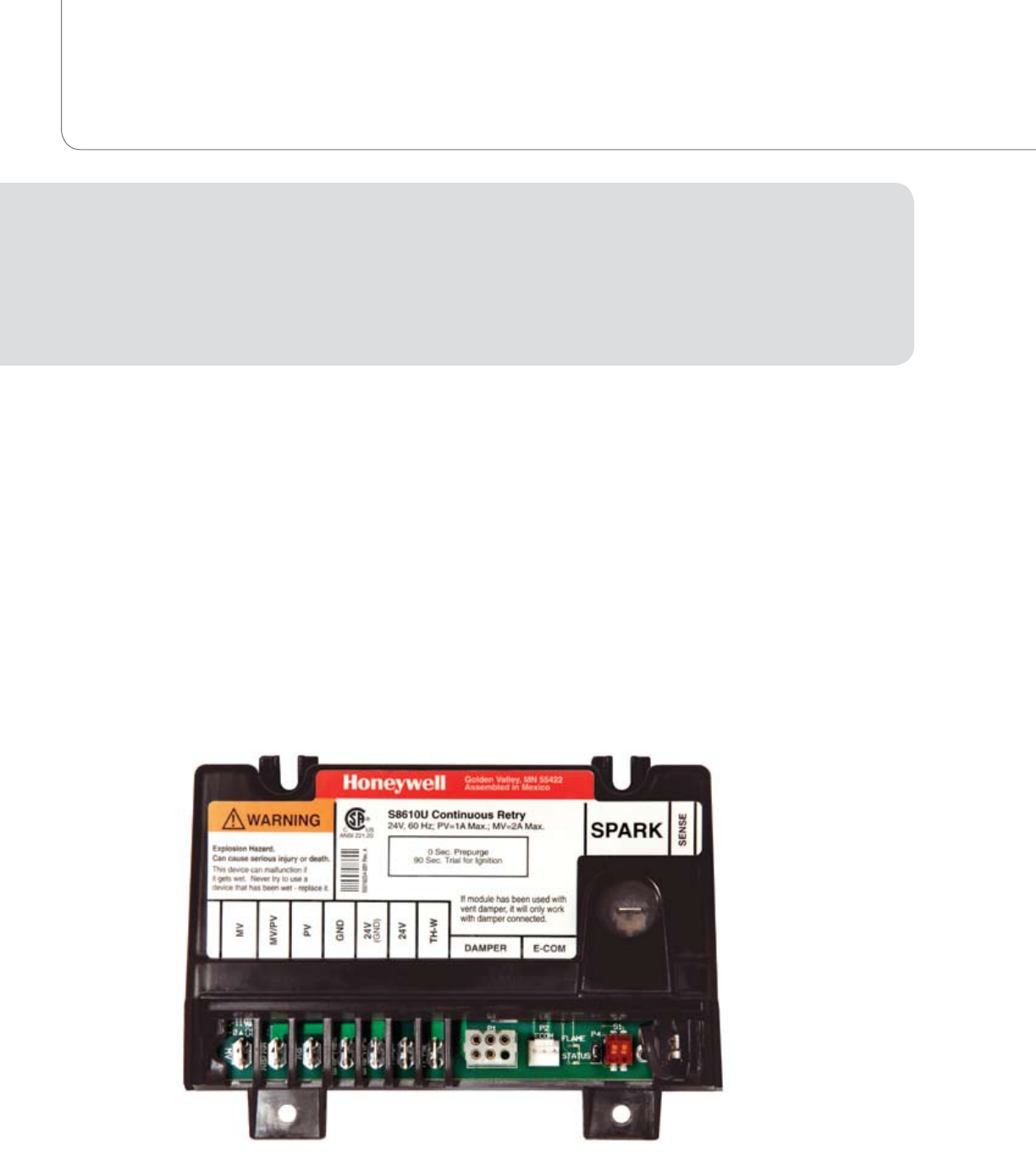

Ignition Modules 16

Glowﬂy™ Universal Hot Surface Ignitor 20

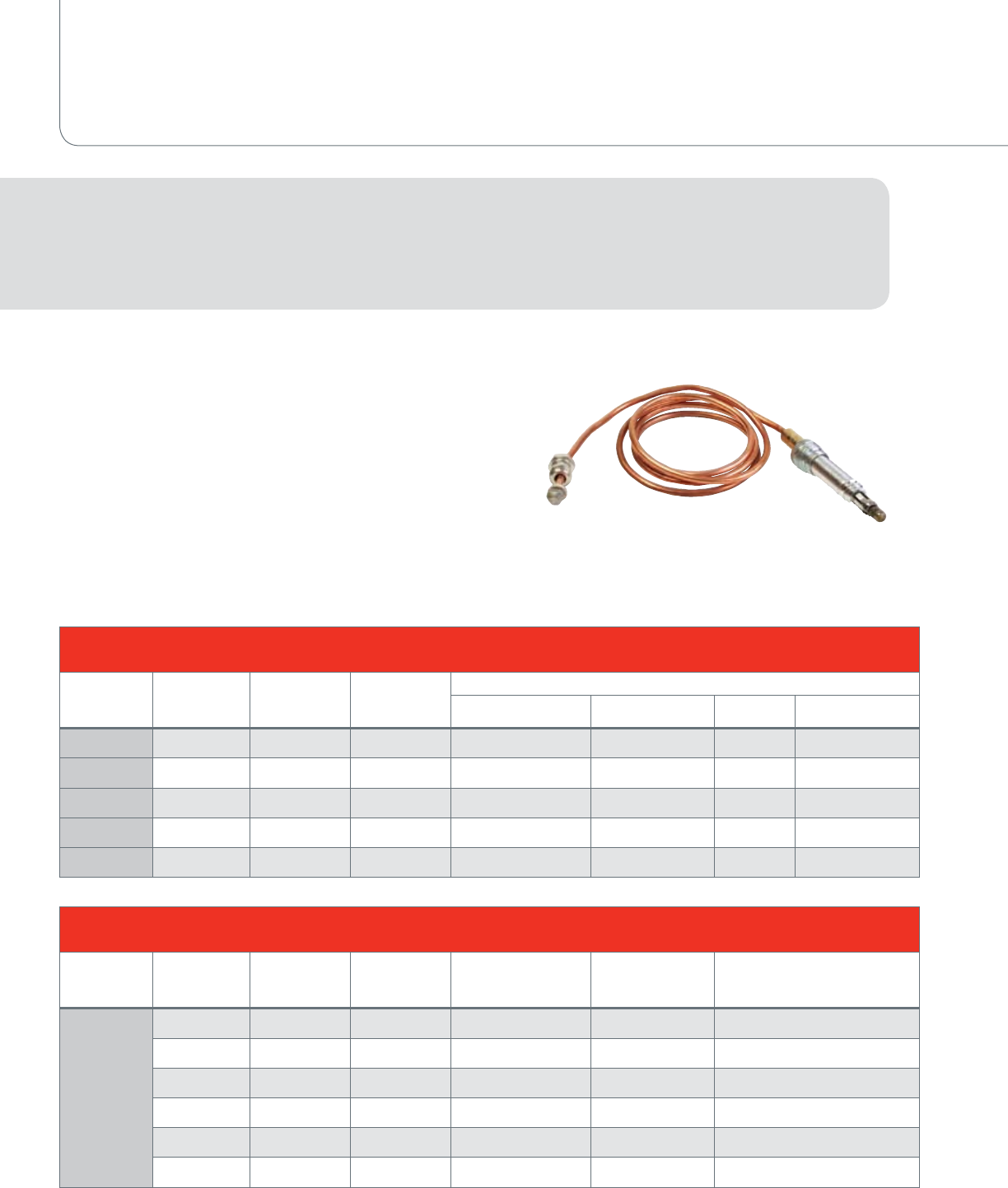

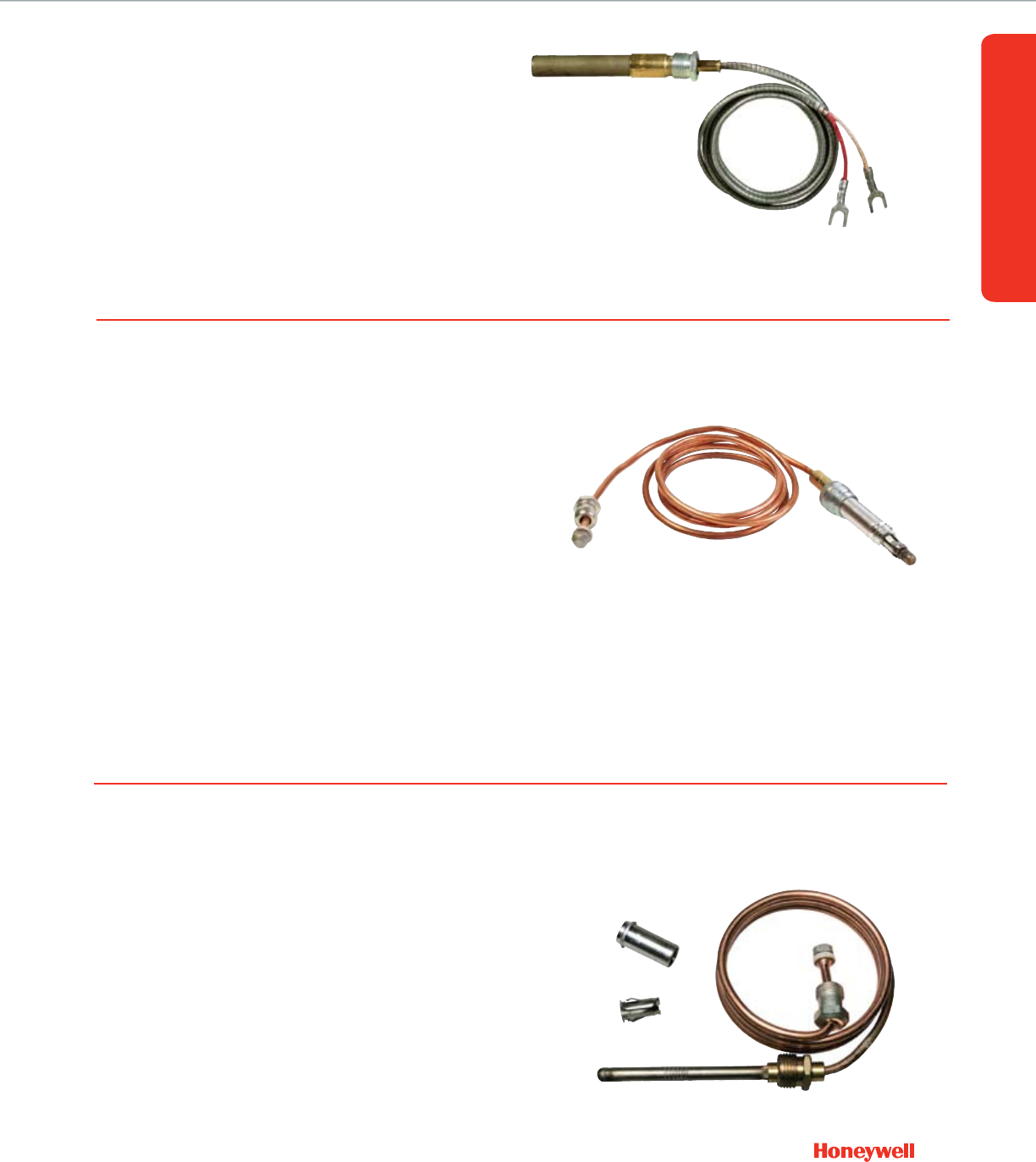

Thermocouples/Thermopiles 22

Universal Electronic Fan Timer 24

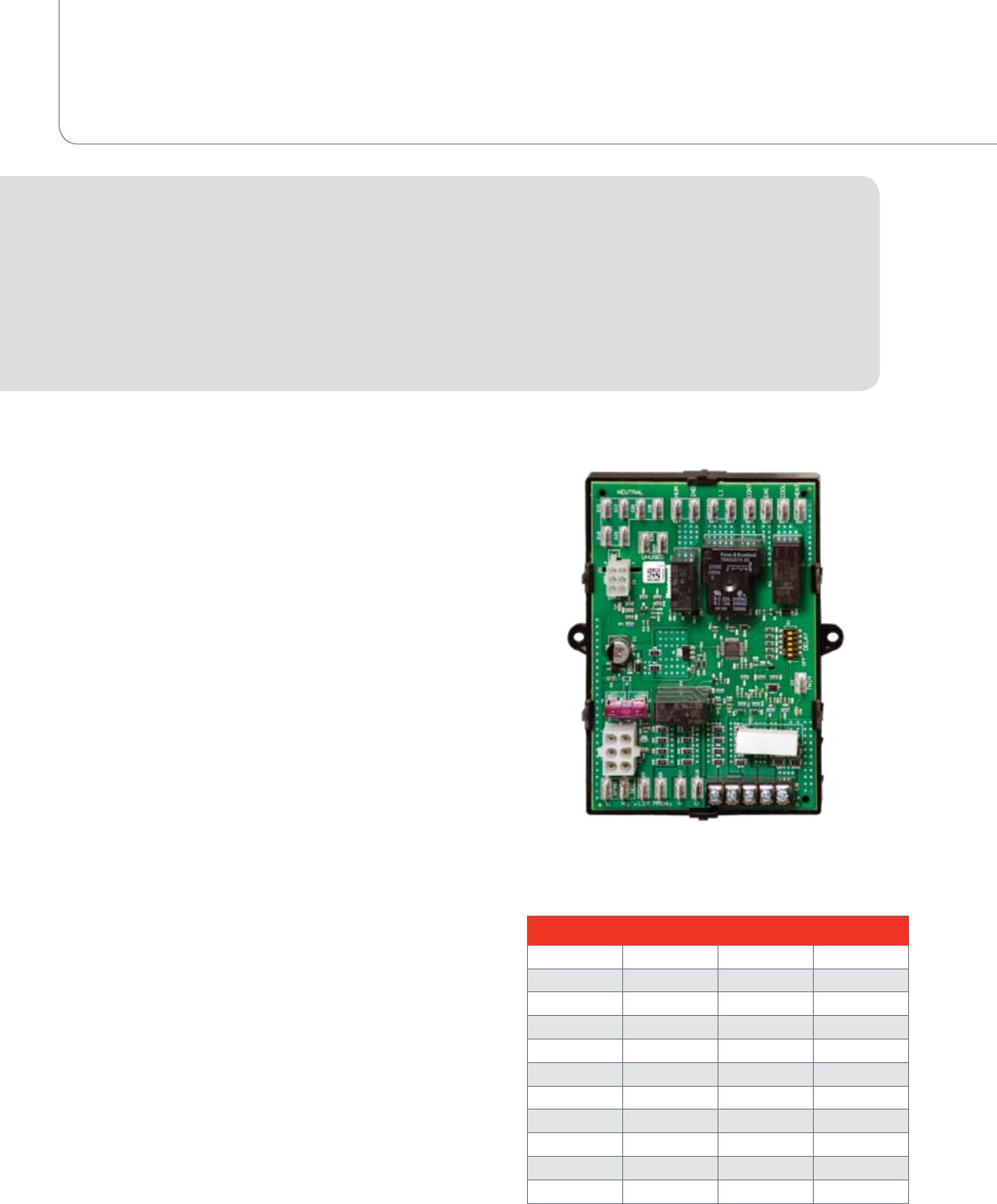

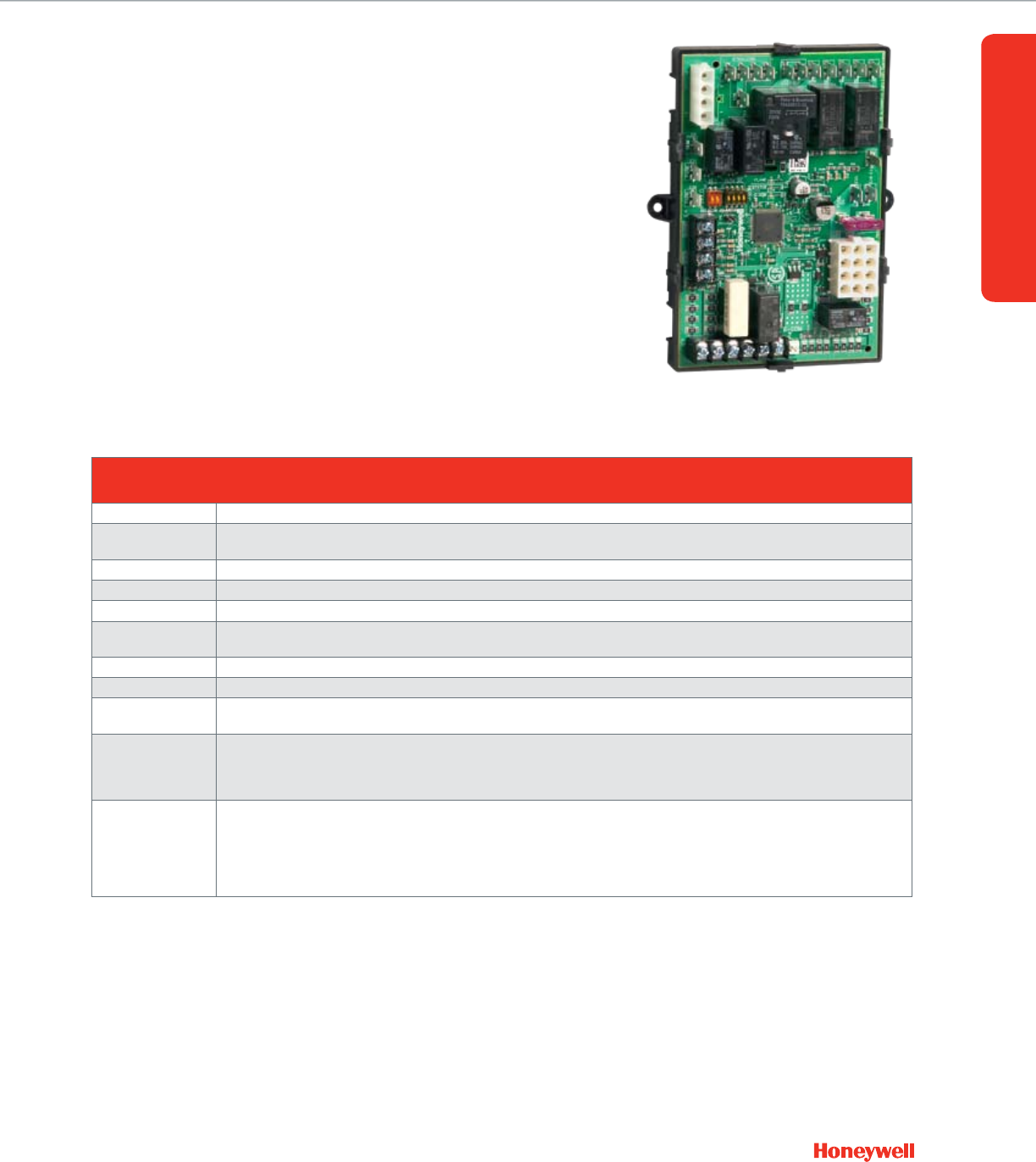

Universal Integrated Furnace Control 26

Fan and Limit Controls 30

OIL CONTROLS

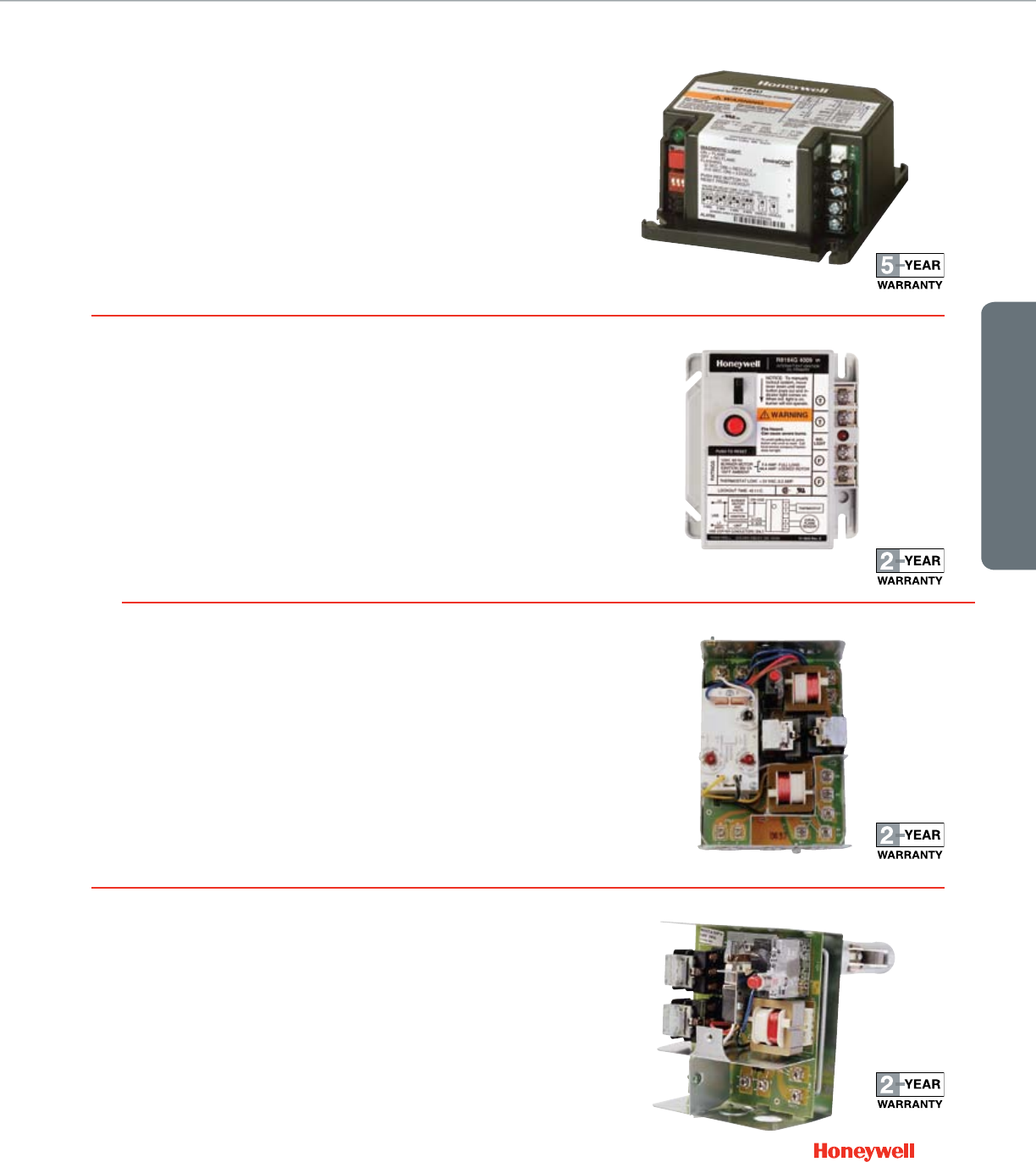

Oil Primaries 32

Outdoor Reset 36

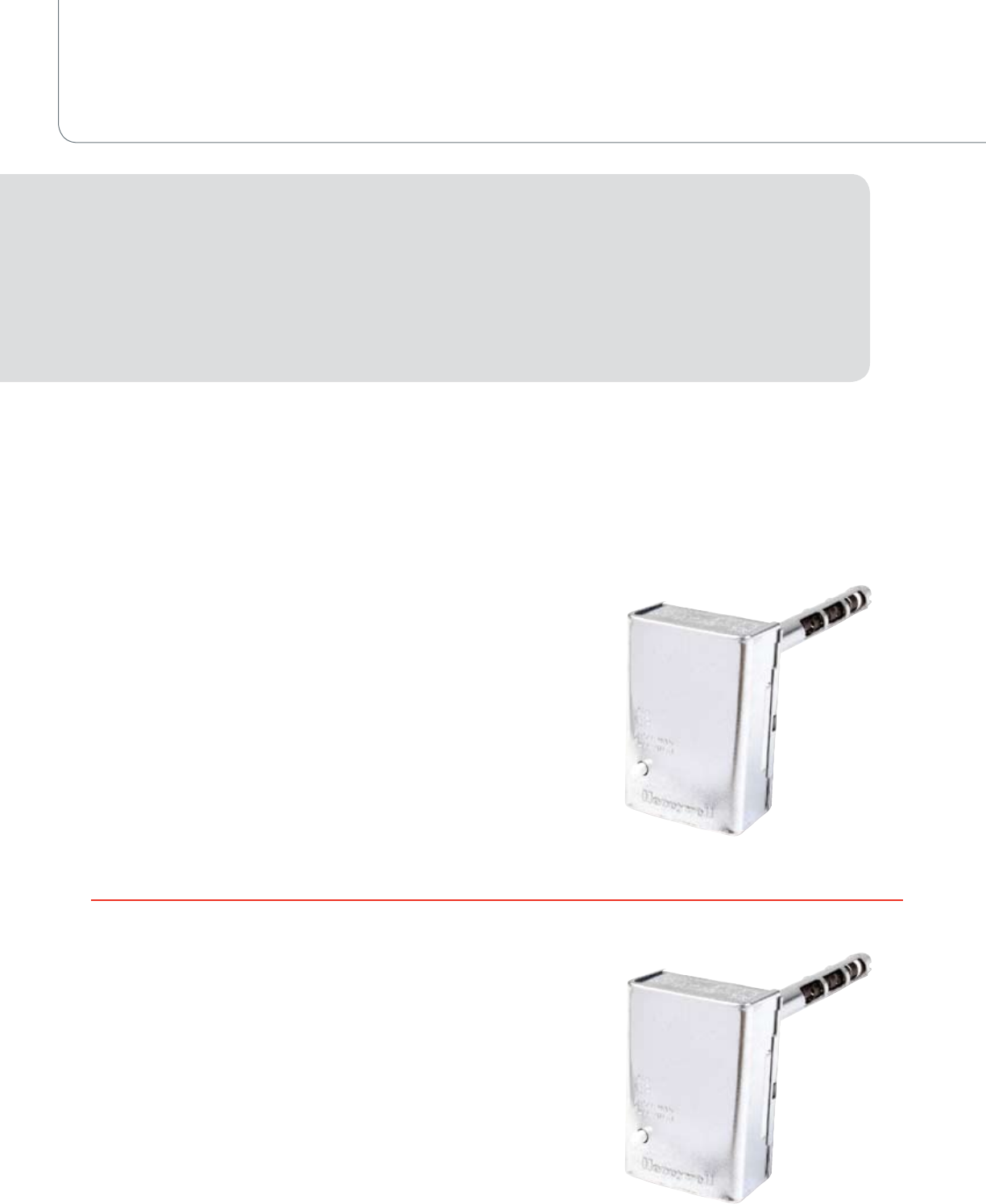

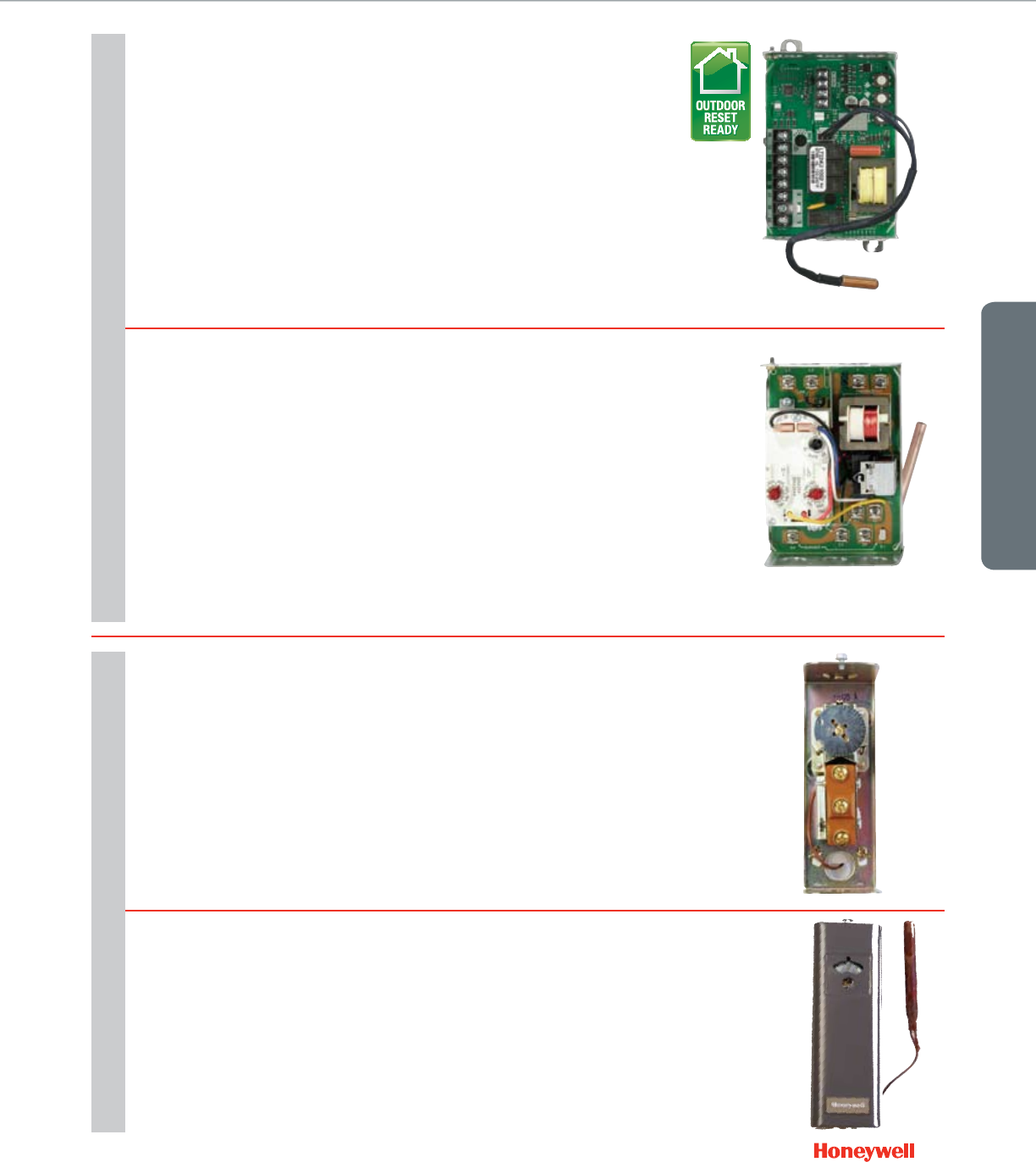

Aquastats® 38

HEATING/COOLING DEVICES

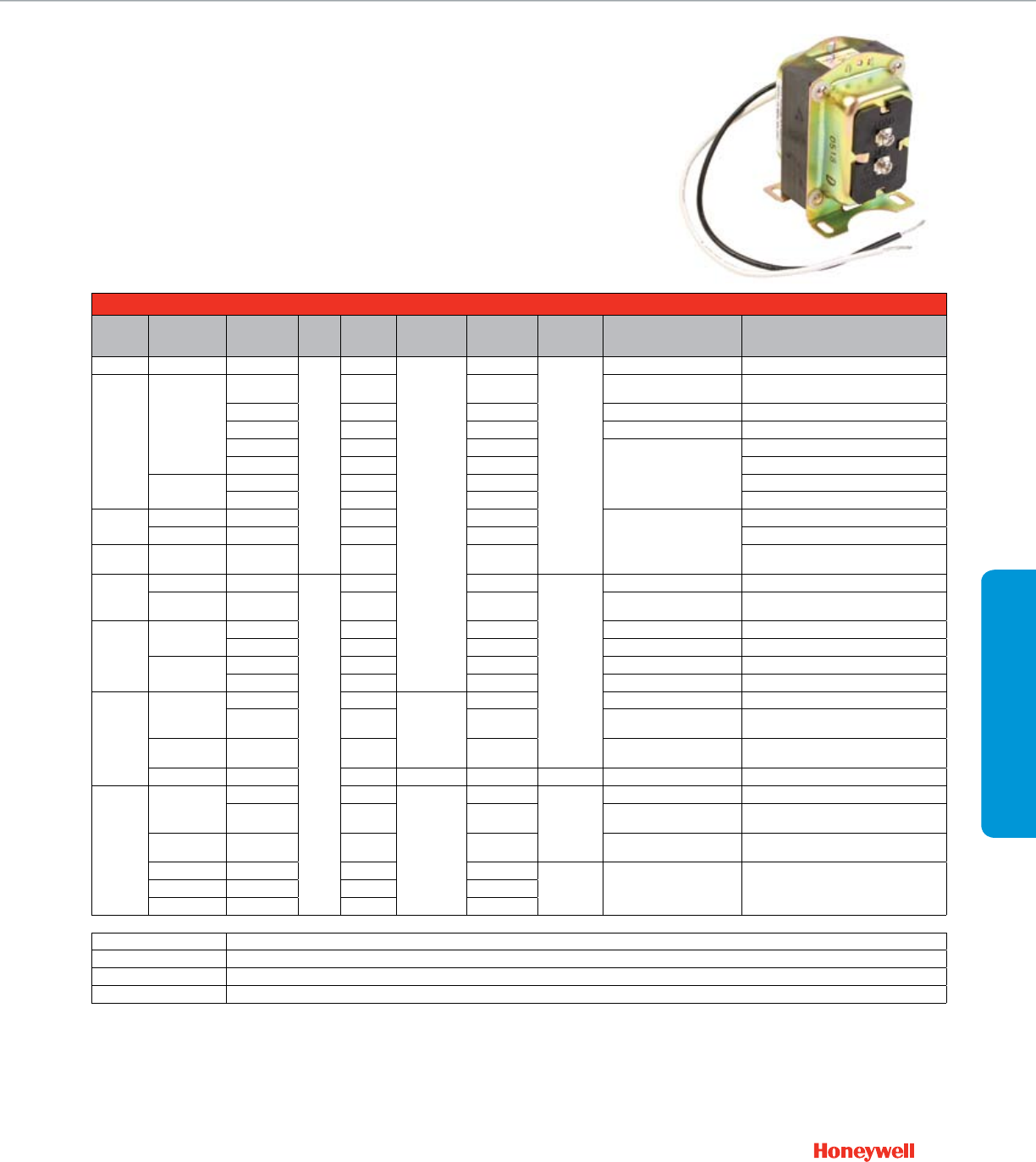

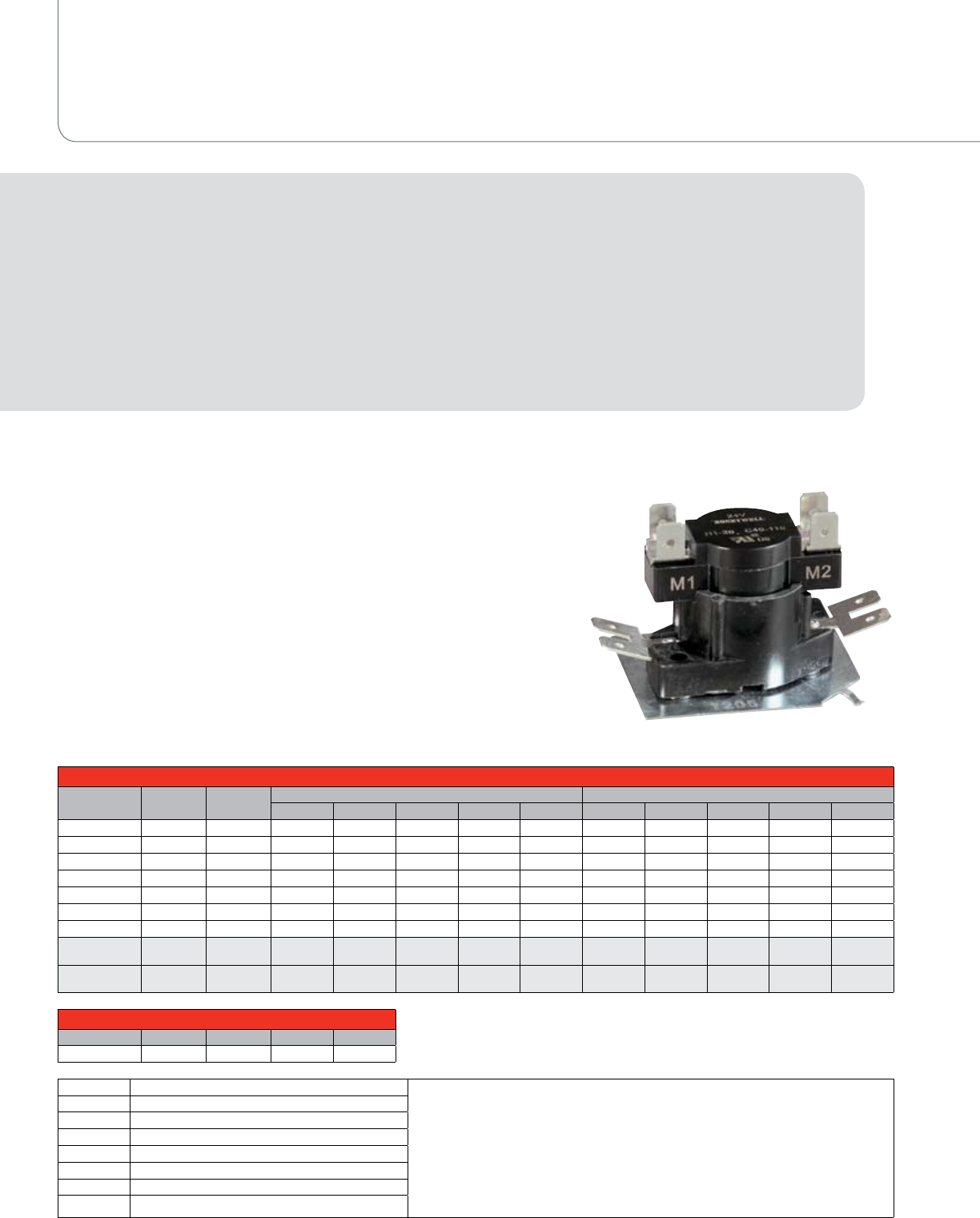

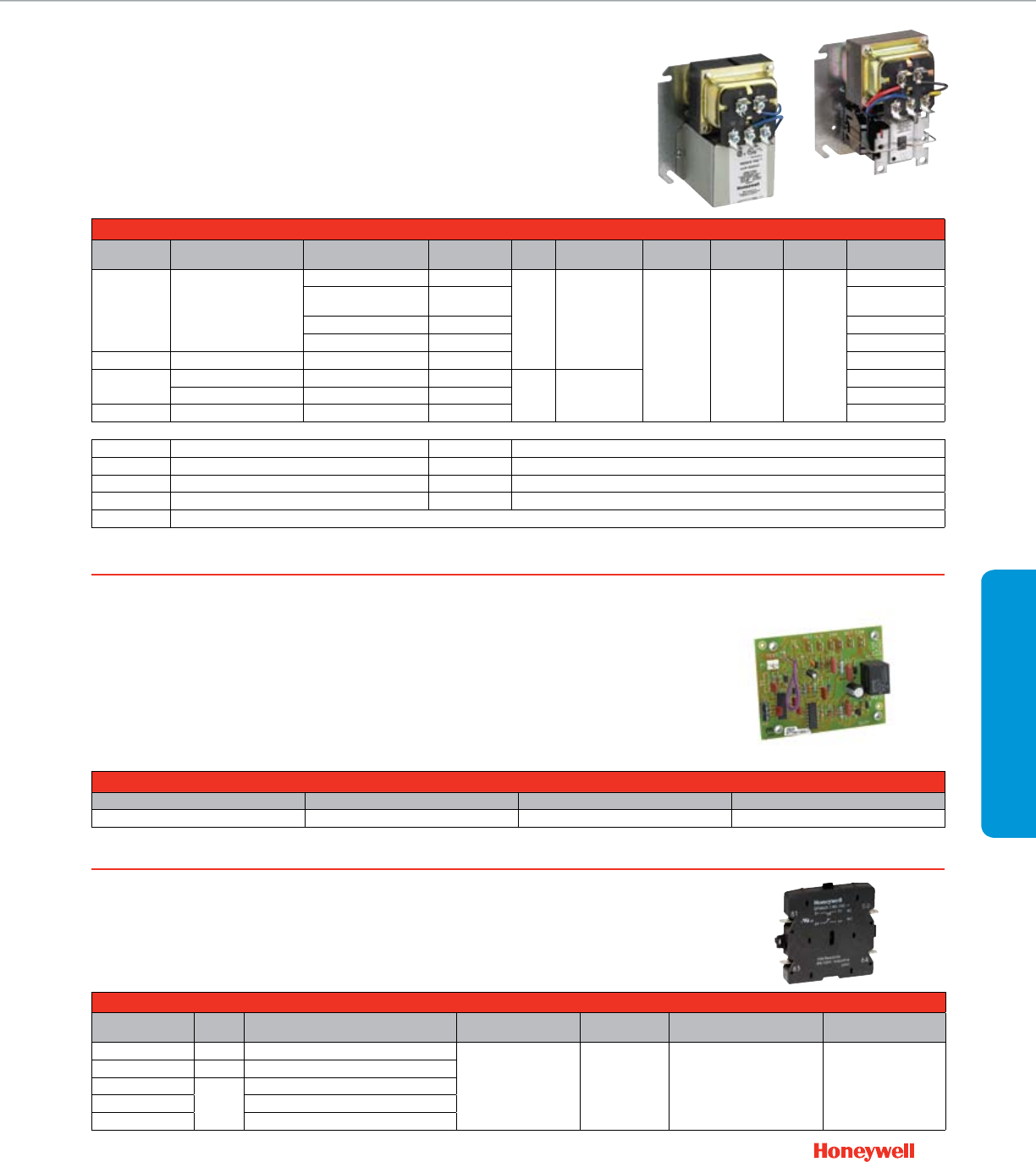

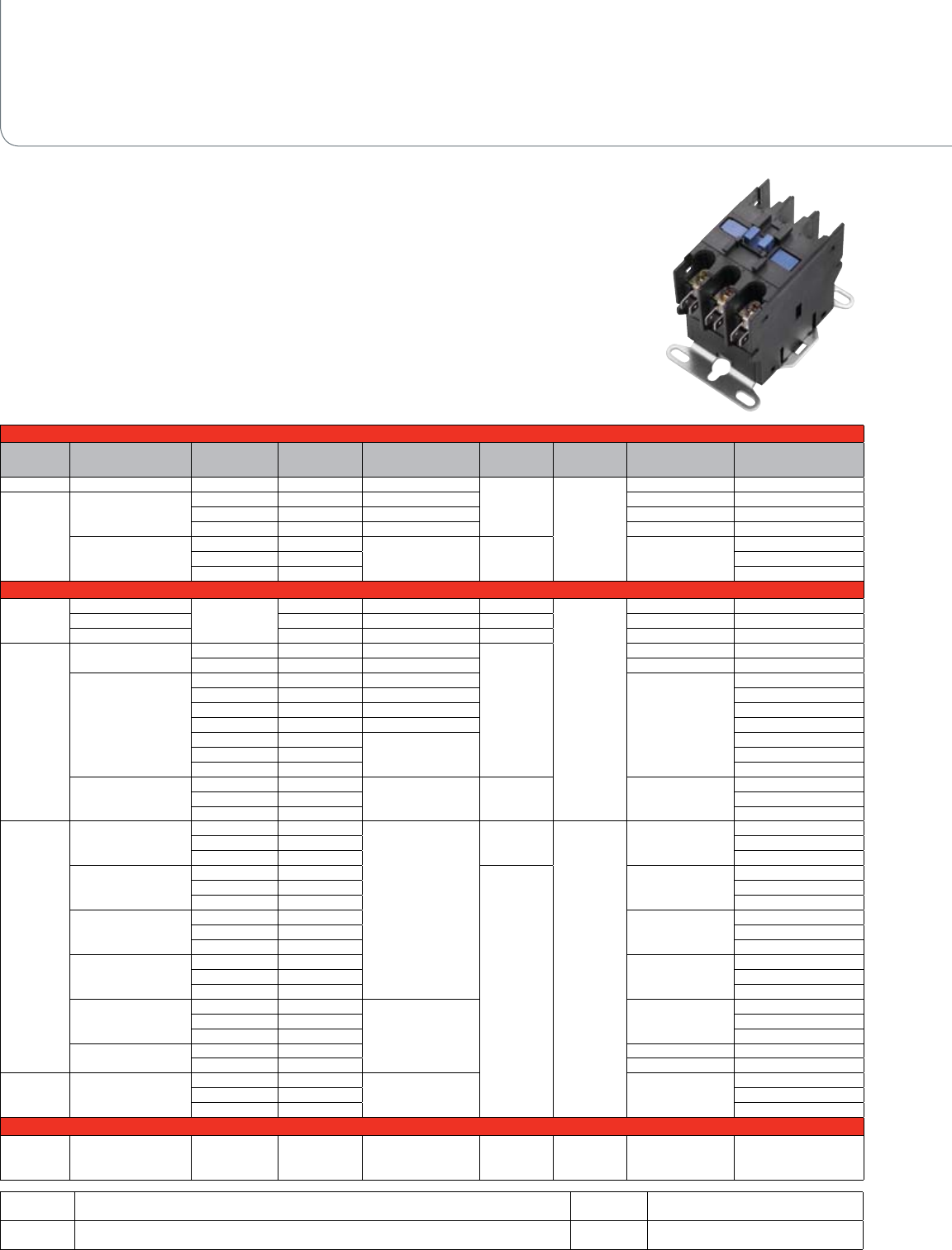

Relays/Contactors/Transformers 44

TAM AND SALES MATERIAL

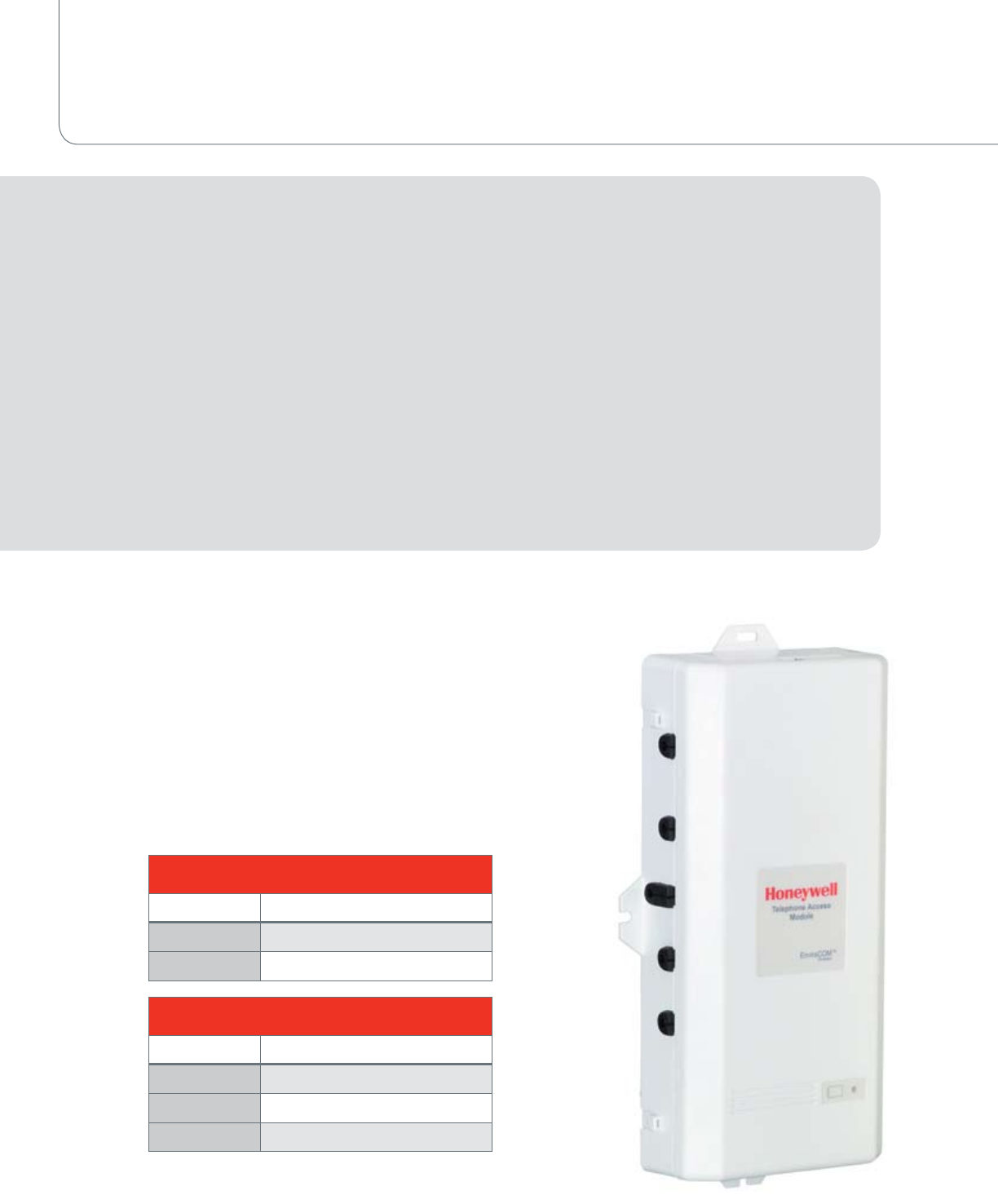

Telephone Access Module 50

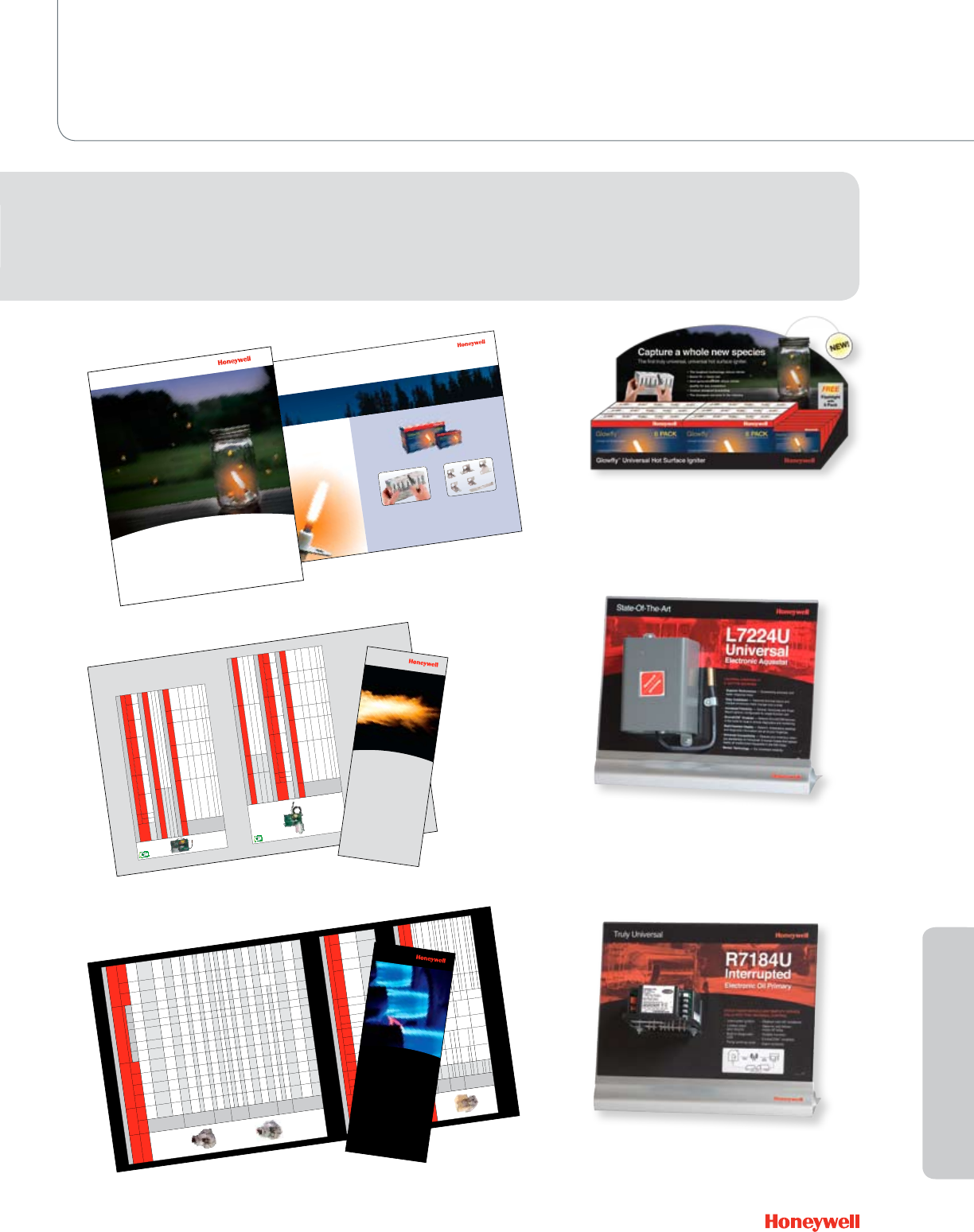

Literature and Sales Material 51

Gas ControlsHeating/Cooling DevicesTAM and Sales Material Oil Controls

PAGE

Residential Combustion

Honeywell Residential Combustion is the industry leader in combustion controls for applications

including warm air furnaces, boilers, commercial water heaters, hearth, pool and spa heaters, and

service parts. Our products are used on appliances utilizing natural gas, propane, fuel oil, and electric

fuels and first and foremost assure the safe operation of heating and cooling appliances. Sold primarily

through OEM and wholesale channels, our family of products has both the largest breadth and depth of

offering in HVAC industry.

Our offerings include like-for-like replacement parts and a full line-up of universal products that cover

almost any application making Honeywell the only brand of replacement parts you’ll ever need. The

pages in this guide feature our universal products and our exciting new offerings for the upcoming

heating season!

Universal Products

Now more than ever watching your inventory levels is an extremely important part

of everyone’s business. To help you control costs, Honeywell offers a full line of

universal products that help you better manage your inventory. You have many

applications, but one brand is all you need with Honeywell’s universal portfolio.

Add in that Honeywell gas, oil and hydronic controls offer state-of-the-art diagnostic

and troubleshooting capabilities, and you’ll see that reliable Honeywell universal

products are the universal choice.

Communications

EnviraCOM™ is a communications protocol developed by Honeywell and proven

through many years of reliable service. Using a three-wire hookup, the protocol allows

all EnviraCOM-enabled products in a system to speak to each other to maximize

efficiency and ease troubleshooting. When running diagnostics through an EnviraCOM

thermostat or remote monitoring device, you only need one device to see what’s

happening with all elements of the system. Plus, it couldn’t be easier — there’s no

need for configuring because devices start communicating upon connection.

You’ll find EnviraCOM communications on most of our universal products making it

easy for you to create a communicating system. Any diagnostic information from a

component in the system is available for viewing through an EnviraCOM enabled

thermostat, such as the VisionPRO® IAQ, or plug-in device, such as OnWatch®

Electronics QuickLook™ and GasStick™ diagnostic tools.

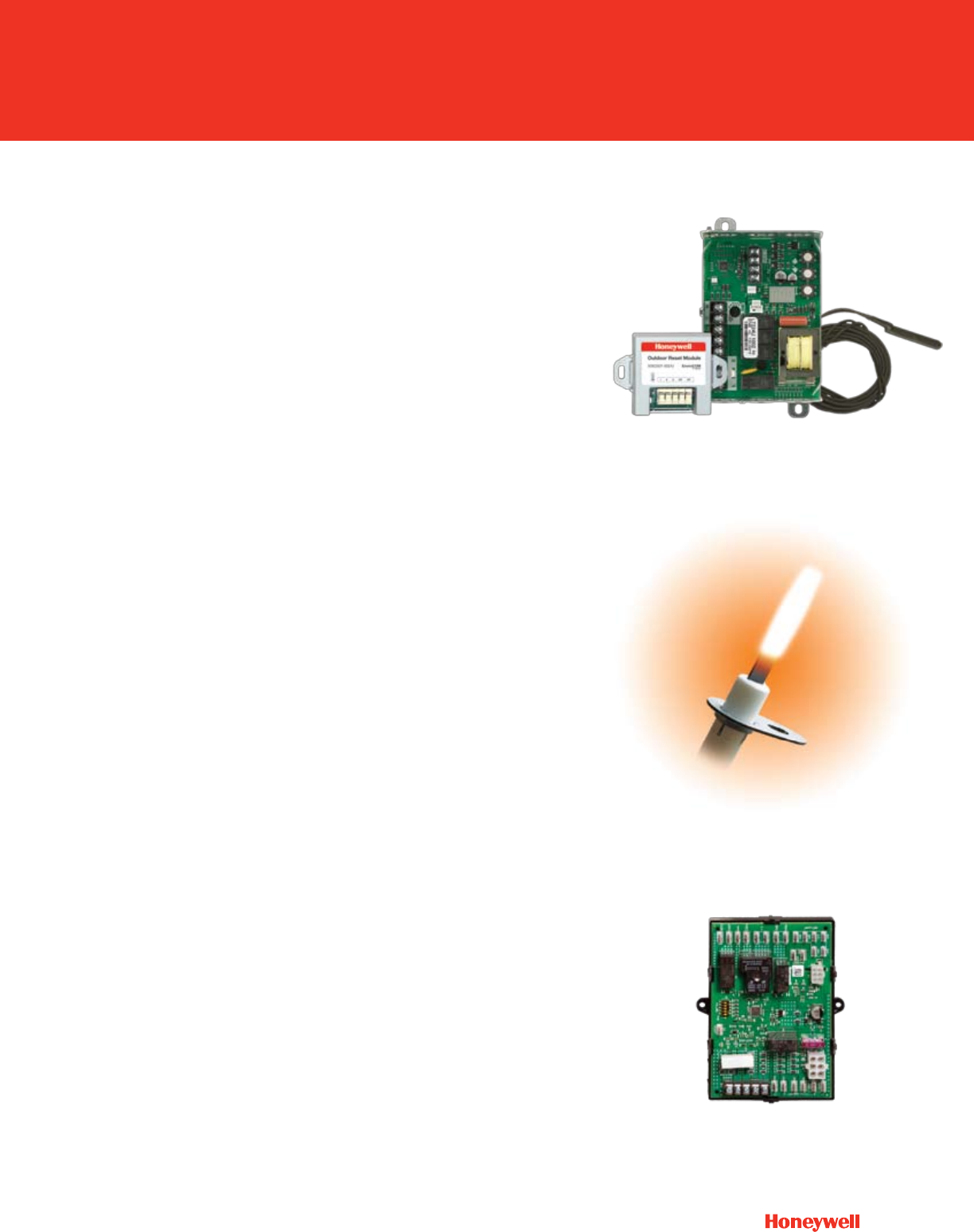

New Products

As an industry leader in innovation and new product development Honeywell is always working to

provide solutions that make your job easier and more profitable. This heating season we are introducing

three new and exciting products into the residential combustion market place. Our new Honeywell

AquaReset™ offers homeowners with oil fired hydronic heating systems real energy savings of up to

15 percent while still being one of the easiest installations in the industry. Glowfly™ is the new universal

hot surface igniter made from next generation silicon nitride and comes in a one-of-a-kind six pack

with an easy to use visual cross-reference. And last, but certainly not least, the new ST9120U Universal

Electronic Fan Timer replaces most previous Honeywell fan timers making it the only one you will need!

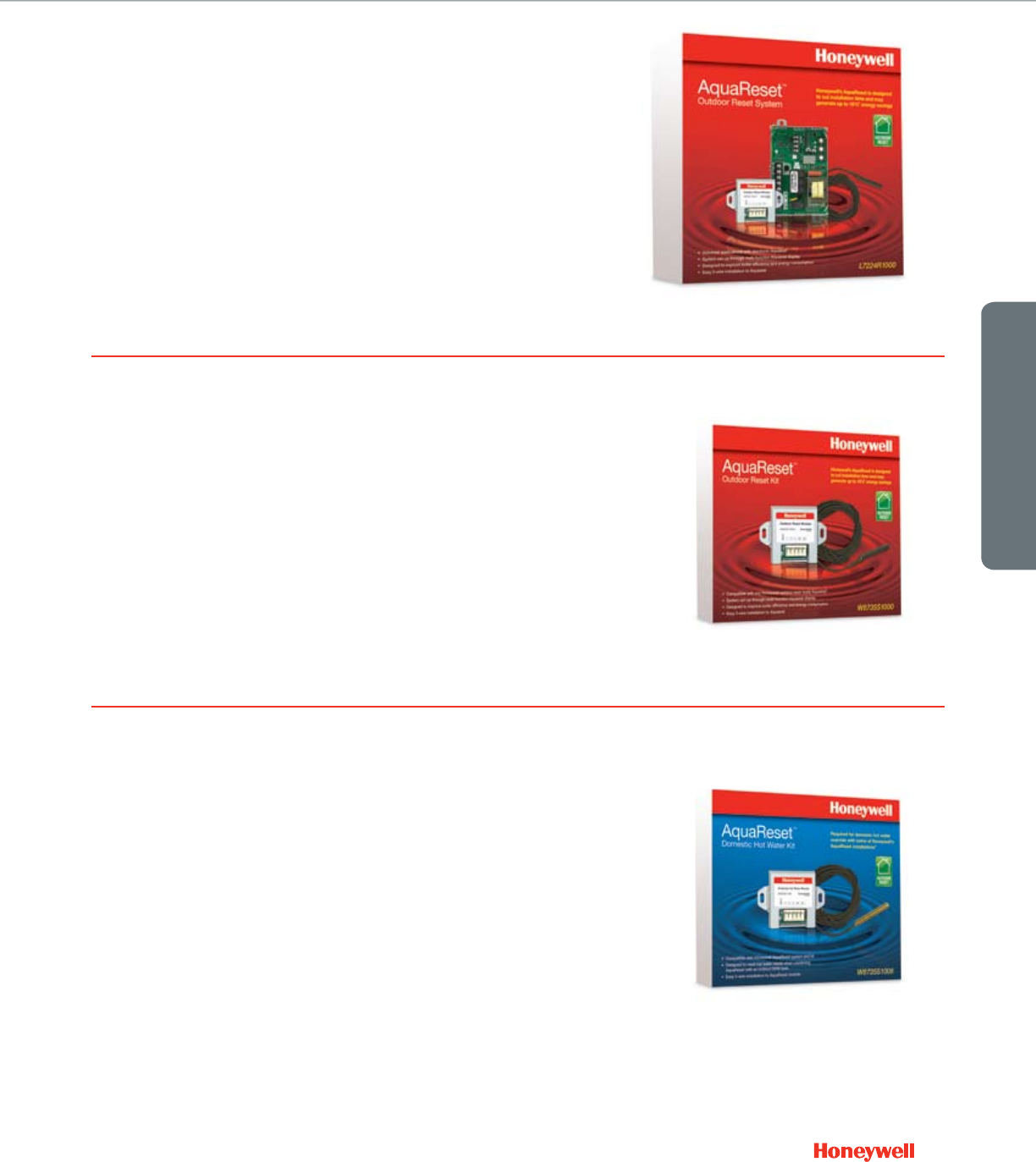

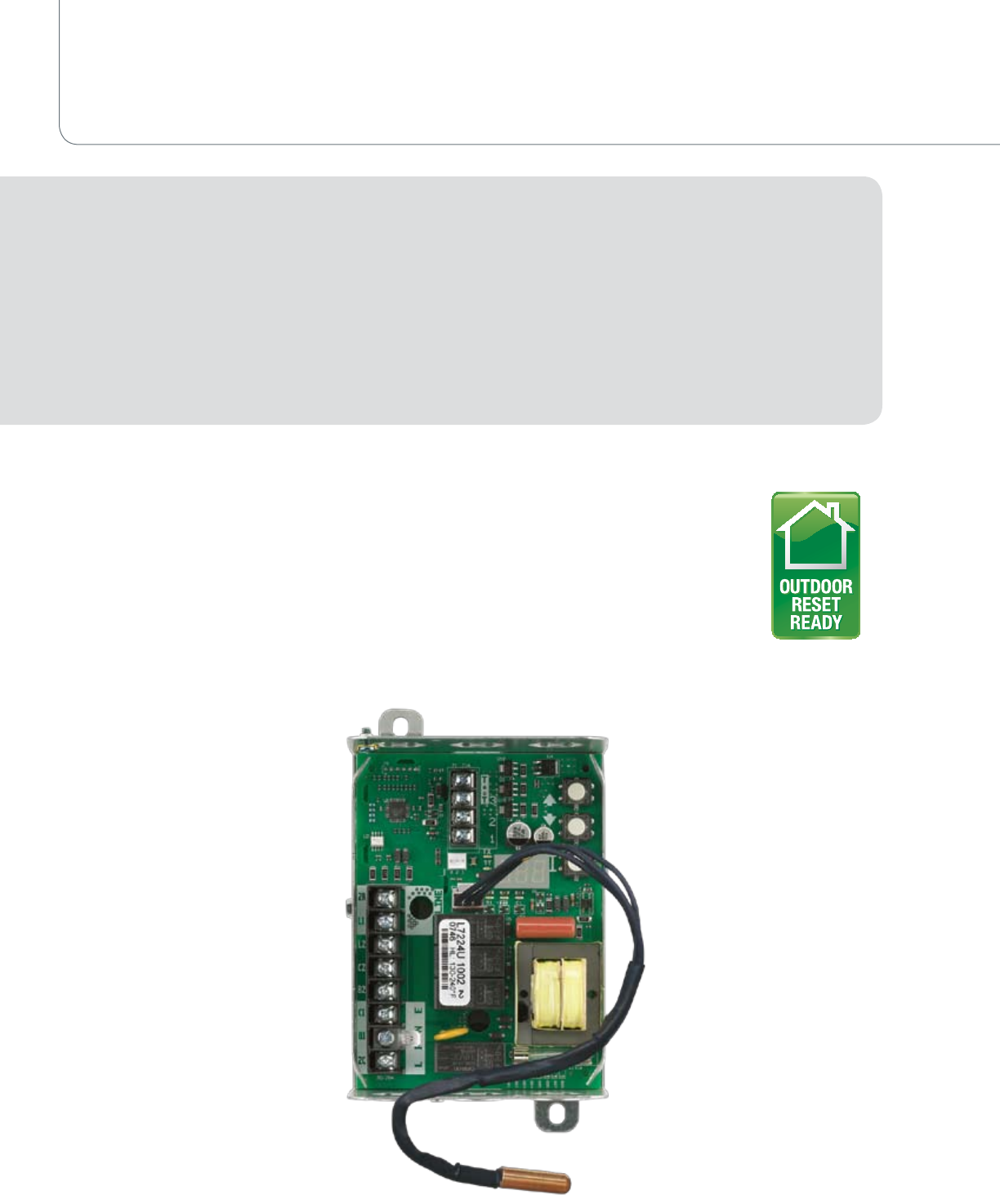

Honeywell’s AquaReset™

See Red, Think Green! Help homeowners save money on their fuel

bills and put money in your pocket with Honeywell’s AquaReset.

Our new product integrates easily into any Honeywell outdoor

reset ready electronic Aquastat®. Whether it’s a boiler service

call or a new boiler install the Honeywell AquaReset provides

easy installation and up to 15 percent* energy savings for the

homeowner. Its outdoor reset, done right!

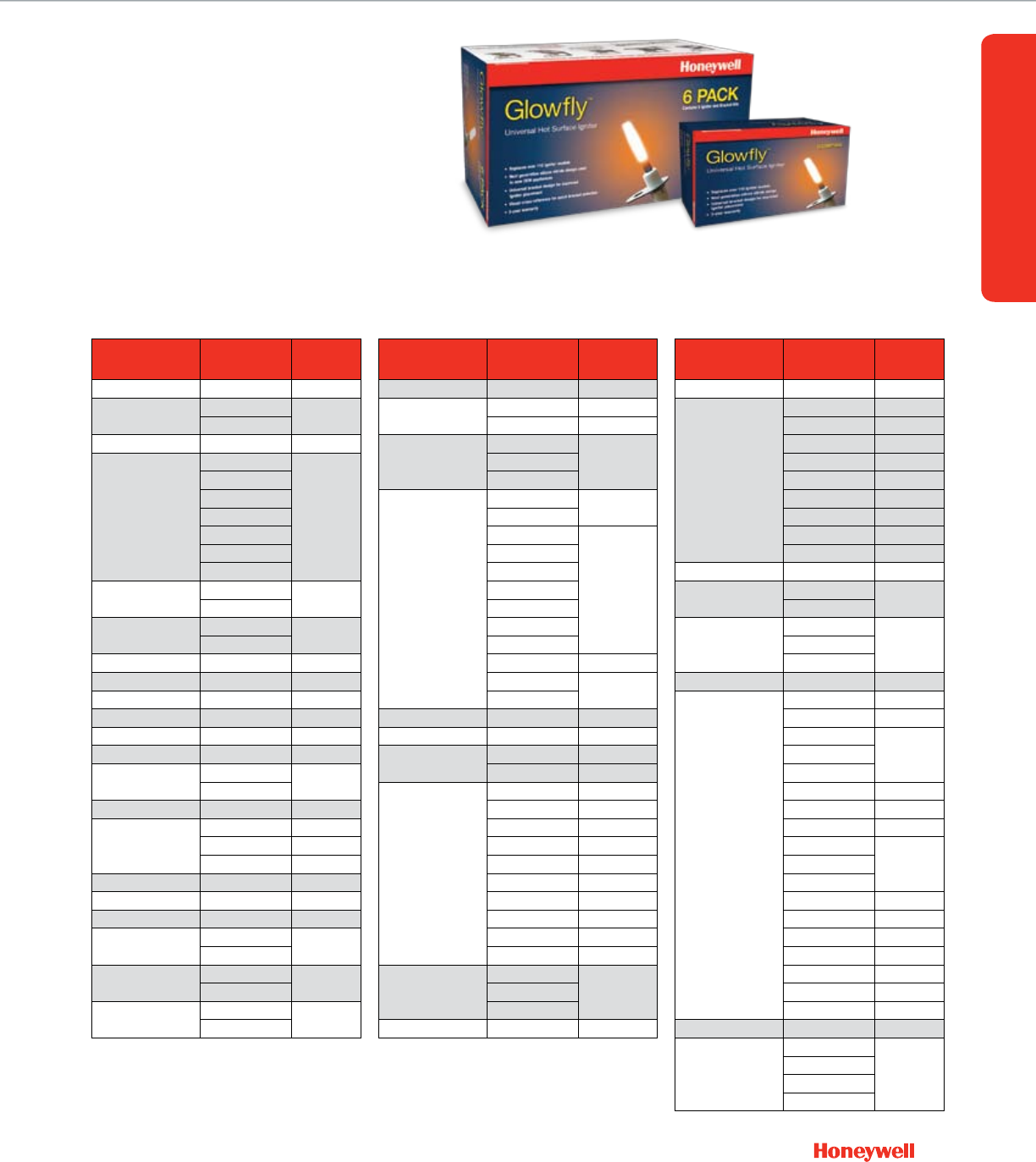

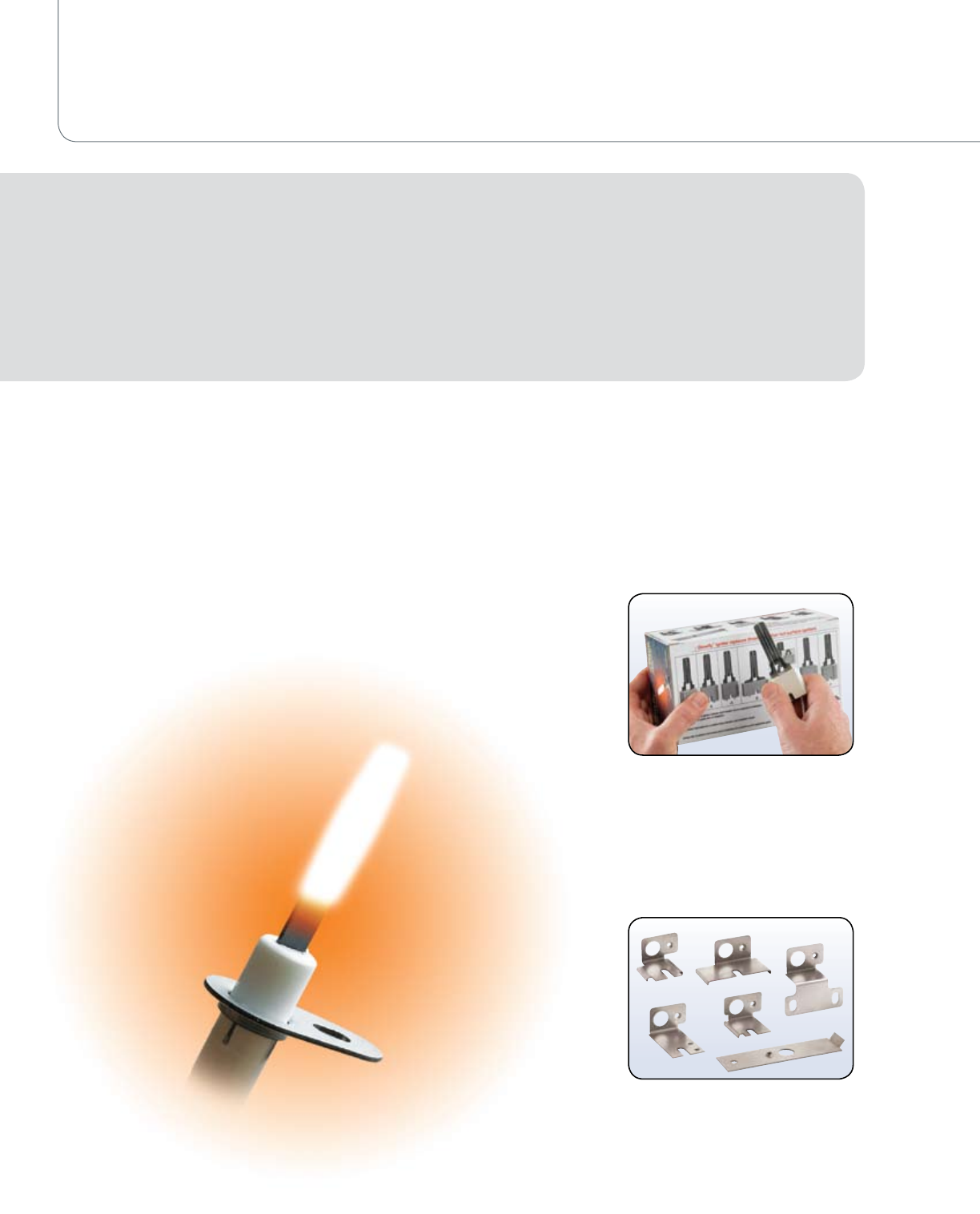

Glowfly™

Introducing the Honeywell Glowfly, It’s a whole new species.

Replacing over 110 installed silicon carbide models, with a

superior universal bracketing design, one of a kind visual cross-

reference packaging and its made from next generation OEM

quality Silicon Nitride the Glowfly is the only igniter you will need.

Pick up a six pack and light up your igniter business!

Universal Electronic Fan Timer

Replaces all others. The new universal platform will not only

integrate control of all combustion blower and circulating fan

operations in a gas warm air appliance but also replace all

ST9101, ST9103, ST9120, ST9141 and ST9160 fan timer boards.

This new universal fan timer will save you time and money with

its diagnostic LED and continuous EAC and HUM terminal

connections. These new options and features make it the only

electronic fan timer you will need.

*Honeywell Inc. 1979 Study; Control Systems Providing Energy Savings with single and multi-zone Hydronic Heating.

15% is the average energy savings and can only be achieved when installing an outdoor reset model, domestic hot

water priority is off and the unit is installed as directed.

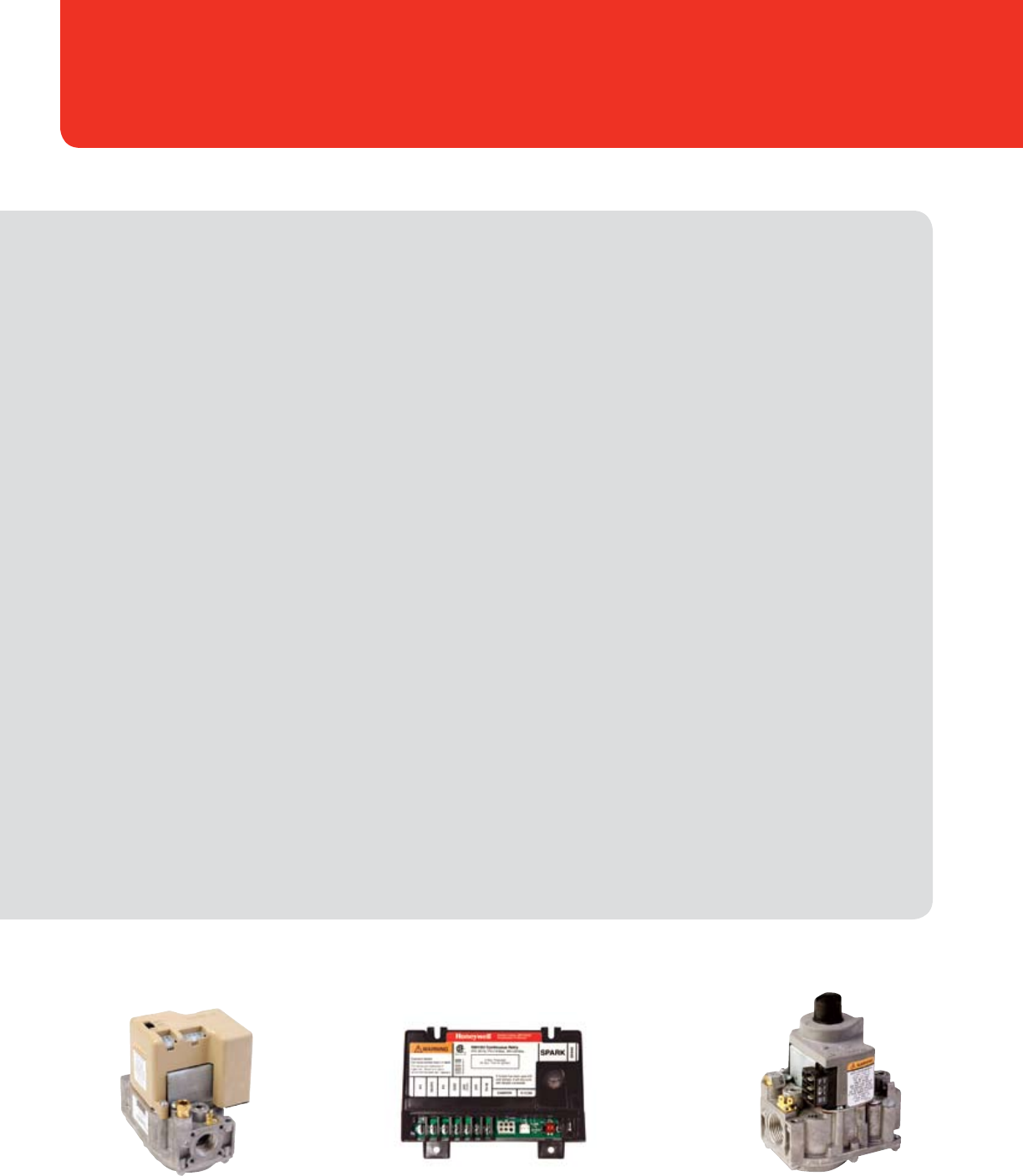

Gas Valves

Honeywell has taken the guesswork out of gas valve selection with our complete line of universal

gas valves. Contractors appreciate the reliability, ease of installation and time saved by carrying

a select few gas valves on their truck. Honeywell gas valves — the right choice every time.

When selecting a gas valve for your next job,

look for these Honeywell features:

• Universalapplication

• Reducedinventory

• Easyinstallationandadjustments

• Compactdesign

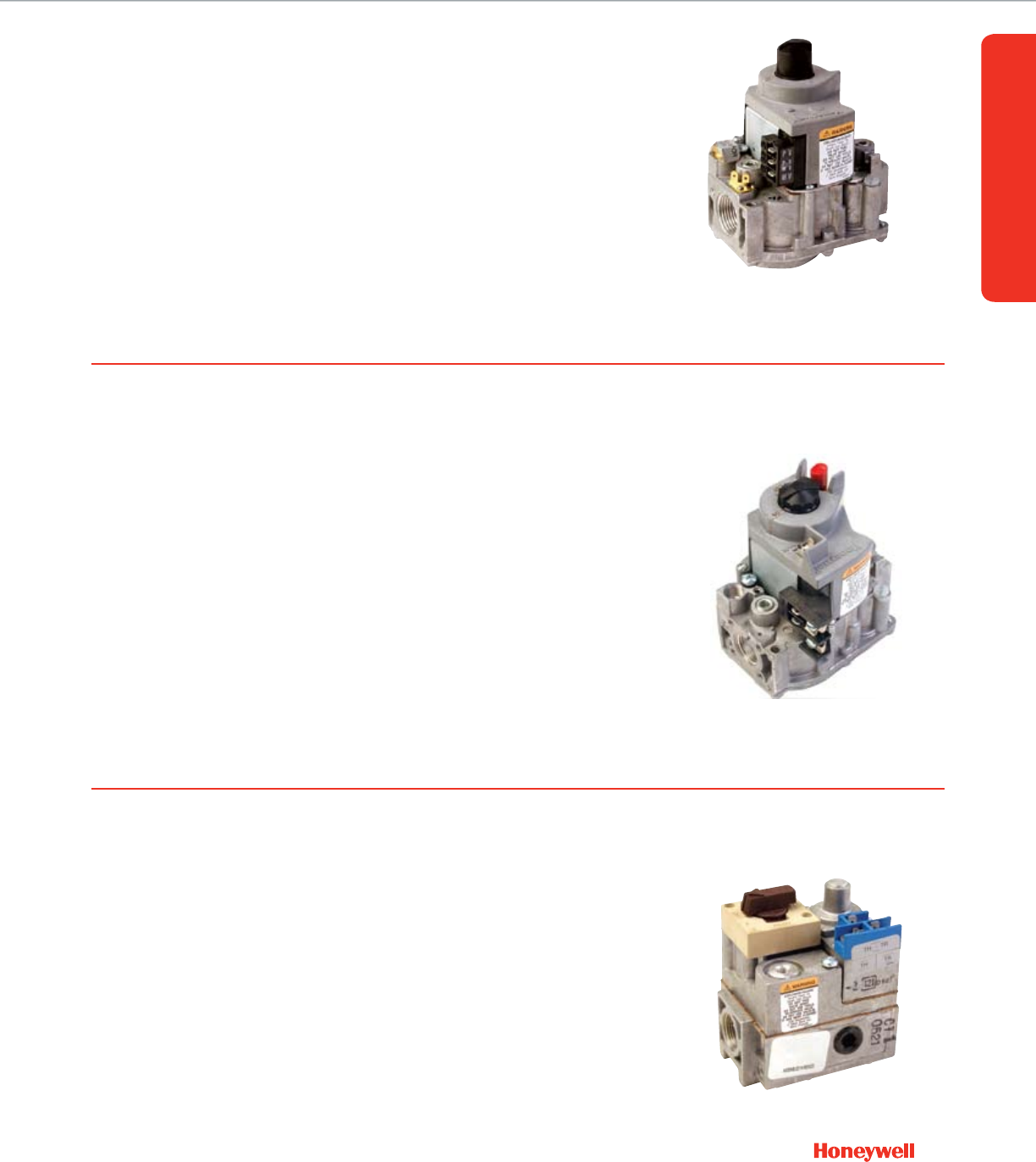

VR8300/VR8200

Universal Standing Pilot Gas Valve

• Combinationgascontrolsforusein24Vac,gas-fired,

standing pilot appliances with capacities from 20 to

200 (VR8200) cfh or 30 to 300 (VR8300) cfh

• Includessafetyshutoff,manualvalve,twoautomatic

operators, pressure regulator and pilot adjustment

• UniversalreplacementforvirtuallyallHoneywelland

competitive standing pilot valve models

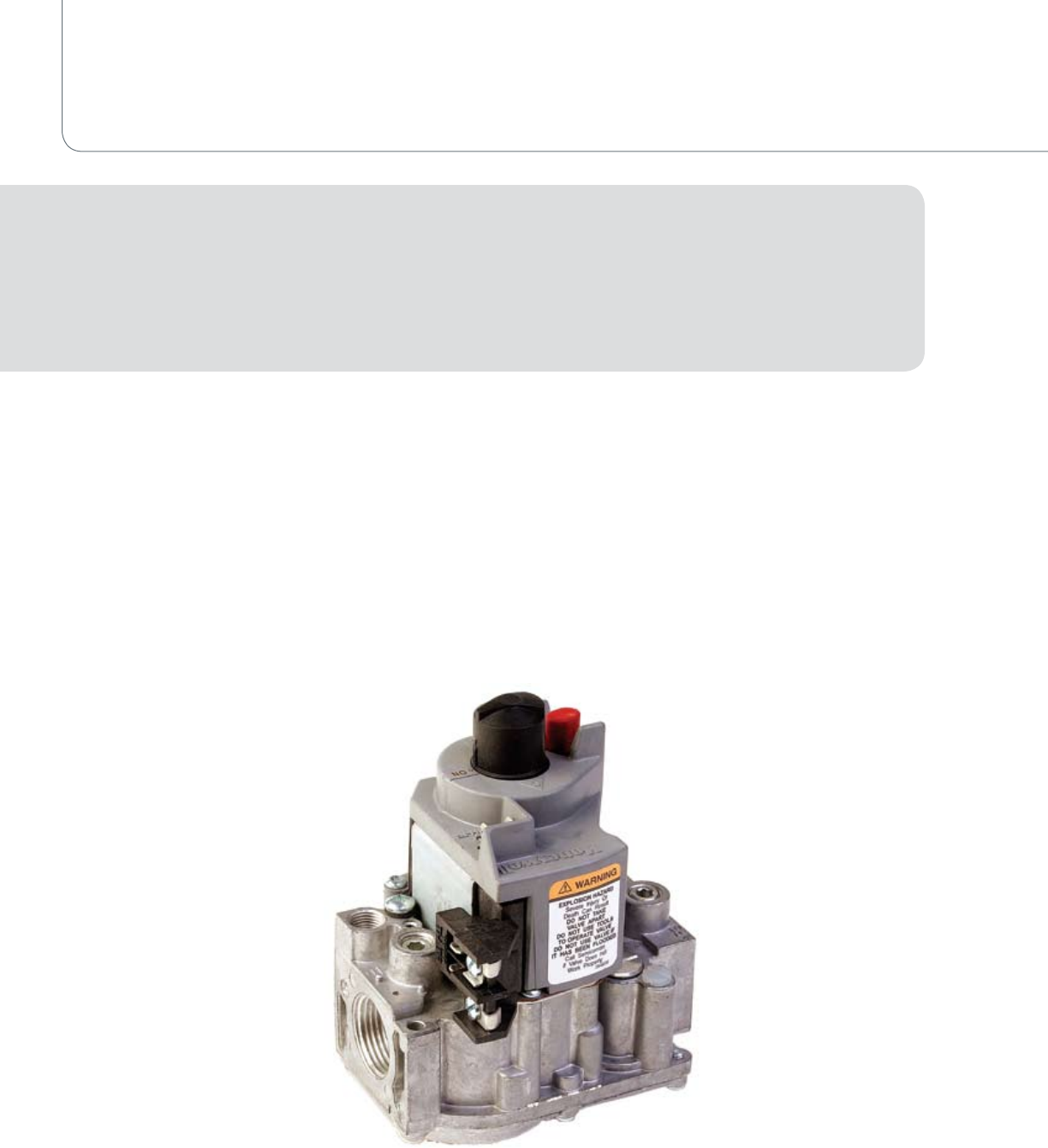

VR8345M/VR8345Q/VR8345H/

VR8245M

Universal Electronic Ignition Gas Valve

• Wide-capacitycontrolforalmostanyIP,HSIorDSIgas-firedappliances

• Compactfitsimplifiesfieldreplacement

• Usewith24Vacheatingappliances,usingnatural,manufacturedorLPgas

• UsetheVR8345Qforatwo-stageapplication,VR8345Mfor

a standard and VR8345H for a slow-opening application

•Capacitiesfrom20to200(VR8245)cfhor30to415(VR8345)cfh

VS820

Millivolt Combination Gas Valve

• Self-poweredautomaticcontrol

• Usewith750mVpilotgenerator

• Easytoinstallandservicewithalltheadjustmentsand

connections accessible from the top of the control

• 34to425cfhcapacity

Gas Controls

Gas Valves Selection Guide

Notes:

All piloted valves have a 1/4" compression fitting.

All the VR valves come set for natural gas, but can be converted to LP gas.

The VS820A1054 is for natural gas. The VS820A1336 is for LP gas.

All the VR valves have inlet and outlet pressure taps. The VS820 valves have just an outlet pressure tap.

TRADE REPLACEMENTS

(Double-Check Specifications

Before Replacement)

SPECIFICATIONS ACCESSORIES

Universal Service

Part Direct Service Part

Replacement

Opening

Characteristics

(standard, step)

Inlet/Outlet

Size (in.) Pressure Regulator

Setting (psi) Temperature

Range

Includes

Q340

Thermocouple

3/4" x 1/2"

Reducer Bushing

Natural to LP

Conversion Kit

VR8215S1503 Standard 1/2 x 1/2 3.5 in. wc (0.87 kPa) -40˚ to 175˚ F

(-40˚ to 79˚ C)

VR8300A4516

VR8300A4508 Standard 3/4 x 3/4 3.5 in. wc (0.87 kPa) 0˚ to 175˚ F

(-18˚ to 79˚ C) None Two One

VR8300A3500 Standard 1/2 x 3/4 3.5 in. wc (0.87 kPa) 0˚ to 175˚ F

(-18˚ to 79˚ C) None One One

VR8300A4516 Standard 3/4 x 3/4 3.5 in. wc (0.87 kPa) 0˚ to 175˚ F

(-18˚ to 79˚ C) One Two One

VR8245M2530

VR8204A2076 Standard 1/2 x 1/2 3.5 in. wc (0.87 kPa) 0˚ to 175˚ F

(-18˚ to 79˚ C) None None One

VR8204M1091 Standard 1/2 x 1/2 3.5 in. wc (0.87 kPa) -40˚ to 175˚ F

(-40˚ to 79˚ C) None None One

VR8205A2024 Standard 1/2 x 1/2 3.5 in. wc (0.87 kPa) 0˚ to 175˚ F

(-18˚ to 79˚ C) None None One

VR8245M2530 Standard 1/2 x 1/2 3.5 in. wc (0.87 kPa) -40˚ to 175˚ F

(-40˚ to 79˚ C) None None One

VR8345H4555

VR8205H1003 Slow 1/2 x 1/2 3.5 in. wc (0.87 kPa) 0˚ to 175˚ F

(-18˚ to 79˚ C) None None None

VR8304H4503 Slow 3/4 x 3/4 3.5 in. wc (0.87 kPa) 0˚ to 175˚ F

(-18˚ to 79˚ C) None None One

VR8345H4555 Slow 3/4 x 3/4 3.5 in. wc (0.87 kPa) 0˚ to 175˚ F

(0˚ to 79˚ C) None Two One

VR8345M4302

VR8304M3509 Standard 1/2 x 3/4 3.5 in. wc (0.87 kPa) -40˚ to 175˚ F

(-40˚ to 79˚ C) None One One

VR8304M4507 Standard 3/4 x 3/4 3.5 in. wc (0.87 kPa) -40˚ to 175˚ F

(-40˚ to 79˚ C) None Two One

VR8305M3506 Standard 1/2 x 3/4 3.5 in. wc (0.87 kPa) -40˚ to 175˚ F

(-40˚ to 79˚ C) None One One

VR8345M4302 Standard 3/4 x 3/4 3.5 in. wc (0.87 kPa) -40˚ to 175˚ F

(-40˚ to 79˚ C) None Two One

VR8345Q4563

VR8205Q2555 2-Stage 1/2 x 1/2 1.7 in. wc Low Fire;

3.5 in. wc High Fire

-40˚ to 175˚ F

(-40˚ to 79˚ C) None None One

VR8304Q4511 2-Stage 3/4 x 3/4 1.7 in. wc Low Fire;

3.5 in. wc High Fire

-40˚ to 175˚ F

(-40˚ to 79˚ C) None Two One

VR8305Q4500 2-Stage 3/4 x 3/4 1.7 in. wc Low Fire;

3.5 in. wc High Fire

-40˚ to 175˚ F

(-40˚ to 79˚ C) None One One

VR8345Q4563 2-Stage 3/4 x 3/4 1.7 in. wc Low Fire;

3.5 in. wc High Fire

-40˚ to 175˚ F

(-40˚ to 79˚ C) None Two One

VR8200A2744

VR8200A2124 Standard 1/2 x 1/2 3.5 in. wc (0.87 kPa) 0˚ to 175˚ F

(-18˚ to 79˚ C) One None One

VR8200A2132 Standard 1/2 x 1/2 3.5 in. wc (0.87 kPa) 0˚ to 175˚ F

(-18˚ to 79˚ C) None None One

VR8200A2744 Standard 1/2 x 1/2 3.5 in. wc (0.87 kPa) 0˚ to 175˚ F

(-18˚ to 79˚ C) None None One

VS820A1088

VS820A1054 Standard 3/4 x 3/4 3.5 in. wc (0.87 kPa) 32˚ to 175˚ F

(0˚ to 79˚ C) None Two None

VS820A1336 Standard 3/4 x 3/4 10.0 in. wc (2.49 kPa) 32˚ to 175˚ F

(0˚ to 79˚ C) None Two None

VS820A1088 Standard 3/4 x 3/4 3.5 in. wc (0.87 kPa) 32˚ to 175˚ F

(0˚ to 79˚ C) None Two One

ACCESSORIES COMPETITIVE REPLACEMENT

Includes

Honeywell White-Rodgers Robertshaw

3/4" Straight

Flange

1/2" x 3/8"

Reducer Bushing

Remote Rod

Adapter

None None None VR8300A4003, VR8300A4011, VR8300A4037,

VR8300A4045, VR8300A4557, VR8300A4565 36C01-405 720-406 (7200ER)

None None None

VR8300A3104, VR8300A3120, VR8300A3153,

VR8300A3161, VR8300A3203, VR8300A3559,

VR8300A3567, VR8300A3575

36C03-300, 36C03-400,

36C03-433, 36C03-258

720-404 (7200ER)

720-403

None None None VR8300A4003, VR8300A4011, VR8300A4037,

VR8300A4045, VR8300A4557, VR8300A4565 700-400

One One None VR8204A1201, VR8204A1219, VR8204A2001,

VR8204A2175, VR8204A2803, VR8204A2225

One One None VR8204M1075 36E01-204, 36E01-205,

36E01-206, 36E01-305, 36E93-304 722-079 (2000IPERHC)

One One None 36G22-214 722-051 (2000DERHC)

None One None VR8205M1106, VR8205M2310, VR8205M2443,

VR8205M2450, VR8205M2476 36E36-304, 36E22-214 720-079 (7200IPER), 720-080 (7200IPER-LP)

None None None VR8305H4013, VR8305H4039, VR8205H2605

None None None VR8204H1006, VR8204H1055 720-070 (7200IPER-S7C), 720-071 (7200IPER-S7C),

720-072 (7200IPER-S7C), 720-073 (7200IPER-LP-S7C)

None None None 36E98-304, 36E24-214,

36E52-214 700-052

None None None

None None None VR8304M4002

One None None VR8305M4066, VR8305M4165, VR8305M4231 36G22-214, 36C68-423 720-051 (7200DER)

None None None 36E36-304, 36C68-423

None One None VR8205Q2662, VR8205Q2746, VR8205Q2787,

VR8205Q2381 36E54-214

None None None VR8304Q4453 36C76-406, 36C76-420,

36C76-463

None None None VR8305Q4146 36D13-208, 36D13-405,

36G54-214

None None None 36E96-314 720-082 (7200IPER2-4)

One One None

VR8200A2116, VR8200A2264, VR8200A2322*

720-400 (7200ER), 720-402 (7200ER)

One One None 720-400 (7200ER), 720-402 (7200ER)

One

+ One Elbow One None VR8200A2322*

None One None VS820A1005, VS820A1013, VS820A1047,

VS820A1278, VS820A5204, VS820A1922

36C03U-300, 36C03U-333,

36C03U-400, 36C03U-433

None One None VS820A1211, VS820A1740, VS820A1120,

VS820A1898, VS820A1872, VS820A1906

None One Yes VS820A1807, VS820A2003, VS820A1815,

VS820A1039, VS820A2011

Gas Valves Selection Guide

For a complete cross-reference, visit www.customer.honeywell.com

*Canadian Numbers

Gas Controls

Honeywell SmartValve™ combines gas flow control and electronic ignition into a single unit,

providing safety and simplified wiring and appliance construction. You’ll find Honeywell

SmartValves on equipment ranging from furnaces, water heaters, boilers and rooftops to

infrared heaters, cooking units and much more.

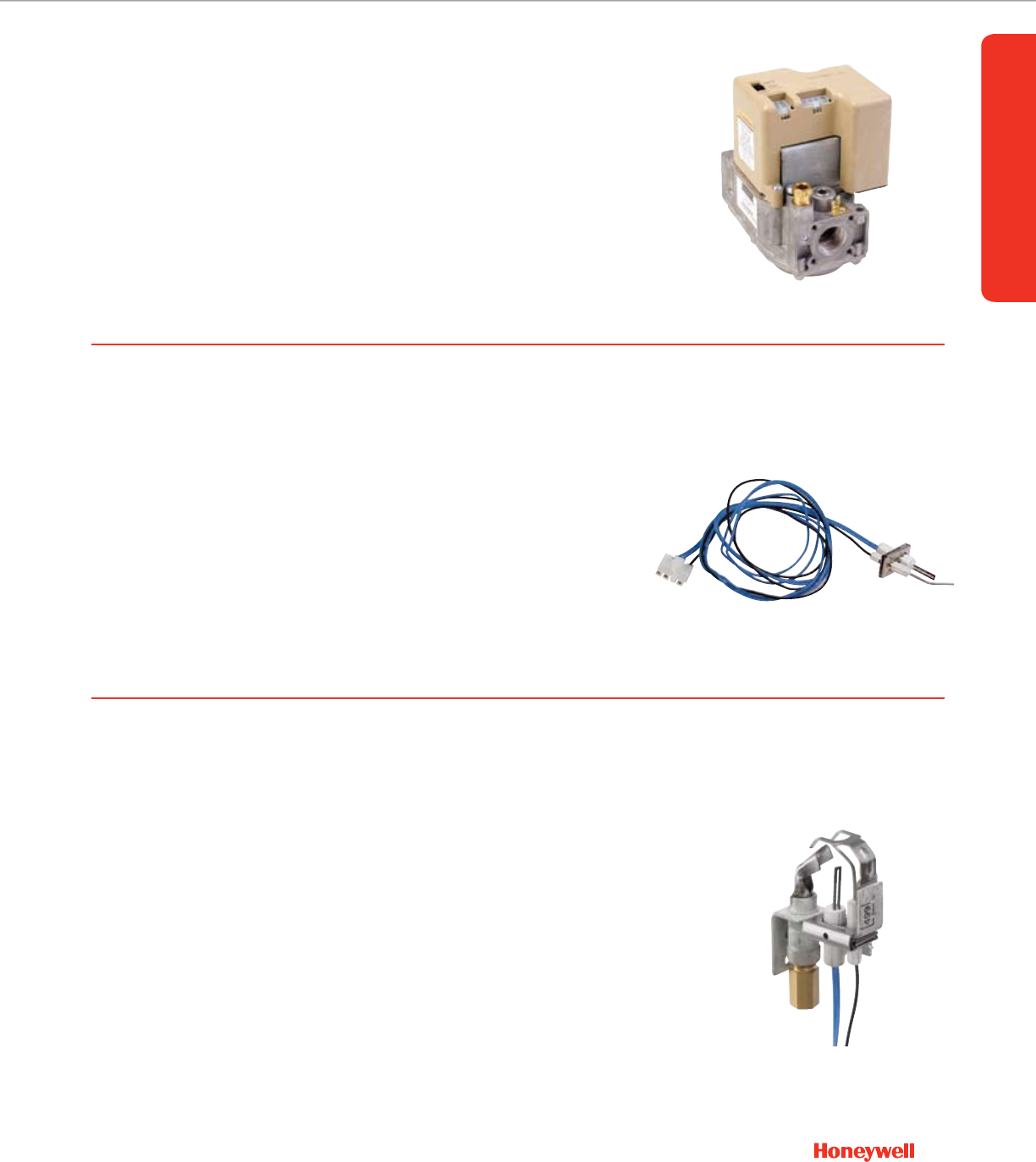

SmartValve™ System Controls

SmartValve™

• Familymemberscoverthefullrangeofopeningcharacteristics

(slow, normal, fast) and ignition systems (hot surface, hot surface pilot)

• UniversalkitsincludenaturaltoLPconversionand3⁄4"to1⁄2"bushings

• Universalfamilyincreasesserviceefficiencyandreduces

truck and warehouse inventory

Q3450

SmartValve Pilot Burner

The Q34050 SmartValve pilot burners provide pilot flame ignition and sensing for SmartValve

intermittent pilot systems. They consist of replaceable igniter-flame rod assembly, bracket

assembly, pilot target, ground electrode, orifice assembly, compression fitting and spring

clip. The igniter lights the pilot burner. The flame rod proves the pilot flame and the pilot

flame lights the main burner

•UsedwithSV9500/SV9600SmartValve™System.

•ReplaceableIgniter-FlameRodAssembly(Q3400A).

•Integralkeyedplugprovidesquick,convenientconnectionofigniterandsensorto

SV9500/SV9600.

•Q3450hasfrontor20degreeright,leftflamepattern.

•NaturalandLPgasorificesavailable.

•Varietyoftargetstylesavailable.

•Varietyofmountingbracketsavailable.

Q3400

Hot Surface Pilot/Sensor Assembly

The Q3400A Igniter-Flame Rod Assembly replaces the original igniter-flame rod

assembly in the Q3450 and Q3480 pilot hardware used with the SV9500 and

SV9600 SmartValve system. The Q3400A has a unique keyed plug connector

that will only fit the SV9500/SV9600 systems.

• Canbereplacedwithoutremovingthepilotburner

• Maxtemp250˚C

• OrderSKUQ3400A1024

* Diagnostic Testers

 FlameCurrentKit#395466

 InputVoltageHarness#396085

Gas Controls

SmartValve™ Control Systems Selection Guide

SPECIFICATIONS

Ignition/Application Universal

Service Part Gas Type Opening

Characteristics

Ambient

Temperature

Range

Includes

Natural to LP

Conversion Kit

3/4" x 1/2"

Reducer

Bushings

HSI

Water Heaters

SV9570A2518 Natural

Standard Opening 0˚ to 150˚ F

(-18˚ to 66˚ C) No None

SV9570A2526 LP

Intermittent HSI Pilot

with Combustion

Air Control and Limit Monitoring

Forced Air Furnace

SV9541Q2561

Natural

2-Stage

-40˚ to 175˚ F

(-40˚ to 79˚ C)

Yes None

SV9641M4510 Standard Opening Yes Two

Direct Ignition,

General Application

SV9510M2511

Natural

Standard Opening

-40˚ to 175˚ F

(-40˚ to 79˚ C)

Yes None

SV9520M2536

SV9510K2539 Slow Opening

SV9520H8513 Fast-Slow Opening 0˚ to 175˚ F

(-18˚ to 79˚ C)

Intermittent HSI Pilot,

General Application

SV9601M4571

Natural

Standard Opening

-40˚ to 175˚ F

(-40˚ to 79˚ C)

Yes

Two

SV9501M2528

NoneSV9501M8129 Fast-Fast

SV9502H2522 Slow Opening 0˚ to 175˚ F

(-18˚ to 79˚ C)

SV9602P4816

Step Opening -40˚ to 175˚ F

(-40˚ to 79˚ C) None Two

SV9602P4824

SV9602P4832

SV9602P4840

SmartValve™ Control Systems Selection Guide

SPECIFICATIONS CROSS-REFERENCE

Includes

OEM Brands Replaces

Extension

Harness

A.O. Smith SV9570A2054, SV9570A2070, SV9570A2096

A.O. Smith SV9570A2062, SV9570A2088, SV9570A2187

ICP, Heil, Tempstar, Arcoaire,

Comfortmaker, KeepRite SV9540Q2464, SV9541Q3098

ICP, Heil, Tempstar, Arcoaire, Comfortmaker,

KeepRite, Mestek, Slant/Fin

SV9541M2094, SV9540M2229, SV9540M2260, SV9640M4116, SV9640M4124,

SV9540M2278, SV9540M2245, SV9640M3126, SV9640M4132

Modine SV9510M2347, SV9510M2362, SV9410M2902, SV9510M2412, SV9510M2354,

SV9410M2910, SV9510M2388, SV9510M2420

SV9420M2331, SV9520M2403, SV9420M2323

Roberts Gordon SV9510H2228, SV9510K2133, SV9510K2158, SV9510K2141, SV9510K2166

Armstrong, Concord, AirEase SV9520H8042, SV9520H8034, SV9520H8067, SV9520H8026

SV9601M4167, SV9601M3003,SV9601M4225

ICP, Heil, Tempstar, Arcoaire,

Comfortmaker, KeepRite

SV9501M2056, SV9501M2080, SV9501M2718, SV9501M2726, SV9501M2031, SV9501M2049,

SV9501M2239, SV9501M2700, SV9501M2734, SV9501M2742, SV9501M2064

Yes

SV9501M8103

Laars, Utica, Armstrong, Concord, AireEase SV9501H3415, SV9501H2417, SV9501H2409, SV9502H1706, SV9502H2704, SV9501H3423,

SV9501H2425

Yes

Burnham, ICP, Heil, Tempstar, Arcoaire,

Comfortmaker, KeepRite SV9501P2004, SV9601P4107, SV9501P2053, SV9502P2101, SV9602P4105

Burnham SV9501P2087, SV9601P4172, SV9502P2127, SV9602P4121

Burnham SV9501P2020, SV9501P2046, SV9601P4149, SV9601P4164, SV9502P2119, SV9502P2135,

SV9602P4113, SV9602P4139

SV9601P4115

For a complete cross-reference, visit www.customer.honeywell.com

Gas Controls

Grow your business while reducing your inventory with Honeywell’s line of ignition modules.

Be prepared to provide electronic control for nearly all intermittent or hot surface ignition

applications from gas-fired furnaces to boilers with Honeywell’s universal controls.

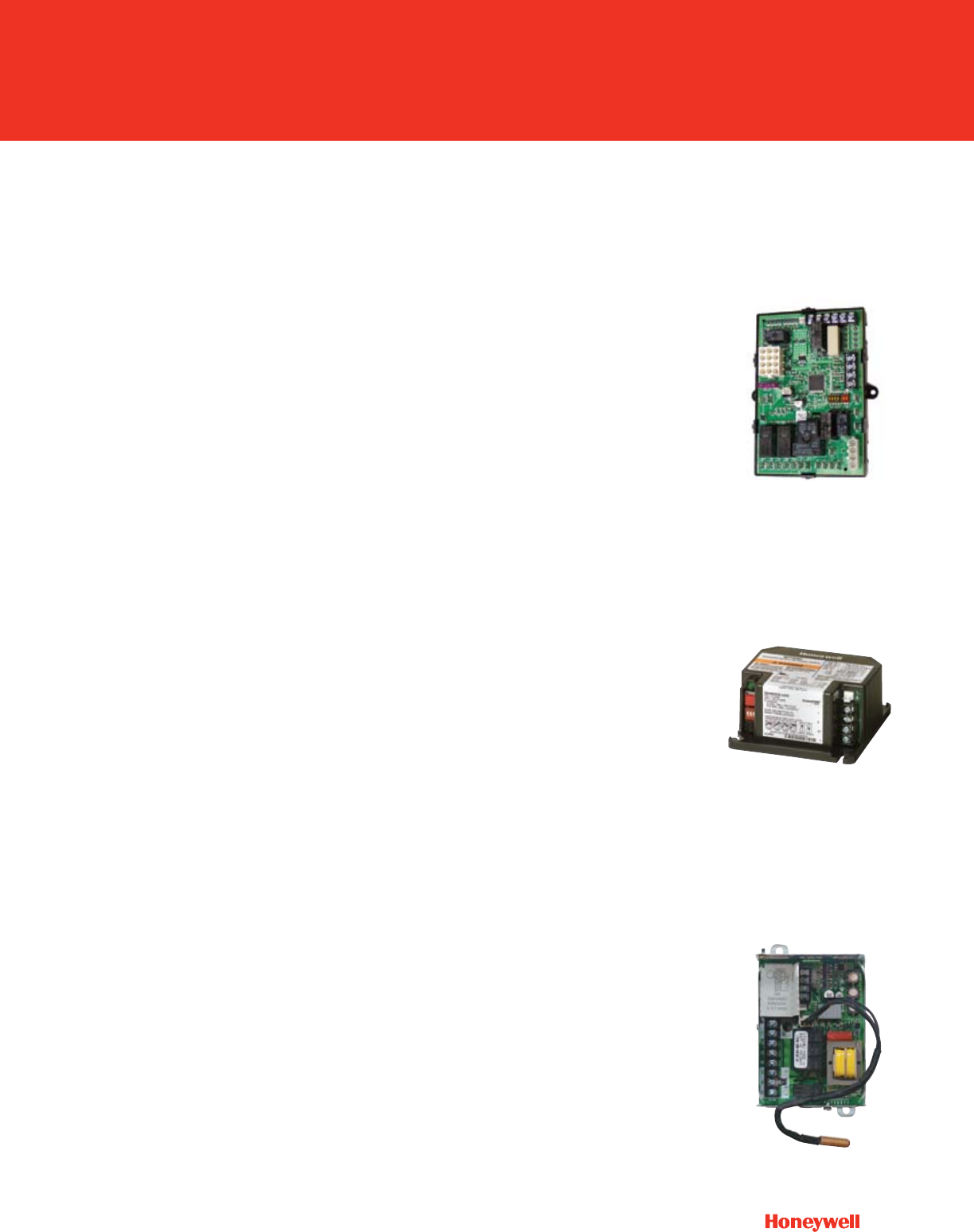

Ignition Modules

When selecting ignition modules for your next job,

look for these Honeywell features:

• Universalcompatibility

• Easyinstallation

• Adaptationaccessoriesincluded

• Usedwithsingle-rodordual-rodsystems

S8610U

Universal Intermittent Pilot Ignition Module

• Easyfieldreplacementformostintermittentpilotmodules

• Single-rodordual-rodsystems

• Field-selectablepre-purgeandignitiontrialtimings

• DiagnosticLEDhelpsdirectserviceeffort

• LEDflamestrengthindicator

• Integraldamperconnections

• Replacesover300Honeywellandcompetitivemodels

Y8610U

UniversalIPRetrofitIgnitionSystemKit

• Usewith24Vacgas-redatmosphericfurnaces,

boiler and heating appliances

• Convertstandingpilotappliancetoelectronicignition

• NaturalorLPgas

S8910U

Universal Hot Surface Ignition Module

• Easyfieldreplacementformosthotsurfaceignitionmodules

• Single-rodordual-rodsystems

• LEDdiagnosticsandfield-adjustableignitiontimings

• NaturalorLPgas

• Alladaptationaccessoriesincluded

• Replacesover100Honeywellandcompetitiveproducts

Gas Controls

Ignition Modules Selection Guide

1. Ignition Sequence

C Continuous retry — After trial for ignition, pilot gas shuts off for

five minutes, then another trial for pilot ignition takes place.

The number of trials for ignition and trial time is determined by

the selection tab. If a selection tab is not installed, the module

will operate at four seconds trial time and one ignition trial.

Notes:

APPLICATIONS TIMINGS

Universal

Service Part Ignition System Flame

Sensor

Ignition

Sequence

(Note 1)

Ignition

Trials To

Lockout

(Note 1)

Ignition Trial

Time Between Trial

Time Pre-Purge

Flame

Failure

Response

Time

S8910U1000 Line Volt Hot

Surface Ignition 1 or 2 Rods P1 or 3

Field Selectable

4 sec. or 7 sec.

Field Selectable

96 sec.,

3 Trial Mode

Only

32 sec. 1.5 sec.

S8610U3009 Intermittent Pilot 1 or 2 Rods C C

15 sec. or 90

sec.

Field Selectable

5 Minute Delay

After Failed Trial

for Ignition

0 sec. or 30 sec.

Field Selectable 2.0 sec. max.

Y8610U6006 Intermittent Pilot Single Rod C C

15 sec. or 90

sec.

Field Selectable

5 Minute Delay

After Failed Trial

for Ignition

0 sec. 2.0 sec. max.

Ignition Modules Selection Guide

FEATURES AND FUNCTIONS CROSS-REFERENCE

Type

of Gas

Ignition

Source

Typical Ignition

Hardware Includes Honeywell White-Rodgers Robertshaw Johnson

Controls

Nat or LP Switched Line

Voltage

Norton 201, Norton

271, Hot Surface

Elements,

Q354 Flame Rod

S89C1004, S89C1007,

S89C1012, S89C1046,

S89C1087, S89C1103,

S89D1002, S89G1005,

S89G1011, S89G1013,

S89G1021, S89G1029,

S89G1047, S89H1003,

S89H1011, S89H1029,

S89J1008, S890D1006,

S890G1003, S890G1037,

S890H1002, S890H1010

50E47 1-79, 101-179,

201-279, 301-379, 5047F

1-79, 101-179, 201-279,

301-379

HS780-17NL, 104A, 306A,

308A, HS780-17NR 104A,

306A, 308A, HS780-34NL

108A, 304A, 306A, 308A,

312A, HS780-34NR 104A,

306A, 308A, 312A,

HS780-34PL 308A

Nat or LP Internal Q345, Q3451,

Q3452

Integral

Damper

Connector

S86 Series ,S90 Series,

S8600 Series,

S8610 Series, S8620

Series, S8660 Series,

S8670 Series, S8680J1004

50D49-350, 50D49-360,

50D49-361, 50D50-843,

50D-401

710-713, 715, 735-737,

780-002, 780-003,

780-701, 780-715,

780-735, 780-736,

780-737, 780-845,

SP710, SP715, SP720,

SP730, SP735, SP750 Series

CSA42, 43,

44, 45, 46, 48,

49, G60, G65,

G67, G770

Series

Nat or LP Internal

Adapter for

Pilot Burner

Included

Y8610U3003

For a complete cross-reference, visit www.customer.honeywell.com

APPLICATIONS TIMINGS

Universal

Service Part Ignition System Flame

Sensor

Ignition

Sequence

(Note 1)

Ignition

Trials To

Lockout

(Note 1)

Ignition Trial

Time Between Trial

Time Pre-Purge

Flame

Failure

Response

Time

S8910U1000 Line Volt Hot

Surface Ignition 1 or 2 Rods P1 or 3

Field Selectable

4 sec. or 7 sec.

Field Selectable

96 sec.,

3 Trial Mode

Only

32 sec. 1.5 sec.

S8610U3009 Intermittent Pilot 1 or 2 Rods C C

15 sec. or 90

sec.

Field Selectable

5 Minute Delay

After Failed Trial

for Ignition

0 sec. or 30 sec.

Field Selectable 2.0 sec. max.

Y8610U6006 Intermittent Pilot Single Rod C C

15 sec. or 90

sec.

Field Selectable

5 Minute Delay

After Failed Trial

for Ignition

0 sec. 2.0 sec. max.

Gas Controls

Replacing a hot surface igniter can be a tricky job. Furnace designs and specifications change.

Appliance designs can be tight and difficult to maneuver in. Then there’s the need to carry a variety

of replacement parts to match the range of hot surface igniter configurations out there. Now, those

challenges have one reliable solution: Glowfly™ from Honeywell.

Universal Hot Surface Igniter

Six brackets. 110+ possibilities.

Every Glowﬂy comes fully equipped with

six custom mounting brackets that are

optimized to replace over 110 igniter

applications from nearly every furnace

manufacturerwithoutmodication.

Match and mount simplicity.

Simply remove the old igniter and

compare it with the diagrams on Glowﬂy’s

unique packaging guide to determine the

correct mounting bracket for the job.

When selecting an igniter for your next job,

look for these Honeywell features:

• Next-generation OEM silicon nitride quality for any installation

• Custom designed bracketing

• The strongest warranty in the industry

• Uniquetruck-readysix-pack

• Graphicinstructionsprovideforquickandaccuratebracket

selection and installation

Q3200U2002

Six Pack

Q3200U1004

Single Pack

MANUFACTURER OEM # Q3200U

BRACKET1

American Road Equip. 201W A

Arco Air 1096048 D

1380680

Armstrong Air 38322B001 A

Carrier/

Bryant/

Payne

LH33ZS001

B or E2

LH33ZS001A

LH33ZS002

LH33ZS002A

LH33ZS003

LH33ZS003A

LH33ZS004

Claire Bros. C-238 A

C242

Coleman 1474-051 A

1474-052

Comfort Maker 1096048 D

Detroit Radiant 201D A

DMO Ind. 20834 A

Dornback Furnace 271W A

Ducane 20015201 B

Enero Tech 10399 A

Evcon 1474-051 A

1474-052

Evcon Coleman 025-32625-000 B

Goodman

B1401009 D

B1401018 C

B1401018S D

HB Smith 50018 A

Heil 1096048 D

Hupp Industries 09050 A

Intercity 1009604 D

1096048

Majestic 75-92-104 A

75-92-105

Metzger 201N A

201W

MANUFACTURER OEM # Q3200U

BRACKET1

Modine 5H76032A C

Mor-Flo 3200618 A

511-330-193 B

Nordyne

105141000

A632-0770

632-0880

Norton/St Gobain

201 B

271

201D

201K

201L

201N

201R

201W

271N

271NM D

271P A

271W

Raypak 600915 B

Rheem 62-22441-01 A

Roberts Gordon 90434300 B

90436600 A

Robertshaw

41-402 A

41-403 B

41-404 B

41-405 A

41-407 B

41-408 A

41-409 B

41-410 A

41-412 D

41-418 C

Snyder General

1380654

B1380672

1380680

Superior Fireplace 94851 A

MANUFACTURER OEM # Q3200U

BRACKET1

Tempstar 1096048 D

Trane

340039P01 A

B138196P01 B

B144676P01 A

B144676P02 B

B340039P01 A

IGN23 A

IGN26 B

IGN30 B

IGN34 A

Viessman 9302-094 A

Wayne Home Equip. 62821-001 A

62821-002

Weil McLain

511-330-139

B511-330-190

511-330-193

White LB 120-07549 A

White-Rodgers

767A-301 A

767A-303 F

767A-306

A767A-311

767A-350

767A-353 F

767A-354 A

767A-357 F

767A-361

A767A-364

767A-366

767A-370 B

767A-371 A

767A-372 A

767A-373 D

767A-376 B

767A-377 A

767A-382 B

Williamson 9050 A

York

025-27766-000

025-27774-000

025-29043-000

025-29050-000

Igniter Bracket Replacement Cross Referencea

a Table data is correct to the best of Honeywell’s knowledge as of this publication’s date. However, some appliances may have igniter

applications that are beyond the capabilities of this kit.

b For igniters that require bracket A, use the template to determine the tab to be removed.

c For Carrier sealed combustion furnaces, you must use bracket E and retain the existing orange gasket for use with bracket E.

Gas Controls

For a complete cross-reference, visit www.customer.honeywell.com

Contractors depend on Honeywell for easy installation and reliable performance. Built for

long service life, the Honeywell Q313A, Q340A and Q390A will meet your service needs.

Thermocouples/Thermopiles

Thermocouple and Thermopile Selection Guide

THERMOCOUPLES

Lead Length

(in.)

US Super

Tradeline Canada Tradeline

Cross-Reference

White-Rodgers Robertshaw Husky Johnson Controls

18 Q340A1066/U Q340A1405 Q390A1095/U H06E-518, HO6E-18 K16BT-18 K19AT-18

24 Q340A1074/U Q340A1413 Q390A1046/U H06E-524, HO6E-24 1970-24, 1980-24 K16BT-24 K19AT-24

30 Q340A1082/U Q340A1421 Q390A1053/U H06E-530, HO6E-30 1970-30 K16BT-30 K19AT-30

36 Q340A1090/U Q340A1439 Q390A1061/U H06E-536, HO6E-36 1970-36, 1980-36 K16BT-36 K19AT-36

48 Q340A1108/U Q340A1447 Q390A1103/U H06E-548, HO6E-48 K16BT-48 K19AT-48

THERMOPILES

Model Item Lead Length

(in.) Connection Tradeline/Super

Tradeline Notes

Q313

Q313A1022/U 35 Nut & Spade Terminal Tradeline

Q313A1139/U 35 Clip & Spade Terminal Super Tradeline Push-In Clip

Q313A1170/U 35 Clip & Spade Terminal Super Tradeline PG9 Adapter (393948)

Q313A1188/U 35 Nut & Spade Terminal Super Tradeline Push-In Clip, 1/2" Attaching Nut

Q313A1055/U 47 Nut & Spade Terminal Tradeline 1/2" Attaching Nut

Q313A1105/B 75 Nut & Spade Terminal Tradeline 1/2" Attaching Nut

When selecting a thermocouple or thermopile for your

next job, look for these Honeywell features:

• Varietyofleadlengths

• Easyinstallation

• Manyaccessoriesincluded

• Durability

For a complete cross-reference, visit www.customer.honeywell.com

Q313A

Replacement Thermopile

• Varietyofleadlengths

• Push-inclip,splitnutandadapterassemblyincluded

• MalenutconnectorforPilotstatincluded

• Generates750mVinamillivoltheatingsystem

Q340A

Universal Thermocouple

•Varietyofleadlengths

•Push-inclip,splitnutandadapterassemblyincluded

•MalenutconnectorforPilotstatincluded

•Generates30mVinstandingpilotsystems

•TheQ340Aisapremiumthermocouplewiththelong

life and durability that your customers demand; built

with a maximum amount of copel, the Q340A will provide

long-lasting service that reduces callbacks and keeps

your customers happy

Q390A

Universal Thermocouple

•Varietyofleadlengths

•Push-inclip,splitnutandadapterassemblyincluded

•MalenutconnectorforPilotstatincluded

•Generates30mVinstandingpilotsystems

•Forsituationswhereautilitygradethermocoupleis

the best solution, the Q390A is the right choice

Gas Controls

Replaces all others. The new universal platform that will not only integrate control of all combustion

blower and circulating an operations in a gas warm air appliance but also replace all ST9101,

ST9103, ST9120, ST9141 and ST9160 fan timer boards. Save room on your truck or on your shelves

with a supply of ST9120U1011 timers and know you’re covered.

Universal Electronic Fan Timer

When selecting fan timers for your next job,

look for these Honeywell features:

• Universalapplication

• Easyinstallation

• Qualityconstructionforlongservicelife

ST9120U1011

•Replaces41existingHoneywellcontrolstoreduce

inventory

•Integratescontrolofallcombustionblowerand

circulating fan operations in a gas warm-air appliance

•Replaceablefuse

•DIPswitchselectableheatandcooldelayonand

off times

•DiagnosticLED

•EACandHUMconvenienceterminalconnections

and continuous low speed indoor air circulation

are provided

ST9120U REPLACES OVER 41 EXISTING MODELS

ST9101A1014 ST9120C4057 ST9141B1001 ST9160B1035

ST9101A1022 ST9120C5005 ST9150A1003 ST9160B1043

ST9120A2004 ST9120C5013 ST9150B2000 ST9160B1050

ST9120C2002 ST9120D3009 ST9150B2018 ST9160B1068

ST9120C2010 ST9120G2024 ST9150B2026 ST9160B1076

ST9120C2028 ST9120G2032 ST9150B2034 ST9160B1084

ST9120C3000 ST9120G4004 ST9150C4057 ST9160C1000

ST9120C3018 ST9120G4038 ST9160A1002 ST9160C1018

ST9120C4008 ST9120U1003 ST9160B1001

ST9120C4016 ST9141A1002 ST9160B1019

ST9120C4040 ST9141A1028 ST9160B1027

Universal Electronic Fan Timer OEM Replacement Guide

RECOMMENDED DIP SWITCH SETTING

Replaced Control

Model Number Original OEM Appliance 12345

ST9101A1006 Rheem off off off off off

ST9101A1014 Rheem off off off off off

ST9101A1022 Trade off off off off off

ST9120A1006 Armstrong off off off off off

ST9120A2004 Armstrong on off on off off

ST9120B1005 Ducane off on off off off

ST9120C1012 Snyder General on off off off off

ST9120C1020 Nordyne on off off off off

ST9120C2002 York off off off off off

ST9120C2010 Ducane off off off off off

ST9120C2028 Armstrong off off off off on

ST9120C3000 ICP off off on on off

ST9120C3018 Bard on off off off on

ST9120C4008 ICP off off on on off

ST9120C4016 ICP off off on on off

ST9120C4040 ICP off off on on off

ST9120C4057 ICP off off on on off

*ST9120C5005 ICP off off on off off

*ST9120C5013 ICP off off on off off

*ST9120D3009 Goodman off off on off on

ST9120G2008 ICP on off off on off

ST9120G2016 ICP off off off on off

ST9120G2024 Skymark off on off on off

ST9120G2032 Skymark off on off off on

ST9120G4004 ICP off off on on off

ST9120G4012 ICP off off on on off

ST9120G4038 Trade off off on on off

ST9120U1003 Trade off off on off off

ST9141A1002 off off on off on

ST9160B1035 off off off off off

ST9160B1068 on off off off on

ST9160B1076 off off off off off

ST9160B1084 off off on off on

*ST9120U Factory Default Setting off off off off off

For a complete cross-reference, visit www.customer.honeywell.com

Gas Controls

The Honeywell Hot Surface Ignition Universal Integrated Furnace Control offers universal

compatibility and remote monitoring and diagnostics. Able to replace a large number of furnace

controls in heating and cooling single-stage appliances, Honeywell UIFCs are the only controls

you need for residential natural or liquid propane fueled furnaces.

Universal Integrated Furnace Control

When selecting furnace controls for your next job,

look for these Honeywell features:

• Replacesover140furnacecontrols

• Universalapplication

• Robustdiagnostics

• EnviraCOM™ communications enabled

S9200U1000 REPLACES THESE INTEGRATED FURNACE CONTROLS

Amana 10207701, 10207702, 10207703,10207710

Goodman 1809913, 18099-13S, B180996, B1809906, B18099-6, B18099-06, B1809908, B18099-08, B1809910, B18099-10, B18009910, B180099-10,

B1809913, B18099-13, B1809913S, B18099-13S, B18009913, B180099-13, CARB1809913S

ICM ICM280

ICP 1010806, 1380-686, 1380-699

Lennox 1214201

Nordyne 624557, 6245570, 624557-0, 624564, 6245640, 624591, 624591A, 624591-A, 624591-B, 624591-C, 624591-D, 624628, 624628-0, 6246310, 624631-

0, 624631A, 624631-A, 624631-B, 710128A, 902378, 902696, 903106, CAR903106

Rheem/Robertshaw 62-24268-01, 62-24268-02, 695-200, 62-24268-03

Texas Instruments 6DT-1, 6DT-2, 61F3, 41F-5

United Technologies 1012-925A, 1012-925B, 1012-925C, 1012-955A, 1012955A, 1012-83-9651B, 1012-930, 1012933D, 1012-933D,

1012-83-9336AHSC1, 1012-83-9337A

White-Rodgers

50A50-209, 50A50-230, 50T35730, 50T35-730, 50T35743, 50T35-743, 50A55-120, 50A55-286, 50A55-843,

50A50-143, 50A50-286, 50A50-438, 50A50-205, 50A50-206, 50A50-207, 50A50-142, 50A50-110, 50A50-111,

50A50-112, 50A50-113, 50A50-296, 50A55-143, 50A55-288, 50A50-285, 50A55-285, 50A50-288, 50A50-408,

50A50-241, 50A55-241

York

03100662000, 031-00662-000, 031-00662-700, 031-01140-000, 031-01140-001, 031011140002, 031-01140-002,

031-01140-701, 031-01140-702, 031-01234-000, 031-01235-000, 031-01234-700, 031-01235-700, 031-01250-000, 031-01266-000, 31-01267-00,

031-01267-000, 031-01267-001, 031-01267-001A, 031-01284-000, 031-01933-000,

031-01972-000, 031-01973-000, 031-02166-000, 031-09166-000, 031-09167-000, 331-01933-000, 331-01972-200,

331-09167-000, 43101972100, 431-01972-100, P03101267001, P031-01267-001, PTH031011400-00, CAR33101972200, CAR03101973000,

CAR50A55843, G951ADB1401, G951ADB1401C, G951ADB-1401C, G951ADB1402, G951ADB-1402, G951AEB-1403, 031-00662, 031-01266-000

HSI Universal Integrated

Furnace Control

• Completesetofwiringharnessesforuniversal

compatibility and simplified installation

• LEDindicatorsprovidesystemstatus,

performance and diagnostic information

• EnviraCOM™-enabled for easy setup of local

or remote monitoring and diagnostic systems

• Readyforremoteservices,whetheryou’rereplacing

old controls or installing new equipment like the

VisionPRO™ IAQ, Telephone Access Module or EnviraZONE™

• Engineeredforreliabilityandlong-termperformance

Gas Controls

For a complete cross-reference, visit www.customer.honeywell.com

SKU HARNESS FIELD SETTINGS RECOMMENDATION SAFETY TIME SETTINGS

SW1 SW2 SW3 SW4 SW1 SW2

Goodman

1809913, B1809913,

B18099-13

50026393: Main Connector & 50026446 Inducer &

HIS Connector On Off 60/90/120/180 60/90/120/180 Off On

ICM

ICM280 50026393 Main Connector & 50026446 Inducer &

HSI Connector Check Control Field Settings Check Control Safety Timings

Lennox

1214201 50024561 Inducer & HSI Connector On Off On Off Off Off

Nordyne

624557, 6245570, 624557-0

50024568 Main Connector & 50024565 Inducer &

HSI Connector On Off 60/90/120/180 60/90/120/180 On Off

624564, 6245640

624591

624591A, 624591-A

624591-B

624591-C

624591-D

624628, 624628-0

6246310, 624631-0

624631A, 624631-A

624631-B

710128A

902378

902696

903106, CAR903106

Rheem/Robertshaw

62-24268-01

50024568 Main Connector & 50024566 Inducer &

HSI Connector On Off 60/90/120/180 60/90/120/180 On On

62-24268-02

62-24268-03

695-200

Trane

D330927P01

50024561 Inducer & HSI Connector

On Off 60/90/120/180 60/90/120/180 Off Off

D330930P01

Off Off Off On

D330934P01

D340035P01

D340354P01

D340774P01

D341235P01 On Off On Off

Off Off50A50-571 On Off 60/90/120/180 60/90/120/180

50A55-5712Off Off On Off

50A50-473

Off Off 60/90/120/180 60/90/120/180 Off On

50A50-474

50A50-405

50A50-406

50A50-471

50A55-474 Off Off On Off Off Off

50A55-438 Check Settings Off 60/90/120/180 60/90/120/180 Off Off

41F-5 50026393 Main Connector 50026446 Inducer &

HSI Connector On Off 60/90/120/180 60/90/120/180 Off On

6DT-1

50024561 Inducer & HSI Connector On Off 60/90/120/180 60/90/120/180 Off On6DT-2

61F3

UTEC

1012-925A 50024568 Main Connector 50024566 Inducer &

HSI Connector On Off 60/90/120/180 60/90/120/180 On On1012-925B

1012-925C

1012-955A, 1012955A 50024568: Main Connector & 50024565 Inducer

& HSI Connector On Off 60/90/120/180 60/90/120/180 On Off

1012-83-9651B Main Connector not required 50024561 Inducer &

HSI Connector On Off 60/90/120/180 60/90/120/180 Off On

1012933D, 1012-933D 50026393: Main Connector & 50026446 Inducer

& HIS Connector On Off 60/90/120/180 60/90/120/180 Off On1012-83-9336AHSC1

1012-83-9337A

1 Wiring harness # 50031795 should be used if the control being replaced has a 2-pin inducer/igniter connector instead of a 4-pin inducer/igniter connector.

2 A jumper (not provided) may be required to short out the rollout switch on the main 12-pin connector plug from the furnace.

Universal Integrated Furnace Control Selection Guide

Use with only 120 VAC Appliances

Universal Integrated Furnace Control Selection Guide

SKU HARNESS FIELD SETTINGS RECOMMENDATION SAFETY TIME SETTINGS

SW1 SW2 SW3 SW4 SW1 SW2

Amana

10207701

50024561 Inducer & HSI Connector1On Off On Off Off On

10207702

10207703

10207710

White-Rodgers

50A50-110

50024561 Inducer & HSI Connector

On Off

60/90/120/180 60/90/120/180

Off On

50A50-111

50A50-112

50A50-113

50A50-142 On Off Off Off

50A50-143 On Check Settings Off Off

50A50-205

On Off On Off Off On50A50-206

50A50-207

50A50-209 50024568: Main Connector &

50024566 Inducer & HIS Connector On Off 60/90/120/180 60/90/120/180 Off On50A50-230

50A55-241

50A50-285

50024561 Inducer & HSI Connector

Off Off On Off Off Off

50A50-286 On Off 60/90/120/180 60/90/120/180 Off On

50A50-288 On Off On Off Off On

50A50-295 On Off On Off Off On

50A50-296 On Off

60/90/120/180 60/90/120/180

Off On

50A50-408 Off Off Off On

50A50-438 Check Settings On Off On

50A55-474 Off Off On Off Off Off

50T35730, 50T35-730 50026393 Main Connector &

50026446 Inducer & HSI Connector On Off 60/90/120/180 60/90/120/180 Off On

50T35743, 50T35-743

50A55-120 50024561 Inducer & HSI Connector Off Off On Off Off Off

50A55-143 50031795 On 30/60 60/90/120/180 60/90/120/180 Off Off

50A55-285 On Off Off Off

50A55-286

50024561 Inducer & HSI Connector

On Off

60/90/120/180 60/90/120/180

Off On

50A55-288 On Off Off Off

50A55-438 Check Settings Off Off Off

50A55-474 Off Off On Off Off Off

50A55-843 Check Settings Check Settings 60/90/120/180 60/90/120/180 Off Off

York

03100662000, 031-00662-000

50024561Inducer & HSI Connector On Off 60/90/120/180 60/90/120/180 Off On

031-00662-700

031-01140-000

031-01140-001

031011140002, 031-01140-002

031-01140-701

031-01140-702

031.01234.000

031-01234-700

031-01235-000

031-01235-700

031-01250-000

031-01266-000

0310126700

031-01267-000

031-01267-001

031-01267-001A

031-01284-000

3101933000, 031-01933-000

031-01972-000

031-01973-000

031-02166-000

031-09166-000

031-09167-000

33101933000, 331-01933-000

331-09167-000

331-01972-200

43101972100, 431-01972-100

G951ADB1401

G951ADB1401C, G951ADB-1401C

G951ADB1402, G951ADB-1402

G951AEB-1403

P03101267001, P031-01267-001

PTH031011400-00

CAR33101972200

CAR03101973000

CAR50A55843

031-00662

For a complete cross-reference, visit www.customer.honeywell.com

Gas Controls

Honeywell fan and limits combines high temperature limit with circulating blower control. As an

industry standard for many years, these controls have a large and varied installed base. You’ll find

Honeywell fan and limits on a wide range of furnace equipment. Our universal family increases

service efficiency and reduces truck and warehouse inventory.

Fan and Limit Controls

Keyfeaturesforthefamilyofuniversalfanandlimits:

•Familymemberscoverthefullrangeofinsertion—5",8",11-1/2"

•Adjustmenttoolandcross-referenceallowforfieldadjustmenttofactorysettings

•Universalkitaccessoriesreduceinventory

L4064

High Limit and Fan Controller

•Usedinalltypesofforced-airheatingsystems

•Threewiringterminaloptionsavailableforeasyinstallation

•Availableinavarietyoffanandhigh-limitsettingranges

•Controlsadapttomanycompetitivemountingholes

in replacement applications

•Push-inreceptaclesforstrippedwire

•L4064modelsfortimedfanon

•Specialhightemperaturelimitmodels

•Suitableforlinevoltage,lowvoltageor

millivoltage control applications

L6064

High-Limit and Two-Speed Fan Controller

•Providestwo-speedfancontrol

•Continuouslow-speedandhigh-speedon-callforheat

•SameoverallsizeandmountingasL4064

•SamespecificationsasL4064

MODEL OS# REGION

ELEMENT

INSERTION

LENGTH (IN.)

REPLACES

HIGH

LIMIT

STOP (˚F)

FAN-ON

STOP (˚F)

FAN-OFF

STOP (˚F)

MANUAL

FAN

BUTTON

MANUAL

RESET

SWITCHING

ACTION

L4064

L4064B1469 US 5

L4064B1600, L4064B3440,

L4064B3010, L4064B1683,

L4064B2228, L4064B2640,

L4064B2889, L4064B2947,

L4064B3374, L4064B3432,

L4064B2897, L4064B3598,

L4064B3515, L4064E2502,

L4064E2585, L4064E2528,

L4064F1098, L4064A2501,

L4064A1339, L4064A1503

160 to 200 110 to 125 85 to 100 Yes No

Fan: SPST — N.O. (make

on rise), Limit: SPST —

N.C. (break on rise)

L4064W1080 US 5

L4064W1072, L4064W1163,

L4064W1197, L4064W1056,

L4064W1064, L4064W1296,

L4064Y1565

200 120 90 Yes No

Fan: SPST — N.O. (make

on rise), Limit: SPST —

N.C. (break on rise)

L4064R1159 Canada 5L4064R1043, L4064R1076 200 to 250 125 100 Yes Yes

Fan: SPST — N.O. (make

on rise), Limit: SPST —

N.C. (break on rise)

L4064B2236 US 8

L4064B3457, L4064B1618,

L4064B1691, L4064B2608,

L4064B2905, L4064B2962,

L4064B2772, L4064B3572,

L4064B3051, L4064B3085,

L4064B3499, L4064B3481,

L4064B3390, L4064E2452,

L4064E2544, L4064A2279,

L4064A2998, L4064A2030,

L4064A1735, L4064A1347,

L4064A1511, L4064A2774

170 to 250 120 to 140 90 to 104 Yes No

Fan: SPST — N.O. (make

on rise), Limit: SPST —

N.C. (break on rise)

L4064R1142 Canada 8L4064R1019, L4064R1118,

L4064R1126 180 to 250 125 100 Yes Yes

Fan: SPST — N.O. (make

on rise), Limit: SPST —

N.C. (break on rise)

L4064W1098 US 8

L4064W1007, L4064W1171,

L4064W1130, L4064W1221,

L4064W1205, L4064W1288,

L4064T1707, L4064T1715,

L4064T1780, L4064T2093,

L4064T2440, L4064W1015,

L4064Y1573

150 to 220 100 to 185 90 to 120 Yes No

Fan: SPST — N.O. (make

on rise), Limit: SPST —

N.C. (break on rise)

L4064B1451 US 11.5

L4064A1321, L4064A1453,

L4064A2758, L4064A3046,

L4064B3580, L4064B3465,

L4064B1592, L4064B1725,

L4064B1931, L4064B2210,

L4064B2723, L4064B2863,

L4064B2954, L4064B3036,

L4064B3044, L4064B3077,

L4064B2756, L4064B3069,

L4064E2551

170 to 250 122 to 130 90 to 104 Yes No

Fan: SPST — N.O. (make

on rise), Limit: SPST —

N.C. (break on rise)

L4064N1058 Canada 11.5 175 to 200 104 to 165 68 to 104 Yes Yes

Fan: SPST — N.O. (make

on rise), Limit: SPST —

N.C. (break on rise)

L4064R1134 Canada 11.5 L4064R1100, L4064R1068,

L4064R1035, L4064R1027 170 to 250 125 100 Yes Yes

Fan: SPST — N.O. (make

on rise), Limit: SPST —

N.C. (break on rise)

L4064W1106 US 11.5

L4064T1046, L4064T2457,

L4064W1213, L4064W1254,

L4064Y1540

200 to 210 125 to 130 100 Yes No

Fan: SPST — N.O. (make

on rise), Limit: SPST —

N.C. (break on rise)

L6064

L6064A1052 Canada 5L6064A1094, L6064E1020 180 to 200 105 to 125 90 to 100 No No Fan: SPDT, Limit: SPST —

N.C. (break on rise)

L6064A1045 Canada 8L6064A1086 200 125 to 130 100 No No Fan: SPDT, Limit: SPST —

N.C. (break on rise)

L6064A1037 Canada 11.5 L6064A1003, L6064A1078,

L6064A1151 200 125 to 165 85 to 100 No No Fan: SPDT, Limit: SPST —

N.C. (break on rise)

For a complete cross-reference, visit www.customer.honeywell.com

* Some models limit, Fan On and Fan Off need to be adjusted.

Fan and Limits Selection Guide

Gas Controls

Simplification is the key with Honeywell oil primaries. Their universal design, installation ease and

ability to upgrade make them highly valuable tools for contractors and distributors alike.

Oil Primaries

When selecting an oil primary for your next job, look for these

Honeywell features:

•Universalcapability

•EnviraCOM™ communications enabled

•Versatility

•Durability

•DiagnosticLED

R8184

Protectorelay® Oil Burner Control

•Industry-standardintermittentignitioncontrol

•Solid-state,flame-sensingcircuit

•45-secondtiming,safetyswitch

•Mountsonstandard4"x4"junctionbox

•Externalbuttontomanuallyresetsafetyswitchafterlockout

RA116A / RA117A

Universal Interrupted Electronic Oil

Primary

•Versatilemountingforcurvedorflatsurfaces

•InterruptedandIntermittent

•75-secondlockouttiming

•Replacesmanycompetitivemodels

R8182

Combination Protectorelay® and Hydronic

Heating Controllers

•Immersion-typeAquastat® controller and oil burner primary control

•Provideshighlimitandlowlimit/circulatorcontrol

•Useinintermittentignitionapplications

•CirculatorzonecontrolwithZCandZRterminalsonR8182D,E,H,J

R7184

Universal Interrupted Electronic Oil Primary

•DiagnosticLED

•Pumpprimingcycle

•Limitedreset

•Limitedrecycle

•Valve-onandblowermotor-offdelay

•Cadcellflamestrengthindicator

•Interruptedorintermittentignition

•EnviraCOM™ communications enabled

Oil Controls

Oil Primaries Selection Guide

(1) Includes 40 VA transformers and heat/cool thermostat connections for warm-air furnace applications.

OIL PRIMARIES

Specifications

Ignition Type Universal Service Part Direct Service Part

Replacement

Lockout

Time (sec.)

Valve On Delay

(sec.) Blower Off Delay (min.)

Interrupted

R7184U1004

0/15 0/2/4/6

R7184A1026

R7184B1024 15

R7184P1098 15 0.25

R7184U1012

0/15 0/2/4/6

R7184A1034

R7184U1020 R7184U1020 45 0/15 0/2/4/6

R7184A1042

Intermittent

R7184U1004 R8184G4066 15

R7184U1012 R8184G4033 30

R7184U1020 R8184G4009 45

R8184M1051 R8184M1051

R8182 COMBINATION AQUASTAT AND OIL PRIMARY

Direct Service Part

Features and Functions

Includes

Upgraded

Cross-Reference

Mounting

Differential Temperature (˚F)

Honeywell

High Limit Low Limit/

Circulator

R8182D1079 Vertical 10 fixed 10 to 25 Heat-Conductive Compound R8182E1118

R8182D1111 Horizontal 10 fixed 10 to 25 Heat-Conductive Compound R8182D1129

R8182H1070 J Box 10 fixed 10 to 25 Heat-Conductive Compound

R8182J1042 J Box 15 fixed Heat-Conductive Compound R8182J1059

STACK SWITCHES

Model Number Ignition Type Replaces

RA116A1055 Intermittent RA116A1063

RA117A1047 Interrupted

Oil Primaries Selection Guide

Specifications Cross-Reference

Alarm Contacts Manual Trip Lever

w/ LED Indicator Honeywell Beckett Carlin White-Rodgers

Yes

R7184P1031, R7184P1049,

R7184P1056, R7184P1064,

R7184P1072

7505P125M

50200-02S, 602000-02S,

6020002S015120,

6020002S030015,

6020002S030030,

6020002S030120,

6020002S030300,

6020002S030010

R7184A1075, R7184A1000 7505A0000 40200-02S 669-640,669-670

R7184B1032, R7184B1016 7505B1500

R7184P1080 7505P1515

Yes

No R7184A1018 42230-02S 669-440, 669-445,

669-470, 669-540

Yes No

Yes

R8184G1294, R8184G1302,

R8184G4074, R8184G4033,

R8184G4090, G1427, G4058

7505A0000 668-601, 668-670

Yes R8184G1393, R8184G1302,

R8184G4074, R8184G4033 668-501

Yes Yes

R8184G1286, R8184G1427,

R184G4025, R8184G4082,

R8184G1458, G4108

48245-S 668-401, 668-0415,

668-430, 668-515

Yes 668-430

Yes Yes (no LED)

R8184M1002 668-441, 668-451, 668-454

For a complete cross-reference, visit www.customer.honeywell.com

CAD CELL SELECTOR GUIDE

Product

Number

CAD

Cells (1)

Lead

Length

(in.)

Wire

Termination

Mounting

Bracket Includes Tradeline

Value Replaces

C554A1315 120320 30 Stripped Type B Tradeline

C554A1463 130367 60 2 Flag 1/4" QC Type R A, B, E, J and P Mounting

Brackets and Fuel Line Adaptor

Super

Tradeline

C554A1307, C554A1315, C554A1398,

C554A1133, C554A1174, C554A1372,

C554C1570, C554A1216, C554A1927,

C554A1794

C554A1794 130367 60 Stripped Type R E Mounting Bracket

and Fuel Line Adaptor Tradeline C554A1307, C554A1927

Notes:

*120320 replacement CAD cell 7.5 MA minimum sensitivity at 2' candles.

*130367 high-sensitivity CAD cell 12 MA minimum sensitivity at 2' candles.

Oil Controls

What can happen when you combine the industry leading electronic triple action oil Aquastat® with

a simple to install outdoor reset solution? The result is the Honeywell AquaReset™, which can lead to

increased sales for you and energy savings for homeowners. We have taken our electronic Aquastat

and integrated true outdoor reset, making setup almost as easy as one-two-three. Designed to save

the homeowner money by improving boiler efficiency up to 15 percent*, giving contractors up-sell

opportunities and easy installation makes Honeywell’s AquaReset outdoor reset, done right!

Outdoor Reset

*Honeywell Inc. 1979 Study; Control Systems Providing Energy Savings with single and multi-zone Hydronic Heating. 15% is the average energy

savings and can only be achieved when installing an outdoor reset model, domestic hot water priority is off and the unit is installed as directed.

L7224R1000

Honeywell AquaReset

Outdoor Reset System

•UniversalapplicationswithelectronicAquastat®

•Systemset-upthroughmulti-functionAquastatdisplay

•Designedtoimproveboilerefficiencyandenergyconsumption

•Easythree-wireinstallationtoAquastat

W8735S1000

Honeywell AquaReset

OutdoorResetKit

•CompatiblewithanyHoneywelloutdoorresetreadyAquastat®

•Systemset-upthroughmulti-functionAquastatdisplay

•Designedtoimproveboilerefficiencyandenergyconsumption

•Easythree-wireinstallationtoAquastat

W8735S1008

Honeywell AquaReset

DomesticHotWaterKit

Required for domestic hot water override with some Honeywell’s

AquaReset installations*

•CompatiblewithHoneywellAquaResetsystemandkit

•Ensuresdomestichotwaterneedsaremetwhencombining

AquaReset with an indirect DHW tank.

•Easythree-wireinstallationtoAquaResetmodule

*KitrequiredtoenabledomestichotwateroverridefunctionalitywithIndirectDHWtank

when the Zr terminal on the Aquastat® is not used or available for DHW demand. See

instructions or visit customer.honeywell.com for complete details.

Oil Controls

The boiler industry standard, Honeywell Aquastats have a proven track record, wide OEM new

equipment usage and a large installed base. Our electronic Aquastat family builds on this reputation

while adding performance-enhancing features. Honeywell service parts have you covered, offering

universal compatibility and improved service call efficiency — while keeping both distributor and

contractor satisfaction in mind.

Aquastats®

When selecting an Aquastat for your next job, look for these

Honeywell features:

•Broadrangeandflexibilitycoversavarietyofapplicationsandneeds

•Universalversionsallowmultiplemountingandconfigurationcapability

•Universalversionsreduceinventoryandassuretruckavailability

•Electronicversionsincludecommunicationsasastandardfeature,

allowing add-on efficiency, troubleshooting and monitoring capability

•EnviraCOM™ communications enabled

L6006/L4006

Aquastat Controller

•TotallyenclosedMicroSwitchsnap-actingswitchesoperateon

temperature rise to setpoint

•Visiblecontrolpointscaleandexternaladjustmentscrewpermiteasysetting

•Horizontalorverticalinsertionofsensingelement

•Directorwellimmersionofthesensingelement

•SPSTandSPDTswitchingaction

L6008/L4008

Aquastat Controller

•Visiblecontrolpointscaleandexternaladjustmentscrewpermiteasysetting

•Horizontalorverticalmountingoftheremoteelementintoboiler,

tank or other container

•Fast-respondingremotetemperaturesensor

•SPDTorSPSTswitchingaction

L8124/L8148

Triple Aquastat Relay

•Oilandgasversions

•High-limitorhigh-and-low-limitversions

•Mountsdirectlyonboilerhorizontallyorvertically

•Providesmultizonecontrol

•Immersion-typecontrollersthatcombinehighlimitprotectionwith

low limit and circulator control in forced hydronic heating systems

•TheL8148includesatransformertoprovidepowerforthe

low-voltage control circuit

•Gasversionsincludeatransformertoprovidepowerforthelowvoltagecircuit

L7224

Universal Oil Electronic Aquastat

•Diagnosticupdatesthrougheasy-to-readLEDdisplays

•+/-2˚Faccuracyandfasterresponsetimes

•Adjustablehigh-andlow-limitdifferential

•OutdoorresetfunctionalityavailablewithW8735S1000

•Providesmultizonecontrol

•Immersiontypecontrollersthatcombinehigh-limitprotection

with low-limit and circulator control in hydronic heating systems

•Thermowellhorizontalorverticalandflushmounting

•EnviraCOM™ communications enabled

Oil Controls

SINGLE-FUNCTION MULTI-FUNCTION

Single-Function Aquastat® Selection Guide

All mounting is universal horizontal or vertical mounting unless noted. All Tradeline Aquatstats®

include heat-conductive compound.

1 Product Numbering

400X=SPST, 600X=SPDT

X006=Thermowell Sense, X008=Remote Sense

A Make on Rise

B Break on Rise

D Break on Rise w/o Cover

E Make on Rise w/Manual Reset

G Two SPDT

H Make on Rise w/Strap-On Mount

2 Capillary Length

If less then 3" then insulation depth of thermowell

3 All manual reset models comply with the CSD-1 requirement for Manual Reset. Devices with

maximum Range of 200°F, 190°F 180°F are designed to meet local code requirements regarding

maximum setpoints. Units having scale ranges above 240°F do not comply with ASME Section

IV for boilers, use 240 Maximum range Aquastats.

4 Electrical Ratings

A Millivolt: 0.25 A @ 0.25 to 12 Vdc; AFL: 8 A @ 120 Vac/5.1 A @ 240 Vac ALR: 48 A @

120 Vac/30.6 A @ 240 Vac

D Millivolt: 0.25 A @ 0.25 to 12 Vdc; AFL: 1.3 A @ 240 Vac/8 A @ 120 Vac; ALR: 48 A @

120 Vac/30.6 A @ 240 Vac

B AFL: 2.6 A @ 120 Vac/1.3 A @ 240 Vac; ALR: 15.6 A @ 120 Vac/7.8 A @ 240 Vac

H AFL: 8 A @ 120 Vac/1.3 A @ 240 Vac; ALR: 48 A @ 120 Vac/30.6 A @ 240 Vac

SENSOR AND

THERMOWELL FEATURES AND FUNCTIONS

Product Number1Switch

Configuration Thermowell

Included

Thermowell

Spud Size —

14 NPT (in.)

Capillary

Length (in.)2Manual

Reset

Operating

Temperature Range

(˚F)

Factory

Stop

(˚F)

L4006A1009

SPST - N.C.

(break on rise)

Yes 1/2 1-1/2 100 to 240

L4006A1017 Yes 1/2 1-1/2 100 to 240

L4006A1132 Yes 3/4 3 100 to 240 160

L4006A1678 3 100 to 240

L4006A1959 3 40 to 180

L4006A1967 Yes 1/2 1-1/2 100 to 2403

L4006A2007 3 100 to 240

L4006A2148 3 100 to 200

L4006E1042 Yes 130 to 2703240

L4006E1067 3Yes 130 to 270

L4006E1091 3Yes 130 to 270

L4006E1125 3Yes 100 to 200

L4006H1004 1-1/2 100 to 2403240

L4006G1022 3 100 to 200

L4008A1015 66 100 to 2403

L4008A1130 120 130 to 270

L4008A1189 66 130 to 270

L4008E1156 66 Yes 130 to 270 250

L4008E1305 66 Yes 100 to 240 240

L4008E1313 66 Yes 100 to 2003

L4008E1347 66 Yes 40 to 1803

L4006B1007 SPST - N.O.

(make on rise)

Yes 1/2 1-1/2 100 to 240

L4006B1155 3 100 to 240

L6006A1004

SPDT

Yes 1/2 100 to 240

L6006A1012 Yes 1/2 1-1/2 100 to 240

L6006A1145 3 100 to 240 240

L6006A1244 3 100 to 240

L6006C1018 65 to 200

L6008A1093 66 -30 to 703

L6008A1192 66 100 to 240 240

L6008A1242 66 100 to 2003

Single-Function Aquastat® Selection Guide

FEATURES AND FUNCTIONS NOTES CROSS-REFERENCE

Differential

Temperature (˚F) Electrical

Ratings4Notes OEM or Trade Product Number

5 Fixed A

5 to 30 AL4080B, L4080D Families, L4006A1058, L4006A1827, L4006A2015

5 Fixed AL4006A2023

5 to 30 A

2 Fixed B

5 to 30 A

ACanada Only

AL4006E1091, L4006E1109, L4006E1117, L4006E1125, L4006E1133

DBracket for Strap-On Mounting

7 H Canada Only

5 to 30 A

AL4008E1040, L4008E1248, L4008E1321

AL4008E1271, L4008E1313

AMeets Certain State Specific Boiler Inspector Requirements

5 Fixed A

5 to 30 AL4006B1189, L4008B1163

5 A Obs

5 to 30 AL6006A1160, L6006A1269, L6006A1301, L6006A1327, L6006A1335

5 to 30 AHorizontal Mount Only L4006A1004

5 to 30 A

5 to 30 AIncludes Surface Mount Using 1/4" NPT Female

Threads or Surface Mount Through Base of Case L6006C1034, L6006C1059

5 to 30 AL6008A1010

5 to 30 A

For a complete cross-reference, visit www.customer.honeywell.com

Oil Controls

Multi-Function Aquastat® Selection Guide

* Replacement Sensors for the 7224U.

OS Number Length

50001464-001 12"

50001464-004 36"

50001464-005 48"

FUEL LOW LIMIT HIGH LIMIT

Product Number Gas Oil Operating Range,

Low Limit (˚F)

Differential

Temperature, Low

Limit (˚F)

Operating Range,

High Limit (˚F)

Differential

Temperature,

High Limit (˚F)

L6081A1010 • • 110 to 220 130 to 240 10 fixed

L6081A1036 • • 110 to 220 10-25 130 to 240 10 fixed

L8148E1265 •180 to 240 15 fixed

L8124E1016 •110 to 220 10 to 25 130 to 240 10 fixed

L8148J1009 •120 to 240 8 fixed

L7224U1002 •110 to 220 10 to 25 130 to 240 5 to 20 adj.

L8124A1007 •110 to 220 10 to 25 130 to 240 10 fixed

L8124C1003 •110 to 220 10 to 25 130 to 240 10 fixed

L8124G1020 •110 to 220 10 to 25 130 to 240 10 fixed

L8124L1011 •110 to 220 10 to 25 130 to 240 10 fixed

L8148A1017 •140 to 240 8 fixed

Oil Controls

Multi-Function Aquastat® Selection Guide

FEATURES AND FUNCTIONS CROSS-REFERENCE

Factory

Stop (˚F) Switching Action Anticipator

Setting Mounting Notes OEM Part Number

SPDT HL6081A1069

SPDT HL4081A1023, L4081A1148, L4081A1155,

L4081A1171, L4081A1189, L4081A1197

2 SPST: High Limit &

Circulator 0.2 A VL8148E1158, L8148E1182,

L8148E1216, L8148E1065

2 SPST: High & Low

Limit 0.2 A

240 2 SPST: High Limit &

Circulator 0.2 A V/H

3 SPST: High and Low

Limit, Circulator 0.1 A V/H/F

Universal Oil, Digital Display and Settings,

Used with Oil Burner Applications,

EnviraCOM® Communications

All L8124A or C, L8148A or C, L7224A or C,

L7248A or C, L8151A

0.2 A VL8124A1015, L8124A1015, L8124A1049, L8124A1106,

L8124A1114, L8124A1130, L8124A1155, L8124A1015

2 SPST: High & Low

Limit 0.2 A HL8124C1094, L8124C1102

2 SPST: High & Low

Limit 0.2 A VL8124G1004, L8124G1012

2 SPST: High & Low

Limit 0.2 A HL8124L1003, L8124L1029,

L8124G1038, L8124G1046

240 2 SPST: High Limit &

Circulator 0.2 A HL8148A1165, L8148A1157, L8148A1124,

L8148A1090, L8148A1082, L8148A1009

For a complete cross-reference, visit www.customer.honeywell.com

Honeywell offers a complete range of relays, contactors and transformers for all your residential

and commercial HVAC applications. All Honeywell products are designed to exceed safety and

industry life cycle standards. In order to meet these criteria, a statistically significant sample of

Honeywell products are tested to failure and to our stringent qualification requirements. This testing

methodology enables Honeywell to verify that these products will exceed industry standards.

Relays/Contactors/Transformers

R24 Electric Heat Sequencers

The positive temperature coefficient (PTC) heater element provides voltage

compression over a wide voltage range without danger of over-heating at high

voltage. It is self-current limiting, and assures device actuation under low-

voltage conditions. The PTC has the unique feature of always stabilizing at a

specific temperature, regardless of ambient temperature or voltage. This will

allow the use of a common device over a wide voltage range.

ELECTRIC HEAT SEQUENCERS

Product # Switches Timings Timings — ON Timings — OFF

M1-M2 M3-M4 M5-M6 M7-M8 M9-M10 M1-M2 M3-M4 M5-M6 M7-M8 M9-M10

R24AA1008 1 1 1-20 40-110

R24AA3004 1 1 30-90 1-30

R24BA1006 2 1 1-20 1-20 40-110 40-110

R24BA3002 2 1 30-90 30-90 1-30 1-30

R24CB4007 3 2 1-110 1-110 1-110 1-110 1-110 1-110

R24DB4005 4 2 1-110 1-110 1-110 1-110 1-110 1-110 1-110 1-110

R24ED5007 5 4 1-160 1-160 1-160 1-160 1-160 1-160 1-160 1-160 1-160 1-160

R24AA3429

Canada 1 1 15-35 25-55

R24AA3437

Canada 1 1 1-110 1-110

HEAT PUMP — AIR HANDLER MODEL

Model # Switches Timings Heat Cool

R24AA2006 1 1 1-60 75-95

Temperature: -50˚ F to 165˚ F

Table Notes:

• M1-M2 and M3-M4 are always rst switches to turn ON and last to turn OFF.

All other switches are random ON and random OFF.

• R24ED5007 Switch contacts designated F1-F2 instead of M1-M2.

• R24BB3428 is Double Pole Double Throw model.

• R24AA2006 is a Single Pole Double Throw model for Heat Pump Applications.

• These contacts switch simultaneously.

ON Time: Elapsed time (min. to max.) to make contact after heater is energized.

OFF Time: Elapsed time (min. to max.) to break contact after heater is de energized.

Terminations: Solder or screw type 1/4” quick connect

Ratings: Estimate — 25 A resistive and 14 A inductive at 120 Vac

SPST: Single Pole Single Throw

DPST: Double Pole Single Throw

SPDT: Single Pole Double Throw

DPDT: Double Pole Double Throw

Agency: UL/CSA

Transformers

Honeywell offers NEMA — standard DC20-1992 and general purpose

transformers. These transformers are available with single or multiple input

voltages and with foot, conduit and plate mounting options. Transformers with

circuit breakers that can be manually reset by pressing a button are also available.

Honeywell also designs transformers for specific environmental requirements and

with specialized termination options.

TRANSFORMERS

Electrical

Ratings

(VA)

Electrical

Ratings

(Input Voltage)

Product

Number

NEMA

Rated Mounting Main

Connections

Secondary

Connections Frequency Dimensions (in.)

H x W X D Special Features

19 VA 120 Vac AT20A1123

Ye s

2 x 2 1/4 x 1 7/8

40 VA

120 Vac

AT72D1006 P S 3 7/32 x 2 7/32 x (1 1/16

into x 2 in. above plate)

AT72D1089 F S 3 7/32 x 2 7/32 x 3 1/16

AT72D1188 P L 3 7/32 x 2 7/32 x 2 15/16

AT72D1683 M S

3 7/32 x 2 7/32 x 3 1/16

AT72D1956 M L Available only in Canada

208/240 Vac AT72D1691 M S

AT72D1733 M S Available only in Canada

48 VA 277 Vac AT87A1189 F L

2 15/16 x 2 7/32 x 2 1/4

Energy limiting overload protection

480 Vac AT87A1155 F L Energy limiting overload protection

50 VA 120/208/

240 Vac AT87A1106 M S Built-in protection; Primary winding

burnout

20 VA

120 Vac AT120B1028

F L

1 11/16 x 3 3/16 x 1 3/4 Metal end bells

120/208/

240 Vac AT120A1004 M S 2 7/8 x 1 7/8 x 2 15/16 Metal end bells

40 VA

120 Vac AT140A1000 M S 3 3/16 x 2 3/8 x 3 1/8 Metal end bells

AT140B1206 F L 1 11/16 x 3 1/2 x 1 3/4 Plastic end caps

120/208/

240 Vac

AT140A1018 M S 3 3/16 x 2 3/8 x 3 1/8 Metal end bells

AT140B1214 F L 1 11/16 x 3 1/2 x 1 3/4 Plastic end caps

50 VA

120/208/

240 Vac

AT150A1007 M

S1 11/16 x 3 3/16 x 1 3/4 Metal end bells

AT150F1022 M L 3 3/16 x 2 3/16 x 3 5/8 Button for resetting circuit breaker &

metal end bells

208/277/

480 Vac AT150F1030 M L 3 3/16 x 2 3/16 x 3 5/8 Button for resetting circuit breaker &

metal end bells

277 Vac AT150B1252 FL, Q L, Q A 1 11/16 x 3 1/2 x 1 3/4 Plastic end caps

75 VA

120/208/

240 Vac

AT175A1008 M

3 3/16 x 2 3/8 x 3 5/8 Metal end bells

AT175F1023 M L 3 3/16 x 2 3/16 x 3 15/16 Button for resetting circuit breaker &

metal end bells

208/277/

480 Vac AT175F1031 M L 3 3/16 x 2 3/16 x 3 15/16 Button for resetting circuit breaker &

metal end bells

120 Vac AT88A1005 F L

A 2 15/16 x 2 3/16 x 3 5/16 Internally fused secondary for overload

protection

208/240 Vac AT88A1021 F L

480 Vac AT88A1047 F L

Frequency: A — 60 Hz/50 Hz; B — 60 Hz;

Mounting; C — Conduit ; F — Foot; P — Plate; M — Foot, Conduit, Plate (F models do not come with plate options)

Connections: L — Leadwires (9 in. to 13 in.); Q — Quick Connects; S — Screw Terminals

Approval UL, CSA

Heating/Cooling Devices

Relays/Contactors/Transformers

Relays

Honeywell’s switching relays are available in multiple configurations for

various applications. For whatever you need — general purpose relays

or electric heat relays — Honeywell has you covered.

• General Purpose and Heavy-Duty Switching Relays — R4222, R8222, R4228 and R8228

for use in refrigeration and air-conditioning equipment, appliances and vending machines

• Time Delay Relay — ST82 combines the R8222 or R8228 relay for use in compressor-run

air conditioning and heat pump systems; this product features an electronic timer that delays

blower shut off after the compressor has shut off.

• Fully Enclosed Line and Low-Voltage Fan Relays — R4225 and R8225 for control of line

voltage fan motors and auxiliary circuits.

• Electromechanicalrelaysforconventional24Vthermostats

– RC840 for use with two or three-wire thermostats to control baseboard, convectors, radiant

ceiling and duct heaters

– Immediate relay activation, improved temperature control and comfort,

no 90-second on/off delays as with thermal relays.

– Epoxy soundproofing, quiet operation.

– Terminal board connection, easier installation uses less space.

• Triacrelayforpulsedoutputthermostats

– RT850 for use with two or three-wire thermostats to control baseboard, convectors, radiant

ceiling and duct heaters

– Superior temperature control when used with fast cycling thermostats

– 100 percent silent solid state relay switching

Heating/Cooling Devices

RELAYS

Input Voltage/

Coil Voltage Switching Product

Number

Full Load

Amp Rating Frequency Dimensions (in.)

H x W X D

Electrical

Connections

(main)

Special Features

24 Vac DPST N.O. R8228D1018 5.5

1 7/8 x 2 5/32 x 2 3/8

24 Vac

DPDT (1 P & 1 P

Duty) R8222V1003

DPDT — Pilot Duty R8222N1011 Pilot duty

DPDT R8222D1014

DPDT ST82D1004 2 7/32 x 2 1/16 x 2 9/16 80 sec shut off delay

SPDT R8222B1067

1 7/8 x 2 5/32 x 2 3/8 120 Vac

DPDT — Pilot Duty R4222N1002

DPDT R4222D1013

SPDT R4222B1082

208/240 Vac DPDT R4222D1021

24 Vac SPDT R8225A1017

14 B2 11/16 x 2 1/2 x 3 7/16 LDPST N.O. R8225D1003

120 Vac SPDT, 1 N.O., 1 N.C. R4225A1008

24 Vac SPDT R8228B1012 18 A 1 7/8 x 2 5/32 x 2 3/8 Q

ELECTRIC HEAT RELAYS

24 Vac DPST R8229A1005 7 B 2 3/16 x 2 3/32 x 2 1/4 CHS

R8229A1021 Extra mounting hardware

24 Vac SPST R841D1036

14 A 3 7/8 x 2 13/16 x 1 1/2 L

18 A resistive @ 120/208/240 Vac; Requires

transformer; Canada — replaces R841D1028

208/240 Vac SPST R841C1169 18 A resistive @ 120/208/240 Vac; Integral

transformer; Canada — replaces R841C1029

240 Vac SPST R841E1068 22 A resistive @120/208/240 Vac; Dual load/integral

transformer

347 Vac SPST R841C1144 18 A resistive @120/208/240 Vac; Integral

transformer; Available only in Canada

600 Vac SPST R841C1151

ELECTRIC FURNACE SEQUENCER

24 Vac R8330D1039 7.2 B 3 1/16 x 4 13/16 x 2 11/32 T

ELECTRIC HEAT CONTACTOR

24 Vac DPST R8246A1038 30 2 3/16 x 2 1/4 x 3 5/16 Q, S

AUBE ELECTRIC HEAT RELAYS

Input Voltage/

Coil Voltage Switching Product

Number

Full Load

Amp Rating Frequency Dimensions (in.)

H x W X D

Electrical

Connections

(main)

Special Features

24 Vac SPST

RC840

16 @ 120

Vac

13 @ 208

Vac

12 @ 240

Vac

2 11/16 x 3 21/64 x 1 27/64

22 A Resistive @ 120/208/240 Vac

19 A Resistive @ 277 Vac

18 A Resistive @ 347 Vac

Requires transformer

RC840T-240

13 @ 208

Vac

12 @ 240

Vac 2 45/64 x 3 11/32 x 1 27/64

22 A Resistive @ 208/240 Vac: Integrated

transformer; Available only in Canada

RC840T-347

N/A

18 A Resistive @ 347 Vac: Integrated transformer

24 Vac

4-32 Vdc

SPST

(Solid state relay)

RT850

4 13/64 x 4 11/64 x 1 57/64

23 A Resistive @ 120/208/277/347 Vac

Guaranteed OFF signal: 5 Vac, 2 Vdc

24 Vac

RT850T-240

23 A Resistive @ 208/240 Vac: Integrated

transformer

Guaranteed OFF signal: 5 Vac

RT850T-347 23 A @ 347 Vac: Integrated transformer

Guaranteed OFF signal: 5 Vac

Frequency: A — 60 Hz/50 Hz; B — 60 Hz, C — 50 Hz SPST: Single Pole Single Throw

Approvals: UL, CSA DPST: Double Pole Single Throw

Temp Rating: -20˚ F to +150˚ F; 115˚ F max for R8225 DPDT Double Pole Double Throw

Connectors: CHS — Combination Head Screw; L — Leadwires; Q — Quick connect;

T — Terminals SPDT: Single Pole Double Throw

Relays/Contactors/Transformers

Contactors

Honeywell offers definite-purpose contactors for heating, cooling and refrigeration applications.

• Availablein1,2,3and4poleconfigurations.

• Multipleinputvoltagerangefrom24/120/208/240configurations.

• Availablein25,30,40,50,60,75and90Ampconfigurations.

• MeetARI780andUL/CSA/CURstandards.

• Quickconnectsforcoiltermination.

•Hexscrewandquickconnectsonunitsupto30A;lugson

units rated at 40 A and above.

ECONOMY CONTACTORS

Poles Contact Ratings (AFL @

240, 277, 480, 600 Vac)

Input Voltage/

Coil Voltage

Product

Number

Dimensions (in.)

H x W x D

Main

Connections

Coil

Connections

Contact Ratings

(Resistive @ 240,

277, 480, 600 Vac)

Special

Features

1 with shunt 30 24 Vac DP1030A1000 2 7/32 x 2 1/2 x 3 5/16

CHS

48 A

24 Vac DP2030A1003 3 1/4 x 3 5/8 x 3 7/8 48 A

120 Vac DP2030B1002 2 7/32 x 3 5/16 x 2 5/32 40 A

208/240 Vac DP2030C1001 2 7/32 x 2 1/2 x 3 5/16 40 A

24 Vac DP2040A1002

2 3/8 x 3 5/16 x 2 LC 50 A120 Vac DP2040B1001

208/240 Vac DP2040C1000

POWERPRO CONTACTORS — ARI 780/790 RATED

1 with shunt

24 Vac

DP1025A5005 2 7/32 x 2 1/2 x 3 5/16 CHS

30 A

30 DP1030A5013 2 7/32 x 2 1/2 x 3 5/16 CHS 48 A

40 DP1040A5004 2 23/64 x 2 1/2 x 3 5/16 LC 50 A

20 24 Vac DP2020A5021 2 7/32 x 2 1/2 x 3 5/16

CHS

30 A

120 Vac DP2020B5038 2 7/32 x 2 1/2 x 3 5/16 30 A

24 Vac DP2030A5004 3 1/4 x 2 5/8 x 3 3/4

48 A

24 Vac DP2030A5012 3 1/4 x 2 5/8 x 3 3/4 Extra mounting HDW

120 Vac DP2030B5003 2 7/32 x 3 5/16 x 2 5/32

120 Vac DP2030B5011 2 5/16 x 3 5/16 x 2 5/32 Extra mounting HDW

208/240 Vac DP2030C5002

2 7/32 x 2 1/2 x 3 5/16

208/240 Vac DP2030C5010 Extra mounting HDW

277 Vac DP2030D5001

24 Vac DP2040A5003

2 23/64 x 3 3/16 x 1 15/16 LC 50 A

120 Vac DP2040B5002

208/240 Vac DP2040C5001

24 Vac DP3030A5003

3 7/64 x 3 5/8 x 2 13/32

CHS

Q, S

40 A

120 Vac DP3030B5002

208/240 Vac DP3030C5001

24 Vac DP3040A5002

50 A

120 Vac DP3040B5001

208/240 Vac DP3040C5000

24 Vac DP3050A5001

63 A

120 Vac DP3050B5000

208/240 Vac DP3050C5009

24 Vac DP3060A5000

75 A

120 Vac DP3060B5009

208/240 Vac DP3060C5008

24 Vac DP3075A5016

4 7/16 x 5 x 3 3/4

95 A

120 Vac DP3075B5015

208/240 Vac DP3075C5014

90 120 Vac DP3090B5006 120 A

208/240 Vac DP3090C5005 120 A

440

24 Vac DP4040A5001

2 5/8 x 3 3/4 x 3 7/64 50 A

120 Vac DP4040B5000

208/240 Vac DP4040C5009

ELECTRIC HEAT CONTACTOR

230 24 Vac R8246A1038 2 3/16 x 2 5/16 x 3 5/16 Q, S TCS, Q 48 A @ 240 Vac,

277 Vac

First pole resistive only,

second pole resistive/

inductive combined;

ARI 780/790 rated

Connectors: BHS — Binding Head Screw; Q — Quick Connect; SS — Sems Screw; CHS — #10-32 Combination Head

Screw; S — #6 Screw; TCS — Terminal Clamp Screw; LC — Lug Connector Approvals: UL, CSA

Temp Rating: -4˚ F to 149˚ F ARI - 780: 500,000 cycle mechanical life; 200,000 cycle

electrical life; 10,000 cycle recycle life

Heating/Cooling Devices

Fan Centers

For fan centers (relay and transformer combination), R8285 and R8239 NEMA

rated units offer low-voltage control of line-voltage fan motors and

auxiliary circuits in heating, cooling or air-conditioning systems.

FAN CENTERS

Electrical

Ratings (VA)

Electrical Ratings

(Input Voltage) Switching Product

Number

NEMA

Rated

Dimensions (in.)

H x W X D

Main

Connections

Secondary

Connections Frequency Special Features

40 VA 120 Vac

DPDT R8239B1043

Ye s 4 1/2 x 4 3/16 x

3 3/32

L L A

Super Tradeline*

DPST R8239D1007 Available only in

Canada

DPST (1 Power, 1 Pilot) R8239D1015 Tradeline

SPDT R8239A1052 Tradeline

50 VA 120/208/240 Vac DPDT R8239B1076 Super Tradeline

40 VA 120 Vac SPDT R8285A1048

No 4 3/16 x 4 1/2 x

2 13/16

Tradeline

120/208/240 Vac DPDT R8285B1053 Tradeline

50 VA 120 Vac DPDT R8285D5001

Frequency: A — 60 Hz/50 Hz; B — 60 Hz SPST: Single Pole Single Throw

Approvals: UL, CSA DPST: Double Pole Single Throw

Temp Rating: -20˚ F to +105˚ F DPDT: Double Pole Double Throw

Connectors: L — Leadwires SPDT: Single Pole Double Throw

Mounting: Standard 4 x 4 in. junction box

* Super Tradeline models include extra hardware.

DEFROST CONTROLLER

Operation Time On Time Off — Selectable Product Number

Remote Contact Closure 10 min. 50/70/90 min. ST74A1053

Defrost Controller

Choose the ST74 low-voltage time/temperature defrost controller for heat pumps.

• Resetsthedefrostcyclebyremotecontactclosure.

• Mountsinoutdoorsectionofheatpump.

• Utilizesspecialmoisturebarriertoprotectcircuitry.

AUXILIARY SWITCHES

Product Number Circuits Conguration Dimensions (in.)

H x W x D

Contact Ratings

(Resistive)

Maximum (inrush) Current

at 120/240/480/600 V Use With

DP3AUX-1NO 1 Normally Open snap-on

2 26/32 x 2 17/32 x 7/16 10 A 60/30/15/12 Amps DP3030 – DP3090

Contactors

DP3AUX-1NC 1 Normally Closed snap-on

DP3AUX-1NO-1NC

Normally Closed/Normally Open snap-on

DP3AUX-2NO Normally Open snap-on

DP3AUX-2NC Normally Closed snap-on

Auxiliary Switches

Honeywell Auxiliary Switches work Honeywell models of 3-pole contactors.

TELEPHONE ACCESS MODULE

Part Number Description

W8735D1009 2-Channel TAM

W8735D1017 4-Channel TAM

VISIONPRO IAQ TOTAL HOME COMFORT SYSTEM

Part Number Description

TH9421C1004 Thermostat Only

YTH9421C1002 Thermostat and Equipment Interface Module

THM5421C1008 Equipment Interface Module Only

Telephone Access Module (TAM)

With the Telephone Access Module (TAM) from Honeywell, homeowners can adjust the comfort levels

in their home, cabin or vacation retreat by simply using a telephone. Your customers can arrive home

to the temperature they desire or monitor their home's HVAC systems when away. You can set the TAM

so that they can even receive alerts if there's a problem with the HVAC system, or you can arrange to

have the alerts sent straight to you as part of a monitoring service. Because the TAM utilizes Honeywell's

EnviraCOM™ communications protocol, you'll have a wealth of information available for both monitoring

and remote troubleshooting. For both homeowners and your business, the Honeywell Telephone Access

Module provides peace of mind.

When selecting an TAM for your next job, look for these

Honeywell features:

•RemoteaccesstohomesHVACsystem

•Multipledial-outalarms

•WorkwithcomplexHVACsystems:monitorandadjustthe

temperature in up to 36 zones

•Simplevoicemenuinteraction

Replacing a hot surface igniter can be a tricky job. Furnace designs and speciﬁcations

cha nge. Burn er d esig ns c an be tig ht a nd di fﬁcu lt to man euver in. The n the re’s t he n eed

to carr y a vari ety of re plac emen t par ts to ma tch t he r ange of f urna ce b rands out the re.

Introducing Glow ﬂy

™

The ﬁrst truly universal, universal hot surface igniter.

Now, those ch allenges have one r eliable soluti on:

Glowﬂ y

™

from H oneyw ell.

The latest technology, true “universal” installation, OEM quality — Glowﬂy brings it all

together in one easy-to-use solution. Backed by the full experience and innovation of

Honeywell, Glowﬂy is sure to become a “must have” on every contractor’s truck.

Her e’s wh y:

The toughest technology: Silicon Nitride

This second-generation material is far more durable than

original OEM igniters, making it less prone to breakage

when used in challenging installs.

Easier fit. Faster job.

The Glowfly’s optimized form factor enables quicker,

easier service calls. Glowfly has specifically been

designed for service replacement jobs.

Next-generation OEM silicon nitride

quality for any installation.

Glowfly brings the latest technology and OEM quality

to even the oldest furnaces.

Custom designed bracketing.

With six custom designed brackets and their seven

configurations, Glowfly fits most replacement igniter

applications.

The strongest warranty in the industry.

Glowfly is backed by Honeywell with a

three year warranty.

S ix br a ck e ts . 1 1 0+ p os s ib i li t ie s .

Every Glowﬂy comes fully equipped with six

cust om m ount ing brac kets that are opt imize d to

replace over 110 igniter applications from nearly

ever y fu rna ce ma nufa ctur er w ithou t mo diﬁc atio n.

Glow ﬂy i s a trad emark of Hone ywel l In tern atio nal Inc. All othe r br and and produ ct n ames sho wn a re tr adem arks of thei r res pect ive owne rs.

Glowﬂy

™

excels in furn aces from the lea ding man ufacture rs.

M at c h a nd mo u nt si m p li c it y.

Simp ly r emov e the old ign iter and com pare it w ith the

diag rams on Glow ﬂy’s u niqu e pa ckag ing guide to

dete rmin e th e co rrec t mou ntin g br acke t fo r th e job .

Av a il a b le as si n gl e u n it s or in co n ve n ie n t s i x- p ac k s.

Neve r be cau ght unpre pare d wi th Gl owﬂy ’s un ique truc k-re ady six- pack.

New s pecies, new exp er ience

Sales Collateral

TAM and Sales Material

Universal Electronic Aquastat

Acrylic Display

Acrylic Display that comes with L7224 Universal

Electronic Aquastat pre-mounted.

14"w x 5"d x 12"h

#63-9842

Electronic Oil Primary Display

Acrylic Display that comes with R7184

Electronic Oil Primary Control pre-mounted.

14"w x 5"d x 12"h

#63-9841

With Honeywell, you’ll have access to sales materials that you can use to help grow your business. To order

these and other residential combustion pieces visit literature.honeywell.com or customer.honeywell.com

Gas Controls Quick Reference Guide 63-9581G

OilControlsQuickReferenceGuide#63-9581O

Universal Gas Valve

S e l e c t o r G u i d e / C ro s s R e f e r e n c e

Tr a d e R ep l a c e me n t s

(D o u b l e- c h e c k s p e c i ﬁ ca t i o n s

be f o r e r e p l a ce m e n t )

Speciﬁcations Accessories

Competitive Replacement

(double-check speciﬁcations

before replacement)

Universal

Service

Part

Direct

Service Part

Rep lac eme nt

Opening

Ch ar ac t er is ti cs

(s ta nd a rd , st ep )

Inlet/Outlet

Size (in.)

Pressure

Regulator

Setting (psi)

Temperature

Range

Includes

Honeywell White-

Rodgers Robertshaw

Q340

Thermocouple

3/4" x 1/2"

Reducer

Bu s h i n g

Natural to LP

Conversion Kit

3/4"

Straight

Flange

1/2 " x 3 /8 "

Re d uc e r

Bu s h i n g

Remote

Rod

Adapter

SmartValve

S e l e c t o r G u i d e / C ro s s R e f e r e n c e

Speciﬁcations Cross-Reference

Ignition/

Application

Universal

Service Part

Opening

Characteristics

Ambient Temperature

Range

Includes

OEM Brands Replaces

Natural to LP

Conversion Kit

3/4" x 1/2"

Reducer Bushings

Extension

Harness

S e l e c t o r G u i d e / C ro s s R e f e r e n c e

Product

Number

Applications Timings Features and Functions Cross-Reference

Ignition

Sy ste m

Fl ame

Se nse r

Ig nit io n

Se que nc e

(N o t e 1)

Ignition

Trials To

Lo c k o u t

(N o t e 1)

Ignition

Tri a l

Time

(N o t e 1)

Between

Tri a l

Time

(N o t e 1)

Pr e-P ur ge

Flame

Fa ilu re

Response

Ti me

Type

Ga s

Ignition

So urc e

Typ i ca l

Ignition

Ha rdw ar e

In clu de s Hon ey wel l Whi te-

Ro dge rs R obe rt -Sh aw Johnson

Co ntr ol s

Universal Ignition Module

Residential

Combustion

Gas Controls

Quick Reference Guide

63-9581G PR

July 2009

Automation and Control Solutions

In the U.S.:

Ho ne yw e ll

1985 Douglas Drive North

Golden Valley, MN 55422-3992

In Canada:

Honeywell Limited

35 Dynamic Drive

Toronto, Ontario M1V 4Z9

www.honeywell.com

Learn More

Call toll-free 1-800-328-5111,

e-mail info@honeywell.com or

visit customer.honeywell.com.

Residential Tech Support: 1-800-468-1502

Burner Boiler Support: 1-888-516-9282

Residential Zoning: 1-800-828-8367

Customer Service: 1-888-793-8193

Sales Support: 1-800-828-8367

Canadian Technical Support: 1-800-405-9835

Canada Customer Care: 1-800-565-6282

2009-2010

S9 2 0 0 U 1 0 0 0 R e p l a c e s T h e s e I n te g r a t e d F u r n a c e C o n t r o l s

OE M B r an d SKU

Ama na 102 0 77 01 , 1 0 20 77 0 2, 1 0 20 7 70 3, 1 02 07 7 10

Goo dman

180 99 1 3, 1 8 09 9 -1 3S , B 18 0 99 6, B1 80 9 90 6 , B1 8 09 9- 6 , B1 8 09 9 -0 6,

B18 09 9 08 , B 18 0 99 -0 8 , B1 8 09 9 10 , B 18 09 9 -1 0, B1 8 00 99 1 0,

B18 00 9 9- 10 , B 1 80 99 1 3, B 1 80 9 9- 13 , B 18 0 99 13 S , B1 8 09 9- 1 3S ,

B18 00 9 91 3, B1 8 00 99 - 13 , C AR B 18 09 9 13 S

ICM I CM28 0

ICP 1 01 0 80 6, 13 8 0- 68 6 , 13 8 0- 6 99

Len nox 12 1 42 01

Nor dyne

624 55 7 , 62 4 55 7 0, 6 2 45 57 - 0, 62 45 6 4, 6 2 45 64 0 , 6 24 59 1 , 62 4 59 1A ,

624 59 1 -A , 6 24 5 91 -B , 6 24 5 91 -C , 6 24 59 1 -D, 62 4 62 8, 62 46 2 8- 0 ,

624 63 1 0, 6 2 46 3 1- 0, 62 46 3 1A , 6 24 6 31 -A , 6 24 6 31 - B, 7 10 1 28 A , 90 2 37 8,

902 69 6 , 90 3 10 6 , CA R 90 31 0 6

Rhe e m/ R ob e r t S h aw 62 - 24 26 8 -0 1 , 62 - 24 26 8 -0 2, 69 5 -2 00 , 6 2- 2 42 68 - 03

Texa s In s t ru m en t s 6DT- 1, 6 D T-2 , 61 F 3, 4 1 F- 5

Un it e d T ec hn ol og i es

10 1 2 -9 2 5A , 1 0 1 2- 9 25 B , 1 0 12 - 92 5 C, 1 01 2 - 95 5 A, 10 1 29 5 5 A, 10 1 2-

83 - 9 65 1 B, 1 01 2 -9 3 0, 1 01 2 93 3 D, 10 1 2- 9 33 D , 10 1 2- 8 3 -9 3 36 A HS C 1 ,

10 1 2 - 8 3 - 9 3 3 7 A

Whi te-R odg ers

50A 50 - 20 9, 50 A 50 -2 3 0, 5 0 T3 5 73 0, 50 T3 5 -7 30 , 5 0 T3 57 4 3, 5 0 T3 5- 7 43 ,

50A 55 - 12 0, 50 A 55 -2 8 6, 5 0 A5 5 -8 43 , 5 0A 5 0- 14 3 , 50 A5 0 -2 86 , 5 0A 5 0-

438 , 5 0A 50 - 20 5 , 50 A 50 -2 0 6, 50 A5 0 -2 07 ,

50A 50 - 14 2, 50 A 50 -1 1 0, 5 0 A5 0 -1 11 , 5 0A 5 0- 11 2 , 5 0A 50 - 11 3, 50 A5 0 -

296 , 5 0A 55 - 14 3 , 50 A 55 -2 8 8, 50 A5 0 -2 85 , 5 0A 5 5- 2 85 , 5 0A 50 - 28 8,

50A 50 - 40 8, 50 A 50 -2 4 1, 5 0 A5 5 -2 41

York

03 1 0 06 6 20 0 0, 0 31 - 00 6 62 - 00 0 , 0 3 1- 0 06 6 2 -7 0 0, 03 1 -0 1 1 40 - 00 0 ,

03 1 - 01 1 40 - 00 1 , 0 3 10 1 11 4 00 0 2 , 0 31 - 01 1 4 0- 0 02 , 0 3 1- 0 1 14 0 -7 0 1,

03 1 - 01 1 40 - 70 2 , 0 3 1- 0 12 3 4- 0 0 0, 03 1 -0 1 2 35 - 00 0 , 0 31 - 0 12 3 4- 7 00 , 03 1 -

01 2 3 5- 7 00 , 0 3 1 -0 1 25 0 -0 0 0, 0 31 - 01 2 66 - 0 00 , 3 1 -0 1 26 7 - 00 , 0 3 1- 0 1 26 7 -

00 0 , 0 3 1- 0 12 6 7 -0 0 1, 03 1 -0 1 2 67 - 00 1 A, 0 31 - 01 2 84 - 00 0 , 0 3 1- 0 19 3 3 -0 0 0,

03 1 - 01 9 72 - 00 0 , 0 3 1- 0 19 7 3- 0 0 0,

03 1 - 02 1 66 - 00 0 , 0 3 1- 0 91 6 6- 0 0 0, 03 1 -0 9 1 67 - 00 0 , 3 31 - 0 19 3 3- 0 00 ,

33 1 - 01 9 72 - 20 0 , 3 3 1- 0 91 6 7- 0 0 0, 43 1 01 9 7 21 0 0, 43 1 -0 1 9 72 -

10 0 , P 0 31 0 12 6 7 00 1 , P 03 1 -0 1 2 67 - 00 1 , P T H0 3 10 1 14 0 0- 0 0 ,

CA R 3 31 0 19 7 22 0 0 , C AR 0 31 0 19 7 3 00 0 , C AR 5 0 A5 5 84 3 , G 95 1 A DB 1 40 1 ,

G9 5 1 AD B 14 0 1C , G9 5 1A D B -1 4 01 C , G 9 51 A D B1 4 02 , G 9 51 A D B- 1 40 2 ,

G9 5 1 AE B -1 4 03 , 03 1 -0 0 66 2 , 0 3 1- 0 12 6 6- 0 0 0

S9200U1000Glowfly

™

Universal Hot Surface Igniter

Q3 2 0 0 U I g n it e r B r a c k e t Re p l a c e m e n t C ro s s R e f e r e n c e

Manufacturer OEM # Q3200U

Bracket Manufacturer OEM # Q3200U

Bracket

Ameri can R oad Equip . 201W AModine 5H7 6032A CTempst ar 1096048 D

Arco A ir 109604 8 DMor-Flo 3 200618 A

Trane

340039 P01 A

138068 0 511- 330-193 BB 138196P 01 B

Armst rong Air 38322B 001 A

Nordyn e

105141 000

B14467 6P01 A

Carri er/

Bryan t/

Payne

LH33ZS 001

B or E

632-07 70 B14 4676P02 B

LH33ZS 001A 6 32-0880 B3400 39P01 A

LH33ZS 002

Norto n/St Goba in

201 BIGN2 3 A

LH33ZS 002A 271 IGN26 B

LH33ZS 003 201D

IGN30 B

LH33ZS 003A 2 01K IG N34 A

LH33ZS 004 201 L Viess man 930 2-094 A

Claire Bro s. C -238 A201N Wayne Home

Equip.

62821- 001 A

C242 201R 6282 1-002

Colema n 1474-05 1 A201W

Weil M cLain

511-33 0-139

B1474-0 52 2 71N 511-3 30-190

Comfor t Ma ker 1096 048 D271NM D51 1-330-1 93

Detroi t Ra dian t 201D A271P AWhite LB 120-0 7549 A

DMO In d. 20 834 A271W

White- Rodgers

767A-3 01 A

Dornb ack F urna ce 2 71W ARaypa k 600915 B7 67A-303 F

Ducane 2001520 1 BRheem 6 2-22441- 01 A767A-3 06

AEnero Tec h 10399 ARoberts Gor don 904 34300 B767 A-311

Evcon 14 74-051 A90 436600 A76 7A-350

1474-0 52

Rober tshaw

41-402 A7 67A-353 F

Evcon Cole man 025-32 625- 000 B41 -403 B767A -354 A

Goodma n

B14010 09 D41-404 B7 67A-357 F

B14010 18 C41-405 A7 67A-361

AB14010 18S D41-40 7 B767A-36 4

HB Smi th 5 0018 A41-4 08 A767A-36 6

Heil 109604 8 D41-409 B76 7A-370 B

Hupp I ndus trie s 090 50 A41-410 A76 7A-371 A

Interc ity 10096 04 D41-412 D7 67A-372 A

109604 8 41-418 C7 67A-373 D

Majest ic 75-92- 104 ASnyde r Gen eral

138065 4

767A-3 76 B

75-92- 105 138 0672 76 7A-377 A

Metzge r 201N A1380 680 767 A-382 B

201W Su peri or Fi repl ace 94851 AWilliam son 9050 A

Y o r k

025-27 766-000

025-27 774-000

025-29 043-000

025-29 050-000

Thermocouple

S e l e c t o r G u i d e

Sp eci ﬁc at ion s Cross-Reference

Lead Length (in.) Super Tradeline Tradeline White-Rodgers Robertshaw Husky Johnson Controls

Thermopile

S e l e c t o r G u i d e

Speciﬁcations

Model Item Lead Length

(in.) Connection Tradeline/Super Tradeline Notes

ST9120U Universal Electronic Fan Timer

ST9120U replaces over 41 existing models

L7224U Universal Electronic Aquastat

Selection Guide

Product Number

Fuel Low Limit High Limit Features and Functions

Ga s Oil Op e r a t in g R an g e ,

Lo w L i mi t

Di f f e r en t i a l Te mp e r a tu r e ,

Lo w L i mi t

Op e r a t in g R an g e ,

Hi g h L im i t

Di f f e r en t i a l Te mp e r a tu r e ,

Hi g h L im i t Swi t c h i ng A c ti o n A n t ic i p a to r S et t i n g Mo u n ti n g

L7224U1002 •110˚ to 220˚ F 10˚ to 25˚ F adj. 130˚ to 240˚ F 5˚ to 20˚ F adj. 3 SPST: High and

Low Limit, Circulator 0.1 A V/H/F

Cross-Reference Guide

OS N u m be r Re p l ac e s M ou n t in g Or i e nt a t io n H i g h L i mi t H i gh L im i t D i f fe r e nc e L ow L im i t Lo w L i mi t D i f fe r e nc e

L7224U1002

L71 24 A 10 17 , L 7 12 4A 1 02 5, L7 2 24 A1 0 08 , L 72 24 A 10 1 6,

L81 24 A 10 07 , L 8 12 4A 1 01 5, L8 1 24 A1 0 49 , L 81 24 A 10 9 8,

L81 24 A 11 06 , L 8 12 4A 1 11 4, L8 1 24 A1 1 22 , L 81 24 A 11 3 0,

L81 24A1 155

Well Mounted – Vertical 130˚ to 240˚ F 10˚ F 110˚ to 220˚ F 10˚ to 25˚ F

L7124C1005, L7224C1004, L8124C1003, L8124C1011,

L81 24 C 10 29 , L 8 12 4C 1 09 4, L8 1 24 C1 1 02 Well Mounted – Horizontal 130˚ to 240˚ F 10˚ F 110˚ to 220˚ F 10˚ to 25˚ F

L7148A1019, L7248C1014, L8148A1009, L8148A1025,

L81 48 A 10 33 , L 8 14 8A 1 05 8, L8 1 48 A1 0 66 , L 81 48 A 10 7 4,

L81 48 A 10 82 , L 8 14 8A 1 09 0, L8 1 48 A1 1 16 , L 81 48 A 11 5 7

Well Mounted – Horizontal 180˚ to 220˚ F 15˚ F

L7148A1035, L7248C1006, L8148A1017, L8148A1065,

L81 48 A 11 24 , L 8 14 8A 1 14 0 Well Mounted – Horizontal 140˚ to 240˚ F 15˚ F

L71 48 A 10 50 , L 7 24 8A 1 00 0, L8 1 48 A1 1 57 Well Mounted – Vertical 180˚ to 220˚ F 15˚ F

L72 48C1 022 Flush Mounted – Vertical 140˚ to 240˚ F 15˚ F

Replacement Sensor

Part Number Length (in.)

50001464-001 12

50001464-004 36

50001464-005 48

Honeywell AquaReset

Product Selection

Product Name Part Number Includes Typical Applications

Honeywell AquaReset System L7224R1000 L72 24U A quas tat, Hone ywell Aqua Rese t Mod ule and W ired Sens or Install as a replacement when an existing boiler needs

a new cont rol.

Honeywell AquaReset Kit W8735S1000 Honeywel l Aq uaRes et M odul e and Wire d Sen sor Upsell as an ad d-on when ins talli ng a new boil er th at c omes from

the OE M wi th a n ena bled L722 4U or L72 48 Aq uast at.

Honeywell Domestic Hot Water Kit W8735S1008 DH W Mod ule and W ired Pipe Tempera ture Sens or Required to enable domestic hot water override on some

applic ations.

Selection Guide

Product Number

Fuel Low Limit High Limit Features and Functions

Ga s Oil Op e r a t in g R an g e ,

Lo w L i mi t

Di f f e r en t i a l Te mp e r a tu r e ,

Lo w L i mi t

Op e r a t in g R an g e ,

Hi g h L im i t

Di f f e r en t i a l Te mp e r a tu r e ,

Hi g h L im i t Swi t c h i ng A c ti o n A n t ic i p a to r S et t i n g Mo u n ti n g

L7224R1000 •110˚ to 220˚ F 10˚ to 25˚ F adj. 130˚ to 240˚ F 5˚ to 20˚ F adj. 3 SPST: High and

Low Limit, Circulator 0.1 A V/H/F

Cross-Reference Guide

OS N u m be r Re p l ac e s M ou n t in g Or i e nt a t io n H i g h L i mi t H i gh L im i t D i f fe r e nc e L ow L im i t Lo w L i mi t D i f fe r e nc e

L7224R1000

L7124A1017, L7124A1025, L7224A1008, L7224A1016,

L8124A1007, L8124A1015, L8124A1049, L8124A1098,

L8124A1106, L8124A1114, L8124A1122, L8124A1130,

L81 24A1 155

Well Mounted – Vertical 130˚ to 240˚ F 10˚ F 110˚ to 220˚ F 10˚ to 25˚ F

L7124C1005, L7224C1004, L8124C1003, L8124C1011,

L81 24 C 10 29 , L 8 12 4C 1 09 4, L8 1 24 C1 1 02 Well Mounted – Horizontal 130˚ to 240˚ F 10˚ F 110˚ to 220˚ F 10˚ to 25˚ F

L7148A1019, L7248C1014, L8148A1009, L8148A1025,

L8148A1033, L8148A1058, L8148A1066, L8148A1074,

L81 48 A 10 82 , L 8 14 8A 1 09 0, L8 1 48 A1 1 16 , L 81 48 A 11 5 7

Well Mounted – Horizontal 180˚ to 220˚ F 15˚ F

L7148A1035, L7248C1006, L8148A1017, L8148A1065,

L81 48 A 11 24 , L 8 14 8A 1 14 0 Well Mounted – Horizontal 140˚ to 240˚ F 15˚ F

L71 48 A 10 50 , L 7 24 8A 1 00 0, L8 1 48 A1 1 57 Well Mounted – Vertical 180˚ to 220˚ F 15˚ F

L72 48C1 022 Flush Mounted – Vertical 140˚ to 240˚ F 15˚ F

Residential

Combustion

Oil Controls

Quick Reference Guide

63-9581O PR

October 2009

Automation and Control Solutions

In the U.S.:

Ho ne yw e ll

1985 Douglas Drive North

Golden Valley, MN 55422-3992

In Canada:

Honeywell Limited

35 Dynamic Drive

Toronto, Ontario M1V 4Z9

www.honeywell.com

Learn More

Call toll-free 1-800-328-5111,

e-mail info@honeywell.com or

visit customer.honeywell.com.

Residential Tech Support: 1-800-468-1502

Burner Boiler Support: 1-888-516-9282

Residential Zoning: 1-800-828-8367

Customer Service: 1-888-793-8193

Sales Support: 1-800-828-8367

Canadian Technical Support: 1-800-405-9835

Canada Customer Care: 1-800-565-6282

2009-2010

Selection Guide

Ignition

Type

Universal

Service

Part

Direct

Service Part

Replacement

Speciﬁcations (Direct and Universal Parts to Left) Cross-Reference

Lockout

Time

(sec.)

Valve On

Delay (sec.)

Blower Off

Delay (min.)

Alarm

Contacts

Manual Trip Lever

w/ LED Indicator Honeywell Carlin White-Rodgers Beckett

Interrupted

R7184U1004

0/15 0/2/4/6 Yes

Yes

R7184P1031, R7184P1049,

R7184P1056, R7184P1064,

R7184P1072

50200-02S, 602000-2S,

6020002S015120,

6020002S030015,

6020002S030030,

6020002S030120,

6020002S030300,

6020002S030010

7505P125M

R7184A1026 R7184A1075, R7184A1000 40200-02S 669-640, 669-670 7505A0000

R7184B1024 15 R7184B1032, R7184B1016 7505B1500

R7184P1098 15 0.25 R7184P1080 7505P1515

R7184U1012

0/15 0/2/4/6 Yes

R7184A1034 R7184A1018 42230-02S 669-440, 669-445,

669-470, 669-540

R7184U1020

0/15 0/2/4/6 Yes

R7184A1042

Intermittent

R7184U1004 R8184G4066 15 Yes R8184G1294, R8184G4045,

R8184G4090 668-601, 668-670 7505A0000

R7184U1012 R8184G4074 30 Yes R8184G1393, R8184G1302,

R8184G4074, R8184G4033 668-501

R7184U1020 R8184G4009 45 Yes Yes

R8184G1286, R8184G1427,

R8184G4025, R8184G4082,

R8184G1458

48245-S 668-401, 668-415,

668-430, 668-515

R7184U Universal Electronic Oil Primary

Selection Guide

Product

Number

CAD

Cells (1)

Lead

Length

(in.)

Wire

Termination

Mounting

Bracket Includes Tradeline

Value Replaces

White-Rodgers Westwood

C554A1315 120320 30 Stripped Type B Tradeline

C554A1463 130367 60 2 Flag 1/4" QC Type R A, B, E, J and P Mounting

Brackets and Fuel Line Adaptor

Super

Tradeline

C554A1307, C554A1315, C554A1398,

C554A1133, C554A1174, C554A1372,

C554C1570, C554A1216, C554A1927,

C554A1794

956-154 TMK-60

C554A1794 130367 60 Stripped Type R E Mounting Bracket

and Fuel Line Adaptor Tradeline C554A1307, C554A1927 956-1

956-154 TMK-60

Cad Cell

Capture a whole new species

of ignition excellence.

Glow fly

™

Universal Hot Surface Igniter

GlowflyBrochure#67-7316

Glowﬂy™ Point-of-Purchase (POP)

Flashlight Display

Cardboard counter top or shelf display that

holds six Glowﬂy six packs and six single packs.

21.75"w x 10.75"d x 11.5" h

#67-7338

Learn More

Call toll-free 1-800-328-5111,

e-mail info@honeywell.com or

visit customer.honeywell.com.

Automation and Control Solutions

In the U.S.:

Honeywell

1985 Douglas Drive North

Golden Valley, MN 55422-3992

In Canada:

Honeywell Limited

35 Dynamic Drive

Toronto, Ontario M1V 4Z9

www.honeywell.com

63-9575 PR

October 2009

53802 Catalog

53802-Catalog 53802-Catalog 53802-Catalog Batch12 unilog cesco-content

Navigation menu

Versions of this User Manual:

Views

Navigation
