Guide to Integration
Security & Automation / Energy Management /
Entertainment / AV / Networking
Welcome to Leviton 01
Welcome Letter and Introduction 01
Welcome To Leviton Integration Guide 02
Residential Solutions 04
Light Commercial Solutions 06
Mixed-Use Solutions 08
Safety & Security 10
Common Automation Questions 14
Global Solutions 15
Omni Automation Systems 16
Omni Accessories 18
Wireless Security Sensors 22
Access Control 24
Video Surveillance 26
VOIP Intercom 27
Omni Interfaces 28
Energy Management 30
Lumina RF Energy Management 34
Temperature Control and Monitoring 36
HAI Lighting Control 42
Wireless Lighting Control 48
Vizia RF + Lighting Control 50
Omni-Bus Lighting Control 54
VerifEye™ 62
Entertainment 66
Multiple Zones to Suit Your Lifestyle 69
Hi-Fi 2 Distributed Audio 70
Speakers 74
In-Wall/In-Ceiling JBL Speakers 76
In-Wall/In-Ceiling Spec-Grade Speakers 77
JBL Outdoor Speakers 78
Home Theater Speakers 79
Audiovisual Solutions 80
Introduction 83
BitWise™ Controllers 84
AV Signal Extension 86
Multimedia Outlet System 90
QuickPort® Wallplates & Housings 94
Audio Accessories 96
Video Accessories 98
Structured Media® 100
Introduction 103
Populating the Structured
Media Enclosure 104
Enclosures 106
Mounting Brackets, Cabinet Patching
Solutions, & Accessories 112
Routers & Power 114
Panels 116
Modules & Expansion Boards 118
Video Distribution, Splitters,
& Networking Connectors 120
Wallplates
Introduction 125
Renu® & QuickPort 126
Decora & QuickPlate® 128
Home Theater Receptacles 130
Leviton Support 132
Communication 134
Comparison Charts 138
Wiring Charts and Diagrams 142
Index 158
Index by Part Number 158
Index by Product Type 172
LEVITON GUIDE TO INTEGRATION
I would like to thank you for your continued business and support! Leviton oers award-winning internet-connected
security, audio/video, and energy management solutions. Combined with structured media, distributed audio, and a full
line of speakers, plus wireless sensors, access control, lighting and HVAC controls, and smart grid products, the result
is a comprehensive integration solution covering everything from data and connectivity backbones to energy metering.
Last year was our best ever. We enhanced our AV control portfolio with the acquisition of BitWise Controls, and grew our
Omni-Bus DIN-rail lighting controls business with the acquisition of ClickOn Technologies. We integrated our Omni controllers
with Leviton’s commercial hardwired lighting controls and updated our Snap-Link Mobile apps. New features were added
to all of our controllers and provided to our Dealer customers as a no-charge software update. And to keep these
advancements easy to obtain, we created a new Dealer-only support website with the technical and marketing downloads
that systems integrators need to succeed. International customers now have Omni security and automation controllers
that meet strict standards for Europe and the United Kingdom. BitWise customers get new drivers and integration
with Omni, Hi-Fi2, Omni-Bus and more for creating customizable apps and touchscreens.
This year, we are excited to open new opportunities to our customers with easy to install products for small commercial
and hospitality marketplaces with a complete technology infrastructure. The wireless Lumina Gateway is a cost-eective
energy manager that provides fast Return On Investment (ROI) and remote access using a free app for controlling
multiple business locations. New AV extension solutions deliver high quality signals over category-rated cable for ease
of use in conference rooms and seminar spaces. Check out the new Omnistat3 hotel room thermostat that can control
lighting and other items in hospitality settings plus meets Title 24 requirements.
Be sure to sign up for our Dealer program at http://dealer.leviton.com for enhanced support as we continue our successful
growth together!
Sincerely,
Richard P. Westfall
Vice President / General Manager
Letter from the Vice President
Integration Guide I LEVITON.COM
2
WELCOME TO LEVITON
INTEGRATION GUIDE
FOR TECHNICAL SUPPORT CALL: 1-800-824-3005 Integration Guide I 3
WELCOME TO LEVITON
INTEGRATION GUIDE
Bringing Everything Together
Leviton brings decades of automation and connectivity
knowledge to provide the proper solution for homes
and commercial buildings. The comprehensive
integrated product line means there is a system
for every budget. Each year, Leviton garners more
recognition for developing and implementing
innovative solutions.
04 Residential Solutions
06 Light Commercial Solutions
08 Mixed-Use Solutions
Integration Guide I LEVITON.COM
4
INTRODUCTION
INTRODUCTION | Welcome to Leviton
1
4
2
3
9
SAFETY & SECURITY
Professional quality UL
Listed security is built into
Omni family controllers.
1
LIGHTING CONTROL
Set warm, pleasant
moods for dining, movies,
or entertaining. Have lights
automatically turn on when
arriving home and provide
passive security for the “lived-in”
look when on vacation.
3
CONNECTIVITY /
WALLPLATES
From entertainment
to security systems, easily
integrate connections like
ethernet, speaker, HDMI, USB,
and stereo-jacks for unparalleled
connected home connectivity.
2
Residential Solutions
Leviton oers everything needed for total home automation technology control. From surveillance
and security to energy ecient lighting and power to comprehensive entertainment systems,
Leviton security, connectivity, and automation innovations help create the ideal, stress-free home.
FOR TECHNICAL SUPPORT CALL: 1-800-824-3005 Integration Guide I 5
INTRODUCTION
6
8
5
7

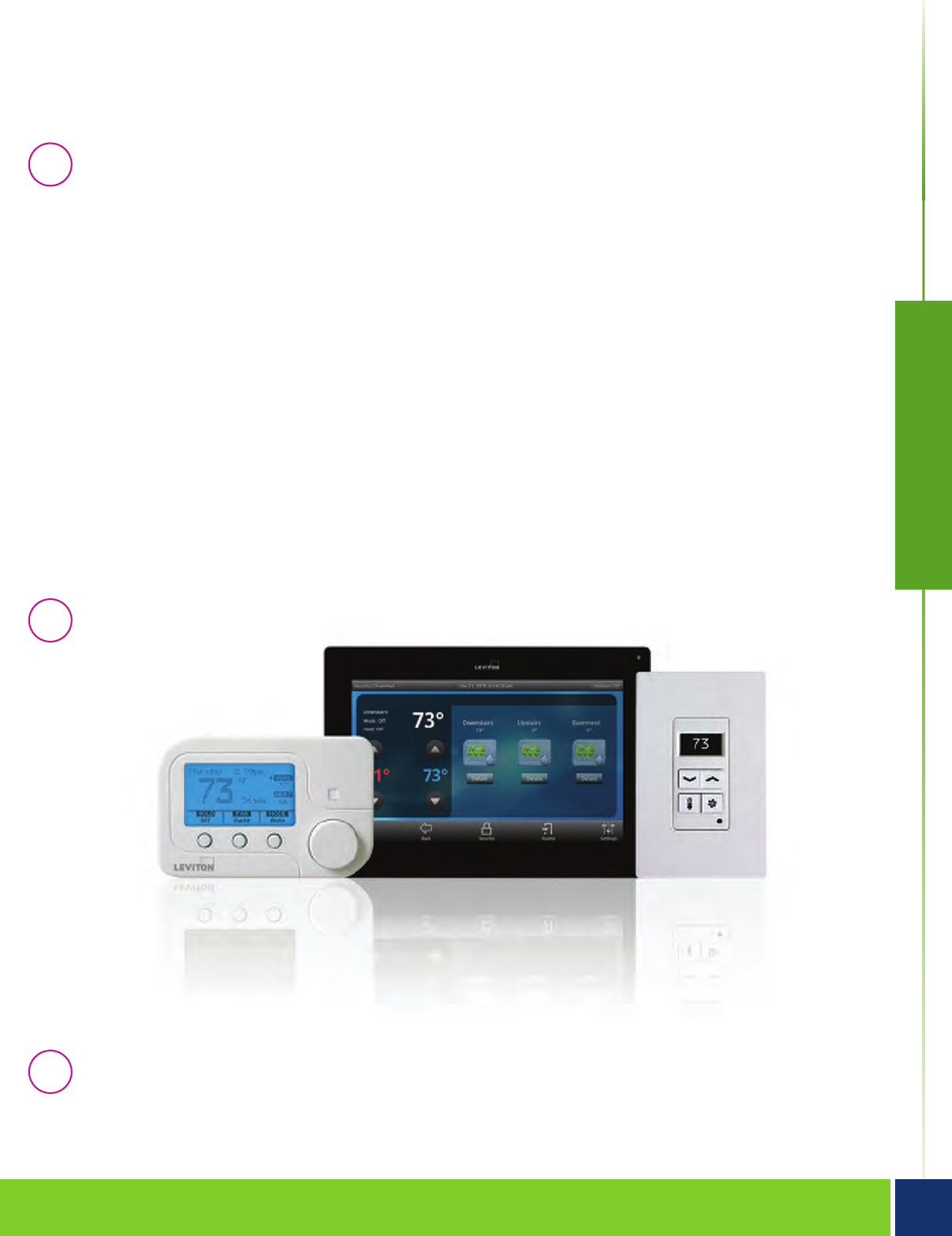

TEMPERATURE CONTROL
& MONITORING
Be comfortable and save
energy while away. Smart
phone app allows control of
temperatures in greenhouses,
humidors, wine cellars,
aquariums, and attics.
8
AUTOMATION
Check and
adjust security,
temperatures,
and lights via
An OmniTouch
Touchscreen or any
smartphone or tablet.
9

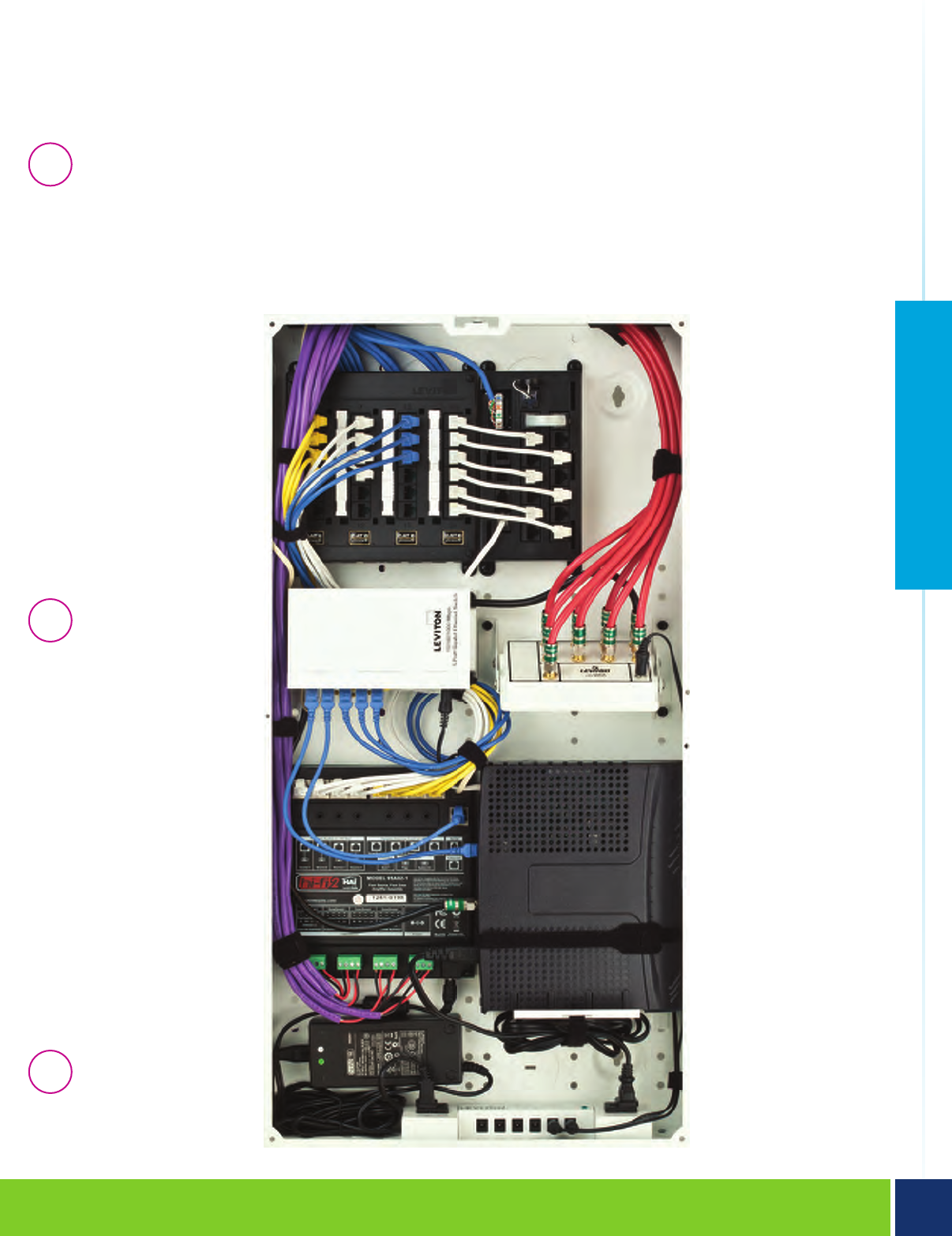

STRUCTURED MEDIA
In-suite solution for best in
class networking.
6
HOME THEATER
Use an iPad® to create a
full cinema experience (control
audiovisual equipment, lower
projection screens, and close window
coverings).
7
WHOLE-HOUSE AUDIO
Share music throughout every room
in the home. Use Bluetooth® to distribute
streaming or stored music via a tablet or
smartphone.
5
HIGH-SPEED NETWORKING
Access the Internet
anywhere in the home.
Surf the web, stream movies,
play games or remotely monitor
and control the home with a
smartphone or tablet.
4
INTRODUCTION
Integration Guide I LEVITON.COM
6
INTRODUCTION | Welcome to Leviton
Light Commercial Solutions
Leviton combines high-quality performance with easy-to-use devices to provide comprehensive
building automation and remote audiovisual network management. Maximize energy savings and
safety by integrating security, energy management, and network devices, all with remote access
control from a smartphone or tablet.
2
3
4
HIGH-SPEED NETWORKING
Access the Internet anywhere
in the building with high-speed
Gigabit networks. Search the web,
review presentations, check email,
or remotely monitor the oce from a
smartphone or tablet.
4
DISTRIBUTED AUDIO
Use Bluetooth® to provide music
throughout every zone in the building.
3
CONNECTIVITY / WALLPLATES
From entertainment to security
systems, easily integrate
connections like Ethernet, speaker,
HDMI, USB, and Mini-Jacks for
unparalleled reliable connectivity.
2
TEMPERATURE CONTROL
Be comfortable during operational
hours and save energy while
away. Control temperatures in oces,
storerooms, and reception areas.
1
INTRODUCTION
FOR TECHNICAL SUPPORT CALL: 1-800-824-3005 Integration Guide I 7
1
5
9
6 7
10
8
TELECOMMUNICATIONS ROOM
Manage all network infrastructure devices from one
easy-to-access, secure, central location. Support easy
moves, adds, and changes.
9
CONFERENCE ROOM AUDIOVISUAL
Display high-definition video, control audiovisual
equipment, lighting, and window coverings.
10
6
COMMERCIAL LIGHTING
Control commercial
lighting, including signage,
interior and exterior lights, even
table lamps.
5
DIGITAL SIGNAGE
Use a tablet or smartphone to
control audiovisual equipment, lower
projection screens, manage lobby displays,
and open/close window coverings.
7
SAFETY & SECURITY
Professional quality UL Listed
security is built into Omni
controllers and integrates with
surveillance cameras and access
control.
8
ENERGY MANAGEMENT
Use Lumina RF to
wirelessly control
ventilation, fans, pumps,
generators, foutains and
other high-draw devices.
INTRODUCTION
Integration Guide I LEVITON.COM
8
INTRODUCTION | Welcome to Leviton
15
6
2
4
Mixed-Use Solutions
Leviton delivers innovative solutions for comprehensive management of mixed-use buildings.
From energy ecient automation to complete audiovisual networks, Leviton security, connectivity,
and lighting and power devices help create a perfectly balanced residential/commercial environment.
SAFETY & SECURITY
Professional quality UL Listed
security is built into Omni
controllers and integrates with
existing surveillance cameras and
security systems.
1
CONNECTIVITY / WALLPLATES
From entertainment to security
systems, easily integrate
connections like Ethernet, speaker,
HDMI, USB, and Mini-Jacks for
unparalleled reliable connectivity.
2
TEMPERATURE CONTROL
Be comfortable during operational
hours and save energy while
away. Control temperatures in oces,
storerooms, and reception areas.
3
HIGH-SPEED NETWORKING
Access the Internet
anywhere in the home.
Surf the web, stream movies,
play games, or remotely monitor
and control the home with a
smartphone or tablet.
4
INTRODUCTION
FOR TECHNICAL SUPPORT CALL: 1-800-824-3005 Integration Guide I 9
8
3
7
WHOLE-HOUSE AUDIO
Share music throughout every room in the
home. Use Bluetooth® to distribute streaming
or stored music via a tablet or smartphone.
7
STRUCTURED MEDIA
In-suite solution for best-in-class
networking.
6
ENERGY MANAGEMENT
Use Lumina RF to wirelessly control ventilation,
fans, pumps, generators, fountains and other
high-draw devices.
5
DIGITAL SIGNAGE
Use a tablet or smartphone to
control audiovisual equipment, lower
projection screens, manage lobby displays,
and open/close window coverings.
8
Integration Guide I LEVITON.COM
10
SAFETY & SECURITY
FOR TECHNICAL SUPPORT CALL: 1-800-824-3005 Integration Guide I 11
Safety & Security
Leviton oers a complete suite of products designed
to provide peace of mind. Whether checking an event
log from a smartphone, watching video surveillance
on an iPad®, or restricting access to a secure area,
Leviton has you covered.
14 Common Automation Questions
15 Global Solutions
16 Omni Automation Systems
18 Omni Accessories
22 Wireless Security Sensors
24 Access Control
26 Video Surveillance
27 VOIP Intercom
28 Omni Interfaces
Integration Guide I LEVITON.COM
12
SAFETY & SECURITY
A Leviton Omni control system takes the place of
a standard security system. Integrate video surveillance,
access control and wireless door locks for a secure
property that’s accessible from a tablet or smartphone.
SECTION NAMESAFETY & SECURITY
FOR TECHNICAL SUPPORT CALL: 1-800-824-3005 Integration Guide I 13
Omni Security & Automation Controllers
Omni control systems keep the entire property safe around the clock, coordinating virtually everything
for enhanced energy savings, safety, and entertainment. Omni automation systems are dedicated
security alarm panels, featuring built-in UL Listed, CP-01 compliant security and fire systems to detect
intrusion, smoke and fire, carbon monoxide, water, vehicles, and other hazards through wired and
wireless sensors. EN50131 and PD662 versions are available for EU and UK compliance.
Prevent unauthorized access to sensitive areas or entire buildings by controlling doors and gates.
Incorporate surveillance cameras or wireless door locks for enhanced safety. If a built-in security system
is not desired, use Leviton’s energy-saving Lumina Gateway or AV-Focused BitWise automation system.
Utilize Many Technologies and Protocols
Omni systems are versatile, controlling small condos with the same quality equipment capable of
controlling warehouses. The scalable solution means you can add new features whenever you want,
using a wide variety of open protocols. The reliable Omni automation controller is the brain of the
property, coordinating ZigBee®, Z-Wave®, UPB™, KNX®, DALI, and many more standard home and
building automation protocols to enhance energy savings and increase safety.
Automate to Simplify Life
Based on schedule or event, automate systems including security, access control, HVAC, lighting,
irrigation, ventilation, pumps, fountains, window coverings, and more. Leviton automation systems can
turn o lights, fans, water heaters, fountains and pool pumps when the property is unoccupied to save
money. Push one button at night to turn o lights, turn o AV equipment, close window coverings, lower
temperatures, lock doors, etc.
Remote Access: Anywhere, Anytime
Omni automation systems provide remote access, allowing one to view live surveillance footage,
unlock a door, view event logs, or activate the alarm at any time from a tablet, smartphone, or PC
with zero monthly fees. Utilize an Omni Notifier to receive email or SMS text alerts based on energy
or security events.
SAFETY & SECURITY
Integration Guide I LEVITON.COM
14
SAFETY & SECURITY | Common Automation Questions
What automation platforms
exist?
If UL listed security and access control is desired,
utilize the safety-focused Omni security &
automation systems. The Lumina Gateway eco-
system focuses on wireless energy management
for small commercial properties. The BitWise AV
control systems oer a customizable platform
for commercial and residential.
What is Automation?
Comprehensive automation can coordinate
security, temperatures, lighting, and audio/
video automatically for safety, energy savings,
and convenience. Dimming lights and changing
heating and cooling setpoints while away can
greatly reduce energy costs. Remote access lets
the user view security video, dim lights, or lower
temperatures via a mobile device.
Is the system easy to understand
and operate?
Yes. Easy-to-recognize icons allow manual control
from familiar devices. Children and new employees
alike can learn and understand how to use basic
features of the system. Day-to-day events are
controlled with one button. Don’t forget, many
home or business functions are automated based
on schedule or common event.
Can the system
expand easily?
Yes. Leviton has partnered
with many other companies
in related industries so you
can expand and customize
the automation system now,
or at any time in the future.
Is the system aordable?
Yes. Leviton oers an integrated system for
every lifestyle. Price depends on the size of the
home or business and options that are desired.
Common automation questions and answers
SAFETY & SECURITY
FOR TECHNICAL SUPPORT CALL: 1-800-824-3005 Integration Guide I 15
Multi-language support
Omni security & automation control systems,
programming software, and interfaces are available
in a wide variety of world languages to suit
international as well as domestic markets.
Leviton aims to make an automation system
comfortable and familiar for every user and
has security & automation systems available
in several languages. For instance, Snap-Link
Mobile app for iPhone®, iPad®, and iPod® Touch®
is available in seventeen dierent languages:
Arabic, Catalan, Chinese (Simplified and
Traditional), Croatian, Dutch, English, French,
German, Greek, Hebrew, Italian, Portuguese,
Russian, Spanish (European and Latin American),
and Turkish.
Leviton has global sales oces and a team
of knowledgeable sales managers and
representatives to serve your market.
Leviton conducts international trainings
and invites you to our hands-on New Orleans
factory training.
International market support
As part of our continuing endeavor to support
international markets, Leviton acquired Omni-
Bus DIN Rail Lighting Technology and BitWise
Controls.
EN50131 and PD6662 Compliant
Additionally, in 2015 we have developed a
specialized security system that meets the
needs of the European and specifically British
markets with Level 2 EN50131 as well as PD6662
compliance for police response. Special part
numbers are available for OmniPro II, Omni IIe,
Omni LTe, Expanders, and Consoles. Utilize
Leviton’s Omni-Bus for DIN Rail lighting control
or tie in to DALI and KNX systems.
Leviton provides global automation solutions
Above: Snap-Link
iOS® app in Italian
The International Omni Console features language neutral
symbols to serve a full range of markets.
SAFETY & SECURITY
Integration Guide I LEVITON.COM
16
SAFETY & SECURITY | Omni Automation Systems
Omni Automation Systems – Controllers
E, E1
A, A1 B
D
C
PRODUCT INFORMATION
Description Features Cat. No.
[A] OmniPro II Controller The flagship Leviton home automation controller. Includes the OmniPro II
controller with enclosure, lock set with two keys, RJ31X cord and jack, manuals.
Part 20A00-2 is English language. For other available languages add language
code to part number: French (FR) and Latin American Spanish (SPA).
20A00-2
[A1] European OmniPro II
in Enclosure
EN50131 Grade 2 and PD6662 Compliant. (Italian language version - OP202-9IT
also available).
0P202-900
[B] OmniPro II
Commercial
Controller
OmniPro II controller with commercial attack–proof enclosure, lock set with two
keys, RJ31X cord and jack, manuals. Available in English.
20A00-5
[C] OmniPro II – Board
Only
OmniPro II controller board only. Part 20A00-21 is English language. For other
available languages, add language code to part number: Catalan (CAT), French (FR),
Italian (IT), Latin American Spanish (SPA), and European Spanish (SPE), *Arabic (AR),
*Simplified Chinese (CHS), *Traditional Chinese (CHT), *German (GER), *Hebrew (HE),
*Portuguese (POR), *Russian (RU).
20A00-21
[D] OmniPro II Controller
for Leviton
Structured Media
Center
OmniPro II controller on mounting plate for structured wiring enclosures, RJ31X
cord and jack, manuals, accessory kit, wiring diagram for enclosure door. Part
20A00-8 is English language. For other available languages add language code to
part number: Catalan (CAT), French (FR), Italian (IT), Latin American Spanish (SPA),
and European Spanish (SPE), *Arabic (AR), *Simplified Chinese (CHS), *Traditional
Chinese (CHT), *German (GER), *Hebrew (HE), *Portuguese (POR), *Russian (RU).
20A00-8
[E] Omni IIe Controller Omni IIe controller with enclosure, lock set with two keys, RJ31X cord and jack,
manuals. For other available languages, add language code to part number:
Latin American Spanish (SPA).
20A00-50
[E1] European Omni IIe in
Enclosure
EN50131 Grade 2 and PD6662 Compliant. (Italian language version - 20A50-9IT
also available).
20A50-900
*English controller with translated manuals and labels. Mobile interfaces available.
SAFETY & SECURITY
FOR TECHNICAL SUPPORT CALL: 1-800-824-3005 Integration Guide I 17
Omni Automation Systems – Controllers
E
A B C, C1
D
C
PRODUCT INFORMATION
Description Features Cat. No.
[A] Omni IIe
Controller for
Structured
Wiring
Enclosures
Omni IIe controller on mounting plate for structured wiring enclosures, RJ31X cord and
jack, manuals, accessory kit, wiring diagram for enclosure door. Part 20A00-52 is English
language. For other available languages add language code to part number: Catalan (CAT),
French (FR), Italian (IT), Latin American Spanish (SPA), and European Spanish (SPE), *Arabic
(AR), *Simplified Chinese (CHS), *Traditional Chinese (CHT), *German (GER), *Hebrew (HE),
*Portuguese (POR), *Russian (RU).
20A00-52
[B] Omni IIe –
Board Only
Omni IIe controller board only. Part 20A00-53 is English language. For other available
languages add language code to part number: Catalan (CAT), French (FR), Italian (IT), Latin
American Spanish (SPA), and European Spanish (SPE), *Arabic (AR), *Simplified Chinese (CHS),
*Traditional Chinese (CHT), *German (GER), *Hebrew (HE), *Portuguese (POR), *Russian (RU).
20A00-53
[C] Omni LTe
Controller
Omni LTe controller with enclosure, lock set with two keys, RJ31X cord and jack, manuals.
Part number 20A00-70 is English language. For other available languages add language
code to part number: French (FR) and Latin American Spanish (SPA).
20A00-70
[C1] European
Omni LTe in
Enclosure
EN50131 Grade 2 and PD6662 Compliant. (Italian language version - 20A70-9IT also
available).
20A70-900
[D] Omni LTe
Controller for
Structured
Wiring
Enclosures
Omni LTe controller on mounting plate for structured wiring enclosures, lock set with two
keys, RJ31X cord and jack, manuals. Part number 20A00-72 is English language. For other
available languages add language code to part number: Catalan (CAT), French (FR), Italian
(IT), Latin American Spanish (SPA), and European Spanish (SPE), *Arabic (AR), *Simplified
Chinese (CHS), *Traditional Chinese (CHT), *German (GER), *Hebrew (HE), *Portuguese (POR),
*Russian (RU).
20A00-72
[E] Omni LTe –
Board Only
Omni LTe controller board only. Part 20A00-73 is English language. For other available
languages add language code to part number: Catalan (CAT), French (FR), Italian (IT), Latin
American Spanish (SPA), and European Spanish (SPE), *Arabic (AR), *Simplified Chinese (CHS),
*Traditional Chinese (CHT), *German (GER), *Hebrew (HE), *Portuguese (POR), *Russian (RU).
20A00-73
*English controller with translated manuals and labels. Mobile interfaces available.
SAFETY & SECURITY
Integration Guide I LEVITON.COM
18
SAFETY & SECURITY | Omni Accessories
Omni Accessories
A B
D
C, C1 E
PRODUCT INFORMATION
Description Features Cat. No.
[A] 16 Zone Hardwire
Expander
Terminals are provided for 16 additional zones that can be programmed for
burglary, fire, temperature or auxiliary inputs (for use with all Leviton controllers
except Omni LTe and Omni LT.)
10A06-1
[B] Expansion Enclosure 16 Input/16 Output Expansion Board with enclosure, lock set with two keys,
accessory kit, instructions. Reduces wiring use in larger installations (for OmniPro II).
Can be remotely located from controller. Provides additional battery-backed power
for security and temperature sensors.
17A00-1
[C] 16 Zone/16 Output
Expansion
16 Zone Input/16 Output Expansion Board on a universal mounting plate with
accessory kit, instructions for installation in structured wiring enclosures (for
OmniPro II). Can be remotely located from controller. Provides additional battery-
backed power for security and temperature sensors.
17A00-9
[C1] European 16 Zone/16
Output Expander
EN50131 Grade 2 and PD6662 Compliant. 0A179-9EU
[D] Expansion Board Only 16 Input/16 Output Expansion Board only (for OmniPro II). Can be remotely located
from controller. Provides additional battery-backed power for security and
temperature sensors.
17A00-8
[E] Omni Notifier Add email and text notifications with zero fees to your home or business. Use
with a new or legacy Leviton automation system. Simply plug in the email and text
notification module to a network and any current Leviton Omni control system
via the RS-232 port. Mount the board directly over the controller using provided
standoffs. No service contracts required, yet you can remain in constant contact
with your property, having it notify you of special events or emergencies.
20A30-1
[F] PC Access Software Required setup software for Omni Systems. 1105W
1106
SAFETY & SECURITY
FOR TECHNICAL SUPPORT CALL: 1-800-824-3005 Integration Guide I 19
Omni Accessories
PRODUCT INFORMATION
Description Features Cat. No.
[A] 1. Omni Console
2. Omni Console with Built-in
Speaker/Microphone
3. International Market Omni Console
4. International Market Omni Console
with Built-in Speaker/Microphone
Cool blue LCD surface mount console, connector kit,
instructions. Controls security, lighting, temperatures, buttons,
events, setup and other functions. International versions feature
easy to understand symbols rather than text. Parts 33A00-4
and -24 require the Two-Way Voice Module (Leviton part #10A11-
1). See special wiring instructions in wiring section.
33A00-1
33A00-4
33A00-23
33A00-24
[A1] European Console Tamper Kit For use with 33A00 series consoles in EN50131 Grade 2 and
PD6662 applications.
ENTMP-9EU
[B] Flush Mount Kit White flush mount back box for use with 33A00-1, 33A00-4,
33A00-19, 33A00-20, 33A00-23, 33A00-24, 33A00-25, and
33A00-26 consoles and keypads (not included). Includes
mounting bracket, instructions.
33A00-3
[C] 1. Surface Speaker Microphone
2. Flush Speaker Microphone
A speaker and microphone assembly that allows two-way
communication with a central station after an alarm, paging and
listening from an on-premises or remote phone, annunciation of
alarm and zone by voice, and voice messaging when connected
to a Two-Way Voice Module (Leviton part #10A11-1). Includes
speaker and microphone, surface mount enclosure, instructions.
28A00-1
28A00-2
[D] Two-Way Voice Module Talk or listen through the telephone interface either locally
or remotely. Have your system announce messages based
on events in the house. For example, “guest at door” or “back
door open”. Includes two-way voice board, mounting material,
and instructions. Use with the 33A00-4 or 33A00-24 consoles,
33A00-20 keypad, 28A00-1 Surface Speaker/Mic, or 28A00-2
Flush Speaker/Mic.
10A11-1
[E] ZigBee® Interface Module (ZIM) Wireless interface and coordinator for Lumina RF products. Plugs
into serial port on Leviton Omni family controller and allows
control of Leviton Wireless Energy Management Components.
Display helps setup and installation of wireless systems. Uses
Lumina RF wireless communication. Six foot cable included.
Powered by the Leviton Omni controller.
81A00-3WHZB
A A1 B
*Console not included.
C
D
E
USE WITH OMNI
CONTROLLERS
SAFETY & SECURITY
Integration Guide I LEVITON.COM
20
SAFETY & SECURITY | Omni Accessories
Omni Accessories
E
A
1.
2. B
DC
PRODUCT INFORMATION
Description Features Cat. No.
[A] RS-232/RS-485
Serial Board
Allows an Omni controller to be connected to a personal computer or other
system to exchange data and commands. The controller can be accessed
continuously and in real time through the interface without affecting the
operation of the controller. Includes RS-232/485 serial board, accessory kit, 20 pin
cable, instructions.
10A17-1
[B] 1. Four Relay Module
2. Eight Relay
Module
Relay Modules are used to convert voltage outputs to Form C relay contacts
for switching pumps, motors, commercial lighting, remote control breakers, and
sprinkler systems. For use with Omni controllers.
10A07-1
19A00-1
[C] Universal Mounting
Plate
Mounting plate, hardware kit & instructions. Used to mount Leviton’s Omni Hi-Fi 2
main board assemblies, expanders, and accessories for installation in structured
wiring enclosures.
20A07-2
[D] Enclosure Lock
and Two Keys
Lock for enclosure and pair of matching keys. Included with 17A00-1 and 95A09-1. 21A06-1
[E] Hardwired Load
Control Module
20 AMP Relay Module that connects directly to voltage outputs on Leviton home
controllers and expanders and includes a manual override switch. Can control 120,
240, or 277VAC loads. Ideal for lighting control in small commercial environments.
Requires 120V and neutral wires.
72A00-1
SAFETY & SECURITY
FOR TECHNICAL SUPPORT CALL: 1-800-824-3005 Integration Guide I 21
Omni Accessories
PRODUCT INFORMATION
Description Features Cat. No.
[A] KNX® Gateway The Leviton KNX® Gateway allows Omni controllers (OmniPro II, Omni IIe, Omni LTe)
to communicate with and control KNX® devices installed on the network. Lighting,
temperature and motors (window coverings, shades, shutters, etc.) are among the
many KNX® devices that can be controlled from a Leviton interface or via controller
programming.
97A00-1
[B] One Port PoE
Injector
Single port PoE injector that is fully compatible with Powered Devices that comply with
the IEEE 802.3af standard. Can provide power to one OmniTouch 7 Touchscreen or other
Powered Devices (such as BitWise, PoE IP cameras, PoE Wireless Access Points, PoE
Printer, etc.) without requiring additional power wiring to the device. Provides up to 15.4
watts of power and 10/100M data transmission through the traditional CAT-5 cable.
90A00-1
[C] 1. Eight Port PoE
Switch
2. Eight Port PoE
Switch with
Structured
Wiring Backplate
Power Source Equipment (PSE) device that is fully compatible with IEEE 802.3af standard
compliant devices. Powers up to seven OmniTouch 7 Touchscreens (one port must be
connected to the network). PoE ports can also power other powered devices (such as the
BitWise, PoE IP cameras, PoE Wireless Access Points, etc.) without additional power wiring to
the device. Each PoE port can provide 15.4 watts of power and 10/100M data transmission
through traditional CAT-5 cable to the Powered Device.
91A00-1
91A00-2
[D] Serial PC Cable 7 foot cable, modular to DB-9F - connects Omni controller serial ports to computer RS-232
serial port for use with PC Access, and other Leviton Connectivity Partners.
21A05-2
[E] UPB™ Powerline
Interface Module to
Computer Cable
7-foot cable, modular to DB-9F – connects Leviton UPB™ Powerline Interface Module to
computer RS-232 serial port for use with UPStart software. UPStart may be downloaded
for free. Also used for Leviton Connectivity Partners, as directed.
36A05-2
[F] Serial Connectivity
Cable
7-foot cable, modular to DB-9M - connects controller to serial ports for Russound, NuVo,
RadioRA, CentraLite, Jandy, and other Leviton Connectivity Partners.
36A05-4
[G] Leviton Security &
Automation Serial
Server
RS232/RS485 to TCP/IP converter integrated with a robust system and network
management features designed for serial equipment to be accessed and controlled via
Intranet or Internet.
93A00-1
AB
C
DEFG
SAFETY & SECURITY
Integration Guide I LEVITON.COM
22
SAFETY & SECURITY | Wireless Security Sensors
Wireless Security Sensors
Features and Benefits
Utilize Leviton’s wireless sensors with Omni control systems.
PRODUCT INFORMATION
Description Features Cat. No.
[A] 64-Zone
Wireless
Receiver
433 MHz wireless receiver for use with Omni controller. Allows up to 64 unique wireless security
transmitters to report information to a Leviton Omni controller. Includes Receiver Signal
Strength Indicator (RSSI) capability, indicating signal strength of the transmitter as good, fair,
or poor. That information is stored in the Leviton system and can be accessed from any Leviton
console, OmniTouch Touchscreens or PC Access. This information is important to an installer to
ensure optimum placement and performance of the transmitters and receivers.
45A00-1
[B] Glass Break The 61A00-1 Wireless Glassbreak Detector is an omnidirectional acoustic sensor and wireless
transmitter. It is used for detecting the sound of breaking glass, providing 360º of coverage.
Requires a Leviton 64 Zone Wireless Receiver (Leviton part #45A00-1). Uses a CR23A lithium ion
battery, included.
61A00-1
[C] PIR Motion
Detector
Quad element detector reduces false alarms. 33lbs. and 55lbs. pet immune settings. 30’x
50’ coverage. 3-year battery life. Includes quad motion detector with wall and ceiling mount
hardware, wide-angle lens, battery, instructions. Requires an Leviton 64 Zone Wireless Receiver
(Leviton part #45A00-1). Uses CR123A lithium ion battery, included.
47A00-2
[D] Four-Button
Wireless
Keypad
May be programmed to control any Leviton Omni home control system feature, such as lights,
temperatures, macros, and the security features of an Omni family system. Requires a Leviton
64 Zone Wireless Receiver (Leviton part #45A00-1). Uses CR2032 lithium ion battery, included.
69A00-1
[E] Four-Button
Keyfob
Can be programmed to control any Leviton controller feature, such as lights, temperatures,
macros, and security. Includes instructions. Requires a Leviton 64 Zone Wireless Receiver
(Leviton part #45A00-1). Uses CR2025 lithium ion battery, included.
48A00-1
[F] Panic/Alert
Pendant
Can trigger outgoing phone calls to up to 8 different numbers, an e-mail notification, or video
surveillance recording. Includes Panic/Alert pendant with lanyard, battery, and instructions.
Requires a Leviton 64 Zone Wireless Receiver (Leviton part #45A00-1). Some features may
require additional equipment. Uses CR2032 lithium battery, included.
50A00-1
[G] Wireless
Receiver
for GE
InterLogix
64 Zone wireless receiver, with LED display for GE/ITI/Caddx transmistters. Works only with GE
compatible sensors, not Leviton wireless security sensors.
42A00-2
C
A
B
D E F G
SAFETY & SECURITY
FOR TECHNICAL SUPPORT CALL: 1-800-824-3005 Integration Guide I 23
Wireless Security Sensors
E
B
A
CD
PRODUCT INFORMATION
Description Features Cat. No.
[A] Wireless
Driveway
Sensor
No digging or underground cable required. Uses earth’s magnetic field to detect moving
vehicles. Activate lighting, video surveillance, and more when a vehicle is detected in a
driveway or parking area. Magnetic sensing range of 12 feet with three sensitivity modes
for precise installation. Two unique mounting options including stake or post/wall mount.
Operates in temperatures between -20–120ºF. Requires a Leviton 64-Zone Wireless Receiver
(Leviton part #45A00-1). Uses two C-cell alkaline batteries, included.
63A00-1
[B] Door/
Window
Transmitter
3 Zone Door/Window Transmitter with a mercury tilt switch for garage doors. Includes
Door/Window 3 Zone transmitter with tilt switch, magnet, mounting hardware, battery,
instructions. Requires a Leviton 64 Zone Wireless Receiver (Leviton part #45A00-1). Uses
CR123A lithium ion battery, included.
46A00-1
[C] Mini Contact The 58A00-1 Mini Door/Window Transmitter is a miniature (1.7”H x 1”W x .65”D) supervised
wireless transmitter that comes with a case tamper switch, wall tamper switch, and a
replaceable Lithium battery. The 58A00-1 is a single zone miniature version of the existing
46A00-1 Three Zone Door/Window Transmitter. Requires a Leviton 64 Zone Wireless Receiver
(Leviton part #45A00-1). Uses CR2450N lithium ion battery, included. Two hard wire inputs in
addition to built-in reed switch.
58A00-1
[D] Vanishing
Contact
The 57A00-1 Vanishing Door/Window Transmitter is an ultra-thin (1.5”H x 1”W x .38”D)
supervised wireless contact. It has beveled edges that vanish into any décor. It also features
a bypass button that allows you to manually bypass the transmitter, which automatically
restores when the magnet is replaced. Requires a Leviton 64 Zone Wireless Receiver (Leviton
part #45A00-1). Uses CR2032 lithium ion battery, included.
57A00-1
[E] Wireless
Recessed
Door
Contact
This recessed supervised wireless transmitter is used for the protection of doors and
windows in installations where the contact must be totally hidden. The transmitter is
concealed within the door or window frame for virtual transparency. It is supplied with a
replaceable lithium battery that lasts for 5 years under normal conditions. Requires a Leviton
64 Zone Wireless Receiver (Leviton part #45A00-1). Uses CR23V lithium ion battery, included.
56A00-1
SAFETY & SECURITY
Integration Guide I LEVITON.COM
24
SAFETY & SECURITY | Access Control
Access Control Based on Time, Day or Person
Features and Benefits
Proximity card readers and accessories connect to a Leviton system for complete access control. Popular uses of Leviton’s
access control include restricting access to storage closets, outbuildings, gyms, theaters, cellars, and pools.
Simplified wiring makes for efficient residential or small commercial use. Everything between the controller and the readers–
including power–goes over a single four-conductor or CAT-6 cable.
Each card is attached to a user code in the Leviton Omni automation controller which can be managed with specific privileges.
For instance, users can be granted privileges based on time and date, and access can be restricted to specific readers.
Each swipe can perform as many actions as desired and these results can be customized by time of day, arming condition,
or any other event the Leviton control system is monitoring, including lighting, temperature, video surveillance, and audio.
E F
AB C D
Lock or unlock doors via
OmniTouch 7 or remotely
via Snap-Link Mobile
for iOS/Android
Door Locks can easily be activated
with the push of a button.
SAFETY & SECURITY
FOR TECHNICAL SUPPORT CALL: 1-800-824-3005 Integration Guide I 25
Access Control Part Numbers
PRODUCT INFORMATION
Description Features Cat. No.
[A] Access Control Reader High security, digitally encrypted, 26-Bit Proximity card reader that connects to
a serial port on an Omni system. The reader has durable and scratch resistant
polycarbonate housing. Full epoxy potting ensures successful operation even in
harsh environments. The 75A00-2 can be mounted to metal door frame (mullion)
or to any flat wall surface. Two-color LED (green and red) and Piezo sounder
guarantee accurate reliable door access operations.
75A00-2
[B] Access Control Keypad Weatherproof and vandal resistant piezoelectric keypad designed to interface
with Leviton home controllers. Buttons work simply by tapping the surface.
Sleek keys of the outdoor keypad can be operated with a bare finger or a snow-
covered glove. Stainless steel outdoor keypad, cable assembly, instructions.
Connects via serial port on Omni controller (does not use console/keypad port on
console bus). Temperature range: -31ºF to 140ºF.
54A00-1
[C] Access Control Card,
Pack of 10
Credit card size 1.7mm thick high security proximity card with fully encrypted
format stored on the card. Thin, flexible, and light enough to be carried in a purse
or wallet. Preprogrammed at the factory with a unique encryption code. Provides
a read range up to 4”.
78A00-1
[D] Access Control Key Tag,
Pack of 10
Very small (only 4 grams). High security digitally encrypted proximity key tag. Hole
for a key ring or Leviton. Pre-programmed at the factory with a unique encryption
code. Small and durable enough to fit on a key ring. Provides a read range up to 2”.
78A00-2
[E] 12VDC Electric Door
Strike (Fail Secure)
When used with 75A00-2 Access Control Reader, this door strike securely locks
and unlocks a door without the need of a key. Allows the door to be locked when
closed, but can be automatically unlocked by the system, or manually unlocked
with a key. 12VDC Fail-Secure device, which means the door unlocks when power
is connected (i.e. the door is locked when power fails).
79A00-1
[F] Power Hub in Enclosure
Power Hub for Structured
Wiring Enclosures
General purpose 12VDC power supply mounted in enclosure (83A00-1). Designed
to provide power to several Leviton products, including Leviton Access Control
Readers with electric or magnetic locks, Omni consoles, and many other devices.
The Leviton Power Hub provides battery backed power for connected devices.
Convenient connections and power terminals for a neat installation. Designed to
eliminate unsightly transformers, power strips, external power supplies, battery
backup units, and complex wiring normally associated with access control
installations. Up to five (5) Amps total; Connectors for 2 sealed batteries, 12V@4-
8Ah each (not supplied); Power for 8 Leviton Access Control Readers (75A00-2,
with electric and magnetic locks) OR eight Omni Consoles and/or OR four Leviton
Access Control Readers (75A00-2, with electric and magnetic locks) and four
Omni Consoles.
83A00-1
83A00-2
SAFETY & SECURITY
Integration Guide I LEVITON.COM
26
SAFETY & SECURITY | Video Surveillance
Video Surveillance
Features and Benefits
Confirm the security and safety of a business location, residence, or vacation home in an instant. View surveillance video of
the front entrance, business interior, nursery, or driveway. On vacation and concerned about the safety of the property? Want
to check up on children, elderly relatives, or pets from the office? Leviton’s surveillance video may be viewed remotely on a
smartphone/tablet with Omni Systems.
PRODUCT INFORMATION
Description Features Cat. No.
[A] Indoor/Outdoor
Mini Dome IP
Camera
Full High Definition 1080p at up to 30 frames per
second. View on your smartphone, tablet, or OmniTouch
Touchscreen. Simultaneously streams H.264 and MJPEG
video (dual stream). Thanks to the built-in web server,
you can view live and recorded video from a PC and have
still video frames emailed to you or uploaded to an FTP
site when motion is detected in an area. Record video to
a Micro SD card or PC. Camera automatically switches
to black and white at night for enhanced viewing
capabilities. Features a weatherproof dongle and is
rated IP66 for outdoor use (operational temperature 14
degrees F to 122 degrees F). With Power over Ethernet,
there is no need for power supplies or power outlets.
68A11-1
A
View live surveillance from
OmniTouch 7 or Snap-Link
Mobile
Press a camera icon to select feed.
Double-tap thumbnail to enlarge
to full screen.
SAFETY & SECURITY
FOR TECHNICAL SUPPORT CALL: 1-800-824-3005 Integration Guide I 27
VOIP Intercom Door Station
A
Front Door to Touchscreen Communication
Press a button to let a guest inside after confirming their arrival.
Features and Benefits
Connect with OmniTouch 7 Touchscreens to control access at front gates and entryways. End-users can press the call button
which will ring the programmed touchscreens. The individual inside the building can answer or reject the call. Once connected,
the IP camera from the door station will display live footage of the area on the selected touchscreens. Additionally, a homeowner
or employee can utilize an on-screen macro button to remotely unlock a door or gate and allow the guest inside.
PRODUCT INFORMATION
Description Features Cat. No.
[A] Intercom Door
Station
Integrated wide angle IP camera, capacitive touch
call button, electric lock switch with remote unlock,
built-in speaker and microphone with adjustable
volume/sensitivity. Works on an Ethernet Network
using SIP communication protocol (connects to third
party SIP server) and PoE (Power over Ethernet).
Has an integrated web server for configuration.
Designed to be flush mounted with metal backbox
and water resistant IP65 front panel.
INDS1
SAFETY & SECURITY
Integration Guide I LEVITON.COM
28
SAFETY & SECURITY | Omni Interfaces
PRODUCT INFORMATION
Description Features Cat. No.
OmniTouch 7
Touchscreen
The OmniTouch 7 is now able to work with either Omni, BitWise, or Lumina Gateway control
systems via a firmware update.
New Omni Features: Intercom Capability, camera pop-up based on “When” event; Window
Covering Category for Somfy; Support Category for Installer Contact Information; “All Off”
Lighting Button.
Omni Security:
• Arm or Disarm security system or alert emergency personnel.
• Quickly check whether all doors are locked and either unlock or lock any door.
• View crisp IP surveillance video footage.
• Quick glance LED on the top right corner is green when security is disarmed and red
when armed.
Omni Energy Management:
• Utilize slider bars to adjust lighting load levels from 0 to 100%.
• Access up to 64 thermostats including humidity settings.
• Control irrigation, ventilation, and window coverings.
Omni Entertainment:
• Control Leviton’s Hi-Fi 2 Distributed Audio System or a compatible system
from a Connectivity Partner.
Overall Specifications:
• Large approx 7” diagonal viewing area with minimal plastic surround available
in Black or White.
• 7.25”x5.125”x0.55” on exterior wall surface, and 6”x4”x1” behind surface of wall.
• Glass front capacitive touchscreen at 800x480 resolution.
• PoE connection provides all power and communication.
• Optional 12VDC power can be used if not utilizing PoE.
• Firmware updates via Ethernet.
• 2 watt mono digital amplifier and speaker.
• Two digital MEMS microphones for improved noise and echo cancellation.
• Light sensor allows automatic dimming of display backlight.
99A00-1 (White) /
99A00-2 (Black)
OmniTouch 7
Touchscreen
Table top Display, includes rubber feet. 99A16-1 (White) /
99A16-2 (Black)
OmniTouch 7 Touchscreen
SAFETY & SECURITY
FOR TECHNICAL SUPPORT CALL: 1-800-824-3005 Integration Guide I 29
Features and Benefits
Snap-Link Mobile for iOS and Snap-Link Mobile for Android put Omni home and business control in the palm of your hand with zero
monthly fees. Simply purchase the app from the appropriate app store, and get instant access to the property. You can even
access multiple properties from a single app!
Secure encrypted communication over Wi-Fi or cellular data networks. The app is available in supported regions for
multi-lingual support. No third parties other than cellular service are required for operation.
Requires a Leviton Omni Pro II, Omni IIe or Omni LTe control system.
Total Control with no monthly fees
• Set lighting levels or audio from 0-100% with a sliding scale – or use quick scene buttons.
• View real time surveillance camera video – front door, nursery, pool, boat dock, etc.*
• Adjust heating and cooling and view humidity and outdoor temperatures.
• Arm/disarm the alarm. View a security log to monitor entry/exit activity.
• Select music sources and adjust volume levels in individual rooms or the entire property.
• iOS App supports 17 different popular world languages.
• Access multiple accounts.
Simplify with one app on multiple devices for one price
Purchase and maintain a single app for your iOS or Android devices. Utilize on any device that is attached to the appropriate
iOS or Android account.
*Requires appropriate cellular provider plan and cameras.
Snap-Link Mobile for iOS and Android
Integration Guide I LEVITON.COM
30
ENERGY MANAGEMENT
FOR TECHNICAL SUPPORT CALL: 1-800-824-3005 Integration Guide I 31
Energy Management
Leviton energy management products make homes
and businesses more comfortable while saving energy.
Automatically coordinate lighting, temperatures,
pumps, fountains, water heaters, window coverings,
and other energy-consuming devices. Save money by
automating based upon schedules or events.
34 Lumina RF Energy Management
36 Temperature Control
and Monitoring
42 HAI Lighting Control
48 Wireless Lighting Control
50 Vizia RF + Lighting Control
54 Omni-Bus Lighting Control
62 VerifEye™
Integration Guide I LEVITON.COM
32
LUMINA RF CONTROL SYSTEMS
Cover 100% of Your Energy Management Needs.
Make facilities more energy ecient. According to the
U.S. Department of Energy, energy is consumed in several
major ways, all of which can be monitored and controlled.
SECTION NAMEENERGY MANAGEMENT
FOR TECHNICAL SUPPORT CALL: 1-800-824-3005 Integration Guide I 33
Lumina Gateway and Lumina RF Eco-System
The aordable Lumina Gateway and Lumina RF product family provide wireless energy management
and remote access for small commercial applications utilizing wireless sensors and devices to control
temperatures, lamps, fans, pumps and third-party window coverings. The system features scheduling
event logic, up to 40 connected wireless two-way sensors and load control, free email or SMS text
notification based on event, free apps for remote access, and free software for setup.
Why Use Lumina RF in a Small Commercial Facility?
The Gateway itself functions as an energy management coordinator allowing automation of loads
and control of multiple properties from smartphone apps. Centralized timing functions make load
scheduling simple for signage and other important facets of the business. Using the downloaded
setup software, program the system to notify when an event has occurred on the property.
Choose from wireless sensors for open/close, motion or occupancy events. Thermostats provide
temperature/humidity notification. As well, Lumina Gateway working with thermostats provides
advanced scheduling and remote control via apps.
What is Lumina RF?
The Lumina Gateway features Lumina RF wireless technology. This 2.4GHz mesh network technology
has a proven track record in light commercial applications for distance and reliability. Choose from
a variety of load control devices to turn nearly any light commercial load on/o.
What is Leviton Cloud Service?
Leviton Cloud Service was created for the professional installer as a method to facilitate user-friendly
system connections, proper installation, and secure encrypted communication. To register and
download the free setup software, please visit http://cloud.leviton.com
REMOTE ACCESS
OMNITOUCH 7 INTERFACE
LUMINA GATEWAY: THE HUB
WIRELESS
THERMOSTATS
SWITCH
MOTION AND
DOOR SENSORS
WINDOW TREATMENTS
HEAVY DUTY
LOAD CONTROL
PLUG-IN
LOADS
Leviton Cloud Service
ENERGY MANAGEMENT
Integration Guide I LEVITON.COM
34
ENERGY MANAGEMENT | Lumina RF Wireless Energy Management
PRODUCT INFORMATION
Description Features Cat. No.
[A] Lumina Gateway Wireless energy management hub for creating eco-system using
Lumina RF devices including thermostats, load control modules,
sensors, and switches. Easy to setup and create time schedules or
utilize sensors for automation, along with macros based on activities.
Includes free app and free built-in email notifications.
74A00-1
[B] OmniTouch 7
Touchscreen for
Lumina Gateway
Adjust lights, temperatures and window coverings. View sensors
and surveillance cameras. Black/White.
99A00-1/99A00-2
[C] Lumina RF 120/277VAC
10A Switch
Wall-mounted wireless wall switch for control of small commercial
lighting loads.
ZSS10-N0Z and
ZSS10-G0Z
[D] Lumina RF Ceiling
Mount Occupancy
Sensor – 1500 Sq/Ft –
450 Sq/Ft
360 Degree Occupancy Sensing for either 450 square feet or 1500
square feet.
ZSC04-INW
and ZSC15-INW
Lumina Gateway and Lumina RF Devices
Features and Benefits
Leviton’s powerful wireless Lumina RF products ensure energy savings in new construction and retrofit, controlling lights,
lamps, fans, shades, pumps, and third-party window coverings. Use the Lumina Gateway or opt for the Interface Module
(part# 81A00-3WHZB) if incorporating into a Leviton Omni Security automation system. Control multiple locations with the
free Lumina Mobile app, downloadable in the Apple iTunes and Google Play stores.
A B
C D
ENERGY MANAGEMENT
FOR TECHNICAL SUPPORT CALL: 1-800-824-3005 Integration Guide I 35
Wireless Lumina RF Devices
PRODUCT INFORMATION
Description Features Cat. No.
[A] Omnistat2 Wireless
Single-Stage
Conventional &
Heat Pump (w/Aux
Heat)
All the features of the RC-1000 Omnistat2 plus uses Lumina RF wireless
communication. Can alternatively attach to Omni Automation Systems.
RC-1000WHZB
[B] Omnistat2 Wireless
Multistage & Heat
Pump w/Humidity
Control
All the features of the RC-2000 Omnistat2, plus uses Lumina RF wireless
communication. Can alternatively attach to Omni Automation Systems.
RC-2000WHZB
[C] Lumina RF Universal
Thermostat
Lumina RF universal thermostats provide precise control over the heating,
ventilation, & air conditioning (HVAC) system using advanced digital technology
that learns the heating/cooling patterns to control the equipment for maximum
efficiency and comfort. Can alternatively attach to Omni Automation Systems.
RC-1500WHZB
[D] Lumina RF Motion
Sensor
Lumina RF Motion Sensor for occupancy based automation. LURMD-00W
[E] Lumina RF Door/
Window Sensor
Lumina RF Door/Window Sensors can be applied to doors and windows for
occupancy based automated energy management.
LURDW-00W
[F] Lumina RF 15A
Plug-in Load Control
Module
Perfect for appliances, fans, and lamps up to 15A, general purpose. ½
horsepower. 120VAC/60hz. Uses Lumina RF wireless communication.
89A00-1ZB
[G] Lumina RF 30A
Wireless Load
Control Module
Wireless controls for water heaters, pool pumps, outdoor fountains, lighting, and
more. Ultra low stand-by power. Universal 96-250 VAC and 50/60 Hz. Can be
used outdoors. Uses Lumina RF wireless communication.
73A00-3ZB
[H] Lumina RF 5A
Wireless Load
Control Module
Controls low voltage circuits in outdoor air conditioning units, pool and spa
heaters & pumps, generators, and more. Ultra low stand-by power. Universal
96-250VAC and 50/60Hz. Can be used outdoors. Uses Lumina RF wireless
communication.
73A00-4ZB
HD E F G
B CA
Integration Guide I LEVITON.COM
36
TEMPERATURE CONTROL & MONITORING
The Omnistat2 programmable communicating
thermostat combines Leviton’s years as a leader in energy
management to provide sophisticated and intelligent
function in an easy to use wired or wireless device.
SECTION NAMEENERGY MANAGEMENT
FOR TECHNICAL SUPPORT CALL: 1-800-824-3005 Integration Guide I 37
Programmable Communicating Thermostats
Using advanced digital technology, the Omnistat2 “learns” heating and cooling patterns and adjusts
control to maximize both HVAC eciency and comfort. Omnistat2 can manage electric, gas,
geothermal, and radiant heat energy sources. The most cost-eective way to control your energy
usage is by managing the heating and cooling system. The Omnistat2 automatically adjusts the
temperature and saves money!
A Simple Interface for Ease of Use
Simply turn the scroll wheel to the right or left to adjust the temperature. Three buttons facilitate easy
to navigate menus on the large multi-color display. View information such as temperature setpoints,
modes, outdoor temperature and humidity, run time by week, and more.
Unique Looks to Suit Any Home or Business
Choose from over one hundred customizable backlight colors with the Omnistat2 thermostat.
Change backlighting from blue to red or green–or any color in between with the turn of the scroll wheel.
ENERGY MANAGEMENT
Integration Guide I LEVITON.COM
38
ENERGY MANAGEMENT | Temperature Control and Monitoring
PRODUCT INFORMATION
Description Features Cat. No.
[A] Omnistat2 Thermostat
Conventional & Heat Pump
(w/ Aux)
White (WH). For thermostat comparison, see page 141 RC-1000WH
[B] Omnistat2 Thermostat
Multi-Stage Heat Pump
w/ Humidity Control
White (WH). For thermostat comparison, see page 141 RC-2000WH
[C] Omnistat2 Trim Ring White backplate used as a cover-up when retrofitting existing
thermostats. (Omnistat2 thermostat shown but not included).
65A18-1
[D] Temperature Display/Control
(TDC)
Easy-to-use controls and OLED display make the control and adjustment
of interior comfort settings both simple and beautiful. Remote interface
for use with RC2000 (Wired and ZigBee®).
95A03-1TWH
[D] TDC Kit with Power Supply Includes required communication interface 95A03-1TKT
[D] TDC COLOR CHANGE KIT BLACK 1 Black faceplate 95A19-BL
[D] TDC COLOR CHANGE KIT WHITE 1 White faceplate 95A19-WH
[D] TDC COLOR CHANGE KIT
LIGHT ALMOND
1 Light Almond faceplate 95A19-LTA
[E] Flush Mount Remote Indoor/
Outdoor Temp Sensor
For Leviton Omnistat2 thermostats. Can be painted or wallpapered to
become virtually invisible.
23A00-2
[F] Thermostat Isolation Module Relay isolation module for Omnistat2 thermostats. Includes mounting
clips, instructions (may be needed for HVAC systems using non-standard
voltages).
29A00-1
[G] Thermostat Power Supply
Module
Power booster for Omnistat2 thermostats, instructions (may be needed
in retrofit applications when “HVAC common” wire is not available).
Mounts at furnace/air handler and requires no external power source.
30A00-2
[H] Surface Mount Remote Indoor/
Outdoor Temp Sensor
Surface indoor/outdoor temperature sensor for Omnistat2 thermostats.
Can be used as outdoor sensor for dual-fuel heat pumps.
23A00-1
Omni Temperature Control and Monitoring
F
E
A, B C
D
GH
ENERGY MANAGEMENT
FOR TECHNICAL SUPPORT CALL: 1-800-824-3005 Integration Guide I 39
PRODUCT INFORMATION
Description Features Cat. No.
[A] Water Temperature Sensor Module, probe, accessories, instructions. Monitor and activate programs
based on water temperature in pools, spas, aquatic ponds, fish tanks,
greenhouses, etc. Sensing range is 0–120ºF.
14A00-8
[B] Extended Range Indoor/Outdoor
Temperature Sensor for Leviton
Omni Controllers
Sensor from -40° to 120°F, accessory kit, instruction sheet. Monitor and
activate programs based on temperatures including attics, basements,
wine cellars, etc. Must be connected directly to the Leviton controller
using a four conductor wire. For enhanced accuracy, it may be calibrated
after installation. Includes mounting bracket.
31A00-7
[C] Extended Range Indoor/Outdoor
Temperature & Humidity Sensor
for Leviton Omni Controllers
Sensor from -40° to 120°F and humidity sensor, accessory kit,
instruction sheet. Must be connected directly to the Leviton controller
using a four conductor wire. For enhanced accuracy, it may be calibrated
after installation. Includes mounting bracket.
31A00-8
Omni Temperature Control and Monitoring
Features
The accessory products below are specifically designed for use with your Omni automation systems. Sensors have been
enhanced with a special mounting bracket for improved environmental readings – indoor and outdoor.
A B C
SPOTLIGHT | Dealer Support Website
Learn how to install and program products via Online Training
Videos, installation manuals, recorded webinars and more.
View sample floorplans and solution sheets. Access all
resources related to new product launches. Download
marketing videos and high-resolution images to utilize for
your website and social media campaigns.
To learn more, please visit http://dealer.leviton.com
ENERGY MANAGEMENT
Integration Guide I LEVITON.COM
40
ENERGY MANAGEMENT | Temperature Control and Monitoring
Omnistat3 Hospitality Thermostat
The New
Omnistat3
is Here!
The New
Omnistat3
is Here!
The Omnistat3 is designed to achieve Title 24 compliance to accurately detect if a hospitality room is
occupied, adjusting heat and cool setpoints based upon vacancy or occupancy, and to control room
loads or circuits if the room is vacant or occupied. The thermostat is directly compatible with the
Lumina RF sensor network, combining a built-in occupancy sensor in the face of the thermostat with
battery powered RF sensors to monitor activity throughout the room.
The secure wireless technology also provides communication with load control modules, allowing
devices to be turned o when the room is unoccupied. The Omnistat3 is designed to have an easily
replicable installation process, utilizing the USB port to quickly push unified programming logic into each
device with free software.
Features and Benefits
RC500 Hospitality Thermostat:
Provides Energy Management for hotel rooms by adjusting temperature set points after accurately determining if a room
is unoccupied
• Compact size, only 4.5” W x 3.15” H x .82” D
• Meets Title 24 and ASHRAE 90.1 2010 standards
• Provides wireless load control turning loads off when a room is unoccupied and on when occupied
• State-Of-The-Art logic combines door activity with occupancy sensors to accurately determine if a room is occupied or vacant
• Compatible with nearly all 24VAC thermostat applications including 2 and 4 pipe systems
• Quick installation software allows rooms to be replicated quickly and easily via a USB connector
• Each RC500-2EW supports up to a total of 10 Lumina RF devices
- The total of 10 Lumina RF devices can be a mixture of sensors and/or load control devices
- The occupancy sensor on the front of the thermostat does not count towards the total of 10 devices
- The hardwired input does not count towards the total of 10 devices
• Optional retrofit kit for single-gang box. Covers mounting location from previous larger thermostats.
Omnistat3 Accessory Products
Description Cat. No.
Omnistat3 Hospitality Thermostat RC500-2EW
RC500 Retrofit kit RCPLT-00W
Wireless Ceiling Occupancy Sensors - Coverage of up to 450 sq/ft ZSC04-INW
Wireless Ceiling Occupancy Sensors - Coverage of up to 1,500 sq/ft ZSC15-INW
Wireless Corner Mount Motion Sensor LURMD-00W
Wireless Door / Window / Balcony sensor LURDW-00W
30 Amp Load Control Module - 96-250VAC (50/60 Hz) 73A00-3ZB
Plug-in Appliance Module - 120VAC 15A 89A00-1ZB
Wall switch - 120-277VAC 10A Wall switch, for applications with a neutral connection ZSS10-N0Z
Wall switch - 120-277VAC 10A Wall switch, for applications without a neutral connection ZSS10-G0Z
Hardwired Room Key Switch - 24V Key Switch Interface, requires OSP20-RxH power pack HKSWP-0Lx
ENERGY MANAGEMENT
FOR TECHNICAL SUPPORT CALL: 1-800-824-3005 Integration Guide I 41
Integration Guide I LEVITON.COM
42
HAI LIGHTING CONTROL
The HLC product line is designed for 110VAC applications
and includes dimmers, switches, remote controls,
and plug-in modules. HLC is a hard-wired powerline carrier
solution that can be easily retrofitted without new wiring!
HLC can operate stand-alone or with an Omni control
system for advanced scheduling and remote access.
Enhance the enjoyment and property value.
Add security for peace of mind, and contribute to savings
on energy bills.
SECTION NAMEENERGY MANAGEMENT
FOR TECHNICAL SUPPORT CALL: 1-800-824-3005 Integration Guide I 43
Why HLC?
HLC technology is ideal because of its long range, ease of use, custom labeling and decorator colors.
Automatically set lights to any percentage, saving money every time a light is illuminated. In addition
to controlling conventional bulbs, HLC controls high eciency incandescent as well as dimmable LED
and CFL.
Leviton’s Gen III UPB™ adds several features including automatic timeout and switching from dimming to
non-dimming in the field. Leviton Gen III UPB™ also includes improvements to the core UPB™ technology,
including improved drive for CFL and LED lamps and better tolerance for power frequency variations and
interruptions in the dimmers.
Easy To Use – The Smart Switches!
HLC switches feature true rocker action via large panel style switches. Press and hold to brighten or
dim. Press up to turn on. Press down to turn o. Easily change scene settings at any time without a
service call.
Because HLC is a modular system, rooms and lights can be added anytime, updating as needs change.
For retrofits or expansion, existing light switches can be replaced with HLC smart switches and plug-in
lamp control modules can be added for accessory lighting.
Matches Your Style
Most switches accommodate standard Decora® wallplates for unlimited faceplate options. A full range
of switch colors, including almond, black, brown, grey, ivory, light almond, and white, are available.
LED indicator lights at the top of the switches can be programmed to glow blue, red, magenta,
or turned o entirely. Scene Keypad and House Status Switches can even feature custom laser
engraved buttons.
ENERGY MANAGEMENT
Integration Guide I LEVITON.COM
44
ENERGY MANAGEMENT | HAI Lighting Control
PRODUCT INFORMATION
Description Features Cat. No.
[A] CFL/LED
Dimmer
UL Listed for CFL and LED bulbs. Special dimming curve, minimal brightness level, and
optimized TRIAC drive. Can also control up to 600 watts of incandescent/Halogen
brightness. White color. Color Change Kit available. Uses standard Decora® wallplate
(not included).
35A00-1CFL
[B] 600W UPB™
Dimmer
Switch
Used for controlling and dimming lighting loads up to 600W. Optimized for incandescent/
Halogen bulbs. White paddle, connectors, instructions. Color Change Kit available. Uses
standard Decora wallplate (not included).
35A00-1
600W UPB™
Non-Dimming
Switch
Used for controlling non-dimming loads, such as fluorescent lights, up to 600 watts.
Includes a white paddle, connectors, instructions. Color Change Kit available.
Uses standard Decora wallplate (not included).
35A00-3
[C] 15A Relay
Switch
For controlling heavier loads (up to 15 amps) or motors, such as ceiling fans, that may hum
when used with dimming or non-dimming switches. White color. Color Change Kit available.
Uses standard Decora wallplate (not included).
40A00-1
{D} Auxiliary
Switch
Remotely operate 35A00, 40A00, and 55A00 dimmers and switches; connectors,
instructions. White color. Color Change Kit available. Uses standard Decora
wallplate (not included).
37A00-1
[E] Switch Color
Change Kit
Paddle, bezel assembly for 35A00, 37A00 and 40A00 series switches.
Part number example: 35A14-ALCS (Almond), 35A14-WHCS, 35A14-BLCS (Black), 35A14-
GRCS (Gray), 35A14-IVCS (Ivory), 35A14-LTACS (Light Almond).
35A14-color
codeCS
HAI Lighting Control
E
D
A B C
LED Lightbulb Incandescent Lightbulb
Other Lightbulb CFL Lightbulb
ENERGY MANAGEMENT
FOR TECHNICAL SUPPORT CALL: 1-800-824-3005 Integration Guide I 45
PRODUCT INFORMATION
Description Features Cat. No.
[A] 2400W UPB™ Dimmer Switch
Color-Matched Wallplate
With connectors, instructions. Requires a special back box or
must be de-rated. Shown in white (WH), also available in ivory
(IV). 2400W Switch uses special-sized wallplate, sold separately.
55A00-3colorcode
55A03-1/-2
[B] 1000W UPB™ Dimmer Switch With connectors, instructions. Requires its own gang box, or
must de-rated. Wallplate not included, uses standard Decora
wallplate.
55A00-1WH /
55A00-1IV
[C] UPB™ Lamp Module Plug-in Lamp Module controls and dims lamps up to 300 watts. 59A00-1
{D} UPB™ Appliance Module Plug-in Appliance Module controls appliances, fans, and lamps
up to 15 amps, general purpose, ½ horsepower.
60A00-1
[E] Scene Keypad, 6-Button Control all lights in a room or area. Lights may be turned on or off,
dimmed, brightened, and set to four different scenes. Setting
a scene is as simple as pressing the scene button on the Scene
Keypad five times. Has infrared receiver for use with Scene
Keypad Remote Control. Includes White bezel, connectors,
instructions. Color Change Kit and custom engraving available.
38A00-1
[F] House Status Switch, 8-Button This master lighting control shows the status for up to eight
rooms. If any light is on in an integrated room, the button for that
room is illuminated. Pressing the room’s button will turn on or off
all of the lights in that room. Includes White bezel, connectors,
instructions. Color Change Kit and custom engraving available.
38A00-2
A B C
DEF
ENERGY MANAGEMENT
Integration Guide I LEVITON.COM
46
ENERGY MANAGEMENT | HAI Lighting Control
PRODUCT INFORMATION
Description Features Cat. No.
[A] Table Top Scene Keypad and Cradle
Cradle Only
Table mount the Scene Keypad (38A00-1), House Status
Switch (38A00-2), or Lumina Mode Switch (38A00-3).
Conveniently locate throughout the property (bedside
nightstand, the office desk, next to a favorite chair). Plug
directly into electrical outlet with six foot cord. Scene
Keypad sold separately. Specify color code when ordering,
WH or BL.
38A16-colorcode
38A15-colorcode
[B] Custom Legend Kit for Scene/House
Status Switches
Coupon and instructions for custom laser engraved
buttons for 6 Button Scene Keypad or 8 Button House
Status Switch. Mail in coupon, receive custom button
overlay by mail. Customized Scene Keypads make
creating an ambiance easy. Select “Task Lighting”, or
“Romantic Evening” to set the proper mood. Customizing
House Status Switches is fun as well. “Sue’s Bedroom”,
“Master Bath” and “Back Porch” allow for ultimate control
of every room. Create your own!
38A06-2
[C] Scene Keypad Remote Works with Leviton’s Scene Keypad. Controls all lights in a
room or area. White color.
38A14-1
[D] Scene Keypad
Color Change Kit (12 count)
Bezel for 38A00-1 or 38A00-3, instructions. Part number
example: 38A04-ALCS, 38A04-BLCS, 38A04-ALBRCS,
38A04-GRCS, 38A04-LTACS, 38A04-IVCS, 38A04-WHCS.
38A04-color codeCS
[E] House Status Switch
Color Change Kit (12 count)
Bezel for 38A00-2, instructions. Part number example:
38A05-ALCS, 38A05-BLCS, 38A05-BRCS, 38A05-GRCS,
38A05-LALCS, 38A05-IVCS, 38A05-WHCS.
38A05-color codeCS
HAI Lighting Control
D E
AB C
ENERGY MANAGEMENT
FOR TECHNICAL SUPPORT CALL: 1-800-824-3005 Integration Guide I 47
PRODUCT INFORMATION
Description Features Cat. No.
[A] HLC Load Control Module 30A module utilizing Leviton’s Generation III UPB™ (Universal Powerline Bus)
technology over existing power lines. Controls the power consumption of
high wattage loads such as pool pumps and hot water heater. Can control
120 or 240V loads. Requires neutral wire.
71A00-1
[B] Phase Coupler For 120/240V electrical systems, the Phase Coupler increases the speed
and reliability of the HLC system. Although the HLC protocol is extremely
robust and less susceptible to power line conditions, Leviton recommends
the use of a Phase Coupler in every installation.
39A00-1
[C] UPB™ Split-Phase Repeater Designed to repeat UPB™ signal in installations requiring additional signal
strength. Must be used on a 120/240VAC split-phase 60Hz powerline.
39A00-2
[D] UPB™ Three-Phase Repeater Required for use in three-phase installations when UPB™ devices are
installed on separate phases. Must be used on a three-phase 120/208VAC
delta-wye, 60Hz powerline.
39A00-3
[E] UPB™ Powerline Interface
Module with Cable
UPB™ Powerline Interface Module (PIM) connects the lighting system to an
automation system or computer, which can then control the lights – making
the system accessible through the home computer or from a remote
location over the Internet.
36A00-1
AB C
D
E
Integration Guide I LEVITON.COM
48
WIRELESS LIGHTING CONTROL
Utilizing Z-Wave® technology, Vizia RF +® provides dramatic
scene transitions, extended zone lighting control, industry
standard 2-way status updating and true integration of
household electrical devices.
Use Vizia RF +® to enhance new construction or to refresh
existing homes and residences.
Enjoy stand-alone or tie in to Leviton’s Omni
automation systems.
ENERGY MANAGEMENT
FOR TECHNICAL SUPPORT CALL: 1-800-824-3005 Integration Guide I 49
Vizia RF +® Wireless Lighting Controls
Join a revolution in the home automation industry with Vizia RF +® wireless lighting and home control
technology. Innovative and aordable, with features that are desired by professional installers and
appreciated by homeowners, Vizia RF +® helps reduce energy consumption.
Equipped with Z-Wave® home automation technology, Vizia RF +® allows tailoring of the perfect home
control solution that can be used stand-alone or tied into a Leviton Omni control system. Imagine
a home in which the lighting automatically adapts to your needs. For example, in the kitchen, one
button can slowly dim the ceiling light while subtly brightening the chandelier over the kitchen table.
Vizia RF +® can control other rooms just as impressively. It also works well with exterior fixtures,
enabling them to be controlled throughout the house. Maximum square footage: 7500 Sqft, with
a maximum of 120 devices.
The Vizia RF +® product line includes new customer-requested features that increase its options,
such as 49 selectable fade rates, an Energy Save mode, customizable preset maximum and minimum
brightness levels, and more control of locator LED activity.
Color Choices
Vizia RF +® devices are oered in a wide range of colors and finishes.
To order colors, add sux to Cat No.
Red (R)
Black (E)Grey (G)
Ivory (I)Light
Almond (T)
Brown (B)
White (W)
ENERGY MANAGEMENT
Integration Guide I LEVITON.COM
50
ENERGY MANAGEMENT | Vizia RF +® Wireless Lighting
Vizia RF +® | Dimmers
Vizia RF +® Scene Capable Dimmers for Single Pole, 3-Way or Multi-Location Applications
Dimmers
Description Rating Cat. No. Color
[A] CFL, LED, Incandescent, Magnetic Low Voltage and Mark 10
Dimmer with LED locator and brightness display - Neutral required
1000W / 1000VA
60Hz. CFL/LED: 450W
VRMX1-1L Z
[B] Incandescent Dimmer with LED locator and brightness display -
No Neutral
600W – 120VAC
60Hz
VRI06-1L Z
[C] Incandescent Dimmer with LED locator and brightness display -
No Neutral
1000W – 120VAC
60Hz
VRI10-1L Z
[D] Electronic Low Voltage Dimmer with LED locator and brightness
display - Neutral req’d
600W – 120VAC
60Hz
VRE06-1L Z
Fan Speed Controls
Description Rating Cat. No. Color
[E] Quiet Fan Speed Control with LED locator and fan speed display 1.5A – 120VAC
60Hz
VRF01-1L Z
Color Change Kit for Vizia RF +® Dimmers
Color Change Kit
Description Cat. No. Color
[F] Matching Dimmer/Fan Speed Control VPKIT-MD W, I, T, G, E,
B, R
[G] Color Change Kit with LED locator and brightness display
A B C
D E F
ENERGY MANAGEMENT
FOR TECHNICAL SUPPORT CALL: 1-800-824-3005 Integration Guide I 51
Vizia RF +® | Switches
VRS15-1L
Vizia RF +® Scene Capable Switch for Single Pole, 3-Way
or Multi-Location Applications
Scene Capable Switches
Description Rating Cat. No. Color
Scene Capable
Switch with LED
locator
15A
1800W Resistive
1800W Incandescent
1800VA Fluorescent
1800VA Inductive
1/2 HP Motor (9.8A)
VRS15-1L Z
Incandescent Scene
Capable Switch with
LED locator
5A
Incandescent only
(no neutral required)
VRS05-1L Z
Color Change Kit for Vizia RF +® Switches
Color Change Kit
Description Cat. No Color
Matching Switch Color
Change Kit with LED locator
VPKIT-MS W, I, T, G, E, B, R
Vizia RF +® | Remotes
Vizia RF +® Programming and Handheld Remote Controllers
Programming and Handheld Remote Controllers
Description Cat. No.
RF + Installer Tool Software and USB for System programming* VRUSB-000
RF Handheld Remote Controller Programmer/Timer
(Internal astronomical clock)
VRCPG-0SG
Vizia RF +® IR Handheld Remote Controller VRMR1-0SG
VRCPG-SG
LED Lightbulb Incandescent Lightbulb
Other Lightbulb CFL Lightbulb
ENERGY MANAGEMENT
Integration Guide I LEVITON.COM
52
ENERGY MANAGEMENT | Vizia RF +® Wireless Lighting
Vizia RF +® | Controllers
Vizia RF +® Wall Controllers
Wall Controllers
Description Rating Cat. No. Color
Vizia RF +® 4-Button Scene
Controller
No Load Rating
120VAC-60Hz
VRCS4-M0 Z
Vizia RF +® 4-Button Zone
Controller
No Load Rating
120VAC-60Hz
VRCZ4-M0 Z
Vizia RF +® 2-Button Scene
Controller with Switches
1000W, 1000VA, 1/4HP per
switch 120VAC-240VAC,
50/60 Hz
VRCS2-MR Z
VRCS2-MR
Color Change Kits for Vizia RF +® Controllers
Color Change Kits for Vizia RF Controllers
Description Cat. No. Color
2-Button Scene Controller with Switches Color Change Kit with
LED for VRCS2
VRKIT-DS W, T, G, E, B
1-Button Zone Controller/Virtual Dimmer Remote Color Change
Kit with LED locator and brightness display for VRCZ1
VPKIT-MD W, I, T, G, E, B, R
1-Button Scene Controller/Virtual Switch Remote Color Change
Kit with LED locator for VRCS1
VPKIT-MS W, I, T, G, E, B
4-Button Scene Controller Color Change Kit with LED locator for
VRCS4
VPKIT-S4 W, I, T, G, E, B
4-Button Zone Controller Color Change Kit with LED for VRCZ4 VPKIT-Z4 W, I, T, G, E, B, R
4-Button Scene Controller Label Kit with LED locator for VRCS4 VPSLB-S4 W, I, T, G, E, B, R
4-Button Zone Controller Label Kit with LED for VRCZ4 VPZLB-Z4 W, I, T, G, E, B, R
VRCZ4-M0
VRCS4-MRZ
Vizia RF +® Virtual 3-Way Remotes
Virtual 3-Way Remotes
Description Rating Cat. No. Color
1-Button Scene Controller/ Virtual
Switch Remote
No Load Rating
120VAC-60Hz
VRCS1-1L Z
Vizia RF +® 1-Button Zone Controller/
Virtual Dimmer Remote
No Load Rating
120VAC-60Hz
VRCZ1-1L Z
ENERGY MANAGEMENT
FOR TECHNICAL SUPPORT CALL: 1-800-824-3005 Integration Guide I 53
Vizia RF +® | Plug-In Modules
VRPA1-1L
VRPD3-1L
VRR15-1L
Vizia RF +® Scene Capable Plug-In Modules
Plug-In Modules
Description Rating Cat. No. Color
Vizia RF +® Scene Capable
Plug-In Appliance Module
15A, 5A LED/CFL
1800W Incandescent
1800VA Fluorescent
1800W Resistive
1800VA Inductive and
1/2 HP motor loads @ 120VAC-
60Hz
VRPA1-1LW W
Vizia RF +® Scene Capable
Plug-In Lamp Dimming
Module
300W Incandescent or 100W CFL/
LED @ 120VAC-60Hz
VRPD3-1L W
Vizia RF +® Plug-In Serial
Interface Module, ASCII to
Z-Wave® Interface
No Load Rating
120VAC-60Hz
VRC0P-1L W
Vizia RF +® Split Duplex
TR Receptacle with LED
Locator
1800W, 1800VA,
1/2 HP motor loads @: 120VAC-
60Hz
VRR15-1L Z
Receptacle Color Change Kit VRKIT-R0 B, E, G, I, T, W.
SPOTLIGHT | Attach Z-Wave Devices to Automation Systems
Vizia RF + devices can create a wonderful stand-alone lighting system with
scene and zone control. However, attaching these lighting control devices
to automation hubs, gateways, and security systems opens up additional
sales opportunities for installing dealers. Not only will these intelligent
switches, receptacles, and more attach to Leviton Omni security & automation
controllers, but also a wide variety of third-party Z-Wave capable control
systems. Add “razor blade” revenue to smart systems by incorporating
two-way communicating Vizia RF + devices.
Integration Guide I LEVITON.COM
54
OMNI-BUS LIGHTING NETWORK
Popular in domestic commercial operations and a variety
of international applications, Omni-Bus controls up to 256
lights, shades, fans, shutters, pumps, and more. Omni-Bus
features the benefits of central lighting control with
the flexibility of distributed control systems. Modular
Omni-Bus components can be located where needed to
save wiring and installation costs.
SECTION NAMEENERGY MANAGEMENT
FOR TECHNICAL SUPPORT CALL: 1-800-824-3005 Integration Guide I 55
The Universal Solution DIN Rail Solution
The Leviton Omni-Bus Lighting Control Network is the hardwired and wireless lighting solution
for 110/220/240V 50-60Hz. Utilizing the worldwide DIN rail standard for mounting, this bus and
controller-based management oering will control CFL, LED, electronic low-voltage, Halogen,
and incandescent lighting.
Omni-Bus Advantages
The Omni-Bus lighting system fully integrates with Omni and BitWise controllers, allowing control
of Omni-Bus devices using standard Leviton interfaces or software applications. Power wiring is
minimized as controllers can be localized to switches. Switches can be programmed to perform a
number of actions. Omni-Bus features free setup software available online.
How Omni-Bus Works
Power modules feed power to dimming or non-dimming switches. Each switch wires up to a DIN rail
module. Load Control and other DIN rail modules connect to the Omni-Bus network using standard
CAT-6 UTP (Unshielded Twisted Pair) cable between each Omni-Bus device. The Omni-Bus network runs
on a low supply voltage (24VDC) and is optically isolated from the mains supply side. Each hardwired
switch connects to the Omni-Bus network using CAT-6. The use of splitters allows for a free topology
architecture for ease of installation and expandability.
ENERGY MANAGEMENT
Integration Guide I LEVITON.COM
56
ENERGY MANAGEMENT | Omni-Bus Lighting Control
Core Components (Required) Accessories Load Control Modules Switch Interfaces
For ease of reference, Omni-Bus components are labeled using the following
four categories:
PRODUCT INFORMATION
Description Features Cat. No.
[A] Interface Translator DIN Rail
Module
The “gateway” of the Omni-Bus system, this device allows Leviton
Controllers (Omni LTe, Omni IIe, OmniPro II) to interface with an Omni-Bus
network. Built in radio receiver for use with wireless switch interfaces
113A00-2, 113A00-4, 113A00-7, 125A00-1, 125A00-2. Features an
Ethernet port and serial port.
117A00 -1
[B] Omni-Bus Scene Control DIN
Rail Module
Stores up to 32 lighting scenes or moods, controlling up to a total of 256
Omni-Bus load control modules. Each scene can be triggered from up to 8
different Omni-Bus input devices. Also works in conjunction with a Leviton
Controller and Omni-Bus Interface Translator for added flexibility and
control.
126A00-1
[C] Power Supply 2.5A DIN Rail
Module
This 24VDC 2.5A power supply module provides power to the Omni-Bus
network. Required Omni-Bus component.
123A00-1
[D] Power Supply Interface 2A DIN
Rail Module
Used to detect overloading and select cabling errors on the Omni-Bus
network. Distributes power from 123A00-1. Detects low voltage power
and overloading to Omni-Bus network. Required Omni-Bus component.
124A00-1
[E] 8-Way Splitter DIN Rail Module Eight-port splitter used for splitting the network into a star configuration. 120A00-1
Omni-Bus Lighting Control
E
A C
D
B
ENERGY MANAGEMENT
FOR TECHNICAL SUPPORT CALL: 1-800-824-3005 Integration Guide I 57
PRODUCT INFORMATION
Description Features Cat. No.
[A] Termination Plug Used to terminate the Omni-Bus network. Each network must contain one
and only one network Termination Plug. Required Omni-Bus component.
122A00-1
[B] Jumper Plugs Used to terminate any open ends or open connectors on the Omni-Bus
network. Required Omni-Bus component. Available in packs of ten. Not sold
individually.
121A00-1
[C] RF Transceiver DIN Rail Module Wireless transceiver for use with wireless switch interfaces 113A00-2,
113A00-4, 113A00-7, 125A00-1, 125A00-2. This added transceiver provides
expanded wireless range for the Omni-Bus network.
115A00-1
[D] DALI Gateway DIN Rail Module Controls DALI (Digital Addressable Lighting Interface) output devices: On/
off switching, dimming, DALI group control, DALI broadcast control, and
DALI scene control.
118A00-1
[E] USB Programming Interface
Unit
Configure and maintain all user programmable parameters of the Omni-
Bus network with a PC. Includes an Omni-Bus PC software license.
116A00-1
[F] 3-Way Splitter Expand an Omni-Bus network with this splitter. Used where a T-junction or
network split is required.
119A00-1
[G]
6-Channel Universal Switch
Interface Module –
Connects up to six third-party switches to the Omni-Bus network. Six LED
outputs control two-lead bi-color or single color LED indicators for each
switch.
114A00-1
[H]
Omni-Bus Cable Assemblies
for Universal Switch Interface
Module (12) –
Pack of 12 cable assemblies for Omni-Bus Universal Switch Interface
Module 114A00-1. 150mm cable assembly used to connect a switch input
or LED output of the 114A00-1 to third-party switch. One cable is required
for each input or LED output. Cables not sold separately.
114A01-1
FED
A B C
G
H
ENERGY MANAGEMENT
Integration Guide I LEVITON.COM
58
ENERGY MANAGEMENT | Omni-Bus Lighting Control
Core Components (Required) Accessories Load Control Modules Switch Interfaces
For ease of reference, Omni-Bus components are labeled using the following
four categories:
PRODUCT INFORMATION
Description Features Cat. No.
[A] Omni-Bus Relay DIN Rail
Module
Control up to four general purpose resistive loads: 2A@230V~,
2A@110V~, 2A@28VDC or general purpose low voltage switching
applications (irrigation valves, gates, garage doors, etc.).
112A00-1
[B] Omni-Bus Dimmer DIN Rail
Module
Controls 220V incandescent, 220V halogen, and low voltage
transformers suitable for trailing-edge dimming: 400W@230V~ This
product is available for international (non-North American) markets only.
110A00-1
[C] Omni-Bus Universal Dimmer
DIN Rail Module
Advanced dimming circuit controls most lighting loads. Selectable
jumper for leading or trailing edge dimming. Controls incandescent,
halogen, low voltage electronic transformers, low voltage magnetic
transformers: 900W@230V~; 600W@110V~. Controls dimmable CFL/
LED: 400W@230V~; 300W@110V~
110A00-2
[D] Omni-Bus Power Switch DIN
Rail Module
Controls resistive/incandescent: 2000W@230V~; 1500W@110V~.
Ballast (fluorescent lights): 2000W@230V~; 1500W~110V~. Low voltage
transformer: 2000W@230V~; 1500W@110V~. DC resistive: 10A@30VDC.
111A00-1
[E] Single-Gang Switch Box w/
Cover, Metal
Features holes and knockouts for mounting to desired surface. Can
accommodate Hi-Fi 2 by Leviton interfaces, Omni-Bus hardwired
switches, and UPB™ switches. Includes a metal cover with hardware for
mounting to the box.
95A20-1
Omni-Bus Lighting Control
E
A C
D
B
ENERGY MANAGEMENT
FOR TECHNICAL SUPPORT CALL: 1-800-824-3005 Integration Guide I 59
PRODUCT INFORMATION
Description Features Cat. No.
[A] 1-Button, Hardwired, White
1-Button, Wireless, White
Single button hardwired or wireless switch interface. Controls dimmer, power
switch, relay, or an input into Leviton controller. LED light indicates operation
status. Wireless switch operates with 117A00-1 or 115A00-1.
113A00-1
113A00-2
[B] 2-Button, Hardwired, White
2-Button, Wireless, White
Two button hardwired or wireless switch interface. Controls dimmer, power
switch, relay, or an input into Leviton controller. LED light indicates operation
status. Wireless switch operates with 117A00-1 or 115A00-1.
113A00-3
113A00-4
[C] 3-Button, Hardwired, White
3-Button, Wireless, White
Three button hardwired or wireless switch interface. Controls dimmer, power
switch, relay, or an input into Leviton controller. LED light indicates operation
status. Wireless switch operates with 117A00-1 or 115A00-1.
113A00-5
113A00-7
[D] 6-Button, Hardwired, White Six button hardwired switch interface. Controls dimmer, power switch, relay, or
an input into Leviton controller. LED light indicates operation status.
113A00-8
[E] 3-Button, Hardwired,
Brushed Stainless
Three-button hardwired switch interface. Controls dimmer, power switch,
relay, or inputs into Leviton controller. LED lights indicate operation status.
113A00-6
[F] 6-Button, Hardwired,
Brushed Stainless
Six-button hardwired switch interface. Controls dimmer, power switch, relay, or
inputs into Leviton controller. LED lights indicate operation status.
113A00-9
[G] Keyfob Remote Control,
6-Channel
Wireless RF transmitter built into a convenient keyfob. Up to six channels
available. Controls dimmer, power switch, relay, or inputs into Leviton controller.
Wireless switch operates with 117A00-1 or 115A00-1.
125A00-1
[H] Keyfob Remote Control,
16-Channel
Wireless RF transmitter built into a convenient keyfob. Up to 16 channels
available. Controls dimmer, power switch, relay, or inputs into Leviton controller.
Wireless switch operates with 117A00-1 or 115A00-1.
125A00-2
A DCB
E
G H
F
ENERGY MANAGEMENT
Integration Guide I LEVITON.COM
60
ENERGY MANAGEMENT | Omni-Bus Lighting Control
Low Voltage Switches
Description Cat. No.
[A]
Omni-Bus Decora Low Voltage Keypad,
NEMA Form Factor, 1 Button, RJ45
Connectors for Omni-Bus, Color: White
OBKND-10W
[B]
Omni-Bus Decora Low Voltage Station,
NEMA Form Factor, 2 Button, RJ45
Connectors for Omni-Bus, Color: White
ONKND-20W
[C]
Omni-Bus Decora Low Voltage Station,
NEMA Form Factor, 4 Button, RJ45
Connectors for Omni-Bus, Color: White
OBKND-40W
Optional Wallplates
Description Cat. No.
1-Gang Decora Screwless Wallplate 80301-0Sx*
1-Gang Decora Screwless Wallplate, color: gray 80301-SGY
1-Gang Decora Standard Screw Wallplate 80401-00x*
1-Gang Decora Standard Screw Wallplate, color: gray 80401-SGY
1-Gang Decora Wallplate, brass satin 81401-000
1-Gang Decora Wallplate, brushed stainless steel 84401-040
Wall Station Color Change Kits
Description Cat. No.
NEMA Omni-Bus 1-button wall station color change kit RDSGW-1xx*
NEMA Omni-Bus 2-button wall station color change kit RDSGW-2xx*
NEMA Omni-Bus 4-button wall station color change kit RDSGW-4xx*
NEMA Omni-Bus Wall Stations
PRODUCT INFORMATION
The Omni-Bus™ Low Voltage Wall Stations are NEMA form factor stations designed for modular load control of the Omni-Bus
network. The Omni-Bus Low Voltage Wall Stations can be configured to operate any Omni-Bus load or scene.
FEATURES
• Models include 1-, 2- or 4-button configurations for control
of Omni-Bus devices
• Standalone or PC-based programming
• Multiple LED display options including intensity control
• Red/green LED status for load or scene
• RJ45 connectors for connection to Omni-Bus networks
• Requires 1-gang NEMA backbox
• Screwless Decora® wallplate is included and stations
are compatible with all Decora wallplates
• Custom engraved labeling available
A B C
*Replace “x” to indicate option and color. Each device is supplied with a white, single gang plate. Options: E – (color change kit) F – Engraved.
Color: W(white), I(ivory), T(light almond), G(gray), E(black), R(red).
NOTE: Contact factory for custom engraving information.
*Replace “x” to indicate color: (W)White, (I)Ivory, T(Light Almond), E(Black) NOTE: Contact factory for custom engraving information.
ENERGY MANAGEMENT
FOR TECHNICAL SUPPORT CALL: 1-800-824-3005 Integration Guide I 61
Which Lighting Control System Is Best?
Now that you’ve seen several dierent lighting control solutions, how do you determine which is the top
choice for your specific installation?
Have more questions? Visit the product pages
to learn more at www.leviton.com/automation
Lighting Control Features/Benefits
Product Page # Ideal For Voltage Technology Advantages
HLC 42 Single Family Homes 120/240 Universal Powerline
Bus (UPB™)
Decora® form factor, works
over long distances, affordable
Vizia RF+ 48 Condominiums, Townhomes,
Apartments
120 Z-Wave® (900 MHz) Wireless, Compatible
with products from 160
manufacturers
Omni-Bus 54 High-End Residential, Small
Commercial
110/220-240 Low Voltage (Cat 6),
Wireless (433MHz)
Flexible installation options,
wide array of compatible wall
stations
Lumina RF 34 Small Commercial 120/240 Lumina RF (2.4 GHz) High-power mesh network,
simple to configure
ENERGY MANAGEMENT
Integration Guide I LEVITON.COM
62
ENERGY MANAGEMENT | VerifEye™ Series 1000 & Series 2000 Meter Kits
VerifEye™ Series 1000 (single phase) and Series 2000
(single or three phase) Meter Kits
The VerifEye line of revenue-grade meters meets all measurement and verification-
based opportunities. Designed to provide a simple and eective process for accurately
capturing measurements of power consumption, VerifEye meters utilize highly accurate
current transformers (CTs) for revenue-grade performance certified to ANSI standards.
The large LCD display shows kWh and optional peak and instantaneous kW with
Demand Reset. With the 2000 Series meters, Multiple Meter Unit (MMU) Configurations
are possible with 2-4 Medium meters, 5-8 large meters, or 9-16 extra large meters.
Solid core CTs slip over power lines to measure the electrical current flowing through
the line. They are compact, cost eec tive and are extremely accurate (0.3% maximum
error). For installation, power must be de-energized and the circuit opened, in order
to slip the CT over the power line.
Split core CTs can be disassembled, or ‘split’ into halves, eliminating the need to turn
power o and open the circuit during installation. This time-saving installation is ideal
for critical loads that cannot be disconnected. Split core CTs close securely for fast,
precise installation with no need for time-consuming tie wraps and no worries about
improper seating or core half separation.
PART NUMBERS: Series 1000 Single Phase Meter Kits
VOLTAGE AMPS CTS INCLUDED INDOOR ENCLOSURE
LEVITON P/N
OUTDOOR ENCLOSURE
LEVITON P/N
120V 1 PH 2 W 100 1 Split CT 1K120-01W 1O120-01W
200 1 Split CT 1K120-02W 1O120-02W
400 1 Split CT 1K120-04W 1O120-04W
800 1 Split CT 1K120-08W 1K120-08W
100 1 SOLID CT 1K120-1SW –
200 1 SOLID CT 1K120-2SW –
120/208V 1 PH 3 W or
120/240V 1 PH 3 W (Split Phase)
100 2 Split CTs 1K240-01W 1O240-01W
200 2 Split CTs 1K240-02W 1O240-02W
400 2 Split CTs 1K240-04W 1O240-04W
800 2 Split CTs 1K240-08W 1O240-08W
100 2 SOLID CTs 1K240-1SW –
200 2 SOLID CTs 1K240-2SW –
277V 1 PH 2W 100 1 Split CT 1K277-01W 1O277-01W
200 1 Split CT 1K277-02W 1O277-02W
400 1 Split CT 1K277-04W 1O277-04W
800 1 Split CT 1K277-08W 1O277-08W
100 1 SOLID CT 1K277-1SW –
200 1 SOLID CT 1K277-2SW –
Use Series 1000 and Series 2000 Meters in commercial, institutional,
industrial and government applications for:
• Tenant cost allocation
• Load profiling and benchmarking
• Measurement and verification
• Usage aggregation
• Energy conservation
• Cost reduction
ENERGY MANAGEMENT
FOR TECHNICAL SUPPORT CALL: 1-800-824-3005 Integration Guide I 63
ENERGY MANAGEMENT | VerifEye™ Series 1000 & Series 2000 Meter Kits
PART NUMBERS: Series 2000 Single Phase Meter Kits
VOLTAGE AMPS CTS INCLUDED INDOOR ENCLOSURE
LEVITON P/N
OUTDOOR ENCLOSURE
LEVITON P/N
120/208V 3 PH 4 W WYE kWh Meter 100 3 Split CTs 2K208-01W 2O208-01W
200 3 Split CTs 2K208-02W 2O208-02W
400 3 Split CTs 2K208-04W 2O208-04W
800 3 Split CTs 2K208-08W 2O208-08W
1200 3 Split CTs 2K208-12W 2O208-12W
100 3 SOLID CTs 2K208-1SW –
200 3 SOLID CTs 2K208-2SW –
120/208V 1 PH 3 W or
120/240V 1 PH 3 W (Split Phase)
100 3 Split CTs 2K480-01W 2O480-01W
200 3 Split CTs 2K480-02W 2O480-02W
400 3 Split CTs 2K480-04W 2O480-04W
800 3 Split CTs 2K480-08W 2O480-08W
1200 3 Split CTs 2K480-12W 2O480-12W
100 3 SOLID CTs 2K480-1SW –
200 3 SOLID CTs 2K480-2SW –
120/208V 3 PH 4 W WYE
Demand Meter
100 3 Split CTs 2K208-01D –
200 3 Split CTs 2K208-02D –
400 3 Split CTs 2K208-04D –
800 3 Split CTs 2K208-08D –
1200 3 Split CTs 2K208-12D –
277/480V 3 PH 4 W WYE
Demand Meter
100 3 Split CTs 2K480-01D –
200 3 Split CTs 2K480-02D –
400 3 Split CTs 2K480-08D –
800 3 Split CTs 2K480-08D –
1200 3 Split CTs 2K480-12D –
“ Leviton continues to have the most flexible automation panel on
the market and the systems continue to be very reliable.”
Mountain Home Technology, Big Sky, Montana
Meter Technical Support Number: 1-800-959-6004
ENERGY MANAGEMENT
Integration Guide I LEVITON.COM
64
ENERGY MANAGEMENT | VerifEye™ EMH+ and Emax
VerifEye EMH+ All-in-One Integrated Meter and Hub
The VerifEye EMH+ combines a revenue-grade power meter and data acquisition Hub
in a flexible all-in-one package. Installation is simple as the device draws power from
the connected voltage sense lines - no external power supply required!
Features
• Data Collection
- Logs and collects data on user selected intervals
- Non-volatile memory stores data until the next scheduled upload or manual
download
• Compatible with FREE* VerifEye BMO 2.0 software, allowing users to quickly access
energy consumption information from a web-based platform
• Tracks real-time energy usage for demand response programs
• Meter data can be transferred to energy dashboards, kiosks and software
applications
• Expandable via ModBus RTU and ModBus TCP
• Supports BACNet and other protocols on one device
• Seamlessly integrates with BMS and BAS systems
• Monitors performance of critical systems such as lighting and HVAC
• Set alarms notifications for targeted levels and view graphical and historical data
* VerifEye BMO 2.0 is included at no cost with the purchase of VerifEye EMH+
Ordering Information
Description Cat. No.
EMH+ All-in-One Meter and Hub with 3 Phase Meter, includes 100A CTs. Power Supply Included A8814-1S3
EMH+ All-in-One Meter and Hub with 3 Phase Meter, includes 200A CTs. Power Supply Included A8814-2S3
EMH+ All-in-One Meter and Hub with 3 Phase Meter, includes 300A CTs. Power Supply Included A8814-3S3
EMH+ All-in-One Meter and Hub with 3 Phase Meter, includes 400A CTs. Power Supply Included A8814-4S3
EMH+ All-in-One Meter and Hub with 3 Phase Meter, includes 600A CTs. Power Supply Included A8814-6S3
ENERGY MANAGEMENT
FOR TECHNICAL SUPPORT CALL: 1-800-824-3005 Integration Guide I 65
EZ-MAX® Plus Relay Control Panels
EZ-MAX Plus relay lighting control panels pack power and performance in compact,
cost-eective and easy to install package. EZ-MAX Plus is the ideal solution for
smaller, stand-alone applications that do not require the field configuration or
advanced networking features. EZ-MAX Plus includes standard programming
configurations for occupancy sensors and photocells as well as a built-in astronomical
time clock (ATC) with 101 major city and states programmed into the system.
Features
• Easy standard programming configuration:
- Occupancy sensors: manual-ON or auto-ON applications
- Photocells: interior or exterior application modes
- Photocell light level trip points: ON or OFF
• Built-in astronomical time clock and scheduler
- 101 major cities and states programmed for easy astronomical setup
- Sunrise/sunset time clock events
• Auto detection/auto assign of installed network switches
• Enable/disable of low voltage and digital input devices minimizes power consumption
• Clearly labeled access points allow installer to locate optimum knock-out locations
• ON/OFF timed control of LED - use with low voltage sensors, photocells and switches
• UL and cUL Listed Industrial Control Equipment and Emergency Lighting Equipment
for 120V, 277V and 347V Panels
• ASHRAE 90.1 2010 compliant
• CA Title 24 2013 compliant and listed
• Rated for 100% load capacity
Ordering Information
Description Cat. No.
EZ-MAX Plus 8 Relay Panel, (0) No Relays, (8) empty slots. 120V, 277V, 347V input power. With 8 Low
\Voltage Inputs
R08BD-000
EZ-MAX Plus 8 Relay Panel, (4) 1-Pole 30A 120V/277V Relays, (4) empty slots. 120V, 277V, 347V input power.
With 8 Low Voltage Inputs
R08BD-L04
EZ-MAX Plus 8 Relay Panel, (8) 1-Pole 30A 120V/277V Relays. 120V, 277V, 347V input power. With 8 Low
\Voltage Inputs
R08BD-L08
EZ-MAX Plus 8 Relay Panel, (8) 2-Pole 20A 240V/480V Relays. 120V, 277V, 347V input power. With 8 Low
\Voltage Inputs
R08BD-208
EZ-MAX Plus 24 Relay Panel, (0) No Relays, (24) empty slots. 120V, 277V, 347V input power. With 12 Low
\Voltage Inputs
R24BD-000
EZ-MAX Plus 24 Relay Panel, (16) 1-Pole 30A 120V/277V Relays, (8) empty slots. 120V, 277V, 347V input power.
With 12 Low Voltage Inputs
R24BD-L16
EZ-MAX Plus 24 Relay Panel, (24) 1-Pole 30A 120V/277V Relays. 120V, 277V, 347V input power. With 12 Low
Voltage Inputs
R24BD-L24
EZ-MAX Plus 24 Relay Panel, (16) 2-Pole 20A 240V/480V Relays, (8) empty slots. 120V, 277V, 347V input power.
With 12 Low Voltage Inputs
R24BD-216
EZ-MAX Plus 24 Relay Panel, (24) 2-Pole 20A 240V/480V Relays. 120V, 277V, 347V input power. With 12 Low
Voltage Inputs
R24BD-224
EZ-MAX Plus 8 Relay Panel, (0) No Relays, (8) empty slots. 230V input power. With 8 Low Voltage Inputs R08BF-000
EZ-MAX Plus 8 Relay Panel, (8) 1-Pole 30A 120V/230V/277V Relays. 230V input power. With 8 Low Voltage Inputs R08BF-L08
EZ-MAX Plus 24 Relay Panel, (0) No Relays, (24) empty slots. 230V input power. With 12 Low Voltage Inputs R24BF-000
Integration Guide I LEVITON.COM
66
ENTERTAINMENT
FOR TECHNICAL SUPPORT CALL: 1-800-824-3005 Integration Guide I 67
ENTERTAINMENT
Leviton makes it easy to stream music anywhere.
Many Leviton audio products can be used as
stand-alone devices or integrated into a control
system for improved functionality. Build an AV
solution that provides more than convenience,
create an enhanced audio experience.
69 Multiple Zones to Suit
Your Lifestyle
70 Hi-Fi Distributed Audio
74 Speakers
76 In-Wall/In-Ceiling
JBL Speakers
77 In-Wall/In-Ceiling
Spec-Grade Speakers
78 JBL Outdoor Speakers
79 Home Theater Speakers
Integration Guide I LEVITON.COM
68
ENTERTAINMENT
The revolutionary Hi-Fi 2 distributed audio system mounts
in a structured wiring enclosure for a clean, built-in
installation. These innovative systems support in-wall and
in-ceiling speakers and any shared audio source. Use the
free Leviton app to control audio in every room.
SECTION NAMEENTERTAINMENT
FOR TECHNICAL SUPPORT CALL: 1-800-824-3005 Integration Guide I 69
Multiple Zones to Suit Your Lifestyle
The Hi-Fi 2 distributed audio system is available in either 8-source/8-zone systems (expandable to 16
zones) or as a 4-source/4-zone system. For clarity that is skip free and not subject to distortion, choose
the hard-wired reliability of the Hi-Fi 2.
Both systems can work stand-alone and can be accessed via the free Hi-Fi 2 Leviton app.
Built-In Distributed Audio With Bluetooth
The Hi-Fi 2 amplification, 1x6 Audio Distribution Module, and Strauss Volume Control are all mounted in
a Leviton Structured Media® Enclosure between the studs for a clean, sleek appearance. Leviton Built-In
Distributed Audio requires no audio rack or closet full of audio equipment. Simply plug in your audio
source or share via Bluetooth®.
The 8x8 Hi-Fi version features 50 Watts per zone and mounts full-width in a Leviton Structured Media
Center, while the 4x4 version features 40 Watts per zone and fits half-width.
Discreet Speaker Installations
Leviton manufactures speakers that sound fantastic when paired with these audio systems. Choose
from in-wall, in-ceiling, or outdoor speakers from Leviton for a truly professional aesthetic and say
goodbye to cluttered bookshelf speakers.
Free Stand-Alone iOS® and Android App
Now, anyone can control their Hi-Fi 2 system via free Leviton applications from a smartphone
or tablet. Load the application on as many devices as you like for free. Whether it’s from the couch,
the den, the patio, the oce, or anywhere else in the building, the application supports easy control.
ENTERTAINMENT
Integration Guide I LEVITON.COM
70
ENTERTAINMENT | HI-FI 2 Distributed Audio
PRODUCT INFORMATION
Description Features Cat. No.
[A] Hi-Fi 2 by Leviton
4 Zone, 4 Source –
Amp Only
Amplifier Only 4x4 with Power Supply version. Includes US Power Supply. A bundled kit
is also available, 95A00-3. Includes free iOS app.
95A02-3
[B] Hi-Fi 2 by Leviton
4 Zone, 4 Source
Kit for Structured
Wiring Enclosures
Accommodates four sources, which can either be local at the amplifier or remote using
a RIM connected to Cat5. 2 RIMS come with the Hi-Fi 2 4x4 for the most popular remote
inputs (home theater, kitchen TV, den entertainment center). More RIMs are available
separately. Includes 4 OLED Display VSCs (Volume Source Control) with digital controls
and remote control. Works with optional Bluetooth® Remote Input Module. This product
functions in many world locations with multiple voltage operating capacity.
95A00-3
[C] Hi-Fi 4x4 Power
Cord
Power cord for Australia, for use with Hi-Fi 4-Zone, 4 Source systems 95A21-3
Power cord for Europe, for use with Hi-Fi 4-Zone, 4 Source systems 95A21-2
Power cord for UK, for use with Hi-Fi 4-Zone, 4 Source systems 95A21-1
[D] Hi-Fi 2 by Leviton
8 Zone, 8 Source
Kit with Enclosure
Includes 8 Inputs and 4 RIMs (Remote Input Module); use all 8 Inputs or 4 Inputs and 4
RIMS or any combination up to a total of 8 Inputs/RIMS. Also includes 8 OLED Display
VSCs (Volume Source Control) with digital controls. Expandable to 16 zones using
Expansion Amplifier Kit [sold separately]. Works with optional HAI Dock and Bluetooth
Remote Input Module. Includes free iOS app.
95A00-1
[E] Hi-Fi 2 by Leviton
8 Zone, 8 Source
Kit for Structured
Wiring Enclosures
Includes 8 Inputs and 4 RIMs (Remote Input Module); use all 8 Inputs or 4 Inputs and 4
RIMS or any combination up to a total of 8 Inputs/RIMS. Also includes 8 OLED Display
VSCs (Volume Source Control) with digital controls. Expandable to 16 zones using
Expansion Amplifier Kit [sold separately]. Works with optional HAI Dock and Bluetooth
Remote Input Module. Includes free iOS app.
95A00-2
[F] Hi-Fi 2 by Leviton
Main Amplifier
Assembly with
Power Supply
Expandable to 16 zones using Expansion Amplifier Kit [sold separately]. Includes free
iOS app.
95A01-1
Backplate available. 20A07-2
Hi-Fi 2 Distributed Audio
FE
B CA
D
iOS &
FREE
APPS
Android
iOS &
FREE
APPS
Android
ENTERTAINMENT
FOR TECHNICAL SUPPORT CALL: 1-800-824-3005 Integration Guide I 71
PRODUCT INFORMATION
Description Features Cat. No.
[A] Hi-Fi 2 by Leviton 8 Zone
Expansion Amplifier Kit
with Enclosure
Includes expansion PCA, 8 VSCs, and enclosure. Expands the Hi-Fi 2 to a total
of 16 zones. Includes power cord, expansion cable, and two variable outputs.
Expansion Amplifier must be mounted no more than six inches (15.24cm) below
the Main Amplifier. Compatible with OmniPro II and Lumina Pro controllers only.
95A12-1
[B] Hi-Fi 2 by Leviton 8 Zone
Expansion Amplifier Kit
for Structured Wiring
Enclosures
Includes expansion PCA on back plate and 8 VSCs. Expands the Hi-Fi 2 to a total
of 16 zones. Includes power cord, expansion cable, and two variable outputs.
Expansion Amplifier must be mounted no more than six inches (15.24cm) below
the Main Amplifier. Compatible with OmniPro II and Lumina Pro controllers only.
95A12-2
[C] Hi-Fi 2 Expansion
Amplifier Assembly
w/Power Supply
Includes expansion PCA with power supply and power cord. Expands the Hi-Fi 2
to a total of 16 zones. Expansion Amplifier must be mounted no more than
six inches (15.24cm) below the Main Amplifier. Compatible with OmniPro II and
Lumina Pro controllers only.
95A18-1
[D] Hi-Fi 2 Expansion Cable
Assembly
24-pin ribbon cable connects the Main Amplifier board to the Expansion Amplifier
board. This part is included with 95A12-1 and 95A12-2.
95A16-1
[E] Vented Enclosure Enclosure for Hi-Fi 2 with vents, door latch mounting plate, hardware kit and
instructions. Features knock-outs on top, bottom, and back for multiple
installation scenarios.
95A09-1
[F] Hi-Fi 2 by Leviton
Retractable Cable
3.5mm male to 2 RCA male patch cable. Extends to 4 feet. Use to connect TVs,
CD players, home theater and stereo components to Hi-Fi 2’s RIM.
95A13-1
[G] Hi-Fi 2 by Leviton
Retractable Cable
3.5mm male to 3.5mm male stereo patch cable. Extends to 4 feet. Use to
connect MP3 players, iPods™, computers with headphone and/or audio outputs
to Hi-Fi 2’s RIM.
95A14-1
[H] Single Head Flashing IR Emitter EN928-000
G
H
F
E
A B C
D
ENTERTAINMENT
Integration Guide I LEVITON.COM
72
ENTERTAINMENT | HI-FI 2 Distributed Audio
PRODUCT INFORMATION
Description Features Cat. No.
[A] Hi-Fi 2 Remote Control Remote Control for volume and source selection. One included in 95A00-1
and 95A00-2.
95A05-1
[B] Volume–Source Control
(VSC)
Four-button OLED keypad controls volume, power, source, and more.
Features IR receiver. White wallplate, VSC Color Change Kits available.
Supports foreign language (western characters) and unicode characters.
95A03-1
[C] VSC Color Change Kits
(Case of 12)
Case of 12 wallplates. Specify color code when ordering, White (WH),
Almond (AL), Light Almond (LTA), Black (BL) and Ivory (IV).
95A11-colorcodeCS
[D] Bluetooth® Remote
Input Module
Bluetooth® devices can connect and act as music servers for your Hi-Fi
2 distributed audio system. Play music from your device’s Pandora,
Spotify, Rhapsody, iTunes®, and YouTube playlists. No more learning new
interfaces or being held back by localized controls. Now anyone can be
the DJ!
95A04-2
[E] BRIM Color Change Kit
(Sold Individually)
Single wallplate. Specify color code when ordering, White (WH), Almond
(AL), Light Almond (LTA), Black (BL), and Ivory (IV).
95A15-colorcode
[F] Remote Input Module
(RIM)
White Remote Audio Input/IR output module. Includes white wallplate.
Additional colors are available through RIM Color Change Kits. Features a
routed IR emitter jack and a flasher. Control your source equipment from
any room that has a Volume-Source Control.
95A04-1
[G] RIM Color Change Kits
(Case of 12)
Case of 12 wallplates. Specify color code when ordering, White (WH),
Almond (AL), Light Almond (LTA), Black (BL), and Ivory (IV).
95A10-colorcodeCS
Hi-Fi 2 Distributed Audio
F
A
B C D
EG
Black (E)
Ivory (I)Light
Almond (T)
Almond
(AL)
White (W)
ENTERTAINMENT
FOR TECHNICAL SUPPORT CALL: 1-800-824-3005 Integration Guide I 73
ENTERTAINMENT | Strauss Volume Controls & 1x6 Distributed Audio
A B C D
DECORA® Strauss™ Transformer-Free
Volume Controls
• Contemporary slider design brings precision and
elegance to any installed audio system
• Available in standard and impedance-matched
versions
• Volume control uses standard Decora wallplate in
a standard J-Box or low-voltage mounting ring
• Color-change kits ensure the right finishing touch
for every application
System Matching Module
• Combine with non-impedance-matching volume
controls to control up to six speaker pairs (cannot
be used with impedance-matching volume
controls)
• AutoSurge™ circuit technology protects speakers
from potentially damaging transients
• Designed to mount in Leviton Structured Media®
Enclosures
1x6 Audio Distribution Module
• Combines with impedance-matching Volume Controls to control up to six speaker pairs from an
amplifier or receiver
• Designed to mount in Leviton Structured Media enclosures and connect to six rooms/zones
Audio System Volume Controls
Description PART NO.
[A] Decora Strauss Transformer-Free Slider volume control, analog, 200 watts peak, 100 watts RMS, 4-16
ohms, 8 ohm nominal (for use with SGAMP-000) (Decora wallplate sold separately, see page F25)
SGVST-00W
[C] Decora Strauss Transformer-Free Impedance-Matching Slider volume control, analog, 200 watts peak, SGVSM-00W
Decora Strauss Color-Change Kit, converts to light almond SGVCK-0LA
Decora Strauss Color-Change Kit, converts to ivory SGVCK-00I
Decora Strauss Color-Change Kit, converts to black SGVCK-00E
System Matching Modules
[B] System Matching Module for impedance-matching passive two-channel multi-room audio systems
(for use with SGVST-00W)
SGAMP-000
1X6 AUDIO DISTRIBUTION MODULE
[D] [D] 1x6 Passive Audio Module (for use with SGVSM-00W) 48211-06A
Features and Benefits – Impedance Matching Difference
When installing an audio system
It is important to have an impedance-matching component
paired with a standard component. Failure to do so may have
a negative effect on the audio system.
Do NOT use an impedance-matching volume control with
an impedance-matching module, and do NOT use a standard
volume control with a passive audio module. Doing so, in either
instance, could damage the amplifier.
SGVST-00W SGAMP-000
SGVSM-00W
48211-06A
Integration Guide I LEVITON.COM
74
SPEAKERS
The award-winning Leviton Architectural Edition™ Powered
by JBL® easily amplifies audio capabilities in any type of
home, business, conference room, or oce, bringing the
pro sound experience and ensuring that an installed audio
system has no weak links. For a cost-eective solution,
Leviton Spec-Grade™ speakers are an ideal balance
between home theater, distributed audio, and outdoor
sound performance and value.
SPEAKERS
FOR TECHNICAL SUPPORT CALL: 1-800-824-3005 Integration Guide I 75
Speakers
JBL® Speakers
Leviton Architectural Edition™ Powered by JBL incorporates the most advanced audio materials,
technologies, and precision engineering available. Leviton audio solutions help builders dierentiate
themselves in the market with comprehensive entertainment packages, oering home and business
owners an extra level of technology and convenience.
JBL is a trusted name in home audio. The power of the brand, combined with Leviton’s reputation with
builders and strong relationships with builders and contractors, creates a perfect team for equipping
homes and MDUs with reliable home networking connectivity and quality entertainment systems.
When the specs call for JBL In-Wall and In-Ceiling Speakers, the performance is guaranteed to bring
a new meaning to home entertainment.
Spec-Grade™ Speakers
The Leviton Spec-Grade series delivers time-tested performance across any audio application.
Spec-Grade speakers provide a cost-conscious value that delivers an ideal balance between home
theater, distributed audio, and quality sound performance. When the specs call for quality sound,
rely on the Leviton Spec-Grade speaker line for technical innovation and value.
SPEAKERS
Integration Guide I LEVITON.COM
76
DISTRIBUTED AUDIO | In-Wall & In-Ceiling Speakers
Leviton Architectural Edition Powered by JBL In-Wall/In-Ceiling Speakers
Description Cat. No.
[A] Pair of 6.5" Two-Way In-Wall Loudspeakers, 80 watts, 8 ohms AEI65-000
[B] Pair of 8" Two-Way In-Wall Loudspeakers, 100 watts, 8 ohms AEI80-000
[C] Pair of 6.5" Two-Way In-Ceiling Loudspeakers, 80 watts, 8 ohms AEC65-000
Pair of 8" Two-Way In-Ceiling Loudspeakers, 100 watts, 8 ohms AEC80-000
[D] 6.5" Two-Channel / Single Location Two-Way In-Ceiling Loudspeakers, two titanium tweeters,
dual voice-coil titanium-laminate woofer 50 watts/channel, 8 ohms
AEM65-000
Pre-Construction Kits
Description Cat. No.
6.5" Pre-Construction Speaker Kit for in-wall installations AEPI6-KIT
8" Pre-Construction Speaker Kit for in-wall installations AEPI8-KIT
Fire-Rated Back-Box Enclosure (Required for 6.5" in-ceiling speakers AEC65, AEM65) AEBC6-000
8” Pre-Construction Speaker Kit for In-Ceiling Speaker AEPC8-KIT
In-Wall/In Ceiling JBL® Speakers
JBL studio speakers have a reputation for incorporating the most advanced audio materials,
technologies, and precision engineering available. These same features and technologies are built
into the Leviton Architectural Edition® Powered by JBL Series audio equipment.
Features and Benefits
Leviton Architectural Edition Powered by JBL Wall & Ceiling Speakers
JBL titanium-laminate drivers maintain accuracy and clarity even at frequency extremes
Straight-line Signal Path™ (SSP®) crossover network for minimal signal distortion
Long-excursion woofers with butyl-rubber half-round surrounds and extended pole-piece magnetic structures for maximum
bass impact and dynamic range
Low-diffraction, swivel-tweeter mounting system for optimum stereo imaging
Heavy-duty push-type input terminals for long-term connection integrity
Integrated dog-ear mounting brackets (optional rough-in kits available for pre-construction installation in new homes)
Acoustically transparent, paintable grills
Pre-Construction Kits
Pre-construction kits ensure that speaker locations and wiring are preserved and protected during construction,
allowing for a cleaner, faster, and more precise installation during the trim-out stage
Fire-Rated Back-Box enclosure meets fire code for MDU and residential installations
DCA B
SPEAKERS
FOR TECHNICAL SUPPORT CALL: 1-800-824-3005 Integration Guide I 77
Pre-Construction Kits
Pre-construction kits ensure that speaker locations and wiring are preserved and protected during
construction, allowing for a cleaner, faster, and more precise installation during the trim-out stage.
Fire-Rated Back-Box enclosure meets fire code for MDU and residential installations.
Spec-Grade® In-Wall/In-Ceiling Indoor Speakers
Description Cat. No.
[A] Pair of 6.5" Spec-Grade Two-Way In-Ceiling Loudspeakers, 120 W peak/ 60 W RMS, 8 ohms SGC65-00W
[B] Pair of 6.5" Spec-Grade Two-Way In-Wall Loudspeakers, 120 W peak/ 60 W RMS, 8 ohms SGI65-00W
Pre-Construction Kits
Description Cat. No.
Rough-in Bracket for 6.5" In-Wall Loudspeakers PCI65-KIT
Rough-in Bracket for 8" In-Wall Loudspeakers PCI80-KIT
[C] Fire-Rated Back-Box Enclosure (Required for 6.5" in-ceiling speakers SGC65) AEBC6-000
In-Wall/In Ceiling Spec-Grade® Speakers
When the specs call for quality audio, rely on Leviton’s award-winning Spec-Grade® indoor speaker
line for technical innovation and value.
Features and Benefits
Spec-Grade Speakers
AeroNylon tweeter diaphragm provides crystal-clear treble response and accurate tracking
Built-in AutoSurge™ circuit protection helps prevent speaker damage
Advanced phase/time alignment guide properly aligns sound without misaligning the tweeters
Precision dividing network ensures total audio signal electronic integrity up to the last microsecond before the signal is converted
into sound
Inert mounting frame with “dogleg” installation points eliminates any transmitted vibrations that could alter in-wall or in-ceiling
sound quality
CA B
DISTRIBUTED AUDIO | Outdoor Home & Theater Speakers
Leviton Architectural Edition Powered by JBL Outdoor Speakers
Description Cat. No.
[A] Pair of Outdoor/All–Weather Two-Way Loudspeakers in Enclosure, 0.50" tweeter,
4" woofer, 200 watts, 8 ohms
AEAWS-C1W
JBL Outdoor Speakers
Features and Benefits
Leviton Architectural Edition® Powered by JBL® Outdoor Speakers
Elliptical Oblate Spheroidal™ (EOS) Waveguide technology for high-frequency dispersion
Straight-line Signal Path™ (SSP) crossover networks for minimal signal distortion
5-way binding post input terminals for long-term connection integrity
Mounting brackets included
A
SPOTLIGHT | Smartphone Convenience, Connected Home Performance
More homeowners are sending music and movies from their smartphones to HDTVs or home
entertainment systems over Apple Airplay®, Airport Express®, or Apple TV devices. Leviton
offers wiring diagrams and equipment lists to help you integrate these Apple products with
Leviton Structured Media® Systems and speakers.
We’ll help you connect the dots to easily share music, videos, and photos on a grand scale.
To learn more, go to leviton.com/connectedhome.
SPEAKERS
Integration Guide I LEVITON.COM
78
Leviton Architectural Edition Powered by JBL Home Theater Speakers
Description Cat. No.
[A] Dual 5" Two-Way In-Wall Center Channel Home Theater Loudspeakers, 120 watts, 8 ohms AEI55-000
[B] Dual Channel Two-Way Shelf-Mounted Center Channel Loudspeaker w/ silver grill,
75 watts / 300 watts, 8 ohms
AECCS-VCE
[C] Powered 12" Subwoofer w/ amplifier w/ silver grill, 400 watts RMS, 700 watts peak, 8 ohms AESUB-012
[D] Five-Channel Surround-Sound Home Cinema Speaker System w/ 100-watt powered subwoofer
and 5 satellite speakers
AEH50-0**
System-Matched Satellite Speaker for 6.1 and 7.1 surround sound expansion AESS5-0**
Single-Gang Decorative Satellite Speaker Adapter Wallplate/Bracket AEPHK-0**
Pre-Construction Kit, in-wall center channel shelf for use with AEI55-000 AEPIS-KIT
** = Color: Available in White (WH) or Black (BL)
Home Theater Speakers
Features and Benefits
In-Wall Speakers
Straight-line Signal Path™ (SSP) crossover network for
minimal signal distortion
JBL® titanium-laminate drivers, pure titanium tweeter,
and polymer-coated aluminum woofers maintain musical
accuracy and clarity, even at frequency extremes
Low-diffraction, swivel-tweeter mounting system of
optimum stereo imaging
Shelf-Mount Center Channel Speaker
Straight-line Signal Path (SSP) crossover network for minimal
signal distortion
Dual 5" JBL PolyPlas cone woofers
FreeFlow flared port for increased bass response without
added port noise
Subwoofer
JBL PolyPlas™ woofer for low frequencies
High-efficiency, high-current switching amplifier
Freeflow flared port for increased bass response without
added port noise
Built-in technologies allow simple adjustment for room
acoustics and personal preference
LFE and line level inputs for maximum connection flexibility
Surround-Sound Home Cinema System
Includes five 2-way magnetically shielded satellite
speakers with 2.5" (63.5 mm) woofer and 0.5" (12.7 m) tweeter;
one 8” (200 mm) 100 watt powered subwoofer with LFE and
a built-in crossover network, plus five adjustable mounting
brackets and subwoofer input RCA cable
Five-channel system can be expanded to 6.1 or
7.1 surround sound with optional satellite speakers
A
BD
C
SPEAKERS
FOR TECHNICAL SUPPORT CALL: 1-800-824-3005 Integration Guide I 79
Integration Guide I LEVITON.COM
80
AUDIOVISUAL SOLUTIONS
FOR TECHNICAL SUPPORT CALL: 1-800-824-3005 Integration Guide I 81
AUDIOVISUAL SOLUTIONS
Leviton comprehensive audiovisual solutions
deliver the durable, high-quality performance
needed to support today’s cutting-edge
home and oce technologies.
83 Introduction
84 BitWise™ Controllers
86 AV Signal Extension
90 Multimedia Outlet System
94 QuickPort® Wallplates
& Housings
96 Audio Accessories
98 Video Accessories
Integration Guide I LEVITON.COM
82
AUDIOVISUAL SOLUTIONS
Easily control and monitor AV equipment from any
smartphone or tablet, extend audio and video signal reach
using the latest technologies, completely customize
in-wall connectivity configurations, and rely on one
manufacturer to provide it all. Leviton state-of-the-art
audiovisual solutions seamlessly optimize any home or
business AV system.
AUDIOVISUAL SOLUTIONS
FOR TECHNICAL SUPPORT CALL: 1-800-824-3005 Integration Guide I 83
Control and Signal Strength that Goes the Distance
BitWise
BC1, BC2, and BC4 controllers support the control of audiovisual equipment from a tablet or smartphone.
By using a free Leviton app for the Android/iPhone/iPad/iPod Touch, AV equipment can be eortlessly
controlled from anywhere in the building. OmniTouch 7 Touchscreens can be used for dedicated control. These
controllers also make it easy to manage more complex systems or setups, such as multiple AV systems in sports
bars, restaurants, business conference rooms, and classroom environments. And they allow users to control
lights, HVAC window coverings, and dozens of AV components, including projectors, displays, matrix switches,
amplifiers, and source devices.
Extension
Leviton plug-n-play extenders support the latest HDBaseT technology, providing the highest quality,
simplest end-to-end audiovisual solutions for the residential and commercial applications.
Leviton extenders deliver strong HDMI, VGA, and USB signals over greater distances, amplifying the power,
clarity, and reach of business, school, or home AV networks.
Connectivity
Leviton oers a comprehensive line of QuickPort® connectors and adapters to support various
audiovisual formats, including HDMI, USB, VGA, and DVI connector formats from BNC, RCA, F-type,
and Banana Jacks to Binding Posts. For larger multimedia applications, the Multimedia Outlet System
(MOS) allows wallplates to be configured with a high-density, front-loading combination of snap-in
copper, fiber, audio, and video modules.
AUDIOVISUAL SOLUTIONS
Integration Guide I LEVITON.COM
84
AUDIOVISUAL SOLUTIONS | BitWise Products
Introducing the Leviton BitWise Product Family!
A complete AV control and automation eco-system.
The Leviton BitWise line oers powerful automation controllers, a completely customizable app
interface, and our easy-to-use, no-coding-required Project Editor software. From a single control app,
you can manage every aspect of AV and more. For setup software, templates, modules, and support,
please visit Leviton.com/BitWise.
• No per-device or per-job licensing fees, free software
• Free Apple and Android control apps
• U.S.-assembled controllers ensure the highest standards of quality and reliability
• Integrate with Omni Security & Automation systems for a comprehensive solution.
BitWise AV Controllers
FEATURES
• Entry-level BC4 is perfect for home theaters, conference rooms, and classrooms
• BC2 includes additional inputs and outputs, including optional Wi-Fi connectivity
• BC1 controller fits in an AV rack at full width and adds advanced scheduling and notification.
Interfaces
• Manage your system via the BitWise control app on iOS and Android devices, available on smartphones and tablets.
Use an OmniTouch 7 Touchscreen for ‘Always there, Always on’ control
• RF Room Remote and Remote Receiver controls all BitWise connected devices in a room
Accessories
• Optional power supplies, IR emitters, IR Learners, and Wi-Fi adapters enhance the capabilities of a BitWise control system
• PoE Power Injector provides up to 15.4 watts of power and 10/100M data transmission through category cable
AUDIOVISUAL SOLUTIONS
FOR TECHNICAL SUPPORT CALL: 1-800-824-3005 Integration Guide I 85
BitWise
Description Cat. No.
[A] BC1, US Power Supply, 8 IR ports, 4 RS232, 4 GPIO, 4 Relays, 1 IR input BWBC1-000
BC1, Intl Power Supply, 8 IR ports, 4 RS232, 4 GPIO, 4 Relays, 1 IR input BWBC1-0NT
[B] BC2, US Power Supply, 4 IR ports; 2 RS232; 2 GPIO; 2 Relays BWBC2-000
BC2, lntl Power Supply, 4 IR ports, 2 RS232; 2 PIO, 2 Relays BWBC2-0NT
[C] BC4-BCX-1 PRO, US power supply, BW BC4 with 4 IR ports, GPIO, RS232 BWBC4-000
BC4-BCX-1 PRO, INTL power supply, BW BC4 with 4 IR ports, GPIO, RS232 BWBC4-0NT
[D] RF Remote Control BWRMT-000
[E] RF Remote Control Receiver BWRRR-000
[F] BC-2 Rack Ears BWEAR-000
[G] Single Head Flashing IR Emitter EN928-000
[H] Dual Head Flashing IR Emitter BWEM2-000
[J] Adapter for connecting a BC-1 IR In port to a Distributed IR system BWIRA-000
[K] Wi-Fi Adapter with External Antenna BWWFA-000
[L] IR Receiver Module BWIRI-000
[M] IR Learner BWIRL-000
[N] DB9 Female-RJ45 Female Adapter BWDBF-000
[P] DB9 Male-RJ45 Female Adapter BWDBM-000
[Q] POE Power Injector with A/C Cord TS901-000
[R] OmniTouch 7 Touchscreen, black/white 99A00-1/2
OmniTouch 7 Table Top Stand – White 99A16-1
OmniTouch 7 Top Stand – Black 99A16-2
US Power Supply, 12V BWDPS-000
International Power Supply, 12VDC BWIPS-000
A
D
H
N P Q
J K L M
E F G
B C
R
AUDIOVISUAL SOLUTIONS
Integration Guide I LEVITON.COM
86
AUDIOVISUAL SOLUTIONS | AV Signal Extension
Extending High-Quality AV Signals Over
Category Cable
Deliver the high-quality audiovisual required for today’s technologies with Leviton IT/AV Systems,
which include signal extenders for long distance transmission of HD video. We oer extenders for a
variety of connection types that increase cable distance and retain high signal performance.
HDMI with
HDBaseT Extender A
VGA Extender
B
USB 1.1 Extender
C
0 100 200 300 400
40-50 feet
100 m
(100 m)
100 feet
100 m
(100 m)
16 feet
164 feet
(50 m)
HDMI Cable
HDMI w/ Leviton HDBaseT Extender
over category cable
VGA Cable
VGA with Leviton Extender
over category cable
USB 1.1 Cable
USB 1.1 with Leviton Extender
over category cable
Distance in feet
A
B
C
Below are recommended maximum lengths for different AV cables,
compared to maximum lengths using Leviton extenders:
HDMI®
VGA
USB
1.1
AUDIOVISUAL SOLUTIONS
FOR TECHNICAL SUPPORT CALL: 1-800-824-3005 Integration Guide I 87
Receiver
HDBaseT Extender Transmitters & Receivers
Description Cat. No.
[A] HDBaseT Extender, Transmitter and Receiver, 100 m 41910-HTE
[B] HDBaseT Extender, Transmitter and Receiver, 70 m 41910-HT0
[C] HDBaseT Extender, Receiver only, 70 m 41910-HTR
[D] HDBaseT Extender IR Emitter and Receiver Kit 41910-HIR
A DB
C
Features and Benefits
HDBaseT Extender Transmitters & Receivers
HDBaseT twisted pair extenders with PoH (Power over HDBaseT) deliver high-performance HDMI, Ethernet, IR, and RS232 signals
for classrooms, conference rooms, command centers, restaurants, home cinemas, and more. The paired transmitter and receiver
require only one power adapter that can be connected at either the source or display end. HDBaseT certification ensures
compatibility with other HDBaseT certified products.
• Class A Extenders (41910-HTE) deliver 328 ft (100 m) transmission for HDMI, Ethernet, bi-directional IR, RS232
• Class B Extenders (41910-HT0) deliver 230 ft (70 m) transmission for HDMI, bi-directional IR, RS232
• Support key features of HDMI 1.4, including 3D & 4K x 2K, CEC pass through and HDCP compatible
• Locking power supply and HDMI cable connectors
• Mounting brackets included
• Compact metal housing for mounting with flatscreen displays
IR Emitter and Receiver Kit
• Includes IR emitter and IR target, connected to 5-foot cords
• Delivers 5V IR signal transmission
• Works with HDBaseT Extender Transmitters and Receivers
HDBaseT™
Transmitter Transmitter
Receiver Receiver
Transmitter
AUDIOVISUAL SOLUTIONS | AV Signal Extension
A B
Features and Benefits
VGA Extender Transmitter & Receiver
The VGA Extender allows you to extend the distance between
your AV source and display devices by as much as 328 feet
(100 m). The transmitter and receiver connect over category
cable, providing an easy way to replace heavy and expensive
VGA cables. The extender is a compact, convenient, and
economical addition to your AV setup.
• Screen resolutions include:
1920 x 1200@60Hz (30 m)
1600 x 1200@60Hz (100 m)
1280 x 1024@60Hz (150 m)
• Adjustable Gain Control lets you manually adjust
signal strength to compensate for distance
• Audio enabled (mono)
• No external power supply needed for transmitter
• Compact metal housing for convenient docking
on the display device
HDMI Cables
The Leviton high-speed HDMI Cable with Ethernet is ideal for
supporting in-wall and permanent installations for education,
healthcare, enterprise, and government applications
• CL2 rated for in-wall installation
• Compact connector body and flexible cable accommodate
common box depths while maintaining minimum bend radius
• Commercial-grade 28-gauge construction
• Gold-plated connectors for long-lasting performance
• Cable Lock Kit secures cable to Leviton Signal Extension
devices for permanent installations
VGA Extender Transmitter & Receiver
Description Cat. No.
[A] VGA Extender Transmitter and Receiver, 100 m 41910-V01
HDMI Cables
HDMI Cable, 3 ft. 41900-03E
[B] HDMI Cable, 6 ft. 41900-06E
HDMI Cable, 10 ft. 41900-10E
HDMI Cable, 15 ft. 41900-15E
HDMI Cable Lock Kit 41900-LKT
Receiver
AUDIOVISUAL SOLUTIONS
Integration Guide I LEVITON.COM
88
USB Extenders
Description Cat No.
[A] USB 1.1 Extender, 50 m 41910-U11
Mini Digital Amplifier
[B] Mixing Audio Amplifier 41920-A01
[C] Infrared Remote Control Kit 41920-AIR
USB 1.1 Extender
The USB 1.1 Extender lets you locate your USB device or hub at greater distances from your computer,
overcoming the typical 15-foot USB cable limitation. The extenders are ideal for classrooms with
interactive board installations.
Mixing Audio Amplifier & Infrared Remote Control Kit
Ideal for classrooms and meeting rooms, this Class D mini amplifier includes 2 line and 1 MIC inputs,
which support EQ control and MIC mixing. With 2 x 20W at 4 Ohm as default output, it can be switched
to 1 x 40W at 8 Ohm by bridge connection.
AB C
USB 1.1 Extender
Specifications and Features
• Consist of a local unit and a remote unit
• Embedded USB transceivers at both ends prevent signal loss
• Extend transmission distance up to 164 ft (50 m) using category cabling
• No additional software/drivers required
• 1-foot USB cable included with local unit
Specifications and Features
• Two switchable analog audio inputs
• One 3-level MIC input with mixer function
• Stereo, dual mono, and bridge output mode selectable
• Bass, treble, and volume adjustable
• Loop output to cascade to another amplifier
• Locking power adapter
• Controllable via button, RS232 (optional IR via Infrared Kit: 41920-AIR)
• Optional Infrared Remote Control Kit includes remote control and IR sensor/receiver to control amplifier
AUDIOVISUAL SOLUTIONS
FOR TECHNICAL SUPPORT CALL: 1-800-824-3005 Integration Guide I 89
AUDIOVISUAL SOLUTIONS
Integration Guide I LEVITON.COM
90
AUDIOVISUAL SOLUTIONS | Coppers Systems – Multimedia Outlet System
• Front-load installation ensures simple moves, adds, and changes
• Modules are available in 0.5, 1, 1.5, 2, and 3-unit high sizes
• Accommodates a combination of QuickPort® connectors and larger AV components such as 3-port
composite/component RCA and HD-15 connectors
• Large Surface-Mount Box accepts 3 modules (1-unit high only)
• Wallplates accept 3-units high total
• New Surface-Mount Housing (pictured below) accepts one 1-unit high module and is plenum rated
for use in air handling environments
HDMI Feedthrough
1-Unit High Module
XLR Connector in a
1.5-Unit High Module
Cat 6 Adapter in a
1-Port QuickPort
1-Unit High Module
MOS Passthrough
1.5-Unit High Module
ID Window
3-Port RCA
1-Unit High Module
Multimedia Outlet System (MOS)
The innovative Multimedia Outlet System (MOS) consists of a surface-mount box and
single- and dual-gang wallplates that accept a variety of copper, fiber, and AV connectors.
The system is ideal for multimedia applications in conference rooms, training rooms,
classrooms, auditoriums, and other areas.
AUDIOVISUAL SOLUTIONS
FOR TECHNICAL SUPPORT CALL: 1-800-824-3005 Integration Guide I 91
Dual-Gang Wallplate (3-units high)
Single-Gang Wallplate also available VGA Video
XLR Connector with
Passthrough Module
QuickPort® & MOS Compatibility
The highly flexible front-loading Multimedia Outlet System (MOS) and QuickPort® Solutions work
together to provide hundreds of possible configurations. Select MOS, MOS and QuickPort, or QuickPort
only configurations. Blank inserts are also available to create a finished look when building in extra
capacity for future growth. For more information about configuring your MOS installation,
visit Leviton.com/MOS.
Single-Gang Wallplate
Decora Insert
Component Video
MOS modules will also work with Decora® wallplates
Just snap one-unit high modules into Decora inserts.
speakON® Connector
with Passthrough Module
HDMI Connector
Feedthrough
1-Port QuickPort
Module
Fiber Adapter
Duplex SC
AUDIOVISUAL SOLUTIONS
Integration Guide I LEVITON.COM
92
AUDIOVISUAL SOLUTIONS | AV Connectivity – Multimedia Outlet System
MOS Surface-Mount Box & Wallplate Housings
Description White Lt. Almond Ivory Grey Black Stainless
[A] Single-Gang Wallplate 41290-SMW 41290-SMT 41290-SMI 41290-SMG 41290-SME 41290-SMS
[B] Dual-Gang Wallplate 41290-DMW 41290-DMT 41290-DMI 41290-DMG 41290-DME 41290-DMS
[C] Three-Gang Wallplate — — — — — 41290-TMS
[D] Surface-Mount Box*,
3-unit w/Fiber Storage
41296-MMW 41296-MMT 41296-MMI 41296-MMG 41296-MME —
[E] Surface-Mount Housing,
holds one 1-unit high module
4M089-1WM 4M089-1IM 4M089-1TM 4M089-1GM 4M089-1EM —
[F] Fiber Storage/Spacer Ring ˚41290-DRW —41290-DRI 41290-DRG 41290-DRE —
[G] Decora® Insert,
holds one 1-unit high module
41649-00W 41649-00T 41649-00I 41649-00G 41649-00E —
* = Surface-mount box is not compatible with 41295-V**, 41292-D**, and 41292-A**.
˚ = Dual-gang only.
Multimedia Outlet System AV Connector Modules (All modules are 1-unit high unless noted otherwise)
Description White Lt. Almond Ivory Grey Black
[H] VGA PC Module, 110-style termination^ 41295-VPW 41295-VPT 41295-VPI 41295-VPG —
[I] VGA Monitor Module, 110-style termination^ 41295-VMW 41295-VMT 41295-VMI 41295-VMG —
[J] VGA/HD15 Module, screw terminal 41295-HDW —41295-HDI — —
[K] VGA/HD15 Module, feedthrough 41293-HDW 41293-HDT 41293-HDI 41293-HDG 41293-HDE
VGA/HD15 Module, empty 41291-DBW —41291-DBI 41291-DBG 41291-DBE
[L] RCA Component Video Module,
110-style termination (red, green, blue)
41292-DEW 41292-DET 41292-DEI — —
[M] RCA Composite Video Module,
110-style termination (red, white, yellow)
41292-AEW 41292-AET 41292-AEI — —
[N] 3-Port RCA Module (red, black, yellow), feedthrough 41292-3RW 41292-3RT 41292-3RI 41292-3RG 41292-3RE
[O] 3-Port RCA Module (red, green, blue), feedthrough 41292-3DW 41292-3DT 41292-3DI 41292-3DG 41292-3DE
[P] HDMI® Module, feedthrough 41290-HDW 41290-HDT 41290-HDI 41290-HDG 41290-HDE
[Q] speakON® Connector, 4-pole, screw terminal* — — — — 41297-SP4
[R] XLR Connector, 3-pole, screw terminal* — — — — 41297-XL3
^ = 110-Style VGA modules require both PC and Monitor modules used in pairs to operate. This applies to F and G only.
* = 1.5-units high. speakON and XLR Connectors must be installed in 1.5-unit high MOS Passthrough Module (41297-2Px).
A B D F G
EC
N O P Q R
H I J K L M
AUDIOVISUAL SOLUTIONS
FOR TECHNICAL SUPPORT CALL: 1-800-824-3005 Integration Guide I 93
MOS Fiber Inserts
Description White Ivory Grey Black
[A] 1 Duplex SC, zirconia ceramic, SM/M, blue, (1-unit high) 41291-2CW 41291-2CI 41291-2CG 41291-2CE
[B] 1 Duplex SC, zirconia ceramic, SM/MM, blue, 45˚ exit (1.5-units high) 41294-2CW 41294-2CI 41294-2CG 41294-2CE
[C] 1 Duplex SC, zirconia ceramic, SM/MM, blue, 45˚ exit (2-units high) 41292-2CW 41292-2CI 41292-2CG 41292-2CE
[D] 2 Duplex SC, zirconia ceramic, SM/MM, blue, 45˚ exit (3-units high) 41293-4CW 41293-4CI 41293-4CG 41293-4CE
1 Duplex ST, zirconia ceramic, SM, (1-unit high) 41291-ZTW 41291-ZTI 41291-ZTG 41291-ZTE
[E] 1 Duplex ST, phosphor bronze, MM, (1-unit high) 41291-2TW 41291-2TI 41291-2TG 41291-2TE
1 Duplex ST, zirconia ceramic, SM, 45˚ exit (1.5-units high) 41294-ZTW 41294-ZTI 41294-ZTG 41294-ZTE
WWW
DCBA E
MOS Adapters & Blank Modules
Description White Lt. Almond Ivory Grey Black
[F] 1-Port QuickPort® Module (1-unit high) 41291-1MW 41291-1MT 41291-1MI 41291-1MG 41291-1ME
[G] 2-Port QuickPort Module (1-unit high) 41291-2QW 41291-2QT 41291-2QI 41291-2QG 41291-2QE
[H] 2-Port 45˚ Exit Angled QuickPort Module
(1.5-units high)
41294-2QW 41294-2QT 41294-2QI 41294-2QG 41294-2QE
[I] Passthrough Module (1.5-units high) 41297-2PW 41297-2PI 41297-2PT 41297-2PG 41297-2PE
[J] Blank Module (0.5-unit high) 41295-5BW 41295-5BT 41295-5BI 41295-5BG 41295-5BE
[K] Blank Module (1-unit high) 41291-1BW 41291-1BT 41291-1BI 41291-1BG 41291-1BE
[L] Blank Module (1.5-units high) 41294-2BW 41294-2BT 41294-2BI 41294-2BG 41294-2BE
[M] Blank Module (2-units high) 41292-2BW 41292-2BT 41292-2BI 41292-2BG 41292-2BE
For multimode SC adapters in beige, blue, or aqua housing, please contact inside sales at 800.722.2082.
F G H J K L MI
White Light
Almond
Ivory Grey Black
AUDIOVISUAL SOLUTIONS
Integration Guide I LEVITON.COM
94
AUDIOVISUAL SOLUTIONS | AV Connectivity – Multimedia Outlet System
QuickPort® Wallplates & Housings
The QuickPort System allows you to create the perfect mix of voice, data, video, and audio connections.
Category-rated, fiber, and AV QuickPort connectors are compatible with any QuickPort wallplate or insert.
QuickPlate Tempo available early Q2 2015.
Please contact Inside Sales at 1.800.722.2082.
2-Port Wallplate 4-Port Wallplate
Cat 5e UTP
Connector
Stereo Adapter
HDMI Connector
Feedthrough
F-Connector
Feedthrough
HOME 6
Connector
USB A/A Connector
Feedthrough Connectors & Adapters
SPOTLIGHT | Single-Gang QuickPlate® Tempo Wallplates with ID Windows
QuickPlate Tempo wallplates allow for fast, one-step installations. They feature patented rear wings that
tighten the wallplate to wallboard, eliminating the need for a box or mounting brackets.
AUDIOVISUAL SOLUTIONS
FOR TECHNICAL SUPPORT CALL: 1-800-824-3005 Integration Guide I 95
QuickPlate Tempo Single-Gang Wallplates with ID Windows
White Light Almond Ivory Grey Black
[O] 2-Port Wallplate 42090-2WS 42090-2TS 42090-2IS 42090-2GS 42090-2ES
[P] 4-Port Wallplate 42090-4WS 42090-4TS 42090-4IS 42090-4GS 42090-4ES
O, P
Data & AV Connectors
Description Application Cat. No.
[A] QuickPort® BNC Bulkhead Module, standard CCTV & video 41084-B*F
[B] QuickPort BNC Bulkhead Module, gold plated CCTV & video 40832-0B°
[C] QuickPort HDMI Passthrough TV, DVD, satellite & home theater 40834-00#
QuickPort S-Video Feedthrough Enhanced video streams 40734-CV~
[D] QuickPort USB A-A Connector, feedthrough Computers & peripherals 40835-00~
[E] QuickPort 3.5 mm Stereo, screw terminal Computer audio 40839-S~S
[F] QuickPort F-Connector, standard, 3.0 GHz TV, DVD, satellite & home theater 41084-F*F
[G] QuickPort F-Connector, gold plated, 3.0 GHz TV, DVD, satellite & home theater 40831-0B°
QuickPort RCA to 110 Advanced audio & video 40735-Rx†
QuickPort RCA w/ black stripe Advanced audio & video 40830-B*E
[H] QuickPort RCA w/ red stripe Advanced audio & video 40830-B*R
QuickPort RCA w/ yellow stripe r Advanced audio & video 40830-B°Y
QuickPort RCA w/ green stripe Advanced audio & video 40830-B~V
QuickPort RCA w/ blue stripe Advanced audio & video 40830-B~L
[I] QuickPort Binding Post Adapter, gold plated w/ black stripe Advanced audio 40833-B°E
[J] QuickPort Binding Post Adapter, gold plated w/ red stripe Advanced audio 40833-B°R
QuickPort Snap-in Blank Module Secures unused ports 41084-B*B
[K] QuickPort Compression RCA Connector Advanced audio & video 40782-R•W
[L] QuickPort Compression F-Connector (white only) TV, DVD, satellite & home theater 40782-CPF
[M] RCA Compression Connector (colored rings included) CCTV & video 40985-CRU
[N] Compression F-Connector CCTV & video 40985-CPF
M, N
I, J
r = Minimum order quantity and lead times may apply.
~ = Color: White (W), Ivory (I)
x = Inner Barrel Color: Orange (O), Red (R), White (W), Yellow (Y)
† = Color: White (W), Light Almond (T), Ivory (I), Grey (G), Black (E)
• = Inner Barrel Color: Black (E), Yellow (Y), Red (R), Blue (L), Green (V)
‡ = Color: Choose from any of the 13 colors shown at left
* = Color: White (W), Light Almond (T), Ivory (I), Grey (G), Black (E), Brown (B)
° = Color: White (W), Light Almond (T), Ivory (I)
# = Color: White (W), Light Almond (T), Ivory (I), Black (E)
K, L
F, G
C
A, B E
D
Yellow (-Y)
White (-W)
Orange (-O)
Light Almond
(-T)
Crimson (-C)
Ivory (-I)
Dark Red (-R)
Grey (-G)
Purple (-P)
Black (-E)
Blue (-L)
Brown (-B)
Green (-V)
H
AUDIOVISUAL SOLUTIONS
Integration Guide I LEVITON.COM
96
AUDIOVISUAL SOLUTIONS | Audio Accessories
* = Color: White (W), Ivory (I)
† = Color: White (W), Lt. Almond (T), Ivory (I), Black (E)
Home Theater and Multi-Room Wallplates
Description Cat. No.
[A] Home Theater Interface Wallplate, 14 gold-plated spring clips, two RCA connectors, two QuickPort® openings AEHTK-000
[B] Multi-Room Install Wallplate, two gold-plated spring clips, two QuickPort openings AEMRK-000
[C] Single-Gang Single Spring-Clip Device Audio/Video Wallplate, standard size, polymer break resistant,
box mount
40951-1P*
[D] Single-Gang Double Spring-Clip Device Audio/Video Wallplate, standard size, polymer break resistant,
box mount
40952-2P*
White (-W) Light Almond
(-T)
Ivory (-I) Black (-E)
D
C
A
B
Splits Audio Signal into Two Outputs – One Male RCA Connector to Two Female RCA Connectors
RCA Y Adapter, 1 RCA Plug to 2 RCA Jacks
Description Cat. No.
[A] RCA Y Adapter, carded unit pack C5405-000
Yellow, White, Red, and Black Plugs on Both Ends | RCA Patch Cable – 4 RCA Plugs to 4 RCA Plugs
Description Cat. No.
[B] Black Cable with Color-Coded Plugs (Y-W-R-B), carded unit pack C5454-003
AWG Speaker Wires
Description Cat. No.
[C] 18/2 AWG Speaker Wire, 25', sleeve unit pack X3301-25C
18/2 AWG Speaker Wire, 50', sleeve unit pack X3301-50C
18/2 AWG Speaker Wire, 100', sleeve unit pack X3301-100
[D] 14/2 AWG Speaker Wire, 50', sleeve unit pack X3324-50C
Audio Accessories
D
ABC
AUDIOVISUAL SOLUTIONS
FOR TECHNICAL SUPPORT CALL: 1-800-824-3005 Integration Guide I 97
Converts 75 Ohm Incoming Signal into 300 Ohm
Indoor Matching Transformer
Description Cat. No.
Indoor Matching Transformer, carded unit pack C5052-000
Indoor Matching Transformer, gold plated, carded unit pack C5052-0GO
Converts 75 Ohm Twist-On Connection to 75 Push-On Connection
75 Ohm Push-On Connector
Description Cat. No.
75 Ohm Push-On Connector, 2 per carded unit pack C5235-000
Double Female F-Connector for Joining Two Cables Together
75 Ohm In-Line Cable Connector
Description Cat. No.
75 Ohm In-Line Cable Connector, 100 per bulk polybag 40986-000*
*Note: Retainer nut for wallplate mounting not provided.
Terminates 75 Ohm w/ Crimp-On Male F-Connector 1-Piece
Description Cat. No.
One-Piece Crimp-On F-Connector for RG6 Quad Shiled Bulk polybag order in increments of 100, nickel plated 40985-0Q6
Connects One Antenna/Cable TV Input and One DSS® 2.1 gHz Input, to One Combined Output
DSS 75 Ohm and 2.0 gHz Combiner with DC Blocking
Description Cat. No.
[B] DSS 75 Ohm and 2.0 gHz Combiner with DC Blocking, gold plated, carded unit pack 40856-DSS
DSS 2- and 4-Way Splitter
Description Cat. No.
[C] DSS 2-Way Splitter, gold plated, carded unit pack, connects one input to two outputs. All ports 2.1 gHz. 40867-DSS
[D] DSS 4-Way Splitter, gold plated, carded unit pack, connects one input to four outputs. All ports 2.1 gHz. 40868-DSS
D
BC
AUDIOVISUAL SOLUTIONS
Integration Guide I LEVITON.COM
98
AUDIOVISUAL SOLUTIONS | Video Accessories
Video Accessories
Converts 75 Ohm Twist-On Connection to 75 Push-On Connection | 75 Ohm Push-On Connector
Description Cat. No.
[F] 75 Ohm Push-On Connector, 2 per carded unit pack C5235-000
Double Female F-Connector for Joining Two Cables Together | 75 Ohm In-Line Cable Connector
Description Cat. No.
[G] 75 Ohm In-Line Cable Connector, 100 per bulk polybag 40986-000*
*Note: Retainer nut for wallplate mounting not provided.
Converts 75 Ohm Incoming Signal Into 300 Ohm | Indoor Matching Transformer
Description Cat. No.
[H] Indoor Matching Transformer, carded unit pack C5052-000
G
F H
A, B C-E
Compression & Crimp-On F-Connectors
• Leviton compression and crimp-on connectors are ideal for more specialized AV applications
• Compression connectors oer an airtight seal and secure fitting for increased cable retention
• Crimp-on connectors are an economical solution for less demanding applications
Compression and Crimp-On RCA & F-Connectors
Description RG-59 Cable RG-6 Cable RG-6 Quad
Shield
RCA Compression Connector (colored rings included) — — [A] 40985-CRU
Compression F-Connector (colored rings included) — — [B] 40985-CPF
Terminates 75 Ohm w/ Crimp-On Male F-Connector
F-Connectors, one-piece crimp-on, nickel plated (bag of 100)
2 per carded unit pack, nickel plated
2 per carded unit pack, gold plated
[C] 40985-1P9
C5307-000
C5307-0G0
[D] 40985-1P6 [E] 40985-0Q6
F-Connectors, two-piece crimp-on
2 per carded unit pack, nickel plated
C5009-000 C5007-000 —
AUDIOVISUAL SOLUTIONS
FOR TECHNICAL SUPPORT CALL: 1-800-824-3005 Integration Guide I 99
RG6 Coax Cable, Nickel
Description Cat. No.
[A] RG6 Coax Cable, nickel C6851-xx*
xx = Length: 3’ (03), 6’ (06), 12’ (12), 25’ (25), 50’ (50) or 100’ (0C).
* = Colors: Choose from Black (E), or White (W).
Two-Way Splitter | One 75 Ohm Input to Two 75 Ohm Outputs
Description Cat. No.
[B] Two-Way Splitter, carded unit pack C5002-000
Two-Way Splitter, gold plated, individual polybag 40987-002
Three-Way Splitter | One 75 Ohm Input to Three 75 Ohm Outputs
Description Cat. No.
Three-Way Splitter, carded unit pack C5003-000
[C] Three-Way Splitter, gold plated, individual polybag pack 40987-003
Four-Way Splitter | One 75 Ohm Input to Four 75 Ohm Outputs
Description Cat. No.
[D] Four-Way Splitter, carded unit pack C5004-000
Four-Way Splitter, gold plated, individual polybag pack 40987-004
75 Ohm Termination Cap for F-Connector Jacks
Description Cat. No.
[E] 75 Ohm Termination Cap, 25 per polybag pack 40984-000
BA
E
CD
Integration Guide I LEVITON.COM
100
STRUCTURED MEDIA®
FOR TECHNICAL SUPPORT CALL: 1-800-824-3005 Integration Guide I 101
103 Introduction
104 Populating the Structured
Media Enclosure
106 Enclosures
112 Mounting Brackets, Cabinet
Patching Solutions,
& Accessories
114 Routers & Power
116 Panels
118 Modules & Expansion Boards
120 Video Distribution, Splitters,
& Networking Connectors
STRUCTURED MEDIA®
Homeowners and businesses need reliable distribution
of Internet for fast streaming, communication, online
gaming, and video conferencing. Creating a hard-wired
structured wiring foundation supports optimal
connectivity between consumer electronic
devices in the home or oce.
Integration Guide I LEVITON.COM
102
STRUCTURED MEDIA® ENCLOSURES
The connected home is a requirement of modern living.
Access music, movies, entertainment, and information
with the latest in residential technology: networking,
HDTV, media servers, media streaming, VoIP, IPTV, Wi-Fi,
gaming, broadband Internet, and the integration of your
mobile devices in the home. Leviton Connected Home
solutions provide the ideal backbone support network for
tomorrow’s technology.
SECTION NAMESTRUCTURED MEDIA
FOR TECHNICAL SUPPORT CALL: 1-800-824-3005 Integration Guide I 103
STRUCTURED MEDIA® ENCLOSURES
Leviton Structured Media Enclosures act as a central distribution point for all in-home technologies.
When building a connected home network, it’s necessary to organize all network devices in one easy-
to-access, central hub. Leviton oers a variety of Structured Media enclosures that support optimal
organization while maintaining a clean, aesthetic within the home.
STRUCTURED MEDIA
Integration Guide I LEVITON.COM
104
Structured Media Enclosures
These versatile enclosures allow you to
manage and distribute a full range of voice,
data, audio, and video wiring from one
central location. We have enclosure solutions
for wood frame, concrete, and cinder block
construction.
Data Patching and Distribution
Leviton oers durable Cat 6 and 5e panels
and modules for data cable distribution.
The high-end Twist & Mount Panel makes
installation simple and provides easy access
for moves, additions, or changes in the
home network.
STRUCTURED MEDIA | Populating the Structured Media Enclosure
Populating The Structured Media® Enclosure –
The Nerve Center of the Connected Home
Get enterprise-grade, best-in-class broadband network performance capability with Leviton Connected
Home components. All Structured Media solutions are engineered to work together, providing a clean
and organized base and simplifying integration from rough-in through line activation.
Telephone Patching and
Distribution
Choose from a wide selection of telephone
distribution boards, modules, or panels for
the secure feel and sound of a telephone
landline. Our Telephone Input Distribution
Panel (TIDP) supports inputs for use with
“triple play” modems and complements the
look and simplicity of our Twist & Mount
Patch Panels.
1
2
2
3
3
4
5
6
79
8
1
STRUCTURED MEDIA
FOR TECHNICAL SUPPORT CALL: 1-800-824-3005 Integration Guide I 105
ISP Modem
(provided by service provider)
The modem converts DSL, cable, or
fiber optic signals for Internet access
for triple-play service or pure data
connections.
Multi-Room Audio
The Hi-Fi 2 Four Source, Four Zone
(4x4) is a quality distributed audio
system that integrates easily inside a
Structured Media enclosure. It is ideal
for controlling, sharing, and listening
to audio systems throughout the
home. More information on the Hi-Fi
4x4 system is available online at
leviton.com/hifi4x4.
Premium and Passive
CATV Splitters
Distribute the incoming RF signal
to locations throughout a home via
coaxial cable using Leviton’s passive
CATV splitters, or use Premium
splitters to optimize the performance
of digital cable signals to handle
HDTV. The Premium splitter’s
forward-path internal amplifier
provides equal input and output
levels on all ports.
Integrated Power Supply
Structured cabling systems rely on
active gear that requires low-voltage
power and surge protection. Leviton
oers power supplies with extra plugs
that eliminate the need for bulky power
adapters within enclosures.
Internet Routers and
Switches
Leviton has high-speed routers to
share Internet access over a Wide Area
Network (WAN) in the home or oce, and
Ethernet switches to network additional
PCs, printers, and other peripherals
beyond router capacity.
4
5
9
8
Ultra High-Flex Patch Cords
The structured cabling system you install today will likely
change tomorrow. Ultra High-Flex Patch Cords help make
changes easy. They allow for tighter radius connections
and a cleaner finished appearance inside a dressed Structured
Media® Enclosure.
7
6
STRUCTURED MEDIA
Integration Guide I LEVITON.COM
106
STRUCTURED MEDIA | Standard Enclosures
Structured Media® Enclosures
Leviton Structured Media enclosures provide a convenient termination location for wiring home runs
from wall outlets, creating a distribution point for voice, data, audio, and video applications. Available
in compact, 14”, 21”, 28”, and 42” sizes to address a broad range of capacities for single family homes,
MDUs, and light commercial applications, Leviton Structured Media enclosures support new and
retrofit installations.
A B C
DE F
G H I
Structured Media Enclosures, Covers, and Doors
Enclosures are constructed of white powder-coated
20-gauge steel
Covers and doors are constructed of white
powder-coated 18-gauge steel, and feature 3/4”
overlap to hide irregular drywall cuts
Modules mount vertically or horizontally
Multiple knock-outs on top and bottom facilitate
cable entry and routing
Knock-out in base of enclosure accommodates
single- and double-gang J-boxes and power modules
Six 3” self-healing foam grommets included to
accommodate and protect cable bundles
Mounting tabs on housing sidewalls prevent enclosure from
falling through the studs during installation
Can be surface-mounted or recessed
Combine two or more enclosures for larger installations
or future expansion
Optional lock and key set available for
additional security
Standards compliance: ACA and cULus Listed
For enclosure configuration assistance,
go to leviton.com/homeconfig
STRUCTURED MEDIA
FOR TECHNICAL SUPPORT CALL: 1-800-824-3005 Integration Guide I 107
14" Structured Media Enclosures, Covers, and Doors
Description Cat. No.
14" Enclosure and Flush-Mount Cover, 15.32" (389.1 mm) H x 15.62" (396.7 mm) W x 3.83" (97.3 mm) D 47605-140
[A] 14" Enclosure, 14.0" (355.6 mm) H x 14.38" (365.3 mm) W x 3.63" (92.2 mm) D 47605-14E
14" Multi-Dwelling Unit Configuration A Enclosure and Flush-Mount Cover,
15.32" (389.1 mm) H x 15.62" (396.7 mm) W x 3.83" (97.3 mm) D
47605-1MG
[B] 14" Flush-Mount Cover, 15.32" (389.1 mm) H x 15.62" (396.7 mm) W x 0.20" (5.1 mm) D 47605-14C
[C] 14" Economy Hinged Door, 15.32" (389.1 mm) H x 15.62" (396.7 mm) W x 0.25" (6.4 mm) D 47605-14D
14" Premium Vented Hinged Door, 15.32" (389.1 mm) H x 15.62" (396.7 mm) W x 0.25" (6.4 mm) D 47605-14S
14" Enclosure, job packed, 6 per pack, 14.0" (355.6 mm) H x 14.38" (365.3 mm) W x 3.63" (92.2 mm) D 47605-14G
14" Flush-Mount Cover, job packed, 6 per pack, 15.32" (389.1 mm) H x 15.62" (396.7 mm) W x 0.20" (5.1 mm) D 47605-14B
Structured Media Enclosure Lock & Key for 14", 21", 28", and 42" hinged doors 5L000-L0K
21" Structured Media Enclosures, Covers, and Doors
Description Cat. No.
[D] 21" Enclosure, 21.0" (533.4 mm) H x 14.38" (365.3 mm) W x 3.63" (92.2 mm) D 47605-21E
[E] 21" Flush-Mount Cover, 22.35" (567.7 mm) H x 15.62" (396.7 mm) W x 0.20" (5.1 mm) D 47605-21C
[F] 21" Premium Vented Hinged Door, 22.35" (567.7 mm) H x 15.62" (396.7 mm) W x 0.25" (6.4 mm) D 47605-21S
Structured Media Enclosure Lock & Key for 14", 21", 28", and 42" hinged doors 5L000-L0K
Compact Structured Media MDU Enclosures
Description Cat. No.
[G] Compact Structured Media Enclosure and Cover, empty,
8.02" (203.7 mm) H x 14.38" (365.2 mm) W x 3.71" (94.2 mm) D
47605-MDU
Compact Structured Media Enclosure Cover only, 15.375" (390.5 mm) H x 9" (228.6 mm) W x .5" (12.7 mm) D 47605-MDC
[H] MDU Kit (Compact Structured Media Enclosure and Cover plus 1x6 Telephone Expansion Board),
8.02" (203.7 mm) H x 14.38" (365.2 mm) W x 3.71" (94.2 mm) D
47604-0F6
[I] MDU Kit (Compact Structured Media Enclosure and Cover plus 1x6 Telephone Expansion Board and
6-Way 1 GHz Splitter), 8.02" (203.7 mm) H x 14.38" (365.2 mm) W x 3.71" (94.2 mm) D
47604-F6S
Structured Media® Enclosures | 14" & 21"
Specifications and Features
14” & 21” Enclosures, Covers & Doors
• Entry-level home network enclosures create a central distribution point for low-voltage cabling
• Ideal for apartments, condos, and smaller homes
• 14” enclosure accommodates basic residential networking systems and accessories
• 21” enclosure provides additional room for larger modules and equipment
Compact Structured Media MDU Enclosures
• Economical solution for MDU connectivity
• Flexibility to accommodate a variety of telephone/video distribution configurations
• Available empty with cover or in two pre-configured kits
• Snap-on cover requires no tools or fasteners
• Molded-in brackets provide quick snap-in convenience for expansion boards
• Angled video-splitter shelf for easy installation
• Hosts three expansion boards and one TV splitter
• Constructed of sturdy white ABS molded plastic
• cULus Listed for communications equipment
STRUCTURED MEDIA | Standard Enclosures
Structured Media® Enclosures
Leviton 28" & 42" Structured Media Enclosures
The 28” enclosures can comfortably accommodate up to eight distribution
modules, depending on selection and density. The 42” enclosures have
generous capacity for up to 12 modules, and can also simultaneously
accommodate many diverse functions. In larger homes, many contractors
specify multiple Structured Media Center enclosures, sometimes separating
coaxial cable-based CATV or Satellite TV equipment from the Cat 5e or
Cat 6 UTP-based communications and networking equipment. Leviton’s
exclusive backplates allows for o-site configuration of components for
reduced on-site labor.
Leviton 28” Structured Media Enclosures & Covers
Description Part No.
28” Enclosure and Flush-Mount Cover, 29.32”
(744.7mm) H x 15.62” (396.7mm) Wx 3.68” (93.5mm) D
47605-28W
28” Enclosure only, 28.0” (711.2mm) H x 14.38” (365.3mm) W x 3.60” (91.4mm) D 47605-28N
28” Multi-Dwelling Unit Configuration A Enclosure and Flush-Mount Cover,
29.32” (744.7mm) H x 15.62” (396.7mm) W x 3.68” (93.5mm) D
47605-2MG
28” Multi-Dwelling Unit Configuration B Enclosure only,
28.0” (711.2mm) H x 14.38” (365.3mm) W x 3.60” (91.4mm) D
47605-M28
28” Flush-Mount Cover, 29.32” (744.7mm) H x 15.62”
(396.7mm) W x 0.20” (5.1mm) D
47605-F28
28” Economy Hinged Door, 29.32”
(744.7mm) H x 15.62” (396.7mm) W x 0.25” (6.4mm) D
47605-28D
28” Premium Vented Hinged Door, 29.32”
(744.7mm) H x 15.62” (396.7mm) W x 0.25” (6.4mm) D
47605-28S
28” Enclosure only, job packed, 3 per pack,
28.0” (711.2mm) H x 14.38” (365.3mm) W x 3.60” (91.4mm) D
47605-28G
28” Flush-Mount Cover only job packed,
3 per pack, 29.32” (744.7mm) H x 15.62” (396.7mm) W x 0.20” (5.1mm) D
47605-28B
28” Pre-Fab Back Plate, 25” (635.0mm) H x 13.5” (342.9mm) W x 0.38” (9.65mm) D 47605-2BP
SPOTLIGHT | Choosing Your Structured Media Center
Enclosure Cover or Door
47605-28N
47605-28P
47605-2BP
FLUSH MOUNT COVER END HINGED DOOR PREMIUM HINGED VENTED DOOR
STRUCTURED MEDIA
Integration Guide I LEVITON.COM
108
Leviton 42" Structured Media® Enclosures & Covers
Description Part No.
42” Enclosure and Flush-Mount Cover,
43.32” (1,100.3mm) H x 15.62” (396.7mm) W x 3.68” (93.5mm) D
47605-42W
42” Enclosure only,
42.16” (1,070.8mm) H x 14.38” (365.3mm) W x 3.60” (91.4mm) D
47605-42N
42” Multi-Dwelling Unit Configuration A Enclosure and Flush-Mount Cover,
43.32” (1,100.3mm) H x 15.62” (396.7mm) W x 3.68” (93.5mm) D
47605-4MG
42” Multi-Dwelling Unit Configuration B, Enclosure only,
42.16” (1,070.8) H x 14.38” (365.3mm) W x 3.60” (91.4mm) D
47605-M42
42” Flush-Mount Cover,
43.32” (1100.3mm) H x 15.62” (396.7mm) W x 0.20” (5.1mm) D
47605-F42
42” Economy Hinged Door,
43.32” (1100.3mm) H x 15.62” (396.7mm) W x 0.25” (6.4mm) D
47605-42D
42” Premium Hinged Door,
43.32” (1100.3mm) H x 15.62” (396.7mm) W x 0.25” (6.4mm) D
47605-42S
42” Pre-Fab Back Plate,
40.0” (1,016.0mm) H x 13.5” (342.9mm) W x 0.38” (9.65mm) D
47605-4BP
SPOTLIGHT | Structured Media Center Enclosure Options
47605-42N
Extender Bracket Frame
(SMC sold separately)
28”& 42” Structured Media Center Extender Bracket Frames
& SMC Accessories
Description Part No.
Extender Bracket, 2” depth extension package for 28” Structured Media Centers 47612-28B
Extender Bracket, 2” depth extension package for 42” Structured Media Centers 47612-42B
Structured Media Center Lock & Key 5L000-L0K
MDU Configuration A
Top
Bottom
Knockout sizes support 1” & 2” commercial conduit.
MDU Configuration B
Top
Bottom
28" & 42" Extender Bracket Frames & SMC Accessories
Specifications and Features
• Extender Brackets provide additional 2” of depth
• Allows for better cable management and for large modules within the SMC
• Made of sturdy, white powder coated 18-gauge sheet metal
• Louvers enhance ventilation for added protection against heat build up from
installed modules
STRUCTURED MEDIA
FOR TECHNICAL SUPPORT CALL: 1-800-824-3005 Integration Guide I 109
STRUCTURED MEDIA
Integration Guide I LEVITON.COM
110
STRUCTURED MEDIA | Speciality Enclosures
A
B
Structured Media® Enclosures
Multi-Bay FTTH Enclosures
Multi-Bay Enclosures provide excellent termination and mounting locations
for both in-home structured wiring and fiber-to-the-home (FTTH)
components. Structured wiring components typically mount in the upper
section of the dual enclosure and optical network termination (ONT) mounts
in the lower section. The dual enclosure can be surface-mounted or mounted
between metal or wood wall studs using provided screws.
Features and Benefits
Multi-bay enclosure design allows separate lockable sections for FTTH integration
In a separate bay, a full Leviton structured wiring system can be easily connected and
optimized up to gigabit speeds to maximize incoming fiber optic connection
Ideal for new installations or retrofits
Uses multiple covers or doors to provide access and security.
Flush-Mount cover, economy, premium, and premium vented doors available
Note: See pages 108-109 for covers and doors. r = Minimum order quantity and lead times may apply.
Multi-Bay Enclosures
Description Cat. No.
14" + 14" Dual Multi-Bay Enclosure, 29.64" (752.8 mm) H x 14.30" (363.2 mm) W x 3.63" (92.2 mm) D 47FTH-440
[A] 28" + 14" Dual Multi-Bay Enclosure, 46.64" (1,184.6 mm) H x 14.30" (363.2 mm) W x 3.63" (92.2 mm) D r47FTH-840
28" + 14" + 14" Triple Multi-Bay Enclosure, 59.22" (1,504.1 mm) H x 14.30" (363.2 mm) W x 3.63" (92.2 mm) D 47FTH-844
42" + 14" Dual Multi-Bay Enclosure, 57.64" (1,464.1 mm) H x 14.30" (363.2 mm) W x 3.63" (92.2 mm) D 47FTH-420
14" + 14" + 14" Triple Multi-Bay Enclosure, 45.22" (1,148 mm) H x 14.30" (363.2 mm) W x 3.63" (92.2 mm) D r47FTH-240
[B] 28" + 28" Dual Multi-Bay Enclosure, 57.64" (1,464.1 mm) H x 14.30" (363.2 mm) W x 3.63" (92.2 mm) D 47FTH-880
FTTH Point of Entry Box
The Fiber-to-the Home (FTTH) Point of Entry Box provides a location to terminate fiber coming from a
service provider to pigtails at the subscriber’s premises. It’s a convenient staging demarcation point
with quick and easy access for activation as residents request FTTH service.
Features and Benefits
Provides convenient staging prior to terminating incoming fiber from service provider
Can mount inside the Structured Media enclosure or as a stand-alone unit on a wall
Includes magnet for easy installation and place adjustments
Includes an SC/APC adapter with two dust caps and two splice sleeves
Made of ABS plastic
r = Minimum order quantity and lead times may apply
Fiber-to-The-Home Solution
Description Cat. No.
FTTH Point of Entry Box, 3.94" (100 mm) H x 3.15" (80 mm) W x .84" (21 mm) D rFTH00-00W
STRUCTURED MEDIA
FOR TECHNICAL SUPPORT CALL: 1-800-824-3005 Integration Guide I 111
Concrete-Mountable Structured Media Enclosures
Concrete-Mountable Structured Media Enclosures are specially designed for
concrete pour and cinder-block construction methods.
Concrete-Mountable Structured Media Enclosures
Description Cat. No.
Concrete-Mountable Structured Media Enclosure, 21" 48605-21E
[A] Concrete-Mountable Structured Media Enclosure, 28" 48605-28E
Concrete-Mountable Structured Media Enclosure, 42" 48605-42E
[B] Concrete-Mountable Structured Media Duplex Receptacle Power Box 48605-2GP
RF Transparent Structured Media Enclosure
Description Cat. No.
[C] RF Transparent Structured Media Enclosure with Door, 30" 49605-30W
RF Transparent Enclosure for Wireless Transmission
Specifications and Features
• Designed to withstand added weight during concrete pouring
• Moisture-resistant powder coating binds with treated steel to provide multiple levels
of corrosion protection and durability
• Knock-outs on the top and bottom support conduit up to 1.5” in diameter and facilitate
cable routing and entry
• Power knock-out located on side panel for increased vertical cable routing capacity
• Durable powder coating withstands 1/8” dent test for cured flexibility (per ASTM D 522-93A
standard) for minimized scratching, cracking, or peeling during shipping or installation
A
SPOTLIGHT | Wireless 802.11n Dual-Band Gigabit Router
The Leviton wireless router allows multiple users to share a single, secure,
high-speed broadband (DSL or cable) Internet connection, creating a private
network for home, small oce, or school environments. Combine it with the
RF Transparent Structured Media Enclosure to maximize the Wi-Fi signal range.
For more information, see page 114.
47611-WG4
B
C
Specifications and Features
• Expands the reach of wireless signals by diminishing the effect of interference with the ABS
polymer construction
• 180º hinged cover allows for quick and easy access to network equipment
• Makes servicing and expansion easy with twelve 1” entry/exit ports and additional 1/4”
knock-outs and conduit adapters
• Compatible with most Leviton Connected Home patch panels, voice, data, video, and audio
quick-connect distribution modules
• Ensures safety with UL Compliant ABS flame-retardant polymer
• Vented for cooling
STRUCTURED MEDIA
Integration Guide I LEVITON.COM
112
STRUCTURED MEDIA | Mounting Brackets, Cabinet Patching Solutions, & Accessories
Mounting Brackets & Patch Cords
Mounting Brackets
Description Cat. No.
[A] Single Plastic Bracket, for single expansion board, white 47612-SBK
[B] Standard (12" width) Expansion Plastic Bracket,
for up to five expansion boards, white
47612-EBK
Shelf Plastic Bracket, for up to three expansion boards
and CATV splitter, white (compact width)
47612-VSB
[C] Compact (6" width) Expansion Plastic Bracket,
for up to three expansion boards, white
47612-HBK
[D] Data Plastic Bracket, for mounting routers and switches 47612-DBK
[E] 12-Port QuickPort Mounting Bracket 47600-QPB
Mounting Brackets
Made of sturdy white ABS plastic
Include push-lock pins
Snap-in installation in any Leviton 14”, 21”,
28”, or 42” Structured Media® Enclosure
Allow for cable management via routing
under bracket
12-port bracket made of black
polycarbonate
12-port bracket accepts all QuickPort®
connectors
Patch Cords
Description Cat. No.
[F] Home 6® Ultra High-Flex Patch Cord 6HHOM-xx*
Home 5e® Ultra High-Flex Patch Cord 5HHOM-xx*
8-Conductor Flat Telephone Patch Cord, 8” long 42400-8FG
Patch Cords
Available in Cat 6 and Cat 5e
Low-profile Ultra High-Flex Patch Cords allow
tighter radius connections
Available in five lengths and four colors
xx = Length: 6" (6I), 1' (01), 2' (02), 3' (03), or 4' (04). * = Colors: Choose from any of the colors below.
AF
E
BC
D
19” Cabinet Patching Solutions
Description Cat. No.
[G] 1RU 12-Port Flat 110-Style Patch Panel 5G596-U12
[H] 1RU 24-Port Flat 110-Style Patch Panel 5G596-U24
[I] 1RU 24-Port Flat QuickPort Patch Panel 49255-H24‡
19” Cabinet Patching Solutions
Perfect for small enterprise or custom
home applications
Build a fast and reliable network with
Gigabit speeds
Patching solutions for HDBaseT AV
applications
110-Style terminations with ANSI/TIA 568
A/B wiring topology
QuickPort® option provides capability
for fully customized multimedia panel
configurations
H
G
I
19” Cabinet Patching Solutions
‡ = Patch panel sold empty. QuickPort connectors must be purchased separately.
STRUCTURED MEDIA
FOR TECHNICAL SUPPORT CALL: 1-800-824-3005 Integration Guide I 113
Security Brackets, Shelf Brackets, & Tools
Universal Security & Shelf Brackets
Universal Shelf Bracket allows security batteries and other active products to be mounted inside any Structured
Media® Enclosure
Shelf Bracket includes four 8” long Velcro® Brand strips, ensuring vertical and horizontal stability
Universal Security Board Mounting Plate includes four adhesive clips for mounting within any Leviton Structured
Media Enclosure
Combo Bracket allows Leviton products to be installed in most non-Leviton structured wiring enclosures
Universal Mounting Brackets allow an unlimited number of upgrades (limited only by enclosure size) to be added to an existing
security system terminated within any Leviton Structured Media Enclosure
Universal Brackets are sold in pairs with self-tapping screws and spacers to easily connect the largest number of security alarm
manufacturers’ panels
Universal Security and Shelf Brackets
Description Cat. No.
[A] Universal Shelf Bracket 47612-UBK
[B] Compact (6" width) Universal Security
Board Mounting Plate
47612-HSB
[C] Standard (12" width) Universal Security
Board Mounting Plate
47612-FSB
[D] Combo Bracket 47612-CBK
[E] Compact (6" width) Universal Mounting
Bracket
47612-6SB
[F] Standard (12" width) Universal Mounting
Bracket
47612-1SB
Residential Tools
Description Cat. No.
Wire Punchdown / Termination Tool,
blades sold separately
49553-814
110 IDC Blade 49553-110
66-Clip Blade 49553-066
BIX® Blade 49553-BIX
Krone® Blade 49553-KRN
Awl (woodscrew starter punch) 49553-AWL
Master Compression Tool 40989-CPT
UTP Stripping Tool 49660-00P
Coaxial Stripping Tool C5914-000
GEZ-RJ45 Crimp Tool 40989-ACT
Residential Accessories
Description Cat. No.
EZ-RJ45 Connector, 50/pack 47613-EZC
EZ-RJ45 Connector Display Pack,
10/pack
47613-EZR
HEZ-RJ45 Cat 6 Plug 50/pack 47613-EZ6
Push-Lock Pins for SMCs, 20/pack 47615-NYL
Reclosable Tie-Wrap, 5" Length, 25/pack 43105-005
Reclosable Tie-Wrap, 8" Length, 25/pack 43108-008
Reclosable Tie-Wrap, 12” Length,
25/pack
43112-012
B, C
A
E
F
D
G H
STRUCTURED MEDIA
Integration Guide I LEVITON.COM
114
STRUCTURED MEDIA | Routers & Power
Routers & Switches
B
C
D
A
SPOTLIGHT | Ultra High Flex Patch Cords
Leviton’s Ultra High Flex Patch Cables oer extra flexible
connectivity inside or outside a Structured Media®
Center enclosure. The low-profile cables support data
applications, and are available in a variety of colors for
color-coding or organization.
Features and Benefits
Gigabit Router
Compliant with IEEE 802.11a/b/g/n dual band
(2.4G Hz & 5G Hz simultaneously) wireless
technology capable up to 300+300 Mbps
data rate
Advanced security: 64/128-bit WEP, WPA/
WPA2 and WPA-PSK/WPA2-PSK (TKIP/AES
encryption)
Supports Wi-Fi® Protected setup (WPS), NAT
firewall, IP/port/URL-based access control,
and MAC address filtering
Includes Gigabit RJ-45 ports (10/100/1000
Mbps) of 1 WAN and 4 LAN ports
Supports dual-SSID to access different
networks through a single AP
Supports NTP, Virtual Server, UPnP, and DMZ
for various networking applications
Gigabit Ethernet Switch
10/100/1000 Mbps data transfer rate
Eight RJ-45 connector Mbps LAN ports
Power button arrows for easy power down
LEDs indicate power; LINK/Activity; and 10,
100, or 1000 Mbps
Plug-n-play installation
Auto detect uplink to easily cascade
additional hubs, switches, and routers from
any port
Features high-performance, store-and-
forward switching architecture with CRC
100 Mbps Ethernet Switches
10/100 Mbps data transfer rate
Network additional PCs, printers, and other
peripherals beyond router capacity
Connects to many home office
Ethernet devices
Available in 5- and 8-port versions
Data Networking Routers and Switches
Description Cat. No.
[A] Gigabit 8-Port Ethernet Switch, 2.52” (64 mm) H x 6.50” (165.1 mm)
W x 3.54” (89.9 mm) D
47611-8GB
[B] 100 Mbps 5-Port Ethernet Switch, 2.52" (64 mm) H x 6.50" (165.1 mm)
W x 3.54" (89.9 mm) D
47611-5PT
[C] 100 Mbps 8-Port Ethernet Switch, 2.52" (64 mm) H x 6.50" (165.1 mm)
W x 3.54" (89.9 mm) D
47611-8PT
[D] Gigabit 4-Port Router and 300 Mbps Dual-Band Wi-Fi, 6.76” (171.61 mm)
H x 4.38” (111.16 mm) W x 1.01” (25.47 mm) D
47611-WG4
No port forwarding required:
wireless router uses default
IP address of Omni controllers
to enable quick set up and
installation.
STRUCTURED MEDIA
FOR TECHNICAL SUPPORT CALL: 1-800-824-3005 Integration Guide I 115
F, G
D
E
A
B
C
Power Supplies & Surge Protection
Features and Benefits
Surge-Protection, Standard AC Power
Modules, & J-Box Kits
Fit in standard 14”, 21”, 28”, and 42”
Structured Media® Enclosures
Surge-protected versions provide enhanced
protection and EMI/RFI filtering per UL 1449
standards
DC BUS Module
Eliminates need for more than two bulky
AC/DC power adapters
Contains six 12 VDC power outputs at up
1500 mA total
Contains three 24 VDC power outputs at up to
1000 mA total including one F-connector
Output power cables included for all except
24 VDC F-connector connection
Versatile DC Power Supplies
120 VAC – 60 Hz input
Provides 12 VDC outputs with surge
protection at 3.34A total
Includes NEMA 5-15 AC receptacles at
15A total
Eliminates the need for multiple bulky AC/DC
power adapters
AC Surge Modules
Includes six surge-protected NEMA 5-15P
receptacles
Allows six AC/DC power adapters to fit easily
into Structured Media Enclosures
Powers routers, switches, modems, volume
controls, camera hubs, and other Structured
Media mounted devices
Universal Mini DC Power Supplies
90 - 264 VAC – 50/60 Hz input
Provides three 12 VDC outputs with surge
protection at 833 mA total
Eliminates the need for multiple bulky AC/DC
power adapters
Universal DC Power Supplies
100 - 240 VAC – 50/60 Hz input
Provides nine 12 VDC outputs with surge
protection at 3.34A total
Includes one IEC AC power receptacle
For North American and international use
Eliminates the need for multiple bulky AC/DC
power adapters
Power Supplies
Description Cat. No.
[A] Surge J-Box Kit, one duplex receptacle, wallplate 47605-ACS
Non-Surge J-Box Kit, one duplex receptacle, wallplate 47605-ACN
[B] Surge AC Power Module, two duplex receptacles 47605-0DP
Non-Surge AC Power Module, two duplex receptacles 47605-NDP
[C] DC Bus Module, 12 VDC and 24 VDC 48212-124
[D] Versatile Power Supply, six 12 VDC connectors and two NEMA 15A
receptacles
47605-PSC
[E] AC Surge Module, six receptacles 48212-06S
[F] Universal Mini DC Power Supply, three 12 VDC connectors 47605-PSB
[G] Universal DC Power Supply, nine 12 VDC connectors and one IEC AC
receptacle
47605-PSA
IEC TO NEMA 15A Adapter Power Cord, 12" (accessory for 47605-PSA) 48212-IEC
STRUCTURED MEDIA
Integration Guide I LEVITON.COM
116
STRUCTURED MEDIA | Panels
Twist & Mount, TIDP, & Compact Structured
Media® Panels
Features and Benefits
Twist & Mount Patch Panels
Low-profile, high-density, component-rated patching for both
voice and gigabit ethernet connections
Feature simple twist and mount installation
Offered in Cat 6, Cat 5e, and Cat 6/Cat 5e configurations
Universal T568A and T568B wiring labels ensure compatibility
in both residential and commercial installations
Manufactured from black ABS plastic
Meet or exceed all TIA-568-C.2 bend radius requirements
Available in 12- and 24-port versions
Telephone Input Distribution Panels (TIDP)
Supports four-line telephone distribution
Offers choice of inputs and outputs: one 4-pair 110-style IDC
input, four industry-standard RJ-11 jack inputs for use with
“triple play” modems, or 12 modular industry-standard RJ-45
jack outputs
Includes a security jack for interface with security systems
Test and auxiliary disconnect outlet (ADO) ports for isolation
and testing of telephone line connections
Includes twelve 8” telephone patch cords
EBA C D
Twist & Mount Panels and Telephone Distribution Panels
Description Cat. No.
Twist & Mount Patch Panel – 12 ports each of Cat 6 and Cat 5e (24 ports total) 476TM-654
[A] Twist & Mount Patch Panel – 24 ports of Cat 6 476TM-624
Twist & Mount Patch Panel – 24 ports of Cat 5e 476TM-524
Twist & Mount Patch Panel – 6 ports each of Cat 6 and Cat 5e (12 ports total) 476TM-652
Twist & Mount Patch Panel – 12 ports of Cat 6 476TM-612
[B] Twist & Mount Patch Panel – 12 ports of Cat 5e 476TM-512
[C] Telephone Input Distribution Panel (TIDP) 476TL-T12
Features and Benefits
Pre-configured Compact Structured Media Panels
Compact series (6” width) pre-configured panels are an ideal solution for basic telephone, data, security interface, and TV
distribution in MDUs where space and budget are of primary concern
Provides four to nine bridged telephone connections, up to four Cat 5e data connections, and up to eight video connections
Pre-Configured Compact Structured Media Panels - Compact Width (6”)
Description Cat. No.
1x9 Bridged Telephone and 4-way 1 GHz TV Splitter 47603-1G4
[D] 1x9 Bridged Telephone and 6-way 1 GHz TV Splitter 47603-1G6
1x9 Bridged Telephone and 8-way 1 GHz TV Splitter 47603-1G8
[E] 1x4 Bridged Telephone, 4 Data, and 6-way 1 GHz TV Splitter 47603-DP6
1x7 Bridged Telephone, Security Interface, and 6-way 1 GHz TV Splitter 47603-TSV
STRUCTURED MEDIA
FOR TECHNICAL SUPPORT CALL: 1-800-824-3005 Integration Guide I 117
Pre-Configured Standard Structured Media Panels
Description Features Cat. No.
[A] Basic Telephone & Video Panel One 1x9 Bridged Telephone Board
One 6-way 2 GHz TV Splitter
47606-BTV
[B] Basic Home Networking Plus Panel One Telephone Patching Board
One Cat 5e Voice & Data Board
Six 4-line telephone connections
One 6-way 2 GHz TV Splitter
47606-BNP
Advanced Home Telephone & Video Panel One Telephone Line Distribution Board
19 multi-line telephone connections
One Cat 5e Voice & Data Board
One 6-way 2 GHz TV Splitter
47606-AHT
[C] Advanced Home Office Panel One Telephone Line Distribution Board
19 multi-line telephone connections
Two Cat 5e Voice & Data Boards
One 6-way 2 GHz TV Splitter
47606-ASO
12-Port Structured Media Panel One Telephone Line Distribution Board
19 multi-line telephone connections
Two Cat 5e Voice & Data Boards
47603-12P
[D] 18-Port Structured Media Panel One Telephone Line Distribution Board
19 multi-line telephone connections
Three Cat 5e Voice & Data Boards
47603-18P
[E] 24-Port Structured Media Panel One Telephone Line Distribution Board
19 multi-line telephone connections
Four Cat 5e Voice & Data Boards
47603-24P
[F] 4x12 Telephone Distribution Panel One 4x12 Telephone Distribution Board 47603-12M
4x12 Telephone Distribution Panel w/ Splitter One 4x12 Telephone Distribution Board
One 8-way 2 GHz TV Splitter
47603-412
[G] 4x18 Telephone Distribution Panel One 4x18 Telephone Distribution Board 47603-18M
[H] 4x18 Telephone Distribution Panel w/ Cat 5e Board One 4x18 Telephone Distribution Board
One Cat 5e Voice & Data Board
47603-8C1
Standard Structured Media® Panels
Features and Benefits
Pre-Configured Structured Media Panels
Standard series (12” width) pre-configured panels combine voice, data, and TV modules into a single, simple distribution point
Several pre-configured options are available with room for customization with additional expansion boards
H
GFE
A B C D
STRUCTURED MEDIA
Integration Guide I LEVITON.COM
118
STRUCTURED MEDIA | Modules & Expansion Boards
Modules
Description Cat. No.
[A] 1x9 Bridged Telephone Module 47689-00B
[B] Cat 5e Voice & Data Module 47605-C5B
[C] Cat 6 Voice & Data Module 47611-C6B
DSL Filter Module 47616-DSB
Telephone Security Module 47609-TSV
Expansion Boards
Description Application Features Cat. No.
[D] Cat 5e Voice and
Data Board
Data,
Telephone,
Fax, Modem
Patch phone or data connections to six locations
Combine with a TLDM, key system, or network switches
4-pair 110-type IDC punchdowns
Six Cat 5e RJ-45 ports
Printed circuit board
47603-0C5
[E] Cat 6 Voice and
Data Board
Data,
Telephone,
Fax, Modem
TIA-568-C channel-rated for gigabit ethernet
Combine with gigabit internet router or ethernet switch 4-pair
110-type IDC punchdowns and six Cat 6 connectors
47611-0C6
[F] VDSL Board w/ 1x5
Bridged Phone w/
Data Passthrough
IDCs
Data,
Telephone,
Modem
Bridge up to four telephone lines to five locations
Connect up to five separate telephones per line
IDC connectors for Cat 5 or Cat 5e wire
Termination point and pass-through for a data connection via IDCs
up to 150 MHz
47609-D5P
[G] Combo Phone &
Data Board
w/ 1x4 Bridged
Phone and 4-Port
Cat 5e
Data,
Telephone
Provides data and phone connections on a single board
1x4 phone portion provides four telephone lines to up to four
locations via IDC punchdowns
Four ports of Cat 5e 150 MHz data connections via modular RJ-45
connectors and 4-pair 110-type IDC punchdowns
47609-4DP
[H] Camera Hub Video Injects power for cameras, provides video-out signals for other
video equipment in the Structured Media® Enclosure
VSHUB-000
Camera Hub w/ IDC
Connectors
Video Injects power for cameras, provides video-out signals for other
video equipment in the Structured Media Enclosure
Standard 110 IDC terminations or 8P8C jacks for connection to
camera UTP cabling
VSHUB-IDC
E
BA C D F G H
Modules & Expansion Boards
Pre-configured Structured Media Panels Module Expansion
Board
SPOTLIGHT | Panels, Modules, Boards: What’s the dierence?
Pre-configured Structured Media Panels
include multiple expansion boards combining voice, data,
and TV boards into a single distribution point. Modules
include an expansion board on a single ABS mounting
bracket. Expansion Boards mount in Structured Media
Panels or Mounting Brackets (see pages 116-119).
STRUCTURED MEDIA
FOR TECHNICAL SUPPORT CALL: 1-800-824-3005 Integration Guide I 119
Expansion Boards (Continued)
Description Applications Features Cat. No.
[A] 1x9 Bridged Telephone Board Telephone,
Fax, Modem
Bridge up to four telephone lines to nine locations
Connect up to nine separate telephones per line
Printed circuit board
4-pair 110-type IDC punchdowns
47603-110
[B] 1x6 Bridged Telephone Board Telephone,
Fax, Modem
Bridge up to four telephone lines to six locations
Connect up to six separate telephones per line
Printed circuit board
IDC connectors for Cat 5 or Cat 5e wire
RJ-45 expansion port
47609-0F6
[C] 1x10 Bridged Telephone Board Telephone,
Fax, Modem
Bridge up to six telephone lines to 10 locations
Connect up to 10 separate telephones per line
Printed circuit board
IDC connectors for Cat 5 or Cat 5e wire
Security port
Punchdown security interface to accommodate
alarm systems
47609-S10
[D] 1x4 Bridged Telephone Board Telephone,
Fax, Modem
Bridge up to four lines to four locations via
IDC punchdowns 47609-004
[E]
Telephone Patching Board/
Expanded 4-line Telephone
Distribution
Telephone,
Fax, Modem
Bridge up to four telephone lines to seven locations
Printed circuit board module
One incoming 4-pair 110-type IDC punchdown
Seven outgoing RJ-45 connector connections
Combine with a Cat 5e board to route telephone to
remote locations
47609-EMP
DSL Filter Board Telephone,
Modem
Filters DSL signal from phone line before distribution
throughout home or office
Eliminates need for individual filters at wallplate
Use with any phone distribution module
Printed circuit board module w/ RJ-45 connector
and 110-type punchdown
47616-DSF
Telephone Line
Distribution Board
Telephone, Fax,
Modem
19 multi-line telephone connections in combinations of
two or four lines
Bridge “line 1” service to 12 locations and four-line
service to eight locations
Connect to Cat 5e Voice & Data Board(s) or
additional panels for more connections and easier
moves/adds/changes
Independent RJ-45 connector and punchdown
security interface to accommodate alarm systems
47603-TDM
[F] 4x12 Telephone
Distribution Board Telephone, Fax Bridge up to four telephone lines to 12 locations 47603-12B
[G] 4x18 Telephone
Distribution Board Telephone, Fax Bridge up to four telephone lines to 18 locations 47603-18B
EF G
BA C D
Expansion Boards
STRUCTURED MEDIA
Integration Guide I LEVITON.COM
120
STRUCTURED MEDIA | Video Distribution, Splitters and Networking Jacks
Premium Modules
Description 1 GHZ
[A] 1x1 Premium Video Module 47693-01P
[B] 1x8 Premium Video Module 47693-08P
[C] 1x16 Premium Video Module 47693-16P
[D] 3x1 Passive Combiner 47693-31P
Passive Splitters (with and without Mounting Bracket)
Description 2 GHZ
[E] 1x6 Passive Video Splitter w/ bracket for 14", 21", 28", and 42" SMCs 47690-6C2
[F] 1x8 Passive Video Splitter w/ bracket for 14", 21", 28", and 42" SMCs 47690-8C2
[G] 1x6 Passive Video Splitter 47690-0G6
[H] 1x8 Passive Video Splitter 47690-0G8
Video Distribution Modules & Splitters
Features and Benefits
Premium Amplified CATV/HDTV Module
Split and/or amplify signal to one, eight, or 16 TVs throughout
the home
Bi-directional circuitry supports advanced interactive
applications, as well as standard TV and video inputs
Forward path internal amplifier provides equal input and output
level on all ports; reverse path is not affected
Unity gain eliminates the need to manually adjust attenuation
HDTV and digital cable ready, SCTE- and DOCSIS-compliant
Passive CATV/HDTV Splitters
Split signal to four, six, or eight TVs throughout the home Provide
digital cable, cable TV, and other TV services via coaxial cable
Lightweight, strong die-cast housing
HDTV and digital cable ready SCTE-compliant
Available with and without Structure Media® Enclosure
mounting bracket
3x1 Passive Combiner Module
Digital CATV compatible
Provides bi-directional signal path to support cable modem
or digital cable communications
F-ports provide up to 15 psi weather sealing
A
B
C
D
E
F
H
G
STRUCTURED MEDIA
FOR TECHNICAL SUPPORT CALL: 1-800-824-3005 Integration Guide I 121
Features and Benefits
GigaMax UTP QuickPort® Connectors
• Single T568A or T568B wiring labels simplify terminations
• Narrow connector profile for high-density installations
• Compatible with Fluke JackRapid Punchdown Tool for quick
and easy terminations
• Durable one-piece frame built for longevity
• Made in the USA
Cat 5/3 & USOC UTP QuickPort Connectors
• Fit into all QuickPort wallplates and housings
• Full support of voice and low-speed data applications
• Cat 5/3 and 8P8C USOC accept RJ-45 plugs; 6P6C USOC
accepts RJ-11 plugs
HOME Cat 5e/6
• Residential-grade connectors for data and
voice applications
• Easy to read T568A wiring
Green (V) Blue (L)Purple (P)
Crimson (C) Dark
Red (R)
Orange (O) Yellow (Y) Black (E)Grey (G)
Ivory (I)Light
Almond (T)
Brown (B)
White (W)
Data & Voice QuickPort Connectors
Description Application Cat. No.
[A] GigaMax® Cat 5e UTP Connector High-Speed Data 5G108-R*6
[B] HOME 6 Connector, Standard Voice & Data 61HOM-R^6
[C] HOME 5e Connector, Standard Voice & Data 5EHOM-R^5
[D] Cat 5 Connector Voice & low speed data 41108-R*5
[E] Cat 3 Connector Voice & low speed data 41108-R*3
[F] USOC Connector, 8P8C Voice 41108-R*8
[G] USOC Connector, 6P6C Voice 41106-R*6
* = Colors: Choose from any of the 13 colors below
^ = Colors: White (W), Light Almond (T), Ivory (I), Blue (L), Grey (G), Black (E), and Brown (B)
All Leviton Category-Rated Connectors are RoHS Compliant.
STRUCTURED MEDIA | Data & Voice QuickPort® Connectors
FED G
BA C
Integration Guide I LEVITON.COM
122
WALLPLATES
FOR TECHNICAL SUPPORT CALL: 1-800-824-3005 Integration Guide I 123
WALLPLATES
Leviton oers a broad selection of at-the-wall
connection options designed for residential,
light commercial, and enterprise markets.
QuickPort® wallplates oer the ultimate in
fast installation, designer styling, durability,
and easy cleaning.
125 Introduction
126 Renu® & QuickPort
128 Decora® & QuickPlate®
130 Home Theater Receptacles
Integration Guide I LEVITON.COM
124
WALLPLATES
Leviton oers an extensive selection of wallplates and
housings, with the colors and styles needed for virtually
any type of application. The Renu® system oers
tool-free, snap-on wallplate installation and QuickPort®
compatibility, while the Decora® designer brand provides
and unmatched signature look suitable for the
home or oce.
WALLPLATES
FOR TECHNICAL SUPPORT CALL: 1-800-824-3005 Integration Guide I 125
Wallplates
Renu
Renu is Leviton’s smart electrical and data connectivity system. Renu® QuickPort® compatible
wallplates snap on and o quickly and easily with no tools, simplifying installation and ongoing
maintenance. Choose from wallplates and inserts in Renu White on White, Navajo Sand, and Onyx Black.
The complete Renu collection includes 20 color options and a wide selection of switch, dimmer, and
outlet styles.
Decora
Leviton Decora® brand Designer Wallplates – available in a wide spectrum of colors and styles – can add
subtle elegance to any home or oce. Sleek, versatile, and convenient, they also come in a midway
size that gives greater coverage, and can hide unsightly wall surface irregularities. All Leviton Decora®
Wallplates can stand up to heavy use while coordinating perfectly with paint or wall coverings.
QuickPort
The QuickPort® system, Leviton’s exclusive set of mix and match panels, connectors, wallplates,
and surface-mount boxes. The QuickPort family of connectors is compatible in any QuickPort housing.
This simple solution is ideal for any environment that has frequent moves, adds, and changes.
WALLPLATES
Integration Guide I LEVITON.COM
126
WALLPLATES | Renu & Quickport
Renu Wallplates and Inserts
Description White on
White
Navajo
Sand
Onyx
Black
[A] Snap-In Blank Module RE640-BWW RE640-BNS RE640-BOB
Four-Gang Wallplate REWP4-0WW REWP4-0NS REWP4-0OB
Three-Gang Wallplate REWP3-0WW REWP3-0NS REWP3-0OB
[B] Dual-Gang Wallplate REWP2-0WW REWP2-0NS REWP2-0OB
[C] Single-Gang Wallplate REWP1-0WW REWP1-0NS REWP1-0OB
[D] 6-Port Insert RE640-WW6 RE640-NS6 RE640-OB6
[E] 4-Port Insert RE640-WW4 RE640-NS4 RE640-OB4
3-Port Insert RE640-WW3 RE640-NS3 RE640-OB3
[F] 2-Port Insert RE640-WW2 RE640-NS2 RE640-OB2
1-Port Insert RE640-WW1 RE640-NS1 RE640-OB1
Renu Wallplate and 2-Port Insert
with QuickPort Connectors
Renu® Wallplates & Inserts
Renu is Leviton’s smart electrical and data connectivity system. Renu QuickPort® compatible wallplates
snap on and o quickly and easily with no tools, simplifying installation and ongoing maintenance.
Choose from wallplates and inserts in Renu White on White, Navajo Sand, and Onyx Black. The complete
Renu collection includes 20 color options and a wide selection of switch, dimmer, and outlet styles.
White On
White (-WW)
Navajo
Sand (-NS)
Onyx Black
(-OB)
Features and Benefits
Renu Wallplates & Inserts
Inserts accept all QuickPort connectors
Screwless wallplates easily snap on to any Renu insert or device
Slightly larger size covers wall imperfections
Tongue and groove design simplifies alignment in multi-gang installations
Adapter ring allows use of Decora® device with Renu wallplates
Available in three standard colors to coordinate with the commercial-grade QuickPort line (white, light almond, black)
Additional wallplate colors for switches, dimmers, and outlets available; visit leviton.com/renu
cULus Listed
C FED
B
A
WALLPLATES
FOR TECHNICAL SUPPORT CALL: 1-800-824-3005 Integration Guide I 127
QuickPort Angled Wallplates
Description White Light
Almond Ivory
4-Port Wallplate 41081-4WP 41081-4TP 41081-4IP
[A] 2-Port Wallplate 41081-2WP 41081-2TP 41081-2IP
[B] 4-Port Wallplate w/ ID window 42081-4WS 42081-4TS 42081-4IS
2-Port Wallplate w/ ID window 42081-2WS 42081-2TS 42081-2IS
QuickPort Flush-Mount Wallplates
[C] 6-Port Flush Mount 41080-6WP 41080-6TP 41080-6IP
4-Port Flush Mount 41080-4WP 41080-4TP 41080-4IP
[D] 3-Port Flush Mount 41080-3WP 41080-3TP 41080-3IP
2-Port Flush Mount 41080-2WP 41080-2TP 41080-2IP
1-Port Flush Mount 41080-1WP 41080-1TP 41080-1IP
QuickPort Stainless-Steel Wallphone Plate
Description Recessed Flush
[E, F] 1-Port Wallplate 4108W-1SP 4108W-0SP
QuickPort Single-Gang Stainless-Steel Wallplates
Description 1-Por t 2-Port 3-Port 4-Port 6-Port
[G] Single-Gang Wallplate 43080-1S1 43080-1S2 43080-1S3 43080-1S4 43080-1S6
QuickPort Dual-Gang Stainless-Steel Wallplates
Description 2-Port 4-Port 6-Port 8-Port 12-Port
[H] Dual-Gang Wallplate 43080-2S2 43080-2S4 43080-2S6 43080-2S8 43080-S12
QuickPort® Wallplates
DC E, F G, H
A, B I
Features and Benefits
QuickPort Flush-Mount & Angled Wallplates
Angled ports relieve stress on equipment cords
Manufactured from ABS plastic for superior durability
QuickPort Stainless-Steel Wallplates
Manufactured from 304 stainless steel in a brushed finish to provide
corrosion resistance in a non-magnetic material
Angled wallplate ports facilitate proper front and rear cable bend radius
White (-W) Light
Almond (-T)
Ivory (-I)
QuickPort Angled Stainless-Steel Wallplates with ID Windows
Description 2-Port 4-Port
[I] Single-Gang Angled Wallplate 43081-1L2 43081-1L4
Dual-Gang Angled Wallplate —43081-2L4
WALLPLATES
Integration Guide I LEVITON.COM
128
WALLPLATES | Decora & QuickPlate
Decora Single- and Dual-Gang Wallplates
Description Single-Gang Dual-Gang
[A, B] Decora, standard size, urea 80401-00* 80409-00*
Decora, standard size, nylon 80401-0N* 80409-0N*
Decora, standard size, stainless 84401-040 84409-040
Decora Plus, standard size, polycarbonate 80301-0S* 80309-0S*
Decora, midway, urea 80601-0S* 80609-0S*
Decora, midway, nylon PJ26-00* PJ262-00*
* = Colors: Choose from any of the colors below.
C, D
A, B GFE
QuickPort® Multimedia Wallplate Inserts
Description White Light
Almond Ivory
6-Port Insert, polybag, standard carton 41646-00W 41646-00T 41646-00I
4-Port Insert, polybag, standard carton 41644-00W 41644-00T 41644-00I
[C] 3-Port Insert, polybag, standard carton 41643-00W 41643-00T 41643-00I
2-Port Insert, polybag, standard carton 41642-00W 41642-00T 41642-00I
[D] 1-Port Insert, polybag, standard carton 41641-00W 41641-00T 41641-00I
[E] HDMI Decora Insert, feedthrough 41647-00W —41647-00I
[F] DVI Decora Insert, feedthrough 41648-00W —41648-00I
[G] Decora, white brush ,passthrough 41075-DBW — —
Decora® Wallplates & Multimedia Inserts
SPOTLIGHT | Single-Gang QuickPlate® Tempo Wallplates with ID Windows
QuickPlate Tempo wallplates allow for fast, one-step installations. They feature patented rear wings
that tighten the wallplate to wallboard, eliminating the need for a box or mounting brackets.
QuickPlate Tempo available early
Q2 2015. Please contact Inside Sales at
1.800.722.2082. Part numbers can be found
on pages 95.
WALLPLATES
FOR TECHNICAL SUPPORT CALL: 1-800-824-3005 Integration Guide I 129
QuickPlate
Description Standard Size Cat. No. Midway Size Cat. No.
[A] One Data 5EA20-S1* 5E A20-M1*
[B] One Data, One F-Style 5EA20-S2* 5EA20-M2*
[C] One Data, One Phone, One F-Style 5EA20-S3* 5EA20-M3*
[D] Two Data, Two F-Style 5EA20-S4* 5EA20-M4*
* = COLORS: CHOOSE FROM ANY OF THE COLORS BELOW.
DCA B
QuickPlate® Wallplates
Features and Benefits
QuickPlate Wallplates distribute data, phone, and TV
connections through a preassembled one-piece design
Rear facing IDC punchdowns and consistent positioning of
data and F-Connectors eliminate onsite assembly. Rear facing
110 IDC punchdown for voice and data jacks make termination
quick and easy
Robust one-piece wallplate and lead-frame jack design
Data port accepts Cat 5e with T568A wiring, and meets or
exceeds applicable standards
Phone port accepts UTP with USOC wiring
Supports high-megabit and shared-sheath applications
F-style bulkhead connectors meet or exceed 10dB of return
loss at 1 GHz and are SCTE compliant
Standard dimensions — 4.61” (117.1mm) H x 2.75” (69.9mm) W x 0.26” (6.5mm) D
Midway dimensions — 4.99” (126.7mm) H 3.13” (79.4mm) W x 0.26” (6.5mm) D
Wallplate Accessories
Description Cat. No.
[F] QuickPort® Shutter Kit (50 shutters) 51084-ICN
White Label Kit 51084-XLB
[G] Color Label Kit † 51084-CLB
[H] Wallplate Mounting Brackets, single-gang, bulk polybag
pack, 2 brackets per unit, rack pack carton C0224-000
[I] Wallplate Mounting Bracket, dual-gang, individual
polybag pack, rack pack carton C0225-OCP
† = Color Label Kit includes grey, orange, red, yellow, green, blue, purple, and brown
(2 sheets of each color).
IH
GF
Note: 80301 and 80309 are not available in black or brown
White (-W) Light
Almond (-T)
Ivory (-I) Grey (-G) Black (-E) Brown (-B)
WALLPLATES
Integration Guide I LEVITON.COM
130
WALLPLATES | Home Theater Receptacles
Home Theater, Multi-Room, & Speaker Wallplates
• Designed for easy installation of cables using low-voltage rings
and standard low-voltage junction boxes
• Home Theater Interface wallplate (AEHTK) accommodates
5.1 to 7.1 channel surround-sound systems, and features
RCA connectors for subwoofer connection and two extra
QuickPort® openings
• Multi-room Audio wallplate (AEMRK) accommodates left and
right audio speakers (± connections), and two extra openings
for additional QuickPort connectors (e.g., adding a subwoofer
or 3.5 mm stereo phone jack)
• Speaker wallplate allows for simple, solderless connections to
any home entertainment speaker system
Recessed Entertainment Box (REB)
• Affordable solution manages home theater electronics in a
single location
• Ideal for new construction (stud-mounted) and retrofit
(wall-mounted) applications
• Low-profile frame provides neat, recessed installation
• Optional high-profile cover includes sliding plastic
front panels, and channels all wires through
the bottom of the unit
Recessed Receptacles
Recessed Single-Gang Receptacle
• Fits most standard electrical boxes
• Supplies AC power for one or two components
(flat panel TVs and video receiver)
• cULus Approved, code-compliant solution
Recessed Dual-Gang Duplex Receptacle with
Six QuickPort Openings
• Centralizes connection points for AC power,
audio, video, data, and phone
• Includes plastic electrical box for use in new
and retrofit construction
• UL Approved, code-compliant solution
Mobile Device Station
• Turns a receptacle outlet into a convenient storage location
for smartphones and MP3 players
• Installs without creating any new holes in the wall
• Available in both Decora® and Renu® styles
• Integrated cable management keeps charging
cables organized and protected
• Requires a Leviton wallplate, sold separately
• Ideal with Leviton USB charger/tamper-resistant receptacle
USB Charger/Tamper-Resistant Receptacle
• USB ports with a combined power of 3.6A, ideal for charging
tablets and other high-draw devices
• Compact design fits in a standard wallbox, is compatible with
standard wallplates, and can be multi-ganged with other
standard Leviton devices
• Back and side wired for easy installation
• Smart chip designed for recognizing and optimizing the
charging requirements of your device
• Tamper-Resistant NEC® Compliant shutter mechanism blocks
access to contacts from most foreign objects
DCA B
FE G
IH J
Mobile Device Station
& USB Charger/Tamper-Resistant
Receptacle Decora Mobile Device Station Renu Mobile Device Station
WALLPLATES
FOR TECHNICAL SUPPORT CALL: 1-800-824-3005 Integration Guide I 131
SPOTLIGHT | Recessed Entertainment Box
For an almost invisible installation behind wall-mounted TVs,
entertainment centers, monitors, and more, connect with the
Leviton Recessed Entertainment Box (REB). The REB centralizes
AC power and low-voltage connection points for audio, video,
data, and phones. It is perfect for supporting any low-voltage
application across homes, apartments, co-ops, condominiums,
and oces. REBs come with one snap-in cover plate for unused
openings, and are available with a either a low-profile frame or a
high-profile cover that channels all wires through the bottom for
a clean, finished look. ( The REB comes with one snap-in plate to
cover unused openings; additional plates are sold separately.)
Home Theater and Multi-Room Wallplates
Description Cat. No.
[A] Home Theater Interface Wallplate, 14 gold-plated spring clips, two RCA connectors, two QuickPort® openings AEHTK-000
[B] Multi-Room Install Wallplate, two gold-plated spring clips, two QuickPort openings AEMRK-000
[C] Single-Gang Single Spring-Clip Device Audio/Video Wallplate, standard size, polymer break resistant, box mount 40951-1P*
[D] Single-Gang Double Spring-Clip Device Audio/Video Wallplate, standard size, polymer break resistant, box mount 40952-2P*
Recessed Devices & Entertainment Box
Single-Gang Recessed Single Receptacle 15A-125VAC, 2-Pole, 3-Wire — NEMA 5-15R, includes clock hanger hook 00688-00*
Single-Gang Recessed Single Receptacle, Non-Magnetic Stainless Steel
15A-125VAC, 2-Pole, 3-Wire — NEMA 5-15R, includes clock hanger hook
05261-0CH
[E] Single-Gang Recessed Duplex Receptacle 15A-125VAC, 2-Pole, 3-Wire — NEMA 5-15R 00689-00†
Single-Gang Recessed Single Receptacle, Non-Magnetic Stainless Steel
20A-125VAC, 2-Pole, 3-Wire — NEMA 5-20R, includes clock hanger hook
05361-0CH
[F] Dual-Gang Recessed Duplex Receptacle and Openings for six QuickPort Modules
15A-125VAC, 2-Pole, 3-Wire — NEMA 5-15R (four blank inserts included)
00690-00*
Recessed Entertainment Box w/ Low-Profile Frame 47617-REB
[G] Recessed Entertainment Box w/ High-Profile Cover 47617-RBH
High-Profile Cover 47617-HPC
Low-Profile Frame 47617-LPF
Replacement Snap-in Plates, 2 per bag 47617-PLT
Mobile Device Station & USB Charger / Receptacle
[H] Decora® Mobile Device Station, White 47112-00W
Decora Mobile Device Station, Light Almond 47112-00T
Decora Mobile Device Station, Black 47112-00E
[I] Renu® Mobile Device Station, White on White 47112-RWW
Renu Mobile Device Station, Navajo Sand 47112-RNS
Renu Mobile Device Station, Onyx Black 47112-ROB
[J] USB Charger/Tamper-Resistant Receptacle T5631-2W
White (W) Light
Almond (T)
Ivory (I) Black (E) Onyx
Black
Navajo
Sand
White On
White
* = Color: White (W), Ivory (I)
† = Color: White (W), Lt. Almond (T), Ivory (I), Black (E) Renu Mobile Device Station Colors:
Integration Guide I LEVITON.COM
132
LEVITON SUPPORT
FOR TECHNICAL SUPPORT CALL: 1-800-824-3005 Integration Guide I 133
LEVITON SUPPORT
Leviton takes pride in our award-winning support
programs, giving property owners and integrators
the necessary tools for successful installations.
134 Communication
138 Comparison Charts
142 Wiring Charts and Diagrams
158 Index
LEVITON SUPPORT
Integration Guide I LEVITON.COM
134
LEVITON SUPPORT | Communication
Unparalleled support: Leviton
provides proven tools for success.
Dealer Support Website – your new one-stop shop!
Visit: dealer.leviton.com
Access online training videos, download marketing videos, read solution
sheets or download a PowerPoint. Download all product materials including
owners manuals, installation manuals and product technical sheets. Also
available for download are all marketing literature, return authorization
forms, Model Home Rebate forms, and more. Leviton oers printed literature
that can be ordered for FREE to use as informational sales material for
end users.
Newsletters and Updates
Receive monthly newsletters, bundling all of the month’s notable information,
including upcoming trade shows, new product releases, training dates,
technical support, and press releases.
Technical Bulletins are important alerts regarding installation issues,
or product updates, including firmware updates.
Case Studies
Leviton will promote your integrations by featuring projects on leviton.com.
We will also create a professional PDF for your marketing purposes. Email
SAMarketing@leviton.com with a synopsis of your unique installation.
Knowledge Base: 24/7 support
Leviton’s Knowledge Base includes documents formulated by Leviton’s
Technical Support team. Leviton’s Online Forums also allow open sharing
of ideas, applications, and setups.
LEVITON SUPPORT
FOR TECHNICAL SUPPORT CALL: 1-800-824-3005 Integration Guide I 135
Five Star Dealer Program
Every year, Leviton rewards exemplary installing dealers that go above
and beyond with their services and product knowledge. They receive sales
leads, direct access to free literature, and are oered product promotions.
Their valuable input during the application process helps shape product
development, marketing material creation and overall business operations.
Visit the Dealer Support Website at http://dealer.leviton.com to apply.
Program and adjust from anywhere in the world
Dealers and Distributors can download Leviton’s Omni-Link serial protocol
or Pro-Link protocol documents to learn how to create an application
that communicates with a Leviton controller via a serial port. Omni-Link II
and Omni-Link protocol supports Ethernet applications utilizing Internet
protocols. For applications that communicate with an Ethernet port,
Dealers and Distributors can download an API Kit.
Monthly Factory Training
Factory Training is a three-day event at Leviton’s new Experience Center,
located in New Orleans, Louisiana. Detailed installation and system
programming instruction is provided. Attendees work hands-on with
an automation system and computer to install and set up a Leviton
Automation system. Seating is limited.
Regional Factory Training
Leviton oers classroom training that may be directly sponsored by
Leviton, or by a Leviton Authorized Distribution Partner.
Please visit: leviton.com/automation to see all live global trainings.
Leviton EZ-Learn provides online resources 24-7
Leviton EZ-Learn weaves together all of Leviton’s many online resources
including demonstration videos, recorded webinar presentations and more.
All information is laid out in courses and categorized by product type.
Several classes are eligible for credits –
and many classes carry
state approvals.
Five Star Dealer
LEVITON SUPPORT
Integration Guide I LEVITON.COM
136
LEVITON SUPPORT | Communication
Leviton stands behind our products
with industry leading support and
customer service.
Leviton provides many Technical Support resources for our network
of professional installing dealers:
• Leviton Territory Sales Managers and Representatives
• Leviton 800 Technical Support: 1-800-824-3005
• Leviton Online Knowledge Base
• Leviton Parts & Repair Department
• Warranties on all Leviton products
• Leviton Dealer Online Forum
• Recorded and live product webinars
• Award-winning training and support departments
The resources software developers
need to interface with the best in
security & automation.
The Leviton Developer Support Program was created for software developers
who want to generate software that works with Leviton products.
To join the Leviton Developer Support Program, complete an application for
approval by Leviton. Every Developer Support application will be processed
by Leviton’s Director of Technical Services within two business days.
Go to: http://www.homeauto.com/Support/Developers/
DeveloperApplication.asp
Once approved, the software developer will have access to the following
resources:
• Programming protocols, SDK, documentation, and examples
• A forum for developers to share experiences or ask questions
• Dealer level access to Leviton’s Knowledge Base
• All Leviton manuals, including installation manuals
• High-resolution versions of Leviton logos and product images
LEVITON SUPPORT
FOR TECHNICAL SUPPORT CALL: 1-800-824-3005 Integration Guide I 137
Demo Adapter Kit 18A00-5
Demo adapter board, instructions. For Omni IIe and OmniPro II.
Installer Demo Kits
Hi-Fi 2 by Demo Case 18A00-15
Demonstrate the power of Hi-Fi 2 by Leviton with this complete stand-alone kit.
Includes: Hi-Fi 2 by Leviton (95A01-1), one Volume Source Control (95A03-1), one
Remote Input Module (95A04-1), and a Hi-Fi 2 Remote Control (95A05-1). Eye-
catching color graphic adhered to a foam insert keeps everything secure during
travel. Note: Touchscreen, and MP3 player images are printed on graphic only and
are not included.
OmniPro II Demo w/OmniTouch & Leviton Lighting Control 18A00-13
OmniPro II controller, LCD console with built-in speaker, OmniTouch Touchscreen,
RC-2000WH Omnistat2 Thermostat, Leviton Lighting Control (Scene Keypad and
600W Dimmer), UPB™ Powerline Interface Module with cable, wireless router, and
Voice Module all in a travel case. Demo programs included. For other languages add
language code to part number: Latin American Spanish (SPA), French (FR).
Omni-Bus Demo Case 000-DE825
Includes Modules and interfaces to control 2 lamps and 1 fan. Included: Dimmer
Module, Universal Dimmer Module, Power Switch Module, Relay Module, Two-Button
Wireless Switch, Six-Button Stainless Switch, 6-Channel Universal Switch Interface
Module, Interface Translator Module, Termination Plug, 2.5A Power Supply Module,
2A Power Supply Interface Module, and 6-Channel Keyfob Remote.
WIRING DIAGRAMS
Integration Guide I LEVITON.COM
138
COMPARISON CHARTS | Omni/Lumina
* Systems must have one console to meet UL requirements.
** Wireless Receivers can support 64 Transmitters and can report to 16, 32, 48, or 64 zones, depending upon your setup. Each group
of 16 zones counts as one expansion enclosure.
SPECIFICATIONS
Leviton Controllers OmniPro II / EN50131 Omni IIe / EN50131 Omni LTe / EN50131
Leviton Lighting/Rooms 31 8 4
Lighting Scenes 128 64 32
Lighting Addresses 256 64 32
Zones 16 16 16
Zone Expansion Total 176 48 32 16
2 Wire Smoke Loops 4 4 4
4 Wire Smoke Loops 176 48 16
Thermostats 64 4 4
Consoles (Keypads)* 16 8 4
OmniTouch 7/OmniTouch Pro 16 16 16
12 Volt Triggers
(w/ expansions) 8 (136) 8 (8) 8 (8)
Audio Control Hi-Fi 2/Conn.Prtnrs Hi-Fi, Hi-Fi 2 Hi-Fi, Hi-Fi 2
Audio Zones 16/36 8 8
Access Control Card Readers 16 4 4
Access Control Card/Keytag 99 16 16
Serial Ports 5 5 5
Serial Expansion Total 6 6 5
Ethernet Port Yes Yes Yes
Flash Memory Yes Yes Yes
User Codes 99 16 16
Programming Lines 1500 500 300
Vocabulary 550 550 550
Custom Vocabulary Yes No No
Depluggable Terminal Strips Yes Yes Yes
Format Contact ID,
4/2,3/1 Contact ID Contact ID,
4/2,3/1 Contact ID Contact ID,
4/2,3/1 Contact ID
Transformer Required 24V (40VA) 24V (40VA) 24V (40VA)
Battery (Typical) 12V (7 Ah) 12V (7 Ah) 12V (7 Ah)
Aux Current Max 1A 1A 1A
Bell Current Max 1A 1A 1A
Aux Current (UL 24hr.) 250mA N/A 250mA N/A 250mA N/A
Bell Current (UL 24hr.) 300mA N/A 300mA N/A 300mA N/A
Total Expansion Boards (10A06-1) 2 2 0
Total Expansion Enclosures
(17A00-X) 8 0 0
Total 64-Zone Wireless Receivers
(45A00-1/42A00-2) 8** 0 1 0 1 0
110V/220V/240V Yes Yes Yes
UL Listing Res. Burg/Fire; Comm. Burg Res. Burg/Fire; Comm. Burg Res. Burglar/Fire
Warranty 3 years 2 years 2 years
WIRING DIAGRAMS
FOR TECHNICAL SUPPORT CALL: 1-800-824-3005 Integration Guide I 139
* Wireless Receivers can support 64 Transmitters and can report to 16, 32, 48, or 64 zones, depending upon your setup. Each group of 16 zones counts
as one expansion enclosure.
SPECIFICATIONS
Lumina Control Systems Lumina Pro Lumina
Rooms 31 8
Loads (lights) 256 64
House Status Switches 31 8
Max Keypads 16 8
Max OmniTouch 7/OmniTouch Pro 16 16
Thermostats 64 4
Access Control Card Readers 16 4
Access Control Card/Key Tag 99 16
Audio Control Hi-Fi 2/Conn Ptnrs Hi-Fi, Hi-Fi 2
Audio Zones 16/36 8
Flash Memory Yes Yes
Inputs (with expansion) 16 (176) 16 (48)
Multipurpose Outputs (with expansion) 10 (136) 10
Ethernet Port Yes Yes
Serial Ports (w/ expansion) 5 (6) 5 (6)
Programming Lines 1500 500
Vocabulary 550 550
Customizable Vocabulary Yes No
Depluggable Terminal Strips Yes Yes
16 Zone Hardwire Expanders (10A06-1) Supported 2 2
Expansion Enclosures (17A00-X) Supported 8 0
64 Zone Wireless Receivers
(45A00-1 or 42A00-2) Supported*
8* 1
UL Listed Yes Yes
Warranty 3 Years 2 years
WIRING DIAGRAMS
Integration Guide I LEVITON.COM
140
COMPARISON CHARTS | Software
SPECIFICATIONS
Leviton Software Comparison Chart
PC Access OmniTouch Pro
Part Number 1105W, 1106W, 1111 1131
Access via Internet Yes Yes
Dedicated Computer On-site No No
Client Software Yes (installed on client) No (runs on client)
Installation Components Application Application
Subscription Fee No No
Video Surveillance No Yes
Video Recording No No
Notifications No Yes
User Interface PC application PC Application
Additional Interfaces Supported None PC Touchscreens
Configure System Yes No
Program System Yes No
Create Rules/Alerts No Yes
Change Description Yes Yes
Web Updates Yes Yes
RSS (Real Simple Syndication)** No Yes
Operating Systems
Windows® 98E, Windows® XP, Windows®
Vista Ultimate, Windows® Vista Home
Premium, Windows® 7, Windows® 8/8.1
Microsoft Windows® XP, Vista, or
Windows® 7
* Does not require installation on PC. Application can run from thumb drive, flash drives, or other removable media.
** Displays RSS feeds such as latest news, weather reports, personal blogs, and much more.
SPECIFICATIONS
Leviton Software Comparison Chart
Snap-Link iPhone®/iPad® App Android™ App Kindle Fire
Part Number 1120 1120A 1120C 1120D
Access via Internet Yes Yes Yes Yes
Dedicated Computer
On-site No No No No
Client Software No (runs on client)* No (runs on client) No (runs on client) No (runs on client)
Installation
Components
No installation
(Plug and Go)* Application Application Application
Subscription Fee No No No No
Video Surveillance Link to installed
IP Web Camera Yes Yes Yes
Video Recording No No No No
Notifications
E-mail, messaging,
pop-up notifications,
visual
No No Yes
User Interface PC application iPhone® App Android™ App Kindle Fire™
Additional Interfaces
Supported PC Touchscreen Apple iPod® Touch®
and iPad®
Android™ Mobile
Devices None
Configure System No No No No
Program System No No No No
Create Rules/Alerts Yes No No No
Change Description No Yes (hide/show) No No
Web Updates Yes Yes Yes Yes
WIRING DIAGRAMS
FOR TECHNICAL SUPPORT CALL: 1-800-824-3005 Integration Guide I 141
COMPARISON CHARTS | Thermostats
THERMOSTAT FEATURES RC-2000 RC-1500 RC-1000 RC-500
Humidifier control
Dehumidifier control
Humidity sensing and display
Supports up to two stages of cooling, and three stages
of heating
Supports dual fuel systems
Automatic heat/cool changeover
Filter reminder for peak efficiency
Digital precise temperature control
Seven day schedule with copy function
Fan cycle mode periodically circulates air
Graphical display of HVAC usage by week
Eco-friendly design–no batteries to replace
Multi-Color Backlight display
Choose between Simple or Advanced displays
Temperature readings available in Fahrenheit or Celsius
Energy Efficient Control (EEC) for heat pump auxiliary heat
Learns a home’s heating and cooling patterns for efficiency
Communicates with Leviton systems and other
automation systems
Lumina RF Sensors Attachment
Mirco USB port
Built-in Occupancy Sensor
Load control capability
Free configuration software
Settings for Home, Night, Away, and Vacation
(with a Leviton system)
Easy to use Vacation mode restores temperatures before
your return
Serial Connection
Remote and averaged temperature sensors available
Motion activated backlight turns on when approached
Optional Passcode lockout
2-pipe & 4-pipe compatible
3 speed fan control
WIRING DIAGRAMS
Integration Guide I LEVITON.COM
142
WIRING CHARTS | Omni/Lumina
11000’ limit for entire AB Bus combined. 2Exact wire determined by distance and wire type. 3Wire limit per branch. 4For distances up to 100’
use 16 AWG. 5Size of wire required based on insulation and distance. 6Recommend stranded for each pair of speakers. 7Distance between
99A00-1, -2 and PSE (Power Sensing Equipment) device. 8When connecting the HTX2 to a Leviton PoE Switch (91A00-1) a CAT-5 “crossover”
cable is required. 9Exact wire determined by distance and wire type. 10Recommend 3 conductors (including common ground) for remote
mounting the expansion enclosure. 11Original Hi-Fi components use the same wiring. 12Two additional wires required for low battery
notifications. *Speaker/Microphone wiring sizes should be used with Two-Way Voice Module (10A11-1), Speaker/Microphone Module
(28A00-1/2), and LCD 33A00-4
SPECIFICATIONS
Leviton Product Wiring Requirements and Distances
Product Name Part Number Wire Type Conductors Max. Length Twist Shield
Two-Way Voice Module 10A11-1 * - - - -
Water Temperature Sensor 14A00-8 22 AWG 31000’ No No
Expansion Enclosure 17A00 22 AWG 21000’1No No
Remote Temperature Sensors 23A00 22 AWG52250’5Yes Yes
ALC Branch Interface 25A00 20–24 AWG 2500’3Yes No
Speaker/Microphone Module 28A00-ALL * - - - -
Indoor/Outdoor Temperature Sensor 31A00-ALL 22 AWG 41000’ No No
LCD Console* 33A00-ALL 22 AWG 41000’1No No
Wireless Receiver (GE) 42A00-1 22 AWG 41000’1No No
Wireless Receiver (Leviton) 45A00-1 22 AWG 41000’1No No
OmniTouch 7 Touchscreen 99A00-1, -2 CAT-5 (patch) 8328’7N/A N/A
Access Control Keypad 54A00-2 22 AWG 450’ N/A N/A
IP Camera 68A11-1 CAT-5 (patch) 8328’ N/A N/A
Access Card Reader 75A00-2 22 AWG9491000’9N/A N/A
12VDC Door Strike 79A00-1 16 AWG 2 - - -
Power Hub (Controller) 83A00 22 AWG 312 1000’1No No
Home Theater Extender 2 (HTX2) /BC4 86A00-2 /
BWBC4
CAT-5 (patch) 8328’ N/A N/A
PoE Injector 90A00-1 CAT-5 (patch) 8328’ N/A N/A
8-Port PoE Switch 91A00-1 CAT-5 (patch) 8328’ N/A N/A
Serial Server 93A00-1 CAT-5 (patch) 8328’ N/A N/A
Hi-Fi 2 (Network) 95A00-1 CAT-5 (patch) 8328’ N/A N/A
Hi-Fi 2 (Controller) 95A00-1 22 AWG 450’ N/A N/A
Hi-Fi 2 RIM 95A04-1 CAT-5 (patch) 8500’ N/A N/A
Hi-Fi 2 VSC 95A03-1 CAT-5 (patch) 8250’ N/A N/A
Speakers connected to Hi-Fi 2 -16 AWG 46-N/A N/A
Omnistat2 Thermostat (All Models) -22 AWG 410,000’ No No
Speaker *18 AWG 250’ Yes No
Microphone *24 AWG 2100’ Yes Yes
WIRING DIAGRAMS
FOR TECHNICAL SUPPORT CALL: 1-800-824-3005 Integration Guide I 143
SPECIFICATIONS
Access Control Capacities
OmniPro II Omni IIe Omni LTe Lumina Pro Lumina
Card Reader 16 4 4 16 4
Access Card/Key Tag 99 16 16 99 16
Access Control Wiring Requirements
The 75A00-2 requires four wires for operation (two for power and two for communication). The maximum distance
between the 75A00-2 and the connected 12V Power Supply or Leviton 83A00 Power Hub is based on two factors: 1) the
current draw of the connected door lock device, and 2) the wire gauge/type used. To maintain proper operation of the
75A00-2 and the connected door lock device, do not exceed the "Maximum Cable Length" based on the Total Current Draw
and the Wire Gauge/Type per the table below.
Wire Gauge Wire Type # Positive Conductors # Ground Conductors Max Cable Length
(feet)
24 solid 1 1 233
24 solid 2 2 466
24 solid 3 3 699
22 solid 1 1 413
22 solid 2 2 826
22 stranded 1 1 381
18 solid 1 1 1000
18 stranded 1 1 963
16 solid 1 1 1000
16 stranded 1 1 1000
WIRING DIAGRAMS
Integration Guide I LEVITON.COM
144
WIRING CHARTS | Access Control
75A00-2 and 79A00-1 Electric Door Strike (450mA): 600mA Maximum
Wire Gauge Wire Type # Positive Conductors # Ground Conductors Max Cable Length (feet)
24 solid 1 1 58
24 solid 2 2 117
24 solid 3 3 175
22 solid 1 1 103
22 solid 2 2 207
22 stranded 1 1 95
18 solid 1 1 261
18 stranded 1 1 241
16 solid 1 1 415
16 stranded 1 1 383
75A00-2 and Door Lock (800mA): 950mA Maximum
Wire Gauge Wire Type # Positive Conductors # Ground Conductors Max Cable Length (feet)
24 solid 1 1 37
24 solid 2 2 74
24 solid 3 3 110
22 solid 1 1 65
22 solid 2 2 130
22 stranded 1 1 60
18 solid 1 1 165
18 stranded 1 1 152
16 solid 1 1 262
16 stranded 1 1 242
Note: If cable with multiple conductors is used (such as CAT-5), it is possible to connect multiple conductors together to achieve
greater distance.
75A00-2 and Door Lock (1A): 1.15A Maximum
Wire Gauge Wire Type # Positive Conductors # Ground Conductors Max Cable Length (feet)
24 solid 1 1 30
24 solid 2 2 61
24 solid 3 3 91
22 solid 1 1 54
22 solid 2 2 108
22 stranded 1 1 50
18 solid 1 1 136
18 stranded 1 1 126
16 solid 1 1 217
16 stranded 1 1 200
WIRING DIAGRAMS
FOR TECHNICAL SUPPORT CALL: 1-800-824-3005 Integration Guide I 145
Red
Green
White
Black
Neutral
DIMMERS AND RELAY SWITCH 35A00-1, 55A00-1, 55A00-2, 55A00-3, 40A00-1
GND
MULTI-WAY
INSTALLATIONS
Yellow
L
SCENE SWITCH HOUSE STATUS SWITCH
38A00-1 38A00-2
L
N
L
N
N
WIRING DIAGRAM
Lighting Control
WIRING DIAGRAMS
Integration Guide I LEVITON.COM
146
WIRING DIAGRAMS | IT/AV Systems
Classroom Applications with Leviton Solutions
Interactive Whiteboard
Ethernet
to WAP/LAN
Ethernet
to WAP/LAN
TEACHER’S DESK
VGA+Audio
Extender Transmitter
41910-V01
HDMI Extender
Transmitter
41910-HT0
USB
Extender Transmitter
41910-U11
Document
Camera
Wireless
Microphone
Audio
VGA
VGA
PC
HDMI
USB
Laptop
VGA
Audio
USB Extender
Receiver
41910-U11
USB
Audio Cable
HDMI Cable
VGA Cable
USB Cable
Speaker Cable
Category-Rated Patch Cord
Category Cable
Audio Amplifier
41920-A01
Audio
speakON®
Connector
1.5U MOS
41297-SP4
XLR Connector
1.5U MOS
41297-XL3
Microphone
Base Station
HDMI
Audio
VGA
Projector / Flat Screen TV
Audio
VGA+ Audio
Extender
Receiver
41910-V01
AC Power
12 VDC
HDMI
Extender Receiver
41910-HT0
AC Power
12 VDC
Atlas-X1
Connector
6AUJK-RL6
QuickPort®
In-Wall Bracket
49223-BA5
IP Clock
To LAN
WAP
Plenum
Surface-Mount Box
41089-2WP
QuickPort In-Ceiling Bracket
49223-CBC
To LAN
Pair of 6.5" Ceiling Loudspeakers
with Plenum Back-Boxes
AEC65-000 / AEBC6-000
Atlas-X1™
Connector
6AUJK-RL6
Atlas-X1
Connector
6AUJK-RL6
Atlas-X1
Connector
6AUJK-RL6
Atlas-X1
Connector
6AUJK-RL6
Atlas-X1
Connector
6AUJK-RL6
AC Power
12 VDC
FOR TECHNICAL SUPPORT CALL: 1-800-824-3005 Integration Guide I 147
Conference Room Applications with Leviton Solutions
WIRING DIAGRAMS
ETHERNET
Ethernet to LAN
LAN
Audio Cable
HDMI Cable
VGA Cable
Speaker Cable
Category-Rated Patch Cord
Category Cable
WAP
Plenum
Surface-Mount Box
41089-2WP
QuickPort® In-Ceiling Bracket
49223-CBC
To LAN
HDMI
Projector / Flat Screen TV
Audio
Pair of 6.5" Ceiling Loudspeakers
with Plenum Back-Boxes
AEC65-000 / AEBC6-000
speakON®
Connector
1.5U MOS
41297-SP4
HDMI Extender Receiver
41910-HTE
HDMI Extender
Transmitter
41910-HTE
PC
HDMI
Ethernet
to WAP/LAN
Laptop
VGA
Audio
VGA+Audio
Extender Transmitter
41910-V01
Audio Amplifier
and Remote Control
41920-A01 / 41920-AIR
Atlas-X1
Connector
6AUJK-RL6
Atlas-X1 Connectors
6AUJK-RL6
Atlas-X1™
Connector
6AUJK-RL6
Audio
VGA
VGA+Audio
Extender Receiver
41910-V01
AC Power
12 VDC
WIRING DIAGRAMS
Integration Guide I LEVITON.COM
148
WIRING DIAGRAMS | Omni
WIRING DIAGRAM
OmniPro II
Omni systems are designed for professional installation.
Licensing requirements vary by area.
COMFORT & CONVENIENCE
Omnistat2 Thermostats
Two-Way X-10
TRANSFORMER 24V/40VA
TELEPHONE
INTERFACE
• Land line
• Cellular
Communicator
(#70A00)
• PC Access
USER INTERFACE
SECURITY & ENERGY MANAGEMENT
Temperature Sensor (#31A00-7)
Temperature/Humidity Sensor (#31A00-8)
Standard Security/Fire/Environmental
Sensors
SERIAL PORTS
HLC Lighting Control UPB™ PIM (#36A00-1)
Leviton Vizia RF + Z-Wave (#VRC0P)
ZigBee (#81A00-3)
Omni-Bus (#117A00-1)
Serial to PC Cable (#21A05-2)
Hi-Fi 2 (#95A00)
Access Control Readers (#75A00, #54A00)
Clipsal, Dynalite, Coolmaster, Serial Connectivity
Cable (#36A05-4)
ETHERNET PORT
Snap-Link, Snap-Link Mobile
for Android™ and iOS®, PC Access, OmniTouch
Touchscreen, OmniTouch Pro, Omni-Bus
EXPANSION
Wireless Receiver (#45A00-1)
Wireless Receiver for GE (#42A00-2)
Expansion Enclosure (#17A00)
EARTH GROUND
12V BATTERY
AUDIO
Omni Console w/ Spkr/Mic #(33A00-4)
Surface Speaker/Mic (#28A00-1)
Flush Speaker/Mic (#28A00-2)
Two-Way Voice Module (#10A11-1)
Controller – Board Only
11.0” W x 8.0” H x 1.25” D
Approximate Weight: 1.6 lbs
Controller – In Enclosure
13.25” W x 13.375” H x 4.625” D
Approximate Weight: 13.30 lbs
Omni Consoles (#33A00)
WIRING DIAGRAMS
FOR TECHNICAL SUPPORT CALL: 1-800-824-3005 Integration Guide I 149
SERIAL PORTS
HLC Lighting Control UPB™ PIM (#36A00-1)
Leviton Vizia RF + Z-Wave (#VRC0P)
ZigBee (#81A00-3)
Omni-Bus (#117A00-1)
Serial to PC Cable (#21A05-2)
Hi-Fi 2 (#95A00)
Access Control Readers (#75A00, #54A00)
Clipsal, Dynalite, Coolmaster, Serial Connectivity
Cable (#36A05-4)
ETHERNET PORT
Snap-Link, Snap-Link Mobile
for Android™ and iOS®, PC Access, OmniTouch
Touchscreen, OmniTouch Pro, Omni-Bus
WIRING DIAGRAM
Omni Commercial
Omni systems are designed for professional installation.
Licensing requirements vary by area.
COMFORT & CONVENIENCE
Omnistat2 Thermostats
Two-Way X-10
TRANSFORMER 24V/40VA
TELEPHONE
INTERFACE
• Land line
• Cellular
Communicator
(#70A00)
• PC Access
USER INTERFACE
SECURITY & ENERGY MANAGEMENT
Temperature Sensor (#31A00-7)
Temperature/Humidity Sensor (#31A00-8)
Standard Security/Fire/Environmental
Sensors
SERIAL PORTS
HLC Lighting Control UPB™ PIM (#36A00-1)
Leviton Vizia RF + Z-Wave (#VRC0P)
ZigBee (#81A00-3)
Omni-Bus (#117A00-1)
Serial to PC Cable (#21A05-2)
Hi-Fi 2 (#95A00)
Access Control Readers (#75A00, #54A00)
Clipsal, Dynalite, Coolmaster, Serial Connectivity
Cable (#36A05-4)
ETHERNET PORT
Snap-Link, Snap-Link Mobile
for Android™ and iOS®, PC Access, OmniTouch
Touchscreen, OmniTouch Pro, Omni-Bus
EXPANSION
Wireless Receiver (#45A00-1)
Wireless Receiver for GE (#42A00-2)
Expansion Enclosure (#17A00)
EARTH GROUND
12V BATTERY
AUDIO
Omni Console w/ Spkr/Mic #(33A00-4)
Surface Speaker/Mic (#28A00-1)
Flush Speaker/Mic (#28A00-2)
Two-Way Voice Module (#10A11-1)
Controller – Board Only
11.0” W x 8.0” H x 1.25” D
Approximate Weight: 1.6 lbs
Controller – In Enclosure
13.25” W x 13.375” H x 4.625” D
Approximate Weight: 13.30 lbs
Omni Consoles (#33A00)
WIRING DIAGRAMS
Integration Guide I LEVITON.COM
150
WIRING DIAGRAMS | Omni
WIRING DIAGRAM
Omni IIe
COMFORT & CONVENIENCE
Omnistat2 Thermostats
Two-Way X-10
TRANSFORMER
24V/40VA
TELEPHONE
INTERFACE
• Land line
• Cellular
Communications
Center (#70A00)
• PC Access
USER INTERFACE SECURITY & ENERGY MANAGEMENT
Temperature Sensor (#31A00-7)
Temperature/Humidity Sensor (#31A00-8)
Standard Security/Fire/Environmental
Sensors
SERIAL PORTS
HLC Lighting Control UPB™ PIM (#36A00-1)
Leviton Vizia RF + Z-Wave (#VRC0P),
ZigBee (#81A00-3)
Hi-Fi 2 (#95A00)
KNX® Gateway, (#97A00-1)
Access Control Readers (#75A00, #54A00)
Clipsal, Dynalite, Coolmaster, Serial Connectivity
Cable (#36A05-4), Serial to PC Cable (#21A05-2)
ETHERNET PORT
Snaplink for Windows, Snaplink
Mobile for Android™/iPhone®
and iOS®, PC Access, OmniTouch
7 Touchscreen, OmniTouch Pro,
Omni-Bus
EXPANSION
Wireless Receiver (#45A00-1)
Wireless Receiver for GE (#42A00-2)
EARTH GROUND
12V BATTERY
AUDIO
Omni Console w/ Spkr/Mic #(33A00-4)
Surface Speaker/Mic (#28A00-1)
Flush Speaker/Mic (#28A00-2)
Two-Way Voice Module (#10A11-1)
Omni systems are designed for professional
installation. Licensing requirements vary by area.
Controller – Board Only
11.0” W x 8.0” H x 1.25” D
Approximate Weight: 1.6 lbs
Controller – In Enclosure
13.25” W x 13.375” H x 4.625” D
Approximate Weight: 13.30 lbs
Omni Cosoles (#33A00)
WIRING DIAGRAMS
FOR TECHNICAL SUPPORT CALL: 1-800-824-3005 Integration Guide I 151
WIRING DIAGRAM
Omni LTe
COMFORT & CONVENIENCE
Omnistat2 Thermostats
Two-Way X-10
TRANSFORMER 24V/40VA
TELEPHONE
INTERFACE
• Land line
• Cellular
Communications
Center (#70A00)
• PC Access
USER INTERFACE SECURITY & ENERGY MANAGEMENT
Temperature Sensor (#31A00-7)
Temperature/Humidity Sensor (#31A00-8)
Standard Security/Fire/Environmental
Sensors
SERIAL PORTS
HLC Lighting Control UPB™ PIM (#36A00-1)
Leviton Vizia RF + Z-Wave (#VRC0P),
ZigBee (#81A00-3)
Hi-Fi 2 (#95A00)
KNX® Gateway, (#97A00-1)
Access Control Readers (#75A00, #54A00)
Clipsal, Dynalite, Coolmaster, Serial Connectivity
Cable (#36A05-4), Serial to PC Cable (#21A05-2)
ETHERNET PORT
Snaplink for Windows, Snaplink
Mobile for Android™/iPhone®
and iOS®, PC Access, OmniTouch
7 Touchscreen, OmniTouch Pro,
Omni-Bus
EXPANSION
Wireless Receiver (#45A00-1)
Wireless Receiver for GE (#42A00-2)
EARTH GROUND
12V BATTERY
AUDIO
Omni Console w/ Spkr/Mic #(33A00-4)
Surface Speaker/Mic (#28A00-1)
Flush Speaker/Mic (#28A00-2)
Two-Way Voice Module (#10A11-1)
Omni systems are designed for professional
installation. Licensing requirements vary by area.
Controller – Board Only
11.0” W x 8.0” H x 1.25” D
Approximate Weight: 1.6 lbs
Controller – In Enclosure
13.25” W x 13.375” H x 4.625” D
Approximate Weight: 13.30 lbs
Omni Consoles (#33A00)
TELEPHONE
INTERFACE
• Land line
• Cellular
Communications
Center (#70A00)
• PC Access
WIRING DIAGRAMS
Integration Guide I LEVITON.COM
152
WIRING DIAGRAMS | Access Control
WIRING DIAGRAM
Access Control via Leviton Power Hub (#83A00-X)
EXIT
When a serial interface is configured for access
control, the corresponding interface jumper must
be in the “485” position.
For example: JP2 must be set to “485” when serial
interface 2 (J2) is used for access control.
LEVITON 12VDC POWER HUB (#83A00-X)
EXIT BUTTON
ACCESS CONTROL READER (#75A00-2)
GREEN
12VDC DOOR STRIKE
BLACK
WHITE
RED
LEVITON CONTROLLER
WIRING DIAGRAMS
FOR TECHNICAL SUPPORT CALL: 1-800-824-3005 Integration Guide I 153
WIRING DIAGRAM
Access Control via non-Leviton Power Supply
When a serial interface is configured for access
control, the corresponding interface jumper must
be in the “485” position.
For example: JP2 must be set to “485” when serial
interface 2 (J2) is used for access control.
EXIT BUTTON
ACCESS CONTROL READER (#75A00-2)
GREEN
12VDC DOOR STRIKE
BLACK
WHITE
RED
12VDC POWER SUPPLY
RED
BLACK
POWER TRANSFORMER
LEVITON CONTROLLER
GROUND
INPUT
12VDC
24VAC 40VA
TAB UPGRAY WIRE ON TOP
TOP SIDE
A
B
GR AY
ORANGE
4 POSITION MODULAR CONNECTOR
ADDITIONAL READERS CONNECT IN PARALLEL
WIRING DIAGRAMS
Integration Guide I LEVITON.COM
154
WIRING DIAGRAMS | HI-FI
WIRING DIAGRAM
Hi-Fi 2 Four Zone, Four Source Distributed Audio System
CONTROLLER (OPTIONAL)
Connect to controller or other serial port
device. With a controller select zone and
source and control volume and power
from an OmniTouch Touchscreen or via
controller program.
ETHERNET NETWORK PORT
Communicate with IP devices on
the network. Free iOS app for
controlling with iPhone, iPad, and
iPod Touch.
ZONE SPEAKERS
Total of 4 speaker zones on the main
board. Use 8-Ohm speakers and
16-gauge speaker wire (4-conductor
stranded suggested for neat
installation).
SYSTEM ON OUTPUT
When any audio zones turn
on, this output activates an
auxiliary amplifer equipped with
a voltage trigger.
PAGE INPUT
When triggered, all zones turn
on at the preset paging volume
and switch to source 4.
VARIABLE OUTPUT
Attach additional amplification
to Zone 1.
LOCAL AUDIO INPUTS
Attach audio sources that are in
the same location as the Hi-Fi2 4x4
system.
POWER SUPPLY INPUT
20.5V Universal power
supply (included)
RIM Part #95A04-1
• Remote Input Modules
allow any source from
anywhere in the house
to be listened to in any
or all zones.
• Use Cat5 cable from
the RIM to Remote
Audio In on the Hi-Fi 2.
BRIM Part #95A04-2
• Adds wireless
connectivity to
share streaming or
stored music from
smartphone, tablet,
or computer.
• Add a max of 4 BRIMs
to the main board.
VSC Part #95A03-1
• Volume-Source Controls
allow selection of source
and adjustment of volume,
bass, treble, balance and
source gain. VSCs also
feature and IR receiver.
• Use Cat5 cable from VSC
to Zone Control In on the
Hi-Fi-2.
• Add a max of 4
VSCs to the
main board.
WIRING DIAGRAMS
FOR TECHNICAL SUPPORT CALL: 1-800-824-3005 Integration Guide I 155
WIRING DIAGRAM
Hi-Fi 2 Eight Zone, Eight Source Distributed Audio System
Part #95A12-1/-2
CONTROLLER (OPTIONAL)
Connect to controller or other serial port
device. With a controller select zone and
source and control volume and power from
an OmniTouch Touchscreen or via controller
program.
ZONE SPEAKERS
Total of 8 on the main board. Use 8-Ohm
speakers and 16-gauge speaker wire
(4-conductor stranded suggested for neat
installation).
HI-FI 2 EXPANSION BOARD
Connect the Hi-Fi 2 Expansion Board via a
supplied expansion cable to add an additional
8 zones to your Hi-Fi 2 audio system.
ETHERNET
NETWORK PORT
Communicate with IP devices
on the network. Free iOS app
for controlling with iPhone,
iPad, and iPod Touch.
SYSTEM ON
OUTPUT
When any audio zones
turn on, this output
activates an auxiliary
amplifer equipped with
a voltage trigger.
PAGE INPUT
When triggered, all
zones turn on at the
preset paging volume
and switch to source 8.
VARIABLE
OUTPUT
Attach additional
amplification
to Zone 1 and/or 8
LOCAL AUDIO
INPUTS
Attach audio sources
that are in the same
location as the Hi-Fi2
8x8 system.
RIM Part #95A04-1
• Remote Input Modules
allow any source from
anywhere in the house
to be listened to in any
or all zones.
• Use Cat5 cable from
the RIM to Remote
Audio In on the Hi-Fi 2.
• Add a max of 8 RIMs to
the main board.
BRIM Part #95A04-2
• Adds wireless
connectivity to
share streaming or
stored music from
smartphone, tablet, or
computer.
VSC Part #95A03-1
• Volume-Source Controls
allow selection of source and
adjustment of volume, bass,
treble, balance and source
gain. VSCs also feature and IR
receiver.
• Use Cat5 cable from VSC to
Zone Control In on the Hi-Fi-2.
• Add a max of 8
VSCs to the
main board.
WIRING DIAGRAMS
Integration Guide I LEVITON.COM
156
WIRING DIAGRAMS | Omni-Bus Lighting Control Network
WIRING DIAGRAM
1st Distribution Box 2nd Distribution Box
3-Way Splitter
Leviton Controller
USB Programming
Interface
RS232 CABLE
Interface
Translator
12
3
9
4
4
4
4
4
44
4
5
5
6
6
7
7
7
7
7
7
8
8
10
WIRING DIAGRAMS
FOR TECHNICAL SUPPORT CALL: 1-800-824-3005 Integration Guide I 157
WIRING DIAGRAM
Omni-Bus Lighting Control Network
1. Network Cable
a. CAT5 UTP (Category 5 Unshielded Twisted pair (4 pairs), stranded or single core)
2. Crimp Connectors
a. All cable ends must be terminated with RJ45 plugs.
3. Network Termination Plug
a. Each network must have ONE and only one network Termination Plug (122A00-1).
b. It is recommended that the Termination Plug always be installed at the power supply interface.
4. Jumpers
a. No open ends or open connectors are allowed on the network.
b. All open ends or open connectors must be terminated with a Network Jumper Plug (121A00-1).
5. Splitters
a. Where a T-junction or network split is required, a Splitter box must be used (119A00-1 or 120A00-1).
b. A Splitter can be inserted anywhere on the network.
6. Power Supply
a. Each Power Supply Unit must be connected to the network via a separate Power Supply Interface unit (124A00-1).
b. Each power supply can supply up to 2A to the network.
c. More than one power supply can be used if the total network current consumption exceeds 2A
d. To obtain the total current requirement, add up the individual current consumptions of all devices on the network.
e. The power supply(s) must be installed at the point where most devices are located (usually the distribution board) to avoid excessive
voltage drops over long cables.
f. The supply voltage at any point on the cable (pin 1 and 8) must be between 15 and 24VDC.
7. Supply Distribution
a. The total number of devices on a single network split from the power supplies must not exceed 50 devices.
b. The total current consumption of devices on a single network split from the power supplies must not exceed 2A.
8. Device Placement and Isolation
a. The Leviton Omni-Bus units have been designed to operate over an ambient temperature range between 0 ºC and 40 ºC at the
rated maximum load capacities. Sucient spacing and airflow between devices should be allowed for in the distribution board. The
minimum recommended horizontal spacing between dimmer devices is one din rail module width (17mm or 2/3inches).
b. All network connections and cabling are low voltage and optically isolated from the mains supply voltage and must thus be kept
away from any mains wiring.
c. Sucient spacing must be allowed for this between consecutive din rails in the distribution board (minimum recommended spacing
between din rail centers = 150mm or 6inches).
d. Do NOT route any network cables via the same conduits as mains wiring.
9. Maximum Cable Length
a. The total cable length on a single bus network may not exceed 1000m (3280feet).
10. Maximum Number of Devices
a. The total number of devices on a single bus network may not exceed 256.
INDEX
Integration Guide I LEVITON.COM
158
INDEX | BY PRODUCT TYPE
SAFETY & SECURITY
Omni Automation Systems – Controllers
OmniPro II Board Only 20A00-21 16
OmniPro II Commercial Controller 20A00-5 16
OmniPro II Controller 20A00-2 16
OmniPro II Controller for Structured Wiring 20A00-8 16
European OmniPro II in Enclosure 0P202-900 16
Omni IIe Controller 20A00-50 16
European Omni IIe in Enclosure 20A50-900 16
Omni IIe Board Only 20A00-53 17
Omni IIe Controller 20A00-50 17
Omni IIe Controller for Structured Wiring 20A00-52 17
European Omni LTe in Enclosure 20A70-900 17
Omni LTe Board Only 20A00-73 17
Omni LTe Controller 20A00-70 17
Omni LTe for Structured Wiring 20A00-72 17
Omni Accessories
16 Zone Hardwire Expander 10A06-1 18
16 Zone/16 Output Expansion 17A00-9 18
Expansion Enclosure 17A00-1 18
European 16 Zone/16 Output Expander 0A179-9EU 18
Expansion Board Only 17A00-8 18
Omni Notifier 20A30-1 18
PC Access Software 1105W/1106 18
Omni Console 33A00-1 19
Omni Console w/Built-In Speaker/Mic 33A00-4 19
International Omni Console 33A00-23 19
International Omni Console w/Built-In Speaker/Mic 33A00-24 19
European Console Tamper Kit ENTMP-9EU 19
Flush Mount Kit 33A00-3 19
Surface Speaker Microphone 28A00-1 19
Flush Speaker Microphone 28A00-2 19
Two-Way Voice Module 10A11-1 19
ZigBee® Interface Module (ZIM) 81A00-3WHZB 19
RS-232/RS-485 Serial Board 10A17-1 20
8 Relay Module 19A00-1 20
Four Relay Module 10A07-1 20
Universal Mounting Plate 20A07-2 20
Enclosure Lock & 2 Keys 21A06-1 20
Hardwired Load Control Module 72A00-1 20
KNX® Gateway 97A00-1 21
One Port PoE Injector 90A00-1 21
Eight Port PoE Switch 91A00-1 21
Eight Port PoE Switch with Structured Wiring Backplate 91A00-2 21
Serial PC Cable 21A05-2 21
UPB™ Powerline Interface Module to Computer Cable 36A05-2 21
Serial Connectivity Cable 36A05-4 21
Serial Server 93A00-1 21
Wireless Security Sensors
64 Zone Wireless Receiver 45A00-1 22
Glass Break 61A00-1 22
Quad Pet Immune Motion Detector 47A00-2 22
4 Button Wireless Keypad 69A00-1 22
4 Button Keyfob 48A00-1 22
Panic/Alert Pendant 50A00-1 22
Wireless Receiver for GE InterLogix 42A00-2 22
Wireless Driveway Sensor 63A00-1 23
Door/Window Transmitter 46A00-1 23
INDEX
FOR TECHNICAL SUPPORT CALL: 1-800-824-3005 Integration Guide I 159
Mini Contact 58A00-1 23
Vanishing Contact 57A00-1 23
Wireless Recessed Door Contacts 56A00-1 23
Access Control
Access Control Card Reader 75A00-2 25
Access Control Keypad 54A00-1 25
Access Control Card Pack of 10 78A00-1 25
Access Control Key Tag Pack of 10 78A00-2 25
12VDC Electric Door Strike (Fail Secure) 79A00-1 25
Power Hub in Enclosure 83A00-1 25
Power Hub for Structured Wiring 83A00-2 25
Video Surveillance
Indoor/Outdoor Mini Dome IP Camera 68A11-1 26
VOIP Intercom Door Station
Intercom Door Station INDS1 27
OMNI INTERFACES
Touchscreens & Accessories
OmniTouch 7 White 99A00-1 (White) 28
OmniTouch 7 Black 99A00-2 Black) 28
Table top Display, includes rubber feet. 99A16-1 (White) 28
99A16-2 (Black) 28
ENERGY MANAGEMENT
Lumina RF Wireless Energy Management
Lumina Gateway 74A00-1 34
OmniTouch 7 Touchscreen for Lumina Gateway 99A00-1/99A00-2 34
Lumina RF 120/277VAC 10A Switch ZSS10 34
Lumina RF Ceiling Mount Occupancy Sensor – 1500 Sq/Ft – 450 Sq/Ft ZSC04 and ZSC15 34
Omnistat2 Wireless Single-Stage Conventional & Heat Pump (w/Aux Heat) RC-1000WHZB 35
Lumina RF Universal Thermostat RC-1500WHZB 35
Omnistat2 Wireless Multistage & Heat Pump w/Humidity Control RC-2000WHZB 35
Lumina RF Motion Sensor LURMD-00W 35
Lumina RF Door/ Window Sensor LURDW-00W 35
Lumina RF 15A Plug-in Load Control Module 89A00-1ZB 35
Lumina RF 30A Wireless Load Control Module 73A00-3ZB 35
Lumina RF 5A Wireless Load Control Module 73A00-4ZB 35
Omni Temperature Control and Monitoring
Omnistat2 Thermostat Conventional & Heat Pump (w/ Aux) White (WH). RC-1000WH 38
Omnistat2 Thermostat Multi-Stage Heat Pump w/ Humidity Control RC-2000WH 38
Omnistat2 Trim Ring 65A18-1 38
Temperature Display/Control (TDC) 95A03-1TWH 38
TDC Kit with Power Supply 95A03-1TKT 38
TDC Color Change Kit 95A19-BL 38
TDC Color Change Kit 95A19-WH 38
Flush Mount Remote Indoor/ Outdoor Temp Sensor 23A00-2 38
Thermostat Isolation Module 29A00-1 38
Thermostat Power Supply Module 30A00-2 38
Surface Mount Remote Indoor/Outdoor Temp Sensor 23A00-1 38
Water Temperature Sensor 14A00-8 39
Extended Range Indoor/Outdoor Temperature Sensor for Leviton Omni Controllers 31A00-7 39
Extended Range Indoor/Outdoor Temperature & Humidity Sensor for Leviton Omni Controllers 31A00-8 39
INDEX
Integration Guide I LEVITON.COM
160
INDEX | BY PRODUCT TYPE
Hospitality Temperature Control and Monitoring
Omnistat3 Hospitality Thermostat RC500-2EW 41
RC500 Thermostat Retrofit Kit RCPLT-00W 41
Wireless Ceiling Occupancy Sensors - Coverage of up to 450 sq/ft ZSC04-INW 41
Wireless Ceiling Occupancy Sensors - Coverage of up to 1,500 sq/ft ZSC15-INW 41
Wireless Corner Mount Motion Sensor LURMD-00W 41
Wireless Door / Window / Balcony sensor LURDW-00W 41
30 Amp Load Control Module - 96-250VAC (50/60 Hz) 73A00-3ZB 41
Plug-in Appliance Module - 120VAC 15A 89A00-1ZB 41
Wall switch - 120-277VAC 10A Wall switch, for applications with a neutral connection ZSS10-N0Z 41
Wall switch - 120-277VAC 10A Wall switch, for applications without a neutral connection ZSS10-G0Z 41
Hardwired Room Key Switch - 24V Key Switch Interface, requires OSP20-RxH power pack HKSWP-0Lx 41
HAI Lighting Control
CFL/LED Dimmer 35A00-1CFL 44
600W UPB™ Dimmer Switch 35A00-1 44
600W UPB™ Non-Dimming Switch 35A00-3 44
15A Relay Switch 40A00-1 44
Auxiliary Switch 37A00-1 44
Switch Color Change Kit 35A14-colorcodeCS 44
2400W UPB™ Dimmer Switch 55A00-3 color 45
2400W Wallplate, Ivory 55A03-2 45
2400W Wallplate, White 55A03-1 45
1000W UPB™ Dimmer Switch 55A00-1colorcode 45
UPB™ Lamp Module 59A00-1 45
UPB™ Appliance Module 60A00-1 45
Scene Switch, 6 Button 38A00-1 45
House Status Switch, 8 Button 38A00-2 45
Table Top Scene Switch Cradle 38A15-color 46
Table Top Scene Switch with Cradle 38A16-color 46
Custom Legend Kit for Scene or House Status Switch 38A06-2 46
Scene Switch Remote 38A14-1 46
Scene Switch and Lumina Mode Switch Color Change Kit 38A04-colorcodeCS 46
House Status Switch Color Change Kit 38A05-colorcodeCS 46
HLC Load Control Module 71A00-1 47
Phase Coupler 39A00-1 47
UPB™ Split-Phase Repeater 39A00-2 47
UPB™ Three-Phase Repeater 39A00-3 47
UPB™ Powerline Interface Module & Cable 36A00-1 47
Vizia RF+ Wireless Lighting
CFL, LED, Incandescent, Magnetic Low Voltage and Mark 10 Dimmer with LED locator and brightness display VRMX1-1L 50
Incandescent Dimmer with LED locator and brightness display VRI06-1L 50
Incandescent Dimmer with LED locator and brightness display VRI10-1L 50
Incandescent, Magnetic Low Voltage and Mark 10 Dimmer Electronic Low Voltage Dimmer with LED locator
and brightness display VRE06-1L 50
Quiet Fan Speed Control with LED locator and fan speed display VRF01-1L 50
1-Button Zone Controller/Virtual Dimmer Remote Color Change Kit with LED locator and brightness display for VRCZ1 VPKIT-MD 50
Scene Capable Switch with LED locator VRS15-1L 51
Incandescent Scene Capable Switch with LED locator VRS05-1L 51
Matching Switch Color Change Kit with LED locator VPKIT-MS 51
RF + Installer Tool Software and USB for System programming* VRUSB-000 51
(Internal astronomical clock) VRCPG-0SG 51
Vizia RF +® IR Handheld Remote Controller VRMR1-0SG 51
Vizia RF +® 4-Button Scene Controller VRCS4-M0 52
Vizia RF +® 4-Button Zone Controller VRCZ4-M0 52
Vizia RF +® 2-Button Scene Controller with Switches VRCS2-MR 52
1-Button Scene Controller/ Virtual Switch Remote VRCS1-1L 52
Vizia RF +® 1-Button Zone Controller/ Virtual Dimmer Remote VRCZ1-1L 52
Vizia RF +® 4-Button Zone Controller VRCZ4-M0 52
Color Change Kit with LED for VRCS2 VRKIT-DS 52
Matching Dimmer/Fan Speed Control VPKIT-MD 52
INDEX
FOR TECHNICAL SUPPORT CALL: 1-800-824-3005 Integration Guide I 161
Color Change Kit with LED locator for VRCS1 VPKIT-MS 52
4-Button Scene Controller Color Change Kit with LED locator for VRCS4 VPKIT-S4 52
4-Button Zone Controller Color Change Kit with LED for VRCZ4 VPKIT-Z4 52
4-Button Scene Controller Label Kit with LED locator for VRCS4 VPSLB-S4 52
4-Button Zone Controller Label Kit with LED for VRCZ4 VPZLB-Z4 52
Vizia RF +® Scene Capable Plug-In Appliance Module VRPA1-1LW 53
Vizia RF +® Scene Capable Plug-In Lamp Dimming Module VRPD3-1L 53
Vizia RF +® Plug-In Serial Interface Module, ASCII to Z-Wave® Interface VRC0P-1L 53
2-Button Scene Controller with Switches Vizia RF +® Scene Capable Plug-In Appliance Module VRP15-1L 53
Receptacle Color Change Kit VRKIT-R0 53
Omni-Bus Lighting Control
Interface Translator DIN Rail Module 117A00-1 56
Omni-Bus Scene Control DIN Rail Module 126A00-1 56
Power Supply 2.5A DIN Rail Module 123A00-1 56
Power Supply Interface DIN Rail Module 124A00-1 56
8-Way Splitter DIN Rail Module 120A00-1 56
Termination Plug 122A00-1 57
Jumper Plugs 121A00-1 57
RF Transceiver DIN Rail Module 115A00-1 57
DALI Gateway DIN Rail Module 118A00-1 57
USB Programming Interface Unit 116A00-1 57
3-Way Splitter 119A00-1 57
6-Channel Universal Switch Interface Module 114A00-1 57
Omni-Bus Cable Assemblies for 114A00-1 114A01-1 57
Omni-Bus Relay DIN Rail Module 112A00-1 58
Omni-Bus Dimmer DIN Rail Module 110A00-1 58
Omni-Bus Universal Dimmer DIN Rail Module 110A00-2 58
Omni-Bus Power Switch DIN Rail Module 111A00-1 58
Single-Gang Switch Box w/Cover, Metal 95A20-1 58
1-Button Hardwired, White 113A00-1 59
1-Button Wireless, White 113A00-2 59
2-Button Hardwired, White 113A00-3 59
2-Button Wireless, White 113A00-4 59
3-Button Hardwired, White 113A00-5 59
3-Button Hardwired, Brushed Stainless 113A00-6 59
3-Button Wireless, White 113A00-7 59
6-Button Hardwired, White 113A00-8 59
6-Button Hardwired, Brushed Stainless 113A00-9 59
Keyfob Remote Control, 6-Channel 125A00-1 59
Keyfob Remote Control, 16-Channel 125A00-2 59
Omni-Bus Decora Low Voltage Keypad, NEMA Form Factor, 1 Button, RJ45 Connectors for Omni-Bus, Color: White OBKND-10W 60
Omni-Bus Decora Low Voltage Station, NEMA Form Factor, 2 Button, RJ45 Connectors for Omni-Bus, Color: White ONKND-20W 60
Omni-Bus Decora Low Voltage Station, NEMA Form Factor, 4 Button, RJ45 Connectors for Omni-Bus, Color: White OBKND-40W 60
NEMA Omni-Bus 1-button wall station color change kit RDSGW-1xx 60
NEMA Omni-Bus 2-button wall station color change kit RDSGW-2xx 60
NEMA Omni-Bus 4-button wall station color change kit RDSGW-4xx 60
1-Gang Decora Screwless Wallplate 80301-0Sx 60
1-Gang Decora Screwless Wallplate, color: gray 80301-SGY 60
1-Gang Decora Standard Screw Wallplate 80401-00x 60
1-Gang Decora Standard Screw Wallplate, color: gray 80401-SGY 60
1-Gang Decora Wallplate, brass satin 81401-000 60
1-Gang Decora Wallplate, brushed stainless steel 84401-040 60
VerifEye™ Series 1000 & Series 2000 Meter Kits
1000 Series Meters
1000 120V 1 PH 2W 100A 1 split CT Indoor 1K120-01W 62
1000 120V 1 PH 2W 200A 1 split CT Indoor 1K120-02W 62
1000 120V 1 PH 2W 400A 1 split CT Indoor 1K120-04W 62
1000 120V 1 PH 2W 800A 1 split CT Indoor 1K120-08W 62
1000 120V 1 PH 2W 100A 1 solid CT Indoor 1K120-1SW 62
1000 120V 1 PH 2W 200A 1 solid CT Indoor 1K120-2SW 62
INDEX
Integration Guide I LEVITON.COM
162
INDEX | BY PRODUCT TYPE
1000 120/240V 1 PH 3W 100A 2 split CT Indoor 1K240-01W 62
1000 120/240V 1 PH 3W 200A 2 split CT Indoor 1K240-02W 62
1000 120/240V 1 PH 3W 400A 2 split CT Indoor 1K240-04W 62
1000 120/240V 1 PH 3W 800A 2 split CT Indoor 1K240-08W 62
1000 120/240V 1 PH 3W 100A 2 solid CT Indoor 1K240-1SW 62
1000 120/240V 1 PH 3W 200A 2 solid CT Indoor 1K240-2SW 62
1000 277V 1PH 2W 100A 1 split CT Indoor 1K277-01W 62
1000 277V 1PH 2W 200A 1 split CT Indoor 1K277-02W 62
1000 277V 1PH 2W 400A 1 split CT Indoor 1K277-04W 62
1000 277V 1PH 2W 800A 1 split CT Indoor 1K277-08W 62
1000 277V 1PH 2W 100A 1 solid CT Indoor 1K277-1SW 62
1000 277V 1PH 2W 200A 1 solid CT Indoor 1K277-2SW 62
1000 120V 1 PH 2W 100A 1 split CT Outdoor 1O120-01W 62
1000 120V 1 PH 2W 200A 1 split CT Outdoor 1O120-02W 62
1000 120V 1 PH 2W 400A 1 split CT Outdoor 1O120-04W 62
1000 120V 1 PH 2W 800A 1 split CT Outdoor 1O120-08W 62
1000 120/240V 1 PH 3W 100A 2 split CT Outdoor 1O240-01W 62
1000 120/240V 1 PH 3W 200A 2 split CT Outdoor 1O240-02W 62
1000 120/240V 1 PH 3W 400A 2 split CT Outdoor 1O240-04W 62
1000 120/240V 1 PH 3W 800A 2 split CT Outdoor 1O240-08W 62
1000 277V 1PH 2W 100A 1 split CT Indoor 1O277-01W 62
1000 277V 1PH 2W 200A 1 split CT Indoor 1O277-02W 62
1000 277V 1PH 2W 400A 1 split CT Indoor 1O277-04W 62
1000 277V 1PH 2W 800A 1 split CT Indoor 1O277-08W 62
2000 Series Meters
2000 120/208V 3 PH 4W 100A 3 split CT Indoor 2K208-01W 63
2000 120/208V 3 PH 4W 200A 3 split CT Indoor 2K208-02W 63
2000 120/208V 3 PH 4W 400A 3 split CT Indoor 2K208-04W 63
2000 120/208V 3 PH 4W 800A 3 split CT Indoor 2K208-08W 63
2000 120/208V 3 PH 4W 1200A 3 split CT Indoor 2K208-12W 63
2000 120/208V 3 PH 4W 100A 3 solid CT Indoor 2K208-1SW 63
2000 120/208V 3 PH 4W 200A 3 solid CT Indoor 2K208-2SW 63
2000 120/240V 1 PH 3W 100A 3 split CT Indoor 2K480-01W 63
2000 120/240V 1 PH 3W 200A 3 split CT Indoor 2K480-02W 63
2000 120/240V 1 PH 3W 400A 3 split CT Indoor 2K480-04W 63
2000 120/240V 1 PH 3W 800A 3 split CT Indoor 2K480-08W 63
2000 120/240V 1 PH 3W 1200A 3 split CT Indoor 2K480-12W 63
2000 120/240V 1 PH 3W 100A 3 solid CT Indoor 2K480-1SW 63
2000 120/240V 1 PH 3W 200A 3 solid CT Indoor 2K480-2SW 63
2000 120/208V 3 PH 4W 100A 3 split CT Indoor 2K208-01D 63
2000 120/208V 3 PH 4W 200A 3 split CT Indoor 2K208-02D 63
2000 120/208V 3 PH 4W 400A 3 split CT Indoor 2K208-04D 63
2000 120/208V 3 PH 4W 800A 3 split CT Indoor 2K208-08D 63
2000 120/208V 3 PH 4W 1200A 3 split CT Indoor 2K208-12D 63
2000 277/480V 3PH 4W 100A 3 split CT Indoor 2K480-01D 63
2000 277/480V 3PH 4W 200A 3 split CT Indoor 2K480-02D 63
2000 277/480V 3PH 4W 400A 3 split CT Indoor 2K480-08D 63
2000 277/480V 3PH 4W 800A 3 split CT Indoor 2K480-08D 63
2000 277/480V 3PH 4W 1200A 3 split CT Indoor 2K480-12D 63
2000 120/208V 3 PH 4W 100A 3 split CT Outdoor 2O208-01W 63
2000 120/208V 3 PH 4W 200A 3 split CT Outdoor 2O208-02W 63
2000 120/208V 3 PH 4W 400A 3 split CT Outdoor 2O208-04W 63
2000 120/208V 3 PH 4W 800A 3 split CT Outdoor 2O208-08W 63
2000 120/208V 3 PH 4W 1200A 3 split CT Outdoor 2O208-12W 63
2000 120/240V 1 PH 3W 100A 3 split CT Outdoor 2O480-01W 63
2000 120/240V 1 PH 3W 200A 3 split CT Outdoor 2O480-02W 63
2000 120/240V 1 PH 3W 400A 3 split CT Outdoor 2O480-04W 63
2000 120/240V 1 PH 3W 800A 3 split CT Outdoor 2O480-08W 63
2000 120/240V 1 PH 3W 1200A 3 split CT Outdoor 2O480-12W 63
INDEX
FOR TECHNICAL SUPPORT CALL: 1-800-824-3005 Integration Guide I 163
VerifEye™ EMH+ and Emax
EMH+ All-in-One Meter and Hub with 3 Phase Meter,
includes 100A CTs. A8814-1S3 64
includes 200A CTs. A8814-2S3 64
includes 300A CTs. A8814-3S3 64
includes 400A CTs. A8814-4S3 64
includes 600A CTs. A8814-6S3 64
EZ-MAX® Plus Relay Control Panels
EZ-MAX Plus 8 Relay Panel, (0) No Relays, (8) empty slots. 120V, 277V, 347V input power. With 8 Low \Voltage Inputs 08BD-000 65
EZ-MAX Plus 8 Relay Panel, (4) 1-Pole 30A 120V/277V Relays, (4) empty slots. 120V, 277V, 347V input power.
With 8 Low Voltage Inputs R08BD-L04 65
EZ-MAX Plus 8 Relay Panel, (8) 1-Pole 30A 120V/277V Relays. 120V, 277V, 347V input power.
With 8 Low \Voltage Inputs R08BD-L08 65
EZ-MAX Plus 8 Relay Panel, (8) 2-Pole 20A 240V/480V Relays. 120V, 277V, 347V input power.
With 8 Low \Voltage Inputs R08BD-208 65
EZ-MAX Plus 24 Relay Panel, (0) No Relays, (24) empty slots. 120V, 277V, 347V input power.
With 12 Low \Voltage Inputs R24BD-000 65
EZ-MAX Plus 24 Relay Panel, (16) 1-Pole 30A 120V/277V Relays, (8) empty slots. 120V, 277V, 347V input power.
With 12 Low Voltage Inputs R24BD-L16 65
EZ-MAX Plus 24 Relay Panel, (24) 1-Pole 30A 120V/277V
Relays. 120V, 277V, 347V input power. With 12 Low Voltage Inputs R24BD-L24 65
EZ-MAX Plus 24 Relay Panel, (16) 2-Pole 20A 240V/480V
Relays, (8) empty slots. 120V, 277V, 347V input power. With 12 Low Voltage Inputs R24BD-216 65
EZ-MAX Plus 24 Relay Panel, (24) 2-Pole 20A 240V/480V Relays. 120V, 277V, 347V input power.
With 12 Low Voltage Inputs R24BD-224 65
EZ-MAX Plus 8 Relay Panel, (0) No Relays, (8) empty slots. 230V input power. With 8 Low Voltage Inputs R08BF-000 65
EZ-MAX Plus 8 Relay Panel, (8) 1-Pole 30A 120V/230V/277V Relays. 230V input power. With 8 Low Voltage Inputs R08BF-L08 65
EZ-MAX Plus 24 Relay Panel, (0) No Relays, (24) empty slots. 230V input power. With 12 Low Voltage Inputs R24BF-000 65
ENTERTAINMENT
Hi-Fi 2
Hi-Fi 2 4 Zone, 4 Source Amp Only 95A02-3 70
Hi-Fi 2, 4 Zone, 4 Source Kit for Structured Wiring 95A00-3 70
Hi-Fi 4x4 Power Cord - Power cord for Australia, for use with Hi-Fi 4-Zone, 4 Source systems 95A21-3 70
Hi-Fi 4x4 Power Cord - Power cord for Europe, for use with Hi-Fi 4-Zone, 4 Source systems 95A21-2 70
Hi-Fi 4x4 Power Cord - Power cord for UK, for use with Hi-Fi 4-Zone, 4 Source systems 95A21-1 70
Hi-Fi 2, 8 Zone, 8 Source Kit w/Enclosure 95A00-1 70
Hi-Fi 2, 8 Zone, 8 Source Kit for Structured Wiring 95A00-2 70
Hi-Fi 2 Main Amplifier Assembly w/Power Supply 95A01-1 70
Hi-Fi 2 Main Amplifier Assembly with Power Supply 20A07-2 70
Hi-Fi 2, 8 Zone Expansion Amplifier Kit w/Enclosure 95A12-1 71
Hi-Fi 2, 8 Zone Expansion Amplifier Kit for Structured Wiring 95A12-2 71
Hi-Fi 2 Expansion Amplifier Assembly w/Power Supply 95A18-1 71
Hi-Fi 2 Expansion Cable Assembly 95A16-1 71
Vented Enclosure 95A09-1 71
Hi-Fi 2 Retractable Cable 95A13-1 71
Hi-Fi 2 Retractable Cable 95A14-1 71
Single-head Flashing IR Emitter EN928-000 71
Hi-Fi 2 Remote Control 95A05-1 72
Volume-Source Control (VSC) 95A03-1 72
VSC Color Change Kit 95A11-colorCS 72
Remote Input Module (RIM) 95A04-1 72
Bluetooth Remote Input Module (BRIM) 95A04-2 72
Individual RIM Color Change Kit 95A15-colorcode 72
RIM Color Change Kit 95A10-colorCS 72
INDEX
Integration Guide I LEVITON.COM
164
INDEX | BY PRODUCT TYPE
Strauss Volume Controls & 1x6 Distributed Audio
Audio System Volume Controls
Decora Strauss Transformer-Free Slider Volume Control, analog, 200 watts peak, 100 watts RMS, 4-16 ohms, 8 ohm
nominal (for use with SGAMP-000) (Decora wallplate sold separately) SGVST-00W 73
Decora Strauss Transformer-Free Impedance-Matching Slider Volume Control, analog, 200 watts peak, SGVSM-00W 73
Decora Strauss Color-Change Kit, converts to light almond SGVCK-0LA 73
Decora Strauss Color-Change Kit, converts to ivory SGVCK-00I 73
Decora Strauss Color-Change Kit, converts to black SGVCK-00E 73
System Matching Modules
System Matching Module for impedance-matching passive two-channel multi-room audio systems
(for use with SGVST-00W) SGAMP-000 73
1X6 Audio Distribution Module
1x6 Passive Audio Module (for use with SGVSM-00W) 48211-06A 73
SPEAKERS
In-Wall & In-Ceiling Speakers
Leviton Architectural Edition Powered by JBL In-Wall/In-Ceiling Speakers
Pair of 6.5” Two-Way In-Wall Loudspeakers, 80 watts, 8 ohms AEI65-000 76
Pair of 8” Two-Way In-Wall Loudspeakers, 100 watts, 8 ohms AEI80-000 76
Pair of 6.5” Two-Way In-Ceiling Loudspeakers, 80 watts, 8 ohms AEC65-000 76
Pair of 8” Two-Way In-Ceiling Loudspeakers, 100 watts, 8 ohms AEC80-000 76
6.5” Two-Channel / Single Location Two-Way In-Ceiling Loudspeakers, two titanium tweeters, dual voice-coil
titanium-laminate woofer 50 watts/channel, 8 ohms AEM65-000 76
Pre-Construction Kits
6.5” Pre-Construction Speaker Kit for in-wall installations AEPI6-KIT 76
8” Pre-Construction Speaker Kit for in-wall installations AEPI8-KIT 76
Fire Rated Back-Box Enclosure (Required for 6.5” in-ceiling speakers AEC65, AEM65) AEBC6-000 76
8” Pre-Construction Speaker Kit for In-Ceiling Speaker AEPC8-KIT 76
Spec-Grade® In-Wall/In-Ceiling Indoor Speakers
Pair of 6.5” Spec-Grade Two-Way In-Ceiling Loudspeakers, 120 W peak/ 60 W RMS, 8 ohms SGC65-00W 77
Pair of 6.5” Spec-Grade Two-Way In-Wall Loudspeakers, 120 W peak/ 60 W RMS, 8 ohms SGI65-00W 77
Pre-Construction Kits
Rough-in Bracket for 6.5” In-Wall Loudspeakers PCI65-KIT 77
Rough-in Bracket for 8” In-Wall Loudspeakers PCI80-KIT 77
Fire-Rated Back-Box Enclosure (Required for 6.5” in-ceiling speakers SGC65) AEBC6-000 77
Outdoor Home & Theater Speakers
Pair of Outdoor/All–Weather Two-Way Loudspeakers in Enclosure, 0.50” tweeter, 4” woofer, 200 watts, 8 ohms AEAWS-C1W 78
Dual 5” Two-Way In-Wall Center Channel Home Theater Loudspeakers, 120 watts, 8 ohms AEI55-000 79
Dual Channel Two-Way Shelf-Mounted Center Channel Loudspeaker w/ silver grill, 75 watts / 300 watts, 8 ohms AECCS-VCE 79
Powered 12” Subwoofer w/ amplifier w/ silver grill, 400 watts RMS, 700 watts peak, 8 ohms AESUB-012 79
Five-Channel Surround-Sound Home Cinema Speaker System w/ 100-watt powered subwoofer
and 5 satellite speakers AEH50-0** 79
System-Matched Satellite Speaker for 6.1 and 7.1 surround sound expansion AESS5-0** 79
Single-Gang Decorative Satellite Speaker Adapter Wallplate/Bracket AEPHK-0** 79
Pre-Construction Kit, in-wall center channel shelf for use with AEI55-000 AEPIS-KIT 79
INDEX
FOR TECHNICAL SUPPORT CALL: 1-800-824-3005 Integration Guide I 165
AUDIOVISUAL SOLUTIONS
BitWise Products
BC1, US Power Supply, 8 IR ports, 4 RS232, 4 GPIO, 4 Relays, 1 IR input BWBC1-000 85
BC1, Intl Power Supply, 8 IR ports, 4 RS232, 4 GPIO, 4 Relays, 1 IR input BWBC1-0NT 85
BC2, US Power Supply, 4 IR ports; 2 RS232; 2 GPIO; 2 Relays BWBC2-000 85
BC2, lntl Power Supply, 4 IR ports, 2 RS232; 2 PIO, 2 Relays BWBC2-0NT 85
BC4-BCX-1 PRO, US power supply, BW BC4 with 4 IR ports, GPIO, RS232 BWBC4-000 85
BC4-BCX-1 PRO, INTL power supply, BW BC4 with 4 IR ports, GPIO, RS232 BWBC4-0NT 85
RF Remote Control BWRMT-000 85
RF Remote Control Receiver BWRRR-000 85
BC-2 Rack Ears BWEAR-000 85
Single Head Flashing IR Emitter EN928-000 85
Dual Head Flashing IR Emitter BWEM2-000 85
Adapter for connecting a BC-1 IR In port to a Distributed IR system BWIRA-000 85
Wi-Fi Adapter with External Antenna BWWFA-000 85
IR Receiver Module BWIRI-000 85
IR Learner BWIRL-000 85
DB9 Female-RJ45 Female Adapter BWDBF-000 85
DB9 Male-RJ45 Female Adapter BWDBM-000 85
POE Power Injector with A/C Cord TS901-000 85
OmniTouch 7 Touchscreen, black/white 99A00-1/2 85
OmniTouch 7 Table Top Stand – White 99A16-1 85
OmniTouch 7 Top Stand – Black 99A16-2 85
US Power Supply, 12V BWDPS-000 85
International Power Supply, 12VDC BWIPS-000 85
AV Signal Extension
HDBaseT Extender, Transmitter and Receiver, 100 m 41910-HTE 87
HDBaseT Extender, Transmitter and Receiver, 70 m 41910-HT0 87
HDBaseT Extender, Receiver only, 70 m 41910-HTR 87
HDBaseT Extender IR Emitter and Receiver Kit 41910-HIR 87
VGA Extender Transmitter and Receiver, 100 m 41910-V01 88
HDMI Cable, 3 ft. 41900-03E 88
HDMI Cable, 6 ft. 41900-06E 88
HDMI Cable, 10 ft. 41900-10E 88
HDMI Cable, 15 ft. 41900-15E 88
HDMI Cable Lock Kit 41900-LKT 88
USB 1.1 Extender, 50 m 41910-U11 89
Mixing Audio Amplifier 41920-A01 89
Infrared Remote Control Kit 41920-AIR 89
AV Connectivity – Multimedia Outlet System – MOS Surface-Mount Box & Wallplate Housings
Single-Gang Wallplate 41290-SMW 41290-SMT 41290-SMI 41290-SMG 41290-SME 41290-SMS 92
Dual-Gang Wallplate 41290-DMW 41290-DMT 41290-DMI 41290-DMG 41290-DME 41290-DMS 92
Three-Gang Wallplate 41290-TMS 92
Surface-Mount Box*, 3-unit w/Fiber Storage 41296-MMW 41296-MMT 41296-MMI 41296-MMG 41296-MME 92
Surface-Mount Housing, holds one 1-unit high module 4M089-1WM 4M089-1IM 4M089-1TM 4M089-1GM 4M089-1EM 92
Fiber Storage/Spacer Ring 41290-DRW 41290-DRI 41290-DRG 41290-DRE 92
Decora® Insert, holds one 1-unit high module 41649-00W 41649-00T 41649-00I 41649-00G 41649-00E 92
VGA PC Module, 110-style termination 41295-VPW 41295-VPT 41295-VPI 41295-VPG 92
VGA Monitor Module, 110-style termination 41295-VMW 41295-VMT 41295-VMI 41295-VMG 92
VGA/HD15 Module, screw terminal 41295-HDW 41295-HDI 92
VGA/HD15 Module, feedthrough 41293-HDW 41293-HDT 41293-HDI 41293-HDG 41293-HDE 92
VGA/HD15 Module, empty 41291-DBW 41291-DBI 41291-DBG 41291-DBE 92
RCA Component Video Module, 110-style termination (red, green, blue) 41292-DEW 41292-DET 41292-DEI 92
RCA Composite Video Module, 110-style termination (red, white, yellow) 41292-AEW 41292-AET 41292-AEI 92
3-Port RCA Module (red, black, yellow), feedthrough 41292-3RW 41292-3RT 41292-3RI 41292-3RG 41292-3RE 92
3-Port RCA Module (red, green, blue), feedthrough 41292-3DW 41292-3DT 41292-3DI 41292-3DG 41292-3DE 92
HDMI® Module, feedthrough 41290-HDW 41290-HDT 41290-HDI 41290-HDG 41290-HDE 92
INDEX
Integration Guide I LEVITON.COM
166
INDEX | BY PRODUCT TYPE
speakON® Connector, 4-pole, screw terminal* 41297-SP4 92
XLR Connector, 3-pole, screw terminal* 41297-XL3 92
MOS Fiber Inserts
1 Duplex SC, zirconia ceramic, SM/M, blue, (1-unit high) 41291-2CW 41291-2CI 41291-2CG 41291-2CE 93
1 Duplex SC, zirconia ceramic, SM/MM, blue, 45˚ exit (1.5-units high) 41294-2CW 41294-2CI 41294-2CG 41294-2CE 93
1 Duplex SC, zirconia ceramic, SM/MM, blue, 45˚ exit (2-units high) 41292-2CW 41292-2CI 41292-2CG 41292-2CE 93
2 Duplex SC, zirconia ceramic, SM/MM, blue, 45˚ exit (3-units high) 41293-4CW 41293-4CI 41293-4CG 41293-4CE 93
1 Duplex ST, zirconia ceramic, SM, (1-unit high) 41291-ZTW 41291-ZTI 41291-ZTG 41291-ZTE 93
1 Duplex ST, phosphor bronze, MM, (1-unit high) 41291-2TW 41291-2TI 41291-2TG 41291-2TE 93
1 Duplex ST, zirconia ceramic, SM, 45˚ exit (1.5-units high) 41294-ZTW 41294-ZTI 41294-ZTG 41294-ZTE 93
MOS Adapters & Blank Modules
1-Port QuickPort® Module (1-unit high) 41291-1MW 41291-1MT 41291-1MI 41291-1MG 41291-1ME 93
2-Port QuickPort Module (1-unit high) 41291-2QW 41291-2QT 41291-2QI 41291-2QG 41291-2QE 93
2-Port 45˚ Exit Angled QuickPort Module (1.5-units high) 41294-2QW 41294-2QT 41294-2QI 41294-2QG 41294-2QE 93
Passthrough Module (1.5-units high) 41297-2PW 41297-2PI 41297-2PT 41297-2PG 41297-2PE 93
Blank Module (0.5-unit high) 41295-5BW 41295-5BT 41295-5BI 41295-5BG 41295-5BE 93
Blank Module (1-unit high) 41291-1BW 41291-1BT 41291-1BI 41291-1BG 41291-1BE 93
Blank Module (1.5-units high) 41294-2BW 41294-2BT 41294-2BI 41294-2BG 41294-2BE 93
Blank Module (2-units high) 41292-2BW 41292-2BT 41292-2BI 41292-2BG 41292-2BE 93
Data & AV Connectors
QuickPort® BNC Bulkhead Module, standard 41084-B*F 95
QuickPort BNC Bulkhead Module, gold plated 40832-0B° 95
QuickPort HDMI Passthrough 40834-00# 95
QuickPort S-Video Feedthrough 40734-CV~ 95
QuickPort USB A-A Connector, feedthrough 40835-00~ 95
QuickPort 3.5 mm Stereo, screw terminal 40839-S~S 95
QuickPort F-Connector, standard, 3.0 GHz 41084-F*F 95
QuickPort F-Connector, gold plated, 3.0 GHz 40831-0B° 95
QuickPort RCA to 110 40735-Rx† 95
QuickPort RCA w/ black stripe 40830-B*E 95
QuickPort RCA w/ red stripe 40830-B*R 95
QuickPort RCA w/ yellow stripe 40830-B°Y 95
QuickPort RCA w/ green stripe 40830-B~V 95
QuickPort RCA w/ blue stripe 40830-B~L 95
QuickPort Binding Post Adapter, gold plated w/ black stripe 40833-B°E 95
QuickPort Binding Post Adapter, gold plated w/ red stripe 40833-B°R 95
QuickPort Snap-in Blank Module 41084-B*B 95
QuickPort Compression RCA Connector 40782-R•W 95
QuickPort Compression F-Connector (white only) 40782-CPF 95
RCA Compression Connector (colored rings included) 40985-CRU 95
Compression F-Connector 40985-CPF 95
QuickPlate Tempo Single-Gang Wallplates with ID Windows
2-Port Wallplate 42090-2WS 42090-2TS 42090-2IS 42090-2GS 42090-2ES 95
4-Port Wallplate 42090-4WS 42090-4TS 42090-4IS 42090-4GS 42090-4ES 95
Audio Accessories
RCA Y Adapter, carded unit pack C5405-000 96
Black Cable with Color-Coded Plugs (Y-W-R-B), carded unit pack C5454-003 96
18/2 AWG Speaker Wire, 25’, sleeve unit pack X3301-25C 96
18/2 AWG Speaker Wire, 50’, sleeve unit pack X3301-50C 96
18/2 AWG Speaker Wire, 100’, sleeve unit pack X3301-100 96
14/2 AWG Speaker Wire, 50’, sleeve unit pack X3324-50C 96
Home Theater Interface Wallplate, 14 gold-plated spring clips, two RCA connectors, two QuickPort® openings AEHTK-000 96
Multi-Room Install Wallplate, two gold-plated spring clips, two QuickPort openings AEMRK-000 96
Single-Gang Single Spring-Clip Device Audio/Video Wallplate, standard size, polymer break resistant, box mount 40951-1P* 96
Single-Gang Double Spring-Clip Device Audio/Video Wallplate, standard size, polymer break resistant, box mount 40952-2P* 96
DSS 75 Ohm and 2.0 gHz Combiner with DC Blocking, gold plated, carded unit pack 40856-DSS 96
INDEX
FOR TECHNICAL SUPPORT CALL: 1-800-824-3005 Integration Guide I 167
DSS 2-Way Splitter, gold plated, carded unit pack, connects one input to two outputs. All ports 2.1 gHz. 40867-DSS 97
DSS 4-Way Splitter, gold plated, carded unit pack, connects one input to four outputs. All ports 2.1 gHz. 40868-DSS 97
75 Ohm Push-On Connector, 2 per carded unit pack C5235-000 97
75 Ohm In-Line Cable Connector, 100 per bulk polybag 40986-000* 97
Indoor Matching Transformer, carded unit pack C5052-000 97
Indoor Matching Transformer, gold plated, carded unit pack C5052-0GO 97
One-Piece Crimp-On F-Connector for RG6 Quad Shiled Bulk polybag order in increments of 100, nickel plated 40985-0Q6 97
RCA Compression Connector (colored rings included) 40985-CRU 98
Compression F-Connector (colored rings included) 40985-CPF 98
F-Connectors, one-piece crimp-on, nickel plated (bag of 100) 40985-1P9 40985-1P6 40985-0Q6 98
2 per carded unit pack, nickel plated C5307-000 98
2 per carded unit pack, gold plated C5307-0G0 98
F-Connectors, two-piece crimp-on 2 per carded unit pack, nickel plated C5009-000 C5007-000 98
75 Ohm Push-On Connector, 2 per carded unit pack C5235-000 98
75 Ohm In-Line Cable Connector, 100 per bulk polybag 40986-000* 98
Indoor Matching Transformer, carded unit pack C5052-000 98
RG6 Coax Cable, nickel C6851-xx 99
Two-Way Splitter, carded unit pack C5002-000 99
Two-Way Splitter, gold plated, individual polybag 40987-002 99
Three-Way Splitter, carded unit pack C5003-000 99
Three-Way Splitter, gold plated, individual polybag pack 40987-003 99
Four-Way Splitter, carded unit pack C5004-000 99
Four-Way Splitter, gold plated, individual polybag pack 40987-004 99
75 Ohm Termination Cap, 25 per polybag pack 40984-000 99
STRUCTURED MEDIA® ENCLOSURES
Standard Enclosures
14” Enclosure and Flush-Mount Cover, 15.32” (389.1 mm) H x 15.62” (396.7 mm) W x 3.83” (97.3 mm) D 47605-140 107
14” Enclosure, 14.0” (355.6 mm) H x 14.38” (365.3 mm) W x 3.63” (92.2 mm) D 47605-14E 107
14” Multi-Dwelling Unit Configuration A Enclosure and Flush-Mount Cover,15.32” (389.1 mm) H x 15.62”
(396.7 mm) W x 3.83” (97.3 mm) D 47605-1MG 107
14” Flush-Mount Cover, 15.32” (389.1 mm) H x 15.62” (396.7 mm) W x 0.20” (5.1 mm) D 47605-14C 107
14” Economy Hinged Door, 15.32” (389.1 mm) H x 15.62” (396.7 mm) W x 0.25” (6.4 mm) D 47605-14D 107
14” Premium Vented Hinged Door, 15.32” (389.1 mm) H x 15.62” (396.7 mm) W x 0.25” (6.4 mm) D 47605-14S 107
14” Enclosure, job packed, 6 per pack, 14.0” (355.6 mm) H x 14.38” (365.3 mm) W x 3.63” (92.2 mm) D 47605-14G 107
14” Flush-Mount Cover, job packed, 6 per pack, 15.32” (389.1 mm) H x 15.62” (396.7 mm) W x 0.20” (5.1 mm) D 47605-14B 107
Structured Media Enclosure Lock & Key for 14”, 21”, 28”, and 42” hinged doors 5L000-L0K 107
21” Enclosure, 21.0” (533.4 mm) H x 14.38” (365.3 mm) W x 3.63” (92.2 mm) D 47605-21E 107
21” Flush-Mount Cover, 22.35” (567.7 mm) H x 15.62” (396.7 mm) W x 0.20” (5.1 mm) D 47605-21C 107
21” Premium Vented Hinged Door, 22.35” (567.7 mm) H x 15.62” (396.7 mm) W x 0.25” (6.4 mm) D 47605-21S 107
Structured Media Enclosure Lock & Key for 14”, 21”, 28”, and 42” hinged doors 5L000-L0K 107
Compact Structured Media Enclosure and Cover, empty,8.02” (203.7 mm) H x 14.38”
(365.2 mm) W x 3.71” (94.2 mm) D 47605-MDU 107
Compact Structured Media Enclosure Cover only, 15.375” (390.5 mm) H x 9” (228.6 mm) W x .5” (12.7 mm) D 47605-MDC 107
MDU Kit (Compact Structured Media Enclosure and Cover plus
1x6 Telephone Expansion Board), 8.02” (203.7 mm) H x 14.38” (365.2 mm) W x 3.71” (94.2 mm) D 47604-0F6 107
MDU Kit (Compact Structured Media Enclosure and Cover plus 1x6 Telephone Expansion Board
and 6-Way 1 GHz Splitter), 8.02” (203.7 mm) H x 14.38” (365.2 mm) W x 3.71” (94.2 mm) D 47604-F6S 107
Leviton 28” & 42” Structured Media Enclosures
28” Enclosure and Flush-Mount Cover, 29.32” (744.7mm) H x 15.62” (396.7mm) Wx 3.68” (93.5mm) D 47605-28W 108
28” Enclosure only, 28.0” (711.2mm) H x 14.38” (365.3mm) W x 3.60” (91.4mm) D 47605-28N 108
28” Multi-Dwelling Unit Configuration A Enclosure and Flush-Mount Cover, 29.32” (744.7mm) H x 15.62”
(396.7mm) W x 3.68” (93.5mm) D 47605-2MG 108
28” Multi-Dwelling Unit Configuration B Enclosure only, 28.0” (711.2mm) H x 14.38” (365.3mm) W x 3.60” (91.4mm) D 47605-M28 108
28” Flush-Mount Cover, 29.32” (744.7mm) H x 15.62” (396.7mm) W x 0.20” (5.1mm) D 47605-F28 108
28” Economy Hinged Door, 29.32” (744.7mm) H x 15.62” (396.7mm) W x 0.25” (6.4mm) D 47605-28D 108
28” Premium Vented Hinged Door, 29.32” (744.7mm) H x 15.62” (396.7mm) W x 0.25” (6.4mm) D 47605-28S 108
28” Enclosure only, job packed, 3 per pack, 28.0” (711.2mm) H x 14.38” (365.3mm) W x 3.60” (91.4mm) D 47605-28G 108
INDEX
Integration Guide I LEVITON.COM
168
INDEX | BY PRODUCT TYPE
28” Flush-Mount Cover only job packed, 3 per pack, 29.32” (744.7mm) H x 15.62” (396.7mm) W x 0.20” (5.1mm) D 47605-28B 108
28” Pre-Fab Back Plate, 25” (635.0mm) H x 13.5” (342.9mm) Wx 0.38” (9.65mm) D 47605-2BP 108
Leviton 42” Structured Media Enclosures & Covers
42” Enclosure and Flush-Mount Cover, 43.32” (1,100.3mm) H x 15.62” (396.7mm) W x 3.68” (93.5mm) D 47605-42W 109
42” Enclosure only, 42.16” (1,070.8mm) H x 14.38” (365.3mm) W x 3.60” (91.4mm) D 47605-42N 109
42” Multi-Dwelling Unit Configuration A Enclosure and Flush-Mount Cover, 43.32” (1,100.3mm) H x 15.62”
(396.7mm) W x 3.68” (93.5mm) D 47605-4MG 109
42” Multi-Dwelling Unit Configuration B, Enclosure only, 42.16” (1,070.8) H x 14.38” (365.3mm) W x 3.60” (91.4mm) D 47605-M42 109
42” Flush-Mount Cover, 43.32” (1100.3mm) H x 15.62” (396.7mm) W x 0.20” (5.1mm) D 47605-F42 109
42” Economy Hinged Door, 43.32” (1100.3mm) H x 15.62” (396.7mm) W x 0.25” (6.4mm) D 47605-42D 109
42” Premium Hinged Door, 43.32” (1100.3mm) H x 15.62” (396.7mm) W x 0.25” (6.4mm) D 47605-42S 109
42” Pre-Fab Back Plate, 40.0” (1,016.0mm) H x 13.5” (342.9mm) W x 0.38” (9.65mm) D 47605-4BP 109
28”& 42” Structured Media Center Extender
Bracket Frames & SMC Accessories
Extender Bracket, 2” depth extension package for 28” Structured Media Centers 47612-28B 109
Extender Bracket, 2” depth extension package for 42” Structured Media Centers 47612-42B 109
Structured Media Center Lock & Key 5L000-L0K 109
Multi-Bay FTTH Enclosures
14” + 14” Dual Multi-Bay Enclosure, 29.64” (752.8 mm) H x 14.30” (363.2 mm) W x 3.63” (92.2 mm) D 47FTH-440 110
28” + 14” Dual Multi-Bay Enclosure, 46.64” (1,184.6 mm) H x 14.30” (363.2 mm) W x 3.63” (92.2 mm) D 47FTH-840 110
28” + 14” + 14” Triple Multi-Bay Enclosure, 59.22” (1,504.1 mm) H x 14.30” (363.2 mm) W x 3.63” (92.2 mm) D 47FTH-844 110
42” + 14” Dual Multi-Bay Enclosure, 57.64” (1,464.1 mm) H x 14.30” (363.2 mm) W x 3.63” (92.2 mm) D 47FTH-420 110
14” + 14” + 14” Triple Multi-Bay Enclosure, 45.22” (1,148 mm) H x 14.30” (363.2 mm) W x 3.63” (92.2 mm) D 47FTH-240 110
28” + 28” Dual Multi-Bay Enclosure, 57.64” (1,464.1 mm) H x 14.30” (363.2 mm) W x 3.63” (92.2 mm) D 47FTH-880 110
FTTH Point of Entry Box, 3.94” (100 mm) H x 3.15” (80 mm) W x .84” (21 mm) D FTH00-00W 110
Concrete-Mountable Structured Media Enclosures
Concrete-Mountable Structured Media Enclosure, 21” 48605-21E 111
Concrete-Mountable Structured Media Enclosure, 28” 48605-28E 111
Concrete-Mountable Structured Media Enclosure, 42” 48605-42E 111
Concrete-Mountable Structured Media Duplex Receptacle Power Box 48605-2GP 111
RF Transparent Structured Media Enclosure with Door, 30” 49605-30W 111
Mounting Brackets & Patch Cords
Single Plastic Bracket, for single expansion board, white 47612-SBK 112
Standard (12” width) Expansion Plastic Bracket, for up to five expansion boards, white 47612-EBK 112
Shelf Plastic Bracket, for up to three expansion boards and CATV splitter, white (compact width) 47612-VSB 112
Compact (6” width) Expansion Plastic Bracket, for up to three expansion boards, white 47612-HBK 112
Data Plastic Bracket, for mounting routers and switches 47612-DBK 112
12-Port QuickPort Mounting Bracket 47600-QPB 112
Home 6® Ultra High-Flex Patch Cord 6HHOM-xx* 112
Home 5e® Ultra High-Flex Patch Cord 5HHOM-xx* 112
8-Conductor Flat Telephone Patch Cord, 8” long 42400-8FG 112
19” Cabinet Patching Solutions
1RU 12-Port Flat 110-Style Patch Panel 5G596-U12 112
1RU 24-Port Flat 110-Style Patch Panel 5G596-U24 112
1RU 24-Port Flat QuickPort Patch Panel 49255-H24‡ 112
Security Brackets, Shelf Brackets, & Tools
Universal Shelf Bracket 47612-UBK 113
Compact (6” width) Universal Security Board Mounting Plate 47612-HSB 113
Standard (12” width) Universal Security Board Mounting Plate 47612-FSB 113
Combo Bracket 47612-CBK Compact (6” width) Universal Mounting Bracket 47612-6SB 113
Standard (12” width) Universal Mounting Bracket 47612-1SB 113
EZ-RJ45 Connector, 50/pack 47613-EZC 113
EZ-RJ45 Connector Display Pack, 10/pack 47613-EZR 113
EZ-RJ45 Cat 6 Plug 50/pack 47613-EZ6 113
Push-Lock Pins for SMCs, 20/pack 47615-NYL 113
INDEX
FOR TECHNICAL SUPPORT CALL: 1-800-824-3005 Integration Guide I 169
Reclosable Tie-Wrap, 5” Length, 25/pack 43105-005 113
Reclosable Tie-Wrap, 8” Length, 25/pack 43108-008 113
Reclosable Tie-Wrap, 12” Length, 25/pack 43112-012 113
Wire Punchdown / Termination Tool, blades sold separately 49553-814 113
110 IDC Blade 49553-110 113
66-Clip Blade 49553-066 113
BIX® Blade 49553-BIX 113
Krone® Blade 49553-KRN 113
Awl (woodscrew starter punch) 49553-AWL 113
Master Compression Tool 40989-CPT 113
UTP Stripping Tool 49660-00P 113
Coaxial Stripping Tool C5914-000 113
EZ-RJ45 Crimp Tool 40989-ACT 113
Routers & Switches
Gigabit 8-Port Ethernet Switch, 2.52” (64 mm) H x 6.50” (165.1 mm) W x 3.54” (89.9 mm) D 47611-8GB 114
100 Mbps 5-Port Ethernet Switch, 2.52” (64 mm) H x 6.50” (165.1 mm) W x 3.54” (89.9 mm) D 47611-5PT 114
100 Mbps 8-Port Ethernet Switch, 2.52” (64 mm) H x 6.50” (165.1 mm) W x 3.54” (89.9 mm) D 47611-8PT 114
Gigabit 4-Port Router and 300 Mbps Dual-Band Wi-Fi, 6.76” (171.61 mm) H x 4.38”
(111.16 mm) W x 1.01” (25.47 mm) D 47611-WG4 114
Power Supplies & Surge Protection
Surge J-Box Kit, one duplex receptacle, wallplate 47605-ACS 115
Non-Surge J-Box Kit, one duplex receptacle, wallplate 47605-ACN 115
Surge AC Power Module, two duplex receptacles 47605-0DP 115
Non-Surge AC Power Module, two duplex receptacles 47605-NDP 115
DC Bus Module, 12 VDC and 24 VDC 48212-124 115
Versatile Power Supply, six 12 VDC connectors and two NEMA 15A receptacles 47605-PSC 115
AC Surge Module, six receptacles 48212-06S 115
Universal Mini DC Power Supply, three 12 VDC connectors 47605-PSB 115
Universal DC Power Supply, nine 12 VDC connectors and one IEC AC receptacle 47605-PSA 115
IEC TO NEMA 15A Adapter Power Cord, 12” (accessory for 47605-PSA) 48212-IEC 115
Twist & Mount, TIDP, & Compact Structured Media® Panels
Twist & Mount Patch Panel – 12 ports each of Cat 6 and Cat 5e (24 ports total) 476TM-654 116
Twist & Mount Patch Panel – 24 ports of Cat 6 476TM-624 116
Twist & Mount Patch Panel – 24 ports of Cat 5e 476TM-524 116
Twist & Mount Patch Panel – 6 ports each of Cat 6 and Cat 5e (12 ports total) 476TM-652 116
Twist & Mount Patch Panel – 12 ports of Cat 6 476TM-612 116
Twist & Mount Patch Panel – 12 ports of Cat 5e 476TM-512 116
Telephone Input Distribution Panel (TIDP) 476TL-T12 116
1x9 Bridged Telephone and 4-way 1 GHz TV Splitter 47603-1G4 116
1x9 Bridged Telephone and 6-way 1 GHz TV Splitter 47603-1G6 116
1x9 Bridged Telephone and 8-way 1 GHz TV Splitter 47603-1G8 116
1x4 Bridged Telephone, 4 Data, and 6-way 1 GHz TV Splitter 47603-DP6 116
1x7 Bridged Telephone, Security Interface, and 6-way 1 GHz TV Splitter 47603-TSV 116
Standard Structured Media® Panels
Basic Telephone & Video Panel One 1x9 Bridged
Telephone Board 47606-BTV 117
Basic Home Networking Plus Panel 47606-BNP 117
Advanced Home Telephone & Video Panel 47606-AHT 117
Advanced Home Oce Panel 47606-ASO 117
12-Port Structured Media Panel 47603-12P 117
18-Port Structured Media Panel 47603-18P 117
24-Port Structured Media Panel 47603-24P 117
4x12 Telephone Distribution Panel 47603-12M 117
4x12 Telephone Distribution Panel w/ Splitter 47603-412 117
4x18 Telephone Distribution Panel 47603-18M 117
4x18 Telephone Distribution Panel w/ Cat 5e Board 47603-8C1 117
INDEX
Integration Guide I LEVITON.COM
170
INDEX | BY PRODUCT TYPE
Modules & Expansion Boards
Cat 5e Voice and Data Board 47603-0C5 118
Cat 6 Voice and Data Board 47611-0C6 118
VDSL Board w/ 1x5 Bridged Phone w/ Data Passthrough IDCs 47609-D5P 118
Combo Phone & Data Board w/ 1x4 Bridged Phone and 4-Port Cat 5e 47609-4DP 118
Camera Hub VSHUB-000 118
Camera Hub w/ IDC Connectors VSHUB-IDC 118
1x9 Bridged Telephone Board 47603-110 119
1x6 Bridged Telephone Board 47609-0F6 119
1x10 Bridged Telephone Board 47609-004 119
Telephone Patching Board/ Expanded 4-line Telephone Distribution 47609-EMP 119
DSL Filter Board 47616-DSF 119
Telephone Line Distribution Board 47603-TDM 119
4x12 Telephone Distribution Board 47603-12B 119
4x18 Telephone Distribution Board 47603-18B 119
Video Distribution & Splitters
1x1 Premium Video Module 47693-01P 120
1x8 Premium Video Module 47693-08P 120
1x16 Premium Video Module 47693-16P 120
3x1 Passive Combiner 47693-31P 120
1x6 Passive Video Splitter w/ bracket for 14”, 21”, 28”, and 42” SMCs 47690-6C2 120
1x8 Passive Video Splitter w/ bracket for 14”, 21”, 28”, and 42” SMCs 47690-8C2 120
1x6 Passive Video Splitter 47690-0G6 120
1x8 Passive Video Splitter 47690-0G8 120
Data & Voice QuickPort® Connectors
GigaMax® Cat 5e UTP Connector – High-Speed Data 5G108-R*6 121
HOME 6 Connector, – Standard Voice & Data 61HOM-R^6 121
HOME 5e Connector,– Standard Voice & Data 5EHOM-R^5 121
Cat 5 Connector – Voice & low speed data 41108-R*5 121
Cat 3 Connector – Voice & low speed data 41108-R*3 121
USOC Connector, 8P8C – Voice 41108-R*8 121
USOC Connector, 6P6C – Voice 41106-R*6 121
WALLPLATES
Renu & Quickport
Snap-In Blank Module RE640-BWW RE640-BNS RE640-BOB 126
Four-Gang Wallplate REWP4-0WW REWP4-0NS REWP4-0OB 126
Three-Gang Wallplate REWP3-0WW REWP3-0NS REWP3-0OB 126
Dual-Gang Wallplate REWP2-0WW REWP2-0NS REWP2-0OB 126
Single-Gang Wallplate REWP1-0WW REWP1-0NS REWP1-0OB 126
6-Port Insert RE640-WW6 RE640-NS6 RE640-OB6 126
4-Port Insert RE640-WW4 RE640-NS4 RE640-OB4 126
3-Port Insert RE640-WW3 RE640-NS3 RE640-OB3 126
2-Port Insert RE640-WW2 RE640-NS2 RE640-OB2 126
1-Port Insert RE640-WW1 RE640-NS1 RE640-OB1 126
QuickPort® Wallplates
4-Port Wallplate 41081-4WP 41081-4TP 41081-4IP 127
2-Port Wallplate 41081-2WP 41081-2TP 41081-2IP 127
4-Port Wallplate w/ ID window 42081-4WS 42081-4TS 42081-4IS 127
2-Port Wallplate w/ ID window 42081-2WS 42081-2TS 42081-2IS 127
6-Port Flush Mount 41080-6WP 41080-6TP 41080-6IP 127
4-Port Flush Mount 41080-4WP 41080-4TP 41080-4IP 127
3-Port Flush Mount 41080-3WP 41080-3TP 41080-3IP 127
2-Port Flush Mount 41080-2WP 41080-2TP 41080-2IP 127
1-Port Flush Mount 41080-1WP 41080-1TP 41080-1IP 127
1-Port Wallplate 4108W-1SP 4108W-0SP 127
INDEX
FOR TECHNICAL SUPPORT CALL: 1-800-824-3005 Integration Guide I 171
Single-Gang Wallplate 43080-1S1 43080-1S2 43080-1S3 43080-1S4 43080-1S6 127
Dual-Gang Wallplate 43080-2S2 43080-2S4 43080-2S6 43080-2S8 43080-S12 127
Single-Gang Angled Wallplate 43081-1L2 43081-1L4 127
Dual-Gang Angled Wallplate 43081-2L4 127
Decora® Wallplates & Multimedia Inserts
Decora, standard size, urea 80401-00* 80409-00* 128
Decora, standard size, nylon 80401-0N* 80409-0N* 128
Decora, standard size, stainless 84401-040 84409-040 128
Decora Plus, standard size, polycarbonate 80301-0S* 80309-0S* 128
Decora, midway, urea 80601-0S* 80609-0S* 128
Decora, midway, nylon PJ26-00* PJ262-00* 128
6-Port Insert, polybag, standard carton 41646-00W 41646-00T 41646-00I 128
4-Port Insert, polybag, standard carton 41644-00W 41644-00T 41644-00I 128
3-Port Insert, polybag, standard carton 41643-00W 41643-00T 41643-00I 128
2-Port Insert, polybag, standard carton 41642-00W 41642-00T 41642-00I 128
1-Port Insert, polybag, standard carton 41641-00W 41641-00T 41641-00I 128
HDMI Decora Insert, feedthrough 41647-00W 41647-00I 128
DVI Decora Insert, feedthrough 41648-00W 41648-00I 128
Decora, white brush ,passthrough 41075-DBW 128
QuickPlate® Wallplates
One Data 5EA20-S1* 5EA20-M1* 129
One Data, One F-Style 5EA20-S2* 5EA20-M2* 129
One Data, One Phone, One F-Style 5EA20-S3* 5EA20-M3* 129
Two Data, Two F-Style 5EA20-S4* 5EA20-M4* 129
Wallplate Accessories
QuickPort® Shutter Kit (50 shutters) 51084-ICN 129
White Label Kit 51084-XLB 129
Color Label Kit † 51084-CLB 129
Wallplate Mounting Brackets, single-gang, bulk polybag pack, 2 brackets per unit, rack pack carton C0224-000 129
Wallplate Mounting Bracket, dual-gang, individual polybag pack, rack pack carton C0225-OCP 129
Home Theater Receptacles
Home Theater Interface Wallplate, 14 gold-plated spring clips, two RCA connectors, two QuickPort® openings AEHTK-000 131
Multi-Room Install Wallplate, two gold-plated spring clips, two QuickPort openings AEMRK-000 131
Single-Gang Single Spring-Clip Device Audio/Video Wallplate, standard size, polymer break resistant, box mount 40951-1P* 131
Single-Gang Double Spring-Clip Device Audio/Video Wallplate, standard size, polymer break resistant, box mount 40952-2P* 131
Single-Gang Recessed Single Receptacle 15A-125VAC, 2-Pole, 3-Wire — NEMA 5-15R, includes clock hanger hook 00688-00* 131
Single-Gang Recessed Single Receptacle, Non-Magnetic
Stainless Steel 15A-125VAC, 2-Pole, 3-Wire — NEMA 5-15R, includes clock hanger hook 05261-0CH 131
Single-Gang Recessed Duplex Receptacle 15A-125VAC, 2-Pole, 3-Wire — NEMA 5-15R 00689-00† 131
Single-Gang Recessed Single Receptacle, Non-Magnetic
Stainless Steel 20A-125VAC, 2-Pole, 3-Wire — NEMA 5-20R, includes clock hanger hook 05361-0CH 131
Dual-Gang Recessed Duplex Receptacle and Openings
for six QuickPort Modules 15A-125VAC, 2-Pole,
3-Wire — NEMA 5-15R (four blank inserts included) 00690-00* 131
Recessed Entertainment Box w/ Low-Profile Frame 47617-REB 131
Recessed Entertainment Box w/ High-Profile Cover 47617-RBH 131
High-Profile Cover 47617-HPC 131
Low-Profile Frame 47617-LPF 131
Replacement Snap-in Plates, 2 per bag 47617-PLT 131
Decora® Mobile Device Station, White 47112-00W 131
Decora Mobile Device Station, Light Almond 47112-00T 131
Decora Mobile Device Station, Black 47112-00E 131
Renu® Mobile Device Station, White on White 47112-RWW 131
Renu Mobile Device Station, Navajo Sand 47112-RNS 131
Renu Mobile Device Station, Onyx Black 47112-ROB 131
USB Charger/Tamper-Resistant Receptacle T5631-2W 131
INDEX
Integration Guide I LEVITON.COM
172
INDEX | BY PART NUMBER
00688-00* Single-Gang Recessed Single Receptacle 15A-125VAC, 2-Pole, 3-Wire — NEMA 5-15R, includes clock hanger hook 131
00689-00† Single-Gang Recessed Duplex Receptacle 15A-125VAC, 2-Pole, 3-Wire — NEMA 5-15R 131
00690-00* Dual-Gang Recessed Duplex Receptacle and Openings for six QuickPort Modules 15A-125VAC,
2-Pole, 3-Wire — NEMA 5-15R (four blank inserts included) 131
05261-0CH Single-Gang Recessed Single Receptacle, Non-Magnetic Stainless Steel
15A-125VAC, 2-Pole, 3-Wire — NEMA 5-15R, includes clock hanger hook 131
05361-0CH Single-Gang Recessed Single Receptacle, Non-Magnetic Stainless Steel
20A-125VAC, 2-Pole, 3-Wire — NEMA 5-20R, includes clock hanger hook 131
08BD-000 EZ-MAX Plus 8 Relay Panel, (0) No Relays, (8) empty slots.
120V, 277V, 347V input power. With 8 Low \Voltage Inputs 65
10A06-1 16 Zone Hardwire Expander 18
10A07-1 Four Relay Module 20
10A11-1 Two-Way Voice Module 19
10A17-1 RS-232/RS-485 Serial Board 20
1105W/1106 PC Access Software 18
110A00-1 Omni-Bus Dimmer DIN Rail Module 58
110A00-2 Omni-Bus Universal Dimmer DIN Rail Module 58
111A00-1 Omni-Bus Power Switch DIN Rail Module 58
112A00-1 Omni-Bus Relay DIN Rail Module 58
113A00-1 1-Button Hardwired, White 59
113A00-2 1-Button Wireless, White 59
113A00-3 2-Button Hardwired, White 59
113A00-4 2-Button Wireless, White 59
113A00-5 3-Button Hardwired, White 59
113A00-6 3-Button Hardwired, Brushed Stainless 59
113A00-7 3-Button Wireless, White 59
113A00-8 6-Button Hardwired, White 59
113A00-9 6-Button Hardwired, Brushed Stainless 59
114A00-1 6-Channel Universal Switch Interface Module 57
114A01-1 Omni-Bus Cable Assemblies for 114A00-1 57
115A00-1 RF Transceiver DIN Rail Module 57
116A00-1 USB Programming Interface Unit 57
117A00-1 Interface Translator DIN Rail Module 56
118A00-1 DALI Gateway DIN Rail Module 57
119A00-1 3-Way Splitter 57
120A00-1 8-Way Splitter DIN Rail Module 56
121A00-1 Jumper Plugs 57
122A00-1 Termination Plug 57
123A00-1 Power Supply 2.5A DIN Rail Module 56
124A00-1 Power Supply Interface DIN Rail Module 56
125A00-1 Keyfob Remote Control, 6-Channel 59
125A00-2 Keyfob Remote Control, 16-Channel 59
126A00-1 Omni-Bus Scene Control DIN Rail Module 56
14A00-8 Water Temperature Sensor 39
17A00-1 Expansion Enclosure 18
17A00-8 Expansion Board Only 18
17A00-9 16 Zone/16 Output Expansion 18
19A00-1 8 Relay Module 20
1K120-01W 1000 120V 1 PH 2W 100A 1 split CT Indoor 62
1K120-02W 1000 120V 1 PH 2W 200A 1 split CT Indoor 62
1K120-04W 1000 120V 1 PH 2W 400A 1 split CT Indoor 62
1K120-08W 1000 120V 1 PH 2W 800A 1 split CT Indoor 62
1K120-1SW 1000 120V 1 PH 2W 100A 1 solid CT Indoor 62
1K120-2SW 1000 120V 1 PH 2W 200A 1 solid CT Indoor 62
1K240-01W 1000 120/240V 1 PH 3W 100A 2 split CT Indoor 62
1K240-02W 1000 120/240V 1 PH 3W 200A 2 split CT Indoor 62
1K240-04W 1000 120/240V 1 PH 3W 400A 2 split CT Indoor 62
1K240-08W 1000 120/240V 1 PH 3W 800A 2 split CT Indoor 62
1K240-1SW 1000 120/240V 1 PH 3W 100A 2 solid CT Indoor 62
1K240-2SW 1000 120/240V 1 PH 3W 200A 2 solid CT Indoor 62
1K277-01W 1000 277V 1PH 2W 100A 1 split CT Indoor 62
1K277-02W 1000 277V 1PH 2W 200A 1 split CT Indoor 62
INDEX
FOR TECHNICAL SUPPORT CALL: 1-800-824-3005 Integration Guide I 173
1K277-04W 1000 277V 1PH 2W 400A 1 split CT Indoor 62
1K277-08W 1000 277V 1PH 2W 800A 1 split CT Indoor 62
1K277-1SW 1000 277V 1PH 2W 100A 1 solid CT Indoor 62
1K277-2SW 1000 277V 1PH 2W 200A 1 solid CT Indoor 62
1O120-01W 1000 120V 1 PH 2W 100A 1 split CT Outdoor 62
1O120-02W 1000 120V 1 PH 2W 200A 1 split CT Outdoor 62
1O120-04W 1000 120V 1 PH 2W 400A 1 split CT Outdoor 62
1O120-08W 1000 120V 1 PH 2W 800A 1 split CT Outdoor 62
1O240-01W 1000 120/240V 1 PH 3W 100A 2 split CT Outdoor 62
1O240-02W 1000 120/240V 1 PH 3W 200A 2 split CT Outdoor 62
1O240-04W 1000 120/240V 1 PH 3W 400A 2 split CT Outdoor 62
1O240-08W 1000 120/240V 1 PH 3W 800A 2 split CT Outdoor 62
1O277-01W 1000 277V 1PH 2W 100A 1 split CT Indoor 62
1O277-02W 1000 277V 1PH 2W 200A 1 split CT Indoor 62
1O277-04W 1000 277V 1PH 2W 400A 1 split CT Indoor 62
1O277-08W 1000 277V 1PH 2W 800A 1 split CT Indoor 62
20A00-2 OmniPro II Controller 16
20A00-21 OmniPro II Board Only 16
20A00-5 OmniPro II Commercial Controller 16
20A00-50 Omni IIe Controller 16
20A00-52 Omni IIe Controller for Structured Wiring 17
20A00-53 Omni IIe Board Only 17
20A00-70 Omni LTe Controller 17
20A00-72 Omni LTe for Structured Wiring 17
20A00-73 Omni LTe Board Only 17
20A00-8 OmniPro II Controller for Structured Wiring 16
20A07-2 Universal Mounting Plate 20
20A07-2 Hi-Fi 2 by Leviton Main Amplifier Assembly with Power Supply 70
20A30-1 Omni Notifier 18
20A50-900 European Omni IIe in Enclosure 16
20A70-900 European Omni LTe in Enclosure 17
21A05-2 Serial PC Cable 21
21A06-1 Enclosure Lock & 2 Keys 20
23A00-1 Surface Mount Remote Indoor/Outdoor Temp Sensor 38
23A00-2 Flush Mount Remote Indoor/ Outdoor Temp Sensor 38
28A00-1 Surface Speaker Microphone 19
28A00-2 Flush Speaker Microphone 19
29A00-1 Thermostat Isolation Module 38
2K208-01D 2000 120/208V 3 PH 4W 100A 3 split CT Indoor 63
2K208-01W 2000 120/208V 3 PH 4W 100A 3 split CT Indoor 63
2K208-02D 2000 120/208V 3 PH 4W 200A 3 split CT Indoor 63
2K208-02W 2000 120/208V 3 PH 4W 200A 3 split CT Indoor 63
2K208-04D 2000 120/208V 3 PH 4W 400A 3 split CT Indoor 63
2K208-04W 2000 120/208V 3 PH 4W 400A 3 split CT Indoor 63
2K208-08D 2000 120/208V 3 PH 4W 800A 3 split CT Indoor 63
2K208-08W 2000 120/208V 3 PH 4W 800A 3 split CT Indoor 63
2K208-12D 2000 120/208V 3 PH 4W 1200A 3 split CT Indoor 63
2K208-12W 2000 120/208V 3 PH 4W 1200A 3 split CT Indoor 63
2K208-1SW 2000 120/208V 3 PH 4W 100A 3 solid CT Indoor 63
2K208-2SW 2000 120/208V 3 PH 4W 200A 3 solid CT Indoor 63
2K480-01D 2000 277/480V 3PH 4W 100A 3 split CT Indoor 63
2K480-01W 2000 120/240V 1 PH 3W 100A 3 split CT Indoor 63
2K480-02D 2000 277/480V 3PH 4W 200A 3 split CT Indoor 63
2K480-02W 2000 120/240V 1 PH 3W 200A 3 split CT Indoor 63
2K480-04W 2000 120/240V 1 PH 3W 400A 3 split CT Indoor 63
2K480-08D 2000 277/480V 3PH 4W 400A 3 split CT Indoor 63
2K480-08D 2000 277/480V 3PH 4W 800A 3 split CT Indoor 63
2K480-08W 2000 120/240V 1 PH 3W 800A 3 split CT Indoor 63
2K480-12D 2000 277/480V 3PH 4W 1200A 3 split CT Indoor 63
2K480-12W 2000 120/240V 1 PH 3W 1200A 3 split CT Indoor 63
2K480-1SW 2000 120/240V 1 PH 3W 100A 3 solid CT Indoor 63
2K480-2SW 2000 120/240V 1 PH 3W 200A 3 solid CT Indoor 63
INDEX
Integration Guide I LEVITON.COM
174
INDEX | BY PART NUMBER
2O208-01W 2000 120/208V 3 PH 4W 100A 3 split CT Outdoor 63
2O208-02W 2000 120/208V 3 PH 4W 200A 3 split CT Outdoor 63
2O208-04W 2000 120/208V 3 PH 4W 400A 3 split CT Outdoor 63
2O208-08W 2000 120/208V 3 PH 4W 800A 3 split CT Outdoor 63
2O208-12W 2000 120/208V 3 PH 4W 1200A 3 split CT Outdoor 63
2O480-01W 2000 120/240V 1 PH 3W 100A 3 split CT Outdoor 63
2O480-02W 2000 120/240V 1 PH 3W 200A 3 split CT Outdoor 63
2O480-04W 2000 120/240V 1 PH 3W 400A 3 split CT Outdoor 63
2O480-08W 2000 120/240V 1 PH 3W 800A 3 split CT Outdoor 63
2O480-12W 2000 120/240V 1 PH 3W 1200A 3 split CT Outdoor 63
30A00-2 Thermostat Power Supply Module 38
31A00-7 Extended Range Indoor/Outdoor Temperature Sensor for Leviton Omni Controllers 39
31A00-8 Extended Range Indoor/Outdoor Temperature & Humidity Sensor for Leviton Omni Controllers 39
33A00-1 Omni Console 19
33A00-23 International Omni Console 19
33A00-24 International Omni Console w/Built-In Speaker/Mic 19
33A00-3 Flush Mount Kit 19
33A00-4 Omni Console w/Built-In Speaker/Mic 19
35A00-1 600W UPB™ Dimmer Switch 44
35A00-1CFL CFL/LED Dimmer 44
35A00-3 600W UPB™ Non-Dimming Switch 44
35A14-colorcodeCS Switch Color Change Kit 44
36A00-1 UPB™ Powerline Interface Module & Cable 47
36A05-2 UPB™ Powerline Interface Module to Computer Cable 21
36A05-4 Serial Connectivity Cable 21
37A00-1 Auxiliary Switch 44
38A00-1 Scene Switch, 6 Button 45
38A00-2 House Status Switch, 8 Button 45
38A04-colorcodeCS Scene Switch and Lumina Mode Switch Color Change Kit 46
38A05-colorcodeCS House Status Switch Color Change Kit 46
38A06-2 Custom Legend Kit for Scene or House Status Switch 46
38A14-1 Scene Switch Remote 46
38A15-color Table Top Scene Switch Cradle 46
38A16-color Table Top Scene Switch with Cradle 46
39A00-1 Phase Coupler 47
39A00-2 UPB™ Split-Phase Repeater 47
39A00-3 UPB™ Three-Phase Repeater 47
40734-CV~ QuickPort S-Video Feedthrough 95
40735-Rx† QuickPort RCA to 110 95
40782-CPF QuickPort Compression F-Connector (white only) 95
40782-R•W QuickPort Compression RCA Connector 95
40830-B*E QuickPort RCA w/ black stripe 95
40830-B*R QuickPort RCA w/ red stripe 95
40830-B°Y QuickPort RCA w/ yellow stripe 95
40830-B~L QuickPort RCA w/ blue stripe 95
40830-B~V QuickPort RCA w/ green stripe 95
40831-0B° QuickPort F-Connector, gold plated, 3.0 GHz 95
40832-0B° QuickPort BNC Bulkhead Module, gold plated 95
40833-B°E QuickPort Binding Post Adapter, gold plated w/ black stripe 95
40833-B°R QuickPort Binding Post Adapter, gold plated w/ red stripe 95
40834-00# QuickPort HDMI Passthrough 95
40835-00~ QuickPort USB A-A Connector, feedthrough 95
40839-S~S QuickPort 3.5mm Stereo, screw terminal 95
40856-DSS DSS 75 Ohm and 2.0 gHz Combiner with DC Blocking, gold plated, carded unit pack 96
40867-DSS DSS 2-Way Splitter, gold plated, carded unit pack, connects one input to two outputs. All ports 2.1 gHz. 97
40868-DSS DSS 4-Way Splitter, gold plated, carded unit pack, connects one input to four outputs. All ports 2.1 gHz. 97
40951-1P* Single-Gang Single Spring-Clip Device Audio/Video Wallplate, standard size, polymer break resistant, box mount 96
40951-1P* Single-Gang Single Spring-Clip Device Audio/Video Wallplate, standard size, polymer break resistant, box mount 131
40952-2P* Single-Gang Double Spring-Clip Device Audio/Video Wallplate, standard size, polymer break resistant, box mount 96
40952-2P* Single-Gang Double Spring-Clip Device Audio/Video Wallplate, standard size, polymer break resistant, box mount 131
40984-000 75 Ohm Termination Cap, 25 per polybag pack 99
INDEX
FOR TECHNICAL SUPPORT CALL: 1-800-824-3005 Integration Guide I 175
40985-0Q6 One-Piece Crimp-On F-Connector for RG6 Quad Shiled Bulk polybag order
in increments of 100, nickel plated 97
40985-1P9 40985-1P6 40985-0Q6 F-Connectors, one-piece crimp-on, nickel plated (bag of 100) 98
40985-CPF Compression F-Connector 95
40985-CPF Compression F-Connector (colored rings included) 98
40985-CRU RCA Compression Connector (colored rings included) 95
40985-CRU RCA Compression Connector (colored rings included) 98
40986-000* 75 Ohm In-Line Cable Connector, 100 per bulk polybag 97
40986-000* 75 Ohm In-Line Cable Connector, 100 per bulk polybag 98
40987-002 Two-Way Splitter, gold plated, individual polybag 99
40987-003 Three-Way Splitter, gold plated, individual polybag pack 99
40987-004 Four-Way Splitter, gold plated, individual polybag pack 99
40989-ACT EZ-RJ45 Crimp Tool 113
40989-CPT Master Compression Tool 113
40A00-1 15A Relay Switch 44
41075-DBW Decora, white brush ,passthrough 128
41080-1WP 41080-1TP 41080-1IP 1-Port Flush Mount 127
41080-2WP 41080-2TP 41080-2IP 2-Port Flush Mount 127
41080-3WP 41080-3TP 41080-3IP 3-Port Flush Mount 127
41080-4WP 41080-4TP 41080-4IP 4-Port Flush Mount 127
41080-6WP 41080-6TP 41080-6IP 6-Port Flush Mount 127
41081-2WP 41081-2TP 41081-2IP 2-Port Wallplate 127
41081-4WP 41081-4TP 41081-4IP 4-Port Wallplate 127
41084-B*B QuickPort Snap-in Blank Module 95
41084-B*F QuickPort® BNC Bulkhead Module, standard 95
41084-F*F QuickPort F-Connector, standard, 3.0 GHz 95
4108W-1SP 4108W-0SP 1-Port Wallplate 127
41106-R*6 USOC Connector, 6P6C – Voice 121
41108-R*3 Cat 3 Connector – Voice & low speed data 121
41108-R*5 Cat 5 Connector – Voice & low speed data 121
41108-R*8 USOC Connector, 8P8C – Voice 121
41290-DMW 41290-DMT 41290-DMI 41290-DMG 41290-DME 41290-DMS Dual-Gang Wallplate 92
41290-DRW 41290-DRI 41290-DRG 41290-DRE Fiber Storage/Spacer Ring 92
41290-HDW 41290-HDT 41290-HDI 41290-HDG 41290-HDE HDMI® Module, feedthrough 92
41290-SMW 41290-SMT 41290-SMI 41290-SMG 41290-SME 41290-SMS Single-Gang Wallplate 92
41290-TMS Three-Gang Wallplate 92
41291-1BW 41291-1BT 41291-1BI 41291-1BG 41291-1BE Blank Module (1-unit high) 93
41291-1MW 41291-1MT 41291-1MI 41291-1MG 41291-1ME 1-Port QuickPort® Module (1-unit high) 93
41291-2CW 41291-2CI 41291-2CG 41291-2CE 1 Duplex SC, zirconia ceramic, SM/M, blue, (1-unit high) 93
41291-2QW 41291-2QT 41291-2QI 41291-2QG 41291-2QE 2-Port QuickPort Module (1-unit high) 93
41291-2TW 41291-2TI 41291-2TG 41291-2TE 1 Duplex ST, phosphor bronze, MM, (1-unit high) 93
41291-DBW 41291-DBI 41291-DBG 41291-DBE VGA/HD15 Module, empty 92
41291-ZTW 41291-ZTI 41291-ZTG 41291-ZTE 1 Duplex ST, zirconia ceramic, SM, (1-unit high) 93
41292-2BW 41292-2BT 41292-2BI 41292-2BG 41292-2BE Blank Module (2-units high) 93
41292-2CW 41292-2CI 41292-2CG 41292-2CE 1 Duplex SC, zirconia ceramic, SM/MM, blue, 45˚ exit (2-units high) 93
41292-3DW 41292-3DT 41292-3DI 41292-3DG 41292-3DE 3-Port RCA Module (red, green, blue), feedthrough 92
41292-3RW 41292-3RT 41292-3RI 41292-3RG 41292-3RE 3-Port RCA Module (red, black, yellow), feedthrough 92
41292-AEW 41292-AET 41292-AEI RCA Composite Video Module, 110-style termination (red, white, yellow) 92
41292-DEW 41292-DET 41292-DEI RCA Component Video Module, 110-style termination (red, green, blue) 92
41293-4CW 41293-4CI 41293-4CG 41293-4CE 2 Duplex SC, zirconia ceramic, SM/MM, blue, 45˚ exit (3-units high) 93
41293-HDW 41293-HDT 41293-HDI 41293-HDG 41293-HDE VGA/HD15 Module, feedthrough 92
41294-2BW 41294-2BT 41294-2BI 41294-2BG 41294-2BE Blank Module (1.5-units high) 93
41294-2CW 41294-2CI 41294-2CG 41294-2CE 1 Duplex SC, zirconia ceramic, SM/MM, blue, 45˚ exit (1.5-units high) 93
41294-2QW 41294-2QT 41294-2QI 41294-2QG 41294-2QE 2-Port 45˚ Exit Angled QuickPort Module (1.5-units high) 93
41294-ZTW 41294-ZTI 41294-ZTG 41294-ZTE 1 Duplex ST, zirconia ceramic, SM, 45˚ exit (1.5-units high) 93
41295-5BW 41295-5BT 41295-5BI 41295-5BG 41295-5BE Blank Module (0.5-unit high) 93
41295-HDW 41295-HDI VGA/HD15 Module, screw terminal 92
41295-VMW 41295-VMT 41295-VMI 41295-VMG VGA Monitor Module, 110-style termination 92
41295-VPW 41295-VPT 41295-VPI 41295-VPG VGA PC Module, 110-style termination 92
41296-MMW 41296-MMT 41296-MMI 41296-MMG 41296-MME Surface-Mount Box*, 3-unit w/Fiber Storage 92
41297-2PW 41297-2PI 41297-2PT 41297-2PG 41297-2PE Passthrough Module (1.5-units high) 93
41297-SP4 speakON® Connector, 4-pole, screw terminal* 92
INDEX
Integration Guide I LEVITON.COM
176
INDEX | BY PART NUMBER
41297-XL3 XLR Connector, 3-pole, screw terminal* 92
41641-00W 41641-00T 41641-00I 1-Port Insert, polybag, standard carton 128
41642-00W 41642-00T 41642-00I 2-Port Insert, polybag, standard carton 128
41643-00W 41643-00T 41643-00I 3-Port Insert, polybag, standard carton 128
41644-00W 41644-00T 41644-00I 4-Port Insert, polybag, standard carton 128
41646-00W 41646-00T 41646-00I 6-Port Insert, polybag, standard carton 128
41647-00W 41647-00I HDMI Decora Insert, feedthrough 128
41648-00W 41648-00I DVI Decora Insert, feedthrough 128
41649-00W 41649-00T 41649-00I 41649-00G 41649-00E Decora® Insert, holds one 1-unit high module 92
41900-03E HDMI Cable, 3 ft. 88
41900-06E HDMI Cable, 6 ft. 88
41900-10E HDMI Cable, 10 ft. 88
41900-15E HDMI Cable, 15 ft. 88
41900-LKT HDMI Cable Lock Kit 88
41910-HIR HDBaseT Extender IR Emitter and Receiver Kit 87
41910-HT0 HDBaseT Extender, Transmitter and Receiver, 70 m 87
41910-HTE HDBaseT Extender, Transmitter and Receiver, 100 m 87
41910-HTR HDBaseT Extender, Receiver only, 70 m 87
41910-U11 USB 1.1 Extender, 50 m 89
41910-V01 VGA Extender Transmitter and Receiver, 100 m 88
41920-A01 Mixing Audio Amplifier 89
41920-AIR Infrared Remote Control Kit 89
42081-2WS 42081-2TS 42081-2IS 2-Port Wallplate w/ ID window 127
42081-4WS 42081-4TS 42081-4IS 4-Port Wallplate w/ ID window 127
42090-2WS 42090-2TS 42090-2IS 42090-2GS 42090-2ES 2-Port Wallplate 95
42090-4WS 42090-4TS 42090-4IS 42090-4GS 42090-4ES 4-Port Wallplate 95
42400-8FG 8-Conductor Flat Telephone Patch Cord, 8” long 112
42A00-2 Wireless Receiver for GE InterLogix 22
43080-1S1 43080-1S2 43080-1S3 43080-1S4 43080-1S6 Single-Gang Wallplate 127
43080-2S2 43080-2S4 43080-2S6 43080-2S8 43080-S12 Dual-Gang Wallplate 127
43081-1L2 43081-1L4 Single-Gang Angled Wallplate 127
43081-2L4 Dual-Gang Angled Wallplate 127
43105-005 Reclosable Tie-Wrap, 5” Length, 25/pack 113
43108-008 Reclosable Tie-Wrap, 8” Length, 25/pack 113
43112-012 Reclosable Tie-Wrap, 12” Length, 25/pack 113
45A00-1 64 Zone Wireless Receiver 22
46A00-1 Door/Window Transmitter 23
47A00-2 PIR Motion Detector 22
47112-00E Decora Mobile Device Station, Black 131
47112-00T Decora Mobile Device Station, Light Almond 131
47112-00W Decora® Mobile Device Station, White 131
47112-RNS Renu Mobile Device Station, Navajo Sand 131
47112-ROB Renu Mobile Device Station, Onyx Black 131
47112-RWW Renu® Mobile Device Station, White on White 131
47600-QPB 12-Port QuickPort Mounting Bracket 112
47603-0C5 Cat 5e Voice and Data Board 118
47603-110 1x9 Bridged Telephone Board 119
47603-12B 4x12 Telephone Distribution Board 119
47603-12M 4x12 Telephone Distribution Panel 117
47603-12P 12-Port Structured Media Panel 117
47603-18B 4x18 Telephone Distribution Board 119
47603-18M 4x18 Telephone Distribution Panel 117
47603-18P 18-Port Structured Media Panel 117
47603-1G4 1x9 Bridged Telephone and 4-way 1 GHz TV Splitter 116
47603-1G6 1x9 Bridged Telephone and 6-way 1 GHz TV Splitter 116
47603-1G8 1x9 Bridged Telephone and 8-way 1 GHz TV Splitter 116
47603-24P 24-Port Structured Media Panel 117
47603-412 4x12 Telephone Distribution Panel w/ Splitter 117
47603-8C1 4x18 Telephone Distribution Panel w/ Cat 5e Board 117
47603-DP6 1x4 Bridged Telephone, 4 Data, and 6-way 1 GHz TV Splitter 116
47603-TDM Telephone Line Distribution Board 119
47603-TSV 1x7 Bridged Telephone, Security Interface, and 6-way 1 GHz TV Splitter 116
INDEX
FOR TECHNICAL SUPPORT CALL: 1-800-824-3005 Integration Guide I 177
47604-0F6 MDU Kit (Compact Structured Media Enclosure and Cover plus
1x6 Telephone Expansion Board), 8.02” (203.7 mm) H x 14.38” (365.2 mm) W x 3.71” (94.2 mm) D 107
47604-F6S MDU Kit (Compact Structured Media Enclosure and Cover plus 1x6 Telephone Expansion Board
and 6-Way 1 GHz Splitter), 8.02” (203.7 mm) H x 14.38” (365.2 mm) W x 3.71” (94.2 mm) D 107
47605-0DP Surge AC Power Module, two duplex receptacles 115
47605-140 14” Enclosure and Flush-Mount Cover, 15.32” (389.1 mm) H x 15.62” (396.7 mm) W x 3.83” (97.3 mm) D 107
47605-14B 14” Flush-Mount Cover, job packed, 6 per pack, 15.32” (389.1 mm) H x 15.62” (396.7 mm) W x 0.20” (5.1 mm) D 107
47605-14C 14” Flush-Mount Cover, 15.32” (389.1 mm) H x 15.62” (396.7 mm) W x 0.20” (5.1 mm) D 107
47605-14D 14” Economy Hinged Door, 15.32” (389.1 mm) H x 15.62” (396.7 mm) W x 0.25” (6.4 mm) D 107
47605-14E 14” Enclosure, 14.0” (355.6 mm) H x 14.38” (365.3 mm) W x 3.63” (92.2 mm) D 107
47605-14G 14” Enclosure, job packed, 6 per pack, 14.0” (355.6 mm) H x 14.38” (365.3 mm) W x 3.63” (92.2 mm) D 107
47605-14S 14” Premium Vented Hinged Door, 15.32” (389.1 mm) H x 15.62” (396.7 mm) W x 0.25” (6.4 mm) D 107
47605-1MG 14” Multi-Dwelling Unit Configuration A Enclosure and Flush-Mount Cover,
15.32” (389.1 mm) H x 15.62” (396.7 mm) W x 3.83” (97.3 mm) D 107
47605-21C 21” Flush-Mount Cover, 22.35” (567.7 mm) H x 15.62” (396.7 mm) W x 0.20” (5.1 mm) D 107
47605-21E 21” Enclosure, 21.0” (533.4 mm) H x 14.38” (365.3 mm) W x 3.63” (92.2 mm) D 107
47605-21S 21” Premium Vented Hinged Door, 22.35” (567.7 mm) H x 15.62” (396.7 mm) W x 0.25” (6.4 mm) D 107
47605-28B 28” Flush-Mount Cover only job packed, 3 per pack, 29.32” (744.7mm) H x 15.62” (396.7mm) W x 0.20” (5.1mm) D 108
47605-28D 28” Economy Hinged Door, 29.32” (744.7mm) H x 15.62” (396.7mm) W x 0.25” (6.4mm) D 108
47605-28G 28” Enclosure only, job packed, 3 per pack, 28.0” (711.2mm) H x 14.38” (365.3mm) W x 3.60” (91.4mm) D 108
47605-28N 28” Enclosure only, 28.0” (711.2mm) H x 14.38” (365.3mm) W x 3.60” (91.4mm) D 108
47605-28S 28” Premium Vented Hinged Door, 29.32” (744.7mm) H x 15.62” (396.7mm) W x 0.25” (6.4mm) D 108
47605-28W 28” Enclosure and Flush-Mount Cover, 29.32” (744.7mm) H x 15.62” (396.7mm) Wx 3.68” (93.5mm) D 108
47605-2BP 28” Pre-Fab Back Plate, 25” (635.0mm) H x 13.5” (342.9mm) Wx 0.38” (9.65mm) D 108
47605-2MG 28” Multi-Dwelling Unit Configuration A Enclosure and Flush-Mount Cover,
29.32” (744.7mm) H x 15.62” (396.7mm) W x 3.68” (93.5mm) D 108
47605-42D 42” Economy Hinged Door, 43.32” (1100.3mm) H x 15.62” (396.7mm) W x 0.25” (6.4mm) D 109
47605-42N 42” Enclosure only, 42.16” (1,070.8mm) H x 14.38” (365.3mm) W x 3.60” (91.4mm) D 109
47605-42S 42” Premium Hinged Door, 43.32” (1100.3mm) H x 15.62” (396.7mm) W x 0.25” (6.4mm) D 109
47605-42W 42” Enclosure and Flush-Mount Cover, 43.32” (1,100.3mm) H x 15.62” (396.7mm) W x 3.68” (93.5mm) D 109
47605-4BP 42” Pre-Fab Back Plate, 40.0” (1,016.0mm) H x 13.5” (342.9mm) W x 0.38” (9.65mm) D 109
47605-4MG 42” Multi-Dwelling Unit Configuration A Enclosure and Flush-Mount Cover,
43.32” (1,100.3mm) H x 15.62” (396.7mm) W x 3.68” (93.5mm) D 109
47605-ACN Non-Surge J-Box Kit, one duplex receptacle, wallplate 115
47605-ACS Surge J-Box Kit, one duplex receptacle, wallplate 115
47605-F28 28” Flush-Mount Cover, 29.32” (744.7mm) H x 15.62” (396.7mm) W x 0.20” (5.1mm) D 108
47605-F42 42” Flush-Mount Cover, 43.32” (1100.3mm) H x 15.62” (396.7mm) W x 0.20” (5.1mm) D 109
47605-M28 28” Multi-Dwelling Unit Configuration B Enclosure only,
28.0” (711.2mm) H x 14.38” (365.3mm) W x 3.60” (91.4mm) D 108
47605-M42 42” Multi-Dwelling Unit Configuration B, Enclosure only,
42.16” (1,070.8) H x 14.38” (365.3mm) W x 3.60” (91.4mm) D 109
47605-MDC Compact Structured Media Enclosure Cover only, 15.375” (390.5 mm) H x 9” (228.6 mm) W x .5” (12.7 mm) D 107
47605-MDU Compact Structured Media Enclosure and Cover, empty,
8.02” (203.7 mm) H x 14.38” (365.2 mm) W x 3.71” (94.2 mm) D 107
47605-NDP Non-Surge AC Power Module, two duplex receptacles 115
47605-PSA Universal DC Power Supply, nine 12 VDC connectors and one IEC AC receptacle 115
47605-PSB Universal Mini DC Power Supply, three 12 VDC connectors 115
47605-PSC Versatile Power Supply, six 12 VDC connectors and two NEMA 15A receptacles 115
47606-AHT Advanced Home Telephone & Video Panel 117
47606-ASO Advanced Home Oce Panel 117
47606-BNP Basic Home Networking Plus Panel 117
47606-BTV Basic Telephone & Video Panel One 1x9 Bridged Telephone Board 117
47609-004 1x10 Bridged Telephone Board 119
47609-0F6 1x6 Bridged Telephone Board 119
47609-4DP Combo Phone & Data Board w/ 1x4 Bridged Phone and 4-Port Cat 5e 118
47609-D5P VDSL Board w/ 1x5 Bridged Phone w/ Data Passthrough IDCs 118
47609-EMP Telephone Patching Board/ Expanded 4-line Telephone Distribution 119
47611-0C6 Cat 6 Voice and Data Board 118
47611-5PT 100 Mbps 5-Port Ethernet Switch, 2.52” (64 mm) H x 6.50” (165.1 mm) W x 3.54” (89.9 mm) D 114
47611-8GB Gigabit 8-Port Ethernet Switch, 2.52” (64 mm) H x 6.50” (165.1 mm) W x 3.54” (89.9 mm) D 114
47611-8PT 100 Mbps 8-Port Ethernet Switch, 2.52” (64 mm) H x 6.50” (165.1 mm) W x 3.54” (89.9 mm) D 114
INDEX
Integration Guide I LEVITON.COM
178
INDEX | BY PART NUMBER
47611-WG4 Gigabit 4-Port Router and 300 Mbps Dual-Band Wi-Fi,
6.76” (171.61 mm) H x 4.38” (111.16 mm) W x 1.01” (25.47 mm) D 114
47612-1SB Standard (12” width) Universal Mounting Bracket 113
47612-28B Extender Bracket, 2” depth extension package for 28” Structured Media Centers 109
47612-42B Extender Bracket, 2” depth extension package for 42” Structured Media Centers 109
47612-6SB Combo Bracket 47612-CBK Compact (6” width) Universal Mounting Bracket 113
47612-DBK Data Plastic Bracket, for mounting routers and switches 112
47612-EBK Standard (12” width) Expansion Plastic Bracket, for up to five expansion boards, white 112
47612-FSB Standard (12” width) Universal Security Board Mounting Plate 113
47612-HBK Compact (6” width) Expansion Plastic Bracket, for up to three expansion boards, white 112
47612-HSB Compact (6” width) Universal Security Board Mounting Plate 113
47612-SBK Single Plastic Bracket, for single expansion board, white 112
47612-UBK Universal Shelf Bracket 113
47612-VSB Shelf Plastic Bracket, for up to three expansion boards and CATV splitter, white (compact width) 112
47613-EZ6 EZ-RJ45 Cat 6 Plug 50/pack 113
47613-EZC EZ-RJ45 Connector, 50/pack 113
47613-EZR EZ-RJ45 Connector Display Pack, 10/pack 113
47615-NYL Push-Lock Pins for SMCs, 20/pack 113
47616-DSF DSL Filter Board 119
47617-HPC High-Profile Cover 131
47617-LPF Low-Profile Frame 131
47617-PLT Replacement Snap-in Plates, 2 per bag 131
47617-RBH Recessed Entertainment Box w/ High-Profile Cover 131
47617-REB Recessed Entertainment Box w/ Low-Profile Frame 131
47690-0G6 1x6 Passive Video Splitter 120
47690-0G8 1x8 Passive Video Splitter 120
47690-6C2 1x6 Passive Video Splitter w/ bracket for 14”, 21”, 28”, and 42” SMCs 120
47690-8C2 1x8 Passive Video Splitter w/ bracket for 14”, 21”, 28”, and 42” SMCs 120
47693-01P 1x1 Premium Video Module 120
47693-08P 1x8 Premium Video Module 120
47693-16P 1x16 Premium Video Module 120
47693-31P 3x1 Passive Combiner 120
476TL-T12 Telephone Input Distribution Panel (TIDP) 116
476TM-512 Twist & Mount Patch Panel – 12 ports of Cat 5e 116
476TM-524 Twist & Mount Patch Panel – 24 ports of Cat 5e 116
476TM-612 Twist & Mount Patch Panel – 12 ports of Cat 6 116
476TM-624 Twist & Mount Patch Panel – 24 ports of Cat 6 116
476TM-652 Twist & Mount Patch Panel – 6 ports each of Cat 6 and Cat 5e (12 ports total) 116
476TM-654 Twist & Mount Patch Panel – 12 ports each of Cat 6 and Cat 5e (24 ports total) 116
47A00-2 Quad Pet Immune Motion Detector 22
47FTH-240 14” + 14” + 14” Triple Multi-Bay Enclosure, 45.22” (1,148 mm) H x 14.30” (363.2 mm) W x 3.63” (92.2 mm) D 110
47FTH-420 42” + 14” Dual Multi-Bay Enclosure, 57.64” (1,464.1 mm) H x 14.30” (363.2 mm) W x 3.63” (92.2 mm) D 110
47FTH-440 14” + 14” Dual Multi-Bay Enclosure, 29.64” (752.8 mm) H x 14.30” (363.2 mm) W x 3.63” (92.2 mm) D 110
47FTH-840 28” + 14” Dual Multi-Bay Enclosure, 46.64” (1,184.6 mm) H x 14.30” (363.2 mm) W x 3.63” (92.2 mm) D 110
47FTH-844 28” + 14” + 14” Triple Multi-Bay Enclosure, 59.22” (1,504.1 mm) H x 14.30” (363.2 mm) W x 3.63” (92.2 mm) D 110
47FTH-880 28” + 28” Dual Multi-Bay Enclosure, 57.64” (1,464.1 mm) H x 14.30” (363.2 mm) W x 3.63” (92.2 mm) D 110
48211-06A 1x6 Passive Audio Module (for use with SGVSM-00W) 73
48212-06S AC Surge Module, six receptacles 115
48212-124 DC Bus Module, 12 VDC and 24 VDC 115
48212-IEC IEC TO NEMA 15A Adapter Power Cord, 12” (accessory for 47605-PSA) 115
48605-21E Concrete-Mountable Structured Media Enclosure, 21” 111
48605-28E Concrete-Mountable Structured Media Enclosure, 28” 111
48605-2GP Concrete-Mountable Structured Media Duplex Receptacle Power Box 111
48605-42E Concrete-Mountable Structured Media Enclosure, 42” 111
48A00-1 4 Button Keyfob 22
49255-H24‡ 1RU 24-Port Flat QuickPort Patch Panel 112
49553-066 66-Clip Blade 113
49553-110 110 IDC Blade 113
49553-814 Wire Punchdown / Termination Tool, blades sold separately 113
49553-AWL Awl (woodscrew starter punch) 113
49553-BIX BIX® Blade 113
49553-KRN Krone® Blade 113
INDEX
FOR TECHNICAL SUPPORT CALL: 1-800-824-3005 Integration Guide I 179
49605-30W RF Transparent Structured Media Enclosure with Door, 30” 111
49660-00P UTP Stripping Tool 113
4M089-1WM 4M089-1IM 4M089-1TM 4M089-1GM 4M089-1EM Surface-Mount Housing, holds one 1-unit high module 92
50A00-1 Panic/Alert Pendant 22
51084-CLB Color Label Kit † 129
51084-ICN QuickPort® Shutter Kit (50 shutters) 129
51084-XLB White Label Kit 129
54A00-1 Access Control Keypad 25
55A00-3 color 2400W UPB™ Dimmer Switch 45
55A03-1 2400W Wallplate, White 45
55A03-2 2400W Wallplate, Ivory 45
56A00-1 Wireless Recessed Door Contacts 23
57A00-1 Vanishing Contact 23
58A00-1 Mini Contact 23
59A00-1 UPB™ Lamp Module 45
5EA20-S1* 5EA20-M1* One Data 129
5EA20-S2* 5EA20-M2* One Data, One F-Style 129
5EA20-S3* 5EA20-M3* One Data, One Phone, One F-Style 129
5EA20-S4* 5EA20-M4* Two Data, Two F-Style 129
5EHOM-R^5 HOME 5e Connector,– Standard Voice & Data 121
5G108-R*6 GigaMax® Cat 5e UTP Connector – High-Speed Data 121
5G596-U12 1RU 12-Port Flat 110-Style Patch Panel 112
5G596-U24 1RU 24-Port Flat 110-Style Patch Panel 112
5HHOM-xx* Home 5e® Ultra High-Flex Patch Cord 112
5L000-L0K Structured Media Enclosure Lock & Key for 14”, 21”, 28”, and 42” hinged doors 107
5L000-L0K Structured Media Enclosure Lock & Key for 14”, 21”, 28”, and 42” hinged doors 107
5L000-L0K Structured Media Center Lock & Key 109
60A00-1 UPB™ Appliance Module 45
61A00-1 Glass Break 22
61HOM-R^6 HOME 6 Connector, – Standard Voice & Data 121
63A00-1 Wireless Driveway Sensor 23
65A18-1 Omnistat2 Trim Ring 38
68A11-1 Indoor/Outdoor Mini Dome IP Camera 26
69A00-1 4 Button Wireless Keypad 22
6HHOM-xx* Home 6® Ultra High-Flex Patch Cord 112
71A00-1 HLC Load Control Module 47
72A00-1 Hardwired Load Control Module 20
73A00-3ZB Lumina RF 30A Wireless Load Control Module 96-250VAC (50/60 Hz) 35, 41
73A00-4ZB Lumina RF 5A Wireless Load Control Module 35
74A00-1 Lumina Gateway 34
75A00-2 Access Control Card Reader 25
78A00-1 Access Control Card Pack of 10 25
78A00-2 Access Control Key Tag Pack of 10 25
79A00-1 12VDC Electric Door Strike (Fail Secure) 25
80301-0S* 80309-0S* Decora Plus, standard size, polycarbonate 128
80301-0Sx 1-Gang Decora Screwless Wallplate 60
80301-SGY 1-Gang Decora Screwless Wallplate, color: gray 60
80401-00* 80409-00* Decora, standard size, urea 128
80401-00x 1-Gang Decora Standard Screw Wallplate 60
80401-0N* 80409-0N* Decora, standard size, nylon 128
80401-SGY 1-Gang Decora Standard Screw Wallplate, color: gray 60
80601-0S* 80609-0S* Decora, midway, urea 128
81401-000 1-Gang Decora Wallplate, brass satin 60
81A00-3WHZB ZigBee® Interface Module (ZIM) 19
83A00-1 Power Hub in Enclosure 25
83A00-2 Power Hub for Structured Wiring 25
84401-040 1-Gang Decora Wallplate, brushed stainless steel 60
84401-040 84409-040 Decora, standard size, stainless 128
89A00-1ZB Lumina RF 15A Plug-in Load Control Module 120VAC 15A 35, 41
90A00-1 One Port PoE Injector 21
91A00-1 Eight Port PoE Switch 21
91A00-2 Eight Port PoE Switch with Structured Wiring Backplate 21
INDEX
Integration Guide I LEVITON.COM
180
INDEX | BY PART NUMBER
93A00-1 Serial Server 21
95A00-1 Hi-Fi 2, 8 Zone, 8 Source Kit w/Enclosure 70
95A00-2 Hi-Fi 2, 8 Zone, 8 Source Kit for Structured Wiring 70
95A00-3 Hi-Fi 2, 4 Zone, 4 Source Kit for Structured Wiring 70
95A01-1 Hi-Fi 2 Main Amplifier Assembly w/Power Supply 70
95A02-3 Hi-Fi 2 4 Zone, 4 Source Amp Only 70
95A03-1 Volume-Source Control (VSC) 72
95A03-1TKT TDC Kit with Power Supply 38
95A03-1TWH Temperature Display/Control (TDC) 38
95A04-1 Remote Input Module (RIM) 72
95A04-2 Bluetooth Remote Input Module (BRIM) 72
95A05-1 Hi-Fi 2 Remote Control 72
95A09-1 Vented Enclosure 71
95A10-colorCS RIM Color Change Kit 72
95A11-colorCS VSC Color Change Kit 72
95A12-1 Hi-Fi 2, 8 Zone Expansion Amplifier Kit w/Enclosure 71
95A12-2 Hi-Fi 2, 8 Zone Expansion Amplifier Kit for Structured Wiring 71
95A13-1 Hi-Fi 2 Retractable Cable 71
95A14-1 Hi-Fi 2 Retractable Cable 71
95A15-colorcode Individual BRIM Color Change Kit 72
95A16-1 Hi-Fi 2 Expansion Cable Assembly 71
95A18-1 Hi-Fi 2 Expansion Amplifier Assembly w/Power Supply 71
95A19-BL TDC COLOR CHANGE KIT 38
95A19-WH TDC COLOR CHANGE KIT 38
95A20-1 Single-Gang Switch Box w/Cover, Metal 58
95A21-1 Hi-Fi 4x4 Power Cord - Power cord for UK, for use with Hi-Fi 4-Zone, 4 Source systems 70
95A21-2 Hi-Fi 4x4 Power Cord - Power cord for Europe, for use with Hi-Fi 4-Zone, 4 Source systems 70
95A21-3 Hi-Fi 4x4 Power Cord - Power cord for Australia, for use with Hi-Fi 4-Zone, 4 Source systems 70
97A00-1 KNX® Gateway 21
99A00-1 OmniTouch 7 White 28, 85, 34
99A00-2 OmniTouch 7 Black 28, 85, 34
99A16-1 OmniTouch 7 Table Top Stand – White 28, 85
99A16-2 OmniTouch 7 Top Stand – Black 28, 85
A8814-1S3 includes 100A CTs. 64
A8814-2S3 includes 200A CTs. 64
A8814-3S3 includes 300A CTs. 64
A8814-4S3 includes 400A CTs. 64
A8814-6S3 includes 600A CTs. 64
AEAWS-C1W Pair of Outdoor/All–Weather Two-Way Loudspeakers in Enclosure, 0.50” tweeter, 4” woofer, 200 watts, 8 ohms 78
AEBC6-000 Fire Rated Back-Box Enclosure (Required for 6.5” in-ceiling speakers AEC65, AEM65) 76
AEBC6-000 Fire-Rated Back-Box Enclosure (Required for 6.5” in-ceiling speakers SGC65) 77
AEC65-000 Pair of 6.5” Two-Way In-Ceiling Loudspeakers, 80 watts, 8 ohms 76
AEC80-000 Pair of 8” Two-Way In-Ceiling Loudspeakers, 100 watts, 8 ohms 76
AECCS-VCE Dual Channel Two-Way Shelf-Mounted Center Channel Loudspeaker w/ silver grill, 75 watts / 300 watts, 8 ohms 79
AEH50-0** Five-Channel Surround-Sound Home Cinema Speaker System
w/ 100-watt powered subwoofer and 5 satellite speakers 79
AEHTK-000 Home Theater Interface Wallplate, 14 gold-plated spring clips, two RCA connectors, two QuickPort® openings 96
AEHTK-000 Home Theater Interface Wallplate, 14 gold-plated spring clips, two RCA connectors, two QuickPort® openings 131
AEI55-000 Dual 5” Two-Way In-Wall Center Channel Home Theater Loudspeakers, 120 watts, 8 ohms 79
AEI65-000 Pair of 6.5” Two-Way In-Wall Loudspeakers, 80 watts, 8 ohms 76
AEI80-000 Pair of 8” Two-Way In-Wall Loudspeakers, 100 watts, 8 ohms 76
AEM65-000 6.5” Two-Channel / Single Location Two-Way In-Ceiling Loudspeakers,
two titanium tweeters, dual voice-coil titanium-laminate woofer 50 watts/channel, 8 ohms 76
AEMRK-000 Multi-Room Install Wallplate, two gold-plated spring clips, two QuickPort openings 96
AEMRK-000 Multi-Room Install Wallplate, two gold-plated spring clips, two QuickPort openings 131
AEPC8-KIT 8” Pre-Construction Speaker Kit for In-Ceiling Speaker 76
AEPHK-0** Single-Gang Decorative Satellite Speaker Adapter Wallplate/Bracket 79
AEPI6-KIT 6.5” Pre-Construction Speaker Kit for in-wall installations 76
AEPI8-KIT 8” Pre-Construction Speaker Kit for in-wall installations 76
AEPIS-KIT Pre-Construction Kit, in-wall center channel shelf for use with AEI55-000 79
AESS5-0** System-Matched Satellite Speaker for 6.1 and 7.1 surround sound expansion 79
AESUB-012 Powered 12” Subwoofer w/ amplifier w/ silver grill, 400 watts RMS, 700 watts peak, 8 ohms 79
INDEX
FOR TECHNICAL SUPPORT CALL: 1-800-824-3005 Integration Guide I 181
BWBC1-000 BC1, US Power Supply, 8 IR ports, 4 RS232, 4 GPIO, 4 Relays, 1 IR input 85
BWBC1-0NT BC1, Intl Power Supply, 8 IR ports, 4 RS232, 4 GPIO, 4 Relays, 1 IR input 85
BWBC2-000 BC2, US Power Supply, 4 IR ports; 2 RS232; 2 GPIO; 2 Relays 85
BWBC2-0NT BC2, lntl Power Supply, 4 IR ports, 2 RS232; 2 PIO, 2 Relays 85
BWBC4-000 BC4-BCX-1 PRO, US power supply, BW BC4 with 4 IR ports, GPIO, RS232 85
BWBC4-0NT BC4-BCX-1 PRO, INTL power supply, BW BC4 with 4 IR ports, GPIO, RS232 85
BWDBF-000 DB9 Female-RJ45 Female Adapter 85
BWDBM-000 DB9 Male-RJ45 Female Adapter 85
BWDPS-000 US Power Supply, 12V 85
BWEAR-000 BC-2 Rack Ears 85
BWEM2-000 Dual Head Flashing IR Emitter 85
BWIPS-000 International Power Supply, 12VDC 85
BWIRA-000 Adapter for connecting a BC-1 IR In port to a Distributed IR system 85
BWIRI-000 IR Receiver Module 85
BWIRL-000 IR Learner 85
BWRMT-000 RF Remote Control 85
BWRRR-000 RF Remote Control Receiver 85
BWWFA-000 Wi-Fi Adapter with External Antenna 85
C0224-000 Wallplate Mounting Brackets, single-gang, bulk polybag pack, 2 brackets per unit, rack pack carton 129
C0225-OCP Wallplate Mounting Bracket, dual-gang, individual polybag pack, rack pack carton 129
C5002-000 Two-Way Splitter, carded unit pack 99
C5003-000 Three-Way Splitter, carded unit pack 99
C5004-000 Four-Way Splitter, carded unit pack 99
C5009-000 C5007-000 F-Connectors, two-piece crimp-on 2 per carded unit pack, nickel plated 98
C5052-000 Indoor Matching Transformer, carded unit pack 97
C5052-000 Indoor Matching Transformer, carded unit pack 98
C5052-0GO Indoor Matching Transformer, gold plated, carded unit pack 97
C5235-000 75 Ohm Push-On Connector, 2 per carded unit pack 97
C5235-000 75 Ohm Push-On Connector, 2 per carded unit pack 98
C5307-000 2 per carded unit pack, nickel plated 98
C5307-0G0 2 per carded unit pack, gold plated 98
C5405-000 RCA Y Adapter, carded unit pack 96
C5454-003 Black Cable with Color-Coded Plugs (Y-W-R-B), carded unit pack 96
C5914-000 Coaxial Stripping Tool 113
C6851-xx RG6 Coax Cable, nickel 99
EN928-000 Single Head Flashing IR Emitter 85
ENTMP-9EU European Console Tamper Kit 19
FTH00-00W FTTH Point of Entry Box, 3.94” (100 mm) H x 3.15” (80 mm) W x .84” (21 mm) D 110
HKSWP-0Lx Hardwired Room Key Switch - 24V Key Switch Interface, requires OSP20-RxH power pack 41
INDS1 Intercom Door Station 27
LURDW-00W Lumina RF Door/ Window Sensor 35, 41
LURMD-00W Lumina RF Motion Sensor 35, 41
OA179-9EU European 16 Zone/16 Output Expander 18
OBKND-10W Omni-Bus Decora Low Voltage Keypad, NEMA Form Factor, 1 Button, RJ45 Connectors for Omni-Bus, Color: White 60
OBKND-40W Omni-Bus Decora Low Voltage Station, NEMA Form Factor, 4 Button, RJ45 Connectors for Omni-Bus, Color: White 60
ONKND-20W Omni-Bus Decora Low Voltage Station, NEMA Form Factor, 2 Button, RJ45 Connectors for Omni-Bus, Color: White 60
OP202-900 European OmniPro II in Enclosure 16
PCI65-KIT Rough-in Bracket for 6.5” In-Wall Loudspeakers 77
PCI80-KIT Rough-in Bracket for 8” In-Wall Loudspeakers 77
PJ26-00* PJ262-00* Decora, midway, nylon 128
R08BD-208 EZ-MAX Plus 8 Relay Panel, (8) 2-Pole 20A 240V/480V Relays.
120V, 277V, 347V input power. With 8 Low \Voltage Inputs 65
R08BD-L04 EZ-MAX Plus 8 Relay Panel, (4) 1-Pole 30A 120V/277V Relays, (4) empty slots.
120V, 277V, 347V input power. With 8 Low Voltage Inputs 65
R08BD-L08 EZ-MAX Plus 8 Relay Panel, (8) 1-Pole 30A 120V/277V Relays.
120V, 277V, 347V input power. With 8 Low \Voltage Inputs 65
R08BF-000 EZ-MAX Plus 8 Relay Panel, (0) No Relays, (8) empty slots. 230V input power. With 8 Low Voltage Inputs 65
R08BF-L08 EZ-MAX Plus 8 Relay Panel, (8) 1-Pole 30A 120V/230V/277V Relays. 230V input power. With 8 Low Voltage Inputs 65
R24BD-000 EZ-MAX Plus 24 Relay Panel, (0) No Relays, (24) empty slots.
120V, 277V, 347V input power. With 12 Low \Voltage Inputs 65
R24BD-216 EZ-MAX Plus 24 Relay Panel, (16) 2-Pole 20A 240V/480V Relays, (8) empty slots.
120V, 277V, 347V input power. With 12 Low Voltage Inputs 65
INDEX
Integration Guide I LEVITON.COM
182
INDEX | BY PART NUMBER
R24BD-224 EZ-MAX Plus 24 Relay Panel, (24) 2-Pole 20A 240V/480V Relays.
120V, 277V, 347V input power. With 12 Low Voltage Inputs 65
R24BD-L16 EZ-MAX Plus 24 Relay Panel, (16) 1-Pole 30A 120V/277V Relays, (8) empty slots.
120V, 277V, 347V input power. With 12 Low Voltage Inputs 65
R24BD-L24 EZ-MAX Plus 24 Relay Panel, (24) 1-Pole 30A 120V/277V Relays.
120V, 277V, 347V input power. With 12 Low Voltage Inputs 65
R24BF-000 EZ-MAX Plus 24 Relay Panel, (0) No Relays, (24) empty slots. 230V input power. With 12 Low Voltage Inputs 65
RC-1000WH Omnistat2 Thermostat Conventional & Heat Pump (w/ Aux) White (WH). 38
RC-1000WHZB Omnistat2 Wireless Single-Stage Conventional & Heat Pump (w/Aux Heat) 35
RC-1500WHZB Lumina RF Universal Thermostat 35
RC-2000WH Omnistat2 Thermostat Multi-Stage Heat Pump w/ Humidity Control 38
RC-2000WHZB Omnistat2 Wireless Multistage & Heat Pump w/Humidity Control 35
RC500-2EW Omnistat3 Hospitality Thermostat 41
RDSGW-1xx NEMA Omni-bus 1-button wall station color change kit 60
RDSGW-2xx NEMA Omni-bus 2-button wall station color change kit 60
RDSGW-4xx NEMA Omni-bus 4-button wall station color change kit 60
RE640-BWW RE640-BNS RE640-BOB Snap-In Blank Module 126
RE640-WW1 RE640-NS1 RE640-OB1 1-Port Insert 126
RE640-WW2 RE640-NS2 RE640-OB2 2-Port Insert 126
RE640-WW3 RE640-NS3 RE640-OB3 3-Port Insert 126
RE640-WW4 RE640-NS4 RE640-OB4 4-Port Insert 126
RE640-WW6 RE640-NS6 RE640-OB6 6-Port Insert 126
REWP1-0WW REWP1-0NS REWP1-0OB Single-Gang Wallplate 126
REWP2-0WW REWP2-0NS REWP2-0OB Dual-Gang Wallplate 126
REWP3-0WW REWP3-0NS REWP3-0OB Three-Gang Wallplate 126
REWP4-0WW REWP4-0NS REWP4-0OB Four-Gang Wallplate 126
SGAMP-000 System Matching Module for impedance-matching passive two-channel
multi-room audio systems (for use with SGVST-00W) 73
SGC65-00W Pair of 6.5” Spec-Grade Two-Way In-Ceiling Loudspeakers, 120 W peak/ 60 W RMS, 8 ohms 77
SGI65-00W Pair of 6.5” Spec-Grade Two-Way In-Wall Loudspeakers, 120 W peak/ 60 W RMS, 8 ohms 77
SGVCK-00E Decora Strauss Color-Change Kit, converts to black 73
SGVCK-00I Decora Strauss Color-Change Kit, converts to ivory 73
SGVCK-0LA Decora Strauss Color-Change Kit, converts to light almond 73
SGVSM-00W Decora Strauss Transformer-Free Impedance-Matching Slider Volume Control, analog, 200 watts peak, 73
SGVST-00W Decora Strauss Transformer-Free Slider Volume Control, analog,
200 watts peak, 100 watts RMS, 4-16 ohms, 8 ohm nominal
(for use with SGAMP-000) (Decora wallplate sold separately) 73
T5631-2W USB Charger/Tamper-Resistant Receptacle 131
TS901-000 POE Power Injector with A/C Cord 85
VPKIT-MD 1-Button Zone Controller/Virtual Dimmer Remote Color Change Kit with LED locator and brightness display for VRCZ1 50
VPKIT-MD Matching Dimmer/Fan Speed Control 52
VPKIT-MS Matching Switch Color Change Kit with LED locator 51
VPKIT-MS Color Change Kit with LED locator for VRCS1 52
VPKIT-S4 4-Button Scene Controller Color Change Kit with LED locator for VRCS4 52
VPKIT-Z4 4-Button Zone Controller Color Change Kit with LED for VRCZ4 52
VPSLB-S4 4-Button Scene Controller Label Kit with LED locator for VRCS4 52
VPZLB-Z4 4-Button Zone Controller Label Kit with LED for VRCZ4 52
VRC0P-1L Vizia RF +® Plug-In Serial Interface Module, ASCII to Z-Wave® Interface 53
VRCPG-0SG (Internal astronomical clock) 51
VRCS1-1L 1-Button Scene Controller/ Virtual Switch Remote 52
VRCS2-MR Vizia RF +® 2-Button Scene Controller with Switches 52
VRCS4-M0 Vizia RF +® 4-Button Scene Controller 52
VRCZ1-1L Vizia RF +® 1-Button Zone Controller/ Virtual Dimmer Remote 52
VRCZ4-M0 Vizia RF +® 4-Button Zone Controller 52
VRCZ4-M0 Vizia RF +® 4-Button Zone Controller 52
VRE06-1L Incandescent, Magnetic Low Voltage and Mark 10 Dimmer Electronic Low Voltage Dimmer
with LED locator and brightness display 50
VRF01-1L Quiet Fan Speed Control with LED locator and fan speed display 50
VRI06-1L Incandescent Dimmer with LED locator and brightness display 50
VRI10-1L Incandescent Dimmer with LED locator and brightness display 50
VRKIT-DS Color Change Kit with LED for VRCS2 52
VRKIT-R0 Receptacle Color Change Kit 53
INDEX
FOR TECHNICAL SUPPORT CALL: 1-800-824-3005 Integration Guide I 183
VRMR1-0SG Vizia RF +® IR Handheld Remote Controller 51
VRMX1-1L CFL, LED, Incandescent, Magnetic Low Voltage and Mark 10 Dimmer with LED locator and brightness display 50
VRP15-1L 2-Button Scene Controller with Switches Vizia RF +® Scene Capable Plug-In Appliance Module 53
VRPA1-1LW Vizia RF +® Scene Capable Plug-In Appliance Module 53
VRPD3-1L Vizia RF +® Scene Capable Plug-In Lamp Dimming Module 53
VRS05-1L Incandescent Scene Capable Switch with LED locator 51
VRS15-1L Scene Capable Switch with LED locator 51
VRUSB-000 RF + Installer Tool Software and USB for System programming* 51
VSHUB-000 Camera Hub 118
VSHUB-IDC Camera Hub w/ IDC Connectors 118
X3301-100 18/2 AWG Speaker Wire, 100’, sleeve unit pack 96
X3301-25C 18/2 AWG Speaker Wire, 25’, sleeve unit pack 96
X3301-50C 18/2 AWG Speaker Wire, 50’, sleeve unit pack 96
X3324-50C 14/2 AWG Speaker Wire, 50’, sleeve unit pack 96
ZSC04-INW Wireless Ceiling Occupancy Sensors - Coverage of up to 450 sq/ft 34, 41
ZSC15-INW Wireless Ceiling Occupancy Sensors - Coverage of up to 1,500 sq/ft 34, 41
ZSS10-G0Z Wall switch - 120-277VAC 10A Wall switch, for applications without a neutral connection 34, 41
ZSS10-N0Z Wall switch - 120-277VAC 10A Wall switch, for applications with a neutral connection 34, 41
INDEX
Integration Guide I LEVITON.COM
184
NOTES | NOTES
© Copyright Leviton Manufacturing Co., Inc. 2015. All rights reserved. All unauthorized quotation and reproduction is forbidden except for brief examples used in reviews of this work by
periodical publications where the source of information is credited to Leviton or the reproduction of this material for the purpose of preparing specifications and/or bids in which Leviton
products are indicated. To request permission, please contact the Leviton at SAMarketing@leviton.com. Information in this catalog is provided as a guide to product selection and is believed to
be correct at time of publication. Because Leviton engages in a continuous program of product improvement, data is subject to change without notice.
An automation system for every building
Leviton oers over three decades of automation experience and recognizes that integrators and contractors can craft
the proper solution for every application. Leviton designs systems that successfully implement a vast multitude of home
and building automation standards to ensure the system is useful and functional throughout its long life. With the wireless
Lumina Gateway, it’s simple to create energy management automation systems for small commercial properties – quickly
and easily. The BitWise platform allows for entirely customized control over AV systems and beyond – to HVAC, lighting,
and more, and will continue to evolve to meet growing demands. The versatile Omni security & automation controller
incorporates a wide variety of open standards including UPB™, X-10, Z-Wave®, RS-232, TCP/IP, KNX, DALI and ZigBee®.
All of these systems utilize the infrastructure and accessory pieces included in this helpful guide, creating an entire
eco-system allowing installers to create the right solution, every time, in every building.
N23156
SA-10007
Leviton International
Canada
T +1.514.954.1840
E pcservice@leviton.com
Caribbean
T 786-295-1997
E infocaribbean@leviton.com
Central and South America
T +52.55.5081.2270
E lsamarketing@leviton.com
China
T +86.755.3320.0588
E infochina@leviton.com
Europe/ASEAN/
Australia/New Zealand
T 504-736-9810, x 229 | C: 504- 250-7183
E infoeurope@leviton.com
E infoasean@leviton.com
E aread@leviton.com
Latin America
T +52.55.5082.1040
E lsamarketing@leviton.com
Mexico
T +52.55.5082.1040
E lsamarketing@leviton.com
Middle East & Africa
T +971.50.551.4211
E lmeinfo@leviton.com
South Korea
T +82.2.3273.9963
E infokorea@leviton.com
Leviton Corporate
Headquarters
leviton.com
T 800.323.8920
E customerservice@leviton.com

Navigation menu
