www.edwardssignaling.com 4-87
TM
AUDIBLE SIGNALS
4

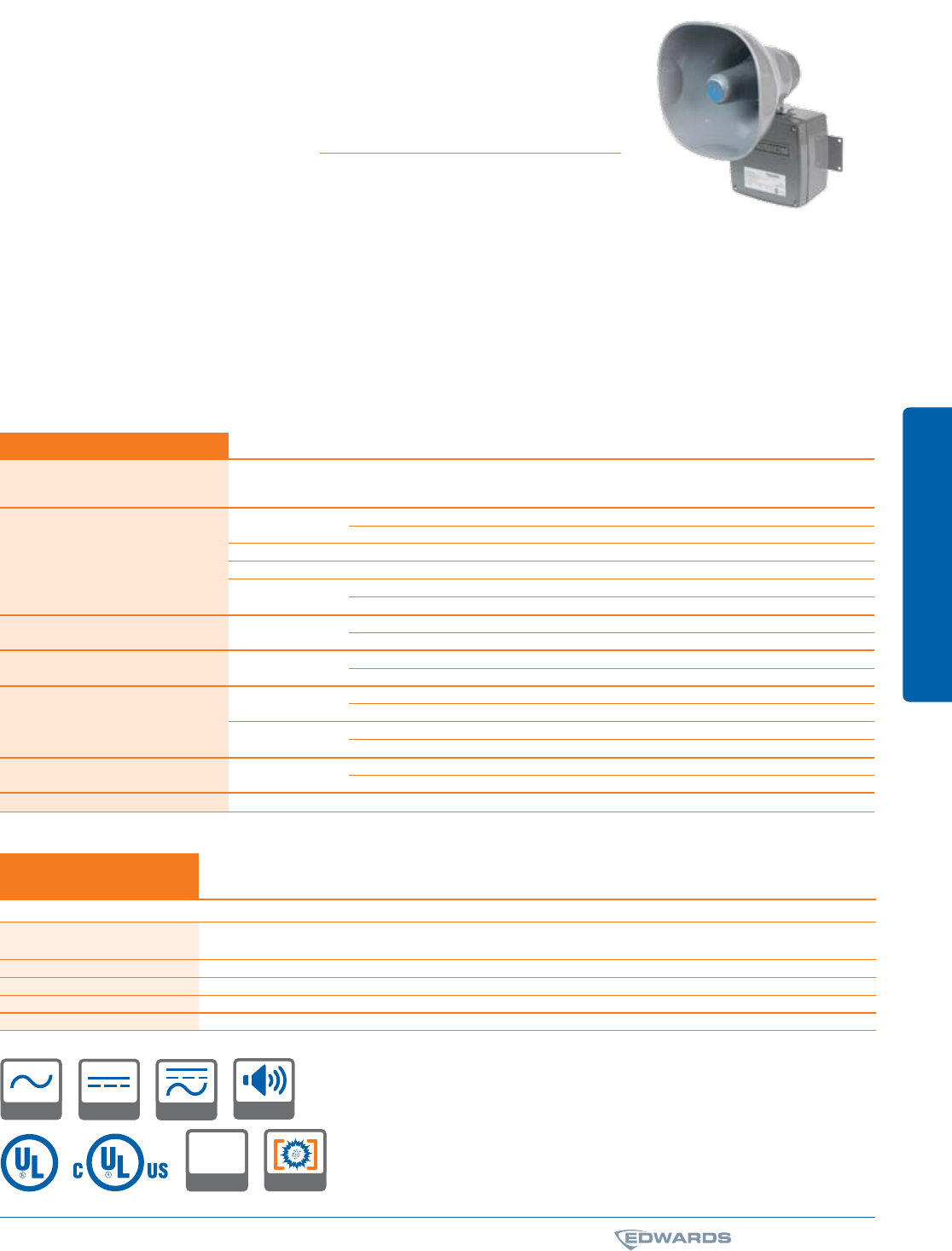

Electronic Audible Signals
Multi-Tone Signal – Single Input, Single Output
Millennium Class
The Millennium Class are heavy-duty industrial,
tone-selectable, signaling devices capable of
producing volume-controlled, high-decibel tones.
Selected models are designed to serially connect
to RS485 networks. The 5530MV-485Y6
additionally has a field recordable voice feature
that allows activation of voice messages over the
RS485 network.
Features and Specifications
• Userselectable55tonecapability-No
additional tone modules needed
• Outputupto120dB@1m(110dB@10ft.)
• Outputupto123dB@1m (113dB@10ft.)
(5530MHV Series)
• Captivecomponents
• RS485modelssupervised
• Diodepolarizedforsupervisorycircuits
(5530MD-24AW)
• Speakercanberotatedandlockedinany
 horizontaldirection
• 24VDCbatterybackupterminalsprovided
• NEMAType3R
• ULlistedforClass1,Div.2,GroupsA,B,Cand
D;ClassII,Div.2,GroupsFandG;ClassIII
hazardouslocations
Ordering Information
Description Cat. No.
Operating
Voltage1
Input
Activation
Voltage
Signal Off
Standby Current
(Amps)
Signal On
Operating Current
(Amps)
Single output,
15WattStandardVolume
5530M-24AQ 24VDC 24VDC 0.10A 0.74A
24VAC 24VDC 0.10A 1.3A
5530M-24N5 120VAC 24VDC 0.10A 0.36A
5530M-120N5 120VAC 120VAC 0.10A 0.38A
5530M-24Y6 120V-240VAC 24VDC 0.10A 0.31-0.20A
5530M-120Y6 125-250VDC 120VAC 0.10-0.02A 0.21-0.10A
Single output, RS485 5530M-485Y6 120-240VAC RS485 0.10A 0.32-0.20A
125-250VDC RS485 0.10-0.02A 0.21-0.10A
Single output, RS485
Fieldrecordablevoicemodel 5530MV-485Y6 120-240VAC RS485 0.10A 0.31-0.20A
125-250VDC RS485 0.10-0.02A 0.20-0.10A
Singleoutput,30WattHighVolume
5530MHV-24AQ 24VDC 24VDC 0.10A 1.5A
24VAC 24VDC 0.10A 2.3A
5530MHV-24Y6 120-240VAC 24VDC 0.10A 0.56-0.34A
5530MHV-120Y6 125-250VDC 120VAC 0.10-0.02A 0.39-0.19A
Single output, RS485 Connection
30WattHighVolume 5530MHV-485Y6 120VAC-240VAC RS485 0.10A 0.56-0.34A
125-250VDC RS485 0.10-0.02A 0.39-0.19A
Singleoutput,DiodePolarized 5530MD-24AW220-31VDC — — 0.63-1.0A
1ACvoltagefrequencyis50/60Hz.
2Red finish
Signal Input Load
Characteristics
PLC output to meet following product input parameters
ThesedevicesmaybeoperatedbyPLCswithoutputcharacteristicsthatmatchtheinputloadrequirementsofthesignal.
Cat. No.
Operating
Voltage1
Max. Off State
Leakage Current (A)
Continuous On
Current (A)
Surge (Inrush/Duration)
Amps/Milliseconds
5530M-24AQ 24VDConly 0.002 0.740 8/4
5530M-24N5 120V 0.002 0.360 2.82/4
5530M-120N5 120V 0.005 0.380 2.82/4
5530MHV-24AQ 24VDConly 0.002 1.500 8/4
AC DC
HAZ-LOC
ENCLOSURE
3R
AC/DC 120-123 dB
www.edwardssignaling.com
4-88 TM
AUDIBLE SIGNALS
4

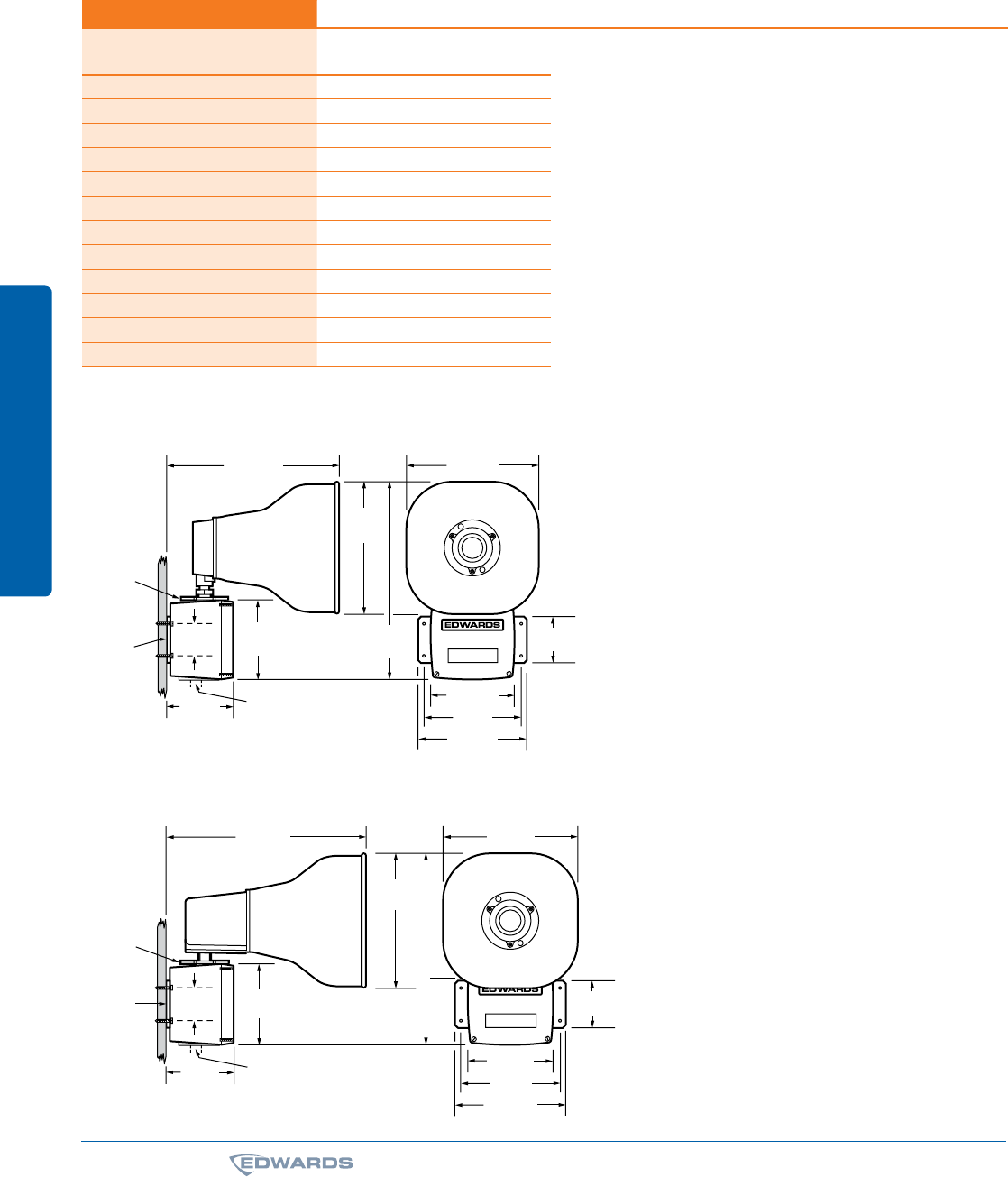

Weights and Dimensions
Cat. No.
Approx. Net
Weight (lb.)
Approx. Shipping
Weight (lb.)
5530M-24AQ 10.60 13.20
5530M-24N5 10.60 13.20
5530M-120N5 10.60 13.20
5530M-24Y6 10.60 13.20
5530M-120Y6 10.60 13.20
5530M-485Y6 10.60 13.20
5530MV-485Y6 10.60 13.20
5530MHV-24AQ 10.60 13.20
5530MHV-24Y6 10.60 13.20
5530MHV-120Y6 10.60 13.20
5530MHV-485Y6 10.60 13.20
5530MD-24AW 10.60 13.20
dr_as_5530M_01.eps
8 47/64"
(222mm)
Nut to adjust
speaker
direction
Mounting
flange
4 holes
(2 each side)
6"
(152mm)
2 1/2"
(64mm)
3 1/2"
(89mm)
8"
(203mm)
13 3/4"
(349mm)
8"
(203mm)
4"
(102mm)
6"
(152mm)
8"
(203mm)
1/2" (13mm)
conduit mounting
5530M, 5530MV, and 5530MD-24AW Series
dr_as_5530MHV_01.eps
11 1/2"
(292mm)
Nut to adjust
speaker
direction
Mounting
flange
4 holes
(2 each side)
6"
(152mm)
2 1/2"
(64mm)
3 1/2"
(89mm)
9 3/4"
(248mm)
15"
(381mm)
9 3/4"
(248mm)
4"
(102mm)
6"
(152mm)
8"
(203mm)
1/2" (13mm)
conduit mounting
5530MHV Series
Electronic Audible Signals
Multi-Tone Signal – Single Input, Single Output
Millennium Class
7 1/2"
(191mm)
7 1/2"
(191mm)
