542929 Catalog

RECESSED PRECISION LUMINAIRES

A comprehensive offering

of high performance

precision luminaires

Aculux Overview ..................................................2-3

Aculux Precision Offering.....................................4-5

Aculux 3 1/4" Round & Square Offering .............6-7

3 1/4" Acu-Aim™Optics ..........................8-9

3 1/4" Installation Features.................10-13

3 1/4" Flush Mount Features...............14-15

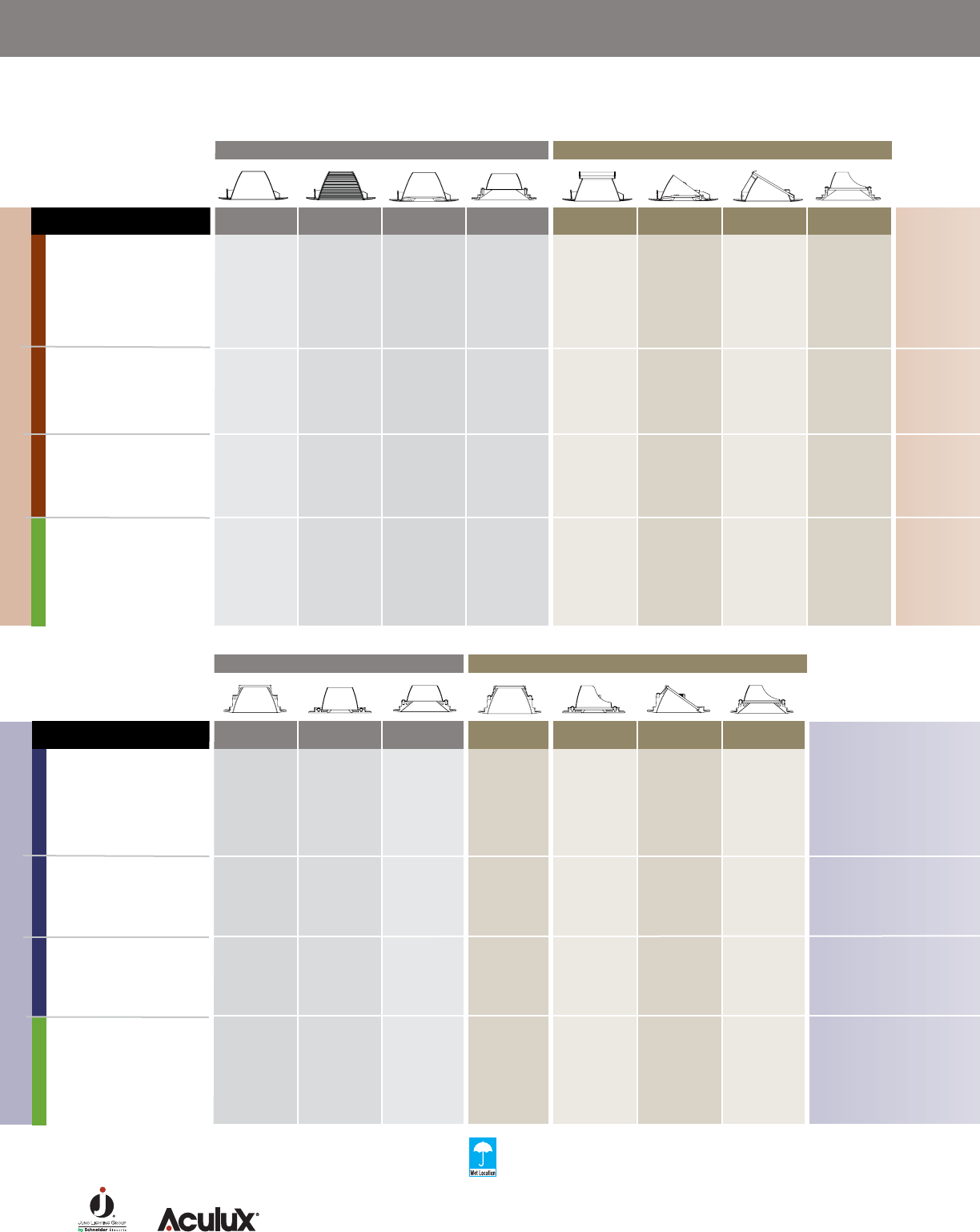

3 1/4" New Aculux Product Matrix .....16-17

3 1/4" Round ........................................................18

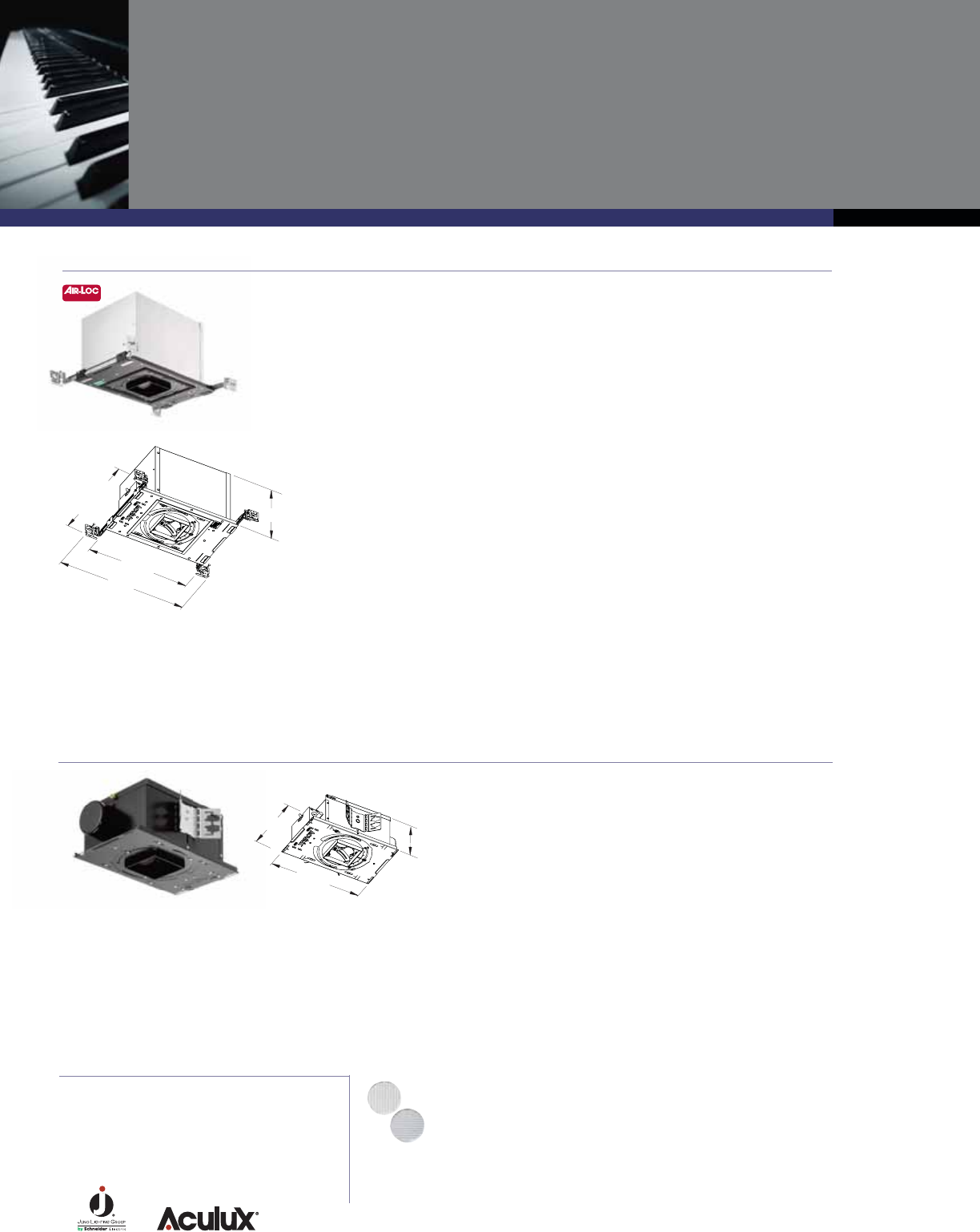

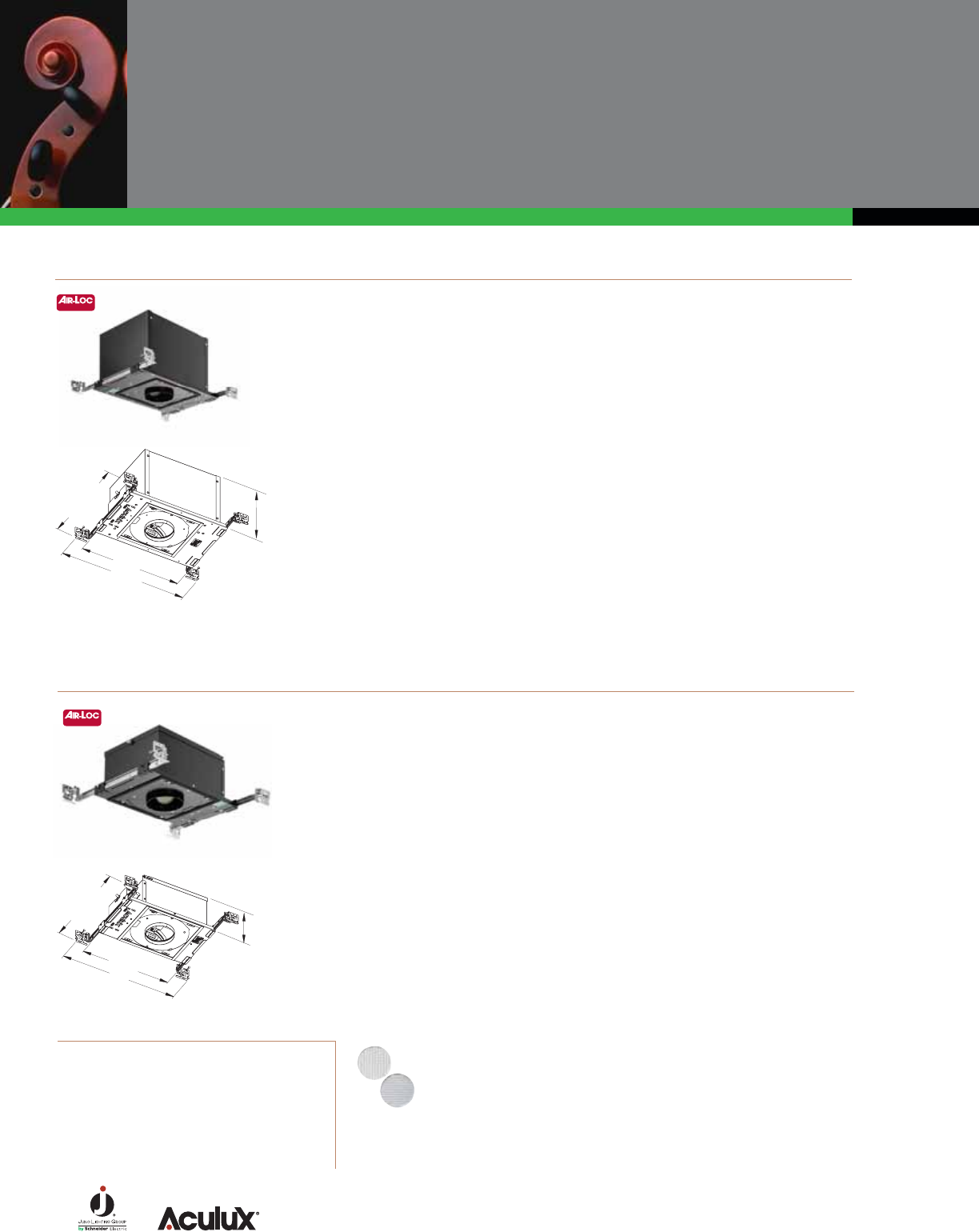

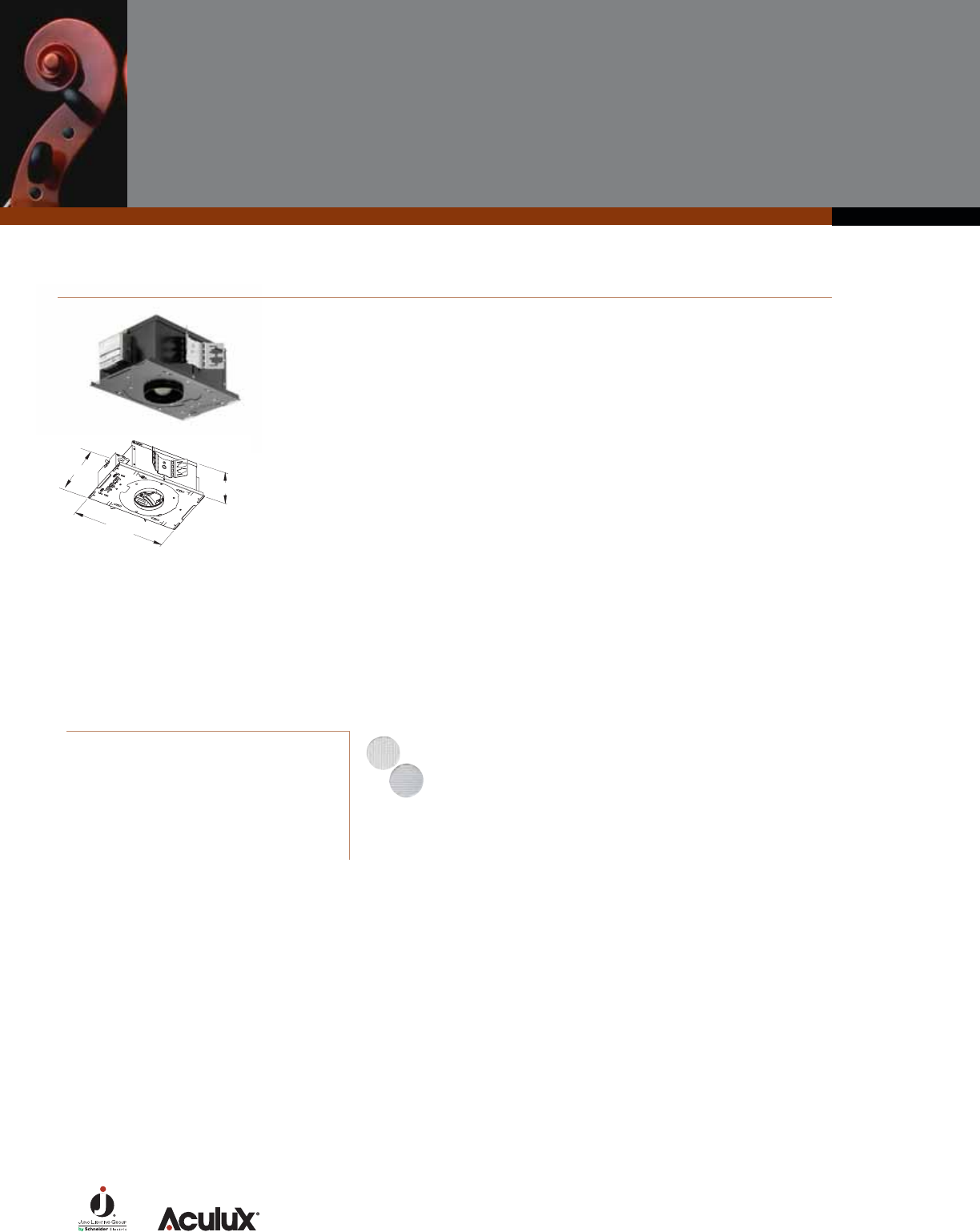

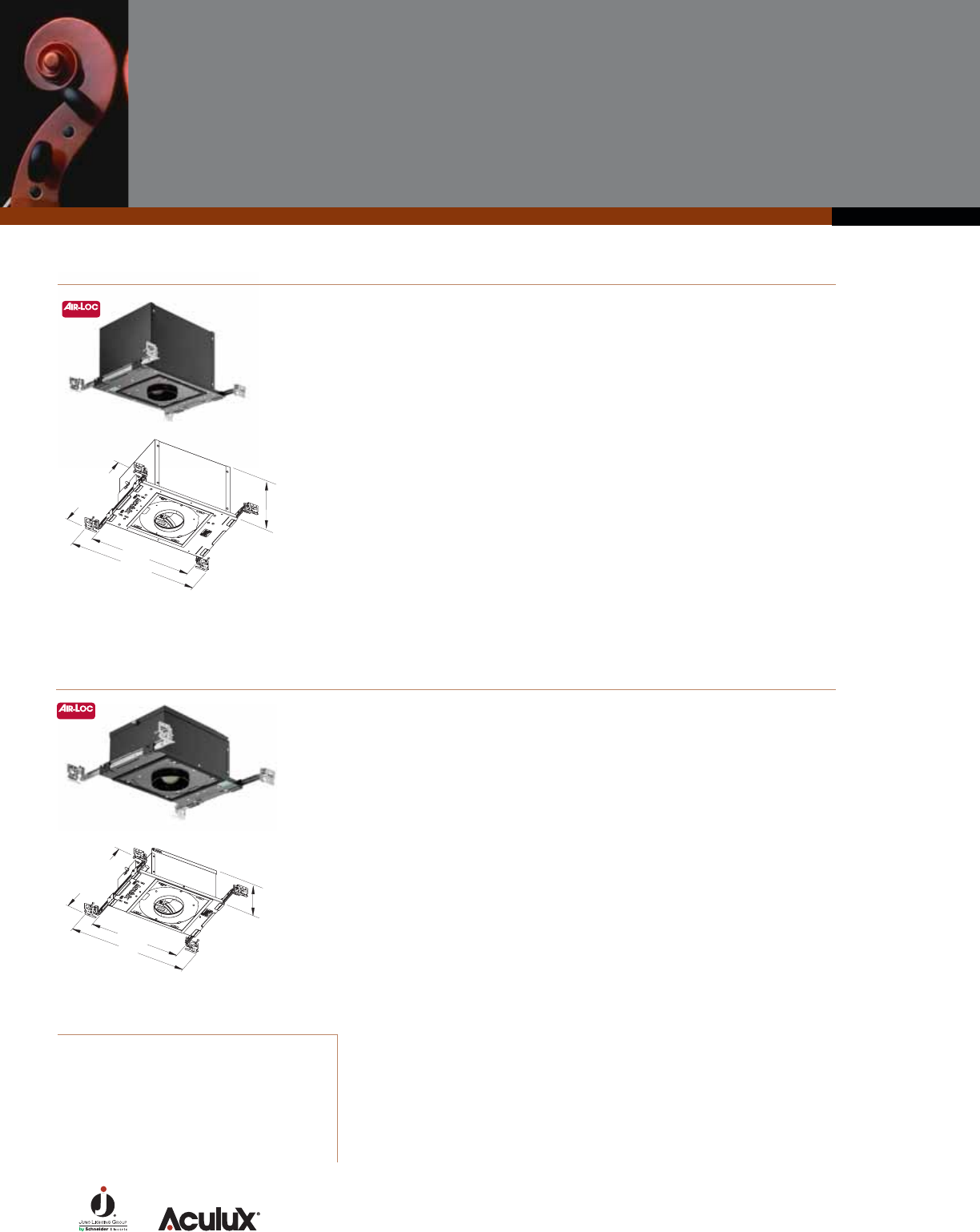

Housings ..............................................................................18

LED .............................................................................18-19

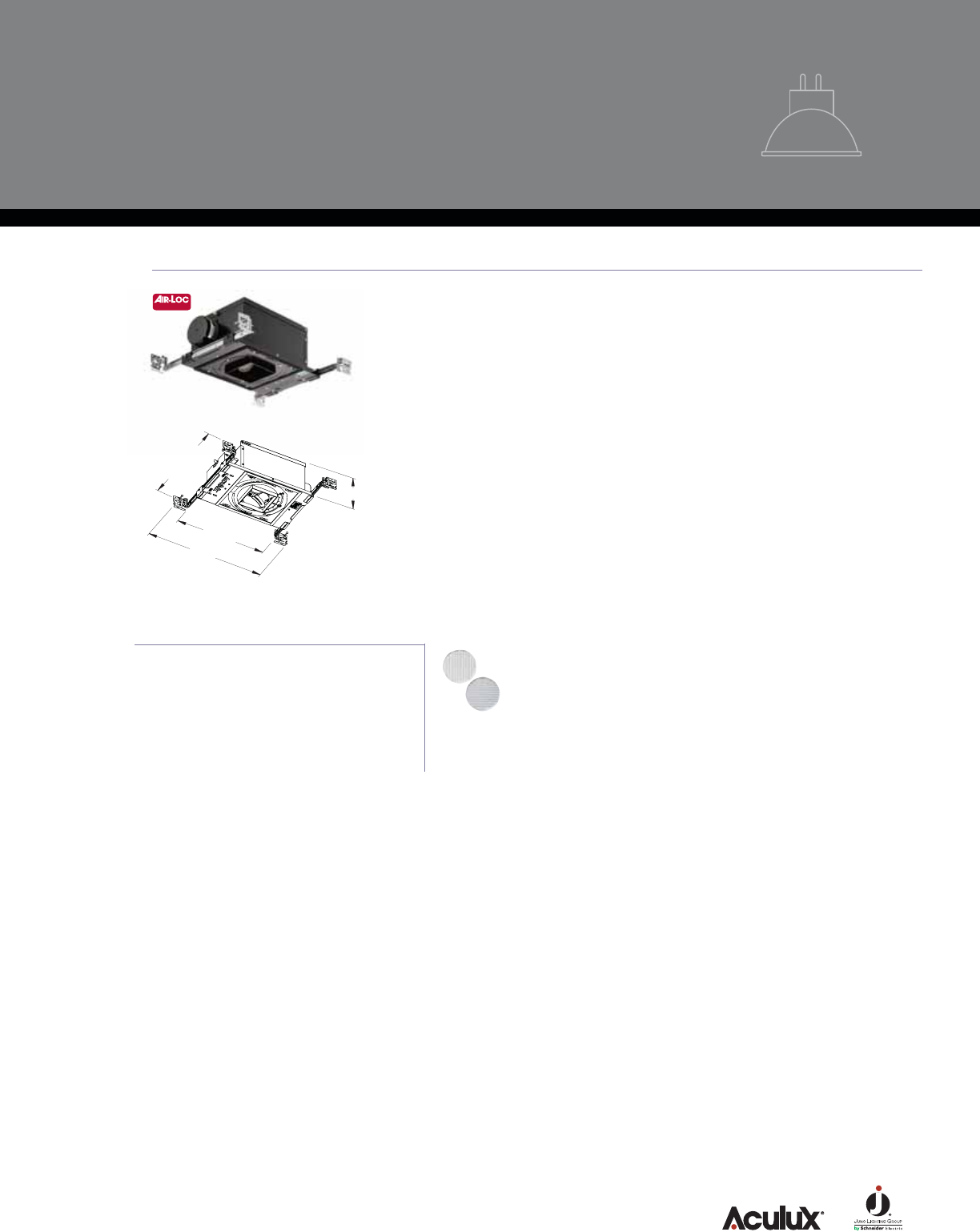

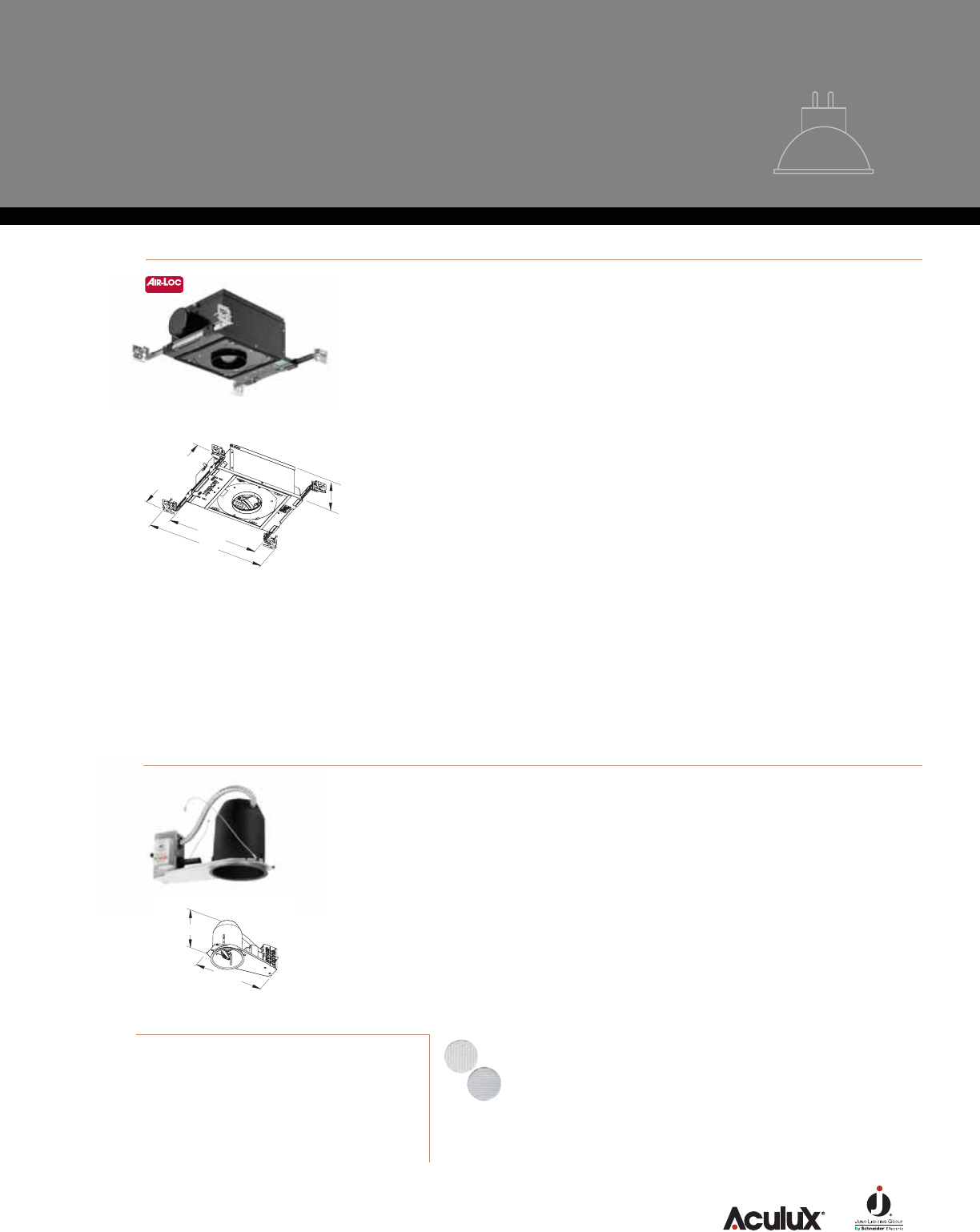

MR16 Halogen............................................................20-21

PAR16/PAR20..............................................................22-23

MR16 CMH .................................................................24-25

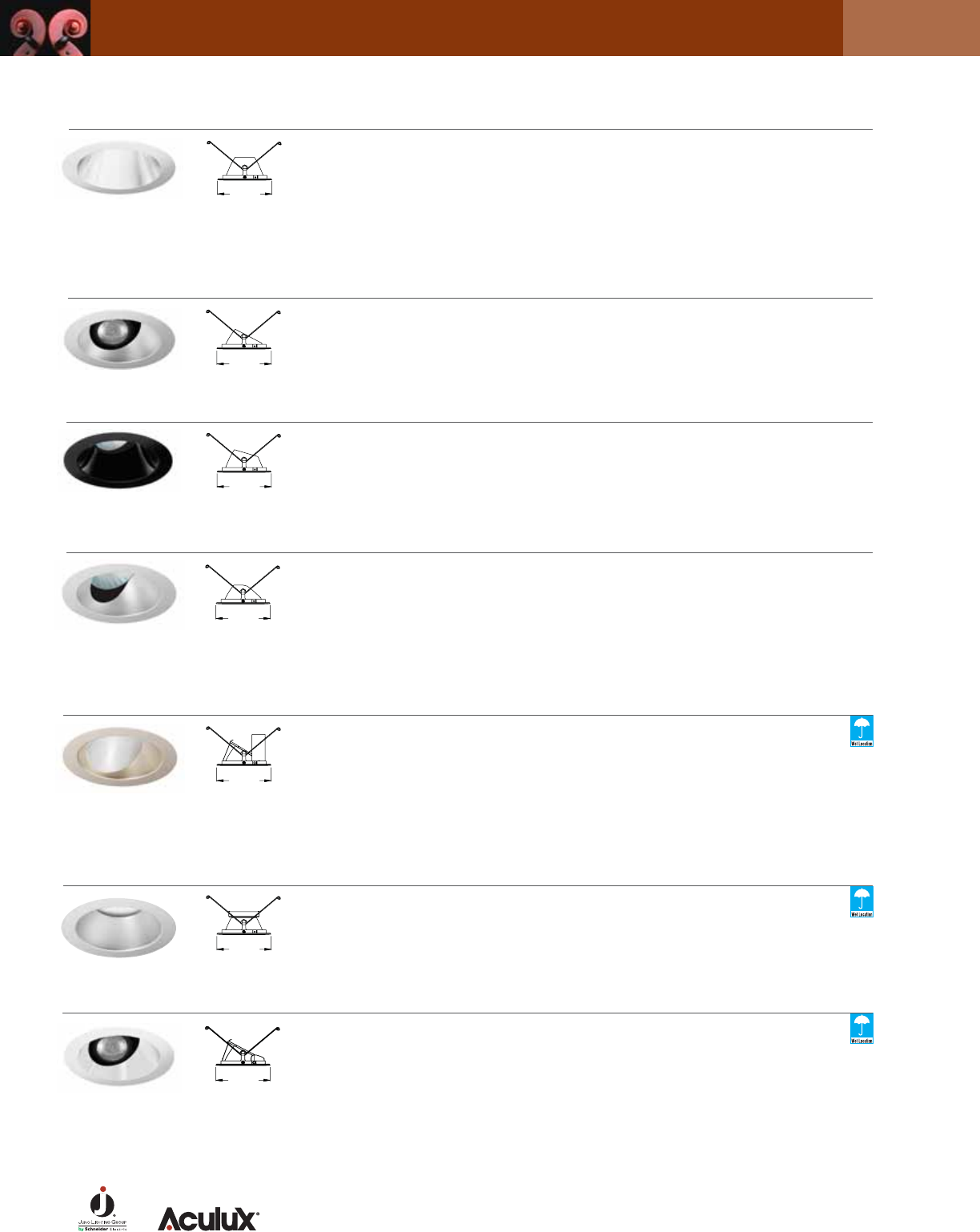

Trims.....................................................................................26

Trim Ring.....................................................................26-28

Self-Flanged.....................................................................30

Flush Mount................................................................32-33

3 1/4" Square........................................................34

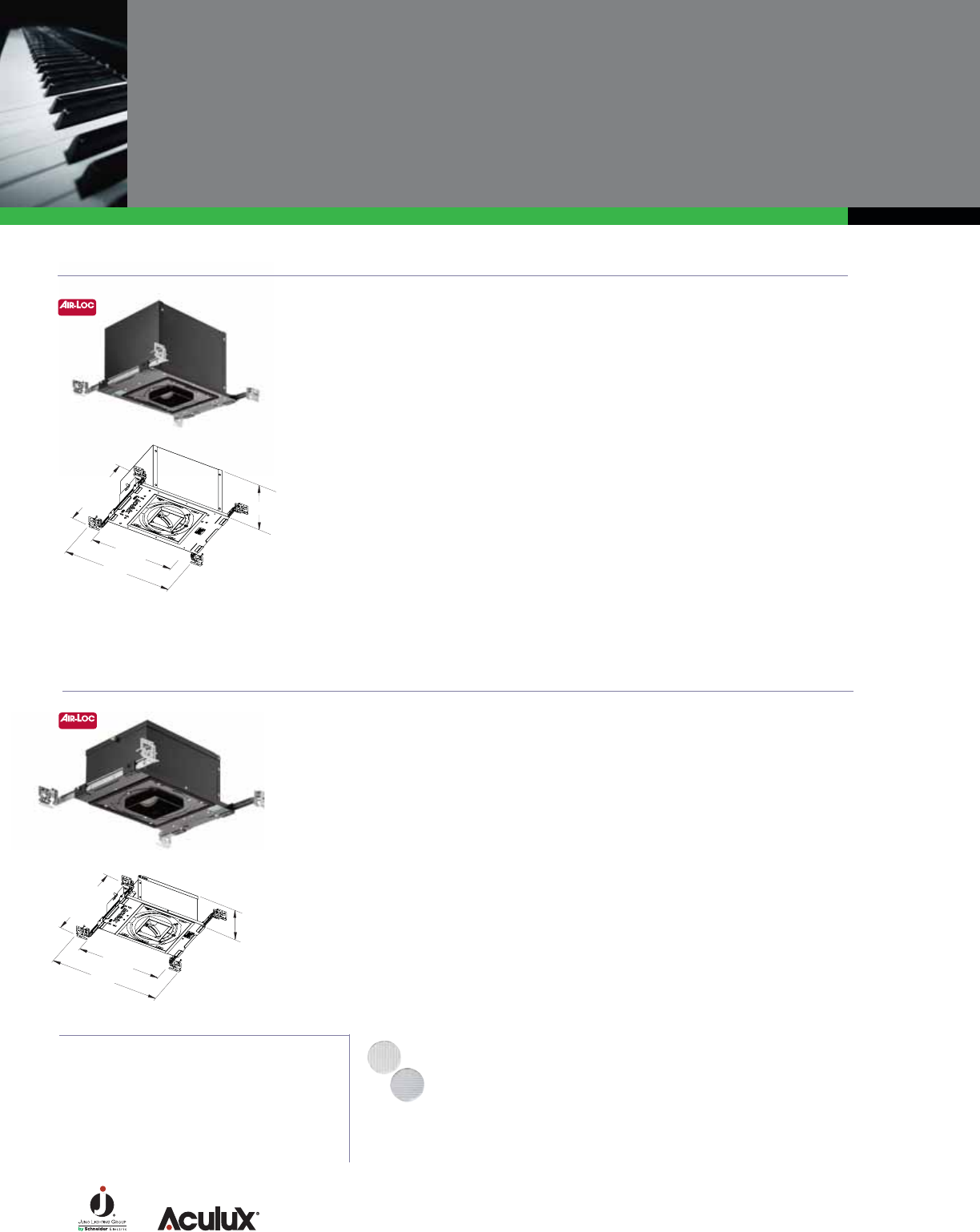

Housings ..............................................................................34

LED .............................................................................34-35

MR16 Halogen............................................................36-37

PAR16/PAR20..............................................................38-39

MR16 CMH .................................................................40-41

Trims.....................................................................................42

Self-Flanged................................................................42-43

Flush Mount................................................................44-45

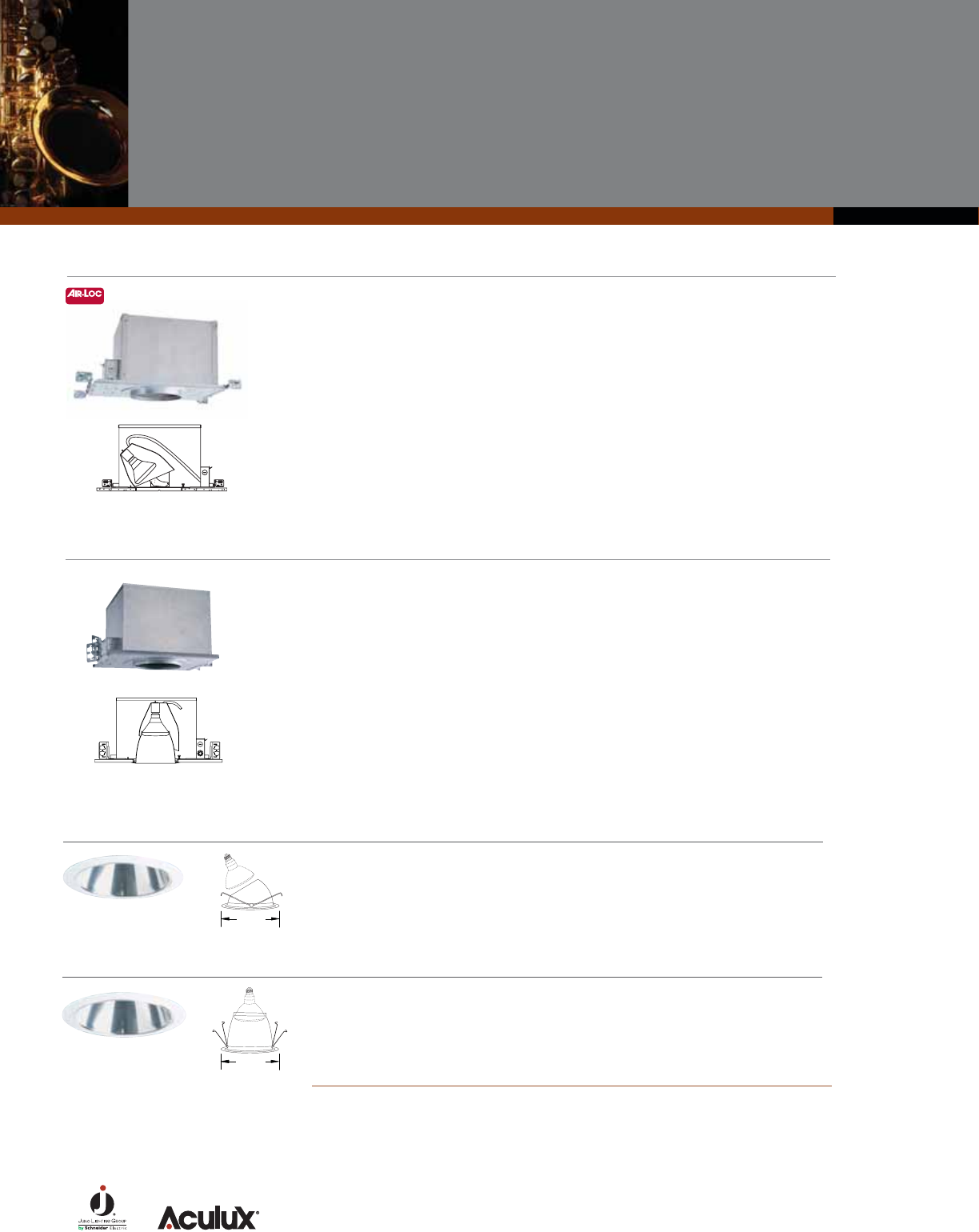

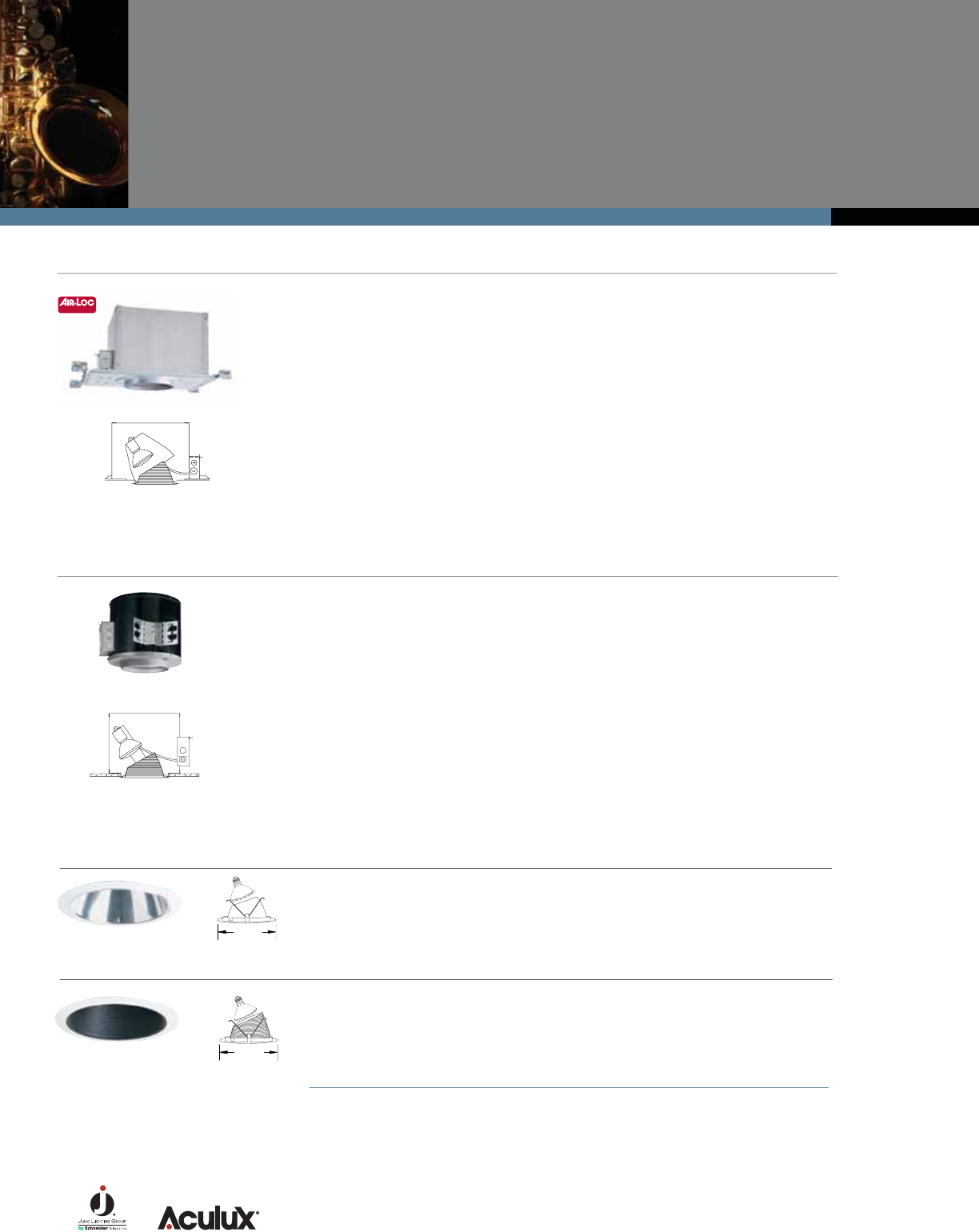

5 5/8" – 6" Round .................................................46

PAR36/AR111 Housing & Trims .......................................48

PAR30/38 Housing & Trims.........................................50-51

A-Lamp Housing & Trims............................................52-53

26W/32W CFL Housings & Trims................................54-55

7" Round ...............................................................56

PAR38 Housings & Trims..................................................56

MR16 Framing Projector .......................................57

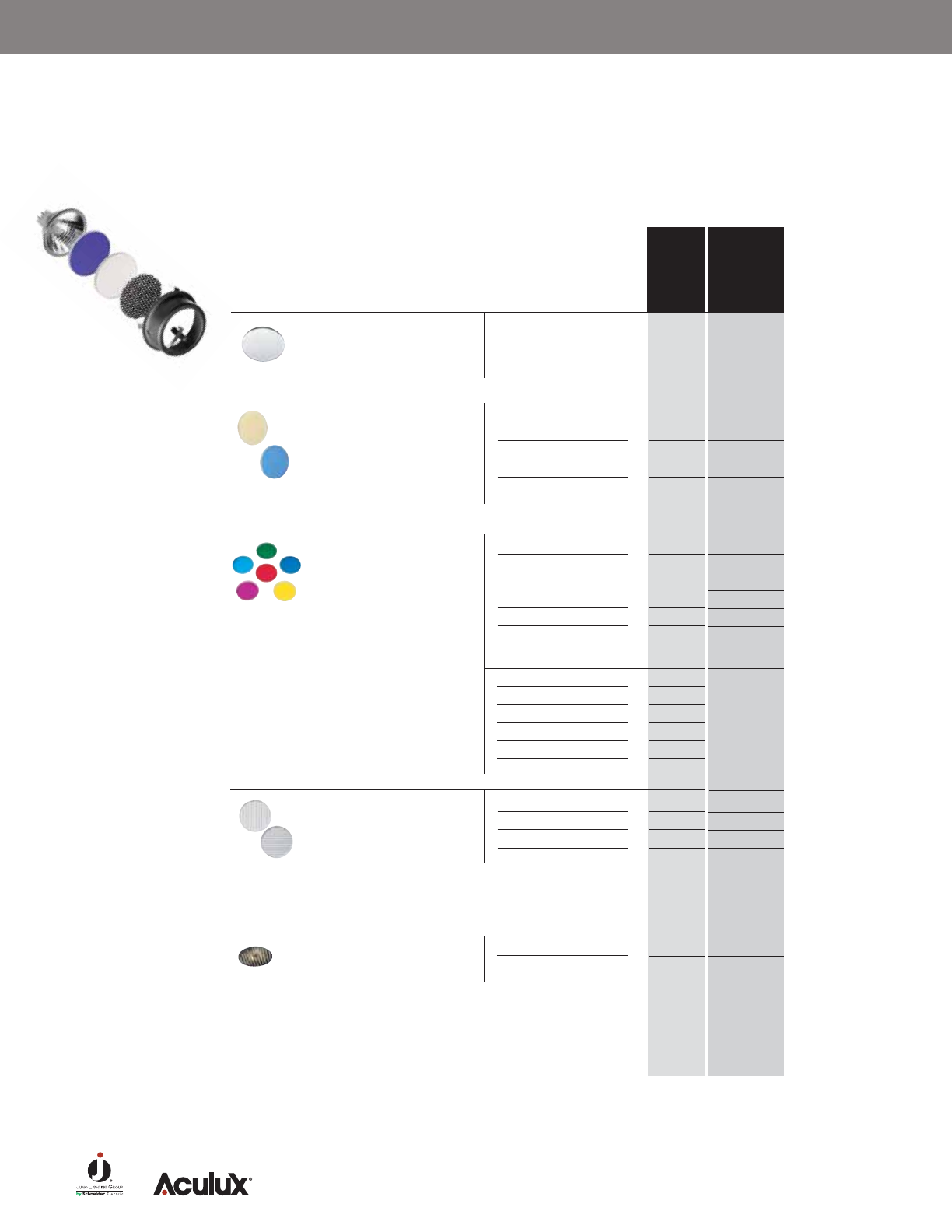

Optic Accessories..................................................58

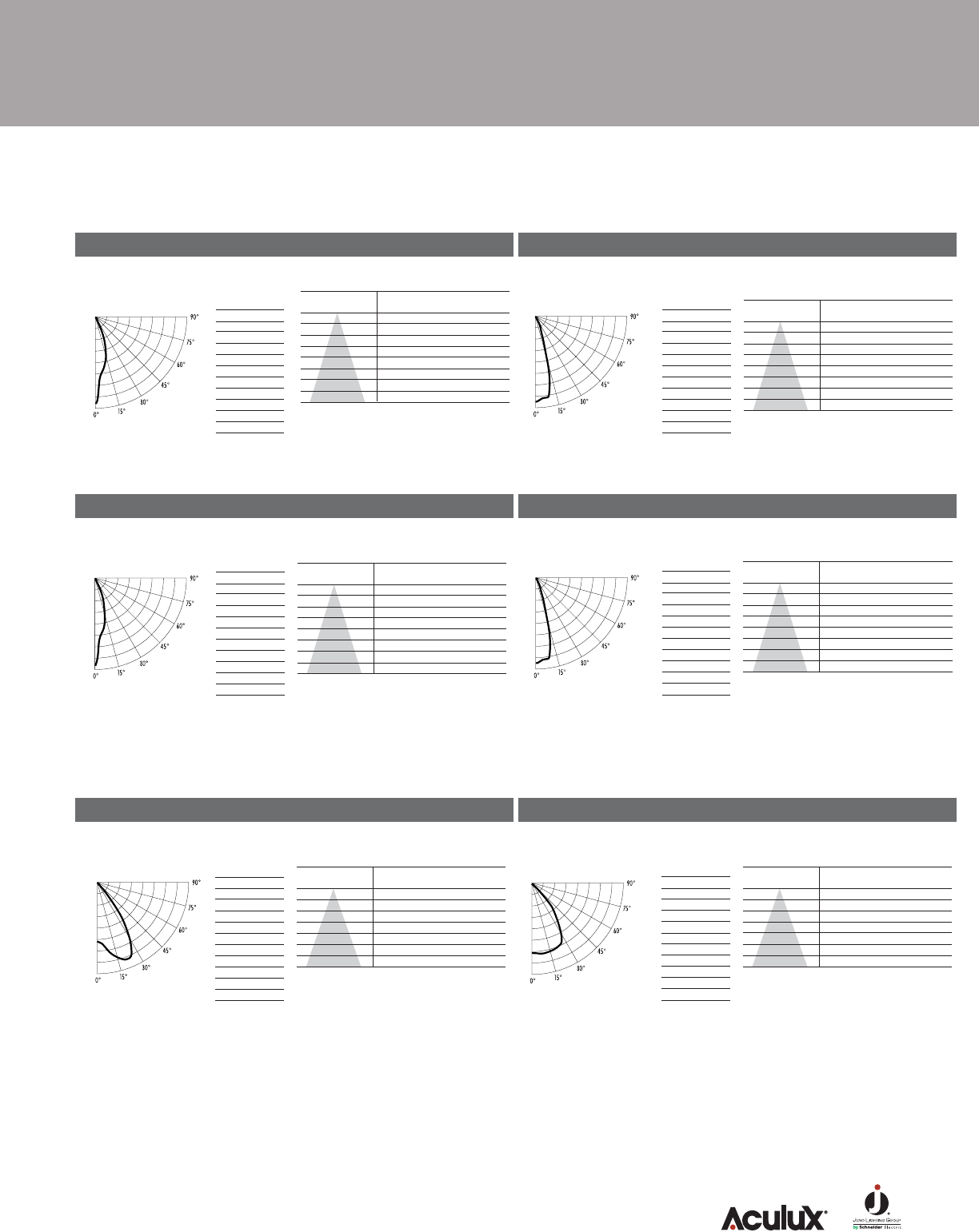

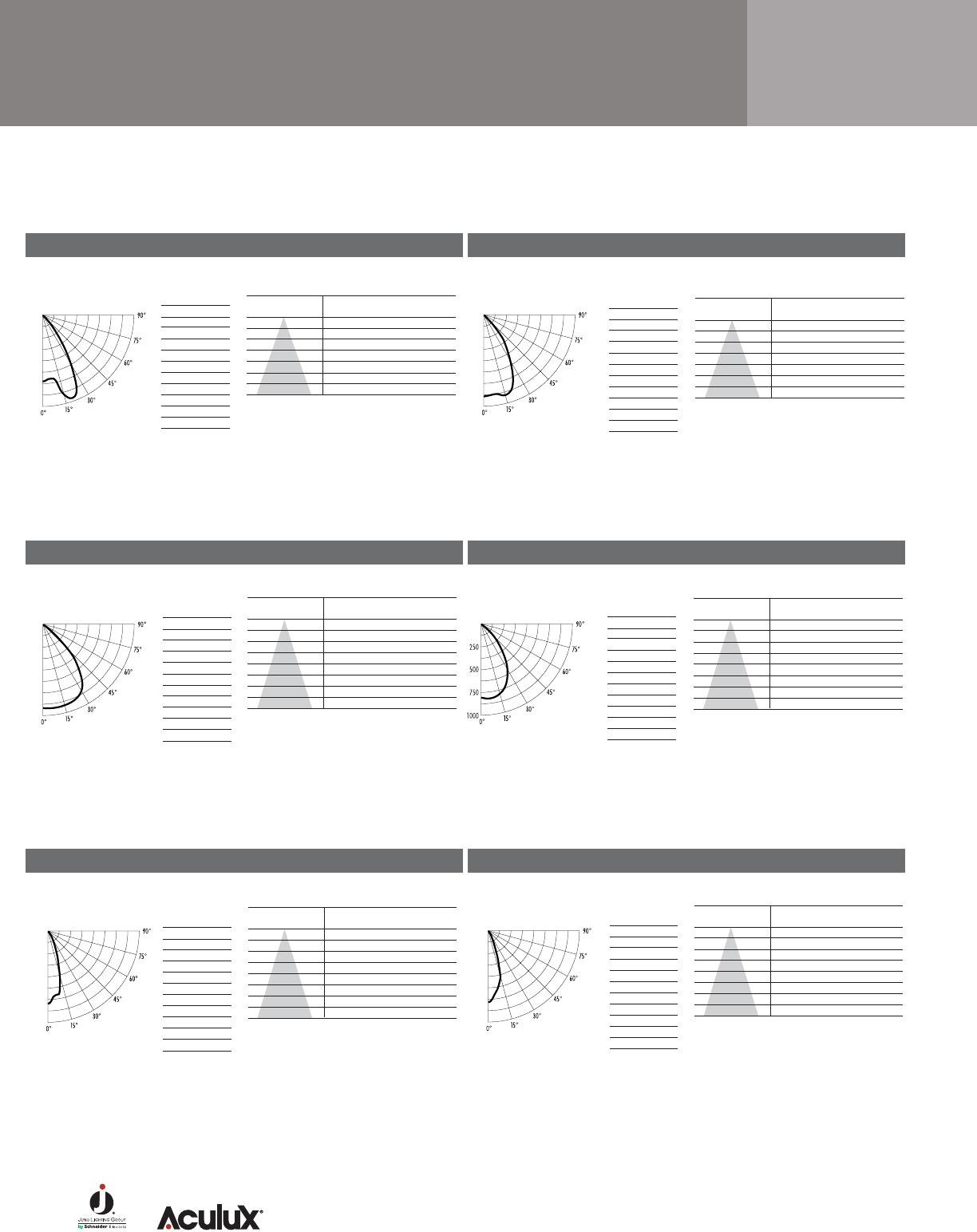

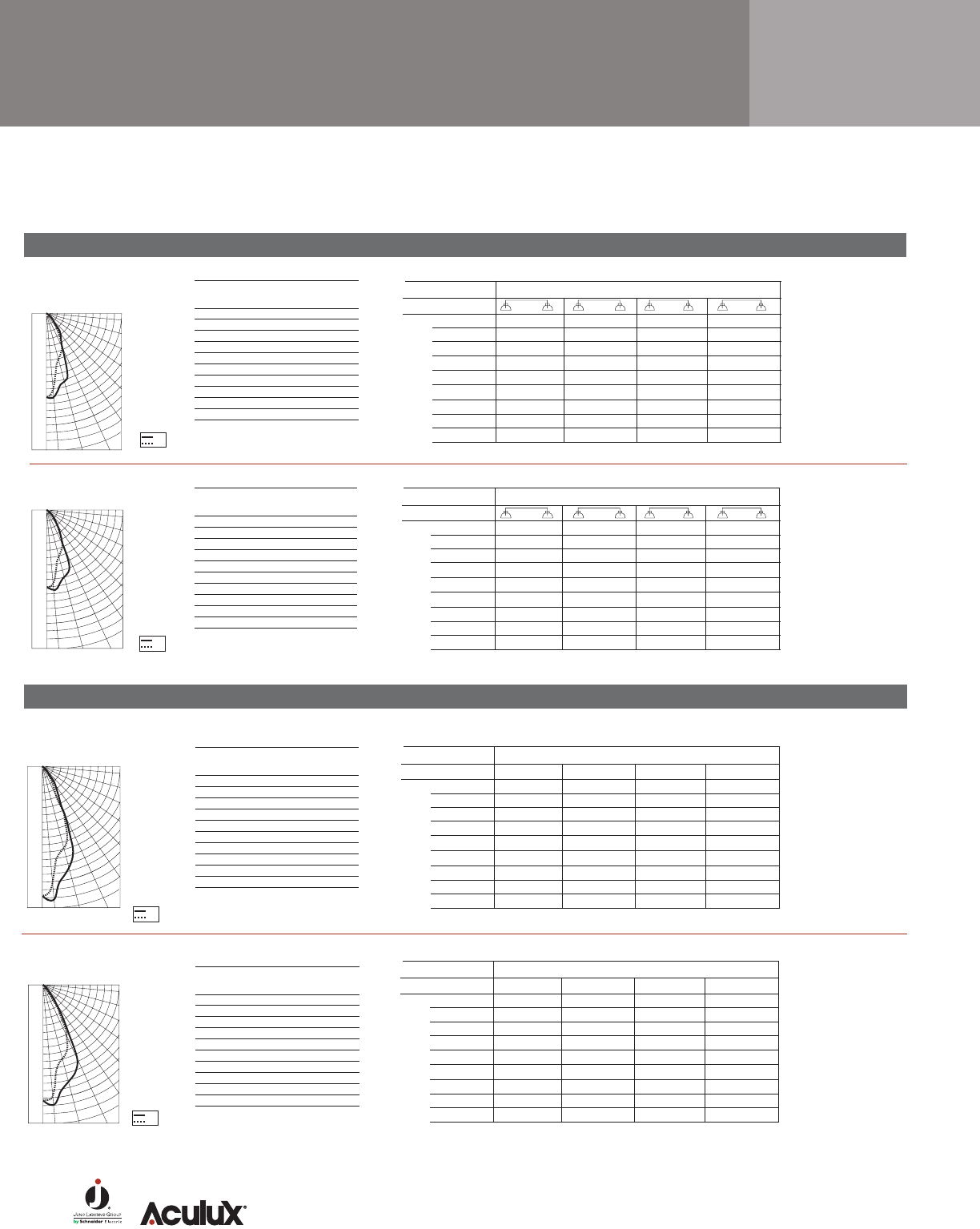

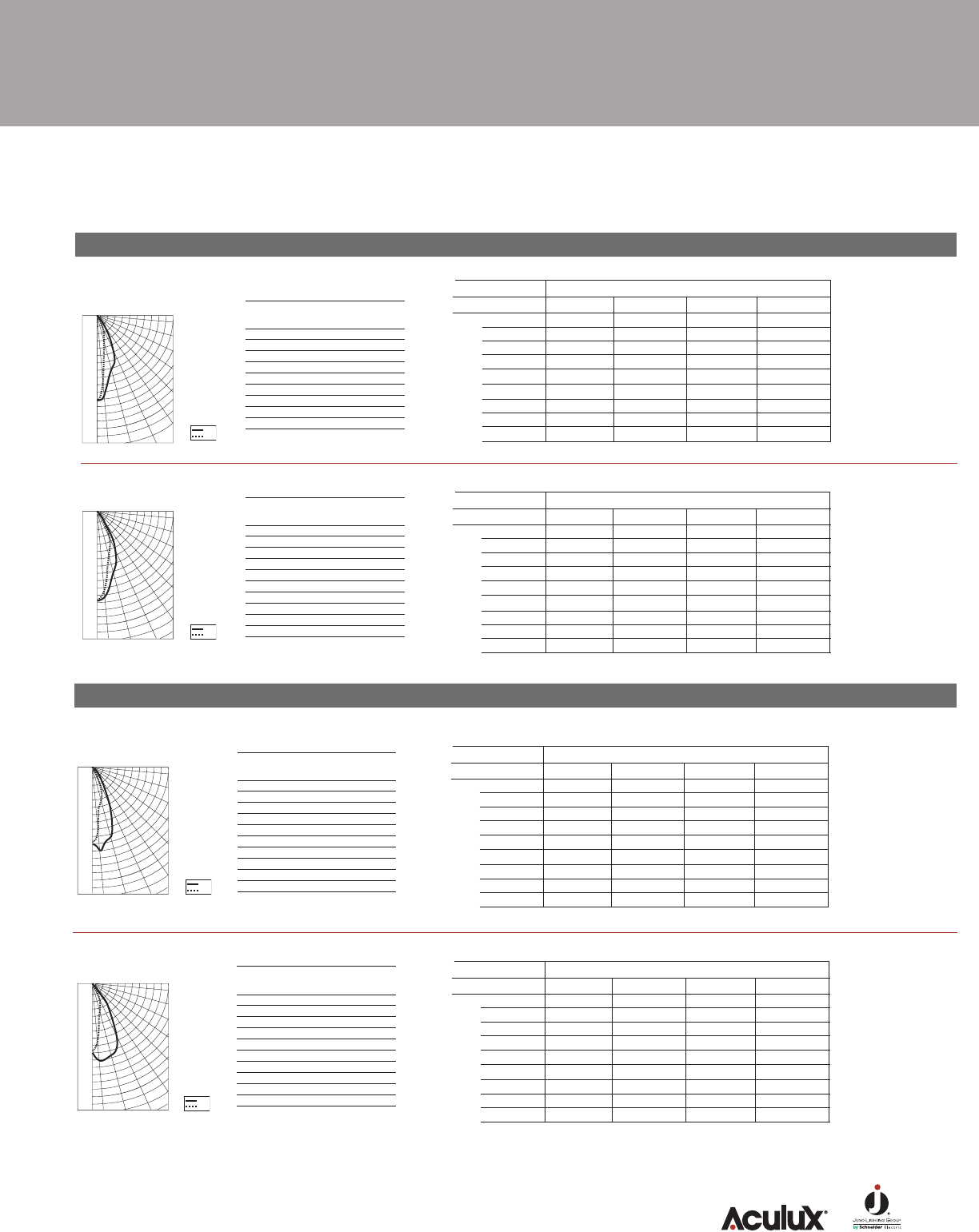

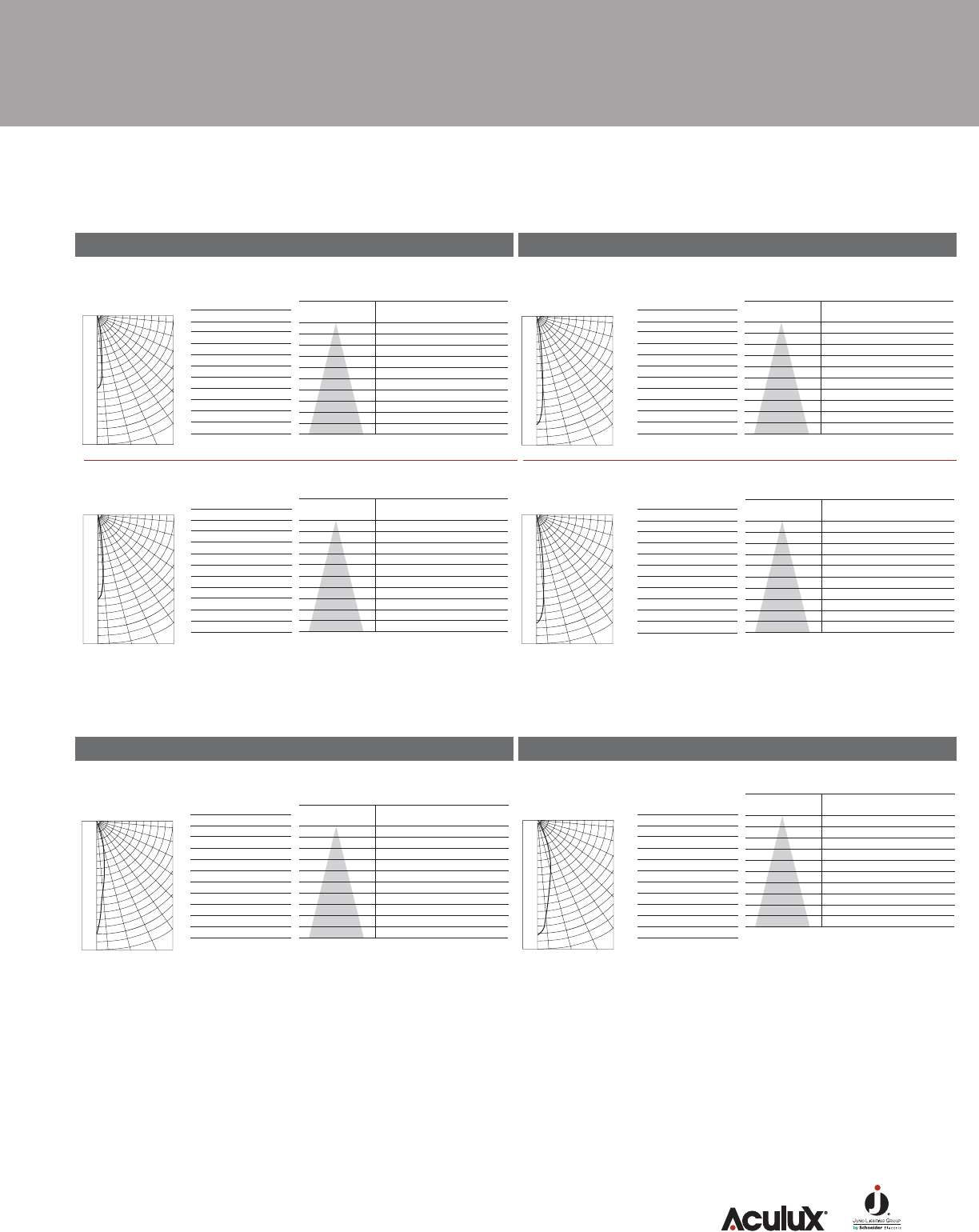

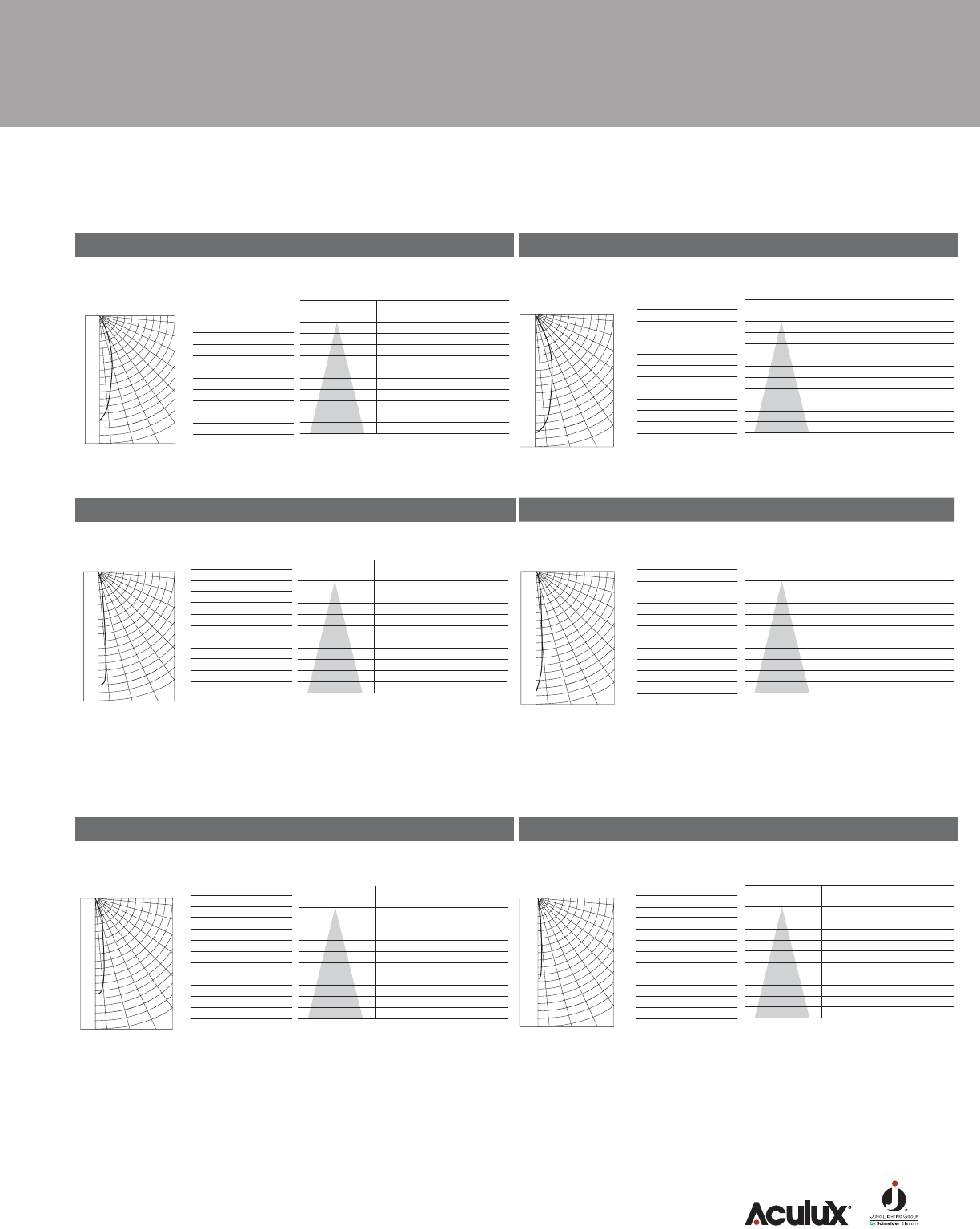

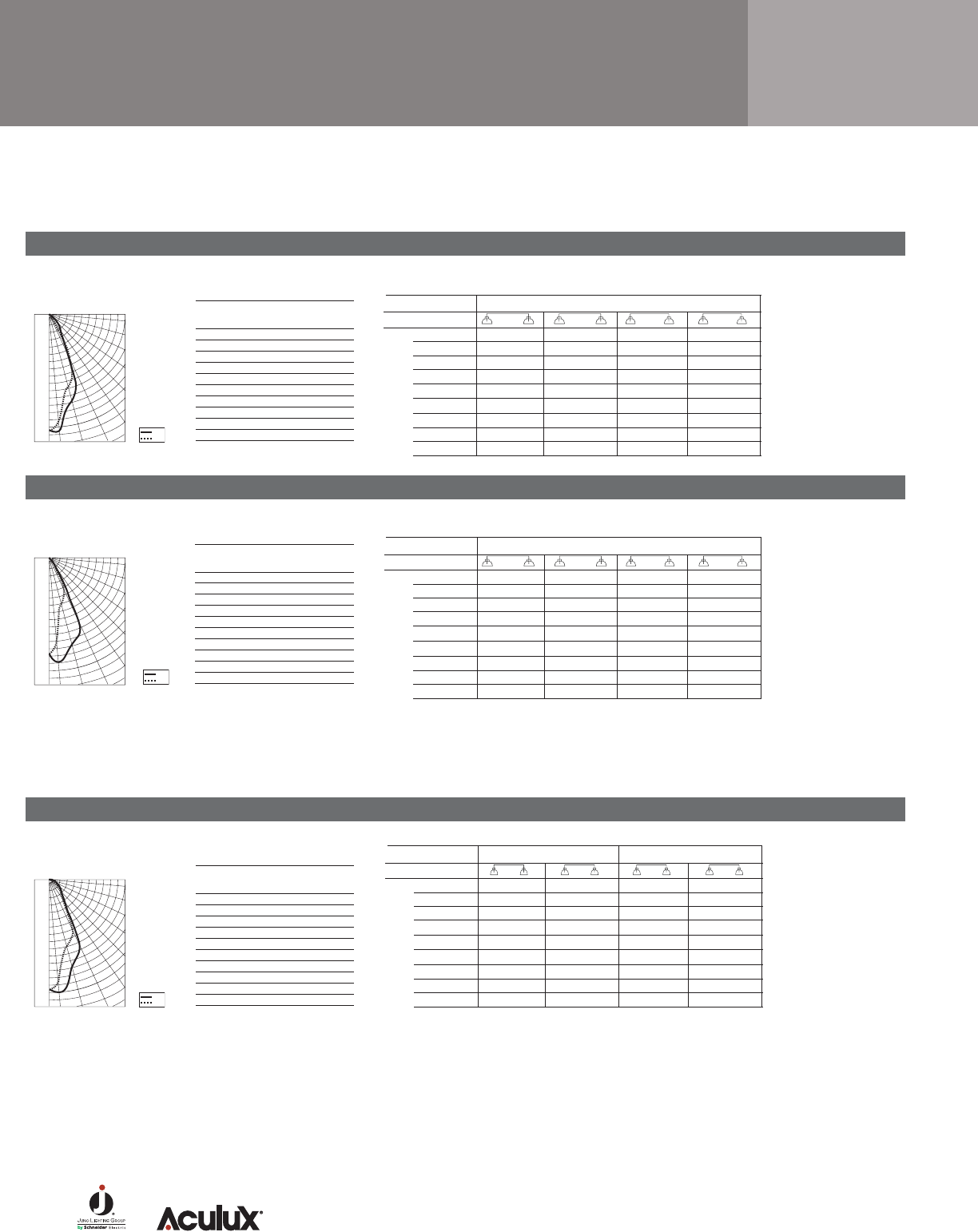

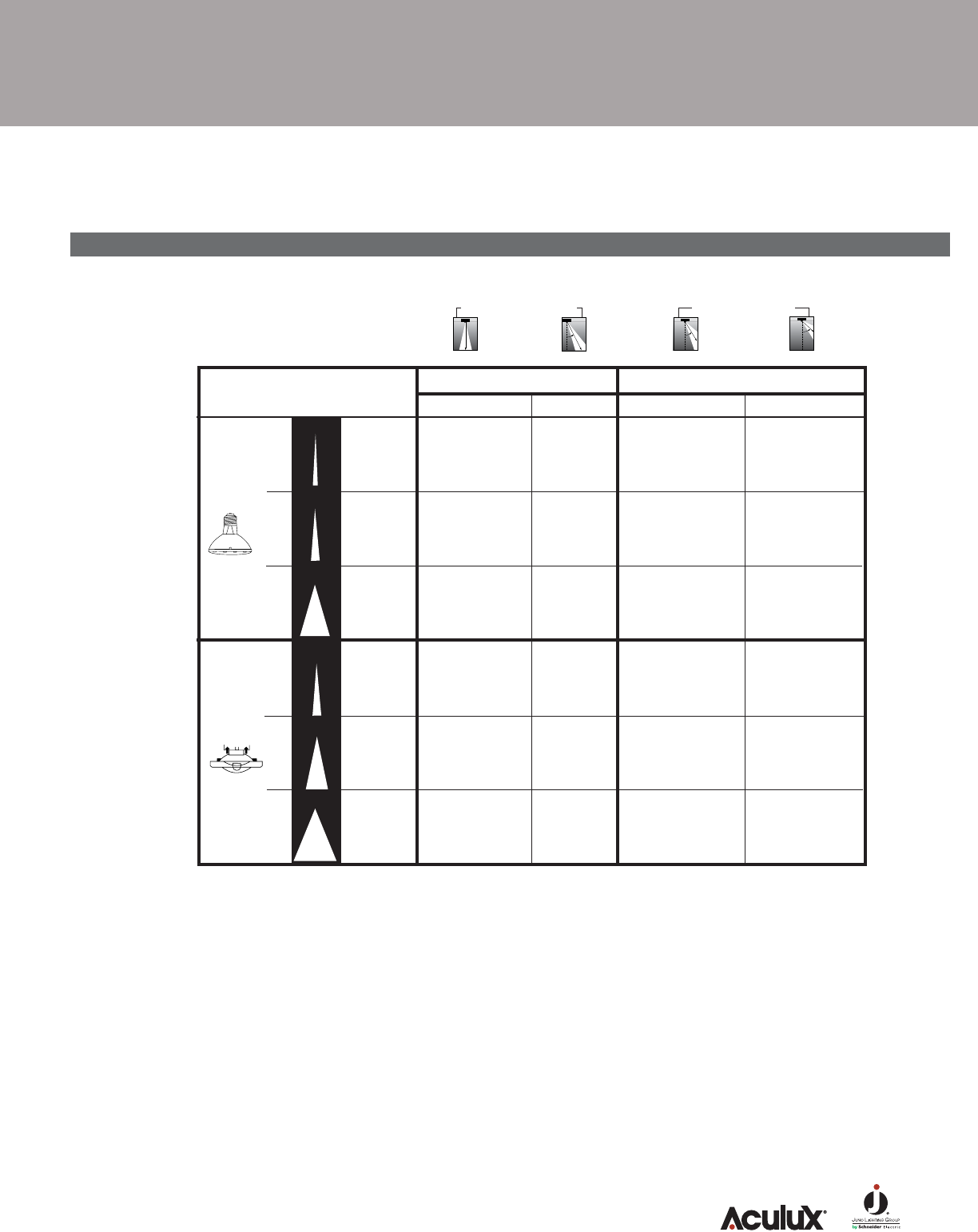

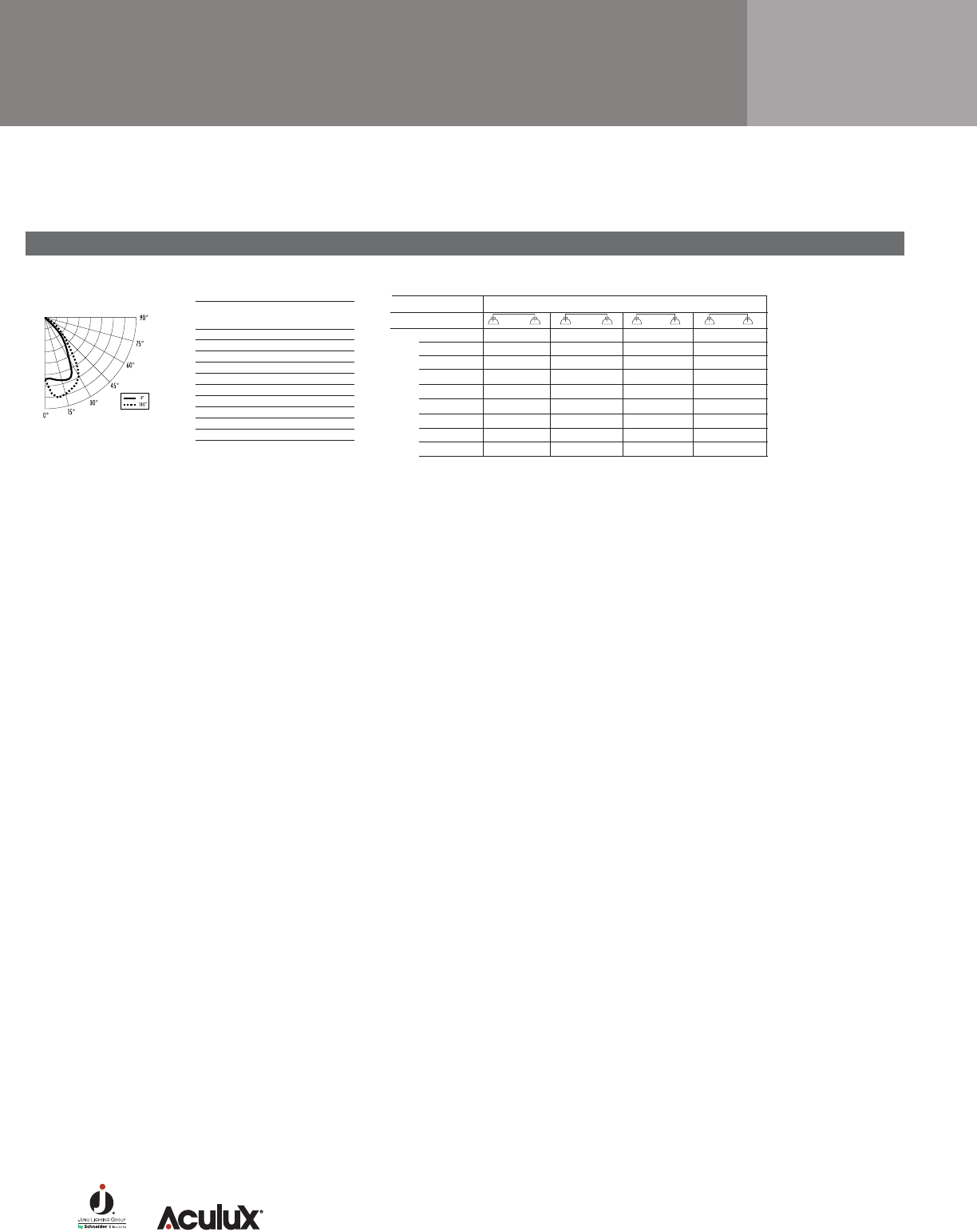

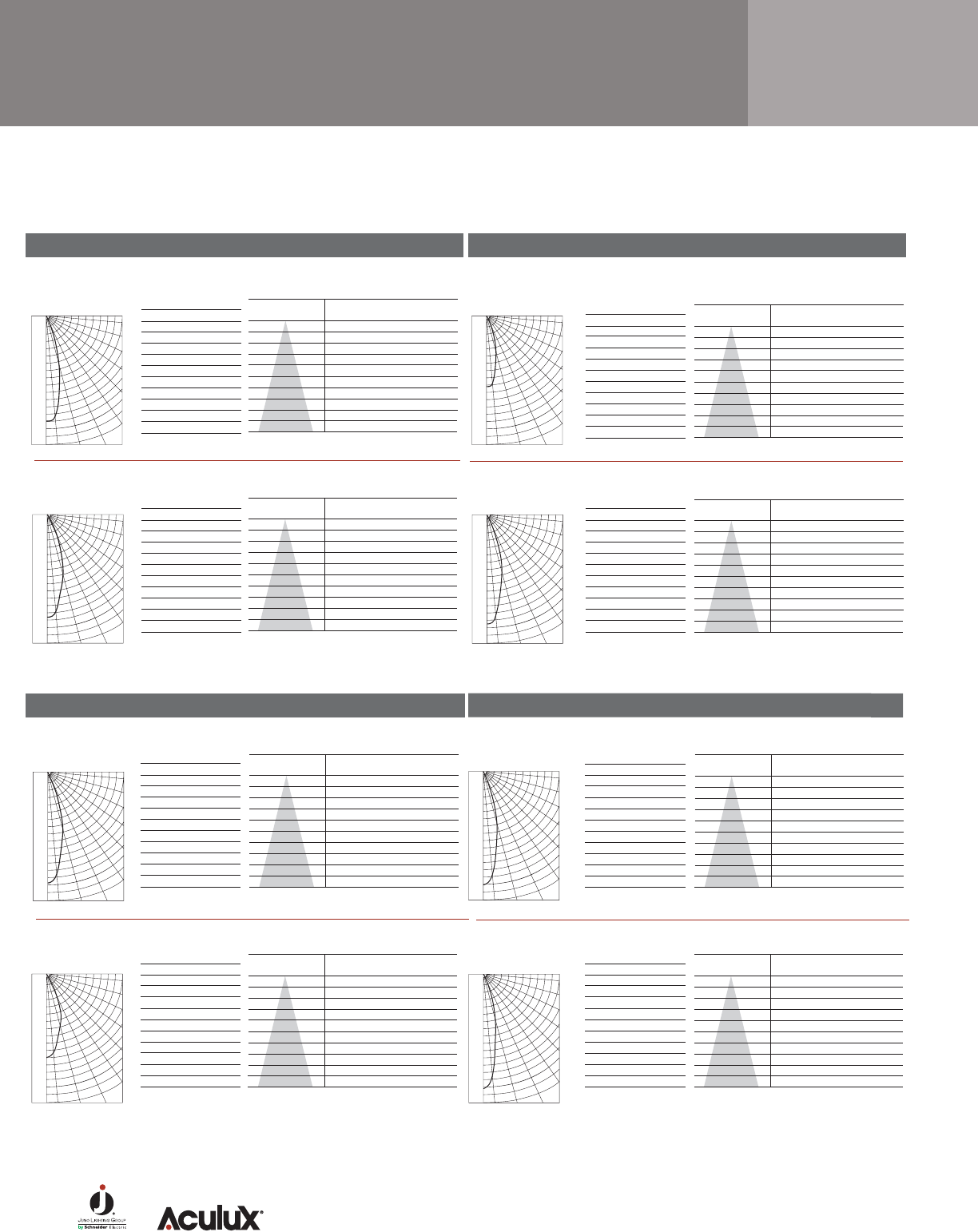

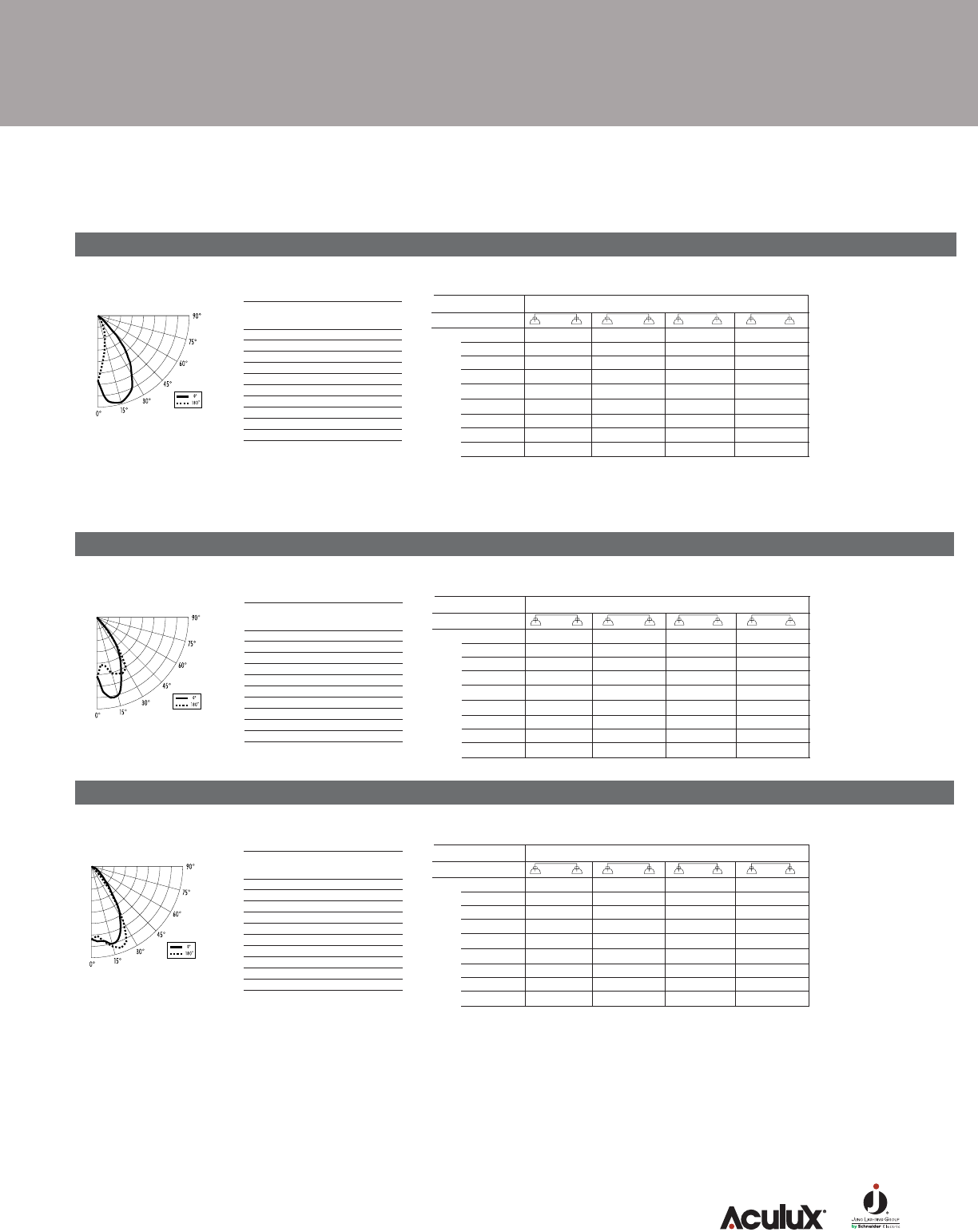

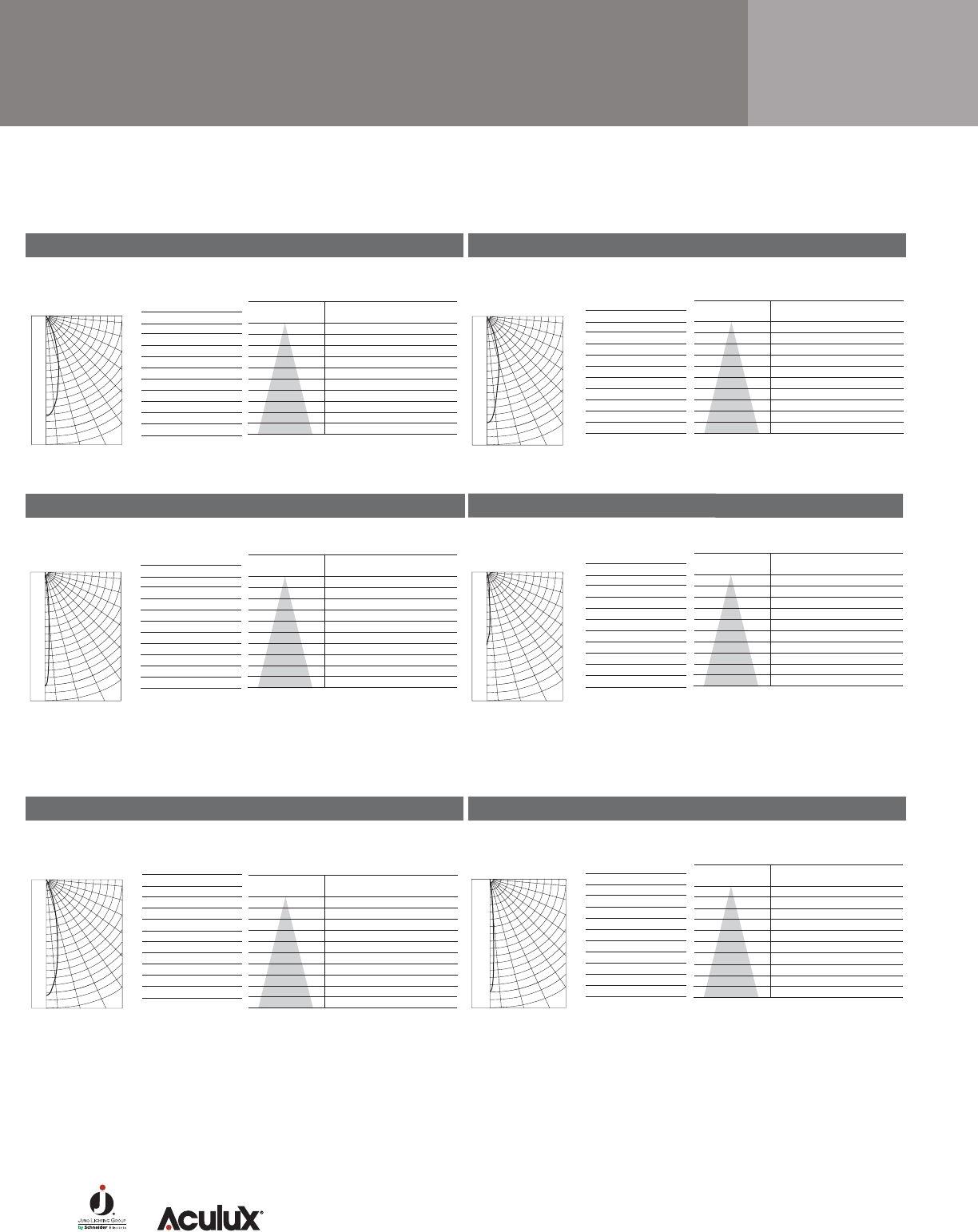

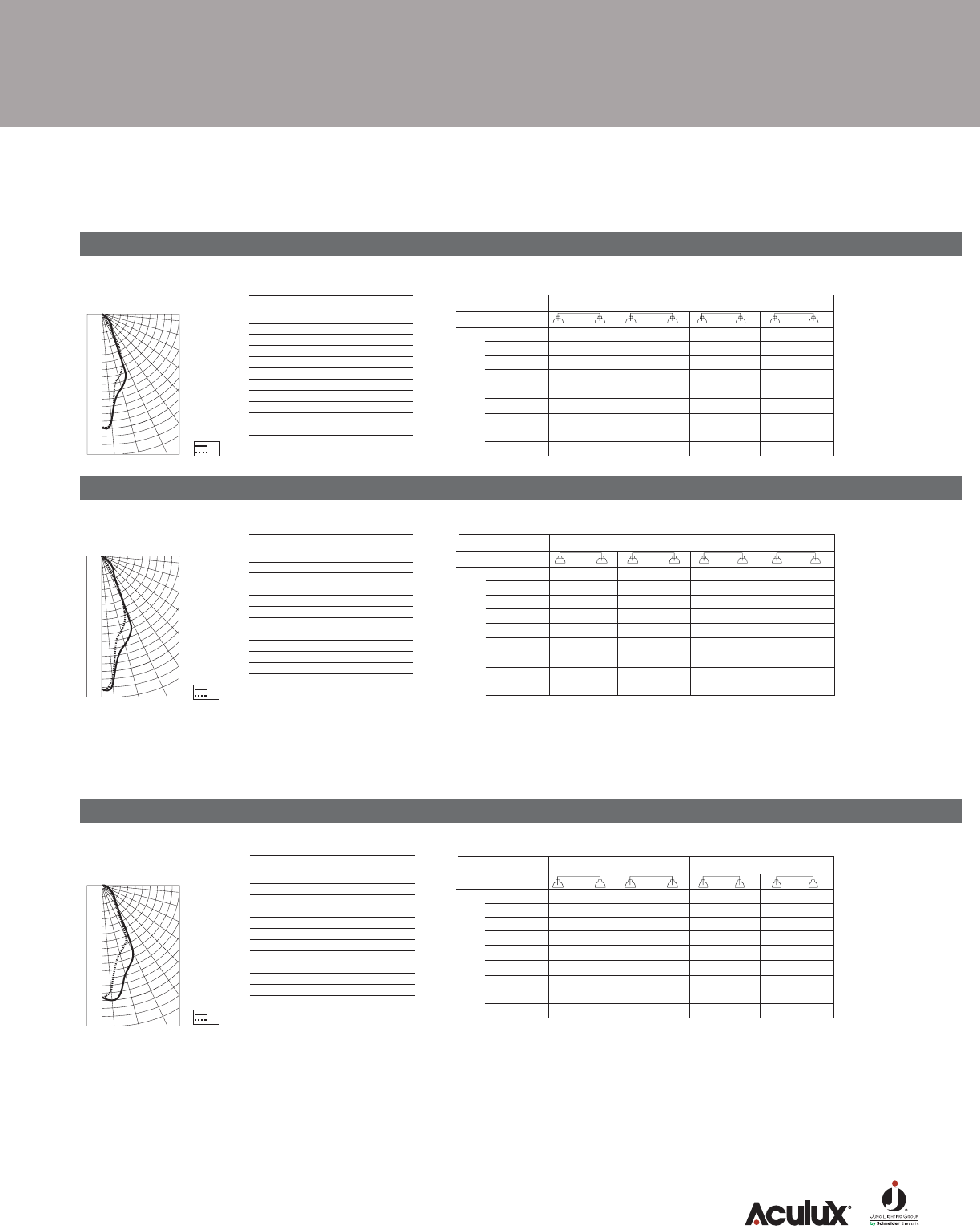

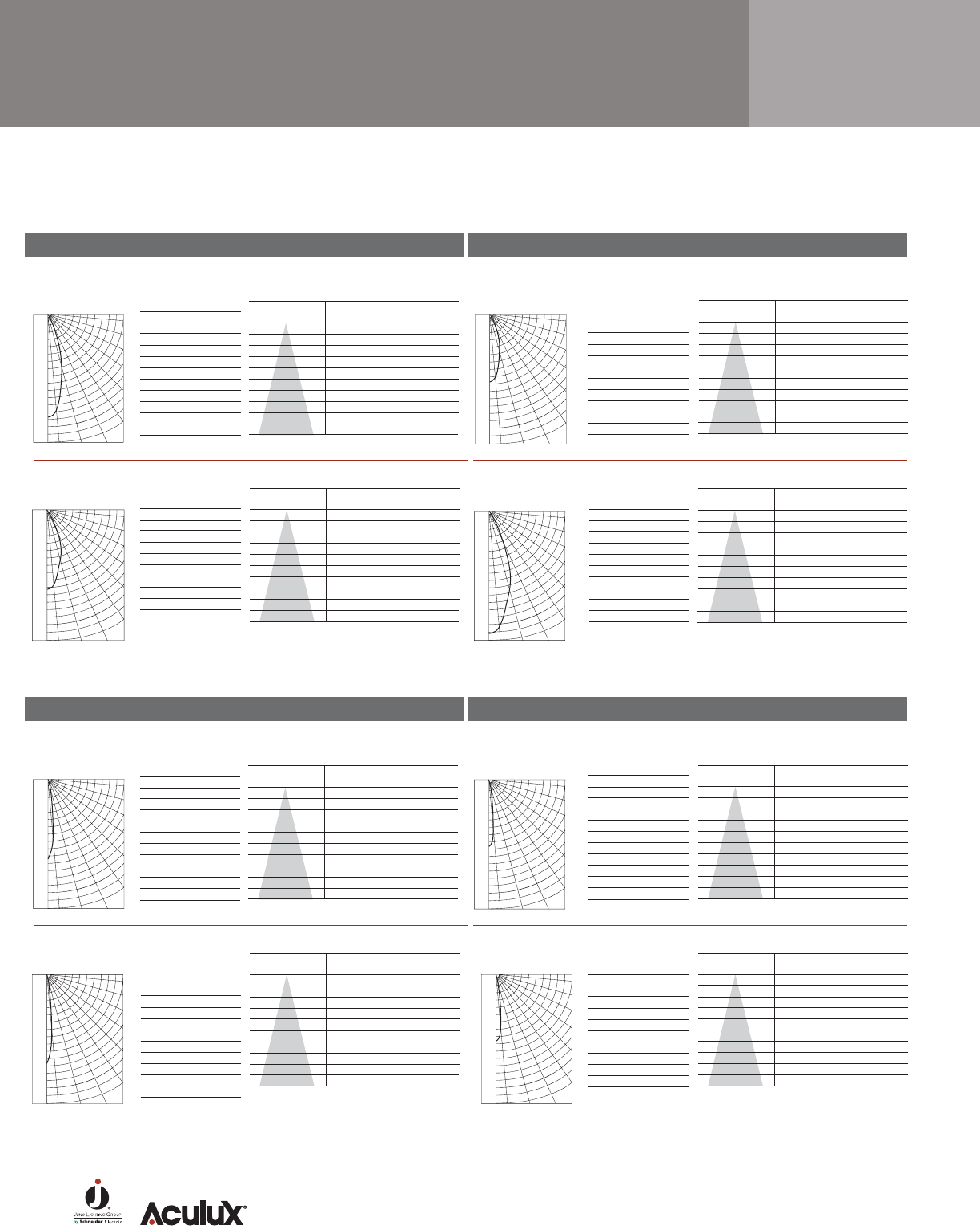

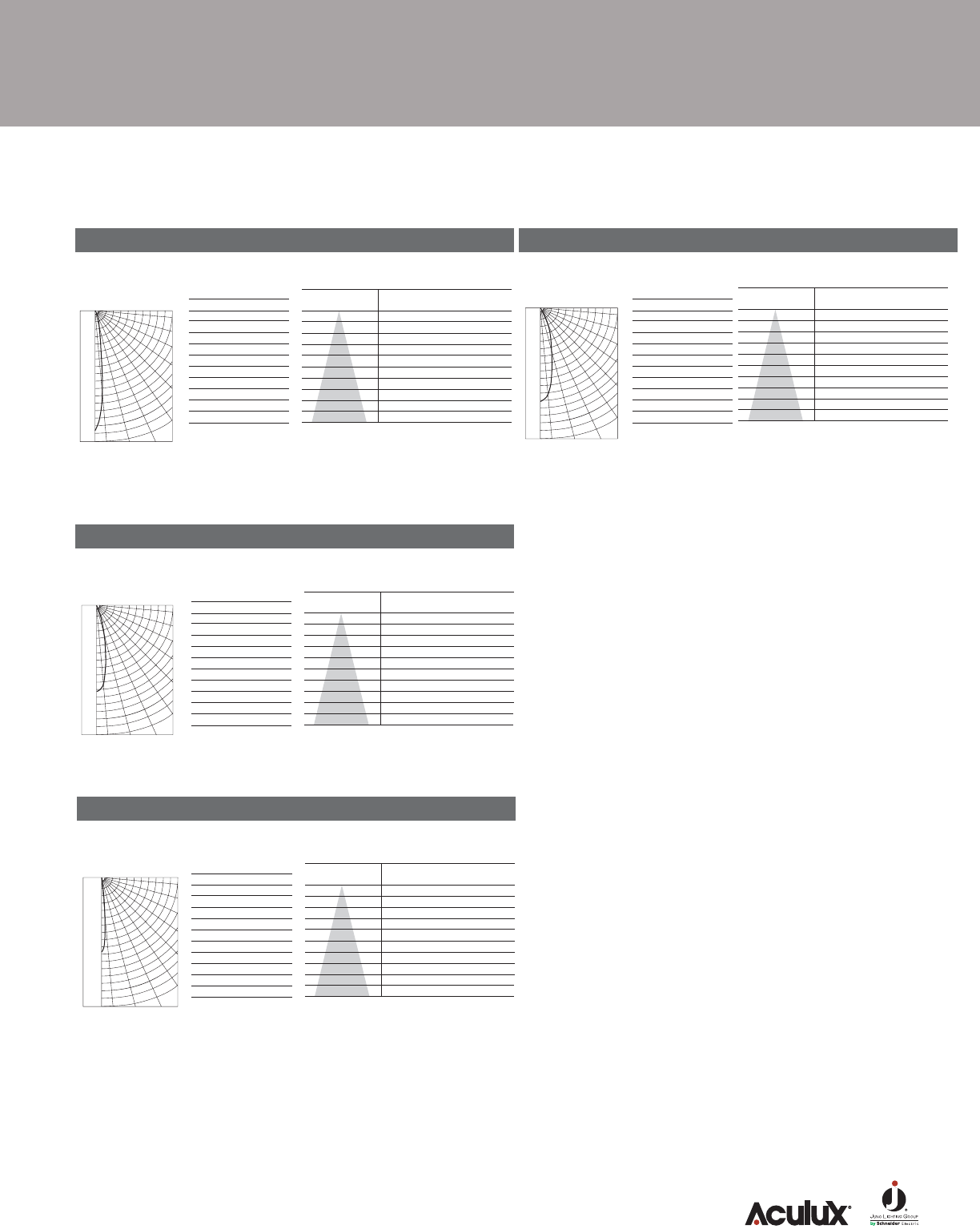

Photometrics .........................................................59

Rounds .............................................................................60

Squares ............................................................................78

Index ................................................................88-89

NEW

Contents

NEW

1

Aculux is Precision

Precision (noun) 1. Accuracy; exactness. 2. Made to adhere strictly to

a deﬁned standard. 3. Pertaining to or characterized by accuracy in

action: Aculux precision lighting.

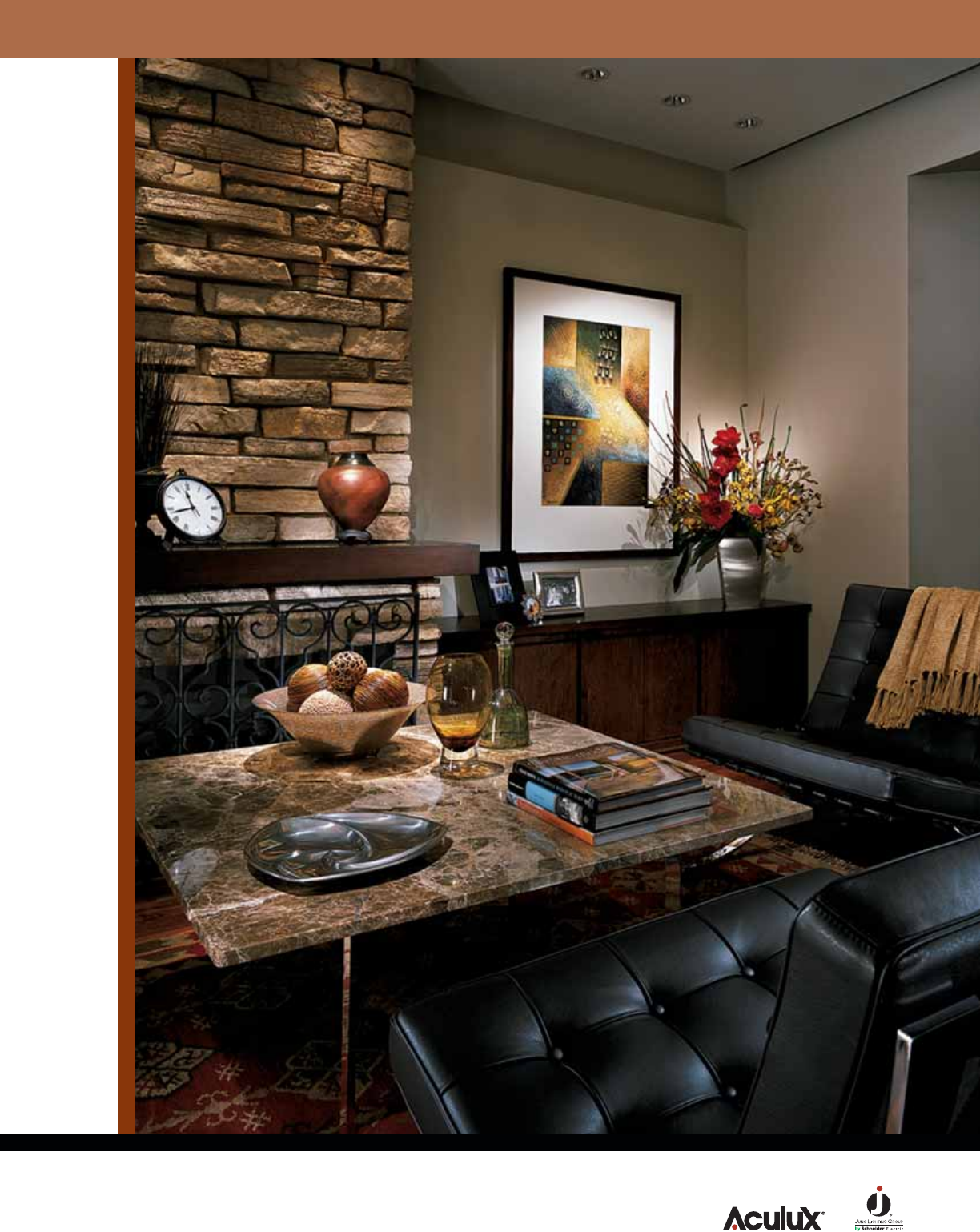

The unseen engineering

excellence of Aculux precision

luminaires is reﬂected in the

beauty of the spaces they

illuminate.

he showpiece artfully highlighted.

The wall dramatically awash in light.

The row of downlights in perfect alignment.

The beauty you see begins with the

excellence you don’t: the precision of

Aculux luminaires. Reﬂectors are hand-

polished and feature deep lamp regression

to reduce brightness. Precise geometry

ensures that the lamp beam shines through

the center of the aperture, regardless of

the tilt angle, to maximize light output and

eliminate glare.

Building on over a quarter century of

leadership in recessed lighting, Aculux

precision recessed luminaires offer superior

optical control and adjustment features

that aid professional lighting designers in

creating stunning visual effects.

Beautiful spaces begin with

the precision within

2

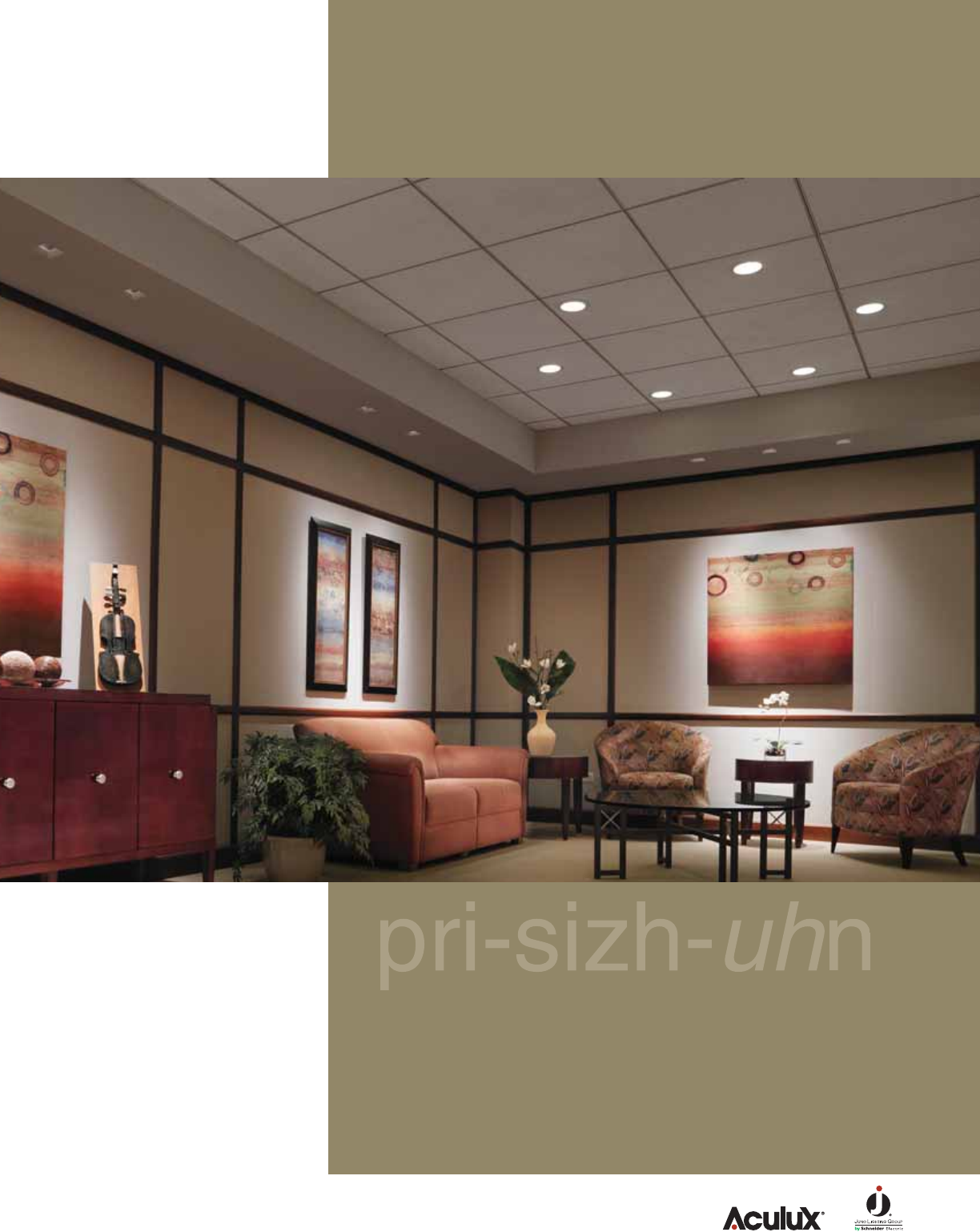

Aculux Precision Lighting

TAculux high-performance architectural-

grade recessed luminaires provide highly

efﬁcient illumination and dramatic,

space-enhancing effects from apertures

that quietly blend with the architecture.

Whether your interior is contemporary

or traditional, Aculux ﬁxtures deliver

stunning results quite distinct from

standard recessed ﬁxtures. And to further

the gap of standard recessed ﬁxtures,

Juno Lighting Group has raised the bar

once again in the precision lighting

community with its re-engineered 3 1/4”

Round and Square luminaires - incorpo-

rating exclusive features, designs and

LED precision lighting that are the

result of continuous, industry leading

innovation.

3

Aculux IC and TC* housings meet IECC Energy Code requirements

per ASTM E283. Aculux IC and TC housings are Air-Loc®rated for

maximum energy savings. The sealed Air-Loc construction eliminates

the transfer of conditioned air out of, or unconditioned air into,

a living space to maintain maximum energy efficiency and comfort.

The sealed Air-Loc construction also helps preserve sound proofing

and eliminates the possibility of dirt, dust and insects entering a room

through the recessed luminaire.

* 3 1/4” TC housings where noted.

Aculux IC CFL downlight is listed as

Energy Star qualified product. Energy

Star, a government-sponsored pro-

gram, establishes criteria and testing

requirements to ensure energy efficient

luminaires meet consistent perform-

ance standards. Many local utilities

offer builders rebates for installing

Energy Star qualified products. Juno

Energy Star qualified fixtures comply

with California Title 24 Energy Code.

Air-Loc®Rating

Our complete offering of Aculux

premium luminaires

Brilliance in all its forms

ven more than before, there’s

an Aculux precision luminaire

designed to cast any commercial or

residential setting in a favorable light.

Aculux continues to offer 5 5/8”, 6” and

7” ﬁxtures that provide a vast range of

choices: low voltage halogen, line

voltage PAR/A-Lamp and compact

ﬂuorescent lamps in various trim color

and styles, conﬁgured for an inﬁnite

variety of uses.

The new 3 1/4” Aculux recessed lighting

rises to a whole new level of understated

beauty, with a full line of dramatically

upgraded round and square adjustable

luminaires (p.6). Aculux luminaires are at the

forefront of energy efﬁcient technology with

the introduction of the new round and

square ceramic metal halide (CMH) ﬁxtures.

Furthermore, Aculux luminaires demon-

strate major new advances in recessed

applications with the introduction of light

emitting diode (LED) adjustable ﬁxtures

speciﬁcally designed for accent, downlight-

ing and wall washing illumination.

In these and other ways, the Aculux brand

is meeting the challenge of subdued,

precise and high performance lighting

in brilliant fashion.

Wet Location

UL Listed for use in wet locations.

Energy Star Products

E

4

NEW

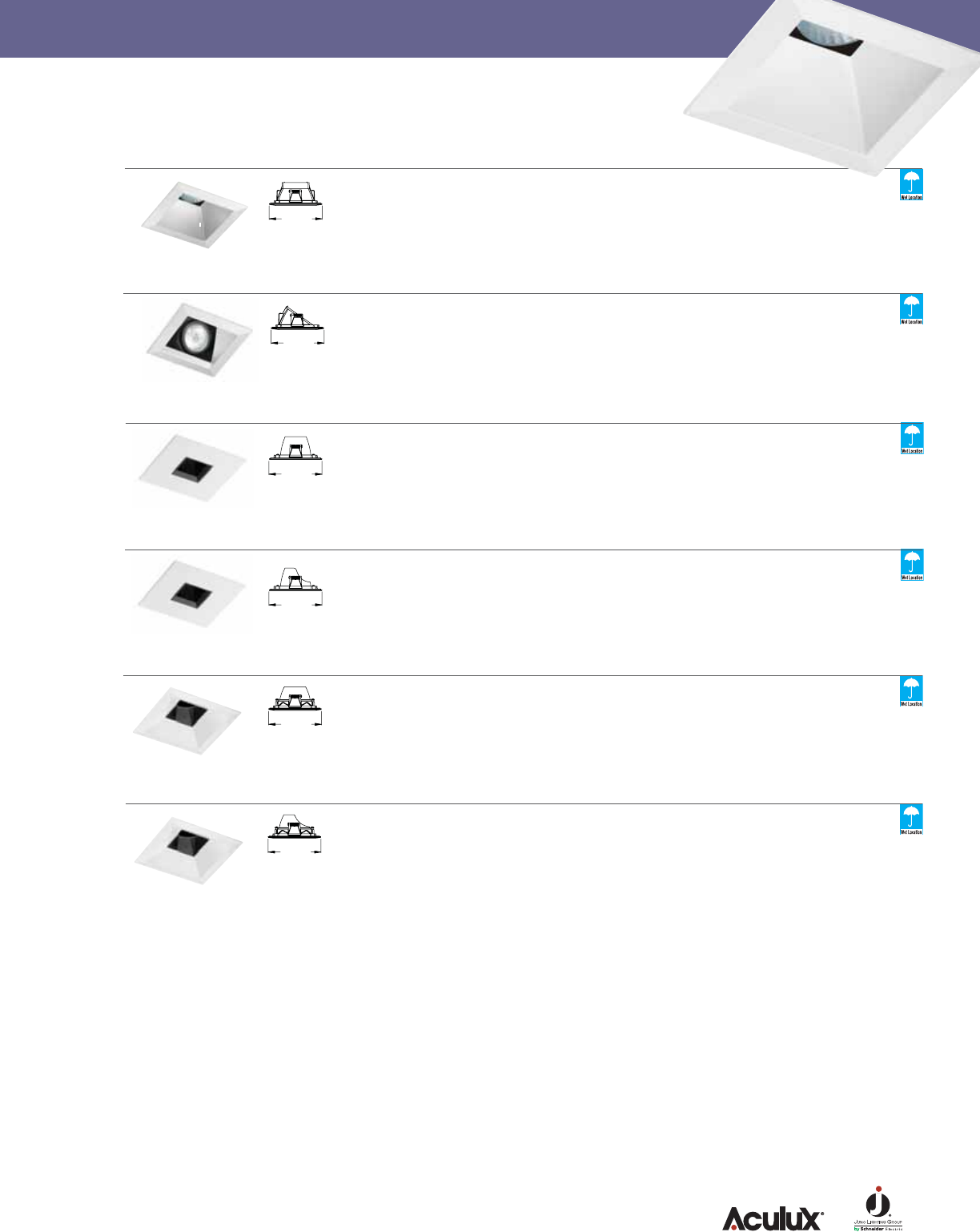

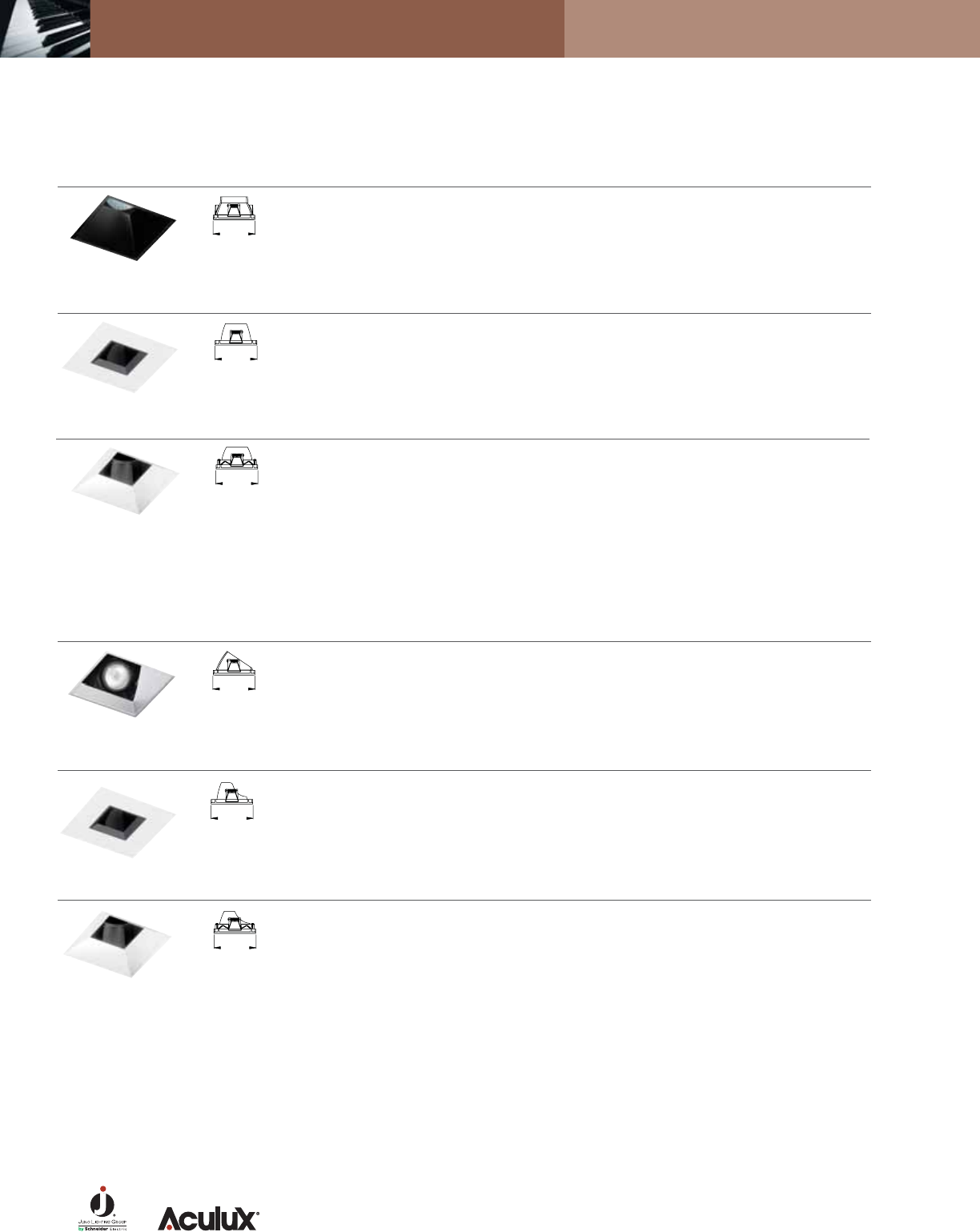

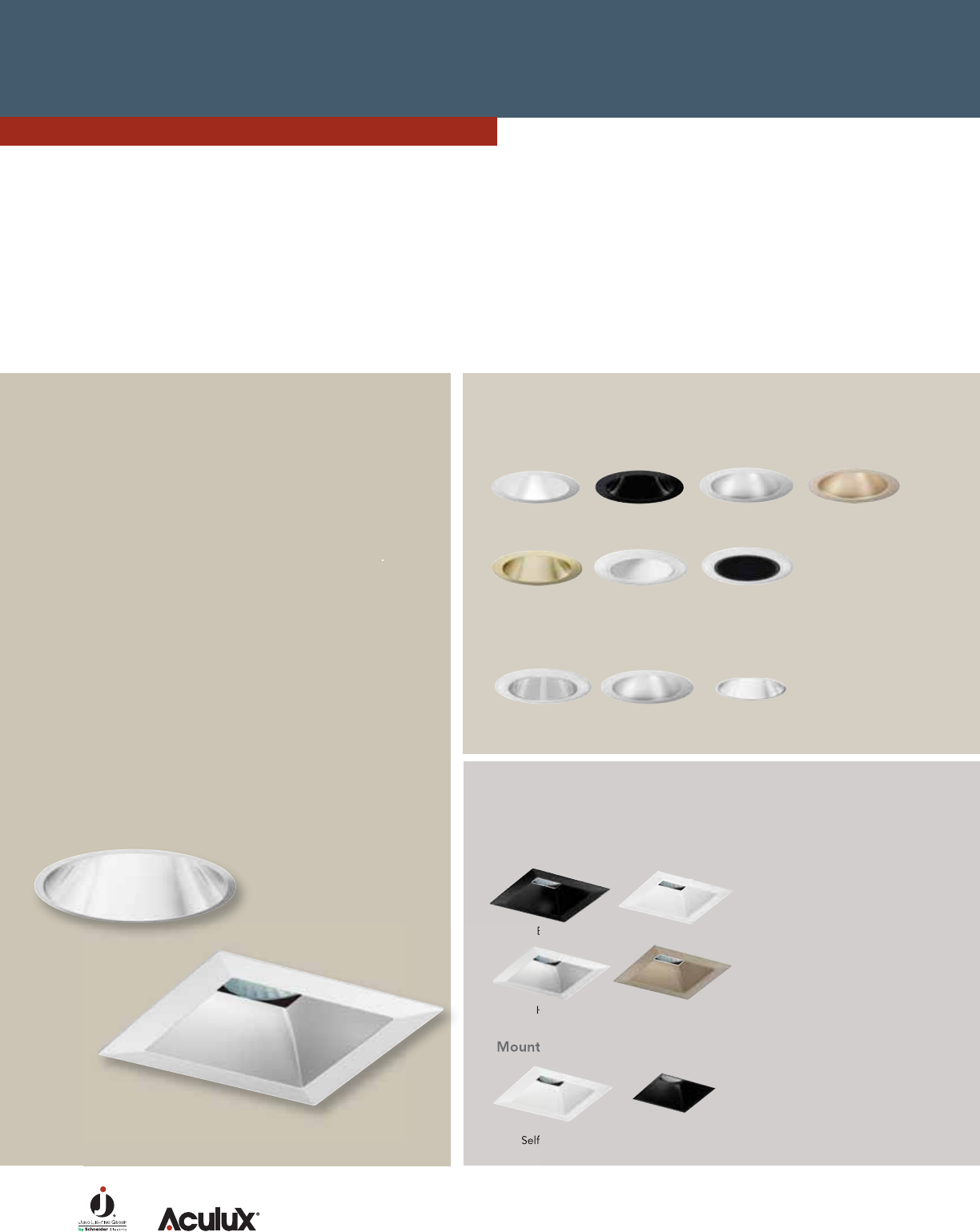

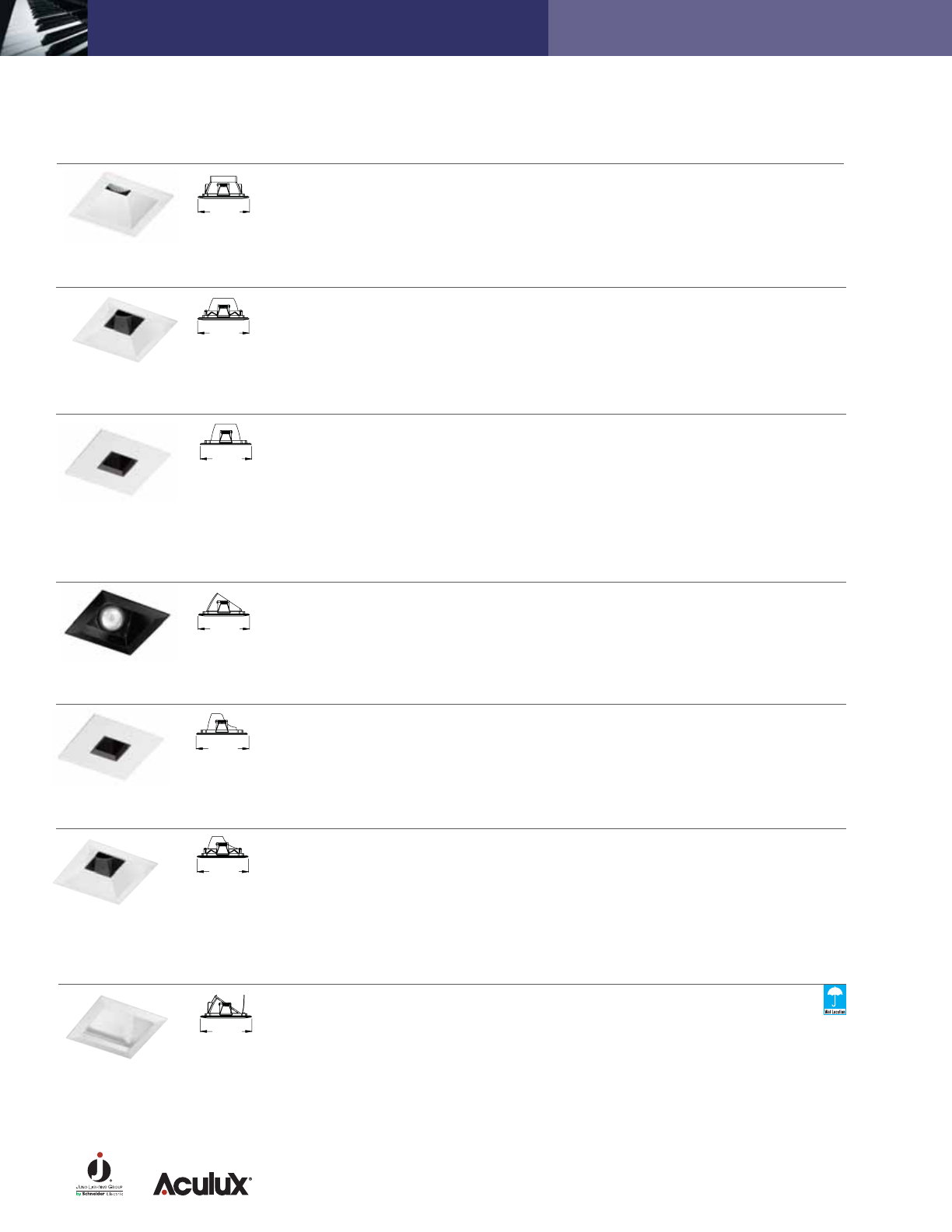

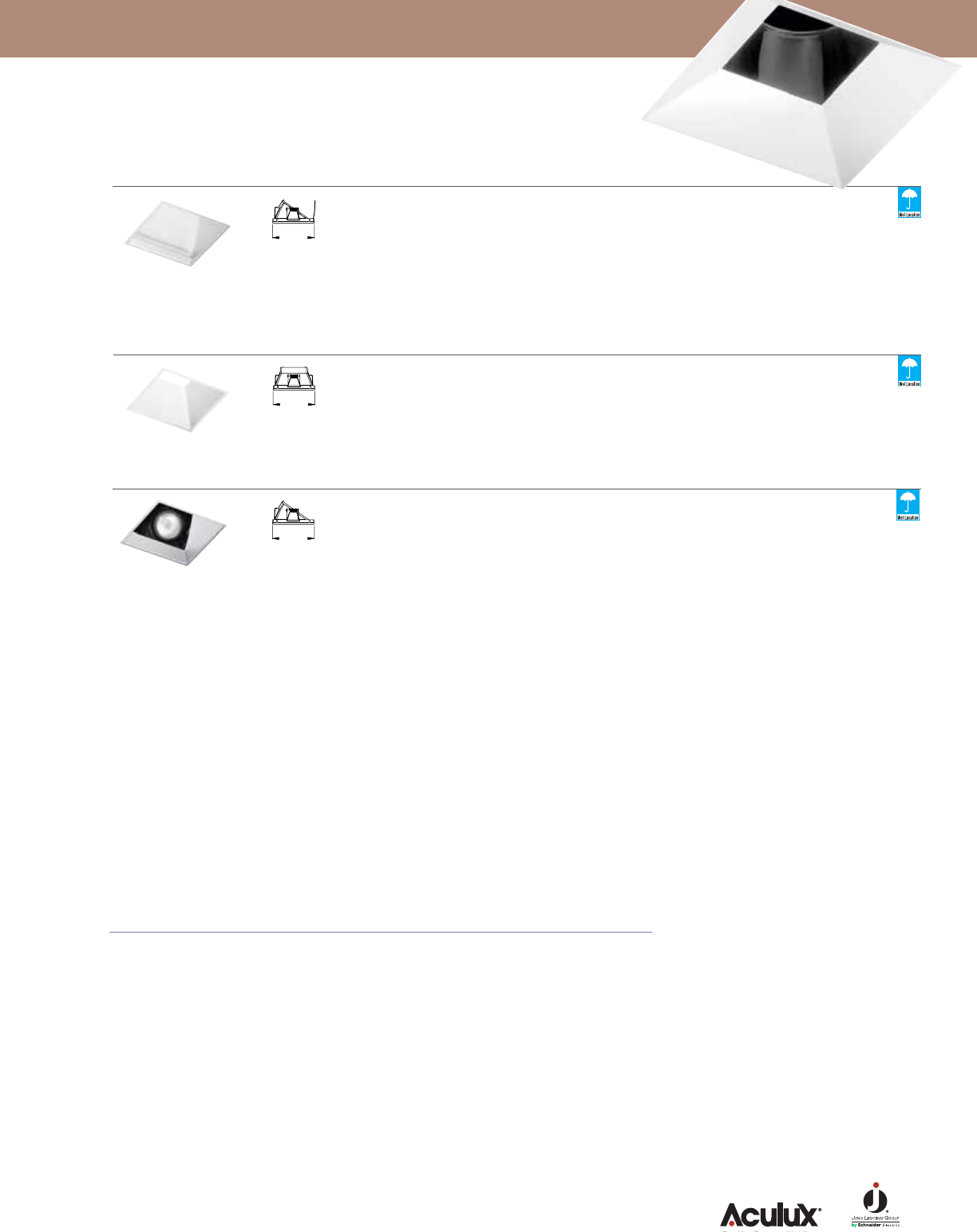

Square Trims

Offered with the new Aculux 3 1/4" square luminaires.

The die-cast square reﬂectors maintain perfectly aligned

corners, have deep lamp regression and parabolic

sidewalls to minimize glare. Choose from self-ﬂanged

or ﬂush mount in an inscribable selection of styles and

ﬁnish options.

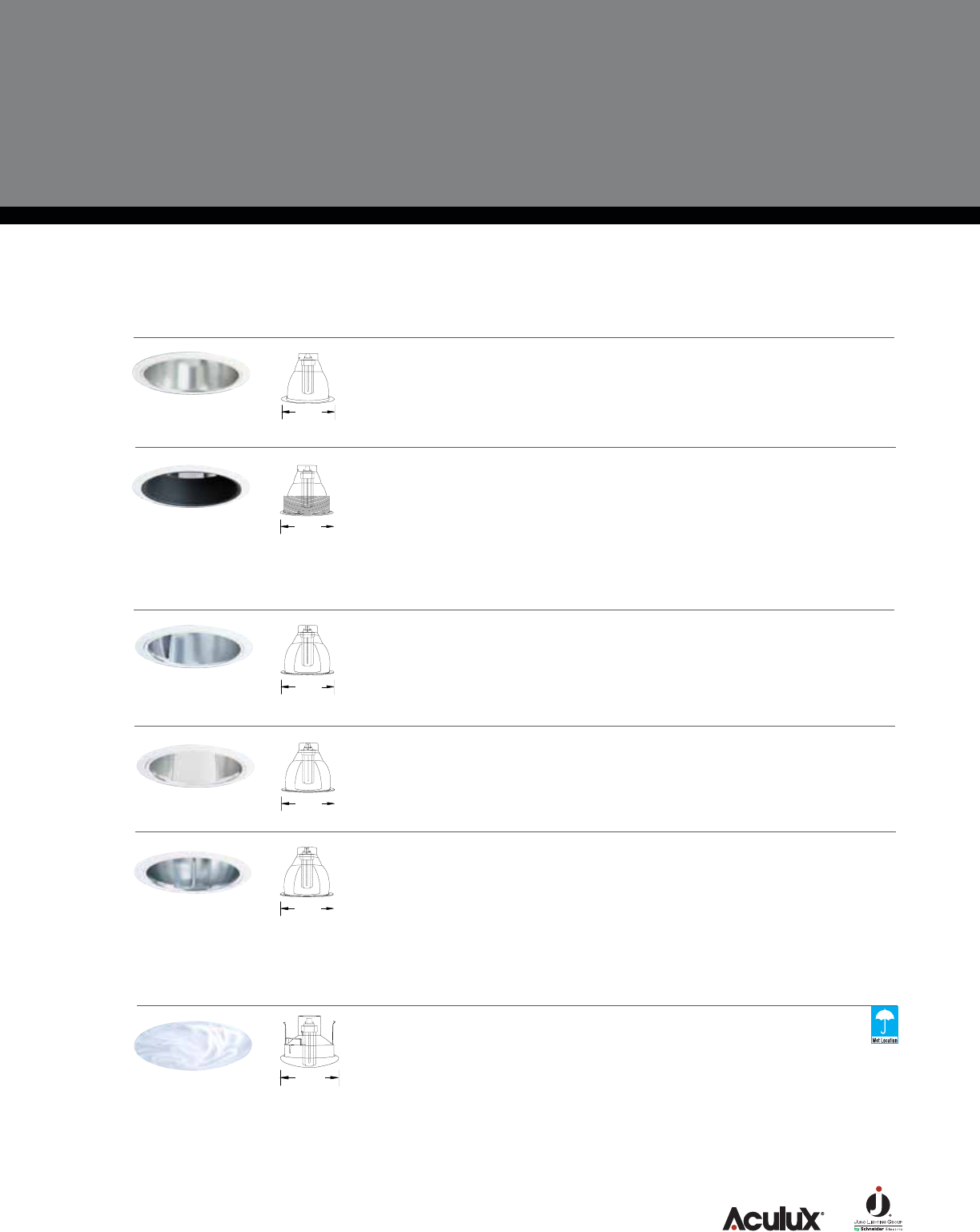

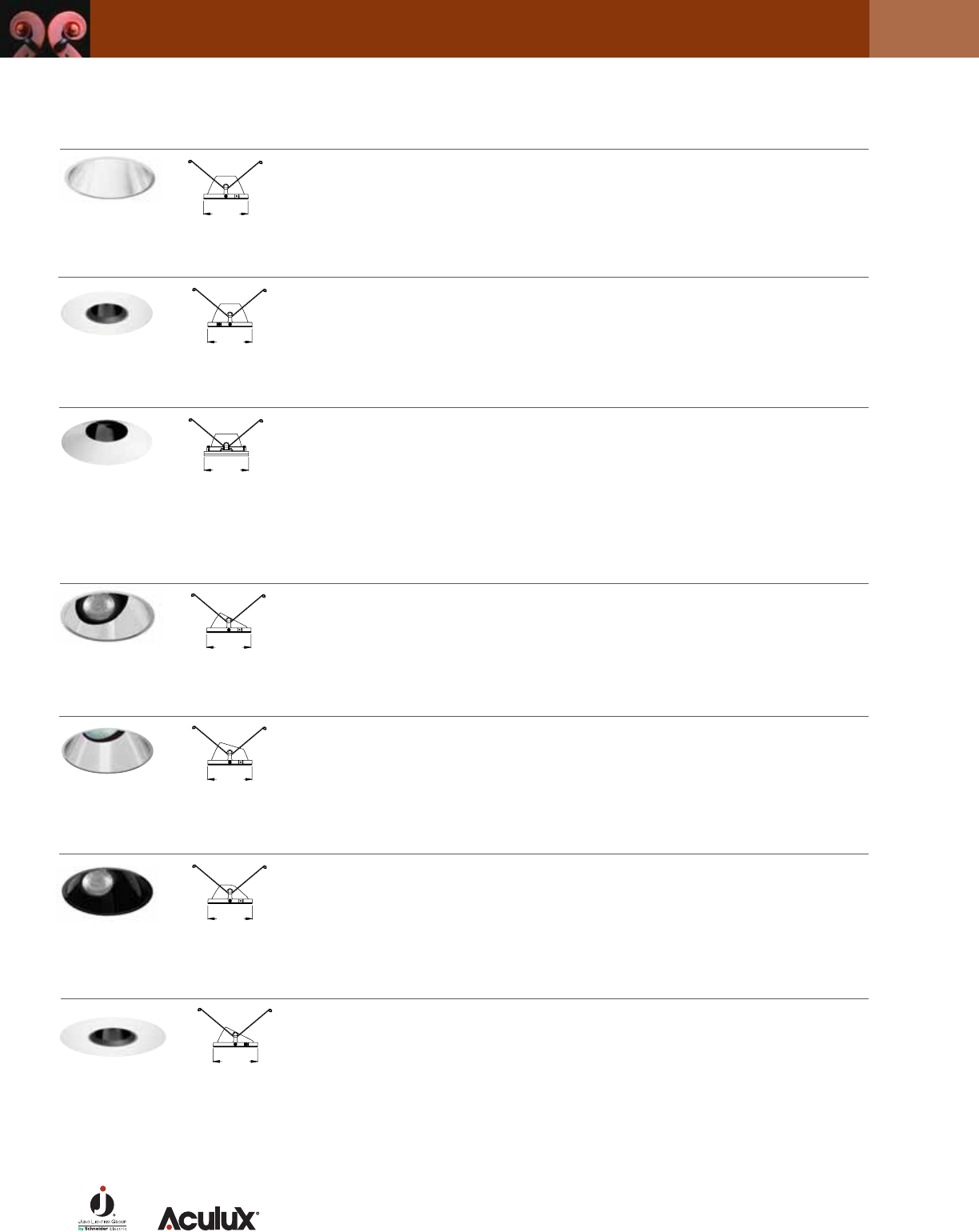

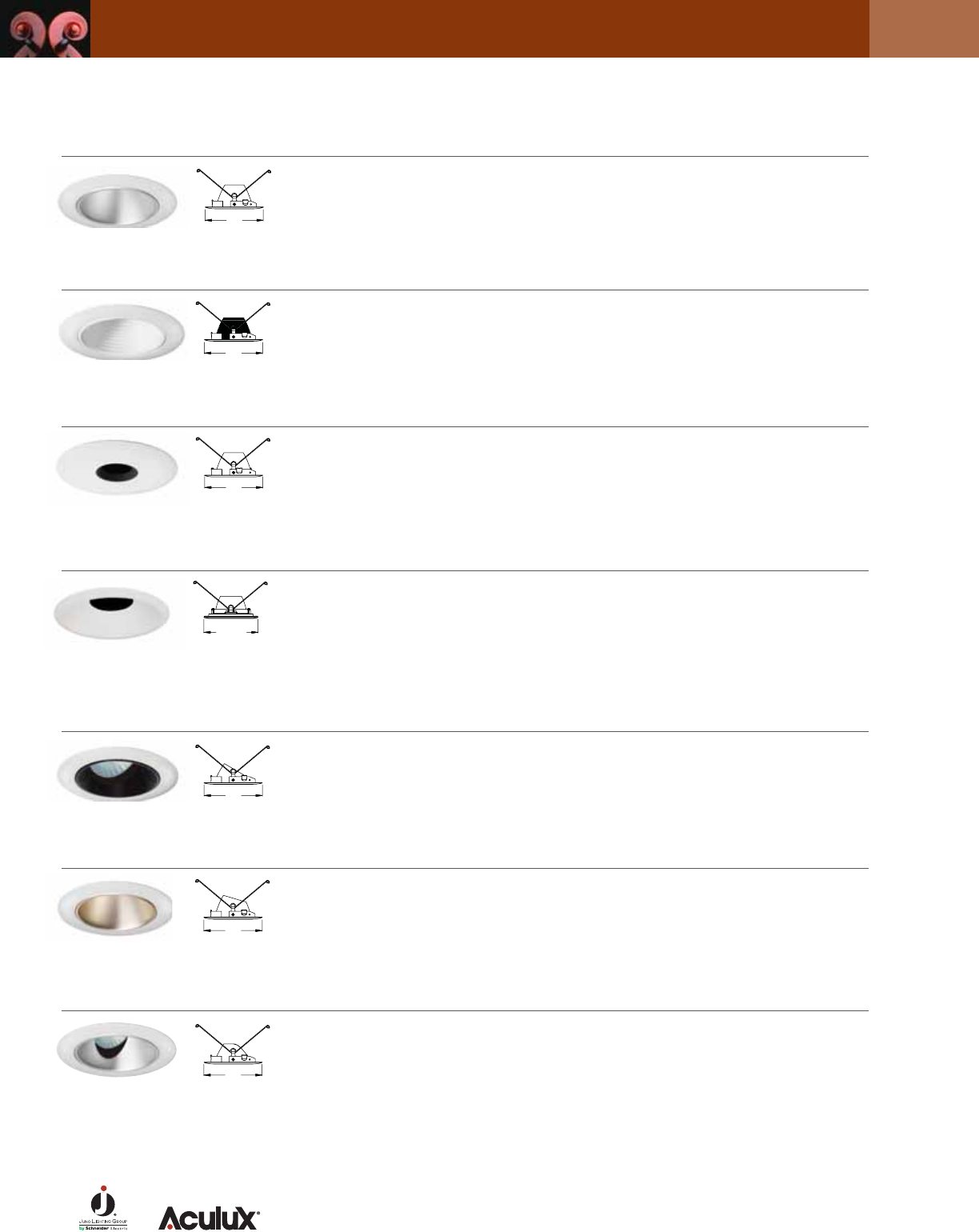

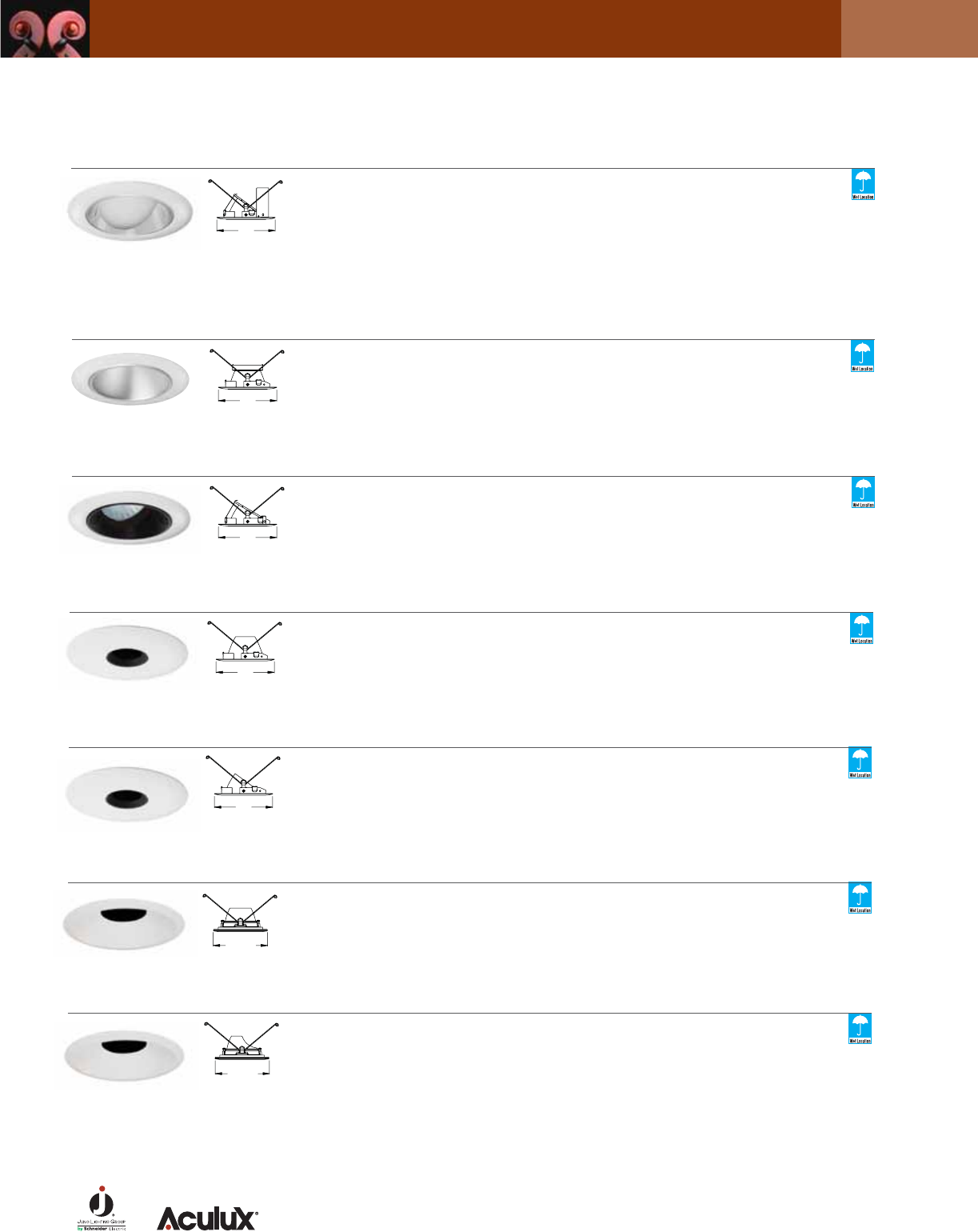

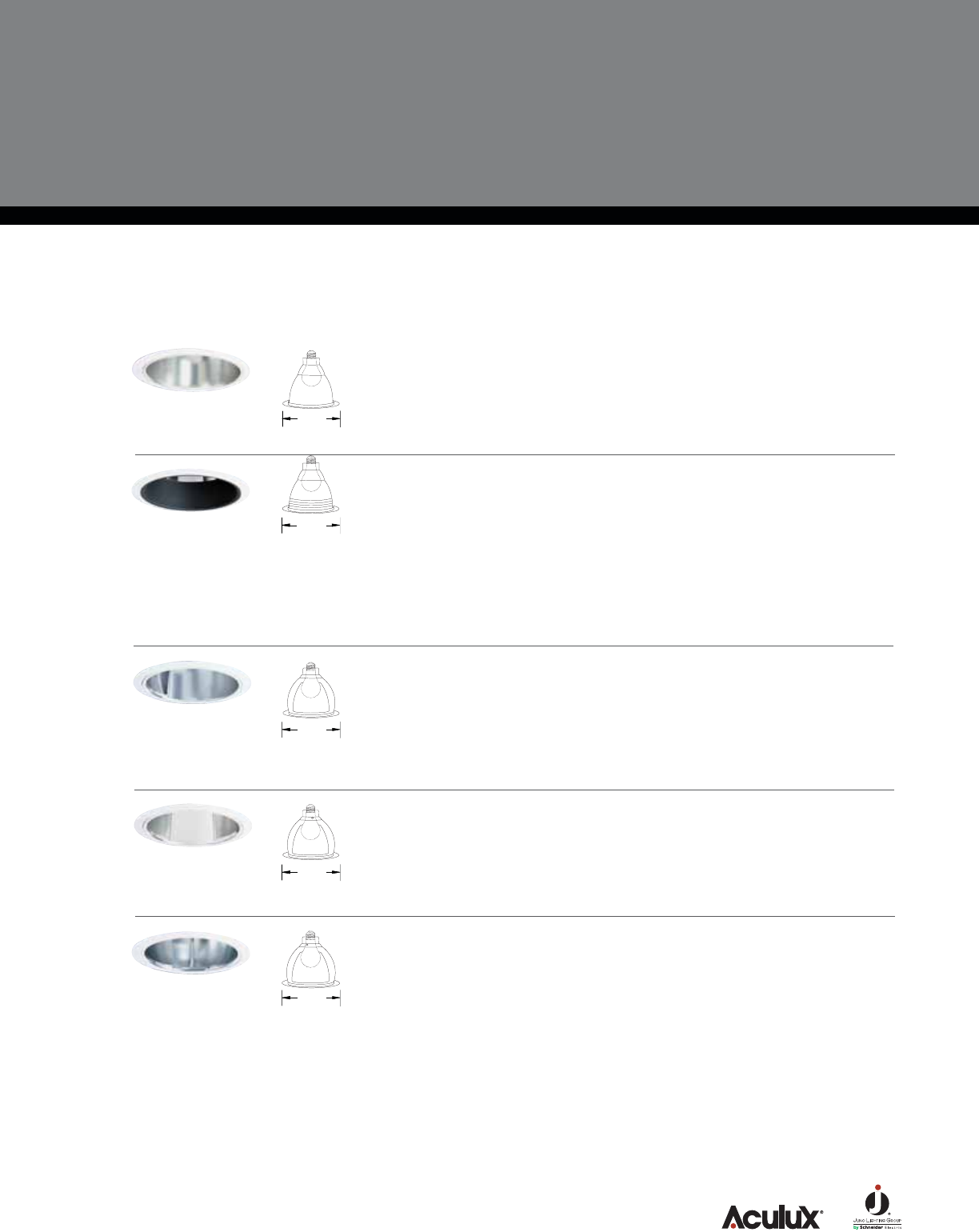

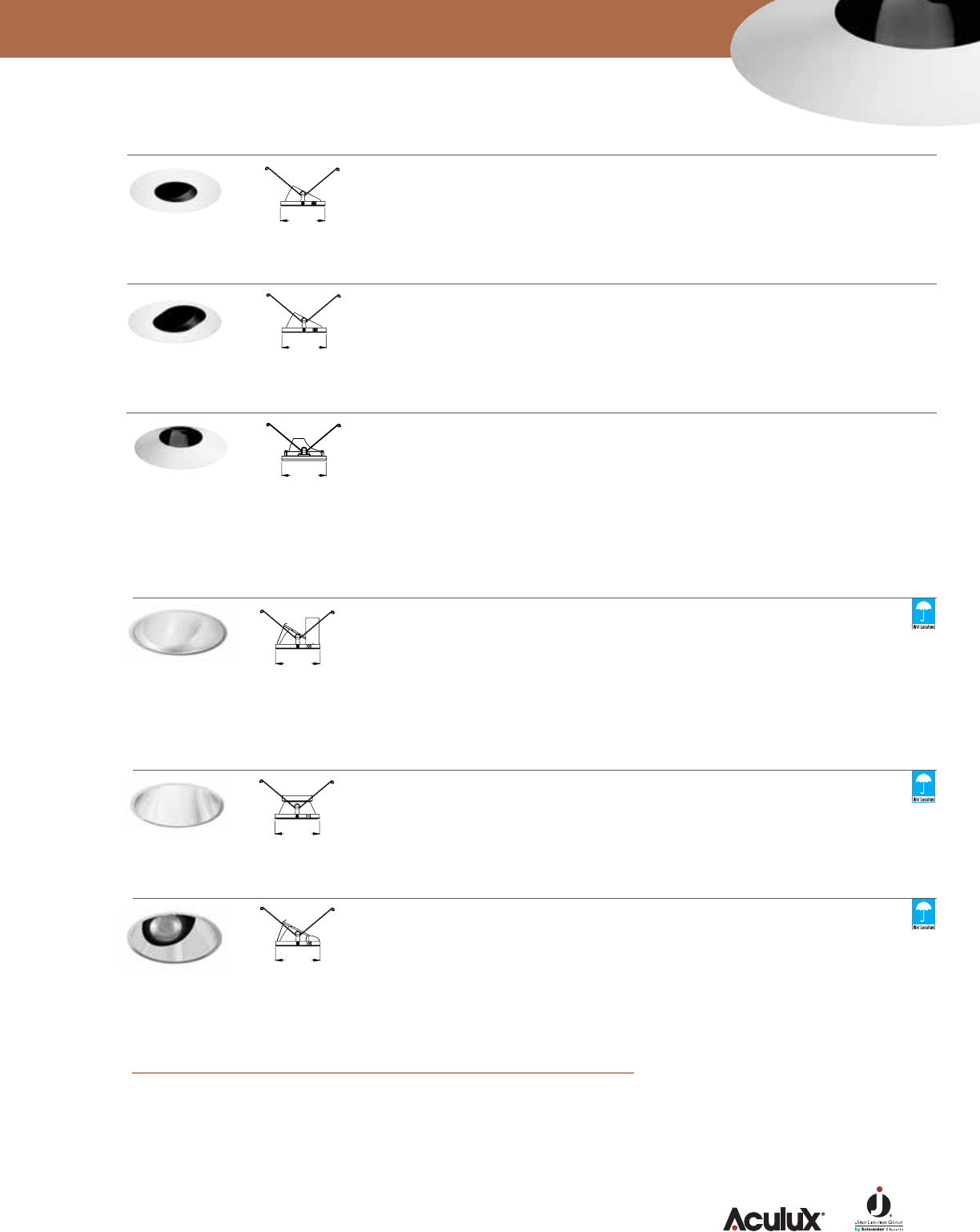

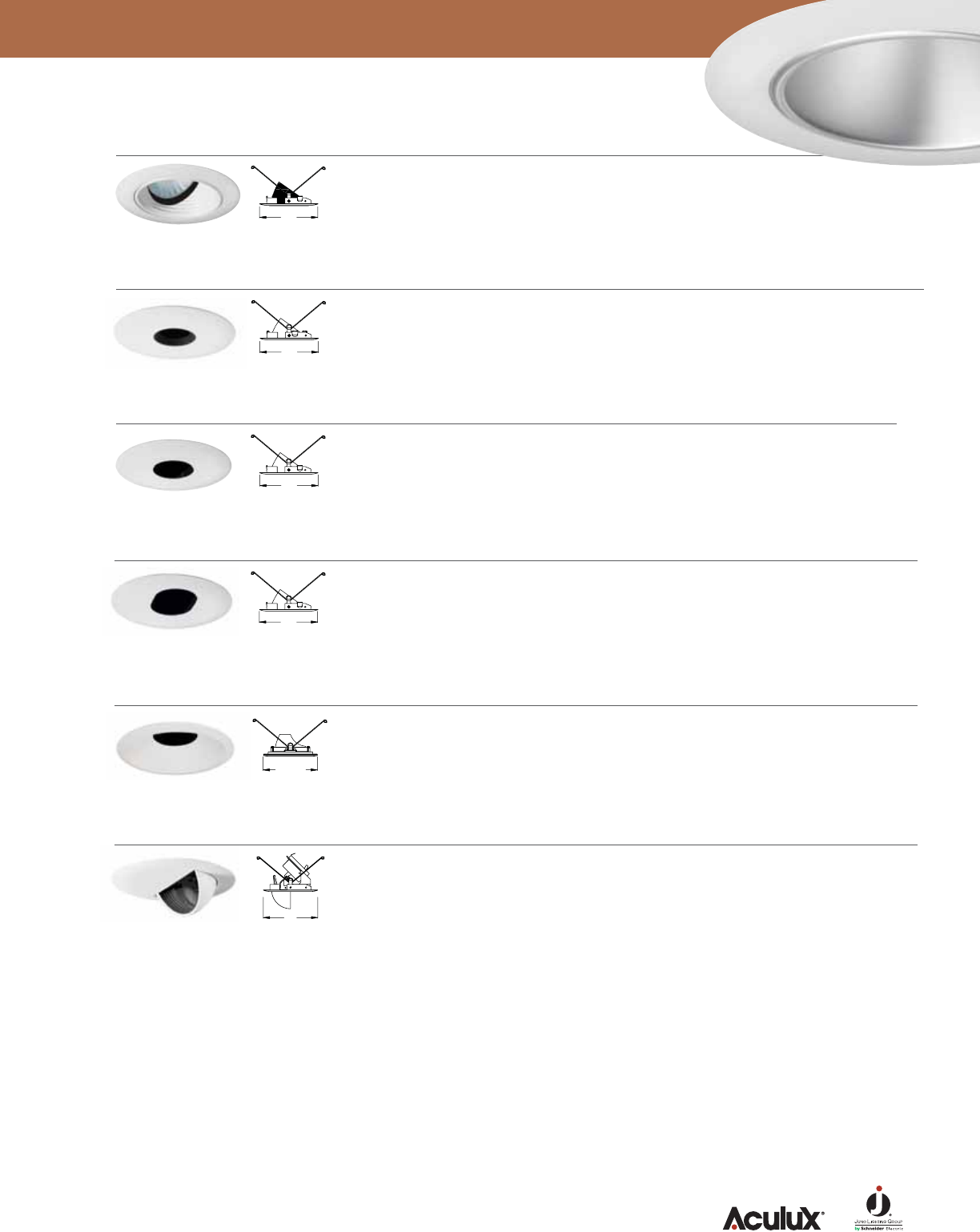

Round Trims

Designed to blend quietly with architecture, Aculux

features a comprehensive selection of hand polished

reﬂectors with deep lamp regression that perform

different functions to create a multitude of dramatic

lighting effects. Choose from downlights, adjustables,

wall wash, pinhole, in an array of reﬂector ﬁnishes or

bafﬂe apertures to suit your individual aesthetic

preference.

Aperture Selection

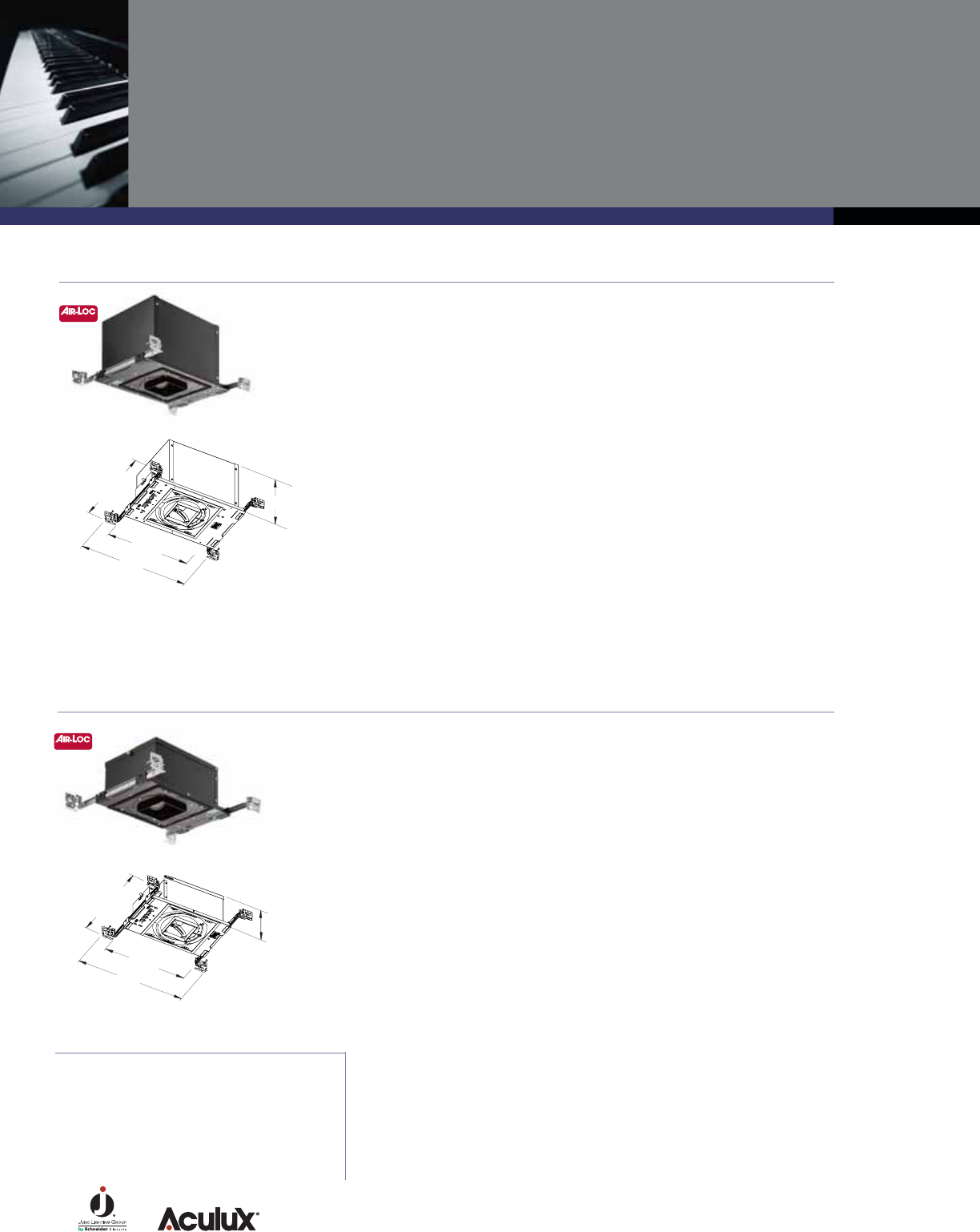

3 1/4” Round and Square Housings

LED Adjustables

Exceptional 50,000 hour lamp life, energy conscious

precision lighting for accent, wall wash, and downlight

illumination.

MR16 Halogen Adjustables

Precisely controlled and excellent color rendering

for accent, wall wash, and downlight illumination.

PAR16/PAR20 Adjustables

Low to medium light level accent and downlight

illumination.

CMH MR16 Adjustables

Extended operating life, energy efﬁcient and excellent

color rendering for low to medium light level accent,

wall wash and downlight illumination.

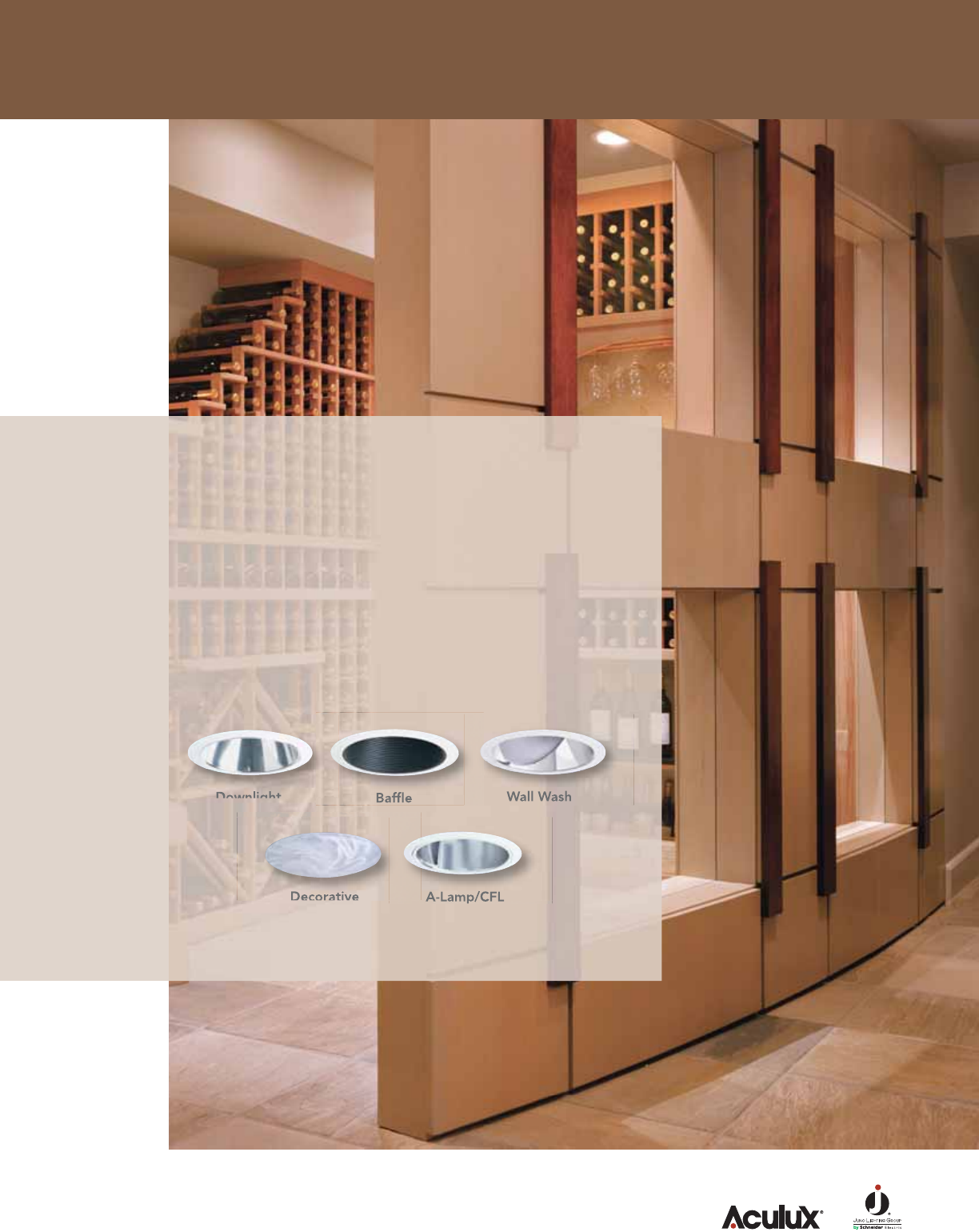

5 5/8” - 6” Round Housings

PAR36/AR111 Adjustables

Produces a tight, collimated beam of light that

provides high-intensity, pinpoint illumination

over great distances.

PAR30/PAR38 Adjustables/Wall Wash/DownLights

Provides medium to high light level accent,

general, task, and wall wash illumination.

Incandescent/CFL Housings

Diffuse, widespread illumination from economical

incandescent A-lamps or energy efﬁcient compact

ﬂuorescent lamps.

7" PAR38 Round Housing

For accent, task or downlighting from high ﬂat or

sloped mounting heights.

Framing Projector

Produces an adjustable rectangular light pattern

to dramatically “frame” art with light.

NEW

5

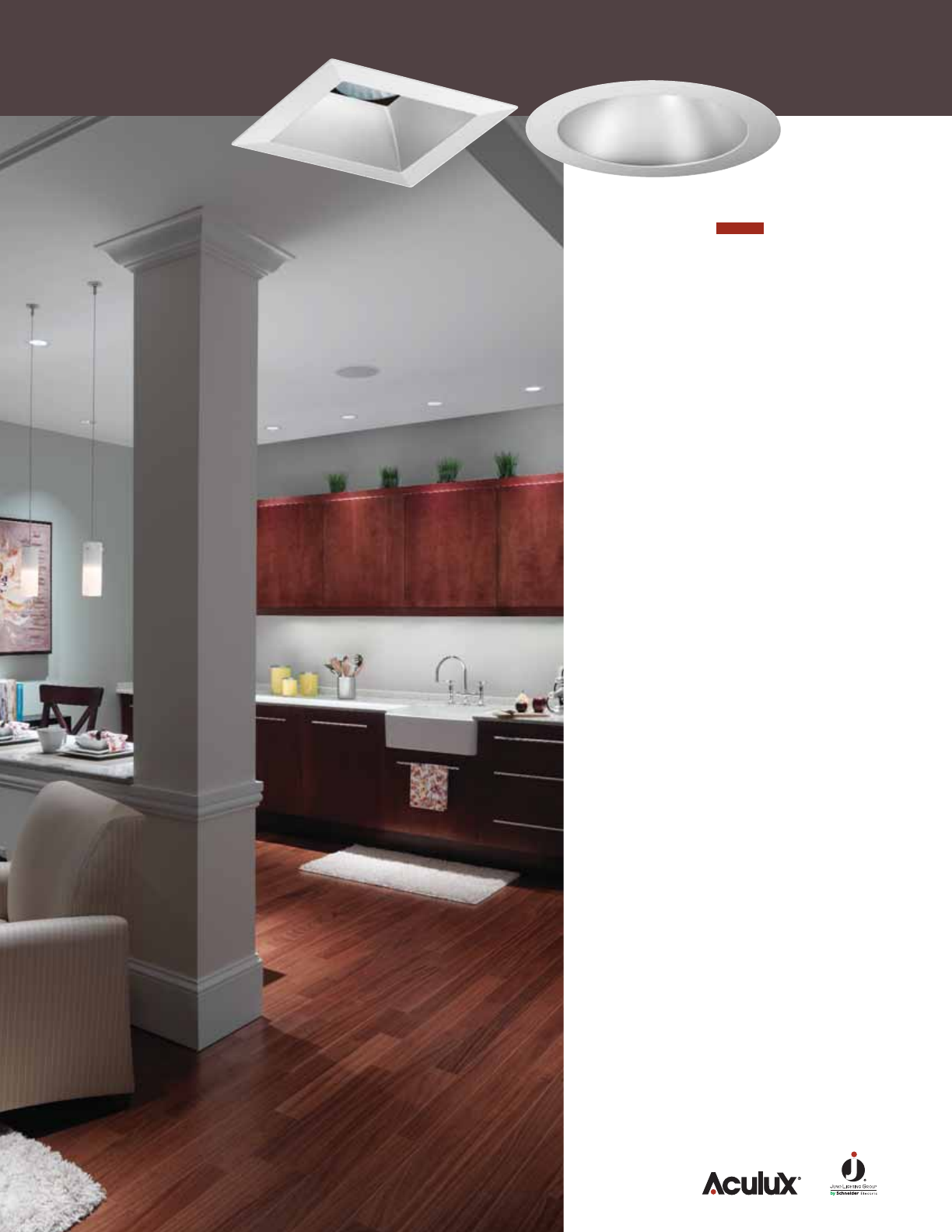

A new larger line of smaller ﬁxtures

3 1/4”round and square luminaires

ew Aculux 3 1/4” adjustable

luminaires pack outsized engineering

into some of the industry’s smallest,

most discreet apertures. These minimalist

ﬁxtures come to you in a vast range of styles.

But if these compact luminaires impress

with their variety, they positively shine

in their performance. Lamp angle and

rotation are ﬁne-tuned with precision gears.

Housings, transformers, connectors and

bar hangers have been rethought

for easy, ﬂawless installation. Trims are

meticulously engineered to draw attention

to the room, not to themselves. In every

detail, the truth can be seen: the more

Aculux precision luminaires are reduced

in size, the more impressive they grow.

N

NEW 3 1/4” LUMINAIRES

6

Luminaires

3 1/4" Round and Square luminaires are

re-engineered to the highest quality in the

precision lighting industry. Offering exclusive

Tru-Line™adjustment and Acu-Aim™optic

features in a vast range of lamp choices –

LED, MR16 and PAR16/PAR20 Halogen,

and CMH MR16 20W & 39W. See pages

18-24 and 34-40.

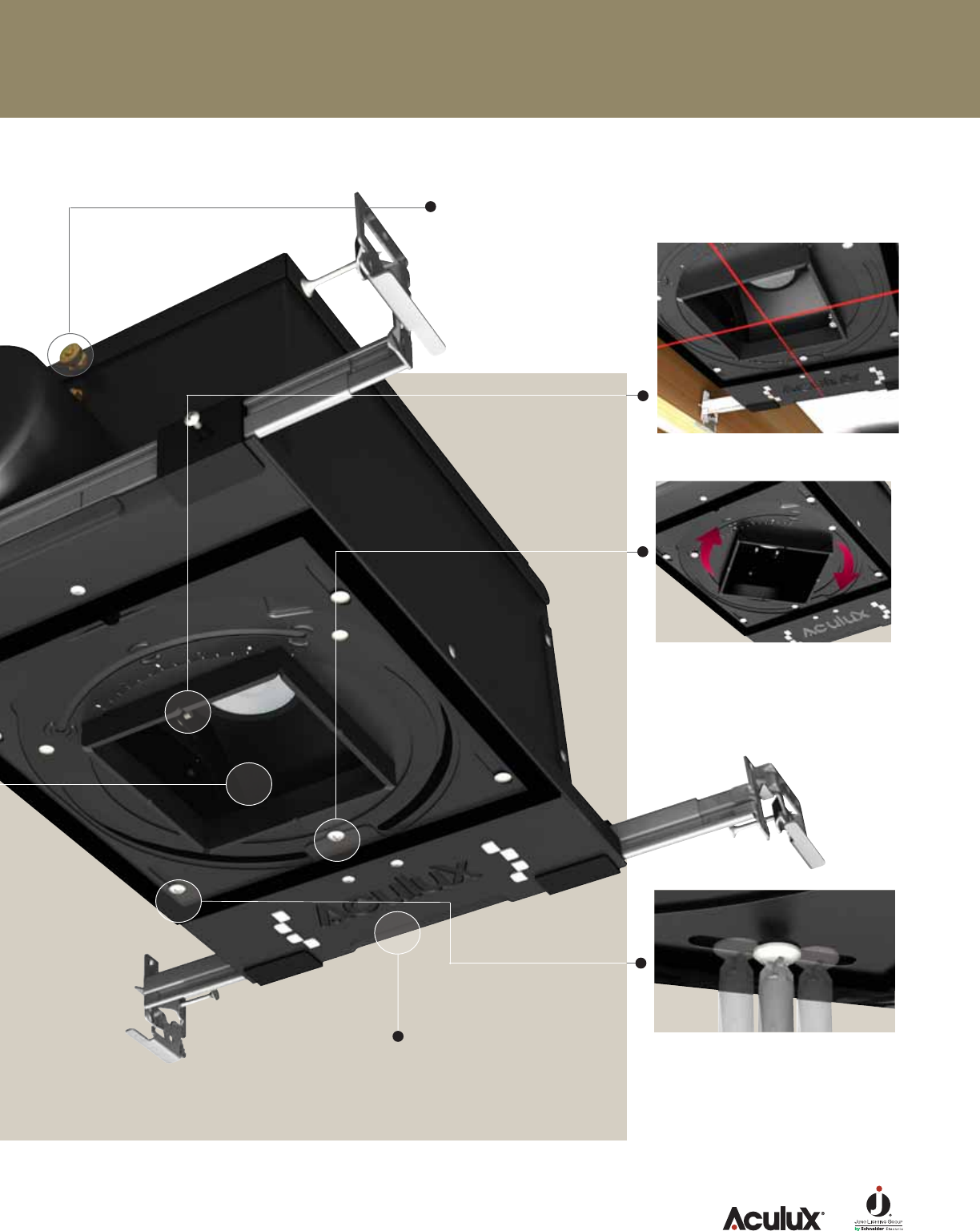

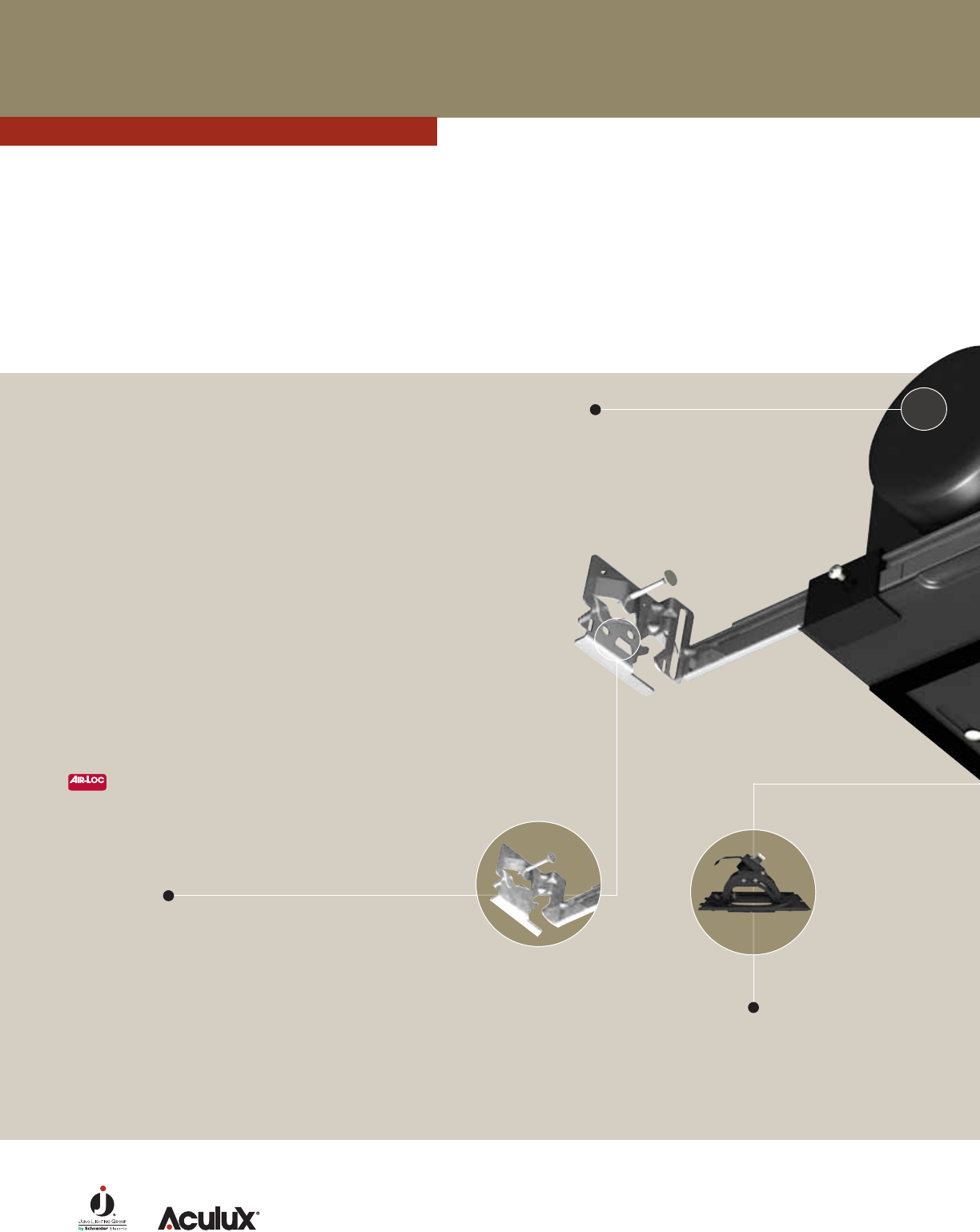

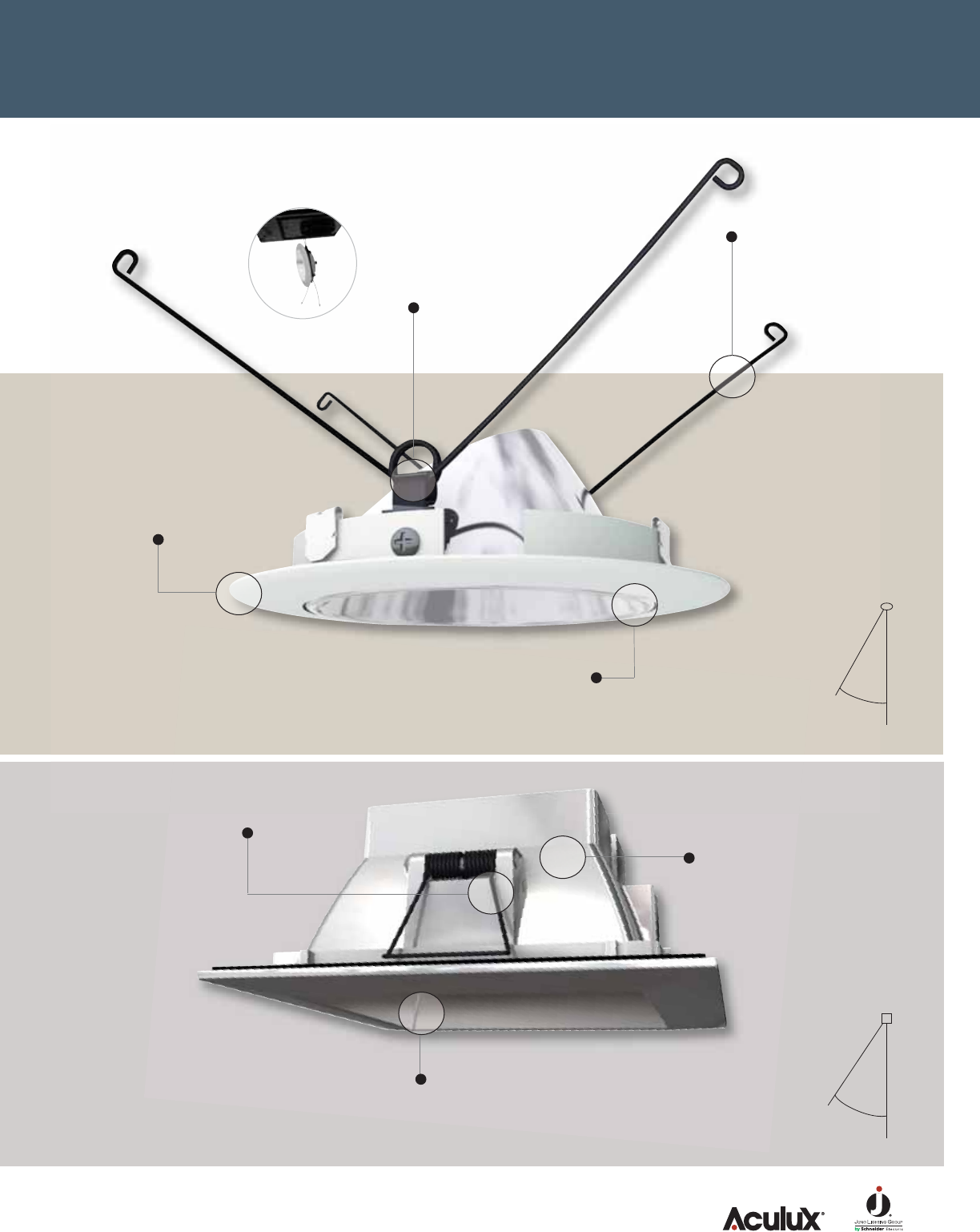

Tru-Line™Platform

Patent pending, Tru-Line™allows +/- 1/2"

platform adjustment after installation to

ensure ﬁxture-to-ﬁxture alignment prior to

ﬁnishing the ceiling. See page 10-11.

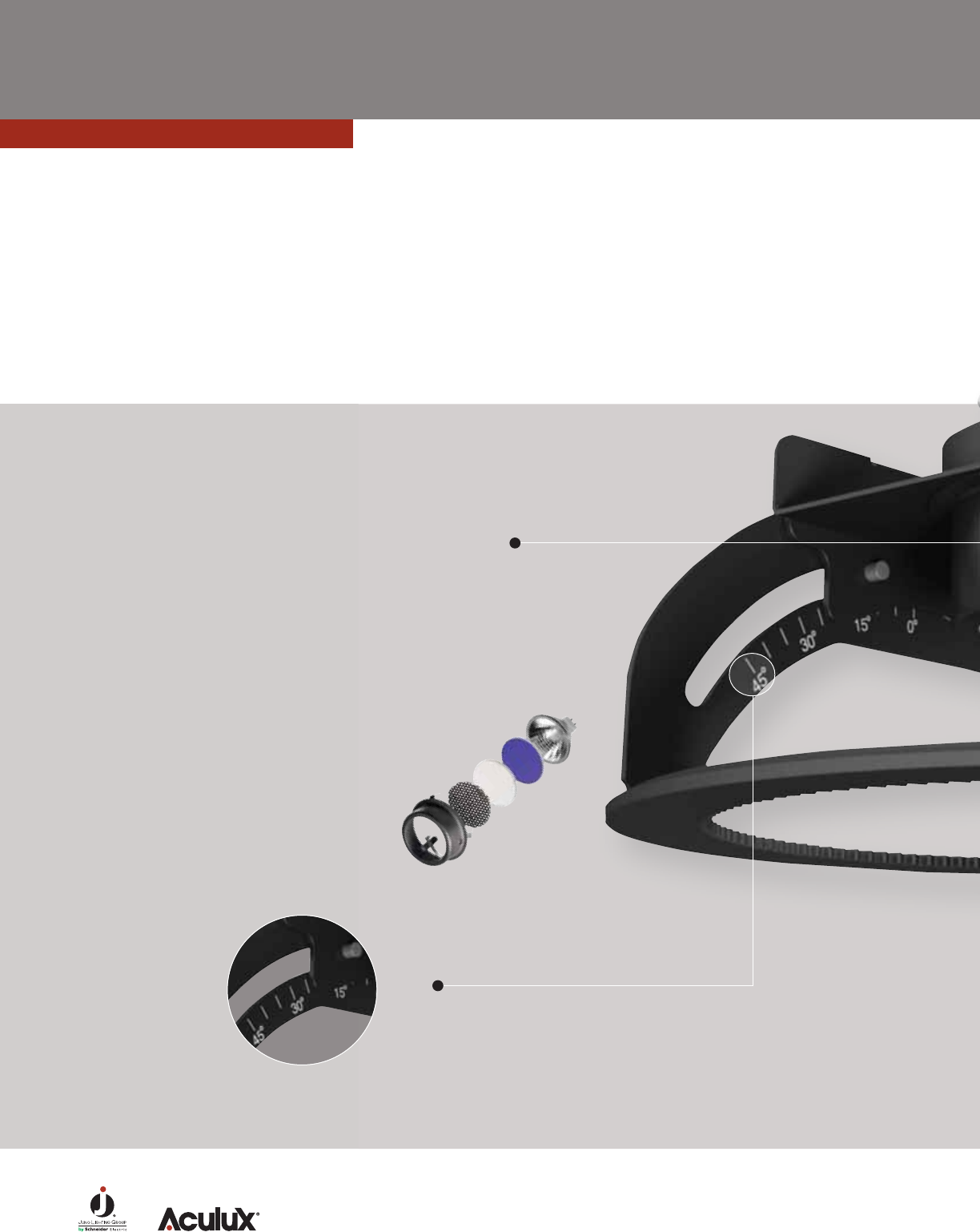

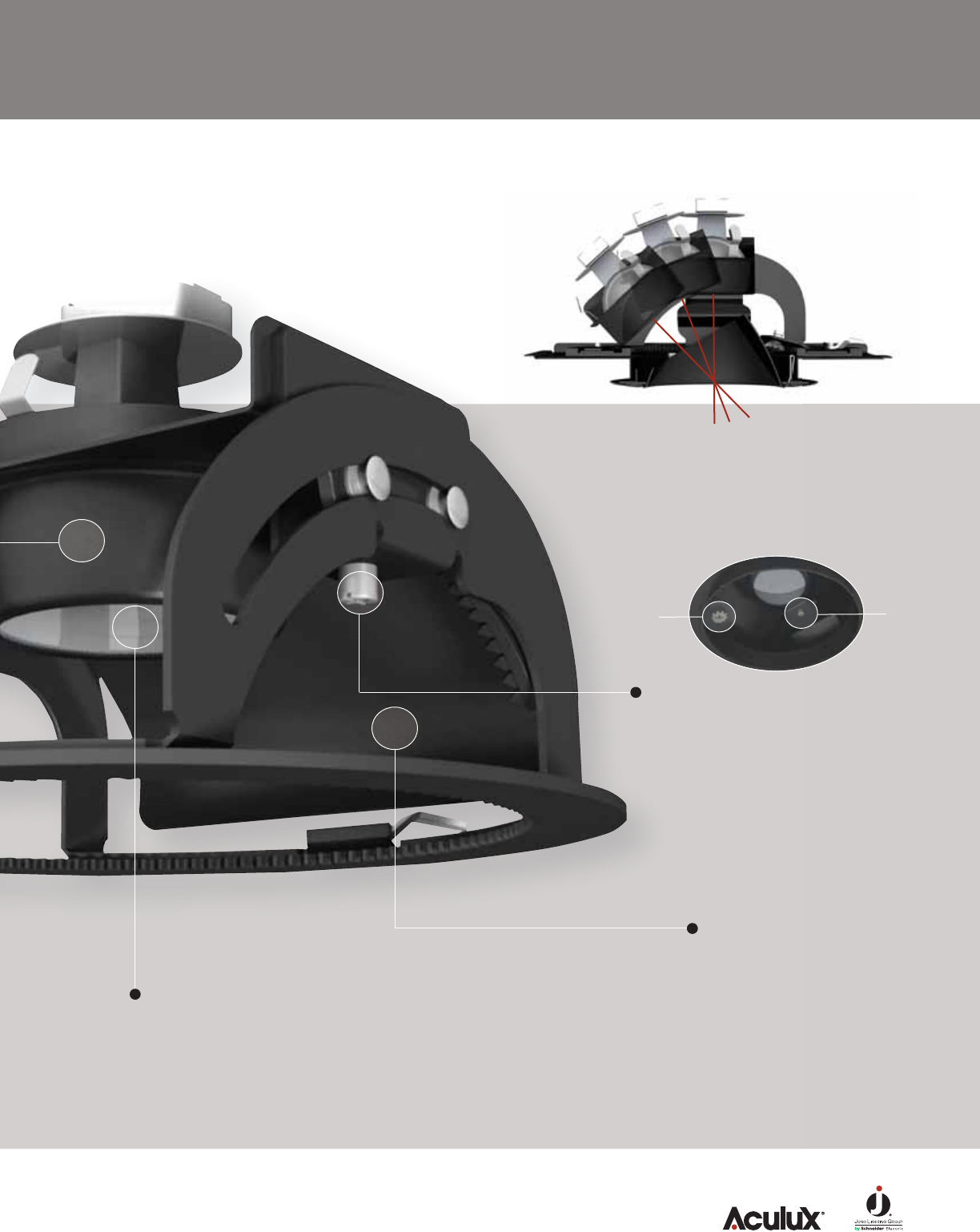

Acu-Aim™Precision Geared Optics

Superior optics employ precision gearing

with 370º rotation and 45º hot aiming tilt

with an effortless turn of a screwdriver.

Optimized center lamp beam optics translates

lamp forward maximizing light output as it

is aimed off of nadir – glare is eliminated at

any angle. See page 8-9.

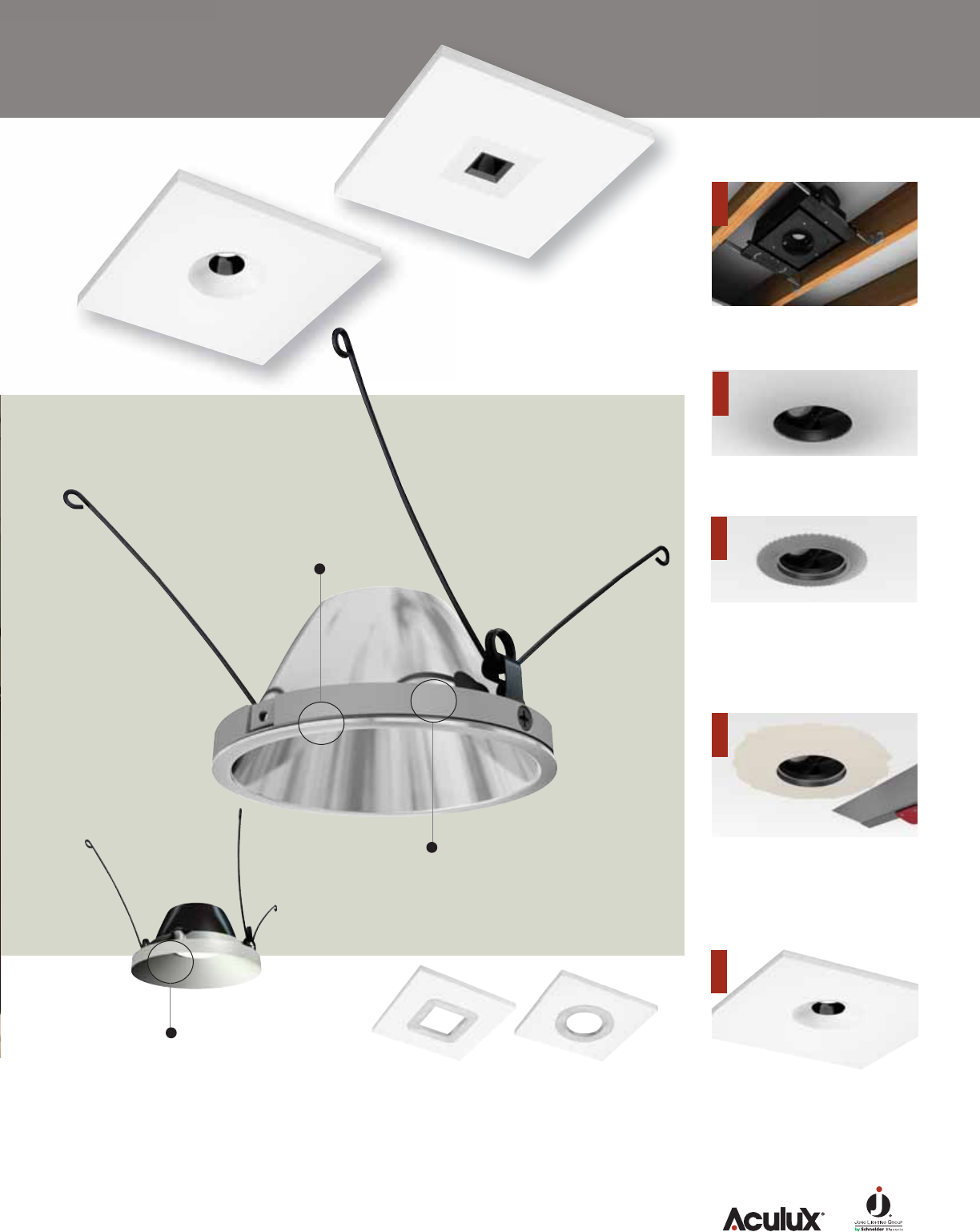

Flush Mount

Smooth installations in every way – the unique

lattice ﬂush mount adapter helps to mitigate

crack propagation and is die-cast for maxi-

mum rigidity and tight tolerances. Add the

ﬁnishing touches with a vast range of trim

styles and colors for a ceiling that’s truly

tranquil. See page 14-15.

Reﬂector

Precisely crafted to perfection, the compre-

hensive selection of the 3 1/4" hand-polished

round and die-cast square reﬂectors are

engineered with forethought resulting in

efﬁcient illumination and ultra-low brightness

that blends quietly with any architectural

space. See page 12-13.

3 1/4”Features NEW

7

he goal of precision lighting is to

illuminate every inch of the space at

exactly the level of relative emphasis, intensity

and subtlety the room’s designer intended.

The only way to achieve this is with lighting

instruments engineered for each speciﬁc task,

manufactured to perform ﬂawlessly, and

adjustable in so many ways that performance

is never compromised. Quite simply, new

Aculux 3 1/4” precision luminaires achieve this

daunting set of objectives more completely

than any recessed lighting ever made — and

Juno Lighting Group, yet again, sets a new

benchmark for excellence for the entire

industry.

T

Push-in Lamp Holder

accepts up to (3) 2" optical

media and the Acu-Aim™

gear remains ﬁxed during

lamp replacement. Each

ﬁxture is supplied with a

soft-focus uniformity lens

to ensure smooth beam

patterns.

Numerical Degree

markings allow the ﬁxtures to

be consistently aimed.

NEW 3 1/4” ACU-AIM™

A new benchmark for excellence

New precision in gearing & optics

8

Optimized center lamp beam optics translates lamp

forward maximizing light output as lamp is aimed off

nadir and eliminates glare at any aiming angle.

Matte Black Interior and black lamp

shield preserves dark aperture and

prevents visibility into the ﬁxture.

Lamp Choices - The new Aculux 3 1/4" ﬁxtures are not only

feature-rich, versatile and precise - there's a vast selection

of lamp choice to suit the broadest range of any precision

lighting environment.

• 20W LED

• 20W/39W MR16 Ceramic Metal Halide (CMH)

• 75W 12V Halogen MR16

• 75W PAR16/50W PAR20 Incandescent Line Voltage

(1) 45º hot-aiming vertical adjustment is

effortless with a turn of a screwdriver.

The precision gear tilt is so smooth –

simply focus on the lighting object and

tilt the lamp for precise aiming.

(40 degrees on PAR16/PAR20 ﬁxtures

is an industry exclusive).

(2) Exclusive 370º gear rotation fully

eliminates any dead spots in a

lighting application.

Acu-Aim™Precision Geared Optics

is comprised of two aiming features.

(1) (2)

9

Precision installation begins

with precision design

ven the most sophisticated lighting is

only as good as the quality of its

installation. Fortunately, new Aculux 3 1/4”

precision luminaires leave virtually nothing

to chance. Their exhaustive engineering

simpliﬁes every aspect of installation, aiming

and maintenance. A misaligned housing can

be made right with a simple turn of the

screwdriver. Lamp sockets, junction boxes,

transformers and bar hangers all are

comprehensively rethought for ease of

use and trouble-free performance. It’s a

combination of advancements destined

not only to illuminate countless rooms,

but to enlighten an entire industry.

E

The harmony of a great design

12V Transformer Options

• Magnetic 120V or 277V High efﬁciency (>90 %) dual tap

toroidal transformer has a boost tap to compensate for dimmer

losses, improving color temperature and lumen output.

Potted to eliminate noise and vibration.

• Electronic 120V or 277V High efﬁciency (>94%), high power

factor transformer.

CMH Ballast Options

High Power Factor,

electronic solid state

ballast has transient and

short circuit protection

with less than 10% THD.

Available in 20W or 39W –

120V or 277V.

LED Driver 120V or 277V

electronic solid state driver.

20W total system power

consumption delivers

performance similar

to 50W halogen MR16.

Pro-VI™Bar Hanger System

Engineered with the contractor in mind. The patent pending,

Pro-VI™inter-locking hanger system eliminates ﬂexing and has several features

to ensure ﬁxture-to-ﬁxture alignment in the event of any installation mishap.

• Smooth, non-binding bars simplify installation and ﬁxture alignment.

• Integral locking set-screw allows side-to-side ﬁxture adjustment.

• Bar hanger foot aligns to bottom of joist for precise positioning.

• Captive bugle-headed nail for one-step installation.

Hinged black lamp shield easily

lifts to gain quick access to j-box,

transformer or ballast.

IC and TC* housings are Air-Loc®rated

and are designed to minimize air

leakage and promote building

energy efﬁciency.

NEW 3 1/4” TRU-LINE™ and PRO-VI™

* TC housings are Air-Loc®rated only where icon appears.

• Breakaway foot for installation in t-bar eliminates interference with

adjacent ceiling tiles.

• Integral t-notch has locking tabs to lock ﬁxture to t-bar without fasteners.

10

Square Aperture Rotation

Adjustment allows aperture to rotate

up to 90º to help align ﬁxtures after

installation and prior to ﬁnishing

ceiling. Fixtures feature rotation

stops at +/- 45º (squares only).

V-Notch Gunsight helps contractor

align ﬁxtures during installation.

Patent pending Aperture Translation

allows +/- 1/2” translation adjustment

to ensure ﬁxture-to-ﬁxture alignment

after installation prior to ﬁnishing

ceiling (round and squares).

Pre-wired junction box and quick connect bracket

tower facilitates trouble-free wire management and

socket replacement.

Toolless access through the

top of TC ﬁxtures allows for

bottom and top re-lamping.

Tru-Line™ Platform

€

11

ne of the foremost luxuries of

specifying Aculux luminaires is the

luxury of options. Trim Ring, self-ﬂanged

or the minimalist look of ﬂush mount

in a variety of trim ﬁnishes. Downlights,

adjustables, pinholes, wall wash and

lensed style options. Each of these

many variations has been engineered

with forethought and all are precision

crafted to stand up to the closest

scrutiny, while never clamoring for

attention. See the trim pages for

speciﬁc style and ﬁnish options.

O

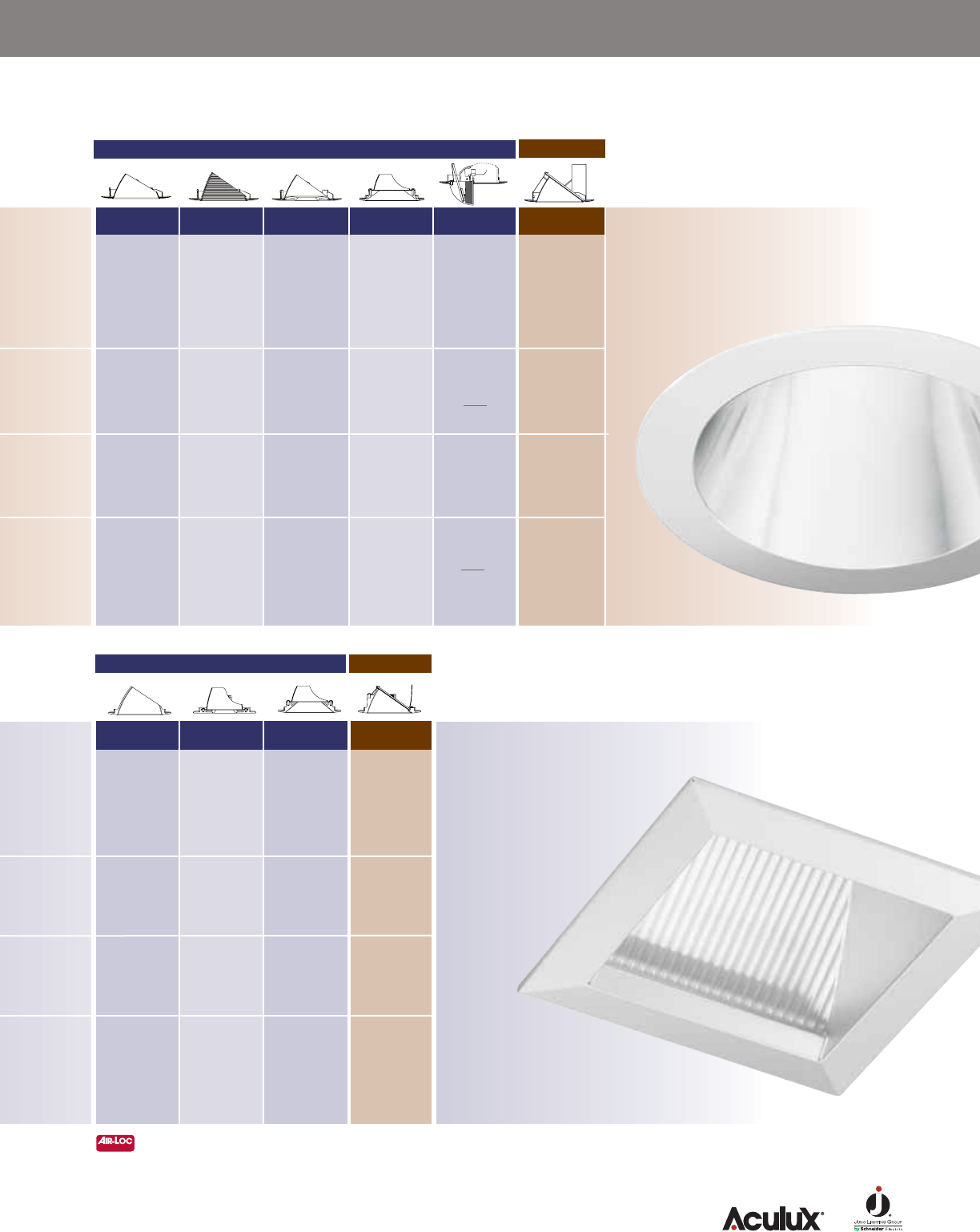

NEW 3 1/4” ROUND & SQUARE TRIMS

Black Specular

Trim Ring Self-Flanged Flush Mount

Finishes

Clear Specular Haze

Gold

Wheat Haze

Mounting Styles

Finishes

Self-Flanged

Mounting Styles

Flush Mount

Black White

Haze

Wheat Haze

Rounds

Squares

Our trims speak well

of you…quietly

Finishes and mounting styles

Black Bafﬂe

White Bafﬂe

12

Coined Reﬂector gasketed and

held ﬁrmly in place with clips

eliminates light leak and

unwanted brightness off

inside edge of trim ring.

Shadow-Free Knife

Edge Trim Rings blend

smoothly into ceiling

without unsightly

shadows.

Dual Self-Aligning

Torsion Springs

pull the trim tight to

ceiling, eliminating

light leak.

Captive Trim makes lamp

aiming and replacement

safer and easier.

Die-Cast Reﬂectors maintain perfectly

aligned corners, eliminating seams that

create unsightly dark shadows and ﬂange

misalignment.

Parabolic Sidewalls

eliminates glare.

Precision Wound Double Torsion

Springs pull the trim tight to ceiling,

eliminating light leak.

50˚

cutoff angle

Aculux Source

0˚

Deep Lamp Regression

provides 50° lamp/lamp

image cutoff, for less

aperture brightness

and glare.

55˚

cutoff angle

Aculux Source

0˚

Deep Lamp Regression

provides 55° lamp/lamp

image cutoff, for less

aperture brightness.

13

o one can deny that the quiet

elegance of a completely clean

ceiling is a compelling argument for

trimless ﬁxtures. That is, until the quiet

is shattered by unsightly cracks that

spread around the luminaires. Aculux

luminaires relieve the fear of cracking

with thoughtfully designed hardware

both on and around the ﬁxture. Which

means the uninterrupted beauty you

see in your mind’s eye is more likely

to remain that way on the actual

ceiling...creating a lasting tranquil

vision.

N

Two Aculux Flush Mount regressed pinholes (4308N-WH-FM)

in the sofﬁt accent the table while the Aculux framing

projector precisely frames the artwork.

NEW 3 1/4” FLUSH MOUNT TRIMS

Flush mount installation

that’s smooth in every way

14

Square

Adhesive-Back Trimless Adapter

• Die-cast for maximum rigidity and

tight tolerance

• Unique lattice design helps to

mitigate crack propagation

• Converts standard housings to ﬂush mount

• Easy to specify, easy to install

Trimless Reﬂector has

minimal ﬂange.

Flush Mount Pinhole has

no ﬂange for a truly trimless

appearance that blends

seamlessly with the

architecture.

Die-Cast Light Trap is ten times deeper

than the competition where the reﬂector

mates with the ﬂush mount adapter to

eliminate the possibility of light leak.

1

2

3

4

5

Prior to dry-wall – Use Tru-Line™

installation features to align ﬁxtures

and apertures.

Round

Apply dry-wall. Use a 4 3/8” cutout

for round aperture and 4 1/4”

cutout for square aperture.

After dry-wall, apply the self-adhe-

sive ﬂush mount adapter. Unique

lattice ﬂush mount adapter helps to

mitigate crack propagation and is

die-cast for maximum rigidity and

tight tolerances.

Install the Aculux ﬂush mount trim.

Apply multiple thin layers of a

setting-type joint compound

according to the Level 4 or Level 5

drywall ﬁnishing requirements

speciﬁed. Sand and ﬁnish ceiling

as desired.

Five Easy Steps

15

Round

Housing

Bafﬂe

Regressed

Pinhole Downlight Pinhole Adjustable

Regressed

Pinhole

Cone Pinhole

Downlight

Reﬂector Pinhole

Regressed

Pinhole Downlight Pinhole Adjustable

Regressed

Pinhole

MR16

PAR

CMH

LED

IC43N

12V MR16 IC, Air-Loc

3 1/4”ROUND APERTURE

TC43NR

12V MR16 Remodel, Non-IC

TC943N

12V MR16 Commercial Non-IC

TC43N

12V MR16 Non-IC, Air-Loc

437N

50W-75W MR16

434N

50W-75W MR16

4337N

50W-75W MR16

4307N

50W-75W MR16

432N

50W-75W MR16

431N

50W-75W MR16

4301N

4302N

50W-75W MR16

4331N

4332N

50W-75W MR16

IC13N

120V PAR IC, Air-Loc

TC13N

120V PAR Non-IC, Air-Loc

437N

60W-75W PAR16

50W PAR20

434N

60W-75W PAR16

50W PAR20

4337N

60W-75W PAR16

50W PAR20

4307N

60W-75W PAR16

50W PAR20

432N

45W-75W PAR16

50W PAR20

4331N

4332N

45W-75W PAR16

50W PAR20

431N

45W-75W PAR16

50W PAR20

4301N

4302N

45W-75W PAR16

50W PAR20

437N

20W-39W CMH

MR16

434N

20W-39W CMH

MR16

4337N

20W-39W CMH

MR16

4307N

20W-39W CMH

MR16

432N

20W-39W CMH

MR16

4331N

4332N

20W-39W CMH

MR16

431N

20W-39W CMH

MR16

4301N

4302N

20W-39W CMH

MR16

TC943M - MR16

CMH MR16 Commercial Non-IC

437N

20W LED

434N

20W LED

4337N

20W LED

4307N

20W LED

432N

20W LED

4331N

4332N

20W LED

431N

20W LED

4301N

4302N

20W LED

IC43L

LED IC, Air-Loc

TC943L

LED Commercial Non-IC

TC43L

LED Non-IC, Air-Loc

MR16

PAR

CMH

LED

3 1/4”SQUARE APERTURE

437SQ

50W-75W MR16

4337SQ

50W-75W MR16

4307SQ

50W-75W MR16

432SQ

50W-75W MR16

4331SQ

4332SQ

50W-75W MR16

431SQ

50W-75W MR16

4301SQ

50W-75W MR16

IC43SQ

12V MR16 IC, Air-Loc

TC943SQ

12V MR16 Commercial Non-IC

TC43SQ

12V MR16 Non-IC, Air-Loc

IC13SQ

120V PAR IC Air-Loc

TC13SQ

120V PAR Non-IC, Air-Loc

437SQ

60W-75W PAR16

50W PAR20

4337SQ

60W-75W PAR16

50W PAR20

4307SQ

45W-75W PAR16

50W PAR20

432SQ

45W-60W PAR16

50W PAR20

4331SQ

4332SQ

45W-60W PAR16

50W PAR20

4331SQ

4332SQ

45W-60W PAR16

50W PAR20

4301SQ

45W-60W PAR16

50W PAR20

TC943MSQ-MR16

CMH MR16 Commercial Non-IC 437SQ

20W-39W CMH

MR16

4337SQ

20W-39W CMH

MR16

4307SQ

20W-39W CMH

MR16

432SQ

20W-39W CMH

MR16

4331SQ

4332SQ

20W-39W CMH

MR16

431SQ

20W-39W CMH

MR16

4301SQ

20W-39W CMH

MR16

437SQ

20W LED

4337SQ

20W LED

4307SQ

20W LED

432SQ

20W LED

4331SQ

4332SQ

20W LED

431SQ

20W LED

4301SQ

20W LED

IC43LSQ

LED IC, Air-Loc

TC943LSQ

LED Commercial Non-IC

TC43SLSQ

LED Non-IC, Air-Loc

Downlight Lensed*

Square

Downlight Lensed*

3 1/4”Matrix Chart - Rounds & Squares

* Wet Location

UL Listed for use in wet locations.

16

Angle-Cut

Cone

Angle-Cut

Bafﬂe Pinhole

Regressed

Pinhole

Super Adjustable

(15º - 75º) Lensed

Angle-Cut

Reﬂector Pinhole

Regressed

Pinhole Lensed

438N

430N

436N

50W-75W MR16

435N

50W-75W MR16

433N

4335N

4345N

50W-75W MR16

4308N*

50W-75W MR16

4349N

50W-75W MR16

439N

50W-75W MR16

438N

430N

436N

60W-75W PAR16

50W PAR20

435N

60W-75W PAR16

50W PAR20

4335N

433N

4345N

60W-75W PAR16

50W PAR20

4308N

60W-75W PAR16

50W PAR20

439N

45W-75W PAR16

50W PAR20

438N

430N

436N

20W-39W CMH

MR16

435N

20W-39W CMH

MR16

433N

4335N

4345N

20W-39W CMH

MR16

4308N

20W-39W CMH

MR16

439N

20W-39W CMH

MR16

438N

430N

436N

20W LED

435N

20W LED

433N

4335N

4345N

20W LED

4308N

20W LED

439N

20W LED

438SQ

50W-75W MR16

433SQ

50W-75W MR16

4308SQ

50W-75W MR16

439SQ

50W-75W MR16

438SQ

60W-75W PAR16

50W PAR20

433SQ

60W-75W PAR16

50W PAR20

4308SQ

45W-60W PAR16

50W PAR20

439SQ

45W-60W PAR16

50W PAR20

438SQ

20W-39W CMH

MR16

433SQ

20W-39W CMH

MR16

4308SQ

20W-39W CMH

MR16

439SQ

20W-39W CMH

MR16

438SQ

20W LED

433SQ

20W LED

4308SQ

20W LED

439SQ

20W LED

Adjustable Accent Wall Wash*

Round

Square

See pages 18-33

See pages 34-45

Aculux IC and TC† housings meet IECC Energy Code requirements per ASTM E283. Aculux IC and TC housings

are Air-Loc®rated for maximum energy savings. The sealed Air-Loc construction eliminates the transfer of condi-

tioned air out of, or unconditioned air into, a living space to maintain maximum energy efficiency and comfort.

The sealed Air-Loc construction also helps preserve sound proofing and eliminates the possibility of dirt, dust

and insects entering a room through the recessed luminaire.

Air-Loc®Rating

†TC housings are Air-Loc®rated only where icon appears.

4349N

20W-39W CMH

MR16

17

13 1/2"

18"

13 3/4"

Will expand

to 24 3/8"

(Reduces to 9 1/4"

with breakaway

feature)

5 7/16"

IC43L-3K-S (-N, -F)

3000K Color Temperature,

85 CRI Typical

IC43L-35K-S (-N, -F)

3500K Color Temperature,

85 CRI Typical

IC43L-4K-S (-N, -F)

4100K Color Temperature,

75 CRI Typical

LED Non-IC Rated with Pro-VI™Telescoping Bar Hangers

LED IC Rated with Pro-VI™Telescoping Bar Hangers

The Aculux brand is redeﬁning precision lighting with energy efﬁcient, versatile, low wattage LED

ﬁxtures. The performance approximates a 50W MR16 while consuming only 20 watts. The LED ﬁxtures

are compatible with the new 3 1/4" trim offering and have the same features as the newly redesigned

3 1/4" ﬁxtures – Acu-Aim™Geared Optics, Tru-Line™Installation and Pro-VI™Bar Hangers to name a few.

The unique interchangeable beam optics provide the lighting designer with the ultimate ﬂexibility

from ﬁxture-to-ﬁxture.

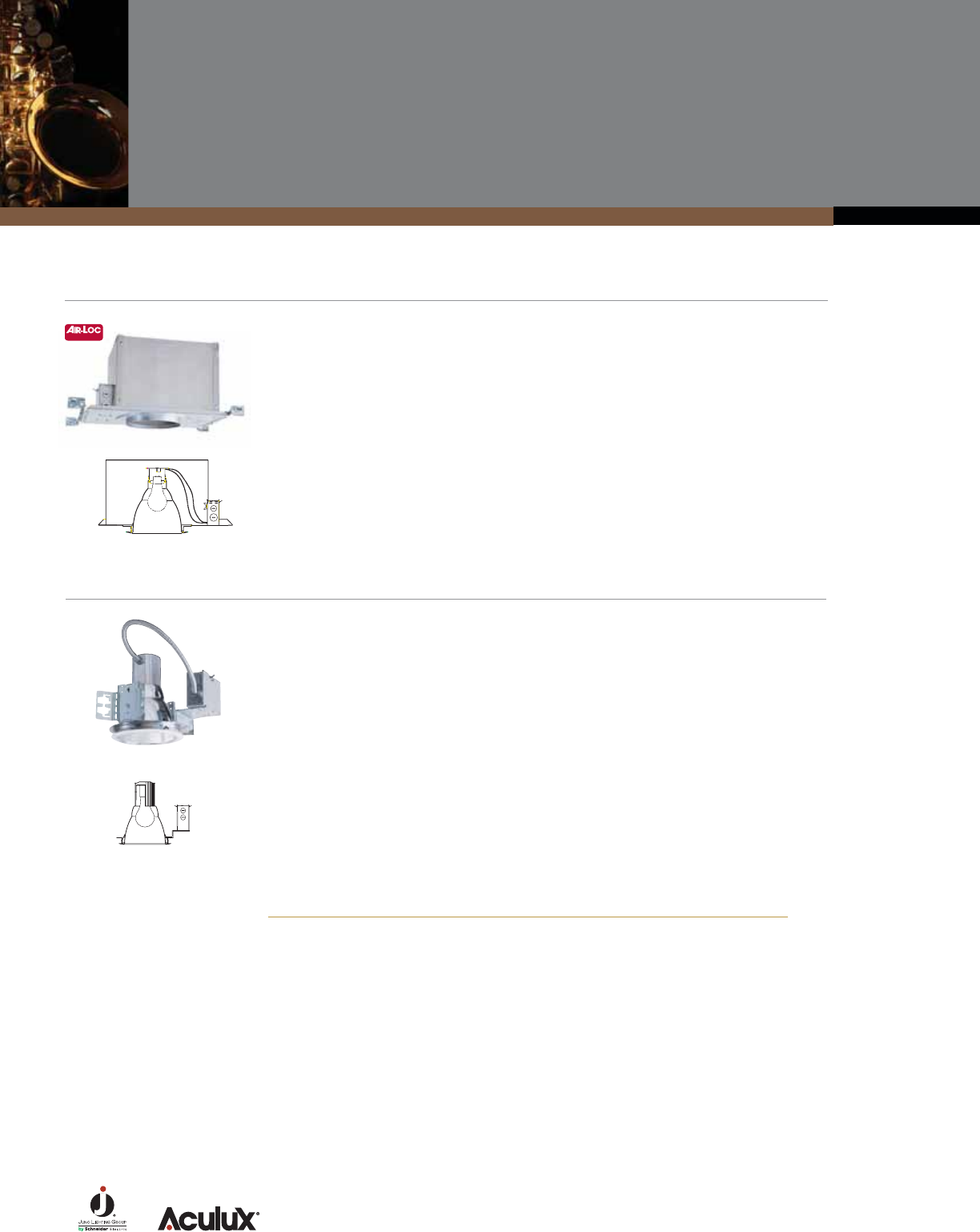

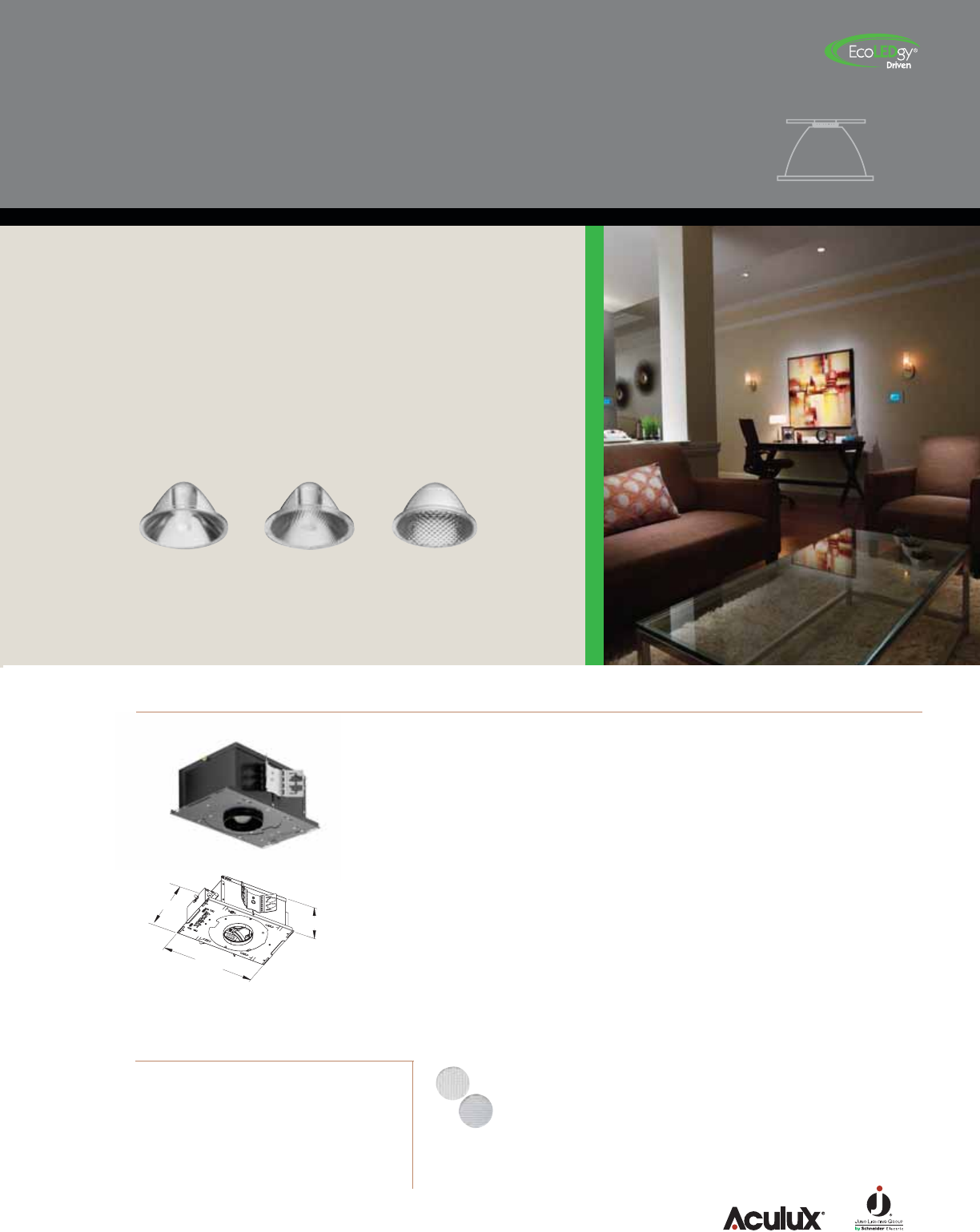

3 1/4" Round Aperture LED Housings

Energy Efﬁcient, IC Rated new construction housing for use in

direct contact with insulation.

Sealed Air-Loc®housing eliminates air ﬂow and reduces sound

transmission through plenum.

Patent Pending, Tru-Line™platform allows +/- 1/2” aperture

translation after installation prior to ﬁnished ceiling, aiding

ﬁxture-to-ﬁxture alignment.

Acu-Aim™optics employs precision gearing to achieve 370°

rotation, 45° tilt hot aiming with a screwdriver. Optimized center

lamp beam optics translates light engine forward as it is aimed

off nadir.

120V or 277V electronic solid state driver. 20W total system

power consumption delivers performance similar to 50W halogen

MR16.

Patent pending, Pro-VI™telescoping bar hanger system has

locking set screws. The captive bugle-headed ring shank nail

allows for a quick one-step installation in joist construction while

the robust bar eliminates ﬂexing regardless of ﬁxture position.

For suspended ceilings, use integral t-notches with locking tabs.

Innovative optic holder allows interchangeable optics and

(2) additional 2” beam control lenses and/or ﬁlters.

Catalog # Description

CTA4N-125 7/8” – 1 1/4” ceiling adapter

CTA4N-163 1 1/4” – 1 5/8” ceiling adapter

CTA4N-200 1 5/8” – 2” ceiling adapter

FMA4 Flush mount adapter for required

ﬂush mount trim installations

See Accessories

on page 58.

Beam Optics

S = 15º Spot

N = 24º Narrow Flood

F = 35º Flood

TC43L-3K-S (-N, -F)-E1

3000K Color Temperature,

85 CRI Typical

TC43L-35K-S (-N, -F)-E1

3500K Color Temperature,

85 CRI Typical

TC43L-4K-S (-N, -F)-E1

4100K Color Temperature,

75 CRI Typical

Beam Optics

S = 15º Spot

N = 24º Narrow Flood

F = 35º Flood

Mounting Accessories

15 1/8"

19 5/8"

13 3/4"

Will expand

to 24 3/8"

(Reduces to 10 3/4"

with breakaway

feature) 8 15/16"

For 277V replace

E1 with E2.

Energy Efﬁcient, Non-IC Rated new construction housing for use

where insulation is spaced 3” away from ﬁxture.

Sealed Air-Loc®housing eliminates air ﬂow and reduces sound

transmission through plenum.

Patent Pending, Tru-Line™platform allows +/- 1/2” aperture

translation after installation prior to ﬁnished ceiling, aiding

ﬁxture-to-ﬁxture alignment.

Acu-Aim™optics employs precision gearing to achieve 370°

rotation, 45° tilt hot aiming with a screwdriver. Optimized center

lamp beam optics translates light engine forward as it is aimed

off nadir.

120V or 277V electronic solid state driver. 20W total system

power consumption delivers performance similar to 50W halogen

MR16.

Patent pending, Pro-VI™telescoping bar hanger system has

locking set screws. The captive bugle-headed ring shank nail

allows for a quick one-step installation in joist construction while

the robust bar eliminates ﬂexing regardless of ﬁxture position.

For suspended ceilings, use integral t-notches with locking tabs.

Innovative optic holder allows interchangeable optics and

(2) additional 2” beam control lenses and/or ﬁlters.

18

13 7/8"

5 7/16"

8 1/2"

TC943L-3K-S (-N, -F)-E1

3000K Color Temperature,

85 CRI Typical

TC943L-35K-S (-N, -F)-E1

3500K Color Temperature,

85 CRI Typical

TC943L-4K-S (-N, -F)-E1

4100K Color Temperature,

75 CRI Typical

Energy Efﬁcient, Non-IC Rated new construction housing for

use where insulation is spaced 3” away from ﬁxture.

Patent Pending, Tru-Line™platform allows +/- 1/2” aperture

translation after installation prior to ﬁnished ceiling, aiding

ﬁxture-to-ﬁxture alignment.

Acu-Aim™optics employs precision gearing to achieve 370°

rotation, 45° tilt hot aiming with a screwdriver. Optimized

center lamp beam optics translates light engine forward as

it is aimed off nadir.

120V or 277V electronic solid state driver. 20W total system

power consumption delivers performance similar to 50W

halogen MR16.

Innovative optic holder allows interchangeable optics and

(2) additional 2” beam control lenses and/or ﬁlters.

Supplied with vertically adjustable mounting brackets that

accept 1/2” conduit, “C” channel hangers (HB-26 or HB-50),

linear bar hangers (LB-27) or telescoping Juno Real Nail bar

hangers (HB-1).

Beam Optics

S = 15º Spot

N = 24º Narrow Flood

F = 35º Flood

Catalog # Description

CTA4N-125 7/8” – 1 1/4” ceiling adapter

CTA4N-163 1 1/4” – 1 5/8” ceiling adapter

CTA4N-200 1 5/8” – 2” ceiling adapter

FMA4 Flush mount adapter for required

ﬂush mount trim installations

See Accessories

on page 58.

Mounting Accessories

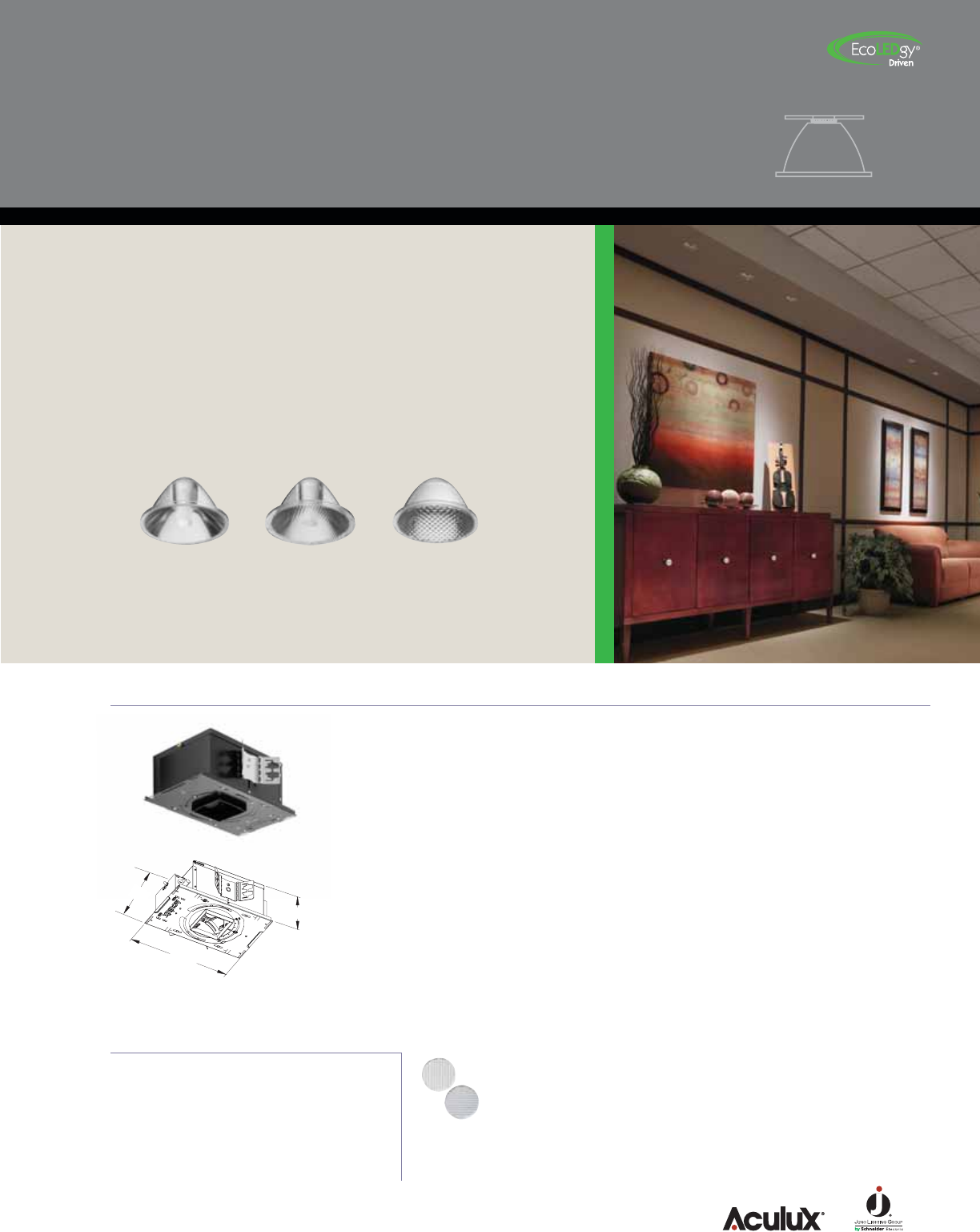

• Concealed LEDs mimic 50W MR16 Performance.

• Accepts up to two beam control lenses and/or ﬁlters.

• Available in 3000K, 3500K, 4100K.

• 85 CRI typical for 3000K and 3500K, 75 CRI 4100K.

• 20W total power consumption approximates 50W MR16

performance.

• Reverse phase dimming. Consult factory for dimmer compatibility.

• Solid state driver, 120V or 277V.

• Three interchangeable Optics.

Features

35º Flood

24º Narrow Flood

15º Spot LED

Commercial LED Non-IC Rated with Butterﬂy Style Mounting Brackets

For 277V replace

E1 with E2.

19

15 1/8"

19 5/8"

13 3/4"

Will expand

to 24 3/8"

(Reduces to 10 3/4"

with breakaway

feature) 8 15/16"

Low Voltage IC Rated new construction housing for use in

direct contact with insulation.

Sealed Air Loc®housing eliminates air ﬂow and reduces sound

transmission through plenum.

Patent Pending, Tru-Line™platform allows +/- 1/2” aperture

translation after installation prior to ﬁnished ceiling, aiding

ﬁxture-to-ﬁxture alignment.

Acu-Aim™optics employs precision gearing to achieve

370° rotation, 45° tilt hot aiming with a screwdriver.

Optimized center lamp beam optics translates lamp forward

as it is aimed off nadir.

Choose from 120V High efﬁciency (>90%) dual tap potted

magnetic or 120V High efﬁciency (>94%), high power factor

electronic transformer.

Patent pending, Pro-VI™telescoping bar hanger system has

locking set screws. The captive bugle-headed ring shank nail

allows for a quick one-step installation in joist construction

while the robust bar eliminates ﬂexing regardless of ﬁxture

position. For suspended ceilings, use integral t-notches with

locking tabs.

Lampholder accepts up to (3) 2” beam control lenses

and/or color correction/UV ﬁlters. Fixture is supplied with

stippled clear uniformity lens.

50W MR16 Maximum Lamp Rating.

UL and C-UL listed for through branch wiring and damp

locations. Wet location listed with approved trims.

IC43N

120V Magnetic, High efﬁciency

dual tap toroidal transformer.

IC43N-E1

120V Electronic, High efﬁciency,

high power factor transformer.

Commercial Non-IC Rated with Butterﬂy Style Mounting Brackets

TC943N

120V Magnetic, High efﬁciency

toroidal transformer.

TC943N-V

277V Magnetic, High efﬁciency

toroidal transformer.

IC Rated with Pro-VI™Telescoping Bar Hangers

Speciﬁcation grade, adjustable 12-volt MR16 luminaires produce controlled beam spreads and

excellent color rendering properties that dramatically emphasize art, textures and architectural

elements. Each 3 1/4” housing has the ﬂexibility to accept trims for downlighting, accenting and

wall washing, guaranteeing stunning performance in any application.

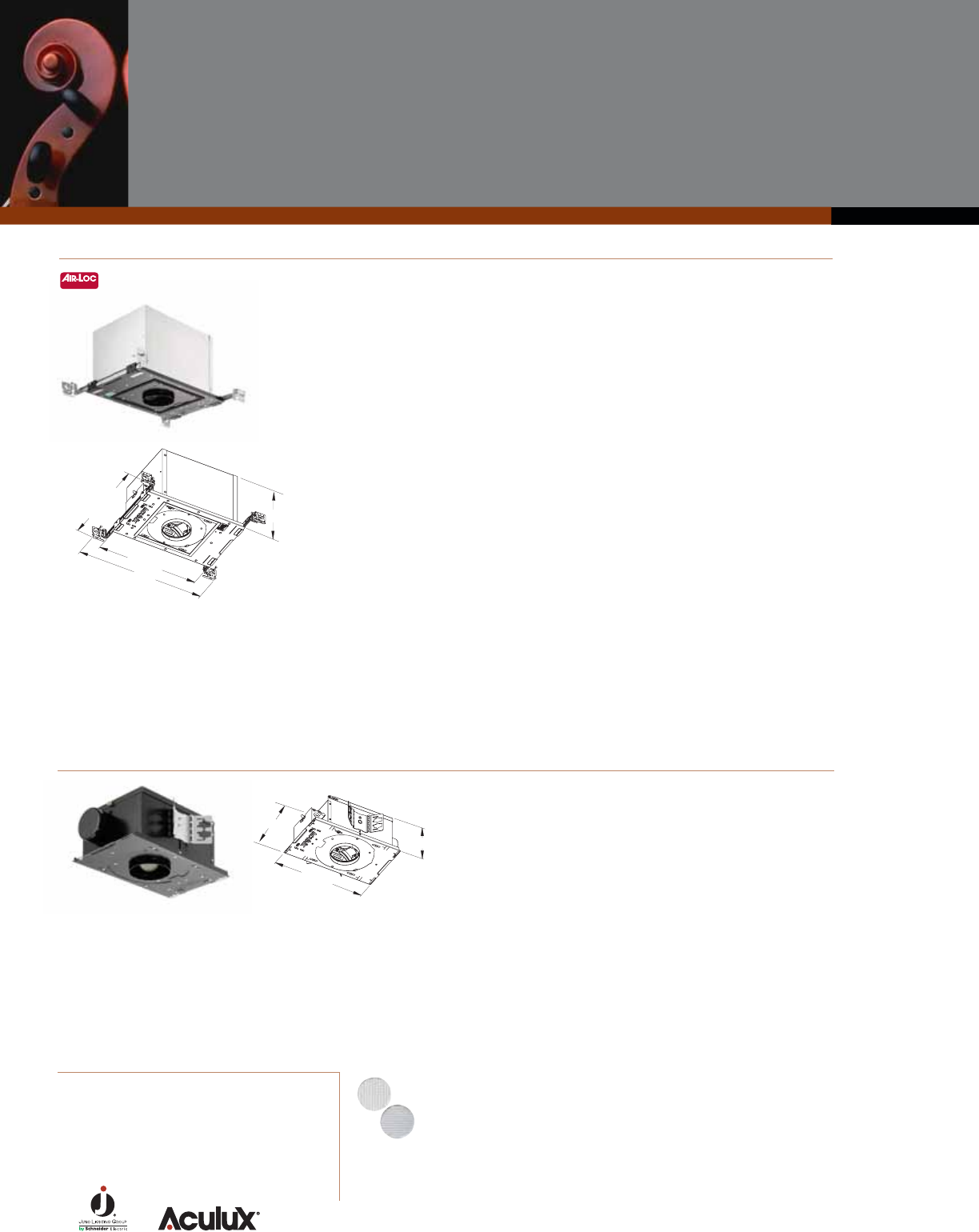

3 1/4" Round Aperture MR16 Low Voltage Housings

TC943N-E1

120V Electronic, High efﬁciency,

high power factor transformer.

TC943N-E2

277V Electronic, High efﬁciency,

high power factor transformer.

14 1/2"

5 7/16"

8 1/2"

Low Voltage, Non-IC Rated new construction housing for use

where insulation is spaced 3” away from ﬁxture.

Patent Pending, Tru-Line

™

platform allows +/- 1/2” aperture

translation after installation prior to ﬁnished ceiling, aiding

ﬁxture-to-ﬁxture alignment.

Acu-Aim

™

optics employs precision gearing to achieve

370° rotation, 45° tilt hot aiming with a screwdriver.

Optimized center lamp beam optics translates lamp forward

as it is aimed off nadir.

Fixture is available with four premium transformer options –

Magnetic: 120V or 277V High efﬁciency (>90%) dual tap,

potted magnetic, toroidal transformer.

Electronic: 120V or 277V High efﬁciency (>94%), high power

factor electronic transformer.

Supplied with vertically adjustable mounting brackets that

accept 1/2” conduit, “C” channel hangers (HB-26 or HB-50),

linear bar hangers (LB-27) or telescoping Juno Real Nail bar

hangers (HB-1).

Lampholder accepts up to (3) 2” beam control lenses and/or

color correction/UV ﬁlters. Fixture is supplied with stippled

clear uniformity lens.

75W MR16 Maximum Lamp Rating.

UL and C-UL listed for through branch wiring and damp

locations. Wet location listed with approved trims.

Catalog # Description

CTA4N-125 7/8”– 1 1/4” ceiling adapter

CTA4N-163 1 1/4” – 1 5/8” ceiling adapter

CTA4N-200 1 5/8” – 2” ceiling adapter

FMA4 Flush mount adapter for required

ﬂush mount trim installations

See Accessories

on page 58.

Mounting Accessories

20

Remodel Non-IC Rated

TC43NR

120V Magnetic transformer.

TC43NR-E1

120V Electronic, High efﬁciency,

high power factor transformer.

Non-IC Rated with Pro-VI™Telescoping Bar Hangers

TC43N

120V Magnetic, High efﬁciency

dual tap toroidal transformer.

TC43N-E1

120V Electronic, High efﬁciency,

high power factor transformer.

13 1/2"

18"

13 3/4"

Will expand

to 24 3/8"

(Reduces to 9 1/4"

with breakaway

feature)

5 7/16

10 3/16"

5 5/16"

Low Voltage, Non-IC Rated new construction housing for use

where insulation is spaced 3” away from ﬁxture.

Sealed Air Loc®housing eliminates air ﬂow and reduces sound

transmission through plenum.

Patent Pending, Tru-Line™platform allows +/- 1/2” aperture

translation after installation prior to ﬁnished ceiling, aiding

ﬁxture-to-ﬁxture alignment.

Acu-Aim™optics employs precision gearing to achieve

370° rotation, 45° tilt hot aiming with a screwdriver.

Optimized center lamp beam optics translates lamp forward

as it is aimed off nadir.

Choose from 120V High efﬁciency (>90%) dual tap potted

magnetic or 120V High efﬁciency (>94%), high power factor

electronic transformer.

Patent pending, Pro-VI™telescoping bar hanger system has

locking set screws. The captive bugle-headed ring shank nail

allows for a quick one-step installation in joist construction

while the robust bar eliminates ﬂexing regardless of ﬁxture

position. For suspended ceilings, use integral t-notches with

locking tabs.

Lampholder accepts up to (3) 2” beam control lenses

and/or color correction/UV ﬁlters. Fixture is supplied with

stippled clear uniformity lens.

75W MR16 Maximum Lamp Rating.

UL and C-UL listed for through branch wiring and damp

locations. Wet location listed with approved trims.

Low Voltage, Non-IC Rated remodel housing features patented

“push-pull” system for quick, easy installation. Requires 3”

spacing from insulation.

35º adjustable tilt and 361º rotation.

Choose from a magnetic or electronic transformer.

Magnetic: 120V thermally protected transformer is serviceable

from below ceiling.

Electronic: 120V High efﬁciency (>95%), high power factor

transformer.

Lampholder accepts up to (3) 2” beam control lenses and/or

color correction/UV ﬁlters. Fixture is supplied with stippled

clear uniformity lens.

50W MR16 Maximum Lamp Rating.

UL and C-UL listed for through branch wiring and damp

locations. Wet location listed with approved trims.

Catalog # Description

CTA4N-125 7/8”–1 1/4” ceiling adapter

CTA4N-163 1 1/4” – 1 5/8” ceiling adapter

CTA4N-200 1 5/8” – 2” ceiling adapter

FMA4 Flush mount adapter for required

ﬂush mount trim installations

See Accessories

on page 58.

Mounting Accessories (for TC43N only)

21

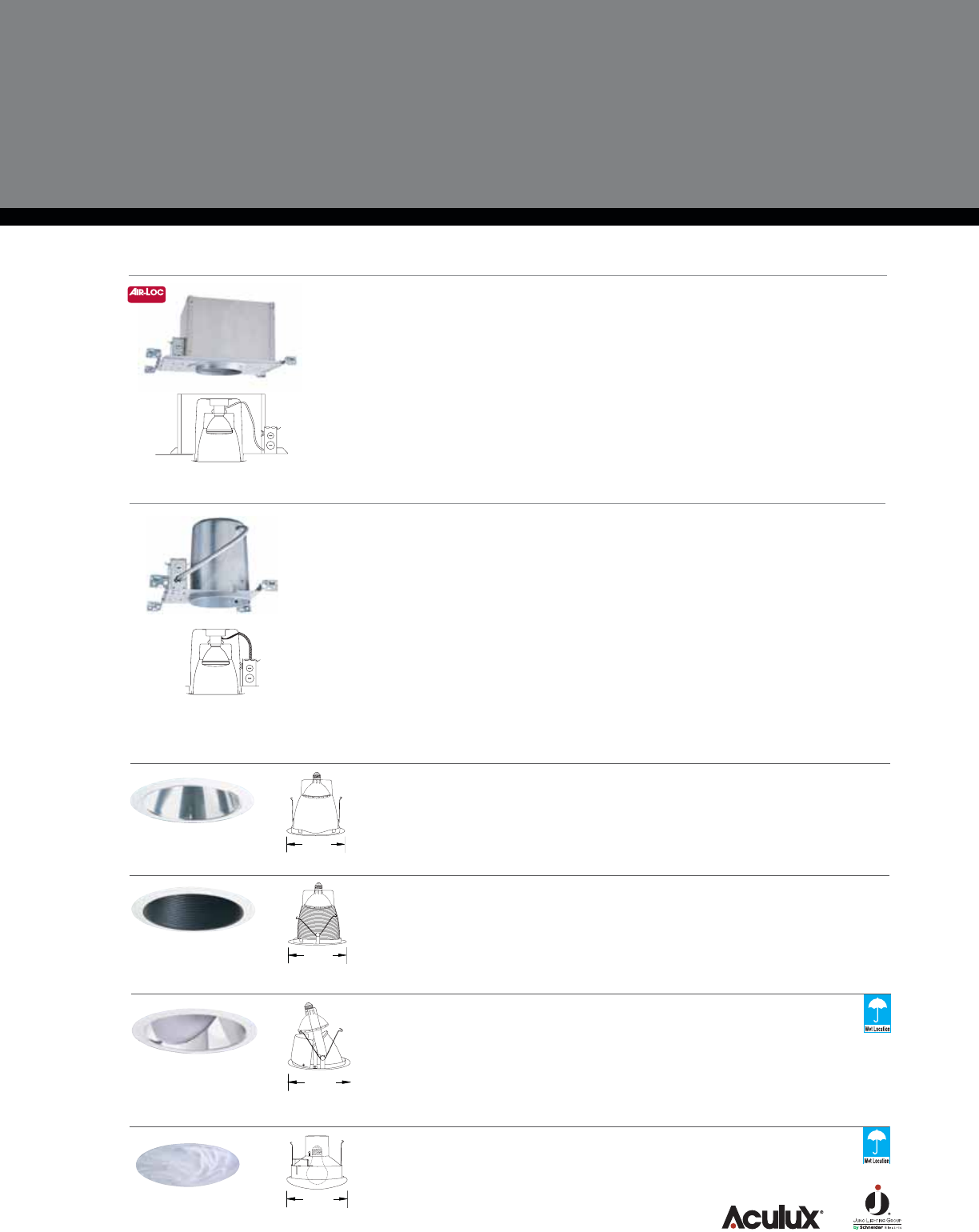

IC13N

120V Line Voltage,

IC Housing

Non-IC Rated with Pro-VI™Telescoping Bar Hangers

IC Rated with Pro-VI™Telescoping Bar Hangers

Aculux 120-volt PAR luminaires produce concentrated beams of light for a variety of lighting

applications. PAR16 or PAR20 lamps produce spot or ﬂood patterns for low to moderate light levels

over shorter to medium throw distances. These ﬁxtures are well suited for higher-level ambient

lighting in a task or an accent lighting environment.

3 1/4" Round Aperture PAR16/PAR20 Housings

TC13N

120V Line Voltage,

Non-IC Housing

Line Voltage, IC Rated new construction housing for use in

direct contact with insulation.

Sealed Air Loc®housing eliminates air ﬂow and reduces sound

transmission through plenum.

Patent Pending, Tru-Line™platform allows +/- 1/2” aperture

translation after installation prior to ﬁnished ceiling, aiding

ﬁxture-to-ﬁxture alignment.

Acu-Aim™optics employs precision gearing to achieve

370° rotation, 40° tilt hot aiming with a screwdriver.

Optimized center lamp beam optics translates lamp forward

as it is aimed off nadir.

Patent pending, Pro-VI™telescoping bar hanger system has

locking set screws. The captive bugle-headed ring shank nail

allows for a quick one-step installation in joist construction

while the robust bar eliminates ﬂexing regardless of ﬁxture

position. For suspended ceilings, use integral t-notches with

locking tabs.

50W PAR20 or 60W PAR16 Maximum Lamp Rating.

UL and C-UL listed for through branch wiring and damp

locations. Wet location listed with approved trims.

Line Voltage, Non-IC Rated new construction housing for use

where insulation is spaced 3” away from ﬁxture.

Sealed Air Loc®housing eliminates air ﬂow and reduces sound

transmission through plenum.

Patent Pending, Tru-Line™platform allows +/- 1/2” aperture

translation after installation prior to ﬁnished ceiling, aiding

ﬁxture-to-ﬁxture alignment.

Acu-Aim™optics employs precision gearing to achieve

370° rotation, 40° tilt hot aiming with a screwdriver.

Optimized center lamp beam optics translates lamp forward

as it is aimed off nadir.

Patent pending, Pro-VI™telescoping bar hanger system

has locking set screws. The captive bugle-headed ring shank

nail allows for a quick one-step installation in joist construction

while the robust bar eliminates ﬂexing regardless of ﬁxture

position. For suspended ceilings, use integral t-notches with

locking tabs.

50W PAR20 or 75W PAR16 Maximum Lamp Rating.

UL and C-UL listed for through branch wiring and damp

locations. Wet location listed with approved trims.

Catalog # Description

CTA4N-125 7/8”– 1 1/4” ceiling adapter

CTA4N-163 1 1/4” – 1 5/8” ceiling adapter

CTA4N-200 1 5/8” – 2” ceiling adapter

FMA4 Flush mount adapter for required

ﬂush mount trim installations

Mounting Accessories

13 1/2"

18"

13 3/4"

Will expand

to 24 3/8"

(Reduces to 9 1/4"

with breakaway

feature)

5 7/16"

15 1/8"

19 5/8"

13 3/4"

Will expand

to 24 3/8"

(Reduces to 10 3/4"

with breakaway

feature) 8 15/16"

22

23

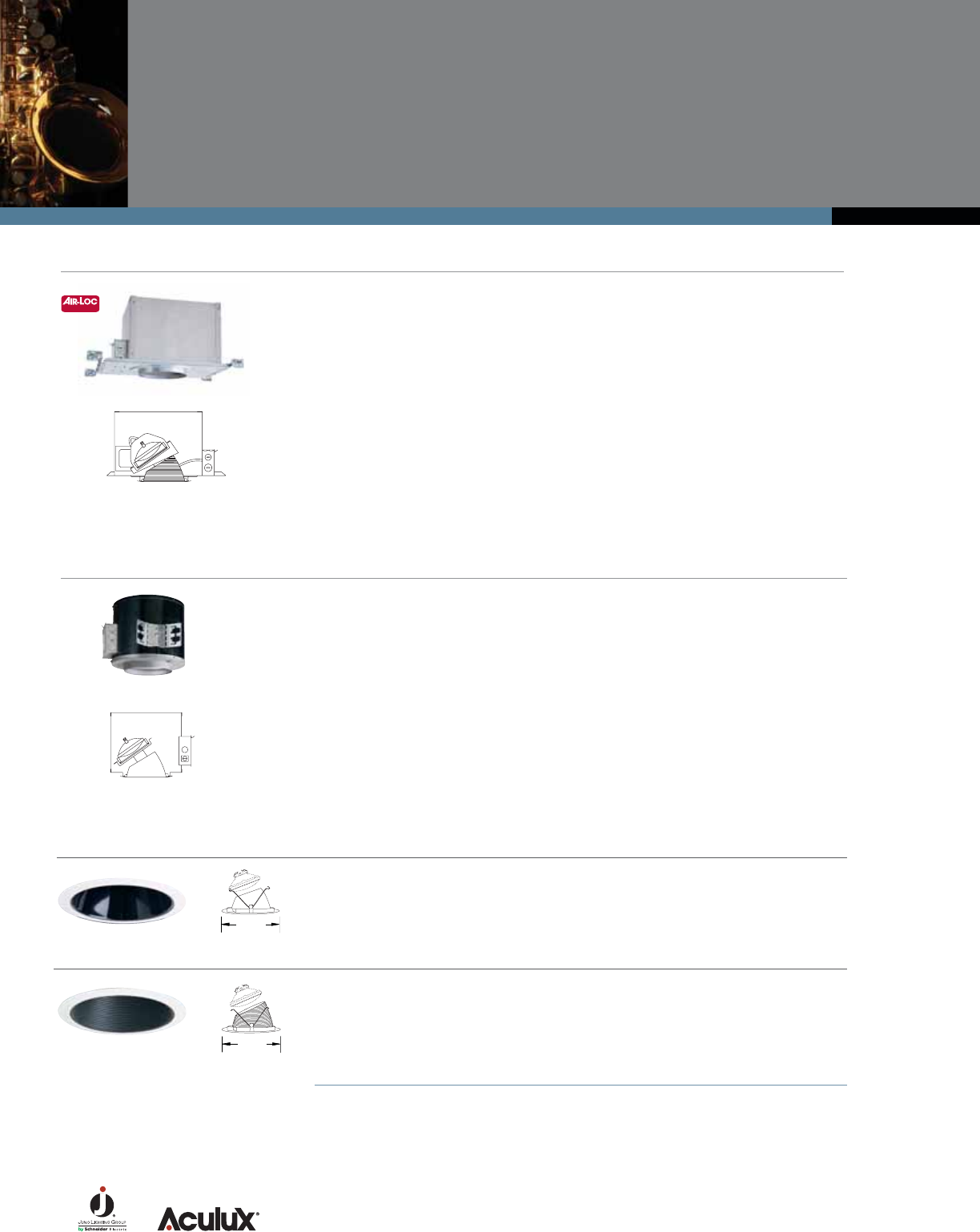

TC943M-MR16-20E1

120V Electronic Solid State

Ballast, 20W CMH MR16

TC943M-MR16-20E2

277V Electronic Solid State

Ballast, 20W CMH MR16

Commercial Non-IC Rated - CMH MR16 with Butterﬂy Style Mounting Brackets

Speciﬁcation grade and energy efﬁcient, the 20W and 39W CMH MR16 lamp replicates the size and

performance of a 50W and 75W halogen MR16 lamp respectively – but has up to 12,000 hour lamp life.

The crisp, 3000K white light offers the smallest CMH lamp package, making these ﬁxtures perfect for

niche display or high-end retail accent lighting.

3 1/4" Round Aperture CMH MR16 Housings

TC943M-MR16-39E1

120V Electronic Solid State

Ballast, 39W CMH MR16

TC943M-MR16-39E2

277V Electronic Solid State

Ballast, 39W CMH MR16

Energy Efﬁcient, Non-IC Rated new construction housing for

use where insulation is spaced 3” away from ﬁxture.

Patent Pending, Tru-Line™platform allows +/- 1/2” aperture

translation after installation prior to ﬁnished ceiling, aiding

ﬁxture-to-ﬁxture alignment.

Acu-Aim™ optics employs precision gearing to achieve

370° rotation, 45° tilt hot aiming with a screwdriver.

Optimized center lamp beam optics translates lamp forward

as it is aimed off nadir.

Supplied with vertically adjustable mounting brackets that

accept 1/2” conduit, “C” channel hangers (HB-26 or HB-50),

linear bar hangers (LB-27) or telescoping Juno Real Nail bar

hangers (HB-1).

Choose from 120V or 277V high power factor, electronic solid

state ballast.

Lampholder accepts (2) 2” beam control lenses and/or color

correction/UV ﬁlters.

20W or 39W CMH MR16, GX10 Base Lamp.

UL and C-UL listed for through branch wiring and damp

locations. Wet location listed with approved trims.

Catalog # Description

CTA4N-125 7/8” – 1 1/4” ceiling adapter

CTA4N-163 1 1/4” – 1 5/8” ceiling adapter

CTA4N-200 1 5/8” – 2” ceiling adapter

FMA4 Flush mount adapter for required

ﬂush mount trim installations

See Accessories

on page 58.

Mounting Accessories

13 7/8"

5 7/16"

8 1/2"

24

25

Deep Downlight Cone

Trim Ring — 3 1/4" Round Trim Selection

Downlight

Catalog # Description

434NB-ABZ Black Bafﬂe, Aged Bronze Trim Ring

434NB-SC Black Bafﬂe, Satin Chrome Trim Ring

434NB-WH Black Bafﬂe, White Trim Ring

434NW-WH White Bafﬂe, White Trim Ring

Deep Downlight Bafﬂe

Catalog # Description Lamp Ratings

4337N-ABZ Black Alzak®Reﬂector, Aged Bronze Trim

4337N-SC Black Alzak®Reﬂector, Satin Chrome Trim

4337N-WH Black Alzak®Reﬂector, White Trim

Downlight 1 1/4"Pinhole

Catalog # Description Lamp Ratings*

4307N-WH Black Alzak®Reﬂector, White Trim IC43L: 20W LED

TC43L/TC943L: 20W LED

IC43N: 50W MR16

TC43N/TC943N: 75W MR16

IC13N: 60W PAR16/50W PAR20

TC13N: 75W PAR16/50W PAR20

TC943M: 20W/39W CMH MR16

Aperture: 1 3/4”

Downlight Regressed 1 3/4"Pinhole

Catalog # Description Lamp Ratings

438NB-ABZ Black Alzak®Cone, Aged Bronze Trim Ring

438NB-SC Black Alzak®Cone, Satin Chrome Trim Ring

438NB-WH Black Alzak®Cone, White Trim Ring

438NC-WH Clear Alzak®Cone, White Trim Ring

438NG-WH Gold Alzak®Cone, White Trim Ring

438NHZ-SC Haze Alzak®Cone, Satin Chrome Ring

438NHZ-WH Haze Alzak®Cone, White Ring

438NWHZ-ABZ Wheat Haze Alzak®Cone, Aged Bronze Ring

438NWHZ-WH Wheat Haze Alzak®Cone, White Trim Ring

Angle-Cut Cone

Adjustable Accent

Catalog # Description Lamp Ratings

430NB-WH Black Alzak®Cone, White Trim Ring

430NC-WH Clear Alzak®Cone, White Trim Ring

430NG-WH Gold Alzak®Cone, White Trim Ring

430NHZ-SC Haze Alzak®Cone, Satin Chrome Trim Ring

430NHZ-WH Haze Alzak®Cone, White Trim Ring

430NWHZ-ABZ Wheat Haze Alzak®Cone, Aged Bronze Trim Ring

430NWHZ-WH Wheat Haze Alzak®Cone, White Trim Ring

20º Angle-Cut Cone

Catalog # Description Lamp Ratings

436NB-ABZ Black Alzak®Cone, Aged Bronze Trim Ring

436NB-SC Black Alzak®Cone, Satin Chrome Trim Ring

436NB-WH Black Alzak®Cone, White Trim Ring

436NC-WH Clear Alzak®Cone, White Trim Ring

436NG-WH Gold Alzak®Cone, White Trim Ring

436NHZ-SC Haze Alzak®Cone, Satin Chrome Ring

436NHZ-WH Haze Alzak®Cone, White Ring

436NWHZ-ABZ Wheat Haze Alzak®Cone, Aged Bronze Ring

436NWHZ-WH Wheat Haze Alzak®Cone, White Trim Ring

Slot Angle-Cut Cone

*Not compatible with TC43NR

5"

4 5/8"

5"

Catalog # Description Lamp Ratings

437NB-ABZ Black Alzak®Cone, Aged Bronze Trim Ring IC43L: 20W LED

437NB-SC Black Alzak®Cone, Satin Chrome Trim Ring TC43L/TC943L: 20W LED

437NB-WH Black Alzak®Cone, White Trim Ring IC43N: 50W MR16

437NC-WH Clear Alzak®Cone, White Trim Ring TC43N/TC943N: 75W MR16

437NG-WH Gold Alzak®Cone, White Trim Ring TC43NR: 50W MR16

437NHZ-SC Haze Alzak®Cone, Satin Chrome Ring IC13N: 60W PAR16/50W PAR20

437NHZ-WH Haze Alzak®Cone, White Ring TC13N: 75W PAR16/50W PAR20

437NWHZ-ABZ Wheat Haze Alzak®Cone, Aged Bronze Ring TC943M: 20W/39W CMH MR16

437NWHZ-WH Wheat Haze Alzak®Cone, White Trim Ring Aperture: 3 1/4”

Lamp Ratings

IC43L: 20W LED

TC43L/TC943L: 20W LED

IC43N: 50W MR16

TC43N/TC943N: 75W MR16

TC43NR: 50W MR16

IC13N: 60W PAR16/50W PAR20

TC13N: 75W PAR16/50W PAR20

TC943M: 20W/39W CMH MR16

Aperture: 3 1/4”

IC43L: 20W LED

TC43L/TC943L: 20W LED

IC43N: 50W MR16

TC43N/TC943N: 75W MR16

TC43NR: 50W MR16

IC13N: 60W PAR16/50W PAR20

TC13N: 75W PAR16 50W PAR20

TC943M: 20W/39W CMH MR16

Aperture: 1 1/4”

IC43L: 20W LED

TC43L/TC943L: 20W LED

IC43N: 50W MR16

TC43N/TC943N: 75W MR16

TC43NR: 50W MR16

IC13N: 60W PAR16/50W PAR20

TC13N: 75W PAR16/50W PAR20

TC943M: 20W/39W CMH MR16

Aperture: 3 1/4”

IC43L: 20W LED

TC43L/TC943L: 20W LED

IC43N: 50W MR16

TC43N/TC943N: 75W MR16

TC43NR: 50W MR16

IC13N: 60W PAR16/50W PAR20

TC13N: 75W PAR16/50W PAR20

TC943M: 20W/39W CMH MR16

Aperture: 3 1/4”

IC43L: 20W LED

TC43L/TC943L: 20W LED

IC43N: 50W MR16

TC43N/TC943N: 75W MR16

IC13N: 60W PAR16/50W PAR20

TC13N: 75W PAR16/50W PAR20

TC43NR: 50W MR16

TC943M: 20W/39W CMH MR16

Aperture: 3 1/4”

26

Catalog # Description Lamp Ratings

435NB-ABZ Black Bafﬂe, Aged Bronze Trim Ring

435NB-SC Black Bafﬂe, Satin Chrome Trim Ring

435NB-WH Black Bafﬂe, White Trim Ring

435NW-WH White Bafﬂe, White Trim Ring

Angle-Cut Bafﬂe

Catalog # Description Lamp Ratings

433N-ABZ Black Alzak®Reﬂector, Aged Bronze Trim

433N-SC Black Alzak®Reﬂector, Satin Chrome Trim

433N-WH Black Alzak®Reﬂector, White Trim

Adjustable 1 1/4"Pinhole

Catalog # Description Lamp Ratings

4335N-ABZ Black Alzak®Reﬂector, Aged Bronze Trim

4335N-SC Black Alzak®Reﬂector, Satin Chrome Trim

4335N-WH Black Alzak®Reﬂector, White Trim

Adjustable 1 3/4"Pinhole

Adjustable Accent continued

Catalog # Description Lamp Ratings

4345N-WH Black Alzak®Reﬂector, White Trim IC43L: 20W LED

TC43L/TC943L: 20W LED

IC43N: 50W MR16

TC43N/TC943N: 75W MR16

TC43NR: 50W MR16

IC13N: 60W PAR16/50W PAR20

TC13N: 75W PAR16/50W PAR20

TC943M: 20W/39W CMH MR16

Aperture: 2 1/2”

Slot Pinhole

Catalog # Description Lamp Ratings*

4308N-WH Black Alzak®Reﬂector, White Trim IC43L: 20W LED

TC43L/TC943L: 20W LED

IC43N: 50W MR16

TC43N/TC943N: 75W MR16

IC13N: 60W PAR16/50W PAR20

TC13N: 75W PAR16/50W PAR20

TC943M: 20W/39W CMH MR16

Aperture: 1 3/4”

*Not compatible with TC43NR

5"

Adjustable Regressed 1 3/4"Pinhole

Catalog # Description Lamp Ratings*

4349NB-BL Black Bafﬂe, Black Trim IC43N: 50W MR16

4349NB-WH Black Bafﬂe, White Trim TC43N/TC943N: 75W MR16

TC943M: 20W/39W CMH MR16

Mirrored Super Adjustable

IC43L: 20W LED

TC43L/TC943L: 20W LED

IC43N: 50W MR16

TC43N/TC943N: 75W MR16

TC43NR: 50W MR16

IC13N: 60W PAR16/50W PAR20

TC13N: 75W PAR16/50W PAR20

TC943M: 20W/39W CMH MR16

Aperture: 3 1/4”

IC43L: 20W LED

TC43L/TC943L: 20W LED

IC43N: 50W MR16

TC43N/TC943N: 75W MR16

TC943M: 20W/39W CMH MR16

IC13N: 60W PAR16/50W PAR20

TC13N: 75W PAR16/50W PAR20

TC43NR: 50W MR16

Aperture: 1 1/4”

IC43L: 20W LED

TC43L/TC943L: 20W LED

IC43N: 50W MR16

TC43N/TC943N: 75W MR16

TC43NR: 50W MR16

IC13N: 60W PAR16/50W PAR20

TC13N: 75W PAR16/50W PAR20

TC943M: 20W/39W CMH MR16

Aperture: 1 3/4”

continued

5"

4 5/8"

27

Catalog # Description Lamp Ratings

439NB-WH Black Alzak®Cone, White Trim Ring

439NC-WH Clear Alzak®Cone, White Trim Ring

439NG-WH Gold Alzak®Cone, White Trim Ring

439NHZ-SC Haze Alzak®Cone, Satin Chrome Trim Ring

439NHZ-WH Haze Alzak®Cone, White Trim Ring

439NWHZ-ABZ Wheat Haze Alzak®Cone, Aged Bronze Trim Ring

439NWHZ-WH Wheat Haze Alzak®Cone, White Trim Ring

Lensed Wall Wash

Catalog # Description Lamp Ratings

432NB-WH Black Alzak®Cone, White Trim Ring

432NC-WH Clear Alzak®Cone, White Trim Ring

432NG-WH Gold Alzak®Cone, White Trim Ring

432NHZ-SC Haze Alzak®Cone, Satin Chrome Trim Ring

432NHZ-WH Haze Alzak®Cone, White Trim Ring

432NWHZ-ABZ Wheat Haze Alzak®Cone, Aged Bronze Trim Ring

432NWHZ-WH Wheat Haze Alzak®Cone, White Trim Ring

Downlight Lensed Trim

Lensed

Catalog # Description Lamp Ratings

431NB-WH Black Alzak®Cone, White Trim Ring

431NC-WH Clear Alzak®Cone, White Trim Ring

431NG-WH Gold Alzak®Cone, White Trim Ring

431NHZ-SC Haze Alzak®Cone, Satin Chrome Trim Ring

431NHZ-WH Haze Alzak®Cone, White Trim Ring

431NWHZ-ABZ Wheat Haze Alzak®Cone, Aged Bronze Trim Ring

431NWHZ-WH Wheat Haze Alzak®Cone, White Trim Ring

Angle-Cut Lensed Trim

Catalog # Description Lamp Ratings

4332N-ABZ Black Alzak®Reﬂector, Aged Bronze

4332N-SC Black Alzak®Reﬂector, Satin Chrome

4332N-WH Black Alzak®Reﬂector, White Trim

Downlight 1 1/4"Pinhole - Lensed

Catalog # Description Lamp Ratings

4331N-ABZ Black Alzak®Reﬂector, Aged Bronze

4331N-SC Black Alzak®Reﬂector, Satin Chrome

4331N-WH Black Alzak®Reﬂector, White Trim

Adjustable 1 1/4"Pinhole - Lensed

Catalog # Description Lamp Ratings*

4302N-WH Black Alzak®Reﬂector, White Trim

Downlight Regressed 1 3/4"Pinhole - Lensed

Catalog # Description Lamp Ratings*

4301N-WH Black Alzak®Reﬂector, White Trim IC43L: 20W LED

TC43L/TC943L: 20W LED

IC43N: 50W MR16

TC43N/TC943N: 75W MR16

IC13N: 45W PAR16/50W PAR20

TC13N: 75W PAR16/50W PAR20

TC943M: 20W/39W CMH MR16

Aperture: 1 3/4”

Adjustable Regressed 1 3/4"Pinhole - Lensed

Wall Wash

5"

4 5/8"

Trim Ring — 3 1/4" Round Trim Selection,

continued

IC43L: 20W LED

TC43L/TC943L: 20W LED

IC43N: 50W MR16

TC43N/TC943N: 75W MR16

TC43NR: 50W MR16

IC13N: 45W PAR16/50W PAR20

TC13N: 75W PAR16/50W PAR20

TC943M: 20W/39W/CMH MR16

Aperture: 3 1/4”

IC43L: 20W LED

TC43L/TC943L: 20W LED

IC43N: 50W MR16

TC43N/TC943N: 75W MR16

TC43NR: 50W MR16

IC13N: 45W PAR16/50W PAR20

TC13N: 75W PAR16/50W PAR20

TC943M: 20W/39W CMH MR16

Aperture: 3 1/4”

IC43L: 20W LED

TC43L/TC943L: 20W LED

IC43N: 50W MR16

TC43N/TC943N: 75W MR16

TC43NR: 50W MR16

IC13N: 45W PAR16/50W PAR20

TC13N: 75W PAR16/50W PAR20

TC943M: 20W/39W CMH MR16

Aperture: 3 1/4”

IC43L: 20W LED

TC43L/TC943L: 20W LED

IC43N: 50W MR16

TC43N/TC943N: 75W MR16

TC43NR: 50W MR16

TC943M: 20W/39W CMH MR16

IC13N: 45W PAR16/50W PAR20

TC13N: 75W PAR16/50W PAR20

Aperture: 1 1/4”

IC43L: 20W LED

TC43L/TC943L: 20W LED

IC43N: 50W MR16

TC43N/TC943N: 75W MR16

TC43NR: 50W MR16

TC943M: 20W/39W CMH MR16

IC13N: 45W PAR16/50W PAR20

TC13N: 75W PAR16/50W PAR20

Aperture: 1 1/4”

IC43L: 20W LED

TC43L/TC943L: 20W LED

IC43N: 50W MR16

TC43N/TC943N: 75W MR16

IC13N: 45W PAR16/50W PAR20

TC13N: 75W PAR16/50W PAR20

TC943M: 20W/39W CMH MR16

Aperture: 1 3/4”

*Not compatible with TC43NR

28

29

Self-Flanged — 3 1/4" Round Trim Selection

*Not compatible with TC43NR

Catalog #

†

Description Lamp Ratings*

437NB-SF Black Alzak®Deep Cone

437NC-SF Clear Alzak®Deep Cone

437NG-SF Gold Alzak®Deep Cone

437NHZ-SF Haze Alzak®Deep Cone

437NWHZ-SF Wheat Haze Alzak®Deep Cone

Deep Downlight Cone

Downlight

Catalog #

†

Description Lamp Ratings*

438NB-SF Black Alzak®Cone

438NC-SF Clear Alzak®Cone

438NG-SF Gold Alzak®Cone

438NHZ-SF Haze Alzak®Cone

438NWHZ-SF Wheat Haze Alzak®Cone

Angle-Cut Cone

Adjustable Accent

Catalog #

†

Description Lamp Ratings*

430NB-SF Black Alzak®Cone

430NC-SF Clear Alzak®Cone

430NG-SF Gold Alzak®Cone

430NHZ-SF Haze Alzak®Cone

430NWHZ-SF Wheat Haze Alzak®Cone

20º Angle-Cut Cone

Catalog #

†

Description Lamp Ratings*

436NB-SF Black Alzak®Cone

436NC-SF Clear Alzak®Cone

436NG-SF Gold Alzak®Cone

436NHZ-SF Haze Alzak®Cone

436NWHZ-SF Wheat Haze Alzak®Cone

Slot Angle-Cut Cone

Catalog #

†

Description Lamp Ratings*

439NB-SF Black Alzak®Cone

439NC-SF Clear Alzak®Cone

439NG-SF Gold Alzak®Cone

439NHZ-SF Haze Alzak®Cone

439NWHZ-SF Wheat Haze Alzak®Cone

Lensed Wall Wash

Wall Wash

Catalog #

†

Description Lamp Ratings*

432NB-SF Black Alzak®Cone, Lensed

432NC-SF Clear Alzak®Cone, Lensed

432NG-SF Gold Alzak®Cone, Lensed

432NHZ-SF Haze Alzak®Cone, Lensed

432NWHZ-SF Wheat Haze Alzak®Cone, Lensed

Downlight Lensed Trim

Lensed

Catalog #

†

Description Lamp Ratings*

431NB-SF Black Alzak®Cone, Lensed

431NC-SF Clear Alzak®Cone, Lensed

431NG-SF Gold Alzak®Cone, Lensed

431NHZ-SF Haze Alzak®Cone, Lensed

431NWHZ-SF Wheat Haze Alzak®Cone, Lensed

Angle-Cut Lensed Trim

4 5/8"

IC43L: 20W LED

TC43L/TC943L: 20W LED

IC43N: 50W MR16

TC43N/TC943N Series: 75W MR16

IC13N: 60W PAR16/50W PAR20

TC13N: 75W PAR16/50W PAR20

TC943M: 20W/39W MR16 CMH

Aperture: 3 3/8”

IC43L: 20W LED

TC43L/TC943L: 20W LED

IC43N: 50W MR16

TC43N/TC943N: 75W MR16

IC13N: 60W PAR16/50W PAR20

TC13N: 75W PAR16/50W PAR20

TC943M: 20W/39W MR16 CMH

Aperture: 3 3/8”

IC43L: 20W LED

TC43L/TC943L: 20W LED

IC43N: 50W MR16

TC43N/TC943N: 75W MR16

IC13N: 60W PAR16/50W PAR20

TC13N: 75W PAR16/50W PAR20

TC943M: 20W/39W MR16 CMH

Aperture: 3 3/8”

IC43L: 20W LED

TC43L/TC943L: 20W LED

IC43N: 50W MR16

TC43N/TC943N: 75W MR16

IC13N: 60W PAR16/50W PAR20

TC13N: 75W PAR16/50W PAR20

TC943M: 20W/39W MR16 CMH

Aperture: 3 3/8”

IC43L: 20W LED

TC43L/TC943L: 20W LED

IC43N: 50W MR16

TC43N/TC943N: 75W MR16

IC13N: 45W PAR16/50W PAR20

TC13N: 75W PAR16/50W PAR20

TC943M: 20W/39W MR16 CMH

Aperture: 3 3/8”

IC43L: 20W LED

TC43L/TC943L: 20W LED

IC43N: 50W MR16

TC43N/TC943N: 75W MR16

IC13N: 45W PAR16/50W PAR20

TC13N: 75W PAR16/50W PAR20

TC943M: 20W/39W MR16 CMH

Aperture: 3 3/8”

IC43L: 20W LED

TC43L/TC943L: 20W LED

IC43N: 50W MR16

TC43N/TC943N: 75W MR16

IC13N: 45W PAR16/50W PAR20

TC13N: 75W PAR16/50W PAR20

TC943M: 20W/39W MR16 CMH

Aperture: 3 3/8”

† For self-flanged reflector with optional white painted flange, add WH suffix. (example: 437NB-SFWH)

30

31

Catalog # Description Lamp Ratings*

437NB-FM Black Alzak®Deep Cone

437NC-FM Clear Alzak®Deep Cone

437NG-FM Gold Alzak®Deep Cone

437NHZ-FM Haze Alzak®Deep Cone

437NWHZ-FM Wheat Haze Alzak®Deep Cone

Deep Downlight Cone

Downlight

Catalog # Description Lamp Ratings*

4337N-WH-FM Black Alzak®Reﬂector, White Trim IC43L: 20W LED

TC43L/TC943L: 20W LED

IC43N: 50W MR16

TC43N/TC943N: 75W MR16

IC13N: 60W PAR16/50W PAR20

TC13N: 75W PAR16/50W PAR20

TC943M: 20W/39W MR16 CMH

Aperture: 1 1/4”

Downlight 1 1/4"Pinhole

Catalog # Description Lamp Ratings*

4307N-WH-FM Black Alzak®Reﬂector, White Trim IC43L: 20W

TC43L/TC943L: 20W LED

IC43N: 50W MR16

TC43N/TC943N: 75W MR16

IC13N: 60W PAR16/50W PAR20

TC13N: 75W PAR16/50W PAR20

TC943M: 20W/39W MR16 CMH

Aperture: 1 3/4”

Downlight Regressed 1 3/4"Pinhole

Catalog # Description Lamp Ratings*

438NB-FM Black Alzak®Cone

438NC-FM Clear Alzak®Cone

438NG-FM Gold Alzak®Cone

438NHZ-FM Haze Alzak®Cone

438NWHZ-FM Wheat Haze Alzak®Cone

Angle-Cut Cone

Adjustable Accent

Catalog # Description Lamp Ratings*

430NB-FM Black Alzak®Cone

430NC-FM Clear Alzak®Cone

430NG-FM Gold Alzak®Cone

430NHZ-FM Haze Alzak®Cone

430NWHZ-FM Wheat Haze Alzak®Cone

20º Angle-Cut Cone

Catalog # Description Lamp Ratings*

436NB-FM Black Alzak®Cone

436NC-FM Clear Alzak®Cone

436NG-FM Gold Alzak®Cone

436NHZ-FM Haze Alzak®Cone

436NWHZ-FM Wheat Haze Alzak®Cone

Slot Angle-Cut Cone

Catalog # Description Lamp Ratings*

433N-WH-FM Black Alzak®Reﬂector, White Trim IC43L: 20W LED

TC43L/TC943L: 20W LED

IC13N: 60W PAR16/50W PAR20

TC13N: 75W PAR16/50W PAR20

IC43N: 50W MR16

TC43N/TC943N: 75W MR16

TC943M: 20W/39W MR16 CMH

Aperture: 1 1/4”

Adjustable 1 1/4"Pinhole

Flush Mount — 3 1/4" Round Trim Selection

3 7/8"

IC43L: 20W LED

TC43L/TC943L: 20W LED

IC43N: 50W MR16

TC43N/TC943N: 75W MR16

IC13N: 60W PAR16/50W PAR20

TC13N: 75W PAR16/50W PAR20

TC943M: 20W/39W MR16 CMH

Aperture: 3 3/8”

IC43L: 20W LED

TC43L/TC943L: 20W LED

IC43N: 50W MR16

TC43N/TC943N: 75W MR16

IC13N: 60W PAR16/50W PAR20

TC13N: 75W PAR16/50W PAR20

TC943M: 20W/39W MR16 CMH

Aperture: 3 3/8”

IC43L: 20W LED

TC43L/TC943L: 20W LED

IC43N: 50W MR16

TC43N/TC943N: 75W MR16

IC13N: 60W PAR16/50W PAR20

TC13N: 75W PAR16/50W PAR20

TC943M: 20W/39W MR16 CMH

Aperture: 3 3/8”

IC43L: 20W LED

TC43L/TC943L: 20W LED

IC43N: 50W MR16

TC43N/TC943N: 75W MR16

IC13N: 60W PAR16/50W PAR20

TC13N: 75W PAR16/50W PAR20

TC943M: 20W/39W MR16 CMH

Aperture: 3 3/8”

*Not compatible with TC43NR

32

Accessories

Catalog # Description

FMA4 Flush mount adapter required for round ﬂush mount trim installations

Catalog # Description Ratings*

4335N-WH-FM Black Alzak®Reﬂector, White Trim

Adjustable 1 3/4” Pinhole

Catalog # Description Lamp Ratings*

4345N-WH-FM Black Alzak®Reﬂector, White Trim IC43L: 20W LED

TC43L/TC943L: 20W LED

IC43N: 50W MR16

IC13N: 60W PAR16/50W PAR20

TC13N: 75W PAR16/50W PAR20

TC43N/TC943N: 75W MR16

TC943M: 20W/39W MR16 CMH

Aperture: 2 1/2”

Slot Pinhole

Catalog # Description Lamp Ratings*

4308N-WH-FM Black Alzak®Reﬂector, White Trim IC43L: 20W LED

TC43L/TC943L: 20W LED

IC43N: 50W MR16

TC43N/TC943N: 75W MR16

IC13N: 60W PAR16/50W PAR20

TC13N: 75W PAR16/50W PAR20

TC943M: 20W/39W MR16 CMH

Aperture: 1 3/4”

Adjustable Regressed Pinhole

Catalog # Description Lamp Ratings*

439NB-FM Black Alzak®Cone

439NC-FM Clear Alzak®Cone

439NG-FM Gold Alzak®Cone

439NHZ-FM Haze Alzak®Cone

439NWHZ-FM Wheat Haze Alzak®Cone

Lensed Wall Wash

Wall Wash

Catalog # Description Lamp Ratings*

432NB-FM Black Alzak®Cone, Lensed

432NC-FM Clear Alzak®Cone, Lensed

432NG-FM Gold Alzak®Cone, Lensed

432NHZ-FM Haze Alzak®Cone, Lensed

432NWHZ-FM Wheat Haze Alzak®Cone, Lensed

Downlight Lensed Trim

Lensed

Catalog # Description Lamp Ratings*

431NB-FM Black Alzak®Cone, Lensed

431NC-FM Clear Alzak®Cone, Lensed

431NG-FM Gold Alzak®Cone, Lensed

431NHZ-FM Haze Alzak®Cone, Lensed

431NWHZ-FM Wheat Haze Alzak®Cone, Lensed

Angle-Cut Lensed Trim

3 7/8"

IC43L: 20W LED

TC43L/TC943L: 20W LED

IC43N: 50W MR16

TC43N/TC943N: 75W MR16

IC13N: 60W PAR16/50W PAR20

TC13N: 75W PAR16/50W PAR20

TC943M: 20W/39W MR16 CMH

Aperture: 1 3/4”

continued

IC43L: 20W LED

TC43L/TC943L: 20W LED

IC43N: 50W MR16

TC43N/TC943N: 75W MR16

IC13N: 45W PAR16/50W PAR20

TC13N: 75W PAR16/50W PAR20

TC943M: 20W/39W MR16 CMH

Aperture: 3 3/8”

IC43L: 20W LED

TC43L/TC943L: 20W LED

IC43N: 50W MR16

TC43N/TC943N: 75W MR16

IC13N: 45W PAR16/50W PAR20

TC13N: 75W PAR16/50W PAR20

TC943M: 20W/39W MR16 CMH

Aperture: 3 3/8”

*Not compatible with TC43NR

IC43L: 20W LED

TC43L/TC943L: 20W LED

IC43N: 50W MR16

TC43N/TC943N: 75W MR16

IC13N: 45W PAR16/50W PAR20

TC13N: 75W PAR16/50W PAR20

TC943M: 20W/39W MR16 CMH

Aperture: 3 3/8”

33

LED Non-IC Rated with Pro-VI Telescoping Bar Hangers

LED IC Rated with Pro-VI™Telescoping Bar Hangers

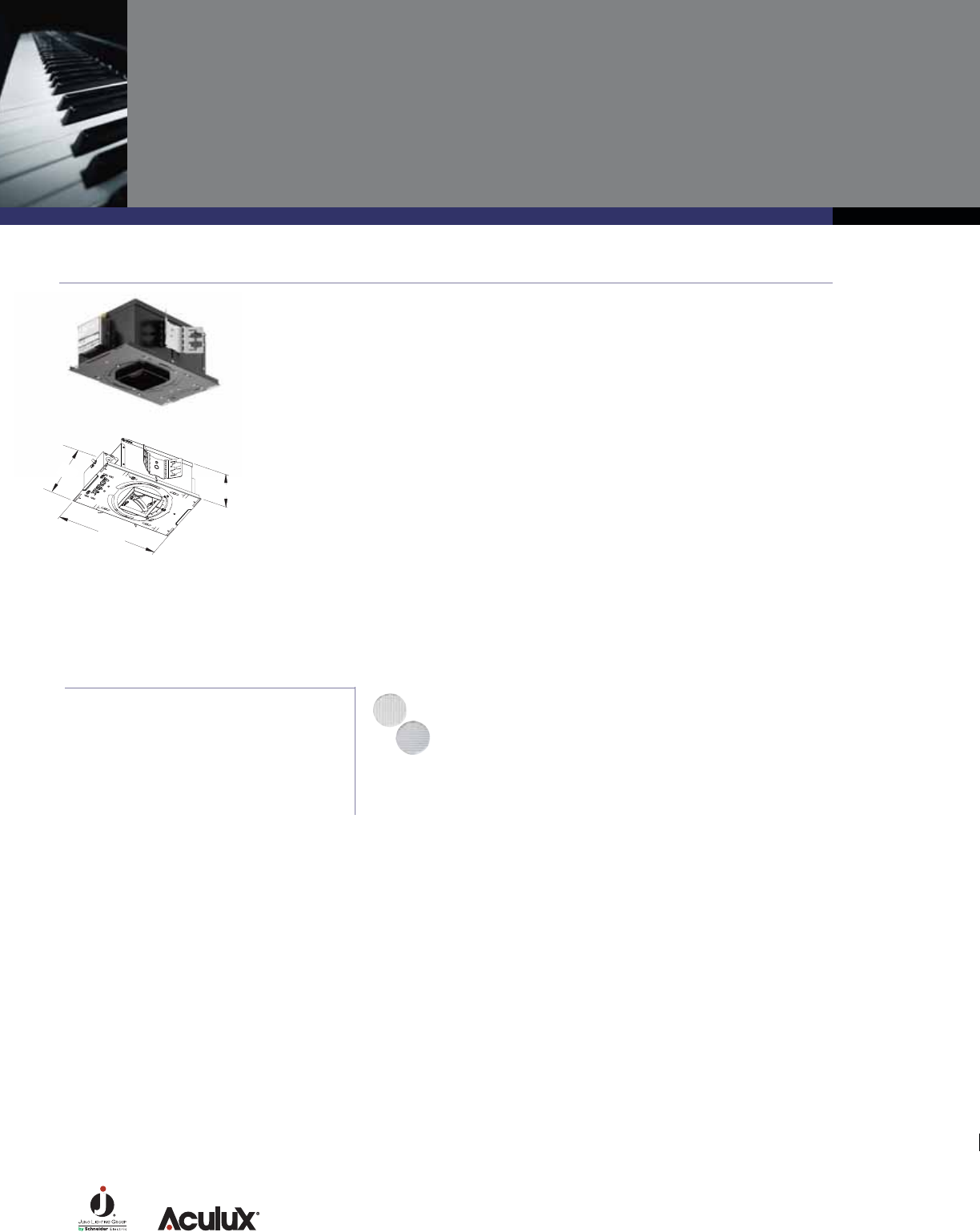

3 1/4" Square Aperture LED Housings

IC43LSQ-3K-S (-N, -F)

3000K Color Temperature,

85 CRI Typical

IC43LSQ-35K-S (-N, -F)

3500K Color Temperature,

85 CRI Typical

IC43LSQ-4K-S (-N, -F)

4100K Color Temperature,

75 CRI Typical

Energy Efﬁcient, IC Rated new construction housing for use in

direct contact with insulation.

Sealed Air-Loc®housing eliminates air ﬂow and reduces sound

transmission through plenum.

Patent Pending, Tru-Line™platform allows +/- 1/2” aperture

translation and +/- 45° aperture rotation after installation prior

to ﬁnished ceiling, aiding ﬁxture-to-ﬁxture alignment.

Acu-Aim™optics employs precision gearing to achieve 370°

rotation, 45° tilt hot aiming with screwdriver. Optimized center

lamp beam optics translates light engine forward as it is aimed

off nadir.

120V-277V electronic solid state driver. 20W total system power

consumption delivers performance similar to 50W halogen MR16.

Patent pending, Pro-VI™telescoping bar hanger system has

locking set screws. The captive bugle-headed ring shank nail

allows for a quick one-step installation in joist construction while

the robust bar eliminates ﬂexing regardless of ﬁxture position.

For suspended ceilings, use integral t-notches with locking tabs.

Innovative optic holder allows interchangeable optics and

(2) additional 2” beam control lenses and/or ﬁlters.

Beam Optics

S = 15º Spot

N = 24º Narrow Flood

F = 35º Flood

TC43LSQ-3K-S (-N, -F)-E1

3000K Color Temperature,

85 CRI Typical

TC43LSQ-35K-S (-N, -F)-E1

3500K Color Temperature,

85 CRI Typical

TC43LSQ-4K-S (-N, -F)-E1

4100K Color Temperature,

75 CRI Typical

Energy Efﬁcient, Non-IC Rated new construction housing for

use where insulation is spaced 3” away from ﬁxture.

Sealed Air-Loc®housing eliminates air ﬂow and reduces sound

transmission through plenum

Patent Pending, Tru-Line™platform allows +/- 1/2” aperture

translation and +/- 45° aperture rotation after installation prior

to ﬁnished ceiling, aiding ﬁxture-to-ﬁxture alignment.

Acu-Aim™optics employs precision gearing to achieve 370°

rotation, 45° tilt hot aiming with a screwdriver. Optimized center

lamp beam optics translates light engine forward as it is aimed

off nadir.

120V or 277V electronic solid state driver. 20W total system

power consumption delivers performance similar to 50W

halogen MR16.

Patent pending, Pro-VI™telescoping bar hanger system has

locking set screws. The captive bugle-headed ring shank nail

allows for a quick one-step installation in joist construction while

the robust bar eliminates ﬂexing regardless of ﬁxture position.

For suspended ceilings, use integral t-notches with locking tabs.

Innovative optic holder allows interchangeable optics and

(2) additional 2” beam control lenses and/or ﬁlters.

Beam Optics

S = 15º Spot

N = 24º Narrow Flood

F = 35º Flood

15 1/8"

19 5/8"

13 3/4"

Will expand

to 24 3/8"

(Reduces to 10 3/4"

with breakaway

feature) 8 15/16"

18"

13 1/2"

13 3/4"

Will expand

to 24 3/8"

(Reduces to 9 1/4"

with breakaway

feature)

5 7/16" For 277V replace

E1 with E2.

Catalog # Description

CTA4SQ-125 7/8” – 1 1/4” ceiling adapter

CTA4SQ-163 1 1/4” – 1 5/8” ceiling adapter

CTA4SQ-200 1 5/8” – 2” ceiling adapter

FMASQ4 Flush mount adapter for required

ﬂush mount trim installations

See Accessories

on page 58.

Mounting Accessories

The Aculux brand is redeﬁning precision lighting with energy efﬁcient, versatile, low wattage LED ﬁxtures.

The performance approximates a 50W MR16 while consuming only 20 watts. The LED ﬁxtures are

compatible with all the new 3 1/4" trim offering and have the same features as the newly redesigned

3 1/4" ﬁxtures – Acu-Aim™Geared Optics, Tru-Line™Installation and Pro-VI™Bar Hangers to name a few.

The unique interchangeable beam optics provide the lighting designer with the ultimate

ﬂexibility from ﬁxture-to-ﬁxture.

34

Features

Commercial LED Non-IC Rated with Butterﬂy Style Mounting Brackets

TC943LSQ-3K-S (-N, -F)-E1

3000K Color Temperature,

85 CRI Typical

TC943LSQ-35K-S (-N, -F)-E1

3500K Color Temperature,

85 CRI Typical

TC943LSQ-4K-S (-N, -F)-E1

4100K Color Temperature,

75 CRI Typical

Energy Efﬁcient, Non-IC Rated new construction housing for

use where insulation is spaced 3” away from ﬁxture.

Patent Pending, Tru-Line™platform allows +/- 1/2” aperture

translation and +/- 45° aperture rotation after installation prior

to ﬁnished ceiling, aiding ﬁxture-to-ﬁxture alignment.

Acu-Aim™optics employs precision gearing to achieve 370°

rotation, 45° tilt hot aiming with a screwdriver. Optimized center

lamp beam optics translates light engine forward as it is aimed

off nadir.

120V or 277V electronic solid state driver. 20W total system

power consumption delivers performance similar to 50W

halogen MR16.

Innovative optic holder allows interchangeable optics and

(2) additional 2” beam control lenses and/or ﬁlters.

Supplied with vertically adjustable mounting brackets that

accept 1/2” conduit, C” channel hangers (HB-26 or HB-50),

linear bar hangers (LB-27) or telescoping Juno Real Nail bar

hangers (HB-1).

Beam Optics

S = 15º Spot

N = 24º Narrow Flood

F = 35º Flood

Catalog # Description

CTA4N-125 1 1/4” ceiling adapter

CTA4N-163 1 1/4” – 1 5/8” ceiling adapter

CTA4N-200 1 5/8” – 2” ceiling adapter

FMA4 Flush mount adapter for required

ﬂush mount trim installations

See Accessories

on page 58.

Mounting Accessories

13 7/8"

5 7/16"

8 1/2"

• Concealed LEDs mimic 50W MR16 Performance.

• Accepts up to two beam control lenses and/or ﬁlters.

• Available in 3000K, 3500K, 4100K.

• 85 CRI typical for 3000K and 3500K, 75 CRI 4100K.

• 20W total power consumption approximates 50W MR16

performance.

• Reverse phase dimming. Consult factory for dimmer compatibility.

• Solid state driver, 120V or 277V.

• Three interchangeable Optics.

35º Flood

24º Narrow Flood

15º Spot LED

For 277V replace

E1 with E2.

35

IC Rated with Pro-VI™Telescoping Bar Hangers

Speciﬁcation grade, adjustable 12-volt MR16 luminaires produce controlled beam spreads, and have

excellent color rendering properties that dramatically emphasize art, textures and architectural

elements. Aculux 3 1/4” square aperture ﬁxtures make a bold architectural statement while delivering

superb downlighting, accent lighting and wall washing.

3 1/4" Square Aperture MR16 Low Voltage Housings

Commercial Non-IC Rated with Butterﬂy Style Mounting Brackets

TC943SQ

120V Magnetic, High efﬁciency

dual tap, toroidal transformer.

TC943SQ-V

277V Magnetic, High efﬁciency

dual tap, toroidal transformer.

TC943SQ-E1

120V Electronic, High efﬁciency,

high power factor transformer.

TC943SQ-E2

277V Electronic, High efﬁciency,

high power factor transformer.

19 5/8"

15 1/8"

13 3/4"

Will expand

to 24 3/8"

(Reduces to 10 3/4"

with breakaway

feature) 8 5/16"

14 1/2"

8 1/2"

5 7/16"

Low Voltage IC Rated new construction housing for use in direct

contact with insulation.

Sealed Air-Loc

®

housing eliminates air ﬂow and reduces sound

transmission through plenum.

Patent Pending, Tru-Line™platform allows +/- 1/2” aperture

translation and +/- 45° aperture rotation after installation prior

to ﬁnished ceiling, aiding ﬁxture-to-ﬁxture alignment.

Acu-Aim™optics employs precision gearing to achieve 370°

rotation, 45° tilt hot aiming with a screwdriver. Optimized

center lamp beam optics translates lamp forward as it is

aimed off nadir.

Choose from 120V High efﬁciency (>90%) dual tap potted magnetic or

120V High efﬁciency (>94%), high power factor electronic transformer.

Patent pending, Pro-VI™telescoping bar hanger system has locking

set screws. The captive bugle-headed ring shank nail allows for a

quick one-step installation in joist construction while the robust bar

eliminates ﬂexing regardless of ﬁxture position. For suspended

ceilings, use integral t-notches with locking tabs.

Lampholder accepts up to (3) 2” beam control lenses and/or

color correction/UV ﬁlters. Fixture is supplied with stippled clear

uniformity lens.

50W MR16 Maximum Lamp Rating.

UL and cUL listed for through branch wiring and damp locations.

Wet location listed with approved trims.

Low Voltage, Non-IC Rated new construction housing for use

where insulation is spaced 3” away from ﬁxture.

Patent Pending, Tru-Line™platform allows +/- 1/2” aperture

translation and +/- 45° aperture rotation after installation prior

to ﬁnished ceiling, aiding ﬁxture-to-ﬁxture alignment.

Acu-Aim™optics employs precision gearing to achieve 370°

rotation, 45° tilt hot aiming with a screwdriver. Optimized

center lamp beam optics translates lamp forward as it is

aimed off nadir.

Fixture is available with four premium transformer options –

Magnetic 120V or 277V High efﬁciency (>90%) dual tap

magnetic, toroidal transformer.

Electronic: 120V or 277V High efﬁciency (>94%), high power

factor electronic transformer

Supplied with vertically adjustable mounting brackets that

accept 1/2” conduit, “C” channel hangers (HB-26 or HB-50),

linear bar hangers (LB-27) or telescoping Juno Real Nail bar

hangers (HB-1).

Lampholder accepts up to (3) 2” beam control lenses and/or

color correction/UV ﬁlters. Fixture is supplied with stippled clear

uniformity lens.

75W MR16 Maximum Lamp Rating.

UL and C-UL listed for through branch wiring and damp

locations. Wet location listed with approved trims.

IC43SQ

120V Magnetic, High efﬁciency

dual tap, toroidal transformer.

IC43SQ-E1

120V Electronic, High efﬁciency,

high power factor transformer.

Catalog # Description

CTA4SQ-125 7/8” – 1 1/4” ceiling adapter

CTA4SQ-163 1 1/4” – 1 5/8” ceiling adapter

CTA4SQ-200 1 5/8” – 2” ceiling adapter

FMASQ4 Flush mount adapter for required

ﬂush mount trim installations

See Accessories

on page 58.

Mounting Accessories

36

Non-IC Rated with Pro-VI™Telescoping Bar Hangers

5 7/16"

18"

13 1/2"

13 3/4"

Will expand

to 24 3/8"

(Reduces to 9 1/4"

with breakaway

feature)

Low Voltage, Non-IC Rated new construction housing for use

where insulation is spaced 3” away from ﬁxture.

Sealed Air-Loc

®

housing eliminates air ﬂow and reduces sound

transmission through plenum.

Patent Pending, Tru-Line™platform allows +/- 1/2” aperture

translation and +/- 45° aperture rotation after installation prior

to ﬁnished ceiling, aiding ﬁxture-to-ﬁxture alignment.

Acu-Aim™optics employs precision gearing to achieve

370° rotation, 45° tilt hot aiming with a screwdriver. Optimized

center lamp beam optics translates lamp forward as it is

aimed off nadir.

Choose from 120V High efﬁciency (>90%) dual tap potted

magnetic or 120V High efﬁciency (>94%), high power factor

electronic transformer.

Patent pending, Pro-VI™telescoping bar hanger system has

locking set screws. The captive bugle-headed ring shank nail

allows for a quick one-step installation in joist construction

while the robust bar eliminates ﬂexing regardless of ﬁxture

position. For suspended ceilings, use integral t-notches with

locking tabs.

Lampholder accepts up to (3) 2” beam control lenses and/or

color correction/UV ﬁlters. Fixture is supplied with stippled

clear uniformity lens.

75W MR16 Maximum Lamp Rating.

UL and C-UL listed for through branch wiring and damp

locations. Wet location listed with approved trims.

TC43SQ

120V Magnetic, High efﬁciency

toroidal transformer.

TC43SQ-E1

120V Electronic, High efﬁciency,

high power factor transformer.

Catalog # Description

CTA4SQ-125 7/8” – 1 1/4” ceiling adapter

CTA4SQ-163 1 1/4” – 1 5/8” ceiling adapter

CTA4SQ-200 1 5/8” – 2” ceiling adapter

FMASQ4 Flush mount adapter for required

ﬂush mount trim installations

See Accessories

on page 58.

Mounting Accessories

37

IC13SQ

120V Line Voltage,

IC Housing

Non-IC Rated with Pro-VI™Telescoping Bar Hangers

Residential IC Rated with Pro-VI™Telescoping Bar Hangers

Aculux 120-volt PAR luminaires produce concentrated beams of light for a variety of lighting

applications. PAR16 or PAR20 lamps produce spot or ﬂood patterns for moderate light levels over

shorter to medium throw distances. Aculux 3 1/4” square PAR ﬁxtures are well suited for

higher-level ambient lighting in a task or an accent lighting environment.

3 1/4" Square Aperture PAR16/PAR20 Housings

TC13SQ

120V Line Voltage,

Non-IC Housing

15 1/8"

19 5/8"

13 3/4"

Will expand

to 24 3/8"

(Reduces to 10 3/4"

with breakaway

feature) 8 15/16"

18"

13 1/2"

13 3/4"

Will expand

to 24 3/8"

(Reduces to 9 1/4"

with breakaway

feature)

5 7/16"

Line Voltage IC rated, new construction housing for use in

direct contact with insulation.

Sealed Air-Loc

®

housing eliminates air ﬂow and reduces sound

transmission through plenum.

Patent Pending, Tru-Line™platform allows +/- 1/2” aperture

translation and +/- 45° aperture rotation after installation prior

to ﬁnished ceiling, aiding ﬁxture-to-ﬁxture alignment.

Acu-Aim™optics employs precision gearing to achieve

370° rotation, 40° tilt hot aiming with a screwdriver.

Optimized center lamp beam optics translates lamp forward

as it is aimed off nadir.

Patent pending, Pro-VI™telescoping bar hanger system has

locking set screws. The captive bugle-headed ring shank nail

allows for a quick one-step installation in joist construction

while the robust bar eliminates ﬂexing regardless of ﬁxture

position. For suspended ceilings, use integral t-notches with

locking tabs.

50W PAR20 or 60W PAR16 Maximum Lamp Rating.

UL and C-UL listed for through branch wiring and damp

locations. Wet location listed with approved trims.

Line Voltage, Non-IC Rated new construction housing for use

where insulation is spaced 3” away from ﬁxture.

Sealed Air-Loc

®

housing eliminates air ﬂow and reduces sound

transmission through plenum.

Patent Pending, Tru-Line™platform allows +/- 1/2” aperture

translation and +/- 45° aperture rotation after installation prior

to ﬁnished ceiling, aiding ﬁxture-to-ﬁxture alignment.

Acu-Aim™optics employs precision gearing to achieve

370° rotation, 40° tilt hot aiming with a screwdriver.

Optimized center lamp beam optics translates lamp forward

as it is aimed off nadir.

Patent pending, Pro-VI™telescoping bar hanger system has

locking set screws. The captive bugle-headed ring shank nail

allows for a quick one-step installation in joist construction

while the robust bar eliminates ﬂexing regardless of ﬁxture

position. For suspended ceilings, use integral t-notches with

locking tabs.

50W PAR20 or 75W PAR16 Maximum Lamp Rating.

UL and C-UL listed for through branch wiring and damp

locations. Wet location listed with approved trims.

Catalog # Description

CTA4SQ-125 7/8” – 1 1/4” ceiling adapter

CTA4SQ-163 1 1/4” – 1 5/8” ceiling adapter

CTA4SQ-200 1 5/8” – 2” ceiling adapter

FMASQ4 Flush mount adapter for required

ﬂush mount trim installations

Mounting Accessories

38

39

TC943MSQ-MR16-20E1

120V High Power Factor

Electronic Solid State Ballast,

20W CMH MR16

TC943MSQ-MR16-20E2

277V High Power Factor

Electronic Solid State Ballast,

20W CMH MR16

TC943MSQ-MR16-39E1

120V High Power Factor

Electronic Solid State Ballast,

39W CMH MR16

TC943MSQ-MR16-39E2

277V High Power Factor

Electronic Solid State Ballast,

39W CMH MR16

Speciﬁcation grade and energy efﬁcient. The 20W to 39W CMH MR16 lamp replicates the size and

performance of a 50W and 75W halogen MR16 lamp respectively – but up to 12,000 hour lamp life.

The crisp, 3000K white light offers the smallest CMH lamp package, making these ﬁxtures perfect for

niche display or accent lighting.

3 1/4" Square Aperture CMH MR16 Housings

Commercial Non-IC Rated CMH MR16 with Butterﬂy Mounting Brackets

Energy Efﬁcient, Non-IC Rated new construction housing for

use where insulation is spaced 3” away from ﬁxture.

Patent Pending, Tru-Line™platform allows +/- 1/2” aperture

translation and +/- 45° aperture rotation after installation prior

to ﬁnished ceiling, aiding ﬁxture-to-ﬁxture alignment.

Acu-Aim™optics employs precision gearing to achieve

370° rotation, 45° tilt hot aiming with a screwdriver. Optimized

center lamp beam optics translates lamp forward as it is

aimed off nadir.

Supplied with vertically adjustable mounting brackets that

accept 1/2” conduit, “C” channel hangers (HB-26 or HB-50),

linear bar hangers (LB-27) or telescoping Juno Real Nail bar

hangers (HB-1).

Choose from 120V or 277V high power factor, electronic solid

state ballast.

Lampholder accepts (2) 2” beam control lenses and/or

color correction/UV ﬁlters.

20W or 39W CMH MR16, GX10 Base Lamp.

UL and C-UL listed for through branch wiring and damp

locations. Wet location listed with approved trims.

13 7/8"

5 7/16"

8 1/2"

Catalog # Description

CTA4SQ-125 7/8” – 1 1/4” ceiling adapter

CTA4SQ-163 1 1/4” – 1 5/8” ceiling adapter

CTA4SQ-200 1 5/8” – 2” ceiling adapter

FMASQ4 Flush mount adapter for required

ﬂush mount trim installations

See Accessories

on page 58.

Mounting Accessories

40

41

Catalog #

†

Description Lamp Ratings

437SQBHZ-SF Black Haze Reﬂector

437SQW-SF White Reﬂector

437SQHZ-SF Haze Reﬂector

437SQWHZ-SF Wheat Haze Reﬂector

Deep Downlight Reﬂector

Downlight

Catalog #

†

Description Lamp Ratings

4307SQ-WH Black Alzak®Reﬂector, White Trim IC43LSQ: 20W LED

TC43LSQ/TC943LSQ: 20W LED

IC43SQ: 50W MR16

TC43SQ/TC943SQ: 75W MR16

IC13SQ: 45W PAR16/50W PAR20

TC13SQ: 60W PAR16/50W PAR20

TC943MSQ: 20W/39W MR16 CMH

Aperture: 1 3/4”

Downlight Regressed Pinhole

Catalog #

†

Description Lamp Ratings

438SQBHZ-SF Black Haze Reﬂector

438SQW-SF White Reﬂector

438SQHZ-SF Haze Reﬂector

438SQWHZ-SF Wheat Haze Reﬂector

Angle-Cut Reﬂector

Adjustable Accent

Catalog # Description Lamp Ratings

433SQ-WH Black Alzak®Reﬂector, White Trim IC43LSQ: 20W LED

TC43LSQ/TC943LSQ: 20W LED

IC43SQ: 50W MR16

TC43SQ/TC943SQ: 75W MR16

IC13SQ: 60W PAR16/50W PAR20

TC13SQ: 75W PAR16/50W PAR20

TC943MSQ: 20W/39W MR16 CMH

Aperture: 1 1/4”

Adjustable 1 1/4"Pinhole

Catalog #

†

Description Lamp Ratings

439SQBHZ-SF Black Haze Reﬂector

439SQW-SF White Reﬂector

439SQHZ-SF Haze Reﬂector

439SQWHZ-SF Wheat Haze Reﬂector

Lensed Wall Wash

Wall Wash

Self-Flanged — 3 1/4" Square Trims

4 1/2"

IC43LSQ: 20W LED

TC43LSQ/TC943LSQ: 20W LED

IC43SQ: 50W MR16

TC43SQ/TC943SQ: 75W MR16

IC13SQ: 60W PAR16/50W PAR20

TC13SQ: 75W PAR16/50W PAR20

TC943MSQ: 20W/39W MR16 CMH

Aperture: 3 1/4”

IC43LSQ: 20W LED

TC43LSQ/TC943LSQ: 20W LED

IC43SQ: 50W MR16

TC43SQ/TC943SQ: 75W MR16

IC13SQ: 60W PAR16/50W PAR20

TC13SQ: 75W PAR16/50W PAR20

TC943MSQ: 20W/39W MR16 CMH

Aperture: 3 1/4”

IC43LSQ: 20W LED

TC43LSQ/TC943LSQ: 20W LED

IC43SQ: 50W MR16

TC43SQ/TC943SQ: 75W MR16

IC13SQ: 45W PAR16/50W PAR20

TC13SQ: 60W PAR16/50W PAR20

TC943MSQ: 20W/39W MR16 CMH

Aperture: 3 1/4”

Catalog #

†

Description Lamp Ratings

4337SQ-WH Black Alzak®Reﬂector, White Trim IC43LSQ: 20W LED

TC43LSQ/TC943LSQ: 20W LED

IC43SQ: 50W MR16

TC43SQ/TC943SQ: 75W MR16

IC13SQ: 60W PAR16/50W PAR20

TC13SQ:75W PAR16/50W PAR20

TC943MSQ: 20W/39W MR16 CMH

Aperture: 1 1/4”

Downlight 1 1/4"Pinhole

Catalog # Description Lamp Ratings

4308SQ-WH Black Alzak®Reﬂector, White Trim IC43LSQ: 20W LED

TC43LSQ/TC943LSQ: 20W LED

IC43SQ: 50W MR16

TC43SQ/TC943SQ: 75W MR16

IC13SQ: 45W PAR16/50W PAR20

TC13SQ: 60W PAR16/50W PAR20

TC943MSQ: 20W/39W MR16 CMH

Aperture: 1 3/4”

Adjustable Regressed 1 3/4"Pinhole

4 1/2"

† For self-flanged reflector with optional white painted flange, add WH suffix. (example: 437SQNB-SFWH)

42

Catalog #

†

Description Lamp Ratings

432SQBHZ-SF Black Haze Reﬂector

432SQW-SF White Reﬂector

432SQHZ-SF Haze Reﬂector

432SQWHZ-SF Wheat Haze Reﬂector

Downlight Lensed Trim

Lensed

Catalog #

†

Description Lamp Ratings

431SQBHZ-SF Black Haze Reﬂector

431SQW-SF White Reﬂector

431SQHZ-SF Haze Reﬂector

431SQWHZ-SF Wheat Haze Reﬂector

Angle-Cut Lensed Trim

Catalog # Description Lamp Ratings

4332SQ-WH Black Alzak®Reﬂector, White Trim IC43LSQ: 20W LED

TC43LSQ/TC943LSQ: 20W LED

IC43SQ: 50W MR16

TC43SQ/TC943SQ: 75W MR16

IC13SQ: 45W PAR16/50W PAR20

TC13SQ: 60W PAR16/50W PAR20

TC943MSQ: 20W/39W MR16 CMH

Aperture: 1 1/4”

Downlight 1 1/4"Pinhole-Lensed

Catalog # Description Lamp Ratings

4331SQ-WH Black Alzak®Reﬂector, White Trim IC43LSQ: 20W LED

TC43LSQ/TC943LSQ: 20W LED

IC43SQ: 50W MR16

TC43SQ/TC943SQ: 75W MR16

IC13SQ: 45W PAR16/50W PAR20

TC13SQ: 60W PAR16/50W PAR20

TC943MSQ: 20W/39W MR16 CMH

Aperture: 1 1/4”

Adjustable 1 1/4"Pinhole-Lensed

4 1/2"

Catalog # Description Lamp Ratings

4302SQ-WH Black Alzak®Reﬂector, White Trim IC43LSQ: 20W LED

TC43LSQ/TC943LSQ: 20W LED

IC43SQ: 50W MR16

TC43SQ/TC943SQ: 75W MR16

IC13SQ: 45W PAR16/50W PAR20

TC13SQ: 60W PAR16/50W PAR20

TC943MSQ: 20W/39W MR16 CMH

Aperture: 1 3/4”

Downlight Regressed Pinhold-Lensed

Catalog # Description Lamp Ratings

4301SQ-WH Black Alzak®Reﬂector, White Trim IC43LSQ: 20W LED

TC43LSQ/TC943LSQ: 20W LED

IC43SQ: 50W MR16

TC43SQ/TC943SQ: 75W MR16

IC13SQ: 45W PAR16/50W PAR20

TC13SQ: 60W PAR16/50W PAR20

TC943MSQ: 20W/39W MR16 CMH

Aperture: 1 3/4”

Adjustable Regressed Pinhole-Lensed

4 1/2"

IC43LSQ: 20W LED

TC43LSQ/TC943LSQ: 20W LED

IC43SQ: 50W MR16

TC43SQ/TC943SQ: 75W MR16

IC13SQ: 45W PAR16/50W PAR20

TC13SQ: 60W PAR16/50W PAR20

TC943MSQ: 20W/39W MR16 CMH

Aperture: 3 1/4”

IC43LSQ: 20W LED

TC43LSQ/TC943LSQ: 20W LED

IC43SQ: 50W MR16

TC43SQ /TC943SQ: 75W MR16

IC13SQ: 45W PAR16/50W PAR20

TC13SQ: 60W PAR16/50W PAR20

TC943MSQ: 20W/39W MR16 CMH

Aperture: 3 1/4”

4 1/2"

† For self-flanged reflector with optional white painted flange, add WH suffix. (example: 437SQNB-SFWH)

43

Flush-Mount — 3 1/4" Square Trims

Catalog # Description Lamp Ratings

437SQBHZ-FM Black Haze Reﬂector

437SQW-FM White Reﬂector

437SQHZ-FM Haze Reﬂector

437SQWHZ-FM Wheat Haze Reﬂector

Deep Downlight Reﬂector

Downlight

Catalog # Description Lamp Ratings

4307SQ-WH-FM Black Alzak®Reﬂector, White Trim IC43LSQ: 20W LED

TC43LSQ/TC943LSQ: 20W LED

IC43SQ: 50W MR16

TC43SQ/TC943SQ: 75W MR16

IC13SQ: 45W PAR16/50W PAR20

TC13SQ: 60W PAR16/50W PAR20

TC943MSQ: 20W/39W MR16 CMH

Aperture: 1 3/4”

Downlight Regressed Pinhole

Catalog # Description Lamp Ratings

438SQBHZ-SF-FM Black Haze Reﬂector

438SQW-SF-FM White Reﬂector

438SQHZ-SF-FM Haze Reﬂector

438SQWHZ-SF-FM Wheat Haze Reﬂector

Angle-Cut Reﬂector

Adjustable Accent

Catalog # Description Lamp Ratings

4308SQ-WH-FM Black Alzak®Reﬂector, White Trim IC43LSQ: 20W LED

TC43LSQ/TC943LSQ: 20W LED

IC43SQ: 50W MR16

TC43SQ/TC943SQ: 75W MR16

IC13SQ: 45W PAR16/50W PAR20

TC13SQ: 60W PAR16/50W PAR20

TC943MSQ: 20W/39W MR16 CMH

Aperture: 1 3/4”

Adjustable Regressed Pinhole

3 5/8"

Catalog # Description Lamp Ratings

4337SQ-WH-FM Black Alzak®Reﬂector, White Trim IC43LSQ: 20W LED

TC43LSQ/TC943LSQ: 20W LED

IC43SQ: 50W MR16

TC43SQ/TC943SQ: 75W MR16

IC13SQ: 60W PAR16/50W PAR20

TC13SQ: 75W PAR16/50W PAR20

TC943MSQ: 20W/39W MR16 CMH

Aperture: 1 1/4”

Downlight 1 1/4"Pinhole

Catalog # Description Lamp Ratings

433SQ-WH-FM Black Alzak®Reﬂector, White Trim IC43LED: 20W LED

TC43LED/TC943LED: 20W LED

IC43SQ: 50W MR16

TC43SQ/TC943SQ: 75W MR16

IC13SQ: 60W PAR16/50W PAR20

TC13SQ: 75W PAR16/50W PAR20

TC943MSQ: 20W/39W MR16 CMH

Aperture: 1 1/4”

Adjustable 1 1/4"Pinhole

IC43LSQ: 20W LED

TC43LSQ/TC943LSQ: 20W LED

IC43SQ: 50W MR16

TC43SQ/TC943SQ: 75W MR16

IC13SQ: 60W PAR16/50W PAR20

TC13SQ: 75W PAR16/50W PAR20

TC943MSQ: 20W/39W MR16 CMH

Aperture: 3 1/4”

IC43LSQ: 20W LED

TC43LSQ/TC943LSQ: 20W LED

IC43SQ: 50W MR16

TC43SQ/TC943SQ: 75W MR16

IC13SQ: 60W PAR16/50W PAR20

TC13SQ: 75W PAR16/50W PAR20

TC943MSQ: 20W/39W MR16 CMH

Aperture: 3 1/4”

3 5/8"

44

Catalog # Description Lamp Ratings

439SQBHZ-FM Black Haze Reﬂector

439SQW-FM White Reﬂector

439SQHZ-FM Haze Reﬂector

439SQWHZ-FM Wheat Haze Reﬂector

Wall Wash

Catalog # Description Lamp Ratings

432SQBHZ-FM Black Haze Reﬂector

432SQW-FM White Reﬂector

432SQHZ-FM Haze Reﬂector

432SQWHZ-FM Wheat Haze Reﬂector

Downlight Lensed Trim

Lensed

Catalog # Description Lamp Ratings

431SQBHZ-FM Black Haze Reﬂector

431SQW-FM White Reﬂector

431SQHZ-FM Haze Reﬂector

431SQWHZ-FM Wheat Haze Reﬂector

Angle-Cut Lensed Trim

Accessories

3 5/8"

Lensed Wall Wash

Catalog # Description

FMASQ4 Flush mount square adapter required for square ﬂush mount trim installations

IC43LSQ: 20W LED

TC43LSQ/TC943LSQ: 20W LED

IC43SQ: 50W MR16

TC43SQ/TC943SQ: 75W MR16

IC13SQ: 45W PAR16/50W PAR20

TC13SQ: 60W PAR16/50W PAR20

TC943MSQ: 20W/39W MR16 CMH

Aperture: 3 1/4”

IC43LSQ: 20W LED

TC43LSQ/TC943LSQ: 20W LED

IC43SQ: 50W MR16

TC43SQ/TC943SQ: 75W MR16

IC13SQ: 45W PAR16/50W PAR20

TC13SQ: 60W PAR16/50W PAR20

TC943MSQ: 20W/39W MR16 CMH

Aperture: 3 1/4”

IC43LSQ: 20W LED

TC43LSQ/TC943LSQ: 20W LED

IC43SQ: 50W MR16

TC43SQ/TC943SQ: 75W MR16

IC13SQ: 45W PAR16/50W PAR20

TC13SQ: 60W PAR16/50W PAR20

TC943MSQ: 20W/39W MR16 CMH

Aperture: 3 1/4”

45

Whether you're accenting large objects or

architectural features, Aculux high-perfor-

mance luminaires provide excellent beam

control in a variety of larger apertures and

lamp options to suit any precision lighting

applications.

5 5/8", 6", 7"

Downlights and Adjustables

Aperture Selection

5 5/8” - 6” Round Housings

PAR36/AR111 Adjustables

Produces a tight, collimated beam of light that

provides high-intensity, pinpoint illumination

over great distances.

PAR30/PAR38 Adjustables/Wall Wash/DownLights

Provides medium to high light level accent,

general, task, and wall wash illumination.

Incandescent/CFL Housings

Diffuse, widespread illumination from economical

incandescent A-lamps or energy efﬁcient compact

ﬂuorescent lamps.

7" PAR38

For accent, task or downlighting from high ﬂat or

sloped mounting heights.

Framing Projector

Produces an adjustable rectangular light pattern

to dramatically “frame” art with light.

• Adjustable ﬁxtures have a locking 0-35º

tilt, exclusive 45º on 7"aperture.

• Center lamp beam optical alignment

assures full light output and low aperture

brightness at any aiming angle.

• 361º rotation with toolless locking

capability prevents aiming dead spots.

• Deep lamp regression.

• 50º lamp/lamp image cutoff.

• Adjustable internal lamp shield eliminates

sight lines into housing from all angles.

Key Features

46

Aesthetically Superior Trims

• High-quality, hand-polished, ALZAK®anodized

aluminum reflectors.

Wall Wash

Baffle

Downlight

• Tapered die-formed trim rings inconspicuously blend

with the ceiling.

• Low iridescent coating for compact fluorescent lamps

to eliminate “rainbow” color separation.

• Low profile trim with self-centering spring retention for

clean ceiling interface without light leaks.

• Optional reflector finishes available to suit individual

aesthetic preference. Consult factory for specialty finishes.

A-Lamp/CFL

Wall Wash Series

Decorative

47

IC64

120V Magnetic

thermally protected

transformer

Housing dimensions:

20 3/8” L x 10” W x 9 1/2” H

Ceiling cutout: 6 7/8”

IC Rated with Real Nail™Bar Hangers

The Adjustable Series recessed housings are ideal for accent lighting over great distances.

12-volt Halogen PAR36 or AR111 lamps produce a collimated light beam with excellent

color-rendering properties.

5 5/8" Round Aperture PAR36/AR111 Low-Voltage Housings

Optional Mounting Accessories

Catalog # Description

CTA6 Ceiling thickness adapter accommodates ceilings from 1 1/4” to 2” thick

Bar Hangers for TC964

HB-1 Real Nail™bar hangers (set of 2)

HB-26 26” C-Channel bar hangers (set of 2)

HB-50 50” C-Channel bar hangers (set of 2)

LB-27 27” Linear bar hangers (set of 2)

TC964

120V Magnetic

thermally protected

transformer

Housing dimensions:

13 1/2” L x 12” W x 9” H

Ceiling cutout: 6 7/8”

7 3/8"

Catalog # Description Lamp Ratings

638B-WH Black Alzak®, White Trim Ring IC64: 50W PAR36/AR111

638C-WH Clear Alzak®, White Trim Ring TC964: 75W PAR36/AR111

638G-WH Gold Alzak®, White Trim Ring 5 5/8” Aperture

638HZ-SC Haze, Satin Chrome Trim Ring

638HZ-WH Haze, White Trim Ring

638WHZ-ABZ Wheat Haze, Aged Bronze Trim Ring

638WHZ-WH Wheat Haze, White Trim Ring

Angle-Cut Cone

Catalog # Description Lamp Ratings

635W-WH White Bafﬂe, White Trim Ring IC64: 50W PAR36/AR111

635B-ABZ Black Bafﬂe, Aged Bronze Trim Ring TC964: 75W PAR36/AR111

635B-WH Black Bafﬂe, White Trim Ring 5 5/8” Aperture

635B-SC Black Bafﬂe, Satin Chrome Trim Ring

Angle-Cut Bafﬂe

Commercial Non- IC Rated with Butterﬂy Style Mounting Brackets

Adjustable Accents

Low Voltage, Energy-efﬁcient Air-Loc®Rated, IC Rated for direct

contact with insulation, new construction speciﬁcation grade

housing.

Tool-less locking, 361º rotation and 35º tilt.

Deep lamp regression and optimized beam center provides 50°

lamp/lamp image cut-off for exceptional low aperture brightness

Premium thermally protected, low voltage magnetic transformer.

Patented telescoping Real Nail™bar hangers have captive ring

shank nails for a quick one-step installation. The quick-loc slots

and oversized locking set screws securely hold ﬁxture in any

position without bar ﬂexing.

50W PAR36/AR111 Maximum Lamp Rating. Lamp holder

accepts two optical media.

UL and C-UL listed for through-branch wiring and damp

locations.

Low Voltage, Non-IC new construction speciﬁcation grade

housing for use where insulation is spaced 3" away from ﬁxture.

Tool-less locking, 361º rotation and 35º tilt.

Deep lamp regression and optimized beam center provides 50°

lamp/lamp image cut-off for exceptional low aperture brightness

Premium thermally protected, low voltage magnetic transformer.

Supplied with vertically adjustable mounting brackets that accept

1/2" conduit,"C" channel hangers (HB-26 or HB-50), linear bar

hangers (LB-27) or telescoping Juno Real Nail bar hangers

(HB-1).

75W PAR36/AR111 Maximum Lamp Rating. Lamp holder

excepts two optical media.

UL and C-UL listed for through-branch wiring and damp

locations.

48

49

IC63

120V Line Voltage,

IC Housing.

Housing dimensions:

20 3/8” L x 10” W x 9 1/2” H

Ceiling cutout: 6 7/8”

IC Rated with Real Nail™Bar Hangers

Adjustable recessed housing for accent, task, or downlighting. 120-volt PAR30 halogen lamp produces

spot or ﬂood patterns for medium to high light levels.

5 5/8" Round Aperture PAR30 Housings

TC963

120V Line Voltage,

Non-IC Housing

Housing dimensions:

13 1/2” L x 12” W x 9” H

Ceiling cutout: 6 7/8”

Catalog # Description Lamp Ratings

638B-WH Black Alzak®, White Trim Ring IC63: 75W PAR30

638C-WH Clear Alzak®, White Trim Ring TC963: 75W PAR30

638G-WH Gold Alzak®, White Trim Ring 5 5/8” Aperture

638HZ-SC Haze, Satin Chrome Trim Ring

638HZ-WH Haze, White Trim Ring

638WHZ-ABZ Wheat Haze, Aged Bronze Trim Ring

638WHZ-WH Wheat Haze, White Trim Ring

Angle-Cut Cone

Catalog # Description Lamp Ratings

635W-WH White Bafﬂe, White Trim Ring IC63: 75W PAR30

635B-ABZ Black Bafﬂe, Aged Bronze Trim Ring TC963: 75W PAR30

635B-WH Black Bafﬂe, White Trim Ring 5 5/8” Aperture

635B-SC Black Bafﬂe, Satin Chrome Trim Ring

Angle-Cut Bafﬂe

Commercial Non-IC Rated with Butterﬂy Style Mounting Brackets

7 3/8"

Line Voltage Air-Loc®Rated, speciﬁcation grade New

Construction Housing IC Rated for direct contact with

insulation.

Tool-less Locking, 361º rotation and 35º tilt.

Optimized lamp beam optical alignment with trim opening

to insure low aperture brightness at any aiming angle.

Patented telescoping Real Nail™bar hangers have captive ring

shank nails for a quick one-step installation. The quick-loc slots

and oversized locking set screws securely hold ﬁxture in any

position without bar ﬂexing.

75W PAR30 Maximum Lamp Rating.

UL and C-UL listed for through-branch wiring and damp

locations.

Optional Mounting Accessories

Catalog # Description

CTA6 Ceiling thickness adapter accommodates ceilings from 1 1/4” to 2” thick

Bar Hangers for TC963

HB-1 Real Nail™Bar hangers (set of 2)

HB-26 26” C-Channel bar hangers (set of 2)

HB-50 50” C-Channel bar hangers (set of 2)

LB-27 27” Linear bar hangers (set of 2)

Adjustable Accents

Line Voltage Non-IC Rated, speciﬁcation grade New

Construction Housing for use where insulation is spaced

3” away from ﬁxture.

Tool-less Locking, 361º rotation and 35º tilt.

Optimized lamp beam optical alignment with trim opening

to insure low aperture brightness at any aiming angle.

Supplied with vertically adjustable mounting brackets that

accept 1/2" conduit, "C" channel hangers (HB-26 or HB-50),

linear bar hangers (LB-27) or telescoping Juno Real Nail™

bar hangers (HB-1).

75W PAR30 Maximum Lamp Rating.

UL and C-UL listed for through-branch wiring and damp

locations.

50

IC62

120V Line Voltage,

IC Housing.

Housing dimensions:

20 3/8” L x 10” W x 9 1/2” H

Ceiling cutout: 6 7/8”

IC Rated with Real Nail™Bar Hangers

Downlight and Wall Wash Series Provides high light level general and task illumination for 7’ - 20’ ceiling heights.

Also accommodates lensed wall wash trims for even illumination of vertical surfaces without light scallops.

5 5/8" Round Aperture PAR30/PAR38 Housings

TC62

120V Line Voltage,

Non-IC Housing.

Housing dimensions:

13 1/2” L x 7 3/4” W x 8 3/4” H

Ceiling cutout: 6 7/8”

Catalog # Description Lamp Ratings

627B-WH Black Alzak®, White Trim Ring IC62: 75W PAR30, 100W PAR38

627C-WH Clear Alzak®, White Trim Ring TC62: 75W PAR30, 120W PAR38

627G-WH Gold Alzak®, White Trim Ring, 5 5/8” Aperture

627HZ-SC Haze, Satin Chrome Trim Ring

627HZ-WH Haze, White Trim Ring

627WHZ-ABZ Wheat Haze, Aged Bronze Trim Ring

627WHZ-WH Wheat Haze, White Trim Ring

Deep Downlight Cone

Catalog # Description Lamp Ratings

624W-WH White Bafﬂe, White Trim Ring IC62: 75W PAR30, 100W PAR38

624B-ABZ Black Bafﬂe, Aged Bronze Trim Ring TC62: 75W PAR30, 120W PAR38

624B-WH Black Bafﬂe, White Trim Ring 5 5/8” Aperture

624B-SC Black Bafﬂe, Satin Chrome

Deep Downlight Bafﬂe

Non- IC Rated with Real Nail™ Bar Hangers

7 3/8"

Catalog # Description Lamp Ratings

629B-WH Black Alzak®, White Trim Ring IC62: 75W PAR30

629C-WH Clear Alzak®, White Trim Ring TC62: 75W PAR30

629G-WH Gold Alzak®, White Trim Ring 5 5/8” Aperture

629HZ-SC Haze, Satin Chrome Trim Ring

629HZ-WH Haze, White Trim Ring

629WHZ-ABZ Wheat Haze, Aged Bronze Trim Ring

629WHZ-WH Wheat Haze, White Trim Ring

Angle-Cut Lensed Wall Wash

Catalog # Description Lamp Ratings

611-WH Swirled Etched Glass IC62: 100W A19

TC62: 100W A19

Opal Glass

Downlight Trims

Wall Wash Trim

Decorative Trim

Line Voltage Air-Loc®Rated, New Construction

speciﬁcation grade housing IC Rated for direct contact

with insulation.

Patented telescoping Real Nail™bar hangers have

captive ring shank nails for a quick one-step installation.

The quick-loc slots and oversized locking set screws

securely hold ﬁxture in any position without bar ﬂexing.

75W PAR30 or 100W PAR38 Maximum Lamp Rating.

UL and C-UL listed for through-branch wiring and

damp locations.

Line Voltage Non-IC speciﬁcation grade New

Construction Housing for use where insulation is

spaced 3” away from ﬁxture.

Patented telescoping Real Nail™bar hangers have

captive ring shank nails for a quick one-step installation.

The quick-loc slots and oversized locking set screws

securely hold ﬁxture in any position without bar ﬂexing.

75W PAR30 or 120W PAR38 Maximum Lamp Rating.

UL and C-UL listed for through-branch wiring and

damp locations. Wet location listed with approved trims.

51

IC906

120V Line Voltage,

IC Housing.

Housing dimensions:

20 3/8” L x 10” W x 9 1/2” H

Ceiling cutout: 6 7/8”

IC Rated with Real Nail™Bar Hangers

Recessed downlight housings for general and wall wash illumination in low to medium ceiling heights.

Provides diffuse, uniform illumination from economical incandescent A-lamps.

6" Aperture A-Lamp

TC906

120V Line Voltage,

Non-IC Housing.

Housing dimensions:

11 3/4” L x 11 3/8” W x 9 1/8” H

Ceiling cutout: 6 7/8”

Commercial Non- IC Rated with Butterﬂy Style Mounting Brackets

Optional Bar Hangers for TC906

Catalog # Description

HB-1 Real Nail bar hangers (set of 2)

HB-26 26” C-Channel bar hangers (set of 2)

HB-50 50” C-Channel bar hangers (set of 2)

LB-27 27” Linear bar hangers (set of 2)

Energy-efﬁcient Air-Loc®Rated, IC Rated new construction

speciﬁcation grade housing for use in direct contact with

insulation.

Patented telescoping Real Nail™bar hangers have captive

ring shank nails for a quick one-step installation.

The quick-loc slots and oversized locking set screws

securely hold ﬁxture in any position without bar ﬂexing.

Fixed socket position to maintain optical integrity

independent of housing mounting.

100W A19/MB19/BT15 Maximum Lamp Rating.

UL and C-UL listed for through-branch wiring and

damp locations.

120V Line Voltage, Non-IC new construction speciﬁcation

grade housing for use where insulation is spaced 3"

away from ﬁxture.

Supplied with vertically adjustable mounting brackets

that accept 1/2" conduit, "C" channel hangers

(HB-26 or HB-50), linear bar hangers (LB-27) or

telescoping Juno Real Nail™bar hangers (HB-1).

Adjustable dual socket positions to accommodate

A19 or A21 lamps

100W A19 or 150W A21 Maximum Lamp Rating.

UL and C-UL listed for through-branch wiring and

damp locations.

52

Deep Downlight Cone

Catalog # Description Lamp Ratings

633W-WH White Bafﬂe, White Trim Ring IC906: 100W A19, 100W MB19, 100W BT15

633B-WH Black Bafﬂe, White Trim Ring TC906: 100W A19, 150W A21

6” Aperture

Deep Downlight Bafﬂe

Catalog # Description Lamp Ratings

643C-WH Clear Alzak® ,White Trim Ring IC906: 100W A19, 100W MB19, 100W BT15

643G-WH Gold Alzak®,White Trim Ring TC906: 100W A19, 150W A21

643HZ-WH Haze, White Trim Ring 6” Aperture

90º Single Wall Wash

Catalog # Description Lamp Ratings

663C-WH Clear Alzak®, White Trim Ring IC906: 100W A19, 100W MB19, 100W BT15

663G-WH Gold Alzak®, White Trim Ring TC906: 100W A19, 150W A21

663HZ-WH Haze, White Trim Ring 6” Aperture

180º Double Wall Wash

Catalog # Description Lamp Ratings

662C-WH Clear Alzak®, White Trim Ring IC906: 100W A19, 100W MB19, 100W BT15

662G-WH Gold Alzak®, White Trim Ring TC906: 100W A19, 150W A21

662HZ-WH Haze, White Trim Ring 6” Aperture

Catalog # Description Lamp Ratings

644C-WH Clear Alzak®, White Trim Ring IC906: 100W A19, 100W MB19, 100W BT15

644G-WH Gold Alzak®, White Trim Ring TC906: 100W A19, 150W A21

643HZ-WH Haze, White Trim Ring 6” Aperture

180º Corner Wall Wash

7 5/8"

Downlight Trim

Wall Wash Trim

53

ICV6-126/32T

26W/32W Compact Fluorescent,

120V/277V IC new construction

speciﬁcation grade housing

Housing dimensions:

20 3/8” L x 10” W x 9 1/2” H

Ceiling cutout: 6 7/8”

ICV6-126/32T-DB120

120V HPF Dimmable Ballast*

IC Rated with Real Nail™Bar Hangers

Downlight/Wall Wash Series Recessed downlight housings for general and wall wash illumination

in low to medium ceiling heights. Provides diffuse, uniform illumination from energy-efﬁcient

compact ﬂuorescent lamps. Premium, low-iridescent reﬂectors eliminate the “rainbow” color separation

effect that occurs with ﬂuorescent lamps and standard grade reﬂectors,

6" Aperture 26/32W Compact Fluorescent

Optional Bar Hangers for CV6-126/32T

Catalog # Description

HB-1 Real Nail bar hangers (set of 2)

HB-26 26” C-Channel bar hangers (set of 2)

HB-50 50” C-Channel bar hangers (set of 2)

LB-27 27” Linear bar hangers (set of 2)

PLK-E 13-42W Emergency Power Kit

CV6-126/32T

26W/32W Compact Fluorescent,

120V to 277V Non-IC

new construction speciﬁcation

grade housing

Housing dimensions:

11 3/4” L x 11 3/8” W x 9 1/8” H

Ceiling cutout: 6 7/8”

CV6-126/32T-DB120

120V HPF Dimmable Ballast

CV6-126/32T-DB277

277V HPF Dimmable Ballast

Commercial Non- IC Rated with Butterﬂy Style Mounting Brackets

* Dimming ballast is not Energy Star rated.

Energy-efﬁcient Air-Loc®Rated, IC Rated new construction

speciﬁcation grade housing for use in direct contact with

insulation.

120V/277 HPF Electronic Non-Dimmable or 120V

Dimmable* Ballast with end-of-life lamp protection.

Patented telescoping Real Nail™bar hangers have

captive ring shank nails for a quick one-step installation.

The quick-loc slots and oversized locking set screws

securely hold ﬁxture in any position without bar ﬂexing.

26W or 32W Triple Tube CFL lamp, 4-pin.

UL and C-UL listed for through-branch wiring and

damp locations. Wet location listed with approved trim.

Non-IC Rated new construction speciﬁcation

grade housing for use where insulation is spaced

3” away from ﬁxture.

120V to 277V HPF Electronic Non-Dimmable or

Dimmable Ballast with end-of-life lamp protection.

Consult factory for 347V.

Supplied with vertically adjustable mounting brackets

that accept 1/2" conduit, "C" channel hangers

(HB-26 or HB-50), linear bar hangers (LB-27) or

telescoping Juno Real Nail™bar hangers (HB-1).

26W or 32W Triple Tube CFL lamp, 4-pin.

UL and C-UL listed for through-branch wiring and

damp locations. Wet location listed with approved trim.

54

Deep Downlight Cone

Catalog # Description Lamp Ratings

601W-WH White Bafﬂe, White Trim Ring ICV6 Series: 26W/32W Triple Tube CFL

601B-WH Black Bafﬂe, White Trim Ring CV6 Series: 26W/32W Triple Tube CFL

6” Aperture

Deep Downlight Bafﬂe

Catalog # Description Lamp Ratings

600C-WH Clear Alzak®, White Trim Ring ICV6 Series: 26W/32W Triple Tube CFL

600G-WH Gold Alzak®, White Trim Ring CV6 Series: 26W/32W Triple Tube CFL

600HZ-WH Haze, White Trim Ring 6” Aperture

600WHZ-WH Wheat Haze, White Trim Ring

90º Single Wall Wash

Catalog # Description Lamp Ratings

600C-WWD-WH Clear Alzak®, White Trim Ring ICV6 Series: 26W/32W Triple Tube CFL

600G-WWD-WH Gold Alzak®, White Trim Ring CV6 Series: 26W/32W Triple Tube CFL

600HZ-WWD-WH Haze, White Trim Ring 6” Aperture

180º Double Wall Wash

Catalog # Description Lamp Ratings

600C-WWS-WH Clear Alzak®, White Trim Ring ICV6 Series: 26W/32W Triple Tube CFL

600G-WWS-WH Gold Alzak®, White Trim Ring CV6 Series: 26W/32W Triple Tube CFL

600HZ-WWS-WH Haze, White Trim Ring 6” Aperture

Catalog # Description Lamp Ratings

600C-WWC-WH Clear Alzak®, White Trim Ring ICV6 Series: 26W/32W Triple Tube CFL

600G-WWC-WH Gold Alzak®, White Trim Ring CV6 Series: 26W/32W Triple Tube CFL

600HZ-WWC-WH Haze, White Trim Ring 6” Aperture

180º Corner Wall Wash

7 7/8"

Swirled Etched Opal Glass

Catalog # Description Lamp Ratings

611-WH Swirled Etched Glass ICV6 Series: 26W/32W Triple Tube CFL

CV6 Series: 26W/32W Triple Tube CFL

6” Aperture

Downlight

Wall Wash

Decorative Trim

55

7" Aperture PAR38

Recessed 0-45º adjustable housing for accent, task or downlighting from high ﬂat or sloped ceiling

mounting heights. 120V PAR38 halogen lamp produces spot or ﬂood patterns for medium to high light

levels. Features industry exclusive 45º adjustment and 361º rotation.

8 3/4"

8"

Angle-Cut Cone

Catalog # Description Lamp Ratings

727B-WH Black Alzak®, White Trim Ring IC73: 120W PAR38, 120W BR40

727C-WH Clear Alzak®, White Trim Ring TC973: 250W PAR38, 120W BR40

727G-WH Gold Alzak®, White Trim Ring 7” Aperture

727HZ-WH Haze, White Trim Ring

727WHZ-WH Wheat Haze, White Trim Ring

Deep Downlight Cone

Catalog # Description Lamp Ratings

738B-WH Black Alzak®, White Trim Ring IC73: 100W PAR38

738C-WH Clear Alzak®, White Trim Ring TC973: 250W PAR38

738G-WH Gold Alzak®, White Trim Ring 7” Aperture

738HZ-ABZ Haze, Aged Bronze Trim Ring

738WHZ-WH Wheat Haze, White Trim Ring

Optional Bar Hangers for TC973

Catalog # Description

HB-1 Real Nail bar hangers (set of 2)

HB-26 26” C-Channel bar hangers (set of 2)

HB-50 50” C-Channel bar hangers (set of 2)

LB-27 27” Linear bar hangers (set of 2)

Adjustable Accent Trims

Downlight Trim

IC73

120V Line Voltage,

IC Housing

Housing dimensions:

21 1/2” L x 13 15/16” W x 11 5/8” H

Ceiling cutout: 8 1/2”

IC Rated with Real Nail™Bar Hangers

TC973

120V Line Voltage,

Non-IC Housing

Housing dimensions:

21 9/16” L x 13 15/16” W x 11 5/8” H

Ceiling cutout: 8 1/2”

Commercial Non- IC Rated with Butterﬂy Style Mounting Brackets

Energy-efﬁcient Air-Loc®Rated, IC Rated new construction

speciﬁcation grade housing for use in direct contact with

insulation.

Tool-less Locking, 361º rotation and exclusive 45º tilt.

Patented telescoping Real Nail™bar hangers have

captive ring shank nails for a quick one-step installation.

The quick-loc slots and oversized locking set screws

securely hold ﬁxture in any position without bar ﬂexing.

100W - 120W PAR38/BR40 Maximum Lamp Rating.

UL and C-UL listed for through-branch wiring and

damp locations.

120V Line Voltage, Non-IC new construction speciﬁcation

grade housing for use where insulation is spaced 3"

away from ﬁxture.

Supplied with vertically adjustable mounting brackets

that accept 1/2" conduit, "C" channel hangers

(HB-26 or HB-50), linear bar hangers (LB-27) or

telescoping Juno Real Nail™bar hangers (HB-1).

250W PAR38 and 120W BR40 Maximum Lamp Rating.

UL and C-UL listed for through-branch wiring and

damp locations.

56

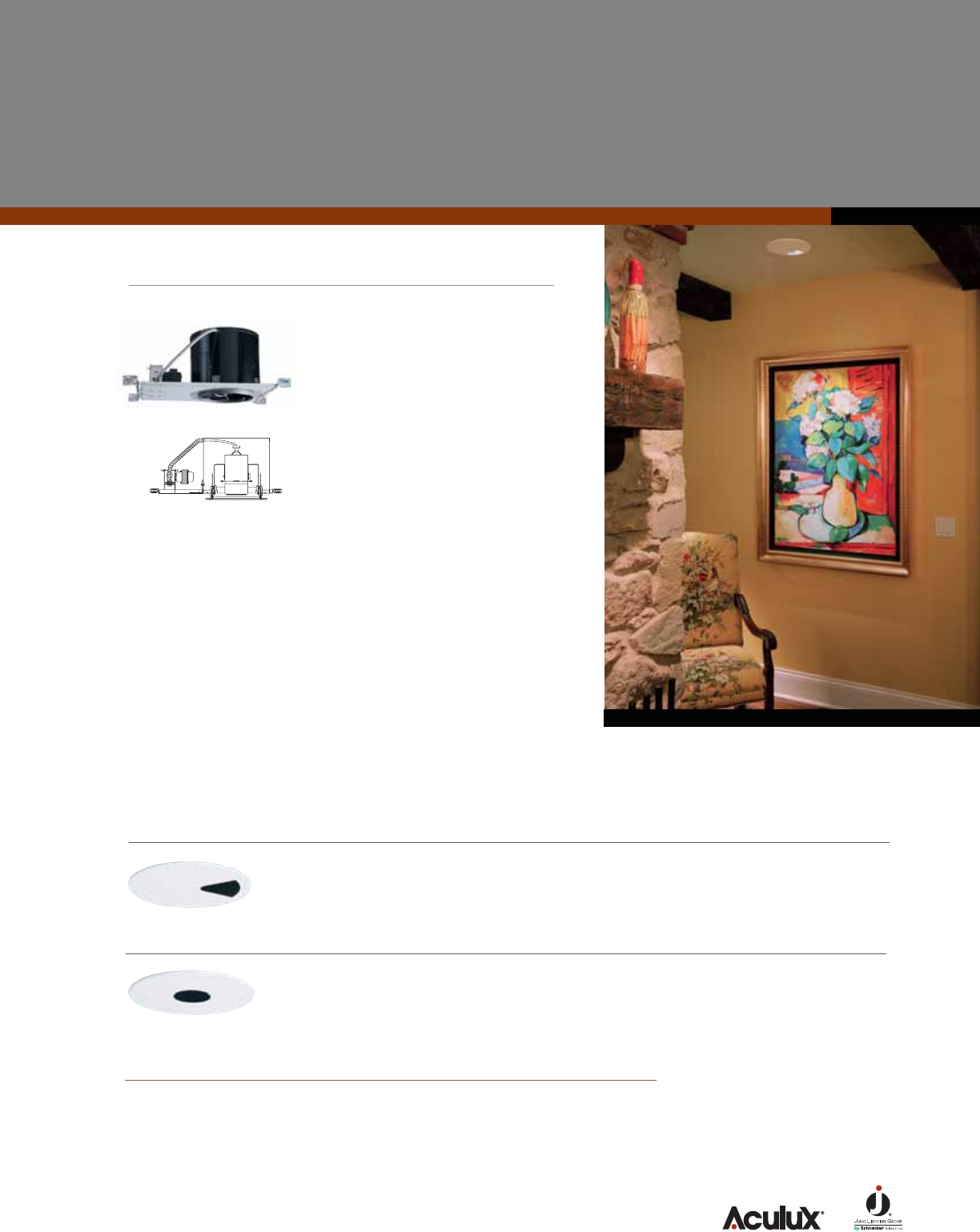

TC960

120V Magnetic, thermally protected

low voltage transformer

Housing dimensions:

20 3/8” L x 11 1/2” W x 9 1/4” H

Ceiling cutout: 8 1/8”

Non-IC Rated with Real Nail™Bar Hangers

MR16 Framing Projector Housings

Catalog # Description Lamp Ratings

245-WH White Trim 75W MR16 Flood (EYC)

O.D: 9 3/8”

Slot Pinhole Trim (For wall illumination)

Catalog # Description Lamp Ratings

246-WH White Trim 75W MR16 Flood (EYC)

Aperture: 2 3/4”

O.D: 9 3/8”

Downlight Pinhole (For downlight illumination)

Adjustable Framing Projector Trims

Low Voltage, Non-IC Rated new construction housing for use where

insulation is spaced 3" away from ﬁxture.

Tool-less locking, 0º to 45º vertical tilt and 358º horizontal rotation

Four independently operated shutters for precise framing.

Patented telescoping Real Nail™bar hangers have captive ring shank nails

for a quick one-step installation. The quick-loc slots and oversized locking

set screws securely hold ﬁxture in any position without bar ﬂexing.

Fixture is also supplied with vertically adjustable mounting brackets that

accept 1/2" conduit, “C” channel hangers (HB-26 or HB-50), linear bar

hangers (LB-27) or telescoping Juno Real Nail™bar hangers (HB-1).

75W MR16 Maximum Lamp Rating. Lamp holder accepts two

optical media.

Optional Mounting Accessory

Catalog # Description

HB-1 Real Nail bar hangers (set of 2)

HB-26 26” C-Channel bar hangers (set of 2)

HB-50 50” C-Channel bar hangers (set of 2)

LB-27 27” Linear bar hangers (set of 2)

Aculux framing projector produces an adjustable rectangular light pattern to dramatically“frame” art with

light. Choose the slot trim for framing art on vertical surfaces or pinhole trim for framed downlighting.

57

These alter the light distribution

of a given lamp, enlarging or

elongating it, softening the beam

edge or removing striations.

Uniformity Lens

Diffusion Lens

Prismatic Spread Lens

Linear Spread Lens

These museum quality lenses filter

out ultraviolet radiation below 400

nanometers to protect fade sensi-

tive art and objects.

T7422

Color Correction Filters correct

the light, either to warm it up

to approximate incandescent,

or cool it down to approximate

daylight.

Halogen-to-Incandescent,

2700K

Halogen-to-Daylight,

4250K

HID-to-Incandescent

for HID Lampholders

T7418

T7416

T7419

Color Filters change white light

into colored light and are available

in colored glass and more

efficient/saturated dichroic filters.

Medium Pink

Warm Red

Daylight Blue

Medium Blue

Medium Amber

Medium Green

T741

T742

T743

T744

T745

T746

Hexcell and Cube Cell louvers

reduce perceived fixture brightness.

T7459BL

Colored Glass Filters

Dichroic Glass Filters

Red

Medium Green

Medium Blue

Yellow

Magenta

Blue-Green (Cyan)

T7401

T7403

T7404

T7405

T7406

T7411

Hexcell Louver

Louver

T7421

T7420

T7477

T7478

Color Filters

Light Control Lenses

Dichroic Color Correction Filters

Optical Accessories

The complete range of optical accessories offered with the 3 1/4" and 5 5/8” Aculux luminaires allows the lighting

designer to customize any visual effect. Each 3 1/4" MR16 Halogen fixture is supplied with a soft-focus uniformity

lens and accepts up to (3) optical accessories. 3 1/4” LED and CMH, and 5 5/8” PAR36/AR111 luminaires accepts

(2) optical accessories.

2" COMPATIBLE

DIA. WITH

2” DIA.

For use

with

3 1/4”

Luminaires

T5721

T5777

T5778

T5722

T5718

T5719

T571

T572

T573

T574

T575

T576

T579BL

4 11/16” DIA.

For use with

5 5/8”

PAR36/AR111

Luminaires

Cubed Cell Louver

UV Filters

58

59

Accent Lighting - Accent lighting creates high contrast on objects of interest such as sculpture, paintings,

collectibles and architectural details. For noticeable visual impact, accent lighting should be at least 3 times

as bright as a surrounding area. More dramatic accent lighting requires contrast ratios of 5:1 or greater.

Photometrics - Rounds and Squares

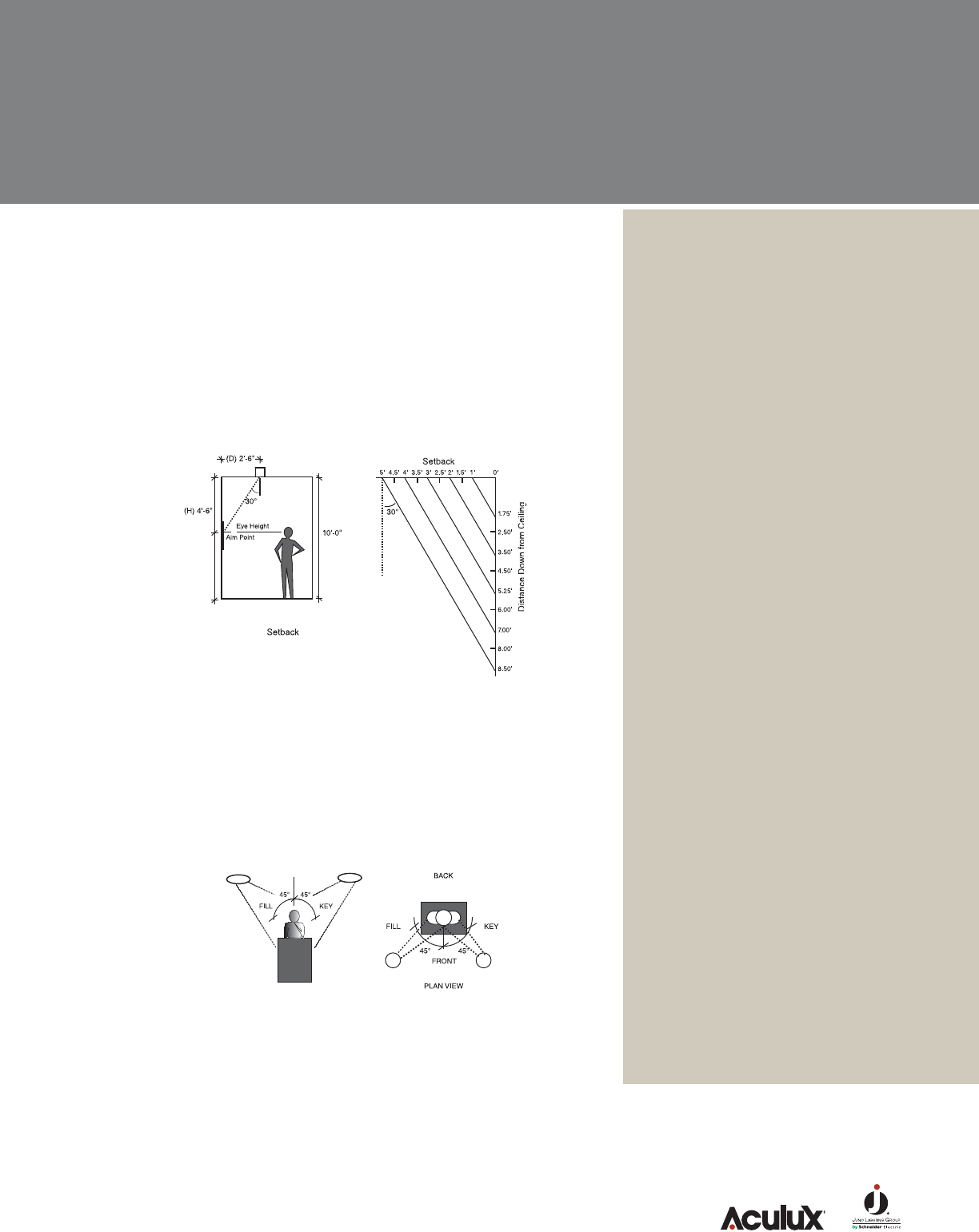

Accent lighting of ﬂat artwork

Flat art is ideally illuminated by a source striking its surface at a 30º angle.

This eliminates veiling reﬂection (glare) from bouncing into a viewer’s eye,

and prevents the casting of a shadow of the viewer onto the artwork.

To determine the correct distance from the wall you can use the below

listed formula or quick reference chart.

Formula to calculate luminaire distance from the wall for a 30º aiming angle

where H = Distance from the ceiling to the aiming point and D = Distance

from the wall to the center of the luminaire. (The aiming point is generally

selected at 1/3 down from the top of the picture or object.)

D = H x .5774

Example: D = 4.5' x .5774 = 2.6' or approximately 2'-6"

Round Downlights.................................60

3 1/4" MR16..........................................60

3 1/4" PAR .......................................61-62

3 1/4" CMH MR16 ................................62

5 5/8" PAR.............................................63

6" A-Lamp........................................63-64

6" CFL ...................................................64

7" PAR ...................................................64

Round Wall Wash...................................65

3 1/4" MR16 .........................................65

3 1/4" PAR.............................................66

3 1/4" CMH MR16 ................................66

5 5/8" PAR.............................................67

6" A-Lamp.............................................67

6" CFL ...................................................68

Round Lensed Downlight ......................69

3 1/4" MR16 .........................................69

3 1/4" PAR.............................................69

3 1/4" CMH MR16 ................................69

Round Adjustables ................................70

3 1/4" MR16 ....................................70-71

3 1/4" PAR.............................................72

3 1/4" CMH MR16 ................................73

5 5/8" AR111/PAR36........................74-75

5 5/8" PAR.............................................76

7" PAR ...................................................77

Square Downlights ................................78

3 1/4" MR16..........................................78

3 1/4" PAR.............................................79

3 1/4" CMH MR16 ................................79

Square Wall Wash..................................80

3 1/4" MR16 .........................................80

3 1/4" PAR.............................................81

3 1/4" CMH MR16 ................................81

Square Lensed Downlight .....................82

3 1/4" MR16 .........................................82

3 1/4” PAR.............................................83

3 1/4" CMH MR16 ................................83

Square Adjustables ...............................84

3 1/4" MR16 ....................................84-85

3 1/4" PAR.............................................86

3 1/4" CMH MR16 ................................87

INDEX

Accent lighting of three dimensional objects

“Key and ﬁll” is an effective technique for accentuating the three-dimen-

sional character of an object. This technique entails the use of key and ﬁll

lighting from two sides of the object. Key lighting is a hard accent light

used to create shadows and to highlight an object’s form and texture. Fill

light is a softer light thrown from the opposite side of the object to soften

the shadows, making the object appear more natural. Other techniques

can also be applied to further accentuate the unique character of an

object, such as silhouetting an object from behind.

Accent Lighting Fixture/Lamp Choices

12-volt MR16 Adjustables are the ﬁxture of choice for accent lighting due

to their small aperture, wide variety of precisely controlled, intense beam

spreads, and available range of light control and color correction accessories.

AR111 and PAR36 Adjustable are most useful for longer throw distances,

up to 30', where tightly controlled pinspots of light are required.

PAR lamp Adjustables provide less costly accent lighting and are well suited

for illuminating larger objects or areas such as ﬁreplaces, coffee tables,

large art or murals, potted trees, etc.

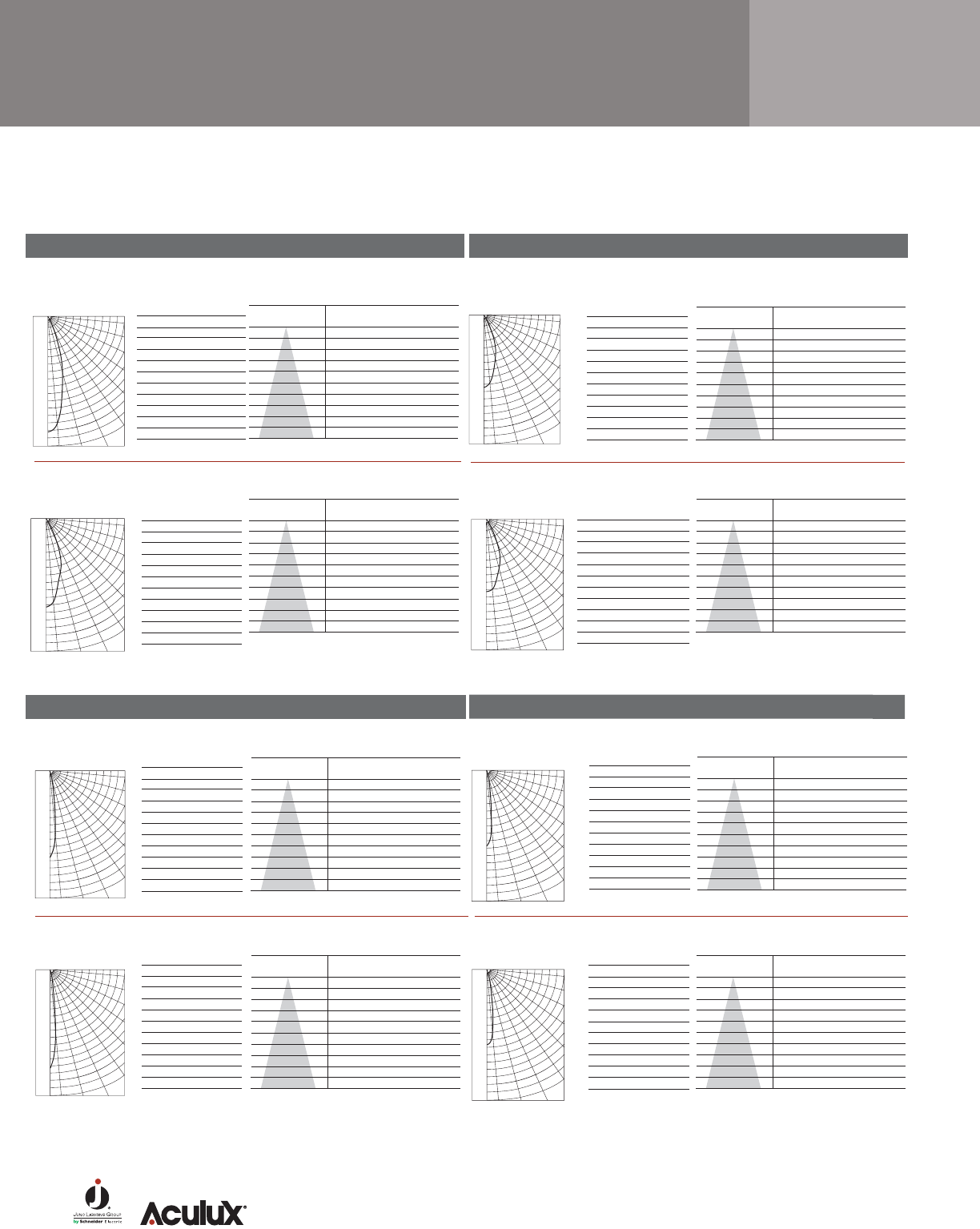

Photometrics - Round Downlights

IC43N-437

37W IR MR16

35˚ Flood

50W MR16

40˚ Flood

Reﬂectors

3-1/4" MR16 Halogen

IC43N-437NC, Clear Specular

50W IR MR16

35˚ Flood

75W MR16

40˚ Flood

TC43N-437NC, Clear Specular

Black Bafﬂe

37W IR MR16

35˚ Flood

White Bafﬂe

50W MR16

40˚ Flood

Bafﬂe

IC43N-434N

White Bafﬂe

50W IR MR16

35˚ Flood

Black Bafﬂe

75W MR16

40˚ Flood

TC43N-434N

Initial Footcandles

Distance to Illuminated Footcandles Footcandles Beam

Plane (Feet) Beam Center Beam Edge Diameter

6’ 47.2 20.8 3.6’

7’ 34.7 15.3 4.2’

8’ 26.5 11.7 4.7’

9’ 21.0 9.3 5.3’

10’ 17.0 7.5 5.9’

11’ 14.0 6.2 6.5’

12’ 11.8 5.2 7.1’

13’ 10.1 4.4 7.7’

14’ 8.7 3.8 8.3’

15’ 7.6 3.3 8.9’

Candlepower

Distribution

(Candelas)

Angle Candela Lumens

0° 1699

5° 1649 157

15° 957 271

25° 232 107

35° 28 18

45° 0 0

55° 0 0

65° 0 0

75° 0 0

85° 0 0

400

600

800

1000

1200

1400

1600

05 15 25

35

45

55

65

75

85

90

1800

Initial Footcandles

Distance to Illuminated Footcandles Footcandles Beam

Plane (Feet) Beam Center Beam Edge Diameter

6’ 41.0 17.6 3.9’

7’ 30.1 12.9 4.6’

8’ 23.0 9.9 5.2’

9’ 18.2 7.8 5.9’

10’ 14.7 6.3 6.6’

11’ 12.2 5.2 7.2’

12’ 10.2 4.4 7.9’

13’ 8.7 3.8 8.5’

14’ 7.5 3.2 9.2’

15’ 6.6 2.8 9.8’

Candlepower

Distribution

(Candelas)

Angle Candela Lumens

0° 1475

5° 1410 135

15° 891 253

25° 346 160

35° 54 34

45° 4 3

55° 0 0

65° 0 0

75° 0 0

85° 0 0

200

400

600

800

1000

1200

1400

05 15 25

35

45

55

65

75

85

90

1600

Initial Footcandles

Distance to Illuminated Footcandles Footcandles Beam

Plane (Feet) Beam Center Beam Edge Diameter

6’ 70.6 31.2 3.5’

7’ 51.9 23.0 4.1’

8’ 39.7 17.6 4.7’

9’ 31.4 13.9 5.3’

10’ 25.4 11.2 5.8’

11’ 21.0 9.3 6.4’

12’ 17.6 7.8 7.0’

13’ 15.0 6.7 7.6’

14’ 13.0 5.7 8.2’

15’ 11.3 5.0 8.8’

Candlepower

Distribution

(Candelas)

Angle Candela Lumens

0° 2541

5° 2466 235

15° 1392 395

25° 390 181

35° 44 27

45° 3 2

55° 0 0

65° 0 0

75° 0 0

85° 0 0

500

1000

1500

2000

2500

3000

3500

05 15 25

35

45

55

65

75

85

90

4000

Initial Footcandles

Distance to Illuminated Footcandles Footcandles Beam

Plane (Feet) Beam Center Beam Edge Diameter

6’ 61.5 26.4 3.9’

7’ 45.2 19.4 4.6’

8’ 34.6 14.9 5.2’

9’ 27.3 11.7 5.9’

10’ 22.1 9.5 6.5’

11’ 18.3 7.9 7.2’

12’ 15.4 6.6 7.8’

13’ 13.1 5.6 8.5’

14’ 11.3 4.9 9.2’

15’ 9.8 4.2 9.8’

Candlepower

Distribution

(Candelas)

Angle Candela Lumens

0° 2214

5° 2110 201

15° 1311 372

25° 496 230

35° 66 41

45° 6 5

55° 0 0

65° 0 0

75° 0 0

85° 0 0

500

750

1000

1250

1500

1750

2000

05 15 25

35

45

55

65

75

85

90

2250

Initial Footcandles

Distance to Illuminated Footcandles Footcandles Beam

Plane (Feet) Beam Center Beam Edge Diameter

6’ 43.1 19.0 3.5’

7’ 31.7 14.0 4.1’

8’ 24.3 10.7 4.7’

9’ 19.2 8.5 5.3’

10’ 15.5 6.9 5.9’

11’ 12.8 5.7 6.5’

12’ 10.8 4.8 7.0’

13’ 9.2 4.1 7.6’

14’ 7.9 3.5 8.2’

15’ 6.9 3.0 8.8’

Candlepower

Distribution

(Candelas)

Angle Candela Lumens

0° 1552

5° 1432 137

15° 852 241

25° 218 101

35° 28 17

45° 0 0

55° 0 0

65° 0 0

75° 0 0

85° 0 0

200

400

600

800

1000

1200

1400

05 15 25

35

45

55

65

75

85

90

1600

Initial Footcandles

Distance to Illuminated Footcandles Footcandles Beam

Plane (Feet) Beam Center Beam Edge Diameter

6’ 33.3 13.8 4.4’

7’ 24.4 10.1 5.1’

8’ 18.7 7.7 5.9’

9’ 14.8 6.1 6.6’

10’ 12.0 5.0 7.3’

11’ 9.9 4.1 8.1’

12’ 8.3 3.4 8.8’

13’ 7.1 2.9 9.5’

14’ 6.1 2.5 10.3’

15’ 5.3 2.2 11.0’

Candlepower

Distribution

(Candelas)

Angle Candela Lumens

0° 1198

5° 1142 109

15° 774 219

25° 367 170

35° 59 37

45° 11 9

55° 6 6

65° 4 4

75° 3 3

85° 0 0

200

400

600

800

1000

1200

1400

05 15 25

35

45

55

65

75

85

90

1600

Initial Footcandles

Distance to Illuminated Footcandles Footcandles Beam

Plane (Feet) Beam Center Beam Edge Diameter

6’ 62.7 27.6 3.6’

7’ 46.1 20.3 4.2’

8’ 35.3 15.5 4.8’

9’ 27.9 12.3 5.4’

10’ 22.6 9.9 6.0’

11’ 18.7 8.2 6.5’

12’ 15.7 6.9 7.1’

13’ 13.4 5.9 7.7’

14’ 11.5 5.1 8.3’

15’ 10.0 4.4 8.9’

Candlepower

Distribution

(Candelas)

Angle Candela Lumens

0° 2257

5° 2116 202

15° 1242 352

25° 398 184

35° 55 34

45° 14 11

55° 10 9

65° 6 6

75° 4 4

85° 0 0

500

750

1000

1250

1500

1750

2000

05 15 25

35

45

55

65

75

85

90

2250

Initial Footcandles

Distance to Illuminated Footcandles Footcandles Beam

Plane (Feet) Beam Center Beam Edge Diameter

6’ 50.0 20.7 4.4’

7’ 36.8 15.2 5.1’

8’ 28.1 11.7 5.8’

9’ 22.2 9.2 6.6’

10’ 18.0 7.5 7.3’

11’ 14.9 6.2 8.0’

12’ 12.5 5.2 8.7’

13’ 10.7 4.4 9.5’

14’ 9.2 3.8 10.2’

15’ 8.0 3.3 10.9’

Candlepower

Distribution

(Candelas)

Angle Candela Lumens

0° 1801

5° 1730 165

15° 1189 337

25° 482 223

35° 62 39

45° 6 4

55° 0 0

65° 0 0

75° 0 0

85° 0 0

400

600

800

1000

1200

1400

1600

05 15 25

35

45

55

65

75

85

90

1800

60

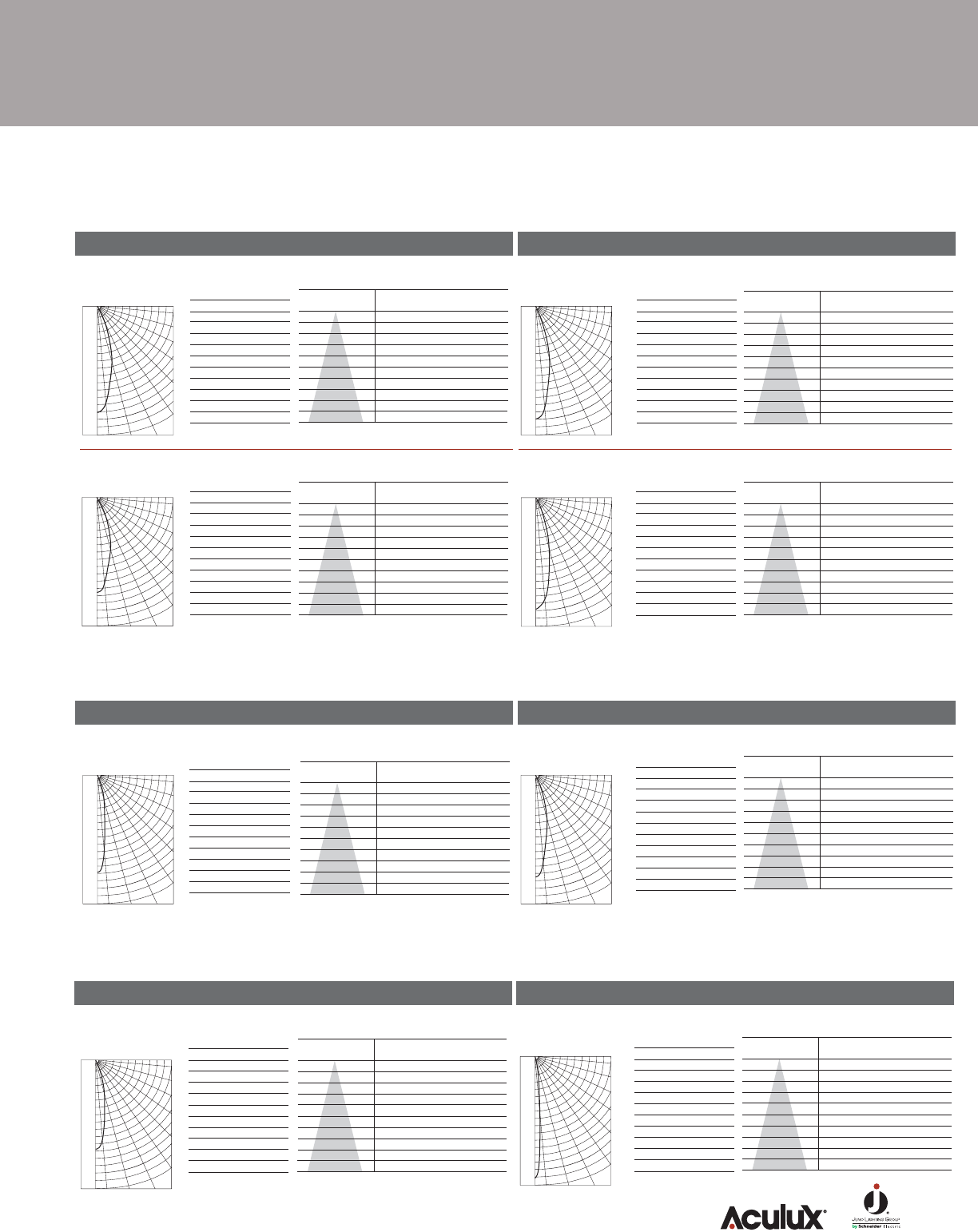

IC43N-437

37W IR MR16

10˚ Spot

50W MR16

15˚ Narrow Spot

Flat Pinhole

3-1/4" MR16 Halogen

IC43N-4337N-WH, Black Alzak®Reﬂector

50W IR MR16

10˚ Spot

75W MR16

15˚ Narrow Spot

TC43N-4337N-WH, Black Alzak®Reﬂector

Initial Footcandles

Distance to Illuminated Footcandles Footcandles Beam

Plane (Feet) Beam Center Beam Edge Diameter

6’ 71.7 34.9 1.6’

7’ 52.7 25.7 1.9’

8’ 40.3 19.6 2.1’

9’ 31.9 15.5 2.4’

10’ 25.8 12.6 2.7’

11’ 21.3 10.4 2.9’

12’ 17.9 8.7 3.2’

13’ 15.3 7.4 3.5’

14’ 13.2 6.4 3.7’

15’ 11.5 5.6 4.0’

Candlepower

Distribution

(Candelas)

Angle Candela Lumens

0° 2581

5° 2011 192

15° 376 107

25° 15 7

35° 0 0

45° 0 0

55° 0 0

65° 0 0

75° 0 0

85° 0 0

500

1000

1500

2000

2500

3000

3500

05 15 25

35

45

55

65

75

85

90

4000

Initial Footcandles

Distance to Illuminated Footcandles Footcandles Beam

Plane (Feet) Beam Center Beam Edge Diameter

6’ 83.4 40.9 1.4’

7’ 61.3 30.0 1.6’

8’ 46.9 23.0 1.9’

9’ 37.1 18.2 2.1’

10’ 30.0 14.7 2.3’

11’ 24.8 12.2 2.6’

12’ 20.9 10.2 2.8’

13’ 17.8 8.7 3.0’

14’ 15.3 7.5 3.3’

15’ 13.3 6.5 3.5’

Candlepower

Distribution

(Candelas)

Angle Candela Lumens

0° 3004

5° 2151 205

15° 200 57

25° 17 8

35° 0 0

45° 0 0

55° 0 0

65° 0 0

75° 0 0

85° 0 0

500

1000

1500

2000

2500

3000

3500

05 15 25

35

45

55

65

75

85

90

4000

Initial Footcandles

Distance to Illuminated Footcandles Footcandles Beam

Plane (Feet) Beam Center Beam Edge Diameter

6’ 106.4 52.2 1.4’

7’ 78.2 38.3 1.6’

8’ 59.9 29.3 1.8’

9’ 47.3 23.2 2.1’

10’ 38.3 18.8 2.3’

11’ 31.7 15.5 2.5’

12’ 26.6 13.0 2.8’

13’ 22.7 11.1 3.0’

14’ 19.5 9.6 3.2’

15’ 17.0 8.3 3.4’

Candlepower

Distribution

(Candelas)

Angle Candela Lumens

0° 3831

5° 2647 253

15° 381 108

25° 18 8

35° 0 0

45° 0 0

55° 0 0

65° 0 0

75° 0 0

85° 0 0

500

1000

1500

2000

2500

3000

3500

05 15 25

35

45

55

65

75

85

90

4000

Initial Footcandles

Distance to Illuminated Footcandles Footcandles Beam

Plane (Feet) Beam Center Beam Edge Diameter

6’ 107.0 52.3 1.5’

7’ 78.6 38.4 1.7’

8’ 60.2 29.4 2.0’

9’ 47.6 23.2 2.2’

10’ 38.5 18.8 2.5’

11’ 31.8 15.6 2.7’

12’ 26.8 13.1 3.0’

13’ 22.8 11.1 3.2’

14’ 19.7 9.6 3.5’

15’ 17.1 8.4 3.7’

Candlepower

Distribution

(Candelas)

Angle Candela Lumens

0° 3852

5° 2888 276

15° 311 88

25° 23 11

35° 0 0

45° 0 0

55° 0 0

65° 0 0

75° 0 0

85° 0 0

500

1000

1500

2000

2500

3000

3500

05 15 25

35

45

55

65

75

85

90

4000

IC43N-437

60W PAR16

30˚ Narrow Flood

Reﬂector

3-1/4" PAR

IC13N-437NC, Clear Specular

75W PAR16

30˚ Narrow Flood

TC13N-437NC, Clear Specular

Initial Footcandles

Distance to Illuminated Footcandles Footcandles Beam

Plane (Feet) Beam Center Beam Edge Diameter

6’ 62.5 29.9 2.1’

7’ 45.9 22.0 2.4’

8’ 35.1 16.8 2.7’

9’ 27.8 13.3 3.1’

10’ 22.5 10.8 3.4’

11’ 18.6 8.9 3.8’

12’ 15.6 7.5 4.1’

13’ 13.3 6.4 4.5’

14’ 11.5 5.5 4.8’

15’ 10.0 4.8 5.2’

Candlepower

Distribution

(Candelas)

Angle Candela Lumens

0° 2249

5° 1536 147

15° 722 205

25° 227 105

35° 13 8

45° 0 0

55° 0 0

65° 0 0

75° 0 0

85° 0 0

500

750

1000

1250

1500

1750

2000

05 15 25

35

45

55

65

75

85

90

2250

Initial Footcandles

Distance to Illuminated Footcandles Footcandles Beam

Plane (Feet) Beam Center Beam Edge Diameter

6’ 56.2 25.8 2.9’

7’ 41.3 19.0 3.4’

8’ 31.6 14.5 3.9’

9’ 25.0 11.5 4.3’

10’ 20.2 9.3 4.8’

11’ 16.7 7.7 5.3’

12’ 14.1 6.5 5.8’

13’ 12.0 5.5 6.3’

14’ 10.3 4.7 6.8’

15’ 9.0 4.1 7.2’

Candlepower

Distribution

(Candelas)

Angle Candela Lumens

0° 2024

5° 1744 166

15° 930 264

25° 352 163

35° 23 15

45° 0 0

55° 0 0

65° 0 0

75° 0 0

85° 0 0

250

500

750

1000

1250

1500

1750

05 15 25

35

45

55

65

75

85

90

2000

61

Photometrics - Round Downlights (cont.)

IC43N-437

60W PAR16

30˚ Narrow Flood

Bafﬂe

3-1/4" PAR (cont.)

IC13N-434NW, White Bafﬂe

75W PAR16

30˚ Narrow Flood

TC13N-434NW, White Bafﬂe

60W PAR16

10˚ Narrow Spot

Regressed Pinhole

IC13N-4307N, Black Alzak®Reﬂector

75W PAR16

10˚ Narrow Spot

TC13N-4307N, Black Alzak

®

Reﬂector

Initial Footcandles

Distance to Illuminated Footcandles Footcandles Beam

Plane (Feet) Beam Center Beam Edge Diameter

6’ 39.9 18.0 3.2’

7’ 29.3 13.2 3.8’

8’ 22.4 10.1 4.3’

9’ 17.7 8.0 4.9’

10’ 14.4 6.5 5.4’

11’ 11.9 5.3 5.9’

12’ 10.0 4.5 6.5’

13’ 8.5 3.8 7.0’

14’ 7.3 3.3 7.6’

15’ 6.4 2.9 8.1’

Candlepower

Distribution

(Candelas)

Angle Candela Lumens

0° 1437

5° 1324 126

15° 725 205

25° 222 103

35° 21 13

45° 8 6

55° 6 5

65° 4 4

75° 3 3

85° 0 0

200

400

600

800

1000

1200

1400

05 15 25

35

45

55

65

75

85

90

1600

Initial Footcandles

Distance to Illuminated Footcandles Footcandles Beam

Plane (Feet) Beam Center Beam Edge Diameter

6’ 47.3 21.1 3.4’

7’ 34.7 15.5 3.9’

8’ 26.6 11.9 4.5’

9’ 21.0 9.4 5.0’

10’ 17.0 7.6 5.6’

11’ 14.1 6.3 6.2’

12’ 11.8 5.3 6.7’

13’ 10.1 4.5 7.3’

14’ 8.7 3.9 7.9’

15’ 7.6 3.4 8.4’

Candlepower

Distribution

(Candelas)

Angle Candela Lumens

0° 1702

5° 1582 151

15° 889 252

25° 348 161

35° 43 27

45° 11 8

55° 9 8

65° 6 6

75° 4 4

85° 0 0

400

600

800

1000

1200

1400

1600

05 15 25

35

45

55

65

75

85

90

1800

IC43N-437

CMH MR16 39W

25˚ Flood

Reﬂector Flat Pinhole

3-1/4" CMH MR16

TC943M-MR16-39E1-437NC, Clear Specular

CMH MR16 39W

12˚ Spot

TC943M-MR16-39E1-4337N, Black Alzak®Reﬂector

Initial Footcandles

Distance to Illuminated Footcandles Footcandles Beam

Plane (Feet) Beam Center Beam Edge Diameter

6’ 126.0 62.4 1.0’

7’ 92.6 45.8 1.2’

8’ 70.9 35.1 1.3’

9’ 56.0 27.7 1.5’

10’ 45.4 22.5 1.7’

11’ 37.5 18.6 1.8’

12’ 31.5 15.6 2.0’

13’ 26.8 13.3 2.2’

14’ 23.2 11.5 2.3’

15’ 20.2 10.0 2.5’

Candlepower

Distribution

(Candelas)

Angle Candela Lumens

0° 4538

5° 2115 202

15° 445 126

25° 66 30

35° 4 2

45° 0 0

55° 0 0

65° 0 0

75° 0 0

85° 0 0

1000

1500

2000

2500

3000

3500

4000

05 15 25

35

45

55

65

75

85

90

4500

Initial Footcandles

Distance to Illuminated Footcandles Footcandles Beam

Plane (Feet) Beam Center Beam Edge Diameter

6’ 144.5 71.2 1.2’

7’ 106.1 52.3 1.3’

8’ 81.3 40.1 1.5’

9’ 64.2 31.7 1.7’

10’ 52.0 25.6 1.9’

11’ 43.0 21.2 2.1’

12’ 36.1 17.8 2.3’

13’ 30.8 15.2 2.5’

14’ 26.5 13.1 2.7’

15’ 23.1 11.4 2.9’

Candlepower

Distribution

(Candelas)

Angle Candela Lumens

0° 5200

5° 2943 281

15° 660 187

25° 215 100

35° 7 4

45° 0 0

55° 0 0

65° 0 0

75° 0 0

85° 0 0

1000

2000

3000

4000

5000

6000

7000

05 15 25

35

45

55

65

75

85

90

8000

Initial Footcandles

Distance to Illuminated Footcandles Footcandles Beam

Plane (Feet) Beam Center Beam Edge Diameter

6’ 229.0 107.6 2.5’

7’ 168.2 79.1 2.9’

8’ 128.8 60.5 3.3’

9’ 101.8 47.8 3.7’

10’ 82.4 38.7 4.1’

11’ 68.1 32.0 4.5’

12’ 57.2 26.9 4.9’

13’ 48.8 22.9 5.3’

14’ 42.1 19.8 5.7’

15’ 36.6 17.2 6.2’

Candlepower

Distribution

(Candelas)

Angle Candela Lumens

0° 8243

5° 7122 680

15° 2768 785

25° 522 242

35° 129 81

45° 18 14

55° 0 0

65° 0 0

75° 0 0

85° 0 0

1000

2000

3000

4000

5000

6000

7000

05 15 25

35

45

55

65

75

85

90

8000

Initial Footcandles

Distance to Illuminated Footcandles Footcandles Beam

Plane (Feet) Beam Center Beam Edge Diameter

6’ 277.3 137.2 1.0’

7’ 203.7 100.8 1.2’

8’ 156.0 77.2 1.3’

9’ 123.2 61.0 1.5’

10’ 99.8 49.4 1.7’

11’ 82.5 40.8 1.8’

12’ 69.3 34.3 2.0’

13’ 59.1 29.2 2.2’

14’ 50.9 25.2 2.3’

15’ 44.4 22.0 2.5’

Candlepower

Distribution

(Candelas)

Angle Candela Lumens

0° 9981

5° 4677 446

15° 639 181

25° 74 34

35° 0 0

45° 0 0

55° 0 0

65° 0 0

75° 0 0

85° 0 0

3000

4000

5000

6000

7000

8000

9000

05 15 25

35

45

55

65

75

85

90

10000

62

IC43N-437

75W PAR30

35˚ Flood

Reﬂector

5-5/8" PAR

IC62-627C, Clear Specular

120W PAR38

30˚ Flood

TC62-627C, Clear Specular

Initial Footcandles

Distance to Illuminated Footcandles Footcandles Beam

Plane (Feet) Beam Center Beam Edge Diameter

6’ 88.0 39.8 3.2’

8’ 49.5 22.4 4.2’

10’ 31.7 14.3 5.3’

12’ 22.0 9.9 6.4’

14’ 16.2 7.3 7.4’

16’ 12.4 5.6 8.5’

18’ 9.8 4.4 9.5’

20’ 7.9 3.9 10.6’

Candlepower

Distribution

(Candelas)

Angle Average

0° 3169

5° 2173

15° 1573

25° 559

35° 95

45° 21

55° 0

65° 0

75° 0

85° 0

Candlepower

Distribution

(Candelas)

Angle Average

0° 4433

5° 4315

15° 2145

25° 579

35° 377

45° 242

55° 48

65° 14

75° 0

85° 0

Initial Footcandles

Distance to Illuminated Footcandles Footcandles Beam

Plane (Feet) Beam Center Beam Edge Diameter

6’ 123.1 55.6 3.2’

8’ 69.3 31.3 4.2’

10’ 44.3 20.0 5.3’

12’ 30.8 13.9 6.4’

14’ 22.6 10.2 7.4’

16’ 17.3 7.8 8.5’

18’ 13.7 6.2 9.5’

20’ 11.1 5.0 10.6’

800

1600

2400

3200

1200

2400

3600

4800

IC43N-437

75W PAR30

35˚ Flood

Bafﬂe

IC62-624B, Black Bafﬂe

120W PAR38

30˚ Flood

TC62-624B, Black Bafﬂe

100W A19

Reﬂector

6" A-Lamps

IC906-643C, Clear Specular

150W A21

TC906-643C, Clear Specular

Candlepower

Distribution

(Candelas)

Angle Average

0° 3105

5° 2171

15° 1446

25° 305

35° 33

45° 4

55° 0

65° 0

75° 0

85° 0

Initial Footcandles

Distance to Illuminated Footcandles Footcandles Beam

Plane (Feet) Beam Center Beam Edge Diameter

6’ 8.63 39.4 3.0’

8’ 48.5 22.2 4.0’

10’ 31.1 14.2 5.0’

12’ 21.6 9.9 6.0’

14’ 15.8 7.2 7.0’

16’ 12.1 5.5 8.0’

18’ 9.6 4.4 9.0’

20’ 7.8 3.5 9.9’

800

1600

2400

3200

Candlepower

Distribution

(Candelas)

Angle Average

0° 1228

5° 1238

15° 1239

25° 1198

35° 751

45° 265

55° 3

65° 0

75° 0

85° 0

Initial Footcandles

Distance to Illuminated Footcandles Footcandles Beam

Plane (Feet) Beam Center Beam Edge Diameter

6’ 34.1 8.6 9.3’

8’ 19.2 4.8 12.4’

10’ 12.3 3.1 15.5’

12’ 8.5 2.1 18.7’

14’ 6.3 1.6 21.8’

16’ 4.8 1.2 24.9’

18’ 3.8 1.0 28.0’

1600

1200

800

400

Candlepower

Distribution

(Candelas)

Angle Average

0° 722

5° 742

15° 888

25° 923

35° 569

45° 113

55° 3

65° 0

75° 0

85° 0

Initial Footcandles

Distance to Illuminated Footcandles Footcandles Beam

Plane (Feet) Beam Center Beam Edge Diameter

6’ 20.1 6.7 9.0’

8’ 11.3 3.8 12.0’

10’ 7.2 2.4 15.0’

12’ 5.0 1.7 18.0’

14’ 3.7 1.2 21.0’

16’ 2.8 0.9 24.0’

18’ 2.2 0.7 27.0’

400

600

800

1000

Candlepower

Distribution

(Candelas)

Angle Average

0° 4452

5° 4314

15° 2132

25° 524

35° 203

45° 62

55° 10

65° 3

75° 0

85° 0

Initial Footcandles

Distance to Illuminated Footcandles Footcandles Beam

Plane (Feet) Beam Center Beam Edge Diameter

6’ 123.7 55.9 3.2’

8’ 69.6 31.4 4.2’

10’ 44.5 20.1 5.3’

12’ 30.9 14.0 6.3’

14’ 22.7 10.3 7.4’

16’ 17.4 7.9 8.4’

18’ 13.7 6.2 9.5’

20’ 11.1 5.0 10.5’

1200

2400

3600

4800

63

Photometrics - Round Downlights (cont.)

IC43N-437

100W A19

Bafﬂe

6" A-Lamps (cont.)

IC906-633B, Black Bafﬂe

150W A21

TC906-633B, Black Bafﬂe

IC43N-437

26W Triple Tube

CFL

Reﬂector Bafﬂe

6" CFL

ICV6-126/32T and CV6-126/32T-600C, Clear Specular

32W Triple Tube

CFL

ICV6-126/32T and CV6-126/32T-601B, Black Bafﬂe

IC43N-437

120W PAR38

Flood

Reﬂector

7" PAR

IC73-727C, Clear Specular

250W PAR38

Flood

TC973-727C, Clear Specular

Initial Footcandles

Distance to Illuminated Footcandles Footcandles Beam

Plane (Feet) Beam Center Beam Edge Diameter

6’ 20.1 5.9 7.9’

8’ 11.3 3.3 10.5’

10’ 7.3 2.1 13.1’

12’ 5.0 1.5 15.7’

14’ 3.7 1.1 18.3’

16’ 2.8 0.8 21.0’

18’ 2.2 0.7 23.6’

20’ 1.8 0.5 26.2’

Candlepower

Distribution

(Candelas)

Angle Average

0° 725

5° 753

15° 765

25° 729

35° 585

45° 342

55° 16

65° 0

75° 0

85° 0

200

400

600

800

Initial Footcandles

Distance to Illuminated Footcandles Footcandles Beam

Plane (Feet) Beam Center Beam Edge Diameter

6’ 152.3 67.7 3.4’

8’ 85.7 38.1 4.6’

10’ 54.8 24.4 5.7’

12’ 38.1 16.9 6.8’

14’ 28.0 12.4 8.0’

16’ 21.4 9.5 9.1’

18’ 16.9 7.5 10.3’

20’ 13.7 6.1 11.4’

Candlepower

Distribution

(Candelas)

Angle Average

0° 5483

5° 4829

15° 3124

25° 651

35° 108

45° 40

55° 0

65° 0

75° 0

85° 0

3000

5000

7000

1000

Initial Footcandles

Distance to Illuminated Footcandles Footcandles Beam

Plane (Feet) Beam Center Beam Edge Diameter

6’ 22.8 5.2 9.9’

8’ 12.8 2.9 13.2’

10’ 8.2 1.9 16.5’

12’ 5.7 1.3 19.8’

14’ 4.1 1.0 ’23.1

16’ 3.2 0.7 26.4’

18’ 2.5 0.6 29.7’

20’ 2.1 0.5 33.0’

Candlepower

Distribution

(Candelas)

Angle Average

0° 821

5° 833

15° 813

25° 722

35° 497

45° 237

55° 8

65° 0

75° 0

85° 0

Candlepower

Distribution

(Candelas)

Angle Average

0° 1058

5° 1040

15° 1079

25° 952

35° 578

45° 207

55° 12

65° 4

75° 0

85° 0

Initial Footcandles

Distance to Illuminated Footcandles Footcandles Beam

Plane (Feet) Beam Center Beam Edge Diameter

6’ 29.4 8.0 8.7’

8’ 16.5 4.5 11.6’

10’ 10.6 2.9 14.5’

12’ 7.3 2.0 17.4’

14’ 5.4 1.5 20.3’

16’ 4.1 1.1 23.2’

18’ 3.3 0.9 26.1’

1200

900

600

300

Candlepower

Distribution

(Candelas)

Angle Average

0° 582

5° 573

15° 727

25° 712

35° 315

45° 72

55° 2

65° 0

75° 0

85° 0

Initial Footcandles

Distance to Illuminated Footcandles Footcandles Beam

Plane (Feet) Beam Center Beam Edge Diameter

6’ 16.2 6.4 7.8’

8’ 9.1 3.6 10.4’

10’ 5.8 2.3 13.0’

12’ 4.0 1.6 15.7’

14’ 3.0 1.2 18.3’

16’ 2.3 0.9 20.9’

18’ 1.8 0.7 23.5’

200

400

600

800

Initial Footcandles

Distance to Illuminated Footcandles Footcandles Beam

Plane (Feet) Beam Center Beam Edge Diameter

6’ 300.3 133.0 3.5’

8’ 168.9 74.8 4.7’

10’ 108.1 47.9 5.9’

12’ 75.1 33.3 7.0’

14’ 55.2 24.4 8.2’

16’ 42.2 18.7 9.4’

18’ 33.4 14.8 10.6’

20’ 27.0 12.0 11.7’

Candlepower

Distribution

(Candelas)

Angle Average

0° 10811

5° 9776

15° 6344

25° 918

35° 151

45° 55

55° 3

65° 0

75° 0

85° 0

6000

10000

14000

2000

64

Photometrics - Round Wall Wash

IC43N-437

37W IR MR16

35˚ Flood

Reﬂector

3-1/4" MR16 Halogen

IC43N-439NC, Clear Specular

50W IR MR16

35˚ Flood

TC43N-439NC, Clear Specular

50W MR16

40˚ Flood

75W IR MR16

40˚ Flood

Candlepower

Distribution (Candelas)

Degrees 0° 180°

Vertical Wall Wash Downlight

0° 603 603

5° 582 481

15° 414 207

25° 281 129

35° 112 41

45° 62 16

55° 15 0

65° 0 0

75° 0 0

85° 0 0

100

200

300

400

500

600

700

05 15 25

35

45

55

65

75

85

90

800 0˚

180˚

Candlepower

Distribution (Candelas)

Degrees 0° 180°

Vertical Wall Wash Downlight

0° 645 645

5° 635 588

15° 462 331

25° 311 224

35° 136 80

45° 75 27

55° 12 0

65° 2 0

75° 0 0

85° 0 0

100

200

300

400

500

600

700

05 15 25

35

45

55

65

75

85

90

800

0˚

180˚

Candlepower

Distribution (Candelas)

Degrees 0° 180°

Vertical Wall Wash Downlight

0° 1075 1075

5° 1177 924

15° 998 506

25° 606 272

35° 270 112

45° 167 45

55° 77 0

65° 43 0

75° 14 0

85° 0 0

200

400

600

800

1000

1200

1400

05 15 25

35

45

55

65

75

85

90

1600 0˚

180˚

Candlepower

Distribution (Candelas)

Degrees 0° 180°

Vertical Wall Wash Downlight

0° 965 965

5° 1068 865

15° 1038 445

25° 820 264

35° 387 85

45° 230 35

55° 63 0

65° 27 0

75° 12 0

85° 0 0

200

400

600

800

1000

1200

1400

05 15 25

35

45

55

65

75

85

90

1600 0˚

180˚

Footcandles on Wall from Multiple Fixtures

Fixture Distance to Wall 18” 24”

Fixture Centers (spacing) 18” 24” 18” 24”

1’ 18 12 18 16 7 16 7 6 7 6 4 6

2’ 38 39 38 31 24 31 25 24 25 20 17 20

3’ 37 35 37 30 25 30 28 30 28 22 23 22

4’ 30 27 30 22 21 22 28 26 28 21 20 21

5’ 21 20 21 16 15 16 24 22 24 18 17 18

6’ 15 15 15 11 11 11 19 19 19 14 14 14

7’ 11 11 11 8 8 8 14 15 14 11 11 11

8’ 9 9 9 7 6 7 11 11 11 9 8 9

9’ 7 7 7 5 5 5 999 777

DISTANCE FROM CEILING

Footcandles on Wall from Multiple Fixtures

Fixture Distance to Wall 18” 24”

Fixture Centers (spacing) 18” 24” 18” 24”

1’ 19 14 19 17 9 17 10 8 10 8 6 8

2’ 29 27 29 23 19 23 21 20 21 16 15 16

3’ 28 27 28 23 19 23 21 21 21 17 15 17

4’ 24 23 24 18 17 18 21 21 21 16 16 16

5’ 18 17 18 13 13 13 19 18 19 14 14 14

6’ 13 13 13 10 9 10 16 15 16 12 11 12

7’ 10 10 10 7 7 7 12 12 12 9 9 9

8’ 7 8 7 6 6 6 10 10 10 7 7 7

9’ 6 6 6 5 5 5 888 666

DISTANCE FROM CEILING

Footcandles on Wall from Multiple Fixtures

Fixture Distance to Wall 18” 24”

Fixture Centers (spacing) 18” 24” 18” 24”

1’ 26 21 26 22 13 22 14 11 14 11 8 11

2’ 38 34 38 30 24 30 27 26 27 21 19 21

3’ 35 34 35 29 24 29 26 26 26 21 19 21

4’ 34 31 34 25 24 25 27 26 27 20 20 20

5’ 26 24 26 19 19 19 26 24 26 20 18 20

6’ 19 19 19 14 14 14 22 22 22 17 16 17

7’ 14 15 14 11 11 11 18 18 18 14 13 14

8’ 11 12 11 9 9 9 14 15 14 11 11 11

9’ 10 10 10 7 7 7 12 12 12 9 9 9

DISTANCE FROM CEILINGDISTANCE FROM CEILING

Footcandles on Wall from Multiple Fixtures

Fixture Distance to Wall 18” 24”

Fixture Centers (spacing) 18” 24” 18” 24”

1’ 20 16 20 17 10 17 9 8 9 8 6 8

2’ 49 48 49 39 33 39 30 27 30 25 19 25

3’ 49 49 49 40 34 40 38 40 38 29 29 29

4’ 38 37 38 29 28 29 37 37 37 28 28 28

5’ 28 27 28 21 21 21 31 30 31 23 23 23

6’ 20 20 20 15 15 15 25 24 25 19 18 19

7’ 15 15 15 11 11 11 19 19 19 15 14 15

8’ 12 12 12 9 9 9 15 15 15 12 11 12

9’ 10 10 10 7 7 7 12 13 12 9 9 9

65

Photometrics - Round Wall Wash (cont.)

IC43N-437

45W PAR16

27˚ Flood

Reﬂector

3-1/4" PAR

IC13N-439NC, Clear Specular

50

100

150

200

250

300

350

05 15 25

35

45

55

65

75

85

90

400

0˚

180˚

75W PAR16

30˚ Narrow Flood

TC13N-439NC, Clear Specular

100

200

300

400

500

600

700

05 15 25

35

45

55

65

75

85

90

800 0˚

180˚

39W CMH MR16

40˚ Wide Flood

Reﬂector

TC943M-MR16-39E1-439NC, Clear Specular

Candlepower

Distribution (Candelas)

Degrees 0° 180°

Vertical Wall Wash Downlight

0° 1772 1772

5° 1742 1594

15° 1221 1099

25° 691 593

35° 325 293

45° 193 125

55° 119 0

65° 84 0

75° 30 0

85° 2 0

200

400

600

800

1000

1200

1400

05 15 25

35

45

55

65

75

85

90

1600 0˚

180˚

Footcandles on Wall from Multiple Fixtures

Fixture Distance to Wall 18” 24”

Fixture Centers (spacing) 18” 24” 18” 24”

1’ 45 39 45 36 27 36 27 23 27 21 17 21

2’ 48 44 48 39 33 39 34 34 34 27 25 27

3’ 45 45 45 36 31 36 35 34 35 27 25 27

4’ 41 41 41 32 30 32 33 35 33 26 25 26

5’ 33 33 33 24 25 24 32 32 32 24 24 24

6’ 25 25 25 18 19 18 29 28 29 21 21 21

7’ 20 20 20 15 15 15 23 23 23 18 18 18

8’ 16 17 16 12 12 12 19 20 19 15 15 15

9’ 14 14 14 11 11 11 16 17 16 12 12 12

DISTANCE FROM CEILING

Candlepower

Distribution (Candelas)

Degrees 0° 180°

Vertical Wall Wash Downlight

0° 667 667

5° 732 571

15° 633 317

25° 399 160

35° 169 72

45° 98 21

55° 46 0

65° 24 0

75° 11 0

85° 1 0

Footcandles on Wall from Multiple Fixtures

Fixture Distance to Wall 18” 24”

Fixture Centers (spacing) 18” 24” 18” 24”

1’ 16 14 16 13 9 13 8 7 8 7 5 7

2’ 22 20 22 18 15 18 15 15 15 12 11 12

3’ 24 24 24 19 16 19 17 16 17 13 12 13

4’ 21 21 21 16 16 16 18 18 18 13 14 13

5’ 16 16 16 12 12 12 17 16 17 12 13 12

6’ 12 12 12 9 9 9 14 14 14 11 11 11

7’ 9 10 9 7 7 7 12 12 12 8 9 8

8’ 7 8 7 6 6 6 999 777

9’ 6 6 6 5 5 5 888 666

DISTANCE FROM CEILING

Candlepower

Distribution (Candelas)

Degrees 0° 180°

Vertical Wall Wash Downlight

0° 380 380

5° 383 305

15° 252 174

25° 135 73

35° 60 35

45° 38 11

55° 16 0

65° 10 0

75° 5 0

85° 0 0

Footcandles on Wall from Multiple Fixtures

Fixture Distance to Wall 18” 24”

Fixture Centers (spacing) 18” 24” 18” 24”

1’ 6 5 6 5 3 5 434 323

2’ 9 8 9 7 6 7 666 545

3’ 8 8 8 7 6 7 666 545

4’ 8 8 8 6 6 6 666 555

5’ 7 6 7 5 5 5 666 555

6’ 5 5 5 4 4 4 666 444

7’ 4 4 4 3 3 3 555 434

8’ 3 3 3 2 3 2 444 333

9’ 3 3 3 2 2 2 333 222

DISTANCE FROM CEILING

3-1/4" CMH MR16

66

IC43N-437

75W PAR30

40˚ Flood

Reﬂector

5-5/8" PAR

IC62/TC62-629C, Clear Specular

100W A19

Reﬂector

6" A-Lamps

IC906-662C, Clear Specular

175

350

525

700

400

600

800

1000

350

700

1050

1400

Candlepower

Distribution (Candelas)

Degrees 0° 180°

Vertical Wall Wash Downlight

0° 509 509

5° 631 376

15° 692 207

25° 608 104

35° 420 42

45° 210 3

55° 94 0

65° 41 0

75° 15 0

85° 1 0

Footcandles on Wall from Multiple Fixtures

Fixture Distance to Wall 2’ 3’

Fixture Centers (spacing) 2’ 3’ 3’ 4’

1’ 8 11 8 4 4 4 2 3 2 1 2 1

2’ 20 24 20 9 20 9 5 7 5 3 6 3

3’ 25 27 25 13 21 13 9 11 9- 6 9 6

4’ 21 21 21 13 16 13 11 12 11 7 10 7

5’ 16 16 16 10 11 10 11 12 111 8 9 8

6’ 12 12 12 8 8 8 10 10 10 7 8 7

7’ 9 9 9 6 6 6 888 666

8’ 7 7 7 5 5 5 777 555

9’ 6 6 6 4 4 4 666 444

DISTANCE FROM CEILING

150W A21

TC906-662C, Clear Specular

Candlepower

Distribution (Candelas)

Degrees 0° 180°

Vertical Wall Wash Downlight

0° 734 734

5° 851 617

15° 903 707

25° 703 748

35° 510 547

45° 251 130

55° 122 4

65° 76 0

75° 21 0

85° 0 0

Footcandles on Wall from Multiple Fixtures

Fixture Distance to Wall 2’ 3’

Fixture Centers (spacing) 2’ 3’ 3’ 4’

1’ 20 21 20 11 17 11 4 5 4 3 4 3

2’ 30 33 30 16 26 16 11 12 11 8 9 8

3’ 37 37 37 23 26 23 14 15 14 9 12 9

4’ 31 32 31 21 20 21 17 17 17 12 13 12

5’ 25 25 25 16 17 16 16 16 16 12 12 12

6’ 20 20 20 13 14 13 14 15 14 11 11 11

7’ 17 16 17 11 11 11 12 13 12 9 10 9

8’ 14 13 14 9 9 9 11 11 11 8 8 8

9’ 11 11 11 8 8 8 9 9 9 7 7 7

DISTANCE FROM CEILING

Candlepower

Distribution (Candelas)

Degrees 0° 180°

Vertical Wall Wash Downlight

0° 1094 1094

5° 1147 1055

15° 1202 1263

25° 1035 1264

35° 660 615

45° 319 87

55° 182 0

65° 90 0

75° 33 0

85° 7 0

Footcandles on Wall from Multiple Fixtures

Fixture Distance to Wall 2’ 3’

Fixture Centers (spacing) 2’ 3’ 3’ 4’

1’ 22 25 22 12 21 12 6 6 6 4 5 4

2’ 40 42 40 22 32 22 14 15 14 10 13 10

3’ 45 46 45 27 34 27 18 19 18 12 15 12

4’ 42 43 42 29 28 29 20 21 20 14 17 14

5’ 34 35 34 24 23 24 21 21 21 15 16 15

6’ 28 28 28 18 19 18 19 20 19 15 14 15

7’ 22 22 22 15 15 15 17 17 17 13 13 13

8’ 18 18 18 12 13 12 15 15 15 11 11 11

9’ 15 15 15 10 10 10 13 13 13 9 10 9

DISTANCE FROM CEILING

67

Photometrics - Round Wall Wash (cont.)

26W Triple Tube

CFL

Reﬂector

6" CFL

ICV6-126/32T and CV6-126/32T-600C-WWS, Clear Specular

225

450

675

900

Candlepower

Distribution (Candelas)

Degrees 0° 180°

Vertical Wall Wash Downlight

0° 644 644

5° 620 790

15° 576 798

25° 481 733

35° 385 578

45° 279 172

55° 194 43

65° 81 12

75° 31 0

85° 6 0

Footcandles on Wall from Multiple Fixtures

Fixture Distance to Wall 2’ 3’

Fixture Centers (spacing) 2’ 3’ 3’ 4’

1’ 20 22 20 10 19 10 5 6 5 3 5 3

2’ 32 33 32 17 26 17 12 14 12 8 13 8

3’ 28 30 28 20 20 20 15 15 15 10 13 10

4’ 25 25 25 17 16 17 13 15 13 11 10 11

5’ 20 20 20 14 13 14 13 13 13 9 10 9

6’ 16 16 16 11 11 11 12 11 12 9 9 9

7’ 13 13 13 9 9 9 10 10 10 8 7 8

8’ 10 10 10 7 7 7 9 9 9 7 6 7

9’ 9 8 9 6 6 6 777 656

DISTANCE FROM CEILING

68

Photometrics - Round Lensed Downlights

IC43N-437

37W IR MR16

35˚ Flood

Lensed Downlight

3-1/4" MR16 Halogen

IC43N-432NC, Clear Specular

50W IR MR16

35˚ Flood

TC43N-432NC, Clear Specular

50W MR16

40˚ Flood

45W PAR16

27˚ Flood

Reﬂector

3-1/4" PAR

IC13N-432NC, Clear Specular

75W PAR16

30˚ Narrow Flood

TC13N-432NC, Clear Specular

Initial Footcandles

Distance to Illuminated Footcandles Footcandles Beam

Plane (Feet) Beam Center Beam Edge Diameter

6’ 42.0 18.6 3.5’

7’ 30.9 13.6 4.1’

8’ 23.6 10.4 4.7’

9’ 18.7 8.2 5.3’

10’ 15.1 6.7 5.9’

11’ 12.5 5.5 6.5’

12’ 10.5 4.6 7.0’

13’ 8.9 4.0 7.6’

14’ 7.7 3.4 8.2’

15’ 6.7 3.0 8.8’

Candlepower

Distribution

(Candelas)

Angle Candela Lumens

0° 1512

5° 1390 133

15° 825 234

25° 262 121

35° 57 36

45° 20 15

55° 7 7

65° 0 0

75° 0 0

85° 0 0

200

400

600

800

1000

1200

1400

05 15 25

35

45

55

65

75

85

90

1600

Initial Footcandles

Distance to Illuminated Footcandles Footcandles Beam

Plane (Feet) Beam Center Beam Edge Diameter

6’ 37.7 16.3 3.8’

7’ 27.7 12.0 4.5’

8’ 21.2 9.2 5.1’

9’ 16.7 7.2 5.8’

10’ 13.6 5.9 6.4’

11’ 11.2 4.8 7.0’

12’ 9.4 4.1 7.7’

13’ 8.0 3.5 8.3’

14’ 6.9 3.0 9.0’

15’ 6.0 2.6 9.6’

Candlepower

Distribution

(Candelas)

Angle Candela Lumens

0° 1357

5° 1239 118

15° 783 222

25° 343 159

35° 88 55

45° 25 19

55° 8 7

65° 0 0

75° 0 0

85° 0 0

200

400

600

800

1000

1200

1400

05 15 25

35

45

55

65

75

85

90

1600

75W MR16

40˚ Flood

Initial Footcandles

Distance to Illuminated Footcandles Footcandles Beam

Plane (Feet) Beam Center Beam Edge Diameter

6’ 62.5 27.6 3.5’

7’ 45.9 20.3 4.1’

8’ 35.1 15.5 4.7’

9’ 27.8 12.3 5.3’

10’ 22.5 9.9 5.9’

11’ 18.6 8.2 6.5’

12’ 15.6 6.9 7.1’

13’ 13.3 5.9 7.7’

14’ 11.5 5.1 8.2’

15’ 10.0 4.4 8.8’

Candlepower

Distribution

(Candelas)

Angle Candela Lumens

0° 2249

5° 2095 200

15° 1221 346

25° 422 196

35° 89 56

45° 30 23

55° 13 11

65° 0 0

75° 0 0

85° 0 0

500

750

1000

1250

1500

1750

2000

05 15 25

35

45

55

65

75

85

90

2250

Initial Footcandles

Distance to Illuminated Footcandles Footcandles Beam

Plane (Feet) Beam Center Beam Edge Diameter

6’ 38.6 18.5 2.0’

7’ 28.4 13.6 2.3’

8’ 21.7 10.4 2.7’

9’ 17.2 8.2 3.0’

10’ 13.9 6.7 3.3’

11’ 11.5 5.5 3.7’

12’ 9.6 4.6 4.0’

13’ 8.2 3.9 4.3’

14’ 7.1 3.4 4.6’

15’ 6.2 3.0 5.0’

Candlepower

Distribution

(Candelas)

Angle Candela Lumens

0° 1390

5° 1146 109

15° 414 117

25° 114 53

35° 29 18

45° 15 12

55° 6 5

65° 0 0

75° 0 0

85° 0 0

200

400

600

800

1000

1200

1400

05 15 25

35

45

55

65

75

85

90

1600

Initial Footcandles

Distance to Illuminated Footcandles Footcandles Beam

Plane (Feet) Beam Center Beam Edge Diameter

6’ 46.0 20.2 3.6’

7’ 33.8 14.8 4.2’

8’ 25.9 11.4 4.8’

9’ 20.5 9.0 5.4’

10’ 16.6 7.3 6.0’

11’ 13.7 6.0 6.7’

12’ 11.5 5.0 7.3’

13’ 9.8 4.3 7.9’

14’ 8.5 3.7 8.5’

15’ 7.4 3.2 9.1’

Candlepower

Distribution

(Candelas)

Angle Candela Lumens

0° 1658

5° 1516 145

15° 908 257

25° 370 171

35° 72 45

45° 28 22

55° 12 11

65° 0 0

75° 0 0

85° 0 0

400

600

800

1000

1200

1400

1600

05 15 25

35

45

55

65

75

85

90

1800

69

Initial Footcandles

Distance to Illuminated Footcandles Footcandles Beam

Plane (Feet) Beam Center Beam Edge Diameter

6’ 55.0 23.7 3.9’

7’ 40.4 17.4 4.5’

8’ 30.9 13.3 5.2’

9’ 24.4 10.5 5.8’

10’ 19.8 8.5 6.5’

11’ 16.3 7.0 7.1’

12’ 13.7 5.9 7.8’

13’ 11.7 5.0 8.4’

14’ 10.1 4.3 9.1’

15’ 8.8 3.8 9.7’

Candlepower

Distribution

(Candelas)

Angle Candela Lumens

0° 1978

5° 1846 176

15° 1142 324

25° 497 230

35° 110 69

45° 36 28

55° 12 10

65° 0 0

75° 0 0

85° 0 0

600

800

1000

1200

1400

1600

1800

05 15 25

35

45

55

65

75

85

90

2000

39W CMH MR16

25˚ Flood

Lensed Downlight

3-1/4" CMH MR16

TC943M-MR16-39E1-432NC, Clear Specular

Initial Footcandles

Distance to Illuminated Footcandles Footcandles Beam

Plane (Feet) Beam Center Beam Edge Diameter

6’ 179.3 83.6 2.6’

7’ 131.7 61.4 3.1’

8’ 100.8 47.0 3.5’

9’ 79.7 37.2 3.9’

10’ 64.5 30.1 4.4’

11’ 53.3 24.9 4.8’

12’ 44.8 20.9 5.2’

13’ 38.2 17.8 5.7’

14’ 32.9 15.4 6.1’

15’ 28.7 13.4 6.5’

Candlepower

Distribution

(Candelas)

Angle Candela Lumens

0° 6454

5° 5771 551

15° 2597 736

25° 730 338

35° 192 121

45° 66 51

55° 19 17

65° 0 0

75° 0 0

85° 0 0

1000

2000

3000

4000

5000

6000

7000

05 15 25

35

45

55

65

75

85

90

8000

39W CMH MR16

30˚ Spot

TC943M-MR16-39E1-4332N-WH

Initial Footcandles

Distance to Illuminated Footcandles Footcandles Beam

Plane (Feet) Beam Center Beam Edge Diameter

6’ 236.3 116.7 1.1’

7’ 173.6 85.8 1.3’

8’ 132.9 65.7 1.4’

9’ 105.0 51.9 1.6’

10’ 85.1 42.0 1.8’

11’ 70.3 34.7 2.0’

12’ 59.1 29.2 2.1’

13’ 50.3 24.9 2.3’

14’ 43.4 21.4 2.5’

15’ 37.8 18.7 2.7’

Candlepower

Distribution

(Candelas)

Angle Candela Lumens

0° 8506

5° 4370 417

15° 619 176

25° 70 32

35° 0 0

45° 0 0

55° 0 0

65° 0 0

75° 0 0

85° 0 0

1000

2000

3000

4000

5000

6000

7000

05 15 25

35

45

55

65

75

85

90

8000

Lensed Pinhole Downlight

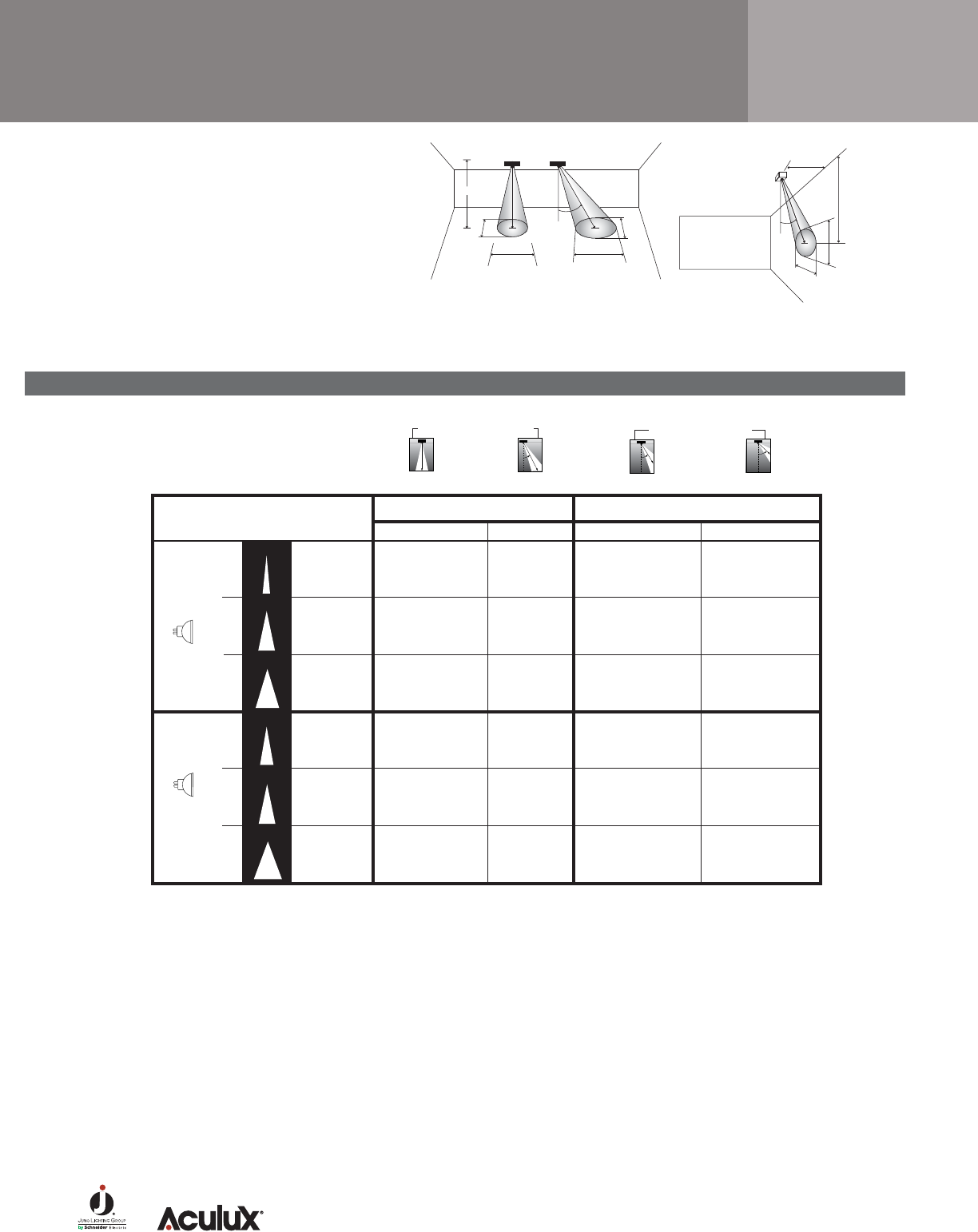

Photometrics - Round Adjustables

Adjustable

3-1/4" MR16 Halogen

IC43N/TC43N-438N

Horizontal Aiming Angles

Beam Beam Rated

Type Spread° Life CBCP MH FC L W FC L W

NSP 5000 12500 6 347 1.0 1.0 226 1.4 1.2

8 195 1.4 1.4 127 1.9 1.6

10 125 1.7 1.7 81 2.3 2.0

12 87 2.1 2.1 56 2.8 2.4

NFL 5000 4400 4 275 1.8 1.8 179 2.4 2.0

6 122 2.7 2.7 79 3.6 3.1

8 69 3.5 3.5 45 4.8 4.1

10 44 4.4 4.4 29 6.0 5.1

FL 5000 2200 3 244 1.9 1.9 159 2.6 2.2

4 138 2.5 2.5 89 3.5 2.9

6 61 3.8 3.8 40 5.2 4.4

8 34 5.0 5.0 22 7.0 5.8

0° 30° 30° 45°

D FC X L W FC X L W

3 174 5.2 2.1 1.0 491 3.0 1.1 0.7

4 98 6.9 2.9 1.4 276 4.0 1.4 1.0

5 63 8.7 3.6 1.7 177 5.0 1.8 1.2

6 43 10.4 4.3 2.0 123 6.0 2.1 1.5

2 138 3.5 4.2 1.8 389 2.0 1.9 1.3

3 61 5.2 6.2 2.7 173 3.0 2.8 1.9

4 34 6.9 8.3 3.5 97 4.0 3.7 2.5

5 22 8.7 10.4 4.4 62 5.0 4.7 3.1

2 69 3.5 7.2 2.5 194 2.0 2.8 1.8

3 31 5.2 10.8 3.8 86 3.0 4.2 2.7

4 17 6.9 14.4 5.0 49 4.0 5.6 3.6

5 11 8.7 18.0 6.3 31 5.0 7.0 4.5

Lamp

37W MR16

Halogen IR

NSP 6000 9100 6 253 1.6 1.6 164 2.1 1.8

8 142 2.1 2.1 92 2.8 2.4

10 91 2.6 2.6 59 3.5 3.0

12 63 3.2 3.2 41 4.2 3.6

NFL 6000 3200 4 200 1.8 1.8 130 2.4 2.0

6 89 2.7 2.7 58 3.6 3.1

8 50 3.5 3.5 32 4.8 4.1

10 32 4.4 4.4 21 6.0 5.1

FL 6000 1700 3 189 2.2 2.2 123 3.0 2.5

4 106 2.9 2.9 69 4.1 3.4

6 47 4.4 4.4 31 6.1 5.0

8 27 5.8 5.8 17 8.1 6.7

3 126 5.2 3.3 1.6 357 3.0 1.6 1.1

4 71 6.9 4.4 2.1 201 4.0 2.1 1.5

5 46 8.7 5.6 2.6 129 5.0 2.7 1.9

6 32 10.4 6.7 3.2 89 6.0 3.2 2.2

2 100 3.5 4.2 1.8 283 2.0 1.9 1.3

3 44 5.2 6.2 2.7 126 3.0 2.8 1.9

4 25 6.9 8.3 3.5 71 4.0 3.7 2.5

5 16 8.7 10.4 4.4 45 5.0 4.7 3.1

2 53 3.5 9.7 2.9 150 2.0 3.4 2.1

3 24 5.2 14.5 4.4 67 3.0 5.0 3.1

4 13 6.9 19.3 5.8 38 4.0 6.7 4.1

5 9 8.7 24.2 7.3 24 5.0 8.4 5.1

50W MR16

Halogen

Vertical Aiming Angles

15°

10°

25°

35°

25°

40°

70

MH

W

LL

Aim Point W

Aim Point

Aiming Angle (A = 0°) Aiming Angle (A = 30°)

0°

A

FOR HORIZONTAL AIMING ANGLES

L

X

W

Aim Point

D

0°

A

FOR VERTICAL AIMING ANGLES

The tables on the following pages provide illumination

levels, footcandles (FC) and beam size (in feet) for lamps

of various wattages and beam patterns. Data is given for

lamps aimed at both horizontal and vertical surfaces.

The beam spread in degrees and the beam “L” and “W” in the following tables are computed at 50%

of centerbeam candlepower and represent areas of “effective illumination.”

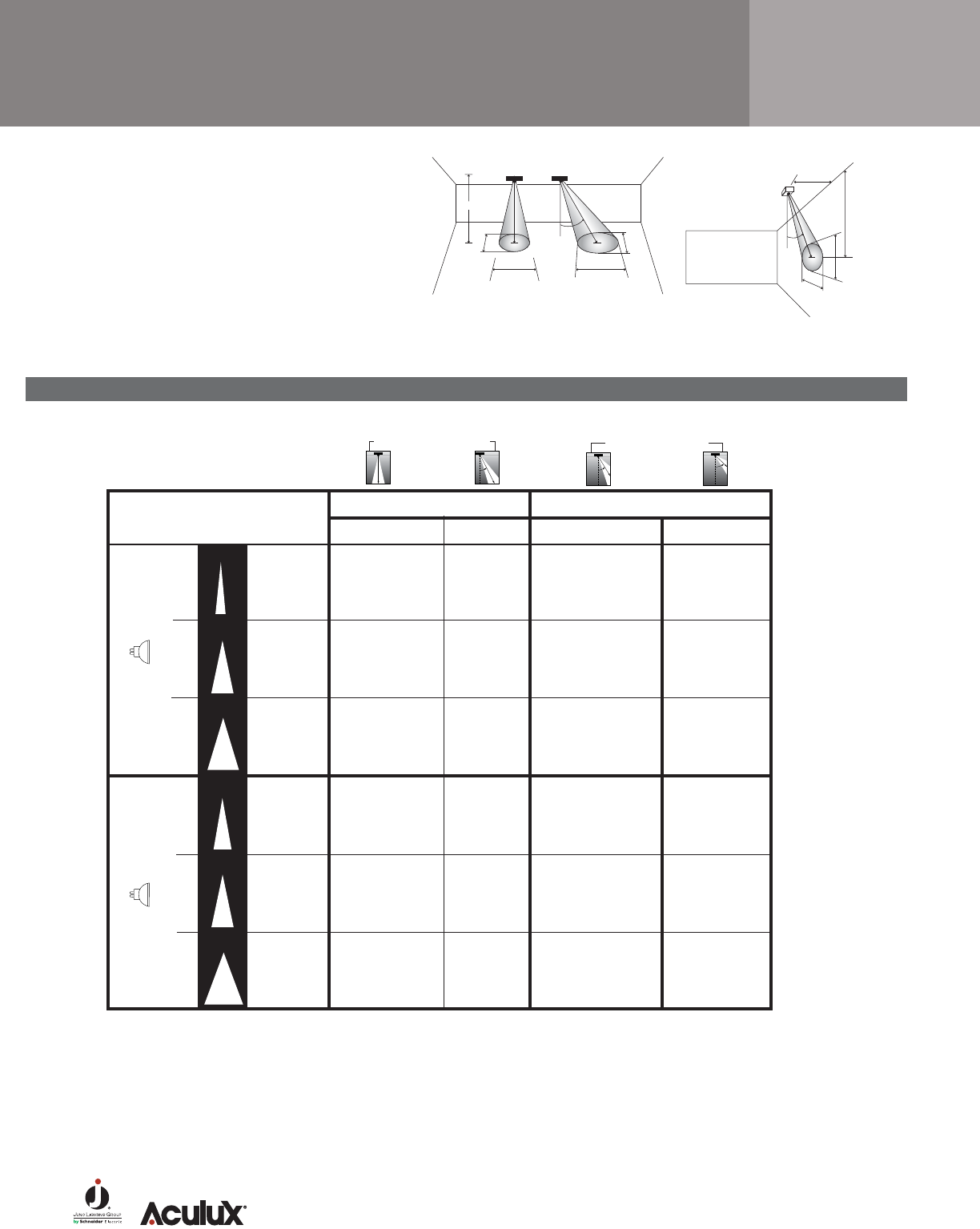

Adjustable

TC43N-438N, Black Alzak®Reﬂector, Lensed

The beam spread in degrees and the beam “L” and “W” in the following tables are computed at 50%

of centerbeam candlepower and represent areas of “effective illumination.”

0° 30° 30° 45°

Beam Beam Rated

Type Spread° Life CBCP MH FC L W FC L W

SP 5000 15000 6 417 1.0 1.0 217 1.4 1.2

8 234 1.4 1.4 152 1.9 1.6

10 150 1.7 1.7 97 2.3 2.0

12 104 2.1 2.1 68 2.8 2.4

NFL 5000 5700 4 356 1.8 1.8 231 2.1 2.0

6 158 2.7 2.7 103 3.6 3.1

8 89 3.5 3.5 58 4.8 4.1

10 57 4.4 4.4 37 6.0 5.1

FL 5000 2850 3 317 1.9 1.9 206 2.6 2.2

4 178 2.5 2.5 116 3.5 2.9

6 79 3.8 3.8 51 5.2 4.4

8 45 5.0 5.0 29 7.0 5.8

D FC X L W FC X L W

3 208 5.2 2.1 1.0 589 3.0 1.1 0.7

4 117 6.9 2.9 1.4 331 4.0 1.4 1.0

5 75 8.7 3.6 1.7 212 5.0 1.8 1.2

6 52 10.4 4.3 2.1 147 6.0 2.1 1.5

2 178 3.5 4.2 1.8 504 2.0 1.9 1.3

3 79 5.2 6.2 2.7 224 3.0 2.8 1.9

4 45 6.9 8.3 3.5 126 4.0 3.7 2.5

5 29 8.7 10.4 4.4 81 5.0 4.7 3.1

2 89 3.5 7.2 2.5 252 2.0 2.8 1.8

3 40 5.2 10.8 3.8 112 3.0 4.2 2.7

4 22 6.9 14.4 5.0 63 4.0 5.6 3.6

5 14 8.7 18.0 6.3 40 5.0 7.0 4.5

50W MR16

Halogen IR

Lensed

SP 4000 11500 6 319 1.6 1.6 207 2.1 1.8

8 180 2.1 2.1 117 2.8 2.4

10 115 2.6 2.6 75 3.5 3.0

12 80 3.2 3.2 52 4.2 3.6

NFL 4000 5500 4 344 1.8 1.8 223 2.4 2.0

6 153 2.7 2.7 99 3.6 3.1

8 86 3.5 3.5 56 4.8 4.1

10 55 4.4 4.4 36 6.0 5.1

FL 4000 2200 3 244 2.2 2.2 159 3.0 2.5

4 138 2.9 2.9 89 4.1 3.4

6 61 4.4 4.4 40 6.1 5.0

8 34 5.8 5.8 22 8.1 6.7

3 160 5.2 3.3 1.6 452 3.0 1.6 1.1

4 90 6.9 4.4 2.1 254 4.0 2.1 1.5

5 58 8.7 5.6 2.6 163 5.0 2.7 1.9

6 40 10.4 6.7 3.2 113 6.0 3.2 2.2

2 172 3.5 4.2 1.8 486 2.0 1.9 1.3

3 76 5.2 6.2 2.7 216 3.0 2.8 1.9

4 43 6.9 8.3 3.5 122 4.0 3.7 2.5

5 28 8.7 10.4 4.4 78 5.0 4.7 3.1

2 69 3.5 9.7 2.9 194 2.0 3.4 2.1

3 31 5.2 14.5 4.4 86 3.0 5.0 3.1

4 17 6.9 19.3 5.8 49 4.0 6.7 4.1

5 11 8.7 24.2 7.3 31 5.0 8.4 5.1

71W MR16

Halogen

10°

25°

35°

15°

25°

40°

71

3-1/4" MR16 Halogen

Horizontal Aiming Angles Vertical Aiming Angles

Photometrics - Round Adjustables (cont.)

72

Adjustable

3-1/4" PAR

IC13N-438N

TC13N-438N

NSP 2000 5000 6 139 1.0 1.0 90 1.4 1.2

8 78 1.4 1.4 51 1.9 1.6

10 50 1.7 1.7 32 2.3 2.0

12 35 2.1 2.1 23 2.8 2.4

14 26 2.4 2.4 17 3.3 2.8

NFL 2000 1400 3 156 1.4 1.4 101 2.0 1.7

5 56 2.4 2.4 36 3.3 2.8

7 29 3.4 3.4 19 4.6 3.9

9 17 4.3 4.3 11 5.9 5.0

11 12 5.3 5.3 8 7.2 6.1

Beam Beam Rated

Type Spread° Life CBCP MH FC L W FC L W

0° 30° 30°

Lamp D FC X L W FC X L W

2 156 3.5 1.4 0.7 332 2.4 0.9 0.5

3 69 5.2 2.1 1.0 148 3.6 1.3 0.8

4 39 6.9 2.9 1.4 83 4.8 1.7 1.1

5 25 8.7 3.6 1.7 53 6.0 2.1 1.4

6 17 10.4 4.3 2.1 37 7.2 2.6 1.6

1 175 1.7 2.3 1.0 372 1.2 1.4 0.8

2 44 3.5 4.6 1.9 93 2.4 2.9 1.7

3 19 5.2 7.0 2.9 41 3.6 4.3 2.5

4 11 6.9 9.3 3.8 23 4.8 5.8 3.3

5 7 8.7 11.6 4.8 15 6.0 7.2 4.2

10°

27°

Horizontal Aiming Angles

The beam spread in degrees and the beam “L” and “W” in the following tables are computed at 50%

of centerbeam candlepower and represent areas of “effective illumination.”

45W PAR16

Halogen

Vertical Aiming Angles

40°

Beam Beam Rated

Type Spread° Life CBCP MH FC L W FC L W

0° 30° 30°

Lamp D FC X L W FC X L W

Horizontal Aiming Angles

The beam spread in degrees and the beam “L” and “W” in the following tables are computed at 50%

of centerbeam candlepower and represent areas of “effective illumination.”

NSP 2000 7500 6 208 1.0 1.0 135 1.4 1.2

8 117 1.4 1.4 76 1.9 1.6

10 75 1.7 1.7 49 2.3 2.0

12 52 2.1 2.1 34 2.8 2.4

14 38 2.4 2.4 25 3.3 2.8

NFL 2000 1900 4 119 2.1 2.1 77 2.9 2.5

6 53 3.2 3.2 34 4.4 3.7

8 30 4.3 4.3 19 5.9 5.0

10 19 5.4 5.4 12 7.3 6.2

12 13 6.4 6.4 9 8.8 7.4

2 234 3.5 1.4 0.7 498 2.4 0.9 0.5

3 104 5.2 2.1 1.0 221 3.6 1.3 0.8

4 59 6.9 2.9 1.4 124 4.8 1.7 1.1

5 38 8.7 3.6 1.7 80 6.0 2.1 1.4

6 26 10.4 4.3 2.1 55 7.2 2.6 1.6

2 59 3.5 5.5 2.1 126 2.4 2.9 1.7

3 26 5.2 8.2 3.2 56 3.6 4.3 2.5

4 15 6.9 10.9 4.3 32 4.8 5.8 3.3

5 10 8.7 13.7 5.4 20 6.0 7.2 4.2

6 7 10.4 16.4 6.4 14 7.2 8.7 5.0

75W PAR16

Halogen

30°

10°

Vertical Aiming Angles

40°

NSP 2000 5400 6 150 1.0 1.0 97 1.4 1.2

8 84 1.4 1.4 55 1.9 1.6

10 54 1.7 1.7 35 2.3 2.0

12 38 2.1 2.1 24 2.8 2.4

14 28 2.4 2.4 18 3.3 2.8

NFL 2000 1550 4 97 2.1 2.1 63 2.9 2.5

6 43 3.2 3.2 28 4.4 3.7

8 24 4.3 4.3 16 5.9 5.0

10 16 5.4 5.4 10 7.3 6.2

12 11 6.4 6.4 7 8.8 7.4

2 169 3.5 1.4 0.7 359 2.4 0.9 0.5

3 75 5.2 2.1 1.0 159 3.6 1.3 0.8

4 42 6.9 2.9 1.4 90 4.8 1.7 1.1

5 27 8.7 3.6 1.7 57 6.0 2.1 1.4

6 19 10.4 4.3 2.1 40 7.2 2.6 1.6

2 48 3.5 5.5 2.1 103 2.4 2.9 1.7

3 22 5.2 8.2 3.2 46 3.6 4.3 2.5

4 12 6.9 10.9 4.3 26 4.8 5.8 3.3

5 8 8.7 13.7 5.4 16 6.0 7.2 4.2

6 5 10.4 16.4 6.4 11 7.2 8.7 5.0

60W PAR16

Halogen

Adjustable

3-1/4" CMH MR16

TC943M-MR16-20E1-438N

Horizontal Aiming Angles Vertical Aiming Angles

73

Adjustable

TC943M-MR16-39E1-438N

Horizontal Aiming Angles Vertical Aiming Angles

0° 30° 30° 45°

Lamp Beam Beam Rated

Type Spread° Life CBCP MH FC L W FC L W D FC X L W FC X L W

12°

40°

25°

WFL 12000 3000 8 47 5.8 5.8 30 8.1 6.7

10 30 7.3 7.3 19 10.2 8.4

12 21 8.7 8.7 14 12.2 10.1

14 15 10.2 10.2 10 14.2 11.8

16 12 11.6 11.6 8 16.2 13.4

2 94 3.5 9.7 2.9 265 2.0 3.4 2.1

3 42 5.2 14.5 4.4 118 3.0 5.0 3.1

4 23 6.9 19.3 5.8 66 4.0 6.7 4.1

5 15 8.7 24.2 7.3 42 5.0 8.4 5.1

6 10 10.4 ** 8.7 29 6.0 10.1 6.2

SP 12000 16000 10 160 2.1 2.1 104 2.8 2.4

12 111 2.5 2.5 72 3.4 2.9

14 82 2.9 2.9 53 3.9 3.4

16 63 3.4 3.4 41 4.5 3.9

18 49 3.8 3.8 32 5.1 4.4

4 125 6.9 3.5 1.7 354 4.0 1.7 1.2

6 56 10.4 5.2 2.5 157 6.0 2.6 1.8

8 31 13.9 7.0 3.4 88 8.0 3.4 2.4

10 20 17.3 8.7 4.2 57 10.0 4.3 3.0

12 14 20.8 10.4 5.0 39 12.0 5.1 3.6

39W MR16

Ceramic

Metal Halide

2 172 3.5 4.2 1.8 486 2.0 1.9 1.3

4 43 6.9 8.3 3.5 122 4.0 3.7 2.5

6 19 10.4 12.5 5.3 54 6.0 5.6 3.8

8 11 13.9 16.6 7.1 30 80 7.5 5.0

10 7 17.3 20.8 8.9 19 10.0 9.3 6.3

FL 12000 5500 8 86 3.5 3.5 56 4.8 4.1

10 55 4.4 4.4 36 6.0 5.1

12 38 5.3 5.3 25 7.2 6.1

14 28 6.2 6.2 18 8.4 7.2

16 21 7.1 7.1 14 9.6 8.2

0° 30° 30° 45°

Lamp

WFL 12000 1500 8 23 5.8 5.8 15 8.1 6.7

10 15 7.3 7.3 10 10.2 8.4

12 10 8.7 8.7 7 12.2 10.1

14 8 10.2 10.2 5 14.2 11.8

16 6 11.6 11.6 4 16.2 13.4

2 47 3.5 9.7 2.9 133 2.0 3.4 2.1

3 21 5.2 14.5 4.4 59 3.0 5.0 3.1

4 12 6.9 19.3 5.8 33 4.0 6.7 4.1

5 8 8.7 24.2 7.3 21 5.0 8.4 5.1

6 5 10.4 ** 8.7 15 6.0 10.1 6.2

Beam Beam Rated

Type Spread° Life CBCP MH FC L W FC L W

SP 12000 9000 10 90 2.1 2.1 58 2.8 2.4

12 63 2.5 2.5 41 3.4 2.9

14 46 2.9 2.9 30 3.9 3.4

16 35 3.4 3.4 23 4.5 3.9

18 28 3.8 3.8 18 5.1 4.4

D FC X L W FC X L W

4 70 6.9 3.5 1.7 199 4.0 1.7 1.2

6 31 10.4 5.2 2.5 88 6.0 2.6 1.8

8 18 13.9 7.0 3.4 50 8.0 3.4 2.4

10 11 17.3 8.7 4.2 32 10.0 4.3 3.0

12 8 20.8 10.4 5.0 22 12.0 5.1 3.6

12°

40°

20W MR16

Ceramic

Metal Halide

2 91 3.5 4.2 1.8 256 2.0 1.9 1.3

4 23 6.9 8.3 3.5 64 4.0 3.7 2.5

6 10 10.4 12.5 5.3 28 6.0 5.6 3.8

8 6 13.9 16.6 7.1 16 8.0 7.5 5.0

10 4 17.3 20.8 8.9 10 10.0 9.3 6.3

FL 12000 2900 8 45 3.5 3.5 29 4.8 4.1

10 29 4.4 4.4 19 6.0 5.1

12 20 5.3 5.3 13 7.2 6.1

14 15 6.2 6.2 10 8.4 7.2

16 11 7.1 7.1 7 9.6 8.2

25°

The beam spread in degrees and the beam “L” and “W” in the following tables are computed at 50%

of centerbeam candlepower and represent areas of “effective illumination.”

**Due to steep aiming angle, length of beam extends beyond 25’.

The beam spread in degrees and the beam “L” and “W” in the following tables are computed at 50%

of centerbeam candlepower and represent areas of “effective illumination.”

**Due to steep aiming angle, length of beam extends beyond 25’.

Photometrics - Round Adjustables (cont.)

74

Adjustable

5-5/8" AR111/PAR36

IC64-638

Horizontal Aiming Angles

The beam spread in degrees and the beam “L” and “W” in the following tables are computed at 50%

of centerbeam candlepower and represent areas of “effective illumination.”

**Due to steep aiming angle, length of beam extends beyond 25’.

0° 30° 30° 45°

Lamp

50W

PAR36

Halogen

Beam Beam Rated

Type Spread° Life CBCP MH FC L W FC L W

VNSP 4000 35000 14 179 1.2 1.2 116 1.6 1.4

18 108 1.6 1.6 70 2.1 1.8

22 72 1.9 1.9 47 2.6 2.2

26 52 2.3 2.3 34 3.0 2.6

30 39 2.6 2.6 25 3.5 3.0

NSP 4000 30000 12 208 1.7 1.7 135 2.2 1.9

16 117 2.2 2.2 76 3.0 2.6

20 75 2.8 2.8 49 3.7 3.2

24 52 3.4 3.4 34 4.5 3.9

28 38 3.9 3.9 25 5.2 4.5

FL 4000 1300 4 81 2.1 2.1 53 2.9 2.5

6 36 4.1 4.1 23 5.7 4.8

8 20 5.5 5.5 13 7.6 6.4

10 13 6.9 6.9 8 9.6 8.0

12 9 8.3 8.3 6 11.5 9.5

D FC X L W FC X L W

8 68 13.9 2.8 1.4 193 8.0 1.4 1.0

10 44 17.3 3.5 1.7 124 10.0 1.7 1.2

12 30 20.8 4.2 2.1 86 12.0 2.1 1.5

14 22 24.2 4.9 2.4 63 14.0 2.4 1.7

16 17 27.7 5.6 2.8 48 16.0 2.8 2.0

6 104 10.4 3.4 1.4 295 6.0 1.7 1.2

8 59 13.9 4.5 2.2 166 8.0 2.2 1.6

10 38 17.3 5.7 2.8 106 10.0 2.8 2.0

12 26 20.8 6.8 3.4 74 12.0 3.4 2.4

14 19 24.2 7.9 3.9 54 14.0 3.9 2.8

2 41 3.5 5.5 2.1 115 2.0 2.3 1.5

3 18 5.2 12.8 4.1 51 3.0 4.7 2.9

4 10 6.9 17.1 5.5 29 4.0 6.3 3.9

5 7 8.7 21.4 6.9 18 5.0 7.8 4.9

6 5 10.4 ** 8.3 13 6.0 9.4 5.8

50W AR111

Halogen

Vertical Aiming Angles

VNSP 3000 50000 12 347 0.8 0.8 226 1.1 1.0

16 195 1.1 1.1 127 1.5 1.3

20 125 1.4 1.4 81 1.9 1.6

24 87 1.7 1.7 56 2.2 1.9

28 64 2.0 2.0 41 2.6 2.3

SP 3000 23000 12 160 1.7 1.7 104 2.2 1.9

16 90 2.2 2.2 58 3.0 2.6

20 58 2.8 2.8 37 3.7 3.2

24 40 3.4 3.4 26 4.5 3.9

28 29 3.9 3.9 19 5.2 4.5

FL 3000 4000 6 111 2.7 2.7 72 3.6 3.1

8 63 3.5 3.5 41 4.8 4.1

10 40 4.4 4.4 26 6.0 5.1

12 28 5.3 5.3 18 7.2 6.1

14 20 6.2 6.2 13 8.4 7.2

6 174 10.4 1.7 0.8 491 6.0 0.8 0.6

10 63 17.3 2.8 1.4 177 10.0 1.4 1.0

14 32 24.2 3.9 2.0 90 14.0 2.0 1.4

18 19 31.2 5.0 2.5 55 18.0 2.5 1.8

22 13 38.1 6.2 3.1 37 22.0 3.1 2.2

4 180 6.9 2.3 1.1 508 4.0 1.1 0.8

6 80 10.4 3.4 1.7 226 6.0 1.7 1.2

8 45 13.9 4.5 2.2 127 8.0 2.2 1.6

10 29 17.3 5.7 2.8 81 10.0 2.8 2.0

12 20 20.8 6.8 3.4 56 12.0 3.4 2.4

2 125 3.5 4.2 1.8 354 2.0 1.9 1.3

3 56 5.2 6.2 2.7 157 3.0 2.8 1.9

4 31 6.9 8.3 3.5 88 4.0 3.7 2.5

5 20 8.7 10.4 4.4 57 5.0 4.7 3.1

6 14 10.4 12.5 5.3 39 6.0 5.6 3.8

30°

8°

25°

5°

4°

Adjustable

5-5/8" AR111/PAR36

TC964-638

Horizontal Aiming Angles Vertical Aiming Angles

75W PAR30

Halogen

0° 30° 30° 45°

Lamp

Beam Beam Rated

Type Spread° Life CBCP MH FC L W FC L W

SP 3000 13000 6 361 1.0 1.0 235 1.4 1.2

8 203 1.4 1.4 132 1.9 1.6

10 130 1.7 1.7 84 2.3 2.0

12 90 2.1 2.1 59 2.8 2.4

14 66 2.4 2.4 43 3.3 2.8

NFL 3000 3100 4 194 1.8 1.8 126 2.4 2.0

6 86 2.7 2.7 56 3.6 3.1

8 48 3.5 3.5 31 4.8 4.1

10 31 4.4 4.4 20 6.0 5.1

12 22 5.3 5.3 14 7.2 6.1

FL 3000 2000 4 125 2.5 2.5 81 3.5 2.9

6 56 3.8 3.8 36 5.2 4.4

8 31 5.0 5.0 20 7.0 5.8

10 20 6.3 6.3 13 8.7 7.3

12 14 7.6 7.6 9 10.4 8.7

D FC X L W FC X L W

4 102 6.9 2.9 1.4 287 4.0 1.4 1.0

5 65 8.7 3.6 1.7 184 5.0 1.8 1.2

6 45 10.4 4.3 2.1 128 6.0 2.1 1.5

7 33 12.1 5.0 2.4 94 7.0 2.5 1.7

8 25 13.9 5.7 2.8 72 8.0 2.8 2.0

2 97 3.5 4.2 1.8 274 2.0 1.9 1.3

3 43 5.2 6.2 2.7 122 3.0 2.8 1.9

4 24 6.9 8.3 3.5 69 4.0 3.7 2.5

5 16 8.7 10.4 4.4 44 5.0 4.7 3.1

6 11 10.4 12.5 5.3 30 6.0 5.6 3.8

2 63 3.5 7.2 2.5 177 2.0 2.8 1.8

3 28 5.2 10.8 3.8 79 3.0 4.2 2.7

4 16 6.9 14.4 5.0 44 4.0 5.6 3.6

5 10 8.7 18.0 6.3 28 5.0 7.0 4.5

6 7 10.4 21.6 7.6 20 6.0 8.4 5.4

75W AR111

Halogen

SP 3000 30000 10 300 1.4 1.4 195 1.9 1.6

14 153 2.0 2.0 99 2.6 2.3

18 93 2.5 2.5 60 3.4 2.9

22 62 3.1 3.1 40 4.1 3.6

26 44 3.6 3.6 29 4.9 4.2

FL 3000 5300 4 331 1.8 1.8 215 2.4 2.0

6 147 2.7 2.7 96 3.6 3.1

8 83 3.5 3.5 54 4.8 4.1

10 53 4.4 4.4 34 6.0 5.1

12 37 5.3 5.3 24 7.2 6.1

WFL 3000 1700 3 189 2.5 2.5 123 3.5 2.9

5 68 4.1 4.1 44 5.9 4.8

7 35 5.8 5.8 23 8.2 6.7

9 21 7.5 7.5 14 10.5 8.6

11 14 9.1 9.1 9 12.9 10.5

4 234 6.9 2.3 1.1 663 4.0 1.1 0.8

6 104 10.4 3.4 1.7 295 6.0 1.7 1.2

8 59 13.9 4.5 2.2 166 8.0 2.2 1.6

10 38 17.3 5.7 2.8 106 10.0 2.8 2.0

12 26 20.8 6.8 3.4 74 12.0 3.4 2.4

2 166 3.5 4.2 1.8 468 2.0 1.9 1.3

3 74 5.2 6.2 2.7 208 3.0 2.8 1.9

4 41 6.9 8.3 3.5 117 4.0 3.7 2.5

5 27 8.7 10.4 4.4 75 5.0 4.7 3.1

6 18 10.4 12.5 5.3 52 6.0 5.6 3.8

1 213 1.7 6.8 1.7 601 1.0 2.0 1.2

2 53 3.5 13.7 3.3 150 2.0 4.0 2.3

3 24 5.2 20.5 5.0 67 3.0 6.0 3.5

4 13 6.9 ** 6.6 38 4.0 8.0 4.7

5 9 8.7 ** 8.3 24 5.0 10.0 5.9

30°

8°

25°

45°

5°

8°

75

The beam spread in degrees and the beam “L” and “W” in the following tables are computed at 50%

of centerbeam candlepower and represent areas of “effective illumination.”

**Due to steep aiming angle, length of beam extends beyond 25’.

Photometrics - Round Adjustables (cont.)

76

Adjustable

5-5/8" PAR

IC63/TC63-638

Horizontal Aiming Angles

The beam spread in degrees and the beam “L” and “W” in the following tables are computed at 50%

of centerbeam candlepower and represent areas of “effective illumination.”

0° 30° 30° 45°

Lamp

50W

PAR30

Halogen

Beam Beam Rated

Type Spread° Life CBCP MH FC L W FC L W

SP 3000 6900 6 192 1.0 1.0 124 1.4 1.2

8 108 1.4 1.4 70 1.9 1.6

10 69 1.7 1.7 45 2.3 2.0

12 48 2.1 2.1 31 2.8 2.4

14 35 2.4 2.4 23 3.3 2.8

NFL 3000 2000 4 125 1.8 1.8 81 2.4 2.0

6 56 2.7 2.7 36 3.6 3.1

8 31 3.5 3.5 20 4.8 4.1

10 20 4.4 4.4 13 6.0 5.1

12 14 5.3 5.3 9 7.2 6.1

FL 3000 1400 3 156 1.9 1.9 101 2.6 2.2

5 56 3.2 3.2 36 4.3 3.6

7 29 4.4 4.4 19 6.1 5.1

9 17 5.7 5.7 11 7.8 6.6

11 12 6.9 6.9 8 9.6 8.0

D FC X L W FC X L W

3 96 5.2 2.1 1.0 271 3.0 1.1 0.7

4 54 6.9 2.9 1.4 152 4.0 1.4 1.0

5 35 8.7 3.6 1.7 98 5.0 1.8 1.2

6 24 10.4 4.3 2.1 68 6.0 2.1 1.5

7 18 12.1 5.0 2.4 50 7.0 2.5 1.7

2 63 3.5 4.2 1.8 177 2.0 1.9 1.3

3 28 5.2 6.2 2.7 79 3.0 2.8 1.9

4 16 6.9 8.3 3.5 44 4.0 3.7 2.5

5 10 8.7 10.4 4.4 28 5.0 4.7 3.1

6 7 10.4 12.5 5.3 20 6.0 5.6 3.8

1 175 1.7 3.6 1.3 495 1.0 1.4 0.9

2 44 3.5 7.2 2.5 124 2.0 2.8 1.8

3 19 5.2 10.8 3.8 55 3.0 4.2 2.7

4 11 6.9 14.4 5.0 31 4.0 5.6 3.6

5 7 8.7 18.0 6.3 20 5.0 7.0 4.5

50W PAR30

Halogen IR

Vertical Aiming Angles

SP 3000 13000 6 361 0.9 0.9 235 1.3 1.1

8 203 1.3 1.3 132 1.7 1.5

10 130 1.6 1.6 84 2.1 1.8

12 90 1.9 1.9 59 2.5 2.2

14 66 2.2 2.2 43 2.9 2.5

NFL 3000 2700 4 169 1.8 1.8 110 2.4 2.0

6 75 2.7 2.7 49 3.6 3.1

8 42 3.5 3.5 27 4.8 4.1

10 27 4.4 4.4 18 6.0 5.1

12 19 5.3 5.3 12 7.2 6.1

FL 3000 1500 3 167 1.9 1.9 108 2.6 2.2

5 60 3.2 3.2 39 4.3 3.6

7 31 4.4 4.4 20 6.1 5.1

9 19 5.7 5.7 12 7.8 6.6

11 12 6.9 6.9 8 9.6 8.0

4 102 6.9 2.6 1.3 287 4.0 1.3 0.9

5 65 8.7 3.2 1.6 184 5.0 1.6 1.1

6 45 10.4 3.8 1.9 128 6.0 1.9 1.3

7 33 12.1 4.5 2.2 94 7.0 2.2 1.6

8 25 13.9 5.1 2.5 72 8.0 2.5 1.8

2 84 3.5 4.2 1.8 239 2.0 1.9 1.3

3 38 5.2 6.2 2.7 106 3.0 2.8 1.9

4 21 6.9 8.3 3.5 60 4.0 3.7 2.5

5 14 8.7 10.4 4.4 38 5.0 4.7 3.1

6 9 10.4 12.5 5.3 27 6.0 5.6 3.8

1 188 1.7 3.6 1.3 530 1.0 1.4 0.9

2 47 3.5 7.2 2.5 133 2.0 2.8 1.8

3 21 5.2 10.8 3.8 59 3.0 4.2 2.7

4 12 6.9 14.4 5.0 33 4.0 5.6 3.6

5 8 8.7 18.0 6.3 21 5.0 7.0 4.5

35°

9°

25°

SP 3000 13000 6 361 1.0 1.0 235 1.4 1.2

8 203 1.4 1.4 132 1.9 1.6

10 130 1.7 1.7 84 2.3 2.0

12 90 2.1 2.1 59 2.8 2.4

14 66 2.4 2.4 43 3.3 2.8

NFL 3000 3100 4 194 1.8 1.8 126 2.4 2.0

6 86 2.7 2.7 56 3.6 3.1

8 48 3.5 3.5 31 4.8 4.1

10 31 4.4 4.4 20 6.0 5.1

12 22 5.3 5.3 14 7.2 6.1

FL 3000 2000 4 125 2.5 2.5 81 3.5 2.9

6 56 3.8 3.8 36 5.2 4.4

8 31 5.0 5.0 20 7.0 5.8

10 20 6.3 6.3 13 8.7 7.3

12 14 7.6 7.6 9 10.4 8.7

4 102 6.9 2.9 1.4 287 4.0 1.4 1.0

5 65 8.7 3.6 1.7 184 5.0 1.8 1.2

6 45 10.4 4.3 2.1 128 6.0 2.1 1.5

7 33 12.1 5.0 2.4 94 7.0 2.5 1.7

8 25 13.9 5.7 2.8 72 8.0 2.8 2.0

2 97 3.5 4.2 1.8 274 2.0 1.9 1.3

3 43 5.2 6.2 2.7 122 3.0 2.8 1.9

4 24 6.9 8.3 3.5 69 4.0 3.7 2.5

5 16 8.7 10.4 4.4 44 5.0 4.7 3.1

6 11 10.4 12.5 5.3 30 6.0 5.6 3.8

2 63 3.5 7.2 2.5 177 2.0 2.8 1.8

3 28 5.2 10.8 3.8 79 3.0 4.2 2.7

4 16 6.9 14.4 5.0 44 4.0 5.6 3.6

5 10 8.7 18.0 6.3 28 5.0 7.0 4.5

6 7 10.4 21.6 7.6 20 6.0 8.4 5.4

75W PAR30

Halogen

25°

10°

35°

10°

Adjustable

7" PAR -IC

IC73-738

The beam spread in degrees and the beam “L” and “W” in the following tables are computed at 50%

of centerbeam candlepower and represent areas of “effective illumination.”

**Due to steep aiming angle, length of beam extends beyond 25’.

0° 30° 30° 45°

Beam Beam Rated

Type Spread° Life CBCP MH FC L W FC L W

SP 3000 25000 10 250 1.6 1.6 162 2.1 1.8

14 128 2.2 2.2 83 2.9 2.5

18 77 2.8 2.8 50 3.8 3.3

22 52 3.5 3.5 34 4.6 4.0

NFL 3000 5000 6 139 3.2 3.2 90 4.4 3.7

8 78 4.3 4.3 51 5.9 5.0

10 50 5.4 5.4 32 7.3 6.2

12 35 6.4 6.4 23 8.8 7.4

FL 3000 2000 4 125 3.7 3.7 81 5.4 4.3

6 56 5.6 5.6 36 8.0 6.5

8 31 7.5 7.5 20 10.7 8.6

10 20 9.3 9.3 13 13.4 10.8

D FC X L W FC X L W

6 87 10.4 3.8 1.9 246 6.0 1.9 1.3

9 39 15.6 5.8 2.8 109 9.0 2.9 2.0

12 22 10.8 7.7 3.8 61 12.0 3.8 2.7

15 14 26.0 9.6 4.7 39 15.0 4.8 3.3

3 69 5.2 8.2 3.2 196 3.0 3.5 2.3

4 39 6.9 10.9 4.3 110 4.0 4.6 3.0

5 25 8.7 13.7 5.4 71 5.0 5.8 3.8

6 17 10.4 16.4 6.4 49 6.0 6.9 4.5

2 63 3.5 21.5 3.7 177 2.0 4.8 2.6

3 28 5.2 ** 5.6 79 3.0 7.2 4.0

4 16 6.9 ** 7.5 44 4.0 9.5 5.3

5 10 8.7 ** 9.3 28 5.0 11.9 6.6

120W

PAR38

Halogen

30°

50°

9°

250W PAR38

Halogen

SP 4200 40000 10 400 1.7 1.7 260 2.3 2.0

15 178 2.6 2.6 115 3.5 3.0

20 100 3.5 3.5 65 4.7 4.0

25 64 4.4 4.4 42 5.8 5.1

FL 4200 9000 6 250 3.2 3.2 162 4.4 3.7

8 141 4.3 4.3 91 5.9 5.0

10 90 5.4 5.4 58 7.3 6.2

12 63 6.4 6.4 41 8.8 7.4

6 139 10.4 4.3 2.1 393 6.0 2.1 1.5

9 62 15.6 6.4 3.1 175 9.0 3.2 2.2

12 35 20.8 8.6 4.2 98 12.0 4.2 3.0

15 22 26.0 10.7 5.2 63 15.0 5.3 3.7

3 125 5.2 8.2 3.2 354 3.0 3.5 2.3

4 70 6.9 10.9 4.3 199 4.0 4.6 3.0

5 45 8.7 13.7 5.4 127 5.0 5.8 3.8

6 31 10.4 16.4 6.4 88 6.0 6.9 4.5

12°

Adjustable

TC973-738

Horizontal Aiming Angles Vertical Aiming Angles

0° 30° 30° 45°

Beam Beam Rated

Type Spread° Life CBCP MH FC L W FC L W

SP 3000 29000 10 290 1.7 1.7 188 2.3 2.0

14 148 2.4 2.4 96 3.3 2.8

18 90 3.1 3.1 58 4.2 3.6

22 60 3.8 3.8 39 5.1 4.4

26 43 4.5 4.5 28 6.1 5.3

NFL 3000 6300 6 175 2.7 2.7 114 3.6 3.1

8 98 3.5 3.5 64 4.8 4.1

10 63 4.4 4.4 41 6.0 5.1

12 44 5.3 5.3 28 7.2 6.1

14 32 6.2 6.2 21 8.4 7.2

FL 3000 3400 4 213 2.9 2.9 138 4.1 3.4

6 94 4.4 4.4 61 6.1 5.0

8 53 5.8 5.8 35 8.1 6.7

10 34 7.3 7.3 22 10.2 8.4

12 24 8.7 8.7 15 12.2 10.1

D FC X L W FC X L W

6 101 10.4 4.3 2.1 285 6.0 2.1 1.5

9 45 15.6 6.4 3.1 127 9.0 3.2 2.2

12 25 20.8 8.6 4.2 71 12.0 4.2 3.0

15 16 26.0 10.7 5.2 46 15.0 5.3 3.7

18 11 31.2 12.9 6.3 32 18.0 6.3 4.5

3 88 5.2 6.2 2.7 247 3.0 2.8 1.9

4 49 6.9 8.3 3.5 139 4.0 3.7 2.5

5 32 8.7 10.4 4.4 89 5.0 4.7 3.1

6 22 10.4 12.5 5.3 62 6.0 5.6 3.8

7 16 12.1 14.6 6.2 45 7.0 6.5 4.4

2 106 3.5 9.7 2.9 301 2.0 3.4 2.1

3 47 5.2 14.5 4.4 134 3.0 5.0 3.1

4 27 6.9 19.3 5.8 75 4.0 6.7 4.1

5 17 8.7 24.2 7.3 48 5.0 8.4 5.1

6 12 10.4 ** 8.7 33 6.0 10.1 6.2

100W

PAR38

Halogen IR

25°

40°

10°

77

7" PAR-TC

Horizontal Aiming Angles Vertical Aiming Angles

The beam spread in degrees and the beam “L” and “W” in the following tables are computed at 50%

of centerbeam candlepower and represent areas of “effective illumination.”

**Due to steep aiming angle, length of beam extends beyond 25’.

78

Photometrics - Square Downlights

IC43N-437

37W IR MR16

35˚ Flood

50W MR16

40˚ Flood

Reﬂector

3-1/4" MR16 Halogen

IC43SQ-437SQHZ, Haze Reﬂector

50W IR MR16

35˚ Flood

75W MR16

40˚ Flood

TC43SQ-437SQHZ, Haze Reﬂector

Flat Pinhole

IC43SQ-4337SQ, Black Alzak®Reﬂector

TC43SQ-4337SQ, Black Alzak

®

Reﬂector

Initial Footcandles

Distance to Illuminated Footcandles Footcandles Beam

Plane (Feet) Beam Center Beam Edge Diameter

6’ 44.7 19.8 3.5’

7’ 32.8 14.6 4.0’

8’ 25.1 11.1 4.6’

9’ 19.9 8.8 5.2’

10’ 16.1 7.1 5.8’

11’ 13.3 5.9 6.4’

12’ 11.2 5.0 6.9’

13’ 9.5 4.2 7.5’

14’ 8.2 3.6 8.1’

15’ 7.2 3.2 8.7’

Candlepower

Distribution

(Candelas)

Angle Candela Lumens

0° 1609

5° 1512 144

15° 866 246

25° 278 129

35° 41 26

45° 6 5

55° 1 1

65° 0 0

75° 0 0

85° 0 0

200

400

600

800

1000

1200

1400

05 15 25

35

45

55

65

75

85

90

1600

Initial Footcandles

Distance to Illuminated Footcandles Footcandles Beam

Plane (Feet) Beam Center Beam Edge Diameter

6’ 34.2 14.0 4.5’

7’ 25.1 10.3 5.3’

8’ 19.2 7.9 6.1’

9’ 15.2 6.2 6.8’

10’ 12.3 5.0 7.6’

11’ 10.2 4.2 8.3’

12’ 8.6 3.5 9.1’

13’ 7.3 3.0 9.9’

14’ 6.3 2.6 10.6’

15’ 5.5 2.2 11.4’

Candlepower

Distribution

(Candelas)

Angle Candela Lumens

0° 1231

5° 1168 111

15° 796 226

25° 405 187

35° 67 42

45° 10 8

55° 2 2

65° 0 0

75° 0 0

85° 0 0

200

400

600

800

1000

1200

1400

05 15 25

35

45

55

65

75

85

90

1600

Initial Footcandles

Distance to Illuminated Footcandles Footcandles Beam

Plane (Feet) Beam Center Beam Edge Diameter

6’ 65.9 28.9 3.6’

7’ 48.4 21.2 4.2’

8’ 37.0 16.2 4.8’

9’ 29.3 12.8 5.5’

10’ 23.7 10.4 6.1’

11’ 19.6 8.6 6.7’

12’ 16.5 7.2 7.3’

13’ 14.0 6.1 7.9’

14’ 12.1 5.3 8.5’

15’ 10.5 4.6 9.1’

Candlepower

Distribution

(Candelas)

Angle Candela Lumens

0° 2371

5° 2200 210

15° 1326 376

25° 428 198

35° 69 43

45° 11 8

55° 3 2

65° 0 0

75° 0 0

85° 0 0

Initial Footcandles

Distance to Illuminated Footcandles Footcandles Beam

Plane (Feet) Beam Center Beam Edge Diameter

6’ 51.0 20.9 4.5’

7’ 37.5 15.3 5.3’

8’ 28.7 11.7 6.0’

9’ 22.7 9.3 6.8’

10’ 18.4 7.5 7.6’

11’ 15.2 6.2 8.3’

12’ 12.8 5.2 9.1’

13’ 10.9 4.4 9.8’

14’ 9.4 3.8 10.6’

15’ 8.2 3.3 11.3’

Candlepower

Distribution

(Candelas)

Angle Candela Lumens

0° 1837

5° 1775 169

15° 1230 349

25° 556 257

35° 82 52

45° 14 11

55° 2 2

65° 0 0

75° 0 0

85° 0 0

200

600

1000

1400

1800

2200

2600

05 15 25

35

45

55

65

75

85

90

3000

250

750

1250

1750

2250

2750

3250

05 15 25

35

45

55

65

75

85

90

3750

37W IR MR16

10˚ Spot

50W MR16

15˚ Narrow Spot

50W IR MR16

10˚ Spot

75W MR16

15˚ Narrow Spot

Initial Footcandles

Distance to Illuminated Footcandles Footcandles Beam

Plane (Feet) Beam Center Beam Edge Diameter

6’ 88.7 43.3 1.5’

7’ 65.2 31.8 1.8’

8’ 49.9 24.4 2.0’

9’ 39.4 19.3 2.3’

10’ 31.9 15.6 2.5’

11’ 26.4 12.9 2.8’

12’ 22.2 10.8 3.0’

13’ 18.9 9.2 3.3’

14’ 16.3 8.0 3.5’

15’ 14.2 6.9 3.8’

Candlepower

Distribution

(Candelas)

Angle Candela Lumens

0° 3193

5° 2327 222

15° 387 110

25° 39 18

35° 0 0

45° 0 0

55° 0 0

65° 0 0

75° 0 0

85° 0 0

Initial Footcandles

Distance to Illuminated Footcandles Footcandles Beam

Plane (Feet) Beam Center Beam Edge Diameter

6’ 98.8 48.5 1.3’

7’ 72.6 35.7 1.5’

8’ 55.6 27.3 1.7’

9’ 43.9 21.6 2.0’

10’ 35.6 17.5 2.2’

11’ 29.4 14.4 2.4’

12’ 24.7 12.1 2.6’

13’ 21.0 10.3 2.8’

14’ 18.1 8.9 3.1’

15’ 15.8 7.8 3.3’

Candlepower

Distribution

(Candelas)

Angle Candela Lumens

0° 3557

5° 2312 221

15° 246 70

25° 25 11

35° 0 0

45° 0 0

55° 0 0

65° 0 0

75° 0 0

85° 0 0

500

1000

1500

2000

2500

3000

3500

05 15 25

35

45

55

65

75

85

90

4000

500

1000

1500

2000

2500

3000

3500

05 15 25

35

45

55

65

75

85

90

4000

Initial Footcandles

Distance to Illuminated Footcandles Footcandles Beam

Plane (Feet) Beam Center Beam Edge Diameter

6’ 135.0 66.1 1.4’

7’ 99.2 48.6 1.7’

8’ 75.9 37.2 1.9’

9’ 60.0 29.4 2.1’

10’ 48.6 23.8 2.4’

11’ 40.2 19.7 2.8’

12’ 33.7 16.5 2.8’

13’ 28.8 14.1 3.1’

14’ 24.8 12.1 3.3’

15’ 21.6 10.6 3.5’

Candlepower

Distribution

(Candelas)

Angle Candela Lumens

0° 4860

5° 3445 329

15° 431 122

25° 39 18

35° 0 0

45° 0 0

55° 0 0

65° 0 0

75° 0 0

85° 0 0

500

1500

2500

3500

4500

5500

6500

05 15 25

35

45

55

65

75

85

90

7500

Initial Footcandles

Distance to Illuminated Footcandles Footcandles Beam

Plane (Feet) Beam Center Beam Edge Diameter

6’ 133.9 65.4 1.5’

7’ 98.3 48.0 1.8’

8’ 75.3 36.8 2.0’

9’ 59.5 29.1 2.3’

10’ 48.2 23.5 2.5’

11’ 39.8 19.4 2.8’

12’ 33.5 16.3 3.0’

13’ 28.5 13.9 3.3’

14’ 24.6 12.0 3.5’

15’ 21.4 10.5 3.8’

Candlepower

Distribution

(Candelas)

Angle Candela Lumens

0° 4819

5° 3644 348

15° 443 126

25° 34 16

35° 0 0

45° 0 0

55° 0 0

65° 0 0

75° 0 0

85° 0 0

500

1500

2500

3500

4500

5500

6500

05 15 25

35

45

55

65

75

85

90

7500

79

IC43N-437

Reﬂector

3-1/4" PAR

IC13SQ-437SQHZ, Haze Reﬂector TC13SQ-437SQHZ, Haze Reﬂector

60W PAR16

30˚ Narrow Flood

75W PAR16

30˚ Narrow Flood

Initial Footcandles

Distance to Illuminated Footcandles Footcandles Beam

Plane (Feet) Beam Center Beam Edge Diameter

6’ 40.6 18.3 3.2’

7’ 29.9 13.4 3.8’

8’ 22.9 10.3 4.3’

9’ 18.1 8.1 4.8’

10’ 14.6 6.6 5.4’

11’ 12.1 5.4 5.9’

12’ 10.2 4.6 6.5’

13’ 8.7 3.9 7.0’

14’ 7.5 3.4 7.5’

15’ 6.5 2.9 8.1’

Candlepower

Distribution

(Candelas)

Angle Candela Lumens

0° 1463

5° 1344 128

15° 736 209

25° 258 120

35° 27 17

45° 3 2

55° 0 0

65° 0 0

75° 0 0

85° 0 0

200

400

600

800

1000

1200

1400

05 15 25

35

45

55

65

75

85

90

1600

Initial Footcandles

Distance to Illuminated Footcandles Footcandles Beam

Plane (Feet) Beam Center Beam Edge Diameter

6’ 45.6 19.9 3.7’

7’ 33.5 14.6 4.3’

8’ 25.7 11.2 4.9’

9’ 20.3 8.9 5.5’

10’ 16.4 7.2 6.2’

11’ 13.6 5.9 6.8’

12’ 11.4 5.0 7.4’

13’ 9.7 4.2 8.0’

14’ 8.4 3.7 8.6’

15’ 7.3 3.2 9.2’

Candlepower

Distribution

(Candelas)

Angle Candela Lumens

0° 1643

5° 1536 147

15° 925 262

25° 437 202

35° 41 26

45° 5 4

55° 3 2

65° 0 0

75° 0 0

85° 0 0

200

400

600

800

1000

1200

1400

05 15 25

35

45

55

65

75

85

90

1600

45W PAR16

10˚ Spot

Regressed Pinhole

IC13SQ-4307SQ, Black Alzak®Reﬂector

60W PAR16

10˚ Narrow Spot

TC13SQ-4307SQ, Black Alzak

®

Reﬂector

39W MR16

25˚ Flood

Reﬂector Flat Pinhole

3-1/4" CMH MR16

TC943MSQ-MR16-39E1-437SQHZ, Haze Reﬂector

39W MR16

12˚ Spot

TC943MSQ-M16-39E1-4337SQ, Black Alzak Reﬂector

Initial Footcandles

Distance to Illuminated Footcandles Footcandles Beam

Plane (Feet) Beam Center Beam Edge Diameter

6’ 326.4 161.1 1.1’

7’ 239.8 118.4 1.3’

8’ 183.6 90.6 1.5’

9’ 145.1 71.6 1.7’

10’ 117.5 58.0 1.8’

11’ 97.1 47.9 2.0’

12’ 81.6 40.3 2.2’

13’ 69.5 34.3 2.4’

14’ 59.9 29.6 2.6’

15’ 52.2 25.8 2.8’

Candlepower

Distribution

(Candelas)

Angle Candela Lumens

0° 11750

5° 6324 604

15° 778 221

25° 93 43

35° 2 1

45° 0 0

55° 0 0

65° 0 0

75° 0 0

85° 0 0

2000

4000

6000

8000

10000

12000

14000

05 15 25

35

45

55

65

75

85

90

16000

Initial Footcandles

Distance to Illuminated Footcandles Footcandles Beam

Plane (Feet) Beam Center Beam Edge Diameter

6’ 186.2 87.2 2.5’

7’ 136.8 64.0 3.0’

8’ 104.7 49.0 3.4’

9’ 82.7 38.7 3.8’

10’ 67.0 31.4 4.2’

11’ 55.4 25.9 4.6’

12’ 46.5 21.8 5.1’

13’ 39.7 18.6 5.5’

14’ 34.2 16.0 5.9’

15’ 29.8 13.9 6.3’

Candlepower

Distribution

(Candelas)

Angle Candela Lumens

0° 6702

5° 6164 588

15° 2446 693

25° 677 313

35° 162 102

45° 59 46

55° 9 8

65° 5 5

75° 2 3

85° 0 0

1000

2000

3000

4000

5000

6000

7000

05 15 25

35

45

55

65

75

85

90

8000

Initial Footcandles

Distance to Illuminated Footcandles Footcandles Beam

Plane (Feet) Beam Center Beam Edge Diameter

6’ 116.5 57.4 1.2’

7’ 85.6 42.2 1.4’

8’ 65.5 32.3 1.6’

9’ 51.8 25.5 1.8’

10’ 41.9 20.7 2.0’

11’ 34.7 17.1 2.1’

12’ 29.1 14.4 2.3’

13’ 24.8 12.2 2.5’

14’ 21.4 10.5 2.7’

15’ 18.6 9.2 2.9’

Candlepower

Distribution

(Candelas)

Angle Candela Lumens

0° 4195

5° 2407 230

15° 452 128

25° 110 51

35° 4 3

45° 0 0

55° 0 0

65° 0 0

75° 0 0

85° 0 0

500

1000

1500

2000

2500

3000

3500

05 15 25

35

45

55

65

75

85

90

4000

Initial Footcandles

Distance to Illuminated Footcandles Footcandles Beam

Plane (Feet) Beam Center Beam Edge Diameter

6’ 55.7 27.3 1.4’

7’ 40.9 20.0 1.6’

8’ 31.3 15.3 1.9’

9’ 24.8 12.1 2.1’

10’ 20.0 9.8 2.3’

11’ 16.6 8.1 2.6’

12’ 13.9 6.8 2.8’

13’ 11.9 5.8 3.0’

14’ 10.2 5.0 3.3’

15’ 8.9 4.4 3.5’

Candlepower

Distribution

(Candelas)

Angle Candela Lumens

0° 2005

5° 1543 147

15° 238 68

25° 65 30

35° 7 5

45° 6 4

55° 0 0

65° 0 0

75° 0 0

85° 0 0

250

500

750

1000

1250

1500

1750

05 15 25

35

45

55

65

75

85

90

2000

80

Photometrics - Square Wall Wash

IC43N-437

37W IR MR16

35˚ Flood

Wall Wash

3-1/4" MR16 Halogen

IC43SQ-439SQHZ, Haze Reﬂector

50W IR MR16

35˚ Flood

TC43SQ-439SQHZ, Haze Reﬂector

50W MR16

40˚ Flood

75W MR16

40˚ Flood

Candlepower Distribution (Candelas)

Degrees 0° 180°

Vertical Wall Wash Downlight

0° 580 580

5° 579 543

15° 482 331

25° 247 215

35° 142 79

45° 80 42

55° 41 8

65° 22 2

75° 10 0

85° 0 0

Footcandles on Wall from Multiple Fixtures

Fixture Distance to Wall 18” 24”

Fixture Centers (spacing) 18” 24” 18” 24”

1’ 13 12 13 11 7 11 7 6 7 5 4 5

2’ 20 17 20 16 13 16 13 13 13 10 10 10

3’ 17 18 17 13 12 13 14 14 14 11 10 11

4’ 15 16 15 12 12 12 13 14 13 9 10 9

5’ 13 12 13 9 9 9 12 12 12 9 9 9

6’ 10 10 10 7 7 7 11 11 11 8 8 8

7’ 7 8 7 6 6 6 999 777

8’ 6 6 6 5 5 5 777 656

9’ 5 5 5 4 4 4 666 555

100

200

300

400

500

600

700

05 15 25

35

45

55

65

75

85

90

800

DISTANCE FROM CEILING

0˚

180˚

100

200

300

400

500

600

700

05 15 25

35

45

55

65

75

85

90

800

0˚

180˚

Candlepower Distribution (Candelas)

Degrees 0° 180°

Vertical Wall Wash Downlight

0° 535 535

5° 554 489

15° 473 325

25° 301 207

35° 126 90

45° 79 50

55° 40 8

65° 23 3

75° 11 0

85° 0 0

Footcandles on Wall from Multiple Fixtures

Fixture Distance to Wall 18” 24”

Fixture Centers (spacing) 18” 24” 18” 24”

1’ 12 11 12 11 6 11 7 6 7 6 4 6

2’ 19 16 19 14 13 14 12 11 12 9 8 9

3’ 19 21 19 15 14 15 14 15 14 11 10 11

4’ 17 18 17 13 13 13 15 16 15 11 12 11

5’ 14 13 14 10 10 10 14 14 14 10 11 10

6’ 10 10 10 8 8 8 12 12 12 9 9 9

7’ 8 8 8 6 6 6 10 10 10 7 7 7

8’ 6 6 6 5 5 5 888 666

9’ 5 5 5 4 4 4 676 555

DISTANCE FROM CEILING

Candlepower Distribution (Candelas)

Degrees 0° 180°

Vertical Wall Wash Downlight

0° 864 864

5° 885 794

15° 700 497

25° 412 296

35° 160 129

45° 108 61

55° 60 9

65° 34 3

75° 16 0

85° 2 0

Footcandles on Wall from Multiple Fixtures

Fixture Distance to Wall 18” 24”

Fixture Centers (spacing) 18” 24” 18” 24”

1’ 19 14 19 17 8 17 10 8 10 8 6 8

2’ 23 22 23 18 17 18 16 16 16 13 12 13

3’ 26 25 26 20 18 20 18 17 18 14 13 14

4’ 24 23 24 18 18 18 19 19 19 15 14 15

5’ 19 19 19 14 14 14 19 18 19 14 14 14

6’ 14 14 14 11 11 11 16 16 16 12 12 12

7’ 11 11 11 8 8 8 13 13 13 10 10 10

8’ 9 9 9 7 7 7 11 11 11 8 8 8

9’ 8 8 8 6 6 6 999 777

100

200

300

400

500

600

700

05 15 25

35

45

55

65

75

85

90

800

900

DISTANCE FROM CEILING

Candlepower Distribution (Candelas)

Degrees 0° 180°

Vertical Wall Wash Downlight

0° 800 800

5° 840 723

15° 717 480

25° 456 285

35° 191 135

45° 120 61

55° 56 9

65° 32 3

75° 16 0

85° 2 0

Footcandles on Wall from Multiple Fixtures

Fixture Distance to Wall 18” 24”

Fixture Centers (spacing) 18” 24” 18” 24”

1’ 18 15 18 15 8 15 10 8 10 8 6 8

2’ 27 25 27 21 20 21 18 17 18 14 13 14

3’ 30 30 30 23 21 23 21 21 21 16 15 16

4’ 26 26 26 20 19 20 22 23 22 17 17 17

5’ 20 20 20 15 15 15 20 20 20 15 16 15

6’ 15 15 15 11 11 11 17 17 17 13 13 13

7’ 12 12 12 9 9 9 14 14 14 11 11 11

8’ 9 9 9 7 7 7 11 12 11 9 9 9

9’ 8 8 8 6 6 6 9 10 9 7 7 7

100

200

300

400

500

600

700

05 15 25

35

45

55

65

75

85

90

800

900

DISTANCE FROM CEILING

0˚

180˚

0˚

180˚

81

IC43N-437

45W PAR16

27˚ Flood

Wall Wash

3-1/4" PAR

IC13SQ-439SQHZ, Haze Reﬂector

60W PAR16

30˚ Narrow Flood

TC13SQ-439SQHZ, Haze Reﬂector

39W MR16

30˚ Wide Flood

Wall Wash

TC943MSQ-MR16-39E1-439SQHZ, Haze Reﬂector

3-1/4" CMH MR16

Candlepower Distribution (Candelas)

Degrees 0° 180°

Vertical Wall Wash Downlight

0° 384 384

5° 350 374

15° 228 200

25° 123 128

35° 73 42

45° 54 21

55° 27 4

65° 14 0

75° 7 0

85° 0 0

Footcandles on Wall from Multiple Fixtures

Fixture Distance to Wall 18” 24”

Fixture Centers (spacing) 18” 24” 18” 24”

1’ 8 7 8 7 4 7 444 434

2’ 11 10 11 8 7 8 8 8 8 6 6 6

3’ 8 8 8 6 6 6 777 555

4’ 8 7 8 6 6 6 666 454

5’ 6 6 6 4 4 4 666 444

6’ 4 5 4 3 3 4 555 444

7’ 3 4 3 3 3 3 444 333

8’ 3 3 3 2 2 2 333 333

9’ 3 3 3 2 2 2 333 222

50

100

150

200

250

300

350

05 15 25

35

45

55

65

75

85

90

400

450

DISTANCE FROM CEILING

Candlepower Distribution (Candelas)

Degrees 0° 180°

Vertical Wall Wash Downlight

0° 445 445

5° 435 422

15° 317 257

25° 166 160

35° 88 59

45° 60 31

55° 28 5

65° 15 0

75° 7 0

85° 0 0

Footcandles on Wall from Multiple Fixtures

Fixture Distance to Wall 18” 24”

Fixture Centers (spacing) 18” 24” 18” 24”

1’ 9 8 9 8 4 8 545 434

2’ 12 11 12 10 8 10 9 9 9 7 6 7

3’ 11 11 11 8 8 8 9 8 9 7 6 7

4’ 10 10 10 8 8 8 8 8 8 6 6 6

5’ 8 8 8 6 6 6 888 666

6’ 6 6 6 5 5 5 777 555

7’ 5 5 5 4 4 4 666 444

8’ 4 4 4 3 3 3 555 444

9’ 3 4 3 3 3 3 444 333

50

100

150

200

250

300

350

05 15 25

35

45

55

65

75

85

90

400

450

DISTANCE FROM CEILING

0˚

180˚

0˚

180˚

0˚

180˚

Candlepower Distribution (Candelas)

Degrees 0° 180°

Vertical Wall Wash Downlight

0° 1505 1505

5° 1554 1365

15° 1257 983

25° 948 550

35° 347 294

45° 233 122

55° 174 24

65° 108 9

75° 57 0

85° 5 0

Footcandles on Wall from Multiple Fixtures

Fixture Distance to Wall 18” 24”

Fixture Centers (spacing) 18” 24” 18” 24”

1’ 54 41 54 48 23 48 31 27 31 26 18 26

2’ 49 53 49 38 42 38 35 36 35 28 27 28

3’ 61 56 61 48 39 48 42 40 42 31 30 31

4’ 47 48 47 37 35 37 44 44 44 35 32 35

5’ 36 37 36 26 28 26 38 38 38 29 29 29

6’ 28 28 28 20 21 20 32 32 32 24 24 24

7’ 22 22 22 16 16 16 26 26 26 19 20 19

8’ 18 18 18 13 13 13 21 21 21 16 16 16

9’ 15 15 15 11 11 11 18 18 18 13 13 13

200

400

600

800

1000

1200

1400

05 15 25

35

45

55

65

75

85

90

1600

DISTANCE FROM CEILING

82

Photometrics - Square Lensed Downlights

IC43N-437

37W IR MR16

35˚ Flood

50W MR16

40˚ Flood

Lensed Downlight

3-1/4" MR16 Halogen

IC43SQ-432SQHZ, Haze Reﬂector

50W IR MR16

35˚ Flood

TC43SQ-432SQHZ, Haze Reﬂector

Initial Footcandles

Distance to Illuminated Footcandles Footcandles Beam

Plane (Feet) Beam Center Beam Edge Diameter

6’ 41.1 18.1 3.5’

7’ 30.2 13.3 4.1’

8’ 23.1 10.2 4.7’

9’ 18.3 8.1 5.3’

10’ 14.8 6.5 5.9’

11’ 12.2 5.4 6.5’

12’ 10.3 4.5 7.1’

13’ 8.8 3.9 7.7’

14’ 7.6 3.3 8.3’

15’ 6.6 2.9 8.8’

Candlepower

Distribution

(Candelas)

Angle Candela Lumens

0° 1481

5° 1398 133

15° 812 230

25° 271 126

35° 44 28

45° 7 6

55° 1 1

65° 0 0

75° 0 0

85° 0 0

Initial Footcandles

Distance to Illuminated Footcandles Footcandles Beam

Plane (Feet) Beam Center Beam Edge Diameter

6’ 31.6 12.9 4.6’

7’ 23.2 9.4 5.4’

8’ 17.8 7.2 6.1’

9’ 14.0 5.7 6.9’

10’ 11.4 4.6 7.7’

11’ 9.4 3.8 8.4’

12’ 7.9 3.2 9.2’

13’ 6.7 2.7 10.0’

14’ 5.8 2.4 10.7’

15’ 5.1 2.1 11.5’

Candlepower

Distribution

(Candelas)

Angle Candela Lumens

0° 1137

5° 1080 103

15° 741 210

25° 387 179

35° 66 42

45° 12 9

55° 2 2

65° 0 0

75° 0 0

85° 0 0

200

400

600

800

1000

1200

1400

05 15 25

35

45

55

65

75

85

90

1600

200

400

600

800

1000

1200

1400

05 15 25

35

45

55

65

75

85

90

1600

Initial Footcandles

Distance to Illuminated Footcandles Footcandles Beam

Plane (Feet) Beam Center Beam Edge Diameter

6’ 60.7 26.8 3.5’

7’ 44.6 19.7 4.1’

8’ 34.1 15.1 4.7’

9’ 27.0 11.9 5.3’

10’ 21.8 9.6 5.9’

11’ 18.0 8.0 6.5’

12’ 15.2 6.7 7.0’

13’ 12.9 5.7 7.6’

14’ 11.1 4.9 8.2’

15’ 9.7 4.3 8.8’

Candlepower

Distribution

(Candelas)

Angle Candela Lumens

0° 2184

5° 2033 194

15° 1183 335

25° 434 201

35° 66 41

45° 12 10

55° 3 3

65° 0 0

75° 0 0

85° 0 0

250

750

1250

1750

2250

2750

3250

05 15 25

35

45

55

65

75

85

90

3750

37W IR MR16

10˚ Spot

50W MR16

15˚ Narrow Spot

Lensed Pinhole Downlight

IC43SQ-4332SQ-WH, Black Alzak®Reﬂector

50W IR MR16

10˚ Spot

TC43SQ-4332SQ-WH, Black Alzak®Reﬂector

Initial Footcandles

Distance to Illuminated Footcandles Footcandles Beam

Plane (Feet) Beam Center Beam Edge Diameter

6’ 79.7 38.9 1.5’

7’ 58.5 28.6 1.8’

8’ 44.8 21.9 2.0’

9’ 35.4 17.3 2.3’

10’ 28.7 14.0 2.5’

11’ 23.7 11.6 2.8’

12’ 19.9 9.7 3.0’

13’ 17.0 8.3 3.3’

14’ 14.6 7.1 3.5’

15’ 12.7 6.2 3.8’

Candlepower

Distribution

(Candelas)

Angle Candela Lumens

0° 2868

5° 2091 200

15° 362 102

25° 36 17

35° 0 0

45° 0 0

55° 0 0

65° 0 0

75° 0 0

85° 0 0

500

1000

1500

2000

2500

3000

3500

05 15 25

35

45

55

65

75

85

90

4000

Initial Footcandles

Distance to Illuminated Footcandles Footcandles Beam

Plane (Feet) Beam Center Beam Edge Diameter

6’ 89.6 44.0 1.3’

7’ 65.8 32.3 1.5’

8’ 50.4 24.8 1.8’

9’ 39.8 19.6 2.0’

10’ 32.3 15.8 2.2’

11’ 26.7 13.1 2.4’

12’ 22.4 11.0 2.6’

13’ 19.1 9.4 2.9’

14’ 16.5 8.1 3.1’

15’ 14.3 7.0 3.3’

Candlepower

Distribution

(Candelas)

Angle Candela Lumens

0° 3226

5° 2130 203

15° 234 66

25° 24 11

35° 0 0

45° 0 0

55° 0 0

65° 0 0

75° 0 0

85° 0 0

500

1000

1500

2000

2500

3000

3500

05 15 25

35

45

55

65

75

85

90

4000

Initial Footcandles

Distance to Illuminated Footcandles Footcandles Beam

Plane (Feet) Beam Center Beam Edge Diameter

6’ 122.9 60.3 1.4’

7’ 90.3 44.3 1.6’

8’ 69.1 33.9 1.8’

9’ 54.6 26.8 2.1’

10’ 44.2 21.7 2.3’

11’ 36.6 17.9 2.5’

12’ 30.7 15.1 2.7’

13’ 26.2 12.8 3.0’

14’ 26.2 12.8 3.0’

15’ 22.6 11.1 3.2’

Candlepower

Distribution

(Candelas)

Angle Candela Lumens

0° 4424

5° 3001 286

15° 432 122

25° 37 17

35° 0 0

45° 0 0

55° 0 0

65° 0 0

75° 0 0

85° 0 0

500

1500

2500

3500

4500

5500

6500

05 15 25

35

45

55

65

75

85

90

7500

Initial Footcandles

Distance to Illuminated Footcandles Footcandles Beam

Plane (Feet) Beam Center Beam Edge Diameter

6’ 122.9 59.9 1.5’

7’ 90.3 44.0 1.8’

8’ 69.1 33.7 2.0’

9’ 54.6 26.6 2.3’

10’ 44.2 21.6 2.6’

11’ 36.6 17.8 2.8’

12’ 30.7 15.0 3.1’

13’ 26.2 12.8 3.3’

14’ 22.6 11.0 3.6’

15’ 19.7 9.6 3.8’

Candlepower

Distribution

(Candelas)

Angle Candela Lumens

0° 4423

5° 3412 326

15° 410 116

25° 36 17

35° 0 0

45° 0 0

55° 0 0

65° 0 0

75° 0 0

85° 0 0

500

1500

2500

3500

4500

5500

6500

05 15 25

35

45

55

65

75

85

90

7500

50W MR16

15˚ Narrow Spot

Initial Footcandles

Distance to Illuminated Footcandles Footcandles Beam

Plane (Feet) Beam Center Beam Edge Diameter

6’ 47.5 19.4 4.6’

7’ 34.9 14.2 5.3’

8’ 26.7 10.9 6.1’

9’ 21.1 8.6 6.8’

10’ 17.1 7.0 7.6’

11’ 14.1 5.8 8.3’

12’ 11.9 4.8 9.1’

13’ 10.1 4.1 9.9’

14’ 8.7 3.6 10.6’

15’ 7.6 3.1 11.4’

Candlepower

Distribution

(Candelas)

Angle Candela Lumens

0° 1709

5° 1647 157

15° 1154 327

25° 525 243

35° 86 54

45° 16 13

55° 3 2

65° 0 0

75° 0 0

85° 0 0

200

400

600

800

1000

1200

1400

05 15 25

35

45

55

65

75

85

90

1600

75W MR16

40˚ Flood

83

Lensed Downlight

3-1/4" PARs

IC13SQ-432SQHZ, Haze Reﬂector TC13SQ-432SQHZ, Haze Reﬂector

45W PAR16

27˚ Flood

60W PAR16

30˚ Narrow Flood

Initial Footcandles

Distance to Illuminated Footcandles Footcandles Beam

Plane (Feet) Beam Center Beam Edge Diameter

6’ 58.0 28.4 1.4’

7’ 42.6 20.9 1.7’

8’ 32.6 16.0 1.9’

9’ 25.8 12.6 2.2’

10’ 20.9 10.2 2.4’

11’ 17.3 8.4 2.6’

12’ 14.5 7.1 2.9’

13’ 12.4 6.0 3.1’

14’ 10.7 5.2 3.4’

15’ 9.3 4.5 3.6’

Candlepower

Distribution

(Candelas)

Angle Candela Lumens

0° 2088

5° 1449 138

15° 282 80

25° 115 53

35° 14 9

45° 5 4

55° 0 0

65° 0 0

75° 0 0

85° 0 0

250

500

750

1000

1250

1500

1750

05 15 25

35

45

55

65

75

85

90

2000

Initial Footcandles

Distance to Illuminated Footcandles Footcandles Beam

Plane (Feet) Beam Center Beam Edge Diameter

6’ 36.7 16.6 3.2’

7’ 27.0 12.2 3.7’

8’ 20.6 9.3 4.2’

9’ 16.3 7.4 4.8’

10’ 13.2 6.0 5.3’

11’ 10.9 4.9 5.8’

12’ 9.2 4.1 6.4’

13’ 7.8 3.5 6.9’

14’ 6.7 3.0 7.4’

15’ 5.9 2.7 7.9’

Candlepower

Distribution

(Candelas)

Angle Candela Lumens

0° 1321

5° 1231 117

15° 653 185

25° 280 130

35° 31 20

45° 3 2

55° 0 0

65° 0 0

75° 0 0

85° 0 0

200

400

600

800

1000

1200

1400

05 15 25

35

45

55

65

75

85

90

1600

39W MR16

30˚ Flood

Lensed Downlight

3-1/4" CMH MR16

TC943MSQ-MR16-39E1-432SQ

Initial Footcandles

Distance to Illuminated Footcandles Footcandles Beam

Plane (Feet) Beam Center Beam Edge Diameter

6’ 168.4 78.8 2.6’

7’ 123.7 57.9 3.0’

8’ 94.7 44.3 3.4’

9’ 74.9 35.0 3.8’

10’ 60.6 28.4 4.3’

11’ 50.1 23.4 4.7’

12’ 42.1 19.7 5.1’

13’ 35.9 16.8 5.5’

14’ 30.9 14.5 6.0’

15’ 26.9 12.6 6.4’

Candlepower

Distribution

(Candelas)

Angle Candela Lumens

0° 6064

5° 5524 527

15° 2251 638

25° 629 291

35° 163 102

45° 72 56

55° 9 8

65° 5 4

75° 2 2

85° 0 0

1000

2000

3000

4000

5000

6000

7000

05 15 25

35

45

55

65

75

85

90

8000

39W MR16

12˚ Spot

Lensed Pinhole Downlight

TC943MSQ-MR16-39E1-4332SQ

Initial Footcandles

Distance to Illuminated Footcandles Footcandles Beam

Plane (Feet) Beam Center Beam Edge Diameter

6’ 301.1 148.8 1.1’

7’ 221.2 109.3 1.2’

8’ 169.4 83.7 1.4’

9’ 133.8 66.1 1.6’

10’ 108.4 53.6 1.8’

11’ 89.6 44.3 2.0’

12’ 75.3 37.2 2.1’

13’ 64.1 31.7 2.3’

14’ 55.3 27.3 2.5’

15’ 48.2 23.8 2.7’

Candlepower

Distribution

(Candelas)

Angle Candela Lumens

0° 10839

5° 5562 531

15° 750 213

25° 91 42

35° 3 2

45° 0 0

55° 0 0

65° 0 0

75° 0 0

85° 0 0

2000

4000

6000

8000

10000

12000

14000

05 15 25

35

45

55

65

75

85

90

16000

84

Photometrics - Square Adjustables

Adjustable

3-1/4" MR16 Halogen

IC43SQ-438SQ

Horizontal Aiming Angles Vertical Aiming Angles

Beam Beam Rated

Type Spread° Life CBCP MH FC L W FC L W

0° 30° 30°

D FC X L W FC X L W

Lamp

NSP 5000 12500 6 347 1.0 1.0 226 1.4 1.2

8 195 1.4 1.4 127 1.9 1.6

10 125 1.7 1.7 81 2.3 2.0

12 87 2.1 2.1 56 2.8 2.4

14 64 2.4 2.4 41 3.3 2.8

NFL 5000 4400 4 275 1.8 1.8 179 2.4 2.0

6 122 2.7 2.7 79 3.6 3.1

8 69 3.5 3.5 45 4.8 4.1

10 44 4.4 4.4 29 6.0 5.1

12 31 5.3 5.3 20 7.2 6.1

FL 5000 2200 3 244 1.9 1.9 159 2.6 2.2

4 138 2.5 2.5 89 3.5 2.9

6 61 3.8 3.8 40 5.2 4.4

8 34 5.0 5.0 22 7.0 5.8

10 22 6.3 6.3 14 8.7 7.3

NSP 6000 9100 6 253 1.6 1.6 164 2.1 1.8

8 142 2.1 2.1 92 2.8 2.4

10 91 2.6 2.6 59 3.5 3.0

12 63 3.2 3.2 41 4.2 3.6

14 46 3.7 3.7 30 4.9 4.3

NFL 6000 3200 4 200 1.8 1.8 130 2.4 2.0

6 89 2.7 2.7 58 3.6 3.1

8 50 3.5 3.5 32 4.8 4.1

10 32 4.4 4.4 21 6.0 5.1

12 22 5.3 5.3 14 7.2 6.1

FL 6000 1700 3 189 2.2 2.2 123 3.0 2.5

4 106 2.9 2.9 69 4.1 3.4

6 47 4.4 4.4 31 6.1 5.0

8 27 5.8 5.8 17 8.1 6.7

10 17 7.3 7.3 11 10.2 8.4

3 174 5.2 2.1 1.0 491 3.0 1.1 0.7

4 98 6.9 2.9 1.4 276 4.0 1.4 1.0

5 63 8.7 3.6 1.7 177 5.0 1.8 1.2

6 43 10.4 4.3 2.1 123 6.0 2.1 1.5

7 32 12.1 5.0 2.4 90 7.0 2.5 1.7

2 138 3.5 4.2 1.8 389 2.0 1.9 1.3

3 61 5.2 6.2 2.7 173 3.0 2.8 1.9

4 34 6.9 8.3 3.5 97 4.0 3.7 2.5

5 22 8.7 10.4 4.4 62 5.0 4.7 3.1

6 15 10.4 12.5 5.3 43 6.0 5.6 3.8

2 69 3.5 7.2 2.5 194 2.0 2.8 1.8

3 31 5.2 10.8 3.8 86 3.0 4.2 2.7

4 17 6.9 14.4 5.0 49 4.0 5.6 3.6

5 11 8.7 18.0 6.3 31 5.0 7.0 4.5

6 8 10.4 21.6 7.6 22 6.0 8.4 5.4

3 126 5.2 3.3 1.6 357 3.0 1.6 1.1

4 71 6.9 4.4 2.1 201 4.0 2.1 1.5

5 46 8.7 5.6 2.6 129 5.0 2.7 1.9

6 32 10.4 6.7 3.2 89 6.0 3.2 2.2

7 23 12.1 7.8 3.7 66 7.0 3.8 2.6

2 100 3.5 4.2 1.8 283 2.0 1.9 1.3

3 44 5.2 6.2 2.7 126 3.0 2.8 1.9

4 25 6.9 8.3 3.5 71 4.0 3.7 2.5

5 16 8.7 10.4 4.4 45 5.0 4.7 3.1

6 11 10.4 12.5 5.3 31 6.0 5.6 3.8

2 53 3.5 9.7 2.9 150 2.0 3.4 2.1

3 24 5.2 14.5 4.4 67 3.0 5.0 3.1

4 13 6.9 19.3 5.8 38 4.0 6.7 4.1

5 9 8.7 24.2 7.3 24 5.0 8.4 5.1

6 6 10.4 ** 8.7 17 6.0 10.1 6.2

37W MR16

Halogen IR

50W MR16

Halogen

15°

10°

25°

35°

25°

40°

45°

MH

W

LL

Aim Point W

Aim Point

Aiming Angle (A = 0°) Aiming Angle (A = 30°)

0°

A

FOR HORIZONTAL AIMING ANGLES

L

X

W

Aim Point

D

0°

A

FOR VERTICAL AIMING ANGLES

The tables on the following pages provide illumination

levels, footcandles (FC) and beam size (in feet) for lamps

of various wattages and beam patterns. Data is given for

lamps aimed at both horizontal and vertical surfaces.

The beam spread in degrees and the beam “L” and “W” in the following tables are computed at 50%

of centerbeam candlepower and represent areas of “effective illumination.”

**Due to steep aiming angle, length of beam extends beyond 25’.

85

IC43SQ

Adjustable

3-1/4" MR16 Halogen

TC43SQ-438SQ

Horizontal Aiming Angles

The beam spread in degrees and the beam “L” and “W” in the following tables are computed at 50%

of centerbeam candlepower and represent areas of “effective illumination.”

Vertical Aiming Angles

Beam Beam Rated

Type Spread° Life CBCP MH FC L W FC L W

0° 30° 30° 45°

D FC X L W FC X L W

Lamp

SP 5000 15000 6 417 1.0 1.0 217 1.4 1.2

8 234 1.4 1.4 152 1.9 1.6

10 150 1.7 1.7 97 2.3 2.0

12 104 2.1 2.1 68 2.8 2.4

NFL 5000 5700 4 356 1.8 1.8 231 2.1 2.0

6 158 2.7 2.7 103 3.6 3.1

8 89 3.5 3.5 58 4.8 4.1

10 57 4.4 4.4 37 6.0 5.1

FL 5000 2850 3 317 1.9 1.9 206 2.6 2.2

4 178 2.5 2.5 116 3.5 2.9

6 79 3.8 3.8 51 5.2 4.4

8 45 5.0 5.0 29 7.0 5.8

3 208 5.2 2.1 1.0 589 3.0 1.1 0.7

4 117 6.9 2.9 1.4 331 4.0 1.4 1.0

5 75 8.7 3.6 1.7 212 5.0 1.8 1.2

6 52 10.4 4.3 2.1 147 6.0 2.1 1.5

2 178 3.5 4.2 1.8 504 2.0 1.9 1.3

3 79 5.2 6.2 2.7 224 3.0 2.8 1.9

4 45 6.9 8.3 3.5 126 4.0 3.7 2.5

5 29 8.7 10.4 4.4 81 5.0 4.7 3.1

2 89 3.5 7.2 2.5 252 2.0 2.8 1.8

3 40 5.2 10.8 3.8 112 3.0 4.2 2.7

4 22 6.9 14.4 5.0 63 4.0 5.6 3.6

5 14 8.7 18.0 6.3 40 5.0 7.0 4.5

50W MR16

Halogen IR

Lensed

75W MR16

Halogen

SP 4000 11500 6 319 1.6 1.6 207 2.1 1.8

8 180 2.1 2.1 117 2.8 2.4

10 115 2.6 2.6 75 3.5 3.0

12 80 3.2 3.2 52 4.2 3.6

NFL 4000 5500 4 344 1.8 1.8 223 2.4 2.0

6 153 2.7 2.7 99 3.6 3.1

8 86 3.5 3.5 56 4.8 4.1

10 55 4.4 4.4 36 6.0 5.1

FL 4000 2200 3 244 2.2 2.2 159 3.0 2.5

4 138 2.9 2.9 89 4.1 3.4

6 61 4.4 4.4 40 6.1 5.0

8 34 5.8 5.8 22 8.1 6.7

3 160 5.2 3.3 1.6 452 3.0 1.6 1.1

4 90 6.9 4.4 2.1 254 4.0 2.1 1.5

5 58 8.7 5.6 2.6 163 5.0 2.7 1.9

6 40 10.4 6.7 3.2 113 6.0 3.2 2.2

2 172 3.5 4.2 1.8 486 2.0 1.9 1.3

3 76 5.2 6.2 2.7 216 3.0 2.8 1.9

4 43 6.9 8.3 3.5 122 4.0 3.7 2.5

5 28 8.7 10.4 4.4 78 5.0 4.7 3.1

2 69 3.5 9.7 2.9 194 2.0 3.4 2.1

3 31 5.2 14.5 4.4 86 3.0 5.0 3.1

4 17 6.9 19.3 5.8 49 4.0 6.7 4.1

5 11 8.7 24.2 7.3 31 5.0 8.4 5.1

10°

25°

35°

15°

25°

40°

86

Photometrics - Square Adjustables

Adjustable

3-1/4" PAR

IC13SQ-438SQ

Horizontal Aiming Angles

The beam spread in degrees and the beam “L” and “W” in the following tables are computed at 50%

of centerbeam candlepower and represent areas of “effective illumination.”

Vertical Aiming Angles

NSP 2000 5000 6 139 1.0 1.0 90 1.4 1.2

8 78 1.4 1.4 51 1.9 1.6

10 50 1.7 1.7 32 2.3 2.0

12 35 2.1 2.1 23 2.8 2.4

14 26 2.4 2.4 17 3.3 2.8

NFL 2000 1400 3 156 1.4 1.4 101 2.0 1.7

5 56 2.4 2.4 36 3.3 2.8

7 29 3.4 3.4 19 4.6 3.9

9 17 4.3 4.3 11 5.9 5.0

11 12 5.3 5.3 8 7.2 6.1

Beam Beam Rated

Type Spread° Life CBCP MH FC L W FC L W

0° 30° 30° 40°

Lamp D FC X L W FC X L W

2 156 3.5 1.4 0.7 332 2.4 0.9 0.5

3 69 5.2 2.1 1.0 148 3.6 1.3 0.8

4 39 6.9 2.9 1.4 83 4.8 1.7 1.1

5 25 8.7 3.6 1.7 53 6.0 2.1 1.4

6 17 10.4 4.3 2.1 37 7.2 2.6 1.6

1 175 1.7 2.3 1.0 372 1.2 1.4 0.8

2 44 3.5 4.6 1.9 93 2.4 2.9 1.7

3 19 5.2 7.0 2.9 41 3.6 4.3 2.5

4 11 6.9 9.3 3.8 23 4.8 5.8 3.3

5 7 8.7 11.6 4.8 15 6.0 7.2 4.2

10°

27°

45W PAR16

Halogen

TC13SQ-438SQ

Horizontal Aiming Angles

The beam spread in degrees and the beam “L” and “W” in the following tables are computed at 50%

of centerbeam candlepower and represent areas of “effective illumination.”

Vertical Aiming Angles

Beam Beam Rated

Type Spread° Life CBCP MH FC L W FC L W

0° 30° 30°

Lamp D FC X L W FC X L W

NSP 2000 7500 6 208 1.0 1.0 135 1.4 1.2

8 117 1.4 1.4 76 1.9 1.6

10 75 1.7 1.7 49 2.3 2.0

12 52 2.1 2.1 34 2.8 2.4

14 38 2.4 2.4 25 3.3 2.8

NFL 2000 1900 4 119 2.1 2.1 77 2.9 2.5

6 53 3.2 3.2 34 4.4 3.7

8 30 4.3 4.3 19 5.9 5.0

10 19 5.4 5.4 12 7.3 6.2

12 13 6.4 6.4 9 8.8 7.4

2 234 3.5 1.4 0.7 498 2.4 0.9 0.5

3 104 5.2 2.1 1.0 221 3.6 1.3 0.8

4 59 6.9 2.9 1.4 124 4.8 1.7 1.1

5 38 8.7 3.6 1.7 80 6.0 2.1 1.4

6 26 10.4 4.3 2.1 55 7.2 2.6 1.6

2 59 3.5 5.5 2.1 126 2.4 2.9 1.7

3 26 5.2 8.2 3.2 56 3.6 4.3 2.5

4 15 6.9 10.9 4.3 32 4.8 5.8 3.3

5 10 8.7 13.7 5.4 20 6.0 7.2 4.2

6 7 10.4 16.4 6.4 14 7.2 8.7 5.0

75W PAR16

Halogen

30°

10°

40°

NSP 2000 5400 6 150 1.0 1.0 97 1.4 1.2

8 84 1.4 1.4 55 1.9 1.6

10 54 1.7 1.7 35 2.3 2.0

12 38 2.1 2.1 24 2.8 2.4

14 28 2.4 2.4 18 3.3 2.8

NFL 2000 1550 4 97 2.1 2.1 63 2.9 2.5

6 43 3.2 3.2 28 4.4 3.7

8 24 4.3 4.3 16 5.9 5.0

10 16 5.4 5.4 10 7.3 6.2

12 11 6.4 6.4 7 8.8 7.4

2 169 3.5 1.4 0.7 359 2.4 0.9 0.5

3 75 5.2 2.1 1.0 159 3.6 1.3 0.8

4 42 6.9 2.9 1.4 90 4.8 1.7 1.1

5 27 8.7 3.6 1.7 57 6.0 2.1 1.4

6 19 10.4 4.3 2.1 40 7.2 2.6 1.6

2 48 3.5 5.5 2.1 103 2.4 2.9 1.7

3 22 5.2 8.2 3.2 46 3.6 4.3 2.5

4 12 6.9 10.9 4.3 26 4.8 5.8 3.3

5 8 8.7 13.7 5.4 16 6.0 7.2 4.2

6 5 10.4 16.4 6.4 11 7.2 8.7 5.0

60W PAR16

Halogen

30°

10°

87

Photometrics - Round Shower/Lensed Adjustables

Adjustable

3 1/4" CMH MR16

TC943MSQ-MR16-20E1-438SQ

Horizontal Aiming Angles

The beam spread in degrees and the beam “L” and “W” in the following tables are computed at 50%

of centerbeam candlepower and represent areas of “effective illumination.”

**Due to steep aiming angle, length of beam extends beyond 25’.

Vertical Aiming Angles

0° 30° 30° 45°

Lamp

WFL 12000 1500 8 23 5.8 5.8 15 8.1 6.7

10 15 7.3 7.3 10 10.2 8.4

12 10 8.7 8.7 7 12.2 10.1

14 8 10.2 10.2 5 14.2 11.8

16 6 11.6 11.6 4 16.2 13.4

2 47 3.5 9.7 2.9 133 2.0 3.4 2.1

3 21 5.2 14.5 4.4 59 3.0 5.0 3.1

4 12 6.9 19.3 5.8 33 4.0 6.7 4.1

5 8 8.7 24.2 7.3 21 5.0 8.4 5.1

6 5 10.4 ** 8.7 15 6.0 10.1 6.2

Beam Beam Rated

Type Spread° Life CBCP MH FC L W FC L W

SP 12000 9000 10 90 2.1 2.1 58 2.8 2.4

12 63 2.5 2.5 41 3.4 2.9

14 46 2.9 2.9 30 3.9 3.4

16 35 3.4 3.4 23 4.5 3.9

18 28 3.8 3.8 18 5.1 4.4

D FC X L W FC X L W

4 70 6.9 3.5 1.7 199 4.0 1.7 1.2

6 31 10.4 5.2 2.5 88 6.0 2.6 1.8

8 18 13.9 7.0 3.4 50 8.0 3.4 2.4

10 11 17.3 8.7 4.2 32 10.0 4.3 3.0

12 8 20.8 10.4 5.0 22 12.0 5.1 3.6

12°

40°

20W MR16

Ceramic

Metal Halide

2 91 3.5 4.2 1.8 256 2.0 1.9 1.3

4 23 6.9 8.3 3.5 64 4.0 3.7 2.5

6 10 10.4 12.5 5.3 28 6.0 5.6 3.8

8 6 13.9 16.6 7.1 16 8.0 7.5 5.0

10 4 17.3 20.8 8.9 10 10.0 9.3 6.3

FL 12000 2900 8 45 3.5 3.5 29 4.8 4.1

10 29 4.4 4.4 19 6.0 5.1

12 20 5.3 5.3 13 7.2 6.1

14 15 6.2 6.2 10 8.4 7.2

16 11 7.1 7.1 7 9.6 8.2

25°

0° 30° 30° 45°

Lamp Beam Beam Rated

Type Spread° Life CBCP MH FC L W FC L W D FC X L W FC X L W

12°

40°

25°

WFL 12000 3000 8 47 5.8 5.8 30 8.1 6.7

10 30 7.3 7.3 19 10.2 8.4

12 21 8.7 8.7 14 12.2 10.1

14 15 10.2 10.2 10 14.2 11.8

16 12 11.6 11.6 8 16.2 13.4

2 94 3.5 9.7 2.9 265 2.0 3.4 2.1

3 42 5.2 14.5 4.4 118 3.0 5.0 3.1

4 23 6.9 19.3 5.8 66 4.0 6.7 4.1

5 15 8.7 24.2 7.3 42 5.0 8.4 5.1

6 10 10.4 ** 8.7 29 6.0 10.1 6.2

SP 12000 16000 10 160 2.1 2.1 104 2.8 2.4

12 111 2.5 2.5 72 3.4 2.9

14 82 2.9 2.9 53 3.9 3.4

16 63 3.4 3.4 41 4.5 3.9

18 49 3.8 3.8 32 5.1 4.4

4 125 6.9 3.5 1.7 354 4.0 1.7 1.2

6 56 10.4 5.2 2.5 157 6.0 2.6 1.8

8 31 13.9 7.0 3.4 88 8.0 3.4 2.4

10 20 17.3 8.7 4.2 57 10.0 4.3 3.0

12 14 20.8 10.4 5.0 39 12.0 5.1 3.6

39W MR16

Ceramic

Metal Halide

2 172 3.5 4.2 1.8 486 2.0 1.9 1.3

4 43 6.9 8.3 3.5 122 4.0 3.7 2.5

6 19 10.4 12.5 5.3 54 6.0 5.6 3.8

8 11 13.9 16.6 7.1 30 8.0 7.5 5.0

10 7 17.3 20.8 8.9 19 10.0 9.3 6.3

FL 12000 5500 8 86 3.5 3.5 56 4.8 4.1

10 55 4.4 4.4 36 6.0 5.1

12 38 5.3 5.3 25 7.2 6.1

14 28 6.2 6.2 18 8.4 7.2

16 21 7.1 7.1 14 9.6 8.2

TC943MSQ-MR16-39E1-438SQ

Horizontal Aiming Angles Vertical Aiming Angles

The beam spread in degrees and the beam “L” and “W” in the following tables are computed at 50%

of centerbeam candlepower and represent areas of “effective illumination.”

**Due to steep aiming angle, length of beam extends beyond 25’.

INDEX

3 1/4" Round Housings

IC13N.............................................22

IC43L-3K ........................................18

IC43L-4K ........................................18

IC43L-35K ......................................18

IC43N.............................................20

IC43N-E1 .......................................20

TC13N ...........................................22

TC43L-3K .......................................18

TC43L-4K .......................................18

TC43L-35K .....................................18

TC943M-MR16-20E .......................24

TC943M-MR16-39E .......................24

TC43N ...........................................21

TC43N-E1 ......................................21

TC43NR .........................................21

TC43NR-E1 ....................................21

TC943L-3K .....................................19

TC943L-4K .....................................19

TC943L-35K ...................................19

TC943N .........................................20

TC943N-E1 ....................................20

TC943N-E2 ....................................20

TC943N-V ......................................20

3 1/4" Round Trims -Trim Rings

430NB-WH.....................................26

430NC-WH ....................................26

430NG-WH ....................................26

430NHZ-SC....................................26

430NHZ-WH ..................................26

430NWHZ-ABZ ..............................26

430NWHZ-WH...............................26

431NB-WH.....................................28

431NC-WH ....................................28

431NG-WH ....................................28

431NHZ-SC....................................28

431NHZ-WH ..................................28

431NWHZ-ABZ ..............................28

431NWHZ-WH...............................28

432NB-WH.....................................28

432NC-WH ....................................28

432NG-WH ....................................28

432NHZ-SC....................................28

432NHZ-WH ..................................28

432NWHZ-ABZ ..............................28

432NWHZ-WH...............................28

433N-ABZ ......................................27

433N-SC ........................................27

433N-WH.......................................27

434NB-ABZ....................................26

434NB-SC ......................................26

434NB-WH.....................................26

434NW-WH ...................................26

435NB-ABZ....................................27

435NB-SC ......................................27

435NB-WH.....................................27

435NW-WH ...................................27

436NB-ABZ....................................26

436NB-SC ......................................26

436NB-WH.....................................26

436NC-WH ....................................26

436NG-WH ....................................26

436NHZ-SC....................................26

436NHZ-WH ..................................26

436NWHZ-ABZ ..............................26

436NWHZ-WH...............................26

437NB-ABZ....................................26

437NB-SC ......................................26

437NB-WH.....................................26

437NC-WH ....................................26

437NG-WH ....................................26

437NHZ-SC....................................26

437NHZ-WH ..................................26

437NWHZ-ABZ ..............................26

437NWHZ-WH...............................26

438NB-ABZ....................................26

438NB-SC ......................................26

438NB-WH.....................................26

438NC-WH ....................................26

438NG-WH ....................................26

438NHZ-SC....................................26

438NHZ-WH ..................................26

438NWHZ-ABZ ..............................26

438NWHZ-WH...............................26

439NB-WH.....................................28

439NC-WH ....................................28

439NG-WH ....................................28

439NHZ-SC....................................28

439NHZ-WH ..................................28

439NWHZ-ABZ ..............................28

439NWHZ-WH...............................28

4301N-WH.....................................28

4302N-WH.....................................28

4307N-WH.....................................26

4308N-WH.....................................27

4331N-ABZ ....................................28

4331N-SC ......................................28

4331N-WH.....................................28

4332N-ABZ ....................................28

4332N-SC ......................................28

4332N-WH.....................................28

4335N-ABZ ....................................27

4335N-SC ......................................27

4335N-WH.....................................27

4337N-ABZ ....................................26

4337N-SC ......................................26

4337N-WH.....................................26

4345N-WH.....................................27

4349NB-BL.....................................27

4349NB-WH...................................27

3 1/4" Round Trims - Flush Mount

430NB-FM .....................................32

430NC-FM .....................................32

430NG-FM.....................................32

430NHZ-FM ...................................32

430NWHZ-FM................................32

431NB-FM .....................................33

431NC-FM .....................................33

431NG-FM.....................................33

431NHZ-FM ...................................33

431NWHZ-FM................................33

432NB-FM .....................................33

432NC-FM .....................................33

432NG-FM.....................................33

432NHZ-FM ...................................33

432NWHZ-FM................................33

433N-WH-FM ................................32

436NB-FM .....................................32

436NC-FM .....................................32

436NG-FM.....................................32

436NHZ-FM ...................................32

436NWHZ-FM................................32

437NB-FM .....................................32

437NC-FM .....................................32

437NG-FM.....................................32

437NHZ-FM ...................................32

437NWHZ-FM................................32

438NB-FM .....................................32

438NC-FM .....................................32

438NG-FM.....................................32

438NHZ-FM ...................................32

438NWHZ-FM................................32

439NB-FM .....................................33

439NC-FM .....................................33

439NG-FM.....................................33

439NHZ-FM ...................................33

439NWHZ-FM................................33

4307N-WH-FM ..............................32

4308N-WH-FM ..............................33

4335N-WH-FM ..............................33

4345N-WH-FM ..............................33

4337N-WH-FM ..............................32

3 1/4" Round Trims -

Self-Flanged

430NB-SF.......................................30

430NC-SF ......................................30

430NG-SF ......................................30

430NHZ-SF ....................................30

430NWHZ-SF.................................30

431NB-SF.......................................30

431NC-SF ......................................30

431NG-SF ......................................30

431NHZ-SF ....................................30

431NWHZ-SF.................................30

432NB-SF.......................................30

432NC-SF ......................................30

432NG-SF ......................................30

432NHZ-SF ....................................30

432NWHZ-SF.................................30

436NB-SF.......................................30

436NC-SF ......................................30

436NG-SF ......................................30

436NHZ-SF ....................................30

436NWHZ-SF.................................30

437NB-SF.......................................30

437NC-SF ......................................30

437NG-SF ......................................30

437NHZ-SF ....................................30

437NWHZ-SF.................................30

438NB-SF.......................................30

438NC-SF ......................................30

438NG-SF ......................................30

438NHZ-SF ....................................30

438NWHZ-SF.................................30

439NB-SF.......................................30

439NC-SF ......................................30

439NG-SF ......................................30

439NHZ-SF ....................................30

439NWHZ-SF.................................30

3 1/4 " Square Housings

IC13SQ ..........................................38

IC43LSQ-3K ...................................34

IC43LSQ-4K ...................................34

IC43LSQ-35K .................................34

IC43SQ ..........................................36

IC43SQ-E1 .....................................36

TC13SQ .........................................38

88

3 1/4 " Square Housings continued

TC43LSQ-3K ..................................34

TC43LSQ-4K ..................................34

TC43LSQ-35K ................................34

TC43SQ .........................................37

TC43SQ-E1....................................37

TC943LSQ-3K ................................35

TC943LSQ-4K ................................35

TC943LSQ-35K ..............................35

TC943MSQ-MR16-20E ..................40

TC943MSQ-MR16-39E ..................40

TC943SQ .......................................36

TC943SQ-E1..................................36

TC943SQ-E2..................................36

TC943SQ-V....................................36

3 1/4" Square Trims -

Flush Mount

431SQBHZ-FM...............................45

431SQHZ-FM.................................45

431SQW-FM ..................................45

431SQWHZ-FM .............................45

432SQBHZ-FM...............................45

432SQHZ-FM.................................45

432SQW-FM ..................................45

432SQWHZ-FM .............................45

433SQWH-FM ...............................44

437SQBHZ-FM...............................44

437SQHZ-FM.................................44

437SQW-FM ..................................44

437SQWHZ-FM .............................44

438SQBHZ-FM...............................44

438SQHZ-FM.................................44

438SQW-FM ..................................44

438SQWHZ-FM .............................44

439SQBHZ-FM...............................45

439SQHZ-FM.................................45

439SQW-FM ..................................45

439SQWHZ-FM .............................45

4307SQ-WH-FM ............................44

4308SQ-WH-FM ............................44

4337SQ-WH-FM ............................44

3 1/4" Square Trims -

Self-Flanged

431SSQBHZ-SF .............................43

431SQHZ-SF..................................43

431SQWHZ-SF ..............................43

431SQW-SF...................................43

432SQBHZ-SF ...............................43

432SQHZ-SF..................................43

432SQWHZ-SF ..............................43

432SQW-SF...................................43

433SQ-WH ....................................42

437SQBHZ-SF ...............................42

437SQHZ-SF..................................42

437SQWHZ-SF ..............................42

437SQW-SF...................................42

438SQBHZ-SF ...............................42

438SQHZ-SF..................................42

438SQWHZ-SF ..............................42

438SQW-SF...................................42

439SQBHZ-SF ...............................42

439SQW-SF...................................42

439SQHZ-SF..................................42

439SQWHZ-SF ..............................42

4301SQ-WH ..................................43

4302SQ-WH ..................................43

4307SQ-WH ..................................42

4308SQ-WH ..................................42

4331SQ-WH ..................................43

4332SQ-WH ..................................43

4337SQ-WH ..................................42

5 5/8" Round Housings

IC62 ...............................................51

IC63 ...............................................50

IC64 ...............................................48

TC62 ..............................................51

TC963 ............................................50

TC964 ............................................48

5 5/8" Round Trims

611-WH..........................................51

624B-ABZ.......................................51

624B-SC.........................................51

624B-WH .......................................51

624W-WH ......................................51

627B-WH .......................................51

627C-WH .......................................51

627G-WH.......................................51

627HZ-SC.......................................51

627HZ-WH .....................................51

627WHZ-ABZ.................................51

627WHZ-WH..................................51

629B-WH .......................................51

629C-WH .......................................51

629G-WH.......................................51

629HZ-SC.......................................51

629HZ-WH .....................................51

629WHZ-ABZ.................................51

629WHZ-WH..................................51

635B-ABZ.................................48, 50

635B-SC...................................48, 50

635B-WH .................................48, 50

635W-WH ................................48, 50

638B-WH .................................48, 50

638C-WH .................................48, 50

638G-WH.................................48, 50

638HZ-SC.................................48, 50

638HZ-WH ...............................48, 50

638WHZ-ABZ...........................48, 50

638WHZ-WH............................48, 50

6" Round Housings

CV6-126/32T..................................54

CV6-126/32T-DB120......................54

CV6-126/32T-DB277......................54

IC906 .............................................52

ICV6-126/32T.................................54

ICV6-126/32T-DB120 .....................54

TC906 ............................................52

6" Round Trims

600C-WH .......................................55

600C-WWC-WH.............................55

600C-WWD-WH ............................55

600C-WWS-WH .............................55

600G-WH.......................................55

600G-WWC-WH ............................55

600G-WWD-WH ............................55

600G-WWS-WH.............................55

600HZ-WH .....................................55

600HZ-WWC-WH...........................55

600HZ-WWD-WH ..........................55

600HZ-WWS-WH ...........................55

600WHZ-WH..................................55

601B-WH .......................................55

601W-WH ......................................55

611-WH..........................................55

633B-WH .......................................53

633W-WH ......................................53

643C-WH .......................................53

643G-WH.......................................53

643HZ-WH .....................................53

662C-WH .......................................53

662G-WH.......................................53

662HZ-WH .....................................53

663C-WH .......................................53

663G-WH.......................................53

663HZ-WH .....................................53

664C-WH .......................................53

664G-WH.......................................53

664HZ-WH .....................................53

7" Round Housings

IC73 ...............................................56

TC973 ............................................56

7" Round Trims

727B-WH .......................................56

727C-WH .......................................56

727G-WH.......................................56

727HZ-WH .....................................56

727WHZ-WH..................................56

738B-WH .......................................56

738C-WH .......................................56

738G-WH.......................................56

738HZ-WH .....................................56

738WHZ-WH..................................56

Framing Projector Housing

TC960 ............................................57

Framing Projector Trims

245-WH..........................................57

246-WH..........................................57

Mounting Accessories -

3 1/4" Round

CTA4N-125 ............18, 19, 20, 21, 24

CTA4N-163 ............18, 19, 20, 21, 24

CTA4N-200 ............18, 19, 20, 21, 24

FMA4 .....................18, 19, 20, 21, 33

3 1/4" Square

CTA4SQ-125....34, 35, 36, 37, 38, 40

CTA4SQ-163....34, 35, 36, 37, 38, 40

CTA4SQ-200....34, 35, 36, 37, 38, 40

FMASQ4 ....34, 35, 36, 37, 38, 40, 45

Bar Hangers

HB-1.................48, 50, 52, 54, 56, 57

BH-26...............48, 50, 52, 54, 56, 57

HB-50...............48, 50, 52, 54, 56, 57

LB-27................48, 50, 52, 54, 56, 57

3 1/4” & 5 5/8” Optics...........58

89

1300 South Wolf Road • Des Plaines, IL 60018

PHONE (847) 827-9880 • FAX (847) 827-2925 • junolightinggroup.com

Regional Offices & Warehouses:

California, Georgia, Illinois, Indiana, Pennsylvania, Texas, Ontario CN

Printed in U.S.A. LIT-ACULUX-CAT 5/10

Aculux is a registered trademark of Juno Lighting, LLC.

Products shown in this brochure are covered by U.S. and

international patents and patents pending.

Specifications subject to change without notice.

542929 Catalog

542933-Brochure 542933-Brochure 542933-Brochure 661209 Batch4 unilog cesco-content

Navigation menu

Versions of this User Manual:

Views

Navigation
