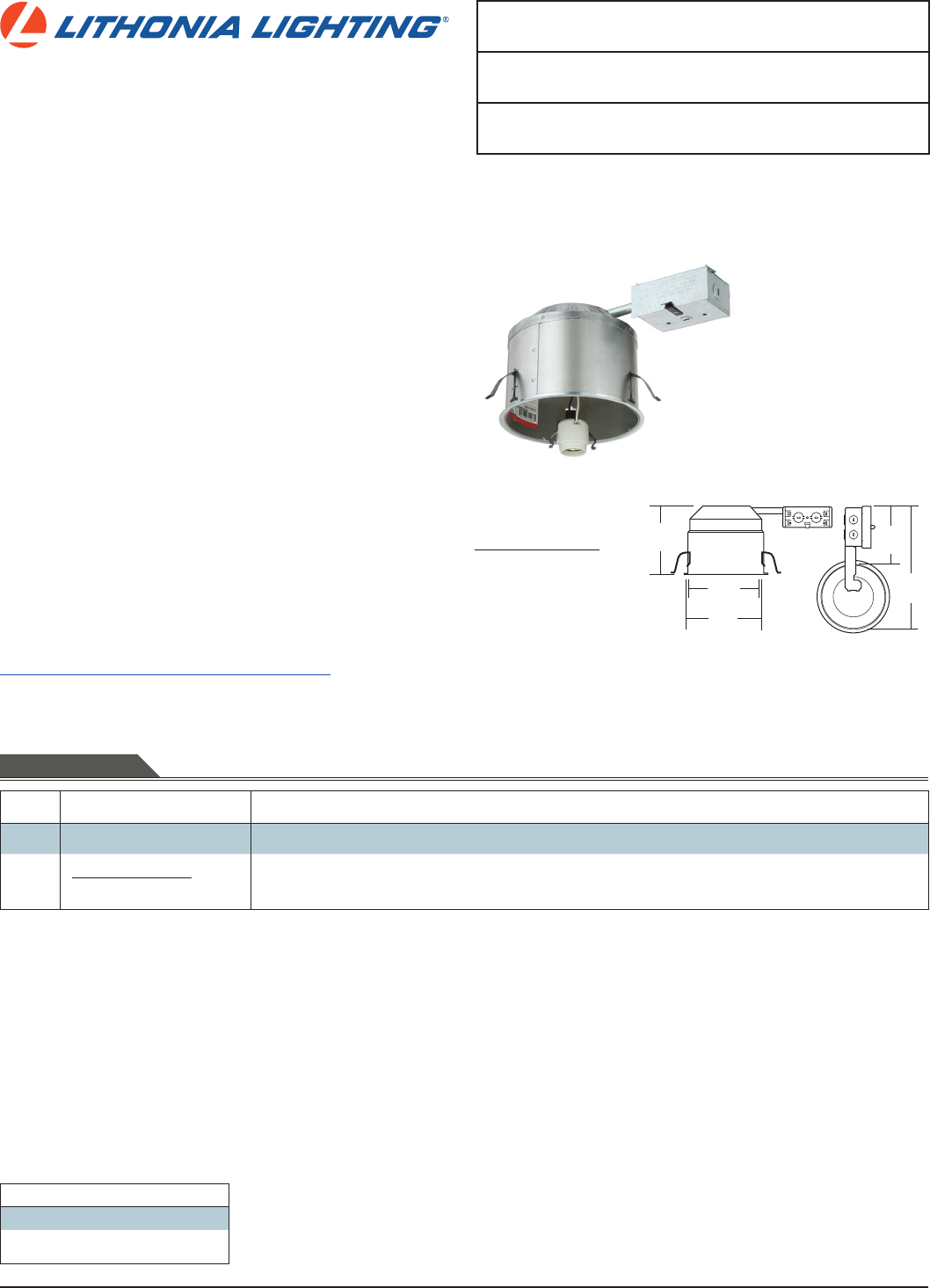

DOWNLIGHTING L7XPR

All dimensions are inches (centimeters) unless otherwise specied.

L7XPR

Series Options Packaging

L7XPR Shipped installed in xture

PHC Poke-home wire connector

R6 Resale pack of six

UUnit pack (non-stock)

ORDERING INFORMATION Example: L7XPR R6

For shortest lead times, congure product using standard options (shown in bold).

Accessories: Order as separate catalog number.

ATK6 R6 6" Airtight trim kit

6-3/4

(17.1)

7-1/4

(18.4)

12-3/8

(31.4)

5-3/4

(14.6)

5-3/4

(14.6)

FEATURES & SPECIFICATIONS

INTENDED USE — Recessed housing rated IC or Non-IC. For remodel construction only.

Approved for factory assembled wiring only.

Approved for direct burial in insulation.

CONSTRUCTION — Air-tight standard. Tested to meet current energy codes.

Aluminum housing with three remodel clips for installation in existing plaster, sheet rock or mechanical

ceilings.

Heavy-gauge galvanized steel raceway arm.

Galvanized steel junction box with four built in romex clamps; ve ½” knockouts with slots for pryout.

Not suitable for pulling wires.

Maximum 4 (2in 2out) No 12 AWG conductors. Rated for 90° C.

Ground wire provided.

Removable J-box door for easy access.

Trim retention (clips): Retaining clips riveted to top of reector hold trim inside housing.

Trim retention (TOR): Two-side mounted torsion springs on the trim and 2 receiving brackets in the can

ensure a consistently tight t with the ceiling.

ELECTRICAL — Durable medium base porcelain socket with nickel plated copper alloy screw shell and

contact.

Socket clips to top of housing to prevent paint overspray in socket screw shell.

Thermal protection provided against improper lamp usage.

120 volt only.

INSTALLATION — Air-tight housing suitable for air-tight installations. Refer to energy codes for proper

installations.

2 x 6 existing ceiling or T-bar ceiling panel installation.

Clip adjustment on housing (up to 1-¼”) allows for ush mounting with ceiling face.

Socket attaches to reector to ensure proper and consistent lamp position.

LISTINGS — UL Listed to US and Canadian safety standards. Damp location listing (see trim selection for

wet location listing).

WARRANTY — 1-year limited warranty. Complete warranty terms located at

www.acuitybrands.com/CustomerResources/Terms_and_conditions.aspx

NOTE: Specications subject to change without notice.

6" Housing

L7XPR

INCANDESCENT

IC Shallow

Remodel

Specications

Height: 5-3/4 (14.6)

Length: 12-3/8 (31.4)

Width: 6-3/4 (17.1)

Ceiling opening: 6-7/8 (17.5)

Ceiling cutout template: 6.65

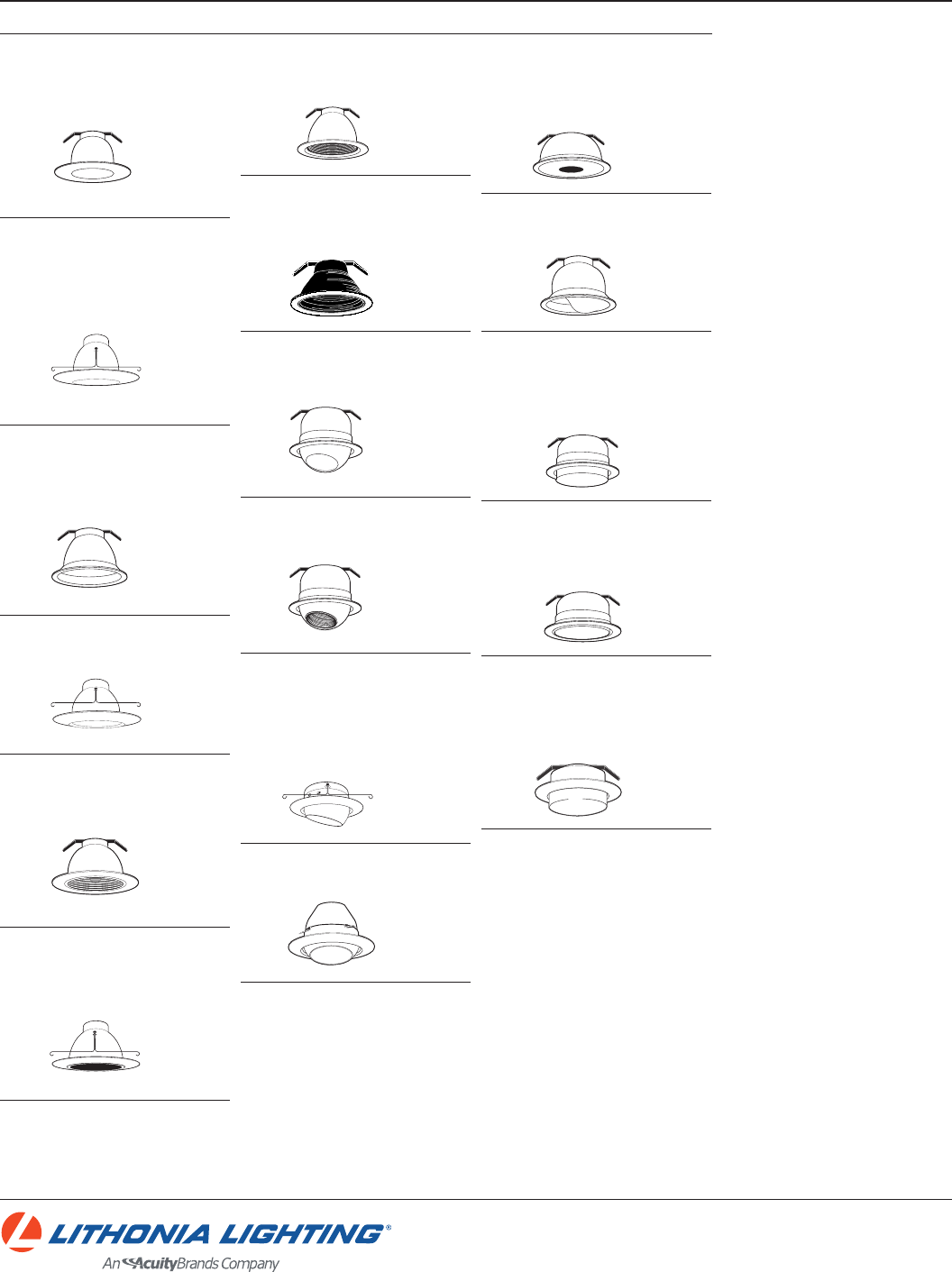

C & 7 Series 6" Incandescent L7XPR Full Reector Shallow Trims

General/Task

Open Wide Flange

CO1 White

60 A19

65 BR30

75 PAR30

IC

Open Wide Flange

CO1 TOR White

CO1BN TOR Brushed nickel

CO1ORB TOR Oil-rubbed bronze

CO1BZA TOR Antique bronze

60 A19

65 BR30

75 PAR30

IC

Open Narrow Flange

CO2 White

CO2A Clear diuse

CO2AZ Clear specular

60 A19

65 BR30

75 PAR30

IC

Open Wide Flange

7O1 TOR White

65 BR30

75 PAR30

IC

Bae Wide Flange

CB1 Black

CB1W White

40 A19

65 BR30

75 PAR 30

IC

Bae Wide Flange

CB1 TOR Black

CB1W TOR White

40 A19

65 BR30

75 PAR 30

IC

Bae Narrow Flange

7B0W White

65 BR30

75 PAR30

IC

Bae Wide Flange

7B1 TOR Black

7B1W TOR White

65 BR30

75 PAR30

IC

Accent/Adjustable

Eyeball Narrow Flange

CE1 White

65 BR30

75 PAR30

IC

Baed Eyeball Narrow Flange

CE2 White/black

CE2W White/white

65 BR30

75 PAR30

IC

Eyeball Wide Flange

7E1 TOR White

7E1BN TOR Brushed nickel

7E1ORB TOR Oil-rubbed bronze

7E1BZA TOR Antique bronze

65 BR30

75 PAR30

IC

Regressed Eyeball Wide Flange

7RE1 White

65 BR30

50 PAR30

IC

Pinhole Narrow Flange

CS1 White

40 A19

50 BR20

50 PAR20

IC

Wallwash Narrow Flange

CW1 White

40 A19

IC

Lens/Wet Location

Shower/Closet Narrow Flange2

CLD1 Drop opal*

40 A19

IC

Shower/Closet Narrow Flange2

CLF1 Flush opal*

CLF2 Flush prismatic*

40 A19

IC

Shower/Closet Narrow Flange2

7LD1 Drop opal metal ange

7LD1 PF Drop opal plastic*

7LD2 PF Drop prismatic plastic*

40 A19

IC

* For plastic ange add sux PF

Notes

1 Maximum wattage listed. Lower wattage lamps may be used.

2 Lens trims are wet location listed. All others are damp location.

3 Shallow trims may be used for lower lamp position.

Description Maximum wattage1

Catalog number Sheet number

Description Maximum wattage1

Catalog number Sheet number

Description Maximum wattage1

Catalog number Sheet number

L7XPR

DOWNLIGHTING : One Lithonia Way Conyers, GA 30012 Phone: 800-315-4935 Fax: 770-860-3129 www.lithonia.com © 2000-2012 Acuity Brands Lighting, Inc. All rights reserved. Rev. 09/18/12

L7XPR

DOWNLIGHTING: One Lithonia Way Conyers, GA 30012 Phone: 800-315-4935 Fax: 770-860-3129 www.lithonia.com © 2000-2012 Acuity Brands Lighting, Inc. All rights reserved. Rev. 09/18/12

C & 7 Series 6" L7XPR Full Reector Shallow Trims

P Series Bae Wide ange (Wet location)

6BPMW LED

Series/Finish Lamps/Lumens1Color temperature Voltage

Series

6BP 6" Bae LED Module

Finish

MW Matte white

LED 8.9W, 620 lumens (blank) 3000 K (blank) 120V

ORDERING INFORMATION For shortest lead times, congure products using bolded options.

Example: 6BPMW LED

L7XP

Notes

1 Total system delivered lumens.

6BLMW LED

Series/Finish Lamps/Lumens Color Temperature Voltage

Series

6BL 6” bae LED module

Finish

MW Matte white

LED 13W, 620 lumens (blank) 3000 K (blank) 120V

ORDERING INFORMATION For shortest lead times, congure products using bolded options.

L Series Bae Wide ange (Damp location)

Example: 6BLMW LED

L7X
