1www.bryant-electric.com

INDEX PAGE

Network Wiring

Advantages ............................................................................P-2

Structured Wiring Layout .................................................................P-3

netSELECT® Network Enclosures ...........................................................P-4

netSELECT® Network Modules and Accessories ...............................................P-5

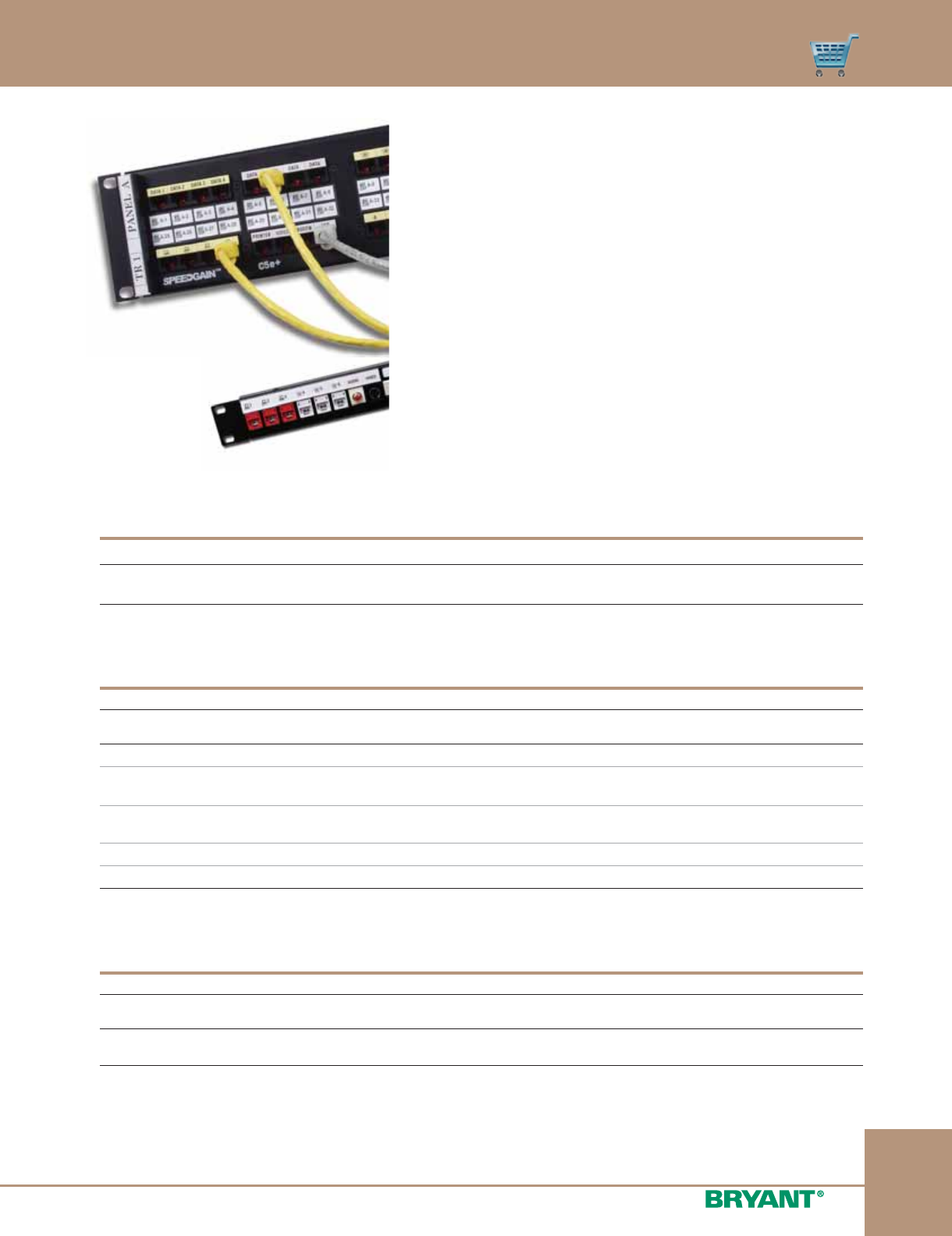

Universal Consolidation Blocks, Patch Panels, Patch Cords and Plugs .............................P-7

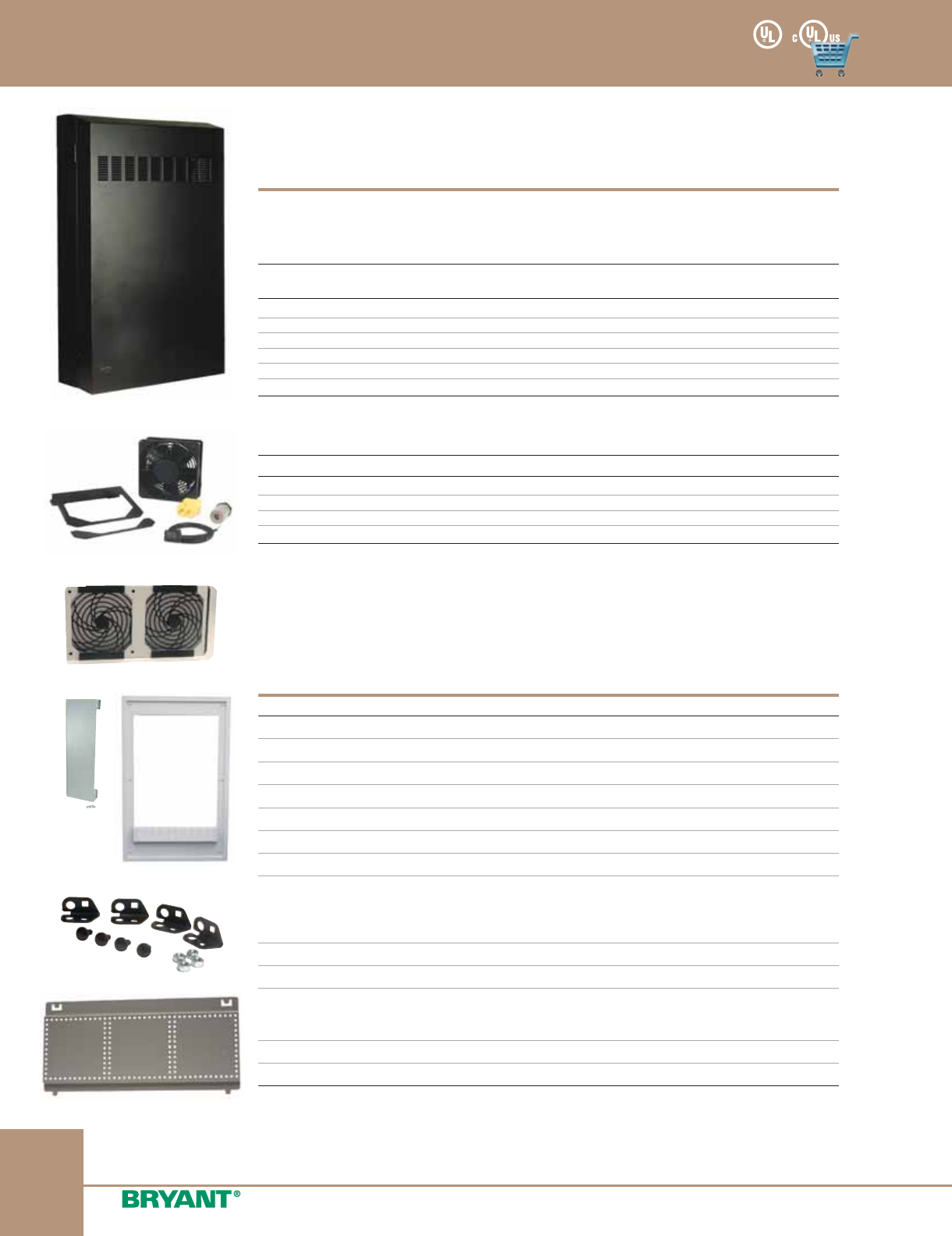

Wall Mounted Enclosures and Accessories ...................................................P-8

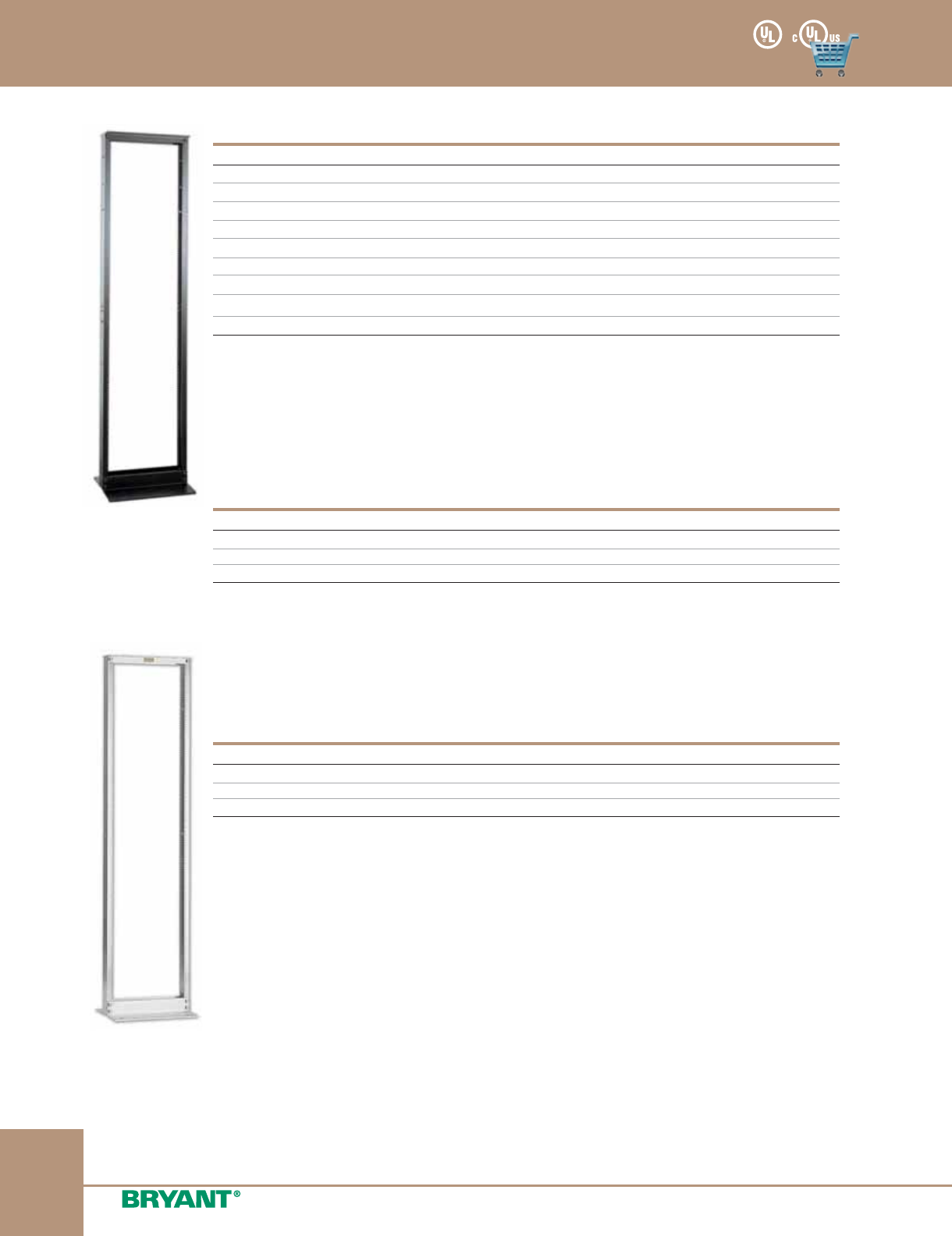

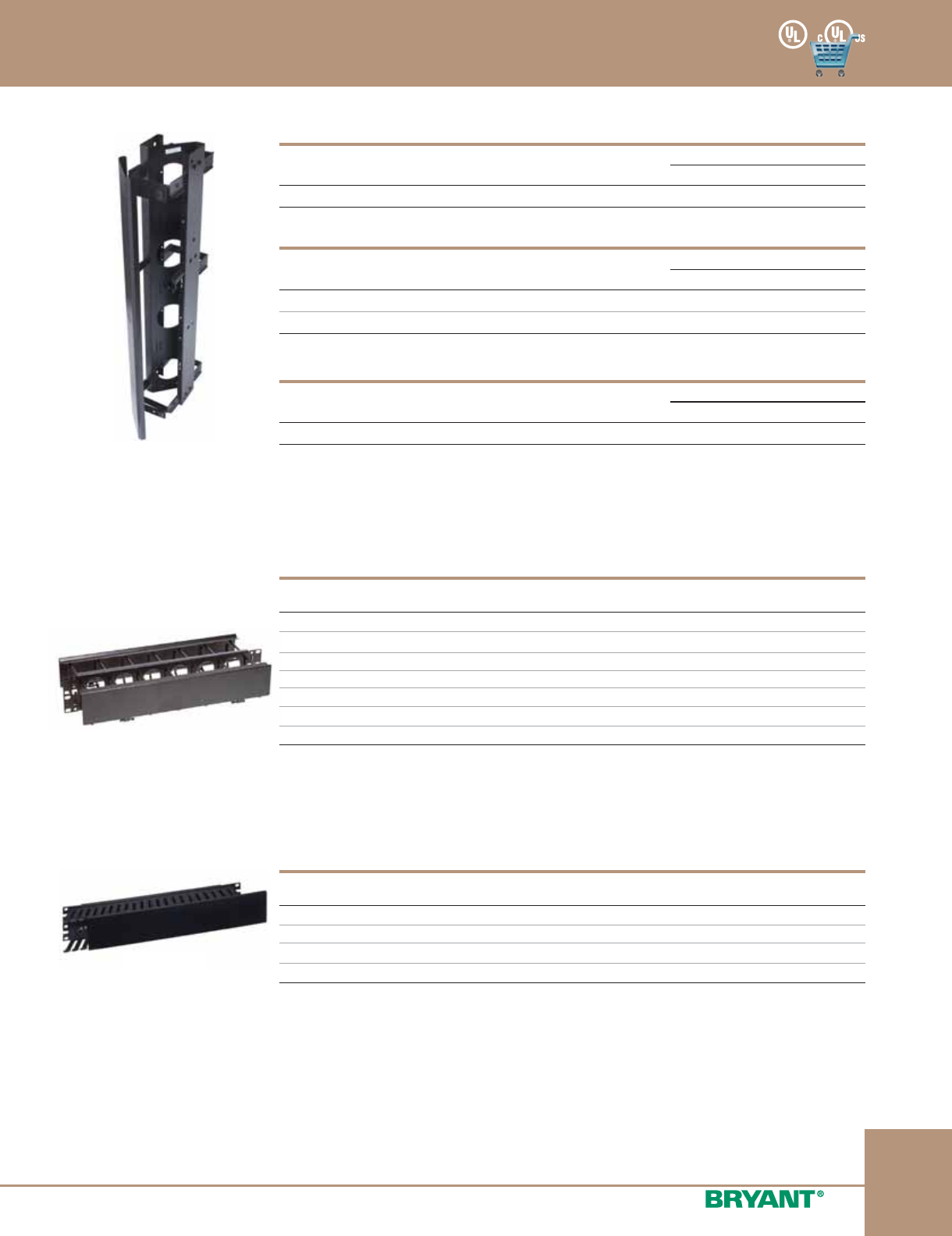

Cable Management Racks ...............................................................P-10

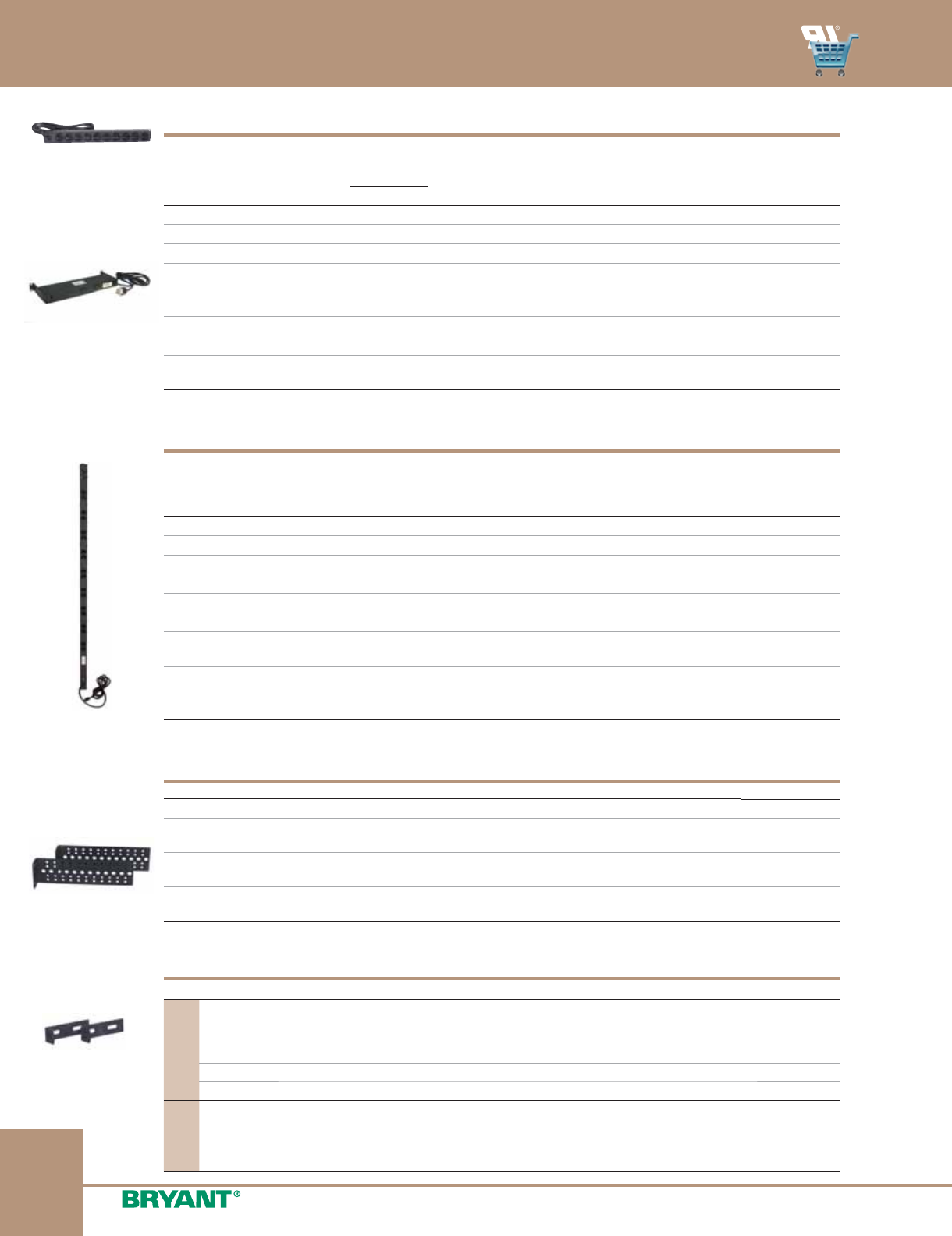

Power Strips ..........................................................................P-12

Data Communications and Audio Video

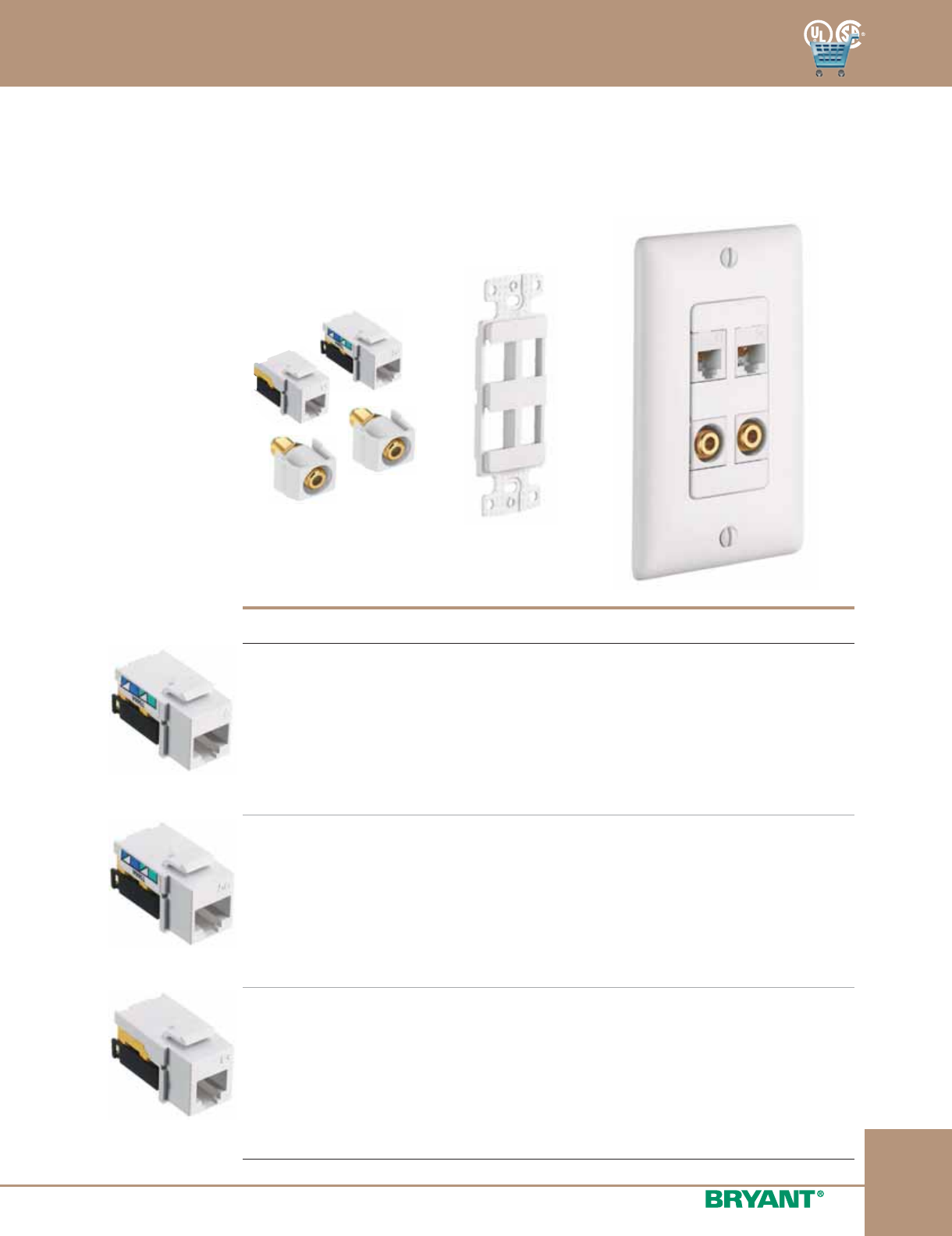

Voice/Data Jacks ......................................................................P-13

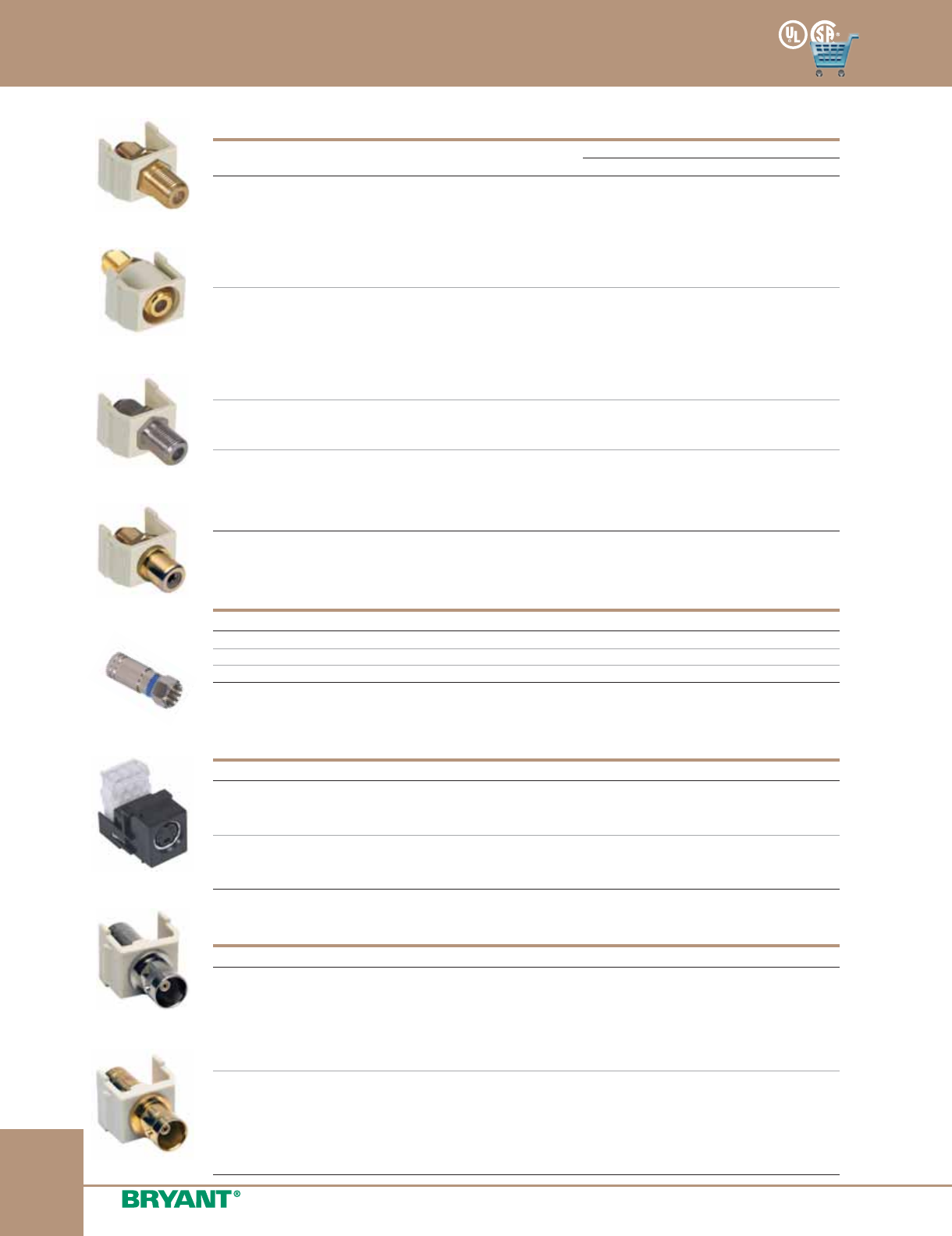

F-Type Connectors .....................................................................P-14

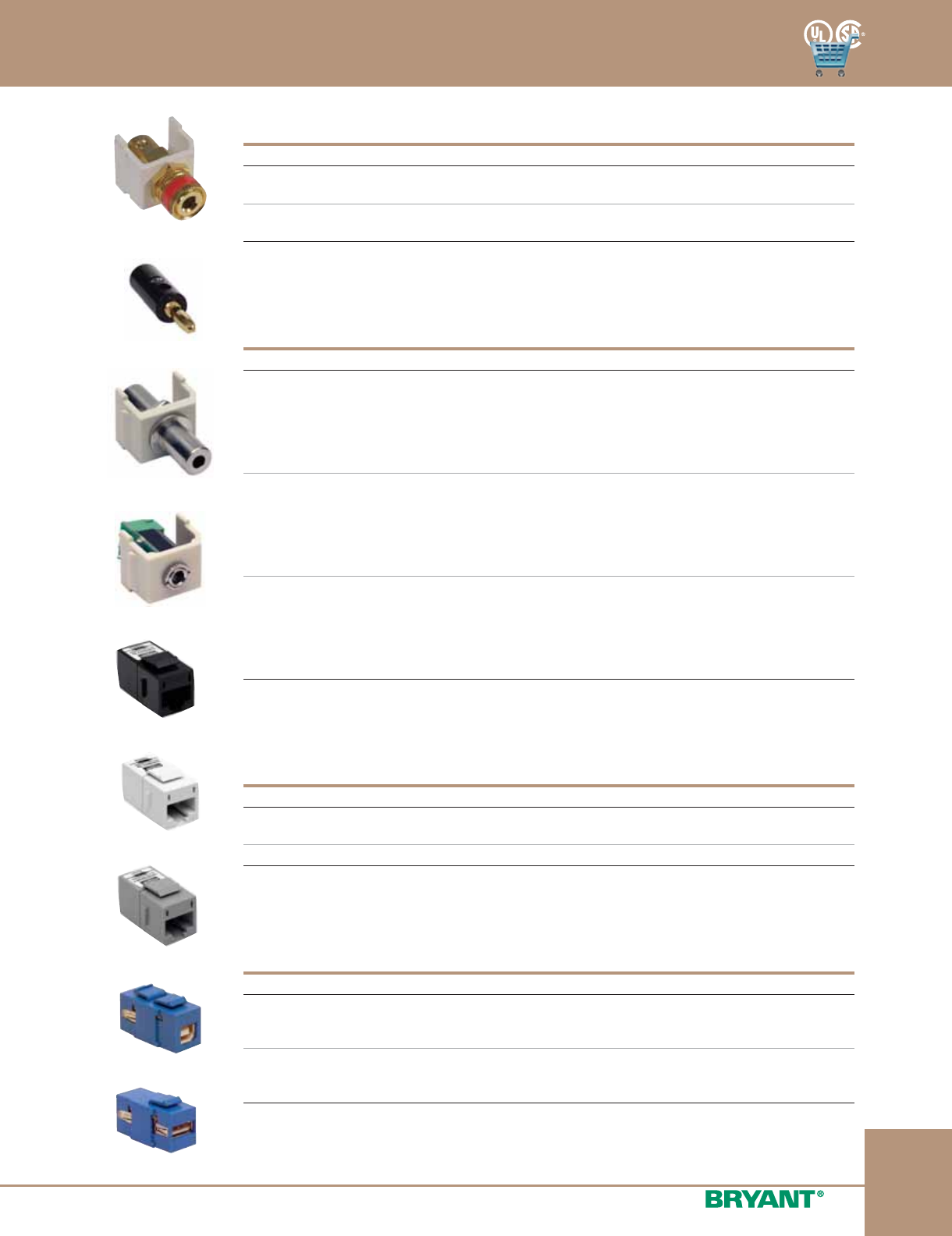

Audio/Video Connectors .................................................................P-15

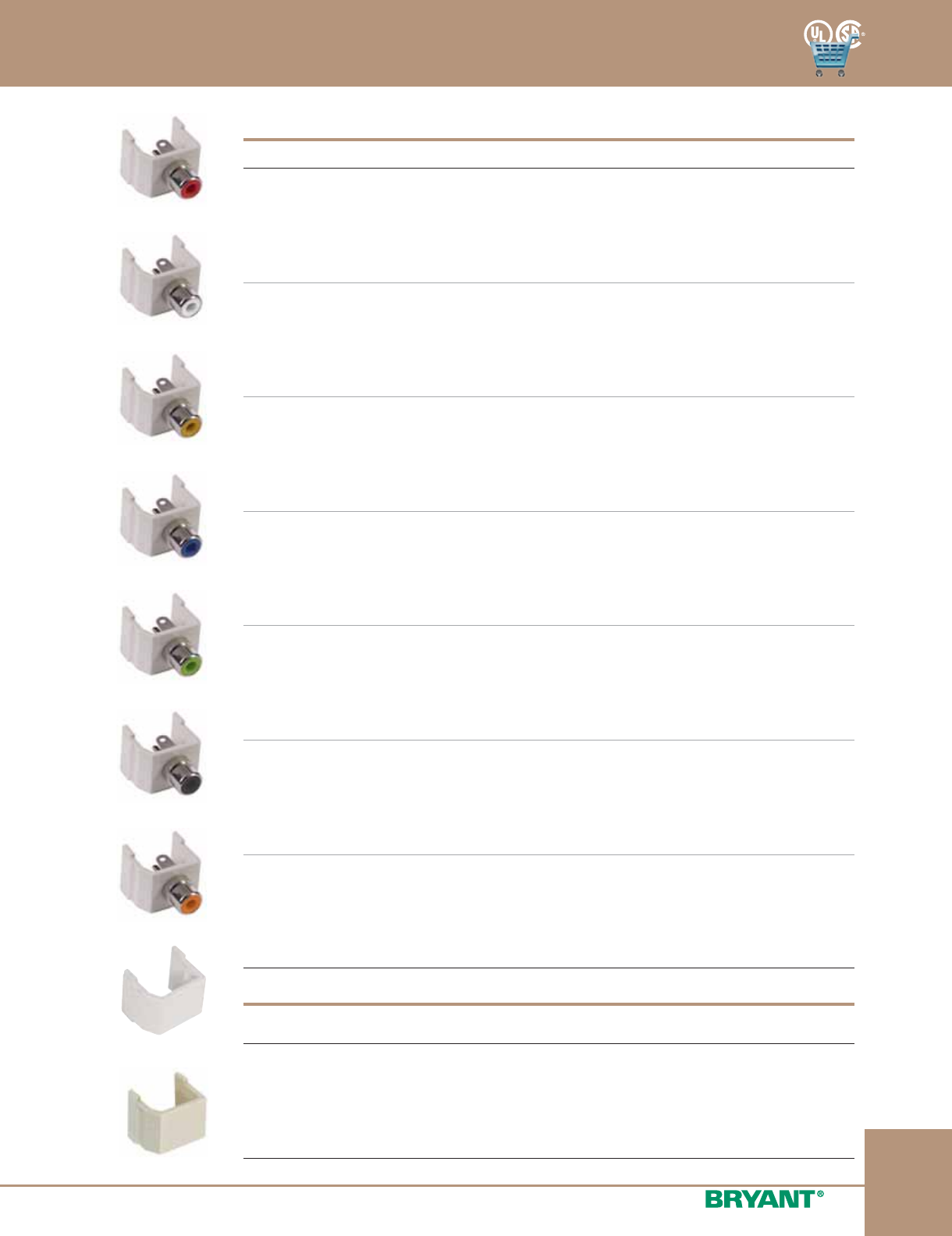

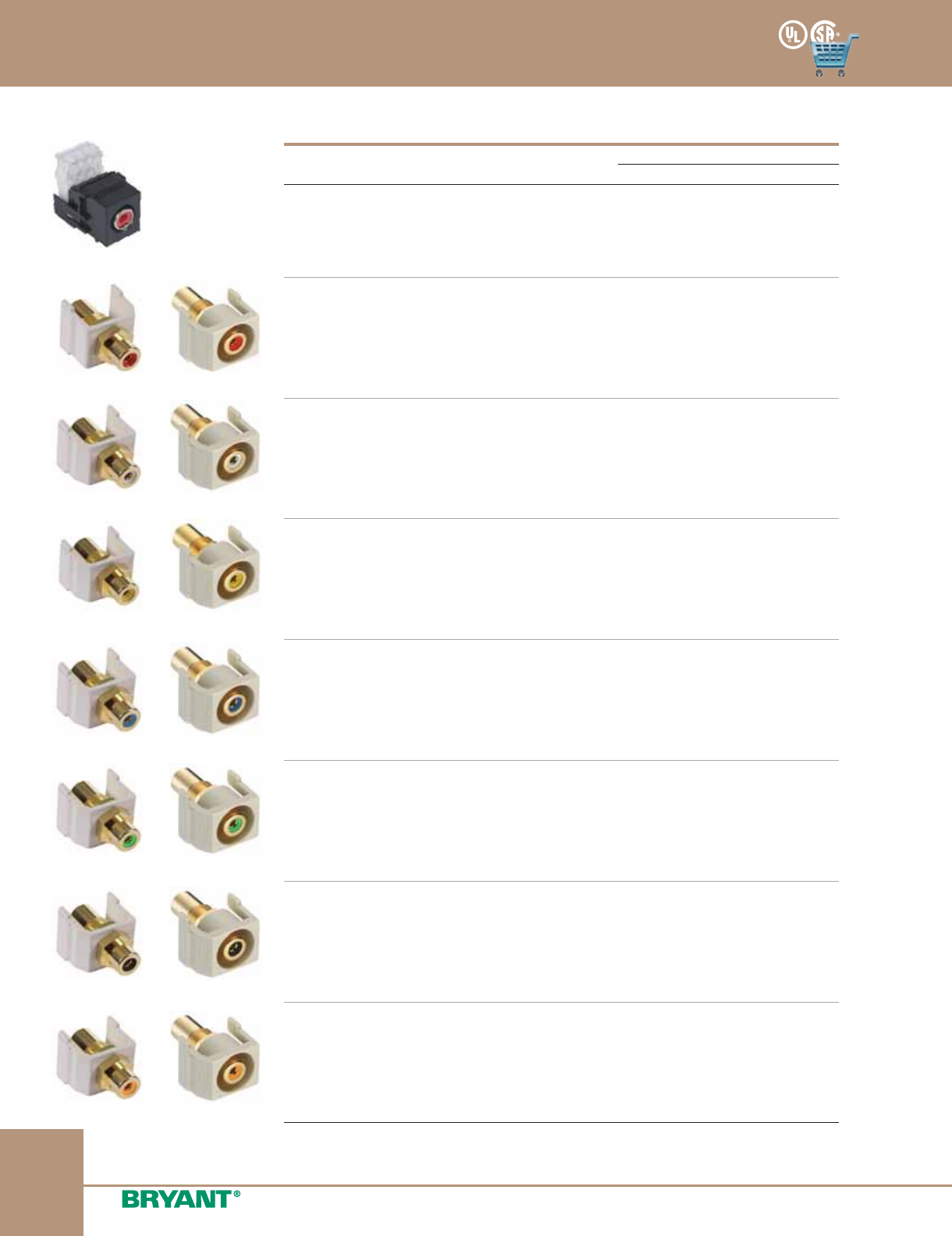

RCA Connectors .......................................................................P-16

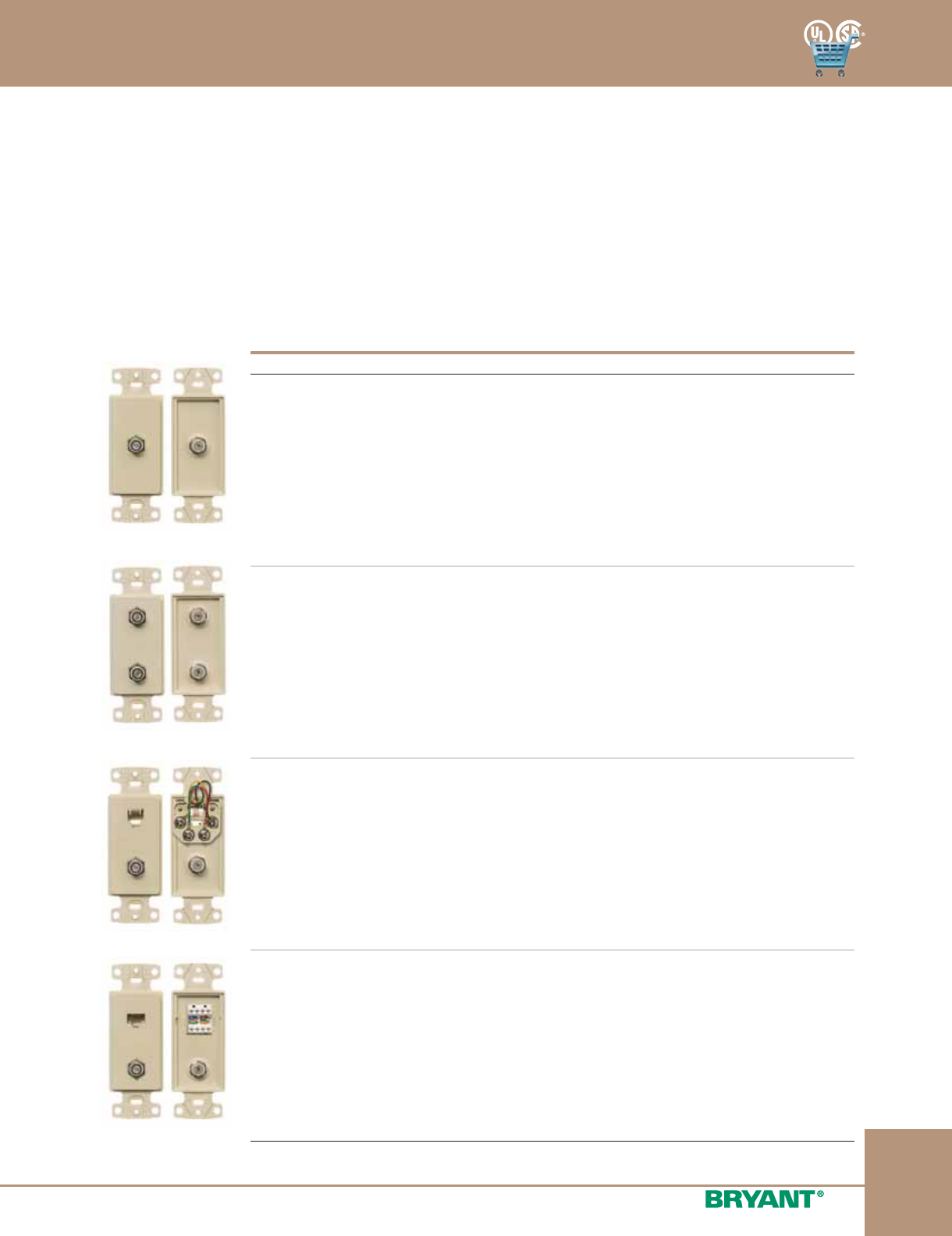

Multimedia Face Plates ..................................................................P-18

iSTATION™ Face Plates ................................................................P-19

Outlet Frames and Plates ................................................................P-20

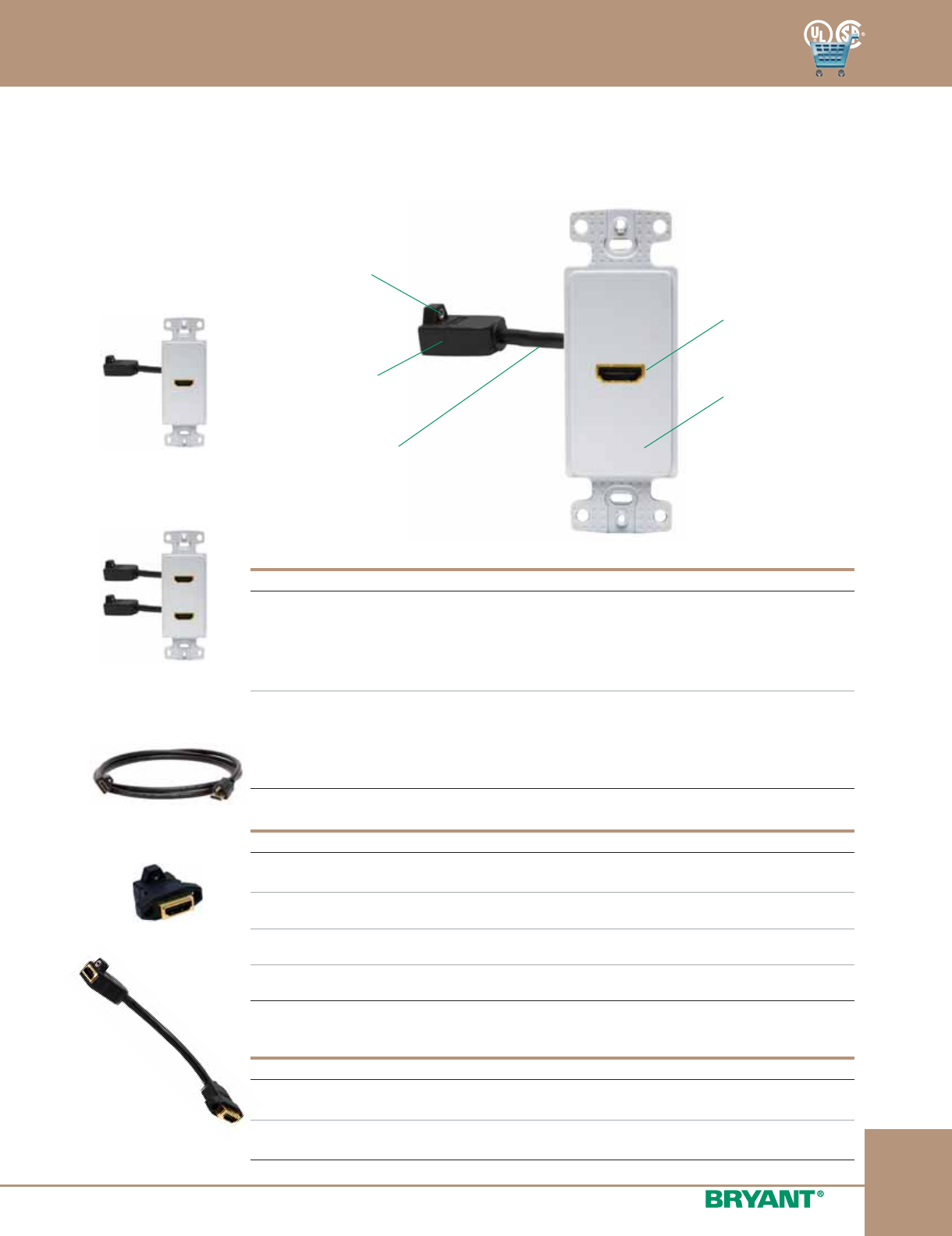

HDMI Products ........................................................................P-21

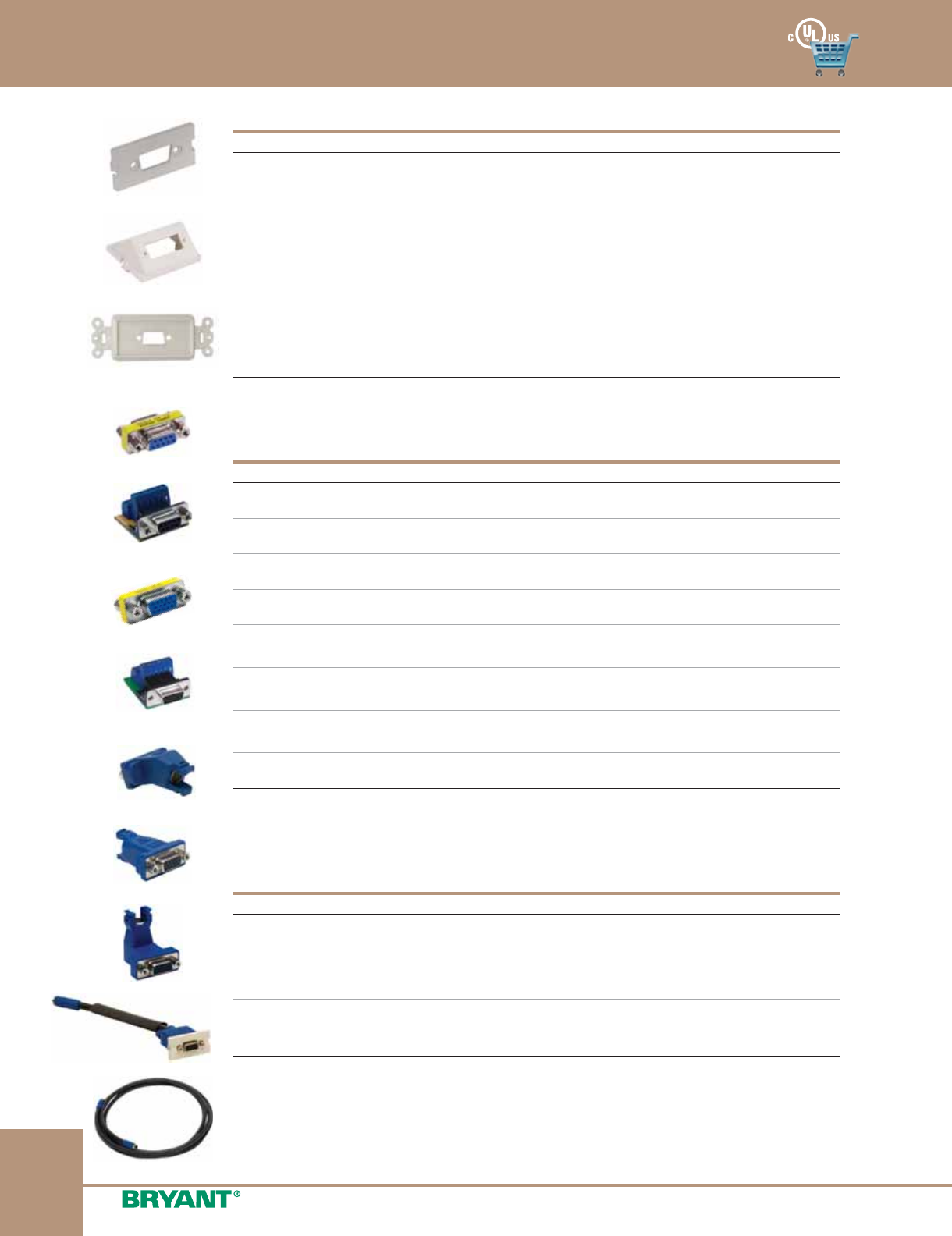

iSTATION™ HD Connectors, and VGA Horizontal Runs ........................................P-22

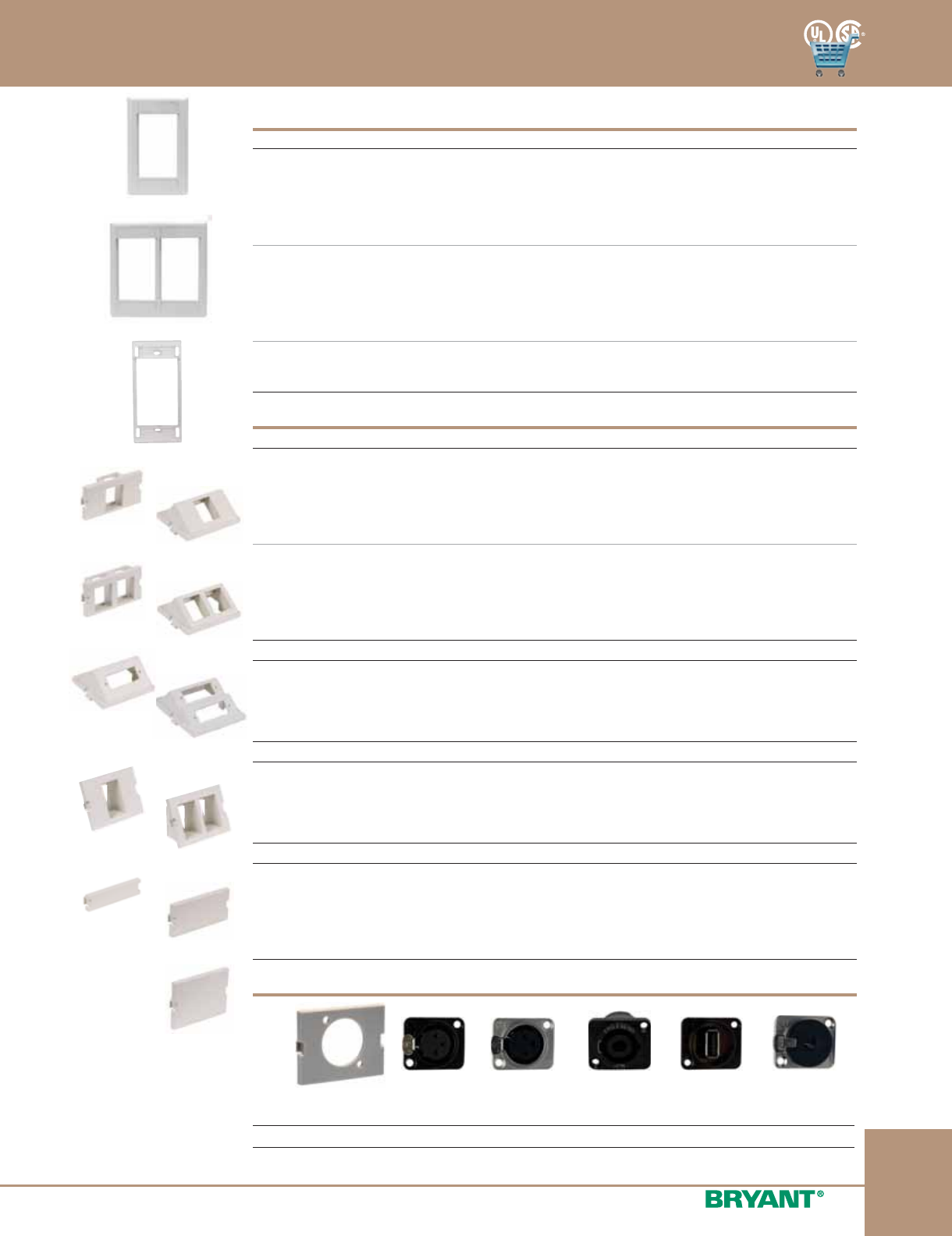

iSTATION™ Front-Loading Frames and Modules .............................................P-23

iSTATION™ Audio/Video Modules .........................................................P-24

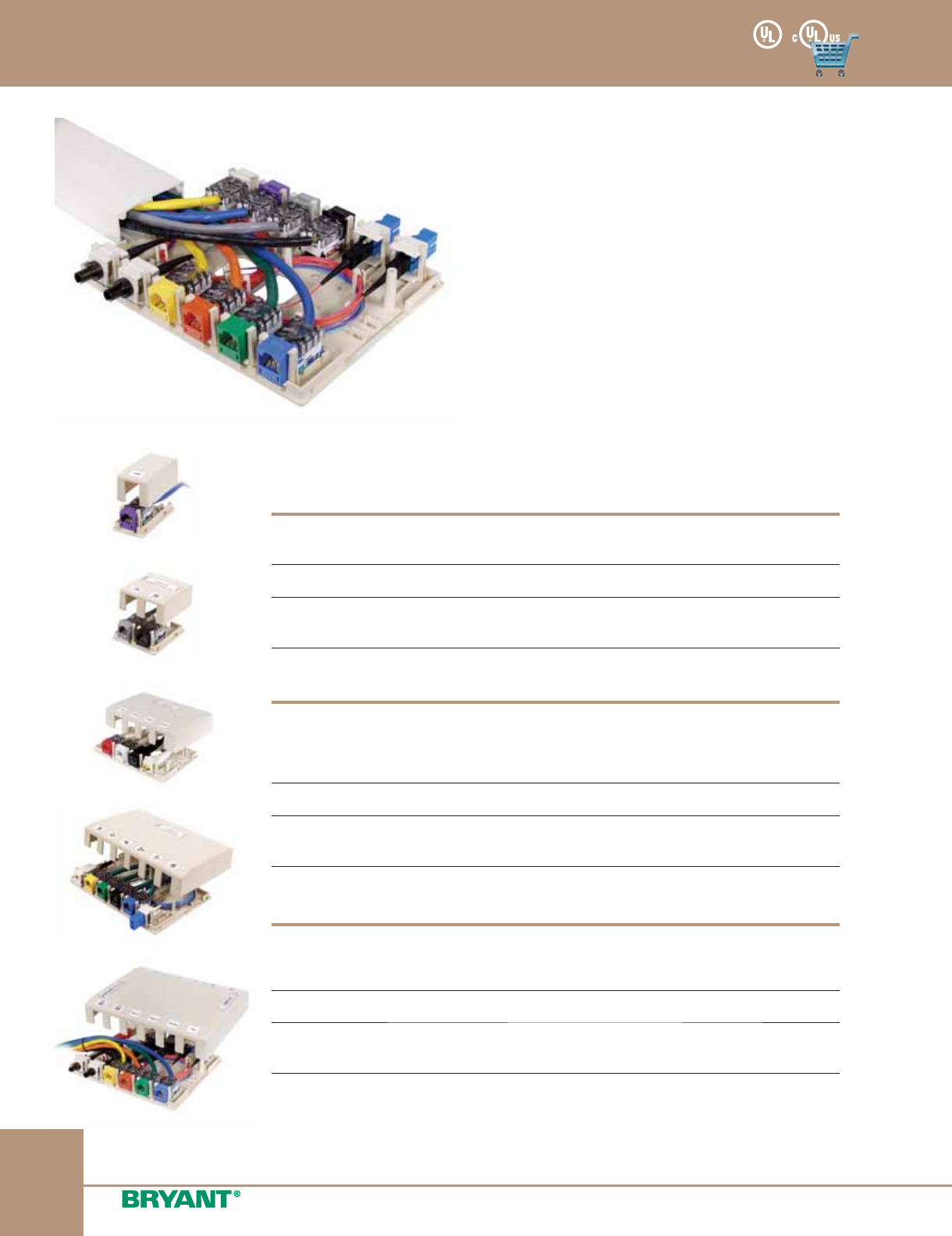

iSTATION™ Surface Mount Boxes .........................................................P-26

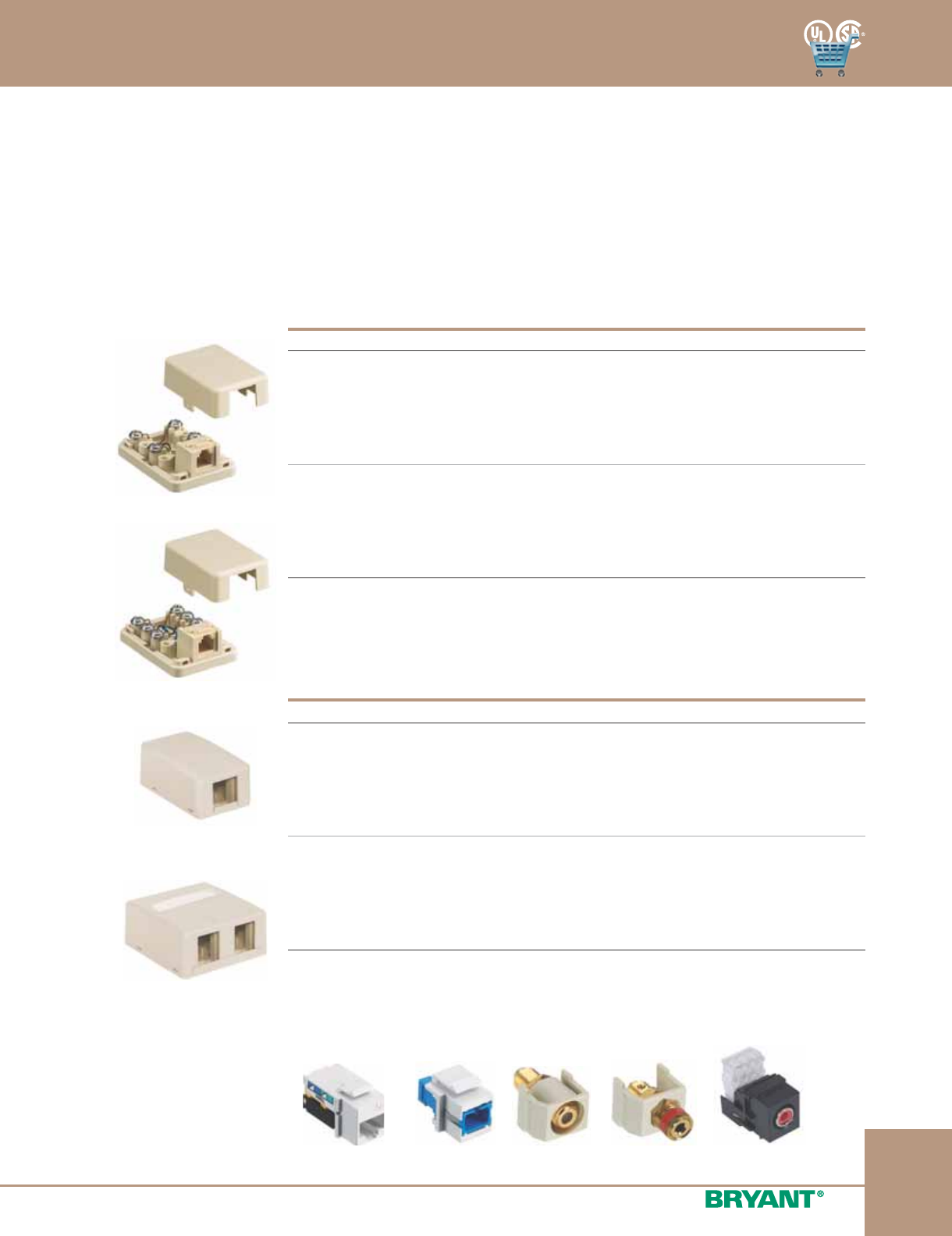

Telephone Surface Mount Wall Jacks ......................................................P-27

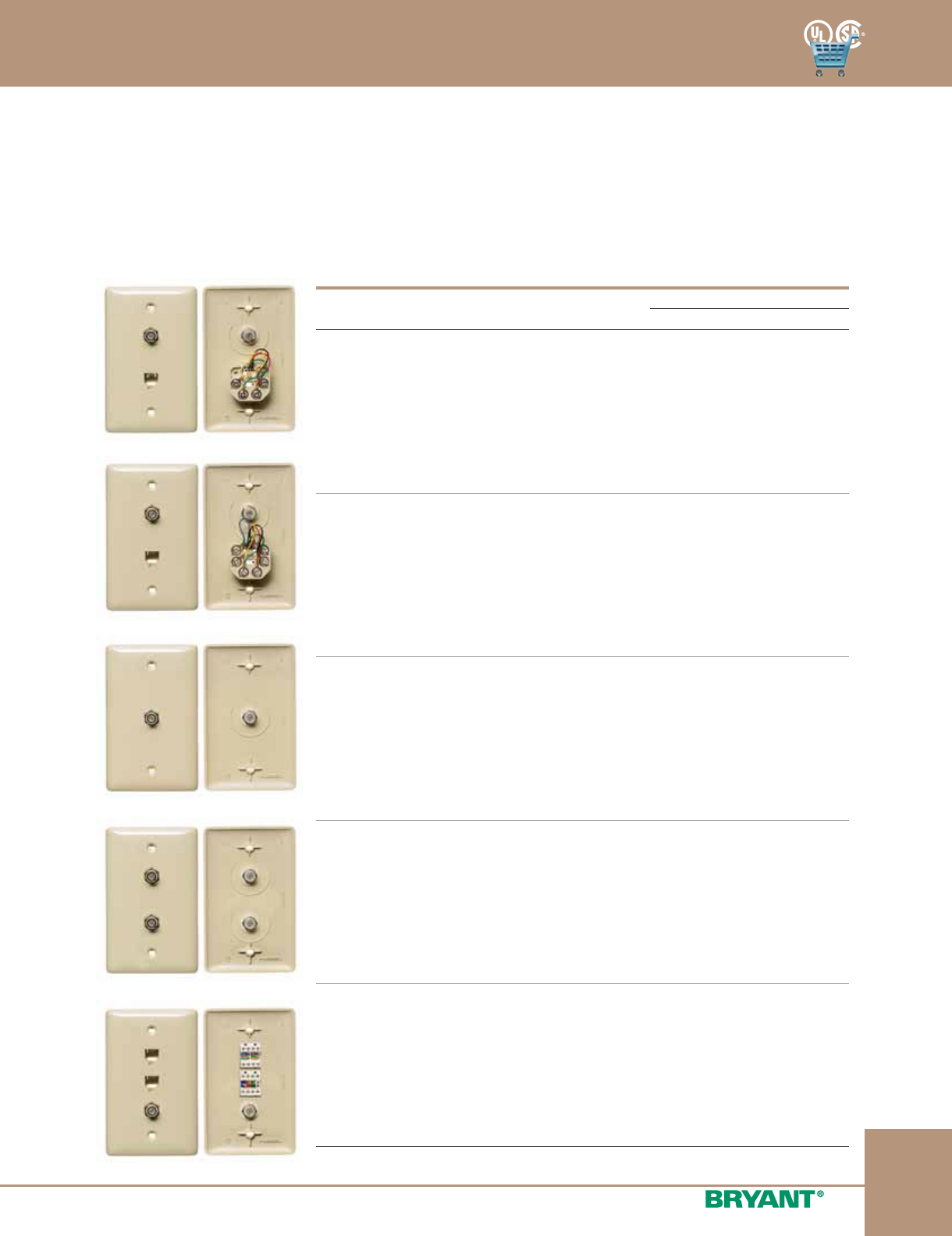

Molded-In Voice/Data/Video ..............................................................P-28

Molded-In Plates .......................................................................P-30

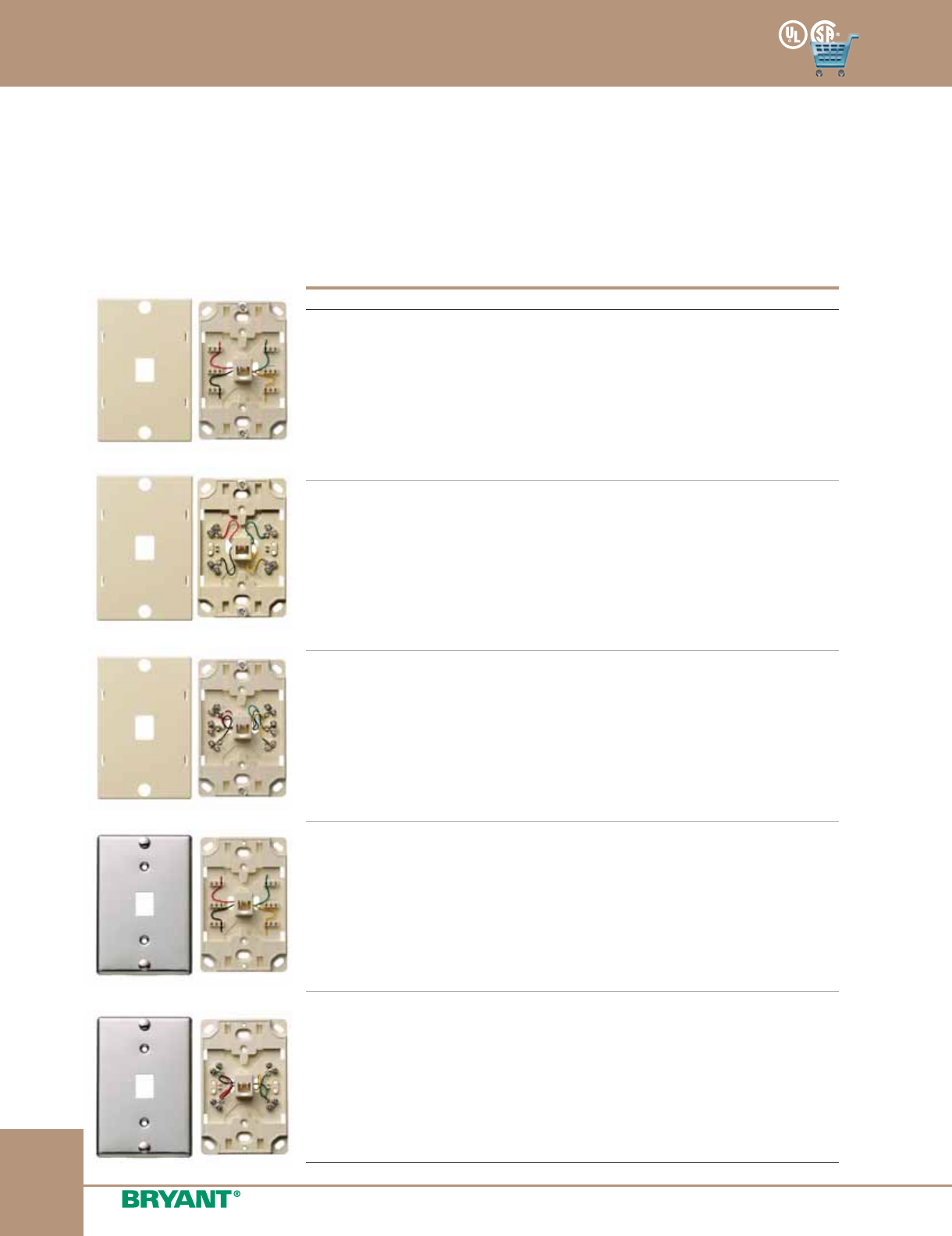

Telephone Wall Jacks ...................................................................P-32

Labeling Solutions ......................................................................P-33

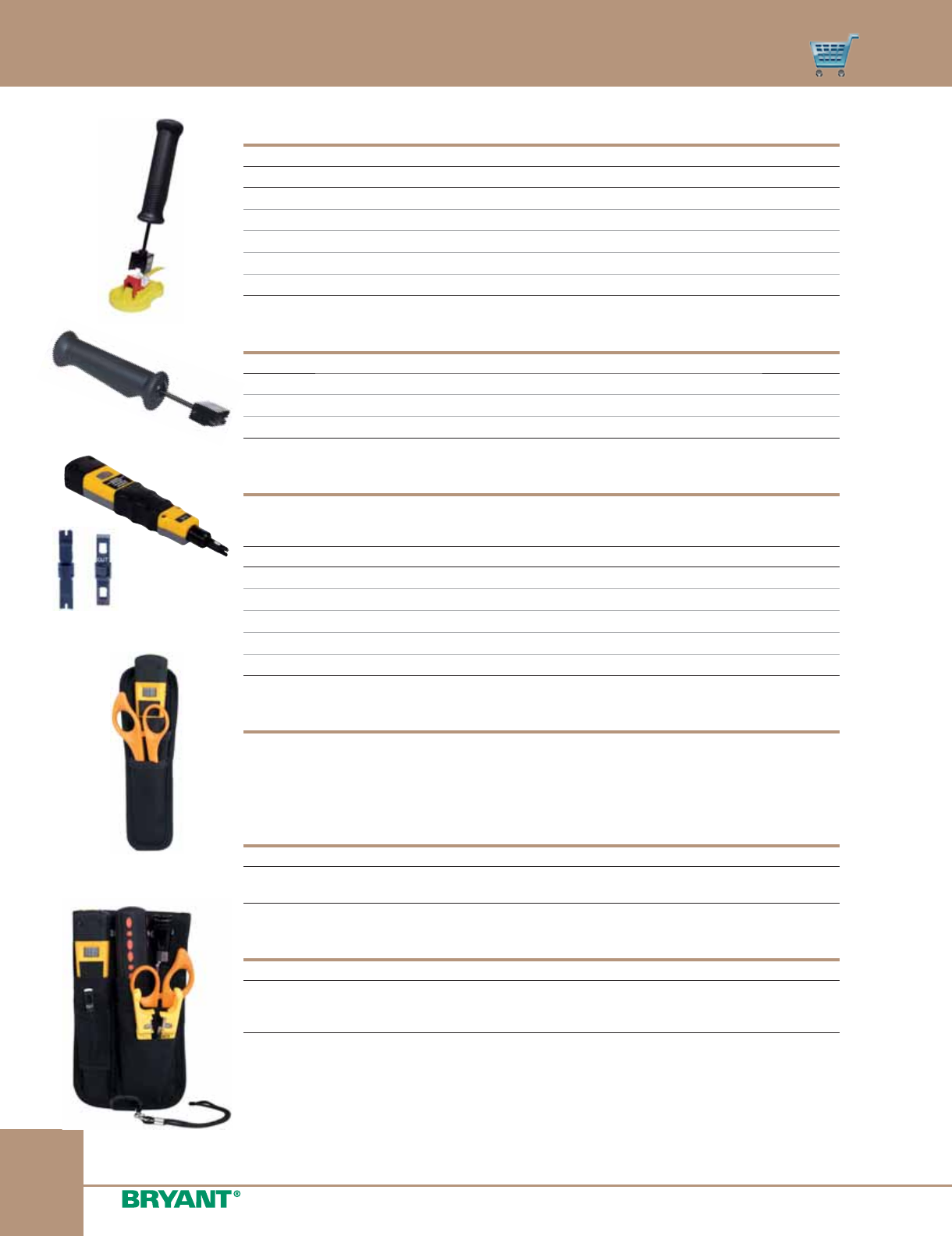

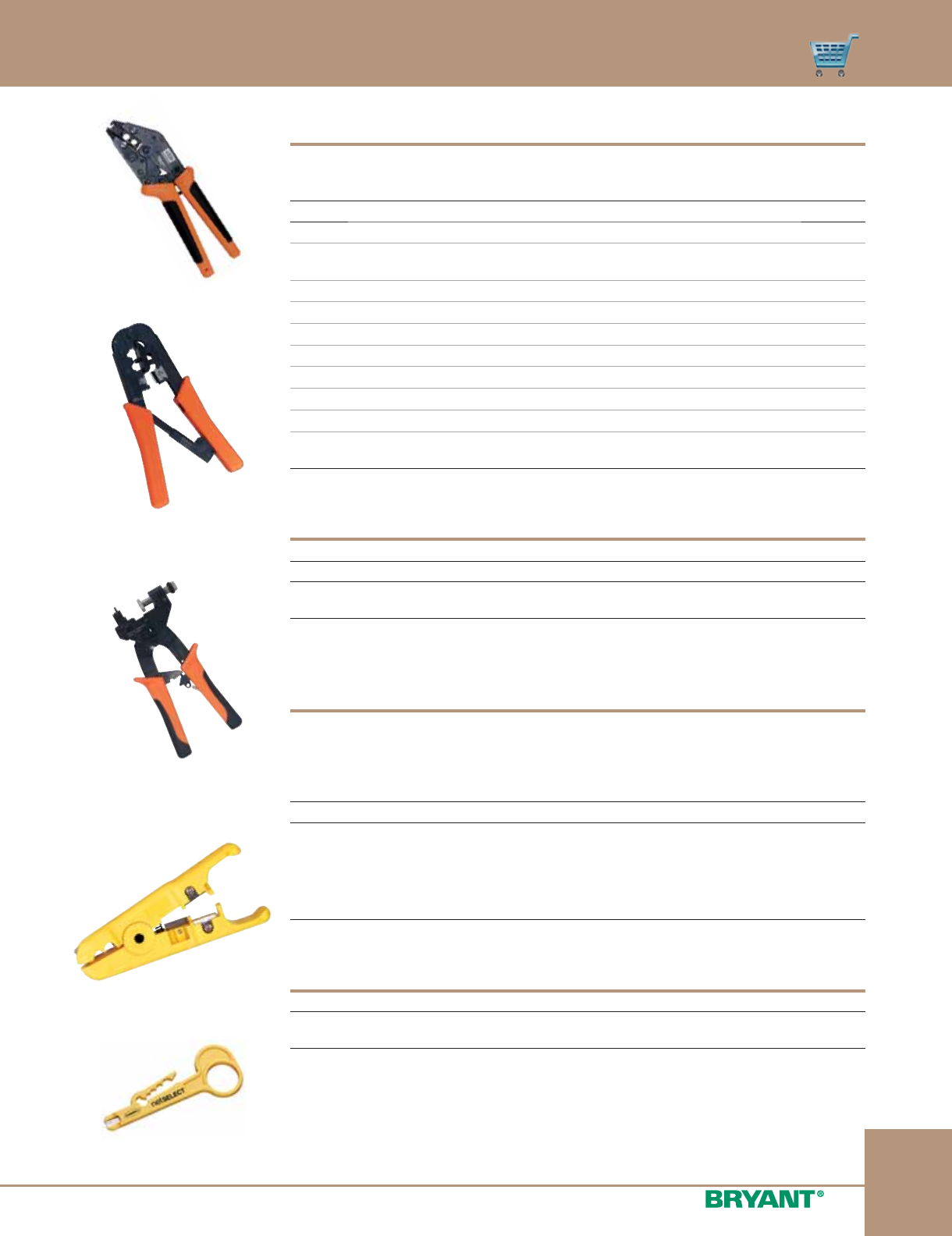

Tools and Accessories ..................................................................P-34

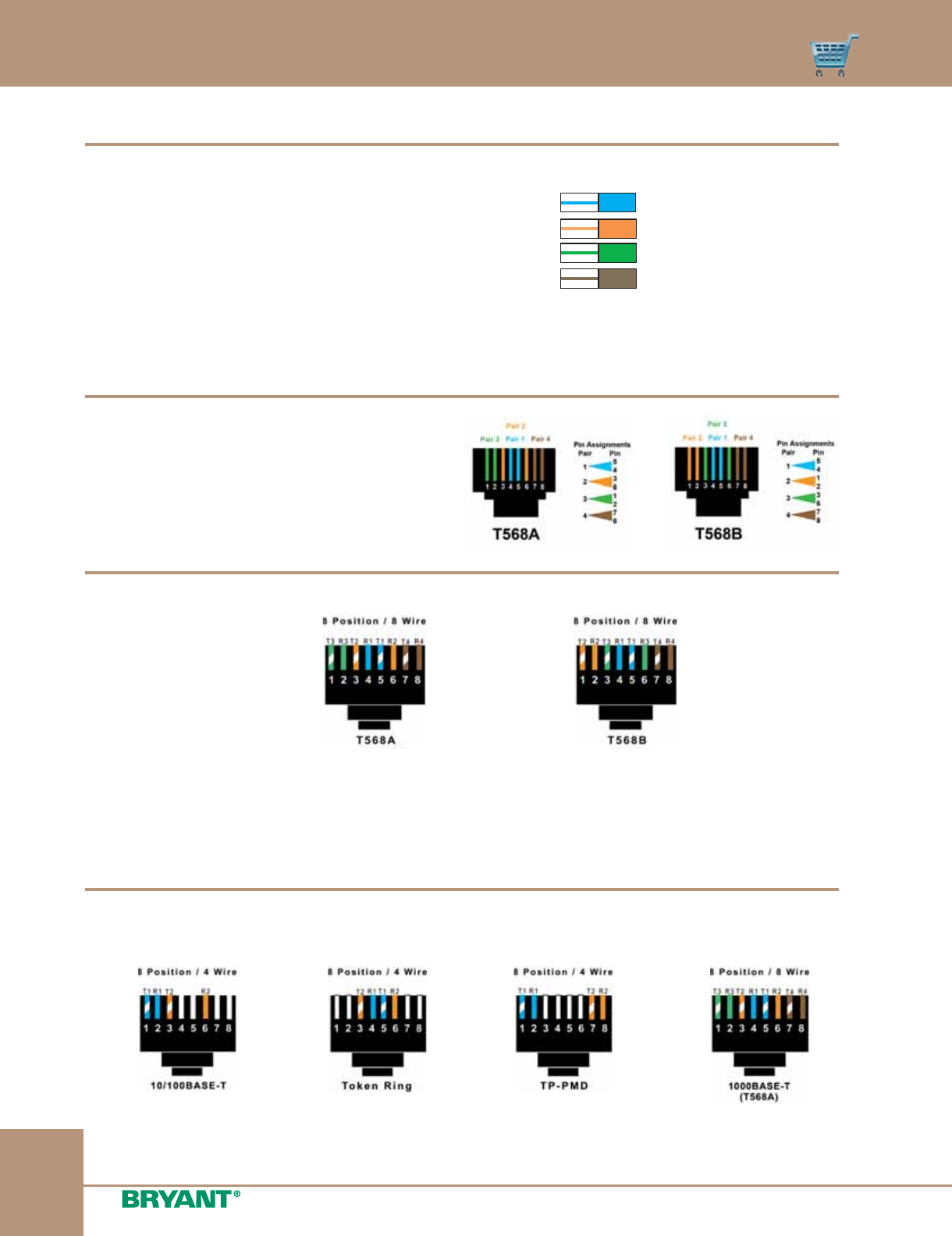

Standard UTP Wiring Conventions .........................................................P-36

Section P

Network Wiring

2www.bryant-electric.com Specifications are subject to change without notice.

Easy for Installers

An easy-to-hang cabinet featuring surface or recess

mounts between 16-inch studs on center, 2 x 4 inch

minimum. netSELECT® modular components snap

into the box horizontally or vertically, optimizing space.

A blank module provides flexibility for installers to use

their own choice of manufacturer's active components.

Also included: A reversible and lockable hinged door,

ample cable entrance locations and a complete offering

of jacks, plates and other work station accessories.

Easy for Users

Built in flexibility to upgrade and keep pace with

evolving technologies. An easy-to-read label helps you

to keep track of the system's infrastructure. The white

powder coat finish provides a clean, durable chassis

to house all components.

netSELECT® is an innovative network solution that's perfect for any home or small office. The netSELECT® System

satisfies the need for a dependable, flexible system that can accommodate all of today's fast-changing voice, data and

video requirements. Built-in flexibility makes it easy to upgrade and keep pace with evolving technologies.

Network Wiring

Advantages

Features and Benefits

• Share single analog, cable or DSL internet connection

• Local ﬁle access

• Shared peripherals

• Multiple telephone distribution

• Call handling (PBX)

• Video distribution

• Play games that allow multi-users

• Support home automation systems

Internet/Networking

Entertainment

Gaming/Video

Communications

CATV

distribution

Telephone distribution

Provides internet and networking

service to systems and

computers

Telephone

Internet

CATV

Audio controls

3www.bryant-electric.comSpecifications are subject to change without notice.

Today’s Communications Entail a Lot More Than Just Talking.

netSELECT® Keeps You Connected—Internet, Voice, Data and Entertainment

Network Wiring

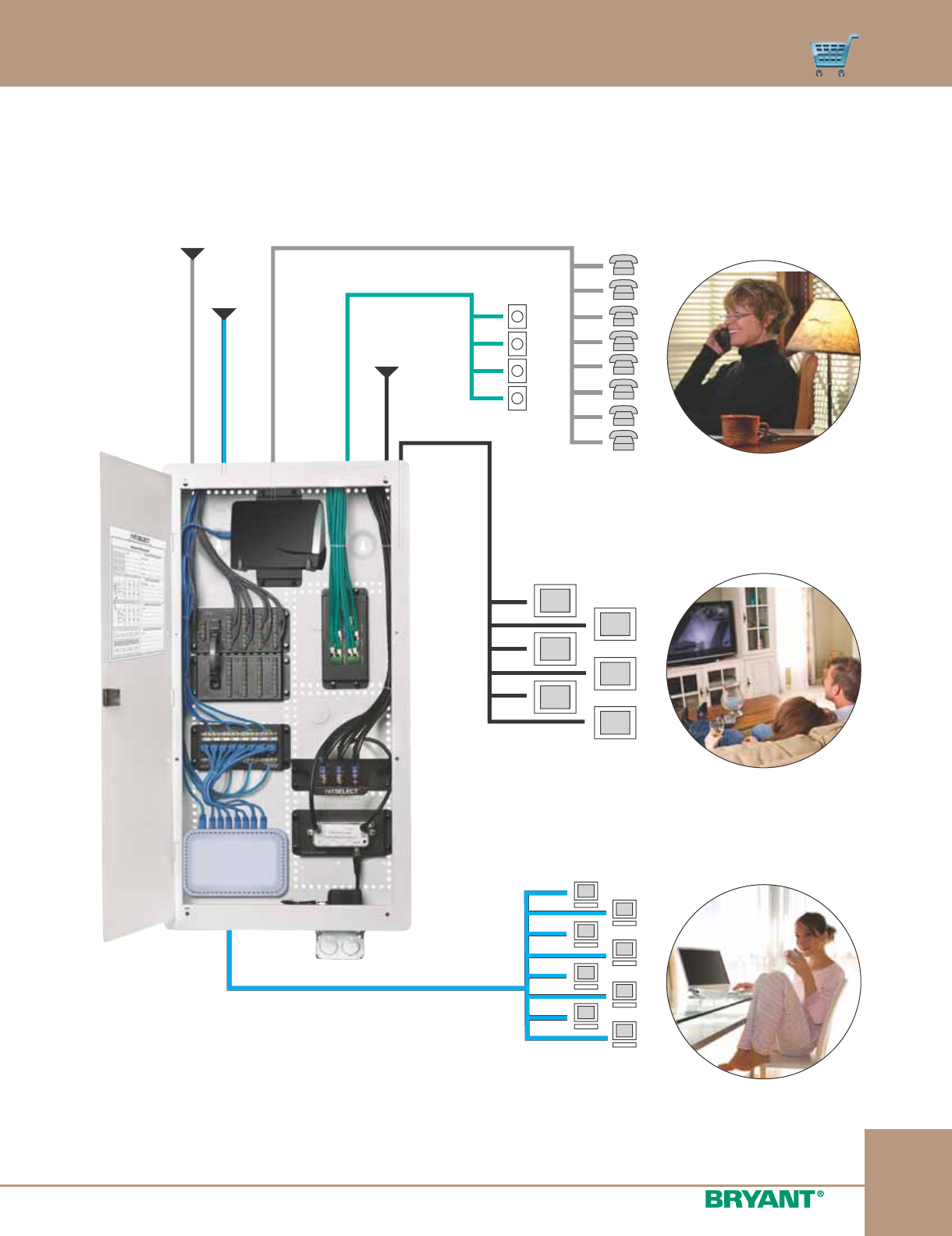

Structured Wiring Layout

4www.bryant-electric.com Specifications are subject to change without notice.

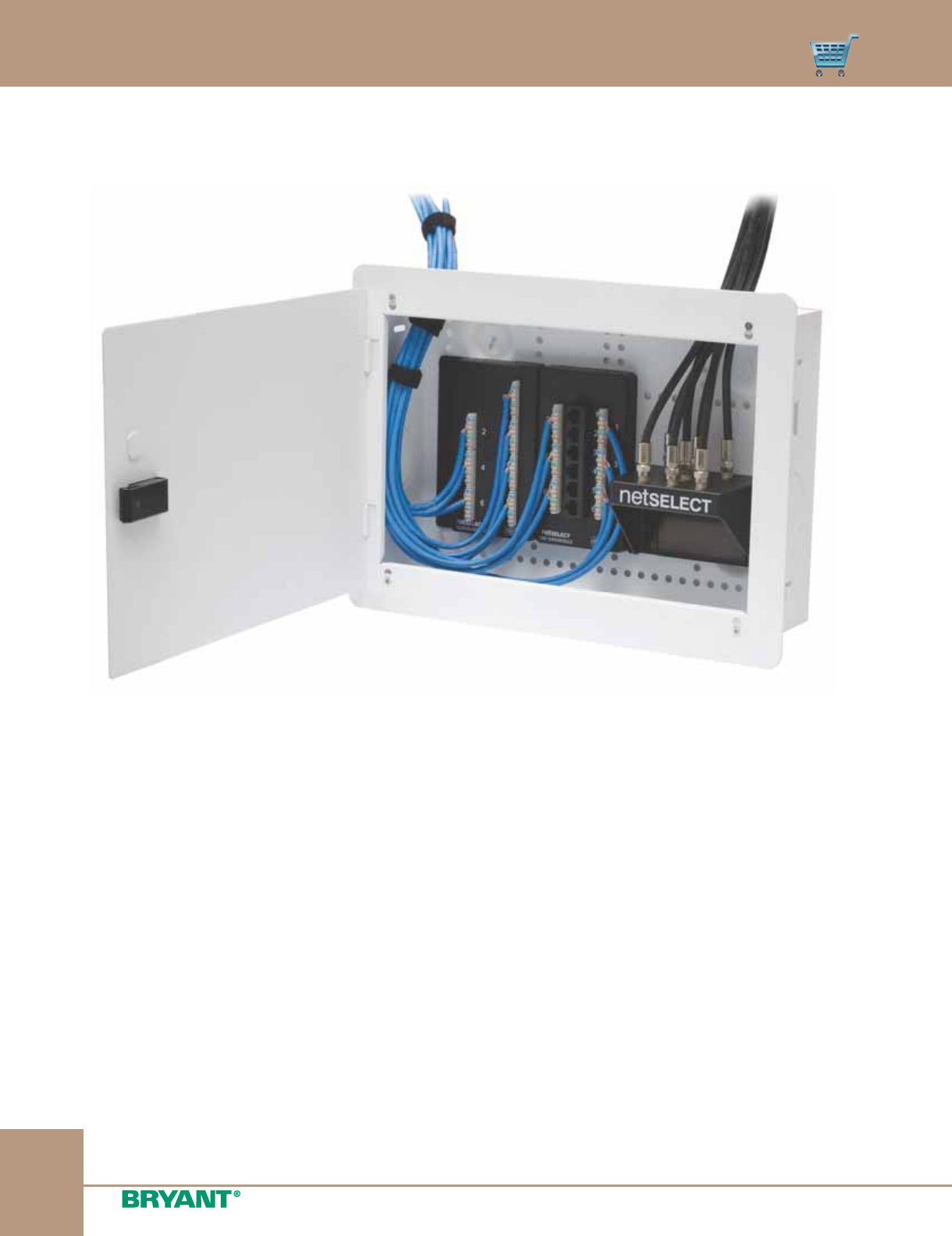

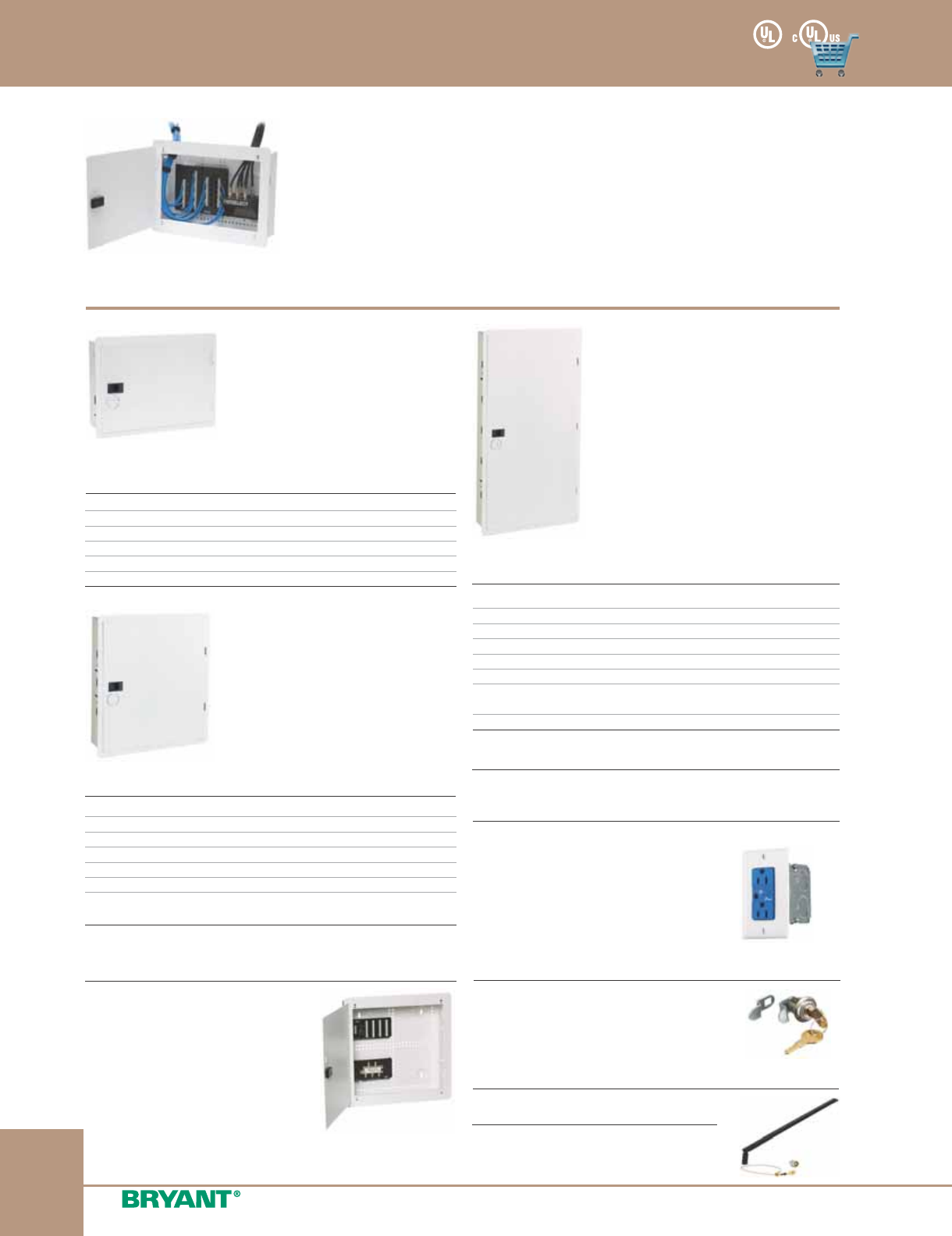

NETWORK ENCLOSURES

• Flush or surface mount enclosure (hardware provided)

• Hinged cover can be mounted to swing from either side

• Integral trim ring on hinged door

• Horizontal and vertical module mounting holes

• Unique 89D bracket mounting holes

• Integral cable management slots and tie-wraps

• Material: 20-18 gauge steel

• Finish: white; powder coat

Network Wiring

netSELECT® Network Enclosures

WiFi Antenna Kit NSOKA*

Pre-Configured Network Enclosure

14"H with Hinged Cover NSOBNK14

Basic home network kit includes:

1 box with hinged cover (NSOBOX14);

1 primary 8-port telephone module

(NSOPTM8); 1 4-way coaxial splitter

module (NSOVDM4)

10" Network Enclosure

for MDU and Modular Applications Catalog Number

Dimensions: 14.38"W x 10"H x 3.96"D

Knockouts:

Top: four 1½" NPT or completely

open combo

Bottom: four 1½" NPT or completely

open combo

Side: 1½" NPT

10" Enclosure with hinged cover NSOBX10

10" Enclosure with panel cover NSOBX10BC

10" Enclosure box only NSOBX10B

Hinged door NSOBX10D

Panel cover NSOBX10C

Blank plate for custom KO patterns NSOPLT

NSOBX10

14" Network Enclosure Catalog Number

Dimensions: 14.38"W x 14"H x 3.96"D

Knockouts:

Top:

two 1" dia. and three 1½" NPT

combo

Bottom: one 1" Dia. and one 1½"

NPT combo; 1 power kit knockout

Back: two 1" NPT

14" Enclosure with hinged cover NSOBOX14

14" Enclosure with panel cover NSOBOX14BC

14" Enclosure box only NSOBOX14B

Hinged door NSOBOX14D

Vented door NSOBOX14DL

Panel cover NSOBOX14C

2"D Extension bracket with ventilation NSOBOX14X2

and WiFi KOs

NSOBOX14

28" and 48" Network Enclosures Catalog Number

28" Enclosure

Dimensions: 14.38"W x 28"H x 3.96"D

Knockouts:

Top: five 1½" NPT

Bottom: two power kit knockouts

Back: four 1" NPT

48" Enclosure

Dimensions: 14.38"W x 48"H x 3.96"D

Knockouts:

Top: five 1½" NPT

Bottom: two power kit knockouts

Back: none

28" Enclosure with hinged cover NSOBOX28

28" Enclosure with panel cover NSOBOX28BC

28" Enclosure box only NSOBOX28B

Hinged door NSOBOX28D

Vented door NSOBOX28DL

Panel cover NSOBOX28C

2"D Extension bracket with ventilation NSOBOX28X2

and WiFi KOs

48" Enclosure with hinged cover NSOBOX48

NSOBOX28

Power Kits Catalog Number

Standard power kit; includes duplex NSOKP*

receptacle 15A 125V; NEMA 5-15R;

electrical steel box and wallplate

Surge suppression power kit; includes NSOKPS*

duplex receptacle 15A 125V; NEMA 5-15R;

240 Joules/15,000A protection per mode;

electrical steel box and wallplate

Lock Kit, Chromed Steel FLOCK1*

Includes two keys; eliminates unwanted

tampering

Attaches to extension brackets; 7dB gain

for better coverage

Note: *Not UL or cULus listed.

NSOTVM6

5www.bryant-electric.comSpecifications are subject to change without notice.

• Dimensions: 6.47"W x 2.95"H; except NSOMTM24 6.47"W x 6.00"H

• Meets FCC part 68 standard

• Finish: black; powder coat

• Material: 18 gauge steel or high impact plastic

• Snaps horizontally or vertically into enclosure

• Telephone and data modules are TIA-568A wired

Network Wiring

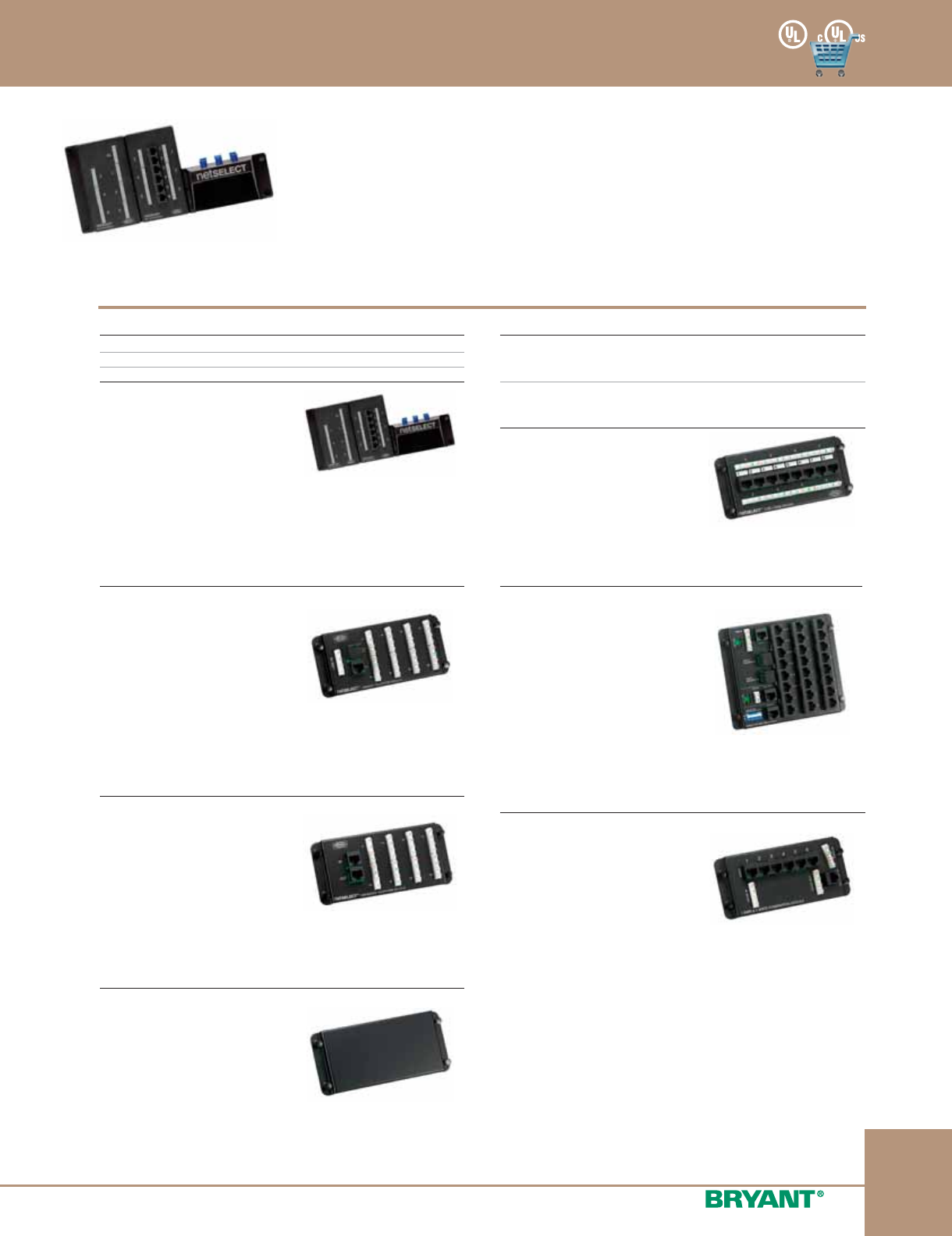

netSELECT® Network Modules

VELCRO® is a registered trademark of Velcro Industries B.V.

Combo Module, 6-Port Catalog Number

6-port telephone panel and

6-port coaxial splitter with

optional 6-port cat. 5e panel;

provides voice, video, and

data distribution; for use with

NSOBOX10 and NS790xx

plates to quickly establish a

comprehensive network

NSOTVDM6

Telephone and video NSOTVM6

Telephone, video and cat. 5e NSOTVDM6

Category 5e data upgrade kit NSODK6

Primary Telephone Module, 8-Port Catalog Number

NSOPTM8

Supports 8 phone outlets

with up to 4 incoming lines for

voice; RJ31X interface jack for

security system connection;

RJ45 jack interfaces with

optional NSOETM8 telephone

expansion module for

additional extensions

Expansion Telephone Module, 8-Port Catalog Number

NSOETM8

Adds additional 8 phone

outlets with up to 4 incoming

lines when used with the

primary telephone module;

RJ45 jumper cord to connect

with NSOPTM8 primary

telephone module

Data Module, 8-Port Catalog Number

Category 5e data module; supports NSODM8

up to gigabit ethernet with front

110 punch-down terminations

Category 6 data module; supports NSODM8C6

enhanced transmission speeds

beyond gigabit ethernet

NSODM8

Multiport Patchable Telecom Module Catalog Number

NSOMTM24

Terminates lines via modular

plug to accommodate ﬂexibility,

by changing plug locations;

reconﬁgure where phone lines

go at the panel level; includes

nine RJ45 jumper cords

Combination Module, 6-Port

Telephone and 1-Port Cat. 5e Data Catalog Number

NSO6P1DM

Provides basic telephone

and data delivery in a small

package; allows data lines to

be converted to voice, with

the move of a patch cord

Blank Module Plate Catalog Number

NSOBM

Allows mounting of active

components (i.e., switches,

routers) or other devices (66

blocks, audio components)

onto a modular platform; can

be custom drilled or used with

two self-adhesive VELCRO®

strips included to mount

components onto module

NETWORK MODULES

6www.bryant-electric.com Specifications are subject to change without notice.

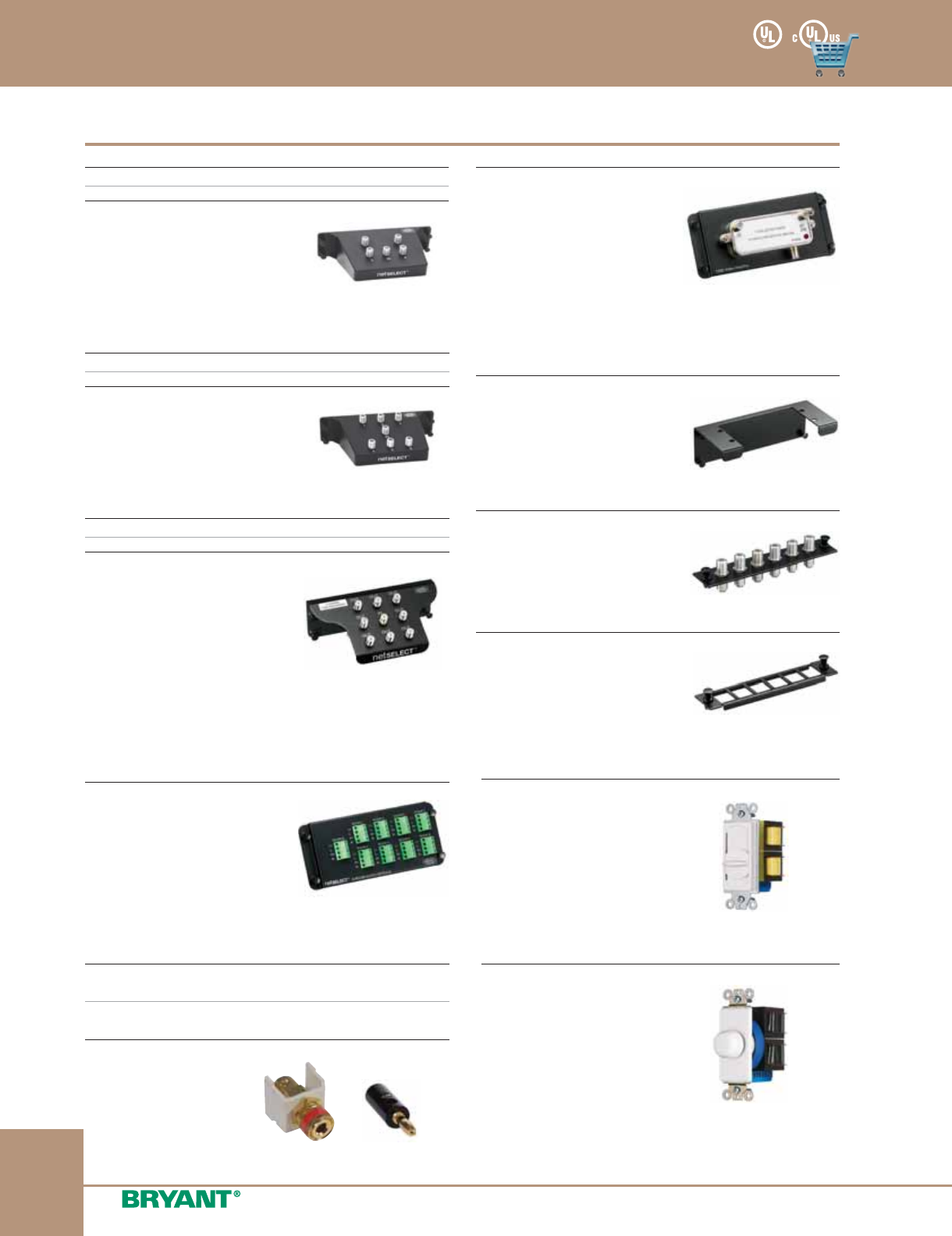

Fixed Video Amplifier Module, 10dB Catalog Number

Provides video signal ampliﬁcation NSOVAMP

for incoming cable feeds

recommended for use when more

than four outputs are installed or

when signal level is low; provides

10dB forward path gain and

supports current digital cable

systems and modems with a

passive return; includes RG59

cable jumper to connect ampliﬁer

to passive video splitter

F-Connector Adapter Panel Catalog Number

Six populated coaxial connectors FSPFP6X

Modular Adapter Panel Catalog Number

Six blank openings for Bryant jacks FSPHD6X

and modular connectorss

Panel Bracket Adapter Catalog Number

For use with adapter panels NSOFSB

shown below and FSP series

modules; snap mounts into

structured cabling enclosures

8 Room Audio Module Catalog Number

Distributes audio from an NSOAM8

ampliﬁer to matching volume

controllers; supports up to eight

rooms of audio; power handling –

200W RMS@20° C per channel;

requires impedance matching

volume controls

Network Wiring

netSELECT® Network Modules and Accessories

NSOVM8

4-Way Coaxial Splitter Modules Catalog Number

1 Ghz; basic unit NSOVM4

2.3 Ghz; enhanced capability NSOVM42G

NSOVM4

NSOVM6

6-Way Coaxial Splitter Modules Catalog Number

1 Ghz; basic unit NSOVM6

2.3 Ghz; enhanced capability NSOVM62G

8-Way Coaxial Splitter Modules Catalog Number

1 Ghz; basic unit NSOVM8

2.3 Ghz; enhanced capability NSOVM82G

AUDIO/VIDEO MODULES AND ACCESSORIES

Slide Stereo Volume Controller Catalog Number

Decorator styling; includes both NSOSAVC

ivory and white slides and frames;

power handling – 70W RMS@20° C;

impedance matching for up to eight

pairs of speakers

Rotary Stereo Volume Controller Catalog Number

Decorator styling; includes both NSORAVC

ivory and white knobs and frames;

power handling – 70W RMS@20° C;

impedance matching for up to eight

pairs of speakers

Gold Speaker Post

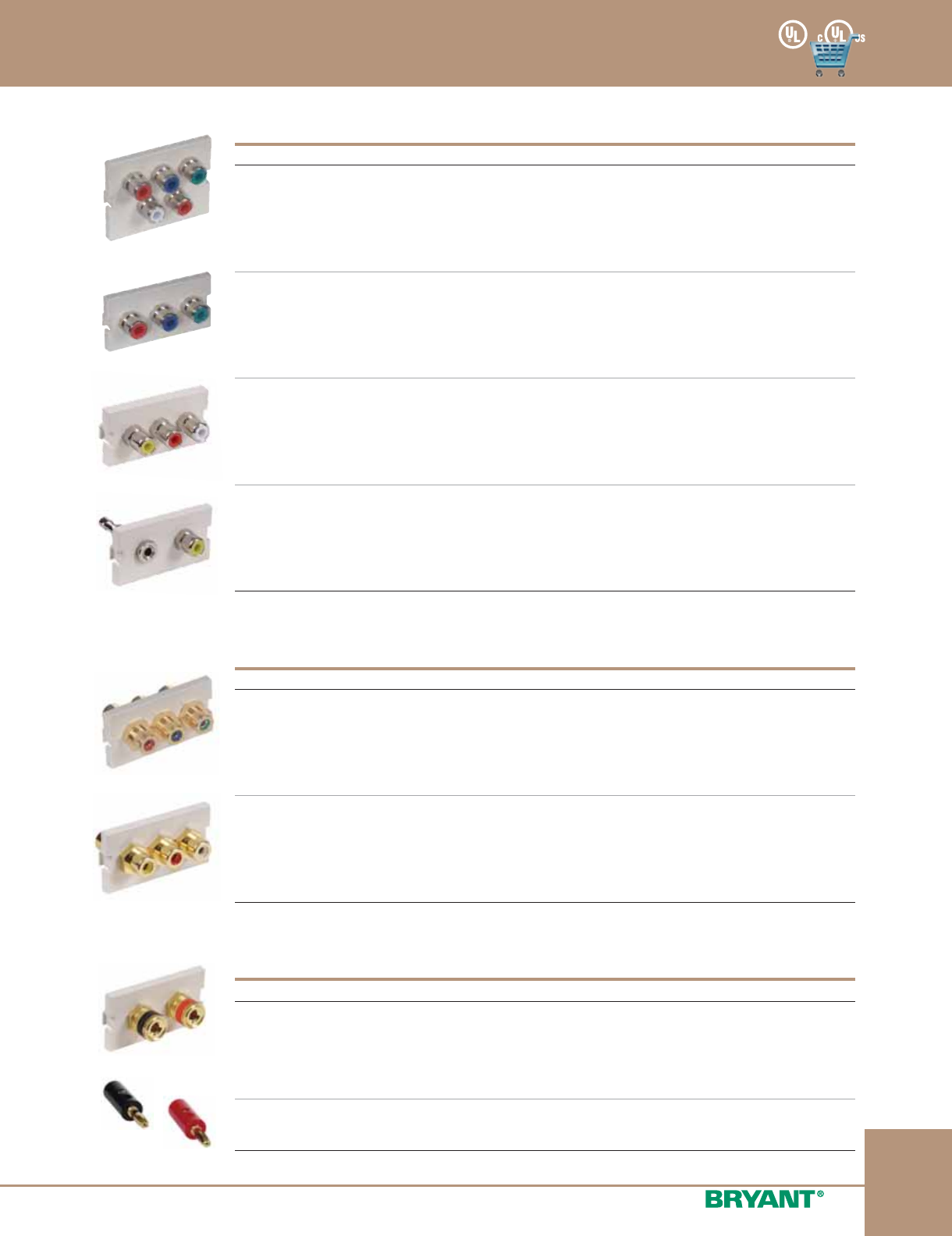

Connectors and Plugs Ring Color Catalog Number

Speaker post connector;

office white housing

Black

Red

SFSPGBK*

SFSPGR*

Speaker banana plugs; gold;

screw termination; 10-packs

Black

Red

SPPBK10*

SPPR10*

Note: *Not UL Listed.

SPPBK10

SFSPGR

NS5E12U

NS612U

NS5E48U

NS648U

NS5E24U

NS624U

7www.bryant-electric.comSpecifications are subject to change without notice.

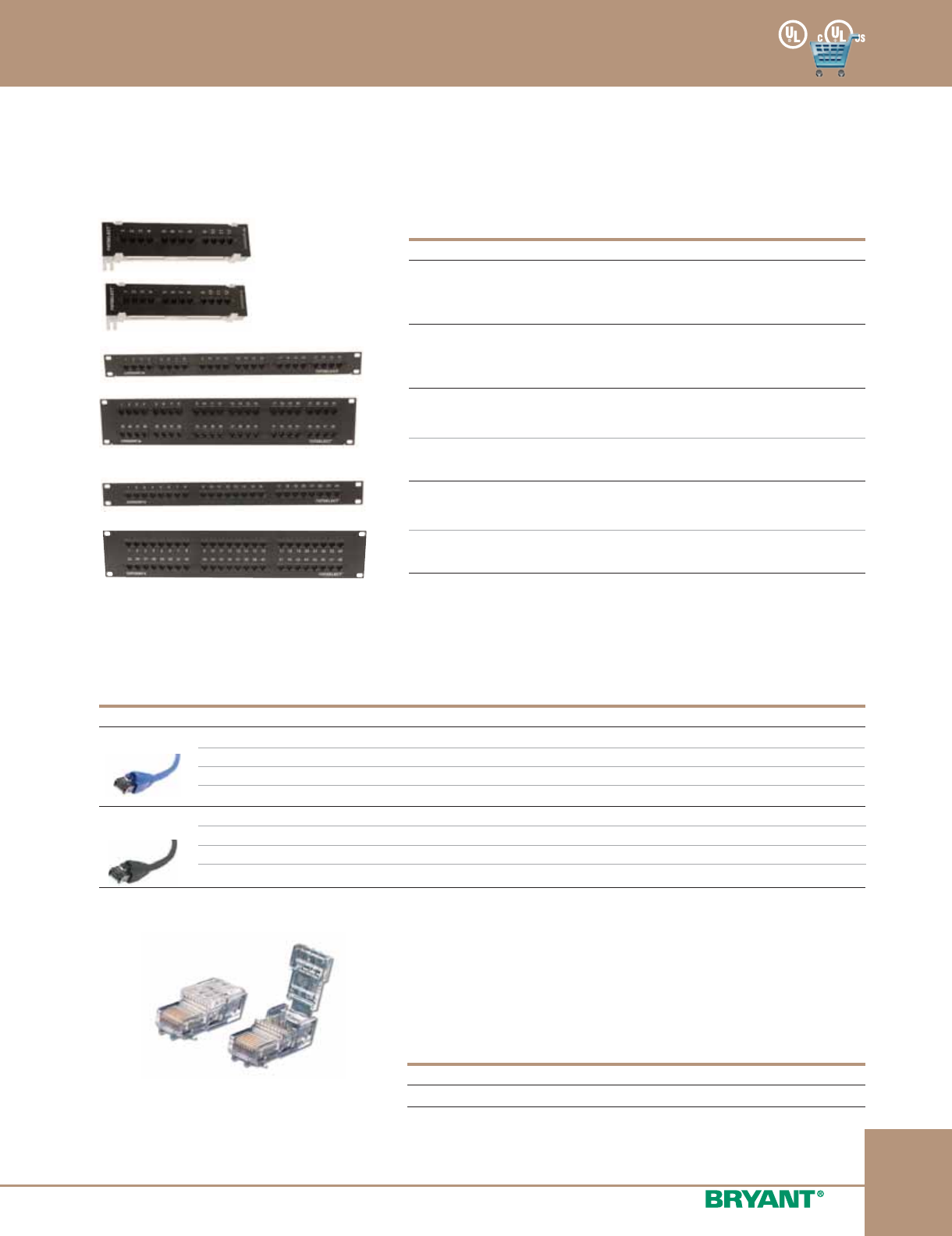

UNIVERSAL PATCH CORDS, CATEGORY 6 AND CATEGORY 5e

Description Color 1-Foot 3-Foot 5-Foot 7-Foot 10-Foot 15-Foot 20-Foot 25-Foot

Category 5e

Patch Cord

Blue

Gray

Yellow

Red

SC5EB01

SC5EGY01

SC5EY01

SC5ER01

SC5EB03

SC5EGY03

SC5EY03

SC5ER03

SC5EB05

SC5EGY05

SC5EY05

SC5ER05

SC5EB07

SC5EGY07

SC5EY07

SC5ER07

SC5EB10

SC5EGY10

SC5EY10

SC5ER10

SC5EB15

SC5EGY15

SC5EY15

SC5ER15

SC5EB20

SC5EGY20

SC5EY20

SC5ER20

SC5EB25

SC5EGY25

SC5EY25

SC5ER25

Category 6

Patch Cord

Blue

Gray

Yellow

Red

SC6B01

SC6GY01

SC6Y01

SC6R01

SC6B03

SC6GY03

SC6Y03

SC6R03

SC6B05

SC6GY05

SC6Y05

SC6R05

SC6B07

SC6GY07

SC6Y07

SC6R07

SC6B10

SC6GY10

SC6Y10

SC6R10

SC6B15

SC6GY15

SC6Y15

SC6R15

SC6B20

SC6GY20

SC6Y20

SC6R20

SC6B25

SC6GY25

SC6Y25

SC6R25

Snap-On Plugs

• All plug contacts 50 micro-inch gold-plated

• IDC wire contacts

• Plastic: 94V-0 rated

• For voice applications

• For solid cable

• Meets and exceeds ANSI/TIA - Category 6 or Category 5e standards

• UL and cUL Listed

UNIVERSAL NETSELECT® PATCH PANELS

Description Catalog Number

Category 5e 12-port universal consolidation block;

89D bracket mount

NS5E12U

Category 6 12-port universal consolidation block;

89D bracket mount

NS612U

Category 5e universal patch panel;

24-port - 1.75 inch H (1 rack unit)

NS5E24U

48-port - 3.50 inch H (2 rack units) NS5E48U

Category 6 universal patch panel

24-port - 1.75 inch H (1 rack unit)

NS624U

48-port - 3.50 inch H (2 rack units) NS648U

• Meets ANSI/TIA category 6 and category 5e standards

• cULus Listed

• Consolidation blocks mount in or on the wall for telephone,

data and AV systems

BRFTP4P

SNAP-ON MODULAR PLUG

Description AWG Catalog Number

Snap-on; 8-position modular plug 24 to 26 BRFTP4P

Network Wiring

Universal Consolidation Blocks, Patch Panels and Patch Cords

8www.bryant-electric.com Specifications are subject to change without notice.

REKH

REKHS

REKF

REKFF

REKSJ20

REKR24

RE4B

RE-BOX® WALL MOUNT ENCLOSURES

PRE-CONFIGURED VERSION

Delivery: 1 base/rear section with welded 19-inch brackets for 2 hubs; 1 front door with 2 locks (NSQ

tool); 1 set 19-inch extension brackets for 2 additional hubs (RE4xx only); 1 set 19-inch bottom hinge

brackets for patch panels

Switch

Capacity

Max. Hub

Width Depth Color Catalog NumberDepth Height

14.0" (356)

22.0" (559)

32.0" (818)

42.0" (1067)

24.2" (615)

7.0" (178)

10.0" (254)

Light gray

Black

Light gray

Black

Light gray

Black

RE2

RE2B

RE4

RE4B

RE4X

RE4XB

USER-CONFIGURABLE VERSION

Delivery: 1 base/rear section and 1 front door with 2 locks (NSQ tool) (IDF24 has only 1 lock)

RWU Height Width Depth Color Catalog Number

24.0" (600)

32.0" (813)

42.0" (1067)

24.2" (615)

7.0" (178)

10.0" (254)

Light Gray

IDF24L*

IDF24

IDF32

IDF42

Note: IDF24L and IDF24 do not use the same base section; knock-out patterns are different.

See page P-9 for key lock kits.

*Front door includes Cat60 key locks.

RE-BOX® WALL MOUNT ENCLOSURE ACCESSORIES

Description Size Catalog Number

Door conversion kit (RE2 to RE4); light gray — REKU

Door conversion kit (RE2 to RE4); black — REKUB

Fan kit; 57CFM (order 1 per RE2, 2 per RE4, RE4X, IDF) — REKF

Fan plate, blank 4.0" fan H1KB

Fan 125V/7A REKEF

Fan filter kit — REKFF

Filler panel 3.5"H MCCBP350

Joining kits Top-to-bottom

Side-by-side (IDF24, IDF24L)

Side-by-side (RE2, RE4, IDF32)

Side-by-side (RE4X, IDF42)

REKTJ

REKSJ20

REKSJ30

REKSJ40

Padlock hasp kit — REKH

For mounting NSO modules (see pages P-5 and P-6) — REKHS

Recessed mounting kit 24.0"

32.0"

42.0"

REKR24

REKR32

REKR42

Reverse hinge kit — REKI

Sound dampening kit — REKS

Network Wiring

Wall Mounted Enclosures

9www.bryant-electric.comSpecifications are subject to change without notice.

Network Wiring

Wall Mounted Enclosures

REKMT10

CTK

REKGB

REKP

REKFP HIDRUBCKIT

REKZ

QUADCAB® WALL MOUNT ENCLOSURE

Cabinet Depth Door Style Color* Catalog Number

20.0"

26.0"

36.0"

20.0"

26.0"

36.0"

Window

Solid

Black

HSQXX

HSQXX26

HSQXX36

HSQXXS

HSQXXS26

HSQXXS36

Note: XX = Height in inches. ‘24’ = 24"/12 Rack Units; ‘36’ = 36"/19 Rack Units; ‘48’ = 48"/26 Rack Units.

*For Office White, add “W” to the end of the catalog number.

Delivery: 1 rear section (arrives disassembled, facilitating installation); 1 front door; 2 19-inch mounting angles;

1 center section with 2 CH751 locks; 2 top/bottom cover plates; 2 hinge pins; 2 security cotter pins.

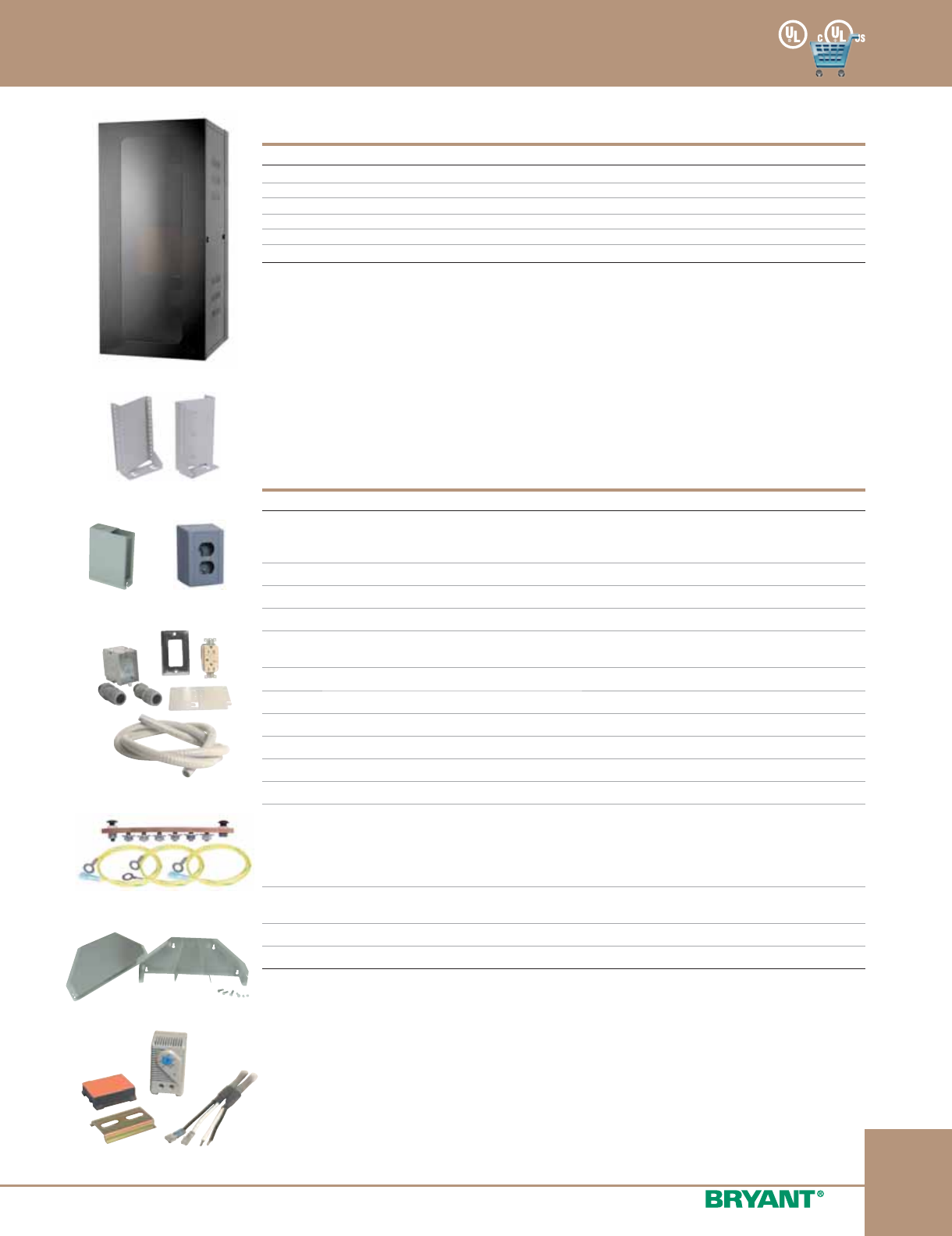

RE-BOX® AND QUADCAB® WALL MOUNT ENCLOSURE

ACCESSORIES

Description Size/Style Catalog Number

¾" plywood backboard 20.0" x 19.0"

30.0" x 19.0"

40.0" x 19.0"

REKBB20

REKBB30

REKBB40

110/66 block mounting rails — REK110

DIN rail utility box — DRUBTVSS15

DIN rail communications kit — HIDRUBCKIT

Equipment mounting bracket 8.75"

5.25"

REKZ

REKZL

Fiber optic bracket — REKFP

Filler panel 3.5"H MCCBP350

Gasket kit - padded grommet 30' HWKGT

Gasket kit - adhesive backed foam 10' REKG

Ground kit — REKGB

Ground strap kit; economy — REKEGS

Key lock kits: CH751

333

Bellcore 716

Cat60

Cat70

CKL751

CKL333

CKL716

CKLCAT60

CKLCAT70

Patch panel mounting bracket 7.0"

3.5"

REK19

REK19L

Power kit; 20A — REKP

Thermostat — CTK

10 www.bryant-electric.com Specifications are subject to change without notice.

HPW84RR19

HPW84RR19ML

Network Wiring

Cable Management Racks

EQUIPMENT RACKS Inches (mm)

Rack Height Rack Units Mounting Width Finish* Catalog Number

48.0" (1219)

68.5" (1676)

84.0" (2134)

89.7" (2286)

96.0" (2438)

19.0" (483)

23.0" (584)

19.0" (483)

23.0" (584)

19.0" (483)

23.0" (584)

19.0" (483)

23.0" (584)

Black

HPW48RR19

HPW48RR23

HPW66RR19

HPW84RR19

HPW84RR23

HPW90RR19

HPW90RR23

HPW96RR19

HPW96RR23

Note: Shipped unassembled.

*For aluminum mill finish rack, add “ML” to end of catalog number.

19" EQUIPMENT RACKS WITH 6" WIDE ‘Z’ CHANNELS Feet (m)

Rack Height Rack Units Finish Cover Style Catalog Number

7.0' (2.13)

Black

Aluminum

Hinged

Clip on

CS1976H

CS1976

CS1976A

Note: Delivery: 1 rack - 7'H (HPW84RR19); 2 vertical organizers (VS76/VS76A).

19" EQUIPMENT RACKS WITH 3.25" WIDE ‘C’ CHANNELS Feet (m)

Rack Height Rack Units Finish Cover Style Catalog Number

7.0' (2.13)

Black

Aluminum

Hinged

Clip on

CS1973H

CS1973

CS1973A

Note: Delivery: 1 rack - 7'H (HPW84RR19); 2 vertical organizers (VS73/VS73A); 4 covers (VCC3/VCC3A).

11www.bryant-electric.comSpecifications are subject to change without notice.

HC219CC3N

VS76H

HC119CC3P

Network Wiring

Cable Management Racks

VERTICAL CHANNELS FOR 7' RACK Feet (m)

Rack Height Hinged Cover Color

Catalog Number

6"W 3.25"W

7' (2134) Black VS76H VS73H

6" ‘Z’ CHANNEL WITH COVER Feet (m)

Rack Height

Catalog Number

Black Aluminum

7' (2134) or 7.5' (2.29) VS76 VS76A

8' (2.44) VS86 VS86A

¾" ‘C’ CHANNEL Feet (m)

Rack Height

Catalog Number

Black Aluminum

7' (2.13) VS73 VS73A

METAL ORGANIZERS, 19" WIDE Inches (mm)

Rack Units Panel Height

Front Ring

Depth

Rear Ring

Depth Catalog Number

1.75" (44.5)

3.5" (88.9)

5.25" (133.4)

3.5" (88.9)

6.0" (152.4)

3.5" (88.9)

6.0" (152.4)

—

4.6" (116.8)

—

HC119GC36*

HC119MS3N

HC219CE3N

HC219CE6N

HC219CC3N

HC219MS3N

HC319CE6N

Note: *Includes rear wire frame and rear cover—no pass-through holes.

PLASTIC FINGER DUCT ORGANIZERS Inches (mm)

Rack Units Panel Height

Front Duct

Depth

Rear Duct

Depth Catalog Number

3.5" (88.9)

1.75" (44.5)

3.0" (76.2)

5.0" (127.0)

—

5.0" (127.0)

—

HC219CC3P

HC219CE3P

HC119CC3P

HC119CE3P

12 www.bryant-electric.com Specifications are subject to change without notice.

MCCPSS19TS

HPWPWR

PR20620

PRAMB

PRSLB4

POWER STRIPS, 19" RACK MOUNT

All units utilize 1U of rack space and include circuit breakers (except PR10720); 15A units feature 10-foot cable with

NEMA 5-15P plug; 20A units feature 10-foot cable with NEMA 5-20P plug; delivery: 1 strip, 1 kit mounting hardware

Electrical

Specification

Receptacle

Type

Outlets Mounting

Style

Surge

Protected

Transformer

Spaced Switch

Current

Monitor Catalog NumberFront Rear

15A/120V NEMA 5-15R 0 10 Flush No No Yes No HPWPWR

15A/120V NEMA 5-15R 0 10 Flush Yes* No Yes No MCCPSS19

15A/120V NEMA 5-15R 4 4 Recess Yes* Yes No No MCCPSS19TS

20A/120V NEMA 5-20R 0 10 Flush No No No No PR10120

20/16A,

120/250V

IEC 320-C13 10 0 Flush No No Yes No PR10720**

15A/120V NEMA 5-15R 0 6 Flush No No No No PR0615

20A/120V NEMA 5-20R 0 10 Flush No No Yes Yes PR1020

60A/250V IEC 320-C19 0 3 Adjustable No N/A CB/

Switch

No PR0360***

Note: *Joule rating = 720J. **PR10720 includes an IEC 320 (C-20) inlet for power input; vertical mount brackets are also included.

***PR0360 features 10' cable with IEC 60A 2P/3W plug.

POWER STRIPS, VERTICAL MOUNT

All units include circuit breakers and full length mounting bracket; feature 10-foot cable (except PR20820I); delivery:

1 strip; 1 kit mounting hardware; universal mounting brackets

Electrical

Specification

Receptacle

Type

Outlets

Front Type

Plug

Circuits

Number of

Protected

Surge

Switch

Current

Monitor Catalog Number

15A/120V NEMA 5-15R 10 NEMA 5-15P 1 No No No PR104

20A/120V NEMA 5-20R 10 NEMA 5-20P 1 No No No PR10420

15A/120V NEMA 5-15R 20 NEMA 5-15P 1 No No No PR206

20A/120V NEMA 5-20R 20 NEMA 5-20P 1 No No No PR20620

20A/120V NEMA 5-20R 20 NEMA 5-20P 1 No Yes Yes PR20820DRTL

30A/120V NEMA 5-20R 20 NEMA L5-30P 1 No No No PR20830

20/16A/

circuit 120V

NEMA 5-20R 20 NEMA 5-20P 2 No No No PR20820A*

20/16A-120/

250V

IEC 320C-13 20 IEC 320 (C-20) 1 No No No PR20820I**

30/24A-250V IEC 320C-13 24 NEMA L6-30P 1 No No No PR24

Note: *PR20820A features (2) 20A circuits each fed by 10-foot cable with NEMA 5-20 plug.

**PR20820I includes an IEC 320 (C-20) inlet for power input.

MOUNTING BRACKETS FOR POWER STRIPS

Power Strip Style Description Catalog Number

19" Rack mount Adjustable mounting brackets; allows numerous recess or flush mount PRAMB*

19" Rack mount Panel mount brackets; ideal for zero ‘U’ mounting applications by effectively

allowing the unit to be hung from a cross beam or flat surface

PRPMB*

Vertical mount ‘L’ brackets – turned ‘in’ for rack/rail mounting; turned ‘out’ to extend

mounting options an additional 8 inches

PRSLB4*

Vertical mount Left, right, front or back rail mounting; may be installed in conjunction with other

equipment mounted in the same ‘U’ space

PREZB*

Note: *Not UL recognized.

MOUNTING BRACKETS OPTIONS

Type Catalog Number Integral Fixed Brackets Pre-Assembled Brackets Included Optional Brackets Available

19" Rack

Mount

HPWPWR, MCCPSS19

PR10120, PR0615, PR1020 Flush Mount N/A N/A

MCCPSS19TS N/A Recess Mount PRAMB, PRPMB

PR10720 N/A Flush Mount and PRSLB4 PREZB

PR0360 N/A PRAMB PRPMB

Vertical

Mount

PR104, PR10420, PR206,

PR20620, PR20820A,

PR20820I, PR20820DRTL,

PR24, PR20830

N/A Full Length PRSLB4, PREZB

Network Wiring

Power Strips

Customize your jack

selections and look.

+ =

NSJUW

NSJ5EW

NSJ6W

13www.bryant-electric.comSpecifications are subject to change without notice.

netSELECT® Voice/Data Jacks provide for a wide range of applications ranging from high

performance data demands of Cat. 6 and Cat. 5e, to simple voice grade USOC jacks.

• Easy to terminate angled wiring towers

• Meets FCC part 68

• Meets and exceeds ANSI/TIA - Category 6 and

Category 5e standards

• UL Listed and CSA Certiﬁed

MODULAR JACKS

Description Color Catalog Number

Bag of 25

Catalog Number

Category 6 jacks Almond

Black

Blue

Gray

Green

Ivory

Light Almond

Orange

Red

White

Yellow

NSJ6AL

NSJ6BK

NSJ6B

NSJ6GY

NSJ6GN

NSJ6I

NSJ6LA

NSJ6OR

NSJ6R

NSJ6W

NSJ6Y

NSJ6AL25

NSJ6BK25

NSJ6B25

NSJ6GY25

NSJ6GN25

NSJ6I25

NSJ6LA25

NSJ6OR25

NSJ6R25

NSJ6W25

NSJ6Y25

Category 5e jacks Almond

Black

Blue

Gray

Green

Ivory

Light Almond

Orange

Red

White

Yellow

NSJ5EAL

NSJ5EBK

NSJ5EB

NSJ5EGY

NSJ5EGN

NSJ5EI

NSJ5ELA

NSJ5EOR

NSJ5ER

NSJ5EW

NSJ5EY

NSJ5EAL25

NSJ5EBK25

NSJ5EB25

NSJ5EGY25

NSJ5EGN25

NSJ5EI25

NSJ5ELA25

NSJ5EOR25

NSJ5ER25

NSJ5EW25

NSJ5EY25

Category USOC jacks Almond

Black

Blue

Gray

Green

Ivory

Light Almond

Orange

Red

White

Yellow

NSJUAL

NSJUBK

NSJUB

NSJUGY

NSJUGN

NSJUI

NSJULA

NSJUOR

NSJUR

NSJUW

NSJUY

—

Note: For a complete list of A/V and fiber modular connectors see pages P-14 to P-17.

Network Wiring

Modular Jacks

NSF70I

SFRFGEI

SFFGEI

SFGRFEI

SFSV110BK

SFBGOW

SFBOW

FRG625

14 www.bryant-electric.com Specifications are subject to change without notice.

Network Wiring

Modular Connectors

RG6 AND RG59 COMPRESSION CONNECTORS

Termination Type Cable Type Number of Pieces Catalog Number

Compression

Crimp

RG6/RG6 Quad Shield

RG59

RG6

FRG625*

FRG5925*

FRG6C25*

Note: *Not UL Listed.

See page P-35 for compression tool.

F-TYPE CONNECTORS

Description Color

Catalog Number

Standard Bulkhead Recessed

Gold F-type coupler bulkhead;

female to female

Almond

Black

Gray

Ivory

Light Almond

Ofﬁce White

White

SFFGAL

SFFGBK

SFFGGY

SFFGEI

SFFGLA

SFFGOW

SFFGW

SFGRFAL

SFGRFBK

SFGRFGY

SFGRFEI

SFGRFLA

SFGRFOW

SFGRFW

Nickel F-type coupler bulkhead;

female to female

Almond

Black

Gray

Ivory

Light Almond

Ofﬁce White

White

NSF70AL

NSF70BK

NSF70GY

NSF70I

NSF70LA

NSF70OW

NSF70W

—

Nickel F-type coupler bulkhead;

male to female; bag of 25

NSC9025* —

Gold F-type to RCA bulkhead;

female to female

Black

Gray

Ivory

Ofﬁce White

White

SFRFGBK*

SFRFGGY*

SFRFGEI*

SFRFGOW*

SFRFGW*

—

Note: *Not UL Listed.

S-VIDEO CONNECTORS

Description Color Catalog Number

S-video; 110 punch-down Black SFSV110BK

S-video; female to female coupler Black SFSVBK

BNC CONNECTORS

Description Color Catalog Number

Nickle ﬁnish; BNC connector Black

Gray

Ivory

Light Almond

Ofﬁce White

White

SFBBK

SFBGY

SFBEI

SFBLA

SFBOW

SFBW

Gold ﬁnish; BNC connector Black

Gray

Ivory

Light Almond

Ofﬁce White

White

SFBGBK

SFBGGY

SFBGEI

SFBGLA

SFBGOW

SFBGW

SPPBK10

SF35ST

SFC5EBK

SFC5EW

SFUSBABB

SFUSBAAB

SF5ECOGY

SFSPGR

SF35FF

15www.bryant-electric.comSpecifications are subject to change without notice.

GOLD SPEAKER POST CONNECTORS AND PLUGS

Description Ring Color Catalog Number

Speaker post connector;

office white housing

Black

Red

SFSPGBK*

SFSPGR*

Speaker post/banana plugs Black

Red

SPPBK10*

SPPR10*

Note: *Not UL Listed.

3.5MM STEREO JACKS

Description Housing Color Catalog Number

3.5mm F/F coupler Black

Gray

Ivory

Light Almond

Ofﬁce White

White

SF35FFBK*

SF35FFGY*

SF35FFEI*

SF35FFLA*

SF35FFOW*

SF35FFW*

3.5mm stereo jack Black

Gray

Ivory

Light Almond

Ofﬁce White

White

SF35SJBK*

SF35SJGY*

SF35SJEI*

SF35SJLA*

SF35SJ*

SF35SJW*

3.5mm screw term Black

Gray

Ivory

Light Almond

Ofﬁce White

White

SF35STBK*

SF35STGY*

SF35STEI*

SF35STLA*

SF35STOW*

SF35STW*

Note: *Not UL Listed.

INLINE COUPLERS

Description Color Catalog Number

Wiring: T568A/B Black

White

SFC5EBK*

SFC5EW*

Crossover Gray SF5ECOGY*

Note: *Not UL Listed.

USB CONNECTORS

Description Color Catalog Number

Format: A-to-B Blue

Ofﬁce White

White

SFUSBABB

SFUSBABOW

SFUSBABW

Format: A-to-A Blue

Ofﬁce White

White

SFUSBAAB

SFUSBAAOW

SFUSBAAW

Network Wiring

Modular Connectors

SFRCGREI

SFRCBKREI

SFRCORREI

SFRCGFFEI

SFRCBKFFEI

SFRCORFFEI

SFRCBREISFRCBFFEI

SFRCYREISFRCYFFEI

SFRCWREISFRCWFFEI

SFRCRREISFRCRFFEI

16 www.bryant-electric.com Specifications are subject to change without notice.

RCA CONNECTORS

Description

Housing

Color

Catalog Number

Standard Bulkhead Recessed

RCA 110 punch-down;

black housing

Blue

Green

Red

White

Yellow

SFRC110B

SFRC110GN

SFRC110R

SFRC110W

SFRC110Y

—

RCA gold pass through;

female to female;

red interior

Almond

Black

Gray

Ivory

Light Almond

Ofﬁce White

White

SFRCRFFAL

SFRCRFFBK

SFRCRFFGY

SFRCRFFEI

SFRCRFFLA

SFRCRFF

SFRCRFFW

SFRCRRAL

SFRCRRBK

SFRCRRGY

SFRCRREI

SFRCRRLA

SFRCRR

SFRCRRW

RCA gold pass through;

female to female;

white interior

Almond

Black

Gray

Ivory

Light Almond

Ofﬁce White

White

SFRCWFFAL

SFRCWFFBK

SFRCWFFGY

SFRCWFFEI

SFRCWFFLA

SFRCWFF

SFRCWFFW

SFRCWRAL

SFRCWRBK

SFRCWRGY

SFRCWREI

SFRCWRLA

SFRCWR

SFRCWRW

RCA gold pass through;

female to female;

yellow interior

Almond

Black

Gray

Ivory

Light Almond

Ofﬁce White

White

SFRCYFFAL

SFRCYFFBK

SFRCYFFGY

SFRCYFFEI

SFRCYFFLA

SFRCYFF

SFRCYFFW

SFRCYRAL

SFRCYRBK

SFRCYRGY

SFRCYREI

SFRCYRLA

SFRCYR

SFRCYRW

RCA gold pass through;

female to female;

blue interior

Almond

Black

Gray

Ivory

Light Almond

Ofﬁce White

White

SFRCBFFAL

SFRCBFFBK

SFRCBFFGY

SFRCBFFEI

SFRCBFFLA

SFRCBFFOW

SFRCBFFW

SFRCBRAL

SFRCBRBK

SFRCBRGY

SFRCBREI

SFRCBRLA

SFRCBROW

SFRCBRW

RCA gold pass through;

female to female;

green interior

Almond

Black

Gray

Ivory

Light Almond

Ofﬁce White

White

SFRCGNFFAL

SFRCGNFFBK

SFRCGNFFGY

SFRCGNFFEI

SFRCGNFFLA

SFRCGNFFOW

SFRCGNFFW

SFRCGNRAL

SFRCGNRBK

SFRCGNRGY

SFRCGNREI

SFRCGNRLA

SFRCGNROW

SFRCGNRW

RCA gold pass through;

female to female;

black interior

Almond

Black

Gray

Ivory

Light Almond

Ofﬁce White

White

SFRCBKFFAL

SFRCBKFFBK

SFRCBKFFGY

SFRCBKFFEI

SFRCBKFFLA

SFRCBKFF

SFRCBKFFW

SFRCBKRAL

SFRCBKRBK

SFRCBKRGY

SFRCBKREI

SFRCBKRLA

SFRCBKR

SFRCBKRW

RCA gold pass through;

female to female;

orange interior

Almond

Black

Gray

Ivory

Light Almond

Ofﬁce White

White

SFRCORFFAL

SFRCORFFBK

SFRCORFFGY

SFRCORFFEI

SFRCORFFLA

SFRCORFFOW

SFRCORFFW

SFRCORRAL

SFRCORRBK

SFRCORRGY

SFRCORREI

SFRCORRLA

SFRCORROW

SFRCORRW

Network Wiring

Modular Connectors

SFRC110R

SFSBEI10

SFRCR

SFRCW

SFRCY

SFRCBOW

SFRCGNOW

SFRCBKOW

SFRCOROW

SFB10

17www.bryant-electric.comSpecifications are subject to change without notice.

RCA CONNECTORS

Description

Housing

Color

Standard Bulkhead

Catalog Number

Solder coupler termination;

red interior

Almond

Black

Gray

Ivory

Light Almond

Ofﬁce White

White

SFRCRAL

SFRCRBK

SFRCRGY

SFRCREI

SFRCRLA

SFRCR

SFRCRW

Solder coupler termination;

white interior

Almond

Black

Gray

Ivory

Light Almond

Ofﬁce White

White

SFRCWAL

SFRCWBK

SFRCWGY

SFRCWEI

SFRCWLA

SFRCW

SFRCWW

Solder coupler termination;

yellow interior

Almond

Black

Gray

Ivory

Light Almond

Ofﬁce White

White

SFRCYAL

SFRCYBK

SFRCYGY

SFRCYEI

SFRCYLA

SFRCY

SFRCYW

Solder coupler termination;

blue interior

Almond

Black

Gray

Ivory

Light Almond

Ofﬁce White

White

SFRCBAL

SFRCBBK

SFRCBGY

SFRCBEI

SFRCBLA

SFRCBOW

SFRCBW

Solder coupler termination;

green interior

Almond

Black

Gray

Ivory

Light Almond

Ofﬁce White

White

SFRCGNAL

SFRCGNBK

SFRCGNGY

SFRCGNEI

SFRCGNLA

SFRCGNOW

SFRCGNW

Solder coupler termination;

black interior

Almond

Black

Gray

Ivory

Light Almond

Ofﬁce White

White

SFRCBKAL

SFRCBKBK

SFRCBKGY

SFRCBKEI

SFRCBKLA

SFRCBKOW

SFRCBKW

Solder coupler termination;

orange interior

Almond

Black

Gray

Ivory

Light Almond

Ofﬁce White

White

SFRCORAL

SFRCORBK

SFRCORGY

SFRCOREI

SFRCORLA

SFRCOROW

SFRCORW

BLANK INSERTS

Description Color Catalog Number

Smooth

Catalog Number

Blank insert; 10-pack (order 1 to receive

a bag of 10 blanks)

Almond

Black

Gray

Ivory

Light Almond

Ofﬁce White

White

SFBAL10

SFBBK10

SFBGY10

SFBEI10

SFBLA10

SFB10

SFBW10

SFSBAL10

SFSBBK10

SFSBGY10

SFSBEI10

SFSBLA10

SFSB10

SFSBW10

Network Wiring

Modular Connectors

NSP26I

NSP24I

NSP16I

NSP14I

NSP13I

NSP12I

NSP11I

18 www.bryant-electric.com Specifications are subject to change without notice.

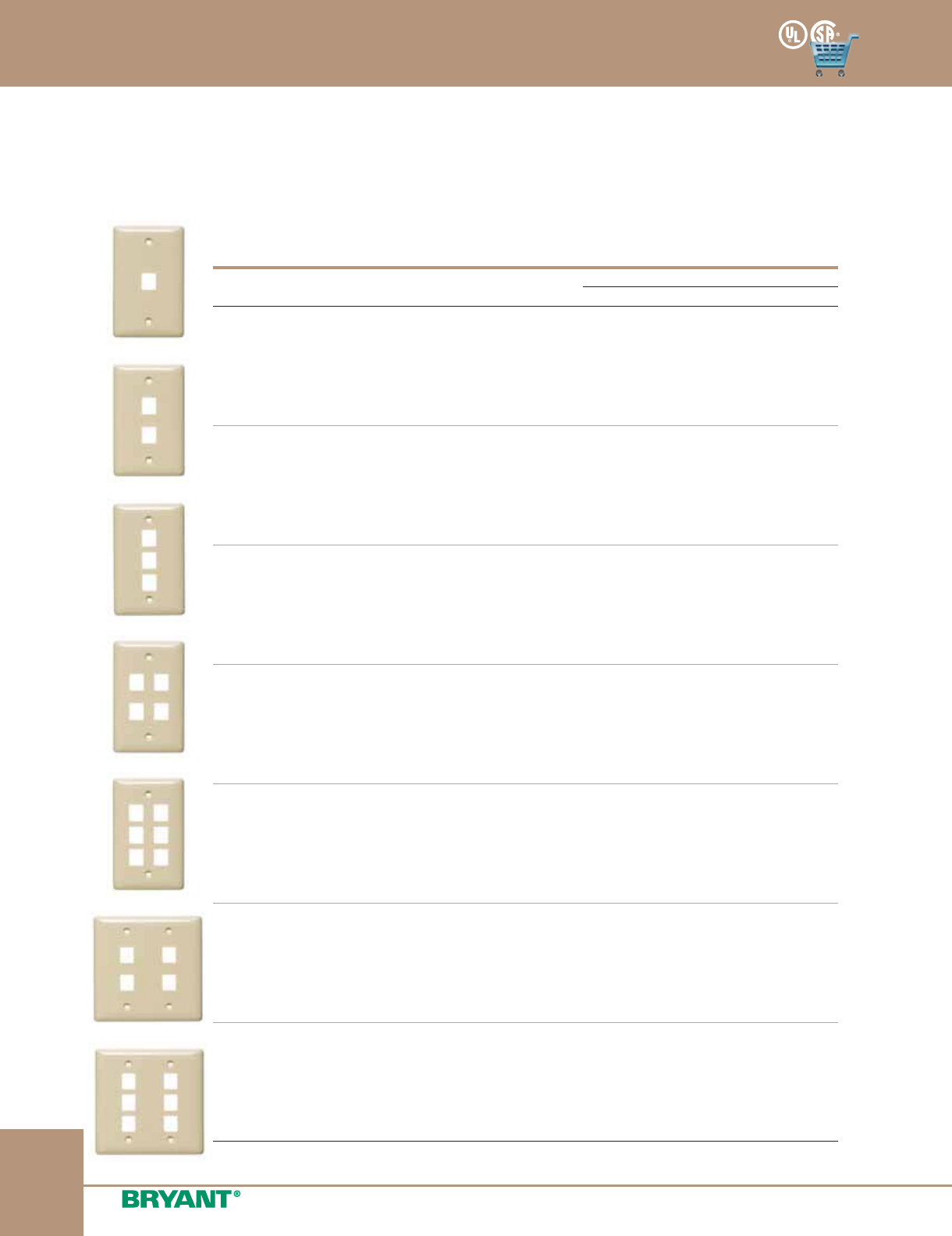

MULTIMEDIA FACE PLATES

Description Color

Catalog Number

Standard Mid-Size

1-Gang; 1-port plate Almond

Black

Gray

Ivory

Light Almond

White

NSP11AL

NSP11BK

NSP11GY

NSP11I

NSP11LA

NSP11W

NSP101AL

NSP101BK

NSP101GY

NSP101I

NSP101LA

NSP101W

1-Gang; 2-port plate Almond

Black

Gray

Ivory

Light Almond

White

NSP12AL

NSP12BK

NSP12GY

NSP12I

NSP12LA

NSP12W

NSP102AL

NSP102BK

NSP102GY

NSP102I

NSP102LA

NSP102W

1-Gang; 3-port plate Almond

Black

Gray

Ivory

Light Almond

White

NSP13AL

NSP13BK

NSP13GY

NSP13I

NSP13LA

NSP13W

NSP103AL

NSP103BK

NSP103GY

NSP103I

NSP103LA

NSP103W

1-Gang; 4-port plate Almond

Black

Gray

Ivory

Light Almond

White

NSP14AL

NSP14BK

NSP14GY

NSP14I

NSP14LA

NSP14W

NSP104AL

NSP104BK

NSP104GY

NSP104I

NSP104LA

NSP104W

1-Gang; 6-port plate Almond

Black

Gray

Ivory

Light Almond

White

NSP16AL

NSP16BK

NSP16GY

NSP16I

NSP16LA

NSP16W

NSP106AL

NSP106BK

NSP106GY

NSP106I

NSP106LA

NSP106W

2-Gang; 4-port plate Almond

Black

Gray

Ivory

Light Almond

White

NSP24AL

NSP24BK

NSP24GY

NSP24I

NSP24LA

NSP24W

—

2-Gang; 6-port plate Almond

Black

Gray

Ivory

Light Almond

White

NSP26AL

NSP26BK

NSP26GY

NSP26I

NSP26LA

NSP26W

—

netSELECT® multimedia face plates offer a perfect match to electrical wallplates for a consistent

smooth ﬁnish look.

• Accepts AV and Voice/Data connectors

• High impact-resistant thermoplastic plate

• UL Listed 1863 - Communication Circuit Accessory

• CSA Certiﬁed

Network Wiring

Multimedia Face Plates

630 WALL PHONE PLATES

Color

1-Gang

1-Port 2-Port 3-Port 4-Port 6-Port

2-Gang

6-Port 9-Port 12-Port

Almond

Black

Gray

Ivory

Light Almond*

Office White

White

IFP11AL

IFP11BK

IFP11GY

IFP11EI

IFP11LA

IFP11OW

IFP11W

IFP12AL

IFP12BK

IFP12GY

IFP12EI

IFP12LA

IFP12OW

IFP12W

IFP13AL

IFP13BK

IFP13GY

IFP13EI

IFP13LA

IFP13OW

IFP13W

IFP14AL

IFP14BK

IFP14GY

IFP14EI

IFP14LA

IFP14OW

IFP14W

IFP16AL

IFP16BK

IFP16GY

IFP16EI

IFP16LA

IFP16OW

IFP16W

IFP26AL

IFP26BK

IFP26GY

IFP26EI

IFP26LA

IFP26OW

IFP26W

—

IFP29BK

IFP29GY

IFP29EI

IFP29LA

IFP29OW

IFP29W

—

IFP212BK

IFP212GY

IFP212EI

IFP212LA

IFP212OW

IFP212W

Note: *Light Almond plates match Office White non-metallic raceway, boxes, jacks and connectors.

1-Gang

1-Port 2-Port 3-Port 4-Port 6-Port

2-Gang

4-Port 6-Port 9-Port 12-Port

SSF11 SSF12 SSF13 SSF14 SSF16 SSF204 SSF206 SSF209 SSF212

1-Gang Catalog Number

1-Port

2-Port

3-Port

4-Port

6-Port

SSFL11

SSFL12

SSFL13

SSFL14

SSFL16

Color Duplex Plate Decorator Plate

Almond

Office White

IFP18AL

IFP18OW

IFP126AL

IFP126OW

STAINLESS STEEL FACE PLATES WITHOUT LABEL FIELDS

IFP FACE PLATES, WITH LABEL FIELDS, 1- AND 2-GANG

STAINLESS STEEL FACE PLATES

WITH LABEL FIELDS

DUPLEX AND DECORATOR PLATES

WITH LABEL FIELDS

Description Jack Format Includes Catalog Number

Stainless steel; 1-gang

wall phone plate

Flush

Recessed

6-position USOC gray jack, RJ25

8-position Cat. 5e, gray jack, RJ45

6-position USOC gray jack, RJ25

8-position Cat. 5e, gray jack, RJ45

P630S1GJ6

P630S1GJ8

P630SR1GJ6

P630SR1GJ8

Color

1-Gang

Duplex Plate

1-Gang

Decorator Plate

2-Gang

Decorator Plate

Almond

Black

Gray

Ivory

Light Almond*

White

NP8AL

NP8BK

NP8GY

NP8I

NP8LA

NP8W

NP26AL

NP26BK

NP26GY

NP26I

NP26LA

NP26W

NP262AL

NP262BK

NP262GY

NP262I

NP262LA

NP262W

Note: *Light Almond plates match Office White non-metallic raceway, boxes, jacks and connectors.

STANDARD DUPLEX AND DECORATOR PLATES WITH NO LABEL FIELDS

19www.bryant-electric.comSpecifications are subject to change without notice.

Network Wiring

iSTATION™ Face Plates

Q106W

BR106B

NS620I

SL5E4A

NS621I

SL5E4B

NS613INS612I

TPF1W TWPF1GY

20 www.bryant-electric.com Specifications are subject to change without notice.

Network Wiring

Outlet Frames and Plates

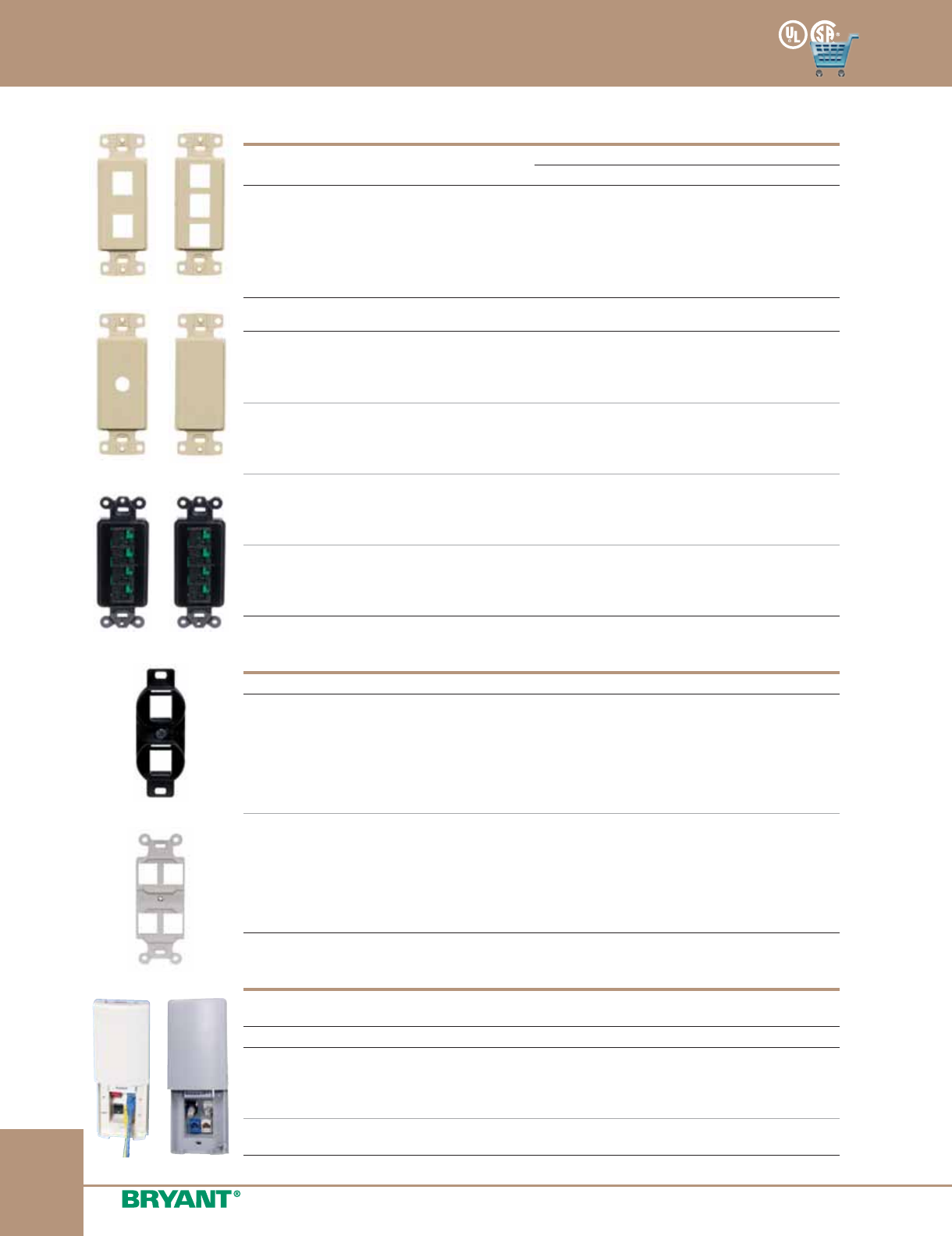

DECORATOR OUTLET FRAMES

Description Color

Catalog Number

2-Port 3-Port 4-Port 6-Port

netSELECT® decorator

unloaded frames provide a

stylized look for that finishing

touch; multimedia jacks

insert into frame for custom

configuration; high impact-

resistant thermoplastic frame

Almond

Black

Gray

Ivory

Light Almond

White

NS612AL

NS612BK

NS612GY

NS612I

NS612LA

NS612W

NS613AL

NS613BK

NS613GY

NS613I

NS613LA

NS613W

NS614AL

NS614BK

NS614GY

NS614I

NS614LA

NS614W

NS616AL

NS616BK

NS616GY

NS616I

NS616LA

NS616W

Description Color Catalog Number

1-Gang adapter; .40" (10.3 mm)

dia. hole; for use with rotary

dimmers or to pull through

AV or telephone cable

Almond

Ivory

Light Almond

White

NS621AL

NS621I

NS621LA

NS621W

1-Gang adapter blank; to ﬁll

an extra decorator opening

or to create customized

openings

Almond

Ivory

Light Almond

White

NS620AL

NS620I

NS620LA

NS620W

4-Port; T568B; loaded Black SL5E4B

4-Port; T568A; loaded Black SL5E4A

DUPLEX OUTLET FRAMES

Description Color Catalog Number

2-Port duplex; unloaded Almond

Black

Gray

Ivory

Light Almond

Office White

White

BR106AL

BR106B

BR106G

BR106E

BR106LA

BR106OW

BR106W

4-Port duplex; unloaded Almond

Black

Gray

Ivory

Light Almond

Office White

White

Q106AL

Q106B

Q106G

Q106E

Q106LA

Q106OW

Q106W

SECURE-IT™ PLATES

Secure-IT™ plates protect mated and unmated connections from physical damage and unauthorized

tampering. Available in tamper-resistant and weatherproof versions.

Description Color Catalog Number

Tamper-resistant plates Black

Gray

Office White

White

TPF1BK

TPF1GY

TPF1OW

TPF1W

NEMA 3R weatherproof plates Gray TWPF1GY

NS801W

NS802W

HDPC06BK

HDMIC1

HDMIT1

21www.bryant-electric.comSpecifications are subject to change without notice.

netSELECT® HDMI Decorator Frames deliver uncompromising digital audio and video wherever you need it. Unleash

the full potential of your high deﬁnition display and audio installations.

• Third party tested for 1080p resolutions

• UL Listed - Communications Circuit Accessory

• CSA Certiﬁed

HDMI PRODUCTS

Description Color Catalog Number

1-Gang; 1-port HDMI;

decorator frame;

female to female

Almond

Black

Gray

Ivory

Light Almond

White

NS801AL

NS801BK

NS801GY

NS801I

NS801LA

NS801W

1-Gang; 2-port HDMI;

decorator frame;

female to female

Almond

Black

Gray

Ivory

Light Almond

White

NS802AL

NS802BK

NS802GY

NS802I

NS802LA

NS802W

HDMI CORDS

Description Feet Catalog Number

HDMI device patch cords HDMI (24 AWG) 3 ft.

6 ft.

HDPC03BK

HDPC06BK

Link cords (connector to device)

HDMI (24 AWG)

xx ft. HDLXXBK

Coupler cords (coupler to device)

HDMI (24 AWG)

xx ft. HDCXXBK

Horizontal cords (connector to connector)

HDMI (24 AWG)

xx ft. HDHXXBK

Note: XX = Length in feet. 10 = 10 ft., 15 = 15 ft., 20 = 20 ft., 25 = 25 ft., 30 = 30 ft., Black and Non-Plenum only.

HDMI CONNECTORS

Description Packaging Catalog Number

HDMI feed thru coupler Single

10-Pack

HDMIC1

HDMIC10

HDMI feed thru 4.0" tail Single

10-Pack

HDMIT1

HDMIT10

Network Wiring

HDMI Products

Gold-plated HDMI

female connector

High impact

thermoplastic frame

4.0" flexible extension

reduces bend radius

issues in confined spaces

Thumbscrew prevents

accidental disconnection

only when used with Bryant’s

HDMI patch cords

Connector sized

to fit 1.0" conduit

IMBDS1W

IMBDSA15W

ISFBDSW

9GC10

9ST10

22 www.bryant-electric.com Specifications are subject to change without notice.

HD (HIGH DEFINITION) 15-PIN/9-PIN CONNECTORS AND MODULES

Description Color Catalog Number

Flat blank HD15/9 or HDMI module;

1 unit; 10-pack

Almond

Black

Gray

Ivory

Light Almond

Ofﬁce White

White

IMBDS1AL

IMBDS1BK

IMBDS1GY

IMBDS1EI

IMBDS1OW

IMBDS1W

Angled blank HD15/9 or HDMI module;

1 unit; 10-pack

Almond

Black

Gray

Ivory

Light Almond

Ofﬁce White

White

IMBDSA15AL

IMBDSA15BK

IMBDSA15GY

IMBDSA15EI

IMBDSA15LW

IMBDSA15OW

IMBDSA15W

HD 9-PIN AND HD 15-PIN VGA-STYLE CONNECTORS

Description Packaging Catalog Number

HD 9-pin F/F coupler 10-Pack 9GC10*

HD 9-pin screw term 10-Pack 9ST10

HD 15-pin F/F coupler 10-Pack 15GC10*

HD 15-pin screw term 10-Pack 15ST10

HD 15-pin to 8-pin angled 45° 1-Pack

10-Pack

15A6P1

15A6P10

HD 15-pin to 8-pin straight 180° 1-Pack

10-Pack

15S6P1

15S6P10

HD 15-pin to 8-pin angled 90° 1-Pack

10-Pack

15N6P1

15N6P10

HD 15-pin to 8-pin 8.0" tail; 1-pack 1-Pack 15T6P1

Note: *Not UL Listed.

PLUG-N-PLAY VGA HORIZONTAL RUNS*

Description Catalog Number

VGA; 8-pin; non-plenum; black VGA6XXBK

VGA; 8-pin; plenum; black VGA6PXXBK

VGA; 8-pin; 15-pin F; non-plenum; black VG15F6XXBK

VGA; 8-pin; 15-pin M; non-plenum; black VG15M6XXBK

VGA; 8-pin; 15-pin M; plenum; black VG15MP6XXBK

Note: *Maximum supported distance varies by application and resolution. Refer to X-END™ brochure for details.

XX = Length: 05, 10, 15, 20, 25, 30, 35, 40, 45, 50, 55, 60, 65, 70, 75, 80, 85, 90, 95, 100.

Network Wiring

iSTATION™ HD Connectors and VGA Horizontal Runs

15ST10

15GC10

15A6P1

15S6P1

15N6P1

15T6P1

15N6P1

23www.bryant-electric.comSpecifications are subject to change without notice.

Descritpion

AV blank

1.5 unit

XLR screw

terminal

XLR

solder-type

Speakon®

connector;

solder-type

USB

feed-thru;

A-to-B

¼" stereo jack;

solder-type

Catalog No. IMAVB15OW* XLRST10 XLR10 SC10 USB10 14S10

Note: *Color listed is Office White, for other colors, replace “OW” with: “AL” = Almond; “BK” = Black; “EI” = Ivory;

“GY” = Gray; “W” = White.

Network Wiring

iSTATION™ Front-Loading Frames and Modules

MODULAR FACE PLATE FRAMES

Description Color Catalog Number

Modular face plate frame;

1-gang

Almond

Black

Gray

Ivory

Ofﬁce White

White

IMF1AL

IMF1BK

IMF1GY

IMF1EI

IMF1OW

IMF1W

Modular face plate frame;

2-gang

Almond

Black

Gray

Ivory

Ofﬁce White

White

IMF2AL

IMF2BK

IMF2GY

IMF2EI

IMF2OW

IMF2W

Raceway bezel frame Almond

Gray

Ofﬁce White

KPIMBZAL

KPIMBZGY

KPIMBZOW

UNLOADED MODULES

Description Color Flat Catalog No. Angled Catalog No.

Modular; 1-port; 1 unit (flat);

1.5 unit (angled)

Almond

Black

Gray

Ivory

Ofﬁce White

White

IM1K1AL

IM1K1BK

IM1K1GY

IM1K1EI

IM1K1OW

IM1K1W

IM1KA15AL

IM1KA15BK

IM1KA15GY

IM1KA15EI

IM1KA15OW

IM1KA15W

Modular; 2-port; 1 unit (flat);

1.5 unit (angled)

Almond

Black

Gray

Ivory

Ofﬁce White

White

IM2K1AL

IM2K1BK

IM2K1GY

IM2K1EI

IM2K1OW

IM2K1W

IM2KA15AL

IM2KA15BK

IM2KA15GY

IM2KA15EI

IM2KA15OW

IM2KA15W

Description Color 1 Duplex Catalog No. 2 Duplex Catalog No.

SC angled; 1.5 unit (1 duplex);

2 unit (2 duplex)

Black

Gray

Ivory

Ofﬁce White

White

IM1SCA15BK

IM1SCA15GY

IM1SCA15EI

IM1SCA15OW

IM1SCA15W

IM2SCA15BK

IM2SCA15GY

IM2SCA15EI

IM2SCA15OW

IM2SCA15W

Description Color 1 Port Catalog No. 2 Port Catalog No.

Modular recessed angle; 1.5 unit Black

Gray

Ivory

Ofﬁce White

White

IM1IA15BK

IM1IA15GY

IM1IA15EI

IM1IA15OW

IM1IA15W

IM2IA15BK

IM2IA15GY

IM2IA15EI

IM2IA15OW

IM2IA15W

Description Color .5 Unit Catalog No. 1 Unit Catalog No. 1.5 Unit Catalog No.

Flat blank Almond

Black

Gray

Ivory

Ofﬁce White

White

IMB05AL

IMB05BK

IMB05GY

IMB05EI

IMB05OW

IMB05W

IMB1AL

IMB1BK

IMB1GY

IMB1EI

IMB1OW

IMB1W

IMB15AL

IMB15BK

IMB15GY

IMB15EI

IMB15OW

IMB15W

ISTATION™ AUDIO/VIDEO MODULES (10-PACK)

IMF1OW

IMF2OW

KPIMBZOW

IM1K1OW

IM2K1OW

IM1SCA15OW

IM1IA15OW

IMB05OW

IM2KA15OW

IM2SCA2OW

IM2IA15OW

IMB1OW

IMB15OW

24 www.bryant-electric.com Specifications are subject to change without notice.

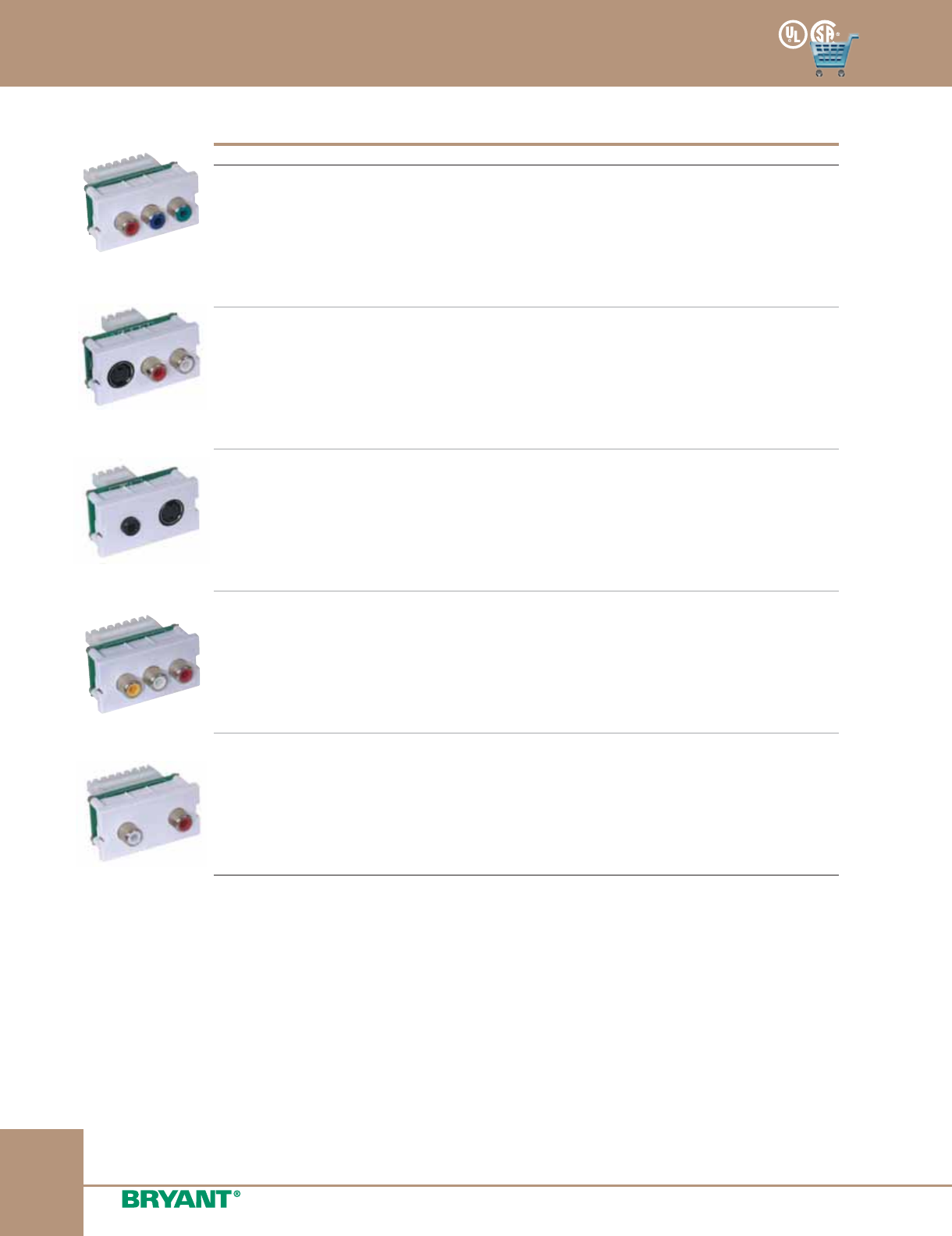

IMCR1101W

IMSR1101W

IMSV351101W

IMR1101W

IMAR1101W

110 AUDIO VIDEO MODULES Feet (m)

Description Housing Color Catalog Number

RCA component; video to 110 termination;

1 unit; 75' (19.1) max. HD Cat 5, 5e, 6 UTP

Almond

Black

Electric Ivory

Gray

Office White

White

IMCR1101AL

IMCR1101BK

IMCR1101EI

IMCR1101GY

IMCR1101OW

IMCR1101W

S-video; stereo RCA audio to 110 termination;

1 unit; 100' (25.4) max. Cat 5, 5e, 6 UTP

Almond

Black

Electric Ivory

Gray

Office White

White

IMSR1101AL

IMSR1101BK

IMSR1101EI

IMSR1101GY

IMSR1101OW

IMSR1101W

S-video; 3.5mm stereo audio jack to 110

termination; 1 unit; 100' (25.4) max. Cat 5, 5e, 6

Black

Electric Ivory

Gray

Office White

White

IMSV351101BK

IMSV351101EI

IMSV351101GY

IMSV351101OW

IMSV351101W

RCA composite; video; stereo;

audio to 110 termination;

1 unit; 100' (25.4) max. Cat 5, 5e, 6

Almond

Black

Electric Ivory

Gray

Office White

White

IMR1101AL

IMR1101BK

IMR1101EI

IMR1101GY

IMR1101OW

IMR1101W

RCA stereo; audio 110 termination;

1 unit; 100' (25.4) max. Cat 5, 5e, 6

Almond

Black

Electric Ivory

Gray

Office White

White

IMAR1101AL

IMAR1101BK

IMAR1101EI

IMAR1101GY

IMAR1101OW

IMAR1101W

Network Wiring

iSTATION™ Audio/Video Modules

25www.bryant-electric.comSpecifications are subject to change without notice.

IMCRS15OW

IMCRS1OW

IM3RF1OW

IM3RS1OW

IMSP1OW

IMRSJ1OW

SPPBK10

SPPR10

SOLDER AUDIO VIDEO MODULES

Description Housing Color Catalog Number

RCA component; video;

stereo audio or RGBHV;

solder; 1.5 unit

Almond

Black

Electric Ivory

Gray

Office White

White

IMCRS15AL*

IMCRS15BK*

IMCRS15EI*

IMCRS15GY*

IMCRS15OW*

IMCRS15W*

RCA component; video;

solder; 1 unit

Almond

Black

Electric Ivory

Gray

Office White

White

IMCRS1AL*

IMCRS1BK*

IMCRS1EI*

IMCRS1GY*

IMCRS1OW*

IMCRS1W*

RCA composite; video;

stereo audio; solder;

1 unit

Almond

Black

Electric Ivory

Gray

Office White

White

IM3RS1AL

IM3RS1BK

IM3RS1EI

IM3RS1GY

IM3RS1OW

IM3RS1W

RCA composite; video;

3.5mm stereo audio jack;

solder; 1 unit

Almond

Black

Electric Ivory

Gray

Office White

White

IMRSJ1AL

IMRSJ1BK

IMRSJ1EI

IMRSJ1GY

IMRSJ1OW

IMRSJ1W

Note: *Not UL Listed.

GOLD FEED-THROUGH AUDIO VIDEO RCA COUPLERS

Description Housing Color Catalog Number

RCA component; video; gold;

pass-through; F/F coupler;

1 unit

Almond

Black

Electric Ivory

Gray

Office White

White

IMCRF1AL*

IMCRF1BK*

IMCRF1EI*

IMCRF1GY*

IMCRF1OW*

IMCRF1W*

RCA composite; video; audio; gold;

pass-through; F/F coupler;

1 unit

Almond

Black

Electric Ivory

Gray

Office White

White

IM3RF1AL

IM3RF1BK

IM3RF1EI

IM3RF1GY

IM3RF1OW

IM3RF1W

Note: *Not UL Listed.

GOLD SPEAKER POSTS MODULES AND BANANA PLUGS

Description Housing Color Catalog Number

Speaker post;

gold, black and red;

screw termination

Almond

Black

Electric Ivory

Gray

Office White

White

IMSP1AL

IMSP1BK

IMSP1EI

IMSP1GY

IMSP1OW

IMSP1W

Speaker banana plugs;

gold; screw termination;

10-packs

Black

Red

SPPBK10*

SPPR10*

Note: *Not UL Listed.

Network Wiring

iSTATION™ Audio/Video Modules

IMCRF1OW

26 www.bryant-electric.com Specifications are subject to change without notice.

ISM1OW

ISM2OW

ISM4OW

ISM6OW

• Low-profile design

• Accepts XJ jacks, audio video and ﬁber connectors

• Provided with double-sided tape and mounting screws

for easy installation

• UL and cULus Listed

• Constructed with a high-impact resistant, ﬂame-

retardant polymer

• ANSI/TIA-606A compliant

ISM SURFACE MOUNT BOXES, 1- AND 2-PORT

Ideal for open office, compact surface mount environments, and retrofits to support data, voice,

and multimedia applications; can be mounted with supplied surface mounting screws or double-

sided adhesive tape

Color

1-Port

Catalog Number

2-Port

Catalog Number

Ivory

Office White

White

ISM1EI

ISM1OW

ISM1W

ISM2EI

ISM2OW

ISM2W

ISM SURFACE MOUNT BOXES, 4- AND 6-PORT

Ideal for open office MUTOA cabling, compact surface mount environments, and retrofits to

support data, voice, and multimedia applications; features adjustable furniture latches to provide

an additional mounting option to common ANSI/TIA/EIA standard furniture openings, and

solutions requiring fiber; box bases feature fiber storage posts that can store one meter fiber

cable after termination

Color

4-Port

Catalog Number

6-Port

Catalog Number

Ivory

Office White

White

ISM4EI

ISM4OW

ISM4W

ISM6EI

ISM6OW

ISM6W

ISM SURFACE MOUNT BOXES, 12-PORT

Ideal for open office MUTOA cabling, large capacity surface mount applications and retrofits

to support data, voice, and multimedia installations. Can be mounted with supplied surface

mounting screws or double-sided adhesive tape and mounted to NEMA electric boxes or

relay racks

Color

12-Port

Catalog Number

Ivory

Office White

White

ISM12EI

ISM12OW

ISM12W

Network Wiring

iSTATION™ Surface Mount Boxes

ISM12OW

ISM1EI

ISM2EI

NS761I

NS760I

27www.bryant-electric.comSpecifications are subject to change without notice.

Telephone surface mount jacks are available in 4- or 6-conductor conﬁgurations for voice.

Alternatively, multimedia surface mount boxes can be custom loaded for computer and

media use.

• High impact-resistant thermoplastic

• Mounts using screws or double sided tape (both included)

• Meets FCC part 68

• UL Listed 1863 - Communication Circuit Accessory

• CSA Certiﬁed

TELEPHONE SURFACE MOUNT WALL JACKS

Description Color Catalog Number

Telephone surface mount jack;

6-position; 4-conductor;

screw terminations

Ivory

White

NS760I

NS760W

Telephone surface mount jack;

6-position; 6-conductor;

screw terminations

Ivory

White

NS761I

NS761W

MODULAR SURFACE HOUSINGS

Description Color Catalog Number

Multimedia 1-port surface mount box;

jack not included

Ivory

White

ISM1EI*

ISM1W*

Multimedia 2-port surface mount box;

jacks not included

Ivory

White

ISM2EI*

ISM2W*

Note: *cULus Listed 1863 - Communication Circuit Accessory.

See pages P-13 to P-17 for modular jacks and A/V connectors.

Network Wiring

Telephone Surface Mount Wall Jacks

28 www.bryant-electric.com Specifications are subject to change without notice.

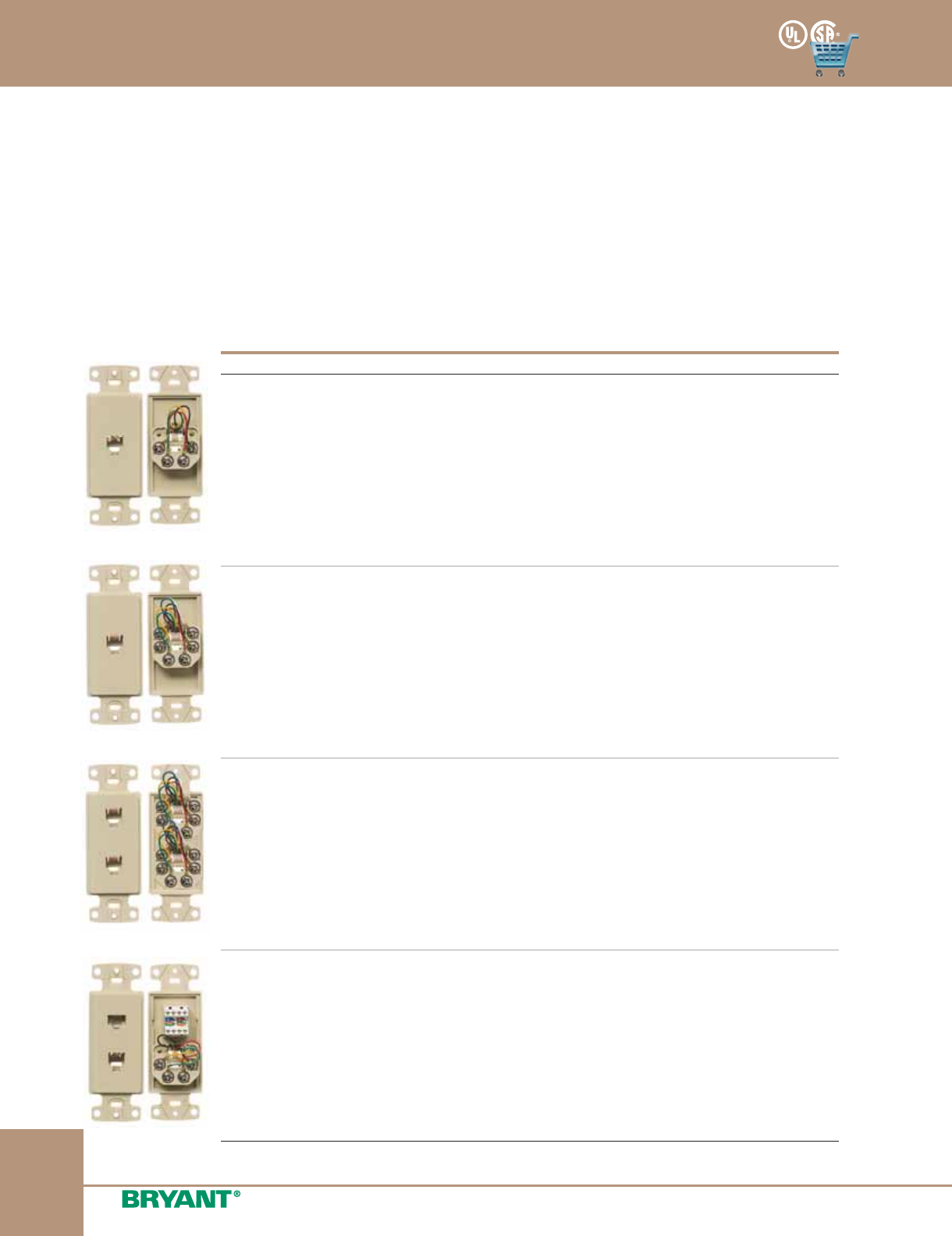

NS770I

NS771I

NS772I

NS784I

MOLDED-IN VOICE/LOW-SPEED DATA

Description Color Catalog Number

Decorator frame;

one RJ11 jack;

6-position; 4-conductor;

screw terminations

Almond

Black

Brown

Gray

Ivory

Light Almond

White

NS770AL

NS770BK

NS770

NS770GY

NS770I

NS770LA

NS770W

Decorator frame;

one RJ11 jack;

6-position; 6-conductor;

screw terminations

Almond

Brown

Ivory

Light Almond

White

NS771AL

NS771

NS771I

NS771LA

NS771W

Decorator frame;

duplex RJ11 jacks;

6-position; 6-conductor;

screw terminations

Almond

Ivory

Light Almond

White

NS772AL

NS772I

NS772LA

NS772W

Decorator frame;

one cat. 5e 110 punch-down;

one RJ11 jack; 6-position; 4-conductor;

screw terminations

Almond

Black

Brown

Gray

Ivory

Light Almond

White

NS784AL

NS784BK

NS784

NS784GY

NS784I

NS784LA

NS784W

Designed to complement decorator styling, these jacks offer voice and Cat. 5e devices to ﬁt within

a decorator wallplate. Create a look to match your voice/data, switch, and receptacle devices.

• High impact-resistant thermoplastic frame

• Meets FCC part 68

• UL Listed 1863 - Communication Circuit Accessory

• CSA Certiﬁed

Network Wiring

Molded-In Voice/Data/Video

29www.bryant-electric.comSpecifications are subject to change without notice.

NS780I

NS782I

NS783I

NS785I

MOLDED-IN VOICE/LOW-SPEED DATA

Description Color Catalog Number

Decorator frame;

single F-type coupler bulkhead

female to female

Almond

Ivory

Light Almond

White

NS780AL

NS780I

NS780LA

NS780W

Decorator frame;

duplex F-type coupler bulkhead

female to female

Almond

Ivory

Light Almond

White

NS782AL

NS782I

NS782LA

NS782W

Decorator frame;

one RJ11 jack;

6-position; 4-conductor;

one F-type coupler bulkhead

female to female

Almond

Ivory

Light Almond

White

NS783AL

NS783I

NS783LA

NS783W

Decorator frame;

one cat. 5e 110 punch-down;

one F-type coupler bulkhead

female to female

Almond

Black

Brown

Gray

Ivory

Light Almond

White

NS785AL

NS785BK

NS785

NS785GY

NS785I

NS785LA

NS785W

Coaxial video and combination jacks complement multimedia needs in a 1-gang

decorator opening.

• High impact-resistant thermoplastic frame

• Jacks meet FCC part 68

• UL Listed 1863 - Communication Circuit Accessory

• CSA Certiﬁed

Network Wiring

Molded-In Voice/Data/Video

NS730I

NS732I

NS742I

NS744I

30 www.bryant-electric.com Specifications are subject to change without notice.

Designed for voice, these devices provide an economical alternative to wall phone

outlet placement.

• High impact-resistant thermoplastic plate

• Convenient screw down terminals

• Meets FCC part 68

• UL Listed 1863 - Communication Circuit Accessory

• CSA Certiﬁed

MOLDED-IN PLATES

Description Color

Catalog Number

Standard Mid-Size

1-Gang plate;

one RJ11 jack;

6-position; 4-conductor;

screw terminations

Almond

Brown

Ivory

Light Almond

White

NS730AL

NS730

NS730I

NS730LA

NS730W

NS735AL

NS735

NS735I

NS735LA

NS735W

1-Gang plate;

one RJ11 jack;

6-position; 6-conductor;

screw terminations

Almond

Brown

Ivory

Light Almond

White

NS732AL

NS732

NS732I

NS732LA

NS732W

—

1-Gang plate;

duplex RJ11 jacks;

6-position; 4-conductor;

screw terminations

Almond

Ivory

Light Almond

White

NS742AL

NS742I

NS742LA

NS742W

—

NS745I

—

NS745W

1-Gang plate;

duplex RJ11 jacks;

6-position; 6-conductor;

screw terminations

Almond

Ivory

Light Almond

White

NS744AL

NS744I

—

NS744W

—

Network Wiring

Molded-In Plates

NS748I

NS750I

NS752I

NS790I

NS747I

31www.bryant-electric.comSpecifications are subject to change without notice.

Designed for voice CATV/satellite and data applications, these devices offer

an economical alternative to snap ﬁt style products.

• High impact-resistant thermoplastic frame

• Combination jack and coaxial minimize ganging requirements

• Meets FCC part 68

• UL Listed 1863 - Communication Circuit Accessory

• CSA Certiﬁed

MOLDED-IN PLATES

Description Color

Catalog Number

Standard Mid-Size

1-Gang plate;

F-type coupler bulkhead

female to female;

one RJ11 jack;

6-position; 4-conductor

Almond

Ivory

Light Almond

White

NS747AL

NS747I

NS747LA

NS747W

—

1-Gang plate;

F-type coupler bulkhead

female to female;

one RJ11 jack;

6-position; 6-conductor

Almond

Ivory

Light Almond

White

NS748AL

NS748I

NS748LA

NS748W

NS755AL

NS755I

NS755LA

NS755W

1-Gang plate;

single F-type coupler bulkhead

female to female

Almond

Ivory

Light Almond

White

NS750AL

NS750I

NS750LA

NS750W

NS751AL

NS751I

NS751LA

NS751W

1-Gang plate;

duplex F-type coupler bulkhead

female to female

Almond

Ivory

Light Almond

White

NS752AL

NS752I

NS752LA

NS752W

—

1-Gang plate;

one cat. 5e 110 punch-down:

one RJ11 jack; 6-position; 4-conductor;

one F-type coupler bulkhead

female to female

Almond

Black

Brown

Gray

Ivory

Light Almond

White

NS790AL

NS790BK

NS790

NS790GY

NS790I

NS790LA

NS790W

—

Network Wiring

Molded-In Plates

NS722I

NS725I

NS723SS

NS726SS

NS721I

32 www.bryant-electric.com Specifications are subject to change without notice.

TELEPHONE WALL JACKS

Description Color Catalog Number

Wall phone jack quick connect;

6-position; 4-conductor;

punch-down termination tool included

Almond

Ivory

Light Almond

White

NS721AL

NS721I

—

NS721W

Wall phone jack;

6-position; 4-conductor;

screw terminations

Almond

Ivory

Light Almond

White

NS722AL

NS722I

—

NS722W

Wall phone jack;

6-position; 6-conductor;

screw terminations

Almond

Ivory

Light Almond

White

NS725AL

NS725I

NS725LA

NS725W

Wall phone jack quick connect;

6-position; 4-conductor;

punch-down termination tool included

Stainless Steel NS723SS

Wall phone jack;

6-position; 4-conductor;

screw terminations

Stainless Steel NS726SS

Designed for voice applications, these jacks provide an economical alternative to

basic wall mount and performance needs.

• Available in high impact-resistant thermoplastic or stainless steel

• Meets FCC part 68

• UL Listed 1863 - Communication Circuit Accessory

• CSA Certiﬁed

Network Wiring

Telephone Wall Jacks

33www.bryant-electric.comSpecifications are subject to change without notice.

• Meets TIA/EIA-606-A labeling administration standards

• Labor savings; installer can produce and print labels before

installation

• Saving job ﬁles reduces potential for error and eliminates the time to

re-enter information when changes and additions are required

• Makes closets and workstations look professional with clearly

marked connections and leaves an impression of quality

workmanship

• In ever-changing work environments, clearly marked connections

will make moves, adds, and changes easier by eliminating mistakes

and wasted time

LABELING SOLUTIONS SOFTWARE

Description Catalog Number

Software package for custom labeling; consult factory for

download instructions

XPSOFT

PATCH PANEL AND RACK LABELS Inches (mm)

Delivery: Package of 10; 8.5" x 11" (215.9 x 279.4) paper sheets

Description

Labels

per sheet

Label Sheets

Catalog Number

Extra Label Holders

Catalog Number

Adhesive 8-port front label strips 20 XPLPPA10W —

Paper 8-port front label strips (use with label holders supplied

with panel)

18 XPLPP10W XPHPP50

Paper ID labels for all panel sizes (use with vertical ID label holders

on panels)

18 XPLPPID10W XPHPPID1U10 (for 1U)

— XPHPPID2U10 (for 2U)

Rack and cabinet labels (use with XPHRC10) XPLRC10W XPHRC10

MULTIMEDIA PANEL LABELS Inches (mm)

Delivery: Package of 10; 8.5" x 11" (215.9 x 279.4) paper sheets

Description

Labels

per sheet

Label Sheets

Catalog Number

Extra Label Holders

Catalog Number

Paper 8-port front label strips (use with label holders supplied

with panel)

18 XPLUDX2410W XPHUDX2410

Note: Use XPLFOSEPAW labels for the UDX36 multimedia panel.

Network Wiring

Labeling Solutions

34 www.bryant-electric.com Specifications are subject to change without notice.

TX4PP

TX4P

TPD110

TBLH

1-PUNCH JACK TERMINATION TOOL

This tool should be used exclusively with netSELECT® jacks; used with the HXTA termination aid

Description Catalog Number

1-Punch XJ tool with head; blades and HXTA termination aid TX4P

1-Punch XJ replacement head (includes blades) TX4PH

1-Punch XJ replacement blades TX4PHBL

Hand Termination Aid “Jack Knuckles” HXTA

Snap-X Termination Puck (Bag of 25) HXTP25

1-PUNCH PANEL TERMINATION TOOL

Description For use with Catalog Number

1-Punch panel tool with head and blades P6EXXU panel TX4PP

1-Punch panel replacement head P6EXXU panel TX4PPH

1-Punch panel replacement blades P6EXXU panel TX4PPBL

110 PUNCH-DOWN TOOL

Comfortable, ergonomic grip with insulated, rubber-embedded handle; terminated 28-22AWG solid/

stranded wire; high visibility colors; lanyard holes in the handle end; latching blade storage cover;

adjustable high- and low-impact settings; twist and lock blades

Description Catalog Number

Standard 110 punch-down tool TPD110

1-pair NSJ; 110 blade TBLH

Punch-down tool; 1-pair TPDH

Replacement 110 blade TBL110

Replacement 66 Blade TBL66

TOOL KITS

• Punch-down tool with 110 and 66 blades; rubber-embedded handle

• Durable; black; nylon belt pouch

• Belt pouch fits up to 2½" belt (slide on style)

3-PIECE TOOL KIT

Description Catalog Number

Delivery: 1 punch-down tool with 110 and 66 blades;

1 pair of snips; and 1 belt pouch

TK3

8-PIECE TOOL KIT

Description Catalog Number

Delivery: 1 punch-down tool with 110 and 66 blades; 1 pair of snips;

4-bit screwdriver; UTP/STP cable stripper/cutter; Maglite™; 1 belt pouch;

and 1 Snap-X termination aid

TK8

Network Wiring

Tools and Accessories

TK8

TK3

Maglite™ is a trademark of Mag Instruments, Inc.

35www.bryant-electric.comSpecifications are subject to change without notice.

UCT

ECT

COMPTRG659

TCS3

NS4

CRIMP TOOLS

• Universal frame accepts interchangeable dies to crimp different plugs

• Color-coded die-sets for different plug sizes

• Complete ratchet cycle release assures no-fault crimps

Description Catalog Number

Crimp tool frame (die-sets sold separately). UCT

Complete tool kit in hard, plastic case includes crimp tool;

UTP cable stripper; 3 die-sets (RJ45, RJ22 and RJ11)

UCTKIT

RG6 compression connector (optional die-set not included in tool kit) FRG6C25

RG59 compression connector (optional die-set not included in tool kit) FRG5925

RJ11 die-set CDTSR11

RJ22 die-set CDTSR22

RJ45 die-set; non-snagless CDTSR45

RJ45 die-set; snagless CDTSR45S

RG6 and RG59 hex crimp die-set CDTSRG659

Economy crimp tool – includes non-replaceable RJ11, RJ22

and RJ45 die-sets

ECT

RG6 OR RG59 COMPRESSION TOOL

Use to terminate onto 75 ohm RG6 or RG59 coaxial cable.

Description Catalog Number

RG6 and RG59 compression tool

Coaxial stripping tool

COMPTRG659

CSTRPR

Note: See page P-14 for compression connectors.

COMMUNICATIONS CABLE STRIPPER/CUTTER Inches (mm)

• Strips round Cat. 5e and 6 UTP/STP

• Cuts cable

• Strips flat cables

• Compact size

• High-visibility for quick locating

Description Catalog Number

Communications cable stripper/cutter;

strips round Cat. 5e and Cat. 6 UTP/STP with diameters

of 0.145" to 0.275" (3.7 to 7.0) ; cuts round UTP/STP cables up

to 0.350" (8.9); adjusting screw for varied cable diameters to avoid

scoring interior conductor insulation; high-visibility for quick locating;

strips ﬂat cables; non-metallic body

TCS3

HAND HELD 110 TERMINATION TOOL

Description Catalog Number

Designed as an economical alternative for low volume use

where the installer press ﬁts the conductors

NS4

Network Wiring

Tools and Accessories

36 www.bryant-electric.com Specifications are subject to change without notice.

HORIZONTAL UTP CABLE AND PATCH CORDS

• Solid copper 4-pair 24 AWG UTP is speciﬁed for distribution

cabling; stranded UTP is speciﬁed for patch cords for ﬂexibility;

shielded cable is not commonly used in the U.S.; splices bridge

taps are not permitted

• Cable, connectors and patch cords shall be marked with the

performance category; always match performance categories of

cables and components throughout the infrastructure

• All cable, cords and connecting hardware shall meet

performance requirements of ANSI/TIA/EIA-568-B.1 and

568-B.2; Bryant assures this compliance with all products

and cable partners

RECOGNIZED CONNECTOR AND WIRING CONFIGURATIONS

• 8-position modular jack/plug

• 8-position modular panel/plug

• T568A wiring or T568B wiring options

• Cat. 5e or Cat. 6 recommended

RJ 45 - TIA/EIA-568 CONVENTIONS

Two wiring standards were adopted; both conﬁgurations provide equivalent transmission performance

LAN WIRING CONVENTIONS

Local Area Network standards designed to operate over UTP specify pin/pair assignments on modular connectors for various

signal transmission protocols. While TIA/EIA-568A and 568B conventions support all of these designations, there are some cases

where the user chooses to cable only the number of pairs required to support these applications.

COLOR CODING:

white-blue/blue

white-orange/orange

white-green/green

white-brown/brown

• Preferred method

• Directly compatible with

2-pair voice and Token

Ring systems utilizing

6-position connectors

• Optional method

• AT&T’s standard

• Directly compatible with

AT&T phone systems

• 1000 Mbps/10Gb

Ethernet over UTP

• Uses all four pairs

• 100 Mbps FDDI

over copper (pending)

• 4/16 Mbps Token

Ring over copper

• 10 Mbps Ethernet

over UTP

• 100 Mbps Ethernet

Network Wiring

Standard UTP Wiring Conventions

Product Detail Manual

Navigation menu

Versions of this User Manual:

Views

Navigation
