APPLICANT 560689(Full River) EMC Certificate And Report

2016-04-26

: Pdf 560689(Full River) Emc Certificate And Report 560689(Full_River)_EMC_Certificate_and__Report CertsReports 560689 ProductFiles

Open the PDF directly: View PDF PDF.
Page Count: 42

STC (Dongguan) Company Limited
EC DECLARATION OF CONFORMITY
Reference Number:
EMC-D163132DOC
Intracom Asia Co., Ltd
4F., No.77, Sec.1, Xintai 5th Rd., Xizhi Dist., New Taipei City 221, Taiwan
declare the product
Description:
8-Port Fast Ethernet Office Switch, Plastic
Brand Name:
Manhattan
Model:
560689
complies with the requirements of the
EC Electromagnetic Compatibility Directive 2014/30/EU
Applicable Standard(s) with amendments:
EN55022: 2010 +AC: 2011
EN55024: 2010
EN61000-3-2: 2014
EN61000-3-3: 2013
General Remarks:
This declaration is only valid when used in conjunction with the technical file(s) refers to DM123142.
This declaration applies specifically to the sample(s) investigated in the technical report mentioned above and not to the bulk.
The CE mark as shown below can be used, under the responsibility of the manufacturer, after completion of an EC
Declaration of Conformity and compliance with all relevant EC Directives.
Manufacturer/Importer
Test Laboratory
Signature
LONG Yun Jian, Along
Authorized Signatory
ElectroMagnetic Compatibility Department
For and on behalf of
STC (Dongguan) Company Limited
www.dgstc.org Date of Issue:
2016-04-20
Date: 2016-04-15
Page 1 of 33
No.: DM123142
Applicant:
Intracom Asia Co., Ltd
4F., No.77, Sec.1, Xintai 5th Rd., Xizhi Dist., New Taipei
City 221, Taiwan
Description of Sample(s):
Submitted sample(s) said to be
Product:
8-Port Fast Ethernet Office Switch,
Plastic
Brand Name:
Manhattan
Model Number:
560689
Date Sample(s) Received:
2014-08-20
Date Tested:
2014-08-25 to 2014-09-25
Investigation Requested:
Test for compliance with EMC requirements of EN55022,
EN55024, EN61000-3-2 and EN61000-3-3.
Conclusion(s):
The submitted product COMPLIED with the requirements
of EN55022: 2010 +AC: 2011, EN55024: 2010,
EN61000-3-2: 2014 and EN61000-3-3: 2013. The EMC
tests were performed in accordance with the standards
described above and on Section 2.2 in this Test Report.
Remark(s):
---
LONG Yun Jian, Along
Authorized Signatory
ElectroMagnetic Compatibility Department
For and on behalf of
STC (Dongguan) Company Limited
STC Test Report
STC (Dongguan) Company Limited
68 Fumin Nan Road, Dalang, Dongguan, China. (Zip Code : 523 770)
Tel : (86 769) 8111 9888 Fax : (86 769) 8111 6222 E-mail : dgstc@dgstc.org Homepage : www.dgstc.org
This report shall not be reproduced unless with prior written approval from STC (Dongguan) Company Limited.
For Conditions of Issuance of this test report, please refer to the overleaf or Homepage.
Date: 2016-04-15
Page 2 of 33
No.: DM123142
CONTENT:
Cover
Page 1 of 33
Content
Page 2 of 33
1.0
General Details
1.1
Equipment Under Test [EUT]
Page 3 of 33
Description of Sample(s)
1.2
Date of Order
Page 3 of 33
1.3
Submitted Sample(s)
Page 3 of 33
1.4
Test Duration
Page 3 of 33
1.5
Country of Origin
Page 3 of 33
2.0
Technical Details
2.1
Investigations Requested
Page 4 of 33
2.2
Test Standards and Results Summary
Page 4-6 of 33
3.0
Test Results
3.1
Emission
Page 7-18 of 33
3.2
Immunity
Page 19-33 of 33
Appendix A
List of Measurement Equipment
Page A1-A2 of A2
Appendix B
Photograph(s) of Product
Page B1 - B5 of B5
STC Test Report
STC (Dongguan) Company Limited
68 Fumin Nan Road, Dalang, Dongguan, China. (Zip Code : 523 770)
Tel : (86 769) 8111 9888 Fax : (86 769) 8111 6222 E-mail : dgstc@dgstc.org Homepage : www.dgstc.org
This report shall not be reproduced unless with prior written approval from STC (Dongguan) Company Limited.
For Conditions of Issuance of this test report, please refer to the overleaf or Homepage.
Date: 2016-04-15
Page 3 of 33
No.: DM123142
1.0
General Details
1.1
Equipment Under Test [EUT]
Description of Sample(s)
Product:
8-Port Fast Ethernet Office Switch, Plastic
Manufacturer:
Intracom Asia Co., Ltd
4F., No.77, Sec.1, Xintai 5th Rd., Xizhi Dist., New Taipei City 221,
Taiwan
Brand Name:
Manhattan
Model Number:
560689
Rating:
5Vd.c.with Jack
The AC/DC adaptor was provided by the applicant with following details:-
Brand name: N/A; Model no.: AMS20-0501000FV2; Input: 100-240Va.c. 50/60Hz 0.2A,
Output: 5Vd.c. 1.0A.
1.1.1
Description of EUT Operation
The Equipment Under Test (EUT) is a 8-Port Fast Ethernet Office Switch, Plastic of Intracom
Asia Co., Ltd. Test was conducted under the Data transfer mode to simulate the normal
operating condition. Port 1 and 8 of the EUT were connected to two PC which operated with
ping the IP address to each other.
1.2
Date of Order
2014-08-20
1.3
Submitted Sample(s):
1 Sample
1.4
Test Duration
2014-08-25 to 2014-09-25
1.5
Country of Origin
China
STC Test Report
STC (Dongguan) Company Limited
68 Fumin Nan Road, Dalang, Dongguan, China. (Zip Code : 523 770)
Tel : (86 769) 8111 9888 Fax : (86 769) 8111 6222 E-mail : dgstc@dgstc.org Homepage : www.dgstc.org
This report shall not be reproduced unless with prior written approval from STC (Dongguan) Company Limited.
For Conditions of Issuance of this test report, please refer to the overleaf or Homepage.
Date: 2016-04-15
Page 4 of 33
No.: DM123142
2.0
Technical Details
2.1
Investigations Requested
Perform ElectroMagnetic Interference [EMI] & ElectroMagnetic Susceptibility [EMS] tests for
CE Marking
2.2
Test Standards and Results Summary Tables
Test Standards
EN55022: 2010
+AC: 2011
Information technology equipment - Radio disturbance characteristics -
Limits and methods of measurement
EN55024: 2010
Information technology equipment - Immunity characteristics - Limits and
methods of measurement
EN61000-3-2: 2014
Electromagnetic compatibility (EMC) - Part 3-2: Limits - Limits for
harmonic current emissions (equipment input current ≤16 A per phase)
EN61000-3-3: 2013
Electromagnetic compatibility (EMC) - Part 3-3: Limits - Limitation of
voltage changes, voltage fluctuations and flicker in public low-voltage
supply systems, for equipment with rated current ≤16 A per phase and not
subject to conditional connection
STC Test Report
STC (Dongguan) Company Limited
68 Fumin Nan Road, Dalang, Dongguan, China. (Zip Code : 523 770)
Tel : (86 769) 8111 9888 Fax : (86 769) 8111 6222 E-mail : dgstc@dgstc.org Homepage : www.dgstc.org
This report shall not be reproduced unless with prior written approval from STC (Dongguan) Company Limited.
For Conditions of Issuance of this test report, please refer to the overleaf or Homepage.
Date: 2016-04-15
Page 5 of 33
No.: DM123142
2.2
Test Standards and Results Summary Tables
EMISSION
Results Summary
Test Condition
Test Requirement
Test Method
Class /
Test Result
Severity
Pass
Failed
N/A
Radiated Emission,
30MHz to 1GHz
EN55022: 2010
+AC: 2011
EN55022: 2010
+AC: 2011
Class B

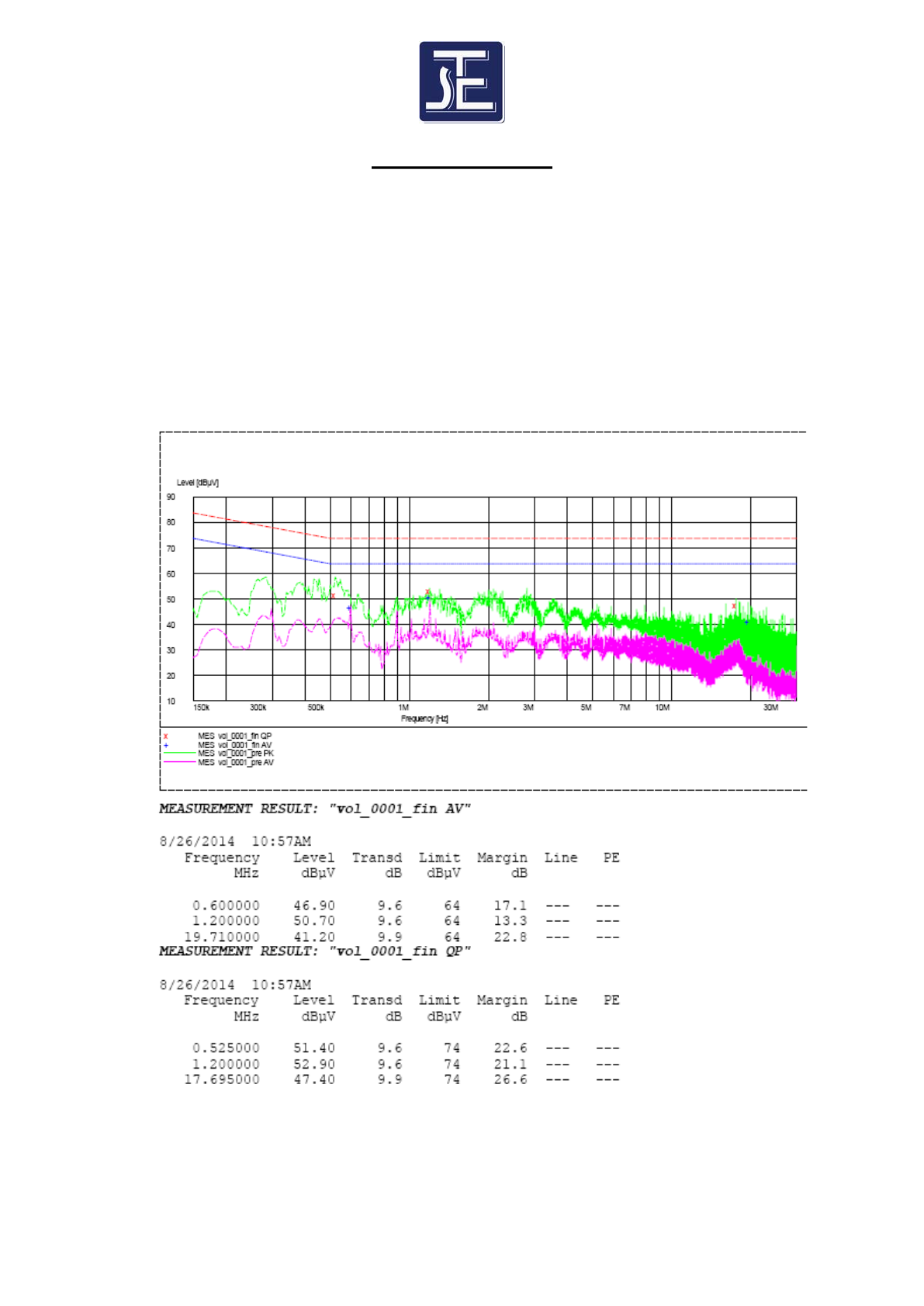

Conducted Emission
on AC, 150kHz to
30MHz
EN55022: 2010
+AC: 2011
EN55022: 2010
+AC: 2011
Class B

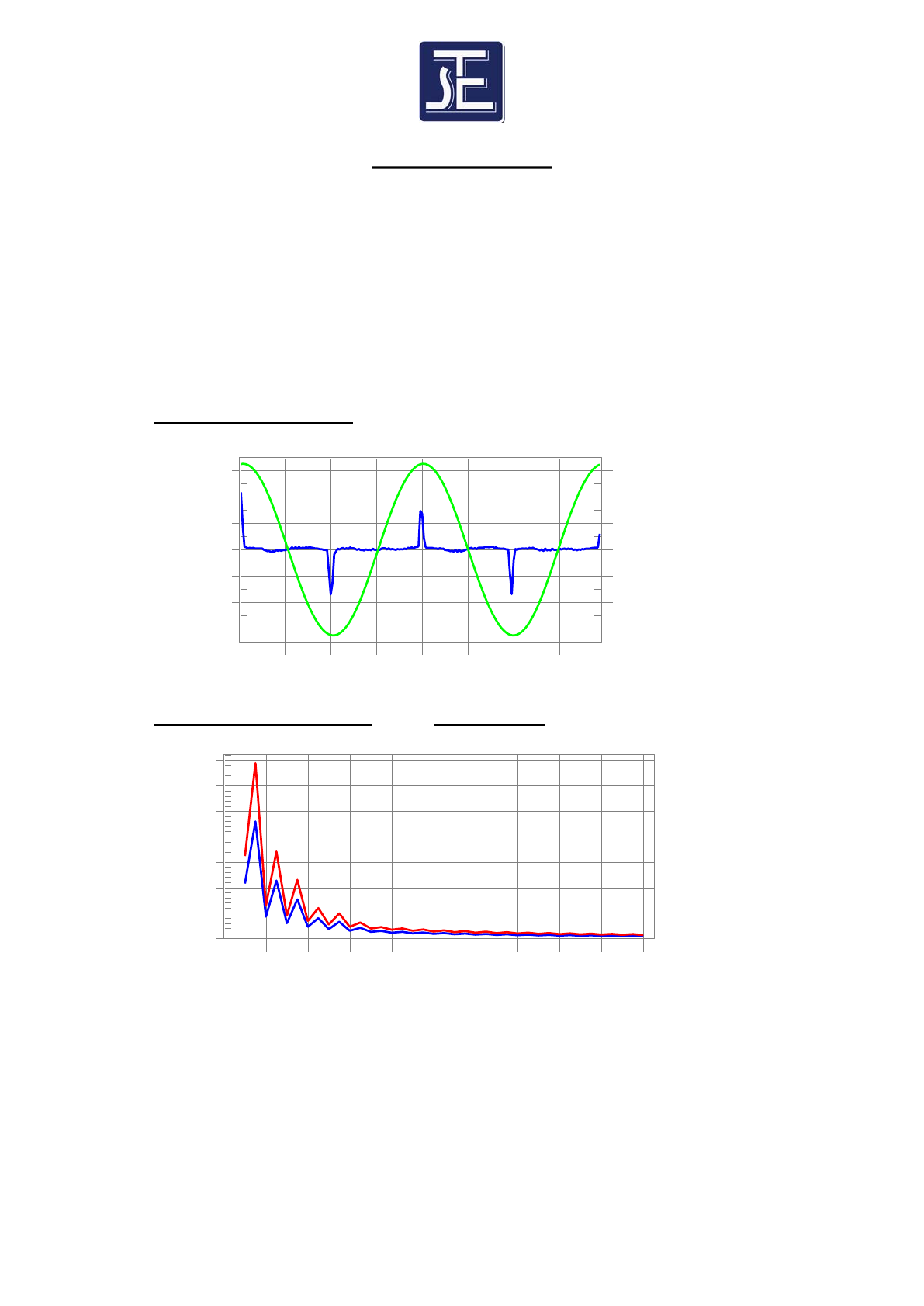

Harmonic Emissions
on AC Supply
EN61000-3-2: 2014
EN61000-3-2: 2014
Class A
Voltage Fluctuations
on AC Supply
EN61000-3-3: 2013
EN61000-3-3: 2013
N/A
STC Test Report
STC (Dongguan) Company Limited
68 Fumin Nan Road, Dalang, Dongguan, China. (Zip Code : 523 770)
Tel : (86 769) 8111 9888 Fax : (86 769) 8111 6222 E-mail : dgstc@dgstc.org Homepage : www.dgstc.org
This report shall not be reproduced unless with prior written approval from STC (Dongguan) Company Limited.
For Conditions of Issuance of this test report, please refer to the overleaf or Homepage.
Date: 2016-04-15
Page 6 of 33
No.: DM123142
2.2
Test Standards and Results Summary Tables
SUSCEPTIBILITY
Results Summary
Test Condition
Test Requirement
Test Method
Class /
Test Result
Severity
Pass
Failed
N/A

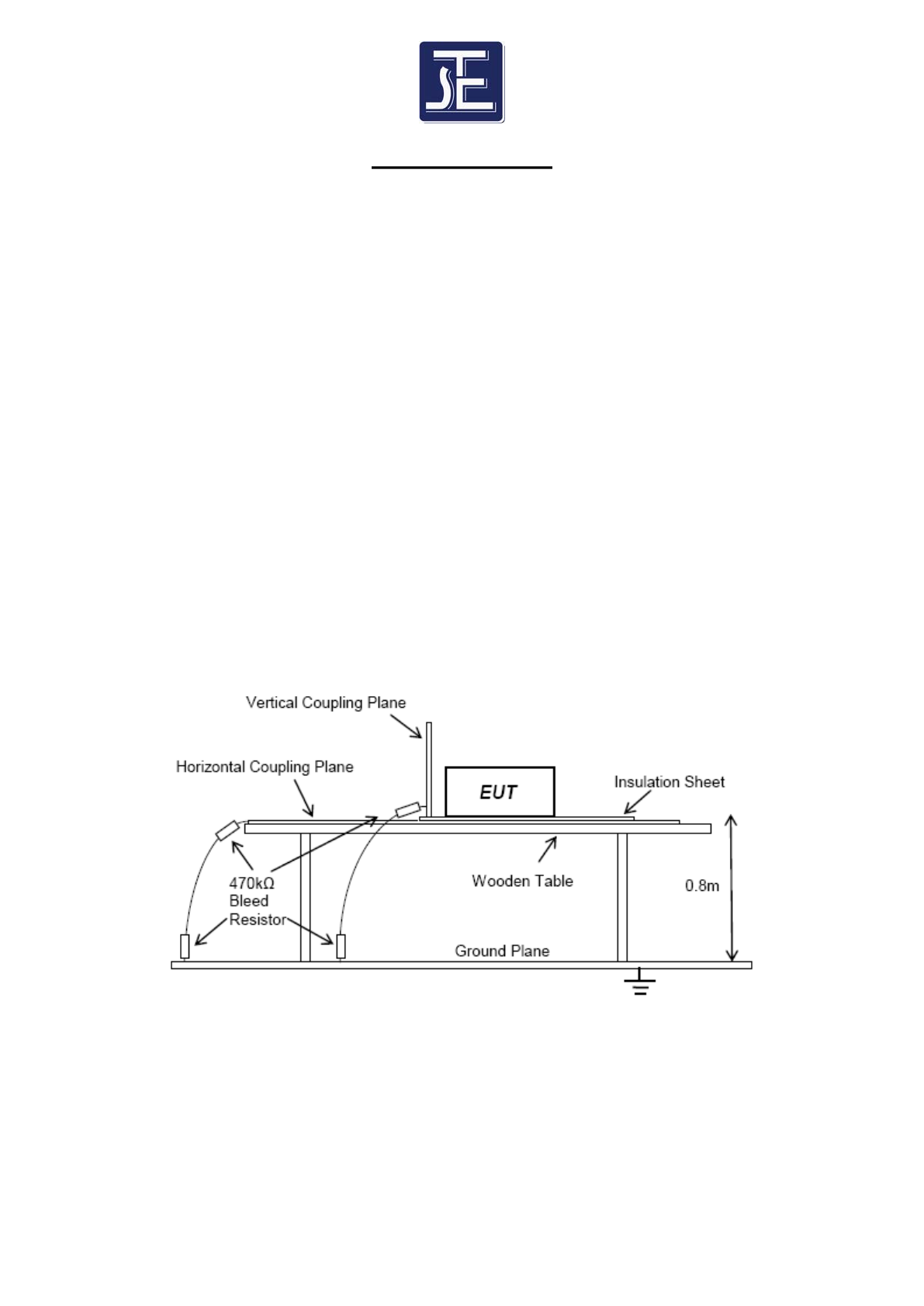

Electrostatic
Discharge
EN55024: 2010
EN61000-4-2: 2009
2.0kV,
4.0kV
Cont
2.0kV,
4.0kV,
8.0kV Air
Radiated Immunity
80MHz to
1000MHz
EN55024: 2010
EN61000-4-3: 2006
+A1:: 2008
+A2: 2010
3V/m
Electrical Fast
Transients on AC
Supply
EN55024: 2010
EN61000-4-4: 2004
1.0kV
Electrical Fast
Transients on LAN
Port
EN55024: 2010
EN61000-4-4: 2004
0.5kV
Surge Immunity on
AC Supply
EN55024: 2010
EN61000-4-5: 2006
0.5kV
1.0kV
Surge Immunity on
LAN Port
EN55024: 2010
EN61000-4-5: 2006
1.0kV
Continuous RF
Immunity on AC
Supply
EN55024: 2010
EN61000-4-6: 2009
3Vrms
Continuous RF
Immunity on LAN
Port
EN55024: 2010
EN61000-4-6: 2009
3Vrms
Voltage Dips,
Interruptions and
Variations on AC
Supply
EN55024: 2010
EN61000-4-11: 2004
0%, 70%
of UT

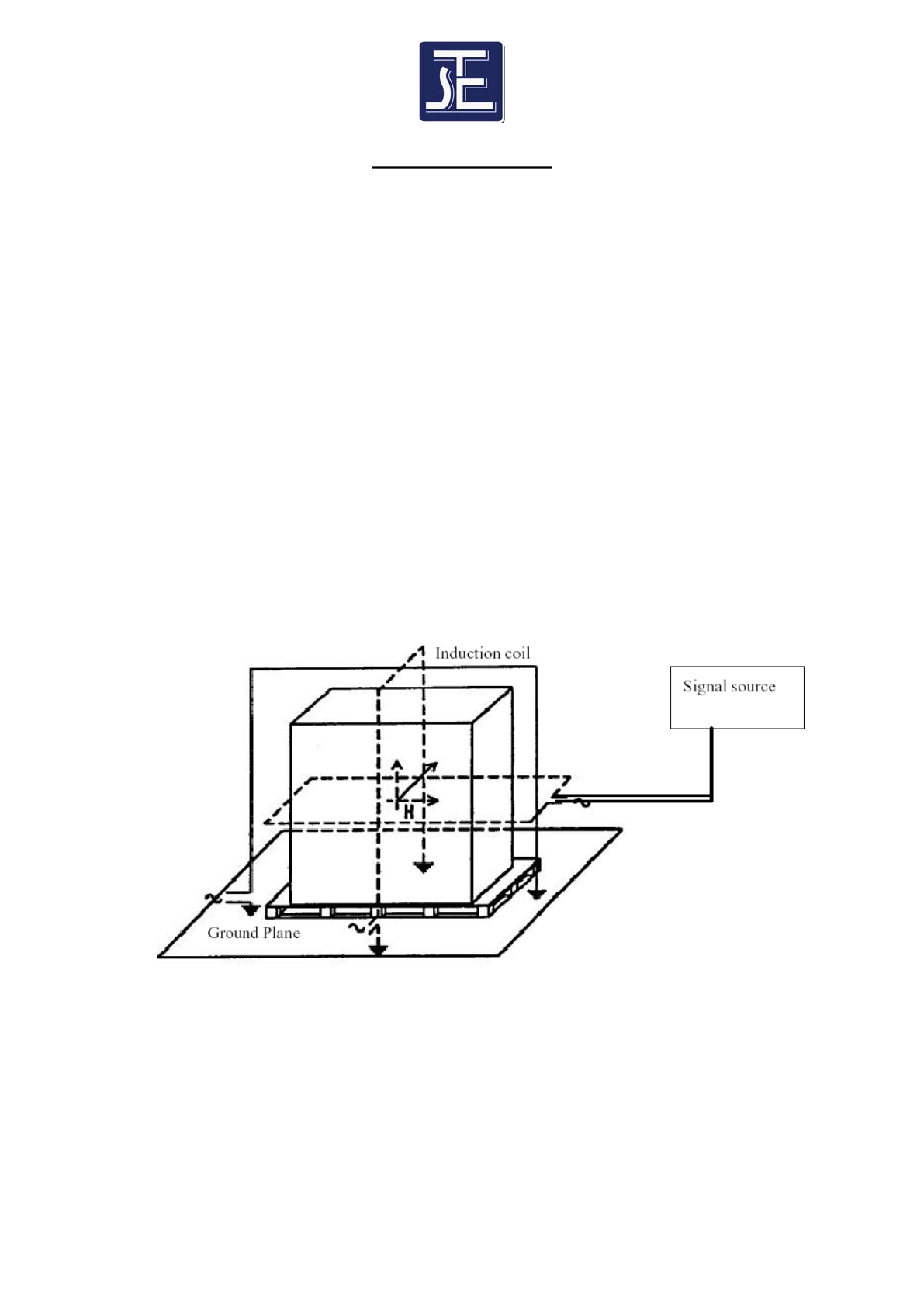

Power Frequency
Magnetic Field
EN61000-6-1: 2007
EN61000-4-8: 1993
3A/m
(r.m.s)
Remarks:
N/A: Not Applicable
UT: The nominal supply voltage
STC Test Report
STC (Dongguan) Company Limited
68 Fumin Nan Road, Dalang, Dongguan, China. (Zip Code : 523 770)
Tel : (86 769) 8111 9888 Fax : (86 769) 8111 6222 E-mail : dgstc@dgstc.org Homepage : www.dgstc.org
This report shall not be reproduced unless with prior written approval from STC (Dongguan) Company Limited.
For Conditions of Issuance of this test report, please refer to the overleaf or Homepage.
Date: 2016-04-15
Page 7 of 33
No.: DM123142
3.0
Test Results
3.1
Emission
3.1.1
Radiated Emissions (30MHz to 6000MHz)
Test Requirement:
EN 55022
Test Method:
EN 55022
Level:
Class B
Test Date(s):
2014-08-25
Mode of Operation:
Data transfer mode
Test Method:
The test was performed in accordance with EN55022 at 3m test distance on a standard emission test
site, with quasi-peak measurements performed if the maximised peak measurements were less than 6dB
from the corresponding Class B limit lines.

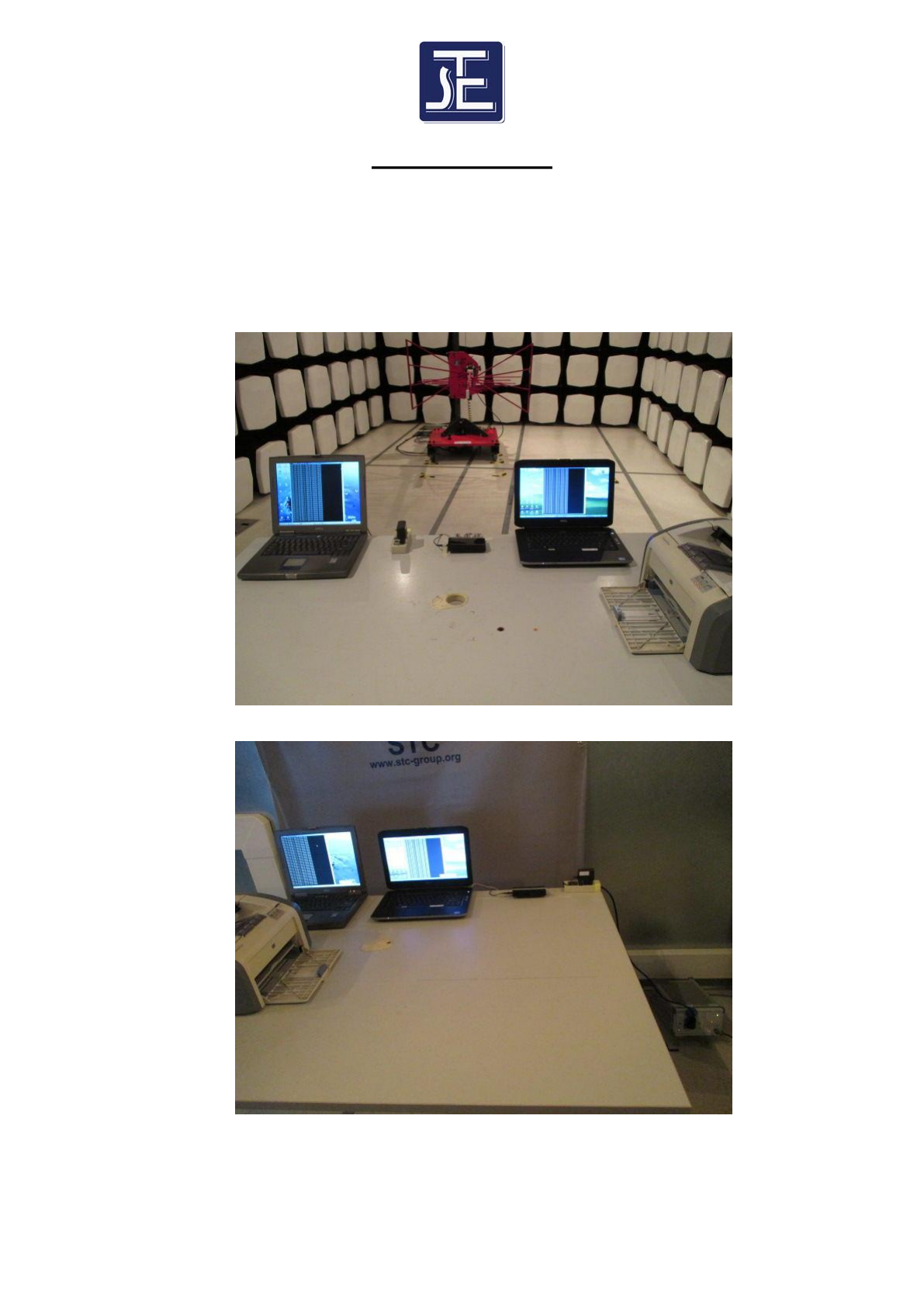

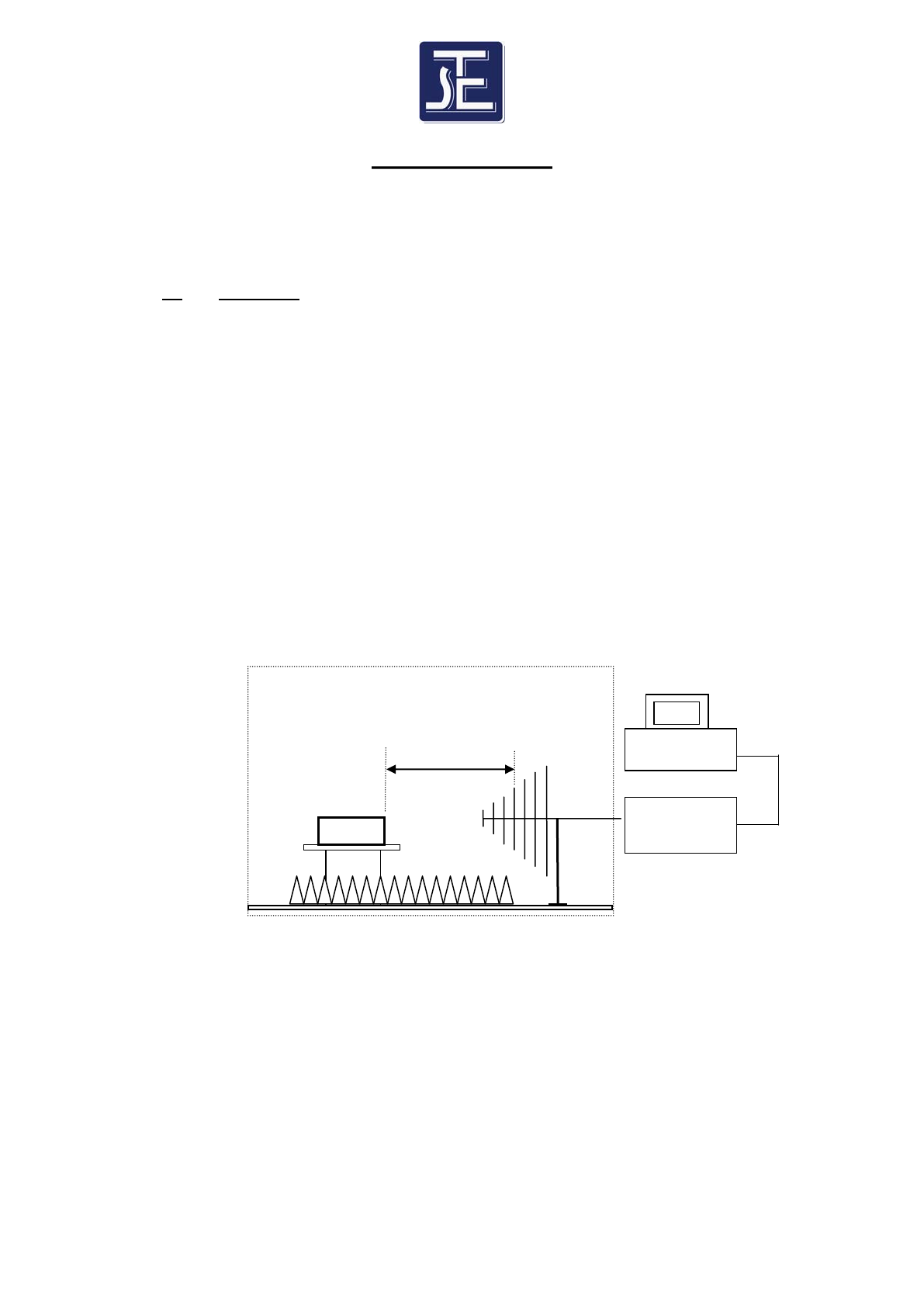

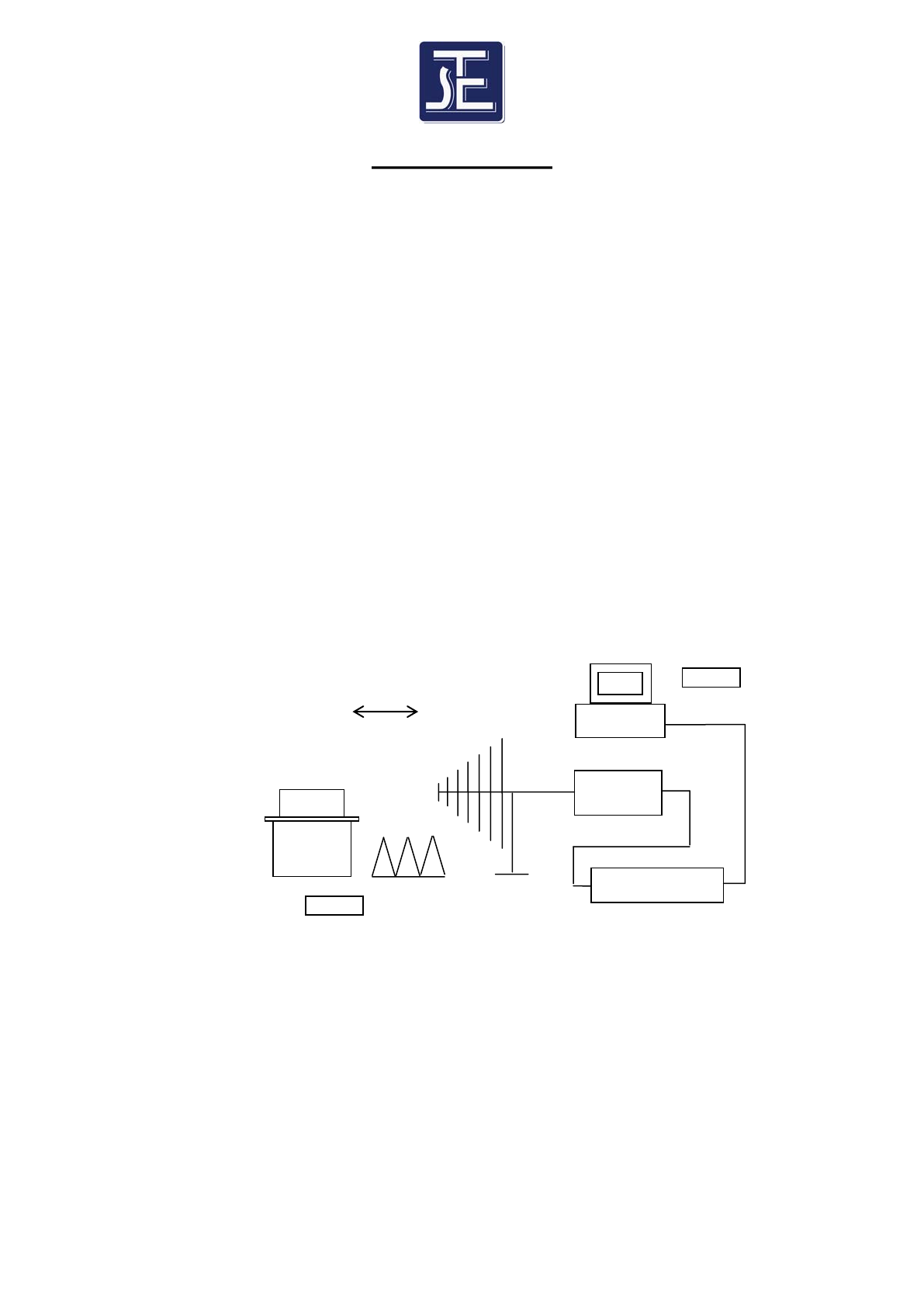

Test Setup:
Measurement
Receiver
Computer
Ground Plane
Absorber
s
Absorbers placed on top of the ground plane are for measurements above 1000MHz only.
Turn-table
Distance = 3m
Semi-Anechoic Chamber
EUT
STC Test Report
STC (Dongguan) Company Limited
68 Fumin Nan Road, Dalang, Dongguan, China. (Zip Code : 523 770)
Tel : (86 769) 8111 9888 Fax : (86 769) 8111 6222 E-mail : dgstc@dgstc.org Homepage : www.dgstc.org
This report shall not be reproduced unless with prior written approval from STC (Dongguan) Company Limited.
For Conditions of Issuance of this test report, please refer to the overleaf or Homepage.
Date: 2016-04-15
Page 8 of 33
No.: DM123142
Limits for Radiated Emission:
Frequency Range
Quasi-Peak Limits
[MHz]
[dBV/m]
30-230
40.0
230-1000
47.0

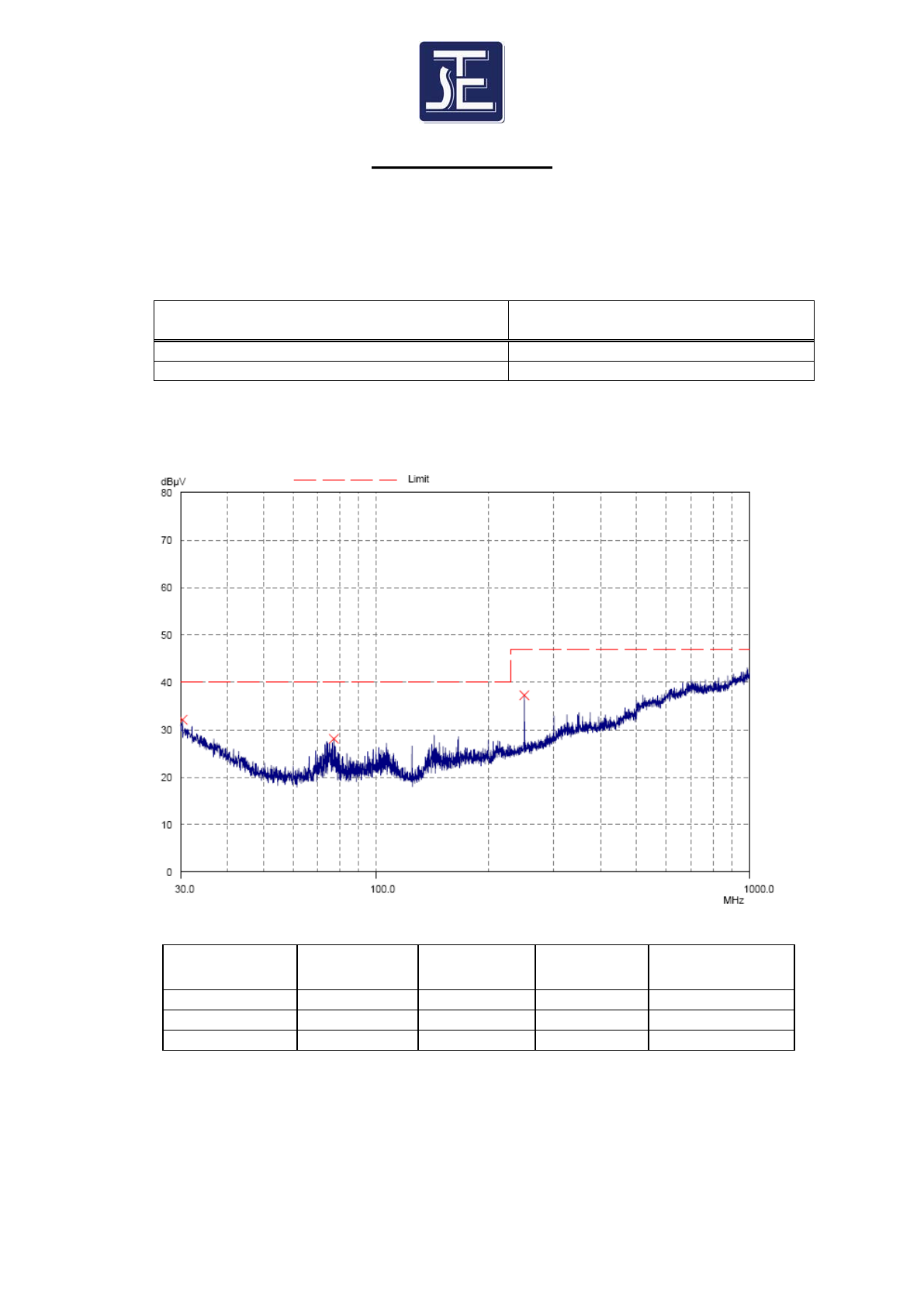

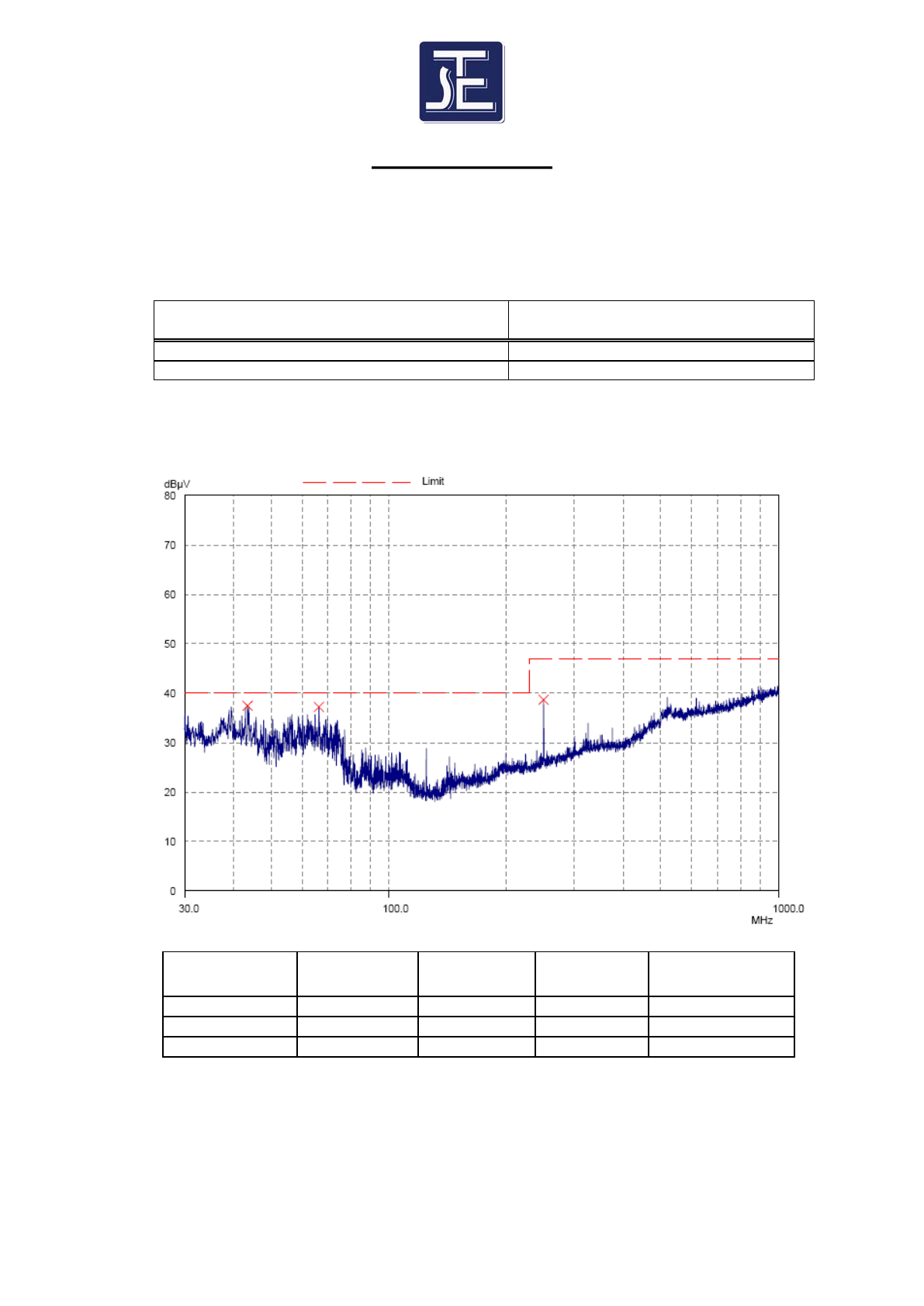

Results of Data transfer mode (connected to PC): Pass
Please refer to the following table for result details
Horizontal
The quasi-peak measurements were recorded as follows:
Frequency
MHz
Level @3m
dBV/m
Limit @3m
dBV/m
Margin
dB
E-Field Polarity
30.4
30.1
40.0
9.9
Horizontal
77.3
26.1
40.0
13.9
Horizontal
250.0
36.8
47.0
10.2
Horizontal
STC Test Report
STC (Dongguan) Company Limited
68 Fumin Nan Road, Dalang, Dongguan, China. (Zip Code : 523 770)
Tel : (86 769) 8111 9888 Fax : (86 769) 8111 6222 E-mail : dgstc@dgstc.org Homepage : www.dgstc.org
This report shall not be reproduced unless with prior written approval from STC (Dongguan) Company Limited.
For Conditions of Issuance of this test report, please refer to the overleaf or Homepage.
Date: 2016-04-15
Page 9 of 33
No.: DM123142
Limits for Radiated Emission:
Frequency Range
Quasi-Peak Limits
[MHz]
[dBV/m]
30-230
40.0
230-1000
47.0
Results of Data transfer mode (connected to PC): Pass
Please refer to the following table for result details
Vertical
The quasi-peak measurements were recorded as follows:
Frequency
MHz
Level @3m
dBV/m
Limit @3m
dBV/m
Margin
dB
E-Field Polarity
43.5
35.4
40.0
4.6
Vertical
66.3
35.2
40.0
4.8
Vertical
250.0
37.8
47.0
9.2
Vertical
Remark:
Calculated measurement uncertainty (30MHz – 1GHz): 4.6dB
Emissions in the vertical and horizontal polarizations have been investigated and the worst-case test results are
recorded in this report.
STC Test Report
STC (Dongguan) Company Limited
68 Fumin Nan Road, Dalang, Dongguan, China. (Zip Code : 523 770)
Tel : (86 769) 8111 9888 Fax : (86 769) 8111 6222 E-mail : dgstc@dgstc.org Homepage : www.dgstc.org
This report shall not be reproduced unless with prior written approval from STC (Dongguan) Company Limited.
For Conditions of Issuance of this test report, please refer to the overleaf or Homepage.
Date: 2016-04-15
Page 10 of 33
No.: DM123142
3.1.2
Conducted Emissions (150kHz to 30MHz)
Test Requirement:
EN 55022
Test Method:
EN 55022
Level:
Class B
Test Date(s):
2014-08-25
Mode of Operation:
Data transfer mode
Test Method:
Initial measurements were performed in peak and average detection modes on the live line. Any
emissions recorded within 30dB of the relevant limit lines were re-measured using quasi-peak and
average detection on the live and neutral lines with the worst case recorded in the table of results.
The test was performed in accordance with EN 55022.

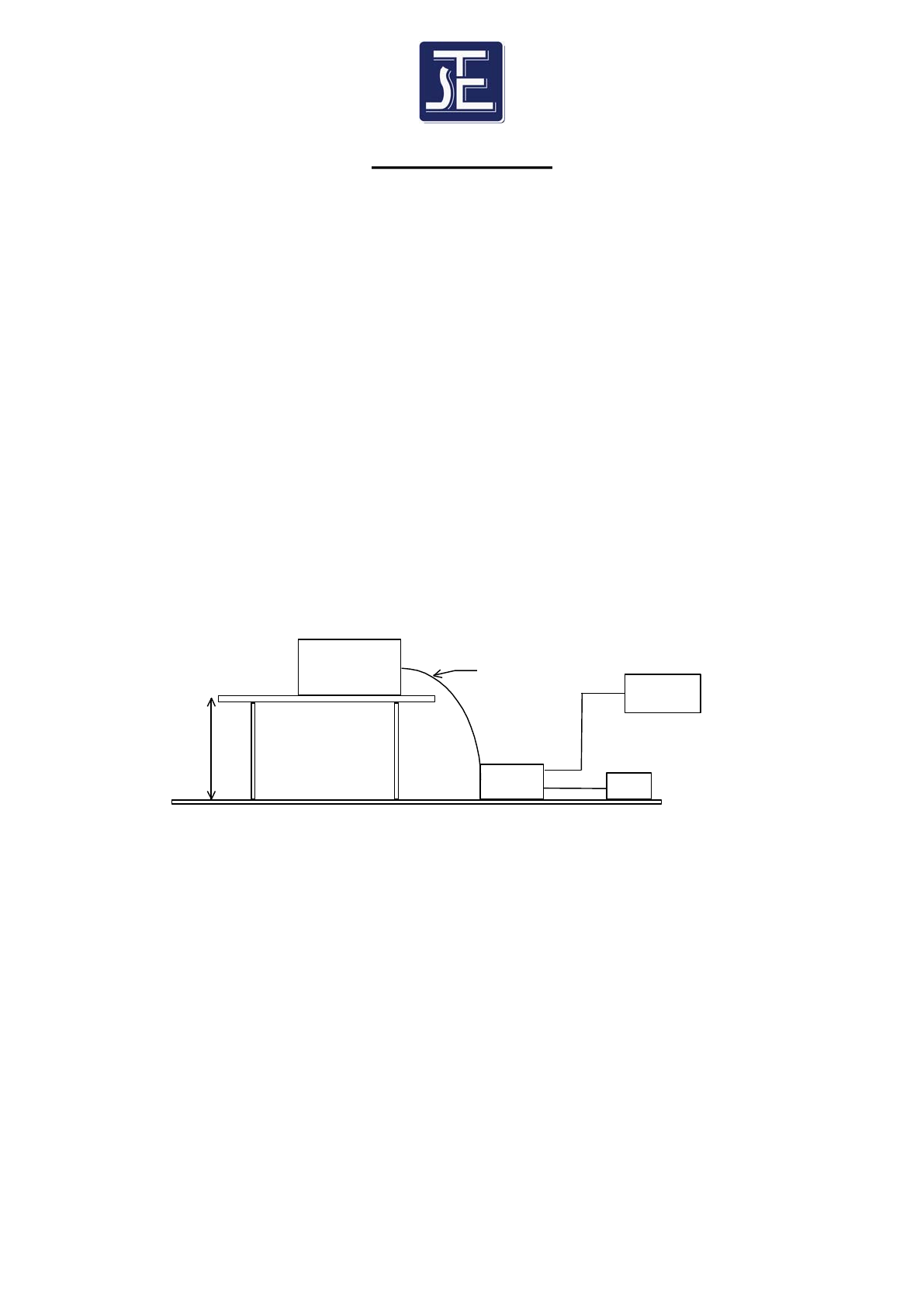

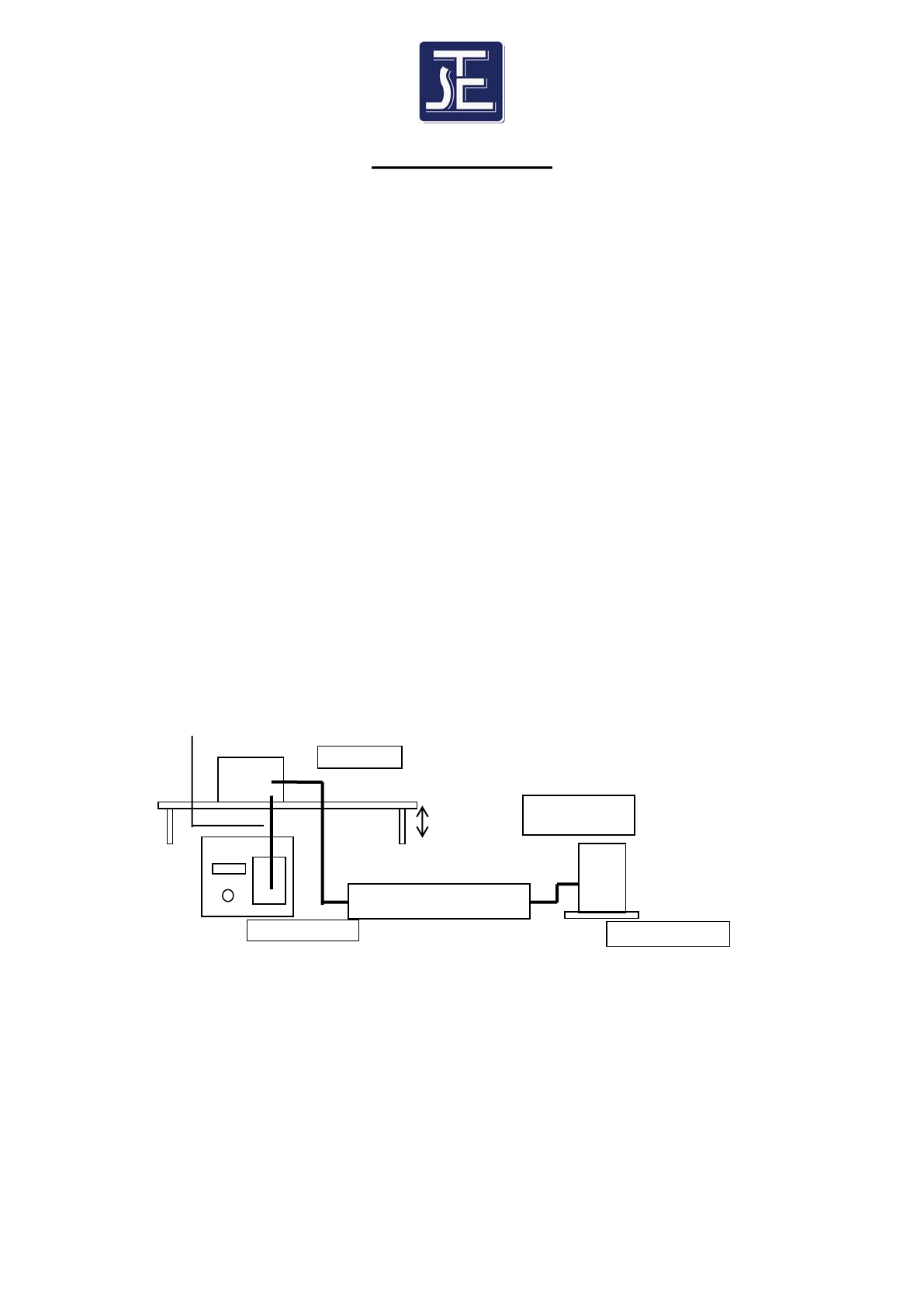

Test Setup:
LISN
Receiver
AE
EUT
0.8m
Cable
=0.8m
STC Test Report
STC (Dongguan) Company Limited
68 Fumin Nan Road, Dalang, Dongguan, China. (Zip Code : 523 770)
Tel : (86 769) 8111 9888 Fax : (86 769) 8111 6222 E-mail : dgstc@dgstc.org Homepage : www.dgstc.org
This report shall not be reproduced unless with prior written approval from STC (Dongguan) Company Limited.
For Conditions of Issuance of this test report, please refer to the overleaf or Homepage.
Date: 2016-04-15
Page 11 of 33
No.: DM123142
Results and limit lines for Conducted Emission:
Limits for Conducted Emission Test, please refer to limit lines (Quasi-Peak and Average) in the following
diagram.

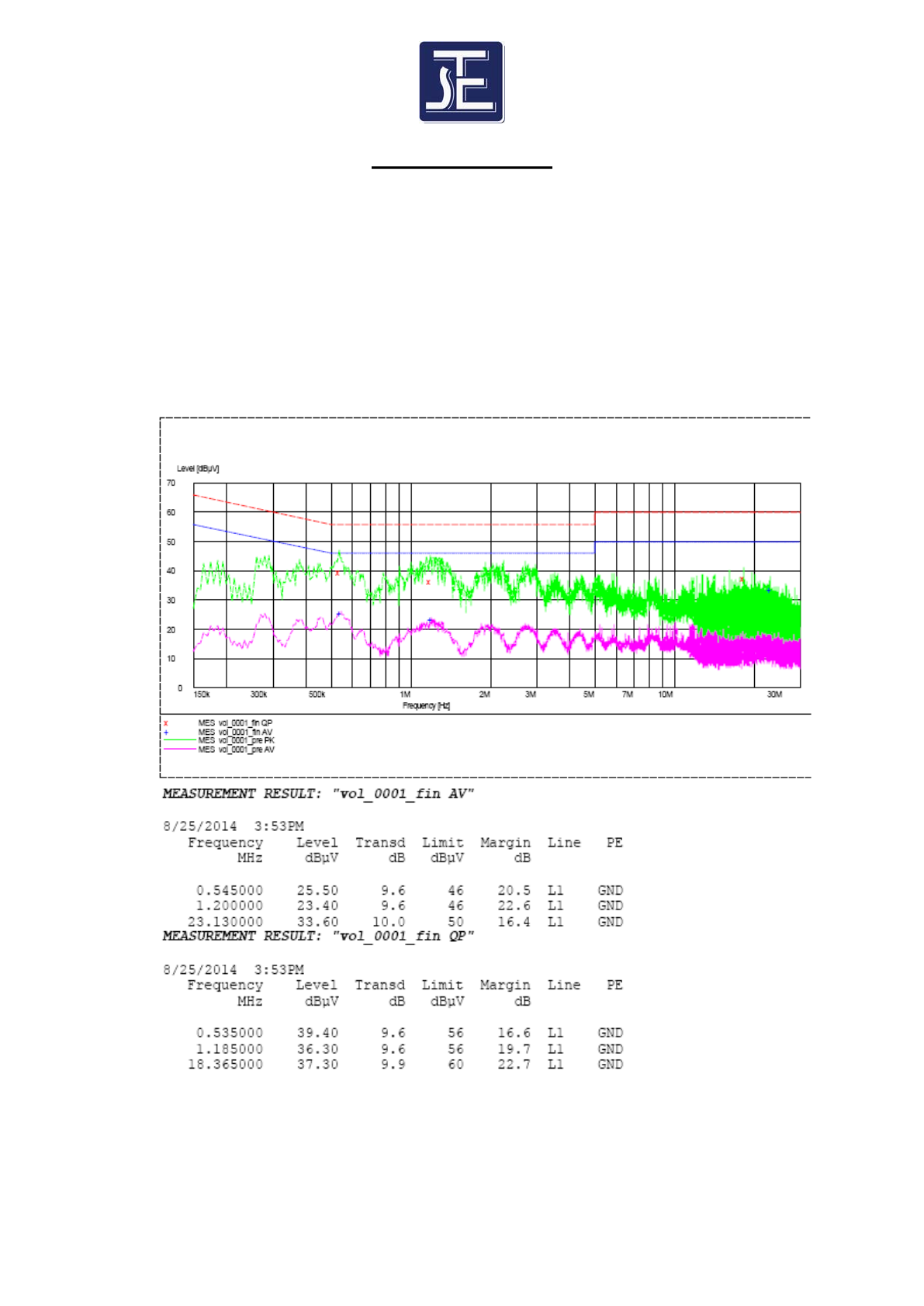

Results of Data transfer mode (connected to PC) (L): Pass
Please refer to the following diagram for individual results.
STC Test Report
STC (Dongguan) Company Limited
68 Fumin Nan Road, Dalang, Dongguan, China. (Zip Code : 523 770)
Tel : (86 769) 8111 9888 Fax : (86 769) 8111 6222 E-mail : dgstc@dgstc.org Homepage : www.dgstc.org
This report shall not be reproduced unless with prior written approval from STC (Dongguan) Company Limited.
For Conditions of Issuance of this test report, please refer to the overleaf or Homepage.
Date: 2016-04-15
Page 12 of 33
No.: DM123142
Results and limit lines for Conducted Emission:
Limits for Conducted Emission Test, please refer to limit lines (Quasi-Peak and Average) in the following
diagram.

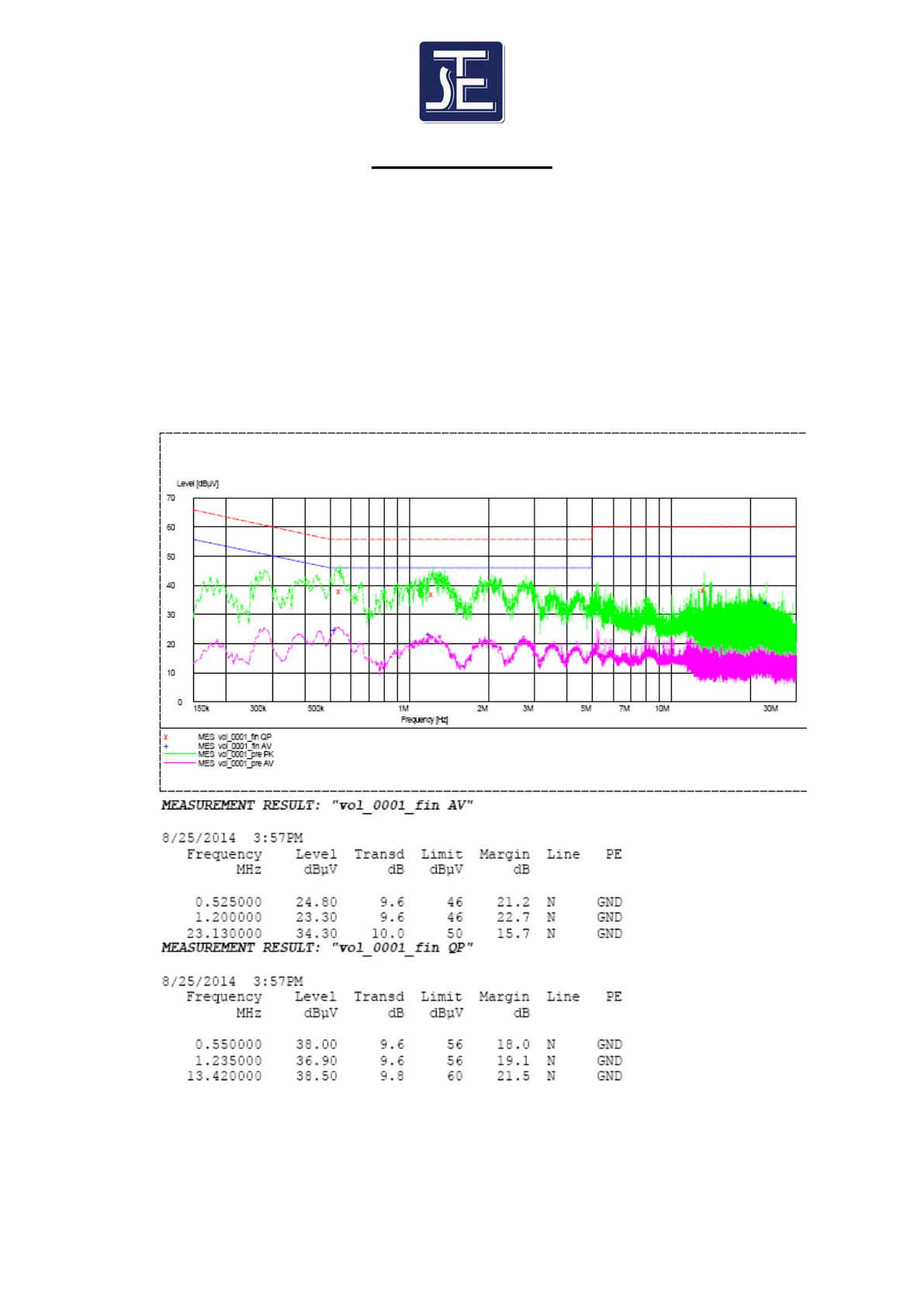

Results of Data transfer mode (connected to PC) (N): Pass
Please refer to the following diagram for individual results.
STC Test Report
STC (Dongguan) Company Limited
68 Fumin Nan Road, Dalang, Dongguan, China. (Zip Code : 523 770)
Tel : (86 769) 8111 9888 Fax : (86 769) 8111 6222 E-mail : dgstc@dgstc.org Homepage : www.dgstc.org
This report shall not be reproduced unless with prior written approval from STC (Dongguan) Company Limited.
For Conditions of Issuance of this test report, please refer to the overleaf or Homepage.
Date: 2016-04-15
Page 13 of 33
No.: DM123142
Results and limit lines for Conducted Emission:
Limits for Conducted Emission Test, please refer to limit lines (Quasi-Peak and Average) in the following
diagram.
Results of Data transfer mode (connected to PC, LAN1): Pass
Please refer to the following diagram for individual results.
STC Test Report
STC (Dongguan) Company Limited
68 Fumin Nan Road, Dalang, Dongguan, China. (Zip Code : 523 770)
Tel : (86 769) 8111 9888 Fax : (86 769) 8111 6222 E-mail : dgstc@dgstc.org Homepage : www.dgstc.org
This report shall not be reproduced unless with prior written approval from STC (Dongguan) Company Limited.
For Conditions of Issuance of this test report, please refer to the overleaf or Homepage.
Date: 2016-04-15
Page 14 of 33
No.: DM123142
Results and limit lines for Conducted Emission:
Limits for Conducted Emission Test, please refer to limit lines (Quasi-Peak and Average) in the following
diagram.
Results of Data transfer mode (connected to PC, LAN8): Pass
Please refer to the following diagram for individual results.
Remark:
Calculated measurement uncertainty (0.15MHz - 30MHz): 3.2dB
STC Test Report
STC (Dongguan) Company Limited
68 Fumin Nan Road, Dalang, Dongguan, China. (Zip Code : 523 770)
Tel : (86 769) 8111 9888 Fax : (86 769) 8111 6222 E-mail : dgstc@dgstc.org Homepage : www.dgstc.org
This report shall not be reproduced unless with prior written approval from STC (Dongguan) Company Limited.
For Conditions of Issuance of this test report, please refer to the overleaf or Homepage.
Date: 2016-04-15
Page 15 of 33
No.: DM123142
3.1.3
Harmonics Emissions on AC Supply
Test Requirement:
EN 61000-3-2
Test Method:
EN 61000-3-2
Level:
Class A
Test Date(s):
2014-08-27
Mode of Operation:
Data transfer mode
Input Voltage:
230Va.c.
Test Method:
The test was performed in accordance with EN 61000-3-2.
STC Test Report
STC (Dongguan) Company Limited
68 Fumin Nan Road, Dalang, Dongguan, China. (Zip Code : 523 770)
Tel : (86 769) 8111 9888 Fax : (86 769) 8111 6222 E-mail : dgstc@dgstc.org Homepage : www.dgstc.org
This report shall not be reproduced unless with prior written approval from STC (Dongguan) Company Limited.
For Conditions of Issuance of this test report, please refer to the overleaf or Homepage.
Date: 2016-04-15
Page 16 of 33
No.: DM123142
Results and limit line for Harmonics Emissions:
For limits for Harmonics Emission Test, please refer to limit lines (saw-tooth) in the following diagram.
Results: Pass
Please refer to the following table for individual results.
Current & voltage waveforms
- 0 . 1 5
- 0 . 1 0
- 0 . 0 5
0 . 0 0
0 . 0 5
0 . 1 0
0 . 1 5
- 3 0 0
- 2 0 0
- 1 0 0
0
100
200
300
C u r r e n t ( A m p s )
V o l t a g e ( V o l t s )
Harmonics and Class A limit line European Limits
0 . 0
0 . 5
1 . 0
1 . 5
2 . 0
2 . 5
3 . 0
3 . 5
C u r r e n t R M S ( A m p s )
H a r m o n ic #
4 8 12 16 20 24 28 32 36 40
Remark:
Calculated measurement uncertainty: 7.1%
STC Test Report
STC (Dongguan) Company Limited
68 Fumin Nan Road, Dalang, Dongguan, China. (Zip Code : 523 770)
Tel : (86 769) 8111 9888 Fax : (86 769) 8111 6222 E-mail : dgstc@dgstc.org Homepage : www.dgstc.org
This report shall not be reproduced unless with prior written approval from STC (Dongguan) Company Limited.
For Conditions of Issuance of this test report, please refer to the overleaf or Homepage.
Date: 2016-04-15
Page 17 of 33
No.: DM123142
3.1.4
Emission for Fluctuations & Flicker
Test Requirement:
EN 61000-3-3
Test Method:
EN 61000-3-3
Level:
N/A
Test Date(s):
2014-08-27
Mode of Operation:
Data transfer mode
Test Method:
The test was performed in accordance with EN 61000-3-3.
STC Test Report
STC (Dongguan) Company Limited
68 Fumin Nan Road, Dalang, Dongguan, China. (Zip Code : 523 770)
Tel : (86 769) 8111 9888 Fax : (86 769) 8111 6222 E-mail : dgstc@dgstc.org Homepage : www.dgstc.org
This report shall not be reproduced unless with prior written approval from STC (Dongguan) Company Limited.
For Conditions of Issuance of this test report, please refer to the overleaf or Homepage.
Date: 2016-04-15
Page 18 of 33
No.: DM123142
Limits for Flicker:
Please refer to the result table for details.
Results: Pass
Please refer to the following table for individual results.
Maximum Occurring Levels:
Pst:
0.064
Limit =
1.00
(The Highest Short Term Flicker Value)
Plt:
0.028
Limit =
0.65
(The Highest Long Term Flicker Value)
dc(%):
0.00
Limit =
3.30%
(The Highest Relative Steady State Voltage Change (1sec))
dmax:
0.00
Limit =
4.00%
(*The Highest Maximum Relative Voltage Change)
Tdt:
0.00
Limit =
500ms
(The Max Time (in milli-sec) that dt exceeds 3.3%)
Ut:
230.15V
(EUT Test RMS Voltage)
Remark:
* - Some products may have more relax limits (refer to Clause 5 of EN 61000-3-3)
Calculated measurement uncertainty: 7.7%
STC Test Report
STC (Dongguan) Company Limited
68 Fumin Nan Road, Dalang, Dongguan, China. (Zip Code : 523 770)
Tel : (86 769) 8111 9888 Fax : (86 769) 8111 6222 E-mail : dgstc@dgstc.org Homepage : www.dgstc.org
This report shall not be reproduced unless with prior written approval from STC (Dongguan) Company Limited.
For Conditions of Issuance of this test report, please refer to the overleaf or Homepage.
Date: 2016-04-15
Page 19 of 33
No.: DM123142
3.2
Immunity
3.2.1
Susceptibility Performance Criteria
A
Normal performance within the specification limits
B
Temporary degradation or loss of function or performance which is self-
recoverable
C
Temporary degradation or loss of function or performance which
requires operator intervention or system reset
D
Degradation or loss of function which is not recoverable due to damage of
equipment (components) or software, or loss of data
STC Test Report
STC (Dongguan) Company Limited
68 Fumin Nan Road, Dalang, Dongguan, China. (Zip Code : 523 770)
Tel : (86 769) 8111 9888 Fax : (86 769) 8111 6222 E-mail : dgstc@dgstc.org Homepage : www.dgstc.org
This report shall not be reproduced unless with prior written approval from STC (Dongguan) Company Limited.
For Conditions of Issuance of this test report, please refer to the overleaf or Homepage.
Date: 2016-04-15
Page 20 of 33
No.: DM123142
3.2.2
Electrostatic Discharge
Test Requirement:
EN 55024
Test Method:
EN 61000-4-2
Severity:
2kV, 4kV for Direct & Indirect Contact Discharge
2kV, 4kV, 8kV for Air Discharge
Performance Criterion Requirement:
B
Temperature:
22 oC
Humidity:
54 %
Atmospheric Pressure:
101 kPa
Test Date(s):
2014-08-29
Mode of Operation:
Data transfer mode
Test Method:
The test was performed in accordance with EN 61000-4-2.
Test Setup:
STC Test Report
STC (Dongguan) Company Limited
68 Fumin Nan Road, Dalang, Dongguan, China. (Zip Code : 523 770)
Tel : (86 769) 8111 9888 Fax : (86 769) 8111 6222 E-mail : dgstc@dgstc.org Homepage : www.dgstc.org
This report shall not be reproduced unless with prior written approval from STC (Dongguan) Company Limited.
For Conditions of Issuance of this test report, please refer to the overleaf or Homepage.
Date: 2016-04-15
Page 21 of 33
No.: DM123142
Severity Levels for Electrostatic Discharge:
Level
Test Voltage
Test Voltage
Direct & Indirect Contact Discharge
Air Discharge
[kV]
[kV]
1
2kV
2kV
2
4kV
4kV
3
6kV
8kV
4
8kV
15kV
Results of Data transfer mode: Pass
Please refer to the following table for individual results.
Location
Discharge Method
Test Voltage
Individual Results
Pass
Failed
HCP
[Horizontal Coupling Plane]
Indirect Contact
2kV, 4kV
VCP
[Vertical Coupling Plane]
Indirect Contact
2kV, 4kV
Gaps
Air
2kV, 4kV, 8kV
LAN port/ DC Port
Air
2kV, 4kV, 8kV
***EUT Grounding
Grounded
Ungrounded
Remarks:
***For ungrounded EUT, the charge on the EUT shall be removed prior to each applied ESD pulse
Calculated measurement uncertainty: 7.1%
STC Test Report
STC (Dongguan) Company Limited
68 Fumin Nan Road, Dalang, Dongguan, China. (Zip Code : 523 770)
Tel : (86 769) 8111 9888 Fax : (86 769) 8111 6222 E-mail : dgstc@dgstc.org Homepage : www.dgstc.org
This report shall not be reproduced unless with prior written approval from STC (Dongguan) Company Limited.
For Conditions of Issuance of this test report, please refer to the overleaf or Homepage.
Date: 2016-04-15
Page 22 of 33
No.: DM123142
3.2.3
Radiated Immunity [80MHz to 1000MHz]
Test Requirement:
EN 55024
Test Method:
EN 61000-4-3
Severity:
Level 2 [3V/m]
Modulation:
80% 1kHz AM
Performance Criterion Requirement:
A
Temperature:
24 oC
Humidity:
52 %
Test Date(s):
2014-08-28
Mode of Operation:
Data transfer mode
Test Method:
The test was performed in accordance with EN 61000-4-3.
Test Setup:
EUT
distance = 3m
Amplifier
Signal Generator
Computer
Absorbers
STC Test Report
STC (Dongguan) Company Limited
68 Fumin Nan Road, Dalang, Dongguan, China. (Zip Code : 523 770)
Tel : (86 769) 8111 9888 Fax : (86 769) 8111 6222 E-mail : dgstc@dgstc.org Homepage : www.dgstc.org
This report shall not be reproduced unless with prior written approval from STC (Dongguan) Company Limited.
For Conditions of Issuance of this test report, please refer to the overleaf or Homepage.
Date: 2016-04-15
Page 23 of 33
No.: DM123142
Severity Levels for Radiated Immunity:
Level
Field Strength
[V/m]
1
1
2
3
3
10
Results of Data transfer mode: Pass
Please refer to the following table for individual results.
Frequency
Face
Polarity
Level
Dwell
Time
Sweep
rate
Individual
Results
(MHz)
(V/m)
(s)
(%)
Pass
Failed
80-1000
0o
Horizontal
3
3
1
80-1000
90o
Horizontal
3
3
1
80-1000
180o
Horizontal
3
3
1
80-1000
270o
Horizontal
3
3
1
80-1000
0o
Vertical
3
3
1
80-1000
90o
Vertical
3
3
1
80-1000
180o
Vertical
3
3
1
80-1000
270o
Vertical
3
3
1
Remarks:
The dwell time at each frequency is according to the standard being applied and the basic standard
Calculated measurement uncertainty: 1.74dB
STC Test Report
STC (Dongguan) Company Limited
68 Fumin Nan Road, Dalang, Dongguan, China. (Zip Code : 523 770)
Tel : (86 769) 8111 9888 Fax : (86 769) 8111 6222 E-mail : dgstc@dgstc.org Homepage : www.dgstc.org
This report shall not be reproduced unless with prior written approval from STC (Dongguan) Company Limited.
For Conditions of Issuance of this test report, please refer to the overleaf or Homepage.
Date: 2016-04-15
Page 24 of 33
No.: DM123142
3.2.4
Electrical Fast Transients on AC Supply / LAN Port
Test Requirement:
EN 55024
Test Method:
EN 61000-4-4
Severity:
Level 2 on LAN Port [0.5kV]
Level 2 on AC [1kV]
Performance Criterion Requirement:
B
Temperature:
24 oC
Humidity:
52 %
Atmospheric Pressure:
101 kPa
Test Date(s):
2014-08-27
Mode of Operation:
Data transfer mode
Test Method:
The test was performed in accordance with EN 61000-4-4.
Test Setup:
Burst Generator
EUT
0.1m
10cm height stand
EUT
Capacitive
Coupling Clamp
Signal Cable
Mains Cable
STC Test Report
STC (Dongguan) Company Limited
68 Fumin Nan Road, Dalang, Dongguan, China. (Zip Code : 523 770)
Tel : (86 769) 8111 9888 Fax : (86 769) 8111 6222 E-mail : dgstc@dgstc.org Homepage : www.dgstc.org
This report shall not be reproduced unless with prior written approval from STC (Dongguan) Company Limited.
For Conditions of Issuance of this test report, please refer to the overleaf or Homepage.
Date: 2016-04-15
Page 25 of 33
No.: DM123142
Severity Levels for Electrical Fast Transient:
Level
On power supply port, PE
On I/O (Input/Output) signal, data and
control ports
Voltage peak
Repetition rate
Voltage peak
Repetition rate
[kV]
[kHz]
[kV]
[kHz]
1
0.5
5.0
0.25
5.0
2
1.0
5.0
0.50
5.0
3
2.0
5.0
1.00
5.0
4
4.0
2.5
2.00
5.0
Results of Data transfer mode: Pass
Please refer to the following table for individual results.
Conductor
Polarity & Level
Duration/Polarity
Individual Results
(s)
Pass
Failed
LAN Port
0.5kV
120
Live- Neutral
1kV
120
Remark:
Calculated measurement uncertainty: 7.1%
STC Test Report
STC (Dongguan) Company Limited
68 Fumin Nan Road, Dalang, Dongguan, China. (Zip Code : 523 770)
Tel : (86 769) 8111 9888 Fax : (86 769) 8111 6222 E-mail : dgstc@dgstc.org Homepage : www.dgstc.org
This report shall not be reproduced unless with prior written approval from STC (Dongguan) Company Limited.
For Conditions of Issuance of this test report, please refer to the overleaf or Homepage.
Date: 2016-04-15
Page 26 of 33
No.: DM123142
3.2.5
Surge Immunity on AC Supply / LAN Port
Test Requirement:
EN 55024
Test Method:
EN 61000-4-5
Severity:
On AC:
Level 1 - 0.5kV (between live & neutral)
Level 2 - 1.0kV (between live & neutral)
On LAN ports:
Level 2 - 1.0kV (LAN port)
Performance Criterion Requirement:
B for AC Supply
C for LAN ports
Temperature:
21 oC
Humidity:
48 %
Atmospheric Pressure:
101 kPa
Test Date(s):
2014-08-29 to 2014-09-25
Mode of Operation:
Data transfer mode
Test Method:
The test was performed in accordance with EN 61000-4-5.

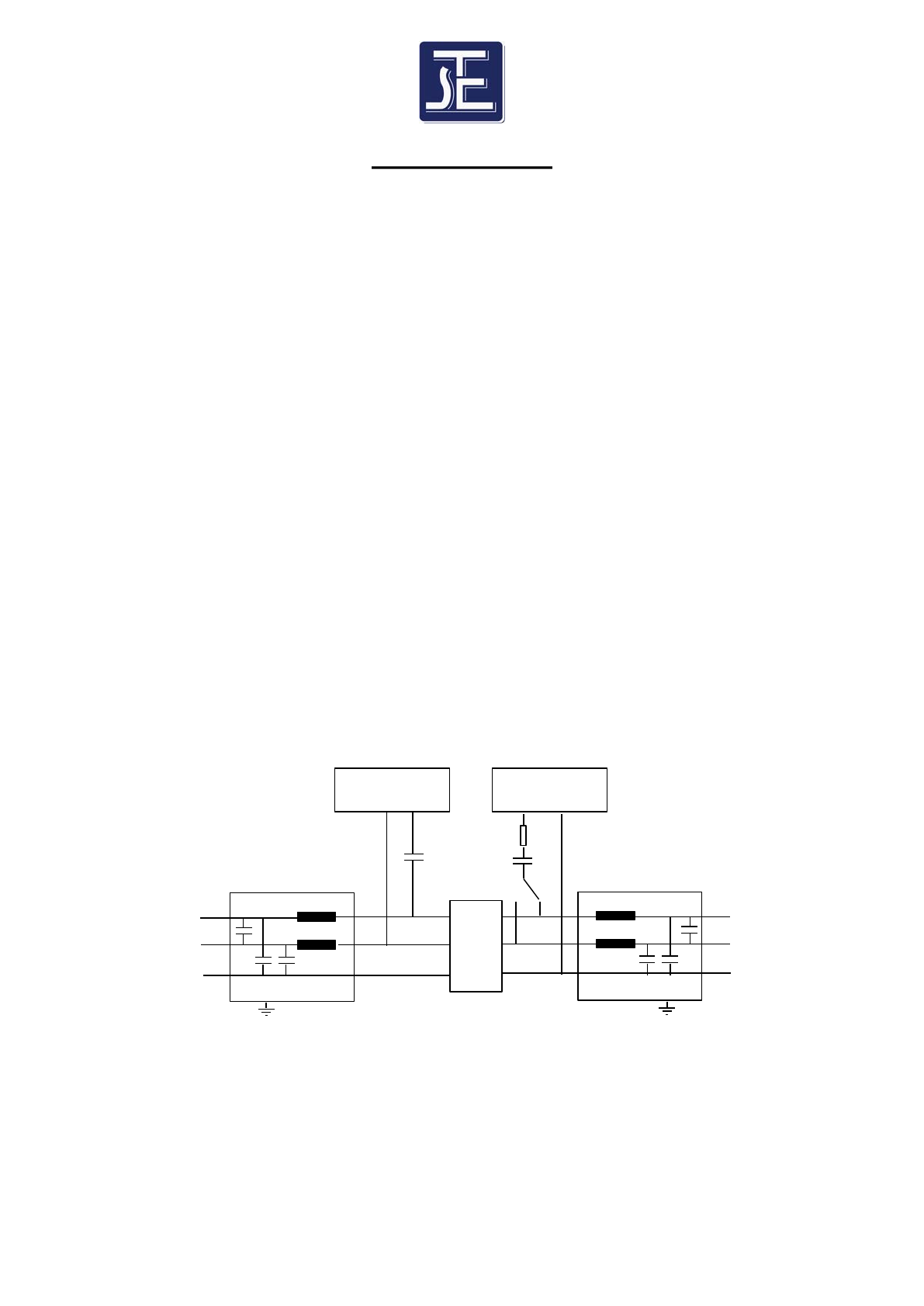

Test Setup:
Combination
Wave Generator
EUT
Combination
Wave Generator
Line -to-line
coupling
Line-to-earth
coupling
L
N
PE
C=18F
R=10
C= 9F
L
N
PE
STC Test Report
STC (Dongguan) Company Limited
68 Fumin Nan Road, Dalang, Dongguan, China. (Zip Code : 523 770)
Tel : (86 769) 8111 9888 Fax : (86 769) 8111 6222 E-mail : dgstc@dgstc.org Homepage : www.dgstc.org
This report shall not be reproduced unless with prior written approval from STC (Dongguan) Company Limited.
For Conditions of Issuance of this test report, please refer to the overleaf or Homepage.
Date: 2016-04-15
Page 27 of 33
No.: DM123142
Severity Levels for Surge Immunity:
Level
Open-circuit test voltage 10%
kV
1
0.5
2
1.0
3
2.0
4
4.0
Results of Data transfer mode: Pass
Please refer to the following table for individual results
Conductor
Level & Polarity
kV
No. of
Surge
Phase
Angle
Surge
Interval
(s)
Individual Results
Pass
Failed
0o
Live - Neutral
0.5, 1.0
5
90o
60s
180o
270o
LAN Port
1.0kV
5
--
60s
Remarks:
*- N/A: Not Applicable
Calculated measurement uncertainty: 7.1%
STC Test Report
STC (Dongguan) Company Limited
68 Fumin Nan Road, Dalang, Dongguan, China. (Zip Code : 523 770)
Tel : (86 769) 8111 9888 Fax : (86 769) 8111 6222 E-mail : dgstc@dgstc.org Homepage : www.dgstc.org
This report shall not be reproduced unless with prior written approval from STC (Dongguan) Company Limited.
For Conditions of Issuance of this test report, please refer to the overleaf or Homepage.
Date: 2016-04-15
Page 28 of 33
No.: DM123142
3.2.6
Continuous RF Immunity on AC Supply / LAN Port (150kHz to 80MHz)
Test Requirement:
EN 55024
Test Method:
EN 61000-4-6
Severity:
Level 2 - 3Vrms(emf) with 80% 1kHz AM
Performance Criterion Requirement:
A
Temperature:
24 oC
Humidity:
52 %
Atmospheric Pressure:
101 kPa
Test Date(s):
2014-08-28
Mode of Operation:
Data transfer mode
Test Method:
The test was performed in accordance with EN 61000-4-6.
Test Setup:
Signal Generator
Amplifier
Coupler
Multivoltmeter
CDN
0.1m support
EUT
0.1m < Cable length < 0.3m
AE
STC Test Report
STC (Dongguan) Company Limited
68 Fumin Nan Road, Dalang, Dongguan, China. (Zip Code : 523 770)
Tel : (86 769) 8111 9888 Fax : (86 769) 8111 6222 E-mail : dgstc@dgstc.org Homepage : www.dgstc.org
This report shall not be reproduced unless with prior written approval from STC (Dongguan) Company Limited.
For Conditions of Issuance of this test report, please refer to the overleaf or Homepage.
Date: 2016-04-15
Page 29 of 33
No.: DM123142
Severity Levels for Continuous RF Immunity:
Frequency range 150kHz - 80MHz
Level
Voltage level (emf)
Uo [dB(V)]
Uo [V]
1
120
1
2
130
3
3
140
10
Results of Data transfer mode: Pass
Please refer to the following table for individual results.
Frequency
Level
Dwell Time
Sweep rate
Individual Results
(MHz)
(Vrms)
(s)
(%)
Pass
Failed
150kHz – 80MHz
3
3
1
Remark:
Calculated measurement uncertainty: 2.39dB
STC Test Report
STC (Dongguan) Company Limited
68 Fumin Nan Road, Dalang, Dongguan, China. (Zip Code : 523 770)
Tel : (86 769) 8111 9888 Fax : (86 769) 8111 6222 E-mail : dgstc@dgstc.org Homepage : www.dgstc.org
This report shall not be reproduced unless with prior written approval from STC (Dongguan) Company Limited.
For Conditions of Issuance of this test report, please refer to the overleaf or Homepage.
Date: 2016-04-15
Page 30 of 33
No.: DM123142
3.2.7
Voltage Dips, Interruptions and Variations on AC Supply
Test Requirement:
EN 55024
Test Method:
EN 61000-4-11
Severity:
[0, 70]% of UT
Performance Criterion Requirement:
B for 0% of UT for 0.5 period
C for other specifications
Temperature:
23 oC
Humidity:
53 %
Atmospheric Pressure:
101 kPa
Test Date(s):
2014-08-28
Mode of Operation:
Data transfer mode
Test Method:
The test was performed in accordance with EN 61000-4-11.
STC Test Report
STC (Dongguan) Company Limited
68 Fumin Nan Road, Dalang, Dongguan, China. (Zip Code : 523 770)
Tel : (86 769) 8111 9888 Fax : (86 769) 8111 6222 E-mail : dgstc@dgstc.org Homepage : www.dgstc.org
This report shall not be reproduced unless with prior written approval from STC (Dongguan) Company Limited.
For Conditions of Issuance of this test report, please refer to the overleaf or Homepage.
Date: 2016-04-15
Page 31 of 33
No.: DM123142
Severity Levels for voltage dips, short interruptions and voltage variations immunity:
Level
Voltage dip and short interruptions
Duration
(period)
0
100
0.5
70
30
25
0
100
250
Results of Data transfer mode: Pass
Please refer to the following table for individual results.
Phase
Test Level
Duration
Individual Results
(% of UT)
(period)
Pass
Failed
0o followed by 180o
0
0.5
0o followed by 180o
70
25
0o followed by 180o
0
250
Remarks:
Calculated measurement uncertainty: 7.1% of tested voltage
UT - The nominal supply voltage
STC Test Report
STC (Dongguan) Company Limited
68 Fumin Nan Road, Dalang, Dongguan, China. (Zip Code : 523 770)
Tel : (86 769) 8111 9888 Fax : (86 769) 8111 6222 E-mail : dgstc@dgstc.org Homepage : www.dgstc.org
This report shall not be reproduced unless with prior written approval from STC (Dongguan) Company Limited.
For Conditions of Issuance of this test report, please refer to the overleaf or Homepage.
Date: 2016-04-15
Page 32 of 33
No.: DM123142
3.2.8
Power Frequency Magnetic Field
Test Requirement:
EN 61000-6-1
Test Method:
EN 61000-4-8
Severity:
3A/m (r.m.s)
Performance Criterion Requirement:
A
Temperature:
24 oC
Humidity:
51 %
Atmospheric Pressure:
101 kPa
Test Date(s):
2014-08-28
Mode of Operation:
Data transfer mode
Test Method:
The test was performed in accordance with EN 61000-4-8
STC Test Report
STC (Dongguan) Company Limited
68 Fumin Nan Road, Dalang, Dongguan, China. (Zip Code : 523 770)
Tel : (86 769) 8111 9888 Fax : (86 769) 8111 6222 E-mail : dgstc@dgstc.org Homepage : www.dgstc.org
This report shall not be reproduced unless with prior written approval from STC (Dongguan) Company Limited.
For Conditions of Issuance of this test report, please refer to the overleaf or Homepage.
Date: 2016-04-15
Page 33 of 33
No.: DM123142
Severity Levels for Power Frequency Magnetic Field:
Level
Magnetic filed strength
A/m
1
1
2
3
3
10
4
30
5
100
X1)
special
NOTE 1 “X” is an open level. This level can be given in the product specification
Results of Data transfer mode: Pass
Please refer to the following table for individual results.
Test Level
EUT Orientation
Individual Results
Pass
Failed
1 A/m
X, Y, Z
Remark:
Calculated measurement uncertainty: 7.1%
*****End of Test Report*****
STC Test Report
STC (Dongguan) Company Limited
68 Fumin Nan Road, Dalang, Dongguan, China. (Zip Code : 523 770)
Tel : (86 769) 8111 9888 Fax : (86 769) 8111 6222 E-mail : dgstc@dgstc.org Homepage : www.dgstc.org
This report shall not be reproduced unless with prior written approval from STC (Dongguan) Company Limited.
For Conditions of Issuance of this test report, please refer to the overleaf or Homepage.
Date: 2016-04-15
Page A1 of A2
No.: DM123142
APPENDIX A
List of Measurement Equipment
RADIATED EMISSION
EQP NO.
DESCRIPTION
MANUFACTURER
MODEL NO.
SERIAL NO.
LAST CAL
EMD036
EMI Test Receiver
ROHDE & SCHWARZ
ESIB26
100388
2014.06.10
EMD061
BICONILOG ANTENNA
ETS.LINDGREN
3142C
00060439
2012.11.28
EMD084
MULTI-DVICE CONTROLLER
ETS.LINDGREN
2090
00060107
N/A
EMD088
VIDEO CONTOL UNIT
ETS.LINDGREN
Y21953A
2601073
N/A
EMD093
MONITOR
VIEWSONIC
VA9036
Q8X064201876
N/A
EMD102
INTELLIGENT FREQUENCY
AINUO LNSTRUMENT
CO., LTD
AN97005SS
79707454
N/A
EMD105
FACT-3 EMC CHAMBER
ETS.LINDGREN
FACT-3
3803
N/A
CONDUCTED EMISSION
EQP NO.
DESCRIPTION
MANUFACTURER
MODEL NO.
SERIAL NO.
LAST CAL
EMD002
EMI Test Receiver
ROHDE & SCHWARZ
ESHS 10
8468601002
2014.03.21
EMD003
IMPULSEGRENZER PULSE
LIMITER
ROHDE & SCHWARZ
ESH3-Z2
100071
2014.03.21
EMD004
ZWEILEITER-V-
NETZNACHBILDUNG TWO-
LINE V-NETWORK
ROHDE & SCHWARZ
ESH3-Z5
100102
2014.03.21
EMD009
Passive Voltage Probe
ROHDE & SCHWARZ
ESH2-Z3
100020
2014.03.21
EMD022
EMI Test Receiver
ROHDE & SCHWARZ
ESCS 30
100314
2014.03.21
EMD036
EMI Test Receiver
ROHDE & SCHWARZ
ESIB26
100388
2014.06.10
EMD041
TWO-LINE V-NETWORK
ROHDE & SCHWARZ
ENV216
100261
2014.03.21
EMD056
4-WIRE ISN
ROHDE & SCHWARZ
ENY41
100205
2014.06.10
EMD103
Intelligent Frequency
Ainuo lnstrument Co., Ltd
AN97005SS
79707455
N/A
EMD106
Shielding Room #1
ETS.LINDGREN
RFD-100
3802
N/A
HARMONICS/ FLICKER
EQP NO.
DESCRIPTION
MANUFACTURER
MODEL NO.
SERIAL NO.
LAST CAL
EMD013
AC POWER SOURCE
SCHAFFNER
NSG1007
54964
2014.03.21
EMD014
HARMONIC & FLICKER
METER
SCHAFFNER
CCN1000
72104
2014.06.10
RADIATED FIELD IMMUNITY
EQP NO.
DESCRIPTION
MANUFACTURER
MODEL NO.
SERIAL NO.
LAST CAL
EMD111
Power meter
ROHDE & SCHWARZ
NRVD
102051
2014.03.21
EMD137
Signal Generator
ROHDE & SCHWARZ
SMB100A
1406600K02-
104532-DF
2014.06.10
EMD060
Biconilog Antenna
ETS.LINDGREN
3142C
00060445
2012.11.03
EMD063
Power Amplifier
BONN ELEKTRONIK
BLWA0840-
50/30D
066454B
2014.03.21
EMD064
Power Amplifier
BONN ELEKTRONIK
BLWA0810-
250/100D
066454A
2014.03.21
STC Test Report
STC (Dongguan) Company Limited
68 Fumin Nan Road, Dalang, Dongguan, China. (Zip Code : 523 770)
Tel : (86 769) 8111 9888 Fax : (86 769) 8111 6222 E-mail : dgstc@dgstc.org Homepage : www.dgstc.org
This report shall not be reproduced unless with prior written approval from STC (Dongguan) Company Limited.
For Conditions of Issuance of this test report, please refer to the overleaf or Homepage.
Date: 2016-04-15
Page A2 of A2
No.: DM123142
APPENDIX A
List of Measurement Equipment
ELECTRO STATIC DISCHARGE
EQP NO.
DESCRIPTION
MANUFACTURER
MODEL NO.
SERIAL NO.
LAST CAL
EMD007
HIGH VOLTAGE OUTPUT
±30KV MAX
KIKUSUI
KES4021
LG001717
2014.01.02
EMD034
DEHUMIDIFIER
KAWASIMA
ELECTRICAL
APPLIANCE CO.,LTD
DH-820H
N/A
N/A
EMD100
THERMOHYGROGRAPH
SATO KEIRYOKI
MFG.CO.,LTD.
7210-00
1633581
2013.08.22
EMD109
BAROGRAPH
SATO KEIRYOKI
MFG.CO.,LTD.
NSII-BQ
567719
2013.01.25
EFT /BURST
EQP NO.
DESCRIPTION
MANUFACTURER
MODEL NO.
SERIAL NO.
LAST CAL
EMD053
TRANSIENT IMMUNITY TEST
SYSTEM
EMC-PARTNER
TRANSIENT2000
845
2014.06.10
SURGE IMMUNITY
EQP NO.
DESCRIPTION
MANUFACTURER
MODEL NO.
SERIAL NO.
LAST CAL
EMD053
TRANSIENT IMMUNITY TEST
SYSTEM
EMC-PARTNER
TRANSIENT2000
845
2014.06.10
POWER FREQUENCY MAGNETIC FIELD
EQP NO.
DESCRIPTION
MANUFACTURER
MODEL NO.
SERIAL NO.
LAST CAL
EMD053
Transient Immunity Test System
EMC-PARTNER
TRANSIENT2000
845
2014.06.10
INJECTED CURRENT IMMUNITY
EQP NO.
DESCRIPTION
MANUFACTURER
MODEL NO.
SERIAL NO.
LAST CAL
EMD023
DUAL DIRECTIONAL
COUPLER
AMPLIFIER RESEARCH
DC2600A
308682
2014.03.21
EMD024
AMPLIFIER
AMPLIFIER RESEARCH
75A250A
308682
2014.03.21
EMD111
POWER METER
ROHDE & SCHWARZ
NRVD
102051
2014.03.21
EMD026
SIGNAL GENERATOR
ROHDE & SCHWARZ
SML01
102439
2014.03.21
EMD029
COUPLING DECOUPLING
NETWORK
FISCHER CUSTOM
COMMUNICATIONS
INC
30W1000B
4022
2014.03.21
VOLTAGE DIP
EQP NO.
DESCRIPTION
MANUFACTURER
MODEL NO.
SERIAL NO.
LAST CAL
EMD053
TRANSIENT IMMUNITY TEST
SYSTEM
EMC-PARTNER
TRANSIENT2000
845
2014.06.10
Remark:
N/A Not Applicable
STC Test Report
STC (Dongguan) Company Limited
68 Fumin Nan Road, Dalang, Dongguan, China. (Zip Code : 523 770)
Tel : (86 769) 8111 9888 Fax : (86 769) 8111 6222 E-mail : dgstc@dgstc.org Homepage : www.dgstc.org
This report shall not be reproduced unless with prior written approval from STC (Dongguan) Company Limited.
For Conditions of Issuance of this test report, please refer to the overleaf or Homepage.
Date: 2016-04-15
Page B1 of B5
No.: DM123142
APPENDIX B
PHOTOGRAPH (S) OF PRODUCT
Front View of The Product
Rear View of The Product
STC Test Report
STC (Dongguan) Company Limited
68 Fumin Nan Road, Dalang, Dongguan, China. (Zip Code : 523 770)
Tel : (86 769) 8111 9888 Fax : (86 769) 8111 6222 E-mail : dgstc@dgstc.org Homepage : www.dgstc.org
This report shall not be reproduced unless with prior written approval from STC (Dongguan) Company Limited.
For Conditions of Issuance of this test report, please refer to the overleaf or Homepage.
Date: 2016-04-15
Page B2 of B5
No.: DM123142
APPENDIX B
PHOTOGRAPH (S) OF PRODUCT
Radiated Emissions Test Set Up
Conducted Emission Test Set Up
STC Test Report
STC (Dongguan) Company Limited
68 Fumin Nan Road, Dalang, Dongguan, China. (Zip Code : 523 770)
Tel : (86 769) 8111 9888 Fax : (86 769) 8111 6222 E-mail : dgstc@dgstc.org Homepage : www.dgstc.org
This report shall not be reproduced unless with prior written approval from STC (Dongguan) Company Limited.
For Conditions of Issuance of this test report, please refer to the overleaf or Homepage.
Date: 2016-04-15
Page B3 of B5
No.: DM123142
APPENDIX B
PHOTOGRAPH (S) OF PRODUCT

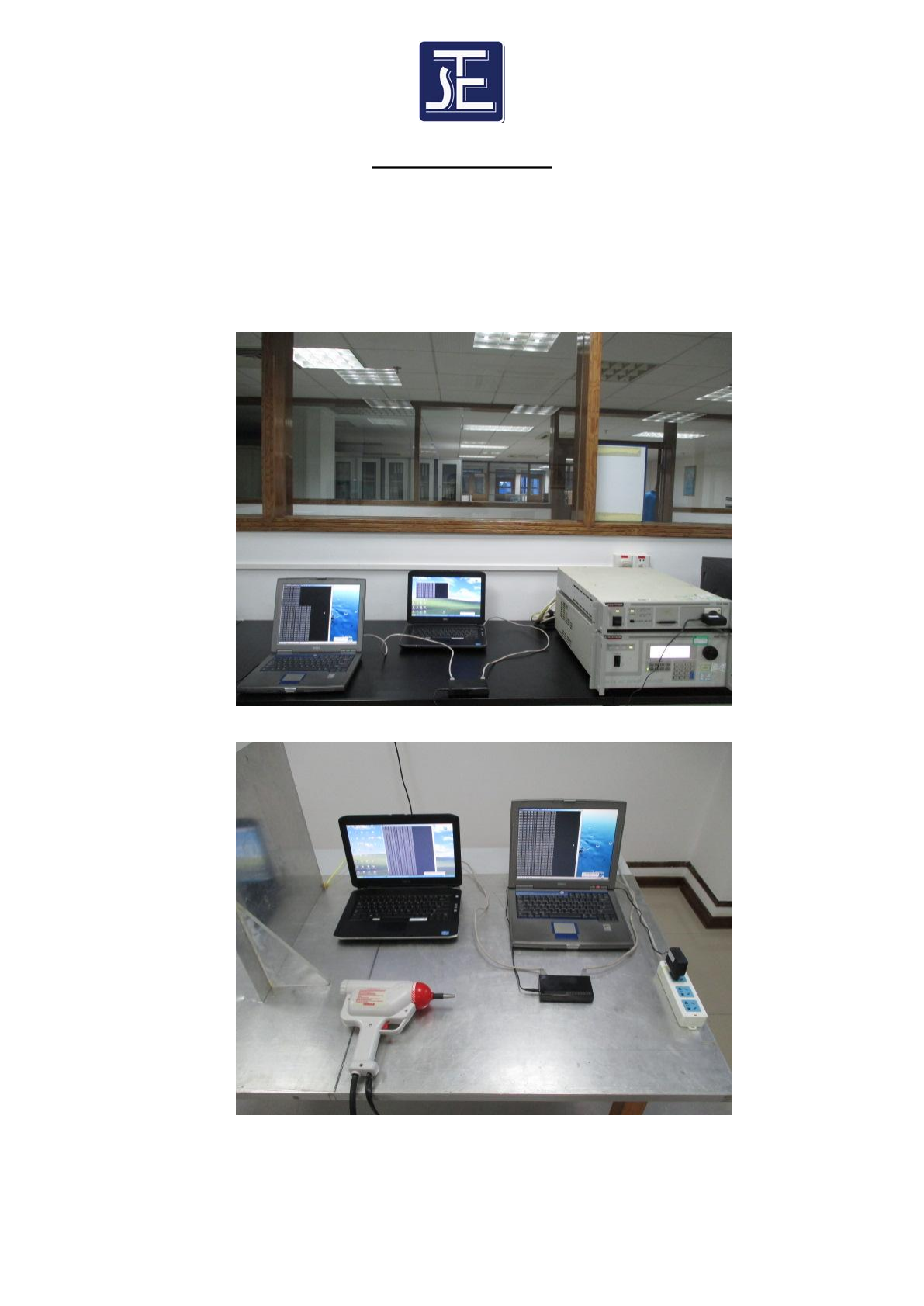

Harmonic Emissions & Voltage Fluctuations Test Set Up
Electro Static Discharge Test Set Up
STC Test Report
STC (Dongguan) Company Limited
68 Fumin Nan Road, Dalang, Dongguan, China. (Zip Code : 523 770)
Tel : (86 769) 8111 9888 Fax : (86 769) 8111 6222 E-mail : dgstc@dgstc.org Homepage : www.dgstc.org
This report shall not be reproduced unless with prior written approval from STC (Dongguan) Company Limited.
For Conditions of Issuance of this test report, please refer to the overleaf or Homepage.
Date: 2016-04-15
Page B4 of B5
No.: DM123142
APPENDIX B
PHOTOGRAPH (S) OF PRODUCT
Radiated Immunity Test Set Up
Electrical Fast Transients, Surge Immunity, Voltage Dips Test Set Up
STC Test Report
STC (Dongguan) Company Limited
68 Fumin Nan Road, Dalang, Dongguan, China. (Zip Code : 523 770)
Tel : (86 769) 8111 9888 Fax : (86 769) 8111 6222 E-mail : dgstc@dgstc.org Homepage : www.dgstc.org
This report shall not be reproduced unless with prior written approval from STC (Dongguan) Company Limited.
For Conditions of Issuance of this test report, please refer to the overleaf or Homepage.
Date: 2016-04-15
Page B5 of B5
No.: DM123142
APPENDIX B
PHOTOGRAPH (S) OF PRODUCT
Continuous RF Immunity Test Set Up
Power Frequency Test Set Up
STC Test Report
STC (Dongguan) Company Limited
68 Fumin Nan Road, Dalang, Dongguan, China. (Zip Code : 523 770)
Tel : (86 769) 8111 9888 Fax : (86 769) 8111 6222 E-mail : dgstc@dgstc.org Homepage : www.dgstc.org
This report shall not be reproduced unless with prior written approval from STC (Dongguan) Company Limited.
For Conditions of Issuance of this test report, please refer to the overleaf or Homepage.
STC Test Report
Conditions of Issuance of Test Reports
1. All samples and goods are accepted by The Hong Kong Standards & Testing Centre Limited (the “Company”) solely
for testing and reporting in accordance with the following terms and conditions. The Company provides its
services on the basis that such terms and conditions constitute express agreement between the Company and
any person, firm or company requesting its services (the “Clients”).
2. Any report issued by the Company as a result of this application for testing service (the “Report”) shall be issued
in confidence to the Clients and the Report will be strictly treated as such by the Company. It may not be
reproduced either in its entirety or in part and it may not be used for advertising or other unauthorized purposes
without the written consent of the Company. The Clients to whom the Report is issued may, however, show or
send it, or a certified copy thereof prepared by the Company to his customer, supplier or other persons directly
concerned. The Company will not, without the consent of the Clients, enter into any discussion or correspondence
with any third party concerning the contents of the Report, unless required by the relevant governmental
authorities, laws or court orders.
3. The Company shall not be called or be liable to be called to give evidence or testimony on the Report in a court of
law without its prior written consent, unless required by the relevant governmental authorities, laws or court
orders.
4. The Report refers only to the sample tested and does not apply to the bulk, unless the sampling has been carried
out by the Company and is stated as such in the Report.
5. In the event of the improper use the report as determined by the Company, the Company reserves the right to
withdraw it, and to adopt any other additional remedies which may be appropriate.
6. Sample submitted for testing are accepted on the understanding that the Report issued cannot form the basis of,
or be the instrument for, any legal action against the Company.
7. The Company will not be liable for or accept responsibility for any loss or damage howsoever arising from the use
of information contained in any of its Reports or in any communication whatsoever about its said tests or
investigations.
8. Clients wishing to use the Report in court proceedings or arbitration shall inform the Company to that effect prior
to submitting the sample for testing.
9. Subject to the variable length of retention time for test data and report stored hereinto as to otherwise specifically
required by individual accreditation authorities, the Company will only keep the supporting test data and
information of this test report for a period of three years. The data and information will be disposed of after the
aforementioned retention period has elapsed. Under no circumstances shall we provide any data and information
which has been disposed of after the retention period. Under no circumstances shall we be liable for damages of
any kind, including (but not limited to) compensatory damages, lost profits, lost data, or any form of special,
incidental, indirect, consequential or punitive damages of any kind, whether based on breach of contract of
warranty, tort (including negligence), product liability or otherwise, even if we are informed in advance of the
possibility of such damages.
10. Issuance records of the Report are available on the internet at www.stc-group.org. Further enquiry of validity or
verification of the Reports should be addressed to the Company.

Navigation menu
