Effective June 2011
Technical Data TD0EV00003E
Pow-R-Station Level 2 AC
electric vehicle charging station
Product family overview
The electric vehicle (EV) revolution is here, and
with it the need for a robust and accessible EV
charging infrastructure. Eaton meets that need
with a family of EV charging stations specifically
designed for use in the places where people
work, shop, and play. Eaton’s Pow-R-StationE
Level 2 AC charging stations are offered in
30A and 70A styles, and provide a 4–6 hour
charging range, depending on battery size,
making this design suitable for residential
or commercial installations.
Product description
The Pow-R-Station Level 2 AC charging station
provides users with a robust, dependable solution
to their EV charging needs. Designed to meet
the most rigorous electrical and environmental
standards, the charging station is housed in
an attractive steel case and equipped with the
industry standard SAE J1772E power connector
mounted on a 9–18-foot cord. A series of six LED
indicators gives users system status and feed-
back for ease of use. The Pow-R-Station Level 2
charging station is available as a wallmount or as
a freestanding pedestal. The charging station can
be applied as standalone with data supplied via a
dedicated static IP or be configured as a network
and used with Eaton’s optional Network Manager
software to monitor and manage the entire
network’s performance. The charging stations
can be equipped with optional secure access
control devices or point-of-sale systems.
Standard features
• Level 2 AC charging—208 Vac or 240 Vac
• Eaton’s standard one-year warranty on all
electrical components and housing per
Selling Policy 25-000
• NEMAT 3R exterior housing
Standards compliance
• SAE J1772 2010 EV conductive charge coupler
• NFPAT 70 National Electrical CodeT, Article 625
Electric Vehicle Charging System
• ULT 2231 personnel protection systems
for EV charging circuits
• UL 2594 EV supply equipment
(outline of investigation)
• UL 1998 software in programmable components
• FCC compliant

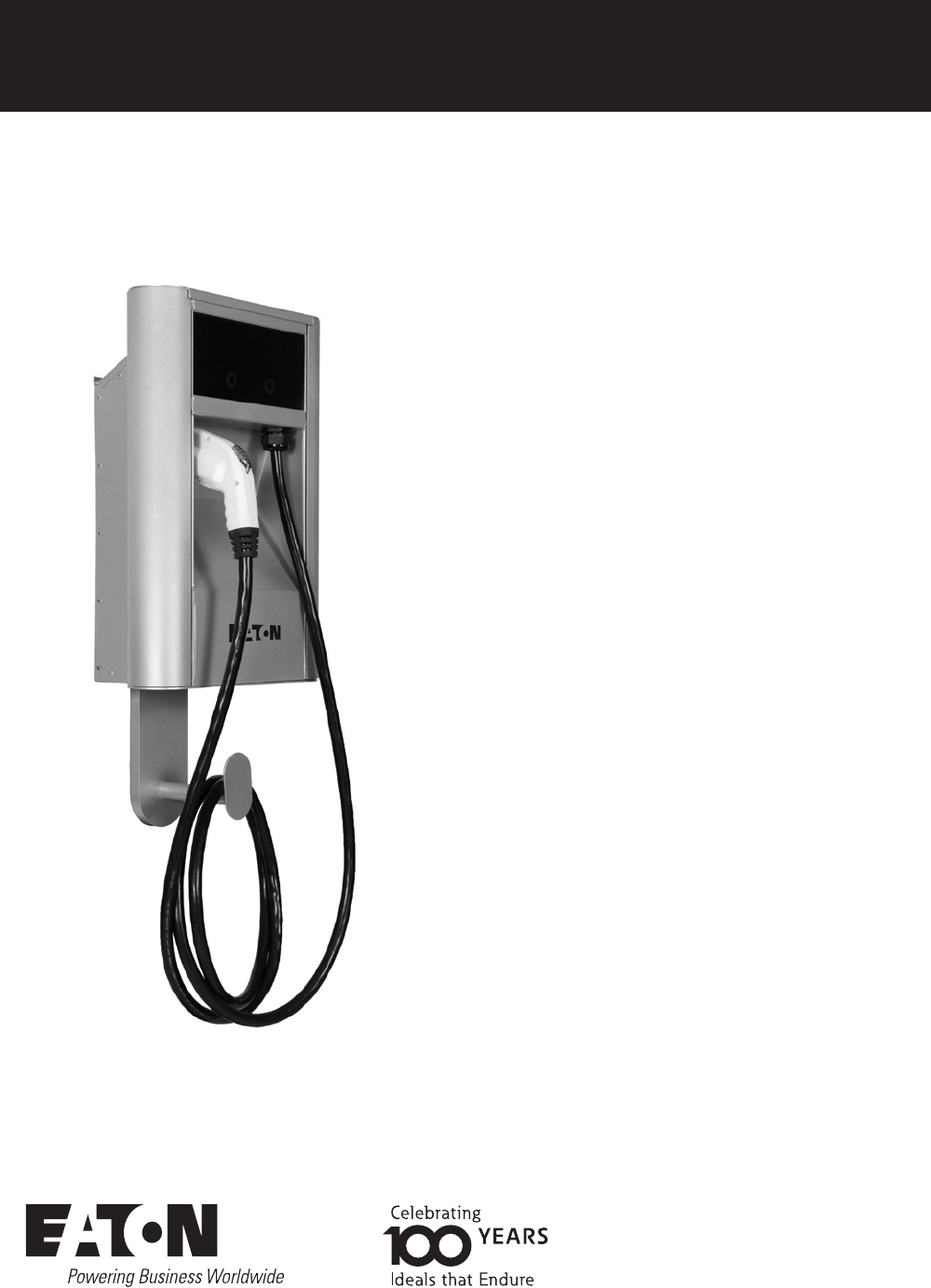

ote:N Wallmount shown. Pedestal configuration
also available.
Eaton Corporation
Electrical Sector
1111 Superior Ave.
Cleveland, OH 44114
United States
877-ETN-CARE (877-386-2273)
Eaton.com
© 2011 Eaton Corporation
All Rights Reserved
Printed in USA
Publication No. TD0EV00003E / Z10841
June 2011
Canadian Operations
5050 Mainway
Burlington, ON L7L 5Z1
Canada
800-268-3578
Eatoncanada.ca
Eaton is a registered trademark
of Eaton Corporation.
All other trademarks are property
of their respective owners.
Technical Data TD0EV00003E
Effective June 2011
Pow-R-Station Level 2 AC
electric vehicle charging station
Table 1. Catalog Numbering
Type aDescription Wallmount Pedestal
Standard Level 2 Wall EVSE 30A;
18-foot cable
SAR3BX000000 SBR3BX000000
Network manager
capable
Level 2 Wall EVSE 30A network
capable; 18-foot cable
SAR3B1000000 SBR3B1000000
a Consult factory for additional configurations.
Specications
Table 2. Technical Specifications
Description 30A 70A
Incoming voltage and connections 208–240 Vac, Line 1, Line 2, Neutral and
Earth ground
Input frequency 50/60 Hz
Upstream breaker size per NFPA 70
National Electrical Code,
Article 625.14
40A 100A
Output amperage—max. continuous 30A 70A
Interlocked power output Yes
Overcurrent rating Output amperage +5%
Ground fault interruption 20 mA (UL 2231-1 / UL 2231-2 personnel protection)
Automatic reset after
nuisance trip feature
DIP switch selectable Enable/Disable
(default Enabled)
Cold-load pickup (randomized restart on
power failure/delay before charging
resumes after a power failure)
Yes
Mechanical operations 10,000 cycles (EV connector, replaceable)
100,000 cycles (contactor, replaceable)
De-energization on breakaway Yes
Surge withstand Up to 6 kV at 3000A
Soft start No—Field selectable (DIP switch)
Table 3. Physical and Environmental Specifications
Description Wallmount Pedestal
Cable length Available up to 18 feet
Dimensions H x W x D
in inches (mm)
22.00 x 15.00 x 8.00
(558.8 x 381.0 x 203.2)
Add 9 inches below
for cable hanger
53.00 x 15.00 x 8.00
(1347.0 x 381.0 x 203.2)
Weight unpackaged
Weight packaged
52
63
110
154
Status indicators Six LEDs: Power, Charging, Complete, Remotely
Controlled, Temporary Fault, and Service
Pushbuttons Two buttons: Override and Reset
Ingress protection IP14
Type rating 3R
Temperature—storage –30 to 80°C
Temperature—operating –25 to 40°C
Humidity 90% RH, noncondensing
Table 4. I/O Specifications
Description Wallmount Pedestal
J1772 pistol-grip EV connector Same as output rating
Permissive run contact NC dry contact input
Current control to vehicle 4–20 mA analog input
RS-485 ModbusT-RTU four-wire port
Memory SD memory slot
Ethernet RJ45, IEEET 802.3, TCP/IP, Modbus TCP
Field diagnostics and upgrade port RS-232 DB9 (Telnet support)
Table 5. Optional Specifications
Description Wallmount Pedestal
Through-feed (daisy chain) compatible No Yes
Network controller Enables connectivity to Pow-R-Station Network
Manager with real-time status
and historical information
Cellular aGSM/GPRS
Wireless bWi-Fi (WPA or WPA2)
RFID basic Basic lock/unlock with card or keyfob
RFID user Third-party database of users integrated
for authentication
Credit card processing PCI-DSS
a Cellular data plan required.
b Wireless routers type G or above are preferred for best compatibility.
Installation
The Pow-R-Station EVSE’s electric requirements and wiring installa-
tion procedure vary by form-factor, but can easily be performed by
any qualified electrician. For the wallmount Level 2 AC, the procedure
is much like installing an electric stove circuit, and for the outside
pedestal, it is much like installing a lighting bollard circuit.
See installation guide IM0EV00002E for more details.
For more information, visit www.eaton.com/plugin, call 855-ETN-EVSE
(855-386-3873), or call your local Eaton sales office.
