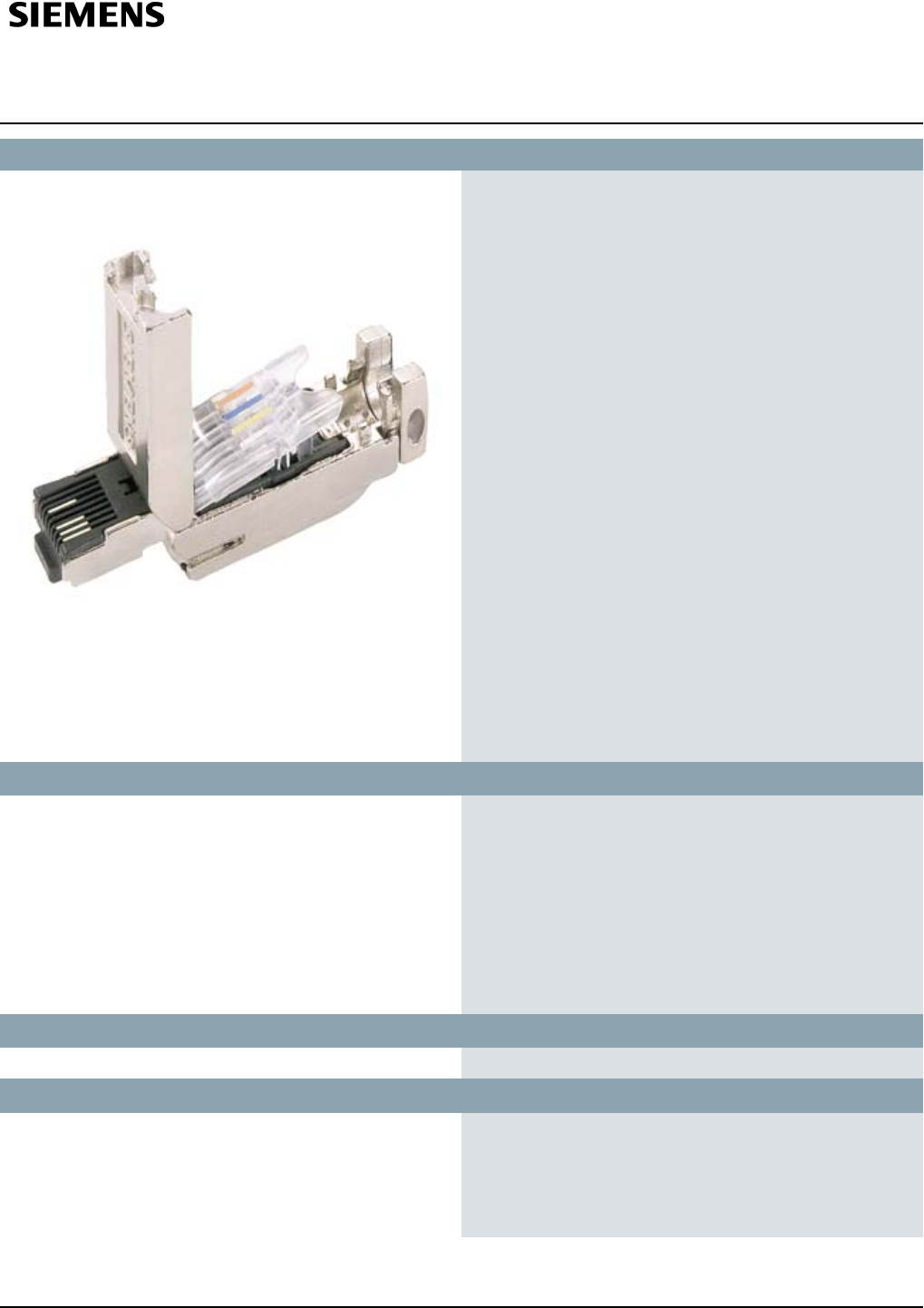

Product data sheet 6GK1901-1BB10-2AA0

Product-type designation IE FC RJ45 Plug 180 (2x2)

IE FC RJ45 PLUG 180 2X2,

RJ45 PLUG CONNECTOR (10/100MBIT/S) W. RUGGED

METAL HOUSING AND FC CONNECTING METHOD,

FOR IE FC CABLE 2X2 180 DGR CABLE OUTLET 1 PACK

= 1 PCS

Acceptability for application For connection to IE FC TP cables 2x2, suitable for fast assembly

with the FastConnect system

[nicht versorgt: PMD_ACE676_001_000]

• 1 / for Industrial Ethernet 10 Mbit/s

• 2 / for Industrial Ethernet 100 Mbit/s

Interfaces

Number of electrical connections

• for Industrial Ethernet FC TP cables 4

• for network components and terminal equipment 1

Design of the electrical connection

• for Industrial Ethernet FC TP cables integrated cut-and-clamp contacts for 4-wire TP FC installation cable

• for network components and terminal equipment RJ45 connector

Design of the electrical connection / FastConnect Yes

Mechanical data

Material / of the enclosure metal

Design, dimensions and weight

Type of cable outlet 180 degree cable outlet

Width 13.7 mm

Height 16 mm

Depth 55 mm

6GK1901-1BB10-2AA0

Page 1/ 04/26/2014

subject to modifications

© Copyright Siemens AG 2014

2

Net weight 35 g

Permitted ambient conditions

Ambient temperature

• during operating -40 … +85 °C

• during storage -40 … +85 °C

• during transport -40 … +85 °C

Relative humidity / at 25 °C / without condensation / during operating

/ maximum

95 %

Protection class IP IP20

Product properties, functions, components / general

Product feature / silicon-free Yes

Product component

• strain relief Yes

Standards, specifications, approvals

Verification of suitability

• RoHS conformity Yes

• UL-registration Yes

Standard for structured cabling Cat5

letzte Änderung: Apr 25, 2014

6GK1901-1BB10-2AA0

Page 2/ 04/26/2014
