440 Philips
Lytecaster
Canlyte Lighting Resource GuideCanlyte Lighting Resource Guide
Lightolier Lytecaster... Inspiring Intelligent Expression
Lytecaster sets the standard for the downlighting indus try with
innovative advances, trusted luminaires and exible options that
open up ever growing recessed lighting design opportunities.
To help expand your interior decoration horizons, the Lytecaster
product line features a unique combination of functional and
aesthetic benets, including ease of installation, a complete range
of lighting effects and contemporary styling right down to the
smallest aperture models.
Lytecaster meets the need for quality-engineered, versatile and
affordable downlighting systems suited to residential and light
commercial applications.
There is a Lytecaster solution for just about every lighting challenge,
however small or complex. Use the Inspiring Intelligent Expression
of Lightolier Lytecaster downlights to your advantage.
441Philips Canlyte Lighting Resource GuideCanlyte Lighting Resource Guide
Introduction 442
LED 448
Compact Fluorescent 456
HID 490
Incandescent 498
Complete Units 516
300X Series 520
500X Series 544
Accessories 552
Contents
442 Philips
Lytecaster – Philips Lightolier
371FGSTX
344ACMX
377CHX
1050RNDLWDP
1001CLSW
Canlyte Lighting Resource Guide

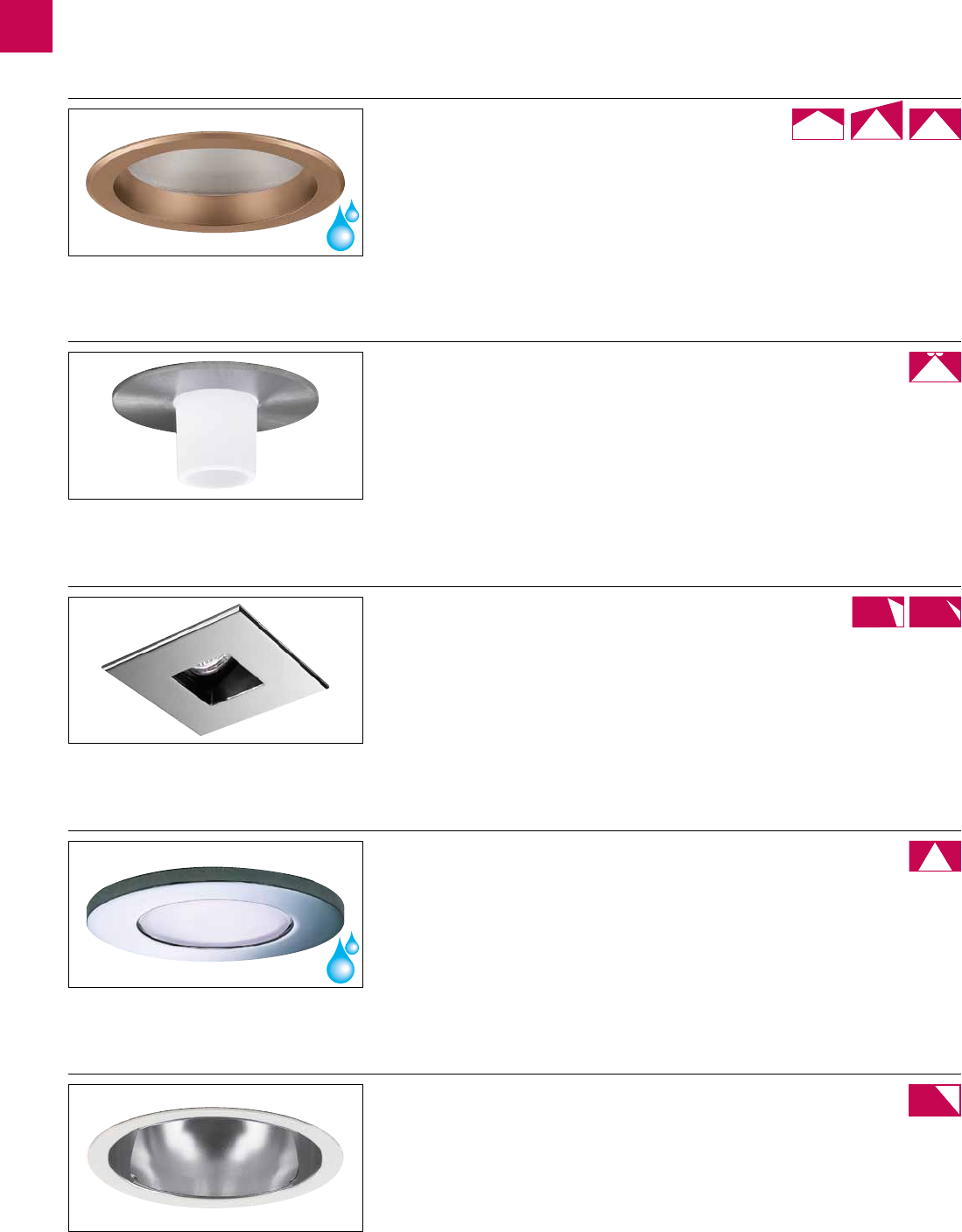

Lighting Effects
Design tools offering endless opportunities
lighting effects

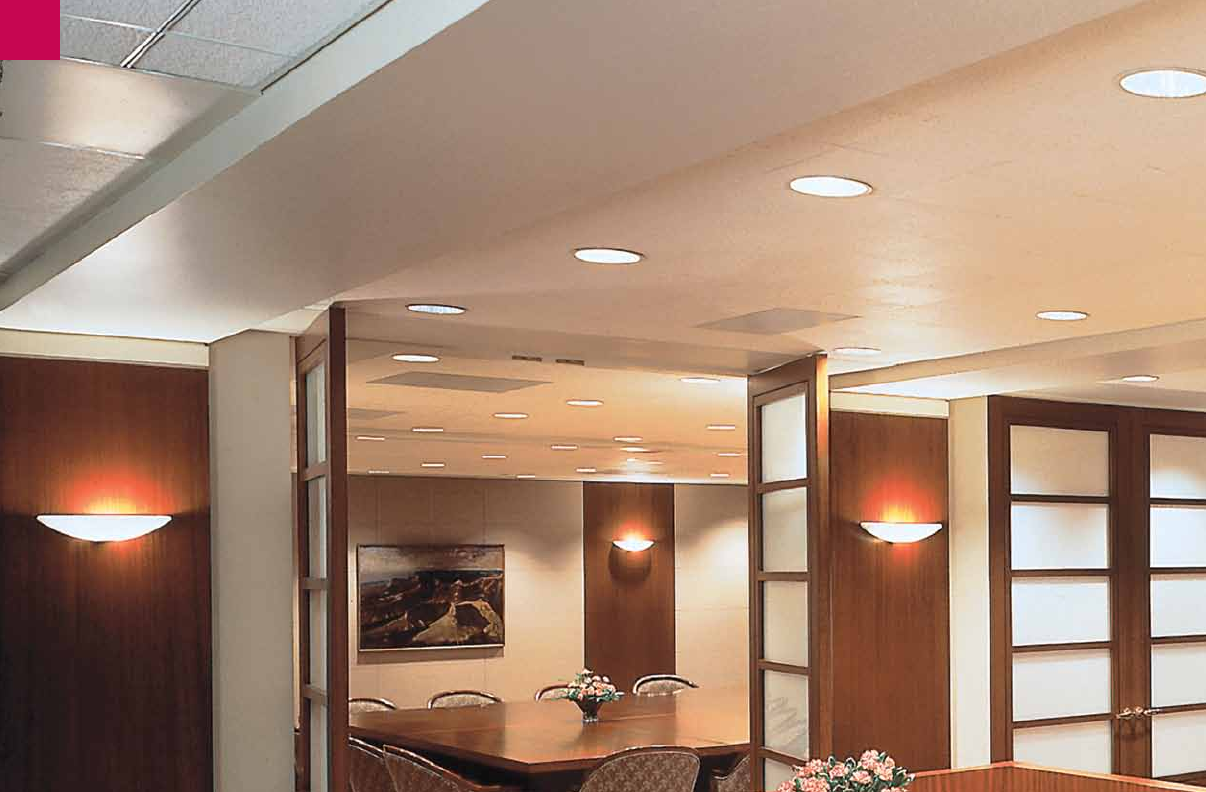

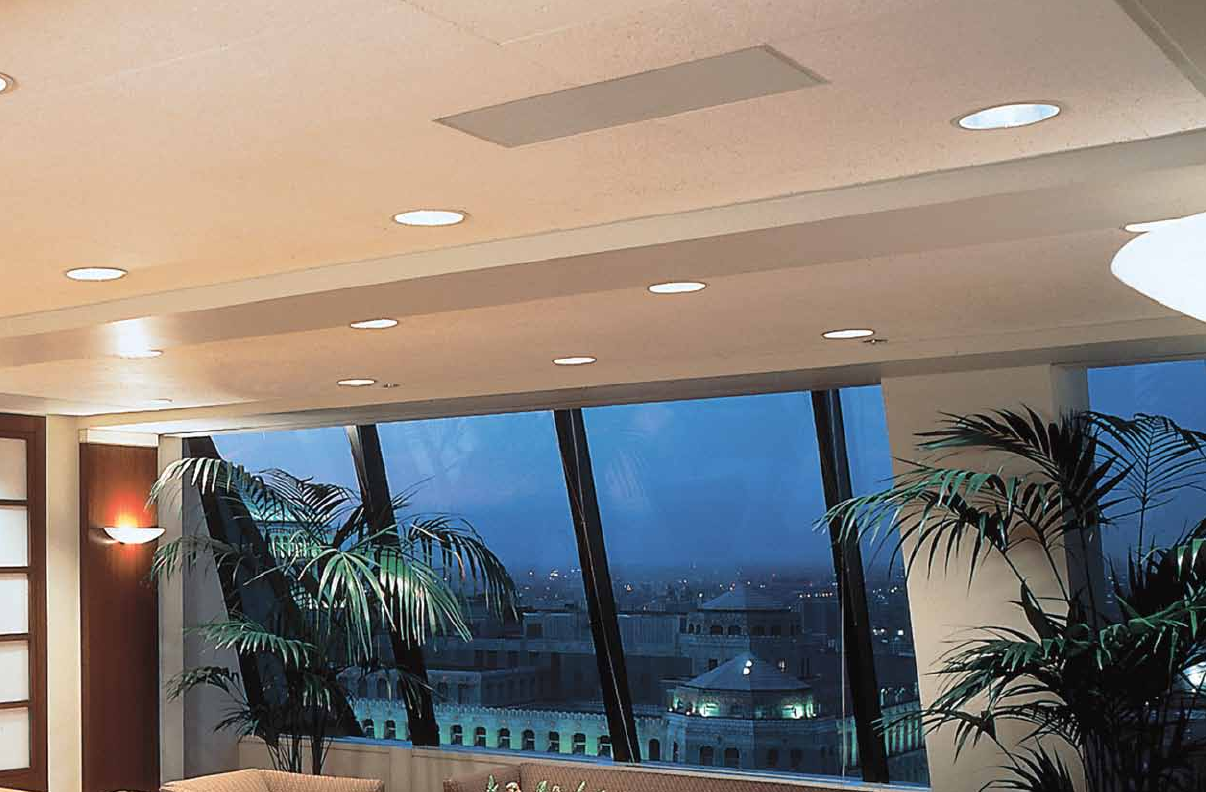

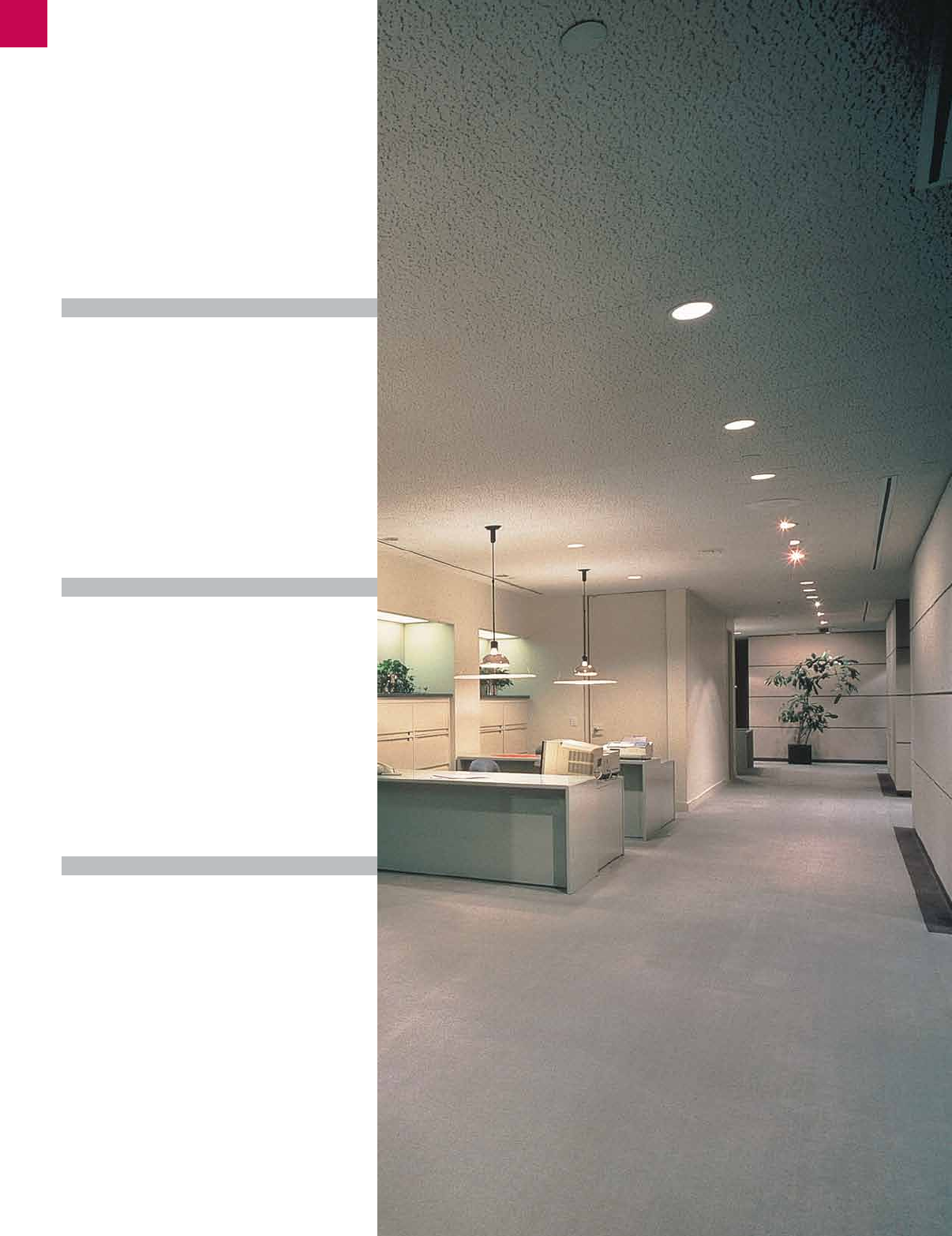

General Lighting
Light for overall illumination
Creates even luminosity in open spaces or hallways. Achieved with recessed lighting products such as Lytecaster

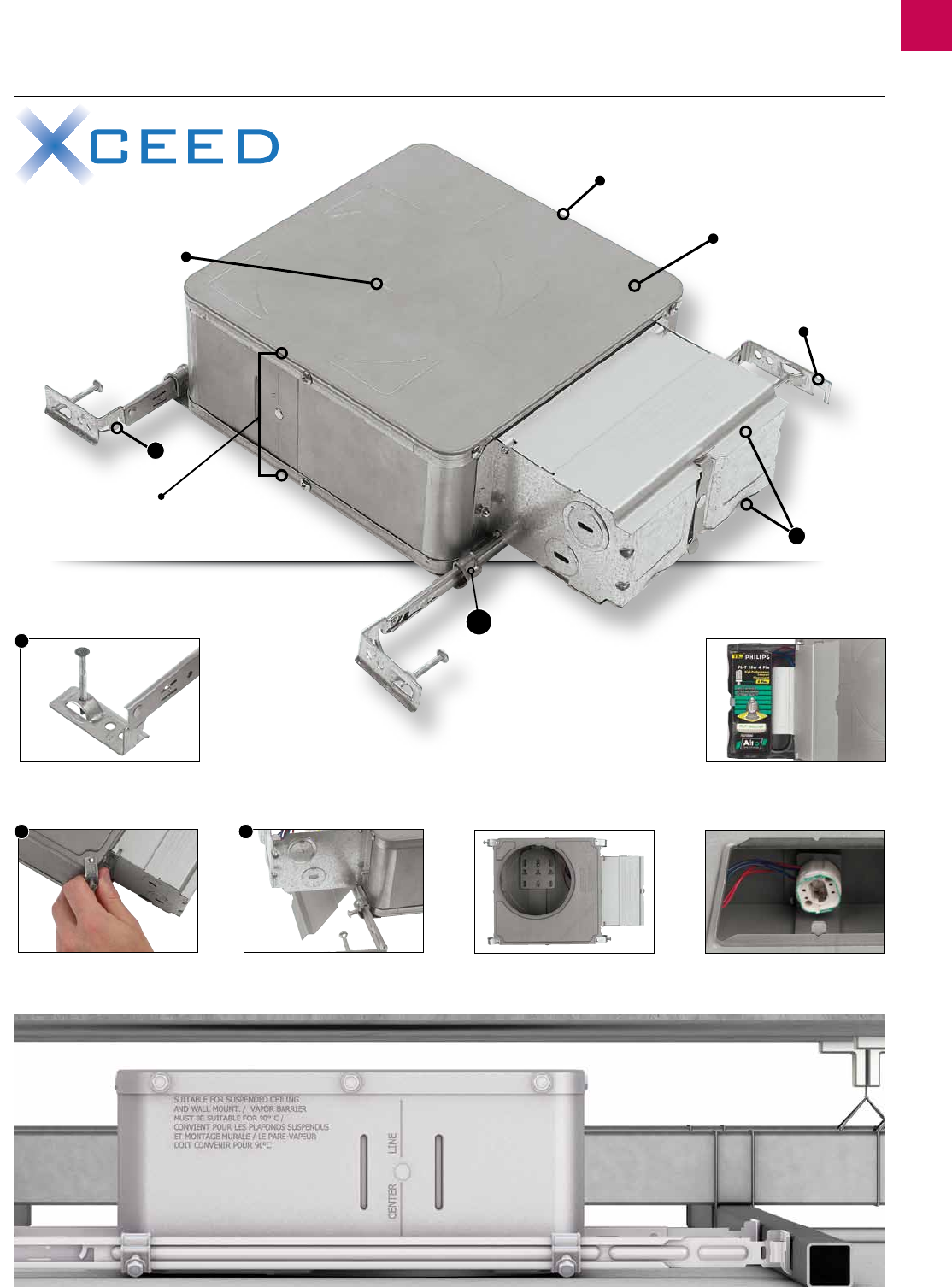

Xceed Lensed Downlight Reflector (see p. 486).
• Providesanoverallspreadoflight
• Makesforacomfortablevisualenvironment
Ambience Lighting
Light for decorative illumination
Setsamoodthroughdecorativeluminairesintegratedintothespace.Canbeusedasgenerallighting.
Achieved with recessed lighting products such as Lytecaster Drop Glass luminaires (see p. 539).
• Illuminationusingdecor-enhancinglightingelements
• Createsafeelingofwarmthandintimacy
• Addsapersonaltouchtoanyenvironment
• Addsluminancetotheceiling
Accent Lighting
Light to draw attention
Attracts the eye to specific areas of the room. Useful to highlight paintings, sculptures and other displays.
Especiallyeffectivewhentheluminaireprovidesaddedversatility,aswithSquarePremiumDie-CastBaffle
Adjustable(seep.532).
• Directsextralighttoselectedobjectsandsurfaces
• Providesdramaticinterest
Task Lighting
Light to work by
Createswelldiffused,supplementarylightingfortasks,suchasreading,paperwork,foodpreparation.Forkitchen
orhobbytasks,aconcentratedlightfromaboveispreferred.Lightgenerallycomesfromovertheshoulder,aswith
Lytecasterflatlensshowerlight(seep.542).
• Directsextralighttoworkareas
• Somemodelsarewetlocationcertifiedforwashroomtaskareas
• Enablesimprovedtaskperformance
Wall Washing
Light that adds life to walls
Smoothly illuminates vertical surfaces from floor to ceiling. Useful to highlight a wall of prized possessions.
Idealtomakesmallroomsappearmorespacious.Providesvisuallyexcitinglightingofverticalplanes,
as with Lytecaster Performance Vertical Single Wall Wash (see p. 479).
• Definesaspace
• Emphasizescolourandtexture
• Enhancessenseofspaciousness
443Philips
Lytecaster – Philips Lightolier
Canlyte Lighting Resource Guide
the lytecaster system
The Lytecaster System
Setting the standard for performance, selection and quality
With the Lytecaster System, you get optimum lighting performance and the freedom to choose from
a wide range of lamp options and aperture sizes. Lightolier quality is ensured by using superior reflector
finishes. The large variety of Lytecaster downlights provides more lighting opportunities than ever before.
Designed-InPerformance
Toachievemaximumlightoutputandminimumglare,Lytecastermakes
useofLightolier’sUnitizedOpticssystem,whichincorporatesasnap-on
socketandapush-up,self-flangedreflector.Unliketypical“whitecans”,
theUnitizedOpticsfeatureallowsa“forgiving”installation,whichassures
a perfect alignment with the ceiling and full reflector output every time.
Thissystemeliminatesdistractinglightleaks,aswellastheneedto
adjustsocketheight.Inaddition,Lytecastergenerallightingluminaires
putthelightsourcehigherintheceilingtoprovideacomfortable
aperturebrightness.

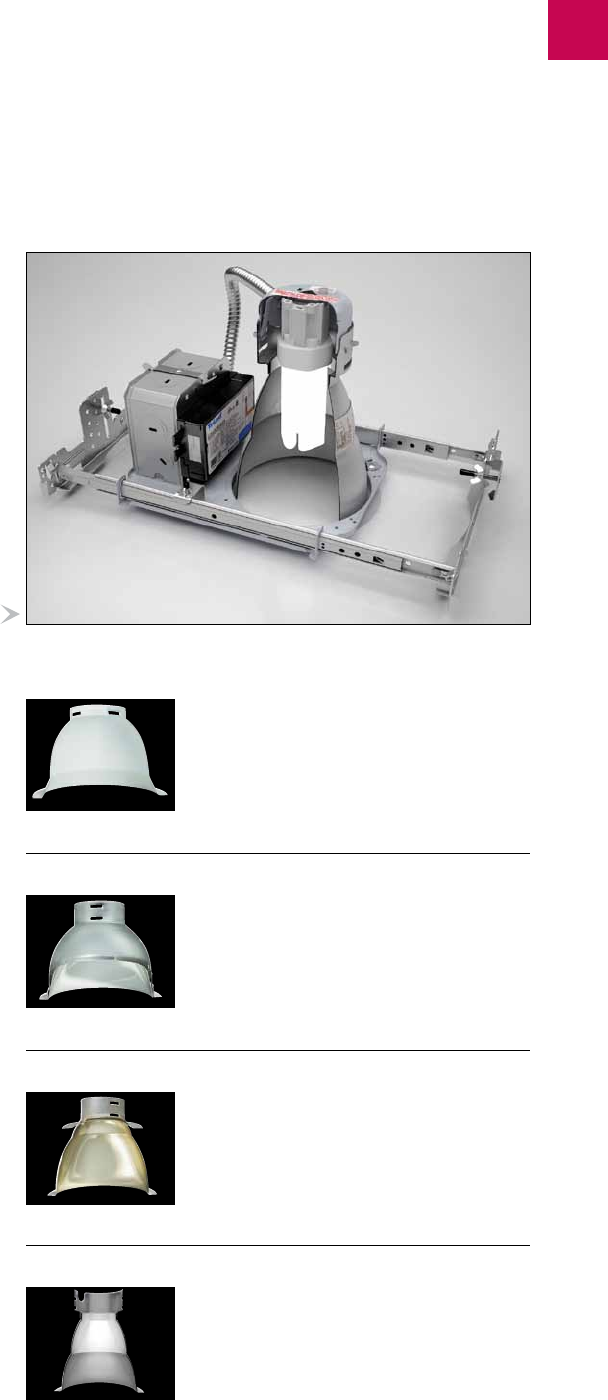

Performance Options
Reflectorstodayplayanever-increasingroleinmaximizinglightoutput,
especially with the widespread use of energy efficient, LED, compact
fluorescentandHIDsources.Craftedfromhighquality,corrosion-resistant
aluminum, Lytecaster reflectors are designed to achieve the highest output
possiblefromtheavailablesource.Inaddition,aperturesizeselectionhas
beenextended,ensuringawidervarietyoflampsinallfourperformance
optionsofferedinthiscatalogue(applicableonreflectorsusingA,CFL
and ED17 lamps only).
Lytecaster’sUnitizedOpticssystemkeepsthesocketand
reflector in proper alignment with the ceiling at all times.
Good i
Basicwhiteorbafedreectorsprovidegoodreectivity
andglarecontrol.Theyarenishedusingahigh-glosspaint
featuringaddeddurability,improvedUV-inhibitingproperties
andbetteroverallperformance.
Better ii
Anobrite®reectorsarechemicallybrightenedandanodized
forpermanenthighreectivity.Theyensurebetterglare
control.CombinedwithbafesorAlzak® cones, these
reectorsprovide20%higherperformancethan
basicwhitereectors.
Best iii
DeepAlzak®reectorsofferthehighestefciencyandbest
glarecontrol.Eachreectorischemicallypolishedtoa
highlyspecularnish.DeepAlzak®deliversapproximately
15%morelightoutputthanbafesorAlzak® cones, which
results in fewer luminaires to light a space and significant
long-termenergysavings.
Performance iiii
PerformanceAlzak®reectorsfeaturededicatedhorizontal
andverticalopticssuitableforcommercialprojects.
Designedwithcut-offfrom60-65degrees,thesetrims
provideexcellentglarecontrolandlampshieldingaswell
aswattagesuptoa42WTripleTube.Performancetrims
deliverapproximately20to25%morelightoutputthan
bafesorAlzak® cones units.
444 Philips
Lytecaster – Philips Lightolier
1
4
6
5
3
2
1
2
3
4
5
6
Canlyte Lighting Resource Guide

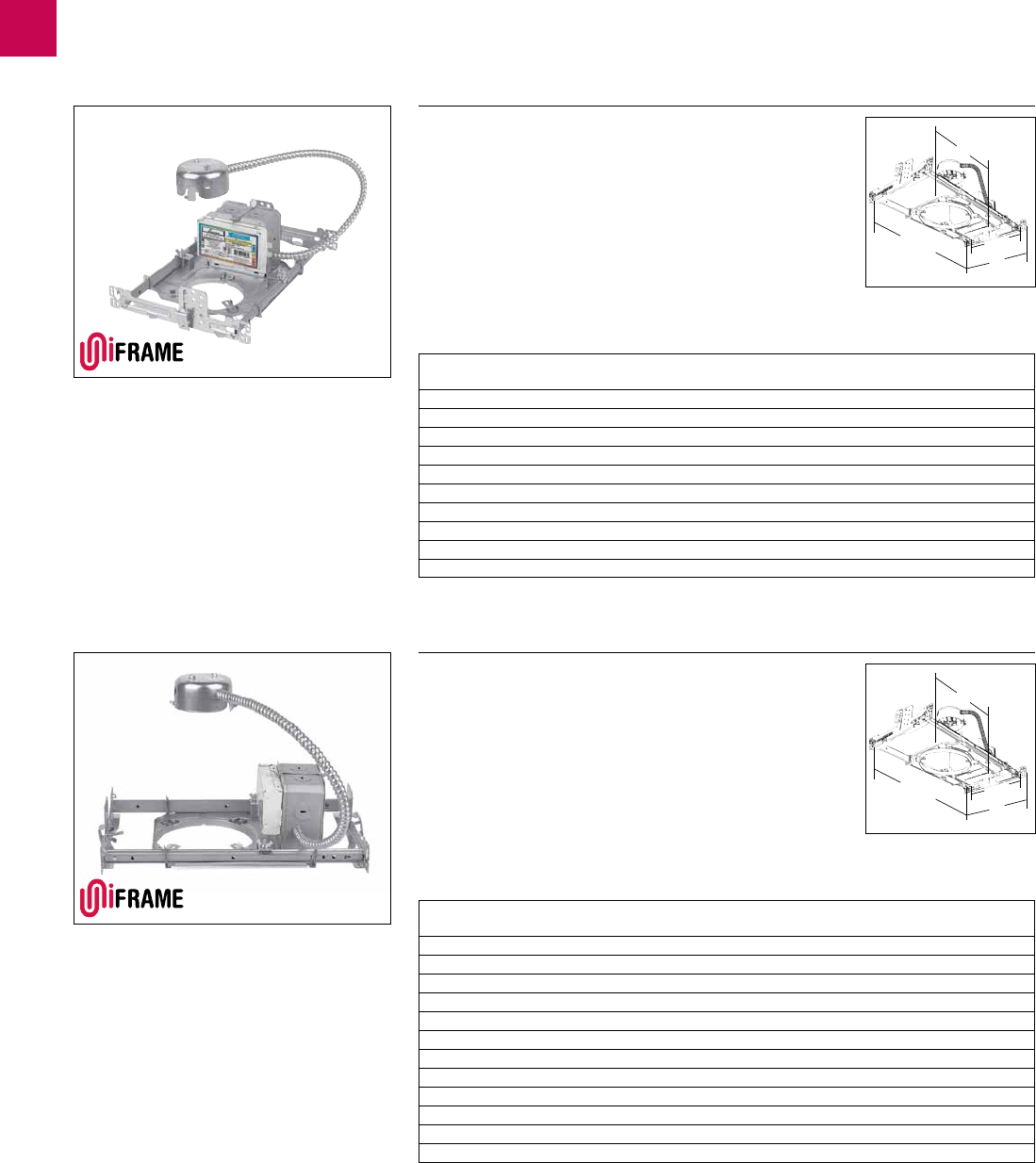

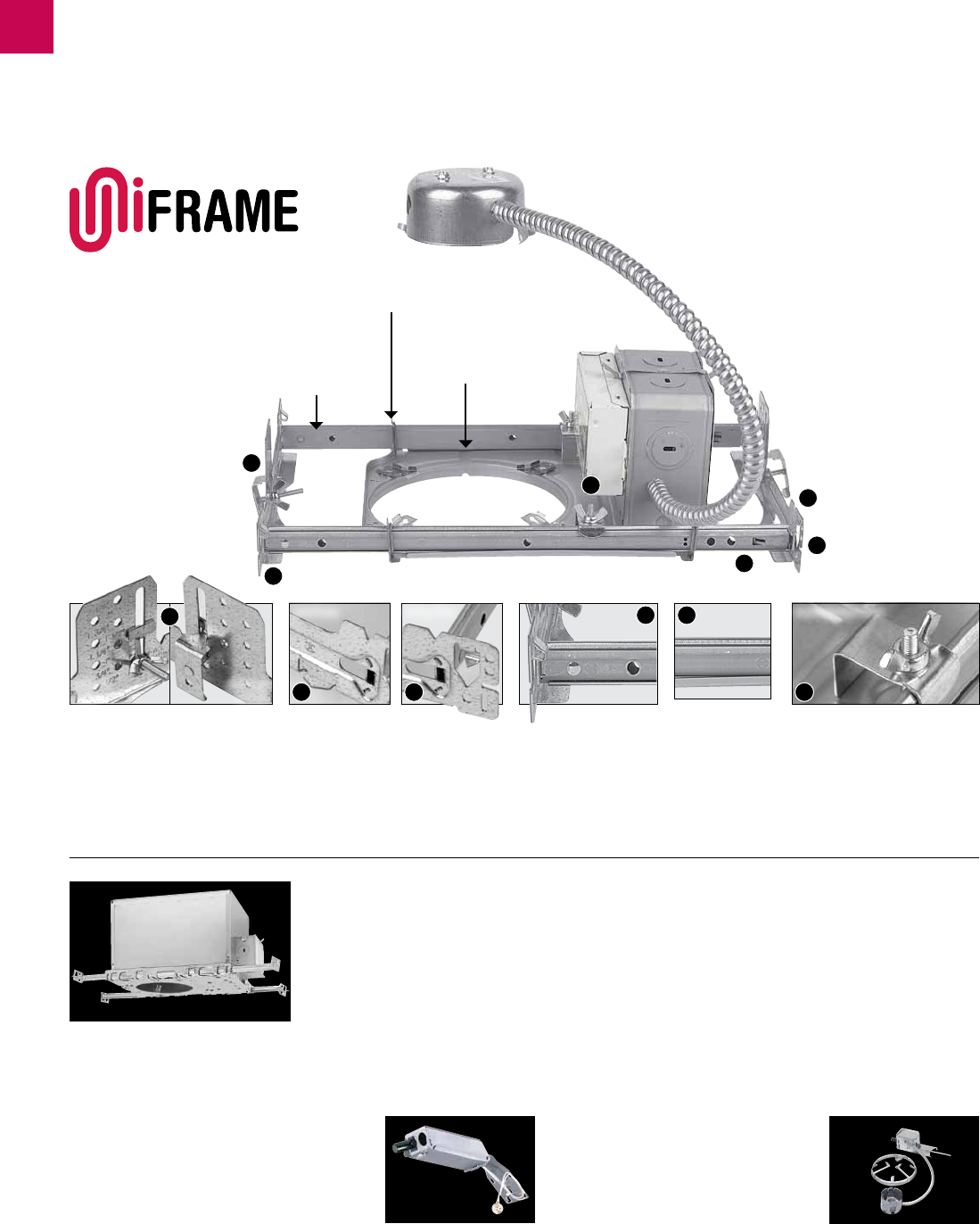

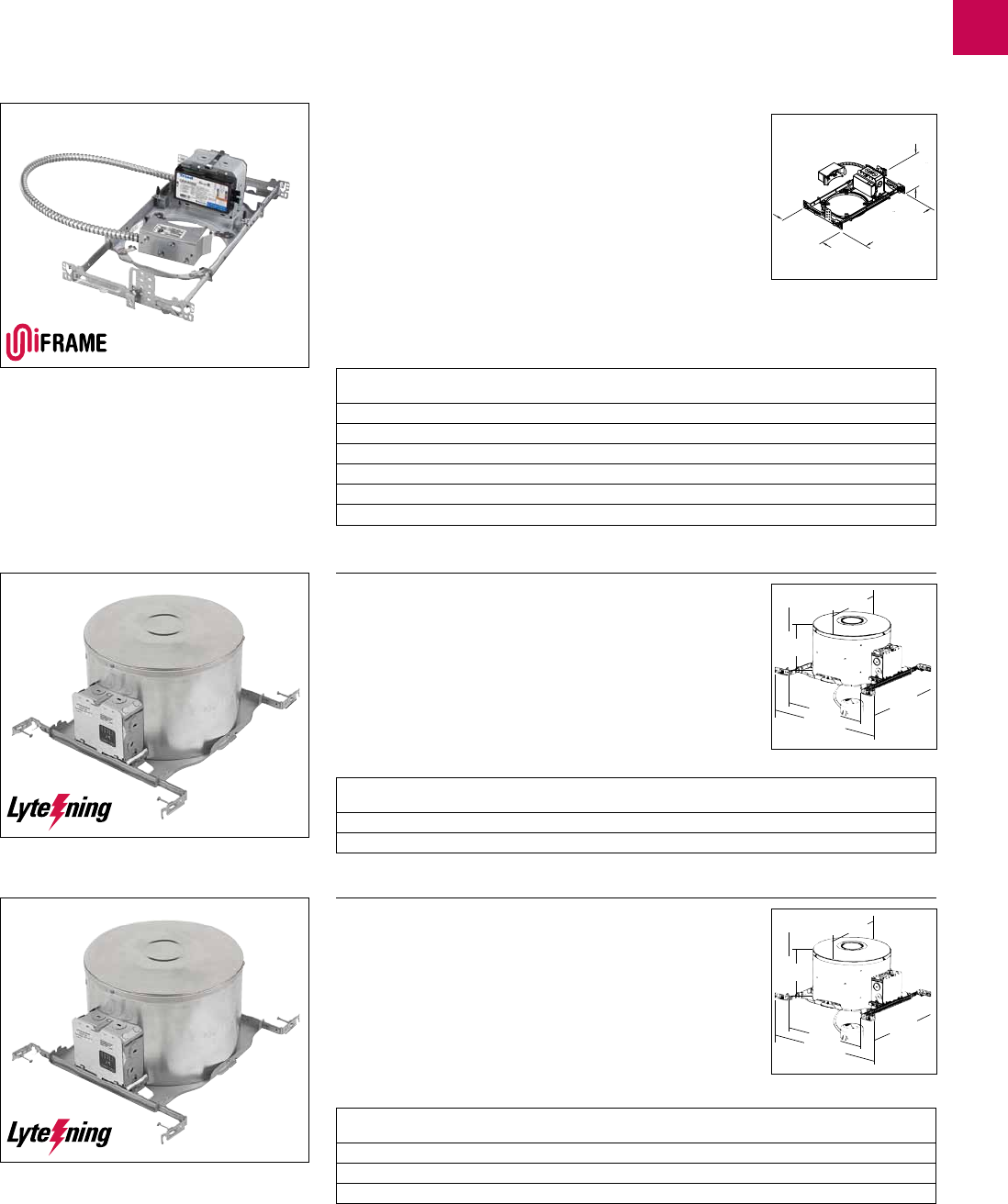

Uniframe
easy Installation features
With its wide range of new and advanced installation solutions for all lighting needs,
Lytecaster luminaires install fast and easy, providing installers with an edge in the marketplace.
Horizontal Adjustment
NailingTabsJoist Finder
GridLock
Inside
GridLock
Outside
Easilyadaptableto
wood construction with
integratednailingtabsand
verticalalignmenttabsfor
standard joists and strapping.
Lockingmechanism
eliminates frame movement.
Tool-freeinstallationinGridCeiling.
AutomaticallyadjuststoanyT-Bar
height,widthandceilingthickness
withournewGrid-Lock™.
Design secures tile
downonT-Bareliminating
thetilefromoatingupward
during trim installation.
Easily adjusts
from16”O.C.
wood joists to
24”O.C.T-Bar.
ToensureFrame-inKitscompatibilitypleaserefertospecsheets

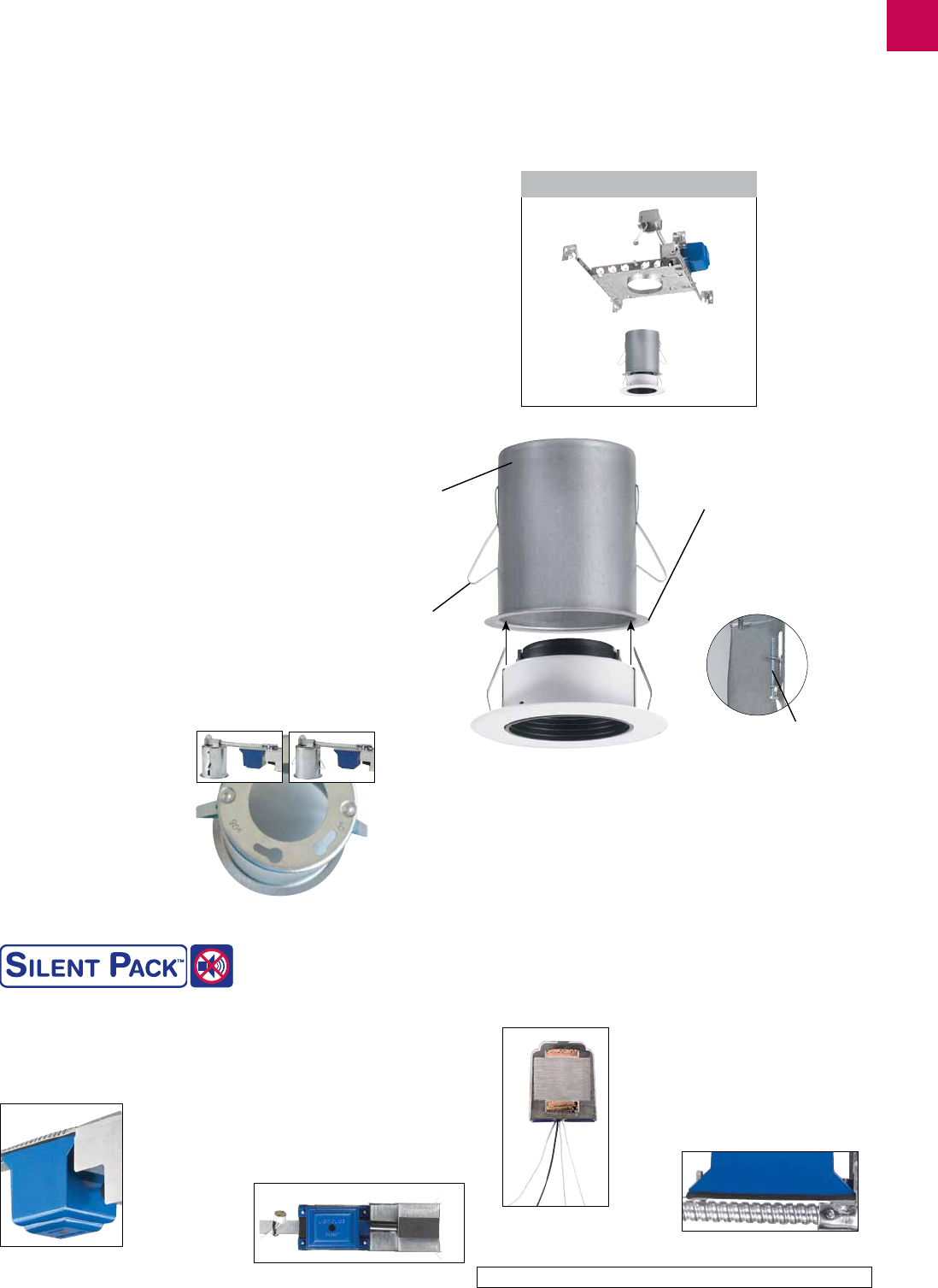

LowProfilePowerPack
(see p. 524)
Unique Remodeler Rings
offered in all
3 aperture sizes.
ICFrame-inKit
Non-ICRemodelerKits
Lytecasteroffersafulllineofnon-ICremodeler
kitssuitedtorenovationprojectsofallkinds.
Pivot-action design
Idealsolutionforcrampedareas.Pivot-action
mechanismenableslessbulkyceilingpenetration.
Equipped with an electronic transformer for quiet operation.

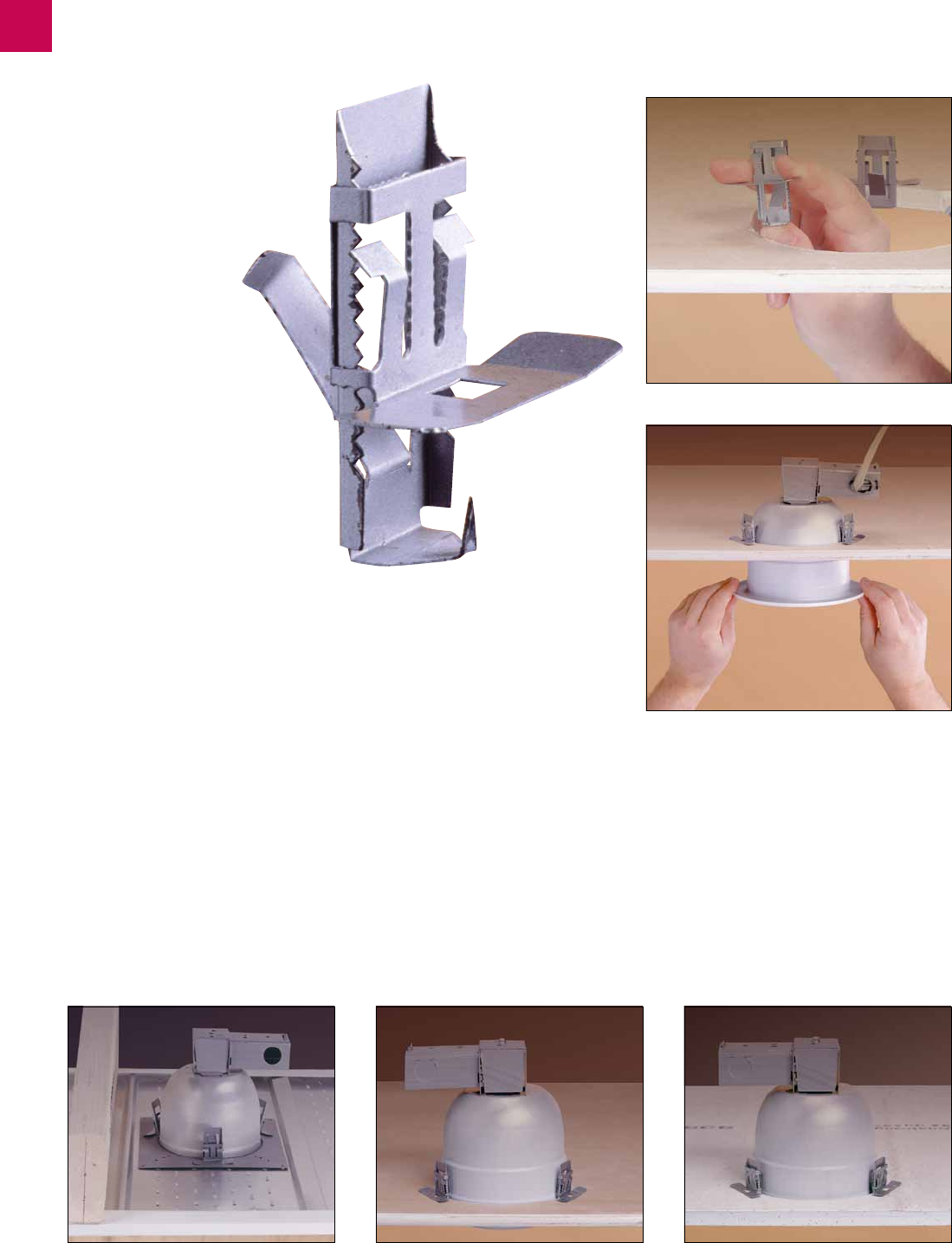

Non-ICRemodelerRings
Unique mounting straps* secure the
ringquicklywithoutdamaginggypsum
orplasterceilingsupto2"thick.
Availableinallthreeaperturesizes,
Non-ICRemodelerRingsarecompatible
with all Lytecaster reflector trims suited
to incandescent or compact fluorescent
downlights.
Alignment notches
allow easy alignment.
“U”shapedbarsallow
two point installation.
Rolled metal prevents
sharp edges.

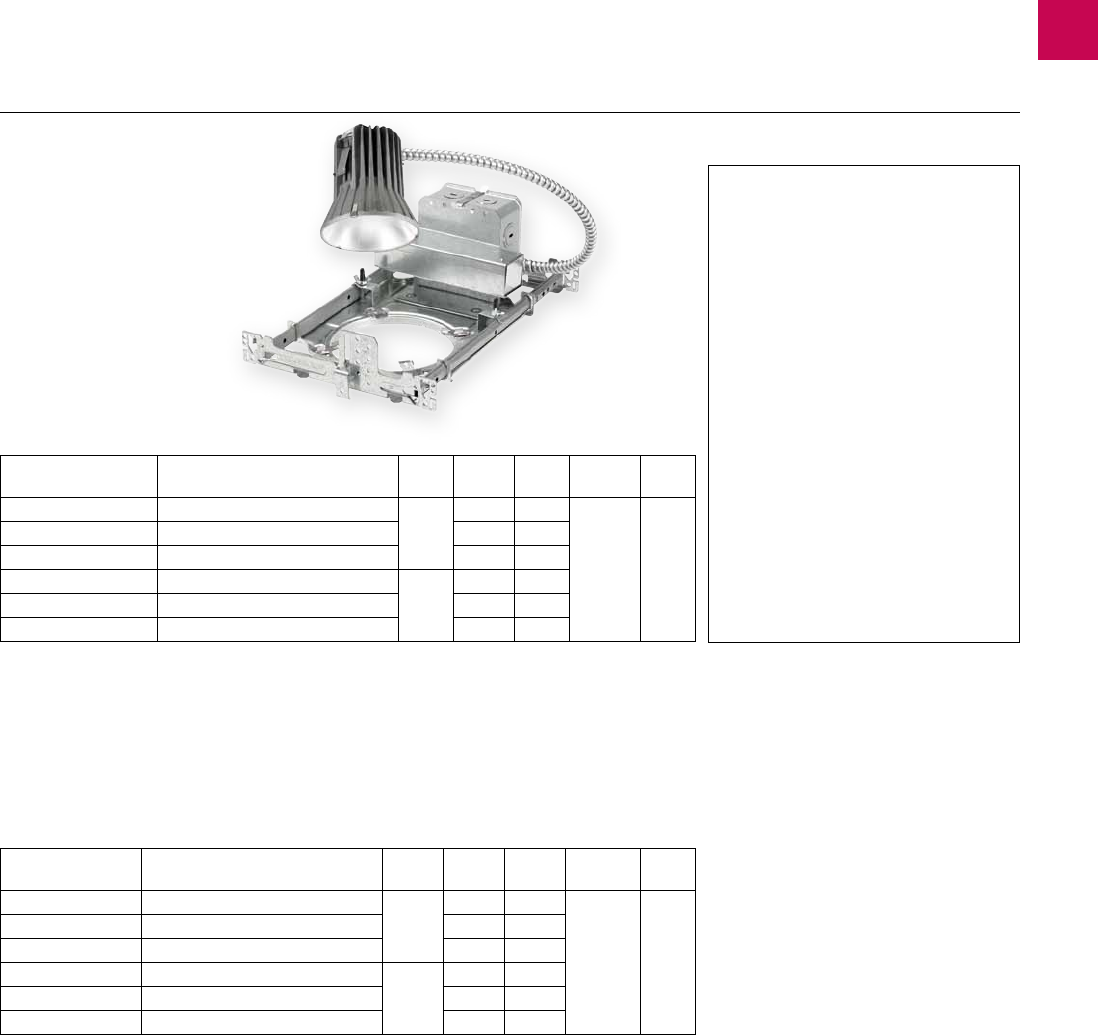

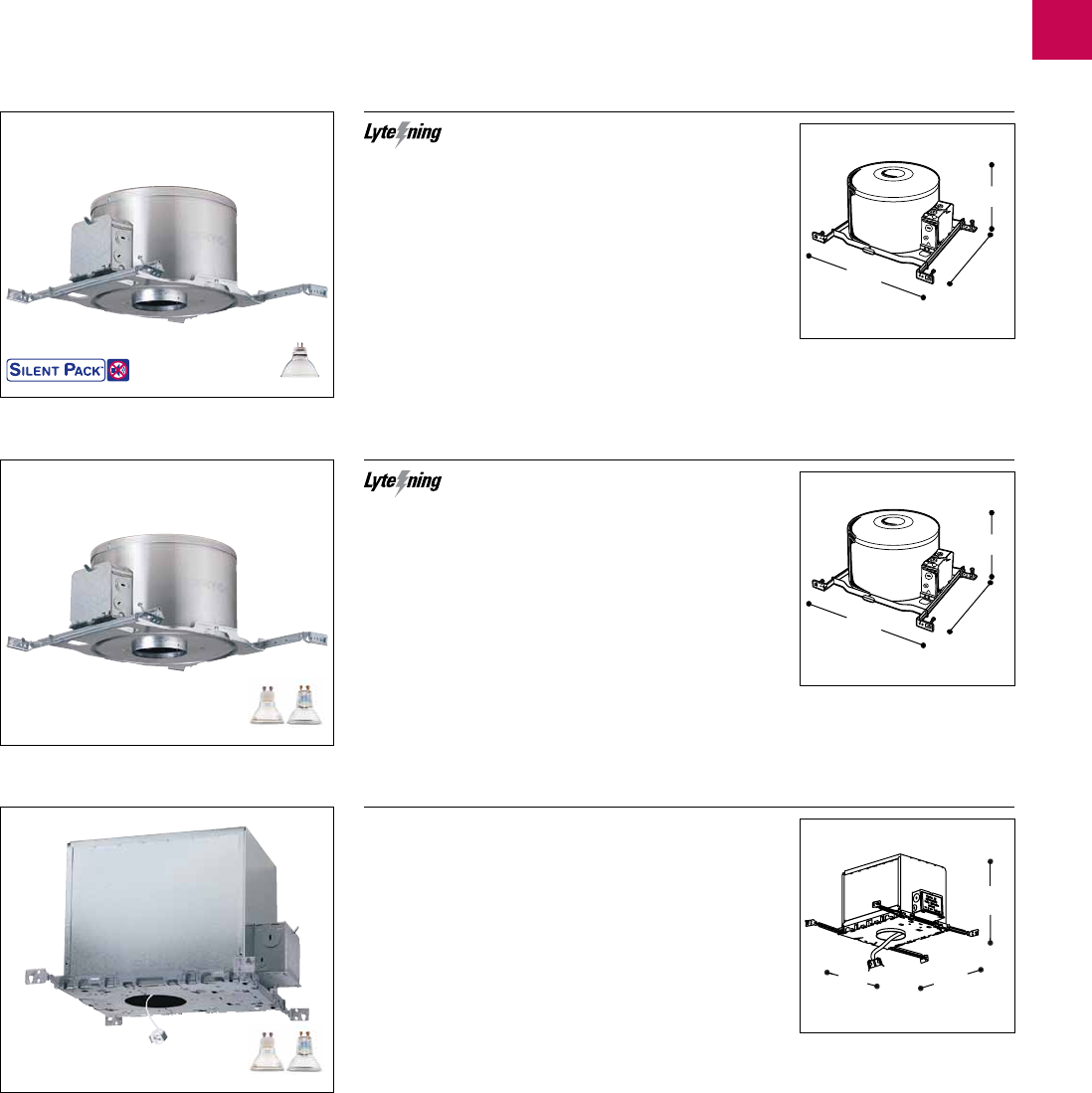

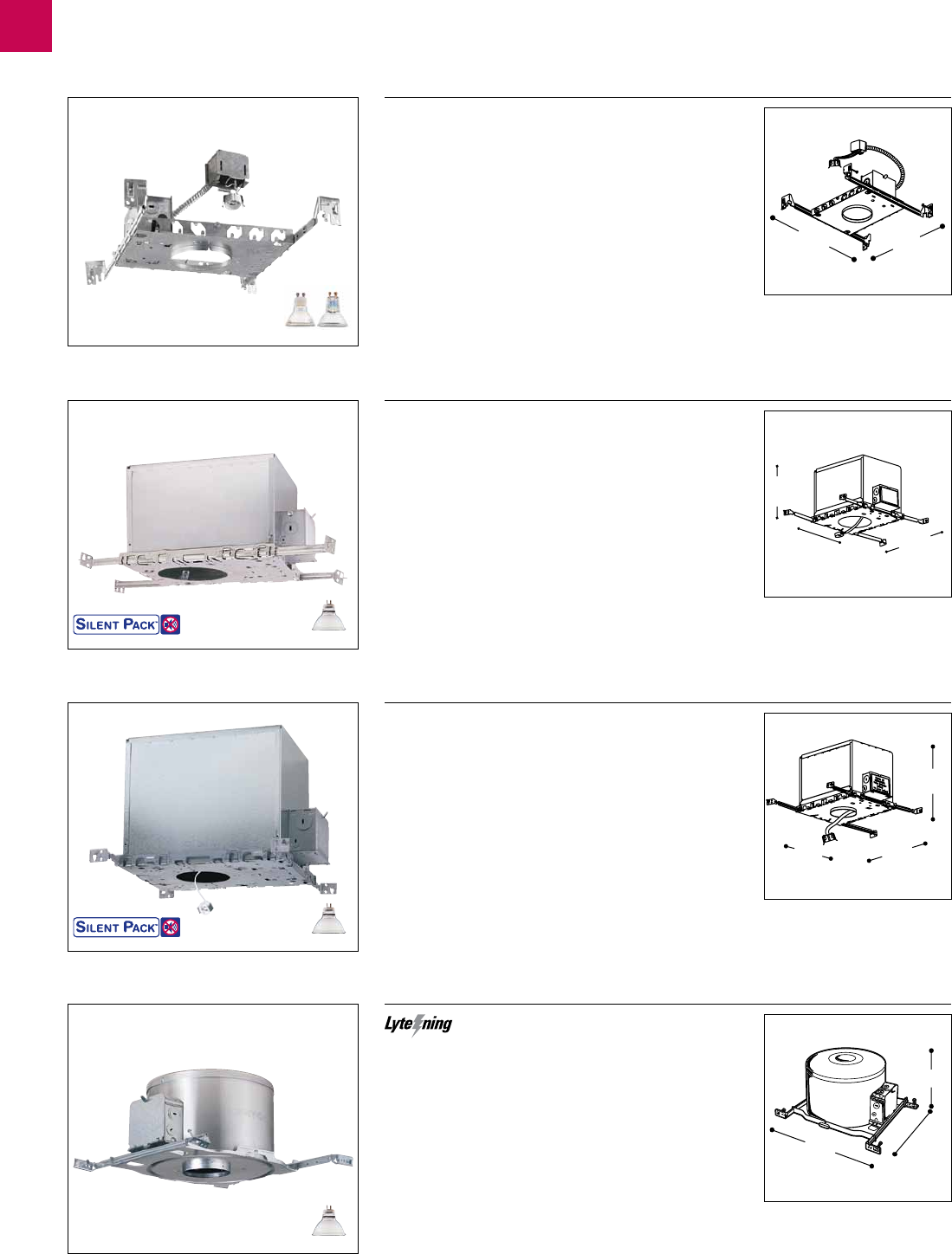

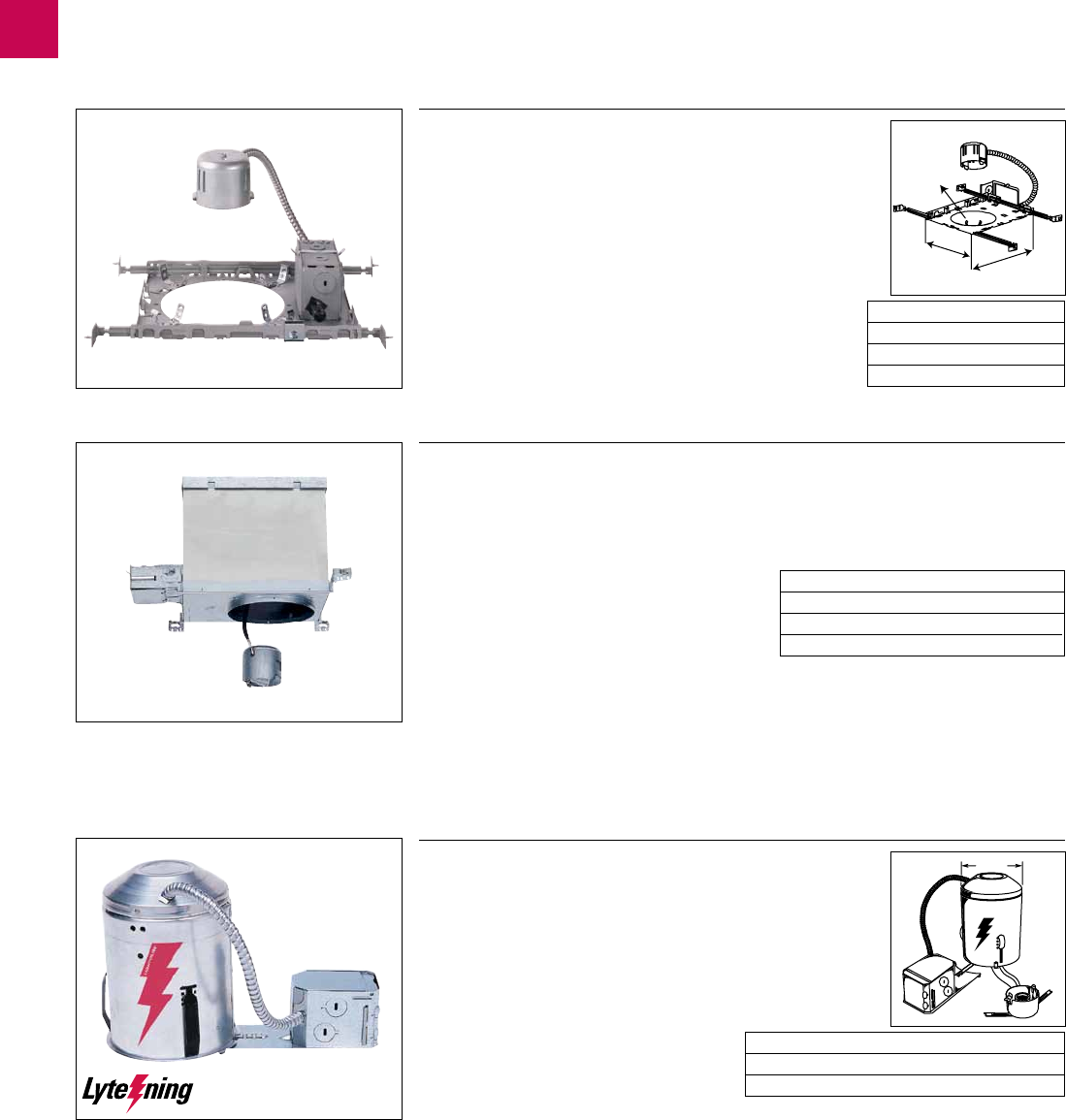

NewConstructionICFrame-InKits
Lytecasteroffersawideselectionofframe-inkitsforinsulatedceilings.Becauseofsizeofbox,itallowsforhigher
wattagestobeused.Suitedtoalmostalltrims.ForanAirSeal®installation,useaVapourBarrierExtender(VBE300).

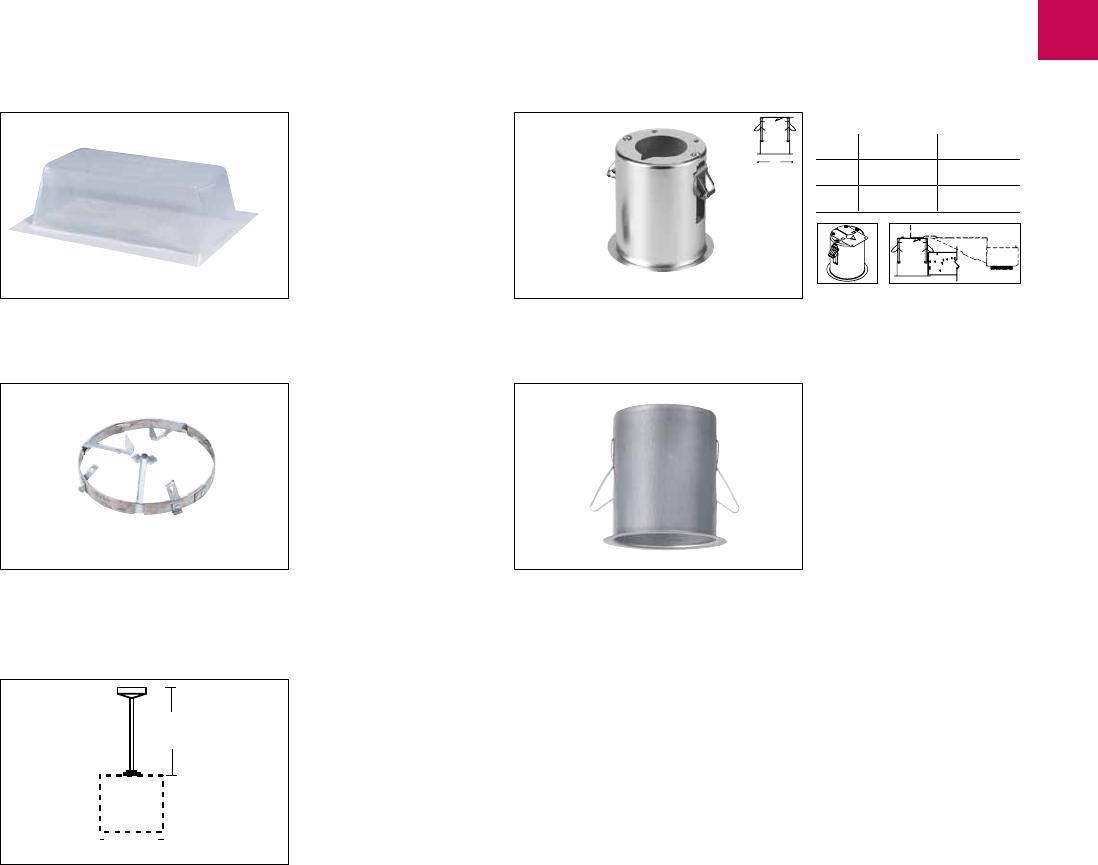

Vapour Barrier Extenders
DesignedforICframe-inkits,VBE300isdesignedfor24"centre-to-centrejoist(seep.553).
Note:AllLytecasterICframesaredesignedforCanadianconstructionstandardsusingaPolyvinylAirVapourBarrier(PAVB).Tocomplywith
provinciallegislation,VBEsareusuallyrequiredforICframes;VBEsmaynotberequiredforLytecasterAirSeal®ICframesmeeting
ASTM#E283(seelocalBuildingCodesfordetails).
445Philips
Lytecaster – Philips Lightolier
AIRSEAL®
Canlyte Lighting Resource Guide

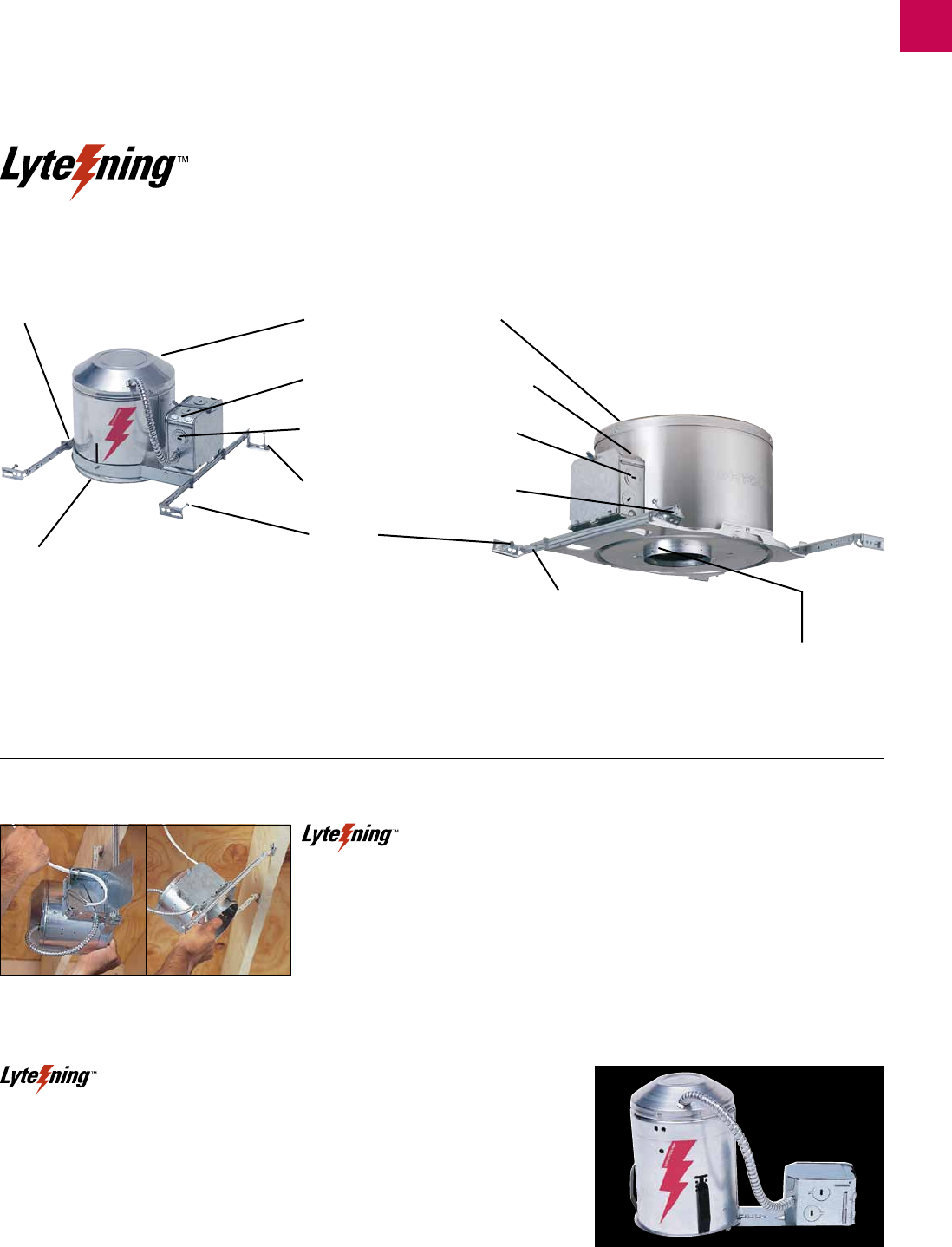

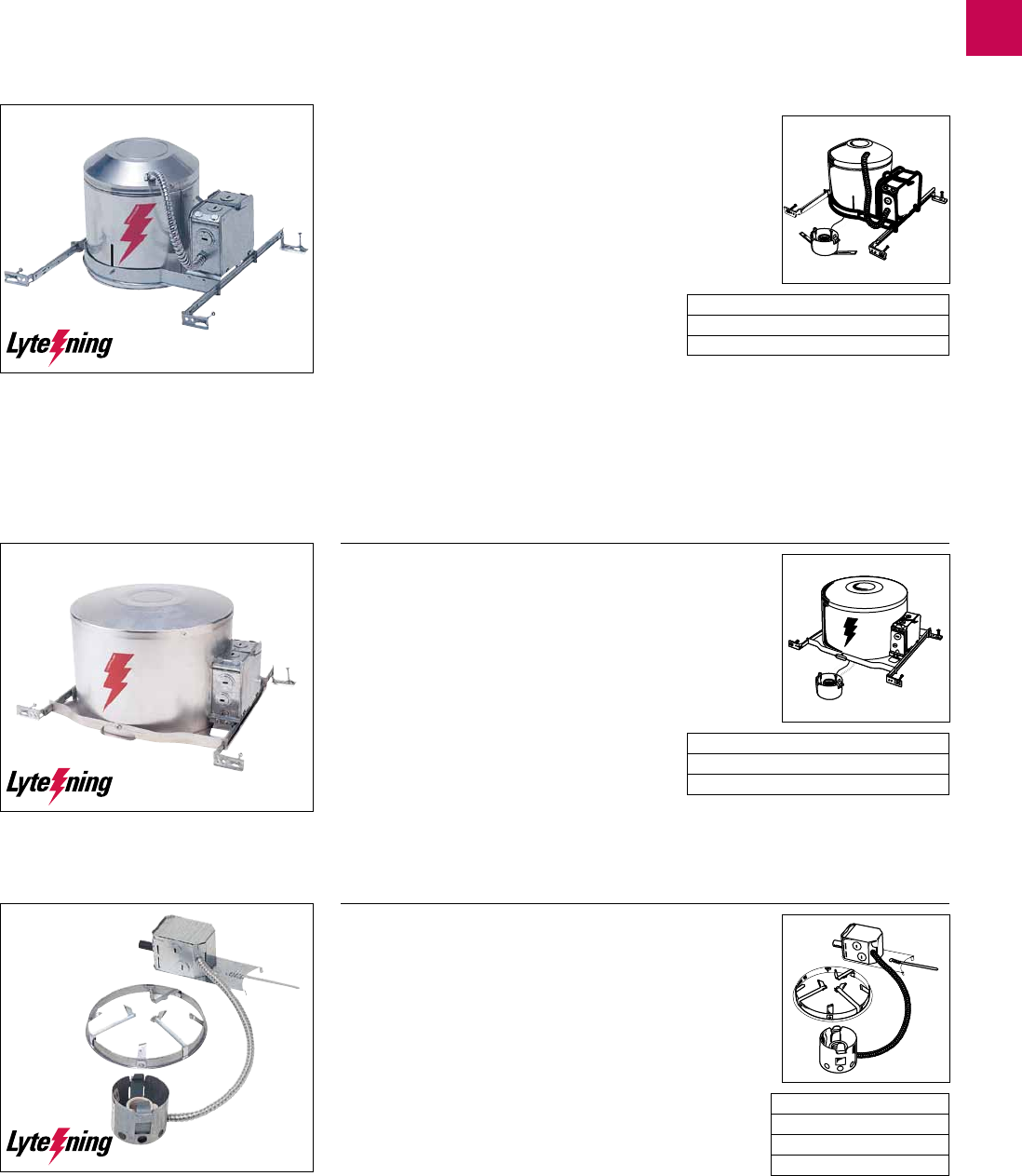

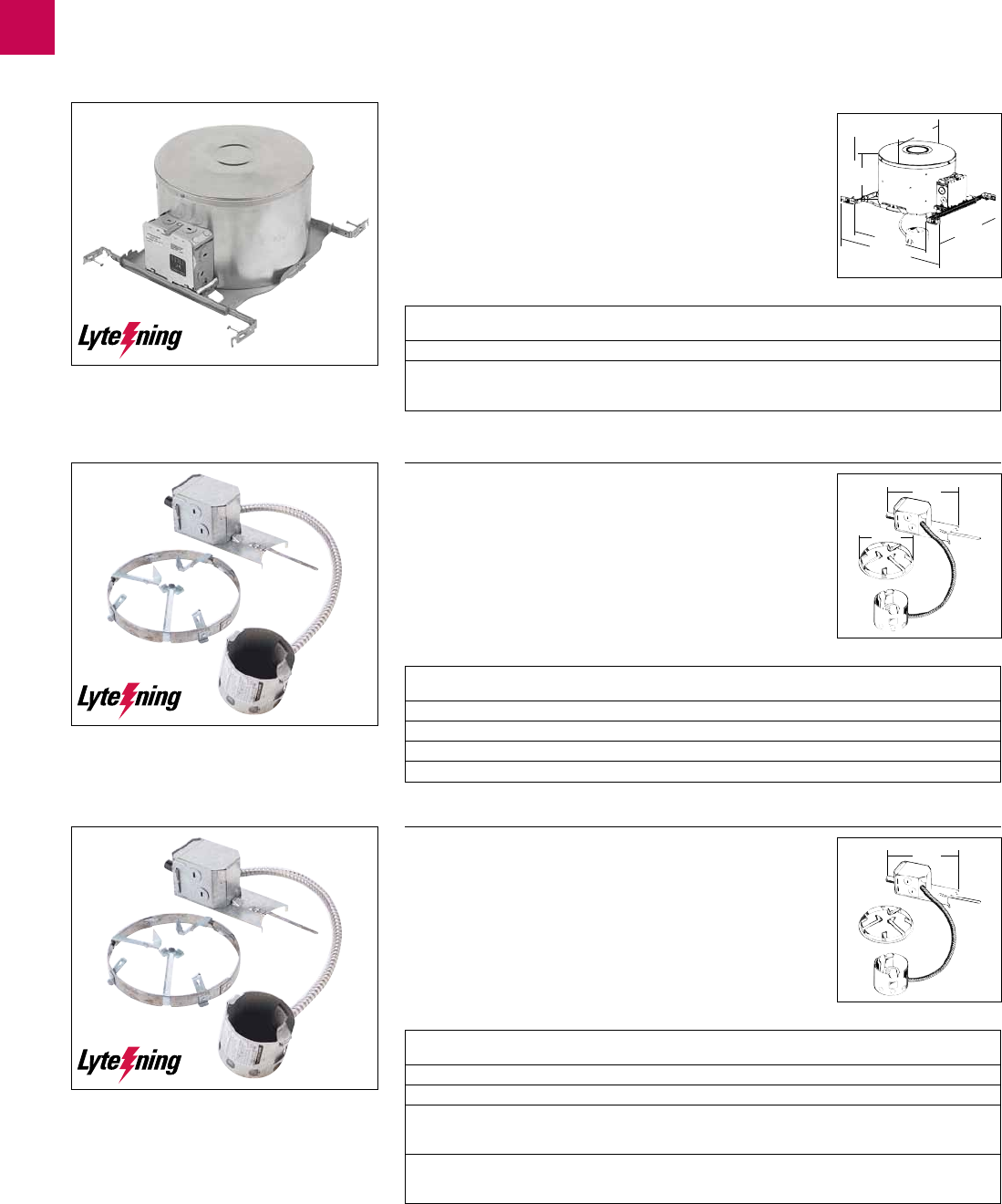

Lytening AirSeal®
lytening airseal®
All the speed and convenience you should expect from a leader
Special Lytening AirSeal® pivoting device* allows fast,
easymountingandwiringfrombelowceilingline.

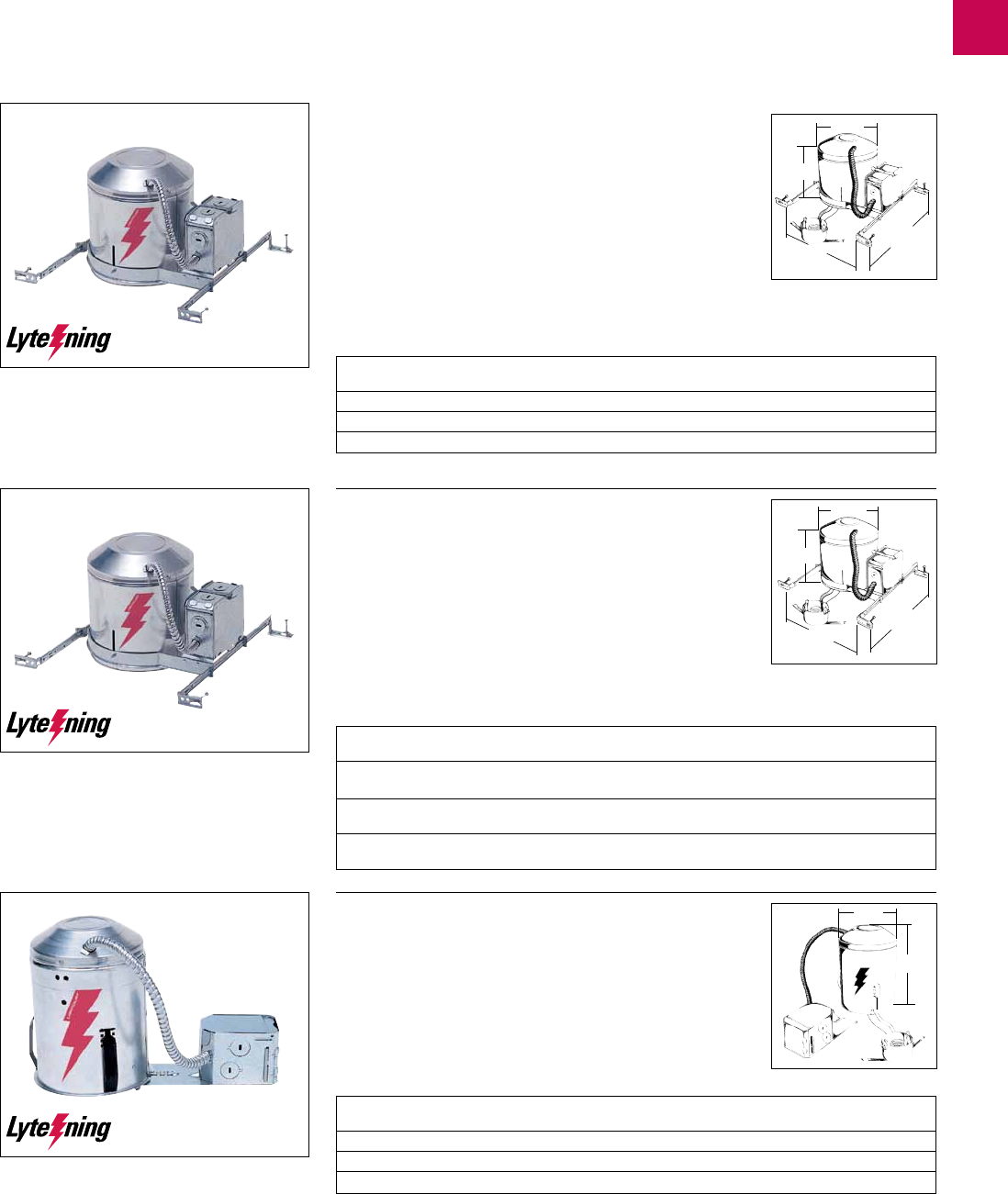

AirSeal®NewConstructionFrame-inKits
Lytening AirSeal®installsfastandeasyininsulatedornon-insulatedceilings.Itsuniquedesignenables
mountingandwiringfrombelowtheceiling.Thehousingisthensimplypivotedintopositionbetween
thejoists.Noconfinedworkspace.Nojugglingoftools.Noalignmentproblems.LyteningisAirSeal®-
ready(OptionalgasketKitsoldseparatelyfor1004ICor1104IConly,seep.552).JustslitPAVB
(PolyvinylAirVaporBarrier)andsealtooutside/bottomofLyteningAirSeal®canforquickapproved
installation. Lytening AirSeal®iscompatiblewithover40Lytecasterreflectortrims.
AirSeal®IC/Non-ICRemodeler
The Lytening AirSeal®Remodelerframe-inkitisforuseininsulatedornon-insulatedceilings.Itis
AirSeal®-ready(OptionalgasketKitsoldseparately,seep.552).JustslitPAVB(PolyvinylAirVapor
Barrier)andsealtooutsideofLyteningAirSeal®canforquickapprovedinstallation.LyteningAirSeal®
iscompatiblewithover40Lytecasterreflectortrimsandisavailableinincandescentorcompact
fluorescent.Aswithotherframe-inkits,theUnitizedOpticssystemensuresconsistentalignmentof
lampandreflectortrim,inadditiontoeliminatinglightleaks.
ICXhousingdesignedtoofferafullrangeoflightingperformanceinfully
insulated ceiling applications. Accepts a wide choice of reflector trims
andlampsupto100Winincandescentand32Wintripletubecompact
fluorescent. AirSeal® complies with MEC (Model Energy Code) and WSEC
(WashingtonStateEnergyCode)airleakagerequirements.Pivotingbar-ends,
pre-installednailsandtool-freecableclampsforfast,convenientinstallation.
Lightweight,non-corrosivealuminum
housingwithsmooth,safety-rolled
edges for easy handling
Housingadjusts2"verticallywithin
mounting frame
Push-Lock™CableClampsinstantly
secureLoomex–notoolsrequired
TKOs™(Tool-freeKnock-Outs)-
liftopeneasilybyhand
SwiveLock™allowsconvenient
installationandwiringbelow
ceiling line
Spring“Squeeze-Clip”forinstantadjustment
andlocking–notoolsrequired
Mountingbarslockintopositionalonglength
withlockingscrewandbendableslot
3/8"deepintegrallipallowseasy
sealingofthePAVBtothemounting
frame, for an AirSeal® installation
Integralnail
Lytening AirSeal®ICRemodelersuited
to over 40 Lytecaster reflector trims.
IC/NON-IC
ICX
446 Philips
Lytecaster – Philips Lightolier
Canlyte Lighting Resource Guide

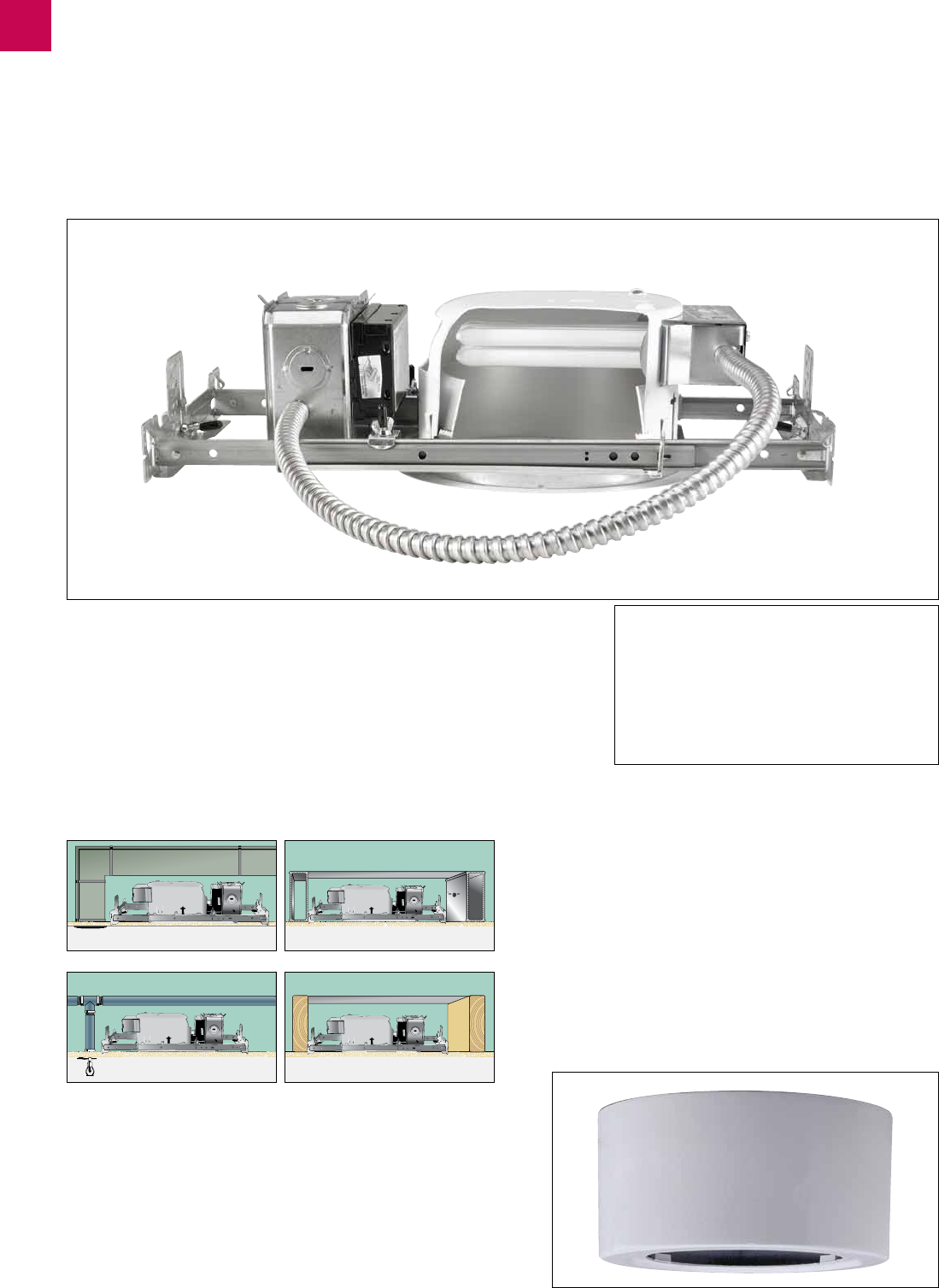

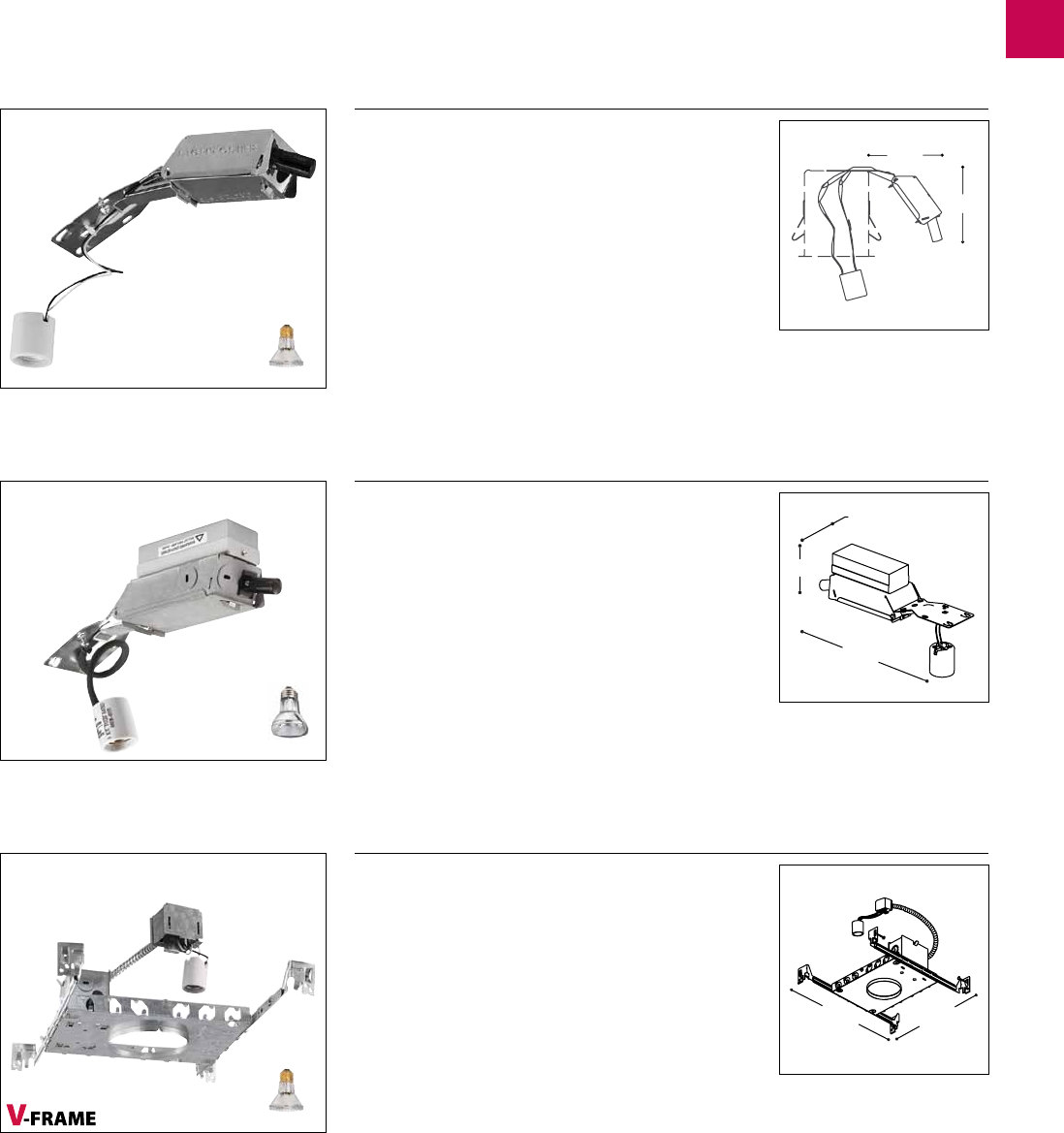

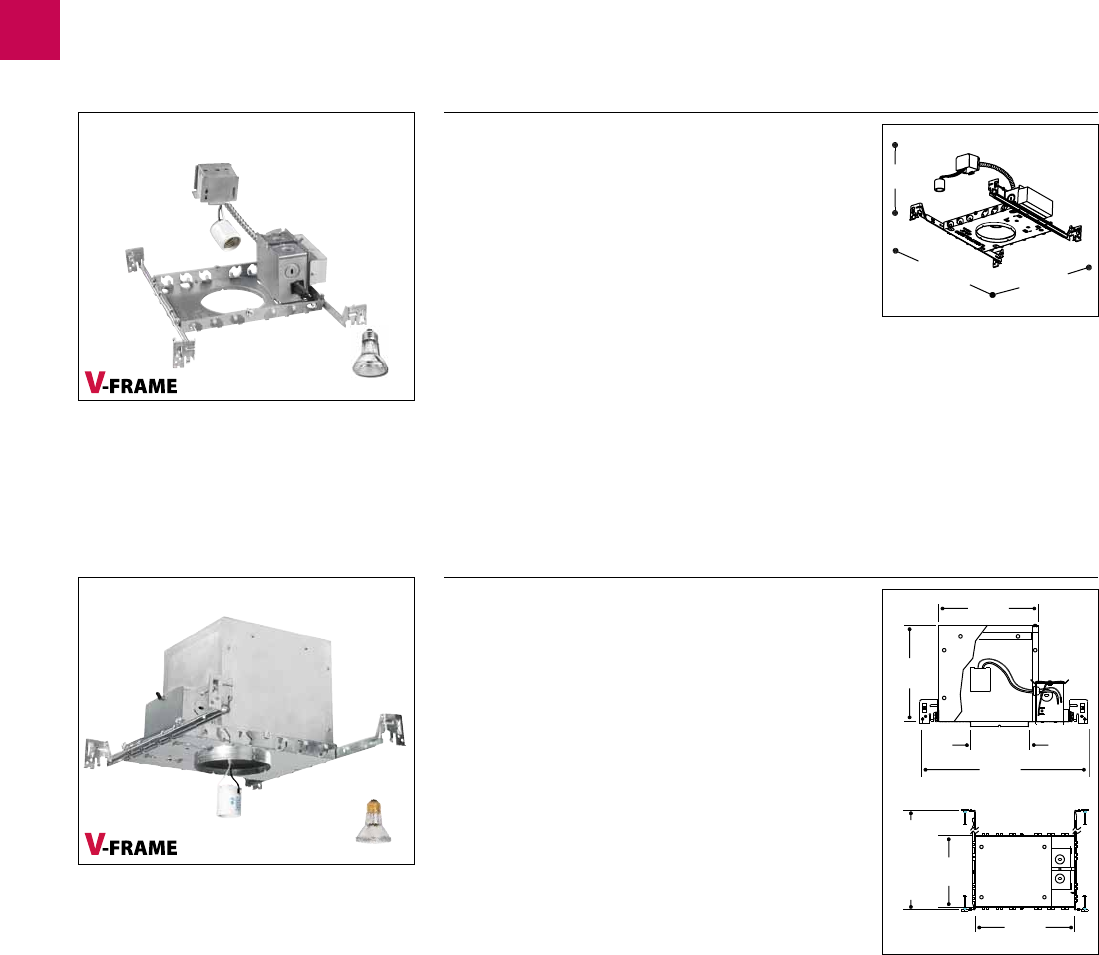

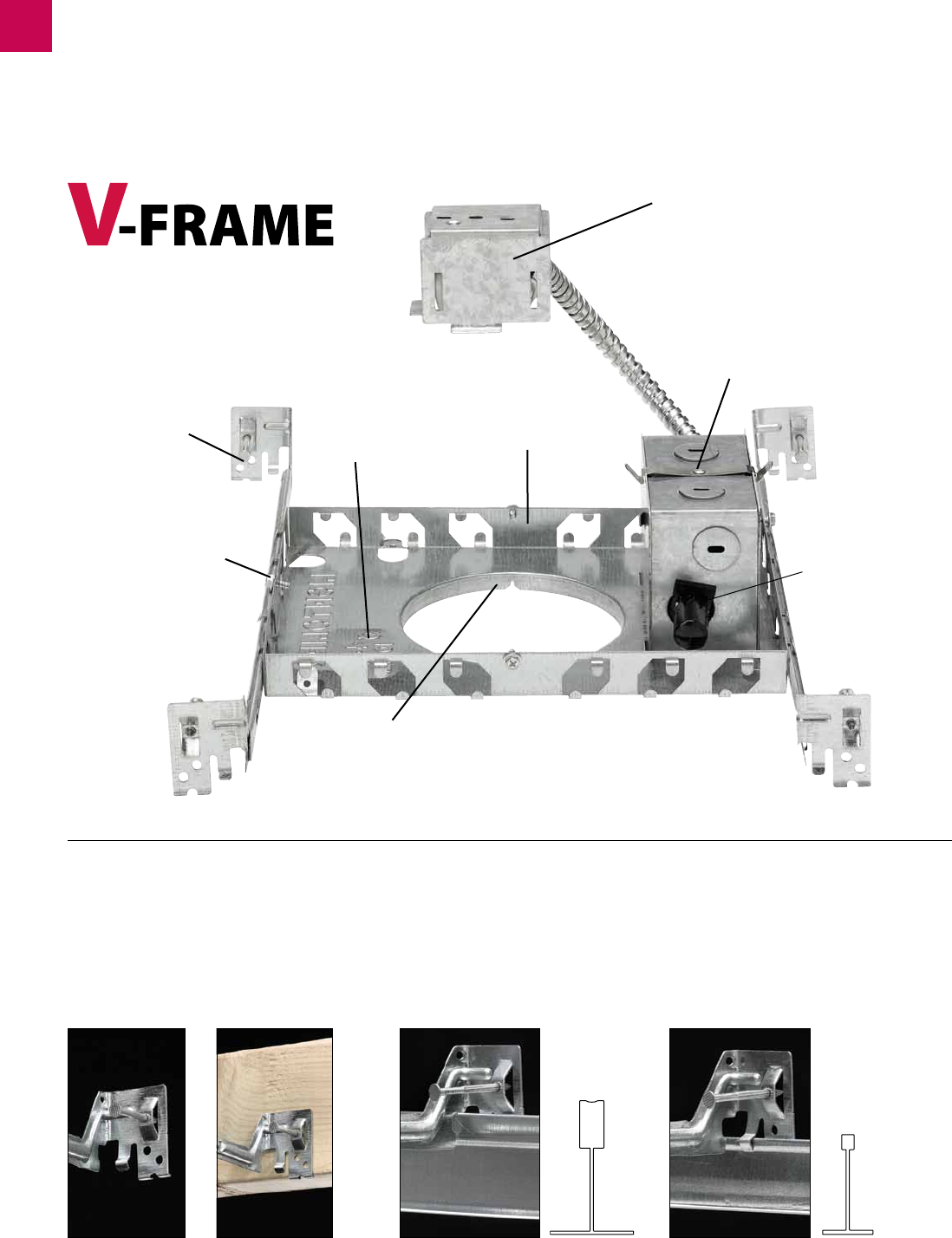

V-Frame – Non-IC Frame-in Kits
v-frameTM
Pre-positionednail Wood installation
(Locatortabs)
LargeT-Barinstallation NarrowT-Barinstallation
With its improved design, installation of the V-Frame is quicker and easier than before, providing greater
flexibility across various applications. The extra features are designed to save time and add value,
making the new frame-in kit a more flexible and cost effective option for contractors.
• Value Added
• Improved Version
• Very Flexible
Engraving
• Diameter
info (imperial
and metric)
Mounting Bars
•Pre-installed
on the product
Locking
• Pre-attachedscrews
 tolockmounting
 barsinplace
• Canbeafxedon
 toporbottom
• Allowsforproper
positioning of the
frame
Junction Box
• Easilyaccessiblefrombothsides
• Groundwire,knock-outsand
 safesnap-oncover
• cCSAuscertiedforthrough
 branchcircuits
Thermal
protector
•Ensuresagainst
overheating
due to incorrect
lamping
Rigid Frame-in Kit
•High-qualitysteel
with 4 folded sides
Socket Cup
• CompatiblewithFleXHousing
Lip
•Alignmentnotchesallowforproperpositioning
 andfacilitatesinstallationofmultipleframe-inkits
in a continuous row
MountingBarFeatures
•Locatortabspositionbarendsaccuratelyonjoistduringinstallation
•Canbemountedontheshortorlongsideoftheframetoensuremaximumflexibility
•Pre-positionednailsforquickinstallationinwoodorcompositeconstruction
•Extendsfrom14"(356mm)to25"(635mm)
447Philips
Lytecaster – Philips Lightolier
2
1
3
1
2
3
Canlyte Lighting Resource Guide

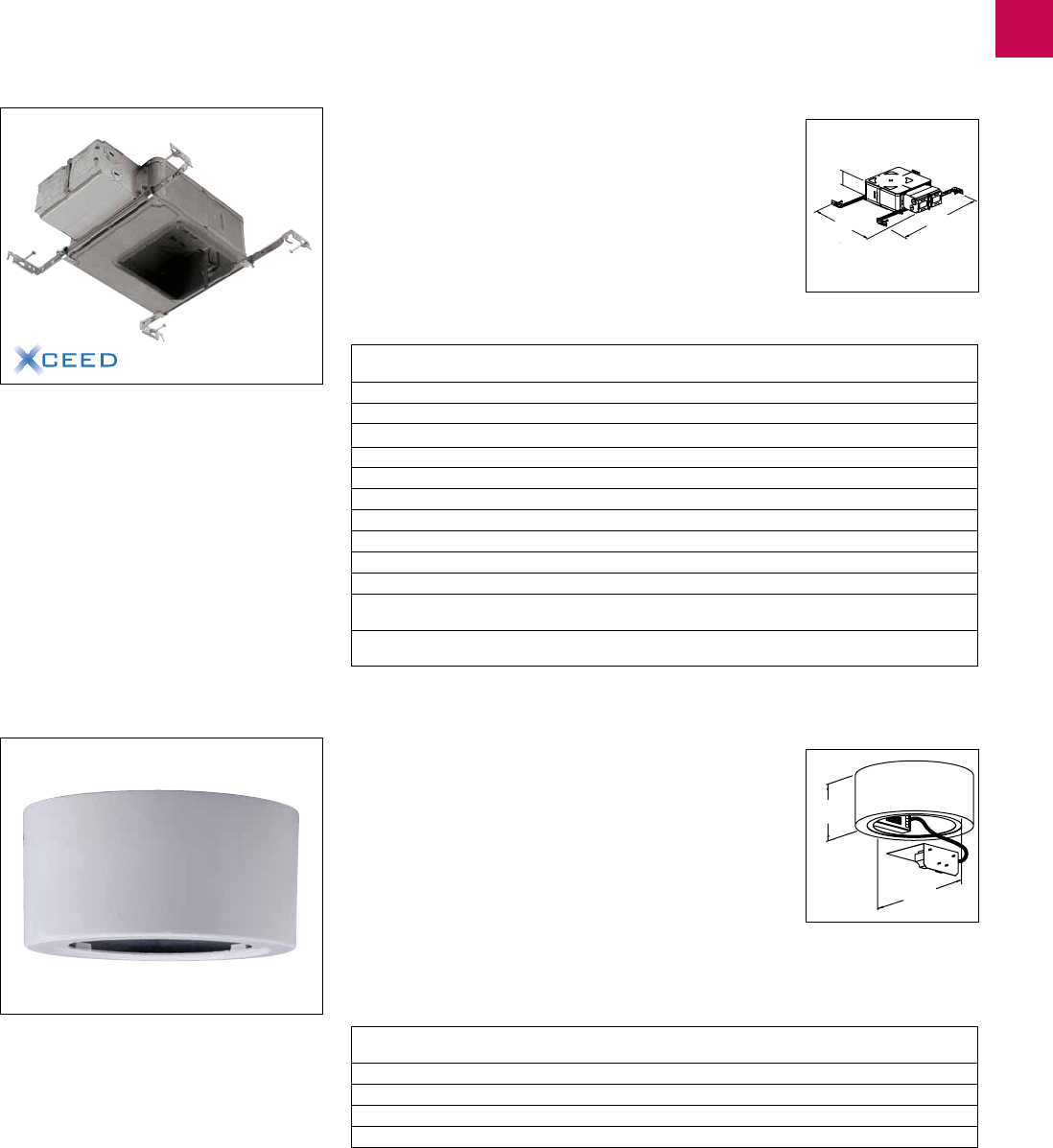

Xceed
Xceed
Only 3-1/2" deep,
the Xceed frame
is perfect for
narrow ceiling
spaces.
Aperture hole marking
for easy alignment.
Rolled metal prevents
sharp edges.
Insulated ceiling,
AirSeal® ready
aluminum housing.
Easily adaptable
to suspended
ceiling applications.
3-1/2" Low Profile Height:
Idealforwallmountingorrestrictedplenums.
Energy Star®Dimmingavailablein26Wversion.
Swivel-LockMountingBars
Pivoting mechanism on frame allows
for90°adjustmentofmountingbar.
Offset aperture hole allows
for installation close to joists.
InnovativeTop/Bottomjunctionbox
access allows for easy wiring
and installation.
TwistandLocklampholder
to ensure easy relamping.
(1)TripleTube4-pinbase2700K
or3500KCompactFluorescent
LampIncluded.
448 Philips
Lytecaster – Philips Lightolier
Canlyte Lighting Resource Guide
LED
led
Technology should enhance your lighting, not detract from it. Lytecaster's line of LED
products provides value added features, proven performance and the quality you've
cometoexpectfromLytecaster for over 40 years.
Designed for commercial and residential applications, our LED line of products are
created to meet the demanding needs of these applications. Lytecaster is committed
toprovidingproductsthatwillhelpmeettheeverchangingneedsofourcustomerby
offeringlightingthatprovidesunsurpassedquality,exceptionalperformanceandthe
latest technology for energy efficiency.
Quality White Light
Lytecaster LED is committed to quality lighting. Our
tightlycontrolledcustombinningprocessandcontrolled
mixingchamberensureaqualitywhitelightand
excellentcolourconstancy.Infact,ourcolourconstancy
is held to a tolerance twice as controlled as the current
Energy Star standards.
Trusted Quality
Embracenewtechnologyinyourlightingdesignswith
Lytecaster LED. With a 5 year warranty Lytecaster LED
is the product you can trust for quality and performance.
Tested to meet the demanding standard of Energy Star.
449Philips
Lytecaster – Philips Lightolier
Canlyte Lighting Resource Guide
led
Ordering Guide
Catalogue No. Ceiling Colour
Temp
Input
Voltage Wattage Lumens Trims
1001LED09N271-CDN 5-1/4"Non-ICNewConstruction
2700k
120V 19W
900 lm
Exactsystem
lumens
depends on
trim used
Pages
450-453
1001LED09N27D1-CDN 5-1/4"Non-ICNewConstruction(dimming)* 120V 23W
1001LED09N271-347CDN 5-1/4"Non-ICNewConstruction 347V 24W
1001LED09N351-CDN 5-1/4"Non-ICNewConstruction
3500k
120V 19W
1001LED09N35D1-CDN 5-1/4"Non-ICNewConstruction(dimming)* 120V 23W
1001LED09N351-347CDN 5-1/4"Non-ICNewConstruction 347V 24W
For277VversionpleaseconsulttheSpecsheetavailableonwww.canlyte.com.
AlltestingconductedinaccordancewithIESNALM79andLM80standards.
*Refer to specification sheet on www.canlyte.com for detailed dimming information.
Catalogue No. Ceiling Colour
Temp
Input
Voltage Wattage Lumens Trims
1101LED09N271 6-3/4"Non-ICNewConstruction
2700k
120V 19W
900 lm
Exactsystem
lumens
depends on
trim used
Pages
450-453
1101LED09N27D1 6-3/4"Non-ICNewConstruction(dimming)* 120V 23W
1101LED09N271-347 6-3/4"Non-ICNewConstruction 347V 24W
1101LED09N351 6-3/4"Non-ICNewConstruction
3500k
120V 19W
1101LED09N35D1 6-3/4"Non-ICNewConstruction(dimming)* 120V 23W
1101LED09N351-347 6-3/4"Non-ICNewConstruction 347V 24W
For277VversionpleaseconsulttheSpecsheetavailableonwww.canlyte.com.
AlltestingconductedinaccordancewithIESNALM79andLM80standards.
*Refer to specification sheet on www.canlyte.com for detailed dimming information.

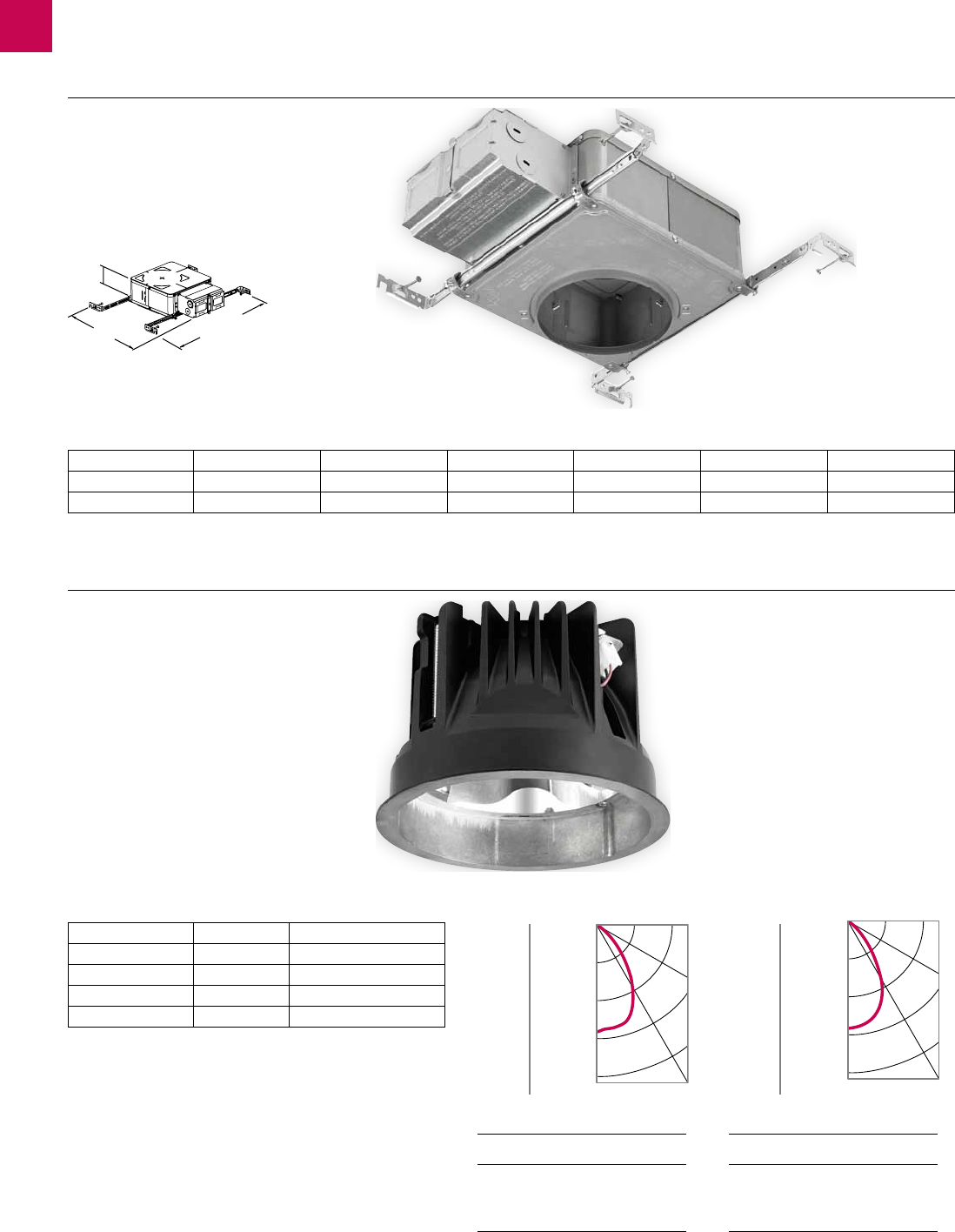

Uniframe
Key Features
• Proventobethebest-in-classforT-Bar
ceiling installation
• Toolfreeinstallationincommercialnon-
insulated ceilings
• Cutsinstallationtimebyupto50%
• Idealforlightcommercial,hospitalityand
multi-familyinstallations
• Improvedcut-offandopticperformance.
Forcompatibletrimselectionpleasesee
p. 450-453
• Uses75%lessenergythanincandescent
• Notallcompatibletrimstobeusedwith
Uniframe LED are Energy Star. Go to
Compatibilitylistonspecicationsheet
Energy Star trims
Uniframe
450 Philips
Lytecaster – Philips Lightolier
7-15/16"
6-3/4"
6-3/4"
6-3/4"
5-1/4"
7"
6-9/16"
7-3/16"
1146
1005CL
1105CL
1144
Canlyte Lighting Resource Guide

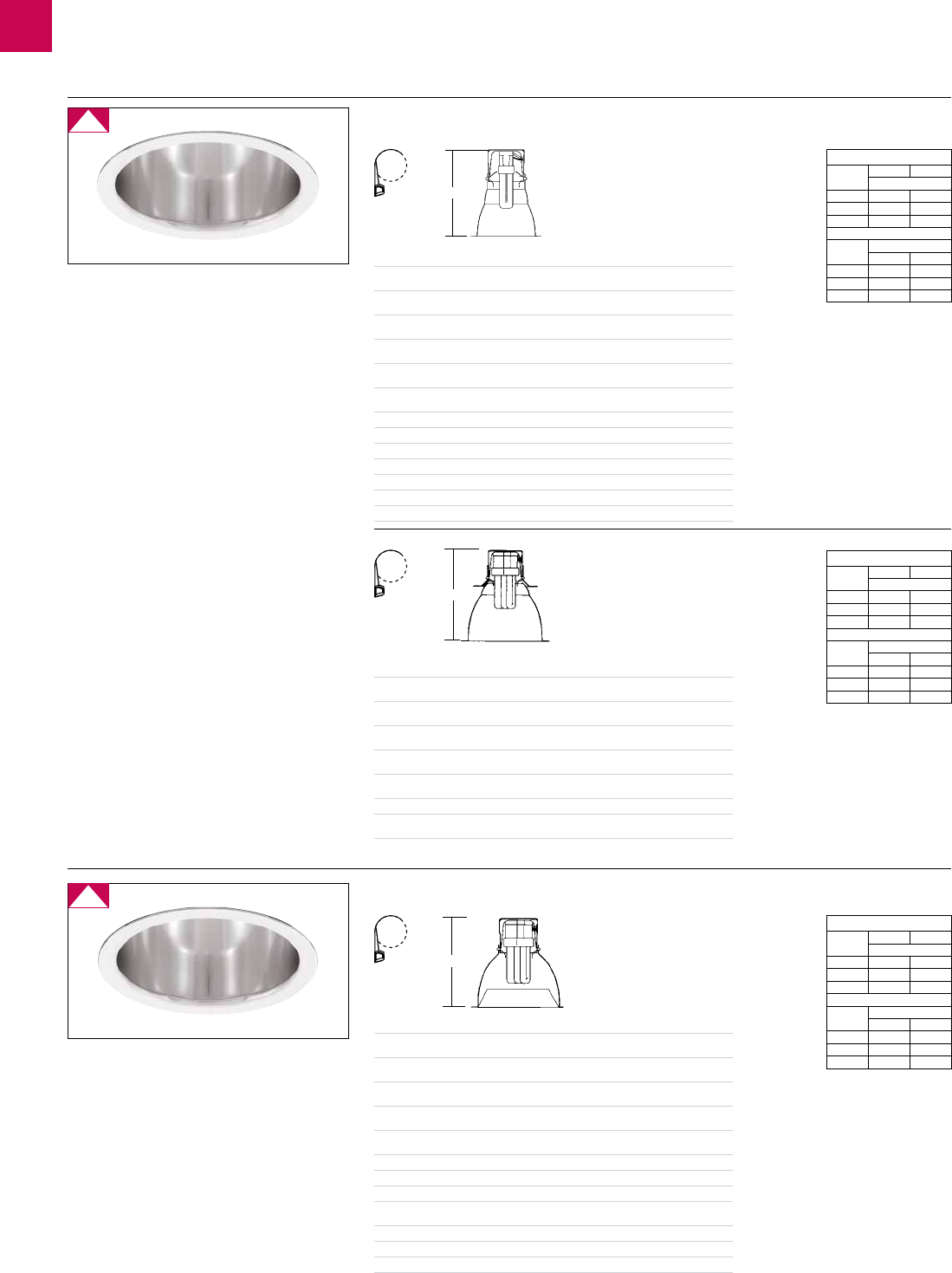

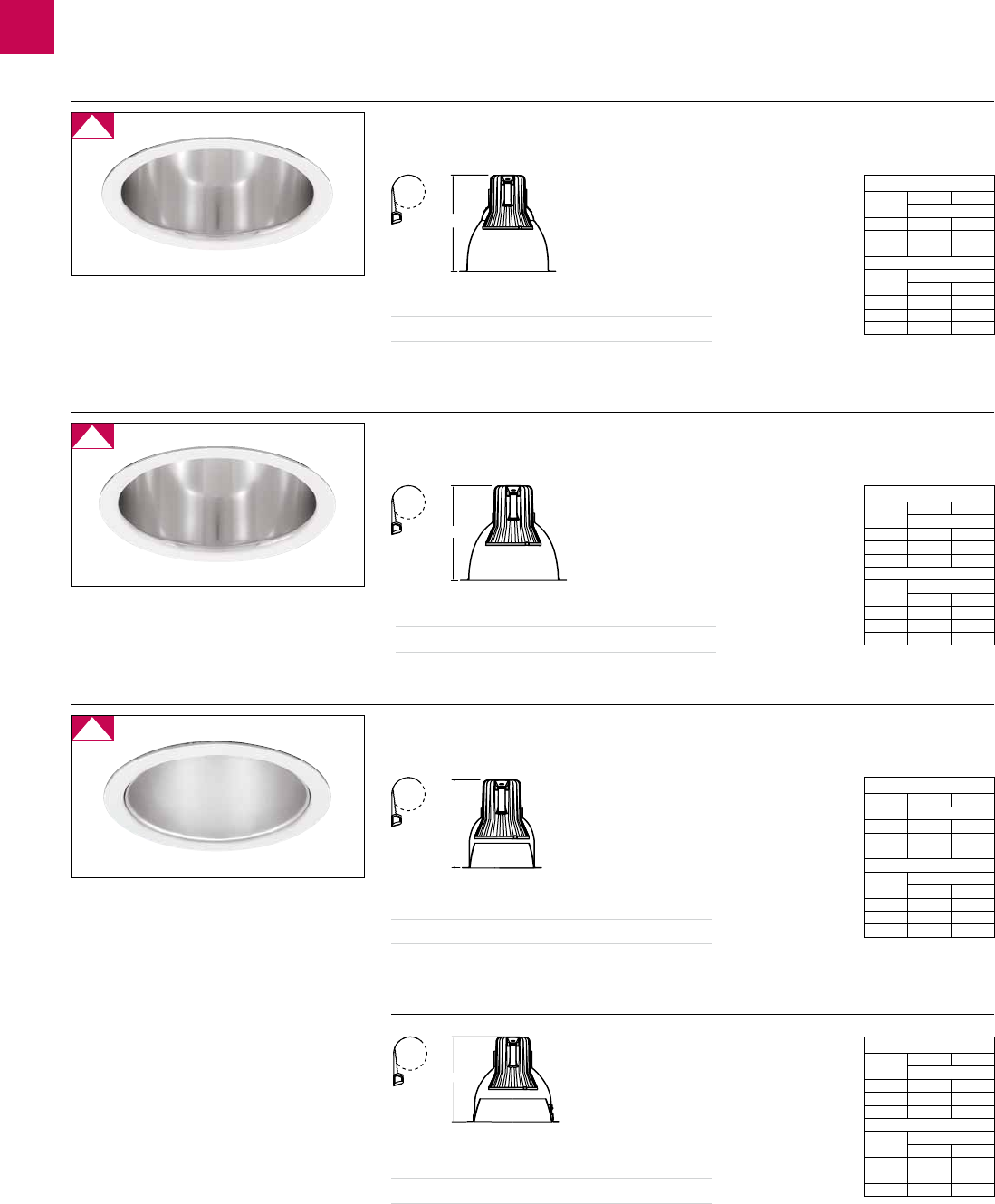

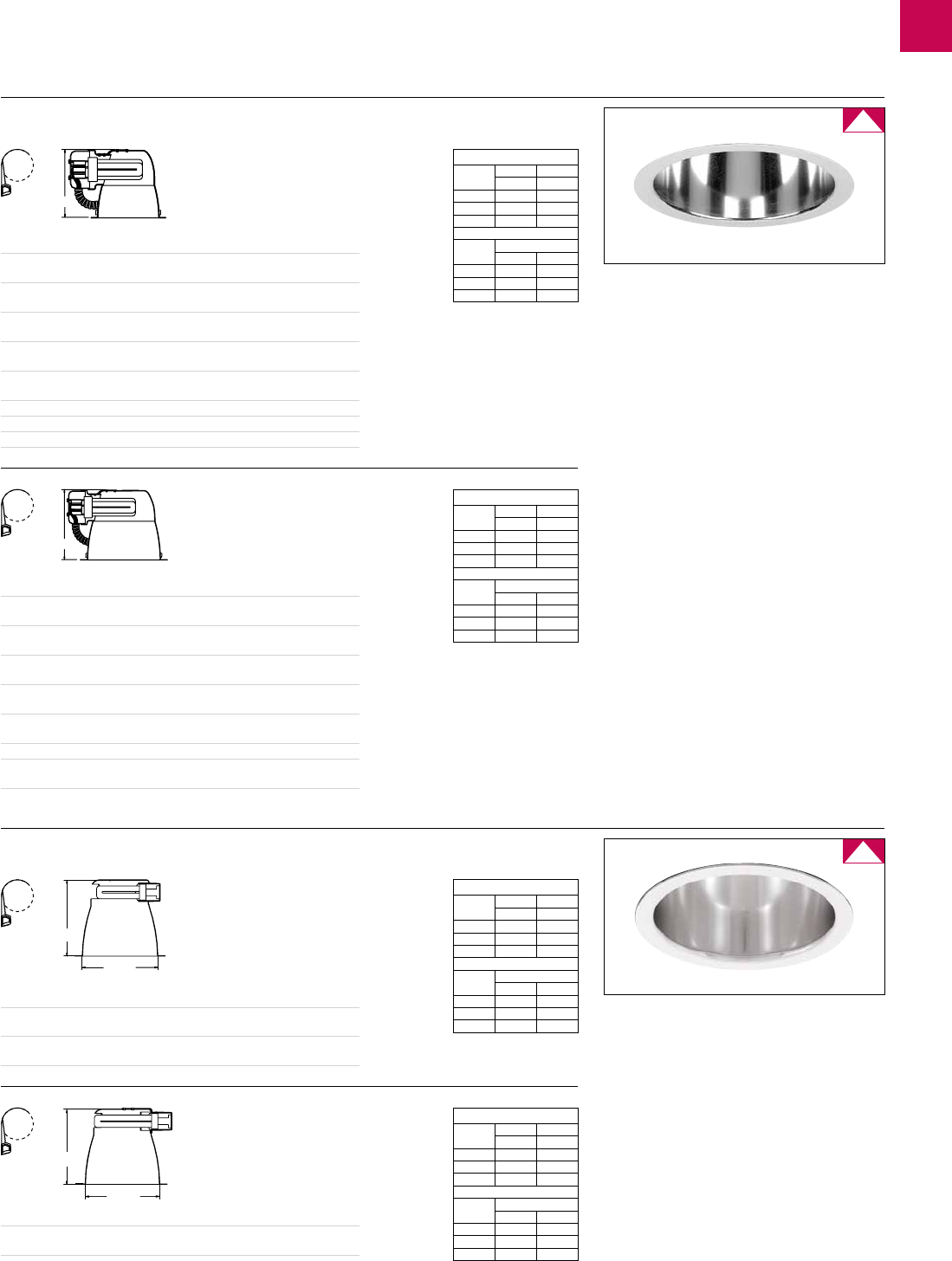

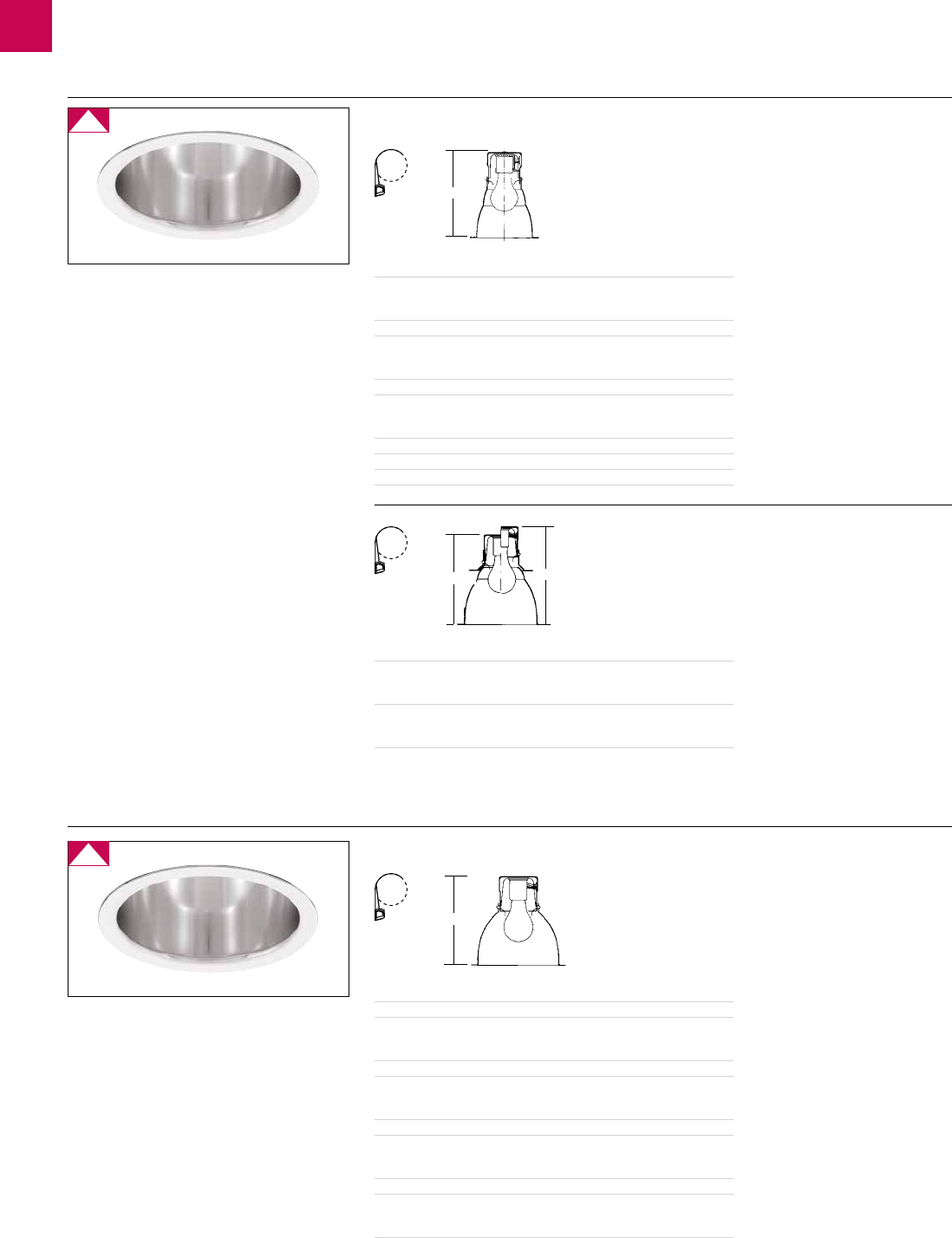

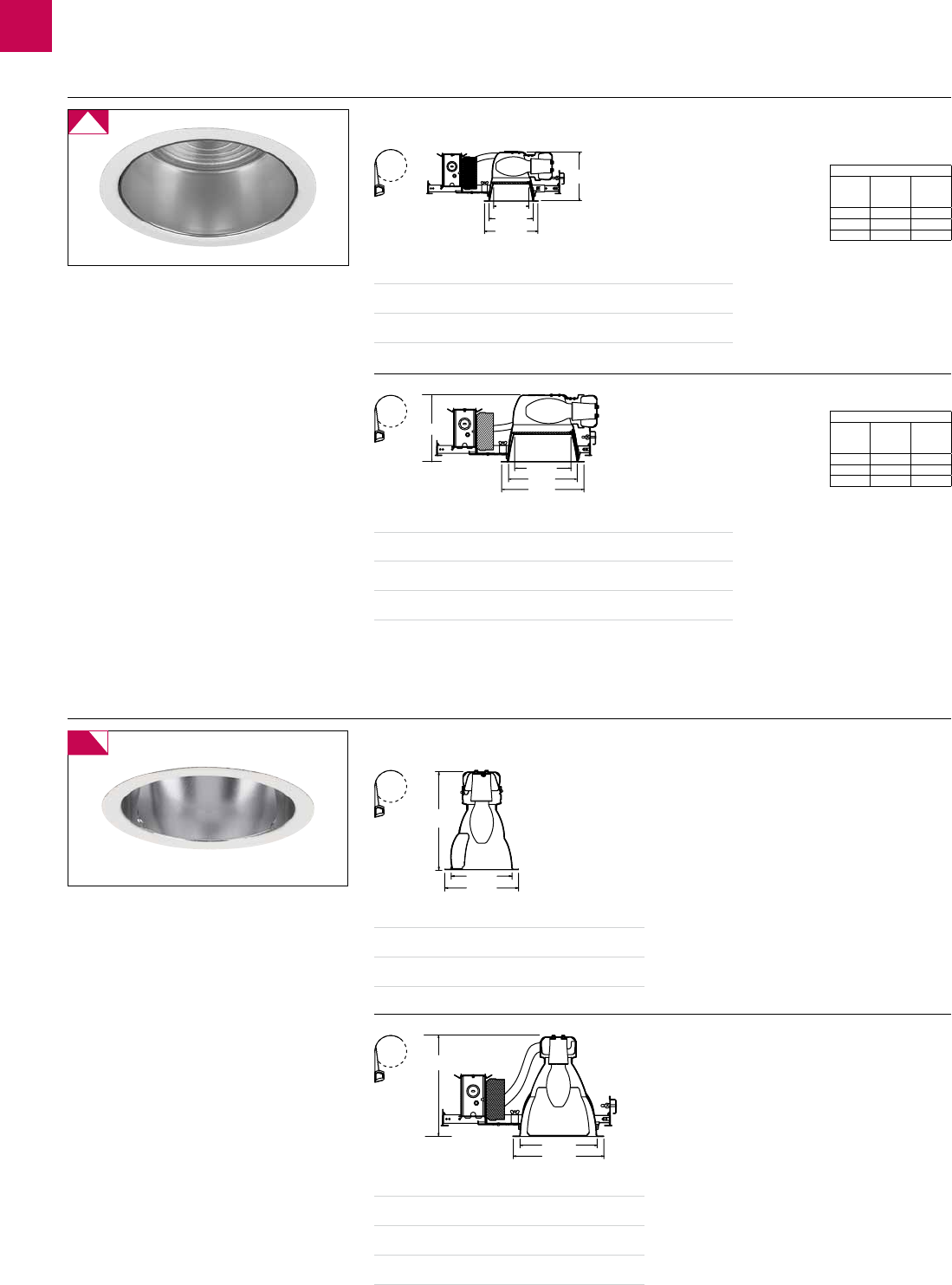

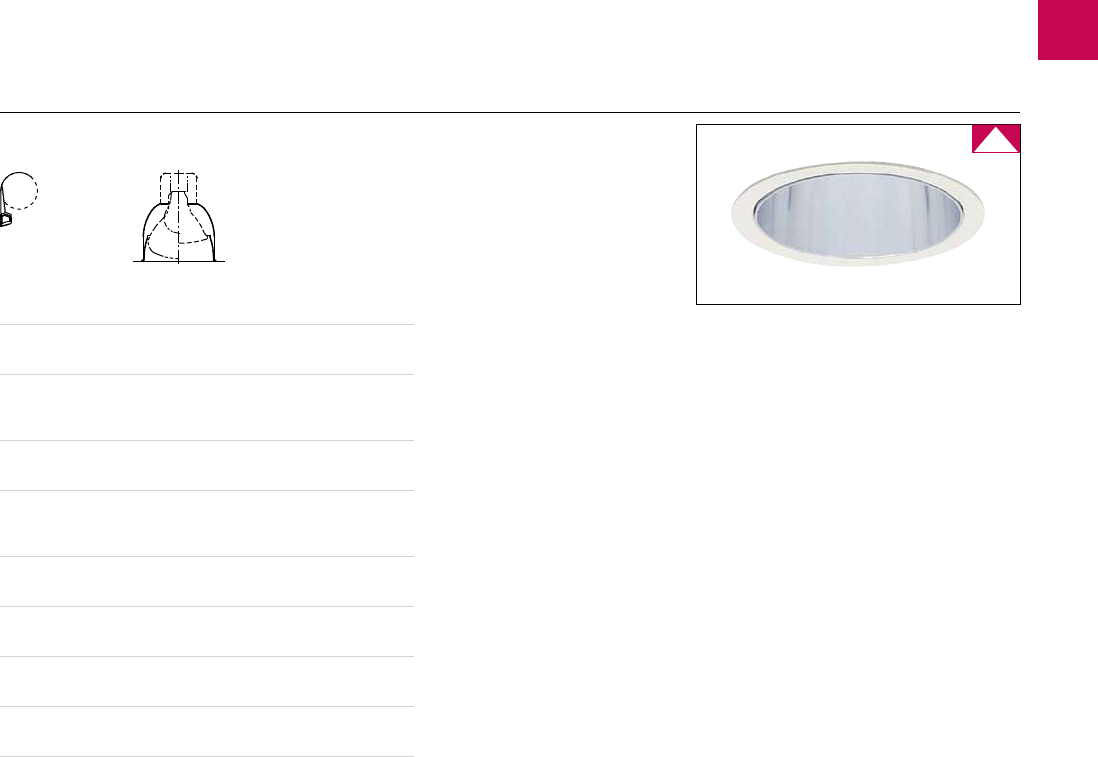

Specular Reectors
1146
1146CD
Specular Clear
Clear Diffuse
1005CL
1005BA
1005CD
Specular Clear
SpecularBlack
Clear Diffuse
1105CL
1105BA
1105CD
Specular Clear
SpecularBlack
Clear Diffuse
1144
1144CD
Specular Clear
Clear Diffuse
Frame-InKit Lamping* Wattage(nondim/dim)
1101LED Series 900 lms 1 9 W / 2 3 W
Frame-InKit Lamping* Wattage(nondim/dim)
1001LED Series 900 lms 1 9 W / 2 3 W
Frame-InKit Lamping* Wattage(nondim/dim)
1101LED Series 900 lms 1 9 W / 2 3 W
Frame-InKit Lamping* Wattage(nondim/dim)
L1101LED Series 900 lms 1 9 W / 2 3 W
*Lumenperformancevariesbycolortemperature,driverandtrimoption.Pleasereferencespecicationsheetsforperformancedetails.
1101LED09N271 Single Unit
Ht.to F.C BeamDia.
 Floor At30"AboveFloor
 8' 27 11
 9' 19 12
10' 14 13
Multiple Units
Ctr. to Ctr. Footcandles
Lrg. Room Sml. Room
4' 51 37
 5' 35 25
 6' 24 14
1101LED09N271 Single Unit
Ht.to F.C BeamDia.
 Floor At30"AboveFloor
 8' 26 10
9' 19 11.5
10' 14 13
Multiple Units
Ctr. to Ctr. Footcandles
Lrg. Room Sml. Room
 4' 52 38
 5' 37 26
 6' 24 15
1001LED09N271 Single Unit
Ht.to F.C BeamDia.
 Floor At30"AboveFloor
8' 35 8
 9' 25  9
10' 19 10
Multiple Units
Ctr. to Ctr. Footcandles
Lrg. Room Sml. Room
4' 49 38
 5' 34 25
 6' 23 15
1101LED09N271 Single Unit
Ht.to F.C BeamDia.
 Floor At30"AboveFloor
 8' 27 10
9' 19 11
 10' 14 12
Multiple Units
Ctr. to Ctr. Footcandles
Lrg. Room Sml. Room
4' 51 38
 5' 35 26
 6' 24 15

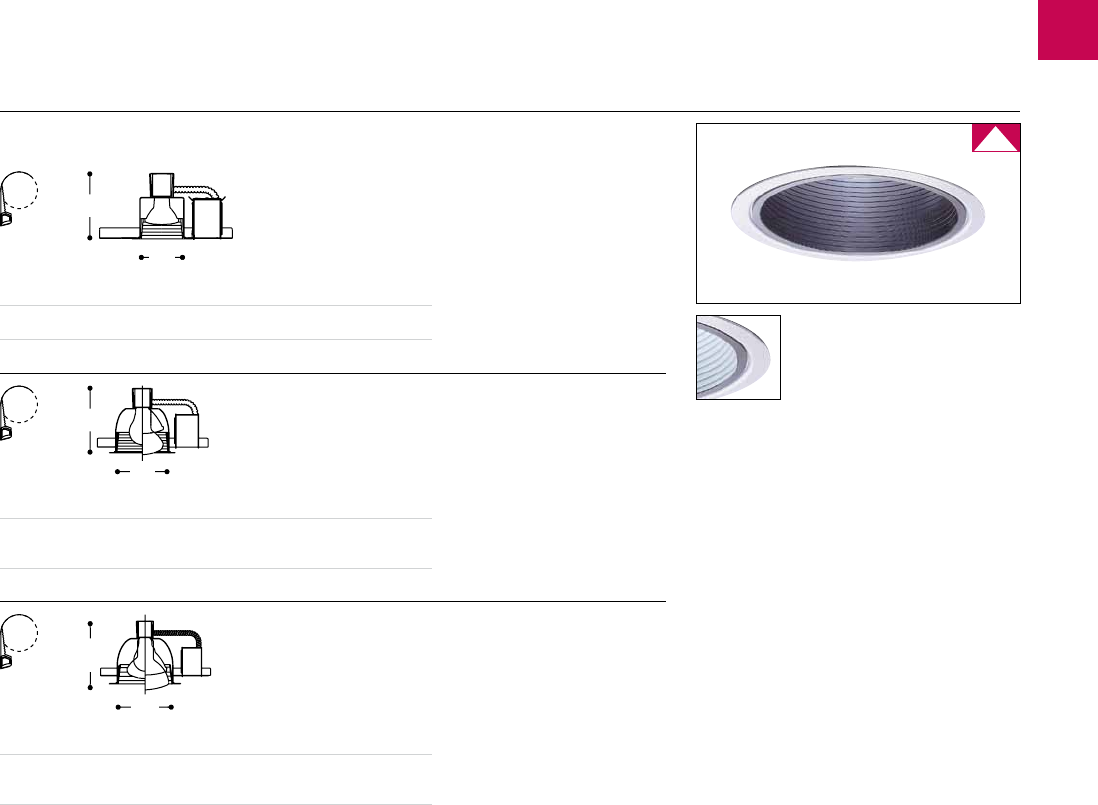

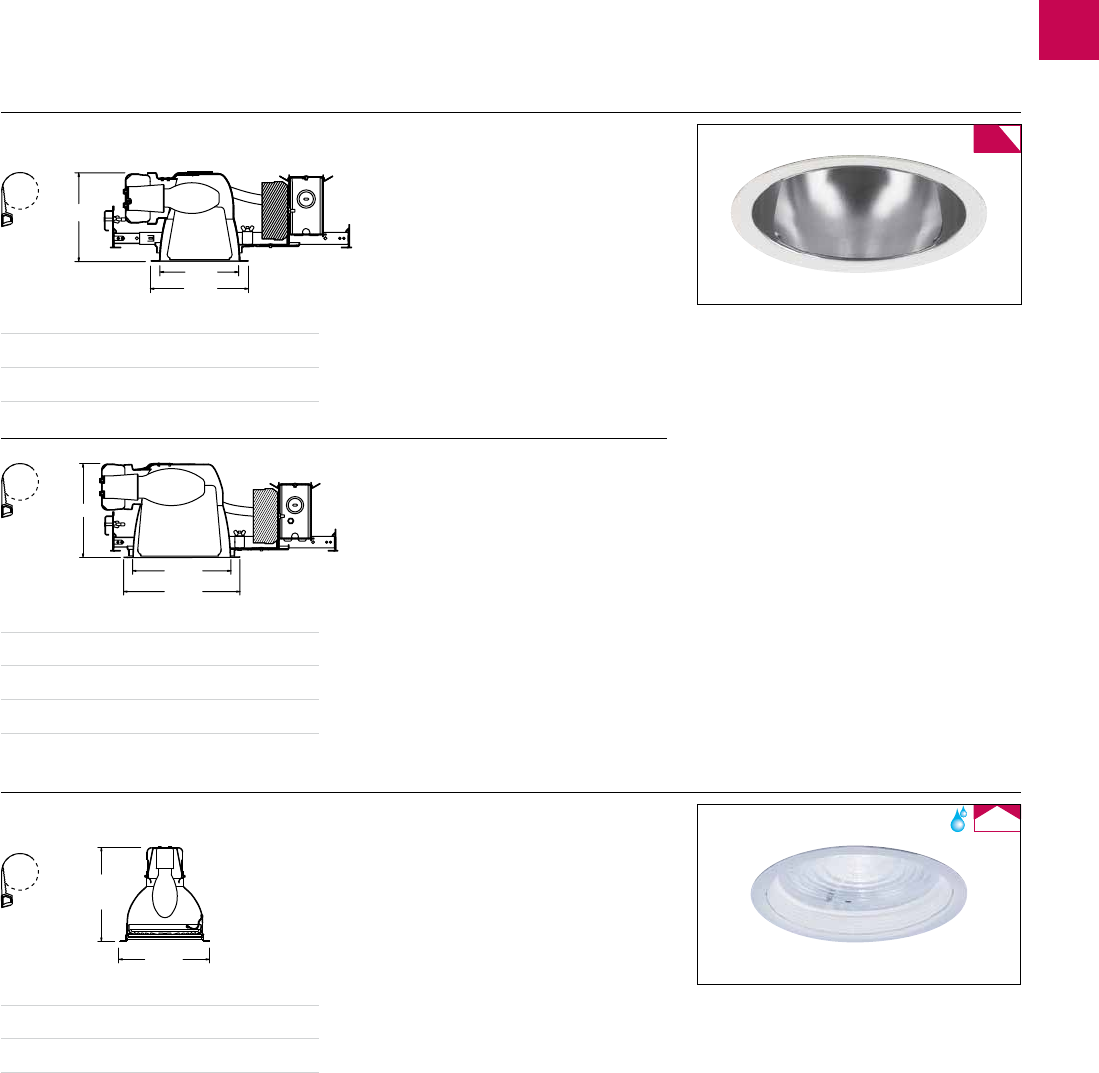

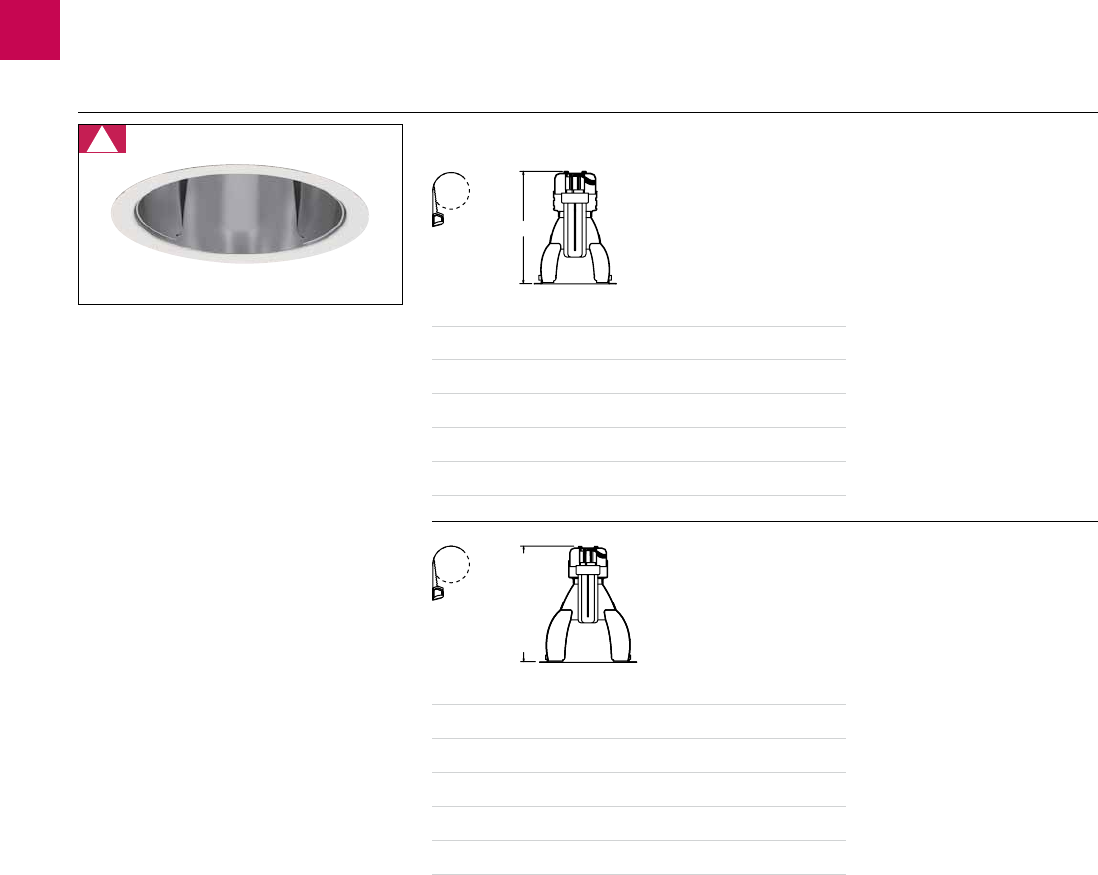

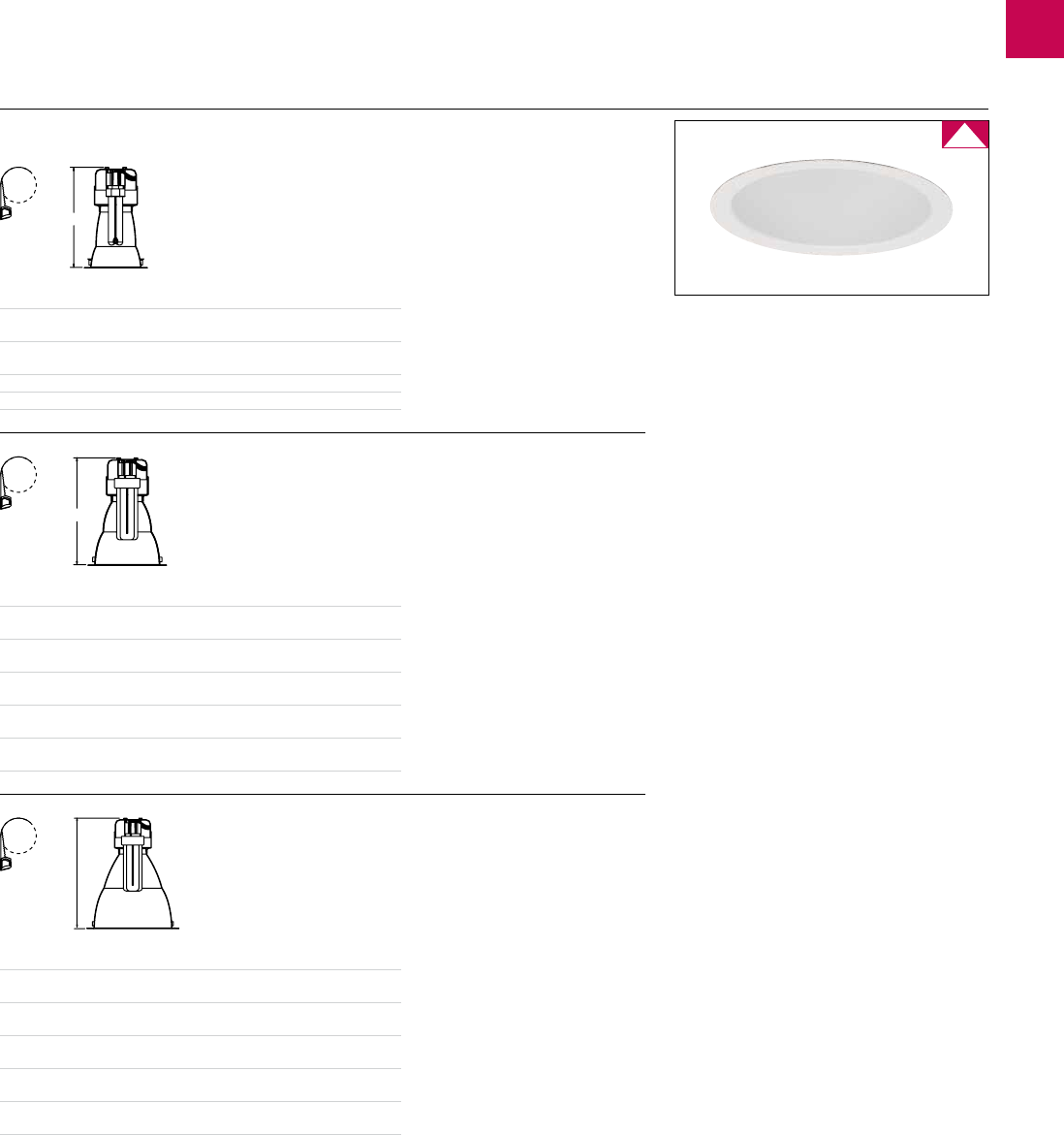

The best efciency and glare control. Lamp is fully
recessedinadeep,specularAlzak®reector,precisely
contoured to assure 38° shielding of lamp and
lamp image.
Versatile, low brightness downlights. Specular Alzak®
heavy gauge aperture cone and recessed lamp con-
trol glare. Cone can easily be removed to facilitate
maintenance.
High efciency downlight ts in 8" joist construction.
SpecularAlzak®reectormaximizesoutput.

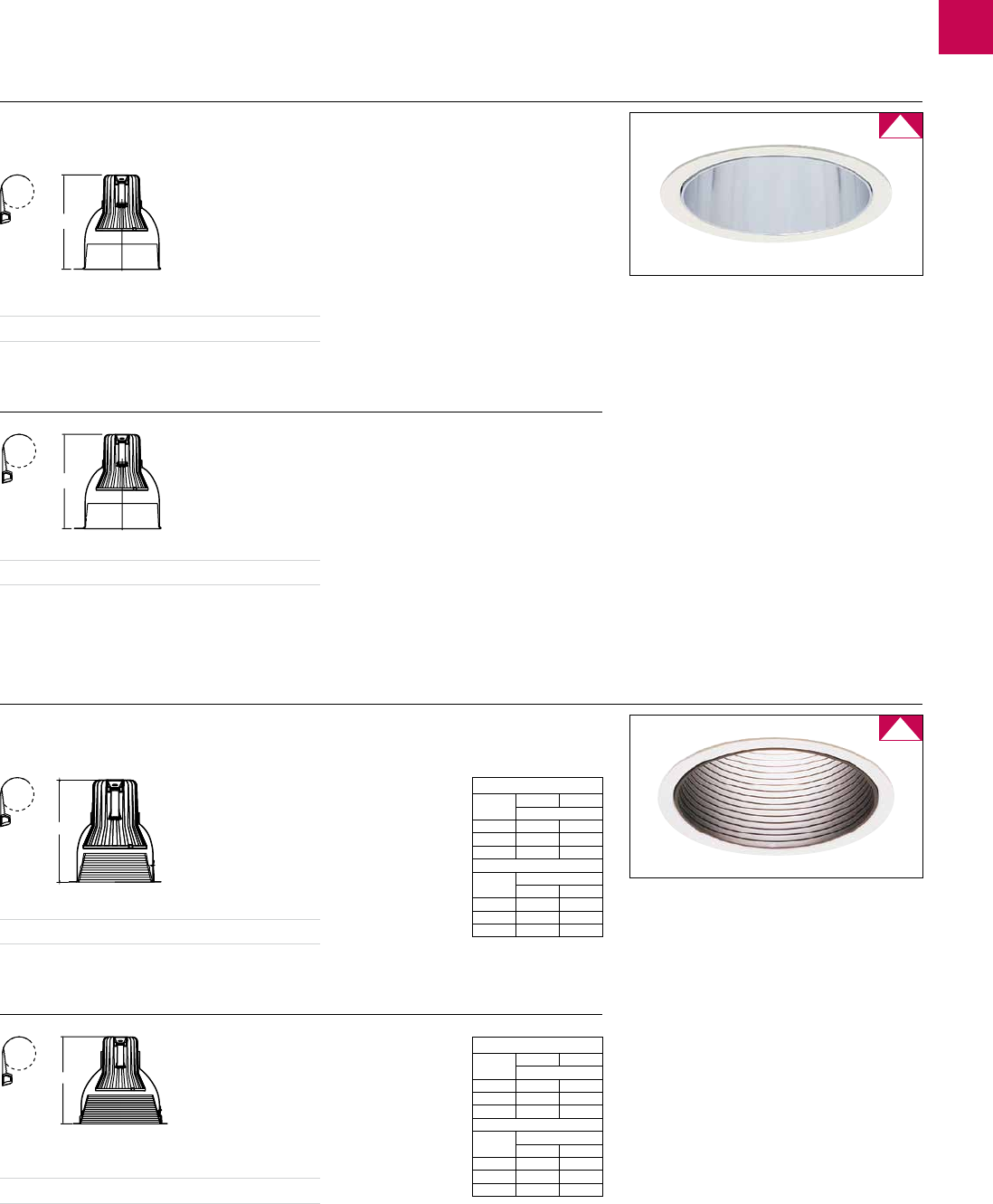

Deep Alzak® Reector iii
Specular Alzak® Cone ii
Shallow Alzak® Reector iii
led
451Philips
Lytecaster – Philips Lightolier
6-3/4"
5-1/4"
7-1/2"
7-1/2"
6-9/16"
5-1/4"
6-3/4"
7-3/16"
1005WB
1105WB
Canlyte Lighting Resource Guide

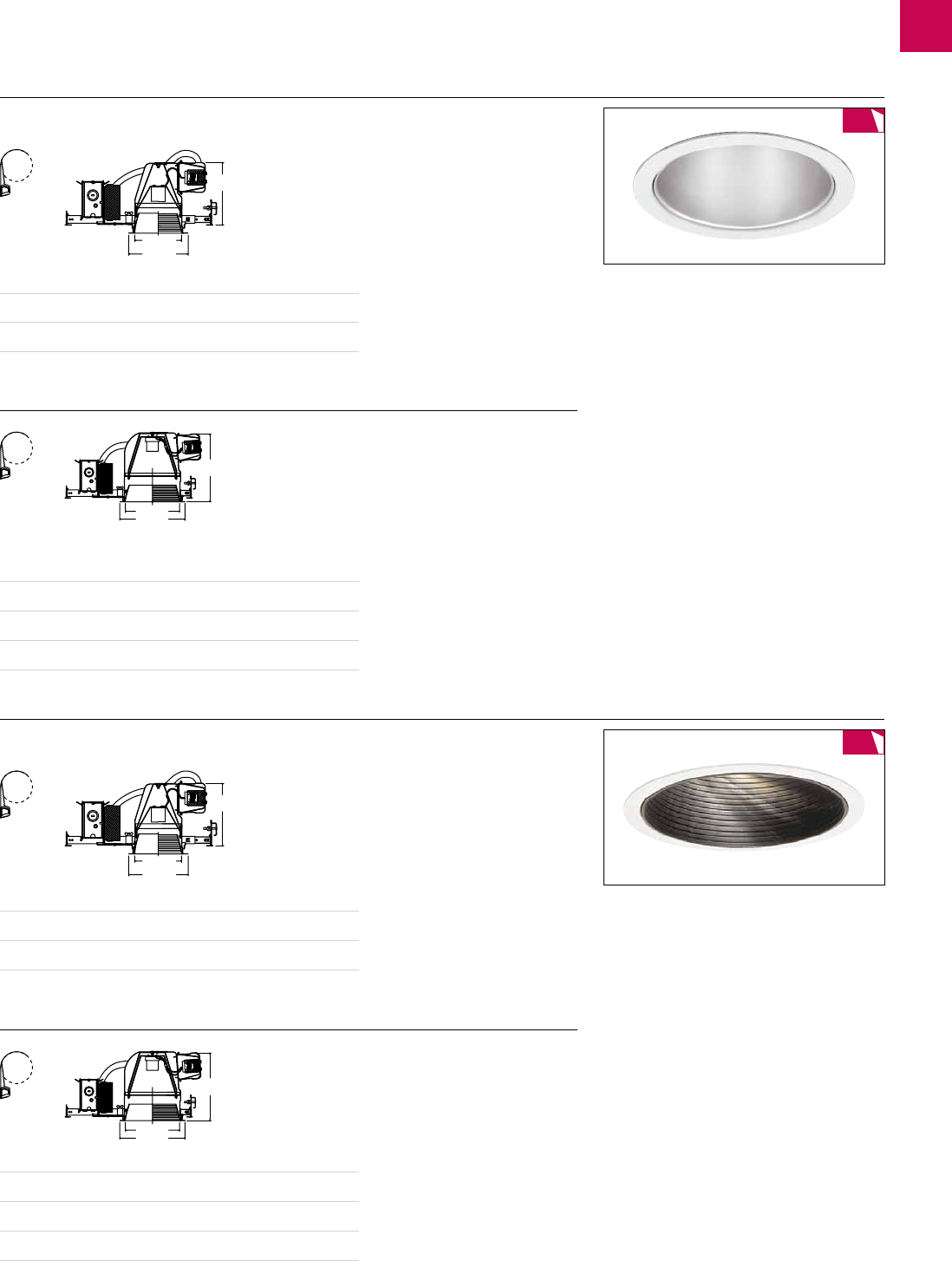

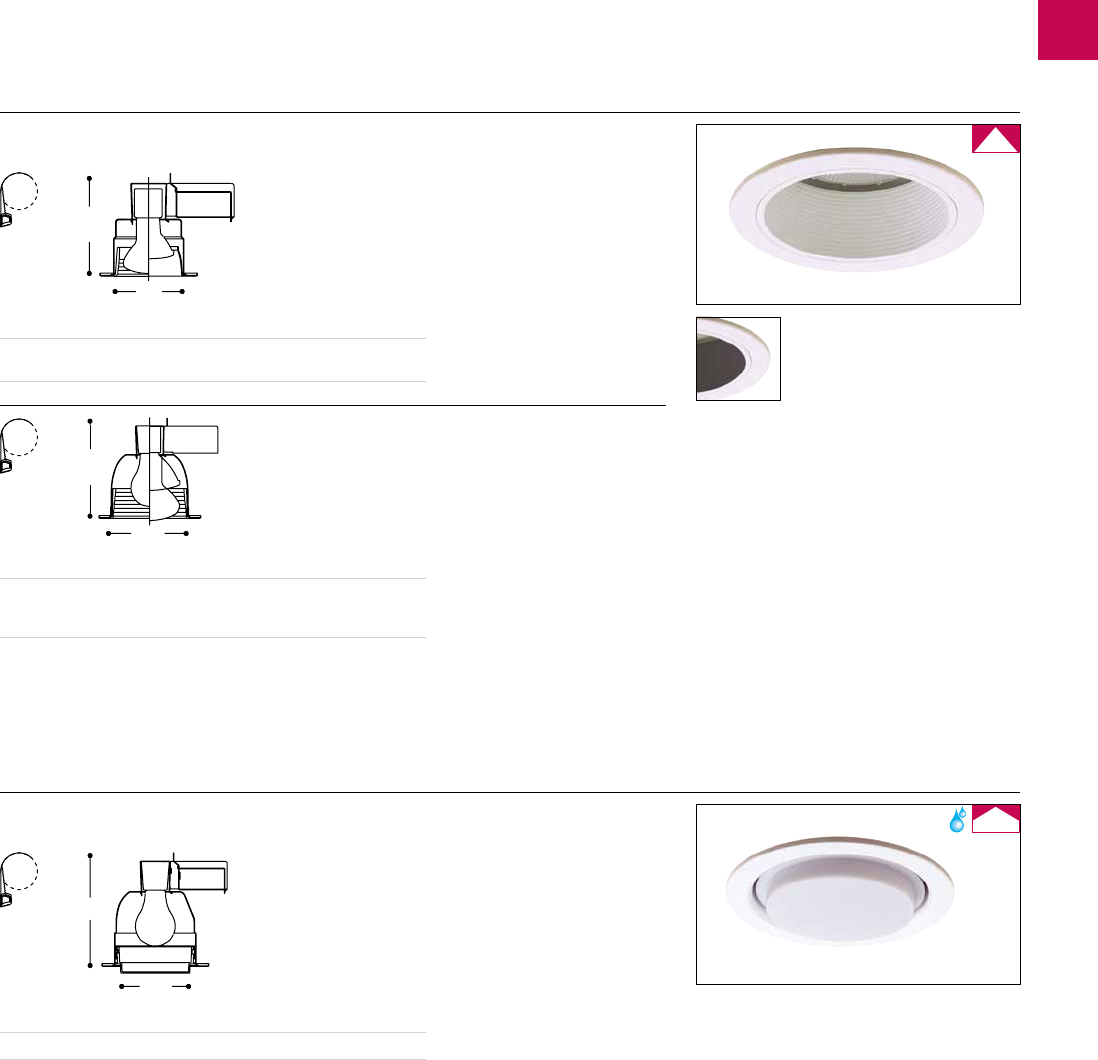

Specular Reectors - Bafed Downlight
1076CH Chrome
1176CH Chrome
Frame-InKit Lamping* Wattage(nondim/dim)
1001LED Series 900 lms 1 9 W / 2 3 W
Frame-InKit Lamping* Wattage(nondim/dim)
1101LED Series 900 lms 1 9 W / 2 3 W
*Lumenperformancevariesbycolortemperature,driverandtrimoption.Pleasereferencespecicationsheetsforperformancedetails.
Aneconomicalchoiceforlowbudgetapplicationisthe
chrome finish.
Basic® Cone i
led
Frame-InKit Lamping* Wattage(nondim/dim)
1001LED Series 900 lms 1 9 W / 2 3 W
L56LED09S271 Single Unit
Ht.to F.C BeamDia.
 Floor At30"AboveFloor
 8' 27  8
9' 19 9
10' 15 10
Multiple Units
Ctr. to Ctr. Footcandles
Lrg. Room Sml. Room
4' 43 31
 5' 30 21
 6' 20 12

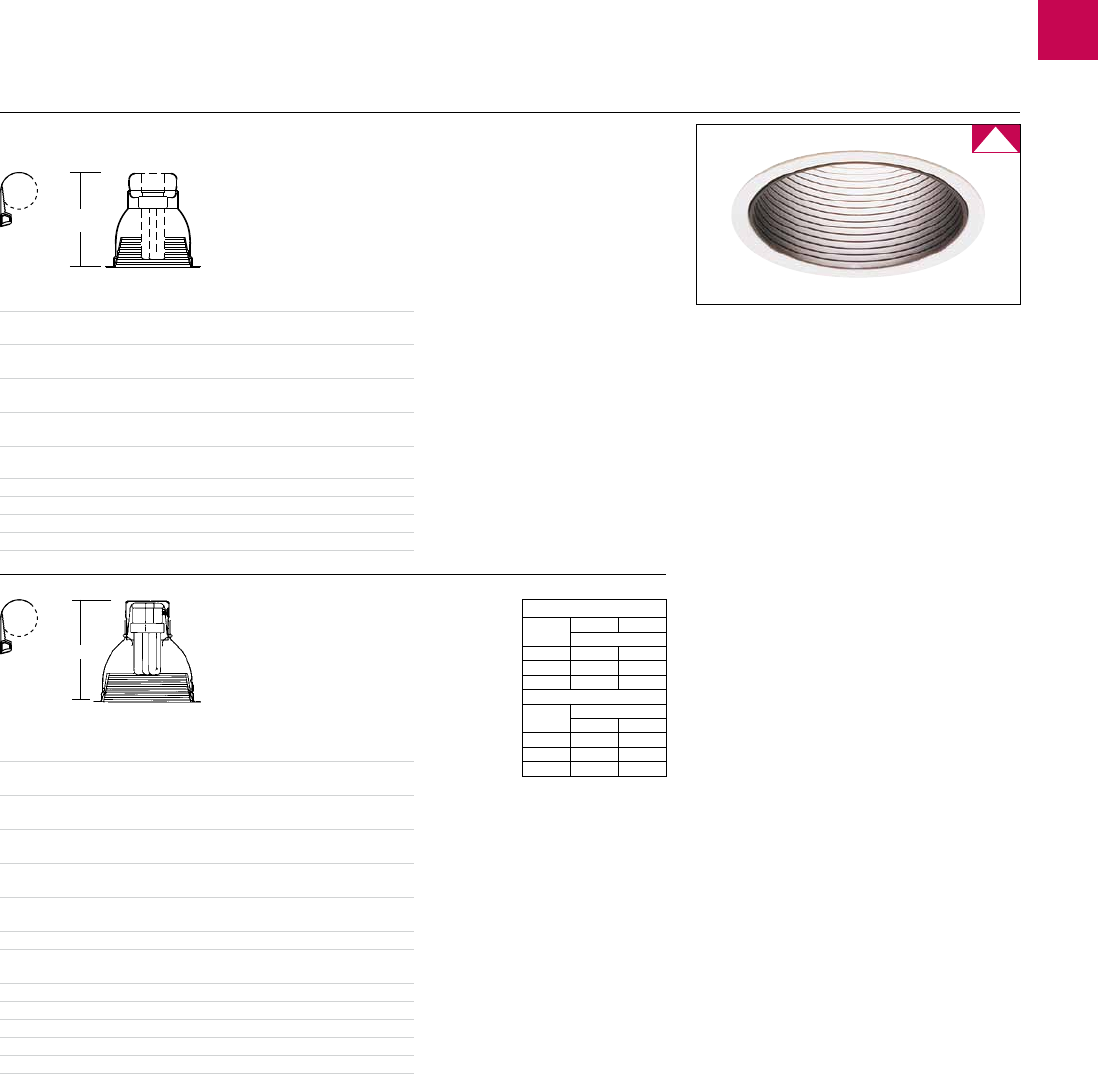

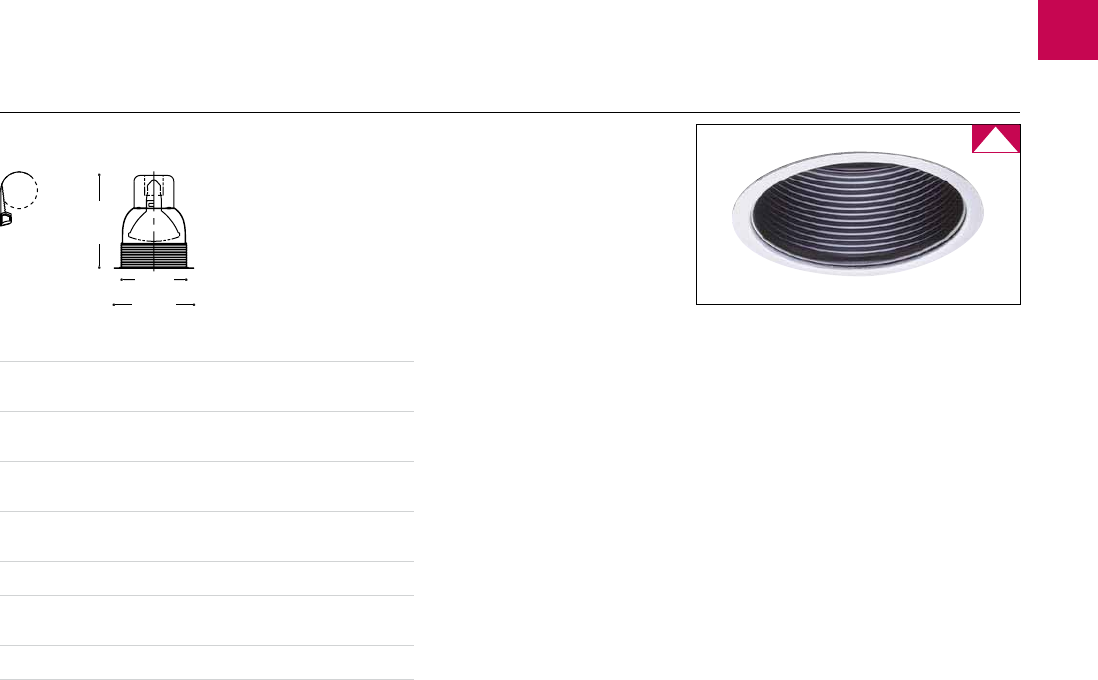

Versatile,lowbrightnessdownlight.Precision-tteddie-
castaluminum step bafe isnishedin black orwhite
andtherecessedlampreducesglare.Anobrite® alumi-
numreector.

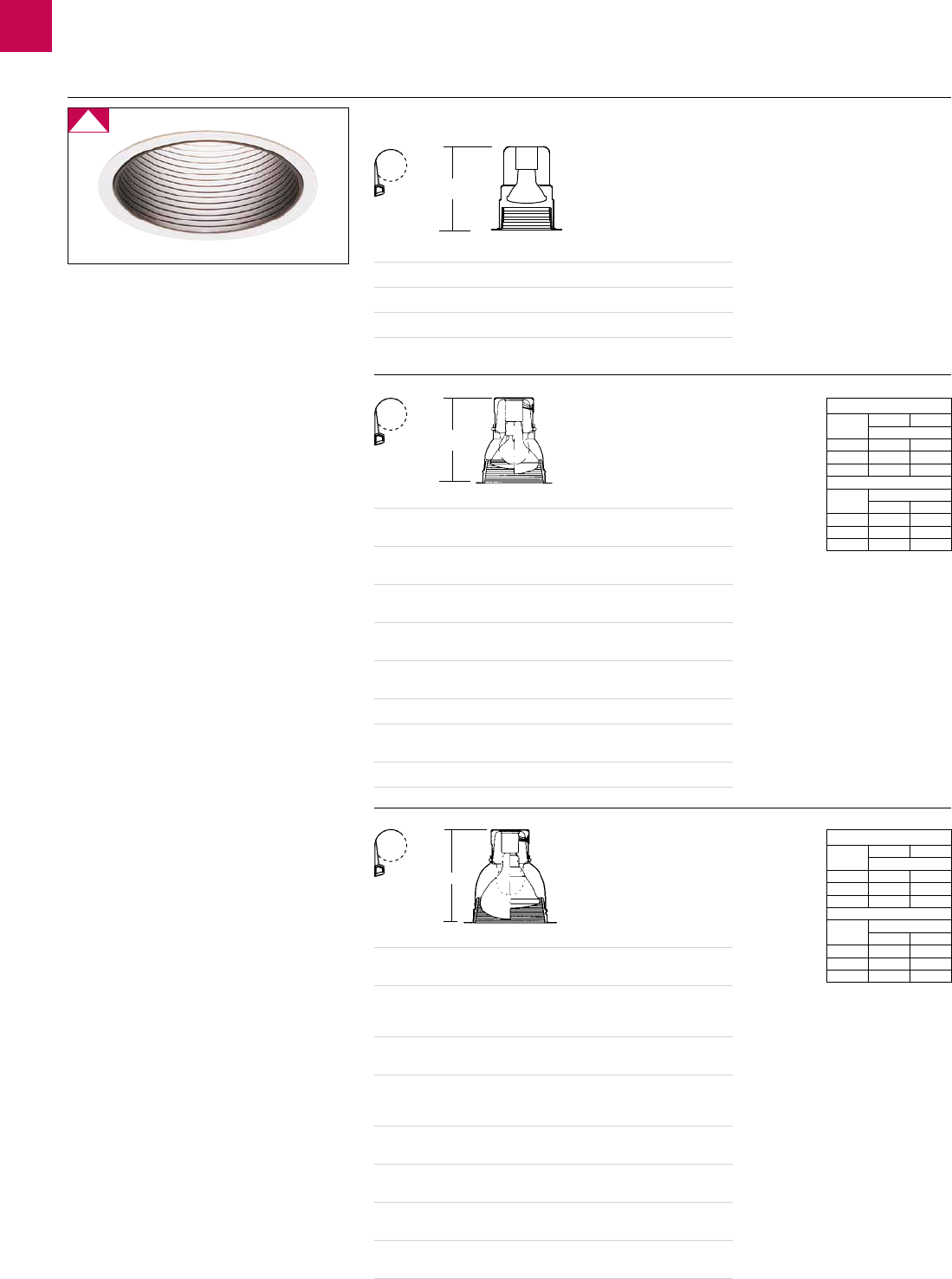

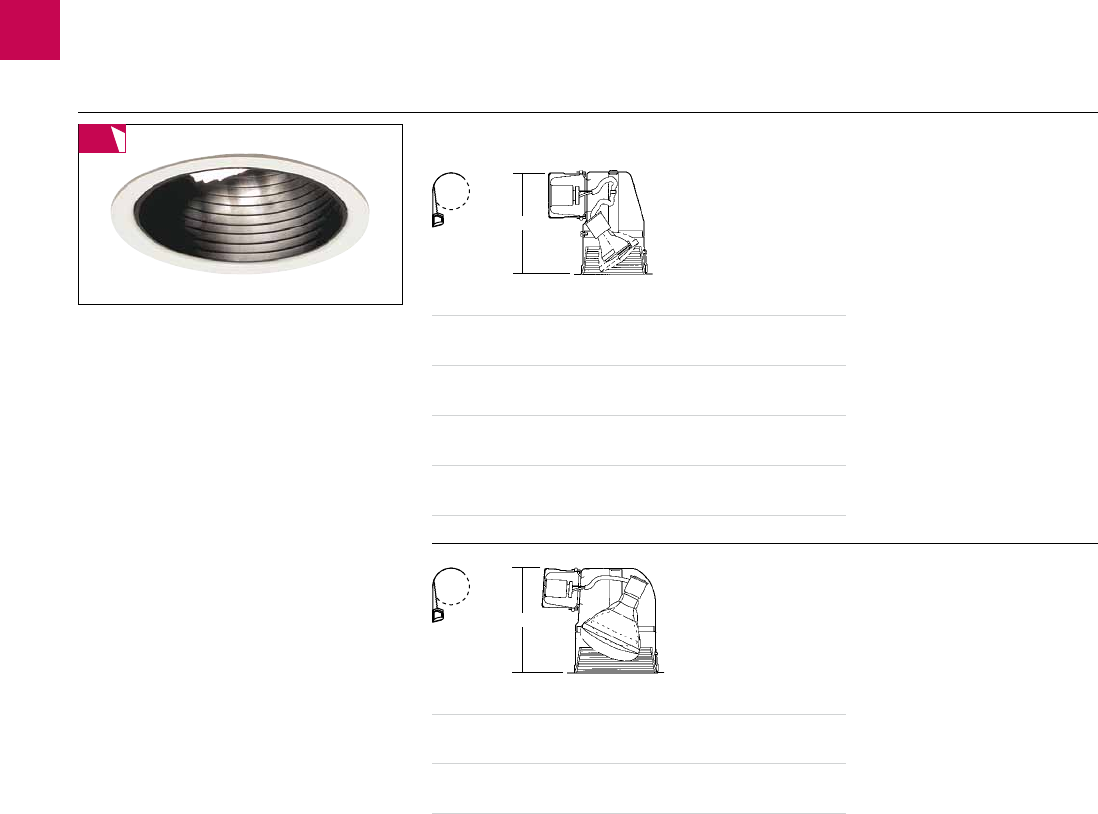

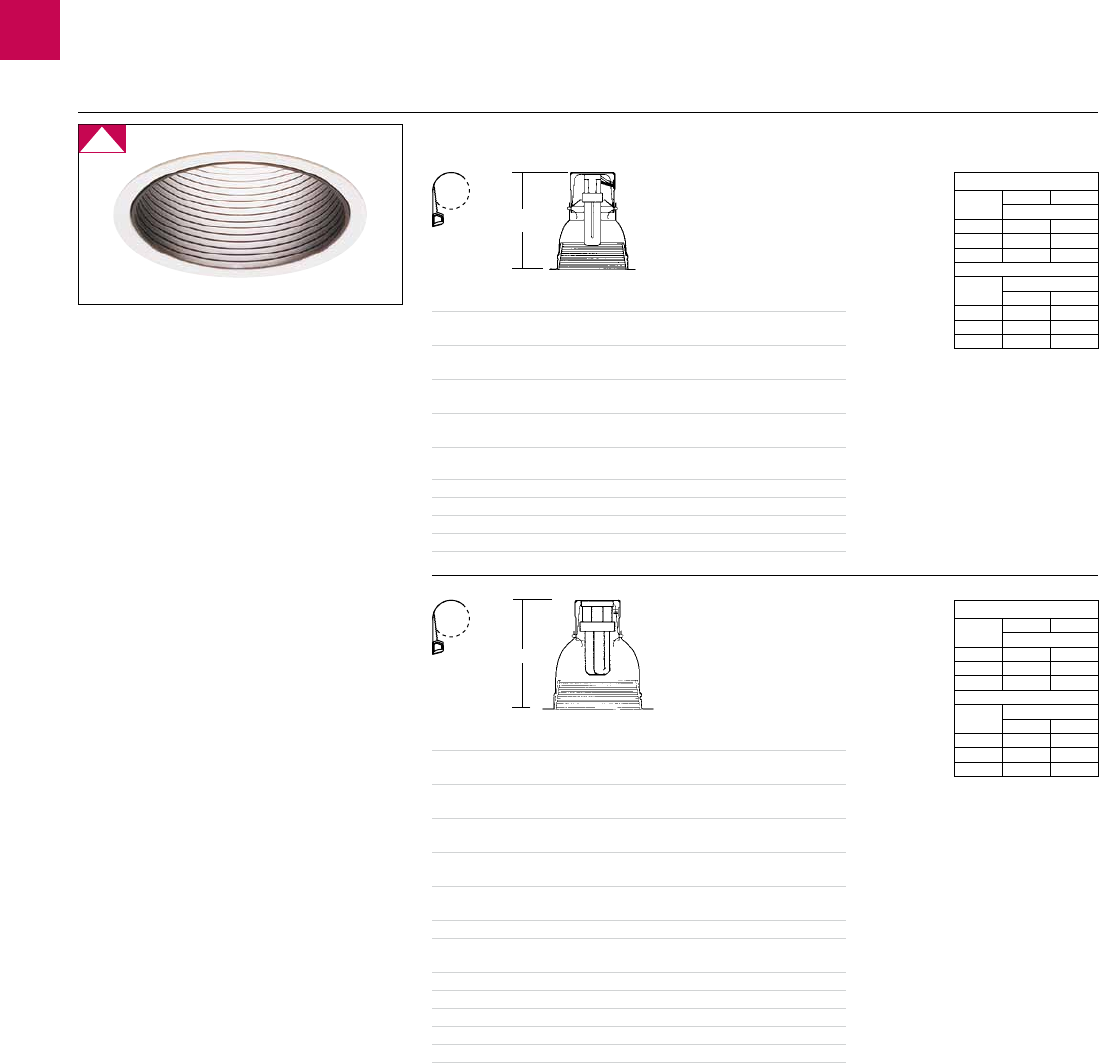

Premium Die-Cast Step Bafe ii
1005BK
1005WB
BlackBafe
WhiteBafe
1105BK
1105WB
BlackBafe
WhiteBafe
Frame-InKit Lamping* Wattage(nondim/dim)
1101LED Series 900 lms 1 9 W / 2 3 W
1101LED09N271 Single Unit
Ht.to F.C BeamDia.
 Floor At30"AboveFloor
 8' 27  9
9' 19 10
10' 14 11
Multiple Units
Ctr. to Ctr. Footcandles
Lrg. Room Sml. Room
4' 48 34
 5' 33 23
 6' 22 13
452 Philips
Lytecaster – Philips Lightolier
6-3/4"
5-1/4"
7-1/2"
7-1/2"
6-1/2"
1"
5-1/4"
6-3/4"
7-3/8"
6-3/4"
6-7/8"
1-7/8"
1121
Canlyte Lighting Resource Guide

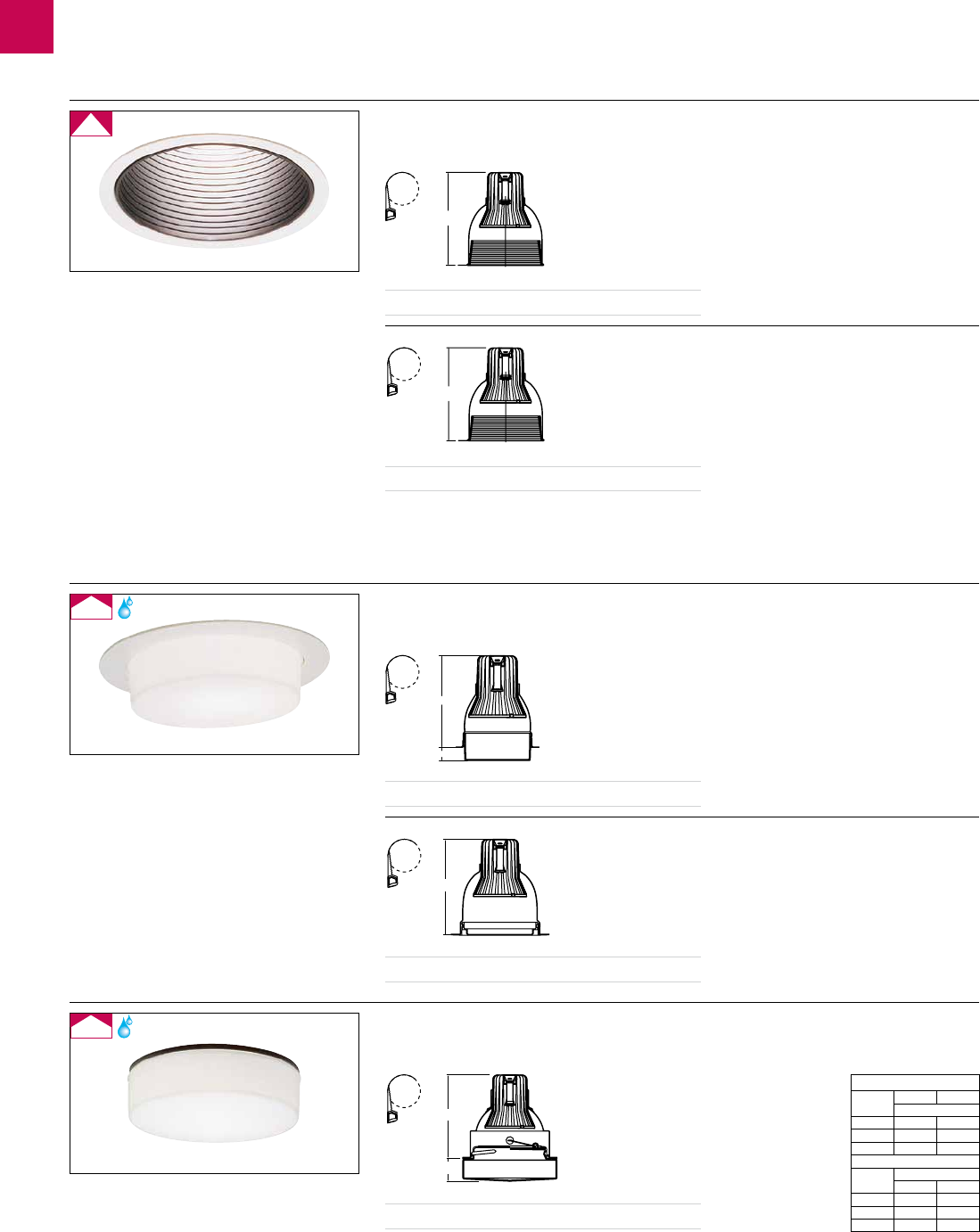

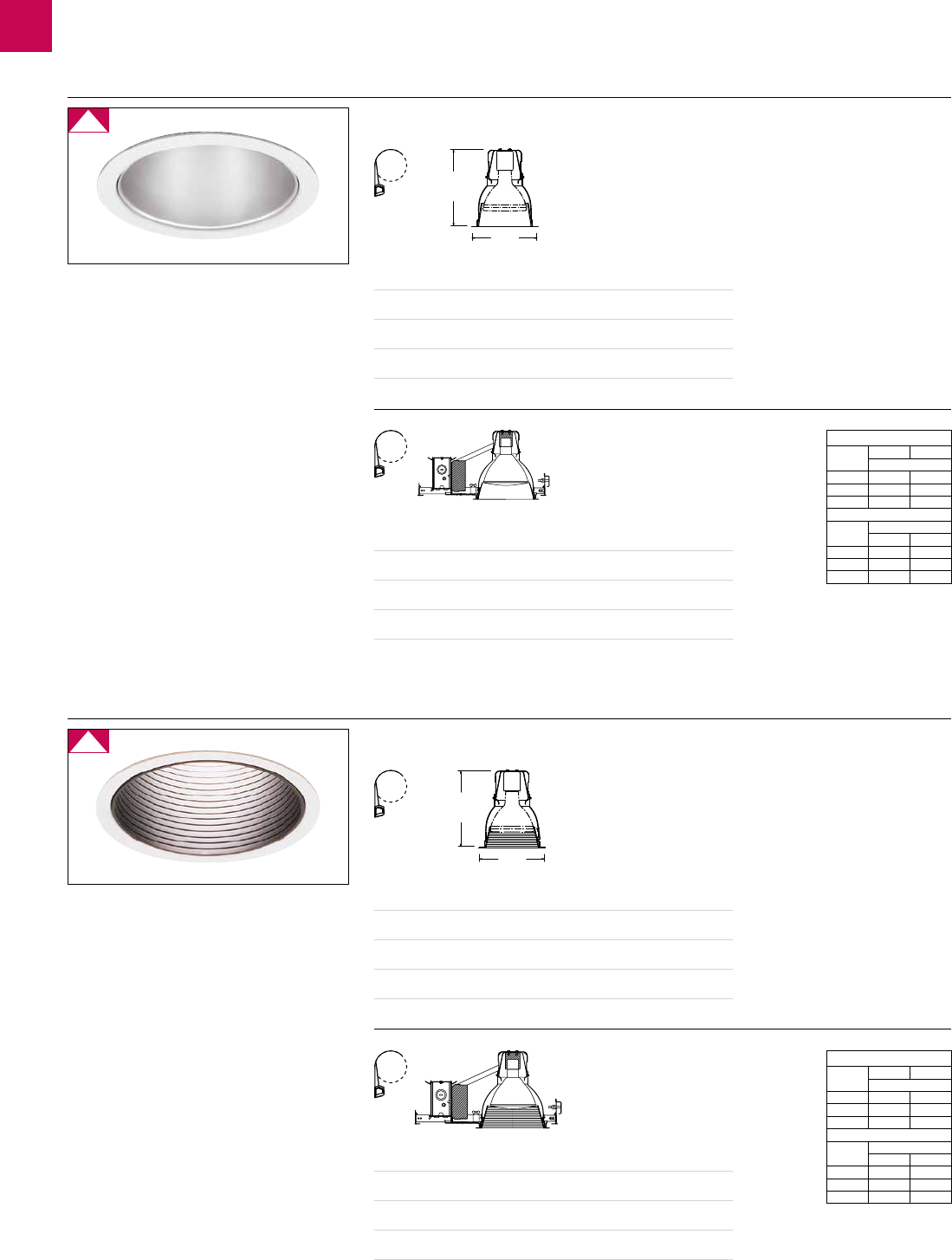

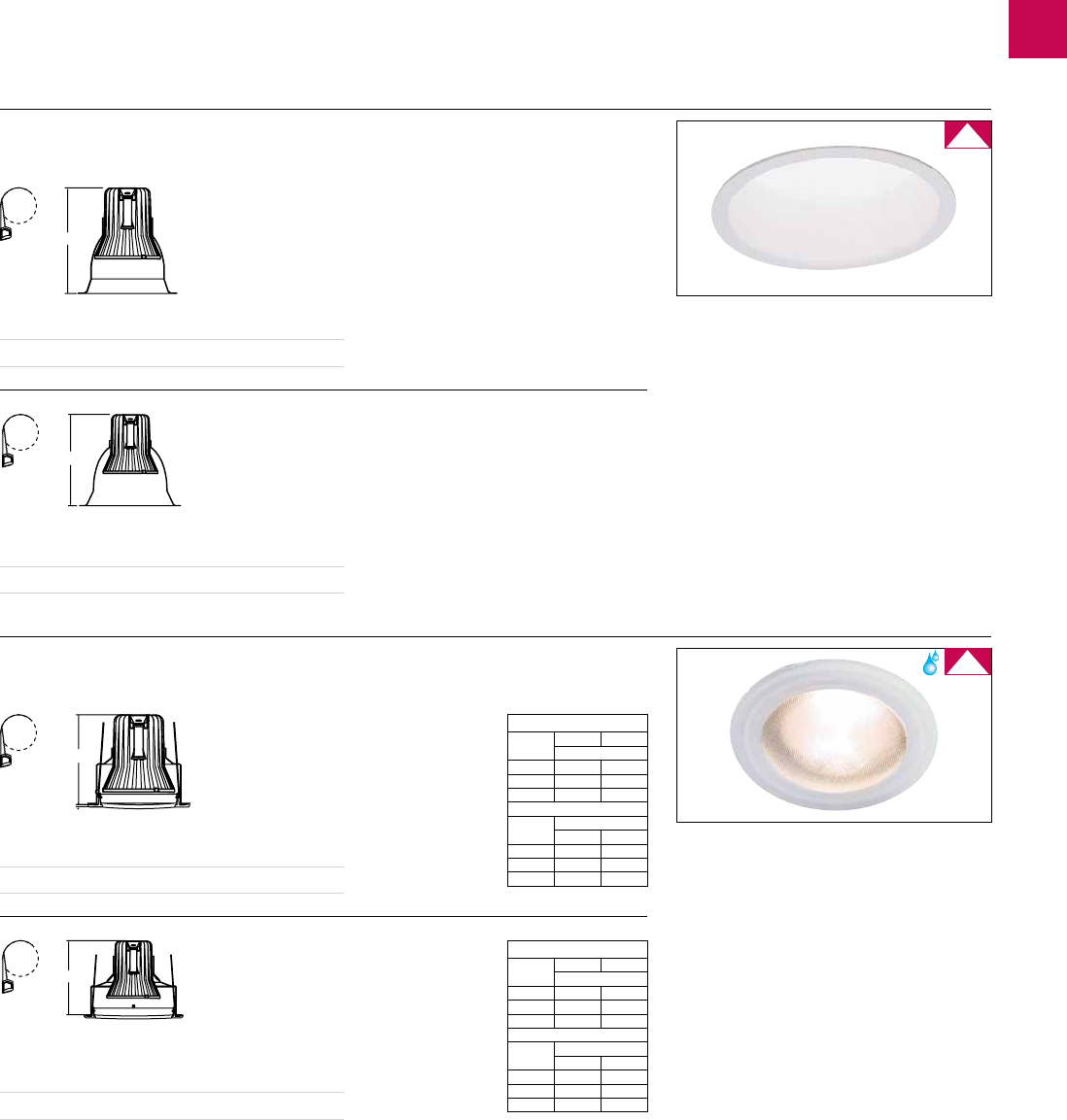

Bafed Downlight - Diffusers
*Lumenperformancevariesbycolortemperature,driverandtrimoption.Pleasereferencespecicationsheetsforperformancedetails.
Precision-tted, high temperature phenolic bafe with
horizontal grooves reduces glare. Aluminum reec-
tornishedinwhite.Economicalchoiceforlowbudget
applications.
1076
1076WH
BlackBafe
WhiteBafe
1176
1176WH
BlackBafe
WhiteBafe
Frame-InKit Lamping* Wattage(nondim/dim)
1001LED Series 900 lms 1 9 W / 2 3 W
Basic Bafe i
Frame-InKit Lamping* Wattage(nondim/dim)
1101LED Series 900 lms 1 9 W / 2 3 W
led

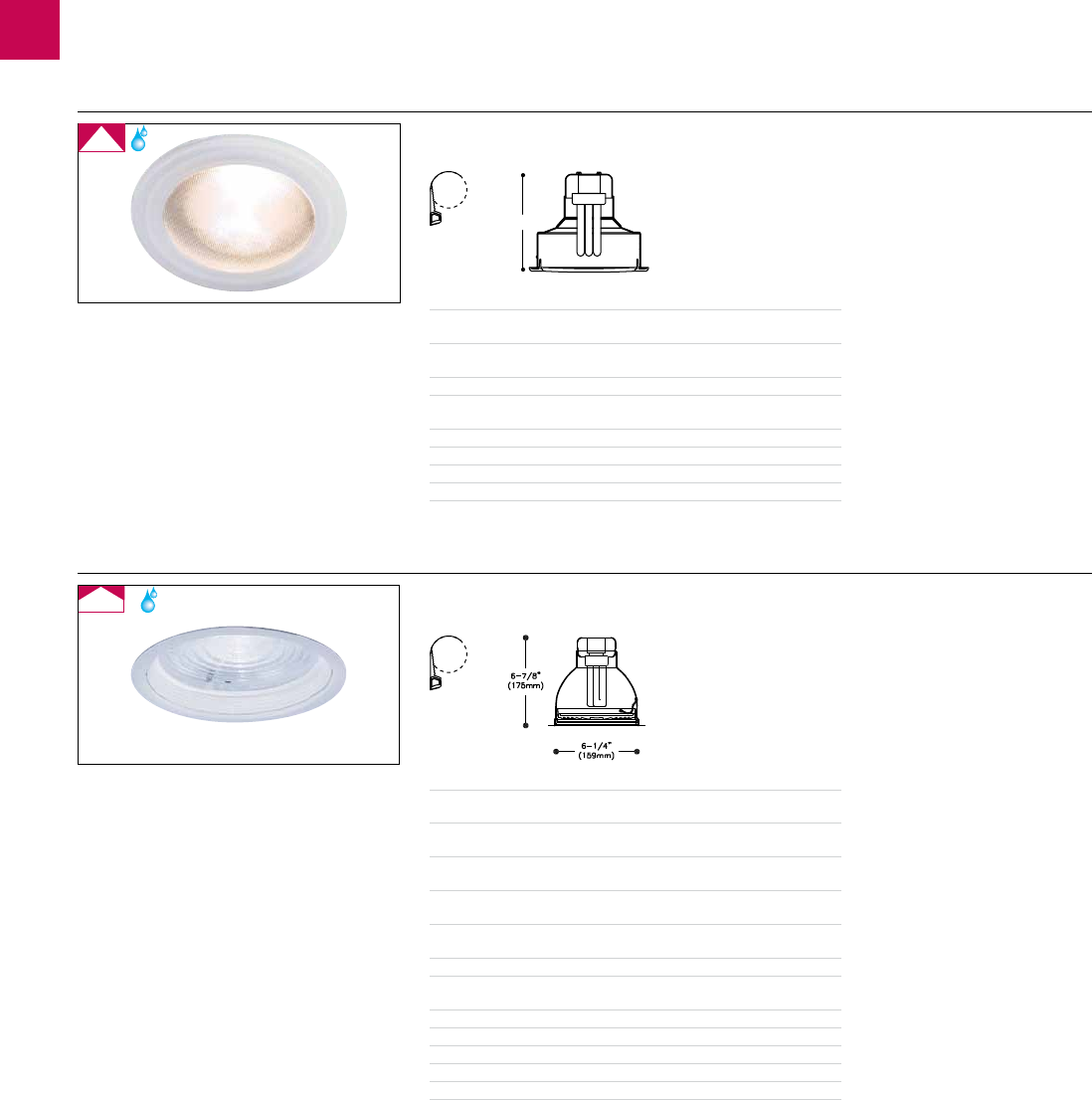

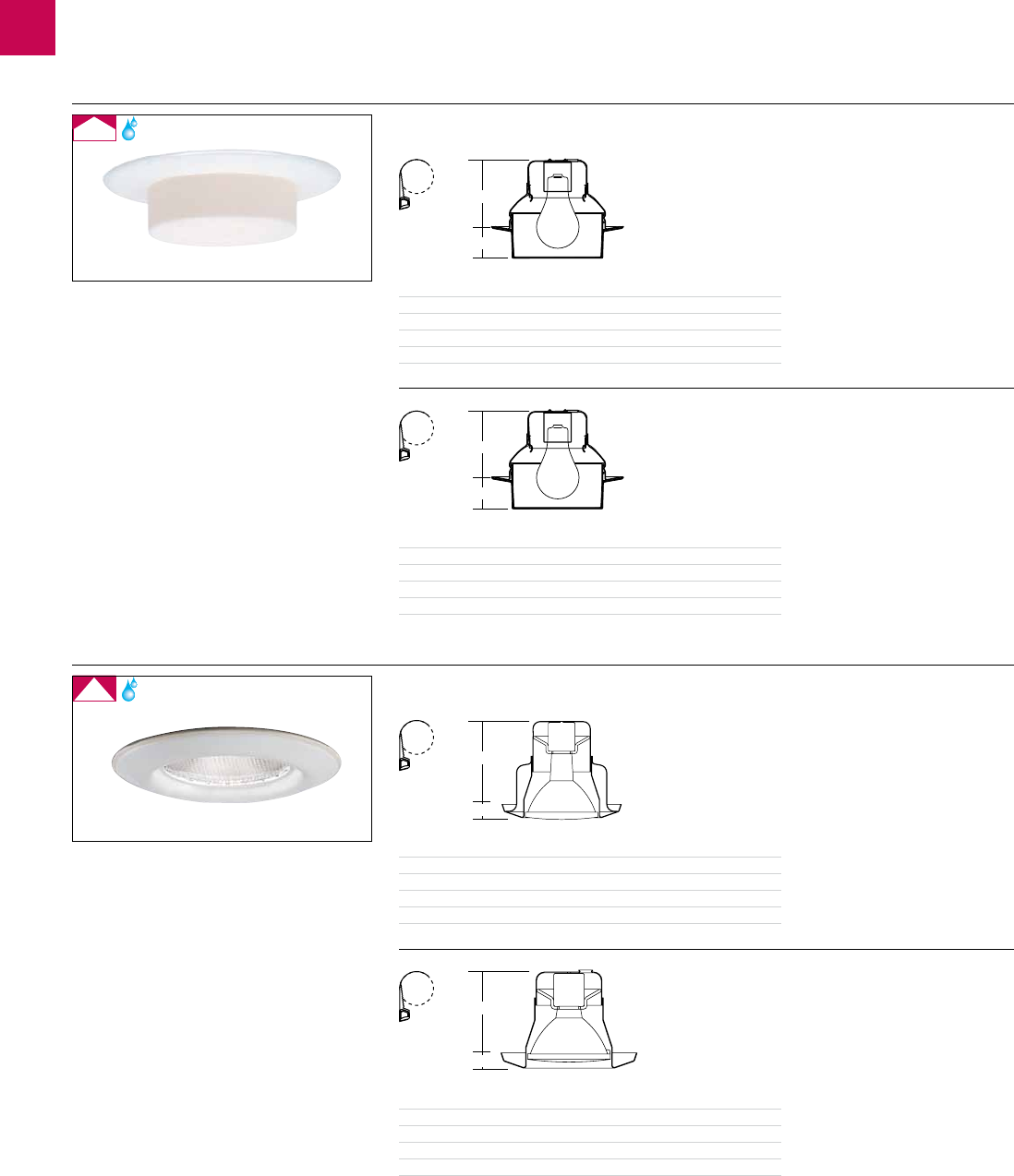

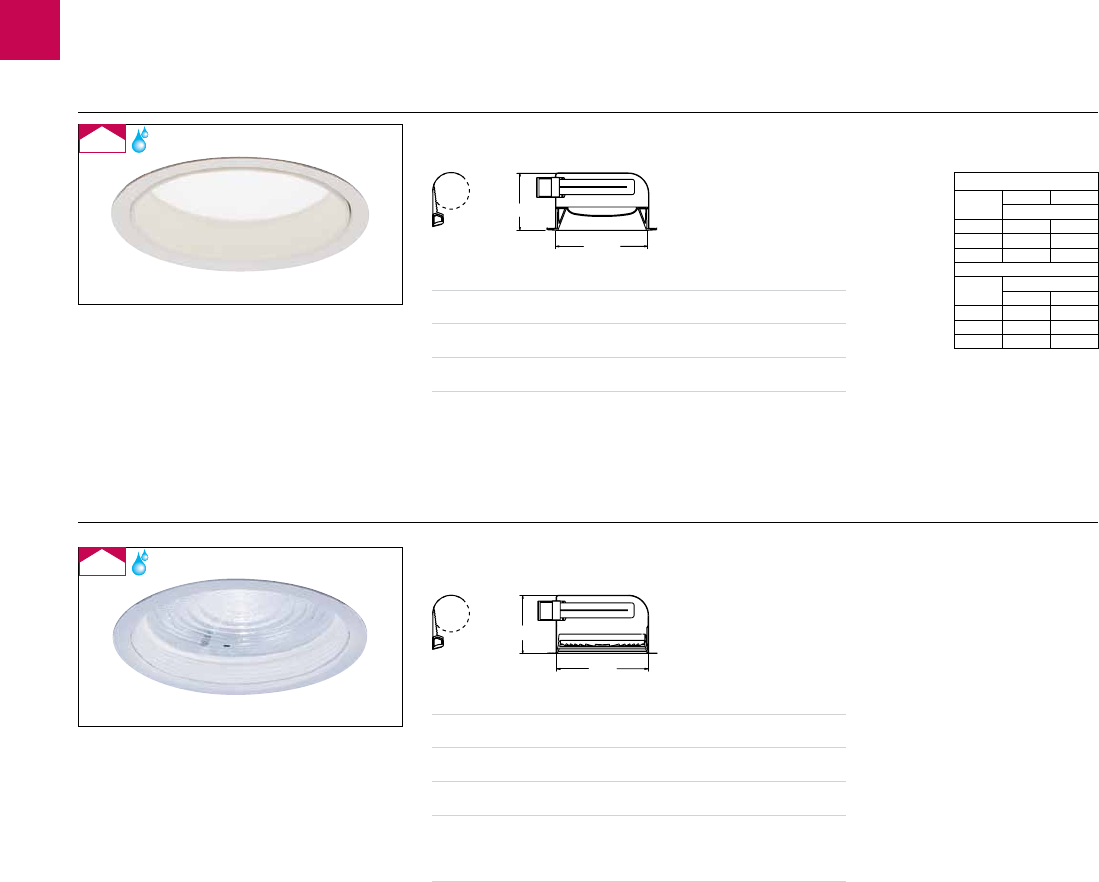

EvenilluminationfromdurableLexan® diffuser, supplied
with gasket to keep out dirt and moisture. Easy twist-
lock relamping. Aluminum reector nished in white.
Economicalchoiceforlowbudgetapplications.Suitable
for wet locations, showers and spas.

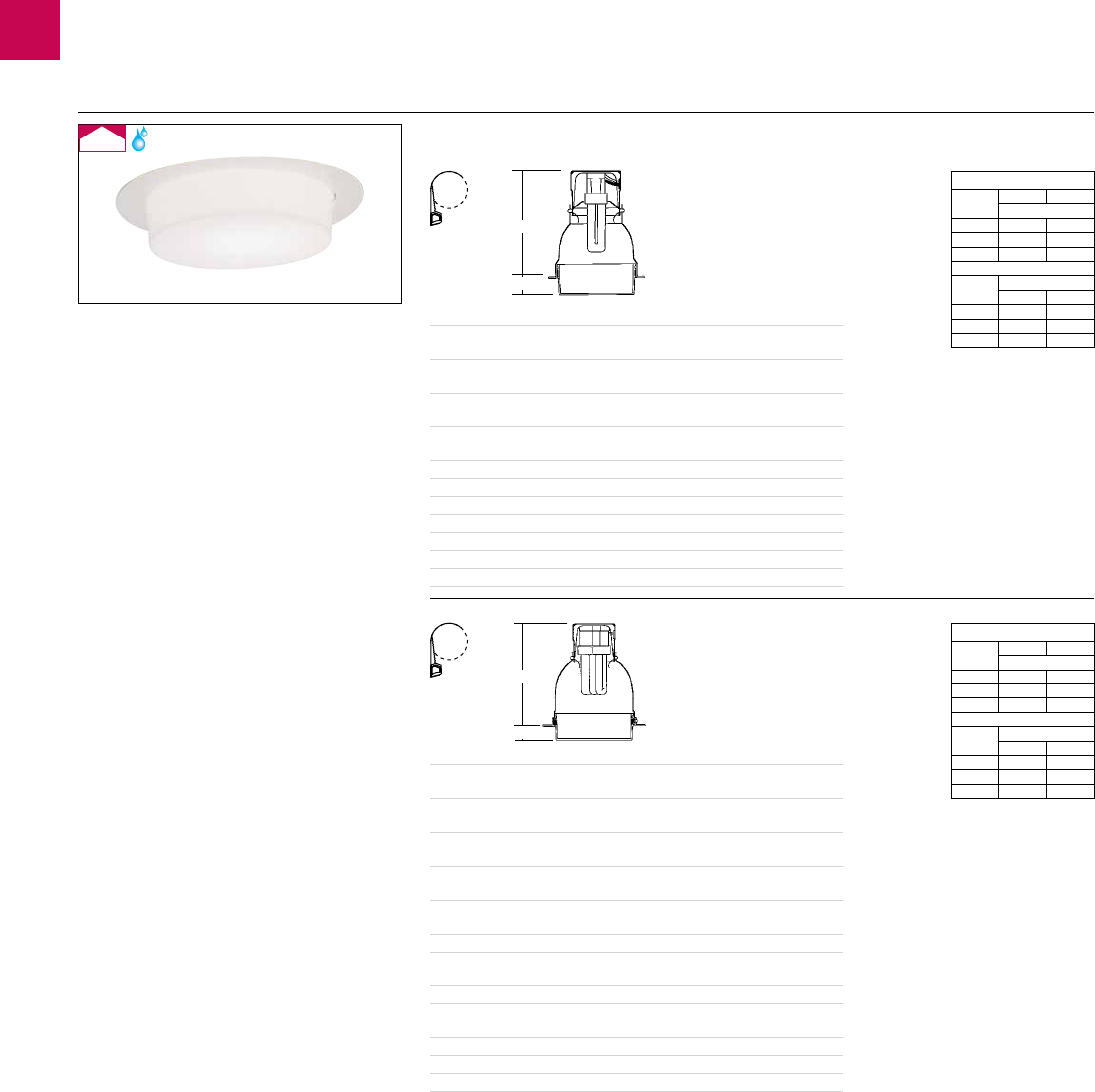

Lexan® Dish i
1078 OpalLexan®
1178SH OpalLexan®
Cased opal glass gives widespread, even illumination.
Diffuser removes easily with twist-tite action. Sturdy
hinge supports glass, assuring safe relamping. Gasket
keepsoutdirtandmoisture.Suitableforwetlocations,
showers and spas.
1121 Opal Glass
Opal Disk ii
Frame-InKit Lamping* Wattage(nondim/dim)
1101LED Series 900 lms 1 9 W / 2 3 W
Frame-InKit Lamping* Wattage(nondim/dim)
1001LED Series 900 lms 1 9 W / 2 3 W
Frame-InKit Lamping* Wattage(nondim/dim)
1101LED Series 900 lms 1 9 W / 2 3 W
1101LED09N271 Single Unit
Ht.to F.C BeamDia.
 Floor At30"AboveFloor
8' 4 30
9' 3 34
 10' 2 38
Multiple Units
Ctr. to Ctr. Footcandles
Lrg. Room Sml. Room
 4' 12 23
5' 8 16
6' 4 11
453Philips
Lytecaster – Philips Lightolier
6-3/4"
6-3/4"
5-1/4"
5-1/4"
6-9/16"
6-13/16"
6-1/2"
1/4"
5-3/4"
1090
1190
Canlyte Lighting Resource Guide
White Reectors / Lensed Downlights
1001LED09N271 Single Unit
Ht.to F.C BeamDia.
 Floor At30"AboveFloor
 8' 20  9
9' 15 10
10' 11 11
Multiple Units
Ctr. to Ctr. Footcandles
Lrg. Room Sml. Room
 4' 44 29
5' 30 19
 6' 20 11
1101LED09N271 Single Unit
Ht.to F.C BeamDia.
 Floor At30"AboveFloor
 8' 21  9
9' 15 10
10' 11 11
Multiple Units
Ctr. to Ctr. Footcandles
Lrg. Room Sml. Room
4' 45 30
 5' 31 20
 6' 21 11

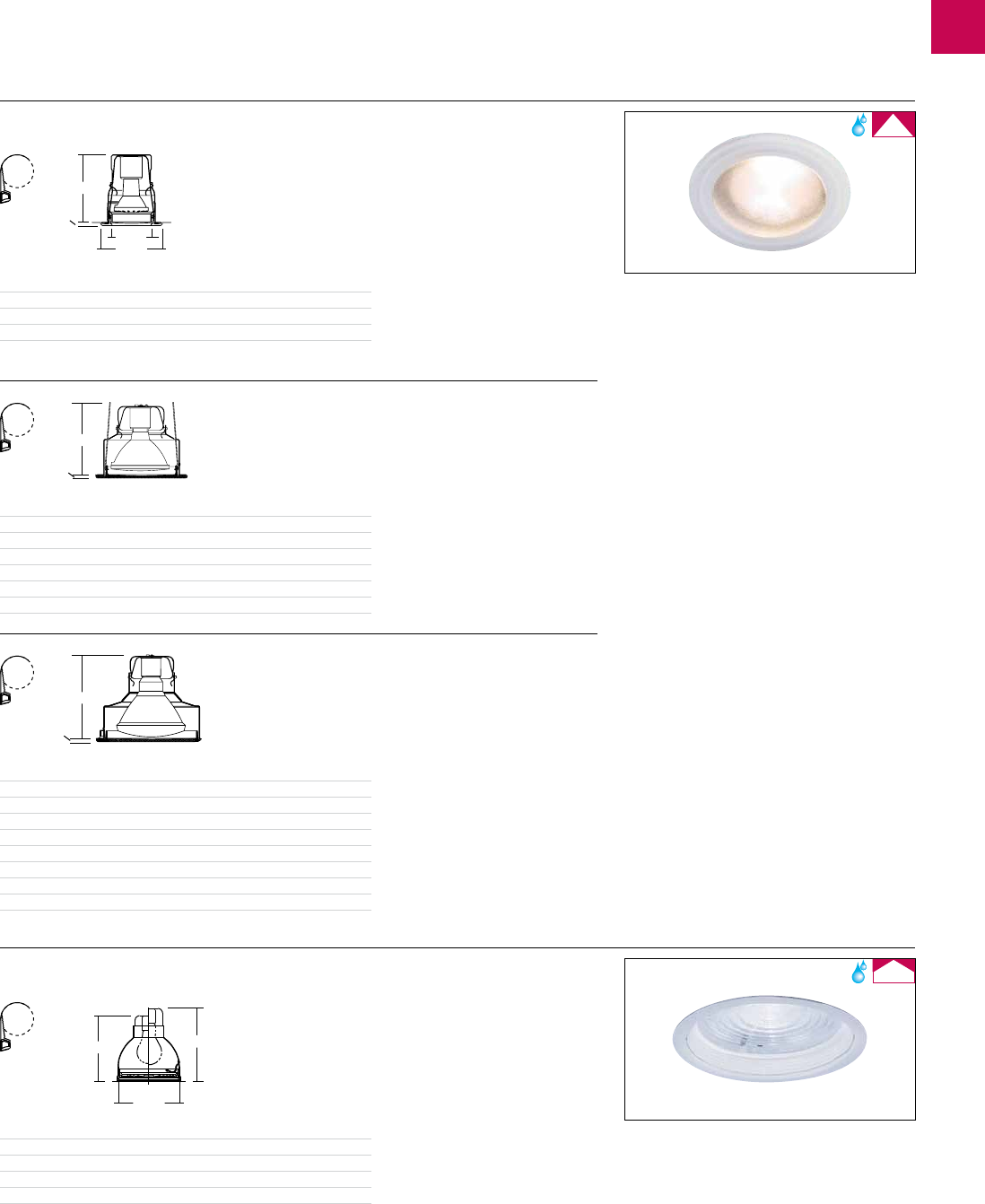

1071 White
1171 White
1090 Frosted Lens
Frame-InKit Lamping* Wattage(nondim/dim)
1001LED Series 900 lms 1 9 W / 2 3 W
Frame-InKit Lamping* Wattage(nondim/dim)
1001LED Series 900 lms 1 9 W / 2 3 W
Frame-InKit Lamping* Wattage(nondim/dim)
1101LED Series 900 lms 1 9 W / 2 3 W
Frame-InKit Lamping* Wattage(nondim/dim)
1101LED Series 900 lms 1 9 W / 2 3 W

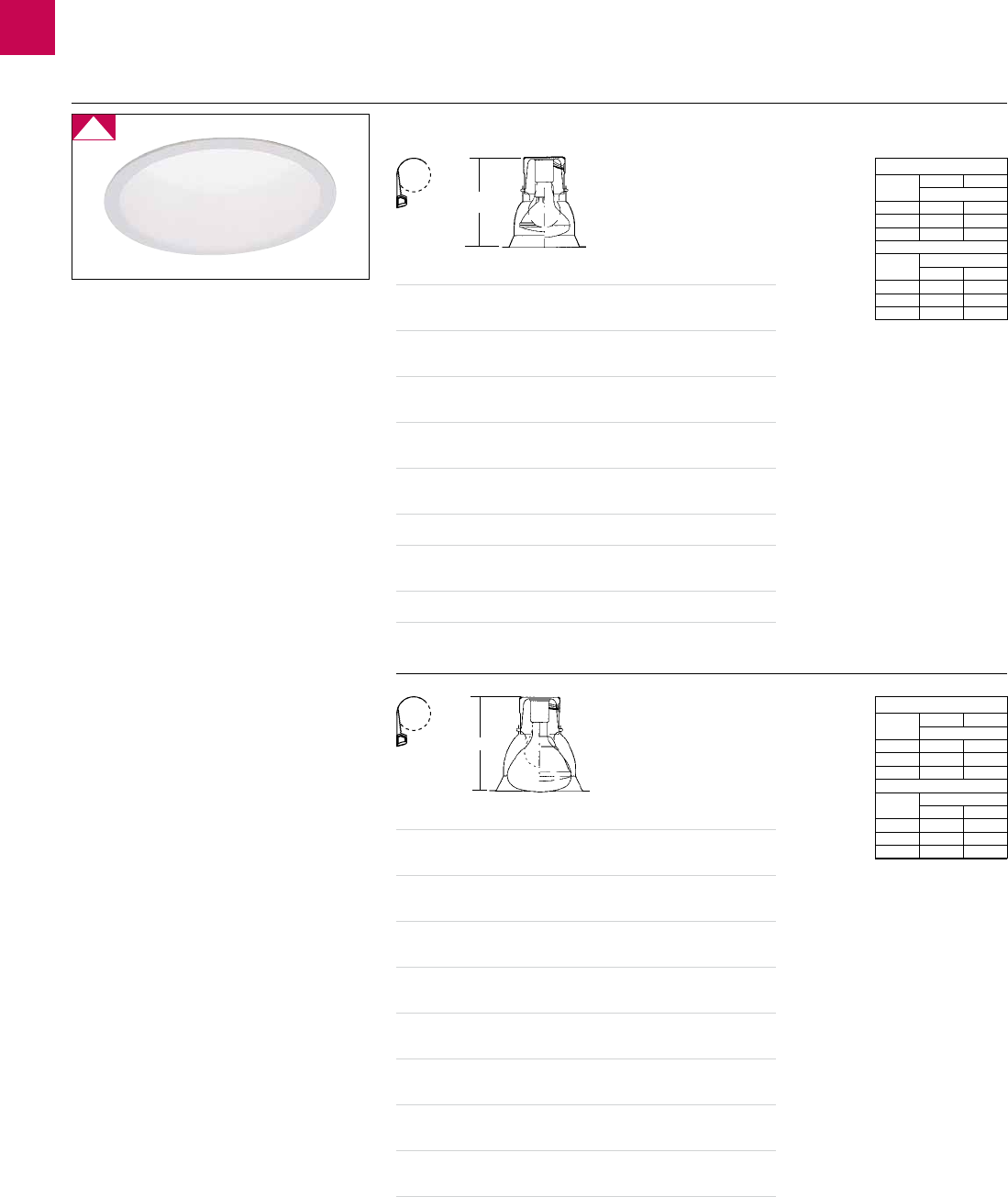

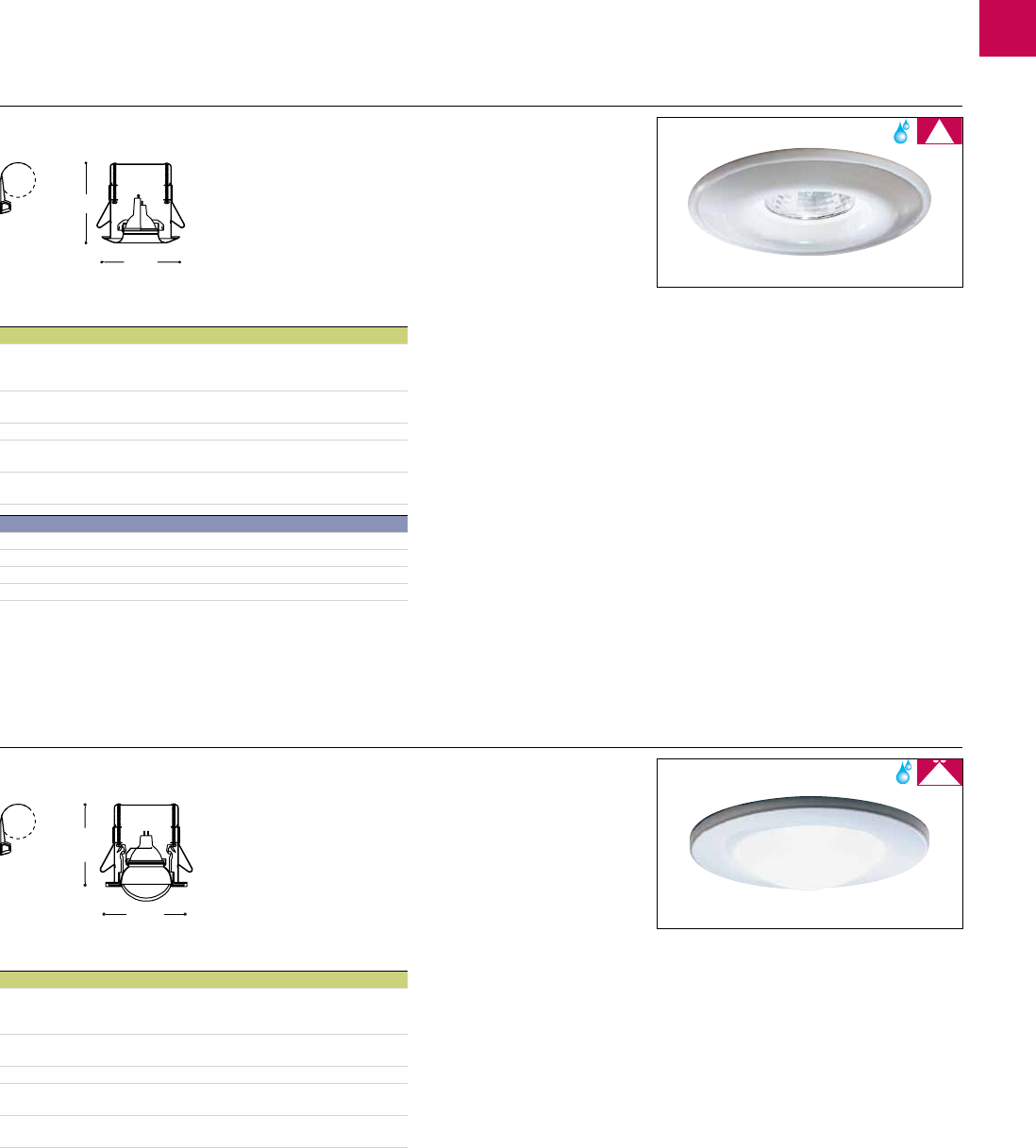

Basic downlight with low brightness splay. Aluminum
reector nished in white. Economical choice for low
budgetapplications.
Thetrim'sush design allows fora clean architectural
look while the frosted polycarbonate ange creates
an elegant glow against the ceiling. The textured lens
shieldsthelampsourceandcompletesthelookproviding
a clean classic style that fits in any decor.
Basic White Reector i
Decorative Lens Wet Location i
1190 Frosted Lens
led
*Lumenperformancevariesbycolortemperature,driverandtrimoption.Pleasereferencespecicationsheetsforperformancedetails.
454 Philips
Lytecaster – Philips Lightolier
200
400
600
800
60°
30°
300
600
900
1200
60°
30°
3-1/2"
(89mm)
13" min. - 24" max.
(330mm min - 610mm max.)
14"
(356mm)
Canlyte Lighting Resource Guide
Xceed LED
Ordering Guide
Xceed LED
IC/Non-ICAirSealframe-inkit.
XceedLEDprovidesmaximum
installationexibilitywithan
unprecedenteddepthofonly3-1/2"!
Xceed LED
Light Engine
Die-castaluminumlightengineisavailable
in 950 or 650 lumens with a choice of colour
temperatures:warm2700Korcool3500K.
CeilingCut-Out:5-1/4"
Frame-in Kit Type Lumen Driver Volts Total Input Watts Input Current
1050LRN09D1N IC/Non-IC 950 Dimming ELV 120 19.7W 0.17A
1050LRN06D1N IC/Non-IC 650 Dimming ELV 120 16.0W 0.15A
Multiple Unit Data
Spacing on
Center
Initial
Footcandles
Watts per
Sq.Ft.
4'17 0.64
6'12 0.45
8' 9 0.35
10' 7 0.27
100'x6'x9'Room,Workplaneaboveoor,
80/50/20%Reectances
Multiple Unit Data
Spacing on
Center
Initial
Footcandles
Watts per
Sq.Ft.
4'24 0.79
6'17 0.56
8'13 0.43
10'10 0.33
100'x6'x9'Room,Workplaneaboveoor,
80/50/20%Reectances
Report L10092
Reector
Finish
White
Colour
Temp 3500K
CRI 82
Spacing 1.0
Fixture
Lumens 752lm
Wattage 16.0 W
Efficacy 47.0lm/w
Report L10076
Reector
Finish White
Colour
Temp 3500K
CRI 82
Spacing 1.0
Fixture
Lumens 1023lm
Wattage 19.7 W
Efficacy 51.9lm/w
650 Lumens 950 Lumens
AlltestingconductedinaccordancewithIESNALM79andLM80standards.
Light Engine Lumen Colour Temperature
1050LRN0927 950 2700K
1050LRN0935 950 3500K
1050LRN0627 650 2700K
1050LRN0635 650 3500K
led
455Philips
Lytecaster – Philips Lightolier
Canlyte Lighting Resource Guide
Xceed LED
Xceed LED Trim
Faceplate trims provide more light
outputthana65WBR30withhigh
transmission, non yellowing lens.
cULus listed for wet location.
Ordering Guide
Trim Finish
1050LRNDLWB WhiteBafewithWhiteFlange
1050LRNDLCDW Clear Diffuse with White Flange
1050LRNDLCDP Clear Diffuse with Clear Diffuse Flange
WhiteBafe Clear Diffuse
and White Flange
Clear Diffuse
led
456 Philips
Lytecaster – Philips Lightolier
Canlyte Lighting Resource Guide
CFL
compact fluorescent
457Philips
Lytecaster – Philips Lightolier
Canlyte Lighting Resource Guide
To provide Energy Smart lighting, Lytecaster luminaires don’t just utilize the most efficient light sources. They are
carefully designed around them to provide the highest light output while maintaining good shielding for comfortable,
glare-free installations.
Today’s compact fluorescent sources, such as the triple tube lamps, consume 70% less energy than comparable
incandescent luminaires and last up to 13 times as long. Coupled with state-of-the-art electronic ballasts, they provide
high output with fast, flicker-free starts, long lamp life and excellent colour rendition. Lytecaster compact fluorescent
downlights can either correspond to warm incandescent sources, ideal for residential applications, or match cooler
fluorescent lighting, good for where generous daylight is present.
CFL
compact fluorescent
With the introduction of Lightolier’s newest system
of energy efficient compact fluorescent products,
we don’t just meet those challenges, we Xceed
them. Unlike all the other “energy efficient” compact
fluorescent products available today, Lytecaster Xceed
has redesigned and redefined the idea of energy efficiency
for residential and light commercial applications. We have accomplished
this by wiping the slate clean and developing a series of frames and trims specifically
for compact fluorescent lamps that not only outperform standard incandescent products,
but provide exceptional styling and visual comfort.
For tight spots and shallow plenums, Lytecaster has the Energy
Smart solution: XCEED CFL (LED also available) or Low
Profile compact fluorescent recessed downlights. These
ultra compact luminaires are only 3-1/2" or 4-1/4" deep
and feature Lightolier’s Unitized Optics system for consistently
correct lamp alignment. Also, the Low Profile luminaire comes
in surface models.
Performance professional optics provide the ultimate in efficiency
and flexibility. All optics focus on a specific trim/lamp for a
excellent combination while offering multiple lamp
options for increased flexibility.
These trims are offered in 3-3/4", 5-1/4" and 6-3/4"
aperture sizes with a White, Specular Clear or Clear Diffuse finish.
Specular Clear finish offers superior performance and provides an Iridescent-
Free coating to eliminate rainbowing. Clear Diffuse is a semi-specular finish that
diffuses light and provides a soft, even illumination that minimizes the mirror image
typically found on specular finishes. White finish blends into ceiling for minimal impact on
ceiling appearance. They are available in Open Downlights, Wall Washers and Lensed Downlights
XCEED CFL
SHALLOW PLENUM
PERFORMANCE TRIMS
458 Philips
Lytecaster – Philips Lightolier
7-3/4"
7-1/2"
9"
7-3/4"
9"
8-7/8"
7-3/4"
9"
10-1/2"
Canlyte Lighting Resource Guide

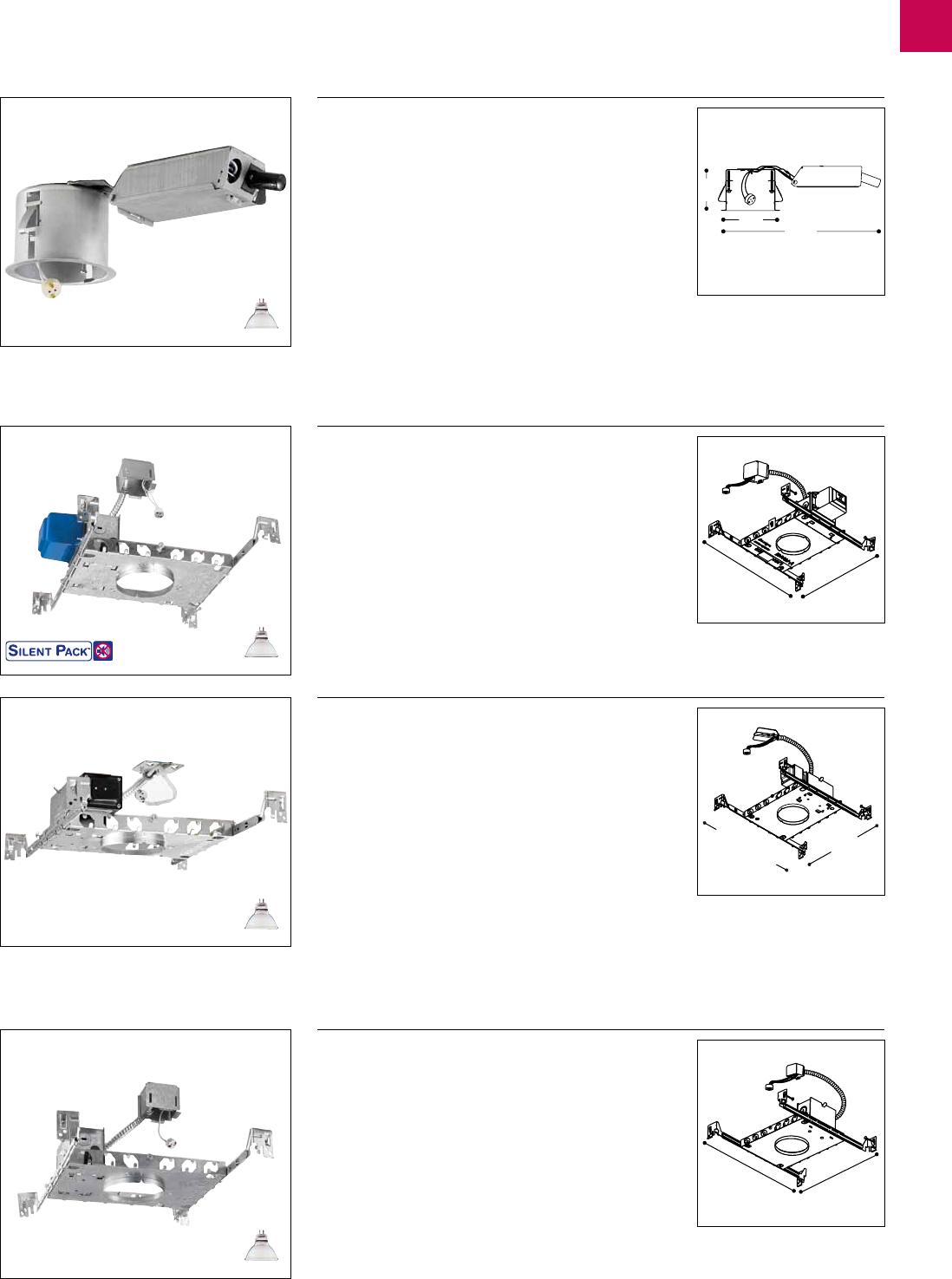

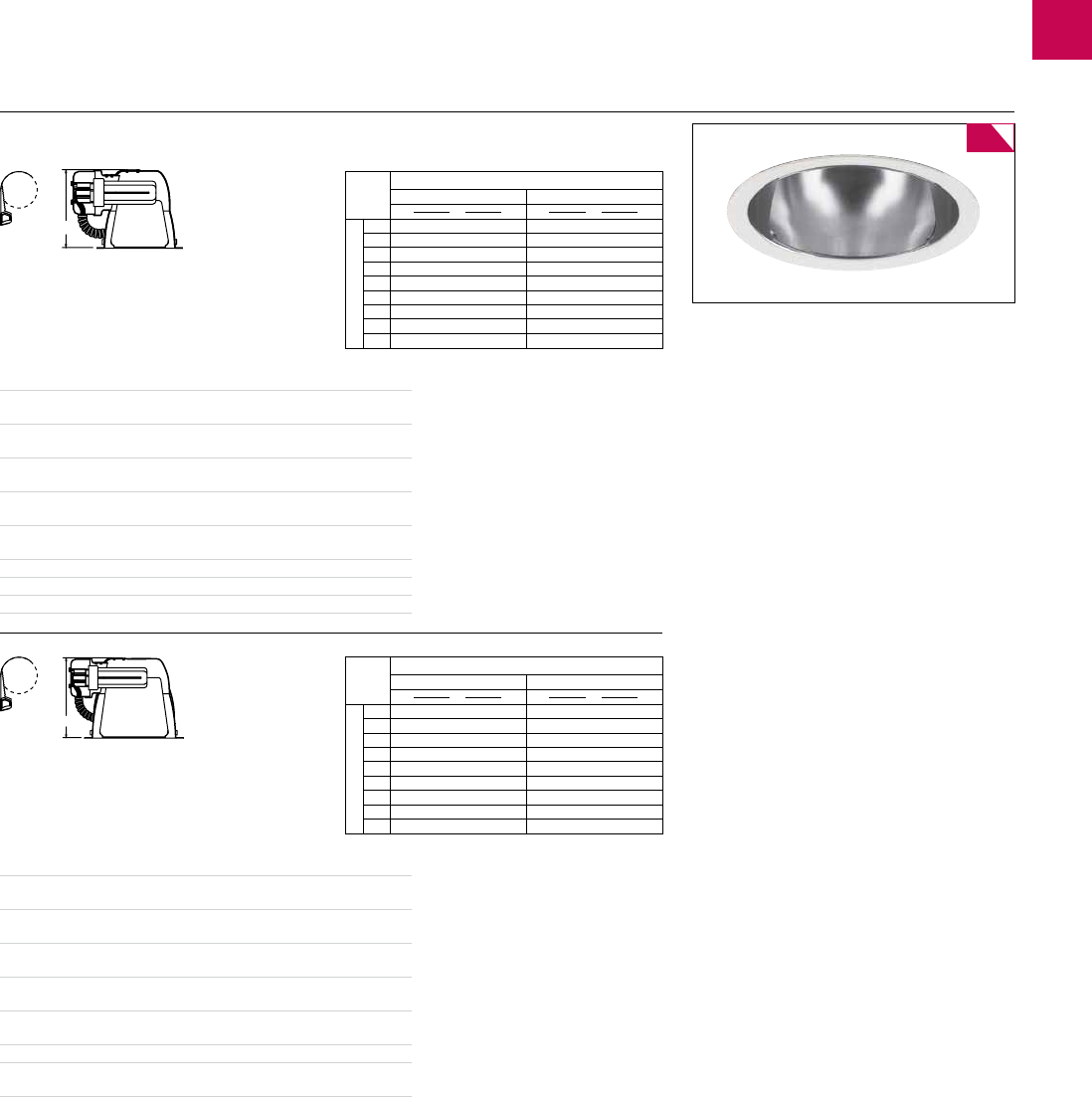

CFL – Frame-in Kits
Ceiling Cut-Out: 3-15/16"
Ceiling Cut-Out: 5-1/4"
Ceiling Cut-Out: 6-15/16"
3-3/4" Aperture New Construction
Features
Mounting Frame: Accommodates all ceilings up to 1-1/2" thick
Junction Box: Through branch circuit conductors
Grid Ceiling Installation: Tool free mounting in grid ceilings, interlocking side
bars adjust to 24-1/8" long, adjustable speed clamps for positive attachment
to grid ceilings
Wood Joist Installation: Integral nail tabs, joist finder, fastener holes and
bendable strapping guides for wood joist installation, interlocking slide bars adjust
from 12-15/16" to 24-1/8" long to accommodate 16" and 24" O.C joist spacing,
with or without strapping
Accessories: 1967C Extra Thick Ceiling Adapter (up to 2" thick).
For emergency use FAEM13L (see www.canlyte.com)
5-1/4" Aperture New Construction
Features
Mounting Frame: Accommodates all ceilings up to 1-1/2" thick
Junction Box: Through branch circuit conductors
Grid Ceiling Installation: Tool free mounting in grid ceilings, interlocking
side bars adjust to 24-1/8" long, adjustable speed clamps for positive attachment
to grid ceilings
Wood Joist Installation: Integral nail tabs, joist finder, fastener holes and
bendable strapping guides for wood joist installation, interlocking slide bars adjust
from 12-15/16" to 24-1/ 8" long to accommodate 16" and 24" O.C joist spacing,
with or without strapping
Accessories: 1967B Extra Thick Ceiling Adapter (up to 2" thick).
For emergency use FAEM13L (see www.canlyte.com)
6-3/4" Aperture New Construction
Features
Mounting Frame: Accommodates all ceilings up to 1-1/2" thick
Junction Box: Through branch circuit conductors
Grid Ceiling Installation: Tool free mounting in grid ceilings, interlocking
side bars adjust to 24-1/8" long, adjustable speed clamps for positive attachment
to grid ceilings
Wood Joist Installation: Integral nail tabs, joist finder, fastener holes and
bendable strapping guides for wood joist installation, interlocking slide bars adjust
from 12-15/16" to 24-1/8" long to accommodate 16" and 24" O.C joist spacing,
with or without strapping
Accessories: 1967A Extra Thick Ceiling Adapter (up to 2" thick).
For emergency use FAEM13L (see www.canlyte.com)
Frame-in Kit Lamp Ballast Base Voltage Total Amps
Watts
2001F13U 1-13W QT/TTT Electronic 4 Pin (GX24q-1/G24q-1) 120/277V 18W 0,15/0,07A
2001F13-347 1-13W QT/TTT Electronic 4 Pin (GX24q-1/G24q-1) 347V 18W 0,06A
2001F18U 1-18W TTT Electronic 4 Pin (GX24q-2) 120/277V 19W 0,16/0,07A
2001F18-347 1-18W TTT Electronic 4 Pin (GX24q-2) 347V 21W 0,11A
Frame-in Kit Lamp Ballast Base Voltage Total Amps
Watts
1001F13U 1-13W QT/TTT Electronic 4 Pin (GX24q-1/G24q-1) 120/277V 18W 0,15/0,07A
1001F13-347 1-13W QT/TTT Electronic 4 Pin (GX24q-1/G24q-1) 347V 18W 0,06A
1001F18U 1-18W TTT Electronic 4 Pin (GX24q-2) 120/277V 19W 0,16/0,07A
1001F18-347 1-18W TTT Electronic 4 Pin (GX24q-2) 347V 21W 0,06A
1001F26U 1-26W TTT Electronic 4 Pin (GX24q-3) 120/277V 28W 0,25/0,11A
1001F26-347 1-26W TTT Electronic 4 Pin (GX24q-3) 347V 29W 0,09A
Frame-in Kit Lamp Ballast Base Voltage Total Amps
Watts
1101F13U 1-13W QT/TTT Electronic 4 Pin (GX24q-1/G24q-1) 120/277V 18W 0,15/0,07A
1101F13-347 1-13W QT/TTT Electronic 4 Pin (GX24q-1/G24q-1) 347V 18W 0,06A
1101F18U 1-18W QT/TTT Electronic 4 Pin (GX24q-2/G24q-2) 120/277V 22W 0,18/0,08A
1101F18-347 1-18W QT/TTT Electronic 4 Pin (GX24q-2/G24q-2) 347V 21W 0,11A
1101F2642U 1-26W QT/TTT Electronic 4 Pin (GX24q-3/G24q-3) 120/277V 28W 0,25/0,11A
1-32W TTT 4 Pin (GX24q-3) 36W 0,32/0,14A
1-42W TTT 4 Pin (GX24q-4) 48W 0,42/0,18A
1101F2642-347 1-26W QT/TTT Electronic 4 Pin (GX24q-3/G24q-3) 347V 29W 0,09A
1-32W TTT 4 Pin (GX24q-3) 36W 0,11A
1-42W TTT 4 Pin (GX24q-4) 49W 0,15A
For dimming options, please consult the corresponding product Spec Sheet on our web site: www.canlyte.com
For dimming options, please consult the corresponding product Spec Sheet on our web site: www.canlyte.com
From
12-15/16"
to 24-1/8"
From
12-15/16"
to 24-1/8"
From
12-15/16"
to 24-1/8"
compact fluorescent
459Philips
Lytecaster – Philips Lightolier
15-5/16"
10-3/8"
7-1/4"
12-1/4"
15-5/16"
10-3/8"
7-1/4"
12-1/4"
9"
(229mm)
13" MIN.
(330mm)
24-1/8" M A X.
(613mm )
3-7/8"
(98mm)
Canlyte Lighting Resource Guide
CFL – Frame-in Kits
Ceiling Cut-Out: 6-15/16"
Ceiling Cut-Out: 3-15/16"
Ceiling Cut-Out: 5-1/4"
6-3/4" Aperture New Construction Low Profile 2 Lamps
Features
Mounting Frame: Accommodates all ceilings up to 1-1/2" thick
Junction Box: Through branch circuit conductors
Grid Ceiling Installation: Tool free mounting in grid ceilings, interlocking
side bars adjust to 24-1/8" long, adjustable speed clamps for positive attachment
to grid ceilings
Wood Joist Installation: Integral nail tabs, joist finder, fastener holes and
bendable strapping guides for wood joist installation, interlocking slide bars adjust
from 12-15/16" to 24-1/8" long to accommodate 16" and 24" O.C joist spacing,
with or without strapping
Accessories: 1967A Extra Thick Ceiling Adapter (up to 2" thick).
For emergency use FAEM13L (see www.canlyte.com)
3-3/4" Aperture IC AirSeal®
Features
Mounting Frame: Accommodates all ceilings up to 1-1/2" thick. 3/8" deep
integral lip AirSeal® housing minimizes air leakage
Junction Box: Through branch circuit conductors
Mounting Bars: Bars pivot for easy attachment and wire-in below ceiling line.
Integral nail, alignment guides. Bars extend to accommodate 24" O.C joist spacing
Accessories: 1967C Extra Thick Ceiling Adapter (up to 2" thick).
5-1/4" Aperture IC AirSeal®
Features
Mounting Frame: Accommodates all ceilings up to 1-1/2" thick. 3/8" deep
integral lip AirSeal® housing minimizes air leakage
Junction Box: Through branch circuit conductors
Mounting Bars: Bars pivot for easy attachment and wire-in below ceiling line.
Integral nail tabs, alignment guides. Bars extend to accommodate 24" O.C
joist spacing
Accessories: 1967B Extra Thick Ceiling Adapter (up to 2" thick)
Frame-in Kit Lamp Ballast Base Voltage Total Amps
Watts
1101T13U 2-13W QT Electronic 4 Pin (G24q-1) 120/277V 32W 0,27/0,12A
1101T13-347 2-13W QT Electronic 4 Pin (G24q-1) 347V 33W 0,10A
1101T18U 2-18W QT Electronic 4 Pin (G24q-2) 120/277V 38W 0,32/0,14A
1101T18-347 2-18W QT Electronic 4 Pin (G24q-2) 347V 38W 0,11A
1101T26U 2-26W QT Electronic 4 Pin (G24q-3) 120/277V 56W 0,49/0,21A
1101T26-347 2-26W QT Electronic 4 Pin (G24q-3) 347V 57W 0,17A
Frame-in Kit Lamp Ballast Base Voltage Total Amps
Watts
2001F13ICUN 1-13W QT/TTT Electronic 4 Pin (GX24q-1/G24q-1) 120/277V 18W 0,15/0,07A
2001F18ICUN 1-18W TTT Electronic 4 Pin (GX24q-2) 120/277V 19W 0,16/0,07A
Frame-in Kit Lamp Ballast Base Voltage Total Amps
Watts
1001F13ICUN 1-13W QT/TTT Electronic 4 Pin (GX24q-1/G24q-1) 120/277V 18W 0,15/0,07A
1001F18ICUN 1-18W TTT Electronic 4 Pin (GX24q-2) 120/277V 20W 0,17/0,08A
1001F26ICUN 1-26W TTT Electronic 4 Pin (GX24q-3) 120/277V 29W 0,24/0,11A
For dimming options, please consult the corresponding product Spec Sheet on our web site: www.canlyte.com
For dimming options, please consult the corresponding product Spec Sheet on our web site: www.canlyte.com
From
13-3 /4"
to 24"
From
13-3 /4"
to 24"
compact fluorescent
460 Philips
Lytecaster – Philips Lightolier
7-1/2"
5-1/2"
7-1/2"
15-5/16"
10-3/8"
7-1/4"
12-1/4"
Canlyte Lighting Resource Guide
Ceiling Cut-Out: 5-1/2"
Ceiling Cut-Out: 7-1/8"
6-3/4" Aperture IC AirSeal®
Features
Mounting Frame: Accommodates all ceilings up to 1-1/2" thick 3/8" deep
integral lip. AirSeal® housing minimizes air leakage
Junction Box: Through branch circuit conductors
Mounting Bars: Bars pivot for easy attachment and wire-in below ceiling line.
Integral nail tab, alignment guides. Bars extend to accommodate 24" O.C
joist spacing
Accessories: 1967A Extra Thick Ceiling Adapter (up to 2" thick)
5-1/4" Aperture Remodeler
Features
Mounting Ring: Accommodates all ceilings up to 2" thick
Junction Box: Attaches to mounting ring without tools
Trim Clips: “Push In/Twist Out" clips hold reflector flush
to ceiling
6-3/4" Aperture Remodeler
Features
Mounting Ring: Accommodates all ceilings up to 2" thick
Junction Box: Attaches to mounting ring without tools
Trim Clips: “Push In/Twist Out" clips hold reflector flush
to ceiling
Frame-in Kit Lamp Ballast Base Voltage Total Amps
Watts
1101F18ICUN 1-18W TTT Electronic 4 Pin (GX24q-2) 120/277V 20W 0,17/0,08A
1101F2642ICUN 1-26W QT/TTT Electronic 4 Pin (GX24q-3/G24q-3) 120/277V 29W 0,24/0,11A
1-32W TTT 4 Pin (GX24q-3) 36W 0,31/0,13A
1-42W TTT 4 Pin (GX24q-4) 46W 0,38/0,17A
Frame-in Kit Lamp Ballast Base Voltage Total Amps
Watts
1001FR18U 1-18W TTT Electronic 4 Pin (GX24q-2) 120/277V 20W 0,17/0,08A
1001FR18-347 1-18W TTT Electronic 4 Pin (GX24q-2) 347V 21W 0,06A
1001FR26U 1-26W TTT Electronic 4 Pin (GX24q-3) 120/277V 29W 0,24/0,11A
1001FR26-347 1-26W TTT Electronic 4 Pin (GX24q-3) 347V 29W 0,09A
Frame-in Kit Lamp Ballast Base Voltage Total Amps
Watts
1101FR18U 1-18W TTT Electronic 4 Pin (GX24q-2) 120/277V 20W 0,17/0,08A
1101FR18-347 1-18W TTT Electronic 4 Pin (GX24q-2) 347V 21W 0,06A
1101FR2642U 1-26W QT/TTT Electronic 4 Pin (GX24q-3/G24q-3) 120/277V 29W 0,24 /0,11A
1-32W TTT 4 Pin (GX24q-3) 36W 0,31/0,13A
1-42W TTT 4 Pin (GX24q-4) 46W 0,38/0,17A
1101FR2642-347 1-26W QT/TTT Electronic 4 Pin (GX24q-3/G24q-3) 347V 29W 0,09A
1-32W TTT 4 Pin (GX24q-3) 36W 0,11A
1-42W TTT 4 Pin (GX24q-4) 49W 0,15A
For dimming options, please consult the corresponding product Spec Sheet on our web site: www.canlyte.com
CFL – Frame-in Kits
Ceiling Cut-Out: 6-15/16"
From
13-3 /4"
to 24"
compact fluorescent
461Philips
Lytecaster – Philips Lightolier
9"
7-1/2"
5-3/4"
7-1/2"
7-5/16"
10-3/4"
7-1/2"
5-1/4"
Canlyte Lighting Resource Guide
Ceiling Cut-Out: 5-3/8"
Ceiling Cut-Out: 7"
Ceiling Cut-Out: 5-3/8"
5-1/4" Aperture IC/Non-IC AirSeal®
Features
Mounting Frame: Accommodates all ceilings up to 3" thick. 3/8" deep integral
lip AirSeal® housing minimizes air leakage
Junction Box: Through branch circuit conductors
Mounting Bars: Bars pivot for easy attachment and wire-in below ceiling
line. Integral nail tab, alignment guides. Bars extend to accommodate
24" O.C joist spacing
Accessories: 1967B Extra Thick Ceiling Adapter (up to 2" thick).
AirSeal® optional gasket kit see (p. 552)
Compatibility: With most existing Lytecaster trims
Not compatible: With Performance iiii trims
6-3/4" Aperture IC/Non-IC AirSeal®
Features
Mounting Frame: Accommodates all ceilings up to 3" thick. AirSeal® housing
minimizes air leakage
Junction Box: Certified for branch circuit wiring
Mounting Bars: Bars pivot for easy attachment and wire-in below ceiling line.
Integral nail tab, alignment guides. Bars extend to accommodate
24" O.C joist spacing
Accessories: AirSeal® optional gasket kit see (p. 552)
Compatibility: With most existing Lytecaster trims
Not compatible: With Performance iiii trims
5-1/4" Aperture IC/Non-IC Remodeler
Features
Housing: Accommodates all ceilings up to 2" thick. AirSeal® housing
minimizes air leakage
Junction Box: Certified for branch circuit wiring
Accessories: AirSeal® optional gasket kit see (p. 552)
Compatibility: With most existing Lytecaster trims
Not compatible: With Performance iiii trims
Frame-in Kit Lamp Ballast Base Voltage Total Amps
Watts
1004F13ESN 1-13W QT/TTT Electronic 4 Pin (GX24q-1/G24q-1) 120/277V 18W 0,15/0,07A
1004F18ESN 1-18W TTT Electronic 4 Pin (GX24q-2) 120/277V 19W 0,16/0,08A
1004F26ESN 1-26W TTT Electronic 4 Pin (GX24q-3) 120/277V 27W 0,23/0,11A
Frame-in Kit Lamp Ballast Base Voltage Total Amps
Watts
1104F13ESN 1-13W QT/TTT Electronic 4 Pin 120/277V 18W 0,15/0,07A
(GX24q-1/G24q-1)
1104F18ESN 1-18W QT/TTT Electronic 4 Pin 120/277V 19W 0,16/0,08A
(GX24q-2)
1104F2632ESN 1-26W QT/TTT Electronic 4 Pin 120/277V 27W 0,23/0,11A
(GX24q-3) 37W 0.31/0.13A
Frame-in Kit Lamp Ballast Base Voltage Total Amps
Watts
1004F13ESR 1-13W QT/TTT Electronic 4 Pin (GX24q-1/G24q-1) 120/277V 18W 0,15/0,07A
1004F18ESR 1-18W TTT Electronic 4 Pin (GX24q-2) 120/277V 22W 0,18/0,08A
1004F26ESR 1-26W TTT Electronic 4 Pin (GX24q-3) 120/277V 28W 0,25/0,11A
CFL – Frame-in Kits
From 13-3/4"
to 24"
From 13"
to 24"
compact fluorescent
462 Philips
Lytecaster – Philips Lightolier
7-1/2"
6-7/8"
3-1/2"
(89mm)
13-1/2"
(343mm)
13-1/8"
(333mm)
Canlyte Lighting Resource Guide
CFL – Frame-in Kits
Ceiling Cut-Out: 7"
Ceiling Cut-Out: 5-1/4"
6-3/4"Aperture IC/Non-IC AirSeal® Remodeler
Features
Housing: Accommodates all ceilings up to 2" thick. AirSeal® housing
minimizes air leakage
Junction Box: Certified for branch circuit wiring
Accessories: AirSeal® optional gasket kit see (p. 552)
Compatibility: With most existing Lytecaster trims
Not compatible: With Performance iiii trims
5" Round Low-Profile IC/Non-IC AirSeal®
Features
•  Aperture hole marking for easy alignment
•  Rolled metal prevents sharp edges
•  Insulated ceiling, AirSeal® ready aluminum housing
•  Easily adaptable to suspended ceiling applications
•  3-1/2" Low Profile Height: Ideal for wall mounting or restricted plenums
•  Energy Star® Dimming available in 26W version
•  See trims on p. 487-488
Frame-in Kit Lamp Ballast Base Voltage Total Amps
Watts
1104F13ESR 1-13W QT/TTT Electronic 4 Pin 120/277V 18W 0,15/0,07A
(GX24q-1/G24q-1)
1104F18ESR 1-18W TTT Electronic 4 Pin 120/277V 19W 0,16/0,08A
(GX24q-2)
1104F2632ESR 1-26W TTT Electronic 4 Pin 120/277V 27W 0,23/0,11A
1-32W TTT (GX24q-3) 37W 0.31/0.13A
Frame-in Kit Type Lamp Base Ballast Volts Total Current
Input Input
Watts
1050RN13ESN IC/Non-IC 13W Triple 2700K GX24q-1 Elect. 120 27 0.23A
1050RN13CMN-347 Non-IC 13W Triple 2700K GX24q-2 Elect. 347 18 0.06A
1050RN18ESN IC/Non-IC 18W Triple 2700K GX24q-1 Elect. 120 35 0.29A
1050RN18CMN-347 Non-IC 18W Triple 2700K GX24q-1 Elect. 347 21 0.06A
1050RN18ESN35 IC/Non-IC 18W Triple 3500K GX24q-1 Elect. 120 35 0.29A
1050RN18CMN35-347 Non-IC 18W Triple 3500K GX24q-1 Elect. 347 21 0.06A
1050RN26ESN IC/Non-IC 26W Triple 2700K GX24q-1 Elect. 120 35 0.29A
1050RN26CMN-347 Non-IC 26W Triple 2700K GX24q-1 Elect. 347 31 0.09A
1050RN26ESN35 IC/Non-IC 26W Triple 3500K GX24q-1 Elect. 120 35 0.29A
1050RN26CMN35-347 Non-IC 26W Triple 3500K GX24q-1 Elect. 347 31 0.09A
1050DRN26ESN IC/Non-IC 26W Triple 2700K GX24q-1 Dimming 120 27 0.23A
Elect.
1050DRN26ESN35 IC/Non-IC 26W Triple 3500K GX24q-1 Dimming 120 27 0.23A
Elect.
compact fluorescent
463Philips
Lytecaster – Philips Lightolier
3-1/2"
(89mm)
13-1/2"
(343mm)
13-1/8"
(333mm)
10"
(254mm)
5"
(127mm)
Canlyte Lighting Resource Guide
CFL – Frame-in Kits
Ceiling Cut-Out: 5-1/4"
5" Square Low-Profile IC/Non-IC AirSeal®
Features
•  Aperture hole marking for easy alignment
•  Rolled metal prevents sharp edges
•  Insulated ceiling, AirSeal® ready aluminum housing
•  Easily adaptable to suspended ceiling applications
•  3-1/2" Low Profile Height: Ideal for wall mounting or restricted plenums
•  Energy Star® Dimming available in 26W version
•  See trims on p. 487-488
Frame-in Kit Type Lamp Base Ballast Volts Total Current
Input Watts Input
1050SQ13ESN IC/Non-IC 13W Triple 2700K GX24q-1 Elect. 120 27 0.23A
1050SQ13CMN-347 Non-IC 13W Triple 2700K GX24q-2 Elect. 347 18 0.06A
1050SQ18ESN IC/Non-IC 18W Triple 2700K GX24q-1 Elect. 120 35 0.29A
1050SQ18CMN-347 Non-IC 18W Triple 2700K GX24q-1 Elect. 347 21 0.06A
1050SQ18ESN35 IC/Non-IC 18W Triple 3500K GX24q-1 Elect. 120 35 0.29A
1050SQ18CMN35-347 Non-IC 18W Triple 3500K GX24q-1 Elect. 347 21 0.06A
1050SQ26ESN IC/Non-IC 26W Triple 2700K GX24q-1 Elect. 120 35 0.29A
1050SQ26CMN-347 Non-IC 26W Triple 2700K GX24q-1 Elect. 347 31 0.09A
1050SQ26ESN35 IC/Non-IC 26W Triple 3500K GX24q-1 Elect. 120 35 0.29A
1050SQ26CMN35-347 Non-IC 26W Triple 3500K GX24q-1 Elect. 347 31 0.09A
1050DSQ26ESN IC/Non-IC 26W Triple 2700K GX24q-1 Dimming 120 27 0.23A
Elect.
1050DSQ26ESN35 IC/Non-IC 26W Triple 3500K GX24q-1 Dimming 120 27 0.23A
Elect.

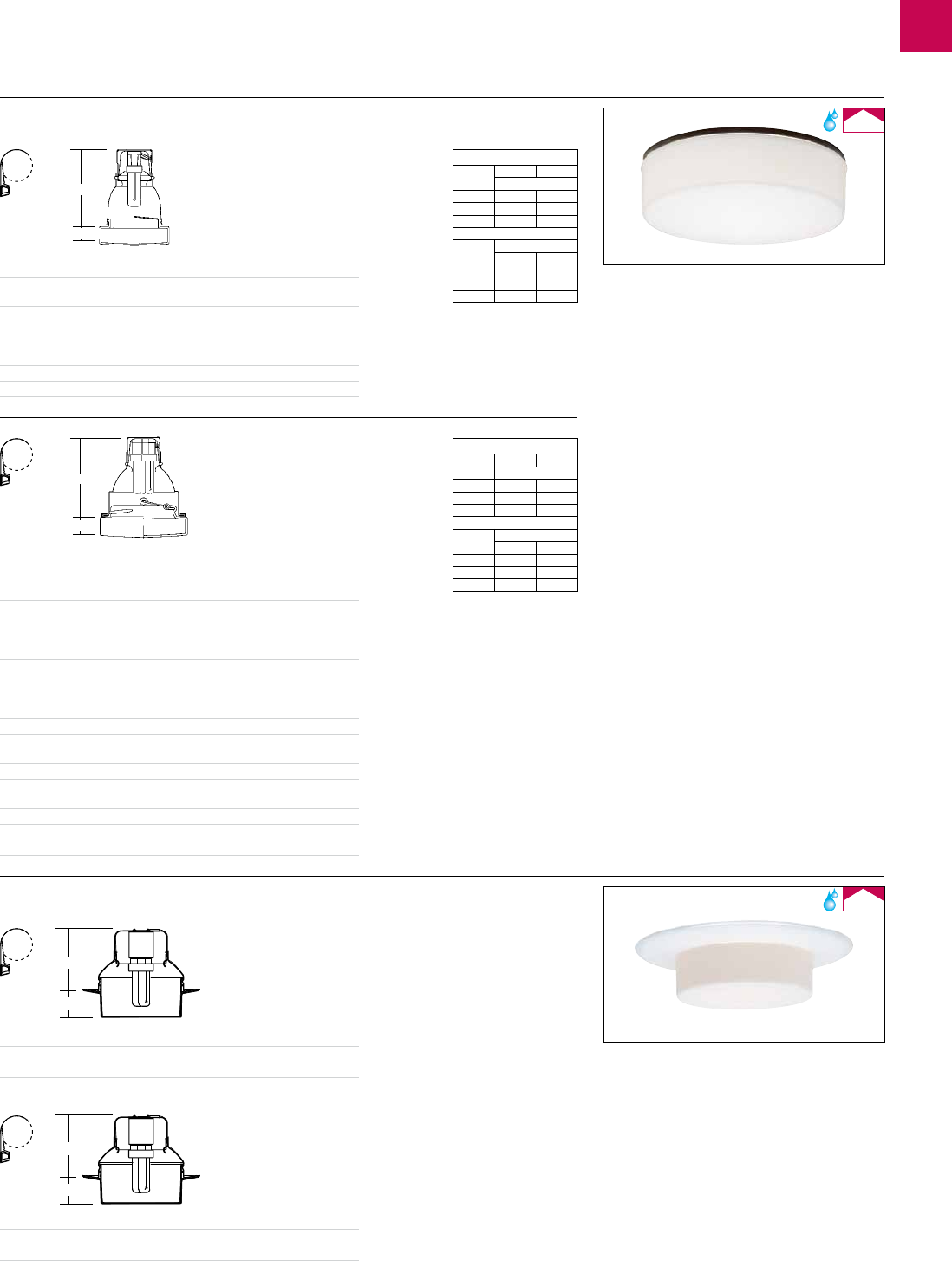

Lytecaster Low Profile Compact Fluorescent
Surface Drums
Energy-efficient Surface Drum for 2 x 26W Quad Tube lamps. Allows installation
in areas that are inappropriate for recessed downlights, such as concrete ceilings.
Surface Drums feature the same lighting performance as standard recessed versions
of Low Profile.
Features
•   Tough die-cast aluminum housing in a white finish
•   Electronic ballast (HPF)
•    Damp or wet location rated  depending on trim used
•    Style-matched Lytecaster Low Profile series
•    Stem kit accessory: order cat. no. FACSA36 (white). 36" length. (See p. 553)
Surface Lamps Base Ballast Volts Total Input
Drum Watts Current
CS1102T26UWH White 2x26W QT 4 Pin (G24q-3) Electronic 120V 50 0.45A
CS1102T26-347WH White 2x26W QT 4 Pin (G24q-3) Electronic 347V 50 0.18A
CS1102T26UBK Black 2x26W QT 4 Pin (G24q-3) Electronic 120V 50 0.45A
CS1102T26-347BK Black 2x26W QT 4 Pin (G24q-3) Electronic 347V 50 0.18A
compact fluorescent
464 Philips
Lytecaster – Philips Lightolier
7-1/4"
5-1/4"
6-3/4"
8-1/8"
3-3/4"
2001CL
1101CL
1001CL
Canlyte Lighting Resource Guide

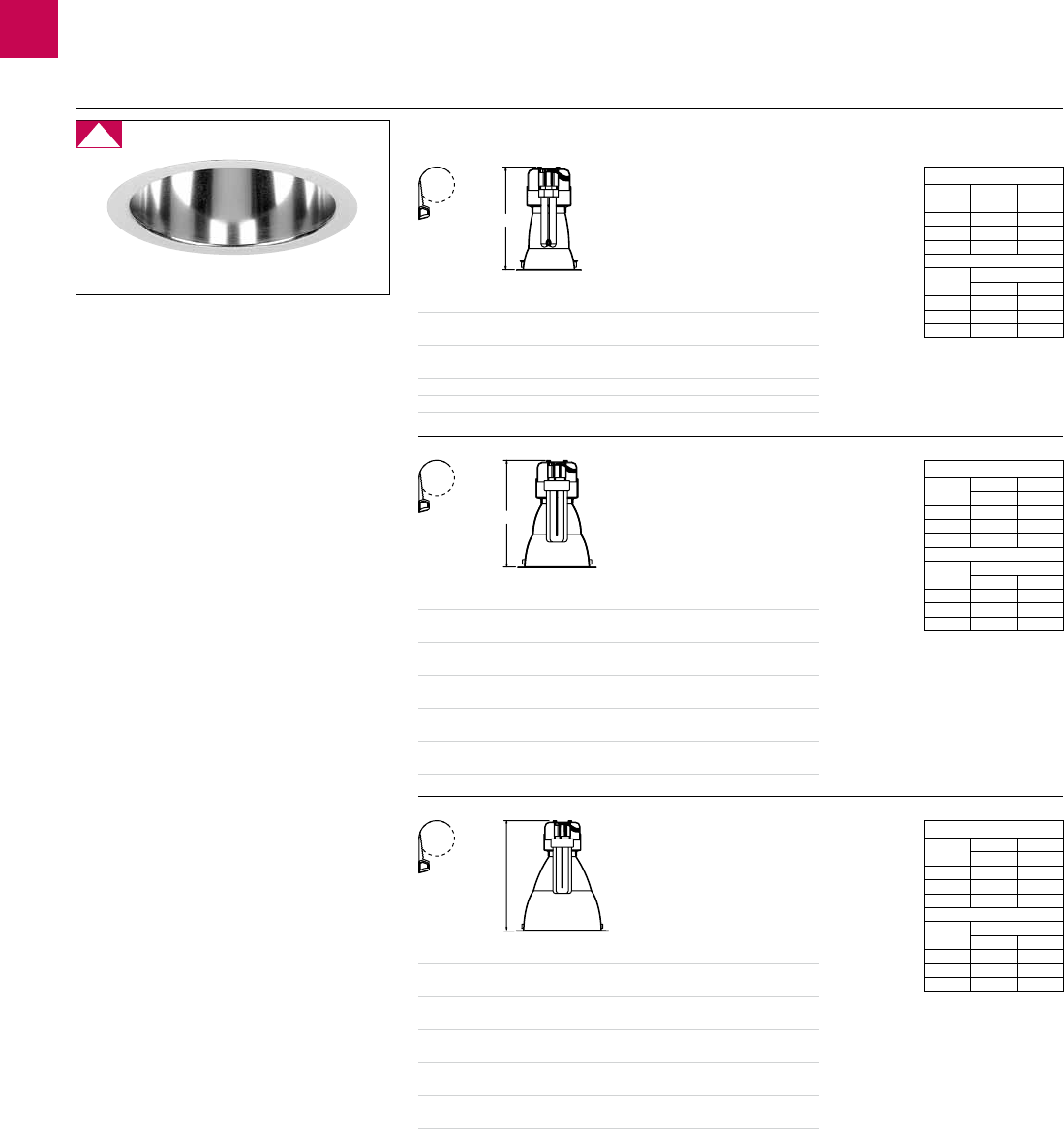

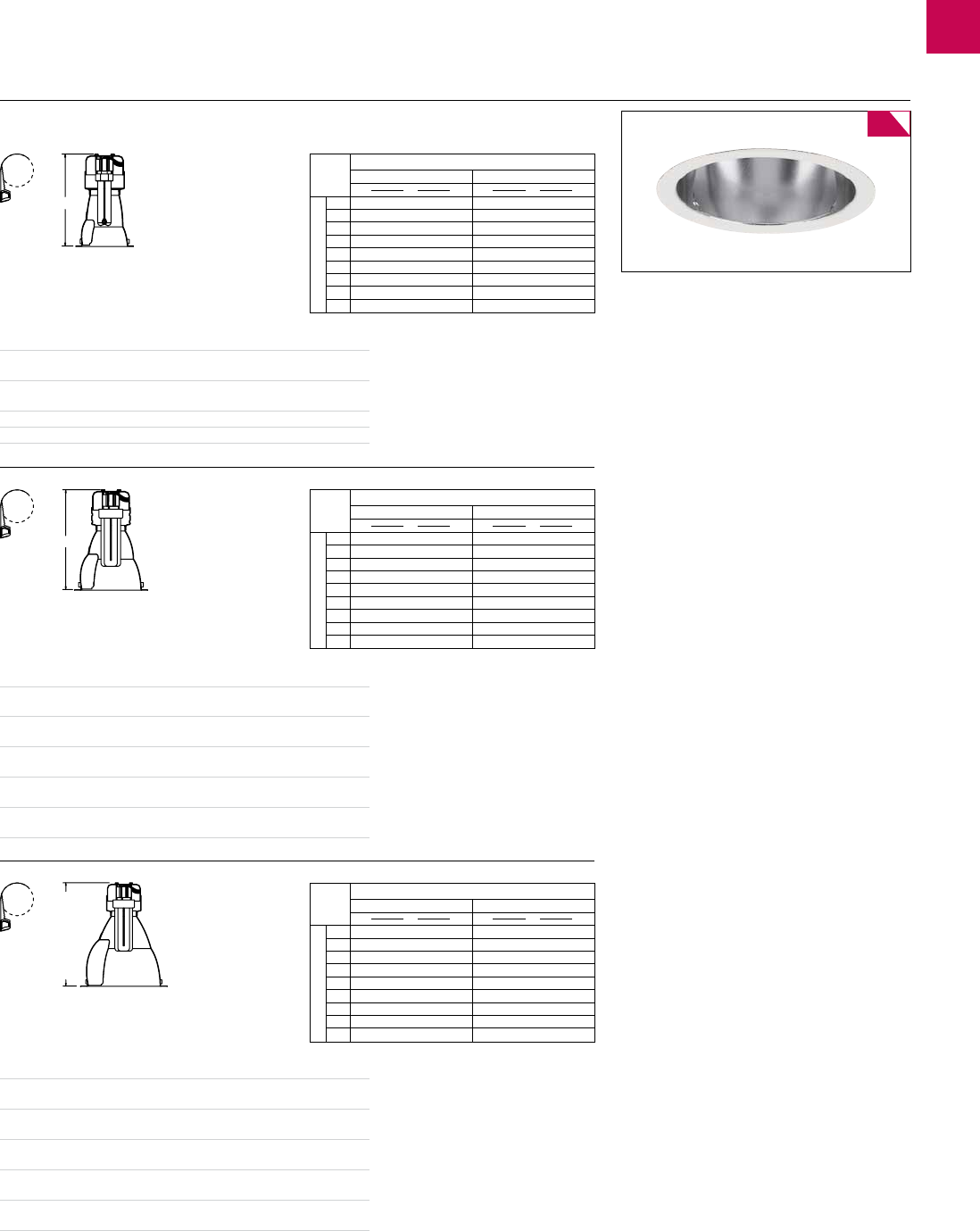

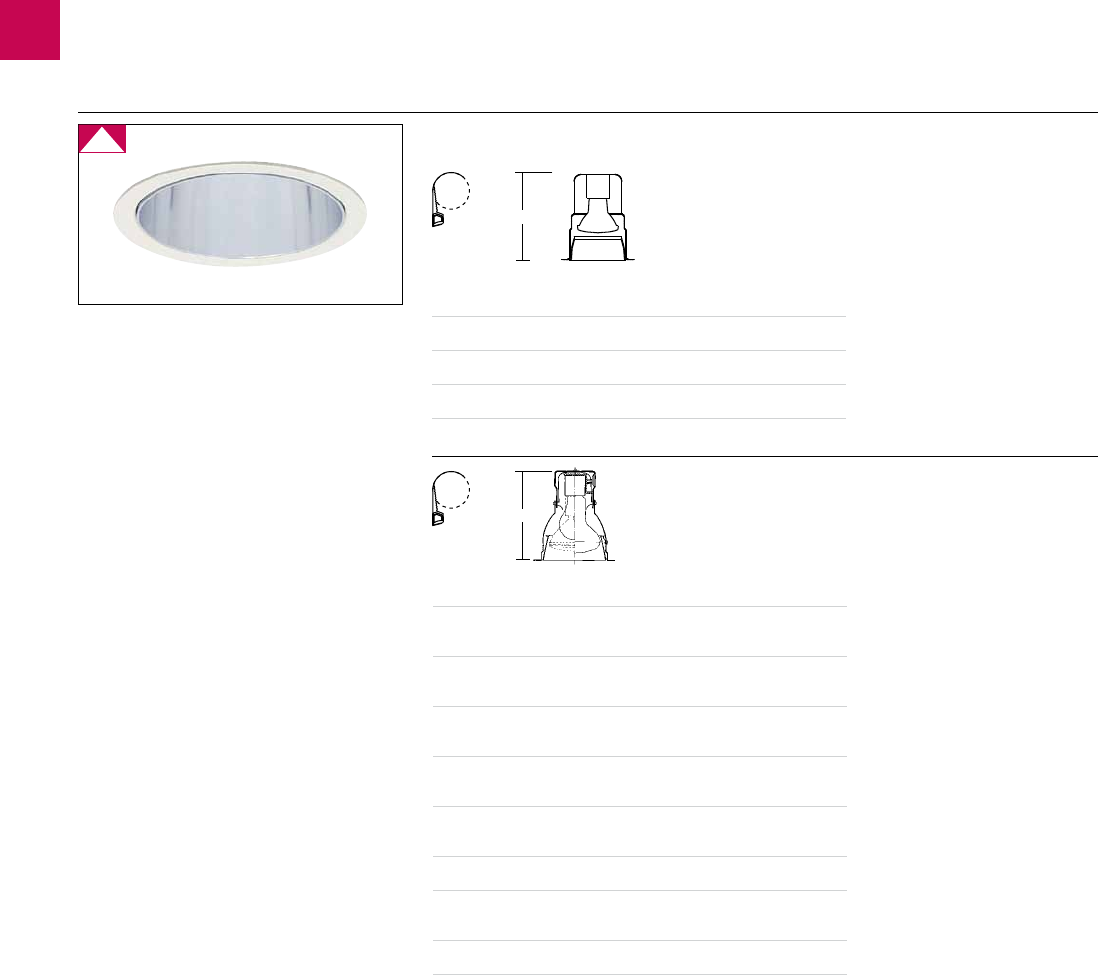

Specular Reectors
Note: For dimming options, please consult the corresponding product Spec Sheet on www.canlyte.com.
These trims are offered in 3-3/4", 5-1/4" and 6-3/4"
aperture sizes in Specular Clear or Clear Diffuse finishes.
Specular Clear finish offers superior performance and
provides an Iridescent-Free coating to eliminate rainbow-
ing. Clear Diffuse is a semi-specular finish that diffuses
light and provides a soft, even illumination that minimizes
the mirror image typically found on specular finishes.
Performance Vertical Open Downlight iiii
2001CL
2001CD
Specular Clear
Clear Diffuse
1001CL
1001CD
Specular Clear
Clear Diffuse
18W TTT
Ht. to   F.C  Beam 99°
Workplane Dia.
4' 15 6'
5' 10 7'
6' 7 8'
Multiple Units
Ctr. to Ctr. Footcandles
    Lrg. Room Watts Sq. Ft.
4' 60 2.06
5' 41 1.43
6' 27 0.92
26W TTT
Ht. to   F.C  Beam 90°
Workplane Dia.
6' 14 8'
7' 10 9'
8' 8 10'
Multiple Units
Ctr. to Ctr. Footcandles
    Lrg. Room Watts Sq. Ft.
4' 54 1.69
5' 38 1.17
6' 24 0.75
1101CL
1101CD
Specular Clear
Clear Diffuse
42W TTT
Ht. to   F.C  Beam 76°
Workplane Dia.
6' 40 6'
8' 24 8'
10' 15 10'
Multiple Units
Ctr. to Ctr. Footcandles
    Lrg. Room Watts Sq. Ft.
5' 88 1.91
6' 56 1.22
7' 32 0.69
9-3/8"
42W &
18/26W
Quad
8-1/2"
32W &
18/26W
Triple
compact fluorescent
Frame-In Kit Ceiling Wattage Lamping
1001F13U
1001F13-347 Non-IC 13W (1) Triple or Quad
1001F18U
1001F18-347 Non-IC 18W (1) Triple
1001F26U
1001F26-347 Non-IC 26W (1) Triple
1001FR18U
1001FR18-347 Non-IC Remodeler 18W (1) Triple
1001FR26U
1001FR26-347 Non-IC Remodeler 26W (1) Triple
Frame-In Kit Ceiling Wattage Lamping
1101F13U
1101F13-347 Non-IC 13W (1) Triple or Quad
1101F18U
1101F18-347 Non-IC 18W (1) Triple or Quad
1101F2642U
1101F2642-347 Non-IC 26W
32/42W
(1) Triple or Quad
(1) Triple
1101FR18U
1101FR18-347 Non-IC Remodeler 18W (1) Triple or Quad
1101FR2642U
1101FR2642-347 Non-IC Remodeler 26W
32/42W
(1) Triple or Quad
(1) Triple
Frame-In Kit Ceiling Wattage Lamping
2001F13U
2001F13-347 Non-IC 13W (1) Triple or Quad
2001F18U
2001F18-347 Non-IC 18W (1) Triple
2001F13ICUN IC/Airseal®13W (1) Triple or Quad
2001F18ICUN IC/Airseal®18W (1) Triple
465Philips
Lytecaster – Philips Lightolier
5-1/4"
5-3/8"
6-3/4"
6-3/4"
6-3/8"
6-3/4"
6-5/8"
6-3/4"
6-3/4"
6-5/8"
1001HCL
1101HCL
1142TCL
1142T26CL
Canlyte Lighting Resource Guide

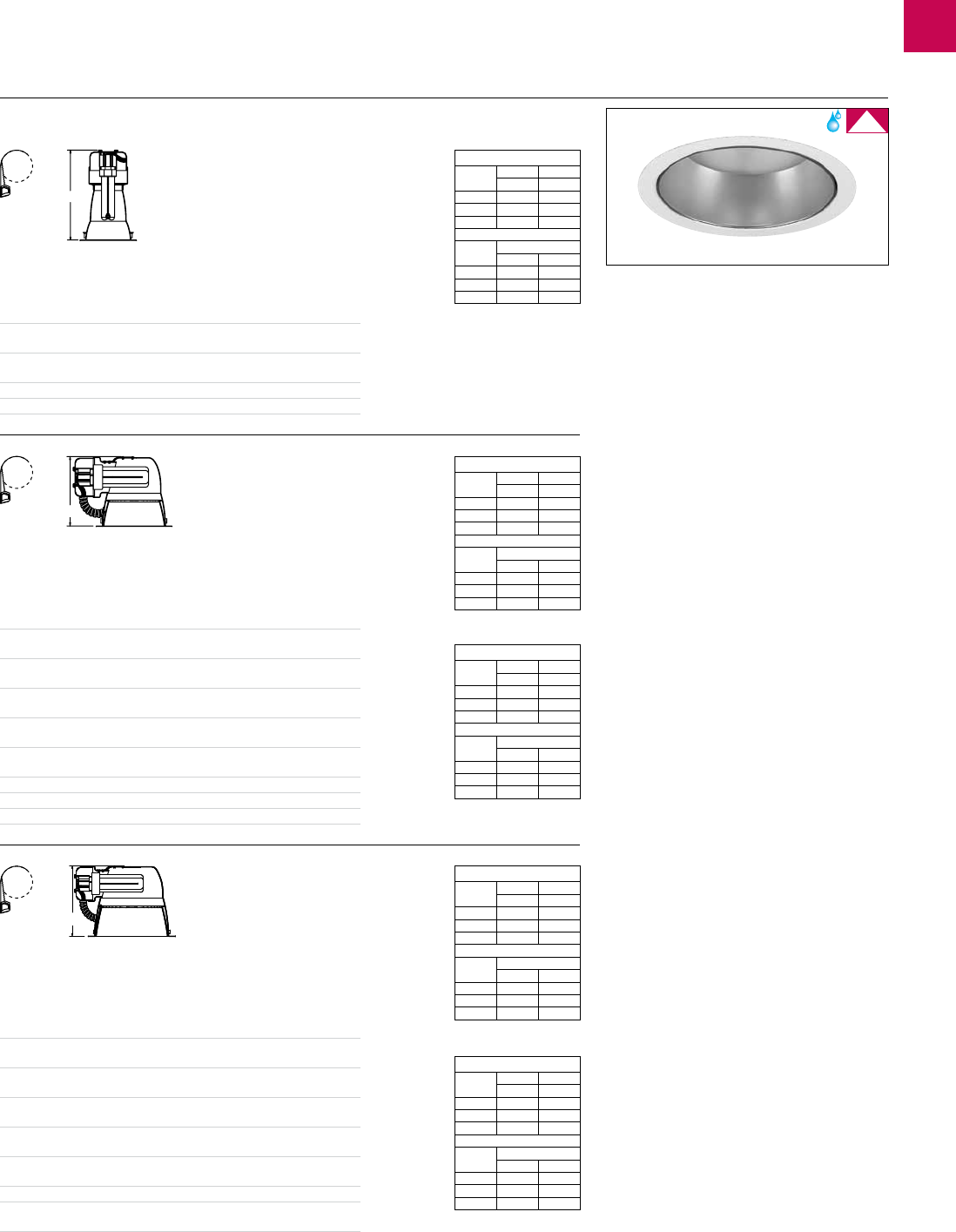

Specular Reectors
Note: For dimming options, please consult the corresponding product Spec Sheet on www.canlyte.com.
1001HCL
1001HCD
Specular Clear
Clear Diffuse
1142TCL
1142TCD
Specular Clear Alzak®
Clear Diffuse
Horizontal  trims  provide  superior  cut-off  and  shielding 
and use the standard Frame-in Kit. These open down-
lights offer a 60-degree cut-off with up to 42W Triple
Tube lamping. Trims are offered in 5-1/4" and 6-3/4"
aperture sizes in Specular Clear and Clear Diffuse.
Horizontal lamp position hides light source and ensures 
glare control. Unitized Optics system provides consis-
tently correct lamp alignment. Deep lamp position asures
excellent cut-off (55 degrees). Easy front relamping.
Performance Horizontal Open Downlight iiii
Horizontal Open Downlight iii
1101HCL
1101HCD
Specular Clear
Clear Diffuse
1142T26CL
1142T26CD
Specular Clear Alzak®
ClearTM Diffuse
32W TTT
Ht. to   F.C  Beam 104°
Workplane Dia.
6' 20 8'
5' 11 10'
6' 7 12'
Multiple Units
Ctr. to Ctr. Footcandles
    Lrg. Room Watts Sq. Ft.
4' 78 1.94
6' 54 1.35
8' 35 0.86
26W TTT
Ht. to   F.C  Beam 91°
Workplane Dia.
6' 16 7'
7' 12 8'
8' 9 9'
Multiple Units
Ctr. to Ctr. Footcandles
    Lrg. Room Watts Sq. Ft.
4' 58 1.63
5' 40 1.13
6' 26 0.72
2 x 18W QT
Ht. to   F.C  Beam 71°
Workplane Dia.
6' 14 6'
8' 8 8'
10' 5 10'
Multiple Units
Ctr. to Ctr. Footcandles
    Lrg. Room Watts Sq. Ft.
5' 40 2.06
6' 26 0.92
7' 15 0.52
2 x 26W QT
Ht. to   F.C  Beam 75°
Workplane Dia.
6' 35 6'
8' 24 8'
10' 18 10'
Multiple Units
Ctr. to Ctr. Footcandles
    Lrg. Room Watts Sq. Ft.
5' 101 3.14
6' 70 2.18
7' 45 1.4
compact fluorescent
Frame-In Kit Ceiling Wattage Lamping
1001F13U
1001F13-347 Non-IC 13W (1) Triple or Quad
1001F18U
1001F18-347 Non-IC 18W (1) Triple
1001F26U
1001F26-347 Non-IC 26W (1) Triple
1001FR18U
1001FR18-347 Non-IC Remodeler 18W (1) Triple
1001FR26U
1001FR26-347 Non-IC Remodeler 26W (1) Triple
1001F13ICUN IC/Airseal®13W (1) Triple or Quad
1001F18ICUN IC/Airseal®18W (1) Triple
1001F26ICUN IC/Airseal®26W (1) Triple
Frame-In Kit Ceiling Wattage Lamping
1101F13U
1101F13-347 Non-IC 13W (1) Triple or Quad
1101F18U
1101F18-347 Non-IC 18W (1) Triple or Quad
1101F2642U
1101F2642-347 Non-IC 26W
32/42W
(1) Triple or Quad
(1) Triple
1101FR18U
1101FR18-347 Non-IC Remodeler 18W (1) Triple or Quad
1101FR2642U
1101FR2642-347 Non-IC Remodeler 26W
32/42W
(1) Triple or Quad
(1) Triple
1101F18ICUN IC/Airseal®18W (1) Triple or Quad
1101F2642ICUN IC/Airseal®26W
32/42W
(1) Triple or Quad
(1) Triple
Frame-In Kit Ceiling Wattage Lamping
1101T13U
1101T13-347 Non-IC 13W (2) Quad
1101T18U
1101T18-347 Non-IC 18W (2) Quad
Frame-In Kit Ceiling Wattage Lamping
1101T26U
1101T26-347 Non-IC 26W (2) Quad
466 Philips
Lytecaster – Philips Lightolier
5-1/4"
6-3/4"
6-3/4"
7-3/16"
7-15/16"
7-3/16"
1046
1146
1144
Canlyte Lighting Resource Guide
Specular Reectors
Note: For dimming options, please consult the corresponding product Spec Sheet on www.canlyte.com.
The best efficiency and glare control. Lamp is fully
recessed in a deep, specular Alzak® reflector, precisely
contoured  to  assure  38°  shielding  of  lamp  and  lamp 
image. Vertically adjustable socket holder on 1100 series
provides lamping flexibility.
Deep Alzak® Reector iii
1046
1046CD
Specular Clear Alzak®
Clear Diffuse
26W TTT
Ht. to   F.C  Beam Dia.
Floor At 30" Above Floor
8' 9 17'
9' 6 20'
10' 5 23'
Multiple Units
Ctr. to Ctr. Footcandles
    Lrg. Room Sml. Room
4' 52 35
5' 37 24
6' 25 12
1146
1146CD
Specular Clear Alzak®
Clear Diffuse
32W TTT
Ht. to   F.C  Beam Dia.
Floor At 30" Above Floor
8' 30 12'
9' 22 14'
10' 16 16'
Multiple Units
Ctr. to Ctr. Footcandles
  Lrg. Room Sml. Room
4' 77 60
5' 55 40
6' 37 20
Shallow Alzak® Reector iii
High  efciency  downlight  ts  in  8"  joist  construction 
and provides high wattage in IC frame-in kits. Specular
Alzak® reflector maximizes output from self-ballasted
compact fluorescent lamps and efficient compact fluo-
rescent lamps.
1144
1144CD
Specular Clear Alzak®
Clear Diffuse
26W TTT
Ht. to   F.C  Beam Dia.
Floor At 30" Above Floor
8' 12 12'
9' 9 14'
10' 6 16'
Multiple Units
Ctr. to Ctr. Footcandles
    Lrg. Room Sml. Room
4' 80 51
5' 57 32
6' 43 17
compact fluorescent
Frame-In Kit Ceiling Wattage Lamping
1001F13U
1001F13-347 Non-IC 13W (1) Triple or Quad
1001F18U
1001F18-347 Non-IC 18W (1) Triple
1001F26U
1001F26-347 Non-IC 26W (1) Triple
1001FR18U
1001FR18-347 Non-IC Remodeler 18W (1) Triple
1001FR26U
1001FR26-347 Non-IC Remodeler 26W (1) Triple
1004F13ESN
1001F13ICUN IC/Airseal®13W (1) Triple or Quad
1004F18ESN IC/Airseal®18W (1) Triple or Quad
1001F18ICUN IC/Airseal®18W (1) Triple
1004F26ESN IC/Airseal®26W (1) Triple or Quad
1001F26ICUN IC/Airseal®26W (1) Triple
1004F13ESR IC/Airseal®  Remodeler 13W (1) Triple or Quad
1004F18ESR IC/Airseal®  Remodeler 18W (1) Triple or Quad
1004F26ESR IC/Airseal®  Remodeler 26W (1) Triple or Quad
Frame-In Kit Ceiling Wattage Lamping
1101F13U
1101F13-347 Non-IC 13W (1) Triple or Quad
1101F18U
1101F18-347 Non-IC 18W (1) Triple
1101F2642U
1101F2642-347 Non-IC 26W (1) Triple
1101FR18U
1101FR18-347 Non-IC Remodeler 18W (1) Triple
1101FR2642U
1101FR2642-347 Non-IC Remodeler 26W (1) Triple
1104F13ESN IC/Airseal®13W (1) Triple or Quad
1101F18ICUN IC/Airseal®18W (1) Triple
1104F18ESN IC/Airseal®18W (1) Triple or Quad
1101F2642ICUN
1104F2632ESN IC/Airseal®26W
32/42W
(1) Triple or Quad
(1) Triple
1104F13ESR IC/Airseal®  Remodeler 13W (1) Triple or Quad
1104F18ESR IC/Airseal®  Remodeler 18W (1) Triple or Quad
1104F2632ESR IC/Airseal®  Remodeler 26W (1) Triple
Frame-In Kit Ceiling Wattage Lamping
1101F13U
1101F13-347 Non-IC 13W (1) Triple or Quad
1101F18U
1101F18-347 Non-IC 18W (1) Triple
1101F2642U
1101F2642-347 Non-IC 26W
32/42W
(1) Triple or Quad
(1) Triple
1101FR18U
1101FR18-347 Non-IC Remodeler 18W (1) Triple
1101FR2642U
1101FR2642-347 Non-IC Remodeler 26W
32/42W
(1) Triple or Quad
(1) Triple
1101F18ICUN IC/Airseal®18W (1) Triple or Quad
1101F2642ICUN IC/Airseal®26W
32/42W
(1) Triple or Quad
(1) Triple
467Philips
Lytecaster – Philips Lightolier
6-3/4"
5-1/4"
5-7/8"
7-3/16"
1105CL
Canlyte Lighting Resource Guide
Specular Reectors
1005CL
1005BA
1005CD
Specular Clear Alzak®
Specular Black Alzak®
Clear Diffuse
1105CL
1105BA
1105CD
Specular Clear Alzak®
Specular Black Alzak®
Clear Diffuse
Versatile, low brightness downlights. Specular Alzak®
heavy gauge aperture cone and recessed lamp control
glare. Cone can easily be removed to facilitate mainte-
nance.
Specular Alzak® Cone ii
32W TTT
Ht. to   F.C  Beam Dia.
Floor At 30" Above Floor
8' 26 12'
9' 19 14'
10' 14 16'
Multiple Units
Ctr. to Ctr. Footcandles
  Lrg. Room Sml. Room
4' 80 60
5' 57 40
6' 38 20
7-15/16" with 32W TTT
Note: For dimming options, please consult the corresponding product Spec Sheet on www.canlyte.com.
compact fluorescent
Frame-In Kit Ceiling Wattage Lamping
1001F13U
1001F13-347 Non-IC 13W (1) Triple or Quad
1001F18U
1001F18-347 Non-IC 18W (1) Triple
1001FR18U
1001FR18-347 Non-IC Remodeler 18W (1) Triple
1004F13ESN
1001F13ICUN IC/Airseal®13W (1) Triple or Quad
1004F18ESN
1001F18ICUN IC/Airseal®18W (1) Triple
1004F26ESN IC/Airseal®26W (1) Triple
1004F13ESR IC/Airseal®  Remodeler 13W (1) Triple or Quad
1004F18ESR IC/Airseal®  Remodeler 18W (1) Triple
1004F26ESR IC/Airseal®  Remodeler 26W (1) Triple
Frame-In Kit Ceiling Wattage Lamping
1101F13U
1101F13-347 Non-IC 13W (1) Triple or Quad
1101F18U
1101F18-347 Non-IC 18W (1) Triple or Quad
1101F2642U
1101F2642-347 Non-IC 26/32W (1) Triple
1101FR18U
1101FR18-347 Non-IC Remodeler 18W (1) Triple or Quad
1101FR2642U
1101FR2642-347 Non-IC Remodeler 26/32W (1) Triple
1104F13ESN IC/Airseal®13W (1) Triple or Quad
1104F18ESN
1101F18ICUN IC/Airseal®18W (1) Triple or Quad
1104F2632ESN IC/Airseal® 26/32W (1) Triple or Quad
1101F2642ICUN IC/Airseal®26/32W (1) Triple
1104F13ESR IC/Airseal®  Remodeler 13W (1) Triple or Quad
1104F18ESR IC/Airseal®  Remodeler 18W (1) Triple or Quad
1104F2632ESR IC/Airseal®  Remodeler 26/32W (1) Triple or Quad
468 Philips
Lytecaster – Philips Lightolier
5-1/4"
6-3/4"
6-3/4"
6-1/2"
Canlyte Lighting Resource Guide
Specular Reectors
Note: For dimming options, please consult the corresponding product Spec Sheet on www.canlyte.com.
An economical choice for low budget is the chrome (CH) 
finish.
Basic Cone i
1076CH Chrome
1176CH Chrome
compact fluorescent
Frame-In Kit Ceiling Wattage Lamping
1001F13U
1001F13-347 Non-IC 13W (1) Triple or Quad
1001F18U
1001F18-347 Non-IC 18W (1) Triple
1001FR18U
1001FR18-347 Non-IC Remodeler 18W (1) Triple
1004F13ESN
1001F13ICUN IC/Airseal®13W (1) Triple or Quad
1004F18ESN
1001F18ICUN IC/Airseal®18W (1) Triple
1004F26ESN IC/Airseal®26W (1) Triple
1004F13ESR IC/Airseal®  Remodeler 13W (1) Triple or Quad
1004F18ESR IC/Airseal®  Remodeler 18W (1) Triple
1004F26ESR IC/Airseal®  Remodeler 26W (1) Triple
Frame-In Kit Ceiling Wattage Lamping
1101F13U
1101F13-347 Non-IC 13W (1) Triple or Quad
1101F18U
1101F18-347 Non-IC 18W (1) Triple or Quad
1101F2642U
1101F2642-347 Non-IC 26/32W (1) Triple
1101FR18U
1101FR18-347 Non-IC Remodeler 18W (1) Triple or Quad
1101FR2642U
1101FR2642-347 Non-IC Remodeler 26/32W (1) Triple
1104F13ESN IC/Airseal®13W (1) Triple or Quad
1104F18ESN
1101F18ICUN IC/Airseal®18W (1) Triple or Quad
1104F2632ESN IC/Airseal® 26/32W (1) Triple or Quad
1101F2642ICUN IC/Airseal®26W (1) Triple
1104F13ESR IC/Airseal®  Remodeler 13W (1) Triple or Quad
1104F18ESR IC/Airseal®  Remodeler 18W (1) Triple or Quad
1104F2632ESR IC/Airseal®  Remodeler 26/32W (1) Triple or Quad
469Philips
Lytecaster – Philips Lightolier
5-1/4"
5-7/8"
6-3/4"
7-3/16"
1105BK
Canlyte Lighting Resource Guide
Bafed Downlight
1005BK
1005WB
Black Baffle
White Baffle
Versatile, low brightness downlight. Precision-fitted die-
cast aluminum step baffle is finished in black or white
and the recessed lamp reduces glare. Anobrite® alumi-
num reflector concentrates output from compact fluo-
rescent lamps.
Premium Die-Cast Step Bafe ii
Note: For dimming options, please consult the corresponding product Spec Sheet on www.canlyte.com.
1105BK
1105WB
Black Baffle
White Baffle
32W TTT
Ht. to   F.C  Beam Dia.
Floor At 30" Above Floor
8' 19 12'
9' 13 14'
10' 10 16'
Multiple Units
Ctr. to Ctr. Footcandles
  Lrg. Room Sml. Room
4' 53 40
5' 38 27
6' 25 13
7-15/16" with 32W TTT
compact fluorescent
Frame-In Kit Ceiling Wattage Lamping
1001F13U
1001F13-347 Non-IC 13W (1) Triple or Quad
1001F18U
1001F18-347 Non-IC 18W (1) Triple
1001FR18U
1001FR18-347 Non-IC Remodeler 18W (1) Triple
1004F13ESN
1001F13ICUN IC/Airseal®13W (1) Triple or Quad
1004F18ESN
1001F18ICUN IC/Airseal®18W (1) Triple
1004F26ESN IC/Airseal®26W (1) Triple
1004F13ESR IC/Airseal®  Remodeler 13W (1) Triple or Quad
1004F18ESR IC/Airseal®  Remodeler 18W (1) Triple
1004F26ESR IC/Airseal®  Remodeler 26W (1) Triple
Frame-In Kit Ceiling Wattage Lamping
1101F13U
1101F13-347 Non-IC 13W (1) Triple or Quad
1101F18U
1101F18-347 Non-IC 18W (1) Triple or Quad
1101F2642U
1101F2642-347 Non-IC 26/32W (1) Triple
1101FR18U
1101FR18-347 Non-IC Remodeler 18W (1) Triple or Quad
1101FR2642U
1101FR2642-347 Non-IC Remodeler 26/32W (1) Triple
1104F13ESN IC/Airseal®13W (1) Triple or Quad
1104F18ESN
1101F18ICUN IC/Airseal®18W (1) Triple or Quad
1104F2632ESN IC/Airseal® 26/32W (1) Triple or Quad
1101F2642ICUN IC/Airseal®26W (1) Triple
1104F13ESR IC/Airseal®  Remodeler 13W (1) Triple or Quad
1104F18ESR IC/Airseal®  Remodeler 18W (1) Triple or Quad
1104F2632ESR IC/Airseal®  Remodeler 26/32W (1) Triple or Quad
470 Philips
Lytecaster – Philips Lightolier
5-1/4"
6-3/4"
6-3/4"
7-5/8"
1076
1176
Canlyte Lighting Resource Guide

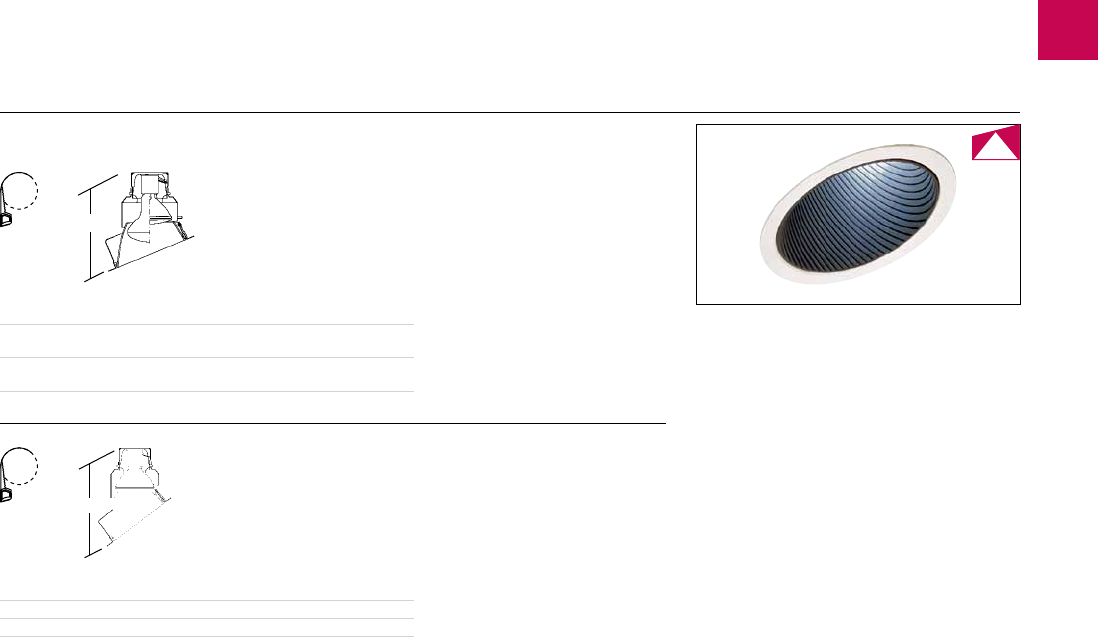

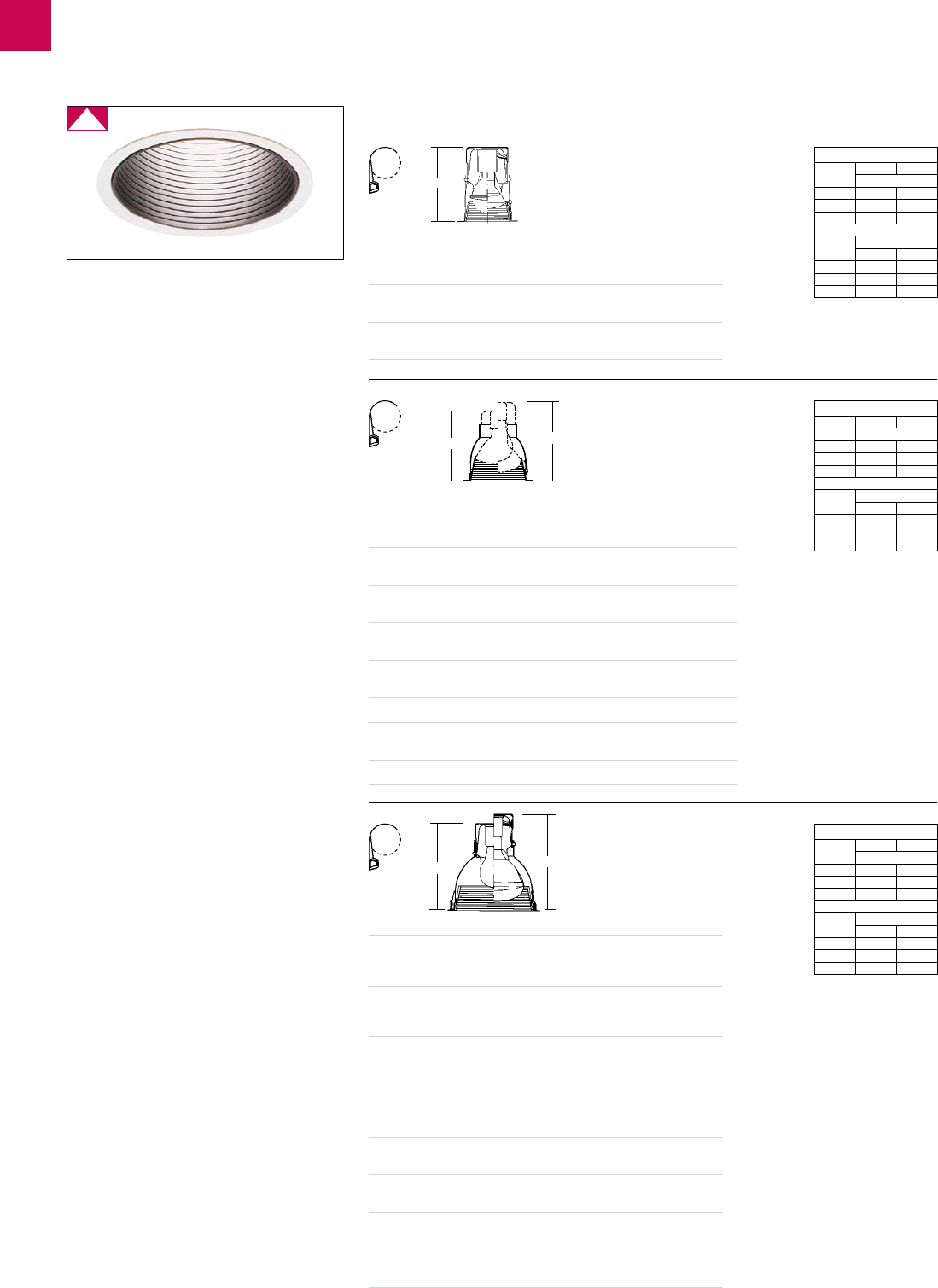

Bafed Downlight
Precision-fitted, high temperature phenolic baffle with
horizontal grooves reduces glare. Aluminum reflec-
tor finished in white operates effectively with compact
fluorescent lamps. Economical choice for low budget
applications.
Basic Bafe i
1076
1076WH
Black Baffle
White Baffle
1176
1176WH
Black Baffle
White Baffle
Note: For dimming options, please consult the corresponding product Spec Sheet on www.canlyte.com.
compact fluorescent
Frame-In Kit Ceiling Wattage Lamping
1001F13U
1001F13-347 Non-IC 13W (1) Triple or Quad
1001F18U
1001F18-347 Non-IC 18W (1) Triple
1001FR18U
1001FR18-347 Non-IC Remodeler 18W (1) Triple
1004F13ESN
1001F13ICUN IC/Airseal®13W (1) Triple or Quad
1004F18ESN
1001F18ICUN IC/Airseal®18W (1) Triple
1004F26ESN IC/Airseal®26W (1) Triple
1004F13ESR IC/Airseal®  Remodeler 13W (1) Triple or Quad
1004F18ESR IC/Airseal®  Remodeler 18W (1) Triple
1004F26ESR IC/Airseal®  Remodeler 26W (1) Triple
Frame-In Kit Ceiling Wattage Lamping
1101F13U
1101F13-347 Non-IC 13W (1) Triple or Quad
1101F18U
1101F18-347 Non-IC 18W (1) Triple or Quad
1101F2642U
1101F2642-347 Non-IC 26/32W (1) Triple
1101FR18U
1101FR18-347 Non-IC Remodeler 18W (1) Triple or Quad
1101FR2642U
1101FR2642-347 Non-IC Remodeler 26/32W (1) Triple
1104F13ESN IC/Airseal®13W (1) Triple or Quad
1104F18ESN
1101F18ICUN IC/Airseal®18W (1) Triple or Quad
1104F2632ESN IC/Airseal® 26/32W (1) Triple or Quad
1101F2642ICUN IC/Airseal®26W (1) Triple
1104F13ESR IC/Airseal®  Remodeler 13W (1) Triple or Quad
1104F18ESR IC/Airseal®  Remodeler 18W (1) Triple or Quad
1104F2632ESR IC/Airseal®  Remodeler 26/32W (1) Triple or Quad
13W QT
Ht. to   F.C  Beam Dia.
Floor At 30" Above Floor
8' 4 14'
9' 3 15.5'
10' 2 17'
Multiple Units
Ctr. to Ctr. Footcandles
  Lrg. Room Sml. Room
4' 12 9
5' 9 6
6' 6 3
13W QT
Ht. to   F.C  Beam Dia.
Floor At 30" Above Floor
8' 5 13'
9' 3 15'
10' 2 17'
Multiple Units
Ctr. to Ctr. Footcandles
  Lrg. Room Sml. Room
4' 12 9
5' 9 6
6' 6 3
471Philips
Lytecaster – Philips Lightolier
5-1/4"
6-3/4"
3-3/4"
7-1/4"
8-1/8"
Canlyte Lighting Resource Guide

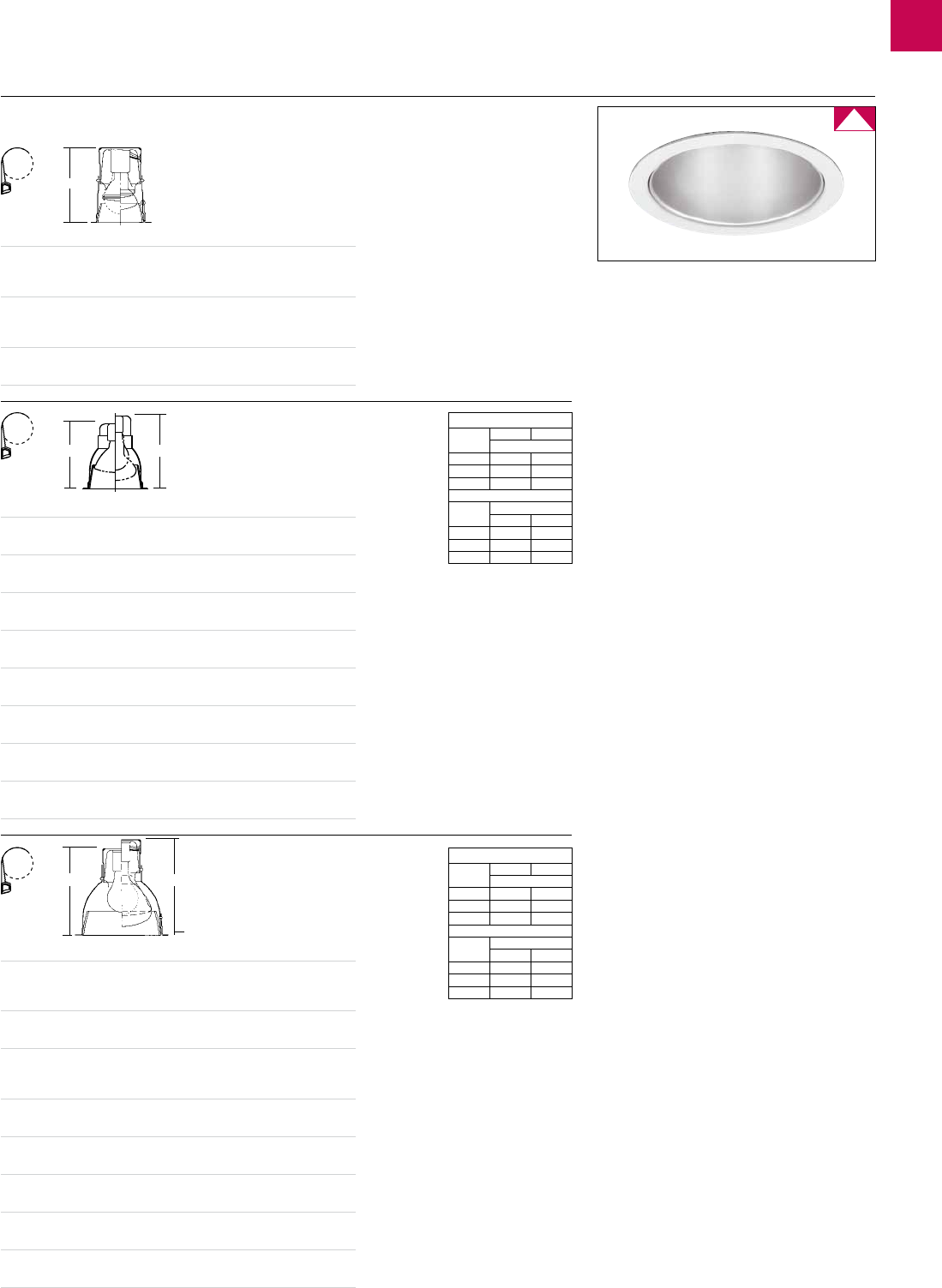

White Reectors
2001WH White
These trims are offered in 3-3/4", 5-1/4" and 6-3/4"
aperture sizes in White. White finish blends into ceiling
for minimal impact on ceiling appearance.
Performance Vertical Open Downlight iii
Note: For dimming options, please consult the corresponding product Spec Sheet on www.canlyte.com.
1001WH White
1101WH White
9-3/8"
42W &
18/26W
Quad
8-1/2"
32W &
18/26W
Triple
compact fluorescent
Frame-In Kit Ceiling Wattage Lamping
2001F13U
2001F13-347 Non-IC 13W (1) Triple or Quad
2001F18U
2001F18-347 Non-IC 18W (1) Triple
2001F13ICUN IC/Airseal®13W (1) Triple or Quad
2001F18ICUN IC/Airseal®18W (1) Triple
Frame-In Kit Ceiling Wattage Lamping
1001F13U
1001F13-347 Non-IC 13W (1) Triple or Quad
1001F18U
1001F18-347 Non-IC 18W (1) Triple
1001F26U
1001F26-347 Non-IC 26W (1) Triple
1001FR18U
1001FR18-347 Non-IC Remodeler 18W (1) Triple
1001FR26U
1001FR26-347 Non-IC Remodeler 26W (1) Triple
Frame-In Kit Ceiling Wattage Lamping
1101F13U
1101F13-347 Non-IC 13W (1) Triple or Quad
1101F18U
1101F18-347 Non-IC 18W (1) Triple or Quad
1101F2642U
1101F2642-347 Non-IC 26W
32/42W
(1) Triple or Quad
(1) Triple
1101FR18U
1101FR18-347 Non-IC Remodeler 18W (1) Triple or Quad
1101FR2642U
1101FR2642-347 Non-IC Remodeler 26W
32/42W
(1) Triple or Quad
(1) Triple
472 Philips
Lytecaster – Philips Lightolier
5-1/4"
5-3/8"
6-3/4"
6-3/8"
Canlyte Lighting Resource Guide

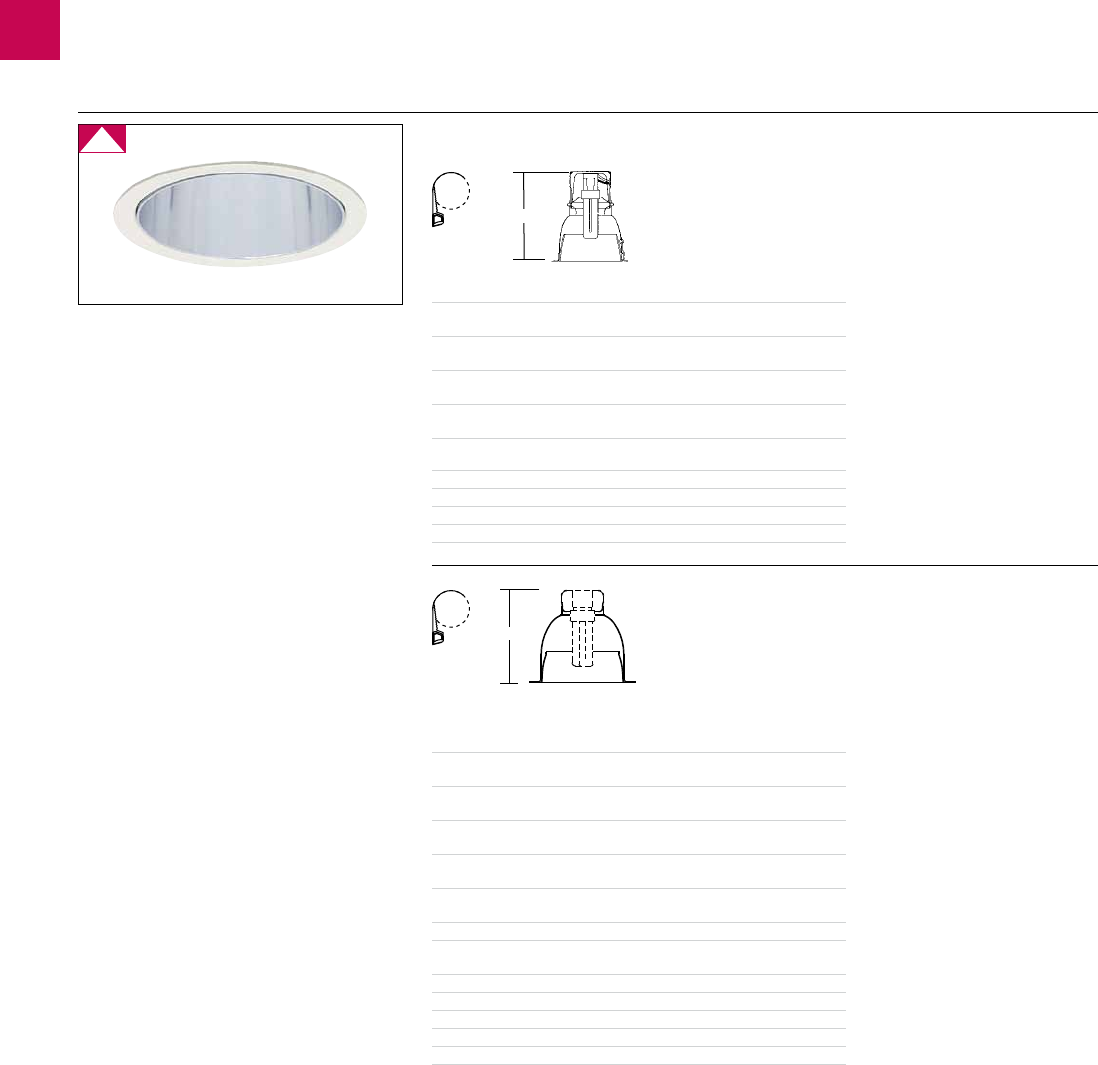

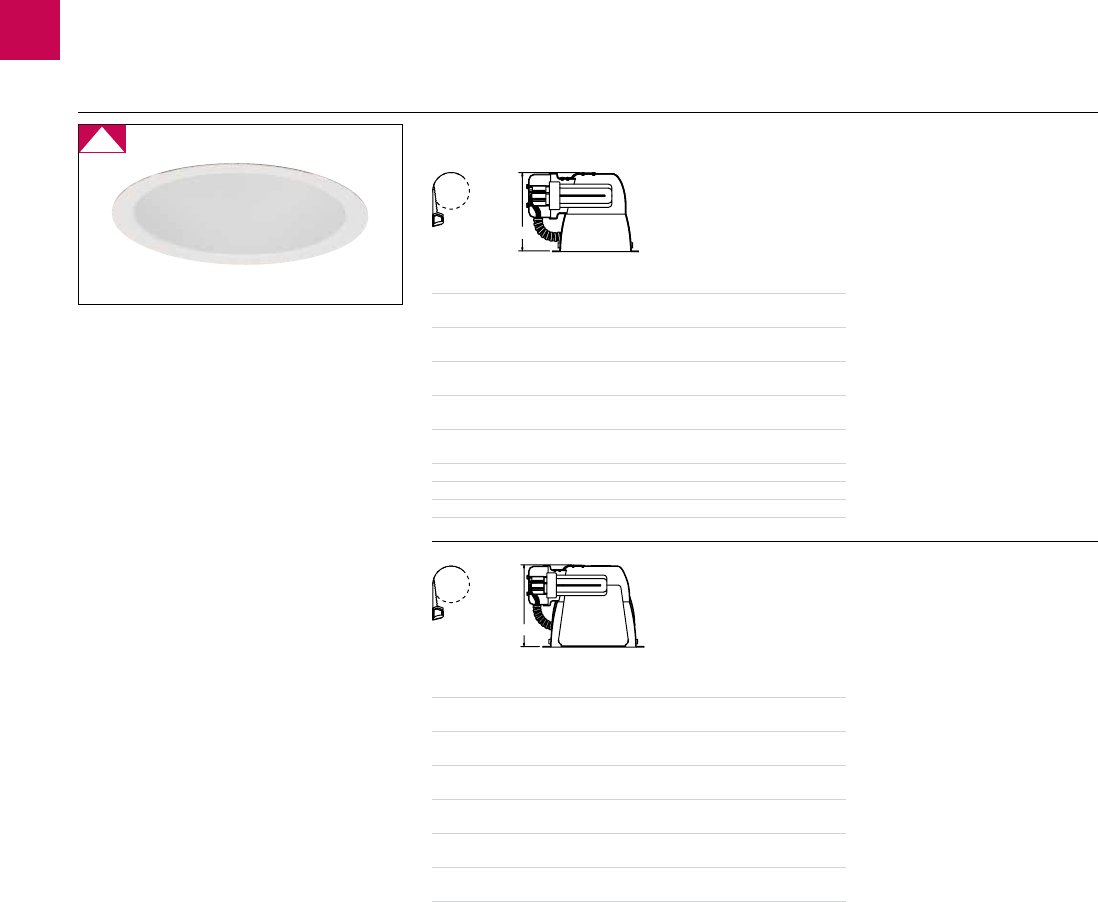

White Reectors
Note: For dimming options, please consult the corresponding product Spec Sheet on www.canlyte.com.
Horizontal  trims  provide  superior  cut-off  and  shielding 
and use the standard Frame-in Kit. These open down-
lights offer a 60-degree cut-off with up to 42W Triple
Tube lamping. Trims are offered in 5-1/4" and 6-3/4"
aperture sizes in White finishes.

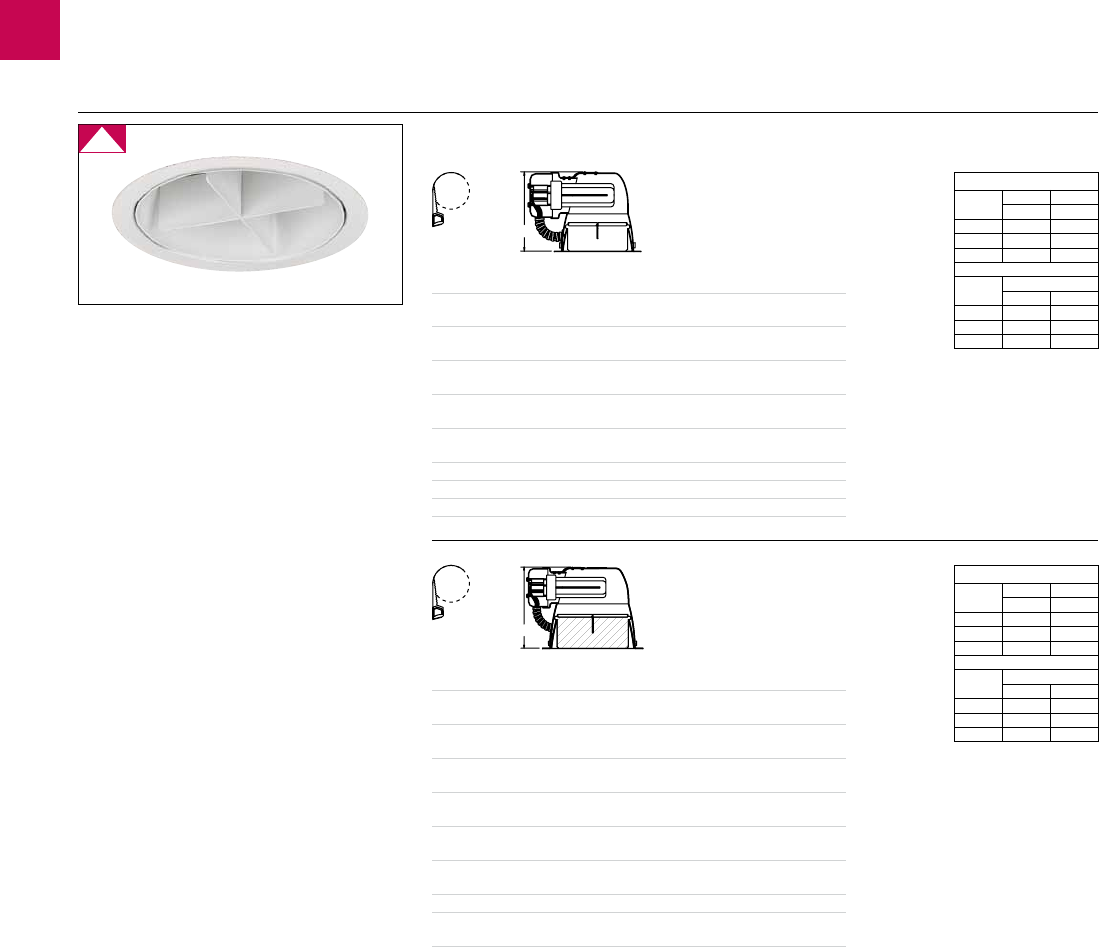

Performance Horizontal Open Downlight iii
1001HWH White
1101HWH White
compact fluorescent
Frame-In Kit Ceiling Wattage Lamping
1001F13U
1001F13-347 Non-IC 13W (1) Triple or Quad
1001F18U
1001F18-347 Non-IC 18W (1) Triple
1001F26U
1001F26-347 Non-IC 26W (1) Triple
1001FR18U
1001FR18-347 Non-IC Remodeler 18W (1) Triple
1001FR26U
1001FR26-347 Non-IC Remodeler 26W (1) Triple
1001F13ICUN IC/Airseal®13W (1) Triple or Quad
1001F18ICUN IC/Airseal®18W (1) Triple
1001F26ICUN IC/Airseal®26W (1) Triple
Frame-In Kit Ceiling Wattage Lamping
1101F13U
1101F13-347 Non-IC 13W (1) Triple or Quad
1101F18U
1101F18-347 Non-IC 18W (1) Triple or Quad
1101F2642U
1101F2642-347 Non-IC 26W
32/42W
(1) Triple or Quad
(1) Triple
1101FR18U
1101FR18-347 Non-IC Remodeler 18W (1) Triple or Quad
1101FR2642U
1101FR2642-347 Non-IC Remodeler 26W
32/42W
(1) Triple or Quad
(1) Triple
1101F18ICUN
1101F2642ICUN IC/Airseal®26W
32/42W
(1) Triple or Quad
(1) Triple
473Philips
Lytecaster – Philips Lightolier
5-1/4"
6-3/4"
7-1/8"
7-1/2"
1071
1171
Canlyte Lighting Resource Guide

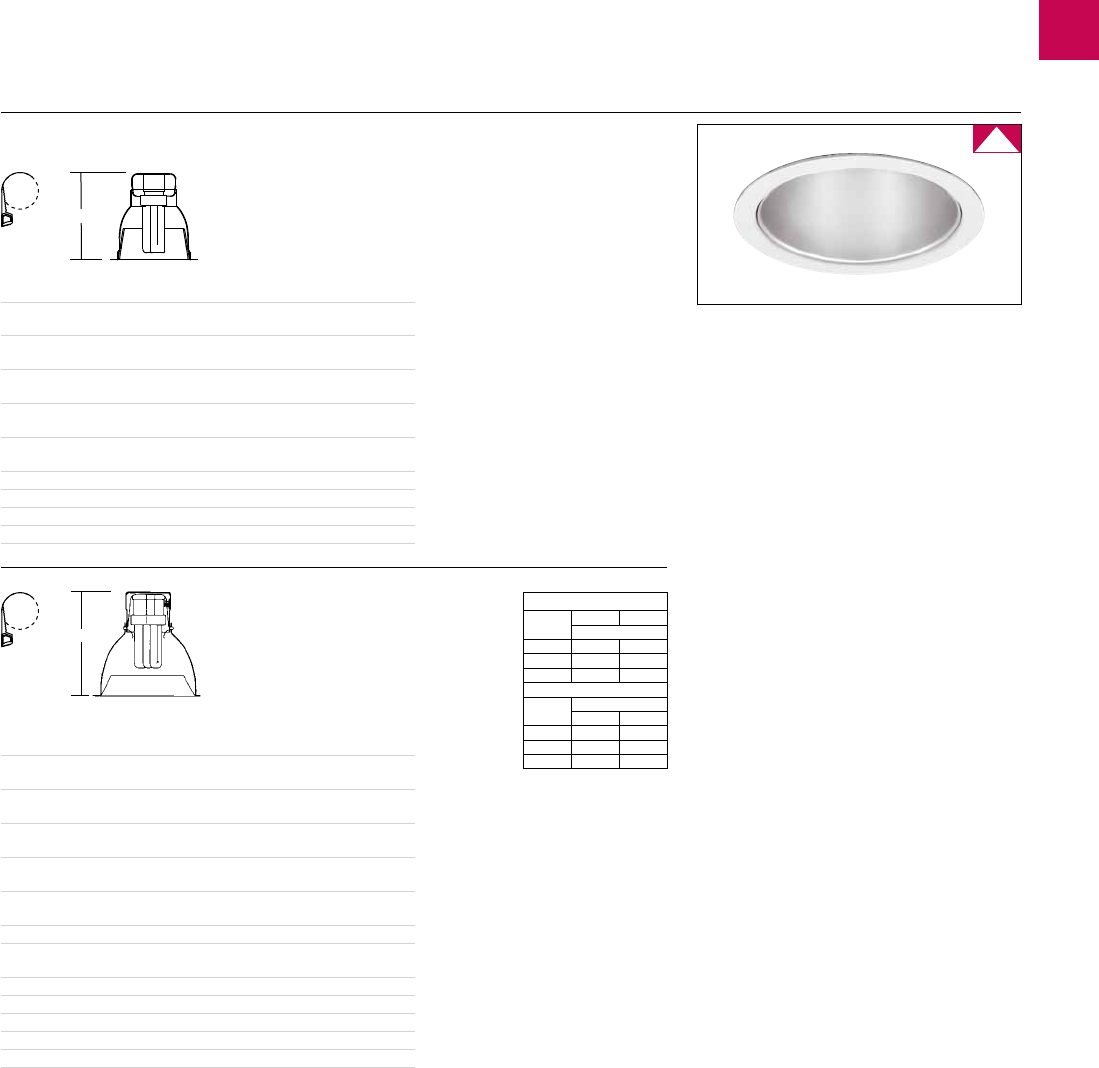

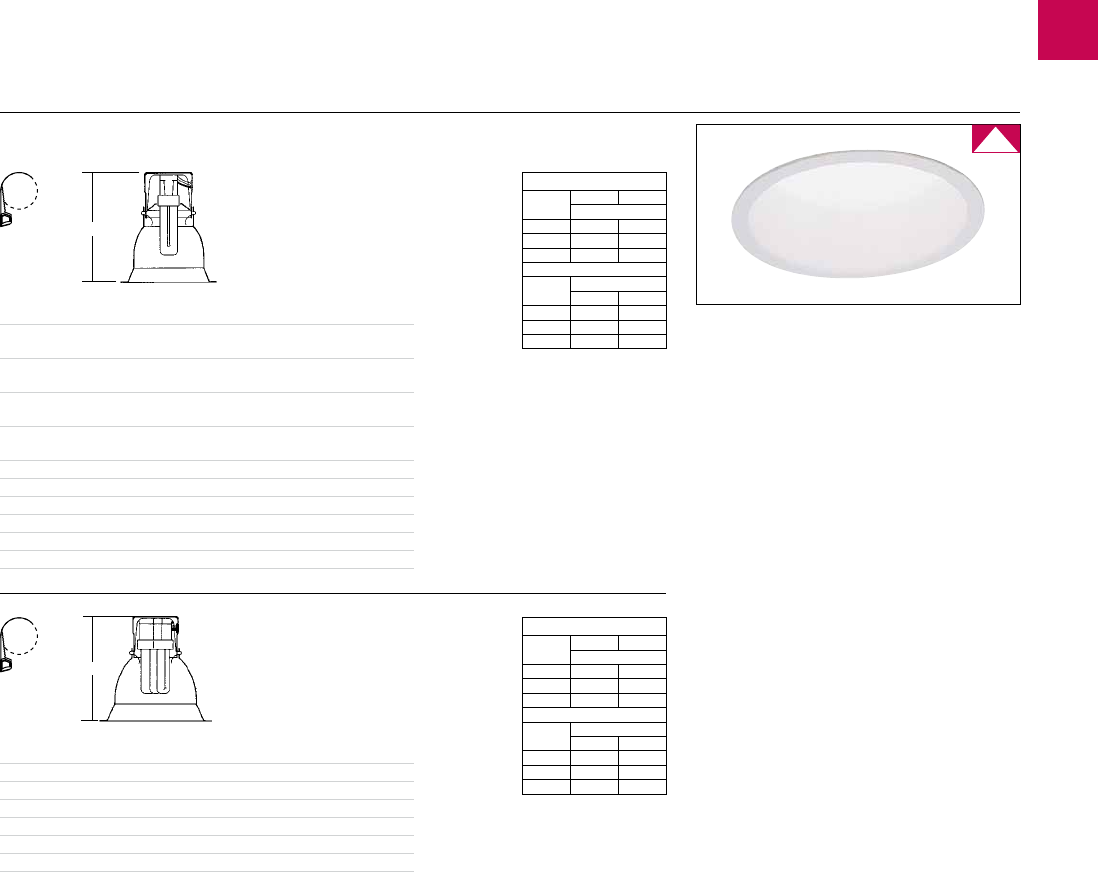

White Reectors
Note: For dimming options, please consult the corresponding product Spec Sheet on www.canlyte.com.
Basic downlight with low brightness splay. Aluminum
reflector finished in white assures efficiency with com-
pact fluorescent lamps. Economical choice for low budget
applications.
Basic White Reector i
1071 White
1171 White
13W QT
Ht. to   F.C  Beam Dia.
Floor At 30" Above Floor
8' 6 16'
9' 4 18'
10' 3 20'
Multiple Units
Ctr. to Ctr. Footcandles
  Lrg. Room Sml. Room
4' 21 16
5' 15 10
6' 10 5
13W QT
Ht. to   F.C  Beam Dia.
Floor At 30" Above Floor
8' 7 18'
9' 5 20'
10' 4 22'
Multiple Units
Ctr. to Ctr. Footcandles
Lrg. Room Sml. Room
4' 27 19
5' 20 13
6' 13 7
compact fluorescent
Frame-In Kit Ceiling Wattage Lamping
1001F13U
1001F13-347 Non-IC 13W (1) Triple or Quad
1001F18U
1001F18-347 Non-IC 18W (1) Triple
1001FR18U
1001FR18-347 Non-IC Remodeler 18W (1) Triple
1004F13ESN
1001F13ICUN IC/Airseal®13W (1) Triple or Quad
1001F18ICUN IC/Airseal®18W (1) Triple
1004F18ESN IC/Airseal®18W (1) Triple or Quad
1004F26ESN IC/Airseal®26W (1) Triple or Quad
1004F13ESR IC/Airseal®  Remodeler 13W (1) Triple or Quad
1004F18ESR IC/Airseal®  Remodeler 18W (1) Triple or Quad
1004F26ESR IC/Airseal®  Remodeler 26W (1) Triple or Quad
Frame-In Kit Ceiling Wattage Lamping
1104F13ESN IC/Airseal®13W (1) Triple or Quad
1104F18ESN IC/Airseal®18W (1) Triple or Quad
1104F2632ESN IC/Airseal® 26/32W (1) Triple or Quad
1104F13ESR IC/Airseal®  Remodeler 13W (1) Triple or Quad
1104F18ESR IC/Airseal®  Remodeler 18W (1) Triple or Quad
1104F2632ESR IC/Airseal®  Remodeler 26/32W (1) Triple or Quad
474 Philips
Lytecaster – Philips Lightolier
5-1/4"
6-3/4"
5-3/8"
6-3/8"
1001HWHCB
1101HWHCB
Canlyte Lighting Resource Guide
Shielded Downlights
Note: For dimming options, please consult the corresponding product Spec Sheet on www.canlyte.com.
Performance Shielded Downlight iiii
1001HACB
1001HWHCB
Aluminum Paint White
White White Flange
1101HACB
1101HWHCB
Aluminum Paint White
White White Flange
26W TTT
Ht. to   F.C  Beam 62°
Workplane Dia.
6' 11 5'
7' 8 6'
8' 6 7'
Multiple Units
Ctr. to Ctr. Footcandles
    Lrg. Room Watts Sq. Ft.
4' 30 1.88
5' 21 1.30
6' 14 0.83
New floating crossblade adds visual interest and rede-
fines a classic look. The horizontal lamping provides
additional shielding for exceptional visual comfort with-
out sacrificing performance. Trims are available in 5-1/4"
and 6-3/4" aperture sizes with Aluminum paint or White
finishes and white flange.
32W TTT
Ht. to   F.C  Beam 58°
Workplane Dia.
6' 18 6'
7' 14 7'
8' 10 8'
Multiple Units
Ctr. to Ctr. Footcandles
    Lrg. Room Watts Sq. Ft.
4' 47 2.19
5' 32 1.52
6' 21 0.97
compact fluorescent
Frame-In Kit Ceiling Wattage Lamping
1001F13U
1001F13-347 Non-IC 13W (1) Triple or Quad
1001F18U
1001F18-347 Non-IC 18W (1) Triple
1001F26U
1001F26-347 Non-IC 26W (1) Triple
1001FR18U
1001FR18-347 Non-IC Remodeler 18W (1) Triple
1001FR26U
1001FR26-347 Non-IC Remodeler 26W (1) Triple
1001F13ICUN IC/Airseal®13W (1) Triple or Quad
1001F18ICUN IC/Airseal®18W (1) Triple
1001F26ICUN IC/Airseal®26W (1) Triple
Frame-In Kit Ceiling Wattage Lamping
1101F13U
1101F13-347 Non-IC 13W (1) Triple or Quad
1101F18U
1101F18-347 Non-IC 18W (1) Triple or Quad
1101F2642U
1101F2642-347 Non-IC 26W
32/42W
(1) Triple or Quad
(1) Triple
1101FR18U
1101FR18-347 Non-IC Remodeler 18W (1) Triple or Quad
1101FR2642U Non-IC Remodeler 26W
32/42W
(1) Triple or Quad
(1) Triple
1101FR2642-347 Non-IC Remodeler 26W
32/42W
(1) Triple or Quad
(1) Triple
1101F18ICUN IC/Airseal®18W (1) Triple or Quad
1101F2642ICUN IC/Airseal®26W
32/42W
(1) Triple or Quad
(1) Triple
475Philips
Lytecaster – Philips Lightolier
5-1/4"
6-3/4"
6-5/8"
1-13/16"
6-5/8"
1-7/8"
1021
1121
5-1/4"
6-3/4"
2-3/4"
2-3/4"
D
D
Canlyte Lighting Resource Guide
Diffusers
Note: For dimming options, please consult the corresponding product Spec Sheet on www.canlyte.com.

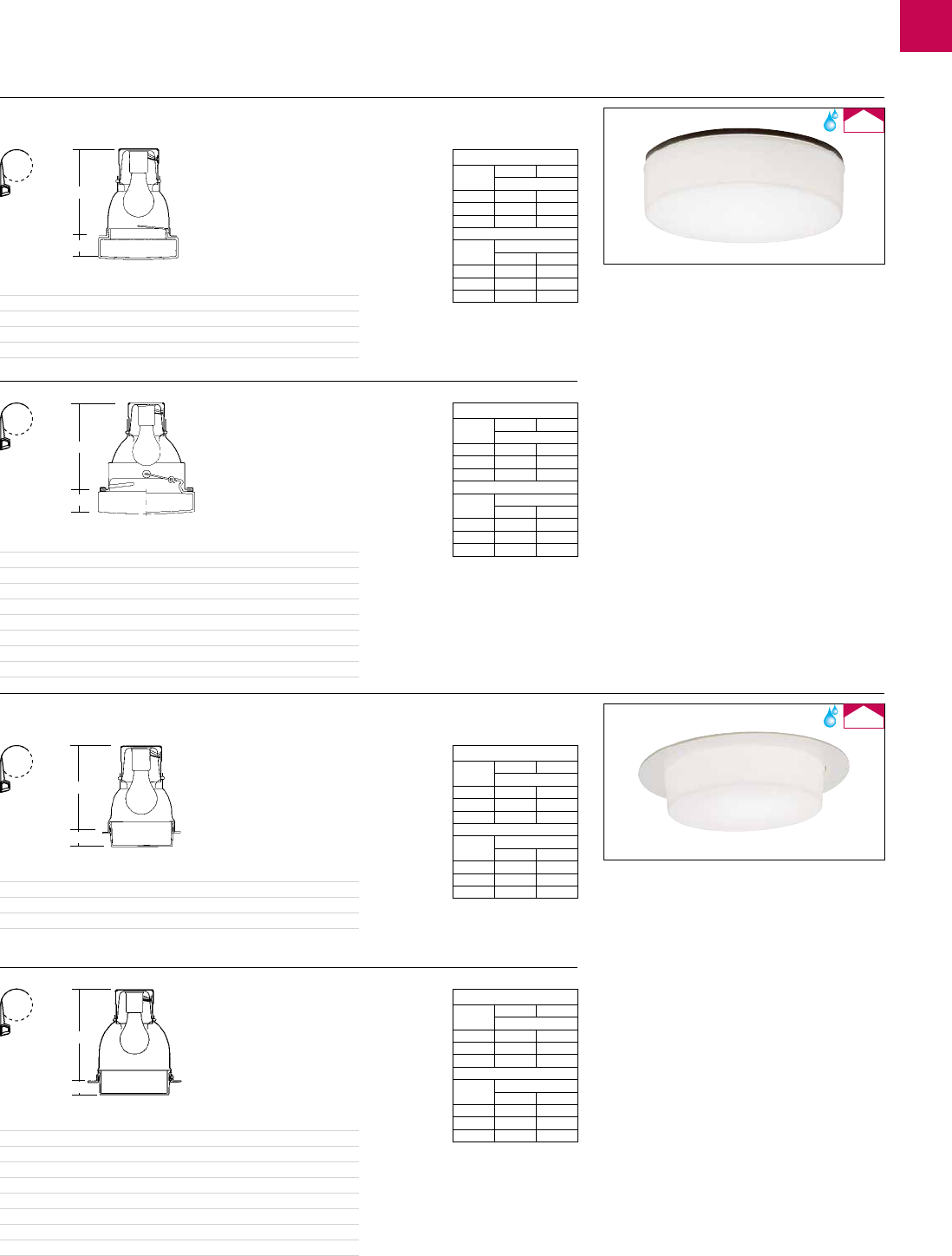

Cased opal glass gives widespread, even illumination.
Diffuser removes easily with twist-tite action. Sturdy
hinge supports glass, assuring safe relamping. Gasket
keeps out dirt and moisture. Suitable for wet locations,
showers and spas.
Opal Disk ii
1021 Opal Glass
1121 Opal Glass 13W QT
Ht. to   F.C  Beam Dia.
Floor At 30" Above Floor
8' 3 33'
9' 2 37'
10' 1.5 41'
Multiple Units
Ctr. to Ctr. Footcandles
  Lrg. Room Sml. Room
4' 15 9
5' 10 6
6' 7 3
compact fluorescent
13W QT
Ht. to   F.C  Beam Dia.
Floor At 30" Above Floor
8' 2 39'
9' 1.5 44'
10' 1 48'
Multiple Units
Ctr. to Ctr. Footcandles
    Lrg. Room Sml. Room
4' 11 7
5' 8 5
6' 5 2
Frame-In Kit Ceiling Wattage Lamping
1001F13U
1001F13-347 Non-IC 13W (1) Quad
1001F18U
1001F18-347 Non-IC 18W (1) Quad
1001FR18U
1001FR18-347 Non-IC Remodeler 18W (1) Quad
1001F13ICUN IC/Airseal®13W (1) Quad
1001F18ICUN IC/Airseal®18W (1) Triple
Frame-In Kit Ceiling Wattage Lamping
1101F13U
1101F13-347 Non-IC 13W (1) Triple or Quad
1101F18U
1101F18-347 Non-IC 18W (1) Triple or Quad
1101F2642U
1101F2642-347 Non-IC 26W
32/42W
(1) Triple or Quad
(1) Triple
1101FR18U
1101FR18-347 Non-IC Remodeler 18W (1) Triple or Quad
1101FR2642U
1101FR2642-347 Non-IC Remodeler 26W
32/42W
(1) Triple or Quad
(1) Triple
1104F13ESN IC/Airseal®13W (1) Triple or Quad
1104F18ESN
1101F18ICUN IC/Airseal®18W (1) Triple or Quad
1104F2632ESN IC/Airseal® 26/32W (1) Triple or Quad
1101F2642ICUN IC/Airseal®26W
32/42W
(1) Triple or Quad
(1) Triple
1104F13ESR IC/Airseal®  Remodeler 13W (1) Triple or Quad
1104F18ESR IC/Airseal®  Remodeler 18W (1) Triple or Quad
1104F2632ESR IC/Airseal®  Remodeler 26/32W (1) Triple or Quad
Even illumination from durable Lexan diffuser. One trim
size designed to be used with both 1004 and 1104
Lytening series frame-in kits. Easy twist-lock relamping.
Suitable for wet locations, showers and spas.
Lytening Lexan® Dish i
1178L X Opal Lexan®
1178L X Opal Lexan®
Frame-In Kit Ceiling Wattage Lamping
1004F13ESN IC/Airseal®13W (1) Triple or Quad
1004F13ESR IC/Airseal®  Remodeler 13W (1) Triple or Quad
Frame-In Kit Ceiling Wattage Lamping
1104F13ESN IC/Airseal®13W (1) Triple or Quad
1104F13ESR IC/Airseal®  Remodeler 13W (1) Triple or Quad
476 Philips
Lytecaster – Philips Lightolier
5-1/4"
6-3/4"
6-3⁄4"
1"
7-1/2"
1"
1078
1178SH
Canlyte Lighting Resource Guide
Diffusers
Note: For dimming options, please consult the corresponding product Spec Sheet on www.canlyte.com.
Even illumination from durable Lexan® diffuser, supplied
with gasket to keep out dirt and moisture. Easy twist-
lock relamping. Aluminum reflector finished in white.
Economical choice for low budget applications. Suitable
for wet locations, showers and spas.
Lexan® Dish i
1078 Opal Lexan®
1178SH Opal Lexan®
13W QT
Ht. to   F.C  Beam Dia.
Floor At 30" Above Floor
8' 2 36'
9' 1.5 40'
10' 1 45'
Multiple Units
Ctr. to Ctr. Footcandles
    Lrg. Room Sml. Room
4' 9 6
5' 7 4
6' 4 2
13W QT
Ht. to   F.C  Beam Dia.
Floor At 30" Above Floor
8' 2 33'
9' 1.5 38'
10' 1 42'
Multiple Units
Ctr. to Ctr. Footcandles
    Lrg. Room Sml. Room
4' 10 7
5' 7 4
6' 5 2
compact fluorescent
Frame-In Kit Ceiling Wattage Lamping
1001F13U
1001F13-347 Non-IC 13W (1) Triple or Quad
1001F18U
1001F18-347 Non-IC 18W (1) Triple or Quad
1001FR18U
1001FR18-347 Non-IC Remodeler 18W (1) Triple or Quad
1004F13ESN
1001F13ICUN IC/Airseal®13W (1) Triple or Quad
1001F18ICUN IC/Airseal®18W (1) Triple or Quad
1004F18ESN IC/Airseal®18W (1) Triple or Quad
1004F26ESN IC/Airseal®26W (1) Triple or Quad
1001F26ICUN IC/Airseal®26W (1) Triple
1004F13ESR IC/Airseal®  Remodeler 13W (1) Triple or Quad
1004F18ESR IC/Airseal®  Remodeler 18W (1) Triple or Quad
1004F26ESR IC/Airseal®  Remodeler 26W (1) Triple or Quad
Frame-In Kit Ceiling Wattage Lamping
1101F13U
1101F13-347 Non-IC 13W (1) Triple or Quad
1101F18U
1101F18-347 Non-IC 18W (1) Triple or Quad
1101F2642U
1101F2642-347 Non-IC 26/32W (1) Triple
1101FR18U
1101FR18-347 Non-IC Remodeler 18W (1) Triple or Quad
1101FR2642U
1101FR2642-347 Non-IC Remodeler 26/32W (1) Triple
1104F13ESN IC/Airseal®13W (1) Triple or Quad
1104F18ESN
1101F18ICUN IC/Airseal®18W (1) Triple or Quad
1104F2632ESN IC/Airseal® 26W (1) Triple or Quad
1101F2642ICUN IC/Airseal®26W
32/42W
(1) Triple or Quad
(1) Triple
1104F13ESR IC/Airseal®  Remodeler 13W (1) Triple or Quad
1104F18ESR IC/Airseal®  Remodeler 18W (1) Triple or Quad
1104F2632ESR IC/Airseal®  Remodeler 26W (1) Triple or Quad
477Philips
Lytecaster – Philips Lightolier
5-1/4"
6-3/4"
3-3/4"
7-1/4"
5-3/8"
6-3/8"
2001CLC
1001HCLO
1101HCLO
1101HCLF
1001HCLC
Canlyte Lighting Resource Guide
Diffusers
Note: For dimming options, please consult the corresponding product Spec Sheet on www.canlyte.com.Note: For dimming options, please consult the corresponding product Spec Sheet on www.canlyte.com.
Performance offers a wide variety of lens products
designed to perform in diverse applications.Opal lens
provides complete shielding of the lamp source and
offers beautiful aesthetics. The Clear lens provides
optimal lumen output and light distribution. The Fresnel
lens provides improved shielding of the lamp source
while effectively distributing light. These trims provide
an incandescent halogen-like light source in an energy-
efficient package ideal for showers, spas or outdoor
overhangs.
Performance Lensed Downlight iii
OPAL LENS
2001CLO Specular Clear
2001CDO Clear Diffuse
2001WHO White
CLEAR LENS
2001CLC Specular Clear
2001CDC Clear Diffuse
2001WHC White
OPAL LENS
1001HCLO Specular Clear
1001HCDO Clear Diffuse
1001HWHO White
CLEAR LENS
1001HCLC Specular Clear
1001HCDC Clear Diffuse
1001HWHC White
FRESNEL LENS
2001CLF Specular Clear
2001CDF Clear Diffuse
2001WHF White
FRESNEL LENS
1001HCLF Specular Clear
1001HCDF Clear Diffuse
1001HWHF White
FRESNEL LENS
1101HCLF Specular Clear
1101HCDF Clear Diffuse
1101HWHF White
26W TTT
Ht. to   F.C  Beam 86°
Workplane Dia.
6' 10 7'
7' 8 8'
8' 6 9'
Multiple Units
Ctr. to Ctr. Footcandles
    Lrg. Room Watts Sq. Ft.
4' 36 1.88
5' 25 1.3
6' 16 0.83
OPAL LENS
1101HCLO Specular Clear
1101HCDO Clear Diffuse
1101HWHO White
CLEAR LENS
1101HCLC Specular Clear
1101HCDC Clear Diffuse
1101HWHC White
32W TTT
Ht. to   F.C  Beam 89°
Workplane Dia.
6' 16 7'
7' 12 8'
8' 9 9'
Multiple Units
Ctr. to Ctr. Footcandles
    Lrg. Room Watts Sq. Ft.
4' 47 2.19
5' 32 1.52
6' 21 0.97
compact fluorescent
18W TTT
Ht. to   F.C  Beam 99°
Workplane Dia.
4' 15 6'
5' 10 7'
6' 7 8'
Multiple Units
Ctr. to Ctr. Footcandles
    Lrg. Room Watts Sq. Ft.
4' 60 2.06
5' 41 1.43
6' 27 0.92
26W TTT
Ht. to   F.C  Beam 75°
Workplane Dia.
6' 14 6'
7' 10 7'
8' 7 8'
Multiple Units
Ctr. to Ctr. Footcandles
    Lrg. Room Watts Sq. Ft.
4' 42 1.88
5' 29 1.3
6' 19 0.83
32W TTT
Ht. to   F.C  Beam 89°
Workplane Dia.
6' 16 7'
7' 12 8'
8' 9 9'
Multiple Units
Ctr. to Ctr. Footcandles
    Lrg. Room Watts Sq. Ft.
4' 47 2.19
5' 32 1.52
6' 21 0.97
Frame-In Kit Ceiling Wattage Lamping
2001F13U
2001F13-347 Non-IC 13W (1) Triple or Quad
2001F18U
2001F18-347 Non-IC 18W (1) Triple
2001F13ICUN IC/Airseal®13W (1) Triple or Quad
2001F18ICUN IC/Airseal®18W (1) Triple
Frame-In Kit Ceiling Wattage Lamping
1001F13U
1001F13-347 Non-IC 13W (1) Triple or Quad
1001F18U
1001F18-347 Non-IC 18W (1) Triple or Quad
1001F26U
1001F26-347 Non-IC 26W (1) Triple
1001FR18U
1001FR18-347 Non-IC Remodeler 18W (1) Triple
1001FR26U
1001FR26-347 Non-IC Remodeler 26W (1) Triple
1001F13ICUN IC/Airseal®13W (1) Triple or Quad
1001F18ICUN IC/Airseal®18W (1) Triple
1001F26ICUN IC/Airseal®26W (1) Triple
Frame-In Kit Ceiling Wattage Lamping
1101F13U
1101F13-347 Non-IC 13W (1) Triple or Quad
1101F18U
1101F18-347 Non-IC 18W (1) Triple or Quad
1101F2642U
1101F2642-347 Non-IC 26/32W (1) Triple
1101FR18U
1101FR18-347 Non-IC Remodeler 18W (1) Triple or Quad
1101FR2642U
1101FR2642-347 Non-IC Remodeler 26W
32/42W
(1) Triple or Quad
(1) Triple
1101F18ICUN IC/Airseal®18W (1) Triple or Quad
1101F2642ICUN IC/Airseal®26W
32/42W
(1) Triple or Quad
(1) Triple

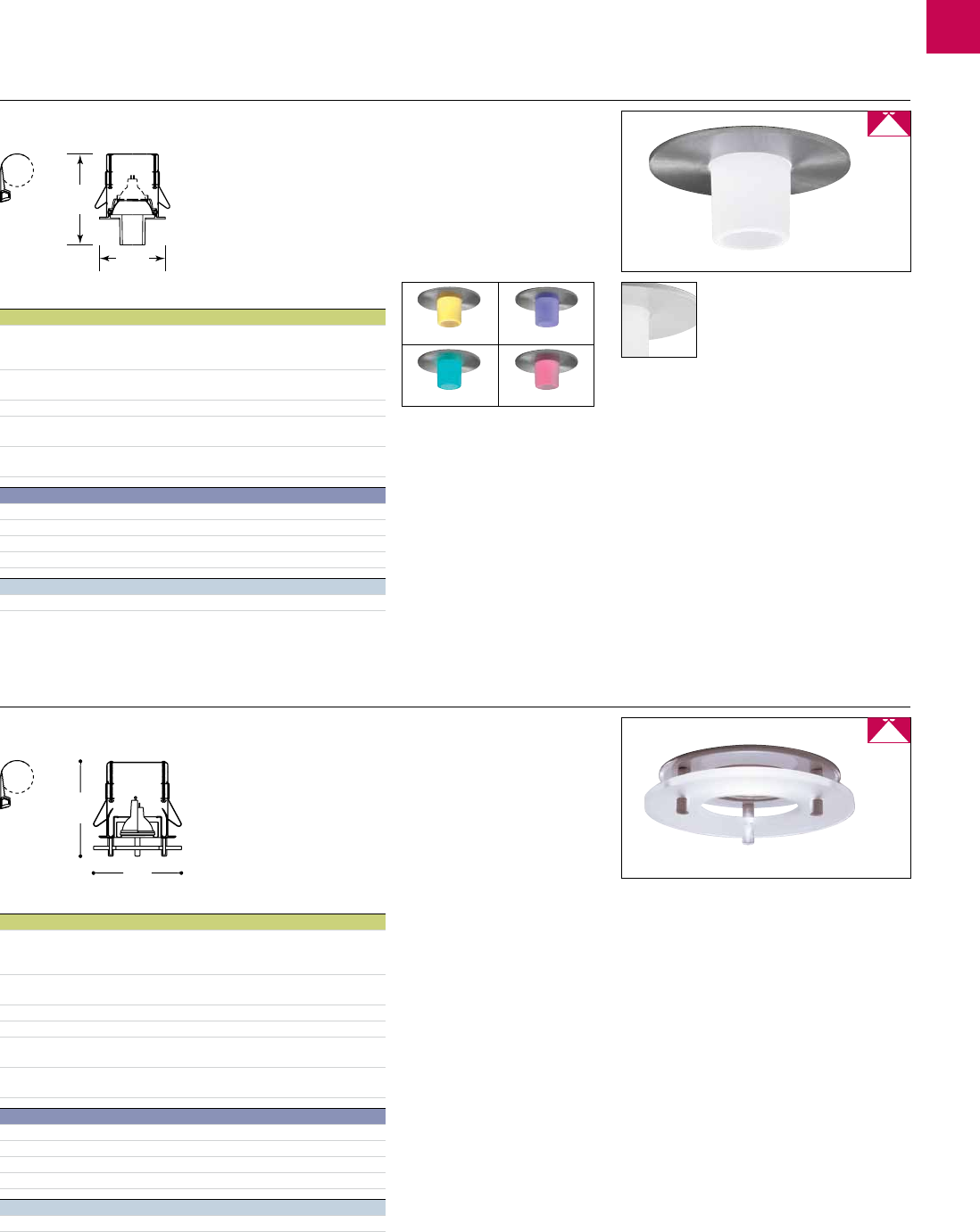

478 Philips
Lytecaster – Philips Lightolier
6-3/4"
6-5/8"
6-3/4"
Canlyte Lighting Resource Guide
Lensed Downlights
Note: For dimming options, please consult the corresponding product Spec Sheet on www.canlyte.com.
The trim's flush design allows for a clean architectural look
while the frosted polycarbonate flange creates an elegant
glow against the ceiling. The textured lens shields the
lamp source and completes the look providing a clean
classic style that fits in any decor.
Decorative Lens Wet Location i
1190 Frosted Lens
compact fluorescent
Frame-In Kit Ceiling Wattage Lamping
1101F13U
1101F13-347 Non-IC 13W (1) Triple or Quad
1101F18U
1101F18-347 Non-IC 18W (1) Triple or Quad
1104F13ESN IC/Airseal®13W (1) Triple or Quad
1104F18ESN
1101F18ICUN IC/Airseal®18W (1) Triple or Quad
1104F2632ESN IC/Airseal® 26W (1) Triple
1101F2642ICUN IC/Airseal®26W (1) Triple
1104F13ESR IC/Airseal®  Remodeler 13W (1) Triple or Quad
1104F18ESR IC/Airseal®  Remodeler 18W (1) Triple or Quad
Fresnel lens is recessed, comes in white, spreads light
evenly, gives high efficiency and low brightness and
cleans easily. Anobrite® aluminum reflector maximizes
output. Lens assembly pulls down for easy relamping
and retains with safety chain. Suitable for wet locations,
showers and spas. Also available Low Profile luminaires,
see p. 484.
Fresnel Lenslite ii
1126WH White Baffle
1126BK Black Baffle
Frame-In Kit Ceiling Wattage Lamping
1101F13U
1101F13-347 Non-IC 13W (1) triple
1101F18U
1101F18-347 Non-IC 18W (1) triple
1101F2642U
1101F2642-347 Non-IC Remodeler 26W (1) triple
1101FR18U
1101FR18-347 Non-IC Remodeler 18W (1) triple
1101FR2642U
1101FR2642-347 Non-IC Remodeler 26W (1) triple
1104F13ESN IC/Airseal®13W (1) triple
1104F18ESN
1101F18ICUN IC/Airseal®18W (1) triple
1104F2632ESN IC/Airseal® 26W (1) triple
1101F2642ICUN IC/Airseal®26W (1) triple
1104F13ESR IC/Airseal®  Remodeler 13W (1) triple
1104F18ESR IC/Airseal®  Remodeler 18W (1) triple
1104F2632ESR IC/Airseal®  Remodeler 26W (1) triple
479Philips
Lytecaster – Philips Lightolier
5-1/4"
6-3/4"
3-3/4"
7-1/4"
8-1/8"
9-3/8"
42w et
18/26w
quad.
8-1/2"
32w et
18/26w
triple
2001CLSW
1001CLSW
1101CLSW
Canlyte Lighting Resource Guide
Note: For dimming options, please consult the corresponding product Spec Sheet on www.canlyte.com.
Wall washers provide a smooth, even illumination over
the length and height of a wall surface and roomside
downlighting. The single wall washers are available
in 3-3/4", 5-1/4" and 6-3/4" aperture sizes. All trims
are available in Specular Clear, Clear Diffuse or White
finishes.
Performance Vertical Single Wall Wash iiii
2001CLSW Specular Clear
2001CDSW Clear Diffuse
2001WHSW White
1001CLSW Specular Clear
1001CDSW Clear Diffuse
1001WHSW White
1101CLSW Specular Clear
1101CDSW Clear Diffuse
1101WHSW White
Wall Washers
18W TTT
2' From Wall – 2' on Center 2' From Wall – 3' on Center
■ 2'
■ ■ 3' ■
1' 21 18 21 16 12 16
2' 29 29 29 20 19 20
3' 23 23 23 15 16 15
4' 16 16 16 11 11 11
5' 11 11 11 8 8 8
6' 8 8 8 6 6 6
7' 5 5 5 4 4 4
8' 4 4 4 3 3 3
9' 3 3 3 2 2 2
Distance from Ceiling
26W TTT
2' From Wall – 2' on Center 2' From Wall – 3' on Center
■ 2'
■ ■ 3' ■
1' 24 23 24 19 13 19
2' 35 34 35 26 23 26
3' 32 33 32 23 21 23
4' 25 25 25 17 17 17
5' 18 19 18 13 13 13
6' 13 13 13 9 10 9
7' 10 10 10 7 7 7
8' 7 7 7 6 5 6
9' 6 6 6 4 4 4
Distance from Ceiling
42W TTT
3' From Wall – 3' on Center 3' From Wall – 4' on Center
■ 2'
■ ■ 3' ■
1' 12 11 12 10 7 10
2' 22 21 22 18 14 18
3' 27 27 28 21 20 21
4' 29 29 29 23 21 23
5' 27 27 27 21 20 21
6' 23 23 23 18 17 18
7' 19 19 19 15 15 15
8' 16 16 16 13 13 13
9' 13 14 13 11 11 11
Distance from Ceiling
compact fluorescent
Frame-In Kit Ceiling Wattage Lamping
2001F13U
2001F13-347 Non-IC 13W (1) Triple or Quad
2001F18U
2001F18-347 Non-IC 18W (1) Triple
2001F13ICUN IC/Airseal®13W (1) Triple or Quad
2001F18ICUN IC/Airseal®18W (1) Triple
Frame-In Kit Ceiling Wattage Lamping
1001F13U
1001F13-347 Non-IC 13W (1) Triple or Quad
1001F18U
1001F18-347 Non-IC 18W (1) Triple
1001F26U
1001F26-347 Non-IC 26W (1) Triple
1001FR18U
1001FR18-347 Non-IC Remodeler 18W (1) Triple
1001FR26U
1001FR26-347 Non-IC Remodeler 26W (1) Triple
Frame-In Kit Ceiling Wattage Lamping
1101F13U
1101F13-347 Non-IC 13W (1) Triple or Quad
1101F18U
1101F18-347 Non-IC 18W (1) Triple or Quad
1101F2642U
1101F2642-347 Non-IC 26W
32/42W
(1) Triple or Quad
(1) Triple
1101FR18U
1101FR18-347 Non-IC Remodeler 18W (1) Triple or Quad
1101FR2642U
1101FR2642-347 Non-IC Remodeler 26W
32/42W
(1) Triple or Quad
(1) Triple
480 Philips
Lytecaster – Philips Lightolier
5-1/4"
6-3/4"
8-1/8"
Canlyte Lighting Resource Guide
Wall Washers
compact fluorescent
Note: For dimming options, please consult the corresponding product Spec Sheet on www.canlyte.com.
Wall washers provide a smooth, even illumination over
the length and height of a wall surface and roomside
downlighting. The double wall washers are offered in
5-1/4" and 6-3/4" aperture sizes. All trims are available
in Specular Clear, Clear Diffuse or White finishes.
Performance Vertical Double Wall Wash iiii
1001CLDW Specular Clear
1001CDDW Clear Diffuse
1001WHDW White
1101CLDW Specular Clear
1101CDDW Clear Diffuse
1101WHDW White
9-3/8"
42w &
18/26w
Quad
8-1/2"
32w &
18/26w
Triple
Frame-In Kit Ceiling Wattage Lamping
1001F13U
1001F13-347 Non-IC 13W (1) Triple or Quad
1001F18U
1001F18-347 Non-IC 18W (1) Triple
1001F26U
1001F26-347 Non-IC 26W (1) Triple
1001FR18U
1001FR18-347 Non-IC Remodeler 18W (1) Triple
1001FR26U
1001FR26-347 Non-IC Remodeler 26W (1) Triple
Frame-In Kit Ceiling Wattage Lamping
1101F13U
1101F13-347 Non-IC 13W (1) Triple or Quad
1101F18U
1101F18-347 Non-IC 18W (1) Triple or Quad
1101F2642U
1101F2642-347 Non-IC 26W
32/42W
(1) Triple or Quad
(1) Triple
1101FR18U
1101FR18-347 Non-IC Remodeler 18W (1) Triple or Quad
1101FR2642U
1101FR2642-347 Non-IC Remodeler 26W
32/42W
(1) Triple or Quad
(1) Triple
481Philips
Lytecaster – Philips Lightolier
5-1/4"
6-3/4"
5-3/8"
6-3/8"
1001HCLSW
1101HCL SW
Canlyte Lighting Resource Guide
Performance Horizontal Single Wall Wash iiii
Single wall washers provide a uniform distribution of
light together with roomside downlighting for demanding
commercial applications. Trims are available in 5-1/4"
and 6-3/4" aperture sizes in Specular Clear, Clear
Diffuse or White finishes.
1001HCLSW Specular Clear
1001HCDSW Clear Diffuse
1001HWHSW White
1101HCLSW Specular Clear
1101HCDSW Clear Diffuse
1101HWHSW White
26W TTT
2' From Wall – 2' on Center 2' From Wall – 3' on Center
■ 2'
■ ■ 3' ■
1' 29 27 29 23 16 23
2' 43 43 43 27 29 27
3' 33 33 33 23 21 23
4' 24 25 24 17 17 17
5' 17 18 17 12 12 12
6' 12 13 12 9 9 9
7' 9 9 9 7 7 7
8' 7 7 7 5 5 5
9' 5 5 5 4 4 4
Distance from Ceiling
Wall Washers
42W TTT
3' From Wall – 3' on Center 4' From Wall – 4' on Center
■ 2'
■ ■ 3' ■
1' 22 20 22 10 7 10
2' 47 48 47 18 14 18
3' 47 47 47 21 20 21
4' 35 34 35 23 21 23
5' 28 28 28 21 20 21
6' 22 22 22 18 17 18
7' 17 17 17 15 15 15
8' 14 14 14 13 13 13
9' 11 11 11 11 11 11
Distance from Ceiling
Note: For dimming options, please consult the corresponding product Spec Sheet on www.canlyte.com.
compact fluorescent
Frame-In Kit Ceiling Wattage Lamping
1101F13U
1101F13-347 Non-IC 13W (1) Triple or Quad
1101F18U
1101F18-347 Non-IC 18W (1) Triple or Quad
1001F26U
1001F26-347 Non-IC 26W (1) Triple
1001FR18U
1001FR18-347 Non-IC Remodeler 18W (1) Triple
1001FR26U
1001FR26-347 Non-IC Remodeler 26W (1) Triple
1001F13ICUN IC/Airseal®13W (1) Triple or Quad
1001F18ICUN IC/Airseal®18W (1) Triple
1001F26ICUN IC/Airseal® 26W (1) Triple
Frame-In Kit Ceiling Wattage Lamping
1101F13U
1101F13-347 Non-IC 13W (1) Triple or Quad
1101F18U
1101F18-347 Non-IC 18W (1) Triple or Quad
1101F2642U
1101F2642-347 Non-IC 26W
32/42W
(1) Triple or Quad
(1) Triple
1101FR18U
1101FR18-347 Non-IC Remodeler 18W (1) Triple or Quad
1001FR2642U
1001FR2642-347 Non-IC Remodeler 26W
32/42W
(1) Triple or Quad
(1) Triple
1101F18ICUN IC/Airseal®18W (1) Triple or Quad
1101F2642ICUN IC/Airseal® 26W
32/42W
(1) Triple or Quad
(1) Triple
482 Philips
Lytecaster – Philips Lightolier
Canlyte Lighting Resource Guide
Lytecaster’s Energy Smart downlighting solution for shallow plenums
The 1101T Low Profile series offers the widest selection of lamp and ballast options in the shallowest
design available. For complete installation details, see Low Profile Frame-In Kit and Surface Drum
information on p. 458 and 463.
At 4-1/4" in depth, Lytecaster Low Profile recessed compact fluorescent downlights deliver high performance
in residential and commercial applications with limited plenum access.
Product shown: 1101T26U Frame
1105TCD Trim
Features:
•  Ultra-compact Energy Smart downlights ideal for tight spaces
•  Recessed model: only 4-1/4" deep
•  Surface model: only 5" deep
•  Choice of 5 reflectors suited for both recessed and surface models 
(see p. 483-484)
•  Selection of reflectors suitable for wet locations (see 1126TWB and 
1128T)
•  Unitized Optics system provides consistently correct lamp alignment
Ultra-shallow Low Profile is perfect where other
recessed luminaires just won’t fit
Only 4-1/4" deep including reflector trim, Low Profile recessed downlights
are ideal for cramped areas in a variety of home and commercial applications.
Beneath HVAC ducts
Under sprinkler lines
Inside shallow plenums
Between 2" x 6" wood or steel studs
Low Profile Surface Drum only 5" deep...
Ideal for concrete ceilings and other
cramped surface applications
This Energy Smart luminaire features correct lamp alignment
at all times, the same selection of Low Profile reflector trims
(except 1128T) and the same lighting performance as its
recessed counterpart. It comes with an electronic ballast
for quiet, energy-efficient operation.
Low Prole CFL
compact fluorescent

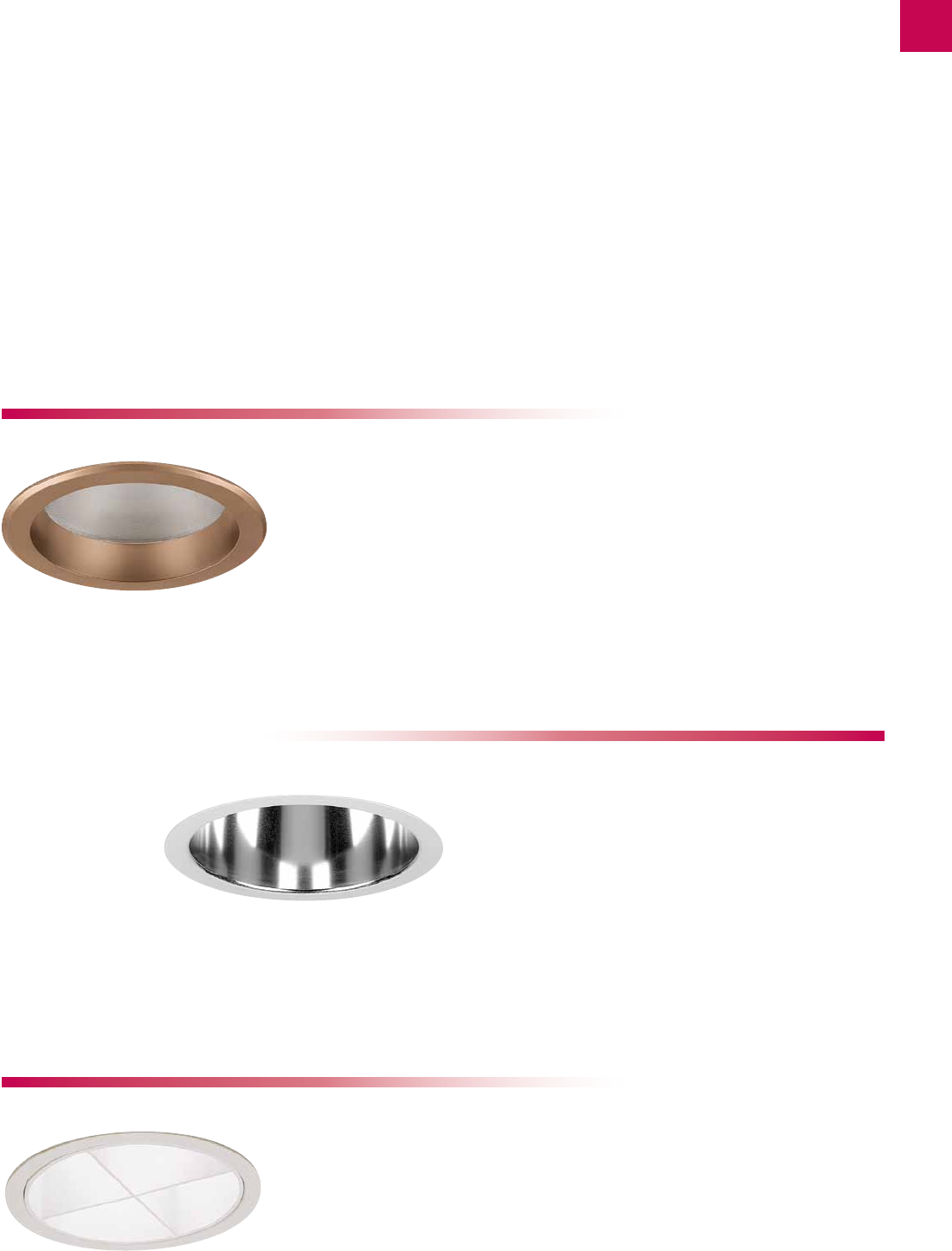

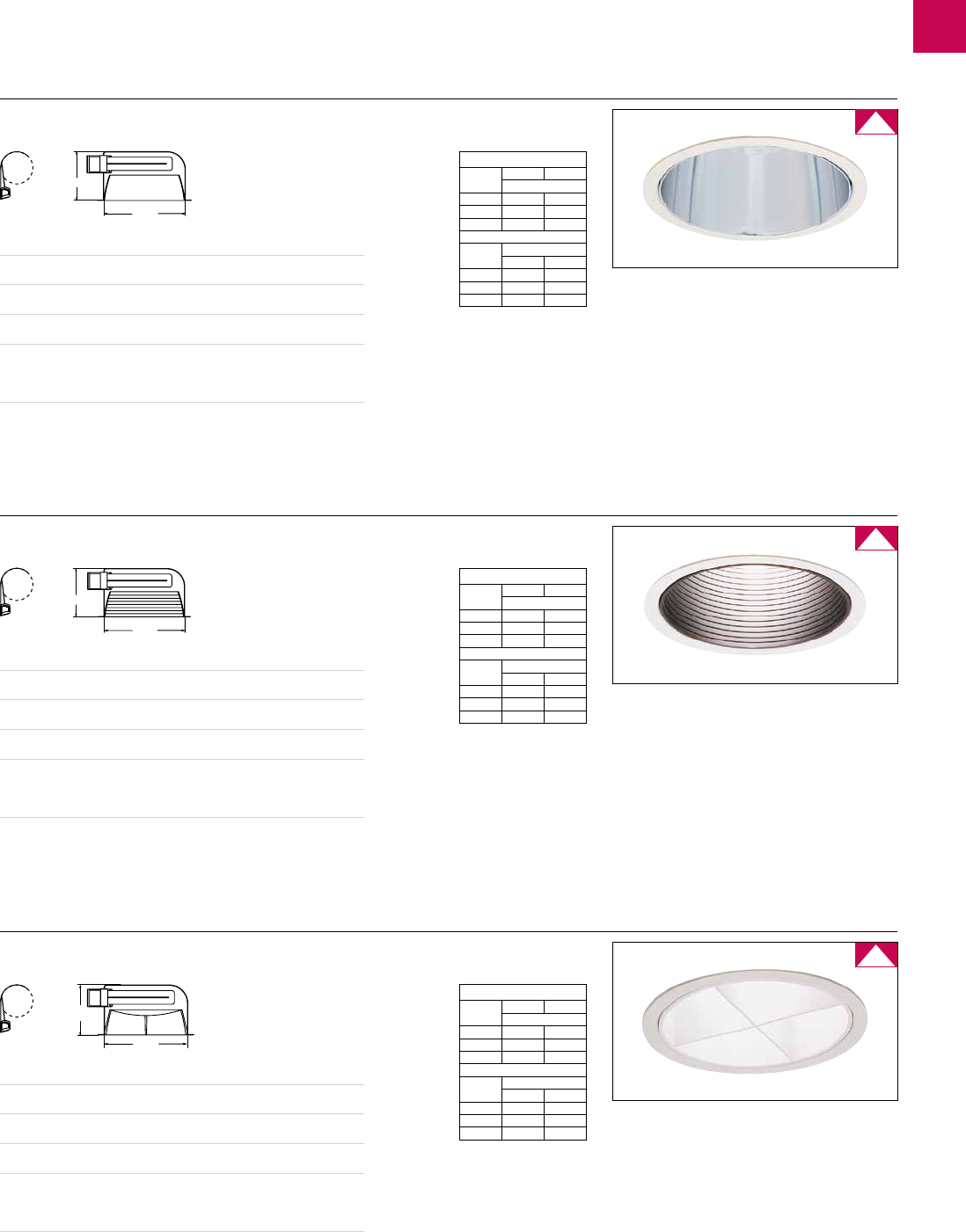

483Philips
Lytecaster – Philips Lightolier
6-3/4"
4-1/4"
6-1/4"
6-3/4"
6-3/4"
4-1/4"
6-1/4"
4-1/4"
6-1/4"
1105TCL
1105TBK
1132TWB
Canlyte Lighting Resource Guide
Specular Alzak® Cone ii
Premium Die-Cast Step Bafe ii
Cross Blade ii
Specular clear Alzak® aperture cone and Quad Tube
lamps  provide  best  efciency.  High  reectivity  white 
reflector for maximum reflectance.
Versatile low brightness downlight with precision-fitted
die-cast aluminum step baffle and high reflectivity white
reector. Recommended for use with 26W QT lamps.
Exclusive cross blade louver provides a well-shielded soft
lighting  effect.  High  reectivity  white  reector.Ideal  for 
corridor lighting, it offers a very wide lighting distribution
with optimum glare control.
1105TCL Specular Clear Alzak®
1105TCD Clear Diffuse
1105TBK Black Baffle
1105TWB White Baffle
1132TA Satin Aluminum Louver
1132T WB White Louver
Low Prole CFL
Note: For dimming options, please consult the corresponding product Spec Sheet on www.canlyte.com.
2 x 13W QT
Ht. to   F.C  Beam Dia.
Floor At 30" Above Floor
8' 15 14'
9' 11 16'
10' 8 18'
Multiple Units
Ctr. to Ctr. Footcandles
  Lrg. Room Sml. Room
4' 57 42
5' 40 28
6' 27 14
2 x 13W QT
Ht. to   F.C  Beam Dia.
Floor At 30" Above Floor
8' 12 14'
9' 8 16'
10' 6 18'
Multiple Units
Ctr. to Ctr. Footcandles
    Lrg. Room Sml. Room
4' 35 26
5' 25 17
6' 17 9
2 x 13W QT
Ht. to   F.C  Beam Dia.
Floor At 30" Above Floor
8' 14 11'
9' 10 12.5'
10' 8 14'
Multiple Units
Ctr. to Ctr. Footcandles
    Lrg. Room Sml. Room
4' 39 28
5' 28 19
6' 18 9
compact fluorescent
Frame-In Kit Ceiling Wattage Lamping
1101T13U
1101T13-347 Non-IC 13W (2) Quad
1101T18U
1101T18-347 Non-IC 18W (2) Quad
1101T26U
1101T26-347 Non-IC 26W (2) Quad
CS1102T26UWH
CS1102T26-347WH
CS1102T26UBK
CS1102T26-347BK
Surface 26W (2) Quad
Frame-In Kit Ceiling Wattage Lamping
1101T13U
1101T13-347 Non-IC 13W (2) Quad
1101T18U
1101T18-347 Non-IC 18W (2) Quad
1101T26U
1101T26-347 Non-IC 26W (2) Quad
CS1102T26UWH
CS1102T26-347WH
CS1102T26UBK
CS1102T26-347BK
Surface 26W (2) Quad
Frame-In Kit Ceiling Wattage Lamping
1101T13U
1101T13-347 Non-IC 13W (2) Quad
1101T18U
1101T18-347 Non-IC 18W (2) Quad
1101T26U
1101T26-347 Non-IC 26W (2) Quad
CS1102T26UWH
CS1102T26-347WH
CS1102T26UBK
CS1102T26-347BK
Surface 26W (2) Quad
484 Philips
Lytecaster – Philips Lightolier
6-3/4"
6-3/4"
4-1/4"
6-1/8"
4-1/4"
6-1/4"
Canlyte Lighting Resource Guide
compact fluorescent
Low Prole CFL
Note: For dimming options, please consult the corresponding product Spec Sheet on www.canlyte.com.
Recessed  in  white  polycarbonate  splay.  The  white  dif-
fuser provides a crisp look and hides the lamp. Diffuser
cleans easily. Suitable for showers, spas and wet loca-
tions. High reectivity white reector.
Fresnel lens is recessed, comes in white bezel, spreads
light evenly, gives high efficiency and low brightness;
lens cleans easily. Anobrite® aluminum reflector maxi-
mizes output. Torsiontite springs allow lens assembly
to be pulled down easily for relamping. Suitable for wet
locations, showers and spas.
White Diffuser ii
Fresnel Lenslite ii
1128T White
1126TWB White Cone
2 x 13W QT
Ht. to   F.C  Beam Dia.
Floor At 30" Above Floor
8' 6 19'
9' 4 21'
10' 3 24'
Multiple Units
Ctr. to Ctr. Footcandles
    Lrg. Room Sml. Room
4' 23 16
5' 17 11
6' 11 5
Frame-In Kit Ceiling Wattage Lamping
1101T13U
1101T13-347 Non-IC 13W (2) Quad
1101T18U
1101T18-347 Non-IC 18W (2) Quad
1101T26U
1101T26-347 Non-IC 26W (2) Quad
Frame-In Kit Ceiling Wattage Lamping
1101T13U
1101T13-347 Non-IC 13W (2) Quad
1101T18U
1101T18-347 Non-IC 18W (2) Quad
1101T26U
1101T26-347 Non-IC 26W (2) Quad
CS1102T26UWH
CS1102T26-347WH
CS1102T26UBK
CS1102T26-347BK
Surface 26W (2) Quad
485Philips
Lytecaster – Philips Lightolier
Canlyte Lighting Resource Guide
compact fluorescent
486 Philips
Lytecaster – Philips Lightolier
Canlyte Lighting Resource Guide

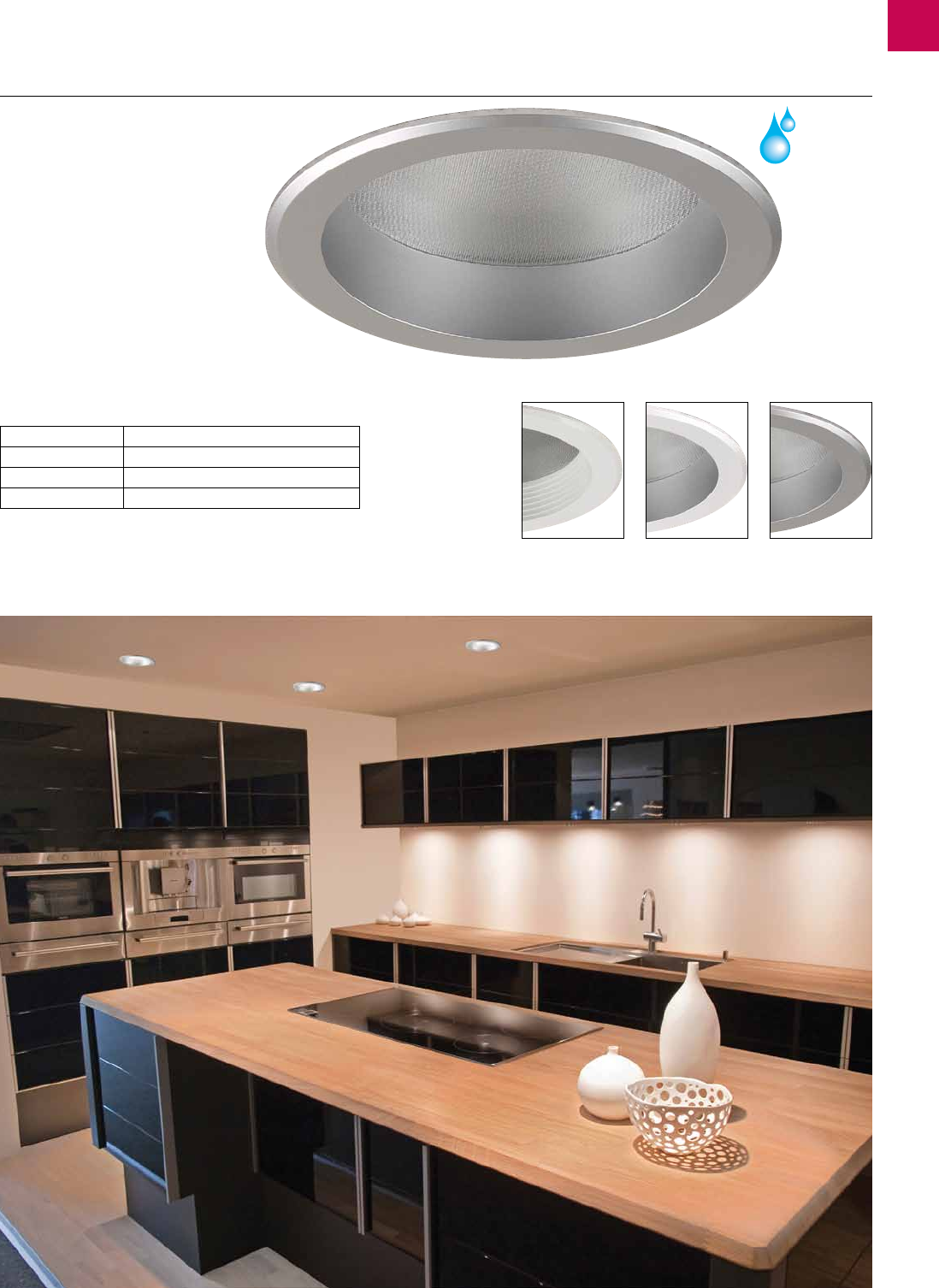

Xceed
What makes Xceed different?
A focus on 3 key elements:
Performance
•  Outperforms the industry standard 
65 watt BR30 by up to 30%
•  Uses 70% less energy than standard 
incandescent light bulbs
•  High transmission lens increases performance 
while shielding the lamp from view
Convenience
•  Unique design focuses on ease of 
installation and maintenance
•  Each frame is compatible with all trim styles
•  A 2700K or 3500K lamp is included with 
every frame
•  Out of the box, each frame is AirSeal®/insulated
ceiling ready and is listed for both Energy Star®
Aesthetics
•  Unique design and nish options provide 
an incandescent look and feel
•  Flicker free, quick start lamp is completely 
shielded for visual comfort
•  Trim options include downlights, wall 
washing and slopes all wet location listed
•  New indirect trim provides effective and 
stylish Up-Lighting and Step Lighting
Simplifies Your Purchase
Each frame includes a compact fluorescent lamp that accommodates the most
common lighting applications while maximizing performance and visual comfort.
Living Areas 2700K lamping
Living Rooms | Dining Rooms | Bedrooms
Task Areas 3500K lamping
Kitchens | Bathrooms | Garages | Laundry-Utility Rooms
120V product
in the Xceed line is
Energy Star® rated
Xceed redefines the idea of energy efficiency
in Residental and Light Commercial applications
compact fluorescent
487Philips
Lytecaster – Philips Lightolier
5-1/4"
5-1/4"
3.74"
(95mm)
3.74"
(95 mm)
1050RNDLWB
1050SQDLWB
Canlyte Lighting Resource Guide

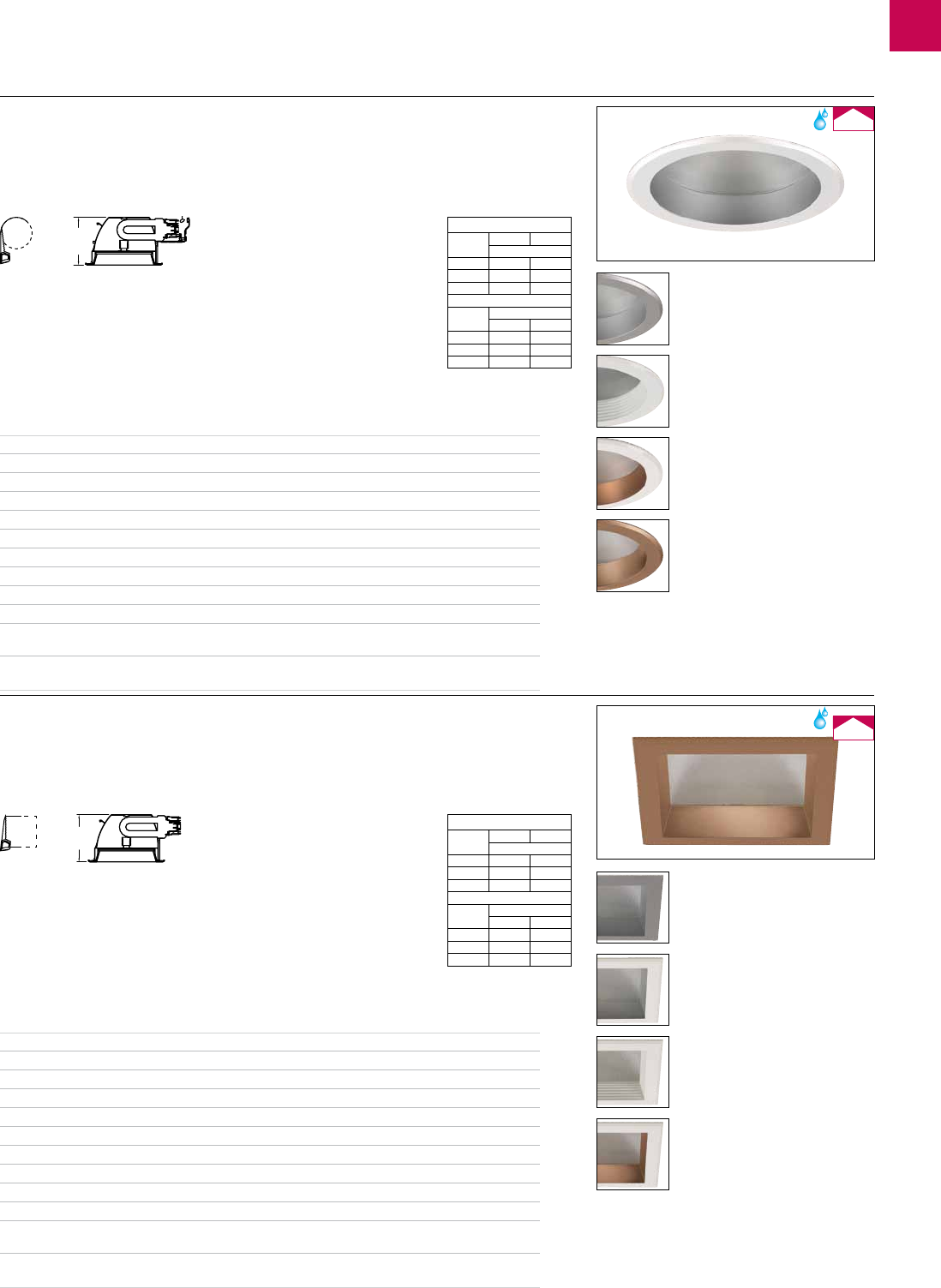

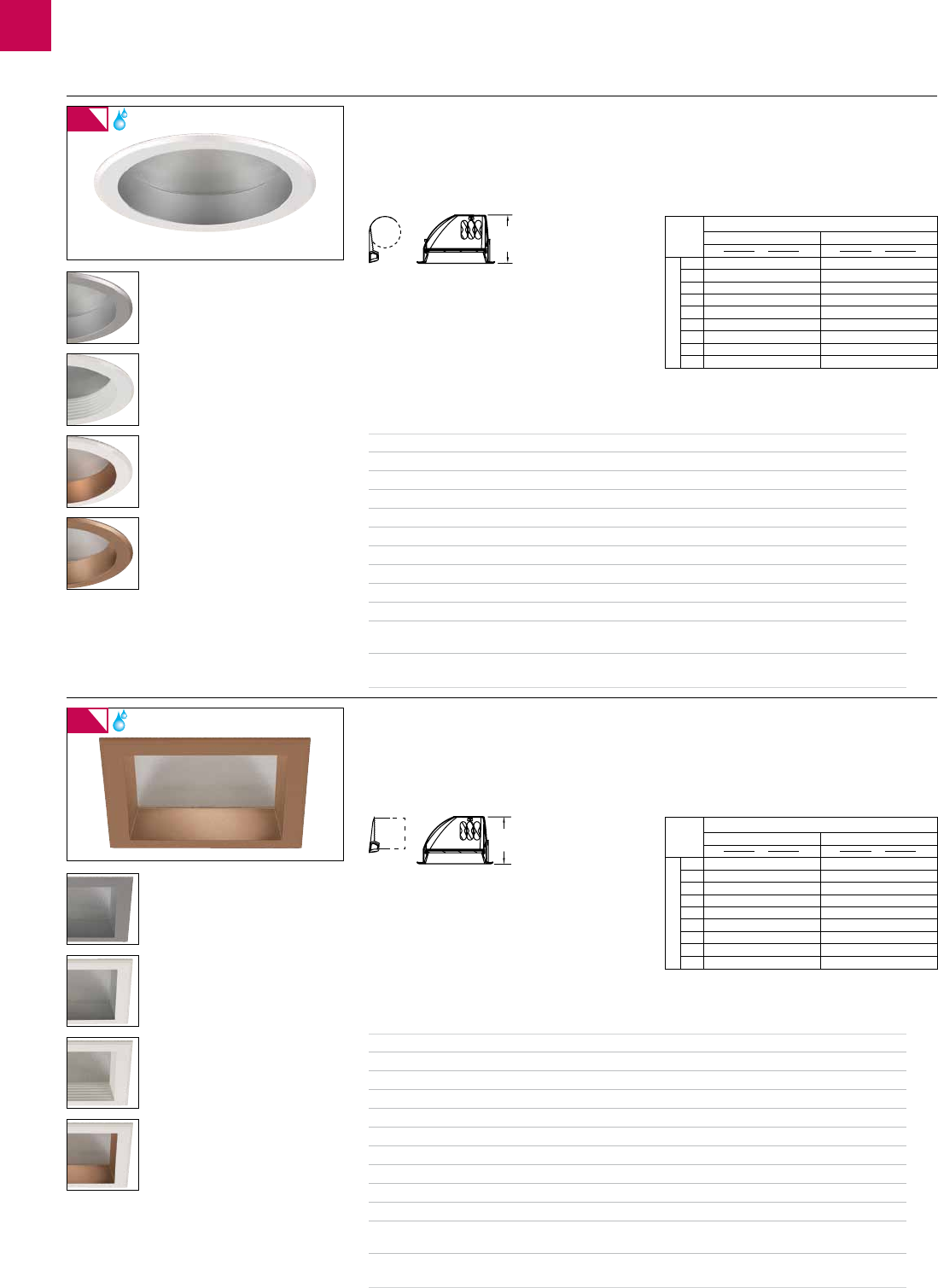

Lensed Round Downlight ii
Lensed Square Downlight ii
Xceed round trims provide more light output than a standard 65W BR30 with high transmission, non-yellowing lens. 
Glass lens eliminates lamp visibility for visual comfort. They provide general lighting and are wet location certified.
Compact Fluorescent lamp included with the Frame-in Kit.
Xceed Trims
White Baffle
with White Flange
Clear Diffuse
with Clear Diffuse Flange
Warm Diffuse
with White Flange
Warm Diffuse
with Warm Diffuse Flange
1050RNDLWB White Baffle,
White Flange
1050RNDLCDW Clear Diffuse,
White Flange
1050RNDLCDP Clear Diffuse,
Clear Diffuse Flange
1050RNDLWDW Warm Diffuse,
White Flange
1050RNDLWDP Warm Diffuse,
Warm Diffuse Flange
1050SQDLWB White Baffle,
White Flange
1050SQDLCDW Clear Diffuse,
White Flange
1050SQDLCDP Clear Diffuse,
Clear Diffuse Flange
1050SQDLWDW Warm Diffuse,
White Flange
1050SQDLWDP Warm Diffuse,
Warm Diffuse Flange
18W TTT
Ht. to   F.C  Beam Dia.
Floor At 30" Above Floor
8' 9 5'
9' 7 5.5'
10' 5 6'
Multiple Units
Ctr. to Ctr. Footcandles
    Lrg. Room Sml. Room
4' 36 26
5' 26 17
6' 17 9
Lensed Round
Downlight Reflector
Lensed Square
Downlight Reflector
Frame-in Kit Type Lamp Base Ballast Volts Total Current
Input Input
Watts
1050RN13CMN-347 Non-IC 13W Triple 2700K GX24q-2 Elect. 347 18 0.06A
1050RN18CMN-347 Non-IC 18W Triple 2700K GX24q-1 Elect. 347 21 0.06A
1050RN18CMN35-347 Non-IC 18W Triple 3500K GX24q-1 Elect. 347 21 0.06A
1050RN26CMN-347 Non-IC 26W Triple 2700K GX24q-1 Elect. 347 31 0.09A
1050RN26CMN35-347 Non-IC 26W Triple 3500K GX24q-1 Elect. 347 31 0.09A
1050RN13ESN IC/Non-IC 13W Triple 2700K GX24q-1 Elect. 120 27 0.23A
1050RN18ESN IC/Non-IC 18W Triple 2700K GX24q-1 Elect. 120 35 0.29A
1050RN18ESN35 IC/Non-IC 18W Triple 3500K GX24q-1 Elect. 120 35 0.29A
1050RN26ESN IC/Non-IC 26W Triple 2700K GX24q-1 Elect. 120 35 0.29A
1050RN26ESN35 IC/Non-IC 26W Triple 3500K GX24q-1 Elect. 120 35 0.29A
1050DRN26ESN IC/Non-IC 26W Triple 2700K GX24q-1 Dimming 120 27 0.23A
Elect.
1050DRN26ESN35 IC/Non-IC 26W Triple 3500K GX24q-1 Dimming 120 27 0.23A
Elect.
Frame-in Kit Type Lamp Base Ballast Volts Total Current
Input Input
Watts
1050SQ13CMN-347 Non-IC 13W Triple 2700K GX24q-2 Elect. 347 18 0.06A
1050SQ18CMN-347 Non-IC 18W Triple 2700K GX24q-1 Elect. 347 21 0.06A
1050SQ18CMN35-347 Non-IC 18W Triple 3500K GX24q-1 Elect. 347 21 0.06A
1050SQ26CMN-347 Non-IC 26W Triple 2700K GX24q-1 Elect. 347 31 0.09A
1050SQ26CMN35-347 Non-IC 26W Triple 3500K GX24q-1 Elect. 347 31 0.09A
1050SQ13ESN IC/Non-IC 13W Triple 2700K GX24q-1 Elect. 120 27 0.23A
1050SQ18ESN IC/Non-IC 18W Triple 2700K GX24q-1 Elect. 120 35 0.29A
1050SQ18ESN35 IC/Non-IC 18W Triple 3500K GX24q-1 Elect. 120 35 0.29A
1050SQ26ESN IC/Non-IC 26W Triple 2700K GX24q-1 Elect. 120 35 0.29A
1050SQ26ESN35 IC/Non-IC 26W Triple 3500K GX24q-1 Elect. 120 35 0.29A
1050DSQ26ESN IC/Non-IC 26W Triple 2700K GX24q-1 Dimming 120 27 0.23A
Elect.
1050DSQ26ESN35 IC/Non-IC 26W Triple 3500K GX24q-1 Dimming 120 27 0.23A
Elect.
18W TTT
Ht. to   F.C  Beam Dia.
Floor At 30" Above Floor
8' 12 13
9' 9 14.5
10' 6 16
Multiple Units
Ctr. to Ctr. Footcandles
    Lrg. Room Sml. Room
4' 44 32
5' 32 21
6' 21 11
Clear Diffuse
with White Flange
White Baffle
with White Flange
Clear Diffuse
with Clear Diffuse Flange
Warm Diffuse
with White Flange
Xceed square trims provide more light output than a standard 65W BR30 with high transmission, non-yellowing lens. 
Glass lens eliminates lamp visibility for visual comfort. They provide general lighting and are wet location certified.
Compact Fluorescent lamp included with Frame-in Kit.
compact fluorescent
488 Philips
Lytecaster – Philips Lightolier
5-1/4"
5-1/4"
3.74"
(95 mm)
3.74"
(95 mm)
1050RNSLWWB
1050SQSLWWB
Canlyte Lighting Resource Guide
Xceed Trims
Lensed Round Wall Washer/Slope ii
Lensed Square Wall Washer/Slope ii
Xceed  round  trims  provide  more  light  output  than  a  standard  65W  BR30  with  high  transmission,  non-yellowing 
lens. Glass lens eliminates lamp visibility for visual comfort. Same trim provides wall wash or sloped ceiling
lighting and is wet location certified. Compact Fluorescent lamp included with the Frame-in Kit.
1050RNSLWWB White Baffle, White Flange
1050RNSLWCDW Clear Diffuse, White Flange
1050RNSLWCDP Clear Diffuse, Clear Diffuse Flange
1050RNSLWWDW Warm Diffuse, White Flange
1050RNSLWWDP Warm Diffuse, Warm Diffuse Flange
1050SQSLWWB White Baffle, White Flange
1050SQSLWCDW Clear Diffuse, White Flange
1050SQSLWCDP Clear Diffuse, Clear Diffuse Flange
1050SQSLWWDW Warm Diffuse, White Flange
1050SQSLWWDP Warm Diffuse, Warm Diffuse Flange
Lensed Round
Slope/Wall Washer

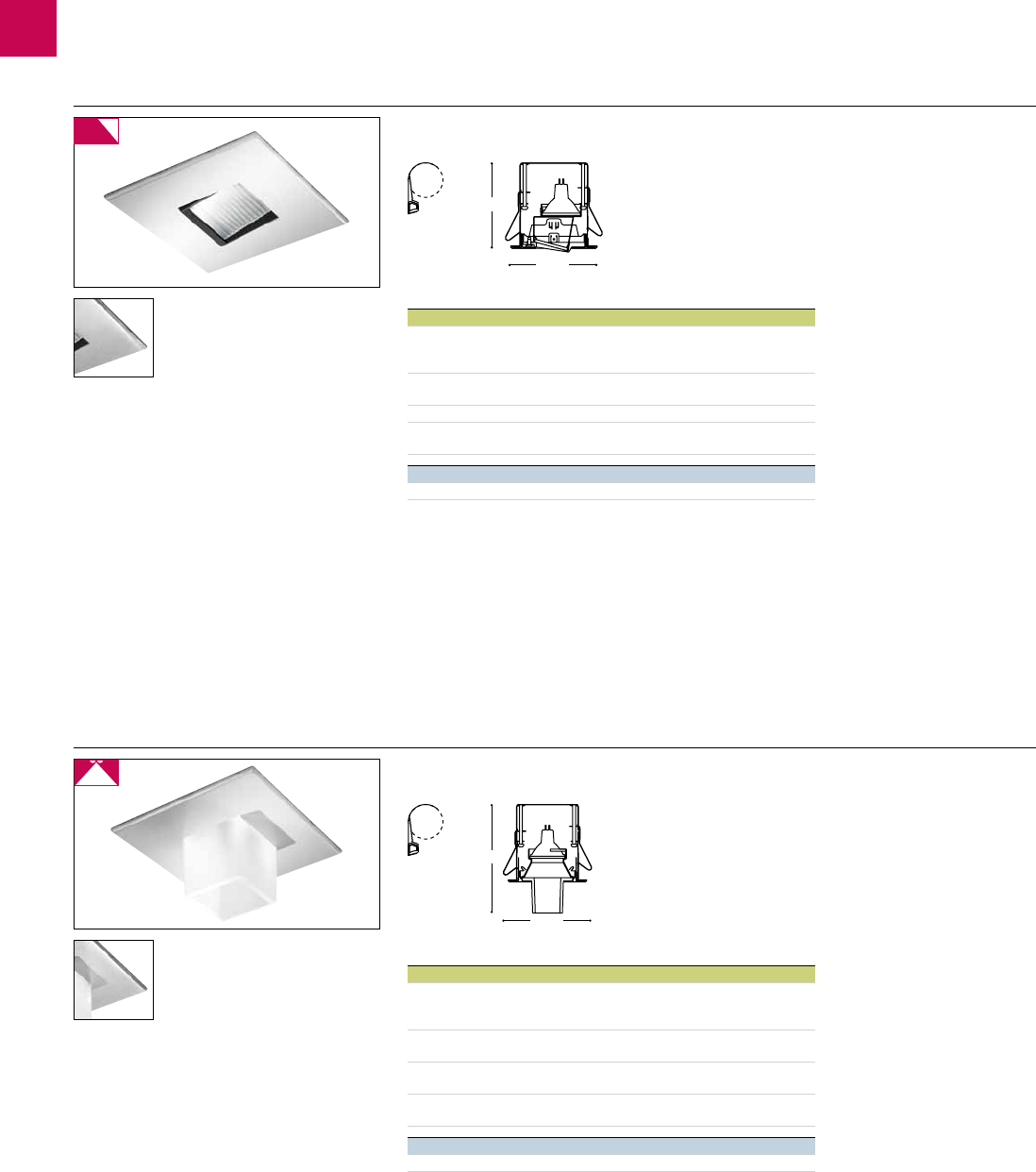

Lensed Square
Slope/Wall Washer
Xceed square trims provide more light output than a standard 65W BR30 with high transmission, non-yellowing lens. 
Glass lens eliminates lamp visibility for visual comfort. Same trim provides wall wash or sloped ceiling lighting and is
wet location certified. Compact fluorescent lamp included with the Frame-in Kit.
White Baffle
with White Flange
Clear Diffuse
with Clear Diffuse Flange
Warm Diffuse
with White Flange
Warm Diffuse
with Warm Diffuse Flange
18W TTT
2' From Wall – 2' on Center 2' From Wall – 3' on Center
■ 2'
■ ■ 3' ■
1' 5 6 5 6 7 6
2' 12 14 12 15 16 15
3' 21 22 21 19 20 19
4' 19 20 19 16 17 16
5' 13 13 13 12 12 12
6' 9 9 9 8 8 8
7' 7 7 7 6 6 6
8' 5 5 5 4 4 4
9' 3 3 3 2 2 2
Distance from Ceiling
Frame-in Kit Type Lamp Base Ballast Volts Total Current
Input Input
Watts
1050RN13CMN-347 Non-IC 13W Triple 2700K GX24q-2 Elect. 347 18 0.06A
1050RN18CMN-347 Non-IC 18W Triple 2700K GX24q-1 Elect. 347 21 0.06A
1050RN18CMN35-347 Non-IC 18W Triple 3500K GX24q-1 Elect. 347 21 0.06A
1050RN26CMN-347 Non-IC 26W Triple 2700K GX24q-1 Elect. 347 31 0.09A
1050RN26CMN35-347 Non-IC 26W Triple 3500K GX24q-1 Elect. 347 31 0.09A
1050RN13ESN IC/Non-IC 13W Triple 2700K GX24q-1 Elect. 120 27 0.23A
1050RN18ESN IC/Non-IC 18W Triple 2700K GX24q-1 Elect. 120 35 0.29A
1050RN18ESN35 IC/Non-IC 18W Triple 3500K GX24q-1 Elect. 120 35 0.29A
1050RN26ESN IC/Non-IC 26W Triple 2700K GX24q-1 Elect. 120 35 0.29A
1050RN26ESN35 IC/Non-IC 26W Triple 3500K GX24q-1 Elect. 120 35 0.29A
1050DRN26ESN IC/Non-IC 26W Triple 2700K GX24q-1 Dimming 120 27 0.23A
Elect.
1050DRN26ESN35 IC/Non-IC 26W Triple 3500K GX24q-1 Dimming 120 27 0.23A
Elect.
18W TTT
2' From Wall – 2' on Center 2' From Wall – 3' on Center
■ 2'
■ ■ 3' ■
1' 5 6 5 4 5 4
2' 16 17 16 14 15 14
3' 21 22 21 19 20 19
4' 16 17 16 15 16 15
5' 13 13 13 12 12 12
6' 9 9 9 8 8 8
7' 7 7 7 6 6 6
8' 5 5 5 4 4 4
9' 3 3 3 2 2 2
Distance from Ceiling
Clear Diffuse
with White Flange
White Baffle
with White Flange
Clear Diffuse
with Clear Diffuse Flange
Warm Diffuse
with White Flange
Frame-in Kit Type Lamp Base Ballast Volts Total Current
Input Input
Watts
1050SQ13CMN-347 Non-IC 13W Triple 2700K GX24q-2 Elect. 347 18 0.06A
1050SQ18CMN-347 Non-IC 18W Triple 2700K GX24q-1 Elect. 347 21 0.06A
1050SQ18CMN35-347 Non-IC 18W Triple 3500K GX24q-1 Elect. 347 21 0.06A
1050SQ26CMN-347 Non-IC 26W Triple 2700K GX24q-1 Elect. 347 31 0.09A
1050SQ26CMN35-347 Non-IC 26W Triple 3500K GX24q-1 Elect. 347 31 0.09A
1050SQ13ESN IC/Non-IC 13W Triple 2700K GX24q-1 Elect. 120 27 0.23A
1050SQ18ESN IC/Non-IC 18W Triple 2700K GX24q-1 Elect. 120 35 0.29A
1050SQ18ESN35 IC/Non-IC 18W Triple 3500K GX24q-1 Elect. 120 35 0.29A
1050SQ26ESN IC/Non-IC 26W Triple 2700K GX24q-1 Elect. 120 35 0.29A
1050SQ26ESN35 IC/Non-IC 26W Triple 3500K GX24q-1 Elect. 120 35 0.29A
1050DSQ26ESN IC/Non-IC 26W Triple 2700K GX24q-1 Dimming 120 27 0.23A
Elect.
1050DSQ26ESN35 IC/Non-IC 26W Triple 3500K GX24q-1 Dimming 120 27 0.23A
Elect.
compact fluorescent
489Philips
Lytecaster – Philips Lightolier
5-1/4"
3.74"
(95 mm)
1050SQINFBW
Canlyte Lighting Resource Guide
Xceed Trims
Lensed Indirect Square ii
Xceed new indirect trim provides effective and stylish Up-Lighting and Step Lighting in wall mount installations.
Available in white only. Compact Fluorescent lamp included with the Frame-in Kit.
1050SQINFBW White
Lensed Indirect
Square Indirect Flush
18W TTT
18" From Wall – 2' on Center 18" From Wall – 3' on Center
■
■ ■ ■
1' 31 20 31 31 8 31
2' 30 23 30 26 12 26
3' 18 19 19 15 10 15
4' 10 12 10 9 8 9
5' 7 8 7 6 5 6
6' 5 5 5 4 3 4
7' 3 3 3 3 2 3
8' 2 2 2 2 1 2
Distance from Ceiling
Frame-in Kit Type Lamp Base Ballast Volts Total Current
Input Input
Watts
1050SQ13CMN-347 Non-IC 13W Triple 2700K GX24q-2 Elect. 347 18 0.06A
1050SQ18CMN-347 Non-IC 18W Triple 2700K GX24q-1 Elect. 347 21 0.06A
1050SQ18CMN35-347 Non-IC 18W Triple 3500K GX24q-1 Elect. 347 21 0.06A
1050SQ26CMN-347 Non-IC 26W Triple 2700K GX24q-1 Elect. 347 31 0.09A
1050SQ26CMN35-347 Non-IC 26W Triple 3500K GX24q-1 Elect. 347 31 0.09A
1050SQ13ESN IC/Non-IC 13W Triple 2700K GX24q-1 Elect. 120 27 0.23A
1050SQ18ESN IC/Non-IC 18W Triple 2700K GX24q-1 Elect. 120 35 0.29A
1050SQ18ESN35 IC/Non-IC 18W Triple 3500K GX24q-1 Elect. 120 35 0.29A
1050SQ26ESN IC/Non-IC 26W Triple 2700K GX24q-1 Elect. 120 35 0.29A
1050SQ26ESN35 IC/Non-IC 26W Triple 3500K GX24q-1 Elect. 120 35 0.29A
1050DSQ26ESN IC/Non-IC 26W Triple 2700K GX24q-1 Dimming 120 27 0.23A
Elect.
1050DSQ26ESN35 IC/Non-IC 26W Triple 3500K GX24q-1 Dimming 120 27 0.23A
Elect.
compact fluorescent
490 Philips
Lytecaster – Philips Lightolier
Canlyte Lighting Resource Guide
HID
hid
High Intensity Discharge (HID) light sources provide high output, long life and great energy efficiency.
These characteristics make them a prime consideration for many commercial applications. Metal Halide
is suited for interior applications as it provides better colour rendering than high pressure sodium with
a colour rendering index of up to 90. HID downlights should be used for ceilings over twelve feet where
a strong punch of light is required. For ceilings over 20 feet, consider Metal Halide PAR lamps, that
provide an even stronger throw of light. They are available in 3 lamps sizes, PAR20 up to 39W, PAR30
up to 70W and PAR38 up to 100W.
491Philips
Lytecaster – Philips Lightolier
Canlyte Lighting Resource Guide
HID
hid
Building on our leadership in the small aperture recessed products,
we now offer energy efficient MR-16 and PAR20 CMH lamp solutions
for 12 feet or less ceiling in our successful 300X and 500X series.
For more details, see our Flex section on p. 520-549.
492 Philips
Lytecaster – Philips Lightolier
7-3/4"
9"
8-7/8"
7-3/4"
9"
10-1/2"
Canlyte Lighting Resource Guide

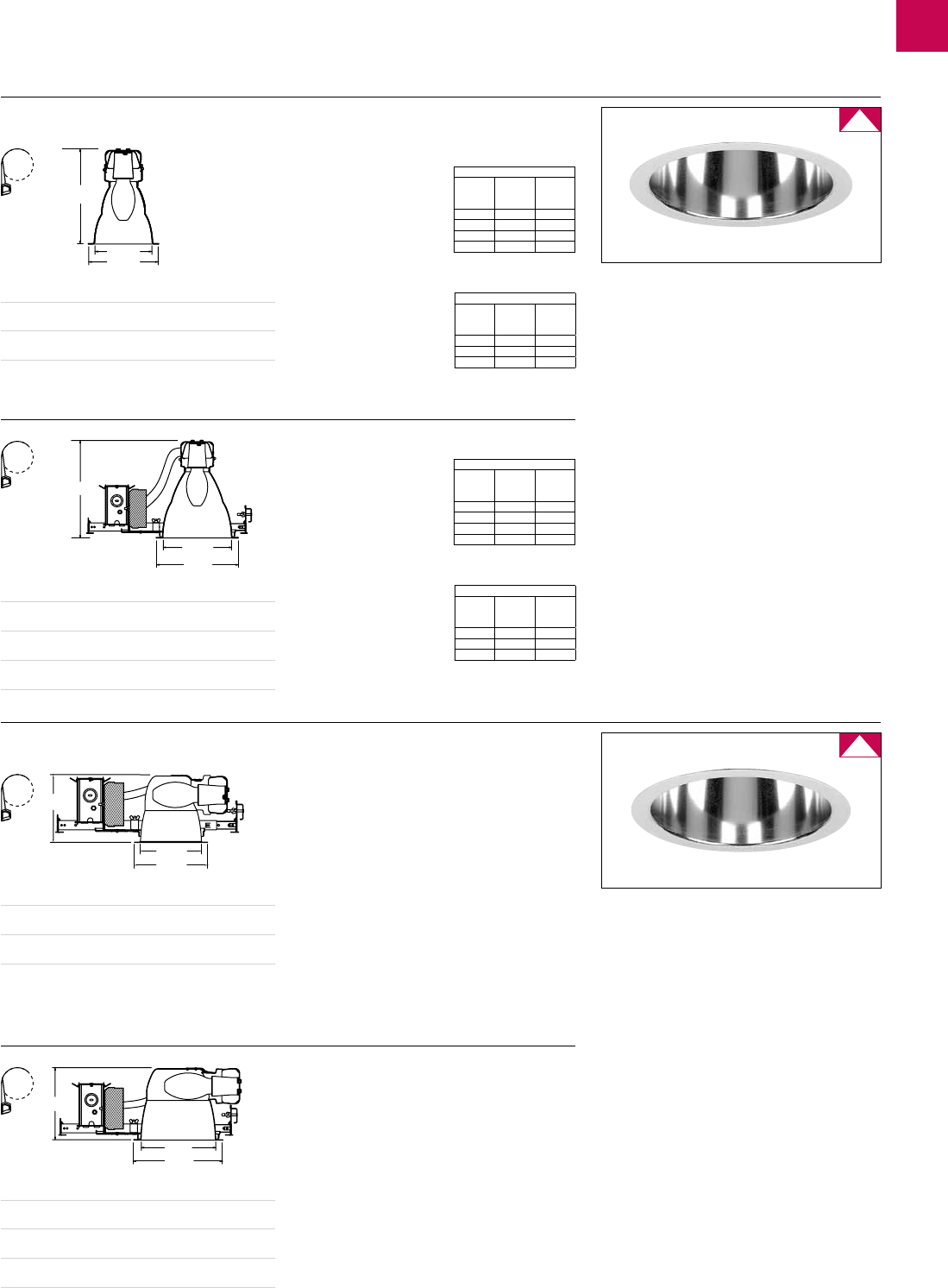

HID – Frame-in Kits
hid
Ceiling Cut-Out: 5-1/4"
Ceiling Cut-Out: 6-15/16"
5-1/4" Aperture New Construction
Features
Mounting Frame: Accommodates all ceilings up to 1-1/2" thick
Junction Box: Through branch circuit conductors
Grid Ceiling Installation: Tool free mounting in grid ceilings, interlocking
side bars adjust to 24-1/8" long, adjustable speed clamps for positive attachment
to grid ceilings
Wood Joist Installation: Integral nail tabs, joist finder, fastener holes and
bendable strapping guides for wood joist installation, interlocking slide bars adjust
from 12-15/16" to 24-1/ 8" long to accommodate 16" and 24" O.C joist spacing,
with or without strapping
Accessories: 1967B Extra Thick Ceiling Adapter (up to 2" thick)
6-3/4" Aperture New Construction
Features
Mounting Frame: Accommodates all ceilings up to 1-1/2" thick
Junction Box: Through branch circuit conductors
Grid Ceiling Installation: Tool free mounting in grid ceilings, interlocking
side bars adjust to 24-1/8" long, adjustable speed clamps for positive attachment
to grid ceilings
Wood Joist Installation: Integral nail tabs, joist finder, fastener holes and
bendable strapping guides for wood joist installation, interlocking slide bars adjust
from 12-15/16" to 24-1/8" long to accommodate 16" and 24" O.C joist spacing,
with or without strapping
Accessories: 1967A Extra Thick Ceiling Adapter (up to 2" thick)
Frame-in Kit Lamp Ballast Base Voltage Total Amps
Watts
1001HIDP20U 1-20W PAR30 Electronic Medium 120V 24W 0.21A
1001HIDP20-347 1-20W PAR30 Electronic Medium 347V 35W 0.16A
1001HIDP39U 1-39W PAR30 Electronic Medium 120V 44W 0.37A
1001HIDP39-347 1-39W PAR30 Electronic Medium 347V 44W 0.13A
1001HIDED50U 1-50W ED17P Electronic Medium 120V 58W 0.48A
1001HIDED50-347 1-50W ED17P Electronic Medium 347V 58W 0.17A
1001HIDED70U 1-70W ED17P Electronic Medium 120V 78W 0.65A
1001HIDED70-347 1-70W ED17P Electronic Medium 347V 78W 0.22A
1001HIDP70U 1-70W PAR30 Electronic Medium 120V 78W 0.65A
1001HIDP70-347 1-70W PAR30 Electronic Medium 347V 78W 0.22A
Frame-in Kit Lamp Ballast Base Voltage Total Amps
Watts
1101HIDP39U 1-39W / PAR38 Electronic Medium 120V 44W 0.37A
1101HIDP39-347 1-39W / PAR38 Electronic Medium 347V 44W 0.13A
1101HIDP70U 1-70W PAR38 Electronic Medium 120V 78W 0.65A
1101HIDP70-347 1-70W PAR38 Electronic Medium 347V 78W 0.22A
1101HIDP100U 1-100W PAR38 Electronic Medium 120V 108W 0.90A
1101HIDP100-347 1-100W PAR38 Electronic Medium 347V 108W 0.31A
1101HIDED50U 1-50W ED17P Electronic Medium 120V 58W 0.48A
1101HIDED50-347 1-50W ED17P Electronic Medium 347V 58W 0.17A
1101HIDED70U 1-70W ED17P Electronic Medium 120V 78W 0.65A
1101HIDED70-347 1-70W ED17P Electronic Medium 347V 78W 0.22A
1101HIDED100U 1-100W ED17P Electronic Medium 120V 108W 0.90A
1101HIDED100-347 1-100W ED17P Electronic Medium 347V 108W 0.31A
From
12-15/16"
to 24-1/8"
From
12-15/16"
to 24-1/8"
493Philips
Lytecaster – Philips Lightolier
5-1/4"
6-3/4"
8-1/8"
4-7/8"
5-7/8"
5-1/4"
4-7/8"
5-7/8"
5-3/8"
6-3/4"
7-7/8"
6-1/2"
6-3/8"
6-1/2"
7-7/8"
9-3/8"
1001CL
1101CL
Canlyte Lighting Resource Guide
Specular Reectors
hid
These trims are offered in 5-1/4" and 6-3/4" aperture
sizes in Specular Clear or Clear Diffuse finishes. Specular
Clear finish offers superior performance and provides an
Iridescent-Free coating to eliminate rainbowing. Clear
Diffuse is a semi-specular finish that diffuses light and
provides a soft, even illumination that minimizes the
mirror image typically found on specular finishes.
1001CL
1001CD
Specular Clear
Clear Diffuse
1101CL
1101CD
Specular Clear
Clear Diffuse
Horizontal trims provide superior cut-off and shielding.
These open downlights offer a 60-degree cut-off with
up to 100W ED17P lamping. Trims are offered in 5-1/4"
and 6-3/4" aperture sizes in Specular Clear and Clear
Diffuse.
1001HCL
1001HCD
Specular Clear
Clear Diffuse
Performance Horizontal Open Downlight iiii
1101HCL
1101HCD
Specular Clear
Clear Diffuse
Single Unit Data
Height to
Lighted
Plane
fc Beam
Diameter
6' 42 6'
8' 24 8'
10' 15 11'
12' 11 13'
Beam diameter is where
footcandles drop to 50%
of maximum.
Single Unit Data
Height to
Lighted
Plane
fc Beam
Diameter
6' 70 8'
8' 39 11'
10' 25 14'
12' 17 16'
Beam diameter is where
footcandles drop to 50%
of maximum.
Multiple Units – RCR 2
Spacing
On Center
Average
Initial
fc
Watts
Sq. Ft.
6' 55 2.07
8' 38 1.4 4
10' 24 0.92
38' x 38' x 10' Room
Workplane 2-1/2' above floor
80/50/20% Reflectances
Multiple Units – RCR 2
Spacing
On Center
Average
Initial
fc
Watts
Sq. Ft.
6' 121 2.97
8' 84 2.06
10' 54 1.32
38' x 38' x 10' Room
Workplane 2-1/2' above floor
80/50/20% Reflectances
Frame-In Kit Wattage Lamping
1001HIDED50U
1001HIDED50U-347 50W ED17P
1001HIDED70U
1001HIDED70-347 70W ED17P
Frame-In Kit Wattage Lamping
1001HIDED50U
1001HIDED50U-347 50W ED17P
1001HIDED70U
1001HIDED70-347 70W ED17P
Frame-In Kit Wattage Lamping
1101HIDED50U
1101HIDED50-347 50W ED17P
1101HIDED70U
1101HIDED70-347 70W ED17P
1101HIDED100U
1101HIDED100-347 100W ED17P
Frame-In Kit Wattage Lamping
1101HIDED50U
1101HIDED50-347 50W ED17P
1101HIDED70U
1101HIDED70-347 70W ED17P
1101HIDED100U
1101HIDED100-347 100W ED17P
Performance Vertical Open Downlight iiii
494 Philips
Lytecaster – Philips Lightolier
7"
(178mm)
5-7/8"
(149mm)
5-1/4"
5-1/4"
6-3/4"
6-3/4"
1105CL
11105BK
7"
(178mm)
5-7/8"
(149mm)

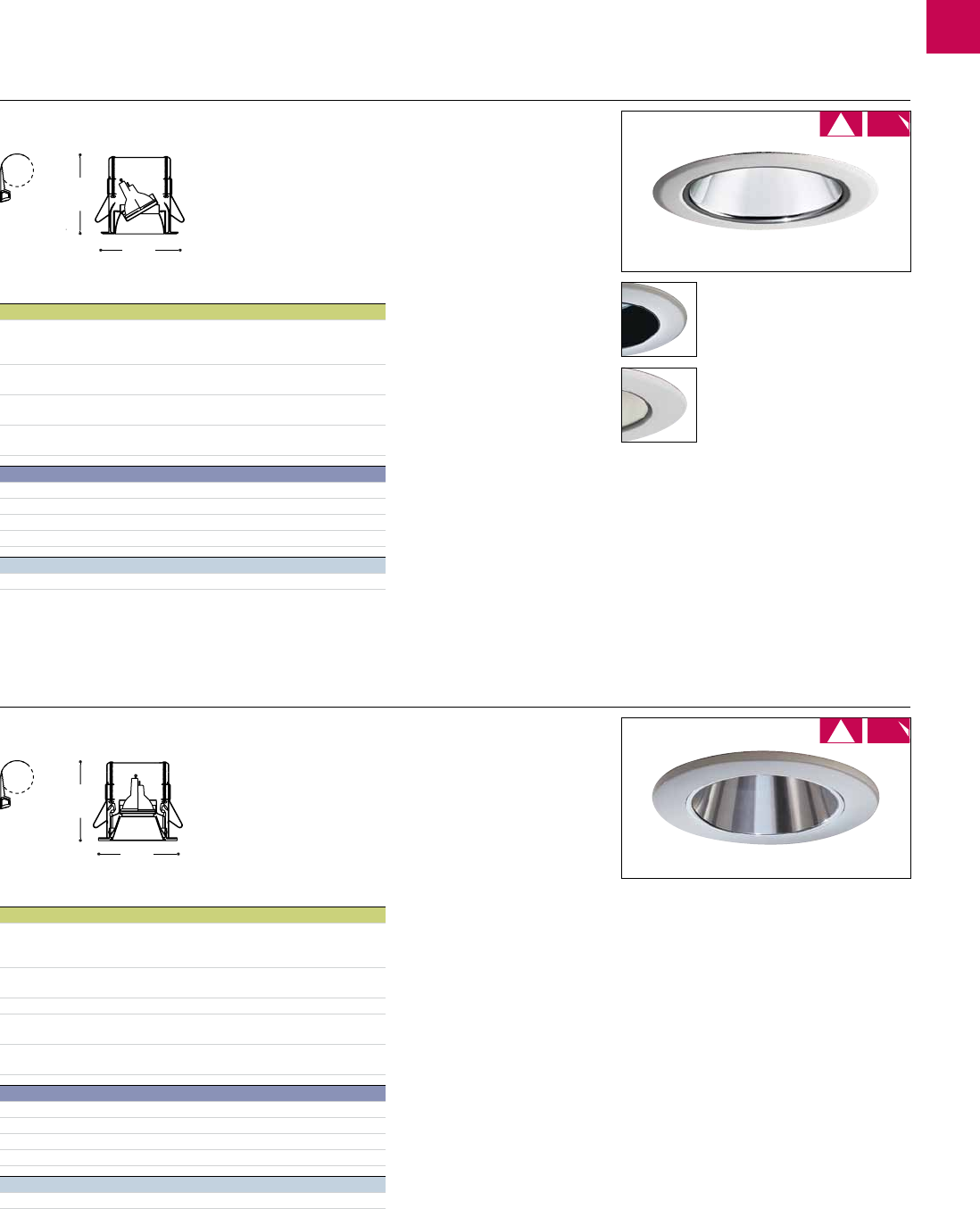

Canlyte Lighting Resource Guide
Specular Reectors
Versatile, low brightness downlights. Specular Alzak®
heavy gauge aperture cone and recessed lamp control
glare. Cone can easily be removed to facilitate mainte-
nance.
Specular Alzak® Cone ii
1005CL
1005BA
1005CD
Specular Clear
Specular Black
Clear Diffuse
1105CL
1105BA
1105CD
Specular Clear
Specular Black
Clear Diffuse
1105BK
1105WB
Black Baffle
White Baffle
hid
Versatile, low brightness downlight. Precision-fitted die-
cast aluminum step baffle is finished in black or white
and the recessed lamp reduces glare.
Premium Die-Cast Step Bafe ii
70W PAR38
Ht. to F.C Beam Dia.
Floor At 30" Above Floor
8' 96 10'
9' 69 11'
10' 52 12'
Multiple Units
Ctr. to Ctr. Footcandles
Lrg. Room Sml. Room
4' 163 134
5' 117 89
6' 78 45
1005BK Black Baffle
1005WB White Baffle
70W PAR38
Ht. to F.C Beam Dia.
Floor At 30" Above Floor
8' 96 10'
9' 69 11'
10' 52 12'
Multiple Units
Ctr. to Ctr. Footcandles
Lrg. Room Sml. Room
4' 163 134
5' 117 89
6' 78 45
Frame-In Kit Wattage Lamping
1001HIDP20U
1001HIDP20-347 20/22W PAR20 / PAR30L
1001HIDP39U
1001HIDP39-347 39W PAR20 / PAR30L
1001HIDP70U
1001HIDP70-347 70W PAR30L
Frame-In Kit Wattage Lamping
1101HIDP39U
1101HIDP39-347 39W PAR30L
1101HIDP70U
1101HIDP70-347 70W PAR30L / PAR38
1101HIDP100U
1101HIDP100-347 100W PAR38
Frame-In Kit Wattage Lamping
1101HIDP39U
1101HIDP39-347 39W PAR30L
1101HIDP70U
1101HIDP70-347 70W PAR30L / PAR38
1101HIDP100U
1101HIDP100-347 100W PAR38
Frame-In Kit Wattage Lamping
1001HIDP20U
1001HIDP20-347 20/22W PAR20 / PAR30L
1001HIDP39U
1001HIDP39-347 39W PAR20 / PAR30L
1001HIDP70U
1001HIDP70-347 70W PAR30L
495Philips
Lytecaster – Philips Lightolier
5-1/4"
6-3/4"
7"
4 7/8"
5 7/8"
7"
4 7/8"
5 7/8"
7 15/16"
7 9/16"
6 1/4"
7 15/16"
7 9/16"
6 1/4"
5-1/4"
6-3/4"
Canlyte Lighting Resource Guide
hid
Recessed Adjustable offer inconspicuous accent
lighting for horizontal and vertical surfaces and can be
easily coordinated with Step Baffle and Aperture Cone
downlights.
Frame-In Kit Wattage Lamping
1001HIDP20U
1001HIDP20-347 20/22W PAR20 / PAR30L
1001HIDP39U
1001HIDP39-347 39W PAR20 / PAR30L
Frame-In Kit Wattage Lamping
1101HIDP39U
1101HIDP39-347 39W PAR30L
1101HIDP70U
1101HIDP70-347 70W PAR30L / PAR38
1101HIDP100U
1101HIDP100-347 100W PAR38
Recessed Adjustable offer inconspicuous accent
lighting for horizontal and vertical surfaces and can be
easily coordinated with Step Baffle and Aperture Cone
downlights.
Adjustable Specular Alzak Cone ii
1027CDHID
1048HID
Clear Diffuse
Specular Clear
1127CDHID
1148HID
Clear Diffuse
Specular Clear
Frame-In Kit Wattage Lamping
1001HIDP20U
1001HIDP20-347 20/22W PAR20 / PAR30L
1001HIDP39U
1001HIDP39-347 39W PAR20 / PAR30L
1027HID Black Baffle
1027WHHID White Baffle
Adjustable Premium Die-Cast Step Bafe Cone ii
1127HID
1127WHHID
Black Baffle
White Baffle
Frame-In Kit Wattage Lamping
1101HIDP39U
1101HIDP39-347 39W PAR30L
1101HIDP70U
1101HIDP70-347 70W PAR30L / PAR38
1101HIDP100U
1101HIDP100-347 100W PAR38
Specular Reectors
496 Philips
Lytecaster – Philips Lightolier
5-1/4"
6-3/4"
5 3/8"
3 7/8"
4 7/8"
5 7/8"
7-7/8"
6-1/2"
5-3/8"
6-3/8"
5-1/4"
6-3/4"
8-1/8"
4-7/8"
5-7/8"
7-7/8"
6-1/2"
9-3/8"
1001HCLFHID
1101HCLFHID
Canlyte Lighting Resource Guide
hid
Wall Washers
Note: For dimming options, please consult the corresponding product Spec Sheet on www.canlyte.com.
Performance Horizontal Lensed Wall Wash iiii
1001HCLFHID Specular Clear
Cone, Fresnel Lens
1001HCDFHID Clear Diffuse Cone,
Fresnel Lens
1101HCLFHID Specular Clear
Cone, Fresnel Lens
1101HCDFHID Clear Diffuse Cone,
Fresnel Lens
Performance Vertical Single Wall Wash iiii
1001CLSW Specular Clear
1001CDSW Clear Diffuse
1101CLSW Specular Clear
1101CDSW Clear Diffuse
Frame-In Kit Wattage Lamping
1001HIDED50U
1001HIDED50-347 50W ED17P
1001HIDED70U
1001HIDED70-347 70W ED17P
Frame-In Kit Wattage Lamping
1101HIDED50U
1101HIDED50-347 50W ED17P
1101HDED70U
1101HDED70-347 70W ED17P
1101HIDED100U
1101HIDED100-347 100W ED17P
Multiple Units – RCR 2
Spacing
On Center
Average
Initial
fc
Watts
Sq. Ft.
6' 48 2.02
8' 33 1.40
10' 21 0.90
38' x 38' x 10' Room
Workplane 2-1/2' above floor
80/50/20% Reflectances
Multiple Units – RCR 2
Spacing
On Center
Average
Initial
fc
Watts
Sq. Ft.
6' 129 2.84
8' 90 1.97
10' 57 1.26
38' x 38' x 10' Room
Workplane 2-1/2' above floor
80/50/20% Reflectances
Frame-In Kit Wattage Lamping
1001HIDED50U
1001HIDED50-347 50W ED17P
1001HIDED70U
1001HIDED70-347 70W ED17P
Frame-In Kit Wattage Lamping
1101HIDED50U
1101HIDED50-347 50W ED17P
1101HIDED70U
1101HIDED70-347 70W ED17P
1101HIDED100U
1101HIDED100-347 100W ED17P
Uniframe HID 5" trims provide additional design flexibil-
ity. Designed around lower lamp wattages they are an
ideal solution in applications with lower ceilings where
energy efficiency is still desired. Uniframe HID 6 ¾" trims
provide commercial level lumen performance and flex-
ibility. Designed around higher lamp wattages they are
an ideal solution in applications with high ceilings where
energy efficiency is a must. All open trims utilize an
affordable ED17 lamp in vertical and horizontal lamping.
Wall washers provide a smooth, even illumination over
the length and height of a wall surface and roomside
downlighting. The single wall washers are available in
5-1/4" and 6-3/4" aperture sizes. All trims are available
in Specular Clear or Clear Diffuse.
497Philips
Lytecaster – Philips Lightolier
5-3/8"
4-7/8"
5-7/8"
7-7/8"
6-1/2"
6-3/8"
5-1/4"
6-3/4"
6-3/4"
7-5/8"
(194mm)
8"
(203mm)
Canlyte Lighting Resource Guide
hid
Wall Washers
Single wall washers provide a uniform distribution of
light together with roomside downlighting for demanding
commercial applications. Trims are available in 5-1/4"
and 6-3/4" aperture sizes in Specular Clear or Clear
Diffuse.
Performance Horizontal Single Wall Wash iiii
1001HCLSW
1001HCDSW
Specular Clear
Clear Diffuse
1101HCLSW
1101HCDSW
Specular Clear
Clear Diffuse
Frame-In Kit Wattage Lamping
1001HIDED50U
1001HIDED50U-347 50W ED17P
1001HIDED70U
1001HIDED70-347 70W ED17P
Frame-In Kit Wattage Lamping
1101HIDED50U
1101HIDED50-347 50W ED17P
1101HIDED70U
1101HIDED70-347 70W ED17P
1101HIDED100U
1101HIDED100-347 100W ED17P
Frame-In Kit Wattage Lamping
1101HIDED50U
1101HIDED50-347 50W ED17P
1101HIDED70U
1101HIDED70-347 70W ED17P
Note: For dimming options, please consult the corresponding product Spec Sheet on www.canlyte.com.
Fresnel lens is recessed, comes in white, spreads light
evenly, gives high efficiency and low brightness and
cleans easily. Anobrite® aluminum reflector maximizes
output. Lens assembly pulls down for easy relamping
and retains with safety chain. Suitable for wet locations,
showers and spas.
Fresnel Lenslite ii
1126WH White Baffle
1126BK Black Baffle
498 Philips
Lytecaster – Philips Lightolier
Canlyte Lighting Resource Guide
Incandescent
incandescent
INCANDESCENT
For superior colour rendering and quiet dimming, nothing compares to incandescent lighting. Lytecaster allows designers
and lighting professionals superior flexibility in achieving all the beauty and drama incandescent lighting can deliver. The
colour rendering of incandescent sources ranges all the way from warm tones to the brilliant light of tungsten halogen.
Lytecaster’s precise optics and high quality reflector finishes maximize the output of the self ballasted compact fluorescent
lamp sources for the greatest possible efficiency. Units featuring BR lamps are well suited for budget oriented installation.
Units featuring MR16 lamps or reflectorized lamps, such as PAR, are a good choice for accent lighting or wherever highly
controlled beams are desired. Small-scale halogen PAR lamps, such as PAR16 and PAR20, produce crisp, white light
that is very similar in effect to MR16 low voltage halogen lighting.
499Philips
Lytecaster – Philips Lightolier
Canlyte Lighting Resource Guide
Incandescent
incandescent

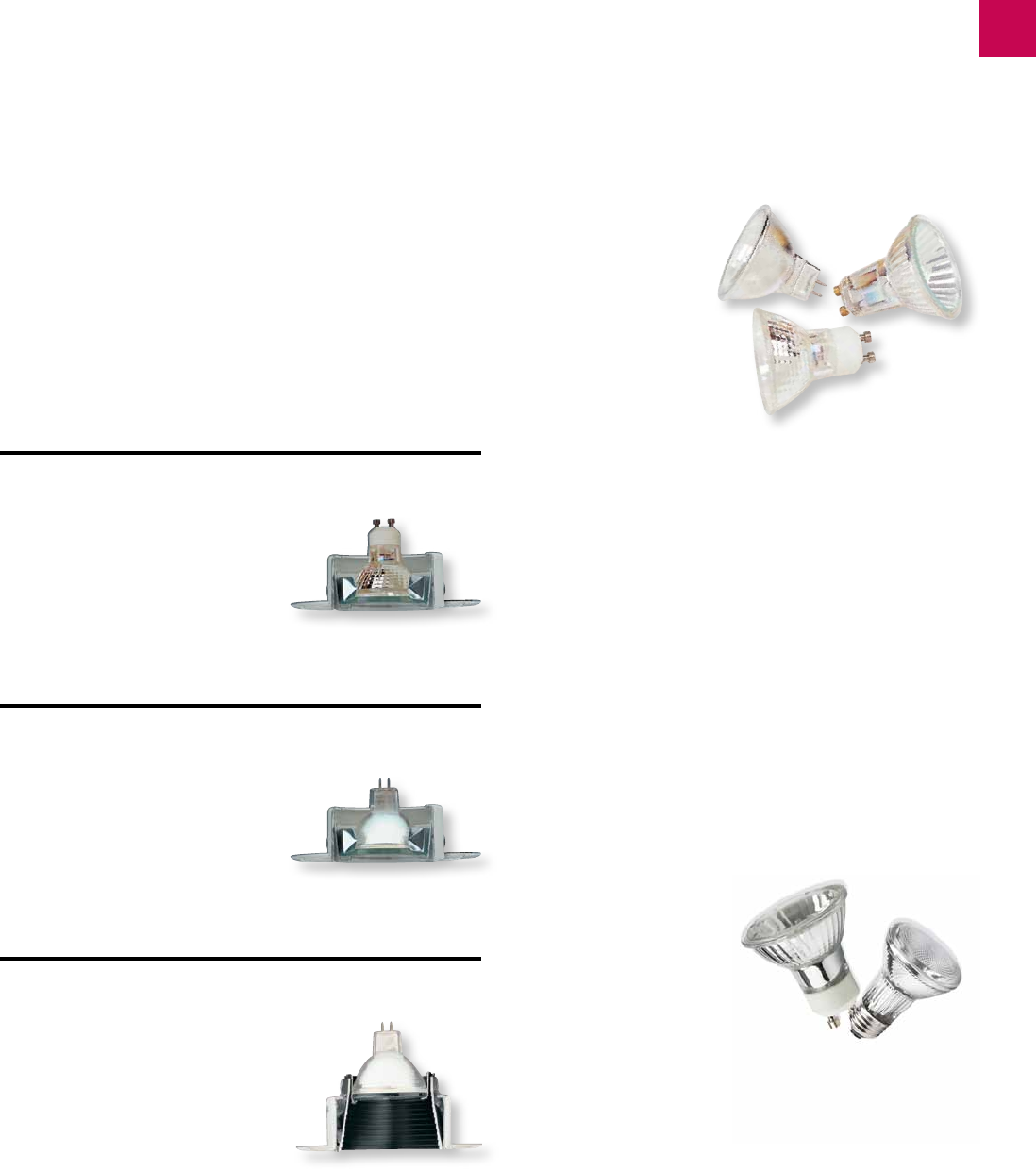

HALOGEN
By bringing out form, colour and texture in the objects being lighted, low voltage halogen lighting draws the viewer in and
adds excitement to the composition. These low voltage incandescent sources are also 50% brighter with lamp life as
long as 4000 hours. MR16 lamps offer a unique punch and sparkle which is ideal for highlighting small objects such as
artwork, glass and tableware. For added ambience, several low voltage luminaires feature decorative glass and enhance
the decor by adding luminance to the ceiling line.
(See 300 Series on page 520).
500 Philips
Lytecaster – Philips Lightolier
A
CB
5 1/4"
Canlyte Lighting Resource Guide
incandescent
Incandescent – Frame-in Kits
Lytecaster Non-IC Frame-in Kits
For all Non-IC applications in both residential and commercial construction.
Accommodates new or existing ceilings (except for 2002) up to 1" thick.
Thermally protected; insulation, if any, must be kept 3" away from fixture sides
and wiring compartment. Damp or wet location rated depending on trim used.
Features
•  Accepts all trims
•   Rugged mounting system with 13" heavy-gauge mounting bars 
that extend to 27"
•  Integral cable clamps (only 1102P1)
•   Break-out section for installation in existing ceilings from below 
(only 1102P1)
•  cULus listed for through branch circuit wiring
Lytecaster IC Frame-in Kits
Specially designed to offer a full range of lighting performance when buried
in insulation. Accepts a wide choice of reflector trims and lamps up to 100W. Thermally
protected. For use in all ceilings up to 1" thick. Damp or wet location
rated depending on trim used.
Features
•  Accepts most trims
•  Rugged mounting system with 13" heavy-gauge mounting bars 
that extend to 27"
•  Integral cable clamps
•   Integral thermal cut-out insures against overheating due 
to incorrect lamping
•  cULus listed for through branch circuit wiring
•   Vapour barrier extender (VBE) accessory available (see p. 553) 
for installation with PAVB (Polyvinyl Air Vapour Barrier) (except 2002AIC)
•   Extra lightweight dual wall galvanized construction for easy handling during installation
•   2002AIC is AirSeal
Lytening AirSeal® IC/Non-IC Remodelers
Companion Remodeler to 1004/1104IC. For existing residential insulated or non-
insulated ceiling applications. Accommodates existing ceilings up to 2" thick.
Thermally protected and CSA certified for through branch circuit wiring. T-clips
quickly lock housing to ceiling without tools. Junction box separates from housing
for convenient wiring from below the ceiling. Self-adhesive precision ceiling template
included. Damp or wet location rated depending on trim used. For PAVB (Polyvinyl 
Air Vapour Barrier) construction slit PAVB and seal to Lytening AirSeal® housing.
Features
•  Accepts most existing Lytecaster trims
•  Push-LockTM cable clamps instantly secure Loomex
without tools
•  TKOsTM (Tool-free Knock-Outs) are standard
•  AirSeal® optional Gasket kit (see p. 552)
•  cULus listed for through branch circuit wiring
No. Cut-Out Length Width
2002 3-3/4" 10-1/8" 7-1/2"
1002 5-1/4" 10-1/8" 7-1/2"
1102P1 6-13/16" 11-1/8" 9"
No. Cut-Out Length Width Depth
1004ICRS 5-3/8" 11-3/8" 5-3/4" 7-1/2"
1104ICRS 7" 13-1/8" 7-5/16" 7-1/2"
No. Cut-Out Length Width Depth
1000IC 5-1/8" 15-1/2" 9" 7-5/16"
1100IC 6-13/16" 15-1/2" 9" 7-1/2"
2002AIC 3-11/16'' 10-1/4'' 7-1/2'' 5-1/2''
501Philips
Lytecaster – Philips Lightolier
Canlyte Lighting Resource Guide
incandescent
Incandescent – Frame-in Kits
Lytening AirSeal® IC/Non-IC Frame-in Kits
For the fastest, most convenient installation in insulated ceilings in residential
construction. Accommodates new ceilings up to 3" thick. SwiveLockTM pivoting
mounting bars permit installation and wiring below the ceiling. Pre-installed nails for
installation in wood joists. Locator tabs aid in locating bar ends during installation.
Housing adjusts 2" vertically in mounting band and may be removed to access
junction box after installation. Damp or wet location rated depending on trim used.
For PAVB (Polyvinyl Air Vapour Barrier) construction slit PAVB and seal to Lytening 
AirSeal® housing.
Features
•  Accepts most existing Lytecaster trims
•  Mounting bars extend from 14" to 24"
•  Instant Spring “Squeeze-Clips” secures housing to bars without tools
•  Push-LockTM cable clamps instantly secure Loomex without tools
•  TKOsTM (Tool-free Knock-Outs) are standard
•  AirSeal® optional Gasket kit (see p. 552)
•  cULus listed for through branch circuit wiring
•   Listed for Non IC and IC application. Please consult trim spec sheet 
for maximum lamp wattage
Lytening AirSeal® ICX Frame-in Kits
Lightolier’s Lytening AirSeal® ICX Frame-in Kits are “The World’s Best Engineered 
Downlights”. They are specifically designed for quick, convenient installation in 
residential applications, offering good performance and outstanding value. No other
family of recessed housings offer the installation benefits, performance options
and Lightolier quality that comes with Lytening AirSeal® (see p. 445).
Features
•  Accepts most existing Lytecaster trims
•  Mounting bars extend from 16" to 24"
•   Mounting bars lock into position along length with locking screw 
and bendable slot
•   3/8" deep integral lip allows easy sealing of the PAVB to the 
mounting frame, for an AirSeal® installation
•   Listed for IC application. Please consult trim spec sheet 
for maximum lamp wattage
Non-IC Remodeler Rings
For remodeling in existing residential or commercial ceiling applications.
Accommodates ceilings up to 2" thick. Thermally protected. Dedicated ceiling
mounting ring. Integral ceiling clamps will not damage ceiling material and
requires no tools for installation. Self-adhesive precision ceiling template included.
Damp or wet location rated depending on trim used.
Features
•   Accepts most existing Lytecaster trims
•   Large junction box with captive, pivoting, easy access door
•   Integral Push-LockTM cable clamps
•    T K O s TM (Tool-free Knock-Outs) are standard
•  cULus listed for chain wiring
No. Cut-Out Length Width Depth
1004ICN 5-3/8" 9" 5-3/4" 7-1/2"
1104ICN 7" 10-3/4" 7-1/4" 7-1/2"
No. Cut-Out Length Width Depth
1004ICXN 5-1/2" 12-1/4" 10-3/8" 7-1/4"
1104ICXN 6-7/8" 12-1/4" 10-3/8" 7-1/4"
No. Cut-Out Length Width
2003RS 4-1/8" 9-5/8" 4-3/8"
1003RS 5-3/8" 13" 5-3/4"
1103RS 7" 14-5/8" 7-3/8"
502 Philips
Lytecaster – Philips Lightolier
5-1/4"
6-3/4"
6-3/4"
7-3/16"
7-3/16"
9"
7-15/16"
Canlyte Lighting Resource Guide
incandescent
Specular Reectors
The best efficiency and glare control. Lamp is fully
recessed in a deep, specular Alzak® reflector, pre-
cisely contoured to assure 38° shielding of lamp and
lamp image.
Deep Alzak® Reector iii
1046
1046CD
Specular Clear Alzak®
Clear Diffuse
1146
1146CD
Specular Clear Alzak®
Clear Diffuse
Shallow Alzak® Reector iii
High efficiency downlight fits in 8" joist construction
and provides high wattage in IC frame-in kits. Specular
Alzak® reflector maximizes output from self-ballasted
compact fluorescent lamps.
1144
1144CD
Specular Clear Alzak®
Clear Diffuse
Frame-In Kit Ceiling Wattage Lamping
1002 Non-IC
100W
65W
75W
A19
BR30
PAR30L
1004ICN Non-IC 60W A19
1003RS Non-IC Remodeler
100W
65W
75W
A19
BR30
PAR30L
1004ICRS Non-IC Remodeler 60W A19
1000IC IC
60W
65W
75W
A19
BR30
PAR30L
1004ICN IC/Airseal®40W A19
1004ICXN IC/Airseal®60W A19
1004ICRS IC/Airseal® Remodeler 40W A19
Frame-In Kit Ceiling Wattage Lamping
1102P1 Non-IC 100W A19
1104ICN Non-IC
100W
75W
85W
A19
PAR30
BR30
1103RS Non-IC Remodeler 100W A19
1104ICRS Non-IC Remodeler
100W
75W
85W
A19
PAR30
BR30
1100IC IC 100W A19
1104ICN IC/Airseal®
75W
75W
85W
A19
PAR30
BR30
1104ICXN IC/Airseal®100W A19
1104ICRS IC/Airseal® Remodeler
75W
75W
85W
A19
PAR30
BR30
Frame-In Kit Ceiling Wattage Lamping
1102P1 Non-IC
150W
100W
85W
A21
A19
BR30
1103RS Non-IC Remodeler
150W
100W
85W
A21
A19
BR30
503Philips
Lytecaster – Philips Lightolier
7-3/16" 7-15/16"
6-3/4"
5-1/4"
3-3/4"
5-1/2"
5-7/8" 6-5/8"
1005CL
1105CL
Canlyte Lighting Resource Guide
incandescent
Specular Reectors
2005CL
2005BA
2005CD
Specular Clear Alzak®
Specular Black Alzak®
Clear Diffuse
1105CL
1105BA
1105CD
Specular Clear Alzak®
Specular Black Alzak®
Clear Diffuse
Versatile,  low  brightness  downlights.  Specular  Alzak®
heavy gauge aperture cone and recessed lamp control
glare. Cone can easily be removed to facilitate mainte-
nance.
Specular Alzak® Cone ii
90W PAR38
Ht. to F.C Beam Dia.
Floor At 30" Above Floor
8' 136 4'
9' 97 4.5'
10' 73 5'
Multiple Units
Ctr. to Ctr. Footcandles
Lrg. Room Sml. Room
4' 81 73
5' 58 49
6' 28 24
1005CL
1005BA
1005CD
Specular Clear Alzak®
Specular Black Alzak®
Clear Diffuse
75W PAR30
Ht. to F.C Beam Dia.
Floor At 30" Above Floor
8' 59 6'
9' 42 7'
10' 32 8'
Multiple Units
Ctr. to Ctr. Footcandles
Lrg. Room Sml. Room
4' 72 62
5' 51 41
6' 34 21
( ) = Max wattage for BA.
Frame-In Kit Ceiling Wattage Lamping
1002 Non-IC
75W
75W
75W
PAR30L
BR30
A19
1004ICN Non-IC
75W
85W
60W
PAR30
BR30
A19
1003RS Non-IC Remodeler
75W
75W
75W
PAR30L
BR30
A19
1004ICRS Non-IC Remodeler
75W
85W
60W
PAR30L
BR30
A19
1000IC IC
75W
65W
40W
PAR30L
BR30
A19
1004ICN IC/Airseal®
50W
65W (60W)
40W
PAR30
BR30
A19
1004ICXN IC/Airseal®
75W
85W
60W
PAR30
BR30
A19
1004ICRS IC/Airseal® Remodeler
50W
65W (60W)
40W
PAR30
BR30
A19
Frame-In Kit Ceiling Wattage Lamping
2002 Non-IC
50W
75W
75W
60W
PAR20
R20
PAR16
A19
2003RS Non-IC Remodeler
50W
75W
75W
60W
PAR20
R20
PAR16
A19
2002AIC IC/Airseal®
50W
50W
45W
PAR20
R20
PAR16
Frame-In Kit Ceiling Wattage Lamping
1102P1 Non-IC
150W
150W
150W
100W
PAR38
BR40
A21
A19
1104ICN Non-IC
100W
150W
100W (75W)
PAR38
BR40
A19
1103RS Non-IC Remodeler
150W
150W
150W
100W
PAR38
BR40
A21
A19
1104ICRS Non-IC Remodeler
100W
150W
100W (75W)
PAR38
BR40
A19
1100IC IC
90W
100W
75W
PAR38
BR40
A19
1104ICN IC/Airseal®
75W
65W
60W (52W)
PAR38
BR40
A19
1104ICXN IC/Airseal®
100W (90W)
120W
60W
PAR38
BR40
A19
1104ICRS IC/Airseal® Remodeler
75W
65W
60W (52W)
PAR38
BR40
A19
( ) = Max wattage for BA.
504 Philips
Lytecaster – Philips Lightolier
5-1/4"
3-3/4"
6-3/4"
5-1/2"
Canlyte Lighting Resource Guide
An economical choice for low budget applications is the
CH finish.
Basic Cone i
1076CH Chrome
incandescent
Specular Reectors
2076CH Chrome
Frame-In Kit Ceiling Wattage Lamping
2002 Non-IC 50W
50W
PAR20
R20
2003RS Remodeler Non-IC 50W
50W
PAR20
R20
2002AIC IC 50W
50W
PAR20
R20
Frame-In Kit Ceiling Wattage Lamping
1002 Non-IC
75W
75W
60W
PAR30L
BR30
A19
1004ICN Non-IC
50W
65W
40W
PAR30
BR30
A19
1003RS Non-IC Remodeler
75W
75W
60W
PAR30L
BR30
A19
1004ICRS Non-IC Remodeler
50W
65W
40W
PAR30
BR30
A19
1000IC IC
75W
65W
40W
PAR30
BR30
A19
1004ICN IC/Airseal®50W
65W
PAR30
BR30
1004ICXN IC/Airseal®
75W
65W
40W
PAR30L
BR30
A19
1004ICRS IC/Airseal® Remodeler 50W
65W
PAR30
BR30
505Philips
Lytecaster – Philips Lightolier
6-3/4"
Canlyte Lighting Resource Guide
An economical choice for low budget applications is the
CH finish.
Basic Cone i
1176CH Chrome
incandescent
Specular Reectors
Frame-In Kit Ceiling Wattage Lamping
1102P1 Non-IC
150W
150W
100W
PAR38
BR40
A19
1104ICN Non-IC
90W
85W
120W
60W
PAR38
BR30
BR40
A19
1103RS Non-IC Remodeler
150W
150W
100W
PAR38
BR40
A19
1104ICRS Non-IC Remodeler
90W
85W
120W
60W
PAR38
BR30
BR40
A19
1100IC IC
90W
100W
40W
PAR38
BR40
A19
1104ICN IC/Airseal®
75W
65W
40W
PAR38
BR30/BR40
A19
1104ICXN IC/Airseal®
90W
90W
52W
PAR38
BR40
A19
1104ICRS IC/Airseal® Remodeler
75W
65W
40W
PAR38
BR40
A19
506 Philips
Lytecaster – Philips Lightolier
5-1/4"
6-3/4"
3-3/4"
5-1/2"
7-3/16" 7-15/16"
2005BK
1005BK
1105BK
5-7/8" 6-5/8"

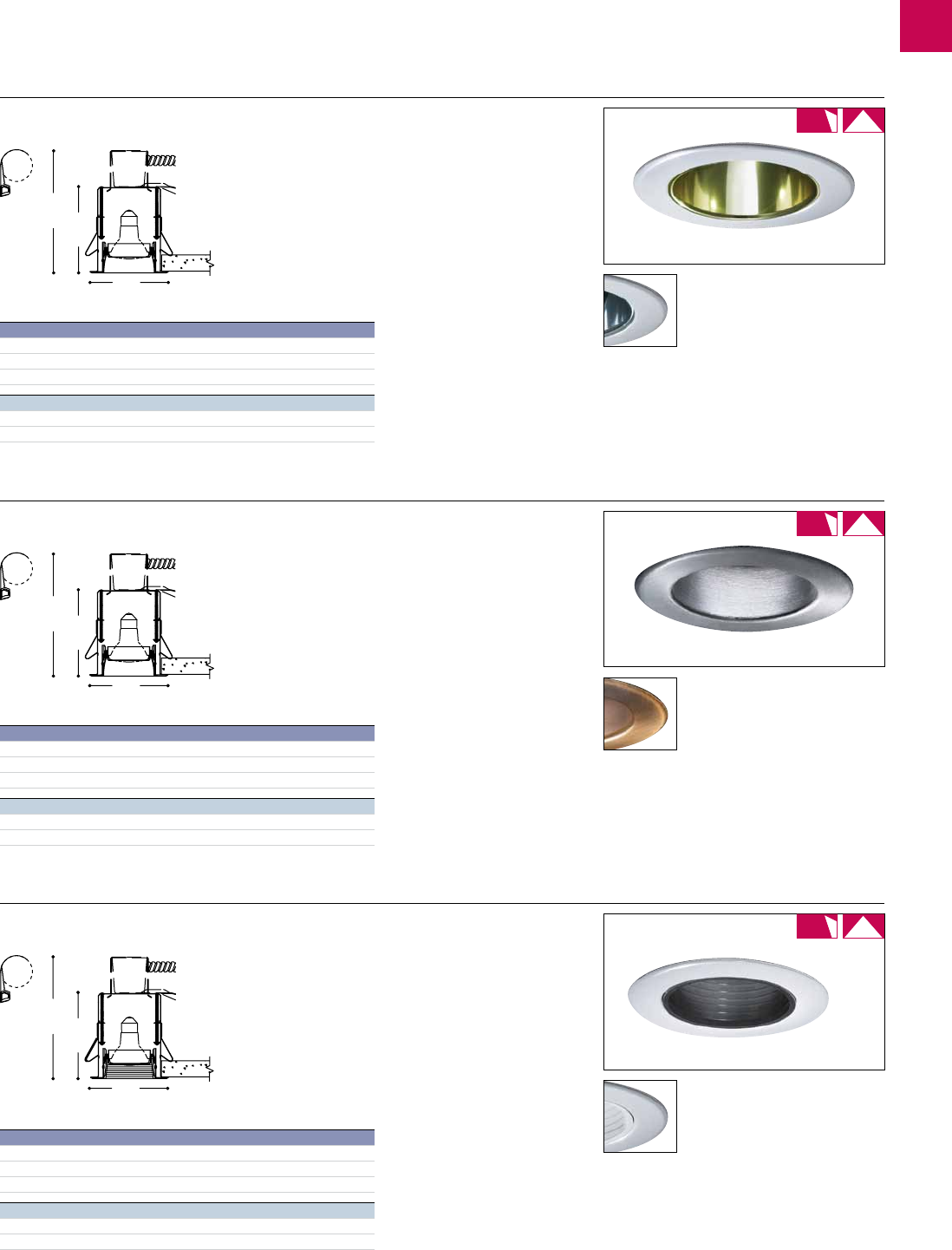

Canlyte Lighting Resource Guide
incandescent
Versatile,  low  brightness  downlight.  Precision-tted 
die-cast aluminum step baffle is finished in black or
white and the recessed lamp reduces glare. Anobrite®
aluminum reflector concentrates output from A and self-
ballasted compact fluorescent lamps.
1005BK
1005WB
Black Baffle
White Baffle
2005BK
2005WB
Black Baffle
White Baffle

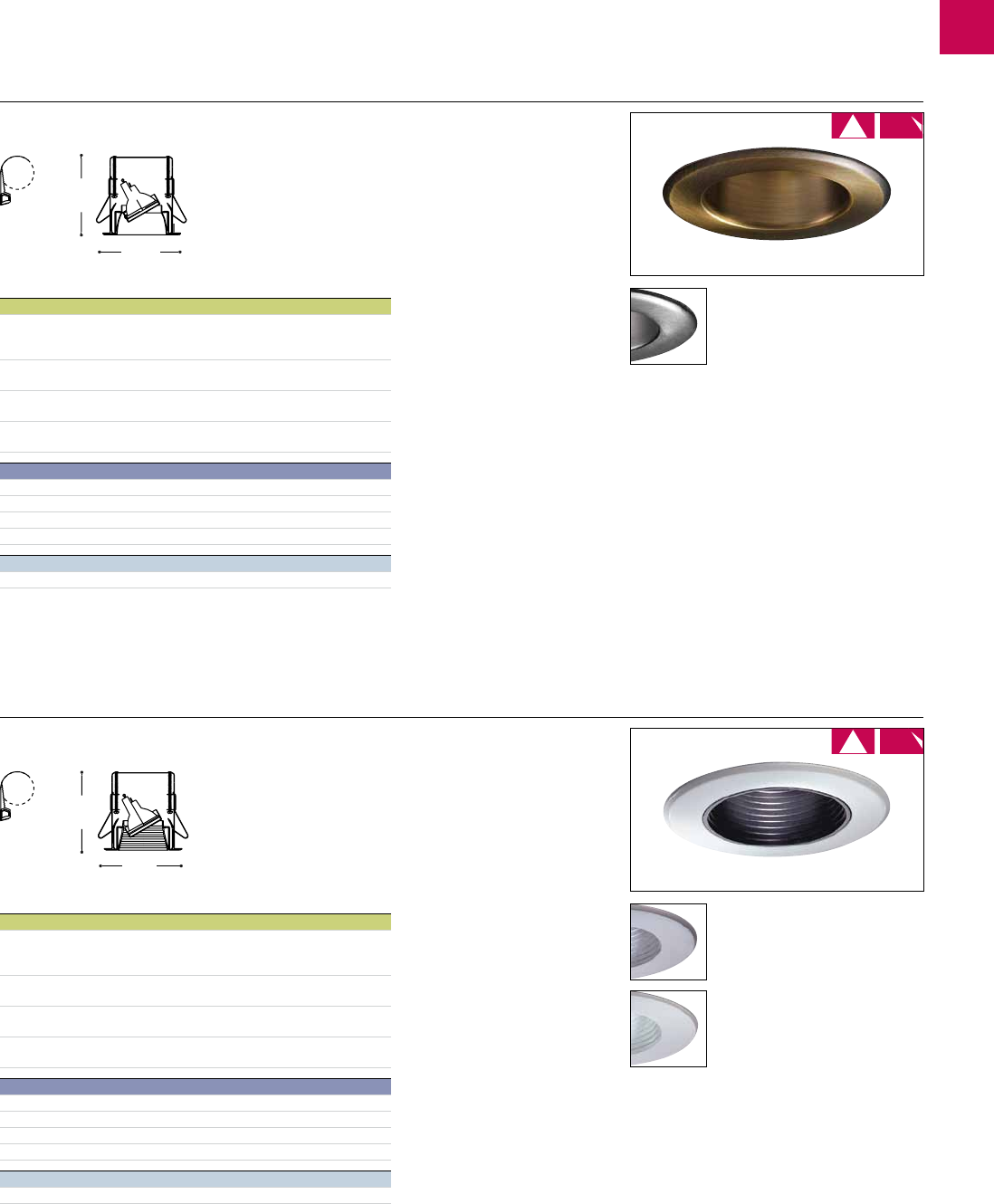

Premium Die-Cast Step Bafe ii
1105BK
1105WB
Black Baffle
White Baffle
50W PAR20
Ht. to F.C Beam Dia.
Floor At 30" Above Floor
8' 53 5'
9' 38 5.5'
10' 29 6'
Multiple Units
Ctr. to Ctr. Footcandles
Lrg. Room Sml. Room
4' 40 36
5' 29 24
6' 19 12
75W PAR30
Ht. to F.C Beam Dia.
Floor At 30" Above Floor
8' 61 6'
9' 43 7'
10' 33 8'
Multiple Units
Ctr. to Ctr. Footcandles
Lrg. Room Sml. Room
4' 63 55
5' 45 37
6' 34 18
150W PAR38
Ht. to F.C Beam Dia.
Floor At 30" Above Floor
8' 175 3.5'
9' 125 4'
10' 94 4.5'
Multiple Units
Ctr. to Ctr. Footcandles
Lrg. Room Sml. Room
4' 88 81
5' 63 54
6' 42 27
Bafed Downlight
Frame-In Kit Ceiling Wattage Lamping
2002 Non-IC
50W
75W
60W
PAR20
PAR16/ R20
A19
2003RS Non-IC Remodeler
50W
75W
60W
PAR20
PAR16/ R20
A19
2002AIC IC/Airseal®
50W
45W
50W
PAR20
PAR16
R20
Frame-In Kit Ceiling Wattage Lamping
1002 Non-IC
75W
75W
75W
PAR30
BR30
A19
1004ICN Non-IC
75W
75W
40W
PAR30
BR30
A19
1003RS Non-IC Remodeler
75W
75W
75W
PAR30
BR30
A19
1004ICRS Non-IC Remodeler
75W
75W
40W
PAR30
BR30
A19
1000IC IC
75W
65W
40W
PAR30
BR30
A19
1004ICN IC/Airseal®50W
65W (60W)
PAR30
BR30
1004ICXN IC/Airseal®
75W
65W
40W
PAR30
BR30
A19
1004ICRS IC/Airseal® Remodeler 50W
65W (60W)
PAR30
BR30
Frame-In Kit Ceiling Wattage Lamping
1102P1 Non-IC
150W
150W
150W
100W
PAR38
BR40
A21
A19
1104ICN Non-IC
90W
85W
120W
75W
PAR38
BR30
BR40
A19
1103RS Non-IC Remodeler
150W
150W
150W
100W
PAR38
BR40
A21
A19
1104ICRS Non-IC Remodeler
90W
85W
120W
75W
PAR38
BR30
BR40
A19
1100IC IC
100W
100W
60W
PAR38
BR40
A19
1104ICN IC/Airseal®
75W
65W
40W
PAR38
BR40
A19
1104ICXN IC/Airseal®
100W
100W
60W
PAR38
BR40
A19
1104ICRS IC/Airseal® Remodeler
75W
65W
60W (52)
PAR38
BR40
A19 (  ) = Max wattage for BK.
(  ) = Max wattage for BK.
507Philips
Lytecaster – Philips Lightolier
6-3/4"
D
D
6-3/4"
Canlyte Lighting Resource Guide
incandescent
Bafed Downlight
Each  downlight  features  a  6-3/4"  round  opening  that 
precisely matches other 6-3/4" downlights in shape and
finish. Shallow slope: Lower brightness downlighting
for shallow sloped ceilings. 14°- 30° (3/12-7/12) Pitch.
Steep slope: Provides well-shielded downlighting for
steep sloped ceilings. 30°- 45° (7/12-12/12) Pitch.
Premium Die-Cast Step Bafe Sloped Ceiling ii
SHALLOW SLOPE
1131 Black Baffle
1131WH White Baffle
STEEP SLOPE
1133 Black Baffle
1133WH White Baffle
Frame-In Kit Ceiling Wattage Lamping
1100IC IC 75W
65W
PAR30S (short neck)
BR30
1104ICXN IC/Airseal®75W
65W
PAR30S (short neck)
BR30
Frame-In Kit Ceiling Wattage Lamping
1100IC IC 75W PAR30S (short neck)
1104ICXN IC/Airseal®75W PAR30S (short neck)
508 Philips
Lytecaster – Philips Lightolier
6-3/4"
3-3/4"
5-1/4"
6-3/4"6-3/4"
6-3/4"5-1/2"
7-1/2"
1076
1176
Canlyte Lighting Resource Guide
Bafed Downlight
Precision-fitted, high temperature phenolic baffle,
hori zontal grooves reduces glare. Aluminum reflector
finished in white operates effectively with A and self-
ballasted compact fluorescent lamps as well as PAR and
BR lamps. Economical choice for low budget applications.
1076
1076WH
Black Baffle
White Baffle
1176
1176WH
Black Baffle
White Baffle
75W PAR30
Ht. to F.C Beam Dia.
Floor At 30" Above Floor
8' 61 6'
9' 43 7'
10' 33 8'
Multiple Units
Ctr. to Ctr. Footcandles
Lrg. Room Sml. Room
4' 63 55
5' 45 37
6' 34 18
150W PAR38
Ht. to F.C Beam Dia.
Floor At 30" Above Floor
8' 175 3.5'
9' 125 4'
10' 94 4.5'
Multiple Units
Ctr. to Ctr. Footcandles
Lrg. Room Sml. Room
4' 88 81
5' 63 54
6' 42 27
incandescent
Frame-In Kit Ceiling Wattage Lamping
1002 Non-IC
75W
75W
60W
PAR30L
BR30
A19
1004ICN Non-IC
50W
65W
40W
PAR30
BR30
A19
1003RS Non-IC Remodeler
75W
85W
60W
PAR30L
BR30
A19
1004ICRS Non-IC Remodeler
50W
65W
40W
PAR30
BR30
A19
1000IC IC
75W
65W
40W
PAR30
BR30
A19
1004ICN IC/Airseal®50W
65W
PAR30
BR30
1004ICXN IC/Airseal®
75W
65W
40W
PAR30L
BR30
A19
1004ICRS IC/Airseal® Remodeler 50W
65W
PAR30
BR30
Frame-In Kit Ceiling Wattage Lamping
1102P1 Non-IC
150W
150W
100W
PAR38
BR40
A19
1104ICN Non-IC
90W
85W
120W
40W
PAR38
BR30
BR40
A19
1103RS Non-IC Remodeler
150W
150W
100W
PAR38
BR40
A19
1104ICRS Non-IC Remodeler
90W
85W
120W
60W
PAR38
BR30
BR40
A19
1100IC IC
90W
100W
40W
PAR38
BR40
A19
1104ICN IC/Airseal®
75W
65W
40W
PAR38
BR40
A19
1104ICXN IC/Airseal®
90W
90W
52W
PAR38
BR40
A19
1104ICRS IC/Airseal® Remodeler
75W
65W
40W
PAR38
BR40
A19
2076BK
2076WB
Black Baffle
White Baffle
Frame-In Kit Ceiling Wattage Lamping
2002 Non-IC 50W
50W
PAR20
R20
2003RS Remodeler Non-IC 50W
50W
PAR20
R20
2002AIC IC 50W
50W
PAR20
R20
Basic Bafe i
509Philips
Lytecaster – Philips Lightolier
5-1/4"
7"
(178mm)
4-7/8"
(124mm)
6"
(152mm)
Canlyte Lighting Resource Guide
incandescent
Bafed Downlight
Aluminum reflector grooved on the inside for baffle
appearance. Interior painted black to reduce glare.
Operates effectively with PAR and BR lamps. A lamps or 
self-ballasted compact fluorescent lamps recommended
for white version only. White version is all white for a
uniform look.
Basic Grooved Bafe i
R620BK Black Grooves
R620WH White Grooves
Frame-In Kit Ceiling Wattage Lamping
1002 Non-IC
75W
75W
60W
PAR30L
BR30
A19
1004ICN Non-IC
50W
65W
40W
PAR30
BR30
A19
1004ICRS Non-IC Remodeler
50W
65W
40W
PAR30
BR30
A19
1000IC IC
75W
65W
40W
PAR30
BR30
A19
1004ICN IC/Airseal®50W
65W
PAR30
BR30
1004ICXN IC/Airseal®
75W
65W
40W
PAR30L
BR30
A19
1004ICRS IC/Airseal® Remodeler 50W
65W
PAR30
BR30
510 Philips
Lytecaster – Philips Lightolier
5-1/4"
6-3/4"
6-3/4"6-3/4"
7-1/8"
1071
1171
Canlyte Lighting Resource Guide
Basic downlight with low brightness splay. Aluminum
reflector finished in white assures ef ficiency with A and self-
ballasted compact fluorescent lamps. Wide choice of
wattage and lamp types, including heat lamp (1171 only).
Economical choice for low budget applications.
Basic White Reflector (heat lamp) i
1071 White
1171 White
75W PAR30
Ht. to F.C Beam Dia.
Floor At 30" Above Floor
8' 71 6'
9' 51 7'
10' 38 8'
Multiple Units
Ctr. to Ctr. Footcandles
Lrg. Room Sml. Room
4' 74 64
5' 53 43
6' 35 21
150W PAR38
Ht. to F.C Beam Dia.
Floor At 30" Above Floor
8' 145 5'
9' 104 5.5'
10' 78 6'
Multiple Units
Ctr. to Ctr. Footcandles
Lrg. Room Sml. Room
4' 93 85
5' 66 57
6' 44 28
White Reectors
incandescent
Frame-In Kit Ceiling Wattage Lamping
1002 Non-IC
75W
65W
75W
PAR30L
BR30
A19
1004ICN Non-IC
75W
85W
52W
PAR30
BR30
A19
1003RS Non-IC Remodeler
75W
85W
75W
PAR30L
BR30
A19
1004ICRS Non-IC Remodeler
75W
85W
52W
PAR30
BR30
A19
1000IC IC
75W
65W
40W
PAR30
BR30
A19
1004ICN IC/Airseal®50W
65W
PAR30
BR30
1004ICXN IC/Airseal®
75W
65W
52W
PAR30
BR30
A19
1004ICRS IC/Airseal® Remodeler 50W
65W
PAR30
BR30
Frame-In Kit Ceiling Wattage Lamping
1102P1 Non-IC
250W
150W
100W
R40 IR
PAR38/BR40
A19
1104ICN Non-IC
150W
120W
75W
PAR38
BR40
A19
1103RS Non-IC Remodeler
250W
150W
100W
R40 IR
PAR38/BR40
A19
1104ICRS Non-IC Remodeler
150W
120W
75W
PAR38
BR40
A19
1100IC IC
90W
100W
60W
PAR38
BR40
A19
1104ICN IC/Airseal®
75W
85W
52W
PAR38
BR40
A19
1104ICXN IC/Airseal®
100W
120W
60W
PAR38
BR40
A19
1104ICRS IC/Airseal® Remodeler
75W
85W
52W
PAR38
BR40
A19
511Philips
Lytecaster – Philips Lightolier
6-3/4"
6-3/4"
6-3/4"
1-9/16"
5-1/4"
5-1/4"
6-3/4"
1-7/8"
6-3/4"
1"
7-1/2"
1"
1021
1121
1078
1178SH
Canlyte Lighting Resource Guide
incandescent
Diffusers
Cased opal glass gives widespread, even illumination.
Diffuser removes easily with twist-tite action. Sturdy
hinge supports glass, assuring safe relamping. Gasket
keeps out dirt and moisture. Suitable for wet locations,
showers and spas.
Even illumination from durable Lexan® diffuser, supplied
with  gasket  to  keep  out  dirt  and  moisture.  Easy  twist-
lock relamping. Aluminum reflector finished in white.
Economical choice for low budget applications. Suitable 
for wet locations, showers and spas.
Opal Disk ii
Lexan® Dish i
1021  Opal Glass
1078  Opal Lexan®
1121  Opal Glass
1178SH  Opal Lexan®
75W A19
Ht. to F.C Beam Dia.
Floor At 30" Above Floor
8' 3 33'
9' 2 37'
10' 1.5 41'
Multiple Units
Ctr. to Ctr. Footcandles
Lrg. Room Sml. Room
4' 17 11
5' 12 7
6' 8 4
100W A19
Ht. to F.C Beam Dia.
Floor At 30" Above Floor
8' 8 22'
9' 6 25'
10' 4 28'
Multiple Units
Ctr. to Ctr. Footcandles
Lrg. Room Sml. Room
4' 38 25
5' 27 17
6' 18 9
60W A19
Ht. to F.C Beam Dia.
Floor At 30" Above Floor
8' 2.5 39'
9' 2 43'
10' 1.5 48'
Multiple Units
Ctr. to Ctr. Footcandles
Lrg. Room Sml. Room
4' 12 8
5' 9 5
6' 6 3
75W A19
Ht. to F.C Beam Dia.
Floor At 30" Above Floor
8' 5 27'
9' 3 30'
10' 2.5 34'
Multiple Units
Ctr. to Ctr. Footcandles
Lrg. Room Sml. Room
4' 25 16
5' 18 11
6' 12 5
Frame-In Kit Ceiling Wattage Lamping
1002 Non-IC 75W A19
1003RS Non-IC Remodeler 75W A19
1000IC IC 40W A19
1004ICXN IC/Airseal®40W A19
Frame-In Kit Ceiling Wattage Lamping
1002 Non-IC 60W A19
1003RS Non-IC Remodeler 60W A19
1000IC IC 40W A19
Frame-In Kit Ceiling Wattage Lamping
1102P1 Non-IC 100W A19
1104ICN Non-IC 75W A19
1103RS Non-IC Remodeler 100W A19
1104ICRS Non-IC Remodeler 75W A19
1100IC IC 60W A19
1104ICN IC/Airseal®40W A19
1104ICXN IC/Airseal®52W A19
1104ICRS IC/Airseal® Remodeler 40W A19
Frame-In Kit Ceiling Wattage Lamping
1102P1 Non-IC 75W A19
1104ICN Non-IC 40W A19
1103RS Non-IC Remodeler 75W A19
1104ICRS Non-IC Remodeler 40W A19
1100IC IC 40W A19
1104ICN IC/Airseal®40W A19
1104ICXN IC/Airseal®40W A19
1104ICRS IC/Airseal® Remodeler 40W A19
512 Philips
Lytecaster – Philips Lightolier
5-1/4"
6-3/4"
D
1-3/4"
D
1-3/4"
5-1/4"
5-1/4"
3-5/8"
4-5/16"
5/8"
5/8"
Canlyte Lighting Resource Guide
Even illumination from durable Lexan diffuser. One trim 
size designed to be used with both 1004 and 1104
Lytening series frame-in kits. Easy twist-lock relamping. 
Suitable for wet locations, showers and spas.
Lytening Lexan® Dish i
Diffusers
incandescent
1178L X  Opal Lexan®
1178L X  Opal Lexan®
Frame-In Kit Ceiling Wattage Lamping
1004ICN Non-IC 40W A19
1004ICRS Non-IC Remodeler 40W A19
1004ICN IC/Airseal® 40W A19
1004ICRS IC/Airseal® Remodeler 40W A19
Frame-In Kit Ceiling Wattage Lamping
1104ICN Non-IC 52W A19
1104ICRS Non-IC Remodeler 52W A19
1104ICN IC/Airseal® 40W A19
1104ICRS IC/Airseal® Remodeler 40W A19
Contour i
1084WH White
Frame-In Kit Ceiling Wattage Lamping
1002 Non-IC 75W PAR30L
1003RS Non-IC Remodeler 75W PAR30L
1000IC IC 60W PAR30
1004ICXN IC/Airseal®60W PAR30
1081WH White
Frame-In Kit Ceiling Wattage Lamping
1004ICN Non-IC 75W PAR30
1004ICRS Non-IC Remodeler 75W PAR30
1004ICN IC/Airseal® 75W PAR30
1004ICRS IC/Airseal® Remodeler 75W PAR30
Simple contoured architectural flange for unique new
appearance. Specially designed for task areas and wet
locations such as showers. Gasket included certified for
wet locations with or without gasket.
513Philips
Lytecaster – Philips Lightolier
6-3/4"
3-3/4"
5-3/16"
2-7⁄8"
4-5⁄8"
1⁄4"
1⁄4"
5-1/4"
1⁄4"
6-1/2"
6-3/4"
7-1/8" 7-3/4"
6-1/4"
5-1/4"
Canlyte Lighting Resource Guide
incandescent
The trim's flush design allows for a clean architectural
look while the frosted polycarbonate flange creates
an elegant glow against the ceiling. The textured lens
shields the lamp source and completes the look providing
a clean classic style that fits in any decor.
Fresnel lens is recessed, comes in white, spreads light
evenly, gives high efficiency and low brightness and
cleans easily. Anobrite® aluminum reflector maximizes
output. Lens assembly pulls down for easy relamping
and retains with safety chain. Suitable for wet locations,
showers and spas.
Decorative Lens Wet Location i
Fresnel Lenslite ii
2090 Frosted Lens
1126WH White Baffle
1126BK Black Baffle
1090 Frosted Lens
1190 Frosted Lens
PAR30S = Short neck lamp only
PAR30L = Long neck lamp only
Lensed Downlights
Frame-In Kit Ceiling Wattage Lamping
2002 Non-IC 50W PAR20
2003RS Non-IC Remodeler 50W PAR20
2002AIC IC/Airseal® 50W PAR20
Frame-In Kit Ceiling Wattage Lamping
1102P1 Non-IC 100W A19
1103RS Non-IC Remodeler 100W A19
1100IC IC 60W A19
1104ICXN IC/Airseal®52W A19
Frame-In Kit Ceiling Wattage Lamping
1002 Non-IC 75W PAR30L
1004ICN Non-IC 75W PAR30S
1003RS Non-IC Remodeler 75W PAR30L
1004ICRS Non-IC Remodeler 75W PAR30S
1000IC IC 60W PAR30S
1004ICXN IC/Airseal® 60W PAR30S
Frame-In Kit Ceiling Wattage Lamping
1102P1 Non-IC 120W PAR38
1104ICN Non-IC 100W PAR38
1103RS Non-IC Remodeler 120W PAR38
1104ICRS Non-IC Remodeler 100W PAR38
1100IC IC 90W PAR38
1104ICN IC/Airseal® 45W PAR38
1104ICXN IC/Airseal®60W PAR38
1104ICRS IC/Airseal® Remodeler 45W PAR38
514 Philips
Lytecaster – Philips Lightolier
5-1/4"
6-3/4"
7"
7-15/16"
Canlyte Lighting Resource Guide
Accent lighting for horizontal or vertical surfaces, or
recessed downlighting for sloped ceilings. Fully adjust-
able 358° horizontally, 30° vertically. Lamp is recessed
and shielded by die-cast baffle or aperture cone to
reduce glare.
Adjustable Premum Die-Cast Step Bafe ii
Adjustables
incandescent
1027 Black Baffle
1027WH White Baffle
1048 Specular Clear
Alzak® Cone
1127 Black Baffle
1127WH White Baffle
1148 Specular Clear
Alzak® Cone
PAR30S = Short neck lamp only
Frame-In Kit Ceiling Wattage Lamping
1002 Non-IC
75W
75W
50W
PAR30S
PAR16
PAR20
1003RS Non-IC Remodeler
75W
75W
50W
PAR30S
PAR16
PAR20
1000IC IC
75W
75W
50W
PAR30S
PAR16
PAR20
1004ICXN IC/Airseal®
75W
75W
50W
PAR30S
PAR16
PAR20
Frame-In Kit Ceiling Wattage Lamping
1102P1 Non-IC
150W
150W
85W
BR40
PAR38
BR30
1103RS Non-IC Remodeler
150W
150W
85W
BR40
PAR38
BR30
515Philips
Lytecaster – Philips Lightolier
5-1/4"
5-1/4"
6-3/4"
7"
6-3/8"
3-3/8"
ø6"
(152mm)
7-1/2"
(191mm)
4-1/8"
7-5/8"
7"
Canlyte Lighting Resource Guide

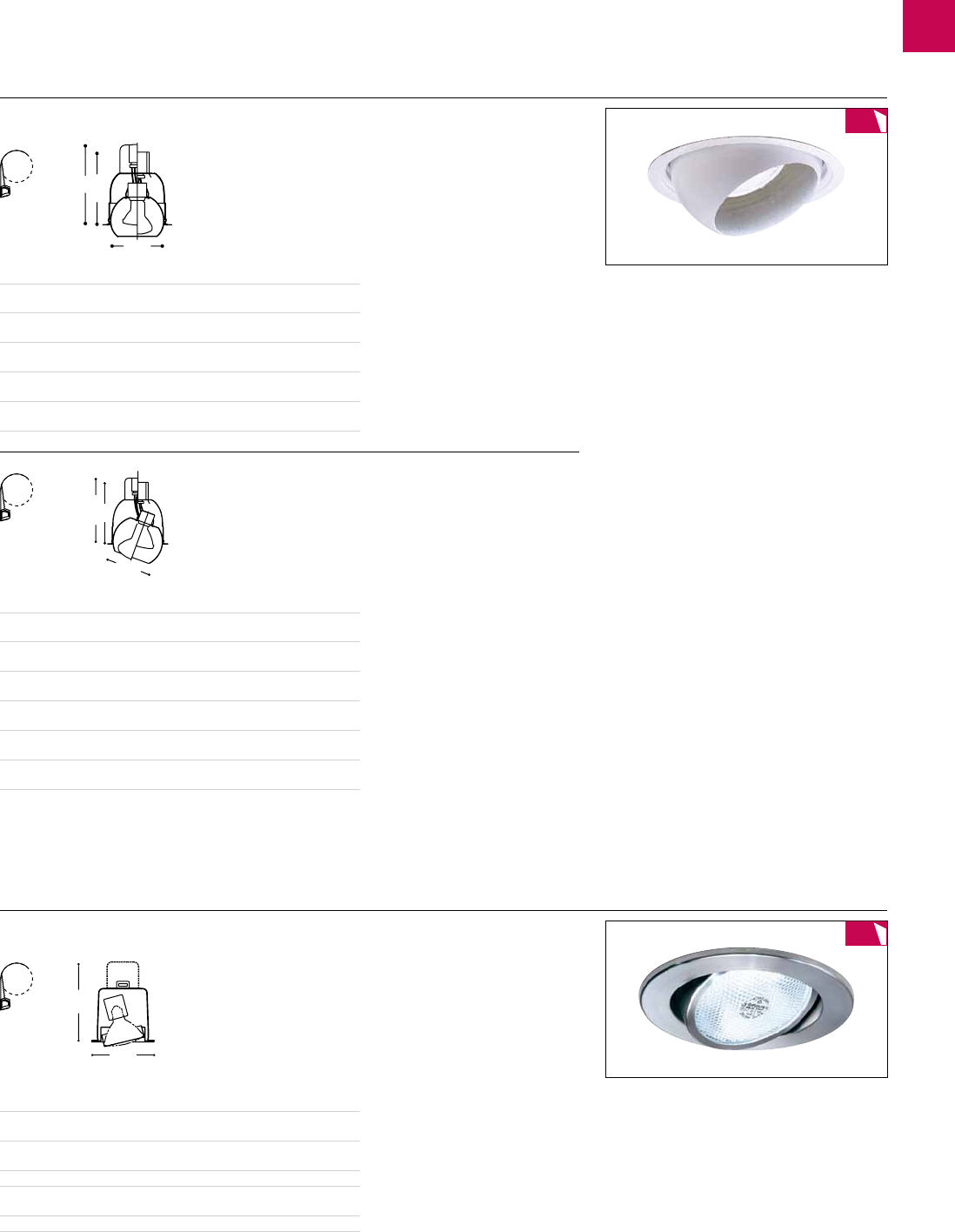

Adjustable accent lighting for horizontal and vertical sur-
faces. One-piece housing adjusts 358° horizontally and 
40° vertically. White eyeball is an economical choice for
low budget applications.
Lamp rotates 360° horizontally and 30° vertically. It is
flush with trim and can be aimed without removing trim.
Suited to sloped ceilings up to 30°. General or accent
lighting. Easy back relamping.
Basic Eyeball i
PAR30 Gimbal i
1082 White
1182 White
1083BK Black
1083ST Brushed Steel
1083WH Gloss White
PAR30S = Short neck lamp only
incandescent
Adjustables
Frame-In Kit Ceiling Wattage Lamping
1002
1004ICN Non-IC 50W
75W
PAR20
R20
1003RS
1004ICRS Non-IC Remodeler 50W
75W
PAR20
R20
1000IC IC 50W
75W
PAR20
R20
1004ICN
1004ICXN IC/Airseal®50W
75W
PAR20
R20
1004ICRS IC/Airseal® Remodeler 50W
75W
PAR20
R20
Frame-In Kit Ceiling Wattage Lamping
1002
1004ICN Non-IC 75W PAR30S
1003RS
1004ICRS Non-IC Remodeler 75W PAR30S
1000IC IC 75W PAR30S
1004ICN
1004ICXN IC/Airseal®75W PAR30S
1004ICRS IC/Airseal® Remodeler 75W PAR30S
Frame-In Kit Ceiling Wattage Lamping
1102P1 Non-IC 75W
85W
PAR30L
BR30
1104ICN Non-IC 75W
85W
PAR30
BR30
1103RS
1104ICRS Non-IC Remodeler 75W
85W
PAR30
BR30
1100IC IC 75W
85W
PAR30
BR30
1104ICN
1104ICXN IC/Airseal®75W
85W
PAR30
BR30
1104ICRS IC/Airseal® Remodeler 75W
85W
PAR30
BR30
516 Philips
Lytecaster – Philips Lightolier
Canlyte Lighting Resource Guide
For projects with a limited budget, Lytecaster offers
a selection of attractive, easy-to-install luminaires
featuring a variety of lighting effects. Unlike other
Lytecaster products, Complete Units are identified
by a single catalogue number and include the trim
and the frame-in kit all in one box.
Residential and commercial
applications
•   Complete Units are very easy to install, including 
Cliclyte with its innovative mounting clip system
•   Ideally suited for new construction and renovations. 
Many Complete Units can be used for both applications
•   Wide selection of luminaires for insulated ceilings and 
non-insulated ceilings
Affordable convenience
•   Competitively priced CSA-certified luminaires that meet 
Lightolier’s high standards of quality
•   Complete Units combine an Elyte frame-in kit 
(or Power Pack) and a reflector trim
•   Unlike other Lytecaster products, Complete Units include 
all the luminaire elements required and feature a single
catalogue number
complete units
517Philips
Lytecaster – Philips Lightolier
3-3/4"
BK
5"
3-1/4"
6"
4-3/4"
6-3/4"
5-3/4"
6-3/4"
5-1/4"
Canlyte Lighting Resource Guide
High temperature phenolic horizontal baffle available
in black to reduce glare or white, for a uniform look.
Aluminum reflector finished in white operates effectively
with A, self-ballasted compact fluorescent, PAR and BR
lamps. Sold complete all in one box, with a pre-wired
frame for a new or insulated ceiling.
Horizontal Bafe i
0020 Black Baffle
0020WH White Baffle
0030 Black Baffle
0030WH White Baffle
0040 Black Baffle
0040WH White Baffle
Bafed Downlights
White Baffle
complete units
Frame-In Kit Ceiling Wattage Lamping
Complete Units Non-IC 50W
50W
PAR20
R20
Frame-In Kit Ceiling Wattage Lamping
Complete Units Non-IC
100W
85W
75W
A19
BR30
PAR30
Frame-In Kit Ceiling Wattage Lamping
Complete Units Non-IC
150W
150W
100W
PAR38
BR40
A19
518 Philips
Lytecaster – Philips Lightolier
Canlyte Lighting Resource Guide
Drywall Ceiling Ceiling TileExterior Aluminum Soffit*
Installs in minutes
CLIC... Cut out hole using template supplied and fasten clips to edges
CLIC... Wire luminaire without tools and without screws
CLIC... Fit Cliclyte housing snugly into place
Features:
•  Innovative clip design
•  Installs quickly in all ceilings
•  ‘Clics’ into place without tools
•  Three easy steps: clic...clic...clic!
•  Trims can be easily removed afterwards
•   Choice of three Cliclyte trims in a single uniform look
•   An economical choice for remodeling the home or office
•   Optional mounting plate for new ceilings and aluminum soffits
•   Special clips included with trims – extra clips available (see p. 552)
*Optional mounting plate sold separately, see accessories p. 552.
Lytecaster’s total remodeler
solution for easy-to-install
home and office lighting.
A unique mounting clip system
makes Cliclyte the easiest recessed
remodeler to install in all
types of ceilings. In just
three steps, Cliclyte installs
quickly without any tools and
without any trouble. The Cliclyte
family of downlights can meet
a wide range of lighting needs. It is even
suited to outdoor aluminum soffits when
fitted with the optional mounting plate
(see Accessories, p. 552).
3 different ceiling types
Exclusive mounting clips adjust
to ceiling thickness with sliding
teeth that grab hold of ceiling
material and secure Cliclyte
luminaire in position.
complete units
Cliclyte Remodelers
519Philips
Lytecaster – Philips Lightolier
5-1/4"
WH
WH
4"
5-3/8"
3-1/4"
4-3/4"
6-3/8"
5-1/2"
7"
4-1/8"
Canlyte Lighting Resource Guide
Phenolic step baffle. For general lighting, space 6'
between luminaires. For task lighting, use medium beam
spread lamps.
For fast and easy shower remodeling. Virtually unbreak-
able Lexan diffuser. CSA-certified for wet locations,
showers and spas.
Horizontal Bafe i
Shower Light i
0029BK Black Baffle
0029WH White Baffle
0033WH White Lexan®
0039BK Black Baffle
0039WH White Baffle
Frame-In Kit Ceiling Wattage Lamping
Complete Units Non-IC 50W
50W
PAR20
R20
Frame-In Kit Ceiling Wattage Lamping
Complete Units Non-IC 40W A19
Frame-In Kit Ceiling Wattage Lamping
Complete Units Non-IC 75W
75W
40W
PAR30
BR30
A19
Cliclyte Remodelers – Non-IC
Black Baffle
complete units
520 Philips
Lytecaster – Philips Lightolier
3-3/4" 4-1/4"
Canlyte Lighting Resource Guide
300X / 500X Series
In response to the growing needs of the residential market, Lightolier has recently introduced new trims to its popular line of 300X Series small
aperture downlights. By introducing FleX in 2003, an installer-friendly mounting system that gets the job done faster and cleaner than other
systems. And, in 2005, by extending the line with the 500X Series to provide an affordable PAR20 lighting alternative without compromising on
design elegance and Lightolier’s trademark quality.
MR16 – 50W max. Low voltage PAR20 – 50W max. Line voltage
•MagneticandelectronicNon-ICRemodeler
•MagneticandelectronicNon-ICFrame-inKit
•MagneticICFrame-inKit
•MagneticandelectronicICAirSeal®Frame-inKit
•Non-ICRemodeler
•Non-ICFrame-inKit
•ICAirSeal®Frame-inKit
•Non-ICRemodeler
•Non-ICFrame-inKit
•ICandICAirSeal®Frame-inKit
•Non-ICRemodeler
•Non-ICFrame-inKit
•Non-ICRemodeler
•Non-ICFrame-inKit
300X Series 500X Series
ES/ESD16 50W max. Line voltage
MR16 20/39Wmax.C.M.H.
PAR20 20/39Wmax.C.M.H.
521Philips
Lytecaster – Philips Lightolier
+
SOUND DAMPENING TECHNOLOGY
FLEX Installation System
Canlyte Lighting Resource Guide
FLEX, Lightolier’s improved modular mounting system for faster,
more convenient and more forgiving luminaire installations
How does the FLEX System provide added flexibility for
renovation projects and new constructions (IC and non-IC)
using Lightolier Series 300X and 500X luminaires?
•Hassle-freeinstallationseveninnot-so-perfectconditions
•Noverticalhousingadjustmentrequired
•Housingandtrimaremountedafterpaintingandplastering,ensuring
a cleaner, more consistent quality finish
•Addedstabilityprovidedby“clamp-downaction”ofspeciallydesigned
factory-installed Residence mounting clips
•Easieraccesstocomponentsafterluminaireinstallation
Complete fixture =
Three Levels of Isolation for a noise-free environment
Havingfewervibrationsmeanslessnoise.Withthatinmind,SilentPackhasbeenscientificallydevelopedtoeliminateboth.
Thanks to its Tri-Guard design, Silent Pack offers three levels of isolation:
Level One: Aluminum Housing
An aluminum transformer housing
eliminates noise caused by magnetic
transfer and resonance.
Level Two: Isolation
A transformer housing design and potting
process provide a visual indication that the
transformer is fully encased in a sound
dampening epoxy resin. A quick look for
the black dot on the blue aluminum housing
confirms that the transformer is surrounded and
that it is not in contact with the housing walls,
thus eliminating noise and vibration transfer.
Level Three: Gasketing
A thick neoprene gasket separates the
transformerhousingfromtheFrame-inKit
to provide an extra layer of sound isolation
and vibration dampening, preventing
sound or vibrations from reaching
the frame.
The FLEX System features
“clamp-down action”
mounting clips for
trouble-free installation
•Renovations with insulated ceilings
accessible from above:
Installers have no need for mounting bars and spend less
time in the attic, as housing mounting clips secure
Frame-inKitinpositionfrombelow.
•New constructions (IC and non-IC):
InstallerscanworkfasterbecauseFrame-inKitstability
is not as critical as with competing brands, given that
mountingclipssandwichhousingandFrame-inKit
to ceiling material.
Housingmadeofsteel
for strength included
with luminaire trim.
ExclusiveResidence
mounting clips enable
hands-free installation
and reduce installation
time by half in comparison
to rival brands.
•Flangeremainsfreeofpaint
and plaster because housing
is firmly secured to ceiling
after finishing
•Housingdoesnotneed
vertical adjustment, ensuring
uniform trim positioning and
a consistent look
•Wide3/8"integratedflange
allowing more forgiving
installations
With the FleX System,
you have the freedom to choose
housing positions 0° or 90°
Thanks to two key slots on top of
the housing, you have two ways to
attach the housing to the Power
Pack. When in a tight spot,
remodeler housings can be
installed with mounting clips
parallel to joists, conduits or other
obstacles, providing more room to
manoeuvre.
Clamping power:
Residence mounting clips
feature two screw guides
allowing to clamp down
onceilingsfrom1/8"
to1"thick.
Please refer to p. 553 for the housing accessories for extra thick ceilings.
SOUNDDAMPENINGTECHNOLOGY
300X series
522 Philips
Lytecaster – Philips Lightolier Small Aperture Luminaires
Canlyte Lighting Resource Guide

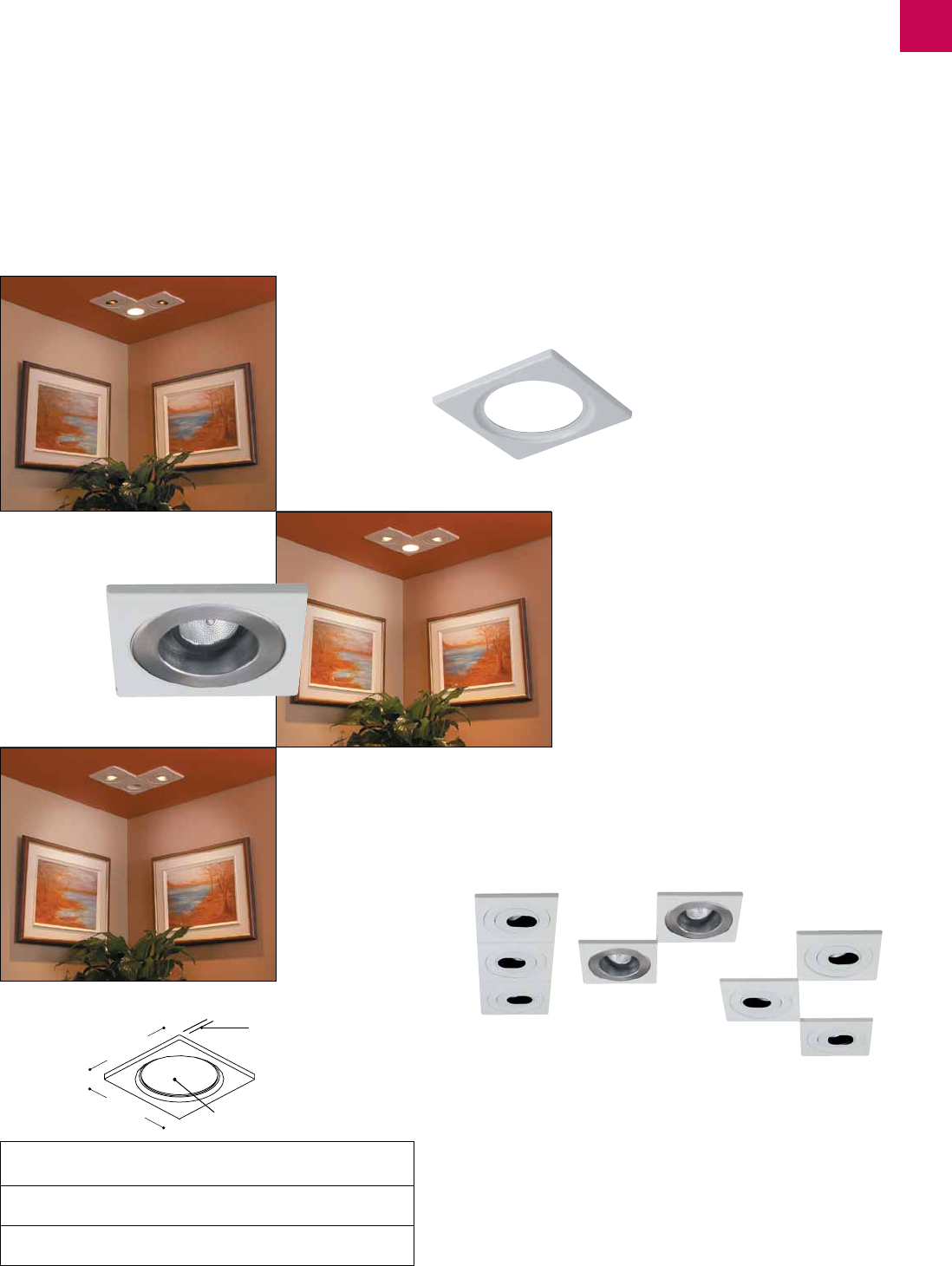

The Lytecaster 300X Series is at the centre of Lightolier’s efforts to provide elegant, installation friendly
small aperture luminaires. Ranging from accent lights to shower lights to models with decorative glass,
the 300X Series is suitable for most residential, commercial and office lighting applications.

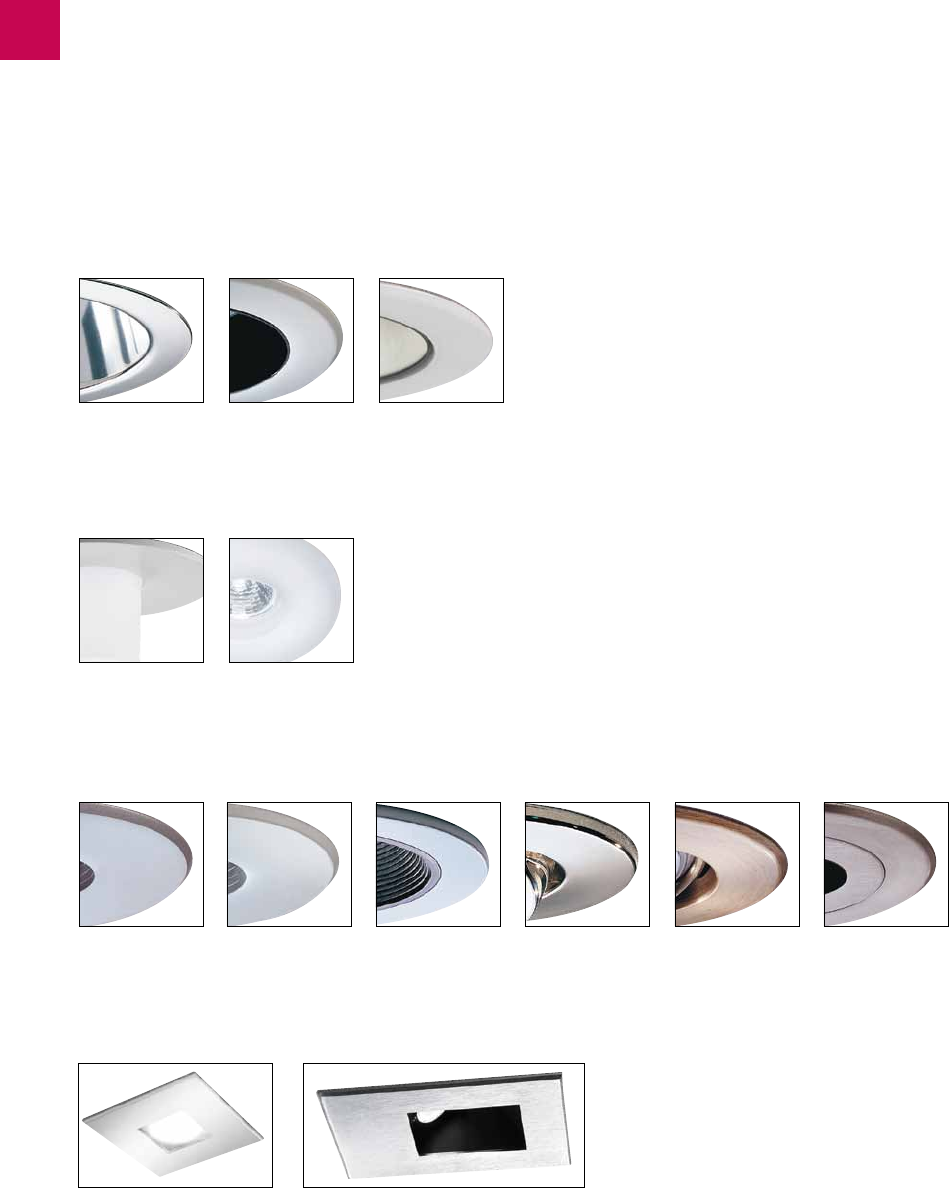

Classic,high-performancefinishes
Choosefromnewshades,excitingdual-tonedesignsandotherpopularfinishes
And now also available in square and linear form factors.
Add flair with decorative glass options
CL–ClearAlzak®
WH–White
AL–AluminumPaint
Square Rectangular
FG–WhiteFrostedGlass
BA–BlackAlzak®
BK–Black
AM–AmberGlass
CM–Chrome
CCD–ComfortClearTM
Diffuse
AB–AntiqueBrass ST–BrushedSteel
300X series
523Philips
Lytecaster – Philips Lightolier
i
ii
iii
MR16
ES16/ESD16
MR16
PAR20
Canlyte Lighting Resource Guide
There’s no better way to create high-impact accent and ambience lighting for homes, retail stores
and other spaces than with low voltage or Ceramic Metal Halide lighting. Lytecaster provides
a wide range of attractive reflector trims to meet the needs of the most discerning eye.
Performance Options
Look for the star rating on every luminaire to determine quality and
facilitate selection... Whether rated Good, Better or Best, Lightolier
downlights are designed to achieve the highest output possible from
the available source while providing superior visual comfort and
quality lighting.
Halogen
By bringing out form, colour
and texture in the objects
being lighted, low voltage halogen
lighting draws the viewer in and adds
excitement to the composition.
Lytecaster low voltage downlights
featureMR16lampsthatprovidehighlyfocusedbeamsthatare
particularly well suited for accent lighting. These low voltage incandescent
sources are also 50% brighter with lamp life as long as 4000 hours.
MR16lampsofferauniquepunchandsparklewhichisidealfor
highlighting small objects such as artwork, glass and tableware.
For added ambience, several low voltage luminaires feature decorative
glass and enhance the decor by adding luminance to the ceiling line.
Lycaster low voltage downlights not only offer an extensive selection
of finishes in both the 300X and 400X series but also feature a range
ofFrame-inkitsandremodelersdesignedforeitherMR16or
ES/ESD16sources.
PleasenotethatMR16IRlampsshouldbeusedonlywhenlisted.Please
consult product specification sheets available on www.canlyte.com for the
latest lamp listing.
Good
Line-voltagePAR20andES16/ESD16
downlights provide suitable lighting quality;
lamps are either flush with the ceiling or
slightly recessed.
Better
Quality lighting from these low-voltage
orCMHMR16downlightsfeaturelamps
that are flush with the ceiling.
Best
These high-quality low-voltage
orCMHMR16downlightsinclude
fully recessed lamps for increased
visual comfort.
CeramicMetalHalide
CeramicMetalHalidelampsdeliver
a crisp white light with excellent colour
rendering and long lamp life. The ballast that
Lightolier uses provides optimal lamp drive, assuring
high luminous efficacy, full rated lamp life and colour
stability.CeramicHalidetechnologywillproduceadded
energy efficiency opportunities and improve lumen performance
by 30% over current halogen technology. This will result in extra
energy savings and in layouts that require even fewer luminaires.
Withtheirbiggerpunchoflight,theseinnovativeCeramicMetal
Halidelampswillcreatenewlightingapplicationsinspaceswith
higherceilings.300X/500XSerieshandleeitherPARCMH
orMR16CMHlampsformaximumperformance.
Small Aperture Luminaires
300X series
524 Philips
Lytecaster – Philips Lightolier
4-1/4"
12-5/8"
14"
5-1/4"
10-1/2"
3-1/8"
2-7/8"
10-1/2"
300MRSPX
300ESX
3401MREX
3401MH39MRE1
MR16(12V)
MR16(12V)
ES/ESD16(120V)

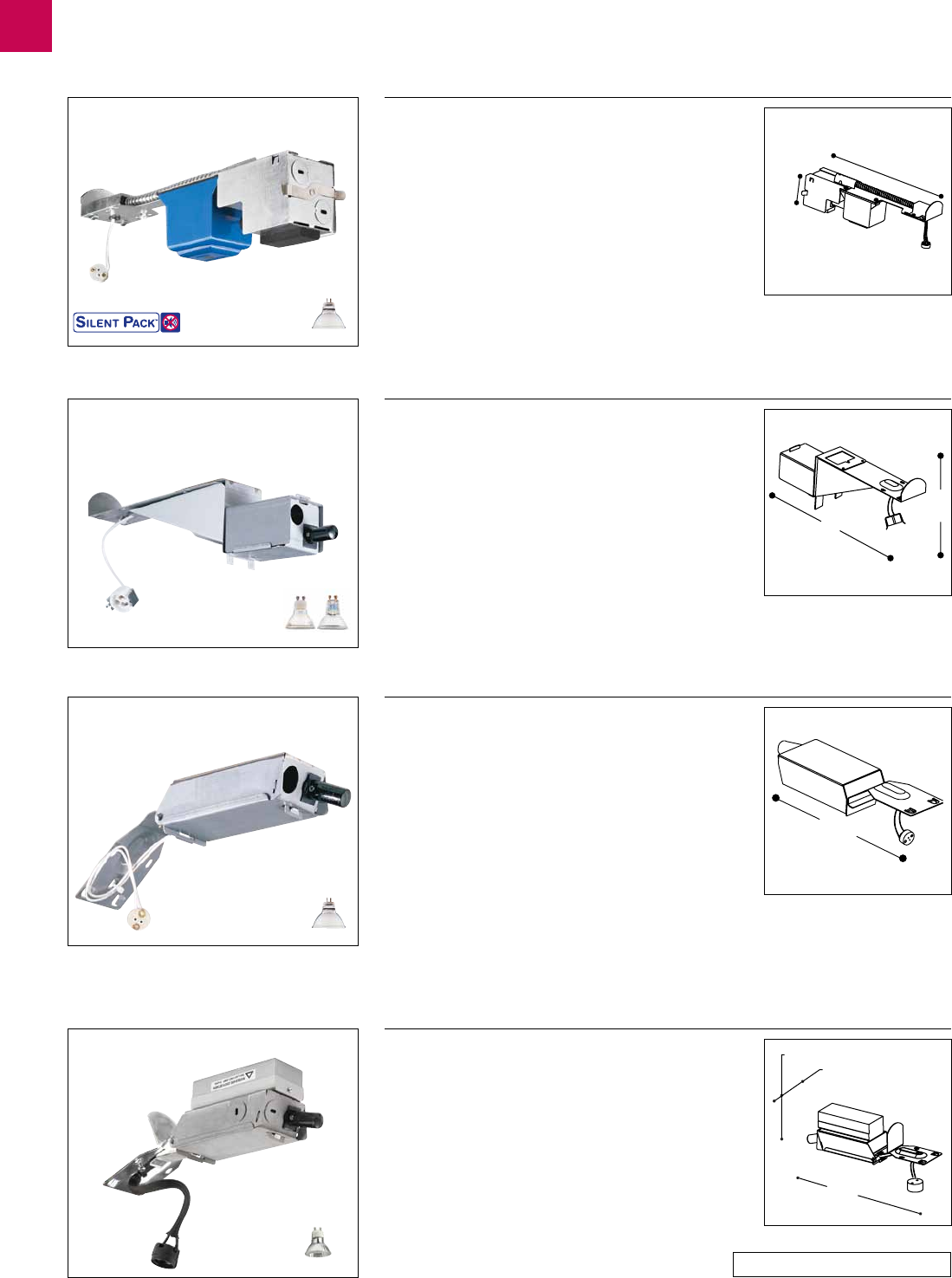

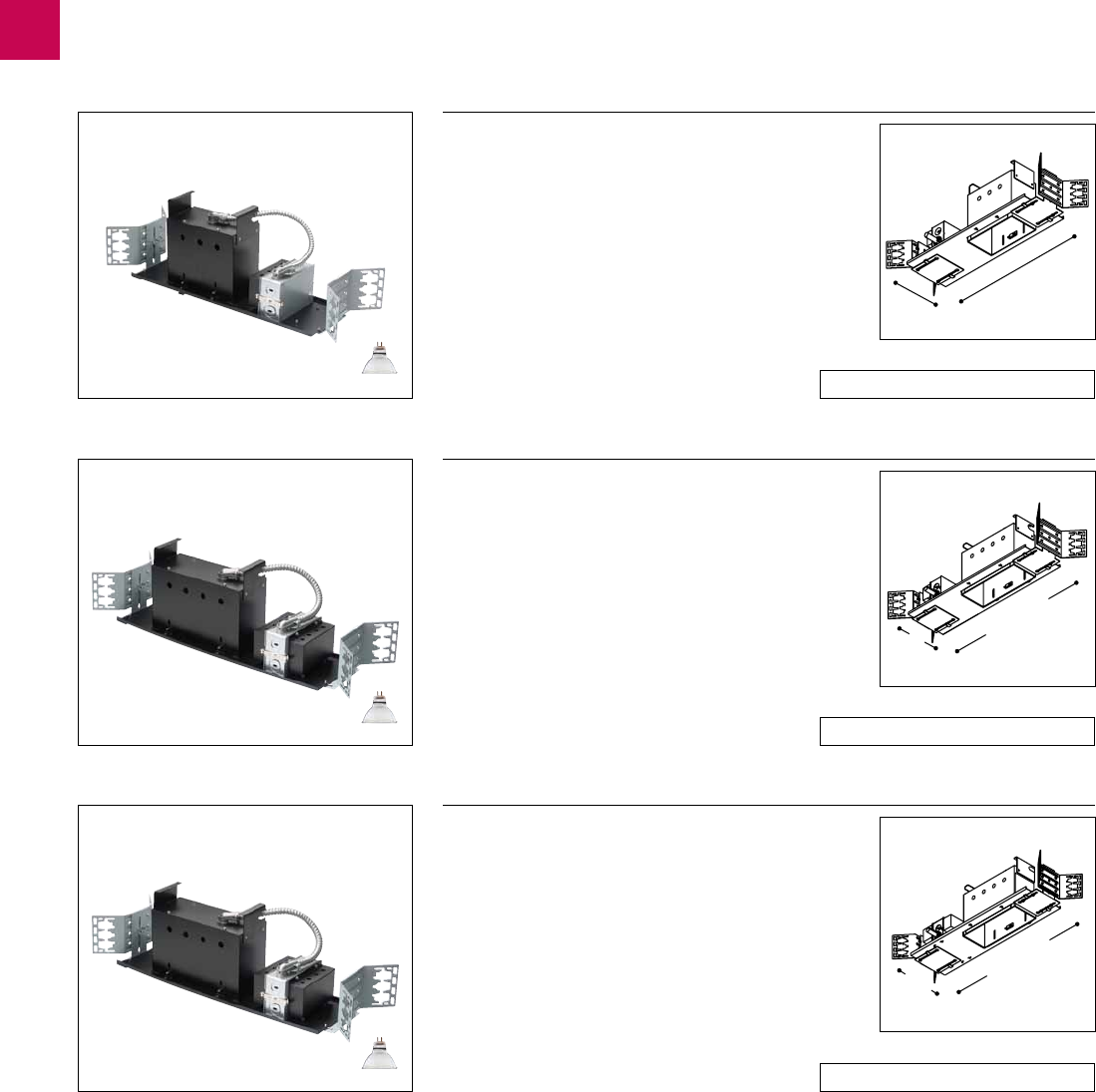

300X Series – 3-3/4" Low and Line Voltage Frame-in Kits
Canlyte Lighting Resource Guide
CeilingCut-Out:3-3/4"
CeilingCut-Out:3-3/4"
CeilingCut-Out:3-3/4"
CeilingCut-Out:3-3/4"
Lytecaster Non-IC Magnetic Remodeler (12V)
Features
Clearance required: 6-1/2"
•IntegralSilentPack50Wmagnetictransformer
for a noise-free environment
•Doublecaptivejunctionboxdoors
•Paddedbasedesigntoeliminatevibrationtransfer
•10-yearwarrantyonthecomponents(transformerandsocket)
•Thermallyprotected
•Damporwetlocationrateddependingontrimused
•Designedtopermitwiringfrombelowtheceilingline
•cCSAuscertifiedforthroughbranchcircuitwiring
Lytecaster Non-IC Remodeler (120V)
Features
Clearance required: 5-7/8"
•Acceptsmost300XtrimsSeries
•Powerpackdesignedfor50WES/ESD16halogenlamps
(notransformer)
•Thermallyprotected
•Damporwetlocationrateddependingontrimused
•Designedtopermitwiringfrombelowtheceilingline
•CSAcertifiedforthroughbranchcircuitwiring
Lytecaster Non-IC Low-Profile
Electronic Remodeler 50W (12V)
Features
Clearance required: 4-5/8"
•Suitablefor300XSeries
•Lowvoltageremodelerusesintegralelectronic
transformer(Class2)
•Thermallyprotected
•Swiveljunctionboxforlowplenumspaces
•Damporwetlocationrateddependingontrimused
•Designedtopermitwiringfrombelowtheceilingline
•Certifiedforchainwiring
•Autoheatregulation,protectsagainstoverheating
Lytecaster Non-IC Low-Profile
Electronic Remodeler 39W CHM
Features
Clearance required: 4-5/8"
•Suitablefor300XSeries
•CMHremodeleruseselectronicballast,HPF>90%,T.H.D.<20%
•Thermallyprotected
•Swiveljunctionboxforlowplenumspaces
•Damporwetlocationrateddependingontrimused
•Designedtopermitwiringfrombelowtheceilingline
•Certifiedforchainwiring
SOUNDDAMPENINGTECHNOLOGY
INC
HID
LOVO
LOVO
MR16CMH(120V) 3401MH39MRE1 39WMR16(GX10)CMH
300X series
525Philips
Lytecaster – Philips Lightolier
14"
25" max.
13-1/2"
14" min. (356mm)
25" max. (635mm)
12-1/2"
(313mm)
3-1/4"
3-1/2"
11-3/8"
14"
25" max.
13-1/2"
302MRLX
302MRSPX
302MREX
303MRE
MR16(12V)
MR16(12V)
MR16(12V)
MR16(12V)
300X Series – 3-3/4" Low and Line Voltage Frame-in Kits
Canlyte Lighting Resource Guide
CeilingCut-Out:3-3/4"
CeilingCut-Out:3-3/4"
CeilingCut-Out:3-3/4"
CeilingCut-Out:3-3/4"
V-Frame Low-Profile Non-IC Magnetic
Frame-in Kit (12V)
Features
Clearance required: 3-3/4" (Low Profile housing see p. 547)
4-1/4" (Regular housing)
•Thermallyprotected
•cCSAuscertifiedforthroughbranchcircuitwiring
•Mountingbarsarelockableonframe
•Extendsfrom14"(356mm)to25"(635mm)
•Pre-installedintegralnailsforsecureattachmenttowoodjoist
•AttachestoT-Barceilingswithouttheneedforaccessories
V-Frame Non-IC Magnetic Frame-in Kit (12V)
Features
Clearance required: 5-3/4"
•IntegralSilentPack50Wmagnetictransformerfor
a noise-free environment
•10-yearwarrantyonthecomponents(transformerandsocket)
•Thermallyprotected
•cCSAuscertifiedforthroughbranchcircuitwiring
•Mountingbarsarelockableonframe
•Extendsfrom14"(356mm)to25"(635mm)
•Pre-installedintegralnailsforsecureattachmenttowoodjoist
•AttachestoT-barceilingswithouttheneedforaccessories
Lytecaster Non-IC Ultra-Shallow
Electronic Remodeler (12V)
Features
Clearance required: 3-1/4"
•Integralelectronictransformer(37Wmax.)
•Thermallyprotected
•Swiveljunctionboxforlowplenumspaces
•Suitedtotrims313/316/317/378and379only
•Designedtopermitwiringfrombelowtheceilingline
•Certifiedforchainwiring
•Alsosuitableforcabinetorfurniturelighting
•ExclusiveResidencemountingclips
•Autoheatregulation,protectsagainstoverheating
V-Frame Non-IC Electronic Frame-in Kit (12V)
Features
Clearance required: 5-3/4"
•Externalthermalcut-outinsuresagainstoverheatingdue
to incorrect lamping
•Lowvoltageframe-inKitusesintegralelectronic
transformer 50W max.
•Autoheatregulation,protectsagainstoverheating
•cCSAuscertifiedforthroughbranchcircuitwiring
•Mountingbarsarelockableonframe
•Extendsfrom14"(356mm)to25"(635mm)
•Pre-installedintegralnailsforsecureattachmenttowoodjoist
•AttachestoT-barceilingswithouttheneedforaccessories
SOUNDDAMPENINGTECHNOLOGY
LOVO
LOVO
LOVO
LOVO
300X series
526 Philips
Lytecaster – Philips Lightolier
9-1/4"
(235mm)
13-1/2"
(343mm)
9-1/4"
(235mm)
7-5/8"
10-3/4"
15-1/4"
302MRIC9SPX
302MRAICEX
MR16(12V)
MR16(12V)
7-3/8"
13-1/2"
7-1/2"
302MRIC7SPX
MR16(12V)
14" MIN
25" MAX
12-1/2"
302ESX
ES/ESD16(120V)
300X Series – 3-3/4" Low and Line Voltage Frame-in Kits
Canlyte Lighting Resource Guide
CeilingCut-Out:3-3/4"
CeilingCut-Out:3-3/4"
Lytecaster IC Frame-in Kit (12V)
Features
Clearance required: 9-1/4"
•IntegralSilentPack50Wmagnetictransformerforanoise-free
environment
•10-yearwarrantyonthecomponents(transformerandsocket)
•Internalthermalcut-outinsuresagainstoverheatingdue
to incorrect lamping
•DamporWetLocationrateddependingontrimused
•Forall300Xtrims
•Integralcableclamp
•Mountingbarsextendupto27"
•VapourbarrierextenderaccessoryavailableforAirSeal® installation
AirSeal® IC Electronic Frame-in Kit (12V)
Features
Clearance required: 7-5/8"
•Integralelectronictransformerfor50WMR16maximum
•Forall300XtrimSeries
•Mountingbarspivotforeasyattachmentandwiringinbelowceilingline.
Extendstoaccommodateupto24"o.c.joistspacing
•Integralnails
•Integralcableclamps
•Internalthermalcut-outinsuresagainstoverheatingdue
to incorrect lamping
•MountingbarlockingscrewononesideoftheFrame-inKit
SOUNDDAMPENINGTECHNOLOGY
CeilingCut-Out:3-3/4"
Lytecaster IC Frame-in Kit (12V)
Features
Clearance required: 7-3/8"
•IntegralSilentPack50Wmagnetictransformerfor
a noise-free environment
•10-yearwarrantyonthecomponents(transformerandsocket)
•Availabletrims:Limitedselectionof300XSeriesTrims.
Consultspecificationsheet(www.canlyte.com)fordetails
•Integralcableclamp
•Mountingbarsextendupto27"
•VapourbarrierextenderaccessoryavailableforAirSeal® installation
•Internalthermalcut-outinsuresagainstoverheatingdue
to incorrect lamping
•DamporWetLocationrateddependingontrimused
SOUNDDAMPENINGTECHNOLOGY
CeilingCut-Out:3-3/4"
V-Frame Non-IC Frame-In Kit (120V)
Features
Clearance required: 5-3/4"
•Acceptsmost300XtrimsSeries
•Designedfor50WES16/ESD16aluminumreflectorhalogenlamps
(notransformer)
•cCSAuscertifiedforthroughbranchcircuitwiring
•Mountingbarsarelockableonframe
•Extendsfrom14"(356mm)to25"(635mm)
•Pre-installedintegralnailsforsecureattachmenttowoodjoist
•AttachestoT-barceilingswithouttheneedforaccessories
INC
LOVO
LOVO
LOVO
300X series
527Philips
Lytecaster – Philips Lightolier
7-5/8"
10-3/4"
15-1/4"
7-5/8"
10-3/4"
15-1/4"
302MRAICSPX
302ESAICX
302ESICX
MR16(12V)
ES/ESD16(120V)
ES/ESD16(120V)
9-1/4"
(235mm)
9-1/4"
(235mm)
13-1/2"
(343mm)
CeilingCut-Out:3-3/4"
CeilingCut-Out:3-3/4"
CeilingCut-Out:3-3/4"
AirSeal® IC Frame-in Kit (12V)
Features
Clearance required: 7-5/8"
•IntegralSilentPack50Wmagnetictransformerfor
a noise-free environment
•10-yearwarrantyonthecomponents(transformerandsocket)
•Forall300XtrimSeries
•Mountingbarspivotforeasyattachmentandwiringinbelowceilingline.
Extendstoaccommodateupto24"o.c.joistspacing
•Integralnails
•Integralcableclamps
•Internalthermalcut-outinsuresagainstoverheatingdue
to incorrect lamping
•MountingbarlockingscrewononesideoftheFrame-inKit
AirSeal® IC Frame-in Kit (120V)
Features
Clearance required: 7-5/8"
•Acceptsmost300XtrimsSeries
•Mountingbarspivotforeasyattachmentandwiringinbelow
ceilingline.Extendstoaccommodateupto24"o.c.joistspacing
•Integralnails
•Integralcableclamps
•Internalthermalcut-outinsuresagainstoverheatingdue
to incorrect lamping
•MountingbarlockingscrewononesideoftheFrame-inKit
Lytecaster IC Frame-in Kit (120V)
Features
Clearance required: 9-1/4"
•Acceptsmost300XtrimsSeries
•Designedfor50WES/ESD16aluminumreflectorhalogenlamps
(notransformer)
•Ruggedmountingsystemwith13"heavygaugemountingbarsthat
extendto27"
•Integralcableclamps
•Internalthermalcut-outinsuresagainstoverheatingdue
to incorrect lamping
•cCSAuscertifiedforthroughbranchcircuitwiring
•VapourbarrierextenderaccessoryavailableforAirSeal® installation
•Mountingbarlockingclipsincluded
SOUNDDAMPENINGTECHNOLOGY
300X Series – 3-3/4" Low and Line Voltage Frame-in Kits
Canlyte Lighting Resource Guide
INC
INC
LOVO
300X series
528 Philips
Lytecaster – Philips Lightolier
24-5/8" min.
26-1/4" max.
6"
24-5/8" min.
26-1/4" max.
7-1/2"
651MRE1
652MRE1
653MRE1
MR16(12V)
MR16(12V)
MR16(12V)
300X Series – 3-3/4" Low and Line Voltage Frame-in Kits
Canlyte Lighting Resource Guide
CeilingCut-Out:7"x4"
CeilingCut-Out:9-1/4"x4"
CeilingCut-Out:9-1/4"x4"
One-Lamp Non-IC Electronic Frame-in Kit
(12V )
Features
Clearance required: 8-1/4"
•Accommodatesallceilingsupto2"thick.Adjustablefrominside
•Optionalmountingbars(seeaccessories0085p.552)
•cCSAuscertifiedforthroughbranchcircuitwiringwithmaximum
of8no.12,90ºCconductors
•Lowvoltageframeuseselectronic75VAtransformer
•Thermallyprotected
Two-Lamp Non-IC Electronic Frame-in Kit
(12V )
Features
Clearance required: 8-1/4"
•Accommodatesallceilingsupto2"thick.Adjustablefrominside
•Optionalmountingbars(seeaccessories0085p.552)
•cCSAuscertifiedforthroughbranchcircuitwiringwithmaximum
of8no.12,90ºCconductors
•Lowvoltageframeuseselectronic150VAtransformer
•Thermallyprotected
Three-Lamp Non-IC Electronic Frame-in Kit
(12V )
Features
Clearance required: 8-1/4"
•Accommodatesallceilingsupto2"thick.Adjustablefrominside
•Optionalmountingbars(seeaccessories0085p.552)
•cCSAuscertifiedforthroughbranchcircuitwiringwithmaximum
of8no.12,90ºCconductors
•Lowvoltageframeusesoneelectronic75VAtransformerand
oneelectronic150VAtransformer
•Thermallyprotected
LOVO
LOVO
LOVO
651MRE1 1X50WMR16/37WMR16IR
652MRE1 2X50WMR16/37WMR16IR
653MRE1 3X50WMR16/37WMR16IR
300X series
529Philips
Lytecaster – Philips Lightolier
3-3/4"
4-1/2"
(114mm)
4-1/2"
(114mm)
CL
4-1/2"
(114mm)
4-1/2"
(114mm)
3-3/4"
CH

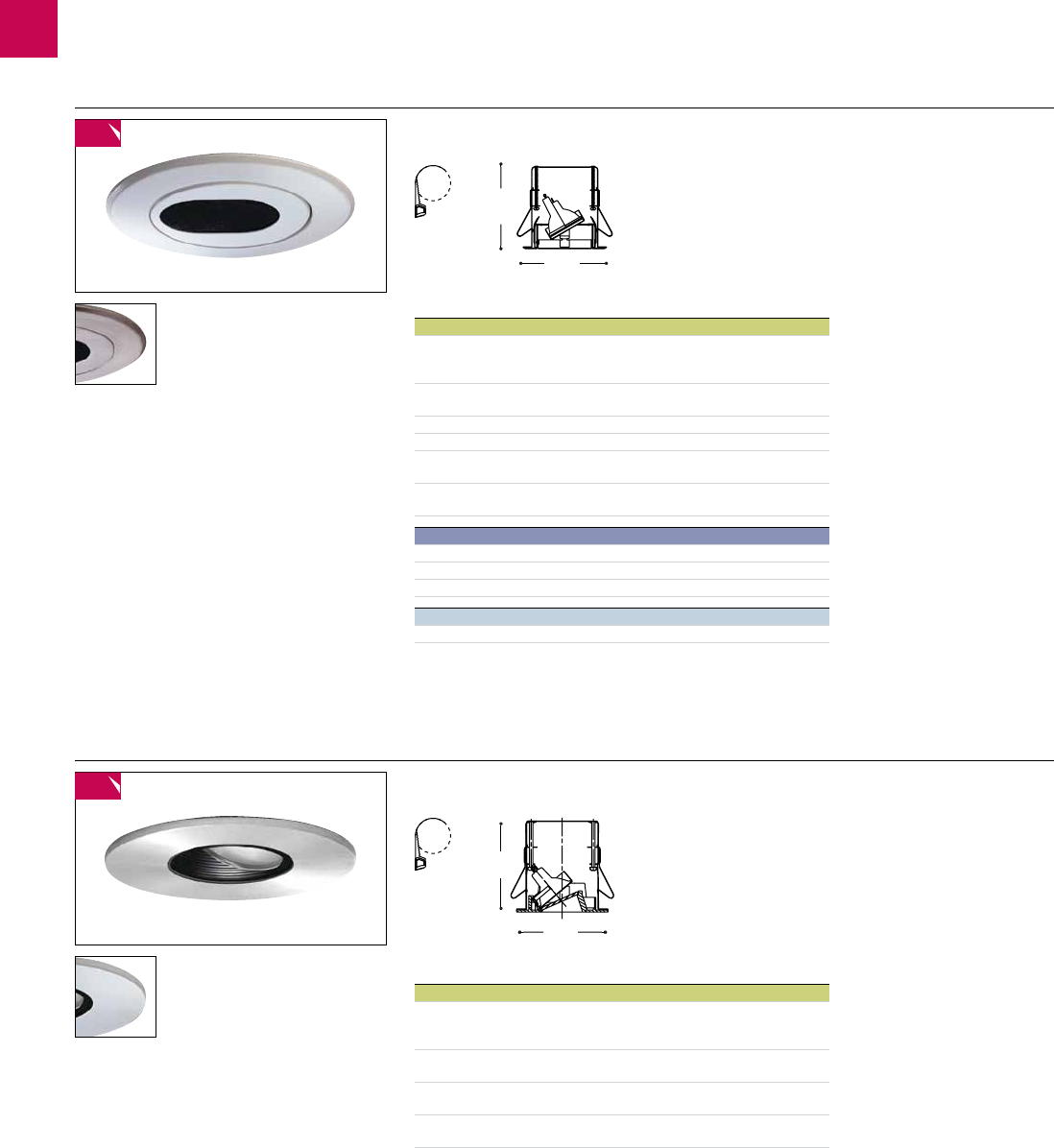

Canlyte Lighting Resource Guide
300X Series – Downlight / Accent
Accent light with Alzak® cone offers non-glare optics
for added visual comfort. Recessed lamp rotates 360°
horizontally and 35° vertically, can be aimed without
removing trim. For mounting plates for use with
remodelers see p. 552. Accommodates all ceiling types
from 1/8" to 1-1/8" thick. For thicker ceilings see extra
thick ceiling housing accessories on p. 553.
Adjustable mini-aperture accent lights with basic chrome
cone. Recessed lamp rotates 25° vertically, can be
aimed without removing trim. For mounting plates for use
with remodelers see p. 552. Accommodates all ceiling
types from 1/8" to 1-1/8" thick. For thicker ceilings see
extra thick ceiling housing accessories on p. 553.
Adjustable Alzak® Cone iii
Basic Cone ii
Specular Black Alzak®
Cone and White Flange
Comfort ClearTM Diffuse
Cone and White Flange
304baX Specular Black Alzak® Cone and White Flange
304clX Specular Clear Alzak® Cone and White Flange
304ccDX Comfort ClearTM
Diffuse Cone and White Flange
Note: Frame-in Kit not applicable: 303MRE.
374cHX Chrome and White Flange
Note: Frame-in Kit not applicable: 303MRE.
Frame-In Kit Ceiling Wattage Lamping
lOW VOlTaGE
302MRSPX
302MREX
302MRlX
Non-IC 50W
37W
MR16
MR16 IR
300MRSPX
3401MREX Non-IC Remodeler 50W
37W
MR16
MR16 IR
302MRIc7SPX
302MRIc9SPX IC 50W
37W
MR16
MR16 IR
302MRaIcSPX
302MRaIcEX IC/Airseal®50W
37W
MR16
MR16 IR
INcaNDEScENT
302ESX Non-IC 50W ES/ESD16 (GU10)
300ESX Non-IC Remodeler 50W ES/ESD16 (GU10)
302ESIcX IC 50W ES/ESD16 (GU10)
302ESaIcX IC/Airseal®50W ES/ESD16 (GU10)
HID
3401MH39MRE1 Non-IC Remodeler 39W MR16CMH
Frame-In Kit Ceiling Wattage Lamping
lOW VOlTaGE
302MRSPX
302MREX
302MRlX
Non-IC 50W
37W
MR16
MR16 IR
300MRSPX
3401MREX Non-IC Remodeler 50W
37W
MR16
MR16 IR
302MRIc7SPX IC 37W MR16 IR
302MRIc9SPX IC 50W
37W
MR16
MR16 IR
302MRaIcSPX
302MRaIcEX IC/Airseal®50W
37W
MR16
MR16 IR
INcaNDEScENT
302ESX Non-IC 50W ES/ESD16 (GU10)
300ESX Non-IC Remodeler 50W ES/ESD16 (GU10)
302ESIcX IC 50W ES/ESD16 (GU10)
302ESaIcX IC/Airseal®50W ES/ESD16 (GU10)
HID
3401MH39MRE1 Non-IC Remodeler 39W MR16CMH
300X series

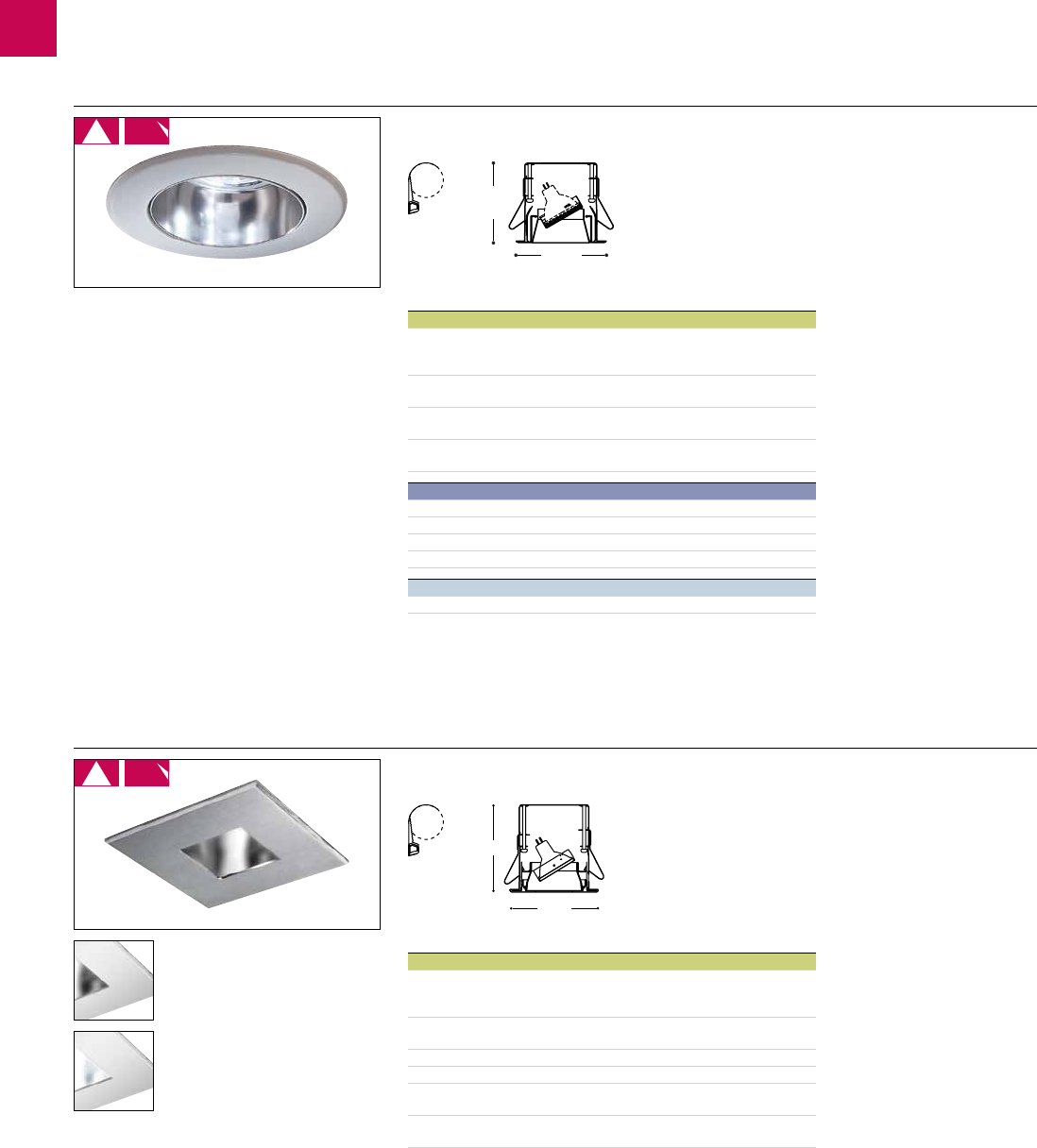

530 Philips
Lytecaster – Philips Lightolier
4"
(103mm)
4-1/2"
(114mm)
CHX
STX
4-3/8"
4-1/2"
3-3/4"
3-3/4"
Canlyte Lighting Resource Guide
Accent light with basic chrome cone. Recessed lamp
rotates 360° horizontally and 35° vertically, can be
aimed without removing trim. For mounting plates for
use with remodelers see p. 552. Accommodates all ceil-
ing types from 1/8" to 1-1/8" thick. For thicker ceilings
see extra thick ceiling housing accessories on p. 553.
Basic Adjustable Alzak® Cone ii
300X Series – Downlight / Accent
394cHX Chrome Reflector and White Flange
Note: Frame-in Kit not applicable: 303MRE.
This affordable white cone or premium Alzak® cone is
available in three finishes. The centered lamp enables
a 0-35° vertical adjustability or it can be locked in a
downlight position with the lamp centered (locking
device included). It provides a 358° horizontal rotation
capability which is adjustable from below with a
screwdriver. The aperture is only 1-7/8" x 1-7/8"
(48mm x 48mm) and the faceplate is made of die-cast
aluminum 1/8" (3.2mm) thick. For mounting plates
for use with remodelers; see p. 552. Accommodates
all ceiling types from 1/8" to 1-1/8" thick. For thicker
ceilings see extra thick ceiling housing accessories on
p. 553.
Nelio Cone Adjustable iii
343ccDSTX Comfort Clear Diffuse Cone/Brushed Steel Flange
343ccDWHX Comfort Clear Diffuse Cone/White Flange
343WHWHX White Cone/White Flange
Note: Frame-in Kit not applicable: 303MRE and ES16 Frame-in Kits.
Comfort Clear Diffuse Cone/
White Flange
White Cone/
White Flange
300X series
Frame-In Kit Ceiling Wattage Lamping
lOW VOlTaGE
302MRSPX
302MREX
302MRlX
Non-IC 50W
37W
MR16
MR16 IR
300MRSPX
3401MREX Non-IC Remodeler 50W
37W
MR16
MR16 IR
302MRIc7SPX
302MRIc9SPX IC 50W
37W
MR16
MR16 IR
302MRaIcSPX
302MRaIcEX IC/Airseal®50W
37W
MR16
MR16 IR
INcaNDEScENT
302ESX Non-IC 50W ES/ESD16 (GU10)
300ESX Non-IC Remodeler 50W ES/ESD16 (GU10)
302ESIcX IC 50W ES/ESD16 (GU10)
302ESaIcX IC/Airseal®50W ES/ESD16 (GU10)
HID
3401MH39MRE1 Non-IC Remodeler 39W MR16CMH
Frame-In Kit Ceiling Wattage Lamping
lOW VOlTaGE
302MRSPX
302MREX
302MRlX
Non-IC 50W
37W
MR16
MR16 IR
300MRSPX Non-IC Remodeler 50W
37W
MR16
MR16 IR
3401MREX Non-IC Remodeler 37W MR16 IR
302MRIc7SPX IC 37W MR16 IR
302MRIc9SPX IC 50W
37W
MR16
MR16 IR
302MRaIcSPX
302MRaIcEX IC/Airseal®37W MR16 IR
531Philips
Lytecaster – Philips Lightolier
3-3/4"
3-3/4"
ABP
4-1/2"
(114mm)
4-1/2"
(114mm)
BKX
4-1/2"
(114mm)
4-1/2"
(114mm)
Canlyte Lighting Resource Guide
300X Series – Downlight / Accent
One-piece steel reflector and flange for uniform look.
Recessed lamp rotates 360° horizontally and 35°
vertically, can be aimed without removing trim. For
mounting plates for use with remodelers see p. 552.
Accommodates all ceiling types from 1/8" to 1-1/8"
thick. For thicker ceilings see extra thick ceiling housing
accessories on p. 553.
One-colour luminaire features a one-piece die-cast
flange and step baffle (except 305BKX). Recessed lamp
rotates 360° horizontally and 35° vertically, can be
aimed without removing trim. For mounting plates for use
with remodelers see p. 552. Accommodates all ceiling
types from 1/8" to 1-1/8" thick. For thicker ceilings see
extra thick ceiling housing accessories on p. 553.
Adjustable Premium Cone iii
Adjustable Premium Die-Cast Step Bafe iii
304abPX Antique Brass Reflector and Self-Flange
304STPX Brushed Steel Reflector and Self-Flange
Note: Frame-in Kit not applicable: 303MRE.
305bKX Black Step Baffle and White Flange
305alPX Aluminum Painted Step Baffle and Self-Flange
305WHWX White Step Baffle and Self-Flange
Note: Frame-in Kit not applicable: 303MRE.
Brushed Steel Reflector
and Self-Flange
Aluminum Painted Step Baffle
and Self-Flange
White Step Baffle
and Self-Flange
300X series
Frame-In Kit Ceiling Wattage Lamping
lOW VOlTaGE
302MRSPX
302MREX
302MRlX
Non-IC 50W
37W
MR16
MR16 IR
300MRSPX
3401MREX Non-IC Remodeler 50W
37W
MR16
MR16 IR
302MRIc7SPX
302MRIc9SPX IC 50W
37W
MR16
MR16 IR
302MRaIcSPX
302MRaIcEX IC/Airseal®50W
37W
MR16
MR16 IR
INcaNDEScENT
302ESX Non-IC 50W ES/ESD16 (GU10)
300ESX Non-IC Remodeler 50W ES/ESD16 (GU10)
302ESIcX IC 50W ES/ESD16 (GU10)
302ESaIcX IC/Airseal®50W ES/ESD16 (GU10)
HID
3401MH39MRE1 Non-IC Remodeler 39W MR16CMH
Frame-In Kit Ceiling Wattage Lamping
lOW VOlTaGE
302MRSPX
302MREX
302MRlX
Non-IC 50W
37W
MR16
MR16 IR
300MRSPX
3401MREX Non-IC Remodeler 50W
37W
MR16
MR16 IR
302MRIc7SPX
302MRIc9SPX IC 50W
37W
MR16
MR16 IR
302MRaIcSPX
302MRaIcEX IC/Airseal®50W
37W
MR16
MR16 IR
INcaNDEScENT
302ESX Non-IC 50W ES/ESD16 (GU10)
300ESX Non-IC Remodeler 50W ES/ESD16 (GU10)
302ESIcX IC 50W ES/ESD16 (GU10)
302ESaIcX IC/Airseal®50W ES/ESD16 (GU10)
HID
3401MH39MRE1 Non-IC Remodeler 39W MR16CMH

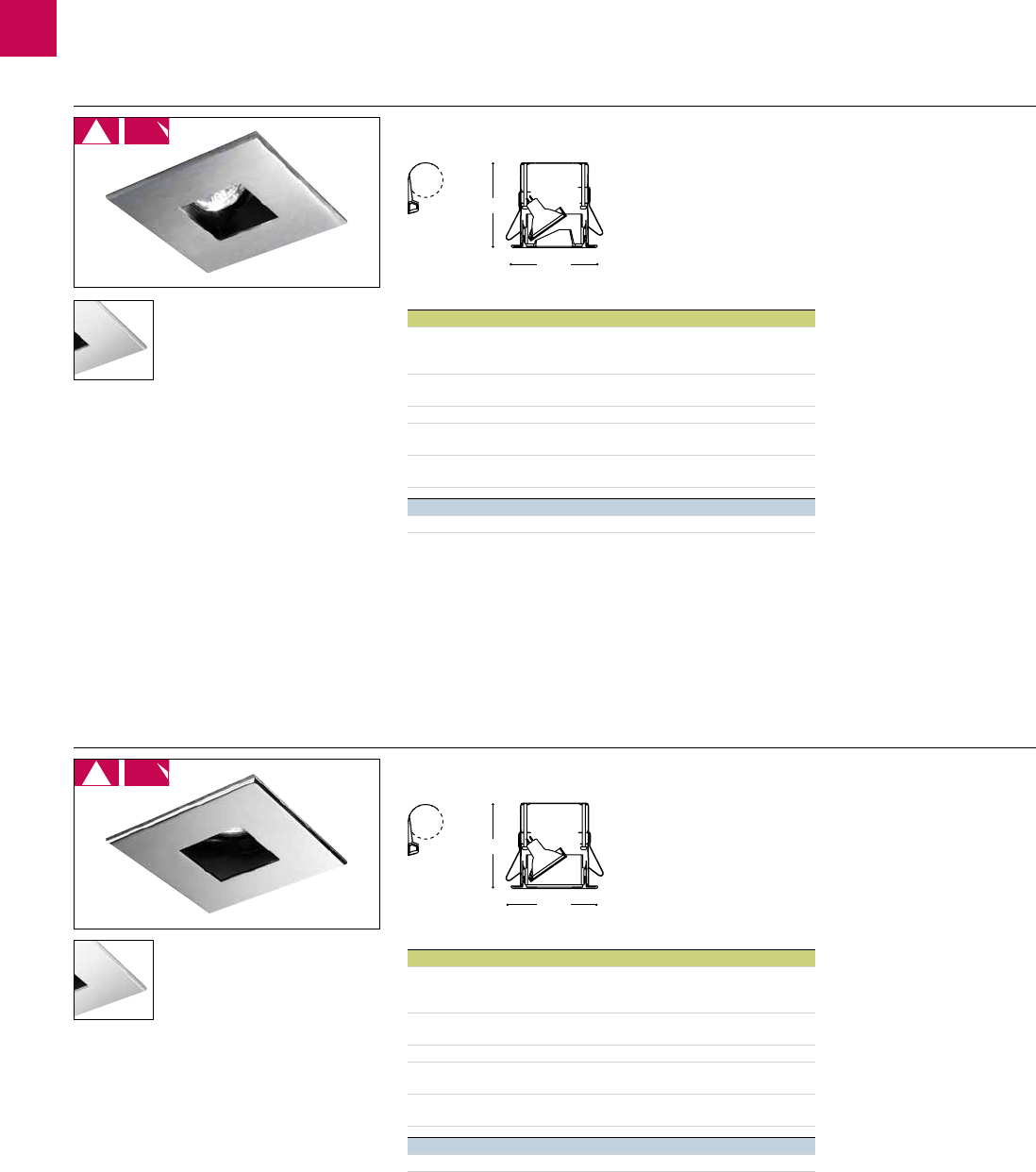

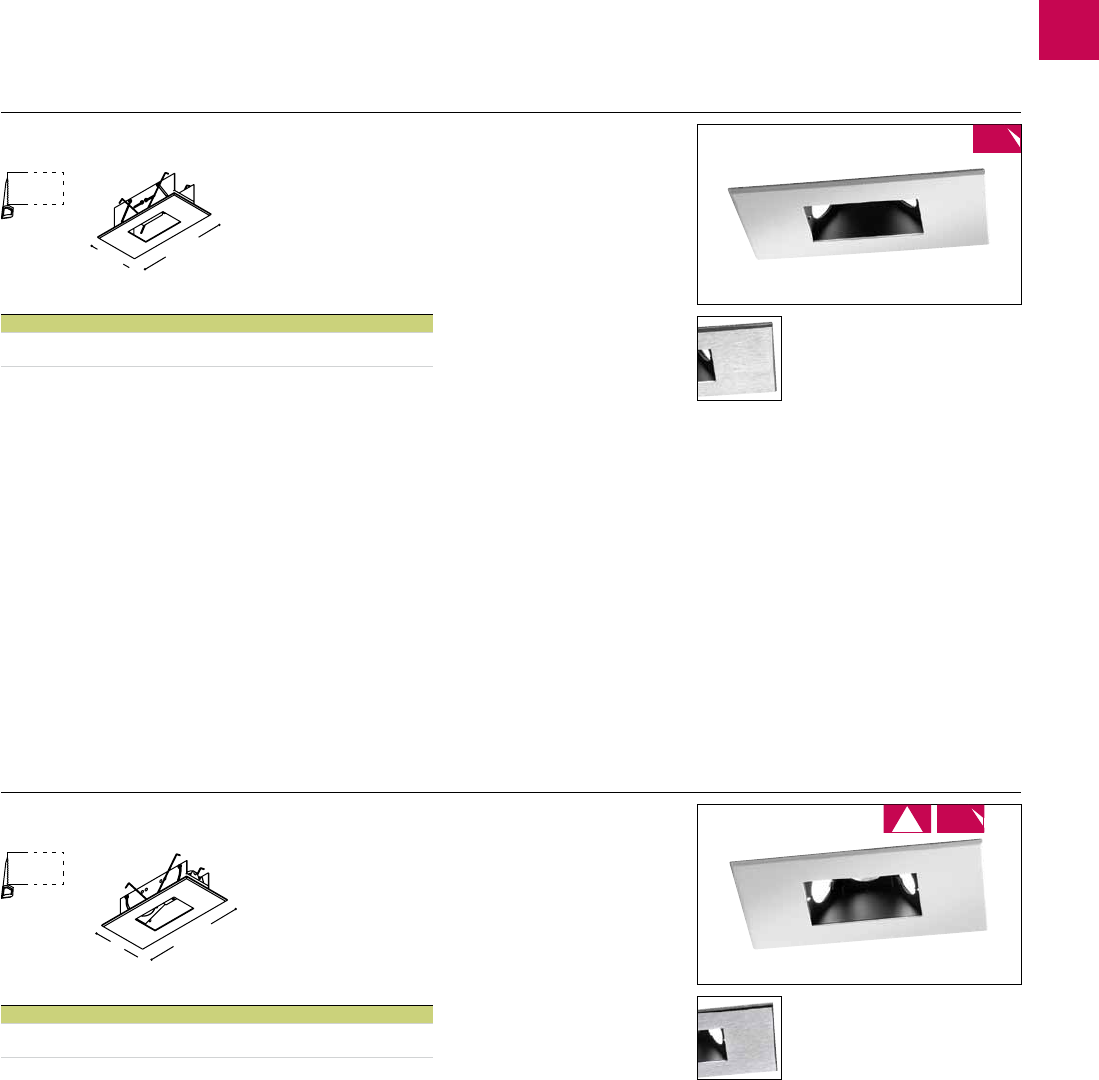

532 Philips
Lytecaster – Philips Lightolier
3-3/4"
3-3/4"
4-3/8"
4-1/2"
ST
4-3/8"
4-1/2"
STX
Canlyte Lighting Resource Guide
The lamp is slightly off-centre which enables a 0-35°
vertical adjustability (locking device included). It also
provides a 358° horizontal rotation capability which is
adjustable from below with a screwdriver. The aperture is
only 1-7/8" x 1-7/8" (48mm x 48mm) and the faceplate
is made of die-cast aluminum 1/8" (3.2mm) thick. The
truncated die-cast baffle features a black painted finish
for low brightness. For mounting plates for use with
remodelers; see p. 552. Accommodates all ceiling types
from 1/8" to 1-1/8" thick. For thicker ceilings see extra
thick ceiling housing accessories on p. 553.
Nelio Premium Die-Cast Bafe Adjustable iii
300X Series – Downlight / Accent
344aSTX Brushed Steel
344aWHX White
Note: Frame-in Kit not applicable: 303MRE and ES16 Frame-in Kits.
The lamp is slightly off-centre which enables a 0-35°
vertical adjustability or it can be locked in a downlight
position with the lamp centered (locking device included).
It also provides a 358° horizontal rotation capability
which is adjustable from below with a screwdriver. The
aperture is only 1-7/8" x 1-7/8" (48mm x 48mm) and the
faceplate is made of die-cast aluminum 1/8" (3.2mm)
thick. For mounting plates for use with remodelers; see
p. 552. Accommodates all ceiling types from 1/8" to
1-1/8" thick. For thicker ceilings see extra thick ceiling
housing accessories on p. 553.
Nelio Open Adjustable iii
348STX Brushed Steel
348WHX White
Note: Frame-in Kit not applicable: 303MRE and ES16 Frame-in Kits.
White
White
300X series
Frame-In Kit Ceiling Wattage Lamping
lOW VOlTaGE
302MRSPX
302MREX
302MRlX
Non-IC 50W
37W
MR16
MR16 IR
300MRSPX
3401MREX Non-IC Remodeler 37W MR16 IR
302MRIc7SPX IC 37W MR16 IR
302MRIc9SPX IC 50W
37W
MR16
MR16 IR
302MRaIcSPX
302MRaIcEX IC/Airseal®37W MR16 IR
HID
3401MH39MRE1 Non-IC Remodeler 39W MR16CMH
Frame-In Kit Ceiling Wattage Lamping
lOW VOlTaGE
302MRSPX
302MREX
302MRlX
Non-IC 50W
37W
MR16
MR16 IR
300MRSPX
3401MREX Non-IC Remodeler 37W MR16 IR
302MRIc7SPX IC 37W MR16 IR
302MRIc9SPX IC 50W
37W
MR16
MR16 IR
302MRaIcSPX
302MRaIcEX IC/Airseal®37W MR16 IR
HID
3401MH39MRE1 Non-IC Remodeler 39W MR16CMH

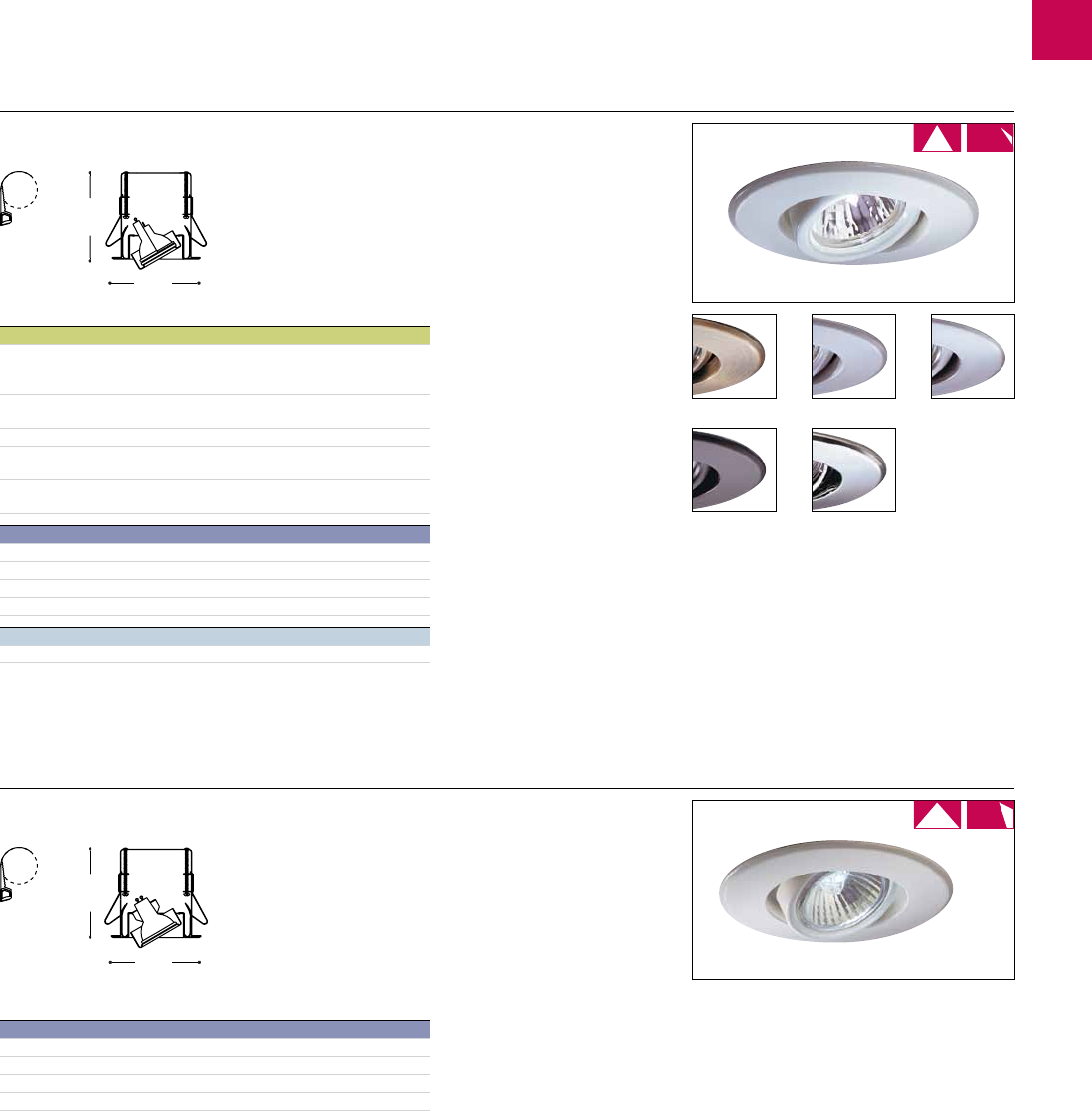

533Philips
Lytecaster – Philips Lightolier
3-3/4"
3-3/4"
WH
4-1/2"
(114mm)
4-1/2"
(114mm)
WH
4-1/2"
(114mm)
4-1/2"
(114mm)
Canlyte Lighting Resource Guide
300X Series – Downlight / Accent
Lamp sits flush with the ceiling. Adjustable up to 30°
for accent lighting to a vertical surface and 360°
horizontally. The industry leader, offering the easiest
and fastest installation with rear lamping and patented
spring clips. For mounting plates for use with remodelers
see p. 552. Accommodates all ceiling types from 1/8"
to 1-1/8" thick. For thicker ceilings see extra thick ceiling
housing accessories on p. 553.
Pivoting Gimbal ring houses ES/ESD16 lamps close to
the opening. Features front relamping. The lamp adjusts
20° vertically and 360° horizontally. For mounting plates
for use with remodelers see p. 552. Accommodates
all ceiling types from 1/8" to 1-1/8" thick. For thicker
ceilings see extra thick ceiling housing accessories on
p. 553.
Residence ii
Gimbal ES/ESD16 i
313abX Antique Brass
313al X Aluminum Paint
313bKX Black
313STX Brushed Steel
313cMX Chrome
313WHX White
330WHX White
Note: Frame-in Kit not applicable for MR16 lamp.
Antique Brass
Black
Brushed SteelAluminum Paint
Chrome
300X series
Frame-In Kit Ceiling Wattage Lamping
lOW VOlTaGE
302MRSPX
302MREX
302MRlX
Non-IC 50W
37W
MR16
MR16 IR
300MRSPX
3401MREX Non-IC Remodeler 50W
37W
MR16
MR16 IR
303MRE Non-IC Remodeler 37W MR16 IR
302MRIc7SPX
302MRIc9SPX IC 50W
37W
MR16
MR16 IR
302MRaIcSPX
302MRaIcEX IC/Airseal®50W
37W
MR16
MR16 IR
INcaNDEScENT
302ESX Non-IC 50W ES/ESD16 (GU10)
300ESX Non-IC Remodeler 50W ES/ESD16 (GU10)
302ESIcX IC 50W ES/ESD16 (GU10)
302ESaIcX IC/Airseal®50W ES/ESD16 (GU10)
HID
3401MH39MRE1 Non-IC Remodeler 39W MR16CMH
Frame-In Kit Ceiling Wattage Lamping
INcaNDEScENT
302ESX Non-IC 50W ES/ESD16 (GU10)
300ESX Non-IC Remodeler 50W ES/ESD16 (GU10)
302ESIcX IC 50W ES/ESD16 (GU10)
302ESaIcX IC/Airseal® 50W ES/ESD16 (GU10)

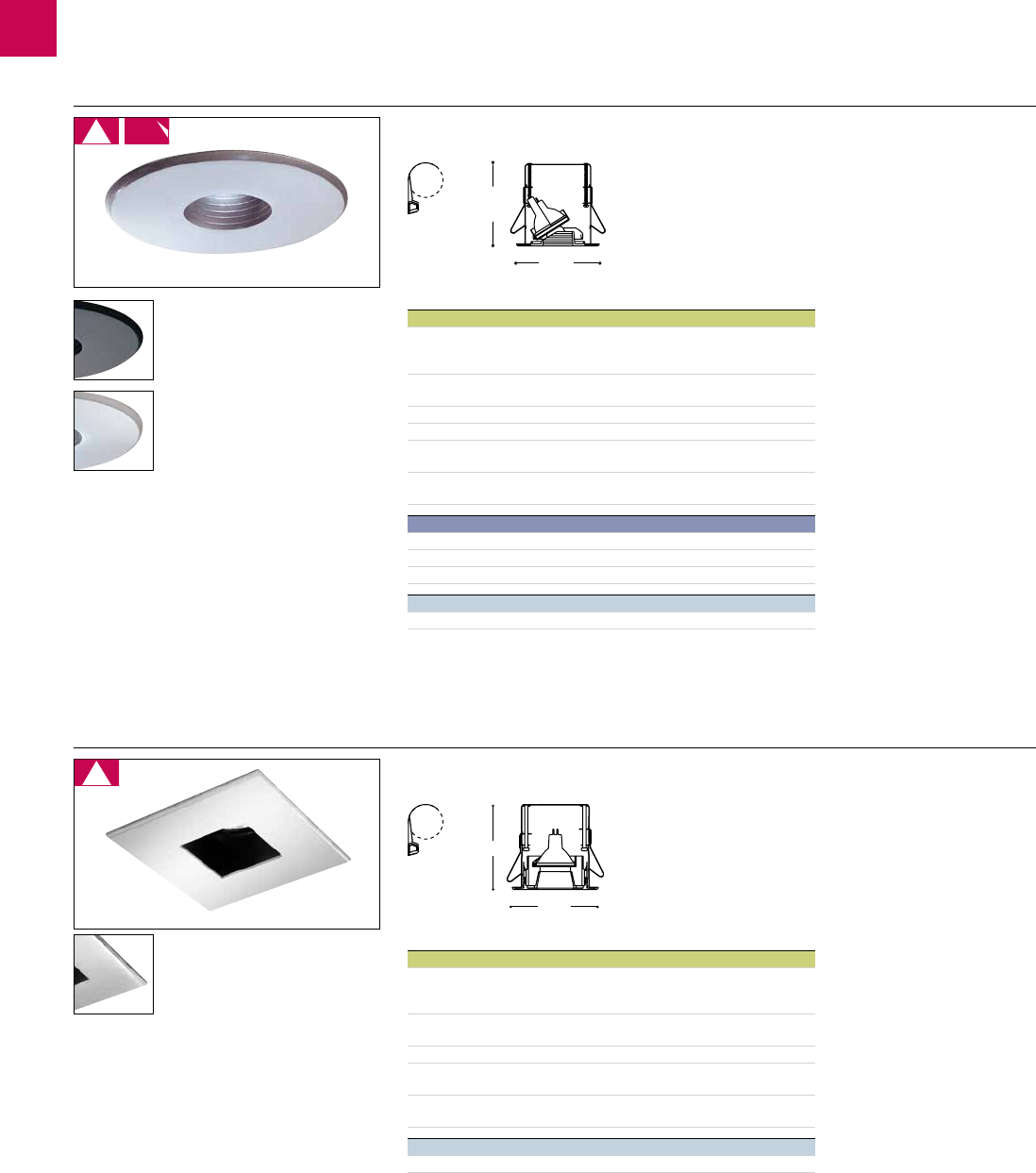

534 Philips
Lytecaster – Philips Lightolier
3-3/4"
3-3/4"
AL
4-1/2"
(114mm)
4-1/2"
(114mm)
4-3/8"
4-1/2"
WH
Canlyte Lighting Resource Guide
Tiny aperture accent light. Easy relamping and
aiming permits up to 30° vertical and 360° horizontal
adjustments. For mounting plates for use with remodelers
see p. 552. Accommodates all ceiling types from 1/8" to
1-1/8" thick. For thicker ceilings see extra thick ceiling
housing accessories on p. 553.
Adjustable Pinhole iii
300X Series – Downlight / Accent
308alX Aluminum Painted Faceplate and Baffle
308bKX Black Faceplate and Baffle
308WWX White Faceplate and Baffle
Note: Frame-in Kits not applicable: 303MRE, 302ESAICX.
The lamp is centered for single-position downlighting.
The aperture is only 1-7/8" x 1-7/8" (48mm x 48mm)
and the faceplate is made of die-cast aluminum
1/8" (3.2mm) thick. The full-size die-cast baffle
features a black painted finish for low brightness.
For mounting plates for use with remodelers;
see p. 552. Accommodates all ceiling types from
1/8" to 1-1/8" thick. For thicker ceilings see extra thick
ceiling housing accessories on p. 553.
Nelio Premium Die-Cast Bafe Downlight iii
344DSTX Brushed Steel
344DWHX White
Note: Frame-in Kit not applicable: 303MRE, and ES16 Frame-in Kits.
Black Faceplate and Baffle
White Faceplate and Baffle
Brushed Steel
300X series
Frame-In Kit Ceiling Wattage Lamping
lOW VOlTaGE
302MRSPX
302MREX
302MRlX
Non-IC 50W
37W
MR16
MR16 IR
300MRSPX Non-IC Remodeler 50W
37W
MR16
MR16 IR
3401MREX Non-IC Remodeler 42W MR16 IR
302MRIc7SPX IC 37W MR16 IR
302MRIc9SPX IC 50W
37W
MR16
MR16 IR
302MRaIcSPX
302MRaIcEX IC/Airseal®37W MR16 IR
INcaNDEScENT
302ESX Non-IC 50W ES/ESD16 (GU10)
300ESX Non-IC Remodeler 50W ES/ESD16 (GU10)
302ESIcX IC 50W ES/ESD16 (GU10)
HID
3401MH39MRE1 Non-IC Remodeler 39W MR16CMH
Frame-In Kit Ceiling Wattage Lamping
lOW VOlTaGE
302MRSPX
302MREX
302MRlX
Non-IC 50W
37W
MR16
MR16 IR
300MRSPX
3401MREX Non-IC Remodeler 37W MR16 IR
302MRIc7SPX IC 37W MR16 IR
302MRIc9SPX IC 50W
37W
MR16
MR16 IR
302MRaIcSPX
302MRaIcEX IC/Airseal®37W MR16 IR
HID
3401MH39MRE1 Non-IC Remodeler 39W MR16CMH

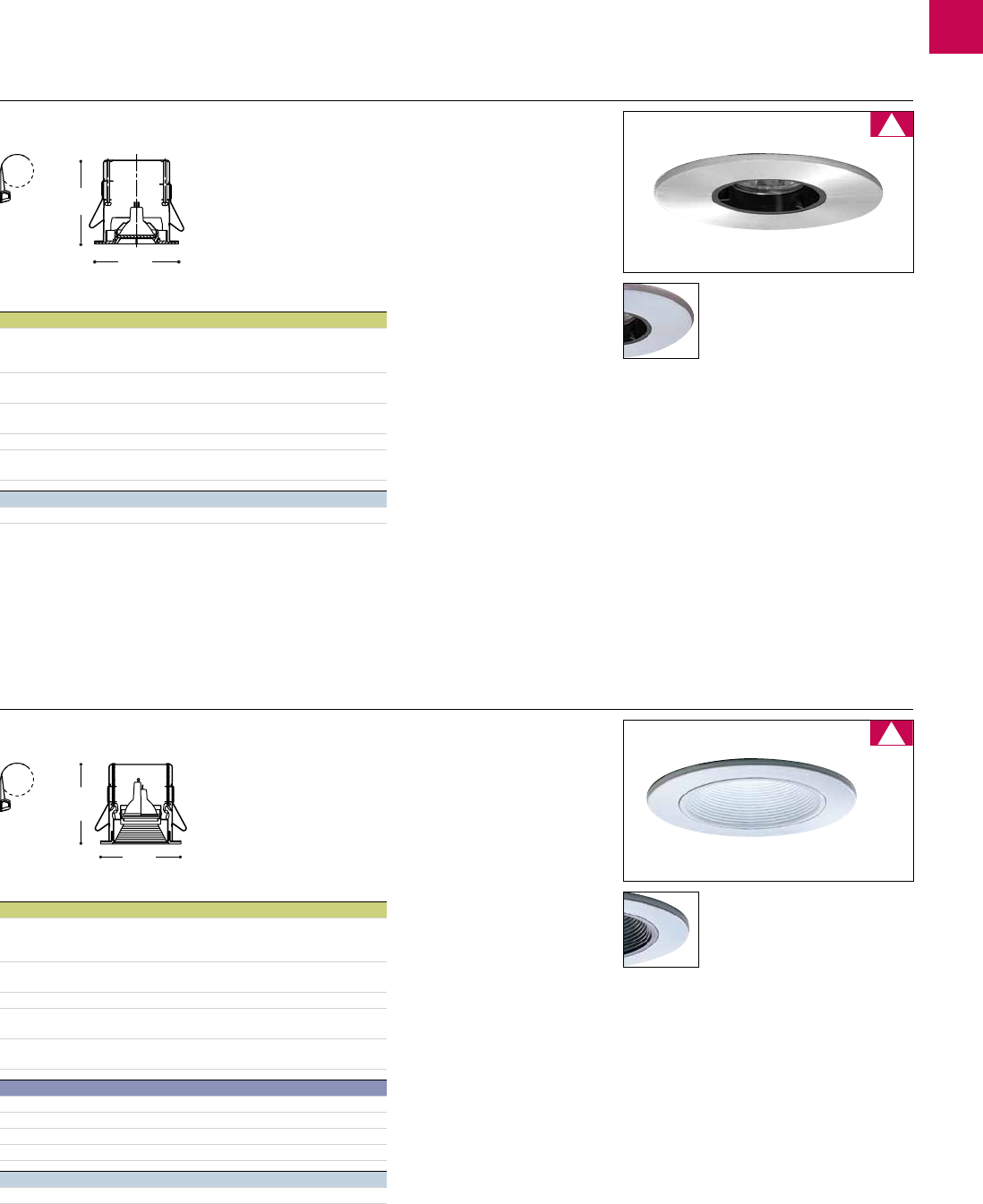

535Philips
Lytecaster – Philips Lightolier
3-3/4"
3-3/4"
WH
ST
4-3/8"
(111mm)
ø4-1/2"
(114mm)
4-1/2"
(114mm)
4-5/8"
( 117mm)
Canlyte Lighting Resource Guide
300X Series – Downlight
Tiny aperture of 1-3/4" for down lighting. Easy relamping
from below without removing trim. This is a vibration-
resistant design and will not open on its own. For
mounting plates for use with remodelers see p. 552.
Accommodates all ceiling types from 1/8" to 1-1/8"
thick. For thicker ceilings see extra thick ceiling housing
accessories on p. 553.
Mini-aperture downlight basic step baffle. Style-matched
with other line voltage step baffles. For mounting plates
for use with remodelers see p. 552. Accommodates
all ceiling types from 1/8" to 1-1/8" thick. For thicker
ceilings see extra thick ceiling housing accessories on
p. 553.
InFrontTM Downlight Pinhole ii
Basic Bafe ii
368STX Brushed Steel
368WHX White
Note: Frame-in Kit not applicable: 303MRE and ES16 Frame-in Kits.
375bKX Black Phenolic Baffle and White Flange
375WHX White Phenolic Baffle and White Flange
Note: Frame-in Kit not applicable: 303MRE.
White
Black Phenolic Baffle
and White Flange
300X series
Frame-In Kit Ceiling Wattage Lamping
lOW VOlTaGE
302MRSPX
302MREX
302MRlX
Non-IC 50W
37W
MR16
MR16 IR
300MRSPX
3401MREX Non-IC Remodeler 50W
37W
MR16
MR16 IR
302MRIc7SPX IC 50W
37W
MR16
MR16 IR
302MRIc9SPX IC 37W MR16 IR
302MRaIcSPX
302MRaIcEX IC/Airseal®35W MR16
HID
3401MH39MRE1 Non-IC Remodeler 39W MR16CMH
Frame-In Kit Ceiling Wattage Lamping
lOW VOlTaGE
302MRSPX
302MREX
302MRlX
Non-IC 50W
37W
MR16
MR16 IR
300MRSPX
3401MREX Non-IC Remodeler 50W
37W
MR16
MR16 IR
302MRIc7SPX IC 37W MR16 IR
302MRIc9SPX IC 50W
37W
MR16
MR16 IR
302MRaIcSPX
302MRaIcEX IC/Airseal®50W
37W
MR16
MR16 IR
INcaNDEScENT
302ESX Non-IC 50W ES/ESD16 (GU10)
300ESX Non-IC Remodeler 50W ES/ESD16 (GU10)
302ESIcX IC 50W ES/ESD16 (GU10)
302ESaIcX IC/Airseal®50W ES/ESD16 (GU10)
HID
3401MH39MRE1 Non-IC Remodeler 39W MR16CMH
536 Philips
Lytecaster – Philips Lightolier
3-3/4"
3-3/4"
ST
4-1/2"
(114mm)
4-1/2"
(114mm)
4-3/8"
(111mm)
ø4-1/2"
(114mm)
WH
Canlyte Lighting Resource Guide
Small aperture accent light. Lampholder rotates 360°
horizontally and 40° vertically. Inner black shield reduces
glares. Faceplate trim ring assembly snaps in and out for
very easy relamping. For mounting plates for use with
remodelers see p. 552. Accommodates all ceiling types
from 1/8" to 1-1/8" thick. For thicker ceilings see extra
thick ceiling housing accessories on p. 553.
Slot Aperture iii
300X Series – Accent
309STX Brushed Steel
309WHX White
Note: Frame-in Kits not applicable: 303MRE, 302ESAICX.
Small aperture accent light. Lampholder is fixed in
a 40 degree position. Black baffle reduces glares.
Faceplate trim ring assembly snaps in and out for easy
relamping. For mounting plates to be used with remod-
elers see p. 552. Accommodates all ceiling types from
1/8" to 1-1/8" thick. For thicker ceilings see extra thick
ceiling housing accessories on p. 553.
Accent Pinhole ii
306STX Brushed Steel
306WHX White
Note: Frame-in Kit not applicable: 303MRE and ES16 Frame-in Kits.
Brushed Steel
White
300X series
Frame-In Kit Ceiling Wattage Lamping
lOW VOlTaGE
302MRSPX
302MREX
302MRlX
Non-IC 50W
37W
MR16
MR16 IR
300MRSPX Non-IC Remodeler 50W
37W
MR16
MR16 IR
3401MREX Non-IC Remodeler 42W MR16
302MRIc7SPX IC 37W MR16 IR
302MRIc9SPX IC 50W
37W
MR16
MR16 IR
302MRaIcSPX
302MRaIcEX IC/Airseal®37W MR16 IR
INcaNDEScENT
302ESX Non-IC 50W ES/ESD16 (GU10)
300ESX Non-IC Remodeler 50W ES/ESD16 (GU10)
302ESIcX IC 50W ES/ESD16 (GU10)
HID
3401MH39MRE1 Non-IC Remodeler 39W MR16CMH
Frame-In Kit Ceiling Wattage Lamping
lOW VOlTaGE
302MRSPX
302MREX
302MRlX
Non-IC 50W
37W
MR16
MR16 IR
300MRSPX
3401MREX Non-IC Remodeler 37W MR16 IR
302MRIc7SPX
302MRIc9SPX IC 37W MR16 IR
302MRaIcSPX
302MRaIcEX IC/Airseal®35W MR16

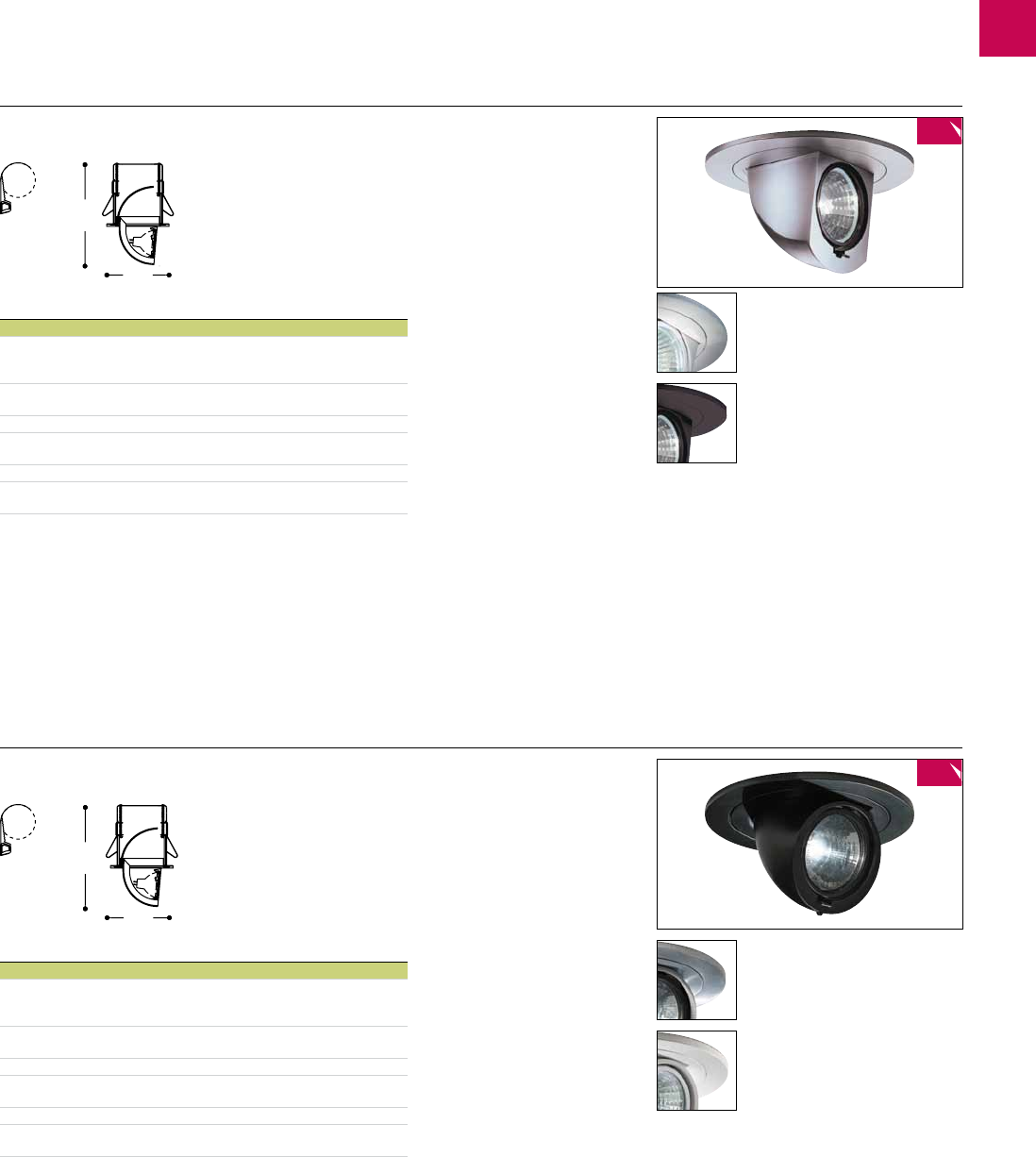

537Philips
Lytecaster – Philips Lightolier
3-3/4"
3-3/4"
BK
ST
4-1/2"
7-3/8"
4-1/2"
7-3/8"
Canlyte Lighting Resource Guide
300X Series – Accent
Versatile accent light utilizing miniature low voltage
MR16 lamps. Elbow adjusts up to 70° vertically and
360° horizontally for focal lighting. Retracts to provide
fully recessed downlight. Certified for wall mounting
applications with 303 MRE using a 37W MR16 IR lamp.
For mounting plates for use with remodelers see p. 552.
Accommodates all ceiling types from 1/8" to 1-1/8"
thick. For thicker ceilings see extra thick ceiling housing
accessories on p. 553.For metal snoot see p. 552.
Versatile accent light utilizing miniature low voltage
MR16 lamps. Elbow adjusts up to 70° vertically and
358° horizontally for accent lighting. Retracts to provide
fully recessed downlight. Certified for wall mounting
applications with 303 MRE using a 37W MR16 IR lamp.
For mounting plates for use with remodelers see p. 552.
Accommodates all ceiling types from 1/8" to 1-1/8"
thick. For thicker ceilings see extra thick ceiling housing
accessories on p. 553. For metal snoot see p. 552.
Elbow ii
Round Elbow ii
378bKX Black
378STX Brushed Steel
378WHX White
Note: Frame-in Kit not applicable: 302ESX, 300ESX, 302ESICX, 302ESAICX.
*Also suitable for wall mount applications (37W MR16 IR).
379bKX Black
379STX Brushed Steel
379WHX White
Note: Frame-in Kit not applicable: 302ESX, 300ESX,302ESICX, 302ESAICX.
*Also suitable for wall mount applications (37W MR16 IR).
Brushed Steel Finish
White
White
Black
300X series
Frame-In Kit Ceiling Wattage Lamping
lOW VOlTaGE
302MRSPX
302MREX
302MRlX
Non-IC 50W
37W
MR16
MR16 IR
300MRSPX
3401MREX Non-IC Remodeler 50W
37W
MR16
MR16 IR
303MRE Non-IC Remodeler 37W MR16 IR
302MRIc7SPX IC 50W
37W
MR16
MR16 IR
302MRIc9SPX IC 37W MR16 IR
302MRaIcSPX
302MRaIcEX IC/Airseal®50W
37W
MR16
MR16 IR
Frame-In Kit Ceiling Wattage Lamping
lOW VOlTaGE
302MRSPX
302MREX
302MRlX
Non-IC 50W
37W
MR16
MR16 IR
300MRSPX
3401MREX Non-IC Remodeler 50W
37W
MR16
MR16 IR
303MRE Non-IC Remodeler 37W MR16 IR
302MRIc7SPX IC 50W
37W
MR16
MR16 IR
302MRIc9SPX IC 37W MR16 IR
302MRaIcSPX
302MRaIcEX IC/Airseal®50W
37W
MR16
MR16 IR

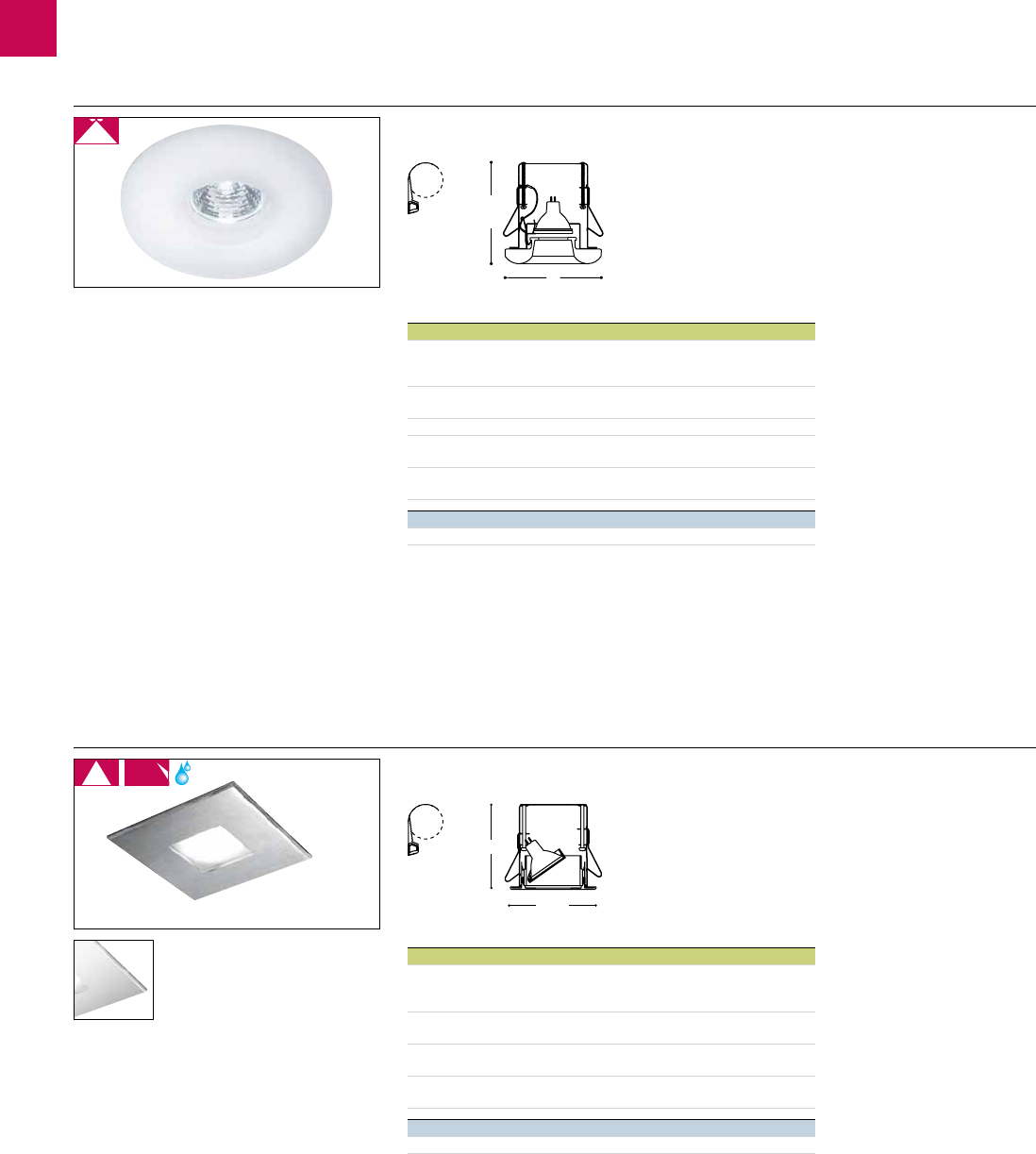

538 Philips
Lytecaster – Philips Lightolier
3-3/4"
3-3/4"
WH
4-3/8"
4-1/2"
6-1/4"
4-1/2"
WH
Canlyte Lighting Resource Guide
This single-position off-centre lamp provides a gentle
ceiling-to-floor wash of light. Its asymmetric lens features
tempered glass that is ribbed and frosted while the
dropped lensholder sports an attractive black painted
finish. To ensure uniform light diffusion, the optic is
painted white. The aperture is only 1-7/8" x 1-7/8" (48mm
x 48mm) and the faceplate is made of die-cast aluminum
1/8" (3.2mm) thick. For mounting plates for use with
remodelers; see p. 552. Accommodates all ceiling types
from 1/8" to 1-1/8" thick. For thicker ceilings see extra
thick ceiling housing accessories on p. 553.
Nelio Lens Wall Washer iii
300X Series – Wall Washer
300X Series – Ambience
346WSTX Brushed Steel
346WWHX White
Note: Frame-in Kit not applicable: 303MRE, 302MRIC7SPX
and ES16 Frame-in Kits.
This luminaire features a decorative frosted glass
element for soft diffused ambient light and an interior
cone finish of specular Alzak®. The lamp is centered for
single-position downlighting. The glass element is only
1-7/8" x 1-7/8" (48mm x 48mm) and the faceplate is
made of die-cast aluminum 1/8" (3.2mm) thick. For
mounting plates for use with remodelers; see p. 552.
Accommodates all ceiling types from 1/8" to 1-1/8"
thick. For thicker ceilings see extra thick ceiling housing
accessories on p. 553. Use filter to add colour to the
glass. See p. 618.
Nelio Drop Glass iii
341DSTX Brushed Steel
341DWHX White
Note: Frame-in Kit not applicable: 303MRE, 302MRIC7SPX and ES16
Frame-in Kits.
Brushed Steel
Brushed Steel
300X series
Frame-In Kit Ceiling Wattage Lamping
lOW VOlTaGE
302MRSPX
302MREX
302MRlX
Non-IC 50W
37W
MR16
MR16 IR
300MRSPX
3401MREX Non-IC Remodeler 37W MR16 IR
302MRIc9SPX IC 37W MR16 IR
302MRaIcSPX
302MRaIcEX IC/Airseal®35W MR16
HID
3401MH39MRE1 Non-IC Remodeler 39W MR16CMH
Frame-In Kit Ceiling Wattage Lamping
lOW VOlTaGE
302MRSPX
302MREX
302MRlX
Non-IC 50W
37W
MR16
MR16 IR
300MRSPX
3401MREX Non-IC Remodeler 37W MR16 IR
302MRIc9SPX IC 50W
37W
MR16
MR16 IR
302MRaIcSPX
302MRaIcEX IC/Airseal®37W MR16 IR
HID
3401MH39MRE1 Non-IC Remodeler 39W MR16CMH
539Philips
Lytecaster – Philips Lightolier
3-3/4"
3-3/4"
FGAL
ST
4-1/2"
(114mm)
6-1/4"
(159mm)
ADF2GR ADF2RD
ADF2MA ADF2BL
5-1/8"
5-1/2"
Canlyte Lighting Resource Guide
300X Series – Ambience
Lightolier responds to growing residential and light
commercial lighting needs with a stylish Drop Glass
Trim. Its frosted glass cylinder is available in two
flange finishes suited to modern interiors and provides
downlighting elegance to suit your decorating needs. For
mounting plates for use with remodelers, see p. 552.
Accommodates all ceiling types from 1/8" to 1-1/8"
thick. For thicker ceilings see extra thick ceiling housing
accessories on p. 553.
Design using the 313 trim with a built-in decorative
element. Beautiful ring with open centre. It has a nice
impact on light by softening the outer light beam of the
MR16 or the new ES/ESD16. For mounting plates for use
with remodelers see p. 552. Accommodates all ceiling
types from 1/8" to 1-1/8" thick. For thicker ceilings see
extra thick ceiling housing accessories on p. 553.
Drop Glass iii
Residence Disk ii
371FGSTX White Frosted Glass/Brushed Steel Flange
371FGWHX White Frosted Glass/White Flange
Note: Frame-in Kit not applicable: 303MRE.
317FGalX Polycarbonate Ring and Aluminum Painted Faceplate
White Frosted Glass/
White Flange
Use filter to add colour to the glass.
See p. 618.
300X series
Frame-In Kit Ceiling Wattage Lamping
lOW VOlTaGE
302MRSPX
302MREX
302MRlX
Non-IC 50W
37W
MR16
MR16 IR
300MRSPX
3401MREX Non-IC Remodeler 50W
37W
MR16
MR16 IR
302MRIc7SPX IC 35W MR16
302MRIc9SPX IC 50W
37W
MR16
MR16 IR
302MRaIcSPX
302MRaIcEX IC/Airseal®50W
37W
MR16
MR16 IR
INcaNDEScENT
302ESX Non-IC 50W ES/ESD16 (GU10)
300ESX Non-IC Remodeler 50W ES/ESD16 (GU10)
302ESIcX IC 50W ES/ESD16 (GU10)
302ESaIcX IC/Airseal®50W ES/ESD16 (GU10)
HID
3401MH39MRE1 Non-IC Remodeler 39W MR16CMH
Frame-In Kit Ceiling Wattage Lamping
lOW VOlTaGE
302MRSPX
302MREX
302MRlX
Non-IC 50W
37W
MR16
MR16 IR
300MRSPX
3401MREX Non-IC Remodeler 50W
37W
MR16
MR16 IR
303MRE Non-IC Remodeler 37W MR16 IR
302MRIc7SPX IC 37W MR16 IR
302MRIc9SPX IC 50W
37W
MR16
MR16 IR
302MRaIcSPX
302MRaIcEX IC/Airseal®50W
37W
MR16
MR16 IR
INcaNDEScENT
302ESX Non-IC 50W ES/ESD16 (GU10)
300ESX Non-IC Remodeler 50W ES/ESD16 (GU10)
302ESIcX IC 50W ES/ESD16 (GU10)
302ESaIcX IC/Airseal®50W ES/ESD16 (GU10)
HID
3401MH39MRE1 Non-IC Remodeler 39W MR16CMH
540 Philips
Lytecaster – Philips Lightolier
3-3/4"
3-3/4"
FG 5"
5-1/4"
4-3/8"
4-1/2"
ST
Canlyte Lighting Resource Guide
Miniature decorative trim. Soft diffusion for a smooth
beam pattern. Choice of two decorative glass colours.
For mounting plates for use with remodelers see p. 552.
Accommodates all ceiling types from 1/8" to 1-1/8"
thick. For thicker ceilings see extra thick ceiling housing
accessories on p. 553.
Rounded Glass ii
300X Series – Ambience
300X Series – Shower Light
322FGX White Frosted Glass
Note: Frame-in Kit not applicable: 303MRE and ES16 Frame-in Kits.
The double frosted glass lens provides a uniform lens
appearance. The lamp is slightly off-centre which
enables a 0-35° vertical adjustability or it can be locked
in a downlight position with the lamp centered (locking
device included). It also provides a 358° horizontal
rotation capability which is adjustable only after the trim
has been removed. The aperture is only 1-7/8" x 1-7/8"
(48mm x 48mm) and the faceplate is made of die-cast
aluminum 1/8" (3.2mm) thick. For mounting plates
for use with remodelers; see p. 552. Accommodates
all ceiling types from 1/8" to 1-1/8" thick. For thicker
ceilings see extra thick ceiling housing accessories on
p. 553.
Nelio Lens Shower Light Adjustable iii
347aSTX Brushed Steel
347aWHX White
Note: Frame-in Kit not applicable: 303MRE and ES16 Frame-in Kits.
White
300X series
Frame-In Kit Ceiling Wattage Lamping
lOW VOlTaGE
302MRSPX
302MREX
302MRlX
Non-IC 50W
37W
MR16
MR16 IR
300MRSPX
3401MREX Non-IC Remodeler 50W
37W
MR16
MR16 IR
302MRIc7SPX IC 37W MR16 IR
302MRIc9SPX IC 50W
37W
MR16
MR16 IR
302MRaIcSPX
302MRaIcEX IC/Airseal®50W
37W
MR16
MR16 IR
HID
3401MH39MRE1 Non-IC Remodeler 39W MR16CMH
Frame-In Kit Ceiling Wattage Lamping
lOW VOlTaGE
302MRSPX
302MREX
302MRlX
Non-IC 50W
37W
MR16
MR16 IR
300MRSPX
3401MREX Non-IC Remodeler 37W MR16 IR
302MRIc7SPX
302MRIc9SPX IC 37W MR16 IR
302MRaIcSPX
302MRaIcEX IC/Airseal®35W MR16
HID
3401MH39MRE1 Non-IC Remodeler 39W MR16CMH
541Philips
Lytecaster – Philips Lightolier
3-3/4"
3-3/4"
WH
4-5/8"
4-3/4"
4-1/2"
(114mm)
4-5/8"
(117mm)
WH
Canlyte Lighting Resource Guide
300X Series – Shower Light
Simple contoured architectural flange for unique new
appearance. Specially designed for task areas and wet
locations such as showers. Gasket included for shower
applications, can be removed. Accommodates all ceiling
types from 1/8" to 1-1/8" thick. For mounting plates for
use with remodelers see p. 552. For thicker ceilings see
extra thick ceiling housing accessories on p. 553.
Simple architectural flange with glass diffuser for a new
appearance. Specially designed for wet locations such as
showers (gasket included). For mounting plates for use
with remodelers see p. 552. Accommodates all ceiling
types from 1/8" to 1-1/8" thick. For thicker ceilings see
extra thick ceiling housing accessories on p. 553.
Contour ii
Shower Light ii
316WHX White
376WHX White Frosted Glass and White Flange
Note: Frame-in Kit not applicable: 303MRE and ES16 Frame-in Kits.
300X series
Frame-In Kit Ceiling Wattage Lamping
lOW VOlTaGE
302MRSPX
302MREX
302MRlX
Non-IC 50W
37W
MR16
MR16 IR
300MRSPX
3401MREX Non-IC Remodeler 50W
37W
MR16
MR16 IR
303MRE Non-IC Remodeler 37W MR16 IR
302MRIc7SPX
302MRIc9SPX IC 50W
37W
MR16
MR16 IR
302MRaIcSPX
302MRaIcEX IC/Airseal®50W
37W
MR16
MR16 IR
INcaNDEScENT
302ESX Non-IC 50W ES/ESD16 (GU10)
300ESX Non-IC Remodeler 50W ES/ESD16 (GU10)
302ESIcX IC 50W ES/ESD16 (GU10)
302ESaIcX IC/Airseal®50W ES/ESD16 (GU10)
Frame-In Kit Ceiling Wattage Lamping
lOW VOlTaGE
302MRSPX
302MREX
302MRlX
Non-IC 50W
37W
MR16
MR16 IR
300MRSPX
3401MREX Non-IC Remodeler 50W
37W
MR16
MR16 IR
302MRIc7SPX IC 37W MR16 IR
302MRIc9SPX IC 50W
37W
MR16
MR16 IR
302MRaIcSPX
302MRaIcEX IC/Airseal®50W
37W
MR16
MR16 IR
542 Philips
Lytecaster – Philips Lightolier
3-3/4"
CH
4-1/2"
(114mm)
4-1/2"
(114mm)
7" x 4"
5"
8"
ST
Canlyte Lighting Resource Guide
Simple architectural flange with glass diffuser specially
designed for wet locations such as showers (gasket
included). For mounting plates for use with remodelers
see p. 552. Accommodates all ceiling types from 1/8" to
1-1/8" thick. For thicker ceilings see extra thick ceiling
housing accessories on p. 553.
Flat Lens Shower Light ii
300X Series – Shower Light
300X Series – Linear Recessed
377cHX Frosted Lens and Chrome Flange
377WHX Frosted Lens and White Flange
Note: Frame-in Kit not applicable: 303MRE and ES16 Frame-in Kits.
The lamp is capable of a 0-60° vertical adjustability
(locking device included). The aperture is only 2-1/2"
x 3-3/4" (64mm x 95mm) and the faceplate is made
of die-cast aluminum 3/16" (4.8mm) thick. Torsiontite
springs ensure the faceplace edges are snug to the
ceiling while the inner housing and lampholder feature
a black painted finish for low brightness. Compatible
frames can be installed in ceilings of up to 2" thick.
Nelio Linear 1-lamp Open Adjustable iii
651WH White
651ST Brushed Steel
Frosted Lens
and White Flange
White
300X series
Frame-In Kit Ceiling Wattage Lamping
lOW VOlTaGE
302MRSPX
302MREX
302MRlX
Non-IC 50W
37W
MR16
MR16 IR
300MRSPX
3401MREX Non-IC Remodeler 50W
37W
MR16
MR16 IR
302MRIc7SPX IC 37W MR16 IR
302MRIc9SPX IC 50W
37W
MR16
MR16 IR
302MRaIcSPX
302MRaIcEX IC/Airseal®50W
37W
MR16
MR16 IR
Frame-In Kit Ceiling Wattage Lamping
lOW VOlTaGE
651MRE1 Non-IC 50W
37W
MR16
MR16 IR
543Philips
Lytecaster – Philips Lightolier
WH
WH
9-1/4" x 4"
7-1/2"
22-1/2"
26-1/8"
9-1/4" x 4"
5"
10-3/8"
Canlyte Lighting Resource Guide
300X Series – Linear Recessed
Both lamps are capable of a 0-60° vertical adjustability
(locking device included). The aperture is only 2-1/2"
x 4-3/4" (64mm x 121mm) and the faceplate is made
of die-cast aluminum 3/16" (4.8mm) thick. Torsiontite
springs ensure the faceplace edges are snug to the
ceiling while the inner housing and lampholder feature
a black painted finish for low brightness. Compatible
frames can be installed in ceilings of up to 2" thick.
The outer lamps only are capable of a 20-60° vertical
adjustability (locking device included). The aperture is
only 2-1/2" x 4-3/4" (64mm x 121mm) and the faceplate
is made of die-cast aluminum 3/16" (4.8mm) thick.
Torsiontite springs ensure the faceplace edges are snug
to the ceiling while the inner housing and lampholder
feature a black painted finish for low brightness.
Compatible frames can be installed in ceilings of up to
2" thick.
Nelio Linear 2-lamp Open Adjustable iii
Nelio Linear 3-lamp Open Adjustable iii
652WH White
652ST Brushed Steel
653WH White
653ST Brushed Steel
Brushed Steel
Brushed Steel
300X series
Frame-In Kit Ceiling Wattage Lamping
lOW VOlTaGE
652MRE1 Non-IC 50W
37W
2 X MR16
2 X MR16 IR
Frame-In Kit Ceiling Wattage Lamping
lOW VOlTaGE
653MRE1 Non-IC 50W
37W
3 X MR16
3 X MR16 IR
544 Philips
Lytecaster – Philips Lightolier
574STX
Canlyte Lighting Resource Guide
500X Series brings a full range of
4-1/4" aperture downlights for residential
and light commercial applications. You
can light an entire house with 500X
Series! With the all-new selection of
decorative square faceplates for 500X
Series, you can also design attractive
ceiling patterns that enhance and define
interiors (see p. 549).
PAR20 Value
Every 500X Series downlight is
available with either a PAR20 (50W
max.) or PAR20CMH (20W or 39W
max.). The PAR20 offering, with its
halogen look and line-voltage (120V)
convenience, is ideally suited to the
lighting needs of today’s residential
decor. PAR20CMH produces added
energy efficiency opportunities and
improves lumen performance by 3 to 4
times over current halogen technology.
This will result in extra energy savings
and in layouts that require even fewer
luminaires. With their bigger punch of
light, these innovative Ceramic Metal
Halide lamps will create new lighting
applications in spaces with higher
ceilings.
Perfect Installations
With FleX, Lightolier’s modular mounting
system, installing 500X Series
downlights is a cinch.
FleX is the market leader for cleaner,
faster and more forgiving luminaire
installations.
500X Series
500X series
Adjustable
small aperture
accent lights
with a one piece
steel reflector and
flange for a uniform look. The recessed lamp
rotates 30° vertically and 360° horizontally and
can be aimed without removing the trim. Also
accommodates all ceiling types from 1/8" to
1-3/4" thick(see p. 553).
The 500X Series,
a line of small aperture
PAR20 recessed
luminaires that makes
it easier than ever
to create stunning
downlighting
configurations.
Product Versatility
545Philips
Lytecaster – Philips Lightolier
4-3/4"
4-5/8"
12-1/2"
14" min
25" max
501X
502X
PAR20 (120V)
PAR20 (120V)
2-7/8"
10-1/2"
3"
501MH39P20E1
Canlyte Lighting Resource Guide
500X Series
Ceiling Cut-Out: 4-1/4"
Ceiling Cut-Out: 4-3/8"
Lytecaster Non-IC Remodeler (120V)
Features
Clearance required: 5-3/4" (ceiling thickness included)
•PowerPackdesignedforPAR20halogenlamps,50W
maximum (no transformer)
•Thermallyprotected
•Exclusiveswiveljunctionboxforclutteredorlowplenumspaces
•Damporwetlocationrateddependingontrimused
•Designedtopermitwiringbelowceilingline
•CSA/ULcertifiedforchainwiring
V-Frame Non-IC Frame-in Kit (120V)
Features
Clearance required: 7" (ceiling thickness included)
•DesignedforPAR20halogenlamps,50Wmax.(notransformer)
•Ruggedmountingsystemwith13"heavygaugemountingbars
that extend to 27"
•Built-inthermalprotection
•CSA/ULcertifiedforthroughbranchcircuitwiring
•Damporwetlocationrateddependingontrimused
Ceiling Cut-Out: 4-1/4"
Lytecaster Non-IC Remodeler (120V)
Features
Clearance required: 6-3/4" (ceiling thickness included)
•PowerPack:Idealforremodeling.Swiveljunctionboxfortightplenum
spaces. Snap-off covers permits wiring from below
•ElectronicBallast:120V,50/60Hz.,highpower>90%factor,
T.H.D.<20%
•ThermalProtector:MeetsCSA/ULrequirements.
INC
INC
HID
PAR20 (C.M.H)
500X series
546 Philips
Lytecaster – Philips Lightolier
7"
14" MIN.
25" MAX.
12-1/2"
502MH39P20E1
7"
(178mm)
7-1/4"
(184mm)
ø4-3/8"
(111mm)
12-1/2"
(315mm)
502AICSX
PAR20 (120V)
Min.
14"
(356mm)
Max.
25"
(635mm)
7"
(175mm)
9-1/2"
(244mm)
Canlyte Lighting Resource Guide
500X Series
Ceiling Cut-Out: 4-1/4"
V-Frame Non-IC Frame-in Kit (120V)
Features
Clearance required: 7"
•MountingFrame:Fourslotsarepositioned90ºaparttosimplify
alignment of luminaires
•MountingBars:LockableonFrame-inKit.Extendsfrom14"(356mm)
to 25" (635mm). Pre-installed integral nails for secure attachment to
wood joists. Attaches to T-bar ceilings without the need of accessories
•JunctionBox:CSAcertifiedPry-outknock-outsacceptBXcable
Loomex clamp included. Easy access from both sides with snap
on covers
•Ballast/CoverAssembly:Accessiblefrombelowandremovable
without tools for inspection and ballast replacement
•Thermallyprotected
•Electronicballast:120V,50/60Hz.,highpower>90%factor,T.H.D.
<20%
Ceiling Cut-Out: 4-3/8"
V-Frame IC Frame-in Kit (120V)
Features
Clearance required: 7-1/4"
•DesignedforPAR20halogenlamps,50Wmax.(notransformer)
•Exclusivepivotingmountingbarsforeasyattachmentandwiring-
inbelowceilingline.Barsextendtoaccommodateupto24"o.c.
joist spacing
•Integralnails,cableclamps
•Internalthermalcut-outinsuresagainstoverheatingdueto
incorrect lamping
•CSA/ULcertifiedforthroughbranchcircuitwiring
•Damporwetlocationrateddependingontrimused
•MountingbarlockingscrewononesideoftheFrame-inKit
INC
HID
PAR20 (C.M.H)
500X series
547Philips
Lytecaster – Philips Lightolier
BS
ST
BK
4-1/4"
4-1/4"
7"
502X 5-5/8"
501X
5"
7"
502X 5-5/8"
501X
5"
4-1/4"
7"
502X 5-5/8"
501X
5"
Canlyte Lighting Resource Guide
500X Series – Downlight/Accent
Adjustable small aperture downlight with plated
reflector. Recessed lamp rotates 30° vertically and 360°
horizontally, can be aimed without removing trim. Style
match with other line voltage reflectors. Accommodates
all ceiling types from 1/8" to 1-3/4" thick. For thicker
ceilings see extra thick ceiling housing on p. 553.
Adjustable small aperture accent lights with one piece
steel reflector and flange for uniform look. Recessed
lamp rotates 30° vertically and 360° horizontally, can be
aimed without removing trim. Accommodates all ceiling
types from 1/8" to 1-3/4" thick. For thicker ceilings see
extra thick ceiling housing on p. 553.
Adjustable small aperture downlight basic step baffle.
Recessed lamp rotates 30° vertically and 360° horizon-
tally, can be aimed without removing trim. Style-matched
with other line voltage step baffles. Accommodates all
ceiling types from 1/8" to 1-3/4" thick. For thicker ceil-
ings see extra thick ceiling housing on p. 553.
Basic Adjustable Alzak® Cone ii
Adjustable Premium Cone ii
Adjustable Step Bafe ii
594BSX BrassPlated
594CHX Chrome Plated
574ABX AntiqueBrass
574STX BrushedSteel
575BKX Black
575WHX White
Chrome Plated
AntiqueBrass
White
500X series
Frame-InKit Ceiling Wattage Lamping
INCANDESCENT
502X Non-IC 50W PAR20
501X Non-ICRemodeler 50W PAR20
502AICX IC/Airseal®50W PAR20
HID
502MH39P20E1 Non-IC 39W PAR20 CMH
501MH39P20E1 Non-ICRemodeler 39W PAR20 CMH
Frame-InKit Ceiling Wattage Lamping
INCANDESCENT
502X Non-IC 50W PAR20
501X Non-ICRemodeler 50W PAR20
502AICX IC/Airseal®50W PAR20
HID
502MH39P20E1 Non-IC 39W PAR20 CMH
501MH39P20E1 Non-ICRemodeler 39W PAR20 CMH
Frame-InKit Ceiling Wattage Lamping
INCANDESCENT
502X Non-IC 50W PAR20
501X Non-ICRemodeler 50W PAR20
502AICX IC/Airseal®50W PAR20
HID
502MH39P20E1 Non-IC 39W PAR20 CMH
501MH39P20E1 Non-ICRemodeler 39W PAR20 CMH
548 Philips
Lytecaster – Philips Lightolier
4-1/4"
4-1/4"
7"
502X 5-5/8"
501X
5"
AB
7"
502X 5-5/8"
501X
5"
WH
Canlyte Lighting Resource Guide
Lamp sits flush with the ceiling. Adjustable up to 30°
for accent lighting to a vertical surface and 360°
horizontally. The industry leader, offering the easiest and
fastest installation with rear lamping. Accommodates
all ceiling types from 1/8" to 1-3/4" thick. For thicker
ceilings see extra thick ceiling housing on p. 553.
Residence i
500X Series – Downlight / Accent
513ABX AntiqueBrass
513BKX Black
513STX BrushedSteel
513WHX White
Simple contoured architectural flange for unique new
appearance. Specially designed for task areas and
wet locations such as showers. Optional white gasket
included for shower applications, can be removed.
FixturewithorwithoutgasketisCSA/ULcertiedforwet
location. Accommodates all ceiling types from 1/8" to
1-3/4" thick. For thicker ceilings see extra thick ceiling
housing on p. 553.
Contour i
516WHX White
Black
BrushedSteel
White
500X series
Frame-InKit Ceiling Wattage Lamping
INCANDESCENT
502X Non-IC 50W PAR20
501X Non-ICRemodeler 50W PAR20
502AICX IC/Airseal®50W PAR20
Frame-InKit Ceiling Wattage Lamping
INCANDESCENT
502X Non-IC 50W PAR20
501X Non-ICRemodeler 50W PAR20
502AICX IC/Airseal®50W PAR20
HID
502MH39P20E1 Non-IC 39W PAR20 CMH
501MH39P20E1 Non-ICRemodeler 39W PAR20 CMH
549Philips
Lytecaster – Philips Lightolier
A
B
Canlyte Lighting Resource Guide
Decorative Square Faceplates
Let your imagination light the way!
DiscovertheendlessinteriordesignpossibilitiesofDecorativeSingle-UnitFaceplates
for Lytecaster 300X/500X Series. These visually appealing accessories combine the
elegance of downlighting and the flexibility of made-to-measure ceiling patterns.
Another innovative idea by Lightolier for your home or business.
Unique. Modern. Convenient.
DecorativeSingle-UnitFaceplatesbreathenewlife
into a space, allowing you to add a personal touch
of refinement to any decor.
• DramaticAccent:Faceplatesmakeiteasytotransform
an area, even enhance a corner
• InterestingAlternative:Faceplateconfigurationscan
replace pendant and surface luminaire applications
• Easy-To-InstallModularSystem:Faceplatesaresecured
to the ceiling thanks to FleX clamping power
Mix’n Match Sensation
Combine faceplates
and trims to suit
your decorating
needs. Create
a consistent
monochrome finish
or develop a two-tone
look in line with your
colour scheme.
Easy-Design Templates
Create the pattern of your choice using linear and diagonal templates, included
with every faceplate. These practical templates let you plan and integrate any
number of geometric ceiling designs. Multiple faceplate patterns require use
ofNon-ICRemodelerframesgiventhebulkinessofotherframe-Inkits.
Popular Finish
Easy-to-match white paint finish.
Dia. A B Catalogue Finish Compatible
Number Trims
3 3/4" 5 3/4" 5 3/4" 300SQWH White All Trims except
316X and 322X Series
4 1/4" 6 1/4" 6 1/4" 500SQWH White All Trims except
516X Series
Hardware-free, hassle-free installation
Faceplates are secured to ceiling and housing thanks to FleX clamping power.
After inserting housing through steel faceplate opening, faceplate remains
in position as mounting clips are screwed tight. Housing flange presses up
against inset faceplate lip for a positive fit. Luminaire trim then installs normally
in housing, arriving flush with faceplate for a clean ceiling line.
• Totalfaceplatedepth:only3/8"
• Continousrows,otherpatterns:recommendedforusewithonlyNon-IC
RemodelerKitgivenspacelimitationsbetweenjoists
Thickness:
5/16"
Opening Dia.
White
Linear
Pattern
Diagonal
Pattern
Checkboard Pattern
300X and 500X series
550 Philips
Lytecaster – Philips Lightolier
Canlyte Lighting Resource Guide
Fireline
FireLine
Fire Rated Enclosure
TheFirstLineofDefenseInFireRatedRecessedLightingLightolierpresentsthesinglemostexibleand
effectivesolutiontoincreasethereresistanceofrecesseddownlightingapplications.Designedwiththe
distributor,contractorandinspectorinmind,FireLineprovidesaUL®Classiedenclosurethatiseasy
toinstall,exibleandcosteffectiveinmaintainingtheone-hourreratingofL500ceilingassemblies
whererecessedlightingisused.DesignedincooperationwithAlbiManufacturing®, a 40 year leader in
thereproongindustry.
Unique Design
ConstructedofAlbiDriClad®,thisindustryacceptedmaterial
providesaone-hourUL®classicationforL500seriesoor/
ceiling assemblies. The enclosure helps to prevent the spread
of heat and flames into the ceiling space, providing additional
timeforresidentstoevacuate.Unlikeothermaterialusedin
reresistantproducts,FIRELINEisdesignedforexposureto
extreme temperatures and will provide consistent and long-
term protection when exposed to the heat given off by lighting
products.Availableinthreesizes,FIRELINEisdesignedtotthe
most popular types of residential construction and is ideal for
single and multi-family dwellings, hospitality and assisted living
environments.
Unsurpassed Flexibility
Lytecaster has set the trend with the most extensive line
ofrecessedlightingintheindustry.TheFireLinererated
enclosureisnoexception.Specicallydesignedtoworkwith
theLytecasterlineofproducts,FIRELINEworkswithover
30existingFrame-InKitsandalltheircompatibletrims.This
provides you with hundreds of
downlighting options for you
and your customers. Why stock
additionalFrame-InKitSKU’s
orsacricestyleandquality
when you can use the recessed
downlight line you have come to
know and trust... Lytecaster.
Value
FireLinesavestimeandmoneybyeliminatingtheneedtoconstructaseparatereratedenclosure.
• Eliminatestheneedforadditionalcontractorstobuildanenclosure
• Eliminatesschedulingissuestryingtocoordinatecontractorstobuildandinstall.
• Eliminatestheneedforinspectorstoinspecteachindividualboxforcompliance.
Thislightweightmaterialweighsafractionofwhatotherreresistantproductsweigh.
SimplyliftFIRELINEintothejoistspaceandusethemountinghardwareprovidedto
install.Onceintheceiling,theFrame-In-Kitcanbeinstalledwithoutanyadditional
hardwareormodications.
Designedspecicallytotinmoststandardtypesofconstruction,FIRELINEprovides
moreexibilitythananyotherreratedproductbyofferinga16"oncenter(16FR2X10)
and 12" on center (12FR2X10) 2x10 construction.
Restrictedorobstructedceilingspace...FIRELINEisalsoavailableinashallow16"on
center (16FR2X16) version for installation in plenums as shallow as 2x6 construction or
where obstructions may cause height restrictions.
Code
Lightolier FireLine, colored the familiar Lightolier red, serves as an easy-to-recognize indicator for
inspectorsthatyouhaveinstalledaUL®classiedproductthatprovidesaone-hourrerating
and the knowledge that it is the quality product they have come to know with Lightolier. Additional
informationcanbeobtainedfromtheULlabelincludedontheboxorfromtheULwebsiteunder
thisULCerticationFireResistiveAssembliesandSystemspage.
accessories
551Philips
Lytecaster – Philips Lightolier
12FR2X10
16FR2X6
16FR2X10
Canlyte Lighting Resource Guide
Product Compatibility
ThefollowinggridoutlinestheLytecasterproductscompatibleforusewiththeFIRELINEFireRatedEnclosure.
Note: For lastest compatibility Product Matrix please see specsheets on www.canlyte.com
FIRELINE Use with Use with Lamping
Catalog No. Frame-in Kit Reflector Trim Options
Incandescent Fluorescent
1004IC-CDN 1004FSeries Compatiblewithalltrimsrated
1104ICN 1104FSeries fortheseFrame-inKits
1050RN Series
1050DRNSeries 
1050SQ Series Compatible with all IC lamping
1050DSQSeries  optionsfortheassociatedtrims
LED Compatible with all trims rated
1050LRNSeries fortheseFrame-inKits Included
Incandescent Fluorescent
1004IC-CDN 2001FSeries Compatiblewithalltrimsrated CompatiblewithallIC lamping
1104ICN 1001FSeries fortheseFrame-inKits optionsfortheassociatedtrims
1004ICXN 1101FSeries
1104ICXN 1004FSeries
302ESAICX 1104FSeries
502AICSX 1001TSeries
2002AIC 1050RNSeries
1000IC 1050DRNSeries
1100IC 1050SQSeries
  1050DSQSeries
LED Compatible with all trims rated
1050LRNSeries  fortheseFrame-inKits Included
Low Voltage
  302MRIC7SPX Compatiblewithalltrimsrated Compatiblewithalllamping
  fortheseFrame-inKits optionsfortheassociatedtrims
Fluorescent
1101T13 Compatible with all trims rated Compatible with all lamping
1101T18  fortheseFrame-inKits optionsfortheassociatedtrims
1050RN 1050DRN
1050SQ 1050DSQ
LED Compatible with all trims rated
1050LRNSeries  fortheseFrame-inKits Included
Fireline
accessories
552 Philips
Lytecaster – Philips Lightolier
0085
0089S - 0092S
1954 - 1957
1956
0099
1964
0089L - 0092L
LAS56
LAS56R
0086BK 0086WH
Canlyte Lighting Resource Guide
accessories
Accessories
Mounting Plates
Multiple nail holes and slits for
added installation flexibility.
Features alignment marks
facilitatingcongurationof
continuous rows and 90° turns.
0089L Long mounting plate
for the 300X Series
3-3/4" aperture
0092L Long mounting plate
for the 500X Series
4-1/4" aperture
Extra Wide Flange
Trim Ring
1954 For most 1100 Series
Reflector Trims.
O.D.8-5/8".
1957 For most 1000 Series
Reflector Trims.
O.D.7".
Mounting Bar Assembly
Set of 2
Adjustable from 14" to 25".
For 600 and 650 Series
Metal Snoot for
Elbow Series
0086BK withblacknish
0086WHwithwhitenish
Mounting Plates
Provides all the features of the
Long Mounting Plate (0092L).
Idealsolutionforstrapped
ceilings, as well.
0089S Short mounting plate
for the 300X series
3-3/4" aperture
0092S Short mounting plate
for the 500X Series
4-1/4" aperture
Lytening AirSeal® Gasket Kit
Converts Lytening housings* to comply with Model
Energy Code and Washington State Energy Code air
leakage requirements.
*UsewithLyteningnewconstructionhousings
(1104ICN,1004IC-CDN,1104ICRS,
1004ICRS-CDN,1004Fseriesand1104Fseries)
only if factory installed tape or knockouts have
been removed.
Lytening AirSeal® Gasket Kit
Converts Lytening Remodeler housings*
1104ICRS,1004ICRS-CDN
to comply with Model Energy Code
and Washington State Energy
Code air leakage requirements.
T-Bar Ceiling Clips
AllstandardFrame-inKit
mounting bars have an integral
T-bar tab. This accessory is to
be used with the 20" mounting
bars, item 1964. Set of 4.
Cliclyte Clips
For installation in existing
ceilings. Carton of 12.
Suits the entire Cliclyte series.
Mounting Bars
20" mounting bar extenders.
Set of 2. Compatible with all
Frame-inKits.
Not for use with Lytening
orUniframeFrame-inKits.
553Philips
Lytecaster – Philips Lightolier
VBE300
1967A - 1967B - 1967C
37-3/4"
(959 mm)
FACSA36
A
300XTC - 500XTC
X
300LX
Canlyte Lighting Resource Guide
accessories
Accessories
Vapour Barrier Extender
For airtight applications
using Non-AirSeal® - ready
ICFrame-inKitsonly.
For 24" centre-to-centre joist.
Extra Thick Ceiling
Mounting Ring
Mounting ring holds reflector
snug to ceiling. Can be used
withStandardFrame-inKits
where ceilings are up to 2"
thick.
1967A (1100 Series trims)
1967B (1000 Series trims)
1967C (2000 Series trims)
Stem Kit Accessory
FACSA36 White
For CS1102T Series.
Low Profile Housing
300LX Lowprolehousing
to be used with
302MRLX only.
Total height of 3-3/4".
Extra Thick Ceilings
Part No. Description ‘’A’’ Ceiling
Thickness
300XTC For 300X Series Minimum 1"
X=3-3/4"Dia. Maximum2-3/4"
500XTC For 500X Series Mimimum 1-1/2"
X=4-1/4"Dia. Maximum3-3/4"
Shown 300TXC + 300MRX
554 Philips
Lytecaster – Philips Lightolier
Canlyte Lighting Resource Guide
Putting Lytecaster to work
The following guidelines provide valuable information on the effective use of Lytecaster.
General Lighting
Asimplelayoutofdownlightsfollowsvebasicsteps:
1.Determinethelevelofillumination,infootcandles,dependingontheusageofthespace.
(Section A)
2.Selectthelightsourcebasedonefciency,lamplife,coloranddimmingability.Besureto
consider Energy Smart®,long-lifecompactuorescentandHIDsources.
3.Selectthedownlight,basedonlightsource,sizeandnish.
4.UseLightLossFactors(SectionB)toassureadequatemaintainedfootcandles.(Maintained
Footcandles=InitialFootcandlesxLLF)
5.DeterminedownlightspacingfromthechartinSectionC.Whenthelayoutispre-determinedby
thespace,usefootcandlechartstondthelightinglevel.Whenmaximumspacingisdesired(in
ahallway,forexample)usetheSpacingRatio(SectionD)toassureevenlighting.
Example: (1105CL) 1 x 32W Triple Tube
Given 1105CL Reflector Trims with one 32W Triple Tube lamp mounted in a small room
with an 8' high white ceiling and light walls.
Find The spacing of fixtures for 25 to 30 footcandles at a 2 1/2' work plane.
Solution SeeMultipleUnitschart.Thesefixtures,mountedon6'centers,willprovide30
footcandles at a work plane height of 30". The Spacing Ratio of 1.1 allows these
fixtures to be mounted up to 6' apart {1.1 x (8 - 2.5)} and still provide even light-
ing.
A Recommended General Lighting Levels
(Minimum, Maintained)
Commercial Residential
High
(Over 50
footcandles)
Price-Oriented Retail
Quick Service Restaurants
Fine Assembly Work
Laboratories
WorkBench
Medium
(30-50
footcandles)
General Retail
GeneralOfce
Classrooms
Libraries
Reception
Leisure Restaurant
Hobby Areas
Kitchens
Laundry
Study
HomeOfce
Low
(Less than 30
footcandles)
Public Spaces
Corridors
Stairs
Social Areas
IntimateRestaurant
DiningRoom
Hallways
Closets
B Light Loss Factors
Light loss factors compensate for dirt accumulation and lamp depreciation.
MaintainedFootcandles=InitialFootcandlesxLightLossFactor(LLF)
Fixture Lamp Type Maintenance Conditions
Good Medium Poor
EnclosedDownlights A, Triple, Quad & Twin Tube .75 .70 .60
OpenDownlights PAR,BR,MR .80 .75 .70
A, Triple, Quad & Twin Tube .75 .70 .65
Good = Clean area, regular maintenance and group relamping.
Medium = Medium dirty area, regular maintenance and spot relamping.
Poor=Dirtyarea,poormaintenanceandspotrelamping.
C General Lighting from Multiple Units
Footcandle values are initial and average and are at a work plane height of 30" above the floor.
Theyareshownforvariousxturespacingsinalargeroom(30'x50')andasmallroom(8'x
12'),bothwithceilingheightsof8'to12'.Roomnishesaretypical:whiteceiling(80%re.),light
walls(50%re.),anddarkoor(20%re.).
Example: (1113) 1 x 32W Triple Tube
Ctr. to Ctr. Footcandles
Spacing Large Small
Room Room
4' 87 68
6' 39 30 S.R. = 1.1
8' 22 14
D Spacing Ratio
Tondthemaximumspacingofxturesforevenlighting,multiplythexture'sSpacingRatio
(S.R.)bythextureheightabovetheworkplane.
E Downlighting from a Single Unit
Footcandle(FC)valuesareinitialandareatthecenterofthebeam,30"abovetheoor.TheBeam
Diameteristothepointthatthecandlepowerdropsto50%ofmaximum.
Example: (1005) 75W PAR30
Height Foot- Beam
toFloor Candles Diameter
8' 56 5'
10' 30 6'
12' 19 8'
F Footcandle Conversion for Downlights
Lamp wattages given for each Line Voltage reflector trim are the maximum for the lamp type
specied.Toconvertthelightingdatatoalowerwattagelampofthesametype,multiplythe
footcandle values by the ratio of the lumens of the two lamps. Note beam diameter and spacing
ratio (S.R.) do not change.
Given LightingDatafor1105reflectortrimwitha150WBR40FLlamp.
Find Thefootcandlelevelfor90WBR40FLlamp.
Solution Dividethelumensofthe90WBR40FL(1100)bythelumensofthe150WBR40FL
(1525) {1100 divided by 1525 = 0.7}. Then, multiply the footcandle values of the
fixture data by 0.7.
Footcandle Multipliers for Alternate Finishes (A Lamp, CFL, HID)*
 (AgainstClear/Gold) (AgainstBlackBafe)
Reflector Matte White Specular White
 TrimSeries Cone BlackCone Baffle
2000 .65 .3 1.4
1000 .85 .6 1.4
1100 .90 .7 1.5
* FootcandlesshownwithSpecularConeunitsareforClearandGoldnishes;withSteporBasic
BafeunitsareforBlackBafes.Multipliersaboveareagainstthosefootcandlevalues.
Putting Lytecaster to work
accessories
Work Plane
Rm.
Ht.
30"
F. C.
Beam Dia.
Work Plane
Rm.
Ht.
30"
Ctr. to Ctr.
555Philips
Lytecaster – Philips Lightolier
Canlyte Lighting Resource Guide
Lighting specications
Accent Lighting
Useindividualxturesinsmallareasortocreatefocalpoolsoflight.(SectionE)
For the best viewing of pictures locate accent lights so that their beams are aimed 30° from
vertical (Section G). Three-dimensional objects stand out best when cross-lighted from two
accent lights.
Size the beam to the object(s) being highlighted and illuminate them up to three times the
general level.
G Accent Lighting/Beam Center Location
The charts locate the distance (C) to the center of the light beam for various mounting distances
(D)andforaimingangles30°and45°fromvertical.30°fromverticalisthepreferredaiming
angle for lighting pictures on a wall.
Example: When an accent light is located 3' from a wall and aimed 30° from vertical, the center
of the light beam will be about 5' down from the ceiling.
D
C
A
2' 4' 6' 8'
2'
4'
6'
8'
10'
12'
14'
Distance (C)
Distance (D)
30˚
Center of Beam
30° Aiming Angle
2' 4' 6' 8'
2'
4'
6'
8'
10'
12'
14'
Distance (C)
Distance (D)
Center of Beam
10'
45˚
45° Aiming Angle
Lamp Data
Watts Bulb RatedLumens RatedLife
(Initial) (Hours)
General Service Line Voltage Lamps
40W A19 465 1500
60W A19 850 1000
75W A19 1190 750
100W A19 1690 750
150W A21 2850 750
Projector (PAR) Halogen Lamps
60W PAR16 650 2000
75W PAR16 900 2000
35W PAR20 360 2500
50W PAR20 550 2500
50W PAR30 660 2500
75W PAR30 1130 2500
45W PAR38 560 2500
60W PAR38 850 3000
90W PAR38 1310 2500
100WHIR PAR38 2070 3000
120W PAR38 1800 3000
250W PAR38 3600 4500
Low Voltage Projector Lamps
MR16 (See page 132)
Reector(BR)Lamps
65W BR30 715 2000
85W BR30 925 2000
65W BR40 685 2000
85W BR40 925 2000
120W BR40 1150 2000
Compact Fluorescent Lamps
13W Twin Tube 2-Pin 900 10,000
(GX23)
13W Quad Tube 2-Pin 860 10,000
(GX23-2)
13W Quad Tube 4-Pin 1250 10,000
(G24q-1)
18W Quad Tube 4-Pin 1250 10,000
(G24q-2)
26W Quad Tube 4-Pin 1800 10,000
(G24q-3)
26W Triple Tube 4-Pin 1800 10,000
(GX24q-3)
32W Triple Tube 4-Pin 2400 10,000
(GX24q-3)
Metal Halide Lamps (Open Fixture Type)
70W(Coated) ED17/Med. 5400 16,000
100W(Coated) ED17/Med. 7900 16,000
70W PAR38/Med. 3400 8,500
100W PAR38/Med. 5800 8,500
The shape of a bulb is indicated by one or more letters such as A, R, PAR, etc. The size is given
byanumberwhichexpressesthediameterineighthsofaninch.Thus,aBR40bulbisofthe
BRshape,40eighths(40/8)or5"indiameter.Lampdatashownistypical.Contactlamp
manufacturerforspecicdata.
Lightingspecications
accessories

Navigation menu
