224
Voice • Data • Video
www.greenlee.com
= REPLACEMENT PART = ACCESSORY

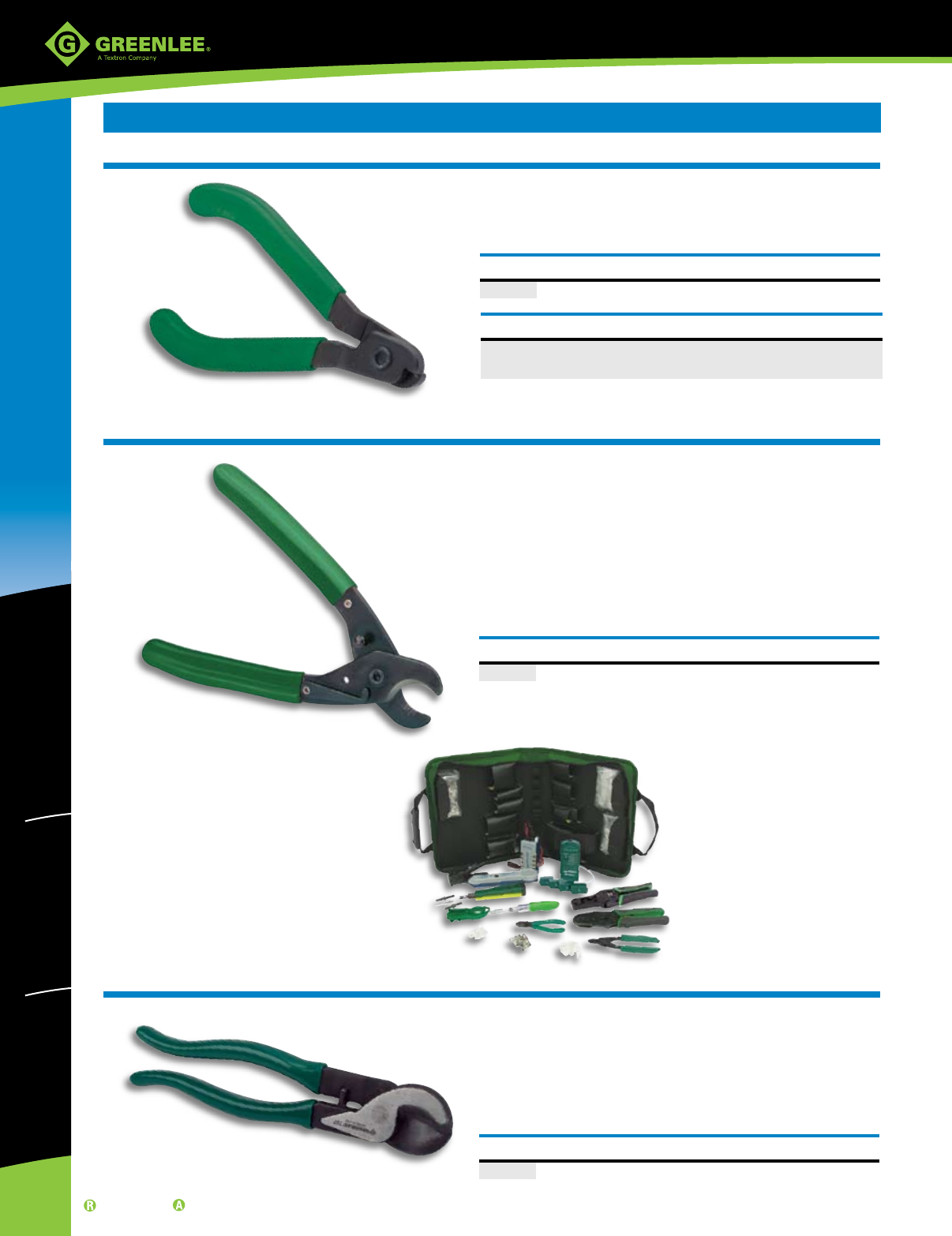

Center Conductor Cutter
Cable Cutter, 8 AWG
Cable Cutter

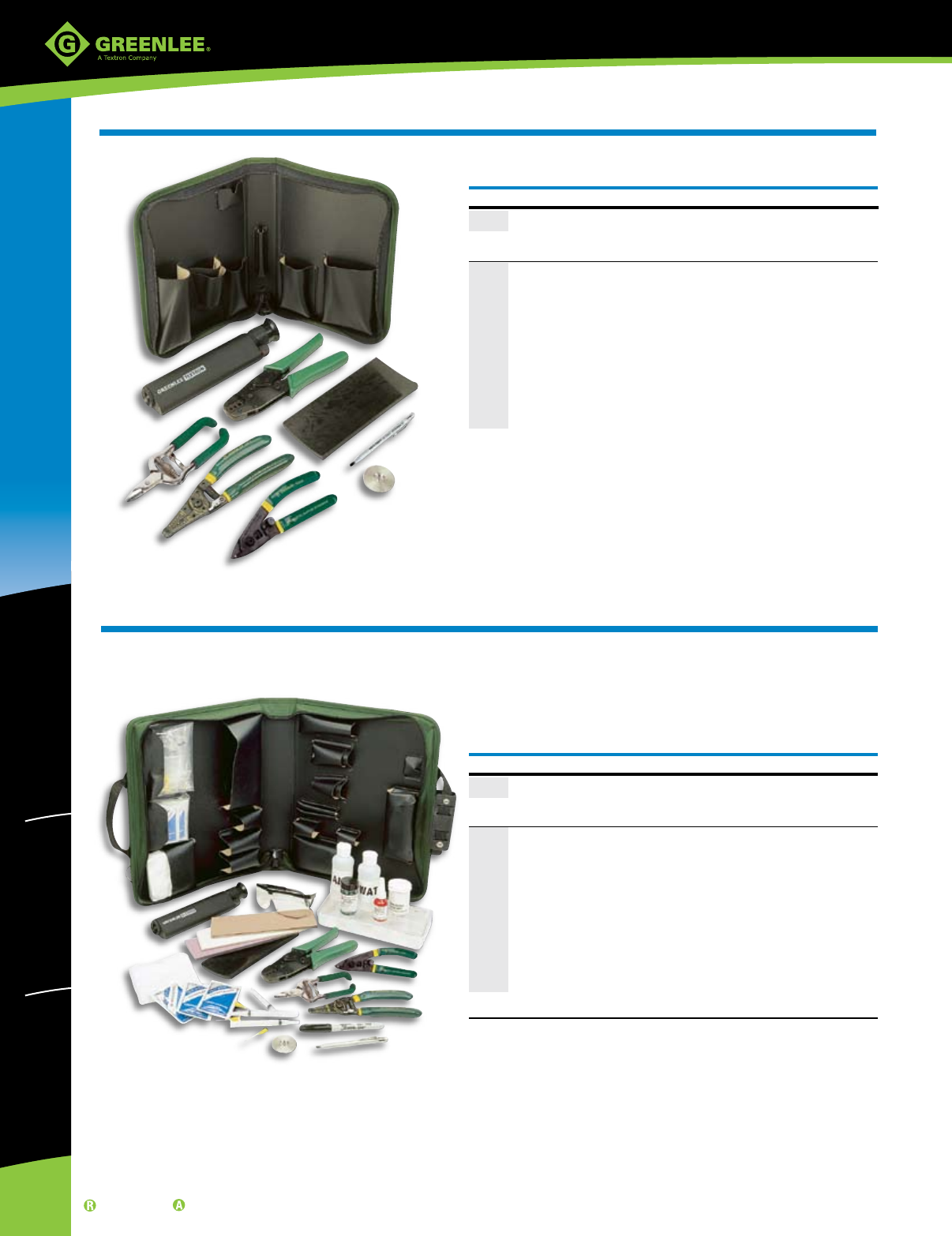

45471 Professional Installation Kit
This complete kit includes our 8 AWG
Cable Cutter plus all the tools, connectors
and tests for installing and maintaining
most types of communications cabling.
See page 252 for details on
our Professional Installation Kit.
CAT. NO. UPC NO. DESCRIPTION
45481 45481 Center Conductor Cutter
CAT. NO. UPC NO. DESCRIPTION
45482 45482 Cable Cutter
CAT. NO. UPC NO. DESCRIPTION
727 31291 Cable Cutter
SPECIFICATIONS
Stamped from high-carbon tool steel
Rust-resistant black oxide finish
• Precisely trims the center conductor of coaxial cable to a standard
length of 3/16" (5 mm).
• Cushioned-grip handle for comfortable use.
• Heat-treated for long life.
• Designed to cut solid, stranded wire up to 8 AWG (10 mm²)
and multi-conductor cable up to 1/2" (12.7 mm) in diameter.
• Curved cutting blades ensure an easy cut.
• Economically priced.
• Cushioned-grip handle for comfortable use.
• Heat-treated for long life.
• Stamped and precision ground from high-carbon tool steel.
• Return spring.
• Locking latch.
• Rust-resistant black oxide finish.
• Easily cuts heavier copper and aluminum cables up to 2/0 (70 mm²).
• Plastic coated, high-leverage handles for easier cuts.
• Heat-treated for long life.
• Made of heavy-duty forged steel.
• Precision-ground, shear-action, curved cutting blades.
• Rust-resistant black oxide finish.
• Made in the USA.
COPPER TERMINATION
www.greenlee.com
225
USA Tel: 800.435.0786
Fax: 800.451.2632
Canada Tel: 800.435.0786
Fax: 800.524.2853
International Tel: +1.815.397.7070
Fax: +1.815.397.9247
Voice • Data • Video
= REPLACEMENT PART = ACCESSORY

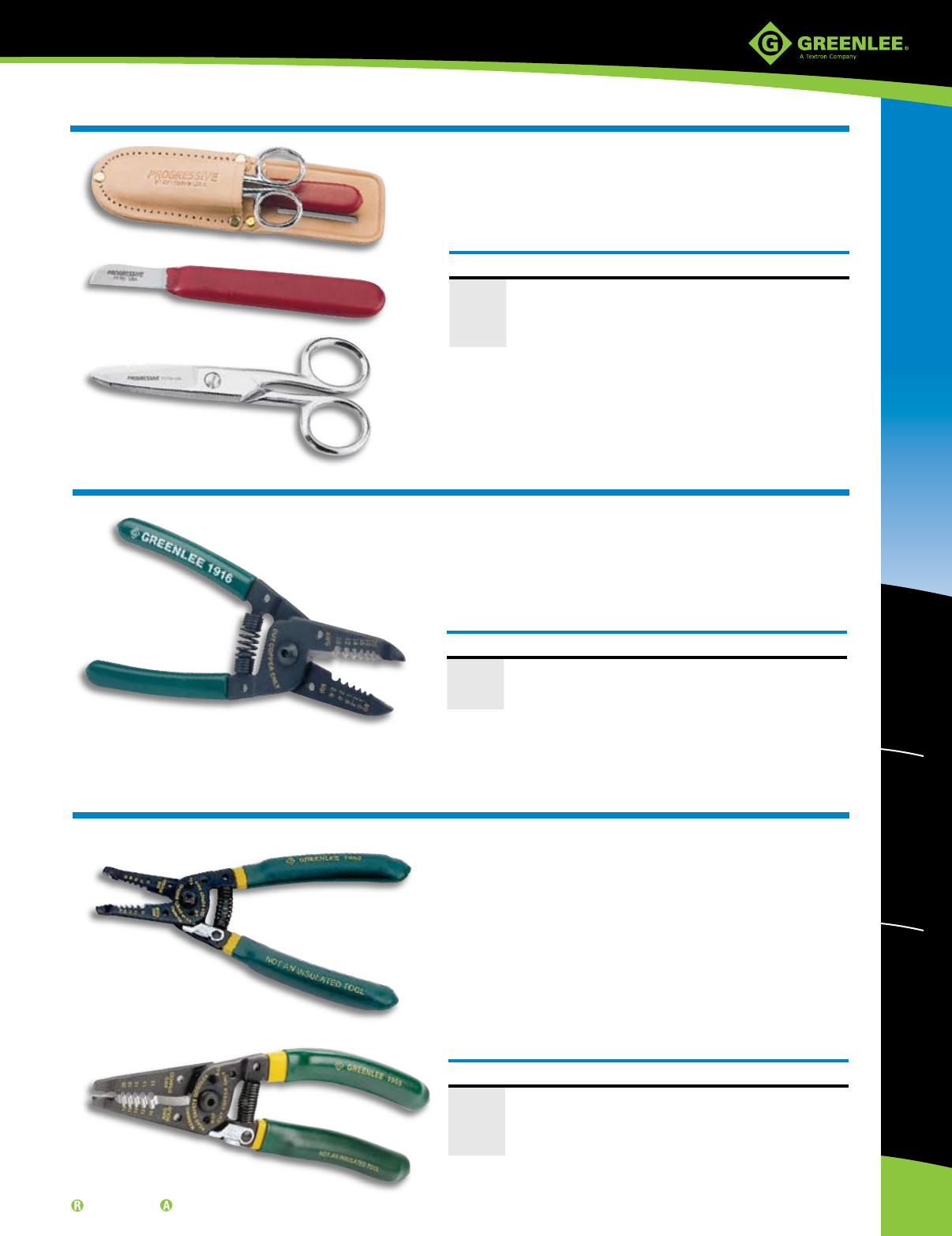

Cable Splicer’s Knife and Electrician’s Scissors
Wire Strippers/Cutter
Pro Wire Strippers
• Strips the outer jacket off both solid and stranded wire.
• Machined stripping stations with a positive stop provide
precise stripping diameters.
• Ergonomically designed, extra-long cushioned handles
add superior comfort and reduce hand fatigue.
• Long curved cutter blades reduce force required by 25%
and can cut NM in a single cut.
• Lock tab protects cutting edges during storage.
• Pliers nose for working with small nuts and pulling wire.
• Hole in jaws for looping wires.
• Opening stop prevents spring from disengaging.
• Easy-to-read graphics.
• Cuts screws.
CAT. NO. UPC NO. DESCRIPTION
PT-K01 08704 Scissors and Knife Kit with Two-Pocket Pouch
PT-T01 08707 Cable Splicer’s Knife
PT-T02 08708 Electrician’s Scissors
PT-C01 08702 Two-Pocket Leather Pouch
CAT. NO. UPC NO. DESCRIPTION
1916 31891 20-10 AWG (0.8 to 2.6 mm dia.) Solid WIre
1917 31890 26-16 AWG (0.4 to 1.3 mm dia.) Solid Wire
1918 31889 30-22 AWG (0.25 to 0.64 mm dia.) Solid Wire
CAT. NO. UPC NO. DESCRIPTION
1950 06852 Pro Wire Stripper 10-18 AWG
1951 06853 Pro Wire Stripper 22-32 AWG
1955 06857 Pro Plus Wire Stripper, 10-18 AWG
1956 10300 Pro Plus Stripper 8-16 AWG
• Cuts cable, telephone wire and strips insulation.
• Tough, tempered steel knife blade holds its edge longer.
• Full-sized knife handle provides greater comfort.
• Knife has a short, coping-type blade made of the finest cutlery steel.
• Scissors have an upper blade with two stripping notches to strip
most insulations from 19-24 AWG.
PT-K01
PT-T01
PT-T02
1916
1950
1955
• Precision-ground blades ensure consistent stripping and cutting.
• Heat-treated for long life.
• Cushioned-grip vinyl handle for comfortable use.
• Serrated nose grip for wire pulling and straightening.
• Stamped from high-carbon tool steel.
• Pivot joints have hardened steel bushings.
• Rust-resistant black oxide finish.
USA Tel: 800.435.0786
Fax: 800.451.2632
Canada Tel: 800.435.0786
Fax: 800.524.2853
International Tel: +1.815.397.7070
Fax: +1.815.397.9247
226
Voice • Data • Video
www.greenlee.com
= REPLACEMENT PART = ACCESSORY

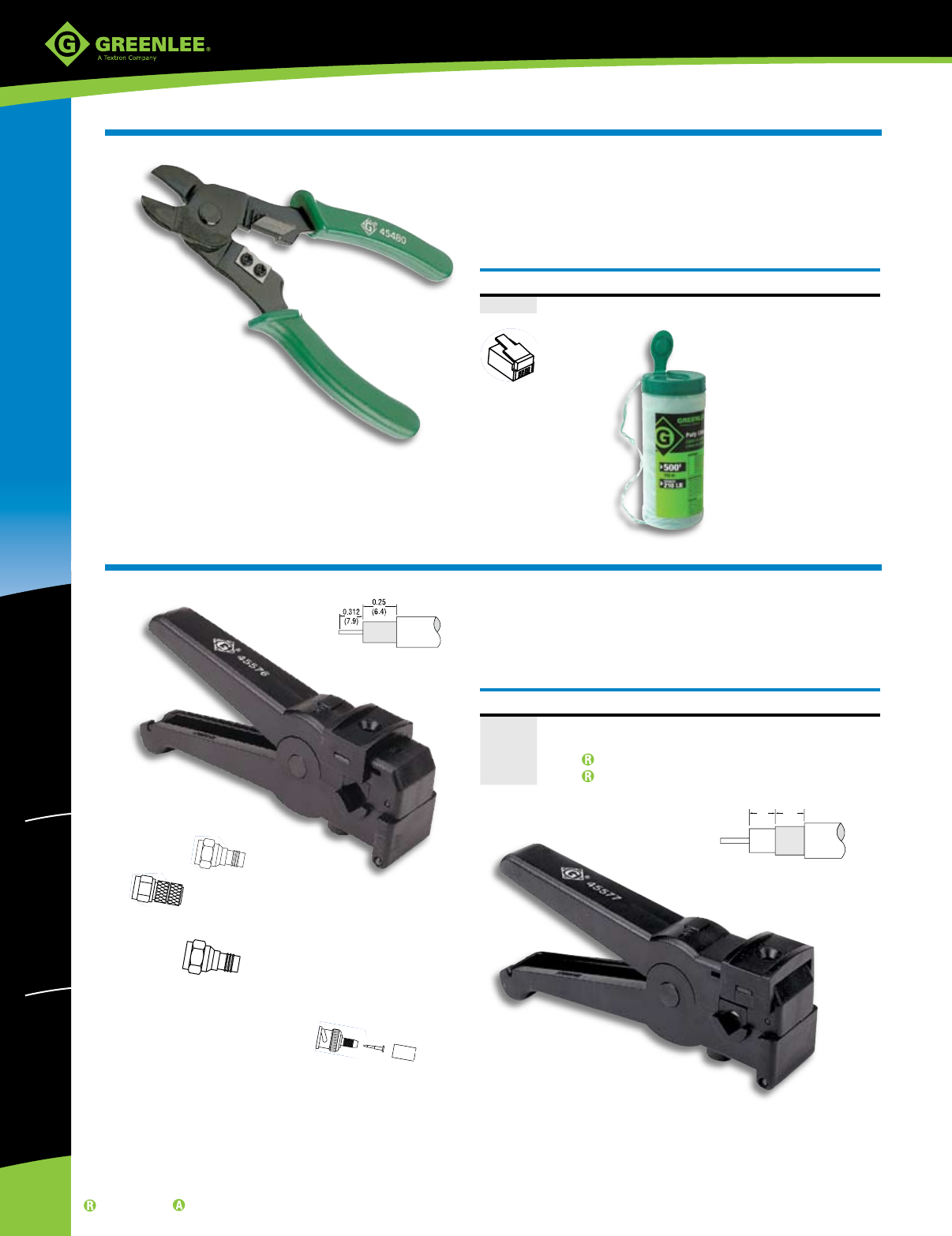

Kwik Stripper Flat Telephone Cable Cutter/Stripper
Kwik Stripper Coax Stripper — 2 level and 3 level
CAT. NO. UPC NO. DESCRIPTION
45480 45480 Kwik Stripper Flat Telephone Cable Cutter/Stripper
CAT. NO. UPC NO. DESCRIPTION
45576 45576 Kwik Stripper Coax Stripper - 2 Level
45577 45577 Kwik Stripper Coax Stripper - 3 Level
45040 45040 Cartridge - 2 Level
45039 45039 Cartridge - 3 Level
45576 2 Level
Typically used for F-type connectors (See pages 234-235).
Frame accepts only 2 level cartridges.
45577 3 Level
Typically used for BNC-type connectors
(See page 236).
Frame accepts both 2 and 3 level cartridges.
.25
(6.4).25
(6.4)
.25
(6.4)
.25
(6.4)
85-003
.23
(5.9)
.23
(5.9)
85-003
85-046
.187
(5)
85-056
Center Conductor
45480
Typically used
for Modular Plug
Connectors (See
page 234)
• Designed to cut and strip flat modular telephone cables (Silver Satin).
• Built-in cable stop/guide for consistent strip length.
• Heat-treated for long life.
• Cushioned-grip vinyl handle for comfortable use.
• 2- to 10-conductor capacity.
• Stamped from high-carbon tool steel.
• Rust-resistant black oxide finish.
• Designed to provide precise, repeatable strips consistently.
• Prepares RG58, RG59, RG62, RG6 and many other types of coax cable.
• Strips braid and dielectric to 1/4" (6.4 mm).
• Blades are easily replaced in the field.
• Blade adjustment for cutting depth.
• Replaceable and interchangeable blade cassettes.
430-500 Poly Line
The 430-500 poly line is the same 210
lb. (934 N) breaking strength line used in
the larger buckets, and it comes in a tube
with a prepunched hole for dispensing
the line without tangling. The line can be
blown into conduit and then used to pull
in a larger pulling rope, or it can be used
directly to pull in smaller wires.
www.greenlee.com
227
USA Tel: 800.435.0786
Fax: 800.451.2632
Canada Tel: 800.435.0786
Fax: 800.524.2853
International Tel: +1.815.397.7070
Fax: +1.815.397.9247
Voice • Data • Video
= REPLACEMENT PART = ACCESSORY

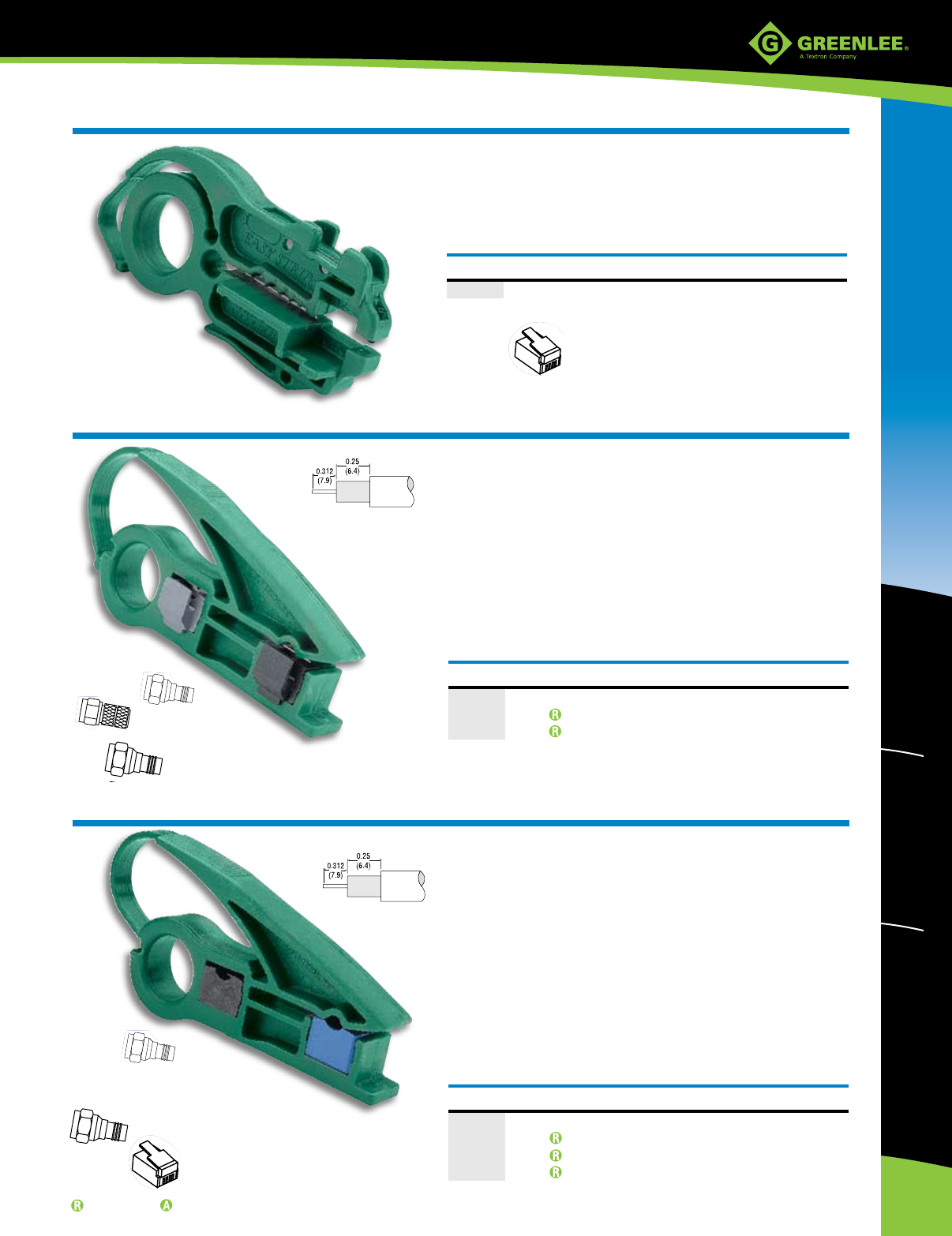

Kwik Stripper Twisted Pair Stripper
Kwik Stripper CATV Cable Stripper
Kwik Stripper CATV/UTP Stripper
CAT. NO. UPC NO. DESCRIPTION
45579 45579 Kwik Stripper Twisted Pair Stripper
CAT. NO. UPC NO. DESCRIPTION
45578 45578 Kwik Stripper CATV Cable Stripper
45580 45580 Cartridge RG6/RG59
45581 45581 Cartridge RG11/RG7
CAT. NO. UPC NO. DESCRIPTION
45677 45677 Kwik Stripper CATV/UTP Stripper with Both Cartridges
45667 45667 Cartridge UTP
45580 45580 Cartridge RG6/RG59
45581 45581 Cartridge RG11/RG7
45677
Typically used for F-type connectors (See page 235)
and Modular Plug connectors (See page 234).
The most versatile stripper in the industry.
45579
Typically used for Modular Plug Connectors (See page 234)
45578
Typically used for F-type Connectors (See page234- 235)
• No tool is better for trimming the jacket from twisted pair cable
without damaging the individual conductors.
• Blade depth adjustment ensures precise cutting depth.
• Blade penetration controlled by tension loop.
• Strip length gauge.
• Made in the USA.
• Designed for the professional CATV cable installer, this stripper is perfect
for high volume and uses replaceable stripping cartridges for RG6, RG59,
RG11 and RG7 CATV cables.
• Pre-measured stops eliminate time-consuming measuring and trimming.
• No adjustments needed.
• Spare cartridge holder is conveniently built into the tool.
• Included with the tool, the RG6/RG59 cartridge strips
cable jacket and dielectric to 1/4" (6.4 mm).
• Included with the tool, the RG11/RG7 cartridge strips
cable jacket and dielectric to 1/4" (6.4 mm).
• Extra-large finger hole.
• Made in the USA.
• Used for both unshielded twisted pair (UTP) and coaxial cabling,
this tool reduces the number of tools needed without any adjustments.
• Switching from four pair UTP to RG6 or RG59 is simple –
just change cartridges.
• Cartridges are color-coded for quick identification; blue for UTP
and black for coax.
• Pre-measured stops eliminate time-consuming measuring and trimming.
• UTP cartridge strips four-pair UTP without scoring the
individual conductors.
• Spare cartridge holder is conveniently built into the tool.
• Included with the tool, the RG6/RG59 cartridge strips
the cable jacket and dielectric to 1/4" (6.4 mm).
• Extra-large finger hole.
• Made in the USA.
USA Tel: 800.435.0786
Fax: 800.451.2632
Canada Tel: 800.435.0786
Fax: 800.524.2853
International Tel: +1.815.397.7070
Fax: +1.815.397.9247
228
Voice • Data • Video
www.greenlee.com
= REPLACEMENT PART = ACCESSORY

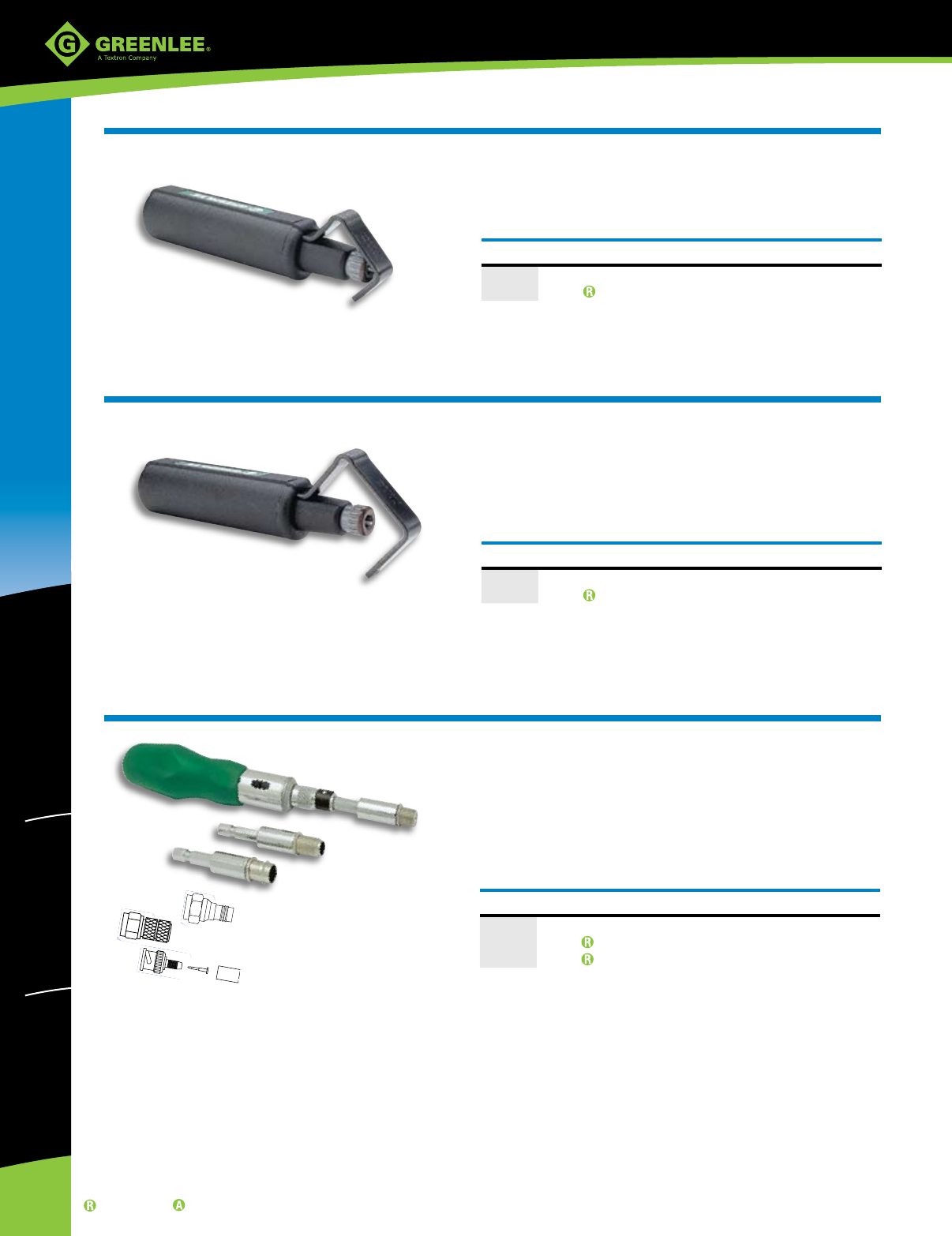

Pocket Cable Stripper
Pocket Cable Stripper
Coax Connector Insertion Tool
CAT. NO. UPC NO. DESCRIPTION
45516 45516 Coax Connector Insertion Tool with F-style Connector Bit
45517 45517 Bit, F-style Connector
45518 45518 Bit, BNC-style Connector
CAT. NO. UPC NO. DESCRIPTION
1901 45823 Pocket Cable Stripper
07915 07915 Cutting Blade
45516
Use with F-style and BNC-style Connectors
(See pages 234 - 236).
• Specifically designed for stripping power and telecommunications
cables from 3/4" to 1-1/2" in diameter (19 mm to 40 mm).
• Strips solid conductor, stranded conductor and multiple
conductor cables.
• Easy blade depth adjustment.
• Blade rotates for circular, longitudinal and spiral cuts.
• Used in CATV applications, the Insertion Tool holds F- and BNC-style
connectors securely in place allowing the installer to seat the connector
properly on the cable.
• Prevents damage to center conductor.
• Screwdriver bit can be removed to allow the ratcheting screwdriver
to be used with standard bits.
• Screwdriver bit can be purchased separately for use in standard
ratcheting screwdrivers.
• BNC screwdriver bit sold separately for use with BNC connectors.
• Specifically designed for stripping power and telecommunications
cables from 3/16" to 1-1/8" in diameter (4.5 mm to 29 mm).
• Easy blade depth adjustment.
• Blade rotates for circular, longitudinal and spiral cuts.
CAT. NO. UPC NO. DESCRIPTION
1900 45824 Pocket Cable Stripper
07915 07915 Cutting Blade
www.greenlee.com
229
USA Tel: 800.435.0786
Fax: 800.451.2632
Canada Tel: 800.435.0786
Fax: 800.524.2853
International Tel: +1.815.397.7070
Fax: +1.815.397.9247
Voice • Data • Video
= REPLACEMENT PART = ACCESSORY

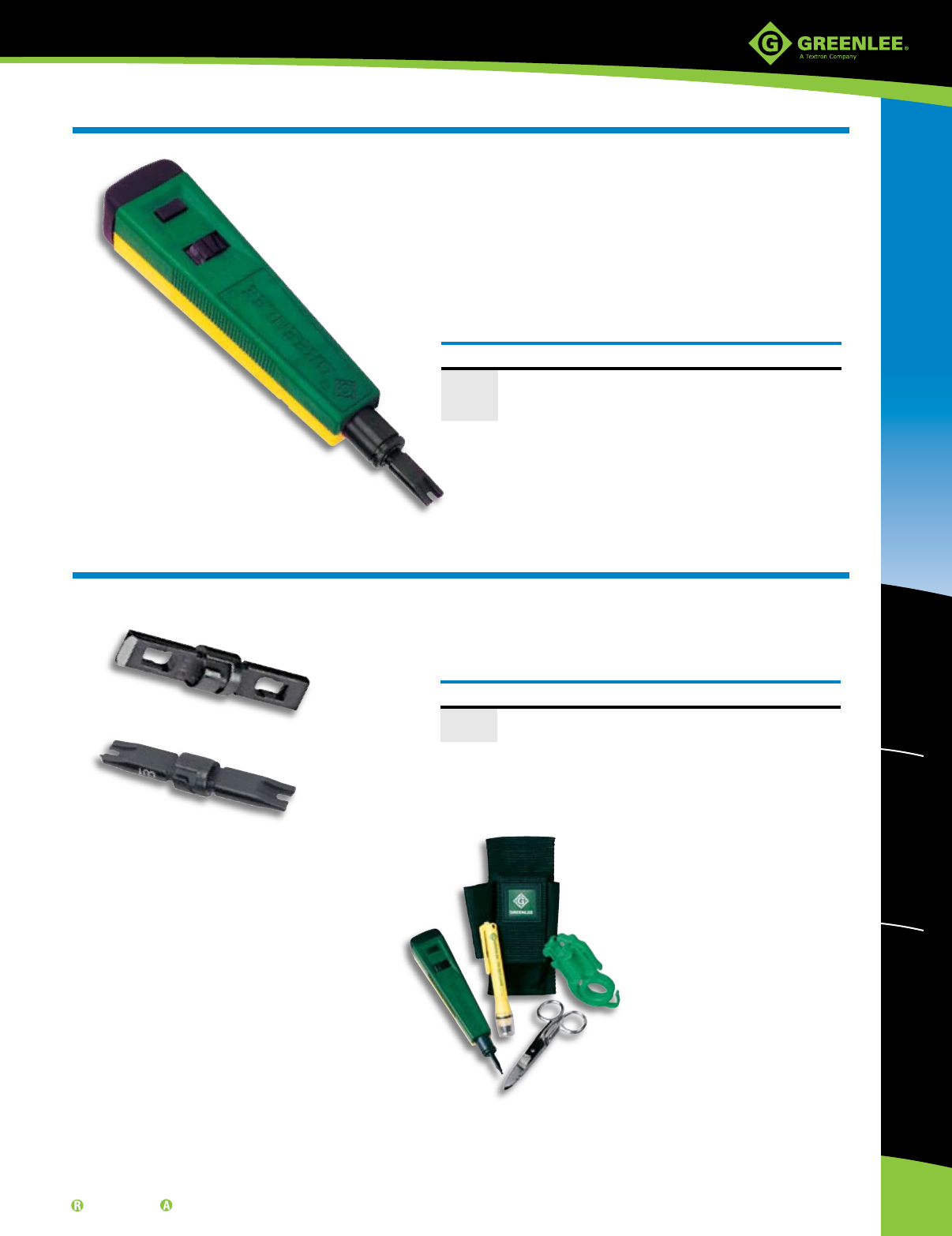

Punchdown Tool
Replacement Blades for the Punchdown Tool
CAT. NO. UPC NO. DESCRIPTION
46020 46020 Punchdown Tool Only
46021 46021 Punchdown Tool w/66 Blade
46023 46023 Punchdown Tool w/110 Blade
CAT. NO. UPC NO. DESCRIPTION
46022 46022 66 Style Blade
46024 46024 110 Style Blade
46022
46010 Clip-On Twisted Pair Kit
Our Clip-On Twisted Pair Kit comes with all
the tools necessary for terminating voice
and data cable including a Punchdown Tool
with 110 blade.
See page 249 for details.
• Inserts wire for a corrosion-resistant termination and trims off
excess wire.
• Terminates 66, 110, BIX and Krone cross-connect and wall jacks.
• Spring-loaded for fast, low-effort wire seating and termination.
• Internal impact mechanism eliminates jamming for longer,
trouble-free service life.
• Adjustable low- and high-impact force settings.
• Bayonet-style blade locking mechanism.
• Neoprene pad for shock absorption.
• Spare blade storage in the handle.
• Color-coded yellow on the cut side of tool.
• Cut side labeled to eliminate costly punching errors.
• Made of high-carbon tool steel, heat-treated and precision-ground
for long life.
• Reversible blades for seating/cut or seating only for jumper wires.
• Rust-resistant finish.
46023
46024
USA Tel: 800.435.0786
Fax: 800.451.2632
Canada Tel: 800.435.0786
Fax: 800.524.2853
International Tel: +1.815.397.7070
Fax: +1.815.397.9247
230
Voice • Data • Video
www.greenlee.com
= REPLACEMENT PART = ACCESSORY

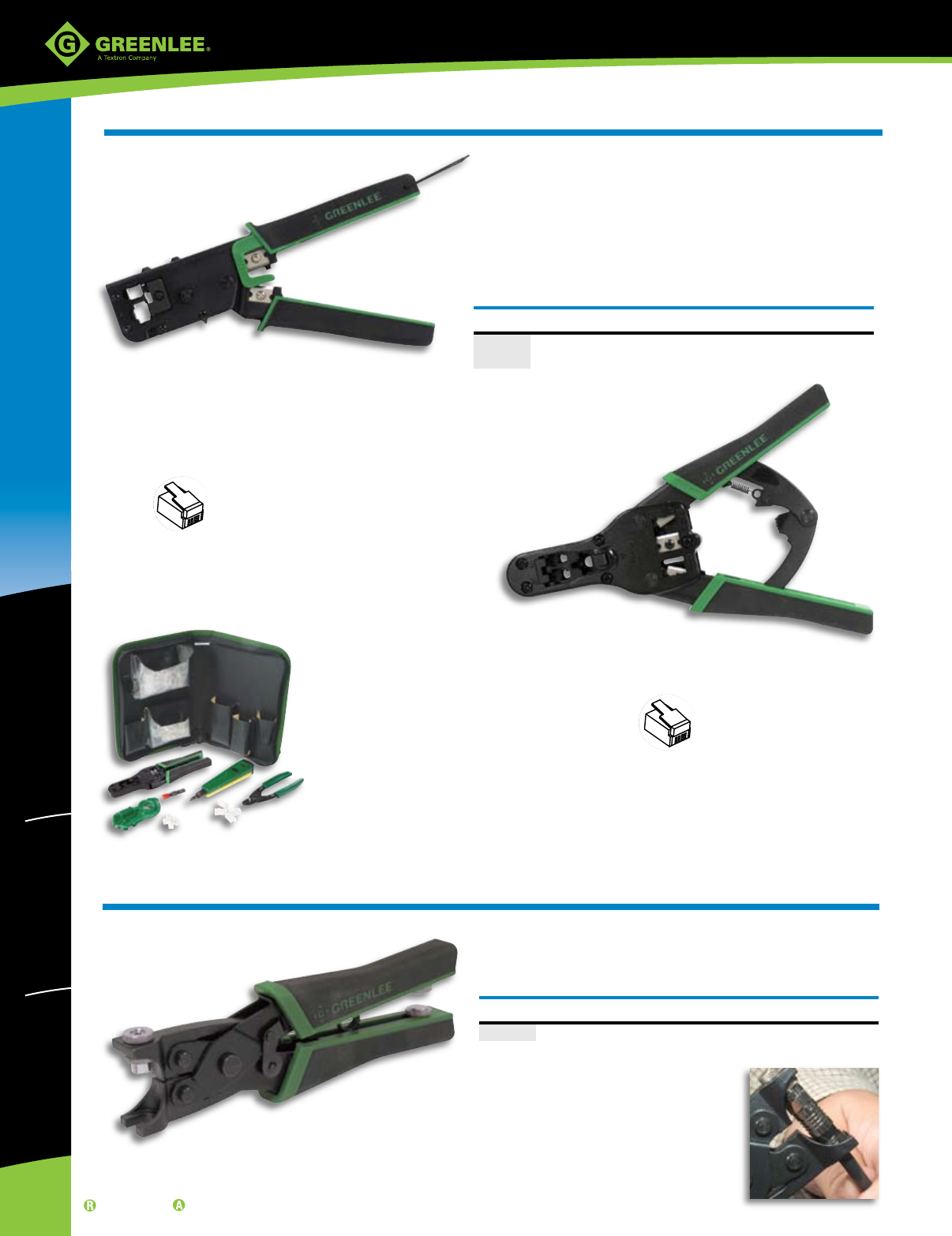

Telephone Ratchet Crimper
CAT. NO. UPC NO. DESCRIPTION
45553 45553 Telephone Ratchet Crimper
45575 45575 Telephone Ratchet Crimper
45553
Typically used for Modular Plug Connectors
(See page 234).
45575
Typically used for Modular Plug Connectors
(See page 234). Our Telephone Ratchet
Crimper was designed with a compact head to
fit into tight spaces and ergonomic handles for
operator comfort.
45469 Voice and Category 5 Data Termination Kit
This kit includes our Telephone Ratchet Crimper plus other tools
and connectors necessary for installing a voice and data net-
work. Everything is conveniently organized in a durable zipper
case. See page 251 for details on our Voice and Category 5 Data
Termination Kit.
• Combination tool terminates 8-position, 6-position and 4-position
(45575 only) modular style plugs.
• No need to change crimping dies.
• Full-cycle ratchet mechanism provides consistent,
quality terminations every cycle.
• Straight action ensures uniform crimp.
• Small, compact design.
• Built-in wire cutter and stripper for flat cable.
• All-steel frame has rust-resistant, black oxide finish.
Compression Crimping Tool
CAT. NO. UPC NO. DESCRIPTION
60807 60807 Compression Crimping Tool
• Requires less force than a traditional hex-style crimp.
• Ergonomic Sanoprene grips reduce hand fatigue.
• Terminates most compression-style connectors.
• Fully adjustable for crimping different coax connector types.
www.greenlee.com
231
USA Tel: 800.435.0786
Fax: 800.451.2632
Canada Tel: 800.435.0786
Fax: 800.524.2853
International Tel: +1.815.397.7070
Fax: +1.815.397.9247
Voice • Data • Video
= REPLACEMENT PART = ACCESSORY
45504
See our comprehensive line of connectors on pages 234 to 236.

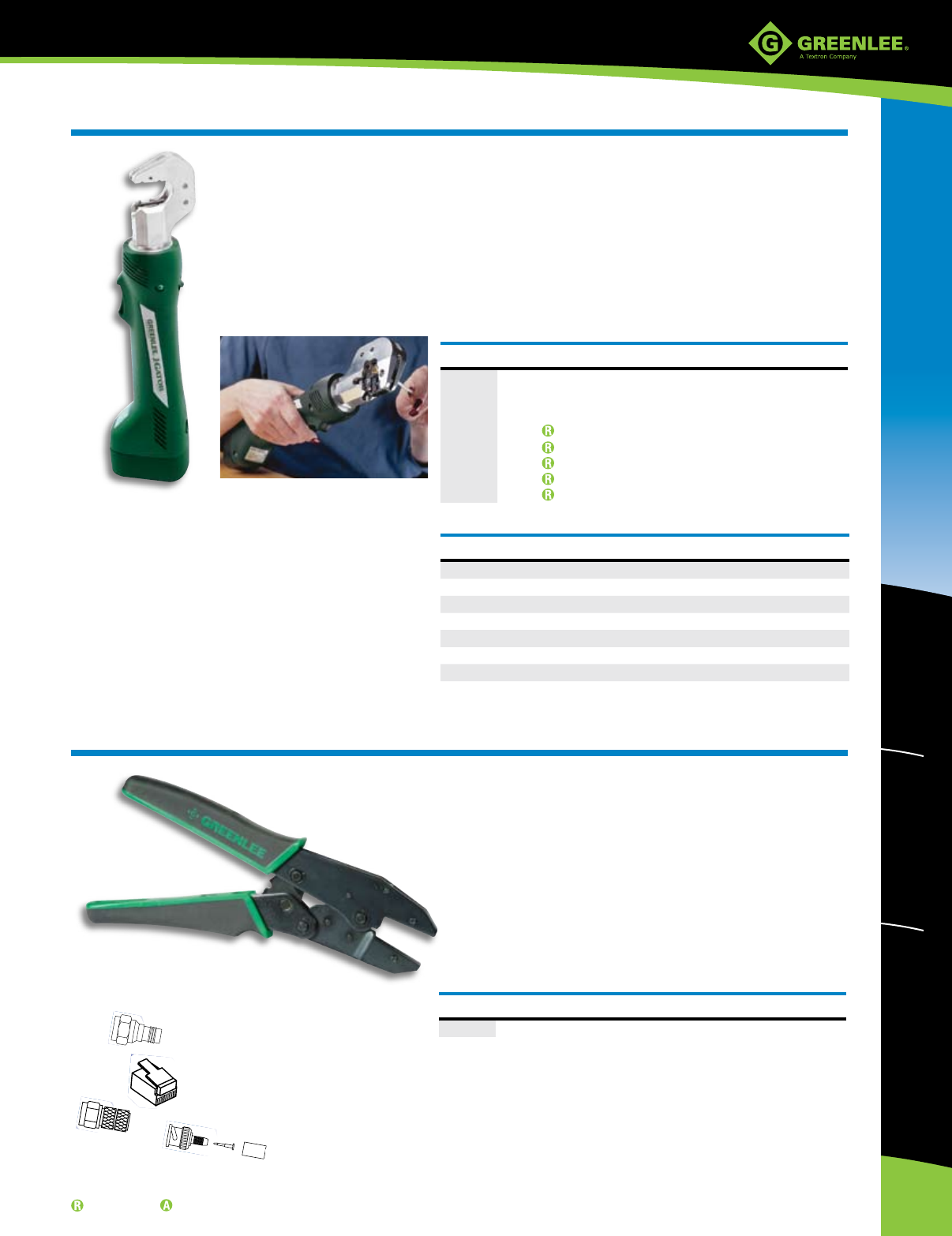

Gator® Plus Terminal Crimping Tool
Kwik Cycle® 9" Crimp Frame
• Totally new hydraulic pump design results in an extremely compact,
battery-powered crimping tool for crimping terminals and VDV connectors.
• Linear crimping action results in a completely symmetric crimp.
• Special compact 9.6 volt NiCd battery reduces weight and size.
• Slim profile and light weight provide for one-hand operation.
• Can complete approximately 150 crimps per battery charge.
• Ram can be retracted in mid-cycle to adjust connector.
• Crimping head rotates 360º.
• Uses all Kwik Cycle® 9 Crimping Dies (see charts on pages 232 and 233).
• Two batteries, battery charger, and carrying case included.
• Choice of 120 volt, 230 volt, or 12 volt battery charger.
• Used to manually crimp a wide variety of connectors
and terminals to factory specifications.
• Frame features a precision full-cycle ratchet for accurate,
repeatable crimps every cycle.
• Crimp release lever improves throughput by eliminating rejected
terminations due to improper connector positioning.
• Frame features a tension adjustment preset at the factory
for optimum performance.
• High-leverage force and ergonomically-designed handle provides
comfortable use.
• Frame and dies are manufactured from heat-treated, hardened tool steel
for superior function and long life.
• All die sets are easily interchangeable with a simple screwdriver.
CAT. NO. UPC NO. DESCRIPTION
EK21011 02024 1.5-Ton Battery-Powered Crimping Tool w/120 volt charger
EK21012 02025 1.5-Ton Battery-Powered Crimping Tool w/12 volt charger
EK21022 02026 1.5-Ton Battery-Powered Crimping Tool w/230 volt charger
RAM1 01975 9.6 V NiCd Battery
KK35SGL
02178
23076
02180
02019
02178
23076
02180
Carrying Case
120 V Charger
12 V Charger
230 V Charger
SPECIFICATIONS
Capacity Uses Kwik Cycle 9 Die Sets
Length 13-1/4" (337 mm)
Weight 2-3/4 lb. (1.3 kg)
Battery 9.6 volt 1.3 Ah NiCd battery
Crimping Force 2,900 lb. (13kN)
Width 3-1/8" (79 mm)
Crimp Cycle Time ~2 seconds
Battery Charge Time 1 hour
CAT. NO. UPC NO. DESCRIPTION
45504 45504 Kwik Cycle 9" Crimp Frame
USA Tel: 800.435.0786
Fax: 800.451.2632
Canada Tel: 800.435.0786
Fax: 800.524.2853
International Tel: +1.815.397.7070
Fax: +1.815.397.9247
232
Voice • Data • Video
www.greenlee.com
= REPLACEMENT PART = ACCESSORY
Kwik Cycle® 9" Interchangeable Die Sets for Coaxial Connectors
CRIMP PROFILE CAT. UPC CAT UPC
DESCRIPTION & DIMENSIONS NO. NO. NO. NO.
CENTER TOOL
CABLE TYPE CONNECTION BRAID CRIMP CONTACT WITH DIE DIE ONLY
45562 45562
RG58/RG59/ BNC/TNC Cambridge/
RG59TFE/RG6 AIM, 2-piece
0.320 0.210 0.185
45563 45563
Belden 1694A BNC/TNC
0.315 0.068
45574 45574
RG22B/U Twinax & others Twinax
0.429 0.075 0.075
45544 45544 46826 46826
RG58/RG174/8218 BNC/TNC 50 and
75 OHM
0.213 0.178 0.068 0.042
BNC/TNC & F, 50 and 45545 45545 46830 46830
RG6/RG59 & 8281 75 OHM. Also 1695,
1505, 9259 and 9231
0.324 0.255 0.068 0.042
46800 46800 46824 46824
RG58/RG59/62AU BNC/TNC
0.256 0.213 0.068
46801 46801 46808 46808
RG59, RG6 CATV F
0.360 0.324 0.255
45556 45556
RG58, RG59 Plenum BNC/TNC 50/75 OHM
& Non-Plenum Thinwire
0.213 0.190 0.068 0.042
45582 45582 45557 45557
RG6, RG174, 8281, BNC/TNC/F
AT&T 728
0.324 0.178 0.068
45558 45558
RG58/141/142/58 Teflon/ BNC/TNC/F
58 Thinney/RG59 0.100
0.255 0.213 0.068 0.052
45559 45559
RG58/59/62 Teflon BNC/TNC from
Cambridge/AIM
0.325 0.215 0.065
www.greenlee.com
233
USA Tel: 800.435.0786
Fax: 800.451.2632
Canada Tel: 800.435.0786
Fax: 800.524.2853
International Tel: +1.815.397.7070
Fax: +1.815.397.9247
Voice • Data • Video
= REPLACEMENT PART = ACCESSORY
DESCRIPTION CAT. NO. UPC NO. CAT. NO. UPC NO.
CONNECTION FEATURES TOOL WITH DIE DIE ONLY
22-10 AWG Open barrel, non-insulated terminals, 45508 45508
(0.3 TO 6 MM2) ring tongue, spade and slide-on style

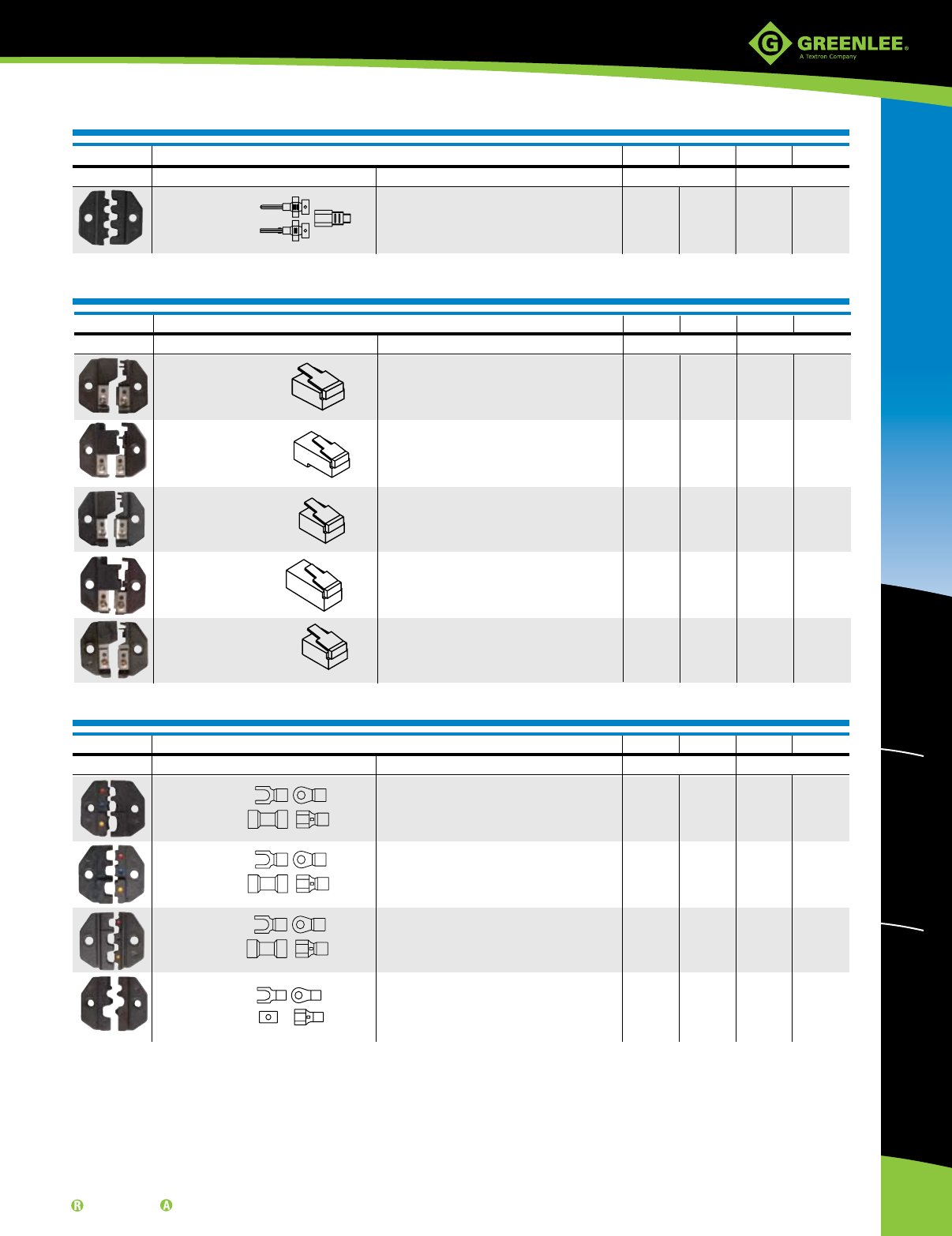

Kwik Cycle® 9" Interchangeable Die Sets for Open Barrel Contacts System
Kwik Cycle® 9" Interchangeable Die Sets for Modular Plugs
Kwik Cycle® 9" Interchangeable Die Sets for Insulated and Non-Insulated Terminals
DESCRIPTION CAT. NO. UPC NO. CAT. NO. UPC NO.
CONNECTION FEATURES TOOL WITH DIE DIE ONLY
22-10 AWG Color coded nests for easy identification 45500 45500 45509 45509
Standard insulated terminals, ring tongue,
spade lug, slide on and butt splices
22-10 AWG Color coded nests for easy identification 45501 45501 45570 45570
For fully insulated slide-on syle connectors
AMP Ultrafast™ style
26-16 AWG For mini insulated terminals with smaller wire 45565 45565
barrels. Ring tongue, spade, slide on and
butt splices
22-8 AWG For non-insulated terminals and splices 45505 45505 45507 45507
DESCRIPTION CAT. NO. UPC NO. CAT. NO. UPC NO.
CONNECTION FEATURES TOOL WITH DIE DIE ONLY
RJ11 Western Electric and Stewart style connectors 46120 46120 46116 46116
2-, 4- and 6-position
RJ45 AMP modular plug connectors 45540 45540 46117 46117
8-position
RJ11 AMP modular plug connectors 45541 45541 46118 46118
4- and 6-position
RJ45 Modular plug connectors 45571 45571
10-position
Hand set plug 45566 45566
4-position
USA Tel: 800.435.0786
Fax: 800.451.2632
Canada Tel: 800.435.0786
Fax: 800.524.2853
International Tel: +1.815.397.7070
Fax: +1.815.397.9247
234
Voice • Data • Video
www.greenlee.com
= REPLACEMENT PART = ACCESSORY
F-STYLE CONNECTORS
DESCRIPTION RECOMMENDED TOOL
STRIPPER CRIMPER COMBO
CONNECTOR TYPE CABLE TYPE QUANTITY CAT. NO. UPC NO. CAT. NO. UPC NO. CAT. NO. UPC NO.
Handset 4 Contact
RJ11 6 Contact
DEC MMJ 6 Contact
RJ45 8 Contact
Handset 4 Contact
RJ11 6 Contact
DEC MMJ 6 Contact
RJ45 8 Contact
RJ45 Cat 5 8 Contact
For the best tools to use with our modular plugs, see pages 266 to 267 for stripping, and pages 267 to 268 for crimping.

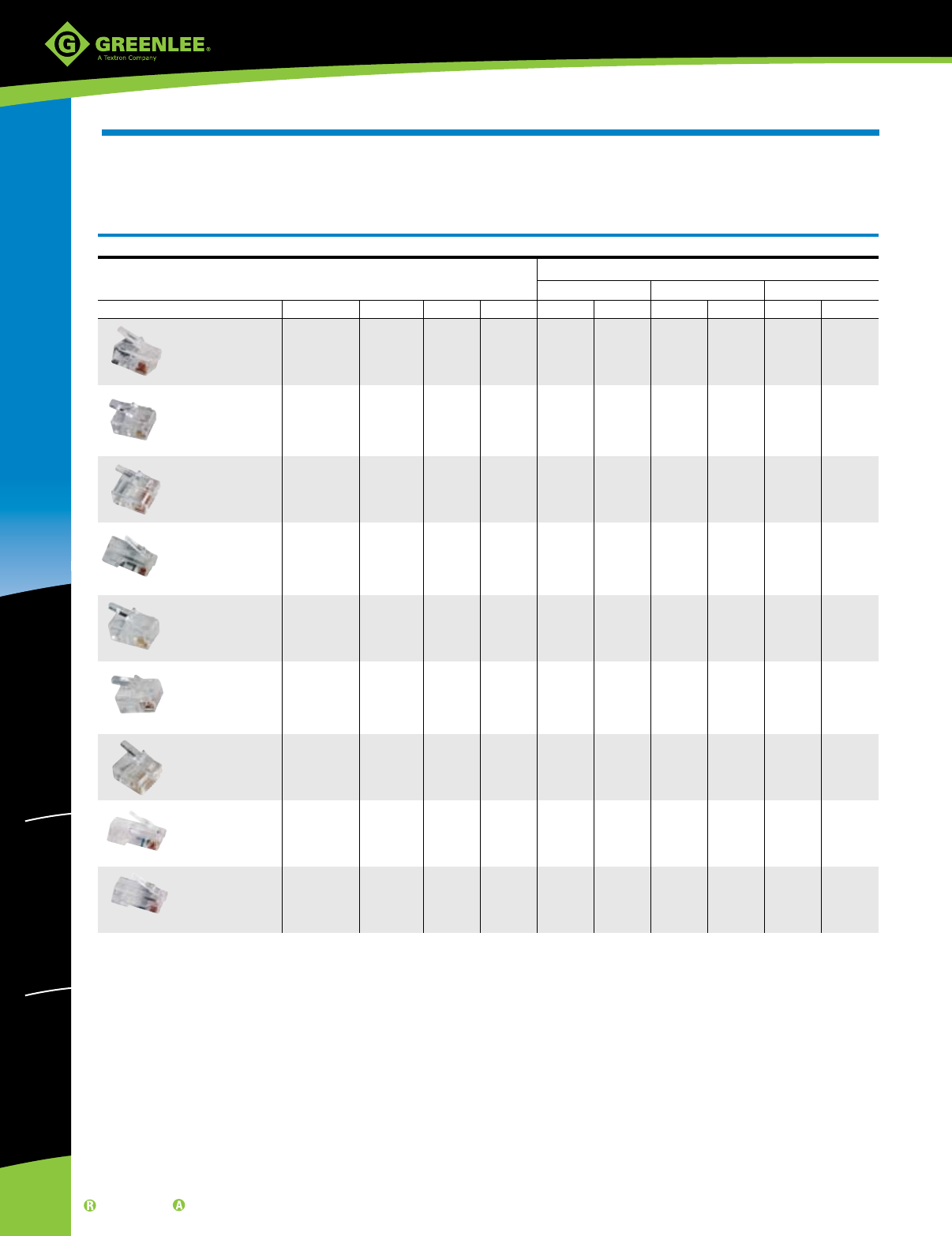

Modular Plugs
We offer modular plugs for a wide variety of installations – from simple
tasks like connecting a telephone handset cord to the most demanding
requirements of Category 5 wiring.
• Gold-plated contacts provide long life and reliable performance
• Manufactured to comply with FCC 68 guidelines
Flat Cable
Stranded Wire
Flat Cable
Stranded Wire
Flat Cable
Stranded Wire
Flat Cable
Stranded Wire
Round Cable
Solid Wire
Round Cable
Solid Wire
Round Cable
Solid Wire
Round Cable
Solid Wire
Round Cable
Solid Wire
45504 w/die
45566
45541
45504 w/die
46119
45504 w/die
45566
45541
45504 w/die
45566
45541
45504 w/die
46119
45504 w/die
45566
45541
45575
45553
45575
45553
45575
45575
45553
45575
45553
45575
45553
45575
45553
45575
45575
45553
45575
45553
45575
45575
45553
45575
45553
45575
45553
45575
45553
45575
45737
45750
45770
45738
45751
45771
45739
45740
45753
45773
45742
45755
45775
45743
45756
45776
45744
45745
45758
45778
45747
45760
45780
45737
45750
45770
45738
45751
45771
45739
45740
45753
45773
45742
45755
45775
45743
45756
45776
45744
45745
45758
45778
45747
45760
45780
45480
45480
45480
45480
45579
45579
45579
45579
45579
45480
45480
45480
45480
45579
45579
45579
45579
45579
25/Pack
50/Pack
100/Pack
25/Pack
50/Pack
100/Pack
25/Pack
25/Pack
50/Pack
100/Pack
25/Pack
50/Pack
100/Pack
25/Pack
50/Pack
100/Pack
25/Pack
25/Pack
50/Pack
100/Pack
25/Pack
50/Pack
100/Pack
CAT. NO. UPC NO.
(2 Piece)
www.greenlee.com
235
USA Tel: 800.435.0786
Fax: 800.451.2632
Canada Tel: 800.435.0786
Fax: 800.524.2853
International Tel: +1.815.397.7070
Fax: +1.815.397.9247
Voice • Data • Video
= REPLACEMENT PART = ACCESSORY

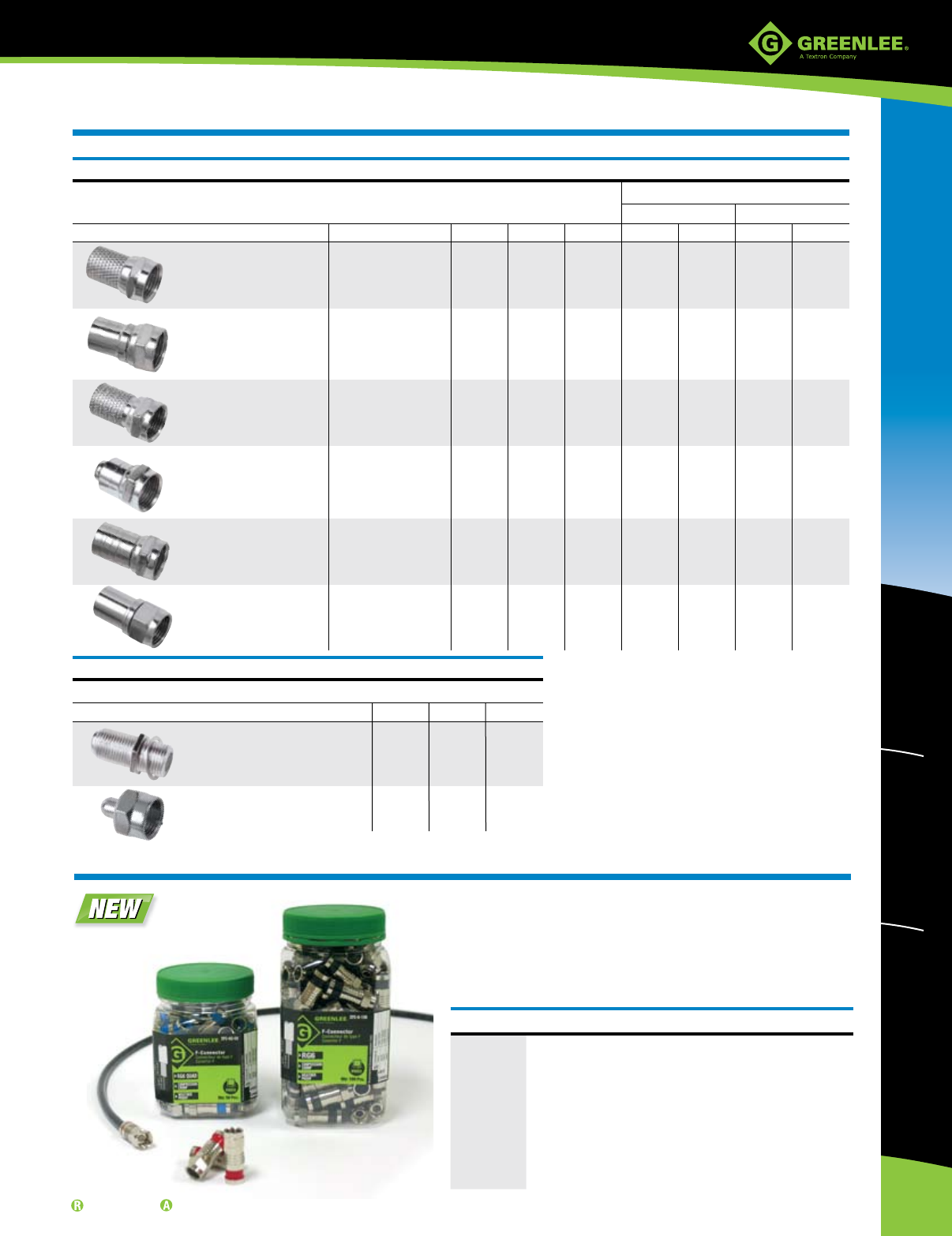

F-Style Coaxial Connectors System
F-STYLE CONNECTORS
DESCRIPTION RECOMMENDED TOOL
STRIPPER CRIMPER
CONNECTOR TYPE CABLE TYPE QUANTITY CAT. NO. UPC NO. CAT. NO. UPC NO. CAT. NO. UPC NO.
‘F’ Connector Twist-on RG59
‘F’ Connector Crimp RG59 46801 46801
‘F’ Connector Twist-on RG6
‘F’ Connector Crimp RG6 46801 46801
‘F’ Connector Crimp RG59 Quad-shield 46801 46801
‘F’ Connector Crimp RG6 Quad-shield 46801 46801
• Nickel plated for corrosion resistance
For the best tools to use with our F-style connectors,
see pages 266 to 267 for stripping and pages 267 to
268 for crimping.
10/Pack
50/Pack
10/Pack
50/Pack
10/Pack
50/Pack
10/Pack
50/Pack
10/Pack
50/Pack
10/Pack
50/Pack
45735
45749
45734
45748
45327
45328
45315
45316
45321
45322
45323
45324
45735
45749
45734
45748
45327
45328
45315
45316
45321
45322
45323
45324
45576
45578
45677
45576
45578
45677
45576
45578
45677
45576
45578
45677
45576
45578
45677
45576
45578
45677
45576
45578
45677
45576
45578
45677
45576
45578
45677
45576
45578
45677
45576
45578
45677
45576
45578
45677
F-STYLE ADAPTERS
DESCRIPTION
ADAPTER/TERMINATOR TYPE QUANTITY CAT. NO. UPC NO.
‘F’ Female Adapter 5/Pack 45325 45325
‘F’ Terminator 5/Pack 45326 45326
XFC Series Weatherproof Compression F-Style Connectors
CAT. NO. UPC NO. DESCRIPTION
XFC-6-10 12578 RG6 - 10 Pack
XFC-6-50 12586 RG6 - 50 Pack
XFC-6-100 12587 RG6 - 100 Pack
XFC-6Q-10 12589 RG6 Quad - 10 Pack
XFC-6Q-50 12590 RG6 Quad - 50 Pack
XFC-6Q-100 12591 RG6 Quad - 100 Pack
XFC-59-10 12593 RG59 - 10 Pack
XFC-59-50 12594 RG59 - 50 Pack
XFC-59-100 12595 RG59 - 100 Pack
• Dual-protection with external sleeve and internal o-ring.
• 360-degree sleeve crimp prevents moisture migration.
• O-ring provides internal seal when the 7/16” nut is tightened.
• Use for both indoor and outdoor applications.
• Color-coded sleeves for easy identification of cable compatibility.
• 70 lbs pull-out strength exceeds SCTE cable retention standard IPS-SP-405.
• Terminates easily using any compression tool.
USA Tel: 800.435.0786
Fax: 800.451.2632
Canada Tel: 800.435.0786
Fax: 800.524.2853
International Tel: +1.815.397.7070
Fax: +1.815.397.9247
236
Voice • Data • Video
www.greenlee.com
= REPLACEMENT PART = ACCESSORY

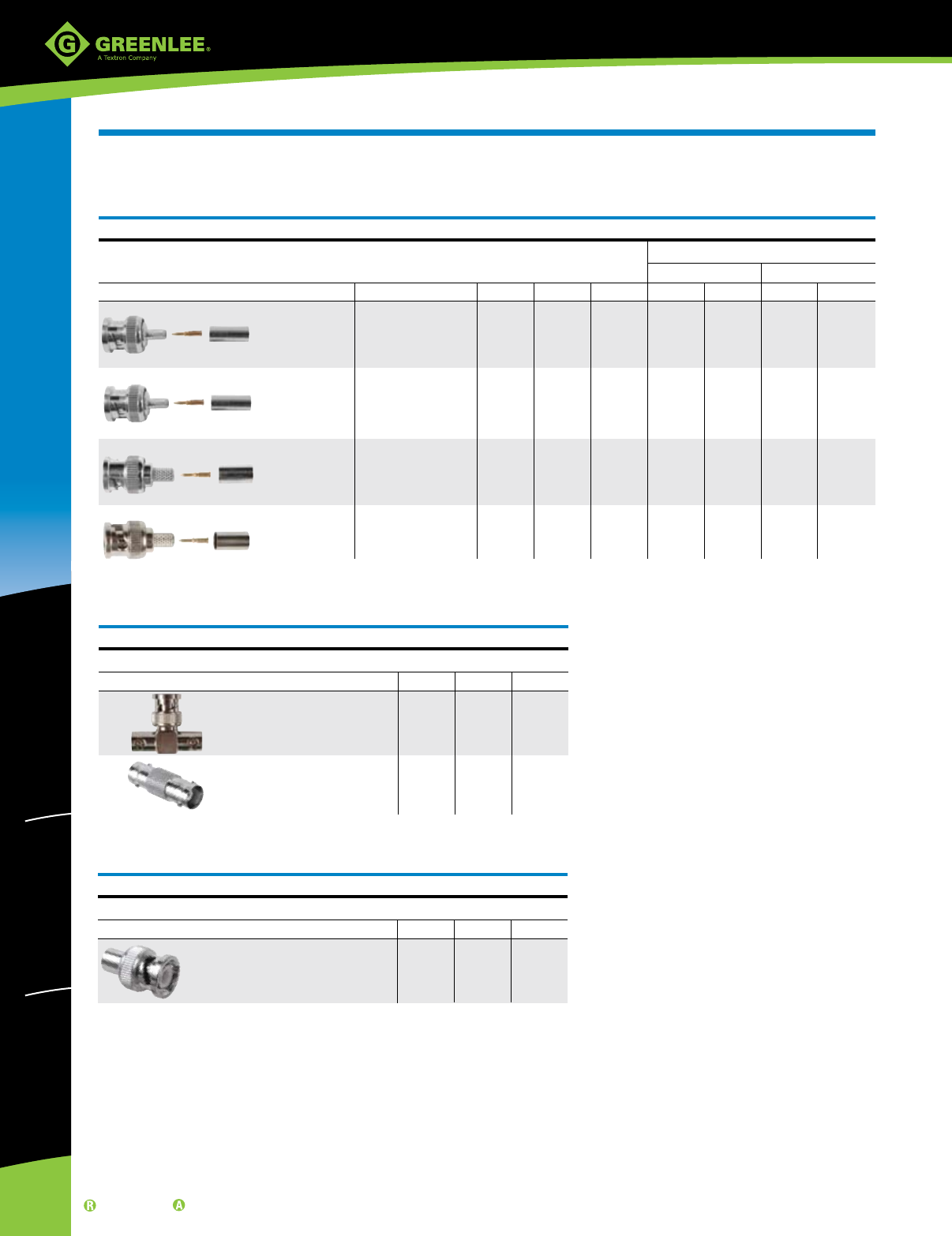

BNC Coaxial Connectors
• Gold-plated, captive center contact provides long life
and reliable performance
• Precision manufactured from machined brass and nickel plated
for corrosion resistance
BNC CONNECTORS
DESCRIPTION RECOMMENDED TOOL
STRIPPER CRIMPER
CONNECTOR TYPE CABLE TYPE QUANTITY CAT. NO. UPC NO. CAT. NO. UPC NO. CAT. NO. UPC NO.
BNC Crimp Plug RG58 Thinnet PVC 5/Pack 45730 45730 45577 45577 46800 46800
BNC Crimp Plug RG58 Thinnet Plenum 5/Pack 45731 45731 45577 45577 46800 46800
BNC Crimp Plug RG59/62 PVC 5/Pack 45732 45732 45577 45577 46800 46800
BNC Crimp Plug RG59/62 Plenum 5/Pack 45733 45733 45577 45577 46800 46800
BNC ADAPTERS
DESCRIPTION
ADAPTER TYPE QUANTITY CAT. NO. UPC NO.
BNC Tee-style Plug to Jack/Jack 1/Pack 45727 45727
BNC Straight Jack to Jack 1/Pack 45728 45728
BNC TERMINATORS
DESCRIPTION
ADAPTER TYPE QUANTITY CAT. NO. UPC NO.
BNC Terminator 93 OHM 1/Pack 45726 45726
For the best tools to use with our BNC connectors, see pages 264
to 267 for stripping and pages 267 to 268 for crimping.
www.greenlee.com
237
USA Tel: 800.435.0786
Fax: 800.451.2632
Canada Tel: 800.435.0786
Fax: 800.524.2853
International Tel: +1.815.397.7070
Fax: +1.815.397.9247
Voice • Data • Video
= REPLACEMENT PART = ACCESSORY

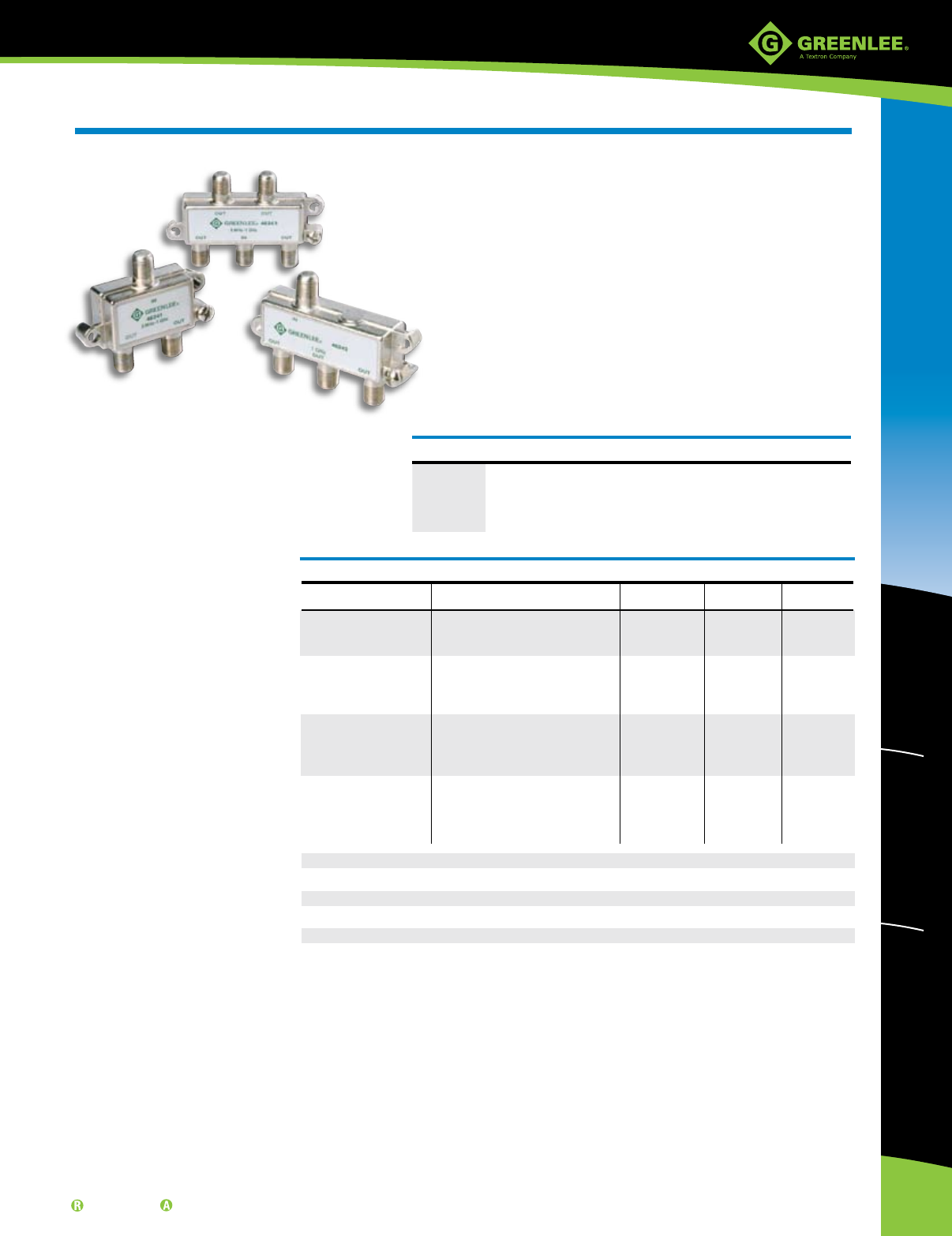

VS1 Series Splitters
CAT. NO. UPC NO. DESCRIPTION
VS1-2 46241 2-Way 1 GHz Splitter (1)
VS1-3 46242 3-Way 1 GHz Splitter (1)
VS1-4 46243 4-Way 1 GHz Splitter (1)
45326 45326 F-Terminator, 75 ohm (10)
ELECTRICAL Frequency - Range (MHz) VS1-2, 2-Way VS1-3, 3-Way VS1-4, 4-Way
I SPECIFICATIONS 5-47 3.6 4.0-7.2 7.5
Insertion Loss 47-470 4.0 4.1-7.8 8.0
In-Out 470-750 4.3 4.3/8.2 8.5
(max dB) 750-1000 4.5 4.5/8.5 8.5
5-47 15.0 15.0 15.0
Return 47-470 16.0 17.0 17.0
Loss In 470-750 15.0 15.0 15.0
(min dB) 750-1000 15.0 15.0 15.0
5-47 15.0 15.0 15.0
Return 47-470 16.0 17.0 17.0
Loss Out 470-750 15.0 15.0 15.0
(min dB) 750-1000 15.0 15.0 15.0
5-47 20.0 20.0 20.0
Isolation 47-470 21.0 21.0 21.0
Out-Out 470-750 20.0 20.0 20.0
(min dB) 750-1000 20.0 20.0 20.0
LENGTH: 2.3" (58mm) 3.0" (76mm) 3.0" (76mm)
WIDTH: 1.9" (48mm) 1.9" (48mm) 1.9" (48mm)
HEIGHT: 0.6" (15mm) 0.6" (15mm) 0.6" (15mm)
HOUSING: Nickel Plated Zinc Die Cast
RF CONNECTOR F-Type Female 75OHM
SPECIFICATIONS
Designed for digital broadcast television, digital cable television,
off-air antennas and RF distribution
• Bandwidth - 5 MHz to 1 GHz.
• Power Passive Port - designed to pass RF and DC power from one input to
one output.
• Nickel-plated, zinc die-cast housing for excellent anti-corrosive protection.
• 100% solder-sealed tin backplate provides EMI/RFI shielding > -120dB.
• Low insertion loss.
• Printed circuit board construction ensures consistent RF performance and
excellent port-to-port isolation.
• Precision machine threaded “F” ports for perfect connector fit.
• F-Ports spaced at 1" on center to allow application of security sleeves and
window filters.
• F-Ports comply with SCTE outdoor standards.
• Mounting screws included.
USA Tel: 800.435.0786
Fax: 800.451.2632
Canada Tel: 800.435.0786
Fax: 800.524.2853
International Tel: +1.815.397.7070
Fax: +1.815.397.9247
238
Voice • Data • Video
www.greenlee.com
= REPLACEMENT PART = ACCESSORY

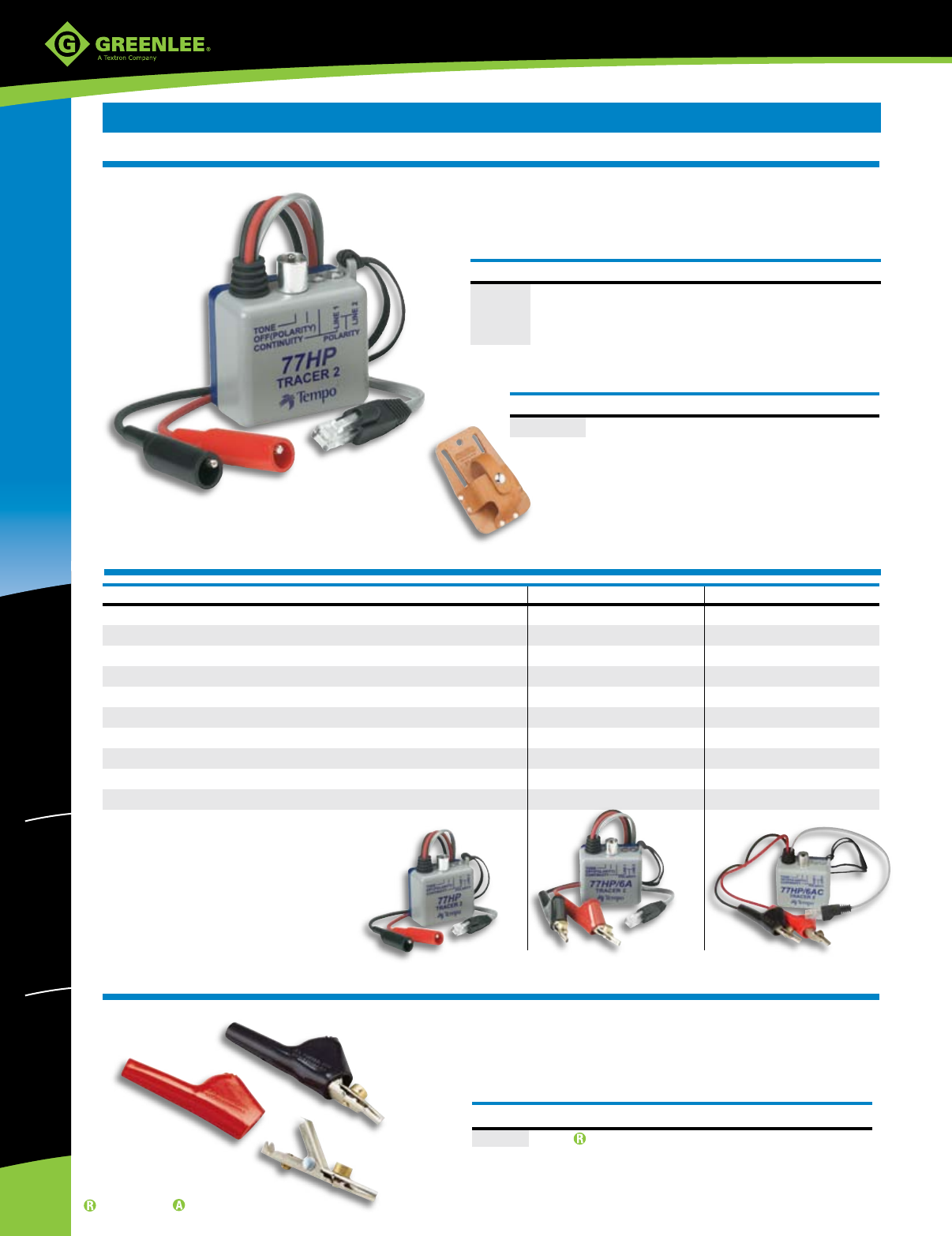

Classic 77 Series Tone Generators
Replacement Piercing Clips
Classic 77 Series Tone Generators
CAT. NO. UPC NO. DESCRIPTION
RPC 08710 Piercing Clips
77HP/6AC
FEATURES / SPECIFICATIONS 77HP 77HP / 6A 77HP / 6AC
Selectable Warble Tone ✔ ✔ ✔
Continuity Testing ✔ ✔ ✔
Polarity Testing ✔ ✔ ✔
Talk Battery Supply ✔ ✔ ✔
Two-line Modular Test Lead (RJ-11) ✔ ✔ ✔
Three-color LED (identifies AC ring voltage) ✔ ✔ ✔
Weather-Resistant Design ✔ ✔ ✔
Bent Nose Clips with Bed-of-Nails Penetrator ✔ ✔
Cloth Test Leads ✔
Battery Operated (9V not included) ✔ ✔ ✔
Permits technicians to identify the conductor within a bundle, at a
cross-connect point or at the remote end. Can be used on twisted pair wiring
(telecom, datacom, etc.), single conductors, coaxial cables, de-energized
AC wiring and most other wiring.
• These traditional telco-style clips can be used with almost any
style cordsets.
• Clips feature bent nose design for use on 66 style punchdown
blocks and bed-of-nails penetrator for use on insulated wires.
• Package of two clips with red and black boots.
77HP/6A77HP
77HP
77CS
CAT. NO. UPC NO. DESCRIPTION
77HP 08687 77HP Tone Generator
77HP/6A 08688 77HP/6A Tone Generator
77HP/6AC 60480 77HP/6AC Tone Generator
CAT. NO. UPC NO. DESCRIPTION
77CS 08686 Leather Belt Holster for Classic 77 Series
Tone Generators
Note: Not for use on energized AC wiring
WIRE & CABLE IDENTIFICATION
www.greenlee.com
239
USA Tel: 800.435.0786
Fax: 800.451.2632
Canada Tel: 800.435.0786
Fax: 800.524.2853
International Tel: +1.815.397.7070
Fax: +1.815.397.9247
Voice • Data • Video
= REPLACEMENT PART = ACCESSORY

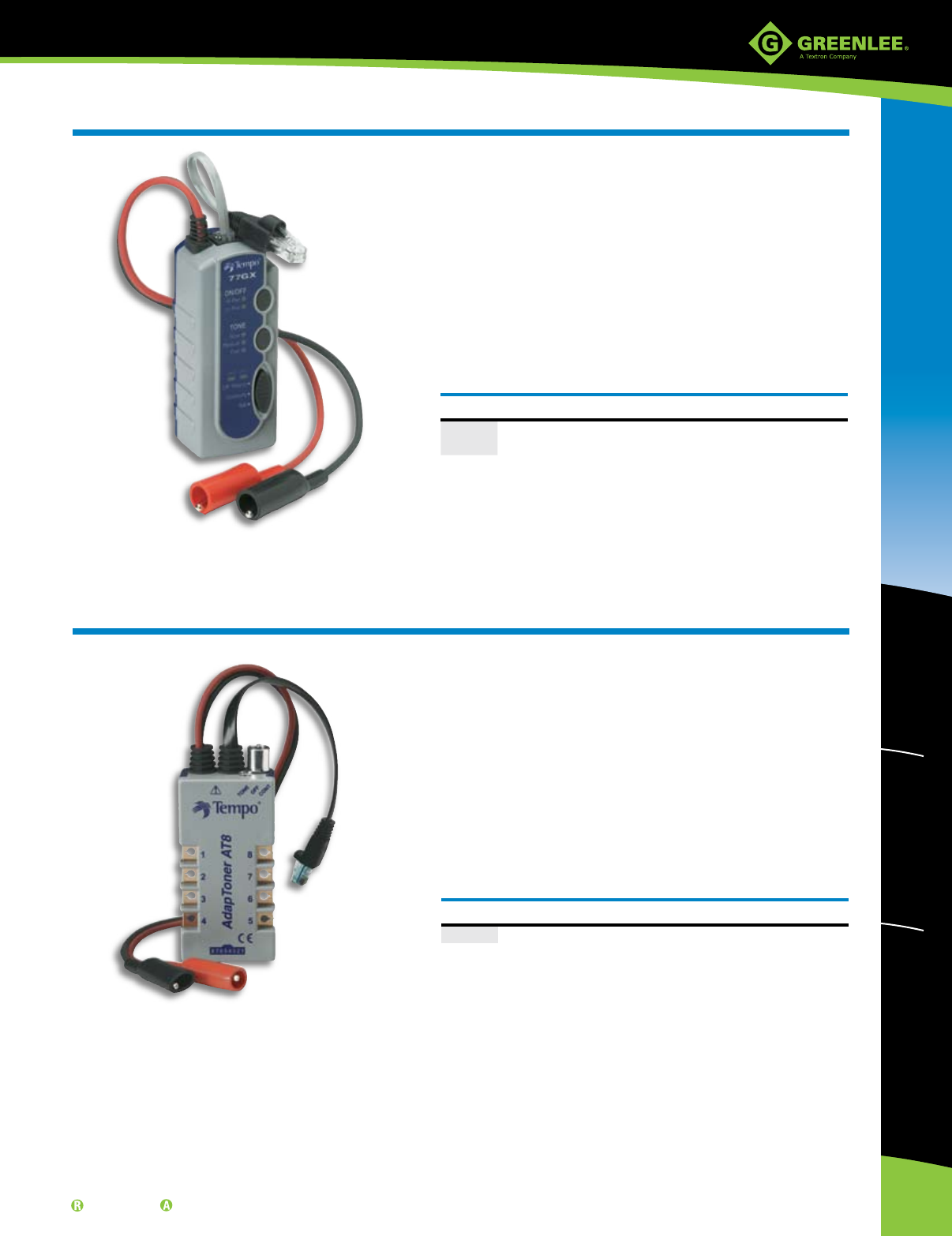

Professional GX Series Tone Generators
CAT. NO. UPC NO. DESCRIPTION
77GX 60556 77GX Tone Generator
77GX2 60560 77GX2 Tone Generator
AdapToner Modular Breakout Tone Generator
• Microprocessor controlled circuitry for increased reliability.
• Two-line polarity indication for fast outlet identification.
• Automatic shutoff to prevent battery drain.
• Snag-proof boot prevents broken plug tabs.
• Convenient wrist/hanging lanyard.
• Three distinct, selectable tone signal outputs for multiple
line identification.
• Two selectable tone power outputs for use on open and shorted pairs.
• Independent continuity test function.
• Independent talk battery supply with higher output voltage.
• Fixed alligator clips and removable modular plug for multiple
connection options.
• 77GX2 includes premium telco-style bent nose clips with piercing pin and
bed-of-nails connectors.
• The AT8 Tone Generator makes it simple to test continuity, polarity,
send tone and even supply talk battery to any configuration of
pairs in 8-position modular jacks and plugs.
• Combines the features of our tone generators and a modular
breakout adapter.
• In-line testing is made simple with both a modular plug and jack
on each unit.
• 8-position “snag-proof” modular plug.
• 8-position jack with protective cover.
• Quick reference guide with common wiring configurations.
• Selectable solid/warble tone signal.
• Tone, continuity and talk battery supply using alligator clips.
• Weather-resistant design.
• Battery operated (9V not included).
77GX
CAT. NO. UPC NO. DESCRIPTION
AT8 08693 AdapToner Modular Breakout Tone Generator
Note: Not for use on energized AC wiring
Note: Not for use on energized AC wiring
USA Tel: 800.435.0786
Fax: 800.451.2632
Canada Tel: 800.435.0786
Fax: 800.524.2853
International Tel: +1.815.397.7070
Fax: +1.815.397.9247
240
Voice • Data • Video
www.greenlee.com
= REPLACEMENT PART = ACCESSORY

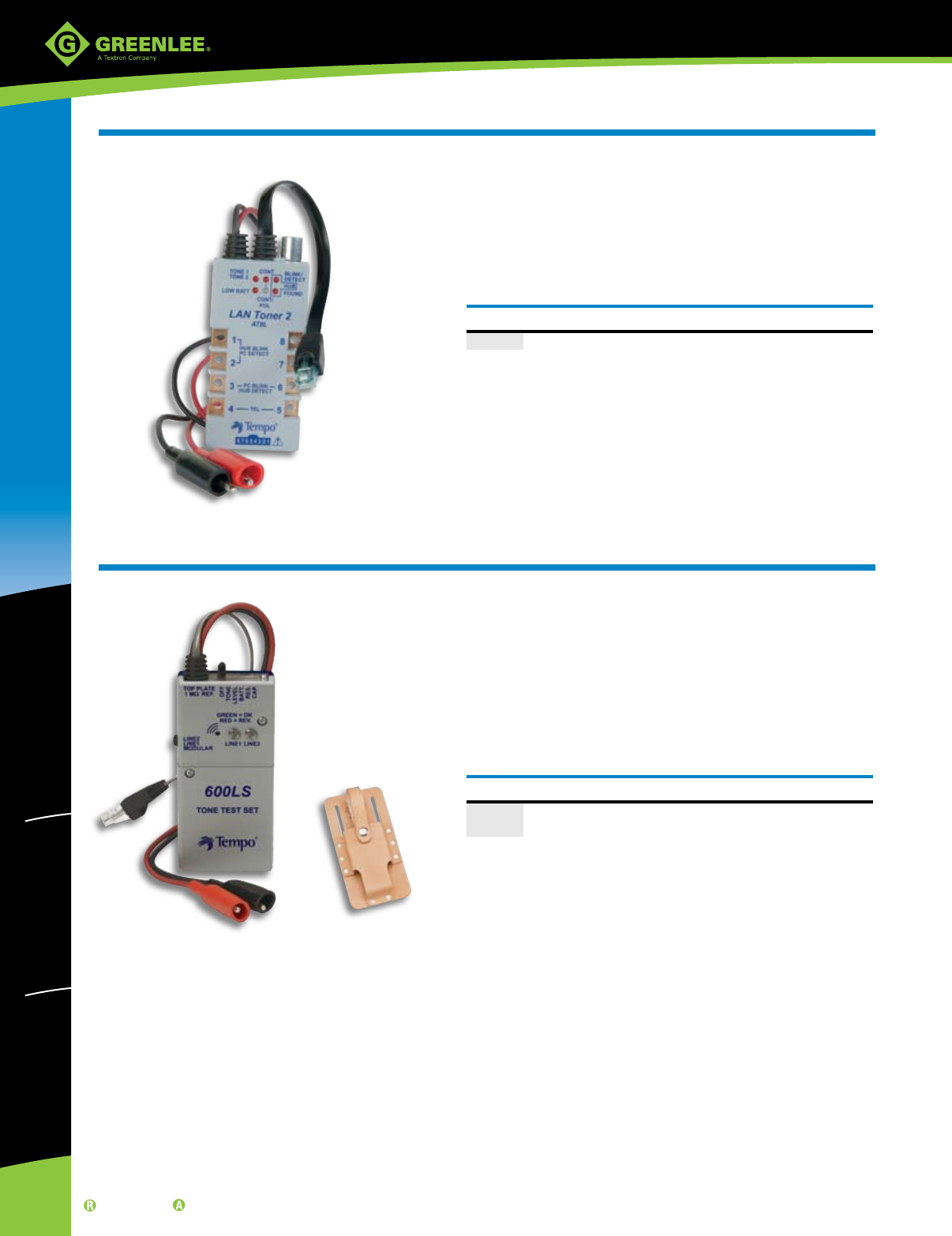

LAN Toner with HUB Blink and Detect
Tone Test Set
• The LAN Toner is designed for the network installation and maintenance
professional and can be used on any wiring system including datacom,
telecom, security/alarm, audio and CATV.
• Blinks HUB, Switch Port, and PC activity lights for fast identification.
• Detect LAN hubs & switches.
• Provides tone signaling, continuity testing and telephone line polarity
indication combined with a modular breakout adapter.
• Selectable tone outputs for identifying multiple cable runs.
• Includes multiple connection options.
• Our most comprehensive tone test set.
• Traditional alternating tone signal for wire identification.
• Audible line condition testing (level) indicates dead,
working and off-hook lines.
• Line 1 and 2 polarity testing using 4-conductor modular plug.
• Improved talk battery supply for communication over inactive pairs.
• Tone and test functions using either modular plug or 24" alligator
clip leads.
• Audible resistance level measurement.
• Audible capacitance level measurement.
• Battery operated (9V not included).
600CS
CAT. NO. UPC NO. DESCRIPTION
AT8L 60583 LAN Toner
CAT. NO. UPC NO. DESCRIPTION
600LS 08680 Tone Test Set
600CS 08679 Leather Belt Holster for 600LS Test Set
Note: Not for use on energized AC wiring
Note: Not for use on energized AC wiring
www.greenlee.com
241
USA Tel: 800.435.0786
Fax: 800.451.2632
Canada Tel: 800.435.0786
Fax: 800.524.2853
International Tel: +1.815.397.7070
Fax: +1.815.397.9247
Voice • Data • Video
= REPLACEMENT PART = ACCESSORY

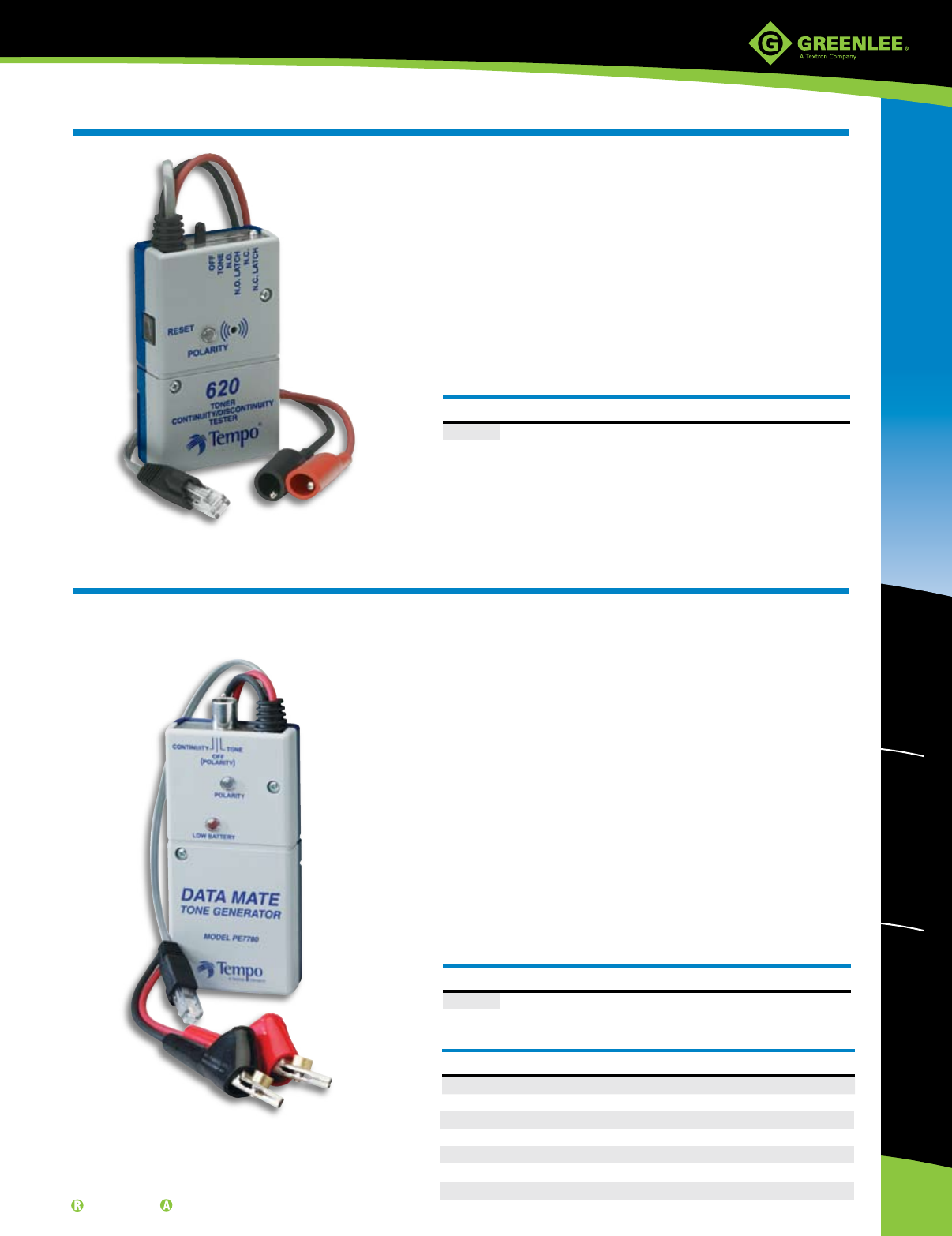

Alarm Loop Verifier/Tone Generator
• Designed specifically for the security and alarm industry, the PE620 can
be connected to a Normally Open or Normally Closed loop pair
and provides a distinct audible tone when the alarm condition occurs.
• Latching feature provides a simple method for identifying intermittent
failures (“swingers”) and confirming operation of switches at
remote locations.
• In the latching mode, the unit will catch the alarm condition
and continue sounding until the tester is reset.
• As a tone generator, the unit provides a traditional variable tone that
can be applied using the 24" red and black test leads or a convenient
6-position modular plug.
• Convenient magnetic back plate allows the PE620 to be mounted
directly to the control panel cabinet or door.
• Battery operated (9V not included).
CAT. NO. UPC NO. DESCRIPTION
PE620 08665 Alarm Loop Verifier/Tone Generator
Data Mate® Precision Tracing Tone Generator
Trace wire or cable without interfering with digital two-way cable
or ADSL services.
The model 7780 Data Mate Precision Tone Generator is intended to
provide tone for tracing and troubleshooting communication circuits without
disrupting digital traffic on the line or adjacent lines.
The high purity of the tracing tones combined with internal isolating filters
allows safe tracing on circuits that carry digital services above the baseband
(two-way cable and ADSL).
The high-power differential output of the 7780 makes tones easy to find,
even over long distances. Also useful for continuity testing and polarity testing,
the 7780 provides the standard warble tone and talk battery supply.
• High Power Tone Output.
• Line Voltage and Polarity
Indication.
• High Purity Tone Signal.
• Low Crosstalk.
• Low Battery Indicator.
• Filter-isolated Circuitry.
• Two-way Broadband Compatible.
• Modular and Telco Pro Alligator
Leads.
• ADSL Service Compatible.
• Long Range.
• Popular, Standard Warble Tone
Frequencies Continuity Testing
• Compatible with existing tone.
CAT. NO. UPC NO. DESCRIPTION
PE7780 60777 Data Mate Tone Generator
SPECIFICATIONS
Electrical
Output Power +9dBm
Output Signal Frequency 877/982 Hz alternating
Output Impedence 3,500 ohms minimum, 25kHz to 1.1 MHz
Mechanical
Length 5.5" (140 mm) Depth 1.0" (25 mm)
Width 2.25" (57 mm) Weight 0.38 lbs. (0.17 kg)
Note: Not for use on energized AC wiring
Note: Not for use on energized AC wiring
USA Tel: 800.435.0786
Fax: 800.451.2632
Canada Tel: 800.435.0786
Fax: 800.524.2853
International Tel: +1.815.397.7070
Fax: +1.815.397.9247
242
Voice • Data • Video
www.greenlee.com
= REPLACEMENT PART = ACCESSORY

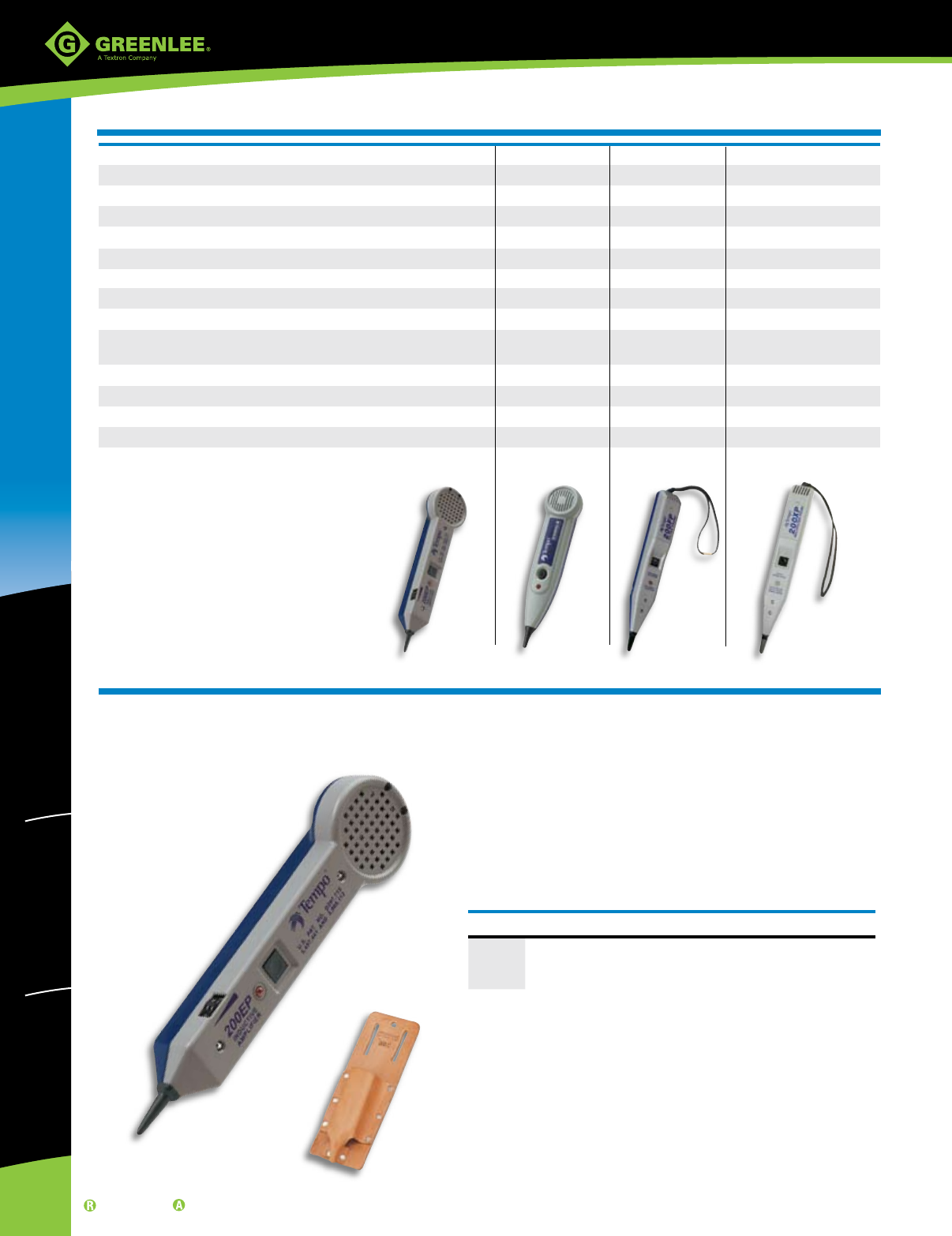

MODEL NO. 200EP 200GX 200FP 200XP
Powerful 2" Speaker ✔ ✔
Powerful, Rear-fire Speaker ✔ ✔
One-button Operation ✔ ✔ ✔ ✔
Adjustable Volume Control ✔ ✔ ✔ ✔
LED for Visual Signal Strength Indication ✔ ✔ ✔ ✔
Recessed Tabs for Telephone Test or Headset Connection ✔ ✔ ✔ ✔
Speaker Bypass When Using Telephone Test Sets ✔
Noise Filtration ✔ ✔
Improved Tip Design for Better Reception and ✔ ✔ ✔
Lower Risk of Shorting Terminals
Continuous-On Feature ✔ ✔
Five-Minute Auto Shutoff ✔ ✔
Low-battery Indicator ✔ ✔
Battery Operated (9V not included) ✔ ✔ ✔ ✔
Patented ✔ ✔
200EP 200GX 200FP
200GX
200 Series Inductive Amplifiers
Inductive Amplifiers
• Used in conjunction with any tone generator, Inductive Amplifiers permit
wire and cable identification without having to make direct metallic
contact with the conductor.
• All models feature a powerful speaker for noisy environments,
recessed on/off button control and high gain for accurate wire
identification in congested cable bundles and equipment rooms.
• The 200EP also includes adjustable volume control for precise
identification, an LED for visual signal strength indication and recessed
telephone test set connectors.
• The 200GX includes all the features of the 200EP in a new rugged,
ergonomically-designed housing.
CAT. NO. UPC NO. DESCRIPTION
200EP 08671 Inductive Amplifier
200GX 60557 Inductive Amplifier
200C 08670 Leather Belt Holster for 200 Series Inductive Amplifiers
200C
200XP
www.greenlee.com
243
USA Tel: 800.435.0786
Fax: 800.451.2632
Canada Tel: 800.435.0786
Fax: 800.524.2853
International Tel: +1.815.397.7070
Fax: +1.815.397.9247
Voice • Data • Video
= REPLACEMENT PART = ACCESSORY
RPT-1
RPT-2

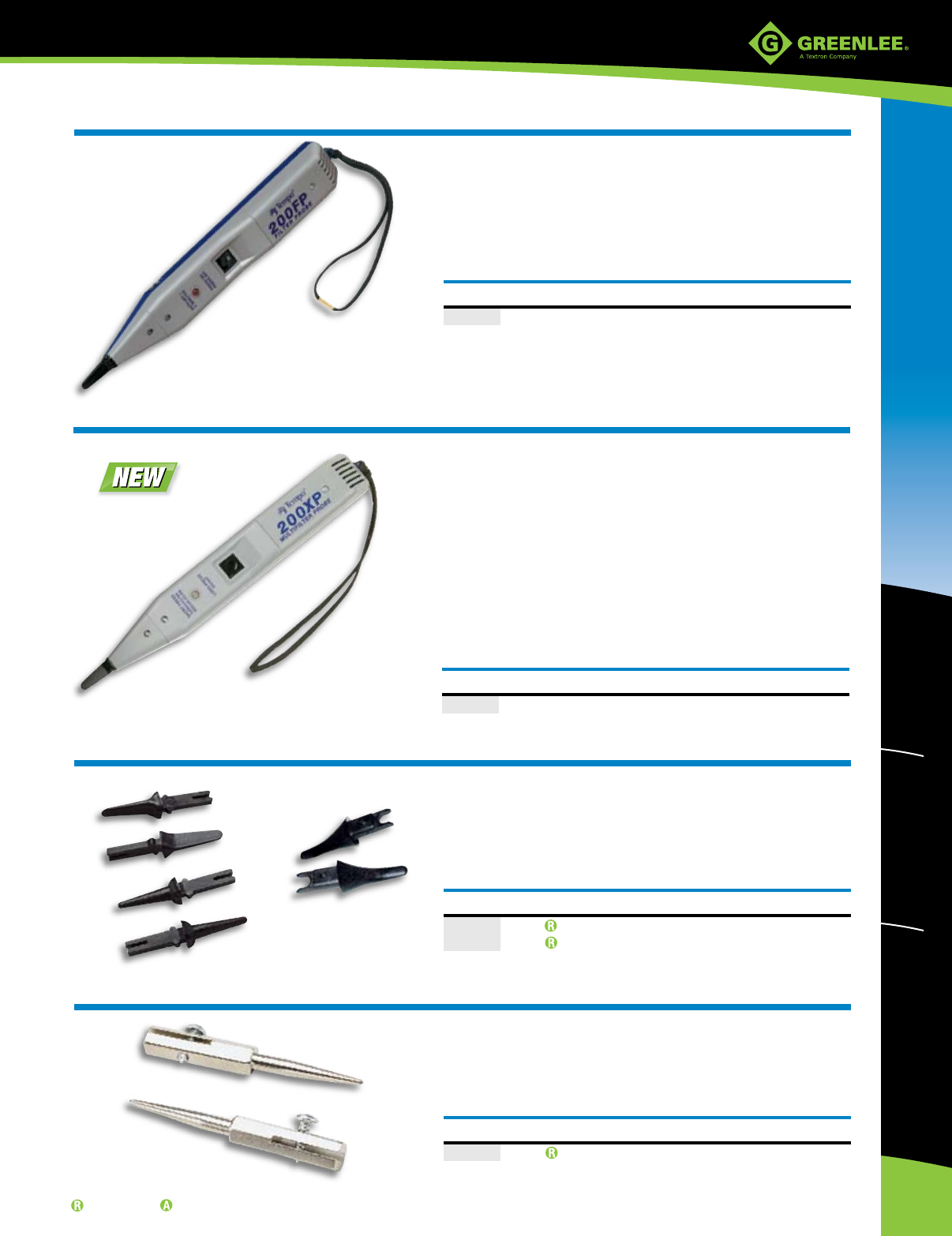

Filter Probe
Replacement Plastic Tips for 200 Series Probes
Replacement Metal Tips for 200B and 200EP Probes
• By selectively filtering out 60Hz and its harmonics, the 200FP
can be used with any tone generator for faster, more accurate,
cable and wire identification.
• Slim, comfortable design for use in limited-space areas.
• Recessed on/off push-button control to conserve battery life.
• Adjustable sensitivity/volume control to increase accuracy.
• Blended carbon/plastic tip to reduce the risk of shorting terminals.
• Patented.
• Plastic tips perform much the same as traditional metal tips while
reducing the risk of shorting terminals.
• Specially formulated with a carbon powder and carbon fiber
blended plastic.
• Tips fit 200B, 200EP, 200GX, 200FP and 200XP probes.
• RPT-1 comes with two pencil-style tips and two spade-style tips.
• Metal tips provide maximum performance when probing
insulated wires or making direct metallic contact.
• Made of nickel-plated brass.
• Tips fit 200B and 200EP probes.
• Package contains two pencil-style tips.
Multi-Filter Tone Probe
• Single button selects two kinds of powerful noise filters.
• Filtering means faster, more accurate pair tracing.
• Digital signal processor for accuracy and sensitivity.
• Durable, light weight.
• Audible and visible signal detection.
• Continuous, wide-range volume control.
• Butt set terminals.
• Field replaceable tip, spare tip included.
• Uses a single 9 V battery.
• One probe for many applications.
• Works with any tone generator.
• Especially well suited for 577Hz Telco tone sources and a version
is available for 1kHz systems (983Hz).
CAT. NO. UPC NO. DESCRIPTION
200FP 08672 Filter Probe
CAT. NO. UPC NO. DESCRIPTION
RPT-1 08711 Plastic Tips for 200B, 200EP, 200FP and 200XP
RPT-2 60561 Plastic Tips for 200GX
CAT. NO. UPC NO. DESCRIPTION
RMT-1 08709 Metal Tips for 200B and 200EP Probes
CAT. NO. UPC NO. DESCRIPTION
200XP 60887 Multi-Filter Tone Probe
USA Tel: 800.435.0786
Fax: 800.451.2632
Canada Tel: 800.435.0786
Fax: 800.524.2853
International Tel: +1.815.397.7070
Fax: +1.815.397.9247
244
Voice • Data • Video
www.greenlee.com
= REPLACEMENT PART = ACCESSORY

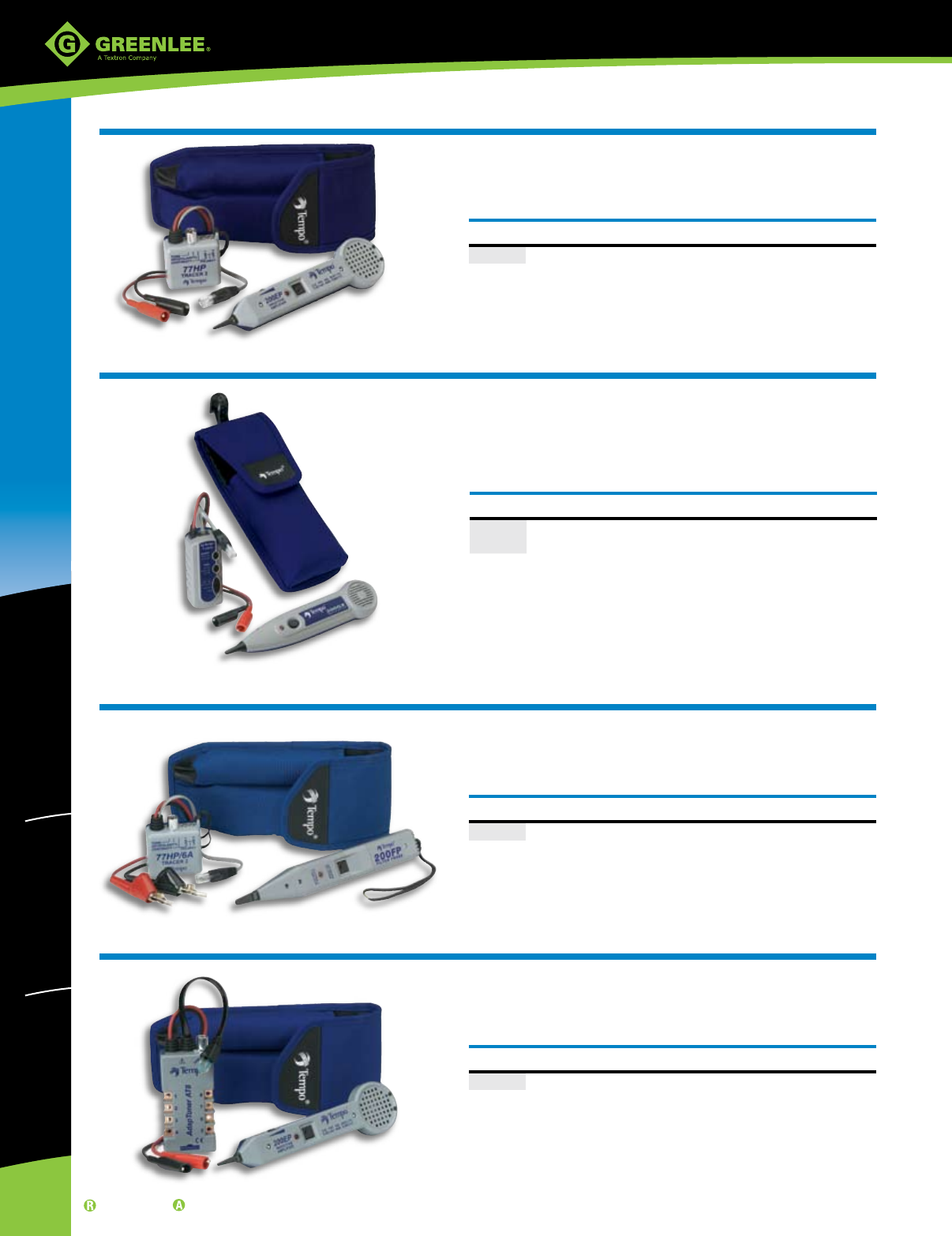

Classic Tone and Probe Kit
Professional Tone and Probe Kit
Premium Tone and Probe Kit
• Used to identify single conductors or cables within a bundle,
at a cross-connect point or at remote ends.
• Kit includes the 77HP High Power Tone Generator and the 200EP Inductive
Amplifier in a rugged, woven nylon carrying case. (700C)
CAT. NO. UPC NO. DESCRIPTION
701K 08684 Classic Tone and Probe Kit
CAT. NO. UPC NO. DESCRIPTION
711K 60558 Professional Tone and Probe Kit
• Designed for the telecom professional, this kit is for use on single
conductors, twisted pairs, coax cables and de-energized electrical wiring.
• Housings are drop-tested to ensure durability.
• Kit includes the 77GX Tone Generator and 200GX Inductive Amplifier
in a rugged carrying case. (711CS)
• Designed for more accurate wire identification, the 801K virtually
eliminates power-related noise from the tone and probe operation.
• Kit includes the 77HP/6A High Power Tone Generator and 200 FP Filter
Probe in a convenient Cordura® case. (700C)
CAT. NO. UPC NO. DESCRIPTION
801K 08690 Premium Tone and Probe Kit
AdapToner Kit
• Designed for fast, accurate wire identification by combining the features
of our tone generators and modular breakout adapter.
• Kit includes the AT8 Modular Breakout Tone Generator and 200EP
Inductive Amplifier in a convenient carrying case. (700C)
CAT. NO. UPC NO. DESCRIPTION
AT8K 08694 AdapToner Kit
www.greenlee.com
245
USA Tel: 800.435.0786
Fax: 800.451.2632
Canada Tel: 800.435.0786
Fax: 800.524.2853
International Tel: +1.815.397.7070
Fax: +1.815.397.9247
Voice • Data • Video
= REPLACEMENT PART = ACCESSORY
LAN Toner Kit
CATV Cable Tone Test Kit
Security and Alarm Kit
• Designed for the network installation and maintenance professional,
the LAN Toner sends tone and blinks HUB, Switch Port, and PC activity
lights for fast identification. This kit can be used on any wiring system
including Datacom, Telecom, security/alarm, audio and CATV.
• Kit includes the AT8L LAN Toner and the 200GX Inductive Amplifier
in a rugged, woven nylon carrying case. (700C)
CAT. NO. UPC NO. DESCRIPTION
AT8LK 60584 LAN Toner Kit
CAT. NO. UPC NO. DESCRIPTION
402K 08677 CATV Cable Tone Test Set
402T 60376 Transmitter
402R 60377 Receiver
CS9 60374 Male to male F-connector adapter cable
CS19 60378 F-connector to alligator clip
• Designed specifically for the CATV industry, this kit allows you to tone through
splitters, directional couplers and traps.
• Simple to use, the 402K provides accurate results and will eliminate long
delays trying to figure out non-tagged or mis-tagged cable drops.
• Kit includes one transmitter, one receiver, one male F-to-F connector adapter
cable, one male F-to-alligator clip adapter cable and a carrying case. (700C)
• Transmitter and receiver are equipped with female F-connectors.
• Three methods of signal reception: electrostatic pickup for non-terminated
cables, electromagnetic pickup for terminated or shorted cables and direct
connection when identifying in the presence of passive devices.
• In continuity mode, provides both audible tone and LED display.
• Identifies the presence of AC or DC voltage on the cable under test.
• Four selectable tone outputs for multiple line identification.
• Designed specifically for the security and alarm industry, the 620K
provides a simple method for identifying intermittent failures (swingers)
and confirming operation of switches at remote locations.
• To better satisfy industry requirements, we’ve combined the Model PE620
Tone Generator with the popular Model 200EP Inductive Amplifier
in a durable woven nylon pouch. (700C)
CAT. NO. UPC NO. DESCRIPTION
620K 08682 Security and Alarm Kit
USA Tel: 800.435.0786
Fax: 800.451.2632
Canada Tel: 800.435.0786
Fax: 800.524.2853
International Tel: +1.815.397.7070
Fax: +1.815.397.9247
246
Voice • Data • Video
www.greenlee.com
= REPLACEMENT PART = ACCESSORY
Cabling Pouch
Tone and Probe Carrying Case
• Designed to hold a complete set of wiring tools including: any (one)
77 Series Tone Generator, any (one) 200 Series Inductive Amplifier,
a punchdown tool, a cabling knife and scissors.
• Convenient loop to hold most telephone test sets.
• Removable “parts pouch” allows you to keep small components
in reach.
• Made of a durable woven nylon.
• Fits belts up to 5" wide.
• Allows you to build your own kit using any tone generator
and 200 Series probe.
• Durable woven nylon.
• Fits belts up to 3" wide.
CAT. NO. UPC NO. DESCRIPTION
700C 08683 Tone and Probe Carrying Case
711CS 60559 Tone and Probe Carrying Case with belt hook
CAT. NO. UPC NO. DESCRIPTION
750C 08685 Cabling Pouch
700C
711CS
www.greenlee.com
247
USA Tel: 800.435.0786
Fax: 800.451.2632
Canada Tel: 800.435.0786
Fax: 800.524.2853
International Tel: +1.815.397.7070
Fax: +1.815.397.9247
Voice • Data • Video
= REPLACEMENT PART = ACCESSORY

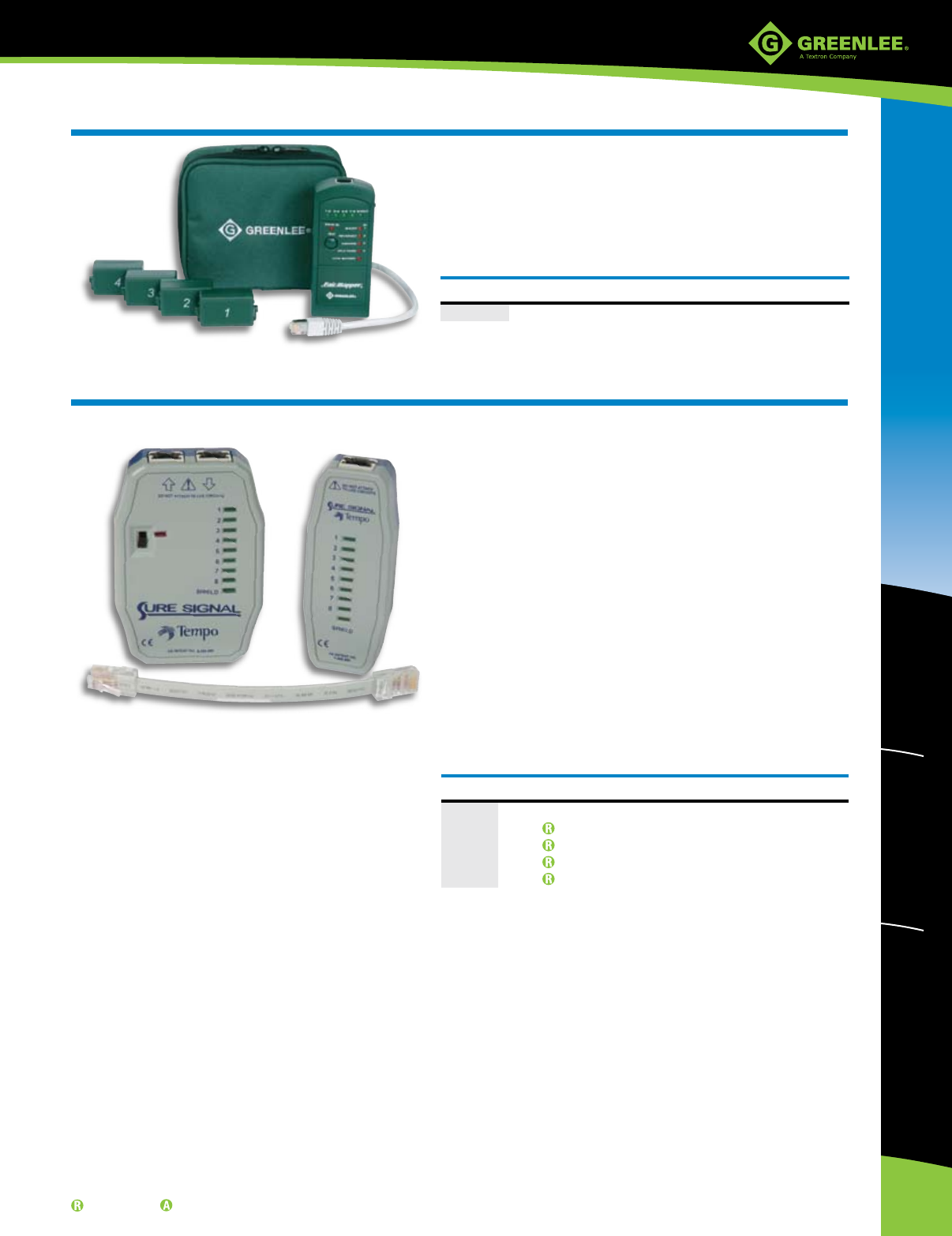

PairMapper® Wiremap Kit
Sure Signal®
• Use to identify various wiring faults found in 10 BASE-T and other
four-pair, twisted pair cables per TIA/EIA 568A and 568B.
• Tests and identifies up to four cables with unique Remote Terminators.
• Easy to use, compact.
• Checks twisted pair cable for shorts, opens, crossed pairs, reversed pairs
and split pairs.
• Battery operated (4 x AAA not included).
• Designed for cable installers and communications technicians for
testing four-pair data/voice cable links terminated with standard,
modular eight-position RJ45-style jacks.
• Simplest tester available for identifying common wiring faults
such as shorts, opens and miswires.
• Diagnosis can be completed at one end.
• Sequentially-lighting LEDs correspond to each wire allowing easier
diagnosis of miswires than testers that check pairs.
• Can test more wiring configurations than other testers due to
sequential wiremap testing.
• Shielded test ports allow extra versatility to test shielded
and screened twisted pair.
• Optional patch cords allow the Sure Signal to be used as a coax
tester, eliminating the need for a second tester.
• Optional remote unit can be used to check patch cords
for wiring errors.
• Optional Accessory Kit includes two RJ45 patch cords, two RJ45 to
BNC adapter cords, two RJ45 to RJ11 snap-in adapters and one BNC
plug to BNC plug adapter.
• Battery operated (9V not included).
• Lifetime limited warranty.
46060
PM-400K
CAT. NO. UPC NO. DESCRIPTION
PM-400K 11877 PairMapper Wiremap Kit
CAT. NO. UPC NO. DESCRIPTION
46060 46060 Sure Signal Line Verifier and Patch Cord Tester
46070 46070 Sure Signal Remote
45276 45276 Carrying Case
46065 46065 Sure Signal Accessory Kit
CSI0 CSI0 Modular Adapter cable
USA Tel: 800.435.0786
Fax: 800.451.2632
Canada Tel: 800.435.0786
Fax: 800.524.2853
International Tel: +1.815.397.7070
Fax: +1.815.397.9247
248
Voice • Data • Video
www.greenlee.com
= REPLACEMENT PART = ACCESSORY

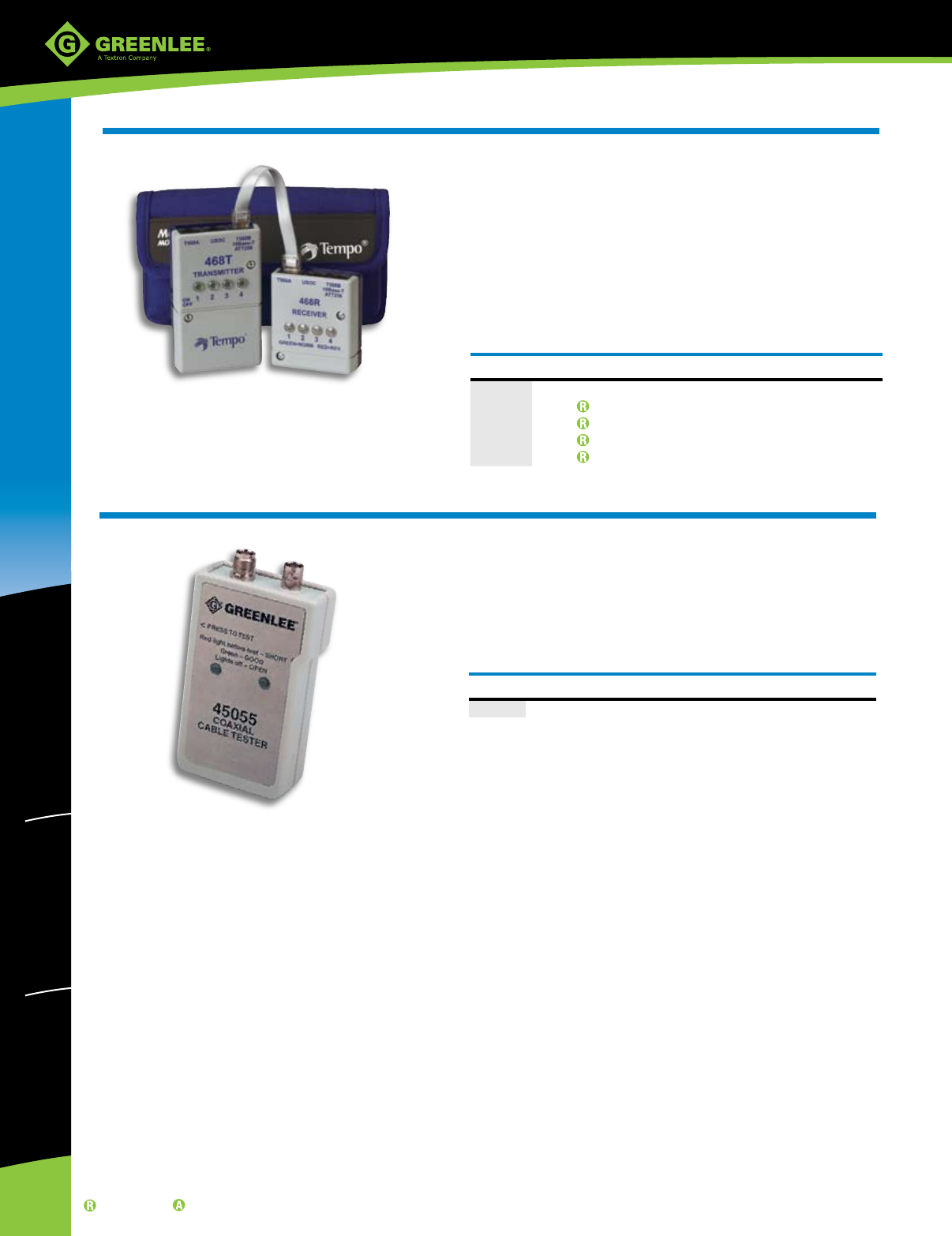

Coaxial Cable Tester
• Provides quick verification of opens or shorts in either the conductor
or the shield of coax cable.
• Simple one-button operation provides pass/fail indication.
• Remote terminator allows testing of cables before or after installation.
• Clear red/green LED indication of short or open conditions.
• Standard BNC- and F-type female connectors.
• Battery operated (9V included).
• Lifetime limited warranty.
45055
CAT. NO. UPC NO. DESCRIPTION
45055 45055 Coaxial Cable Tester
468
Wiremap Tester
• Quickly identifies opens, shorts, reversals and transposed pairs.
• Economical tester includes all the basic functions.
• Connecting the receiver unit automatically activates the test process.
• Sequencing red and green LEDs provide fast, accurate
and simple-to-understand results.
• Alerts the technician if connected to an active circuit without harming
the unit.
• Connect any eight-position modular plug to the appropriate jack on the
transmitter and a sweeping tone signal is applied to all pairs.
• At the far end of the cable, use any Tempo inductive amplifier (probe)
to locate the corresponding plug or jack.
• Battery operated (9V not included).
CAT. NO. UPC NO. DESCRIPTION
468 08661 Wiremap Tester
468C 60382 Carrying Case for the Wiremap Tester
468T 468T Transmitter
468R 468R Receiver
CSI0 CSI0 Modular Adapter Cable
www.greenlee.com
249
USA Tel: 800.435.0786
Fax: 800.451.2632
Canada Tel: 800.435.0786
Fax: 800.524.2853
International Tel: +1.815.397.7070
Fax: +1.815.397.9247
Voice • Data • Video
= REPLACEMENT PART = ACCESSORY
Clip-On Twisted Pair Kit
• Provides the most essential tools for terminating voice and data cabling
right at the installer’s side.
• Rugged Cordura® pouch is built to last, lowering replacement costs.
• Heavy-duty metal clip snaps over the installer’s belt so that the kit can be
removed without removing the belt.
• Side holsters allow the installer to carry a flashlight and a favorite
screwdriver.
Cable TV Coax Termination Kit
• Contains the tools and connectors necessary for installing a
Cable TV system.
• Durable Cordura Plus zipper case protects and organizes tools and
includes a see-through pouch for storing connectors.
• Outside pockets provide convenient storage of instruction manuals or
worksite documents.
CAT. NO. UPC NO. DESCRIPTION
46010 46010 Clip-On Twisted Pair Kit
Kit contents may be purchased separately:
46023 46023 Punchdown Tool with 110 Blade
PT-T02 08708 Electrician’s Scissors
45579 45579 Twisted Pair Stripper
46500 46500 Pocket-Light Flashlight
45272 45272 Pouch
Replacement Tools and Blades are also available:
46020 46020 Punchdown Tool
46021 46021 Punchdown Tool with 66 Blade
46022 46022 66 Style Punchdown Blade
46024 46024 110 Style Punchdown Blade
CAT. NO. UPC NO. DESCRIPTION
45466 45466 Cable TV Coax Termination Kit
Kit contents may be purchased separately:
45482 45482 Cable Cutter
45578 45578 Kwik Stripper® CATV Stripper, 2 Level Stripper for RG6,
RG59, RG7, RG11
46801 46801 Kwik Cycle® 9" Crimp Frame with Die Set for F-style
Connectors on RG6 and RG59 Cable
45516 45516 F Connector Insertion Tool
45324 45324 F-style Crimp-on Connectors for Quad-shield RG6 (Qty. 50)
45476 45476 Zipper Case
TERMINATION & TESTING
USA Tel: 800.435.0786
Fax: 800.451.2632
Canada Tel: 800.435.0786
Fax: 800.524.2853
International Tel: +1.815.397.7070
Fax: +1.815.397.9247
250
Voice • Data • Video
www.greenlee.com
= REPLACEMENT PART = ACCESSORY

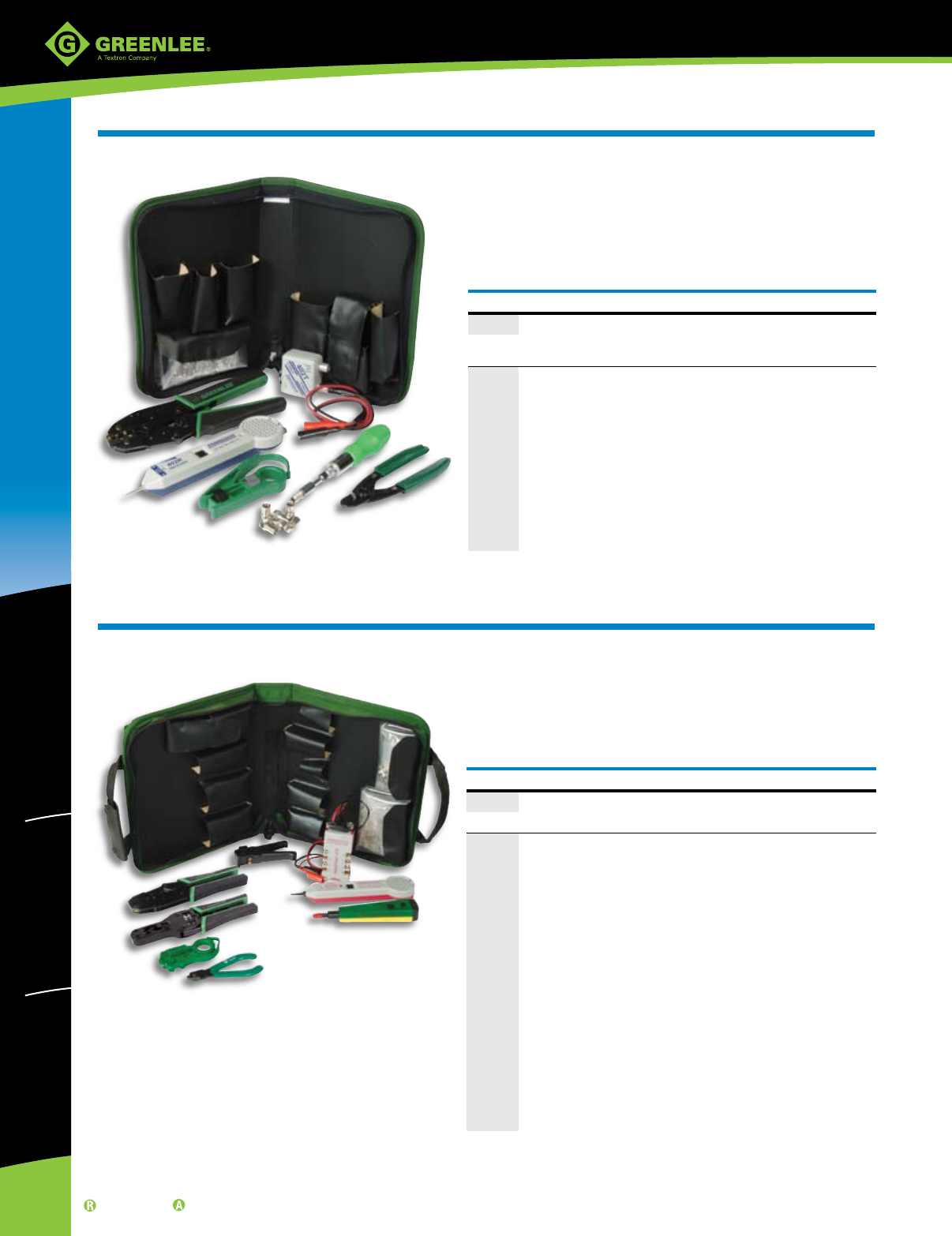

Cable TV Coax Termination and Test Kit
Coax/Twisted Pair LAN Termination and Test Kit
• Contains the tools, connectors and tester for installing and testing a Cable
TV system.
• Cable TV tone test set uses both electromagnetic and electrostatic pickup
to tone through splitters, directional couplers and taps.
• Durable Cordura® Plus zipper case protects and organizes tools
and includes a see-through pouch for storing connectors.
• Outside pockets provide convenient storage of instruction manuals
or worksite documents.
• Provides the essential tools, connectors and testers necessary for
maintaining a Local Area Network (LAN), twisted pair cabling and coax
Ethernet (Thinnet) cabling.
• Durable Cordura Plus carrying case protects and organizes tools and
includes a see-through pouch for storing connectors.
• Outside pockets provide convenient storage of instruction manuals
or worksite documents.
CAT. NO. UPC NO. DESCRIPTION
45467 45467 Cable TV Coax Termination and Test Kit
Kit contents may be purchased separately:
45482 45482 Cable Cutter
45578 45578 Kwik Stripper® CATV Stripper, 2 level stripper for RG6,
RG59, RG7, RG11
46801 46801 Kwik Cycle® 9" Crimp Frame with Die Set for F-style
Connectors on RG6 and RG59 Cable
45516 45516 F Connector Insertion Tool
45323 45323 F-style Crimp-on Connectors for Quad-shield RG6 (Qty. 25)
402T 60376 Cable TV Tone Generator
402R 60377 Cable TV Tone Receiver
45477 45477 Zipper Case
CAT. NO. UPC NO. DESCRIPTION
45468 45468 Coax/Twisted Pair LAN Termination and Test Kit
Kit contents may be purchased separately:
45482 45482 Cable Cutter
45579 45579 Kwik Stripper® Twisted Pair Stripper
46023 46023 Punchdown Tool with 110 Blade
46022 46022 66 Style Punchdown Blade
45575 45575 Telephone Ratchet Crimper for 4-, 6- and
8-position Modular Plugs
45577 45577 Kwik Stripper Coax Stripper, 3 Level
46800 46800 Kwik Cycle 9" Crimp Frame with Die Set for
BNC-style Connectors on Thinnet RG8 Cable
45481 45481 Center Conductor Cutter for Coax Cable
AT8 08693 AdapToner Modular Breakout Tone Generator
200EP 08671 Inductive Amplifier Probe
45781 45781 BNC-style Coax Connectors for RG58 Thinnet Plenum Cable
(Qty. 20)
45760 45760 Category 5 Connectors RJ45, 8-Position (Qty. 50)
45478 45478 Carrying Case
www.greenlee.com
251
USA Tel: 800.435.0786
Fax: 800.451.2632
Canada Tel: 800.435.0786
Fax: 800.524.2853
International Tel: +1.815.397.7070
Fax: +1.815.397.9247
Voice • Data • Video
= REPLACEMENT PART = ACCESSORY

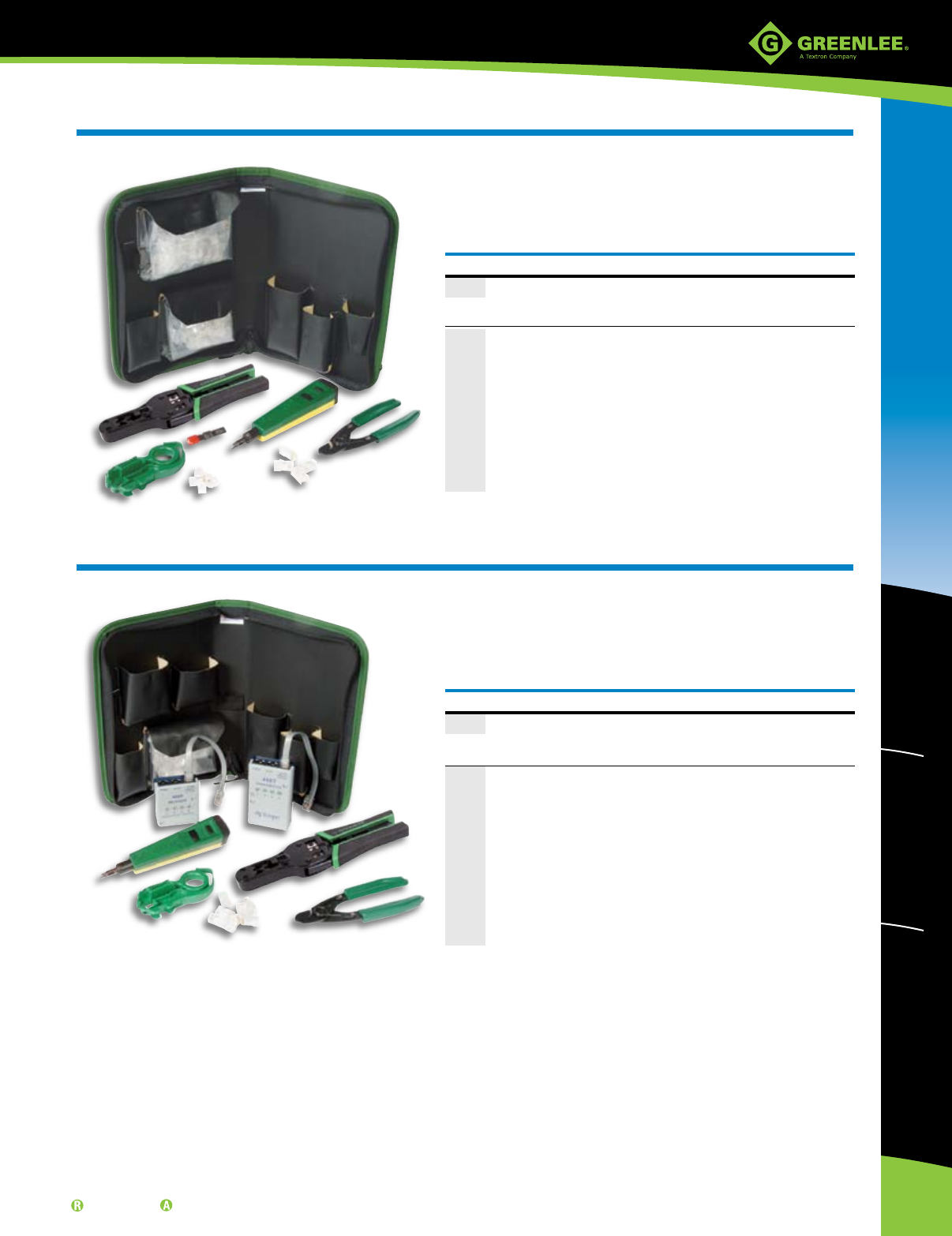

Voice and Category 5 Data Termination Kit
Category 5 Data Termination and Test Kit
• Includes the tools and connectors necessary for installing a voice
and data network.
• Durable Cordura® Plus zipper case protects and organizes tools
and includes a see-through pouch for storing connectors.
• Outside pockets provide convenient storage of instruction manuals
or worksite documents.
• Includes the tools, connectors and testers necessary for installing
a Cat 5 data network.
• Durable Cordura® Plus zipper case protects and organizes tools
and includes a see-through pouch for storing connectors.
• Outside pockets provide convenient storage of instruction manuals
or worksite documents.
CAT. NO. UPC NO. DESCRIPTION
45469 45469 Voice and Category 5 Data Termination Kit
Kit contents may be purchased separately:
45482 45482 Cable Cutter
45579 45579 Kwik Stripper® Twisted Pair Stripper
46023 46023 Punchdown Tool with 110 Blade
46022 46022 66 Style Punchdown Blade
45575 45575 Telephone Ratchet Crimper for 4-, 6- and 8-Position
Modular Plugs
45760 45760 Category 5 Connectors RJ45, 8-Position (Qty. 50)
45751 45751 Flat Cable Connectors RJ12, 6-Position, 6-Conductor (Qty. 50)
45479 45479 Zipper Case
CAT. NO. UPC NO. DESCRIPTION
45470 45470 Category 5 Data Termination and Test Kit
Kit contents may be purchased separately:
45482 45482 Cable Cutter
45579 45579 Kwik Stripper® Twisted Pair Stripper
46023 46023 Punchdown Tool with 110 Blade
45575 45575 Telephone Ratchet Crimper for 4-, 6- and 8-Position
Modular Plugs
45760 45760 Category 5 Connectors RJ45, 8-Position (Qty. 50)
468T 60379 Modular Cable Tester Transmitter with Tone Generator
468R 60380 Modular Cable Tester Receiver
45485 45485 Zipper Case
USA Tel: 800.435.0786
Fax: 800.451.2632
Canada Tel: 800.435.0786
Fax: 800.524.2853
International Tel: +1.815.397.7070
Fax: +1.815.397.9247
252
Voice • Data • Video
www.greenlee.com
= REPLACEMENT PART = ACCESSORY

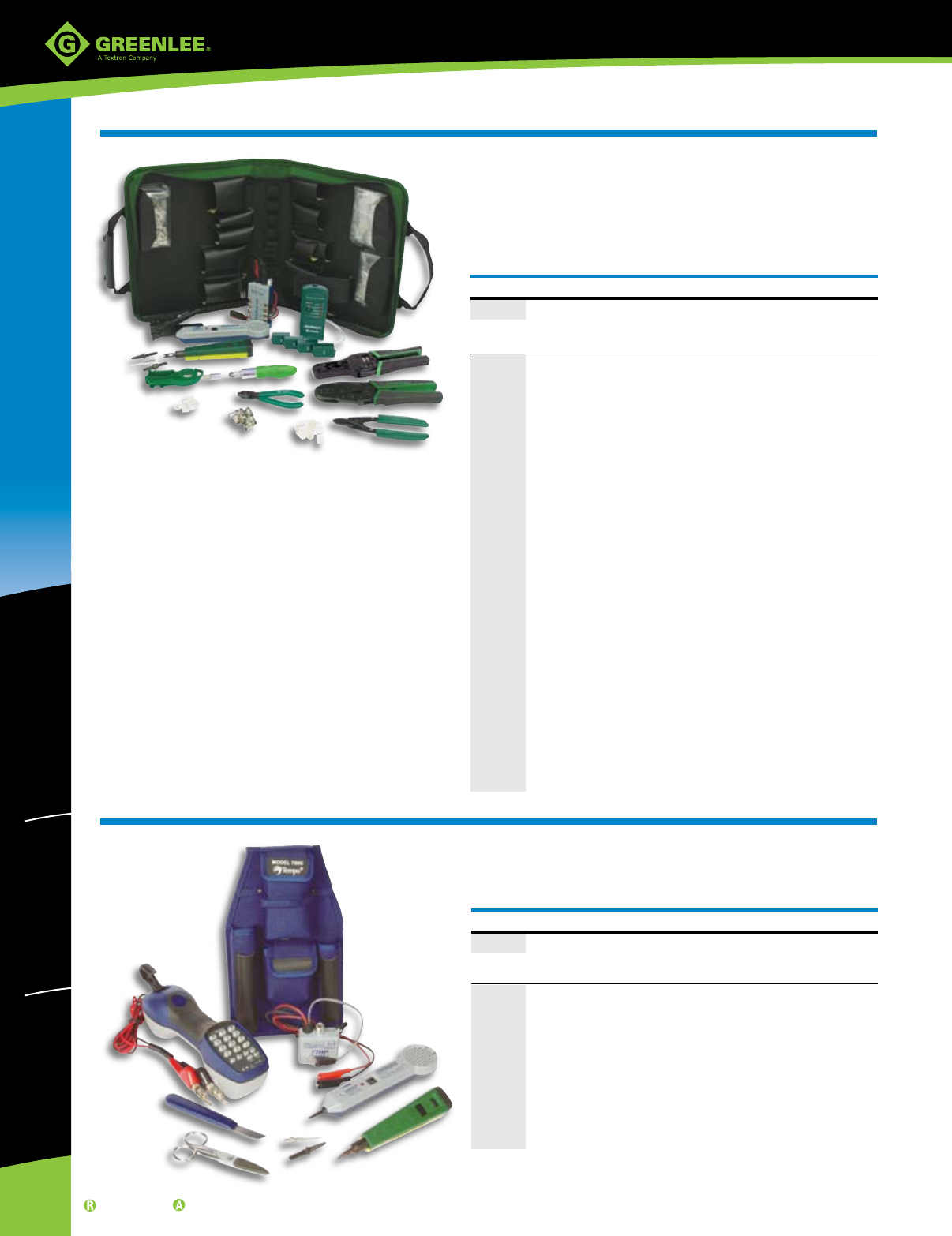

Professional Installation Kit
Telecom Technician Kit
• Includes all the tools, connectors and testers for installing and maintaining
most types of communications cabling including voice, data, cable TV and
coax Ethernet networks.
• Durable Cordura® Plus carrying case protects and organizes tools and
includes see-through pouches for storing connectors.
• Outside pockets provide convenient storage of instruction manuals or
worksite documents.
• Contains all the essential tools and testers to install and maintain
the voice network.
• Durable woven nylon pouch fits any belt up to 5" wide and keeps
all the tools conveniently accessible.
CAT. NO. UPC NO. DESCRIPTION
45471 45471 Professional Installation Kit
Kit contents may be purchased separately:
45482 45482 Cable Cutter
45579 45579 Kwik Stripper® Twisted Pair Stripper
46023 46023 Punchdown Tool with 110 Blade
46022 46022 66 Style Punchdown Blade
45575 45575 Telephone Ratchet Crimper for 4-, 6- and 8-position
Modular Plugs
AT8 08693 AdapToner Modular Breakout Tone Generator
200EP 08671 Inductive Amplifier Probe
PM-400K 11877 PairMapper® with Remotes 1-4
45577 45577 Kwik Stripper Coax Stripper, 3 Level
45040 45040 Kwik Stripper 2-Level Coax Cartridge
46801 46801 Kwik Cycle® 9" Crimp Frame with Die Set for
F-style Connectors on RG6 and RG59 Cable
46824 46824 Kwik Cycle Die Set for BNC-style Coax Connectors on
Thinnet RG58 Cable
45481 45481 Center Conductor Cutter for Coax Cable
45516 45516 F Connector Insertion Tool
45324 45324 F-style Crimp-on Connectors for Quad-shield RG6
(Qty. 50)
45760 45760 Category 5 Connectors RJ45, 8-Position (Qty. 50)
45751 45751 Flat Cable Connectors RJ12, 6-Position, 6-Conductor
(Qty. 50)
45486 45486 Carrying Case
CAT. NO. UPC NO. DESCRIPTION
45472 45472 Telecom Technician Kit
Kit contents may be purchased separately:
46023 46023 Punchdown Tool with 110 Blade
46022 46022 66 Style Punchdown Blade
PT-T02 08708 Electrician’s Scissors
PT-T01 08707 Cable Splicer’s Knife
77HP 08687 Tone Generator
200EP 08671 Inductive Amplifier Probe
PE930 60487 Telephone Test Set
750C 08685 Cabling Pouch
www.greenlee.com
253
USA Tel: 800.435.0786
Fax: 800.451.2632
Canada Tel: 800.435.0786
Fax: 800.524.2853
International Tel: +1.815.397.7070
Fax: +1.815.397.9247
Voice • Data • Video
= REPLACEMENT PART = ACCESSORY

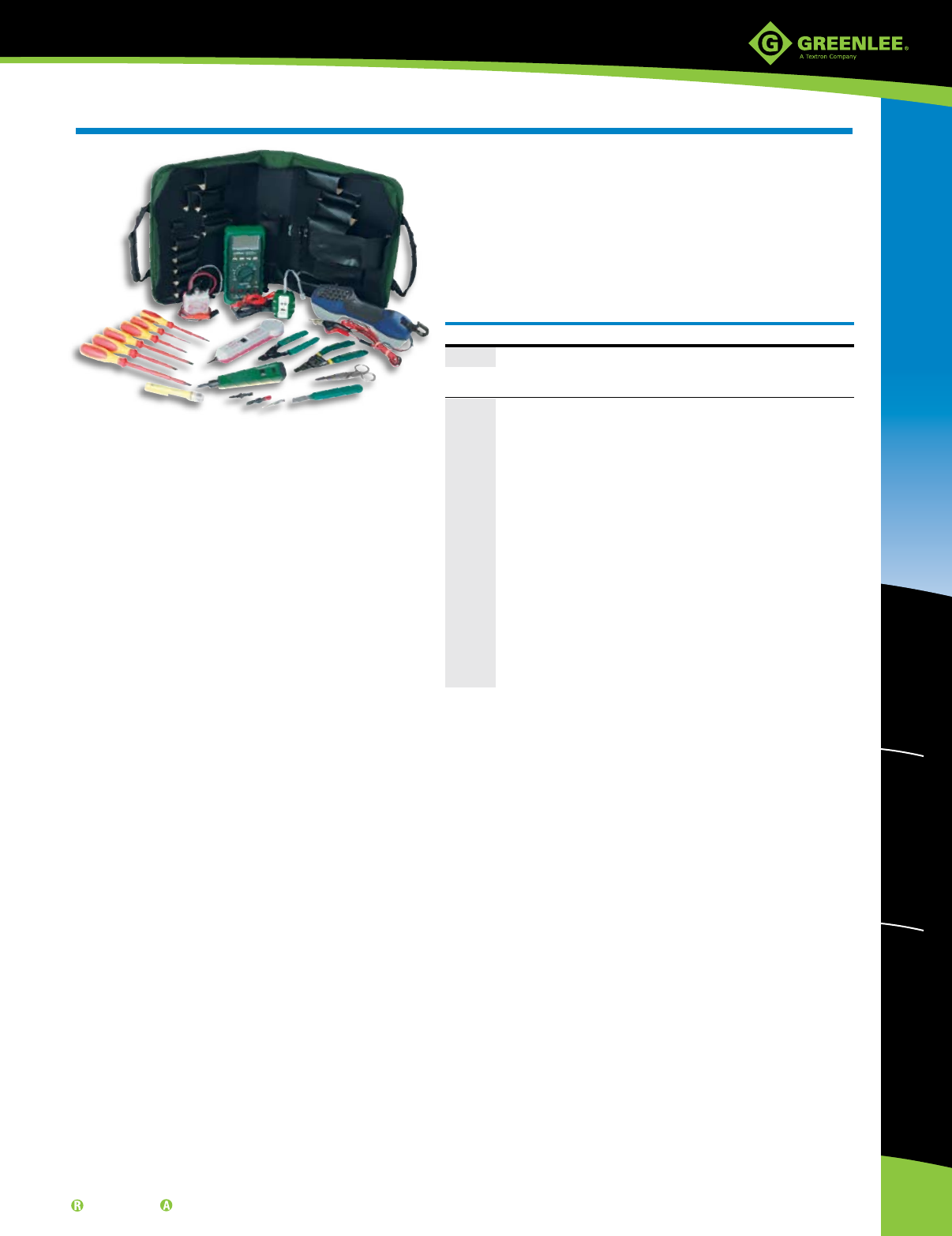

CAT. NO. UPC NO. DESCRIPTION
45473 45473 Telecom Field Technician Kit
Kit contents may be purchased separately:
45482 45482 Cable Cutter
46023 46023 Punchdown Tool with 110 Blade
46022 46022 66 Style Punchdown Blade
PT-T02 08708 Electrician’s Scissors
PT-T01 08707 Cable Splicer’s Knife
77HP 08687 Tone Generator
200EP 08671 Inductive Amplifier Probe
PE930 60487 Telephone Test Set
46040 46040 TurTEL6 Modular Adapter and Polarity Tester
DM-800 07549 Digital Multimeter
46500 46500 Pocket-Light Flashlight
1955 06857 Wire Strippers/Cutter, 10-18 AWG Solid, 12-20 AWG Stranded
47439 47439 Screwdrivers, 6-piece Set.
45487 45487 Carrying Case
Telecom Field Technician Kit
• Contains all the essential tools and testers to maintain a
telecommunications network.
• Top quality digital multimeter and telephone test set make
troubleshooting a voice network easy.
• DMM features an industry-leading lifetime warranty.
• Insulated screwdrivers protect the technician up to 10,000V.
• Durable Cordura® Plus carrying case protects and organizes
tools and includes see-through pouches for storing connectors.
• Outside pockets provide convenient storage of instruction
manuals or worksite documents.
USA Tel: 800.435.0786
Fax: 800.451.2632
Canada Tel: 800.435.0786
Fax: 800.524.2853
International Tel: +1.815.397.7070
Fax: +1.815.397.9247
254
Voice • Data • Video
www.greenlee.com
= REPLACEMENT PART = ACCESSORY

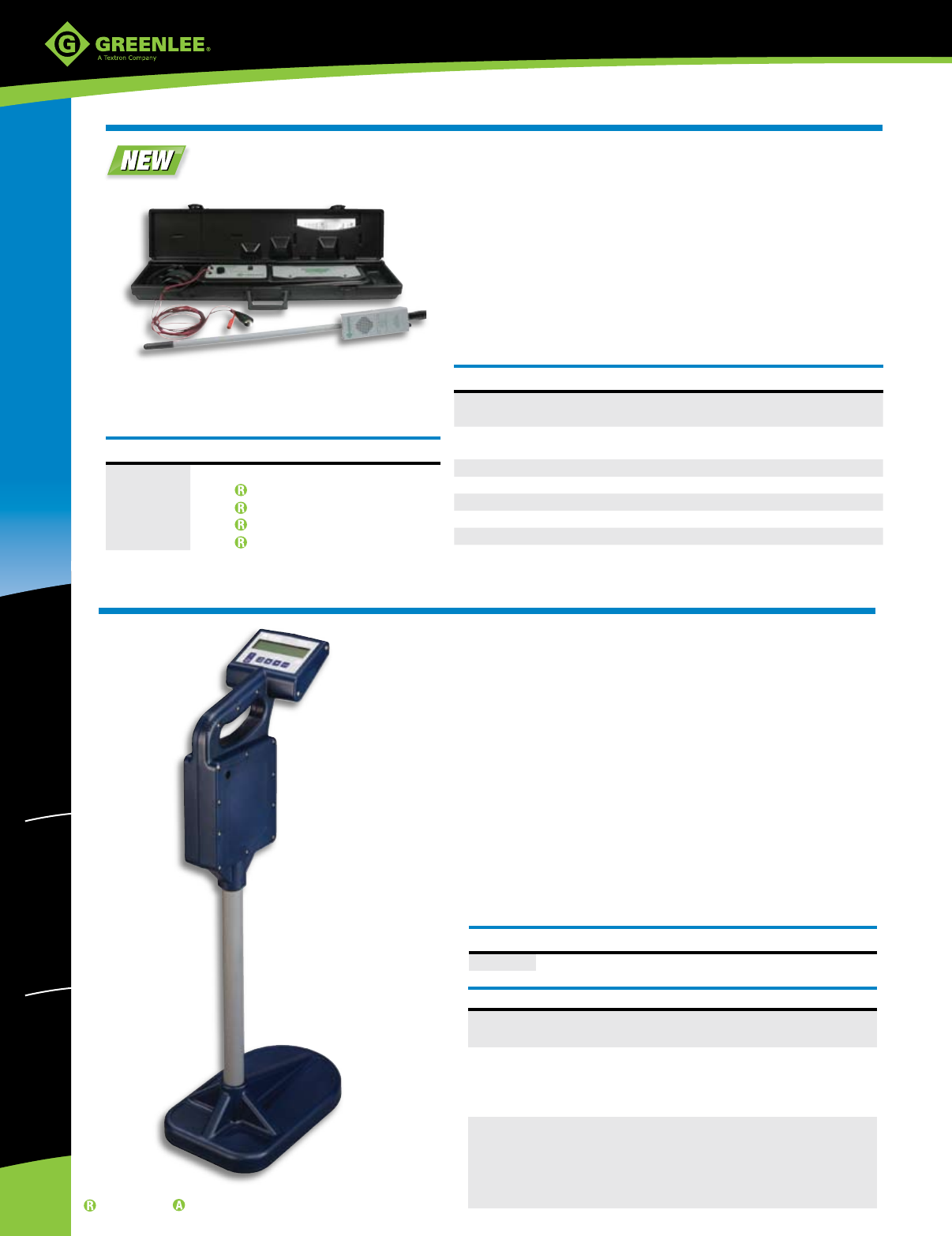

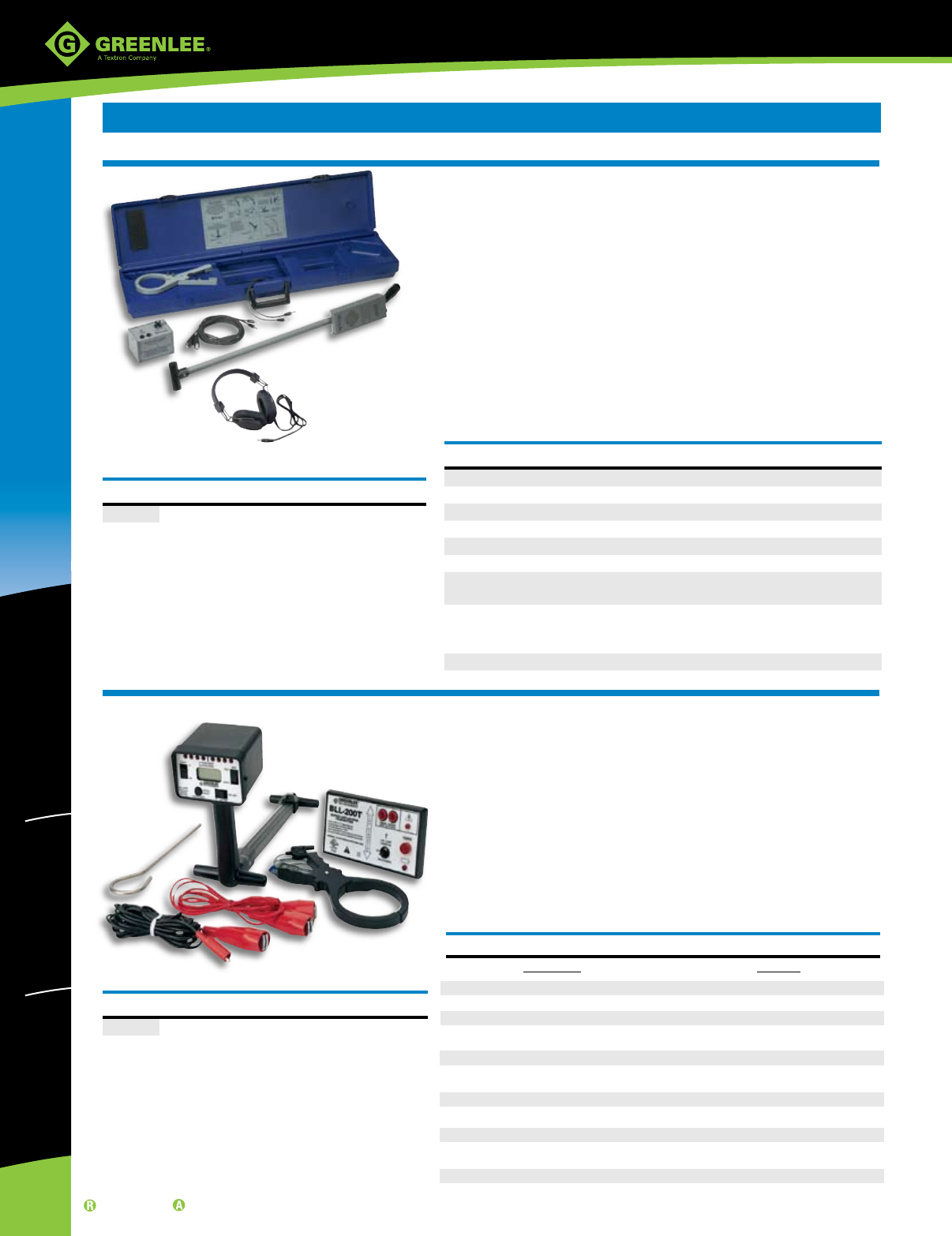

Tracker II
Buried Line Locator
• Traces the path and determines the depth of wires and metallic pipes on
active or dead systems without having to deactivate the system.
• Lightweight receiver provides audible and visual indications of signal strength.
• Transmitter output and receiver sensitivity are fully adjustable for
maximum accuracy.
• Transmitter offers three methods of connection: direct, inductive coupler
and inductive antenna.
• Includes transmitter assembly, receiver assembly, inductive coupler (clamp),
built-in inductive antenna, two 8' test leads (2.4 m) with heavy-duty alligator
clips and durable polyethylene case.
• High frequency transmitter provides range up to 4,000' (1,219 m)
and depths up to 7' (2 m).
• Receiver is 32" long (813 mm).
• Battery operated (eight AA and one 9V battery is included).
• Molded carrying case included.
CAT. NO. UPC NO. DESCRIPTION
501 08662 Tracker II
CAT. NO. UPC NO. DESCRIPTION
BLL-200 07796 Buried Line Locator
• LED and LCD signal strength indicators make it quick and easy to find exact line location.
• Lightweight and ergonomically balanced.
• Automatic signal boost makes it easy to trace lines, even those with very weak signals.
• Receiver may be used in active or passive mode.
• Receiver locates multiple passive frequencies with a single setting.
• Receiver automatically locks out passive range when it detects a transmitter signal,
reducing the chance of tracing other lines carrying weaker signals.
• Microprocessor-based circuitry delivers increased accuracy and features auto-gain
control in all environments.
• Traces 20' (6 m) underground and provides depth readings up to 15' (4.57 m).
• Transmitter can be connected to live lines up to 600V.
• Lifetime limited warranty.
• Molded carrying case included.
HS-1 (08695)
Optional headset is available
for use in high-traffic areas or
other noisy environments.
SPECIFICATIONS
Transmitter
Operating Voltage 0-600VAC,
0-300 VDC
Current 13mA (open line)
150mA (live or shorted line)
Frequency 33.3kHz
Operating Temperature 0°F to 120°F
(-17°C to 50°C)
Size 7.5" x 4" x 2.1"
(190.5 mm x 101.6 mm x 53 mm)
Power 6 VDC (4 AA batteries)
Weight 15 oz. (425 g)
(with batteries and clamp)
Receiver
Depth Range Measures: 0-15 ft.
Traces: 0-20 ft.
±(10% reading + 0.2 ft.)
Depth Resolution - 0.1 ft. increments
Passive Trace Frequency - 12Hz-24kHz
Operating Temperature - 0°F to 120°F
(-17°C to 50°C)
Size 4.1" x 8.5" x 38" (104.1 mm x
215.9 mm x 965.2 mm)
Power 6 VDC (4 AA batteries)
Weight 1 lb. 12 oz. (794 g)
SPECIFICATIONS
Power Requirements Transmitter – (8) AA batteries; Receiver – (1) 9V battery
Battery Life Transmitter – 30 hours nominal; Receiver – 10 hours nominal
Transmitter Frequency 447.5kHz
Transmitter Power 40Vp-p (140mW) maximum
Voltage Protection 240VAC/500VDC
Automatic Shut Off 90 Min. Transmitter and Receiver
Construction Transmitter/Receiver – powder coated aluminum
Case – vacuum formed polyethylene
Dimensions Transmitter – 4.25" x 3" x 3.25" (108 x 76.2 x 82.6 mm)
Receiver – 32" x 2.75" x 4" (812.8 x 69.9 x 101.6 mm)
Case – 33.5" x 8.25" x 3.75" (850.9 x 209.6 x 95.3 mm)
Weight 6.7 lbs. complete kit (3.04 kg)
BURIED FACILITY LOCATING
www.greenlee.com
255
USA Tel: 800.435.0786
Fax: 800.451.2632
Canada Tel: 800.435.0786
Fax: 800.524.2853
International Tel: +1.815.397.7070
Fax: +1.815.397.9247
Voice • Data • Video
= REPLACEMENT PART = ACCESSORY

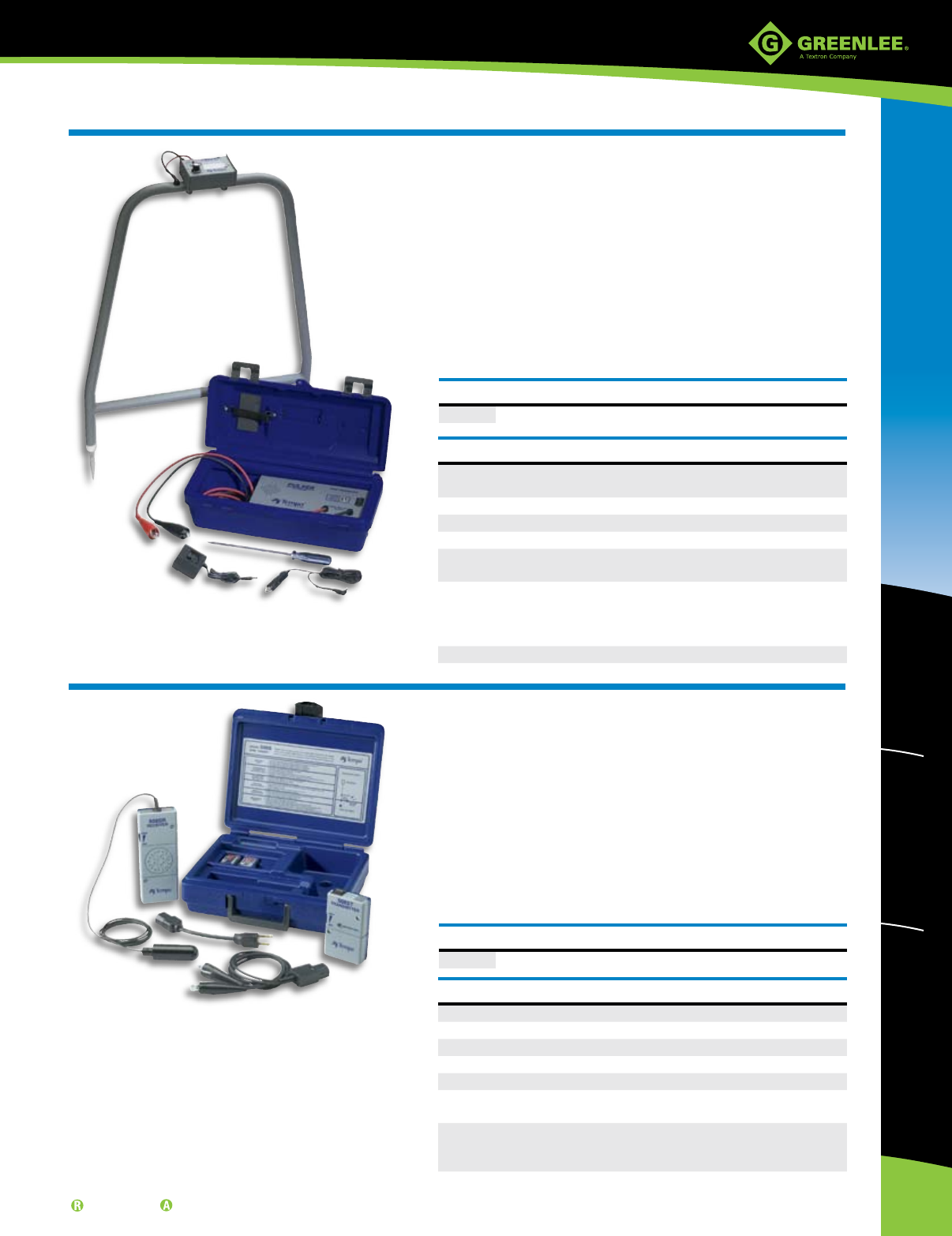

Pulser Fault Locator
Wire Finder/Mini Locator
• Identifies the exact location of even the smallest breaks in insulation
by “pulsing” a high-voltage signal that radiates into the earth at the location
of the faults. With the A-frame mounted receiver, a visual analog meter
points the way to the source of the voltage.
• Multiple faults on a single wire can be identified indicating the need
to replace instead of repair.
• Extra-long test leads feature heavy-duty alligator clips for use on multiple
cable types.
• Includes a rechargeable transmitter, receiver, A-frame, ground stake,
120V charger and a 12V DC (cigarette lighter) adapter.
• Battery operated (one 12V and one 9V battery are included).
• Molded carrying case included.
• 1-year limited warranty.
CAT. NO. UPC NO. DESCRIPTION
PE2003 08666 Pulser
CAT. NO. UPC NO. DESCRIPTION
508S 08678 Wire Finder/Mini Locator
• Traces energized or degenerated wires in walls and drop ceilings.
• Provides reliable results on buried cables to depths of 3' (1 m)
and lengths up to 1000' (308 m).
• Determines the approximate depth of the wire before digging.
• Compact design and easy-to-understand operations.
• Fully adjustable transmitter and receiver for accurate locating.
• Quick change test leads for use in any industry, even international power outlets.
• Voltage protection to allow use on live AC circuits.
• Automatic shut-off to prevent accidental battery discharge.
• Housed in a durable, molded carrying case with a quick reference operation
guide on the inside of the lid.
• Battery-operated: (2) 9V batteries included.
• 1-year limited warranty.
SPECIFICATIONS
Power Requirements Transmitter: (1) 12V rechargeable battery
Receiver: (1) 9V battery
Battery Life Transmitter: 23 hours per charge; Receiver: 200 hours
Transmitter Power 2400VDC peak
Voltage Protection 240VAC/400VDC
Construction Transmitter – aluminum housing in polyethylene case
Receiver – powder coated aluminum
Dimensions Transmitter – 17" x 8.5" x 6.5" (421 mm x 215 mm x
160 mm) in case
Receiver – 33.5" x 21.75" x 3.25" (840 mm x 550 mm x
8 mm) on A-Frame
Weight 12.5 lbs. (5.7 kg) complete
SPECIFICATIONS
Power Requirements (1) 9V each (transmitter and receiver, included)
Battery Life Transmitter 35 hours nominal; Receiver 20 hours nominal
Transmitter Frequency 447.5kHz
Transmitter Power 9Vp-p (11mW)
Voltage Protection 240VAC/500VDC
Construction Transmitter/Receiver – high-impact ABS plastic,
Case – vacuum-formed polyethylene
Dimensions Transmitter – 4" x 2.3" x 1" (101.6 x 58.4 x 25.4 mm),
Receiver – 6" x 2.35" x 1" (152.4 x 59.7 x 25.4 mm),
Case – 9.5" x 8" x 3"(241.3 x 203.2 x 76.2 mm)
Weight 2.6 lbs. (1.2 kg)
PE2003
Great complement to any
buried line cable locator.
USA Tel: 800.435.0786
Fax: 800.451.2632
Canada Tel: 800.435.0786
Fax: 800.524.2853
International Tel: +1.815.397.7070
Fax: +1.815.397.9247
256
Voice • Data • Video
www.greenlee.com
= REPLACEMENT PART = ACCESSORY
Marker-Mate®
• Designed to locate buried electronic markers, including Omni Marker®,
and Uni Marker™
• Five+ foot depth range
• Detects up to seven different marker types
• Scan mode provides simultaneous detection of all marker types
• User-adjustable Detection Threshold
• Digital signal processor accuracy
• Large-character display is easy to read
• Bar graph, numeric & audible signal strength indicators
• Speaker volume adjust
• Headphone jack
• Battery level indicator
• Low battery warning
• Adjustable time out feature prolongs battery life (and can be turned off)
• Weather resistant
• Rugged construction
• Patent pending
CAT. NO. UPC NO. DESCRIPTION
EML100 60798 Marker-Mate Electronic Marker Locator
SPECIFICATIONS
Electrical: Twelve AA batteries
Battery Life: 20 hours typical
Environment:
Operating Temperature: -4°F to 122°F (-20°C to 50°C)
Storage Temperature: -40°F to 158°F (-40°C to 70°C)
Weather Resistant
Physical:
Length: 30.7 in. (780 mm)
Width 7.8 in. (198 mm)
Height: 12.8 in. (325 mm)
Weight: 4.5 lbs. with batteries (2 kg)
Wire and Valve Locator
• Adjustable transmit power allows you to select the best signal for maximum
performance.
• Transmitter’s high power output offers extended range and use on higher
resistance wire paths that other locators can’t touch.
• Receiver provides both audible and visual indications of signal strength.
• Lightweight receiver wand makes it easy for you to move along quickly
to locate even the longest wire path.
• Rugged headphones block ambient noise and improve “feel” for the signal.
• Includes transmitter, receiver, headset, ground stake, and complete instructions.
• Battery-operated: (8) “D” Cells and (1) 9V.
• 1-year limited warranty.
SPECIFICATIONS
Power Requirements Transmitter: (8) “D” Cell;
Receiver: (1) 9V battery
Battery Life Transmitter: 50 hours nominal
Receiver: 100 hours nominal
Transmitter Frequency 1748Hz
Transmitter Power 750Vp-p 285Vrms
Voltage Protection 120VAC/250VDC
Construction Powder-coated aluminum housing in polyethylene case
Case Dimensions 33.5" x 8.25" x 3.75"
Weight 12 lbs. complete
CAT. NO. UPC NO. DESCRIPTION
521A 86788 Wire and Valve Locator
521T 521AT Transmitter
521R 521AR Receiver
HS1 HS1 Headset
GS1 GS1 Ground Stake
www.greenlee.com
257
USA Tel: 800.435.0786
Fax: 800.451.2632
Canada Tel: 800.435.0786
Fax: 800.524.2853
International Tel: +1.815.397.7070
Fax: +1.815.397.9247
Voice • Data • Video
= REPLACEMENT PART = ACCESSORY

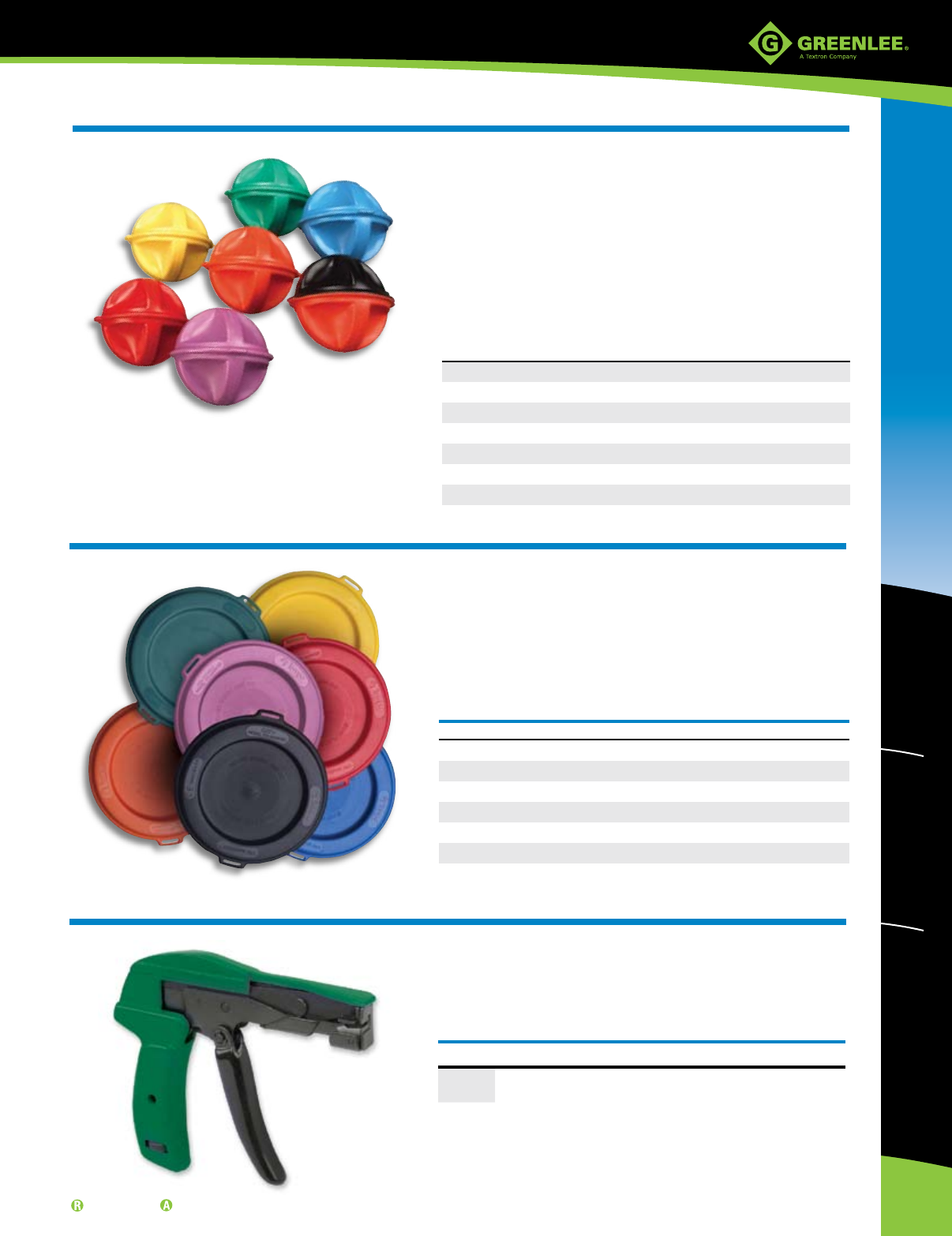

Uni Marker™
• Electronically marks buried facilities for later relocation.
• Rugged polyethylene case ensures years of useful life.
• Small size and flat design attach easily to non-metallic utility box lids,
hand holes and other buried enclosures.
• Location is simple with any modern marker locator.
• Range is 25% more than other similar-style markers.
• Signal peak ensures location within inches of the marker.
• Color coded by utility application.
• Lifetime limited warranty.
APPLICATION COLOR FREQUENCY CAT NO. UPC NO.
Power Red 169.8kHz 0170-0001-1 60771
Water Blue 145.7kHz 0171-0001-1 60772
Sanitary Green 121.6kHz 0172-0001-1 60773
Telephone Orange 101.4kHz 0173-0001-1 60774
Gas Yellow 83.0kHz 0174-0001-1 60775
Cable TV Orange/Black 77.0kHz 0175-0001-1 60776
Non-Potable/Gen I Purple 66.35kHz 0178-0001-1 11059
Kwik Cycle® Cable Tie Guns
The Standard Cable Tie Gun is for use with 5/64" to 3/16" wide cable ties
(2.2 mm to 4.8 mm), and the gun is made of molded nylon.
The Heavy-duty Cable Tie Gun is for use with cable ties up to 1/4" wide
(6.35 mm), and the gun is made of durable metal.
• Tension adjustment allows the user to adapt the tool to the size of the tie.
• Automatic cut-off eliminates sharp edges on ties.
CAT. NO. UPC NO. DESCRIPTION
45306 45306 Standard Cable Tie Gun
45300 45300 Heavy-Duty Cable Tie Gun
Omni Marker®
• Electronically marks and relocates buried facilities.
• Unique design produces a uniform, spherical RF field in every direction.
• Easily located up to 5' away with any modern marker locator.
• Wider field with a signal peak directly above the marker provides
precise location.
• Requires no particular orientation when buried.
• Greater range than standard 4" ball markers.
• High-reliability design lasts as long as your buried plant.
• Color coded by utility application.
• Lifetime limited warranty.
• Patented.
APPLICATION COLOR FREQUENCY CAT NO. UPC NO.
Power Red 169.8kHz 0160-0001-1 60765
Water Blue 145.7kHz 0161-0001-1 60766
Sanitary Green 121.6kHz 0162-0001-1 60767
Telephone Orange 101.4kHz 0163-0001-1 60768
Gas Yellow 83.0kHz 0164-0001-1 60769
Cable TV Orange/Black 77.0kHz 0165-0001-1 60770
Non-Potable Water Purple 66.35 kHz 0168-0001-1 11050
USA Tel: 800.435.0786
Fax: 800.451.2632
Canada Tel: 800.435.0786
Fax: 800.524.2853
International Tel: +1.815.397.7070
Fax: +1.815.397.9247
258
Voice • Data • Video
www.greenlee.com
= REPLACEMENT PART = ACCESSORY

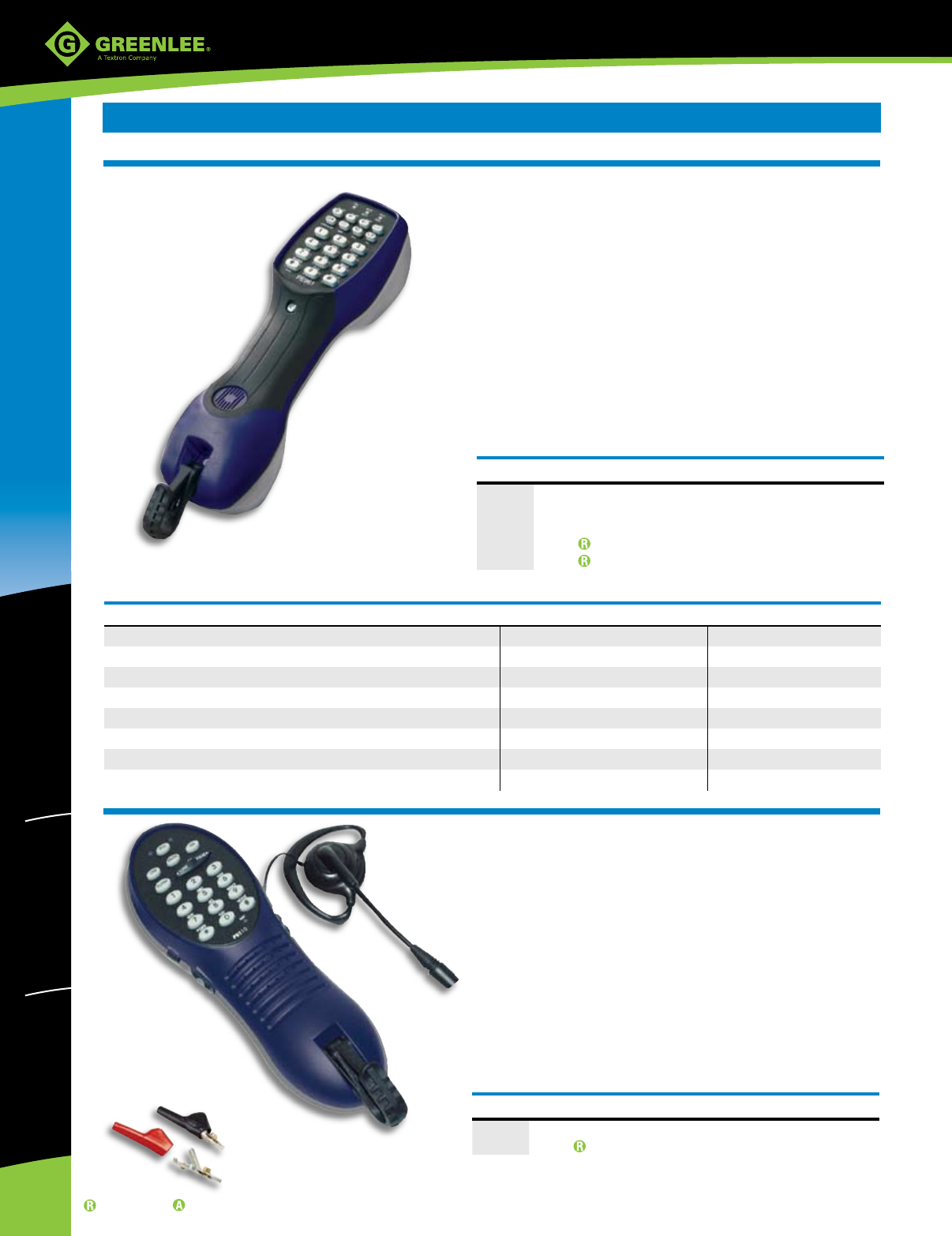

PE 900 Series Telephone Test Sets
• Waterproof tested to an IEC IP67 rating, these test sets are so impervious
to water they can actually withstand submersion.
• The PE961 features our DigAlert™ over-voltage alarm and lock-out
function to eliminate the danger of damaging or knocking out digital
service lines.
• The new PE961 provides full ADSL compatibility.
• Ten-number speed dial memory (32 digits each).
• Last number redial.
• Precise hook flash.
• Microphone mute.
• Audible and visual mode indicators.
• Polarity test in any mode.
• Unique quick-release belt clip.
• Premium cord set with bed-of-nails and piercing pin clips.
• Three year warranty.
FEATURE PE930 PE945 PE961
Data Safe Monitor ✔ ✔ ✔
Adjustable Ringer ✔ ✔ ✔
Waterproof Design ✔ ✔ ✔
Loud Speaker Listening ✔ ✔
Two-Way Hands Free ✔ ✔
DigAlert™ Data Lock-out ✔
ADSL Compatible ✔
RPC
Replacement Piercing Clips (see page 238)
Tele-Mate® Communication Test Set
• Designed for communications wiring installation and repair to quickly
verify the quality of a new installation.
• Affordable
• Headset for hands-free operation.
• Rugged design for demanding use.
• Compact design and durable belt clip make it easy to carry.
• Adjustable volume.
• Built-in ringer.
• Tone/Pulse dialing.
• Last number redial.
• Line polarity indication.
• Microphone mute.
• Data safe monitor mode.
• Replaceable premium cord set with telco-style clips.
CAT. NO. UPC NO. DESCRIPTION
PE810 60298 Tele-Mate® Communication Test Set
PE909 60785 Cord Set
PE810
PE961
CAT. NO. UPC NO. DESCRIPTION
PE930 60487 Telephone Test Set
PE945 60489 Test Set with Two-Way Hands Free
PE961 60511 Test Set with Two-Way Hands Free and DigAlert
PE901 60492 Ground Start Cord Set
PE902 60493 Cord Set
CABLE & SERVICE TESTING
www.greenlee.com
259
USA Tel: 800.435.0786
Fax: 800.451.2632
Canada Tel: 800.435.0786
Fax: 800.524.2853
International Tel: +1.815.397.7070
Fax: +1.815.397.9247
Voice • Data • Video
= REPLACEMENT PART = ACCESSORY

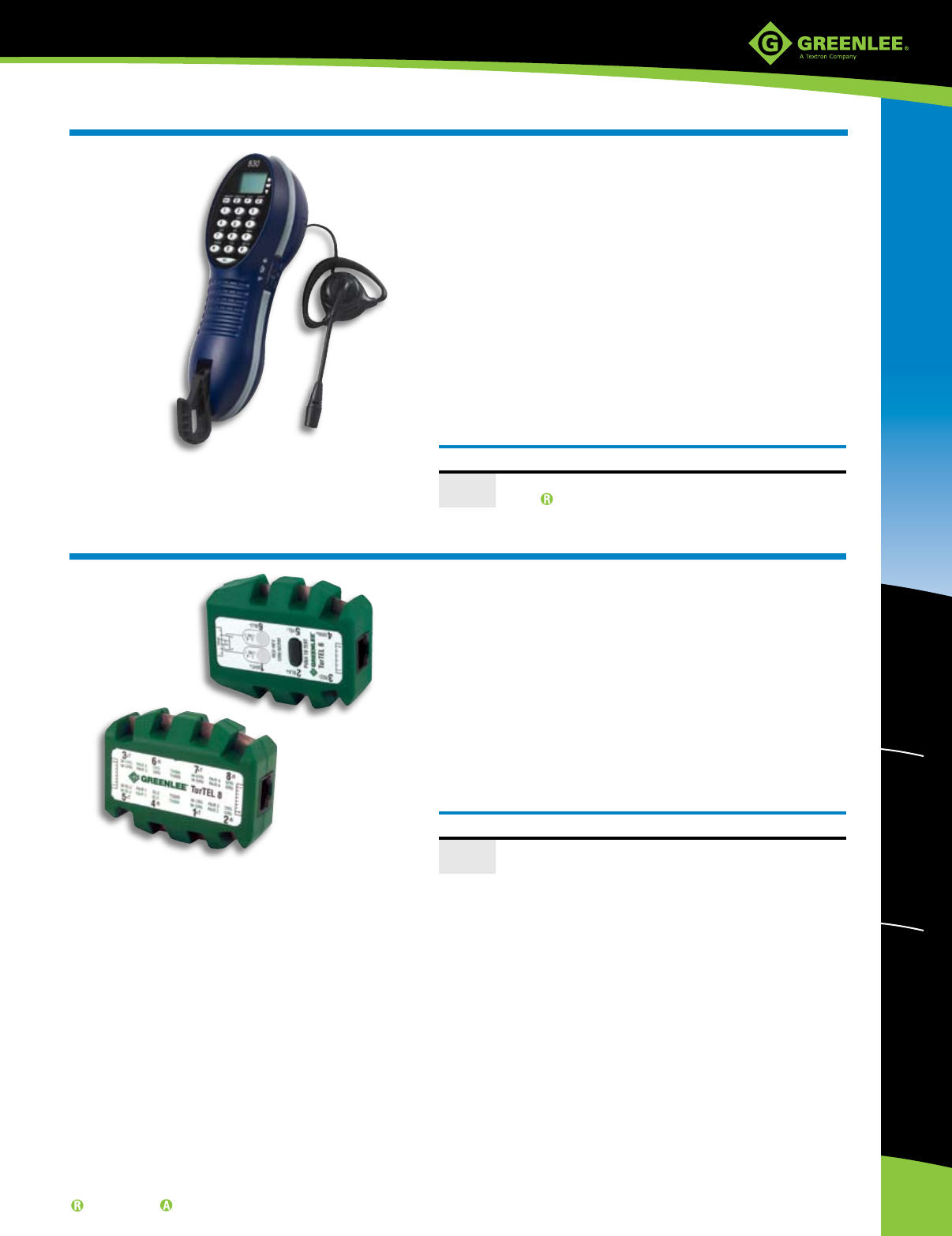

Tele-Mate® Pro Telephone Test Set
TurTEL Modular Adapters/Polarity Tester
• The Tele-Mate Pro Telephone Test Set will help you deal with
the increasing complexity of telecom installation and maintenance.
• Complete telephone set with ringer
• Phone-to-phone intercom
• Modular or alligator clip connection
• LCD Display in English, Spanish or French
• Caller ID with name display
• Call waiting Caller ID
• Missed call indication
• Line voltage and current display
• High voltage detect and lockout
• High current detect and lockout
• Amplified loudspeaker line monitor
• Headset or handset operation
• Tone and pulse dialing
• Large 10-location speed dialing memory
• Multi-memory redial
CAT. NO. UPC NO. DESCRIPTION
PE830 60299 Tele-Mate Pro Telephone Test Set
PE909 60785 Cord Set
• Use with tone generators, test sets and other test devices to troubleshoot and
isolate problems with telephone circuits.
• Two jacks allow in-line testing without service interruption.
• The TurTEL 6 has two six-position, six-wire jacks.
• The TurTEL 8 has two eight-position, eight-wire jacks.
• Simple, push button operation to check polarity and power.
• Reduced chance of shorting adjacent alligator clips due to unique shape.
• Test contacts are perforated to provide sure grip for alligator clips or use of probes.
• The TurTEL 6 has an internal circuit to allow testing of polarity for either of two
lines (pairs 4 to 5 or 3 to 6) – circuit allows verification of power and phone
number assignments.
• Patch cord included.
• Heavy-duty stainless steel belt clip.
• Lifetime limited warranty.
CAT. NO. UPC NO. DESCRIPTION
46040 46040 TurTEL 6 Modular Adapter/Polarity Tester
46050 46050 TurTEL 8 Modular Adapter
46040
46050
PE830
USA Tel: 800.435.0786
Fax: 800.451.2632
Canada Tel: 800.435.0786
Fax: 800.524.2853
International Tel: +1.815.397.7070
Fax: +1.815.397.9247
260
Voice • Data • Video
www.greenlee.com
= REPLACEMENT PART = ACCESSORY

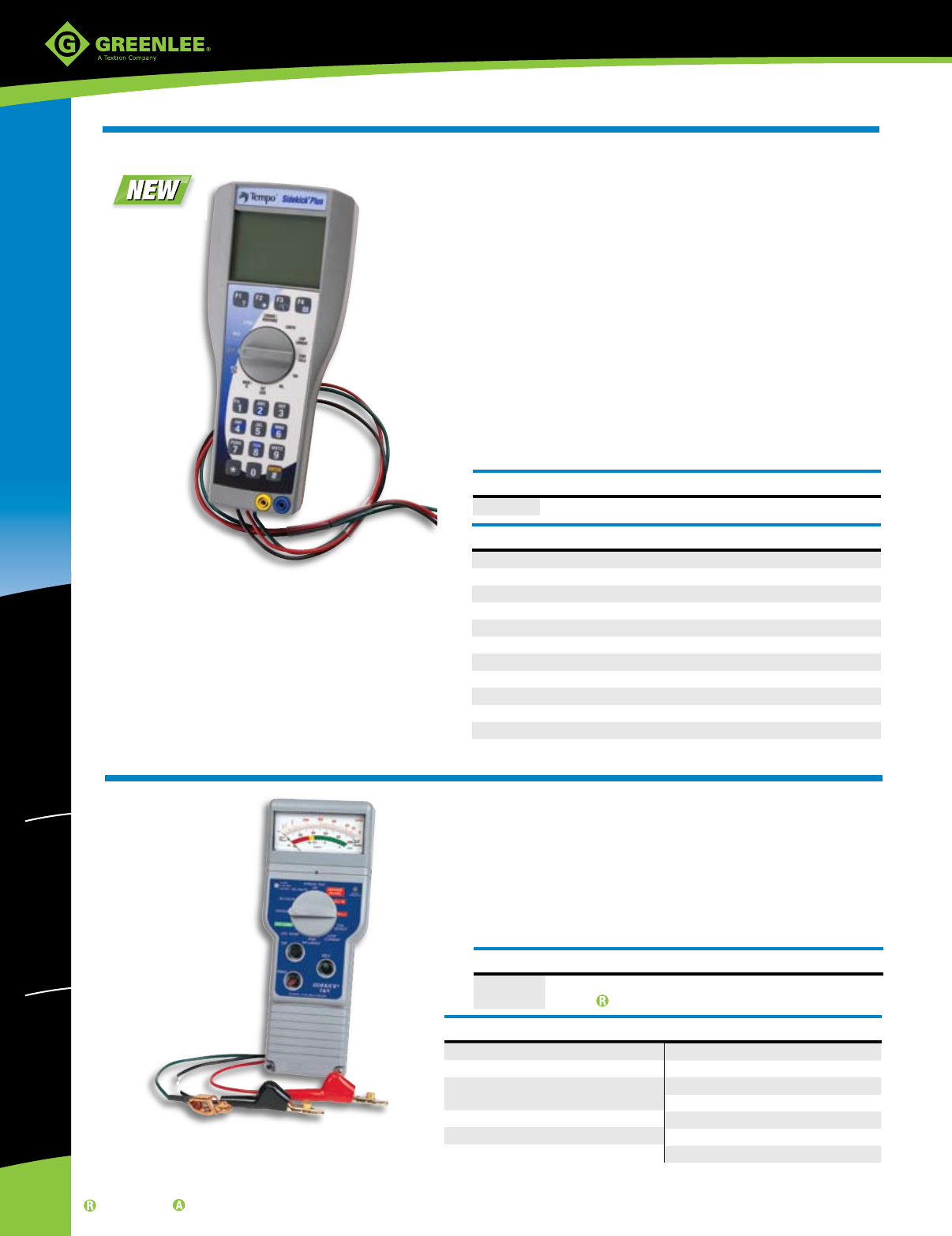

Sidekick® T&N
• Five transmission and noise tests.
• Determines the stressed noise susceptibility of dry and working pairs.
• Measures resistance, AC/DC volts, and capacitive kick.
• Provides tone for twisted pair or crossed conductor identification.
• Single setup for testing Tip-Ring, Tip-Ground, and Ring-Ground.
• Minimal drying effect in all ranges.
• Field replaceable leads.
• Softcase with adjustable strand hook.
• Low Battery indicator light.
CAT. NO. UPC NO. DESCRIPTION
1137-5002 60526 Sidekick T&N
1134-1002 60752 Case
1137-5002
SPECIFICATIONS
Dimensions 10.75" x 4.25" x 2.5"
Weight 2 lbs.
Resistance Rx1: Reads 0 to 2000 Ω
Rx1K: Reads 0 to 2 MΩ
Leakage Rx10K: Reads 0 to 20 MΩ
DC Voltage 0 to 100 volts DC
AC Voltage 0 to 200 Vrms
Stress Test 0 to 82 dBrnC
Loop Current 0 to 100 mA
Circuit Noise 0 to 75 dBrnC
Circuit Loss -15 to +1 dB
Power Influence 50 to 100 dBrnC
Operating Temp. -4°F to +140°F
Power Four AA batteries
1155-5000
Sidekick® Plus Advanced Cable Maintenance Test Set
• Complete metering of voltage, current and resistance on copper cables
• Patented stress balance test
• Measurement of distance to opens
• Line quality tests for noise, loss and power influence
• Multimode wire tracing tone
• Resistance fault locator (RFL) and calculator
• Powerful Time Domain Reflectometer (TDR)
• Caller ID display
• Built-in loudspeaker dialing with phone book memory
• Auto-test mode with Pass/Fail
• USB download of test results and upload of software
• Analog meter or digital display selectable
• Big, easy-to-read display with backlight
• Rechargeable (included) or replaceable batteries
• Advanced cable diagnosis and troubleshooting in a single test set
• Quick testing and fast repairs
• Test data capture for sharing and records
• Easy to learn, especially for Sidekick family users
• Field upgradeable software
CAT. NO. UPC NO. DESCRIPTION
1155-5000 60886 Sidekick Plus Test Set
SPECIFICATIONS
Dimensions 11 x 4.75 x 3 inches
Weight 3 lbs.
Resistance 100 megohm max
Leakage 100 megohm max
DC Voltage 0 to 300 Volts DC
AC Voltage 0 to 250 Vrms
Stress Balance 0 to 82 dBrnC
RFL 20 megohm, distance to 2 megohm
TDR Range 33 kilofeet
Operating Temp. 14°F to +120°F
Power Four AA batteries
www.greenlee.com
261
USA Tel: 800.435.0786
Fax: 800.451.2632
Canada Tel: 800.435.0786
Fax: 800.524.2853
International Tel: +1.815.397.7070
Fax: +1.815.397.9247
Voice • Data • Video
= REPLACEMENT PART = ACCESSORY

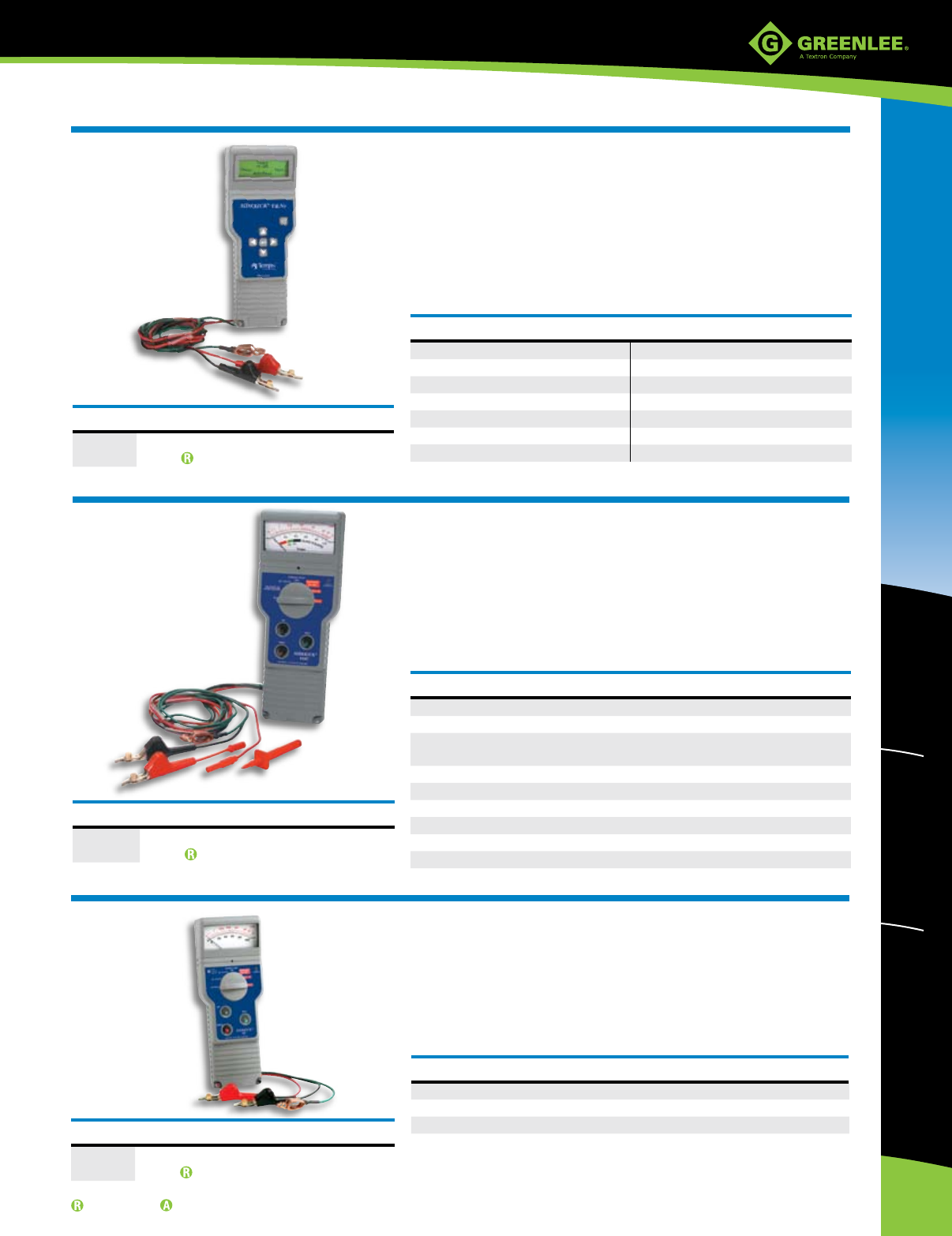

Sidekick® 7B
Sidekick® T&ND
• Determines the stressed noise susceptibility of dry and working pairs.
• Measures resistance, AC/DC volts, and capacitive kick.
• Provides tone for twisted pair or crossed conductor identification.
• Single setup for testing Tip-Ring, Tip-Ground, and Ring-Ground.
• Minimal drying effect in all ranges.
• Field replaceable leads.
• Softcase with adjustable strand hook.
• Low Battery indicator light.
• Easy-to-read digital LCD display.
• Internal Dialer for making Transmission Test connections.
• Autotest – performs 22 individual tests at the touch of a button.
• Determines the stressed noise susceptibility of dry and working pairs.
• Measures AC/DC Volts, Leakage, resistance, and loop current.
• Performs circuit loss, circuit noise (metallic noise), and power influence tests.
• Built-in open meter.
• Locates up to 4 load coils.
• Single set up for Tip-Ring, Tip-Ground, and Ring-Ground tests.
• Field replaceable test leads.
• On-screen display of “LOW BATTERY” when batteries are near failure.
CAT. NO. UPC NO. DESCRIPTION
1134-5029 60525 Sidekick 7B
1134-1002 60752 Case
CAT. NO. UPC NO. DESCRIPTION
1144-5000 60853 Sidekick T&ND Test Set
1134-1002 60752 Case
1134-5029
1144-5000
Dimensions 10.75" x 4.25" x 2.5"
Weight 2 lbs.
Resistance Rx1: Reads 0 to 2000 Ω; Rx1K: Reads 0 to 2 MΩ
Leakage Rx10K: Reads 0 to 20 MΩ
SPECIFICATIONS
Opens 0 to 60 kft.
Loop Current 0 to 100 mA
Load Coil up to 4
Circuit Loss +1 to -15 dB
Power Influence 40 to 100 dBrnC
Circuit Noise 0 to 75 dBrnC
Power Four AA Batteries
Weight 2 lbs.
Dimensions 10.75” X 4.25” X 2.5”
AC Volts 300 Vrms max.
DC Volts ± 300 Volts max.
Resistance 1 MW max.
Leakage 100 MW max.
Stress 0 to 82 dBrnC
SPECIFICATIONS
1143-5000
Sidekick® V.O.C.
• Identifies defective inside wire and jacks.
• Measures resistance, AC/DC volts, quasi square wave, and pair balance.
• Identifies shorts, opens, crosses and grounds.
• Replaces the need for other meters.
• Provides tone for twisted pair or crossed conductor identification.
• Single set-up for testing Tip-Ring, Tip-Ground, and Ring-Ground with
ground connection.
• Field replaceable leads.
• Softcase with adjustable hook.
• Low Battery indicator light.
CAT. NO. UPC NO. DESCRIPTION
1143-5000 60527 Sidekick V.O.C.
1134-1002 60752 Case
SPECIFICATIONS
Dimensions 10.75 x 4.25 x 2.5 inches
Weight 2 lbs.
Resistance Rx1: Reads 0 to 2000 Ω
Rx1K: Reads 0 to 2 Megohms
Leakage Rx10K: Reads 0 to 20 Megohms
DC Voltage 0 to 100 Volts DC
AC Voltage 0 to 200 Vrms
Stress Test 0 to 82 dBrnC
Operating Temp. -4°F to +140°F
Power Four AA batteries
USA Tel: 800.435.0786
Fax: 800.451.2632
Canada Tel: 800.435.0786
Fax: 800.524.2853
International Tel: +1.815.397.7070
Fax: +1.815.397.9247
262
Voice • Data • Video
www.greenlee.com
= REPLACEMENT PART = ACCESSORY

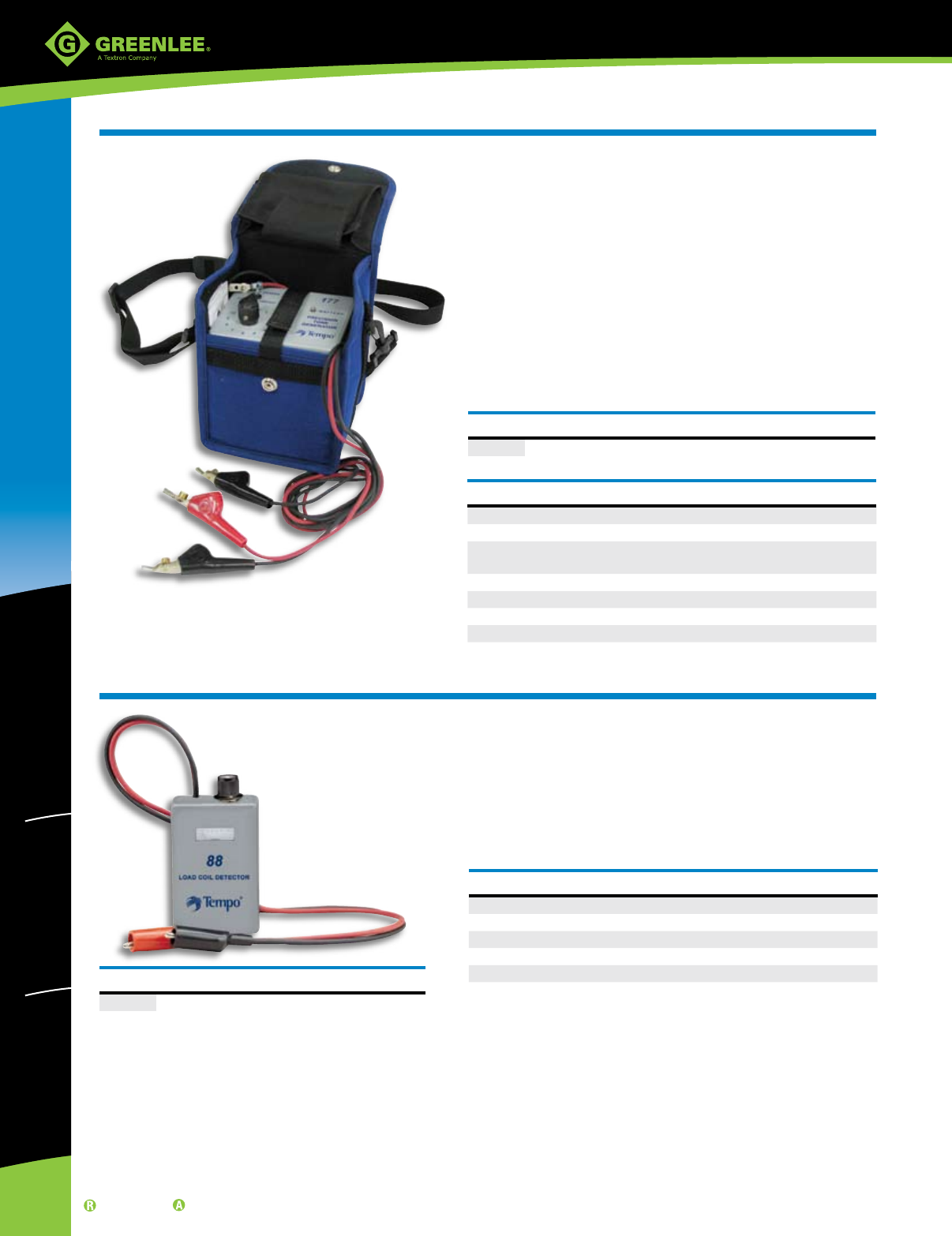

Precision Tone Generator
• Used in the telecommunications industry for pair identification and fault locating.
• Supplies a precise 577.5Hz crystal controlled signal frequency.
• Variable output allows technicians to adjust signal strength to suit field
conditions and improve accuracy.
• Designed to work with any common amplifier and exploring coil for
aerial fault locating.
• For communications over inactive pairs, the unit supplies talk battery to power
two telephone test sets (buttsets).
• Each of the three test leads is equipped with traditional bent nose piercing clips
with “bed-of-nails” insulation piercing pins.
• The tone generator and test leads fit neatly in a durable, protective woven
polyester carrying case with shoulder strap.
• 1-year warranty.
• Battery-operated (1 – 6V lantern included).
CAT. NO. UPC NO. DESCRIPTION
177 08657 Precision Tone Generator
SPECIFICATIONS
Power Requirements One 6V lantern battery
Battery Life 40 hours nominal
Transmitter
Frequency
577.5Hz pulsed at 1Hz, crystal controlled
Output Voltage 0.1 to 80Vp-p
Output Signal Level 0 to +30dBm
Construction High impact ABS plastic in woven polyester case
Dimensions 7.25" x 5.5" x 4.5" in case
Weight 3 lbs. with battery
Load Coil Detector
• Designed for the telecommunications market, the 88 Load Coil Detector will identify
the presence and count the number of load coils on an active or inactive circuit.
• No complicated screens or test instructions to decipher.
• Designed to withstand the rigors of daily use, the tester speeds troubleshooting
dedicated data circuits. Simply connect the test leads and turn the switch.
• While gradually turning the control, the display will “kick” to signify each coil
detected on the pair.
• Accurately identifies and counts up to four load coils on the circuit under test.
• 1-year warranty.
CAT. NO. UPC NO. DESCRIPTION
88 08656 Load Coil Detector
SPECIFICATIONS
Power Requirements One 9V battery
Battery Life 100 hours nominal
Construction High impact ABS plastic
Dimensions 4 x 2.25 x 1.5"
Weight 5.8 oz. with battery
www.greenlee.com
263
USA Tel: 800.435.0786
Fax: 800.451.2632
Canada Tel: 800.435.0786
Fax: 800.524.2853
International Tel: +1.815.397.7070
Fax: +1.815.397.9247
Voice • Data • Video
= REPLACEMENT PART = ACCESSORY
TelScout® TS100
• Twisted Pair and Coax Testing in a Single Unit (optional).
• One-Step Setup.
• Automatic and Manual Instrument Control Mode.
• 45 kilofeet Fault Location Capability.
• Rugged – Survives 6 foot (2m) Drop.
• Splash and Drip Proof.
• Powered from AC Mains or Battery.
• Single-Button Zoom Function.
• Short Pulse Width Option (Includes Coax Testing Capability).
• Pair Comparison Mode.
• Splits/Crosstalk Mode.
• Intermittent Fault Location.
• Measures Distance to Fault in Feet, Meters, or Time.
• Configurable for Any Cable Type and Vp (0.300 to 1.000).
• Internal Memory Waveform Storage and Trace Upload to PC Software
(MCTAP-Option).
• Serial Printer Output for Stored or Displayed Waveforms.
• Accurate (±3 ft. at 10,000 ft.)
• On-line Tutorials.
• Large Backlit Display.
CAT. NO. UPC NO. DESCRIPTION
TS100-01 60520 TelScout TS100-01 Metallic TDR
650391700 60754 Leads
SPECIFICATIONS
Environmental
Temperature –
Operating: 17° F to 92°F (-15° C to +60° C).
Non-operating: 12° F to 97° F (-20° C to +65° C).
Humidity – 95% RH, non-condensing.
Shock (test specification) – Survives drop of 2 m to
concrete in standard soft case.
EMI Emissions – FCC part 15, subpart J, class A;
VFG243 and EN55022.
Power
Mains Operation –
Voltage Ranges: 110 V, 220 V, 240 V with appropriate AC
to DC adapter.
Battery Operation –
Operating Time: 8 hrs. continuous.
Battery Saver: Selectable for 5 to 30 minutes or disabled.
Physical
Dimensions in. mm
Height 12 30
Width 10 25
Depth 3.5 9
Weight lb. kg
Net 6.4 3
USA Tel: 800.435.0786
Fax: 800.451.2632
Canada Tel: 800.435.0786
Fax: 800.524.2853
International Tel: +1.815.397.7070
Fax: +1.815.397.9247
264
Voice • Data • Video
www.greenlee.com
= REPLACEMENT PART = ACCESSORY
SPECIFICATIONS

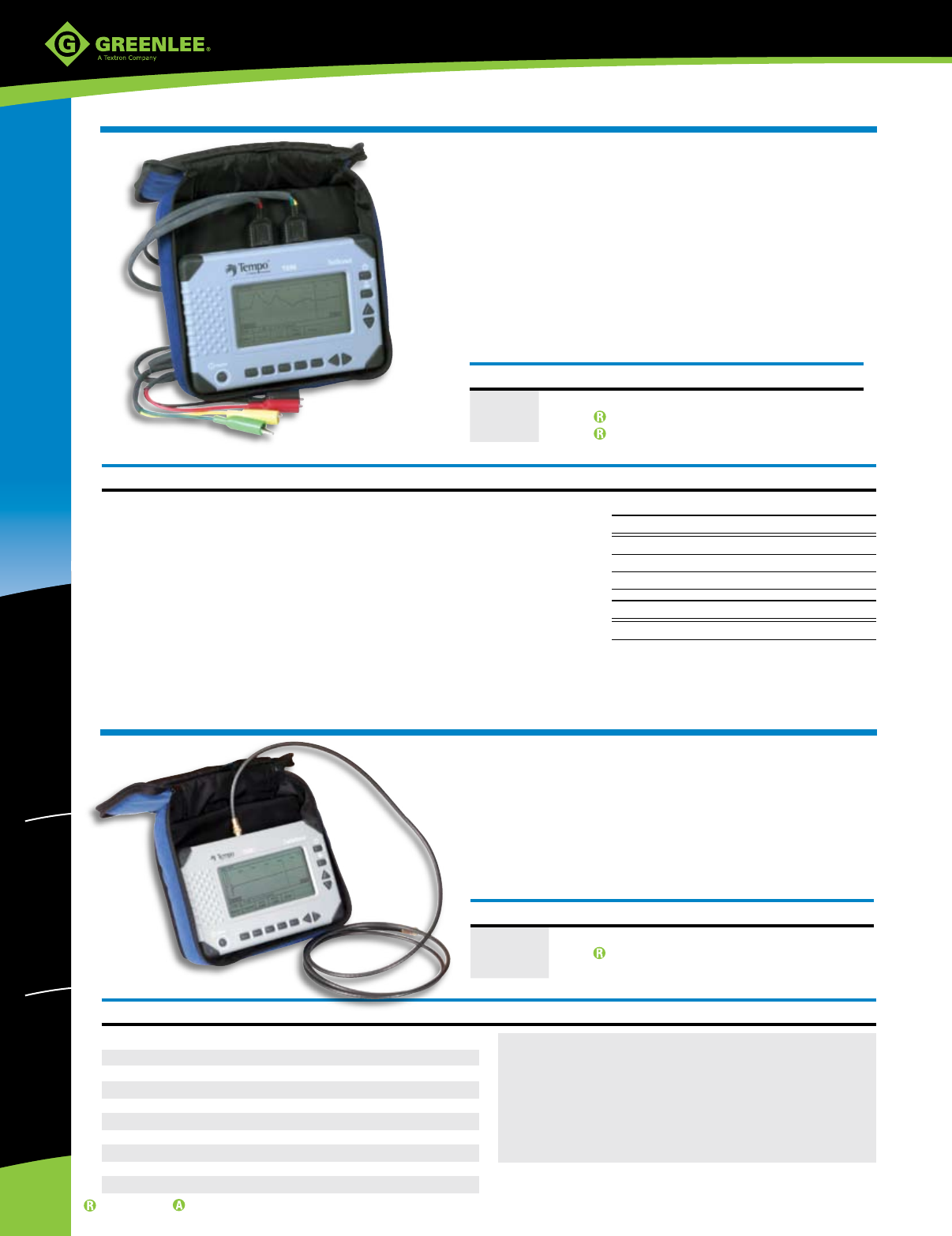

TelScout® TS90
CableScout™ TV90
• Two Pair Test Capability
• One-Step Setup
• Automatic Instrument Control Mode
• 45,000' (15 km) Fault Location Capability
• Splash and Drip Proof
• Single-Button Zoom Function
• Pair Comparison Mode
• Splits/Crosstalk Mode
• Intermittent Fault Location
• Measures Distance to Fault in Feet, Meters, or Time
• Configurable for Any Cable Type and Vp (0.300 to 1.000)
• Accurate (±3 ft. at 10,000 ft.)
• On-line Tutorials
• Large Backlit Display
CAT. NO. UPC NO. DESCRIPTION
TS90 60522 TelScout TS90
012154500 60740 Leads
THM5BAT 60756 Battery
• High performance easy to use, Time Domain Reflectometer for Coaxial
testing applications.
• Employs optimized pulsing and sampling, coupled with advanced
filtering and signal-processing techniques to ensure clean waveform
and easy identification.
• Context-sensitive help screens for all functions
• Small, portable and lightweight 2.2 lbs. (1kg)
• Includes rechargeable battery pack
• Includes twisted pair adapter and test probe
Environmental
Temperature –
Operating: 32° F to 77°F (0° C to +45° C).
Non-operating: 12° F to 92°F (-20° C to +60° C).
Humidity – 95% RH, non-condensing.
EMI Emissions –
EN55011 class A.
EN60555-2.
Power
Battery Operation –
Battery Type: Six AA Alkaline.
Operating Time: >4.5 hrs. with backlight off.
Battery Saver:
Selectable for 5 to 30 minutes or disabled.
Physical
Dimensions in. mm
Height 5.6 141
Width 8.3 211
Depth 1.8 43
Weight lb. kg
Net 2.2 1
SPECIFICATIONS
• Easy to operate (help screens available for all functions)
• Fast fault finding with automatic gain and vertical waveform positioning
• One-button Expand/Full View Function and zoom control.
• Precision accuracy 0-200 ft +- 2 ft. 1% beyond.
• Range up to 4000 ft.
• High-resolution with optimizing pulse and sampling and advanced filtering
• Input Protection: 200 VDC + Peak AC.
• Rugged - designed for harsh environments
• Large 7.2-in. high-resolution backlit display.
• International power supply options
Environmental
Temperature:
Operating: 32° F to 77°F (0° C to +45° C).
Non-Operating: 12° F to 92°F (-20° C to +60° C).
Durability: Survives Drop test of 6 foot (2m) to concrete in soft case
Power: 110 V, 220 V, 240 V with appropriate power adapter
Battery type: 6 AA Alkaline and NiCad rechargeable pack. 4.5 hours con-
tinuous operation with adjustable battery saver modes
Standards
Compliant: UL, FCC EMI, CAN/CSA, EN, and CE
CAT. NO. UPC NO. DESCRIPTION
TV90 12600 TV90 CableScout TDR
THM5BAT 60756 Battery
www.greenlee.com
265
USA Tel: 800.435.0786
Fax: 800.451.2632
Canada Tel: 800.435.0786
Fax: 800.524.2853
International Tel: +1.815.397.7070
Fax: +1.815.397.9247
Voice • Data • Video
= REPLACEMENT PART = ACCESSORY

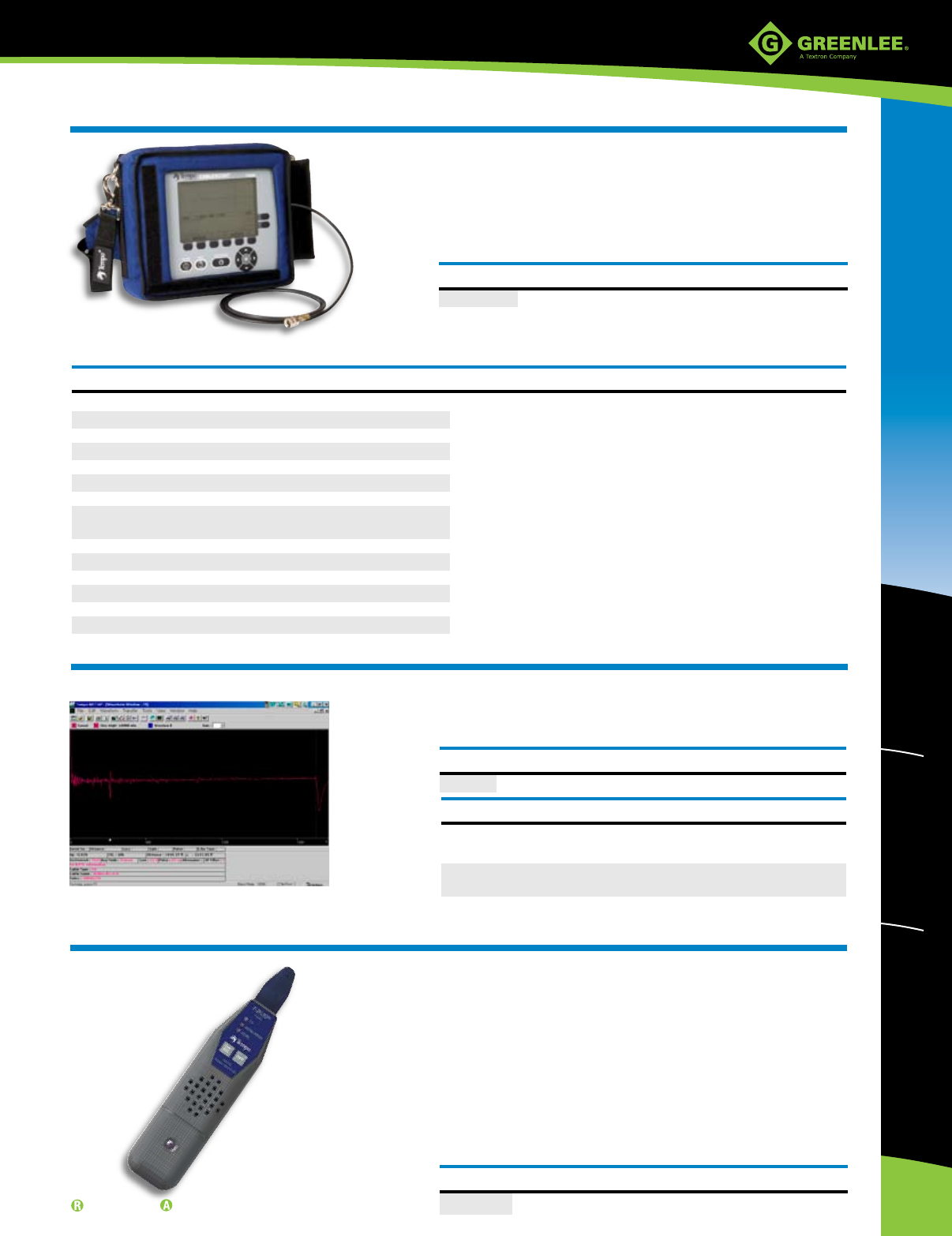

CableScout™ TV220TDR
MCTAP Waveform Analysis Software for TS100/TV220
T-Bug® Digital Signal Identifier
• CableScout TV220: High Performance Time Domain Reflectometer
for Coaxial Applications.
• The TV220 is designed to quickly locate faults that effect digital services
in the Cable TV Network.
• High Frequency acquisition system exposes faults invisible to other TDR’s.
• High signal-to-noise ration (SNR) allows for precision multiple fault
location accuracy.
• Metallic Cable Trace Analysis Package (MCTAP) is a Windows based program
for viewing and analyzing wave forms acquired by the Tempo TV220 and
TS100 TDR. MCTAP may be installed on computers running Windows
95/98, Windows NT, Windows ME, 2000, XP.
CAT. NO. UPC NO. DESCRIPTION
MCTAP 60755 MCTAP Software
• Used to detect digital signals on twisted pair cables, identify and isolate digital
pairs for special handling and help technicians avoid accidentally putting pairs
out of service.
• Operation is non-invasive and does not involve metallic contact so there’s
no risk of service interruption.
• Simple to use – just place the probe between the pairs in question.
• Differential amplifier saves time by allowing the technician to determine
whether the signal is truly present or is an induced signal from adjacent pairs.
• False readings due to noise are virtually eliminated.
• Continuous self test ensures that the unit is functioning properly.
• Emits both visible and audible indication when digital signals are present.
• Patented.
SPECIFICATIONS
Easy to operate with on-board Tutorials
Automatic or manual test features
One-button zoom control.
Trace comparison mode
Intermittent Fault location
Automatic event return loss
Input protection to 400 VDC + Peak AC
Internal memory waveform storage and trace upload to PC
Software (MCTAP- Option).
Serial output connector - print directly from unit
Precision accuracy to +- 4 ft. at 12,000'
High-resolution 1 (ns) short pulse width.
Rugged - designed for harsh environments
Large 7.2-in. high-resolution backlit display.
International language and power supply options
Environmental
Temperature:
Operating: 22° F to 72°F (-10° C to +40° C).
Non-Operating: 12° F to 92°F (-20° C to +60° C).
Durability: Survives Drop test of 6 foot (2m) to concrete
in soft case
Power: 110 V, 220 V, 240 V with appropriate power adapter
Battery type: Internal Lead Acid rechargeable. 8 hours continuous
operation with adjustable battery saver modes
Standards Compliant: UL, FCC EMI, CAN/CSA, EN and CE
CAT. NO. UPC NO. DESCRIPTION
0134-0500 60764 T-Bug Digital Signal Identifier
• TDR waveforms that are saved in the field can be uploaded to a computer for data
management and analysis
• Waveform data can be exported as BMP, JPEG, and TIF file formats for easy
communication of data
• Waveform data can be exported as text or spreadsheet compatible files for use in word
processors or spreadsheet programs
SPECIFICATIONS
CAT. NO. UPC NO. DESCRIPTION
TV220 12599 CableScout TV220TDR
USA Tel: 800.435.0786
Fax: 800.451.2632
Canada Tel: 800.435.0786
Fax: 800.524.2853
International Tel: +1.815.397.7070
Fax: +1.815.397.9247
266
Voice • Data • Video
www.greenlee.com
= REPLACEMENT PART = ACCESSORY

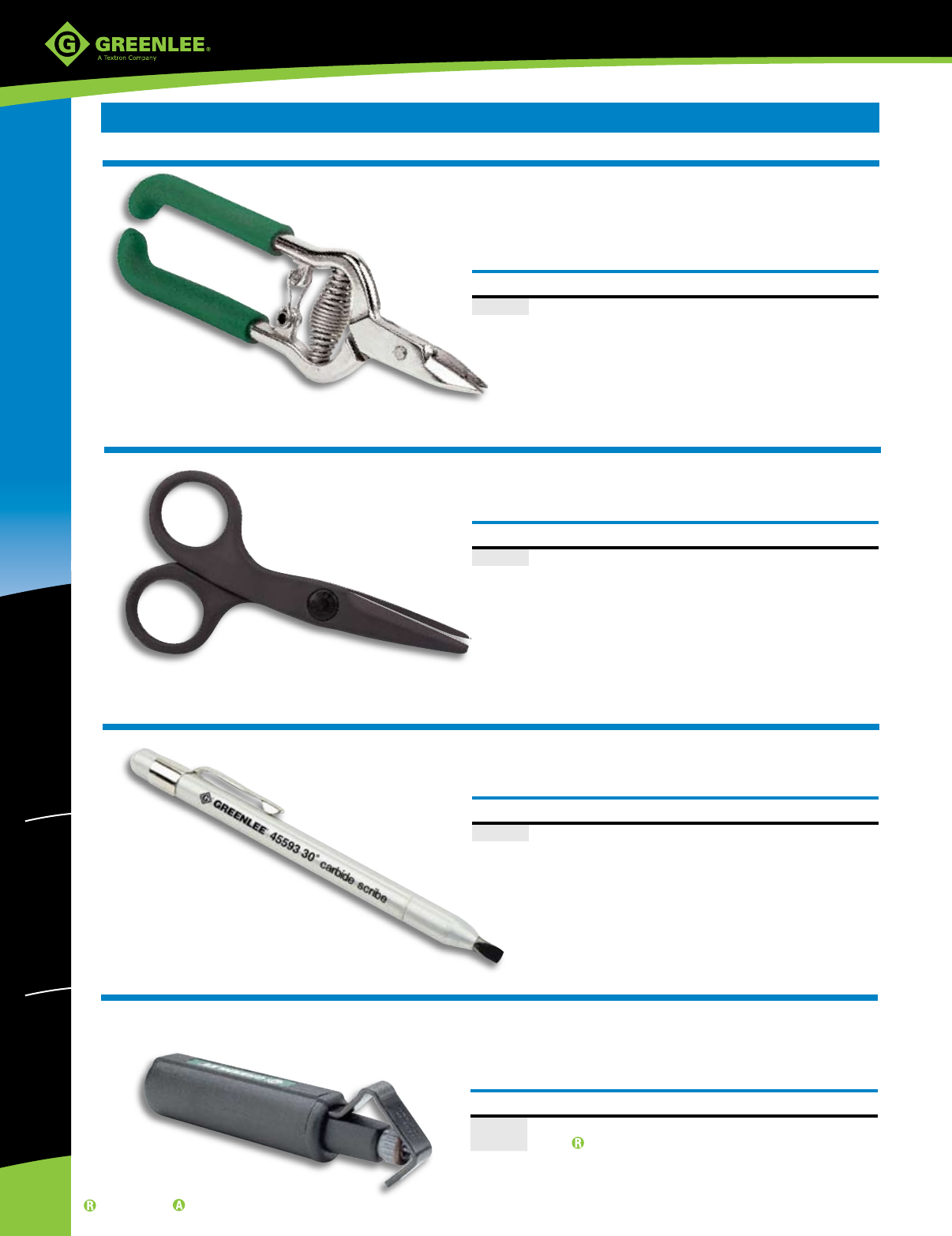

Fiber Optic Kevlar® Shears
Ceramic Kevlar® Cutter
Fiber Optic Carbide-Tipped Scribe
• Easily cuts through DuPont Kevlar or other aramid yarn.
• Serrated blade prevents slipping.
• High-leverage handles facilitate cutting.
• Cushioned-grip handle for comfortable use.
• Manufactured from hot-forged, high-carbon steel for long life.
CAT. NO. UPC NO. DESCRIPTION
45586 45586 Fiber Optic Kevlar Shears
• Quickly and precisely trims the Kevlar strength member in fiber optic cable.
• Ceramic blades never need sharpening and have a long life.
• Handle is tough and durable.
CAT. NO. UPC NO. DESCRIPTION
45483 45483 Ceramic Kevlar Cutter
• Provides consistently good cleaves.
• 30° wedge tip is made of carbide to ensure long life.
• Made in the USA.
Kevlar is a registered trademark of E.I. Dupont, Inc.
Kevlar is a registered trademark of E.I. Dupont, Inc.
CAT. NO. UPC NO. DESCRIPTION
45593 45593 Fiber Optic Carbide-Tipped Scribe
Pocket Cable Stripper
• Specifically designed for stripping power and telecommunications cables
from 3/16" to 1-1/8" in diameter (4.5 mm to 29 mm).
• Easy blade depth adjustment.
• 90º blade rotation allows longitudinal, circular and spiral slitting of insulation.
CAT. NO. UPC NO. DESCRIPTION
1900 45824 Pocket Cable Stripper
07915 07915 Cutting Blade
FIBER TERMINATION & TESTING
www.greenlee.com
267
USA Tel: 800.435.0786
Fax: 800.451.2632
Canada Tel: 800.435.0786
Fax: 800.524.2853
International Tel: +1.815.397.7070
Fax: +1.815.397.9247
Voice • Data • Video
= REPLACEMENT PART = ACCESSORY

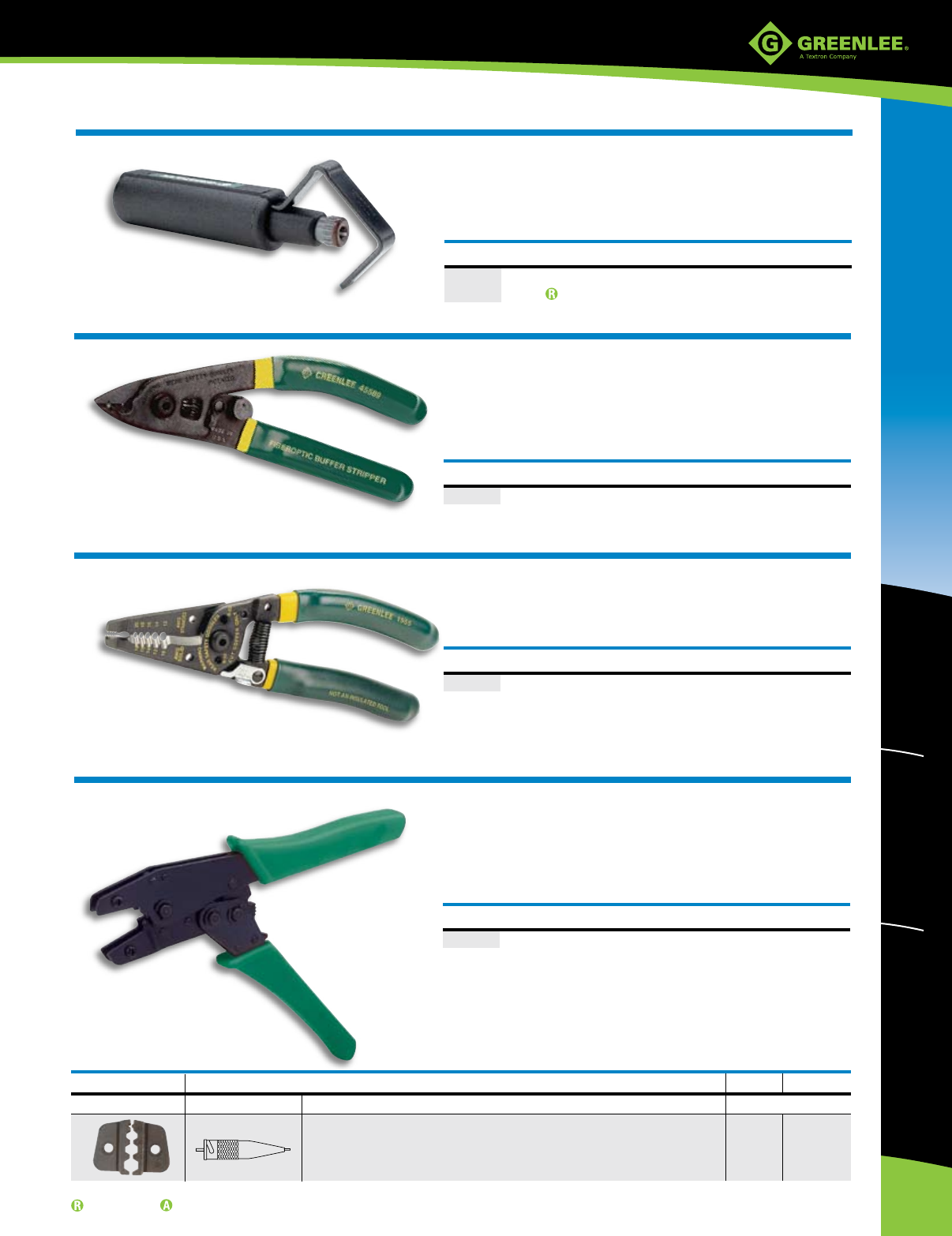

Pocket Cable Stripper
Fiber Optic Buffer Stripper
• Specifically designed for stripping power and telecommunications cables
from 3/4" to 1-1/2" in diameter (19 mm to 40 mm).
• Strips solid conductor, stranded conductor and multiple conductor cables.
• Easy blade depth adjustment.
• Blade rotates for circular, longitudinal and spiral cuts.
CAT. NO. UPC NO. DESCRIPTION
1901 45823 Pocket Cable Stripper
07915 07915 Cutting Blade
• Easily removes the buffer from both 250 and 900 micron cables.
• Preset at the factory – no adjustments required.
• Cushioned-grip ergonomic handles for comfortable use.
• Will not scratch or nick glass or fiber.
• 1.0 mm diameter stripping hole strips most fiber jackets.
• Made in the USA.
CAT. NO. UPC NO. DESCRIPTION
45589 45589 Fiber Optic Buffer Stripper
Pro-Plus Wire Stripper
• Strips the outer jacket off fiber optic cable.
• Extra-long, curved and cushioned handles add comfort and reduce hand fatigue.
• Lock tab protects cutting edges during storage.
• Made in the USA.
CAT. NO. UPC NO. DESCRIPTION
1955 06857 Pro-Plus Wire Stripper, 10-18 AWG
DESCRIPTION CAT. NO. UPC NO.
CONNECTION FEATURES TOOL WITH DIE
0.151" (3.84 mm) hex cavity 45637 45637
0.178" (4.52 mm) hex cavity
0.213" (5.41 mm) hex cavity universal fiber optic die
Kwik Cycle® 8" Crimp Tool for Fiber Optic Connectors
• Features a smaller handle spread with a comfortable,
ergonomically designed handle.
• Ideal for the hard to handle smaller connectors, such as fiber optic
connectors and open barrel contacts.
• Die sets are easily interchangeable with a screwdriver.
• Includes die set.
CAT. NO. UPC NO. DESCRIPTION
45637 45637 8" Fiber Optic Connector Crimp Tool
USA Tel: 800.435.0786
Fax: 800.451.2632
Canada Tel: 800.435.0786
Fax: 800.524.2853
International Tel: +1.815.397.7070
Fax: +1.815.397.9247
268
Voice • Data • Video
www.greenlee.com
= REPLACEMENT PART = ACCESSORY

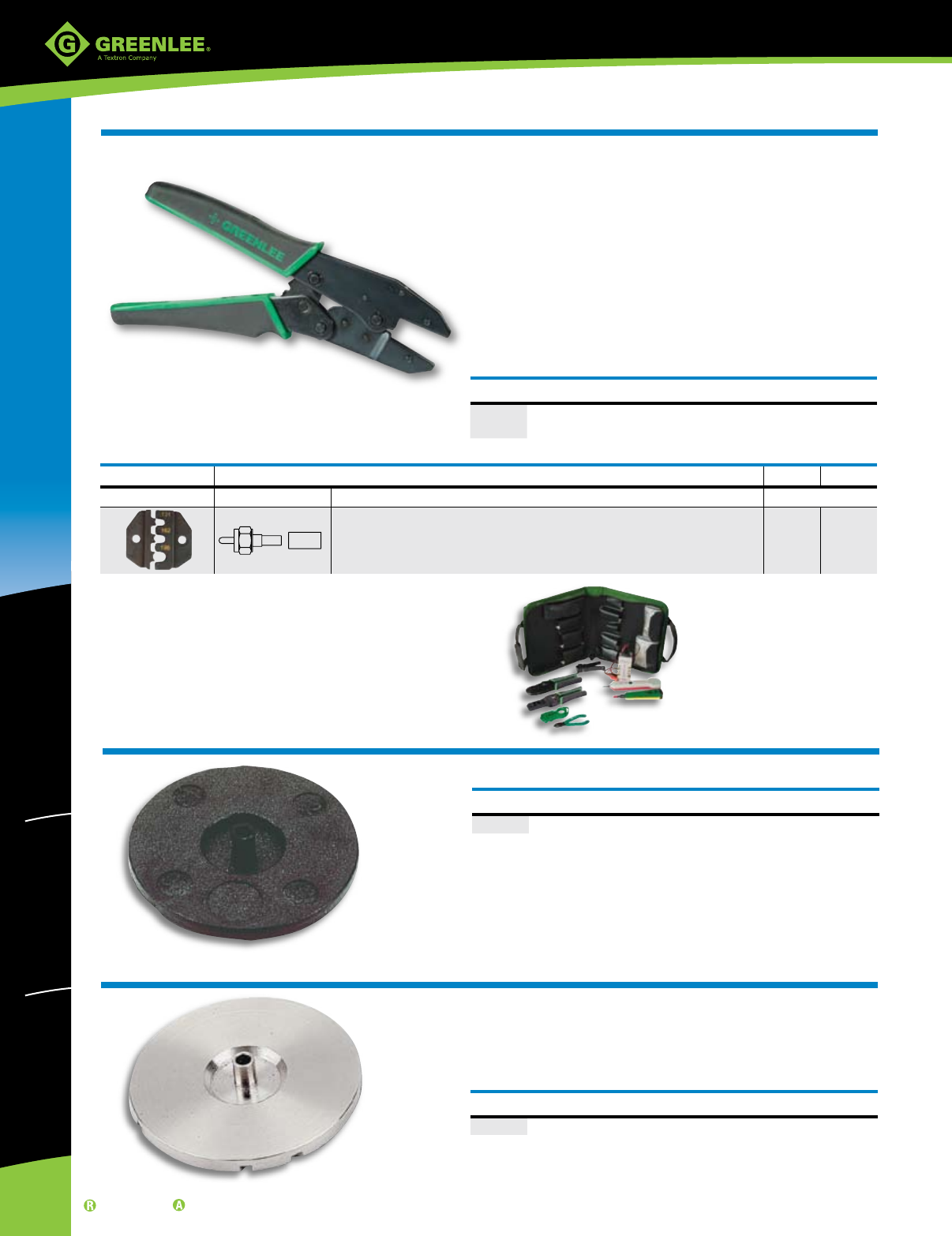

DESCRIPTION CAT. NO. UPC NO.
CONNECTION FEATURES DIE ONLY
O-style crimp cavities with dimensions of 0.131" x 0.162" x 0.196" 45572 45572
(3.33 mm x 4.11 mm x 4.98 mm)
For AMP Optimate SMA-style fiber optic connectors
45468 Fiber Optic Installation Kit
This complete kit contains our Kwik
Cycle® 9” Crimp Frame and all
of the tools and consumables
necessary for epoxy and polish
connector terminations. See page
250 for more details about our
Fiber Optic Termination Kit.
Kwik Cycle® 9" Crimp Tool for Fiber Optic Connectors
• Used to manually crimp a wide variety of connectors and terminals
to factory specifications.
• Frame features a precision full-cycle ratchet for accurate, repeatable crimps
every cycle.
• Crimp release lever improves throughput by eliminating rejected
terminations due to improper connector positioning.
• Frame features a tension adjustment preset at the factory for
optimum performance.
• High-leverage force and ergonomically-designed handle provides
comfortable use.
• Frame and dies are manufactured from heat-treated, hardened tool steel
for superior function and long life.
• All die sets are easily interchangeable with a simple screwdriver.
CAT. NO. UPC NO. DESCRIPTION
45504 45504 Kwik Cycle 9" Crimp Frame
45572 45572 Fiber Optic Die Set
Fiber Optic Co-Polymer Polishing Puck
• Used for standard ST, SC and FC connectors with 2.5 mm ferrules.
CAT. NO. UPC NO. DESCRIPTION
45598 45598 Fiber Optic Co-Polymer Polishing Puck
Fiber Optic Stainless Steel Polishing Puck
• Used for standard ST, SC and FC connectors with 2.5 mm ferrules.
• Made of stainless steel to last for years of termination.
• Precision hole prevents even the slightest misalignment.
• Grooves in the puck’s surface eliminate “sticking” during wet polishes.
CAT. NO. UPC NO. DESCRIPTION
45599 45599 Fiber Optic Stainless Steel Polishing Puck
www.greenlee.com
269
USA Tel: 800.435.0786
Fax: 800.451.2632
Canada Tel: 800.435.0786
Fax: 800.524.2853
International Tel: +1.815.397.7070
Fax: +1.815.397.9247
Voice • Data • Video
= REPLACEMENT PART = ACCESSORY

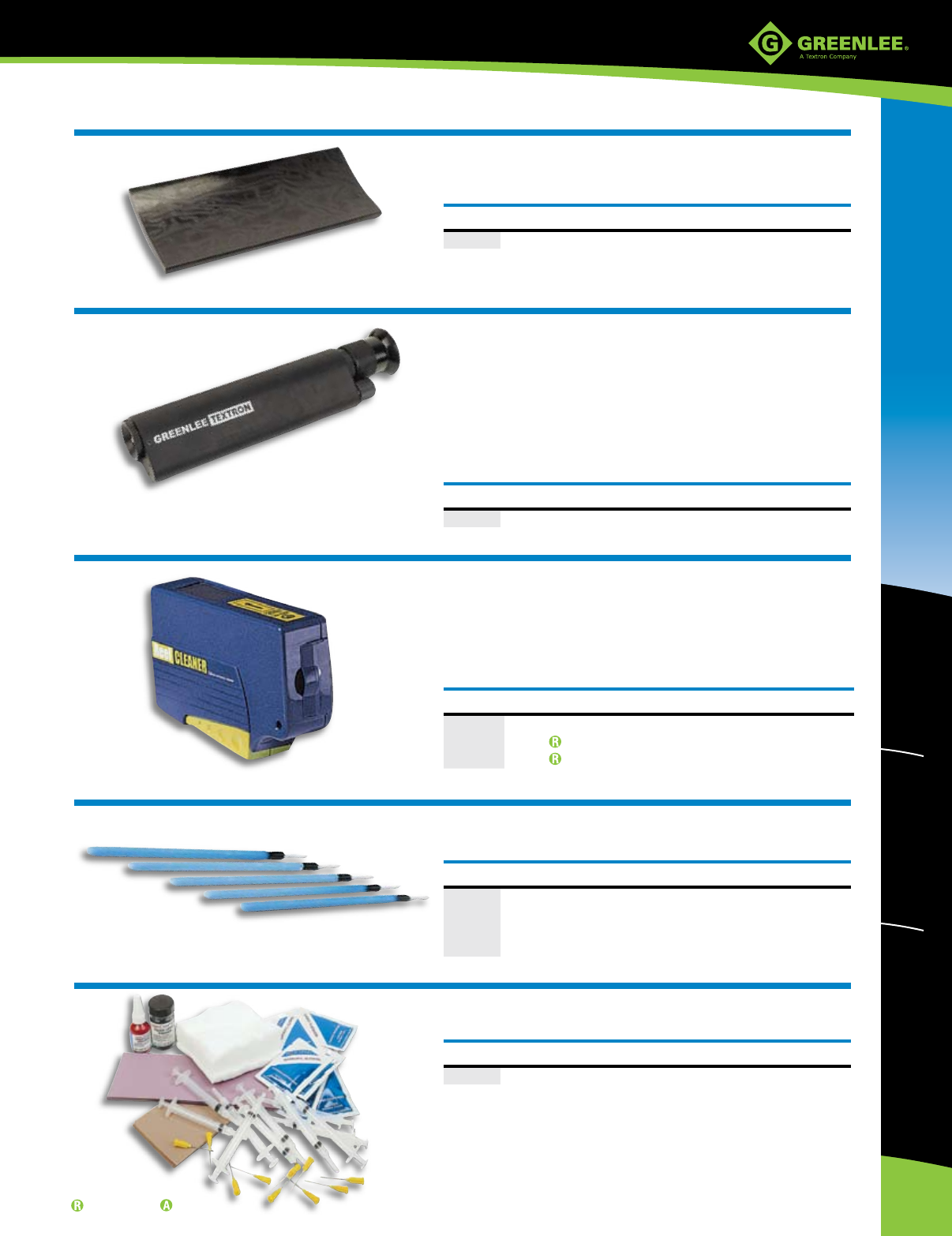

Fiber Optic Polishing Pad
• Resilient pad is perfect for PC (physical contact) pre-radiused ferrules.
• 3" x 8” (7.6 x 203.2 mm)
• 70 durometer.
CAT. NO. UPC NO. DESCRIPTION
45612 45612 Fiber Optic Polishing Pad
Fiber Optic Inspection Microscope
Connector Cleaning Systems
Adapter Cleaning Wands
• High-powered microscope is used to check a connector’s endface for
excess epoxy, core or cladding chips or other irregularities that degrade
optical performance of the connector.
• Laser safety filter protects eyesight.
• Rubber eyecup for comfortable use.
• Rugged aluminum housing.
• 200X magnification.
• Universal adapter works with ST, SC or FC connectors.
• Includes padded nylon carrying case.
• Special lint-free fabric-on-a-reel quickly cleans ferrule endfaces of dust,
oil and other contaminants.
• Cleaning system is completely self-contained.
• No need for alcohol.
• A single cleaning reel can be used for over 400 ferrule cleanings.
• ReelCleaner™ can be used on all connector types including MTP and MT-RJ.
• Specially-created, lint-free materials clean hard-to-reach fiber optic
interfaces, bulkhead adapters and ferrule alignment sleeves.
CAT. NO. UPC NO. DESCRIPTION
45651 45651 Fiber Optic Inspection Microscope
CAT. NO. UPC NO. DESCRIPTION
948 60692 ReelCleaner Connector Cleaning System
948/2 10792 Reel Set, 2/Package
945/ESD/1 24053 Reel Set, 1/Package
CAT. NO. UPC NO. DESCRIPTION
946 60571 2.5 mm Cleaning Wands, 10/Package
946K 60689 2.5 mm Cleaning Wands, 200/Box
947 60690 1.25 mm Cleaning Wands, 10/Package
947K 60691 1.25 mm Cleaning Wands, 200/Box
Fiber Optic Consumables Kit
• Contains the most commonly used consumables for epoxy and polish
fiber optic terminations.
CAT. NO. UPC NO. DESCRIPTION
45656 45656 Fiber Optic Consumables Kit
USA Tel: 800.435.0786
Fax: 800.451.2632
Canada Tel: 800.435.0786
Fax: 800.524.2853
International Tel: +1.815.397.7070
Fax: +1.815.397.9247
270
Voice • Data • Video
www.greenlee.com
= REPLACEMENT PART = ACCESSORY
Fiber Optic Hand Tools Kit
• Contains the most commonly used fiber optic termination tools
in a durable Cordura® Plus zipper case.
CAT. NO. UPC NO. DESCRIPTION
45655 45655 Fiber Optic Hand Tools Kit
Kit contents may be purchased separately:
45586 45586 Fiber Optic Kevlar® Shears
1955 06857 Pro-Plus Wire Stripper, 10-18 AWG
45589 45589 Fiber Optic Buffer Stripper
45593 45593 Carbide-tipped Scribe
45637 45637 Kwik Cycle® 8" Crimp Frame with 0.151", 0.178", 0.213"
Hex Cavities
45651 45651 Fiber Optic Inspection Microscope
45599 45599 Stainless Steel Polishing Puck
45612 45612 Resilient Polishing Pad, 3" x 8" (7.6 x 203.2 mm)
45644 45644 Zipper Case
Fiber Optic Termination Kit
• Contains all of the tools and consumable materials necessary for epoxy
and polish connector terminations.
• Durable Cordura® Plus carrying case protects and organizes tools
and includes see-through pouches for storing connectors.
• Outside pockets provide convenient storage of instruction manuals
or worksite documents.
CAT. NO. UPC NO. DESCRIPTION
45658 45658 Fiber Optic Termination Kit
Kit contents may be purchased separately:
45586 45586 Fiber Optic Kevlar® Shears
1955 06857 Pro-Plus Wire Stripper, 10-18 AWG
45589 45589 Fiber Optic Buffer Stripper
45593 45593 Carbide-Tipped Scribe
45637 45637 Kwik Cycle® 8" Crimp Frame with 0.151", 0.178", 0.213"
Hex Cavities
45651 45651 Fiber Optic Inspection Microscope
45599 45599 Stainless Steel Polishing Puck
45612 45612 Resilient Polishing Pad, 3" x 8" (7.6 x 203.2 mm)
45639 45639 Carrying Case
Kit includes the following consumable items which are not sold separately:
50 Sheets Polishing Paper, 0.3 micron 100 Lint-free Wipes
50 Sheets Polishing Paper, 1 micron 10 Alcohol Wipes
50 Sheets Polishing Paper, 5 micron 1 Alcohol Bottle
10 ml (0.34 oz.) Opticure Adhesive 1 Water Bottle
26 ml (0.9 oz.) Opticure Primer 1 Fiber Debris Disposal Container
1 Pair Safety Glasses 10 Syringes
1 Plastic Utility Box 10 Needle Tips
1 Felt-tipped Marker
www.greenlee.com
271
USA Tel: 800.435.0786
Fax: 800.451.2632
Canada Tel: 800.435.0786
Fax: 800.524.2853
International Tel: +1.815.397.7070
Fax: +1.815.397.9247
Voice • Data • Video
= REPLACEMENT PART = ACCESSORY

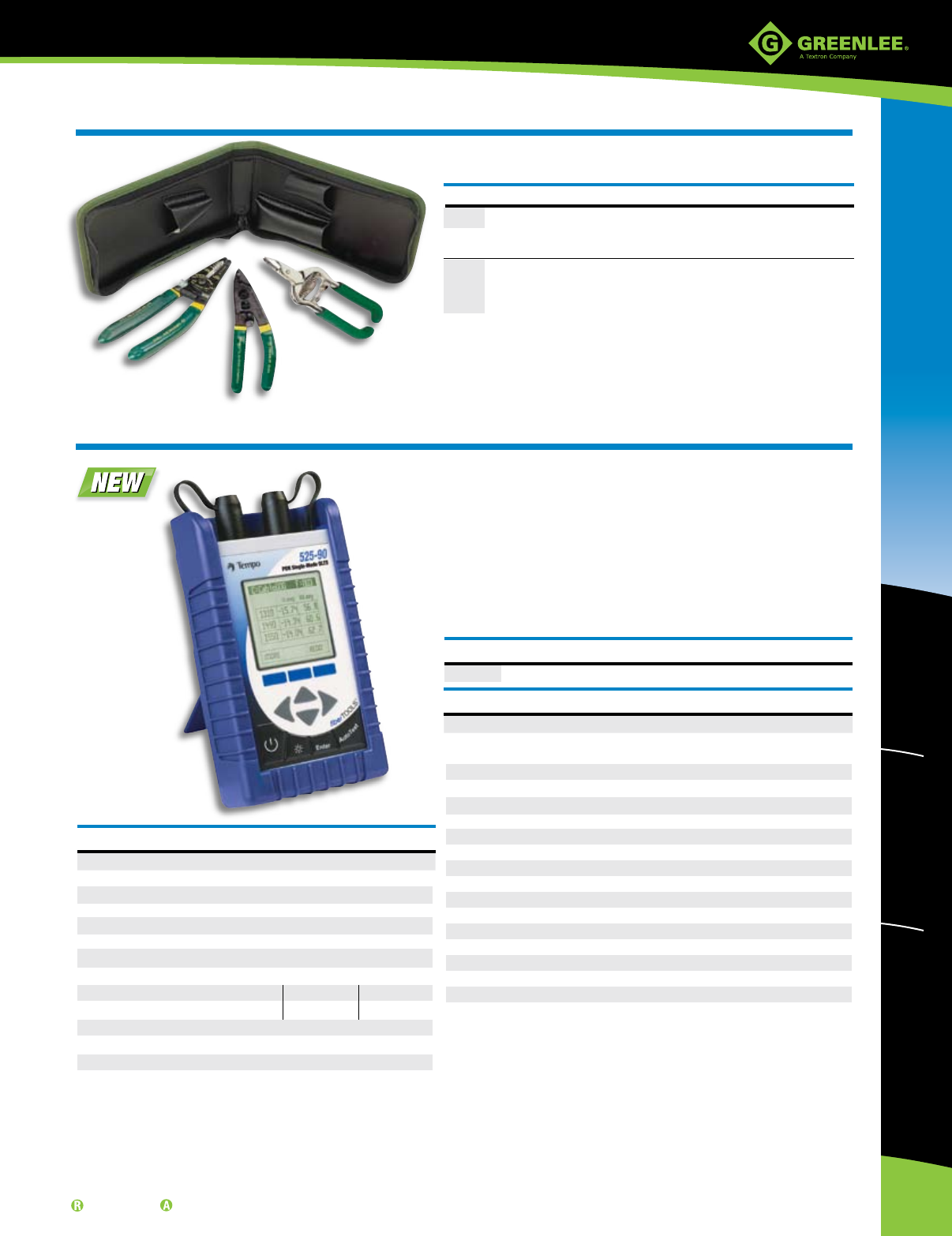

Fiber Optic Cut and Strip Kit
• Includes three basic tools for cutting and stripping optical fiber cables
in a durable Cordura® Plus zipper case.
CAT. NO. UPC NO. DESCRIPTION
45657 45657 Fiber Optic Cut and Strip Kit
Kit contents may be purchased separately:
45586 45586 Fiber Optic Kevlar® Shears
1955 06857 Pro-Plus Wire Stripper, 10-18 AWG
45589 45589 Fiber Optic Buffer Stripper

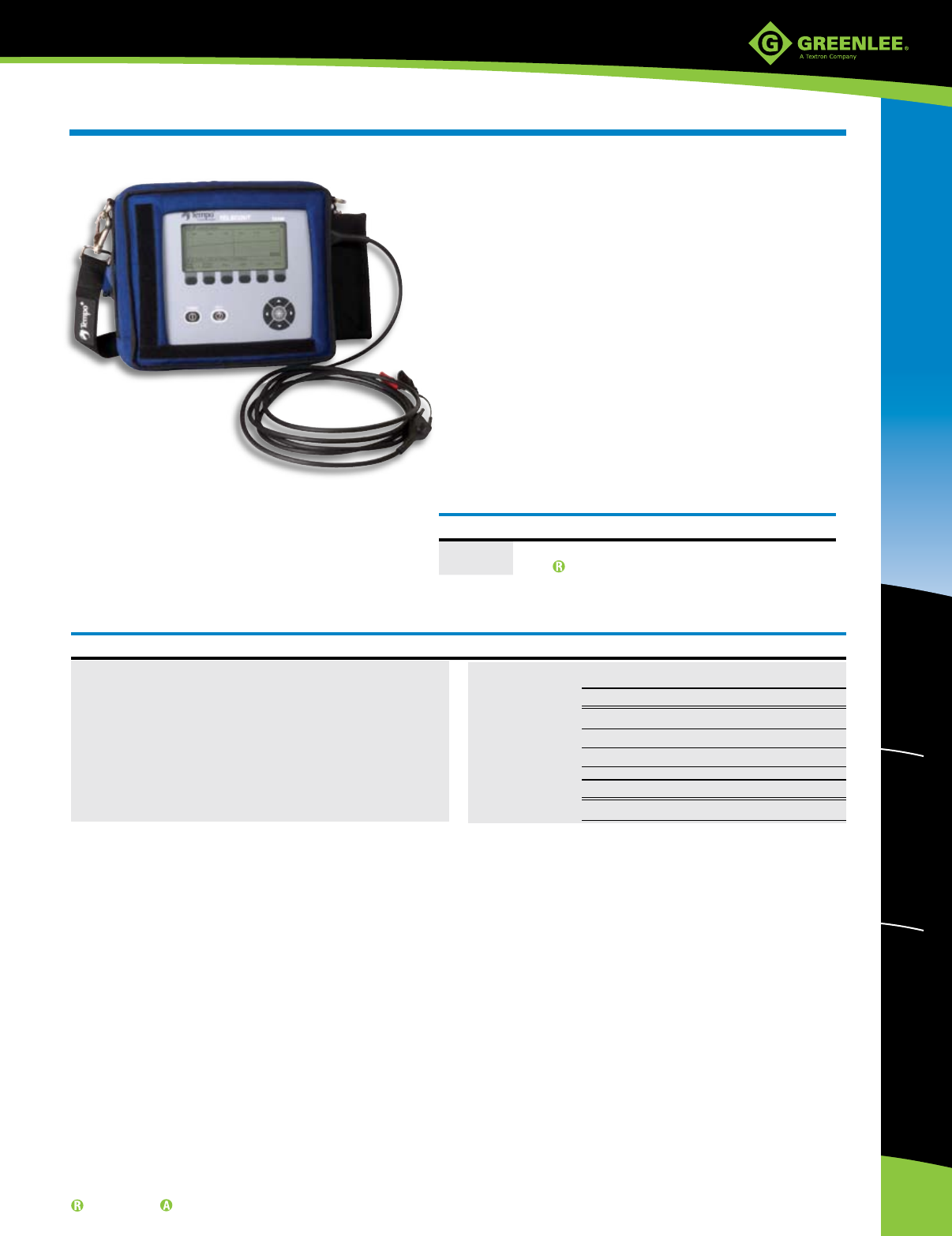

525-90 PON Optical Loss Test Set
• 1310/1490/1550nm.
• Automated Insertion/Return Loss measurements.
• One button AUTOTEST.
• Stores 1000 measurement results.
• Cable acceptance software for report generation and
fiber optic cable management.
• Optical power meter.
• Optical return loss meter.
• Rechargeable batteries.
• Rugged package for outside plant environment.
CAT. NO. UPC NO. DESCRIPTION
525-90 20945 PON Optical Loss Test Set (1310/1490/1550nm)
SPECIFICATIONS
AUTOTEST INSERTION LOSS
Test Port 40dB
Measurement Range
Calibrated Wavelengths 1310, 1490, 1550nm
RETURN LOSS
Measurement Range 10 to 45dB
Accuracy .5dB
GENERAL SPECIFICATIONS
Display Type ±0.05dB
Fiber Type ±0.5dB
Standard Connector Type 0.01dB
Laser Classification Two AA size 1.5V batteries
Operating Temperature FC, SC or ST
Storage Temperature 0° C to +50° C
Relative Humidity 0 to 95% RH non-condensing
Size 7.6 x 4.3 x 2.3 in. (19.3 x 10.9 x 5.8 cm)
Weight 2.2 lbs. (1.0 kg)
Power Internal rechargeable NiMH
Battery Life > 8 hours
SPECIFICATIONS
POWER METER
Dector Type InGaAs
Display Range _10dBm to 70 dBm
Calibrated Wavelengths 850, 980, 1300, 1310, 1490, 1550, 1625
Absolute Accuracy <±0.25 dB
Resolution 0.01 dB
Measurement Units dBm, dB
SOURCE
Center Wavelength 1310nm ±30nm 1490nm ±30nm 1550nm ±30nm
Spectral Width <5 <5 <5
Output Power >-10dBm >-10dBm >-10dBm
Output Stability <±0.15dB/8 hrs <±0.15dB/8 hrs <±0.15dB/8 hrs
Connector Type UCI-APC polish adapter 9-125 SM
USA Tel: 800.435.0786
Fax: 800.451.2632
Canada Tel: 800.435.0786
Fax: 800.524.2853
International Tel: +1.815.397.7070
Fax: +1.815.397.9247
272
Voice • Data • Video
www.greenlee.com
= REPLACEMENT PART = ACCESSORY
525-60 Smart Optical Loss Test Set
• Automated bi-directional testing.
• Optical return loss measurements.
• Dual wavelength insertion loss measurements.
• Multi-mode and Single-mode models feature user settable PASS/FAIL thresholds.
• Communications between units via messaging.
• Wide dynamic range optical power meter.
• Test record storage and data management software.
• Rugged outside plant instrument package.
• Universal connector interface.
CAT. NO. UPC NO. DESCRIPTION
525-60-PCX 20942 1310/1550nm Smart Optical Loss Test Set - PC Connectors
525-60-APC 20943 1310/1550nm Smart Optical Loss Test Set - APC Connectors
525-60RL-APC 20944 1310/1550nm Smart Optical Loss Test Set - APC Connectors
SPECIFICATIONS
525-60-PCX 525-60-APC 525-60RL-APC
Instrument Type Singlemode Smart Loss Singlemode Smart Loss Singlemode Smart Loss
Test Set Test Set Test Set
Interface Connector PC Connector Interface APC Connector Interface APC Connector Interface
AUTOTEST performs AUTOTEST performs AUTOTEST performs
AUTOTEST Insertion Loss Test Insertion Loss Test Insertion and Return
measurements and Manual Return Loss and Manual Return Loss Loss in one Test
POWER METER SPECIFICATIONS
Detector Type InGaAs InGaAs InGaAs
Display Range +10dBm to 70dBm +10dBm to 70dBm +10dBm to 70dBm
Calibrated Wavelengths 850, 980, 1300, 1310, 850, 980, 1300, 1310, 850, 980, 1300, 1310,
1550, 1480, 1625 1550, 1480, 1625 1550, 1480, 1625
Absolute Accuracy ±0.25dB ±0.25dB ±0.25dB
Resolution 0.01dB 0.01dB 0.01dB
Measurement Units dBm, dB, W dBm, dB, W dBm, dB, W
Connector Type UCI-UPC flat polish UCI-APC polish UCI-APC polish
adapter 9/125SM adapter 9/125 SM adapter 9/125 SM
AUTOTEST INSERTION LOSS SPECIFICATIONS
Test Port Measurement Range 40dB 40dB 40dB
Calibrated Wavelengths 1310, 1550nm 1310, 1550nm 1310, 1550nm
RETURN LOSS SPECIFICATIONS
Measurement Range 10 to 45dB 10 to 65dB 10 to 65dB
Accuracy .5dB .5dB .5dB
GENERAL DESCRIPTIONS
Display Type Graphics Liquid Crystal Graphics Liquid Crystal Graphics Liquid Crystal
with Backlight with Backlight with Backlight
Fiber Type Singlemode 9/125 um Singlemode 9/125 um Singlemode 9/125 um
Standard Connector Type FC, SC, ST other connector FC, SC, ST other connector FC, SC, ST other connector
options available options available options available
Laser Classification Class 1 CFR 1040 Class 1 CFR 1040 Class 1 CFR 1040
Operating Temperature 0°C to +50°C 0°C to +50°C 0°C to +50°C
Storage Temperature -20°C to +60°C -20°C to +60°C -20°C to +60°C
Relative Humidity 0 to 95% RH non-condensing 0 to 95% RH non-condensing 0 to 95% RH non-condensing
Size 19.3 x 10.9 x 5.8 cm 19.3 x 10.9 x 5.8 cm 19.3 x 10.9 x 5.8 cm
(7.6 x 4.3 x 2.3 in) (7.6 x 4.3 x 2.3 in) (7.6 x 4.3 x 2.3 in)
Weight 1.0kg (2.2 lbs) 1.0kg (2.2 lbs) 1.0kg (2.2 lbs)
Power Internal rechargeable NiMH Internal rechargeable NiMH Internal rechargeable NiMH
Battery Life >8 hours >8 hours >8 hours
SOURCE SPECIFICATIONS
Center Wavelength 1310nm ±30nm 1550nm ±30nm 1310nm ±30nm 1550nm ±30nm 1310nm ±30nm 1550nm ±30nm
Spectral Width <5 <5 <5 <5 <5 <5
Output Power >-10 dBm >-10 dBm >-10 dBm >-10 dBm >-10 dBm >-10 dBm
Output Stability ±0.15dB/ ±0.15dB ±0.15dB/ ±0.15dB ±0.15dB/ ±0.15dB
8 hours 8 hours 8 hours 8 hours 8 hours 8 hours
Coupled Power Ratio (CPR) 25dB to 29dB 21dB to 22dB
±1dB ±1dB
HOMP
www.greenlee.com
273
USA Tel: 800.435.0786
Fax: 800.451.2632
Canada Tel: 800.435.0786
Fax: 800.524.2853
International Tel: +1.815.397.7070
Fax: +1.815.397.9247
Voice • Data • Video
= REPLACEMENT PART = ACCESSORY

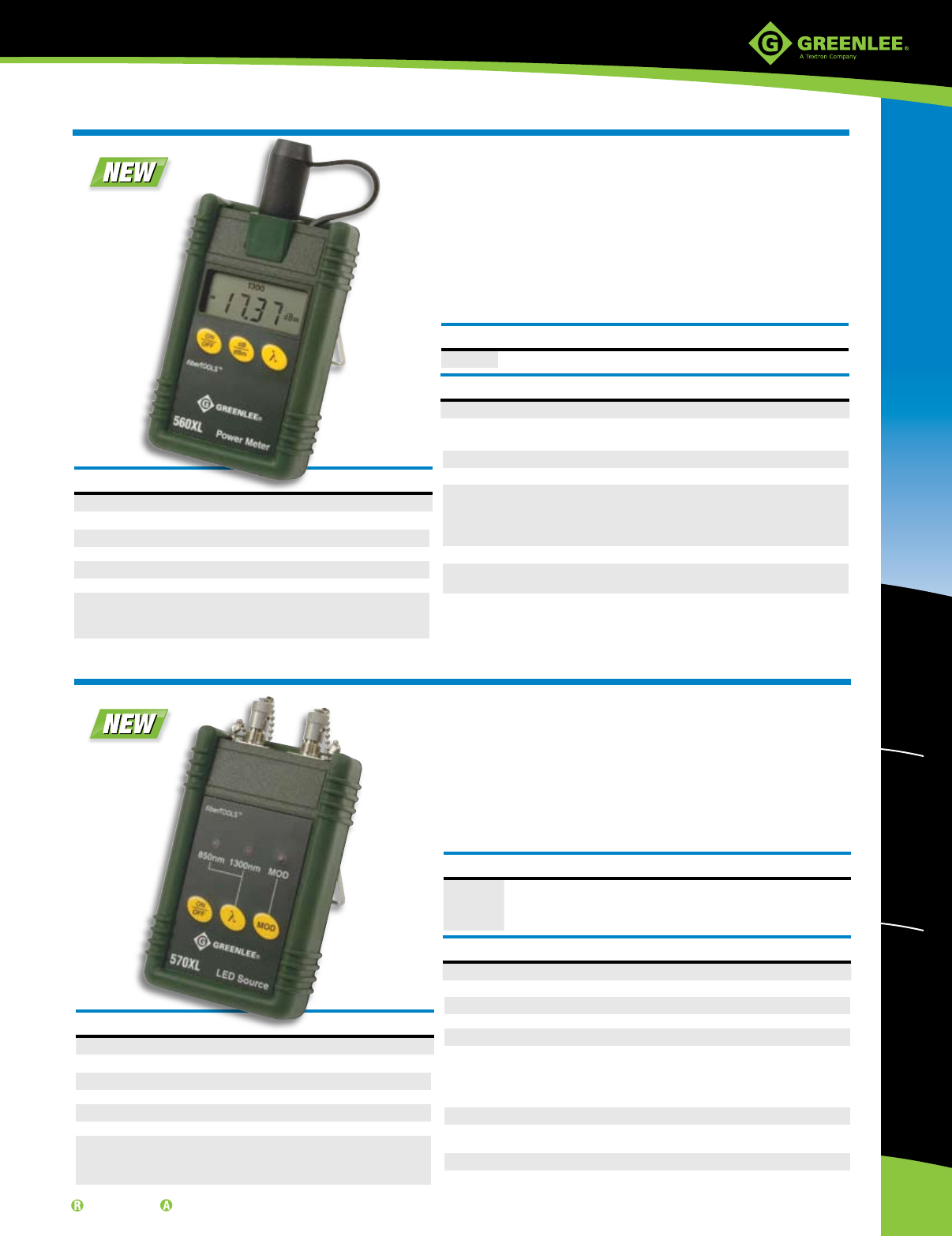

Fiber Optic Power Meter
• Easy to use - three buttons control all functions.
• Loss measurements in (dB); power measurements in (dBm).
• 0.01dB measurement resolution.
• Multi-wavelength storage - store and recall reference power levels for faster,
more efficient measurements.
• Snap-On connector interface adapts to FC, SC and ST connectors.
• Long battery life.
• User selectable auto shut-off.
• Rugged and splash-proof.
• Economically priced.
CAT. NO. UPC NO. DESCRIPTION
560XL 84485 Fiber Optic Power Meter
SPECIFICATIONS
OPTICAL
Calibration Wavelengths 850nm, 1300nm,
1310nm and 1550nm
Power Range -3 dBm to -60 dBm
Accuracy ± 0.25dB
Linearity
+3dBm to -3dBm ±0.5dB
-3dBm to -50dBm ±0.05dB
-50dBm to -60dBm ±0.5dB
Resolution 0.01dB
Power Requirements Two AA size 1.5V batteries
(approx. 100 hours continuous operation)
Connector interface FC, SC or ST
SPECIFICATIONS
ENVIRONMENTAL
Operating temperature -15° C to +55° C
Storage temperature -35° C to +70° C
Humidity 0 to 95% non-condensing
Dimensions 7.2 x 14.2 x 3.5 cm (2.8 x 5.6 x 1.4 in.)
Weight 241g (8.5 oz.)
CE EN61010; EN50081-1: 1992; EN55011,
Group 1, Class A EN50082-1:
1992 IEC 801-2, -3, -4
850/1300nm LED Source
• 850/1300nm wavelengths.
• Stable calibrated output.
• Easy to use.
• Continuous wave and modulated output.
• Fixed connector interface FC, SC or ST.
• Long battery life - approx. 80 hours.
• User selectable auto shut-off.
• Rugged and splash-proof.
• Economically priced.
CAT. NO. UPC NO. DESCRIPTION
570XL-FC 84486 850/1300nm LED source w/FC interface
570XL-SC 84487 850/1300nm LED source w/SC interface
570XL-ST 84488 850/1300nm LED source w/ST interface
SPECIFICATIONS
OPTICAL
Center Wavelengths 850nm 1300nm
Range (typical) 840nm to 880nm 1270nm to 1345nm
Max. spectral width 55nm 150nm
Stability (1 hour) ±0.05dB ±0.05dB
Typical power output
100/140um -13dBm -20dBm
62.5/125um -13dBm -20dBm
50/125um -14dBm -21dBm
Modulation frequency 270 kHz, 1 kHz and 2 kHz 270 kHz, 1 kHz and 2 kHz
Power Requirements Two AA size 1.5V batteries Two AA size 1.5V batteries
(approx. 80 hours continuous operation)
Connector interface FC, SC or ST FC, SC or ST
SPECIFICATIONS
ENVIRONMENTAL
Operating temp. -15° C to +55° C
Storage temp. -35° C to +70° C
Humidity 0 to 95% non-condensing
Dimensions 7.2 x 14.2 x 3.5 cm (2.8 x 5.6 x 1.4 in.)
Weight 241g (8.5 oz.)
CE EN61010; EN50081-1: 1992; EN55011,
Group 1, Class A EN50082-1:
1992 IEC 801-2, -3, -4
USA Tel: 800.435.0786
Fax: 800.451.2632
Canada Tel: 800.435.0786
Fax: 800.524.2853
International Tel: +1.815.397.7070
Fax: +1.815.397.9247
274
Voice • Data • Video
www.greenlee.com
= REPLACEMENT PART = ACCESSORY

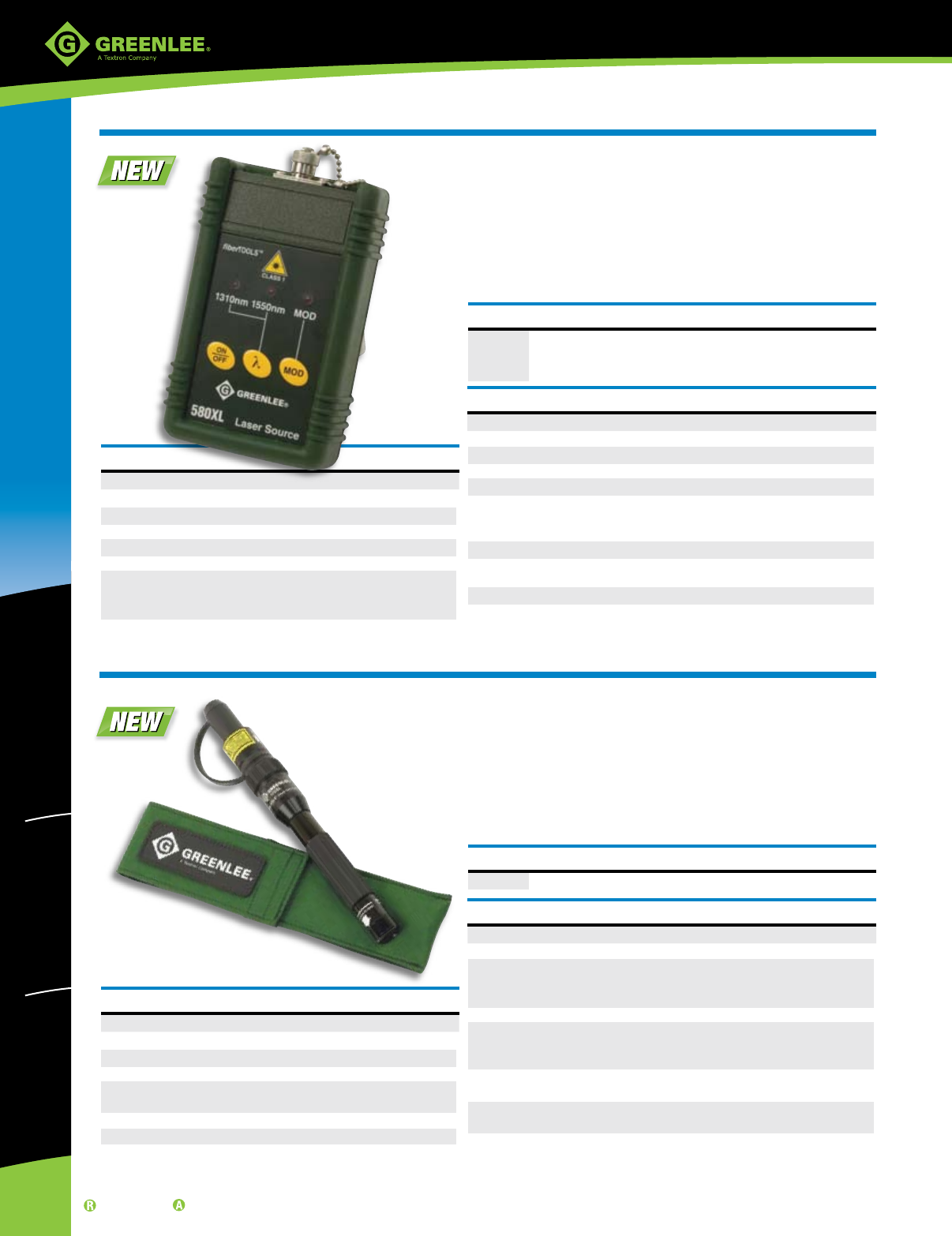

1310/1550nm Laser Source
• 1310/1550nm wavelengths.
• Stable calibrated output.
• Easy to use.
• Continuous wave and modulated output.
• Fixed connect interface FC, SC or ST.
• Long battery life - approx. 80 hours.
• User selectable auto shut-off.
• Rugged and splash-proof.
• Economically priced.
CAT. NO. UPC NO. DESCRIPTION
580XL-FC 84489 1310/1550nm Laser source w/FC interface
580XL-SC 84490 1310/1550nm Laser source w/SC interface
580XL-ST 84491 1310/1550nm Laser source w/ST interface
SPECIFICATIONS
SPECIFICATIONS
ENVIRONMENTAL
Operating temp. -15° C to +55° C
Storage temp. -35° C to +70° C
Humidity 0 to 95% non-condensing
Dimensions 7.2 x 14.2 x 3.5 cm (2.8 x 5.6 x 1.4 in.)
Weight 241g (8.5 oz.)
CE EN61010; EN50081-1: 1992; EN55011,
Group 1, Class A EN50082-1:
1992 IEC 801-2, -3, -4
CDRH Laser Class Class 1
OPTICAL
Center Wavelengths 1310nm 1550nm
Range (typical) 1280nm to 1340nm 1520nm to 1580nm
Max. spectral width <5nm <5nm
Stability (1 hour) ±0.05dB ±0.05dB
Typical power output (9/125)
Minimum -8dBm -8dBm
Typical -7dBm -7dBm
Modulation frequency 270 kHz, 1 kHz and 2 kHz 270 kHz, 1 kHz and 2 kHz
Power Requirements Two AA size 1.5V batteries Two AA size 1.5V batteries
(approx. 80 hours continuous operation)
Connector interface FC, SC or ST FC, SC or ST
Visual Fault Finder
• Continuous wave output mode for steady fault location.
• Find breaks to 3km.
• Blinking output mode increases viewing contrast.
• Easy to use quick interface fits all 2.5mm connector interfaces (FC, SC, ST).
• 1.0mW output power.
• Ergonomic rotary switch permits easy one-handed operation.
• Rugged, compact and splash-proof aluminum design.
• Two AA batteries provide 48 hours continuous operation.
• Nylon belt holster included.
CAT. NO. UPC NO. DESCRIPTION
170XL 84501 Visual Fault Finder
SPECIFICATIONS
SPECIFICATIONS
ENVIRONMENTAL
Operating temp. -10° C to +50° C
Storage temp. -40° C to +60° C
Humidity 0 to 95% non-condensing
Dimensions Length: 22 cm (9.0 in.);
Diameter: 2.54 cm (1 in.)
Weight 200g (7 oz.)
CDRH Laser Class: Class IIIa
CE IEC 60-1-2 portion of the EN50082-1 ESD
immunity requirement EN50082-1:
1992 IEC 801-2, -3, -4
OPTICAL
Light source type 635nm red laser diode
Center wavelength
Nominal 635nm
Range (typical) 630nm to 640nm
Spectral width (FWHM) <2nm
Typical output power
Max. into SMF-28 fiber 1.0mW (0dBm)
Min. CW output mode 316uW (-5 dBm)
Blink frequency in
MOD mode <3Khz approximate)
Power Requirements Two AA size 1.5V batteries
(Battery life Approx. 48 hours continuous operation)
Connector interface Standard “Quick Connect” universal
2.5 mm receptacle
www.greenlee.com
275
USA Tel: 800.435.0786
Fax: 800.451.2632
Canada Tel: 800.435.0786
Fax: 800.524.2853
International Tel: +1.815.397.7070
Fax: +1.815.397.9247
Voice • Data • Video
= REPLACEMENT PART = ACCESSORY

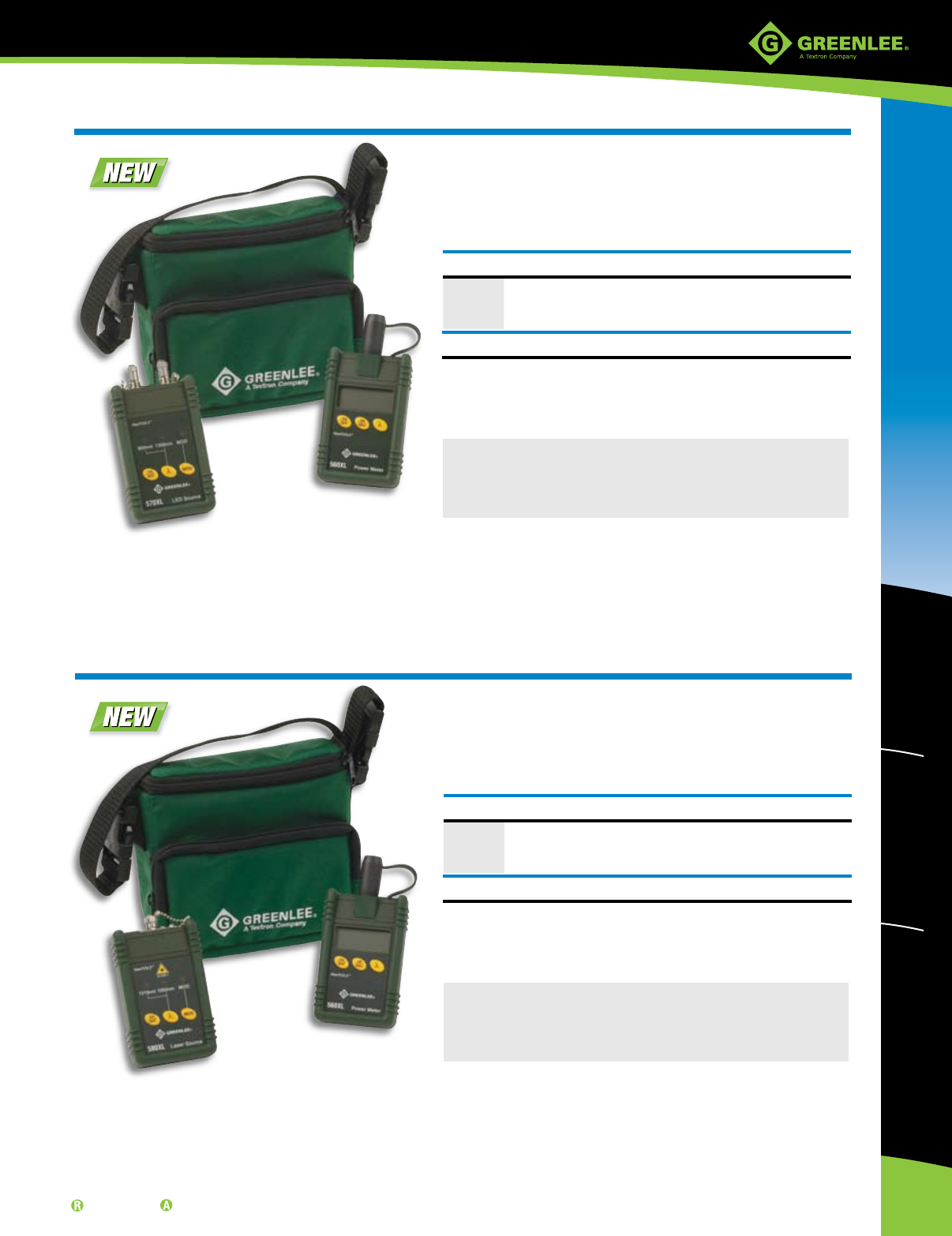

Multimode Fiber Optic Test Set
• Insertion loss test set for multimode fiber.
• 850/1300nm loss measurements.
• Connector for FC, SC or ST.
• Rugged package design.
• Easy to use portable package.
• Economically priced.
CAT. NO. UPC NO. DESCRIPTION
5670-FC 84492 Multimode Fiber Optic Test Set w/FC interface
5670-SC 84493 Multimode Fiber Optic Test Set w/SC interface
5670-ST 84494 Multimode Fiber Optic Test Set w/ST interface
KIT SPECIFICATIONS
5670-FC INCLUDES:
560XL Optical Power Meter
570XL-FC 850/1300nm LED Source w/FC Connector
T1020 FC/PC SOC Adapter
914B Carrying Case
5670-SC INCLUDES:
560XL Optical Power Meter
570XL-SC 850/1300nm LED Source w/SC Connector
1062 SC/PC SOC Adapter
914B Carrying Case
5670-ST INCLUDES:
560XL Optical Power Meter
570XL-ST 850/1300nm LED Source w/ST Connector
T1030 ST/PC SOC Adapter
914B Carrying Case
Singlemode Fiber Optic Test Set
• Insertion loss test set for singlemode fiber.
• 1310/1550nm loss measurements.
• Connector for FC, SC or ST.
• Rugged package design.
• Easy to use portable package.
• Economically priced.
CAT. NO. UPC NO. DESCRIPTION
5680-FC 84495 Singlemode Fiber Optic Test Set w/FC interface
5680-SC 84496 Singlemode Fiber Optic Test Set w/SC interface
5680-ST 84497 Singlemode Fiber Optic Test Set w/ST interface
KIT SPECIFICATIONS
5680-FC INCLUDES:
560XL Optical Power Meter
580XL-FC 1310/1550nm Laser Source w/FC Connector
T1020 FC/PC SOC Adapter
914B Carrying Case
5680-SC INCLUDES:
560XL Optical Power Meter
580XL-SC 1310/1550nm Laser Source w/SC Connector
1062 SC/PC SOC Adapter
914B Carrying Case
5680-ST INCLUDES:
560XL Optical Power Meter
580XL-ST 1310/1550nm Laser Source w/ST Connector
T1030 ST/PC SOC Adapter
914B Carrying Case
USA Tel: 800.435.0786
Fax: 800.451.2632
Canada Tel: 800.435.0786
Fax: 800.524.2853
International Tel: +1.815.397.7070
Fax: +1.815.397.9247
276
Voice • Data • Video
www.greenlee.com
= REPLACEMENT PART = ACCESSORY

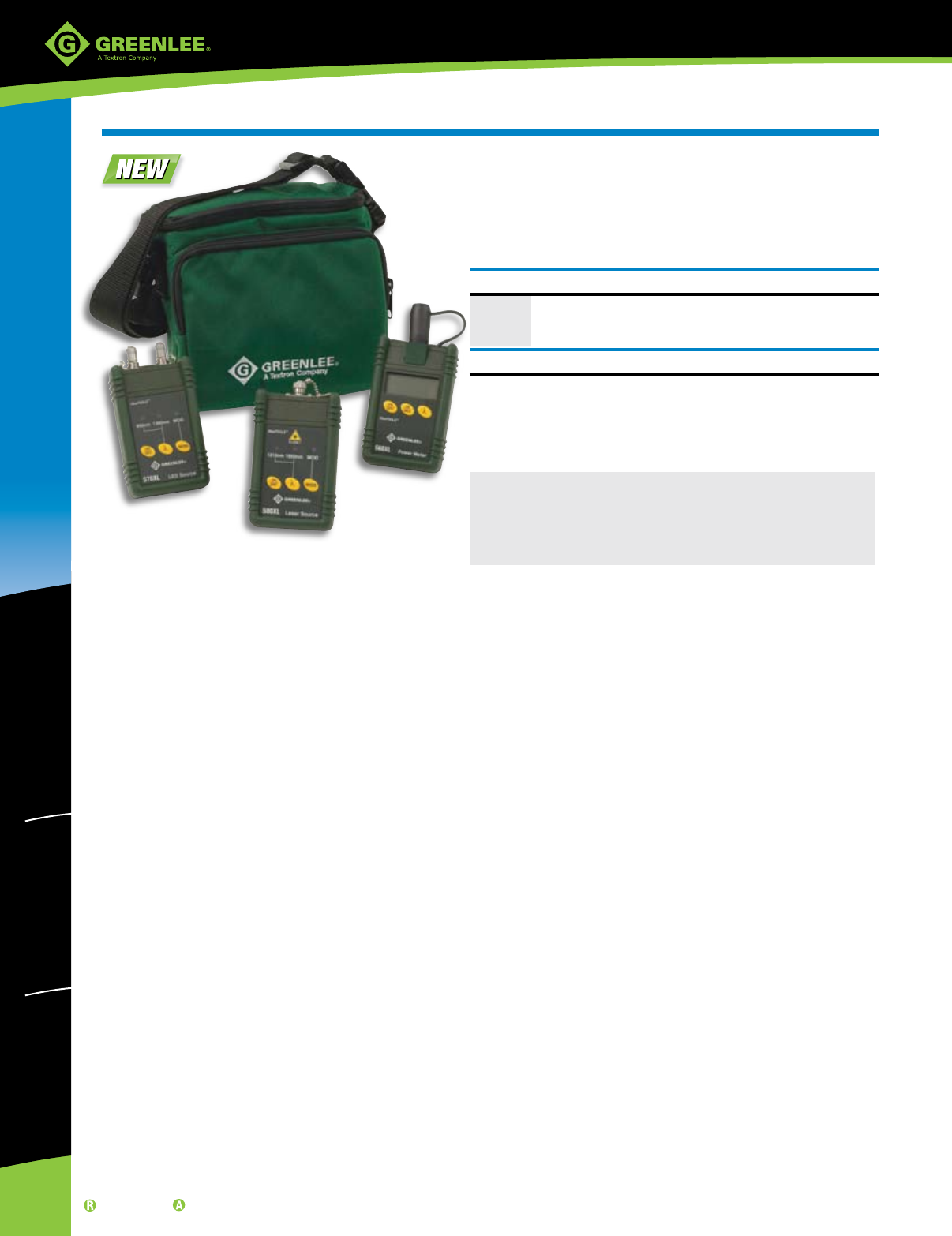

Multimode and Singlemode Fiber Optic Test Set
• Insertion loss test set for multimode and singlemode fiber.
• 850/1300nm Loss measurements.
• 1310/1550nm Loss measurements.
• Connector for FC, SC or ST.
• Rugged package design.
• Easy to use portable package.
• Economically priced.
CAT. NO. UPC NO. DESCRIPTION
5890-FC 84498 Multimode and Singlemode Fiber Optic Test Set w/FC interface
5890-SC 84499 Multimode and Singlemode Fiber Optic Test Set w/SC interface
5890-ST 84500 Multimode and Singlemode Fiber Optic Test Set w/ST interface
KIT SPECIFICATIONS
5890-FC INCLUDES:
560XL Optical Power Meter
570XL-FC 850/1300nm LED Source w/FC Connector
580XL-FC 1310/1550nm Laser Source w/FC Connector
T1020 FC/PC SOC Adapter
915B Carrying Case
5890-SC INCLUDES:
560XL Optical Power Meter
570XL-SC 850/1300nm LED Source w/SC Connector
580XL-SC 1310/1550nm Laser Source w/SC Connector
1062 SC/PC SOC Adapter
915B Carrying Case
5890-ST INCLUDES:
560XL Optical Power Meter
570XL-ST 850/1300nm LED Source w/ST Connector
580XL-ST 1310/1550nm Laser Source w/ST Connector
T1030 ST/PC SOC Adapter
915B Carrying Case
www.greenlee.com
277
USA Tel: 800.435.0786
Fax: 800.451.2632
Canada Tel: 800.435.0786
Fax: 800.524.2853
International Tel: +1.815.397.7070
Fax: +1.815.397.9247
Voice • Data • Video
= REPLACEMENT PART = ACCESSORY

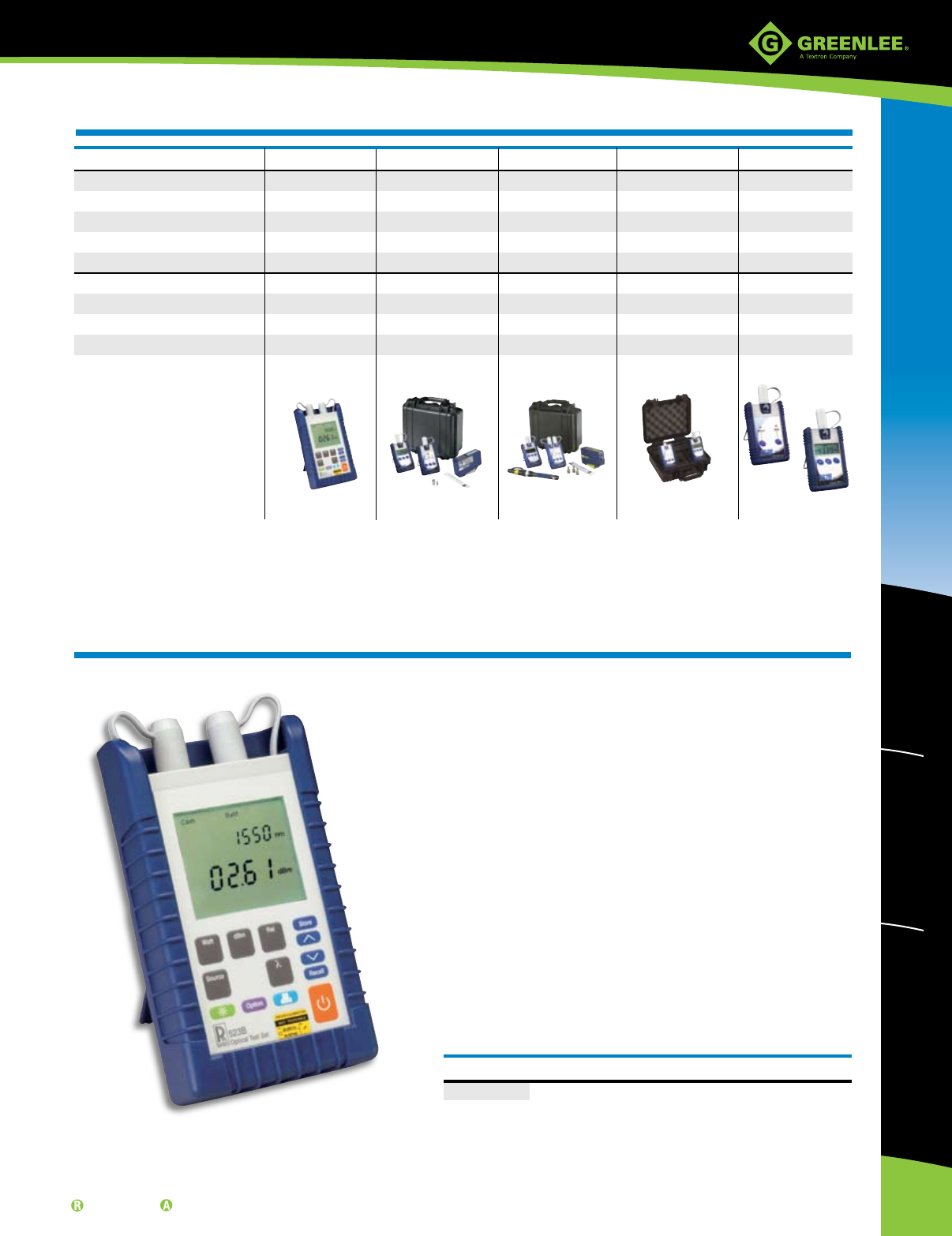

Optical Loss Test Sets
Advanced Single-Mode Optical Loss Test Set
• Incorporates a stable dual 1310nm/1550nm laser source and optical
power meter in a convenient self-contained package to perform insertion
loss and link loss testing.
• Large, backlit LCD makes it easy to view power levels and
calibration wavelengths.
• Operation is simple due to the user-friendly keypad and intuitive controls.
• Remote operation permits the automation of tedious or
repetitive measurements.
• Rubber boot protects against dropping.
• Rugged and splashproof.
• Indium-gallium-arsenide (InGaAs) photodetector.
• 1310/1550nm dual laser source.
• +3dBm to -75dBm measurement range.
• PASS/FAIL testing with audible signal.
• Manual or timer-driven data logging for periods from
one second to one hour.
• Data storage for 1,000 measurements.
• RS232 interface for instrument configuration and data transfer
to a PC-compatible workstation or serial printer.
• Powered by a rechargeable nickel-metal hydride (NiMH) battery pack,
four alkaline batteries or AC adapter.
• Built-in NiMH battery charger with external power supply.
523B-13/15 105202K 6052B2K 60556MT
MODEL NO. 523B-13/15 105202K 6052B2K 60556MT 253B+557B
PACKAGE Handheld Handheld Palm-sized Palm-sized Palm-sized
SOURCE TYPE Laser Laser LED LED LED
CALIBRATION WAVELENGTHS (nm) 1310/1550 1310/1550 850/1300 850/1300 650
MEASUREMENT RANGE +3 to -75dBm +3 to -60dBm +3 to -60dBm +3 to -60dBm +3 to -60dBm
MEASUREMENT UNITS dB, dBm, W dB, dBm dB, dBm dB, dBm dB, dBm
Storage Capability ✔
Single-mode ✔ ✔
Multimode (glass) ✔ ✔
Multimode (POF) ✔
Talk Function
253B + 557B
CAT. NO. UPC NO. DESCRIPTION
523B-13/15 60550 Advanced Single-Mode Optical Loss Test Set
Requires one SOC and one UCI connector adapter (See pages 289 and 290). Source output is directly compatible with PC
connectors. For APC use hybrid cable approach (See page 293).
USA Tel: 800.435.0786
Fax: 800.451.2632
Canada Tel: 800.435.0786
Fax: 800.524.2853
International Tel: +1.815.397.7070
Fax: +1.815.397.9247
278
Voice • Data • Video
www.greenlee.com
= REPLACEMENT PART = ACCESSORY

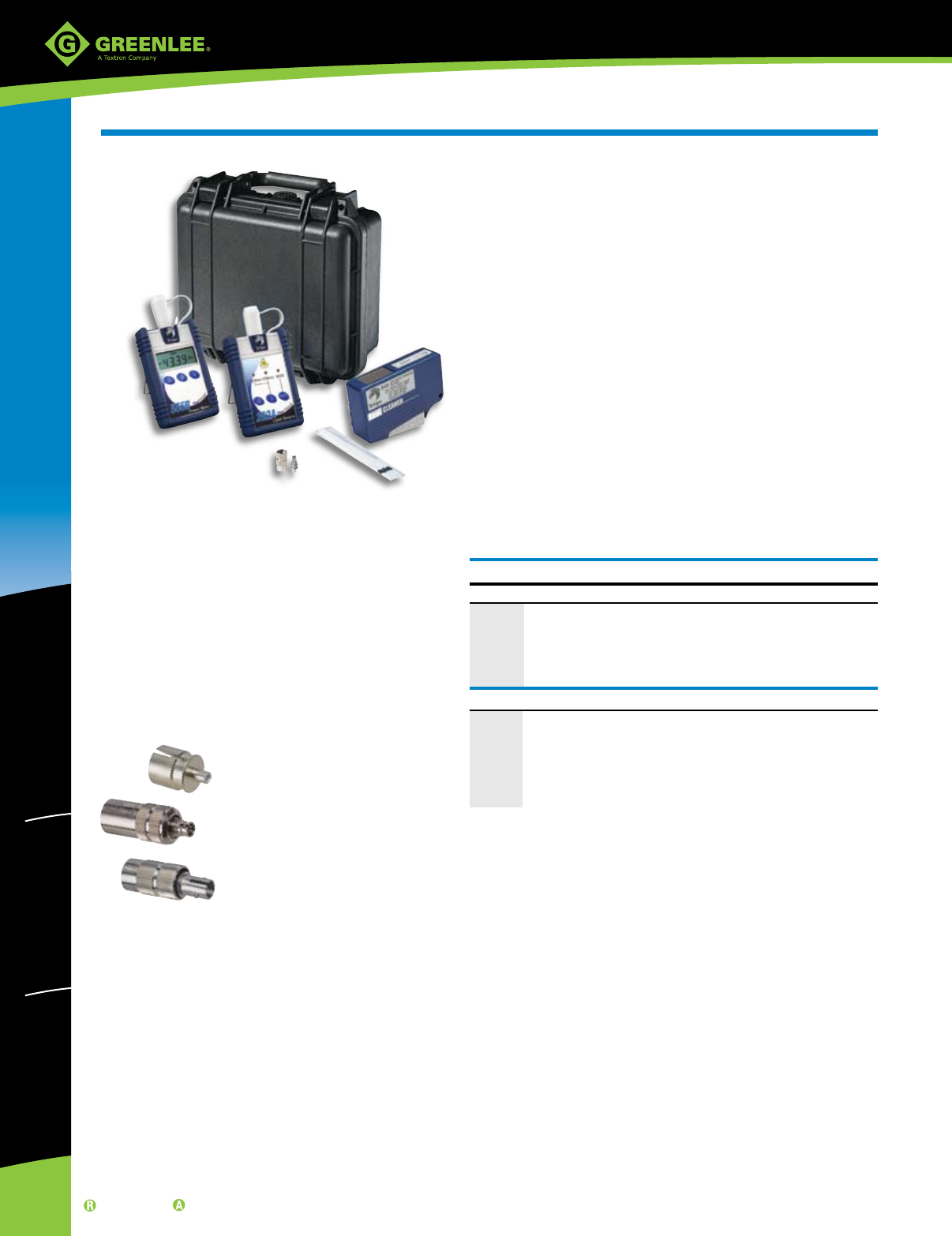

fiberTOOLS® Single-Mode Optical Loss Test Sets
• These conveniently packaged test sets are used to test, troubleshoot
and maintain Telco, CATV, LAN and other single-mode network
applications. The Basic Set can be used to measure output power
and certify end-to-end attenuation on deployed fiber spans.
• Easy to use, all-in-one prepackaged kit.
• Dual wavelength 1310/1550nm source covers all requirements.
• Source has stable, calibrated output.
• Rugged, splashproof instruments.
• Water- and air-tight hard carrying case.
• Meets the link certification requirements of TIA-568B and ISO/IEC-11801.
• 0.01dB measurement resolution.
• Two AA batteries provide power for over 100 hours in the optical power
meters, over 50 hours in the LED sources and over 48 hours in the visual
fault finder.
Basic Sets Include:
• 555B Optical Power Meter plus adapter.
• 262A Dual Wavelength 1310/1550nm Laser Source plus adapters.
• Hard carrying case (900B).
Deluxe Sets Include:
• Basic Set contents.
• Visual fault finder T160.
• Connector cleaner.
• Cleaning wands.
CAT. NO. UPC NO. DESCRIPTION
Basic Single-Mode Test Sets
10520E2 60611 Basic SM Test Set E2000-PC
105202K 60608 Basic SM Test Set, FC-PC
105203K 60609 Basic SM Test Set, ST-PC
105206K 60610 Basic SM Test Set, SC-PC
1052011 60607 Basic SM Test Set, DIN
Deluxe Single-Mode Test Sets
11520E2 60618 Deluxe SM Test Set E2000-PC
115202K 60615 Deluxe SM Test Set, FC-PC
115203K 60616 Deluxe SM Test Set, ST-PC
115206K 60617 Deluxe SM Test Set, SC-PC
115201U 60614 Deluxe SM Test Set, DIN
90ACK 60686 AC/Main Power Converter 120V
(one required per handheld unit)
To accommodate other connector types, see
our SOC/UCI adapters on pages 289 and 290
and reference cables on page 293.
www.greenlee.com
279
USA Tel: 800.435.0786
Fax: 800.451.2632
Canada Tel: 800.435.0786
Fax: 800.524.2853
International Tel: +1.815.397.7070
Fax: +1.815.397.9247
Voice • Data • Video
= REPLACEMENT PART = ACCESSORY

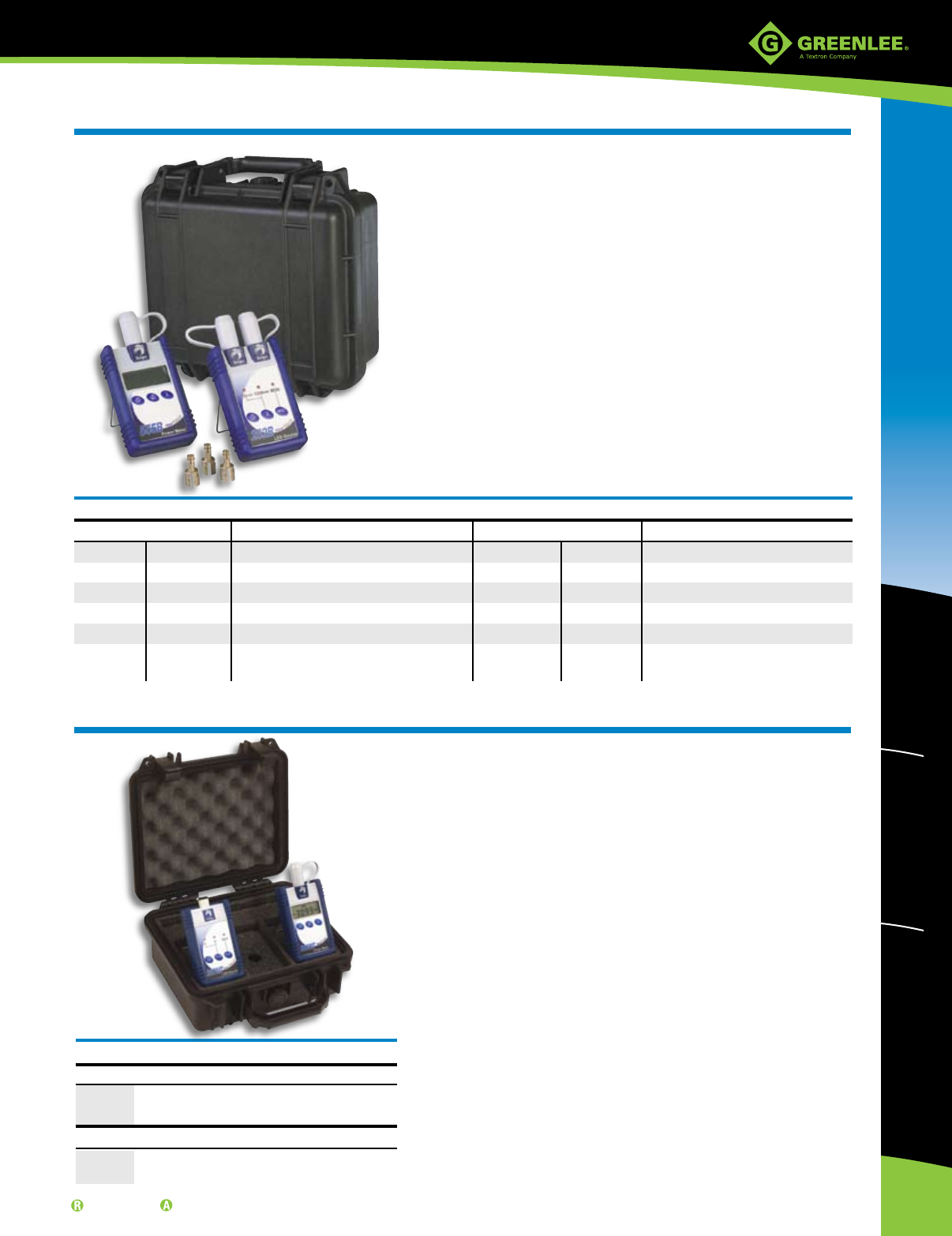

CAT. NO. UPC NO. DESCRIPTION CAT. NO. UPC NO. DESCRIPTION
MM 50/125 BASIC MULTIMODE TEST SETS MM 50/125 DELUXE MULTIMODE TEST SETS
5052BE2 60627 Basic MM Test Set, E2000-PC 5152BE2 60635 Deluxe MM Test Set E2000-PC
5052B2K 60624 Basic MM Test Set, FC-PC 5152B2K 60632 Deluxe MM Test Set, FC-PC
5052B3K 60625 Basic MM Test Set, ST-PC 5152B3K 60633 Deluxe MM Test Set, ST-PC
5052B6K 60626 Basic MM Test Set, SC-PC 5152B6K 60634 Deluxe MM Test Set, SC-PC
5052BIU 60623 Basic MM Test Set, DIN 5152BIU 60631 Deluxe MM Test Set DIN
90ACK 60686 AC/Main Power Converter 120V 90ACK 60686 AC/Main Power Converter 120V
(one required per handheld unit) (one required per handheld unit)
fiberTOOLS® Multimode Optical Loss Test Sets
• These conveniently packaged test sets are used to test,
troubleshoot and maintain LAN and other network applications.
• Easy to use, all-in-one prepackaged kit.
• Dual wavelength 850/1300nm LED source(s) covers all requirements.
• Rugged, splashproof instruments.
• Water- and air-tight hard carrying case.
• Meet the link certification requirements of TIA-568B and ISO/IEC-11801.
• 0.01dB measurement resolution.
• Two AA batteries provide power for over 100 hours in the optical power
meters, over 24 hours in the LED sources and over 48 hours in the visual
fault finder.
Basic Sets Include:
• 555B Optical Power Meter plus adapter.
• 252B Dual Wavelength 850/1300nm LED Source plus 2x adapters.
• Hard carrying case (900B).
Deluxe Sets Include:
• Basic Set contents.
• Visual fault finder T160L.
• Connector cleaner.
• Cleaning wands.
fiberTOOLS® MT-RJ Optical Loss Test Sets
• Our MT-RJ Test Sets provide all the equipment required to test,
troubleshoot and certify multimode optical links.
• Easy to use, all-in-one prepackaged kit.
• Both 850 and 1300nm LED sources available.
• Rugged, splashproof instruments.
• Conveniently packaged in a water- and air-tight hard case.
• Meets the link certification requirements of TIA-568B and ISO/IEC-11801.
• 0.01dB measurement resolution.
• Two AA batteries provide power for over 100 hours in the optical power
meters, over 24 hours in the LED sources and over 48 hours in the visual
fault finder.
Basic Single Wavelength Test Sets Include:
• 556MT Optical Power Meter plus MT-RJ adapter.
• 255MT (1300nm) or 257MT (850nm) LED Source.
• Hard carrying case (900B).
Dual Wavelength Deluxe Test Sets Include:
• 556MT Optical Power Meter plus MT-RJ adapter.
• 255MT 1300nm MT-RJ LED Source.
• 257MT 850nm MT-RJ LED Source.
• MTRJ connector cleaner.
• Hard carrying case (901B).
• 263MT MT-RJ visual fault finder.
• Cleaning wands.
CAT. NO. UPC NO. DESCRIPTION
Single Wavelength MT-RJ Test Sets
60556MT 60555 Basic MM Test Set, 1300nm
60576MT 60727 Basic MM Test Set, 850nm
Dual Wavelength 850/1300nm MT-RJ Test Sets
90ACK 60686 AC/Main Power Converter 120V
(one required per handheld unit)
USA Tel: 800.435.0786
Fax: 800.451.2632
Canada Tel: 800.435.0786
Fax: 800.524.2853
International Tel: +1.815.397.7070
Fax: +1.815.397.9247
280
Voice • Data • Video
www.greenlee.com
= REPLACEMENT PART = ACCESSORY

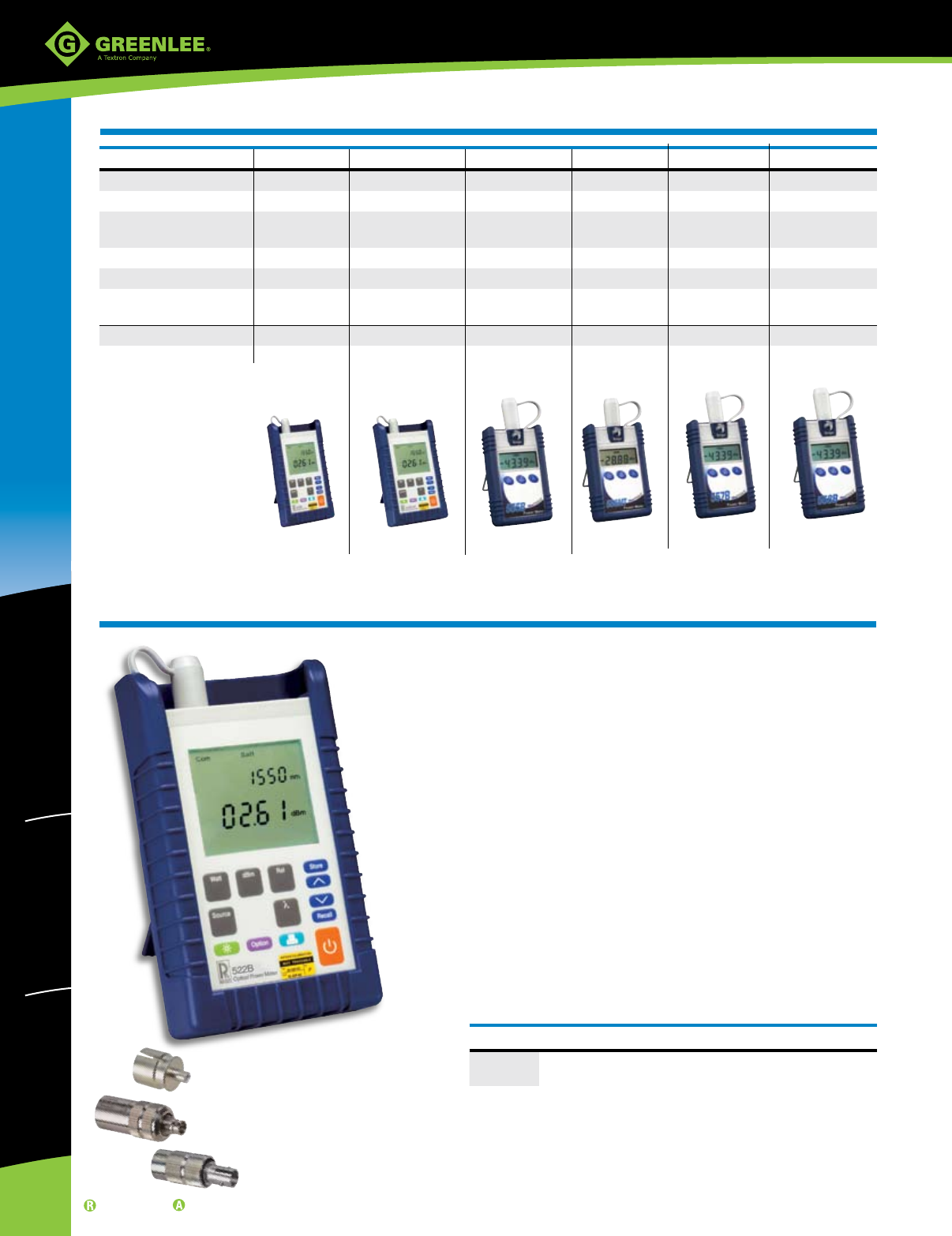

Optical Power Meters
Advanced Optical Power Meters
CAT. NO. UPC NO. DESCRIPTION
522B 60548 Advanced Optical Power Meter, Medium Power to +3dBm
522B-HP 60549 Advanced Optical Power Meter, High Power to +27dBm
• Designed for insertion loss and link loss measurements using an external
light source.
• Large, backlit LCD makes it easy to view power levels
and calibration wavelengths.
• Operation is simple due to the user-friendly keypad and intuitive controls.
• Remote operation permits the automation of tedious
or repetitive measurements.
• Rubber boot protects against dropping.
• Rugged and splashproof.
• 850nm, 980nm, 1310nm, 1480nm, 1550nm and 1625nm
calibration wavelengths.
• InGaAs photodetector.
• +3dBm to -75dBm measurement range.
• PASS/FAIL testing with audible signal.
• Manual or timer-driven data logging for periods from one second to one hour.
• Data storage for 1,000 measurements.
• RS232 interface for instrument configuration and data transfer
to a PC-compatible workstation or serial printer.
• Powered by a rechargeable nickel-metal hydride (NiMH) battery pack,
four alkaline batteries or AC adapter.
• Built-in NiMH battery charger with external power supply.
MODEL NO. 522B 522B-HP 555B 556MT 557B 558B
PACKAGE Handheld Handheld Palm-sized Palm-sized Palm-sized Palm-sized
DETECTOR TYPE 1 mm InGaAs Filtered 2 mm InGaAs 1 mm InGaAs 3 mm Ge 3 x 3.5 mm Silicon Filtered 2 mm InGaAs
CALIBRATION 850/980/1310/ 850/980/1310/ 850/1300/1310/1550 850/1300/1550 635/780/850 980/1310/1550
WAVELENGTHS (nm) 1480/1550/1625 1480/1550/1625
MEASUREMENT RANGE +3 to -75dBm +27 to -53dBm +3 to -60dBm +3 to -40dBm +3 to -60dBm +27 to -30dBm
MEASUREMENT UNITS dB, dBm, mW dB, dBm, mW dB, dBm dB, dBm dB, dBm dB, dBm
OPTICAL POWER METER SOC Universal SOC Universal SOC Universal SOC Universal SOC Universal SOC Universal
INTERFACE TYPE
User-Selectable Auto Shutoff ✔ ✔ ✔ ✔ ✔ ✔
Storage Capability ✔ ✔
522B 522B-HP 555B 556MT 557B 558B
522B
Requires one Snap-On Connector (SOC) interface (See pages 289 and 290). Compatible with both PC and APC connectors.
To accommodate other connector types, see
our SOC/UCI adapters on pages 289 and 290
and reference cables on page 293.
www.greenlee.com
281
USA Tel: 800.435.0786
Fax: 800.451.2632
Canada Tel: 800.435.0786
Fax: 800.524.2853
International Tel: +1.815.397.7070
Fax: +1.815.397.9247
Voice • Data • Video
= REPLACEMENT PART = ACCESSORY

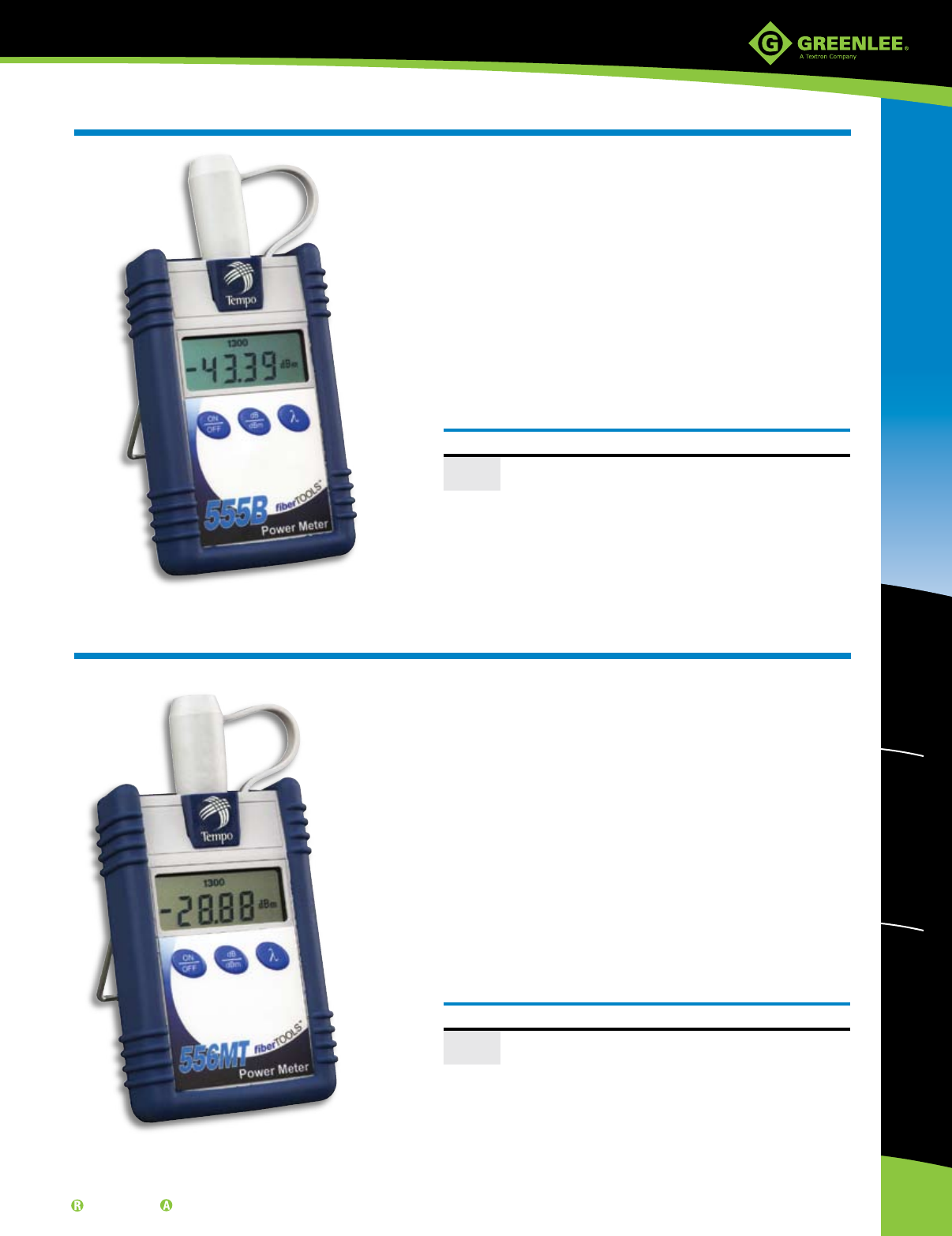

InGaAs Optical Power Meter
Ge MT-RJ Optical Power Meter
• Suitable for power measurements on both laser and LED based
single-mode and multimode fiber optic systems.
• Easy to use; three buttons control all essential functions.
• Multi-wavelength reference stores and recalls reference power levels
for faster, more efficient measurement.
• Rubber boot protects against dropping.
• Rugged and splashproof.
• 850nm, 1300nm, 1310nm and 1550nm calibration wavelengths.
• InGaAs detector.
• +3 to -60dBm measurement range.
• 0.01dB measurement resolution.
• Relative logarithmic dB and absolute logarithmic dBm units.
• User-selectable auto shutoff.
• Two AA batteries provide power for over 100 hours.
• Optional AC power converter/adapter is available for prolonged
or benchtop use.
• Pair with an LED source to test insertion loss of multimode MT-RJ fiber
optic cables and connectors or use independently to perform link loss
testing of installed cable plants.
• Easy to use; three buttons control all essential functions.
• Multi-wavelength reference storage capability permits convenient
insertion and link loss testing at different transmission windows.
• Wide area detector allows for testing of each channel individually,
simultaneously or alternating between the two channels.
• Rubber boot protects against dropping.
• Rugged and splashproof.
• 850nm, 1300nm and 1550nm NIST traceable calibration wavelengths.
• Special extra-large area germanium detector.
• +3 to -40dBm measurement range.
• -0.01dB measurement resolution.
• Relative logarithmic dB and absolute logarithmic dBm units.
• User-selectable auto shutoff.
• Two AA batteries provide power for over 100 hours.
• Optional AC power converter/adapter is available for prolonged or
benchtop use.
CAT. NO. UPC NO. DESCRIPTION
555B 60567 InGaAs Optical Power Meter
90ACK 60686 AC/Main Power Converter 120V (one required per handheld unit)
CAT. NO. UPC NO. DESCRIPTION
556MT 60552 Ge MT-RJ Optical Power Meter
90ACK 60686 AC/Main Power Converter 120V (one required per handheld unit)
Requires one Snap-On Connector (SOC) adapter (See pages 289 and 290). Compatible with both PC and APC connectors.
Requires one T13A2 for MT-RJ Snap-On Connector (SOC) adapter (See page 290).
Compatible with both PC and APC connectors.
USA Tel: 800.435.0786
Fax: 800.451.2632
Canada Tel: 800.435.0786
Fax: 800.524.2853
International Tel: +1.815.397.7070
Fax: +1.815.397.9247
282
Voice • Data • Video
www.greenlee.com
= REPLACEMENT PART = ACCESSORY

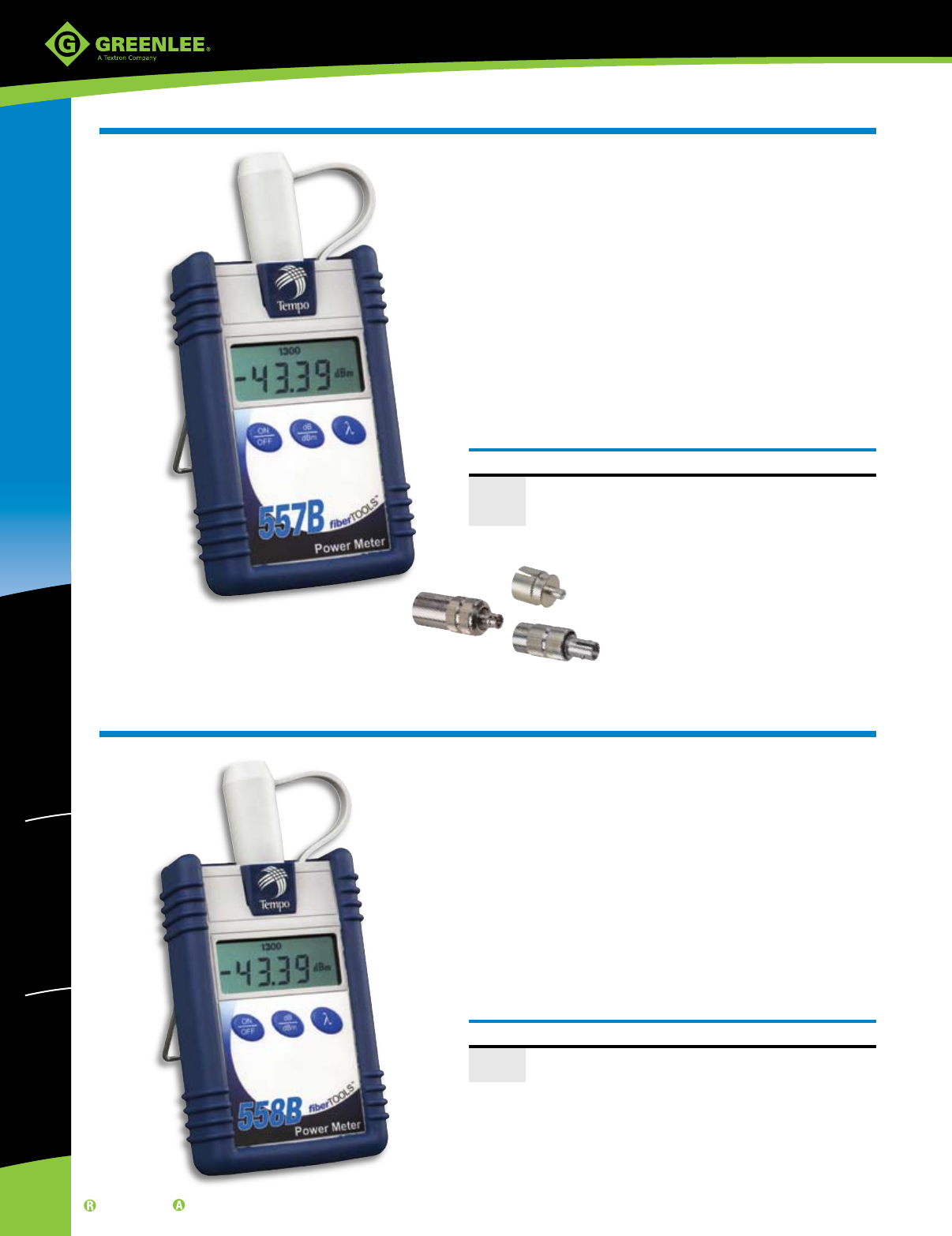

Silicon Optical Power Meter
High Intensity InGaAs Optical Power Meter
• Optimized for power measurements on fiber optic systems based
on single-mode, multimode, plastic or large core glass optical fibers
and using near-infrared or visible light sources.
• Easy to use; three buttons control all essential functions.
• Multi-wavelength reference stores and recalls reference power levels
for faster, more efficient measurement.
• Rubber boot protects against dropping.
• Rugged and splashproof.
• 635nm, 780nm and 850nm calibration wavelengths.
• 3 x 3.5 mm Silicon detector.
• +3 to -60dBm measurement range.
• 0.01dB measurement resolution.
• Relative logarithmic dB and absolute logarithmic dBm units.
• User-selectable auto shutoff.
• Two AA batteries provide power for over 100 hours.
• Optional AC power converter/adapter is available for prolonged
or benchtop use.
• Suitable for power measurements on high power single-mode and DWDM
fiber optic systems.
• Easy to use; three buttons control all essential functions.
• Multi-wavelength reference stores and recalls reference power levels
for faster, more efficient measurement.
• Rubber boot protects against dropping.
• Rugged and splashproof.
• 980nm, 1310nm and 1550nm calibration wavelengths.
• +25 to -30dBm measurement range at 1310/1550nm.
• 0.01dB measurement resolution.
• Relative logarithmic dB and absolute logarithmic dBm units.
• User-selectable auto shutoff.
• Two AA batteries provide power for over 100 hours.
• Optional AC power converter/adapter is available for prolonged
or benchtop use.
CAT. NO. UPC NO. DESCRIPTION
558B 60568 High Intensity InGaAs Optical Power Meter
90ACK 60686 AC/Main Power Converter 120V (one required per handheld unit)
To accommodate other connector types, see
our SOC/UCI adapters on pages 289 and 290
and reference cables on page 293.
CAT. NO. UPC NO. DESCRIPTION
557B 60553 Silicon Optical Power Meter
90ACK 60686 AC/Main Power Converter 120V
(one required per handheld unit)
Requires one Snap-On Connector (SOC) adapter (See pages 289 and 290). Compatible with both PC and APC connectors.
Requires one Snap-On Connector (SOC) adapter (See pages 289 and 290). Compatible with both PC and APC connectors.
www.greenlee.com
283
USA Tel: 800.435.0786
Fax: 800.451.2632
Canada Tel: 800.435.0786
Fax: 800.524.2853
International Tel: +1.815.397.7070
Fax: +1.815.397.9247
Voice • Data • Video
= REPLACEMENT PART = ACCESSORY
Fault Locators and Light Detectors
FC-PC and MT-RJ Visual Fault Finders
• Used to quickly locate bending loss and breaks in optical fibers,
and to identify bad connectors.
• 635nm red laser makes fiber breaks and bending losses easily visible.
• Stable, calibrated output.
• Continuous wave output mode for steady fault illumination.
• Blinking output mode increases viewing contrast.
• Optional AC power converter/adapter is available for prolonged
or benchtop use.
• Proven, reliable and compact design.
• Economically priced.
• Rugged and splashproof.
• 263LX model includes fixed FC-PC interface, for use with optional
FoPro® Adapter Cable (See page 289) or user-supplied hybrid cable
(See page 293).
• 263MT model is designed for MT-RJ duplex connectors to test both
fibers simultaneously.
• LX model has a range up to 3 km. MT model has a range up to 1 km.
• More than 40 hours of continuous operation.
CAT. NO. UPC NO. DESCRIPTION
263LX 60538 Visual Fault Finder
263MT 60539 MT-RJ Visual Fault Finder
90ACK 60686 AC/Main Power Converter 120V (one required per handheld unit)
MODEL 170XL 263LX 263MT 510 LS SENSOLITE® T160L
TYPE Visible Laser Visible Laser Visible Laser Light Detector (Ge) Visible Laser
WAVELENGTH (NM) 635nm (red) 635nm (red) 635nm (red) 630 to 1600nm 635nm (red)
DISTANCE Up to 3 km (very bright) Up to 3 km (very bright) Up to 1 km (bright) Up to 3 km (very bright)
LIFE / BATTERY TYPE 48 hours (2 AA) 40 hours (2 AA) 24 hours (2 AA) 1 year (2 AA) 48 hours (2 AA)
OPTICAL INTERFACE 2.5 MM Fixed FC-PC Interface Fixed MT-RJ Interface Universal Interface 2.5 MM
TYPE Universal Interface Universal Interface
Single-mode ✔ ✔ ✔
Multimode ✔ ✔ ✔ ✔
263LX 263MT T160L
510LS170XL
USA Tel: 800.435.0786
Fax: 800.451.2632
Canada Tel: 800.435.0786
Fax: 800.524.2853
International Tel: +1.815.397.7070
Fax: +1.815.397.9247
284
Voice • Data • Video
www.greenlee.com
= REPLACEMENT PART = ACCESSORY
SensoLITE® Visible/Invisible Light Detector
• Identifies live multimode and single-mode fibers.
• Helps prevent accidental eye exposure to hazardous laser radiation.
• Simple one-button test.
• Patented light baffle accepts all standard fiber optic connector types,
bare fiber and even fiber loop.
• Includes both audible and visible indicators.
• Unique design permits testing in bright light conditions.
• Wide sensitivity from +25dBm to -55dBm.
• Detects visible and invisible light wavelengths from 630nm to 1600nm.
• Operates for approximately one year on two AA batteries.
• Automatic battery check.
CAT. NO. UPC NO. DESCRIPTION
510LS 60566 SensoLITE Visible/Invisible Light Detector
Visual Fault Finder
Bare Fiber Adapter
• Pinpoints cable breaks and bad connections in both single-mode
and multimode fiber.
• Quick connect interface adapts to all standard PC and APC polished 2.5 mm
ferruled connectors without adapters.
• Both continuous and pulsed operation aid in fault detection even in high
ambient lighted areas.
• Pocket-sized.
• Rugged, waterproof design.
• Ultra-bright 635nm visible laser detects fiber breaks up to 3 km away.
• Operates for over 48 hours on two AA batteries.
• Includes integral dust cap and nylon, belt-mounted carrying pouch.
• Optional snap-on adapters permit attachment to ST, SC and FC connectors.
• Allows temporary connection of 125 micron multimode or single-mode fiber
to measuring equipment such as Sources, Optical Power Meters and Fault
Locators with an FC-style connector. Connection to other common fiber optic
connector styles can be accomplished with a hybrid test jumper.
• Short 5 mm minimum strip length provides easy insertion into the capillary
and avoids fiber breakage.
• Reusable.
• Includes a durable 2.5 mm tungsten carbide ferrule and a ferrule cleaning tool.
CAT. NO. UPC NO. DESCRIPTION
T160L 60562 Visual Fault Finder
1630 60580 ST SOC Adapter
1662 60581 SC SOC Adapter
1620 60582 FC SOC Adapter
CAT. NO. UPC NO. DESCRIPTION
55456 55456 Bare Fiber Adapter (125µm, FC-style connector)
www.greenlee.com
285
USA Tel: 800.435.0786
Fax: 800.451.2632
Canada Tel: 800.435.0786
Fax: 800.524.2853
International Tel: +1.815.397.7070
Fax: +1.815.397.9247
Voice • Data • Video
= REPLACEMENT PART = ACCESSORY

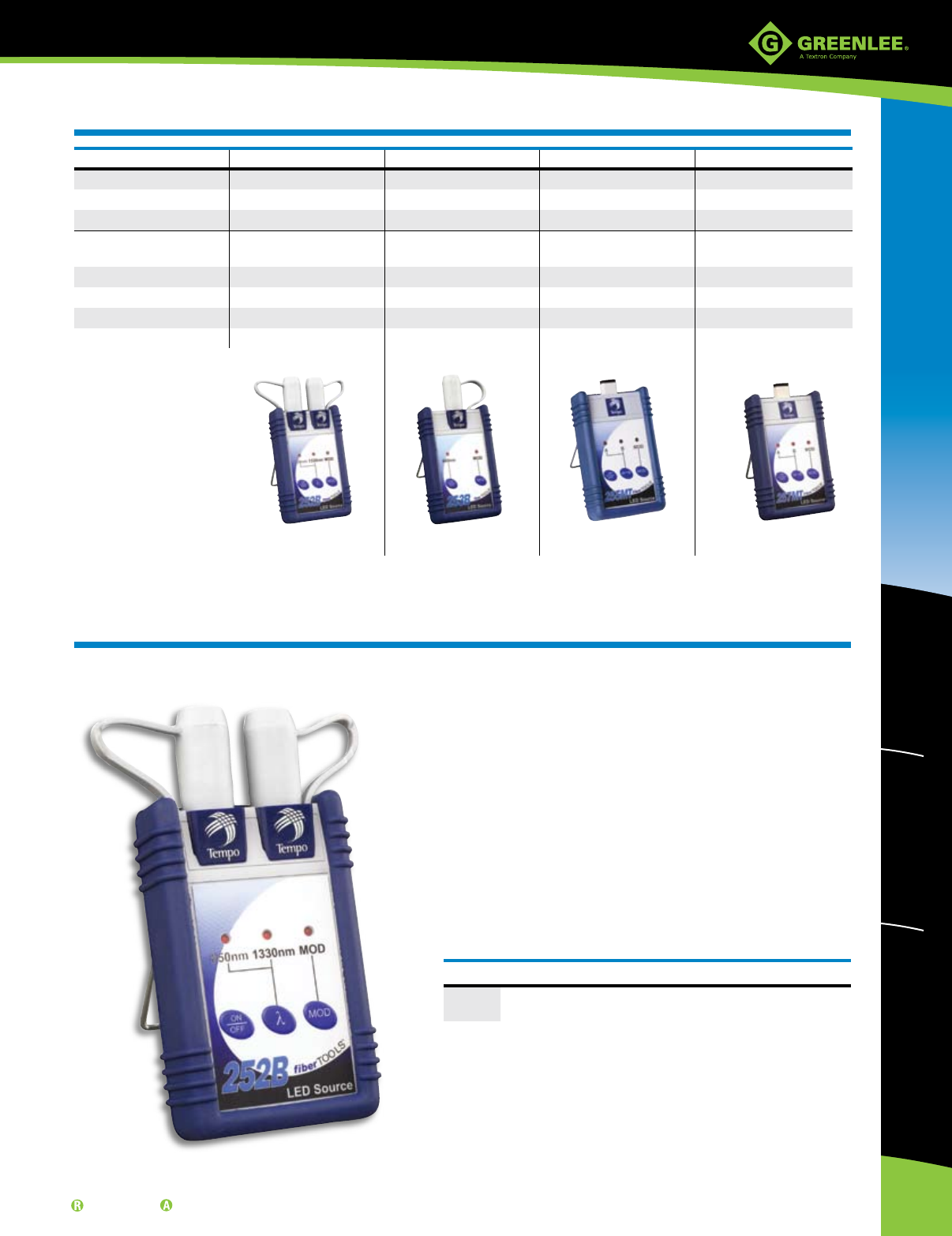

LED Sources
Dual Wavelength LED Source
MODEL 252B 253B 255MT 257MT
SOURCE TYPE LED LED LED LED
WAVELENGTHS (NM) 850/1300 650 1300 850
OPTICAL INTERFACE TYPE SOC Universal SOC Universal Fixed MT-RJ Fixed MT-RJ
Continuous and Modulated ✔ ✔ ✔ ✔
Output Modes
User-selectable Auto Shutoff ✔ ✔ ✔ ✔
Single-mode ✔ ✔
Multimode (glass) ✔ ✔ ✔
Multimode (plastic) ✔
252B 253B 255MT 257MT
• Perform multimode insertion loss and link loss measurements
on Local Area Networks (LAN), premises networks and Fiber
Distributed Data Interface (FDDI) installations.
• Stable, calibrated output.
• Proven, reliable and compact design.
• Easy to use; three buttons control all essential functions.
• Rubber boot protects against dropping.
• Rugged and splashproof.
• Single unit combines 850nm and 1300nm calibrated wavelengths.
• Nominal output for 62.5/125 is -13dBm for 850nm and -20dBm
for 1300nm.
• Continuous and modulated output modes.
• User-selectable auto shutoff.
• TIA-568B compliant.
• Two AA batteries provide power for over 24 hours.
• Optional AC power converter/adapter is available for prolonged
or benchtop use.
CAT. NO. UPC NO. DESCRIPTION
252B 60530 Dual 850/1300nm LED Source
90ACK 60686 AC/Main Power Converter 120V (one required per handheld unit)
Requires two Snap-On Connector (SOC) adapters (See pages 289 and 290).
USA Tel: 800.435.0786
Fax: 800.451.2632
Canada Tel: 800.435.0786
Fax: 800.524.2853
International Tel: +1.815.397.7070
Fax: +1.815.397.9247
286
Voice • Data • Video
www.greenlee.com
= REPLACEMENT PART = ACCESSORY

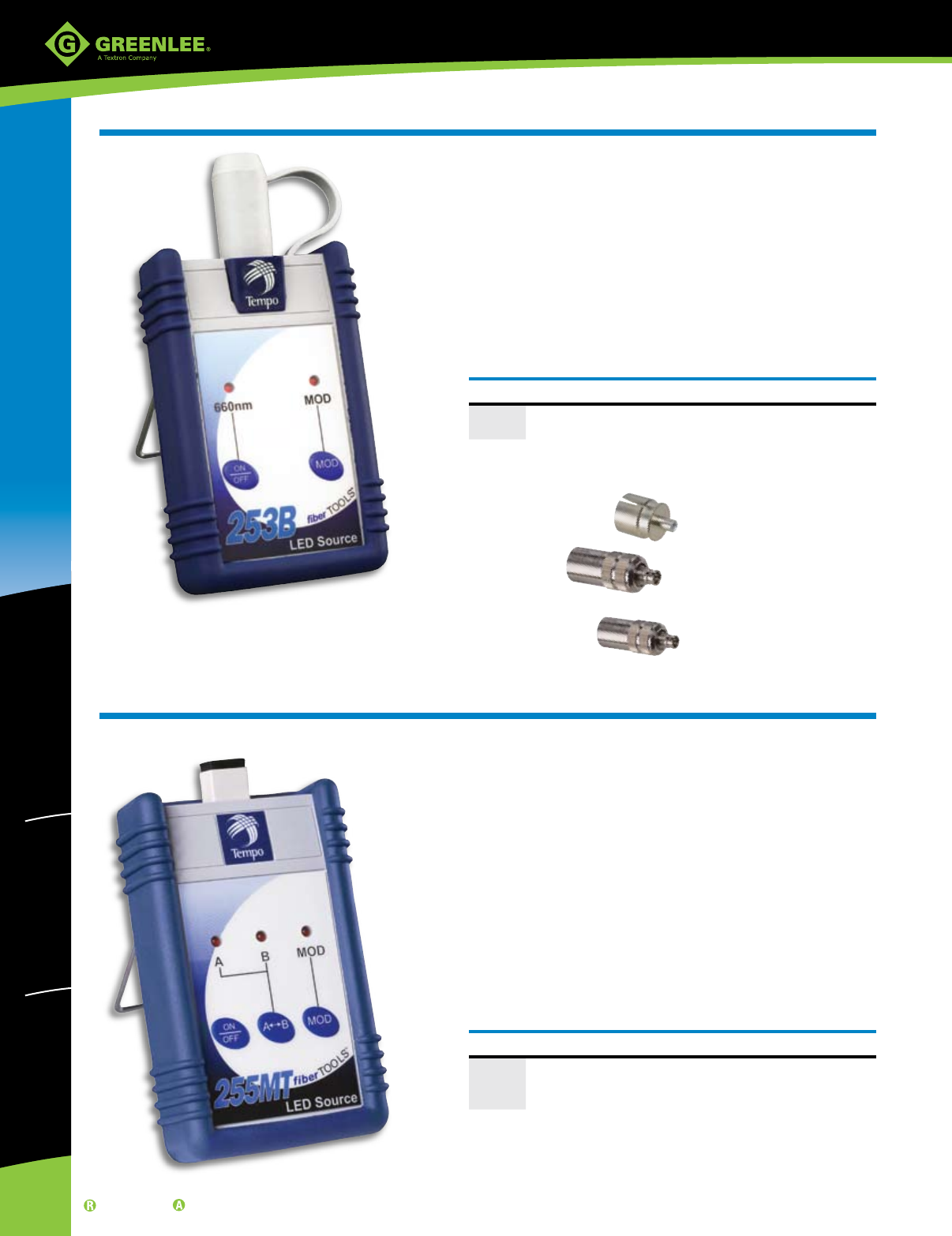

Single Wavelength 650nm LED Source
MT-RJ Dual Channel LED Sources
• Test insertion loss of multimode MT-RJ fiber optic cables and
connectors, or pair with an optical power meter for link loss testing
of installed cable plants.
• Stable, calibrated output.
• Proven, reliable and compact design.
• Easy to use; two buttons control all essential functions.
• Rubber boot protects against dropping.
• Rugged and splashproof.
• 255MT model has a 1300nm wavelength.
• 257MT model has an 850nm wavelength.
• Nominal output for 62.5/125 is -20dBm for both 850nm and 1300nm.
• Continuous and alternating output modes.
• Fixed MT-RJ interface.
• User-selectable auto shutoff.
• Two AA batteries provide power for over 24 hours.
• Optional AC power converter/adapter is available for prolonged
or benchtop use.
CAT. NO. UPC NO. DESCRIPTION
255MT 60533 MT-RJ Dual Channel LED Source 1300nm
257MT 60536 MT-RJ Dual Channel LED Source 850nm
90ACK 60686 AC/Main Power Converter 120V (one required per handheld unit)
255MT
To accommodate other connector types, see
our SOC/UCI adapters on pages 289 and 290
and reference cables on page 293.
• Performs multimode insertion loss and link loss measurements when
paired with an optical power meter for POF testing.
• Stable, calibrated output.
• Proven, reliable and compact design.
• Easy to use; two buttons control all essential functions.
• Rubber boot protects against dropping.
• Rugged and splashproof.
• Nominal output into 200/230 is -15dBm.
• Continuous and modulated output modes.
• User-selectable auto shutoff.
• Two AA batteries provide power for over 24 hours.
• Optional AC power converter/adapter is available for prolonged
or benchtop use.
CAT. NO. UPC NO. DESCRIPTION
253B 60531 650nm LED Source
90ACK 60686 AC/Main Power Converter 120V (one required per handheld unit)
Requires one Snap-On Connector (SOC) adapter (See pages 289 and 290).
www.greenlee.com
287
USA Tel: 800.435.0786
Fax: 800.451.2632
Canada Tel: 800.435.0786
Fax: 800.524.2853
International Tel: +1.815.397.7070
Fax: +1.815.397.9247
Voice • Data • Video
= REPLACEMENT PART = ACCESSORY

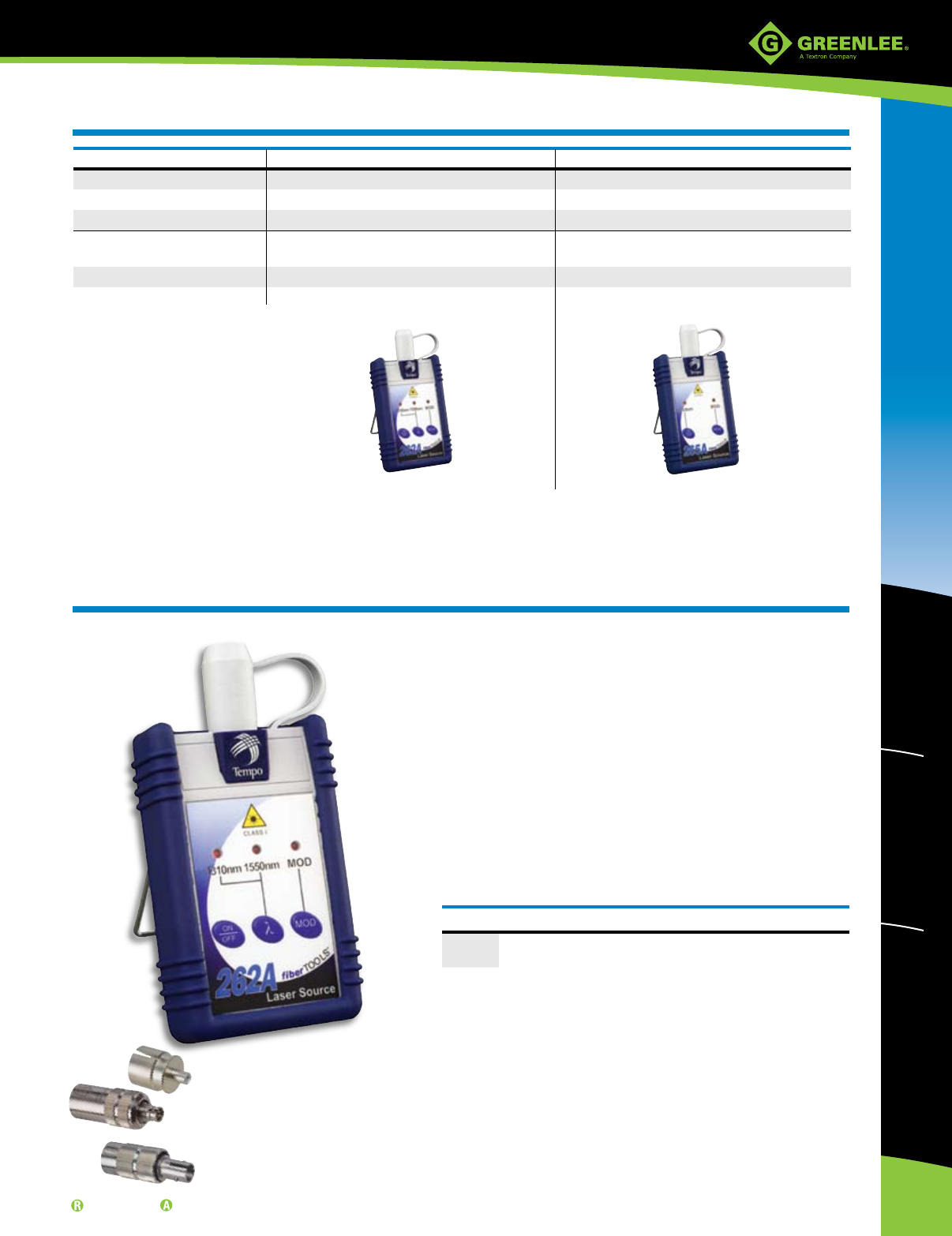

Laser Sources
1310/1550 Dual Wavelength Laser Source
• Performs single-mode insertion loss and link loss measurements when
paired with an optical power meter.
• Single output interface simplifies dual wavelength measurements.
• Stable, calibrated output.
• Proven, reliable and compact design.
• Easy to use; three buttons control all essential functions.
• Rubber boot protects against dropping.
• Rugged and splashproof.
• Single unit toggles between 1310nm and 1550nm wavelengths.
• Fabry-Perot laser diodes.
• Calibrated output power is nominal -7.0dBm.
• Continuous and modulated output modes.
• User-selectable auto shutoff.
• Two AA batteries provide power for over 50 hours.
• Optional AC power converter/adapter is available for prolonged
or benchtop use.
CAT. NO. UPC NO. DESCRIPTION
262A 60564 Dual Laser Source
90ACK 60686 AC/Main Power Converter 120V (one required per handheld unit)
MODEL 262A 265A
SOURCE TYPE Fabry-Perot Laser Fabry-Perot Laser
WAVELENGTHS (NM) 1310/1550 1310
OPTICAL INTERFACE TYPE UCI Universal UCI Universal
Continuous and Modulated ✔ ✔
Output Modes
User-selectable Auto Shutoff ✔ ✔
Single-mode ✔ ✔
262A 265A
To accommodate other connector types, see
our SOC/UCI adapters on pages 289 and 290
and reference cables on page 293.
Requires one UCI adapter (See pages 289 and 290). For PC polished connectors only.
For APC connectors, use hybrid reference cables (See page 293).
USA Tel: 800.435.0786
Fax: 800.451.2632
Canada Tel: 800.435.0786
Fax: 800.524.2853
International Tel: +1.815.397.7070
Fax: +1.815.397.9247
288
Voice • Data • Video
www.greenlee.com
= REPLACEMENT PART = ACCESSORY

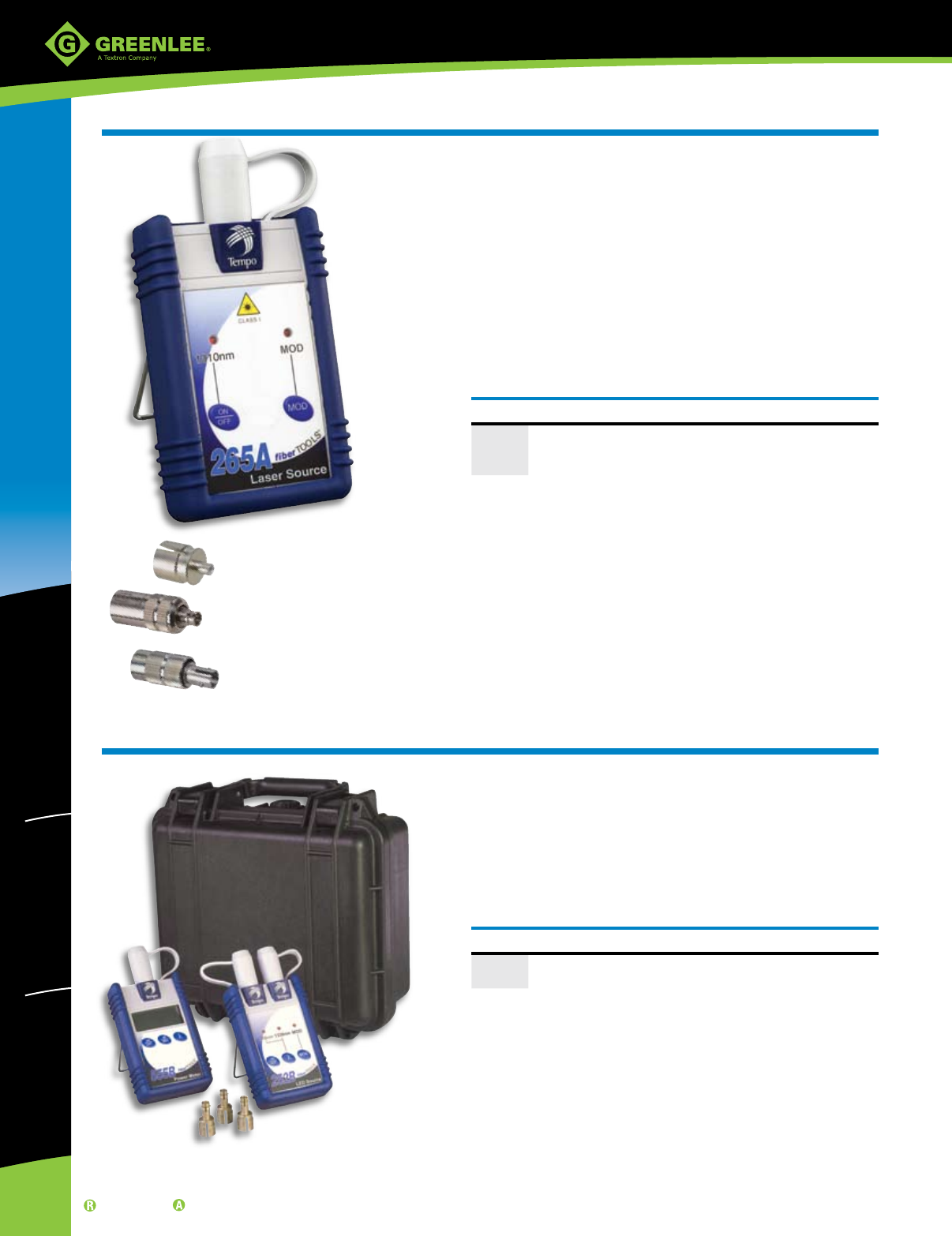

Single Wavelength Laser Sources
fiberTOOLS® Carrying Cases
Designed to hold Tempo handheld instruments and a full range
of test accessories.
900B and 901B Hard Carrying Cases
• Top tray holds up to 3 (900B) or 4 (901B) handheld instruments
and a T160L Visual Fault Finder.
• Bottom compartment of both models stores additional instruments
and test accessories.
• Compact, waterproof and lockable.
• Molded from black structural foam resin.
CAT. NO. UPC NO. DESCRIPTION
900B 60684 Hard Carrying Case, Holds 3 Handhelds
901B 60579 Hard Carrying Case, Holds 4 Handhelds
265A
To accommodate other connector types,
see our SOC/UCI adapters on pages 289 and 290
and reference cables on page 293.
• Performs single-mode insertion loss and link loss measurements
when paired with an optical power meter.
• Stable, calibrated output.
• Proven, reliable and compact design.
• Easy to use; two buttons control all essential functions.
• Rubber boot protects against dropping.
• Rugged and splashproof.
• 265A has a 1310nm wavelength and -7dBm output for single-mode testing.
• Continuous and modulated output modes.
• User-selectable auto shutoff.
• The 265A model operates for over 36 hours on two AA batteries.
• The 266A model operates for over 80 hours on two AA batteries.
• AC power converter/adapter is available for prolonged or benchtop use.
CAT. NO. UPC NO. DESCRIPTION
265A 60565 1310nm Laser Source, SM
90ACK 60686 AC/Main Power Converter 120V
(one required per handheld unit)
Requires one UCI adapter (See pages 289 and 290). For PC polished connectors only.
For APC connectors, use hybrid reference cables (See page 293).
900B
Instruments and accessories
not included
Carry Case only
www.greenlee.com
289
USA Tel: 800.435.0786
Fax: 800.451.2632
Canada Tel: 800.435.0786
Fax: 800.524.2853
International Tel: +1.815.397.7070
Fax: +1.815.397.9247
Voice • Data • Video
= REPLACEMENT PART = ACCESSORY

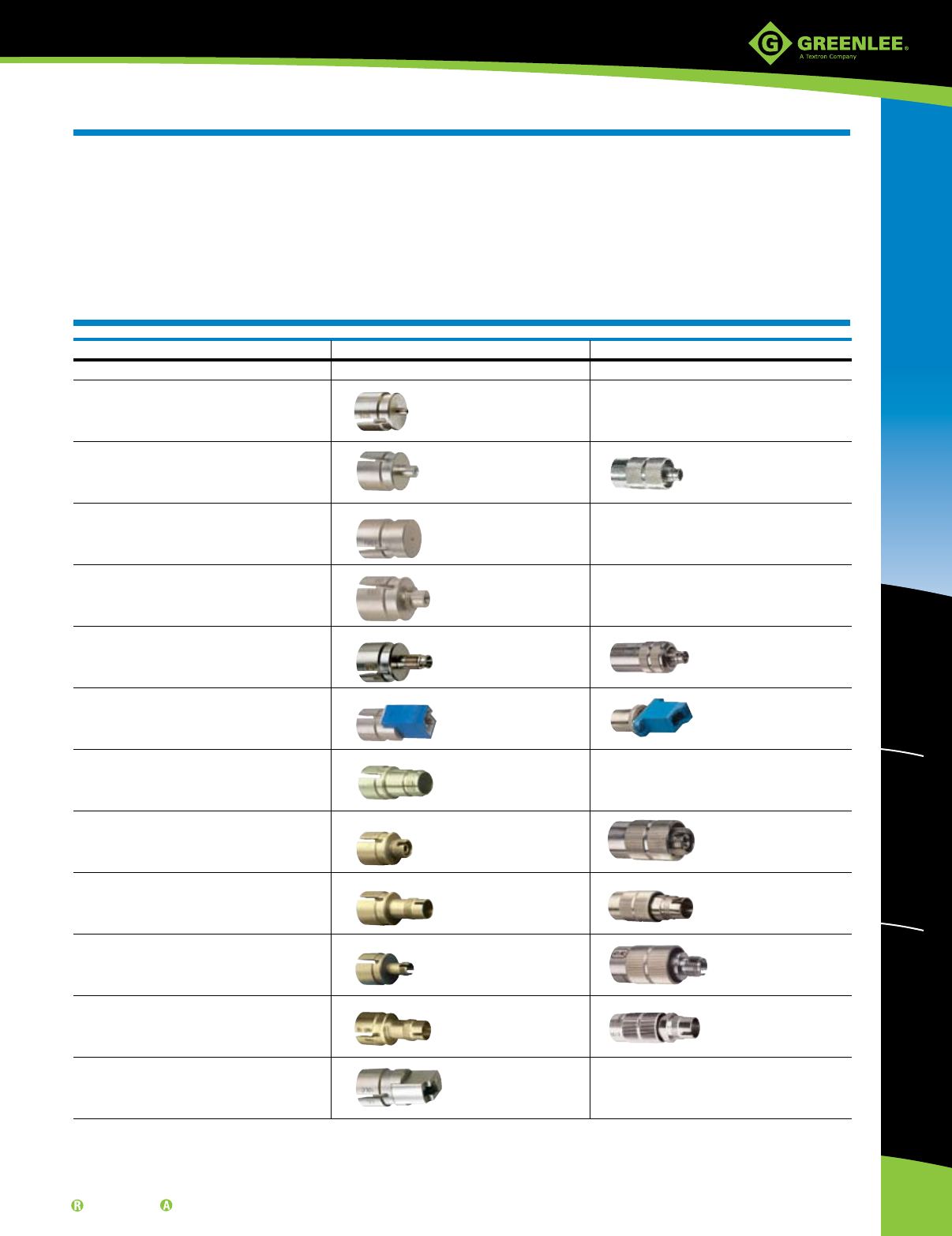

Fiber Optic Instrument Adapters – SOC and UCI
Fiber Optic Instrument Adapters – SOC and UCI
CONNECTOR TYPE SOC ADAPTER UCI ADAPTER
DESCRIPTION CAT. NO. UPC NO. CAT. NO. UPC NO.
1.25 mm Quick-Connect Universal Adapter T1026 60588 Use hybrid cable only *
(LC, MU, etc.)
2.5 mm SOC Quick-Connect Adapter T1025 60587 AU-250 60703
(E2000, FC, SC, ST, etc.)
Blank Adapter (for custom applications) T1001 60585
D4 T1089 60597 Use hybrid cable only *
DIN 47256 T1010 60586 AD-108 60697
E-2000 T10E2 60599 AE2-10 60698
EC-Radiall T10E0 60598 Use hybrid cable only *
FC T1020 60576 APC-108 60572
HMS-0 T1050 60592 AMS-00 60700
HMS-10/A (SMA-2.5 mm) T1086 60595 AMT-10 60701
HMS-10/HP T1040 60590 AHP-10 60699
LC T10LC 60600 Use hybrid cable * or FoPro®-
x
• Our SOC and UCI adapters provide direct connectivity for
Tempo fiberTOOLS® to a wide range of industry-standard fiber
optic connectors.
• Adapter design ensures maximum accuracy and repeatability
when performing critical measurements on fiber optic systems.
• Easy to clean and use.
• Single-mode and multimode compatible.
• SOC adapters are compatible with both PC and Angled APC
physical contact interfaces.
• UCI adapters feature durable phosphor bronze alignment sleeve.
• SOC (Snap-On Connector) adapter is used on all power meters
and 250 “B” series LED Sources.
• UCI (Universal Connector Interface) adapter is used on all 250/260
“A” Series Sources and 330 Series Variable Optical Attenuators.
x
FoPro ferrule options include 2.5 mm, 1.57 mm (MIL-style 16AWG optical contacts) and 1.25 mm.
* When using a Hybrid Adapter Cable, the instrument UCI adapter and one end of the Hybrid Adapter
Cable should be a commonly available connector type. (i.e. FC, SC or ST)
USA Tel: 800.435.0786
Fax: 800.451.2632
Canada Tel: 800.435.0786
Fax: 800.524.2853
International Tel: +1.815.397.7070
Fax: +1.815.397.9247
290
Voice • Data • Video
www.greenlee.com
= REPLACEMENT PART = ACCESSORY

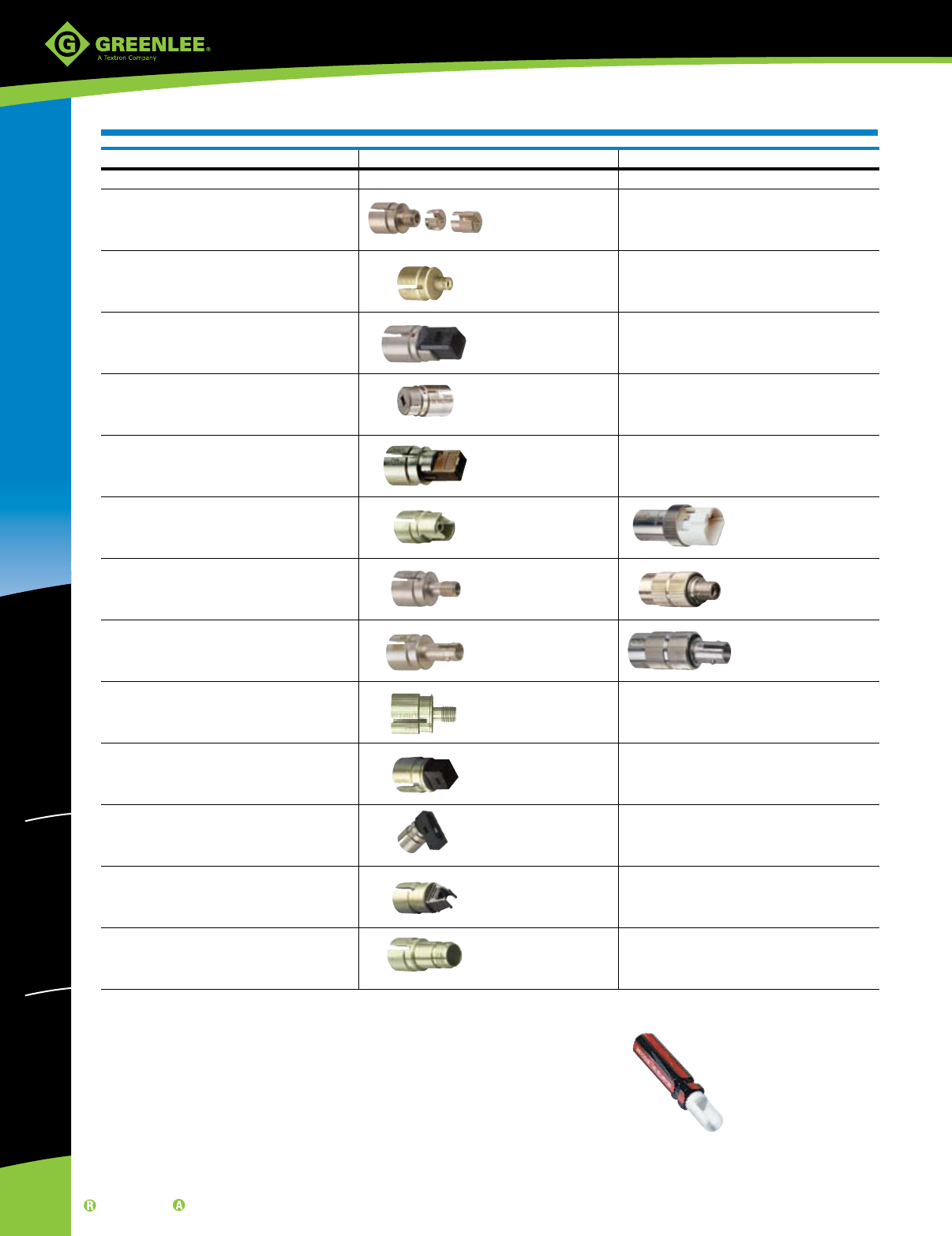

Fiber Optic Instrument Adapters – SOC and UCI
CONNECTOR TYPE SOC ADAPTER UPI-PC ADAPTER
DESCRIPTION CAT. NO. UPC NO. CAT. NO. UPC NO.
MIL-T-29504/4 & /5 Termini T1038 60589 Use hybrid cable * or FoPro®
x
Mini-BNC T1047 60591 Use hybrid cable only *
MT-RJ
Æ
T13A2 60605
Æ
Use hybrid cable only *
MT-RJ Ferrule Only
Æ
T13AF 60606
Æ
Use hybrid cable only *
MU T10MU 60601 Use hybrid cable * or FoPro®
x
SC 1062 60575 ASC-108 60574
SMA 905/906 T1087 60596 ASM-90 60702
ST T1030 60577 ATS-108 60573
STRATOS 430/ HOLTEK 38000 T1057 60593 Use hybrid cable only *
TOSLINK – Simplex T10TB 60602 Use hybrid cable only *
TOSLINK – Duplex (Set of 2) T10TD 60603 Use hybrid cable only *
Versatile Link – V/Z PIN T10ZP 60604 Use hybrid cable only *
VFO – Radiall T1081 60594 Use hybrid cable only *
x
FoPro ferrule options include 2.5 mm, 1.57 mm
(MIL-style 16AWG optical contacts) and 1.25 mm.
* When using a Hybrid Adapter Cable, the instrument
UCI adapter and one end of the Hybrid Adapter Cable
should be a commonly available connector type.
(i.e. FC, SC or ST)
Æ
SOC adapter for use only with the 556MT Optical
Power Meter on page 281.
90SOC (60687)
SOC adapter tool for easy installation
and removal of SOC adapters from
instrument interfaces.
www.greenlee.com
291
USA Tel: 800.435.0786
Fax: 800.451.2632
Canada Tel: 800.435.0786
Fax: 800.524.2853
International Tel: +1.815.397.7070
Fax: +1.815.397.9247
Voice • Data • Video
= REPLACEMENT PART = ACCESSORY
fiberSAFE™ USA/Canada Telecom Adapter Kit — SOC and UCI
fiberSAFE™ Worldwide Telecom Adapter Kit — SOC and UCI
fiberSAFE™ LAN Adapter Kit — SOC and UCI
• Conveniently combines the most popular SOC, UCI and bulkhead
mating adapters used in the North American telecommunications market.
Enables direct connectivity for Tempo fiberTOOLS® to industry-standard
fiber optic connectors.
USA/Canada Telecom Adapter Kit includes:
• FC-PC/APC (wide key) bulkhead/mating adapter.
• ST-PC/APC bulkhead/mating adapter.
• SC-PC/APC bulkhead/mating adapter.
• E2000-PC/APC bulkhead/mating adapter.
• FC/SC hybrid bulkhead adapter.
• FC/ST hybrid bulkhead adapter.
• FC/E2000 hybrid bulkhead adapter.
• Universal 2.5 mm Quick Connect SOC adapter.
• Conveniently combines the most popular SOC, UCI and bulkhead mating
adapters used outside the USA and Canada. Enables direct connectivity
for Tempo fiberTOOLS to industry-standard fiber optic connectors.
Worldwide Telecom Adapter Kit includes:
• DIN 47256-PC/APC bulkhead/mating adapter.
• FC-PC/APC (wide key) bulkhead/mating adapter.
• SC-PC/APC bulkhead/mating adapter.
• E2000-PC/APC bulkhead/mating adapter.
• FC/DIN hybrid bulkhead adapter.
• FC/SC hybrid bulkhead adapter.
• FC/E2000 hybrid bulkhead adapter.
• Universal 2.5 mm Quick Connect SOC adapter.
• Conveniently combines the most popular SOC, UCI and bulkhead mating
adapters used for Local Area Networks (LAN). Enables direct connectivity
for Tempo fiberTOOLS to industry-standard fiber optic connectors.
LAN Adapter Kit includes:
• FC-PC/APC (wide key) bulkhead/mating adapter.
• ST-PC/APC bulkhead/mating adapter.
• SC-PC/APC bulkhead/mating adapter.
• SMA 905/906 bulkhead/mating adapter.
• FC/ST hybrid bulkhead adapter.
• ST/SC hybrid bulkhead adapter.
• Universal 2.5 mm Quick Connect SOC Adapter.
CAT. NO. UPC NO. DESCRIPTION
956US 60695 USA/Canada Adapter Kit
CAT. NO. UPC NO. DESCRIPTION
956WW 60696 Worldwide Adapter Kit
CAT. NO. UPC NO. DESCRIPTION
956LN 60694 LAN Adapter Kit
USA Tel: 800.435.0786
Fax: 800.451.2632
Canada Tel: 800.435.0786
Fax: 800.524.2853
International Tel: +1.815.397.7070
Fax: +1.815.397.9247
292
Voice • Data • Video
www.greenlee.com
= REPLACEMENT PART = ACCESSORY
Quick Reference Charts for Fiber Testing Applications
FIBER OPTICS MEASUREMENTS MATRIX
APPLICATION SINGLE-MODE PAGE NO. MULTIMODE (GLASS FIBER) PAGE NO.
Visual Fault Location T160L 284 T160L 284
263LX 283 263LX 283
170XL 274 170XL 274
Visual Continuity T160L 284 T160L 284
263LX 283 263LX 283
170XL 274 170XL 274
Measure Optical Power (to +3dBm) 522B / 555B 280, 281 522B / 555B / 557B 280, 281
(to +27dBm) 522B-HP / 558B 280, 282 282
560XL 273 560XL 273
Measure Insertion Loss / Attenuation 262A + 555B 281, 287 252B + 555B 281
(Dual Wavelength) 523B-13/15 277
560XL +580XL 273-274 560XL +570XL 270-274
Data Storage Capability 522B / 522B-HP 280 522B / 522B-HP 280
523B-13/15 277
SPECIAL TEST EQUIPMENT FOR MT-RJ INTERCONNECTIONS
APPLICATION SINGLE-MODE PAGE NO. MULTIMODE (GLASS FIBER) PAGE NO.
Visual Fault Location 263MT 283 263MT 283
Visual Continuity 263MT 283 263MT 283
Measure Optical Power 556MT 281 556MT 281
Measure Insertion Loss 262A + 556MT 281, 287 255MT / 257MT + 556MT 286
60576MT / 60556MT 279
SPECIAL TEST EQUIPMENT FOR PLASTIC OPTICAL FIBER (POF)
APPLICATION MULTIMODE (1 MM POF) PAGE NO.
Visual Fault Location 253B 285
Visual Continuity 253B 285
Measure Optical Power 557B 282
Measure Insertion Loss 253B + 557B 282, 285
www.greenlee.com
293
USA Tel: 800.435.0786
Fax: 800.451.2632
Canada Tel: 800.435.0786
Fax: 800.524.2853
International Tel: +1.815.397.7070
Fax: +1.815.397.9247
Voice • Data • Video
= REPLACEMENT PART = ACCESSORY

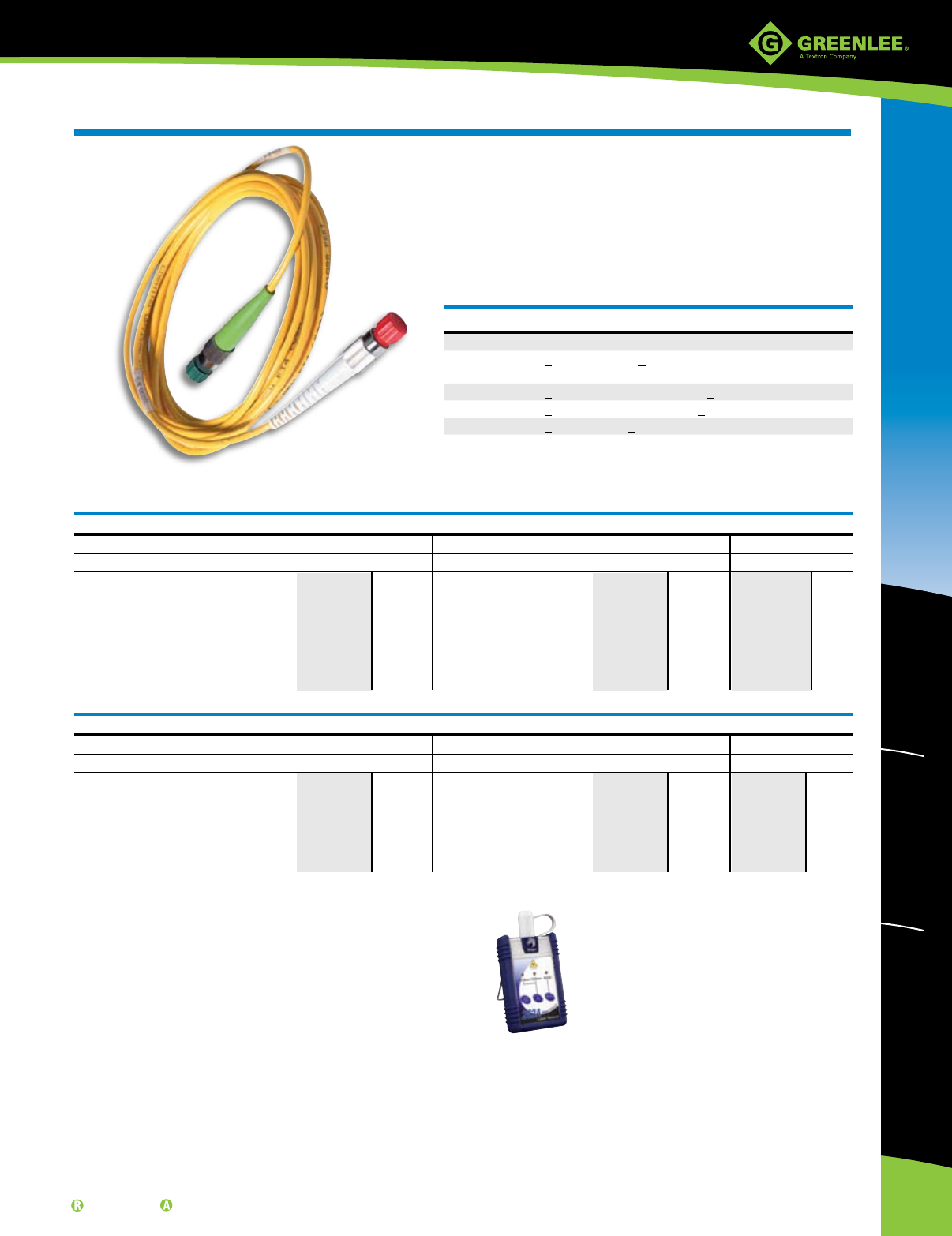

TIA-568B and FOTP-171A Certified Reference Cables
• Ensures accurate measurements for repeatable and reproducible testing
to the latest industry standards.
Meets and/or exceeds the latest industry standards including:
• TIA/EIA-455-171 (FOTP-171A), issued June, 2001.
• TIA-568B, TIA-562-7 (OFSTP-7) and TIA-526-14 (OFSTP-14) for optical
link testing.
• TIA-455-171 (FOTP-171, Attenuation) and TIA-455-8 (FOTP-8,
Return Loss) for cable assembly testing.
• Corresponding IEC measurement standards.
SPECIFICATIONS
Ferrule OD 2.4990 ±0.0005 mm
Fiber to Ferrule
Eccentricity
< 0.25µm (SM) and < 3µm (MM)
Insertion Loss < 0.15dB (SM, 1310/1550nm) and < 0.25dB (MM, 850/1300nm)
Return Loss > 55dB (SM, 1310/1550nm) and > 40dB (MM, 850/1300nm)
Beam Exit Angle < 0.25° (SM) and < 0.5° (MM)
Standard Length 3 m
572J
STANDARD REFERENCE CABLES (TYPE A TO TYPE B)
DESCRIPTION CAT NO. UPC NO. DESCRIPTION CAT NO. UPC NO. CAT NO. UPC NO.
Single-mode Reference Cables: Multimode Reference Cables: 50/125 62.5/125
FC-PC to FC-PC 562K-101 60658 FC-PC to FC-PC 562K-105 60659 562K-106 60660
ST-PC to ST-PC 563K-101 60661 ST-PC to ST-PC 563K-105 60662 563K-106 60663
SC-PC to SC-PC 566K-101 60664 SC-PC to SC-PC 566K-105 60665 566K-106 60666
E2000-PC to E2000-PC 56E2-101 60667 E2000-PC to E2000-PC 56E2-105 60668 56E2-106 60669
LC-PC to LC-PC 56LC-LFM 60670 LC-PC to LC-PC 56LC-LM5 60671 56LC-LM6 60672
MU-PC to MU-PC 56MU-LFM 60673 MU-PC to MU-PC 56MU-LM5 60674 56MU-LM6 60675
HYBRID REFERENCE CABLES (FC-PC TO TYPE A)
DESCRIPTION CAT NO. UPC NO. DESCRIPTION CAT NO. UPC NO. CAT NO. UPC NO.
Single-mode Reference Cables: Multimode Reference Cables: 50/125 62.5/125
FC-PC to FC-APC 572J-101 60680
FC-PC to SC-APC 576J-101 60681
FC-PC to E2000-APC 57E8-101 60682
FC-PC to LC-PC 57LC-LFM 60733 FC-PC to LC-PC 57LC-LM5 60734 57LC-LM6 60735
FC-PC to MU-PC 57MU-LFM 60736 FC-PC to MU-PC 57MU-LM5 60737 57MU-LM6 60738
262A
To measure attenuation of SM links with APC polished connectors, use
our 262A Dual Wavelength Laser Source (see page 287) with the APC-
108 FC UCI Adapter (see page 289) and a Hybrid Reference Cable. Use
same hybrid reference cable approach for LC-PC and MO-PC connectors.
USA Tel: 800.435.0786
Fax: 800.451.2632
Canada Tel: 800.435.0786
Fax: 800.524.2853
International Tel: +1.815.397.7070
Fax: +1.815.397.9247
294
Voice • Data • Video
www.greenlee.com
= REPLACEMENT PART = ACCESSORY
Notes
