LEDs | CFLs | Halogen | Cold Cathodes | HID Lamps | Linear Lamps & Ballasts

LED Fixtures | Linear Fluorescent Fixtures | GU 24 and CFL Fixtures | Exit & Emergency

BECAUSE WE CARE 2013

CATALOG

LAMPS°BALLASTS°FIXTURES

Contents

800.324.1496 | tcpi.com 2 013

LEDs

CFLs

SpringLight™

Cold Cathodes

Halogen

HID

Linear Lamps & Ballasts

2

14

33

34

38

40

50

›

›

›

›

›

›

›

Linear Fluorescent Luminaires

LED Fixtures

Decorative CFL Fixtures

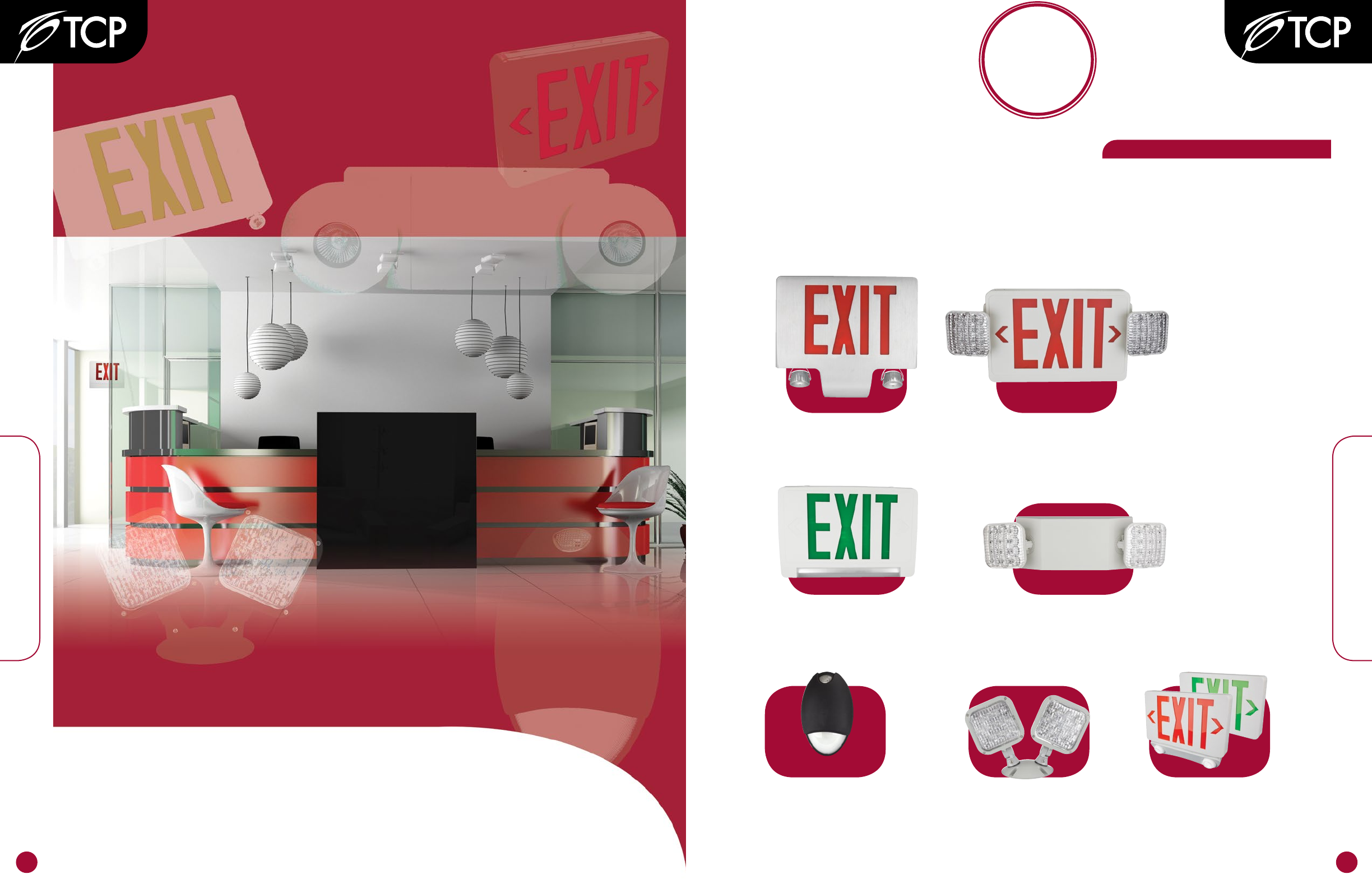

Exit & Emergency

56

74

78

88

›

›

›

›

CATALOG

2 013 CATALOG

TCP – Lighting the Way to Perfection Lamps & Ballasts Fixtures

Product Identification

Glossary

Index

104

106

109

›

›

›

Reference

Lighting today has evolved a great deal from where it started over 100 years ago.

Most bulbs look the same as they did way back then, and the rule was “the higher the wattage, the brighter the light.”

It was pretty simple.

TCP is leading the way with breakthrough energy efficient lighting products. Our advanced CFL ballast design and lamp technologies

set new benchmarks that the rest of the industry is still trying to match. And now, TCP is bringing the same refinements to our

advanced LED driver technology, giving you even more energy efficient lighting choices that last longer

and provide all of the performance characteristics you were used to with the old incandescent lamps.

Retailing, entertainment venues, restaurants, hospitality…although your businesses’ fixtures may look the same,

your lightning needs may be very different. Now, you can choose the perfect lamp that delivers

just the right light to enhance your business or products. Lights that deliver bolder colors, provide stronger

product definition and superior detail, or even a softer, more comfortable environment to set the mood.

TCP has all the solutions to maximize your customer’s experience. With cutting-edge LED technology,

our lamp lineup offers unmatched performance with full dimming capability at a sensible cost.

TCP is the obvious choice for all your lighting needs.

These last few years, we have seen changes that have revolutionized the lighting

industry. New technologies have given us more energy efficient choices, for

delivering the same light you are used to, along with new shapes, better light

output, and many color temperatures to enhance any setting.

800.324.1496 | tcpi.com

2 013 CATALOG

2 013 CATALOG

TCP has all the bases covered.

LEDs

LED technology has ARRIVED!! Throw away anything else that you have been using and upgrade

to LED lamps from TCP. Any application can be satisfied within the umbrella of our LED line of products. TCP’s

newest generation LED lamps utilizes our exclusive design, which provides unmatched performance, function

and value. TCP expertly integrates the LED lighting element, lamp optics, lamp driver, and heat management,

unmatched light output and functionality into a perfectly optimized light system.

2013 brings exciting leaps forward for LED technology at TCP. For our PAR lineup, we introduce

a powerful, 23W option for maximum light output. We also will be launching a lamp line

specifically suited for wet locations. In addition, we also offer a series of economical,

non-dimmable PARs in all temperatures.

With our MR16 line, we offer long lasting halogen replacements that are 80% more efficient.

Our All-purpose, LED A-Lamps offer an excellent solution to replace

energy wasting incandescents, while lasting over 35,000 hours. Our A-Lamps produce light output in

all directions to suit most applications!

Retrofitting to LED downlights has never been easier, thanks to our new

all-in-one 5"/6" and 4" retrofit downlight kits. Perfect for applications

that require fully integrated solution in one fixture.

And finally, TCP improves our Deco line by introducing 4 and now 5 watt versions with new, more efficient designs.

4W = 25W Incandescent Replacement

5W = 40W Incandescent Replacement

Available in B11 & G16, frosted and clear, medium and candelabra base.

800.324.1496 | tcpi.com

LED Lamps

800.324.1496 | tcpi.com

LED Lamps

800.324.1496 | tcpi.com CATALOG

2 013

CATALOG

2 013

54

• 27W

• Wet Location

• Non Dimmable PAR Line

PAR38, PAR30 & PAR20

Features & Benefits

• Smooth, uniform dimming.

• Energy efficient: up to 80% less energy

than standard halogen replacement.

• Many models are Energy Star® rated.

• Long life: designed for 50,000 hours

(lasts at least 15 times longer than alternative)

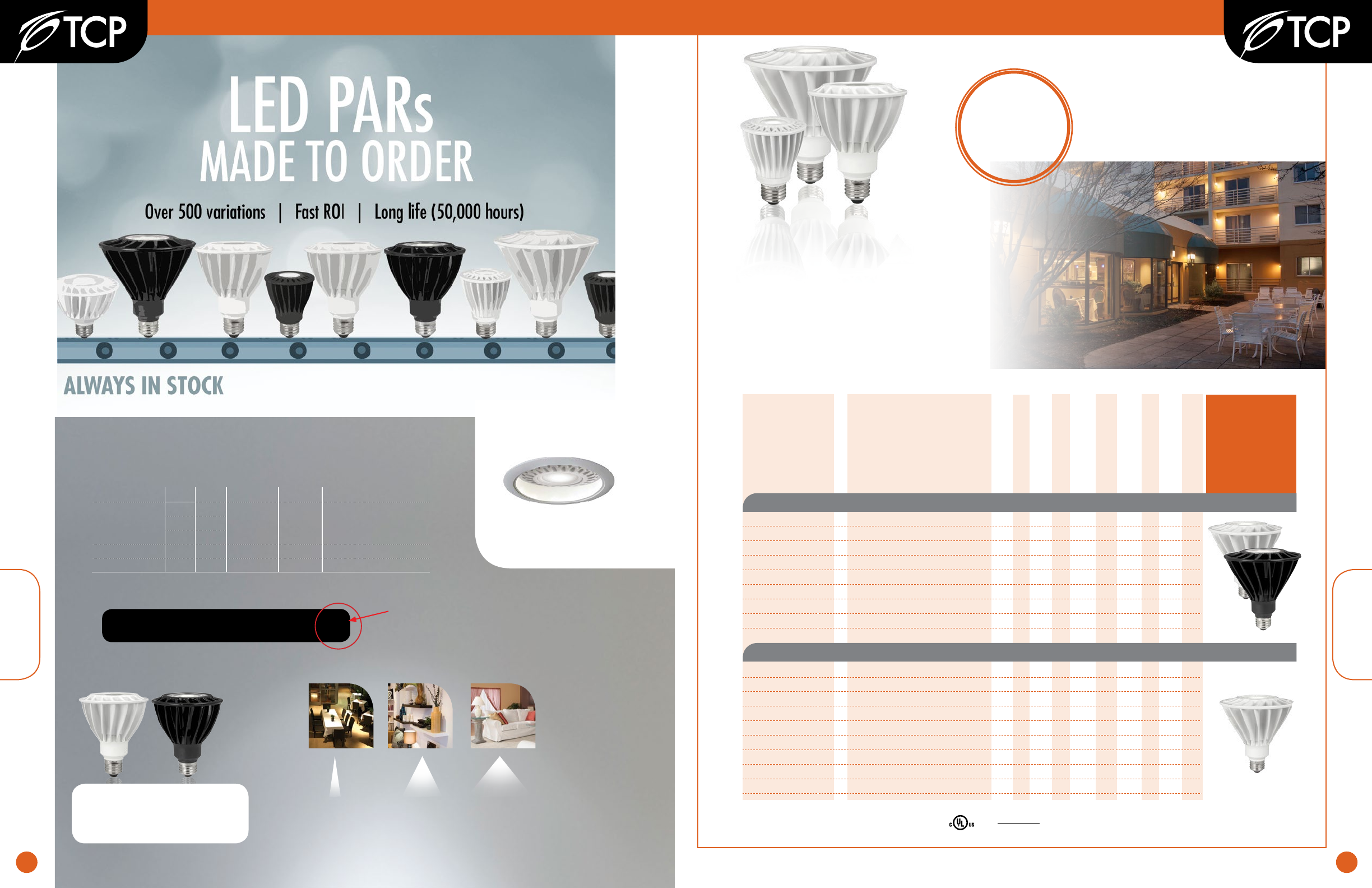

To order our Made To Order LED PAR Lamps,

simply add “US” to the end of any TCP LED PAR

Lamp item number.

EXAMPLE: LED17E26P3827KFLUS

Made To Order LED PAR LAMPS

TCP is pleased to offer LED PAR lamps with a 5 business day turn around.

Call your TCP rep today. If it is not in stock, we’ll assemble it in Aurora, Ohio.

All TCP PARS assembled in Aurora, Ohio are made of components manufactured in China and Japan.

Pick the lamp style: Wattage Replaces Housing Color Beam Angle Color Temperature

PAR38

14W 65W

Black or White 15º, 25º, 40º 24K, 27K, 30K, 35K, 41K, 50K17W 90W

19W 120W

PAR30 Long Neck 14W 75W Black or White 15º, 25º, 40º 24K, 27K, 30K, 35K, 41K, 50K

PAR30 Short Neck 12W 60W Black or White 25º, 40º 24K, 27K, 30K, 35K, 41K, 50K

PAR20 coming soon!

23W NoN-Dimmable PaR38 (RePlaces 150W)

19W PaR38 Dimmable WeT locaTioN (RePlaces 120W)

Item Number

Item Description

Lamp Watts

Beam Angle

CCT

CRI

STK/MTO

Lumens

Lumens Per Watt

*CBCP

Case Quantity

Voltage

ENERGY STAR®

LED23E26PAR3827KSPND ∆LED 23W PAR38 Spot - 2700K 120 23 1700 73.9 11517 15 2700 82 MTO 12

LED23E26PAR3827KNFLND ∆LED 23W PAR38 Narrow Flood - 2700K 120 23 1700 73.9 7198 25 2700 82 MTO 12

LED23E26PAR3827KFLND ∆LED 23W PAR38 Flood - 2700K 120 23 1700 73.9 2716 40 2700 82 MTO 12

LED23E26PAR3830KSPND ∆LED 23W PAR38 Spot - 3000K 120 23 1700 73.9 12518 15 3000 82 STK 12

LED23E26PAR3830KNFLND ∆LED 23W PAR38 Narrow Flood - 3000K 120 23 1700 73.9 7824 25 3000 82 STK 12

LED23E26PAR3830KFLND ∆LED 23W PAR38 Flood - 3000K 120 23 1700 73.9 2952 40 3000 82 STK 12

LED23E26PAR3841KSPND ∆LED 23W PAR38 Spot - 4100K 120 23 1700 73.9 13269 15 4100 82 MTO 12

LED23E26PAR3841KNFLND ∆LED 23W PAR38 Narrow Flood - 4100K 120 23 1700 73.9 8293 25 4100 82 MTO 12

LED23E26PAR3841KFLND ∆LED 23W PAR38 Flood - 4100K 120 23 1700 73.9 3130 40 4100 82 MTO 12

LED19E26PAR38W27KSP ∆LED 19W WL PAR38 Spot - 2700K 120 19 1200 63.2 9220 15 2700K 82 STK 12

LED19E26PAR38W27KNFL ∆LED 19W WL PAR38 Narrow Flood - 2700K 120 19 1200 63.2 5763 25 2700K 82 STK 12

LED19E26PAR38W27KFL ∆LED 19W WL PAR38 Flood - 2700K 120 19 1200 63.2 2175 40 2700K 82 STK 12

LED19E26PAR38W30KSP ∆LED 19W WL PAR38 Spot - 3000K 120 19 1300 68.4 10022 15 3000K 82 STK 12

LED19E26PAR38W30KNFL ∆LED 19W WL PAR38 Narrow Flood - 3000K 120 19 1300 68.4 6264 25 3000K 82 STK 12

LED19E26PAR38W30KFL ∆LED 19W WL PAR38 Flood - 3000K 120 19 1300 68.4 2364 40 3000K 82 STK 12

LED19E26PAR38W41KSP ∆LED 19W WL PAR38 Spot - 4100K 120 19 1400 73.7 11224 15 4100K 82 STK 12

LED19E26PAR38W41KNFL ∆LED 19W WL PAR38 Narrow Flood - 4100K 120 19 1400 73.7 7015 25 4100K 82 STK 12

LED19E26PAR38W41KFL ∆LED 19W WL PAR38 Flood - 4100K 120 19 1400 73.7 2647 40 4100K 82 STK 12

Dimmable

LED PAR

Lamps

Housing Colors

TCP LED PAR lamps are available in white and black

housings for that sophisticated look you want.

When ordering black lamps, simply add “B” to end

of lamp name. Ex. LED19E26P3827KFLB.

Lens Angles

15º Spot 25º Narrow Flood 40º Wide Flood

LED with 15º spot lens is

perfect for any

application where you

want to draw attention to

specific items.

Narrow floods draw

attention in more subtle

ways. These floods can be

used along with different

color temperatures to set

different moods in the

same room.

Highlighting a broader

area helps customers see

more detail.

Works with most incandescent

standard dimmers and systems

NEW FOR

2013!

*Not all CBCP data was available at time of printing.

CBCP was estimated based on known photometry.

Consult tcpi.com for most current photometry

and LM79 data.

5

YEAR

WARRANTY

★ ENERGY STAR

®

Rated

∆ In Testing

LED Lamps

800.324.1496 | tcpi.com

LED Lamps

800.324.1496 | tcpi.com CATALOG

2 013

CATALOG

2 013

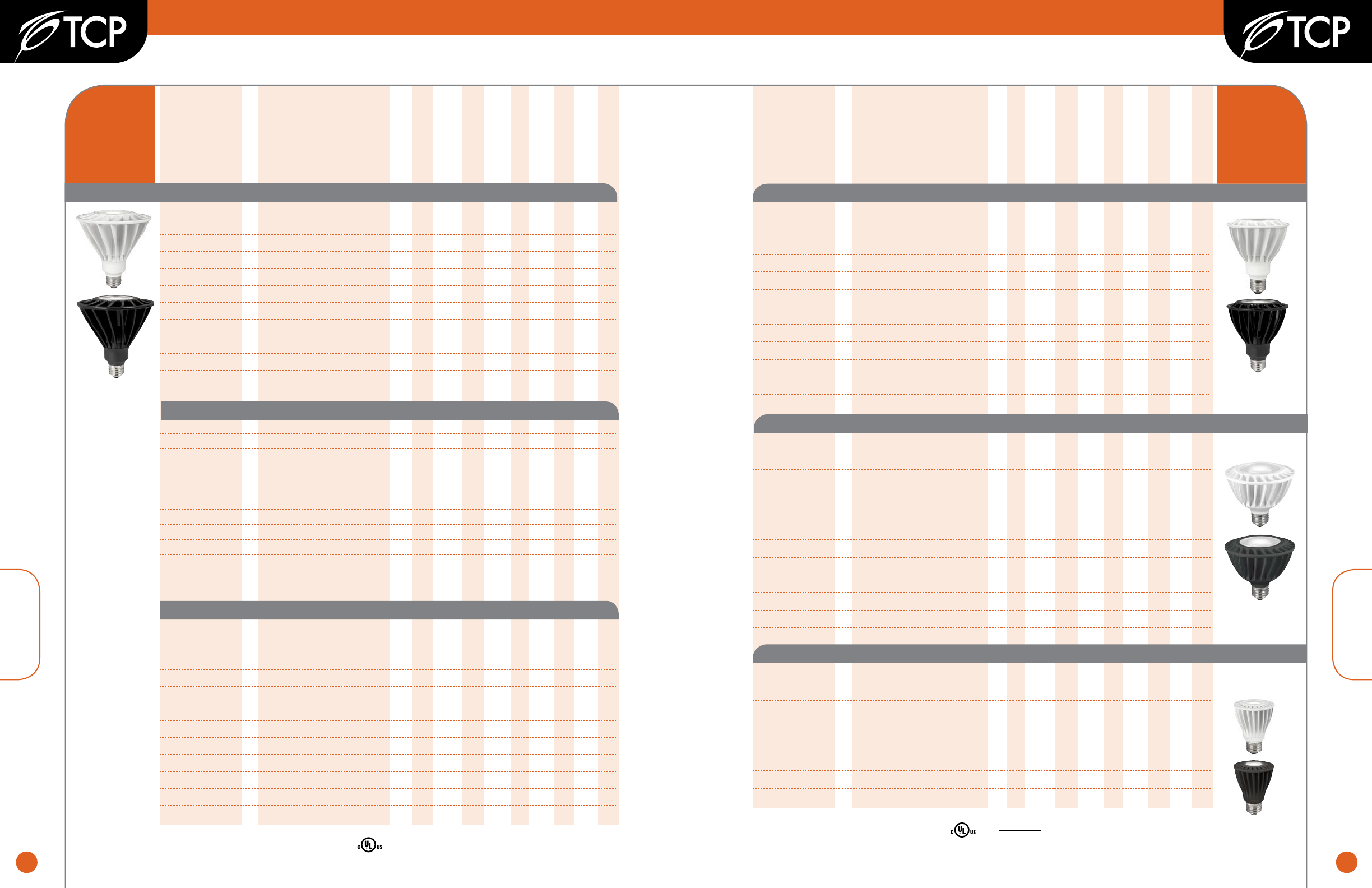

PaR30 loNg Neck (RePlaces 75W)

PaR30 shoRT Neck (RePlaces 60W)

Item Number

Item Description

Lamp Watts

Beam Angle

CCT

CRI

STK/MTO

Lumens

Lumens Per Watt

*CBCP

Case Quantity

LED14E26P3027KSP ★LED 14W PAR30 Spot - 2700K 120 14 820 55.9 6448 15 2700 82 MTO 12

LED14E26P3027KNFL ★LED 14W PAR30 Narrow Flood - 2700K 120 14 820 55.9 5200 25 2700 82 STK 12

LED14E26P3027KFL ★LED 14W PAR30 Flood - 2700K 120 14 820 55.9 1800 40 2700 82 STK 12

LED14E26P3030KSP ★LED 14W PAR30 Spot - 3000K 120 14 850 60.7 6341 15 3000 83 MTO 12

LED14E26P3030KNFL ★LED 14W PAR30 Narrow Flood - 3000K 120 14 900 60.7 6465 25 3000 82 STK 12

LED14E26P3030KFL ★LED 14W PAR30 Flood - 3000K 120 14 850 60.7 2125 40 3000 82 STK 12

LED14E26P3041KSP ★LED 14W PAR30 Spot - 4100K 120 14 900 64.3 6597 15 4100 86 MTO 12

LED14E26P3041KNFL ★LED 14W PAR30 Narrow Flood - 4100K 120 14 950 64.3 6867 25 4100 82 MTO 12

LED14E26P3041KFL ★LED 14W PAR30 Flood - 4100K 120 14 950 64.3 2011 40 4100 85 MTO 12

LED14E26P3050KSP LED 14W PAR30 Spot - 5000K 120 14 950 67.9 6720 15 5000 82 MTO 12

LED14E26P3050KNFL LED 14W PAR30 Narrow Flood - 5000K 120 14 950 67.9 4200 25 5000 82 MTO 12

LED14E26P3050KFL LED 14W PAR30 Flood - 5000K 120 14 950 67.9 1568 40 5000 82 MTO 12

LED12E26P30S27KSP ★LED 12W PAR30 SN Spot - 2700K 120 12 750 50.0 5496 15 2700 82 MTO 12

LED12E26P30S27KNFL ★LED 12W PAR30 SN Narrow Flood - 2700K 120 12 700 50.0 4953 25 2700 82 STK 12

LED12E26P30S27KFL ★LED 12W PAR30 SN Flood - 2700K 120 12 700 50.0 1915 40 2700 82 STK 12

LED12E26P30S30KSP ★LED 12W PAR30 SN Spot - 3000K 120 12 750 54.2 4588 15 3000 83 MTO 12

LED12E26P30S30KNFL ★LED 12W PAR30 SN Narrow Flood - 3000K 120 12 750 54.2 4843 25 3000 83 STK 12

LED12E26P30S30KFL ★LED 12W PAR30 SN Flood - 3000K 120 12 700 54.2 1982 40 3000 85 STK 12

LED12E26P30S41KSP ★LED 12W PAR30 SN Spot - 4100K 120 12 800 57.5 6711 15 4100 83 MTO 12

LED12E26P30S41KNFL ★LED 12W PAR30 SN Narrow Flood - 4100K 120 12 850 57.5 5160 25 4100 84 MTO 12

LED12E26P30S41KFL ★LED 12W PAR30 SN Flood - 4100K 120 12 800 57.5 1989 40 4100 86 MTO 12

LED12E26P30S50KSP LED 12W PAR30 SN Spot - 5000K 120 12 728 60.7 5148 15 5000 82 MTO 12

LED12E26P30S50KNFL LED 12W PAR30 SN Narrow Flood - 5000K 120 12 850 60.7 5578 25 5000 84 MTO 12

LED12E26P30S50KFL LED 12W PAR30 SN Flood - 5000K 120 12 728 60.7 1201 40 5000 82 MTO 12

LED9E26P2027KNFL ★LED 9W PAR20 Narrow Flood - 2700K 120 9 450 51.1 1700 25 2700 85 STK 12

LED9E26P2027KFL ★LED 9W PAR20 Flood - 2700K 120 9 450 51.1 1100 40 2700 85 STK 12

LED9E26P2030KNFL ★LED 9W PAR20 Narrow Flood - 3000K 120 9 500 55.6 1800 25 3000 85 STK 12

LED9E26P2030KFL ★LED 9W PAR20 Flood - 3000K 120 9 500 55.6 1168 40 3000 82 STK 12

LED9E26P2041KNFL ★LED 9W PAR20 Narrow Flood -4100K 120 9 500 58.9 1766 25 4100 87 STK 12

LED9E26P2041KFL ★LED 9W PAR20 Flood - 4100K 120 9 550 58.9 1461 40 4100 86 STK 12

LED9E26P2050KNFL LED 9W PAR20 Narrow Flood -5000K 120 9 560 62.2 2520 25 5000 82 MTO 12

LED9E26P2050KFL LED 9W PAR20 Flood - 5000K 120 9 560 62.2 918 40 5000 82 MTO 12

Voltage

ENERGY STAR®

PaR20 (RePlaces 50W)

LED19E26P3827KSP LED 19W PAR38 Spot - 2700K 120 19 1300 58.1 8594 15 2700 82 MTO 12

LED19E26P3827KNFL ★LED 19W PAR38 Narrow Flood - 2700K 120 19 1400 58.1 1702 25 2700 81 STK 12

LED19E26P3827KFL ★LED 19W PAR38 Flood - 2700K 120 19 1300 58.1 2714 40 2700 81 STK 12

LED19E26P3830KSP LED 19W PAR38 Spot - 3000K 120 19 1300 63.2 8324 15 3000 83 MTO 12

LED19E26P3830KNFL ★LED 19W PAR38 Narrow Flood - 3000K 120 19 1350 63.2 6206 25 3000 82 STK 12

LED19E26P3830KFL ★LED 19W PAR38 Flood - 3000K 120 19 1350 63.2 2765 40 3000 82 STK 12

LED19E26P3841KSP LED 19W PAR38 Spot - 4100K 120 19 1272 66.9 10273 15 4100 82 MTO 12

LED19E26P3841KNFL LED 19W PAR38 Narrow Flood - 4100K 120 19 1500 66.9 6421 25 4100 82 MTO 12

LED19E26P3841KFL LED 19W PAR38 Flood - 4100K 120 19 1272 66.9 2423 40 4100 82 MTO 12

LED19E26P3850KSP LED 19W PAR38 Spot - 5000K 120 19 1344 70.7 10854 15 5000 82 MTO 12

LED19E26P3850KNFL LED 19W PAR38 Narrow Flood - 5000K 120 19 1344 70.7 6784 25 5000 82 MTO 12

LED19E26P3850KFL LED 19W PAR38 Flood - 5000K 120 19 1344 70.7 2560 40 5000 82 MTO 12

LED17E26P3827KSP ★LED 17W PAR38 Spot - 2700K 120 17 950 56.8 7488 15 2700 83 MTO 12

LED17E26P3827KNFL ★LED 17W PAR38 Narrow Flood - 2700K 120 17 950 56.8 5000 25 2700 82 STK 12

LED17E26P3827KFL ★LED 17W PAR38 Flood - 2700K 120 17 950 56.8 2000 40 2700 82 STK 12

LED17E26P3830KSP ★LED 17W PAR38 Spot - 3000K 120 17 1000 61.8 8028 15 3000 83 MTO 12

LED17E26P3830KNFL ★LED 17W PAR38 Narrow Flood - 3000K 120 17 1050 61.8 5500 25 3000 85 STK 12

LED17E26P3830KFL ★LED 17W PAR38 Flood - 3000K 120 17 1050 61.8 2000 40 3000 85 STK 12

LED17E26P3841KSP ★LED 17W PAR38 Spot - 4100K 120 17 1050 65.5 7488 15 4100 86 MTO 12

LED17E26P3841KNFL ★LED 17W PAR38 Narrow Flood - 4100K 120 17 1100 65.5 6487 25 4100 86 MTO 12

LED17E26P3841KFL ★LED 17W PAR38 Flood - 4100K 120 17 1100 65.5 2427 40 4100 86 MTO 12

LED17E26P3850KSP LED 17W PAR38 Spot - 5000K 120 17 1176 69.2 9498 15 5000 82 MTO 12

LED17E26P3850KNFL LED 17W PAR38 Narrow Flood - 5000K 120 17 1200 69.2 7549 25 5000 82 MTO 12

LED17E26P3850KFL LED 17W PAR38 Flood - 5000K 120 17 1200 69.2 2452 40 5000 82 MTO 12

LED14E26P3827KSP LED 14W PAR38 Spot - 2700K 120 14 782 55.9 6316 15 2700K 82 STK 12

LED14E26P3827KNFL LED 14W PAR38 Narrow Flood - 2700K 120 14 850 55.9 3947 25 2700K 82 STK 12

LED14E26P3827KFL LED 14W PAR38 Flood - 2700K 120 14 850 55.9 1490 40 2700K 82 MTO 12

LED14E26P3830KSP LED 14W PAR38 Spot - 3000K 120 14 950 60.7 6865 15 3000K 82 STK 12

LED14E26P3830KNFL LED 14W PAR38 Narrow Flood - 3000K 120 14 950 60.7 4290 25 3000K 82 STK 12

LED14E26P3830KFL LED 14W PAR38 Flood - 3000K 120 14 900 60.7 1619 40 3000K 82 MTO 12

LED14E26P3841KSP LED 14W PAR38 Spot- 4100K 120 14 901 64.4 7277 15 4100K 82 MTO 12

LED14E26P3841KNFL LED 14W PAR38 Narrow Flood - 4100K 120 14 901 64.4 4548 25 4100K 82 MTO 12

LED14E26P3841KFL LED 14W PAR38 Flood - 4100K 120 14 901 64.4 1716 40 4100K 82 MTO 12

LED14E26P3850KSP LED 14W PAR38 Spot - 5000K 120 14 952 68.0 7689 15 5000K 82 MTO 12

LED14E26P3850KNFL LED 14W PAR38 Narrow Flood - 5000K 120 14 952 68.0 4805 25 5000K 82 MTO 12

LED14E26P3027KSP LED 14W PAR30 Spot - 2700K 120 14 782 55.9 5520 15 2700 82 MTO 12

Item Number

Item Description

Lamp Watts

Beam Angle

CCT

CRI

STK/MTO

Lumens

Lumens Per Watt

*CBCP

Case Quantity

Voltage

Dimmable

LED PAR

Lamps

6 7

ENERGY STAR®

*Not all CBCP data was available at time of printing.

CBCP was estimated based on known photometry.

Consult tcpi.com for most current photometry

and LM79 data.

5

YEAR

WARRANTY

★ ENERGY STAR

®

Rated

Dimmable

LED PAR

Lamps

14W PaR38 (RePlaces 65W)

17W PaR38 (RePlaces 90W)

19W PaR38 (RePlaces 120W)

Dimmable

LED PAR

Lamps

*Not all CBCP data was available at time of printing.

CBCP was estimated based on known photometry.

Consult tcpi.com for most current photometry

and LM79 data.

5

YEAR

WARRANTY

★ ENERGY STAR

®

Rated

LED Lamps

800.324.1496 | tcpi.com

LED Lamps

800.324.1496 | tcpi.com CATALOG

2 013

CATALOG

2 013

Item Number

Item Description

Lamp Watts

CCT

CRI

STK/MTO

Lumens

Lumens Per Watt

Case Quantity

LED11E26BR3027K ★LED 11W BR30 Flood - 2700K 120 11 750 59.1 2700K 82 STK 12

LED11E26BR3030K ★LED 11W BR30 Flood - 3000K 120 11 650 61.4 3000K 83 STK 12

LED11E26BR3041K ★LED 11W BR30 Flood - 4100K 120 14 725 65.0 4100K 87 STK 12

LED14E26BR3027K ★LED 14W BR30 Flood - 2700K 120 14 850 60.7 2700K 82 STK 12

LED14E26BR3030K ★LED 14W BR30 Flood - 3000K 120 14 850 62.5 3000K 85 STK 12

LED14E26BR3041K LED 14W BR30 Flood - 4100K 120 14 925 66.3 4100K 82 STK 12

LED11E26BR4027K ★LED 11W BR40 Flood - 2700K 120 11 650 59.1 2700K 82 STK 12

LED11E26BR4030K ★LED 11W BR40 Flood - 3000K 120 11 700 61.4 3000K 82 STK 12

LED11E26BR4041K ★LED 11W BR40 Flood - 4100K 120 11 725 65.0 4100K 87 STK 12

LED14E26BR4027K ★LED 14W BR40 Flood - 2700K 120 14 850 60.7 2700K 82 STK 12

LED14E26BR4030K ★LED 14W BR40 Flood - 3000K 120 14 900 62.5 3000K 84 STK 12

LED14E26BR4041K LED 14W BR40 Flood - 4100K 120 14 1000 66.3 4100K 84 STK 12

LED18E26BR4027K ∆LED 18W BR40 Flood - 2700K 120 18 1200 66.7 2700K 82 STK 12

LED18E26BR4030K ∆LED 18W BR40 Flood - 3000K 120 18 1300 66.7 3000K 82 STK 12

LED18E26BR4041K ∆LED 18W BR40 Flood - 4100K 120 18 1400 66.7 4100K 82 STK 12

LED9E26R2027K ★LED 9W R20 Flood - 2700K 120 9 500 50.0 2700K 82 STK 12

LED9E26R2030K ★LED 9W R20 Flood - 3000K 120 9 500 52.8 3000K 82 STK 12

LED9E26R2041K ★LED 9W R20 Flood - 4100K 120 9 550 55.6 4100K 86 STK 12

Voltage

ENERGY STAR®

8

LED7E26PAR1627KNFL ★LED 7W PAR16 Narrow Flood (20 degree) - 2700K 120 7 350 50.7 1595 20 84 12

LED7E26PAR1627KFL LED 7W PAR16 Flood (40 degree) - 2700K 120 7 340 50.7 800 40 82 12

LED7E26PAR1630KNFL LED 7W PAR16 Narrow Flood (20 degree) - 3000K 120 7 350 52.2 2300 20 82 12

LED7E26PAR1630KFL LED 7W PAR16 Flood (40 degree) - 3000K 120 7 350 52.2 800 40 82 12

LED7E26PAR1641KNFL LED 7W PAR16 Narrow Flood (20 degree) - 4100K 120 7 370 55.2 2300 20 82 12

LED7E26PAR1641KFL LED 7W PAR16 Flood (40 degree) - 4100K 120 7 370 55.2 800 40 82 12

LED7MR1627KNFL LED 7W 12V MR16 Narrow Flood (20 degree) - 2700K 12 7 340 56.7 2300 20 82 12

LED7MR1627KFL LED 7W 12V MR16 Flood (40 degree) - 2700K 12 7 340 56.7 800 40 82 12

LED7MR1630KNFL LED 7W 12V MR16 Narrow Flood (20 degree) - 3000K 12 7 350 58.3 2300 20 82 12

LED7MR1630KFL LED 7W 12V MR16 Flood (40 degree) - 3000K 12 7 350 58.3 800 40 82 12

LED7MR1641KNFL LED 7W 12V MR16 Narrow Flood (20 degree) - 4100K 12 7 370 61.7 2300 20 82 12

LED7MR1641KFL LED 7W 12V MR16 Flood (40 degree) - 4100K 12 7 370 61.7 800 40 82 12

LED7GU10MR1627KNFL LED 7W GU10 MR16 Narrow Flood (20 degree) - 2700K 120 7 340 50.7 2300 20 82 12

LED7GU10MR1627KFL LED 7W GU10 MR16 Flood (40 degree) - 2700K 120 7 340 50.7 800 40 82 12

LED7GU10MR1630KNFL LED 7W GU10 MR16 Narrow Flood (20 degree) - 3000K 120 7 350 52.2 2300 20 82 12

LED7GU10MR1630KFL LED 7W GU10 MR16 Flood (40 degree) - 3000K 120 7 350 52.2 800 40 82 12

LED7GU10MR1641KNFL LED 7W GU10 MR16 Narrow Flood (20 degree) - 4100K 120 7 370 55.2 2300 20 82 12

LED7GU10MR1641KFL LED 7W GU10 MR16 Flood (40 degree) - 4100K 120 7 370 55.2 800 40 82 12

LED Dimmable MR16 lamps

Features & Benefits

• 80% more energy efficient than halogen

• Replaces 35W halogen

• Solutions for 12V, GU10, Medium base

• Excellent CBCP and beam quality

• Last at least 12 times longer than halogen

• ROI < 1 year

• Exceptional Dimming – same as halogen from 100 – 5%

Item Number

Item Description

Lamp Watts

CBCP est.

Beam Angle

CRI

Lumens

Lumens Per Watt

Case Quantity

Voltage

ENERGY STAR®

5

YEAR

WARRANTY

★ ENERGY STAR

®

Rated

*Based on 12 hours

use per day

3

YEAR

WARRANTY

120V PaR16 (35W RePlacemeNT)

12V mR16 (35W RePlacemeNT)

120V gU10 (35W RePlacemeNT)

LED MR16

Dimmable

LED A-Lamps

Dimmable

LED BR Lamps

LED BR30 & BR40

Features & Benefits

• 65W & 85W BR30/BR40 & 50W R20 replacement.

• Exceeds all industry standards – many models ENERGY STAR Rated.

• Smooth, uniform dimming from 100% - 0.5% for BR30/BR40.

• Highly efficient LEDs and Driver.

• Long Life: 25,000 hours.

• Consistent color within 3 MacAdam ellipse tolerance.

• UL approved for damp locations.

5

YEAR

WARRANTY

*Based on 12 hours

use per day

bR30 (11W RePlaces 65W, 14W RePlaces 85W)

bR40 (11W RePlaces 65W, 14W RePlaces 85W, 18W RePlaces 120W)

R20 (RePlaces 50W)

9

NEW!

NEW!

NEW!

18W BR40 replaces 120w Incandescent!

NEW FOR

2013!

★ ENERGY STAR

®

Rated

∆ In Testing

LED Lamps

800.324.1496 | tcpi.com

LED Lamps

800.324.1496 | tcpi.com CATALOG

2 013

CATALOG

2 013

11

10

Recessed

Downlights

Item Number

ENERGY STAR®

Item Description

Lamp Watts

Incandescent

Comparison (Watts)

Voltage

Lamp Replacement

Lumens

CRI

CCT

Case Quantity

6” RecesseD DoWNlighTs (12W RePlaces 65W, 14W RePlaces 85W, 10W RePlaces 50W)

LED Dimmable Recessed Retrofits

Features & Benefits

• DR56 is ideal for replacing dimmable 65W and 85W incandescent alternatives

in 5"/6" recessed cans.

DR4 unit ideal for replacing 50W incandescent alternatives in a 4” recessed can.

• Many models ENERGY STAR rated.

• Smooth, uniform dimming.

• Highly efficient LEDs and Driver.

• Long Life: 35,000 hours.

• Consistent color within 3 MacAdam ellipse tolerance.

• UL approved for damp locations.

3

YEAR

WARRANTY

LED12DR5627K ∆LED 12W 5"/6" Recessed Downlight - 2700K 120 12 65 650 54.2 2700K 82 6

LED14DR5627K ∆LED 14W 5"/6" Recessed Downlight - 2700K 120 14 85 800 57.1 2700K 82 6

LED12DR5630K ∆LED 12W 5"/6" Recessed Downlight - 3000K 120 12 65 670 55.8 3000K 82 6

LED14DR5630K ∆LED 14W 5"/6" Recessed Downlight - 3000K 120 14 85 820 58.6 3000K 82 6

LED10DR427K ∆LED 10W 4" Recessed Downlight - 2700K 120 10 50 600 60.0 2700K 82 6

LED10DR430K ∆LED 10W 4" Recessed Downlight - 3000K 120 10 50 650 65.0 3000K 82 6

4” RecesseD DoWNlighTs (12W RePlaces 65W, 14W RePlaces 85W, 10W RePlaces 50W)

Lumens Per Watt

Dimmable

All Purpose

A-Lamps

LED7E26SA1927K ∆LED Smooth 7W A-LAMP - 2700K 120 7 40 450 64.3 2700K 82 STK 12

LED7E26SA1930K ∆LED Smooth 7W A-LAMP - 3000K 120 7 40 475 67.9 3000K 82 STK 12

LED7E26SA1941K ∆LED Smooth 7W A-LAMP - 4100K 120 7 40 500 71.4 4100K 82 STK 12

LED7E26SA1950K ∆LED Smooth 7W A-LAMP - 5000K 120 7 40 530 75.7 5000K 82 STK 12

LED11E26SA1927K ∆LED Smooth 11W A-LAMP - 2700K 120 11 60 800 72.7 2700K 82 STK 12

LED11E26SA1930K ∆LED Smooth 11W A-LAMP - 3000K 120 11 60 825 75.0 3000K 82 STK 12

LED11E26SA1941K ∆LED Smooth 11W A-LAMP - 4100K 120 11 60 850 77.3 4100K 82 STK 12

LED11E26SA1950K ∆LED Smooth 11W A-LAMP - 5000K 120 11 60 900 81.8 5000K 82 STK 12

LED8E26A1927K ★LED 8W A-LAMP - 2700K 120 8 40 450 56.3 2700 81 STK 12

LED8E26A1930K ★LED 8W A-LAMP - 3000K 120 8 40 470 56.3 3000 82 STK 12

LED8E26A1941K ★LED 8W A-LAMP - 4100K 120 8 40 540 56.3 4100 86 STK 12

LED8E26A1950K LED 8W A-LAMP - 5000K 120 8 40 500 56.3 5000 82 STK 12

LED12E26A1927K ★LED 12W A-LAMP - 2700K 120 12 60 800 64.5 2700 82 STK 12

LED12E26A1930K ★LED 12W A-LAMP - 3000K 120 12 60 850 64.5 3000 81 STK 12

LED12E26A1941K ★LED 12W A-LAMP - 4100K 120 12 60 850 68.4 4100 85 STK 12

LED12E26A1950K LED 12W A-LAMP - 5000K 120 12 60 896 72.3 5000 82 STK 12

leD smooTh a-lamPs, 7W

leD smooTh a-lamPs,11W

Item Number

Item Description

Lamp Watts

Incandescent

Comparison (Watts)

Voltage

LPW

CCT

Lumens

CRI

STK/MTO

Case Quantity

3

YEAR

WARRANTY

ENERGY STAR®

leD a19 sc - “sNoW coNe” VeRsioN, 8W

leD a19 sc - “sNoW coNe” VeRsioN, 12W

LED A Lamps

Features & Benefits

• High Efficiency A-Lamp (40W, 60W, 75W replacements)

• Light Output in all directions to suit many applications.

• Consistent white frosted cover - no obstructions, shadows,

or non-standard colors. Looks like incandescent in all applications.

• Follows A19/A21 ANSI construction requirements - fits in all applications.

• Available in 2700K, 3000K, 4100K, 5000K

★ ENERGY STAR

®

Rated

∆ In Testing

★ ENERGY STAR

®

Rated

∆ In Testing

LED Lamps

800.324.1496 | tcpi.com

LED Lamps

800.324.1496 | tcpi.com CATALOG

2 013

CATALOG

2 013

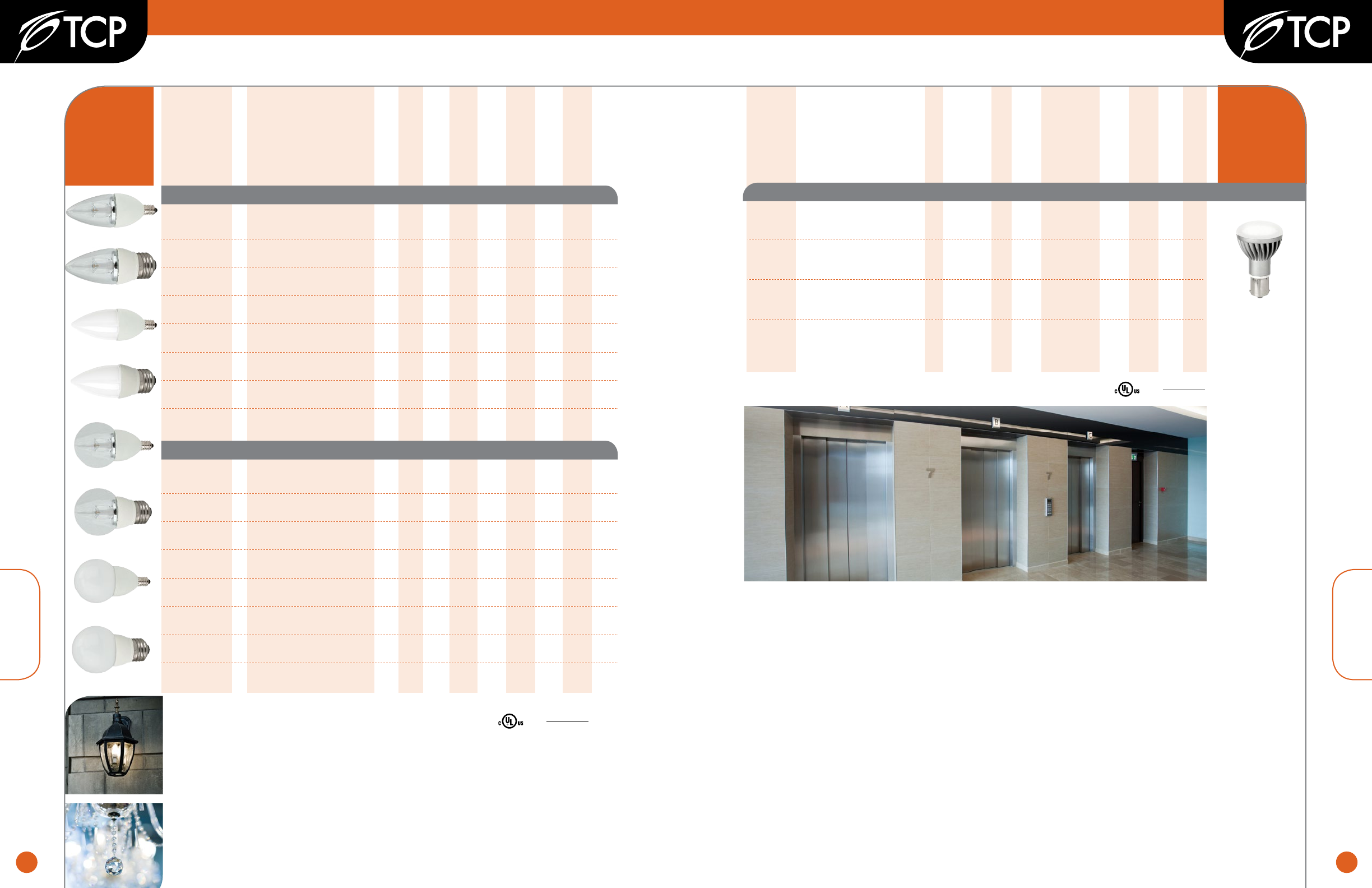

Dimmable

LED Deco Lamps

1312

Item Number

Item Description

Lamp Watts

Voltage

MOL/Height (Inches)

Diameter

CCT

Lumens

Base Type

STK or SPC

Case Quantity

LE2W1383 LED 2W 1383 elevator lamp

(single contact) 2.2 12 VAC/DC 2.5 1.5 3000K 100 BA15S STK 12

LE2WGBF LED 2W GBF elevator lamp

(double contact) 2.2 12 VAC/DC 1.75 1.5 3000K 100 BA15D STK 12

LEF2W1383 LED Frosted 2W 1383 elevator lamp

(single contact) 2.2 12 VAC/DC 2.5 1.5 3000K 80 BA15S STK 12

LEF2WGBF LED Frosted 2W GBF elevator lamp

(double contact) 2.2 12 VAC/DC 1.75 1.5 3000K 80 BA15D STK 12

3

YEAR

WARRANTY

Elevator Lamps

leD 12V eleVaToR lamPs – 25,000 hoURs

LED Warranty

*All data in this catalog is subject to change without notice.

LIMITED WARRANTY

This TCP product is warranted for the period, as specified in each product section of this catalogue, from the date of purchase against defects in

material and workmanship. If this product should fail to operate due to defects in material or workmanship, simply return this product to the place

of purchase or to TCP Service Center (325 Campus Drive, Aurora, OH 44202) along with the original sales receipt within the number of years of

purchase, as specified in each product section. This product will be repaired or replaced, at TCP’s option. This warranty is expressly limited to repair

or replacement of the product. This warranty gives the consumer specific legal rights, which vary from state to state. WARRANTY IS VOID IF

PRODUCT IS NOT USED FOR THE PURPOSE FOR WHICH THIS PRODUCT IS MANUFACTURED.

STK (Stock):Items marked STK are stocked in TCP’s warehouse.

SPC (Special):Items marked SPC are not stocked in TCP’s warehouse. These items have longer lead times than stocked (STK) items.

MTO (Made to Order):All items marked MTO require a one-two week lead time.

Contact our Customer Service department at 800-324-1496 for additional details.

• Accent and decorative lighting

• Chandeliers

• Ceiling fans

• Indoor/outdoor fixtures

LED5E12B1127K ∆LED 5W DIMMABLE CANDELABRA

BLUNT TIP - 2700K 120 5.0 40W 300 60.0 2700K 82 STK 12

LED5E26B1127K ∆LED 5W DIMMABLE BLUNT TIP -

2700K 120 5.0 40W 300 60.0 2700K 82 STK 12

LED5E12B1127KF ∆LED 5W DIMMABLE CANDELABRA

FROSTED BLUNT TIP - 2700K 120 5.0 40W 300 60.0 2700K 82 STK 12

LED5E26B1127KF ∆LED 5W DIMMABLE FROSTED BLUNT

TIP - 2700K 120 5.0 40W 300 60.0 2700K 82 STK 12

LED5E12G1627K ∆LED 5W DIMMABLE CANDELABRA

G16 GLOBE - 2700K 120 5.0 40W 300 60.0 2700K 82 STK 12

LED5E26G1627K ∆LED 5W DIMMABLE G16 GLOBE -

2700K 120 5.0 40W 300 60.0 2700K 82 STK 12

LED5E12G1627KF ∆LED 5W DIMMABLE CANDELABRA

FROSTED G16 GLOBE - 2700K 120 5.0 40W 300 60.0 2700K 82 STK 12

LED5E26G1627KF ∆LED 5W DIMMABLE FROSTED G16

GLOBE - 2700K 120 5.0 40W 300 60.0 2700K 82 STK 12

LED4E12B1127K ∆LED 4W DIMMABLE CANDELABRA

BLUNT TIP - 2700K 120 4.0 25W 200 50.0 2700K 82 STK 12

LED4E26B1127K ∆LED 4W DIMMABLE BLUNT TIP -

2700K 120 4.0 25W 200 50.0 2700K 82 STK 12

LED4E12B1127KF ∆LED 4W DIMMABLE CANDELABRA

FROSTED BLUNT TIP - 2700K 120 4.0 25W 200 50.0 2700K 82 STK 12

LED4E26B1127KF ∆LED 4W DIMMABLE FROSTED BLUNT

TIP - 2700K 120 4.0 25W 200 50.0 2700K 82 STK 12

LED4E12G1627K ∆LED 4W DIMMABLE CANDELABRA

G16 GLOBE - 2700K 120 4.0 25W 200 50.0 2700K 82 STK 12

LED4E26G1627K ∆LED 4W DIMMABLE G16 GLOBE -

2700K 120 4.0 25W 200 50.0 2700K 82 STK 12

LED4E12G1627KF ∆LED 4W DIMMABLE CANDELABRA

FROSTED G16 GLOBE - 2700K 120 4.0 25W 200 50.0 2700K 82 STK 12

LED4E26G1627KF ∆LED 4W DIMMABLE FROSTED G16

GLOBE - 2700K 120 4.0 25W 200 50.0 2700K 82 STK 12

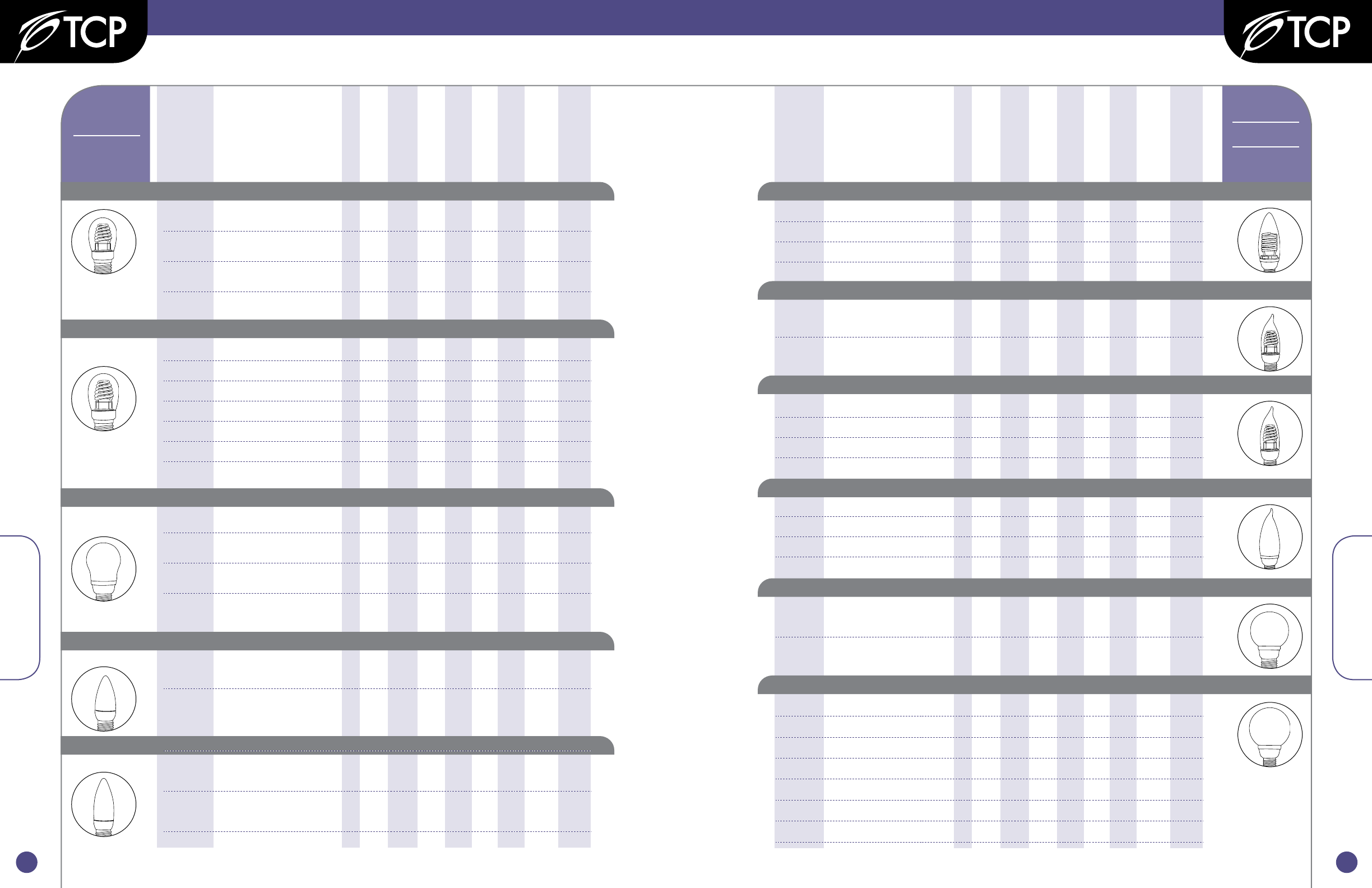

leD Dimmable Deco lamPs, 5W

leD Dimmable Deco lamPs, 4W

Item Number

Item Description

Lamp Watts

Incandescent

Comparison (Watts)

Voltage

LPW

CCT

Lumens

CRI

STK/MTO

Case Quantity

4W = 25W Incandescent Equivalent

5W = 40W Incandescent Equivalent

NEW DESIGN!

Applications

3

YEAR

WARRANTY

ENERGY STAR®

LED Dimmable Deco

Features & Benefits

• Replaces 25W and 40W Incandescent.

• 80% energy savings.

• Uniform and smooth dimming -- perfect for chandeliers.

• UL damp location rated – perfect for outdoor light fixtures.

LED5E12B1127K

LED4E12B1127K

LED5E12G1627K

LED4E12G1627K

LED5E26B1127K

LED4E26B1127K

LED5E26G1627K

LED4E26G1627K

LED5E12B1127KF

LED4E12B1127KF

LED5E12G1627KF

LED4E12G1627KF

LED5E26B1127KF

LED4E26B1127KF

LED5E26G1627KF

LED4E26G1627KF

★ ENERGY STAR

®

Rated

∆ In Testing

Floods

Decorative A-Lamps Globes Flat Pars

Circlines GU Base

FEATURES / BENEFITS

• Integrated circuit technology for high performance and function.

• Large selection of form structures and wattages to fit all your applications.

• Effective sizes to fit in as many sockets as possible.

• Long life from 6,000 to 20,000 hours.

• Excellent lumen maintenance over the life of the product.

• Vertical integration controls the whole process from manufacture to your socket.

TCP is the world leader in the innovation

and manufacture of CFLs.

We continue to develop CFL technology

to insure our customers have the best

selection of quality, performance and

function in the CFL category.

CFLs

Applications:

Use CFLs anywhere – applications

are endless!

PRO SERIES

1514

TCP’s Tru Family features Integrated Circuit Technology for

high performance, function and long life.

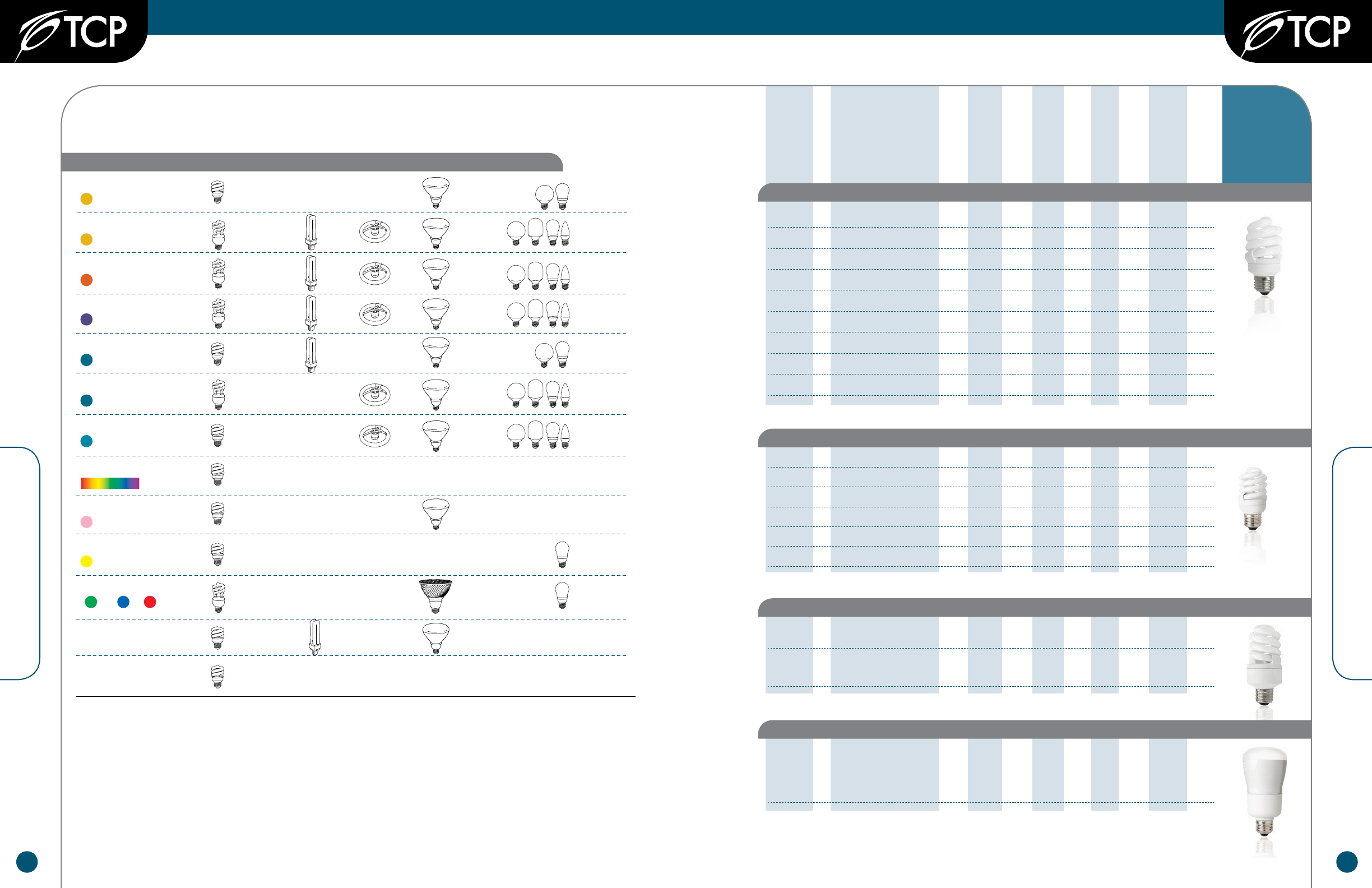

Compact Fluorescent Lamps

800.324.1496 | tcpi.com

Compact Fluorescent Lamps

800.324.1496 | tcpi.com

T2 Full Springs 489 Series

Full Springs InstaBright™ G2

with ArmorCoat

2 013 CATALOG

2 013 CATALOG

CFLs

3000K

White 30K

SpringLamp Series

489, 401, 501

28968(H)(277), GU

Floodlight

4R, PF, GU

Decorative

4G, 413, GU

3100K

31K SpringLamp Series

289, 182 PL Lamps T6

Circline

Floodlight

1R, 2R,

1P, 2P

Decorative

1G, 2G, 1T, 113,

213, 107

3500K

Bright White 35K

SpringLamp Series

489, 4T2, 401, 501

28968(H)(277),

PL Lamps T6

Circline

Floodlight

4R, PF, 1R, 2R,

1P, 2P, GU

Decorative

4G, 413, 1G, 2G,

1T, 113, 213,

4100K

Cool White 41K

SpringLamp Series

489, 4T2, 401, 501

28968(H)(277),

PL Lamps T6

Circline

Floodlight

4R, PF, 1R, 2R,

1P, 2P, GU

Decorative

4G, 413, 1G, 2G,

1T, 113, 213,

5000K

Daylight 50K

SpringLamp Series

489, 4T2, 401, 501

28968(H)(277), GU

PL Lamps Floodlight

4R, PF, GU

Decorative

4G, 413, GU

5100K

51K SpringLamp Series

289, 182

T6

Circline

Floodlight

1R, 2R,

1P, 2P

Decorative

1G, 2G, 1T, 113,

213, 107

6500K 65K SpringLamp Series

489, 401, 289, 182, 501

T6

Circline

Floodlight

1R, 2R, PF, 1P,

2P, GU, 4R, PF

Decorative

1G, 2G, 1T, 113,

213, 107, GU,

Full Spectrum FS SpringLamp Series

48913, 48923, 48927

Pink P SpringLamp Series

48913

Floodlight

2R3016

Yellow YSpringLamp Series

48913, 48918

Decorative

21314, 8A05,

8A08

Green • Blue • Red GR

BL

RD

SpringLamp Series

48913

Flat Pars

PF3823

Decorative

8A05, 8A08

Shatter Resistant SS SpringLamp Series

489, 580, 289, 182, 501 PL Lamps

Floodlight

1R, 2R, 4R

1P, 2P, PF

Wet Location WL SpringLamp Series

489, 580

OPTION ORDER SUFFIX AVAILABLE FOR:

TCP PRO SERIES T3 Full SPRInglamPS, nPF, 12,000 HOuR

48909

H

9 Watt Full SpringLamp 9 40 600 2700 82 3.6 1.8 E26 12

48909C

H

9 Watt Full SpringLamp, E12 9 40 600 2700 82 3.5 1.8 E12 12

48913

H

13 Watt Full SpringLamp 13 60 925 2700 82 3.9 1.8 E26 12

48913C

H

13 Watt Full SpringLamp, E12 13 60 925 2700 82 3.8 1.8 E12 12

48918

H

18 Watt Full SpringLamp 18 75 1300 2700 82 4.0 2.4 E26 12

48923

H

23 Watt Full SpringLamp 23 100 1650 2700 82 4.4 2.4 E26 12

48927

H

27 Watt Full SpringLamp 27 100 1850 2700 82 5.1 2.4 E26 12

48932 32 Watt Full SpringLamp 32 125 2150 2700 82 5.1 2.7 E26 12

48942 42 Watt Full SpringLamp 42 150 2850 2700 82 5.7 2.7 E26 12

4T209

H

9 Watt T2 Full SpringLamp 9 40 550 2700 82 3.3 1.5 E26 12

4T213

H

13 Watt T2 Full SpringLamp 13 60 825 2700 82 3.6 1.5 E26 12

4T213C 13 Watt T2 Full SpringLamp E12 13 60 825 2700 82 3.5 1.5 E12 12

4T213I 13 Watt T2 Full SpringLamp E17 13 60 825 2700 82 3.5 1.5 E17 12

4T218 18 Watt T2 Full SpringLamp 18 75 1200 2700 82 4.2 2.0 E26 12

4T223

H

23 Watt T2 Full SpringLamp 23 100 1625 2700 82 4.5 2.0 E26 12

40114

H

14 Watt Dimmable Full Spring 14 60 850 2700 82 4.4 2.0 E26 12

40123

H

23 Watt Dimmable Full Spring 23 100 1500 2700 82 4.9 2.4 E26 12

2R3016DIM

H

16 Watt R30 Dimmable 16 65 650 2700 82 5.4 3.7 E26 12

TCP PRO SERIES T2 Full SPRInglamPS, nPF, 12,000 HOuR

TCP PRO SERIES DImmablE Full SPRInglamPS, HPF, 10,000 HOuR

TCP PRO SERIES DImmablE COvERED lamPS, HPF, 8,000 HOuR

Item Number

Item Description

Unit/Ballast Watts

Incandescent

Comparison (Watts)

Initial Lumens

CCT (Kelvin)

CRI

MOL/Height (Inches)

Diameter/Width (Inches)

Case Quantity

Base Type

ENERGY STAR®

TCP Pro Series

1716

DESIGNED-2-FIT

PRO SERIES

Specialty lighting application options

Please call or check inventory to confirm availability.

Application Notes:

Recessed Cans:

Up to 23w non-dimmable Springlamps are UL approved for totally enclosed recessed cans.

27w and 32w Springlamps can be used in open recessed cans.

Do not use a 42w or 68w in any type of recessed can.

Do not use a covered CFL in a totally enclosed recessed can.

Up to 23w dimmable springlamp can be used in an open recessed can.

Surface Mount Fixtures:

If a fixture is rated for incandescents choose an equivalent CFL based on specified incandescent wattage,

see tables in catalog or spec sheets for equivalent recommendations.

Do not use more than 2 CFLs up to 23w in any type of enclosed surface mount fixture.

Do not use more than 1 CFL 27w and 32w in any type of enclosed surface mount fixture minimum

12” in diameter.

Do not use a 42w or 68w CFL in any type of enclosed surface mount fixture.

Dimmables:

See TruDim spec sheet for recommended dimmers and applications for dimmable CFLs.

Any questions please consult dimmer manufacturer or TCP Customer Service/Technical.

Outdoor use:

Unless specified otherwise, CFLs can generally be used in enclosed outdoor weatherproof fixtures.

Most covered CFLs are wet location rated in the base up position only, horizontal or base down is not wet

location rated.

Photocells and other devices:

Do not use any type of CFLs on devices that do not meet UL20 Sec. 7.6.15.

Check with device manufacturer for compliance.

Also available in: 30K, 35K, 41K, 50K, 65K

Also available in: 30K, 35K, 41K & 50K

Also available in: 30K, 35K, 41K, 50K, 65K

Also available in: 30K, 35K, 41K, 50K, 65K

Contact Customer Service for inventory availability and special orders.

Minimum requirements apply for all special order items.

Dimmable lamps designed specifically for use with standard non-illuminated 60 watt incandescent slide or rotary

dimmer. Consult TCP Technical Support or dimmer manufacturer for compatibility with other dimmer types.

*

Compact Fluorescent Lamps

800.324.1496 | tcpi.com

Compact Fluorescent Lamps

800.324.1496 | tcpi.com

2 013 CATALOG

2 013 CATALOG

Compact Fluorescent Lamps

800.324.1496 | tcpi.com

Compact Fluorescent Lamps

800.324.1496 | tcpi.com

50123

H

23 Watt Springlamp Dimmable 23 100 1500 2700 82 4.9 2.4 E26 12

4R2014TD 14 Watt R20 Dimmable 14 50 410 2700 82 5.1 2.5 E26 12

4R3016TD 16 Watt R30 Dimmable 16 65 650 2700 82 5.4 3.7 E26 12

4R4016TD 16 Watt R40 Dimmable 16 75 750 2700 82 6.1 4.8 E26 12

4R4020TD 20 Watt R40 Dimmable 20 85 950 2700 82 6.1 4.8 E26 12

41315TD

H

15 Watt A-Lamp Dimmable 15 60 750 2700 82 5.1 2.3 E26 12

41316TD

H

16 Watt A-Lamp Dimmable 16 60 850 2700 82 5.5 2.4 E26 12

4G2515TD

H

15 Watt G25 Globe Dimmable 15 60 800 2700 82 5.2 3.1 E26 6

4G4015TD 15 Watt G40 Globe Dimmable 15 60 750 2700 82 7.3 4.8 E26 6

58009 9 Watt TruStart SpringLamp 9 40 600 2700 82 4.0 1.9 E26 12

58014 14 Watt TruStart SpringLamp 14 60 900 2700 82 4.1 2.2 E26 12

58018 18 Watt TruStart SpringLamp 18 75 1200 2700 82 4.4 2.4 E26 12

58023

H

23 Watt TruStart SpringLamp 23 100 1600 2700 82 4.7 2.4 E26 12

58027 27 Watt TruStart SpringLamp 27 100 1850 2700 82 4.9 2.8 E26 12

58032 32 Watt TruStart SpringLamp 32 125 2100 2700 82 5.7 2.8 E26 12

58042 42 Watt TruStart SpringLamp 23 150 2800 2700 82 6.2 2.8 E26 12

41314A

H

14 Watt A-Lamp InstaBright G2 14 60 700 2700 82 4.4 2.4 E26 12

4G2514A

H

14 Watt G25 InstaBright G2 14 60 800 2700 82 4.4 3.1 E26 6

4R2014A 14 Watt R20 InstaBright G2 14 50 410 2700 82 4.4 2.5 E26 12

4R3014A

H

14 Watt R30 InstaBright G2 14 65 650 2700 82 5.4 3.7 E26 12

TCP PRO SERIES TRuDIm DImmablE COvERED lamPS, HPF, 12,000 HOuR TCP PRO SERIES TRuSTaRT™, nPF, 20,000 HOuR

TCP PRO SERIES InSTabRIgHT g2 wITH aRmOR COaT™, nPF, 8000 HOuR

Item Number

Item Description

Unit/Ballast Watts

Incandescent

Comparison (Watts)

Initial Lumens

CCT (Kelvin)

CRI

MOL/Height (Inches)

Diameter/Width (Inches)

Base Type

Case Quantity

ENERGY STAR®

Item Number

Item Description

Unit/Ballast Watts

Incandescent

Comparison (Watts)

Initial Lumens

CCT (Kelvin)

CRI

MOL/Height (Inches)

Diameter/Width (Inches)

Base Type

Case Quantity

ENERGY STAR®

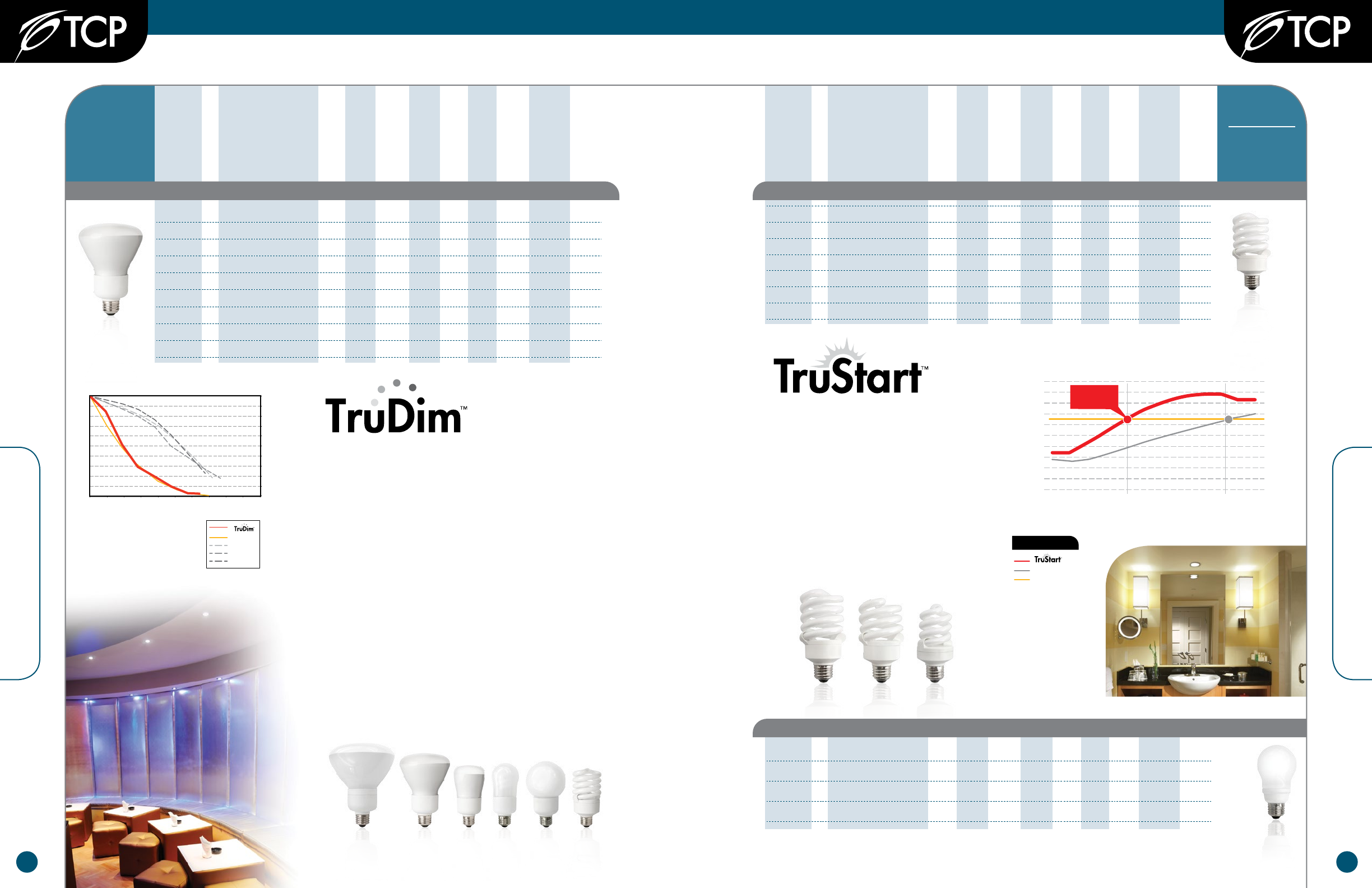

TruStart™

InstaBright™ w/

Armor Coat™

TruDim™

with

Armor

Coat!

PRO SERIESPRO SERIES

1918

These CFLs combine powerful performance with intelligent design. We

created these new dimmable CFLs to meet the most demanding applications.

Full dimming performance all the way down to 2% with

no annoying flicker – that’s best in class performance!

This is the long and short of it. Our new TruStart is a

revolutionary CFL that has the longest life of any bulb on

the market, while achieving full brightness in record time.

Features & Benefits

• Uniform, smooth dimming

performance from

100% to 2%.

• Optimized electronics

maximizes lamp life.

• Low dim level starting

capability.

• Digital technology for

faster run-up time.

Features & Benefits

• TCP-Exclusive Advanced IC Chip Control

• Programmed start for longer life 20,000 hours

• 15 – 20 seconds Run-Up time

• 100% improvement over standard 23w CFL

• Fully compatible with OCC Sensors

Designed specifically for use with standard non-illuminated 60 watt incandescent slide or rotary dimmer.

Consult TCP Technical Support or dimmer manufacturer for compatibility with other dimmer types.

Also works well with the new CFL-LED dimmers.

*

Contact Customer Service for inventory availability and special orders.Contact Customer Service for inventory availability and special orders.

0%

10%

20%

30%

40%

50%

60%

70%

80%

90%

100%

0%10%20%30%40%50%60%70%80%90%100%

% of Lumens

% of Voltage

Dimming Curve

Incandescent

Competitor A

Competitor C

Competitor B

2 013 CATALOG

2 013 CATALOG

Full Brightness in a SNAP!

The only fully dimmable CFL!

Lumens

Run-up Point

Standard 23W CFL

58023

1 5 10 15 20 25 30 35 40 45 50 55

2000

1800

1600

1400

1200

1000

800

600

400

200

0

TruStart 58023 Run-up Analysis

Time (Seconds)

EXTREMELY FAST

RUN-UP TIME!

Lumens

Run-up Point

Standard 23W CFL

58023

1 5 10 15 20 25 30 35 40 45 50 55

2000

1800

1600

1400

1200

1000

800

600

400

200

0

TruStart 58023 Run-up Analysis

Time (Seconds)

EXTREMELY FAST

RUN-UP TIME!

Nothing Compares!

Compact Fluorescent Lamps

800.324.1496 | tcpi.com

Compact Fluorescent Lamps

800.324.1496 | tcpi.com

1R2004 4 Watt R20 Floodlight 4 15 180 2700 82 3.8 2.5 E26 12

1R2009

H

9 Watt R20 Floodlight 9 25 400 2700 82 3.8 2.5 E26 12

1R2014

H

14 Watt R20 Floodlight 14 50 500 2700 82 4.3 2.5 E26 12

2R3014

H

14 Watt R30 Floodlight 14 65 650 2700 82 5.4 3.7 E26 12

2R3016

H

16 Watt R30 Floodlight 16 75 750 2700 82 5.7 3.7 E26 12

1R4016

H

16 Watt R40 Floodlight 16 75 750 2700 82 5.7 4.7 E26 12

1R4019

H

19 Watt R40 Floodlight 19 85 950 2700 82 5.9 4.7 E26 12

1R4023

H

23 Watt R40 Floodlight 23 120 1150 2700 82 6.2 4.7 E26 12

1P3016

H

16 Watt PAR30 Floodlight 16 75 750 2700 82 5.7 3.7 E26 12

1P3816

H

16 Watt PAR38 Floodlight 16 75 850 2700 82 5.9 4.7 E26 12

2P3819

H

19 Watt PAR38 Floodlight 19 85 1000 2700 82 5.9 4.7 E26 12

1P3823

H

23 Watt PAR38 Floodlight 23 90 1200 2700 82 6.2 4.8 E26 12

PF2014 14 Watt Flat Par20 Floodlight 14 30 350 2700 82 4.3 2.5 E26 12

PF3016 16 Watt Flat Par30 Floodlight 16 65 750 2700 82 5.0 3.7 E26 12

PF3823 23 Watt Flat Par PAR38 Floodlight 23 75 1000 2700 82 5.4 4.8 E26 12

11304 4 Watt A-Lamp 4 25 225 2700 82 3.8 1.7 E26 12

11309

H

9 Watt A-Lamp 9 40 475 2700 82 3.8 1.9 E26 12

21314

H

14 Watt A-Lamp 14 60 800 2700 82 4.4 2.4 E26 12

11316

H

16 Watt A-Lamp 16 60 900 2700 82 5.9 2.7 E26 12

11319

H

19 Watt A-Lamp 19 60 1100 2700 82 5.9 2.7 E26 12

11323 23 Watt A-Lamp 23 100 1200 2700 82 6.6 2.7 E26 12

21314Y 14 Watt A-Lamp BugLight 14 60 600 2300 N/A 4.4 2.4 E26 12

28968

H

68 Watt SpringLamp 68 300 4200 2700 82 9.5 4.1 E26 6

28927H 27 Watt SpringLamp Mogul Base 27 100 1850 2700 82 6.2 2.8 Mogul 12

28942H 42 Watt SpringLamp Mogul Base 42 150 2800 2700 82 7.0 2.8 Mogul 12

28968H 68 Watt SpringLamp Mogul Base 68 300 4200 2700 82 9.8 4.1 Mogul 6

28927277 27 Watt SpringLamp 277 Volt 27 100 1850 2700 82 6.0 2.8 E26 12

28932277 32 Watt SpringLamp 277 Volt 32 125 2200 2700 82 6.0 2.8 E26 12

28942277 42 Watt SpringLamp 277 Volt 42 150 2800 2700 82 7.0 2.8 E26 12

28968277 68 Watt SpringLamp 277 Volt 68 300 4200 2700 82 9.5 4.1 E26 6

28927H277 27 Watt SpringLamp Mogul Base

277 Volt 27 100 1850 2700 82 6.2 2.8 Mogul 12

28932H277 32 Watt SpringLamp Mogul Base

277 Volt 32 125 2200 2700 82 6.6 2.8 Mogul 12

28942H277 42 Watt SpringLamp Mogul Base

277 Volt 42 150 2800 2700 82 7.0 2.8 Mogul 12

28968H277 68 Watt SpringLamp Mogul Base

277 Volt 68 300 4200 2700 82 9.8 4.1 Mogul 6

19030LED 19/30/1 Watt 3-Way w/LED

Nightlight

19/

30/

1

75/

120/

night-

light

1300/

1850/

8

2700 82 5.3 2.8 E26 12

19032

H

14/19/32 Watt 3-Way Springlamp

14/

19/

32

40/

75/

150

750/

1400/

2150

2700 82 6.8 2.8 E26 12

19027

H

11/15/27 Watt 3-Way Springlamp

11/

15/

27

25/

60/

100

400/

800/

1850

2700 82 5.2 2.7 E26 12

18209 9 Watt SpringLamp 9 40 500 2700 82 4.1 1.9 E26 12

18214 14 Watt Mini-SpringLamp 14 60 800 2700 82 4.5 1.9 E26 12

18220

H

20 Watt SpringLamp 20 75 1100 2700 82 4.7 2.4 E26 12

18223 23 Watt SpringLamp 23 90 1400 2700 82 4.9 2.4 E26 12

18227 27 Watt SpringLamp 27 100 1600 2700 82 5.4 2.4 E26 12

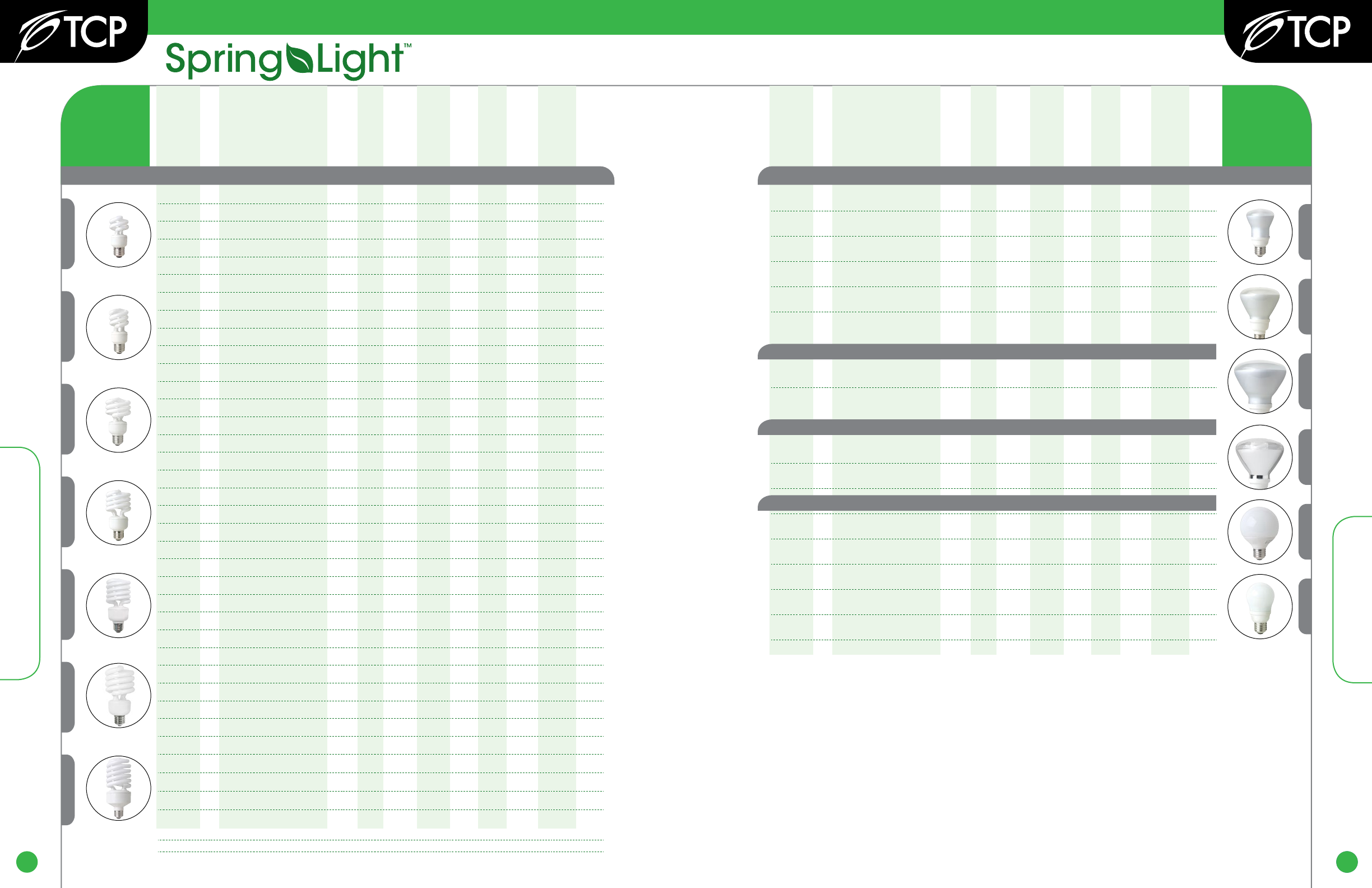

SPRInglamPS, ElECTROnIC, nPF, 10,000 HOuR, <150% THD

SPRInglamPS, ElECTROnIC, nPF, 10,000 HOuR, mOgul baSE, <150% THD

SPRInglamPS, ElECTROnIC, nPF, 10,000 HOuR, mOgul baSE, 277v, <150% THD

SPRInglamPS, ElECTROnIC, nPF, 10,000 HOuR, 277v, <150% THD

3-way SPRInglamPS, ElECTROnIC, 10,000 HOuR, <150% THD

HPF SPRInglamPS, ElECTROnIC, 10,000 HOuR, <33% THD

1-PIECE REFlECTORS, wET lOCaTIOn RaTED, ElECTROnIC, nPF, 8,000 HOuR

1-PIECE FlaT PaR REFlECTORS, wET lOCaTIOn RaTED, ElECTROnIC, nPF, 8,000 HOuR

a-lamP, ElECTROnIC, nPF, 8,000 HOuR

Item Number

Item Description

Unit/Ballast Watts

Incandescent

Comparison (Watts)

Initial Lumens

CCT (Kelvin)

CRI

MOL/Height (Inches)

Diameter/Width (Inches)

Base Type

Case Quantity

ENERGY STAR®

Item Number

Item Description

Unit/Ballast Watts

Incandescent

Comparison (Watts)

Initial Lumens

CCT (Kelvin)

CRI

MOL/Height (Inches)

Diameter/Width (Inches)

Base Type

Case Quantity

ENERGY STAR®

Floods

A-Lamps

E26 Base and

Mogul Base

SpringLamps

2120

Contact Customer Service for inventory availability and special orders.Contact Customer Service for inventory availability and special orders.

2 013 CATALOG

2 013 CATALOG

Compact Fluorescent Lamps

800.324.1496 | tcpi.com

Compact Fluorescent Lamps

800.324.1496 | tcpi.com

Item Number

Item Number

Item Description

Item Description

Unit/Ballast Watts

Unit/Ballast Watts

Incandescent

Comparison (Watts)

Initial Lumens

Initial Lumens

CCT (Kelvin)

CCT (Kelvin)

CRI

CRI

MOL/Height (Inches)

MOL/Height (Inches)

Diameter/Width (Inches)

Diameter/Width (Inches)

Base Type

Base Type

ENERGY STAR®

ENERGY STAR®

Case Quantity

Case Quantity

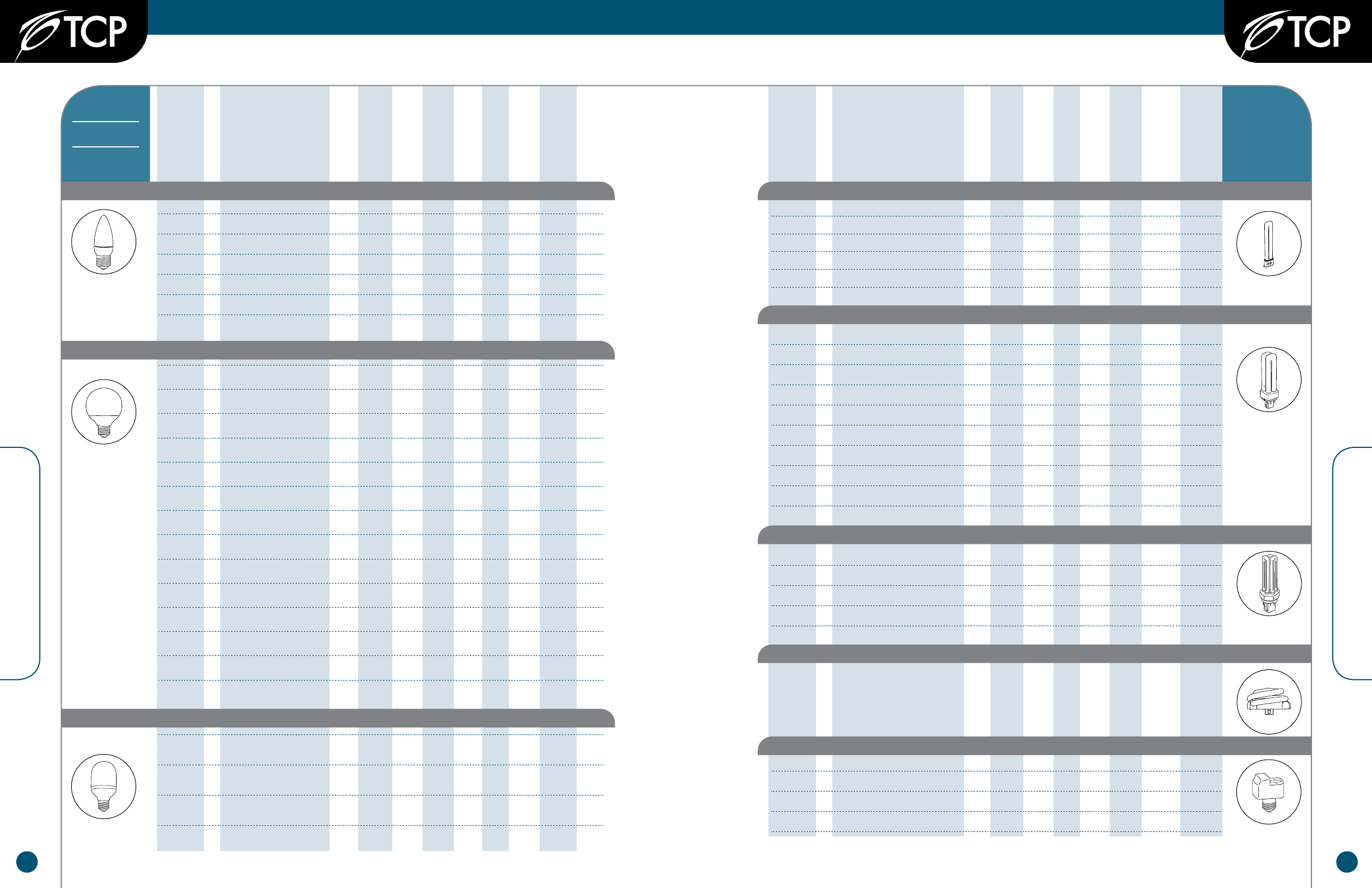

Torpedos

Globes

T-Capsules

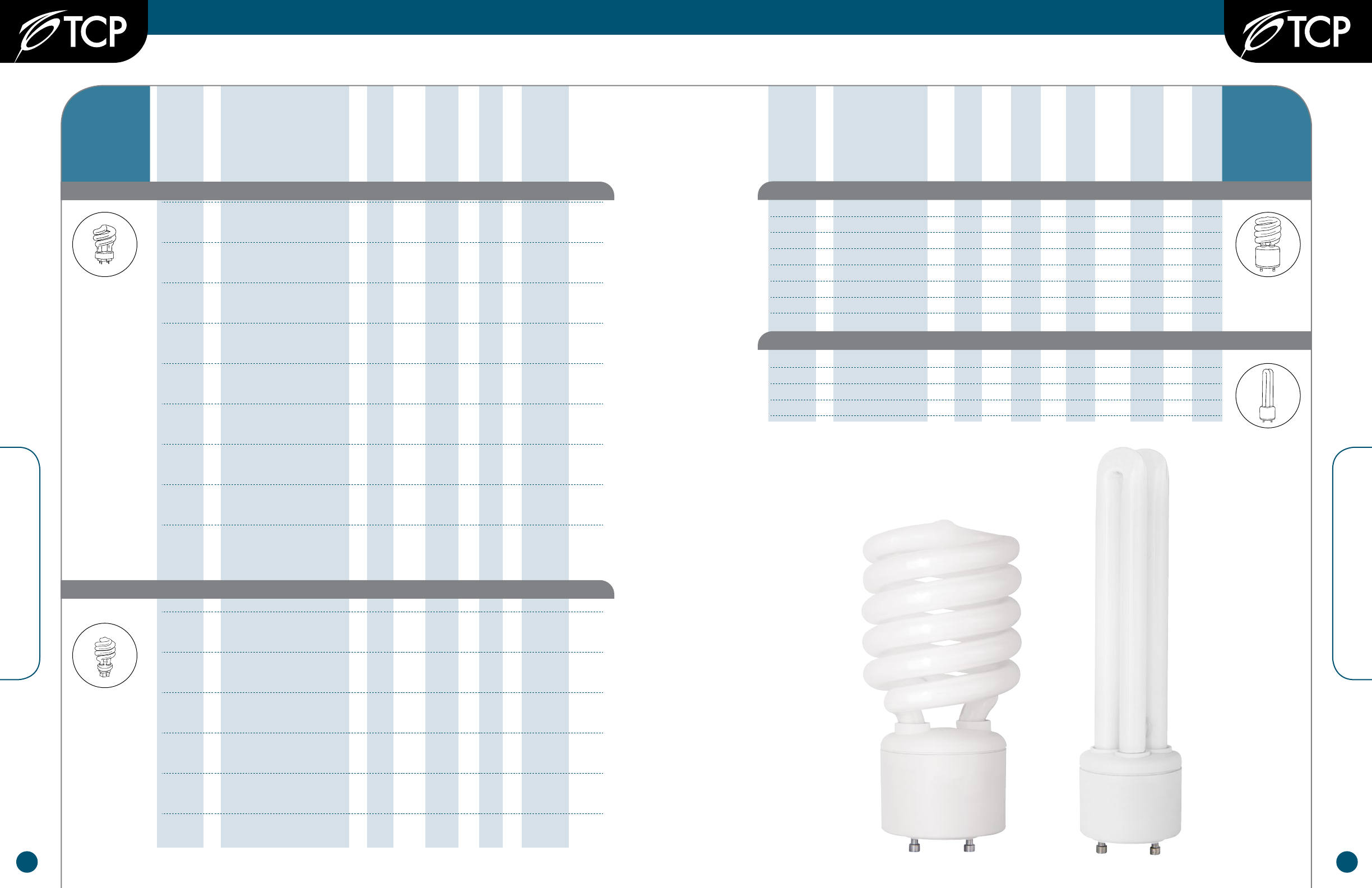

PL Lamps

32005 5 Watt 2-Pin Twin Tube 5 250 2700 82 4.1 1.05 G23 25

32007 7 Watt 2-Pin Twin Tube 7 410 2700 82 5.3 1.3 G23 25

32009 9 Watt 2-Pin Twin Tube 9 590 2700 82 6.4 1.3 G23 25

32013 13 Watt 2-Pin Twin Tube 13 800 2700 82 6.9 1.3 GX23 25

32013IST 13 Watt 2-Pin Twin Tube Instant Start 13 800 2700 82 6.9 1.3 GX23 25

324132GX7 13 Watt 4-Pin Twin Tube 13 800 2700 82 6.2 1.3 2GX7 25

32009Q 9 Watt 2-Pin Quad Tube 9 590 2700 82 4.3 1.4 G23-2 25

32013Q 13 Watt 2-Pin Quad Tube 13 810 2700 82 4.6 1.4 GX23-2 25

32013ISQ 13 Watt 2-Pin Quad Tube Instant Start 13 810 2700 82 4.6 1.4 GX23-2 25

32018Q 18 Watt 2-Pin Quad Tube 18 1150 2700 82 6.0 1.4 G24d-2 25

32026Q 26 Watt 2-Pin Quad Tube 26 1700 2700 82 6.6 1.4 G24d-3 25

32413Q 13 Watt 4-Pin Quad Tube 13 875 2700 82 5.2 1.4 G24q-1 25

32418Q 18 Watt 4-Pin Quad Tube 18 1150 2700 82 5.7 1.4 G24q-2 25

32426Q 26 Watt 4-Pin Quad Tube 26 1700 2700 82 6.3 1.4 G24q-3 12

32020Q 20 Watt 2-Pin Quad Tube 20 1250 2700 82 6.1 1.6 GX32D-2 25

32027Q 27 Watt 2-Pin Quad Tube 27 1700 2700 82 6.5 1.6 GX32D-3 25

32413T 13 Watt 4-Pin Triple Tube 13 900 2700 82 4.2 1.8 GX24q-1 12

32418T 18 Watt 4-Pin Triple Tube 18 1150 2700 82 4.4 1.8 GX24q-2 12

32426T 26 Watt 4-Pin Triple Tube 26 1700 2700 82 4.8 1.8 GX24q-3 12

32432T 32 Watt 4-Pin Triple Tube 32 2000 2700 82 5.5 1.8 GX24q-3 12

32442T 42 Watt 4-Pin Triple Tube 42 2600 2700 82 6.3 1.8 GX24q-4 12

33013SQ 13W Low Profile 4-Pin SpringLamp 13 900 2700 82 1.8 2.9 G24q-1 12

10405 5 Watt Center Mount Adapter 5 N/A N/A N/A 3.3 2.4 E26 12

10407 7 Watt Center Mount Adapter 7 N/A N/A N/A 3.3 2.4 E26 12

10409 9 Watt Center Mount Adapter 9 N/A N/A N/A 3.3 2.4 E26 12

10413 13 Watt Center Mount Adapter 13 N/A N/A N/A 3.3 2.4 E26 12

10704

H

4 Watt Torpedo 4 15 195 2700 82 4.4 1.4 E26 12

10704C

H

4 Watt Torpedo CAND 4 15 195 2700 82 4.4 1.4 E12 12

10709

H

9 Watt Torpedo 9 40 425 2700 82 4.8 1.7 E26 12

10709C 9 Watt Torpedo Lamp 9 40 425 2700 82 4.8 1.7 E12 12

10714 14 Watt Torpedo Lamp 14 60 720 2700 82 5.4 1.7 E26 12

10714C 14 Watt Torpedo Lamp CAND 14 60 720 2700 82 5.4 1.7 E12 12

1G2004 4 Watt G20 Globe 4 25 250 2700 82 3.6 2.5 E26 12

1G2004C 4 Watt G20 Globe CAND 4 25 210 2700 82 3.6 2.5 E12 12

1G2504

H

4 Watt G25 Globe 4 25 250 2700 82 4.0 3.1 E26 6

1G2504C 4 Watt G25 Globe CAND 4 40 250 2700 82 4.0 3.1 E12 6

1G2509

H

9 Watt G25 Globe 9 40 520 2700 82 4.4 3.1 E26 6

1G2509C 9 Watt G25 Globe CAND 9 40 520 2700 82 4.4 3.1 E12 6

2G2514

H

14 Watt G25 Globe 14 60 800 2700 82 4.4 3.1 E26 6

1G3009 9 Watt G30 Globe 9 40 520 2700 82 5.0 3.7 E26 6

1G3014

H

14 Watt G30 Globe 14 60 800 2700 82 5.0 3.7 E26 6

1G3019

H

19 Watt G30 Globe 19 75 1100 2700 82 5.0 3.7 E26 6

1G3023 23 Watt G30 Globe 23 100 1200 2700 82 5.9 3.7 E26 6

1G4014

H

14 Watt G40 Globe 14 60 800 2700 82 6.8 5.0 E26 6

1G4019

H

19 Watt G40 Globe 19 75 1100 2700 82 6.8 5.0 E26 6

1G4023 23 Watt G40 Globe 23 100 1300 2700 82 6.8 5.2 E26 6

1T2014

H

14 Watt T20 Capsule 14 60 800 2700 82 5.4 2.5 E26 12

1T2414

H

14 Watt T24 Capsule 14 60 900 2700 82 5.2 3.5 E26 6

1T2419

H

19 Watt T24 Capsule 19 75 1100 2700 82 5.6 3.5 E26 6

1T2423 23 Watt T24 Capsule 23 100 1200 2700 82 6.3 3.5 E26 6

TORPEDO lamP, ElECTROnIC, nPF, 8,000 HOuR

glObE lamP, ElECTROnIC, 8,000 HOuR

T-CaPSulE lamP, ElECTROnIC, 8,000 HOuR

TwIn TubE Pl lamPS, 10,000 HOuR

QuaD TubE Pl lamPS, 10,000 HOuR

lOw PROFIlE 4-PIn SPRInglamP®, 10,000 HOuR

SCREw In magnETIC aDaPTERS, 50,000 HOuR

2322

Contact Customer Service for inventory availability and special orders.Contact Customer Service for inventory availability and special orders.

2 013 CATALOG

2 013 CATALOG

TRIPlE TubE Pl lamPS, 10,000 HOuR

energy efficient lighting innovation

Item Number

Item Description

Unit/Ballast Watts

Lamp Watts

Incandescent

Comparison (Watts)

Initial Lumens

CCT (Kelvin)

CRI

MOL/Height (Inches)

Diameter/Width (Inches)

Replacement Bracket

Replacement Lamp

Replacement Ballast

Base Type

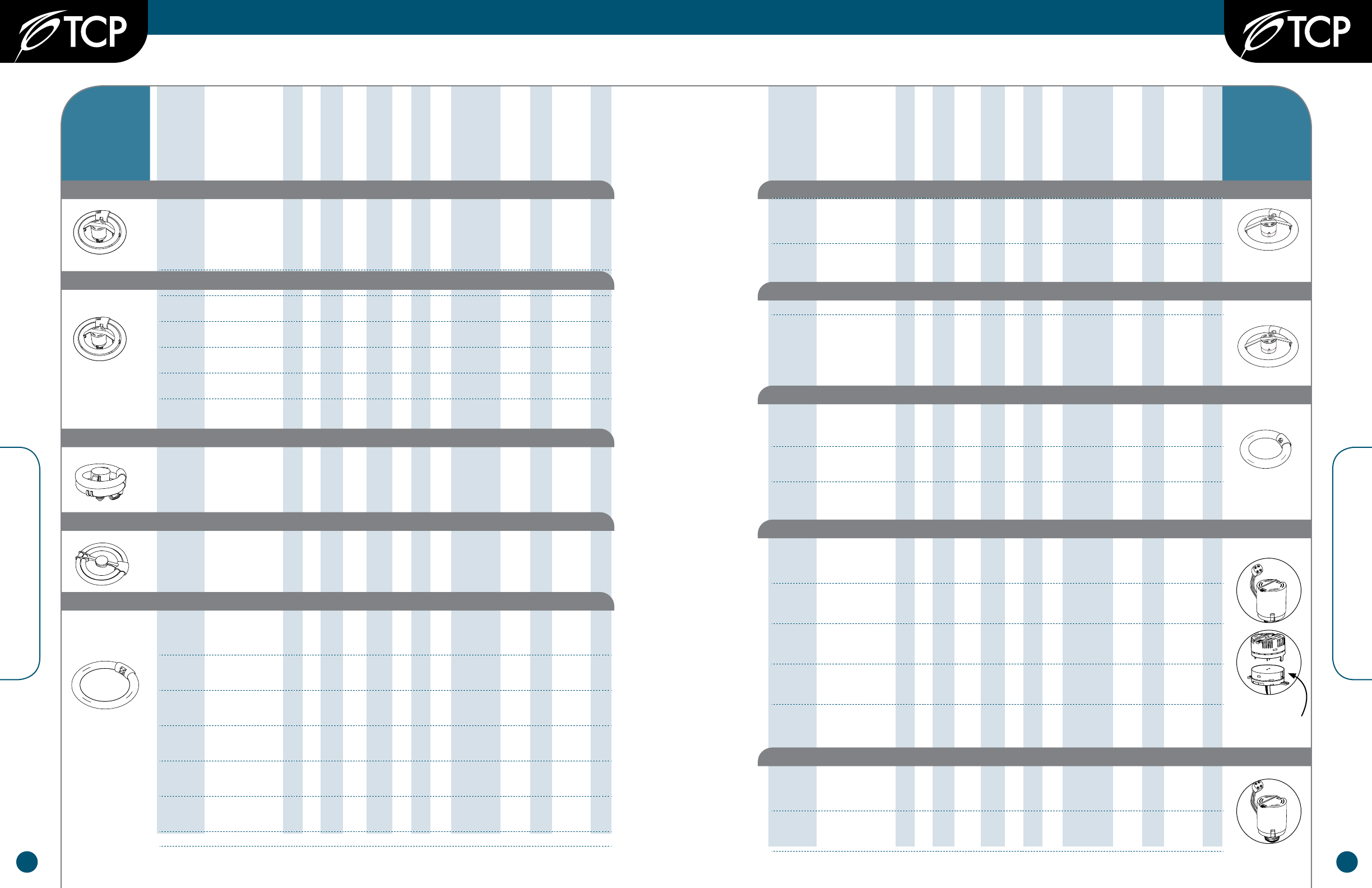

T6 CIRClInE aDaPTERS wITH lamPS, ElECTROnIC, HPF, 10,000 HOuR, 2700K

T6 CIRClInE aDaPTERS wITH lamPS, ElECTROnIC, nPF, 10,000 HOuR, 2700K

T6 3-way CIRClInE aDaPTERS wITH lamP, ElECTROnIC, nPF, 10,000 HOuR, 2700K

T6 CIRClInE 2D REPlaCEmEnT lamPS, 10,000 HOuR, 2700K

T6 CIRClInE lamPS, 2700K

T9 CIRClInE aDaPTERS wITH lamP, ElECTROnIC, nPF, 10,000 HOuR, 2700K

T9 CIRClInE aDaPTERS wITH lamP, ElECTROnIC, HPF, 10,000 HOuR, 2700K

Item Number

Item Description

Unit/Ballast Watts

Lamp Watts

Incandescent

Comparison (Watts)

Initial Lumens

CCT (Kelvin)

CRI

MOL/Height (Inches)

Diameter/Width (Inches)

Replacement Bracket

Replacement Lamp

Replacement Ballast

Base Type

CirclineCircline

1252218 22 Watt Circline Adapter

with 18 Watt Lamp 22 18 75 1200 2700 82 3.7 5.8 13818B 32018 E26 12522 20

1703027 30 Watt Circline Adapter

with 27 Watt Lamp 30 27 120 2000 2700 82 3.7 7.5 13827B 32027 E26 17030 20

1703632RP 36 Watt Circline Adapter

with 32 Watt Lamp 36 32 130 2200 2700 82 3.7 9.0 13832B 32032 E26 17036 20

17033L 33 Watt Circline Adapter

with Lamp 33 33 125 2000 2700 82 3.5 5.5 13833B2ADJ 32033 E26 17033 20

17040LRP 40 Watt Circline Adapter

with Lamp 40 40 150 2800 2700 82 3.7 7.5 13818B 32040 E26 174040 20

17058L 58 Watt Circline Adapter

with Lamp 58 58 200 3700 2700 82 3.7 9.0 13858B 32058 E26 17058 5

16533L 33 Watt Circline Adapter

with Lamp 33

10/

20/

33

50/

100/

150

2150 2700 82 3.5 5.5 13833B2ADJ 32033 E26 16533 20

320582D 58 Watt Lamp with

2D Boot NA 58 200 3700 2700 82 0.8 9.0 N/A N/A N/A N/A 20

32018 18 Watt Circline Lamp NA 18 75 1200 2700 82 0.8 5.7 13818B N/A N/A N/A 20

32027 27 Watt Circline Lamp NA 27 120 2000 2700 82 0.8 7.5 13827B N/A N/A N/A 20

32032 32 Watt Circline Lamp NA 32 130 2200 2700 82 0.8 9.0 13832B N/A N/A N/A 20

32033 33 Watt Circline Lamp NA 33 125 2150 2700 82 1.8 5.5 13833B2ADJ N/A N/A N/A 20

32040 40 Watt Circline Lamp NA 40 150 2800 2700 82 0.8 7.5 13818B N/A N/A N/A 20

32058 58 Watt Circline Lamp NA 58 200 3700 2700 82 0.8 9.0 13858B

(set of 3) N/A N/A N/A 20

17022LRP 22 Watt Circline Adapter

with 22 Watt Lamp 22 22 90 1400 2700 82 3.7 8.0 13822B 32022 E26 17022 6

17030LRP 30 Watt Circline Adapter

with 30 Watt Lamp 30 30 120 2000 2700 82 3.7 9.0 13830B 32030 E26 17030 6

12530L 30 Watt Circline Adapter

and Lamp 30 30 120 2000 2700 82 3.7 9.0 13830B 32030 E26 12530 20

32020 20 Watt Circline Lamp NA 20 75 1200 2700 NA 1.0 6.0 13820B N/A N/A N/A 20

32022 22 Watt Circline Lamp NA 22 90 1400 2700 NA 1.0 8.0 13822B N/A N/A N/A 20

32030 30 Watt Circline Lamp NA 30 120 2000 2700 NA 1.0 9.0 13830B N/A N/A N/A 20

17022 22 Watt Circline Ballast 22 NA NA NA NA NA NA NA NA N/A E26 N/A 50

17030 30 Watt Circline Ballast 30 NA NA NA NA NA NA NA NA N/A E26 N/A 50

17033 33 Watt Circline Ballast 33 NA NA NA NA NA NA NA NA N/A E26 N/A 50

17040 40 Watt Circline Ballast 40 NA NA NA NA NA NA NA NA N/A E26 N/A 50

17058 58 Watt Circline Ballast 58 NA NA NA NA NA NA NA NA N/A E26 N/A 50

12522 22 Watt Circline Ballast 22 NA NA NA NA NA NA NA NA N/A E26 N/A 50

12530 30 Watt Circline Ballast 30 NA NA NA NA NA NA NA NA N/A E26 N/A 50

T9 CIRClInE lamPS, 10,000 HOuR, 2700K

CIRClInE ballaSTS, nPF

CIRClInE ballaSTS, HPF

2524

All T6 Circline lamps also available in: 31K, 35K, 41K, 51K, 65K & P/SP

All Circlines are 4-pin G10Q

*

Compact Fluorescent Lamps

800.324.1496 | tcpi.com

Compact Fluorescent Lamps

800.324.1496 | tcpi.com

Case Quantity

Case Quantity

Contact Customer Service for inventory availability and special orders.Contact Customer Service for inventory availability and special orders.

2 013 CATALOG

2 013 CATALOG

Add suffix “Q” for Snap-in Version.

Item #4001 for Hard-wire base only.

TwO PIECE REPlaCEmEnT lamPS, TCX baSE, Pl 4-PIn, amalgam, 10,000 HOuR

TwO PIECE REPlaCEmEnT lamPS, anSI baSE, Pl 4-PIn, amalgam, 10,000 HOuR

Item Number

Item Description

Lamp Watts

Initial Lumens

CCT (Kelvin)

CRI

MOL/Height (Inches)

Diameter/Width (Inches)

Base Type

Case Quantity

Case Quantity

ENERGY STAR®

Two Piece

SpringLamps

35011M 11 Watt Mini-SpringLamp Replacement 11 52 650 2700 82 3.0 1.8 TCX 4-pin 12

35014M 14 Watt Mini-SpringLamp Replacement 14 60 900 2700 82 3.1 1.8 TCX 4-pin 12

35015 15 Watt SpringLamp Repl 15 60 930 2700 82 3.1 2.2 TCX 4-pin 12

35018 18 Watt SpringLamp Repl 18 75 1150 2700 82 3.4 2.2 TCX 4-pin 12

35020 20 Watt SpringLamp Repl 20 75 1200 2700 82 3.4 2.2 TCX 4-pin 12

35023 23 Watt SpringLamp Repl 23 90 1400 2700 82 3.7 2.2 TCX 4-pin 12

35026 26 Watt SpringLamp Repl 26 100 1750 2700 82 4.3 2.2 TCX 4-pin 12

35032 32 Watt SpringLamp Repl 32 125 2100 2700 82 4.8 2.2 TCX 4-pin 12

35042 42 Watt SpringLamp Repl 42 150 2800 2700 82 5.6 2.5 TCX 4-pin 12

33014M 14 Watt Mini-SpringLamp 14 60 900 2700 82 3.1 1.8 G24Q-1 12

33018 18 Watt SpringLamp 18 75 1150 2700 82 4.0 2.2 G24Q-2 12

33026 26 Watt SpringLamp 26 100 1750 2700 82 4.8 2.2 G24Q-3 12

33032 32 Watt SpringLamp 32 125 2100 2700 82 5.3 2.2 G24Q-3 12

33042 42 Watt SpringLamp 42 150 2800 2700 82 5.6 2.5 G24Q-3 12

Item Number

Item Description

Unit/Ballast Watts

Incandescent

Comparison (Watts)

Incandescent

Comparison (Watts)

Initial Lumens

CCT (Kelvin)

CRI

MOL/Height (Inches)

Diameter/Width (Inches)

Input Line

Base Type

ENERGY STAR®

GU 24 Base

gu24 SPRInglamPS, 10,000 HOuR

gu24 Pl lamPS, 8,000 HOuR

33109SP

H

9 Watt Springlamp 9 45 550 2700 82 3.4 1.8 .15A GU24 12

33113SP

H

13 Watt SpringLamp 13 60 900 2700 82 3.6 1.8 .22A GU24 12

33118SP

H

18 Watt SpringLamp 18 75 1200 2700 82 3.8 2.3 .30A GU24 12

33123SP

H

23 Watt SpringLamp 23 100 1600 2700 82 4.4 2.4 .43A GU24 12

33127SP

H

27 Watt SpringLamp 27 100 1850 2700 82 4.8 2.4 .45A GU24 12

33132SP

H

32 Watt SpringLamp 32 120 2200 2700 82 5.1 2.7 .53A GU24 12

33142SP 42 Watt SpringLamp 42 150 2800 2700 82 5.9 2.8 .70A GU24 12

33213SSP H13 Watt Low Profile 13 60 900 2700 82 2.3 3.2 .22A GU24 12

33109Q 9 Watt Quad Tube 9 45 500 2700 82 4.5 1.5 .15A GU24 12

33113Q 13 Watt Quad Tube 13 60 750 2700 82 4.5 1.5 .22A GU24 12

33118Q 18 Watt Quad Tube 18 75 1150 2700 82 6.1 1.5 .30A GU24 12

33126Q 26 Watt Quad Tube 26 100 1700 2700 82 7.1 1.8 .43A GU24 12

27

Compact Fluorescent Lamps

800.324.1496 | tcpi.com

Compact Fluorescent Lamps

800.324.1496 | tcpi.com

26

Contact Customer Service for inventory availability and special orders.Contact Customer Service for inventory availability and special orders.

2 013 CATALOG

2 013 CATALOG

Item Number

Item Description

Unit/Ballast Watts

Incandescent

Comparison (Watts)

Initial Lumens

CCT (Kelvin)

CRI

MOL/Height (Inches)

Diameter/Width (Inches)

Input Line

Case Quantity

Base Type

ENERGY STAR®

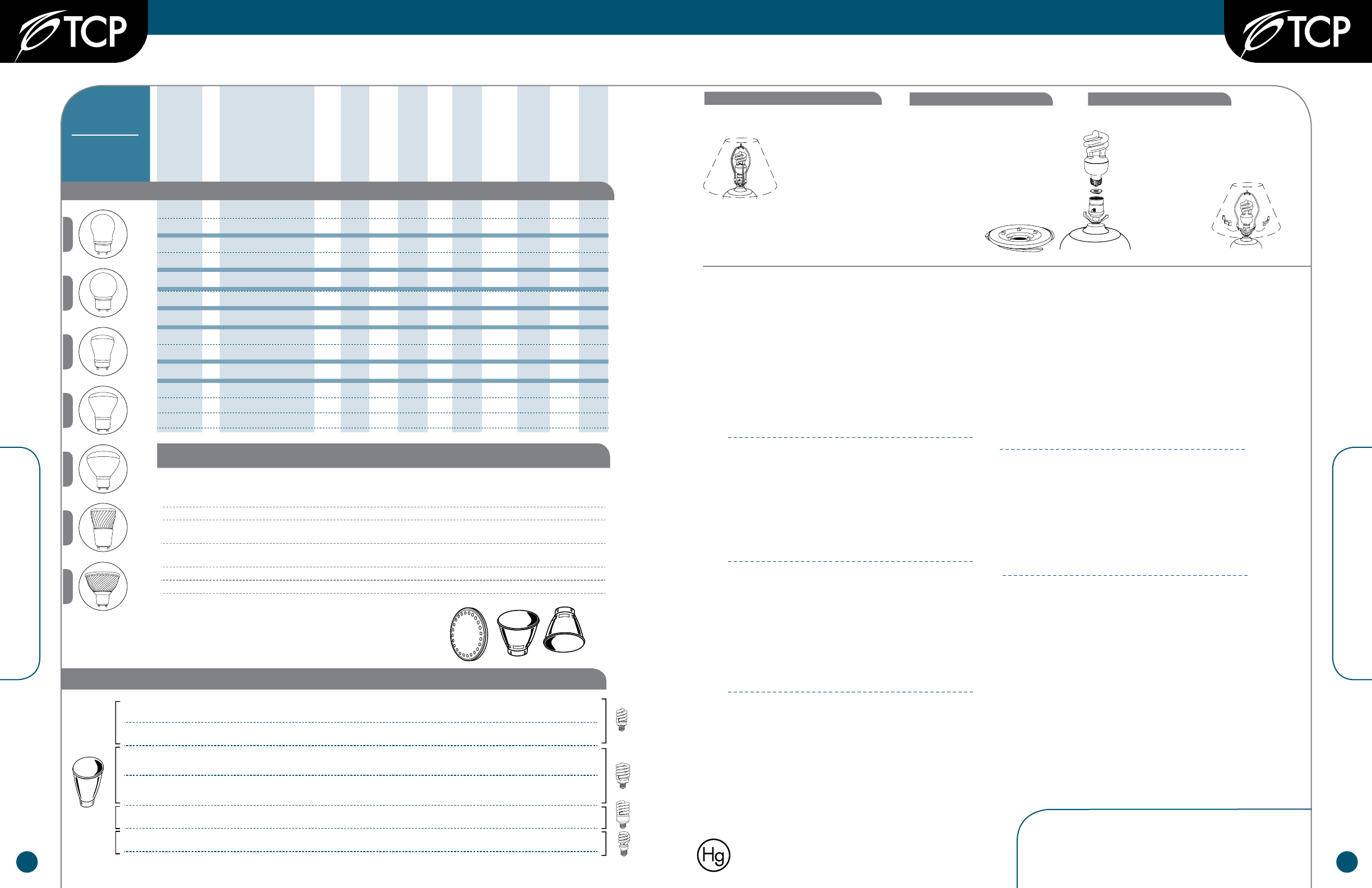

gu24 COvERED lamPS, 8,000 HOuR

GU 24 Base

Covered Lamps

Reflectors

TCP PART

NUMBER DESCRIPTION MOL

(INCHES) DIAMETER

(INCHES) MOL WITH

LAMP (INCHES) SPRINGLAMPS

MAX. LAMP SIZE

33109A19 9 Watt A Lamp 9 40 450 2700 82 3.6 2.3 .15A GU24 12

33114A19

H

14 Watt A Lamp 14 60 800 2700 82 4.3 2.4 .23A GU24 12

33109G25 9 Watt G25 Globe 9 40 450 2700 82 4.0 3.2 .15A GU24 12

33114G25

H

14 Watt G25 Globe 14 60 800 2700 82 4.6 3.2 .23A GU24 12

33114G30 14 Watt G30 Globe 14 60 800 2700 82 5.3 3.7 .23A GU24 12

33114R20 14 Watt R20 Flood 14 50 500 2700 82 4.6 2.5 .23A GU24 12

33116R30

H

16 Watt R30 Flood 16 75 700 2700 82 4.6 3.7 .27A GU24 12

33116R40 16 Watt R40 Flood 16 75 750 2700 82 5.3 4.8 .27A GU24 12

33123R40 23 Watt R40 Flood 23 120 1200 2700 82 5.3 4.8 .38A GU24 12

33123P38 23 Watt Par 38 Flood 23 90 1200 2700 82 5.3 4.8 .38A GU24 12

33114PF20 14 Watt Par Flat 20 Flood 14 65 350 2700 82 4.0 2.5 .23A GU24 12

33116PF30 14 Watt Par Flat 30 Flood 14 65 750 2700 82 4.2 3.7 .27A GU24 12

33123PF38 23 Watt Par Flat 38 Flood 23 90 1000 2700 82 4.8 4.8 .38A GU24 12

A-Lamp Globe R20 Flood R30 Flood R40 Flood PF20 PF38

2928

10R30CV R30 Reflector cover, vented 3.8” diameter

10R40CV R40 Reflector cover, vented 4.7” diameter

TCP Pro Reectors – 489, 401, 580 Series

SNAP-ON REFLECTOR COVERS

Contact Customer Service for inventory availability and special orders.

Compact Fluorescent Lamps

800.324.1496 | tcpi.com

Compact Fluorescent Lamps

800.324.1496 | tcpi.com 2 013 CATALOG

2 013 CATALOG

TCP PART NUMBER DESCRIPTION USE WITH THESE LAMPS

489R3013 Mini Aluminum R30 48909, 48913

489R4013 Mini Aluminum R40 48909, 48913

489R3023 Mini Aluminum R30 48918, 48923, 40114, 48927,

58023, 58018, 58014, 58009

489R4023 Mini Aluminum R40 48918, 48923, 40114, 48927,

58023, 58018, 58014, 58009

401R4023 Mini Aluminum R40 50123

489R4032 Mini Aluminum R40 48932, 48942

489R3013 Fits 48909, 48913 33.7 4.4 13 Watt

489R4013 Fits 48909, 48913 34.7 4.4 13 Watt

489R3023 Fits 48918, 48923, 40114, 48927,

58023, 58018, 58014, 58009 3.4 3.7 4.9 23 Watt

489R4023 Fits 48918, 48923, 40114, 48927,

58023, 58018, 58014, 58009 3.4 4.7 4.9 27 Watt

401R4023 Fits 40123, 50123 3.7 4.7 5.4 23 Watt

489R4032 Fits 48932, 48942 3.7 4.7 5.7 42 Watt

CFL Warranties

With the high quality standards all our products must meet, you are

guaranteed to have a lighting source that performs in the harshest

environments. We’ve even established a UL client testing laboratory at

our corporate headquarters to ensure the safety of every product you

use. Our lab is ISO 17025 compliant.

*All data in this catalog is subject to change without notice.

Some of our products contain mercury.

Manage according to Local, State, or Federal Disposal Laws

See: www.lamprecycle.org or call 1-800-771-9335

8,000 Hour Lamps 12 months

LIMITED WARRANTY

This TCP product is warranted for a period of one year from date of original purchase against defects in

materials and workmanship. If this product should fail to operate due to defects in materials or work-

manship, simply return this product to the place of purchase or to TCP Service Center (325 Campus Dr.,

Aurora, OH 44202) along with the original sales receipt within one year of purchase. This product will be

repaired or replaced, at TCP’s option. This warranty is expressly limited to repair or replacement of the

product. This warranty gives the consumer specific legal rights, which vary from state to state.

WARRANTY IS VOID IF PRODUCT IS NOT USED FOR THE PURPOSE FOR WHICH THIS PRODUCT IS MANUFACTURED.

401 Series | 350 Series | 330 Series | 320 Series | 182 Series

10,000 Hour Lamps 15 months

LIMITED WARRANTY

This TCP product is warranted for a period of 15 months from date of original purchase against defects

in materials and workmanship. If this product should fail to operate due to defects in materials or work-

manship, simply return this product to the place of purchase or to TCP Service Center (325 Campus Dr.,

Aurora, OH 44202) along with the original sales receipt within 15 months of purchase. This product will

be repaired or replaced, at TCP’s option. This warranty is expressly limited to repair or replacement of the

product. This warranty gives the consumer specific legal rights, which vary from state to state.

WARRANTY IS VOID IF PRODUCT IS NOT USED FOR THE PURPOSE FOR WHICH THIS PRODUCT IS MANUFACTURED.

190 Series | 289 Series

10,000 Hour Lamps 18 Months

LIMITED WARRANTY

This TCP product is warranted for a period of 18 months from date of original purchase against defects

in materials and workmanship. If this product should fail to operate due to defects in materials or work-

manship, simply return this product to the place of purchase or to TCP Service Center (325 Campus Dr.,

Aurora, OH 44202) along with the original sales receipt within 18 months of purchase. This product will

be repaired or replaced, at TCP’s option. This warranty is expressly limited to repair or replacement of the

product. This warranty gives the consumer specific legal rights, which vary from state to state.

WARRANTY IS VOID IF PRODUCT IS NOT USED FOR THE PURPOSE FOR WHICH THIS PRODUCT IS MANUFACTURED.

580 Series

20,000 Hour Lamps 36 Months

LIMITED WARRANTY

This TCP product is warranted for a period of 36 months from date of original purchase against defects

in materials and workmanship. If this product should fail to operate due to defects in materials or work-

manship, simply return this product to the place of purchase or to TCP Service Center (325 Campus Dr.,

Aurora, OH 44202) along with the original sales receipt within 36 months of purchase. This product will

be repaired or replaced, at TCP’s option. This warranty is expressly limited to repair or replacement of the

product. This warranty gives the consumer specific legal rights, which vary from state to state.

WARRANTY IS VOID IF PRODUCT IS NOT USED FOR THE PURPOSE FOR WHICH THIS PRODUCT IS MANUFACTURED.

489 Series | 4T2 Series | TruDim™

12,000 Hour Lamps 24 Months

LIMITED WARRANTY

This TCP product is warranted for a period of 24 months from date of original purchase against defects in mate-

rials and workmanship. If this product should fail to operate due to defects in materials or workmanship, simply

return this product to the place of purchase or to TCP Service Center (325 Campus Dr., Aurora, OH 44202)

along with the original sales receipt within 24 months of purchase. This product will be repaired or replaced, at

TCP’s option. This warranty is expressly limited to repair or replacement of the product. This warranty gives the

consumer specific legal rights, which vary from state to state.

WARRANTY IS VOID IF PRODUCT IS NOT USED FOR THE PURPOSE FOR WHICH THIS PRODUCT IS MANUFACTURED.

170 Series | 125 Series | 104 Series | 105 Series

50,000 Hour Ballasts 5 Years

LIMITED WARRANTY

This TCP product is warranted for a period of 5 years from date of original purchase against defects in materi-

als and workmanship. If this product should fail to operate due to defects in materials or workmanship, simply

return this product to the place of purchase or to TCP Service Center (325 Campus Dr., Aurora, OH 44202)

along with the original sales receipt within 5 years of purchase. This product will be repaired or replaced, at

TCP’s option. This warranty is expressly limited to repair or replacement of the product. This warranty gives the

consumer specific legal rights, which vary from state to state.

WARRANTY IS VOID IF PRODUCT IS NOT USED FOR THE PURPOSE FOR WHICH THIS PRODUCT IS MANUFACTURED.

GU24 Lamps 36 Months

LIMITED WARRANTY

This TCP product is warranted for a period of 36 months from date of original purchase against defects in mate-

rials and workmanship. If this product should fail to operate due to defects in materials or workmanship, simply

return this product to the place of purchase or to TCP Service Center (325 Campus Dr., Aurora, OH 44202)

along with the original sales receipt within 36 months of purchase. This product will be repaired or replaced, at

TCP’s option. This warranty is expressly limited to repair or replacement of the product. This warranty gives the

consumer specific legal rights, which vary from state to state.

WARRANTY IS VOID IF PRODUCT IS NOT USED FOR THE PURPOSE FOR WHICH THIS PRODUCT IS MANUFACTURED.

Permanent Installation Disk

A Permanent Installation Disk (10PERM) is

used to allow only TCP Compact Fluorescent

Lamps to fit in a standard light socket to

qualify for energy saving rebates.

10PERM

10PERM Permanent Installation Disk

Item # Description

Lamp Harp Extenders

Simply slip on harp ends to extend

and fit around larger size bulbs.

15HEXT Harp Extenders (set of 2)

Item # Description

10LOCK

Vandal Resistant Device

The Vandal Resistant Device (10LOCK) is

used to help prevent bulb theft.

Use 10LOCK with all lamps except

covered lamps.

10LOCK N/A Vandal Resistant Device

Item # MOL Description

1930

Compact Fluorescent Lamps

800.324.1496 | tcpi.com 2 013 CATALOG

TCP SpringLight™

800.324.1496 | tcpi.com

31

802014

H

14w R20 Flood SpringLamp 14 50 495 2700 82 4.3 2.5 E26 12

803014

H

14w R30 Flood SpringLamp 14 65 650 2700 82 5.4 3.7 E26 4

8030142

H

14w R30 Flood SpringLamp 2PK 14 65 650 2700 82 5.4 3.7 E26 2

805023

H

23w Par38 Flood SpringLamp 23 90 1200 2700 82 6.2 4.8 E26 4

8050232

H

23w Par38 Flood SpringLamp 2PK 23 90 1200 2700 82 6.2 4.8 E26 2

804023

H

23w R40 Flood SpringLamp 23 120 1150 2700 82 6.1 4.8 E26 4

8060092

H

9w G25 Globe SpringLamp 2PK 9 40 525 2700 82 4.3 3.1 E26 3

8060142

H

14w G25 Globe SpringLamp 2PK 14 60 800 2700 82 4.3 3.1 E26 3

8070092

H

9w A-Lamp SpringLamp 2pk 9 40 450 2700 82 4.1 2.2 E26 3

8070142

H

14w A-Lamp SpringLamp 2pk 14 60 800 2700 82 4.8 3.1 E26 3

8011412

H

14w SpringLamp 12PK 14 60 900 2700 82 4.4 1.8 E26 12

8011912

H

19w SpringLamp 12PK 19 75 1225 2700 82 4.4 2.3 E26 12

8012312

H

23w SpringLamp 12PK 23 100 1600 2700 82 4.8 2.3 E26 12

8012712

H

27w SpringLamp 12PK 27 100 1750 2700 82 5.5 2.4 E26 12

801R30146

H

14w R30 SpringLamp 6PK 14 65 645 2700 82 5.4 3.7 E26 12

801009

H

9W SpringLamp 27K 9 40 550 2700 82 4.0 1.8 E26 12

80100935

H

9W SpringLamp 35K 9 40 550 3500 82 4.0 1.8 E26 12

80100941

H

9W SpringLamp 41K 9 40 550 4100 82 4.0 1.8 E26 12

80100950

H

9W SpringLamp 50K 9 40 500 5000 82 4.0 1.8 E26 12

801014

H

14W SpringLamp 27K 14 60 900 2700 82 4.4 1.8 E26 12

8010143

H

14W SpringLamp 27K 3PK 14 60 900 2700 82 4.4 1.8 E26 12

80101435

H

14W SpringLamp 35K 14 60 900 3500 82 4.4 1.8 E26 12

80101441

H

14W SpringLamp 41K 14 60 900 4100 82 4.4 1.8 E26 12

801014413

H

14W SpringLamp 41K 3PK 14 60 900 4100 82 4.4 1.8 E26 12

80101450

H

14W SpringLamp 50K 14 60 850 5000 82 4.4 1.8 E26 12

80101465 14W SpringLamp 65K 14 60 850 6500 82 4.4 1.8 E26 12

801019

H

19W SpringLamp 27K 19 75 1225 2700 82 4.4 2.3 E26 12

8010193

H

19W SpringLamp 27K 3PK 19 75 1225 2700 82 4.4 2.3 E26 12

80101935

H

19W SpringLamp 35K 19 75 1225 3500 82 4.4 2.3 E26 12

80101941

H

19W SpringLamp 41K 19 75 1225 4100 82 4.4 2.3 E26 12

801019413

H

19W SpringLamp 41K 3PK 19 75 1225 4100 82 4.4 2.3 E26 12

80101950

H

19W SpringLamp 50K 19 75 1225 5000 82 4.4 2.3 E26 12

80101965

H

19W SpringLamp 65K 19 75 1225 6500 82 4.4 2.3 E26 12

801023

H

23W SpringLamp 27K 23 100 1600 2700 82 4.8 2.3 E26 12

8010233

H

23W SpringLamp 27K 3PK 23 100 1600 2700 82 4.8 2.3 E26 12

80102335

H

23W SpringLamp 35K 23 100 1600 3500 82 4.8 2.3 E26 12

80102341

H

23W SpringLamp 41K 23 100 1600 4100 82 4.8 2.3 E26 12

801023413

H

23W SpringLamp 41K 3PK 23 100 1600 4100 82 4.8 2.3 E26 12

80102350

H

23W SpringLamp 50K 23 100 1500 5000 82 4.8 2.3 E26 12

80102365 23W SpringLamp 65K 23 100 1500 6500 82 4.8 2.3 E26 12

801027

H

27W SpringLamp 27K 27 100 1750 2700 82 5.5 2.4 E26 12

8010273

H

27W SpringLamp 27K 3PK 27 100 1750 2700 82 5.5 2.4 E26 12

80102735

H

27W SpringLamp 35K 27 100 1750 3500 82 5.5 2.4 E26 12

80102741

H

27W SpringLamp 41K 27 100 1750 4100 82 5.5 2.4 E26 12

801027413

H

27W SpringLamp 41K 3PK 27 100 1750 4100 82 5.5 2.4 E26 12

80102750

H

27W SpringLamp 50K 27 100 1750 5000 82 5.5 2.4 E26 12

80102765 27W SpringLamp 65K 27 100 1750 6500 82 5.5 2.4 E26 12

801032

32W SpringLamp 27K 32 125 2100 2700 82 6.0 2.8 E26 12

80103241

32W SpringLamp 41K 32 125 2000 4100 82 6.0 2.8 E26 12

801042

42W SpringLamp 27K 42 150 2750 2700 82 7.0 2.8 E26 12

80104241

42W SpringLamp 41K 42 150 2650 4200 82 7.0 2.8 E26 12

SPRInglIgHT™ SPRInglamPS®

SPRInglIgHT™ glObES

SPRInglIgHT™ mulTI-PaCKS

SPRInglIgHT™ a-lamPS

Item Number

Item Number

Item Description

Item Description

Unit/Ballast Watts

Unit/Ballast Watts

Incandescent

Comparison (Watts)

Incandescent

Comparison (Watts)

Initial Lumens

Initial Lumens

CCT (Kelvin)

CCT (Kelvin)

CRI

CRI

MOL/Height (Inches)

MOL/Height (Inches)

Diameter/Width (Inches)

Diameter/Width (Inches)

Base Type

Base Type

Case Quantity

Case Quantity

ENERGY STAR®

ENERGY STAR®

SpringLight™

SpringLight™

9w SpringLamp14w SpringLamp19w SpringLamp23w SpringLamp27w SpringLamp32w SpringLamp42w SpringLamp

R20 FloodR30 FloodR40 FloodPAR38 FloodG25 GlobeA-Lamp

801 Series – 10,000 hours – 9 Years – LIMITED WARRANTY*

This product is warranted for a period of 9 YEARS* from date of original

purchase against defects in materials and workmanship. If this product should fail to

operate due to defects in material or workmanship, simply call 1-800-771-9335 within

WARRANTED TIME of purchase. This product will be repaired or replaced, at TCP’s

option. This warranty is expressly limited to repair or replacement of the product.

This warranty gives the consumer specific legal rights, which vary from state to state.

WARRANTY IS VOID IF PRODUCT IS NOT USED FOR THE PURPOSE FOR

WHICH THIS PRODUCT IS MANUFACTURED.

802, 803, 805, 807 Series – 8,000 hours – 7 Years – LIMITED WARRANTY*

This product is warranted for a period of 7 YEARS* from date of original

purchase against defects in materials and workmanship. If this product should fail to

operate due to defects in material or workmanship, simply call 1-800-771-9335 within

WARRANTED TIME of purchase. This product will be repaired or replaced, at TCP’s

option. This warranty is expressly limited to repair or replacement of the product.

This warranty gives the consumer specific legal rights, which vary from state to state.

WARRANTY IS VOID IF PRODUCT IS NOT USED FOR THE PURPOSE FOR

WHICH THIS PRODUCT IS MANUFACTURED.

*Based on 3 hours average use per day

SpringLight

™

WARRANTY

CATALOG

2 013

SPRInglIgHT™ REFlECTOR lamPS

Cold Cathodes

800.324.1496 | tcpi.com

Cold Cathodes

800.324.1496 | tcpi.com

3 waTT S14 COlD CaTHODE 120v, 25,000 HOuR

5 waTT a17 COlD CaTHODE 120v, 25,000 HOuR

8 waTT a19 COlD CaTHODE 120v, 25,000 HOuR

3 waTT TORPEDO COlD CaTHODE 120v, 25,000 HOuR

5 waTT TORPEDO COlD CaTHODE 120v, 25,000 HOuR

8 waTT TORPEDO COlD CaTHODE 120v, 25,000 HOuR

Item Number

Item Number

Item Description

Item Description

Lamp Watts

Lamp Watts

Incandescent

Comparison (Watts)

Incandescent

Comparison (Watts)

Initial Lumens

Initial Lumens

CCT (Kelvin)

CCT (Kelvin)

CRI

CRI

MOL/Height (Inches)

MOL/Height (Inches)

Diameter/Width (Inches)

Diameter/Width (Inches)

Lamp Finish

Case Quantity

Lamp Finish

Case Quantity

Torpedos

Flame Tips

Globes

A-Lamps

Torpedos

8A03CL 3 Watt Cold Cathode A-Lamp Clear 3 15-20 120 2700 82 3.6 1.7 Clear 12

8A03F 3 Watt Cold Cathode A-Lamp Frost 3 15-20 120 2700 82 3.6 1.7 Frost 12

8A03LV 3 Watt Cold Cathode A-Lamp LV 3 15-20 115 2400 82 3.6 1.7 LV 12

8A03WH 3 Watt Cold Cathode A-Lamp White 3 15-20 120 2700 82 3.6 1.7 White 12

8A05CL 5 Watt Cold Cathode A-Lamp Clear 5 25-30 200 2700 82 4.0 2.0 Clear 12

8A05F 5 Watt Cold Cathode A-Lamp Frost 5 25-30 200 2700 82 4.0 2.0 Frost 12

8A05LV 5 Watt Cold Cathode A-Lamp LV 5 25-30 190 2400 82 4.0 2.0 LV 12

8A05Y 5 Watt Cold Cathode A-Lamp Yellow 5 25-30 N/A N/A N/A 4.0 2.0 Yellow 12

8A05BL 5 Watt Cold Cathode A-Lamp Blue 5 25-30 N/A N/A N/A 4.0 2.0 Blue 12

8A05GR 5 Watt Cold Cathode A-Lamp Green 5 25-30 N/A N/A N/A 4.0 2.0 Green 12

8A05RD 5 Watt Cold Cathode A-Lamp Red 5 25-30 N/A N/A N/A 4.0 2.0 Red 12

8A08CL 8 Watt Cold Cathode A-Lamp Clear 8 35-40 300 2700 82 4.5 2.4 Clear 12

8A08F 8 Watt Cold Cathode A-Lamp Frost 8 35-40 300 2700 82 4.5 2.4 Frost 12

8A08LV 8 Watt Cold Cathode A-Lamp LV 8 35-40 280 2400 82 4.5 2.4 LV 12

8A08WH 8 Watt Cold Cathode A-Lamp White 8 35-40 300 2700 82 4.5 2.4 White 12

8T03CL 3 Watt Cold Cathode Torpedo Clear 3 15-20 120 2700 82 4.0 1.4 Clear 12

8T03F 3 Watt Cold Cathode Torpedo Frost 3 15-20 120 2700 82 4.0 1.4 Frost 12

8T05F 5 Watt Cold Cathode Torpedo Frost 5 25-30 200 2700 82 4.4 1.4 Frost 12

8T05WH 5 Watt Cold Cathode Torpedo White 5 25-30 200 2700 82 4.4 1.4 White 12

8T08CL 8 Watt Cold Cathode Torpedo Clear 8 35-40 300 2700 82 5.8 2.0 Clear 12

8T08F 8 Watt Cold Cathode Torpedo Frost 8 35-40 300 2700 82 5.8 2.0 Frost 12

8T08LV 8 Watt Cold Cathode Torpedo LV 8 35-40 280 2400 82 5.8 2.0 LV 12

8T08WH 8 Watt Cold Cathode Torpedo White 8 35-40 300 2700 82 5.8 2.0 White 12

8TF03CL 3 Watt Cold Cathode Flame Tip Clear 3 15-20 120 2700 82 4.5 1.4 Clear 12

8TF03F 3 Watt Cold Cathode Flame Tip Frost 3 15-20 120 2700 82 4.5 1.4 Frost 12

8TF05CL 5 Watt Cold Cathode Flame Tip Clear 5 25-30 200 2700 82 4.8 1.4 Clear 12

8TF05F 5 Watt Cold Cathode Flame Tip Frost 5 25-30 200 2700 82 4.8 1.4 Frost 12

8TF05LV 5 Watt Cold Cathode Flame Tip LV 5 25-30 190 2400 82 4.8 1.4 LV 12

8TF05WH 5 Watt Cold Cathode Flame Tip White 5 25-30 200 2700 82 4.8 1.4 White 12

8TF08CL 8 Watt Cold Cathode Flame Tip Clear 8 35-40 300 2700 82 6.4 2.0 Clear 12

8TF08F 8 Watt Cold Cathode Flame Tip Frost 8 35-40 300 2700 82 6.4 2.0 Frost 12

8TF08LV 8 Watt Cold Cathode Flame Tip LV 8 35-40 280 2400 82 6.4 2.0 LV 12

8TF08WH 8 Watt Cold Cathode Flame Tip White 8 35-40 300 2700 82 6.4 2.0 White 12

8G2003CL 3 Watt Cold Cathode G20 Globe Clear 3 15-20 120 2700 82 4.0 2.5 Clear 12

8G2003F 3 Watt Cold Cathode G20 Globe Frost 3 15-20 120 2700 82 4.0 2.5 Frost 12

8G2503CL 3 Watt Cold Cathode G25 Globe Clear 3 15-20 120 2700 82 4.3 3.1 Clear 12

8G2503WH 3 Watt Cold Cathode G25 Globe White 3 15-20 120 2700 82 4.3 3.1 White 12

8G2505CL 5 Watt Cold Cathode G25 Globe Clear 5 25-30 200 2700 82 4.3 3.1 Clear 12

8G2505F 5 Watt Cold Cathode G25 Globe Frost 5 25-30 200 2700 82 4.3 3.1 Frost 12

8G2505WH 5 Watt Cold Cathode G25 Globe White 5 25-30 200 2700 82 4.3 3.1 White 12

8G2508CL 8 Watt Cold Cathode G25 Globe Clear 8 35-40 300 2700 82 4.3 3.1 Clear 12

8G2508WH 8 Watt Cold Cathode G25 Globe White 8 35-40 300 2700 82 4.3 3.1 White 12

3 waTT FlamE TIP COlD CaTHODE 120v, 25,000 HOuR

5 waTT FlamE TIP COlD CaTHODE 120v, 25,000 HOuR

8 waTT FlamE TIP COlD CaTHODE 120v, 25,000 HOuR

g20 glObE COlD CaTHODE 120v, 25,000 HOuR

g25 glObE COlD CaTHODE 120v, 25,000 HOuR

3332

Contact Customer Service for inventory availability and special orders.Contact Customer Service for inventory availability and special orders.

2 013 CATALOG

2 013 CATALOG

Cold Cathodes

Cold Cathode Warranty

With the high quality standards all our products

must meet, you are guaranteed to have a

lighting source that performs in the harshest

environments. We’ve even established a UL client

testing laboratory at our corporate headquarters

to ensure the safety of every product you use.

Our lab is ISO 17025 compliant.

*All data in this catalog is subject to change without notice.

Some of our products contain mercury.

Manage according to Local, State, or Federal Disposal Laws

See: www.lamprecycle.org or call 1-800-771-9335

25,000 Hour Cold Cathode 24 Month Warranty

LIMITED WARRANTY

This TCP product is warranted for a period of 24 months from date of original purchase against defects in materials and workmanship. If this product

should fail to operate due to defects in materials or workmanship, simply return this product to the place of purchase or to TCP Service Center (325 Campus

Dr., Aurora, OH 44202) along with the original sales receipt within 24 months of purchase. This product will be repaired or replaced, at TCP’s option. This

warranty is expressly limited to repair or replacement of the product. This warranty gives the consumer specific legal rights, which vary from state to state.

WARRANTY IS VOID IF PRODUCT IS NOT USED FOR THE PURPOSE FOR WHICH THIS PRODUCT IS MANUFACTURED.

Special Application Notes:

UL approved for wet location in Base Up Position ONLY.

FlaT PaR COlD CaTHODE 120v, 25,000 HOuR

Item Number

Item Description

Lamp Watts

Incandescent

Comparison (Watts)

Initial Lumens

CCT (Kelvin)

CRI

MOL/Height (Inches)

Diameter/Width (Inches)

Lamp Finish

Case Quantity

Globes

R20s

R30s

Flat Pars

8G3008CL 8 Watt Cold Cathode G30 Globe Clear 8 35-40 300 2700 82 4.8 3.1 Clear

Glass 12

8G3008F 8 Watt Cold Cathode G30 Globe Frost 8 35-40 300 2700 82 4.8 3.1 Frosted

Glass 12

8G3008WH 8 Watt Cold Cathode G30 Globe White 8 35-40 300 2700 82 4.8 3.1

White

Frosted

Glass

12

8R2003F 3 Watt Cold Cathode R20 Reflector Frost 3 15-20 100 2700 82 3.4 2.5 Frosted

Glass 12

8R2005CL 5 Watt Cold Cathode R20 Reflector Clear 5 25-30 140 2700 82 4.0 2.5 Clear

Glass 12

8R2005F 5 Watt Cold Cathode R20 Reflector Frost 5 25-30 140 2700 82 4.0 2.5 Frosted

Glass 12

8R3008F 8 Watt R30 Frost 8 35-40 300 2700 82 4.7 3.7 Frosted

Glass 12

8R3008P 8 Watt R30 Pink 8 35-40 N/A N/A N/A 4.7 3.7 Pink

Glass 12

8PF3008 8 Watt Flat Par30 Clear 8 35-40 260 2700 82 4.9 3.7 Clear

Glass 12

8PF3808 8 Watt Flat Par38 Clear 8 35-40 300 2700 82 5.3 4.8 Clear

Glass 12

g30 glObE COlD CaTHODE 120v, 25,000 HOuR

MORE REASONS TO USE COLD CATHODES...

• Ideal choice for signs, marquees, and accent lighting

• Suitable for indoor and outdoor (base up) applications

• Energy saving replacing 15-40 watt incandescent bulbs

• Excellent for Flashing and Dimming applications

without impacting lamp life

• Infinite dimming from 100 to 10%

• Innovative diagonal mount tube and center post design

increases structural integrity of the 8 watt lamp

3534

Clear Frost LV

Coated White

Cold Cathodes

800.324.1496 | tcpi.com

Cold Cathodes

800.324.1496 | tcpi.com

Contact Customer Service for inventory availability and special orders.

2 013 CATALOG

2 013 CATALOG

Cold Cathodes

R20 REFlECTOR COlD CaTHODE 120v, 25,000 HOuR

R30 REFlECTOR COlD CaTHODE 120v, 25,000 HOuR

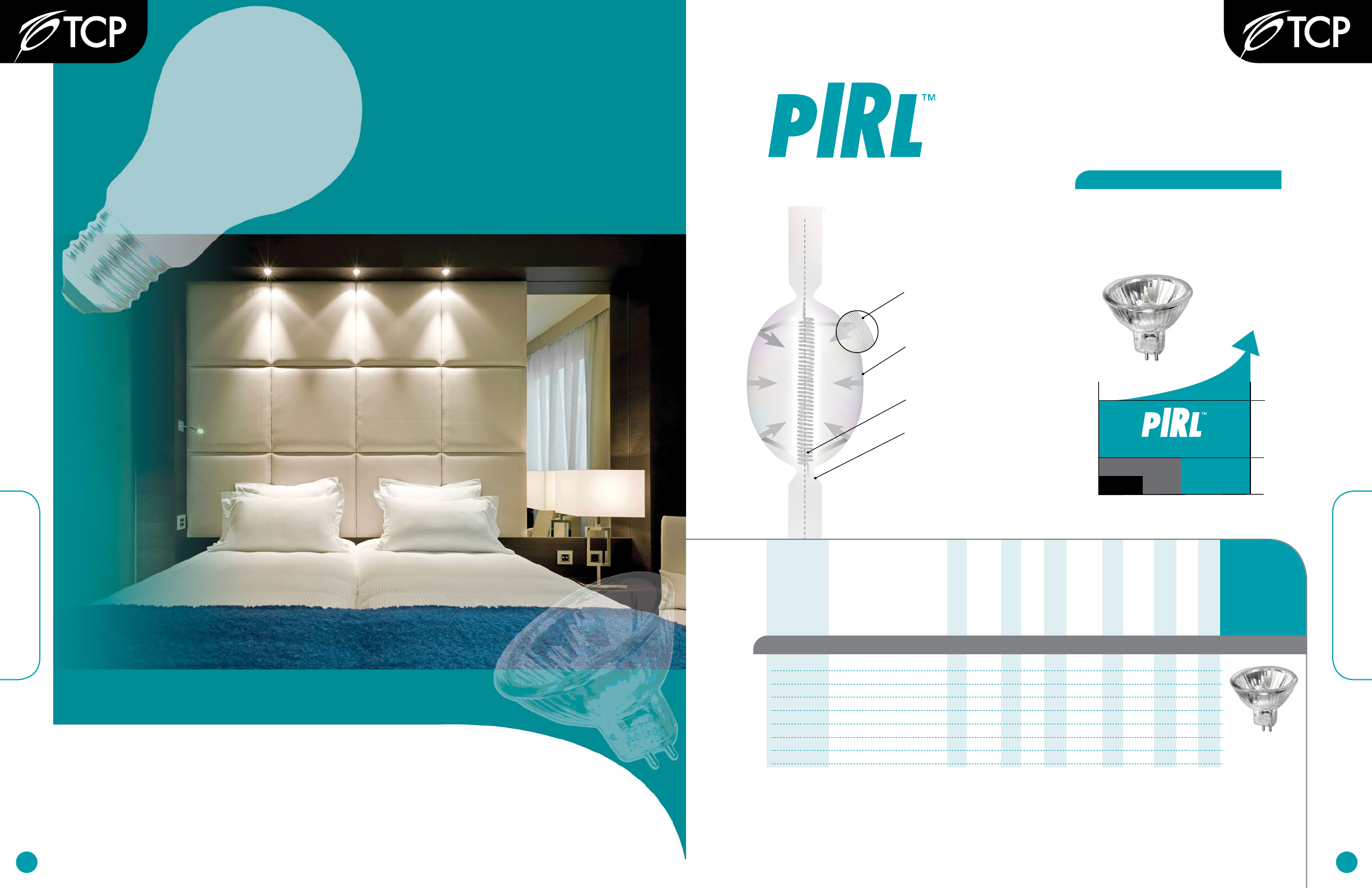

HALOGEN

FEATURES / BENEFITS

• Long service life to 5,000 hours (for general use)

• Perfect color rendering

• Fully dimmable

• Brighter than traditional halogen bulbs

• More energy efficient than incandescent

Eliptical-shaped precision quartz body

allows more IR energy to reflect back to the

filament, creating maximum lumen output.

Fillament is perfectly centered, increasing

energy efficiency and lumen output.

Over-all symmetrical design

maximizes light reflection

and lumen output.

Pinched ends reduce energy

loss due to convection.

Multiple microscopic layers of infra-red

(IR) reflective coating are applied to

glass for optimal IR reflection.

TECHNOLOGY

Precision Infra-Red Light

3736

TCP is further expanding its comprehensive portfolio of energy efficient lighting products, with the introduction

of new high performance Hybrid (IR) Halogen lamps, which produce the same light output and color

rendering characteristics as incandescent lamps, using as much as 50% less energy!

That’s not just smart – it’s genius!

NEW Halogen Lamps

800.324.1496 | tcpi.com

NEW Halogen Lamps

800.324.1496 | tcpi.com

Halogen

MR16

Item Number

Item Description

Lamp Watts

Incandescent

Comparison (Watts)

Voltage

MOL/Height (Inches)

Diameter

Color

Beam Angle

Center Beam Candle Power

Base Type

STK , SPC or SPO

Case Quantity

44113709G 37W MR16 IR-HAL 30K GU53 S9 37 50 12v 1.8 2.0 3000K 9 13,000 GU5.3 STK 20

44113725G 37W MR16 IR-HAL 30K GU53 F25 37 50 12v 1.8 2.0 3000K 25 4,400 GU5.3 STK 20

44113735G 37W MR16 IR-HAL 30K GU53 F35 37 50 12v 1.8 2.0 3000K 35 2,200 GU5.3 STK 20

44113760G 37W MR16 IR-HAL 30K GU53 F60 37 50 12v 1.8 2.0 3000K 60 1,100 GU5.3 STK 20

44115009G 50W MR16 IR-HAL 30K GU53 S9 50 70 12v 1.8 2.0 3000K 9 15,500 GU5.3 STK 20

44115025G 50W MR16 IR-HAL 30K GU53 F25 50 70 12v 1.8 2.0 3000K 25 5,700 GU5.3 STK 20

44115035G 50W MR16 IR-HAL 30K GU53 F35 50 70 12v 1.8 2.0 3000K 35 2,800 GU5.3 STK 20

44115060G 50W MR16 IR-HAL 30K GU53 F60 50 70 12v 1.8 2.0 3000K 60 1,400 GU5.3 STK 20

PIRL HaLogen – MR16, gU 5.3 Base, 5,000 HoURs | 3000K

Today 2012 Beyond

TECHNOLOGY EISA

minimum LPW

requirement

for 2012

EISA

minimum LPW

requirement

for 2020

INCANDESCENT

LIGHTING

OTHER HALOGEN LIGHTING

*All data in this catalog is subject to change without notice.

LIMITED WARRANTY

LIMITED WARRANTY: This product is warranted for a period of 6 MONTHS* from date of original purchase against defects in materials and workmanship. If this

product should fail to operate due to defects in material or workmanship, simply call 1-800-771-9335 within 6 MONTHS* of purchase. This product will be repaired or

replaced, at TCP’s option. This warranty is expressly limited to repair or replacement of the product. This warranty gives the consumer specific legal rights, which vary

from state to state. WARRANTY IS VOID IF PRODUCT IS NOT USED FOR THE PURPOSE FOR WHICH THIS PRODUCT IS MANUFACTURED.

2 013 CATALOG

2 013 CATALOG

HALOGEN

2 013 CATALOG

2 013 CATALOG

HID

FEATURES / BENEFITS

• Long life

• Energy efficient

• Available in multiple wattages

35/50/70/100/150 Watt

Medium Base

50/70/100/150/

250/400/1000 Watt

Mogul Base

50/70/100/150/175 Watt

Medium Base

150/175/250/320/350/

400/450 Watt

Mogul Base

1500 Watt Sports Light

Mogul Base

175 Watt

Medium Base

175/250/400/1000 Watt

Mogul Base

Applications:

• Street Lights

• Parking Lots

• Roadways

• Exterior/Landscape Lighting

• Industrial Lighting

3938

HID Lamps

800.324.1496 | tcpi.com

HID Lamps

800.324.1496 | tcpi.com

• Energy Saving Designs

• UV guard and 30K color temp

available on certain models

• Replacement for

Existing Installation

• High Lumen Output

• Excellent for Sports Venues

HIGH PRESSURE SODIUM

PULSE START METAL HALIDE

PROBE START METAL HALIDE & SPORTS LIGHT

2 013 CATALOG

• Warehouses

• Interior High Bays

• Extreme Long Life

• High Lumen Per Watt

(Up to 130 Lumens/Watt)

• Indoor and outdoor usage

• Available with UV Guard™

BALLAST KITS

pg. 45

HID

LAMPS & BALLASTS

TCP’s robust HID product selection is one of the reasons TCP is the energy efficient lighting leader.

Our Metal Halide products feature Pulse Plus™ starting for fast warm-up. We also offer several lamps featuring

UV Guard™ which provides up to a 90% reduction in ultraviolet light output. Rounding out this category,

our High Pressure Sodium lamps are practical, long lasting, and efficient.

2 013 CATALOG

2 013 CATALOG

Metal Halide

Pulse Plus

HID Lamps

800.324.1496 | tcpi.com

HID Lamps

800.324.1496 | tcpi.com

ANSI Ballast Code

Item Number

Item Description

Initial Lumens

Mean Lumens

Lamp Life

CCT (Kelvin)

Warm Up (

Minutes

)

Restrike

(Minutes)

CRI

Finish

Diameter (Inches)

Bulb Type

Stocking or Special

Case Quantity

Metal Halide

Pulse Plus

4140

48110 LU35/MED S76 2200 2000 16000+ 1900 3 1 22 Clear 2.13 ED17 STK 12

48120 LU50/MED S68 4000 3600 24000+ 1900 3 1 22 Clear 2.13 ED17 STK 12

48140 LU70/MED S62 6400 5800 24000+ 2000 3 1 22 Clear 2.13 ED17 STK 12

48160 LU100/MED S54 9000 7200 24000+ 2000 3 1 22 Clear 2.13 ED17 STK 12

48180 LU150/55/MED S55 16000 14400 24000+ 2000 3 1 22 Clear 2.13 ED17 STK 6

48210 LU50/MOG S68 4000 3600 24000+ 2000 3 1 22 Clear 3.00 ED23.5 SPC 6

48220 LU70/MOG S62 6400 5800 24000+ 2000 3 1 22 Clear 3.00 ED23.5 STK 6

48230 LU100/MOG S54 9500 8500 24000+ 2000 3 1 22 Clear 3.00 ED23.5 STK 6

48240 LU150/55/MOG S55 16000 14400 24000+ 2000 3 1 22 Clear 3.00 ED23.5 STK 6

48250 LU250/MOG S50 28000 25200 24000+ 2100 3 1 22 Clear 2.25 ED18 STK 12

48260 LU400/MOG S51 50000 45000 24000+ 2100 3 1 22 Clear 2.25 ED18 STK 12

48270 LU1000/MOG S52 130000 117000 24000+ 2100 3 2 22 Clear 3.12 E25 STK 6

Medium Base

Mogul Base

Call for availability on special (SPC)

Item Number

Item Description

Initial Lumens

Mean Lumens

Lamp Life

CCT (Kelvin)

Restrike

(Minutes)

CRI

Finish

Operating Position

Base

Stocking or Special

Case Quantity

Bulb Type

50 Watt Pulse Plus Metal Halide, 1-2 Minutes WarM uP tiMe

70 Watt Pulse Plus Metal Halide, 1-2 Minutes WarM uP tiMe

100 Watt Pulse Plus Metal Halide, 1-2 Minutes WarM uP tiMe

175 Watt Pulse Plus Metal Halide, 1-2 Minutes WarM uP tiMe

Item Number

Item Description

ANSI Ballast Code

Initial Lumens

Mean Lumens

Lamp Life

CCT (Kelvin)

Restrike

(Minutes)

CRI

Finish

Operating Position

Base

Stocking or Special

Case Quantity

Bulb Type

Call for availability on special (SPC)

250 Watt Pulse Plus Metal Halide, 2-3 Minutes WarM uP tiMe

320 Watt Pulse Plus Metal Halide, 2-3 Minutes WarM uP tiMe

350 Watt Pulse Plus Metal Halide, 2-3 Minutes WarM uP tiMe

400 Watt Pulse Plus Metal Halide, 2-3 Minutes WarM uP tiMe

Call for availability on special (SPC)

46110 MH 50W/U/PS M110/E 3400V

3100H

2200V

2000H

10000V

7500H 4000 1-2 65 Clear UE26 ED17 STK 12

46111 MH 50W/C/U/PS M110/E 3200V

2900H

2100V

1900H

10000V

7500H 3700 1-2 70 Coated UE26 ED17 STK 12

46112 MP 50W/U/UVG/PS/3K M110/O 3200V

2900H

2100V

1900H

10000V

7500H 3200 2-4 65 Clear UE26 EDX17 STK 12

46113 MP 50W/C/U/UVG/PS/3K M110/O 3000V

2700H

2000V

1800H

10000V

7500H 3200 2-4 70 Coated UE26 EDX17 SPC 12

46120 MH 70W/U/PS M98/E 5600V

5000H

3600V

3300H

15000V

11250H 4000 1-2 65 Clear UE26 ED17 STK 12

46121 MH 70W/C/U/PS M98/E 5300V

4800H

3400V

3100H

15000V

11250H 3700 2-4 70 Coated UE26 ED17 STK 12

46124 MP 70W/U/UVG/PS M98/O 5300V

4800H

3400V

3100H

15000V

11250H 4000 2-4 65 Clear UE26 EDX17 STK 12

46127 MP 70W/C/U/UVG/PS M98/O 5000V

4500H

3300V

3000H

15000V

11250H 3700 2-4 70 Coated UE26 EDX17 STK 12

46130 MH 100W/U/PS M90/E 9000V

8100H

5900V

5300H

15000V

11250H 4000 2-4 65 Clear UE26 ED17 STK 12

46131 MH 100W/C/U/PS M90/E 8500V

7700H

5500V

5000H

15000V

11250H 3700 3-5 70 Coated UE26 ED17 STK 12

46132 MH 100W/U/PS/3K M90/E 9000V

8100V

5900V

5300H

15000V

11250H 3200 3-5 65 Clear UE26 ED17 STK 12

46133 MH 100W/C/U/PS/3K M90/E 8500V

7700H

5500V

5000H

15000V

11250H 3200 2-4 70 Coated UE26 ED17 STK 12

46136 MP 100W/U/UVG/PS M90/O 8500V

7700H

5500V

5000H

15000V

11250H 4000 3-5 65 Clear UE26 EDX17 STK 12

46139 MP 100W/C/U/UVG/PS M90/O 8100V

7300H

5300V

4800H

15000V

11250H 3700 3-5 70 Coated UE26 EDX17 STK 12

46156 MH 150W/U/PS M102/E 14000V

12600H

10500V

9500H

9500V

8800H 4000 2-4 65 Clear UE26 ED17 STK 12

46158 MH 150W/U/ED28/PS M102/E 14000V

12600H

10500V

9500H

15000V

11250H 4000 2-4 65 Clear UE39 ED28 STK 12

46150 MP 150W/U/UVG/PS M102/O 13300V

12000H

10000 V

9000H

15000V

11250H 4000 3-5 65 Clear UE26 EDX17 STK 12

46155 MP 150W/C/U/UVG/PS/3K M102/O 12600V

11300H

9500V

8500H

15000V

11250H 3700 3-5 70 Coated UE26 EDX17 STK 12

46152 MP 150W/U/UVG/PS/3K M102/O 13300V

12000H

10000V

9000H

15000V

11250H 3200 3-5 65 Clear UE26 EDX17 STK 12

46170 MS 175W/BU/PS M152/E

M137/E 17500 14000 15000 4000 2-4 65 Clear BU+/-15° E26 ED17 STK 12

46174 MS 175W/BU/PS M152/E

M137/E 17500 14000 15000 4000 2-4 65 Clear BU+/-15° E39 ED28 STK 12

46175 MS 175W/C/BU/PS M152/E

M137/E 16600 13300 15000 3700 2-4 70 Coated BU+/-15° E39 ED28 STK 12

46176 MP 175W/BU/UVG/PS M152/O

M137/O 15000 12400 15000 4000 3-5 65 Clear BU+/-15° E39 ED28 SPC 12

46177 MP 175W/C/BU/UVG/PS M152/O

M137/O 14300 11400 15000 3700 3-5 70 Coated BU+/-15° E39 ED28 SPC 12

46222 MS 250W/V/PS M153/E

M138/E 25000 20000 15000 4000 3-5 65 Clear V+/-15° E39 ED28 STK 12

46223 MS 250W/C/V/PS M153/E

M138/E 23800 19000 15000 3700 3-5 70 Coated V+/-15° E39 ED28 SPC 12

46226 MS 250W/HOR/PS M153/E

M138/E 22000 17600 15000 4000 3-5 65 Clear HOR

+/-45° E39 ED28 STK 12

46236 MS 320W/V/ED28/PS M154/E

M132/E 33000 26000 20000 4000 4-6 65 Clear V+/-15° E39 ED28 STK 12

46232 MS 320W/V/ED37/PS M154/E

M132/E 33000 26000 20000 4000 4-6 65 Clear V+/-15° E39 ED37 SPC 6

46237 MP 320W/C/BU/ED28/

UVG/PS

M154/O

M132/O 29000 23000 20000 3700 5-8 70 Coated BU+/-15° EX39 ED28 STK 12

46239 MP 320W/C/BU/ED37/

UVG/PS

M154/O

M132/O 29000 23000 20000 3700 5-8 70 Coated BU+/-15° EX39 ED37 STK 6

46250 MS 350W/V/PS M131/E 37000 29000 20000 4000 4-6 65 Clear V+/-15° E39 ED37 SPC 6

46253 MS 350W/C/V/PS M131/E 35000 28000 20000 3700 4-6 70 Coated V+/-15° E39 ED37 SPC 6

46254 MS 350W/V/ED28/PS M131/E 37000 29000 20000 4000 4-6 65 Clear V+/-15° E39 ED28 SPC 12

46274 MS 400W/V/PS M155/E

M135/E 44000 35000 20000 4000 4-6 65 Clear V+/-15° E39 ED37 STK 6

46275 MS 400W/C/V/PS M155/E

M135/E 42000 33000 20000 3700 4-6 70 Coated V+/-15° E39 ED37 SPC 6

46273 MS 400W/C/V/ED28/PS M155/E

M135/E 42000 33000 20000 3700 4-6 70 Coated V+/-15° E39 ED28 STK 12

46284 MS 400W/HOR/PS M155/E

M135/E 40000 32000 12000 4000 4-6 65 Clear HOR

+/-45° E39 ED37 SPC 6

46290 MS 450W/V/PS M144/E 50000 40000 20000 4000 4-6 65 Clear V+/-15° E39 ED37 SPC 6

46292 MP 450W/BU/UVG/PS M144/O 47000 37000 20000 4000 5-8 65 Clear BU+/-15° EX39 ED37 SPC 6

High Pressure

Sodium

HigH Pressure sodiuM, 3 Minutes WarM uP tiMe

ANSI Ballast Code

450 Watt Pulse Plus Metal Halide, 2-3 Minutes WarM uP tiMe

50 Watt Pulse Plus Metal Halide, 1-2 Minutes WarM uP tiMe

150 Watt Pulse Plus Metal Halide, 1-2 Minutes WarM uP tiMe

2 013 CATALOG

2 013 CATALOG

HID Lamps

800.324.1496 | tcpi.com

HID Lamps

800.324.1496 | tcpi.com

Metal Halide

Probe Start

4342

Call for availability on special (SPC)

Item Number

Item Description

ANSI Ballast Code

Initial Lumens

Mean Lumens

Lamp Life

CCT (Kelvin)

Restrike

(Minutes)

CRI

Finish

Operating Position

Base

Stocking or Special

Case Quantity

Bulb Type

46310 MH 175W/U M57/E 14000V

12600H

9100V

8200H

10000V

7500H 4000 5-10 65 Clear UE39 ED28 STK 12

46311 MH 175W/C/U M57/E 13300 V

12000H

8600 V

7800H

10000 V

7500H 3700 5-10 70 Coated UE39 ED28 STK 12

46317 MH 175W/U/MED M57/E 14000V

12600H

9100V

8200H

10000V

7500H 4000 5-10 65 Clear UE26 ED17 STK 12

46319 MH 175W/C/U/MED M57/E 13300V

12000H

8600V

7800H

10000V

7500H 3700 5-10 70 Coated UE26 ED17 STK 12

46320 MH 250W/U M58/E 21000V

18900H

13700V

12300H

10000V

7500H 4000 5-10 65 Clear UE39 ED28 STK 12

46321 MH 250W/C/U M58/E 20000V

18000H

13000V

11700H

10000V

7500H 3700 5-10 70 Coated UE39 ED28 STK 12

46330 MP 360W/BU M59/O 38000 24000 20000 4000 5-10 65 Clear UE39 ED37 STK 6

46331 MP 360W/C/BU M59/O 36000 23000 20000 3700 5-10 70 Coated UE39 ED37 STK 6

46340 MH 400W/U M59/E 36000V

32400H

23000V

21100H

20000V

15000H 4000 7-12 65 Clear UE39 ED37 STK 6

46341 MH 400W/C/U M59/E 34000V

30600H

22000V

19900H

20000V

15000H 3700 7-12 70 Coated UE39 ED37 STK 6

46352 MH 400W/U/ED28 M59/E 36000V

32400H

23000V

21100H

20000V

15000H 4000 7-12 65 Clear UE39 ED28 STK 12

46347 MH 400W/C/U/ED28 M59/E 34000V

30600H

22000V

19900H

20000V

15000H 3700 7-12 70 Coated UE39 ED28 STK 12

46370 MH 1000W/U M47/E 110000V

99000H

71000V

64400H

12000V

9000H 4000 7-12 65 Clear UE39 BT56 STK 6

46376 MH 1000W/U/ED37 M58/E 110000V

99000H

71000V

64400H

12000V

9000H 4000 7-12 65 Clear UE39 ED37 STK 6

46380 MH 1500W/U/BT56 M48/E 190000 123500 3000 4000 7-12 65 Clear UE39 BT56 STK 6

175 Watt standard Probe start Metal Halide, 3-5 Minutes WarM uP tiMe

250 Watt standard Probe start Metal Halide, 3-5 Minutes WarM uP tiMe

360 Watt standard Probe start Metal Halide, 3-5 Minutes WarM uP tiMe

400 Watt standard Probe start Metal Halide, 3-5 Minutes WarM uP tiMe

1000 Watt standard Probe start Metal Halide, 3-5 Minutes WarM uP tiMe

1500 Watt sPorts ligHt – standard Probe start Metal Halide, 3-5 Minutes WarM uP tiMe

HID

Ballast Kits

ANSI Ballast Code

Item Number

Item Description

Voltage Taps

120 207 240 277 347 480

TCP0070MH4T 70W Pulse Start Ballast Replacement Kit M98 √ √ √ √

TCP0100MH4T 100W Pulse Start Ballast Replacement Kit M90 √ √ √ √

TCP0150MH4T 150W Pulse Start Ballast Replacement Kit M102 √ √ √ √

TCP0175MH5T 175W Probe Start Ballast Replacement Kit M57 √ √ √ √ √

TCP0250MH5T 250W Probe Start Ballast Replacement Kit M58 √ √ √ √ √

TCP0400MH6T 400W Probe Start Ballast Replacement Kit M59 √ √ √ √ √ √

TCP1000MH6T 1000W Probe Start Ballast Replacement Kit M47 √ √ √ √ √ √

TCP0070HP4T 70W High Pressure Sodium Ballast Replacement Kit S62 √ √ √ √

TCP0100HP4T 100W High Pressure Sodium Ballast Replacement Kit S54 √ √ √ √

TCP0150HP4T 150W High Pressure Sodium Ballast Replacement Kit S55 √ √ √ √

TCP0250HP6T 250W High Pressure Sodium Ballast Replacement Kit S50 √ √ √ √ √ √

TCP0400HP6T 400W High Pressure Sodium Ballast Replacement Kit S51 √ √ √ √ √ √

TCP1000HP6T 1000W High Pressure Sodium Ballast Replacement Kit S52 √ √ √ √ √ √

HID Warranties

Metal Halide & High Pressure Sodium Lamps 12 months

LIMITED WARRANTY

This TCP product is warranted for a period of one year from date of original purchase against defects in materials and workmanship. If this product should fail to operate

due to defects in materials or workmanship, simply return this product to the place of purchase or to TCP Service Center (325 Campus Drive, Aurora, OH 44202)

along with the original sales receipt within one year of purchase. This product will be repaired or replaced, at TCP’s option. This warranty is expressly limited to repair

or replacement of the product. This warranty gives the consumer specific legal rights, which vary from state to state.

WARRANTY IS VOID IF PRODUCT IS NOT USED FOR THE PURPOSE FOR WHICH THIS PRODUCT IS MANUFACTURED.

Metal Halide Warning

LAMP OPERATING CHARACTERISTICS

1)This is a discharge lamp and requires several minutes to restart and come to full brightness after a power interruption. For total load, add auxiliary ballast

watts to lamp watts. 2)Color variation from lamp to lamp is an inherent characteristic of metal halide lamps. It is further influenced by variation in the

operating conditions and is not an indication of lamp or system failure. As lamps age, a gradual shift in color normally appears.

WARNING: THIS LAMP CAN CAUSE SERIOUS SKIN BURN AND EYE INFLAMMATION FROM SHORTWAVE ULTRAVIOLET RADIATION IF THE OUTER ENVELOPE

OF THE LAMP IS BROKEN OR PUNCTURED AND THE ARC TUBE CONTINUES TO OPERATE. DO NOT USE WHERE PEOPLE WILL REMAIN FOR MORE THAN A

FEW MINUTES UNLESS ADEQUATE SHIELDING OR OTHER SAFETY PRECAUTIONS ARE USED. CERTAIN TYPES OF LAMPS THAT WILL AUTOMATICALLY

EXTINGUISH WHEN THE OUTER ENVELOPE IS BROKEN OR PUNCTURED ARE COMMERCIALLY AVAILABLE.

Complies with USA Federal Standard 21 CFR 1040.03 and Canadian Standard SOR/80-381.

If the outer envelope breaks or is punctured and lamp continues to operate, immediately turn power off and remove lamp after it has been cooled. If the arc tube is broken, avoid

skin contact with any of the contents and fragments.

Some of our products contain mercury.

Manage according to Local, State, or Federal Disposal Laws

See: www.lamprecycle.org or call 1-800-771-9335

*All data in this catalog is subject to change without notice.

With the high quality standards all our products

must meet, you are guaranteed to have a

lighting source that performs in the harshest

environments. We’ve even established a UL client

testing laboratory at our corporate headquarters

to ensure the safety of every product you use. Our

lab is ISO 17025 compliant.

Metal Halide Kits

HigH Pressure sodiuM Kits

2 013 CATALOG

2 013 CATALOG

HID Lamps

800.324.1496 | tcpi.com

HID Lamps

800.324.1496 | tcpi.com

ANSI

Spec

ANSI

Spec

TCP

Item#

TCP

Item#

GE

Item#

GE

Item#

O/S

Item#

O/S

Item#

Philips

Item#

Philips

Item#

TCP

Description

TCP

Description

GE

Description

GE

Description

Osram/ Sylvania

Description

Osram/ Sylvania

Description

Philips

Description

Philips

Description

Venture

Description

Halco

Description

Venture

Item#

Halco

Item#

M155/E 46274 MS 400W/V/PS 45664 MVR400/VBU/HO/PA 64525 MS400/PS/BU-ONLY 27816-8 MS400/BU/PS 73531 MS 400W/V/PS

M155/E 46275 MS 400W/C/V/PS 12644 MVR400/C/VBU/XHO/PA 64527 MS400/C/PS/BU-ONLY 28362-2 MS400/C/BU/PS 42401 MS 400W/C/V/PS

M155/E 46273 MS 400W/C/V/ED28/PS 46271 MVR400/C/VBU/ED28/PA 46416 MS 400W/C/V/ED28/PS

M155/E 46284 MS 400W/HOR/PS 72886 MVR400/HOR/PA 14475-8 MS400/HOR/PS 58788 MH 400W/H75/PS

M144/E 46290 MS 450W/V/PS 10079 MS 450W/V/PS

M144/O 46292 MP 450W/BU/UVG/PS 65072 MP 450W/BU/UVS/PS

M57/E 46310 MH 175W/U 47760 MVR175/U 64471 M175/U 28733-4 MH175/U 88791 MH 175W/U

M57/E 46311 MH 175W/C/U 47761 MVR175/C/U 64472 M175/C/U 28728-4 MH175/C/U 96627 MH 175W/C/U

M57/E 46317 MH 175W/U/MED 18902 MVR175/U/MED 64479 M175/U/MED 31358-5 MH175/U/M 15556 MH 175W/U/MED

M57/E 46319 MH 175W/C/U/MED 19976 MVR175/C/U/MED 64480 M175/C/U/MED 31359-3 MH175/C/U/M 63187 MH 175W/C/U/MED

M58/E 46320 MH 250W/U 42729 MVR250/U 64457 M250/U 27484-5 MH250/U 63052 MH 250W/U

M58/E 46321 MH 250W/C/U 42731 MVR250/C/U 64458 M250/C/U 29169-0 MH250/C/U 61290 MH 250W/C/U

M59/O 46330 MP 360W/BU 40056 MPR360/VBUWM/HO/O 64737 MSP360/SS/BU-ONLY 38029 MPI 360W/BU/EM

M59/O 46331 MP 360W/C/BU 11685 MPR360/C/VBUWM/HO/O 64738 MSP360/C/SS/BU-ONLY 67293 MPI 360W/C/BU/EM

M59/E 46340 MH 400W/U 43828 MVR400/U 64490 M400/U 34415-0 MH400/U 18520 MH 400W/U

M59/E 46341 MH 400W/C/U 43829 MVR400/C/U 64492 M400/C/U 34416-8 MH400/C/U 83545 MH 400W/C/U

M59/E 46352 MH 400W/U/ED28 18904 MVR400/U/ED28 64488 M400/U/BT28 27862-2 MH400/U/ED28 57540 MH 400W/U/ED28

M59/E 46347 MH 400W/C/U/ED28 19979 MVR400/C/U/ED28 64489 M400/C/U/BT28 20753 MH 400W/C/U/ED28

M47/E 46370 MH 1000W/U 41826 MVR1000/U 64468 M1000/U 29826-5 MH1000/U 72051 MH 1000W/U

M47/E 46376 MH 1000W/U/ED37 18205 MVR1000/U/BT37 64469 M1000/U/BT37 15332 MH 1000W/U/BT37

M48/E 46380 MH 1500W/U/BT56 47326 MVR1500/U/SPORTS 64431 M1500/BU-HOR 12342 MH 1500W/U/XL

S76 48110 LU35/MED 11668 LU35/MED 67500 LU35/MED 30632-4 C35S76/M 108102 LU35/MED

S68 48120 LU50/MED 11345 LU50/MED 67502 LU50/MED 30336-2 C50S68/M 108104 LU50/MED

S62 48140 LU70/MED 11339 LU70/MED 67504 LU70/MED 33192-6 C70S62/M 108106 LU70/MED

S54 48160 LU100/MED 13250 LU100/MED 67506 LU100/MED 34446-5 C100S54/M 108108 LU100/MED

S55 48180 LU150/55/MED 13252 LU150/MED 67508 LU150/55/MED 30347-9 C150S55/M 108110 LU150/MED

S68 48120 LU50/MOG 44975 LU50 67510 LU50/ECO 36867-0 C50S68 208120 LU50

S62 48220 LU70/MOG 44033 LU70 67512 LU70/ECO 36869-6 C70S62 208122 LU70

S54 48230 LU100/MOG 44037 LU100 67514 LU100/ECO 36872-0 C100S54 208124 LU100

S55 48240 LU50/55/MOG 44043 LU150/55 67516 LU50/55/ECO 36874-6 C150S55 208126 LU150

S50 48250 LU250/MOG 44047 LU250 67578 LU250/ECO 36879-5 C250S50 208130 LU250

S51 48260 LU400/MOG 44054 LU400 67533 LU400/ECO 36881-1 C400S51 208132 LU400

S52 48270 LU1000/MOG 44058 LU1000/ECO 67307 LU1000 36883-7 C1000S52 279547 LU1000

400 Watt Pulse start Metal Halide

450 Watt Pulse start Metal Halide

175 Watt standard Probe start Metal Halide

250 Watt standard Probe start Metal Halide

360 Watt standard Probe start Metal Halide

400 Watt standard Probe start Metal Halide

1000 Watt standard Probe start Metal Halide

1500 Watt standard Probe start Metal Halide

MediuM based HigH Pressure sodiuM

Mogul based HigH Pressure sodiuM

ANSI

Spec

TCP

Item#

GE

Item#

O/S

Item#

Philips

Item#

TCP

Description

GE

Description

Osram/ Sylvania

Description

Philips

Description

Venture

Description

Venture

Item#

M110/E 46110 MH 50W/U/PS 10361 MXR50/U/MED 52312 MH 50W/U/PS

M110/E 46111 MH 50W/C/U/PS 10364 MXR50/C/U/MED 13093 MH 50W/C/U/PS

M110/O 46112 MP 50W/U/UVG/PS/3K 45670 MXR50/U/MED/O (3K) 64587 MP50/U/MED (3K) 10226 MP 50W/U/UVS/PS/3K

M110/O 46113 MP 50W/C/U/UVG/PS/3K 45671 MXR50/C/U/MED/O (3K) 64588 MP50/C/U/MED (3K) 10381 MP 50W/C/U/UVS/PS/3K

M98/E 46120 MH 70W/U/PS 12590 MVR70/U/MED 78138 MH 70W/U/PS

M98/E 46121 MH 70W/C/U/PS 12594 MVR70/C/U/MED 12180 MH 70W/C/U/PS

M98/E 46122 MH 70W/U/ED28/PS 16017 MH 70W/U/ED28/PS

M98/O 46124 MP 70W/U/UVG/PS 12377 MXR70/U/MED/O (3K) 64547 MP70/U/MED (3K) 40389 MP 70W/U/UVS/PS

M98/O 46127 MP 70W/C/U/UVG/PS 12577 MXR70/C/U/MED/O (3K) 64546 MP70/C/U/MED (3K) 67115 MP 70W/C/U/UVS/PS

M90/E 46130 MH 100W/U/PS 12652 MVR100/U/MED 27266 MH 100W/U/PS

M90/E 46131 MH 100W/C/U/PS 12653 MVR100/C/U/MED 15823 MH 100W/C/U/PS

M90/E 46132 MH 100W/U/PS/3K 18680 MXR100/U/MED (3K)

M90/E 46133 MH 100W/C/U/PS/3K 18679 MXR100/C/U/MED (3K)

M90/O 46136 MP 100W/U/UVG/PS 12381 MXR100/U/MED/O (3K) 64417 MP100/U/MED 96267 MP 100W/U/UVS/PS

M90/O 46139 MP 100W/C/U/UVG/PS 12579 MXR100/C/U/MED/O (3K) 64418 MP100/C/U/MED 11278 MP 100W/C/U/UVS/PS

M102/E 46156 MH 150W/U/PS 12598 MVR 150/U/MED 99584 MH 150W/U/PS/740

M102/E 46158 MH 150W/U/ED28/PS 13556 MH 150W/U/ED28/PS

M102/O 46150 MP 150W/U/UVG/PS 64403 MPD150/U/MED/840 22455 MP 150W/U/UVS/PS/740

M102/O 46152 MP 150W/U/UVG/PS/3K 45683 MXR150/U/MED/O 64402 MP150/U/MED (3K) 22522 MP 150W/U/UVS/PS/732

M102/O 46155 MP 150W/C/U/UVG/PS/3K 45688 MXR 150/C/U/MED/O 64425 MPD150/C/U/MED/840 80039 MP 150W/C/U/UVS/PS/732

M152/E 46174 MS 175W/BU/PS 12622 MVR175/VBU/PA 64815 MS175/PS/BU-ONLY 27662-6 MS175/BU/PS 68475 MS 175W/BU/PS

M152/E 46175 MS 175W/C/BU/PS 12633 MVR175/C/VBU/PA 64816 MS175/C/PS/BU-ONLY 68246 MS 175W/C/BU/PS

M152/O 46176 MP 175W/BU/UVG/PS 49470 MPR175/VBU/O 69854 MP 175W/BU/UVS/PS/740

M152/O 46177 MP 175W/C/BU/UVG/PS 11649 MPR175/C/VBU/O 42346 MP 175W/C/BU/UVS/PS/737

M153/E 46222 MS 250W/V/PS 26317 MVR250/VBU/PA 64578 MS250/PS/BU-ONLY 27661-8 MS250/BU/PS 49621 MS 250W/V/PS

M153/E 46223 MS 250W/C/V/PS 26319 MVR250/C/VBU/PA 64617 MS250/C/PS/BU-ONLY 81365 MS 250W/C/V/PS

M153/E 46226 MS 250W/HOR/PS 72882 MVR250/HOR/PA

M154/E 46236 MS 320W/V/ED28/PS 27501 MVR320/VBU/HO/PA 64507 MS320/PS/BU-HOR 38381-0 MS320/U/PS 59194 MS 320W/V/ED28/PS

M154/E 46232 MS 320W/V/ED37/PS 52236 MS 320W/V/ED37/PS

M154/O 46237 MP 320W/C/BU/ED28/UVG/PS 19609 MPR320/C/ED28/PA 64349 MP320/350/C/PS/BU-ONLY/BT28 10104 MP 320W/C/BU/ED28/UVS/PS

M154/O 46239 MP 320W/C/BU/ED37/UVG/PS 46276 MPR320/C/VBU/XHO/PA 13040-1 MP320/C/BU/PS 32795 MP 320W/C/BU/ED37/UVS/PS

M131/E 46250 MS 350W/V/PS 23729 MVR350/VBU/XHO/PA 38387-7 MS350/BU/PS 98389 MS 350W/V/PS

M131/E 46253 MS 350W/C/V/PS 23738 MVR350/C/VBU/XHO/PA 38388-5 MS350/C/BU/PS 71329 MS 350W/C/V/PS

M131/E 46254 MS 350W/V/ED28/PS 52980 MS 350W/V/ED28/PS

50 Watt Pulse start Metal Halide

70 Watt Pulse start Metal Halide

100 Watt Pulse start Metal Halide

150 Watt Pulse start Metal Halide

175 Watt Pulse start Metal Halide (*175 Watt Pulse start laMPs can also Have an ansi code of M137/e & M137/o)

250 Watt Pulse start Metal Halide (*250 Watt Pulse start laMPs can also Have an ansi code of M138/e & M138/o)

320 Watt Pulse start Metal Halide (*320 Watt Pulse start laMPs can also Have an ansi code of M132/e & M132/o)

350 Watt Pulse start Metal Halide

4544

Metal Halide Cross Reference Guide

2 013 CATALOG

2 013 CATALOG

HID Lamps

800.324.1496 | tcpi.com

HID Lamps

800.324.1496 | tcpi.com

LUMEN MAINTENANCE COMPARISON

45000

LUMENS

HOURS OF OPERATION

100 5000 10000 15000 20000

40000

35000

30000

25000

20000

15000

TCP’S

320W PULSE START

STANDARD

400W PROBE START

Benefits:

+ Brighter,

better quality lighting

+ Energy Savings

+ Energy utility rebates,

reducing pay-back period

+ Longer lamp life

+ Reduced

Maintenance Costs

TCP’s Pulse Plus lamps are brighter, saving even more energy!

Why Pulse is Plus

TCP Pulse Plus Lamps are more energy efficient and provide better lighting. By replacing

standard Probe Start Lamps with TCP’s Pulse Plus™ Lamps, you can increase

efficacy by up to 24% and better lumen maintenance by up to 15%!

4746

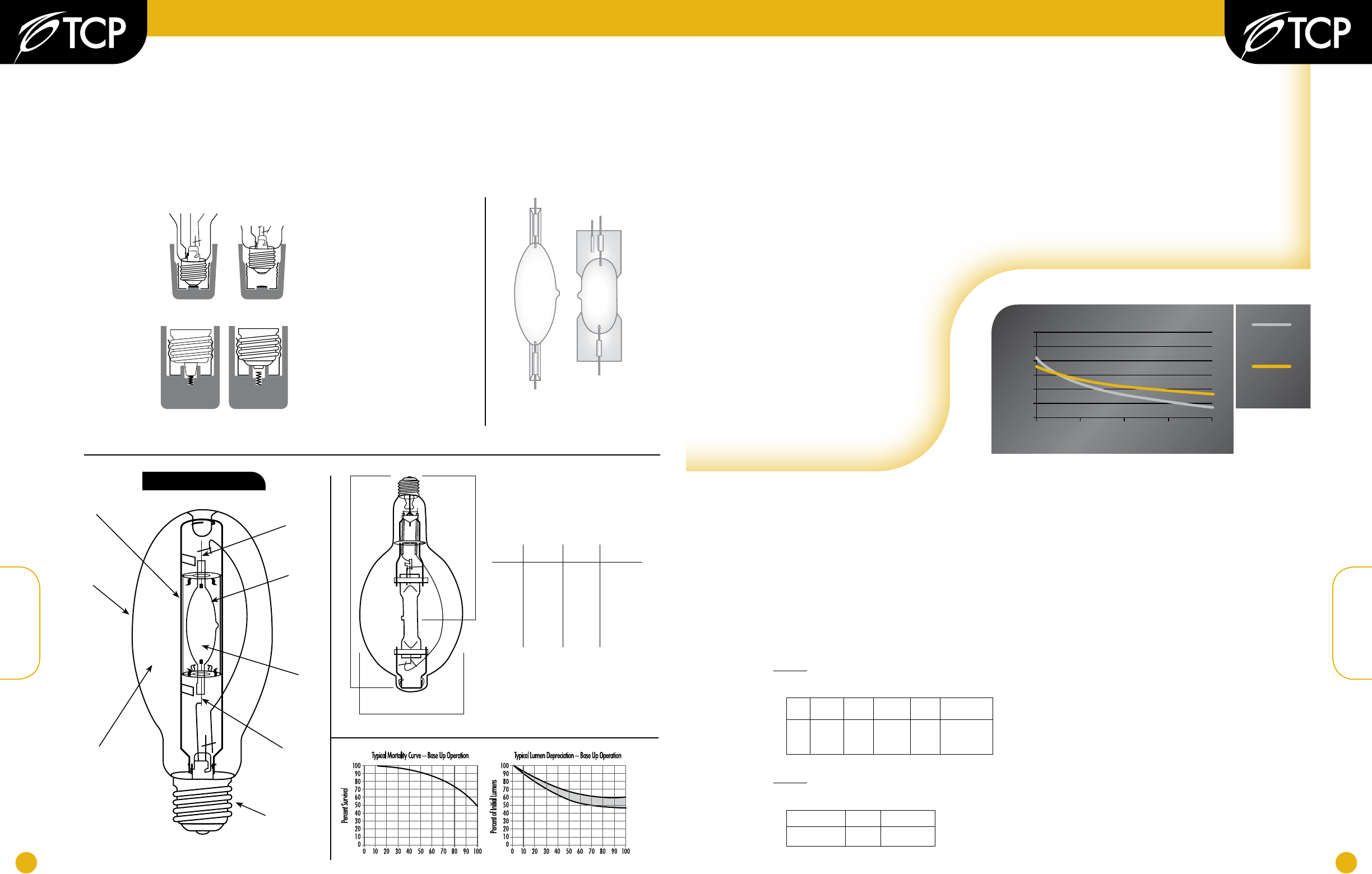

HID Technical Data

Quartz

Shroud

Pulse Start

Quartz

Arc Tube

Refer to lamp specification for operating position

Base

Mercury

& Metal

Halides

Glass

Outer

Envelope

Gas Filled

or Vacuum

Pulse Plus MP Lamp

Pulse Plus Arc

Tube

Probe Start

Arc Tube

C

BA

EX26 Socket

The narrower

EDX17 neck

allows full insertion

into the socket.

The wider bulb

neck will not fit

past ceramic neck

of socket.

Medium Base

Enclosed Fixture

(Type-E)

Open Fixture

(Type-O)

Mogul Base

EX39 Socket

The extended

center contact

completes the

circuit in the socket.

The standard center

won’t reach the

contact in the

dedicated socket.

Open Fixtures need

sockets that only

accept Type-O lamps

(pink mogul sockets)

in order to prevent

accidental use of

Type-E or enclosed

rated lamps.

(A)

MOL

5.44"

9.76"

7.75"

15.08"

8.31"

11.50"

15.38"

(B)

LCL

3.38"

5.75"

5.00"

8.74"

5.00"

7.00”

9.84"

(C)

Bulb

Diameter

2.13"

2.25"

3.00"

3.12"

3.50"

4.63"

7.00”

Electrode

Electrode

Metal Halide Technical Data

Lamp Description Codes

Each TCP lamp has an imprinted monogram code that identifies the

important features needed to select a replacement. For better interpretation

and selection of lamp types, the lamp description code used to identify TCP

lamps appears below. Each lamp description follows the lamp standards

used in the industry.

Metal Halide Description Code Example:

Lamp type: MP100W/U/UVG/PS, 100 watt Pulse Plus lamp, open

fixture rated, universal burning position, UV Guard™, 4000 Kelvin color

temperature.

High Pressure Sodium Description Code Example:

Lamp type: LU70/MOG, 70 watt universal burning high pressure sodium

lamp with a mogul base (E39). All HPS lamps can be used in the

universal burn position.

Lamp Description Codes:

BU

Lamps designed for base up (±15º) operating position

C

Lamps with a phosphor coated (diffuse) outer jacket

ED## Bulb shape and diameter in 1/8 inches

(i.e. diameter of ED28 is 3.5 in.)

HOR

Horizontal operating position (HOR ±45º)

LU

High Pressure Sodium

MED

Medium base E26

MH

Metal Halide, typically universal

MOG

Mogul base E39

MP Lamps with protected (shrouded) arc tube designed

for open luminaries

MS High output metal halide lamps for dedicated operating

positions, a “BU”, “V”, or “HOR”

PS

Pulse start lamp

U

Universal operating position

UVG

UV Guard™ lamps with reduced ultraviolet output

V

Lamps designed for a vertical (±15º) operating position

High Intensity Discharge Technical Information

MP

Metal

Halide

Lamp

Type

Lamp

Wattage

Operating

Position,

Base-Up

Ultra Violet

Guard

Pulse

Start

Lamp

Color temperature

family, 4K unless

otherwise stated

100W UUVG PS

LU

High Pressure

Sodium lamp type

Lamp

wattage

Mogul base

E39

70 MOG

Bulb

ED17

ED18

ED23.5

E25

ED28

ED37

BT56

FEATURES / BENEFITS

• Universal Volts

• Multiple Ballast Factors

• Specialized Electronic Circuitry

• High Frequency

• 5 Year Warranty

• Quiet Operation

• Anti-Striation Control

• Active Power Factor Correction

Ballasts

FEATURES / BENEFITS

• Long Lamp Life

• High Initial Lumens

• Excellent Lumen Maintenance

• Low Operating Cost

• High Color Rendering

• Various Color Temperatures Available

• Shatter Resistant Coating Available

Lamps

U-Bend Lamp – 1.375”

T5 Lamps

T5 and T8 Ballasts T8 Retrofit Kits

Occupancy Sensors

Emergency Ballasts

T8 Lamps

U-Bend Lamp – 6”

Linear

4948

TCP is the logical choice for energy efficient lamps and ballasts. Our innovative technology and

cost-effective energy efficient systems save time and money. TCP’s high efficiency T8 and T5 systems provide

a great selection for any application.

Linear Lamps & Ballasts

800.324.1496 | tcpi.com

Linear Lamps & Ballasts

800.324.1496 | tcpi.com

2 012 CATALOG

2 012 CATALOG

LINEAR

LAMPS + BALLASTS

U-Bend Lamps

Ballasts

T8 Lamps

T5 Lamps

Linear Lamps & Ballasts

800.324.1496 | tcpi.com

Linear Lamps & Ballasts

800.324.1496 | tcpi.com

Next Generation

Item Numbers

Item Description

Ballast Factor

Number of Lamps

Width (Inches)

Length (Inches)

Height (Inches)

E4P32ISUNVHE T8 4 Lamp Instant Start, High Ballast Factor, High Efficiency 1.18 4 or 3 9.5 1.70 1.20

E4P32ISUNVE T8 4 Lamp Instant Start, Normal Ballast Factor, High Efficiency 0.88 4 or 3 9.5 1.70 1.20

E4P32ISUNVLE T8 4 Lamp Instant Start, Low Ballast Factor, High Efficiency 0.78 4 or 3 9.5 1.70 1.20

E3P32ISUNVHE T8 3 Lamp Instant Start, High Ballast Factor, High Efficiency 1.18 3 or 2 9.5 1.30 1.20

E3P32ISUNVE T8 3 Lamp Instant Start, Normal Ballast Factor, High Efficiency 0.88 3 or 2 9.5 1.30 1.20

E3P32ISUNVLE T8 3 Lamp Instant Start, Low Ballast Factor, High Efficiency 0.78 3 or 2 9.5 1.30 1.20

E2P32ISUNVHE T8 2 Lamp Instant Start, High Ballast Factor, High Efficiency 1.18 2 or 1 9.5 1.30 1.20

E2P32ISUNVE T8 2 Lamp Instant Start, Normal Ballast Factor, High Efficiency 0.88 2 or 1 9.5 1.30 1.20

E2P32ISUNVLE T8 2 Lamp Instant Start, Low Ballast Factor, High Efficiency 0.78 2 or 1 9.5 1.30 1.20

E4P32PSUNVHE T8 4 Lamp Program Start, High Ballast Factor, High Efficiency 1.18 4 or 3 11.75 1.70 1.20

E4P32PSUNVE T8 4 Lamp Program Start, Normal Ballast Factor, High Efficiency 0.87 4 or 3 9.5 1.70 1.20

E4P32PSUNVLE T8 4 Lamp Program Start, Low Ballast Factor, High Efficiency 0.77 4 or 3 9.5 1.70 1.20

E3P32PSUNVHE T8 3 Lamp Program Start, High Ballast Factor, High Efficiency 1.18 3 or 2 9.5 1.70 1.20

E3P32PSUNVE T8 3 Lamp Program Start, Normal Ballast Factor, High Efficiency 0.87 3 or 2 9.5 1.70 1.20

E3P32PSUNVLE T8 3 Lamp Program Start, Low Ballast Factor, High Efficiency 0.77 3 or 2 9.5 1.70 1.20

E2P32PSUNVHE T8 2 Lamp Program Start, High Ballast Factor, High Efficiency 1.18 2 or 1 9.5 1.70 1.20

E2P32PSUNVE T8 2 Lamp Program Start, Normal Ballast Factor, High Efficiency 0.87 2 or 1 9.5 1.30 1.20

E2P32PSUNVLE T8 2 Lamp Program Start, Low Ballast Factor, High Efficiency 0.77 2 or 1 9.5 1.30 1.20

TCP2P59ISUNV T8 59W 2 lamp Instant Start, Normal Ballast Factor 0.88 2 or 1 9.5 16.2 1.20

E4P54PRSUNVE T5 4 Lamp Program Start, High Efficiency 1.00 4 or 3 16.75 1.75 1.20

E2P54PRSUNVE T5 2 Lamp Program Start, High Efficiency 1.00 2 or 1 9.5 1.75 1.20

See spec sheet for input watts, current amps and ballast efficacy factor.

* Operates T8 32W, 28W, 25W and 17W Lamps

T8 Lamps, medium Bi-pin

Case Quantity

Case Quantity

Item Number

Item Number

Item Description

Item Description

Lamp Watts

Lamp Watts

Lamp Life (Hours)

At 3 hours per start

Lamp Life (Hours)

At 3 hours per start

Initial Lumens

Initial Lumens

Mean Lumens

Mean Lumens

CCT (Kelvin)

CCT (Kelvin)

CRI

CRI

Diameter (Inches)

Diameter (Inches)

Length (Inches)

Length (Inches)

Base Type

Base Type

31032830 F32T8/830 32 24000 2950 2800 3000 85 1 48 Medium Bi-Pin 25

31032835 F32T8/835 32 24000 2950 2800 3500 85 1 48 Medium Bi-Pin 25

31032841 F32T8/841 32 24000 2950 2800 4100 85 1 48 Medium Bi-Pin 25

31032850 F32T8/850 32 24000 2950 2800 5000 85 1 48 Medium Bi-Pin 25

31028830 F28T8/830 28 24000 2725 2555 3000 85 1 48 Medium Bi-Pin 25

31028835 F28T8/835 28 24000 2725 2555 3500 85 1 48 Medium Bi-Pin 25

31028841 F28T8/841 28 24000 2725 2555 4100 85 1 48 Medium Bi-Pin 25

31028850 F28T8/850 28 24000 2625 2470 5000 85 1 48 Medium Bi-Pin 25

310254F830 F25T8/830 25 24000 2500 2450 3000 85 1 48 Medium Bi-Pin 25

310254F835 F25T8/835 25 24000 2500 2450 3500 85 1 48 Medium Bi-Pin 25

310254F841 F25T8/841 25 24000 2500 2450 4100 85 1 48 Medium Bi-Pin 25

310254F850 F25T8/850 25 24000 2500 2450 5000 85 1 48 Medium Bi-Pin 25

31025830 F25T8/830 25 24000 2225 2050 3000 85 1 36 Medium Bi-Pin 25

31025835 F25T8/835 25 24000 2225 2050 3500 85 1 36 Medium Bi-Pin 25

31025841 F25T8/841 25 24000 2225 2050 4100 85 1 36 Medium Bi-Pin 25

31025850 F25T8/850 25 24000 2225 2050 5000 85 1 36 Medium Bi-Pin 25

31017830 F17T8/830 17 24000 1400 1275 3000 85 1 24 Medium Bi-Pin 25

31017835 F17T8/835 17 24000 1400 1275 3500 85 1 24 Medium Bi-Pin 25

31017841 F17T8/841 17 24000 1400 1275 4100 85 1 24 Medium Bi-Pin 25

31017850 F17T8/850 17 24000 1400 1275 5000 85 1 24 Medium Bi-Pin 25

31032830HL F32T8/830/HL 32 24000 3100 2915 3000 85 1 48 Medium Bi-Pin 25

31032835HL F32T8/835/HL 32 24000 3100 2915 3500 85 1 48 Medium Bi-Pin 25

31032841HL F32T8/841/HL 32 24000 3100 2915 4100 85 1 48 Medium Bi-Pin 25

31032850HL F32T8/850/HL 32 24000 3100 2915 5000 85 1 48 Medium Bi-Pin 25

31054830 F54T5HO/830 54 24000 5000 4750 3000 85 0.625 45.2 Miniature Bi-Pin 40

31054835 F54T5HO/835 54 24000 5000 4750 3500 85 0.625 45.2 Miniature Bi-Pin 40

31054841 F54T5HO/841 54 24000 5000 4750 4100 85 0.625 45.2 Miniature Bi-Pin 40

31054850 F54T5HO/850 54 24000 5000 4750 5000 85 0.625 45.2 Miniature Bi-Pin 40

31054865 F54T5HO/865 54 24000 5000 4750 6500 85 0.625 45.2 Miniature Bi-Pin 40

31049830 F49T5HO/830 49 24000 4500 4275 3000 85 0.625 45.2 Miniature Bi-Pin 40

31049835 F49T5HO/835 49 24000 4500 4275 3500 85 0.625 45.2 Miniature Bi-Pin 40

31049841 F49T5HO/841 49 24000 4500 4275 4100 85 0.625 45.2 Miniature Bi-Pin 40

31049850 F49T5HO/850 49 24000 4500 4275 5000 85 0.625 45.2 Miniature Bi-Pin 40

31049865 F49T5HO/865 49 24000 4500 4275 6500 85 0.625 45.2 Miniature Bi-Pin 40

31024T5830 F24T5HO/830 24 24000 2000 1850 3000 85 0.625 21.6 Miniature Bi-Pin 40

31024T5835 F24T5HO/835 24 24000 2000 1850 3500 85 0.625 21.6 Miniature Bi-Pin 40

31024T5841 F24T5HO/841 24 24000 2000 1850 4100 85 0.625 21.6 Miniature Bi-Pin 40

31024T5850 F24T5HO/850 24 24000 2000 1850 5000 85 0.625 21.6 Miniature Bi-Pin 40

31024T5865 F24T5HO/865 24 24000 2000 1850 6500 85 0.625 21.6 Miniature Bi-Pin 40

31028T5830 F28T5/830 28 20000 2900 2750 3000 85 0.625 45.2 Miniature Bi-Pin 40

31028T5835 F28T5/835 28 20000 2900 2750 3500 85 0.625 45.2 Miniature Bi-Pin 40

31028T5841 F28T5/841 28 20000 2900 2750 4100 85 0.625 45.2 Miniature Bi-Pin 40

31028T5850 F28T5/850 28 20000 2900 2750 5000 85 0.625 45.2 Miniature Bi-Pin 40

31028T5865 F28T5/865 28 20000 2900 2750 6500 85 0.625 45.2 Miniature Bi-Pin 40

32W T8 eLecTronic insTanT sTarT BaLLasTs, 5 Year WarranTY, 120-277 VoLTs, <10% THd, nema premium, cee LisTed

32W T8 eLecTronic program sTarT BaLLasTs, 5 Year WarranTY, 120-277 VoLTs, <10% THd, nema premium, cee LisTed

59W T8 eLecTronic insTanT sTarT BaLLasTs, 5 Year WarranTY, 120-277 VoLTs, <10% THd

54W T5 eLecTronic program sTarT BaLLasTs, 5 Year WarranTY, 120-277 VoLTs, <10% THd

5150

T8 HigH Lumen Lamps, medium Bi-pin

T5Ho Lamps, miniaTure Bi-pin

T8 u-Bend Lamps, medium Bi-pin

32W

32W

54W

49W

24W

28W

28W

25W

4FT

25W

3FT

17W 4 lamp, 32W

4 lamp, 32W

3 lamp, 32W

3 lamp, 32W

2 lamp, 32W

2 lamp, 32W

2 lamp, 59W

4 lamp, 54W

2 lamp, 54W

32W, 6” Leg 31W, 1-5/8” Leg

31032830U6 FB32T8/830/6 32 20000 2900 2755 3000 85 1 22.5 Med. Bi-Pin 10

31032835U6 FB32T8/835/6 32 20000 2900 2755 3500 85 1 22.5 Med. Bi-Pin 10

31032841U6 FB32T8/841/6 32 20000 2900 2755 4100 85 1 22.5 Med. Bi-Pin 10

31032850U6 FB32T8/850/6 32 20000 2900 2755 5000 85 1 22.5 Med. Bi-Pin 10

31031830U1 FB31T8/830/1 31 20000 2775 2635 3000 85 1 22.5 Med. Bi-Pin 10

31031835U1 FB31T8/835/1 31 20000 2775 2635 3500 85 1 22.5 Med. Bi-Pin 10

31031841U1 FB31T8/841/1 31 20000 2775 2635 4100 85 1 22.5 Med. Bi-Pin 10

T5 Lamps, miniaTure Bi-pin

2 012 CATALOG

2 012 CATALOG

Linear Lamps & Ballasts

800.324.1496 | tcpi.com

Linear Lamps & Ballasts

800.324.1496 | tcpi.com

5352

*All data in this catalog is subject to change without notice.

Some of our products contain mercury.

Manage according to Local, State, or Federal Disposal Laws

See: www.lamprecycle.org or call 1-800-771-9335

Linear Warranties

Please see page 73 in the Linear Luminaire Section.

2 012 CATALOG

2 012 CATALOG

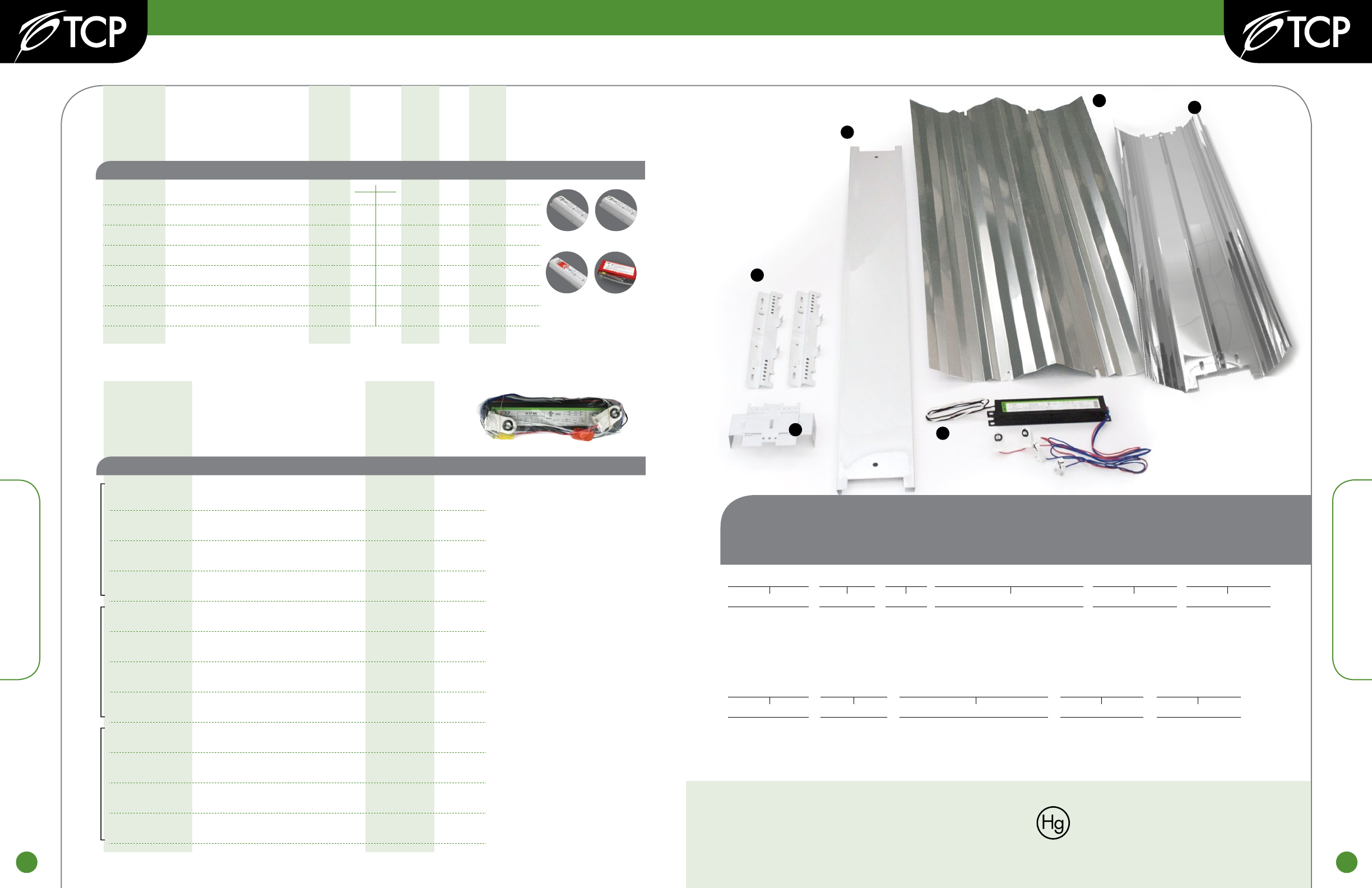

Pre-wired Replacement Ballasts

Switching out obsolete T12 lamps

and replacing them with T8s

couldn’t be easier!

With our pre-assembled

wire/ballast/lamp holder kits,

retrofitting is a snap!

We even

include the pre-wired disconnect.

Item Number

Item Description

Ballast Included

Number of Sockets

reTrofiT BaLLasTs

RETROBALHARNWD1 4 Foot, 1-Lamp Retrofit Ballast, High Ballast Factor E2P32ISUNVHE 2

RETROBALHARNWD2 4 Foot, 2-Lamp Retrofit Ballast, High Ballast Factor E2P32ISUNVHE 4

RETROBALHARNWD3 4 Foot, 3-Lamp Retrofit Ballast, High Ballast Factor E3P32ISUNVHE 6

RETROBALHARNWD4 4 or 8 Foot, 4-Lamp Retrofit Ballast,

High Ballast Factor E4P32ISUNVHE 8

RETROBALHARNWD1N 4 Foot, 1-Lamp Retrofit Ballast, Normal Ballast Factor E2P32ISUNVE 2

RETROBALHARNWD2N 4 Foot, 2-Lamp Retrofit Ballast, Normal Ballast Factor E2P32ISUNVE 4

RETROBALHARNWD3N 4 Foot, 3-Lamp Retrofit Ballast, Normal Ballast Factor E3P32ISUNVE 6

RETROBALHARNWD4N 4 or 8 Foot, 4-Lamp Retrofit Ballast,

Normal Ballast Factor E4P32ISUNVE 8

RETROBALHARNWD1L 4 Foot, 1-Lamp Retrofit Ballast, Low Ballast Factor E2P32ISUNVLE 2

RETROBALHARNWD2L 4 Foot, 2-Lamp Retrofit Ballast, Low Ballast Factor E2P32ISUNVLE 4

RETROBALHARNWD3L 4 Foot, 3-Lamp Retrofit Ballast, Low Ballast Factor E3P32ISUNVLE 6

RETROBALHARNWD4L 4 or 8 Foot, 4-Lamp Retrofit Ballast, Low Ballast Factor E4P32ISUNVLE 8

SNAP!

RETROFIT IN A JIFFY

with our Pre-assembled Kits!

High Ballast FactorNormal Ballast FactorLow Ballast Factor

TCP pre-wires

and individually wraps the ballast,

lampholders and quick disconnect for

faster installation!

1

3

4

6

2

Complete

Retrofit

Kits

1

2

Lampholder brackets for troffers are

white-painted aluminum for long life

Adjustable “Clip Strip” adjusts to any

channel size between 4” and 5.25”

3

4

Ballast covers fit up to a 5.25” channel,

and is white-painted aluminum for long life

2’ and 4’ aluminum troffer reflectors are avail-

able in a Miro4 or white finish (2 or 3 lamp)

5

6

4’ aluminum strip reflectors are available in a Miro4 or

white finish

Ballasts, lampholders and quick disconnects are pre-wired

and shrink-wrapped for a simplified installation process

5

Hardware Lamp Quantity Fixture Length Kit Components (All kits contain ballast sets) Ballast Lamps & Color Temperatures

CLR

- Strips and

Non-Troffer Hardware

1

2

3

4

4 = 4 Foot

8 = 8 Foot

B - Brackets, Hardware

L - Lamps

R - Brackets, Hardware, Lamps, Reflector

S - Brackets, Hardware, Lamps, Strip Cover

WR - Brackets, Hardware, Lamps, White Reflector

WY - Brackets, Hardware, White Reflector

X - Brackets, Hardware, Lamps

Y - Brackets, Hardware, Reflector

Z - Brackets, Hardware, Strip Cover

LB - Low Ballast Factor

NB - Normal Ballast Factor

Leave Blank for

High Ballast Factor

For 28 Watt and/or a different

color, add XX8YY to the end

of the model number.

XX = wattage

YY = color temp.

Leave Blank for

32W, 3500K Lamps

HardwareFixture Dimensions Kit Components (All kits contain ballast sets) Lamps & Color Temperatures

Ballast

CTR

- 2 or 3 Lamp Troffer 22 - 2 x 2 / 2 Lamp

24 - 2 x 4 / 2 Lamp

223- 2 x 2 / 3 Lamp

243 - 2 x 4 / 3 Lamp

R - Brackets, Hardware, Lamps, Reflector

WR - Brackets, Hardware, Lamps, White Reflector

WY - Brackets, Hardware, White Reflector

Y - Brackets, Hardware, Reflector

For 28 Watt and/or a different

color, add XX8YY to the end

of the model number.

XX = wattage

YY = color temp.

Leave Blank for

32W, 3500K Lamps

LB - Low Ballast Factor

NB - Normal Ballast Factor

Leave Blank for

High Ballast Factor

Item Number

Item Description

Lumens

Length

Width

Height

Weight (lbs)

# of Lamps Supported

Linear fLuorescenT emergencY BaLLasTs, 120 or 277 VoLTs

20B100 Emergency Ballast 500 Lumens T8 Only 500 1 none 9.4 2.4 1.5 1.4

20B2PIN 2-Pin Emergency Ballast 650 Lumens 650 1 none 9.4 2.4 1.5 1.4

20B4PIN 4-Pin Emergency Ballast 650 Lumens 650 1 none 9.4 2.4 1.5 1.4

20B60 Emergency Ballast 700 Lumens T8 Only 700 1 or 2 none 9.4 2.4 1.5 2.5

20B50 Emergency Ballast 1400 Lumens T8 or T5 1400 1 or 2 1 13.3 2.4 1.5 2.5

20B30 Emergency Ballast 3000 Lumens T8 or T5 3000 1 or 2 1 or 2 16.4 5.6 1.8 7.8

20LP550 Emergency Ballast 800 Lumens T5 Only 800 none 1 17.5 1.1 1.2 1.7

20B100 20B60

20B50 20B30

T8 T5

Ask about our program.

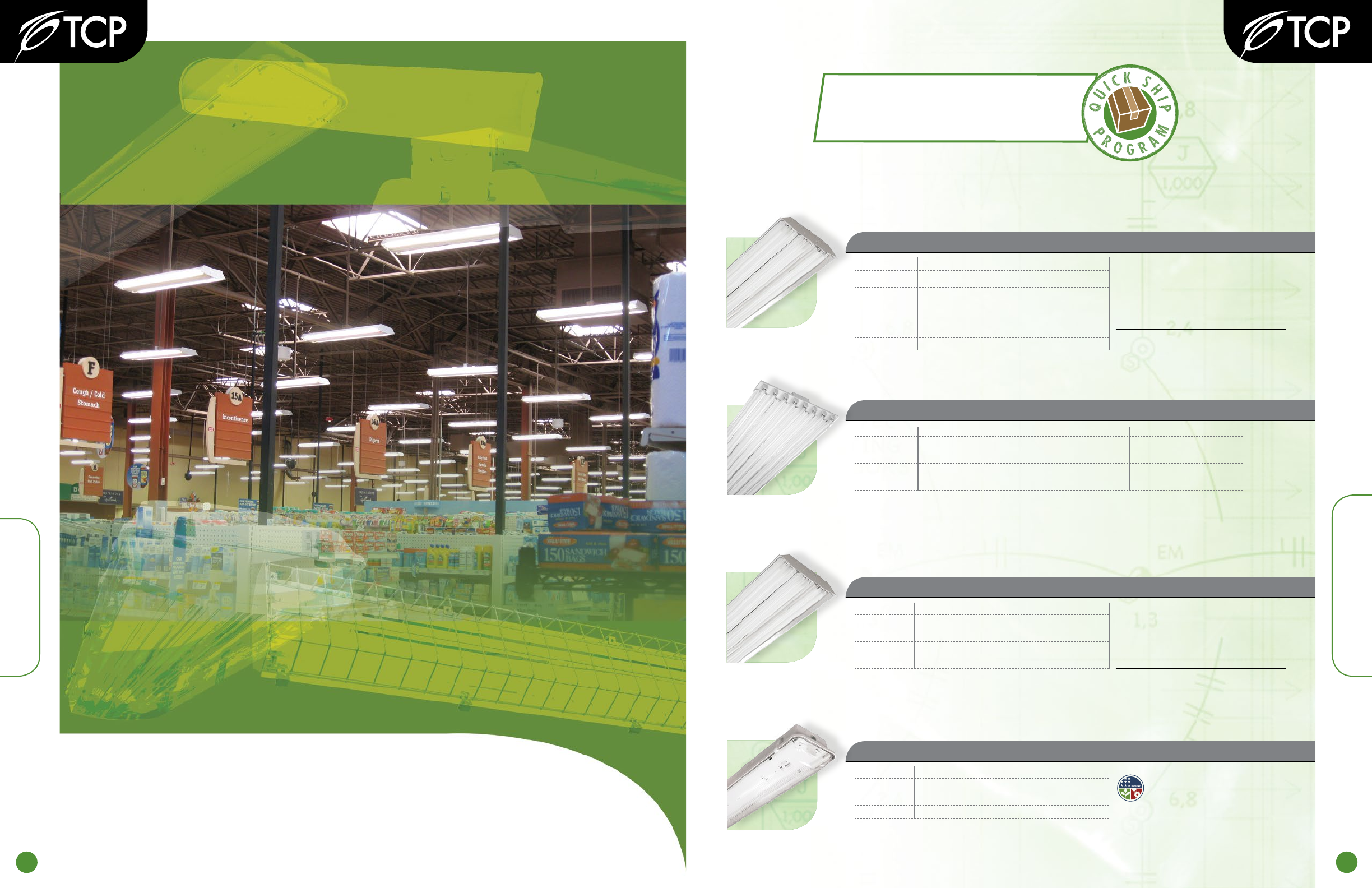

Linear Luminaires

800.324.1496 | tcpi.com

Quick Ship Program

800.324.1496 | tcpi.com

5554

2 013 CATALOG

2 013 CATALOG

We know how important good energy-efficient lighting is for operation safety. This is why we have a

variety of luminaires to fit your needs – from high bays to wet location to strips... and everything in between.

TCP is the obvious choice for all your linear needs!

AVAILABLE ACCESSORIES (ordered separately)

ELITELENSKIT - Elite lens kit complete with lens, wider endcaps,and hardware.

FWGL

- Wire Guard kit complete with Wire Guard and hardware (for use with lens)

FWG - Wire Guard kit complete with Wire Guard and hardware (for use without lens)

AVAILABLE HANGING KITS (ordered separately)

EZHANGER - 15’ adjustable aircraft cable hanging kit

12Pendantkit - Mounting kit for 1/2” pendants

34Pendantkit - Mounting kit for 3/4” pendants

LHKIT - Single Point Hook Mounting Kit completeplete

PART # DESCRIPTION

ME4RA432UNIHSPF Modified Elite Reflective Aluminum 32W T8 4 lamp HBF single packed

ME4RA454UNIVSPF Modified Elite Reflective Aluminum 54W T5HO 4 lamp single packed

ME4RA632UNIHSPF Modified Elite Reflective Aluminum 32W T8 6 lamp HBF single packed

ME4RA654UNIVSPF Modified Elite Reflective Aluminum 54W T5HO 6 lamp single packed

Modified Elite T8/T5HO Quick Ship - Full body, 22 gauge steel, 95% RA reflector

PART # DESCRIPTION

WL4WA332UNIHSP 4 Foot Wet Location White Reflector 32W T8 3 lamp HBF single packed

WL8WAG32UNIHSP 8 Foot Wet Location White Reflector 32W T8 6 lamp HBF single packed

WL4WA254UNIHSP 4 Foot Wet Location White Reflector 54W T5HO 2 lamp HBF single packed

Wet Location T8/T5HO Quick Ship - Wet Location Luminaires - assembled in the U.S.A.

AVAILABLE ACCESSORIES (ordered separately)

ELITELENSKIT - Elite lens kit complete with lens, wider endcaps,and hardware.

FWGL

- Wire Guard kit complete with Wire Guard and hardware (for use with lens)

FWG - Wire Guard kit complete with Wire Guard and hardware (for use without lens)

PART # DESCRIPTION

EL4SA432UNIH10CSPF Elite Miro4 4’ 32w T8 4-Lamp HBF with 10’ cord only and single packed

EL4SA454UNIV10CSPF Elite Miro4 4’ 54w T5HO 4-Lamp with 10’ cord only and single packed

EL4SA632UNIH10CSPF Elite Miro4 4’ 32w T8 6-Lamp HBF with 10’ cord only and single packed

EL4SA654UNIV10CSPF Elite Miro4 4’ 54w T5HO 6-Lamp with 10’ cord only and single packed

AVAILABLE HANGING KITS (ordered separately)

EZHANGER - 15’ adjustable aircraft cable hanging kit

12Pendantkit - Mounting kit for 1/2” pendants

34Pendantkit - Mounting kit for 3/4” pendants

LHKIT - Single Point Hook Mounting Kit completeplete

Elite T8/T5HO Quick Ship - Elite High Bay Luminaire, 98% Miro® 4 reflector

PART # DESCRIPTION

MG4RA432UNIH10CSPF Modified Green Hi Bay 4’ 32w T8 4-Lamp HBF with 10’ cord only and single packed

MG4RA454UNIV10CSPF Modified Green Hi Bay 4’ 54w T5HO 4-Lamp with 10’ cord only and single packed

MG4RA632UNIH10CSPF Modified Green Hi Bay 4’ 32w T8 6-Lamp HBF with 10’ cord only and single packed

MG4RA654UNIV10CSPF Modified Green Hi Bay 4’ 54w T5HO 6-Lamp with 10’ cord only and single packed

AVAILABLE WIRE GUARD KITS

GH4LAMPWGKIT (ordered separately)

GH4LAMPWGKIT (ordered separately)

GH6LAMPWGKIT (ordered separately)

GH4LAMPWGKIT (ordered separately)

Modified Green Hi-Bay T8/T5HO Quick Ship - I-Beam, 20 gauge steel, 95% RA reflector

ARRA Qualified

800.324.1496

*Lamps are available to order, but pre-lamped fixtures

are not part of the Quick Ship program.

QUICK SHIP

LINEAR

LUMINAIRES

RECOMMENDED HANGING KITS

TCPYHOOKX10FT - Y-Hook 10’ Hanging Kit (ordered separately)

TCPYHOOKX20FT

-

Y-Hook 20’ Hanging Kit (ordered separately)

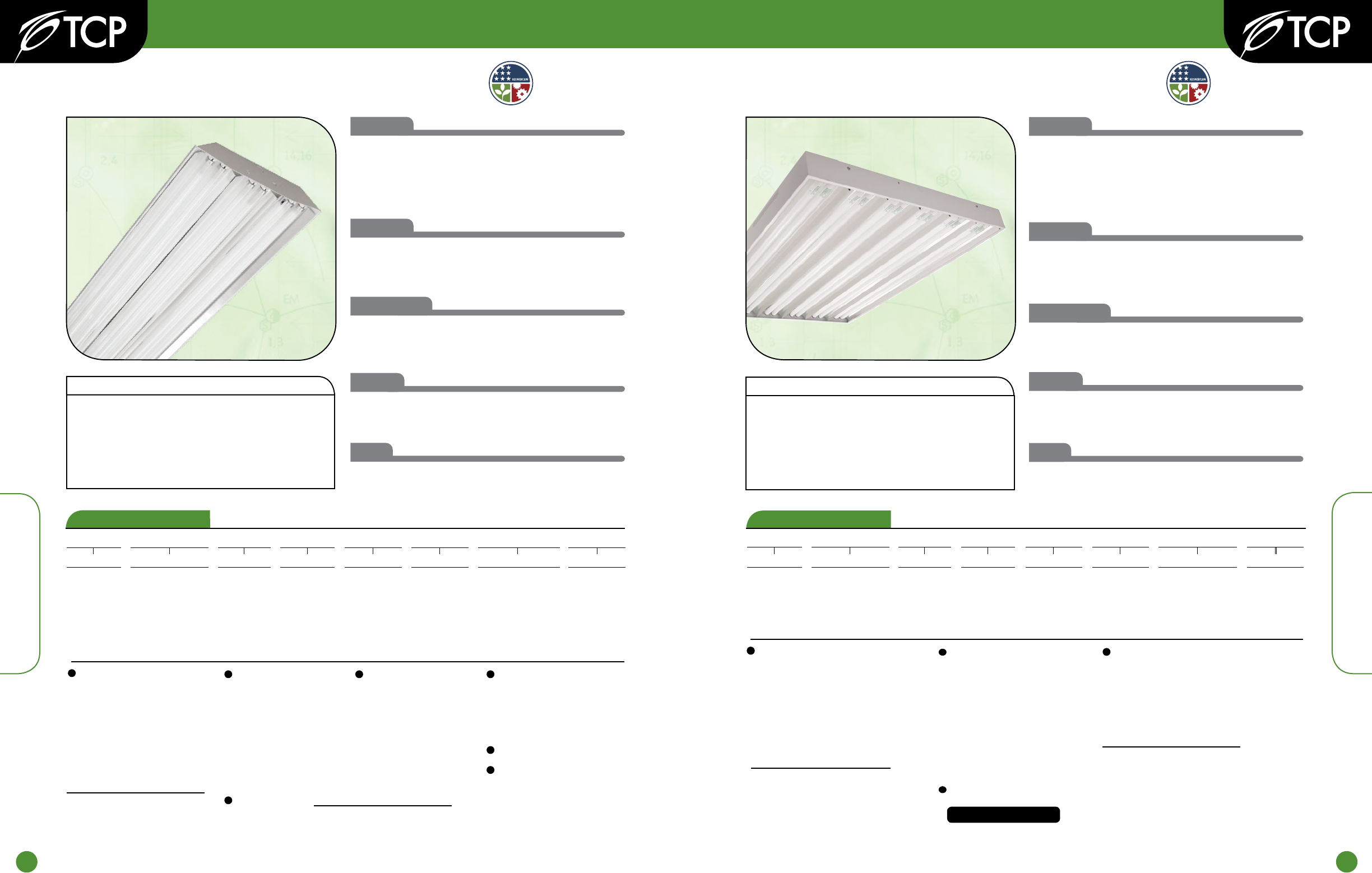

Elite Fluorescent High Bay T8/T5

Elite Fluorescent High Bay T8 and T5 Series

Maintenance

No tools required for lamp and

ballast access.

Installation

Suspension by chain, cable, hook or

monopoint with appropriate accessories.

Warranty

One year warranty against defects

in manufacturing. See warranty page

for extension options.

Listing

UL/cUL Listed - Suitable for

damp locations.

Catalog Ordering Matrix

The full body assembly accommodates multiple optics utilizing either T5 or T8 lamps.

The Elite’s heavy duty 20 gauge housing exceeds code gauge steel, and all components

are post painted with a glossy, high reflectance white paint. Sockets include secure

positioning rotating collars.

The Elite’s superior lumen package is ideal for replacing traditional high bay systems.

Benefits include high efficiency, 95% lumen maintenance, improved color rendering,

extended lamp life, multi-level switching, instant on, dimming, and improved

uniformity. Suggested mounting heights from 15’ - 40’ with primary applications

including “Big Box” retail, warehousing, commercial facilities, manufacturing facilities,

open and stack aisle applications.

The superior beam spread optic covers from narrow aisle lighting to open area general

lighting. The Elite is available using a specular aluminum (SA) Miro®4 or a white

aluminum (WA) reflector, which have a 25 year warranty. The reflector options include

uplight or non-uplight, depending on the application.

All ballasts are class P rated and UL/cUL listed. Our ballasts are also thermally

protected, sound rated, and tightly secured by mounting bolts as well as NEMA Premium

and CEE certified.

The baked white enamel finish is electrostatically applied and post painted with a glossy,

highly reflective and durable white paint.

Description

Reflector Optics

Electrical

Finish

Application

† If a desired lamp and/or

ballast is needed in a

TCP linear fluorescent

fixture, please provide a spec

sheet when consulting with

your local sales rep. The sales

rep will provide a price to use

the desired lamp and/or ballast.

5756

Fluorescent High Bays

800.324.1496 | tcpi.com

Fluorescent High Bays

800.324.1496 | tcpi.com

ARRA Qualified

Power Cords

6C - 6’ PCord 300V 16/3 SJTOOW NO PLUG

6C4 - 6’ PCord 300V 18/4 SJTOW NO PLUG

6W - 6’ WHIP PCord 600V 16/3 NO PLUG

2P - 8’ PCord 125V 15A 16/3 SJTOOW NEMA 5-15P

3P - 8’ PCord 125V 15A 16/3 SJTOW NEMA L5-15P

8T - 8’ PCord 480V 20A 16/3 SEOW NEMA L8-20P

9T - 8’ PCord 250V 20A 16/3 SJTOW NEMA L6-20P

4T - 10’ PCord 125V 20A 16/3 SJTOW NEMA L5-20P

10T - 10’ PCord 277V 15A 14/3 SJTOW NEMA L7-15P

10T2 - 10’ PCord 277V 20A 14/3 SJTOW NEMA L7-20P

10C - 10’ PCord 277V SJTOOW NO PLUG

10C6 - 10’ PCord 600V 15A 16/3 STOW NO PLUG

20C - 20’ PCord 277V 20A 16/3 SJTOOW NO PLUG

20C4 - 20’ PCord 300V 18/4 SJTOW NO PLUG

Family Reflector Distribution Lamp Quantity Lamp Type Voltage Ballast Factor Ballast Options* Options

EL4 - 4’ Elite SA - Narrow Distribution

WA - Wide Distribution

Add “U” for uplight

3

4

5

6

8

25 - (T8 25W)

28 - (T8 28W)

32 - (T8 32W)

54 - (T5HO 54W)

UNI - (120-277)

347

480 - T5 only

480X - Step Down

480Y - Step Down

for 5, 6 Lamp T5

and 8 Lamp T8

480XX - Step Down

for 8 Lamp T5

H - (T8 High)

N - (T8 Normal)

L - (T8 Low)

V - (T5HO)

PRS - (Program Rapid Start)

DIM - (Dimming)

*UNI and Step Down only

(See Below)

OPTIONS (Add to catalog number in order shown)

EZHANGER - 15’ adjustable aircraft cable hanging kit

12Pendantkit - Mounting kit for 1/2” pendants

34Pendantkit - Mounting kit for 3/4” pendants

LHKIT - Single Point Hook Mounting Kit complete

AVAILABLE HANGING KITS (ordered separately)

ELITELENSKIT - Elite lens kit complete with lens, wider endcaps, and hardware.

FWGL - Wire Guard kit complete with Wire Guard and hardware (for use with lens)

FWG - Wire Guard kit complete with Wire Guard and hardware. (for use without lens)

AVAILABLE ACCESSORIES (ordered separately)

Special Mounting

HCB - Hub Connector Box - 3/4” Threaded Hub Mount

Special Packaging

SP - Single Packed (not available with lamps installed)

Emergency Ballasts

20B1 - TCP 450 LMS 90 min (T8)

20B6 - TCP 700 LMS 90 min (T8)

20B5 - TCP 1400 LMS 90 min (T8 or T5)

20B3 - TCP 3000 LMS 90 min (T8 or T5)

20BL5 - TCP 800 LMS 90 min (T5)

20BL6 - TCP 1350 LMS 90 min (T5)

Emergency Ballast Notes:

Orders with an emergency ballast must

include a note on the order indicating the

number of lamps to be operated, which

lamp(s) will be operated by the emergency

ballast (i.e. 3rd lamp) and what voltage

is to be used (120V or 277V only). See

Emergency Ballast Spec Sheets for details.

Lamps Installed in Job Pack

830 - T5 and T8 Lamps

835 - T5 and T8 Lamps

841 - T5 and T8 Lamps

850 - T5 and T8 Lamps

865 - T5 Lamps Only

830HL - T8 Lamps Only

835HL - T8 Lamps Only

841HL - T8 Lamps Only

850HL - T8 Lamps Only

14 5

6

7

Occupancy Sensors

TS1 - TCP Occupancy Sensor w/bracket

and interchangeable lenses,

40’ or less, 120V, 277V, or 347V.

TS1C - TCP Cold Storage Occupancy Sensor

w/bracket and interchangeable lenses,

40’ or less, 120V, 277V, or 347V

TS4 - TCP Occupancy Sensor w/bracket

and interchangeable lenses, 40’

or less, 480V

TS4C - TCP Cold Storage Occupancy Sensor

w/bracket and interchangeable lenses,

40’ or less, 480V

Wire Guard / Lens

WG - Wire Guard

WGL - Wire Guard & Lens

EL - Acrylic Lens

Use a program rapid start ballast with occupancy

sensor. TCP is not responsible for lamps failing

prematurely due to an occupancy sensor being

used with an instant start ballast.

2

3

2 013 CATALOG

2 013 CATALOG

This fixture was designed for optimum performance utilizing either T5 or T8 lamps. The

Sky Bay’s heavy duty 20 gauge housing exceeds code gauge steel, and all components

are post painted with a glossy, high reflectance white paint. Sockets include secure

positioning rotating collars.

Sky Bay’s superior lumen package is ideal for replacing traditional 1000 watt high

bay systems. Benefits include high efficiency, 95% lumen maintenance, improved

color rendering, extended lamp life, multi-level switching, instant on, dimming, and

improved uniformity. Suggested mounting heights from 20’- 110’ with primary

applications including warehousing, commercial facilities, manufacturing facilities, open

and stack aisle applications.

The superior beam spread optic covers from narrow aisle lighting to open area general

lighting. The Sky Bay is available using a specular aluminum (SA) Miro®4 or a white

aluminum (WA) reflector, which have a 25 year warranty.

All ballasts are class P rated and UL/cUL listed. Our ballasts are also thermally

protected, sound rated, and tightly secured by mounting bolts as well as NEMA Premium

and CEE certified.

The baked white enamel finish is electrostatically applied and post painted with a glossy,

highly reflective and durable paint.

Description

Reflector Optics

Electrical

Finish

Application

Sky Bay T8/T5

Sky Bay T8 and T5 Series

Warranty

One year warranty against defects

in manufacturing. See warranty page

for extension options.

Listing

UL/cUL Listed - Suitable for

damp locations.

1Power Cords

6C - 6’ PCord 300V 16/3 SJTOOW NO PLUG

6C4 - 6’ PCord 300V 18/4 SJTOW NO PLUG

6W - 6’ WHIP PCord 600V 16/3 NO PLUG

2P - 8’ PCord 125V 15A 16/3 SJTOOW NEMA 5-15P

3P - 8’ PCord 125V 15A 16/3 SJTOW NEMA L5-15P

8T - 8’ PCord 480V 20A 16/3 SEOW NEMA L8-20P

9T - 8’ PCord 250V 20A 16/3 SJTOW NEMA L6-20P

4T - 10’ PCord 125V 20A 16/3 SJTOW NEMA L5-20P

10T - 10’ PCord 277V 15A 14/3 SJTOW NEMA L7-15P

10T2 - 10’ PCord 277V 20A 14/3 SJTOW NEMA L7-20P

10C - 10’ PCord 277V SJTOOW NO PLUG

10C6 - 10’ PCord 600V 15A 16/3 STOW NO PLUG

20C - 20’ PCord 277V 20A 16/3 SJTOOW NO PLUG

20C4 - 20’ PCord 300V 18/4 SJTOW NO PLUG

OPTIONS (Add to catalog number in order shown)

† If a desired lamp and/or ballast is needed in a

TCP linear fluorescent fixture, please

provide a spec sheet when consulting with your

local sales rep. The sales rep will provide a price

to use the desired lamp and/or ballast.

1Lamps Installed in Job Pack

830 - T5 and T8 Lamps

835 - T5 and T8 Lamps

841 - T5 and T8 Lamps

850 - T5 and T8 Lamps

865 - T5 Lamps Only

830HL - T8 Lamps Only

835HL - T8 Lamps Only

841HL - T8 Lamps Only

850HL - T8 Lamps Only

4

ARRA Qualified

PRS - (Program Rapid Start)

DIM - (Dimming)**

* UNI only

** Dimming not available for

T5 Sky Bay

Catalog Ordering Matrix

Family Reflector Distribution Lamp Quantity Lamp Type Voltage Ballast Factor Ballast Options* Options

SK4 - 4’ Sky Bay SA - Narrow Distribution

WA - Wide Distribution

10

12

25 - (T8 25W)

28 - (T8 28W)

32 - (T8 32W)

54 - (T5HO 54W)

UNI - (120-277)

347

480 - T5 only

H - (T8 High)

N - (T8 Normal)

L - (T8 Low)

V - (T5HO)

(See Below)

TCPYHOOKX10FT - Y-Hook 10 foot hanging kit

TCPYHOOKX20FT - Y-Hook 20 foot hanging kit

TCPSKYHOOKX10FT - Y-Hook 10 foot hanging kit, longer arms

TCPSKYHOOKX20FT - Y-Hook 20 foot hanging kit, longer arms

AVAILABLE HANGING KITS (ordered separately)

SKYBAYINVERTKITX20FT - Complete kit for mounting Sky Bay

upside down. Includes brackets,

20’ Y-Hook cable, and hardware.

No Emergency Ballast Available

Occupancy Sensors

TS1 - TCP Occupancy Sensor w/bracket

and interchangeable lenses,

40’ or less, 120V, 277V, or 347V.

TS1C - TCP Cold Storage Occupancy Sensor

w/bracket and interchangeable lenses,

40’ or less, 120V, 277V, or 347V

TS4 - TCP Occupancy Sensor w/bracket

and interchangeable lenses, 40’

or less, 480V

TS4C - TCP Cold Storage Occupancy Sensor

w/bracket and interchangeable lenses,

40’ or less, 480V

Wire Guard

WG - Wire Guard

Use a program rapid start ballast with occupancy

sensor. TCP is not responsible for lamps failing

prematurely due to an occupancy sensor being

used with an instant start ballast.

2

3

SKWGKIT - Wire Guard kit complete with Wire Guard and mounting

hardware. Order (2) per luminaire.

AVAILABLE ACCESSORIES (ordered separately)

Maintenance

No tools required for lamp and

ballast access.

Installation

Suspension by chain, cable or hook

with appropriate accessories.

5958

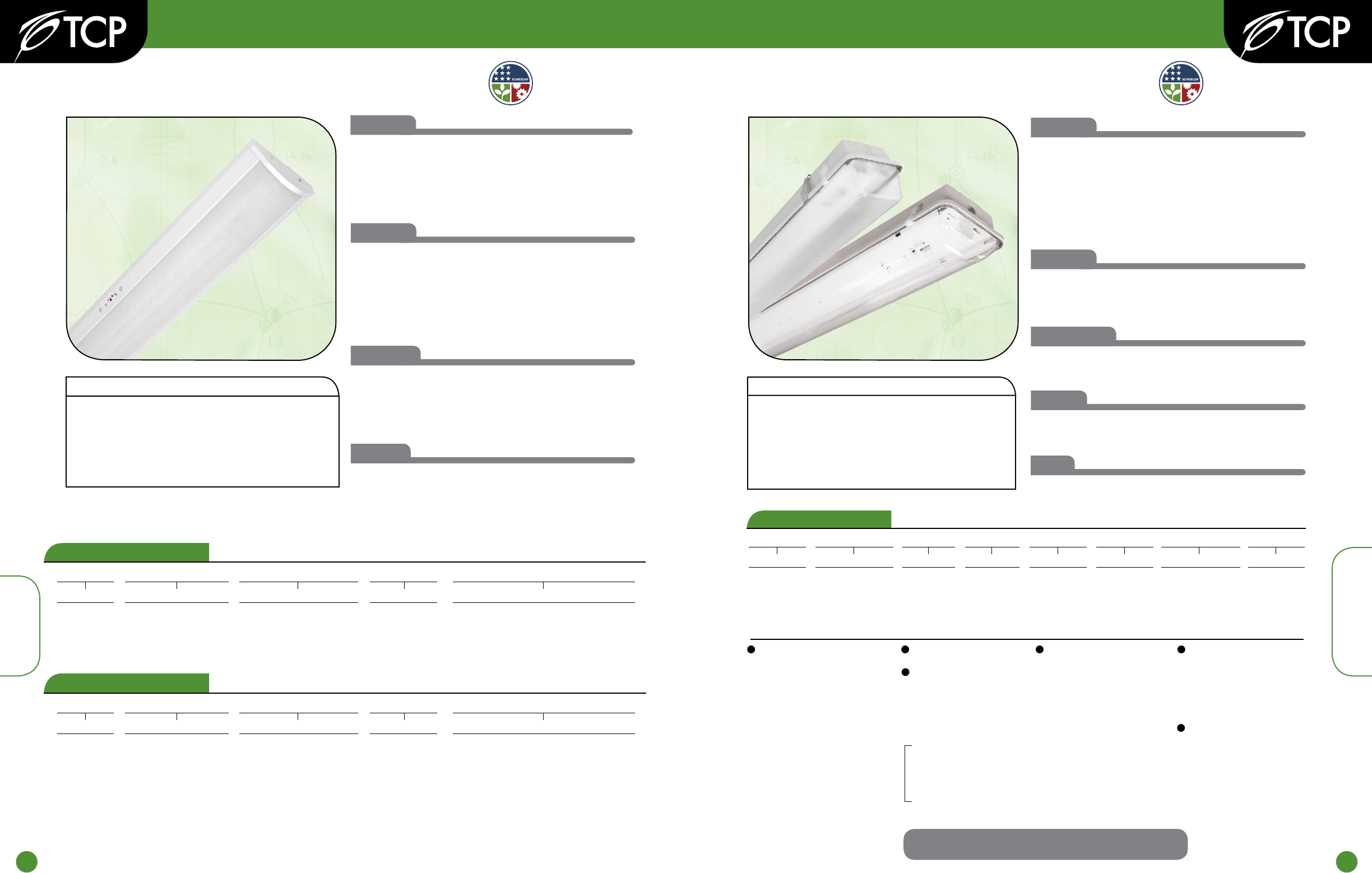

Specialty

800.324.1496 | tcpi.com

Stairwell T8

Catalog Number

Notes Type

ARRA Qualified

2 013 CATALOG

Wet Location

800.324.1496 | tcpi.com 2 013 CATALOG

• Food processing facilities

• Kitchens

• Public Areas

• Subways

• Schools

• Parking garages

• Gas Stations

• Government facilities

• Industrial facilities

The full body assembly accommodates either T8 or T5 lamps. The gasketed enclosure

is constructed of a fiberglass upper body and acrylic diffuser, with a continuous poured

gasket. The diffuser and upper components are locked by retaining latches, which

ensures a tight seal. Sockets include secure positioning rotating collars.

The Wet Location fixture is IP65 and IP67 rated, dust and moisture- resistant, making it

ideal for harsh environments where humidity or moisture is present.

Primary applications include:

The superior beam spread optics are ideal for an open area general lighting. The Wet

Location fixture comes standard with a white channel cover (WA), and is available using a

specular aluminum (SA) Miro®4 reflector, which has a 25 year warranty.

All ballasts are class P rated and UL/cUL listed. Our ballasts are also thermally

protected, sound rated and tightly secured by mounting bolts as well as NEMA Premium

and CEE certified.

Description

Reflector Optics

Electrical

Application

Wet Location/Damp Location Fluorescent T8/T5

Wet Location Fluorescent T8 and T5 Series

Catalog Ordering Matrix

Family Reflector Distribution Lamp Quantity Lamp Type Voltage Ballast Factor Options

WL4 - 4’ Wet Location

WL8 - 8’ Wet Location

DL4 - 4’ Damp Location

DL8 - 8’ Damp Location

WA - Wide Distribution

SA - Narrow Distribution

1 (4’ Fixture Only)

2 (4’ or 8’ Fixture)

3 (4’ Fixture Only)

4 (8’ Fixture Only)

6 (8’ Fixture Only)

25 - (T8 25W)

28 - (T8 28W)

32 - (T8 32W)

54 - (T5HO 54W)

UNI - (120-277)

347

480 - T5 only

480X - Step Down

480Y - Step Down

for 6 Lamp T5

H - (T8 High)

N - (T8 Normal)

L - (T8 Low)

V - (T5HO)

PRS - (Program Rapid Start)

DIM - (Dimming)

*UNI and Step Down only

(See Below)

OPTIONS (Add to catalog number in order shown)

Emergency Ballast Notes:

Orders with an emergency ballast must include

a note on the order indicating the number of

lamps to be operated, which lamp(s) will be

operated by the emergency ballast (i.e. 3rd

lamp), and what voltage is to be used (i.e. 120V).

See Emergency Ballast Spec Sheets for details.

† If a desired lamp and/or ballast is needed in a

TCP linear fluorescent fixture, please provide a

spec sheet when consulting with your local sales

rep. The sales rep will provide a price to use the

desired lamp and/or ballast.

Power Cords

6C - 6’ PCord 300V 16/3 SJTOOW NO PLUG

6C4 - 6’ PCord 300V 18/4 SJTOW NO PLUG

2P - 8’ PCord 125V 15A 16/3 SJTOOW NEMA 5-15P

3P - 8’ PCord 125V 15A 16/3 SJTOW NEMA L5-15P

8T - 8’ PCord 480V 20A 16/3 SEOW NEMA L8-20P

9T - 8’ PCord 250V 20A 16/3 SJTOW NEMA L6-20P

4T - 10’ PCord 125V 20A 16/3 SJTOW NEMA L5-20P

10T - 10’ PCord 277V 15A 14/3 SJTOW NEMA L7-15P

10T2 - 10’ PCord 277V 20A 14/3 SJTOW NEMA L7-20P

10C - 10’ PCord 277V SJTOOW NO PLUG

10C6 - 10’ PCord 600V 15A 16/3 STOW NO PLUG

20C - 20’ PCord 277V 20A 16/3 SJTOOW NO PLUG

20C4 - 20’ PCord 300V 18/4 SJTOW NO PLUG

Damp Location

(DL)

Note: Use Damp Location (DL) item numbers with Damp Location

occupancy sensors ONLY. Otherwise use Wet Location (WL) item numbers.

1

Mounting

Supplied with a stainless steel mouting bracket.

Special Packaging

SP - Single Packed

Emergency Ballasts

20B1 - TCP 450 LMS 90 min (T8)

20B6 - TCP 700 LMS 90 min (T8)

20B5 - TCP 1400 LMS 90 min (T8 or T5)

20BL5 - TCP 800 LMS 90 min (T5)

20BL6 - TCP 1350 LMS 90 min (T5)

4

Special Hardware

SS - Stainless Steel Lens Latches

2

6

White finish with fiberglass housing.

Finish

ARRA Qualified

T5 Lens

T8 Lens

Wet Location Occupancy Sensors

OSWL3 - Occupancy Sensor w/bracket for Cold

Storage/Wet Location, 20’ or less, 120V-277V

OSWL4 - Occupancy Sensor w/bracket for Cold

Storage/Wet Location, 20’-45’, 120V-277V

OSWL5 - Occupancy Sensor w/bracket for Cold

Storage/Wet Location, 20’ or less, 347V-480V

OSWL6 - Occupancy Sensor w/bracket for Cold

Storage/Wet Location, 20’-45’, 347V-480V

Damp Location Occupancy Sensors

TS1C - TCP Cold Storage Occupancy Sensor

w/bracket and interchangeable lenses,

40’ or less, 120V, 277V or 347V

TS4C - TCP Cold Storage Occupancy Sensor

w/bracket and interchangeable lenses,

40’ or less, 480V

Use a program rapid start ballast with occupancy sensor. TCP is not responsible for lamps failing

prematurely due to an occupancy sensor being used with an instant start ballast.

3

Ballast Options*

Lamps Installed in Job Pack

830 - T5 and T8 Lamps

835 - T5 and T8 Lamps

841 - T5 and T8 Lamps

850 - T5 and T8 Lamps

865 - T5 Lamps Only

830HL - T8 Lamps Only

835HL - T8 Lamps Only

841HL - T8 Lamps Only

850HL - T8 Lamps Only

5

Maintenance

No tools required for lamp and ballast access.

Installation

Surface mount bracket provided.

Warranty

One year warranty against defects in manufacturing.

See warranty page for extension options.

Listing

• UL/cUL Listed

• NSF International

• U.S.D.A.

• RoHS Compliant

• NEMA 4X

• IP65 and IP67 Certified

The Stairwell T8 was designed for energy savings using efficient T8 ballasts and lamps

in conjunction with an ultrasonic sensor. The attractive two or three lamp design uses an

ultrasonic occupancy sensor to turn off the main T8 lamp(s) while there are no occupants

in the area, maintaining operation of one T8 lamp during standby mode for safety and

compliance purposes. An emergency ballast can also be specified to provide light for 90

minutes in the event of a power failure. This will ensure there is enough light in areas

designated as emergency egress.

The Stairwell Fixture is a great choice when looking for a bi-level luminaire which

provides energy savings, high efficiency, 95% lumen maintenance, improved color

rendering, extended lamp life, instant on, and improved uniformity. Suggested

mounting heights up to 16’ with primary applications including stairwells, restrooms,

laundry rooms, and other areas where maximum light levels are not needed on a

constant basis.

The Stairwell Fixture is constructed of heavy duty 20 gauge steel which is post

painted with a baked white enamel finish that is electrostatically applied. Ample

knockouts are provided for wiring and mounting. The white perforated steel diffuser

uses one piece of UV stabilized acrylic to provide an even light distribution pattern.

Sockets include secure positioning rotating collars.

All electrical components are UL/cUL listed. Ballasts are class P rated, thermally

protected, sound rated, NEMA premium, CEE approved, and secured by mounting bolts.

The sensor is a low voltage ultrasonic sensor with adjustable sensitivity and time delays

of 5, 10, 15, or 30 minutes. A built in LED lights up when occupancy is detected. The

sensor has functions for testing, overriding “on”, and an integrated 72 hour burn-in

feature to ensure long lamp life and proper operation.

Stairwell T8

Installation

Ceiling or wall surface mounted.

Before installation, please consult

your local ordinances and building

codes for compliance.

Warranty

One year warranty against defectss

in manufacturing. See warranty page for

extension options.

Listing

UL/cUL Listed - Suitable for damp locations.

Description

Construction

Electrical

Application

Family

Family

PRS Ballast (on sensor)

2-Lamp Length and PRS Ballast

IS Ballast (always on)

1-Lamp Length and IS Ballast

Diffuser Option

Diffuser Option

Options

Options

ST - 4’ Stairwell

ST - 4’ Stairwell

4H - 4’ High Ballast Factor

4N - 4’ Normal Ballast Factor

4L - 4’ Low Ballast Factor

4H - 4’ High Ballast Factor

4N - 4’ Normal Ballast Factor

4L - 4’ Low Ballast Factor

4H - 4’ High Ballast Factor

4N - 4’ Normal Ballast Factor

4L - 4’ Low Ballast Factor

3N - 25w 3’ T8 Normal Ballast Factor

3L - 25w 3’ T8 Low Ballast Factor

2N - 17w 2’ T8 Normal Ballast Factor

2L - 17w 2’ T8 Low Ballast Factor

ML - Perforated Metal

ML - Perforated Metal

120B5 - 120V TCP 1400 lumen 90 minute emergency ballast

220B5 - 277V TCP 1400 lumen 90 minute emergency ballast

120B6 - 120V TCP 700 lumen 90 minute emergency ballast

220B6 - 277V TCP 700 lumen 90 minute emergency ballast

120B5 - 120V TCP 1400 lumen 90 minute emergency ballast

220B5 - 277V TCP 1400 lumen 90 minute emergency ballast

120B6 - 120V TCP 700 lumen 90 minute emergency ballast

220B6 - 277V TCP 700 lumen 90 minute emergency ballast

Catalog Ordering Matrix – 3 Lamp

Catalog Ordering Matrix – 2 Lamp

(Order Lamps Separately)

(Order Lamps Separately)

6160

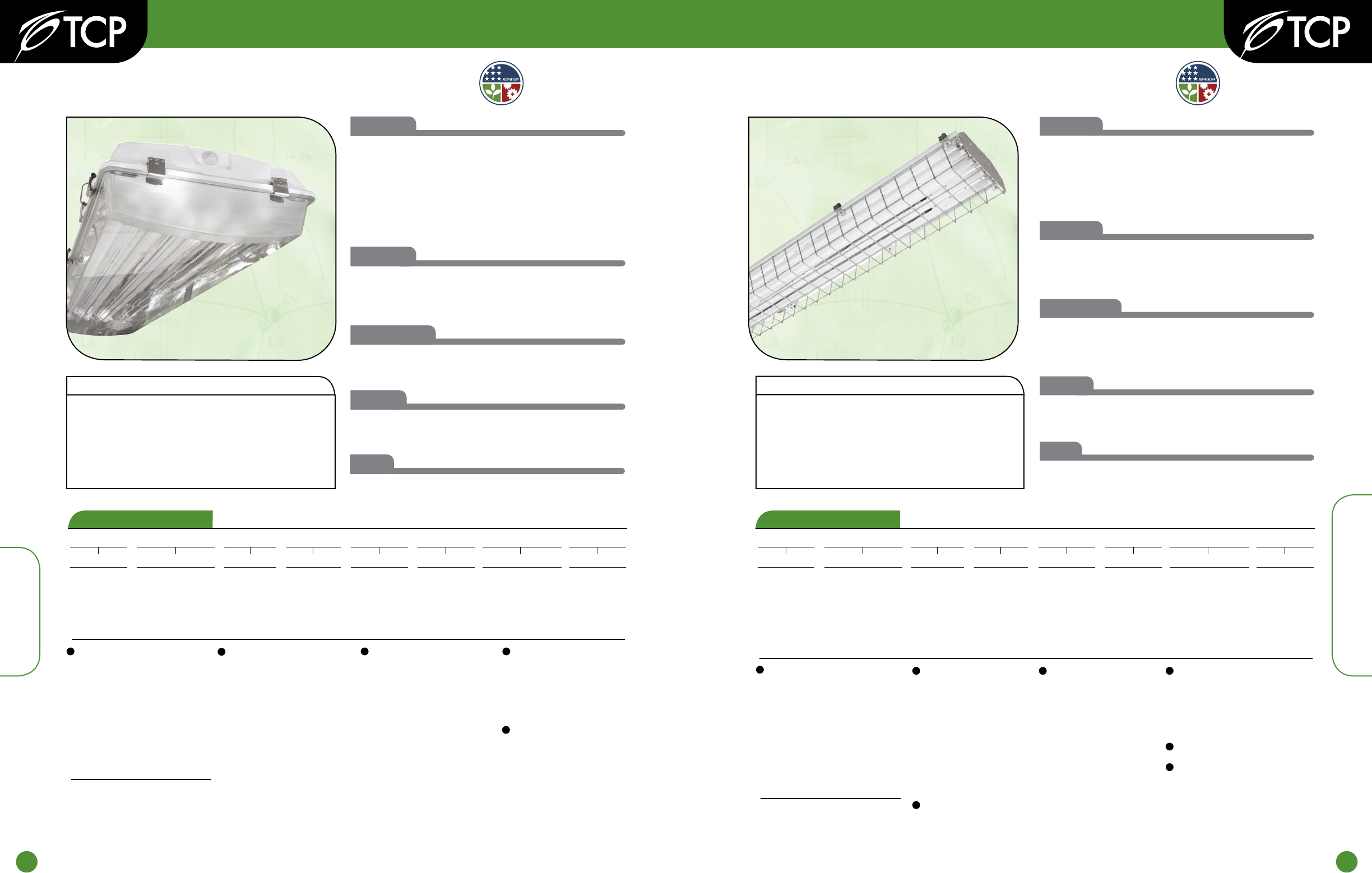

The full body assembly accommodates either T8 or T5 lamps. The gasketed enclosure

is constructed of a fiberglass upper body and acrylic diffuser, with a continuous poured

gasket. The diffuser and upper components are locked by retaining latches, which ensures

a tight seal. Sockets include secure positioning rotating collars.

Description

The superior beam spread optics are ideal for an open area general lighting. The Polar

Bay comes standard with a white channel cover (WA), and is available using a specular

aluminum (SA) Miro®4 reflector, which has a 25 year warranty.

Reflector Optics

All ballasts are class P rated and UL/cUL listed. Our ballasts are also thermally

protected, sound rated, and tightly secured by mounting bolts as well as NEMA Premium

and CEE certified.

Electrical

Application

The Polar Bay Enclosure is IP66 and IP67 rated, dust and moisture-resistant (high

volume hose tested), making it ideal for harsh environments where humidity or

moisture is present. Primary applications include:

• Food processing facilities

• Kitchens

• Public Areas

• Subways

• Schools

• Parking garages

• Gas stations

• Government facilities

• Industrial facilities

• Exterior Retail

Polar Bay T8/T5

Polar Bay T8 and T5 Series

Maintenance

No tools required for lamp and ballast access.

Installation

Luminaire comes with V-Hooks.

Warranty

One year warranty against defects in manufacturing.

See warranty page for extension options.

Listing

• UL/cUL Listed

• NSF International

• U.S.D.A.

• RoHS Compliant

• NEMA 4X

• IP66 and IP67 Certified

Catalog Ordering Matrix

Family Reflector Distribution Lamp Quantity Lamp Type Voltage Ballast Factor Options

PL4 - 4’ Polar Bay SA - Medium Distribution

WA - Wide Distribution

4

6

25 - (T8 25W)

28 - (T8 28W)

32 - (T8 32W)

54 - (T5HO 54W)

UNI - (120-277)

347

480 - T5 only

480X - Step Down

480Y - Step Down

for 6 Lamp T5

H - (T8 High)

N - (T8 Normal)

L - (T8 Low)

V - (T5HO)

PRS - (Program Rapid Start)

DIM - (Dimming)

*UNI and Step Down only

(See Below)

OPTIONS (Add to catalog number in order shown)

White finish with fiberglass housing.

Finish

ARRA Qualified Power Cage Fluorescent High Bay T8/T5

The full body assembly accommodates multiple optics utilizing either T5 or T8 lamps.

The Power Cage’s heavy duty 20 gauge housing and 8 gauge wireguard is code gauge

steel and all components, excluding the wireguard, are post painted with a glossy, high

reflectance white paint. Sockets include secure positioning rotating collars.

The Power Cage’s superior lumen package is ideal for replacing traditional metal

halide high bay systems. Benefits include high efficiency, 95% lumen maintenance,

improved color rendering, extended lamp life, multi-level switching, instant on, dimming

and improved uniformity. Suggested mounting heights from 15’ – 40’ with primary

applications including warehousing, commercial facilities, manufacturing facilities, open

and stack aisle applications.

The superior beam spread optic covers from narrow aisle lighting to open area general

lighting. The Power Cage is available using a specular aluminum (SA) or a white

aluminum (WA) reflector, which have a 25 year warranty.

All ballasts are class P rated and UL/cUL listed. Our ballasts are also thermally

protected, sound rated and tightly secured by mounting bolts as well as NEMA Premium

and CEE certified.

The baked white enamel finish is electrostatically applied and post painted with a glossy,

highly reflective and durable white paint.

Description

Reflector Optics

Electrical

Finish

Application

ARRA Qualified

TCPYHOOKX10FT - Y-Hook 10 foot hanging kit

TCPYHOOKX20FT - Y-Hook 20 foot hanging kit

12Pendantkit - Mounting kit for 1/2” pendants

34Pendantkit - Mounting kit for 3/4” pendants

LHKIT - Single Point Hook Mounting Kit complete

PLSURFMOUNT - Surface mount bracket for Polar Bay,

order (2) per luminaire.

AVAILABLE HANGING KITS (ordered separately)

Ballast Options*

Emergency Ballast Notes:

Orders with an emergency ballast must include

a note on the order indicating the number of

lamps to be operated, which lamp(s) will be

operated by the emergency ballast (i.e. 3rd

lamp), and what voltage is to be used (i.e. 120V).

See Emergency Ballast Spec Sheets for details.

† If a desired lamp and/or ballast is needed in a

TCP linear fluorescent fixture, please provide a

spec sheet when consulting with your local sales

rep. The sales rep will provide a price to use the

desired lamp and/or ballast.

Power Cords

6C - 6’ PCord 300V 16/3 SJTOOW NO PLUG

6C4 - 6’ PCord 300V 18/4 SJTOW NO PLUG

2P - 8’ PCord 125V 15A 16/3 SJTOOW NEMA 5-15P

3P - 8’ PCord 125V 15A 16/3 SJTOW NEMA L5-15P

8T - 8’ PCord 480V 20A 16/3 SEOW NEMA L8-20P

9T - 8’ PCord 250V 20A 16/3 SJTOW NEMA L6-20P

4T - 10’ PCord 125V 20A 16/3 SJTOW NEMA L5-20P

10T - 10’ PCord 277V 15A 14/3 SJTOW NEMA L7-15P

10T2 - 10’ PCord 277V 20A 14/3 SJTOW NEMA L7-20P

10C - 10’ PCord 277V SJTOOW NO PLUG

10C6 - 10’ PCord 600V 15A 16/3 STOW NO PLUG

20C - 20’ PCord 277V 20A 16/3 SJTOOW NO PLUG

20C4 - 20’ PCord 300V 18/4 SJTOW NO PLUG

1

Mounting

Supplied with a stainless steel mouting bracket.

Special Packaging

SP - Single Packed

Emergency Ballasts

20B1 - TCP 450 LMS 90 min (T8)

20B6 - TCP 700 LMS 90 min (T8)

20B5 - TCP 1400 LMS 90 min (T8 or T5)

20BL5 - TCP 800 LMS 90 min (T5)

20BL6 - TCP 1350 LMS 90 min (T5)

3

5

Occupancy Sensors

OSWL3 - Occupancy Sensor w/bracket for Cold

Storage/Wet Location, 20’ or less, 120V-277V

OSWL4 - Occupancy Sensor w/bracket for Cold

Storage/Wet Location, 20’-45’, 120V-277V

OSWL5 - Occupancy Sensor w/bracket for Cold

Storage/Wet Location, 20’ or less, 347V-480V

OSWL6 - Occupancy Sensor w/bracket for Cold

Storage/Wet Location, 20’-45’, 347V-480V

Use a program rapid start ballast with occupancy

sensor. TCP is not responsible for lamps failing

prematurely due to an occupancy sensor being

used with an instant start ballast.

2Lamps Installed in Job Pack

830 - T5 and T8 Lamps

835 - T5 and T8 Lamps

841 - T5 and T8 Lamps

850 - T5 and T8 Lamps

865 - T5 Lamps Only

830HL - T8 Lamps Only

835HL - T8 Lamps Only

841HL - T8 Lamps Only

850HL - T8 Lamps Only

4

Wet Location

800.324.1496 | tcpi.com 2 013 CATALOG

General Application

800.324.1496 | tcpi.com 2 013 CATALOG

Power Cage Fluorescent High Bay T8 and T5 Series

Maintenance

No tools required for lamp and

ballast access.

Installation

Suspension by chain, cable, hook or

monopoint with appropriate accessories.

Warranty

One year warranty against defects

in manufacturing. See warranty page

for extension options.

Listing

UL/cUL Listed - Suitable for

damp locations.

Catalog Ordering Matrix

Family Reflector Distribution Lamp Quantity Lamp Type Voltage Ballast Factor Ballast Options* Options

PC4 - 4' Power Cage

PC8 - 8' Power Cage

SA - Narrow Distribution

WA - Wide Distribution

2 (4' Fixture Only)

3 (4' Fixture Only)

4 (4' and 8' Fixture)

6 (8' Fixture Only)

8 (8' Fixture Only)

25 - (T8 25W)

28 - (T8 28W)

32 - (T8 32W)

54 - (T5HO 54W)

UNI - (120-277)

347

480 - T5 only

480X - Step Down

480Y - Step Down

for 6 Lamp T5

and 8 Lamp T8

480XX - Step Down

for 8 Lamp T5

H - (T8 High)

N - (T8 Normal)

L - (T8 Low)

V - (T5HO)

PRS - (Program Rapid Start)

DIM - (Dimming)

*UNI and Step Down only

(See Below)

Power Cords

6C - 6' PCord 300V 16/3 SJTOOW NO PLUG

6C4 - 6' PCord 300V 18/4 SJTOW NO PLUG

6W - 6' WHIP PCord 600V 16/3 NO PLUG

2P - 8' PCord 125V 15A 16/3 SJTOOW NEMA 5-15P

3P - 8' PCord 125V 15A 16/3 SJTOW NEMA L5-15P

8T - 8' PCord 480V 20A 16/3 SEOW NEMA L8-20P

9T - 8' PCord 250V 20A 16/3 SJTOW NEMA L6-20P

4T - 10' PCord 125V 20A 16/3 SJTOW NEMA L5-20P

10T - 10' PCord 277V 15A 14/3 SJTOW NEMA L7-15P

10T2 - 10' PCord 277V 20A 14/3 SJTOW NEMA L7-20P

10C - 10' PCord 277V SJTOOW NO PLUG

10C6 - 10' PCord 600V 15A 16/3 STOW NO PLUG

20C - 20' PCord 277V 20A 16/3 SJTOOW NO PLUG

20C4 - 20' PCord 300V 18/4 SJTOW NO PLUG

OPTIONS (Add to catalog number in order shown)

Special Mounting

HCB - Hub Connector Box - 3/4" Threaded Hub Mount

Special Packaging

SP - Single Packed (not available with lamps installed)

Emergency Ballasts

20B1 - TCP 450 LMS 90 min (T8)

20B6 - TCP 700 LMS 90 min (T8)

20B5 - TCP 1400 LMS 90 min (T8 or T5)

20BL5 - TCP 800 LMS 90 min (T5)

20BL6 - TCP 1350 LMS 90 min (T5)

Emergency Ballast Notes:

Orders with an emergency ballast must

include a note on the order indicating the

number of lamps to be operated, which

lamp(s) will be operated by the emergency

ballast (i.e. 3rd lamp), and what voltage

is to be used (i.e. 120V). See Emergency

Ballast Spec Sheets for details.

† If a desired lamp and/or ballast is needed in a

TCP linear fluorescent fixture, please

provide a spec sheet when consulting with your

local sales rep. The sales rep will provide a price

to use the desired lamp and/or ballast.

Lamps Installed in Job Pack

830 - T5 and T8 Lamps

835 - T5 and T8 Lamps

841 - T5 and T8 Lamps

850 - T5 and T8 Lamps

865 - T5 Lamps Only

830HL - T8 Lamps Only

835HL - T8 Lamps Only

841HL - T8 Lamps Only

850HL - T8 Lamps Only

14 5

6

7

Occupancy Sensors

TS1 - TCP Occupancy Sensor w/bracket

and interchangeable lenses,

40' or less, 120V, 277V, or 347V.

TS1C - TCP Cold Storage Occupancy Sensor

w/bracket and interchangeable lenses,

40' or less, 120V, 277V, or 347V

TS4 - TCP Occupancy Sensor w/bracket

and interchangeable lenses, 40'

or less, 480V

TS4C - TCP Cold Storage Occupancy Sensor

w/bracket and interchangeable lenses,

40' or less, 480V

Wire Guard / Lens

NWG - No wire guard

PIL - Prismatic Insert Lens, to be used

with Wire Guard

PWL - Prismatic Wrap Lens, not to be

used with Wire Guard

Use a program rapid start ballast with occupancy

sensor. TCP is not responsible for lamps failing

prematurely due to an occupancy sensor being

used with an instant start ballast.

2

3

EZHANGER - 15' adjustable aircraft cable hanging kit

12Pendantkit - Mounting kit for 1/2" pendants

34Pendantkit - Mounting kit for 3/4" pendants

LHKIT - Single Point Hook Mounting Kit complete

AVAILABLE HANGING KITS (ordered separately)

6362

General Application

800.324.1496 | tcpi.com

The full body assembly accommodates multiple optics utilizing either T5 or T8 lamps.

The Power Strip’s heavy duty 20 gauge housing is code gauge steel and all components

are post painted with a glossy, high reflectance white paint. Sockets include secure

positioning rotating collars.

The Power Strip’s superior lumen package is ideal for replacing traditional metal halide

high bay systems. Benefits include high efficiency, 95% lumen maintenance, improved

color rendering, extended lamp life, multi-level switching, instant on, dimming, and

improved uniformity. Suggested mounting heights from 15’ – 40’ with primary

applications including warehousing, commercial facilities, manufacturing facilities, open

and stack aisle applications.

The superior beam spread optic covers from narrow aisle lighting to open area general

lighting. The Power Strip is available using a specular aluminum (SA) Miro®4 or a

white aluminum (WA) reflector, which have a 25 year warranty.

All ballasts are class P rated and UL/cUL listed. Our ballasts are also thermally

protected, sound rated, and tightly secured by mounting bolts as well as NEMA Premium

and CEE certified.

The baked white enamel finish is electrostatically applied and post painted with a glossy,

highly reflective and durable white paint.

Description

Reflector Optics

Electrical

Finish

Application

Power Strip Fluorescent High Bay T8/T5

Power Strip Fluorescent High Bay T8 and T5 Series

Maintenance

No tools required for lamp and ballast access.

Installation

Suspension by chain, cable, hook or

monopoint with appropriate accessories.

Reflectors not pre-installed on fixture.

Some assembly required.

Warranty

One year warranty against defects

in manufacturing. See warranty

page for extension options.

Listing

UL/cUL Listed - Suitable for

damp locations.

Catalog Ordering Matrix

Family Reflector Distribution Lamp Quantity Lamp Type Voltage Ballast Factor Ballast Options* Options

PS4 - 4’ Power Strip

PS8 - 8’ Power Strip

SA - Narrow Distribution

WA - Wide Distribution

3 (4’ Fixture Only)

6 (8’ Fixture Only)

32 - (T8 25-32W)

54 - (T5HO 54W)

UNI - (120-277)

347

480 - T5 only

480X - Step Down

480Y - Step Down

for 6 Lamp T5

H - (T8 High)

N - (T8 Normal)

L - (T8 Low)

V - (T5HO)

PRS - (Program Rapid Start)

DIM - (Dimming)

*UNI and Step Down only

(See Below)

Power Cords

6C - 6’ PCord 300V 16/3 SJTOOW NO PLUG

6C4 - 6’ PCord 300V 18/4 SJTOW NO PLUG

6W - 6’ WHIP PCord 600V 16/3 NO PLUG

2P - 8’ PCord 125V 15A 16/3 SJTOOW NEMA 5-15P

3P - 8’ PCord 125V 15A 16/3 SJTOW NEMA L5-15P

8T - 8’ PCord 480V 20A 16/3 SEOW NEMA L8-20P

9T - 8’ PCord 250V 20A 16/3 SJTOW NEMA L6-20P

4T - 10’ PCord 125V 20A 16/3 SJTOW NEMA L5-20P

10T - 10’ PCord 277V 15A 14/3 SJTOW NEMA L7-15P

10T2 - 10’ PCord 277V 20A 14/3 SJTOW NEMA L7-20P

10C - 10’ PCord 277V SJTOOW NO PLUG

10C6 - 10’ PCord 600V 15A 16/3 STOW NO PLUG

20C - 20’ PCord 277V 20A 16/3 SJTOOW NO PLUG

20C4 - 20’ PCord 300V 18/4 SJTOW NO PLUG

OPTIONS (Add to catalog number in order shown)

Occupancy Sensors

TS1 - TCP Occupancy Sensor w/bracket

and interchangeable lenses,

40’ or less, 120V, 277V, or 347V.

TS1C - TCP Cold Storage Occupancy Sensor

w/bracket and interchangeable lenses,

40’ or less, 120V, 277V, or 347V

TS4 - TCP Occupancy Sensor w/bracket

and interchangeable lenses, 40’

or less, 480V

TS4C - TCP Cold Storage Occupancy Sensor

w/bracket and interchangeable lenses,

40’ or less, 480V

Use a program rapid start ballast with occupancy

sensor. TCP is not responsible for lamps failing

prematurely due to an occupancy sensor being

used with an instant start ballast.

Special Mounting

HCB - Hub Connector Box -

3/4” Threaded Hub Mount

Emergency Ballasts

20B1 - TCP 450 LMS 90 min (T8)

20B6 - TCP 700 LMS 90 min (T8)

20B5 - TCP 1400 LMS 90 min (T8 or T5)

20BL5 - TCP 800 LMS 90 min (T5)

20BL6 - TCP 1350 LMS 90 min (T5)

Emergency Ballast Notes:

Orders with an emergency ballast must include

a note on the order indicating the number of

lamps to be operated, which lamp(s) will be

operated by the emergency ballast (i.e. 3rd

lamp), and what voltage is to be used (i.e. 120V).

See Emergency Ballast Spec Sheets for details.

† If a desired lamp and/or ballast is needed in a

TCP linear fluorescent fixture, please

provide a spec sheet when consulting with your

local sales rep. The sales rep will provide a price

to use the desired lamp and/or ballast.

12 3 4

Family Lamp Quantity Lamp Type Voltage Ballast Factor Ballast Options* Options

AL4 - 4’ Aisle Lighter

AL8 - 8’ Aisle Lighter

1 (4’ Fixture Only)

2 (4’ or 8’ Fixture)

4 (8’ Fixture Only)

32 - (T8 25-32W)

54 - (T5HO 54W)

UNI - (120-277)

347

480 - T5 only

480X - Step Down

H - (T8 High)

N - (T8 Normal)

L - (T8 Low)

V - (T5HO)

PRS - (Program Rapid Start)

DIM - (Dimming)

*UNI and Step Down only

(See Below)

The full body assembly accommodates multiple optics utilizing either T5 or T8

lamps. The Aisle Lighter’s heavy duty 20 gauge housing is code gauge steel and all

components are post painted with a glossy, high reflectance white paint. Sockets

include secure positioning rotating collars.

The Aisle Lighter is designed for surface or suspended mounting. The fixture is ideal

for medium illumination levels and suitable for general task lighting. Suggested

use for applications where optimum photometric performance is required. Ideal for

light-duty task lighting, aisles, warehousing, storage, and retail.

The Aisle Lighter’s superior beam spread optic covers from narrow aisle lighting to

open area general lighting. The fixture comes with a specular aluminum Miro®4

reflector, which has a 25 year warranty.

All ballasts are class P rated and UL/cUL listed. Our ballasts are also thermally

protected, sound rated, and tightly secured by mounting bolts as well as NEMA

Premium and CEE certified.

The baked white enamel finish is electrostatically applied and post painted with a

glossy, highly reflective and durable white paint.

Description

Reflector Optics

Electrical

Finish

Application

Catalog Ordering Matrix

Aisle Lighter T8/T5

Aisle Lighter T8 and T5 Series

Maintenance

No tools required for lamp and ballast access.

Installation

Reflectors not pre-installed on fixture, some

assembly required. Suspension by chain, cable,

hook or monopoint with appropriate accessories.

Warranty

One year warranty against

defects in manufacturing.

See warranty page for

extension options.

Listing

UL/cUL Listed - Suitable for

damp locations.

Power Cords

6C - 6’ PCord 300V 16/3 SJTOOW NO PLUG

6C4 - 6’ PCord 300V 18/4 SJTOW NO PLUG

6W - 6’ WHIP PCord 600V 16/3 NO PLUG

2P - 8’ PCord 125V 15A 16/3 SJTOOW NEMA 5-15P

3P - 8’ PCord 125V 15A 16/3 SJTOW NEMA L5-15P

8T - 8’ PCord 480V 20A 16/3 SEOW NEMA L8-20P

9T - 8’ PCord 250V 20A 16/3 SJTOW NEMA L6-20P

4T - 10’ PCord 125V 20A 16/3 SJTOW NEMA L5-20P

10T - 10’ PCord 277V 15A 14/3 SJTOW NEMA L7-15P

10T2 - 10’ PCord 277V 20A 14/3 SJTOW NEMA L7-20P

10C - 10’ PCord 277V SJTOOW NO PLUG

10C6 - 10’ PCord 600V 15A 16/3 STOW NO PLUG

20C - 20’ PCord 277V 20A 16/3 SJTOOW NO PLUG

20C4 - 20’ PCord 300V 18/4 SJTOW NO PLUG

OPTIONS (Add to catalog number in order shown)

Occupancy Sensors

TS1 - TCP Occupancy Sensor w/bracket

and interchangeable lenses,

40’ or less, 120V, 277V, or 347V.

TS1C - TCP Cold Storage Occupancy Sensor

w/bracket and interchangeable lenses,

40’ or less, 120V, 277V, or 347V

TS4 - TCP Occupancy Sensor w/bracket

and interchangeable lenses, 40’

or less, 480V

TS4C - TCP Cold Storage Occupancy Sensor

w/bracket and interchangeable lenses,

40’ or less, 480V

Use a program rapid start ballast with occupancy

sensor. TCP is not responsible for lamps failing

prematurely due to an occupancy sensor being

used with an instant start ballast.

Special Mounting

HCB - Hub Connector Box - 3/4” Threaded Hub Mount

Emergency Ballasts

20B1 - TCP 450 LMS 90 min (T8)

20B6 - TCP 700 LMS 90 min (T8)

20B5 - TCP 1400 LMS 90 min (T8 or T5)

20BL5 - TCP 800 LMS 90 min (T5)

20BL6 - TCP 1350 LMS 90 min (T5)

Emergency Ballast Notes:

Orders with an emergency ballast must

include a note on the order indicating

the number of lamps to be operated,

which lamp(s) will be operated by the

emergency ballast (i.e. 3rd lamp), and

what voltage is to be used (i.e. 120V).

See Emergency Ballast Spec Sheets

for details.

† If a desired lamp and/or ballast is needed in a

TCP linear fluorescent fixture, please

provide a spec sheet when consulting with your

local sales rep. The sales rep will provide a price

to use the desired lamp and/or ballast.

12 3 4

EZHANGER - 15’ adjustable aircraft cable hanging kit

12Pendantkit - Mounting kit for 1/2” pendants

34Pendantkit - Mounting kit for 3/4” pendants

LHKIT - Single Point Hook Mounting Kit complete

AVAILABLE HANGING KITS (ordered separately)

EZHANGER - 15’ adjustable aircraft cable hanging kit

12Pendantkit - Mounting kit for 1/2” pendants

34Pendantkit - Mounting kit for 3/4” pendants

LHKIT - Single Point Hook Mounting Kit complete

AVAILABLE HANGING KITS (ordered separately)

ARRA Qualified ARRA Qualified

General Application

800.324.1496 | tcpi.com 2 013 CATALOG

2 013 CATALOG

(Order Lamps Separately)

(Order Lamps Separately)

REFLECTOR SHIPS SEPARATELY. REFLECTOR SHIPS SEPARATELY.

6564

The full body assembly accommodates multiple optics utilizing either T5 or T8 lamps.

The General Purpose Strip’s heavy duty 20 gauge housing is code gauge steel, and all

components are post painted with a glossy, high reflectance white paint. Sockets include

secure positioning rotating collars.

The General Purpose Strip is designed for surface or suspended mounting. The fixture is

ideal for medium illumination levels and suitable for general task lighting. Suggested use

for mounting heights up to 16’ requiring low to medium light levels. Ideal for light-duty

task lighting, aisles, warehousing, storage, and retail.

The General Purpose Strip is available using a specular aluminum (SA) Miro®4

or a white aluminum (WA) ballast cover, which have a 25 year warranty.

All ballasts are class P rated and UL/cUL listed. Our ballasts are also thermally

protected, sound rated, and tightly secured by mounting bolts as well as NEMA

Premium and CEE certified.

The baked white enamel finish is electrostatically applied and post painted with a glossy,

highly reflective and durable white paint.

Description

Reflector Optics

Electrical

Finish

Application

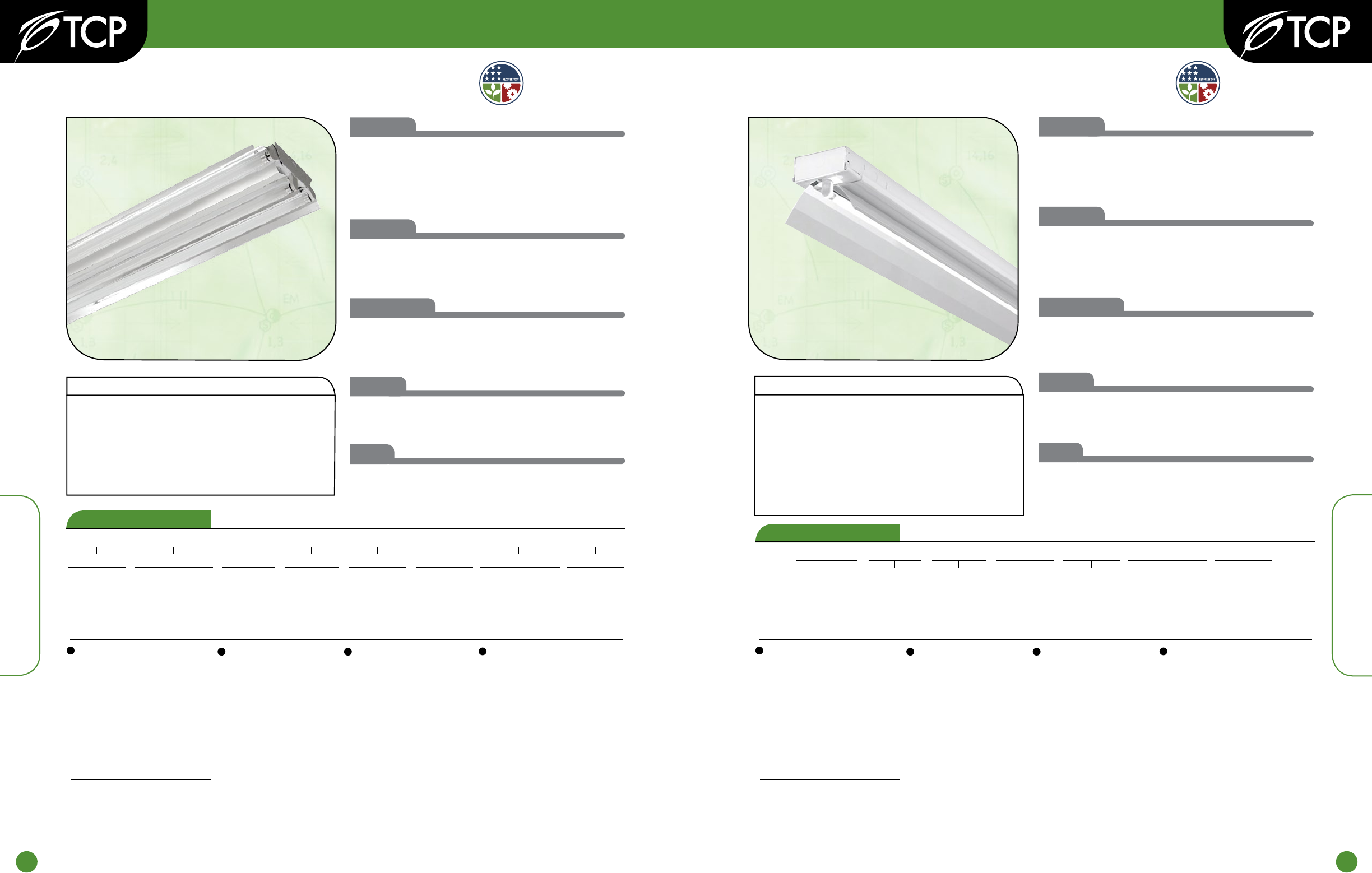

General Purpose Strip T8/T5

General Purpose Strip T8 and T5 Series

Maintenance

No tools required for lamp and

ballast access.

Installation

Suspension by chain, cable, hook or

monopoint with appropriate accessories.

Warranty

One year warranty against defects

in manufacturing. See warranty page

for extension options.

Listing

UL/cUL Listed - Suitable for

damp locations.

Catalog Ordering Matrix

Family

Family

Ballast Cover Lamp Quantity

Lamp Quantity

Lamp Type

Lamp Type

Voltage

Voltage

Ballast Factor

Ballast Factor

Ballast Options*

Ballast Options*

Options

Options GP4 - 4’ General

Purpose Strip

GP8 - 8’ General

Purpose Strip

IS4 - 4’ Hooded

Industrial

IS8 - 8’ Hooded

Industrial

SA - Specular Aluminum

WA - White Aluminum

1 (4’ Fixture Only)

2 (4’ or 8’ Fixture)

4 (8’ Fixture Only)

1 (4’ Fixture Only)

2 (4’ or 8’ Fixture)

4 (8’ Fixture Only)

32 - (T8 25-32W)

54 - (T5HO 54W)

32 - (T8 25-32W)

54 - (T5HO 54W)

UNI - (120-277)

347

480 - T5 only

480X - Step Down

UNI - (120-277)

347

480 - T5 only

480X - Step Down

H - (T8 High)

N - (T8 Normal)

L - (T8 Low)

V - (T5HO)

H - (T8 High)

N - (T8 Normal)

L - (T8 Low)

V - (T5HO)

PRS - (Program Rapid Start)

DIM - (Dimming)

*UNI and Step Down only

PRS - (Program Rapid Start)

DIM - (Dimming)

*UNI and Step Down only

(See Below)

(See Below)

Power Cords

6C - 6’ PCord 300V 16/3 SJTOOW NO PLUG

6C4 - 6’ PCord 300V 18/4 SJTOW NO PLUG

6W - 6’ WHIP PCord 600V 16/3 NO PLUG

2P - 8’ PCord 125V 15A 16/3 SJTOOW NEMA 5-15P

3P - 8’ PCord 125V 15A 16/3 SJTOW NEMA L5-15P

8T - 8’ PCord 480V 20A 16/3 SEOW NEMA L8-20P

9T - 8’ PCord 250V 20A 16/3 SJTOW NEMA L6-20P

4T - 10’ PCord 125V 20A 16/3 SJTOW NEMA L5-20P

10T - 10’ PCord 277V 15A 14/3 SJTOW NEMA L7-15P

10T2 - 10’ PCord 277V 20A 14/3 SJTOW NEMA L7-20P

10C - 10’ PCord 277V SJTOOW NO PLUG

10C6 - 10’ PCord 600V 15A 16/3 STOW NO PLUG

20C - 20’ PCord 277V 20A 16/3 SJTOOW NO PLUG

20C4 - 20’ PCord 300V 18/4 SJTOW NO PLUG

OPTIONS (Add to catalog number in order shown)

Occupancy Sensors

TS1 - TCP Occupancy Sensor w/bracket

and interchangeable lenses,

40’ or less, 120V, 277V, or 347V.

TS1C - TCP Cold Storage Occupancy Sensor

w/bracket and interchangeable lenses,

40’ or less, 120V, 277V, or 347V

TS4 - TCP Occupancy Sensor w/bracket

and interchangeable lenses, 40’

or less, 480V

TS4C - TCP Cold Storage Occupancy Sensor

w/bracket and interchangeable lenses,

40’ or less, 480V

Use a program rapid start ballast with occupancy

sensor. TCP is not responsible for lamps failing

prematurely due to an occupancy sensor being

used with an instant start ballast.

Special Mounting

HCB - Hub Connector Box - 3/4” Threaded Hub Mount

Emergency Ballasts

20B1 - TCP 450 LMS 90 min (T8)

20B6 - TCP 700 LMS 90 min (T8)

20B5 - TCP 1400 LMS 90 min (T8 or T5)

20BL5 - TCP 800 LMS 90 min (T5)

20BL6 - TCP 1350 LMS 90 min (T5)

Emergency Ballast Notes:

Orders with an emergency ballast must include

a note on the order indicating the number of

lamps to be operated, which lamp(s) will be

operated by the emergency ballast (i.e. 3rd

lamp), and what voltage is to be used (i.e. 120V).

See Emergency Ballast Spec Sheets for details.

† If a desired lamp and/or ballast is needed in a

TCP linear fluorescent fixture, please

provide a spec sheet when consulting with your

local sales rep. The sales rep will provide a price

to use the desired lamp and/or ballast.

12 3 4

The full body assembly accommodates multiple optics utilizing either T5 or T8

lamps. The Hooded Industrial’s heavy duty 20 gauge housing is code gauge steel,

and all components are post painted with a glossy, high reflectance white paint.

Sockets include secure positioning rotating collars.

The Hooded Industrial is designed for surface or suspended mounting. The fixture

is ideal for medium illumination levels and suitable for general task lighting.

Suggested use for mounting heights up to 16’ requiring low to medium light levels.

Ideal for light-duty task lighting, aisles, warehousing, storage and retail.

The Hooded Industrial’s superior beam spread optic covers from narrow aisle

lighting to open area general lighting. The fixture comes with a white hooded

reflector.

All ballasts are class P rated and UL/cUL listed. Our ballasts are also thermally

protected, sound rated, and tightly secured by mounting bolts as well as NEMA

Premium and CEE certified.

The baked white enamel finish is electrostatically applied and post painted with a

glossy, highly reflective and durable white paint.

Description

Reflector Optics

Electrical

Finish

Application

Catalog Ordering Matrix

Hooded Industrial T8/T5

Aisle Lighter T8 and T5 Series

Maintenance

No tools required for lamp and ballast access.

Installation

Reflectors not pre-installed on fixture, some

assembly required. Suspension by chain, cable,

hook or monopoint with appropriate accessories.

Warranty

One year warranty against

defects in manufacturing.

See warranty page for

extension options.

Listing

UL/cUL Listed - Suitable for

damp locations.

Power Cords

6C - 6’ PCord 300V 16/3 SJTOOW NO PLUG

6C4 - 6’ PCord 300V 18/4 SJTOW NO PLUG

6W - 6’ WHIP PCord 600V 16/3 NO PLUG

2P - 8’ PCord 125V 15A 16/3 SJTOOW NEMA 5-15P

3P - 8’ PCord 125V 15A 16/3 SJTOW NEMA L5-15P

8T - 8’ PCord 480V 20A 16/3 SEOW NEMA L8-20P

9T - 8’ PCord 250V 20A 16/3 SJTOW NEMA L6-20P

4T - 10’ PCord 125V 20A 16/3 SJTOW NEMA L5-20P

10T - 10’ PCord 277V 15A 14/3 SJTOW NEMA L7-15P

10T2 - 10’ PCord 277V 20A 14/3 SJTOW NEMA L7-20P

10C - 10’ PCord 277V SJTOOW NO PLUG

10C6 - 10’ PCord 600V 15A 16/3 STOW NO PLUG

20C - 20’ PCord 277V 20A 16/3 SJTOOW NO PLUG

20C4 - 20’ PCord 300V 18/4 SJTOW NO PLUG

OPTIONS (Add to catalog number in order shown)

Special Mounting

HCB - Hub Connector Box - 3/4” Threaded Hub Mount

Emergency Ballasts

20B1 - TCP 450 LMS 90 min (T8)

20B6 - TCP 700 LMS 90 min (T8)

20B5 - TCP 1400 LMS 90 min (T8 or T5)

20BL5 - TCP 800 LMS 90 min (T5)

20BL6 - TCP 1350 LMS 90 min (T5)

Emergency Ballast Notes:

Orders with an emergency ballast must

include a note on the order indicating the

number of lamps to be operated, which

lamp(s) will be operated by the emergency

ballast (i.e. 3rd lamp), and what voltage

is to be used (i.e. 120V). See Emergency

Ballast Spec Sheets for details.

† If a desired lamp and/or ballast is needed in a

TCP linear fluorescent fixture, please

provide a spec sheet when consulting with your

local sales rep. The sales rep will provide a price

to use the desired lamp and/or ballast.

134

Occupancy Sensors

TS1 - TCP Occupancy Sensor w/bracket

and interchangeable lenses,

40’ or less, 120V, 277V, or 347V.

TS1C - TCP Cold Storage Occupancy Sensor

w/bracket and interchangeable lenses,

40’ or less, 120V, 277V, or 347V

TS4 - TCP Occupancy Sensor w/bracket

and interchangeable lenses, 40’

or less, 480V

TS4C - TCP Cold Storage Occupancy Sensor

w/bracket and interchangeable lenses,

40’ or less, 480V

Use a program rapid start ballast with occupancy

sensor. TCP is not responsible for lamps failing

prematurely due to an occupancy sensor being

used with an instant start ballast.

2

EZHANGER - 15’ adjustable aircraft cable hanging kit

12Pendantkit - Mounting kit for 1/2” pendants

34Pendantkit - Mounting kit for 3/4” pendants

LHKIT - Single Point Hook Mounting Kit complete

AVAILABLE HANGING KITS (ordered separately)

EZHANGER - 15’ adjustable aircraft cable hanging kit

12Pendantkit - Mounting kit for 1/2” pendants

34Pendantkit - Mounting kit for 3/4” pendants

LHKIT - Single Point Hook Mounting Kit complete

AVAILABLE HANGING KITS (ordered separately)

ARRA QualifiedARRA Qualified

General Application

800.324.1496 | tcpi.com

General Application

800.324.1496 | tcpi.com 2 013 CATALOG

2 013 CATALOG

(Order Lamps Seperately)

(Order Lamps Seperately)

REFLECTOR SHIPS SEPARATELY.

6766

Hub Connector Box

Instruction Sheet for Hub Connector Box for TCP High Bay Fixtures

• Use for single point pendant mount 3/4” NPT

Item Number: HUBCONNECTORBOX

Hub Connector

Box

Components included with each kit:

• 1 - Hub Connector Top

• 1 - Hub Connector Plate

• 1 - Hub Connector Bottom

• Mounting Hardware

GENERAL:

Once receiving the fixture, thoroughly inspect for any freight damage,

which should be brought to the attention of the deliver

y carrier.

Compare the catalog description listed on the packing slip with the

fixture label on the housing to assure you have received the correct

product.

SAFET

Y:

T

his fixture must be wired in accordance with the national electrical

code and applicable local codes and ordinance. Proper ground wiring

is required to insure personal safety

. Carefully observe grounding

procedure under installation section. All work should be done by a

qualified electrician.

RISK OF FIRE

:

DO NOT USE IN HAZARDOUS CLASSIFIED LOCA

TIONS. Failure to do so

could result in explosions and fire.

T

O BE INSTALLED BY A QUALIFIED ELECTRICIAN ONLY. USE SUPPLY WIRE

RA

TED MINIMUM 90˚C.

WA

RNING:

Make certain power is OFF before starting

installation or attempting any maintenance.

DIRECTIONS:

1. Hub Connector Bottom piece will come attached to fixture.

Please make sure the Hub Connector Bottom is tightly fastened

to the fixture, as it might become loose during transit.

2. Thread Hub Connector Top piece (box with ¾” threading)

on ¾” conduit or other approved supporting means.

3. Slide hub connector bottom, which is attached to the fixture,

through the hub connector top, which is attached to ¾” conduit

or other approved supporting mean.

a. NOTE: Make sure when sliding the hub connector

bottom piece onto the hub connector top that the

screw tab is exposed for the hub connector plate.

4. Connect proper supply voltage lead to proper fixture

voltage lead. Connect common leads. Connect ground

(green) wire to suitable grounding. Use wire nuts or other

approved connector for all electrical connections.

a. WARNING: Improper wiring may result in ballast

failure and fire. Improper wiring voids all warranties.

5. Carefully fold electrical leads into the hub connector box.

Slide hub connector plate thru the slots of the hub connector

top grooves. Tighten screw into plate screw hole.

Hub Connector Top

Hub

Connector

Plate

Hub

Connector

Bottom

2.5"

4.34"

.75"

3.5"

Y-HOOK Hanger

EZHANGER

1) Thread hanger onto grip and passover ceiling anchor point.

2) Pass tail end of cable through the other channel of the hanger

and with fixture supported, snap hooks onto fixture

3) Adjust to proper height by pulling cable through either end of the hanger.

1) Attach V-Bracket to fixture body through pre-punched holes

2) Loop cable around strut, joist, eye-bolt or solid ceiling structure

3) Feed cable through grip fastener and adjust to desired mounting height

1) Make sure the load is supported.

How to use

release key to

adjust fixture 2) Push

button release. 3) Release cable from hanger. 4) Secure the load.

Mounting Instuctions:

Mounting Instuctions:

Components included with each kit:

2 - 10’ or 20’ Aircraft Cable with ‘Y” split

and two hooks

2 - Grip Fastener

Recommended use for:

Modified Green Hi-Bay

Sky Bay

Polar Bay

Available in stainless.

Available in stainless.

Mounting instructions for TCP

lighting fixtures, using Y-Hook hangers.

• Use for dual point hanging

EZHANGER for TCP High Bay Fixtures

TCPYHOOKX10FT

EZHANGER

1

2

3

Components included with each kit:

• 2 - 15' #2 Aircraft Cable with crimped loop

• 2 - Grip Fastener

Recommended use for:

Elite

Power Cage

Power Strip

Cable Loop

Grip Fastener

V-Bracket

1

Grip

Fastener

V-Bracket

23

Accessories – Hangers

800.324.1496 | tcpi.com

Accessories – Hangers

800.324.1496 | tcpi.com 2 013 CATALOG

2 013 CATALOG

Item Number Description-Hanging Kit

EZHANGER 15 Ft.

EZHANGER20FT 20 Ft.

EZHANGERSS 15 Ft. Stainless Steel

Item Number Description-Hanging Kit

TCPYHOOKX10FT Y-Hook 10 Ft.

TCPYHOOKX20FT Y-Hook 20 Ft.

TCPYHOOKX10FTSS Y-Hook 10 Ft. Stainless Steel

6968

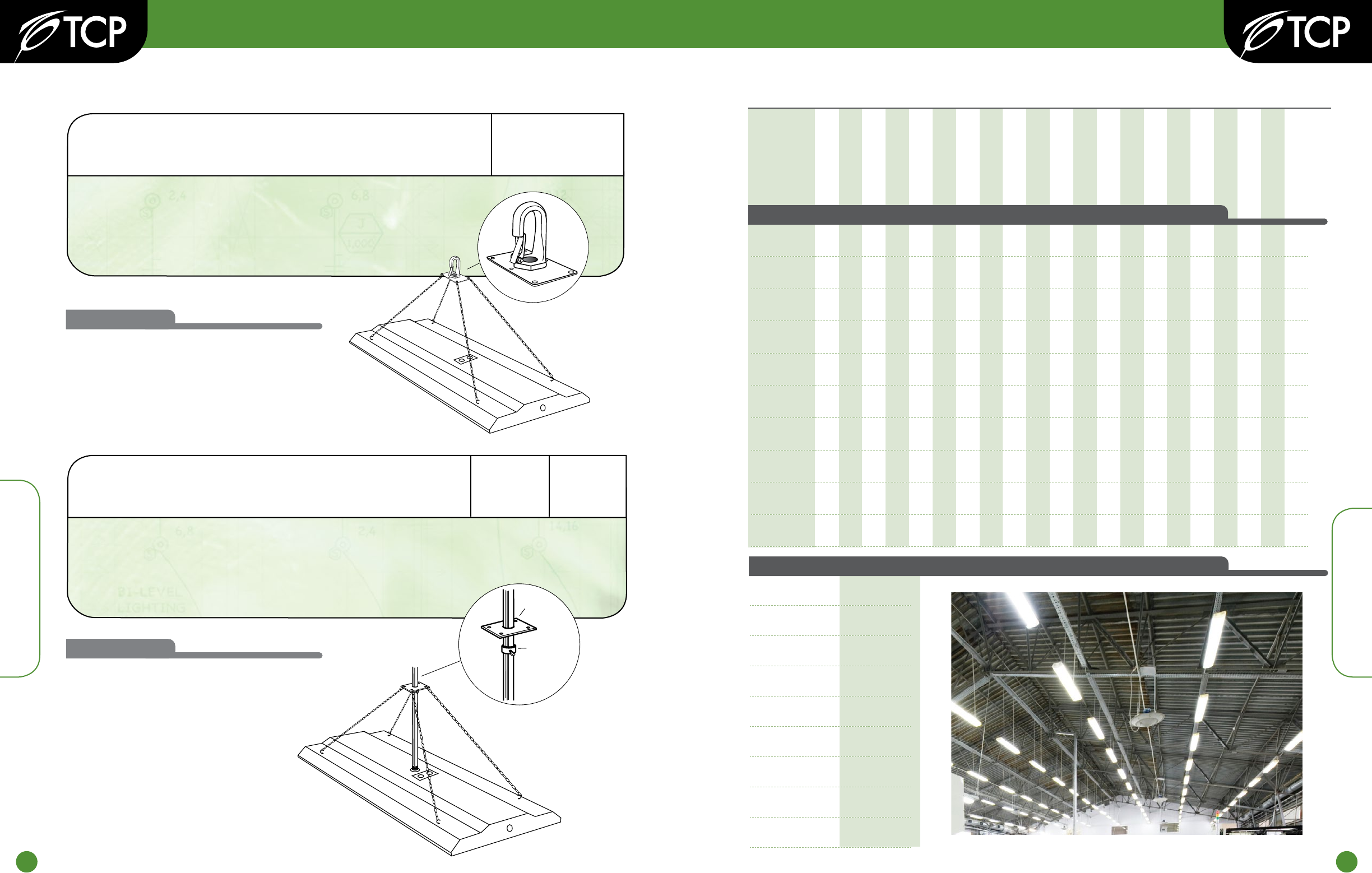

Latch Hook Kit

1/2” & 3/4” Pendant Kit

Latch Hook Kit for TCP High Bay Fixtures

• Use for single point hanging

TCP Item Number: LHKIT

Latch Hook Kit

Components included with each kit:

• 1 - Fixture Hook Male

• 1 - Single Mounting Bar

• 4 - 24” long Chains

• 8 - S-hooks

1) Attach fixture hook to existing structural support.

2) Use S-hooks to attach chain supports to the fixture

body and the chain support hub.

Mounting Instuctions:

1) Slide chain support hub and retaining collar

onto existing pendant. Attach pendant to fixture.

2) Use S-hooks to attach chain supports to the fixture

body and the chain support hub. Adjust chain

length as necessary. Slide chain support

hub up pendant until chain sections

are tight. Slide retaining collar up to

hub and secure.

Mounting Instuctions:

Pendant Mounting Kit for TCP High Bay Fixtures

• Use for fixture mounting with 1/2” Pendants or 3/4” Pendants

TCP Item Number: 12PENDANTKIT | 34PENDANTKIT

1/2” 3/4”

Pendant Kit Pendant Kit

Components included with each 12PENDANTKIT:

• 1 - Chain support retaining collar with set screw (1.50” O.D. - 0.875” I.D.)

• 1 - 2” x 2” Chain support hub with .875” diameter opening

• 4 - 24” long Chains

• 8 - S-Hooks

Components included with each 34PENDANTKIT:

• 1 - Chain support retaining collar with set screw (1.75” O.D. - 1.125” I.D.)

• 1 - 3” x 3” Chain support hub with 1.125” diameter opening

• 4 - 24” long Chains

• 8 - S-Hooks Chain

Support

Hub

Chain

Support

Retaining

Collar

Accessories – Hangers

800.324.1496 | tcpi.com

Application Matrix

800.324.1496 | tcpi.com

Recommended use for:

Elite

Power Cage

Power Strip

Aisle Lighter

Hooded Industrial Strip

General Purpose

Polar Bay

2 013 CATALOG

2 013 CATALOG

Fixture

Warehousing

Commercial Facilities

Manufacturing Facilities

Open Aisle Locations

Stack Aisle Locations

Food Processing Facilities

Light-Duty Tasks / Aisles

Medium-Duty Tasks / Aisles

Kitchens

Retail Stores

Big Box Retail

Exterior Retail

Subways

Schools

Public Areas

Parking Garages

Storage

Cold Storage

Gas Stations

Government Facilities

Industrial Facilities

Fixture Reference Guide

Fixture Reference Guide and Mounting Heights

Elite X X X X X X X X X X X

Modified

Green Hi-Bay XXXXX XX XX X X

Stairwell X X X X X X X

Sky Bay X X X X X X X

Power Cage X X X X X X X X X X

Power Strip X X X X X X X X

Aisle Lighter X X X X X X X

Wet Location X X X X X X X X X X X

Polar Bay X X X X X X X X X X X

General Purpose

Strip X X X X X

Mounting Heights

General Purpose Strip 6’ - 16’

Wet Location 8’ - 35’

Aisle Lighter 12’ - 35’

Elite 10’ - 40’

Polar Bay 15’ - 40’

Power Cage 15’ - 40’

Power Strip 15’ - 40’

Sky Bay 20’ - 110’

Mounting Heights

250W

HID

250-400W

HID

250-400W

HID

400-625W

HID

400-625W

HID

625-700W

HID

750W

HID

1000W

HID

7170

TCP warrants its products to abide by their respective published specifications and are free from defectss in material,

workmanship and title and to operate from the date of Invoice (or date of manufacture if invoice date is not known or

available) for the time periods and subject to the Terms and Conditions specified below.

This warranty only applies when TCP products are operated as specified, have been correctly wired and installed; are

operated within the electrical values publicized on the all labels; used in lighting equipment designed and approved for

the application and in environmental conditions (temperature, humidity, and air movement) within the normal specified

operating range of the system.

Terms and Conditions:

TCP Lamps only

Two years from Date of Invoice1 (or Date of Manufacture if proof of purchase is not

available). If lamps fail within this warranty period, TCP will provide a free one for

one lamp replacement. No labor allowance is allowed. TCP reserves the right to

request defectsive lamps be returned for testing and verification.

TCP Ballasts only

Five years from Date of Invoice2 (or Date of Manufacture if proof of purchase

is not available). If ballasts fail within this warranty period, TCP will provide a

free one for one ballast replacement along with a corresponding labor allowance

as determined by TCP as specified in Service Claims and Labor Options sections.

TCP reserves the right to request defectsive ballasts be returned for testing and

verification.

TCP Lamp and TCP Ballast, luminaire by other

Three years for TCP Lamps and Five Years for TCP Ballasts from Date of Invoice3

(or Date of Manufacture if proof of purchase is not available). If TCP lamps and

ballasts fail within this warranty period, TCP will provide a free one for one ballast

replacement of the lamp and/or the ballast along with a corresponding labor

allowance as determined by TCP as specified in Service Claims and Labor Options

sections. TCP reserves the right to request defectsive product be returned for

testing and verification.

TCP Lamp, TCP Ballast, TCP Luminaire (“System”)

Five years for TCP “System”4,5 from Date of Invoice (or Date of Manufacture if

proof of purchase is not available – oldest date for components applies). If the

TCP “System” fails within this warranty period, TCP will provide, at its discretion,

replacement product or repair services in accordance with the Service Claims and

Labor Options set forth below. TCP reserves the right to request defectsive product

be returned for testing and verification.

Notes:

1) T8 lamps used in Occupancy Sensor applications must have a 15 minute per

start, minimum and a Program Rapid Start ballast must be used.

2) Maximum operating case temperature to maintain warranty is less than 70°C

(generally no more than 40° C maximum ambient).

3) TCP lamp warranty based on 3 hours minimum cycle time and a maximum of

4000 hrs of operation per year, for Occupancy Sensor applications, please see

note 1 above.

4) All components must be ordered, assembled and shipped from a TCP location.

5) For non-TCP components, the supplied manufacturer must be contacted for

warranty claims.

These lamp and ballast warranties do not apply to failures caused by acts of

God, or as a result of any abuse, misuse, abnormal use, or use in violation of

any applicable standard, code, or instructions for use in installations including

those contained in the National Electrical Code (NEC), the Standards for Safety of

Underwriters Laboratory, Inc. (UL), Standards for the American National Standards

Institute (ANSI) or, in Canada, the Canadian Standards Association (CSA).

Technical Consumer Products reserves the right to inspect failed lamps, and/or

ballasts to determine the cause of failure and patterns of lamp usage. The date

of purchase and lamp installation date must be verified to validate the elapsed

operating hours if a warranty claim is made.

Warranty Activation/Service Claims

These warranty policies are activated after TCP receives the completed

“System Warranty Form” form within 30 days of product installation. An

acknowledgement will be sent for each registration with a reference number for

future correspondence. Service claims can be made by contacting Customer Care

at 1-800-324-1496.

Labor Options

If required by the customer, TCP will contact a service provider and co-ordinate

replacement at no cost to the user of the ballasts (or) TCP will reimburse the

purchaser reasonable, customary and necessary labor charges required to install

the ballast replacement. Labor options must be pre-approved by TCP. Any labor

option or cost that is not pre-approved will not be eligible for reimbursements.

Return of Defectsive Products

After contacting TCP and receiving a Return Authorization Number, the user shall

promptly return the product at the customer’s expense to TCP after receiving

instructions as to if, when and where to ship product. Failure to follow this

procedure voids this warranty.

The foregoing shall constitute the exclusive remedy of the purchaser and the

sole liability of Technical Consumer Products for lamp and ballast warranties. NO

WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE IS

MADE OR IS TO BE IMPLIED. In no event shall Technical Consumer Products be

liable for any other cost of damages including lost profits, incidental, special or

consequential damages. TCP reserves the right to examine all failed lamps and/or

ballasts and reserves the right to be the sole judge as to whether any lamps and/

or ballasts are defectsive and covered under this warranty.

September 2011

Linear Warranties

Fixture Reference Guide

800.324.1496 | tcpi.com

Fluorescent Warranty

800.324.1496 | tcpi.com 2 013 CATALOG

2 013 CATALOG

Application Matrix

Got a question?

Use the following link to find the answer!

Lighting Layout Requests?

Linear or Deco Item Setup Requests?

Linear Questions?

LED Luminaire Questions?

Deco Questions?

HID Questions?

AskLightingSystems@tcpi.com

2 013 CATALOG

2 013 CATALOG

7372

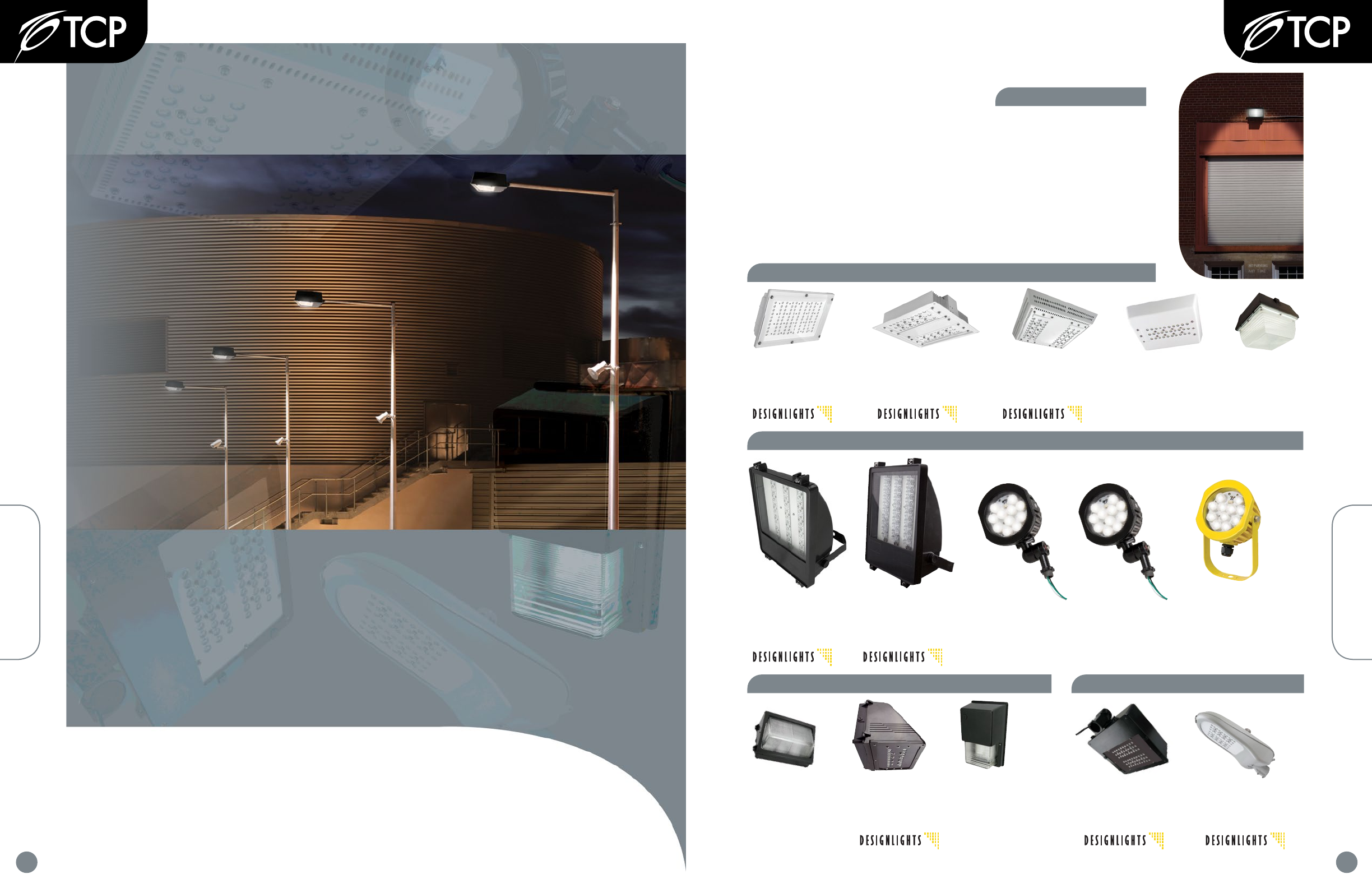

LED Luminaires

LED Luminaires

Standard Luminaires

Spot and Floodlights

LED Wall Packs LED Street Lighting

RADIANT 150W LED

150W Luminaire

45W LED FESTIVAL

FLOOD LIGHT

45W Flood Light

30W LED BLAZER

WALL PACK

30W Outdoor Wall Pack

45W LED BLAZER

WALL PACK

45W Outdoor Wall Pack

100W LED METRO

STREET LIGHT

100W Shoebox Light

100W LED COBRA

STREET LIGHT

100W Street Light

20W LED BLAZER

WALL PACK

20W Outdoor Wall Pack

45W LED FESTIVAL

SPOT LIGHT

45W Spot Light

16W LED

SPOT LIGHT

16W LED Spot Light

16W LED

DOCK LIGHT

16W LED Dock Light

16W LED

FLOOD LIGHT

16W LED Flood Light

ATLAS 100W

RECESSED LED

100W Luminaire

ATLAS 100W

SURFACE LED

100W Luminaire

ATLAS 50W

SURFACE LED

50W Luminaire

ATLAS 20W

SURFACE LED

20W Luminaire

LED Luminaires

Our LED luminaires are the energy

efficient alternatives to metal halide and

fluorescent fixtures. They are designed to

last longer while increasing the amount

of light output and reducing the amount

of energy used to power them.

FEATURES / BENEFITS

• Long life: 50,000 hours

• LM80 certified LEDs

• UL Listed

• Low maintenance

• Energy efficient

800.324.1496 | tcpi.com

800.324.1496 | tcpi.com

LED

FIXTURES

TCP is leading the way with breakthrough energy efficient lighting products. Our advanced CFL ballast

design and lamp technologies set new benchmarks that the rest of the industry is trying to match. And now, with

the development of our advanced LED driver technology, you have even more energy efficient lighting choices that

last longer, provide all of the performance characteristics you are used to, and reduce scheduled maintenance.

CONSORTIUM

CONSORTIUM

CONSORTIUM

CONSORTIUM

CONSORTIUM CONSORTIUM CONSORTIUM

CONSORTIUM

2 013 CATALOG

2 013 CATALOG

7574

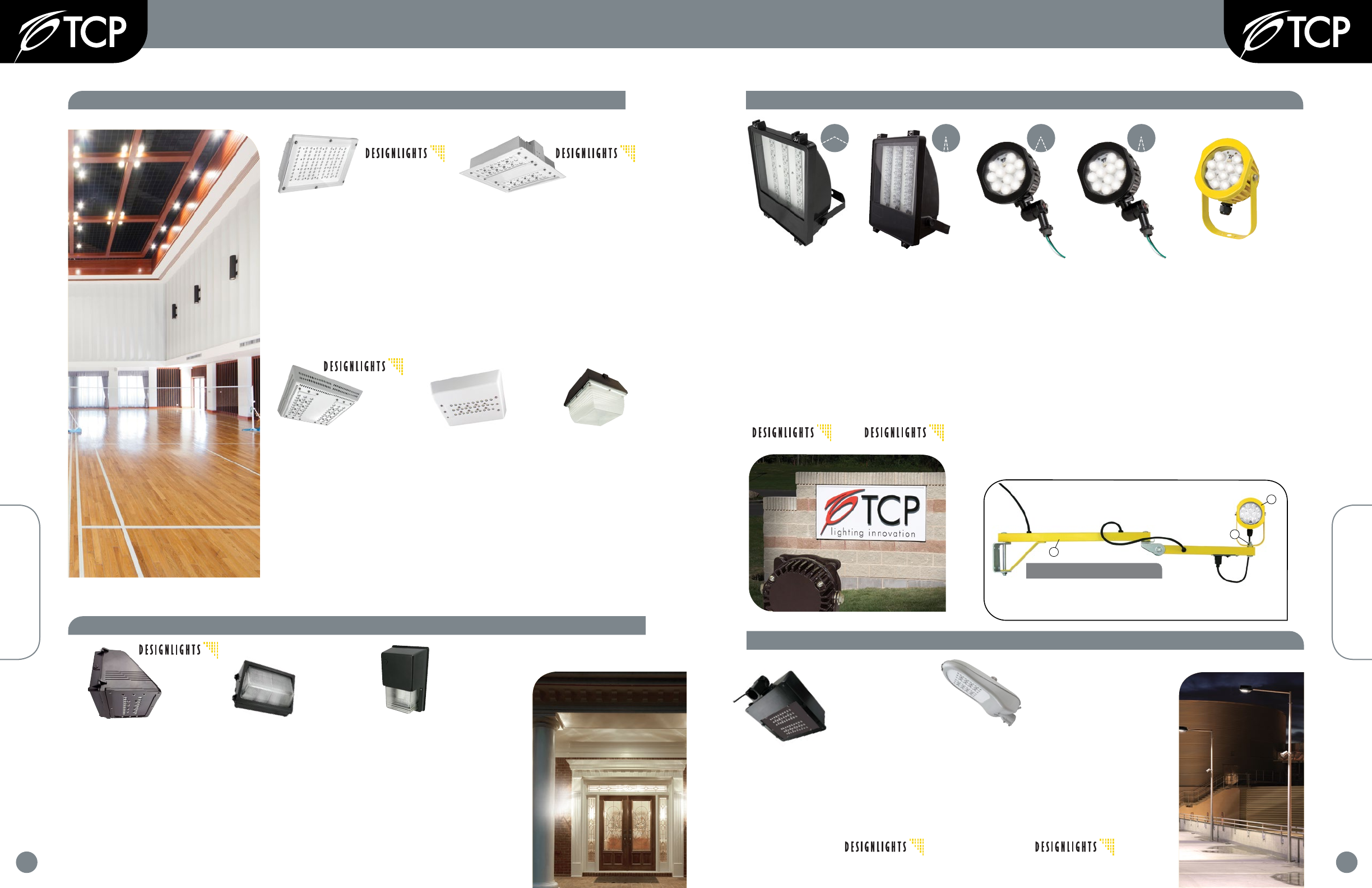

LED Luminaires

LED Luminaires

800.324.1496 | tcpi.com

800.324.1496 | tcpi.com

Standard Luminaires Spot Lights | Flood Lights | Dock Lights

LED Street Lighting

LED Wall Packs

TCPRADIANT100H

RADIANT 150W LED

150W / 11000 Lumens

For applications that require high light

output, long life and low maintenance

such as parking garages, warehouses,

gymnasiums, large retail, stairwells

and more.

L 20.5" W 13.25" H 6.25"

TCPATLASGS60HRS

ATLAS 100W

RECESSED LED

100W / 7600 Lumens

Perfect for hard to reach areas and

easy to install. Great for gas station

canopies, parking garages, stairwells,

walk-in coolers and more.

L 13.6” W 13.6” H 4.41”

TCPATLASGS60H

TCPATLASI5H

ATLAS 100W

SURFACE LED

100W / 7600 Lumens

Perfect for hard to reach areas and

easy to install. Great for gas station

canopies, parking garages, stairwells,

walk-in coolers, and more.

L 15.75” W 15.75” H 2.80”

TCPATLASGS30H

ATLAS 50W

SURFACE LED

50W /3500 Lumens

Perfect for hard to reach

areas and easy to install.

Great for gas station canopies,

parking garages, stairwells,

walk-in coolers, and more.

L 13.25” W 10.75” H 3.0”

TCPATLAS15H

ATLAS 20W

SURFACE LED

20W/1250 Lumens

Perfect surface mounted fixture

with a long life and low main-

tenance requirement. Great

for entrance canopies, parking

garages, stairwells, awnings,

walk-in coolers, and more.

L 9.0” W 9.0” H 7.5”

TCPBLAZER35

30W LED BLAZER WALL PACK

30W / 1950 Lumens

Fully shielded design is dark sky

compliant. Great for security lighting,

building entrances and over doorways.

L 14” W 9” H 11.5”

TCPBLAZER50

45W LED BLAZER WALL PACK

45W / 2500 Lumens

Medium wall pack with impact resistant

non-yellowing lens provides maximum

light output. Great for security lighting,

building entrances and over doorways.

L 14” W 9” H 7”

TCPBLAZER25

20W LED BLAZER WALL PACK

20W / 1125 Lumens

Small wall pack with impact resistant

non-yellowing lens provides maximum

light output. Great for security lighting,

building entrances and over doorways.

L 13” W 7.75” H 5.5”

TCPFESTIVALWF

45W LED FESTIVAL

FLOOD LIGHT

45W / 2600 Lumens

Great for any application

where you need to evenly

light a large area. Great

for lighting over-head

highway signs.

L 13.8” W 10.4” H 5.0”

TCPFESTIVALNF

45W LED FESTIVAL

SPOT LIGHT

45W / 2600 Lumens

Perfect for flag-pole

lighting, security lighting,

lighting mines or caves.

L 13.18” W 10.4” H 5.0”

TCPMETRO60H

100W LED METRO

STREET LIGHT

100W / 6500 Lumens

This specification grade area light

provides an energy efficient solution for

use in parking lots, roadways, pathways

and general area lighting. Mounts to

2.5” diameter steel poles.

L 20” W 16.5” H 6.9”

TCPCOBRAI60H

100W LED COBRA

STREET LIGHT

100W / 6500 Lumens

The Cobra LED street light provides an

energy efficient solution for use in

parking lots, roadways, pathways and

general area lighting. Mounts to 2.5”

diameter steel poles. Photocell included.

L 27.5” W 11.8” H 9.0”

Included In Combo Package

1. LEDDL16K65Y01 Standard 16W Docklight

2. LDA42 42” Dockarm with On/Off Switch

3. LDACC Dock Light Mounting Accessories

All components are delivered together

in one complete package.

Dock Light & Dockarm Combo Package

Part# LEDDL16K65YCOMBO In Formation

2

3

1

45º 15º10º120º

LEDDL16K65Y01

LEDDL16K65Y02

LEDDL16K65YCOMBO

16W LED

DOCK LIGHT

16W / 850 Lumens

L 4” W 5.5” H 8.5”

LEDFL16K50BL01

LEDFL16K50BL03

16W LED

FLOOD LIGHT

16W / 850 Lumens

L 4” W 5.5” H 8.5”

LEDSL16K50BL01

LEDSL16K50BL03

16W LED

SPOT LIGHT

16W / 850 Lumens

L 4” W 5.5” H 8.5”

LEDFL16K50BL01

Black 16W Flood Light with 45 degree

beam & 6’ cord, u-bracket, and NEMA

5-15 Male Plug

LEDFL16K50BL03

Black 16W Flood Light with 45 degree

beam, pivot arm with pigtail

LEDSL16K50BL01

Black 16W Spot Light with 15 degree

beam & 6’ cord, u-bracket, and NEMA

5-15 Male Plug

LEDSL16K50BL03

Black 16W Spot Light with 15 degree

beam, pivot arm with pigtail

LEDDL16K65Y01

Safety Yellow 16W Dock Light with 6’ cord and

IEC 60320-C14 Plug

LEDDL16K65Y02

Safety Yellow 16W Dock Light with 6’ cord and

NEMA 5-15 Male Plug

LEDDL16K65YCOMBO

Dock Light and Dockarm Combo Package

CONSORTIUM

CONSORTIUM

CONSORTIUM

CONSORTIUM

CONSORTIUM

CONSORTIUM

CONSORTIUM

CONSORTIUM

2 013 CATALOG

2 013 CATALOG

800.324.1496 | tcpi.com

800.324.1496 | tcpi.com

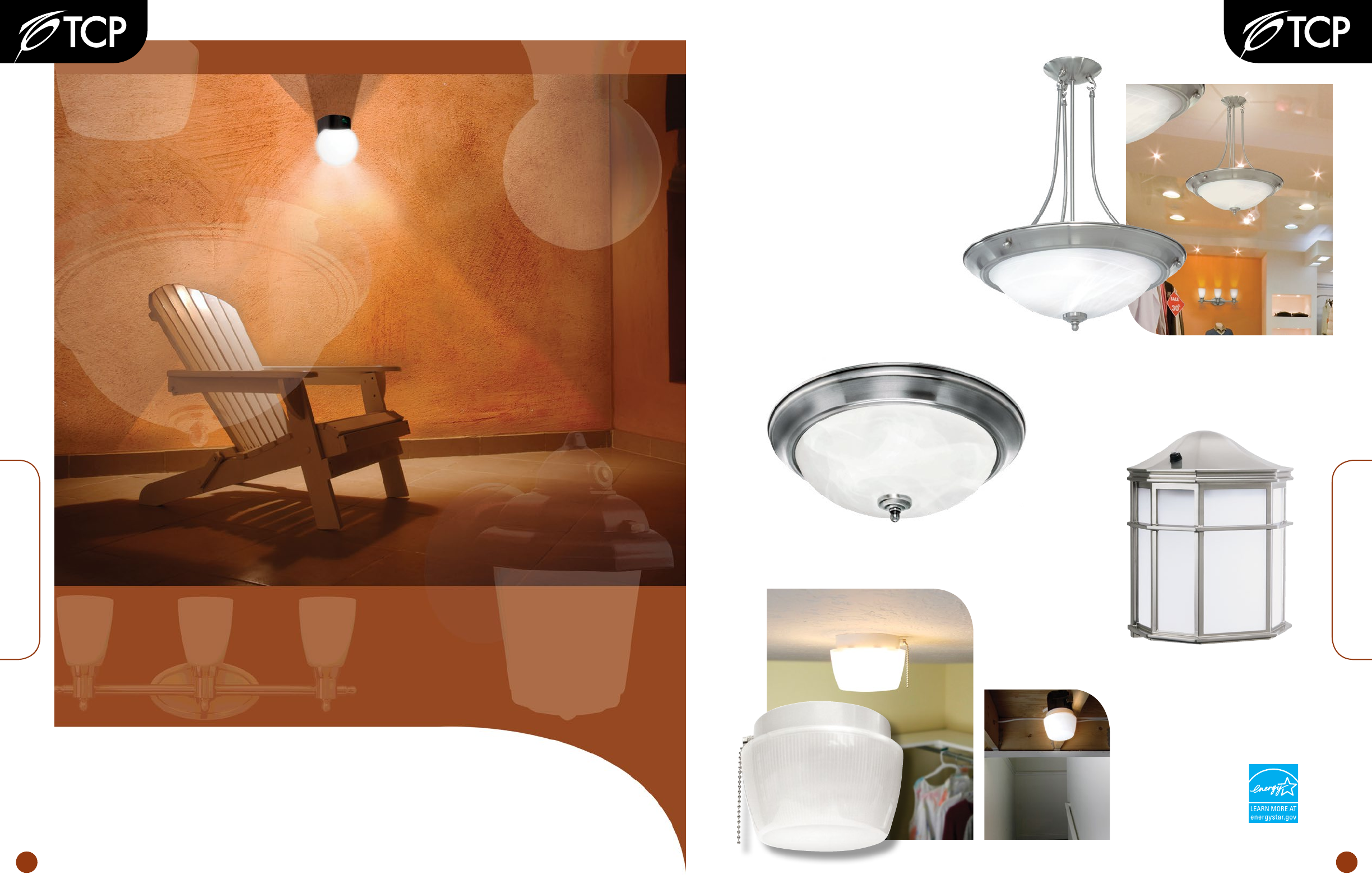

Decorative CFL Fixtures

Decorative CFL Fixtures

7776

All our fixtures come with industry-leading TCP lamps,

assuring unsurpassed reliability at an affordable price.

No matter what the situation, TCP has the right fixture to

fulfill your lighting demands.

At TCP, complete customer satisfaction is our everyday mission and our customers are at the center of everything

we do. With product quality and innovation at the forefront, TCP continues as the leader in the industry. Experience

our energy efficient lighting products and you will agree.

CFL

DECORATIVE

FIXTURES

2 013 CATALOG

2 013 CATALOG

800.324.1496 | tcpi.com

800.324.1496 | tcpi.com

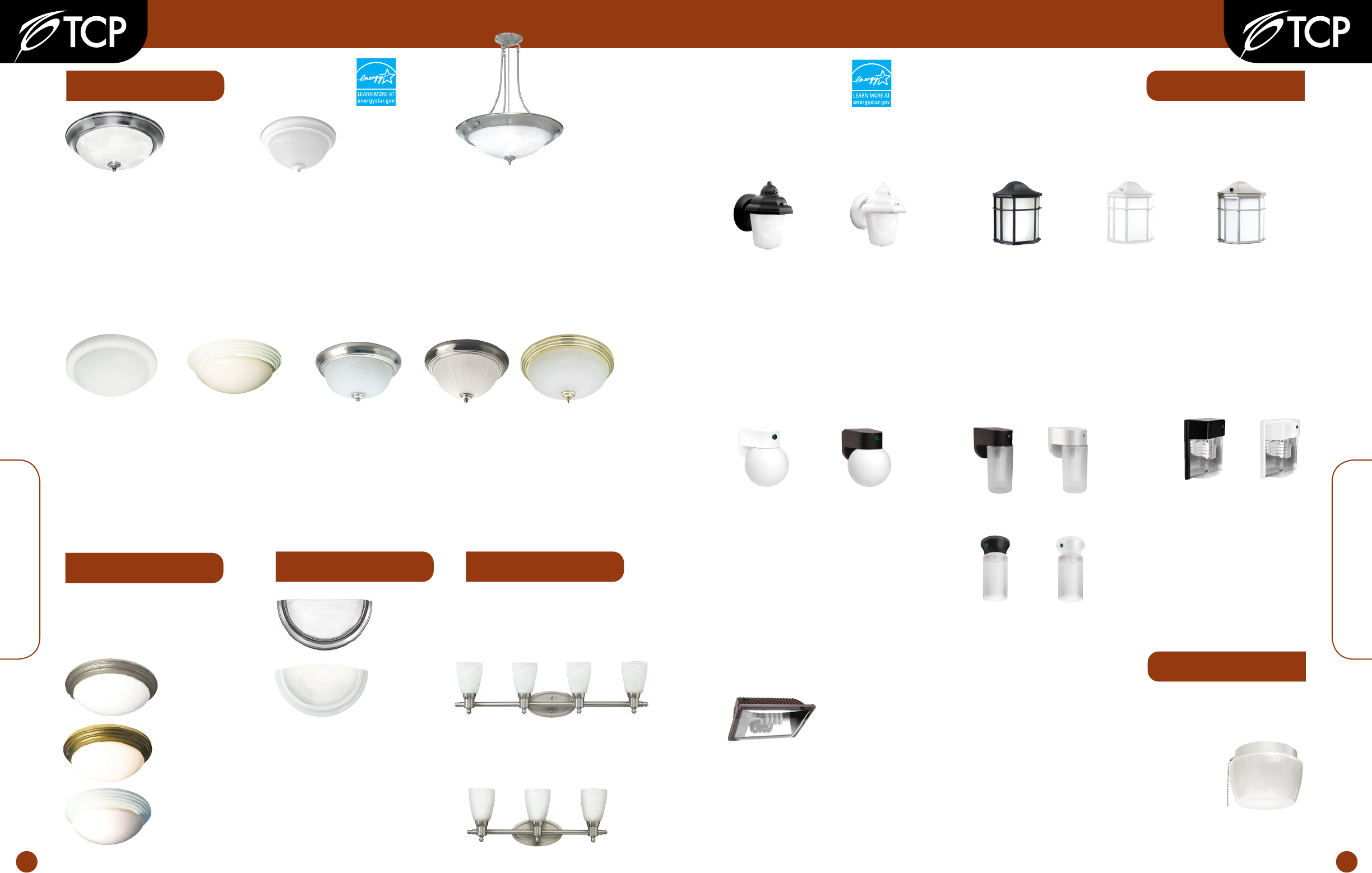

Decorative CFL Fixtures

Decorative CFL Fixtures

Wall Sconce

Brushed Nickel or White Finish with a

Cast Alabaster Glass Diffuser

Width: 15.25”

Height: 7.5”

Depth: 4”

One 23w GU24 Lamp Included.

DES1X23GUWALLBS

DES1X23GUWALLWH

1173032WH

White Ring Base with Polycarbonate

Dome Cover

Diameter: 14"

Depth: 4.4"

One 30W T9 Circline Lamp Included.

11830WH

White Step Base with Polycarbonate

Dome Cover

Diameter: 14"

Depth: 4.4"

One 30W T9 Circline Lamp Included.

(32030)

14230BS

Brushed Steel Base with Glass

Dome Cover

Diameter: 13"

Depth: 6.3"

One 30W T9 Circline

Lamp Included.

(32030)

14840BS

Brush Steel Base with Melon

Glass Dome Cover

Diameter: 13"

Depth: 6.3"

One 40W T6 Circline

Lamp Included.

(32040)

11930PB

Polished Brass Step Base

with Plastic Swirl Cover

Diameter: 14"

Depth: 4.4"

One 30W T9 Circline

Lamp Included.

(32030)

15” Flush Mount Ceiling Fixture

Available Brushed Nickel or White Finish with a

Cast Alabaster Glass Diffuser.

Diameter: 15.25”

Depth: 5.5”

Lamp Included.

Choice of 23W or 27W GU Lamp. 1x23GUFLCLGLASS(23W)

1x27GUFLCLGLASS(27W)

1x18GUFLCLGLASS

11800DS

Also available with two 18W GU Lamps.

DES2X18GUFLCLBS (Brushed Steel)

DES2X18GUFLCLWH (White)

11” Flush Mount Ceiling Fixture

Available Brushed Nickel or White Finish

with a Cast Alabaster Glass Diffuser.

Diameter: 11.5”

Depth: 6”

One 18W GU Lamps Included.

DES1X18GUFLCLBS (Brushed Steel)

DES1X18GUFLCLWH (White)

Ceiling Pendant Fixture

Available Brushed Nickel or White Finish with a

Cast Alabaster Glass Diffuser

Fixture Diameter: 19.25”

Depth: 25”

Two 18W GU Lamps Included.

Supplied with 12’ of Cord and

4’ of Matching Finish Chain

DES2X18GUPENDBS (Brushed Steel)

DES2X18GUPENDWH (White)

7978

Ceiling Fixtures

Wall Sconces

Plastic Ceiling Fixtures

Flush Mount Fixture

Faux Brushed Steel, Faux Polished

Brass or White Plastic Step Base

with a Plastic Dome Cover

11826BSGU (26 WATT)

11836BSGU (36 WATT)

11826PBGU (26 WATT)

11836PBGU (36 WATT)

11826WHGU (26 WATT)

11836WHGU (36 WATT)

No ground required for plastic fixtures!

Fixture Diameter: 14”

Depth: 6”

Two GU24 Lamps Included.

Replacement Glass

available:

Replacement Glass

available:

Replacement Diffuser available: 11800DS

1173032WHHP

1173032WH

11730T9WHBulk6 (6-pack)

Replacement Glass

available:

Replacement Diffuser

available: 11800DS

Four 13W GU

Lamps Included.

Width: 36.25”

Height: 10”

Depth: 5.5”

DES4X13GUBATHBS

4 Lamp Bath Bar

Three 13W GU

Lamps Included.

Width: 26.25”

Height: 10”

Depth: 5.5”

DES3X13GUBATHBS

3 Lamp Bath Bar

Vanity Fixtures

Nickel Finish with Alabaster Glass Diffusers

Outdoor Fixtures

Pagoda

Diecast housing, black or white powdercoat finish with

white glass lens.

510XXBPCGU* 510XXWPCGU*

Height: 9.0”

Width: 6.0”

Height: 9.75"

Width: 7.75"

Depth: 4.25"

520XXBPCGU* 520XXWPCGU* 520XXBSPCGU*

Wall Mount Lantern

Diecast body with a frosted acrylic diffuser and automatic sensor. Choice of

powder coat black, powder coat white or brushed steel finish.

Available with choice of one 13w,

18w, 23w, or 27w GU lamp. Available with choice of one 13w, 18w or 23w GU lamp.

Globe Light

Polycarbonate body, black or white finish with

white or prismatic diffuser.

558XXWPCGU†* 558XXBPCGU†*

558XXWP2GU°* 558XXBP2GU°*

*Note: Substitute XX for lamp

wattage that you desire.

Ex. 51023BPCGU for fixture

with 23w lamp.

†White Diffuser °Prismatic Diffuser

Height: 10.0”

Width: 7.4”

Depth: 6.0”

Available with choice of one 13w,

18w, or 23w GU lamp.

570XXBPCGU* 570XXWPCGU*

565XXBRPCGU*

Wallpack

Polycarbonate housing, black or

white finish with prismatic lens.

Height: 9.5”

Width: 6.6”

Depth: 4.5”

Available with choice of one 13w, 18w,

23w, or 27w GU lamp.

Flood Light

Brown finish with clear lens.

Height: 9.5”

Width: 6.6”

Depth: 4.5”

Available with choice

of one 13w, 18w,

23w, 27w, or 32w

GU lamp. Available with one 13W Low Profile GU Lamp.

Also available without metal pull chain: CL13B.

Closet Light

White Plastic with metal pull

chain, acrylic diffuser

Width: 5”

Height: 4”

Depth: 4”

Lamp Included.

CL13

Closet Light

Also available in white Also available in brushed nickel Also available in white

All Outdoor Fixtures Come with Dusk to Dawn Photocell.

DES1X23GUFLCLBS(23w Brushed Steel)

DES1X23GUFLCLWH (23w White)

DES1X27GUFLCLBS (27w Brushed Steel)

DES1X27GUFLCLWH (27w White)

(Great for basements

and crawl spaces too!)

Height: 9.45”

Width: 5.75”

Depth: 4.4”

Porch Light

Polycarbonate body, black or white finish with

prismatic diffuser. Choice of either wall or ceiling

mounted unit.

564XXBPCGU* 564XXWPCGU*

563XXBPCGU* 563XXWPCGU*

Available with choice of

one 9w, 13w, 18w, 23w,

or 27w GU lamp.

2 013 CATALOG

2 013 CATALOG

800.324.1496 | tcpi.com

800.324.1496 | tcpi.com

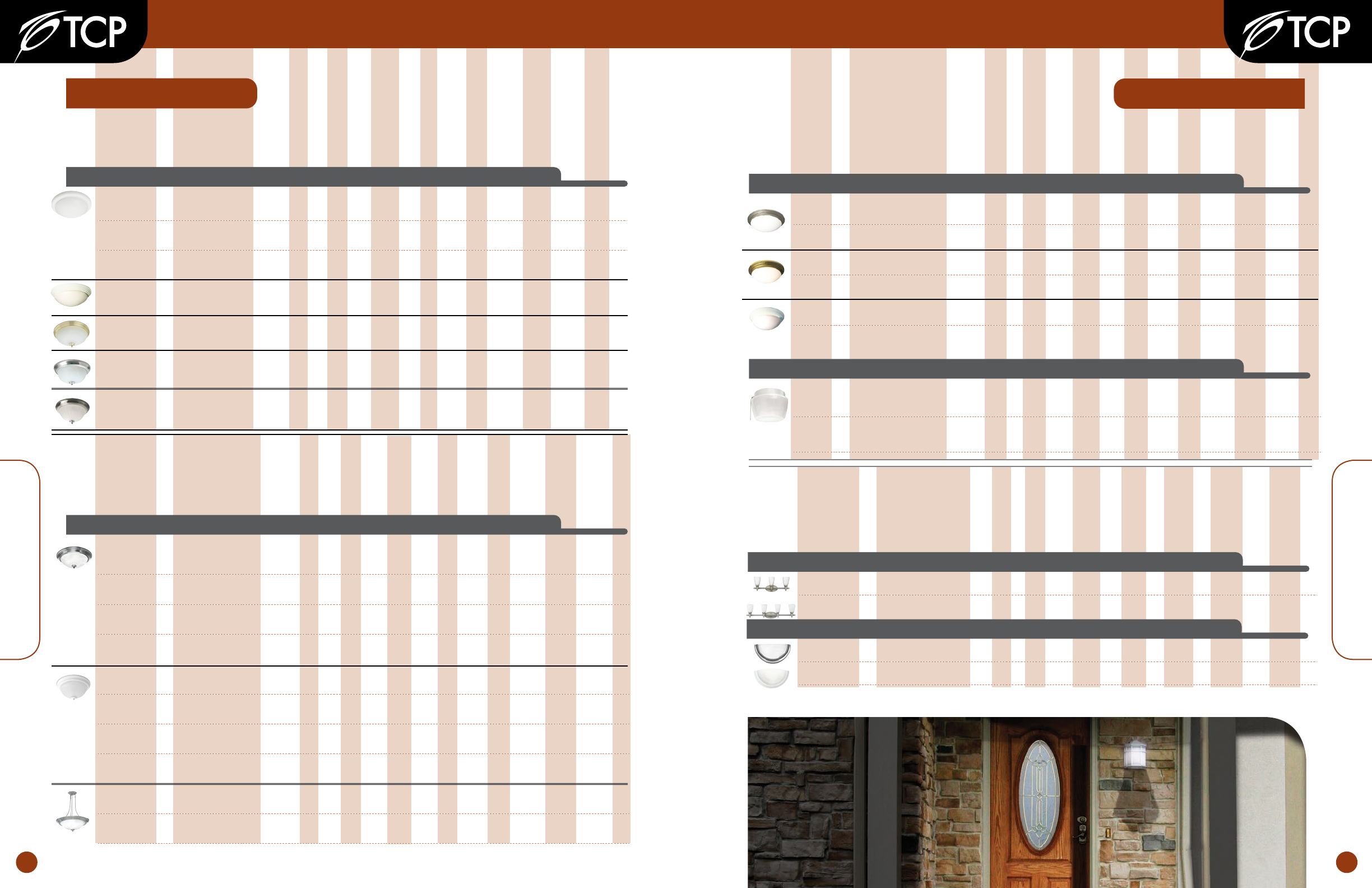

Decorative CFL Fixtures

Decorative CFL Fixtures

Item Number

Item Number

Item Number

ENERGY STAR®

ENERGY STAR®

ENERGY STAR®

Item Description

Item Description

Item Description

Lamp Type

Lamp Type

Lamp Type

Ballast / Lamp Watts

Ballast / Lamp Watts

Ballast / Lamp Watts Ballast Watts

Ballast Watts

Ballast Watts Incandescent Comparison

Incandescent Comparison

Incandescent Comparison

Initial Lumens

Initial Lumens

Initial Lumens

Correlated Color Temperature

Correlated Color Temperature

Correlated Color Temperature Width / Diameter

Width / Diameter

Width / Diameter Depth

Depth

Depth Lamp Life

Lamp Life

Lamp Life Voltage

Voltage

Voltage Lens Color

Lens Color

Lens Color Overall Finish

Overall Finish

Overall Finish Replacement Lamp

Replacement Lamp

Replacement Lamp Replacement Ballast

Number of Lamps

Number of Lamps

Number of Lamps

CEILING Fixtures Specs

GU24 CEILING Fixtures Specs

GU24 CEILING Fixtures Specs

GU24 CLOSET LIGHT Specs

11730T9WHBULK6 14” White Ring Base w/

Plastic Dome 6-Pack Circline 30 30 120 2,000 2850K 14 4.4 10,000 120 White Plastic White 32030 17030Q 1

1173032WHHP 14” White Ring Base w/

Plastic Dome Circline 30 32 130 2,200 2850K 14 4.4 10,000 120 White Plastic White 32032 12530Q 1

1173032WH 14” White Ring Base w/

Plastic Dome Circline 30 32 130 2,200 2850K 14 4.4 10,000 120 White Plastic White 32032 17030Q 1

11830WH H14” White Step Base w/

Plastic Dome Circline 30 30 120 2,000 2850K 14 4.4 10,000 120 White Plastic White 32030 17030Q 1

11930PB H14” Polished Brass Step Base

w/ Plastic Swirl Cover Circline 30 30 120 2,000 2850K 14 4.4 10,000 120 White Swirl

Plastic Polished

Brass 32030 17030Q 1

14230BS 13” Brushed Nickel Base w/

Alabaster Glass Circline 30 30 120 2,000 2850K 13 6.3 10,000 120 Alabaster Brushed

Nickel 32030 17030Q 1

14840BS H13” Brushed Nickel Base w/

Alabaster Glass Circline 40 40 150 2,800 2850K 13 6.3 10,000 120 Melon Brushed

Nickel 32040 17040Q 1

11826BSGU H14" Faux Brushed Steel Step Base w/

Plastic Dome Cover GU24

SpringLamp 13 13 60 900 *2700K 11.5 6 10,000 120 White Brushed

Steel 33113SP 2

11836BSGU 14" Faux Brushed Steel Step Base w/

Plastic Dome Cover GU24

SpringLamp 18 18 75 1,200 *2700K 11.5 6 10,000 120 White Brushed

Steel 33118SP 2

11826PBGU H14" Faux Polished Brass Step Base w/

Plastic Dome Cover GU24

SpringLamp 13 13 60 900 *2700K 15.5 5.5 10,000 120 White Polished

Brass 33113SP 2

11836PBGU 14" Faux Polished Brass Step Base w/

Plastic Dome Cover GU24

SpringLamp 18 18 75 1,200 *2700K 15.5 5.5 10,000 120 White Polished

Brass 33118SP 2

11826WHGU H14" White Step Base w/ Plastic

Dome Cover GU24

SpringLamp 13 13 60 900 *2700K 19.25 25 10,000 120 White White 33113SP 2

11836WHGU 14" White Step Base w/ Plastic

Dome Cover GU24

SpringLamp 18 18 75 1,200 *2700K 19.25 25 10,000 120 White White 33118SP 2

CL13 H13W Closet Light, Pull Chain GU24

SpringLamp 13 13 60 900 *2700K 5 4 10,000 120 White White

Plastic 33213SSP 1

CL13B H13W Closet Light, Without Pull Chain GU24

SpringLamp 13 13 60 900 *2700K 5 4 10,000 120 White White

Plastic 33213SSP 1

Decorative Fixture Specs

Decorative Fixture Specs

8180

* 3000K, 3500K, 4100K, 5100K GU24 lamps also available.

Item Number

ENERGY STAR®

Item Description

Lamp Type

Ballast / Lamp Watts

Ballast Watts

Incandescent Comparison

Initial Lumens

Correlated Color Temperature

Width / Diameter

MOL / Height

Depth

Lamp Life

Voltage

Lens Color

Overall Finish

Replacement Lamp

Number of Lamps

GU24 VANITY Fixture Specs

GU24 WALL SCONCE Fixture Specs

* 3000K, 3500K, 4100K, 5100K GU24 lamps also available.

DES3X13GUBATHBS HDesigner Collection 3 Lamp Bath Bar

w/ Brushed Nickel Finish GU24 13 39 60 2,700 2700K 10 26.25 5.5 10,000 120 Alabaster Brushed

Nickel 33113SP 3

DES4X13GUBATHBS HDesigner Collection 4 Lamp Bath Bar

w/ Brushed Nickel Finish GU24 13 52 60 3,600 2700K 10 36.25 5.5 10,000 120 Alabaster Brushed

Nickel 33113SP 4

DES1X23GUWALLBS HDesigner Collection Wall Sconce 1 x

23w w/ Brushed Nickel finish GU24 23 23 90 1,600 2700K 7.5 15.25 4.25 10,000 120 Alabaster Brushed

Nickel 33123SP 1

DES1X23GUWALLWH HDesigner Collection Wall Sconce 1 x

23w w/ White finish GU24 23 23 90 1,600 2700K 7.5 15.25 4.25 10,000 120 Alabaster White 33123SP 1

DES1X23GUFLCLBS H15” Flush Mount Ceiling Fixture

1 x 23w w/ Brushed Nickel Finish GU24

SpringLamp 23 23 90 1,600 *2700K 15.5 5.5 10,000 120 Alabaster Brushed

Nickel 33123SP 1

DES1X23GUFLCLWH H15” Flush Mount Ceiling Fixture

1 x 23w w/ White Finish GU24

SpringLamp 23 23 90 1,600 *2700K 15.5 5.5 10,000 120 Alabaster White 33123SP 1

DES1X27GUFLCLBS H15” Flush Mount Ceiling Fixture

1 x 27w w/ Brushed Nickel Finish GU24

SpringLamp 27 27 100 1,800 *2700K 15.5 5.5 10,000 120 Alabaster Brushed

Nickel 33127SP 1

DES1X27GUFLCLWH H15” Flush Mount Ceiling Fixture

1 x 27w w/ White Finish GU24

SpringLamp 27 27 100 1,800 *2700K 15.5 5.5 10,000 120 Alabaster White 33127SP 1

DES1X18GUFLCLBS H11” Flush Mount Ceiling Fixture

1 x 18w w/ Brushed Nickel Finish GU24

SpringLamp 18 18 75 1,200 *2700K 11.5 6 10,000 120 Alabaster Brushed

Nickel 33118SP 1

DES1X18GUFLCLWH H11” Flush Mount Ceiling Fixture

1 x 18w w/ White Finish GU24

SpringLamp 18 18 75 1,200 *2700K 11.5 6 10,000 120 Alabaster White 33118SP 1

DES2X18GUFLCLBS 11” Flush Mount Ceiling Fixture

2 x 18w w/ Brushed Nickel Finish GU24

SpringLamp 18 36 75 2,400 *2700K 11.5 6 10,000 120 Alabaster Brushed

Nickel 33118SP 2

DES2X18GUFLCLWH 11” Flush Mount Ceiling Fixture

2 x 18w w/ White Finish GU24

SpringLamp 18 36 75 2,400 *2700K 11.5 6 10,000 120 Alabaster White 33118SP 2

DES2X18GUPENDBS HCeiling Pendant Fixture 2 x t18w

w/ Brushed Nickel Finish GU24

SpringLamp 18 36 75 2,400 *2700K 19.25 25 10,000 120 Alabaster Brushed

Nickel 33118SP 2

DES2X18GUPENDWH HCeiling Pendant Fixture 2 x 18w

w/ Brushed Nickel Finish GU24

SpringLamp 18 36 75 2,400 *2700K 19.25 25 10,000 120 Alabaster White 33118SP 2

2 013 CATALOG

2 013 CATALOG

800.324.1496 | tcpi.com

800.324.1496 | tcpi.com

Decorative CFL Fixtures

Decorative CFL Fixtures

Item Number

Item Number

ENERGY STAR®

ENERGY STAR®

Item Description

Item Description

Lamp Type

Lamp Type

Ballast / Lamp Watts

Ballast / Lamp Watts

Ballast Watts

Ballast Watts

Incandescent Comparison

Incandescent Comparison

Initial Lumens

Initial Lumens

Correlated Color Temperature

Correlated Color Temperature

Width / Diameter

Width / Diameter

MOL / Height

MOL / Height

Depth

Lamp Life

Lamp Life

Depth

Voltage

Voltage

Lens Color

Lens Color

Overall Finish

Overall Finish

Replacement Lamp

Replacement Lamp

Number of Lamps

Number of Lamps

56513BRPCGU Outdoor Floodlight GU24 13 13 60 900 *2700K 6.6 9.5 4.5 10,000 120 Clear Brown 33113SP 1

56518BRPCGU GU24 18 18 75 1,200 *2700K 6.6 9.5 4.5 10,000 120 Clear Brown 33118SP 1

56523BRPCGU GU24 23 23 90 1,600 *2700K 6.6 9.5 4.5 10,000 120 Clear Brown 33123SP 1

56527BRPCGU GU24 27 27 100 1,800 *2700K 6.6 9.5 4.5 10,000 120 Clear Brown 33127SP 1

56532BRPCGU GU24 32 32 120 2,000 *2700K 6.6 9.5 4.5 10,000 120 Clear Brown 33132SP 1

55813BPCGU HOutdoor Globe, Wall Mount,

Black Finish, White Diffuser GU24 13 13 60 900 *2700K 10 7.4 6 10,000 120 WH Black 33113SP 1

55818BPCGU HGU24 18 18 75 1,200 *2700K 10 7.4 6 10,000 120 WH Black 33118SP 1

55823BPCGU GU24 23 23 90 1,600 *2700K 10 7.4 6 10,000 120 WH Black 33123SP 1

55813WPCGU HOutdoor Globe, Wall Mount,

White Finish, White Diffuser GU24 13 13 60 900 *2700K 10 7.4 6 10,000 120 WH White 33113SP 1

55818WPCGU HGU24 18 18 75 1,200 *2700K 10 7.4 6 10,000 120 WH White 33118SP 1

55823WPCGU GU24 23 23 90 1,600 *2700K 10 7.4 6 10,000 120 WH White 33123SP 1

52013BPCGU HOutdoor Lantern Fixture, Wall

Mount, Black Finish GU24 13 13 60 900 *2700K 9.75 7.75 4.25 10,000 120 White Black 33113SP 1

52018BPCGU HGU24 18 18 75 1,200 *2700K 9.75 7.75 4.25 10,000 120 White Black 33118SP 1

52023BPCGU HGU24 23 23 90 1,600 *2700K 9.75 7.75 4.25 10,000 120 White Black 33123SP 1

52013WPCGU HOutdoor Lantern Fixture, Wall

Mount, White Finish GU24 13 13 60 900 *2700K 9.75 7.75 4.25 10,000 120 White White 33113SP 1

52018WPCGU HGU24 18 18 75 1,200 *2700K 9.75 7.75 4.25 10,000 120 White White 33118SP 1

52023WPCGU HGU24 23 23 90 1,600 *2700K 9.75 7.75 4.25 10,000 120 White White 33123SP 1

52013BSPCGU HOutdoor Lantern Fixture, Wall

Mount, Brushed Steel Finish GU24 13 13 60 900 *2700K 9.75 7.75 4.25 10,000 120 White Brushed

Steel 33113SP 1

52018BSPCGU HGU24 18 18 75 1,200 *2700K 9.75 7.75 4.25 10,000 120 White Brushed

Steel 33118SP 1

52023BSPCGU HGU24 23 23 90 1,600 *2700K 9.75 7.75 4.25 10,000 120 White Brushed

Steel 33123SP 1

51013BPCGU HOutdoor Pagoda Fixture,

Black Finish GU24 13 13 60 900 *2700K 9 6 7 10,000 120 White Black 33113SP 1

51018BPCGU HGU24 18 18 75 1,200 *2700K 9 6 7 10,000 120 White Black 33118SP 1

51023BPCGU HGU24 23 23 90 1,600 *2700K 9 6 7 10,000 120 White Black 33123SP 1

51027BPCGU HGU24 27 27 90 1,800 *2700K 9 6 7 10,000 120 White Black 33127SP 1

51032BPCGU HGU24 32 32 90 2,000 *2700K 9 6 7 10,000 120 White Black 33132SP 1

51013WPCGU HOutdoor Pagoda Fixture,

White Finish GU24 13 13 60 900 *2700K 9 6 7 10,000 120 White White 33113SP 1

51018WPCGU HGU24 18 18 75 1,200 *2700K 9 6 7 10,000 120 White White 33118SP 1

51023WPCGU HGU24 23 23 90 1,600 *2700K 9 6 7 10,000 120 White White 33123SP 1

51027WPCGU HGU24 27 27 90 1,800 *2700K 9 6 7 10,000 120 White White 33127SP 1

51032WPCGU HGU24 32 32 90 2,000 *2700K 9 6 7 10,000 120 White White 33132SP 1

57013BPCGU HOutdoor Wallpack, Black Finish GU24 13 13 60 900 *2700K 10 7.4 4.4 10,000 120 Prismatic Black 33113SP 1

57018BPCGU HGU24 18 18 75 1,200 *2700K 10 7.4 4.4 10,000 120 Prismatic Black 33118SP 1

57023BPCGU HGU24 23 23 90 1,600 *2700K 10 7.4 4.4 10,000 120 Prismatic Black 33123SP 1

57027BPCGU HGU24 27 27 100 1,200 *2700K 10 7.4 4.4 10,000 120 Prismatic Black 33127SP 1

57032BPCGU HGU24 32 32 120 1,600 *2700K 10 7.4 4.4 10,000 120 Prismatic Black 33132SP 1

57013WPCGU HOutdoor Wallpack, White Finish GU24 13 13 60 900 *2700K 10 7.4 4.4 10,000 120 Prismatic White 33113SP 1

57018WPCGU HGU24 18 18 75 1,200 *2700K 10 7.4 4.4 10,000 120 Prismatic White 33118SP 1

57023WPCGU HGU24 23 23 90 1,600 *2700K 10 7.4 4.4 10,000 120 Prismatic White 33123SP 1

57027WPCGU HGU24 27 27 100 1,200 *2700K 10 7.4 4.4 10,000 120 Prismatic White 33127SP 1

57032WPCGU GU24 32 32 120 1,600 *2700K 10 7.4 4.4 10,000 120 Prismatic White 33132SP 1

8382

Decorative Fixture Specs

Decorative Fixture Specs

GU24 OUTDOOR FLOODLIGHT Fixture Specs GU24 PAGODA Fixture Specs

GU24 OUTDOOR GLOBE Fixture Specs

GU24 OUTDOOR LANTERN Fixture Specs

* 3000K, 3500K, 4100K, 5100K GU24 lamps also available.

GU24 OUTDOOR PORCH Fixture Specs

2 013 CATALOG

2 013 CATALOG

800.324.1496 | tcpi.com

800.324.1496 | tcpi.com

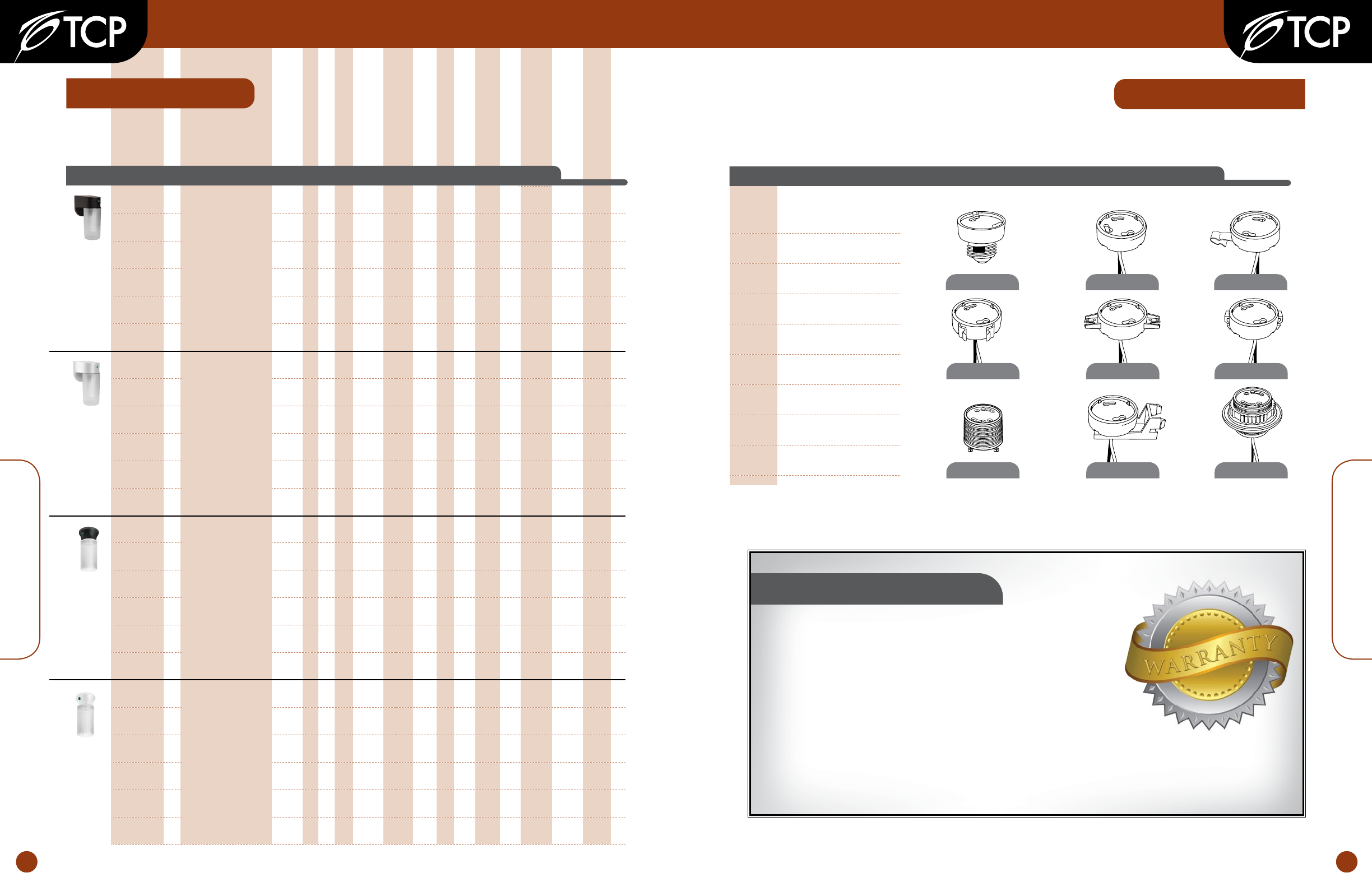

Decorative CFL Fixtures

Decorative CFL Fixtures

Item Number

ENERGY STAR®

Item Description

Lamp Type

Ballast / Lamp Watts

Ballast Watts

Incandescent Comparison

Initial Lumens

Correlated Color Temperature

Width / Diameter

MOL / Height

Depth

Lamp Life

Voltage

Lens Color

Overall Finish

Replacement Lamp

Number of Lamps

56309BPCGU HOutdoor Porch Light, Wall Mount,

Black Finish, Prismatic Diffuser GU24 9 9 40 450 *2700K 10 7.4 6 10,000 120 Prismatic Black 33109SP 1

56313BPCGU HGU24 13 13 60 900 *2700K 10 7.4 6 10,000 120 Prismatic Black 33113SP 1

56318BPCGU HGU24 18 18 75 1,200 *2700K 10 7.4 6 10,000 120 Prismatic Black 33118SP 1

56323BPCGU HGU24 23 23 90 1,600 *2700K 10 7.4 6 10,000 120 Prismatic Black 33123SP 1

56327BPCGU HGU24 27 27 100 1,850 *2700K 10 7.4 6 10,000 120 Prismatic Black 33127SP 1

56332BPCGU HGU24 32 32 120 2,200 *2700K 10 7.4 6 10,000 120 Prismatic Black 33132SP 1

56309WPCGU HOutdoor Porch Light, Wall Mount,

White Finish, Prismatic Diffuser GU24 9 9 40 450 *2700K 10 7.4 6 10,000 120 Prismatic White 33109SP 1

56313WPCGU HGU24 13 13 60 900 *2700K 10 7.4 6 10,000 120 Prismatic White 33113SP 1

56318WPCGU HGU24 18 18 75 1,200 *2700K 10 7.4 6 10,000 120 Prismatic White 33118SP 1

56323WPCGU HGU24 23 23 90 1,600 *2700K 10 7.4 6 10,000 120 Prismatic White 33123SP 1

56327WPCGU HGU24 27 27 100 1,850 *2700K 10 7.4 6 10,000 120 Prismatic White 33127SP 1

56332WPCGU HGU24 32 32 120 2,200 *2700K 10 7.4 6 10,000 120 Prismatic White 33132SP 1

56409BPCGU HOutdoor Porch Light, Ceiling Mount,

Black Finish, Prismatic Diffuser GU24 9 9 40 450 *2700K 10 7.4 6 10,000 120 Prismatic Black 33109SP 1

56413BPCGU HGU24 13 13 60 900 *2700K 10 7.4 6 10,000 120 Prismatic Black 33113SP 1

56418BPCGU HGU24 18 18 75 1,200 *2700K 10 7.4 6 10,000 120 Prismatic Black 33118SP 1

56423BPCGU HGU24 23 23 90 1,600 *2700K 10 7.4 6 10,000 120 Prismatic Black 33123SP 1

56427BPCGU HGU24 27 27 100 1,850 *2700K 10 7.4 6 10,000 120 Prismatic Black 33127SP 1

56432BPCGU HGU24 32 32 120 2,200 *2700K 10 7.4 6 10,000 120 Prismatic Black 33132SP 1

56409WPCGU HOutdoor Porch Light, Ceiling Mount,

White Finish, Prismatic Diffuser GU24 9 9 40 450 *2700K 10 7.4 6 10,000 120 Prismatic White 33109SP 1

56413WPCGU HGU24 13 13 60 900 *2700K 10 7.4 6 10,000 120 Prismatic White 33113SP 1

56418WPCGU HGU24 18 18 75 1,200 *2700K 10 7.4 6 10,000 120 Prismatic White 33118SP 1

56423WPCGU HGU24 23 23 90 1,600 *2700K 10 7.4 6 10,000 120 Prismatic White 33123SP 1

56427WPCGU HGU24 27 27 100 1,850 *2700K 10 7.4 6 10,000 120 Prismatic White 33127SP 1

56432WPCGU HGU24 32 32 120 2,200 *2700K 10 7.4 6 10,000 120 Prismatic White 33132SP 1

8584

Decorative Fixture Specs

Decorative Fixture Warranty

* 3000K, 3500K, 4100K, 5100K GU24 lamps also available.

This TCP product is warranted for a period of two years from date of original purchase against defects in materials

and workmanship. If these products fail to operate due to materials and/or workmanship, simply return this to

the place of purchase or to the TCP, Inc. Service Center (address on the back of catalog) with its RGA as stated in

the terms and conditions, and the product will be repaired or replaced at TCP’s sole discretion. This warranty is

expressly limited to repair or replacement of the product. No labor charge will be honored without prior written

factory authorization. Damage incurred from handling or in transit is not covered by this warranty. Claims from

shipping damages must be filed with the carrier. This warranty gives the customer specific legal rights, which vary

from state to state. Light bulbs are not covered in this warranty. WARRANTY IS VOID IF PRODUCT IS NOT USED FOR

THE PURPOSE FOR WHICH THIS PRODUCT IS MANUFACTURED.

GU24 OUTDOOR PORCH Fixture Specs

331SKTLKT Socket Lock It

331002SKT 2 Way Socket - 12”, 24”, 72” Lengths

331SPRCLP Spring Clip Ceiling Applications

331SDSKT For Vanity Lights and Ceiling Fixtures

331003SKT Recessed Can Socket

331004SKT Clips into Recessed Can

331EXTNT Socket Extender

331SDADJ Adjustable for Vanity Applications

331THSKT Pendant Mount Socket

331SKTLKT

331003SKT 331004SKT331SDSKT

T

331002SKT 331SPRCLP

331SDADJ 331THSKT

331EXTNT

GU24 Sockets

Decorative Fixture Specs

All LED Die-Cast

Aluminum COMBO

(LEDDCDRALCOMBO)

All LED COMBO Signs

(LED20784)

FEATURES / BENEFITS

• Long LED lamp life of 25 years and very

low energy consumption.

• Our battery backup units feature either a

maintenance-free nickel-cadmium battery or

sealed lead acid battery; both offering an

expected life of up to 10 years.

• 7 year battery warranty on NiCad battery

• We offer signs for every application!

From die cast aluminum to sleek

Injection-molded high-impact thermoplastic

units, TCP has the perfect solution for you

for the following applications:

• Theaters

• Malls

• Schools

• Commercial Buildings

• Office Buildings

• Multi-unit Residential Buildings

• Hotels and More!

8786

Exit & Emergency

(All LED option)

Exit & Emergency Lighting

800.324.1496 | tcpi.com

Exit & Emergency Lighting

800.324.1496 | tcpi.com

2 013 CATALOG

2 013 CATALOG

EXIT

EMERGENCY

&

We are proud to offer our new full LED exit and emergency line. This line offer the best in

energy efficiency and is perfect for many applications, including damp location. These well

designed, beautiful units are low maintenance and provide the brightest light while using very

little energy.

All LED Light Stream

COMBO

(LEDPCUGWRC)

LED Low Profile Thermoplastic

Emergency Light

(LEDWEL)

All LED Wet Location Rated

Emergency Decorative Unit

(Also available in Cold Location)

(WLBSDT)

LED Remote Heads

(LEDRH2)

Snap-on

All LED Combo

(LEDRWRC)

NEW FOR

2013!

All lED Combo SignS

All lED EmErgEnCy lighting

Item Number

TCP Traditional Item

Number

Item Number

Item Description

Item Description

Watts

Watts

Height (inches)

Height (inches)

Width (inches)

Width (inches)

Depth (Inches)

Depth (Inches)

Exit Color

AC/Battery Backup

Temperature Range

Housing Color

Housing Color

Battery

Stocking or Special

Stocking or Special

Wet Location

Emergency Light

LED Die Cast

Combo

All LED Combo

Signs

All LED

Emergency Lighting

LED20723 20723 White LED Combo Universal

Face,Red, White Housing 3 8 16.2 2.1 red NiCd

BBUP white 32F to

122F 207B3 ST

LED20725 20725 White LED Combo Universal

Face,Green, White Housing 3 8 16.2 2.1 green NiCd

BBUP white 32F to

122F 207B3 ST

LED20784 20784 White LED Combo Universal

Face,Red, White Housing,

Remote Capable 3 8 16.2 2.1 red NiCd

BBUP white 32F to

122F 207B3 ST

LED20785 20785 White LED Combo Universal

Face,Green, White Housing,

Remote Capable 3 8 16.2 2.1 green NiCd

BBUP white 32F to

122F 207B3 ST

LEDWEL 20760,

20761

White LED

Emergency Light 3 3.5 9 2.1 BBUP white 207B3 ST

LEDWELRC 20765

White LED

Emergency Light Remote

Capable

3 3.5 9 2.1 BBUP white 207B3 ST

LEDWELSDT 20766SD White LED Emergency Light,

SDT 3 3.5 9 2.1 BBUP white 207B3 ST

LEDWELRCSDT 20765,

20766SD

White LED

Emergency Light, White

Remote Capable,SDT

3 3.5 9 2.1 BBUP white 207B3 SP

LEDEL1SDT 207R1 LED Emergency Lighting

Remote Head Single SDT 1 5 3 3 white ST

LEDEL2SDT 207R2 LED Emergency Lighting

Remote Head Double SDT 1.5 5 8 3 white ST

LEDEL1SDTWL LED Emergency Lighting

Single Remote Head Wet

Location SDT 1 5 3 3 white ST

LEDEL2SDTWL LED Emergency Lighting

Double Remote Head Wet

Location SDT 1.5 5 8 3 white SP

LEDWELB 20762,

20763D LED Emergency Lighting

Black 3 3.5 9 2.1 Black ST

LEDWELRCB LED Emergency Lighting,

Black, Remote Capable 3 3.5 9 2.1 Black ST

LEDWELSDTB LED Emergency Lighting,

Black,SDT 3 3.5 9 2.1 Black SP

LEDWELRCSDTB LED Emergency

Lighting Black Remote

Capable SDT 3 3.5 9 2.1 Black SP

LEDEL1SDTB LED Emergency Lighting

Remote Head, Single, Black

1

5 3 3 Black ST

LEDEL2SDTB LED Emergency Lighting

Remote Head, Double, Black

1.5

5 8 3 Black ST

LEDEL1SDTWLB LED Emergency Lighting

Remote Head, Black, Wet

Location SDT, Single

1

5 3 3 Black SP

LEDEL2SDTWLB LED Emergency Lighting

Remote Head, Black, Wet

Location SDT, Double

1.5

5 8 3 Black SP

Accessories

LEDRH1 Led Combo Remote Head, Single Head, SDT

LEDRH2 Led Combo Remote Head, Double Head, SDT

Call for availability on Special (SPC)

Call for availability on Special (SPC)

8988

Exit & Emergency Lighting

800.324.1496 | tcpi.com

Exit & Emergency Lighting

800.324.1496 | tcpi.com

2 013 CATALOG

2 013 CATALOG

LEDRH1WLSDT Led Combo Remote Head, Single Head, Wet Location, SDT

LEDRH2WLSDT Led Combo Remote Head,Double Head, Wet Location, SDT

LED Emergency Lighting Remote Heads

Black LED Emergency Lighting

blACk lED EmErgEnCy lighting rEmotE hEADS

WLBSDT

WET LOCATION, DIE CAST

EMERGENCY LIGHT, BLACK

SDT, LED

8 7.3 8.5 10.5 BL BBUP 207B3 ST

WLBRSDT

WET LOCATION, DIE CAST

EMERGENCY LIGHT, BRONZE,

SDT,LED

8 7.3 8.5 10.5 BRONZE BBUP 207B3 ST

WLWSDT

WET LOCATION, DIE CAST

EMERGENCY LIGHT, WHITE,

SDT,LED

8 7.3 8.5 10.5 WH BBUP 207B3 SP

WLBSDTCW

WET LOCATION, DIE CAST

EMERGENCY LIGHT, BLACK

SDT, LED, COLD WEATHER

8 7.3 8.5 10.5 BL BBUP 207B3 ST

WLBRSDTCW

WET LOCATION, DIE CAST

EMERGENCY LIGHT, BRONZE,

SDT, LED, COLD WEATHER

8 7.3 8.5 10.5 BRONZE BBUP 207B3 SP

WLWSDTCW

WET LOCATION, DIE CAST

EMERGENCY LIGHT, WHITE,

SDT, LED, COLD WEATHER

8 7.3 8.5 10.5 WH BBUP 207B3

207B3 SP

LEDDCDRALCOMBO

COMBO DIE CAST, DOUBLE

FACE,RED,BBUP,LED, ALUMI-

NUM FACE,BODY

5 8.2 9.1 8.2 ALUMINUM BBUP 207B3 ST

LEDDCDRWCOMBO

COMBO DIE CAST DOUBLE

FACE RED BBUP, WHITE FACE

AND BODY

5 8.2 9.1 8.2 WH BBUP 207B3 SP

LEDDCGALCOMBO

COMBO DIE CAST, DOUBLE

FACE,GREEN,BBUP,LED,

ALUMINUM FACE,BODY

5 8.2 9.1 8.2 ALUMINUM BBUP 207B3 SP

LEDDCGWCOMBO

COMBO DIE CAST DOUBLE

FACE GREEN BBUP, WHITE

FACE AND BODY

5 8.2 9.1 8.2 WH BBUP 207B3 SP

WEt loCAtion DiE CASt EmErgEnCy light

lED DiE CASt Combo

(Add “B” to the end of Part

# for Black Housing Version.

ex. LED20723B)

AC/Battery Backup

Battery

PolyCArbonAtE lED Exit SignS, 120 or 277 VoltAgE, DAmP loCAtion

PolyCArbonAtE EmErgEnCy lightS, 120 or 277 VoltAgE, DAmP loCAtion

Item Number

Item Description

Watts

Height (inches)

Width (inches)

Depth (Inches)

Lamp Life (Yrs.)

Exit Color

Single/Double Face

AC/Battery Backup

Number Of Lamps

Temperature Range

Housing Color

Exit Plate Color

Battery Runtime (Min)

Certifications

Stocking or Special

Polycarbonate

LED Exit Signs

Polycarbonate

Emergency Lights

22742

Red LED Exit Sign

Universal AC Only

White Housing

2.4 7.25 11.8 1.8 25 red AC Only D white 50F to

104F N/A N/A N/A 90

NFPA LIFE

Safety Code

101, NEC, ETL

STK

22743

Red LED Exit Sign

Universal Battery

Backup White Housing

2.3 7.25 11.8 1.8 25 red BBUP D white 50F to

104F N/A 207B2 N/A 90

NFPA LIFE

Safety Code

101, NEC, ETL

STK

22745

Green LED Exit Sign

Universal Battery

Backup White Housing

2.3 7.25 11.8 1.8 25 green BBUP D white 50F to

104F N/A 207B3 N/A 90

NFPA LIFE

Safety Code

101, NEC, ETL

STK

22747

Red LED Exit Sign

Universal Battery

Backup Black Housing

2.4 7.25 11.8 1.8 25 red BBUP D black 50F to

104F N/A 207B2 N/A 90

NFPA LIFE

Safety Code

101, NEC, ETL

STK

22749

Green LED Exit Sign

Universal Battery

Backup Black Housing

2.4 7.25 11.8 1.8 25 green BBUP D black 50F to

104F N/A 207B3 N/A 90

NFPA LIFE

Safety Code

101, NEC, ETL

STK

20750 Red LED Exit Sign

Dual Circuit 4 8.5 12.25 1.75 25 red AC Only D white

-4ºF

to

113ºF

N/A N/A N/A

UL 924, NFPA

LIFE Safety

Code 101

STK

20751 Green LED Exit Sign

Dual Circuit 2 8.5 12.25 1.75 25 green AC Only D white

-4ºF

to

113ºF

N/A N/A N/A

UL 924, NFPA

LIFE Safety

Code 101

STK

20743

DRM

Red LED Exit Sign

Universal Battery

Backup White Housing

Remote Capable

3.2 10 13 2.75 25 red BBUP D white

-4ºF

to

113ºF

N/A 20734 N/A 90

UL 924, NFPA

LIFE Safety

Code 101, ETL

Listed, NEC,

OSHA

STK

20745

DRM

Green LED Exit Sign

Universal Battery

Backup White Housing

Remote Capable

2 10 13 2.75 25 green BBUP D white

-4ºF

to

113ºF

N/A 20734 N/A 90

UL 924, NFPA

LIFE Safety

Code 101, ETL

Listed, NEC,

OSHA

STK

20760

Emergency Light

2 x 5.4W Square

Heads, White Finish

10.8

5 16 3.5 N/A N/A BBUP N/A white

20º

to

95ºF

2

6V

5.4W

939/

20734

N/A 90 UL/ETL

Listed STK

207606

6-Pack Emergency

Light 2 x 5.4W Square

Heads, White Finish

10.8

5 16 3.5 N/A N/A BBUP N/A white

20º

to

95ºF

2

6V

5.4W

939/

20734

N/A 90 UL/ETL

Listed STK

20765

Emergency Light 2 x

5.4W Square Heads,

White Finish w/

Remote Capability

10.8

5 16 3.5 N/A N/A BBUP N/A white

20º

to

95ºF

2

6V

5.4W

939/

20739

N/A 90 UL/ETL

Listed STK

21760

Emergency Light 2 x

5.4W Fixed Prismatic

Heads White

10.8

5 12 2.5 N/A N/A BBUP N/A white

20º

to

95ºF

2

6V

54W

DC T5/

20734

90 UL/ETL

Listed STK

21762

Emergency Light 2 x

5.4W Fixed Prismatic

Heads Black

10.8

5 12 2.5 N/A N/A BBUP N/A black

20º

to

95ºF

2

6V

54W

DC T5/

20734

90 UL/ETL

Listed STK

Accessories for Poly LED Exit Signs

207WG Wire Guard for Exit Sign

207WGWH White Wire Guard for Exit Sign

207PS Polycarbonate shield for Exit Sign

207B2 Ni-Cd Battery 2.4V 300 mAh

207B3 Ni-Cd Battery 3.6V 300 mAh

20734 Lead Acid Battery 6V 4.5 Ah

20704 Plastic Exit Canopy

Accessories for Poly Emergency Lights

207WG Wire Guard for Exit Sign

207R1 Single White Remote Head 6W 6V

207R2 Double White Remote Head 6W 6V

207R3 Single Grey Remote Waterpoof Head 5.4W 6V

207R4 Double Grey Remote Waterproof Head 2 X 5.4W 6V

20734 Lead Acid Battery 6V 4.5 Ah In-terminals

20734J Lead Acid Battery 6V 4.5 Ah Out-terminals

20739 Lead Acid Battery 6V 10 Ah

Call for availability on Special (SPC)

Replacement Lamp / Battery

9190

Exit & Emergency Lighting

800.324.1496 | tcpi.com

Exit & Emergency Lighting

800.324.1496 | tcpi.com

2 013 CATALOG

2 013 CATALOG

PolyCArbonAtE EmErgEnCy / Exit CombinAtion SignS, 120 or 277 VoltAgE, DAmP loCAtion

hEAVy Duty EmErgEnCy lighting, 120 or 277 VoltAgE, DAmP loCAtion

Item Number

Item Description

Watts

Height (inches)

Width (inches)

Depth (Inches)

Lamp Life (Yrs.)

Exit Color

Single/Double Face

AC/Battery Backup

Number Of Lamps

Temperature Range

Housing Color

Replacement Lamp / Battery

Exit Plate Color

Battery Runtime (Min)

Certifications

Stocking or Special

Polycarbonate

Combos

Heavy Duty

Emergency

Lighting

20684 Full LED Exit/Em. Combo

Red Letters, White Housing 1 7.48 12.2 1.65 25+ red BBUP double white 32º to

100ºF 2

206HDS/

207B4

N/A 90 UL 924 Listed STK

20685

Full LED Exit/Em. Combo

Green Letters, White

Housing

1 7.48 12.2 1.65 25+ green BBUP double white 32º to

100ºF 2

206HDS/

207B4

N/A 90 UL 924 Listed STK

20723

2 Headed Adjustable LED

Economy Exit/Em. Combo

Red Letters, White Housing

4 10 22 2.75 red BBUP double white 68º to

104º 2

939/

20734

N/A 90 UL/ETL Listed STK

207232

2 Pack

2 Headed Adjustable

LED Economy Exit/Em.

Combo Red Letters, WH Hs

4 10 22 2.75 red BBUP double white 68º to

104º 2

939/

20734

N/A 90 UL/ETL Listed STK

20784

2 Headed Adjustable LED

Exit/Em. Combo Red Letters

with White Housing, Remote

Capability

4 15.6 21.6 4.5 25 red BBUP double white 5º to

104ºF 2

6V 5.4W

939/20734

N/A 90 UL/ETL Listed STK

20784RM

2 Headed Adjustable LED

Exit/Em. Combo Red

Letters, White Housing

with Remote Test

4 15.6 21.6 4.5 25 red BBUP double white 5º to

104ºF 2

6V 5.4W

939/20734

N/A 90 UL/ETL Listed STK

20785

2 Headed Adjustable LED

Exit/ Em. Combo GRN

Letters, White Housing,

Remote Capability

2 15.6 21.6 4.5 25 green BBUP double white 5º to

104ºF 2

6V 5.4W

939/20734

N/A 90 UL/ETL Listed STK

20794

2 Headed Adjustable LED

Exit/Em. Combo Red

Letters, Black Housing

4 15.6 21.6 4.5 25 red BBUP double black 5º to

104ºF 2

6V 5.4W

939/20734

N/A 90 UL/ETL Listed STK

20795

2 Headed Adjustable LED

Exit/Em. Combo GRN

Letters, Black Housing

2 15.6 21.6 4.5 25 green BBUP double black 5º to

104ºF 2

6V 5.4W

939/20734

N/A 90 UL/ETL Listed STK

Accessories

207LWG Large Wire Guard for Exit Sign 206HDS White LED Emergency Heads

207R1 Single White Remote Head 6W 6V 207B4 Ni-Cd Battery 4.8VDC

207R2 Double White Remote Head 6W 6V 20703 Plasic Exit Canopy LED Combo

207R3 Single Grey Remote Waterpoof Head 5.4W 6V 206FPWH Faceplate LED Combo

207R4 Double Grey Remote Waterproof Head 2 X 5.4W 6V

207RT Hand Held Remote Test Unit

20734 Lead Acid Battery 6V 4.5 Ah In-Terminals

20775

50 Watt 6V Heavy Duty

Emergency Light Unit w/

35W Remote Capacity

50/

35 14 12.5 3 N/A N/A BBUP N/A off-

white

-40º to

50ºC 26V 7.2W/

20739 N/A 90

UL 924, NFPA

LIFE Safety

Code 101, ETL

Listed

SPC

20776

50 Watt 12V Heavy Duty

Emergency Light Unit w/

32W Remote Capacity

50/

32 14 12.5 3 N/A N/A BBUP N/A off-

white

-40º to

50ºC 212V 9W/

20739 N/A 90

UL 924, NFPA

LIFE Safety

Code 101, ETL

Listed

SPC

Accessories

207R1 Single White Remote Head 6W 6V

207R2 Double White Remote Head 6W 6V

207R3 Single Grey Remote Waterpoof Head 5.4W 6V

207R4 Double Grey Remote Waterproof Head 2 X 5.4W 6V

20739 Lead Acid Battery 6V 10 Ah

Call for availability on Special (SPC)

WEt loCAtion Exit AnD EmErgEnCy lighting, 120 or 277 VoltAgE, WEt loCAtion

Item Number

Item Description

Watts

Height (inches)

Width (inches)

Depth (Inches)

Lamp Life (Yrs.)

Exit Color

Single/Double Face

AC/Battery Backup

Number Of Lamps

Temperature Range

Housing Color

Replacement Lamp / Battery

Exit Plate Color

Battery Runtime (Min)

Certifications

Stocking or Special

Wet Location

Exit/Emergency

Diecast Exits

23500

Wet Location Single Face

LED Exit Red Letters

Battery Backup

3 12 12 5.25 25 red BBUP single white 0º to

40ºC 2 20732 N/A 90

NFPA Life

Safety 101,

NEC, OSHA,

NEMA 4

SPC

23501

Wet Location Single Face

LED Exit GRN Letters

Battery Backup

3 12 12 5.25 25 green BBUP single white 0º to

40ºC 2 20732 N/A 90

NFPA Life

Safety 101,

NEC, OSHA,

NEMA 4

SPC

23503

Wet Location Emergency

Unit Battery Back-up

2 - 7.2W 6V heads

14 12.5 9.75 6 N/A n/a BBUP n/a white 0º to

40ºC 2

6V

7.2W/

20739

N/A 90

NFPA Life

Safety 101,

NEC, OSHA,

NEMA 4

SPC

23504

Wet Location Red LED

Exit Emergency Combo

Battery Backup

3 18 12 5.25 25 red BBUP single white 0º to

40ºC 26V 5.4W

939/ N/A 90

NFPA Life

Safety 101,

NEC, OSHA,

NEMA 4

SPC

23505

Wet Location GRN LED

Exit Emergency Combo

Battery Backup

3 18 12 5.25 25 green BBUP single white 0º to

40ºC 26v 5.4W

939/ N/A 90

NFPA Life

Safety 101,

NEC, OSHA,

NEMA 4

SPC

Accessories

20732 Ni-Cd Battery 4.8V 1000 Mah

20739 Lead Acid Battery 6V 10 Ah

Exit & Emergency Lighting

Exit & Emergency Lighting

9392

800.324.1496 | tcpi.com

800.324.1496 | tcpi.com

DiECASt Exit SignS, 120 or 277 VoltAgE, DAmP loCAtion (ContinuED on nExt PAgE)

26D90

Diecast Exit Sign Red Single

Face AC Only

3.6 913.25 1.9 25 red AC Only single black -0º to

50ºF N/A N/A N/A N/A UL/ETL

Listed SPC

26D90W

Diecast Exit Sign Red Single

Face AC Only White

3.6 913.25 1.9 25 red AC Only single white -0º to

50ºF N/A N/A N/A N/A UL/ETL

Listed SPC

26D91

Diecast Exit Sign Green

Single Face AC Only

4.4 913.25 1.9 25 green AC Only single black -0º to

50ºF N/A N/A N/A N/A UL/ETL

Listed SPC

26D91W

Diecast Exit Sign Green

Single Face AC Only White

4.4 913.25 1.9 25 green AC Only single white -0º to

50ºF N/A N/A N/A N/A UL/ETL

Listed SPC

26D93

Diecast Exit Sign Red Double

Face AC Only

3.6 913.25 1.9 25 red AC Only double black -0º to

50ºF N/A N/A N/A N/A UL/ETL

Listed SPC

26D93W

Diecast Exit Sign Red Double

Face AC Only White

3.6 913.25 1.9 25 red AC Only double white -0º to

50ºF N/A N/A N/A N/A UL/ETL

Listed SPC

26D94

Diecast Exit Sign Green

Double Face AC Only

4.4 913.25 1.9 25 green AC Only double black -0º to

50ºF N/A N/A N/A N/A UL/ETL

Listed SPC

26D94W

Diecast Exit Sign Green

Double Face AC Only White

4.4 913.25 1.9 25 green AC Only double white -0º to

50ºF N/A N/A N/A N/A UL/ETL

Listed SPC

26L90

Diecast Exit Sign Red Single

Face Battery Backup

3.6 913.25 1.9 25 red BBUP single black -0º to

50ºF N/A 20730 N/A 90 UL/ETL

Listed SPC

26L90W

Diecast Exit Sign Red Single

Face Battery Backup White

3.6 913.25 1.9 25 red BBUP single white -0º to

50ºF N/A 20730 N/A 90 UL/ETL

Listed SPC

26L91

Diecast Exit Sign Green

Single Face Battery Backup

4.4 913.25 1.9 25 green BBUP single black -0º to

50ºF N/A 20730 N/A 90 UL/ETL

Listed SPC

26L91W

Diecast Exit Sign GRN Single

Face Battery Backup White

4.4 913.25 1.9 25 green BBUP single white -0º to

50ºF N/A 20730 N/A 90 UL/ETL

Listed SPC

26L93

Diecast Exit Sign Red Double

Face Battery Backup

3.6 913.25 1.9 25 red BBUP double black -0º to

50ºF N/A 20730 N/A 90 UL/ETL

Listed SPC

26L93W

Diecast Exit Sign Red Double

Face Battery Backup White

3.6 913.25 1.9 25 red BBUP double white -0º to

50ºF N/A 20730 N/A 90 UL/ETL

Listed SPC

26L94

Diecast Exit Sign Green

Double Face Battery Backup

4.4 913.25 1.9 25 green BBUP double black -0º to

50ºF N/A 20730 N/A 90 UL/ETL

Listed SPC

26L94W

Diecast Exit Sign Green

Double Face Battery Backup

White

4.4 913.25 1.9 25 green BBUP double white -0º to

50ºF N/A 20730 N/A 90 UL/ETL

Listed SPC

Accessories

207WG Wire Guard for Exit Sign

207PS Polycarbonate Shield for Exit Sign

20730 Ni-Cd Battery 4.8V 650 mAh

207WGWH White Wire Guard for Exit Sign

2 013 CATALOG

2 013 CATALOG

nyC APProVED StEEl lED Exit Combo

nyC APProVED StEEl lED Exit

nyC APProVED Exit Sign

nyC lED StEEl EmErgEnCy lighting

Item Number

Item Description

Watts

Height (inches)

Width (inches)

Depth (Inches)

Exit Color

AC/Battery Backup

Housing Color

Replacement Lamp / Battery

Stocking or Special

LEDNYC1 STEEL NYC WHITE EXIT 3.7 10.5 14.5 2.5 RED BBUP WH 207B3 SP

LEDNYC1B STEEL NYC BLACK EXIT 3.7 10.5 14.5 2.5 RED BBUP WH 207B3 SP

LEDNYC2 6V 2 LAMP NYC STEEL COMBO 12 10.6 16.5 4 RED BBUP WH 207B3 SP

LEDNYC3 6V 3 LAMP NYC STEEL COMBO 12 10.6 16.5 4 RED BBUP WH 207B3 SP

LEDNYC4 12V 2 LAMP NYC STEEL COMBO 12 10.6 16.5 4 RED BBUP WH 207B3 SP

LEDNYC5 12V 3 LAMP NYC STEEL COMBO 12 10.6 16.5 4 RED BBUP WH 207B3 SP

LEDNYC6 6V 2 LAMP NYC STEEL EMERGENCY

LIGHT 12 10.5 16.5 2.3 BBUP WH 20734 SP

LEDNYC7 6V 3 LAMP NYC STEEL EMERGENCY

LIGHT 12 10.5 16.5 2.3 BBUP WH 20734 SP

LEDNYC8 12V 2 LAMP NYC STEEL EMER-

GENCY LIGHT 12 10.5 16.5 2.3 BBUP WH 20734 SP

LEDNYC9 12V 3 LAMP NYC STEEL EMER-

GENCY LIGHT 12 10.5 16.5 2.3 BBUP WH 20734 SP

LEDNYC10 AC ONLY NYC LED EXIT WHITE 3.7 9.3 14.5 1.2 AC WH 207B3 SP

LEDNYC10B AC ONLY NYC LED EXIT BLACK 3.7 9.3 14.5 1.2 AC BL 207B3 SP

LED NYC Exits

NYC Exits

nyC Exit SignS – rED, 120 or 277 VoltAgE, inDoor

rECESSED EDgElit Exit SignS - grEEn, 120 or 277 VoltAgE, inDoor (ContinuED on nExt PAgE)

Item Number

Item Number

Item Description

Item Description

Watts

Watts

Height (inches)

Height (inches)

Width (inches)

Width (inches)

Depth (Inches)

Depth (Inches)

Lamp Life (Yrs.)

Lamp Life (Yrs.)

Exit Color

Exit Color

Single/Double Face

Single/Double Face

AC/Battery Backup

AC/Battery Backup

Number Of Lamps

Number Of Lamps

Temperature Range

Temperature Range

Housing Color

Housing Color

Replacement Lamp / Battery

Replacement Lamp / Battery

Exit Plate Color

Exit Plate Color

Battery Runtime (Min)

Battery Runtime (Min)

Certifications

Certifications

Stocking or Special

Stocking or Special

Recessed

Edgelit Exits

NYC Exits

Recessed

Edgelit Exits

Steel

27D98NY Red AC Exit Steel 8

Inch Letters 3 10.5 14.5 2.25 N/A red AC S white -68ºF

122ºF N/A N/A H N/A

UL, NFPA LIFE

Safety Code

101, NEC

SPC

27L98NY Red BBU Exit Steel 8

Inch Letters 5 10.5 14.5 2.25 N/A red BBUP S white -68ºF

122ºF N/A 20736 H 90

UL, NFPA LIFE

Safety Code

101, NEC

SPC

Diecast

26D93NY Diecast Red Double

Face AC 8 Inch Letters 3 10.5 14.5 2.25 N/A red AC D brushed

aluminum

-68ºF

122ºF N/A N/A A N/A

UL, NFPA LIFE

Safety Code

101, NEC

SPC

26L93NY

Diecast Red Double

Face BBU 8 Inch

Letters

5 10.5 14.5 2.25 N/A red BBUP D brushed

aluminum

-68ºF

122ºF N/A 20730 BA 90

UL, NFPA LIFE

Safety Code

101, NEC

SPC

Accessories

207WG Wire Guard for Exit Sign

207PS Polycarbonate Shield for Exit Sign

20730 Ni-Cd Battery 4.8V 650 mAh

20736 Ni-Cd Battery 3.6V 1200 mAh

207WGWH White Wire Guard for Exit Sign

2EH01

Recessed Exit Green

AC Only BA Trim

Single Face Clear

3 12 15.8 5.25 25 green AC

Only Sbrushed

aluminum

-4º to

113ºF N/A N/A clear N/A UL/ETL

Listed SPC

2EH02

Recessed Exit Green

AC Only BA Trim

Single Face White

3 12 15.8 5.25 25 green AC

Only Sbrushed

aluminum

-4º to

113ºF N/A N/A white N/A UL/ETL

Listed SPC

2EH03

Recessed Exit Green

AC Only BA Trim

Single Face Mirrored

3 12 15.8 5.25 25 green AC

Only Sbrushed

aluminum

-4º to

113ºF N/A N/A mirror N/A UL/ETL

Listed SPC

2EH04

Recessed Exit Green

AC Only White Trim

Single Face Clear

3 12 15.8 5.25 25 green AC

Only S white -4º to

113ºF N/A N/A clear N/A UL/ETL

Listed SPC

2EH05

Recessed Exit Green

AC Only Wghite Trim

Single Face White

3 12 15.8 5.25 25 green AC S white -4º to

113ºF N/A N/A white N/A UL/ETL

Listed SPC

2EH06

Recessed Exit Green

AC Only White Trim

Single Face Mirrored

3 12 15.8 5.25 25 green AC

Only S white -4º to

113ºF N/A N/A mirror N/A UL/ETL

Listed SPC

2EH07

Recessed Exit Green

AC Only BA Trim

Double Face White

3 12 15.8 5.25 25 green AC

Only Dbrushed

aluminum

-4º to

113ºF N/A N/A white N/A UL/ETL

Listed SPC

2EH08

Recessed Exit Green

AC Only BA Trim

Double Face Mirrored

3 12 15.8 5.25 25 green AC

Only Dbrushed

aluminum

-4º to

113ºF N/A N/A mirror N/A UL/ETL

Listed SPC

2EH09

Recessed Exit Green

AC Only White Trim

Double Face White

3 12 15.8 5.25 25 green AC

Only D white -4º to

113ºF N/A N/A white N/A UL/ETL

Listed SPC

2EH10

Recessed Exit Green

AC Only White Trim

Double Face Mirrored

3 12 15.8 5.25 25 green AC

Only D white -4º to

113ºF N/A N/A mirror N/A UL/ETL

Listed SPC

2EK01

Recessed Exit Green

Battery Backup

Brushed Alum Trim

Single Face Clear

5 12 15.8 5.25 25 green BBUP S brushed

aluminum

-4º to

113ºF N/A 20730 clear N/A UL/ETL

Listed SPC

2EK02

Recessed Green Exit

Battery Backup

Brushed Alum Trim

Single Face White

5 12 15.8 5.25 25 green BBUP S brushed

aluminum

-4º to

113ºF N/A 20730 white N/A UL/ETL

Listed SPC

2EK03

Recessed Exit Green

Battery Backup

Brushed Alum Trim

Single Face Mirrored

5 12 15.8 5.25 25 green BBUP S brushed

aluminum

-4º to

113ºF N/A 20730 mirror N/A UL/ETL

Listed SPC

2EK04

Recessed Green Exit

Battery Backup White

Single Face Clear

5 12 15.8 5.25 25 green BBUP S white -4º to

113ºF N/A 20730 clear N/A UL/ETL

Listed SPC

2EK05

Recessed Green Exit

Battery Backup White

single Face White

5 12 15.8 5.25 25 green BBUP S white -4º to

113ºF N/A 20730 white N/A UL/ETL

Listed SPC

2EK06

Recessed Green Exit

Battery Backup White

Trim Single Face

Mirrored

5 12 15.8 5.25 25 green BBUP S white -4º to

113ºF N/A 20730 mirror N/A UL/ETL

Listed SPC

2EK07

Recessed Exit Green

Battery Backup

Brushed Alum Trim

Double Face White

5 12 15.8 5.25 25 green BBUP D brushed

aluminum

-4º to

113ºF N/A 20730 white N/A UL/ETL

Listed SPC

2EK08

Recessed Exit Green

Battery Backup

Brushed Alum Trim

Double Face Mirrored

5 12 15.8 5.25 25 green BBUP D brushed

aluminum

-4º to

113ºF N/A 20730 mirror N/A UL/ETL

Listed SPC

2EK09

Recessed Green Exit

Battery Backup White

Trim Double Face

White

5 12 15.8 5.25 25 green BBUP D white -4º to

113ºF N/A 20730 white N/A UL/ETL

Listed SPC

2EK10

Recessed Green Exit

Battery Backup White

Trim Double Face

Mirrored

5 12 15.8 5.25 25 green BBUP D white -4º to

113ºF N/A 20730 mirror N/A UL/ETL

Listed SPC

2EG01

Recessed Red Exit

AC Only BA Trim

Single Face Clear

5 12 15.8 5.25 25 red AC

Only Sbrushed

aluminum

-4º to

113ºF N/A N/A clear N/A UL/ETL

Listed SPC

2EG02

Recessed Red Exit

AC Only BA Trim

Single Face White

5 12 15.8 5.25 25 red AC

Only Sbrushed

aluminum

-4º to

113ºF N/A N/A white N/A UL/ETL

Listed SPC

2EG03

Recessed Red Exit

AC Only BA Trim

Single Face Mirrored

5 12 15.8 5.25 25 red AC

Only Sbrushed

aluminum

-4º to

113ºF N/A N/A mirror N/A UL/ETL

Listed SPC

2EG04

Recessed Red Exit

AC Only white Trim

Single Face Clear

5 12 15.8 5.25 25 red AC

Only S white -4º to

113ºF N/A N/A clear N/A UL/ETL

Listed SPC

2EG05

Recessed Red Exit

AC Only white Trim

Single Face White

5 12 15.8 5.25 25 red AC

Only S white -4º to

113ºF N/A N/A white N/A UL/ETL

Listed SPC

2EG06

Recessed Red Exit

AC Only white Trim

Single Face Mirrored

5 12 15.8 5.25 25 red AC

Only S white -4º to

113ºF N/A N/A mirror N/A UL/ETL

Listed SPC

2EG07

Recessed Red Exit

AC Only BA Trim

Double Face White

5 12 15.8 5.25 25 red AC

Only Dbrushed

aluminum

-4º to

113ºF N/A N/A white N/A UL/ETL

Listed SPC

2EG08

Recessed Red Exit

AC Only BA Trim

Double Face Mirrored

5 12 15.8 5.25 25 red AC

Only Dbrushed

aluminum

-4º to

113ºF N/A N/A mirror N/A UL/ETL

Listed SPC

2EG09

Recessed Red Exit

AC Only white Trim

Double Face White

5 12 15.8 5.25 25 red AC

Only D white -4º to

113ºF N/A N/A white N/A UL/ETL

Listed SPC

2EG10

Recessed Red Exit

AC Only white Trim

Double Face Mirrored

5 12 15.8 5.25 25 red AC

Only D white -4º to

113ºF N/A N/A mirror N/A UL/ETL

Listed SPC

Accessories

20730 Ni-Cd Battery 4.8V 650mAh

rECESSED EDgElit Exit SignS - grEEn, 120 or 277 VoltAgE, inDoor (ContinuED)

rECESSED EDgElit Exit SignS - rED, 120 or 277 VoltAgE, inDoor (ContinuED on nExt PAgE)

Call for availability on Special (SPC) Call for availability on Special (SPC)

Exit & Emergency Lighting

Exit & Emergency Lighting

9594

800.324.1496 | tcpi.com

800.324.1496 | tcpi.com

2 013 CATALOG

2 013 CATALOG

Item Number

Item Number

Item Description

Item Description

Watts

Watts

Height (inches)

Height (inches)

Width (inches)

Width (inches)

Depth (Inches)

Depth (Inches)

Lamp Life (Yrs.)

Lamp Life (Yrs.)

Exit Color

Exit Color

Single/Double Face

Single/Double Face

AC/Battery Backup

AC/Battery Backup

Number Of Lamps

Number Of Lamps

Temperature Range

Temperature Range

Housing Color

Housing Color

Replacement Lamp / Battery

Replacement Lamp / Battery

Exit Plate Color

Exit Plate Color

Battery Runtime (Min)

Battery Runtime (Min)

Certifications

Certifications

Stocking or Special

Stocking or Special

Surface Mount

Edgelit Exits

Recessed

Edgelit Exits

2EJ01

Recessed Red Exit

Battery Backup

Brushed Alum Trim

Single Face Clear

5 12 15.8 5.25 25 red BBUP S brushed

aluminum

-4º to

113ºF N/A 20730 clear 90 UL/ETL

Listed SPC

2EJ02

Recessed Red Exit

Battery Backup BA

Trim Single Face

White

5 12 15.8 5.25 25 red BBUP S brushed

aluminum

-4º to

113ºF N/A 20730 white 90 UL/ETL

Listed SPC

2EJ03

Recessed Red Exit

Battery Backup

Brushed Alum Trim

Single Face Mirrored

5 12 15.8 5.25 25 red BBUP S brushed

aluminum

-4º to

113ºF N/A 20730 mirror 90 UL/ETL

Listed SPC

2EJ04

Recessed Red Exit

Battery Backup white

Single Face Clear

5 12 15.8 5.25 25 red BBUP S white -4º to

113ºF N/A 20730 clear 90 UL/ETL

Listed SPC

2EJ05

Recessed Red Exit

Battery Backup white

Single Face White

5 12 15.8 5.25 25 red BBUP S white -4º to

113ºF N/A 20730 white N/A UL/ETL

Listed SPC

2EJ06

Recessed Red Exit

Battery Backup white

Trim Single Face

Mirrored

5 12 15.8 5.25 25 red BBUP S white -4º to

113ºF N/A 20730 mirror 90 UL/ETL

Listed SPC

2EJ07

Recessed Red Exit

Battery Backup

Brushed Alum Trim

Double Face White

5 12 15.8 5.25 25 red BBUP D brushed

aluminum

-4º to

113ºF N/A 20730 white 90 UL/ETL

Listed SPC

2EJ08

Recessed Red Exit

Battery Backup

Brushed Alum Trim

Double Face Mirrored

5 12 15.8 5.25 25 red BBUP D brushed

aluminum

-4º to

113ºF N/A 20730 mirror 90 UL/ETL

Listed SPC

2EJ09

Recessed Red Exit

Battery Backup white

Trim Double Face

White

5 12 15.8 5.25 25 red BBUP D white -4º to

113ºF N/A 20730 white 90 UL/ETL

Listed SPC

2EJ10

Recessed Red Exit

Battery Backup white

Trim Double Face

Mirrored

5 12 15.8 5.25 25 red BBUP D white -4º to

113ºF N/A 20730 mirror 90 UL/ETL

Listed SPC

SurfACE mount EDgElit Exit SignS - grEEn, 120 or 277 VoltAgE, inDoor

Accessories

20730 Ni-Cd Battery 4.8V 650mAh

Accessories

20730 Ni-Cd Battery 4.8V 650mAh

2EM01

Surface Mount Exit

GRN AC Only BA Single

Face Clear

3 10.75 13 15.8 25 green AC Only S brushed

aluminum

-4º to

113ºF N/A N/A clear N/A UL/ETL

Listed SPC

2EM02

Surface Mount Exit

GRN AC Only BA Single

Face White

3 10.75 13 15.8 25 green AC Only S brushed

aluminum

-4º to

113ºF N/A N/A white N/A UL/ETL

Listed SPC

2EM03

Surface Mount Exit

GRN AC Only BA Single

Face Mirrored

3 10.75 13 15.8 25 green AC Only S brushed

aluminum

-4º to

113ºF N/A N/A mirror N/A UL/ETL

Listed SPC

2EM04

Surface Mount Exit

GRN AC Only White

Single Face Clear

3 10.75 13 15.8 25 green AC Only S white -4º to

113ºF N/A N/A clear N/A UL/ETL

Listed SPC

2EM05

Surface Mount Exit

GRN AC Only White

Single Face White

3 10.75 13 15.8 25 green AC Only S white -4º to

113ºF N/A N/A white N/A UL/ETL

Listed SPC

2EM06

Surface Mount Exit

GRN AC Only White

Trim Single Face

Mirrored

3 10.75 13 15.8 25 green AC Only S white -4º to

113ºF N/A N/A mirror N/A UL/ETL

Listed SPC

2EM07

Surface Mount Exit

GRN AC Only BA Trim

Double Face White

3 10.75 13 15.8 25 green AC Only D brushed

aluminum

-4º to

113ºF N/A N/A white N/A UL/ETL

Listed SPC

2EM08

Surface Mount Exit

GRN AC Only BA Trim

Double Face Mirrored

3 10.75 13 15.8 25 green AC Only D brushed

aluminum

-4º to

113ºF N/A N/A mirror N/A UL/ETL

Listed SPC

2EM09

Surface Mount Exit

GRN AC Only White

Double Face White

3 10.75 13 15.8 25 green AC Only D white -4º to

113ºF N/A N/A white N/A UL/ETL

Listed SPC

2EM10

Surface Mount Exit

GRN AC Only White

Double Face Mirrored

3 10.75 13 15.8 25 green AC Only D white -4º to

113ºF N/A N/A mirror N/A UL/ETL

Listed SPC

2EP01

Surface Mount Exit

GRN Battery Backup

BA Single Face CL

5 10.75 13 15.8 25 green BBUP S brushed

aluminum

-4º to

113ºF N/A 20730 clear 90 UL/ETL

Listed SPC

2EP02

Surface Mount Exit

GRN Battery Backup

BA Trim Single Face

White

5 10.75 13 15.8 25 green BBUP S brushed

aluminum

-4º to

113ºF N/A 20730 white 90 UL/ETL

Listed SPC

2EP03

Surface Mount Exit

GRN Battery Backup

BA Trim Single Face

Mirrored

5 10.75 13 15.8 25 green BBUP S brushed

aluminum

-4º to

113ºF N/A 20730 mirror 90 UL/ETL

Listed SPC

2EP04

Surface Mount Exit

GRN Battery Backup

White Trim Single

Face CL

5 10.75 13 1.75 25 green BBUP S white -4º to

113ºF N/A 20730 clear 90 UL/ETL

Listed SPC

2EP05

Surface Mount Exit

GRN Battery Backup

white Trim Single Face

White

5 10.75 13 1.75 25 green BBUP S white -4º to

113ºF N/A 20730 white 90 UL/ETL

Listed SPC

2EP06

Surface Mount Exit

GRN Battery Backup

White Trim Single Face

Mirrored

5 10.75 13 1.75 25 green BBUP S white -4º to

113ºF N/A 20730 mirror 90 UL/ETL

Listed SPC

2EP07

Surface Mount Exit

GRN Battery Backup

BA Double Face White

5 10.75 13 15.8 25 green BBUP D brushed

aluminum

-4º to

113ºF N/A 20730 white 90 UL/ETL

Listed SPC

2EP08

Surface Mount Exit

GRN Battery Backup

BA Double Face Mir-

rored

5 10.75 13 15.8 25 green BBUP D brushed

aluminum

-4º to

113ºF N/A 20730 mirror 90 UL/ETL

Listed SPC

2EP09

Surface Mount Exit

GRN Battery Backup

White Trim Double Face

White

5 10.75 13 1.75 25 green BBUP D white -4º to

113ºF N/A 20730 white 90 UL/ETL

Listed SPC

2EP10

Surface Mount Exit

GRN Battery Backup

White Trim Double Face

Mirrored

5 10.75 13 1.75 25 green BBUP D white -4º to

113ºF N/A 20730 mirror 90 UL/ETL

Listed SPC

Our people make the difference.

TCP’s knowledgeable sales and service team are eager to assist you!

Call 800.324.1496 today!

or visit tcpi.com

Call for availability on Special (SPC)

Call for availability on Special (SPC)

rECESSED EDgElit Exit SignS - rED, 120 or 277 VoltAgE, inDoor (ContinuED)

Exit & Emergency Lighting

Exit & Emergency Lighting

9796

800.324.1496 | tcpi.com

800.324.1496 | tcpi.com

2 013 CATALOG

2 013 CATALOG

SurfACE mount EDgElit Exit SignS - rED, 120 or 277 VoltAgE, inDoor

Steel LED Exits

Emergency

Lights & Combos

Surface Mount

Edgelit Exits

StEEl lED Exit SignS, 120 or 277 VoltAgE, DAmP loCAtion

2EL01

Surface Mount LED Exit

Red AC Only BA Single

Face Clear

3 10.75 13 1.75 25 red AC Only S

brushed

aluminum

-4º to

113ºF N/A N/A clear N/A UL/ETL

Listed SPC

2EL02

Surface Mount LED Exit

Red AC Only BA Trim

Single Face White

3 10.75 13 1.75 25 red AC Only S

brushed

aluminum

-4º to

113ºF N/A N/A white N/A UL/ETL

Listed SPC

2EL03

Surface Mount LED Exit

Red AC Only BA Trim

Single Face Mirrored

3 10.75 13 1.75 25 red AC Only S

brushed

aluminum

-4º to

113ºF N/A N/A mirror N/A UL/ETL

Listed SPC

2EL04

Surface Mount LED Exit

Red AC Only White Trim

Single Face Clear

3 10.75 13 1.75 25 red AC Only S white -4º to

113ºF N/A N/A clear N/A UL/ETL

Listed SPC

2EL05

Surface Mount LED Exit

Red AC Only White Trim

Single Face White

3 10.75 13 1.75 25 red AC Only S white -4º to

113ºF N/A N/A white N/A UL/ETL

Listed SPC

2EL06

Surface Mount LED Exit

Red AC Only White Trim

Single Face Mirrored

3 10.75 13 1.75 25 red AC Only S white -4º to

113ºF N/A N/A mirror N/A UL/ETL

Listed SPC

2EL07

Surface Mount LED Exit

Red AC Only BA Trim

Double Face White

3 10.75 13 1.75 25 red AC Only D

brushed

aluminum

-4º to

113ºF N/A N/A white N/A UL/ETL

Listed SPC

2EL08

Surface Mount LED Exit

Red AC Only BA Trim

Double Face Mirrored

3 10.75 13 1.75 25 red AC Only D

brushed

aluminum

-4º to

113ºF N/A N/A mirror N/A UL/ETL

Listed SPC

2EL09

Surface Mount LED Exit

Red AC Only White Trim

Double Face White

3 10.75 13 1.75 25 red AC Only D white -4º to

113ºF N/A N/A white N/A UL/ETL

Listed SPC

2EL10

Surface Mount LED Exit

Red AC Only White Trim

Double Face Mirrored

3 10.75 13 1.75 25 red AC Only D white -4º to

113ºF N/A N/A mirror N/A UL/ETL

Listed SPC

2EN01

Surface Mount LED Exit

Red Battery Backup BA

Single Face Clear

5 10.75 13 1.75 25 red BBUP S

brushed

aluminum

-4º to

113ºF N/A

20730 clear 90 UL/ETL

Listed SPC

2EN02

Surface Mount LED Exit

Red Battery Backup BA

Trim Single Face White

5 10.75 13 1.75 25 red BBUP S

brushed

aluminum

-4º to

113ºF N/A 20730 white 90 UL/ETL

Listed SPC

2EN03

Surface Mount LED Exit

Red Battery Backup BA

Single Face Mirrored

5 10.75 13 1.75 25 red BBUP S

brushed

aluminum

-4º to

113ºF N/A 20730 mirror 90 UL/ETL

Listed SPC

2EN04

Surface Mount LED Exit

Red Battery Backup White

Trim Single Face Clear

5 10.75 13 1.75 25 red BBUP S white -4º to

113ºF N/A 20730 clear 90 UL/ETL

Listed SPC

2EN05

Surface Mount LED Exit

Red Battery Backup White

Trim Single Face White

5 10.75 13 1.75 25 red BBUP S white -4º to

113ºF N/A 20730 white 90 UL/ETL

Listed SPC

2EN06

Surface Mount LED Exit

Red Battery Backup

White Trim Single Face

Mirrored

5 10.75 13 1.75 25 red BBUP S white -4º to

113ºF N/A 20730 mirror 90 UL/ETL

Listed SPC

2EN07

Surface Mount LED Exit

Red Battery Backup BA

Trim Double Face White

5 10.75 13 1.75 25 red BBUP D

brushed

aluminum

-4º to

113ºF N/A 20730 white 90 UL/ETL

Listed SPC

2EN08

Surface Mount LED Exit

Red Battery Backup BA

Double Face Mirrored

5 10.75 13 1.75 25 red BBUP D

brushed

aluminum

-4º to

113ºF N/A 20730 mirror 90 UL/ETL

Listed SPC

2EN09

Surface Mount LED Exit

Red Battery Backup White

Trim Double Face White

5 10.75 13 1.75 25 red BBUP D white -4º to

113ºF N/A 20730 white 90 UL/ETL

Listed SPC

2EN10

Surface Mount LED Exit

Red Battery Backup

White Trim Double Face

Mirrored

5 10.75 13 1.75 25 red BBUP D white -4º to

113ºF N/A 20730 mirror 90 UL/ETL

Listed SPC

Item Number

Item Description

Watts

Height (inches)

Width (inches)

Depth (Inches)

Lamp Life (Yrs.)

Exit Color

Single/Double Face

AC/Battery Backup

Number Of Lamps

Temperature Range

Housing Color

Replacement Lamp / Battery

Exit Plate Color

Battery Runtime (Min)

Certifications

Stocking or Special

Item Number

Item Description

Watts

Height (inches)

Width (inches)

Depth (Inches)

Lamp Life (Yrs.)

Exit Color

Single/Double Face

AC/Battery Backup

Number Of Lamps

Temperature Range

Housing Color

Replacement Lamp / Battery

Exit Plate Color

Battery Runtime (Min)

Certifications

Stocking or Special

27D98

Steel LED Red

Universal AC

Only Exit Sign

3 7.63 12.1 2.3 25 red AC Only D white -4º to

113ºF N/A N/A N/A N/A UL/ETL

Listed SPC

27D99

Steel LED Green

Universal AC

Only Exit Sign

3 7.63 12.1 2.3 25 green AC Only D white -4º to

113ºF N/A N/A N/A N/A UL/ETL

Listed SPC

27L98

Steel LED Red

Universal Battery

Backup Exit

Sign

5 7.63 12.1 2.3 25 red BBUP D white -4º to

113ºF N/A

27LBATTERY

N/A 90 UL/ETL

Listed SPC

27L99

Steel LED Green

Universal Battery

Backup Exit

Sign

5 7.63 12.1 2.3 25 green BBUP D white -4º to

113ºF N/A

27LBATTERY

N/A 90 UL/ETL

Listed SPC

2S760

Steel Emergency

Light no Heads,

18W Capacity

18 12 13.1 2.9 N/A N/A BBUP beige 20º to

95ºF 0Par36/

20739 N/A 90 UL/ETL

Listed SPC

2S761

Steel Emergency

Light 1 Head,

24W Capacity

24 12 13.1 2.9 N/A N/A BBUP beige 20º to

95ºF 1Par36/

20739 N/A 90 UL/ETL

Listed SPC

2S762

Steel Emergency

Light 2 Heads,

24W Capacity

24 12 13.1 2.9 N/A N/A BBUP beige 20º to

95ºF 2Par36/

20739 N/A 90 UL/ETL

Listed SPC

2S763

Steel Emergency

Light 3 Heads,

36W Capacity

36 12 13.1 2.9 N/A N/A BBUP beige 20º to

95ºF 3Par36/

20739 N/A 90 UL/ETL

Listed SPC

27O90

Steel Red LED

Universal Exit

Emergency

Combo

2.5 13 12.3 2.3 25 red BBUP S white 5º to

104ºF 24W Par36/

20739 N/A 90 UL/ETL

Listed SPC

27O91

Steel Green LED

Universal Exit

Emergency

Combo

2.5 13 12.3 2.3 25 green BBUP S white 5º to

104ºF 24W Par36/

20739 N/A 90 UL/ETL

Listed SPC

Accessories

207WG Wire Guard for Exit Sign

27LBATTERY

NiCd Battery 7.2V .64H

207WGWH White Wire Guard for Exit Sign

Accessories

20735 Lead Acid Battery 6V 7 Ah

20739 Lead Acid Battery 6V 10 Ah

StEEl EmErgEnCy lightS, 120 or 277 VoltAgE, DAmP loCAtion

StEEl lED Exit / EmErgEnCy Combo SignS, 120 or 277 VoltAgE, DAmP loCAtion

Accessories

20739 Lead Acid Battery 6V 10 Ah

Make TCP your only source for all your

energy-efficient lighting needs.

Call 800.324.1496

for more information or to

find a TCP distributor.

Accessories

20730 Ni-Cd Battery 4.8V 650mAh

Call for availability on Special (SPC)

Call for availability on Special (SPC)

Exit & Emergency Lighting

Exit & Emergency Lighting

9998

800.324.1496 | tcpi.com

800.324.1496 | tcpi.com

2 013 CATALOG

2 013 CATALOG

SElf luminouS Exit SignS - 10 yEArS, DAmP loCAtion

LED Retrofit Kits

Emergency

Ballasts

Self-Luminous

(Tritium)

lED rEtrofit kitS & ACCESSoriES

Item Number

Item Description

Watts

Height (inches)

Width (inches)

Depth (Inches)

Voltage

Lamp Life (Yrs.)

Exit Color

Number Of Lamps

Certifications

LED Retrofit Kit Base Type

Stocking or Special

29R90 Self Luminous 10 Yr. Single Face

Red w/White Housing 8.25 12.75 1 S white -76º to 212ºF 10 red Self-Luminous UL924, NFPA Life Safety

Code 101 SPC

29R91 Self Luminous 10 Yr. Single Face

Green w/White Housing 8.25 12.75 1 S white -76º to 212ºF 10 green Self-Luminous UL924, NFPA Life Safety

Code 101 SPC

29R93 Self Luminous 10 Yr. Double Face

Red w/White Housing 8.25 12.75 1 D white -76º to 212ºF 10 red Self-Luminous UL924, NFPA Life Safety

Code 101 SPC

29R94 Self Luminous 10 Yr. Double Face

Green w/White Housing 8.25 12.75 1 D white -76º to 212ºF 10 green Self-Luminous UL924, NFPA Life Safety

Code 101 SPC

29R80 Self Luminous 10 Yr. Single Face

Red w/Black Housing 8.25 12.75 1 S black -76º to 212ºF 10 red Self-Luminous UL924, NFPA Life Safety

Code 101 SPC

29R81 Self Luminous 10 Yr. Single Face

Green w/Black Housing 8.25 12.75 1 S black -76º to 212ºF 10 green Self-Luminous UL924, NFPA Life Safety

Code 101 SPC

29R83 Self Luminous 10 Yr. Double Face

Red w/Black Housing 8.25 12.75 1 D black -76º to 212ºF 10 red Self-Luminous UL924, NFPA Life Safety

Code 101 SPC

29R84 Self Luminous 10 Yr. Double Face

Green w/Black Housing 8.25 12.75 1 D black -76º to 212ºF 10 green Self-Luminous UL924, NFPA Life Safety

Code 101 SPC

29T90 Self Luminous 20 Yr. Single Face

Red w/White Housing 8.25 12.75 1 S white -76º to 212ºF 20 red Self-Luminous UL924, NFPA Life Safety

Code 101 SPC

29T91 Self Luminous 20 Yr. Single Face

Green w/White Housing 8.25 12.75 1 S white -76º to 212ºF 20 green Self-Luminous UL924, NFPA Life Safety

Code 101 SPC

29T93 Self Luminous 20 Yr. Double Face

Red w/White Housing 8.25 12.75 1 D white -76º to 212ºF 20 red Self-Luminous UL924, NFPA Life Safety

Code 101 SPC

29T94 Self Luminous 20 Yr. Double Face

Green w/White Housing 8.25 12.75 1 D white -76º to 212ºF 20 green Self-Luminous UL924, NFPA Life Safety

Code 101 SPC

29T80 Self Luminous 20 Yr. Single Face

Red w/Black Housing 8.25 12.75 1 S black -76º to 212ºF 20 red Self-Luminous UL924, NFPA Life Safety

Code 101 SPC

29T81 Self Luminous 20 Yr. Single Face

Green w/Black Housing 8.25 12.75 1 S black -76º to 212ºF 20 green Self-Luminous UL924, NFPA Life Safety

Code 101 SPC

29T83 Self Luminous 20 Yr. Double Face

Red w/Black Housing 8.25 12.75 1 D black -76º to 212ºF 20 red Self-Luminous UL924, NFPA Life Safety

Code 101 SPC

29T84 Self Luminous 20 Yr. Double Face

Green w/Black Housing 8.25 12.75 1 D black -76º to 212ºF 20 green Self-Luminous UL924, NFPA Life Safety

Code 101 SPC

Accessories

207WG Wire Guard for Exit Sign

207WGWH White Wire Guard for Exit Sign

207PS Polycarbonate Shield for Exit Sign

29RC Security Cover for Self-Luminous Exit Sign

Accessories

207WG Wire Guard for Exit Sign

207WGWH White Wire Guard for Exit Sign

207PS Polycarbonate Shield for Exit Sign

29RC Security Cover for Self-Luminous Exit Sign

20710 One Red LED Exit Retrofit

Lamp .7 4.75 1.25 1.25 10+ 120 red 1 candelabra UL, cUL, UL924 STK

20711 One Red LED Exit Retrofit

Lamp Kit With 2 Base Adapters .7 4.75 1.25 1.25 10+ 120 red 1 candelabra UL, cUL, UL924 STK

20714 Two Red LED Exit Retrofit

Lamps With 4 Base Adapters .7 4.75 1.25 1.25 10+ 120 red 2 candelabra UL, cUL, UL924 STK

20715

Two Red LED Exit Retrofit

Lamps With 4 Base Adapters

120 Use Only

1.2 4.75 1.25 1.25 10+ 120 red 2 candelabra ETL, CETL Listed to

UL 924 Standards STK

20716 Red LED Exit Retrofit Kit

Hardwire 120/277 1.2 4.75 1.65 0.6 10+ 120 or

277 red 2 hardwire ETL, CETL Listed to

UL 924 Standards STK

20717

Two Green LED Exit Retrofit

Lamps With 4 Base Adapters

120 Use Only

.7 5.6 6.9 1 10+ 120 green 2 candelabra ETL, CETL Listed to

UL 924 Standards STK

20718 Green LED Exit Retrofit Kit

Hardwire 120/277 .7 4.75 1.65 0.6 10+ 120 or

277 green 2 hardwire ETL, CETL Listed to

UL 924 Standards STK

20719

Two White LED Exit Retrofit

Lamp, 4 Base Adapters, 120

Use Only

1.7 4.75 1.65 .6 10+ 120 white 2 candelabra ETL, CETL Listed to

UL 924 Standards STK

20720

Two Red LED Exit Retrofit

Lamps, 4 Base Adapters, 2 Red

Diffuser Panels

.7 5.6 6.9 1 10+ 120 red 2 candelabra ETL, CETL Listed to

UL 924 Standards STK

20721 White LED Exit Retrofit Kit

Hardware 1201277 1.8 4.75 6.9 1 10+ 120 or

277 white 2 hardwire ETL, CETL Listed to

UL 924 Standards STK

20797 Socket Adapter Candelabra to

Medium Base 10.50

dia SPC

20798 Socket Adapter Candelabra to

Intermediate Base 10.50

dia SPC

20799 Socket Adapter Candelabra to

Bayonet Base 10.50

dia SPC

29999 Red Diffuser Panel for LED

Exit Signs Only 9.6 6.5 .04 SPC

29999G GRN Diffuser Panel for LED

Exit Signs Only 9.6 6.5 .04 SPC

29999LEDR Red Diffuser Panel for LED

Exit Signs Only 6.8 11.7 .04 SPC

29999LEDG Green Diffuser Panel for LED

Exit Signs Only 6.8 11.7 .04 SPC

Call for availability on Special (SPC)Call for availability on Special (SPC). NOTE: Self Luminous Exit Signs require special order form. Please call 800.324.1496.

Item Number

Item Description

Height (inches)

Width (inches)

Depth (Inches)

Single/Double Face

Temperature Range

Housing Color

Tritium Exit Color

Energy Source

Certifications

Stocking or Special

Exit Life (Years)

Exit & Emergency Lighting

Exit & Emergency Lighting

101100

800.324.1496 | tcpi.com

800.324.1496 | tcpi.com

2 013 CATALOG

CATALOG

SElf luminouS Exit SignS - 20 yEArS, DAmP loCAtion

Exit ACCESSoriES

Item Number

Item Description

Height (Inches)

Width (Inches)

Depth (Inches)

Rating

Finish

Number of Lamps

Replacement Lamp / Battery

Stocking or Special

Exit

Accessories

207R1 Single WH Remote Head 6W 6V 7 5 5 Damp Location white 1 939 STK

207R2 Double WH Remote Head 6W 6V 7 13 5 Damp Location white 2 939 STK

207R3 Single Grey Remote Waterproof Head 5.4W 6V 4.8 4.75 4.5 Waterproof grey 1 939 STK

207R4 Double Grey Remote Waterproof Head 2 X 5.4W 6V 6.75 10.25 4.5 Waterproof grey 2 939 STK

207R5 Single Square Remote Head 12W 12V 4.75 4.75 5 Damp Location white 1 923 SPC

207R6 Double Square Remote Head 2 X 12W 12V 4.75 9 5 Damp Location white 2 923 SPC

207RT Hand Held Remote Test Unit 6 15 0.65 Damp Location white SPC

207WG Wire Guard for Exit Sign 13.5 15 6 Damp Location silver STK

207WGWH WH Wire Guard for Exit Sign 13.375 13.75 4.375 Damp Location white SPC

207LWG Large Wire Guard for Exit Sign 13.5 30 6 Damp Location silver SPC

207PS Polycarbonate Shield for Exit Sign 15 22 8 Damp Location clear SPC

207B2 Ni-Cd Battery 2.4V 300 mAh 1.96 1.10 0.55 Damp Location yellow SPC

207B3 Ni-Cd Battery 3.6V 300 mAh 1.96 1.10 0.98 Damp Location yellow SPC

207B4 Ni-Cd Battery 8.4V VDC 1.96 1.10 0.98 Damp Location yellow SPC

20736 Ni-Cd Battery 3.6V 1200m Ah 8 0.6 Damp Location blue SPC

20729 Ni-Cd Battery 4.8V 400Ah 1.125 1.125 1.125 Damp Location yellow SPC

20730 Ni-Cd Battery 4.8V 650m Ah 3.875 1.125 0.625 Damp Location yellow SPC

20732 Ni-Cd Battery 4.8V 1000m Ah 1.7 2.6 0.6 Damp Location black SPC

27LBATTERY Ni-Cd Battery 7.2V 6Ah 2.3 6.5 1.3 Damp Location black SPC

20734 Lead Acid Battery 6V 4.5 Ah In-Terminals 4 2.75 1.813 Damp Location black SPC

20734J Lead Acid Battery 6V 4.5 Ah Out-Terminals 4 2.75 1.813 Damp Location black SPC

20735 Lead Acid Battery 6V 7Ah 3.688 5.875 1.375 Damp Location black SPC

20738 Lead Acid Battery 6V 12Ah 3.688 5.875 1.938 Damp Location black SPC

20739 Lead Acid Battery 6V 10Ah 3.688 5.875 1.938 Damp Location black SPC

This TCP product (exceptions – batteries and self luminous; see below) is warranted for a period of five years from date of original purchase against defects in ma-

terials and workmanship. If these products should fail to operate due to materials and workmanship, simply return this to the place of purchase or to the TCP, Inc.

service center (address on back of catalog) with its RGA as stated in the terms & conditions, and the product will be repaired or replaced at TCP’s sole discretion.

The warranty is expressly limited to repair or replacement of the product. No labor charge will be honored without prior written factory authorization. Damage

incurred from handling or in transit is not covered by this guarantee. Claims for shipping damages must be filed with the carrier. This warranty gives the customer

specific legal rights, which vary from state to state. Light bulbs are not covered under this warranty.

WARRANTY IS VOID IF PRODUCT IS NOT USED FOR THE PURPOSE FOR WHICH THIS PRODUCT IS MANUFACTURED.

Exit Warranties

*All data in this catalog is subject to change without notice.

Battery Type Life Expectancy Full Warranty

Sealed Lead Acid 8 years 1 year

Nickel Cadmium 10 years 7 years

NOTES:

• Special order (SPC) items may take up to 90 days to deliver.

Please call for availability and lead times.

• Orders for special order items CANNOT BE CANCELLED.

• Orders for special order items CANNOT BE RETURNED.

Call for availability on Special (SPC)

Exit & Emergency Lighting

Exit & Emergency Lighting

103102

Polycarbonate Exit Signs:

FEATURES & BENEFITS

• All units damp location listed, UL and ETL Listed

• UL94 V-O Injection molded construction

• Dual exit face plates are a standard feature

• 90 minutes of run time on all battery back-up units

• 120 or 277 VAC operation

• LED Lamp life of 25 years

• Comes with a mounting canopy for ceiling or

wall mount applications

Heavy Duty Emergency Lighting:

FEATURES & BENEFITS

• All units damp location listed

• Environmentally coated solid state charger

• Automatic low voltage disconnect

• Compact low profile design in an attractive neutral finish

• 6-Volt premium grade maintenance free battery

with remote capability

• 90 minutes of run time on all battery back-up units

• 120 or 277 VAC operation

Steel Exit Signs:

FEATURES & BENEFITS

• UL and ETL Listed

• Housing constructed of die formed, heavy gauge steel

• Dual exit face plates a standard feature

• 90 minutes of run time on all battery back-up units

• 120 or 277 VAC operation

• High output LED’s provide even illumination

• LED Lamp life of 25 years

• Comes with a mounting canopy for ceiling or wall

mount applications

Self Luminous Tritium Exit Signs:

FEATURES & BENEFITS

• 10, 15 or 20 year life

• No wiring necessary

• UL and ETL Listed

• Universal mounting for ceiling or wall canopy supplied

• Housing is high-impact weatherproof ABS thermoplastic

with UV stabilized clear polycarbonate diffuser panel

APPLICATIONS

• Movie theatres, military applications

• Buildings with concrete walls including hotels

and gymnasiums

• Locations with limited wiring capacity

• Wire guards and polycarbonate shields are made of

durable materials and are a vandalism deterrent for the

emergency and exit line. Compatible with all TCP units.

• Wire guards available in white and silver finishes.

• Replacement batteries, canopies and faceplates

available for all exit and emergency line units

Polycarbonate Emergency Lighting:

FEATURES & BENEFITS

• All units damp location listed,UL and ETL Listed

• UL94 V-O Injection molded construction

• 6V maintenance free battery provides 90 minutes

of run time

• 120 or 277 VAC operation

• 20765 unit has capability for remote heads

• Features two 5.4W halogen lamps or MR16 lamps

Wet Location Exit & Emergency Lighting:

FEATURES & BENEFITS

• Units are NEMA 4 rated

• Temperature range 0°C to 40°C

• ABS corrosion resistant UV stabilized enclosure

• Meets NFPA Life Safety 101, NEC, OSHA, Local and

State Codes

• 90 minutes of run time on all battery back-up units

• 120 or 277 VAC operation

APPLICATIONS

• Rugged environments, factories, schools

Steel Emergency Lighting:

FEATURES & BENEFITS

• UL and ETL Listed

• Housing constructed of die formed, heavy gauge steel

• 6V maintenance free battery provides 90 min. run time

• 120 or 277 VAC operation

• Allows for 18 – 36 watts of extra capacity

• Emergency units furnished with adjustable high intensity

9W 12V PAR 36 heads

• Solid state charger with automatic brown out protection,

low voltage disconnect, momentary test switch, and

standard charge indicator lights all standard features

APPLICATIONS

• Industrial facilities, factories, rugged environments

FEATURES & BENEFITS

• Consumes 1.2 watts per lamp,

very energy efficient!

• Made to UL 924 specifications

• Kits come with up to 4 adapters for universal use

• High efficiency LED’s available for crisp even illumination

• Screw-in LED replacement lamps suitable for 120V use only

• Hardwire kits available for 120V or 277 volt usage

APPLICATIONS

• Use in place of fluorescent and incandescent lamps

inside exit signs

Polycarbonate Combination Units:

FEATURES & BENEFITS

• All units damp location listed

• UL and ETL Listed

• UL94 V-O Injection molded construction

• Dual exit face plates a standard feature

• 90 minutes of run time on all battery back-up units

• 120 or 277 VAC operation

• All combos come with an extra battery as a standard

feature and can run up to 12W of remote heads

• LED lamp life of 25 years

• Comes with a mounting canopy for ceiling or

wall mount applications

APPLICATIONS

• Industrial and commercial facilities

Diecast Exit Signs:

FEATURES & BENEFITS

• Specification grade design

• Available in white and brushed aluminum finishes,

single or double face

• Universal knock out chevrons included

• Quick clip snap closure for front faceplate

• Universal mounting canopy included for easy installation

• 90 minutes of run time on all battery back-up units

• 120 or 277 VAC operation

APPLICATIONS

• Indoor locations

• Architectural grade buildings, churches

Edge-Lit Exit Signs:

FEATURES & BENEFITS

• UL and ETL listed

• Specification grade design

• 70 SKU’s available for all your lighting needs

• Chevrons are included for easy installation in the field

• Surface mounted units can be installed top, back, or

end mounted

• High efficiency panels with energy consumption of less than

3W for AC only and less than 5W for battery back-up units

• 90 minutes of run time on all battery back-up units

• 120 or 277 VAC operation

APPLICATIONS

• Indoor locations

• Architectural grade buildings, churches

PolyCArbonAtE

lED rEtrofitS

hEAVy Duty | WEt loCAtion StEEl

SElf luminouS

ACCESSoriES

DiECASt | EDgElit Exit SignS

800.324.1496 | tcpi.com

800.324.1496 | tcpi.com

2 013 CATALOG

2 013 CATALOG

Mogul

E39

Extended

Mogul

Medium

E26

Blown

Tubular

Eliptical

Dimpled

Eliptical

Dimpled

Eliptical

Dimpled

Eliptical

Dimpled

Eliptical Eliptical

Dimpled

Narrow Neck

(Open Fixture)

Medium Skirt

E26 / 60 x 39

2-Pin

GU Base

GU 24

Base

Candelabra

E12

Bulb Size

Base Types

HID Lamp Shapes

Compact Fluorescent Shapes

LED Shapes

Light Level Recommendations

MOL

DIA

DIA

MOL

DIA: Diameter of bulb at widest point

MOL: Maximum overall length including base

Note: Lamp drawings are not drawn to scale. Be sure to check size and dimension information

when identifying each lamp.

To convert inches to millimeters, multiply the dimension (in inches) by 25.4 (i.e. 1.5” x 25.4 = 38.1mm).

BT56 ED18 E25

ED37 ED28 ED23.5 ED17 EDX17

Circline PL Lamps SpringLamp®Cold Cathode

IES Recommended Light Levels

Performance of visual tasks:

33 Watt Circline

17030/27 Circline 2D Replacement Twin Tube Quad Tube Triple Tube

Type of Activity Range of Illuminance (in footcandles)

Public spaces with dark surroundings 2 – 5 fc

Spaces for short temporary visits (typical hallway) 5 – 10 fc

Working spaces where visual tasks are only occasionally performed 10 – 20 fc

Ambient lighting for computer use 20 – 30 fc

High contrast or large size (typical office work) 20 – 50 fc

Medium contrast or small size 100 – 200 fc

Low contrast or very small size 100 – 200 fc

Low contrast and very small size over a prolonged period 200 – 500 fc

Very prolonged and exacting visual tasks 500 – 1000 fc

Visual tasks of extremely low contrast and small size 1000 – 2000 fc

*Obtained by combination of general and task lighting

Other Shapes

R20 Flood R30 Flood PAR-Shape Flood Flat PAR-Shape FloodR40 Flood A-Shape Globe Shape Capsule Shape Deco Shape Flame Tip

Shape

T20 T6

LDCG3WH35K LDA3WH35K

PAR38 PAR30 R20 A-LampPAR20 BR40 BR30

LED4E26G1627K LED4E12G1627K LED4E12B1127K LED4E26B1127K

105104

Product Identification

Product Identification

800.324.1496 | tcpi.com CATALOG

2 013

Product Identification

800.324.1496 | tcpi.com CATALOG

2 013

CFLs

accent lighting

Directional lighting to emphasize a particular

object or to draw attention to a part of the field

of view. See directional lighting.

.......................................................................

adaptation

The process by which the retina of the eye

becomes accustomed to more or less light

than it was exposed to during an immediately

preceding period. It results in a change in the

sensitivity of the eye to light.

.......................................................................

ANSI American National

Standards Institute

The organization that develops voluntary

guidelines and produces standards for the

electrical and other industries.

.......................................................................

arc tube

A completely sealed quartz or ceramic tube

where the electrical discharge (arc) occurs and

light is generated.

.......................................................................

average life

Value for life expectancy of a lamp.

.......................................................................

baffle

A single opaque or translucent element to shield

a source from direct view at certain angles, or

to absorb unwanted light.

.......................................................................

ballast

A device used with an electric-discharge lamp

to obtain the necessary circuit conditions

(voltage, current and wave form) for starting

and operating; all fluorescent and HID light

sources require a ballast for proper operation.

Dimming ballasts are special ballasts which

when used together with a dimmer will vary the

light output of a lamp.

.......................................................................

ballast factor, BF

The measured ability of a particular ballast

to produce light from the lamp(s) it powers;

ballast factor is derived by dividing the lumen

output of a particular lamp/ballast combination

by the lumen output of the same lamp(s) on a

reference ballast.

.......................................................................

base

End of the lamp that inserts into the lamp

socket.

.......................................................................

beam angle

The angle between the two directions for which

the intensity (candlepower) is 50% of the

maximum intensity as measured in a plane

through the nominal beam centerline (center

beam candlepower).

.......................................................................

beam spread

(In any plane) the angle between the two

directions in the plane in which the candlepower

is equal to a stated percent (usually ten

percent) of the maximum candlepower in the

beam.

.......................................................................

brightness

See luminance.

.......................................................................

bulb

Outer jacket or envelope of a lamp.

.......................................................................

burning position

Position that lamps are designed to operate.

.......................................................................

candela, cd

The unit of measure indicating the luminous

intensity (candle-power) of a light source in a

specific direction; any given light source will

have many different intensities, depending upon

the direction considered.

.......................................................................

candlepower distribution

A curve that represents the variation in

luminous intensity (expressed in candelas)

in a plane through the light center of a lamp

or luminaire; each lamp or lamp/luminaire

combination has a unique set of candlepower

distributions that indicate how light will be

spread.

.......................................................................

candlepower distribution curve

A curve, generally polar, representing the

variation of luminous intensity of a lamp or

luminaire in a plane through the light center.

.......................................................................

CCT rating

CCT rating is based on operation at rated

watts in the designated operating position. For

universal lamps, CCT is rated in the vertical

position. All other operating positions will lead

to higher values

of CCT.

.......................................................................

center beam candlepower, CBCP

The intensity of light produced at the center of

a reflector lamp, expressed in candelas.

.......................................................................

chromaticity

The aspect of color that includes consideration

of its dominant wavelength and purity.

.......................................................................

coefficient of utilization, CU

The ratio of the luminous flux (lumens) from

a luminaire received on the work-plane to the

lumens emitted by the luminaire’s lamps alone.

.......................................................................

color rendering index, CRI

The measure of a light source’s ability to render

the color of objects “correctly,” as compared

with a reference source with comparable color

temperature; the scale peaks at 100.

.......................................................................

color uniformity

Consistency of color from lamp to lamp.

.......................................................................

correlated color temperature, CCT

A specification of the color appearance of a

lamp relating its color to that of a reference

source heated to a particular temperature,

measured in degrees Kelvin (K); CCT generally

measures the “warmth” or “coolness” of light

source appearance.

.......................................................................

current, I

A measure of the flow of electricity, expressed

in amperes (A).

.......................................................................

current crest factor

Ratio of peak to rms value of lamp current: mh

values range from 1.4 – 1.8. Cannot go above

1.8 Or it reduces lamp life.

.......................................................................

cut-off angle

(Of a luminaire) the angle from the vertical

at which a reflector, louver or other shielding

device cuts off direct visibility of a light

source. It is the complementary angle of

the shielding angle.

.......................................................................

diffuse lighting

Light that is not predominantly incident from

any particular direction.

.......................................................................

diffuser

A device to redirect of scatter the light from a

source by the process of diffuse transmission.

.......................................................................

direct glare

Glare resulting from high luminance or

insufficiently shielded light sources in the

field of view, or from reflecting areas of high

luminance. It is usually associated with bright

areas such as luminaires, ceilings and windows

that are outside the visual task or region being

viewed.

.......................................................................

direct lighting

Lighting by luminaires distributing 90 to 100

percent of the emitted light in the general

direction of the surface to be illuminated.

The term usually refers to light emitted in a

downward direction. (See accent lighting.)

.......................................................................

directional lighting

Illumination on the work-plane or on an object

predominantly from a single direction.

.......................................................................

disability glare

Glare resulting in reduced visual performance

and visibility. It is often accompanied by

discomfort.

.......................................................................

discharge lamp

Light-producing device that depends on electric

arc, rather than filament, to create illumination.

.......................................................................

discomfort glare

Glare producing discomfort. It does not

necessarily interfere with visual performance

or visibility.

.......................................................................

double-ended

Lamps that have two bases opposite one

another for series electrical connection,

mounting connection and heat dissipation.

.......................................................................

economic life

Number of hrs. A group of lamps will burn

before it’s ergonomically advisable to group

re-lamp (typically 60% - 75% of rated life).

.......................................................................

efficacy

Efficiency of a light source expressed in lumens

per watt (LPW or lm/W).

.......................................................................

energy

A measure of work done by an electrical system

over a given period of time, often expressed in

kilowatt-hours (kWh).

.......................................................................

ENERGY STAR®

U.S. Department of Energy (DOE) and

Environmental Protection Agency (EPA)

designation for products meeting certain energy

efficiency and performance standards.

.......................................................................

enhancing reflections

Reflections which enhance appearance

described in such terms as sparkling,

glittering, etc.

.......................................................................

ESCO

Energy Saving Service Company

.......................................................................

fenestration

Any opening or arrangement of openings or

windows (normally filled with media for light

control) for the admission of daylight or for the

transmission of electric lighting from one room

to another room.

.......................................................................

filament

A tungsten wire purposely positioned inside

a lamp bulb that when heated, electrically

generates radiation in the visible, infrared and

ultraviolet ranges.

........................................................................

fixture

See luminaire.

........................................................................

floodlight

A reflector lamp with a relatively wide

beam pattern.

........................................................................

fluorescent lamp

A low pressure mercury electric discharge lamp,

tubular in shape in which a fluorescent coating

(phosphor) transforms ultraviolet energy into

visible light.

........................................................................

footcandle, fc

A unit of illuminance equal to 1 lumen per

square foot.

........................................................................

formed body arc tube

Arc tube formed by quartz sculpting process:

has 1/3 less quartz mass than standard arc

tubes: 3rd starter electrode eliminated.

Ballast requires external ignitor with 3-4

KV to start lamp.

........................................................................

frequency

The number of times per second that an

alternating current system reverses from

positive to negative and back to positive,

expressed in cycles per second or hertz, Hz.

........................................................................

general lighting

Lighting designed to provide a substantially

uniform illuminance throughout an area,

exclusive of any provision for special local

requirements.

........................................................................

glare

Excessive brightness that may be caused by

either direct or indirect viewing of a light

source; any brightness or brightness relationship

that annoys, distracts or reduces visibility.

........................................................................

harmonic

An electrical frequency that is an integer

multiple of the fundamental frequency; for

example, if 60 Hz is the fundamental frequency,

then 120 Hz is the second harmonic and 180

Hz is the third harmonic; some electronic

devices, such as ballasts or power supplies, can

cause harmonic distortion, directly affecting

power quality.

........................................................................

Hertz, Hz

A unit of frequency equal to one cycle per

second; see frequency.

........................................................................

high intensity discharge (HID) lamps

A general group of lamps consisting of mercury,

metal halide and high pressure sodium lamps.

........................................................................

illuminance

Light arriving at a surface, expressed in lumens

per unit area; 1 lumen per square foot equals

1 footcandle, while 1 lumen per square meter

equals 1 lux.

........................................................................

incandescent filament lamp

A lamp in which light is produced by a filament

heated to incandescence by an electric current.

........................................................................

indirect lighting

Lighting by luminaires distributing 90 to 100

percent of the emitted light upward.

........................................................................

initial lumens

The light output of an HID lamp at rated

power on a reference ballast after 100 hours

of operation.

........................................................................

lamp

Manufactured light source; the 3 broad

categories of electric lamps are incandescent,

fluorescent, and high intensity discharge (HID).

Also, A generic term for a man-made source

of light.

........................................................................

lamp life

An average rating, in hours, indicating when

50% of a large group of lamps have failed,

when operated at nominal lamp voltage and

current; manufacturers use 3 hours per start

for fluorescent lamps and 10 hours per start

for HID lamps when performing lamp life

testing procedures; every lamp type has a

unique mortality curve that depicts its

average rated life.

........................................................................

lamp lumen depreciation factor, LLD

The multiplier to be used in illumination

calculations to relate the initial rated output

of light sources to the anticipated minimum

rated output based on the relamping program

to be used.

........................................................................

lamp voltage

Voltage which lamps operate when they are

fully warmed up.

........................................................................

lens

A glass or plastic element used in luminaires to

change the direction and control the distribution

of light rays.

........................................................................

level of illumination

See illuminance.

........................................................................

light

Radiant energy that is capable of producing a

visual sensation.

........................................................................

light center length (LCL)

The distance from the center of the visible

arc discharge to the bottom of the contact

of the base.

........................................................................

light emitting diode (LED)

Semiconductor diodes, electronic devices that

permit current flow in only one direction. The

diode is formed by bringing two slightly different

materials together, forming a junction. When a

forward voltage is applied, current flow begins

and energy is radiated in the form of light.

........................................................................

light loss factor, LLF

A factor used in calculating illuminance after a

given period of time and under given conditions.

It takes into account temperature and voltage

variations, dirt accumulation on luminaire and

room surfaces, lamp depreciation, maintenance

procedures and atmosphere conditions.

Formerly called maintenance factor.

........................................................................

light on centers, LOC

Distance between LED lights, TCP’s Holiday

lighting products.

........................................................................

light source

See lamp.

........................................................................

lighting design lumens (LDL)

Number of lumens at 2,000 hrs. Of operartion.

........................................................................

louver

A series of baffles used to shield a source from

view at certain angles or to absorb unwanted

light. The baffles are usually arranged in a

geometric pattern.

........................................................................

lumen, lm

A unit of luminous flux; the overall light output

of a luminous source is measured in lumens.

Amount of light lamp emits once it’s started.

........................................................................

lumen depreciation

The decrease in lumen output of a light source

over time; every lamp type has a unique lumen

depreciation curve (sometimes called lumen

maintenance curve) depicting the pattern of

decreasing light output.

........................................................................

lumen maintenance

Lumen output provided by lamp at given point

in or percentage of its life.

........................................................................

lumens per watt, LPW

Lumen (light) output divided by lamp watts

consumed (i.E. Amount of electricity used); also

known as efficacy.

........................................................................

luminaire

A light fixture; the complete lighting unit,

including lamp, reflector, ballast, socket, wiring,

diffuser, and housing.

........................................................................

luminaire efficiency

The ratio of luminous flux (lumens) emitted

by a luminaire to that emitted by the lamp or

lamps used therein.

........................................................................

luminance, L

Light reflected in a particular direction; the

photometric quantity most closely associated

with brightness perception, measured in

units of luminous intensity (candelas) per unit

area (square feet or square meters).

........................................................................

luminance contrast

The relationship between the luminances of an

object and its immediate background.

........................................................................

luminance ratio

The ratio between the luminances of any two

areas in the visual field.

........................................................................

luminous flux

The time rate of flow of light.

........................................................................

lux, lx

A unit of illuminance equal to 1 lumen per

square meter.

........................................................................

maximum overall length, MOL

The maximum allowable distance from the top

of the glass bulb to the end of the contact of

the base.

........................................................................

matte surface

A non-glossy dull surface as opposed to a shiny

(specular) surface. Light reflected from a matte

surface is diffuse.

........................................................................

mean lumens

Lumen output of a light source after the

source has been used. Mean lumen values

for fluorescent and HID lamps are typically

measured at 40% of rated life.

........................................................................

milli-candela, MCD

The measurement of light output of an LED in

thousandths of a candela.

........................................................................

107106

Glossary Glossary

Glossary

800.324.1496 | tcpi.com CATALOG

2 0 13

Glossary

800.324.1496 | tcpi.com CATALOG

2 0 13

nanometer, nm

A unit of length equal to 10-9 meters;

commonly used as a unit of wavelength.

.......................................................................

open rated lamp, mogul base

Designed with an extended contact pin on the

bottom of the base. Lamps should be used

with an extended contact pin on the bottom of

the base. Lamps should be used with an open

fixture mogul socket (EX39) which prevents

electrical contact if a non open rated lamp

is used.

.......................................................................

open rated lamp, medium base

Designed for open fixtures; has narrower

neck than standard medium base lamps to fit

into an exclusionary medium socket for open

fixture use.

.......................................................................

operating position

Metal halide lamps are specified and designed

to be operated in certain positions such as a

vertical or base-up.

.......................................................................

power

The rate at which energy is taken from an

electrical system or dissipated by a load,

expressed in watts (W); power that is generated

by a utility is typically expressed in volt-

amperes (V-A).

.......................................................................

power factor

A measure of the effectiveness with which an

electrical device converts volt-amperes to watts;

devices with power factors >0.90 are “high

power factor” devices.

.......................................................................

pulse start lamp

Specially designed metal halide lamp that

requires high voltage pulse for starting. Has

improved lumen maintenance.

.......................................................................

quality of lighting

Pertains to the distribution of luminance in

a visual environment. The term is used in a

positive sense and implies that all luminances

contribute favorably to visual performance,

visual comfort, ease of seeing, safety and

esthetics for the specific visual tasks involved.

.......................................................................

quantity of light

The product of the luminous flux by the time

it is maintained. It is the time integral of

luminous flux.

.......................................................................

rated life

The number of operating hours at which 50%

of most metal halide lamps or 70% of some

pulse start lamps initially started will still

be operating.

.......................................................................

reference ballast

A ballast specially constructed to have certain

prescribed characteristics for use in testing

electric-discharge lamps and other ballasts.

.......................................................................

reflectance, rho

The percentage of light reflected back from a

surface, the difference having been absorbed or

transmitted by the surface.

.......................................................................

reflected glare

Glare resulting form specular reflections of high

luminance in

polished or glossy surfaces in the field of view.

.......................................................................

reflection

The process by which flux leaves a surface or

medium from the incident side.

.......................................................................

reflector

A device used to redirect the light by the

process of reflection.

.......................................................................

refraction

The process by which the direction of a ray of

light changes as it passes obliquely from one

medium to another.

.......................................................................

refractor

A device used to redirect the luminous flux from

a source, primarily by the process of refraction.

.......................................................................

resistance, R

A measure of resistance to flow of current,

expressed in ohms.

.......................................................................

restrike time

The time to re-ignite the arc of an HID lamp.

.......................................................................

shielding

A general term to include all devices used to

block, diffuse or redirect light rays, including

baffles, louvers, shades, diffusers and lenses.

.......................................................................

shielding angle

The complementary angle of the cut-off angle

of a luminaire.

.......................................................................

shroud

Glass cylinder surrounding arc tube to protect

against hot arc tube particles breaking the glass

bulb if an arc tube rupture occurs; reduces risk

of using mh lamps in open fixtures.

.......................................................................

Special (SPC)

Items not stocked in TCP’s warehouse.

These items have longer lead times than

stocked (STK) items. Contact our Customer

Service department at 800-324-1496 for

additional details.

.......................................................................

spectral power distribution, SPD

A curve illustrating the distribution of power

produced by the lamp, at each wavelength

across the spectrum.

.......................................................................

specular surface

A shiny, highly polished surface which

reflects light at an angle equal to that of

the incident light.

.......................................................................

spotlight

A reflector lamp with a narrow beam pattern

used to illuminate a specifically defined area.

.......................................................................

Stocked (STK)

Item is in stock and applicable to

standard shipping.

.......................................................................

supplementary lighting

Lighting used to provide an additional quantity

and quality of illumination that cannot be

readily obtained by a general lighting system

and that supplements the general lighting level

usually for specific task requirements.

.......................................................................

Special Order (SPO)

Items marked SPO require a lead time of 4-6

weeks, and utilize a premium delivery option.

Contact our Customer Service department at

800-324-1496 for additional details.

.......................................................................

transmission

The process by which incident flux leaves a

surface or medium on a side other than the

incident side, the characteristics of many

materials such as glass, plastics and textiles.

.......................................................................

transmittance

The ratio of the flux transmitted by a medium

to the incident flux.

.......................................................................

UV Guard™

Refers to TCP’s metal halide lamps with a

protective quartz sleeve around the arc tube.

Suitable for use in open luminaires and reduces

UV by up to 90%.

.......................................................................

veiling reflections

Reflections which partially or totally obscure

the details to be seen by reducing the contrast.

.......................................................................

visual comfort probability, VCP

A discomfort glare calculation that predicts

the percent of observers positioned in the

least favorable part of the room who would

be expected to judge a lighting condition to

be comfortable. VCP rates the luminaire in

its environment, taking into account such

factors as illuminance level, room dimensions

and reflectances, luminaire type, size and light

distribution, number and location of luminaires,

and observer location and line of sight. The

higher the VCP the more comfortable the

lighting environment.

.......................................................................

visual field

The location of objects or points in a space

where the head and eyes are kept fixed.

.......................................................................

visual surround

all portions of the visual field except the

visual task.

.......................................................................

visual task

Those details and objects which must be seen

for the performance of a given activity,

including the immediate background of the

details or objects.

.......................................................................

voltage, V

A measure of electrical potential, expressed in

volts (V).

.......................................................................

warm-up time

The amount of time from ignition of the lamp to

90% of full light output of an HID lamp.

.......................................................................

watt, W

A unit of electrical power equal to 1 joule

per second.

.......................................................................

work plane

The plane at which work usually is done, and

on which the illuminance is specified and

measured. Unless otherwise indicated, this is

assumed to be a horizontal plane 0.76 meters

(30 inches) above the floor.

.......................................................................

CFLs

109108

Glossary Index

Glossary

800.324.1496 | tcpi.com CATALOG

2 0 13

Index

800.324.1496 | tcpi.com CATALOG

2 0 13

LEDs.................................................................................2

TCP Pro Series LED PAR Lamps, 23W and 19W PAR38 Fully Dimmable ...............................................5

TCP Pro Series LED PAR Lamps, 19W, 17W and 14W PAR38 Fully Dimmable ......................................6

TCP Pro Series LED PAR Lamps, PAR30 (Long and Shortneck) and PAR20 Fully Dimmable .....................7

TCP Pro Series LED MR16 Lamps (PAR16, MR16 AND GU10), Fully Dimmable .................................... 8

TCP Pro Series LED BR Floods (BR30, BR40 and R20), Fully Dimmable ..............................................9

TCP Pro Series LED Recessed 5/6” and 4” Downlights ...................................................................10

TCP Pro Series LED A-Lamps, Smooth(7W, 11W) & “Snow Cone”(8W, 12W), Fully Dimmable ...........11

TCP Pro Series Deco Lamps, 4W & 5W, Torpedo & Globe, Clear & Frosted, Fully Dimmable ................12

TCP Pro Series LE2W LED Elevator Lamps (LE and LEF Series) .........................................................13

CFLs ........................................................................ 14-24

TCP Pro Series T3 Full SpringLamps, NPF, 12,000 HRS (489 Series) ...............................................17

TCP Pro Series T2 Full SpringLamps, NPF, 12,000 HRS (4T2 Series) ................................................17

TCP Pro Series Dimmable Full SpringLamps, HPF, 10,000hrs (401 Series) ........................................17

TCP Pro Series Dimmable Covered Lamps, HPF, 8,000hrs (2R30 & 2R40) .......................................17

TCP Pro Series TruDim Dimmable Covered Lamps, HPF, 12,000 hrs ..................................................18

TCP Pro Series TruStart, NPF, 8,000 hrs (580 Series) ....................................................................19

TCP Pro Series InstaBright G2, NPF, 8,000 hrs ..............................................................................19

SpringLamps, Electronic, NPF, 10,000 hrs (289 Series) .................................................................20

3-Way SpringLamps, Electronic, 10,000 hrs (190 Series) ..............................................................20

HPF SpringLamps, Electronic, 10,000 hrs (182 Series) ..................................................................20

1-Piece Reflectors, Wet Location Rated, Electronic, NPF, 8,000 hr (1R, 2R, 1P Series) ........................ 21

1-Piece Flat Par Reflectors, Wet Location Rated, Electronic, NPF, 8,000 hrs (PF Series) .......................21

A-Lamp, Electronic, NPF, 8,000 hrs (113 & 213 Series) ................................................................21

Torpedo Lamp, Electronic, NPF, 8,000 hrs (107 Series)..................................................................22

Globe Lamp, Electronic 8,000 hrs (1G Series) ..............................................................................22

T-Capsule Lamp, Electronic, 8,000 hrs (1T Series) .........................................................................22

PL Lamps ....................................................................................... 23

Twin Tube PL Lamps, 10,000 hrs (320/324) ..............................................................................23

Quad Tube PL Lamps, 10,000 hrs (320/324) .............................................................................23

Triple Tube PL Lamps, 10,000 hrs (324) .....................................................................................23

Low Profile 4-Pin SpringLamp, 10,000 hrs (33013SQ) .................................................................23

Screw in Magnetic Adapters, 50,000 hrs (104/105/145) ...........................................................23

Circline (125, 165, 170, 320 Series) .......................................................... 24

T6 Circline Adapters with Lamps, Electronic, HPF, 10,000 hrs ..........................................................24

T6 Circline Adapters with Lamps, Electronic, NPF, 10,000 hrs ..........................................................24

T6 3-Way Circline Adapters with Lamp, Electronic, NPF, 10,000 hrs (16533L8) ................................24

T6 Circline 2D Replacement Lamps, 10,000 hrs (320582D) ..........................................................24

T6 Circline Lamps .....................................................................................................................24

T9 Circline Adapters with Lamp, Electronic NPF, 10,000 hrs ............................................................25

T9 Circline Adapters with Lamp, Electronic HPF, 10,000 hrs ............................................................25

T9 Circline Lamps, 10,000 hrs ...................................................................................................25

Circline Ballasts, NPF .................................................................................................................25

Circline Ballasts, HPF .................................................................................................................25

Two Piece SpringLamps ................................................................ 26

Two Piece Replacement lamps, TCX Base, PL 4-pin Amalgam, 10,000 hrs (350 Series) .....................26

SpringLamp Dimmable Replacement Lamps, TCX Base, PL 4-Pin Amalgam, 10,000 hrs (360 Series) ...26

Two Piece Replacement Lamps, ANSI Base, PL 4-Pin Amalgam, 10,000 hrs (330 Series) ...................26

GU24 (331 Series) ............................................................................... 27

GU24 SpringLamps, 10,000 hrs .................................................................................................27

GU24 PL Lamps, 8,000 hrs........................................................................................................27

GU24 Covered Lamps, 8,000 hrs ................................................................................................28

GU24 Sockets ..........................................................................................................................28

Reflectors ...................................................................................... 28

TCP Pro Reflectors - 489, 401 series ..................................................................................28

Aluminum Reflectors for 1 Piece Lamps ..............................................................................28

Snap-On Reflector Covers ..................................................................................................28

Mini Aluminum Reflectors ..................................................................................................28

SpringLight .................................................................. 30

SpringLight SpringLamps (801 Series) .........................................................................................30

SpringLight Reflectors Lamps (802, 803, 804, 805 Series) ...........................................................31

SpringLight Globes (806 Series) .................................................................................................31

SpringLight A-Lamps (807 Series) ...............................................................................................31

Cold Cathodes ............................................................. 32

3 Watt S14 Cold Cathode (8A03) ..............................................................................................32

5 Watt A17 Cold Cathode (8A05) ...............................................................................................32

8 Watt A19 Cold Cathode (8A08) ...............................................................................................32

3 Watt Toredo Cold Cathode (8T03) ............................................................................................33

5 Watt Torpedo Cold Cathode (8T05) .......................................................................................... 33

8 Watt Torpedo Cold Cathode (8T08) .......................................................................................... 33

3 Watt Flame Tip Cold Cathode (8TF03) ......................................................................................33

5 Watt Flamp Tip Cold Cathode (8TF05) ......................................................................................33

8 Watt Flame Tip Cold Cathode (8TF08) ......................................................................................33

G20 Globe Cold Cathode (8G20) ................................................................................................33

G25 Globe Cold Cathode (8G25) ................................................................................................33

G30 Globe Cold Cathode (8G30) ................................................................................................34

R20 Reflector Cold Cathode (8R20) ............................................................................................34

R30 Reflector Cold Cathode (8R30) ............................................................................................34

Flat Par Cold Cathode (8PF) .......................................................................................................34

HALOGEN .................................................................... 36

TCP Pro Series PIRL Halogen MR16, GU 5.3 Base 5,000 hrs 3000K (4411 Series) ..................37

HID ............................................................................... 38

High Pressure Sodium (481/482 Series) ............................................. 40

Pulse Plus ..................................................................................... 40

50 Watt – 150 Watt Pulse Plus Metal Halide (461/462 Series) ....................................................40

175 Watt – 450 Watt Pulse Plus Metal Halide (462 Series) ..........................................................41

Probe Start ................................................................................... 42

175 Watt – 1500 Watt Standard Probe Start Metal Halide (463 Series) .........................................42

Ballast Kits .................................................................................... 43

Metal Halide and High Pressure Sodium Kits .................................................................................43

LINEAR LAMPS AND BALLASTS ................................ 48

T8 Lamps (310 Series) .............................................................................................................50

T8 High Lumen Lamps (310 Series) ............................................................................................50

T5 lamps (310 Series) .............................................................................................................50

T8 U-Bend Lamps (310 Series) ..................................................................................................51

32W T8 Electronic Instant Start Ballast (E4P, E3P, E2P Series) ........................................................51

59W T8 Electronic Instant Start Ballast (TCP2P59ISUNV) ............................................................... 51

54W T5 Electronic Program Start Ballast (E4P and E2P Series) .......................................................51

Linear Fluorescent Emergency Ballast (20B, 20L Series) ................................................................52

Pre-wired Replacement Ballasts (RETROBAL Series) ........................................................................52

Complete Retrofit Kits (CLR, CTR Series) .......................................................................................53

LINEAR LUMINAIRES ................................................. 54

Quick Ship Program...................................................................................................................55

Elite Fluorescent High Bay ..........................................................................................................56

Sky Bay T8/T5 ........................................................................................................................57

Stairwell T8 .............................................................................................................................58

Wet Location/Damp Location T8/T5 ..........................................................................................59

Polar Bay T8/T5 ......................................................................................................................60

Power Cage Fluorescent High Bay T8/T5 ....................................................................................61

Power Strip Fluorescent High Bay T8/T5 ......................................................................................62

Aisle Lighter T8/T5 ...................................................................................................................63

Hooded Industrial T8/T5 ...........................................................................................................64

General Purpose Strip T8/T5 .....................................................................................................65

Accessories – Hangers ..............................................................................................................66

Hub Connector Box ...................................................................................................................67

Latch Hook and Pendant Kits ......................................................................................................68

Luminaire Reference Guide and Mounting Heights .........................................................................69

LED Fixtures ................................................................ 72

Standard Luminaires ..................................................................................................................74

LED Wall Packs .........................................................................................................................74

LED Spot Lights, Flood Lights and Dock Lights ...............................................................................75

LED Dock Light and Dockarm Combo Package ...............................................................................75

LED Street Lighting ....................................................................................................................75

Decorative CFL Fixtures ............................................. 76

Ceiling Fixtures Specs (117, 118, 119, 142, 148 Series) .............................................................80

GU24 Ceiling Indoor Collection Fixture Specs (Design [DES] Series, 118 Series) ................................80

GU24 Ceiling Indoor Collection Fixture Specs (118 Series) .............................................................81

GU24 Closet Light Specs (CL Series)............................................................................................81

GU24 Vanity Fixture Specs (DES3X13GUBATHBS, DES4X13GUBATHBS) ..........................................81

GU24 Wall Sconce Fixture Specs (DES1X23GUWALLBS, DES1X23GUWALLWH) .................................81

GU24 Outdoor Floodlight Fixture Specs (565 Series) .....................................................................82

GU24 Outdoor Globe Fixture Specs (558, 559 Series)...................................................................82

GU24 Outdoor Lantern Fixture Specs (520 Series) ........................................................................82

GU24 Pagoda Fixture Specs (510 Series) ....................................................................................83

GU24 Outdoor Porch Fixture Specs (570 Series) ...........................................................................83

GU24 Outdoor Porch Fixture Specs (563 and 564 Series) ..............................................................84

GU24 Sockets ..........................................................................................................................85

EXIT AND EMERGENCY .............................................. 86

All LED Combo Signs ................................................................................................................88

All LED Emergency Lighting .........................................................................................................88

Wet Location Die Cast Emergency Light ........................................................................................89

LED Die Cast Combo Units ..........................................................................................................89

Polycarbonate LED Exit Signs (2274, 2075, 2074 Series) ............................................................90

Polycarbonate Emergency Lights (2076, 2176 Series) ..................................................................90

Polycarbonate Emergency Exit Combination Signs (2068, 2072, 2078, 2079 Series) .......................91

Heavy Duty Emergency Lighting (7077 Series) .............................................................................91

Wet Location Exit and Emergency Lighting (2350 Series) ...............................................................92

Diecast Exit Signs (26D, 26L Series) ...........................................................................................92

NYC Approved Steel LED Exit Signs(LEDNYC Series) .......................................................................93

NYC Exit Signs RED (27D98NY, 27L98NY, 26D93NY, 26L93NY) ....................................................94

Recessed Edgelit Exit Signs GREEN (2EH Series, 2EK01) ................................................................95

Recessed Edgelit Exit Signs RED (2EK, 2EG, 2EJ Series) .................................................................95

Surface Mount Edgelit Exit Signs GREEN (2EM, 2EP Series) ............................................................97

Surface Mount Edgelit Exit Signs RED (2EL, 2EN Series) ................................................................. 98

Steel LED Exit Signs (27D98, 27D99, 27L98, 27L99 Series) ........................................................99

Steel Emergency Lights (2S7 Series) ...........................................................................................99

Steel LED Exit Emergency Combo Signs (27O Series).....................................................................99

Self Luminous Exit Signs (29R, 29S, 29T Series) ........................................................................100

LED Retrofit Kits and Accessories................................................................................................101

Linear and Compact Lamp Fluorescent Emergency Ballasts (20B Series) .........................................101

Exit Accessories ......................................................................................................................102

Exit Individual Features and Benefits .........................................................................................103

TCP has received the U.S. Environmental Protection Agency’s

2013 ENERGY STAR Partner of the Year Award.

BECAUSE WE CARE

©TCP, Inc. APRIL 2013

For more information on the quality and care that TCP can deliver, call us at

800.324.1496 or visit tcpi.com

325 Campus Dr.|Aurora, Ohio 44202|P:800.324.1496|F:877.487.0516
