Fasteners

BLF-14

Spring steel

fasteners

Introduction

Fasteners

The support you rely on.

Improving efficiency during installation with maximum return

on investment.

An application is only as strong as its support systems. It’s not

only important to have reliable power, but determining how that

power is distributed – whether in commercial, industrial or data

center applications – is critical for efficiency. B-Line continues

to be the brand for systems that effectively protect, connect

and enclose engineered facility subsystems, keeping your

processes running and costs down. From cable tray systems

and strut systems to spring steel fastener solutions, the B-Line

business is focused on innovative solutions.

Within this Spring Steel Fastener catalog, you will find several

innovative, time-saving solutions that help drive your bottom line.

Below are just a few of our most recent innovative additions.

• J-Hook color ID system that help verify cables are running

in their correct, designated pathways. For more information,

visit www.cooperbline.com/color-id.

• BB8 Series box mounting bracket with integrated cable

containment for lower installed costs. For more information,

visit www.cooperbline.com/BB816.

• Ruff-IN™ pre-fab systems that can save up to 75% during

installation. For more information, visit

www.cooperbline.com/ruff-in.

• Rapid Ring™ self-adjusting pre-fab ring that installs in as

little as 15 seconds. For more information, visit

www.cooperbline.com/rapidring.

• KwikWire™ hanging system and accessories that help

save time during installation. For more information, visit

www.cooperbline.com/kwikwire.

• To view more, visit www.cooperbline.com/laborsavings.

Eaton’s B-Line Business Eaton’s B-Line Business

United States Canada

509 West Monroe Street 5925 McLaughlin Road

Highland, IL 62249 Mississauga, ON L5R 1B8

United States Canada

Phone: (800) 851-7415 Phone: (800) 569-3660

www.cooperbline.com/contactus www.cooperbline.com/contactca

Table Of Contents

Ruff-IN™Pre-Fab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-8

Pictorial Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-15

Numbering Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17-18

Wall Studs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19-46

Conduit & Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47-74

Acoustical Tee . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75-94

Beams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95-118

Hangers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119-144

Lathers Channel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145-148

Communication & Low Voltage . . . . . . . . . . . . . . . 149-176

Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 177-186

Anchors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 187-220

NEC Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . 221-236

TIA/EIA Requirements . . . . . . . . . . . . . . . . . . . . . . . . 237-238

Reference Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 239-246

Alphanumeric Index . . . . . . . . . . . . . . . . . . . . . . . . . . 247-255

Website: www.bline.com

Fasteners 2

Ruff-IN™Pre-Fab

B-Line’s Ruff-IN product offering continues to

expand with product and assembly options.

For the latest additions, visit

www.cooperbline.com/ruff-in.

Ruff-IN™Pre-Fab

Fasteners

Ruff-IN™Pre-Fab

Complete Pre-Fab Offering

Choose the pre-fab offering below that best fits your needs:

Basic Ruff-IN

Offering Contents: Bracket, Box, Mud Ring,

Ground Wire

• Ideal solution for a contractor sampling

pre-fab for the first time that wants to

keep the control of his or her project.

• Published lead times of 3-5 days ARO,

and NEXT DAY SHIPPING ON (16)

QUICK-SHIP ASSEMBLIES.

(See pages 5 & 6)

Ruff-IN with Wiring Devices and/or MC Cable Whips

Offering Contents: Basic Ruff-IN with Wiring Device, Protective

Cover Plates, and MC Cable whip with connector(s)

• Assemblies are pre-wired for quick plug

and-play installation using Wago™†or

wire nut connectors.

• Wiring Device's ArrowLink™

connector offers additional labor

savings with its plug in feature.

(See page 4 for more details)

• Pre-wired Ruff-IN assemblies with

devices and a pre-cut MC cable whip

attached.

• Whip lengths available in 5-foot increments.

• Includes option to order MC cable whips only.

Total Ruff-IN™

Perfect for a contractor that desires take-off services

and B-Line engineering support

• Perfect for a contractor interested in trying

pre- fab for the first time that needs the

engineering and assembly expertise of B-Line.

• Industry leading, published lead times for

Total Ruff-IN quotation responses and order

assembly.

See Ruff-IN Pre-Fab Systems brochure for product information and part numbers.

Ruff-IN™Pre-Fab

Fasteners 4

† Wago™ is a trademark used by WAGO®Kontakttechnik GmbH & Co. KG

Ruff-IN™Pre-Fab

Distributor Quick Ship Program

Next Day Shipping Available on

12 Ruff-In Assemblies & 4 Rapid Ring™Assemblies

• No need to request a lead time, order today and we’ll ship

out of stock tomorrow!

• Ask your B-Line Sales Representative for more information

on stock-able Ruff-IN assemblies.

Part # UPC # Max. Order Qty.

BBF Series Floor-mount

BBF18-1104DA 78205154072 50

18” BBF floor-mount, 1-gang 5/8” plaster ring, TP403 box, stranded ground wire

BBF18-1104D 78205154065 50

18” BBF floor-mount, 1-gang 5/8” plaster ring, TP403 box, solid ground wire

BBF18-1124DA 78205155199 25

18” BBF floor-mount, 1-gang 3/4” plaster ring, TP403 box, stranded ground wire

BBF18-1124D 78205154176 25

18” BBF floor-mount, 1-gang 3/4” plaster ring, TP403 box, solid ground wire

Double-Sided Box Support

BB76-1104DA 78205155200 100

6” Double-sided box support 1-gang 5/8” plaster ring, TP403 box, stranded ground wire

BB76-1104D 78205138768 25

6” Double-sided box support 1-gang 5/8” plaster ring, TP403 box, solid ground wire

BB76-1124DA 78205154049 50

6” Double-sided box support 1-gang 3/4” plaster ring, TP403 box, stranded ground wire

BB76-1124D 78205138771 25

6” Double-sided box support 1-gang 3/4” plaster ring, TP403 box, solid ground wire

Telescoping Slider Bracket

BB216TS-1104DA 78205139289 25

16” Telescoping Slider Brkt, 1-gang 5/8” plaster ring, TP403 box, stranded ground wire

BB216TS-1104D 78205138619 25

16” Telescoping Slider Brkt, 1-gang 5/8” plaster ring, TP403 box, solid ground wire

BB216TS-1124DA 78205139292 25

16” Telescoping Slider Brkt, 1-gang 3/4” plaster ring, TP403 box, stranded ground wire

BB216TS-1124D 78205138621 25

16” Telescoping Slider Brkt, 1-gang 3/4” plaster ring, TP403 box, solid ground wire

Ruff-IN Quick Ship Pre-Fab Assemblies

BBF18-1104DA

BB76-1104D

BB216TS-1104D

Ruff-IN™Pre-Fab

Fasteners

See Ruff-IN Pre-Fab Systems brochure for product information and part numbers.

Ruff-IN™Pre-Fab

Part # UPC # Max. Order Qty.

BB216TS-1RR4DA 78205176294 50

16” Telescoping Slider Brkt, 1-gang Rapid Ring, TP403 box, stranded ground wire

BB216TS-1RR4D 78205176295 50

16” Telescoping Slider Brkt, 1-gang Rapid Ring, TP403 box, solid ground wire

BB216TS-2RR4DA 78205176296 50

16” Telescoping Slider Brkt, 2-gang Rapid Ring, TP403 box, stranded ground wire

BB216TS-2RR4D 78205176297 50

16” Telescoping Slider Brkt, 2-gang Rapid Ring, TP403 box, solid ground wire

Rapid Ring™Quick Ship Pre-Fab Assemblies

Telescoping

Slider Bracket

with Rapid Ring

See Ruff-IN Pre-Fab Systems brochure for product information and part numbers.

Ruff-IN™Pre-Fab

Fasteners 6

Ruff-IN™Pre-Fab

Fasteners

See Ruff-IN Pre-Fab Systems brochure for product information and part numbers.

Ruff-IN™Pre-Fab

B-Line’s Ruff-IN Configurator program helps simplify the planning process

for pre-fab construction. The program will walk you through a component

selection process, build customized pre-fab assemblies, and create a

project BOM to accelerate the quotation process.

Configurator Features

• Build an assembly to your own specification by choosing from

brackets, boxes, plaster rings, wiring devices, and other accessories.

• Check the assembly for accuracy by reviewing a 3D, rotatable image

that is created in real time.

• Configure multiple assemblies and save them as a project.

• Divide the project into rooms and specify the types and quantities of

assemblies that go in each location.

• Print a customized project submittal package with the push of a button.

• Submit the entire project with your specific job and assembly

information to B-Line for a quote with one click.

All of these features translate into fewer mistakes and less time spent

during the take-off process. Let the B-Line Ruff-IN Configurator go to work

for you. Build your next project using B-Line’s Ruff-IN pre-fabricated

wiring assemblies today!

For more information, visit www.cooperbline.com/ruff-in.

See Ruff-IN Pre-Fab Systems brochure for product information and part numbers.

Ruff-IN™Pre-Fab

Fasteners 8

Wall Studs

Conduit & Cable

35 36

37 37

36 38

38 39 40 41

42 43 43 44

44 45 45 46

48 49 50

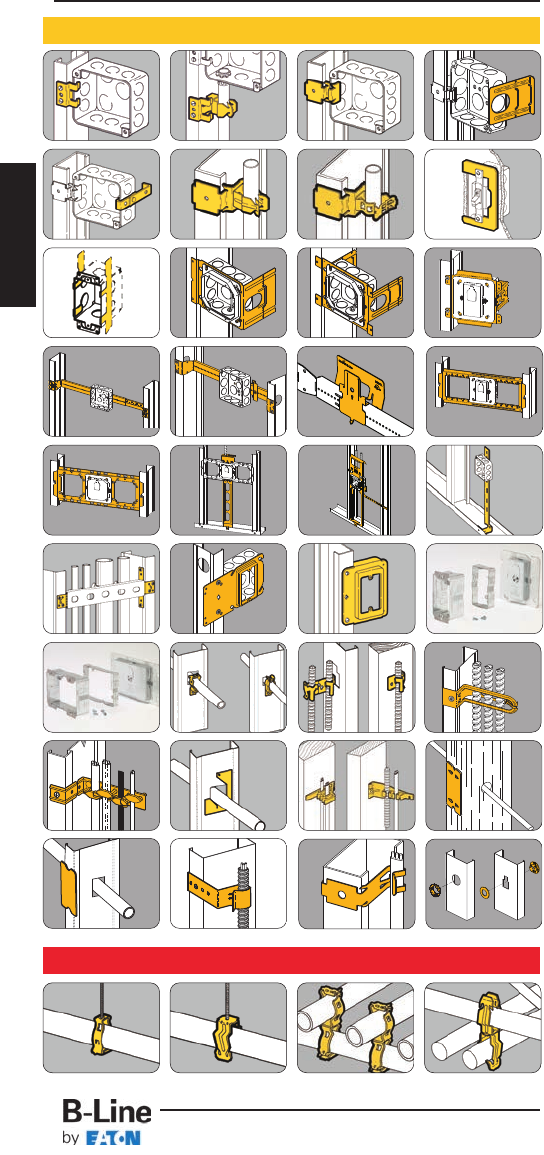

Pictorial Index

26 27-28

33-34

Pictorial Index

Fasteners

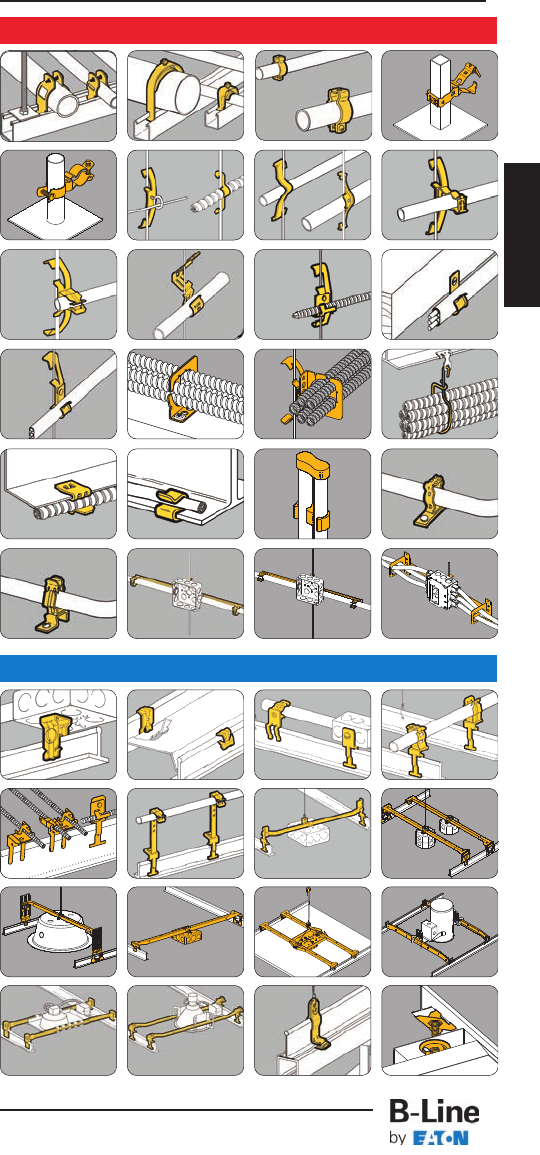

Conduit & Cable

60 61 61 62

68 69-70 71-72 73-74

76 76 77 78

79 82

80 81

Pictorial Index

56 57 58 59

Acoustical Tee

83 83 84 85

86 86 87 88

52 53-54 55

Pictorial Index

Fasteners 10

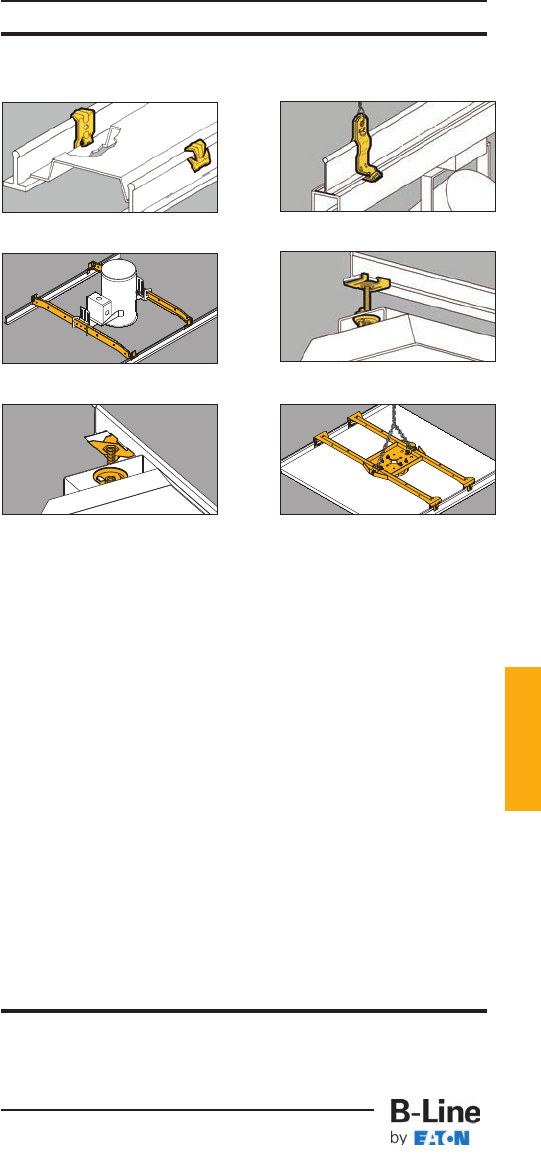

Acoustical Tee

100

101

102

103

Pictorial Index

88 89 89 90

91 91 92

Beams

104 105 105 106

106

110

117

107 108 109

111 111-112 113

118

113 114 115 116

Pictorial Index

Fasteners

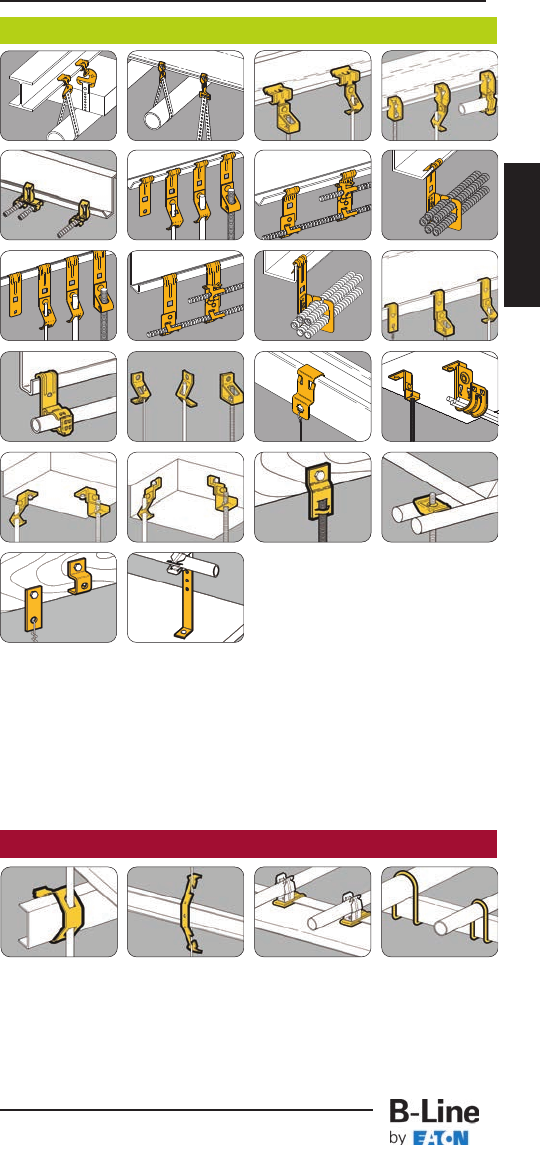

Hangers

Pictorial Index

120 120 121-122 123-124

135 136 137-138 139-140

141 142 143 143

124 125-126 127 128

129-130 131 132 133-134

144 144

146 147 147 148

Lathers Channel

Pictorial Index

Fasteners 12

Pictorial Index

155 156 156

154

157 158 158 159

160 161 161 162

162 163 164 164

165 166 167 167

168 169-170 171 171

172 173 174 175

175 176 176

Communication & Low Voltage

150 150 150 151

152 152 153 154

Pictorial Index

Fasteners

Pictorial Index

178 178 179 179

Accessories

179 180 180 180

180 181 182

183 184 184

182

184

184 186

186

184 185

Pictorial Index

Fasteners 14

Pictorial Index

189-190 191-192 191-192 193

Anchors

194 195 196 197-198

199-200 205-206

210

201-202

207 209208

203-204

211 212 213 214

215

219

218216 217

Pictorial Index

Fasteners

BG - 8-12 - 4T

Numbering Guid

Family Size Suffix

A Series - Anchors Based on 16th AS - Anchor Strap

*B Series - Pipe Strap of an inch BL - Equipment Blue

BA - Acoustical Tee Component 1 - 1/16” BN - Brass Nut

BB - Box Attachment 2 - 1/8” BR - Brown

BC - Beam Clamp 4 - 1/4” BW - Bright White

*BCH - Cable Hook 5 - 5/16” CW - Computer White

*BCS/BES - Conduit Spacer 6 - 3/8” D - Deep Box

BD - Deck Attachment 8 - 1/2” FB - Flat Black

*BE - Edge Attachment 9 - 9/16” GR - Green

BF - Flange Attachment 12 - 3/4” H- Hanger

*BG - Guide-Rite™Fastener 16 - 1” LH - Less Hardware

BH - Hanger Attachment 20 - 11/4” LN - Less Nut

BK - KwikWire 24 - 11/2” LS - Less Stud

BL - Conduit Hangers (mini’s) 32 - 2” OR - Orange

BM - Miscellaneous 64 - 4” R - Right Angle

BN - Push Nuts RR - Regal Red

*BP - Push Type Fasteners S - Stud

*BPC - Break Apart Straps T - Threaded

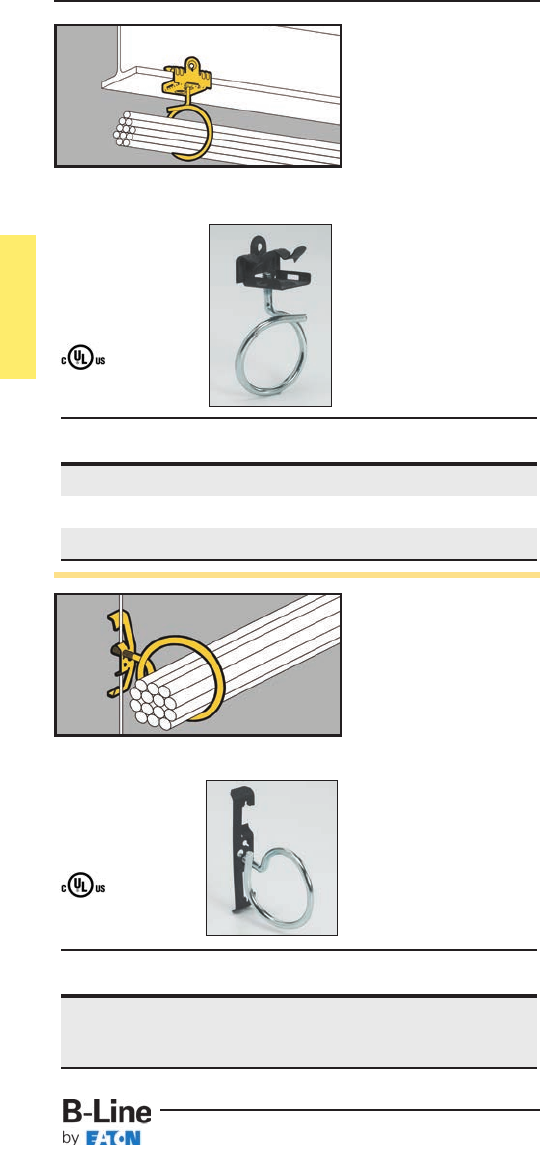

*BR - Bridle Rings TG - Telco Gray

BRC - Cable Fastener W - White

*BRS - Bridle Ring Saddle WBN - White /Brass Nut

BT - Installation Tools WN - Wing Nut

*BU - Universal Beam Attachment YL - Safety Yellow

BW - Bat Wing Fastener 4T - 1/4” Thread Imp.

BX - FMC Support

*The data in the size column only applies to these product families.

BG - 8-12 - 4T

Guide-Rite™

Fastener

1/2” & 3/4”

Conduit

1/4” Thread

Impression

This part numbering guide can be used to quickly translate

our part numbers into meaningful data.

Part Numbering Guide

Fasteners 16

Technical Data - Materials

Steel Specification

High Carbon Cold Rolled ASTM A684, AISI 1055

Electrolytic Zinc Coated ASTM A591

Pre-Galvanized ASTM A653

Load Data

The design load ratings for B-Line fasteners are specified in this catalog as

static load capacity or ultimate static load capacity. By definition, the listed

static load capacity has a safety factor of three (3.0), the listed ultimate static

load capacity has no safety factor. In either case, these stated loads are not

to be exceeded, and loads should be applied only as depicted in the catalog

and/or instruction sheets. The load capacity of a fastener having more than

one component is equal to the load capacity of the lowest rated component.

Fasteners having no load ratings are designed for proper placement of

boxes, conduit, etc., and not for supporting loads.

B-Line fasteners are designed for use with support members (e.g.: angle

iron, bar joists, beams, columns, flanges, purlins, wire, rod) that comply

with the applicable AISI standards and threaded rod that complies with the

applicable AISI standards.

Quality Assurance

B-Line has an established Q.C. program in which raw material and finished

products are sampled, inspected and tested by certified inspectors to assure

that all applicable standards are met. B-Line’s fasteners are manufactured in

controlled lots and each part is identified by a lot number stamped into the

part. This number allows B-Line to track each step of the manufacturing

process including raw material, die set-up, heat treating, and finishing.

Samples are tested to verify correct hardness, corrosion resistance and

load carrying capacity.

Heat Treatment

B-Line spring steel fasteners are heat treated to make the steel hard and

give the parts their spring quality and strength. The hardness for a given

fastener depends on the required load carrying capacity and the application.

Steel

B-Line spring steel fasteners are manufactured from spheroidized annealed

high carbon cold rolled steel (ASTM A684, AISI 1055). Mild steel fasteners

are manufactured from electrolytic zinc coated steel (ASTM A591) or pre-

galvanized steel (ASTM A563).

Electrolytic zinc coated and pre-galvanized steel is produced by coating

coils of sheet steel with zinc at the mills. These coils are then slit to size

and fabricated into B-Line products.

Materials

Fasteners

Pre-Galvanized Zinc

Pre-galvanized steel is produced by coating coils of sheet steel with zinc by

continuously rolling the material through molten zinc at the mills. This is also

known as mill galvanized or hot-dip mill galvanized. These coils are then slit to

size and fabricated into B-Line products.

The G90 specification calls for a coating of .90 ounces of zinc per square

foot on each side of the sheet.

During fabrication, cut edges and welded areas are not normally zinc coated;

however, the zinc near the uncoated metal becomes a sacrificial anode to

protect the bare areas after a short period of time.

Pre-galvanized steel is recommended for indoor use in dry areas.

Electro-galvanized Zinc

Electro-galvanized zinc (also known as zinc plated or electroplated) is the

process by which a coating of zinc is deposited on the steel by electrolysis

from a bath of zinc salts.

The coating is pure zinc and is mechanically bonded to the steel. A

maximum of .5 mils of zinc can be applied by this method.

When exposed to air and moisture, zinc forms a tough, adherent, protective

film consisting of a mixture of zinc oxides, hydroxides, and carbonates. This

film is in itself a barrier coating which slows subsequent corrosive attack of

the zinc.

This coating is usually recommended for indoor use in relatively dry areas.

Paint

Some standard fasteners have a gloss white acrylic enamel applied over the

zinc phosphate finish for an enhanced appearance that compliments white

ceiling grids.

Zinc Phosphate

B-Line spring steel fasteners receive a coating* of sealant impregnated zinc

phosphate. This type of coating was commercially developed by industry to

inhibit oxidation of ferrous metals for up to 72 hours in a specified salt fog

atmosphere. As applied to its fasteners, B-Line rates this coating for 30 hours

when salt fog tested per ASTM B-117.

Although rust resistant, B-Line fasteners should be used only indoors and in

non-corrosive environments.

Unless otherwise noted, the standard finish for B-Line’s spring steel

fasteners is Zinc Phosphate.

*At least 1000 milligrams of zinc phosphate per square foot.

CAUTION: Do not use B-Line Fasteners outdoors or in corrosive environments. Proper

application of each fastener is shown in this catalog and on the installation sheet inside

each carton. Failure due to improper installation may cause harm to personnel and/or

property. Allowable loads shown apply to the fastener only and do not account for the

structure, which supports the fastener. Flanges, wires and rods used with these fasteners

must meet A.I.S.I. standards. To improve personal safety on the jobsite, always observe all

federal and local safety regulations: wear gloves, safety glasses and a hard hat.

Technical Data - Materials

Part Numbering Guide

Fasteners 18

Finish Specification

Zinc-Phosphate MIL-P-16232 Type Z

Electro-galvanized Zinc ASTM B633

Pre-Galvanized Zinc ASTM A653, G90

Gloss White Paint Acrylic Enamel

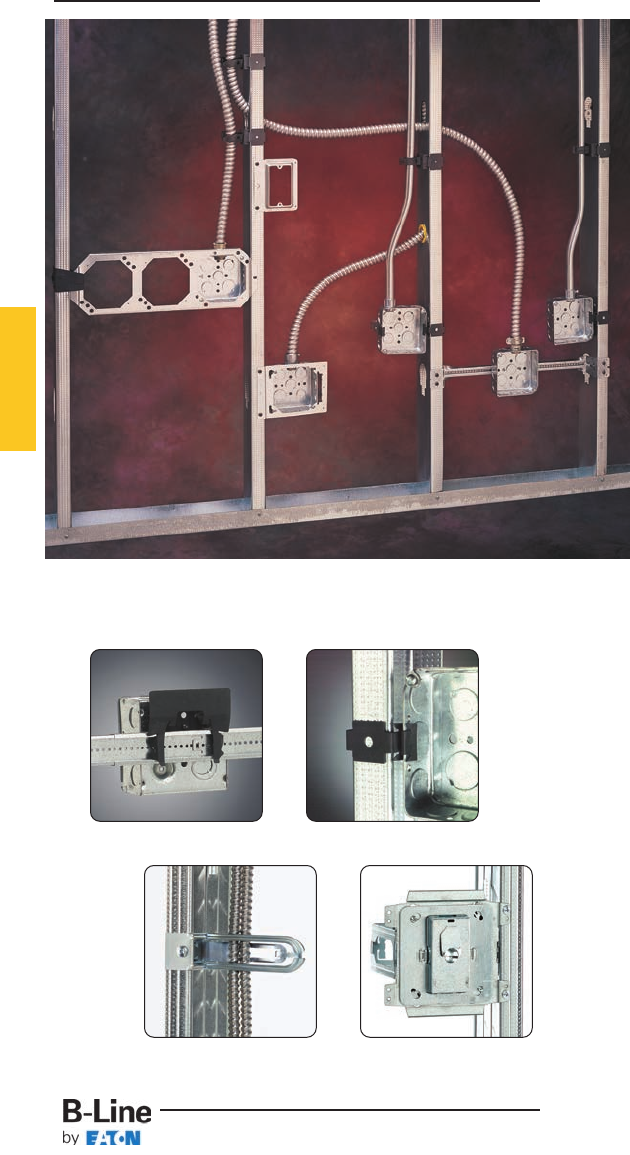

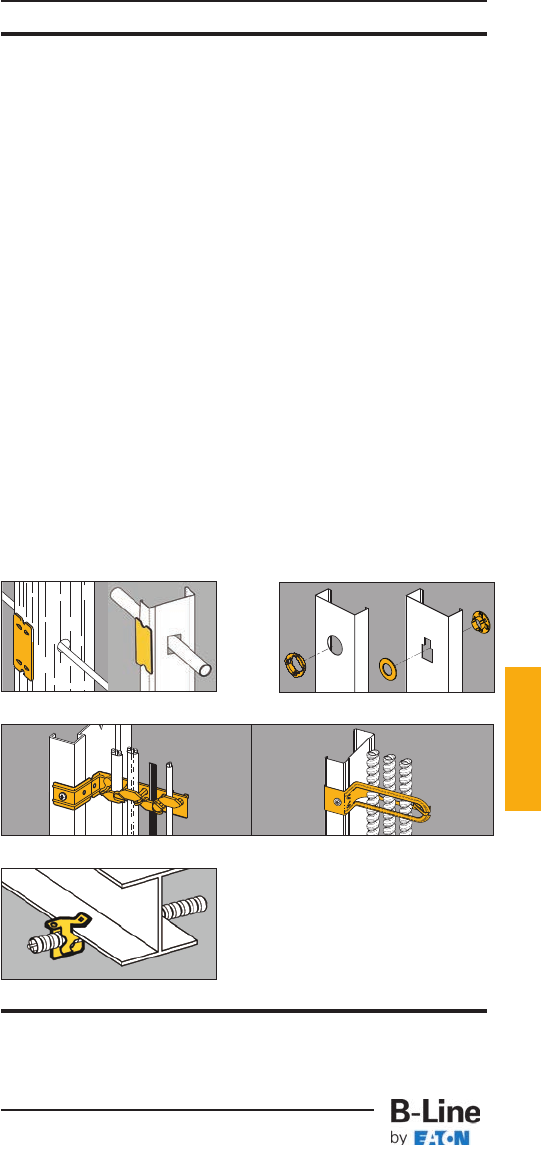

Wall Studs

Fasteners

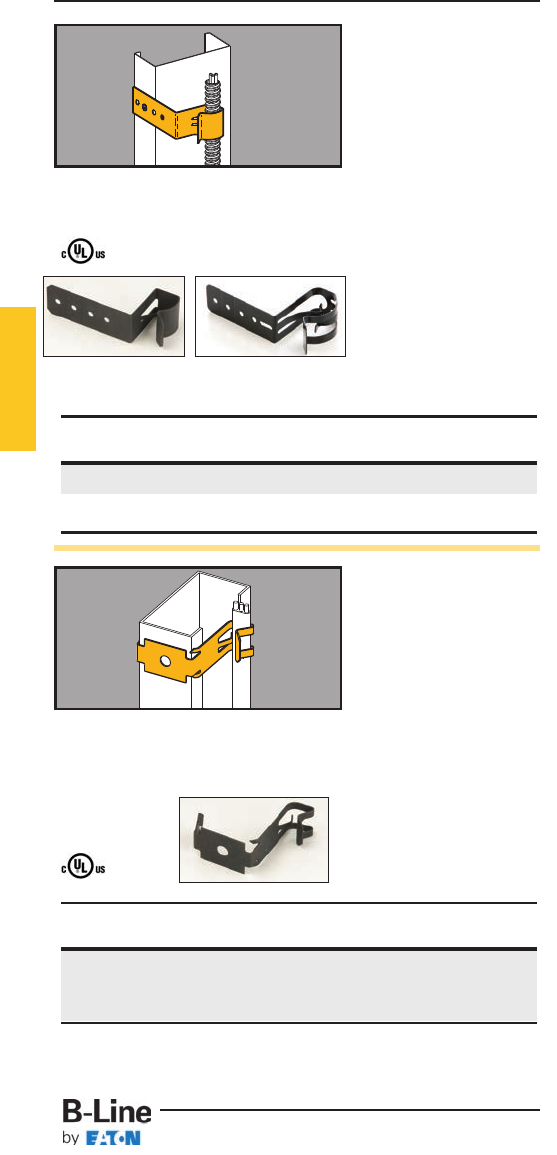

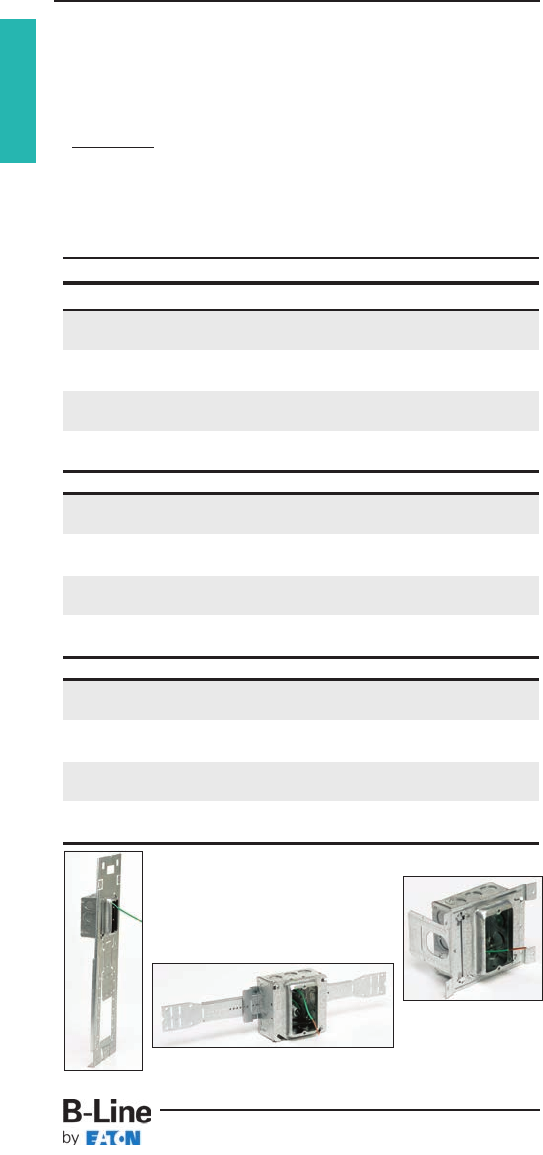

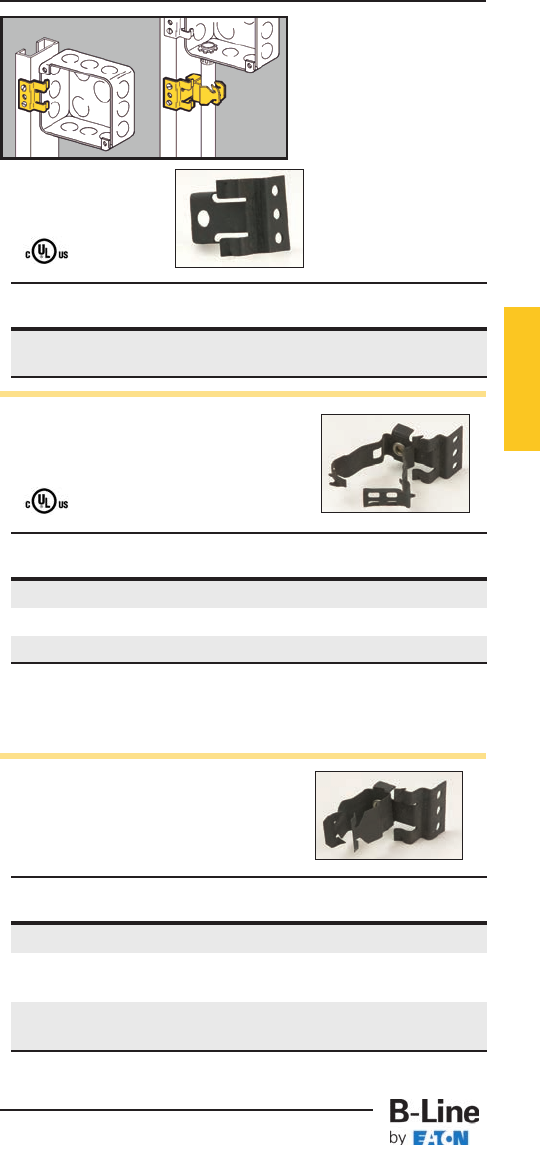

Box To Stud

Fastener

• Attaches with screws

to metal studs.

• BB1 supports electrical

box.

• BG series features

Guide-Rite design.

• BP series features

push-type design.

UPC/Part Catalog Box

Number Number Description Qty.

78101118145 BB1 Electrical Box 100

Support Clip

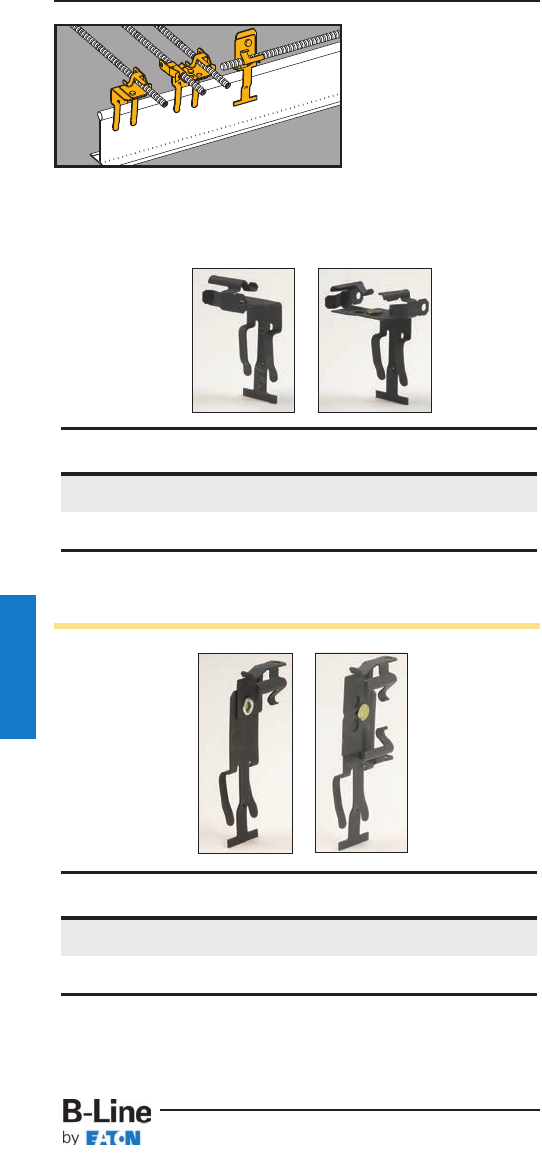

Guide-Rite™Conduit To

Stud Fastener

UPC/Part Catalog Conduit Size Box

Number Number EMT & Rigid Qty.

78101118420 BG-6-B1 *3/8" 100

781011 18475 BG-8-12-B1 1/2", 3/4" 100

781011 18555 BG-16-B1 1" 100

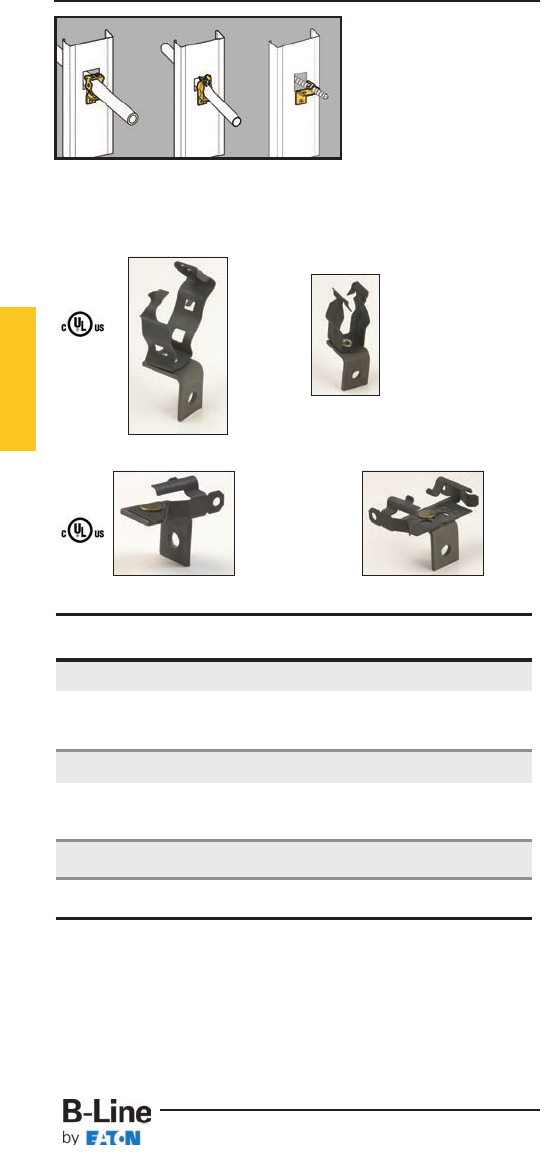

Push Type Conduit To

Stud Fastener

UPC/Part Catalog Box

Number Number Conduit Size Qty.

781011 19245 BP-8-B1 1/2" EMT 100

781011 19345 BP-12-B1 3/4" EMT, 100

1/2" IMC, Rigid

781011 19440 BP-16-B1 1" EMT, 100

3/4" IMC, Rigid

Wall Studs

Patent #4958792

* BG-6 will accept the following range ∅.420 - ∅.675:

14/2 thru 10/4 MC/AC cable and 5/16 or 3/8flexible conduit

Read safety/installation instruction sheets in packages before use.

These products are designed for positioning only. No load rating.

Wall Studs

Fasteners 20

Box To Stud

Fastener

• Attaches electrical

boxes (requiring

plaster rings) to most

metal studs.

• Box mounts flush to

back of drywall.

• Simply installed with

a hammer.

Wall Studs

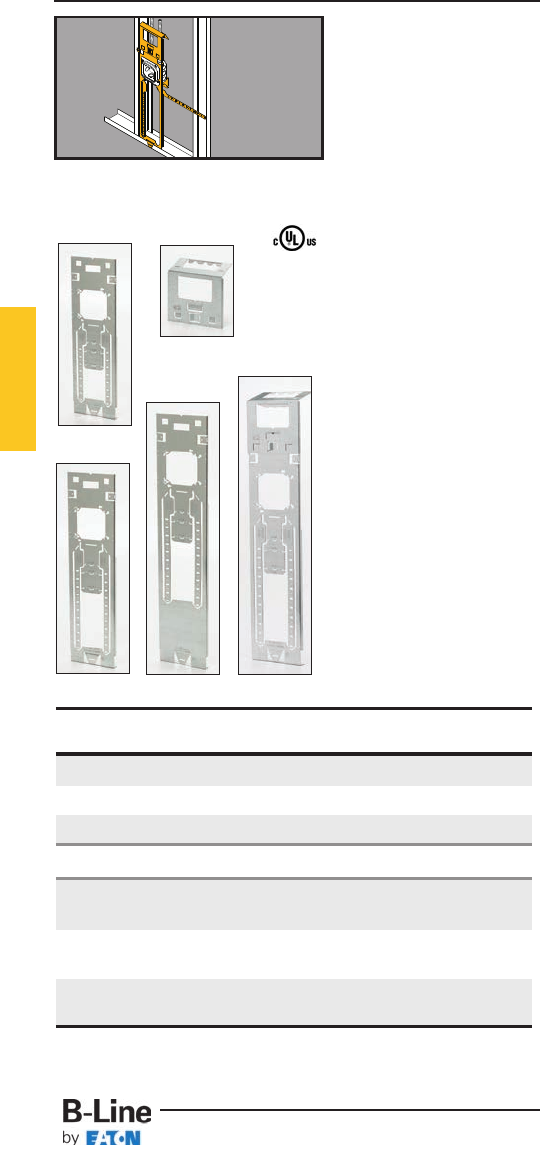

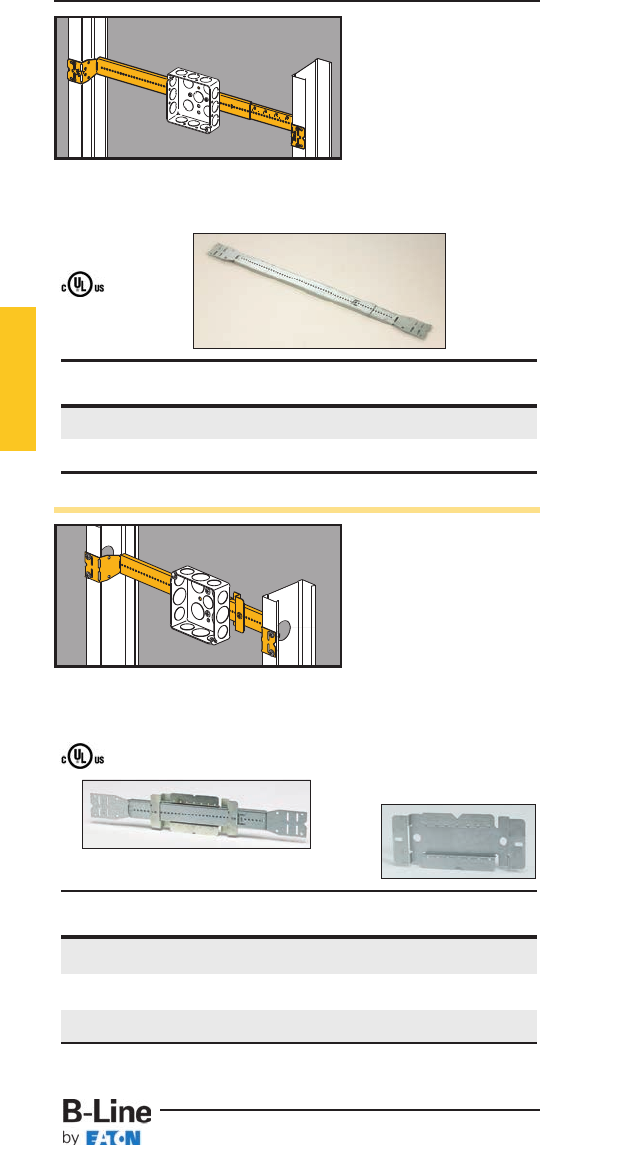

Adjustable Box

Stabilizers

• Provides far-side

support for electrical

boxes in 21/2” thru

6” studs.

• Cut outs facilitate

bending to provide

precise installation

with greater stability.

• Easily snaps onto box

side and is secured in

place by plaster ring.

BB12-6

BB12

Read safety/installation instruction sheets in packages before use.

These products are designed for positioning only. No load rating.

Wall Studs

Fasteners

UPC/Part Catalog Box

Number Number Description Qty.

78101118270 BB9 Electrical Box 100

Support

UPC/Part Catalog Box

Number Number Metal Stud Size Qty.

78101192876 BB12 21/2" thru 4" 100

78101192879 BB12-6 6" 100

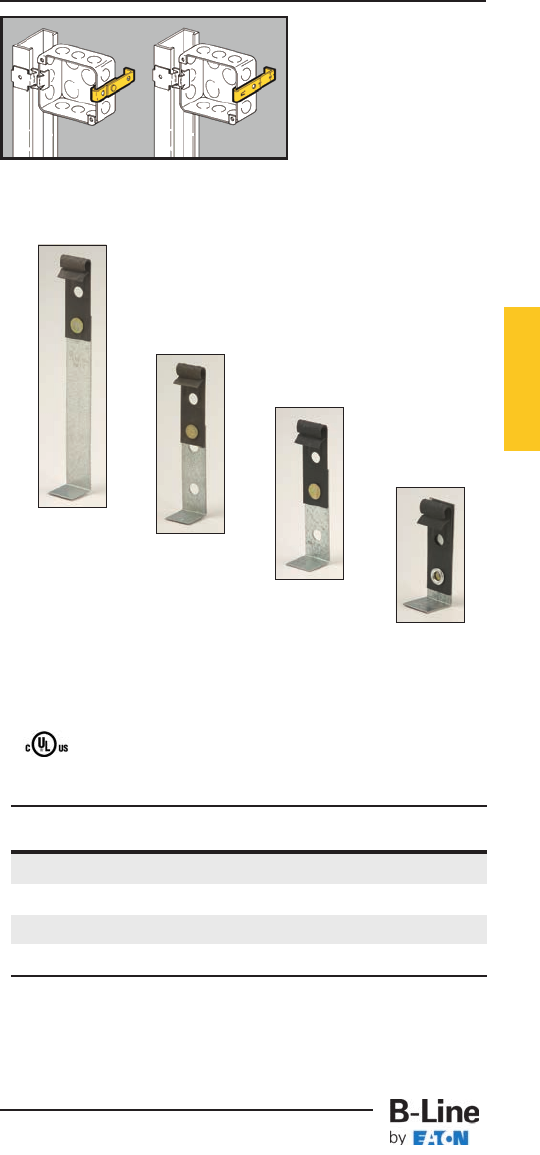

Box Stabilizer

Wall Studs

•Provides far-side

support for

electrical boxes.

•See BB12 Series for

a better solution.

BF1-64

BF1-96

BF1-56

BF1-40

Read safety/installation instruction sheets in packages before use.

These products are designed for positioning only. No load rating.

Wall Studs

Fasteners 22

UPC/Part Catalog Box

Number Number Metal Stud Size Qty.

78101118320 BF1-40 21/2" 100

78101118325 BF1-56 31/2" 100

78101118330 BF1-64 4" 100

78101118335 BF1-96 6" 100

Guide-Rite™Conduit

To Stud Fastener

Push Type Conduit To

Stud Fastener

• Attaches conduit to

most metal studs.

• BG Series features

Guide-Rite design.

• BP Series feature

push-type design.

Wall Studs

* BG-6 will accept the following range ∅.420 - ∅.675:

14/2 thru 10/4 MC/AC cable and 5/16 or 3/8flexible conduit

Read safety/installation instruction sheets in packages before use.

These products are designed for positioning only. No load rating.

Wall Studs

Fasteners

UPC/Part Catalog Conduit Size Box

Number Number EMT & Rigid Qty.

78101118425 BG-6-B5 *3/8" or BX 100

78101118480 BG-8-12-B5 1/2", 3/4" 100

78101118560 BG-16-B5 1" 100

78101118645 BG-20-B5 11/4" 50

Patent #4958792

UPC/Part Catalog Box

Number Number Conduit Size Qty.

78101119250 BP-8-B5 1/2" EMT 100

78101119350 BP-12-B5 3/4" EMT, 100

1/2" IMC, Rigid

78101119445 BP-16-B5 1" EMT, 100

3/4" IMC, Rigid

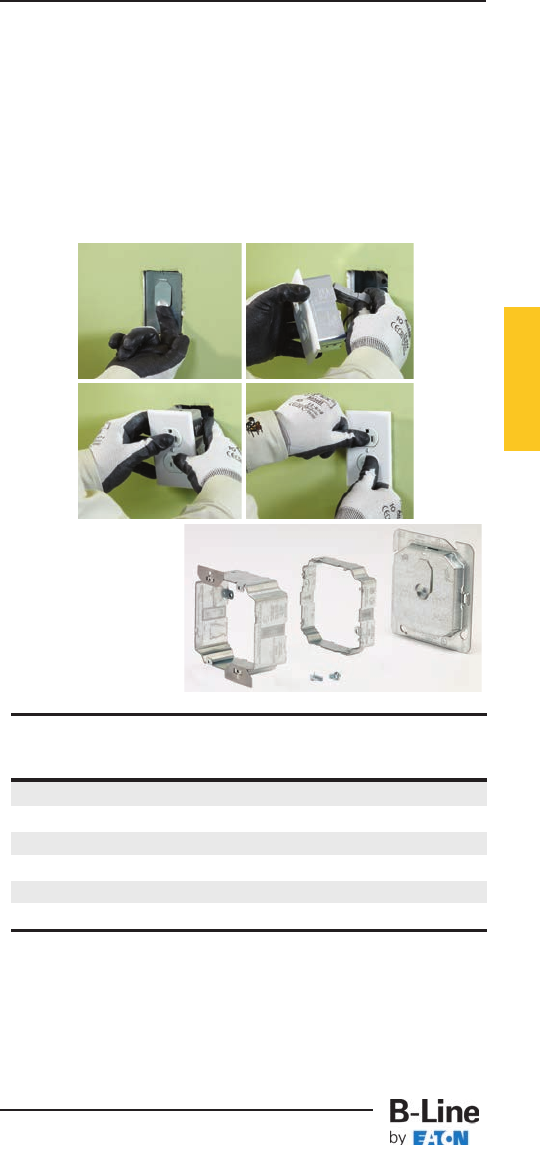

Retainer Leveler

• BB32 adds rigidity to

devices in oversize

wall openings.

• Holds wiring device

firmly in drywall.

• Can be used with

switches, receptacles,

GFCIs and decorator

devices.

• Ideal for positioning

devices in pre-fab

installations.

• Finish: Pre-Galvanized

Box Support

• Attaches electrical

boxes to finished

drywall.

• Box is completely

supported by drywall.

• Prevents box from

pulling out of wall.

• Finish: Pre-Galvanized

BB33 BB33L

Read safety/installation instruction sheets in packages before use.

These products are designed for positioning only. No load rating.

Wall Studs

Fasteners 24

UPC/Part Catalog Box

Number Number Description Qty.

78101118215 BB32 Adds Rigidity to 100

Oversize Wall Openings

UPC/Part Catalog Length Box

Number Number Description A Qty.

78101101138 BB33 Box Support 11/2" 100 pr.

78101104936 BB33L Long Leg 21/2" 100

Box Support

Wall Studs

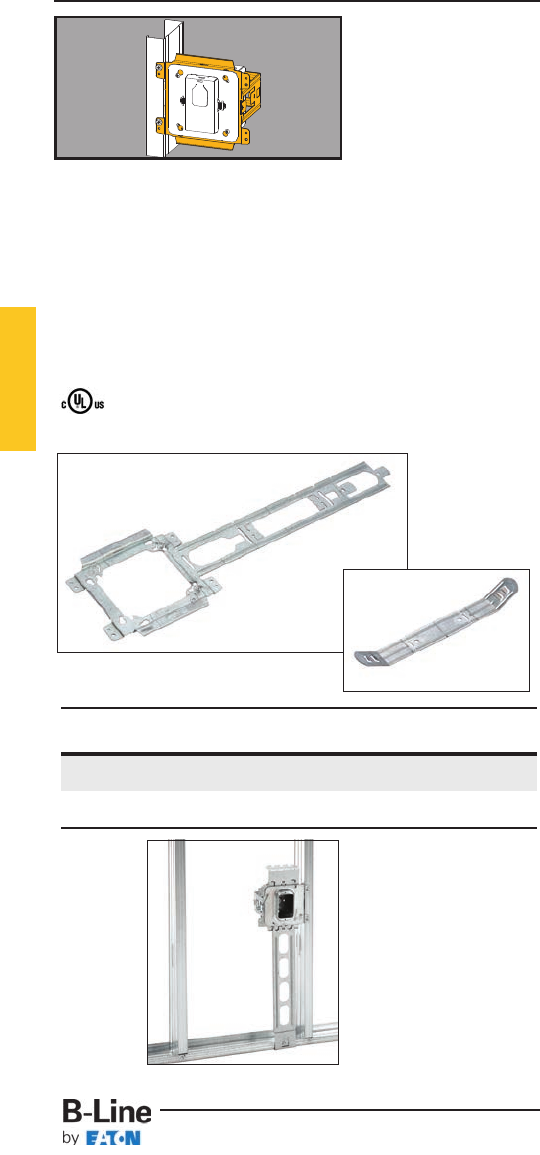

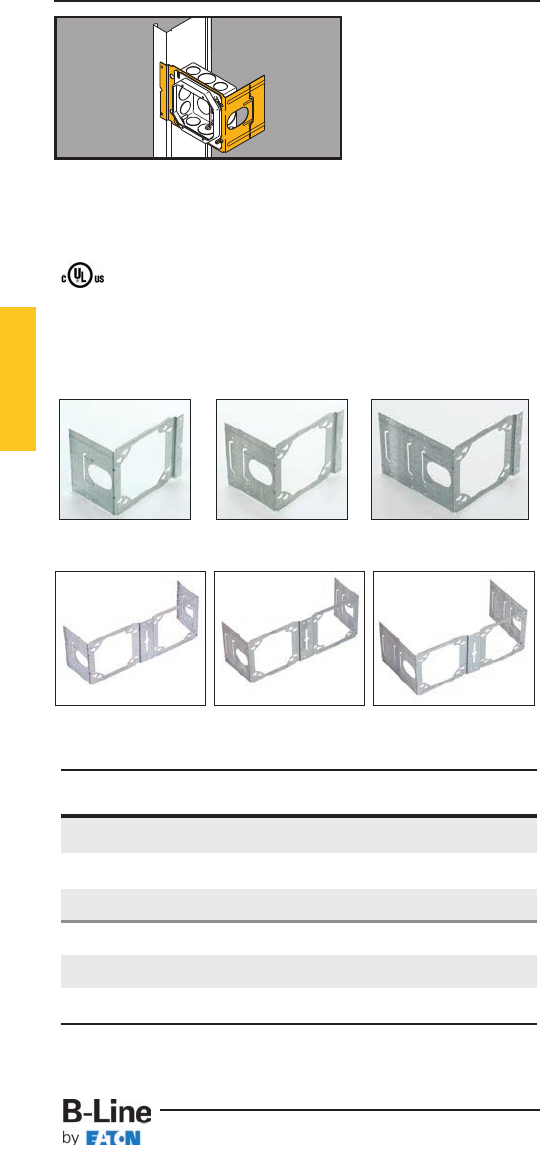

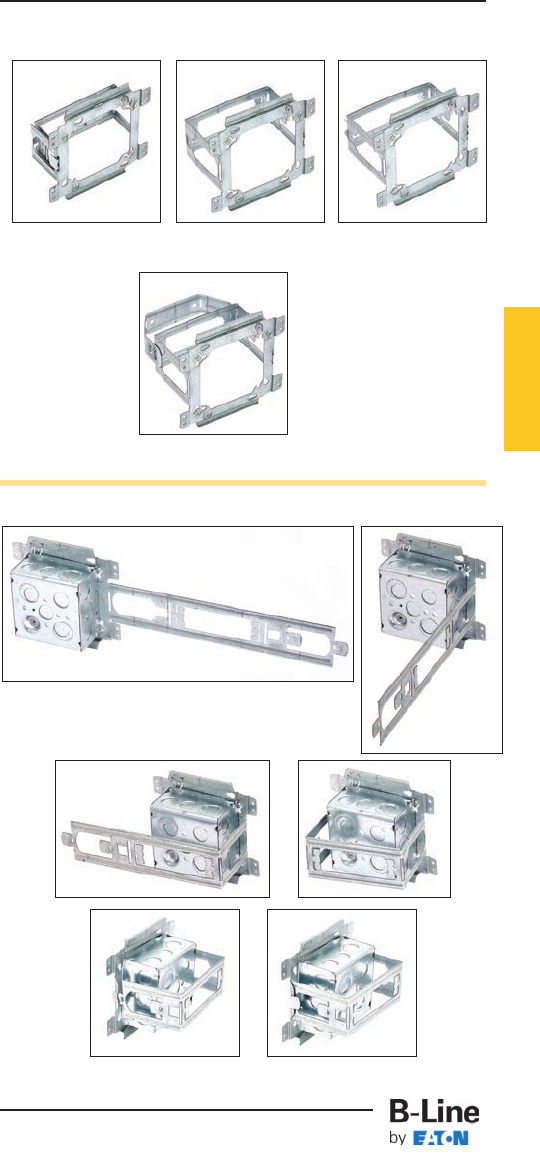

Box Support

Brackets

• Improved far-side

support stands up

during drywall

installation and out

performs competitor

brackets.

• Supports 4” or

411/16”, square

boxes.

• Brackets may be

piggy-backed in

series.

• Finish: Pre

Galvanized.

• See Ruff-IN™

brochure for pre-fab

box assemblies.

BB4-23 BB4-4 BB4-6

BB4-23D BB4-4D BB4-6D

Read safety/installation instruction sheets in packages before use.

These products are designed for positioning only. No load rating.

Wall Studs

Fasteners

UPC/Part Catalog Box

Number Number Metal Stud Size Qty.

78101118190 BB4-23 35/8", 21/2" 100

78101118200 BB4-4 4", 35/8", 21/2" 100

78101118202 BB4-6 6", 51/2", 35/8", 21/2" 100

79903848375 BB4-23D 35/8", 21/2" 50

79903848376 BB4-4D 4", 35/8", 21/2" 50

79903848377 BB4-6D 6", 51/2", 35/8", 21/2" 50

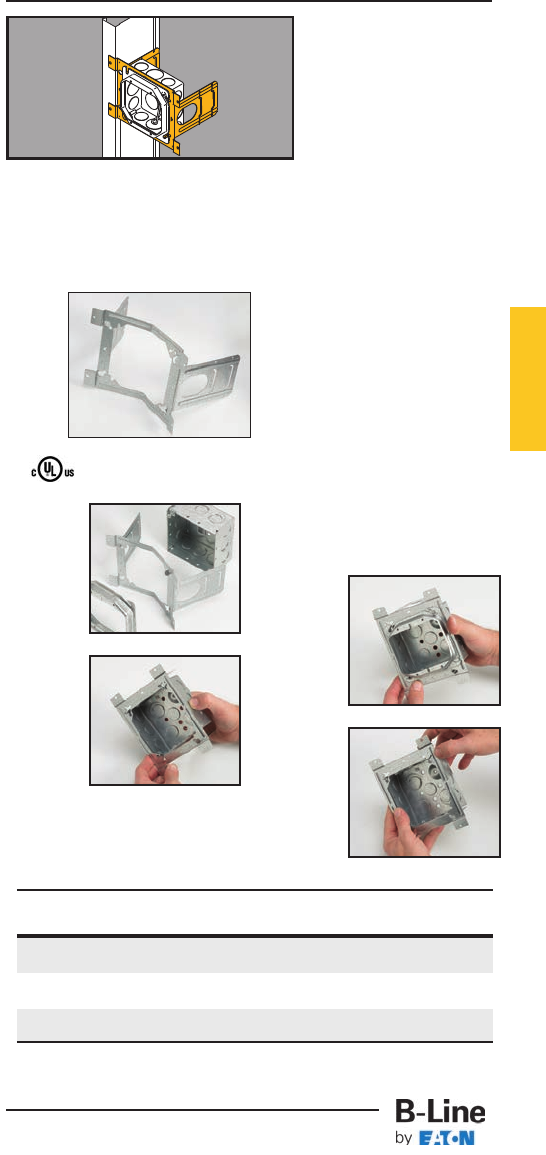

Wall Studs

Double-Sided Box

Support Bracket w/

Marty-Mouse™Ears

• Double-side box

support, designed for

Pre-Fab. Unit can be

installed on either side

of stud without

repositioning box or

devices.

• Patented Marty Mouse™

ears feature an

innovative keyhole

pattern to secure outlet

box to bracket with or

without the plaster ring.

•

Wider box opening

accommodates one or

two gang adjustable

plaster rings (B1AJ &

B2AJ

• Enhanced far-side

support stands up

during drywall

installation and out

out performs

competitor brackets.

• See Ruff-IN™brochure

for pre-fab box

assemblies.

• Finish: Pre-Galvanized

4. With the tabs

closed, the box

remains

secured to the

bracket when

the plaster ring

is removed

1. Bracket is

shipped with

ear tabs in

the open

position

2. Insert box

screws into

open slots

3. When plaster

ring is installed,

the ear tabs

are bent down

into the closed

position

Read safety/installation instruction sheets in packages before use.

These products are designed for positioning only. No load rating.

Wall Studs

Fasteners 26

UPC/Part Catalog Box

Number Number Stud Size Qty.

78205138645 BB73 35/8", 21/2" 50

78205138717 BB74 4", 35/8", 21/2" 50

78205138759 BB76 6", 51/2", 35/8", 21/2" 25

Patent # 5595362

Wall Studs

Read safety/installation instruction sheets in packages before use.

These products are designed for positioning only. No load rating.

Wall Studs

Fasteners

Box Support Brackets

Available August 2014

• Interlocking wrap-

around design

provides extra rigidity.

• Supports most standard

1-gang and 2-gang US

and Canadian boxes

and/or plaster rings

4” SQ., 411/16” SQ.,

and 5” SQ. on either

side of the stud.

UPC/Part Catalog Box

Number Number Metal Stud Size Qty.

79903856399 BB70 21/2" - 4” 50

79903856400 BB70E*51/2" - 6" 50

BB70 BB70E*

(Sold separately,

must be used

with BB70)

See following page for various

product information.

• Adjustable for varying stud depths (21/2” to 6”).

• Compatible with 1-gang and 2-gang Rapid Ring™

and adjustable plaster rings.

• Integral mounting tabs for attaching plaster rings.

• Multiple brackets may be ganged together.

• Available factory assembled as part of the

Ruff-IN™ pre-fab line with box, mud ring, and

pre-wired devices.

• Finish: Pre Galvanized.

• Patent Pemding

Can be used with

BBCC (containment clip)

and BBFS-18 (floor stand)

See pages 33 & 34.

Wall Studs

Read safety/installation instruction sheets in packages before use.

These products are designed for positioning only. No load rating.

Wall Studs

Fasteners 28

21/2”35/8”

For 51/2” depth, snap

the BB70E into the

next notch on the

bracket side

6”

4”

Bent For Various Depths

Bending Bracket For 35/8” Depth

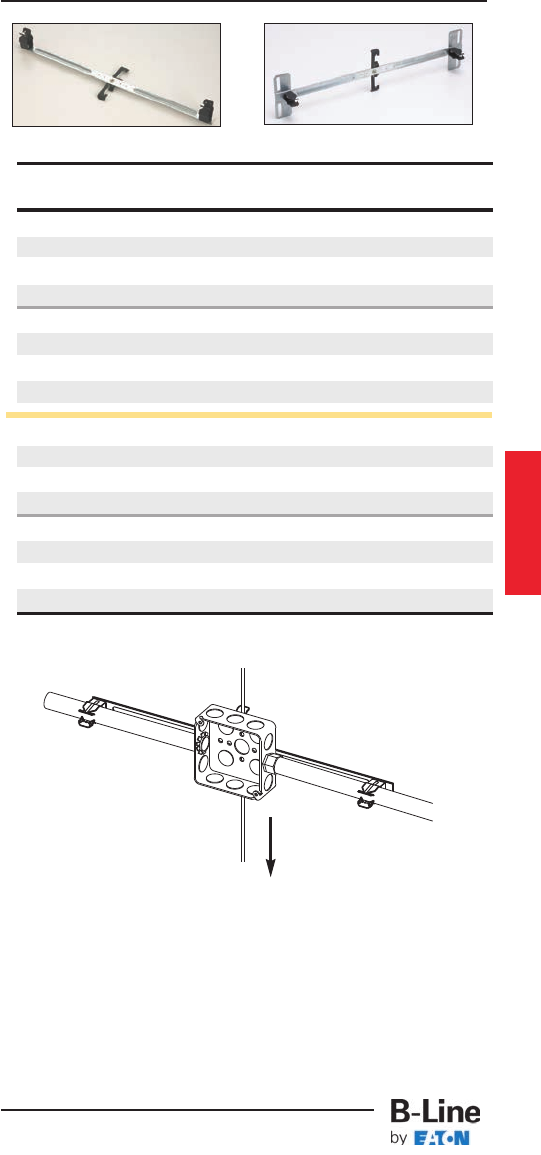

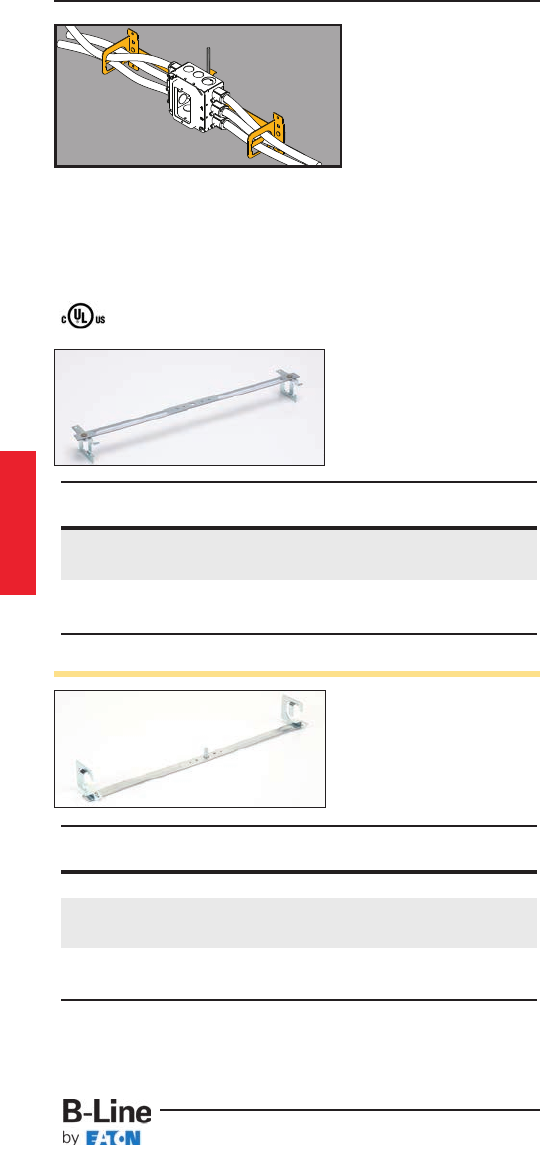

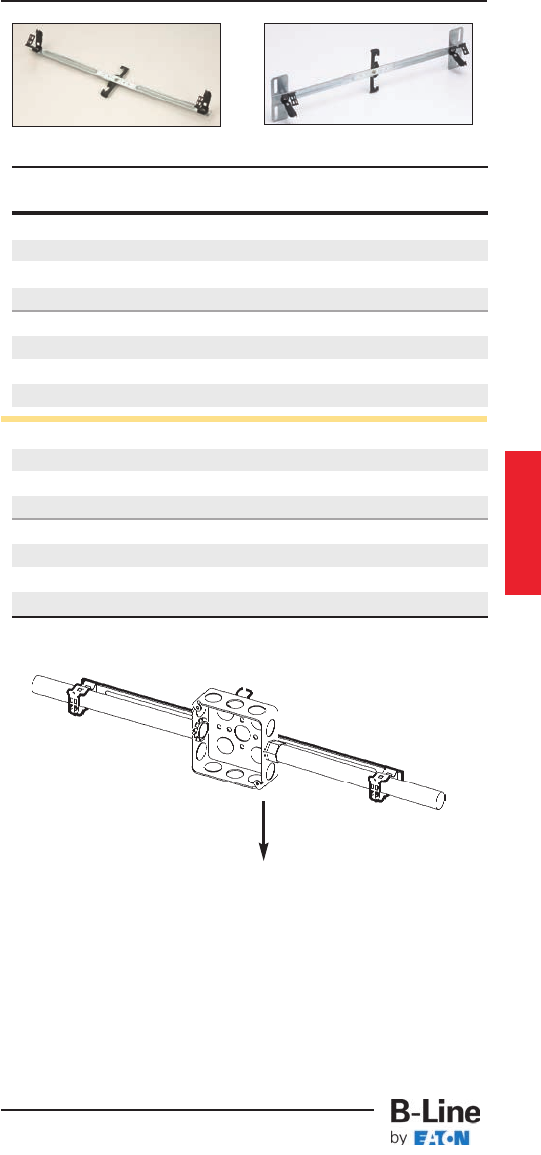

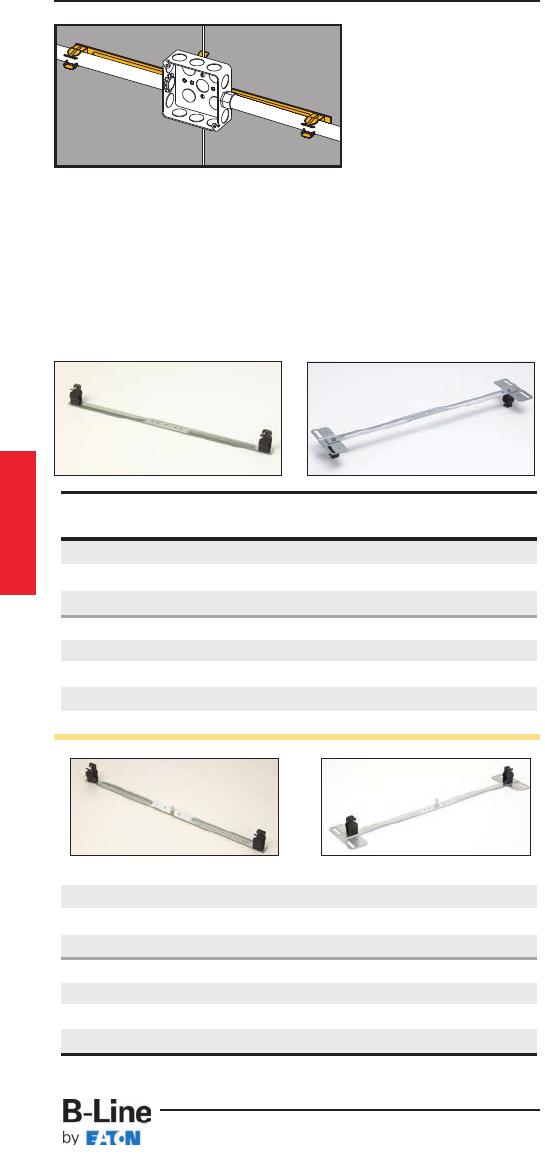

Telescoping Box

Mounting Bracket

• Completely adjustable

- fits a range of stud

spacings and 11/2” or

21/8” deep boxes.

• Pre-punched screw

holes provide for easy

box installation.

• Bar is marked with

scale for stud spacing.

• Finish: Pre-galvanized

Telescoping Slider

Bracket

• Designed for pre-fab.

• Box can be attached

to slider bracket

before or after slider

is installed on

telescoping bracket.

• Box location can be

field adjusted by

moving slider along

telescoping bracket.

• See Ruff-IN™brochure

for pre-fab box

assemblies.

• Finish: Pre-galvanized

BB216TS BB2TS

BB2-24T

Wall Studs

Read safety/installation instruction sheets in packages before use.

These products are designed for positioning only. No load rating.

Wall Studs

Fasteners

UPC/Part Catalog Box

Number Number Stud Spacing Qty.

78205138614 BB216TS 11" to 18" 20

78205138628 BB224TS 15" to 26" 20

78205138613 BB2TS Slider Bracket Only 50

Patent # 7,472,875

UPC/Part Catalog Metal Stud Box

Number Number Spacing Qty.

78101104256 BB2-16T 11" to 18" 50

78101101664 BB2-24T 15" to 26" 50

Licensed under Patent #5386959 • Patent #5209444

Wall Studs

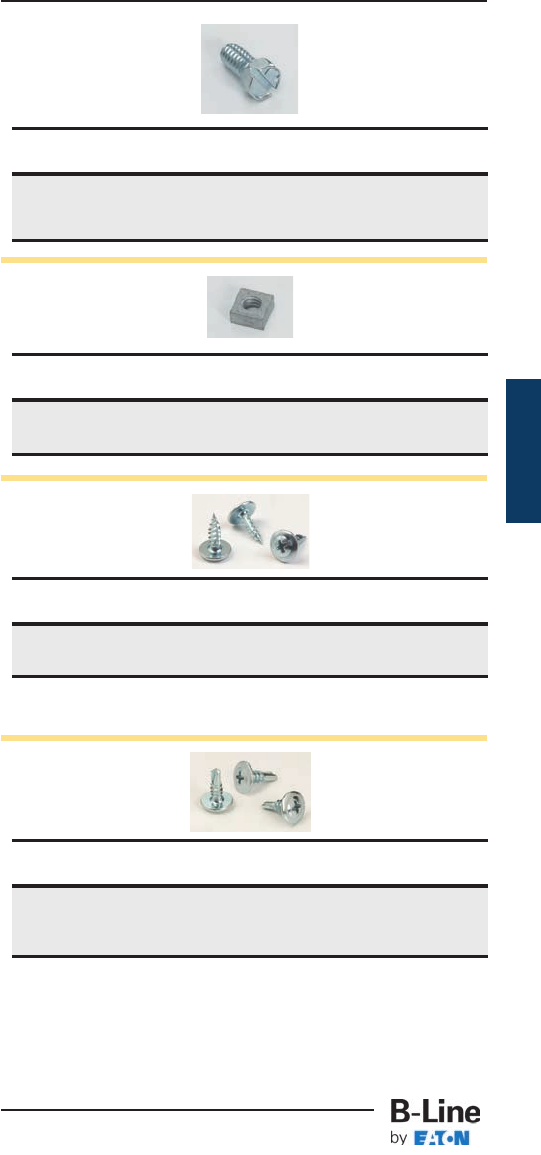

Mounting

Screws

BWHS-9 BWHS-9D

• Designed for pre-fab.

• Outlet boxes mount to

the CROC-LOK with

single screw.

• CROC-LOK box

assemblies can be

attached before or after

the telescoping bar is

mounted in the stud wall.

• The tool-less design

enables CROC-LOK

assemblies to be field

installed in less than 4

seconds. Simply

squeeze, secure and

walk away.

• See Ruff-IN™brochure

for pre-fab box

assemblies.

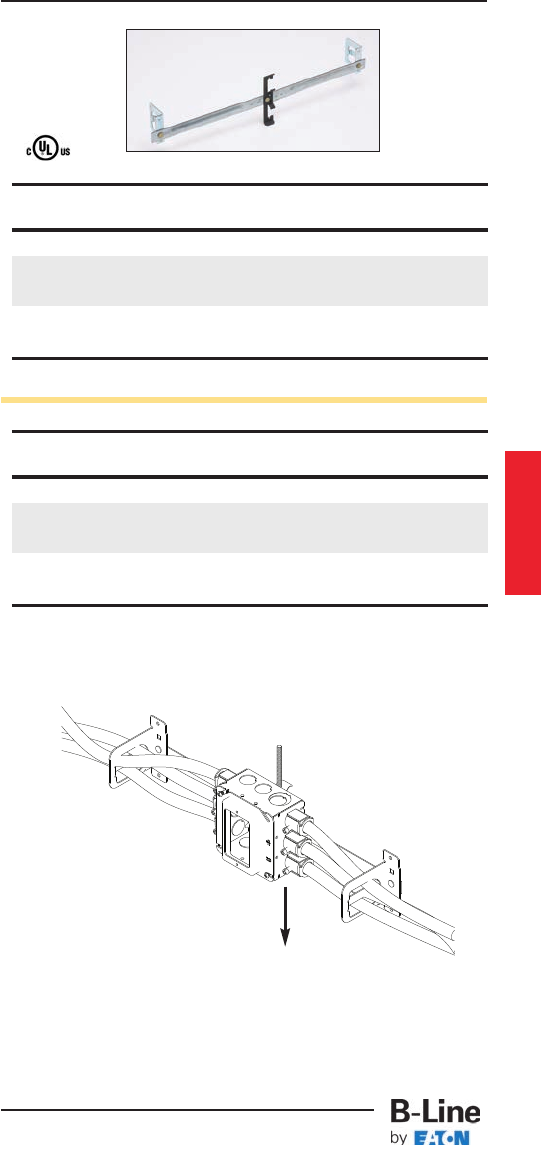

CROC-LOK™

Box Mounting

Bracket

Note:

Secures to B-Line BB2-16T and BB2-24T telescoping brackets only.

For a standard 21/8” deep box, the stud depth must be 31/2” or greater.

For a shallow 11/2” deep box, the stud depth must be 21/2” or greater.

Read safety/installation instruction sheets in packages before use.

These products are designed for positioning only. No load rating.

Wall Studs

Fasteners 30

UPC/Part Catalog Box

Number Number Description Qty.

78101101675 BWHS-9 #8 x 9/16” 1000

Sheet Metal Screw

78101104925 BWHS-9D #8 x 9/16” 1000

Self-Drilling

Sheet Metal Screw

Note: BWHS-9 & BWHS-9D can be used with all fasteners requiring

attachment with sheet metal screws, except on BB2-16, BB2-16D,

BB2-24 & BB2-24D which only BWHS-9 can be used.

UPC/Part Catalog Stud Box

Number Number Description Spacing Qty.

78205151291 BB2CL CROC-LOK only N/A 50

78205151292 BB216TCL BB216T with 11” - 16” 20

CROC-LOK

78205151293 BB224TCL BB224T with 15” - 24” 20

CROC-LOK

U.S. Patent # 8,403,277

Wall Studs

Read safety/installation instruction sheets in packages before use.

These products are designed for positioning only. No load rating.

Wall Studs

Fasteners

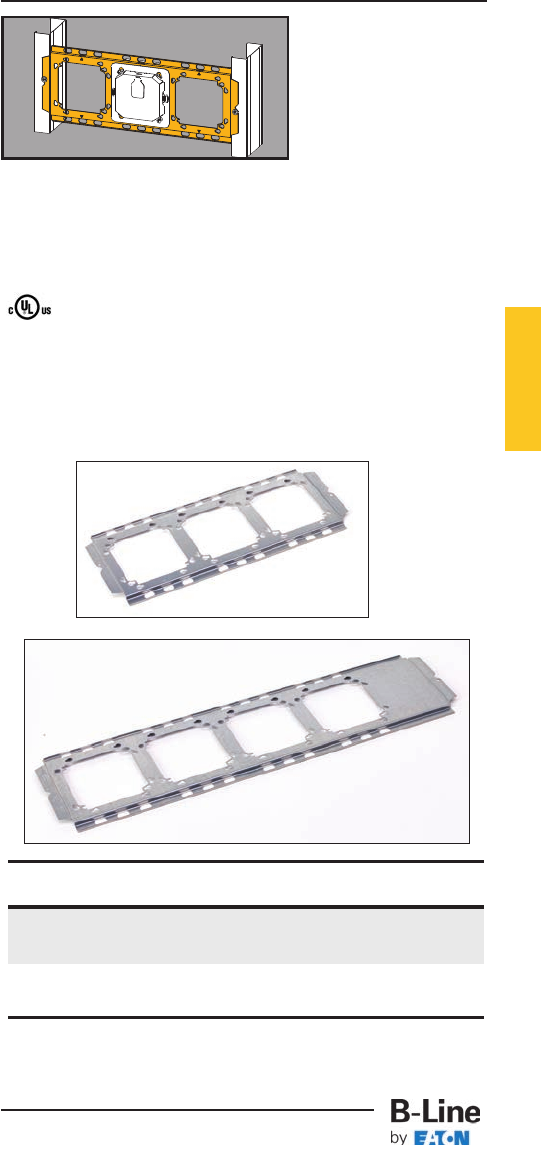

Open Box

Mounting Bracket

Available August 2014

• Open box support

allows for adjustability

of box position

between studs.

• Supports most US and

Canadian boxes and/or

plaster rings 4” SQ.,

411/16” SQ., 5” SQ.,

and multi-gang boxes.

• Fits up to 11/2” wide studs

16” to 24” on center.

• Compatible with Rapid

Ring™ & adjustable

plaster rings.

• Field cut to adjust to non-

standard stud spacings.

• Stamped markings at 1/4”,

1/2”, and 1” increments to

allow the installer to easily

locate the desired box

position.

• Available factory assembled

as part of the Ruff-IN™ pre-

fab line with box(es), mud

ring(s), and pre-wired

devices.

• Finish: Pre-galvanized

• Patent Pending

BB7-24

BB7-16

UPC/Part Catalog Box

Number Number Description Qty.

78205145325 BB7-16 16” Stud Spacing 25

78205145328 BB7-24 24” Stud Spacing 25

Can be cut on a mark to make

shorter length brackets.

Can be used with BBFS-18 (floor stand)

See pages 33 & 34.

Wall Studs

Read safety/installation instruction sheets in packages before use.

These products are designed for positioning only. No load rating.

Wall Studs

Fasteners 32

Box Mounting

Bracket

• Increased strength and

rigidity help withstand

the stress of drywall

installation.

• Supports most US &

Canadian boxes and

plaster rings 4” SQ.

and 411/16” SQ.

• Compatible with 1-gang

and 2-gang Rapid

Ring™ and adjustable

plaster rings.

•

Available factory

assembled as part of

the Ruff-IN™ pre-fab

line with box(es), mud

ring(s), and pre-wired

devices

• Finish: Pre-galvanized

• Patent Pending

BB8-24

BB8-16

UPC/Part Catalog Box

Number Number Description Qty.

78101102898 BB8-16 16” 25

Stud Spacing

78101102900 BB8-24 24” 25

Stud Spacing

Wall Studs

Read safety/installation instruction sheets in packages before use.

These products are designed for positioning only. No load rating.

Wall Studs

Fasteners

Box Mounting

Bracket Accessories

• Bracket accessories

require no tools to

install.

• BBCC cable

containment clip

provides first means of

support for MC cable.

• BBFS-18 floor stand

ensures consistent box

height and eliminates

need to measure for

proper install height.

• Can be used with BB7

and BB8 brackets. See

pages 27, 31, and 32.

• Pre-galvanized finish.

BBFS-18

BBCC

UPC/Part Catalog Box

Number Number Description Qty.

79903851597 BBFS-18 Floor Stand 25

79903851598 BBCC .439” - .750” 50

OD MC Cable

Wall Studs

Box Mounting

Bracket Accessories

con’t.

Read safety/installation instruction sheets in packages before use.

These products are designed for positioning only. No load rating.

Wall Studs

Fasteners 34

BB8-16 Installed

BBFS-18 & BBCC Installed (Can be used with BB7 or BB8 brackets)

Wall Studs

Floor-Mount Box

Support

• New BBF floorstand

provides the most

rigid support in the

industry.

• Far-side support

accommodates 6”,

51/2”, 35/8”, and 21/2”

stud depths.

• Fold-out tab built-in to

attach floor stand to

stud if desired.

• Integral “wings”

provide rigid support

when floorstand is

mounted between

studs.

• Optional cable

containment clip

securely attaches to

floorstand without

hardware.

• Patented Marty

Mouse™ears enable

boxes to be secured in

place with or without

the plaster rings.

• Finish: Pre-galvanized.

• See Ruff-IN™brochure

for pre-fab box

assemblies.

BBF15

BBF18 BBF24

BBFC

BBFxxC

Read safety/installation instruction sheets in packages before use.

These products are designed for positioning only. No load rating.

Wall Studs

Fasteners

UPC/Part Catalog Box Box

Number Number Center Height Qty.

78205152944 BBF15 15” Floorstand 25

78205152945 BBF18 18” Floorstand 25

78205152946 BBF24 24” Floorstand 25

78205152947 BBFC 18” Floorstand 25

78205152948 BBF15C 15” Floorstand 25

with Cable Clip

78205152949 BBF18C 18” Floorstand 25

with Cable Clip

78205152950 BBF24C 24” Floorstand 25

with Cable Clip

Patent #5595362

Patent #7956285 B2

Wall Studs

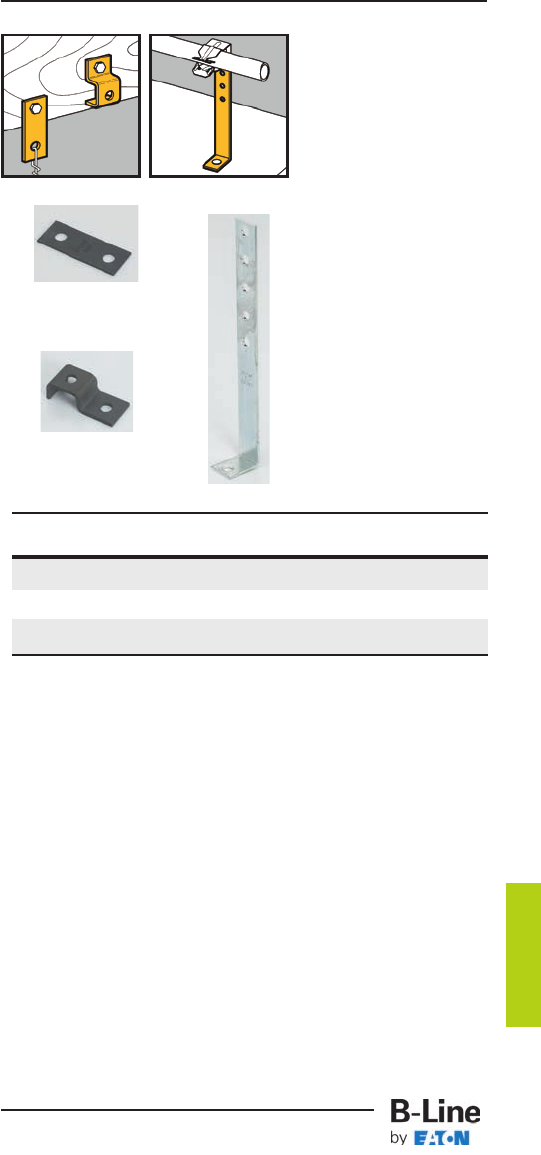

Floor

Mounted

Box Support

•See BBF Series for a

better solution.

• Provides support for

electrical box from

floor track or concrete

forms.

• 18” length with break-

away feature for 12”

or 16” box mounting.

• Finish: Pre-galvanized

Strut Mounting

Brackets

• Attaches 13/16" strut,

11/2" lathers channel,

1/2" EMT or 3/4" EMT

to metal studs.

• Provides support for

vertical runs of

conduit.

• Finish: Pre-galvanized

Read safety/installation instruction sheets in packages before use.

These products are designed for positioning only. No load rating.

Wall Studs

Fasteners 36

UPC/Part Catalog Box

Number Number Description Qty.

78101103623 BB-18 Floor Mounted 50

Box Support

UPC/Part Catalog Box

Number Number Description Qty.

78101101658 BMB1 Strut Mounting 25 pr.

Bracket

Wall Studs

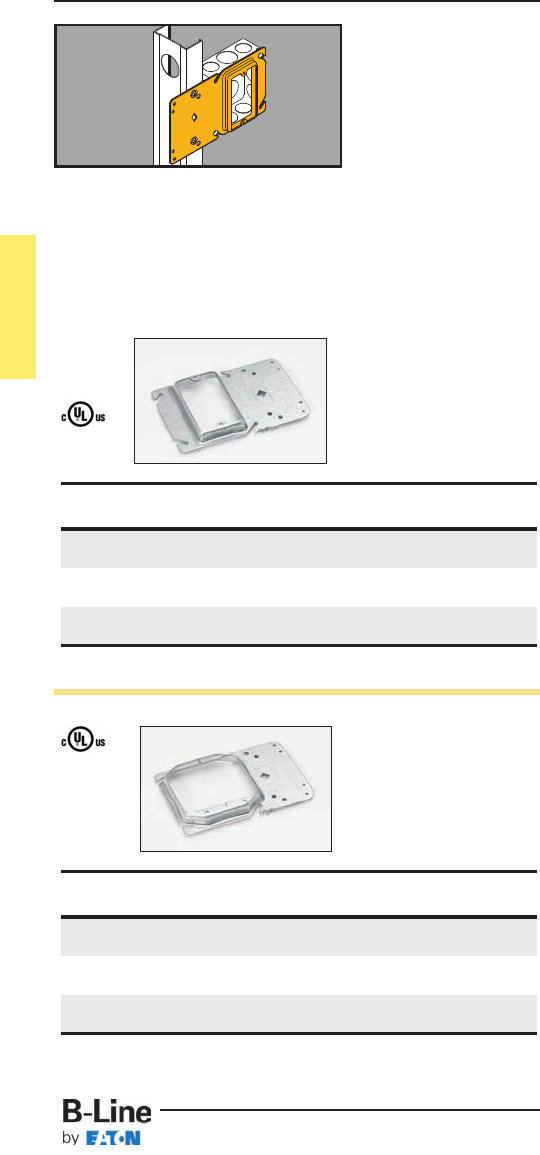

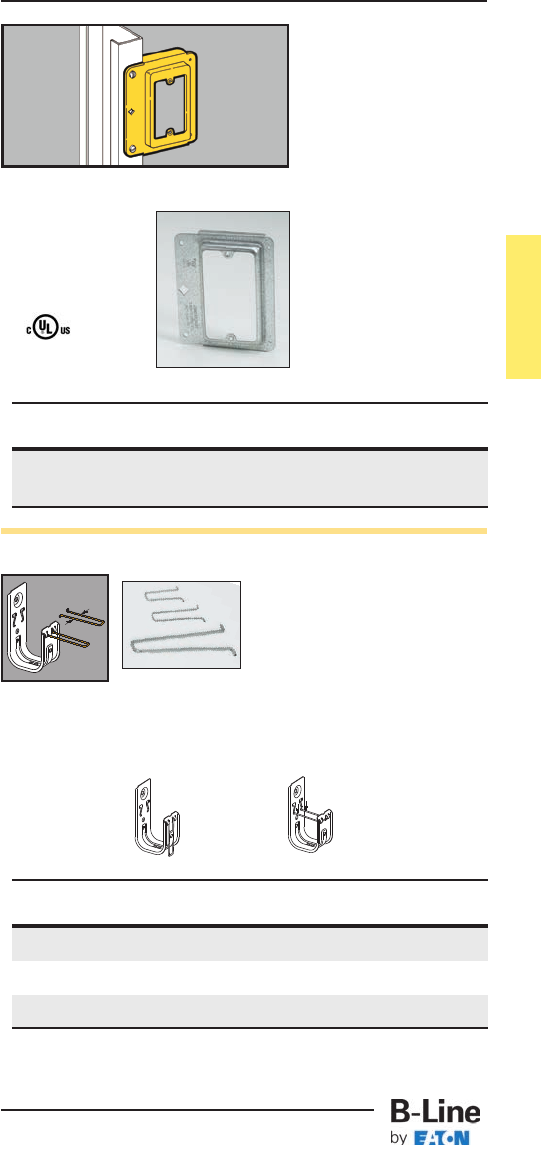

Uni-Mount™

Box Support/Cover

Plate Mounting Bracket

• Uni-Mount provides

a secure support for

4” square boxes and

features a built-in

plaster ring.

• Rigid bracket design

eliminates the need

for far-side support.

• Enlarged viewing

hole makes it easier

to find mark lines on

the stud.

• Gangable design

accepts BB423

bracket to mount

boxes on both sides

of the stud.

• See Ruff-IN™

brochure for pre-fab

box assemblies.

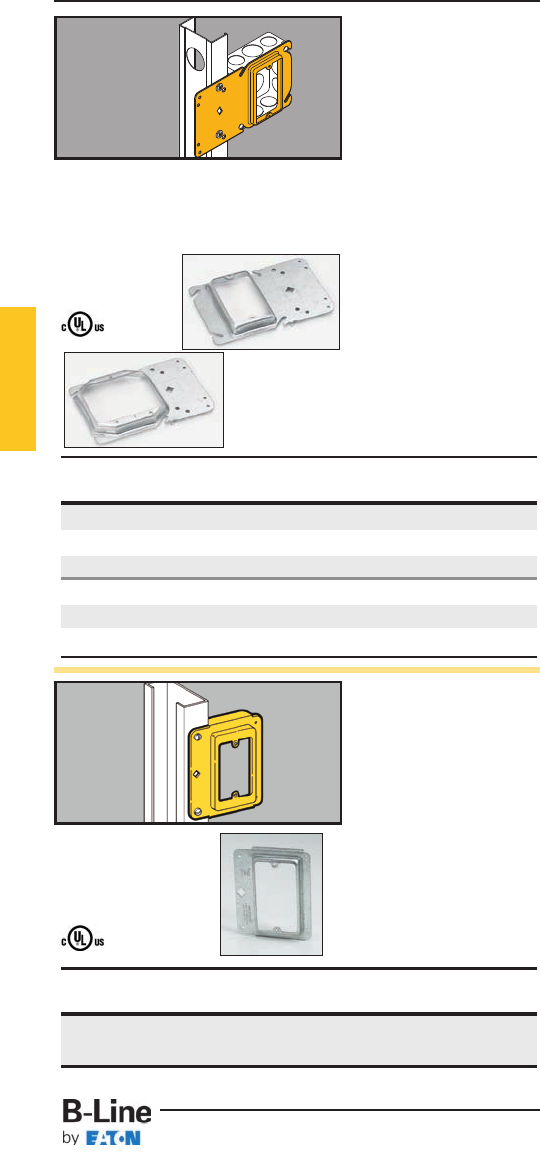

• Finish: Pre-galvanized

Single Gang

BB40 Series

Double Gang

BB45 Series

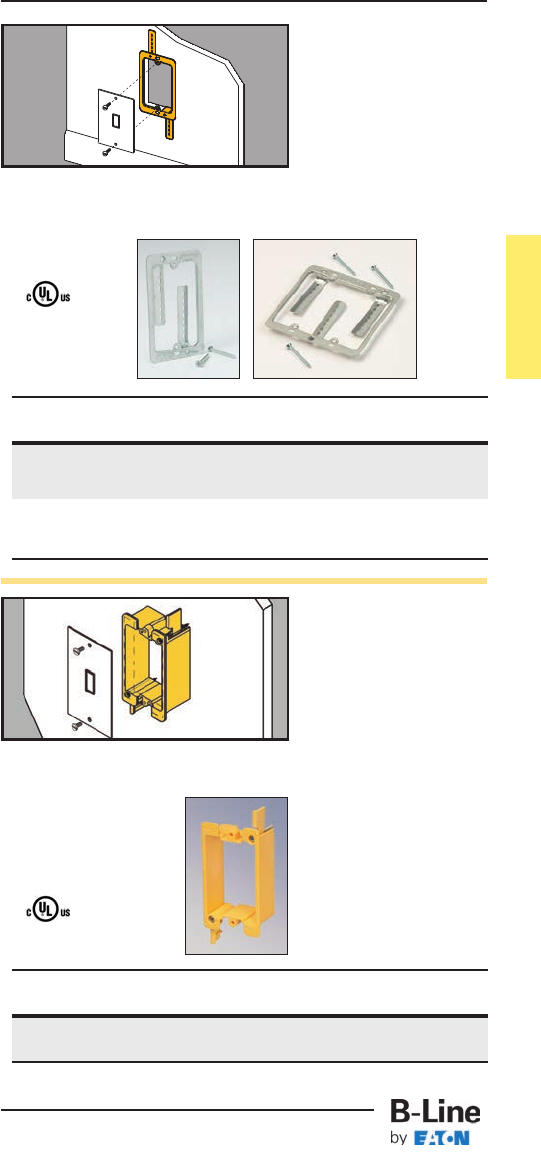

Cover Plate

Mounting

Bracket

• Provides attachment

base for low voltage

outlets.

• Replaces electrical

box in Class 2 low

voltage installations.

• Can be piggy-backed.

• For 1/2” and 5/8”

drywall applications.

• Finish: Pre-galvanized

Read safety/installation instruction sheets in packages before use.

These products are designed for positioning only. No load rating.

Wall Studs

Fasteners

UPC/Part Catalog Box

Number Number Description Qty.

78205122768 BB40-08 1/2” Raise 50

78205122771 BB40-10 5/8” Raise 50

78205122772 BB40-12 3/4” Raise 50

78205122773 BB45-08 1/2” Raise 50

78205122774 BB45-10 5/8” Raise 50

78205122775 BB45-12 3/4” Raise 50

UPC/Part Catalog Box

Number Number Description Qty.

78101119873 BB15 Single Gang 50

Stud Bracket

Wall Studs

Rapid Ring™

Self Adjusting Pre-Fab Ring

The Rapid Ring self-adjusting pre-fab plaster ring can help you win tight

bids and beat the profit squeeze with its innovative 4-step installation. This

revolutionary new pre-fab system installs in as little as 15 seconds per unit,

compressing your project schedule, cutting operational costs and reducing

onsite waste.

Because the Rapid Ring is a self-adjusting pre-fab ring, you’ll never need to

adjust a mud ring again. With a simple push of the Rapid Ring you’re flush

every time.

Stop Plate

Sleeve

Extender Protective

Plate

Box Plate

Go to www.cooperbline.com/rapidring

1. Protective plate included with box plate. 5. Minimum electrical box depth is 21/8”

2. Wall thickness range: 1/2” min. to 11/4” max. 6. Keyhole knockouts allow use on 2-gang electrical box.

3. Stop plates included with sleeve. 7. Keyhole knockouts allow use on 3-gang electrical box.

4. Sleeve extender is an optional accessory to extend max. wall thickness range to 2”

(order separately, mounting hardware included)

1. Remove protective plate.

2. Connect the wiring device.

3. Position the device assembly.

4. Push in the device assembly–

and you’re done!

Read safety/installation instruction sheets in packages before use.

These products are designed for positioning only. No load rating.

Wall Studs

Fasteners 38

For Use With Box Plate 1Sleeve 2,3 Sleeve

Wiring Electrical Cat. No. Cat. No. Extender 4

Device Qty. Box 5Cat. No.

1 4” sq. B1RRP4C B1RRR B1RRE

11/16” sq. B1RRP5C B1RRR B1RRE

2 4” sq. B2RRP4C B2RRR B2RRE

11/16” sq. B2RRP5C B2RRR B2RRE

3 3-gang 6B3RRPC B3RRR B3RRE

4 4-gang 7B4RRPC B4RRR B4RRE

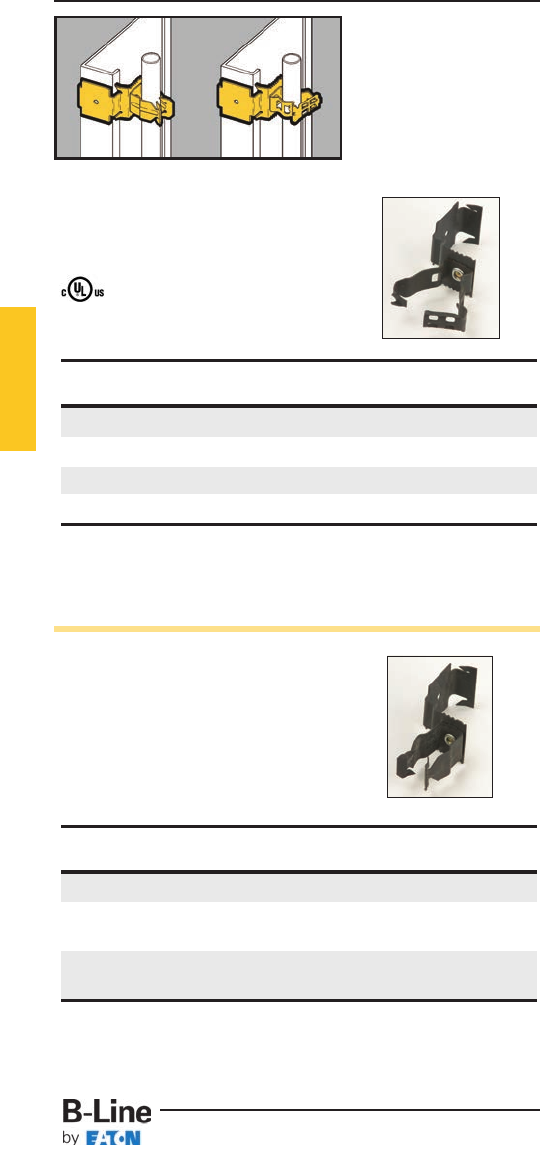

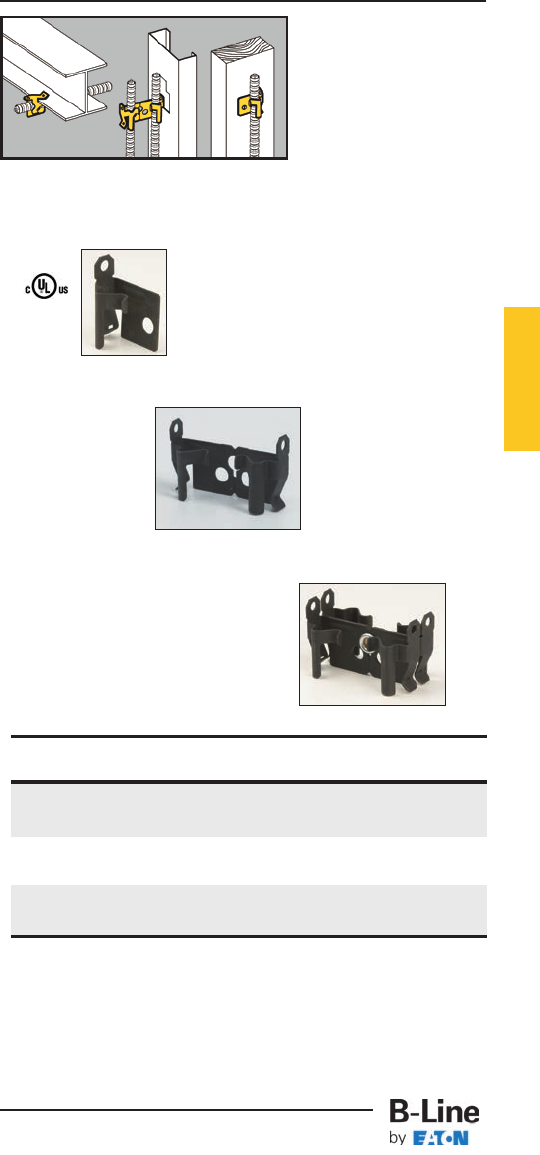

Conduit/Cable

Supports

• Supports horizontal

runs of conduit,

flexible conduit, MC

or AC cable through

metal studs.

• Attaches easily with

a single sheet metal

screw.

• Prevents conduit/cable

rattling.

Wall Studs

BG-x-H7 BP-x-H7

(Not UL)

BX4-H7

BX4M-H7

(Not UL)

* BG-6 will accept the following range ∅.420 - ∅.675:

14/2 thru 10/4 MC/AC cable and 5/16 or 3/8flexible conduit

Read safety/installation instruction sheets in packages before use.

These products are designed for positioning only. No load rating.

Wall Studs

Fasteners

UPC/Part Catalog Conduit/Cable Box

Number Number Size Qty.

78101101228 BG-6-H7 *3/8", MC, AC, or FMC 100

78101110238 BG-8-12-H7 1/2" or 3/4" 100

Patent #4958792

78101101227 BP-8-H7 1/2" EMT 100

78101101226 BP-12-H7 3/4" EMT 100

1/2" IMC, Rigid

78101101200 BX4-H7 MC, AC, or FMC 100

78101101205 BX4M-H7 MC, AC, or FMC 100

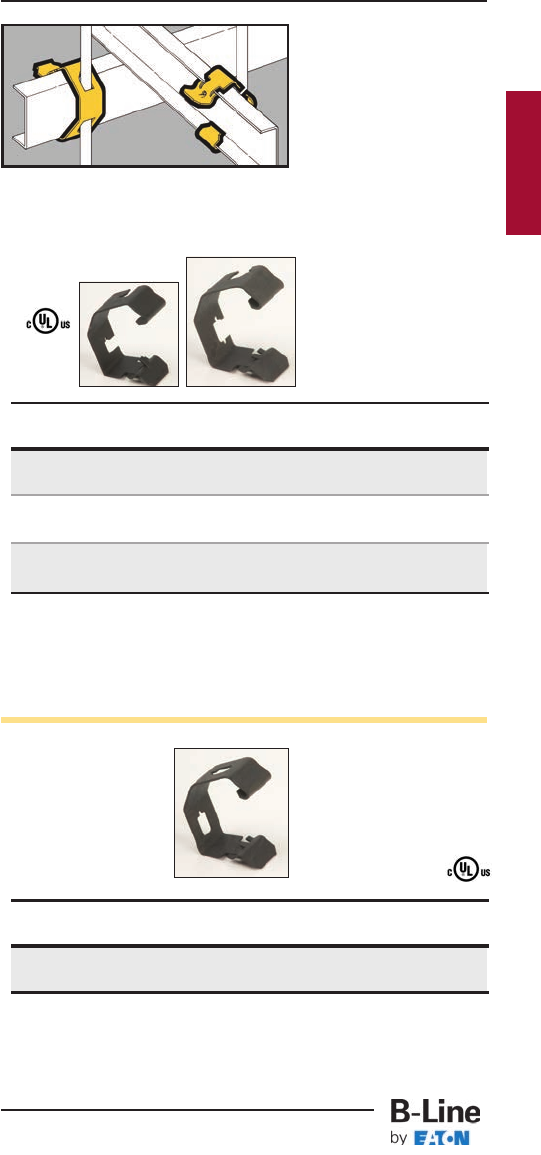

Flexible Conduit/

Cable Fasteners

• Attaches MC, AC, sizes

14/2 through 10/3 or

3/8" FMC to studs or

flanges up to 3/16"

thick.

• Snaps into place on

metal stud openings

or may be screwed to

metal or wood studs.

• BX4M may be snapped

in half to make two

BX4's.

• Allows cables to be

positioned a minimum

of 11/4" from face of

stud as required by

NEC Article 300.4(D).

Wall Studs

BX4

BX4M

BX4MD

Read safety/installation instruction sheets in packages before use.

These products are designed for positioning only. No load rating.

Wall Studs

Fasteners 40

UPC/Part Catalog Box

Number Number Description Qty.

78101101079 BX4 Single Runs 100

78101101080 BX4M Double Runs 100

78101101224 BX4MD Up to 4 Runs 100

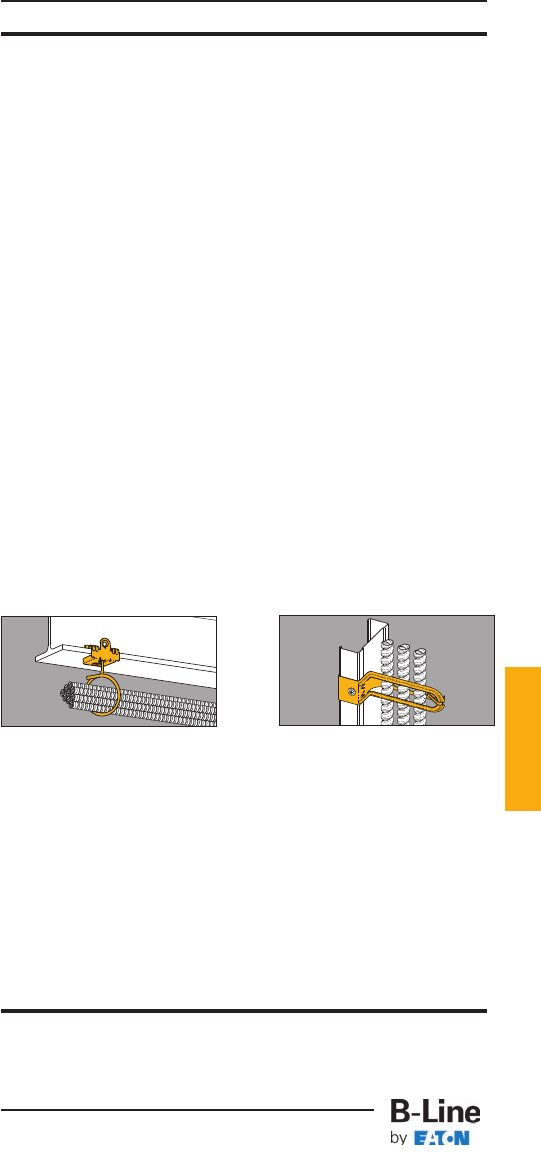

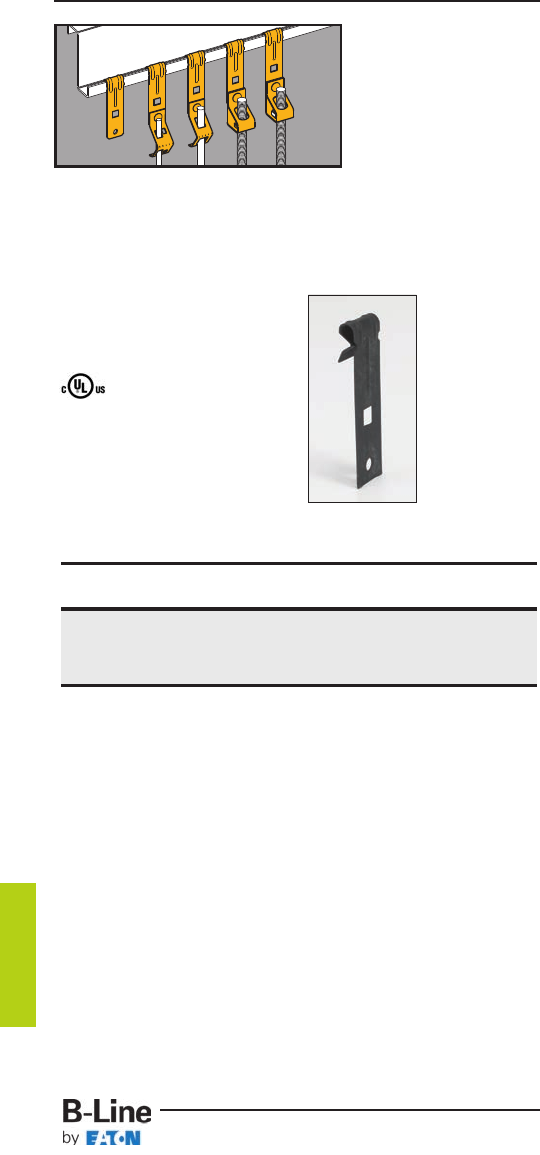

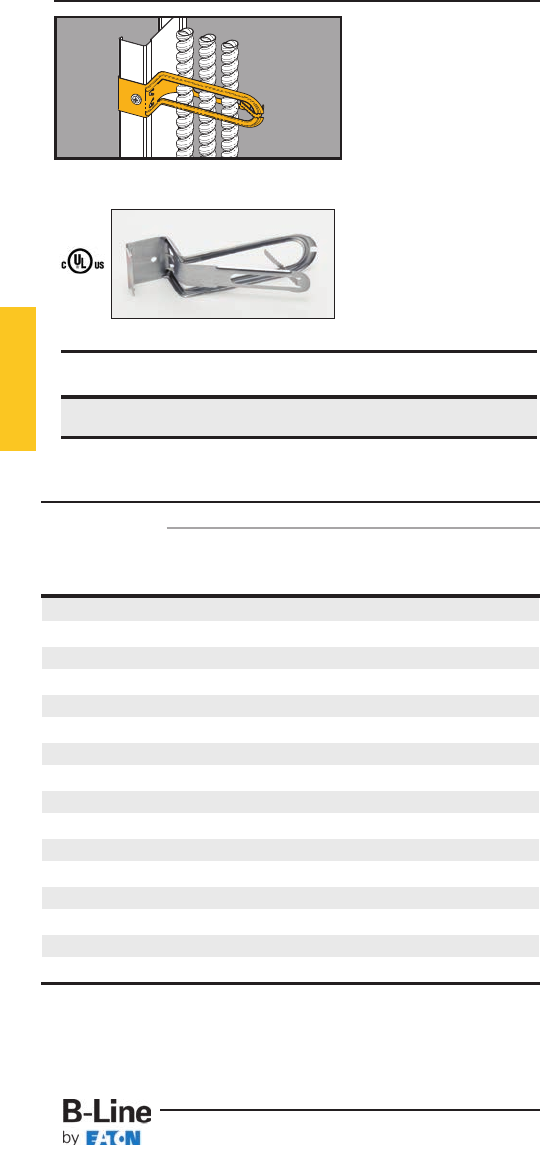

Cable Support

• Metal cable support

can be used in

plenum-rated areas.

• Longer locking tabs.

• Shipped pre-

assembled.

• Hinge can be opened

for greater cable

capacity.

• Allows cables to be

positioned a minimum

of 11/4" from face of

stud as required by

NEC Article 300.4(D).

Cable Type

Cable Non-Metallic Metal Clad Armored Cable

Size (NM) (MC) (AC)

Qty. Dia. Qty. Dia. Qty. Dia.

14-2 w/ Grnd 8 .360 5 .439 5 .464

14-3 w/ Grnd 8 .307 5 .464 5 .483

14-4 w/ Grnd 8 .336 4 .494 4 .517

12-2 w/ Grnd 7 .410 5 .475 4 .498

12-3 w/ Grnd 8 .347 4 .505 4 .521

12-4 w/ Grnd 7 .381 4 .539 4 .557

10-2 w/ Grnd 6 .494 4 .542 4 .560

10-3 w/ Grnd 7 .422 4 .580 4 .588

10-4 w/ Grnd NA NA 3 .623 3 .632

8-2 w/ Grnd 4 .612 NA NA NA NA

8-3 w/ Grnd 4 .565 NA NA NA NA

6-2 w/ Grnd 4 .650 NA NA NA NA

5/16 FMC 5 (,470 to .510 Dia.)

3/8FMC 4 (.560 to .610 Dia.)

1/2FMC 1 (.860 to .920 Dia.)

3/4FMC 1 (1.045 to 1.105 Dia.)

Wall Studs

The quantity of cables shown in the chart is the maximum.

Fewer cables can be supported. Diameters are based on data from

a leading cable manufacturer (may vary slightly).

Diameters of some NM cables refer to the widest dimension of a

flat cable. NA = Not applicable

Read safety/installation instruction sheets in packages before use.

These products are designed for positioning only. No load rating.

Wall Studs

Fasteners

UPC/Part Catalog Box

Number Number Description Qty.

79903843761 BRC6M Up to 3/4” FMC 100

Note: Canadian applications are limited to wood studs only.

Staple-Lok™

Multi-Purpose

Cable Support

• Individual plastic

staples grip cable and

reduce slipping.

• Secures up through

#10 type NM cable.

• Supports AC, MC or

FMC cable up to 1/2”

O.D.

• Break-apart feature

allows installation on

studs and furring

strips.

• Allows cables to be

positioned a minimum

of 11/4” from face of

stud as required by

NEC Article 300.4(D).

Wall Studs

Read safety/installation instruction sheets in packages before use.

These products are designed for positioning only. No load rating.

Wall Studs

Fasteners 42

UPC/Part Catalog Box

Number Number Cable Size Qty.

78101103587 BRC4 Up to .500” O.D. 100

Patent #5587555

Conduit/Cable

Supports

• Allows conduit, MC,

AC, or FMC to be

pulled through metal

studs.

• Provides support for

horizontal runs of

conduit or cable

through metal stud.

• Prevents rattling of

conduit/cable.

• Finish: Pre-galvanized

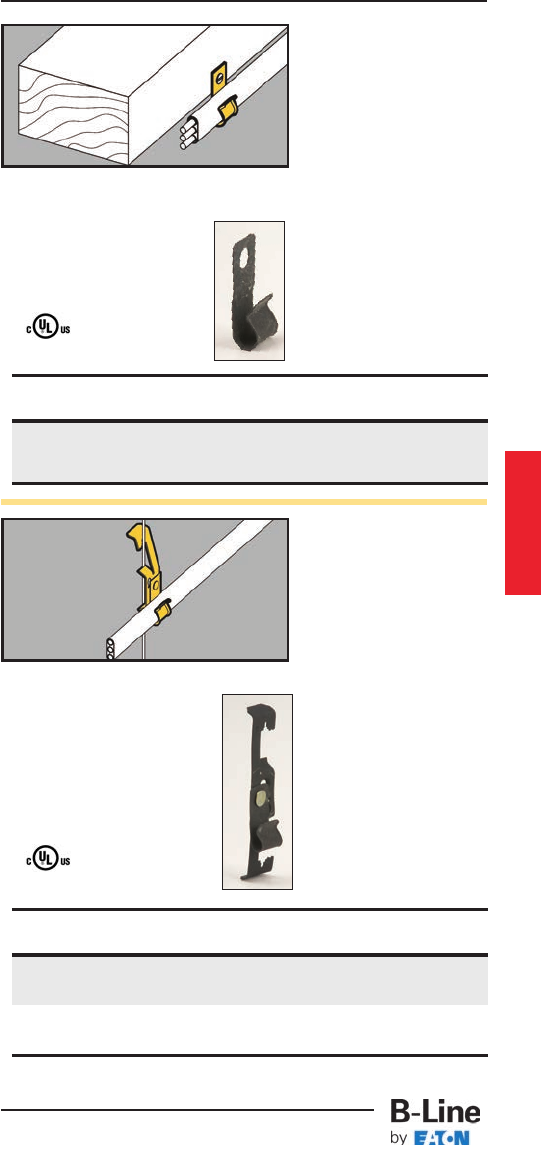

Cable Fasteners

• Attaches Type NM

cables to wood studs.

• Can be used to

support computer,

CATV, telephone,

security and

instrumentation

cables.

• Provided with nail

inserted.

• Allows cables to

be positioned a

minimum of 11/4”

from face of stud as

required by NEC

Article 300.4(D).

BRC1 BRC2

Wall Studs

Read safety/installation instruction sheets in packages before use.

These products are designed for positioning only. No load rating.

Wall Studs

Fasteners

UPC/Part Catalog Box

Number Number Description Qty.

78101102941 BRC1 Wood Stud 50

Cable Fastener

78101102941 BRC2 Furring Strip 50

Cable Fastener

UPC/Part Catalog Conduit/Cable Box

Number Number Size Qty.

78101101657 BX82 Up to 1” 100

Nail Plates

For Wood Studs

• Protects cable, plastic

pipe and copper

tubing from screw or

nail penetration.

• Easily installed with a

hammer.

• Complies with NEC

Article 300-4.

Nail Plates

For Metal Studs

• Protects cable, plastic

pipe and copper

tubing from screw or

nail penetration.

• Comes with industrial

grade double stick

tape on back for easy

installation on stud.

• Complies with NEC

Article 300-4.

Just Peel Tape

and

Stick To Stud

top

bottom

Read safety/installation instruction sheets in packages before use.

These products are designed for positioning only. No load rating.

Wall Studs

Fasteners 44

UPC/Part Catalog Box

Number Number Description Qty.

78101104927 BM3 Nail Plate 100

UPC/Part Catalog Box

Number Number Description Qty.

78101126251 BM3M Nail Plate 100

Wall Studs

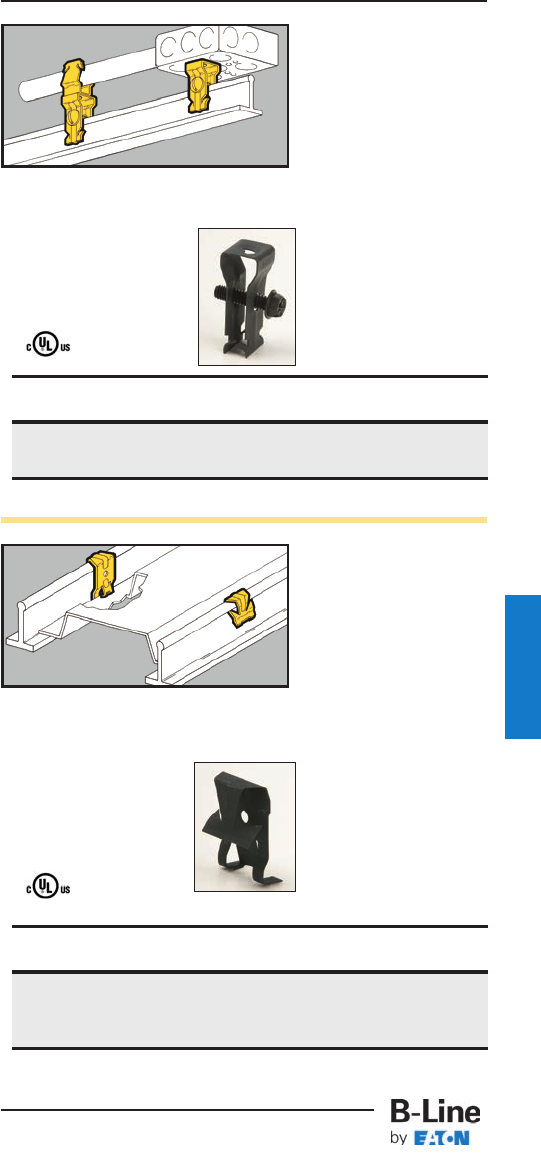

Conduit Support

• Larger capacity:

Redesigned BB38D

attaches 1/2” to 1”

EMT or flexible

conduit to metal or

wood studs.

• BB38 attaches

MC/AC cable, 1/2”

& 3/4” EMT to metal

or wood studs.

• Eliminates the need

for offset bending of

conduit.

• Aligns conduit with

standard box

knockouts.

BB38 BB38D

Flexible Conduit/

Cable Fasteners

• Secures Romex®†

sizes 14/2 w/ground

thru 12/3 w/ground,

MC/AC sizes 14/2

thru 12/3 to metal or

wood studs.

• Allows cables to be

positioned a minimum

of 11/4” from face of

stud as required by

NEC Article 300.4(D).

†Romex®is a registered trademark used by Southwire®Company, Carrollton, Georgia.

Wall Studs

Read safety/installation instruction sheets in packages before use.

These products are designed for positioning only. No load rating.

Wall Studs

Fasteners

UPC/Part Catalog Box

Number Number Box Depth Qty.

78101104265 BB38 11/2” 100

78101195244 BB38D 21/8” 100

UPC/Part Catalog Box

Number Number Description Qty.

78101119755 BX5 Secures Flexible 100

Conduit or Cable

to Metal or Wood Studs

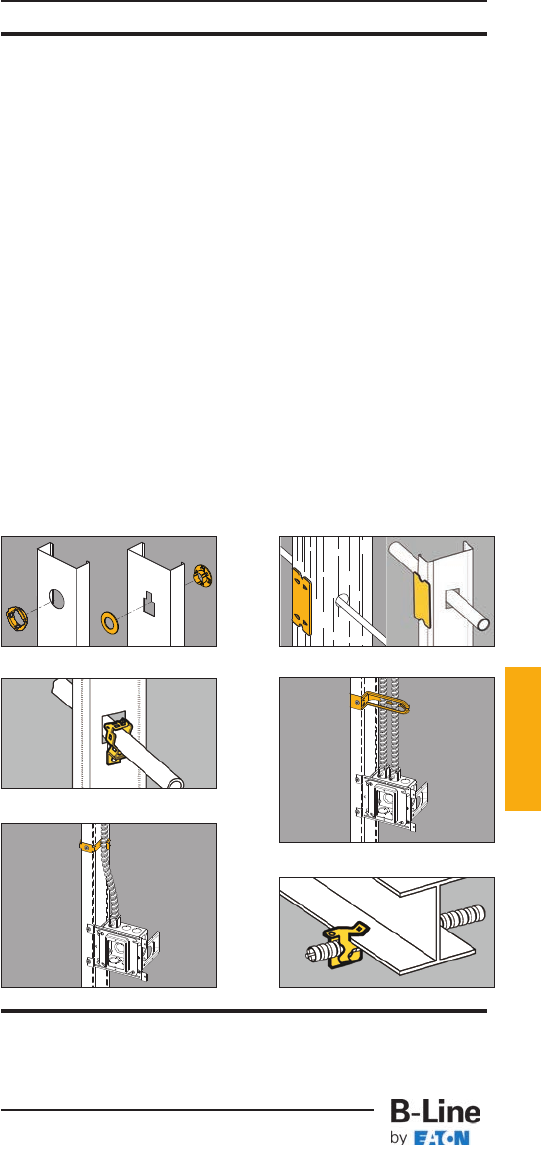

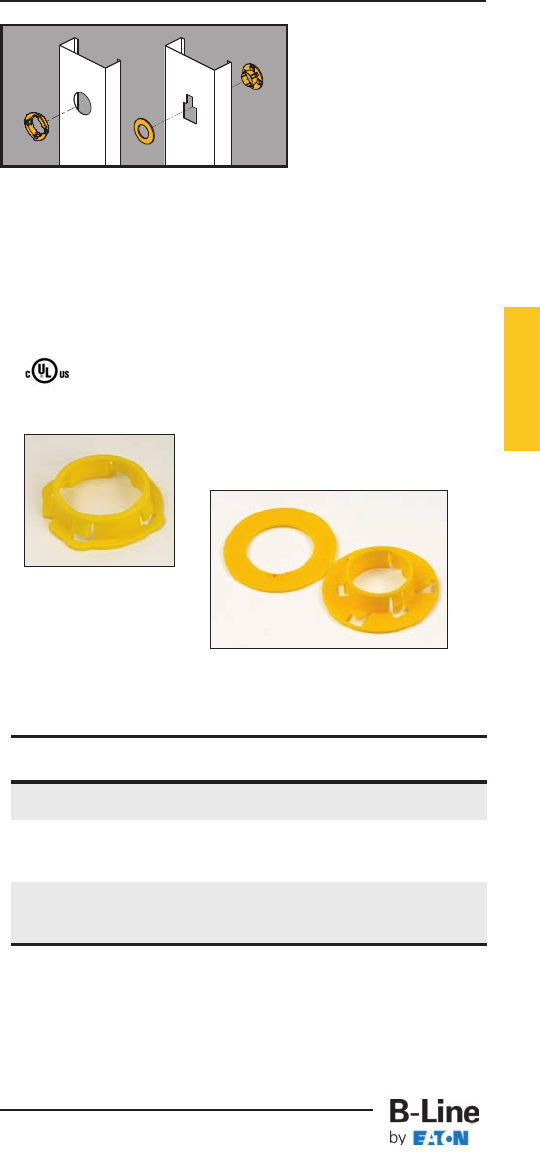

Metal Stud

Grommet

• BM1 snaps into

standard 111/32"

diameter holes in

metal studs from

25 Ga. to 16 Ga.

• Redesigned BM2 is

shipped as one piece

and easily separated

for installation.

• Universal BM2

provides 360°

protection. Fits all

factory punched metal

stud holes.

• Protects wire

insulation in

accordance with

NEC Article

300.4(B) (1).

BM2

BM1

Wall Studs

Read safety/installation instruction sheets in packages before use.

These products are designed for positioning only. No load rating.

Wall Studs

Fasteners 46

UPC/Part Catalog Box

Number Number Description Qty.

78101119100 BM1 Plastic Grommet 100

78101119102 BM1M Plastic Grommet 100

(Bulk Quantity)

78101104926 BM2 Universal 100

Plastic Grommet

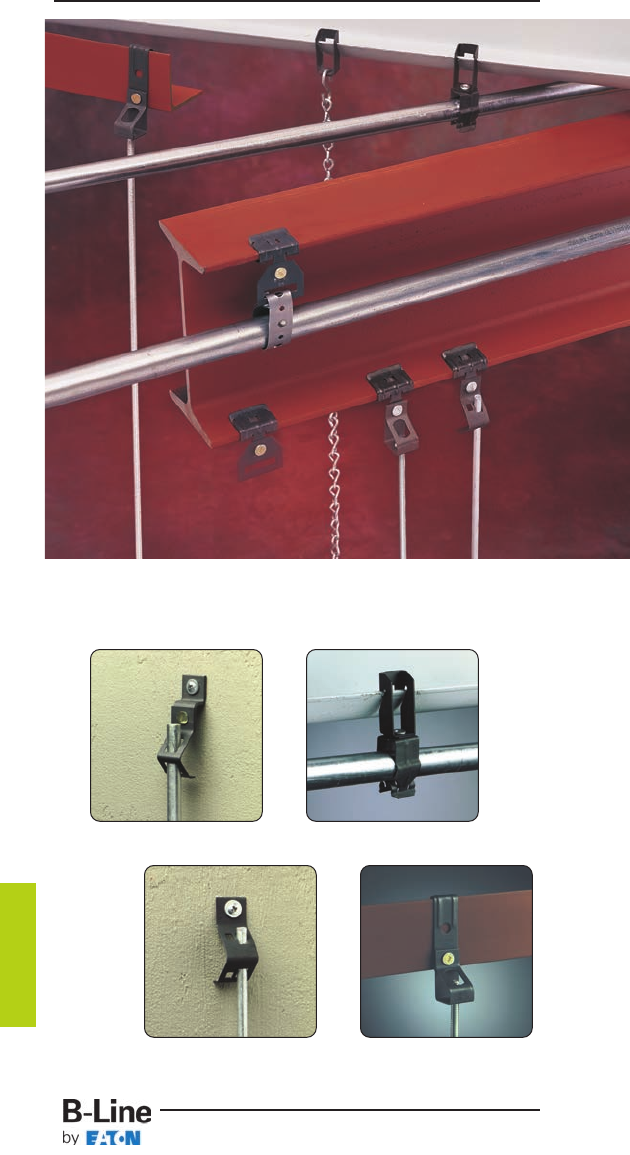

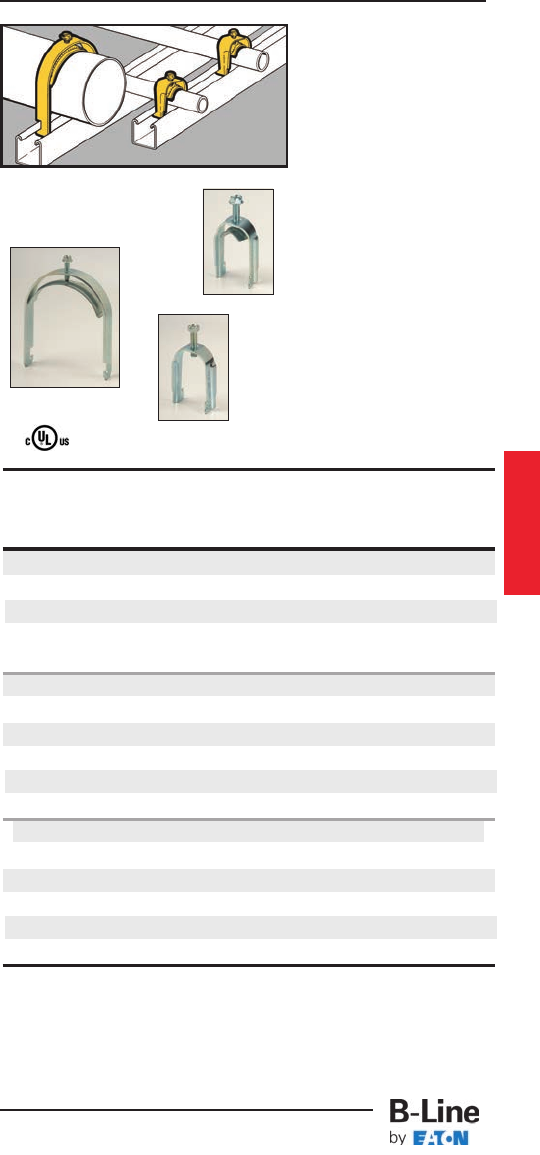

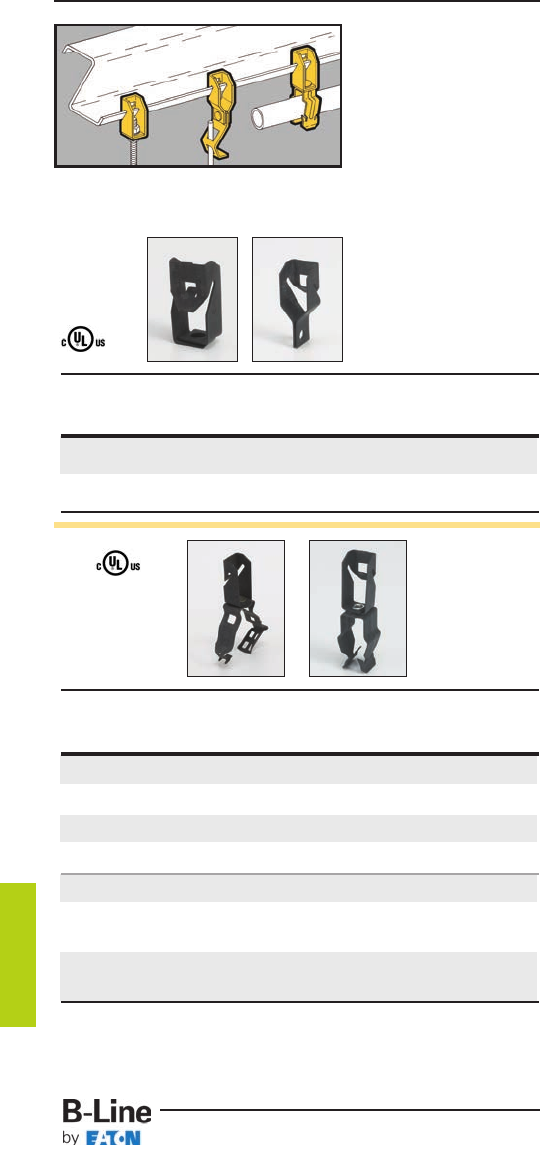

Conduit & Cable

Fasteners

• Supports 3/8" to 2"

conduit.

• Unique Guide-Rite

Fastener provides for

fast and easy installation

with pliers.

• Now available in DURA-

COPPER™finish - add

DCU to part number.

• Static Load Capacity:

100 Lbs. - Vertical

25 Lbs. - Horizontal

Guide-Rite™

Conduit Fasteners

Static

Load

Capacity

Lbs.

100

Lbs.

Clearance Hole

For 1/4" Bolt

1/4"-20

Thread Impression

Conduit & Cable

Read safety/installation instruction sheets in packages before use.

Conduit & Cable

Fasteners 48

UPC/Part Catalog Conduit Size Box

Number Number EMT/Rigid Qty.

78101118350 BG-6*3/8” 100

78101118355 BG-8-12 1/2”, 3/4” 100

78101118360 BG-16 1” 100

78101118365 BG-20 11/4” 100

78101118360 BG-24 11/2” 100

78101118375 BG-32 2” 100

UPC/Part Catalog Conduit Size Box

Number Number EMT/Rigid Qty.

78101118380 BG-6-4T*3/8” 100

78101118385 BG-8-12-4T 1/2”, 3/4” 100

78101118390 BG-16-4T 1” 100

78101118395 BG-20-4T 11/4” 100

78101118400 BG-24-4T 11/2” 100

78101118405 BG-32-4T 2” 100

Patent #4958792

*BG-6 and BG-6-4T will accept the following range ∅.420 - ∅.675:

14/2 thru 10/4 MC/AC cable and 5/16 or 3/8flexible conduit

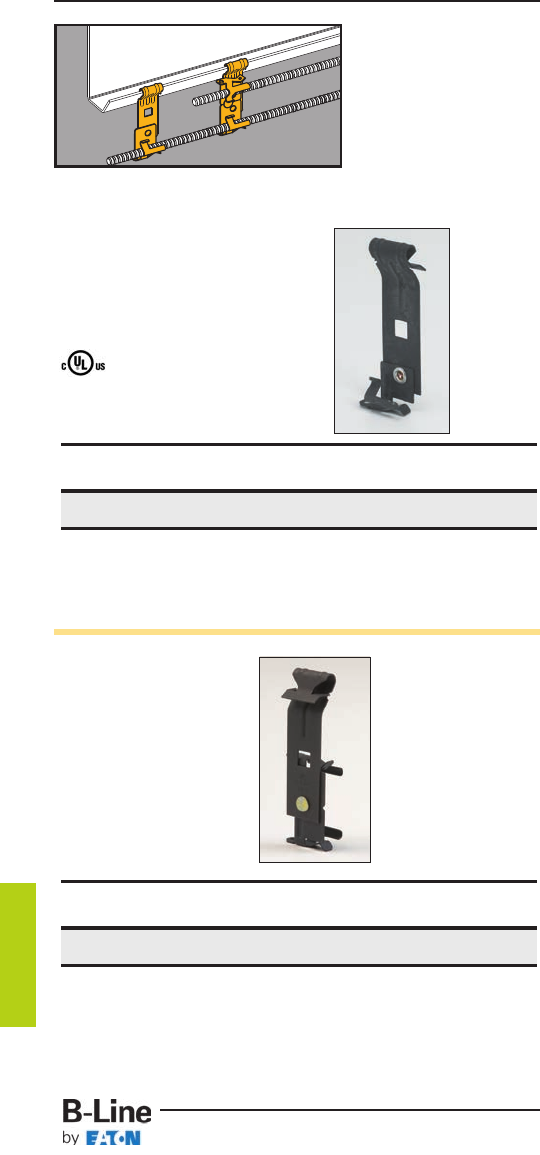

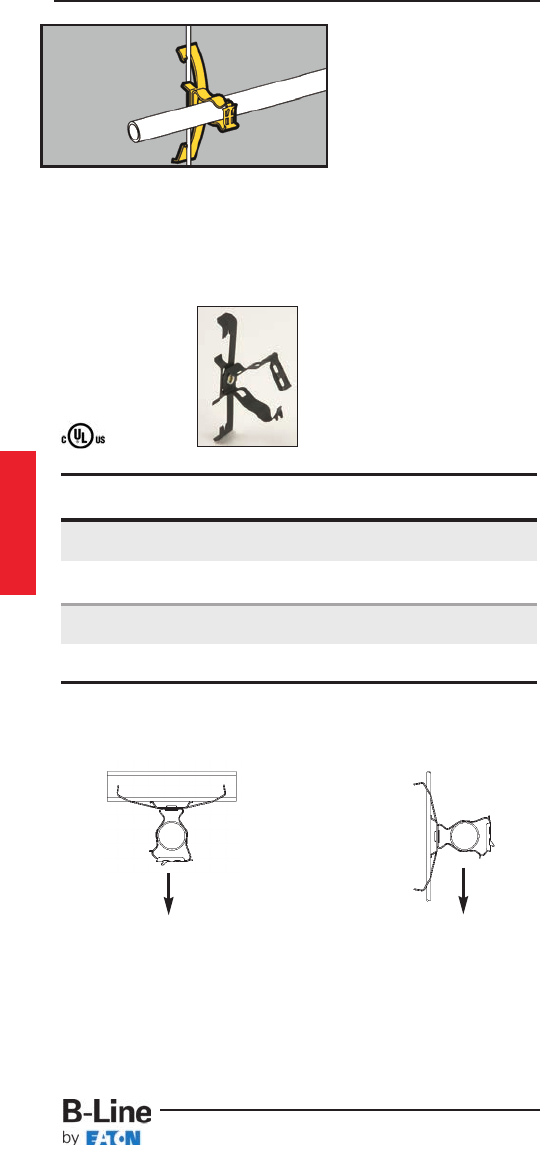

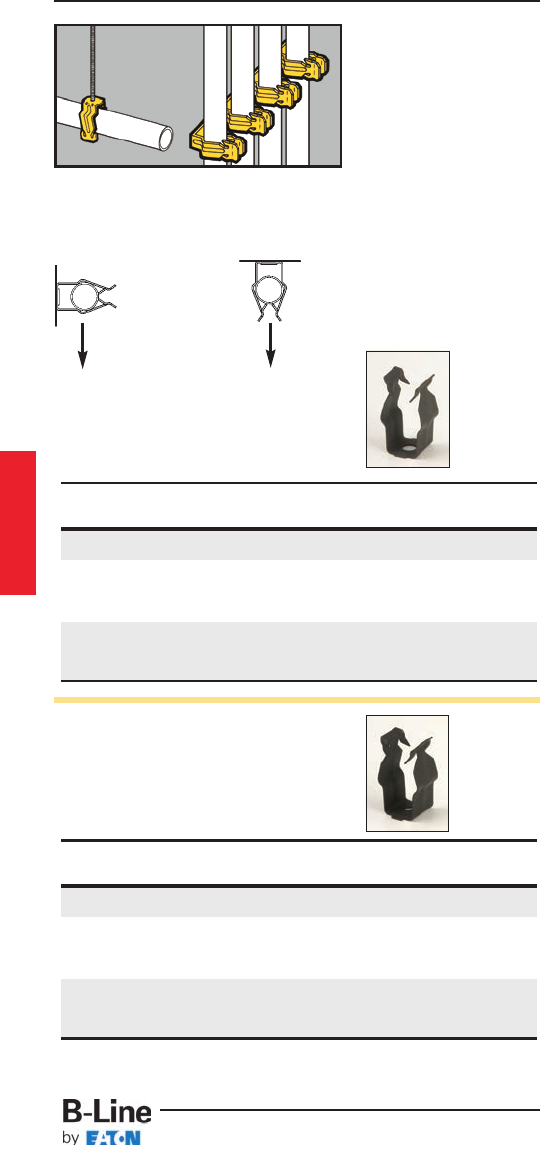

Push-Type

Conduit Fasteners

• Conduit easily snaps

into push type

fastener for secure

support.

• Available with

clearance hole for 1/4"

bolt or 1/4"-20 thread

impression.

•Ultimate Static

Load Capacity:

25 Lbs. Vertical

15 Lbs. Horizontal

Lbs.

Ultimate

Static Load

Capacity

Clearance Hole

For 1/4" Bolt

1/4"-20

Thread Impression

Conduit & Cable

Read safety/installation instruction sheets in packages before use.

Conduit & Cable

Fasteners

UPC/Part Catalog Box

Number Number Conduit Size Qty.

78101119200 BP-8 1/2” EMT 100

78101119205 BP-12 3/4” EMT 100

1/2” IMC, Rigid

78101119210 BP-16 1” EMT 100

3/4” IMC, Rigid

UPC/Part Catalog Box

Number Number Conduit Size Qty.

78101119215 BP-8-4T 1/2” EMT 100

78101119220 BP-12-4T 3/4” EMT 100

1/2” IMC, Rigid

78101119225 BP-16-4T 1” EMT 100

3/4” IMC, Rigid

• For use with 3/8" to 2"

conduit.

• Guide-Rite Fastener

provides for fast and

easy installation with

pliers.

• Note:

Total load

of trapeze

must not

exceed

100 Lbs.

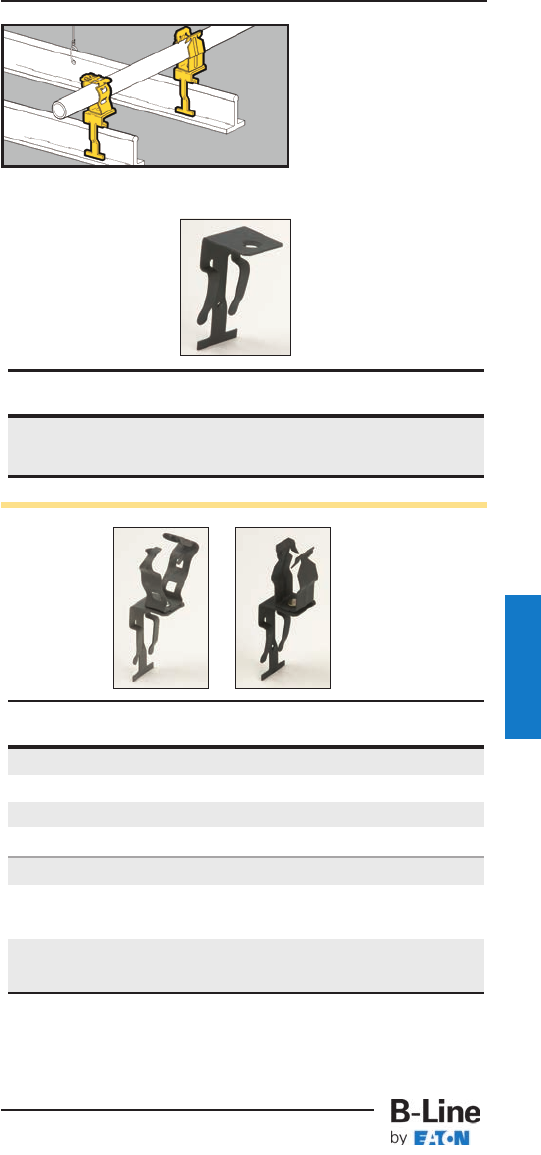

Guide-Rite™

Conduit Trapeze

Fasteners

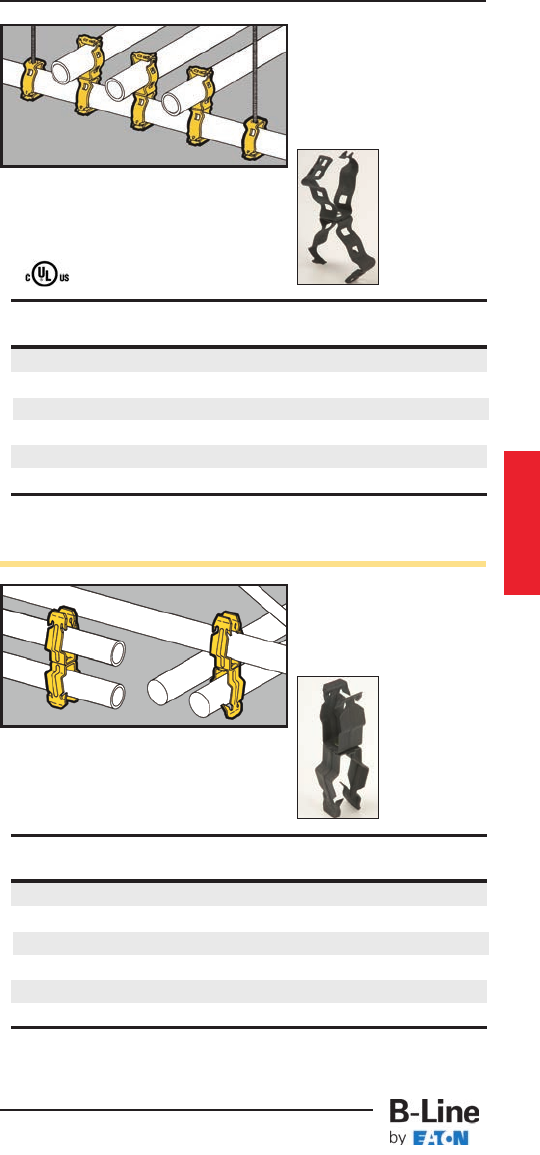

• An ideal spacer

between conduits.

• No installation tools

required.

•Ultimate

Static

Load

Capacity:

25 Lbs.

Push-Type

Conduit To

Conduit Fasteners

Conduit & Cable

Read safety/installation instruction sheets in packages before use.

Conduit & Cable

Fasteners 50

UPC/Part Catalog Conduit To Box

Number Number 1” Trapeze Qty.

78101118615 BG-16-G-6*3/8” 100

78101118620 BG-16-G-8-12 1/2”, 3/4” 100

78101118595 BG-16-G-16 1” 100

78101118600 BG-16-G-20 11/4” 50

78101118605 BG-16-G-24 11/2” 50

78101118610 BG-16-G-32 2” 50

*BG-16-G-6 will accept the following range ∅.420 - ∅.675:

14/2 thru 10/4 MC/AC cable and 5/16 or 3/8flexible conduit

UPC/Part Catalog Box

Number Number Conduit Size Qty.

78101118615 BP-8-P-8 1/2” to 1/2” 100

78101118620 BP-8-P-12 1/2” to 3/4” 100

78101118595 BP-8-P-16 1/2” to 1” 100

78101118600 BP-12-P-12 3/4” to 3/4” 100

78101118605 BP-12-P-16 3/4” to 1” 100

78101118610 BP-16-P-16 1” to 1” 100

Note: For rigid conduit with BP series, use next size larger

fastener (1/2" Rigid use BP-12).

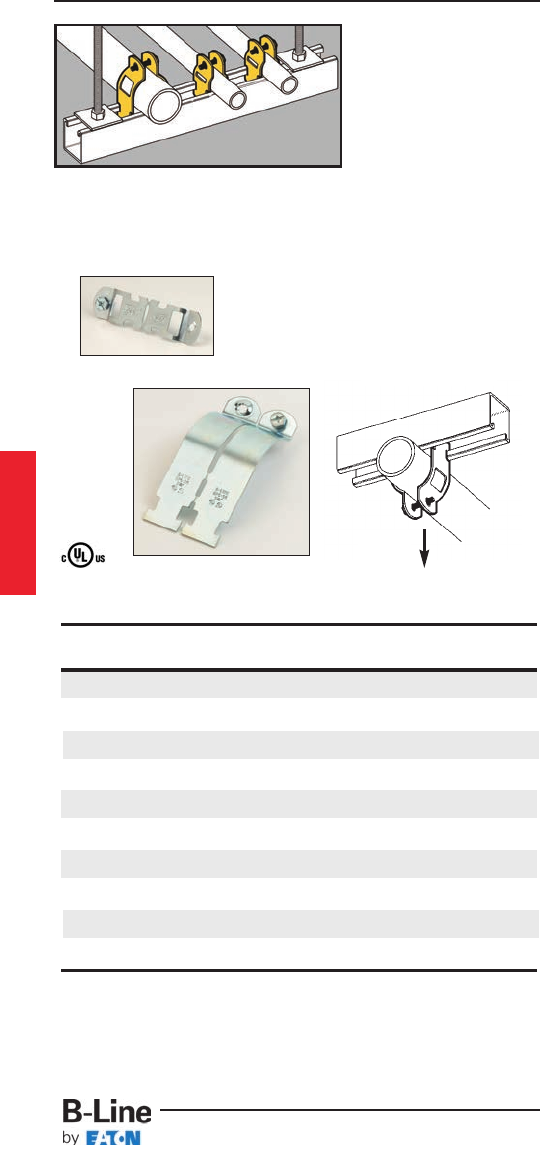

Break-Apart

Conduit Clamps

• Patented Multi-Grip

design fits Rigid, IMC

or EMT conduit.

• Convenient break-

apart clamp features

retained bolt and

5/16” thread

impression to

eliminate handling of

nuts and bolts.

• Finish:

Pre-galvanized

• Static Load Capacity:

200 lbs.

200

Lbs.

BPC-8 thru BPC-32

BPC-40 thru BPC-64

Static Load

Capacity

Conduit & Cable

Read safety/installation instruction sheets in packages before use.

Conduit & Cable

Fasteners

UPC/Part Catalog Rigid or EMT Box

Number Number Conduit Size Qty.

78101101676 BPC-8 1/2” 100

78101101677 BPC-12 3/4” 100

78101101680 BPC-16 1” 100

78101101679 BPC-20 11/4” 50

78101101678 BPC-24 11/2” 50

78101101681 BPC-32 2” 50

78101103977 BPC-40 21/2” 50

78101103978 BPC-48 3” 50

78101103979 BPC-56 31/2” 25

78101103981 BPC-64 4” 25

Patent #4044428

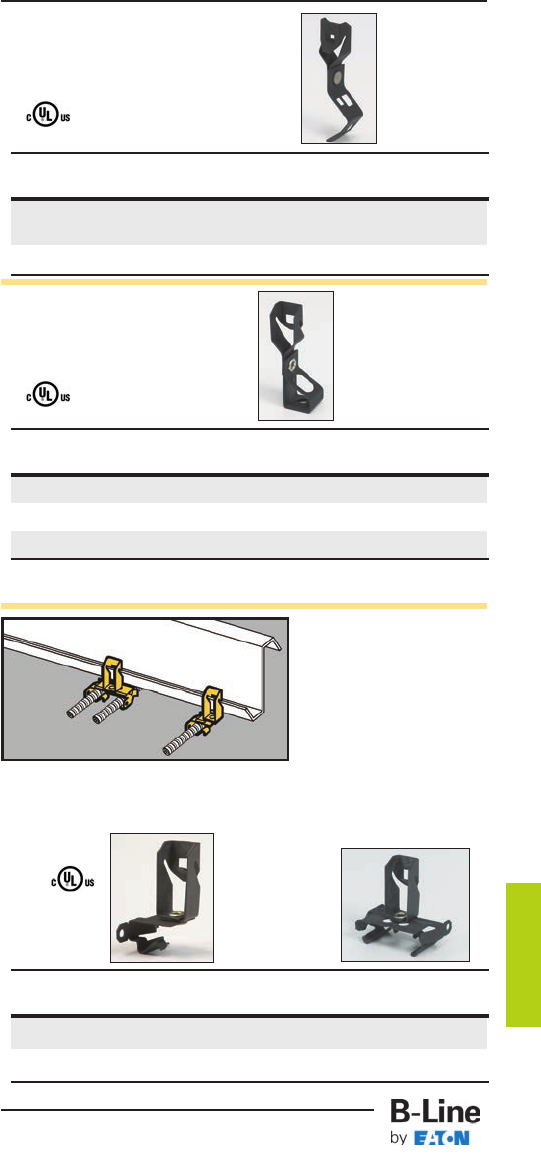

• Attaches conduit,

flexible conduit or

cables to standard

strut channels.

• B1506S designed to

secure and support

MC/AC cables.

• Unique one-piece

design eliminates

handling of hardware

and allows easy

installation and removal

in side-by-side conduit

runs.

• Anti-rock feature

prevents clamp

from disengaging

during installation.

• Finish: Pre-galvanized

Conduit Strut

Clamps

B1508

thru

B1520

B1506S

thru

B1524S

B1532S thru B1564S

*B1506S will accept the following

AC Cable 14/2, 14/3, 14/4, 12/2, 12/3, 12/4, 10/2, 10/3, 10/4

MC Cable 14/2, 14/3, 14/4, 12/2, 12/3, 12/4, 10/2, 10/3, 10/4

Conduit & Cable

Read safety/installation instruction sheets in packages before use.

Conduit & Cable

Fasteners 52

Static

UPC/Part Catalog Conduit OD Range Load Box

Number Number Size Inches Cap. Qty.

EMT Rigid Min Max Lbs.

78101163150 B1508 1/2” -- -- -- 200 100

78101163154 B1512 3/4”1/2” -- -- 200 100

78101163157 B1516 1” 3/4” -- -- 300 100

78101163160 B1520 11/4” 1” -- -- 300 100

Note: Clamps without saddle are not recommended for flexible conduit or cable

78205144495 B1506S*3/8”*-- .400 .630 200 100

78101163164 B1508S 1/2” -- .250 .680 200 100

78101163168 B1512S 3/4”1/2” .500 .840 200 100

78101163171 B1516S 1” 3/4” .750 1.050 300 100

78101163177 B1520S 11/4” 1” 1.125 1.315 300 100

78101163182 B1524S 11/2”1

1/4” 1.375 1.660 400 50

78101163188 B1532S 2” 11/2” 1.875 2.200 400 50

78101163193 B1534S -- 2” 2.125 2.375 400 25

78101163199 B1540S 21/2”2

1/2” 2.625 2.875 400 25

78101163205 B1548S 3” 3” 3.250 3.500 400 25

78101163211 B1556S 31/2”3

1/2” 3.750 4.000 400 10

78101163215 B1564S 4” 4” 4.250 4.500 400 10

Patent #5022614

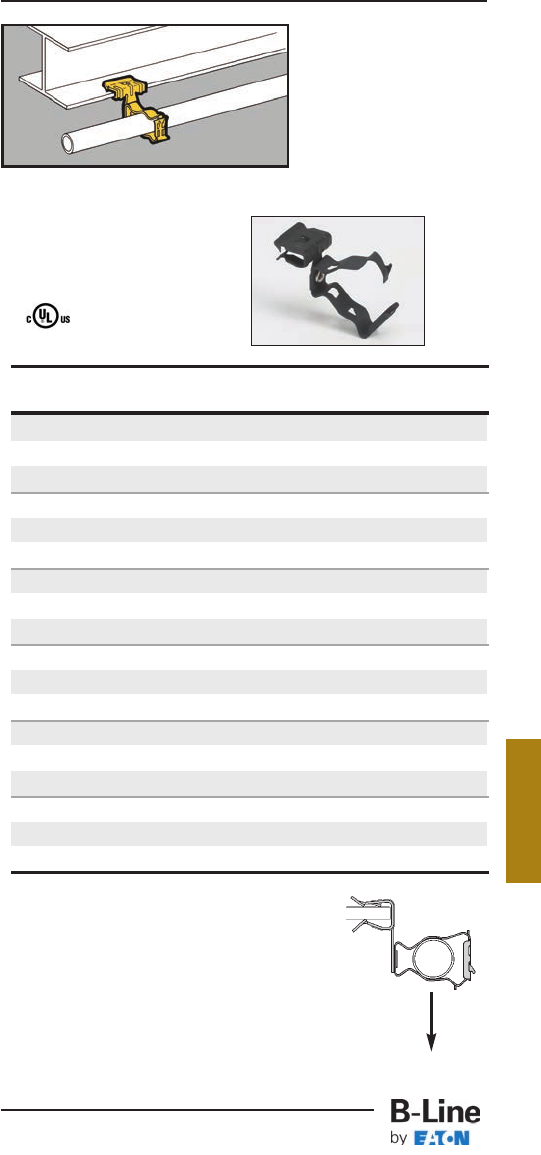

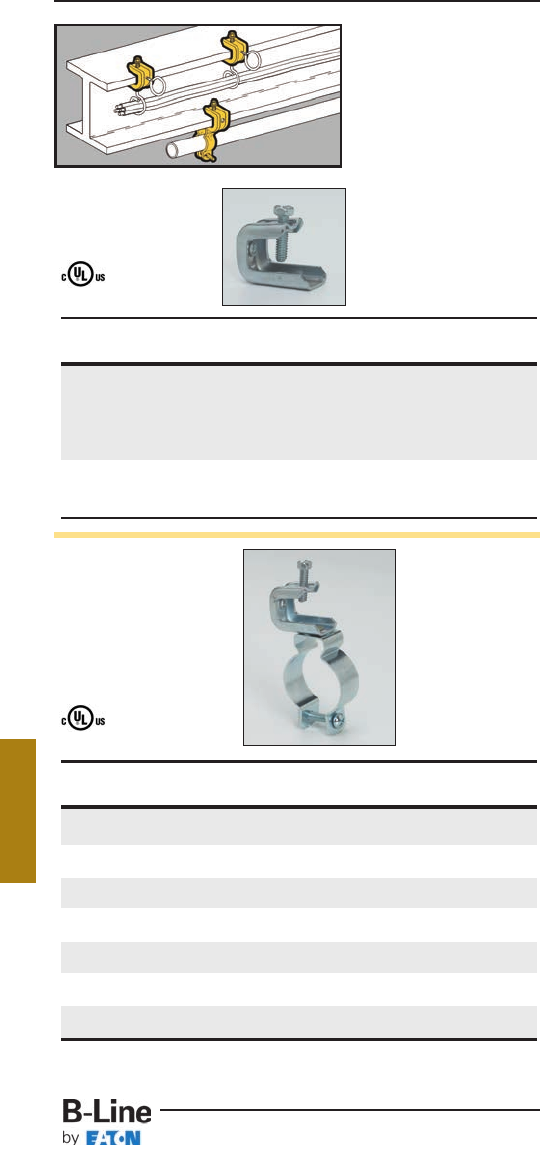

Conduit

Hangers

• For use with 1/2" thru

4" Conduit.

• Static Load Capacity:

400 lbs.

• Now available in

DURA-COPPER™

finish - add DCU to

part number.

• Finish: Zinc-Plated

With Retained Bolt

And

Thread Impression

With Bolt And Nut

Conduit & Cable

Read safety/installation instruction sheets in packages before use.

Conduit & Cable

Fasteners

UPC/Part Catalog Trade Conduit Size Box

Number Number Size EMT Rigid Qty.

78101119800 BL1400*01/2”1/2” 100

78101119801 BL1410*13/4”3/4” 100

78101119802 BL1420*2 1” 1” 100

UPC/Part Catalog Trade Conduit Size Box

Number Number Size EMT Rigid Qty.

78101119803 BL1425*2.5 11/4” -- 100

78101119804 BL1430*31

1/2”1

1/4” 100

78101119805 BL1440†4 -- 11/2” 50

78101119806 BL1450†5 2” 2” 50

78101119807 BL1460†62

1/2”2

1/2” 25

78101119808 BL1470†7 3” 3” 25

78101119809 BL1480†83

1/2”3

1/2” 10

78101119810 BL1490†9 4” 4” 10

*9/32” mounting hole. †11/32” mounting hole.

Stainless Steel

Conduit Hangers

• For use with 1/2" thru

4" Conduit.

• Static Load Capacity:

400 lbs.

• Material: Type 304

Stainless Steel

With Bolt And Nut

Conduit & Cable

Read safety/installation instruction sheets in packages before use.

Conduit & Cable

Fasteners 54

UPC/Part Catalog Trade Conduit Size Box

Number Number Size EMT Rigid Qty.

78101119800 BL1400-SS4*01/2”1/2” 100

78101119801 BL1410-SS4*13/4”3/4” 100

78101119802 BL1420-SS4*2 1” 1” 100

78101119803 BL1425-SS4*2.5 11/4” -- 100

78101119804 BL1430-SS4*31

1/2”1

1/4” 100

78101119805 BL1440-SS4†4 -- 11/2” 50

78101119806 BL1450-SS4†5 2” 2” 50

78101119807 BL1460-SS4†62

1/2”2

1/2” 25

78101119808 BL1470-SS4†7 3” 3” 25

78101119809 BL1480-SS4†83

1/2”3

1/2” 10

78101119810 BL1490-SS4†9 4” 4” 10

*9/32” mounting hole. †11/32” mounting hole.

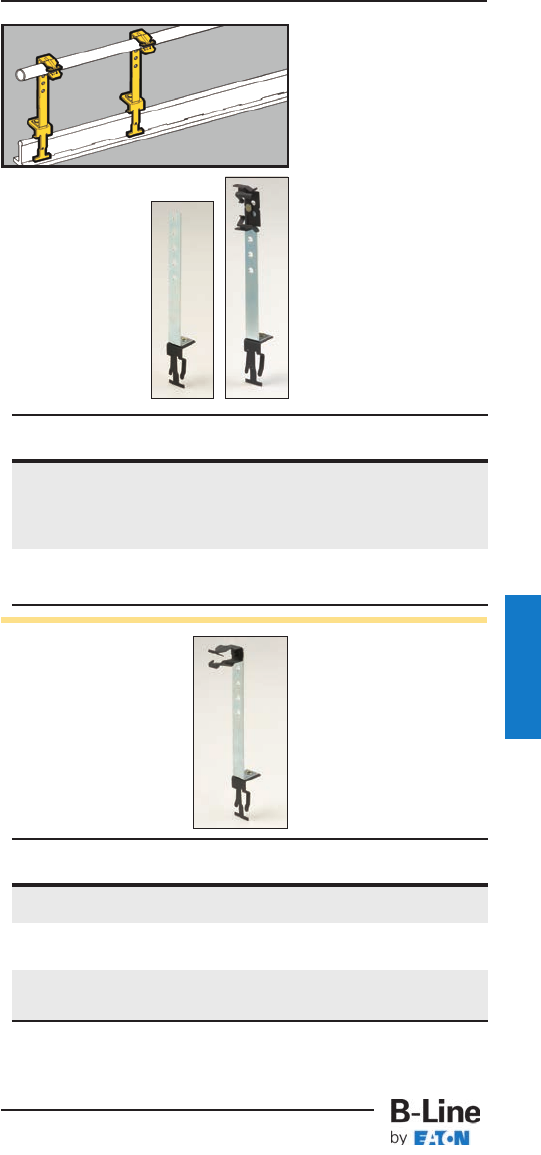

Guide-Rite™

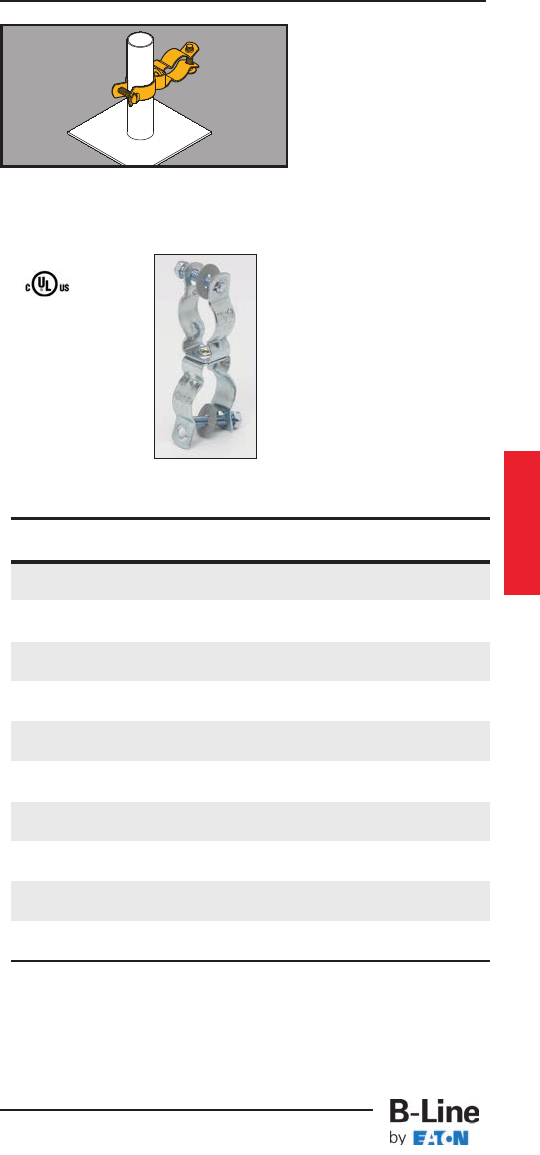

Conduit To

Pedestal Support

• Supports conduit

from square

computer floor

pedestals.

• Unique Guide-Rite

Fastener provides for

fast and easy

installation with pliers.

• Static Load Capacity:

25 lbs.

Conduit & Cable

Read safety/installation instruction sheets in packages before use.

Conduit & Cable

Fasteners

UPC/Part Catalog Conduit Size Box

Number Number EMT/Rigid Qty.

78205125589 BG-8-12-G6*3/8” 100

78101188538 BG-8-12-G812 1/2” or 3/4” 100

78101118620 BG-16-G-8-12 1” 100

78205125594 BG-8-12-G20 11/4” 50

78205125595 BG-8-12-G24 11/2” 50

78205125597 BG-8-12-G32 2” 50

Patent #4958792

*BG-8-12-G6 will accept the following range ∅.420 - ∅.675:

14/2 thru 10/4 MC/AC cable and 5/16 or 3/8flexible conduit

• Supports conduit

from 1” O.D.

computer floor

pedestals.

• Also available in Type

304 Stainless Steel.

Contact factory for

details.

• Static Load Capacity:

25 lbs.

• Finish: Zinc-Plated

Conduit To

Pedestal Support

Conduit & Cable

Read safety/installation instruction sheets in packages before use.

Conduit & Cable

Fasteners 56

UPC/Part Catalog Trade Conduit Size Box

Number Number Size Rigid EMT Qty.

78205125599 BL1410-L1400 01/2”1/2” 50

78205125601 BL1410-L1410 13/4”3/4” 50

78205125602 BL1410-L1420 2 1” 1” 50

78205125603 BL1410-L1425 2.5 -- 11/4” 50

78205125607 BL1410-L1430 31

1/4”1

1/2” 50

78205125612 BL1410-L1440 41

1/2” -- 25

78205125614 BL1410-L1450 5 2” 2” 25

78205125617 BL1410-L1460 62

1/2”2

1/2” 10

78205125618 BL1410-L1470 7 3” 3” 10

78205125619 BL1410-L1480 83

1/2”3

1/2”5

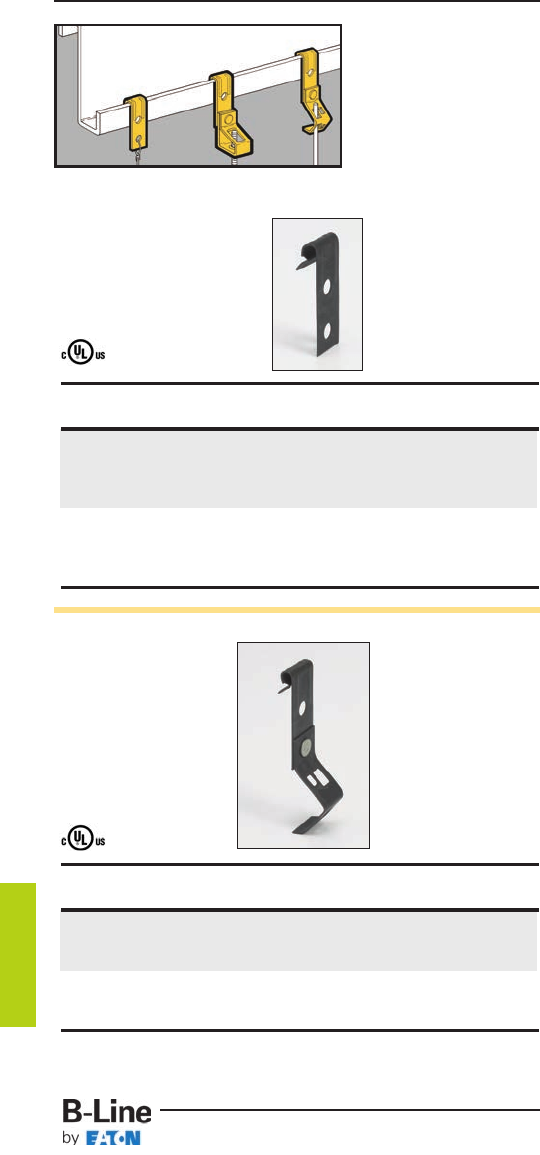

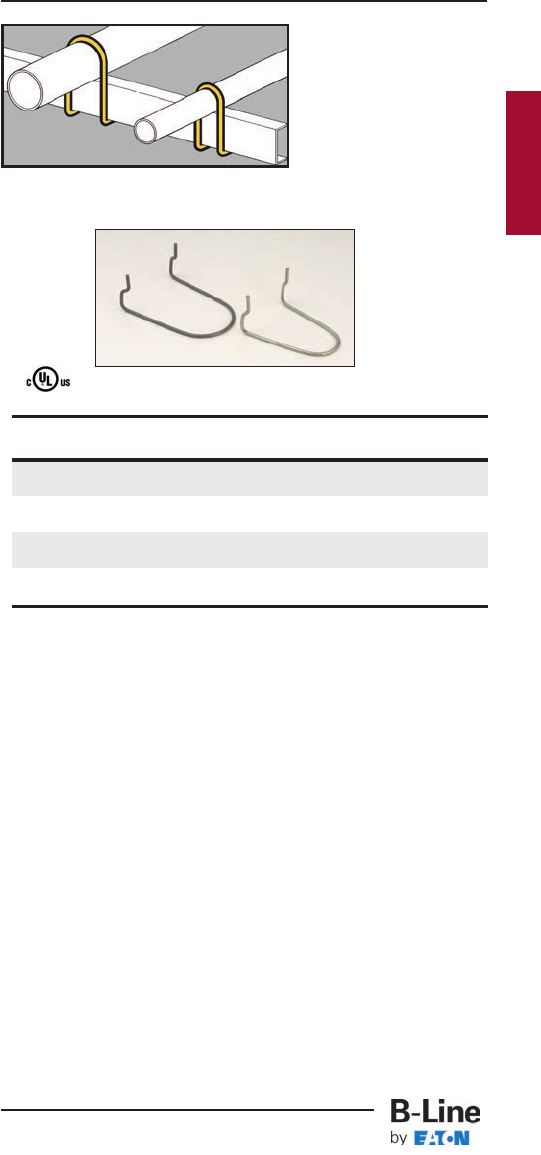

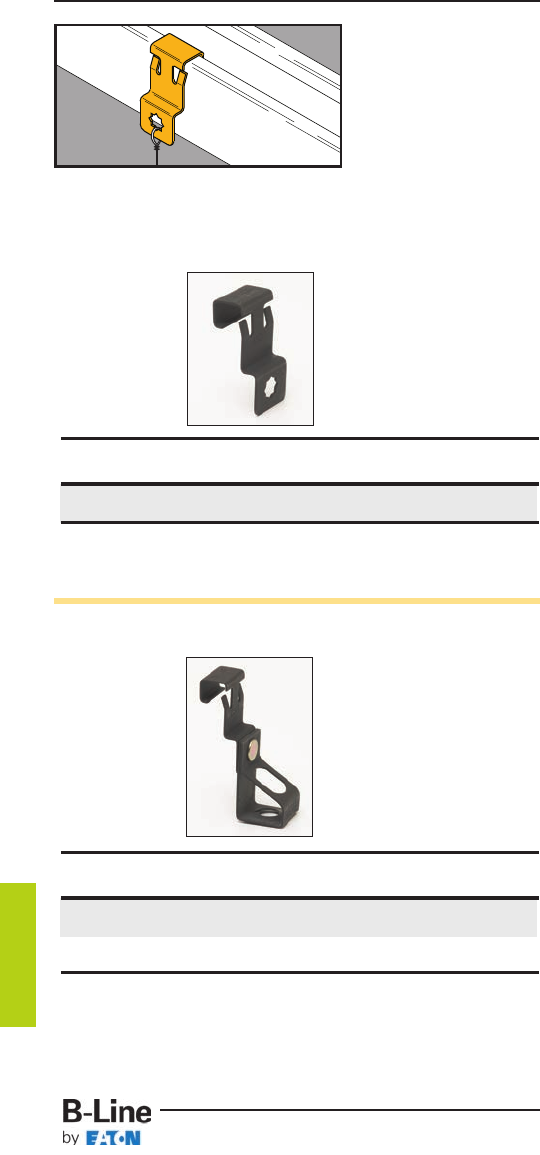

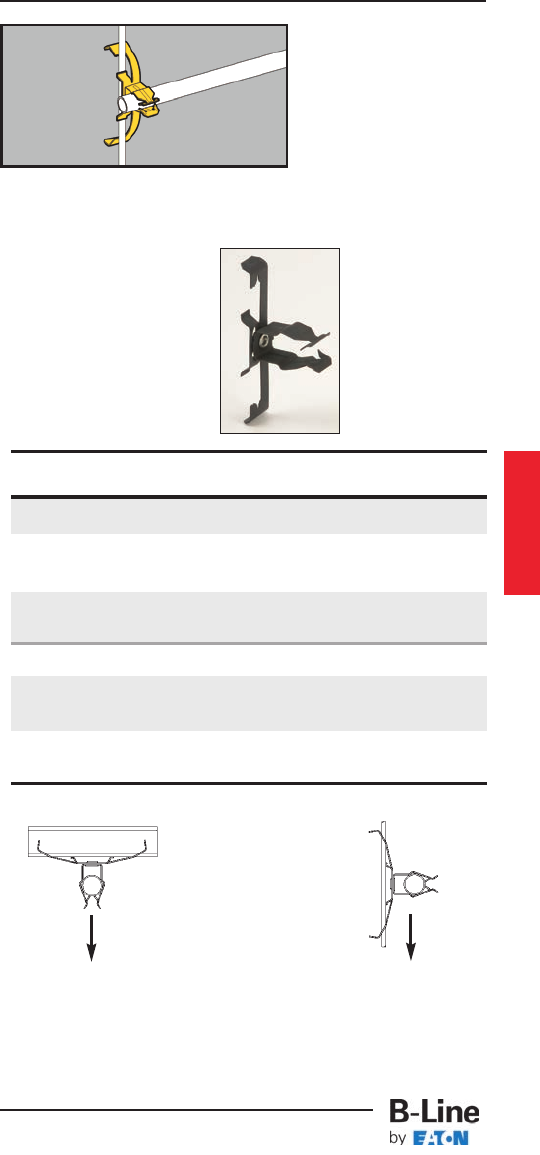

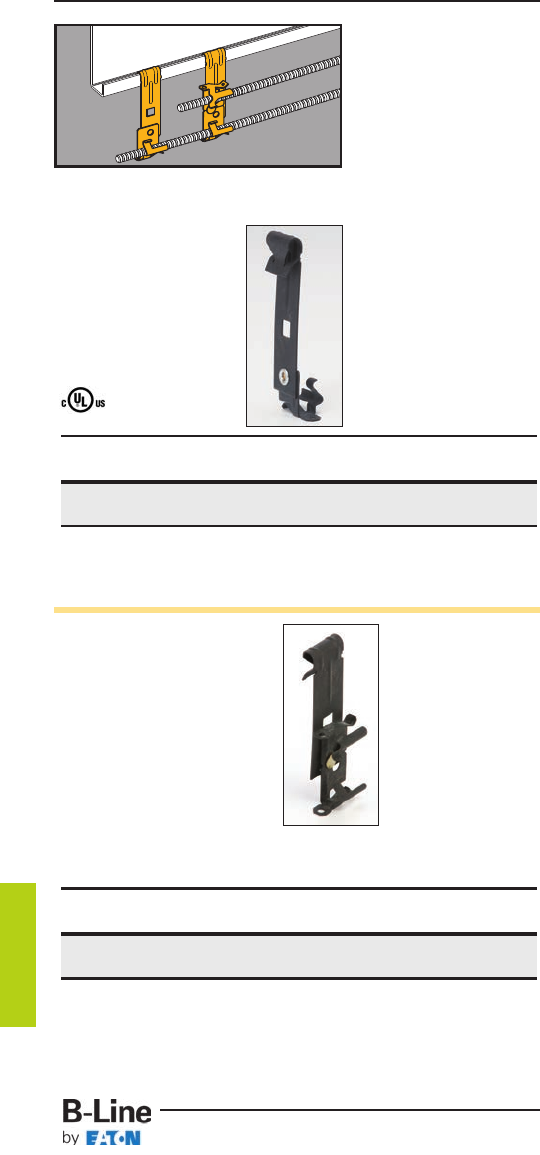

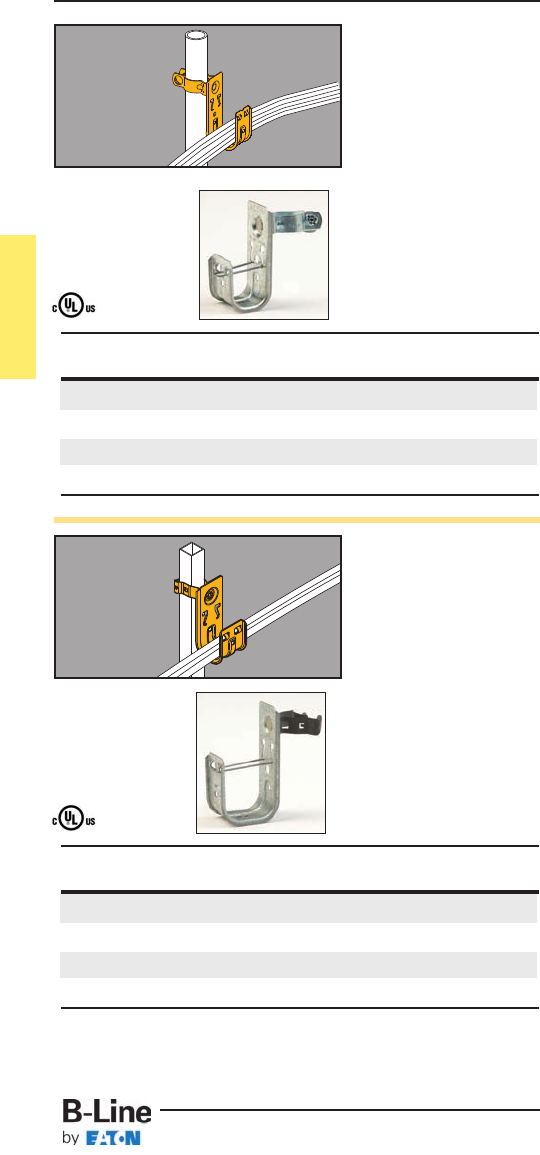

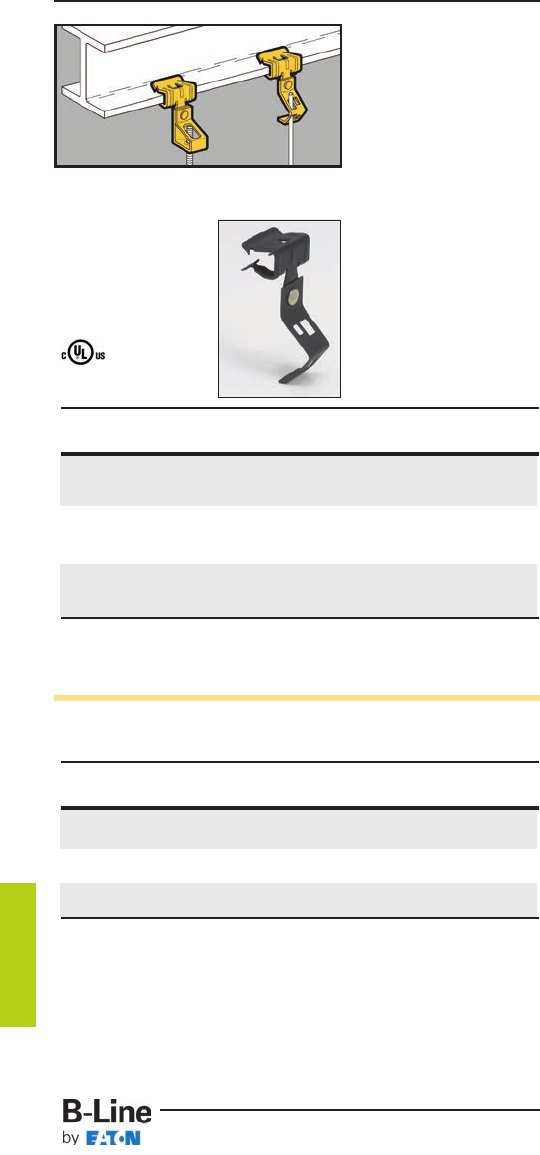

Rod & Wire

Fasteners

• BW2 and BW6

support #10-24 or

1/4”-20 threaded

bridle rings and

provide attachment

for electrical boxes.

• BW2S & BW6S are

provided with one

each 1/4”-20 x 3/8”

screw and hex nut.

• BW4 supports cables

from #12 thru #8

wire.

25 Lbs.

50 Lbs.

Static Load

Capacity

MC/AC #12 #10 #8 & #9

Cable Size Wire Wire Wire

14/2 Cable BW4 BW4 BW4

14/3 Cable BW4 BW4 BW4

12/2 Cable BW4 BW4 BW4

12/3 Cable BW4 BW-8 BW-8

BW4 is designed for positioning only. No load rating.

Note: An independent means of support is required by NEC Article 300.11.

Refer to pages 225-226 for additional support methods.

Conduit & Cable

Read safety/installation instruction sheets in packages before use.

Conduit & Cable

Fasteners

UPC/Part Catalog Drop Rod/ Flange Box

Number Number Wire Size Thickness Qty.

78101119700 BW2 #12 wire thru

1/8

” -

3/8

” 100

1/4

” plain or threaded rod

78205140156 BW2S #12 wire thru

1/8

” -

3/8

” 100

1/4

” plain or threaded rod

78101195516 BW6

3/8

” plain or

3/8

” -

7/16

” 100

threaded rod

78205140157 BW6S

3/8

” plain or

3/8

” -

7/16

” 100

threaded rod

UPC/Part Catalog Box

Number Number Description Qty.

78101119705 BW4 Multi-size 100

Wire Fastener

• See BX8 and BX18

for a better solution.

• Attaches conduit to

wire rods or flanges.

• Can be used for

flexible metallic

tubing or armored

cable.

Rod & Wire Fasteners

Conduit #10 #8 3/16"1/8"5/16"7/16"

Size & #12 & #9 & 1/4" to 1/4" to 3/8" to 1/2"

Wire Wire Rod Flange Flange Flange

1/2" EMT BW-8 BW-8 BW-8 BW-8 BW-12 BW-12

1/2" Rigid BW-8 BW-12 BW-12 BW-12 BW-12 BW-16

3/4" EMT BW-12 BW-12 BW-12 BW-12 BW-16 BW-16

3/4" Rigid BW-12 BW-12 BW-16 BW-16 BW-20* BW-20*

1" EMT --- BW-16 BW-16 BW-16 BW-20* BW-20*

1" Rigid --- --- --- BW-20* BW-20* BW-20*

11/4" EMT --- BW-20 BW-20 BW-20 --- ---

*Note: For horizontal applications only.

Static Load Capacity

25 Lbs. 50 Lbs.

100 Lbs.

Vertical

Flange Vertical

Wire or

Rod

Horizontal

Flange

Note: An independent means of support is required by NEC Article 300.11.

Refer to pages 225-226 for additional support methods.

BW-8 BW-16

Conduit & Cable

Read safety/installation instruction sheets in packages before use.

Conduit & Cable

Fasteners 58

UPC/Part Catalog Box

Number Number Qty.

78101119710 BW-8 100

78101119715 BW-12 100

78101119720 BW-16 100

78101119725 BW-20 100

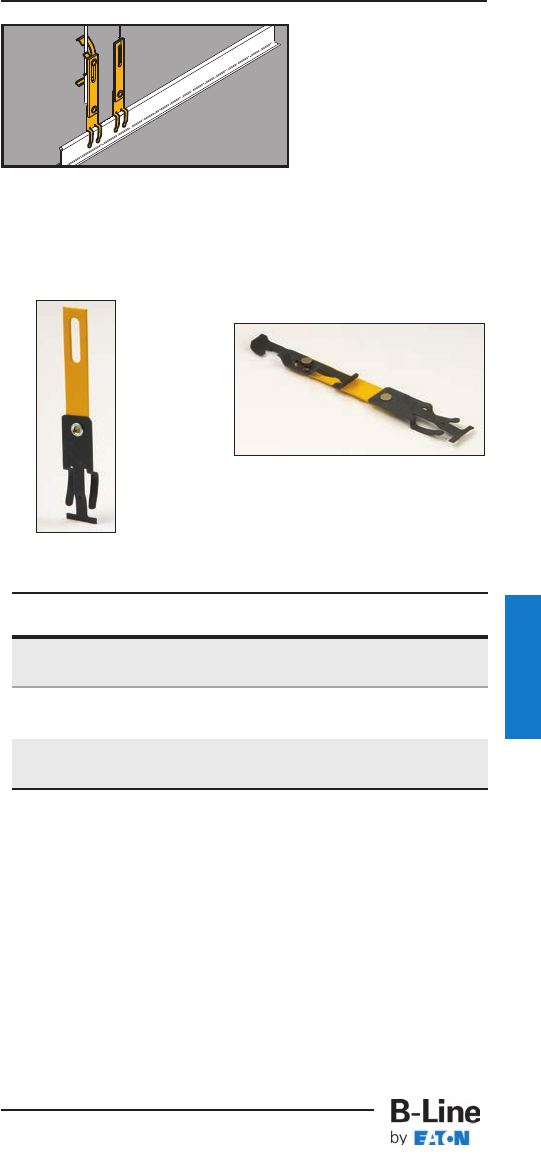

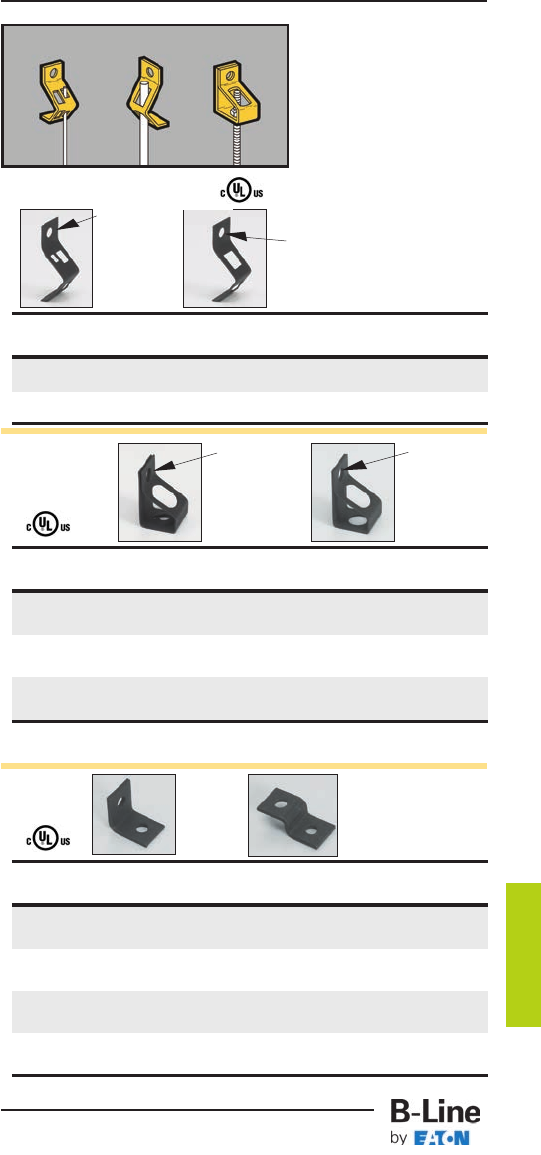

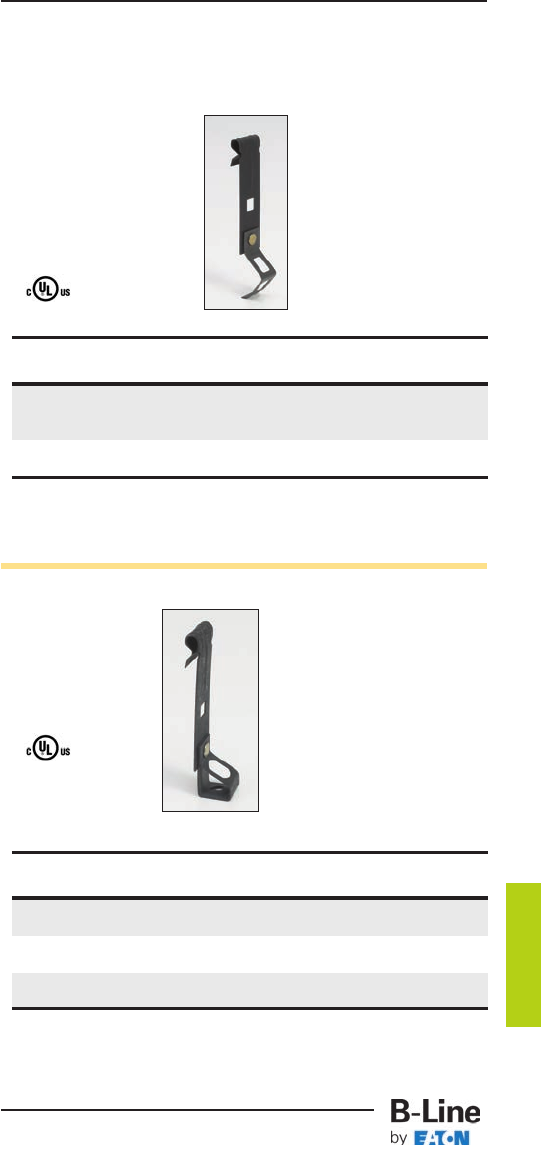

Guide-Rite™

Conduit To Rod

Fasteners

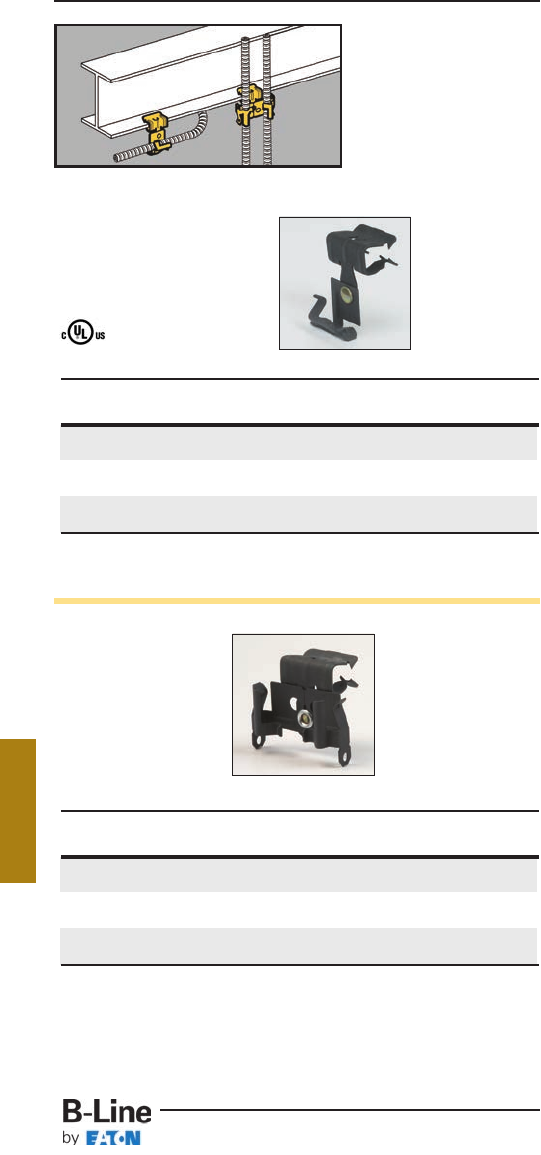

• Assemblies support

1/2", 3/4" and 1”

conduit.

• W2 series attaches to

1/8” thru 3/8” flanges

or #12 wire thru 1/4”

plain or threaded rod.

• W6 series attaches to

3/8” thru 7/16” flanges

or 3/8” plain or

threaded rod.

50 Lbs. 25 Lbs.

Static Load

Capacity

Note: An independent means of support is required by NEC Article 300.11.

Refer to pages 225-226 for additional support methods.

Conduit & Cable

Read safety/installation instruction sheets in packages before use.

Conduit & Cable

Fasteners

UPC/Part Catalog Conduit Size Box

Number Number EMT/Rigid Qty.

78101118540 BG-8-12-W2 1/2”, 3/4” 100

78101118640 BG-16-W2 1” 100

78101195519 BG-8-12-W6 1/2”, 3/4” 100

78101195520 BG-16-W6 1” 100

Patent #4958792

• Assemblies support

1/2", 3/4" and 1”

conduit.

• W2 series attaches to

1/8” thru 3/8” flanges

or #12 wire thru 1/4”

plain or threaded rod.

• W6 series attaches to

3/8” thru 7/16” flanges

or 3/8” plain or

threaded rod.

25 Lbs. 15 Lbs.

Ultimate Static

Load Capacity

Note: An independent means of support is required by NEC Article 300.11.

Refer to pages 225-226 for additional support methods.

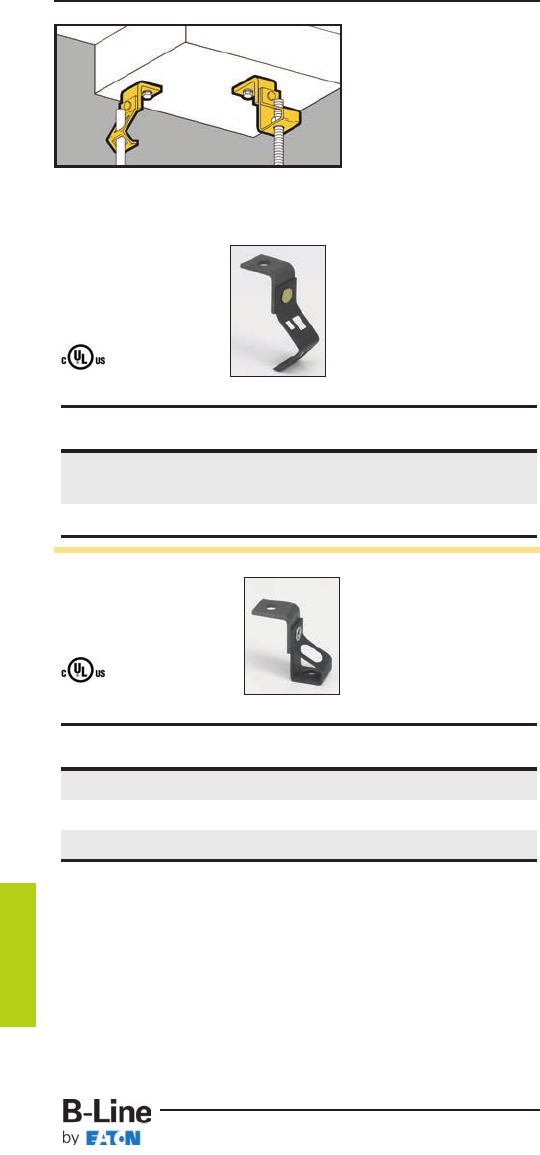

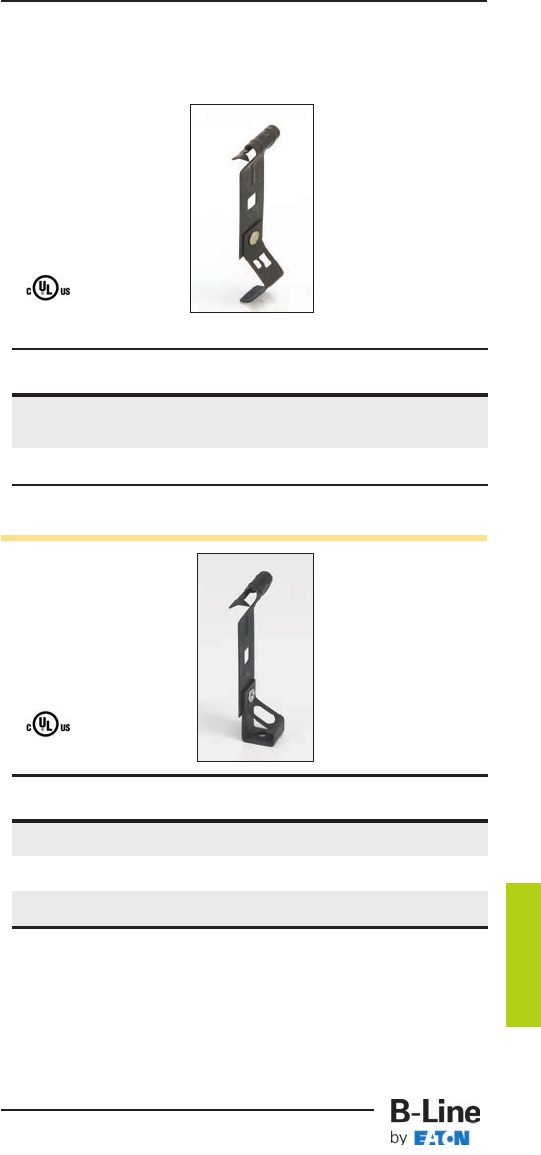

Push-Type

Conduit To Rod

Fasteners

Conduit & Cable

Read safety/installation instruction sheets in packages before use.

Conduit & Cable

Fasteners 60

UPC/Part Catalog Conduit Box

Number Number Size Qty.

78101119325 BP-8-W2 1/2” EMT 100

78101119420 BP-12-W2 3/4” EMT or 100

1/2” IMC. Rigid

78101119505 BP-16-W2 1” EMT or 100

3/4” IMC, Rigid

78101195521 BP-8-W6 1/2” EMT 100

78101195522 BP-12-W6 3/4” EMT or 100

1/2” IMC. Rigid

78101195523 BP-16-W6 1” EMT or 100

3/4” IMC, Rigid

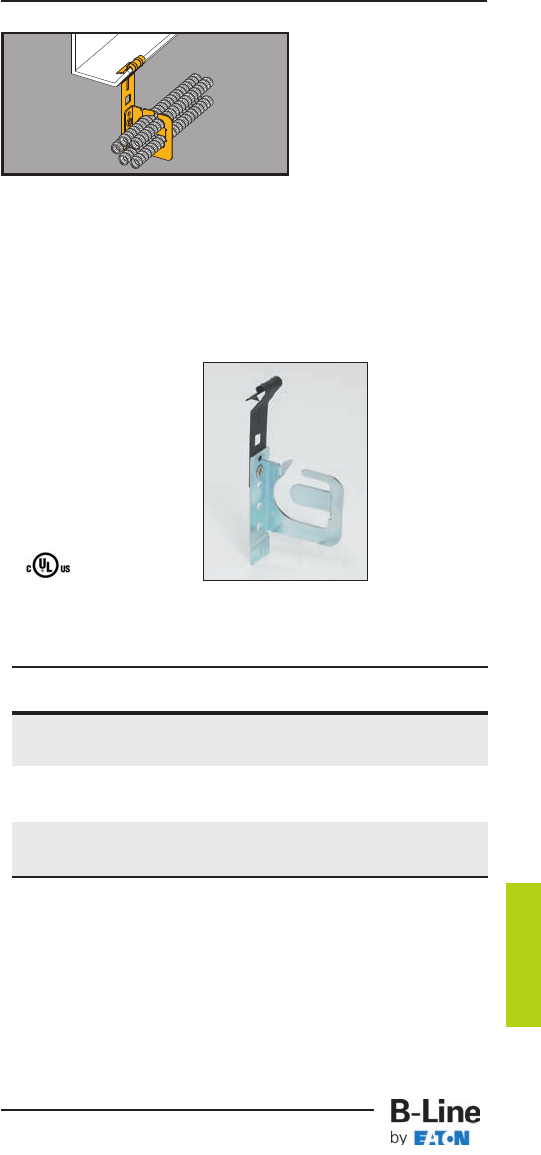

• Can be used in place

of batwings.

• Will not bend or

deform hanger wire.

• Attaches to #12 - #8

wire and 1/4" plain rod.

• Accommodates MC,

AC, 3/8" FMC or 1/2"

EMT.

• Cable can be installed

before or after

attachment to wire.

• Static Load Capacity:

BX-8 - 20 Lbs.

BX-18 - 30 Lbs.

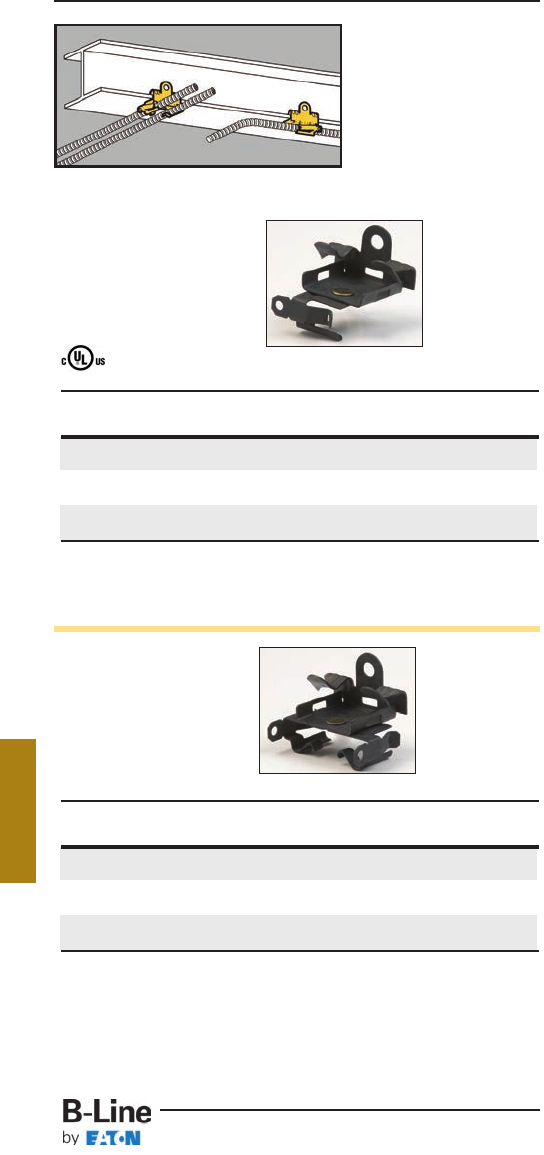

• Assemblies support

MC, AC, sizes 14/2

through 10/3 or 3/8

FMC.

• W2 series attaches

to 1/8” thru 3/8”

flanges or #12 wire

thru 1/4” plain or

threaded rod.

• W6 series attaches

to 3/8” thru 7/16”

flanges or 3/8” plain

or threaded rod.

BX4-W2

Cable

To Rod

Fasteners

BX4M-W2

Flex-Rite™

Cable/Conduit

To Wire

Fasteners

Conduit & Cable

Read safety/installation instruction sheets in packages before use.

Conduit & Cable

Fasteners

UPC/Part Catalog Cable/Conduit Box

Number Number Size Qty.

78101101402 BX-8 .375” to 706” O.D. 100

78101102943 BX-18 .706” to 1.380” O.D. 100

78101101685 BX-8B Bulk Packed In 4000

Fiber Barrels

UPC/Part Catalog Description Box

Number Number Qty.

78101101219 BX4-W2 Single Runs 100

78101101189 BX4M-W2 Double Runs 100

78101195517 BX4-W6 Single Runs 100

78101195518 BX4M-W6 Double Runs 100

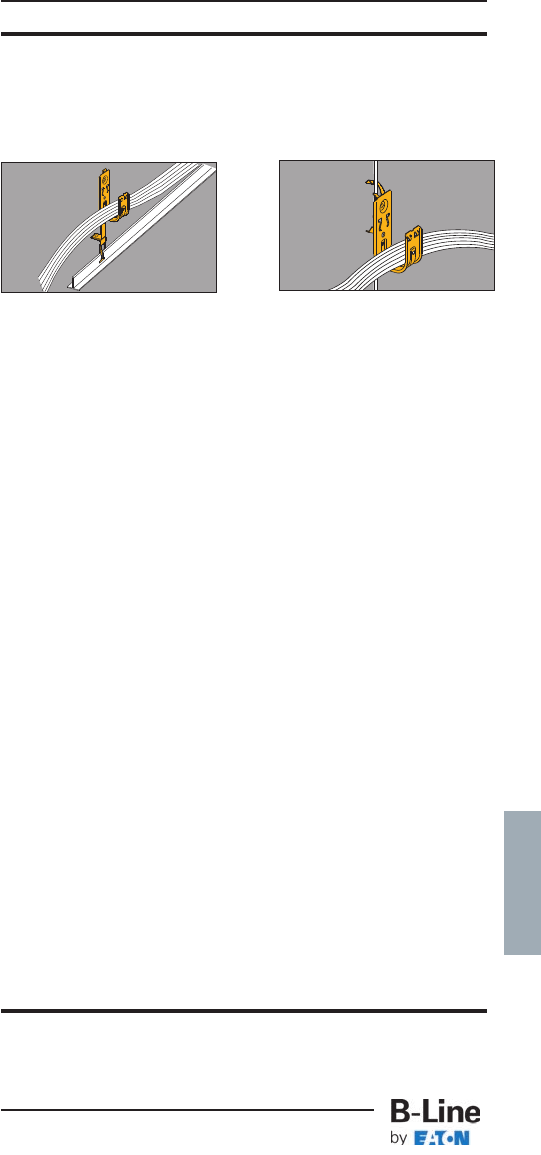

• Attaches Type NM

cable to most

structures.

• Supports cable sizes

14/2 and 12/2 with

ground wire.

• May be used with

other B-Line fasteners

for attachment to

acoustical tees,

beams, drop wires,

etc.

Cable Fasteners

• Supports cable sizes

14/2 and 12/2 with

ground wire.

• W2 series supports

cable from #12 wire

thru 1/4” plain or

threaded rod.

• W6 series supports

cable from 3/8” plain

or threaded rod.

Cable Fasteners

Conduit & Cable

Read safety/installation instruction sheets in packages before use.

These products are designed for positioning only. No load rating.

Conduit & Cable

Fasteners 62

UPC/Part Catalog Description Box

Number Number Qty.

78101103553 BRC3 Type NM 100

Cable Fastener

UPC/Part Catalog Description Box

Number Number Qty.

78101103547 BRC3-W2 Type NM Cable 100

To Wire Fastener

78101195524 BRC3-W6 Type NM Cable 100

To Wire Fastener

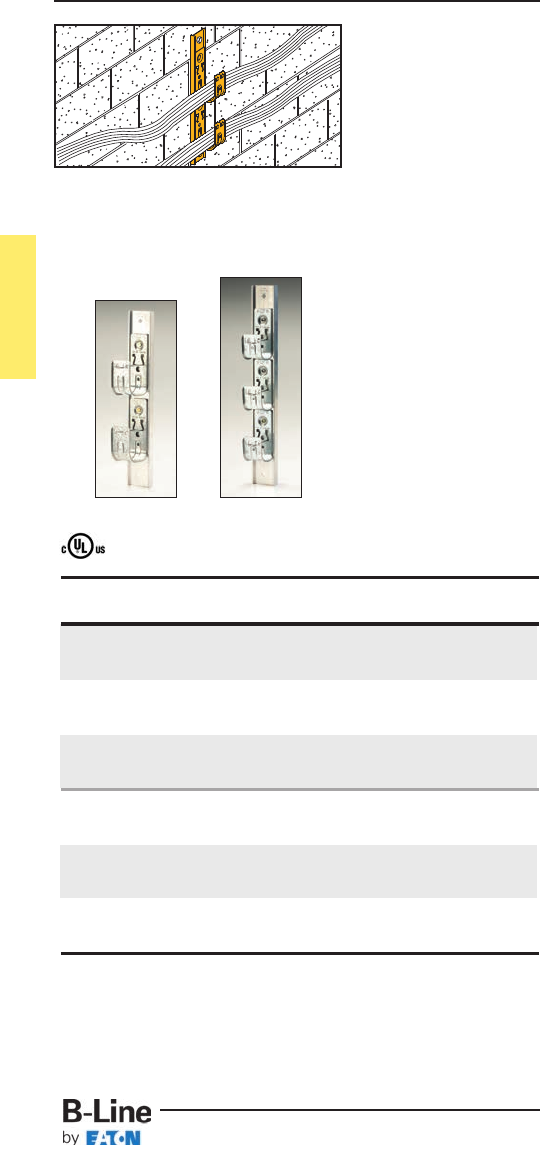

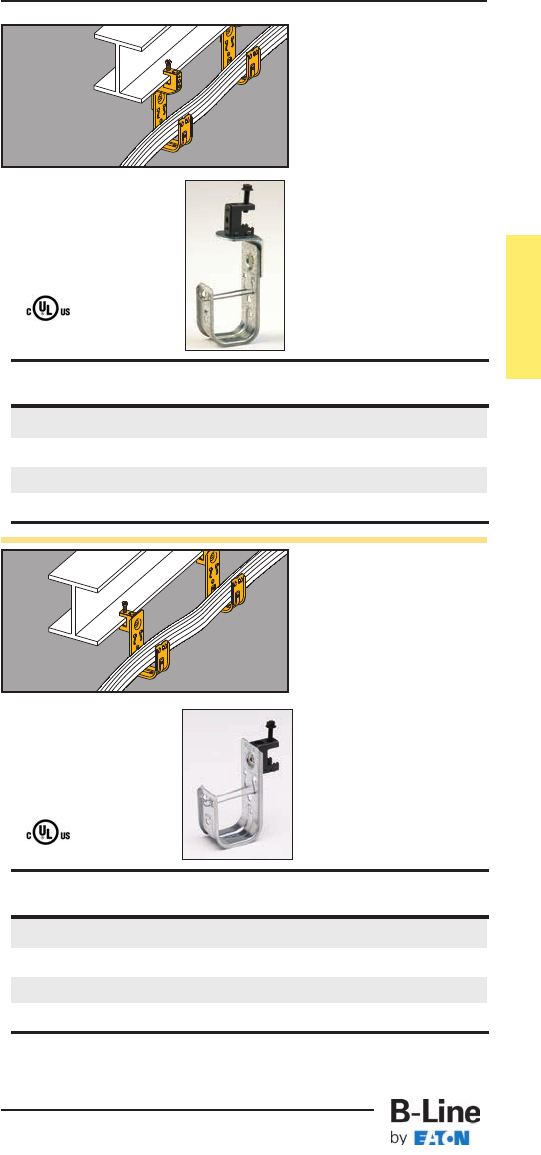

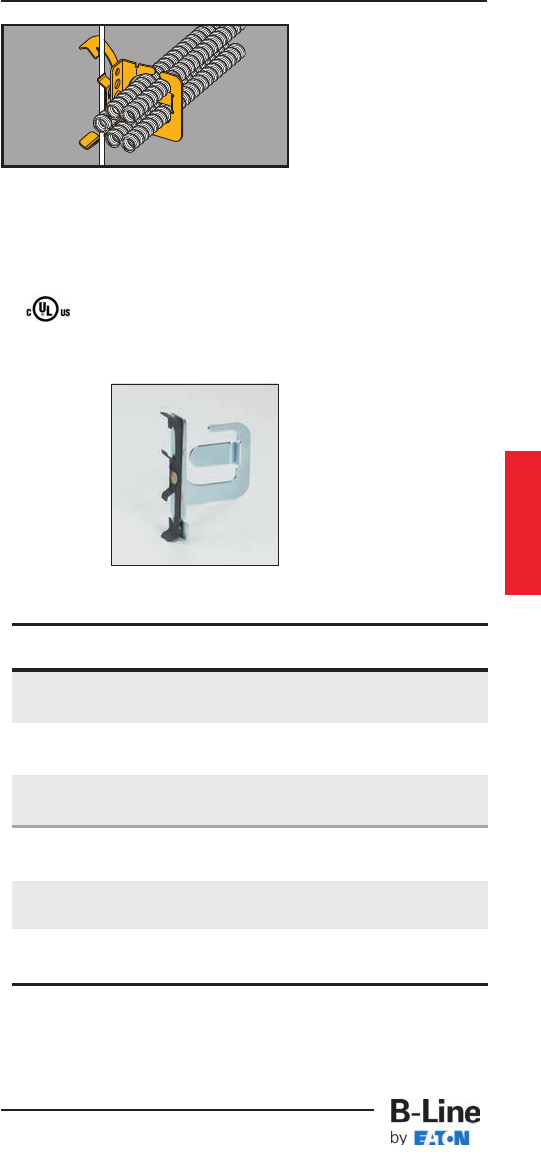

Multi-Run Cable

Carrier for MC/AC

Cable

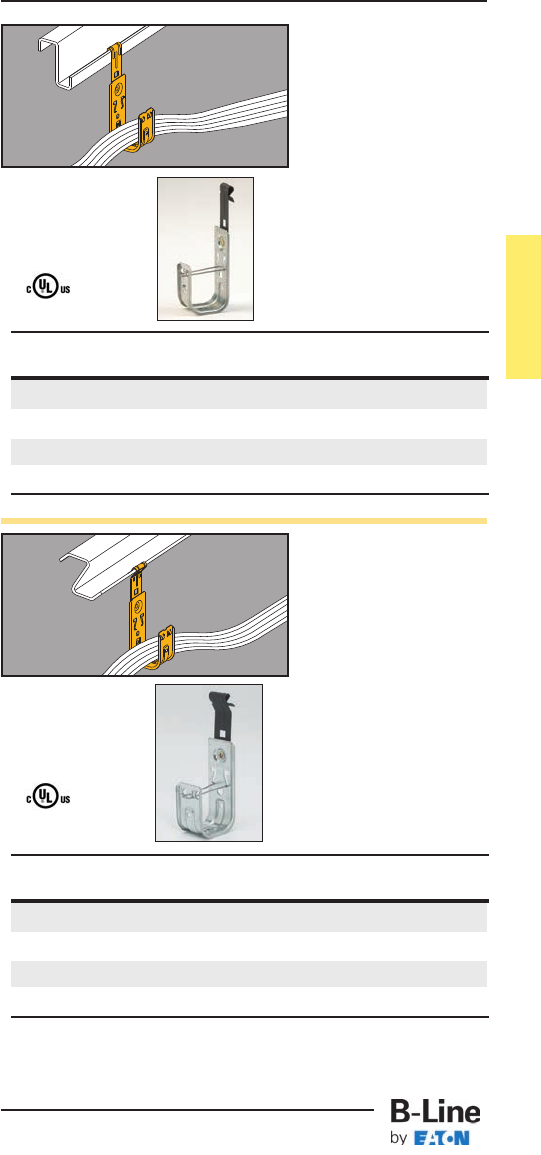

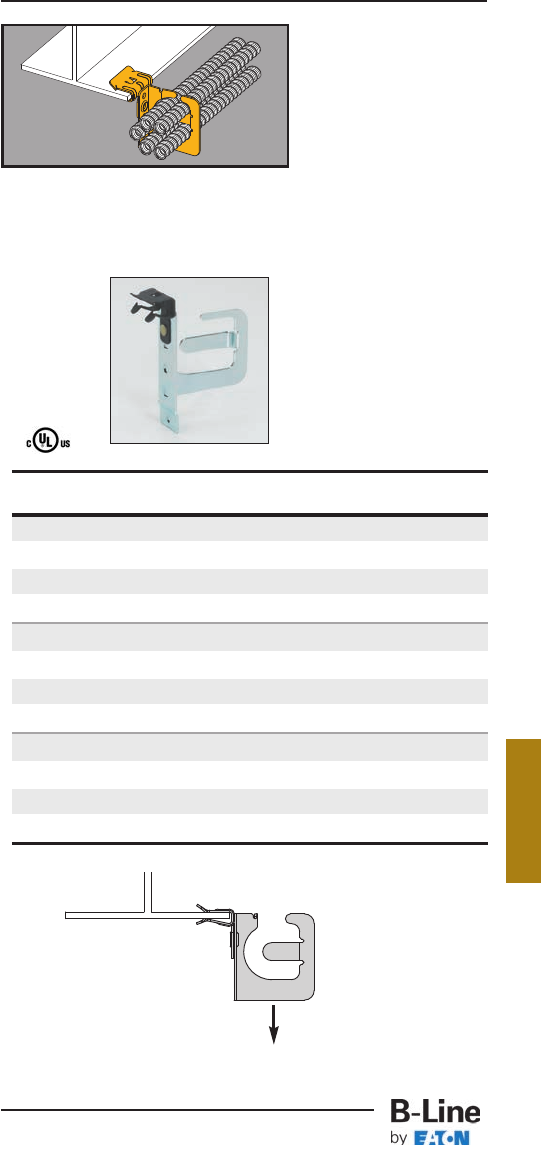

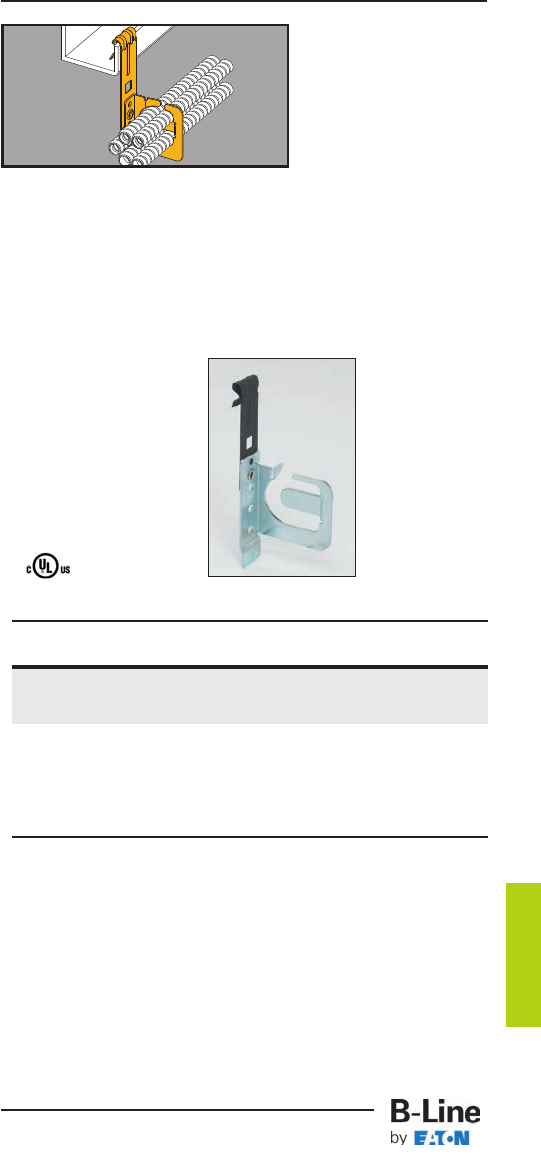

• Secures and supports

multiple runs of

MC/AC cable as

required by the NEC.

• Effectively organizes

cables and eliminates

derating issues.

• Retention tab is open

for easy loading and

unloading and

contains cables when

bent in place.

• Compatible with new

BCH-HBA for multi

tier assemblies.

• Load Capacity:

50 lbs.

• Finish: Zinc Plated

BRC5-1

BRC5-3

BRC5-2

Conduit & Cable

Read safety/installation instruction sheets in packages before use.

Conduit & Cable

Fasteners

UPC/Part Catalog Cable Diameter & Box

Number Number Number Of Runs Qty.

78205143593 BRC5-1 .430” to .560” 50

Up To 4 Runs

78205143594 BRC5-2 .430” to .560” 50

Up To 9 Runs

78205143595 BRC5-3 .560” to .690” 50

Up To 7 Runs

• Secures and supports

multiple runs of

MC/AC cable as

required by the NEC.

• W2 Series attaches to

1/8” thru 3/8” flanges

or #12 thru 1/4” plain

or threaded rod.

• W6 Series attaches to

3/8” thru 7/16” flanges

or 3/8” plain or

threaded rod.

• Load Capacity: 50 lbs.

• Finish: Zinc Plated

Multi-Run Cable

Carrier for MC/AC

Cable

Note: An independent means of support is required by NEC Article 300.11.

Refer to pages 225-226 for additional support methods.

Conduit & Cable

Read safety/installation instruction sheets in packages before use.

These products are designed for positioning only. No load rating.

Conduit & Cable

Fasteners 64

UPC/Part Catalog Cable Diameter & Box

Number Number Number Of Runs Qty.

78205144075 BRC51-W2 .430” to .560” 25

Up To 4 Runs

78205144076 BRC52-W2 .430” to .560” 25

Up To 9 Runs

78205144077 BRC53-W2 .560” to .690” 25

Up To 7 Runs

78205144078 BRC51-W6 .430” to .560” 25

Up To 4 Runs

78205144079 BRC52-W6 .430” to .560” 25

Up To 9 Runs

78205144080 BRC53-W6 .560” to .690” 25

Up To 7 Runs

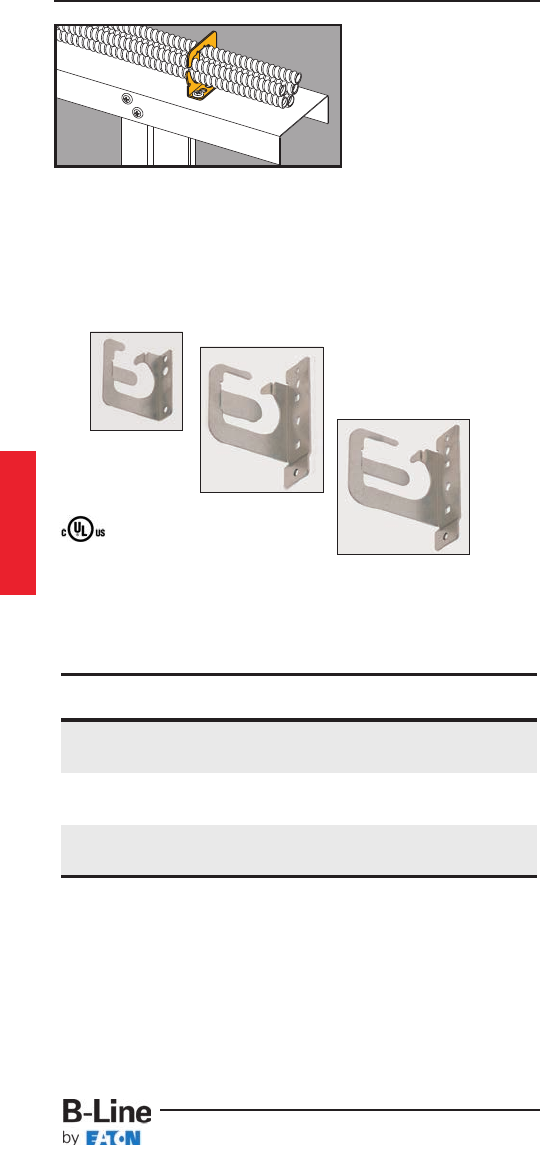

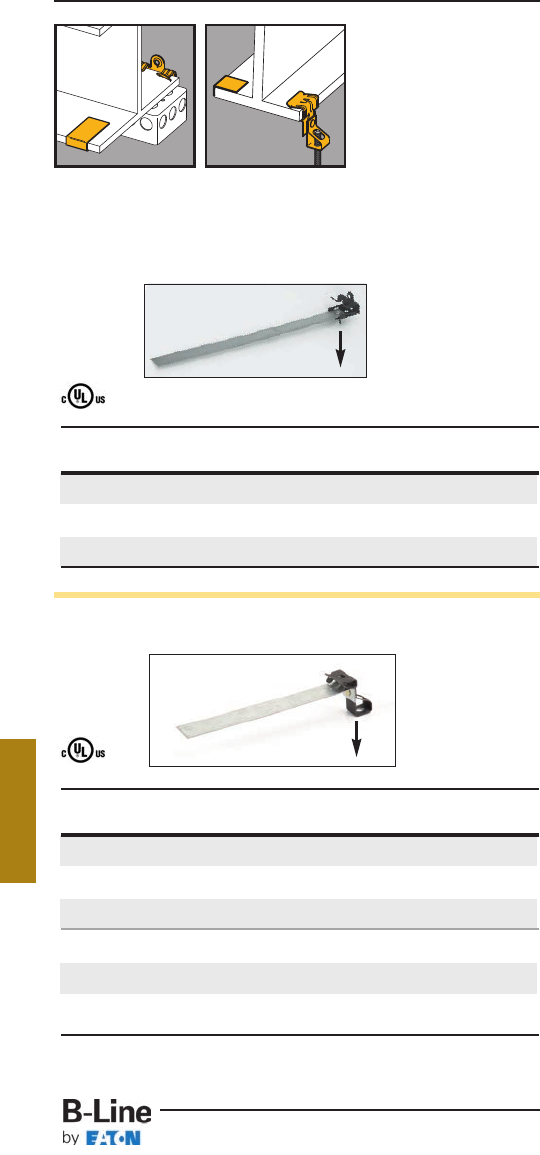

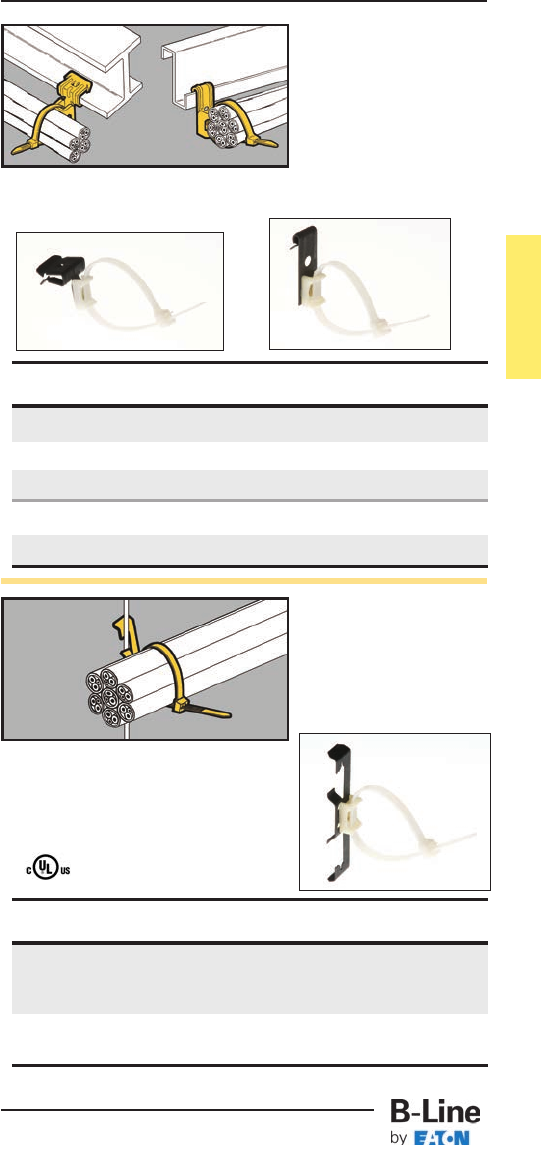

Flexible Cable

Support

• Designed to support

multiple runs of

MC, AC, FMC or

communication

cable.

• Static Load Capacity:

BX2 - 50 lbs.

BX6 & BX24 - 75 Lbs.

• Finish: Zinc Plated

Flexible Conduit/

Cable Fasteners

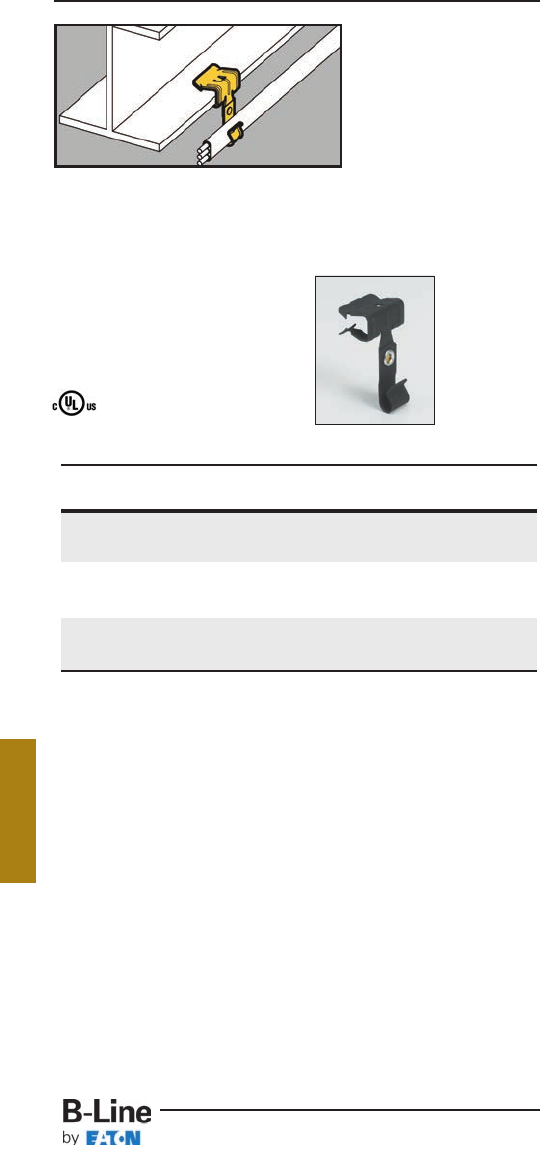

• Fastens flexible

conduit and other

small cables to beam

flanges, bar joists or

metal studs.

• Cable O.D. range of

0.42” to 0.70”.

• Maximum flange

thickness 5/32”.

BX2

BX6

Conduit & Cable

Read safety/installation instruction sheets in packages before use.

Conduit & Cable

Fasteners

UPC/Part Catalog Description Box

Number Number Qty.

78205104934 BX2 Usable Area = 100

2 sq. in.

78205119765 BX6 Usable Area = 100

4 sq. in.

78205119766 BX24 Usable Area = 100

13 sq. in.

UPC/Part Catalog Description Box

Number Number Qty.

78101119770 BX9 Flexible Conduit 100

Fastener

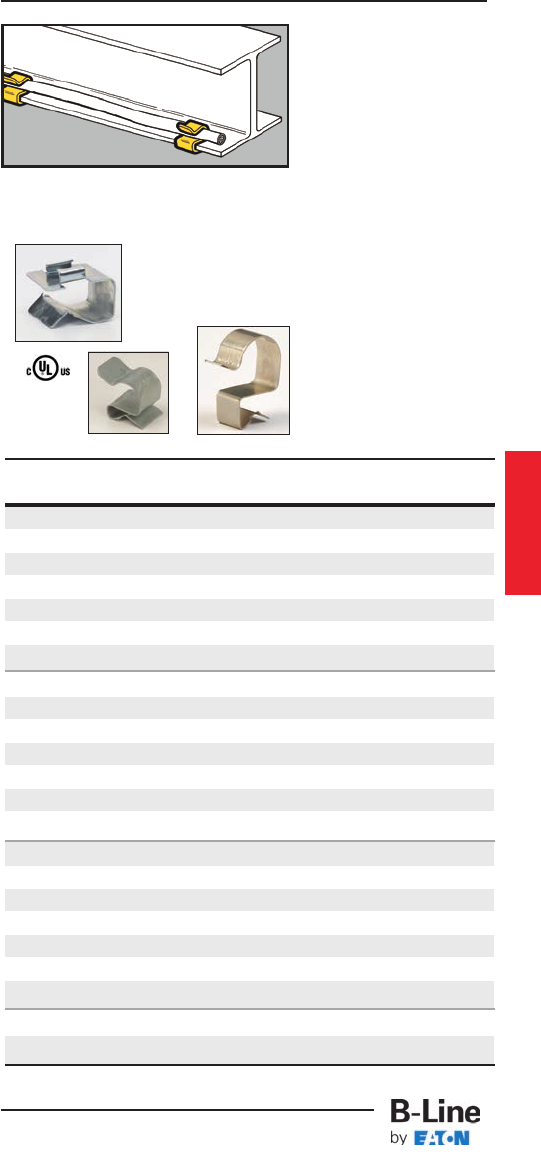

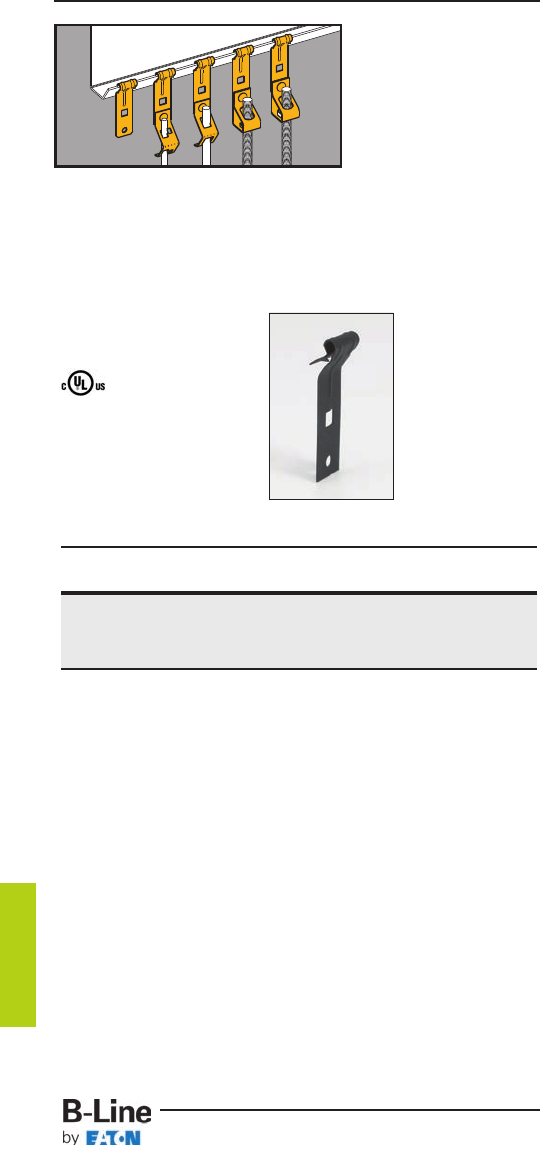

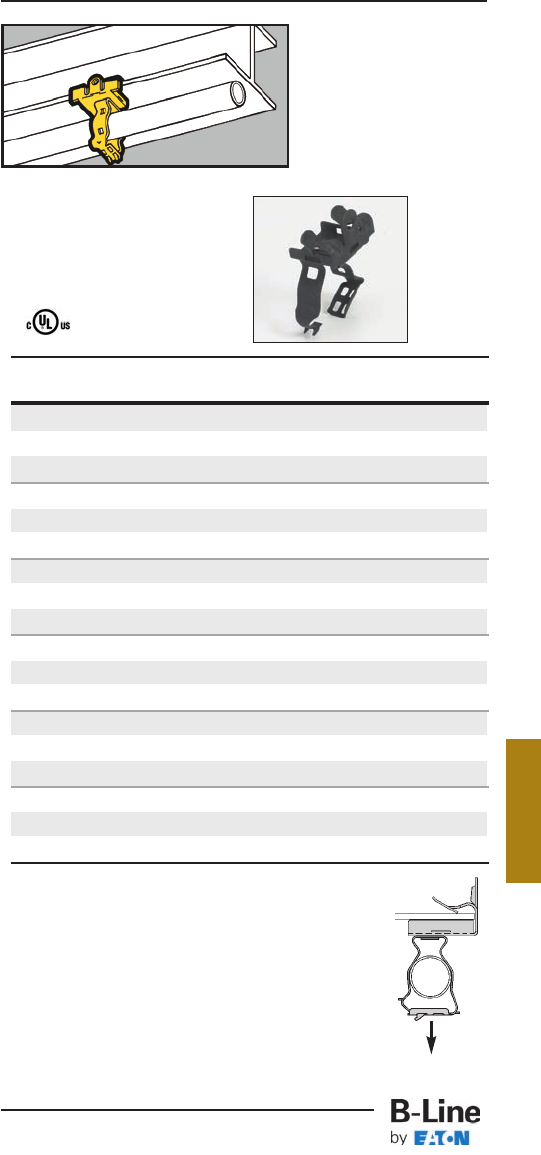

• Secures cable along

flanges 1/16" to 3/4"

thick.

• The BFA flange

adapters attach BXS

series to thicker

flanges.

• BX_-67 accepts 14/2,

12/2 & 10/2 romex

with ground.

• BX_-1011 accepts

14/2, 12/2 & 10/2

romex with ground.

• BX_-1214 accepts

10/3, romex with

ground.

• Finish: Zinc Plated

Flexible Conduit/

Cable Fasteners

UPC/Part Catalog Flange Cable Box

Number Number Thickness Diameter Qty.

78101119973 BXS-67 1/16” - 5/32” .218 to .281 100

78101119974 BXS-89 1/16” - 5/32” .290 to .375 100

78101119975 BXS-1011 1/16” - 5/32” .375 to .437 100

78101119976 BXS-1214 1/16” - 5/32” .444 to .560 100

78101119977 BXS-1519 1/16” - 5/32” .500 to .718 100

78101119978 BXS-2024 1/16” - 5/32” .748 to .945 100

78101119979 BXS-2530 1/16” - 5/32” .968 to 1.250 100

78101119980 BXM-67 5/32” - 9/32” .218 to .281 100

78101119981 BXM-89 5/32” - 9/32” .290 to .375 100

78101119982 BXM-1011 5/32” - 9/32” .375 to .437 100

78101119983 BXM-1214 5/32” - 9/32” .444 to .560 100

78101119984 BXM-1519 5/32” - 9/32” .500 to .718 100

78101119985 BXM-2024 5/32” - 9/32” .748 to .945 100

78101119986 BXM-2530 5/32” - 9/32” .968 to 1.250 100

78101119987 BXL-67 5/16” - 1/2” .218 to .281 100

78101119988 BXL-89 5/16” - 1/2” .290 to .375 100

78101119989 BXL-1011 5/16” - 1/2” .375 to .437 100

78101119990 BXL-1214 5/16” - 1/2” .444 to .560 100

78101119991 BXL-1519 5/16” - 1/2” .500 to .718 100

78101119992 BXL-2024 5/16” - 1/2” .748 to .945 100

78101119993 BXL-2530 5/16” - 1/2” .968 to 1.250 100

78101119955 BFA-1215 1/2” - 5/8” -- 100

78101119956 BFA-1520 5/8” - 3/4” -- 100

BXS

Series

BXL

Series

BFA Series

(For Use with

BXS Series

Only)

Conduit & Cable

Read safety/installation instruction sheets in packages before use.

These products are designed for positioning only. No load rating.

Conduit & Cable

Fasteners 66

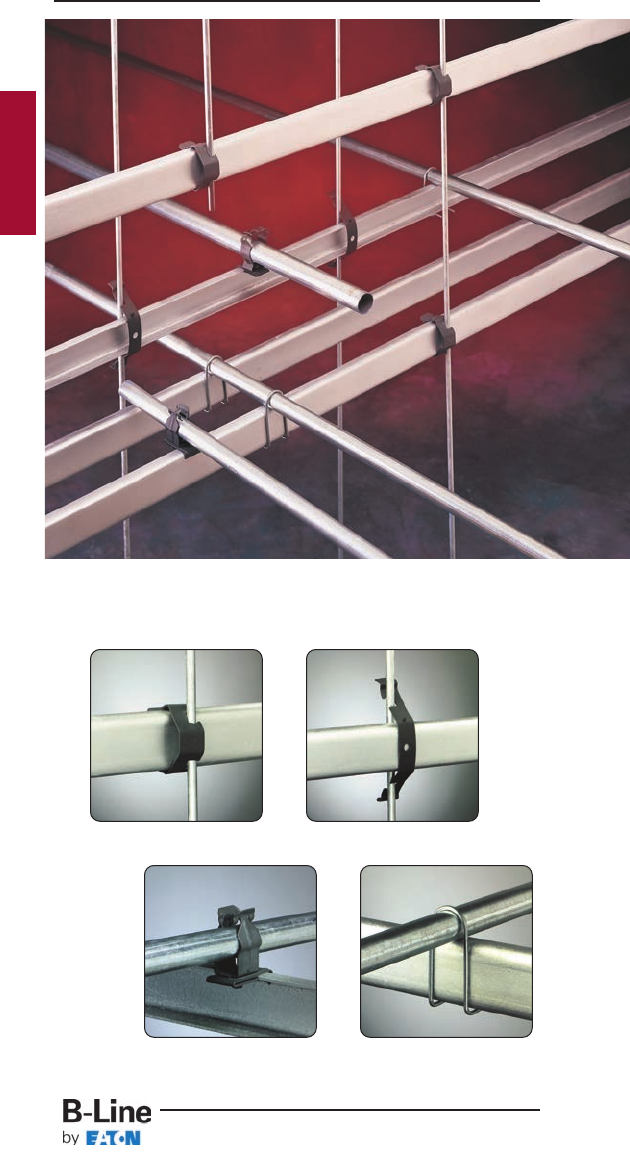

Conduit Quick

Caps & Spacers

• Quick caps and

spacers eliminate the

time consuming

method of duct taping

conduit stubs.

• Quick spacers are

designed to separate

and secure conduit

during concrete pours.

• Quick caps maintain

spacing and keep

conduit free from dirt

and debris.

• Quick caps and

spacers properly

space conduit for any

4” square box.

• Available in EMT &

Rigid conduit sizes.

Conduit & Cable

Read safety/installation instruction sheets in packages before use.

These products are designed for positioning only. No load rating.

Conduit & Cable

Fasteners

UPC/Part Catalog Conduit Box

Number Number Size Qty.

Conduit Spacer

78205122356 BCS-8 1/2” Rigid Conduit 50

78205140057 BES-8 1/2” EMT Conduit 50

78205122357 BCS-12 3/4” Rigid Conduit 50

78205140058 BES-12 3/4” EMT Conduit 50

78205122358 BCS-16 1” Rigid Conduit 50

78205140059 BES-16 1” EMT Conduit 50

79903855806 BCS-18 11/2” Rigid Conduit 25

79903855807 BCS-20 2” Rigid Conduit 25

Conduit Cap

78205122359 BCS-8C 1/2” Rigid Conduit 50

78205140060 BES-8C 1/2” EMT Conduit 50

78205122361 BCS-12C 3/4” Rigid Conduit 50

78205140061 BES-12C 3/4” EMT Conduit 50

78205122362 BCS-16C 1” Rigid Conduit 50

78205140062 BES-16C 1” EMT Conduit 50

79903855803 BCS-18C 11/2” Rigid Conduit 25

79903855805 BCS-20C 2” Rigid Conduit 25

Conduit Spacer

79903855808 BCS-12AS 3/4” Rigid Conduit 50

79903855809 BCS-16AS 1” Rigid Conduit 25

Patent #5896892

BCS & BES

8 & 8C thru 16 & 16C

BCS 18, 18C, 20, & 20C

BCS 12AS & 16AS

• Eliminates the need

for offset bends when

used with 11/2" deep

boxes.

• Attaches conduit to

concrete, steel or

wood with nails.

• May be attached after

conduit positioning.

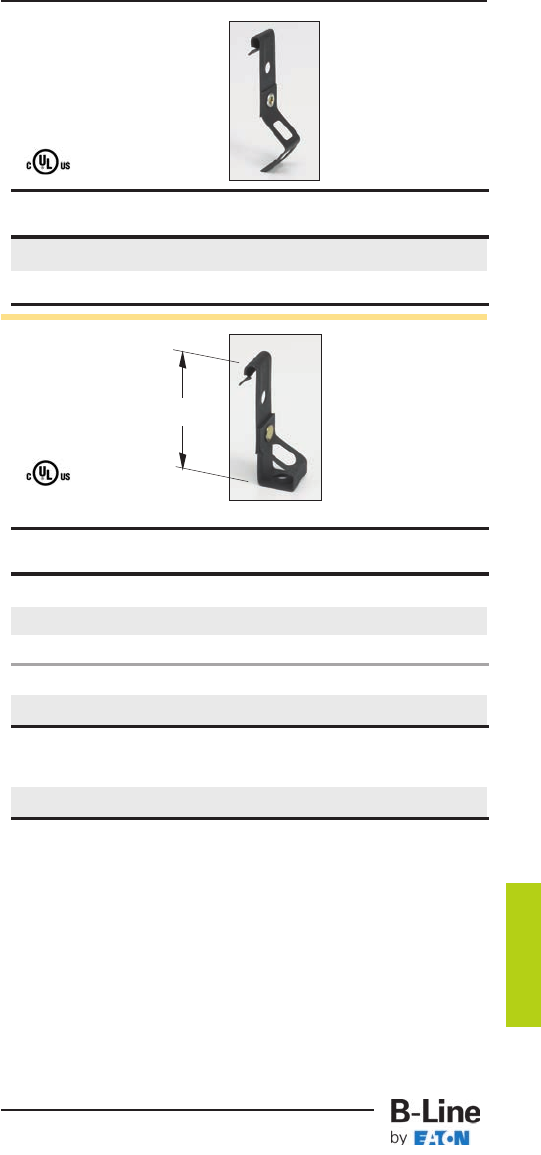

Conduit Spacer

Brackets

BG BP

• Eliminates the need

for offset bends when

used with 21/8" deep

boxes.

• Provides secure

support between

conduit and deck.

• D4 Series is easily

installed with screw

gun or powder

actuated tools.

• Allows for complete

conduit layout prior

to anchoring.

Conduit Spacer

Brackets

BG BP

Conduit & Cable

Read safety/installation instruction sheets in packages before use.

Conduit & Cable

Fasteners 68

UPC/Part Catalog Conduit Box

Number Number Size Qty.

78101118495 BG-8-12-D3 1/2” or 3/4” 100

Patent # 4958792

78101119265 BP-8-D3 1/2” EMT 100

78101118365 BP-12-D3 3/4” EMT or 100

1/2” IMC, Rigid

UPC/Part Catalog Conduit Box

Number Number Size Qty.

78101118500 BG-8-12-D4 1/2” or 3/4” 100

Patent # 4958792

78101119270 BP-8-D4 1/2” EMT 100

78101119370 BP-12-D4 3/4” EMT or 100

1/2” IMC, Rigid

78101119460 BP-16-D4 1” EMT or 100

3/4” IMC, Rigid

Guide-Rite™Conduit

& Box

Support Fasteners

• New BMC3 plate is

available to support

multiple conduit runs.

• Riveted assembly

provides support for

electrical boxes and

conduit runs on either

side of the box.

• Reduces drop wires

by 66% when using

W2/W6 assemblies.

• Assemblies using

BMC3 plate include

center conduit clip.

Additional conduit

clips may be

purchased separately.

BG__-S18 BG__-S18-MC3

• See pages Ruff-IN™brochure for

pre-fab box assemblies.

Conduit & Cable

Read safety/installation instruction sheets in packages before use.

Conduit & Cable

Fasteners

UPC/Part Catalog Conduit Size Box

Number Number EMT & Rigid Qty.

78101103575 BG6-S18 *3/8” 25

78101103573 BG812-S18 1/2” or 3/4” 25

78101103574 BG16-S18 1” 25

With Multiple Conduit Plate

78205152812 BG6-S18-MC3 *3/8” 25

78205152900 BG812-S18-MC3 1/2” or 3/4” 25

78205152901 BG16-S18-MC3 1” 25

Patent # 4958792

With Stud

78205152902 BG6-S18S *3/8” 25

78110104979 BG812-S18S 1/2” or 3/4” 25

78205152903 BG16-S18S 1” 25

With Stud & Multiple Conduit Plate

78205152904 BG6-S18S-MC3 *3/8” 25

78205152905 BG812-S18S-MC3 1/2” or 3/4” 25

78205152906 BG16-S18S-MC3 1” 25

BG-__-S18-S

With 1/4”-20 x 5/8” Stud

BG-__-S18-S-MC3

With 1/4”-20 x 5/8” Stud

*BG-6 will accept the following range ∅.420 - ∅.675:

14/2 thru 10/4 MC/AC cable and 5/16” or 3/8” flexible conduit

** Note: An independent means of support is required by NEC Article

300.11. Refer to pages 225-226 for additional support methods.

BG__-S18-W_ BG__-S18-W_-MC3

25 Lbs.

Static Load

Capacity

Conduit & Cable

Read safety/installation instruction sheets in packages before use.

Conduit & Cable

Fasteners 70

UPC/Part Catalog Conduit Size Box

Number Number EMT & Rigid Qty.

W2 Series for #12 thru 1/4” Rod

78101103578 BG6-S18-W2 *3/8” 25

78101103577 BG812-S18-W2 1/2” or 3/4” 25

78101103577 BG16-S18-W2 1” 25

W2 Series for #12 thru 1/4” Rod & Multiple Conduit Plate

78205152855 BG6-S18-W2-MC3 *3/8” 25

78205152739 BG812-S18-W2-MC3 1/2” or 3/4” 25

78205152862 BG16-S18-W2-MC3 1” 25

W6 Series for 3/8” Plain or Threaded Rod

78110199581 BG6-S18-W6 *3/8” 25

78110199582 BG812-S18-W6 1/2” or 3/4” 25

78110199580 BG16-S18-W6 1” 25

W6 Series for 3/8” Plain or Threaded Rod & Multiple Conduit Plate

78205152856 BG6-S18-W6-MC3 *3/8” 25

78205152860 BG812-S18-W6-MC3 1/2” or 3/4” 25

78205152864 BG16-S18-W6-MC3 1” 25

• New BMC3 plate is

available to support

multiple conduit runs.

• Riveted assembly

provides support for

electrical boxes and

conduit runs on either

side of the box.

• Reduces drop wires

by 66% when using

W2/W6 assemblies.

• Assemblies using

BMC3 plate include

center conduit clip.

Additional conduit

clips may be

purchased separately.

Push-Type

Conduit & Box

Support Fasteners

BP__-S18 BP__-S18-MC3

• See pages Ruff-IN™brochure for

pre-fab box assemblies.

Conduit & Cable

Read safety/installation instruction sheets in packages before use.

Conduit & Cable

Fasteners

UPC/Part Catalog Conduit Size Box

Number Number E(EMT) R(Rigid) Qty.

78205123604 BP8-S18 1/2” E 25

78205123605 BP12-S18 3/4” E or 1/2” R 25

78205123606 BP16-S18 1”E, 3/4” R 25

With Multiple Conduit Plate

78205152907 BP8-S18-MC3 1/2” E 25

78205152908 BP12-S18-MC3 3/4” E or 1/2” R 25

78205152909 BP16-S18-MC3 1”E, 3/4” R 25

With Stud

78205123631 BP8-S18S 1/2” E 25

78205123633 BP12-S18S 3/4” E or 1/2” R 25

78205123634 BP16-S18S 1”E, 3/4” R 25

With Stud & Multiple Conduit Plate

78205152913 BP8-S18S-MC3 1/2” E 25

78205152914 BP12-S18S-MC3 3/4” E or 1/2” R 25

78205152915 BP16-S18S-MC3 1”E, 3/4” R 25

BP-__-S18-S

With 1/4”-20 x 5/8”

Stud

BP-__-S18-S-MC3

With 1/4”-20 x 5/8”

Stud

** Note: An independent means of support is required by NEC Article

300.11. Refer to pages 225-226 for additional support methods.

BG__-S18-W _ BG__-S18-W_-MC3

25 Lbs.

Static Load

Capacity

Conduit & Cable

Read safety/installation instruction sheets in packages before use.

Conduit & Cable

Fasteners 72

UPC/Part Catalog Conduit Size Box

Number Number E(EMT) R(Rigid) Qty.

W2 Series for #12 thru 1/4” Rod

78205123615 BP8-S18-W2 1/2” EMT 25

78205123619 BP12-S18-W2 3/4” E or 1/2” R 25

78205123627 BP16-S18-W2 1”E, 3/4” R 25

W2 Series for #12 thru 1/4” Rod & Multiple Conduit Plate

78205152847 BP8-S18-W2-MC3 1/2” EMT 25

78205152848 BP12-S18-W2-MC3 3/4” E or 1/2” R 25

78205152849 BP16-S18-W2-MC3 1”E, 3/4” R 25

W6 Series for 3/8” Plain or Threaded Rod

78205123628 BP8-S18-W6 1/2” EMT 25

78205123629 BP12-S18-W6 3/4” E or 1/2” R 25

78205123630 BP16-S18-W6 1”E, 3/4” R 25

W6 Series for 3/8” Plain or Threaded Rod & Multiple Conduit Plate

78205152850 BP8-S18-W6-MC3 1/2” EMT 25

78205152851 BP12-S18-W6-MC3 3/4” E or 1/2” R 25

78205152854 BP16-S18-W6-MC3 1”E, 3/4” R 25

• Riveted assembly

provides support for

electrical boxes and

cable runs on either

side of the box.

• Reduces drop wires

by 66% when using

W2/W6 assemblies.

• Cable retension tab is

open for easy loading

and contains the

cables when bent in

place.

• See Ruff-IN™

brochure for pre-fab

box assemblies.

Multi-Run Cable

Carrier & Box

Support Fasteners

BRC5_-S18

BRC5_-S18-S

With 1/4”-20 x 5/8” Stud

Conduit & Cable

Read safety/installation instruction sheets in packages before use.

Conduit & Cable

Fasteners

UPC/Part Catalog Conduit Box

Number Number Size Qty.

78205152916 BRC51-S18 Up to 4 runs 25

.430” - .560”

78205152918 BRC53-S18 Up to 7 runs 25

.560” - .690”

UPC/Part Catalog Conduit Box

Number Number Size Qty.

With Stud

78205152919 BRC51-S18S Up to 4 runs 25

.430” - .560”

78205152921 BRC53-S18S Up to 7 runs 25

.560” - .690”

** Note: An independent means of support is required by NEC Article

300.11. Refer to pages 225-226 for additional support methods.

BRC5_-S18-W _

25 Lbs.

Static Load

Capacity

Conduit & Cable

Read safety/installation instruction sheets in packages before use.

Conduit & Cable

Fasteners 74

UPC/Part Catalog Conduit Box

Number Number Size Qty.

W2 Series for #12 thru 1/4” Rod **

78205152865 BRC51-S18-W2 Up to 4 runs 25

.430” - .560”

78205152869 BRC53-S18-W2 Up to 7 runs 25

.560” - .690”

UPC/Part Catalog Conduit Box

Number Number Size Qty.

W6 Series for 3/8” Plain or Threaded Rod **

78205152866 BRC51-S18-W6 Up to 4 runs 25

.430” - .560”

78205152870 BRC53-S18-W6 Up to 7 runs 25

.560” - .690”

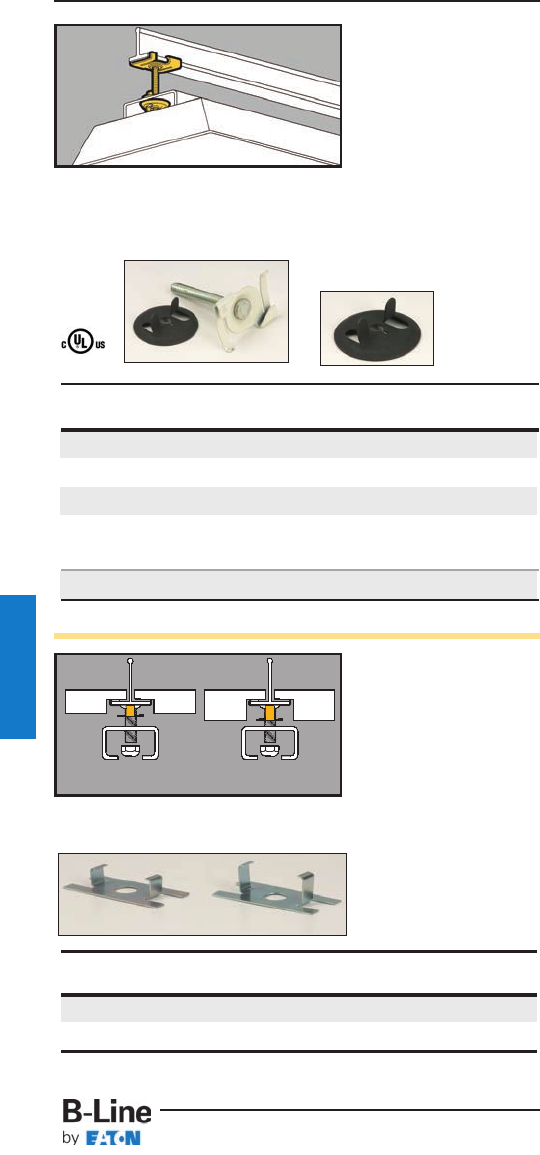

Acoustical Tee

Fasteners

• Attaches to top of

acoustical T-Bar with

1/4"-20 screw.

• Has 1/4"-20 thread

impression for

attachment to box or

conduit fastener.

•Warning: Do not use

for hanging acoustical

tee.

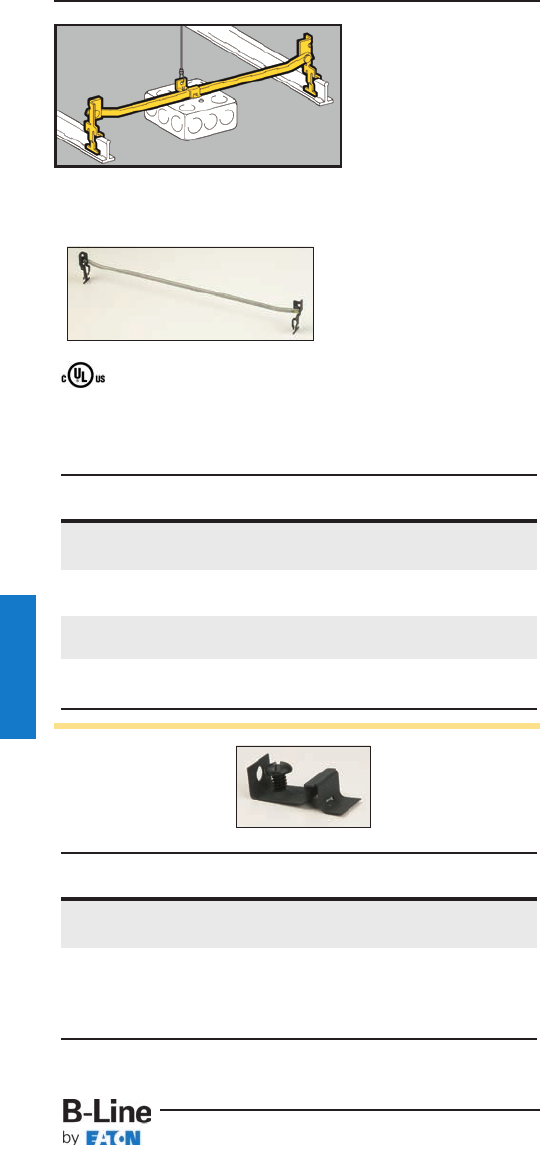

T-Bar Support

Fasteners

• Gives positive support

for troffers and lay-in

fixtures.

• Complies with NEC

Article 410.16(C) for

fixtures supported by

suspended ceilings.

• Fits rectangular or

round head T-Bars.

• Commonly known as

“Hurricane Clip”.

Troffer Fasteners

Acoustical Tee

Read safety/installation instruction sheets in packages before use.

These products are designed for positioning only. No load rating.

Acoustical Tee

Fasteners 76

UPC/Part Catalog Description Box

Number Number Qty.

78101118090 BA14 T-Bar Support 100

Clip

UPC/Part Catalog Description Box

Number Number Qty.

78101118095 BA15 For Straight Lip 100

or Upturned Lip

Fixtures

Side Mount T-Bar

Fasteners

• A positive method for

supporting vertical

boxes, conduit or

cable above T-Bar.

• Allows conduit to

clear drop wires.

•Warning: Do not use

for hanging acoustical

tee.

BA5-4T

Series BP

Series

Read safety/installation instruction sheets in packages before use.

These products are designed for positioning only. No load rating.

Acoustical Tee

Fasteners

UPC/Part Catalog Description Box

Number Number Qty.

78101118095 BA5-4T With 1/4”-20 100

Thread Impression

UPC/Part Catalog Conduit Box

Number Number Size Qty.

78101118410 BG-6-A5 *3/8” 100

78101118465 BG-8-12-A5 1/2”, 3/4” 100

78101118545 BG-16-A5 1” 100

Patent #4958792

78101119235 BP-8-A5 1/2” EMT 100

78101119335 BP-12-A5 3/4” EMT 100

1/2” IMC, Rigid

78101118545 BP-16-A5 1”EMT 100

3/4” IMC, Rigid

*BG-6 will accept the following range ∅.420 - ∅.675:

14/2 thru 10/4 MC/AC cable and 5/16” or 3/8” flexible conduit

• A positive method for

supporting horizontal

boxes or conduit

above T-Bar.

• Allows conduit to

clear drop wires.

•Warning: Do not use

for hanging acoustical

tee.

Top Mount T-Bar

Fasteners

Series BP

Series

Acoustical Tee

Read safety/installation instruction sheets in packages before use.

These products are designed for positioning only. No load rating.

Acoustical Tee

Fasteners 78

UPC/Part Catalog Description Box

Number Number Qty.

78101118125 BA6-4T With 1/4”-20 100

Thread Impression

UPC/Part Catalog Conduit Box

Number Number Size Qty.

78101188540 BG-6-A6 *3/8” 100

78101118470 BG-8-12-A6 1/2”, 3/4” 100

78101118550 BG-16-A6 1” 100

Patent #4958792

78101119240 BP-8-A6 1/2” EMT 100

78101119340 BP-12-A6 3/4” EMT 100

1/2” IMC, Rigid

78101119435 BP-16-A6 1”EMT 100

3/4” IMC, Rigid

*BG-6 will accept the following range ∅.420 - ∅.675:

14/2 thru 10/4 MC/AC cable and 5/16” or 3/8” flexible conduit

Top Mount T-Bar

Fasteners

• A positive method for

supporting cable or

flexible conduit above

T-Bar.

• Assemblies support

MC, AC, sizes 14/2

through 10/3 or

3/8" FMC.

BX4-A6 BX4M-A6

BX4-A5 BX4M-A5

Acoustical Tee

Fasteners

Read safety/installation instruction sheets in packages before use.

These products are designed for positioning only. No load rating.

UPC/Part Catalog Description Box

Number Number Qty.

78101101220 BX4-A6 Single Runs 100

78101101216 BX4M-A6 Double Runs 100

Note: Fasteners will rotate 360°.

UPC/Part Catalog Description Box

Number Number Qty.

78101101187 BX4-A5 Single Runs 100

78101101211 BX4M-A5 Double Runs 100

Note: Fasteners will rotate 360°.

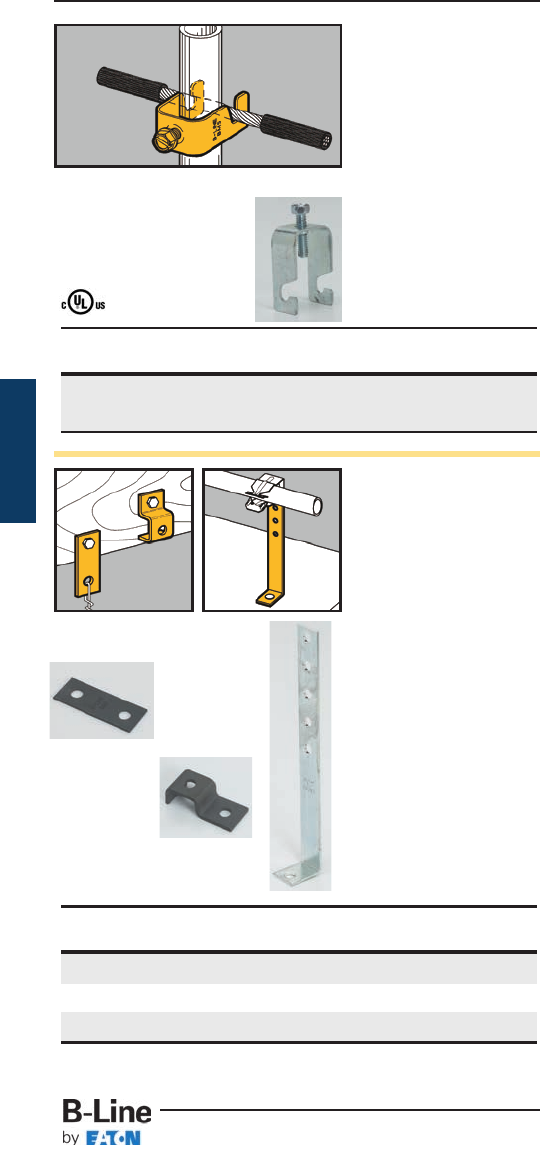

• Supports conduit and

electrical boxes above

T-Bar.

• Height adjusts from

41/4" to 71/4".

• Conduit fasteners can

be attached at 3/4"

increments.

• BX4M-A28 supports

cable or FMC above

T-Bar.

Support

Fasteners

BA28

BP-12-A28

BX4M-A28

Acoustical Tee

Read safety/installation instruction sheets in packages before use.

These products are designed for positioning only. No load rating.

Acoustical Tee

Fasteners 80

UPC/Part Catalog Description Box

Number Number Qty.

78101118115 BA28 1/2” Holes Allow 50

for Adjustment

Between 41/4” and 71/4”

at 3/4” Increments

78101101211 BX4M-A28 Double Runs 25

MC. AC, or FMC

UPC/Part Catalog Conduit Box

Number Number Size Qty.

78101119230 BP-8-A28 1/2” EMT 100

78101119330 BP-12-A28 3/4” EMT 100

1/2” IMC, Rigid

78101119425 BP-16-A28 1” EMT 100

3/4” IMC, Rigid

Note: Adjustable BP Conduit Fastener is attached with screw in

71/4" top hole position.

Electrical Box

T-Bar Fasteners

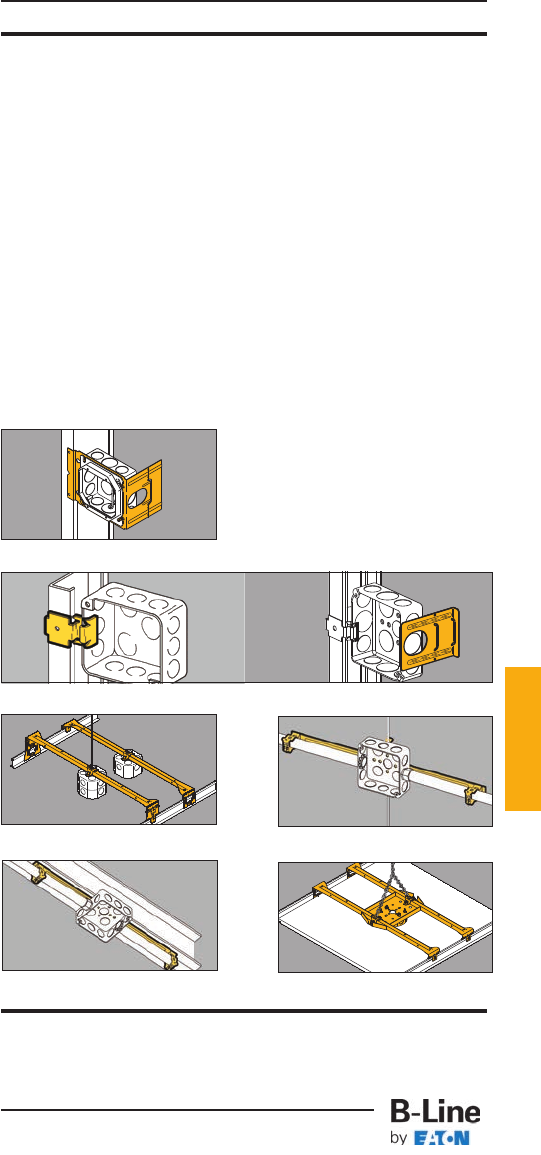

• See BA50 for a

stronger, more cost

effective solution.

• Supports octagonal

or square boxes.

• Allows for flush

mounting or 3/4"

offset for plaster ring.

• One BB27 box

mounting clip with

screw included

with each hanger.

• Load Capacity: 20 lbs.

• For additional support,

attach dropwire to

BB27 box mounting

clip.

•Warning: Do not use

for hanging acoustical

tee.

BA12-20

Acoustical Tee

Fasteners

Read safety/installation instruction sheets in packages before use.

UPC/Part Catalog Description Box

Number Number Qty.

78101118080 BA12 Box Hanger 50

24” Span

78101118082 BA12-12 Box Hanger 50

12” Span

78101118085 BA120 Box Hanger 50

20” Span

78101118087 BA130 Box Hanger 50

30” Span

UPC/Part Catalog Description Box

Number Number Qty.

78101118170 BB27 Box Mounting 100

Clip (with Screw)

78101101673 SRHMS1/4x3/81/4”-20 x 3/8” 50

Slotted Round

Head Machine

Screw

• Supports octagonal or

square boxes on 24”

span.

• Bendable ends mount

11/2” or 21/8” deep

boxes without tools.

• Self-centering feature

positions box on

center.

• Includes BA50C4T

Box Mounting Clip.

• Ultimate Static Load

Capacity: 50 Lbs.

(without dedicated

dropwire)

• Static Load Capacity:

70 Lbs. (with

dedicated dropwire)

35 Lbs. Canada

• Finish: Pre-galvanized

• See Ruff-IN™brochure

for pre-fab box

assemblies.

Heavy Duty

Electrical

Box Hanger

BA50C3T & BA50C4T BA50E

BA50 &

BA50CAN

BA50D &

BA50DCAN

Acoustical Tee

Fasteners 82

Read safety/installation instruction sheets in packages before use.

UPC/Part Catalog Description Box

Number Number Qty.

78101196490 BA50 Box Hanger 25

78205135905 BA50CAN *Box Hanger 25

78101196491 BA50D Box Hanger for 25

Box with 11/2” Extension

78205135906 BA50DCAN *Box Hanger 25

Box with 11/2” Extension

78205136570 BA50C4T Box Mounting 25

Clip with Hardware

78205136571 BA50C3T *Box Mounting 25

Clip with Hardware

78101196489 BA50E Extender Brackets 10

with Hardware pair

* Canada Only

Adjustable Box

Support

• Adjustable box support

for suspended ceilings.

• Accomodates heights

up to 83/4”.

• Integral ruler enables

height adjustments

without measuring.

• Ideal for installation of speaker

cases, emergency light fixtures,

etc. in suspended ceilings.

• Static Load Capacity:

25 Lbs. without dedicated

dropwire

70 Lbs. with dedicated dropwire

35 Lbs. (Canada) with dedicated

dropwire

• See Ruff-IN™brochure for

pre-fab box assemblies.

Electrical Box

T-Bar Fasteners

• Pre-assembled T-Bar

fasteners speed

installation.

• Boxes have 1/2” and

3/4” knockouts.

• Loading not to

exceed 50 lbs. in

U.S.A. without

independent support.

35 Lbs. in Canada

• 24” span

BA50-OB BA50-SB

Acoustical Tee

Fasteners

Read safety/installation instruction sheets in packages before use.

UPC/Part Catalog Description Box

Number Number Qty.

78205118460 BA50A Adjustable Box 10

Hanger T-Bar

UPC/Part Catalog Description Box

Number Number Qty.

78205124855 BA50-OB-24 11/2” Deep Box 10

to T-Bar Fastener

78205124856 BA50-OB-34 21/8” Deep Box 10

to T-Bar Fastener

78205124857 BA50-SB-24 11/2” Deep Box 10

to T-Bar Fastener

78205150954 BA50-SB-34 21/8” Deep Box 10

to T-Bar Fastener

• Pre-assembled fan/

fixture hanger installs

on T-Bar in less than

30 seconds.

• Positions and

secures fans and

fixtures in suspended

ceilings.

• Includes Kwik-Wire™

cable and clamps

which attach to

mounting clips for

easy installation.

• Recommended for

use in seismic areas.

• UL Listed for fan

support up to 70 lbs.

or fixture support up

to 90 lbs.

35 Lbs. Canada

• Finish: Pre-galvanized

RediMount™

Fan Hanger

9.25”

24”

Acoustical Tee

Fasteners 84

Read safety/installation instruction sheets in packages before use.

UPC/Part Catalog Description Box

Number Number Qty.

78101196492 BA50F Fan/Fixture 1

Hanger Includes

4” x 11/2” Deep

Octagon Box

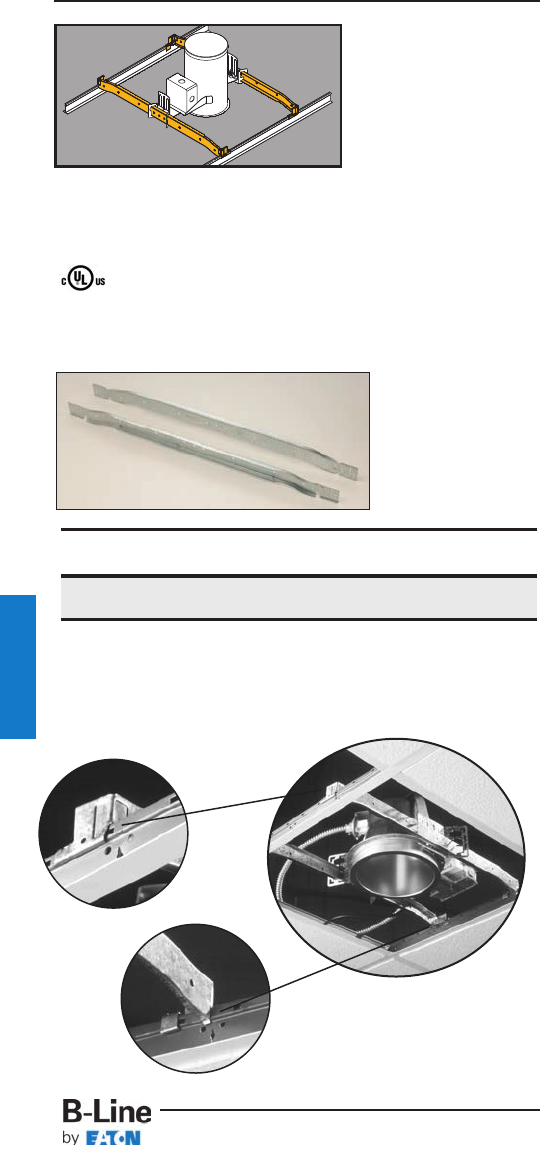

QuikFix™

Fastening System

•New QuikFix™

Fastening System

mounts spec grade

downlights 50%

faster than “wire

bound” installation

methods.

•QuikFix™System is

pre-sized for 24"

spacing.

•No tools required.

•Recommended for

use in seismic areas.

•UL listed for fixture

support up to 50 lbs.

Patent # 6286265

• Innovative design features offset

bar hangers with integral locking

tabs that secure downlights to

T-Bar and prevent lifting or sliding.

Acoustical Tee

Fasteners

Read safety/installation instruction sheets in packages before use.

UPC/Part Catalog Description Box

Number Number Qty.

78205199873 BA40 Fixture Bar 20 pair

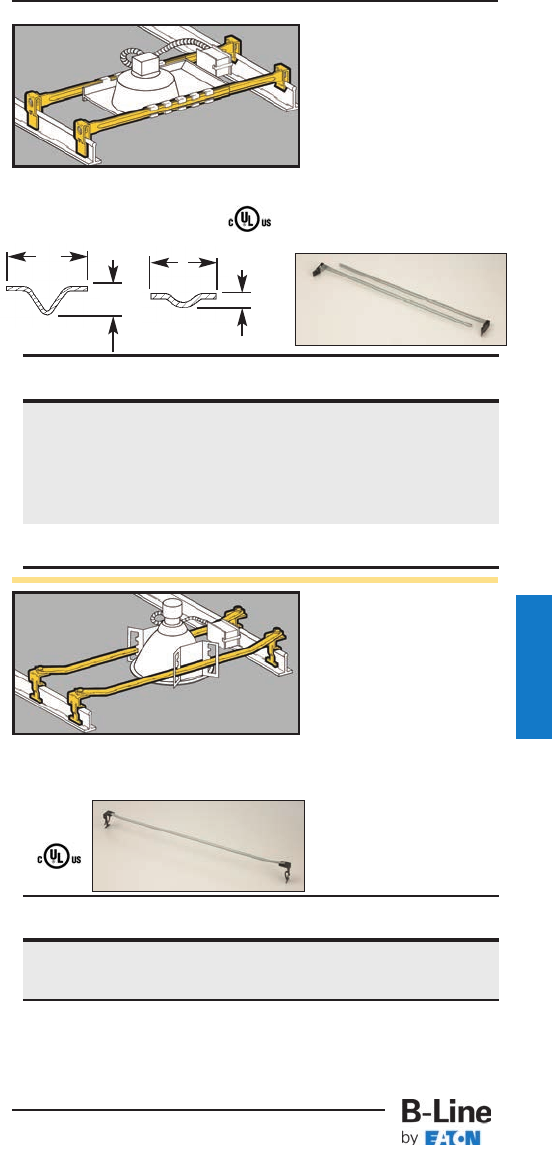

Light Fixture

T-Bar Fasteners

BA17

1/4"

5/8"

BA18

1/8"

1/2"

• Adjustable span from

20" to 30".

• Fits horizontal and

vertical flanges.

• Fixture position is

adjustable.

• No center clips or

tools required.

• One set completes one

fixture installation

(four bars per set).

• Fixture position is

adjustable within the

span of the hanger.

• Fixed span of 24

inches for T-Bar

applications.

• Requires only a

screwdriver to install.

• One set completes

one fixture

installation

(four bars

per set).

Light Fixture T-Bar

Fasteners

Acoustical Tee

Fasteners 86

Read safety/installation instruction sheets in packages before use.

UPC/Part Catalog “High Hat” Box

Number Number Fixtures Qty.

78101118100 BA17 CAPRI1R-9X, R-10C 10

(Wide Bar) CAPR1R-10X sets

CAPR1PR-751CX

HALO®2 H7, HALO®2 H17

JUNO®3 AP, APT

JUNO®3 IC, ICT, J, SC, TC

THOMAS®4 RI-IC

78101118105 BA18 CAPRI1HSG 10

(Narrow Bar) LIGHTOLIER®5 711 sets

UPC/Part Catalog “High Hat” Box

Number Number Fixtures Qty.

78101118110 BA20 Fits LIGHTOLIER®5 10

(Wide Bar) CALCULITE®5 sets

Fixtures

1. CAPRI is a mark used by Thomas Industries, Inc., Louisville, KY.

2. HALO®is the registered trademark of Cooper Industries, Elk Grove, IL.

3. JUNO®is the registered trademark of JUNO Lighting, Inc., Morton Grove, IL.

4. THOMAS®

is the registered trademark of Thomas Industries, Inc., Louisville, KY.

5. LIGHTOLIER

and CALCULITE

are the registered trademarks of Lightolier, Inc.,

Secaucus, NJ.

Suspension Fasteners

• Allows for

independent

suspension of

fixtures.

• Fits most acoustical

T-Bars.

• BA-4-WN wing nut

included with all

1/4”-20 suspension

hangers.

• Static Load Capacity:

65 Lbs.

BA1-T

BA1 BA1-T-BN

BA1-9 BA1-95

Acoustical Tee

Fasteners

Read safety/installation instruction sheets in packages before use.

UPC/Part Catalog T-Bar Stud Box

Number Number Size Size Qty.

78101118065 BA1 15/16”1/4”-20 x 5/8” 100

78101118070 BA1-24 15/16”1/4”-20 x 11/2” 100

78101118075 BA1-32 15/16”1/4”-20 x 2” 100

78101102891 BA1-T 15/16” #8-32 x 5/8” 100

with Pal Nut

78101102897 BA1-T-BN 15/16” #8-32 x 5/8” 100

with Brass Nut

UPC/Part Catalog T-Bar Stud Box

Number Number Size Size Qty.

78205125585 BA1-9 9/16”1/4”-20 x 5/8” 100

78205125587 BA1-95 9/16” & 1/4”-20 x 5/8” 100

15/16”

• Supports electrical

fixtures from

standard 15/16”

T-Bars.

• BA-4-WN wing nut

included.

•1/4”-20 stud available

in varying lengths.

• Static Load Capacity:

50 Lbs.

T-Bar Scissor

Fasteners

• BA-4-16-H supports

signs from 15/16"

T-Bar.

• BA-4-16-H1 supports

signs from 9/16" or

15/16" T-Bar.

• Static Load Capacity:

40 Lbs.

Sign Hangers

BA-4-16-H BA-4-16-H1

Acoustical Tee

Fasteners 88

Read safety/installation instruction sheets in packages before use.

UPC/Part Catalog Stud Box

Number Number Length Qty.

78101104258 BAX-4-16 5/8” 100

78101104262 BAX-4-16-24 11/2” 100

78101104263 BAX-4-16-32 2” 100

78101104264 BAX-4-16-48 3” 100

UPC/Part Catalog Stud Box

Number Number Length Qty.

78101118040 BA-4-16-H Sign Hanger 100

with White Finish

78101104449 BA-4-16-H1 Sign Hanger 100

with Zinc Plated Finish

15/16” Twist

Fasteners

• Supports electrical

fixtures from 15/16"

T-Bar.

•1/4"-20 stud available

in varying lengths.

• Includes BA-4-WN

wing nut with

impression.

• Static Load Capacity:

BA4-16 Series =

50 lbs.

BA4-WN Series =

100 lbs.

BA-4-WN

T-Bar Spacers

• T-Bar spacer provides

flush mounting

surface for tegular tile

installations.

• Spacer must be used

in combination with

B-Line’s BA-4-16 or

BA-2-16 series

fasteners.

• Finish: Zinc Plated

BA-21 BA-21D

Acoustical Tee

Fasteners

Read safety/installation instruction sheets in packages before use.

UPC/Part Catalog Description Box

Number Number Qty.

78101195575 BA-21 1/4” Spacer 100

78101199567 BA-21D 3/8” Spacer 100

UPC/Part Catalog Finish Stud Box

Number Number Length Qty.

78101118020 BA-4-16 Black 5/8” 100

78101118055 BA-4-16-W White 5/8” 100

78101118025 BA-4-16-24 White 11/2” 100

78101118030 BA-4-16-32 White 2” 100

78101118035 BA-4-16-48 White 3” 100

78101118060 BA-4-WN Black 100

• Supports electrical

fixtures from 15/16"

T-Bar.

• #8-32 stud available

in varying lengths.

• Static Load Capacity:

25 Lbs.

15/16” Twist

Fasteners

Acoustical Tee

Fasteners 90

Read safety/installation instruction sheets in packages before use.

UPC/Part Catalog Finish Stud Box

Number Number Length Qty.

78101118000 BA-2-16 Black 5/8” 100

with Pal Nut

78101104259 BA-2-16-7 Black 7/16” 100

with Pal Nut

78101118010 BA-2-16-W White 5/8” 100

with Pal Nut

78101104261 BA-2-16-7-W White 7/16” 100

with Pal Nut

UPC/Part Catalog Finish Stud Box

Number Number Length Qty.

78101118015 BA-2-16-BN Black 5/8” 100

with Brass Nut

78101104260 BA-2-16-7-BN Black 7/16” 100

with Brass Nut

78101118015 BA-2-16-WBN White 5/8” 100

with Brass Nut

78101199566 BA-2-16-7-WBN White 7/16” 100

with Brass Nut

9/16” Twist

Fasteners

• Supports electrical

fixtures from 9/16"

T-Bar.

• Stud size:

1/4"-20 x 5/8".

• Static Load Capacity:

40 Lbs.

9/16” Twist

Fasteners

BA-2-9-BN

Series

with Brass

Nut

BA-2-9

Series

with Pal

Nut

• Supports electrical

fixtures and track

lighting from 9/16"

T-Bar.

• Stud size:

#8-32 x length.

• Static Load Capacity:

25 Lbs.

Acoustical Tee

Fasteners

Read safety/installation instruction sheets in packages before use.

UPC/Part Catalog Finish Stud Box

Number Number Length Qty.

78101103458 BA-4-9 Black 5/8” 100

78101103461 BA-4-9-W White 5/8” 100

UPC/Part Catalog Finish Stud Box

Number Number Length Qty.

78101103467 BA-2-9 Black 5/8” 100

78101103466 BA-2-9-7 Black 7/16” 100

78101103459 BA-2-9-W White 5/8” 100

78101103465 BA-2-9-BN Black 5/8” 100

78101103464 BA-2-9-7-BN Black 7/16” 100

78101103460 BA-2-9-WBN White 5/8” 100

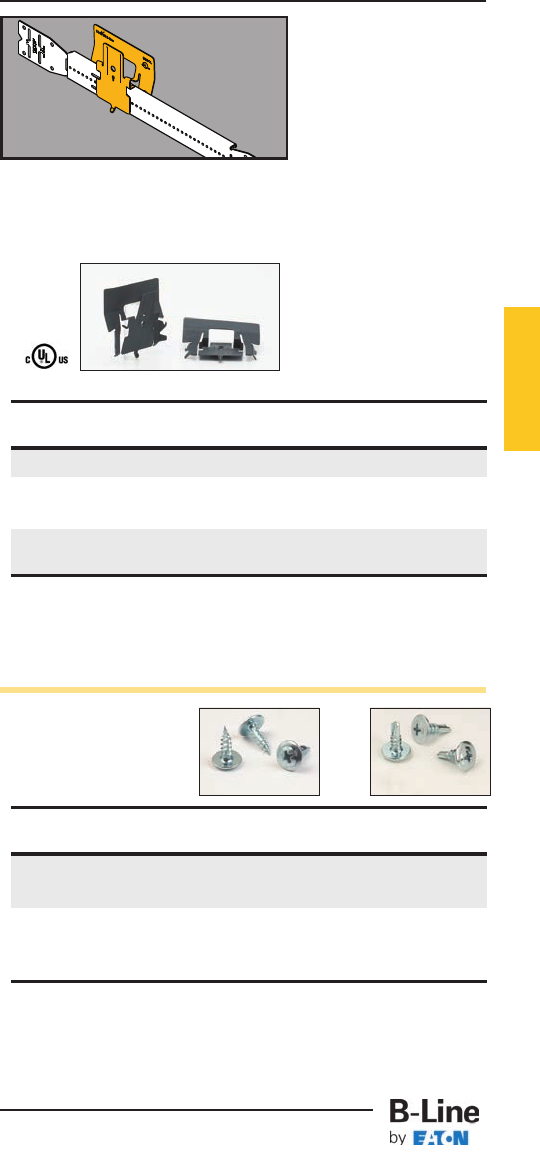

• Secures independent

support wires to

ceiling grid as required

by NEC Article 300.11.

• Slotted design permits

adjustment when

securing rods.

• Bright yellow color,

Per NEC 300.11 (A),

is easily identified by

inspectors.

Drop Wire/Rod

Securing Clip

BA-311

BA-311-W2 Shown

Acoustical Tee

Fasteners 92

Read safety/installation instruction sheets in packages before use.

UPC/Part Catalog Description Box

Number Number Qty.

78101199569 BA311 #12 thru #8 100

Wire

78101199570 BA311-W2 #12 thru 100

1/4” Plain or

78101199571 BA311-W6 3/8” Plain or 100

Threaded Rod

• BA-SFC Series provides seismic restraint for light fixtures

within a suspended ceiling.

• BA-SFC reduces labor by attaching light fixtures to the

T-bar frame and eliminating extra drop wires or chains.

• Provides positive attachment of fixtures to ceiling grid

members, in compliance with ICBO Acceptance Criteria

184 (AC 184).

• Satisfies NEC 410.16(C) which requires positive attachment

for secure fastening of luminaries.

• Load rating: 200 lbs.

Seismic Fixture

Clamps

Acoustical Tee

Fasteners

Read safety/installation instruction sheets in packages before use.

UPC/Part Catalog Description Box

Number Number Qty.

78205145911 BA-SFC Seismic Fixture Clamp 25 sets

attaches one (4 clamps)

standard 2’ x 4’ light per set)

fixture to T-Bar ceiling

78205145912 BA-SFC-E* For attachment of two 25 sets

standard 2’ x 4’ light (4 clamps)

fixtures end-to-end per set)

onto T-Bar ceiling

78205145913 BA-SFC-S* For attachment of two 25 sets

standard 2’ x 4’ light (4 clamps)

fixtures side-by-side per set)

onto T-Bar ceiling

78205145914 BA-SFC-CF* For attachment of 50 sets

standard 2’ x 2’ light (2 clamps)

fixtures onto T-Bar per set)

78205145915 BA-SFC-CFS Seismic Fixture Clamp 50 sets

for reinforcement (2 clamps)

of main runner per set)

connection points

*BASFC is required to complete installation.

BA-SFC BA-SFC-E BA-SFC-S

BA-SFC-CF BA-SFC-CFS

Seismic Fixture Clamps cont.

Single Fixture

Installation Two Fixtures (Side by Side)

Two Fixtures (End to End)

Parts Required:

1 pc. BA-SFC Installation Kit

1 pc. BA-SFC-E Installation Kit

Parts Required:

1 pc. BA-SFC Installation Kit

1 pc. BA-SFC-S Installation Kit

Parts Required:

1 pc. BA-SFC Installation Kit

BA-SFC BA-SFC

BA-SFC BA-SFC-S

BA-SFC

BA-SFC BA-SFC

BA-SFC

BA-SFC-E

BA-SFC-E BA-SFC

BA-SFC

Acoustical Tee

Fasteners 94

Read safety/installation instruction sheets in packages before use.

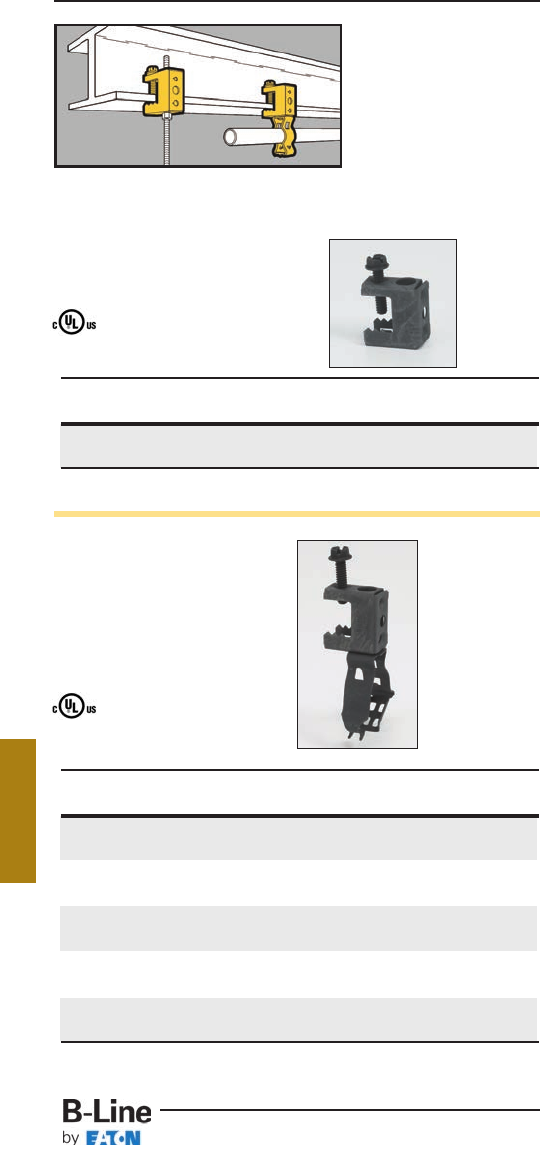

Beams

Fasteners

• Permits fast and easy

installation on bulb

tees and beams.

• Clearance hole for 1/4"

bolt in tab.

• Simply installed with a

hammer.

Flange Beam

Fasteners

BE-2-4

Beams

Fasteners 96

Read safety/installation instruction sheets in packages before use.

UPC/Part Catalog Flange Static Box

Number Number Thickness Load Cap. Qty.

78101118290 BE-1-2 3/32” - 9/64” 160 lbs. 100

UPC/Part Catalog Flange Static Box

Number Number Thickness Load Cap. Qty.

78101118295 BE-2-4 1/8” - 1/4” 200 lbs. 100

78101118300 BE-5-8 5/16” - 1/2” 200 lbs. 100

78101118305 BE-9-12 9/16” - 3/4” 200 lbs. 100

Push-Type

Conduit To Beam

Fasteners

• Quickly attaches

conduit to beams.

• Fasteners will rotate

360°.

• Simply installed with

a hammer.

15 Lbs.

Ultimate

Static Load

Capacity

Beams

Fasteners

Read safety/installation instruction sheets in packages before use.

UPC/Part Catalog Conduit Flange Box

Number Number Size Thickness Qty.

78101119275 BP-8-E-2-4 1/2” EMT 1/8” - 1/4” 100

78101119280 BP-8-E-5-8 1/2” EMT 5/16” - 1/2” 100

78101119285 BP-8-E-9-12 1/2” EMT 9/16” - 3/4” 100

78101119375 BP-12-E-2-4 1/2” EMT 1/8” - 1/4” 100

1/2” IMC, Rigid

78101119380 BP-12-E-5-8 1/2” EMT 5/16” - 1/2” 100

1/2” IMC, Rigid

78101119385 BP-12-E-9-12 1/2” EMT 9/16” - 3/4” 100

1/2” IMC, Rigid

78101119465 BP-16-E-2-4 1” EMT 1/8” - 1/4” 100

3/4” IMC, Rigid

78101119470 BP-16-E-5-8 1” EMT 5/16” - 1/2” 100

3/4” IMC, Rigid

78101119475 BP-16-E-9-12 1” EMT 9/16” - 3/4” 100

3/4” IMC, Rigid

• Unique Guide-Rite

Fastener provides for

fast and easy

installation.

• Fasteners will rotate

360°.

• Simply installed with

a hammer and pliers.

Guide-Rite™

Conduit To Beam

Fasteners

Static Load

Capacity

25 Lbs.

*BG-6 will accept the following

range ∅.420 - ∅.675:

14/2 thru 10/4 MC/AC cable

and 5/16 or 3/8flexible conduit

Beams

Fasteners 98

Read safety/installation instruction sheets in packages before use.

UPC/Part Catalog Conduit Flange Box

Number Number Size Thickness Qty.

78101118430 BG-6-E-2-4 3/8”1/8” - 1/4” 100

78101118435 BG-6-E-5-8 3/8”5/16” - 1/2” 100

78101118440 BG-6-E-9-12 3/8”9/16” - 3/4” 100

78101118505 BG-8-12-E-2-4 1/2”, 3/4”1/8” - 1/4” 100

78101118510 BG-8-12-E-5-8 1/2”, 3/4”5/16” - 1/2” 100

78101118515 BG-8-12-E-9-12 1/2”, 3/4”9/16” - 3/4” 100

78101118575 BG-16-E-2-4 1” 1/8” - 1/4” 100

78101118580 BG-16-E-5-8 1” 5/16” - 1/2” 100

78101118585 BG-16-E-9-12 1” 9/16” - 3/4” 100

78101118660 BG-20-E-2-4 1

1/4

”1/8” - 1/4” 100

78101118665 BG-20-E-5-8 1

1/4

”5/16” - 1/2” 100

78101118670 BG-20-E-9-12 1

1/4

”9/16” - 3/4” 100

78101118705 BG-24-E-2-4 1

1/2

”1/8” - 1/4” 50

78101118710 BG-24-E-5-8 1

1/2

”5/16” - 1/2” 50

78101118715 BG-24-E-9-12 1

1/2

”9/16” - 3/4” 50

78101118745 BG-32-E-2-4 2” 1/8” - 1/4” 50

78101118750 BG-32-E-5-8 2” 5/16” - 1/2” 50

78101118755 BG-32-E-9-12 2” 9/16” - 3/4” 50

Patent #4958792

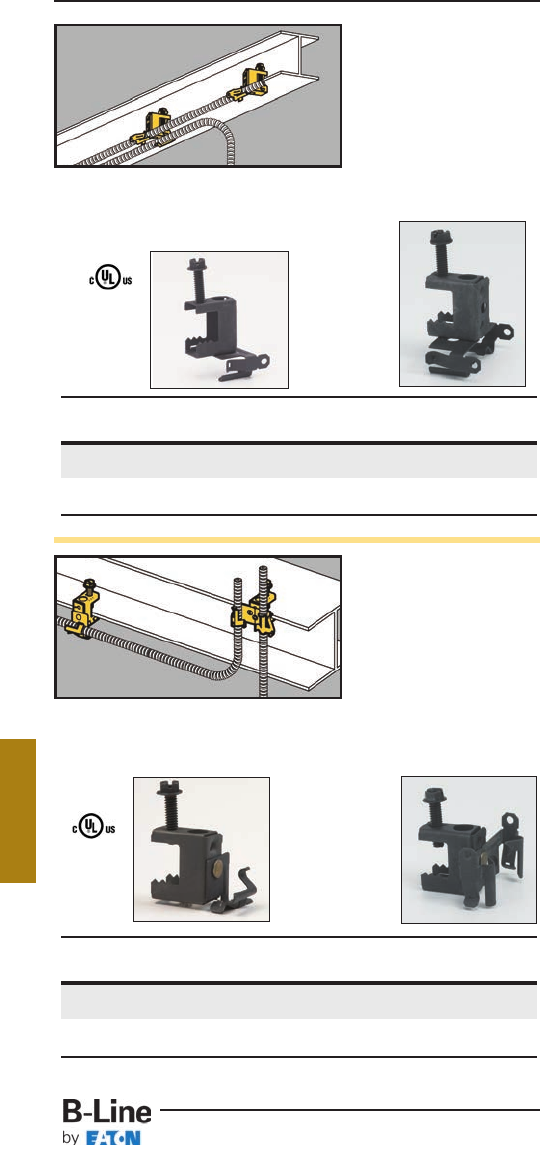

Cable To Beam

Fasteners

• Attaches MC, AC,

sizes 14/2 through

10/3 or 3/8" FMC to

beam flanges 1/8" to

3/4" thick.

• Fasteners will rotate

360°.

• Simply installed with

a hammer.

Beams

Fasteners

Read safety/installation instruction sheets in packages before use.

UPC/Part Catalog Types Flange Box

Number Number Of Runs Thickness Qty.

78101101192 BX4-E-2-4 Single 1/8” - 1/4” 100

78101101193 BX4-E-5-8 Single 5/16” - 1/2” 100

78101101194 BX4-E-9-12 Single 9/16” - 3/4” 100

UPC/Part Catalog Types Flange Box

Number Number Of Runs Thickness Qty.

78101101213 BX4M-E-2-4 Double 1/8” - 1/4” 100

78101101214 BX4M-E-5-8 Double 5/16” - 1/2” 100

78101101215 BX4M-E-9-12 Double 5/16” - 3/4” 100

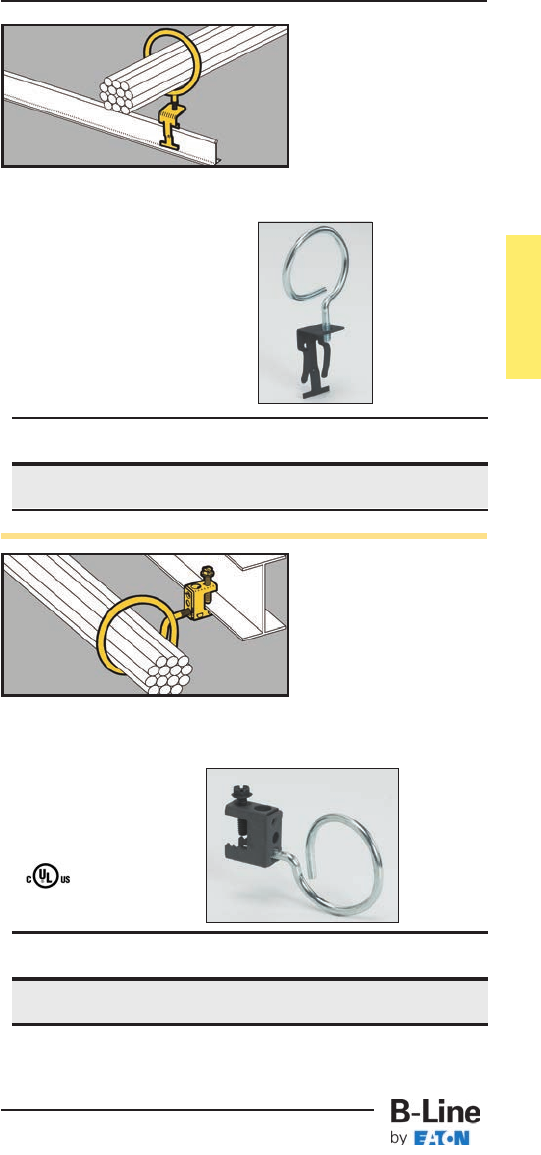

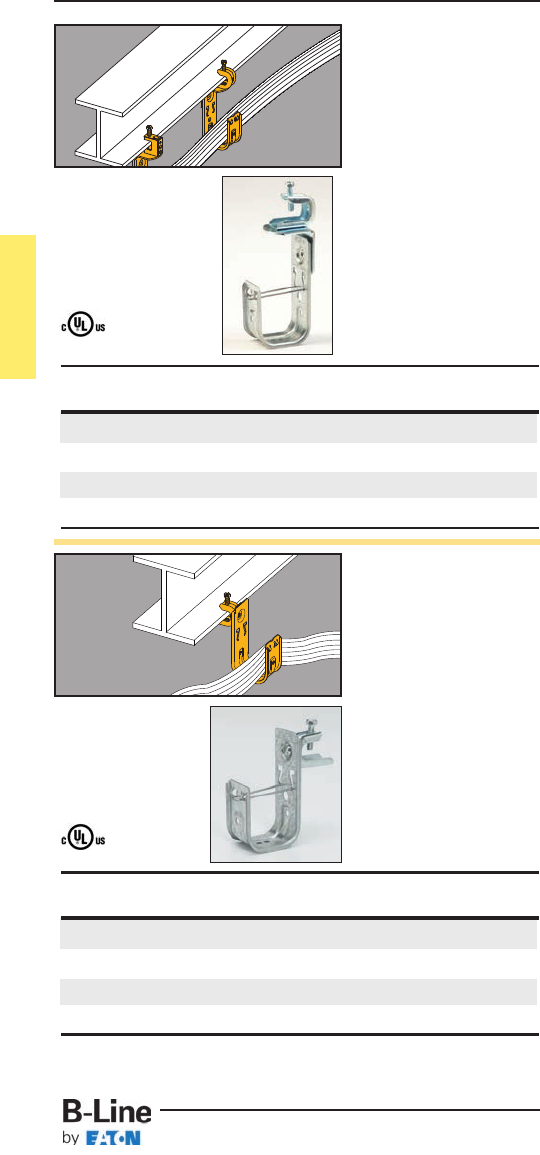

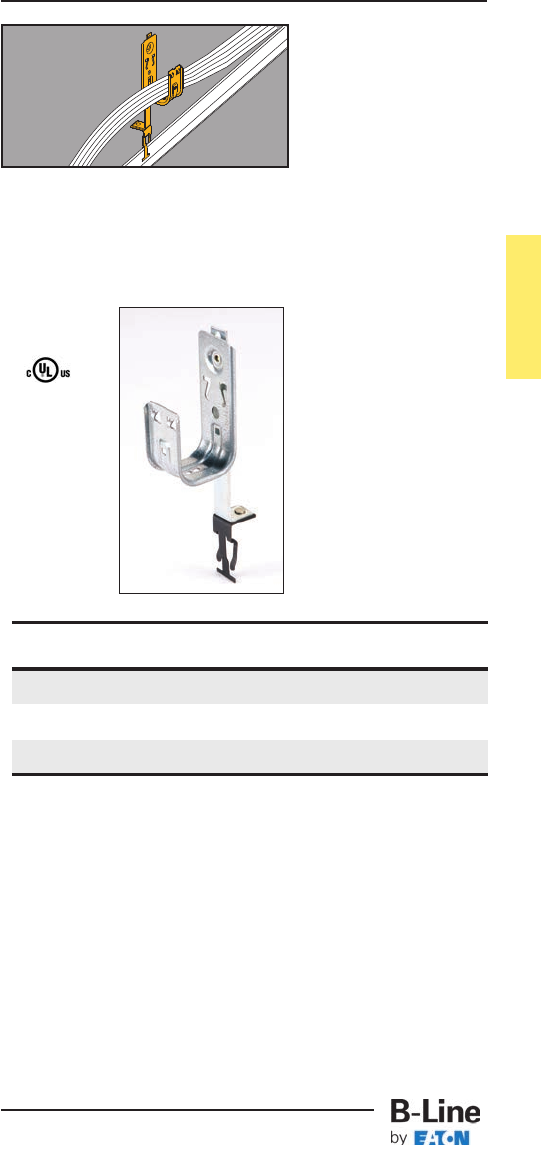

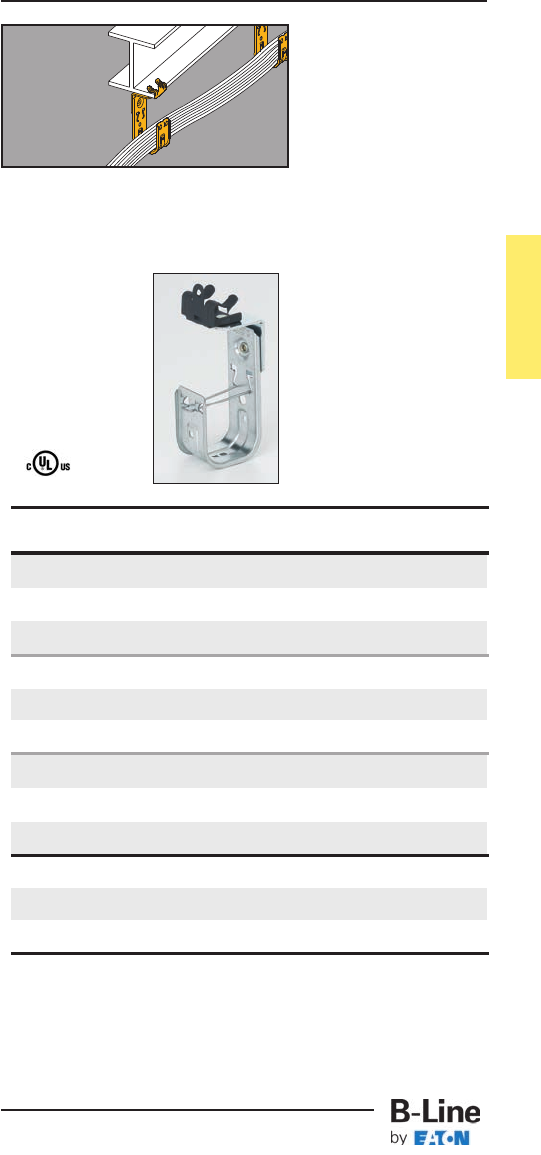

• Secures and supports

MC/AC cables as

required by the NEC.

• Effectively organizes

cables and eliminates

derating issues.

• BRC5-1 secures up to

four (4) runs of .430

to .560 diameter cable.

• BRC5-2 secures up to

nine (9) runs of .430

to .560 diameter cable.

• BRC5-3 secures up to

seven (7) runs of .560

to .690 diameter cable.

• Load Capacity: 50 lbs.

MC/AC Cable

Carrier to Beam

Fastener

50 Lbs.

Static

Load

Capacity

BRC5-2-E24

Beams

Fasteners 100

Read safety/installation instruction sheets in packages before use.

UPC/Part Catalog Flange Box

Number Number Thickness Qty.

78205144093 BRC51-E12 3/32” - 9/64” 25

78205144096 BRC51-E24 1/8” - 1/4” 25

78205144099 BRC51-E58 5/16” - 1/2” 25

78205144102 BRC51-E912 9/16” - 3/4” 25

78205144094 BRC52-E12 3/32” - 9/64” 25

78205144097 BRC52-E24 1/8” - 1/4” 25

78205144100 BRC52-E58 5/16” - 1/2” 25

78205144103 BRC52-E912 9/16” - 3/4” 25

78205144095 BRC53-E12 3/32” - 9/64” 25

78205144098 BRC53-E24 1/8” - 1/4” 25

78205144101 BRC53-E58 5/16” - 1/2” 25

78205144104 BRC53-E912 9/16” - 3/4” 25

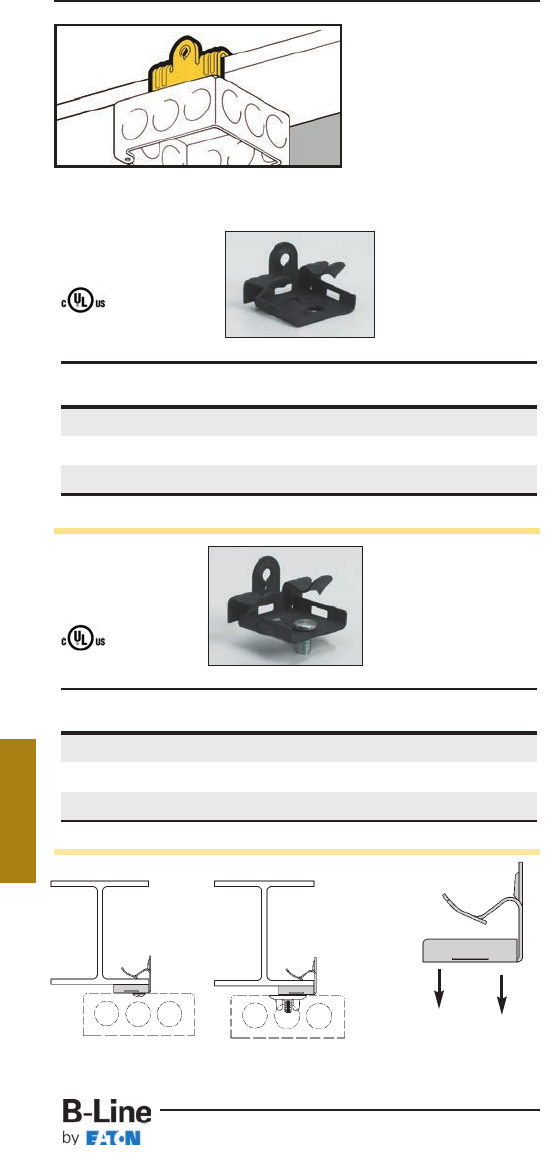

Universal Beam

Fasteners

• Suspend boxes or

fixtures from beam

flanges 1/8" to 3/4"

thick.

• Provided with 1/4"-20

thread impression for

quick and secure

attachment.

• Simply installed with

a hammer.

1/4”-20 x 3/8”

Staked Stud

75 Lbs. 100 Lbs.

Note: Indicated loads are static load capacity and should not be combined.

Static

Load

Capacity

Beams

Fasteners

101

Read safety/installation instruction sheets in packages before use.

These products are designed for positioning only. No load rating.

UPC/Part Catalog Flange Box

Number Number Thickness Qty.

78101119600 BU-2-4 1/8” - 1/4” 100

78101119605 BU-5-8 5/16” - 1/2” 100

78101119610 BU-9-12 9/16” - 3/4” 100

UPC/Part Catalog Flange Box

Number Number Thickness Qty.

78101119615 BU-2-4-S 1/8” - 1/4” 100

78101119620 BU-5-8-S 5/16” - 1/2” 100

78101119625 BU-9-12-S 9/16” - 3/4” 100

• Secures and supports

MC/AC cables as

required by the NEC.

• Effectively organizes

cables and eliminates

derating issues.

• BRC5-1 secures up to

four (4) runs of .430 to

.560 diameter cable.

• BRC5-2 secures up to

nine (9) runs of .430 to

.560 diameter cable.

• BRC5-3 secures up to

seven (7) runs of .560

to .690 diameter

cable.

• Load Capacity: 50 lbs.

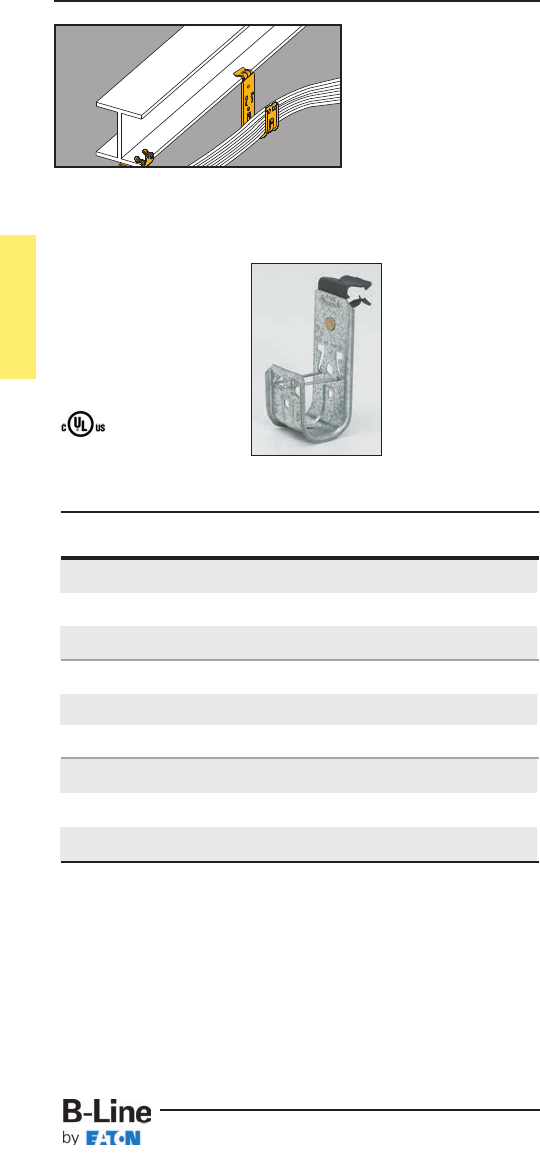

MC/AC Cable

Carrier to Beam

Fastener

75 Lbs.

Static

Load

Capacity

Beams

Fasteners 102

Read safety/installation instruction sheets in packages before use.

UPC/Part Catalog Flange Box

Number Number Thickness Qty.

78205144066 BRC51-U24 1/8” - 1/4” 25

78205144069 BRC51-U58 5/16” - 1/2” 25

78205144072 BRC51-U912 9/16” - 3/4” 25

78205144067 BRC52-U24 1/8” - 1/4” 25

78205144070 BRC52-U58 5/16” - 1/2” 25

78205144073 BRC52-U912 9/16” - 3/4” 25

78205144068 BRC53-U24 1/8” - 1/4” 25

78205144071 BRC53-U58 5/16” - 1/2” 25

78205144074 BRC53-U912 9/16” - 3/4” 25

Push-Type

Conduit To Beam

Fasteners

• Quickly attaches

conduit to beams.

• Fasteners will rotate

360°.

• Simply installed with

a hammer.

Ultimate

Static Load

Capacity

25 Lbs.

Beams

Fasteners

103

Read safety/installation instruction sheets in packages before use.

These products are designed for positioning only. No load rating.

UPC/Part Catalog Conduit Flange Box

Number Number Size Thickness Qty.

78101119310 BP-8-U-2-4 1/2” EMT 1/8” - 1/4” 100

78101119315 BP-8-U-5-8 1/2” EMT

5/16” - 1/2”

100

78101119320 BP-8-U-9-12 1/2” EMT

9/16” - 3/4”

100

78101119405 BP-12-U-2-4 3/4” EMT 1/8” - 1/4” 100

1/2” IMC, Rigid

78101119410 BP-12-U-5-8 3/4” EMT

5/16” - 1/2”

100

1/2” IMC, Rigid

78101119415 BP-12-U-9-12 3/4” EMT

9/16” - 3/4”

100

1/2” IMC, Rigid

78101119490 BP-12-U-2-4 1” EMT 1/8” - 1/4” 100

3/4” IMC, Rigid

78101119495 BP-12-U-5-8 1” EMT

5/16” - 1/2”

100

3/4” IMC, Rigid

78101119500 BP-12-U-9-12 1” EMT

9/16” - 3/4”

100

3/4” IMC, Rigid

• Unique Guide-Rite

Fastener provides for

fast and easy

installation.

• Fasteners will rotate

360°.

• Simply installed with

a hammer and pliers.

Guide-Rite™

Conduit To Beam

Fasteners

Static Load

Capacity

75 Lbs.

*BG-6 will accept the following

range ∅.420 - ∅.675:

14/2 thru 10/4 MC/AC cable

and 5/16 or 3/8flexible conduit

Beams

Fasteners 104

Read safety/installation instruction sheets in packages before use.

UPC/Part Catalog Conduit Flange Box

Number Number Size Thickness Qty.

78101118450 BG-6-U-2-4 3/8”1/8” - 1/4” 100

78101118455 BG-6-U-5-8 3/8”5/16” - 1/2” 100

78101118460 BG-6-U-9-12 3/8”9/16” - 3/4” 100

78101118525 BG-8-12-U-2-4 1/2”, 3/4”1/8” - 1/4” 100

78101118530 BG-8-12-U-5-8 1/2”, 3/4”5/16” - 1/2” 100

78101118535 BG-8-12-U-9-12 1/2”, 3/4”9/16” - 3/4” 100

78101118625 BG-16-U-2-4 1” 1/8” - 1/4” 100

78101118630 BG-16-U-5-8 1” 5/16” - 1/2” 100

78101118635 BG-16-U-9-12 1” 9/16” - 3/4” 100

78101118680 BG-20-U-2-4 1

1/4

”1/8” - 1/4” 100

78101118685 BG-20-U-5-8 1

1/4

”5/16” - 1/2” 100

78101118690 BG-20-U-9-12 1

1/4

”9/16” - 3/4” 100

78101118720 BG-24-U-2-4 1

1/2

”1/8” - 1/4” 50

78101118725 BG-24-U-5-8 1

1/2

”5/16” - 1/2” 50

78101118730 BG-24-U-9-12 1

1/2

”9/16” - 3/4” 50

78101118760 BG-32-U-2-4 2” 1/8” - 1/4” 50

78101118765 BG-32-U-5-8 2” 5/16” - 1/2” 50

78101118770 BG-32-U-9-12 2” 9/16” - 3/4” 50

Patent #4958792

• Anchor strap provides

secure attachment to

beam flanges.

• Suspends threaded

rod from beam

flanges.

• 8” anchor straps are

provided for 1/8" to

1/4" thick flanges.

• 13” anchor straps are

provided for 5/16" to

3/4" thick flanges.

Beam Fasteners

With Anchor

Straps

Static Load

Capacity

Static Load

Capacity

160 Lbs.

75 Lbs.

Beams

Fasteners

105

Read safety/installation instruction sheets in packages before use.

UPC/Part Catalog Stud Flange Box

Number Number Size Thickness Qty.

78101104942 BU-2-4-S-AS

1/4”-20 x 3/8”1/8” - 1/4”

78101104943 BU-5-8-S-AS

1/4”-20 x 3/8”5/16” - 1/2”

78101104944 BU-9-12-S-AS

1/4”-20 x 3/8”9/16” - 3/4”

UPC/Part Catalog Threaded Flange Box

Number Number Rod Size Thickness Qty.

78101104948 BH4-E-2-4-AS

1/4”-20 1/8” - 1/4”

78101104949 BH4-E-5-8-AS

1/4”-20 5/16” - 1/2”

78101104950 BH4-E-9-12-AS

1/4”-20 9/16” - 3/4”

78101104951 BH6-E-2-4-AS

3/8”-16 1/8” - 1/4”

78101104952 BH6-E-5-8-AS

3/8”-16 5/16” - 1/2”

78101104953 BH6-E-9-12-AS

3/8”-16 9/16” - 3/4”

• Anchor strap provides

secure attachment to

beam flanges.

• Unique Guide-Rite™

Fastener provides for

fast and easy

installation.

• 8” anchor straps are

provided for 1/8" to

1/4" thick flanges.

• 13” anchor straps are

provided for 5/16" to

3/4" thick flanges.

Conduit To Beam

Fasteners With

Anchor Straps

Static Load

Capacity

25 Lbs.

Static Load

Capacity

75 Lbs.

Beams

Fasteners 106

Read safety/installation instruction sheets in packages before use.

UPC/Part Catalog Conduit Flange Box

Number Number Size Thickness Qty.

78101104966 BG-8-12-U-2-4-AS 1/2”, 3/4”1/8” - 1/4” 50

78101104967 BG-8-12-U-5-8-AS 1/2”, 3/4”5/16” - 1/2” 50

78101104968 BG-8-12-U-9-12-AS 1/2”, 3/4”9/16” - 3/4” 50

78101104969 BG-16-U-2-4-AS 1” 1/8” - 1/4” 50

78101104970 BG-16-U-5-8-AS 1” 5/16” - 1/2” 50

78101104971 BG-16-U-9-12-AS 1” 9/16” - 3/4” 50

UPC/Part Catalog Conduit Flange Box

Number Number Size Thickness Qty.

78101104972 BG-8-12-E-2-4-AS 1/2”, 3/4”1/8” - 1/4” 50

78101104973 BG-8-12-E-5-8-AS 1/2”, 3/4”5/16” - 1/2” 50

78101104974 BG-8-12-E-9-12-AS 1/2”, 3/4”9/16” - 3/4” 50

78101104975 BG-16-E-2-4-AS 1” 1/8” - 1/4” 50

78101104976 BG-16-E-5-8-AS 1” 5/16” - 1/2” 50

78101104977 BG-16-E-9-12-AS 1” 9/16” - 3/4” 50

• Attaches MC, AC,

sizes 14/2 through

10/3 or 3/8" FMC to

flanges 1/8" to 3/4"

thick.

• Fasteners will rotate

360°.

Cable To Beam

Fasteners

Beams

Fasteners

107

Read safety/installation instruction sheets in packages before use.

UPC/Part Catalog Description Flange Box

Number Number Thickness Qty.

78101101197 BX4-U-2-4

Single Runs 1/8” - 1/4”

100

78101101198 BX4-U-5-8

Single Runs 5/16” - 1/2”

100

78101101199 BX4-U-9-12

Single Runs 9/16” - 3/4”

100

UPC/Part Catalog Description Flange Box

Number Number Thickness Qty.

78101101206 BX4M-U-2-4

Double Runs 1/8” - 1/4”

100

78101101207 BX4M-U-5-8

Double Runs 5/16” - 1/2”

100

78101101208 BX4M-U-9-12

Double Runs 9/16” - 3/4”

100

• Secures and supports

MC/AC cables as

required by the NEC.

• Effectively organizes

cables and eliminates

derating issues.

• Fits beam flanges

from 1/8” thru 5/8”

thick.

• Load Capacity: 50 lbs.

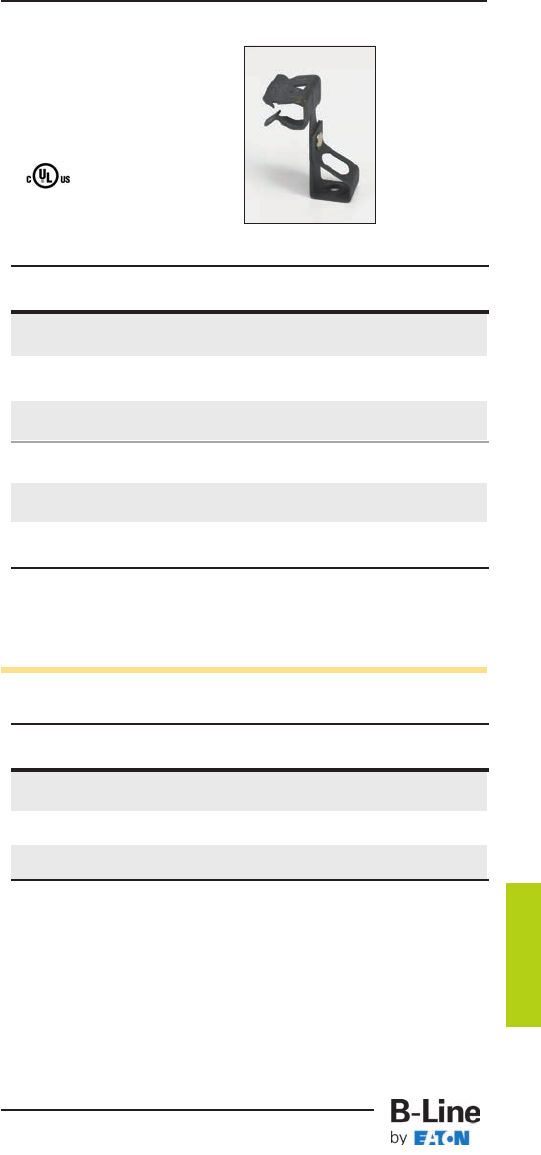

MC/AC Cable

Carrier to

Beam Fastener

BRC5-1-C442

Beams

Fasteners 108

Read safety/installation instruction sheets in packages before use.

UPC/Part Catalog Cable Diameter & Box

Number Number Number of Runs Qty.

78205144087 BRC51-C442 .430” to .560” 25

Up to 4 Runs

78205144088 BRC52-C442 .430” to .560” 25

Up to 9 Runs

78205144089 BRC53-C442 .560” to .690” 25

Up to 7 Runs

• BC442 fits beam

flanges 1/8" to 5/8".

BC442-6 fits beam

flanges up to 3/4".

• Finish: Zinc Plated

• Static Load Capacity:

BC442 = 100 Lbs.

BC442-6 = 200 Lbs.

Beam

Fasteners

Beams

Fasteners

109

Read safety/installation instruction sheets in packages before use.

These products are designed for positioning only. No load rating.

UPC/Part Catalog Description Box

Number Number Qty.

78101118278 BC442 Accepts 1/4”-20 50

Threaded Rod or

1/4”-20 Threaded

Bridle Rings

78101104283 BC442-6 Accepts 3/8”-16 25

Threaded Rod

UPC/Part Catalog Conduit Size Box

Number Number Rigid EMT Qty.

78101119850 BL1400-C442 1/2” 1/2” 50

78101119851 BL1410-C442 3/4”3/4” 50

78101119852 BL1420-C442 1” 1” 50

78101119853 BL1425-C442 -- 11/4” 50

78101119854 BL1430-C442 11/4” 11/2” 50

78101119855 BL1440-C442 11/2” -- 25

78101119856 BL1450-C442 2” 2” 25

• Can be used with

1/4"-20 and 3/8"-16

threaded rod or bridle

rings.

• Fits beam flanges

through 1/2” thick.

• Safety Factor of 5.

• Finish: Zinc-Plated

Beam

Fasteners

Beams

Fasteners 110

Read safety/installation instruction sheets in packages before use.

UPC/Part Catalog Rod Static Box

Number Number Size Load Cap. Qty.

78101155333 B444-1/41/4”-20 150 lbs. 50

78101155333 B444-5/16 5/16”-18 150 lbs. 50

78101155333 B444-3/83/8”-16 150 lbs. 50

Guide-Rite™

Fastener

• Fits beam flanges

thru 1/2" thick.

• Accepts "S" hooks,

1/4" and 3/8" threaded

rod, 1/4"-20 or #10-24

threaded bridle rings.

• Supports conduit and

electrical boxes.

Conduit To Beam

Fasteners

Beams

Fasteners

111

Read safety/installation instruction sheets in packages before use.

UPC/Part Catalog Flange Static Box

Number Number Thickness Load Cap. Qty.

78101118275 BC1 Thru 1/42 100 lbs. 100

UPC/Part Catalog Conduit Size Static Box

Number Number EMT & Rigid Load Cap. Qty.

78101118490 BG-8-12-C2 1/2”, 3/4” 100 lbs. 100

78101118570 BG-16-C2 1” 100 lbs. 100

78101118655 BG-20-C2 11/4” 100 lbs. 100

78101118700 BG-24-C2 11/2” 100 lbs. 100

78101118740 BG-32-C2 2” 100 lbs. 100

Conduit To Beam

Fasteners

Guide-Rite™

Fastener

Push-Type

Beams

Fasteners 112

Read safety/installation instruction sheets in packages before use.

UPC/Part Catalog Conduit Size Static Box

Number Number EMT & Rigid Load Cap. Qty.

78101118485 BG-8-12-C1 1/2”, 3/4” 25 lbs. 100

78101118565 BG-16-C1 1” 25 lbs. 100

78101118650 BG-20-C1 11/4” 25 lbs. 100

78101118695 BG-24-C1 11/2” 25 lbs. 50

78101118735 BG-32-C1 2” 25 lbs. 50

Ultimate

UPC/Part Catalog Conduit Static Box

Number Number Size Load Cap. Qty.

78101119260 BP-8-C2 1/2” EMT 25 lbs. 100

78101119360 BP-12-C2 3/4” EMT 25 lbs. 100

1/2” IMC, Rigid

78101119455 BP-16-C2 1” EMT 25 lbs. 100

3/4” IMC, Rigid

Ultimate

UPC/Part Catalog Conduit Static Box

Number Number Size Load Cap. Qty.

78101119255 BP-8-C1 1/2” EMT 25 lbs. 100

78101119355 BP-12-C1 3/4” EMT 25 lbs. 100

1/2” IMC, Rigid

78101119450 BP-16-C1 1” EMT 25 lbs. 100

3/4” IMC, Rigid

• Attaches MC, AC,

sizes 14/2 through

10/3 or 3/8" FMC to

beam flanges thru

1/2" thick.

• Fasteners will rotate

360°.

• Requires only a

screwdriver to install.

Cable To Beam

Fasteners

• Attaches MC, AC,

sizes 14/2 through

10/3 or 3/8" FMC to

beam flanges thru

1/2" thick.

• Fasteners will rotate

360°.

• Requires only a

screwdriver to install.

Cable To Beam

Fasteners

BX4-C2 BX4M-C2

BX4-C1 BX4M-C1

Beams

Fasteners

113

Read safety/installation instruction sheets in packages before use.

These products are designed for positioning only. No load rating.

UPC/Part Catalog Flange Box

Number Number Thickness Qty.

78101101190 BX4-C2 Single Runs 100

78101101210 BX4M-C2 Double Runs 100

UPC/Part Catalog Flange Box

Number Number Thickness Qty.

78101101191 BX4-C1 Single Runs 100

78101101209 BX4M-C1 Double Runs 100

• Secures and supports

MC/AC cables as

required by the NEC.

• Effectively organizes

cables and eliminates

derating issues.

• Fits beam flanges

thru 1/2” thick.

• Load Capacity: 50 lbs.

MC/AC Cable

Carrier to

Beam Fastener

BRC5-x-C2

Beams

Fasteners 114

Read safety/installation instruction sheets in packages before use.

UPC/Part Catalog Cable Diameter & Box

Number Number Number of Runs Qty.

78205144090 BRC51-C2 .430” to .560”

Up to 4 Runs

78205144091 BRC52-C2 .430” to .560”

Up to 9 Runs

78205144092 BRC53-C2 .560” to .690”

Up to 7 Runs

• Attaches Type NM

cable to beam flanges

1/8” to 1/2” thick.

• Supports cable sizes

14/2 and 12/2 with

ground wire.

• Simply installed with

a hammer.

Cable To Beam

Fasteners

Beams

Fasteners

115

Read safety/installation instruction sheets in packages before use.

These products are designed for positioning only. No load rating.

UPC/Part Catalog Flange Box

Number Number Thickness Qty.

78101103550 BRC3-E-2-4 1/8” to 1/4” 100

78101103551 BRC3-E-5-8 5/16” to 1/2”

100

78101103552 BRC3-E-9-12 9/16” to 3/4”

100

• New BMC3 plate is

available to support

multiple conduit runs.

• Riveted assembly

secures electrical

boxes and conduit

runs to beam flangles

1/8” to 1/2” thick.

• Provides support for

conduit on either side

of electrical box.

• Assemblies using

BMC3 plate include

center conduit clamp.

Additional conduit

clamps may be

purchased separately.

Guide-Rite™

Conduit & Box

Support Fasteners

BG__-S18-U__ BG__-S18-U__-MC3

• See Ruff-IN™brochure for

pre-fab box assemblies.

Beams

Fasteners 116

Read safety/installation instruction sheets in packages before use.

UPC/Part Catalog Conduit Flange Box

Number Number Size Thickness Qty.

78101103583 BG6-S18-U24 *3/8”1/8” to 1/4” 25

78101103584 BG6-S18-U58 *3/8”5/16” to 1/2” 25

78101103579 BG812-S18-U24 1/2”, 3/4”1/8” to 1/4” 25

78101103580 BG812-S18-U58 1/2”, 3/4”5/16” to 1/2” 25

78101103581 BG16-S18-U24 1” 1/8” to 1/4” 25

78101103582 BG16-S18-U58 1” 5/16” to 1/2” 25

Patent #4958792

With Multiple Conduit Plate

78205152813

BG6-S18-U24-MC3 *

3/8”1/8” to 1/4” 25

78205152814

BG6-S18-U58-MC3 *

3/8”5/16” to 1/2” 25

78205152815

BG812-S18-U24-MC3

1/2”, 3/4”1/8” to 1/4” 25

78205152816

BG812-S18-U58-MC3

1/2”, 3/4”5/16” to 1/2” 25

78205152817

BG16-S18-U24-MC3

1” 1/8” to 1/4” 25

78205152823

BG16-S18-U58-MC3

1” 5/16” to 1/2” 25

*BG-6 will accept the following range ∅.420 - ∅.675:

14/2 thru 10/4 MC/AC cable and 5/16 or 3/8flexible conduit

• New BMC3 plate is

available to support

multiple conduit runs.

• Riveted assembly

secures electrical

boxes and conduit

runs to beam flangles

1/8” to 1/2” thick.

• Provides support for

conduit on either side

of electrical box.

• Assemblies using

BMC3 plate include

center conduit clamp.

Additional conduit

clamps may be

purchased separately.

Push-Type

Conduit & Box

Support Fasteners

BP__-S18-U__ BP__-S18-U__-MC3

• See Ruff-IN™brochure for

pre-fab box assemblies.

Beams

Fasteners

117

Read safety/installation instruction sheets in packages before use.

These products are designed for positioning only. No load rating.

UPC/Part Catalog Conduit Size Flange Box

Number Number EMT, IMC, Rigid Thickness Qty.

78205123635 BP8-S18-U24 3/8”1/8” to 1/4” 25

78205123638 BP8-S18-U58 3/8”5/16” to 1/2” 25

78205123636 BP12-S18-U24 1/2”, 3/4”1/8” to 1/4” 25

78205123639 BP12-S18-U58 1/2”, 3/4”5/16” to 1/2” 25

78205123637 BP16-S18-U24 1” 1/8” to 1/4” 25

78205123640 BP16-S18-U58 1” 5/16” to 1/2” 25

Patent #4958792

With Multiple Conduit Plate

78205152824

BP8-S18-U24-MC3

3/8”1/8” to 1/4” 25

78205152825

BP8-S18-U58-MC3

3/8”5/16” to 1/2” 25

78205152827

BP12-S18-U24-MC3

1/2”, 3/4”1/8” to 1/4” 25

78205152828

BP12-S18-U58-MC3

1/2”, 3/4”5/16” to 1/2” 25

78205152825

BP16-S18-U24-MC3

1” 1/8” to 1/4” 25

78205152964

BP16-S18-U58-MC3

1” 5/16” to 1/2” 25

• Riveted assembly

provides support for

electrical box and

cable run on either

side of box.

• Cable retension tab is

open for easy loading

and contains cable

when bent in place.

• See Ruff-IN™brochure

for pre-fab box

assemblies.

Multi-Run Cable

Carrier & Box

Support Fastener

BRC5_-S18-U__

Beams

Fasteners 118

Read safety/installation instruction sheets in packages before use.

UPC/Part Catalog Conduit Size Flange Box

Number Number Number of Runs Thickness Qty.

78205152829 BRC51-S18-U24 .430” - .560” 1/8” to 1/4” 25

Up to 4 Runs

78205152830 BRC51-S18-U58 .560” - .690” 5/16” to 1/2” 25

Up to 7 Runs

78205152834 BRC53-S18-U24 .430” - .560” 1/8” to 1/4” 25

Up to 4 Runs

78205152835 BRC53-S18-U58 .560” - .690” 5/16” to 1/2” 25

Up to 7 Runs

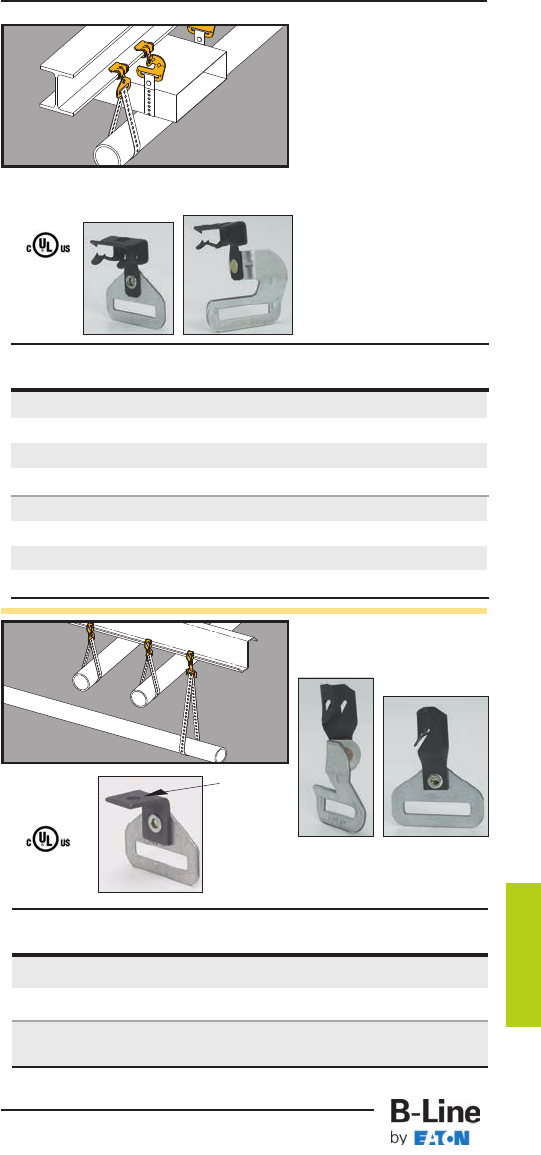

Hangers

Fasteners

119

• Suspends straps thru

11/2" wide from beam

flanges 1/8" to 3/4"

thick.

• Suspends straps

parallel or at right

angles to beams.

• Simply installed with a

hammer.

• Static Load Capacity:

200 Lbs.

Strap Hangers

Parallel Right Angle

“Z” Purlin

Hangers

BH-H7

.281”Ø

BH-F12 BH-F12-R

Hangers

Fasteners 120

Read safety/installation instruction sheets in packages before use.

UPC/Part Catalog Description Box

Number Number Qty.

78101103385 BH-F12 Right Angle 100

78101103384 BH-F12-R Parallel

100

78101119922 BH-H7 Parallel

100

UPC/Part Catalog Description Flange Box

Number Number Thickness Qty.

78101104930 BHE-1-2 Parallel 1/16” to 1/8” 100

78101118870 BH-2-4 Parallel 1/8” to 1/4” 100

78101118880 BH-5-8 Parallel 5/16” to 1/2” 100

78101118890 BH-9-12 Parallel 9/16” to 3/4” 100

78101104115 BH-1-2-R Right Angle 1/16” to 1/8” 100

78101118875 BH-2-4-R Right Angle 1/8” to 1/4” 100

78101118885 BH-5-8-R Right Angle 5/16” to 1/2” 100

78101118895 BH-9-12-R Right Angle 9/16” to 3/4” 100

• Suspend wire or plain

and threaded rod

from beam flanges

1/8" to 3/4" thick.

• Simply installed with

a hammer.

• Static Load Capacity:

160 Lbs.

Rod To Beam

Hangers

Fasteners

121

Read safety/installation instruction sheets in packages before use.

UPC/Part Catalog Flange Description Box

Number Number Thickness Qty.

78101118900 BH1-E-2-4 1/8” to 1/4” #8 Wire or 100

1/4” Plain Rod

78101118905 BH1-E-5-8 5/16” - 1/2” #8 Wire or 100

1/4” Plain Rod

78101118910 BH1-E-9-12 9/16” - 3/4” #8 Wire or 100

1/4” Plain Rod

UPC/Part Catalog Flange Plain Rod Box

Number Number Thickness Size Qty.

78101118940 BH2-E-2-4 1/8” to 1/4”3/8” 100

78101118945 BH2-E-5-8 5/16” - 1/2”3/8” 100

78101118950 BH2-E-9-12 9/16” - 3/4”3/8” 100

Rod To Beam

Hangers

With Thread

Impression

Hangers

Fasteners 122

Read safety/installation instruction sheets in packages before use.

UPC/Part Catalog Flange Threaded Box

Number Number Thickness Rod Size Qty.

78101118980 BH4-E-2-4 1/8” to 1/4”1/4” 100

78101118985 BH4-E-5-8 5/16” - 1/2”1/4” 100

78101118990 BH4-E-9-12 9/16” - 3/4”1/4” 100

78101119060 BH6-E-2-4 1/8” to 1/4”3/8” 100

78101119065 BH6-E-5-8 5/16” - 1/2”3/8” 100

78101119070 BH6-E-9-12 9/16” - 3/4”3/8” 100

Note: BH4 and BH6 have thread impressions.

UPC/Part Catalog Flange Threaded Box

Number Number Thickness Rod Size Qty.

78101119020 BH5-E-2-4 * 1/8” to 1/4”1/4” to 3/8” 100

78101119025 BH5-E-5-8 * 5/16” - 1/2”1/4” to 3/8” 100

78101119030 BH5-E-9-12 * 9/16” - 3/4”1/4” to 3/8” 100

*Nuts Required.

• Compensates for

angle of purlin lip.

• Allows for parallel

conduit runs or

vertical support

drops.

• Riveted fasteners will

rotate 360°.

• Maximum Purlin

thickness of 3/32".

“Z” Purlin

Hangers

Push-Type

BP Series

Guide-Rite™

Fastener

BG Series

BF13

BF12

Hangers

Fasteners

123

Read safety/installation instruction sheets in packages before use.

Static

UPC/Part Catalog Description Load Cap. Box

Number Number Lbs. Qty.

78101118345 BF13

With 1/4” Hole 100

100

78101118340 BF12

For “S” Hooks 100

100

Conduit Static

UPC/Part Catalog Size Load Cap. Box

Number Number EMT & Rigid Lbs. Qty.

78101118445 BG-6-F13 *3/8” 100 100

78101118520 BG-8-12-F13 1/2”, 3/4” 100 100

78101118590 BG-16-F13 1” 100 100

78101118675 BG-20-F13 11/4” 100 100

78101119290 BP-8-F13 1/2” EMT 25 100

78101119390 BP-12-F13 3/4” EMT 25 100

1/2” IMC, Rigid

78101119480 BP-16-F13 1” EMT 25 50

3/4” IMC, Rigid

*BG-6 will accept the following range ∅.420 - ∅.675:

14/2 thru 10/4 MC/AC cable and 5/16 or 3/8flexible conduit

Universal Beam

Fasteners

• Compensates for

angle of purlin lip.

• Attaches MC, AC,

sizes 14/2 through

10/3 or 3/8" FMC to

“Z” Purlins up to 3/32"

thick.

• Fastener will rotate

360°.

• Simply installed with

a hammer.

Cable To “Z” Purlin

Flange Hangers

BX4-F13 BX4M-F13

Hangers

Fasteners 124

Read safety/installation instruction sheets in packages before use.

UPC/Part Catalog Description Flange Box

Number Number Thickness Qty.

78101101188 BX4-F13

Single Runs Thru 3/32”

100

78101101204 BX4M-F13

Double Runs Thru 3/32”

100

UPC/Part Catalog Description Static Box

Number Number Load Cap. Qty.

78101118920 BH1-F12

#8 Wire or 100 Lbs.

100

1/4” Plain Rod

78101118960 BH2-F12

3/8” Plain Rod 100 Lbs.

100

UPC/Part Catalog Threaded Static Box

Number Number Rod Size Load Cap. Qty.

78101119000 BH4-F12

1/4” 100 Lbs.

100

78101119080 BH6-F12

3/8” 100 Lbs.

100

78101119040 BH5-F12 *

1/4” & 3/8” 100 Lbs.

100

*Nuts Required.

Note: BH4 and BH6 have thread impressions.

• Suspend wire, or

plain and threaded

rod from “Z” Purlins.

• Fits “Z” Purlins 1/16"

to 1/4" thick.

• Simply installed with

a hammer.

• Static Load Capacity:

160 Lbs.

“Z” Purlin Flange

Hangers

Fasteners

125

Read safety/installation instruction sheets in packages before use.

UPC/Part Catalog Description Box

Number Number Qty.

78101104271 BF4 For “S” Hooks, 100

Bolting Straps and

Wrap Wire

“Z” Purlin Flange

Hangers

Fasteners 126

Read safety/installation instruction sheets in packages before use.

UPC/Part Catalog Description Box

Number Number Qty.

78101104274 BH1-F4 #8 Wire or 100

1/4” Plain Rod

78101104276 BH2-F4 3/8” Plain Rod 100

UPC/Part Catalog Threaded Box

Number Number Rod Size Qty.

78101104286 BH4-F4 1/4” 100

78101104280 BH6-F4 3/8” 100

78101104278 BH5-F4 * 1/4” - 3/8” 100

* Nuts required.

Note: BH4 & BH6 have thread impressions.

• Attaches MC, AC,

sizes 14/2 thru 10/3

or 3/8" FMC to “Z”

Purlins.

• Fits “Z” Purlin

flanges 1/16" to 1/4"

thick.

• Fastener will rotate

360°.

Cable To “Z” Purlin

Flange Hangers

Hangers

Fasteners

127

Read safety/installation instruction sheets in packages before use.

UPC/Part Catalog Description Box

Number Number Qty.

78101104931 BX4-F4 Single Runs 100

These products are designed for positioning only. No load rating.

UPC/Part Catalog Description Box

Number Number Qty.

78101104932 BX4M-F4 Double Runs 100

These products are designed for positioning only. No load rating.

• Secures and supports

multiple runs of

MC/AC cable to ‘Z’

purlins.

• Effectively organizes

cables and eliminates

derating issues.

• Retention tab is open

for easy loading and

unloading and

contains cables when

bent in place.

• Load Capacity: 50 lbs.

MC/AC Cable

Carrier to

‘Z’ Purlin Flange

Hanger

Hangers

Fasteners 128

Read safety/installation instruction sheets in packages before use.

UPC/Part Catalog Cable Diameter & Box

Number Number Number of Runs Qty.

78205144084 BRC51-F4 .430” to .560” 25

Up to 4 Runs

78205144085 BRC52-F4 .430” to .560” 25

Up to 9 Runs

78205144086 BRC53-F4 .560” to .690” 25

Up to 7 Runs

• Suspend wire, or

plain and threaded

rod from vertical

flanges.

• Fits vertical flanges

1/16" to 1/4" thick.

• Static Load Capacity:

160 Lbs.

Vertical Flange

Hangers

Fasteners

129

Read safety/installation instruction sheets in packages before use.

UPC/Part Catalog Description Box

Number Number Qty.

78101104270 BF3 For “S” Hooks, 100

Bolting Straps and

Wrap Wire

41/4”

Overall Height

Vertical Flange

Hangers

Fasteners 130

Read safety/installation instruction sheets in packages before use.

UPC/Part Catalog Description Box

Number Number Qty.

78101104273 BH1-F3 #8 Wire or 100

1/4” Plain Rod

78101104275 BH2-F3 3/8” Plain Rod 100

UPC/Part Catalog Threaded Box

Number Number Rod Size Qty.

78101104285 BH4-F3 1/4” 100

78101104279 BH6-F3 3/8” 100

78101104933 BH5-F3 * 1/4”, 3/8” 100

* Nuts required.

• Attaches MC, AC,

sizes 14/2 through

10/3 or 3/8" flexible

conduit FMC to

vertical flanges

1/16" to 1/4" thick.

• Fastener will rotate

360°.

• Simply installed with

a hammer.

Cable To Vertical

Flange Hangers

Hangers

Fasteners

131

Read safety/installation instruction sheets in packages before use.

UPC/Part Catalog Description Box

Number Number Qty.

78101104281 BX4-F3 Single Runs 100

This product is designed for positioning only. No load rating.

UPC/Part Catalog Description Box

Number Number Qty.

78101104282 BX4M-F3 Double Runs 100

This product is designed for positioning only. No load rating.

• Secures and supports

multiple runs of

MC/AC cable to

vertical flanges.

• Effectively organizes

cables and eliminates

derating issues.

• Retention tab is open

for easy loading and

unloading and

contains cables when

bent in place.

• Load Capacity: 50 lbs.

MC/AC Cable Carrier

To Vertical Flange

Hanger

Hangers

Fasteners 132

Read safety/installation instruction sheets in packages before use.

UPC/Part Catalog Cable Diameter & Box

Number Number Number of Runs Qty.

78205144081 BRC51-F3 .430” to .560” 25

Up to 4 Runs

78205144084 BRC52-F3 .430” to .560” 25

Up to 9 Runs

78205144083 BRC53-F3 .560” to .690” 25

Up to 7 Runs

• Suspend wire, or

plain or threaded rod

from vertical flanges.

• Fits vertical flanges

1/16" to 1/4" thick.

• Static Load Capacity:

160 Lbs.

Vertical Flange

Hangers

Fasteners

133

Read safety/installation instruction sheets in packages before use.

UPC/Part Catalog Flange Description Box

Number Number Thickness Qty.

78101118310 BF1 1/16” - 5/32” For “S” Hooks, 100

Bolting Straps

and Wrap Wire

78101118315 BF2 5/32” - 1/4” For “S” Hooks, 100

Bolting Straps

and Wrap Wire

UPC/Part Catalog Flange Description Box

Number Number Thickness Qty.

78101118915 BH1-F1 1/16” - 5/32” #8 Wire or 100

1/4” Plain Rod

78101118925 BH1-F2 5/32” - 1/4” #8 Wire or 100

1/4” Plain Rod

Vertical Flange

Hangers

23/4”

Hangers

Fasteners 134

Read safety/installation instruction sheets in packages before use.

UPC/Part Catalog Flange Plain Box

Number Number Thickness Rod Size Qty.

78101118955 BH2-F1 1/16” - 5/32”3/8” 100

78101118965 BH2-F2 5/32” - 1/4”3/8” 100

UPC/Part Catalog Flange Threaded Box

Number Number Thickness Rod Size Qty.

With Thread Impression

78101118995 BH4-F1 1/16” - 5/32”1/4” 100

78101119075 BH6-F1 1/16” - 5/32”3/8” 100

78101119005 BH4-F2 5/32” - 1/4”1/4” 100

78101119085 BH6-F2 5/32” - 1/4”3/8” 100

With Clearance Hole

78101118995 BH5-F1 * 1/16” - 5/32”1/4”, 3/8” 100

78101119075 BH5-F2 * 5/32” - 1/4”1/4”, 3/8” 100

* Nuts required.

• Supports 3/8" to 1"

conduit from vertical

flanges 1/16" to 1/4"

thick.

• Patented Guide-Rite™

feature ensures

fastener will close

and lock every time.

• Simply installed with

a hammer and pliers.

• Static Load Capacity:

25 Lbs.

Conduit To Vertical

Flange Hangers

Guide-Rite™

Fastener

Hangers

Fasteners

135

Read safety/installation instruction sheets in packages before use.

UPC/Part Catalog Conduit Flange Box

Number Number Size Thickness Qty.

78101119957 BG-6-F1 * 3/8”1/16” - 5/32” 100

78101119960 BG-6-F2 * 3/8”5/32” - 1/4” 100

78101119958 BG-8-12-F1 1/2” & 3/8”1/16” - 5/32” 100

78101119961 BG-8-12-F2 1/2” & 3/8”5/32” - 1/4” 100

78101119958 BG-16-F1 1” 1/16” - 5/32” 100

78101119961 BG-16-F2 1” 5/32” - 1/4” 100

Patent #4958792

*BG-6 will accept the following range ∅.420 - ∅.675:

14/2 thru 10/4 MC/AC cable and 5/16 or 3/8flexible conduit

UPC/Part Catalog Wire Flange Box

Number Number Size Thickness Qty.

78101103556 BRC3-F1 14/2 & 12/2 1/16” - 5/32” 100

With Ground

78101103557 BRC3-F2 14/2 & 12/2 5/32” - 1/4” 100

With Ground

Note: These products are designed for positioning only. No load rating.

• BH1, BH2: Supports

wire or plain rod.

• BH7, BH8: For wire or

chain drop from

concrete or wood.

• BH4, BH5, BH6

supports 1/4" or 3/8"

threaded rod.

• Static Load Capacity:

160 Lbs.

Components

BH2

.281”Ø

BH1

.281”Ø

BH7 BH8

BH4

BH6

.281”Ø

BH5

.281”Ø

Hangers

Fasteners 136

Read safety/installation instruction sheets in packages before use.

UPC/Part Catalog Description Box

Number Number Qty.

78101118800 BH1

#8 Wire or 1/4” Plain Rod

100

78101118805 BH2 For 3/8” Plain Rod 100

UPC/Part Catalog Description Box

Number Number Qty.

78101118815 BH4

For 1/4”

100

Threaded Rod

78101118825 BH6

For 3/8”

100

Threaded Rod

78101118820 BH5 *

For 1/4” & 3/8”

100

Threaded Rod

* Nuts required.

Note: BH4 & BH6 have thread impressions.

UPC/Part Catalog Description Box

Number Number Qty.

78101118830 BH7 Angle Bracket 100

With .281”Ø Holes

78101118835 BH7-6 Angle Bracket 100

With .281”Ø & .406”Ø Holes

78101118840 BH8 Offset Bracket 100

With .281”Ø Holes

78101118845 BH8-6 Offset Bracket 100

With .281”Ø & .406”Ø Holes

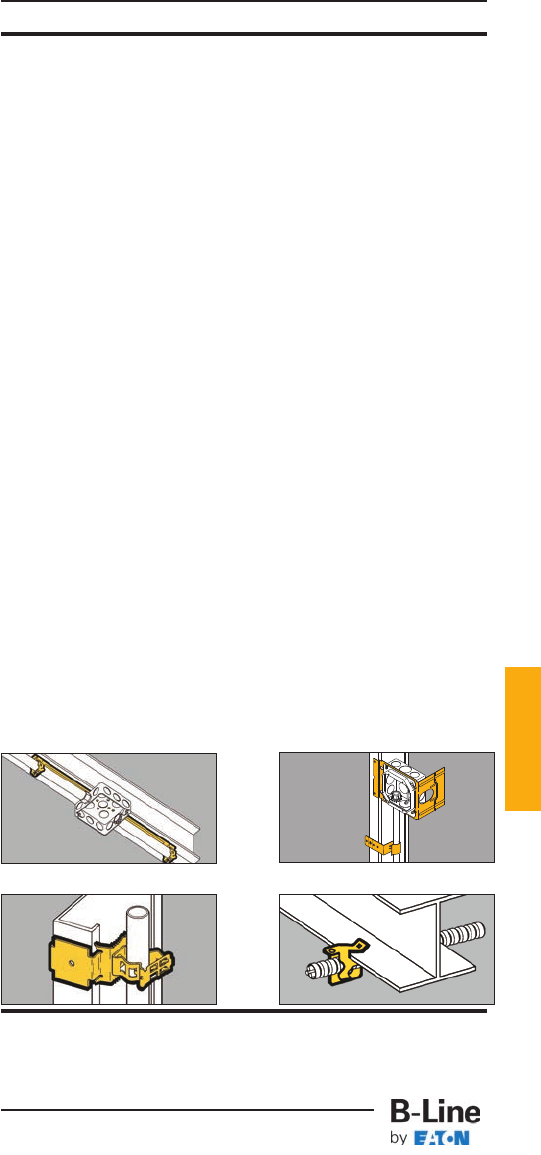

• The BSC4 Series

provides a simple,

snap-on attachment

to strut, eliminating

the need for tools

and/or drilling during

installation.

• Ideal for retrofit and

add-on applications.

• BSC4 provides a 1/4”

mounting hole along

the side of a standard

strut member.

• Riveted assemblies

allow for easy

attachment of

conduit, cable and

rod.

Strut Fasteners

Hangers

Fasteners

137

Read safety/installation instruction sheets in packages before use.

UPC/Part Catalog Description Load Box

Number Number Capacity Qty.

78205146573 BSC4 Strut Clip 60 lbs. 100

UPC/Part Catalog Rod Size Load Box

Number Number Capacity Qty.

78205146581 BH4-SC4 1/4”-20 60 lbs. 100

78205146582 BH6-SC4 3/8”-16 60 lbs. 100

BG_-SC4

BP_-SC4

BL14__-SC4

BX4M_-SC4 BRC5_-SC4

Hangers

Fasteners 138

Read safety/installation instruction sheets in packages before use.

UPC/Part Catalog Conduit Load Box

Number Number Size Capacity Qty.

78205146577 BG6-SC4 MC/AC & 3/8” 25 lbs. 100

78205146578 BG812-SC4 1/2” & 3/4” 25 lbs. 100

78205146579 BP8-SC4 1/2” 15 lbs. 100

78205146580 BP12-SC4 3/4” 15 lbs. 100

78205146588 BL1400-SC4 1/2” 60 lbs. 100

78205146589 BL1410-SC4 3/4” 60 lbs. 100

78205146590 BL1420-SC4 1” 60 lbs. 100

UPC/Part Catalog Cable Size Load Box

Number Number Runs Capacity Qty.

78205146584 BX4M-SC4 14/2 - 10/3 -- 100

up to 2 runs

78205146585 BRC51-SC4 .430” to .560” 50 lbs. 100

up to 4 runs

78205146586 BRC52-SC4 .430” to .560” 50 lbs. 100

up to 9 runs

78205146587 BRC53-SC4 .560” to .690” 50 lbs. 100

up to 7 runs

• Special support

bracket allows

clearance for powder

actuated tools.

• Exclusive 11/4” drive

pin now pre-installed.

• Pins rated for

concrete up to 4000

psi.

• Static Load Capacity:

30 Lbs. unless

specified.

Limited by fastener

assembly. Pin rating

must be considered

before installation.

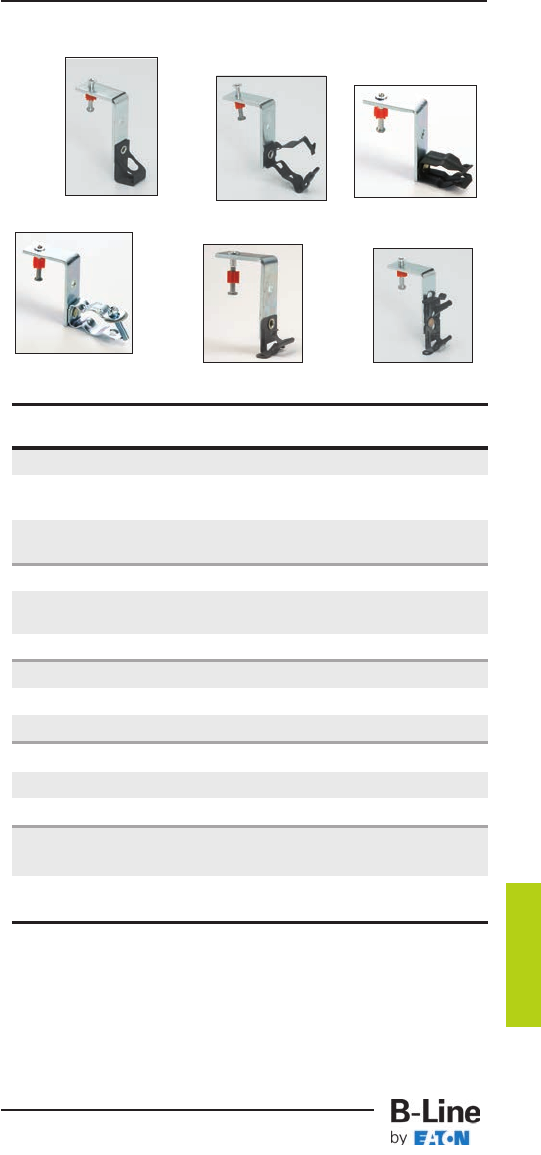

Drive Pin

Fasteners

BCH21-PNA

BCH32-PNA

BH-PNA BH1-PNA

BH2-PNA

BPNA

Hangers

Fasteners

139

Read safety/installation instruction sheets in packages before use.

UPC/Part Catalog Description Box

Number Number Qty.

78205125583 BPNA Angle Bracket 100

78205128090 BCH12-PNA

3/4”

100

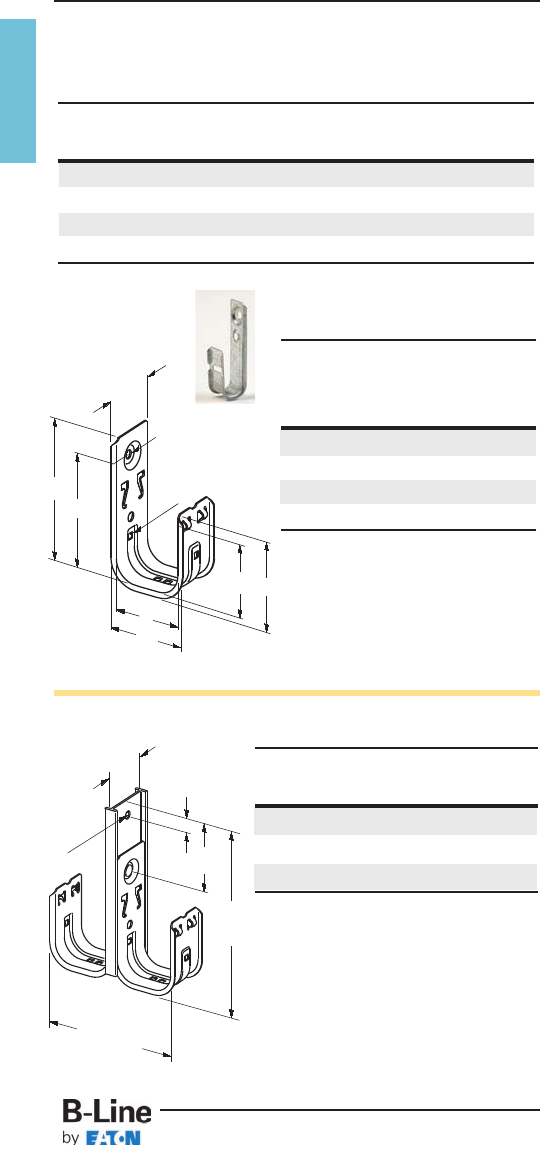

Cable Hook

78205125584 BCH21-PNA 1

5/16”

Cable Hook

78205125586 BCH32-PNA

2”

Cable Hook

78205125588 BCH64-PNA

4”

Cable Hook

78205125611 BH-PNA Strap Hanger 100

78205125593 BH1-PNA #8 Wire or 100

1/4” Plain Rod

78205125596 BH2-PNA 3/8” Plain Rod 100

Drive Pin Fasteners

BH_-PNA

BX4-PNA BX4M-PNA

BG_-PNA BP_-PNA

BL14__-PNA

Hangers

Fasteners 140

Read safety/installation instruction sheets in packages before use.

UPC/Part Catalog Description Box

Number Number Qty.

78205125604 BH4-PNA *1/4” Threaded Rod 100

78205125606 BH6-PNA *3/8” Threaded Rod 100

Cable Hook

78205125605 BH5-PNA ** 1/4” or 3/8” 100

Threaded Rod

78205125613 BG6-PNA *** 3/8” Conduit 100

78205125615 BG8-12-PNA 1/2” & 3/4” 100

Conduit

78205125616 BG16-PNA 1” Conduit 100

78205125623 BP8-PNA 1/2” EMT 100

78205125624 BP12-PNA 3/4” EMT 100

78205125630 BP16-PNA 1” EMT 100

78205125620 BL1400-PNA 1/2” Conduit 100

78205125621 BL1410-PNA 3/4” Conduit 100

78205125622 BL1420-PNA 1” Conduit 100

78205125590 BX4-PNA Single Run 100

MC, AC or FMC

78205125591 BX4M-PNA Double Run 100

MC, AC or FMC

*With threaded impressions. ** Nuts required.

*** BG-6 will accept the following range ∅.420 - ∅.675:

14/2 thru 10/4 MC/AC cable and 5/16 or 3/8flexible conduit

• Suspend plain or

threaded rod and

drop wire from

ceilings, walls,

concrete beams,

joists and laminated

wood beams.

• Clearance hole for

1/4" bolt provided.

• Static Load Capacity:

160 Lbs.

Angle Bracket

Fasteners

Hangers

Fasteners

141

Read safety/installation instruction sheets in packages before use.

UPC/Part Catalog Description Box

Number Number Qty.

78101118930 BH1-H7

#8 Wire or

100

1/4” Plain Rod

78101118975 BH2-H7 For 3/8” Plain Rod 100

UPC/Part Catalog Threaded Box

Number Number Rod Size Qty.

78101119010 BH4-H7 1/4”-20 100

78101119090 BH6-H7 3/8”-16 100

78101119050 BH5-H7 * 1/4”-20 or 3/8”-16 100

* Nuts required.

Note: BH4 & BH6 have thread impressions.

• Suspend plain or

threaded rod and drop

wire from ceilings,

walls, beams, and

joists.

• Clearance hole for 1/4"

bolt provided.

• Static Load Capacity:

160 Lbs.

Offset Bracket

Fasteners

Hangers

Fasteners 142

Read safety/installation instruction sheets in packages before use.

UPC/Part Catalog Description Box

Number Number Qty.

78101118935 BH1-H8 #8 Wire or 100

1/4” Plain Rod

78101118975 BH2-H8 3/8” Plain Rod 100

UPC/Part Catalog Threaded Box

Number Number Rod Size Qty.

78101119015 BH4-H8 1/4”-20 100

78101119095 BH6-H8 3/8”-16 100

78101119055 BH5-H8 * 1/4”-20 or 3/8”-16 100

* Nuts required.

Note: BH4 & BH6 have thread impressions.

• Suspend 3/8" threaded

rod from ceilings,

walls, beams, and

joists.

• Finish: Zinc Plated

• Static Load Capacity:

610 Lbs.

Threaded Rod

Hangers .406”Ø

Hangers

Fasteners

143

Read safety/installation instruction sheets in packages before use.

• Allows centering on

all open web joists

with round bottom

chords.

• Static Load Capacity:

BH11 = 200 Lbs.

BH12 = 100 Lbs.

Wedge Hangers

BH12

BH11

UPC/Part Catalog Description Box

Number Number Qty.

78101101661 B3223-3/8Offset Eye 100

Socket

UPC/Part Catalog Description Box

Number Number Qty.

78101118860 BH11 With 3/8” 100

Clearance Hole

78101118865 BH12 With 1/4”-20 100

Thread Impression

Hangers

Fasteners 144

Read safety/installation instruction sheets in packages before use.

BD2

BD4

BA28B

• Brackets are easily

attached with screws

or drive pins to wood,

concrete or steel

structures.

• Brackets are

adaptable for use with

a wide variety of

fasteners, wires, “S”

hooks and hangers.

UPC/Part Catalog Description Box

Number Number Qty.

78101101686 BD2 Flat Bracket 100

78101118280 BD4 Offset Bracket 100

78101101449 BA28B Angle Bracket 100

Lathers Channel

Hangers

Fasteners

145

• For fastening standard

lathers channels to

wires and plain rods.

• Fits 1/2" through 5/8"

channel flange widths.

• Accepted for use by

the City of New York

Department of

Buildings. MEA

383-91-M.

• Static Load Capacity:

160 Lbs.

Rod & Wire

Fasteners

Center Mount

Side Mounts

BL-24-4

BL-24-2

Lathers Channel

Fasteners 146

Read safety/installation instruction sheets in packages before use.

UPC/Part Catalog Channel Rod/Wire Box

Number Number Size Size Qty.

78101119882 BL-24-2

11/2” #8 Wire

100

78101119883 BL-24-4

11/2”1/4”

100

78101119885 BL-32-4

2” 1/4”

100

UPC/Part Catalog Channel Rod/Wire Box

Number Number Size Size Qty.

78101119884 BL-24-4C

11/2”1/4” Rod

100

• For fastening

standard 11/2" lathers

channel to wires and

plain rods.

• Wire size: #8 and #9.

• Rod size: 3/16" and

1/4".

• Fits 9/16" thru 5/8"

channel flange

widths.

• Static Load Capacity:

100 Lbs.

Rod & Wire Fasteners

• Serves as a mounting

base for conduit

fasteners or electrical

boxes.

• Attaches to either

flange of lathers

channel with 1/4"-20

screw (furnished).

• Fits channel flange

widths up to 5/8".

Flange Fasteners

Lathers Channel

Fasteners

147

Read safety/installation instruction sheets in packages before use.

UPC/Part Catalog Description Box

Number Number Qty.

78101119880 BL1 Channel to Rod 100

& Wire

UPC/Part Catalog Description Box

Number Number Qty.

78101119881 BL2 Flange Fastener 100

with Screw

Note: This product is designed for positioning only. No load rating.

• Fastens EMT to 11/2"

lathers channel.

• Static Load Capacity:

50 Lbs.

• Finish: Zinc Plated

Conduit Fasteners

BL3-12

BL3-20

Lathers Channel

Fasteners 148

Read safety/installation instruction sheets in packages before use.

UPC/Part Catalog EMT Conduit Box

Number Number Size Qty.

78101119902 BL3-8 1/2” 100

78101119903 BL3-12 3/4” 100

78101119904 BL3-16 1” 100

78101119905 BL3-20 11/4” 100

Communication & Low Voltage

Fasteners

149

• Supports cable ties up

to 9/32" wide from

flanges 1/16" to 3/4"

thick.

• 8" cable tie included.

• Simply installed with

a hammer.

Cable Fasteners

• Supports cable ties up

to 9/32" wide from

drop wires.

• 8" cable tie included.

Cable

Fasteners

BE Series

BF Series

Communication & Low Voltage

Fasteners 150

Read safety/installation instruction sheets in packages before use.

These products are designed for positioning only. No load rating.

UPC/Part Catalog Description Box

Number Number Qty.

78101119970 BE-2-4-CT2 1/8” to 1/4” 100

78101119971 BE-5-8-CT2 5/16” to 1/2” 100

78101119972 BE-9-12-CT2 9/16” to 3/4” 100

78101119968 BF1-CT2 1/16” to 5/32” 100

78101119969 BF2-CT2 5/32” to 1/4” 100

UPC/Part Catalog Description Box

Number Number Qty.

78101102866 BW2-CT2 #12 wire thru 100

1/4” plain or

threaded rod

78101195603 BW6-CT2 3/8” plain or 100

threaded rod

• Replaces electrical

box in Class 2 low

voltage installations.

• Provides attachment

base for low voltage

outlets.

• Accepts Decora®*

style cover plates.

• Maximum 11/4”

drywall thickness.

• Finish: Pre-galvanized

* Decora® is a registered trademark of Leviton Corporation.

Cover Plate Mounting

Brackets

BB10 BB10-2 BB10-3

BB10-4 BB20

Communication & Low Voltage

Fasteners

151

Read safety/installation instruction sheets in packages before use.

These products are designed for positioning only. No load rating.

UPC/Part Catalog Description Box

Number Number Qty.

78101118150 BB10 Single Gang 50

Bracket

78101118152 BB10-2 Mounts Two (2) 10

Single Plates

78101119878 BB10-3 Mounts Three (3) 10

Single Plates

78101119879 BB10-4 Mounts Four (4) 10

Single Plates

78101118130 BB20 Double Gang 10

Bracket

Patent # Re.33305

• Replaces electrical

box in Class 2 low

voltage installations.

• Provides attachment

base for low voltage

outlets.

• Maximum 11/4”

drywall thickness.

• Finish: Pre-galvanized

Cover Plate

Mounting Bracket

• Provides attachment

base for low voltage

outlets.

• Replaces electrical box

in Class 2 low voltage

installations.

• Design eliminates

sharp edges from

bracket.

• Maximum wall

thickness: 3/4”

Plastic Cover Plate

Mounting

Bracket

BB10L BB20L

Communication & Low Voltage

Fasteners 152

Read safety/installation instruction sheets in packages before use.

These products are designed for positioning only. No load rating.

UPC/Part Catalog Description Box

Number Number Qty.

78101190895 BB10L Single Gang 50

Bracket

78101190896 BB20L Double Gang 50

Bracket

UPC/Part Catalog Description Box

Number Number Qty.

78205139235 BB10P Single Gang Bracket 50

• Uni-Mount offers a

secure box support

for 4” square boxes

and features a built-in

plaster ring.

• Rigid bracket design

eliminates the need

for far-side support.

• Replaces electrical

boxes in Class 2 low

voltage installations.

• Guide tabs ensure

consistent alignment

on studs.

• Finish: Pre-galvanized

Uni-Mount Box

Support/Cover Plate

Mounting

Brackets

Single

Gang

Double

Gang

Communication & Low Voltage

Fasteners

153

Read safety/installation instruction sheets in packages before use.

These products are designed for positioning only. No load rating.

UPC/Part Catalog Description Box

Number Number Qty.

78205122768 BB40-08 1/2” Raise 50

78205122771 BB40-10 5/8” Raise 50

78205122772 BB40-12 3/4” Raise 50

UPC/Part Catalog Description Box

Number Number Qty.

78205122773 BB45-08 1/2” Raise 50

78205122774 BB45-10 5/8” Raise 50

78205122775 BB45-12 3/4” Raise 50

• Locates

communication

outlets before drywall

is installed.

• Replaces electrical

box in Class 2 low

voltage installations.

• For 1/2” and 5/8”

drywall applications.

• Finish: Pre-galvanized

Cover Plate

Mounting

Bracket

Communication & Low Voltage

Fasteners 154

Read safety/installation instruction sheets in packages before use.

These products are designed for positioning only. No load rating.

• Cable retainer clips are

included with all cable

hook purchases.

• Provides secure

containment of cables

and offers quick open/close

feature to add or remove

cables.

• Finish: Pre-galvanized

Retainer

in open

position

Push

retainer

down to

lock

Replacement

Cable Retainer Clips

UPC/Part Catalog Description Box

Number Number Qty.

78101119873 BB15 Single Gang 25

Stud Bracket

UPC/Part Catalog Cable Retainer Box

Number Number For Hook Size Qty.

78101104847 BCHR21 1/2” Raise 50

78101104848 BCHR32 5/8” Raise 50

78101104849 BCHR64 3/4” Raise 50

Patent #5961081

• Supports

Cat. 5/5e/6/6A

fiber optic, innerduct

and low voltage

cabling requirements.

• Cable retainer clips

are included with

hooks.

• Static Load Capacity:

30 Lbs.

• Finish: Pre-Galvanized

Cable Hooks

(See pages 239-240 for technical data.)

Open Closed

BCH21

BCH32

BCH64

BCH12

For special finish colors see page 156

Communication & Low Voltage

Fasteners

155

Read safety/installation instruction sheets in packages before use.

UPC/Part Catalog Hook Capacity Box

Number Number Size Up To Qty.

78205128060 BCH12 3/4” 16 4-Pair UTP 50

Cat 5e or 2-Strand

Fiber Optic Cable

or 10 CAT6

78101104713 BCH21 15/16” 50 4-Pair UTP 50

Cat 5e or 2-Strand

Fiber Optic Cable

or 32 CAT6 or 18 CAT6A

78101104713 BCH32 2” 50 4-Pair UTP 50

Cat 5e or 2-Strand

Fiber Optic Cable

or 50 CAT6 or 25 CAT6A

78101104713 BCH64 4” 50 4-Pair UTP 25

Cat 5e or 2-Strand

Fiber Optic Cable

or 185 CAT6 or 98 CAT6A

Patent #5961081

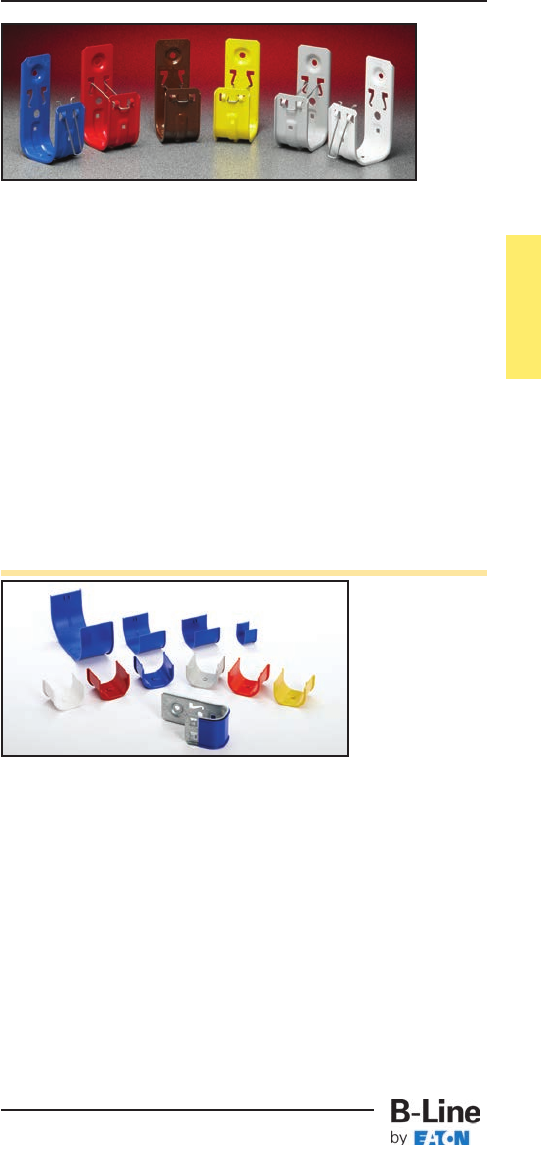

• Powder coated cable hooks are available in

a range of colors to help meet your cable

identification requirements.

• Standard riveted assemblies are available with

painted cable hooks.

• Part numbers can be made by adding the paint

color suffix after the cable hook part number.

• Minimum order quantity 500 pieces.

• Standard lead time is 5-10 working days.

Painted

Cable

Hooks

Bright White - BW Green - GR

Brown - BR Orange - OR

Computer White - CW Regal Red - RR

Equipment Blue - BL Safety Yellow - YL

Flat Black - FB Telcom Gray - TG

Part # Example:

Painted Cable Hook Part Number - BCH32BW

Painted Cable Hook Assembly - BCH32BW-U24

Communication & Low Voltage

Fasteners 156

Read safety/installation instruction sheets in packages before use.

• Color-coded clips allow for content designation

without inventorying various colored hardware.

• Easy to designate pathways to prevent crossover.

• Order separtately and field install.

• Can be snapped on J-Hook after it has been installed.

• Manufactured from Underwriters Laborarories (UL)

Listed material for plenum spaces.

• Suitable for 3/4”, 15/16”, 2”, and 4” J-Hook sizes.

• Available in six (6) colors:

Blue (BL), White (WH), Gray (GY), Orange (OR),

Red (RD), and Yellow (YW).

J-Hook

Color ID

Clip

Part # Example:

Blue Colored ID Clip Part Number

BCHID-BL12 - blue clip for BCH12 J-Hook

• Xylan®coating

provides smooth

frictionless surface for

cable pulling.

• Great for use in

corners, drop-outs or

direction change.

• X-Hook has lower

coefficient of

friction than Teflon®.

• Cable retainer clips

are included with

hooks.

• Static Load Capacity:

30 Lbs.

X-Hook

Low Friction

Cable Hooks

Note: For cable hook assemblies with X-Hooks add an X

to the part number.

Example: BCH32X-U-2-4

(See pages 239-240 for technical data.)

Cable rollers are too expensive and

require installation and removal.

New Xylan®coating reduces cable

friction. Ideal for pulling cable.

BCH64X

Xylan®is a registered trademark used by Whitford Corporation

Teflon®is a registered trademark used by DuPont®

Communication & Low Voltage

Fasteners

157

Read safety/installation instruction sheets in packages before use.

UPC/Part Catalog Hook Capacity Box

Number Number Size Qty.

78205129940 BCH21X 15/16” 50 4-Pair UTP 50

Cat 5e or 2-Strand

Fiber Optic Cable

or 32 CAT6 or 18 CAT6A

78205129941 BCH32X 2” 80 4-Pair UTP 50

Cat 5e or 2-Strand

Fiber Optic Cable

or 50 CAT6 or 25 CAT6A

78205129942 BCH64X 4” 300 4-Pair UTP 25

Cat 5e or 2-Strand

Fiber Optic Cable

or 185 CAT6 or 98 CAT6A

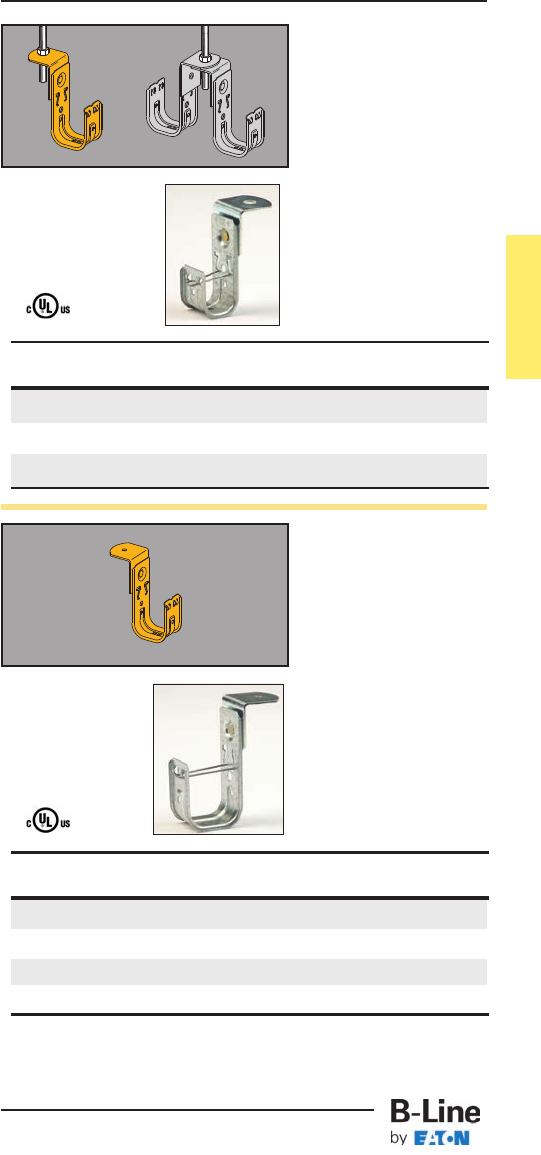

• .505” diameter hole

designed to support

cable from 3/8” or

1/2” threaded rod.

• Allows back-to-back

and multi-tier

installations.

• Cable retainer clips

are included with

hooks.

• Static Load Capacity:

30 Lbs.

• Finish: Pre-galvanized

Cable

To ATR

Fasteners

• Designed for direct

attachment to

structures.

• Supports cable from

1/4” threaded rod.

• .265” diameter hole

accepts anchors,

screws or common

nails.

• Cable retainer clips

are included with

hooks.

• Static Load Capacity:

30 Lbs.

• Finish: Pre-galvanized

Angle

Bracket

Cable

Fasteners

(See pages 239-240 for technical data.)

Communication & Low Voltage

Fasteners 158

Read safety/installation instruction sheets in packages before use.

UPC/Part Catalog Hook Hole Box

Number Number Size Size Qty.

78101104725 BCH21-AB 15/16” .505” Diameter 50

78101104729 BCH32-AB 2” .505” Diameter 50

78101104732 BCH64-AB 4” .505” Diameter 25

UPC/Part Catalog Hook Hole Box

Number Number Size Size Qty.

78205128089 BCH12-RB 3/4” .265” Diameter 50

78101104735 BCH21-RB 15/16” .265” Diameter 50

78101104738 BCH32-RB 2” .265” Diameter 50

78101104742 BCH64-RB 4” .265” Diameter 25

• Permits fast and easy

installation on beam

flanges.

• Cable retainer clips

are included with

hooks.

• Static Load Capacity:

30 Lbs.

• Finish: Pre-galvanized

Cable To Beam

Fasteners

(See pages 239-240 for technical data.)

Communication & Low Voltage

Fasteners

159

Read safety/installation instruction sheets in packages before use.

UPC/Part Catalog Hook Flange Box

Number Number Size Thickness Qty.

78205128067 BCH12-E-2-4 3/4”1/8” to 1/4” 50

78205128072 BCH12-E-5-8 3/4”5/16” to 1/2” 50

78205128073 BCH12-E-9-12 3/4”9/16” to 3/4” 50

78101104803 BCH21-E-2-4 15/16”1/8” to 1/4” 50

78101104805 BCH21-E-5-8 15/16”5/16” to 1/2” 50

78101104807 BCH21-E-9-12 15/16”9/16” to 3/4” 50

78101104825 BCH32-E-2-4 2” 1/8” to 1/4” 50

78101104827 BCH32-E-5-8 2” 5/16” to 1/2” 50

78101104829 BCH32-E-9-12 2” 9/16” to 3/4” 50

• Permits fast and easy

installation on beam

flanges.

• Cable retainer clips

are included with

hooks.

• Static Load Capacity:

30 Lbs.

• Finish: Pre-galvanized

Cable To Beam

Fasteners

Allows

360°

Rotation

(See pages 239-240 for technical data.)

Communication & Low Voltage

Fasteners 160

Read safety/installation instruction sheets in packages before use.

UPC/Part Catalog Hook Flange Box

Number Number Size Thickness Qty.

78205128062 BCH12-U-2-4 3/4”1/8” to 1/4” 50

78205128064 BCH12-U-5-8 3/4”5/16” to 1/2” 50

78205128066 BCH12-U-9-12 3/4”9/16” to 3/4” 50

78101104809 BCH21-U-2-4 15/16”1/8” to 1/4” 50

78101104811 BCH21-U-5-8 15/16”5/16” to 1/2” 50

78101104813 BCH21-U-9-12 15/16”9/16” to 3/4” 50

78101104831 BCH32-U-2-4 2” 1/8” to 1/4” 50

78101104833 BCH32-U-5-8 2” 5/16” to 1/2” 50

78101104835 BCH32-U-9-12 2” 9/16” to 3/4” 50

78101104864 BCH64-U-2-4 4” 1/8” to 1/4” 25

78101104865 BCH64-U-5-8 4” 5/16” to 1/2” 25

78101104866 BCH64-U-9-12 4” 9/16” to 3/4” 25

• 360° rotation allows

cable to run in any

direction.

• Cable retainer clips

are included with

hooks.

• Static Load Capacity:

30 Lbs.

• Finish: Pre-galvanized

Cable

To Beam

Fasteners

(See pages 239-240 for technical data.)

• 360° rotation allows

cable to run in any

direction.

• Cable retainer clips

are included with

hooks.

• Static Load Capacity:

30 Lbs.

• Finish: Pre-galvanized

Cable

To Beam

Fasteners

Communication & Low Voltage

Fasteners

161

Read safety/installation instruction sheets in packages before use.

UPC/Part Catalog Hook Flange Box

Number Number Size Thickness Qty.

78205128077 BCH12-C442 3/4”1/8” to 5/8” 50

78101104823 BCH21-C442 15/16”1/8” to 5/8” 50

78101104845 BCH32-C442 2”1/8” to 5/8” 50

78101104868 BCH64-C442 4”1/8” to 5/8” 25

UPC/Part Catalog Hook Flange Box

Number Number Size Thickness Qty.

78205141850 BCH12-C442A 3/4”1/8” to 5/8” 50

78205141851 BCH21-C442A 15/16”1/8” to 5/8” 50

78205141852 BCH32-C442A 2”1/8” to 5/8” 50

78205141853 BCH64-C442A 4”1/8” to 5/8” 25

• 360° rotation allows

cable to run in any

direction.

• Cable retainer clips

are included with

hooks.

• Static Load Capacity:

30 Lbs.

• Finish: Pre-galvanized

Cable To

Beam

Fasteners

(See pages 239-240 for technical data.)

• Cable retainer clips

are included with

hooks.

• Static Load Capacity:

30 Lbs.

• Finish: Pre-galvanized

Cable To

Beam

Fasteners

Communication & Low Voltage

Fasteners 162

Read safety/installation instruction sheets in packages before use.

UPC/Part Catalog Hook Flange Box

Number Number Size Thickness Qty.

78205128074 BCH12-C2 3/4” thru 1/2” 50

78101104821 BCH21-C2 15/16” thru 1/2” 50

78101104843 BCH32-C2 2” thru 1/2” 50

78101104867 BCH64-C2 4” thru 1/2” 25

UPC/Part Catalog Hook Flange Box

Number Number Size Thickness Qty.

78205141303 BCH12-C1 3/4” thru 1/2” 50

78101195578 BCH21-C1 15/16” thru 1/2” 50

78101195560 BCH32-C1 2” thru 1/2” 50

78205141304 BCH64-C1 4” thru 1/2” 25

• BSC4 provides a

simple snap-on

attachment to strut,

eliminating the need

for tools or drilling.

• Cable retainer clips

are included with

hooks.

• Great for retrofit

applications.

• Load Capacity:

30 Lbs.

• Finish: Pre-galvanized

Cable Hook

To Strut

Attachment

(See pages 239-240 for technical data.)

Communication & Low Voltage

Fasteners

163

Read safety/installation instruction sheets in packages before use.

UPC/Part Catalog Cable Hook Box

Number Number Size Qty.

78205146574 BCH12-SC4 3/4” 50

78205146575 BCH21-SC4 15/16” 50

78205146576 BCH32-SC4 2” 50

78205146583 BCH64-SC4 4” 50

• Supports cable from

vertical flanges.

• Cable retainer clips

are included with

hooks.

• Static Load Capacity:

30 Lbs.

• Finish: Pre-galvanized

Cable To

Flange

Fasteners

• Supports cable from

angled flanges.

• Cable retainer clips

are included with

hooks.

• Static Load Capacity:

30 Lbs.

• Finish: Pre-galvanized

Cable To

Flange

Fasteners

(See pages 239-240 for technical data.)

Communication & Low Voltage

Fasteners 164

Read safety/installation instruction sheets in packages before use.

UPC/Part Catalog Hook Flange Box

Number Number Size Thickness Qty.

78205128079 BCH12-F4 3/4”1/16” to 1/4” 50

78101104817 BCH21-F4 15/16”1/16” to 1/4” 50

78101104839 BCH32-F4 2”1/16” to 1/4” 50

78101104870 BCH64-F4 4”1/16” to 1/4” 25

UPC/Part Catalog Hook Flange Box

Number Number Size Thickness Qty.

78205128078 BCH12-F3 3/4”1/16” to 1/4” 50

78101104815 BCH21-F3 15/16”1/16” to 1/4” 50

78101104837 BCH32-F3 2”1/16” to 1/4” 50

78101104869 BCH64-F3 4”1/16” to 1/4” 25

• Supports cable from

#12 wire thru 3/8”

threaded rod.

• Cable retainer clips

are included with

hooks.

• W2 series attaches to

#12 wire thru 1/4”

plain or threaded rod.

• W6 series attaches to

3/8” plain or threaded

rod.

• Static Load Capacity:

25 Lbs.

• Finish: Pre-galvanized

Cable

To Wire

and Rod

Fasteners

(See pages 239-240 for technical data.)

Communication & Low Voltage

Fasteners

165

Read safety/installation instruction sheets in packages before use.

UPC/Part Catalog Description Box

Number Number Qty.

78205146573 BCH12-W2 3/4” 50

78101104819 BCH21-W2 15/16” 50

78101104841 BCH32-W2 2” 50

78205128082 BCH12-W6 3/4” 50

78101195567 BCH21-W6 15/16” 50

78101195569 BCH32-W6 2” 50

• Supports cable above

ceiling grid and allows

360° rotation.

• Provides compliance

with the EIA/TIA

requirements.

• Permits dropwire

attachment if required.

• Cable retainer clips

are included with

hooks.

• Static Load Capacity:

30 Lbs.

• Finish: Pre-galvanized

Cable

To T-Bar

Fasteners

(See pages 239-240 for technical data.)

Communication & Low Voltage

Fasteners 166

Read safety/installation instruction sheets in packages before use.

UPC/Part Catalog Description Box

Number Number Qty.

78205128083 BCH12-A28 3/4” 50

78101104857 BCH21-A28 15/16” 50

78101104858 BCH32-A28 2” 50

• Supports cable from

computer floor post.

• Organizes cable off

the floor for a neat

installation.

• Cable retainer clips

are included with

hooks.

• Static Load Capacity:

30 Lbs.

• Finish: Pre-galvanized

Cable

To Floor

Support

Fasteners

• Supports cable from

computer floor post.

• Organizes cable off

the floor for a neat

installation.

• Cable retainer clips

are included with

hooks.

• Static Load Capacity:

30 Lbs.

• Finish: Pre-galvanized

Cable

To Floor

Support

Fasteners

(See pages 239-240 for technical data.)

Communication & Low Voltage

Fasteners

167

Read safety/installation instruction sheets in packages before use.

UPC/Part Catalog Hook Floor Post Box

Number Number Size Size Qty.

78205128085 BCH12-L1410 3/4” 1” O.D. 50

78101104851 BCH21-L1410 15/16” 1” O.D. 50

78101104855 BCH32-L1410 2” 1” O.D. 50

78101104871 BCH64-L1410 4” 1” O.D. 25

UPC/Part Catalog Hook Floor Post Box

Number Number Size Size Qty.

78205128086 BCH12-G-8-12 3/4” 1” Square 50

78101172487 BCH21-G-8-12 15/16” 1” Square 50

78101172489 BCH32-G-8-12 2” 1” Square 50

78101172491 BCH64-G-8-12 4” 1” Square 25

• Factory assembled

multi-tier fasteners

speed up installation.

• Unique design

prevents hook and

assembly rotation

when pulling cable.

• All support bars

furnished in 6063-T6

aluminum.

• Shown with optional

BCHK2 kit.

• Cable retainer clips

are included with

hooks.

• Static Load Capacity:

(per hook) 30 Lbs.

• Finish: Pre-galvanized

Double-Sided

Multi-Tier

Cable Fasteners

(See pages 239-240 for technical data.)

1D 2D

Communication & Low Voltage

Fasteners 168

Read safety/installation instruction sheets in packages before use.

UPC/Part Catalog Hook Description Box

Number Number Size Qty.

78101104758 BCH21-1D 15/16” 1 Tier, 2-Sided, 20

51/2” High

78101104762 BCH32-1D 2” 1 Tier, 2-Sided, 25

63/16” High

78101104874 BCH64-1D 4” 1 Tier, 2-Sided, 10

9” High

78101104766 BCH21-2D 15/16” 1 Tier, 2-Sided, 10

91/4” High

78101104770 BCH32-2D 2” 1 Tier, 2-Sided, 10

11” High

78101104875 BCH64-2D 4” 1 Tier, 2-Sided, 10

181/4” High

Patent #5961081

• Factory assembled

multi-tier fasteners

speed up installation.

• Available in two-six

tier assemblies.

• Unique design

prevents hook and

assembly rotation

when pulling cable.

• Cable retainer clips

are included with

hooks.

• All support bars

furnished in 6063-T6

aluminum.

• Static Load Capacity:

30 Lbs. (per hook)

Single-Sided

Multi-Tier

Cable Fasteners

2S 3S

(See pages 239-240 for technical data.)

Communication & Low Voltage

Fasteners

169

Read safety/installation instruction sheets in packages before use.

UPC/Part Catalog Hook Description Box

Number Number Size Qty.

78101104773 BCH21-2S 15/16” 2 Tier, 1-Sided, 20

11” Overall Height

78101104776 BCH32-2S 2” 2 Tier, 1-Sided, 25

123/4” Overall Height

78101195300 BCH64-2S 4” 2 Tier, 1-Sided, 10

195/16” Overall Height

78101104779 BCH21-3S 15/16” 3 Tier, 1-Sided, 10

143/4” Overall Height

78101104782 BCH32-3S 2” 3 Tier, 1-Sided, 10

171/2” Overall Height

78101195303 BCH64-3S 4” 3 Tier, 1-Sided, 10

281/16” Overall Height

Patent #5961081

(See pages 239-240 for technical data.)

Communication & Low Voltage

Fasteners 170

Read safety/installation instruction sheets in packages before use.

UPC/Part Catalog Hook Description Box

Number Number Size Qty.

78101104785 BCH21-4S 15/16” 4 Tier, 1-Sided, 10

181/2” Overall Height

78101104788 BCH32-4S 2” 4 Tier, 1-Sided, 10

213/4” Overall Height

78101197872 BCH64-4S 4” 4 Tier, 1-Sided, 10

3613/16” Overall Height

78101104791 BCH21-5S 15/16” 5 Tier, 1-Sided, 10

213/4” Overall Height

78101104794 BCH32-5S 2” 5 Tier, 1-Sided, 10

27” Overall Height

78101104797 BCH21-6S 15/16” 6 Tier, 1-Sided, 10

26” Overall Height

78101104800 BCH32-6S 2” 6 Tier, 1-Sided, 10

313/4” Overall Height

Patent #5961081

• Support bars

furnished in 6063-T6

aluminum.

Multi-Tier Cable

Hook Kits

(See pages 239-240 for technical data.)

BCH-HB

Support Bars

Shown with

BRC5

Brackets

Shown with

Cable

Hooks

• The BCH-HBA combines a

tiered support bar and angle

bracket into one piece.

• More flexibility! The BCH-HBA

can be supported from 3/16”,

1/4”, 5/16” or 3/8” rod.

• Mounts up to three BCH21 or

BCH32 cable hooks or

two BCH64 cable hooks per

side.

• Mounts up to three BRC5

MC/AC cable support brackets

per side.

• Load Capacity: 180 lbs.

Multi-Tier

Support Bar

Communication & Low Voltage

Fasteners

171

Read safety/installation instruction sheets in packages before use.

UPC/Part Catalog Description Box

Number Number Qty.

78205143819 BCH-HBA Multi-Tier Support Bar 40

UPC/Part Catalog Description Box

Number Number Qty.

78101199572 BCH-HB21 Support Bar for 20

BCH21 and BCH32

81/4” long with .281

holes

78101199574 BCH-HB64 Support Bar for 20

BCH64

135/16” long with .281

holes

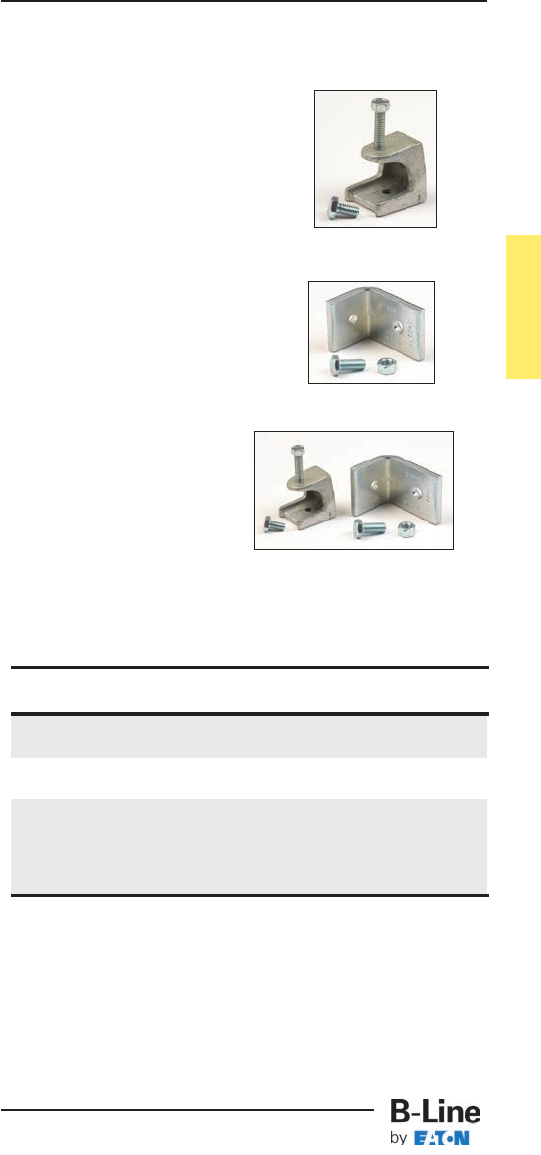

• BCHK1 includes:

Beam clamp (B444-1/4)

and 1/4”-20 x 1/2”

hex head cap screw

• BCHK2 includes:

Angle bracket (.320”Ø

and .390”Ø holes) and

1/4”-20 x 1/2” hex head

cap screw

• BCHK3 includes:

1 each BCHK1 Kit and

BCHK2 Kit

Multi-Tier

Attachment Kits

BCHK1

BCHK2

BCHK3

Communication & Low Voltage

Fasteners 172

Read safety/installation instruction sheets in packages before use.

UPC/Part Catalog Kit Flange Box

Number Number Description Thickness Qty.

78101104872 BCHK1 Beam Clamp Thru 1/2” 10

78101104860 BCHK2 Angle Bracket -- 10

78101104873 BCHK3 Beam Clamp Thru 1/2” 10

with Angle

Bracket

(swivels 360°)

• Supports low voltage

communication

cables from beams

or rods when used

with other fasteners.

•Ultimate Static

Load Capacity:

50 Lbs.

• Finish: Zinc Plated

Threaded

Bridle Rings

Lag Screw

for Wood

Beams

Communication & Low Voltage

Fasteners

173

Read safety/installation instruction sheets in packages before use.

UPC/Part Catalog Ring Thread Size x Box

Number Number Size Thread Length Qty.

78101119875 BR-16-3W 1” #10 x 9/16” 100

78101119886 BR-24-4W 11/2”1/4” x 27/32” 100

78101119876 BR-32-4W 2”1/4” x 7/8” 100

UPC/Part Catalog Ring Thread Size x Box

Number Number Size Thread Length Qty.

78101119550 BR-8-T 1/2” #10-24 x 9/16” 100

78101119555 BR-12-T 3/4” #10-24 x 9/16” 100

78101119560 BR-20-T 11/4” #10-24 x 9/16” 100

78101119570 BR-32-T 2” #10-24 x 9/16” 100

78101119565 BR-20-4T 11/4”1/4”-20 x 9/16” 100

78101119575 BR-32-4T 2” 1/4”-20 x 9/16” 100

78101119889 BR-64-4T 4” 1/4”-20 x 9/16” 50

• The convenience of a

bridle ring with the

cable-bearing surface

of a hook.

• 2” saddle is available

separately. Can be

easily attached before

or after cable

installation.

Bridle Ring

Saddles

BRS-32A

BRS-64A

BRS-32

Also available for use with the following B-Line Fasteners.

BU-9-12 BC1 BW2

BC442 BH4-F3 BA5-4T

Communication & Low Voltage

Fasteners 174

Read safety/installation instruction sheets in packages before use.

UPC/Part Catalog Thread Size x Box

Number Number Thread Length/ Qty.

Description

78205122761 BRS-32A

1/4”-20 x 7/8”

2” Ring Assembly

78205122762 BRS-64A

1/4”-20 x 1”

4” Ring Assembly

78205122759 BRS-32

2” Saddle Only

• Supports low voltage

communication

cables from beam

flanges 1/8” to 3/4”

thick.

• Pre-assembled with

2” bridle ring.

• Reduces installation

time.

• Static Load Capacity :

15 lbs.

Bridle Ring/Beam

Fastener

Assy.

• Supports low voltage

communication

cables from drop

wire.

• Pre-assembled with

2” bridle ring.

• Reduces installation

time.

• Static Load Capacity :

15 lbs.

Bridle Ring/Rod &

Wire

Fastener

Assy.

Communication & Low Voltage

Fasteners

175

Read safety/installation instruction sheets in packages before use.

UPC/Part Catalog Description Box

Number Number Qty.

78101102921 BR-32-4T-U-2-4 1/8” to 1/4” 50

78101102923 BR-32-4T-U-5-8 5/16” to 1/2” 50

78101102924 BR-32-4T-U-9-12 9/16” to 3/4” 50

UPC/Part Catalog Description Box

Number Number Qty.

78101102929 BR-32-4T-W2 #12 Wire Thru 50

1/4” Plain or

Threaded Rod

• Supports low voltage

communication cables

above the T-Bar.

• Pre-assembled with 2”

bridle ring.

• Reduces installation

time.

• For positioning only -

No Load Rating

Bridle Ring/T-Bar

Fastener Assembly

• Supports low voltage

communication cables

from beam flanges

thru 1/2” thick.

• Pre-assembled with 2”

bridle ring.

• Reduces installation

time.

• Static Load Capacity:

15 lbs.

Bridle Ring/Beam

Fastener Assembly

Communication & Low Voltage

Fasteners 176

Read safety/installation instruction sheets in packages before use.

UPC/Part Catalog Description Box

Number Number Qty.

78101102934 BR-32-4T-A6 2” Ring Size 50

UPC/Part Catalog Description Box

Number Number Qty.

78101102937 BR-32-4T-C1 2” Ring Size 50

Accessories

Fasteners

177

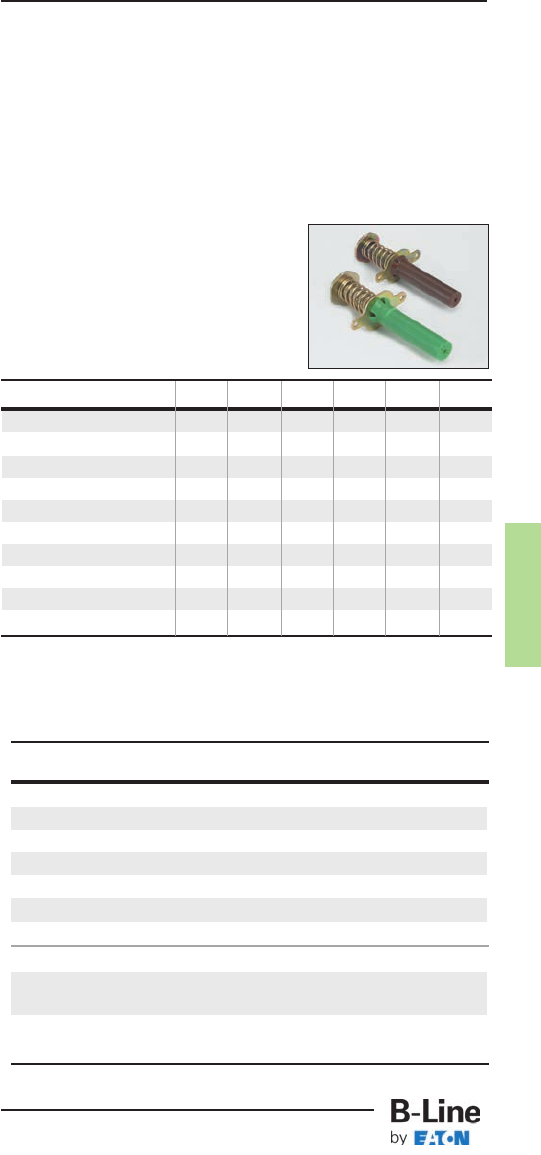

• Allows for rigid

attachment of pipe

sleeves to wall and

floor forms for

concrete pouring.

• Accommodates

Schedule 40,

Schedule 80, or 5/16"

and smaller wall

thickness.

Pipe Sleeve

Fasteners

Accessories

Fasteners 178

Read safety/installation instruction sheets in packages before use.

• Push Nuts designed

for use with plain

rod.

• "U" Nuts provide

1/4"-20 thread

impression for

unthreaded hole.

• No installation tools

required.

Accessory Nuts

BN-2, BN-4,

BN-6

Push Nuts BN1

"U" Nuts With

Thread Impression

UPC/Part Catalog Sleeve Wall Box

Number Number Diameter Thickness Qty.

78101118285 BD40 All Dia. 5/16” & Under 100

78101118285 BD40 2” to 6” Schedule 40 100

Pipe

UPC/Part Catalog Rod/Wire Static Load Box

Number Number Size Capacity Qty.

78101110115 BN-2 #8 Wire 100 lbs. thru 100

3/8” hole

78101119120 BN-4 1/4” Plain 100 lbs. thru 100

Rod 3/8” hole

78101119125 BN-6 3/8” Plain 200 lbs. thru 100

Rod 1/2” hole

78101119110 BN1 1/4” Threaded 50 lbs. on 100

Rod 9/32” hole

• Attaches signal

reference grid wire

to computer floor

posts.

• Fits #8 thru #4

stranded wire. (.146”

O.D. thru .232” O.D.).

• Fits 3/4" to 1" round

or square posts.

Reference Wire

Fasteners

BD2

BD4

BA28B

• Brackets are easily

attached with screws

or drive pins to

wood, concrete or

steel structures.

• Brackets are

adaptable for use

with a wide variety of

fasteners, wires, “S”

hooks and hangers.

Read safety/installation instruction sheets in packages before use.

Accessories

Fasteners

179

UPC/Part Catalog Description Box

Number Number Qty.

78101101659 BM5 Single Reference 100

Grid Wire Fastener

UPC/Part Catalog Description Box

Number Number Qty.

78101101686 BD2 Flat Bracket 100

78101118280 BD4 Offset Bracket 100

78101101449 BA28B Angle Bracket 50

Accessories

Fasteners 180

Read safety/installation instruction sheets in packages before use.

Light Fixture

Hangers

BH15 BH16

• For hanging industrial

class fluorescent

lighting fixtures.

• Use with Jack Chain

and “S” Hooks.

• Static Load Capacity:

29 Lbs.

• Finish: Zinc Plated

• For support of light

fixtures and signs.

• Static Load Capacity:

29 Lbs.

• Finish: Zinc Plated

Jack Chain &

“S” Hooks

BH9

BH9-10

BH10

UPC/Part Catalog Description Box

Number Number Qty.

78101101236 BH15 Side Mount 100

Fluorescent Light

Fixture Hanger

78101101237 BH16 Top Mount 100

Fluorescent Light

Fixture Hanger

UPC/Part Catalog Description Box

Number Number Qty.

78101118850 BH9 #12 Single 100 ft.

Jack Chain

78101102901 BH9-10 #10 Single 100 ft.

Jack Chain

78101118855 BH10 #11 “S” Hook 50

• KwikWire™system

replaces jack chain or

ATR to support

lighting, ductwork,

cable tray, etc.

• Can be quickly installed

around beams - No

drilling required.

• Ideal for sloped ceilings

- can hang objects at

up to 60° angles.

• Simple height

adjustments are made

by releasing locking

tab, no tools required.

• Spools of wire can be

cut to length in field,

reducing waste and up

front planning.

KwikWire™Clamps

KwikWire Clamp

Working Loads*

Clamp Wire Lbs.

Part No. Rope Safety

Dia. Factor 5

1/16” 0-75

BKC100 3/32” 25-150

3/32” 25-150

BKC200 1/8” 25-250

3/16” 50-640

* Working loads shown are for

hanging vertically.

For suspending at 15°, 30°, 45°

or 60° angles from vertical use

the following percentage of

the working loads from the

chart:

15° = 96%, 30° = 86%,

45° = 70%, 60° = 50%

12 435

1. Pass the wire through the KwikWire Clamp

2. Loop wire through/around support

3. Pass wire back through KwikWire Clamp

4. Push wire through clamp leaving 2” to 3” tail, then apply tension on wire

5. To adjust, remove tension and pull wire slightly to disengage teeth, slide

adjustment pin in direction shown by arrow to release wire.

Read safety/installation instruction sheets in packages before use.

Accessories

Fasteners

181

UPC/Part Catalog For Use With Wire Box

Number Number Rope Diameters Qty.

78205140719 BKC100 1/16” & 3/32” 100

78205140723 BKC200 1/8” & 3/16” 50

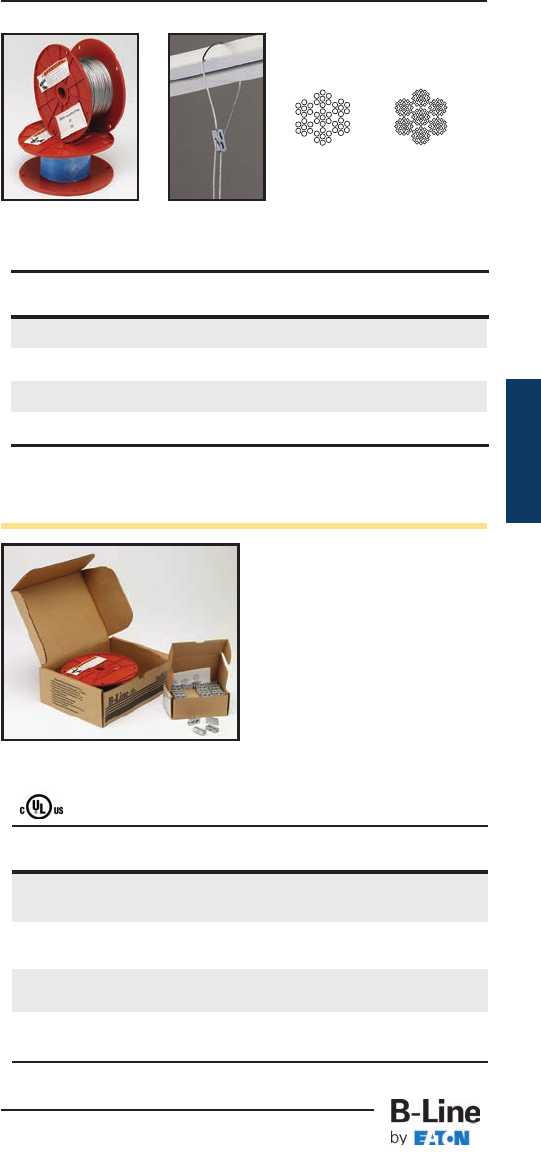

• KwikPak™ includes a

supply of kwik-clamps

and a spool of wire rope.

• KwikPak are shipped in

a specially designed

dispenser box to ease

field cutting of wire.

KwikPak™

7 x 7 7 x 19

KwikWire™Wire Rope

Accessories

Fasteners 182

Read safety/installation instruction sheets in packages before use.

UPC/Part Catalog Kit Includes Box

Number Number Qty.

78205140749 BKP10063 BKC100 (100 pcs.) 1

1/16”Ø Wire Rope (500 ft.)

78205140751 BKP10094 BKC100 (100 pcs.) 1

3/32”Ø Wire Rope (500 ft.)

78205140761 BKP20125 BKC200 (50 pcs.) 1

1/8”Ø Wire Rope (500 ft.)

78205140763 BKP20188 BKC200 (50 pcs.) 1

3/16”Ø Wire Rope (250 ft.)

UPC/Part Catalog Wre Working Spool

Number Number Diameter Load - Lbs. Qty.

78205140725 BKW063 (1)

1/16”

96 500 ft.

78205140727 BKW094 (1)

3/32”

184 500 ft.

78205140733 BKW125 (1)

1/8”

340 500 ft.

78205140734 BKW188 (2)

3/16”

840 250 ft.

(1) Wire rope construction Type 7 x 7

(2) Wire rope construction Type 7 x 19

Uncoated Galvanized Wire

KwikWire™Hanger

• KwikWire™hanger

combines the versatility of

a bolt with an adjustable

wire rope solution.

• Can be quickly installed

in existing anchors or

metal brackets with a nut.

• Ideal for supporting light

fixtures, wire basket cable

tray, HVAC ducts, and

sign/banner supports.

• See page 182 for wire

rope spools.

123

456

1. Screw KwikWire Hanger into installed hanger support

2. Push wire up through the bottom of KwikWire Hanger

3. Continue pushing through until 1/4” minimum is extending out the

side of the KwikWire Hanger

4. To adjust up - pull or push more wire through KwikWire Hanger

5. To adjust down - push up on bottom of KwikWire Hanger and allow

wire to feed down

6. When hanging the wire is complete, cut off any excess cable wire if desired

Read safety/installation instruction sheets in packages before use.

Accessories

Fasteners

183

UPC/Part Catalog Thread Wire Rope Load Box

Number Number Size Diameter SF5 Qty.

78205158764 BKF100-4 1/4”-20 1/16” 45 lbs. 100

3/32” 90 lbs.

78205158765 BKF100-6 3/8”-16 1/16” 45 lbs. 100

3/32” 90 lbs.

KwikWire™Accessories

• Available as a wire rope with loop termination only or

as a ready-to-use kit with a BKC100 clamp.

• Available in lengths of 40”, 80”, 120”, 180”, 240”,

and 360”.

Loop Termination

• Ideal for use with ARS, ARC, ADI, ACPW, or ACPD

anchors.

• Available as a wire rope with bolt termination only

or as a ready-to-use kit with a BKC100 clamp.

• Available in lengths of 40”, 80”, 120”, 180”, 240”,

and 360”.

• Available in single, double (Y), and triple (3) styles

• All double (Y) and triple (3) styles are non-stock,

consult B-Line for lead times

Bolt Loop Termination

• Available as a wire rope with angle bracket termination

only or as a ready-to-use kit with a BKC100 clamp.

• Available in lengths of 40”, 80”, 120”, 180”, 240”,

and 360”.

Angle Bracket Termination

Single & “Y” Style Hook Termination

• Hook designed to accept up to 3/8” diameter wire.

• Available as a wire rope with hook termination only

or as a ready-to-use kit with a BKC100 clamp.

• Available in lengths of 40”, 80”, 120”, 180”, 240”,

and 360”.

• Available in single, double (Y), and triple (3) leg

styles

Single & “Y” Style Toggle Termination

• Available as a wire rope with toggle termination only

or as a ready-to-use kit with a BKC100 clamp.

• Available in lengths of 40”, 80”, 120”, 180”, 240”,

and 360”.

• Available in single, double (Y), and triple (3) leg styles

• All triple (3) leg styles are non-stock, consult B-Line

for lead times

BKL Series

BKH Series

BKYH Series

BKT Series

BKYT Series

BKB Series

BKA Series

For additional options, refer to KwikWire Brochure (KWHS)

Accessories

Fasteners 184

Read safety/installation instruction sheets in packages before use.

Application Photos

KwikWire™ System Recommendations:

• Do not exceed the safe working load of the products shown in

their charts

• All characteristics of KwikWire must be used with wire supplied

by B-Line

• Do not use for overhead lifting or hoisting

• Do not use if cable or components are visibly distorted or worn,

remove damaged cable end prior to inserting in KwikWire™ Clamp

• Do not paint cable near working area of KwikWire Clamp connector

• Do not apply lubricant

• Keep product clean and free of dirt

• Do not use on coated wire rope

• Do not use in chlorinated or caustic atmospheres

• For use in dry locations

• Cooper’s BKCC tool is recommended for cutting wire rope to

prevent fraying

• For use on vertical applications only

BKCP B601-62 BKCC

KwikWire™Accessories

Read safety/installation instruction sheets in packages before use.

Accessories

Fasteners

185

UPC/Part Catalog Description Box

Number Number Qty.

78205140766 BKCP Air Duct Corner 100

Protector

78101156059 B601-62 Air Duct Support 50

78205140297 BKCC * Wire Rope Cutter 1

Danger: Never use cutters on energized circuits, wire, or cable.

Note: Additional accessories include BE Series (pg. 96),

BF Series (pgs. 125 & 129), and BPNA Series (pg. 139)

* Not for use of cutting 3/16” diameter cable.

Accessories

Fasteners 186

Read safety/installation instruction sheets in packages before use.

UPC/Part Catalog Description Box

Number Number Qty.

78101101687 SHHMS 1/4x1/21/4”-20 x 1/2” 100

Slotted Hex Head

Machine Screw

UPC/Part Catalog Description Box

Number Number Qty.

78101142103 MSQN1/41/4”-20 Machine 100

Square Nut

UPC/Part Catalog Description Box

Number Number Qty.

78101110675 BWHS-9 Sheet Metal 1000

Screw #8 x 9/16”

Note: BWHS-9 can be used with all fasteners requiring

attachments with sheet metal screws.

UPC/Part Catalog Description Box

Number Number Qty.

78101104925 BWHS-9D #8 x 1/2” 1000

Self-Drilling

Sheet Metal Screw

Note: BWHS-9D can be used with all fasteners requiring attachment

with sheet metal screws except BB2-16, BB2-16D,

BB2-24 & BB2-24D.

Anchors

Fasteners

187

Glossary

Prefix - Description Screw Dia. Length Suffix

ACB - Concrete Anchor Bolt 4 - #4 75 - 3/4” AN - Acorn Nut

ACPD - Bang-IT 6 - #6 81 - 13/16” CH - Combo Head

ACPW - Wood-Knocker 8 - #8 87 - 7/8” F - Flat

ACS - Concrete Screw 10 - #10 100 - 1” FL - Flanged

ADA - Drive Anchor 12 - 1/8” 118 - 13/18” H - Hex

ADE - Double Expansion Anchor 18 - 3/16” 125 - 11/4” HN - Hex Nut

ADH - Hollow-Base Drop-IN 25 - 1/4” 150 - 11/2” HS - Hole Saw

ADI - Drop-In 31 - 5/16” 175 - 13/4” K - Kit

ADM - Mini Drop-In 37 - 3/8” 187 - 17/8” M - Mushroom

ADN - Drive Nail 50 - 1/2” 200 - 2” OH - Oval Head

AMS - Machine Screw 62 - 5/8” 225 - 21/4” PH - Pan Head

APC - Conical Anchor 75 - 3/4” 250 - 21/2” RH - Rod Hanger

APD - Plastic Driller 87 - 7/8” 275 - 23/4” RS - Slotted

APDM - Plastic Driller - Mini 300 - 3” Round Head

APH - Plastic Hollow Wall Anchor 325 - 31/4” SS4 - 304

APS - Plastic Screw Anchor 350 - 31/2”Stainless Steel

ARC - Rapid Rod™Concrete 375 - 33/4” T - Tool

ARS - Rapid Rod™Steel 400 - 4” WH - Wire

ARW - Rapid Rod™Wood 425 - 41/4”Hanger

ASA - Sleeve Anchor 450 - 41/2”

ASE - Single Expansion Anchor 500 - 5”

ATB - Toggle Bolt 525 - 51/4”

ATM - Self-Tapping Machine 550 - 51/2”

Screw Anchor 600 - 6”

AWA - Wedge Anchor 700 - 7”

AWSD - Seismic Wedge Anchor

AWS - Wall Screw

AZD - Zinc Driller

AZDM - Zinc Driller-Mini

Anchors

Fasteners 188

Read safety/installation instruction sheets in packages before use.

• One-piece, all steel threaded fastener system for

suspending steel threaded rod.

• Suitable for overhead installations such as suspending

cable tray, pipe hangers, strut and conduit.

• Side Mount (SW) available for side mounting applications.

• Lower in-place cost, when compared to beam clamps,

lag bolts and drop-ins.

• Steel rapid rods can be installed with a screw gun or

hammer drill.

• UL & FM approved.

• Made of Zinc Plated carbon steel.

Rapid Rod™Hangers

Steel Rapid Rod - Data

Point Style #3 #5

Self-Drilling Range (in.) 20 ga. - 3/16 3/16 - 1/2

Screw Size (UNC) * 1/4”-20 1/4”-20

Thread Length (in.) * 13/16 31/32

Steel Rapid Rod - Load Data

Rod/ Minimum Steel Gauge Thickness

Anchor

Size 20 (.036”) 18 (.048”) 16 (.060”) 14 (.075”) 12 (.105”) 3/16”1/4”

1/4100 155 245 290 390 800 1260

1/4 w/nut 390 390 440 440 510 960 510

3/8100 155 245 290 390 490 490

3/8 w/nut 365 365 365 365 365 365 365

1/2120 175 230 390 510 820 1260

Rapid Rod Hangers

Steel

Loads shown for ASTM A36 steel beams and ASTM A572 steel purlins

include a safety factor of 4.

For UL & FM listings, steel rapid rod must be installed with a retaining nut.

UL & FM load rating for 3/8” rapid rod is 365 lbs. and can support up to a

maximum 4” pipe.

UL & FM load rating for 1/2” rapid rod is 900 lbs. and can support up to a

maximum 6” pipe.

* Dimensions for self-drilling (embedded) portion of anchor.

Anchors

Fasteners

189

Read safety/installation instruction sheets in packages before use.

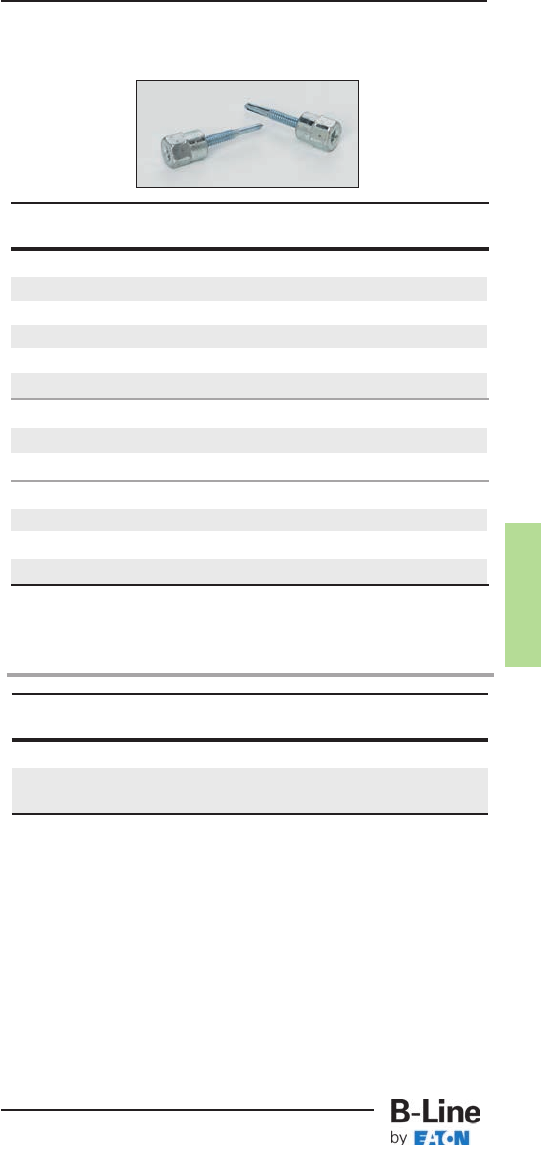

Rapid Rod™Hangers

Anchors

Fasteners 190

Read safety/installation instruction sheets in packages before use.

UPC/Part Catalog Tool Box

Number Number Description Qty.

Tool

78205153287 7187 Universal Steel 1

& Wood Socket

UPC/Part Catalog Rod Shank Size Box

Number Number Size & Length Qty.

Steel Rod Hanger - Point Style #3 For Purlins

78205153317 ARS-25-100 1/4”1/4” x 1” 100

78205153318 ARS-37-200 3/8”1/4” x 2” 100

78205153320 ARS-37-100HN** 3/8”1/4” x 1” w/nuts 100

78205153321 ARS-37-150 3/8”1/4” x 11/2” 100

78205153322 ARS-37-150HN** 3/8”1/4” x 11/2” w/nuts 100

Steel Rod Hanger - Side Mount - Point Style #3 For Purlins

78205153323 ARS-25-100SW 1/4”1/4” x 1” 100

78205153324 ARS-37-100SW 3/8”1/4” x 1” w/nuts 100

Steel Rod Hanger - Point Style #5 For Purlins

78205153325 ARS-25-150HD 1/4” #12-24 x 11/2” 100

78205153326 ARS-37-150HDHN** 3/8”

#12-24 x 11/2” w/nuts

100

78205153327 ARS-50-150HDHN** 1/2”

#12-24 x 11/2” w/nuts

100

** For UL & FM listings, steel rapid rod should be installed with a

retaining nut.

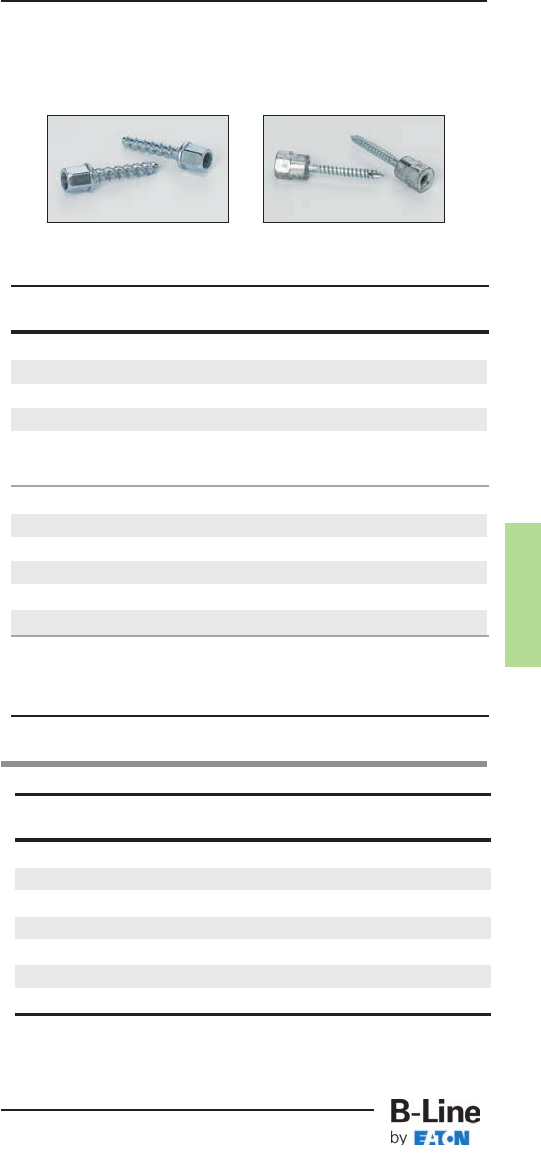

• One-piece, all steel threaded fastener system for

suspending steel threaded rod.

• Suitable for overhead installations such as suspending

cable tray, pipe hangers, strut and conduit.

• Side Mount (SW) available for side mounting applications.

• Lower in-place cost, when compared to beam clamps,

lag bolts and drop-ins.

• Wood rapid rods can be installed with a screw gun or

hammer drill.

• Concrete Rapid Rod hangers can be installed with an

adjustable torque, battery powered screw gun or hammer

drill.

• UL & FM approved.

• Made of Zinc Plated carbon steel.

Rapid Rod™Hangers

Wood Rapid Rod - Data 1/4” Thread 3/8” Thread

Forming Forming

Pre-Drill Diameter (in.) 1/81/8

Point Style Type 17 Type 17

Wood Rapid Rod - Embedment & Load Data

Rod/Anchor

Size Embedment Depth Fir Pine Spruce

1/41” 170 160 160

3/82” 375 375 375

1/221/2” 665 775 775

Rapid Rod Hangers - Wood

Concrete Rapid Rod - Data 1/4”3/8”1/2”

ANSI Drill Bit (in.) 1/41/43/8

Thread Length (in.) 11/813/821/2

Min. Embedment Depth (in.) 11/411/223/4

Load Capacity Tension (lbs.) * 485 650 1510

Load Capacity Shear (lbs.) * 610 660 1580

Rapid Rod Hangers - Concrete

Minimum load ratings are based on a safety factor of 4.

UL approved load capacity for 3/8” rod sizes and 1/4” screw size is 260 lbs.,

maximum 3” pipe. UL approved load capacity for 3/8” rod sizes and 3/8” screw

size is 375 lbs., maximum 4” pipe. FM approval only applies to 3/8” x 21/2”

screw size. Approved for 365 lbs., up to 4” pipe.

* Based on concrete compression strength of 4000 psi using applied safety

factor of 4.0. For additional loading information contact factory.

FM approved load capacity for 3/8” anchor is 365 lbs., maximum 4” pipe

size. FM approved load capacity for 1/2” anchor is 950 lbs., maximum

8” pipe size.

Anchors

Fasteners

191

Read safety/installation instruction sheets in packages before use.

Rapid Rod™Hangers

ARC Series ARW Series

Anchors

Fasteners 192

Read safety/installation instruction sheets in packages before use.

UPC/Part Catalog Rod Shank Size Box

Number Number Size & Length Qty.

Concrete Rod Hanger - ANSI Wedge-Bolt OT Thread Shank Style

78205153328 ARC-25-125 1/4”1/4” x 1” 100

78205153329 ARC-37-150 3/8”1/4” x 11/2” 100

78205153330 ARC-50-275 1/2”3/8” x 23/4” 50

For side mount concrete applications use ARW-25-100SW or

ARW-37-200SW with 1/4” drill bit.

Wood Rod Hanger - Point Style Type 17

78205153331 ARW-25-200 1/4”1/4” x 2” 100

78205153332 ARW-37-100 3/8”1/4” x 1” 100

78205153333 ARW-37-200 3/8”1/4” x 2” 100

78205153334 ARW-37-250 3/8”3/8” x 21/2” 100

78205153335 ARW-50-250 1/2”1/2” x 21/2” 100

Wood Rod Hanger - Side Mount - Point Style Type 17

78205153336 ARW-25-100SW 1/4”1/4” x 1” 100

78205153337 ARW-37-200SW 3/8”1/4” x 2” 100

UPC/Part Catalog Tool Box

Number Number Description Qty.

Tools

78205153287 7187

Universal Steel & Wood Socket

78205153288 7195

1/4" Concrete Socket

78205153289 7197

3/8" Concrete Socket

78205153290 7198

1/2" Concrete Socket

78205153360 5874

Concrete Tapper Sleeve Assy.

78205153361 5866

1/4" X 6" Hex Shank SDS Drill Bit

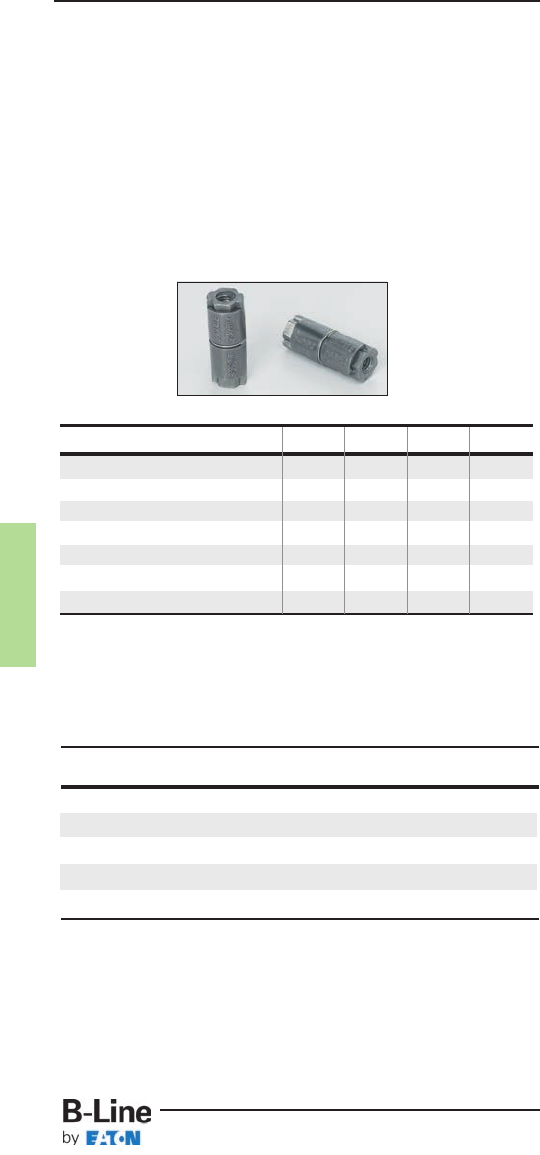

• Designed for use in solid concrete.

• Can be used for overhead applications such as

suspending cable tray, strut, pipe supports and lighting.

• Flanged (lipped) version installs flush for easy

inspection and standardizes rod heights.

• Smooth wall drop-in can be installed

flush mounted or below the base

material surface.

• UL & FM approved.

• Available in Zinc Plated finish

or Stainless Steel.

Drop-in Anchors

Drop-In Anchors - Data 1/4”3/8”1/2”5/8”3/4”

ANSI Drill Bit Size (in.) 3/81/25/87/81

Max. Tightening Torque (ft-lbs) 5 10 20 40 80

Thread Size (UNC) 1/4”-20 3/8”-16 1/2”-13 5/8”-11 3/4”-10

Min. Embedment Depth (in.) 11

9/16 22

1/233/16

Load Capacity Tension (lbs) * 495 1045 1440 1860 3600

Load Capacity Shear (lbs) * 530 1145 1600 3095 3920

* Based on concrete compression strength of 4000 psi using applied safety

factor of 4.0. For additional loading information contact factory.

Smooth Wall

FlangedSetting Tool

Anchors

Fasteners

193

Read safety/installation instruction sheets in packages before use.

UPC/Part Catalog Rod Anchor Thread Box

Number Number Size Length Depth Qty.

Drop-In Anchor - Smooth Wall - Steel

78101103218 ADI-25 1/4” 1” 7/16” 100

78101103219 ADI-37 3/8”1

9/16”5/8” 50

78101103220 ADI-50 1/2” 2” 13/16” 50

78101103221 ADI-62 5/8”2

1/2”1

13/16” 25

78101103222 ADI-75 3/4”3

3/16”1

3/8” 10

Drop-In Anchor - Smooth Wall - StainlessSteel

78101103223 ADI-25SS4 1/4” 1” 7/16” 100

78101103224 ADI-37SS4 3/8”1

9/16”5/8” 50

78101103226 ADI-50SS4 1/2” 2” 13/16” 50

78101103227 ADI-62SS4 5/8”2

1/2”1

13/16” 25

78101103228 ADI-75SS4 3/4”3

3/16”1

3/8” 10

Drop-In Hanger - Flanged - Steel

78205153297 ADI-25FL 1/4” 1” 7/16” 100

78205153298 ADI-37FL 3/8”1

9/16”5/8” 50

78205153299 ADI-50FL 1/2” 2” 13/16” 50

UPC/Part Catalog Rod Pin Box

Number Number Size Length Qty.

Setting Tools

78101103229 6305 1/4”39/64” 1

78101103231 6307 3/8”61/64” 1

78101103232 6309 1/4”1

3/16” 1

78101103233 6311 1/4”1

5/15” 1

78101103234 6313 1/4”1

61/64” 1

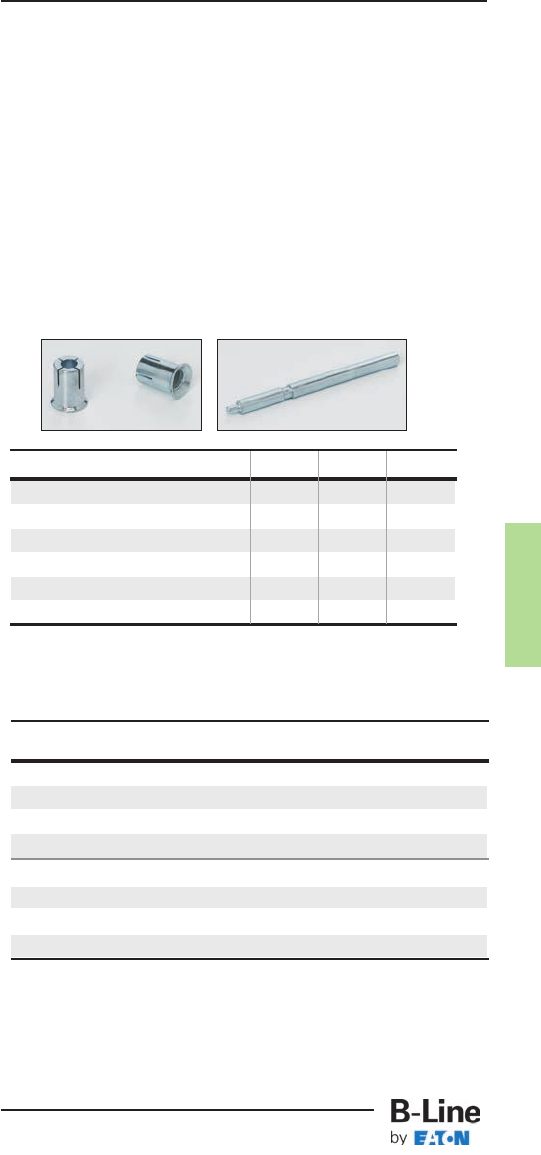

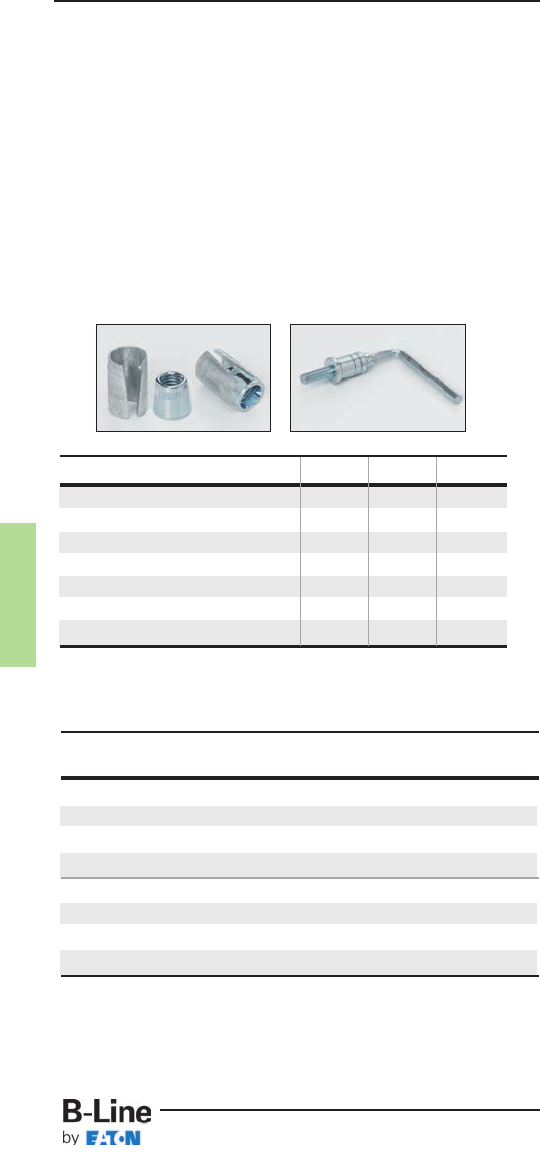

• Carbon steel machine bolt anchor for use in shallow

embedment applications.

• Can be used in solid concrete and precast hollow core

plank, in addition to post-tensioned concrete slabs and

concrete pours over metal deck.

• Can be used for overhead applications such as suspending

cable tray, strut, pipe supports and lighting.

• Flanged (lipped) version installs flush for easy inspection

and standardizes rod heights.

• Setting tool scores flange when set to verify proper

expansion

• Available in zinc plated finish.

Mini Drop-in Anchors

Mini Drop-In Anchors - Data 1/4”3/8”1/2”

ANSI Drill Bit Size (in.) 3/81/25/8

Max. Tightening Torque (ft-lbs) 3510

Thread Size (UNC) 1/4”-20 3/8”-16 1/2”-13

Min. Embedment Depth (in.) 5/83/41

Load Capacity Tension (lbs) * 350 530 840

Load Capacity Shear (lbs) * 415 1055 1220

* Based on concrete compression strength of 4000 psi using applied safety

factor of 4.0. For additional loading information contact factory.

Setting ToolAnchor

Anchors

Fasteners 194

Read safety/installation instruction sheets in packages before use.

UPC/Part Catalog Rod Thread Box

Number Number Size Depth Qty.

Mini Drop-In Anchor - Steel

78205153300 ADM-25 1/4”3/8” 100

78205153302 ADM-37 3/8”13/32” 50

78205153302 ADM-50 1/2”5/8” 50

Setting Tools

78205153301 6336 1/4” -- 1

78205153303 6323 3/8” -- 1

78205153305 6338 3/8” -- 1

• For use in hollow base materials such as hollow concrete

block, brick with weep holes, and precast hollow core

plank.

• Can also be used in solid base materials.

• Smooth wall drop-in can be installed flush mounted or

below the base material surface.

• Available in Zinc Plated finish.

Hollow Base Drop-in Anchors

Hollow Base Drop-In - Data 1/4”3/8”1/2”

ANSI Drill Bit Size (in.) 3/85/83/4

Max. Tightening Torque (ft-lbs) 5 10 20

Thread Size (UNC) 1/4”-20 3/8”-16 1/2”-13

Thread Length In Cone (in.) 3/85/83/4

Min. Embedment Depth (in.) 3/411

1/2

Load Capacity Tension (lbs) * 285 520 1005

Load Capacity Shear (lbs) * 300 640 1005

* Based on concrete compression strength of 4000 psi using applied safety

factor of 4.0. For additional loading information contact factory.

Setting ToolAnchor

Anchors

Fasteners

195

Read safety/installation instruction sheets in packages before use.

UPC/Part Catalog Rod Overall Sleeve Box

Number Number Size Length Length Qty.

Hollow Base Drop-In

78205153291 ADH-25 1/4”7/8”5/8” 100

78205153293 ADH-37 3/8”1

5/16”15/16” 50

78205153294 ADH-50 1/2”1

3/4”1

1/4” 50

Setting Tools

78205153292 9323 1/4” -- -- 1

78205153294 9343 3/8” -- -- 1

78205153296 9353 1/2” -- -- 1

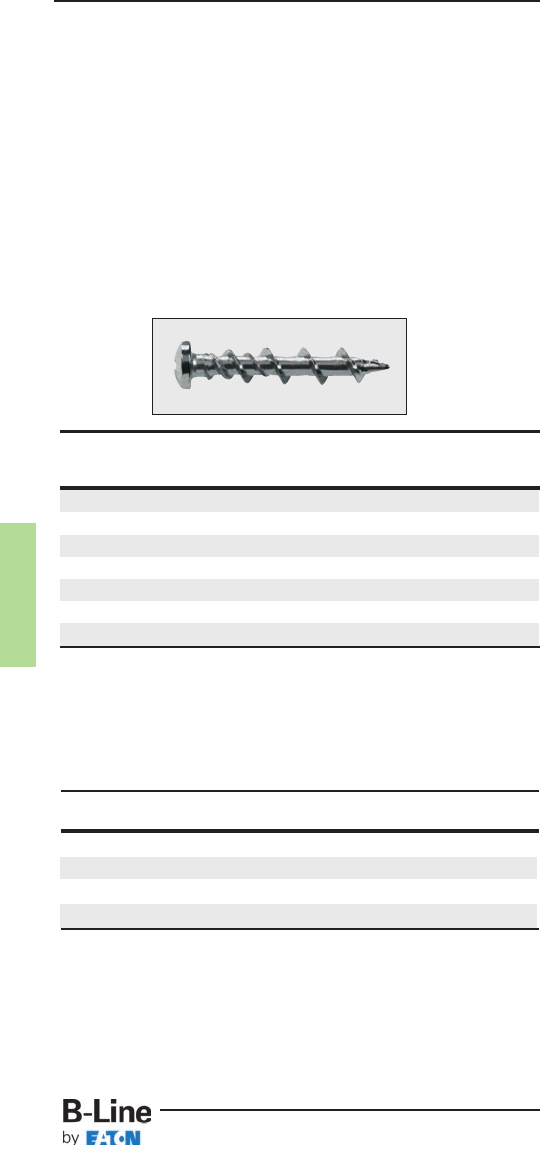

• For use in racking, shelving, material handling, structural

anchorage, masonry and food & beverage facilities.

• One piece heavy-duty anchor with a finished hex-head.

• Fits standard fixture hole dimensions in fabricated steel.

• Fast installation and immediate loading reduces downtime.

• For proper performance, screw anchors must be installed

with the corresponding bits. The bits have a matched

tolerance range designed to provide optimum performance.

Concrete Screw Bolts

Concrete Screw Bolts - Data 1/4”3/8”

ACB Drill Bit Size (in.) 1/43/8

Concrete Screw Tolerance Range (in.) 0.255 - 0.259 0.385 - 0.389

Min. Embedment Depth (in.) 11

1/2

Load Capacity Tension (lbs) *

335 630

Load Capacity

Shear (lbs) * 520 1170

* Based on concrete compression strength of 4000 psi in uncracked concrete

using applied safety factor of 4.0. For additional loading information contact

factory.

For ultimate strength design data in cracked and uncracked concrete, see

ICC-ES ESR-2526.

Anchors

Fasteners 196

Read safety/installation instruction sheets in packages before use.

UPC/Part Catalog Drill Usable Overall Box

Number Number Size Length Length Qty.

Drill Bits - Straight Shank Type

78205153254 1372 1/4” 4” 6” 1

78205153256 1380 3/8” 4” 6” 1

Drill Bits - SDS Type

78205153255 1314 1/4” 4” 6” 1

78205153257 1316 3/8” 4” 6” 1

Note: Matched tolerance bits must be used for installation.

UPC/Part Catalog Anchor Thread Box

Number Number Length Length Qty.

Screw Type Anchor - Steel

78205153247 ACB-25-175 1/4” x 13/4”1

5/8” 100

78205153248 ACB-25-225 1/4” x 21/4” 2” 100

78205153249 ACB-25-300 1/4” x 3” 23/4” 100

78205153250 ACB-37-175 3/8” x 13/4”1

1/2” 50

78205153251 ACB-37-250 3/8” x 21/2”2

1/4” 50

78205153252 ACB-37-300 3/8” x 3” 23/4” 50

78205153253 ACB-37-400 3/8” x 4” 33/4” 50

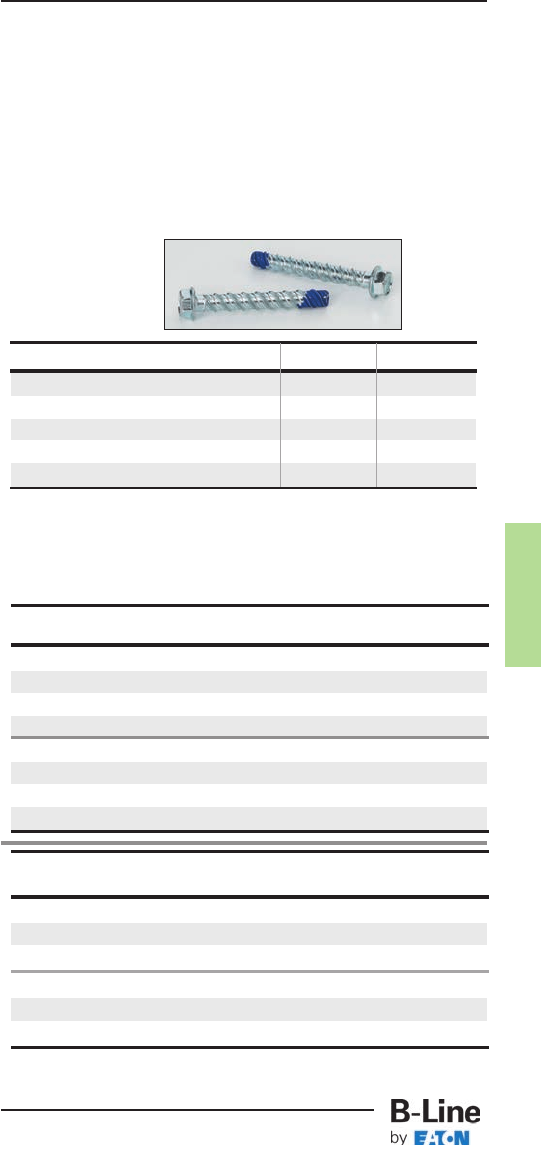

• Light to medium duty anchor for use in concrete, masonry

block and brick base materials.

• Concrete screws are engineered with matched tolerance

bits

and installation tools to optimize performance.

• High low thread design for greater stability and grip.

• No hole spotting required.

• One drill bit is packaged in each box of concrete screws.

• Blue fluorocarbon coating for corrosion resistance.

Concrete Screws

Hex Head - Data 3/16”1/4”

ANSI Drill Bit Size (in.) 5/32 3/16

Fixture Clearance Hole (in.) 1/45/16

Head Height (in.) 7/64 9/64

Head Width (in.) 1/45/16

Washer O.D. (in.) 11/32 13/32

Washer Thickness (in.) 1/32 1/32

Hex Driver (in.) 1/45/16

* Based on concrete compression strength of 4000 psi using applied safety

factor of 4.0. For additional loading information contact factory.

Flat Head - Data 3/16”1/4”

ANSI Drill Bit Size (in.) 5/32 3/16

Fixture Clearance Hole (in.) 1/45/16

Phillips Head O.D. (in.) 3/81/2

Phillips Head Height (in.) 9/64 3/16

Phillips Bit Size 23

Embedment Nominal Anchor Dia. / Loading*

Depth

3/16” Tension 3/16” Shear 1/4” Tension 1/4” Shear

1” 90 175 265 205

11/4” 175 230 335 355

13/8” 215 230 370 385

11/2” 255 230 405 355

13/4” 375 235 435 370

Flat Head

Straight Shank Drill Bit SDS Hex Drill Bit

Hex Head

Anchors

Fasteners

197

Read safety/installation instruction sheets in packages before use.

Concrete Screws

Anchors

Fasteners 198

Read safety/installation instruction sheets in packages before use.

UPC/Part Catalog Size Box

Number Number Qty.

Hex Head Concrete Screws

78101103342 ACS-18-125H

3/16" x 11/4"

100

78101103343 ACS-18-175H

3/16" x 13/4"

100

78101103344 ACS-18-225H

3/16" x 21/4"

100

78101103346 ACS-18-275H

3/16" x 23/4"

100

78101103347 ACS-18-325H

3/16" x 31/4"

100

78101103348 ACS-18-375H

3/16" x 33/4"

100

78101103349 ACS-18-400H

3/16" x 4"

100

78101103342 ACS-25-125H

1/4" x 11/4"

100

78101103343 ACS-25-175H

1/4" x 13/4"

100

78101103344 ACS-25-225H

1/4" x 21/4"

100

78101103346 ACS-25-275H

1/4" x 23/4"

100

78101103347 ACS-25-325H

1/4" x 31/4"

100

78101103348 ACS-25-375H

1/4" x 33/4"

100

78101103349 ACS-25-400H

1/4" x 4"

100

Flat Head Concrete Screws

78205153259 ACS-18-125F

3/16" x 11/4"

100

78205153260 ACS-18-175F

3/16" x 13/4"

100

78205153261 ACS-18-225F

3/16" x 21/4"

100

78205153262 ACS-18-275F

3/16" x 23/4"

100

78205153263 ACS-25-125F

1/4" x 11/4"

100

78205153264 ACS-25-175F

1/4" x 13/4"

100

78205153265 ACS-25-225F

1/4" x 21/4"

100

78205153266 ACS-25-275F

1/4" x 23/4"

100

UPC/Part Catalog Dsecription Box

Number Number Qty.

Setting Tool

78101103453 2791

ConcreteScrew Tool Kit

100

UPC/Part Catalog Bit Size Usable Box

Number Number Length Qty.

Straight Shank Drill Bits

78205153267 2782

5/32” x 41/2” 3”

78205153269 2786

3/16” x 41/2” 3”

SDS Hex Drill Bits

78205153268 2793

5/32” x 5” 3”

78205153270 2796

3/16” x 5” 3”

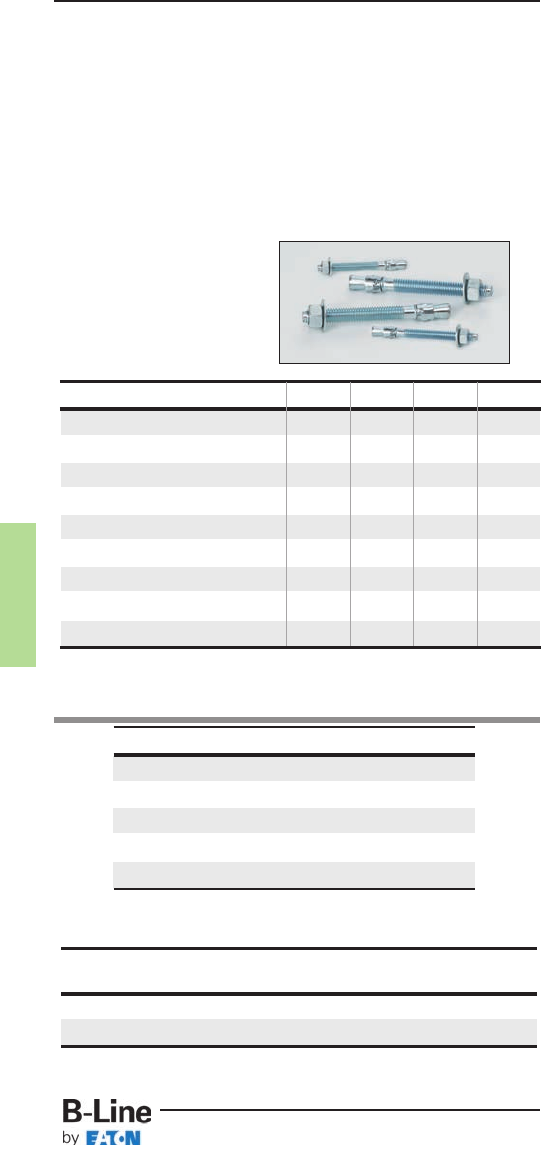

• Heavy and medium duty all purpose anchor.

• For use in solid concrete and grout filled block.

• Anchors can be installed through the fixture, no need

for hole spotting.

• Interlocking clip wedges prevent anchor spinning during

installation.

• Wire hanger hole size 9/32” diameter, head height 3/4”.

• UL & FM approved.

• Available in Zinc Plated

Carbon Steel or Type

304 Stainless Steel.

Wedge Expansion Anchors

Wedge Expansion Anchor -

Data 1/4”3/8”1/2”5/8”

ANSI Drill Bit Size (in.) 1/43/81/25/8

Fixture Clearance Hole (in.) 5/16 7/16 9/16 11/16

Thread Size (UNC) 1/4”-20 3/8”-16 1/2”-13 5/8”-11

Washer O.D. (in.) 5/813/16 11/16 13/4

Wrench Size 7/16 9/16 3/415/16

Max. Tightening Torque (ft-lbs) 8 28 60 90

Min. Embedment Depth (in.) 11/815/821/423/4

Load Capacity Tension (lbs) * 360 760 1390 2075

Load Capacity Shear (lbs) * 405 940 1700 2975

* Based on concrete compression strength of 4000 psi using applied safety

factor of 4.0. For additional loading contact factory.

* Based on concrete compression strength of 4000 psi using applied

safety factor of 4.0. For additional loading information contact factory.

Wire Hanger Wedge Anchor -

Data 1/4”

ANSI Drill Bit Size (in.) 1/4

Min. Embedment Depth (in.) 11/8

Head Height (in.) 3/4

Load Capacity Tension (lbs) * 360

Load Capacity Shear (lbs) * 405

Anchors

Fasteners

199

Read safety/installation instruction sheets in packages before use.

UPC/Part Catalog Size Hole Box

Number Number Size Qty.

Wire Hanger

78101103106 AWA-25-200WH

1/4” x 2” 9/32”

100

Wedge Expansion Anchors

Anchors

Fasteners 200

Read safety/installation instruction sheets in packages before use.

UPC/Part Catalog Size Thread Box

Number Number Length Qty.

Wedge Anchor

78101103068 AWA-25-175 1/4” x 13/4”3/4” 100

78101103069 AWA-25-225 1/4" x 21/4"1

1/4" 100

78101103070 AWA-25-325 1/4" x 31/4"2

1/4" 100

78101103071 AWA-37-225 3/8" x 21/4"1

1/4” 50

78101103072 AWA-37-275 3/8" x 23/4"1

5/8" 50

78101103073 AWA-37-300 3/8" x 3" 17/8" 50

78205153364 AWA-37-350 3/8" x 31/2"2

3/8" 50

78101103074 AWA-37-375 3/8" x 33/4"2

5/8" 50

78101103075 AWA-37-500 3/8" x 5" 37/8" 50

78205153366 AWA-50-275 1/2" x 23/4"1

3/8" 50

78101103077 AWA-50-375 1/2" x 33/4"2

3/8" 50

78205145636 AWA-50-450 1/2" x 41/2"3

1/8" 50

78101103079 AWA-50-550 1/2" x 51/2"4

1/8" 50

78101103080 AWA-50-700 1/2" x 7" 55/8" 25

78101103081 AWA-62-275 5/8" x 31/2" 2" 25

78101103082 AWA-62-375 5/8" x 41/2" 3" 25

78101103083 AWA-62-450 5/8" x 5" 31/2" 25

78101103084 AWA-62-550 5/8" x 6" 41/2" 25

78101103085 AWA-62-700 5/8" x 7" 51/2" 25

Wedge Anchor - Stainless Steel

78101103146 AWA-25-175SS4 1/4” x 13/4”3/4” 100

78101103147 AWA-25-225SS4 1/4" x 21/4"1

1/4" 100

78101103148 AWA-25-325SS4 1/4" x 31/4"2

1/4" 100

78101103149 AWA-37-225SS4 3/8" x 21/4"1

1/4” 50

78101103150 AWA-37-275SS4 3/8" x 23/4"1

5/8" 50

7810110151 AWA-37-300SS4 3/8" x 3" 17/8" 50

78205153365 AWA-37-350SS4 3/8" x 31/2"2

3/8" 50

78101103152 AWA-37-375SS4 3/8" x 33/4"2

5/8" 50

78101103153 AWA-37-500SS4 3/8" x 5" 37/8" 50

78101103154 AWA-50-275SS4 1/2" x 23/4"1

3/8" 50

78101103155 AWA-50-375SS4 1/2" x 33/4"2

3/8" 50

78205153367 AWA-50-450SS4 1/2" x 41/2"3

1/8" 50

78101103157 AWA-50-550SS4 1/2" x 51/2"4

1/8" 50

78205153368 AWA-50-700SS4 1/2" x 7" 55/8" 25

78205153369 AWA-62-275SS4 5/8" x 31/2" 2" 25

78205153370 AWA-62-375SS4 5/8" x 41/2" 3" 25

78205153779 AWA-62-450SS4 5/8" x 5" 31/2" 25

78205153371 AWA-62-550SS4 5/8" x 6" 41/2" 25

78205143044 AWA-62-700SS4 5/8" x 7" 51/2" 25

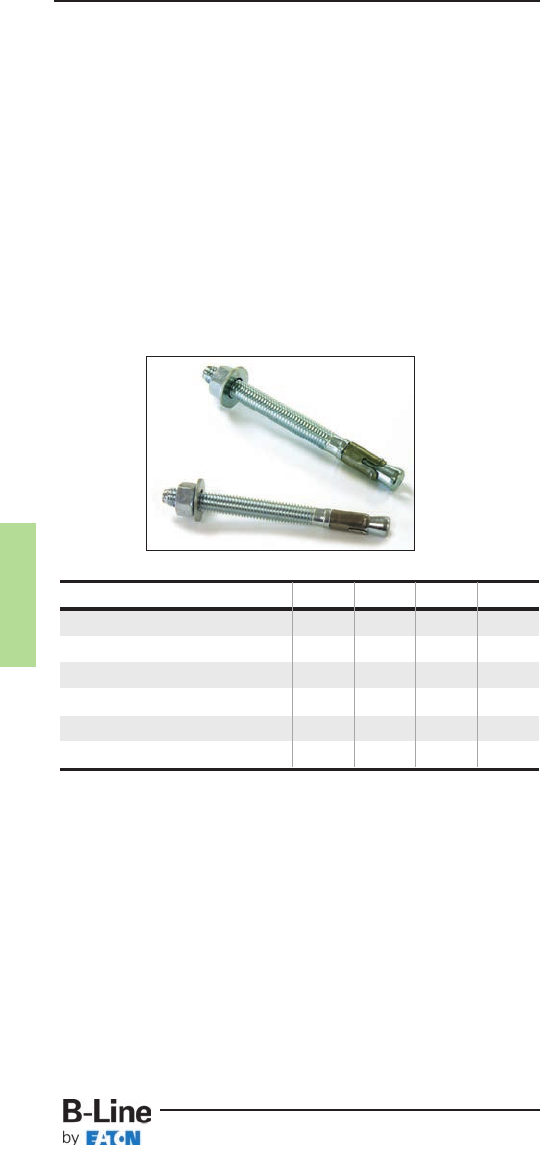

Seismic Wedge Anchors

• Fully threaded, torque-controlled, wedge anchor which is

designed for consistent performance in cracked and

uncracked concrete.

• For use in concrete, structural sand lightweight concrete,

and concrete over metal deck.

• Nominal drill bit size is the same as the anchor diameter.

• ICC-ES listed, ESR-2502, Category 1

• Zinc plated carbon steel body with stainless steel

expansion clip from premium performance.

• Qualified for seismic and wind loading.

Seismic Wedge Anchor - Data

3/8”1/2”5/8”3/4”

ANSI Drill Bit Size (in.) 3/81/25/83/4

Fixture Clearance Hole (in.) 7/16 9/16 11/16 13/16

Minimum Hole Depth (in.) 25/823/441/45

Minimum Concrete Thickness (in.) 44

1/253/47

Max. Tightening Torque (ft-lbs) 20 40 60 110

Min. Embedment Depth (in.) 23/821/237/841/2

For loading information, see ICC-ES ESR-2502.

Anchors

Fasteners

201

Read safety/installation instruction sheets in packages before use.

Seismic Wedge Anchors

Anchors

Fasteners 202

Read safety/installation instruction sheets in packages before use.

UPC/Part Catalog Size Thread Box

Number Number Length Qty.

Seismic Wedge Anchor

78205153398 AWSD-37-300 3/8" X 3" 13/4" 50

78205153399 AWSD-37-350 3/8" X 31/2"2

1/4" 50

78205153400 AWSD-37-375 3/8" X 33/4"2

1/2" 50

78205153401 AWSD-37-500 3/8" X 5" 33/4" 50

78205153402 AWSD-50-375 1/2" X 33/4"2

1/8" 50

78205153403 AWSD-50-450 1/2" X 41/2"2

7/8" 50

78205153404 AWSD-50-550 1/2" X 51/2"3

7/8" 50

78205153405 AWSD-50-700 1/2" X 7" 53/8" 50

78205153406 AWSD-62-475 5/8" X 43/4"2

7/8" 25

78205153407 AWSD-62-500 5/8" X 5" 31/8" 25

78205153408 AWSD-62-600 5/8" X 6" 41/8" 25

78205153409 AWSD-62-700 5/8" X 7" 51/8" 25

78205153410 AWSD-75-550 3/4" X 51/2"3

1/4" 20

78205153411 AWSD-75-625 3/4" X 61/4" 4" 20

78205153425 AWSD-75-700 3/4" X 7" 43/4" 20

• One-piece, tamper-proof vibration resistant anchor

for use in concrete.

• Anchor is formed with an ‘s’ shaped configuration at the

working end of the anchor to create an expansion

mechanism.

• Anchor is pre-expanded so no secondary tightening

operation is required.

• FM approved.

• Made of Zinc Plated carbon steel.

Drive Anchor

Mushroom Head -

Data 3/16”1/4”

ANSI Drill Bit Size (in.) 3/16 1/4

Fixture Clearance Hole (in.) 1/45/16

Head Height (in.) 7/64 7/64

Head Size O.D. (in.) 7/16 1/2

Min. Embedment Depth (in.) 7/87/8

Load Capacity Tension (lbs.) * 215 235

Load Capacity Shear (lbs.) * 330 470

* Based on concrete compression strength of 4000 psi using applied safety

factor of 4.0. For additional loading information contact factory.

Rod Hanger - Data 1/4”3/8”

ANSI Drill Bit Size (in.) 3/16 1/4

UNC Thread Size 1/4”-20 3/8”-16

Head Height (in.) 1/25/8

Head Size O.D. (in.) 13/32 35/64

Min. Embedment Depth (in.) 11/413/4

Load Capacity Tension (lbs.) * 315 500

Load Capacity Shear (lbs.) * 245 525

Wire Hanger -

Data 3/16”1/4”

ANSI Drill Bit Size (in.) 3/16 1/4

Tie-Wire Hole (in.) 3/16 9/32

Head Height (in.) 37/64 41/64

Head Width (in.)

9/64 x 7/16 3/16 x 9/16

Min. Embedment Depth (in.) 11/811/8

Load Capacity Tension (lbs.)*

265 290

Load Capacity Shear (lbs.)*

240 330

Anchors

Fasteners

203

Read safety/installation instruction sheets in packages before use.

Drive Anchors

Anchors

Fasteners 204

Read safety/installation instruction sheets in packages before use.

UPC/Part Catalog Size Box

Number Number Qty.

Mushroom Head

78205153271 ADA-18-100 3/16" x 1" 100

78205153272 ADA-18-125 3/16" x 11/4" 100

78205153273 ADA-18-150 3/16" x 11/2" 100

78205153274 ADA-18-200 3/16" x 2" 100

78205153275 ADA-18-250 3/16" x 21/2" 100

78205153276 ADA-18-300 3/16" x 3" 100

78205153278 ADA-25-100 1/4" x 1" 100

78205153279 ADA-25-125 1/4" x 11/4" 100

78205153280 ADA-25-150 1/4" x 11/2" 100

78205153281 ADA-25-200 1/4" x 2" 100

78205153282 ADA-25-250 1/4" x 21/2" 100

78205153283 ADA-25-300 1/4" x 3" 100

UPC/Part Catalog Head Box

Number Number Size Qty.

Rod Hanger

78205153284 ADA-25RH 1/4" 100

78205153286 ADA-37RH 3/8" 100

Wire Hanger

78205153277 ADA-18WH 3/16" 100

78205153285 ADA-25WH 1/4" 100

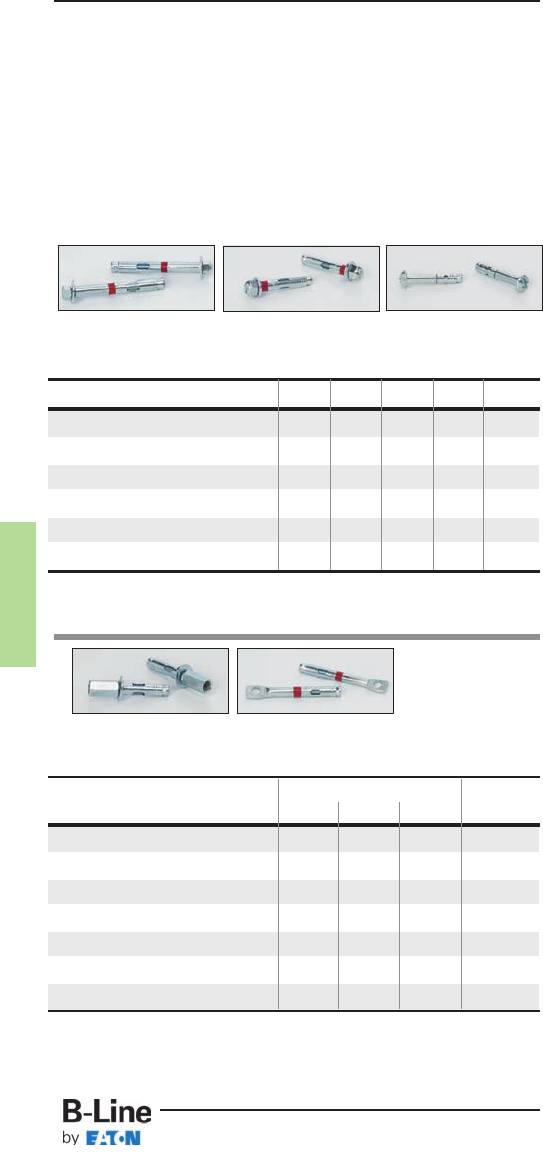

• For use in concrete and masonry substrates.

• Suitable for solid and hollow core materials.

• Fits standard fixture holes - no need to undersize anchors

for proper fit.

• Sleeve has 360° contact area and reduces concrete stress.

• UL & FM approved.

• Available in Zinc Plated Steel or Type 304 Stainless Steel.

Sleeve Type Expansion Anchors

Hex Nut (HN)

Style

Acorn Nut (AN)

Style

Rod Hanger

(RH) Style

Wire Hanger

(WH) Style

Slotted Round

Head (RS) Style

Sleeve Type Expansion - Data 1/4”3/8”1/2”5/8”3/4”

ANSI Drill Bit Size (in.) 1/43/81/25/83/4

Fixture Clearance Hole (in.) 5/16 7/16 9/16 11/16 15/16

Plow Bolt Size (UNC)

#10-24 5/16”-18 3/8”-16 1/2”-13 5/8”-11

Min. Embedment Depth (in.) 5/815/821/421/421/4

Load Capacity Tension (lbs) * 155 670 1255 1465 2105

Load Capacity Shear (lbs) * 300 610 1055 1800 2900

* Based on concrete compression strength of 4000 psi using applied safety

factor of 4.0. For additional loading contact factory.

* Based on concrete compression strength of 4000 psi using applied safety

factor of 4.0. For additional loading go to www.cooperbline.com.

Sleeve Type Expansion - Data

Hanger Rod Wire Hanger

1/4”3/8”1/2”5/16”

ANSI Drill Bit Size (in.) 1/43/81/25/16

Fixture Clearance Hole (in.) NA NA NA 1/4

Plow Bolt Size (UNC) #10-24 5/16

”

-18 3/8

”

-16 1/4

”

-20

Coupling Height (in.) 7/811

1/4NA

Min. Embedment Depth (in.) 5/815/821/411/2

Load Capacity Tension (lbs) * 155 670 1255 520

Load Capacity Shear (lbs) * 300 610 1055 380

Anchors

Fasteners

205

Read safety/installation instruction sheets in packages before use.

Sleeve Type Expansion Anchors

Anchors

Fasteners 206

Read safety/installation instruction sheets in packages before use.

UPC/Part Catalog Size Thread Box

Number Number Length Qty.

Hex Nut Style

78101102995 ASA-37-187HN 3/8" x 17/8"1

5/8" 50

78101102996 ASA-37-300HN 3/8" x 3" 15/8" 50

78205153400 ASA-37-400HN 3/8" x 4" 15/8" 50

78101102997 ASA-50-225HN 1/2" x 21/4"2

1/8" 25

78101102998 ASA-50-300HN 1/2" x 3" 21/4" 25

78101102999 ASA-50-400HN 1/2" x 4" 21/4" 25

78205153351 ASA-50-525HN 1/2" x 51/4"2

1/4" 25

78101103002 ASA-50-600HN 1/2" x 6" 21/4" 10

78101103003 ASA-62-225HN 5/8" x 21/4"2

1/8" 25

78101103004 ASA-62-300HN 5/8" x 3" 23/4" 25

78101103005 ASA-62-425HN 5/8" x 41/4"2

3/4" 10

78101103006 ASA-62-600HN 5/8" x 6" 23/4" 10

78101103007 ASA-75-250HN 3/4" x 21/2"2

1/8" 10

78101103008 ASA-75-425HN 3/4" x 41/4"3

3/8" 10

78101103009 ASA-75-625HN 3/4" x 61/4"3

3/8" 10

Hex Nut Style - Stainless Steel

78205153343 ASA-37-187HNSS4 3/8" x 17/8"1

5/8" 50

78205153345 ASA-37-300HNSS4 3/8" x 3" 15/8" 50

78205153347 ASA-50-225HNSS4 1/2" x 21/4"2

1/8" 25

78205153349 ASA-50-300HNSS4 1/2" x 3" 21/4" 25

78205153350 ASA-50-400HNSS4 1/2" x 4" 21/4" 25

78205153352 ASA-62-425HNSS4 5/8" x 41/4"2

3/4" 10

78205153353 ASA-75-400HNSS4 3/4" x 4" 33/8" 10

Acorn Nut Style

78205153341 ASA-25-62AN 1/4" x 5/8"1/2" 100

78101102991 ASA-25-137AN 1/4" x 13/8"1

1/8" 100

78101102992 ASA-25-225AN 1/4" x 21/4"1

1/8" 100

Slotted Round Head Style

78205153338 ASA-25-112RS 1/4" x 11/8" 1" 100

78205153340 ASA-25-200RS 1/4" x 2" 11/8" 100

UPC/Part Catalog Size Drill Box

Number Number Diameter Qty.

Rod Hanger

78205153339 ASA-25-150RH 1/4" x 11/2"5/16" 50

78205153344 ASA-37-187RH 3/8" x 17/8"3/8" 50

78205153348 ASA-50-225RH 1/2" x 21/4"1/2" 25

Wire Hanger

78205153342 ASA-31-150WH 5/16" x 11/2"5/16" 100

• For use in concrete, block, brick or stone.

• Double expansion anchor is particularly suited for base

materials of questionable strength (job site tests are

recommended).

• Internally threaded anchor for easy removability and

service work.

• Made of Zamac Alloy material.

Double Expansion Anchors

* Based on concrete compression strength of 4000 psi using applied safety

factor of 4.0. For additional loading information contact factory.

Double Expansion - Data 1/4”3/8”1/2”5/8”

ANSI Drill Bit Size (in.) 1/23/47/81

Max. Tightening Torque (ft-lbs) 5 10 20 30

Thread Size (UNC) 1/4”-20 3/8”-16 1/2”-13 5/8”-11

Thread Length In Cone (in.) 1/25/83/47/8

Min. Embedment Depth (in.) 11/413/421/421/2

Load Capacity Tension (lbs) * 415 875 1625 1750

Load Capacity Shear (lbs) * 405 1000 1540 2855

Anchors

Fasteners

207

Read safety/installation instruction sheets in packages before use.

UPC/Part Catalog Rod Anchor Box

Number Number Size Length Qty.

Double Expansion Anchor

78101103251 ADE-25 1/4"1

3/8" 50

78101103253 ADE-37 3/8" 2" 50

78101103254 ADE-50 1/2"2

1/2" 25

78101103256 ADE-62 5/8"2

3/4" 25

• For use in concrete, block, brick or stone.

• Recommended for floor and wall attachments.

• Not recommended for overhead applications.

• Internally threaded anchor for easy removability and

service work.

• Made of Zamac Alloy material.

Single Expansion Anchors

* Based on concrete compression strength of 4000 psi using applied safety

factor of 4.0. For additional loading information contact factory.

Single Expansion - Data 1/4”3/8”1/2”5/8”

ANSI Drill Bit Size (in.) 1/23/47/81

Max. Tightening Torque (ft-lbs) 5 10 20 30

Thread Size (UNC) 1/4”-20 3/8”-16 1/2”-13 5/8”-11

Thread Length In Cone (in.) 5/16 5/16 7/16 5/8

Min. Embedment Depth (in.) 13/815/821/223/4

Load Capacity Tension (lbs) * 500 725 1225 2050

Load Capacity Shear (lbs) * 405 950 1540 2855

Anchors

Fasteners 208

Read safety/installation instruction sheets in packages before use.

UPC/Part Catalog Rod Anchor Box

Number Number Size Length Qty.

Single Expansion Anchor

78101103245 ASE-25 1/4"1

5/16" 50

78101103247 ASE-37 3/8"1

1/2" 50

78101103248 ASE-50 1/2"2

1/16" 25

78101103249 ASE-62 5/8"2

5/8" 25

• Wood-Knocker™ concrete inserts are installed onto wooden

forms used to support newly poured concrete floor slabs,

roof slabs or walls.

• When the forms are stripped, the color-coded flange is

visibly embedded in the concrete surface.

• The unique, six sided impact plate offers resistance to

rotation within the concrete as threaded rod is being

installed.

• Suitable for overhead installations such as suspending cable

tray, pipe hangers, strut and conduit.

• Color coded by size for all trades.

• UL and FM approved.

• Lowest in-place cost.

Wood Knocker™†Anchors

* Based on normal weight concrete with minimum compression strength of

3000 psi. Allowable load capacities are calculated using applied safety

factor of 4.0. For additional loading information contact factory.

Minimum embedment depth is 2”.

Wood Knocker™ - Data 1/4”3/8”1/2”5/8”3/4”

Insert Thread Length (in.) 3/85/811/16 15/16 11/8

Plastic Flange Diameter (in.) 13/813/813/815/815/8

Thread Size (UNC) 1/4”-20 3/8”-16 1/2”-13 5/8”-11 3/4”-10

Overall Length (in.) 17/817/817/817/817/8

Min. Insert Spacing (in.) 99912 12

Min. End Distance (in.) 66699

Load Capacity Tension (lbs) * 930 1200 1200 1160 1160

Load Capacity Shear (lbs) * 370 1330 1840 2800 2800

Anchors

Fasteners

209

Read safety/installation instruction sheets in packages before use.

UPC/Part Catalog Rod Color Box

Number Number Diameter Qty.

Wood Knocker

78205131147 ACPW-25 1/4" Brown 100

78205131149 ACPW-38 3/8" Green 100

78205131151 ACPW-50 1/2" Yellow 100

78205131152 ACPW-62 5/8" Red 50

78205131153 ACPW-75 3/4" Purple 50

†Wood Knocker™ is a registered trademark used by Power®Fasteners, Inc.

Bang-It™ - Data 1/4”3/8”1/2”5/8”3/4”7/8”

Metal Hole Saw Diameter (in.) 13/16 13/16 13/16 13/16 13/16 13/16

Drilling Speed (rpm) 700-900 700-900 700-900 500-700 500-700 500-700

Insert Thread Length (in.) 3/85/811/16 15/16 11/815/16

Length of Sleeve (in.) 33/833/833/833/833/833/8

Thread Size (UNC) 1/4”-20 3/8”-16 1/2”-13 5/8”-11 3/4”-10 7/8”-9

Embedment Depth (in.) 2222 22

Upper Deck Tension Load (lbs) * 835 1435 1775 2200 2200 2200

Lower Deck Tension Load (lbs) * 835 1115 1115 1115 1115 1115

Upper Deck Shear Load (lbs) * 620 620 620 740 740 740

Lower Deck Shear Load (lbs) * 625 840 840 840 840 840

• Bang-It™ concrete inserts are designed for installation in

and through metal composite deck used to support newly

poured concrete floors or roof slabs.

• After installation, the protective sleeve of the insert

protrudes below the surface of the deck, allowing overhead

attachment of threaded rod.

• The unique, six sided impact plate offers resistance to

rotation within the concrete as threaded rod is bing

installed.

• Suitable for overhead installations

such as suspending cable tray,

pipe hangers, strut and conduit.

• Color coded by size for all trades.

• UL and FM approved.

• Lowest in-place cost.

Bang-It™†Anchors

* Based on normal weight concrete with minimum compression strength of

3000 psi. Allowable load capacities are calculated using applied safety

factor of 4.0. For additional loading information contact factory.

Minimum insert spacing of 12”, minimum end spacing 12”.

Anchors

Fasteners 210

Read safety/installation instruction sheets in packages before use.

UPC/Part Catalog Rod Color Box

Number Number Diameter Qty.

Bang-It™

78205131154 ACPD-25 1/4" Brown 100

78205131156 ACPD-38 3/8" Green 100

78205131157 ACPD-50 1/2" Yellow 100

78205131158 ACPD-62 5/8" Red 50

78205131166 ACPD-75 3/4" Purple 50

78205153258 ACPD-87 7/8" Black 50

Bang-It™ Hole Saws

78205131169 ACPD-HS813 13/16" Carbide Hole Saw 1

for 1/4”, 3/8”, 1/2”

78205131171 ACPD-HS1188 13/16" Carbide Hole Saw 1

for 5/8”, 3/4”, 7/8”

†Bang-It™ is a registered trademark used by Power®Fasteners, Inc.

• For use in concrete, block, brick or stone.

• Not recommended for use in overhead applications.

• Readily accepts machine bolts.

• Internally threaded anchor for easy removability and

service work.

• Anchor installation requires shallow embedment.

• Made of Zamac Alloy material.

Machine Screw Anchors

* Based on concrete compression strength of 4000 psi using applied safety

factor of 4.0. For additional loading information contact factory.

Machine Screw Anchor - Data 1/4”3/8”1/2”

ANSI Drill Bit Size (in.) 1/23/47/8

Max. Tightening Torque (ft-lbs) 5 10 15

Thread Size (UNC) 1/4”-20 3/8”-16 1/2”-13

Min. Embedment Depth (in.) 7/811/411/2

Load Capacity Tension (lbs) * 585 775 1095

Load Capacity Shear (lbs) * 355 825 1135

Anchors

Fasteners

211

Read safety/installation instruction sheets in packages before use.

UPC/Part Catalog Rod Box

Number Number Diameter Qty.

Machine Screw Anchor

78101103239 AMS-25 1/4" 100

78101103242 AMS-37 3/8" 50

78101103243 AMS-50 1/2" 50

Setting Tool

78205109765 9221 1/4"1

78205109767 9231 3/8"1

78205109768 9241 1/2"1

• For use in normal-weight concrete, structural sand

lightweight concrete and concrete over metal deck.

• Anchor design allows for shallow embedment and

mechanically interlocks with base material.

• Internally threaded anchor for easy adjustment and

removability of threaded rod or bolt.

• Fast anchor installation with a powered impact wrench.

• Suitable for overhead applications such as suspending

cable tray, strut, pipe hangers and conduit.

• FM Approved.

• ICC-ES listed, ESR-2272

• Made of Zinc Plated carbon steel.

• Setting tool included.

Self-Tapping Machine

Screw Anchors

* Based on concrete compression strength of 4000 psi in uncracked

concrete using applied safety factor of 4.0. For additional loading

information contact factory.

For ultimate strength design data in cracked and uncracked concrete,

see ICC-ES ESR-2526.

Self-Tapping Machine Screw - Data 3/8”

ANSI Drill Bit Size (in.) 1/2

Min. Concrete Thickness (in.) 4

Max. Tightening Torque (ft-lbs) 8

Min. Embedment Depth (in.) 15/8

Load Capacity Tension (lbs) *

540

Load Capacity Shear (lbs) *

825

Anchors

Fasteners 212

Read safety/installation instruction sheets in packages before use.

UPC/Part Catalog Size Thread Box

Number Number Depth Qty.

Self-Tapping Machine Screw Anchor

78205153362 ATM-37 3/8"11/16" 50

Tool

78205153363 6407 SD 3/8" -- 1

• For use in concrete, block or brick.

• Anchor is recommended for light duty, tamper-proof

applications.

• Not recommended for overhead applications.

• Made of Zamac Alloy material.

Drive Nail Anchors

* Based on concrete compression strength of 4000 psi using applied safety

factor of 4.0. For additional loading information contact factory.

Drive Nail - Data 3/16”1/4”

ANSI Drill Bit Size (in.) 3/16 1/4

Fixture Clearance Hole (in.) 1/45/16

Head Height (in.) 7/64 9/64

Head Size, O.D. (in.) 13/32 35/64

Min. Embedment Depth (in.) 3/45/8

Load Capacity Tension (lbs) * 125 150

Load Capacity Shear (lbs) * 175 205

Anchors

Fasteners

213

Read safety/installation instruction sheets in packages before use.

UPC/Part Catalog Size Box

Number Number Qty.

Drive Nail Anchor

78101102964 ADN-18-87 3/16" x 7/8" 100

78101102965 ADN-25-75 1/4" x 3/4" 100

78101102966 ADN-25-100 1/4" x 1" 100

78101102967 ADN-25-125 1/4" x 11/4" 100

78101102968 ADN-25-150 1/4" x 11/2" 100

78101102969 ADN-25-200 1/4" x 2" 100

78205153306 ADN-25-300 1/4" x 3" 100

• The toggle bolt is a spring wing type hollow wall anchor

designed for use in block, wallboard and other hollow

base materials.

• Anchor is a two-part assembly consisting of a machine

screw and a spring wing toggle.

• Adjustable to accommodate various wall thicknesses up

to 21/2".

• Combo round head bolt is provided.

• Made of zinc plated carbon steel.

Toggle Bolts

Allowable load capacities are calculated using applied safety factor of 4.0.

For additional loading information contact factory.

* Based on hollow wall concrete masonry with minimum compression

strength of 1500 psi.

Toggle Bolt - Data 3/16”1/4”3/8”

Tension Shear Tension Shear Tension Shear

(lbs.) (lbs.) (lbs.) (lbs.) (lbs.) (lbs.)

3/8” Wallboard 35 35 55 55 60 65

1/2” Wallboard 45 50 60 60 65 75

5/8” Wallboard 60 60 65 65 75 80

3/4” Wallboard 75 70 80 75 85 90

Hollow Concrete Masonry *

70 70 70 120 195 140

Anchors

Fasteners 214

Read safety/installation instruction sheets in packages before use.

UPC/Part Catalog Drill Size Box

Number Number Diameter Qty.

Toggle Bolt

78205153354 ATB-18-300 1/2"3/16" x 3" 50

78205153355 ATB-18-400 1/2"3/16" x 4" 50

78205153356 ATB-25-300 5/8"1/4" x 3" 50

78205153357 ATB-25-400 5/8"1/4" x 4" 50

78205153358 ATB-37-300 7/8"3/8" x 3" 25

78205153359 ATB-37-400 7/8"3/8" x 4" 25

• One-piece, all steel anchor with high-profile threads for

easy fastening into wallboard and other masonry base

materials.

• Deep cutting, corkscrew-like threads provide for smooth

entry and a strong hold.

• No pre-drilling is required when fastening into wallboard

or wood.

• Fastening into concrete, hollow or grout filled block, brick

and plaster requires a pre-drilled 3/16" ANSI hole.

• Installed with a No. 8 drill bit or No. 2 Phillips driver.

• Made of case hardened carbon steel with chrome finish.

Wall Screws

* Based on concrete compression strength of 4000 psi. Allowable load

capacities are calculated using an applied safety factor of 4.0. For

additional loading contact factory.

Wall Screw - Data Minimum Load Cap. Load Cap.

Embedment Tension Shear

Depth (lbs.) * (lbs.) *

Concrete * 3/4” 90 260

1/2” Wallboard NA 20 60

5/8” Wallboard NA 35 90

3/4” Plywood NA 65 150

Grout-Filled Concrete Masonry 1” 55 165

Hollow Concrete Masonry 1” 60 165

Brick Masonry 3/4” 70 120

Anchors

Fasteners

215

Read safety/installation instruction sheets in packages before use.

UPC/Part Catalog Size Head Box

Number Number Type Qty.

Wall Screw

78205153372 AWS-CH 3/16" x 11/4" Combo 100

78205153373 AWS-OH 3/16" x 11/4" Oval 100

78205153374 AWS-PH 3/16" x 11/4" Pan 100

• One-piece anchor designed for light duty applications in

wallboard, concrete and masonry.

• Works in hollow or solid base materials.

• Suitable for screws with various thread sizes and styles -

screws may be installed with a screw gun.

Plastic Screw Anchors

* Allowable load capacities are calculated using an applied safety factor of 4.0.

For additional loading information contact factory.

Plastic Screw Anchor - Data APS-4 APS-6 APS-8

Drill Diameter (in.) 3/16 1/45/16

Screw Size Range #4-#10 #6-#12 #8-#14

Min, Thread Length (in.) 13/16 13/8113/16

Min. Hole Diameter (in.) 13/819/16 2

Min. Wall Thickness (in.) 1/43/81/2

Min. Embedded Thread Length (in.) 17/822

9/16

Load Capacity Tension (lbs) * 18 20 22

Load Capacity Shear (lbs) * 32 40 45

Anchors

Fasteners 216

Read safety/installation instruction sheets in packages before use.

UPC/Part Catalog Screw Box

Number Number Size Qty.

Plastic Screw Anchors

78205153315 APS-4 #4 - #10 100

78205153316 APS-6 #6 - #12 100

78205153319 APS-8 #8 - #14 100

• Heavy duty hollow wall anchor designed for use in plaster,

wallboard, concrete block, or hollow tile.

• Pre-assembled anchor consisting of a carbon steel wing

and a locking cap/ratchet leg assembly molded from

engineered plastic.

• When compared to traditional toggles, this anchor can be

installed in a smaller hole and does not require a fixture or

screw to set it.

• Adjustable to accommodate various wall thickness up to

21/2".

Plastic Hollow Wall Anchors

Plastic Hollow Wall - Data 3/16”1/4”3/8”1/2”

Thread Size (UNC) 3/16”-24 1/4”-20 3/8”-16 1/2”-13

Max. Tightening Torque (ft-lbs) 5555

Minimum Clearance (in.) 17/8”1

7/8”1

7/8”

Allowable load capacities are calculated using an applied safety factor of 4.0.

For additional loading information contact factory.

* Based on hollow wall concrete masonry with minimum compression

strength of 1500 psi.

Plastic Hollow 3/16”1/4”3/8”1/2”

Wall - Data

Tension Shear Tension Shear Tension Shear Tension Shear

(lbs.) (lbs.) (lbs.) (lbs.) (lbs.) (lbs.) (lbs.) (lbs.)

3/8” Wallboard 30 60 35 70 35 70 35 75

1/2” Wallboard 35 70 35 75 40 75 40 90

5/8” Wallboard 50 95 55 105 55 105 55 110

3/4” Wallboard 50 110 55 120 60 120 60 120

Hollow Concrete 215 150 270 285 285 465 345 595

Masonry *

Anchors

Fasteners

217

Read safety/installation instruction sheets in packages before use.

UPC/Part Catalog Anchor Drill Wall Box

Number Number Size Dia. Thickness Qty.

Plastic Hollow Wall Anchor

78205153311 APH-18 3/16” x 4” 1/2”3/8” - 21/2” 50

78205153312 APH-25 1/4” x 4” 1/2”3/8” - 21/2” 50

78205153313 APH-37 3/8” x 4” 3/4”3/8” - 21/2” 25

78205153314 APH-50 1/2” x 4” 3/4”3/8” - 21/2” 25

• One-piece self drilling anchor designed for use in hollow

wallboard for light to medium duty loads.

• Ideal for mounting electrical fixtures, phone systems, and

miscellaneous hardware.

• APD/AZD designed for use in 3/8" to 1" wallboard.

• APDM/AZDM designed for use in 3/8" to 5/8" wallboard.

• Kit includes 50 anchors, 50 screws and #2 Phillips Drive Bit.

• Available in engineered Nylon and Zamac Alloy.

Self-Drilling Wallboard Anchors

Self-Drilling Wallboard APD/AZD APDM/AZDM

Anchor - Data

Tension Shear Tension Shear

(lbs.) (lbs.) (lbs.) (lbs.)

3/8” Wallboard 15 15 10 15

1/2” Wallboard 15 20 15 15

5/8” Wallboard 20 25 20 20

3/4” Wallboard 20 25 20 20

Self-Drilling Wallboard APD/AZD APDM/AZDM

Anchor - Data

Anchor Length (in.) 111/16 15/16

Min. Screw Engagement (in.) 3/43/4

Allowable load capacities are calculated using an applied safety factor

of 4.0. For additional loading information contact factory.

APD

APDM-6K

AZD

Anchors

Fasteners 218

Read safety/installation instruction sheets in packages before use.

UPC/Part Catalog Screw Box

Number Number Size Qty.

Self-Drilling Wallboard Anchor

78101103314 APD-8K #8 x 1” 50

78101103318 AZD-8K #8 x 1” 50

78205153310 APDM-6K #6 x 1” 50

78205153375 AZDM-6K #6 x 1” 50

• Designed for use with lightweight fixtures.

• Recommended for use in concrete, block and brick.

• Recommended for light duty static applications where

holding power is not critical.

• Not recommended for overhead use.

• Kit includes 100 anchors, 100 screws and one drill bit.

• Made of engineered plastic.

Plastic Conical Anchors

Plastic Conical Anchor -

Data

#8 #10 - #12

Tension Shear Tension Shear

(lbs.) (lbs.) (lbs.) (lbs.)

Nominal Weight Concrete * 110 70 140 90

Hollow Concrete Masonry ** 60 45 70 55

Clay Brick Masonry *** 30 50 55 65

Minimum Embedment Depth

”

” 1” 1”

* Based on concrete compression strength of 4000 psi.

** Based on hollow concrete masonry with minimum compression

strength of 1500 psi.

*** Based on clay brick masonry with minimum compression strength of

1500 psi.

Loads contain an applied safety factor of 4.0. For additional loading

information contact factory.

Anchors

Fasteners

219

Read safety/installation instruction sheets in packages before use.

UPC/Part Catalog Screw Box

Number Number Size Qty.

Plastic Conical Anchor

78205153307 APC-8K #8 x 1” 100

78205153308 APC-10K #10 x 1” 100

78205153309 APC-12K #12 x 1” 100

Anchors

Fasteners 220

Reprinted with permission from NFPA 70-2005, the National Electrical Code®, Copyright®2005, National Fire Protection

Association, Quincy, MA 02269.

This reprinted material is not the complete and official position of the National Fire Protection Association, on the referenced

subject which is represented only by the standard in its entirety.

NEC Requirements

Code Compliance for

Spring Steel Fasteners

Based on the 2005 NEC®

Eaton’s B-Line Business has recognized the need for a

reference source, detailing the National Electrical Code

requirements for Spring Steel Fasteners. The following pages

are reprinted portions of the 2005 NEC. These sections

address nearly every aspect of fastener installations and offer

design solutions for the electrical industry. If a topic has not

been covered sufficiently to answer a specific question or if

additional information is desired, contact our engineering

department.

The following information has been carefully checked for

accuracy and is believed to be correct and current. No

warranty, either expressed or implied, is made as to either

its applicability to, or its compatibility with, specific

requirements, of this information, nor for damages

consequent to its use. All design characteristics,

specifications, tolerances and similar information are subject

to change without notice.

To obtain a copy of the NEC®contact:

National Fire Protection Association

1 Batterymarch Park

P.O. Box 9101

Quincy, Massachusetts 02269-9101

1-800-344-3555

National Electrical Code®and NEC®

are registered trademarks of the

National Fire Protection Association, Inc.

Quincy, MA 02269.

NEC Requirements

Fasteners

221

NEC Requirements

90.4 Enforcement. This Code is intended to be suitable for

mandatory application by governmental bodies that

exercise legal jurisdiction over electrical installations,

including signaling and communications systems, and for

use by insurance inspectors. The authority having

jurisdiction for enforcement of the Code has the

responsibility for making interpretations of the rules, for

deciding upon the approval of equipment and materials,

and for granting the special permission contemplated in a

number of the rules.

By special permission, the authority having jurisdiction

may waive specific requirements in this Code or

permit alternate methods where it is assured that

equivalent objectives can be achieved by establishing

and maintaining effective safety. *

This Code may require new products, constructions, or

materials that may not yet be available at the time the

Code is adopted. In such event, the authority having

jurisdiction may permit the use of the products,

constructions, or materials that comply with the most

recent previous edition of this Code adopted by the

jurisdiction.

Article 100 - Definitions

Listed. Equipment, materials, or services included in a list

published by an organization that is acceptable to the

authority having jurisdiction and concerned with evaluation

of products or services, that maintains periodic inspection

of production of listed equipment or materials or periodic

evaluation of services, and whose listing states that the

equipment, material, or services either meets appropriate

designated standards or has been tested and found

suitable for a specific purpose.

FPN: The means for identifying listed equipment may vary for each

organization concerned with product evaluation, some of which do

not recognize equipment as listed unless it is labeled. Use of the

system employed by the listing organization allows the authority

having jurisdiction to identify a listed product.

*Note: Local codes may override certain requirements of the

National Electrical Code®. Consult your local inspector for

further details.

NEC Requirements

Fasteners 222

Reprinted with permission from NFPA 70-2005, the National Electrical Code®, Copyright®2005, National Fire Protection

Association, Quincy, MA 02269.

This reprinted material is not the complete and official position of the National Fire Protection Association, on the referenced

subject which is represented only by the standard in its entirety.

300.4 Protection Against Physical Damage.

Where subject to physical damage, conductors shall

be adequately protected.

(A) Cables and Raceways through Wood Members.

(1) Bored Holes. . . . , holes shall be bored so that

the edge of the hole is not less than 32mm (11/4in.)

from the nearest edge of the wood member. Where

this distance cannot be maintained, the cable or

raceway shall be protected from penetration by

screws or nails by a steel plate or bushing, at least

1.6 mm (1/16 in.) thick, and of appropriate length and

width installed to cover the area of the wiring.

(See Figure 1)

Exception No. 1: Steel plates shall not be required

to protect RMC, IMC, RNC, or EMT.

Exception No. 2: A listed and marked steel plate less

than 1.6 mm (1/16 in.) thick that provides equal or

better protection against nail or screw penetration

shall be permitted.

(2) Notches in Wood. . . . , cables or raceways

shall be permitted to be laid in notches in wood

studs, joists, rafters, or other wood members where

the cable or raceway at those points is protected

against nails or screws by a steel plate at least

1.6 mm (1/16 in.) thick, and of appropriate length and

width, installed to cover the area of the wiring. The

steel plate shall be installed before the building

finish is applied. (See Figure 1)

Exception: See Exceptions 1 & 2 from (1) Bored Holes

(B) Nonmetallic-Sheathed Cables and Electrical

Nonmetallic Tubing through Metal Framing

Members.

(1) Nonmetallic-Sheathed Cable. . . . where

nonmetallic-sheathed cables pass through either

factory or field punched, cut or drilled slots or holes

in metal members, the cable shall be protected by

listed bushings or listed grommets covering all metal

edges that are securely fastened in the opening prior

to installation of the cable. (See Figure 2)

(2) Nonmetallic-Sheathed Cable and Electrical

Nonmetallic Tubing. Where nails or screws are

likely to penetrate nonmetallic-sheathed cable or

electrical nonmetallic tubing, a steel sleeve, steel

plate, or steel clip not less than 1.6 mm (1/16 in.) in

thickness shall be used to protect the cable or

tubing. (See Figure 1)

Exception: See Exception 2 from (A)(1) Bored Holes

Reprinted with permission from NFPA 70-2005, the National Electrical Code®, Copyright®2005, National Fire Protection

Association, Quincy, MA 02269.

This reprinted material is not the complete and official position of the National Fire Protection Association, on the referenced

subject which is represented only by the standard in its entirety.

NEC Requirements

Fasteners

223

(D) Cables and Raceways Parallel to Framing Members

and Furring Strips. . . . , the cable or race way shall

be installed and supported so that the nearest outside

surface of the cable or raceway is not less than 32 mm

(11/4in.) from the nearest edge of the framing member

or furring strips where nails or screws are likely to

penetrate. Where this distance cannot be maintained,

the cable or raceway shall be protected from penetration

by nails or screws by a steel plate, sleeve, or equivalent

at least 1.6 mm (1/16 in.) thick

(See Figures 1, 3, 4)

Exception 1: See Exception 1 from (A)(1) Bored Holes

Exception No. 2: For concealed work in finished

buildings, or finished panels for prefabricated buildings

where such supporting is impracticable, it shall be

permissible to fish the cables between access points.

Exception 3: See Exception 2 from (A)(1) Bored Holes

(E) Cables and Raceways Installed in Shallow Grooves.

. . . , shall be protected by 1.6 mm (1/16 in.) thick steel

plate, sleeve, or equivalent or by not less than 32 mm

(11/4in.) free space for the full length of the groove in

which the cable or raceway is installed.

(See Figure 1)

Exception: See Exceptions 1 & 2 from (A)(1) Bored Holes

Figure 1 - BM3 & BM3M

Figure 3 - BRC4 & BRC6M

Figure 2 - BM1/BM2

Figure 4 - BX4

NEC Requirements

Fasteners 224

Reprinted with permission from NFPA 70-2005, the National Electrical Code®, Copyright®2005, National Fire Protection

Association, Quincy, MA 02269.

This reprinted material is not the complete and official position of the National Fire Protection Association, on the referenced

subject which is represented only by the standard in its entirety.

300.11 Securing and Supporting.

(A) Secured in Place. Raceways, cable assemblies,

boxes, cabinets, and fittings shall be securely fastened

in place. Support wires that do not provide secure

support shall not be permitted as the sole support.

Support wires and associated fittings that provide

secure support and that are installed in addition to the

ceiling grid support wires shall be permitted as the sole

support. Where independent support wires are used,

they shall be secured at both ends. Cables and race

ways shall not be supported by ceiling grids.

(1) Fire Rated Assemblies. Wiring located

within the cavity of a fire-rated floor-ceiling or

roof-ceiling assembly shall not be secured to, or

supported by, the ceiling assembly, including the

ceiling support wires. An independent means of

secure support shall be provided and shall be

permitted to be attached to the assembly. Where

independent support wires are used, they shall

be distinguishable by color, tagging, or other

effective means from those that are part of the

fire-rated design.

Exception: The ceiling support system shall be

permitted to support wiring and equipment that

have been tested as part of the fire-rated assembly.

(2) Non-Fire-Rated Assemblies. Wiring located

within the cavity of a non-fire-rated floor-ceiling

or roof-ceiling assembly shall not be secured to,

or supported by, the ceiling assembly, including

the ceiling support wires.

An independent means of secure support shall

be provided.

Exception: The ceiling support system shall be

permitted to support branch-circuit wiring and

associated equipment where installed in accordance

with the ceiling system manufacturer’s instructions.

Reprinted with permission from NFPA 70-2005, the National Electrical Code®, Copyright®2005, National Fire Protection

Association, Quincy, MA 02269.

This reprinted material is not the complete and official position of the National Fire Protection Association, on the referenced

subject which is represented only by the standard in its entirety.

NEC Requirements

Fasteners

225

Note: A previously acceptable practice, namely supporting

cable and raceways by the ceiling grid, is no longer

allowed. The intent of Article 300.11 is simple: an

independent means of secure support must be

provided for cable assemblies, raceways, boxes, etc.

(See Figures 5 - 8)

Typical Drop Wire / Rod Applications

Additional drop wires, which are installed specifically

for cable support, must be secured at both ends.

When independent wires are used in fire-rated

assemblies, they must be distinguishable from those

wires that are part of the fire-rated assembly. B-Line’s

BA-311 series can be used to secure support wire to

the ceiling grid. Its bright yellow color allows it to be

easily recognized by inspectors. (See Figure 8)

Figure 5 - BE Series

Upper Attachments

Figure 6 - BF3 Series & BF4 Series

Figure 7 - BG-8-12-S18-W2 Figure 8 - BA311

NEC Requirements

Fasteners 226

Reprinted with permission from NFPA 70-2005, the National Electrical Code®, Copyright®2005, National Fire Protection

Association, Quincy, MA 02269.

This reprinted material is not the complete and official position of the National Fire Protection Association, on the referenced

subject which is represented only by the standard in its entirety.

310.15 Ampacities For Conductors Rated 0-2000 Volts.

(B) Tables . . . . .

(2) Adjustment Factors.

(a) More Than Three Current-Carrying

Conductors in a Raceway or Cable. Where

the number of current-carrying conductors in

a raceway or cable exceeds three, or where

single conductors or multiconductor cables

are stacked or bundled longer than 600 mm

(24 in.) without maintaining spacing and are

not installed in raceways, the allowable

ampacity of each conductor shall be reduced

as shown in Table 310.15(B)(2)(a). Each

current-carrying conductor of a paralleled set

of conductors shall be counted as a current-

carrying conductor.

FPN No. 1: See Annex B, Table B.310.11, for

adjustment factors for more than three current-

carrying conductors in a raceway or cable with

load diversity.

FPN No. 2: See 366.23(A), for correction factors for

conductors in sheet metal auxiliary gutters and

376.22 for correction factors for conductors in

metal raceways.

Exception No. 1: Where conductors of different

systems, as provided in 300.3, are installed in a

common raceway or cable, the derating factors

shown in Table 310.15(B)(2)(a) shall apply only to

the number of power and lighting conductors

(Articles 210, 215, 220, and 230).

Exception No. 2: For conductors installed in cable

trays, the provisions of 392.11 shall apply.

Exception No. 3: Derating factors shall not apply

to conductors in nipples having a length not

exceeding 600 mm (24 in.).

Exception No. 4: Derating factors shall not apply to

underground conductors entering or leaving an

outdoor trench if those conductors have physical

protection in the form of rigid metal conduit,

intermediate metal conduit, or rigid nonmetallic

conduit having a length not exceeding 3.05 m

(10 ft) and if the number of conductors does not

exceed four.

Reprinted with permission from NFPA 70-2005, the National Electrical Code®, Copyright®2005, National Fire Protection

Association, Quincy, MA 02269.

This reprinted material is not the complete and official position of the National Fire Protection Association, on the referenced

subject which is represented only by the standard in its entirety.

NEC Requirements

Fasteners

227

Exception No. 5: Adjustment factors shall not apply

to Type AC cable or to Type MC cable without an

overall outer jacket under the following conditions:

(1) Each cable has not more than three

current-carrying conductors.

(2) The conductors are 12 AWG copper.

(3) Not more than 20 current-carrying

conductors are bundled, stacked, or

supported on “bridle rings”.

(See Figure 9)

A 60 percent adjustment factor shall be applied

where current-carrying conductors in these cables

that are stacked or bundled longer than 600 mm

(24 in.) without maintaining spacing exceeds 20.

(b) More Than One Conduit, Tube, or

Raceway Spacing between conduits,

tubing, or raceways shall be maintained.

Figure 9 - Bridle Rings Figure 10 - BRC6M

NEC Requirements

Fasteners 228

Reprinted with permission from NFPA 70-2005, the National Electrical Code®, Copyright®2005, National Fire Protection

Association, Quincy, MA 02269.

This reprinted material is not the complete and official position of the National Fire Protection Association, on the referenced

subject which is represented only by the standard in its entirety.

Reprinted with permission from NFPA 70-2005, the National Electrical Code®, Copyright®2005, National Fire Protection

Association, Quincy, MA 02269.

This reprinted material is not the complete and official position of the National Fire Protection Association, on the referenced

subject which is represented only by the standard in its entirety.

NEC Requirements

Fasteners

229

314.23 Supports. Enclosures within the scope of this

article shall be supported in accordance with one

or more of the provisions in 314.23 (A) through (H).

mounted in a finished surface shall be rigidly

secured thereto by clamps, anchors, or fittings

identified for the application. (See Figures 11 & 12)

(D) Suspended Ceilings. An enclosure mounted to

structural or supporting elements of a suspended

ceiling shall be not more than 1650 cm3(100 in.3) in

size and shall be securely fastened in place in

accordance with either (D)(1) or (D)(2).

(1) Framing Members. An enclosure shall be

fastened to the framing members by mechanical

means such as bolts, screws, or rivets, or by the

use of clips or other securing means identified for

use with the type of ceiling framing member(s)

and enclosure(s) employed. . . . . (See Figure 13)

(2) Support Wires. The installation shall comply

with the provisions of 300.11(A). The enclosure

shall be secured, using methods identified for the

purpose to ceiling support wire(s), including any

additional support wire(s) installed for that purpose.

Support wire(s) used for enclosure support shall be

fastened at each end so as to be taut within the

ceiling cavity. (See Figure 14)

(E) Raceway Supported Enclosures, Without

Devices, Luminaries (Fixtures), orLampholders.

. . . It shall be supported by two or more conduits

threaded wrenchtight into the enclosure or hubs.

Each conduit shall be secured within 900 mm (3 ft)

of the enclosure, or within 450 mm (18 in.) of the

enclosure if all conduit entries are on the same

side. (See Figure 15)

(F) Raceway Supported Enclosures, With Devices,

Luminaries (Fixtures), or Lampholders. . . . It

shall be supported by two or more conduits threaded

wrenchtight into the enclosure or hubs.

Each conduit shall be secured within 450 mm (18 in.)

of the enclosure. (See Figure 15)

314.27 Outlet Boxes

(B) Maximum Luminaire (Fixture) Weight. Outlet boxes

or fitting installed as required by 314.23 shall be per

mitted to support luminaries (lighting fixtures) weighing

23 kg (50 lbs.) or less. A luminaire (lighting fixture) that

weighs more than 23 kg (50 lbs.) shall be supported

independently of the outlet box unless the outlet box is

listed for the weight to be supported.

(See Figure 13)

(D) Boxes at Ceiling-Suspended (Paddle) Fan Outlets.

Outlet boxes or outlet box systems used as the sole

support of a ceiling-suspended (paddle) fan shall be

listed, shall be marked by their manufacturer as suitable

for this purpose, and shall not support ceiling-suspended

(paddle) fans that weigh more than 32 kg (70 lb). For

outlet boxes or outlet box systems designed to support

of a ceiling-suspended (paddle) fans that weigh more

than 16 kg (35 lb), the required marking shall include the

maximum weight to be supported.

(See Figure 16)

Figure 11 - BB4-23

Figure 12 - BB9 & BB12

Figure 13 - BA50 Figure 14 - BG-8-12-S18-W2

Figure 15 - BG-8-12-S18-U-2-4 Figure 16 - BA50F

NEC Requirements

Fasteners 230

Reprinted with permission from NFPA 70-2005, the National Electrical Code®, Copyright®2005, National Fire Protection

Association, Quincy, MA 02269.

This reprinted material is not the complete and official position of the National Fire Protection Association, on the referenced

subject which is represented only by the standard in its entirety.

Article 320

Armored Cable : Type AC

320.17 Through or Parallel to Framing Members.

Type AC cable shall be protected in accordance with

300.4 (A), (C), and (D) where installed through or parallel

to framing members. (See Figures 17 & 18)

320.30 Securing and Supporting.

(A) General. Type AC shall be supported and secured by

staples, cable ties, straps, hangers, or similar fittings,

designed and installed so as not to damage the cable.

(B) Securing. Unless otherwise provided, Type AC cable

shall be secured within 300 mm (12 in.) of every out

let box, junction box, cabinet, or fitting and at intervals

not exceeding 1.4 m (41/2ft) where installed on or

across framing members. (See Figures 19 -22)

cable shall be supported at intervals not exceeding

1.4 m (41/2ft). Horizontal runs of Type AC cable

installed in wooden or metal framing members or

similar supporting means shall be considered

supported where such support does not exceed 1.4 m

(41/2ft) intervals.

Article 330

Metal-Clad Cable : Type MC

330.17 Through or Parallel to Framing Members.

Type MC cable shall be protected in accordance with

300.4 (A), (C), and (D) where installed through or parallel

to framing members. (See Figures 17 & 18)

330.30 Securing and Supporting.

(A) General. Type MC shall be supported and secured

by staples, cable ties, straps, hangers, or

similar fittings or other approved means designed

and installed so as not to damage the cable.

(B) Securing. Unless otherwise provided, cables

shall be secured at intervals not exceeding 1.8 m

(6 ft). Cables containing four or fewer conductors sized

no larger than 10 AWG shall be secured within

300 mm (12 in.) of every box, cabinet, fitting or other

cable termination. (See Figure 19 - 22)

be supported at intervals not exceeding 1.8 m (6ft).

Horizontal runs of Type MC cable installed in wooden

or metal framing members or similar supporting means

shall be considered supported and secured where

such support does not exceed 1.8 m (6 ft) intervals.

Article 334

Nonmetallic Sheathed Cables

334.17 Through or Parallel to Framing Members.

Type NM, NMC, or NMS cable shall be protected in

accordance with 300.4 where installed through or

Reprinted with permission from NFPA 70-2005, the National Electrical Code®, Copyright®2005, National Fire Protection

Association, Quincy, MA 02269.

This reprinted material is not the complete and official position of the National Fire Protection Association, on the referenced

subject which is represented only by the standard in its entirety.

NEC Requirements

Fasteners

231

parallel to framing members. Grommets used as required

in 300.4(B)(1) shall remain in place and be listed for the

purpose of cable protection.

(See Figures 17 & 18)

334.30 Securing and Supporting. Nonmetallic-sheathed

cable shall be supported and secured by staples, cable

ties, straps, hangers, or similar fittings designed and

installed so as not to damage the cable, at intervals not

exceeding 1.4 m (41/2ft) and within 300 mm (12 in.) of

every outlet box, junction box, cabinet, or fitting. Flat

cables shall not be stapled on edge. Sections of cable

protected from physical damage by raceway shall not be

required to be secured within the raceway.

(See Figures 19 - 22)

(A) Horizontal Runs Through Holes and Notches.

In other than vertical runs, cables installed in

accordance with 300.4 shall be considered to be

supported and secured where such support does not

exceed 1.4 m ( 41/2ft) intervals and the nonmetallic-

sheathed cable is securely fastened in place by an

approved means within 300 mm (12 in.) of each box,

cabinet, conduit body, or other nonmetallic-sheathed

cable termination.

FPN: See 314.17(C) for support where nonmetallic

boxes are used.

Figure 17 - BM1/BM2

Figure 19 - BG-8-12-H7

Figure 22 - BX4

Figure 20 - BRC4 & BRC6M

Figure 21 - BX5

Figure 18 - BM3 & BM3M

NEC Requirements

Fasteners 232

Reprinted with permission from NFPA 70-2005, the National Electrical Code®, Copyright®2005, National Fire Protection

Association, Quincy, MA 02269.

This reprinted material is not the complete and official position of the National Fire Protection Association, on the referenced

subject which is represented only by the standard in its entirety.

Reprinted with permission from NFPA 70-2005, the National Electrical Code®, Copyright®2005, National Fire Protection Association,

Quincy, MA 02269.

This reprinted material is not the complete and official position of the National Fire Protection Association, on the referenced subject

which is represented only by the standard in its entirety.

NEC Requirements

Article 344

Rigid Metal Conduit : Type RMC

344.30 Securing and Supporting.

(A) Securely Fastened. RMC shall be securely fastened

within 900 mm (3 ft) of each outlet box, junction box,

device box, cabinet, conduit body, or other conduit

termination. Fastening shall be permitted to be

increased to a distance of 1.5 m (5 ft) where structural

members do not readily permit fastening within 900 mm

(3 ft). Where approved, conduit shall not be required to

be securely fastened within 900 mm (3 ft) of the service

head for above-the-roof termination of a mast.

(See Figures 23 - 25)

(B) Supports. RMC shall be supported in accordance

with one of the following:

(1) Conduit shall be supported at intervals not

exceeding 3 m (10 ft).

(2) The distance between supports for straight

runs of conduit shall be permitted in

accordance with Table 344.30(B)(2), . . . .

(3) Exposed vertical risers from industrial machinery

or fixed equipment shall be permitted to be

supported at intervals not exceeding

6 m (20 ft) . . . .

(4) Horizontal runs of RMC supported by openings

through framing members at intervals not

exceeding 3 m (10 ft) and securely fastened

within 900 mm (3 ft) of termination points

shall be permitted. (See Figure 26)

Article 348

Flexible Metal Conduit: Type FMC

348.30 Securing and Supporting.

(A) Securely Fastened. FMC shall be securely fastened in

place by an approved means within 300 mm (12 in.) of

each box, cabinet, conduit body, or other conduit

termination and shall be supported and secured at

intervals not to exceed 1.4 m (41/2ft).

(See Figures 23 - 25)

(B) Supports. Horizontal runs of FMC supported by

openings through framing members at intervals not

greater than 1.4 m ( 41/2ft) and securely fastened

within 300 mm (12 in) of termination points shall be

permitted. (See Figure 26)

* See NFPA 70-2005 for exceptions.

Article 358

Electrical Metallic Tubing - Type EMT

358.30 Securing and Supporting.

(A) Securely Fastened. EMT shall be securely fastened in

place at least every 3 m (10 ft). In addition, each EMT

run between termination points shall be securely

within 900 mm (3 ft) of each outlet box, junction box,

NEC Requirements

Fasteners

233

device box, cabinet, conduit body, or other tubing

termination. (See Figures 23 - 25)

Exception No. 1: Fastening of unbroken lengths

shall be permitted to be increased to a distance of

1.5 m (5 ft) where structural members do not

readily permit fastening within 900 mm (3 ft).

Exception No. 2: For concealed work in finished

buildings or prefinished wall panels where such

securing is impracticable, unbroken lengths (with

out coupling) of EMT shall be permitted to be fished.

(B) Supports. Horizontal runs of EMT supported by

openings through framing members at intervals not

greater than 3 m (10 ft) and securely fastened within

900 mm (3 ft) of termination points shall be permitted.

(See Figure 26)

Article 362

Electrical Nonmetallic Tubing - Type ENT

362.30 Securing and Supporting.

(A) Securely Fastened. ENT shall be securely

fastened at intervals not exceeding 900 mm (3 ft).

In addition, ENT shall be securely fastened in place

within 900 mm (3 ft) of each outlet box, device box,

junction box, cabinet, or fitting where it terminates.

(See Figures 23 - 25)

Exception No. 1: Lengths not exceeding a distance of

1.8 m (6 ft) from a luminaire (fixture) terminal

connection for tap connection to lighting luminaries

(fixtures) shall be permitted without being secured.

Exception No. 2: Lengths not exceeding 1.8 m (6 ft)

from the last point where the raceway is securely

fastened for connection within an accessible ceiling to

luminaire(s) [lighting fixture(s)] or other equipment.

(B) Supports. Horizontal runs of ENT supported by

openings in framing members at intervals not

exceeding 900 mm (3 ft) of termination points shall be

permitted. (See Figure 26)

Figure 23 - BG-8-12-S18-U-2-4 Figure 24 - BB38

Figure 25 - BG-8-12-B1 Figure 26 - BX4

NEC Requirements

Fasteners 234

Reprinted with permission from NFPA 70-2005, the National Electrical Code®, Copyright®2005, National Fire Protection

Association, Quincy, MA 02269.

This reprinted material is not the complete and official position of the National Fire Protection Association, on the referenced

subject which is represented only by the standard in its entirety.

Article 410

Luminaries (Lighting Fixtures),

Lampholders, and Lamps

410.16 Means of Support.

(A) Outlet Boxes. Outlet boxes or fittings installed as

required by 314.23 and complying with the provisions

of 314.27(A) and 314.27(B) shall be permitted to

support luminaries (fixtures).

suspended ceiling systems used to support luminaries

(fixtures) shall be securely fastened to each other and

shall be securely attached to the building structure at

appropriate intervals. Luminaries (fixtures) shall be

securely fastened to the ceiling framing member by

mechanical means such as bolts, screws, or rivets.

Listed clips identified for use with the type of ceiling

framing member(s) and luminaire(s) [fixture(s)] shall

also be permitted. (See Figures 27 - 31)

410.104 Fastening. Lighting track shall be securely

mounted so that each fastening is suitable for supporting

the maximum weight of luminaries (fixtures) that can be

installed. Unless identified for supports at greater intervals,

a single section 1.2 m (4 ft.) or shorter in length shall have

two supports, and, where installed in a continuous row,

each individual section of not more than 1.2 m (4 ft.) in

length shall have one additional support. (See Figure 30)

422.18 Support of Ceiling-Suspended (Paddle) Fans

Ceiling-suspended (paddle) fans shall be supported

independently of an outlet box or by listed outlet

box or outlet box systems identified for the use and

installed in accordance with 314.27(D). (See Figure 32)

Article 800

Communication Circuits

800.24 Mechanical Execution of Work.

Communications circuits and equipment shall be installed

in a neat and workmanlike manner. Cables installed exposed

on the surface of ceilings and sidewalls shall be supported

by the building structure in such a manner that the cable will

not be damaged by normal building use. Such cables shall be

secured by straps, staples, hangers, or similar fittings

designed and installed so as not to damage the cable. The

installation shall also conform with 300.4(D) and 300.11.

FPN: Accepted industry practices are described in

ANSI/NECA/BICSI 568-2001, Standard for Installing

Commercial Building Telecommunications Cabling,

and other ANSI-approved installation standards.

Reprinted with permission from NFPA 70-2005, the National Electrical Code®, Copyright®2005, National Fire Protection

Association, Quincy, MA 02269.

This reprinted material is not the complete and official position of the National Fire Protection Association, on the referenced

subject which is represented only by the standard in its entirety.

NEC Requirements

Fasteners

235

Figure 27 - BA15 Figure 28 - BA1

Figure 29 - BA40 Figure 30 - BA 4-16 Series

Figure 31 - BAX Series Figure 32 - BA50F

NEC Requirements

Fasteners 236

Reprinted with permission from NFPA 70-2005, the National Electrical Code®, Copyright®2005, National Fire Protection

Association, Quincy, MA 02269.

This reprinted material is not the complete and official position of the National Fire Protection Association, on the referenced

subject which is represented only by the standard in its entirety.

Reprinted with permission from NFPA 70-2005, the National Electrical Code®, Copyright®2005, National Fire Protection Association,

Quincy, MA 02269.

This reprinted material is not the complete and official position of the National Fire Protection Association, on the referenced subject

which is represented only by the standard in its entirety.

TIA/EIA Requirements

ANSI/TIA/EIA-569-A

4. Horizontal pathways and related spaces

4.6 Ceiling pathway

4.6.2 Design guidelines

4.6.2.1 Planning. The design shall provide a

suitable means for supporting cable from the

telecommunications closet to the work areas to be

served. Cable shall not be laid directly on the

ceiling tile or rails.

4.6.2.2 Clearance. A minimum of 75 mm (3 in.)

clear vertical space shall be available above the

ceiling tiles for the horizontal cabling and pathway.

(See Figure 33)

4.6.5 Cable support

4.6.5.1 Where zone conduit or cable tray is not

available in a suspended ceiling space and

where telecommunications cables are allowed to

be placed in the ceiling, adequate open-top

cable supports, located on 1220-1525 mm (48-

60 inch) centers, shall be provided. Where larger

quantities of cables (50-75 cables) bunched

together in the ceiling at a congested area, such

as close to the telecommunications closet, special

supports shall be designed and installed to carry

the additional weight. (See Figures 33 & 34)

4.6.5.2 A suspended ceiling support rod or wire may

be used to mount appropriate cable fasteners

loaded with multiple cables up to the total weight

for which the fastener is approved. The T-bar rail

of a suspended ceiling may be used to mount

appropriate cable fasteners loaded with cable up

to a total weight of 0.7 kg/m (0.45 lb/ft). The

fastener design shall not interfere with the

inserting or removing of the ceiling tile.

(See Figures 33 & 34)

NOTES

1) A weight of 1.0 kg (2.2 lbs.) or 0.7 kg/m with

spacing of support wire/rod at 1.5 m (5 ft.) is

equivalent to a bundle of sixteen 4-pair 24 AWG

UTP cables, including fasteners.

2) If any side pull is exerted on the support wire,

like a turn in direction of the cables, the level

of the ceiling tee rail could be affected.

TIA/EIA Requirements

Fasteners

237

TIA/EIA Requirements

Figure 33 - BCHxx-A28 Figure 34 - BCHxx-W2

TIA/EIA Requirements

Fasteners 238

Reprinted with permission from NFPA 70-2005, the National Electrical Code®, Copyright®2005, National Fire Protection

Association, Quincy, MA 02269.

This reprinted material is not the complete and official position of the National Fire Protection Association, on the referenced

subject which is represented only by the standard in its entirety.

Reference Data

‘A’

‘B’

‘C’

‘E’

‘D’

‘F’

‘G’

‘H’

.26 Ø

Cable Static Load Capacity (S.F. 3)

Hook Galvanized &

Size Stainless Steel

In.

Lbs.

3/4

15/16

2 30

4 30

Stated loads are per hook and

should not be exceeded. The load

capacity of a fastener having more

than one component is equal to the

load capacity of the lowest rated

component.

Load Capacity

Hook ‘A’ ‘B’ ‘C’ ‘D’ ‘E’ ‘F’ ‘G’ ‘H’

Size

In. In. In. In. In. In. In. In. In.

3/4.88 3.18 2.68 1.00 .75 1.69 .94 --

15/16 1.62 3.62 2.81 1.69 1.31 2.00 1.37 .20

2 1.62 4.31 3.50 2.38 2.00 2.69 2.06 .20

4 2.00 6.81 5.56 4.55 4.00 4.84 4.06 .31

Single-Sided Single-Tier Cable Fasteners

Overall

Height

‘A’

‘B’

.32 Ø

.75

Overall

Width

Hook ‘A’ ‘B’ Overall Overall

Size Height Width

In. In. In. In. In.

15/16

1.90 2.50 5.50 3.47

2 1.90 2.50 6.19 4.85

4 2.38 2.94 9.00 9.19

Double-Sided Single-Tier Cable Fasteners

Cable Hook Technical Data

BCH12

Reference Data

Fasteners

239

Cable Hook Technical Data

Reference Data

Hook ‘A’ ‘B’ Spacing Clearance Overall Overall

Size Height Width

In. In. In. In. In. In. In.

5/16

1.90 2.50 3.75 1.94 9.25 3.47

2 1.90 2.50 4.75 2.25 10.94 4.85

4 2.38 2.94 9.38 4.50 18.20 9.19

Double-Sided Double-Tier Cable Fasteners

Hook No. ‘A’ ‘B’ Spacing Clearance Overall Overall

Size Tiers Height Width

In. In. In. In. In. In. In.

2 1.90 2.50 3.75 1.94 11.00 1.96

3 1.90 2.50 3.75 1.94 14.75 1.96

5/16

4 1.90 2.50 3.75 1.94 18.50 1.96

5 1.90 2.50 3.75 1.94 22.25 1.96

6 1.90 2.50 3.75 1.94 26.00 1.96

2 1.90 2.50 4.75 2.25 12.75 2.66

3 1.90 2.50 4.75 2.25 17.50 2.66

241.90 2.50 4.75 2.25 22.25 2.66

5 1.90 2.50 4.75 2.25 27.00 2.66

6 1.90 2.50 4.75 2.25 31.75 2.66

2 2.38 2.94 8.75 3.19 19.33 4.82

43 2.38 2.94 8.75 3.19 28.08 4.82

Single-Sided Multi-Tier

Cable Fasteners

(2 thru 6 Tier)

‘A’

Clearance

Overall Width

.75

.32 Ø

‘B’

Spacing

Typ.

Overall

Height

‘A’

‘B’

Overall

Height

Clearance

Overall

Width

.75

.32 Ø

Spacing

Reference Data

Fasteners 240

Minimum Weight

Nominal Nominal Weight of Conduit

Conduit Outside Inside Per 100 Ft. and

Size Diameter Diameter With Couplings Conductors

Attached Per 100 Ft.*

In. In. In. Lbs. Lbs.

3/8

0.675 0.493 51.5 65.1

1/2

0.840 0.632 79.0 101.1

3/4

1.050 0.836 105.0 145.8

1 1.315 1.063 153.0 219.3

1/4

1.660 1.394 201.0 318.3

1/2

1.900 1.624 249.0 408.8

2 2.375 2.083 332.0 593.8

1/2

2.875 2.489 527.0 901.0

3 3.500 3.090 682.0 1259.0

1/2

4.000 3.570 831.0 1604.0

4 4.500 4.050 972.0 1967.0

Rigid Steel Conduit (Heavy Wall Conduit)

Minimum Weight

Nominal Nominal Weight of Conduit

Conduit Outside Inside Per 100 Ft. and

Size Diameter Diameter With Couplings Conductors

Attached Per 100 Ft.*

In. In. In. Lbs. Lbs.

1/2

0.815 0.745 60.0 82.1

3/4

1.029 0.954 82.0 122.8

1 1.290 1.205 116.0 182.3

1/4

1.638 1.553 150.0 267.3

1/2

1.883 1.793 182.0 341.8

2 2.360 2.266 242.0 503.8

1/2

2.857 2.727 401.0 775.0

3 3.476 3.346 493.0 1069.0

1/2

3.971 3.841 573.0 1346.0

4 4.466 4.336 638.0 1632.0

Intermediate Metal Conduit (IMC)

Dimensions taken from ANSI C80.3 - 1977.

* Conduit plus weight of heaviest conductor combination as

specified by the National Electrical Code.

Reference Data

Fasteners

241

Minimum Weight

Nominal Nominal Weight of Conduit

Conduit Outside Inside Per 100 Ft. and

Size Diameter Diameter With Couplings Conductors

Attached Per 100 Ft.*

In. In. In. Lbs. Lbs.

3/8

0.577 0.493 23.0 36.6

1/2

0.706 0.622 28.5 50.6

3/4

0.922 0.824 43.5 84.3

1 1.163 1.049 64.0 130.3

1/4

1.510 1.380 95.0 212.3

1/2

1.740 1.610 110.0 269.8

2 2.197 2.067 140.0 401.8

1/2

2.875 2.731 205.0 579.0

3 3.500 3.356 250.0 826.3

1/2

4.000 3.834 325.0 1098.0

4 4.500 4.334 370.0 1364.0

Electrical Metallic Tubing (EMT) - Thinwall Conduit

Minimum Weight

Nominal Nominal Weight of Conduit

Conduit Outside Inside Per 100 Ft. and

Size Diameter Diameter With Couplings Conductors

Attached Per 100 Ft.*

In. In. In. Lbs. Lbs.

1/2

0.840 0.632 27.4 49.5

3/4

1.050 0.836 36.4 77.2

1 1.315 1.063 53.0 119.3

1/4

1.660 1.394 69.6 186.9

1/2

1.900 1.624 82.2 242.0

2 2.375 2.083 115.7 377.5

1/2

2.875 2.489 182.5 556.5

3 3.500 3.090 238.9 815.2

1/2

4.000 3.570 287.7 1061.0

4 4.500 4.050 340.0 1334.0

5 5.563 5.073 465.4 2028.0

6 6.625 6.093 612.5 2870.0

Rigid Aluminum Conduit

Dimensions taken from ANSI C80.3 - 1977.

* Conduit plus weight of heaviest conductor combination as

specified by the National Electrical Code.

Reference Data

Fasteners 242

Nominal

Pipe Outside Wall Weight Weight

Size Diameter Thickness of Pipe of Water

In. In. In. Lbs. Per Ft. Lbs. Per Ft.

1/8

0.405 0.068 0.04 0.02

1/4

0.540 0.088 0.07 0.04

3/8

0.675 0.091 0.10 0.08

1/2

0.840 0.109 0.15 0.10

3/4

1.050 0.113 0.20 0.20

1 1.315 0.133 0.30 0.40

1/4

1.660 0.140 0.40 0.60

1/2

1.900 0.145 0.50 0.90

2 2.375 0.155 0.60 1.40

1/2

2.875 0.203 1.00 2.10

3 3.500 0.216 1.30 3.20

1/2

4.000 0.226 1.60 4.30

4 4.500 0.237 1.90 5.50

Schedule 40 PVC Plastic Pipe

Weight

Nominal Minimum of Conduit

Nominal Outside Inside Weight and

Size Diameter Diameter of Conduit Conductors

In. In. In. Lbs. Per 100 Ft. Lbs. Per 100 Ft.

1/2

0.840 0.560 11.0 33.1

3/4

1.050 0.760 14.0 54.8

1 1.315 1.000 20.0 86.3

1/4

1.660 1.402 19.0 136.3

1/2

1.990 1.554 27.0 186.8

2 2.375 2.030 32.0 261.8

Electrical Non-Metallic Tubing (ENT)

Design

Thread Root Load

Size Area (SF=5)

1/4

”-20 0.027 in.2240 lbs.

5/16

”-18 0.045 in.2400 lbs.

3/8

”-16 0.068 in.2610 lbs.

All Threaded Rod (ATR)

Dimensions taken from ANSI B1.1 1982 Unified Inch Screw

Threads. All threads are UNCR series.

Tabulated loads

are based on an

allowable tensile stress

of 12000 psi reduced

by 25% resulting in

9000 psi. From

ANSI/MSS SP-58,

Table 3.

Reference Data

Fasteners

243

Trade Grounding Armor Approximate

Size Conductor AWG O.D. Wt. Per 100 Ft.

In. Lbs.

14-2 Solid 14 0.470 17.5

14-3 Solid 14 0.480 20.5

14-4 Solid 14 0.510 23.0

12-2 Solid 12 0.495 21.5

12-3 Solid 12 0.530 25.5

12-4 Solid 12 0.565 29.5

10-2 Solid 10 0.560 28.5

10-3 Solid 10 0.600 34.0

10-4 Solid 10 0.645 39.5

8-2 Stranded 10 0.710 45.0

8-3 Stranded 10 0.770 54.5

8-4 Stranded 10 0.835 64.5

6-2 Stranded 8 0.795 59.0

6-3 Stranded 8 0.865 72.0

6-4 Stranded 8 0.945 86.0

4-2 Stranded 8 0.945 78.5

4-3 Stranded 8 1.035 98.5

4-4 Stranded 8 1.135 119.5

3-3 Stranded 6 1.025 107.0

3-4 Stranded 6 1.120 126.0

2-2 Stranded 6 1.075 104.5

2-3 Stranded 6 1.180 134.0

2-4 Stranded 6 1.295 164.0

MC -- Metal Clad Cable Specifications

Pair AWG

Count Size O.D. Weight

In. Lbs. Per 100 Ft.

2 24 0.16 1.3

3 24 0.18 1.7

4 24 0.20 2.1

6 24 0.27 3.5

8 24 0.30 4.2

25 24 0.50 13.0

Category 5 Cable

Reference Data

Fasteners 244

Trade Approximate Approximate

Size O.D. Weight

In. Lbs. Per 100 Ft.

14 AWG 0.11 1.7

12 AWG 0.13 2.5

10 AWG 0.16 4.0

8 AWG 0.22 6.5

6 AWG 0.25 9.7

4 AWG 0.32 15.5

3 AWG 0.35 19.1

2 AWG 0.38 23.6

1 AWG 0.45 30.4

1/0 AWG 0.49 37.5

Type THHN -- Insulated Single

Conductor Building Wire

Size Number Ground Approximate Approximate

AWG of Strands Wire Size O.D. Weight

In. Lbs. Per 100 Ft.

Without Ground Wire

14-2 Solid -- .17 x .37 5.3

12-2 Solid -- .19 x .40 7.0

10-2 Solid -- .22 x .45 10.1

14-3 Solid -- 0.295 8.2

12-3 Solid -- 0.332 10.9

10-3 Solid -- 0.396 15.7

8-3 7 -- 0.538 27.8

6-3 7 -- 0.611 42.2

With Ground Wire

14-2 Solid 14 .17 x .37 6.4

12-2 Solid 12 .19 x .41 9.0

10-2 Solid 10 .22 x .49 13.3

8-2 7 10 .28 x .61 21.5

6-2 7 10 .32 x .73 31.3

14-3 Solid 14 .322 9.3

12-3 Solid 12 .363 12.9

10-3 Solid 10 .436 18.7

14-4 Solid 14 .450 11.6

12-4 Solid 12 .490 16.1

10-4 Solid 10 .550 23.3

8-3 7 10 .552 30.5

6-3 7 10 .611 45.0

4-3 78.821 66.4

2-3 78.946 93.0

Type NM -- Non-Metallic Sheathed Cable

Reference Data

Fasteners

245

Trade Armor Approximate

Size O.D. Weight

In. Lbs. Per 100 Ft.

14-2 Solid 0.433 18.0

14-3 Solid 0.453 20.0

14-4 Solid 0.486 25.0

12-2 Solid 0.467 21.0

12-3 Solid 0.489 24.5

12-4 Solid 0.520 29.0

10-2 Solid 0.476 25.0

10-3 Solid 0.500 29.5

10-4 Solid 0.541 38.0

8-2 Solid 0.570 34.5

8-3 Solid 0.601 41.5

8-4 Solid 0.654 48.0

8-2 Stranded 0.604 34.5

8-3 Stranded 0.637 42.0

8-4 Stranded 0.695 51.5

6-2 Stranded 0.700 44.5

6-3 Stranded 0.739 56.0

6-4 Stranded 0.807 68.5

4-2 Stranded 0.836 62.0

4-3 Stranded 0.885 80.0

4-4 Stranded 0.971 99.5

3-3 Stranded 0.990 94.0

3-4 Stranded 1.085 118.0

2-2 Stranded 0.956 81.5

2-3 Stranded 1.014 109.5

2-4 Stranded 1.115 138.0

AC -- Armored Cable Specifications

Reference Data

Fasteners 246

Index

Catalog No. Page Catalog No. Page

1314 . . . . . . . . . . . . . . . . . . . . . . . 196

1316 . . . . . . . . . . . . . . . . . . . . . . . 196

1372 . . . . . . . . . . . . . . . . . . . . . . . 196

1380 . . . . . . . . . . . . . . . . . . . . . . . 196

5860 . . . . . . . . . . . . . . . . . . . . . . . 192

5874 . . . . . . . . . . . . . . . . . . . . . . . 192

6305 . . . . . . . . . . . . . . . . . . . . . . . 193

6307 . . . . . . . . . . . . . . . . . . . . . . . 193

6309 . . . . . . . . . . . . . . . . . . . . . . . 193

6311 . . . . . . . . . . . . . . . . . . . . . . . 193

6313 . . . . . . . . . . . . . . . . . . . . . . . 193

6323 . . . . . . . . . . . . . . . . . . . . . . . 194

6336 . . . . . . . . . . . . . . . . . . . . . . . 194

6338 . . . . . . . . . . . . . . . . . . . . . . . 194

6407SD . . . . . . . . . . . . . . . . . . . 212

7187 . . . . . . . . . . . . . . . . . 190, 192

7195 . . . . . . . . . . . . . . . . . . . . . . . 192

7197 . . . . . . . . . . . . . . . . . . . . . . . 192

7198 . . . . . . . . . . . . . . . . . . . . . . . 192

9221 . . . . . . . . . . . . . . . . . . . . . . . 211

9231 . . . . . . . . . . . . . . . . . . . . . . . 211

9241 . . . . . . . . . . . . . . . . . . . . . . . 211

9323 . . . . . . . . . . . . . . . . . . . . . . . 195

9343 . . . . . . . . . . . . . . . . . . . . . . . 195

9353 . . . . . . . . . . . . . . . . . . . . . . . 195

ACB Series . . . . . . . . . . . . . . . 196

ACPD Series . . . . . . . . . . . . . . 210

ACPW Series . . . . . . . . . . . . . 209

ACS Series . . . . . . . . . . . 197-198

ADA Series . . . . . . . . . . 203-204

ADI Series . . . . . . . . . . . . . . . . 193

ADE Series . . . . . . . . . . . . . . . 207

ADH Series . . . . . . . . . . . . . . . 195

ADM Series . . . . . . . . . . . . . . . 194

ADN Series . . . . . . . . . . . . . . . 213

AMS Series . . . . . . . . . . . . . . . 211

APC Series . . . . . . . . . . . . . . . 219

APD Series . . . . . . . . . . . . . . . 218

APH Series . . . . . . . . . . . . . . . 217

APS Series . . . . . . . . . . . . . . . 216

ARC Series . . . . . . . . . . . 191-192

ARS Series . . . . . . . . . . . 189-190

ARW Series . . . . . . . . . . . . . . . 192

ASA Series . . . . . . . . . . . 205-206

ASE Series . . . . . . . . . . . . . . . 208

ATB Series . . . . . . . . . . . . . . . 214

ATM Series . . . . . . . . . . . . . . . 212

AWA Series . . . . . . . . . .199-200

AWS Series . . . . . . . . . . . . . . . 215

AWSD Series . . . . . . . . 201-202

AZD Series . . . . . . . . . . . . . . . 218

B1RRE . . . . . . . . . . . . . . . . . . . . . . 38

B1RRP4C . . . . . . . . . . . . . . . . . . . 38

B1RRP5C . . . . . . . . . . . . . . . . . . . 38

B1RRR . . . . . . . . . . . . . . . . . . . . . . 38

B2RRE . . . . . . . . . . . . . . . . . . . . . . 38

B2RRP4C . . . . . . . . . . . . . . . . . . . 38

B2RRP5C . . . . . . . . . . . . . . . . . . . 38

B2RRR . . . . . . . . . . . . . . . . . . . . . . 38

B3RRE . . . . . . . . . . . . . . . . . . . . . . 38

B3RRPC . . . . . . . . . . . . . . . . . . . . 38

B3RRR . . . . . . . . . . . . . . . . . . . . . . 38

B4RRE . . . . . . . . . . . . . . . . . . . . . . 38

B4RRPC . . . . . . . . . . . . . . . . . . . . 38

B4RRR . . . . . . . . . . . . . . . . . . . . . . 38

B444-1/4 . . . . . . . . . . . . . . . . . . . 110

B444-5/16 . . . . . . . . . . . . . . . . . . 110

B444-3/8 . . . . . . . . . . . . . . . . . . . 110

B601-62 . . . . . . . . . . . . . . . . . . . 185

B1506S . . . . . . . . . . . . . . . . . . . . . 52

B1508 . . . . . . . . . . . . . . . . . . . . . . 52

B1508S . . . . . . . . . . . . . . . . . . . . . 52

B1512 . . . . . . . . . . . . . . . . . . . . . . 52

B1512S . . . . . . . . . . . . . . . . . . . . . 52

B1516 . . . . . . . . . . . . . . . . . . . . . . 52

B1516S . . . . . . . . . . . . . . . . . . . . . 52

B1520 . . . . . . . . . . . . . . . . . . . . . . 52

B1520S . . . . . . . . . . . . . . . . . . . . . 52

B1524S . . . . . . . . . . . . . . . . . . . . . 52

B1532S . . . . . . . . . . . . . . . . . . . . . 52

B1534S . . . . . . . . . . . . . . . . . . . . . 52

B1540S . . . . . . . . . . . . . . . . . . . . . 52

B1548S . . . . . . . . . . . . . . . . . . . . . 52

B1556S . . . . . . . . . . . . . . . . . . . . . 52

B1564S . . . . . . . . . . . . . . . . . . . . . 52

B3223-3/8 . . . . . . . . . . . . . . . . . 143

BA1 . . . . . . . . . . . . . . . . . . . . . . . . . 87

BA1-9 . . . . . . . . . . . . . . . . . . . . . . . 87

BA1-24 . . . . . . . . . . . . . . . . . . . . . 87

BA1-32 . . . . . . . . . . . . . . . . . . . . . 87

BA1-95 . . . . . . . . . . . . . . . . . . . . . 87

BA1-T . . . . . . . . . . . . . . . . . . . . . . 87

BA1-T-BN . . . . . . . . . . . . . . . . . . 87

BA-2-9 . . . . . . . . . . . . . . . . . . . . . . 91

BA-2-9-BN . . . . . . . . . . . . . . . . . . 91

BA-2-9-W . . . . . . . . . . . . . . . . . . . 91

BA-2-9-WBN . . . . . . . . . . . . . . . 91

BA-2-9-7 . . . . . . . . . . . . . . . . . . . . 91

BA-2-9-7-BN . . . . . . . . . . . . . . . 91

BA-2-16 . . . . . . . . . . . . . . . . . . . . 90

BA-2-16-BN . . . . . . . . . . . . . . . . 90

BA-2-16-W . . . . . . . . . . . . . . . . . 90

BA-2-16-WBN . . . . . . . . . . . . . . 90

BA-2-16-7 . . . . . . . . . . . . . . . . . . 90

BA-2-16-7-BN . . . . . . . . . . . . . . 90

BA-2-16-7-W . . . . . . . . . . . . . . . 90

BA-2-16-7-WBN . . . . . . . . . . . . 90

BA-4-9 . . . . . . . . . . . . . . . . . . . . . . 91

BA-4-9-W . . . . . . . . . . . . . . . . . . . 91

BA-4-16 . . . . . . . . . . . . . . . . . . . . 89

BA-4-16-24 . . . . . . . . . . . . . . . . . 89

BA-4-16-32 . . . . . . . . . . . . . . . . . 89

BA-4-16-48 . . . . . . . . . . . . . . . . . 89

Index

Fasteners

247

Index

Catalog No. Page Catalog No. Page

BA cont.

BA-4-16-H . . . . . . . . . . . . . . . . . . 88

BA-4-16-H1 . . . . . . . . . . . . . . . . . 88

BA-4-16-W . . . . . . . . . . . . . . . . . 89

BA-4-WN . . . . . . . . . . . . . . . . . . . 89

BA-5-4T . . . . . . . . . . . . . . . . . . . . 77

BA-6-4T . . . . . . . . . . . . . . . . . . . . 78

BA12 . . . . . . . . . . . . . . . . . . . . . . . 81

BA12-12 . . . . . . . . . . . . . . . . . . . . 81

BA12-20 . . . . . . . . . . . . . . . . . . . . 81

BA12-30 . . . . . . . . . . . . . . . . . . . . 81

BA14 . . . . . . . . . . . . . . . . . . . . . . . 76

BA15 . . . . . . . . . . . . . . . . . . . . . . . 76

BA17 . . . . . . . . . . . . . . . . . . . . . . . 86

BA18 . . . . . . . . . . . . . . . . . . . . . . . 86

BA20 . . . . . . . . . . . . . . . . . . . . . . . 86

BA-21 . . . . . . . . . . . . . . . . . . . . . . . 89

BA-21D . . . . . . . . . . . . . . . . . . . . . 89

BA28 . . . . . . . . . . . . . . . . . . . . . . . 80

BA28B . . . . . . . . . . . . . . . 144, 179

BA40 . . . . . . . . . . . . . . . . . . . . . . . 85

BA50 . . . . . . . . . . . . . . . . . . . . . . . 82

BA50A . . . . . . . . . . . . . . . . . . . . . . 83

BA50CAN . . . . . . . . . . . . . . . . . . 82

BA50C3T . . . . . . . . . . . . . . . . . . . 82

BA50C4T . . . . . . . . . . . . . . . . . . . 82

BA50D . . . . . . . . . . . . . . . . . . . . . . 82

BA50DCAN . . . . . . . . . . . . . . . . 82

BA50E . . . . . . . . . . . . . . . . . . . . . . 82

BA50F . . . . . . . . . . . . . . . . . . . . . . 84

BA50-OB-24 . . . . . . . . . . . . . . . . 83

BA50-OB-34 . . . . . . . . . . . . . . . . 83

BA50-SB-24 . . . . . . . . . . . . . . . . 83

BA50-SB-34 . . . . . . . . . . . . . . . . 83

BA311 . . . . . . . . . . . . . . . . . . . . . . 92

BA311-W2 . . . . . . . . . . . . . . . . . . 92

BA311-W6 . . . . . . . . . . . . . . . . . . 92

BA-SFC . . . . . . . . . . . . . . . . . . . . . 93

BA-SFC-CF . . . . . . . . . . . . . . . . . 93

BA-SFC-CFS . . . . . . . . . . . . . . . 93

BA-SFC-E . . . . . . . . . . . . . . . . . . 93

BA-SFC-S . . . . . . . . . . . . . . . . . . 93

BAX-4-16 . . . . . . . . . . . . . . . . . . . 88

BAX-4-16-24 . . . . . . . . . . . . . . . 88

BAX-4-16-32 . . . . . . . . . . . . . . . 88

BAX-4-16-48 . . . . . . . . . . . . . . . 88

BB1 . . . . . . . . . . . . . . . . . . . . . . . . . 20

BB2-16T . . . . . . . . . . . . . . . . . . . . 29

BB2-24T . . . . . . . . . . . . . . . . . . . . 29

BB2CL . . . . . . . . . . . . . . . . . . . . . . 30

BB2TS . . . . . . . . . . . . . . . . . . . . . . 29

BB4-4 . . . . . . . . . . . . . . . . . . . . . . . 25

BB4-4D . . . . . . . . . . . . . . . . . . . . . 25

BB4-6 . . . . . . . . . . . . . . . . . . . . . . . 25

BB4-6D . . . . . . . . . . . . . . . . . . . . . 25

BB4-23 . . . . . . . . . . . . . . . . . . . . . 25

BB4-23D . . . . . . . . . . . . . . . . . . . . 25

BB7-16 . . . . . . . . . . . . . . . . . . . . . 31

BB7-24 . . . . . . . . . . . . . . . . . . . . . 31

BB8-16 . . . . . . . . . . . . . . . . . . . . . 32

BB8-24 . . . . . . . . . . . . . . . . . . . . . 32

BB9 . . . . . . . . . . . . . . . . . . . . . . . . . 21

BB10 . . . . . . . . . . . . . . . . . . . . . . 151

BB10-2 . . . . . . . . . . . . . . . . . . . . 151

BB10-3 . . . . . . . . . . . . . . . . . . . . 151

BB10-4 . . . . . . . . . . . . . . . . . . . . 151

BB10L . . . . . . . . . . . . . . . . . . . . . 152

BB10P . . . . . . . . . . . . . . . . . . . . . 152

BB12 . . . . . . . . . . . . . . . . . . . . . . . . 21

BB12-6 . . . . . . . . . . . . . . . . . . . . . 21

BB15 . . . . . . . . . . . . . . . . . . 37, 154

BB-18 . . . . . . . . . . . . . . . . . . . . . . . 36

BB20 . . . . . . . . . . . . . . . . . . . . . . 151

BB20L . . . . . . . . . . . . . . . . . . . . . 152

BB27 . . . . . . . . . . . . . . . . . . . . . . . . 81

BB32 . . . . . . . . . . . . . . . . . . . . . . . . 24

BB33 . . . . . . . . . . . . . . . . . . . . . . . . 24

BB33L . . . . . . . . . . . . . . . . . . . . . . 24

BB38 . . . . . . . . . . . . . . . . . . . . . . . . 45

BB38D . . . . . . . . . . . . . . . . . . . . . . 45

BB40-08 . . . . . . . . . . . . . . . 37, 153

BB40-10 . . . . . . . . . . . . . . . 37, 153

BB40-12 . . . . . . . . . . . . . . . 37, 153

BB45-08 . . . . . . . . . . . . . . . 37, 153

BB45-10 . . . . . . . . . . . . . . . 37, 153

BB45-12 . . . . . . . . . . . . . . . 37, 153

BB70 . . . . . . . . . . . . . . . . . . . . . . . . 27

BB70E . . . . . . . . . . . . . . . . . . . . . . 27

BB73 . . . . . . . . . . . . . . . . . . . . . . . . 26

BB74 . . . . . . . . . . . . . . . . . . . . . . . . 26

BB76 . . . . . . . . . . . . . . . . . . . . . . . . 26

BB216TCL . . . . . . . . . . . . . . . . . . 30

BB216TS . . . . . . . . . . . . . . . . . . . 29

BB224TCL . . . . . . . . . . . . . . . . . . 30

BB224TS . . . . . . . . . . . . . . . . . . . 29

BBCC . . . . . . . . . . . . . . . . . . . . . . . 33

BBF15 . . . . . . . . . . . . . . . . . . . . . . 35

BBF15FC . . . . . . . . . . . . . . . . . . . 35

BBF18 . . . . . . . . . . . . . . . . . . . . . . 35

BBF18FC . . . . . . . . . . . . . . . . . . . 35

BBF24 . . . . . . . . . . . . . . . . . . . . . . 35

BBF24FC . . . . . . . . . . . . . . . . . . . 35

BBFC . . . . . . . . . . . . . . . . . . . . . . . 35

BBFS-18 . . . . . . . . . . . . . . . . . . . . 33

BC1 . . . . . . . . . . . . . . . . . . . . . . . . 111

BC442 . . . . . . . . . . . . . . . . . . . . . 100

BC442-6 . . . . . . . . . . . . . . . . . . . 100

BCH12 . . . . . . . . . . . . . . . . 155-156

BCH12-A28 . . . . . . . . . . . . . . . 166

BCH12-C1 . . . . . . . . . . . . . . . . . 162

BCH12-C2 . . . . . . . . . . . . . . . . . 162

BCH12-C442 . . . . . . . . . . . . . . 161

BCH12-C442A . . . . . . . . . . . . 161

BCH12-E-2-4 . . . . . . . . . . . . . . 159

BCH12-E-5-8 . . . . . . . . . . . . . . 159

Index

Fasteners 248

Catalog No. Page Catalog No. Page

BC cont.

BCH12-E-9-12 . . . . . . . . . . . . . 159

BCH12-F3 . . . . . . . . . . . . . . . . . 164

BCH12-F4 . . . . . . . . . . . . . . . . . 164

BCH12-G-8-12 . . . . . . . . . . . . 167

BCH12-L1410 . . . . . . . . . . . . . 167

BCH12-PNA . . . . . . . . . . . . . . . 139

BCH12-RB . . . . . . . . . . . . . . . . 158

BCH12-SC4 . . . . . . . . . . . . . . . 163

BCH12-U-2-4 . . . . . . . . . . . . . . 160

BCH12-U-5-8 . . . . . . . . . . . . . . 160

BCH12-U-9-12 . . . . . . . . . . . . 160

BCH12-W2 . . . . . . . . . . . . . . . . 165

BCH12-W6 . . . . . . . . . . . . . . . . 165

BCH21 . . . . . . . . . . . . . . . . 155-156

BCH21-1D . . . . . . . . . . . . . . . . . 168

BCH21-2D . . . . . . . . . . . . . . . . . 168

BCH21-2S . . . . . . . . . . . . . . . . . 169

BCH21-3S . . . . . . . . . . . . . . . . . 169

BCH21-4S . . . . . . . . . . . . . . . . . 170

BCH21-5S . . . . . . . . . . . . . . . . . 170

BCH21-6S . . . . . . . . . . . . . . . . . 170

BCH21-A28 . . . . . . . . . . . . . . . 166

BCH21-AB . . . . . . . . . . . . . . . . 158

BCH21-C1 . . . . . . . . . . . . . . . . . 162

BCH21-C2 . . . . . . . . . . . . . . . . . 162

BCH21-C442 . . . . . . . . . . . . . . 161

BCH21-C442A . . . . . . . . . . . . 161

BCH21-E-2-4 . . . . . . . . . . . . . . 159

BCH21-E-5-8 . . . . . . . . . . . . . . 159

BCH21-E-9-12 . . . . . . . . . . . . . 159

BCH21-F3 . . . . . . . . . . . . . . . . . 164

BCH21-F4 . . . . . . . . . . . . . . . . . 164

BCH21-G-8-12 . . . . . . . . . . . . 167

BCH21-L1410 . . . . . . . . . . . . . 167

BCH21-PNA . . . . . . . . . . . . . . . 139

BCH21-RB . . . . . . . . . . . . . . . . 158

BCH21-SC4 . . . . . . . . . . . . . . . 163

BCH21-U-2-4 . . . . . . . . . . . . . . 160

BCH21-U-5-8 . . . . . . . . . . . . . . 160

BCH21-U-9-12 . . . . . . . . . . . . 160

BCH21-W2 . . . . . . . . . . . . . . . . 165

BCH21-W6 . . . . . . . . . . . . . . . . 165

BCH21X . . . . . . . . . . . . . . . . . . . 157

BCH32 . . . . . . . . . . . . . . . . 155-156

BCH32-1D . . . . . . . . . . . . . . . . . 168

BCH32-2D . . . . . . . . . . . . . . . . . 168

BCH32-2S . . . . . . . . . . . . . . . . . 169

BCH32-3S . . . . . . . . . . . . . . . . . 169

BCH32-4S . . . . . . . . . . . . . . . . . 170

BCH32-5S . . . . . . . . . . . . . . . . . 170

BCH32-6S . . . . . . . . . . . . . . . . . 170

BCH32-A28 . . . . . . . . . . . . . . . 166

BCH32-AB . . . . . . . . . . . . . . . . 158

BCH32-C1 . . . . . . . . . . . . . . . . . 162

BCH32-C2 . . . . . . . . . . . . . . . . . 162

BCH32-C442 . . . . . . . . . . . . . . 161

BCH32-C442A . . . . . . . . . . . . 161

BCH32-E-2-4 . . . . . . . . . . . . . . 159

BCH32-E-5-8 . . . . . . . . . . . . . . 159

BCH32-E-9-12 . . . . . . . . . . . . . 159

BCH32-F3 . . . . . . . . . . . . . . . . . 164

BCH32-F4 . . . . . . . . . . . . . . . . . 164

BCH32-G-8-12 . . . . . . . . . . . . 167

BCH32-L1410 . . . . . . . . . . . . . 167

BCH32-PNA . . . . . . . . . . . . . . . 139

BCH32-RB . . . . . . . . . . . . . . . . 158

BCH32-SC4 . . . . . . . . . . . . . . . 163

BCH32-U-2-4 . . . . . . . . . . . . . . 160

BCH32-U-5-8 . . . . . . . . . . . . . . 160

BCH32-U-9-12 . . . . . . . . . . . . 160

BCH32-W2 . . . . . . . . . . . . . . . . 165

BCH32-W6 . . . . . . . . . . . . . . . . 165

BCH32X . . . . . . . . . . . . . . . . . . . 157

BCH64 . . . . . . . . . . . . . . . . 155-156

BCH64-1D . . . . . . . . . . . . . . . . . 168

BCH64-2D . . . . . . . . . . . . . . . . . 168

BCH64-2S . . . . . . . . . . . . . . . . . 169

BCH64-3S . . . . . . . . . . . . . . . . . 169

BCH64-4S . . . . . . . . . . . . . . . . . 170

BCH64-AB . . . . . . . . . . . . . . . . 158

BCH64-C1 . . . . . . . . . . . . . . . . . 162

BCH64-C2 . . . . . . . . . . . . . . . . . 162

BCH64-C442 . . . . . . . . . . . . . . 161

BCH64-C442A . . . . . . . . . . . . 161

BCH64-F3 . . . . . . . . . . . . . . . . . 164

BCH64-F4 . . . . . . . . . . . . . . . . . 164

BCH64-G-8-12 . . . . . . . . . . . . 167

BCH64-L1410 . . . . . . . . . . . . . 167

BCH64-PNA . . . . . . . . . . . . . . . 139

BCH64-RB . . . . . . . . . . . . . . . . 158

BCH64-SC4 . . . . . . . . . . . . . . . 163

BCH64-U-2-4 . . . . . . . . . . . . . . 160

BCH64-U-5-8 . . . . . . . . . . . . . . 160

BCH64-U-9-12 . . . . . . . . . . . . 150

BCH64X . . . . . . . . . . . . . . . . . . . 157

BCH-HBA . . . . . . . . . . . . . . . . . 171

BCH-HB21 . . . . . . . . . . . . . . . . 171

BCH-HB64 . . . . . . . . . . . . . . . . 171

BCHID-__12 . . . . . . . . . . . . . . . 156

BCHID-__21 . . . . . . . . . . . . . . . 156

BCHID-__32 . . . . . . . . . . . . . . . 156

BCHID-__64 . . . . . . . . . . . . . . . 156

BCHK1 . . . . . . . . . . . . . . . . . . . . 172

BCHK2 . . . . . . . . . . . . . . . . . . . . 172

BCHK3 . . . . . . . . . . . . . . . . . . . . 172

BCHR21 . . . . . . . . . . . . . . . . . . . 154

BCHR32 . . . . . . . . . . . . . . . . . . . 154

BCHR64 . . . . . . . . . . . . . . . . . . . 154

BCS-8 . . . . . . . . . . . . . . . . . . . . . . 67

BCS-8C . . . . . . . . . . . . . . . . . . . . . 67

BCS-12 . . . . . . . . . . . . . . . . . . . . . 67

BCS-12AS . . . . . . . . . . . . . . . . . . 67

BCS-12C . . . . . . . . . . . . . . . . . . . . 67

BCS-16 . . . . . . . . . . . . . . . . . . . . . 67

BCS-16AS . . . . . . . . . . . . . . . . . . 67

BCS-16C . . . . . . . . . . . . . . . . . . . . 67

BCS-18 . . . . . . . . . . . . . . . . . . . . . 67

BCS-18C . . . . . . . . . . . . . . . . . . . . 67

BCS-20 . . . . . . . . . . . . . . . . . . . . . 67

BCS-20C . . . . . . . . . . . . . . . . . . . . 67

Index

Fasteners

249

Catalog No. Page Catalog No. Page

BD2 . . . . . . . . . . . . . . . . . . 144, 179

BD4 . . . . . . . . . . . . . . . . . . 144, 179

BD40 . . . . . . . . . . . . . . . . . . . . . . 178

BE-1-2 . . . . . . . . . . . . . . . . . . . . . . 96

BE-2-4 . . . . . . . . . . . . . . . . . . . . . . . 96

BE-2-4-CT2 . . . . . . . . . . . . . . . . 150

BE-5-8 . . . . . . . . . . . . . . . . . . . . . . . 96

BE-5-8-CT2 . . . . . . . . . . . . . . . . 150

BE-9-12 . . . . . . . . . . . . . . . . . . . . . . 96

BE-9-12-CT2 . . . . . . . . . . . . . . 150

BES-8 . . . . . . . . . . . . . . . . . . . . . . . 67

BES-8C . . . . . . . . . . . . . . . . . . . . . 67

BES-12 . . . . . . . . . . . . . . . . . . . . . . 67

BES-12C . . . . . . . . . . . . . . . . . . . . 67

BES-16 . . . . . . . . . . . . . . . . . . . . . . 67

BES-16C . . . . . . . . . . . . . . . . . . . . 67

BF1 . . . . . . . . . . . . . . . . . . . . . . . . 133

BF1-40 . . . . . . . . . . . . . . . . . . . . . . 22

BF1-56 . . . . . . . . . . . . . . . . . . . . . . 22

BF1-64 . . . . . . . . . . . . . . . . . . . . . . 22

BF1-96 . . . . . . . . . . . . . . . . . . . . . . 22

BF1-CT2 . . . . . . . . . . . . . . . . . . . 150

BF2 . . . . . . . . . . . . . . . . . . . . . . . . 133

BF2-CT2 . . . . . . . . . . . . . . . . . . . 150

BF3 . . . . . . . . . . . . . . . . . . . . . . . . 129

BF4 . . . . . . . . . . . . . . . . . . . . . . . . 125

BF12 . . . . . . . . . . . . . . . . . . . . . . 123

BF13 . . . . . . . . . . . . . . . . . . . . . . 123

BFA-1215 . . . . . . . . . . . . . . . . . . . 66

BFA-1520 . . . . . . . . . . . . . . . . . . . 66

BG-6 . . . . . . . . . . . . . . . . . . . . . . . . 48

BG-6-4T . . . . . . . . . . . . . . . . . . . . 48

BG-6-A5 . . . . . . . . . . . . . . . . . . . . 77

BG-6-A6 . . . . . . . . . . . . . . . . . . . . 78

BG-6-B1 . . . . . . . . . . . . . . . . . . . . 20

BG-6-B5 . . . . . . . . . . . . . . . . . . . . 23

BG-6-E-2-4 . . . . . . . . . . . . . . . . . 98

BG-6-E-5-8 . . . . . . . . . . . . . . . . . 98

BG-6-E-9-12 . . . . . . . . . . . . . . . . 98

BG-6-F1 . . . . . . . . . . . . . . . . . . . 135

BG-6-F2 . . . . . . . . . . . . . . . . . . . 135

BG-6-F13 . . . . . . . . . . . . . . . . . . 123

BG-6-H7 . . . . . . . . . . . . . . . . . . . . 39

BG-6-PNA . . . . . . . . . . . . . . . . . 140

BG6-S18 . . . . . . . . . . . . . . . . . . . . 69

BG6-S18-MC3 . . . . . . . . . . . . . . 69

BG6-S18-S . . . . . . . . . . . . . . . . . 69

BG6-S18-S-MC3 . . . . . . . . . . . 69

BG6-S18-U24 . . . . . . . . . . . . . 116

BG6-S18-U24-MC3 . . . . . . . 116

BG6-S18-U58 . . . . . . . . . . . . . 116

BG6-S18-U58-MC3 . . . . . . . 116

BG6-S18-W2 . . . . . . . . . . . . . . . 70

BG6-S18-W2-MC3 . . . . . . . . . 70

BG6-S18-W6 . . . . . . . . . . . . . . . 70

BG6-S18-W6-MC3 . . . . . . . . . 70

BG6-SC4 . . . . . . . . . . . . . . . . . . 138

BG-6-U-2-4 . . . . . . . . . . . . . . . . 104

BG-6-U-5-8 . . . . . . . . . . . . . . . . 104

BG-6-U-9-12 . . . . . . . . . . . . . . 104

BG-8-12 . . . . . . . . . . . . . . . . . . . . 48

BG-8-12-4T . . . . . . . . . . . . . . . . . 48

BG-8-12-A5 . . . . . . . . . . . . . . . . 77

BG-8-12-A6 . . . . . . . . . . . . . . . . 78

BG-8-12-B1 . . . . . . . . . . . . . . . . . 20

BG-8-12-B5 . . . . . . . . . . . . . . . . . 23

BG-8-12-C1 . . . . . . . . . . . . . . . 112

BG-8-12-C2 . . . . . . . . . . . . . . . 111

BG-8-12-D3 . . . . . . . . . . . . . . . . 68

BG-8-12-D4 . . . . . . . . . . . . . . . . 68

BG-8-12-E-2-4 . . . . . . . . . . . . . . 98

BG-8-12-E-2-4-AS . . . . . . . . 106

BG-8-12-E-5-8 . . . . . . . . . . . . . . 98

BG-8-12-E-5-8-AS . . . . . . . . 106

BG-8-12-E-9-12 . . . . . . . . . . . . 98

BG-8-12-E-9-12-AS . . . . . . . 106

BG-8-12-F1 . . . . . . . . . . . . . . . . 135

BG-8-12-F2 . . . . . . . . . . . . . . . . 135

BG-8-12-F13 . . . . . . . . . . . . . . 123

BG-8-12-G6 . . . . . . . . . . . . . . . . 55

BG-8-12-G20 . . . . . . . . . . . . . . . 55

BG-8-12-G24 . . . . . . . . . . . . . . . 55

BG-8-12-G32 . . . . . . . . . . . . . . . 55

BG-8-12-G812 . . . . . . . . . . . . . . 55

BG-8-12-H7 . . . . . . . . . . . . . . . . 39

BG-8-12-PNA . . . . . . . . . . . . . 140

BG812-S18 . . . . . . . . . . . . . . . . . 69

BG812-S18-MC3 . . . . . . . . . . . 69

BG812-S18S . . . . . . . . . . . . . . . 69

BG812-S18-S-MC3 . . . . . . . . 69

BG812-S18-U24 . . . . . . . . . . 116

BG812-S18-U24-MC3 . . . . 116

BG812-S18-U58 . . . . . . . . . . 116

BG812-S18-U58-MC3 . . . . 116

BG812-S18-W2 . . . . . . . . . . . . 70

BG812-S18-W2-MC3 . . . . . . 70

BG812-S18-W6 . . . . . . . . . . . . 70

BG812-S18-W6-MC3 . . . . . . 70

BG812-SC4 . . . . . . . . . . . . . . . 138

BG-8-12-U-2-4 . . . . . . . . . . . . 104

BG-8-12-U-2-4-AS . . . . . . . . 106

BG-8-12-U-5-8 . . . . . . . . . . . . 104

BG-8-12-U-5-8-AS . . . . . . . . 106

BG-8-12-U-9-12 . . . . . . . . . . . 104

BG-8-12-U-9-12-AS . . . . . . . 106

BG-8-12-W2 . . . . . . . . . . . . . . . . 59

BG-8-12-W6 . . . . . . . . . . . . . . . . 59

BG-16 . . . . . . . . . . . . . . . . . . . . . . 48

BG-16-4T . . . . . . . . . . . . . . . . . . . 48

BG-16-A5 . . . . . . . . . . . . . . . . . . . 77

BG-16-A6 . . . . . . . . . . . . . . . . . . . 78

BG-16-B1 . . . . . . . . . . . . . . . . . . . 20

Index

Fasteners 250

Catalog No. Page Catalog No. Page

BG cont.

BG-16-B5 . . . . . . . . . . . . . . . . . . . 23

BG-16-C1 . . . . . . . . . . . . . . . . . 112

BG-16-C2 . . . . . . . . . . . . . . . . . 111

BG-16-E-2-4 . . . . . . . . . . . . . . . . 98

BG-16-E-2-4-AS . . . . . . . . . . 106

BG-16-E-5-8 . . . . . . . . . . . . . . . . 98

BG-16-E-5-8-AS . . . . . . . . . . 106

BG-16-E-9-12 . . . . . . . . . . . . . . . 98

BG-16-E-9-12-AS . . . . . . . . . 106

BG-16-F1 . . . . . . . . . . . . . . . . . . 135

BG-16-F2 . . . . . . . . . . . . . . . . . . 135

BG-16-F13 . . . . . . . . . . . . . . . . 123

BG-16-G-6 . . . . . . . . . . . . . . . . . . 50

BG-16-G-8-12 . . . . . . . . . . 50, 55

BG-16-G-16 . . . . . . . . . . . . . . . . 50

BG-16-G-20 . . . . . . . . . . . . . . . . 50

BG-16-G-24 . . . . . . . . . . . . . . . . 50

BG-16-G-32 . . . . . . . . . . . . . . . . 50

BG-16-PNA . . . . . . . . . . . . . . . 140

BG-16-S18 . . . . . . . . . . . . . . . . . 69

BG16-S18-MC3 . . . . . . . . . . . . 69

BG16-S18-S . . . . . . . . . . . . . . . . 69

BG16-S18-S-MC3 . . . . . . . . . . 69

BG16-S18-U24 . . . . . . . . . . . . 116

BG16-S18-U24-MC3 . . . . . . 116

BG16-S18-U58 . . . . . . . . . . . . 116

BG16-S18-U58-MC3 . . . . . . 116

BG16-S18-W2 . . . . . . . . . . . . . . 70

BG16-S18-W2-MC3 . . . . . . . . 70

BG16-S18-W6 . . . . . . . . . . . . . . 70

BG16-S18-W6-MC3 . . . . . . . . 70

BG-16-U-2-4 . . . . . . . . . . . . . . 104

BG-16-U-2-4-AS . . . . . . . . . . 106

BG-16-U-5-8 . . . . . . . . . . . . . . 104

BG-16-U-5-8-AS . . . . . . . . . . 106

BG-16-U-9-12 . . . . . . . . . . . . . 104

BG-16-U-9-12-AS . . . . . . . . . 106

BG-16-W2 . . . . . . . . . . . . . . . . . . 59

BG-16-W6 . . . . . . . . . . . . . . . . . . 59

BG-20 . . . . . . . . . . . . . . . . . . . . . . 48

BG-20-4T . . . . . . . . . . . . . . . . . . . 48

BG-20-B5 . . . . . . . . . . . . . . . . . . . 23

BG-20-C1 . . . . . . . . . . . . . . . . . 112

BG-20-C2 . . . . . . . . . . . . . . . . . 111

BG-20-E-2-4 . . . . . . . . . . . . . . . . 98

BG-20-E-5-8 . . . . . . . . . . . . . . . . 98

BG-20-E-9-12 . . . . . . . . . . . . . . . 98

BG-20-F13 . . . . . . . . . . . . . . . . 123

BG-20-U-2-4 . . . . . . . . . . . . . . 104

BG-20-U-5-8 . . . . . . . . . . . . . . 104

BG-20-U-9-12 . . . . . . . . . . . . . 104

BG-24 . . . . . . . . . . . . . . . . . . . . . . 48

BG-24-4T . . . . . . . . . . . . . . . . . . . 48

BG-24-C1 . . . . . . . . . . . . . . . . . 112

BG-24-C2 . . . . . . . . . . . . . . . . . 111

BG-24-E-2-4 . . . . . . . . . . . . . . . . 98

BG-24-E-5-8 . . . . . . . . . . . . . . . . 98

BG-24-E-9-12 . . . . . . . . . . . . . . . 98

BG-24-U-2-4 . . . . . . . . . . . . . . 104

BG-24-U-5-8 . . . . . . . . . . . . . . 104

BG-24-U-9-12 . . . . . . . . . . . . . 104

BG-32 . . . . . . . . . . . . . . . . . . . . . . 48

BG-32-4T . . . . . . . . . . . . . . . . . . . 48

BG-32-C1 . . . . . . . . . . . . . . . . . 112

BG-32-C2 . . . . . . . . . . . . . . . . . 111

BG-32-E-2-4 . . . . . . . . . . . . . . . . 98

BG-32-E-5-8 . . . . . . . . . . . . . . . . 98

BG-32-E-9-12 . . . . . . . . . . . . . . . 98

BG-32-U-2-4 . . . . . . . . . . . . . . 104

BG-32-U-5-8 . . . . . . . . . . . . . . 104

BG-32-U-9-12 . . . . . . . . . . . . . 104

BH1 . . . . . . . . . . . . . . . . . . . . . . . 136

BH1-E-2-4 . . . . . . . . . . . . . . . . . 121

BH1-E-5-8 . . . . . . . . . . . . . . . . . 121

BH1-E-9-12 . . . . . . . . . . . . . . . . 121

BH1-F1 . . . . . . . . . . . . . . . . . . . . 133

BH1-F2 . . . . . . . . . . . . . . . . . . . . 133

BH1-F3 . . . . . . . . . . . . . . . . . . . . 130

BH1-F4 . . . . . . . . . . . . . . . . . . . . 126

BH1-F12 . . . . . . . . . . . . . . . . . . . 124

BH1-H7 . . . . . . . . . . . . . . . . . . . . 141

BH1-H8 . . . . . . . . . . . . . . . . . . . . 142

BH1-PNA . . . . . . . . . . . . . . . . . . 139

BH-1-2-R . . . . . . . . . . . . . . . . . . 120

BH2 . . . . . . . . . . . . . . . . . . . . . . . 136

BH2-E-2-4 . . . . . . . . . . . . . . . . . 121

BH2-E-5-8 . . . . . . . . . . . . . . . . . 121

BH2-E-9-12 . . . . . . . . . . . . . . . . 121

BH2-F1 . . . . . . . . . . . . . . . . . . . . 134

BH2-F2 . . . . . . . . . . . . . . . . . . . . 134

BH2-F3 . . . . . . . . . . . . . . . . . . . . 130

BH2-F4 . . . . . . . . . . . . . . . . . . . . 126

BH2-F12 . . . . . . . . . . . . . . . . . . . 124

BH2-H7 . . . . . . . . . . . . . . . . . . . . 141

BH2-H8 . . . . . . . . . . . . . . . . . . . . 142

BH2-PNA . . . . . . . . . . . . . . . . . . 139

BH-2-4 . . . . . . . . . . . . . . . . . . . . 120

BH-2-4-R . . . . . . . . . . . . . . . . . . 120

BH4 . . . . . . . . . . . . . . . . . . . . . . . 136

BH4-E-2-4 . . . . . . . . . . . . . . . . . 122

BH4-E-2-4-AS . . . . . . . . . . . . . 105

BH4-E-5-8 . . . . . . . . . . . . . . . . . 122

BH4-E-5-8-AS . . . . . . . . . . . . . 105

BH4-E-9-12 . . . . . . . . . . . . . . . . 122

BH4-E-9-12-AS . . . . . . . . . . . 105

BH4-F1 . . . . . . . . . . . . . . . . . . . . 134

BH4-F2 . . . . . . . . . . . . . . . . . . . . 134

BH4-F3 . . . . . . . . . . . . . . . . . . . . 130

BH4-F4 . . . . . . . . . . . . . . . . . . . . 126

BH4-F12 . . . . . . . . . . . . . . . . . . . 124

BH4-H7 . . . . . . . . . . . . . . . . . . . . 141

BH4-H8 . . . . . . . . . . . . . . . . . . . . 142

BH4-PNA . . . . . . . . . . . . . . . . . . 140

BH4-SC4 . . . . . . . . . . . . . . . . . . 137

BH5 . . . . . . . . . . . . . . . . . . . . . . . 136

BH5-E-2-4 . . . . . . . . . . . . . . . . . 122

BH5-E-5-8 . . . . . . . . . . . . . . . . . 122

Index

Fasteners

251

Catalog No. Page Catalog No. Page

BH cont.

BH5-E-9-12 . . . . . . . . . . . . . . . . 122

BH5-F1 . . . . . . . . . . . . . . . . . . . . 134

BH5-F2 . . . . . . . . . . . . . . . . . . . . 134

BH5-F3 . . . . . . . . . . . . . . . . . . . . 130

BH5-F4 . . . . . . . . . . . . . . . . . . . . 126

BH5-F12 . . . . . . . . . . . . . . . . . . . 124

BH5-H7 . . . . . . . . . . . . . . . . . . . . 141

BH5-H8 . . . . . . . . . . . . . . . . . . . . 142

BH5-PNA . . . . . . . . . . . . . . . . . . 140

BH-5-8 . . . . . . . . . . . . . . . . . . . . 120

BH-5-8-R . . . . . . . . . . . . . . . . . . 120

BH6 . . . . . . . . . . . . . . . . . . . . . . . 136

BH6-E-2-4 . . . . . . . . . . . . . . . . . 122

BH6-E-2-4-AS . . . . . . . . . . . . . 105

BH6-E-5-8 . . . . . . . . . . . . . . . . . 122

BH6-E-5-8-AS . . . . . . . . . . . . . 105

BH6-E-9-12 . . . . . . . . . . . . . . . . 122

BH6-E-9-12-AS . . . . . . . . . . . 105

BH6-F1 . . . . . . . . . . . . . . . . . . . . 134

BH6-F2 . . . . . . . . . . . . . . . . . . . . 134

BH6-F3 . . . . . . . . . . . . . . . . . . . . 130

BH6-F4 . . . . . . . . . . . . . . . . . . . . 126

BH6-F12 . . . . . . . . . . . . . . . . . . . 124

BH6-H7 . . . . . . . . . . . . . . . . . . . . 141

BH6-H8 . . . . . . . . . . . . . . . . . . . . 142

BH6-PNA . . . . . . . . . . . . . . . . . . 140

BH6-SC4 . . . . . . . . . . . . . . . . . . 137

BH7 . . . . . . . . . . . . . . . . . . . . . . . 136

BH7-6 . . . . . . . . . . . . . . . . . . . . . 136

BH8 . . . . . . . . . . . . . . . . . . . . . . . 136

BH8-6 . . . . . . . . . . . . . . . . . . . . . 136

BH9 . . . . . . . . . . . . . . . . . . . . . . . 180

BH9-10 . . . . . . . . . . . . . . . . . . . . 180

BH-9-12 . . . . . . . . . . . . . . . . . . . 120

BH-9-12-R . . . . . . . . . . . . . . . . . 120

BH10 . . . . . . . . . . . . . . . . . . . . . . 180

BH11 . . . . . . . . . . . . . . . . . . . . . . 143

BH12 . . . . . . . . . . . . . . . . . . . . . . 143

BH15 . . . . . . . . . . . . . . . . . . . . . . 180

BH16 . . . . . . . . . . . . . . . . . . . . . . 180

BHE-1-2 . . . . . . . . . . . . . . . . . . . 120

BH-F12 . . . . . . . . . . . . . . . . . . . . 120

BH-F12-R . . . . . . . . . . . . . . . . . . 120

BH-H7 . . . . . . . . . . . . . . . . . . . . . 120

BH-PNA . . . . . . . . . . . . . . . . . . . 139

BKA Series . . . . . . . . . . . . . . . 184

BKB Series . . . . . . . . . . . . . . . 184

BKC100 . . . . . . . . . . . . . . . . . . . 181

BKC200 . . . . . . . . . . . . . . . . . . . 181

BKCC . . . . . . . . . . . . . . . . . . . . . . 185

BKCP . . . . . . . . . . . . . . . . . . . . . . 185

BKF100-4 . . . . . . . . . . . . . . . . . 183

BKF100-6 . . . . . . . . . . . . . . . . . 183

BKH Series . . . . . . . . . . . . . . . 184

BKL Series . . . . . . . . . . . . . . . . 184

BKP10063 . . . . . . . . . . . . . . . . . 182

BKP10094 . . . . . . . . . . . . . . . . . 182

BKP20125 . . . . . . . . . . . . . . . . . 182

BKP20188 . . . . . . . . . . . . . . . . . 182

BKT Series . . . . . . . . . . . . . . . . 184

BKW063 . . . . . . . . . . . . . . . . . . 182

BKW094 . . . . . . . . . . . . . . . . . . 182

BKW125 . . . . . . . . . . . . . . . . . . 182

BKW188 . . . . . . . . . . . . . . . . . . 182

BKYH Series . . . . . . . . . . . . . . 184

BKYT Series . . . . . . . . . . . . . . 184

BL1 . . . . . . . . . . . . . . . . . . . . . . . . 147

BL2 . . . . . . . . . . . . . . . . . . . . . . . . 147

BL3-8 . . . . . . . . . . . . . . . . . . . . . . 148

BL3-12 . . . . . . . . . . . . . . . . . . . . 148

BL3-16 . . . . . . . . . . . . . . . . . . . . 148

BL3-20 . . . . . . . . . . . . . . . . . . . . 148

BL-24-2 . . . . . . . . . . . . . . . . . . . . 146

BL-24-4 . . . . . . . . . . . . . . . . . . . . 146

BL-24-4C . . . . . . . . . . . . . . . . . . 146

BL-32-4 . . . . . . . . . . . . . . . . . . . . 146

BL1400 . . . . . . . . . . . . . . . . . 53, 54

BL1400-C442 . . . . . . . . . . . . . 109

BL1400-PNA . . . . . . . . . . . . . . 140

BL1400-SC4 . . . . . . . . . . . . . . 140

BL1410 . . . . . . . . . . . . . . . . . 53, 54

BL1410-C442 . . . . . . . . . . . . . 109

BL1410-L1400 . . . . . . . . . . . . . . 56

BL1410-L1410 . . . . . . . . . . . . . . 56

BL1410-L1420 . . . . . . . . . . . . . . 56

BL1410-L1425 . . . . . . . . . . . . . . 56

BL1410-L1430 . . . . . . . . . . . . . . 56

BL1410-L1440 . . . . . . . . . . . . . . 56

BL1410-L1450 . . . . . . . . . . . . . . 56

BL1410-L1460 . . . . . . . . . . . . . . 56

BL1410-L1470 . . . . . . . . . . . . . . 56

BL1410-L1480 . . . . . . . . . . . . . . 56

BL1410-PNA . . . . . . . . . . . . . . 140

BL1410-SC4 . . . . . . . . . . . . . . 138

BL1420 . . . . . . . . . . . . . . . . . 53, 54

BL1420-C442 . . . . . . . . . . . . . 109

BL1420-PNA . . . . . . . . . . . . . . 140

BL1420-SC4 . . . . . . . . . . . . . . 138

BL1425 . . . . . . . . . . . . . . . . . 53, 54

BL1425-C442 . . . . . . . . . . . . . 109

BL1430 . . . . . . . . . . . . . . . . . 53, 54

BL1430-C442 . . . . . . . . . . . . . 109

BL1440 . . . . . . . . . . . . . . . . . 53, 54

BL1440-C442 . . . . . . . . . . . . . 109

BL1450 . . . . . . . . . . . . . . . . . 53, 54

BL1450-C442 . . . . . . . . . . . . . 109

BL1460 . . . . . . . . . . . . . . . . . 53, 54

BL1470 . . . . . . . . . . . . . . . . . 53, 54

BL1480 . . . . . . . . . . . . . . . . . 53, 54

BL1490 . . . . . . . . . . . . . . . . . 53, 54

Index

Fasteners 252

Catalog No. Page Catalog No. Page

BM1 . . . . . . . . . . . . . . . . . . . . . . . . 46

BM1M . . . . . . . . . . . . . . . . . . . . . . 46

BM2 . . . . . . . . . . . . . . . . . . . . . . . . 46

BM3 . . . . . . . . . . . . . . . . . . . . . . . . 44

BM3M . . . . . . . . . . . . . . . . . . . . . . 44

BM5 . . . . . . . . . . . . . . . . . . . . . . . 179

BMB1 . . . . . . . . . . . . . . . . . . . . . . . 36

BN1 . . . . . . . . . . . . . . . . . . . . . . . 178

BN-2 . . . . . . . . . . . . . . . . . . . . . . 178

BN-4 . . . . . . . . . . . . . . . . . . . . . . 178

BN-6 . . . . . . . . . . . . . . . . . . . . . . 178

BP-8 . . . . . . . . . . . . . . . . . . . . . . . . 49

BP-8-4T . . . . . . . . . . . . . . . . . . . . . 49

BP-8-A28 . . . . . . . . . . . . . . . . . . . 80

BP-8-A5 . . . . . . . . . . . . . . . . . . . . 77

BP-8-A6 . . . . . . . . . . . . . . . . . . . . 78

BP-8-B1 . . . . . . . . . . . . . . . . . . . . 20

BP-8-B5 . . . . . . . . . . . . . . . . . . . . 23

BP-8-C1 . . . . . . . . . . . . . . . . . . . 112

BP-8-C2 . . . . . . . . . . . . . . . . . . . 112

BP-8-D3 . . . . . . . . . . . . . . . . . . . . 68

BP-8-D4 . . . . . . . . . . . . . . . . . . . . 68

BP-8-E-2-4 . . . . . . . . . . . . . . . . . . 97

BP-8-E-5-8 . . . . . . . . . . . . . . . . . . 97

BP-8-E-9-12 . . . . . . . . . . . . . . . . 97

BP-8-F13 . . . . . . . . . . . . . . . . . . 123

BP-8-H7 . . . . . . . . . . . . . . . . . . . . 39

BP-8-P-8 . . . . . . . . . . . . . . . . . . . . 50

BP-8-P-12 . . . . . . . . . . . . . . . . . . 50

BP-8-P-16 . . . . . . . . . . . . . . . . . . 50

BP-8-PNA . . . . . . . . . . . . . . . . . 140

BP8-S18 . . . . . . . . . . . . . . . . . . . . 71

BP8-S18-MC3 . . . . . . . . . . . . . . 71

BP8-S18S . . . . . . . . . . . . . . . . . . 71

BP8-S18-S-MC3 . . . . . . . . . . . . 71

BP8-S18-U24 . . . . . . . . . . . . . 117

BP8-S18-U24-MC3 . . . . . . . 117

BP8-S18-U58 . . . . . . . . . . . . . 117

BP8-S18-U58-MC3 . . . . . . . 117

BP8-S18-W2 . . . . . . . . . . . . . . . 72

BP8-S18-W2-MC3 . . . . . . . . . 72

BP8-S18-W6 . . . . . . . . . . . . . . . 72

BP8-S18-W6-MC3 . . . . . . . . . 72

BP8-SC4 . . . . . . . . . . . . . . . . . . 138

BP-8-U-2-4 . . . . . . . . . . . . . . . . 103

BP-8-U-5-8 . . . . . . . . . . . . . . . . 103

BP-8-U-9-12 . . . . . . . . . . . . . . . 103

BP-8-W2 . . . . . . . . . . . . . . . . . . . . 60

BP-8-W6 . . . . . . . . . . . . . . . . . . . . 60

BP-12 . . . . . . . . . . . . . . . . . . . . . . . 49

BP-12-4T . . . . . . . . . . . . . . . . . . . 49

BP-12-A28 . . . . . . . . . . . . . . . . . . 80

BP-12-A5 . . . . . . . . . . . . . . . . . . . 77

BP-12-A6 . . . . . . . . . . . . . . . . . . . 78

BP-12-B1 . . . . . . . . . . . . . . . . . . . 20

BP-12-B5 . . . . . . . . . . . . . . . . . . . 23

BP-12-C1 . . . . . . . . . . . . . . . . . . 112

BP-12-C2 . . . . . . . . . . . . . . . . . . 112

BP-12-D3 . . . . . . . . . . . . . . . . . . . 68

BP-12-D4 . . . . . . . . . . . . . . . . . . . 68

BP-12-E-2-4 . . . . . . . . . . . . . . . . 97

BP-12-E-5-8 . . . . . . . . . . . . . . . . 97

BP-12-E-9-12 . . . . . . . . . . . . . . . 97

BP-12-F13 . . . . . . . . . . . . . . . . . 123

BP-12-H7 . . . . . . . . . . . . . . . . . . . 39

BP-12-P-12 . . . . . . . . . . . . . . . . . 50

BP-12-P-16 . . . . . . . . . . . . . . . . . 50

BP-12-PNA . . . . . . . . . . . . . . . . 140

BP12-S18 . . . . . . . . . . . . . . . . . . . 71

BP12-S18-MC3 . . . . . . . . . . . . . 71

BP12-S18S . . . . . . . . . . . . . . . . . 71

BP12-S18-S-MC3 . . . . . . . . . . 71

BP12-S18-U24 . . . . . . . . . . . . 117

BP12-S18-U24-MC3 . . . . . . 117

BP12-S18-U58 . . . . . . . . . . . . 117

BP12-S18-U58-MC3 . . . . . . 117

BP12-S18-W2 . . . . . . . . . . . . . . 72

BP12-S18-W2-MC3 . . . . . . . . 72

BP12-S18-W6 . . . . . . . . . . . . . . 72

BP12-S18-W6-MC3 . . . . . . . . 72

BP12-SC4 . . . . . . . . . . . . . . . . . 138

BP-12-U-2-4 . . . . . . . . . . . . . . . 103

BP-12-U-5-8 . . . . . . . . . . . . . . . 103

BP-12-U-9-12 . . . . . . . . . . . . . 103

BP-12-W2 . . . . . . . . . . . . . . . . . . 60

BP-12-W6 . . . . . . . . . . . . . . . . . . 60

BP-16 . . . . . . . . . . . . . . . . . . . . . . . 49

BP-16-4T . . . . . . . . . . . . . . . . . . . 49

BP-16-A28 . . . . . . . . . . . . . . . . . . 80

BP-16-A5 . . . . . . . . . . . . . . . . . . . 77

BP-16-A6 . . . . . . . . . . . . . . . . . . . 78

BP-16-B1 . . . . . . . . . . . . . . . . . . . 20

BP-16-B5 . . . . . . . . . . . . . . . . . . . 23

BP-16-C1 . . . . . . . . . . . . . . . . . . 112

BP-16-C2 . . . . . . . . . . . . . . . . . . 112

BP-16-D4 . . . . . . . . . . . . . . . . . . . 68

BP-16-E-2-4 . . . . . . . . . . . . . . . . 97

BP-16-E-5-8 . . . . . . . . . . . . . . . . 97

BP-16-E-9-12 . . . . . . . . . . . . . . . 97

BP-16-F13 . . . . . . . . . . . . . . . . . 123

BP-16-P-16 . . . . . . . . . . . . . . . . . 50

BP-16-PNA . . . . . . . . . . . . . . . . 140

BP-16-S18 . . . . . . . . . . . . . . . . . . 71

BP16-S18-MC3 . . . . . . . . . . . . . 71

BP16-S18S . . . . . . . . . . . . . . . . . 71

BP16-S18-S-MC3 . . . . . . . . . . 71

BP16-S18-U24 . . . . . . . . . . . . 117

BP16-S18-U24-MC3 . . . . . . 117

BP16-S18-U58 . . . . . . . . . . . . 117

BP16-S18-U58-MC3 . . . . . . 117

BP16-S18-W2 . . . . . . . . . . . . . . 72

BP16-S18-W2-MC3 . . . . . . . . 72

BP16-S18-W6 . . . . . . . . . . . . . . 72

BP16-S18-W6-MC3 . . . . . . . . 72

Index

Fasteners

253

Catalog No. Page Catalog No. Page

BP cont.

BP-16-U-2-4 . . . . . . . . . . . . . . . 103

BP-16-U-5-8 . . . . . . . . . . . . . . . 103

BP-16-U-9-12 . . . . . . . . . . . . . 103

BP-16-W2 . . . . . . . . . . . . . . . . . . 60

BP-16-W6 . . . . . . . . . . . . . . . . . . 60

BPC-8 . . . . . . . . . . . . . . . . . . . . . . . 51

BPC-12 . . . . . . . . . . . . . . . . . . . . . 51

BPC-16 . . . . . . . . . . . . . . . . . . . . . 51

BPC-20 . . . . . . . . . . . . . . . . . . . . . 51

BPC-24 . . . . . . . . . . . . . . . . . . . . . 51

BPC-32 . . . . . . . . . . . . . . . . . . . . . 51

BPC-40 . . . . . . . . . . . . . . . . . . . . . 51

BPC-48 . . . . . . . . . . . . . . . . . . . . . 51

BPC-56 . . . . . . . . . . . . . . . . . . . . . 51

BPC-64 . . . . . . . . . . . . . . . . . . . . . 51

BPNA . . . . . . . . . . . . . . . . . . . . . 139

BR-8-T . . . . . . . . . . . . . . . . . . . . 173

BR-12-T . . . . . . . . . . . . . . . . . . . 173

BR-16-3W . . . . . . . . . . . . . . . . . 173

BR-20-4T . . . . . . . . . . . . . . . . . . 173

BR-20-T . . . . . . . . . . . . . . . . . . . 173

BR-24-4W . . . . . . . . . . . . . . . . . 173

BR-32-4T . . . . . . . . . . . . . . . . . . 173

BR-32-4T-A6 . . . . . . . . . . . . . . 176

BR-32-4T-C1 . . . . . . . . . . . . . . 176

BR-32-4T-U-2-4 . . . . . . . . . . . 175

BR-32-4T-U-5-8 . . . . . . . . . . . 175

BR-32-4T-U-9-12 . . . . . . . . . . 175

BR-32-4T-W2 . . . . . . . . . . . . . 175

BR-32-4W . . . . . . . . . . . . . . . . . 173

BR-32-T . . . . . . . . . . . . . . . . . . . 173

BR-64-4T . . . . . . . . . . . . . . . . . . 173

BRC1 . . . . . . . . . . . . . . . . . . . . . . . 43

BRC2 . . . . . . . . . . . . . . . . . . . . . . . 43

BRC3 . . . . . . . . . . . . . . . . . . . . . . . 62

BRC3-E-2-4 . . . . . . . . . . . . . . . 115

BRC3-E-5-8 . . . . . . . . . . . . . . . 115

BRC3-E-9-12 . . . . . . . . . . . . . . 115

BRC3-F1 . . . . . . . . . . . . . . . . . . 135

BRC3-F2 . . . . . . . . . . . . . . . . . . 135

BRC3-W2 . . . . . . . . . . . . . . . . . . . 62

BRC3-W6 . . . . . . . . . . . . . . . . . . . 62

BRC4 . . . . . . . . . . . . . . . . . . . . . . . 42

BRC5-1 . . . . . . . . . . . . . . . . . . . . . 63

BRC5-1-C2 . . . . . . . . . . . . . . . . 114

BRC5-1-C442 . . . . . . . . . . . . . 108

BRC5-1-E12 . . . . . . . . . . . . . . . 100

BRC5-1-E24 . . . . . . . . . . . . . . . 100

BRC5-1-E58 . . . . . . . . . . . . . . . 100

BRC5-1-E912 . . . . . . . . . . . . . . 100

BRC5-1-F3 . . . . . . . . . . . . . . . . 132

BRC5-1-F4 . . . . . . . . . . . . . . . . 128

BRC51-S18 . . . . . . . . . . . . . . . . . 73

BRC51-S18-S . . . . . . . . . . . . . . 73

BRC51-S18-U24 . . . . . . . . . . 118

BRC51-S18-U58 . . . . . . . . . . 118

BRC51-S18-W2 . . . . . . . . . . . . 74

BRC51-S18-W6 . . . . . . . . . . . . 74

BRC51-SC4 . . . . . . . . . . . . . . . 138

BRC5-1-U24 . . . . . . . . . . . . . . 102

BRC5-1-U58 . . . . . . . . . . . . . . 102

BRC5-1-U912 . . . . . . . . . . . . . 102

BRC5-1-W2 . . . . . . . . . . . . . . . . . 64

BRC5-1-W6 . . . . . . . . . . . . . . . . . 64

BRC5-2 . . . . . . . . . . . . . . . . . . . . . 63

BRC5-2-C2 . . . . . . . . . . . . . . . . 114

BRC5-2-C442 . . . . . . . . . . . . . 108

BRC5-2-E12 . . . . . . . . . . . . . . . 100

BRC5-2-E24 . . . . . . . . . . . . . . . 100

BRC5-2-E58 . . . . . . . . . . . . . . . 100

BRC5-2-E912 . . . . . . . . . . . . . . 100

BRC5-2-F3 . . . . . . . . . . . . . . . . 132

BRC5-2-F4 . . . . . . . . . . . . . . . . 128

BRC52-SC4 . . . . . . . . . . . . . . . 138

BRC5-2-U24 . . . . . . . . . . . . . . 102

BRC5-2-U58 . . . . . . . . . . . . . . 102

BRC5-2-U912 . . . . . . . . . . . . . 102

BRC5-2-W2 . . . . . . . . . . . . . . . . . 64

BRC5-2-W6 . . . . . . . . . . . . . . . . . 64

BRC5-3 . . . . . . . . . . . . . . . . . . . . . 63

BRC5-3-C2 . . . . . . . . . . . . . . . . 114

BRC5-3-C442 . . . . . . . . . . . . . 108

BRC5-3-E12 . . . . . . . . . . . . . . . 100

BRC5-3-E24 . . . . . . . . . . . . . . . 100

BRC5-3-E58 . . . . . . . . . . . . . . . 100

BRC5-3-E912 . . . . . . . . . . . . . . 100

BRC5-3-F3 . . . . . . . . . . . . . . . . 132

BRC5-3-F4 . . . . . . . . . . . . . . . . 128

BRC6M . . . . . . . . . . . . . . . . . . . . . 41

BRC53-S18 . . . . . . . . . . . . . . . . . 73

BRC53-S18-S . . . . . . . . . . . . . . 73

BRC53-S18-U24 . . . . . . . . . . 118

BRC53-S18-U58 . . . . . . . . . . 118

BRC53-S18-W2 . . . . . . . . . . . . 74

BRC53-S18-W6 . . . . . . . . . . . . 74

BRC53-SC4 . . . . . . . . . . . . . . . 138

BRC5-3-U24 . . . . . . . . . . . . . . 102

BRC5-3-U58 . . . . . . . . . . . . . . 102

BRC5-3-U912 . . . . . . . . . . . . . 102

BRC5-3-W2 . . . . . . . . . . . . . . . . . 64

BRC5-3-W6 . . . . . . . . . . . . . . . . . 64

BRS-32 . . . . . . . . . . . . . . . . . . . . 174

BRS-32A . . . . . . . . . . . . . . . . . . 174

BRS-64A . . . . . . . . . . . . . . . . . . 174

BSC4 . . . . . . . . . . . . . . . . . . . . . . 137

Index

Fasteners 254

Catalog No. Page Catalog No. Page

BU-2-4 . . . . . . . . . . . . . . . . . . . . 101

BU-2-4-S . . . . . . . . . . . . . . . . . . 101

BU-2-4-S-AS . . . . . . . . . . . . . . 105

BU-5-8 . . . . . . . . . . . . . . . . . . . . 101

BU-5-8-S . . . . . . . . . . . . . . . . . . 101

BU-5-8-S-AS . . . . . . . . . . . . . . 105

BU-9-12 . . . . . . . . . . . . . . . . . . . 101

BU-9-12-S . . . . . . . . . . . . . . . . . 101

BU-9-12-S-AS . . . . . . . . . . . . 105

BW2 . . . . . . . . . . . . . . . . . . . . . . . . 57

BW2-CT2 . . . . . . . . . . . . . . . . . . 150

BW2S . . . . . . . . . . . . . . . . . . . . . . 57

BW4 . . . . . . . . . . . . . . . . . . . . . . . . 57

BW6 . . . . . . . . . . . . . . . . . . . . . . . . 57

BW6-CT2 . . . . . . . . . . . . . . . . . . 150

BW6S . . . . . . . . . . . . . . . . . . . . . . 57

BW-8 . . . . . . . . . . . . . . . . . . . . . . . 58

BW-12 . . . . . . . . . . . . . . . . . . . . . . 58

BW-16 . . . . . . . . . . . . . . . . . . . . . . 58

BW-20 . . . . . . . . . . . . . . . . . . . . . . 58

BWHS-9 . . . . . . . . . . . . . . . 30, 186

BWHS-9D . . . . . . . . . . . . . 30, 186

BX2 . . . . . . . . . . . . . . . . . . . . . . . . . 65

BX4 . . . . . . . . . . . . . . . . . . . . . . . . . 40

BX4-A5 . . . . . . . . . . . . . . . . . . . . . 79

BX4-A6 . . . . . . . . . . . . . . . . . . . . . 79

BX4-C1 . . . . . . . . . . . . . . . . . . . . 113

BX4-C2 . . . . . . . . . . . . . . . . . . . . 113

BX4-E-2-4 . . . . . . . . . . . . . . . . . . 99

BX4-E-5-8 . . . . . . . . . . . . . . . . . . 99

BX4-E-9-12 . . . . . . . . . . . . . . . . . 99

BX4-F3 . . . . . . . . . . . . . . . . . . . . 131

BX4-F4 . . . . . . . . . . . . . . . . . . . . 127

BX4-F13 . . . . . . . . . . . . . . . . . . . 124

BX4-H7 . . . . . . . . . . . . . . . . . . . . . 39

BX4-PNA . . . . . . . . . . . . . . . . . . 140

BX4-U-2-4 . . . . . . . . . . . . . . . . 107

BX4-U-5-8 . . . . . . . . . . . . . . . . 107

BX4-U-9-12 . . . . . . . . . . . . . . . 107

BX4-W2 . . . . . . . . . . . . . . . . . . . . 61

BX4-W6 . . . . . . . . . . . . . . . . . . . . 61

BX4M . . . . . . . . . . . . . . . . . . . . . . 40

BX4M-A5 . . . . . . . . . . . . . . . . . . . 79

BX4M-A6 . . . . . . . . . . . . . . . . . . . 79

BX4M-A28 . . . . . . . . . . . . . . . . . 80

BX4M-C1 . . . . . . . . . . . . . . . . . 113

BX4M-C2 . . . . . . . . . . . . . . . . . 113

BX4MD . . . . . . . . . . . . . . . . . . . . . 40

BX4M-E-2-4 . . . . . . . . . . . . . . . . 99

BX4M-E-5-8 . . . . . . . . . . . . . . . . 99

BX4M-E-9-12 . . . . . . . . . . . . . . . 99

BX4M-F3 . . . . . . . . . . . . . . . . . . 131

BX4M-F4 . . . . . . . . . . . . . . . . . . 127

BX4M-F13 . . . . . . . . . . . . . . . . 124

BX4M-H7 . . . . . . . . . . . . . . . . . . . 39

BX4M-PNA . . . . . . . . . . . . . . . 140

BX4M-SC4 . . . . . . . . . . . . . . . . 138

BX4M-U-2-4 . . . . . . . . . . . . . . 107

BX4M-U-5-8 . . . . . . . . . . . . . . 107

BX4M-U-9-12 . . . . . . . . . . . . . 107

BX4M-W2 . . . . . . . . . . . . . . . . . . 61

BX4M-W6 . . . . . . . . . . . . . . . . . . 61

BX5 . . . . . . . . . . . . . . . . . . . . . . . . . 45

BX6 . . . . . . . . . . . . . . . . . . . . . . . . . 65

BX-8 . . . . . . . . . . . . . . . . . . . . . . . . 61

BX-8B . . . . . . . . . . . . . . . . . . . . . . 61

BX9 . . . . . . . . . . . . . . . . . . . . . . . . . 65

BX-18 . . . . . . . . . . . . . . . . . . . . . . . 61

BX24 . . . . . . . . . . . . . . . . . . . . . . . 65

BX82 . . . . . . . . . . . . . . . . . . . . . . . 42

BXL-67 . . . . . . . . . . . . . . . . . . . . . 66

BXL-89 . . . . . . . . . . . . . . . . . . . . . 66

BXL-1011 . . . . . . . . . . . . . . . . . . . 66

BXL-1214 . . . . . . . . . . . . . . . . . . . 66

BXL-1519 . . . . . . . . . . . . . . . . . . . 66

BXL-2024 . . . . . . . . . . . . . . . . . . . 66

BXL-2530 . . . . . . . . . . . . . . . . . . . 66

BXM-67 . . . . . . . . . . . . . . . . . . . . 66

BXM-89 . . . . . . . . . . . . . . . . . . . . 66

BXM-1011 . . . . . . . . . . . . . . . . . . 66

BXM-1214 . . . . . . . . . . . . . . . . . . 66

BXM-1519 . . . . . . . . . . . . . . . . . . 66

BXM-2024 . . . . . . . . . . . . . . . . . . 66

BXM-2530 . . . . . . . . . . . . . . . . . . 66

BXS-67 . . . . . . . . . . . . . . . . . . . . . 66

BXS-89 . . . . . . . . . . . . . . . . . . . . . 66

BXS-1011 . . . . . . . . . . . . . . . . . . 66

BXS-1214 . . . . . . . . . . . . . . . . . . 66

BXS-1519 . . . . . . . . . . . . . . . . . . 66

BXS-2024 . . . . . . . . . . . . . . . . . . 66

BXS-2530 . . . . . . . . . . . . . . . . . . 66

MSQN 1/4 . . . . . . . . . . . . . . . . . 186

SHHMS 1/4x 1/2 . . . . . . . . . 186

SRHMS 1/4x 3/8 . . . . . . . . . . . 81

Index

Fasteners

255
