Networking: Wall-Mount Cabinets

Wall-Mount Cabinets Product Selection Guide

PH (763) 422-2661 • FX (763) 422-2588 • homanonline.com

Wall-Mount Ca binets

Wall-Mount Ca binets Pro duct Selec tion Guid e

Wall-Mount Cabinets Product Selection Guide

Networking: Wall-Mount Cabinets

Wall-Mount Cabinets Product Selection Guide

Spec-00449 C

Wall-Mount Cabinets Product Selection Guide

Wall-Mount FaMily ACCESSPLUS® II PROTEK®PROTEK® DOUBLEHINGED

Description ACCESSPLUS® II Double-Hinged Wall-

Mount provides both security and acces-

sibility. Designed to hold multiple pieces of

voice data equipment. Perfect where space

is at a premium.

• Double–hinged wall mount

PROTEK® Wall-Mount Cabinets are ideal

for protecting network equipment beyond

typical Type 1 enclosures.

• Harsh environments

• Models with A/C units

Oers the exibility and accessibility of a

double-hinged wall-mount and the envi-

ronmental protection of the PROTEK Type

4/12 ratings.

• Double-hinged wall-mount

• Harsh environments

• Models with A/C units

Construction Mild steel Mild steel Mild steel

Application Rating Indoors with built-in ventilation areas Indoors and outdoors.

Protects from dust, dirt and splashing

water.

Protects from dust, dirt and splashing

water.

DiMensions

Rack Units (RU) Range 12–39 RUs 12–26 RUs 7–26 RUs

Height 25.00–72.00 in. 24.00–48.00 in. 16.00–48.00 in.

Width 24.00 in., 28.00 in. 24.00 in. 24.00 in.

Depth 18.00–25.00 in. 12.00–24.00 in. 15.00–25.00 in.

Ratings

Loading - Static 250–500 lbs. 100–200 lbs. 100–175 lbs.

Certications and Listings UL 508A, CSA, NEMA, IEC UL 508A, CSA, NEMA, IEC UL 508A, CSA, NEMA, IEC

Type / NEMA / IP Rating Type 1, IP40 Type 1, 4, 12, IP55/IP66 Type 1, 4, 12, IP55/IP66

Plenum Rated Yes Yes Yes

stRuctuRe

Front Door Window or solid Window or solid Window or solid

Back Keyhole mounting slots, accessory raised

pads, cable tie-down points, large cable

knock-out

Rear mounting studs, panel-ready

and wall-mounting provisions

Rear mounting studs, panel-ready

and wall-mounting provisions

Top / Bottom Gland Plate/Cable knock-outs, fan-ready Solid sheet steel construction Solid sheet steel construction

Sides Cable knock-outs, fan-ready Solid sheet steel construction Solid sheet steel construction

Rack Angles 1 set tapped 10-32 fully adjustable, plated 1 set tapped 10-32 fully adjustable, plated 1 set tapped 10-32 fully adjustable, plated

applications

Most frequently utilized model for mount-

ing network equipment. Gland-plate oer-

ing great for retrot applications.

Ideal for remote areas with harsh environ-

ments for network equipment. Extra-deep

to accommodate rack equipment.

Ideal for remote areas with harsh environ-

ments for network equipment. Extra-deep

to accommodate rack equipment.

Unique Features • Single person mounting

• Latch-free sides permit ush-mounting to

adjacent equipment, enclosures and walls

• Safety glass window units

• Pole mounting kit available

• Reversible hinges (left/right)

• Grounding and bonding provisions

• Available with T4 A/C units

• Extra-deep sizes

• Fully vented with foam-in-place

gasket

• Safety Glass

• Rack angle standard

• Grounding and bonding provisions

• Available with T4 A/C units

• Extra deep sizes

• Fully vented with foam-in-place

gasket

• Safety Glass

• Rack Angle Standard

• Front and Rear Access

• Grounding and bonding provisions

Spec-00449.indd 1 10/07/09 9:48:09 AM

CHS Controls AB

Tel +46 42 38 61 00, Fax +46 42 38 61 29

chs@chscontrols.se www.chscontrols.se

895

Networking: Wall-Mount Cabinets

Wall-Mount Cabinets Product Selection Guide

PH (763) 422-2661 • FX (763) 422-2588 • homanonline.com

Networking: Wall-Mount Cabinets

Wall-Mount Cabinets Product Selection Guide

Spec-00449 C

LBOX®DBOX™ WIFI ENCLOSURE2 MODELS COMLINE®

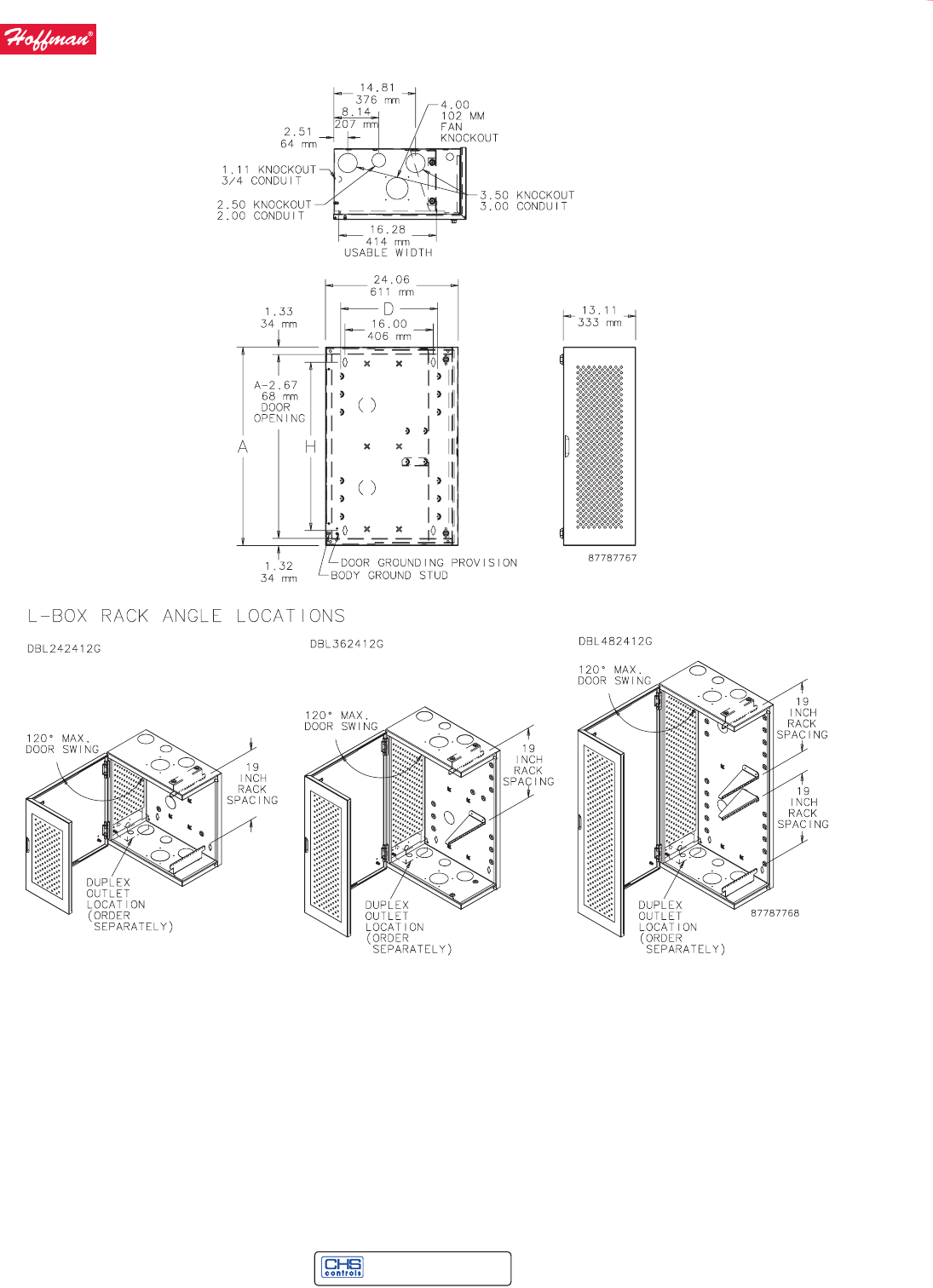

L-BOX® provides convenient mounting and

storage for patch panels in a space-saving

design.

• Horizontal cable distribution

• Copper to ber

• Consolidation points

• Vertical rack angles

D-BOX™ provides convenient mounting

and storage for patch panels.

• Horizontal cable distribution

• Copper to ber

• Consolidation points

• Fixed and rotating rack angles

Provides a secure enclosure for WiFi and

other network equipment. Fiberglass does

not impede WiFi/WLAN signals.

• Corrosion resistant

• Plenum rated

• Plywood back panel provided

Lightweight, corrosion-resistant aluminum

enclosure provides long-lasting protection

for electrical and network components for

both indoor and outdoor environments.

• Corrosion-resistant

• Outdoor applications (OSP)

Mild steel Mild steel Fiberglass Aluminum

Indoors with built-in ventilation areas. Indoors with built-in ventilation areas. Indoors and outdoors plus hazardous

areas. Protects from dust, dirt and splash-

ing water.

Indoors and outdoors plus hazardous

areas. Protects from dust, dirt and splash-

ing water.

6–12 RUs 4–6 RUs Not applicable for smaller model.

Optional RU for large model.

Not supplied as standard.

Optional 12–26 RUs

24.00–48.00 in. 24.00–48.00 in. 6.00–24.61 in. 11.80–59.10 in.

24.00 in. 24.00 in. 6.00–24.11 in. 11.80–35.40 in.

12.34 in. 8.34–12.34 in. 4.00–12.64 in. 5.90–11.80 in.

75 lbs. 100 lbs. 50–200 lbs. 50–200 lbs.

UL 1863/508A/60905, CSA NEMA, IEC, EIA

310-D

UL 1863/508A/60905, CSA, NEMA, IEC,

EIA 310-D UL 508A, CSA,NEMA, IEC UL 508A, CSA, NEMA, IEC

Type 1, IP40 Type 1, IP40 Type 4, 4X, 12, 13 IP66 Type 3, 3R, 4, 4X, 12, IP66

Yes Yes Yes—Solid door only Not applicable

Vented wrap-around door Solid with vents Solid or window Solid

Keyhole mounting slots, accessory raised

pads, cable tie-down points, large cable

knock-out

Keyhole mounting slots, accessory raised

pads, cable tie-down points, large cable

knock-out

Wood panel standard Rear mounting studs, panel-ready and

wall-mounting provisions

Cable knock-outs, fan-ready Cable knock-outs, fan-ready Solid berglass construction Solid aluminum construction

1 set tapped 10-32, plated • 1 set xed tapped 10-32, plated

• 1 set tapped 10-32, fully adjustable

Optional on largest size • Optional based on size

• 1 set tapped 10-32, fully adjustable

Vertical equipment mounting provides

horizontal cable distribution. Oers a

lower-prole installation.

Fixed and rotating rack angles for easy

equipment mounting. Oers a lower-

prole installation.

Indoors and outdoors: Great for tunnels,

marinas, outside walls and rooftops. Ideal

for wireless applications; signals pass

unimpeded through berglass.

Indoors and outdoors: Great for roof-

top, pole mount and tower mounting.

Lightweight with corrosion resistance.

• Removable door

• Quarter-turn latches with keyed lock

• Cable tie-down points

• Mounting screws provided

• Top and bottom knockouts

• Cable spool mounting

• Complete accessories—fans, shelves

and others

• Grounding and bonding provisions

• Removable and reversible door

• Quarter-turn latches with keyed

lock

• Cable tie-down points

• Mounting screws provided

• Grounding and bonding provisions

• Top and bottom knockouts

• Cable spool mounting

• Complete accessories—fans,

shelves and others

• Fiberglass is easily punched or

drilled

• Foam-in-place gasketing

• Removable door with stainless steel

hinge pins

• Window models are scratch-resistant

GE Lexan Margard

• Small model—screw cover

• Large model—key lock knob

• Solar shield provides cooler interior for

outdoor applications

• Foam-in-place gasketing

• Latching—one- and three-point

options

• Door stop

• Door options—removable and heavy-

duty continuous

• Grounding and bonding provisions

Spec-00449.indd 2 10/07/09 9:48:11 AM

CHS Controls AB

Tel +46 42 38 61 00, Fax +46 42 38 61 29

chs@chscontrols.se www.chscontrols.se

896

Networking: Wall-Mount Cabinets

ACCESSPLUS® II Double-Hinge

PH (763) 422-2661 • FX (763) 422-2588 • homanonline.com

ACCESSPLUS® II Dou ble-Hin ge

ACCESSPLUS® II Double-Hinge, Type 1

Industry Standards

UL 508A; Type 1; File No. E61997

cUL Listed per CSA C22.2 No. 182.4; File No. E230874

EIA 310-D

NEMA/EEMAC Type 1

EIC 60529 IP20

Per BICSI TDMM Tenth edition, Chapter 7,

Telecommunication Enclosures (TE)

Application

ACCESSPLUS® II Cabinets provide security, equipment access, cooling

and support for network and other 19-in. rack-mount equipment. The

cabinet has three components: front door, center section and wall

section.

Features

• Double-hinged for easy equipment access; center section provides

19-in. rack mounting per EIA universal spacing and is accessed

through the front door or swing the center section away from the

wall section for rear access

• Round corners; no sharp edges

• Front door has either a solid steel or hardened, tinted safety-glass

window door for superior scratch resistance

• Center section easily removed from rear section; tool-less one-

person installation possible

• Self-grounding, plated steel rack angles fully adjustable within

center section

• Wall section provides cable entry and cable management with

knockouts or gland plates

• Gland plate model provides easy retrot and fast installation and

allows for pre-terminated cables or pre-wired patch panels; no

need to re-terminate and test

• Self-locking center-to-wall section latches in two locations

• Front access to all latches (no exposed side latches); cabinet can be

installed tightly in corners

• Vented sides provide cross ow ventilation to improve heat

dissipation

• Vertical cable manager included in 28-in.-wide models

• A full line of accessories is available

Specications

Front Door (window or solid steel)

•

Composite frame (injection molded top and bottom with extruded

composite sides)

• 140-degree opening door

• Field-reversible (left or right) hinge

• Quarter-turn key lock, two keys included

• Window door is scratch-resistant 1/4-in. tinted safety glass

• Solid door has 16 gauge steel insert with matching black nish

Center Section

• Welded 14 gauge steel

• Solid top of center sections provides protection against falling

debris

• Ventilated sides (to which fans can be added)

• Self-latching closure connects center section to wall section

• Self-alignment ramp supports center section to wall section

• Heavy duty center-to-rear section hinge with quick-release self-

retained hinge pin eases wall installation

Rack-Mounting Angles

• 12 gauge, plated steel

• EIA universal spaced 19-in. rack-mounting holes

• RU marked from bottom to top

• Tapped 10-32 holes, 20 mounting screws included

Rear Wall Section

• Welded 14 gauge steel

• Radius corners; no sharp edges

• Available with knockouts or gland plates

• Raised pads for accessory mounting

• Cable tie-down points for cable management

• Keyhole mounting holes allow wall section to be mounted over

fasteners and eases installation

• Three cable-entry grommets

Finish

Pretreated steel coated with RAL 9005 black light-textured, low-gloss

polyester powder paint. Other nishes available—contact Homan

Customer Service.

Bulletin: DWDH1

CHS Controls AB

Tel +46 42 38 61 00, Fax +46 42 38 61 29

chs@chscontrols.se www.chscontrols.se

897

Networking: Wall-Mount Cabinets

ACCESSPLUS® II Double-Hinge

PH (763) 422-2661 • FX (763) 422-2588 • homanonline.com

Standard Product Window Door

Catalog Number AxBxC in. AxBxC mm Rack Units Additional Rack Angles (S=Square Hole) (T=Tapped Hole)

EWMW242418 23.60 x 23.62 x 18.20 600 x 600 x 462 12 EWMR24T or EWMR24S

EWMW362418 36.02 x 23.62 x 18.20 915 x 600 x 462 19 EWMR36T or EWMR36S

EWMW482418 48.03 x 23.62 x 18.20 1220 x 600 x 462 26 EWMR48T or EWMR48S

EWMW602418 60.04 x 23.62 x 18.20 1525 x 600 x 462 32 EWMR60T or EWMR60S

EWMW722418 72.05 x 23.62 x 18.20 1830 x 600 x 462 39 EWMR72T or EWMR72S

EWMW242425 23.62 x 23.62 x 25.09 600 x 600 x 637 12 EWMR24T or EWMR24S

EWMW362425 36.02 x 23.62 x 25.09 915 x 600 x 637 19 EWMR36T or EWMR36S

EWMW482425 48.03 x 23.62 x 25.09 1220 x 600 x 637 26 EWMR48T or EWMR48S

EWMW602425 60.04 x 23.62 x 25.09 1525 x 600 x 637 32 EWMR60T or EWMR60S

EWMW722425 72.05 x 23.62 x 25.09 1830 x 600 x 637 39 EWMR72T or EWMR72S

EWMW242430 23.62 x 23.62 x 30.01 600 x 600 x 762 12 EWMR24T or EWMR24S

EWMW362430 36.02 x 23.62 x 30.01 915 x 600 x 762 19 EWMR36T or EWMR36S

EWMW482430 48.03 x 23.62 x 30.01 1220 x 600 x 762 26 EWMR48T or EWMR48S

B dimension does not include wall-to-center section hinge.

CHS Controls AB

Tel +46 42 38 61 00, Fax +46 42 38 61 29

chs@chscontrols.se www.chscontrols.se

898

Networking: Wall-Mount Cabinets

ACCESSPLUS® II Double-Hinge

PH (763) 422-2661 • FX (763) 422-2588 • homanonline.com

Standard Product Solid Door

Catalog Number AxBxC in. AxBxC mm Rack Units Additional Rack Angles (S=SquareHole) (T=Tapped Hole)

EWMS242418 23.62 x 23.62 x 18.20 600 x 600 x 462 12 EWMR24T or EWMR24S

EWMS362418 36.02 x 23.62 x 18.20 915 x 600 x 462 19 EWMR36T or EWMR36S

EWMS482418 48.03 x 23.62 x 18.20 1220 x 600 x 462 26 EWMR48T or EWMR48S

EWMS242425 23.62 x 23.62 x 25.09 600 x 600 x 637 12 EWMR24T or EWMR24S

EWMS362425 36.02 x 23.62 x 25.09 915 x 600 x 637 19 EWMR36T or EWMR36S

EWMS482425 48.03 x 23.62 x 25.09 1220 x 600 x 637 26 EWMR48T or EWMR48S

B dimension does not include wall-to-center section hinge.

Standard Product Window Door with Cable Manager

Catalog Number AxBxC in. AxBxC mm Rack Units Additional Rack Angles (S=Square Hole) (T=Tapped Hole) Vertical Cable Mgr. Catalog Numbera

EWMW242825 23.62 x 27.56 x 25.09 600 x 700 x 637 12 EWMR24T or EWMR24S EWMC24

EWMW362825 36.02 x 27.56 x 25.09 915 x 700 x 637 19 EWMR36T or EWMR36S EWMC36

EWMW482825 48.03 x 27.56 x 25.09 1220 x 700 x 637 26 EWMR48T or EWMR48S EWMC48

B dimension does not include wall-to-center section hinge.

a For additional rack angles, also order vertical cable manager.

CHS Controls AB

Tel +46 42 38 61 00, Fax +46 42 38 61 29

chs@chscontrols.se www.chscontrols.se

899

Networking: Wall-Mount Cabinets

ACCESSPLUS® II Double-Hinge

PH (763) 422-2661 • FX (763) 422-2588 • homanonline.com

Standard Product Window Door with Gland Plate

Catalog Number AxBxC in. AxBxC mm Rack Units Additional Rack Angles (S=Square Hole) (T=Tapped Hole)

EWMWG242418 23.62 x 23.62 x 18.20 600 x 600 x 462 12 EWMR24T or EWMR24S

EWMWG362418 36.02 x 23.62 x 18.20 915 x 600 x 462 19 EWMR36T or EWMR36S

EWMWG482418 48.03 x 23.62 x 18.20 1220 x 600 x 462 26 EWMR48T or EWMR48S

EWMWG242425 23.62 x 23.62 x 25.09 600 x 600 x 637 12 EWMR24T or EWMR24S

EWMWG362425 36.02 x 23.62 x 25.09 915 x 600 x 637 19 EWMR36T or EWMR36S

EWMWG482425 48.03 x 23.62 x 25.09 1220 x 600 x 637 26 EWMR48T or EWMR48S

B dimension does not include wall-to-center section hinge.

Load Rating

Height Load Capacity

24 in. 250 lb.

36 in. 300 lb.

48 in. 350 lb.

60 in. 400 lb.

72 in. 500 lb.

CHS Controls AB

Tel +46 42 38 61 00, Fax +46 42 38 61 29

chs@chscontrols.se www.chscontrols.se

900

Networking: Wall-Mount Cabinets

ACCESSPLUS® II Double-Hinge

PH (763) 422-2661 • FX (763) 422-2588 • homanonline.com

Vertical Cable Managers for 28-in.-Wide

Cabinet

Use ACCESSPLUS Cable Managers when ordering additional rack

angles for 28-in.-wide cabinet.

Bulletin: DWDH1

Catalog Number Description Fits Cabinet

EWMC24 ACCESSPLUS Vertical Cable Manager 24.00 in. A = 24.00; B = 28.00

EWMC36 ACCESSPLUS Vertical Cable Manager 36.00 in. A = 36.00; B = 28.00

EWMC48 ACCESSPLUS Vertical Cable Manager 48.00 in. A = 48.00; B = 28.00

Vertical Cable Manager Capacity Number of cables at 60

percent lled

Cross Section (Area) 5e (0.22 in. dia.) 6 (0.28 in. dia.) 6A (0.35 in. dia.)

24.5 in.2380 300 208

Rack Angles Bulletin: DWDH1

Catalog Number Description Rack Units Fits Cabinet

EWMR24T Fits 24-in. tapped 12 A = 24.00

EWMR36T Fits 36-in. tapped 19 A = 36.00

EWMR48T Fits 48-in. tapped 26 A = 48.00

EWMR60T Fits 60-in. tapped 32 A = 60.00

EWMR72T Fits 72-in. tapped 39 A = 72.00

EWMR24S Fits 24-in. square 12 A = 24.00

EWMR36S Fits 36-in. square 19 A = 36.00

EWMR48S Fits 48-in. square 26 A = 48.00

EWMR60S Fits 60-in. square 32 A = 60.00

EWMR72S Fits 72-in. square 39 A = 72.00

Fan Kits Bulletin: DWDH1

Catalog Number Description Fits Cabinet

EWMF1 4-in. fan with plug and blocking plates,

115 VAC, 100 CFM small

Fits all C = 18.00

EWMF2 4-in. fan with plug and blocking plates,

115 VAC, 100 CFM, large

Fits all C = 25.00 or 30.00

CHS Controls AB

Tel +46 42 38 61 00, Fax +46 42 38 61 29

chs@chscontrols.se www.chscontrols.se

901

Networking: Wall-Mount Cabinets

ACCESSPLUS® II Double-Hinge

PH (763) 422-2661 • FX (763) 422-2588 • homanonline.com

DataCom Wall-Mount Cabinet with Gland Plate Application

Networking: Wall-Mount Cabinets

ACCESSPLUS® II Double-Hinged

Spec-00554 D

DataCom Wall-Mount Cabinet with Gland Plate Application

This cabinet oers signicant advantages in retrot applications. The gland plate is mounted at the top and the bottom to accommodate

cable runs from above, below or both. The gland plate casing can be removed while patch panels and associated wiring are brought to the

cabinet.

2. Install the cable gland plate onto the wall section.

4. Install the center section, then mount patch panels on rack

angles.

5. Close and lock the door.

1. Once the wall section is installed on the wall, lay in the

patch panel.

3. Use wire ties or cable wraps to secure the cable to the

cabinet.

Spec-00554.indd 1 10/18/2010 1:19:45 PM

CHS Controls AB

Tel +46 42 38 61 00, Fax +46 42 38 61 29

chs@chscontrols.se www.chscontrols.se

902

Networking: Wall-Mount Cabinets

PROTEK® Wall-Mount and Double-Hinge Cabinets

PH (763) 422-2661 • FX (763) 422-2588 • homanonline.com

PROTEK® Wall-M ount and Dou ble-Hi nge Cabinet s

PROTEK®, Single-Door UL and NEMA Type 4 or 12

Industry Standards

UL 508A Listed; Type 4 or 12; File Number E619967

cUL Listed per CSA C22.2 No. 94; Type 4 or 12; File Number

E61997

NEMA/EEMAC Type 4 or 12

IEC 60529, IP66 or IP55

Application

PROTEK® Cabinets are an excellent, o-the-shelf choice for mounting

19-in. rack network equipment in wet or dirty environments where

oor space is at a premium. Solid or safety glass window door models

provide application exibility.

Features

• Solid door provides complete physical and visual protection

• Window door, made with scratch-resistant safety glass, provides

equipment monitoring without opening the door to minimize

contamination

• Fully welded and ground body and door construction for long-

term good appearance and durability

• Foam-in-place seamless gasket around door seals against outdoor

air inltration; is non-absorbing and chemical resistant

• Type 12 cabinets have solid or window doors and a locking wing

knob with two keys. They provide security and convenience in

indoor applications.

• Type 4 cabinets have solid doors and a padlock-capable quarter-

turn latch. They provide easy operation and locking options in

indoor and outdoor applications.

• One set of adjustable, tapped rack angles included

• Optional square-hole (.375 in.) rack angles available for equipment

mounting exibility

• Rack angles are plated and self-grounding for durability and safety

• Collar studs provided on back of cabinet for mounting accessory

panels

• Accessory panels for mounting additional accessories at the back

of the cabinet include tie-down points and pre-drilled holes

• Plenum rated for use in air exchange areas

Specications

• Doors and body made of 14 gauge steel

• Convenient studs provided on both door and body for bonding

and grounding

• Rack angles tapped 10-32 per EIA standards; made of 12 gauge

self-grounding plated steel

• Window is clear, .25-in. thick, scratch- and impact-resistant safety

glass

• Optional polycarbonate window (not plenum rated) can be eld-

or factory-installed. Contact Homan Customer Service for factory

installation.

• Twenty 10-32 screws included

Finish

Pretreated steel coated with RAL 7035 light-gray or RAL 9005

black textured, low-gloss polyester powder paint. Other nishes

available—contact Homan Customer Service.

Bulletin: DWS12

Standard Product Window Door, NEMA 12, IP55

Catalog Number AxBxC in./mm Finish

Rack

Units

Standard

Panel

Accessory

Panel

Additional Optional

Rack Angles

(Tapped Holes)

Additional Optional

Rack Angles

(Square Holes)

PTDW242412B 24.00 x 24.00 x 12.00

610 x 610 x 305

Black 12 CP2424 PTP2424A PTRA1924TPL PTRA1924THL

PTDW242412G 24.00 x 24.00 x 12.00

610 x 610 x 305

Gray 12 CP2424 PTP2424A PTRA1924TPL PTRA1924THL

PTDW362412B 36.50 x 24.00 x 12.00

927 x 610 x 305

Black 19 CP3624 PTP3624A PTRA1936TPL PTRA1936THL

PTDW362412G 36.50 x 24.00 x 12.00

927 x 610 x 305

Gray 19 CP3624 PTP3624A PTRA1936TPL PTRA1936THL

PTDW482412B 48.50 x 24.00 x 12.00

1232 x 610 x 305

Black 26 CP4824 PTP4824A PTRA1948TPL PTRA1948THL

PTDW482412G 48.50 x 24.00 x 12.00

1232 x 610 x 305

Gray 26 CP4824 PTP4824A PTRA1948TPL PTRA1948THL

PTDW242424B 24.00 x 24.00 x 24.00

610 x 610 x 610

Black 12 CP2424 PTP2424A PTRA1924TPL PTRA1924THL

PTDW242424G 24.00 x 24.00 x 24.00

610 x 610 x 610

Gray 12 CP2424 PTP2424A PTRA1924TPL PTRA1924THL

PTDW362424B 36.50 x 24.00 x 24.00

927 x 610 x 610

Black 19 CP3624 PTP3624A PTRA1936TPL PTRA1936THL

PTDW362424G 36.50 x 24.00 x 24.00

927 x 610 x 610

Gray 19 CP3624 PTP3624A PTRA1936TPL PTRA1936THL

PTDW482424B 48.50 x 24.00 x 24.00

1232 x 610 x 610

Black 26 CP4824 PTP4824A PTRA1948TPL PTRA1948THL

PTDW482424G 48.50 x 24.00 x 24.00

1232 x 610 x 610

Gray 26 CP4824 PTP4824A PTRA1948TPL PTRA1948THL

CHS Controls AB

Tel +46 42 38 61 00, Fax +46 42 38 61 29

chs@chscontrols.se www.chscontrols.se

903

Networking: Wall-Mount Cabinets

PROTEK® Wall-Mount and Double-Hinge Cabinets

PH (763) 422-2661 • FX (763) 422-2588 • homanonline.com

Standard Product Solid Door, NEMA 4, IP66

Catalog Number AxBxC in./mm Finish

Rack

Units

Standard

Panel

Accessory

Panel

Additional Optional

Rack Angles

(Tapped Holes)

Additional Optional

Rack Angles

(Square Holes)

PTDS242412G4 24.00 x 24.00 x 12.00

610 x 610 x 305

Gray 12 CP2424 PTP2424A PTRA1924TPL PTRA1924THL

PTDS362412G4 36.50 x 24.00 x 12.00

927 x 610 x 305

Gray 19 CP3624 PTP3624A PTRA1936TPL PTRA1936THL

PTDS482412G4 48.50 x 24.00 x 12.00

1232 x 610 x 305

Gray 26 CP4824 PTP4824A PTRA1948TPL PTRA1948THL

PTDS242424G4 24.00 x 24.00 x 24.00

610 x 610 x 610

Gray 12 CP2424 PTP2424A PTRA1924TPL PTRA1924THL

PTDS362424G4 36.50 x 24.00 x 24.00

927 x 610 x 610

Gray 19 CP3624 PTP3624A PTRA1936TPL PTRA1936THL

PTDS482424G4 48.50 x 24.00 x 24.00

1232 x 610 x 610

Gray 26 CP4824 PTP4824A PTRA1948TPL PTRA1948THL

Standard Product Solid Door, NEMA 12, IP55

Catalog Number AxBxC in./mm

Rack

Units

Standard

Panel

Accessory

Panel

Additional Optional

Rack Angles

(Tapped Holes)

Additional Optional

Rack Angles

(Square Holes)

PTDS242412B 24.00 x 24.00 x 12.00

610 x 610 x 305

12 CP2424 PTP2424A PTRA1924TPL PTRA1924THL

PTDS242412G 24.00 x 24.00 x 12.00

610 x 610 x 305

12 CP2424 PTP2424A PTRA1924TPL PTRA1924THL

PTDS362412B 36.50 x 24.00 x 12.00

92700 x 610 x 305

19 CP3624 PTP3624A PTRA1936TPL PTRA1936THL

PTDS362412G 36.50 x 24.00 x 12.00

927 x 610 x 305

19 CP3624 PTP3624A PTRA1936TPL PTRA1936THL

PTDS482412B 48.50 x 24.00 x 12.00

1232 x 610 x 305

26 CP4824 PTP4824A PTRA1948TPL PTRA1948THL

PTDS482412G 48.50 x 24.00 x 12.00

1232 x 610 x 305

26 CP4824 PTP4824A PTRA1948TPL PTRA1948THL

PTDS242424B 24.00 x 24.00 x 24.00

610 x 610 x 610

12 CP2424 PTP2424A PTRA1924TPL PTRA1924THL

PTDS242424G 24.00 x 24.00 x 24.00

610 x 610 x 610

12 CP2424 PTP2424A PTRA1924TPL PTRA1924THL

PTDS362424B 36.50 x 24.00 x 24.00

927 x 610 x 610

19 CP3624 PTP3624A PTRA1936TPL PTRA1936THL

PTDS362424G 36.50 x 24.00 x 24.00

927 x 610 x 610

19 CP3624 PTP3624A PTRA1936TPL PTRA1936THL

PTDS482424B 48.50 x 24.00 x 24.00

1232 x 610 x 610

26 CP4824 PTP4824A PTRA1948TPL PTRA1948THL

PTDS482424G 48.50 x 24.00 x 24.00

1232 x 610 x 610

26 CP4824 PTP4824A PTRA1948TPL PTRA1948THL

CHS Controls AB

Tel +46 42 38 61 00, Fax +46 42 38 61 29

chs@chscontrols.se www.chscontrols.se

904

Networking: Wall-Mount Cabinets

PROTEK® Wall-Mount and Double-Hinge Cabinets

PH (763) 422-2661 • FX (763) 422-2588 • homanonline.com

PROTEK® Single-Door Fan and Filter Thermal Packages, UL and NEMA Type 1

Industry Standards

UL 508A Listed; Type 1; File Number E619967

cUL Listed per CSA C22.2 No. 94; Type 1; File Number E61997

NEMA / EEMAC: Type 1

IEC 60529, IP 30

Application

PROTEK® Fan and Filter Packages are ideal for protecting sensitive 19-

in. rack equipment from harmful environmental contaminants such

as falling dirt, dust and dripping water. Use where the ambient air can

be used to cool the internal equipment and where protection from

falling dirt and dripping water is needed. Filters assist in removing

contaminants and are easily removed for periodic cleaning without

accessing the cabinet. Top-mounted fans provide increased airow

and maximize heat dissipation of internally mounted equipment.

Both top-mounted fans and bottom-mounted intake lters are

positioned away from 19-in. rack-mounting areas.

Features

• Solid door provides complete physical and visual protection

• Window door, made with scratch-resistant safety glass, provides

equipment monitoring without opening the door to minimize

contamination

• Fully welded and ground body and door construction for long-

term good appearance and durability

• Foam-in-place seamless gasket around door seals against outdoor

air inltration; is non-absorbing and chemically resistant

• Type 12 cabinets have window doors and a locking wing knob

with two keys. They provide security and convenience in indoor

applications.

• Type 4 cabinets have solid doors and a padlock-capable, tamper-

resistant, quarter-turn latch (tool included). They provide easy

operation and locking options in indoor and outdoor applications.

• One set of adjustable tapped rack angles included

•

Optional square-hole (.375-in.) rack angles available for equipment

mounting exibility

• Rack angles are plated and self-grounding for durability and safety

• Collar studs provided on back of cabinet for mounting accessory

panels

• Accessory panels for mounting additional accessories at the back

of the cabinet include tie-down points and pre-drilled holes

• Plenum rated for use in air exchange areas

Specications

• Doors made of 16 gauge steel; body made of 14 gauge steel

• Convenient studs provided on both door and body for bonding

and grounding

• Rack angles tapped 10-32 per EIA standards; made of 12 gauge

self-grounding plated steel

• Window is clear, .25-in. thick, scratch- and impact-resistant safety

glass

• Optional polycarbonate window (not plenum rated) can be eld-

or factory-installed. Contact Homan Customer Service for factory

installation.

• Twenty 10-32 screws included

• Pagoda top-mounted 6-in. fan and bottom-mounted 10-in. lter

inlet

• Top shroud protects cabinet and fan from falling debris and

dripping water

• Bottom-mounted air inlet with outside removable and cleanable

lter

• Regular lter cleaning required for optimum thermal performance

• Operates on 110/115 VAC 50/60 Hz line voltage

• Standard NEMA 15 A plug internal to the cabinet (5-15P)

Finish

Pretreated steel coated with RAL 7035 light gray textured, low-gloss

polyester powder paint. Other paint nishes available—contact

Homan Customer Service for details.

Load Rating

WARNING: The cabinet must be safely and correctly mounted to the

wall to support the total weight of the cabinet and its contents. Due

to various applications and wall constructions, consultation with a

structural engineer and analysis of the mounting wall is advised.

Bulletin: DWS12

Standard Product PROTEK Single Window Door UL Type 1 Fan and Filter Packages

Catalog Number AxBxC in. AxBxC mm

Rack

Units

Accessory

Panels

Standard

Panels

Additional Optional

Rack Angles

(Tapped Holes)

Additional Optional

Rack Angles

(Square Holes)

PTDW242424GF 24.00 x 24.00 x 24.00 610 x 610 x 610 12 PTP2424A CP2424 PTRA1924TPL PTRA1924THL

PTDW362424GF 36.50 x 24.00 x 24.00 927 x 610 x 610 19 PTP3624A CP3624 PTRA1936TPL PTRA1936THL

PTDW482424GF 48.50 x 24.00 x 24.00 1232 x 610 x 610 26 PTP4824A CP4824 PTRA1948TPL PTRA1948THL

Technical Operating Information Fan Unit (6-in. Fan with Cord) Replacement Filter No. AFLTR10

Hz Voltage VAC CFM W @ 50/60 Hz Full Load Amp @ 50/60 Hz Noise SIL (db)

50/60 115 200/240 36/32 .45/.36 50/56

CHS Controls AB

Tel +46 42 38 61 00, Fax +46 42 38 61 29

chs@chscontrols.se www.chscontrols.se

905

Networking: Wall-Mount Cabinets

PROTEK® Wall-Mount and Double-Hinge Cabinets

PH (763) 422-2661 • FX (763) 422-2588 • homanonline.com

Thermal Performance for Fan and Filter

Packages

PROTEK Fan and Filter Packages calculated thermal performance

Max. Internal Temperature: 100 F

Voltage / Hertz: 115 VAC/60 Hz

Filters: Clean (Regular cleaning required to maintain airow)

Air Volume: 200 CFM (Exact CFM dependant on Voltage, Frequency,

and lter eciency)

Max. Elevation: 6,000 ft. (Contact Homan for elevations above

6,000 ft.)

Thermal Performance PROTEK® Fan and Filter Packages

Ambient Temperature (°F) Watts (Heat) Dissipated

100 or above Not recommended

Consider PROTEK Air Conditioner Package

95 316

90 632

85 948

80 1264

75 1580

70 1896

65 2212

60 2528

55 2844

Watts = .316 x CFM x delta T (degrees F) (at sea level)

Delta T = Max internal temperature (degrees F) – Ambient external temperature (degrees F)

Ambient temperature is the air temperature in and around the intake opening of the cabinet. Fan cooling can

never cool the equipment below ambient temperature.

CHS Controls AB

Tel +46 42 38 61 00, Fax +46 42 38 61 29

chs@chscontrols.se www.chscontrols.se

906

Networking: Wall-Mount Cabinets

PROTEK® Wall-Mount and Double-Hinge Cabinets

PH (763) 422-2661 • FX (763) 422-2588 • homanonline.com

PROTEK® Single-Door Thermal AC Package, UL and NEMA Type 4 or 12

Industry Standards

PROTEK Air Conditioner Packages Indoor (Type 12)

UL 508A Listed; Type 12; File Number E619967

cUL Listed per CSA C22.2 No. 94; Type 12; File Number E61997

NEMA / EEMAC: Type 12

IEC 60529, IP 55

PROTEK Air Conditioner Packages Outdoor (Type 4)

UL 508A Listed; Type 12, 4; File Number E619967

cUL Listed per CSA C22.2 No. 94; Type 12, 4; File Number E61997

NEMA / EEMAC: Type 12, 4

IEC 60529, IP 66

Application

The PROTEK® Thermal Package is an excellent, o-the-shelf choice

for mounting 19-in. rack network equipment in wet or dirty

environments where ltration or air conditioning is required and oor

space is at a premium. Complete Fan and Filter and Air Conditioner

Packages are available to match application requirements.

Features

• Solid door provides complete physical and visual protection

• Window door, made with scratch-resistant safety glass, provides

equipment monitoring without opening the door to minimize

contamination

• Fully welded and ground body and door construction for long-

term good appearance and durability

• Foam-in-place seamless gasket around door seals against outdoor

air inltration; is non-absorbing and chemically resistant

• Type 12 cabinets have window doors and a locking wing knob

with two keys. They provide security and convenience in indoor

applications.

• Type 4 cabinets have solid doors and a padlock-capable, tamper-

resistant, quarter-turn latch (tool included). They provide easy

operation and locking options in indoor and outdoor applications.

• One set of adjustable tapped rack angles included

•

Optional square-hole (.375-in.) rack angles available for equipment

mounting exibility

• Rack angles are plated and self-grounding for durability and safety

• Collar studs provided on back of cabinet for mounting accessory

panels

• Accessory panels for mounting additional accessories at the back

of the cabinet include tie-down points and pre-drilled holes

• Plenum rated for use in air exchange areas

• Cabinet shipped with air conditioner uninstalled

Specications

• Doors made of 16 gauge steel; body made of 14 gauge steel

• Convenient studs provided on both door and body for bonding

and grounding

• Rack angles tapped 10-32 per EIA standards; made of 12 gauge

self-grounding plated steel

• Window is clear, .25-in. thick, scratch- and impact-resistant safety

glass

• Optional polycarbonate window (not plenum rated) can be eld-

or factory-installed. Contact Homan Customer Service for factory

installation.

• Twenty 10-32 screws included

• Right-side-mounted T4 Line Indoor/Outdoor Air Conditioner

• Operates on 110/115 VAC 50/60 Hz line voltage

• Standard NEMA 15 A plug internal to the cabinet (5-15P)

• See table for technical operating information

• Routine maintenance required for optimum performance (see

service manual)

Finish

Pretreated steel coated with RAL 7035 light gray textured, low-gloss

polyester powder paint. Other paint nishes available—contact

Homan Customer Service for details.

Load Rating

WARNING: The cabinet must be safely and correctly mounted to the

wall to support the total weight of the cabinet and its contents. Due

to various applications and wall constructions, consultation with a

structural engineer and analysis of the mounting wall is advised.

Bulletin: DWS12

Standard Product Single Window-Door UL Type 12 Air Conditioner Packages

Catalog Number AxBxC in. AxBxC mm

Rack

Units

Accessory

Panels

Standard

Panel

Additional Optional

Rack Angles

(Tapped Holes)

Additional Optional

Rack Angles

(Square Holes)

PTDW242424GA 24.00 x 24.00 x 24.00 610 x 610 x 610 12 PTP2424A CP2424 PTRA1924TPL PTRA1924THL

PTDW362424GA 36.50 x 24.00 x 24.00 927 x 610 x 610 19 PTP3624A CP3624 PTRA1936TPL PTRA1936THL

PTDW482424GA 48.50 x 24.00 x 24.00 1232 x 610 x 610 26 PTP4824A CP4824 PTRA1948TPL PTRA1948THL

Standard Product Single Solid-Door UL Type 4 Air Conditioner Packages

Catalog Number AxBxC in. AxBxC mm

Rack

Units

Accessory

Panels

Standard

Panel

Additional Optional

Rack Angles

(Tapped Holes)

Additional Optional

Rack Angles

(Square Holes)

PTDS242424GA4 24.00 x 24.00 x 24.00 610 x 610 x 610 12 PTP2424A CP2424 PTRA1924TPL PTRA1924THL

PTDS362424GA4 36.50 x 24.00 x 24.00 927 x 610 x 610 19 PTP3624A CP3624 PTRA1936TPL PTRA1936THL

PTDS482424GA4 48.50 x 24.00 x 24.00 1232 x 610 x 610 26 PTP4824A CP4824 PTRA1948TPL PTRA1948THL

Technical Operating Information AC Unit (T150116G100) Replacement Filter No. 10100091

Hz Voltage VAC Phase BTU/Hr @ Max. Amb. Temp. (E) Full Load Amp Max. Amb. Temp. (ºF) Max. Amb. Temp. (ºC) Cord and Plug

60 (50) 110 - 115 1 800 (235 watts) 3.6 (3.8) 131 (125) 52 (52) 24-in. cord length 5-15PPlug

CHS Controls AB

Tel +46 42 38 61 00, Fax +46 42 38 61 29

chs@chscontrols.se www.chscontrols.se

907

Networking: Wall-Mount Cabinets

PROTEK® Wall-Mount and Double-Hinge Cabinets

PH (763) 422-2661 • FX (763) 422-2588 • homanonline.com

Thermal Performance for Air Conditioner

Packages

PROTEK Air Conditioner calculated thermal performance

AC Performance:

800 BTU/hour or 235 watts

Voltage / Hertz:

115 VAC/60 Hz

Max. Ambient Temperature:

131 F

Min. Ambient Temperature: -40 F

Max. Internal Temperature: 100 F (Allowable)

Thermal Performance PROTEK® Air Conditioner Packages

Ambient

Temperature (°F)

Watts (Heat) Dissipated

Cabinet Height: 24 in.

Watts (Heat) Dissipated

Cabinet Height: 36 in.

Watts (Heat) Dissipated

Cabinet Height: 48 in.

130 15 N/A N/A

120 88 73 59

110 161 154 146

100 234 234 234

90 308 315 322

80 381 396 410

70 454 476 498

60 527 557 586

50 601 637 674

40 674 718 762

N/A = Not applicable and not recommended in these applications

1 BTU = 3.413 watts

CHS Controls AB

Tel +46 42 38 61 00, Fax +46 42 38 61 29

chs@chscontrols.se www.chscontrols.se

908

Networking: Wall-Mount Cabinets

PROTEK® Wall-Mount and Double-Hinge Cabinets

PH (763) 422-2661 • FX (763) 422-2588 • homanonline.com

PROTEK® DH Double-Hinge, UL and NEMA Type 4 or 12

Self-Closing Latch Type 4 Enclosures

Industry Standards

UL 508A Listed; Type 4 or 12; File Number E619967

cUL Listed per CSA C22.2 No. 94; Type 4 or 12; File Number

E61997

NEMA/EEMAC: Type 4 or 12

IEC 60529, IP66 or IP55

Application

PROTEK® DH Cabinets protect equipment in wet or dirty

environments and can be pole- or wall-mounted. Available with

reversible left or right hinging, the cabinet swings open to provide

easy equipment service and installation access.

Features

• Type 12 cabinets available with solid or window doors and have

a locking wing knob with two keys. They provide security and

convenience in indoor applications.

• Type 4 cabinets have solid doors and a padlock-capable quarter-

turn latch. They provide easy operation and locking options in

indoor and outdoor applications.

• Solid door provides complete physical and visual protection

• Window door, made with scratch resistant safety glass, allows

equipment monitoring without opening the door to minimize

contamination

• Double-hinged for easy equipment access

• Front access to center body hinging and back section latches

• Exclusive toolless self-fastening latch is easy to open, yet

automatically closes securely

• Latch on front of door eliminates need to access sides to open door

or back section latches

• Latch-free sides permit side of cabinet to be installed tightly into a

corner

• Fully welded and ground body and door construction for long-

term good appearance and durability

• Foam-in-place seamless gasket around door seals against outdoor

air inltration; is non-absorbing and chemical resistant

• One set of adjustable tapped rack angles included

• Optional square hole rack angles available for equipment

mounting exibility

• Rack angles are plated and self-grounding for durability and safety

• Collar studs provided on back of cabinet for mounting accessory

panels

• Accessory panels for mounting additional accessories at the back

of the cabinet include tie-down points and pre-drilled holes

• Plenum rated for use in air exchange areas

• Available modications include paint colors, holes and cutouts,

and custom sizes

Specications

• Doors and body made of 14 gauge steel

• Convenient studs provided on center section for bonding and

grounding

• Rack angles tapped 10-32 per EIA standards; made of 12 gauge

self-grounding plated steel

• Window is clear, .25 in. thick, scratch and impact resistant safety

glass

• Optional polycarbonate window (not plenum rated) can be eld-

or factory-installed. Contact Homan Customer Service for factory

installation.

• Twenty 10-32 screws included

Finish

Pretreated steel coated with RAL 7035 light gray textured, low gloss

polyester powder paint. Other nishes available – contact Homan

Customer Service.

Load Rating

HEIGHT RATING

16.00 (in.) 100 lb. (45.4 kg)

20.00 (in.) 100 lb. (45.4 kg)

24.00 (in.) 100 lb. (45.4 kg)

36.00 (in.) 125 lb. (56.7 kg)

48.00 (in.) 175 lb. (79.4 kg)

Options

See the appropriate option for more information. Options include:

PROTEK® DH Type 1, 4 or 12 Double-Hinged Wall-Mount Cabinet

Accessory Panels

PROTEK® Polycarbonate Window Inserts

PROTEK® Rack Angles

Bulletin: DWS12

CHS Controls AB

Tel +46 42 38 61 00, Fax +46 42 38 61 29

chs@chscontrols.se www.chscontrols.se

909

Networking: Wall-Mount Cabinets

PROTEK® Wall-Mount and Double-Hinge Cabinets

PH (763) 422-2661 • FX (763) 422-2588 • homanonline.com

Standard Product

Catalog Number AxBxC in. AxBxC mm Rack Units Door Style UL/NEMA Type IP Rating Accessory Panel Standard Panel

Additional Optional

Rack Angles

(Tapped Holes)

Additional Optional

Rack Angles

(Square Holes)

PTDHS162415G4 16.00 x 24.00 x 15.00 406 x 610 x 381 8 Solid 4 IP66 PTPDH1624A A24P16 PTRA1916TPL PTRA1916THL

PTDHS162415G 16.00 x 24.00 x 15.00 406 x 610 x 381 8 Solid 12 IP55 PTPDH1624A A24P16 PTRA1916TPL PTRA1916THL

PTDHW162415G 16.00 x 24.00 x 15.00 406 x 610 x 381 8 Window 12 IP55 PTPDH1624A A24P16 PTRA1916TPL PTRA1916THL

PTDHS202415G4 20.00 x 24.00 x 15.00 508 x 610 x 381 10 Solid 4 IP66 PTPDH2024A A24P20 PTRA1920TPL PTRA1924THL

PTDHS202415G 20.00 x 24.00 x 15.00 508 x 610 x 381 10 Solid 12 IP55 PTPDH2024A A24P20 PTRA1920TPL PTRA1924THL

PTDHW202415G 20.00 x 24.00 x 15.00 508 x 610 x 381 10 Window 12 IP55 PTPDH2024A A24P20 PTRA1920TPL PTRA1924THL

PTDHS242415G4 24.00 x 24.00 x 15.00 610 x 610 x 381 12 Solid 4 IP66 PTPDH2424A A24P24 PTRA1924TPL PTRA1924THL

PTDHS242415G 24.00 x 24.00 x 15.00 610 x 610 x 381 12 Solid 12 IP55 PTPDH2424A A24P24 PTRA1924TPL PTRA1924THL

PTDHW242415G 24.00 x 24.00 x 15.00 610 x 610 x 381 12 Window 12 IP55 PTPDH2424A A24P24 PTRA1924TPL PTRA1924THL

PTDHS362415G4 36.50 x 24.00 x 15.00 927 x 610 x 381 19 Solid 4 IP66 PTPDH3624A A36P24 PTRA1936TPL PTRA1936THL

PTDHS362415G 36.50 x 24.00 x 15.00 927 x 610 x 381 19 Solid 12 IP55 PTPDH3624A A36P24 PTRA1936TPL PTRA1936THL

PTDHW362415G 36.50 x 24.00 x 15.00 927 x 610 x 381 19 Window 12 IP55 PTPDH3624A A36P24 PTRA1936TPL PTRA1936THL

PTDHS482415G4 48.50 x 24.00 x 15.00 1232 x 610 x 381 26 Solid 4 IP66 PTPDH4824A A48P24 PTRA1948TPL PTRA1948THL

PTDHS482415G 48.50 x 24.00 x 15.00 1232 x 610 x 381 26 Solid 12 IP55 PTPDH4824A A48P24 PTRA1948TPL PTRA1948THL

PTDHW482415G 48.50 x 24.00 x 15.00 1232 x 610 x 381 26 Window 12 IP55 PTPDH4824A A48P24 PTRA1948TPL PTRA1948THL

PTDHS242424G4 24.00 x 24.00 x 24.00 610 x 610 x 610 12 Solid 4 IP66 PTPDH2424A A24P24 PTRA1924TPL PTRA1924THL

PTDHS242424G 24.00 x 24.00 x 24.00 610 x 610 x 610 12 Solid 12 IP55 PTPDH2424A A24P24 PTRA1924TPL PTRA1924THL

PTDHW242424G 24.00 x 24.00 x 24.00 610 x 610 x 610 12 Window 12 IP55 PTPDH2424A A24P24 PTRA1924TPL PTRA1924THL

PTDHS362424G4 36.50 x 24.00 x 24.00 927 x 610 x 610 19 Solid 4 IP66 PTPDH3624A A36P24 PTRA1936TPL PTRA1936THL

PTDHS362424G 36.50 x 24.00 x 24.00 927 x 610 x 610 19 Solid 12 IP55 PTPDH3624A A36P24 PTRA1936TPL PTRA1936THL

PTDHW362424G 36.50 x 24.00 x 24.00 927 x 610 x 610 19 Window 12 IP55 PTPDH3624A A36P24 PTRA1936TPL PTRA1936THL

PTDHS482424G4 48.50 x 24.00 x 24.00 1232 x 610 x 610 26 Solid 4 IP66 PTPDH4824A A48P24 PTRA1948TPL PTRA1948THL

PTDHS482424G 48.50 x 24.00 x 24.00 1232 x 610 x 610 26 Solid 12 IP55 PTPDH4824A A48P24 PTRA1948TPL PTRA1948THL

PTDHW482424G 48.50 x 24.00 x 24.00 1232 x 610 x 610 26 Window 12 IP55 PTPDH4824A A48P24 PTRA1948TPL PTRA1948THL

CHS Controls AB

Tel +46 42 38 61 00, Fax +46 42 38 61 29

chs@chscontrols.se www.chscontrols.se

910

Networking: Wall-Mount Cabinets

PROTEK® Wall-Mount and Double-Hinge Cabinets

PH (763) 422-2661 • FX (763) 422-2588 • homanonline.com

PROTEK® DH Double-Hinge Fan and Filter Thermal Packages, UL and NEMA Type 1

Industry Standards

UL 508A Listed; Type 1; File Number E619967

cUL Listed per CSA C22.2 No. 94; Type 1; File Number E61997

NEMA / EEMAC: Type 1

IEC 60529, IP 55

Application

PROTEK® Fan and Filter Packages are ideal for protecting sensitive

19-in. rack equipment from harmful environmental contaminants

such as falling dirt, dust and dripping water. Use for applications

where the ambient air can be used to cool the internal equipment

and where protection from falling dirt and dripping water is needed.

Filters assist in removing contaminants and are easily removed for

periodic cleaning without accessing the cabinet. Top-mounted fans

provide increased airow and maximize heat dissipation of internally

mounted equipment. Both top-mounted fans and bottom-mounted

intake lters are positioned away from 19-inch rack-mounting areas.

Features

• Solid door provides complete physical and visual protection

• Window door, made with scratch-resistant safety glass, provides

equipment monitoring without opening the door to minimize

contamination

• Fully welded and ground body and door construction for long-

term good appearance and durability

• Foam-in-place seamless gasket around door seals against outdoor

air inltration; is non-absorbing and chemically resistant

• Type 1 cabinets have window doors and a locking wing knob

with two keys. They provide security and convenience in indoor

applications.

• One set of adjustable tapped rack angles included

• Optional square hole (.375 in.) rack angles available for equipment

mounting exibility

• Rack angles are plated and self-grounding for durability and safety

• Collar studs provided on back of cabinet for mounting accessory

panels

• Accessory panels for mounting additional accessories at the back

of the cabinet include tie-down points and pre-drilled holes

• Plenum rated for use in air exchange areas

• Double-hinged for easy equipment access

• Front access to center body hinging and back section latches

• Exclusive tool-less self-fastening latch is easy to open, yet

automatically closes securely

•

Latch on front of door eliminates need to access sides to open door

or back section latches

• Latch-free sides permit cabinet to be installed tightly into a corner

Specications

• Doors made of 16 gauge steel and body made of 14 gauge steel

• Convenient studs provided on both door and body for bonding

and grounding

• Rack angles tapped 10-32 per EIA standards; made of 12 gauge

self-grounding plated steel

• Window is clear, .25-in. thick, scratch- and impact-resistant safety

glass

• Optional polycarbonate window (not plenum rated) can be eld-

or factory-installed. Contact Homan Customer Service for factory

installation.

• Twenty 10-32 screws included

• Pagoda top-mounted 6-in. fan and bottom-mounted 10-in. lter

inlet

• Top fan shroud protects cabinet and fan from falling debris and

dripping water

• Bottom-mounted air inlet with outside removable and cleanable

lter

• Regular lter cleaning required for optimum thermal performance

• Operates on 110/115 VAC 50/60 Hz line voltage

• Standard NEMA 15 A plug internal to the cabinet (5-15P)

Finish

Pretreated steel coated with RAL 7035 light-gray, textured, low-gloss

polyester powder paint. Other paint nishes available—contact

Homan Customer Service for details.

Load Rating

WARNING: The cabinet must be safely and correctly mounted to the

wall to support the total weight of the cabinet and its contents. Due

to various applications and wall constructions, consultation with a

structural engineer and analysis of the mounting wall is advised.

Bulletin: DWDH2

Standard ProductDouble-Hinged Window-Door Type 1 Fan and Filter Packages

Catalog Number AxBxC in. AxBxC mm

Rack

Units

Accessory

Panels

Standard

Panel

Additional Optional

Rack Angles

(Tapped Holes)

Additional Optional

Rack Angles

(Square Holes)

PTDHW242424GF 24.00 x 24.00 x 24.00 610 x 610 x 610 12 PTPDH2424A A24P24 PTRA1924TPL PTRA1924THL

PTDHW362424GF 36.50 x 24.00 x 24.00 927 x 610 x 610 19 PTPDH3624A A36P24 PTRA1936TPL PTRA1936THL

PTDHW482424GF 48.50 x 24.00 x 24.00 1232 x 610 x 610 26 PTPDH4824A A48P24 PTRA1948TPL PTRA1948THL

Load Ratings

Height

Max. Load Rack Angles

Mounted to Center Section

Max. Load Accessory Panel Mounted

Rear Section to Collar Studs

16 in. 100 lb. 50 lb.

20 in. 100 lb. 80 lb.

24 in. 100 lb. 100 lb.

36 in. 125 lb. 200 lb.

48 in. 175 lbs. 300 lb.

CHS Controls AB

Tel +46 42 38 61 00, Fax +46 42 38 61 29

chs@chscontrols.se www.chscontrols.se

911

Networking: Wall-Mount Cabinets

PROTEK® Wall-Mount and Double-Hinge Cabinets

PH (763) 422-2661 • FX (763) 422-2588 • homanonline.com

Technical Operating Information Fan Unit (6-in. Fan with Cord) Replacement Filter No. AFLTR10

Hz Voltage VAC CFM W @ 50/60 Hz Full Load Amp @ 50/60 Hz Noise SIL

50/60 115 200/240 36/32 .45/.36 50/56 dB

Thermal Performance for Fan and Filter DH

Packages

PROTEK Fan and Filter Packages calculated thermal

performance

Max. Internal Temperature: 100 F

Voltage / Hertz: 115 VAC/60 Hz

Filters: Clean (Regular cleaning required to maintain airow)

Air Volume: 200 CFM (Exact CFM dependant on Voltage, Frequency,

and lter eciency)

Max. Elevation: 6,000 ft. (Contact Homan for elevations above

6,000 ft.)

Thermal Performance PROTEK® Fan and Filter Packages

Ambient Temperature (°F) Watts (Heat) Dissipated

100 or above Not recommended

Consider PROTEK Air conditioner Package

95 316

90 632

85 948

80 1264

75 1580

70 1896

65 2212

60 2528

55 2844

Watts = .316 x CFM x Delta T (°F) (at sea level)

Delta T = Max internal Temperature (degrees F) – Ambient external Temperature (degrees F)

Ambient temperature is the air temperature in and around the intake opening of the cabinet. Fan cooling can

never cool the equipment below ambient temperature.

CHS Controls AB

Tel +46 42 38 61 00, Fax +46 42 38 61 29

chs@chscontrols.se www.chscontrols.se

912

Networking: Wall-Mount Cabinets

PROTEK® Wall-Mount and Double-Hinge Cabinets

PH (763) 422-2661 • FX (763) 422-2588 • homanonline.com

PROTEK® DH Double-Hinge Thermal AC Package, UL and NEMA Type 4 or 12

Self-Closing Latch Type 4 Enclosures

Industry Standards

PROTEK Air Conditioner Packages Indoor (Type 12)

UL 508A Listed; Type 12; File Number E619967

cUL Listed per CSA C22.2 No. 94; Type 12; File Number E61997

NEMA / EEMAC: Type 12

IEC 60529, IP 66

PROTEK Air Conditioner Packages Outdoor (Type 4)

UL 508A Listed; Type 12, 4; File Number E619967

cUL Listed per CSA C22.2 No. 94; Type 12, 4; File Number E61997

NEMA / EEMAC: Type 12, 4

IEC 60529, IP 66

Application

PROTEK® DH Thermal Packages are an excellent, o-the-shelf

choice for mounting 19-in. rack network equipment in wet or dirty

environments where ltration or air conditioning is required and oor

space is at a premium. These complete packages can be mounted to

a pole or wall and hinged on the left or right. The mounted cabinet

swings open to provide easy equipment service and installation

access. Complete Fan and Filter and Air Conditioner Packages are

available to match application requirements.

Features

• Solid door provides complete physical and visual protection

• Window door, made with scratch-resistant safety glass, provides

equipment monitoring without opening the door to minimize

contamination

• Fully welded and ground body and door construction for long-

term good appearance and durability

• Foam-in-place seamless gasket around door seals against outdoor

air inltration; is non-absorbing and chemically resistant

• Type 12 cabinets have window doors and a locking wing knob

with two keys. They provide security and convenience in indoor

applications.

• Type 4 cabinets have solid doors and a padlock-capable, tamper-

resistant, quarter-turn latch (tool included). They provide easy

operation and locking options in indoor and outdoor applications.

• One set of adjustable tapped rack angles included

• Optional square hole (.375 in.) rack angles available for equipment

mounting exibility

• Rack angles are plated and are self-grounding for durability and

safety

• Collar studs provided on back of cabinet for mounting accessory

panels

• Accessory panels for mounting additional accessories at the back

of the cabinet include tie-down points and pre-drilled holes

• Plenum rated for use in air exchange areas

• Double-hinged for easy equipment access

• Front access to center body hinging and back section latches

• Exclusive tool-less self-fastening latch is easy to open, yet

automatically closes securely

•

Latch on front of door eliminates need to access sides to open door

or back section latches

• Cabinet shipped with air conditioner uninstalled

Specications

• Doors made of 16 gauge steel and body made of 14 gauge steel

• Convenient studs provided on both door and body for bonding

and grounding

• Rack angles tapped 10-32 per EIA standards; made of 12 gauge

self-grounding plated steel

• Window is clear, .25-in. thick, scratch- and impact-resistant safety

glass

• Optional polycarbonate window (not plenum rated) can be eld-

or factory-installed. Contact Homan Customer Service for factory

installation.

• Twenty 10-32 screws included

• Right-side-mounted T4 Line Indoor/Outdoor Air Conditioner

• Operates on 110/115 VAC 50/60 Hz line voltage

• Standard NEMA 15 A plug internal to the cabinet (5-15P)

• See table for technical operating information

• Routine maintenance required for optimum performance (see

service manual)

Finish

Pretreated steel coated with RAL 7035 light-gray, textured, low-gloss

polyester powder paint. Other paint nishes available—contact

Homan Customer Service for details.

Load Rating

WARNING: The cabinet must be safely and correctly mounted to the

wall to support the total weight of the cabinet and its contents. Due

to various applications and wall constructions, consultation with a

structural engineer and analysis of the mounting wall is advised.

Bulletin: DWDH2

Standard Product Double-Hinged Window-Door Type 12 Air Conditioner Packages

Catalog Number AxBxC in. AxBxC mm

Rack

Units

Accessory

Panels

Standard

Panel

Additional Optional

Rack Anglesl

(Tapped Holes)

Additional Optional

Rack Angles

(Square Holes)

PTDHW242429GA 24.00 x 24.00 x 29.00 610 x 610 x 737 12 PTPDH2424A A24P24 PTRA1924TPL PTRA1924THL

PTDHW362429GA 36.50 x 24.00 x 29.00 927 x 610 x 737 19 PTPDH3624A A36P24 PTRA1936TPL PTRA1936THL

PTDHW482429GA 48.50 x 24.00 x 29.00 1232 x 610 x 737 26 PTPDH4824A A48P24 PTRA1948TPL PTRA1948THL

Standard Product Double-Hinged Solid-Door Type 4 Air Conditioner Packages

Catalog Number AxBxC in. AxBxC mm

Rack

Units

Accessory

Panels

Standard

Panel

Additional Optional

Rack Anglesl

(Tapped Holes)

Additional Optional

Rack Angles

(Square Holes)

PTDHS242429GA4 24.00 x 24.00 x 29.00 610 x 610 x 737 12 PTPDH2424A A24P24 PTRA1924TPL PTRA1924THL

PTDHS362429GA4 36.50 x 24.00 x 29.00 927 x 610 x 737 19 PTPDH3624A A36P24 PTRA1936TPL PTRA1936THL

PTDHS482429GA4 48.50 x 24.00 x 29.00 1232 x 610 x 737 26 PTPDH4824A A48P24 PTRA1948TPL PTRA1948THL

CHS Controls AB

Tel +46 42 38 61 00, Fax +46 42 38 61 29

chs@chscontrols.se www.chscontrols.se

913

Networking: Wall-Mount Cabinets

PROTEK® Wall-Mount and Double-Hinge Cabinets

PH (763) 422-2661 • FX (763) 422-2588 • homanonline.com

Load Ratings

Height

Max. Load Rack Angles

Mounted to Center Section

Max. Load Accessory Panel Mounted

Rear Section to Collar Studs

16 in. 100 lb. 50 lb.

20 in. 100 lb. 80 lb.

24 in. 100 lb. 100 lb.

36 in. 125 lb. 200 lb.

48 in. 175 lb. 300 lb.

Thermal Performance for Air Conditioner DH

Packages

PROTEK Air Conditioner calculated thermal performance

AC Performance: 800 BTU/hour or 235 Watts

Voltage / Hertz: 115 VAC/60 Hz

Max. Ambient Temperature: 131 F

Min. Ambient Temperature: -40 F

Max. Internal Temperature: 100 F (Allowable)

Thermal Performance PROTEK® Air Conditioner

Ambient

Temperature (°F)

Watts (Heat) Dissipated

Cabinet Height: 24 in.

Watts (Heat) Dissipated

Cabinet Height: 36 in.

Watts (Heat) Dissipated

Cabinet Height: 48 in.

130 N/A N/A N/A

120 63 27 N/A

110 149 131 105

100 234 234 234

90 320 338 364

80 405 442 493

70 491 546 623

60 576 649 752

50 662 753 881

40 747 857 1011

N/A = Not applicable and not recommended in these applications

1 BTU = 3.413 watts

CHS Controls AB

Tel +46 42 38 61 00, Fax +46 42 38 61 29

chs@chscontrols.se www.chscontrols.se

914

Networking: Wall-Mount Cabinets

PROTEK® Accessories

PH (763) 422-2661 • FX (763) 422-2588 • homanonline.com

PROTEK® Access ories

PROTEK® Single-Door Type 4 or 12 Wall-Mount

Cabinet Accessory Panels

Where equipment mounting space is limited, Accessory Panels

increase cabinet capacity by providing a mounting surface for 19-in.

equipment and accessories at the back of the cabinet. The panels

mount on collar studs provided in the cabinet. They include tie

downs for VELCRO® Cable Wraps and mounting holes for rack angle

brackets, shelves and other accessories. Panels have white paint

nish.

VELCRO is a trademark of Velcro Industries B.V.

Bulletin: DWS12

Catalog Number AxB in. AxB mm Material Fits Cabinet Size

PTP2424A 22.20 x 22.20 564 x 564 12 gauge steel 24.00 x 24.00

PTP3624A 34.20 x 22.20 869 x 564 12 gauge steel 36.00 x 24.00

PTP4824A 46.20 x 22.20 1173 x 564 12 gauge steel 48.00 x 24.00

PROTEK® DH Type 1, 4 or 12 Double-Hinged

Wall-Mount Cabinet Accessory Panels

Where equipment mounting space is limited, Accessory Panels

increase cabinet capacity by providing a mounting surface for 19-in.

equipment accessories at the back of the cabinet. The panels mount

on collar studs provided in the cabinet. They include tie downs for

VELCRO® Cable Wraps and mounting holes for rack angle brackets,

shelves, and other accessories. Panels have a white paint nish over

12 gauge steel.

VELCRO is a trademark of VELCRO Industries B.V.

Bulletin: DWS12

Catalog Number

in./mm

in./mm Fits Cabinet Size

PTPDH1624A 21.00

533

13.00

330

16.00 x 24.00

PTPDH2024A 21.00

533

17.00

452

20.00 x 24.00

PTPDH2424A 21.00

533

21.00

533

24.00 x 24.00

PTPDH3624A 33.00

838

21.00

533

36.00 x 24.00

PTPDH4824A 45.00

1143

21.00

533

48.00 x 24.00

CHS Controls AB

Tel +46 42 38 61 00, Fax +46 42 38 61 29

chs@chscontrols.se www.chscontrols.se

915

Networking: Wall-Mount Cabinets

PROTEK® Accessories

PH (763) 422-2661 • FX (763) 422-2588 • homanonline.com

PROTEK® Rack Angles

Square- and tapped-hole rack angles t into PROTEK® single-and

double-hinged cabinets.

Bulletin: DWS12

Catalog Number Hole Type Fits Cabinet Height

Rack

Units

PTRA1916TPL Tapped 16.00 7

PTRA1916THL Square 16.00 7

PTRA1920TPL Tapped 20.00 10

PTRA1920THL Square 20.00 10

PTRA1924TPL Tapped 24.00 12

PTRA1924THL Square 24.00 12

PTRA1936TPL Tapped 36.00 19

PTRA1936THL Square 36.00 19

PTRA1948TPL Tapped 48.00 26

PTRA1948THL Square 48.00 26

PROTEK® Polycarbonate Window Inserts

Polycarbonate window inserts provide additional impact protection.

They are eld-installed in place of the safety glass provided with the

enclosure. No special tools are required.

Bulletin: DWS12

Catalog Number AxB in./mm Fits Cabinet Size Description

PTWR1624POLY 16.00 x 24.00

406 x 610

16.00 x 20.00 Clear, 0.23-in. thick

PTWR2024POLY 20.00 x 24.00

508 x 610

20.00 x 24.00 Clear, 0.23-in. thick

PTWR2424POLY 24.00 x 24.00

610 x 610

24.00 x 24.00 Clear, 0.23-in. thick

PTWR3624POLY 36.00 x 24.00

914 x 610

36.00 x 24.00 Clear, 0.23-in. thick

PTWR4824POLY 48.00 x 24.00

1219 x 610

48.00 x 24.00 Clear, 0.23-in. thick

CHS Controls AB

Tel +46 42 38 61 00, Fax +46 42 38 61 29

chs@chscontrols.se www.chscontrols.se

916

Networking: Wall-Mount Cabinets

L-BOX® Wall-Mount Cabinet and Accessories

PH (763) 422-2661 • FX (763) 422-2588 • homanonline.com

L-BOX® Wall-Mo unt Cabine t and Accesso ries

L-BOX®, Type 1

Industry Standards

UL 1863 Listed; File No. E230874

UL 508A Listed; Type 1; File Number E61997

cUL Listed per CSA C22.2 No. 182.4; File No. E230874

Ventilation complies with UL 60950

Designed in accordance with BICSI TDMM Tenth edition,

Chapter 7, Telecommunication Enclosures (TE)

EIA 310-D

IEC 60529, IP30

Application

The low-prole, vertically-oriented L-BOX® wall-mount cabinet is

extremely versatile and can be used in public settings to mount, store

and protect network equipment, patch panels and connections. The

hinged, L-shaped door provides full access on two sides to installed

equipment while xed rack angles accommodate varying equipment

sizes.

Features

• Spring-loaded, self-retained hinge pins allow door removal

• 120-degree door opening

• Quarter-turn latches with key lock (Code 333)

• One set of xed rack angles is included on 24- and 36-in. (610- and

914-mm) tall models and two on 48-in. (1219-mm) tall models

• Rack angles on 36-in. (914-mm) models can be positioned either at

the top or the bottom of the cabinet

• 36- and 48-in. (914- and 1219-mm) tall models have space for patch

panel or shelf brackets

• Knockouts for 4-in. (102-mm) fan on top and bottom of cabinet

• Wiring knockouts (7/8 in., 1-3/8 in., and 3 in.) on top and bottom of

cabinet. Two 3-in. cable entry knockouts on back.

• Multiple cable tie-down points on back of cabinet

• Keyhole mounting slots spaced 16.00 in. (406 mm) on center for

easy cabinet mounting

• Includes package of twenty 10-32 mounting screws

Specications

• Manufactured from 14 gauge mild steel

• Self-grounding mounting angles made of 12 gauge plated steel

• Bonding provision on door

• Ground stud on body

• EIA Universal 5/8 - 5/8 - 1/2 in. rack angle mounting hole pattern

matches industry standards. Holes are tapped 10-32.

Finish

Pretreated steel coated with RAL 7035 light-gray textured, low-gloss

polyester powder paint. Other nishes available—contact Homan

Customer Service.

Load Rating

75 lb. (34.0 kg)

Bulletin: DWS1

Standard Product

Catalog Number AxBxC in. AxBxC mm H (in.) H (mm) Rack Units

DBL242412G 24.00 x 24.00 x 12.34 610 x 610 x 313 22.00 559 6

DBL362412G 36.00 x 24.00 x 12.34 915 x 610 x 313 34.00 864 6

DBL482412G 48.00 x 24.00 x 12.34 1220 x 610 x 313 46.00 1168 2 sets of 6

CHS Controls AB

Tel +46 42 38 61 00, Fax +46 42 38 61 29

chs@chscontrols.se www.chscontrols.se

917

Networking: Wall-Mount Cabinets

L-BOX® Wall-Mount Cabinet and Accessories

PH (763) 422-2661 • FX (763) 422-2588 • homanonline.com

CHS Controls AB

Tel +46 42 38 61 00, Fax +46 42 38 61 29

chs@chscontrols.se www.chscontrols.se

918

Networking: Wall-Mount Cabinets

L-BOX® Wall-Mount Cabinet and Accessories

PH (763) 422-2661 • FX (763) 422-2588 • homanonline.com

Bonding and Grounding Kit

Provides the cable and mounting

hardware required to ground

equipment to the door and the body

of the cabinet.

Bulletin: DWS1

Catalog Number Description

DBGRDK Bonding and Grounding Kit

Duplex Outlet Kit

15 A duplex outlet is factory-

mounted in three-sided, plated steel

enclosure. Outlet enclosure mounts

on hinge side of door in lower corner

of cabinet. Mounting hardware

provided.

Bulletin: DWS1

Catalog Number Description Current Rating

DBDXK Duplex Outlet Kit 15 A

Fan Filter and Finger Guard Kit

Low-density lter kit for 4-in.

(102-mm) and 6-in. (152-mm) fans.

Can also be used as vent. Filter is

removable and can be cleaned

and reused. Mounting hardware

included.

Bulletin: DTHRM, DWS1

Catalog Number Description Fits

AFLTR4LD Fan Filter and Finger Guard Kit 4-in. fans

AFLTR6LD Fan Filter and Finger Guard Kit 6-in. fans

Patch Panel Rack Angles

Swiveling rack angles drop 45

degrees to provide convenient access

to equipment mounted on patch

panels. Provide additional patch

panel location in 36- and 48-in. (914-

and 1219-mm) high cabinets. Made

of self-grounding, plated 12 gauge

steel. Mounting hardware included.

Set of two.

Bulletin: DWS1

Catalog Number Description Rack Units

DBPRA4U Patch Panel Rack Angles 4

CHS Controls AB

Tel +46 42 38 61 00, Fax +46 42 38 61 29

chs@chscontrols.se www.chscontrols.se

919

Networking: Wall-Mount Cabinets

L-BOX® Wall-Mount Cabinet and Accessories

PH (763) 422-2661 • FX (763) 422-2588 • homanonline.com

Shelves

Shelves provide additional storage

in 36- and 48-in. (914- and 1219-mm)

tall cabinets. Made of self-grounding

plated 16 gauge steel.

75 lb. (34.0 kg) load rating.

RAL 7035 polyester powder coat

nish.

Bulletin: DWS1

Catalog Number Description

Length

in./mm

Depth

in./mm Fits Cabinet Depth

DBSHELF8 Steel Shelf 19.05

484

7.25

184

8 in.

DBSHELF12 Steel Shelf 19.05

484

11.08

281

8 or 12 in.

Strut Wall-Mounting Kit

Provides secure mounting for

cabinet. RAL 7035 polyester powder

coat nish.

Bulletin: DWS1

Catalog Number Description

Length

in./mm

DB24WMTK Strut Wall-Mounting Kit 24.00

610

CHS Controls AB

Tel +46 42 38 61 00, Fax +46 42 38 61 29

chs@chscontrols.se www.chscontrols.se

920

Networking: Wall-Mount Cabinets

D-BOX™ Wall-Mount Enclosure and Accessories

PH (763) 422-2661 • FX (763) 422-2588 • homanonline.com

D-BOX™ Wall -Mount Enc losure an d Accessori es

D-BOX™, Type 1

Industry Standards

UL 1863 Listed; File No. E230874

UL 508A Listed; Type 1; File Number E61997

cUL Listed per CSA C22.2 No. 182.4; File No. E230874

Ventilation complies with UL 60950

Telcordia NEBSTM Requirements: Physical Protection, GR-63-CORE,

Zone 4. Tested with 100 lb. (45.4 kg) of equipment installed.

Designed in accordance with BICSI TDMM Tenth edition, Chapter 7,

Telecommunication Enclosures (TE)

EIA 310-D

IEC 60529, IP40

Application

Ideal for retail applications where it is necessary to house 19-in.

network equipment in a public location, the horizontally-oriented

D-BOX™ is a low-prole cabinet with a hinged door for convenient

front access and a combination of xed and rotating rack angles to

accommodate varying equipment sizes.

Features

• Spring-loaded, self-retained hinge pins allow door removal

• Reversible door ts ush to body with no exposed corners

• Knockouts for 4-in. fan on top and bottom of enclosure

• Wiring knockouts (7/8 in., 1-3/8 in., and 3 in.) on top and bottom of

enclosure. Two 3-in. cable entry knockouts on back.

• 120-degree door opening

• Multiple cable tie-down points on back of enclosure

• Quarter-turn latch with key lock

• Keyhole mounting slots spaced 16.00 in. (406 mm) on center for

easy enclosure mounting

• Bosses provided for mounting accessories such as cable spools

• Self-grounding mounting angles made of 12 gauge galvanized

steel

• Patch panel mounting angles rotate down for access

• Flange around door opening protects interior

• Bonding provision on door

• Ground stud on body

• EIA Universal 5/8 - 5/8 - 1/2 in. vertical mounting hole pattern

matches industry standards. Holes are tapped 10-32.

• Includes package of twenty 10-32 mounting screws

Specications

• Door manufactured from 14 gauge mild steel

• Body manufactured from 16 gauge mild steel

Finish

Pretreated steel coated with RAL 7035 light-gray textured, low-gloss

polyester powder paint. Other nishes available—contact Homan

Customer Service.

Load Rating

100 lb. (45.4 kg)

Bulletin: DWS1

CHS Controls AB

Tel +46 42 38 61 00, Fax +46 42 38 61 29

chs@chscontrols.se www.chscontrols.se

921

Networking: Wall-Mount Cabinets

D-BOX™ Wall-Mount Enclosure and Accessories

PH (763) 422-2661 • FX (763) 422-2588 • homanonline.com

Standard Product

Catalog Number AxBxC in. AxBxC mm H (in.) H (mm) Rack Units

DBS24248G 24.00 x 24.00 x 8.34 610 x 610 x 212 22.00 559 4

DBS36248G 36.00 x 24.00 x 8.34 915 x 610 x 212 34.00 864 4

DBS48248G 48.00 x 24.00 x 8.34 1220 x 610 x 212 46.00 1168 4

DBS242412G 24.00 x 24.00 x 12.34 610 x 610 x 313 22.00 559 6

DBS362412G 36.00 x 24.00 x 12.34 915 x 610 x 313 34.00 864 6

DBS482412G 48.00 x 24.00 x 12.34 1220 x 610 x 313 46.00 1168 6

CHS Controls AB

Tel +46 42 38 61 00, Fax +46 42 38 61 29

chs@chscontrols.se www.chscontrols.se

922

Networking: Wall-Mount Cabinets

D-BOX™ Wall-Mount Enclosure and Accessories

PH (763) 422-2661 • FX (763) 422-2588 • homanonline.com

Bonding and Grounding Kit

Provides the cable and mounting

hardware required to ground

equipment to the door and the body

of the cabinet.

Bulletin: DWS1

Catalog Number Description

DBGRDK Bonding and Grounding Kit

Duplex Outlet Kit

15 A duplex outlet is factory-

mounted in three-sided, plated steel

enclosure. Outlet enclosure mounts

on hinge side of door in lower corner

of cabinet. Mounting hardware

provided.

Bulletin: DWS1

Catalog Number Description Current Rating

DBDXK Duplex Outlet Kit 15 A

Equipment Rack Angles

Fixed rack angles can be added

to 36-in. and 48-in. tall cabinets

for extra 19-in rack equipment

mounting. Made of steel with clear

zinc plating. EIA spaced holes are

tapped 10-32. Mounts to raised pads

on cabinet inside back with provided

hardware.

Bulletin: DWS1

Catalog Number Description Rack Units

DBERA4U Equipment Rack Angles 4

DBERA6U Equipment Rack Angles 6

Fan Filter and Finger Guard Kit

Low-density lter kit for 4-in.

(102-mm) and 6-in. (152-mm) fans.

Can also be used as vent. Filter is

removable and can be cleaned

and reused. Mounting hardware

included.

Bulletin: DTHRM, DWS1

Catalog Number Description Fits

AFLTR4LD Fan Filter and Finger Guard Kit 4-in. fans

AFLTR6LD Fan Filter and Finger Guard Kit 6-in. fans

Padlock Kit

Kit includes eld installable hasp and

staple. Fits padlocks with maximum

5/16 in. (8mm) shackle diameter. No

drilling or layout required. Includes

mounting hardware.

Bulletin: DWS1

Catalog Number Description

DBPDLK Padlocking Kit

CHS Controls AB

Tel +46 42 38 61 00, Fax +46 42 38 61 29

chs@chscontrols.se www.chscontrols.se

923

Networking: Wall-Mount Cabinets

D-BOX™ Wall-Mount Enclosure and Accessories

PH (763) 422-2661 • FX (763) 422-2588 • homanonline.com

Patch Panel Rack Angles

Swiveling rack angles drop 45

degrees to provide convenient access

to equipment mounted on patch

panels. Provide additional patch

panel location in 36- and 48-in. (914-

and 1219-mm) high cabinets. Made

of self-grounding, plated 12 gauge

steel. Mounting hardware included.

Set of two.

Bulletin: DWS1

Catalog Number Description Rack Units

DBPRA4U Patch Panel Rack Angles 4

Shelves

Shelves provide additional storage

in 36- and 48-in. (914- and 1219-mm)

tall cabinets. Made of self-grounding

plated 16 gauge steel.

75 lb. (34.0 kg) load rating.

RAL 7035 polyester powder coat

nish.

Bulletin: DWS1

Catalog Number Description

Length

in./mm

Depth

in./mm Fits Cabinet Depth

DBSHELF8 Steel Shelf 19.05

484

7.25

184

8 in.

DBSHELF12 Steel Shelf 19.05

484

11.08

281

8 or 12 in.

Strut Wall-Mounting Kit

Provides secure mounting for

cabinet. RAL 7035 polyester powder

coat nish.

Bulletin: DWS1

Catalog Number Description

Length

in./mm

DB24WMTK Strut Wall-Mounting Kit 24.00

610

CHS Controls AB

Tel +46 42 38 61 00, Fax +46 42 38 61 29

chs@chscontrols.se www.chscontrols.se

924

Networking: Wall-Mount Cabinets

POLYPRO® WiFi, Type 4X

PH (763) 422-2661 • FX (763) 422-2588 • homanonline.com

POLYPRO® WiFi, Type 4X

Industry Standards

UL 508A Listed; Type 4, 4X, 12, 13; File No. E61997

cUL Listed per CSA C22.2 No 94; Type 4, 4X, 12, 13; File No.

E61997

Enclosure ammability evaluated per UL 508A

Window ammability evaluated per UL 508A

NEMA/EEMAC Type 4, 4X, 12, 13

CSA File No. 42186; Type 4, 4X, 12, 13 (solid covers only)

IEC 60529, IP66

Application

POLYPRO® WiFi enclosures provide protection for wireless equipment

in both indoor and outdoor locations. The polyester construction

and wood panel allow WiFi and WLAN signals to pass through

the enclosure unimpeded. They perform exceptionally well in

applications where harsh chemicals, weather extremes, a corrosive

environment or ames demand toughness from a lightweight

enclosure. Providing excellent ultraviolet protection and a tight

environmental seal, these versatile, feature-rich enclosures are also

recyclable.

Features

• Non-glass-lled polyester material oers superior UV resistance;

eliminates berbloom associated with berglass

• Provides excellent chemical resistance to a broad range of

solvents, alkalis and acids

• Resists cracking and provides excellent impact resistance

• Lighter-weight than berglass

• Recyclable

• Easy, dustless in-eld modications using standard tools

• Overlapping tongue-and-groove raised cover and gasket provide

secure Type 4X seal

• Removable snap-hinge cover allows for easy access to cover and

body for modications

• Molded layout grid on inside of body and solid covers assists with

component mounting

• Molded-in embosses for rear panel mounting

• Internal rail system and adjustable panel blocks allow for panel

height adjustment and installation of multiple panels

Specications

• Scratch-resistant polycarbonate windows

• Standard models include body and cover, two mounting feet, two

latch assemblies with optional cover screws and hardware, and

3/4-in. plywood panel

Finish

Polyester material is RAL 7035 light-gray textured nish inside and

out

Bulletin: DWS12

CHS Controls AB

Tel +46 42 38 61 00, Fax +46 42 38 61 29

chs@chscontrols.se www.chscontrols.se

925

Networking: Wall-Mount Cabinets

POLYPRO® WiFi, Type 4X

PH (763) 422-2661 • FX (763) 422-2588 • homanonline.com

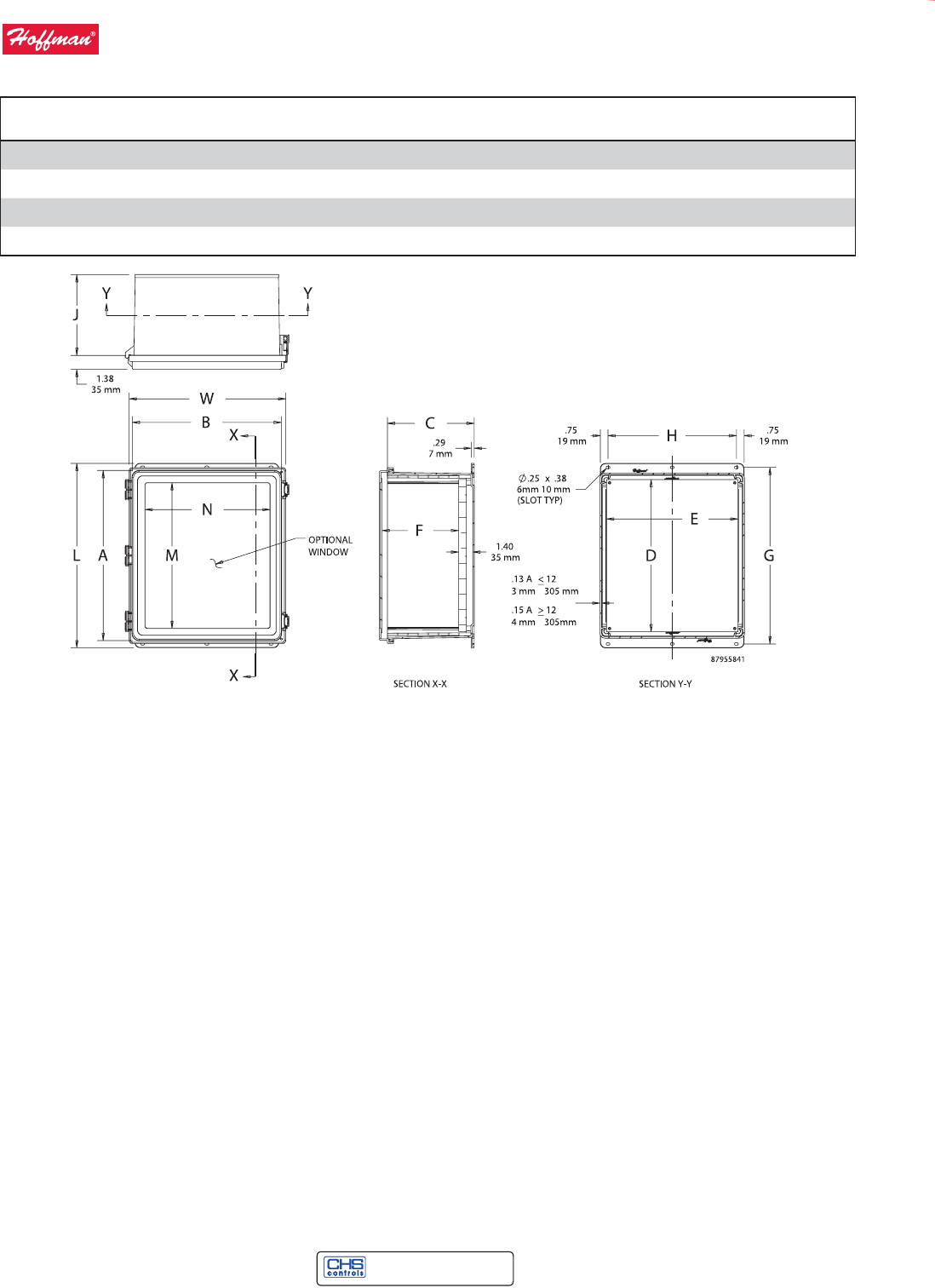

Standard Product

Catalog Number AxBxC in./mm Door Type

Panel Size

D x E

in./mm

D664WF 6.12 x 6.12 x 4.38

155 x 155 x 111

Solid 4.88 x 2.88

124 x 73

4.32

110

7.38

187

2.56

3.91

8.15

207

—

5.23

133

D664WFW 6.12 x 6.12 x 4.38

155 x 155 x 111

Window 4.88 x 2.88

124 x 73

4.32

110

7.38

187

2.56

3.91

8.15

207

4.25

108

2.25

5.23

133

D16148WF 16.12 x 14.01 x 8.35

409 x 356 x 212

Solid 14.75 x 12.88

375 x 327

8.27

210

17.27

439

12.56

319

7.91

201

18.04

458

—

15.32

389

D16148WFW 16.12 x 14.01 x 8.35

409 x 356 x 212

Window 14.75 x 12.88

375 x 327

8.27

210

17.27

439

12.56

319

7.91

201

18.04

458

14.25

362

12.25

311

15.32

389

CHS Controls AB

Tel +46 42 38 61 00, Fax +46 42 38 61 29

chs@chscontrols.se www.chscontrols.se

926

Networking: Wall-Mount Cabinets

POLYPRO® WiFi, Type 4X

PH (763) 422-2661 • FX (763) 422-2588 • homanonline.com

Adjustable Panel Block Kit

Panel blocks slide inside POLYPRO internal rail system for panel

height adjustment within top 5 in. of enclosure. Allows for installation

of multiple panels.

Bulletin: PCRY

Catalog Number Qty.

APNLBLK 4

Includes Allen wrench



$GMXVWDEOH

SDQHOEORFN

;

Polyester Mounting Bracket Kits

Replacement POLYPRO mounting brackets are sold in sets of two and

include hardware for mounting to enclosure.

Included with standard POLYPRO models.

Bulletin: PCRY



PP



PP



Catalog Number Description (in.) Qty.

APOLYFT4 4.00 2

APOLYFT6 6.00 2

APOLYFT8 8.00 2

APOLYFT10 10.00 2

APOLYFT12 12.00 2

APOLYFT14 14.00 2

APOLYFT16 16.00 2

CHS Controls AB

Tel +46 42 38 61 00, Fax +46 42 38 61 29

chs@chscontrols.se www.chscontrols.se

927

Networking: Wall-Mount Cabinets

POLYPRO® WiFi, Type 4X

PH (763) 422-2661 • FX (763) 422-2588 • homanonline.com

Aluminum Swing-Out Panels

Includes four POLYPRO Adjustable Panel Blocks. No enclosure

modication is required for installation.

Bulletin: PCRY

(



Catalog Number D x E (in.) D x E (mm)

A64PSWPNL 5.00 x 3.62 127 x 92

A66PSWPNL 5.00 x 5.62 127 x 143

A86PSWPNL 7.00 x 5.62 178 x 143

A88PSWPNL 7.00 x 7.62 178 x 194

A108PSWPNL 9.00 x 7.62 229 x 194

A1010PSWPNL 9.00 x 9.62 229 x 244

A1210PSWPNL 11.00 x 9.62 279 x 244

A1412PSWPNL 13.00 x 11.62 330 x 295

A1614PSWPNL 15.00 x 13.62 381 x 346

A1816PSWPNL 17.00 x 15.62 432 x 397

Stainless Steel Latches (Padlockable) Stainless Steel Latches can be retrotted on all POLYPRO models

with no modication or drilling required. Hinge/latch constructed of

corrosion-resistant polyester with a Type 316L stainless steel bail.

Included with standard POLYPRO models.

Bulletin: PCRY

Catalog Number Qty.

AQRLSS6 2

Hinge Retainers Hinge Retainers can be eld-installed without modication to

POLYPRO hinges for applications where easy cover removal is not

desired. Two retainers per enclosure is recommended. Kit includes

ten hinge retainers.

Bulletin: PCRY

Catalog Number Description Pkg. Qty.

AHGCLP POLYPRO Hinge Retainers 10

CHS Controls AB

Tel +46 42 38 61 00, Fax +46 42 38 61 29

chs@chscontrols.se www.chscontrols.se

928

Networking: Wall-Mount Cabinets

Fiberglass Hinge-Cover Type 4X WiFi Cabinet and Accessories

PH (763) 422-2661 • FX (763) 422-2588 • homanonline.com

Fiberglass H inge-Cove r Type 4X WiFi Cabin et and Acces sories

Hinge-Cover WiFi, Type 4X

Industry Standards

UL 508A Listed; Type 4, 4X, 12, 13; File No. E61997

cUL Listed per CSA C22.2 No 94; Type 4, 4X, 12, 13; File No.

E61997

Enclosure ammability rating per UL 508

NEMA/EEMAC Type 4, 4X, 12, and 13

Window ammability rating per UL 508

CSA File No. LR42186:Type 4, 4X, 12, and 13

IEC 60529, IP66

Cabinets with solid doors are plenum rated.

Application

The berglass WiFi Cabinet is a secure, hinged enclosure that does

not impede WiFi or WLAN signals. It is ideal for housing wireless

equipment in locations such as tunnels, oor vaults, marinas, outside

walls or rooftops.

Features

• Fiberglass is easily punched, drilled, led or sawed

• Seamless foam-in-place gasket assures watertight and dusttight

seal

•

Molded-in-place threaded brass inserts and plated steel screws are

provided for mounting optional panels and terminal block kits

• Removable hinged cover attached to body with Type 316 stainless

steel hinge pin

• Screw cover enclosures are secured with two captivated Type 316

stainless steel slotted cross-point cover screws

• Available quick-release latches are corrosion-resistant polyester

located in corners to provide unobstructed access to enclosure

• Knockout padlock provisions included in each latch

Specications

• Enclosure and door made of molded berglass polyester that

resists chemicals and temperature change

• Scratch-resistant GE Lexan Margard® windows are permanently

bonded in place

•

Polyester mounting brackets and stainless steel attachment screws

are provided with each enclosure

• Hinge pin and bail are corrosion-resistant Type 316 stainless steel

• Includes a 3/4-in. plywood panel for mounting equipment

Finish

Fiberglass material is light gray inside and out.

Bulletin: DWS12

Standard Product Solid Door

Catalog Number AxBxC in./mm Panel

Panel

D X E

in./mm

Mounting

G x H

in./mm

Overall Size

L x W

in./mm

D664CHSCFGP 6.00 x 6.00 x 4.00

152 x 152 x 102

A6P6WD 4.88 x 4.88

124 x 124

6.94 x 4.00

176 x 102

6.50 x 6.50

165 x 165

3.25

1.00

4.25

108

4.25

108

5.64

143

5.12

130

.12

5.64

143

D16148CHSCFGP 16.00 x 14.00 x 8.00

407 x 356 x 203

A16P14WD 14.75 x 12.88

375 x 327

16.94 x 12.00

430 x 305

16.55 x 14.55

420 x 370

6.23

158

2.08

12.25

311

14.25

362

15.56

395

15.12

384

.15

13.56

344

D181610CHSCFGP 18.00 x 16.00 x 10.00

457 x 407 x 254

A18P16WD 16.75 x 14.88

425 x 378

18.94 x 14.00

481 x 356

18.58 x 16.58

472 x 421

7.66

195

2.66

14.25

362

16.25

413

17.53

445

17.12

435

.16

15.53

394

Wood panels included with enclosure. Optional steel panels must be ordered separately.

Standard Product Window Door

Catalog Number AxBxC in./mm Panel

Panel

D X E

in./mm

Mounting

G x H

in./mm

Overall Size

L x W

in./mm

D664CHSCFGWP 6.00 x 6.00 x 4.00

152 x 152 x 102

A6P6WD 4.88 x 4.88

124 x 124

6.94 x 4.00

176 x 102

6.50 x 6.50

165 x 165

3.25

1.00

4.25

108

4.25

108

5.64

143

5.12

130

.12

5.64

143

D16148CHSCFGWP 16.00 x 14.00 x 8.00

407 x 356 x 203

A16P14WD 14.75 x 12.88

375 x 327

16.94 x 12.00

430 x 305

16.55 x 14.55

420 x 370

6.23

158

2.08

12.25

311

14.25

362

15.56

395

15.12

384

.15

13.56

344

D181610CHSCFGWP 18.00 x 16.00 x 10.00

457 x 407 x 254

A18P16WD 16.75 x 14.88

425 x 378

18.94 x 14.00

481 x 356

18.58 x 16.58

472 x 421

7.66

195

2.66

14.25

362

16.25

413

17.53

445

17.12

435

.16

15.53

394

CHS Controls AB

Tel +46 42 38 61 00, Fax +46 42 38 61 29

chs@chscontrols.se www.chscontrols.se

929

Networking: Wall-Mount Cabinets

Fiberglass Hinge-Cover Type 4X WiFi Cabinet and Accessories

PH (763) 422-2661 • FX (763) 422-2588 • homanonline.com

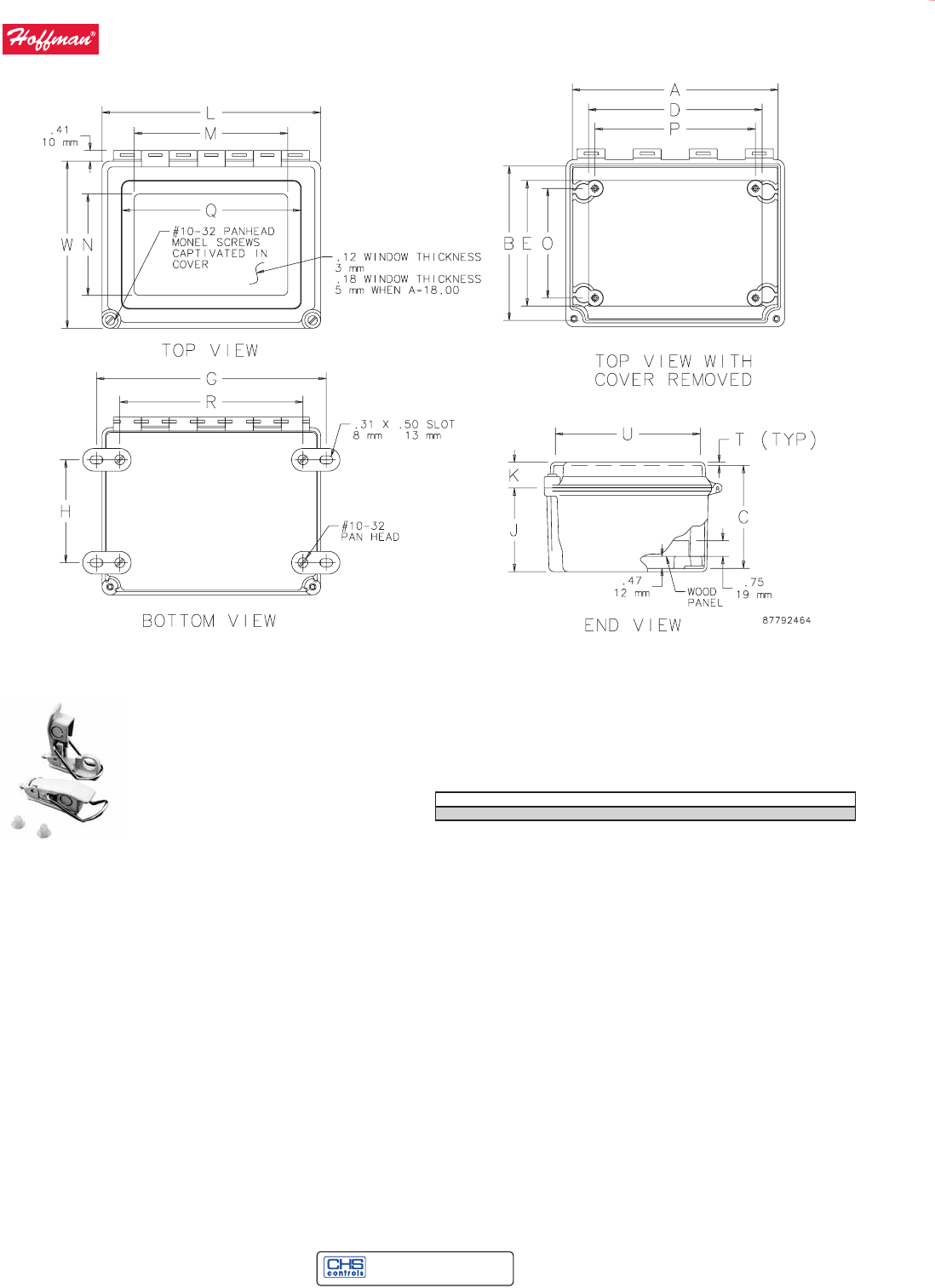

Quick-Release Latch Kit Two berglass-reinforced gray polyester latches with 316L stainless

steel bail and screw-hole plugs are included in each package.

Supplied with Continuous Hinge, Type 4X enclosures and available

for Fiberglass Hinged Cover WiFi Cabinet, Type 4X. Kit converts

screw-cover enclosures to quick-release without modication. No

tools needed to install. Padlocking provision is included.

Bulletin: A48Y

Catalog Number Description Kit Qty.

AL48 Quick-Release Latch Kit 2

CHS Controls AB

Tel +46 42 38 61 00, Fax +46 42 38 61 29

chs@chscontrols.se www.chscontrols.se

930

Networking: Wall-Mount Cabinets

Fiberglass Hinge-Cover Type 4X WiFi Cabinet and Accessories

PH (763) 422-2661 • FX (763) 422-2588 • homanonline.com

Panels for WiFi Cabinets and Small Wall-Mount

Enclosures

Panels are available in both steel and wood. Steel panels are 14 gauge

steel with a white polyester powder paint nish. Wood panels are

3/4-in. plywood and are unnished. Wood panels are supplied with

Fiberglass Hinged-Cover and POLYPRO® Type 4X WiFi Cabinets.

Bulletin: DWS12, PNLJ, PNLWM

Catalog Number Material

Panel Size

D x E (in.)

Panel Size

D x E (mm) V (in.) V (mm)

A6P6 Steel 4.88 x 4.88 124 x 124 0.31 8

A6P6WD Wood 4.88 x 4.88 124 x 124 0.31 8

A16P14 Steel 14.75 x 12.88 375 x 327 0.25 6

A16P14WD Wood 14.75 x 12.88 375 x 327 0.25 6

A18P16 Steel 16.75 x 14.88 425 x 378 0.25 6

A18P16WD Wood 16.75 x 14.88 425 x 378 0.25 6

CHS Controls AB

Tel +46 42 38 61 00, Fax +46 42 38 61 29

chs@chscontrols.se www.chscontrols.se

931

Networking: Wall-Mount Cabinets

ULTRX® Fiberglass Type 4X WiFi Cabinet and Accessories

PH (763) 422-2661 • FX (763) 422-2588 • homanonline.com

ULTRX® Fibergla ss Type 4X WiFi Cabi net and Acces sories

ULTRX® WiFi, Type 4X

Industry Standards

UL 508A Listed; Type 4, 4X, 12, 13; File No. E61997

cUL Listed per CSA C22.2 No 94; Type 4, 4X, 12, 13; File No.

E61997

Enclosure ammability rating per UL 508

Window ammability rating per UL 508

NEMA/EEMAC Type 4, 4X, 12, 13

CSA File No. LR42186: Type 4,4X, 12, 13

IEC 60529, IP66

Cabinets with solid doors are plenum rated.

Application

Ideal for locations such as tunnels, oor vaults, marinas, outside walls

or rooftops, the lightweight ULTRX® berglass WiFi cabinet does not

impede WiFi or WLAN signals and has optional rack angles that can

be added to support 19-in. rack-mount equipment.

Features

• Fiberglass is easily punched, drilled, led or sawed

• Seamless foam-in-place gasket assures watertight and dusttight

seal

• Enclosure may be rotated 180 degrees for left and right hinging

• Molded-in drip shields are standard with each enclosure

• Door opens 180 degrees

• Replaceable breakaway hinges

• Keylocking handle standard

• Molded-in DIN bosses

• Molded bosses on door provide additional mounting provisions

• Integral mounting rails provide innite panel adjustment front to

back

• Optional data pocket is high-impact thermoplastic

Specications

• Enclosure and door made of molded berglass polyester that

resists chemicals and temperature change

• Impact-resistant polycarbonate window is permanently bonded in

place

• Fiberglass mounting brackets and stainless steel attachment

screws are provided with each enclosure

• Includes a 3/4-in. plywood panel for mounting equipment

Finish

Exterior surface painted light-gray acrylic enamel for enhanced UV

protection.

Bulletin: DWS12

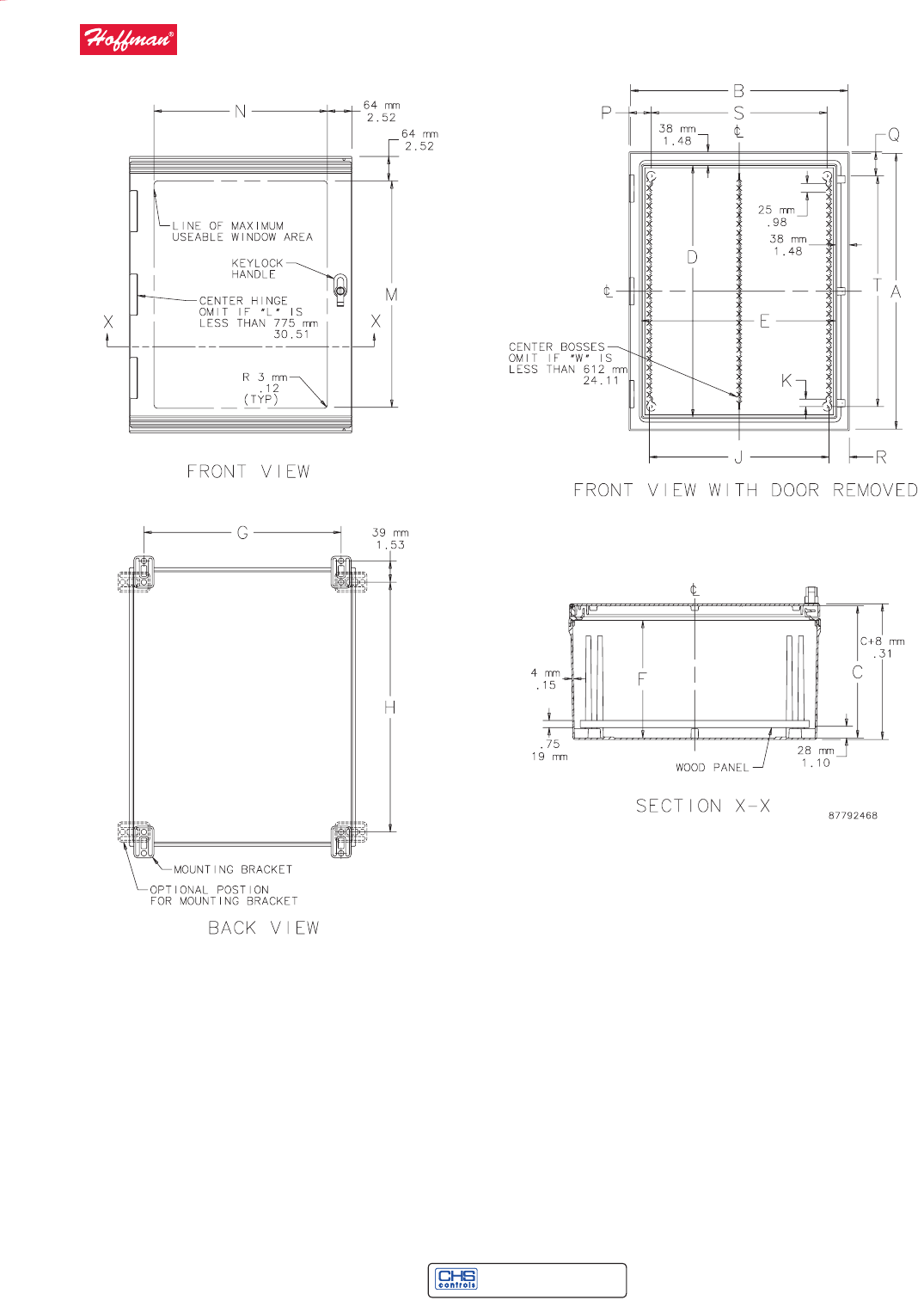

Standard Product

Catalog Number AxBxC mm/in. Door Type

Internal

Dimensions

A x B x C

mm/in. Panel

Panel Size

D x E

mm/in.

Mounting

G x H

mm/in.

Window

Size

M x N

mm/in.

DU606030P 608 x 595 x 321

23.94 x 23.44 x 12.64

Solid 608 x 595 x 321

23.94 x 23.44 x 12.64

A24P24WD 533 x 533

21.00 x 21.00

555 x 568

21.86 x 22.36

498 x 486

19.62 x 19.12

287

11.31

500

19.68

0.81

2.43

2.68

2.21

489

19.25

489

19.25

DU606030WP 608 x 595 x 321

23.94 x 23.44 x 12.64

Window 608 x 595 x 321

23.94 x 23.44 x 12.64

A24P24WD 533 x 533

21.00 x 21.00

555 x 568

21.86 x 22.36

498 x 486

19.62 x 19.12

287

11.31

500

19.68

0.81

2.43

2.68

2.21

489

19.25

489

19.25

Wood panel included with enclosure. Optional steel panels must be ordered separately.

Window size applies to window door cabinets only.

CHS Controls AB

Tel +46 42 38 61 00, Fax +46 42 38 61 29

chs@chscontrols.se www.chscontrols.se

932

Networking: Wall-Mount Cabinets

ULTRX® Fiberglass Type 4X WiFi Cabinet and Accessories

PH (763) 422-2661 • FX (763) 422-2588 • homanonline.com

CHS Controls AB

Tel +46 42 38 61 00, Fax +46 42 38 61 29

chs@chscontrols.se www.chscontrols.se

933

Networking: Wall-Mount Cabinets

ULTRX® Fiberglass Type 4X WiFi Cabinet and Accessories

PH (763) 422-2661 • FX (763) 422-2588 • homanonline.com

ULTRX® Panel

Panels are available in both steel and wood. Steel panels are 14 gauge

steel and have a white nish. Panels have two .75-in. (19-mm) high

edge anges. They require the Panel Bracket Kit, catalog number

UUPB, to mount in the enclosure. Wood panels are 3/4-in. plywood

and are unnished. Wood panels are supplied with the enclosures.

Bulletin: DWS12, PNLWM

Catalog Number Material

mm/in.

A24P24 Steel 533

21.00

533

21.00

.25

A24P24WD Wood 533

21.00

533

21.00

.25

Requires UUPB Panel Bracket Kit to mount steel panel in cabinet.

Swing Frame

Swing Frame provides 19-in. rack-mounting capabilities with U-Style

(Type RA) mounting hole pattern. Quarter-turn latch has 100-degree

swing. Adjustable mounting provision. 14 gauge plated steel.

Includes mounting hardware. Swing frame maintains enclosure rating

if properly installed in a Homan enclosure.

Swing Frame will not slide all the way forward in 400-mm-deep

enclosures. Consult factory for more information.

Bulletin: UX1Y

Catalog Number

Fits A x B

mm/in.

Rack

Units

UU6060SF 610 x 610

24.00 x 24.00

540

21.25

535

21.08

UU7560SF 762 x 610

30.00 x 24.00

687

27.05

535

21.08

Use UU6060SF with DATACOM ULTRX Fiberglass Type 4X WiFi Cabinet.

Rack Angles (Type RA)

Pairs of full-length rack-mounting angles are available for mounting

1- in. (483-mm) rack-mounted equipment. Type RA angles are 14

gauge steel with .281-in. (7-mm) diameter mounting holes, spaced

per EIA standard RS-310-D (universal spacing). Use Clip Nut Package

(AN1032) to provide tapped holes at desired locations. Angles and

mounting hardware are plated steel. Mounting hardware is furnished.

Bulletin: UX1Y

Catalog Number

Fits A x B

mm/in.

Rack

Units

Pkg.

Qty.

UURA6060 610 x 610

24.00 x 24.00

552

21.75

.38

12 2

UURA7560 762 x 610

30.00 x 24.00

705

27.75

.75

15 2

Use UURA6060 with DATACOM ULTRX Fiberglass Type 4X WiFi Cabinet.

CHS Controls AB

Tel +46 42 38 61 00, Fax +46 42 38 61 29

chs@chscontrols.se www.chscontrols.se

934

Networking: Wall-Mount Cabinets

ULTRX® Fiberglass Type 4X WiFi Cabinet and Accessories

PH (763) 422-2661 • FX (763) 422-2588 • homanonline.com

Grounding Device

Grounding Device provides a means

to attach a grounding conductor to

an ULTRX Swing-Out Panel or Swing-

Out Frame. Includes all installation

hardware and instructions.

Bulletin: UX1Y

Catalog Number Description

UUGK ULTRX Grounding Device

Keylock Kit and Padlock Kit

Keylock Kit or pushbutton-style Padlock Kit is easily inserted in latch

hole to prevent unauthorized personnel from gaining access to

enclosure contents. Each kit is fully assembled for easy installation in

the eld. Type 316 stainless steel construction.

Bulletin: UX1Y

Catalog Number Description

UUHKL Keylock Kit

UUHPL Padlock Kit

UUHKL: Internal key components are not stainless steel.

UUHPL: Handles maintain UL 508A, Type 3, 4, 4X and 12 when properly installed on a Homan enclosure. Set

up for 1/4-in. or 3/8-in. padlock.

ULTRX® Mounting Bracket Kit

Kit is eld-installable. Corrosion-

resistant berglass material. Type 316

stainless steel mounting hardware

is included. Four mounting brackets

per kit.

Bulletin: UX1Y

Catalog Number Description Kit Qty.

UUMF Mounting Bracket Kit 4

CHS Controls AB

Tel +46 42 38 61 00, Fax +46 42 38 61 29

chs@chscontrols.se www.chscontrols.se

935

Networking: Wall-Mount Cabinets

ULTRX® Fiberglass Type 4X WiFi Cabinet and Accessories

PH (763) 422-2661 • FX (763) 422-2588 • homanonline.com

Notes

CHS Controls AB

Tel +46 42 38 61 00, Fax +46 42 38 61 29

chs@chscontrols.se www.chscontrols.se

936

Networking: Wall-Mount Cabinets

Security Wall-Mount and Accessories

PH (763) 422-2661 • FX (763) 422-2588 • homanonline.com

Security Wall -Mount an d Accessor ies

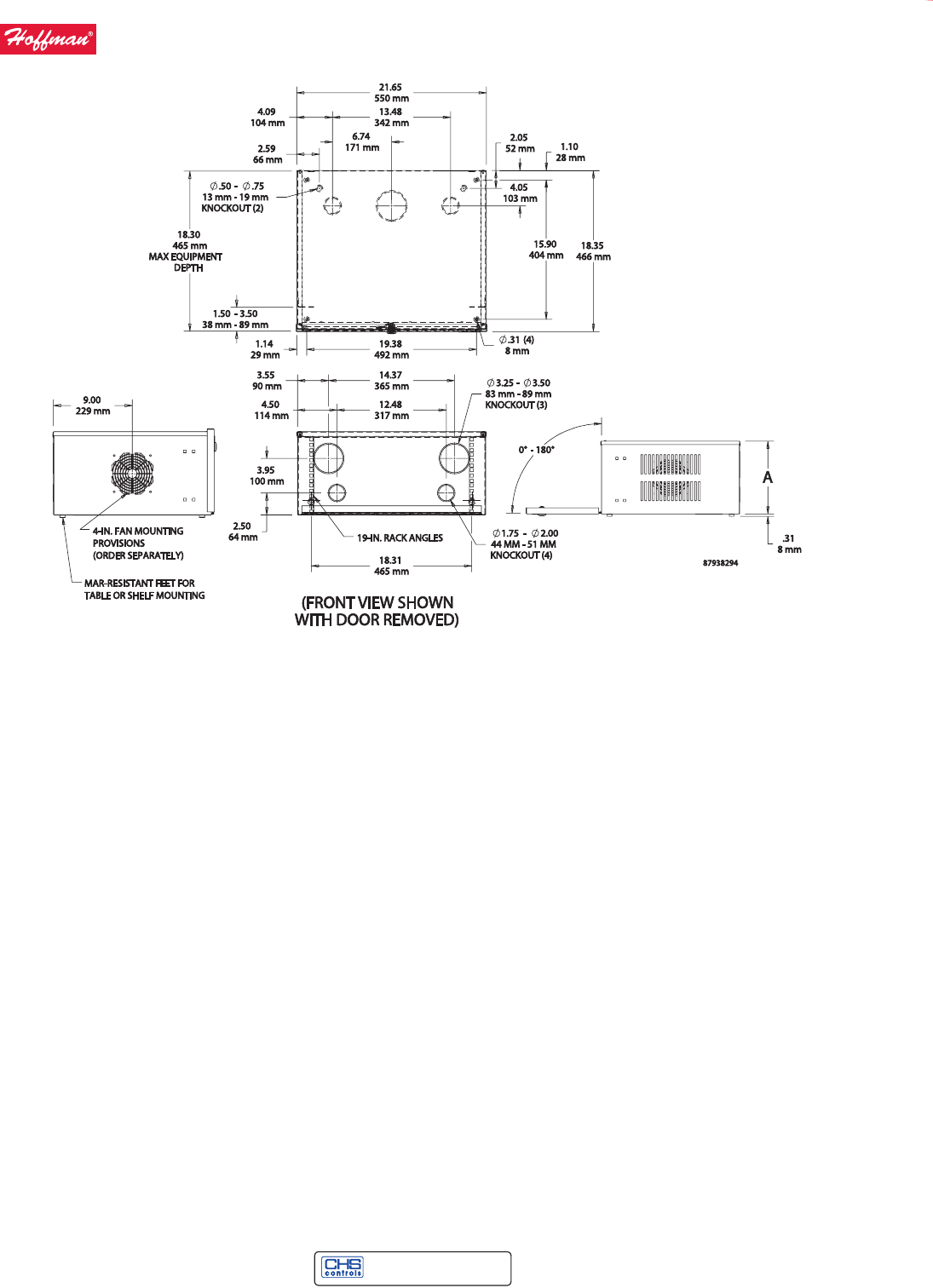

Security DVR and 19-in. Rack Equipment Cabinet, Type 1

Industry Standards

UL 508A Listed; Type 1

CSA; Type 1

NEMA/EEMAC; Type 1

IEC 60529 IP20

EIA 310-D (19-in. spacing for rack equipment)

Homan is an ISO 9001 company

Application

These cabinets provide physical protection and access control to

DVR, 19-in. equipment or other equipment. Mount the cabinet

vertically or horizontally on any surface.

Features

• Houses 19-in. or shelf-mount equipment

• Top cover has tool-less removal, is captivated by door and secured

by keylock, providing easy access and installation

• Solid top cover protects equipment from falling debris

• Two standard models are 4 and 6 RU high

• Radius corners give streamlined appearance and eliminate sharp

edges

• Solid front door has 180-degree opening continuous hinge

• Quarter-turn keylock with two keys on door (code 333)

• Vented sides dissipate heat from equipment

• A fan-ready cutout is provided on left side

• 14 gauge steel rack angles are adjustable within the cabinet body

• Rack angle mounting square holes (.375 x .375 in.) with EIA

universal hole spacing (1/4 x 5/8 x 5/8 x 1/4-in.)

• Knockouts on bottom and side for data and power cables

• Rubber feet provide secure placement and prevent scratches

• Fasteners and cage nuts included

Specications

• Doors and body made of 18 gauge steel; top cover is 16 gauge

steel

• Welded steel construction

• One set of rack angles included per EIA standard

• Included installation instructions show optional accessories

Finish

Pretreated steel coated with RAL 9005 black, light-textured, low-gloss

polyester powder paint

Accessories

Specifiers Guide Chapter 9 60868 Catalog

60868-Catalog 60868-Catalog 60868-Catalog Batch8 unilog cesco-content

130721-Catalog 130721-Catalog 130721-Catalog Batch9 unilog cesco-content

Navigation menu

Versions of this User Manual:

Views

Navigation
