Data Sheet
ADTRAN
434RG
Wireless Residential Gateway ONT
Wi-Fi
Benets
Supports Gigabit Broadband over Wi-Fi
Eliminates Wi-Fi dead spots via Wave 2
IEEE 802.11ac performance
Rapid home installation from
eliminated home wiring and ONT
provisioning steps
Remote service troubleshooting and
home management via TR-69
Optimized for multiuser homes via
MU-MIMO technology
Provides Class of Service (CoS) levels
for prioritizing multiuser, multi-services
Supports both GPON and Active
Ethernet deployment models
USB 2.0 interface device and storage
support
Supports both VoIP and TDM Voice
Supports both IPTV and OTT video
support
Overview
Wi-Fi device access has become an ab-
solute requirement in today’s homes and
businesses. Smartphones, tablets, streaming
devices, and Wi-Fi-enabled smart-home devices
are placing a tremendous strain on the home
network. In addition, the emergence of Gigabit
broadband oerings have exposed Wi-Fi as
a potential bottleneck for delivering advertised
speeds down to the device. All this requires
service providers to rethink how they deliver
residential connectivity over a wireless network
as they look to minimize operational costs while
ensuring higher customer satisfaction.
The Solution
e ADTRAN® 434RG Wireless Residential
Gateway is an integrated wireless router
and gateway with the industry’s rst 5GHz 3x3
802.11ac & 2.4GHz 2x2 802.11n MIMO
implementation, designed to deliver near
Gigabit throughput and the extended coverage
to make the fully wireless home a reality.
Enhanced Multi-user HDTV Quality
over Wireless
e ADTRAN 434RG includes built-in 802.11ac
3x3 antennas with Multi-User Multiple Input
Multiple Output (MU-MIMO) to deliver wired
equivalent performance, including full HDTV
quality with 1080p video resolution. It simulta-
neously delivers up to four awless High-De-
nition (HD) video streams at more than 100
Mbps data rates, over 100 feet, and guarantees
this performance nearly 100 percent of the time
through near-zero Packet Error Rate (PER) data
transfers, regardless of signal impairments and
dead zones that are typical in the home.
Better 802.11ac Performance
with Beamforming
e ADTRAN 434RG Wireless Residential Gate-
way incorporates MU-MIMO with beamforming
technology to deliver dramatic improvement
in Wi-Fi 802.11ac/n performance, reliability,
range and coverage. MU-MIMO supports four
simultaneous data streams. Beamforming makes
it possible to steer these data streams in the di-
rection of associated clients, ensuring dedicated
bandwidth to the wirelessdevices while simulta-
neously avoiding interference.
Game-changing Operational Savings
e ADTRAN FTTH solution inclusive of the
434RG drastically reduces the time and labor
required to install, provision and initiate billing
for a new service. is is a result of eliminated
home wiring due to the wireless feature set
of the 434RG and from the simplied and
automated back-oce ONT service provision-
ing. A single technician simply plugs-in the
Wireless Residential Gateway into the wall and is
automatically directed to the auto-provisioning
portal to choose their service options which then
automatically provision the service and initiate
the billing cycle.

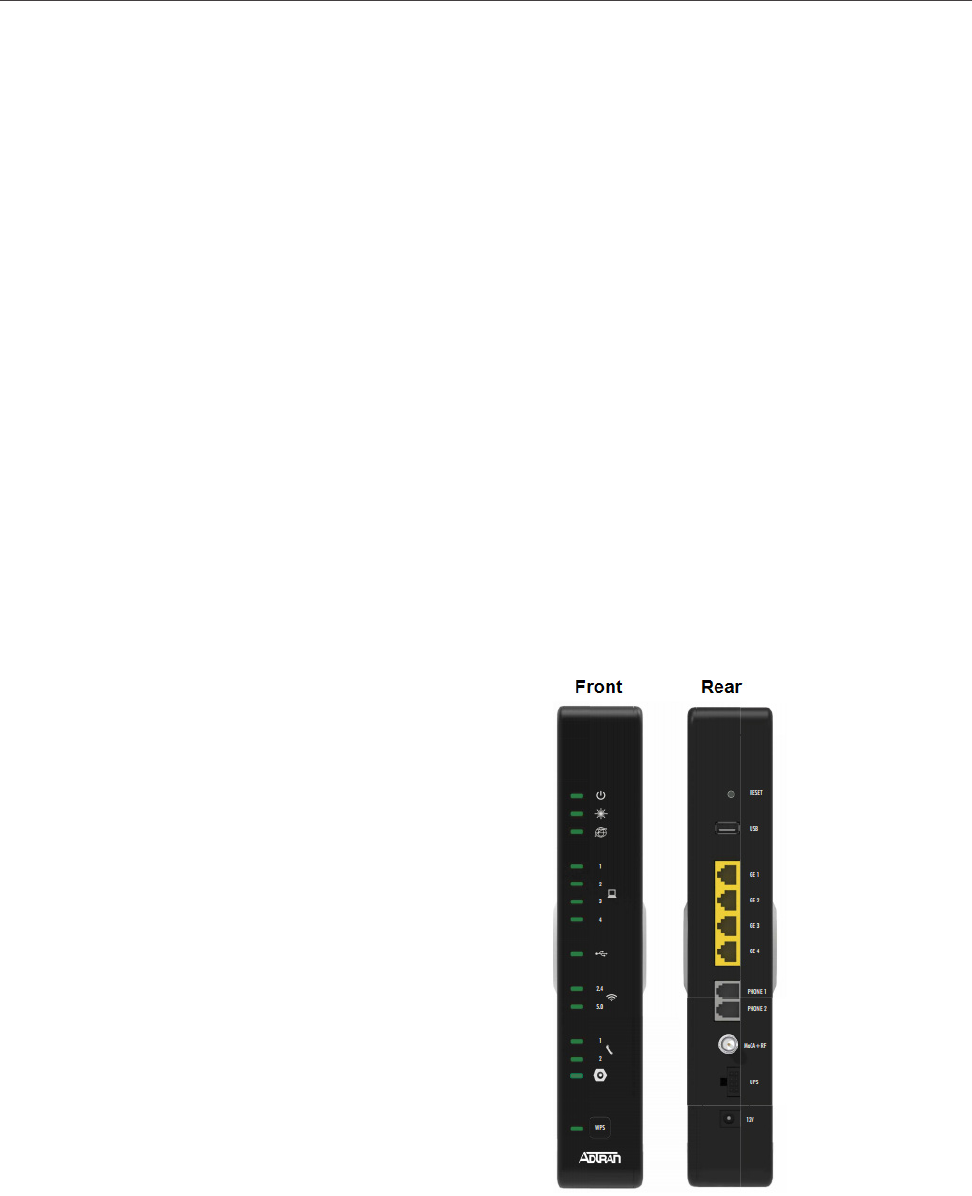

ADTRAN 434RG
Product Specications
Ethernet Interfaces
10/100/1000Base-T Interface with RJ-45 Connectors
Ethernet Port Auto Negotiation or Manual Conguration
MDI/MDIX Automatically Sense
Hardware Priority Queues on the Downstream
Direction in Support of CoS
Ethernet Services
Symmetric 1 Gbps Throughput
802.1D Bridging
802.1x Authentication
Virtual Switch Based on 802.1q VLAN
VLAN Tagging/Detagging Per Ethernet Port
VLAN Stacking (Q-in-Q) and VLAN Translation
IP ToS/DSCP to 802.1p Mapping
Quality of Service (QoS)
VLAN-ID
802.1p bit
DSCP to p Bit Translation
Marking/Remarking of 802.1p
IGMP v2/v3 Snooping
Broadcast/Multicast Rate Limiting
Gateway Features
Multiple WAN Interfaces Supporting
WAN Connection
Point-to-Point Protocol over Ethernet (PPPoE)
Dynamic Host Conguration Protocol (DHCP)
Static
DHCP Server for LAN Devices
DNS Relay
Network Address Translation (NAT)/
Network Address Port Translation (NAPT)
Port Forwarding
Static Routing
Access Control List (ACL)
VPN Pass Thru for Point to Point Tunneling
Protocol (PPTP), Layer 2 Tunneling Protocol
(L2TP) and IP Security Protocol (IPSec)
Firewall
Application Layer Gateway (ALG)
Demilitarized Zone (DMZ)
Dynamic Domain Name Server (DDNS)
Network Time Protocol (NTP)
Universal Plug and Play (uPnP)
IGMP Proxy
IPv6
Stateless Address Autoconguration (SLAAC)
DHCPv6
PPPoEv6
DNSv6
WLAN Interface
Compliant with IEEE 802.11 b/g/n/ac
2.4 GHz and 5.0 GHz
MIMO:2x2
Dual Band Radios
2.4 GHz 2x2
802.11 b/g/n
5.0 GHz 3x3
802.11 n/ac
4x SSIDs per Radio
64 and 128 Bit Wireless Encryption
Protocol (WEP) Support
Push Button WPS
USB Interface
1 USB Host Interface
Compliant to USB 2.0
Network Storage
Wireless Residential Gateway ONT
POTS Interface
RJ-11 Interface
3-REN, 50V RMS
VoIP Voice: Both SIP and MGCP
TDM Voice: Both GR.303, GR-57 and TR-08
Full CLASS Feature Set
Both ANSI and ETSI POTS
T.38 Facsimile
Congurable Dial Plan
Congurable Country Specic Ring-back Tones
(Frequency and Cadence)
DHCP Client or Static IP Conguration
Optionally Metallic Loop Testing
GPON Interface
Compliant with ITU-T G.984 GPON Standards
Compliant with ITU-T G.984.2 Amd1, Class C+
Support G.984.5 Blocking Filter
Multiple T-CONTs per Device
Multiple GEM Ports per Device
DBA Reporting by Piggyback Reports in the
DBRu (Mode 0 and Mode 1)
802.1p Mapper Service Prole on U/S
Mapping of GEM Ports into a T-CONT with
Priority Queues Based Scheduling
Support Multicast GEM Port and Incidental
Broadcast GEM Port
Dimensions
1.4 in. x 3.9 in. x 5.5 in. (35 mm x 100 mm x 140 mm)
(H x W x D)
Power Supply
+12V (Feed via External AC/DC Adapter)
Dying Gasp Support
Power Switch
Power Consumption: Less than 15W
Working Environment
Temperature: 32° F – 104° F (0° C – 40° C)
Humidity: 5% – 95% Relative Humidity
Safety and EMI
CE Certicate
FCC/UL Compliant
Environmental Directive
RoHS 6 of 6
Installation
Wall Mounting and Desktop Mounting
LEDs
Power
GPON
Optical
LAN
VoIP
OAM
Standard Compliant OMCI (the Embedded Operations
Channel) Interface as Dened by ITU-T G.988
Provisioning all kinds of Services including
Ethernet, VoIP etc.
Alarming and Performance Monitoring
Remote Software Image Download over OMCI,
as well as Activation and Rebooting
Hold Two Software Sets with Software Image Integrity
Checking and Automatic Rollback
CATV RF-Video Interface
Single F-Type CATV connector
RF Output level: 26dB
RF Output Impedance: 75 Ohms
Total RF Output Power: 36 dBmV
RF Return
Fully integrated into the ONT
Three wavelength only solution
SCTE 55-1 and 55-2 standards
24 to 60 dBmV received power input level
MoCA 2.0
800 Mbps sustained data throughput over coax
Uses internal Gigabit media independent interfaces
(GMII) for full-duplex communication with the on
board MAC interface
Support up to 15 MoCA nodes
Operating frequency Band D from 1125-1525 MHz
Compatible with existing devices on the coax with
no interference
Compatible with existing services on the coax with
no interference
ADTRAN 434RG
Canada—Montreal, Quebec
+1 877 923 8726
+1 514 940 2888
sales.canada@adtran.com
Mexico and Central America
+1 256 963 3321
+1 52 55 5280 0265 Mexico
sales.cala@adtran.com
South America
+1 256 963 3185
sales.brazil@adtran.com
sales.latam@adtran.com
ADTRAN, Inc.
901 Explorer Boulevard
Huntsville, AL 35806
256 963 8000
General Information
800 9ADTRAN
www.adtran.com/contactus
Canada Headquarters—
Toronto, Ontario
+1 877 923 8726
+1 905 625 2515
sales.canada@adtran.com
April Copyright © 2018 ADTRAN, Inc. All rights reserved. ADTRAN believes
the information in this publication to be accurate as of publication date, and is not
responsible for error. Specifications subject to change without notice. ADTRAN®
and the other trademarks listed at www.adtran.com/trademarks are registered
trademarks of ADTRAN, Inc. or its affiliates in various countries. All other trademarks
mentioned in this document are the property of their respective owners.
ADTRAN warranty duration and entitlements vary by product and geography.
For specific warranty information, visit www.adtran.com/warranty.
ADTRAN products may be subject to U.S. export controls and other trade restrictions.
Any export, re-export, or transfer of the products contrary to law is prohibited.
For more information regarding exportation of ADTRAN items (e.g. commodities,
technology, software), please visit www.adtran.com/exportlicense.
61287782F1-8A
ADTRAN
Certified
Supplier
ISO 9001
ISO 14001
TL 9000
Ordering Information
Equipment Part No.
ADTRAN 434RG Wireless Residential Gateway ONT 1287782F1

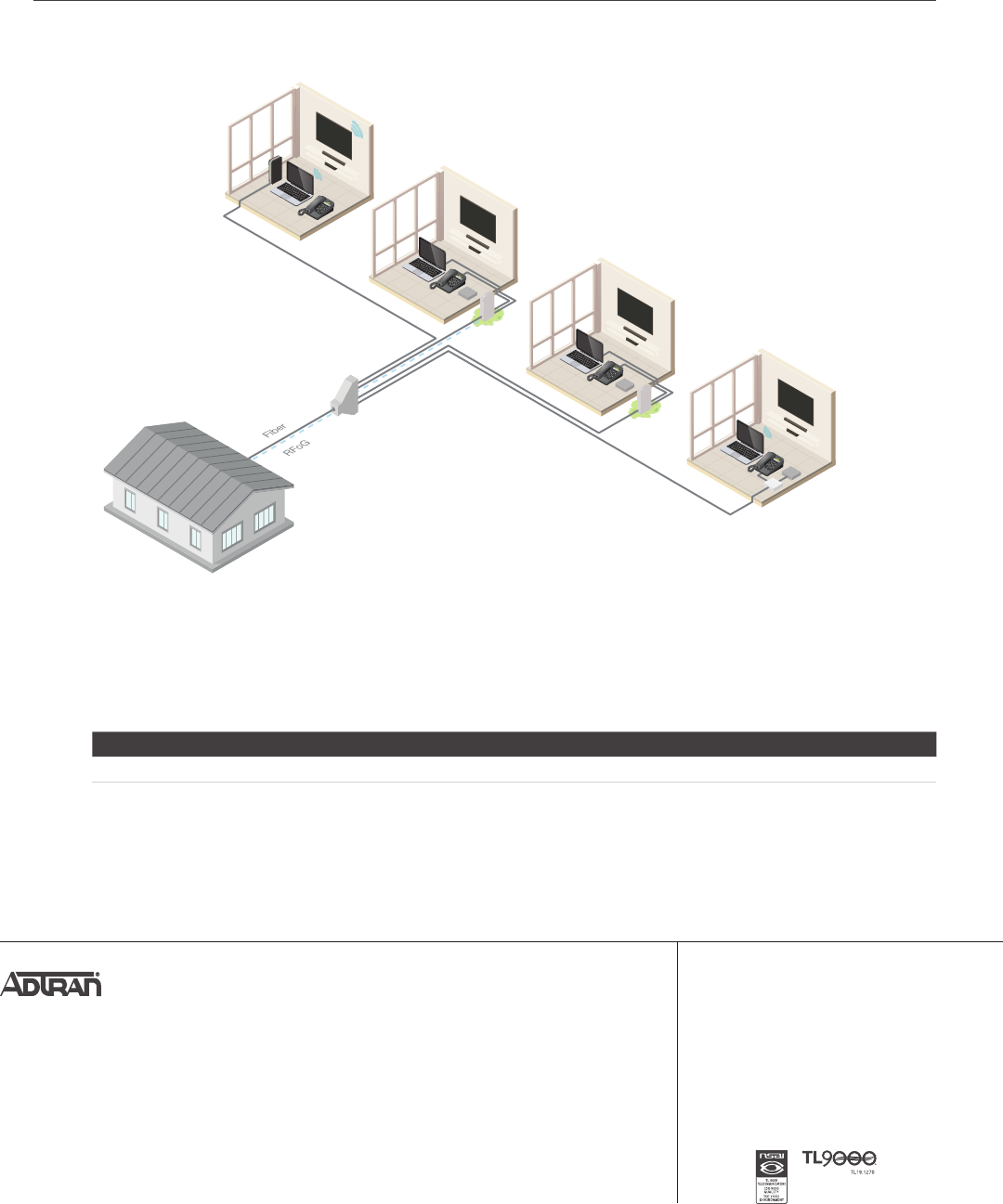

Central Office
Existing Cable MSO (CATV)
Video Equipment
(RF Video Headend)
Wi-Fi
Indoor SFU
ONT w/ RG
IPTV
Outdoor
SFU ONT
CATV
Outdoor SFU
ONT w/ RFoG
IPTV
Small Form
Factor µONT
Splitter
Optical Network Terminal
(ONT) at Each Home
Single-Family Home Options
