‘ 14
WeRackYourWorld.com
Invest in Solid Engineering
Data Centers from the Ground, Up
Solar VPS (a hosting company headquarted in Clifton,
NJ) and its mascot Cosmo provides custom cloud
solutions to more than 10,000 clients. In 2012, Solar
VPS made the strategic decision to move its NJ data
center to a Digital Realty Trust (NYSE: DLR) facility. In
preparing for this move, Solar had to take into account
how DLR building codes would affect the infrastructure
of power, cooling, and cable management within the
data center. Enclosures in the data center not only had
to accommodate as many RMUs as possible, but the
new facility also needed to reflect the unique corporate
culture of Solar VPS.
Together, Solar VPS and Great Lakes decided that blue
ES Enclosures would outfit most of the data center.
The 90"H x 24"W x 42"D, 48 RMU custom height
enclosures feature a large open bottom to facilitate
under floor power supplies; space in the rear of the
enclosure is dedicated to PDU installation based on
custom specifications. Universal mounting rails are able
to support a variety of equipment, ranging from Juniper
networking gear to SuperMicro, Dell and HP Servers. A
hot aisle/cold aisle configuration cools the data center;
contour mesh doors allow the maximum amount of
cool air into the enclosure. Enclosures specifically
designated for high density cloud applications also
include orange12"W x 90"H side cars. To accommodate
overhead cable management, low profile brackets were
designed that stayed within DLR’s height restrictions.
Brackets, once installed, will support fiber and copper
drops to all enclosures.
Several of Solar’s clients require only a few RMU
of mounting space; Great Lakes standard 2 co-lo
enclosure and custom 4 co-lo enclosures allow these
customers to use only the space they need. All front
and rears doors of ES and co-lo enclosures feature
a combination and key handle for secure customer
access to each enclosure.
To learn more about the Solar VPS data center,
please visit werackyourworld.com/resources
To learn about Solar VPS and its cloud solutions,
please visit solarvps.com
*Products marked with an asterisk are not manufactured by Great Lakes Case &
Cabinet Co. Inc. Please see page 154 for third party warranty information.
TABLE OF CONTENTS BY APPLICATION
DATA CENTER NETWORKING
• GL910ES-3048 ................................................................................22
• GL910ES-3042 ................................................................................26
• GL840ES-3048 ................................................................................30
• GL840ES-3042 ................................................................................34
• GL780ES-3048 ................................................................................38
• GL780ES-3042 ................................................................................42
• GL910EN-32 ....................................................................................52
• GL910EN-40 ....................................................................................53
• GL840EN-32 ....................................................................................54
• GL840EN-40 ....................................................................................55
• GL780EN-32 ....................................................................................56
• GL780EN-40 ....................................................................................57
• GL840E-2936 ...................................................................................60
• GL840E-2932 ...................................................................................62
• GL720E-2936 ...................................................................................68
• GL720E-2932 ...................................................................................70
DATA CENTER SERVERS
• GL910ES-2448 ................................................................................24
• GL910ES-2442 ................................................................................28
• GL840ES-2448 ................................................................................32
• GL840ES-2442 ................................................................................36
• GL780ES-2448 ................................................................................40
• GL780ES-2442 ................................................................................44
• GL480ES-2442 ................................................................................46
• GL840E-2436 ...................................................................................64
• GL840E-2432 ...................................................................................66
• GL720E-2436 ...................................................................................72
• GL720E-2432 ...................................................................................74
• WE WALL MOUNT ..........................................................................96
COLO ENCLOSURES
• 3 COLO ENCLOSURE ....................................................................82
• 2 COLO ENCLOSURE ....................................................................83
SEISMIC ENCLOSURES
• SEISMIC ENCLOSURE ...................................................................84
• SEISMIC ANCHOR KIT .................................................................127
NEMA 12K ENCLOSURES/WALL MOUNTS
• NEMA 12K ENCLOSURES .............................................................86
• NEMA 12K WALL MOUNT ..............................................................97
SMALL OFFICE/HOME OFFICE ENCLOSURES
• GL600E-2432 ...................................................................................76
• GL480E-2432 ...................................................................................78
• GL300E-2432 ...................................................................................80
NETWORKING FOR SMALL APPLICATIONS
• WM SERIES ................................................................................... 92
• WS SERIES .................................................................................... 93
• WD SERIES .................................................................................... 94
• 15 WM SERIES .............................................................................. 95
• WR SERIES .................................................................................... 96
• SWING RACKS: SR AND SRD SERIES ........................................ 98
• WALL MOUNT RACK & TILT PANEL MOUNT .............................. 99
• OTHER WALL MOUNTS & ACCESSORIES ............................... 100
AV APPLICATIONS
• 15 WM SERIES .............................................................................. 95
• WR SERIES .................................................................................... 96
• SWING RACKS: SR AND SRD SERIES ........................................ 98
• WALL MOUNT RACK & TILT PANEL MOUNT .............................. 99
• OTHER WALL MOUNTS & ACCESSORIES ............................... 100
DATA CENTER SOLUTIONS .................PAGES 5-16
ES SERVER ENCLOSURES ................ PAGES 22-47
• GL910ES-3048 ................................................................................22
• GL910ES-2448 ................................................................................24
• GL910ES-3042 ................................................................................26
• GL910ES-2442 ................................................................................28
• GL840ES-3048 ................................................................................30
• GL840ES-2448 ................................................................................32
• GL840ES-3042 ................................................................................34
• GL840ES-2442 ................................................................................36
• GL780ES-3048 ................................................................................38
• GL780ES-2448 ................................................................................40
• GL780ES-3042 ................................................................................42
• GL780ES-2442 ................................................................................44
• GL480ES-2442 ................................................................................46
EN ENCLOSURES ................................PAGES 48-57
• GL910EN-32 ....................................................................................52
• GL910EN-40 ....................................................................................53
• GL840EN-32 ....................................................................................54
• GL840EN-40 ....................................................................................55
• GL780EN-32 ....................................................................................56
• GL780EN-40 ....................................................................................57
E SERIES AND SPECIALTY
ENCLOSURES .......................................PAGES 58-88
• GL840E-2936 ...................................................................................60
• GL840E-2932 ...................................................................................62
• GL840E-2436 ...................................................................................64
• GL840E-2432 ...................................................................................66
• GL720E-2936 ...................................................................................68
• GL720E-2932 ...................................................................................70
• GL720E-2436 ...................................................................................72
EN
E
TABLE OF CONTENTS BY PRODUCT SERIES
ES
D

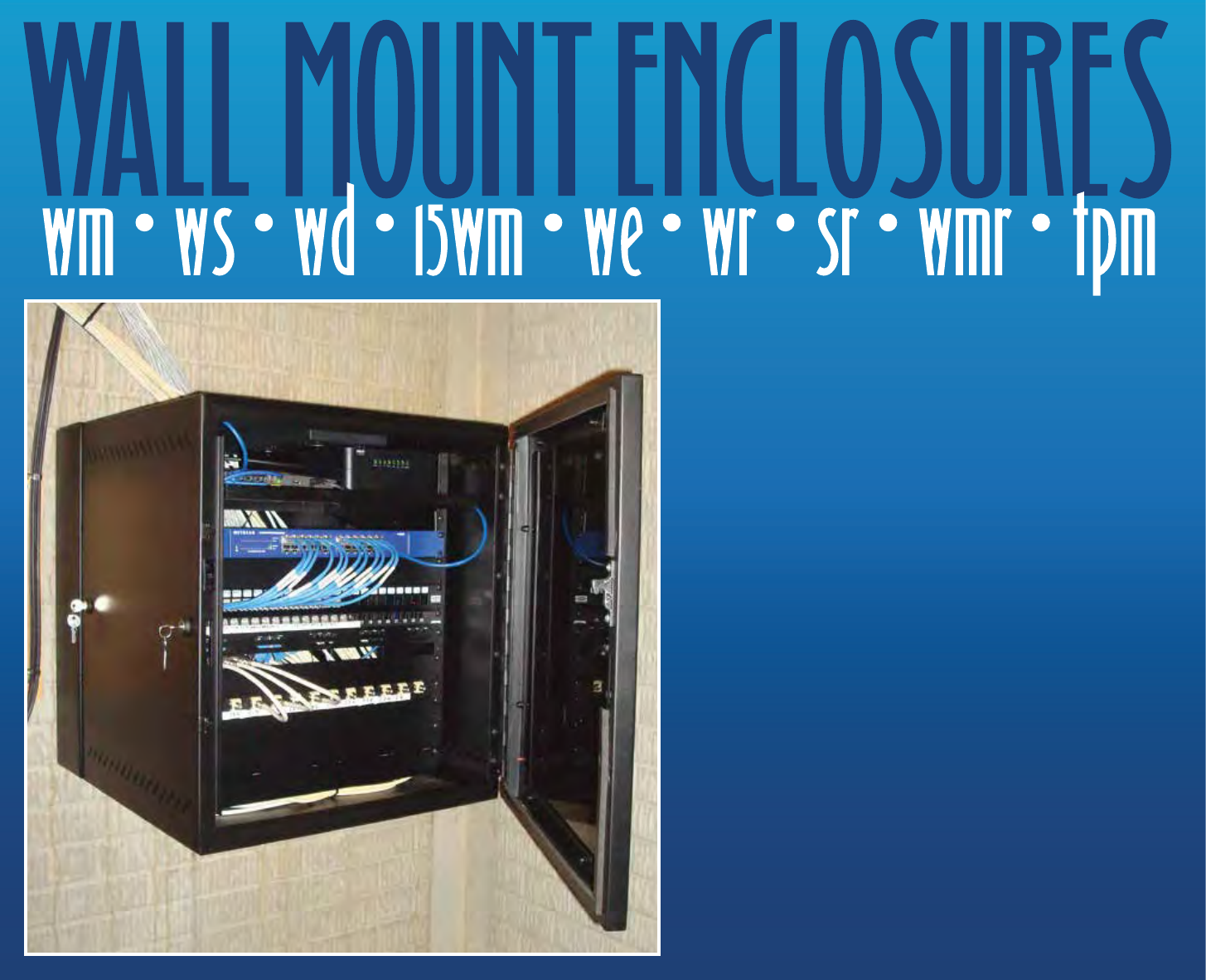

WALL MOUNTS .................................. PAGES 89-102
• WM SERIES ................................................................................... 92
• WS SERIES .................................................................................... 93
• WD SERIES .................................................................................... 94
• 15 WM SERIES .............................................................................. 95
• WE & WR SERIES ......................................................................... 96
• NEMA 12K ...................................................................................... 97
• SWING RACKS: SR AND SRD SERIES ........................................ 98
• WALL MOUNT RACK & TILT PANEL MOUNT .............................. 99
• OTHER WALL MOUNTS & ACCESSORIES ............................... 100

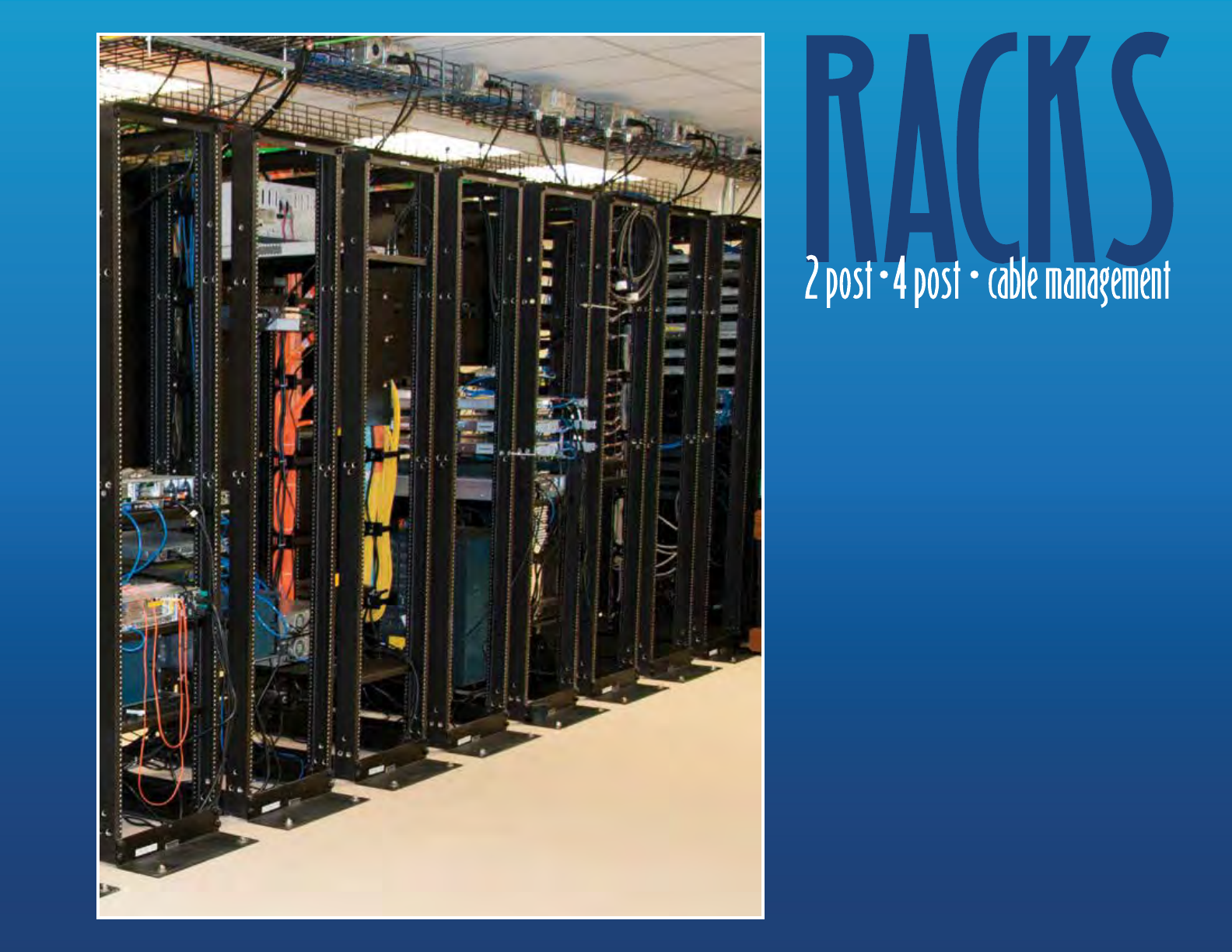

RACKS ................................................PAGES 103-114
• TWO POST RACKS ..................................................................... 106
• FOUR POST RACKS .................................................................... 108
• CABLE MANAGEMENT RACKS .................................................. 110
• HEAVY DUTY FOUR POST RACKS ........................................... 111
• ENHANCED RACKS (VARIABLE DEPTH) .................................. 112
• RACK ACCESSORIES ................................................................. 114
ACCESSORIES ..................................PAGES 115-152
POLICIES ...........................................PAGES 153-156
TECHNICAL DRAWINGS ................ PAGES 157-167
W
R
A
P
T
E SERIES AND SPECIALTY
ENCLOSURES .......................................PAGES 58-88
• GL720E-2432 ...................................................................................74
• GL600E-2432 ...................................................................................76
• GL480E-2432 ...................................................................................78
• GL300E-2432 ...................................................................................80
• COLO ENCLOSURES .....................................................................82
• SEISMIC ENCLOSURE ...................................................................84
• NEMA 12K ENCLOSURE ................................................................86
E
w
e
’
v
e
g
o
t
y
o
u
c
o
v
e
r
e
d
!
Invest in Solid Engineering
Our "Pre-pay and Add"
shipping policy is designed to
make your life a little less stormy!
If you find damage after shipping, simply call us
within 72 hours, inform us of your claim and we will
replace any and all damaged parts. No new purchase
order is necessary. We’ll call you, issue a RMA,
coordinate a pick-up and you’re done.
The best coverage
in the industry.
No two data centers are the same. At Great Lakes,
our goal is to provide you with the data center solution
you want and the right solution for your specic needs.
Based on your cooling resources, power availability,
and infrastructure, we will work with you to develop
the best and most cost-effective solution. On the
following pages, you will nd examples of some of the
solutions and products that we have recently provided
to customers, including:
• A Closed-Loop Water-Cooled Enclosure
• Localized Containment Options
• Hot Aisle Containment Options
• Cold Aisle Containment Options
• Enhanced Networking Enclosure
• Cable Management Accessories
• Cooling Accessories
w
e
’
v
e
g
o
t
y
o
u
c
o
v
e
r
e
d
!
6 Great Lakes Case & Cabinet WeRackYourWorld.com
The enclosure is a crucial component of
the infrastructure of any data center and
its functions go far beyond the protection
and security of the equipment mounted
within. The right enclosure can facilitate
cooling and heat exhaust for server loads
of varying densities. The right enclosure
can support ladder rack, saving thousands
of dollars in installation and cable costs.
The right enclosure can enable a variety
of networking and cable management
requirements, while supporting a myriad
of power and cooling strategies, in either
a “green” or “brownfield” design. Whether
you are working with “hot aisle/cold aisle”
configurations, ducted cooling/exhaust,
slab floor or any variation of containment,
the Great Lakes ES Server enclosure is
the right enclosure for your data center
needs. The ES and its wide variety of
accessories have been engineered
to make it easy to mount, connect
and network both data and electrical
equipment from any manufacturer within
and between the enclosures installed in a
data center.
In quantities from one to thousands,
Great Lakes has the expertise,
experience, products, accessories,
engineering support and manufacturing
capabilities to meet your specific need.
DDATA CENTER SOLUTIONS
n ES Enclosure Frame
1. Exhaust Chimney
2. Chimney Fan Tray
3. Ladder Rack Bracket
4. Top Panel w/Brush Grommet
5. Top Cable Trough
6. Closed-Loop Water-Cooled Fan Door
7. Split Solid Door
8. Split Fan Door
9. Solid Door
10. Split Mesh Door
11. Mesh Contour Door with Fan Assembly
12. Raised Floor Grommet
13. Closed Loop Water Cooled Heat Exchanger
14. Air Manager
15. Air Manager Fan Tray
16. Brush Grommet Kit
17. Mesh Contour Door
18. Localized Containment Door
19. Closed Loop Water Cooled Door
11
7
8
9
10
19
17
18
12
15
14
13
1
2
4
3
5
1.866.TRY.GLCC (879.4522) Great Lakes Case & Cabinet 7
Great Lakes has a variety
of accessories to support
your current, planned and
future needs. We want to
help you "Future-Proof"
your data center.
Future-Proong can help
you increase the cooling
capacity of your data
center while increasing
your CRAC efciency.
6
16
D"FUTURE-PROOFING"
Please note, the Closed-Loop Water-Cooled Fan Door (6) and front
door (19), and heat exchanger (13) can only be used together.
These doors can not be used with other Great Lakes doors.
8 Great Lakes Case & Cabinet WeRackYourWorld.com
CLOSED-LOOP WATER-COOLED ENCLOSURE
The Great Lakes Closed-Loop Water-Cooling System, developed in conjunction with
Naissus Thermal Management Solutions, addresses the primary challenge faced by data
center managers today. As smaller, more powerful servers are compacted into higher
density congurations, data center and air conditioning systems must expand to provide
sufcient cooling air.
Even with costly oor space and air conditioning additions, data centers still struggle with
uneven cooling and hot air recirculation resulting from heat exhaust traveling from other
enclosures. The Great Lakes Closed-Loop Water-Cooled Enclosure (CLWCE) provides
an integrated closed-loop cooling system, saves on oor space, power consumption and
maintenance. It also seals servers from re-circulated exhaust, becoming a versatile
high-density solution to today’s data center challenges.
This enclosure is designed for provide maximum, state-of-the-art data center cooling.
Great Lakes offers a fully configured enclosure (CLWCE) or a kit to convert any 42"
or deeper ES Series Enclosure from an air cooled unit to a water-based, closed-loop
liquid-cooled enclosure.
DIMENSIONS
• 84"H x 30"W x 54"D
• Rack Spaces: 44 RMU, 82.25"
• Usable height: 36 RMU, 63"
STRUCTURAL
• Empty weight: 850 lbs
• Shipping weight: 900 lbs
• Static load: 2000 lbs
• Four, 44 RMU, EIA vertical mounting rails,
numbered from 1 to 44 spaces
FRONT DOOR
• Non-reversible aluminum assembly
combined with a full View-Thru™
Lexan® panel
• Electrical, spring-loaded automatic
door releases
REAR DOOR
• Non-reversible, aluminum door assembly
• Electrical, spring-loaded automatic
door releases
• Integral fan door/plenum duct
TOP PANEL
• Standard top with brush cable entries
SIDE PANEL
• 16 gauge cold-rolled steel
• Two lift handles per panel; Removable
COOLING COMPONENTS
REAR-MOUNTED FAN TRAYS
• 3 Electronically Commutated (EC)
Backward Curved Impellers/Fans
• Operating Point 0 % at 20 degrees C;
100% at 40 degrees C
• 230VAC (200 – 270) Nominal voltage,
2.9A current draw
• Individual fan thermal speed control
sensors (one per fan)
HEAT EXCHANGER
• 8-16 gpm heat-exchange cooling core
supplied with ¾" high-pressure hose
and optional ¾" ange NFP connections
REAL TIME MONITORING
AND ALERTS
• Live data reporting the status of power,
environmental and security systems
available, with alerts, both on-board
and remotely, via e-mail, SNMP or
text message
GL840ES-3048CLWCE SPECIFICATIONS
DCLOSED-LOOP WATER-COOLED ENCLOSURE
1.866.TRY.GLCC (879.4522) Great Lakes Case & Cabinet 9
1. Chilled water at a
consistent temperature
and flow rate directly from
a viable source or via a
coolant distribution unit
(CDU) enters the heat
exchanger coil, cooling air
as it passes over it.
2. Conditioned air at
consistent pressure is
directed through a plenum
chamber.
3. Conditioned air passes
through rack mounted
equipment.
4. Quiet (65 dB) high
efficiency variable speed
exhaust fans remove hot air.
5. Hot air passes across the
heat exchanger.
6. Water then leaves the
heat exchanger coil to begin
a return trip to the chiller.
*Every data center is different. A pump station may be necessary, based on system pressure, distances to be traveled and the number of CLWCEs to be supported.
3
2
4
Chiller
Plant Valves/
Pump
Station*
45o - 50o F Supply to CRAC/CRAH
ReturnReturn
60o F (+)
ReturnCRAC/CRAH
return becomes 55o F
Supply to CLWCE
5
61
The Closed-Loop Water-Cooled Enclosure improves PUE (power
usage effectiveness) by cooling the equipment, not the room,
while significantly reducing data center cooling costs. At 30kW, the
CLWCE accommodates higher concentrations of servers and active
computing equipment in a single enclosure, requiring much less floor
space (in excess of 50%) than traditional plenum cooling.
These photos show a customer installation in a 40 year old facility, with a 9" raised
floor where 80 leased, 2 RMU servers in five enclosures were consolidated into a
single Great Lakes Closed-Loop Water-Cooled Enclosure with 3 high density blades
at 9.3kW each or 28kW total.
The enclosure has been in operation for nearly five years, tapping into the 2"
copper return line, branched from the main return line running from the CRAC at a
temperature of 55 degrees. A pumping station was created to maintain adequate flow
to the enclosure, created from "off-the-shelf" components, to deliver a sustained flow
rate of 10 gallons per minute. After passing through the CLWCE’s heat exchanger,
the water flows out of the enclosure and continues its return path to the chiller.
CRAC/
CRAH
Unit
D
CLOSED-LOOP WATER-COOLED ENCLOSURE
Exhaust Chimney
(Eliminates Recirculation)
Hot Aisle
Eliminated
Solid
Rear
Door
64.4oF - 80.6oF
at equipment intake
Mesh
Front
Door
10 Great Lakes Case & Cabinet WeRackYourWorld.com
*Actual temperature will be based on
actual data center conditions.
Air Manager
Air Manager
LOCALIZED CONTAINMENT
Together, the Adjustable Air Manager (AM-ES), the Exhaust Chimney
(GL-EC) and the Brush Grommet Kit (BGRK) work to contain conditioned air and
remove heated exhaust from the enclosure, while virtually eliminating bypass airflow
and hot air recirculation. We call this solution "Localized Containment" (completely
eliminating the "hot aisle" and reducing the need for perforated tiles in the "cold aisle").
The Adjustable Air Manager (AM-ES) mounts in the bottom of a Great Lakes ES
enclosure (on a raised oor) to bring data center conditioned air inside the enclosure
closer to the equipment to be cooled. A simple slide on the Air Manager allows you to
control the ow of conditioned air coming into the bottom of the cabinet. This increases air
ow, lowering temperatures in the front of the equipment while maintaining air pressure.
The Exhaust Chimney helps to remove heated exhaust far from the enclosure or,
more efficiently, to collect heated exhaust into ducting or a ceiling plenum to return it to
the CRAC unit.
The Brush Grommet Kit installs between the rail and the side panel to allow cable
pass-through while at the same time eliminating bypass air flow and hot air recirculation.
This customer is utilizing Great Lakes’ Air Manager and Exhaust Chimney as a
"localized containment" solution in their data center.
DLOCALIZED CONTAINMENT
1.866.TRY.GLCC (879.4522) Great Lakes Case & Cabinet 11
CFD MODEL
LOCALIZED CONTAINMENT
This Computational Fluid Dynamics (CFD)
model illustrates Great Lakes "Localized
Containment" Solution, utilizing our Air
Manager and Exhaust Chimney. This 2,400
square-foot data center space is modeled on a
24" raised floor with a 16.3' ceiling. A 24" drop
ceiling is installed as an open plenum to feed the
hot air return of the CRAC (computer room air
conditioning) units.
The space was modeled using 75°F supply air
and heated exhaust was directed into the drop
ceiling via chimney duct. The results are a
room with a consistent ambient temperature of
76°F. Equipment intake temperatures reflect a
temperature of 75°F from top to bottom of each
enclosure. Great Lakes Brush Grommet Kits
were installed in each enclosure, which eliminated
any risk of hot air recirculation.
D
LOCALIZED CONTAINMENT
LOCALIZED CONTAINMENT DOOR
Increased equipment densities and diversity in the
design of equipment mounted in today’s enclosures
often require new and innovative responses from
enclosure manufacturers. As part of Great Lakes
commitment to “Future-Proofing” in our ES Server
Enclosures, we have introduced a number of new
accessories which expand our portfolio of Localized
Containment Options.
Great Lakes Localized Containment Door
(LCD) is designed to maximize the delivery of
conditioned air from the air manager inside the front
of the enclosure. The LCD utilizes a proprietary
directional damper which is attached to the door
to ensure that air manager airflow into the front
of the enclosure does not bypass any equipment
which may be mounted in the lower portion of the
enclosure. An adjustable plexiglas panel helps to
contain the conditioned air delivered within the front
of the enclosure while still allowing access to the
ambient conditions in the data center space should
a system failure occur to the air manager or the
data center HVAC system.
new!
SIDE AIRFLOW AIR MANAGER
In response to a need for the support of
switches or side airflow equipment in a localized
containment configuration, Great Lakes has
developed a Side Airflow Air Manager
(SAFM). Like our traditional air manager, this
product channels airflow from under the raised
floor inside the front of the enclosure and to the
front of rack mounted equipment. The difference
is the Side Airflow Air Manager directs that
conditioned air to the right of the front rail and into
the intake side of the rack mounted side airflow
equipment. The Side Airflow Air Manager is
adjustable to vary the amount of airflow directed
to the side and can split the flow between the
front and the side, based on the configuration of
equipment mounted in the enclosure, the amount
of available airflow and the static pressure
underneath the raised floor.
new!
12 Great Lakes Case & Cabinet WeRackYourWorld.com
HOT AISLE CONTAINMENT
In this example, the customer chose to employ a data center solution designed
to contain the hot aisle. Perforated tiles were installed in the cold aisle.
The conditioned air then passed through mesh doors to cool the equipment
mounted within the enclosures.
The customer chose not to use any rear doors, so heated exhaust was
simply vented into the hot aisle which was contained by aisle doors. Vertical
thermoplastic containment panels were attached to and installed above the
enclosures to continue the containment process as the heated air naturally
rose and was channeled to a drop-ceiling plenum which then directed the
heated exhaust to the hot air return of the data center’s CRAC units.
Every data center space is different and many data center managers have
their own ideas as to what solution will work best for them. Great Lakes has
the technology and flexibility to make any planned solution a data center
reality. Our engineering team uses more than 25 years of experience to
help you evaluate your data center infrastructure and ambient conditions to
recommend a solution which will prove to be your best and most cost
effective solution.
COLD AISLE CONTAINMENT
Many times cooling challenges cannot be met simply by expanding
infrastructure or adding additional CRAC units.
The strategy behind "containment" is to either capture as much conditioned air
as possible or to isolate and remove as much heated exhaust air as possible
within the data center space. In this concept, the goal is to create a contained
pool of conditioned air in the cold aisle. Containment doors are then designed
to isolate the cold aisle in this grouping of enclosures. The goal for this
strategy is to saturate the area in front of the enclosures with this contained
conditioned air and to focus it where it is most needed; in front of
the equipment mounted within the enclosures.
Once the conditioned air passes through the equipment, the heated exhaust
is then removed from the rear of the enclosures via Exhaust Chimneys.
DCONTAINMENT STRATEGIES
1.866.TRY.GLCC (879.4522) Great Lakes Case & Cabinet 13
Localized Containment
With Air Managers and Chimneys Standard Cold Aisle Containment
with Chimney
Cold Aisle Containment with Horizontal
Polargy Panels Cold Aisle Containment with Horizontal
Polargy Panels & Chimneys Cold Aisle Containment with Vertical
Polargy Panels Hot Aisle Containment with
Vertical Polargy Panels
In addition to "end of aisle" containment
doors which attach easily to existing
enclosures, there are a number of
containment products which can be
deployed in a variety of strategies,
either across or above the aisle.
For those situations which require
the installation of containment panels
across the aisle or containment
products mounted above the enclosures
themselves, we have developed a
strategic alliance with Polargy, Inc., for
the installation of the company’s line
of PolarPlex™ containment systems*,
which consist of structural aluminum
framing and either vinyl curtains or
thermoplastic panels, to create the
desired environmental solution.
It is important to be familiar (and compliant)
with the building and fire code standards in
your municipality before closing off a grouping
of enclosures, either for hot or cold aisle
containment.
D
CONTAINMENT STRATEGIES
Standard Cold Aisle Containment
14 Great Lakes Case & Cabinet WeRackYourWorld.com
Great Lakes’ Enhanced Networking (EN)
Enclosures provide cable management and cooling
support for networking and switch applications.
Large amounts of open area outside of the rails,
repositionable sections of plastic cable ngers
and strategically positioned knockouts can easily
accommodate the needs of switches and patch
panels. Additional cable and cooling accessories
for the EN series can improve cable pathways and
enhance equipment airow. (See page 48)
The Data Aire gForce IR 24" GICW-060* is shown with two, GL780ES-3042 enclosures
Great Lakes is pleased to offer the gForce IR, in-row cooling solution, by Data Aire. For more than 40
years, Data Aire has been a leading provider of precision air conditioning equipment for data processing
centers. The gForce IR utilizes the coanda effect in close-coupled cooling, to deliver air precisely where it
needs to be. Unlike many other in-row offerings, the gForce IR can handle humidity control issues within
the unit itself, eliminating the need for the addition of traditional CRAC units in the data center space. The
24" unit offers 60kW in chilled water or DX versions and the 12" unit offers 30kW via chilled water. It is also
available in the air cooled or water/glycol cooled DX versions. For more information, contact your Great
Lakes representative or visit werackyourworld.com/gforceir.
DDATA CENTER SOLUTIONS
new!
1.866.TRY.GLCC (879.4522) Great Lakes Case & Cabinet 15
DIGITUS BIOMETRICS
HANDLE SYSTEMS
Great Lakes is proud to
offer the Digitus Biometrics
line of networked biometric
room and enclosure access
solutions* to include the db
Nexus room controller and
the dbServerRack intelligent
handle, which includes a
fingerprint reader integrated
into the cabinet handle and a
lock controller placed inside
the cabinet.
Found on page 120
LADDER RACK BRACKETS
The strength of the ES Enclosure
frame is unmatched in the industry.
Ladder Rack Brackets (LRB) allow
ladder rack to be mounted to the
top of the enclosure, eliminating
the need and additional costs
associated with ladder rack which
must be suspended from the ceiling.
Found on page 148
EXTERNAL CABLE MANAGER
The Great Lakes External Cable
Manager or "Side Car" is designed to
serve as a facilitator of your cabling
needs, either between two 84"H ES
Enclosures or at the end of a row
as part of a "home run" networking
solution.
Found on page 150
TOP CABLE TROUGH
The Top Cable Trough (TCT) helps
to facilitate the flow of cable in and
out of the enclosure, without any
infrastructure changes. The strength
of the trough design, combined with
the durability of the Great Lakes
enclosure, can easily handle multiple
bundles of cable.
Found on page 148
EXHAUST CHIMNEY
Heated exhaust can be easily removed
from the enclosure via an Exhaust
Chimney (GL-EC) that channels the
natural upward movement of hot air.
Standard metal, flexible duct chimneys
(pictured) and custom versions are
available to meet specific height or
infrastructure requirements.
Found on page 138 GREAT LAKES VARIABLE
SPEED FAN CONTROLLER
The Variable Speed Fan Controller
(FTC103) is able to throttle fans to a
speed as low as 60% and up to 100%,
based on temperatures within the
enclosure.
Found on page 142
CHIMNEY FAN TRAY
Optional Chimney Fan Trays
(GL-ECFT) further accelerate the
removal of exhaust from the enclosure.
Found on page 138
BRUSH GROMMET KIT
The Brush Grommet Kit (BGRK)
fills the open area between the
mounting rails and the side panels
to prevent by-pass air flow, hot air
recirculation and to keep conditioned
air where it is needed most; in front
of rack mounted equipment within the
enclosure.
Found on page 139
TCT
D
DATA CENTER ACCESSORIES
SometimeS you need to be juSt a
little bit different!
With Great LakeS, you never have to feeL “chained”
to Standard product confiGurationS or coLorS. from a
SmaLL modification to an exiStinG product, a SimpLe coLor
chanGe, or SomethinG compLex and intricate, Great LakeS
iS abLe to heLp. We can enGineer and manufacture your
deSiGn chanGeS, WhiLe providinG a faSter turn-around than
moSt otherS in the induStry. for more detaiLS, taLk to your
reGionaL Great LakeS SaLeS rep, or caLL 1.866.try. GLcc
WeRackYourWorld.com
From construction to accessories offered, Great
Lake’s series of enclosures offer exibility to nearly
any user in any environment.
• The ES Series is ideal for data centers that require
cooling, power, and cable management solutions.
• The EN is a specic platform for switch and large
cable applications.
• The E Series protects and stores computer,
telecommunications, and other electronic
equipment.
• The CO-LO Series (available in congurations with
2 or 3 compartments) provides one unit for multiple
applications/customers.
• The EZ Seismic is designed to withstand seismic
activity while still accepting a number of
accessories.
• The NEMA 12K protects equipment in industrial/
high dust areas.
ES SERVER
ENCLOSURES
ENHANCED
NETWORKING
(EN) ENCLOSURES
E SERIES
ENCLOSURES SEISMIC
ENCLOSURE NEMA 12K
ENCLOSURES
WHY IT’S GREAT!
Ideal for server and data center
applications; able to support
cooling, cable management,
and power needs
Ideal for switch and high density
cable applications; no corner
posts create an open frame for
large cable bundles
Ideal for telecom and
networking applications in
nearly any environment (small
ofces to large data centers)
Tested and certied to Seismic
Zone 4 NEBS GR-63-CORE
testing standards
Provides protection against
dust, dirt, water and non-
corrosive liquids; Compliant
with NEMA Type 12 standard
HEIGHT / RMU
91"H / 48 RMU
84"H / 44 RMU
78"H / 42 RMU
48"H / 24 RMU
91"H / 48 RMU
84"H / 45 RMU
78"H / 42 RMU
84"H / 44 RMU
72"H / 37 RMU
60"H / 31 RMU
48"H / 24 RMU
30"H / 13 RMU
84"H / 45 RMU 84"H / 45 RMU
WIDTH 24", 30" 32", 40" 24", 29" 30" 24", 30"
OVERALL DEPTH 42", 48" 42", 48" 32", 36" 42" 42"
USABLE DEPTH 48"D = 46" usable depth
42"D = 40" usable depth
48"D = 46" usable depth
42"D = 40" usable depth
36"D = 34" usable depth
32"D = 30" usable depth
35"D = 34" usable depth
32"D = 30" usable depth
38"
MAX. RAIL
PLACEMENT
35" 29.75" 30", 34" 35" 33"
EIA 310-E
MOUNTING RAILS
• 3/8" sq. (M6) Mounting
(#10-32 available)
• All rails fully adjustable,
front to rear
• RMU markings
• Accessory holes (FMP)
outside of EIA pattern
• Lacing points
• #10-32 Mounting
(3/8" sq. (M6) available)
• Front rails xed; rear rails
adjustable
• RMU markings
• Accessory holes (FMP)
outside of EIA pattern
• 3/8" sq. (M6) Mounting
(#10-32 available)
• All rails fully adjustable,
front to rear
• RMU markings
• Accessory holes (FMP)
outside of EIA pattern
• Lacing points
• 3/8" sq. (M6) Mounting
• All rails adjustable
• RMU markings
• Accessory holes (FMP)
outside of EIA pattern
• 3/8 sq. (M6) Mounting
• All rails fully adjustable,
front to rear
• RMU markings
STOCK COLORS Black, Advantage White Black Black, Advantage White,
Nitro Blue Black Black
CHOOSING THE RIGHT ENCLOSURE
E
18 Great Lakes Case & Cabinet WeRackYourWorld.com
Custom sizes and colors are available. Contact you regional manager for details.
E
CHOOSING THE RIGHT ENCLOSURE
1.866.TRY.GLCC (879.4522) Great Lakes Case & Cabinet 19
ES SERVER
ENCLOSURES
ENHANCED
NETWORKING
(EN) ENCLOSURES
E SERIES
ENCLOSURES SEISMIC
ENCLOSURE NEMA 12K
ENCLOSURES
SHIPPING METHOD • Fully assembled on a pallet
• Accessories installed and
shipped in the enclosure
where specied
• Fully assembled on a pallet
• Accessories installed and
shipped in the enclosure
where specied
• Fully assembled on a pallet
• Accessories installed and
shipped in the enclosure
where specied
• Fully assembled on a pallet
• Accessories installed and
shipped in the enclosure
where specied
• Fully assembled on a pallet
• Accessories installed and
shipped in the enclosure
where specied
DOOR OPTIONS
Solid Steel, Plexiglas, Mesh,
Mesh Contour, Split Mesh, Split
Fan, Split Solid
Mesh, Split Mesh Solid Steel, Plexiglas, Mesh,
Mesh Contour, Split Mesh, Split
Fan, Split Solid (Please Note:
not all doors will t on smaller
E enclosures)
Mesh, Solid Solid
TOP PANELS
Solid, Perforated, One 10" 550
CFM Fan, Two 10" 550 CFM
Fans, Three 75 CFM Fans,
Brush Grommet
Solid, Perforated, One 10" 550
CFM Fan, Two 10" 550 CFM
Fans, Three 75 CFM Fans,
Brush Grommet
Solid, Perforated, One 10" 550
CFM Fan, Two 10" 550 CFM
Fans, Three 75 CFM Fans
Solid, Perforated, One 10" 550
CFM Fan, Two 10" 550 CFM
Fans, Three 75 CFM Fans,
Brush Grommet
Solid
BOTTOM PANELS Brush Grommet, Solid N/A Solid, Filtered, Brush Grommet N/A Bottom panel is an integrated
part of enclosure
COOLING
OPTIONS
• Exhaust Chimney
• Air Manager
• Side Air Flow Bafe Kit
• Fan Assisted Doors
• Fan Assisted Top Panels
• 19" Fan Trays
• Brush Grommet Kit
• Side Air Flow Bafe Kits
• Fan Assisted Top Panels
• Fan Assisted Doors
• Fan Assisted Top Panels
• 19" Fan Trays
• Brush Grommet Kit
• Exhaust Chimney
• Fan Assisted Top Panels
• 19" Fan Trays
• Single fan assembly for door
• Vertical mount AC units
• 19" Fan Trays
• AC side panels congured
with an internal bafe kit
CABLE
MANAGEMENT
OPTIONS
• Vertical Cable Troughs
• Side Car
• Top Cable Trough
• Horizontal Cable Trough
• Ladder Rack Brackets
• Lacing Bars
• "Finger" Rail Kits
• 19" Organizers
• Top Cable Trough
• Ladder Rack Brackets
• "Finger" Rail Kits
• 19" Organizers
• Horizontal Cable Trough
• Lacing Bars
• "Finger" Rail Kits
• 19" Organizers
• Vertical Cable Troughs
• Top Cable Trough
• Horizontal Cable Trough
• Ladder Rack Brackets
• Lacing Bars
• "Finger" Rail Kits
• 19" Organizers
• 19" Organizers
• Vertical Lacing Bars (one
in each rear corner come
standard)
OTHER KEY
FEATURES
• Durable powder coat nish for
industrial environment
• Two pair of PDU mounting
brackets are standard
• Durable powder coat nish for
industrial environment
• Large open bottom creates
easy under oor access of
cable bundles
• Two pair of PDU mounting
brackets are standard
• Ganged enclosures create a
virtual "side car"
• Quick disconnect grounding kit
is standard
• Durable powder coat nish for
industrial environment
• 16 position powerstrip
standard with 72" and taller
enclosures (smaller powerstrip
for smaller size enclosures)
• Horseshoe knockouts on top
panels allow removal and
interchanging of top panels
without interfering with
cable entry
• Durable powder coat nish for
industrial environment
• 3000 lbs. weight capacity
(non-seismic)
• Durable powder coat nish for
industrial environment
• Removable side panels to
accept various AC units
CERTIFICATIONS
Note: 91"H enclosures are not OSHPD approved. GR-63 CORE
APPROVED APPROVED APPROVED NEMA
12K
1
2
9
3
48
6
5
7
ES Server Enclosures are designed with integrated features to accommodate servers and the conditions
associated with them: high density cable management, power options, and cooling capabilities. When the
situation to manage these conditions becomes more challenging, additional accessories can be added to
the enclosure. Enclosure rails are folded three times (to produce a channel effect), creating a more rigid
rail which in turn will support any equipment and accessories neccessary.
The featured enclosure, GL840ES-3042, demonstrates these standard and optional features.
1. Power strip mounting brackets allow the mounting of all major brands of PDUs, as well as Great Lakes’ Vertical Cable Troughs;
the combination of PDUs and VCTs will determine how many of each can be mounted
2. Vertical cable troughs can be installed in each rear corner to handle large cable bundles (up to three, when no PDU is mounted)
3. Contour mesh doors allow more cool air into the enclosure, and exhaust to escape; fan kits mount to the door to aid in horizontal
ventilation and the elimination of hot spots
4. Brush grommet top panels create easier overhead cable access while keeping air ow disruption to a minimum
5. Exhaust chimneys serve as a duct that assists in the removal of hot air from the enclosure. The process of removing exhaust air
can be accelerated through the use of a chimney fan tray.
6. Top cable troughs can be mounted over top cable access knockouts so that cables are supported along the bend radius
7. Ladder rack brackets eliminate the need to suspend ladder rack from the ceiling, thus reducing overhead cable infrastructure
8. Cable access knockouts found along the top of the enclosure (30"W only) allow overhead cabling (optional brush grommet seals
gaps around cables to prevent air recirculation)
9. Vertical cable pass throughs on the corner post are designed for side networking cable access (optional brush grommet seals
gaps around cables to prevent air recirculation)
10. Horizontals of the frame do not extend the entire length of the enclosure, leaving empty space in the rear of the enclosure; this
large cavity creates space for tall PDUs and additional cable organizers
11. Air managers mount to the bottom RMU of the enclosure to "manage" the ow of conditioned air into the enclosure. An adjustable
slide allows the amount of air to be adjusted as necessary, while maintaining raised oor pressure throughout a data center
12. Bottom cable access knockouts allow under oor cabling and are ideal to pass large PDU plugs through (optional brush grommet
bottom panel seals gaps around cables)
ES ENCLOSURE FEATURES & ACCESSORIES
156
4
3
7129 11
810
2
12
10
11
ES
DIMENSIONS: 91"H x 30"W x 48"D
Maximum rail placement: 35"; Usable inside depth: 46"
13" of dedicated cable management/PDU depth in rear
RACK SPACES: 48 RMU • 19" EIA 310-E Compliant
STOCK COLORS: Black or Advantage White
RAILS RATED AT: 2000 lbs.
SHIPPING WEIGHT AND PALLET SIZE:
560 lbs./98"H x 32"W x 52"D
Shown with optional accessories,
drawings can be found on page 158
GL910ES-3048MS COMPLETE ENCLOSURE
INCLUDES PARTS BELOW
PART NO. DESCRIPTION
9101ES-3048 Frame with two pairs of black powder coated,
universal 19", 3/8" sq. (M6) mounting rails
(with RMU markings) and package of M6
hardware; includes two pairs of PDU button
mount brackets with up to five mounting
positions per side
7209-N One Set of 4 Adjustable Levelers
TPES-S Solid Top Panel
9102E-MC29 Front Contour Mesh Door with locking handle
9102E-MC29 Rear Contour Mesh Door with locking handle
9110-36ELS Pair of Solid Lift-off Side Panels with lock
and finger release latches
ADDITIONAL CONFIGURATIONS
GL910ES-3048MSS Complete enclosure with Contour Mesh Front
Door and Split Mesh Rear Door
Please call for availability.
22 Great Lakes Case & Cabinet WeRackYourWorld.com
GL910ES-3048 SERIES
Made in the USA
Country of origin
1.866.TRY.GLCC (879.4522) Great Lakes Case & Cabinet 23
GL910ES-3048 ACCESSORIES
PART NO. DESCRIPTION
DOORS & SIDE PANELS
9102E-29SM Split Mesh Steel Door Set
9103E-29 Solid Steel Door
9111-36ELL Pair of Locking Lift-off Vented Side Panels
Additional Doors, pages 116-119
TOP PANELS
TPES-P Perforated Top Panel
TPES-B Top Panel with Brush Grommet
TPES-F10 Top Panel with fan guard and one 10", 550 CFM fan
TPES-2F10 Top Panel with fan guards and two 10", 550 CFM fans
TPES-F Top Panel with fan guards and three, 75 CFM fans
COOLING EQUIPMENT
3.50-FPTL19 Tool-less Filler Panel for M6 rails, 2 RMU
GLHL10031CP Pack of 10 Universal plastic Filler Panels, 1 RMU
7217LE3 Fan Assembly with fan guards and three, 75 CFM fans;
to mount on contour mesh door
GL-EC-48-1832 Exhaust Chimney for 48"D enclosure with an
adjustable range of 18" to 32"
GL-EC-48-3246 Exhaust Chimney for 48"D enclosure with an
adjustable range of 32" to 46"
GL-ECFT48 Optional Fan Tray for exhaust chimney, 1200 CFM
AM-ES Air Manager Assembly
AM-FTES30 Air Manager Fan Tray, 600 CFM
BGRK91-30 Brush Grommet Kit, to mount to enclosure rails to
prevent air recirculation
ESSAB11 Side Air Bafe Kit for use with 11 RMU CISCO
and other side-to-side airow equipment; please see
chart on page 51 to ensure bafe kit and equipment
are compatible
Additional Cooling Equipment, pages 135-142
POWER STRIPS AND GROUNDING
7215-20ARTLP 16 position, 20 amp Power Strip;
5-20R receptacle and L5-20P plug
7215-20AR 16 position, 20 amp Power Strip;
5-20R receptacle and 5-20P plug
7215-30A 24 position, 30 amp Power Strip;
5-20R receptacle and L5-30P plug
CBB-78 Copper Bus Bar 70" (isolated)
Additional Power Strips, pages 132-134
CABLE MANAGEMENT
BGS-91-48 Brush Grommet to cover rear vertical cable pass through
BGT Brush Grommet to cover top cable pass
through knockouts
ESC-K12 Cable Management Rail Kit for front or rear rails;
includes 12 sections of “ngers” (each section 7 RMU);
rails will need to be recessed 4.5"
HCM-D36 Horizontal Cable Organizer; to mount from the front
to the rear of the enclosure
LRB-12 Ladder Rack Bracket for 12"W ladder rack;
includes hardware
LRB-24 Ladder Rack Bracket for 18"W and 24"W
ladder rack; includes hardware
TCT30 Top Cable Trough and hardware
VCT-91 Vertical Cable Trough
VCT-91C Cover for VCT-91
VLB-9136 Vertical Lacing Bar Kit (includes 1 vertical bar,
2 horizontal bars and 6 cinch straps)
Additional Cable Management, pages 143-151
SHELVES FOR 19" MOUNTING
7206-FR-A32HD Stationary Shelf, Front/Rear Mount adjustable,
17.50"W x 32"D, 300 lb. weight capacity
7206-FRSL-ADHD Sliding Shelf, Front/Rear Mount adjustable,
17.5"W x 26"D, 100 lb. weight capacity
7206-FRSLA300 Sliding Shelf, Front/Rear Mount adjustable,
14.33"W x 30"D, 300 lb. weight capacity
7206-MKM Monitor/Keyboard/Mouse Shelf
Additional Shelves, pages 128-129
MOUNTING RAILS, CASTERS & OTHER ACCESSORIES
9105-ES2P Pair of 19" EIA Mounting Rails to accept 3/8" sq. (M6)
cage nuts; includes hardware
HDW-105-50 Package of 50 M6 cage nuts with screws
(12mm screw length)
AT1 One set of 2 anti-tip legs, to be used with casters
and levelers
G101ES Networking/Ganging Kit
7208-ES One set of 4 casters, all non-locking
(creates 1800 lb. weight capacity)
ES
DIMENSIONS: 91"H x 24"W x 48"D
Maximum rail placement: 35"; Usable inside depth: 46"
13" of dedicated cable management/PDU depth in rear
RACK SPACES: 48 RMU • 19" EIA 310-E Compliant
STOCK COLORS: Black or Advantage White
RAILS RATED AT: 2000 lbs.
SHIPPING WEIGHT AND PALLET SIZE:
540 lbs./98"H x 32"W x 52"D
Shown with optional accessories,
drawings can be found on page 158
GL910ES-2448MS COMPLETE ENCLOSURE
INCLUDES PARTS BELOW
PART NO. DESCRIPTION
9101ES-2448 Frame with two pairs of black powder coated,
universal 19", 3/8" sq. (M6) mounting rails
(with RMU markings) and package of M6
hardware; includes two pairs of PDU button
mount brackets with up to five mounting
positions per side
7209-N One Set of 4 Adjustable Levelers
TPES-S Solid Top Panel
9102E-MC24 Front Contour Mesh Door with locking handle
9102E-MC24 Rear Contour Mesh Door with locking handle
9110-36ELS Pair of Solid Lift-off Side Panels with lock
and finger release latches
ADDITIONAL CONFIGURATIONS
GL910ES-2448MSS Complete enclosure with Contour Mesh Front
Door and Split Mesh Rear Door
Please call for availability.
24 Great Lakes Case & Cabinet WeRackYourWorld.com
GL910ES-2448 SERIES
ES
Made in the USA
Country of origin
1.866.TRY.GLCC (879.4522) Great Lakes Case & Cabinet 25
GL910ES-2448 ACCESSORIES
PART NO. DESCRIPTION
DOORS & SIDE PANELS
9102E-29SM Split Mesh Steel Door Set
9103E-29 Solid Steel Door
9111-36ELL Pair of Locking Lift-off Vented Side Panels
Additional Doors, pages 116-119
TOP PANELS
TPES-P Perforated Top Panel
TPES-B Top Panel with Brush Grommet
TPES-F10 Top Panel with fan guard and one 10", 550 CFM fan
TPES-2F10 Top Panel with fan guards and two 10", 550 CFM fans
TPES-F Top Panel with fan guards and three, 75 CFM fans
COOLING EQUIPMENT
3.50-FPTL19 Tool-less Filler Panel for M6 rails, 2 RMU
GLHL10031CP Pack of 10 Universal plastic Filler Panels, 1 RMU
7217LE2 Fan Assembly with fan guards and three, 75 CFM fans;
to mount on contour mesh door
GL-EC-48-1832 Exhaust Chimney for 48"D enclosure with an
adjustable range of 18" to 32"
GL-EC-48-3246 Exhaust Chimney for 48"D enclosure with an
adjustable range of 32" to 46"
GL-ECFT48 Optional Fan Tray for exhaust chimney, 1200 CFM
AM-ES Air Manager Assembly
AM-FTES24 Air Manager Fan Tray, 600 CFM
BGRK91-24 Brush Grommet Kit, to mount to enclosure rails to
prevent air recirculation
Additional Cooling Equipment, pages 135-142
POWER STRIPS AND GROUNDING
7215-20ARTLP 16 position, 20 amp Power Strip;
5-20R receptacle and L5-20P plug
7215-20AR 16 position, 20 amp Power Strip;
5-20R receptacle and 5-20P plug
7215-30A 24 position, 30 amp Power Strip;
5-20R receptacle and L5-30P plug
CBB-78 Copper Bus Bar (isolated)
Additional Power Strips, pages 132-134
CABLE MANAGEMENT
BGS-91-48 Brush Grommet to cover rear vertical cable pass through
ESC-K12 Cable Management Rail Kit for front or rear rails;
includes 12 sections of “ngers” (each section 7 RMU);
rails will need to be recessed 4.5"
LRB-12 Ladder Rack Bracket for 12"W ladder rack;
includes hardware
LRB-24 Ladder Rack Bracket for 18"W and 24"W
ladder rack; includes hardware
TCT24 Top Cable Trough and hardware
VCT-91 Vertical Cable Trough
VCT-91C Cover for VCT-91
VLB-9136 Vertical Lacing Bar Kit (includes 1 vertical bar,
2 horizontal bars and 6 cinch straps)
Additional Cable Management, pages 143-151
SHELVES FOR 19" MOUNTING
7206-FR-A32HD Stationary Shelf, Front/Rear Mount adjustable,
17.50"W x 32"D, 300 lb. weight capacity
7206-FRSL-ADHD Sliding Shelf, Front/Rear Mount adjustable,
17.5"W x 26"D, 100 lb. weight capacity
7206-FRSLA300 Sliding Shelf, Front/Rear Mount adjustable,
14.33"W x 30"D, 300 lb. weight capacity
7206-MKM Monitor/Keyboard/Mouse Shelf
Additional Shelves, pages 128-129
MOUNTING RAILS, CASTERS & OTHER ACCESSORIES
9105-ES2P Pair of 19" EIA Mounting Rails to accept 3/8" sq. (M6)
cage nuts; includes hardware
HDW-105-50 Package of 50 M6 cage nuts with screws
(12mm screw length)
AT1 One set of 2 anti-tip legs, to be used with casters
and levelers
G101ES Networking/Ganging Kit
7208-ES One set of 4 casters, all non-locking
(creates 1800 lb. weight capacity)
ES
ES
DIMENSIONS: 91"H x 30"W x 42"D
Maximum rail placement: 35"; Usable inside depth: 40"
9" of dedicated cable management/PDU depth in rear
RACK SPACES: 48 RMU • 19" EIA 310-E Compliant
STOCK COLORS: Black or Advantage White
RAILS RATED AT: 2000 lbs.
SHIPPING WEIGHT AND PALLET SIZE:
540 lbs./98"H x 32"W x 45"D
Shown with optional accessories,
drawings can be found on page 158
GL910ES-3042MS COMPLETE ENCLOSURE
INCLUDES PARTS BELOW
PART NO. DESCRIPTION
9101ES-3042 Frame with two pairs of black powder coated,
universal 19", 3/8" sq. (M6) mounting rails
(with RMU markings) and package of M6
hardware; includes two pairs of PDU button
mount brackets with up to three mounting
positions per side
7209-N One Set of 4 Adjustable Levelers
TPES-S Solid Top Panel
9102E-MC29 Front Contour Mesh Door with locking handle
9102E-MC29 Rear Contour Mesh Door with locking handle
9110-36ELS Pair of Solid Lift-off Side Panels with lock
and finger release latches
ADDITIONAL CONFIGURATIONS
GL910ES-3042MSS Complete enclosure with Contour Mesh Front
Door and Split Mesh Rear Door
Please call for availability.
26 Great Lakes Case & Cabinet WeRackYourWorld.com
GL910ES-3042 SERIES
Made in the USA
Country of origin
1.866.TRY.GLCC (879.4522) Great Lakes Case & Cabinet 27
GL910ES-3042 ACCESSORIES
PART NO. DESCRIPTION
DOORS & SIDE PANELS
9102E-29SM Split Mesh Steel Door Set
9103E-29 Solid Steel Door
9111-36ELL Pair of Locking Lift-off Vented Side Panels
Additional Doors, pages 116-119
TOP PANELS
TPES-P Perforated Top Panel
TPES-B Top Panel with Brush Grommet
TPES-F10 Top Panel with fan guard and one 10", 550 CFM fan
TPES-2F10 Top Panel with fan guards and two 10", 550 CFM fans
TPES-F Top Panel with fan guards and three, 75 CFM fans
COOLING EQUIPMENT
3.50-FPTL19 Tool-less Filler Panel for M6 rails, 2 RMU
GLHL10031CP Pack of 10 Universal plastic Filler Panels, 1 RMU
7217LE3 Fan Assembly with fan guards and three, 75 CFM fans;
to mount on contour mesh door
GL-EC-42-1832 Exhaust Chimney for 48"D enclosure with an
adjustable range of 18" to 32"
GL-EC-42-3246 Exhaust Chimney for 48"D enclosure with an
adjustable range of 32" to 46"
GL-ECFT42 Optional Fan Tray for exhaust chimney, 1200 CFM
AM-ES Air Manager Assembly
AM-FTES30 Air Manager Fan Tray, 600 CFM
BGRK91-30 Brush Grommet Kit, to mount to enclosure rails to
prevent air recirculation
ESSAB11 Side Air Bafe Kit for use with 11 RMU CISCO
and other side-to-side airow equipment; please see
chart on page 51 to ensure bafe kit and equipment
are compatible
Additional Cooling Equipment, pages 135-142
POWER STRIPS AND GROUNDING
7215-20ARTLP 16 position, 20 amp Power Strip;
5-20R receptacle and L5-20P plug
7215-20AR 16 position, 20 amp Power Strip;
5-20R receptacle and 5-20P plug
7215-30A 24 position, 30 amp Power Strip;
5-20R receptacle and L5-30P plug
CBB-78 Copper Bus Bar (isolated)
Additional Power Strips, pages 132-134
CABLE MANAGEMENT
BGS-91 Brush Grommet to cover rear vertical cable pass through
BGT Brush Grommet to cover top cable pass
through knockouts
ESC-K12 Cable Management Rail Kit for front or rear rails;
includes 12 sections of “ngers” (each section 7 RMU);
rails will need to be recessed 4.5"
HCM-D36 Horizontal Cable Organizer; to mount from the front
to the rear of the enclosure
LRB-12 Ladder Rack Bracket for 12"W ladder rack;
includes hardware
LRB-24 Ladder Rack Bracket for 18"W and 24"W
ladder rack; includes hardware
TCT30 Top Cable Trough and hardware
VCT-91 Vertical Cable Trough
VCT-91C Cover for VCT-91
VLB-9136 Vertical Lacing Bar Kit (includes 1 vertical bar,
2 horizontal bars and 6 cinch straps)
Additional Cable Management, pages 143-151
SHELVES FOR 19" MOUNTING
7206-FR-A32HD Stationary Shelf, Front/Rear Mount adjustable,
17.50"W x 32"D, 300 lb. weight capacity
7206-FRSL-ADHD Sliding Shelf, Front/Rear Mount adjustable,
17.5"W x 26"D, 100 lb. weight capacity
7206-FRSLA300 Sliding Shelf, Front/Rear Mount adjustable,
14.33"W x 30"D, 300 lb. weight capacity
7206-MKM Monitor/Keyboard/Mouse Shelf
Additional Shelves, pages 128-129
MOUNTING RAILS, CASTERS & OTHER ACCESSORIES
9105-ES2P Pair of 19" EIA Mounting Rails to accept 3/8" sq. (M6)
cage nuts; includes hardware
HDW-105-50 Package of 50 M6 cage nuts with screws
(12mm screw length)
AT1 One set of 2 anti-tip legs, to be used with casters
and levelers
G101ES Networking/Ganging Kit
7208-ES One set of 4 casters, all non-locking
(creates 1800 lb. weight capacity)
ES
ES
DIMENSIONS: 91"H x 24"W x 42"D
Maximum rail placement: 35"; Usable inside depth: 40"
9" of dedicated cable management/PDU depth in rear
RACK SPACES: 48 RMU • 19" EIA 310-E Compliant
STOCK COLORS: Black or Advantage White
RAILS RATED AT: 2000 lbs.
SHIPPING WEIGHT AND PALLET SIZE:
520 lbs./98"H x 32"W x 45"D
GL910ES-2442MS COMPLETE ENCLOSURE
INCLUDES PARTS BELOW
PART NO. DESCRIPTION
9101ES-2442 Frame with two pairs of black powder coated,
universal 19", 3/8" sq. (M6) mounting rails
(with RMU markings) and package of M6
hardware; includes two pairs of PDU button
mount brackets with up to three mounting
positions per side
7209-N One Set of 4 Adjustable Levelers
TPES-S Solid Top Panel
9102E-MC29 Front Contour Mesh Door with locking handle
9102E-MC29 Rear Contour Mesh Door with locking handle
9110-36ELS Pair of Solid Lift-off Side Panels with lock
and finger release latches
ADDITIONAL CONFIGURATIONS
GL910ES-2442MSS Complete enclosure with Contour Mesh Front
Door and Split Mesh Rear Door
Please call for availability.
28 Great Lakes Case & Cabinet WeRackYourWorld.com
GL910ES-2442 SERIES
Shown with optional accessories,
drawings can be found on page 158
Made in the USA
Country of origin
ES
1.866.TRY.GLCC (879.4522) Great Lakes Case & Cabinet 29
GL840ES-3048 ACCESSORIES
PART NO. DESCRIPTION
DOORS & SIDE PANELS
9102E-29SM Split Mesh Steel Door Set
9103E-29 Solid Steel Door
9111-36ELL Pair of Locking Lift-off Vented Side Panels
Additional Doors, pages 116-119
TOP PANELS
TPES-P Perforated Top Panel
TPES-B Top Panel with Brush Grommet
TPES-F10 Top Panel with fan guard and one 10", 550 CFM fan
TPES-2F10 Top Panel with fan guards and two 10", 550 CFM fans
TPES-F Top Panel with fan guards and three, 75 CFM fans
COOLING EQUIPMENT
3.50-FPTL19 Tool-less Filler Panel for M6 rails, 2 RMU
GLHL10031CP Pack of 10 Universal plastic Filler Panels, 1 RMU
7217LE2 Fan Assembly with fan guards and three, 75 CFM fans;
to mount on contour mesh door
GL-EC-42-1832 Exhaust Chimney for 48"D enclosure with an
adjustable range of 18" to 32"
GL-EC-42-3246 Exhaust Chimney for 48"D enclosure with an
adjustable range of 32" to 46"
GL-ECFT42 Optional Fan Tray for exhaust chimney, 1200 CFM
AM-ES Air Manager Assembly
AM-FTES24 Air Manager Fan Tray, 600 CFM
BGRK91-24 Brush Grommet Kit, to mount to enclosure rails to
prevent air recirculation
Additional Cooling Equipment, pages 135-142
POWER STRIPS AND GROUNDING
7215-20ARTLP 16 position, 20 amp Power Strip;
5-20R receptacle and L5-20P plug
7215-20AR 16 position, 20 amp Power Strip;
5-20R receptacle and 5-20P plug
7215-30A 24 position, 30 amp Power Strip;
5-20R receptacle and L5-30P plug
CBB-78 Copper Bus Bar (isolated)
Additional Power Strips, pages 132-134
CABLE MANAGEMENT
BGS-91 Brush Grommet to cover rear vertical cable pass through
ESC-K12 Cable Management Rail Kit for front or rear rails;
includes 12 sections of “ngers” (each section 7 RMU);
rails will need to be recessed 4.5"
LRB-12 Ladder Rack Bracket for 12"W ladder rack;
includes hardware
LRB-24 Ladder Rack Bracket for 18"W and 24"W
ladder rack; includes hardware
TCT24 Top Cable Trough and hardware
VCT-91 Vertical Cable Trough
VCT-91C Cover for VCT-91
VLB-9136 Vertical Lacing Bar Kit (includes 1 vertical bar,
2 horizontal bars and 6 cinch straps)
Additional Cable Management, pages 143-151
SHELVES FOR 19" MOUNTING
7206-FR-A32HD Stationary Shelf, Front/Rear Mount adjustable,
17.50"W x 32"D, 300 lb. weight capacity
7206-FRSL-ADHD Sliding Shelf, Front/Rear Mount adjustable,
17.5"W x 26"D, 100 lb. weight capacity
7206-FRSLA300 Sliding Shelf, Front/Rear Mount adjustable,
14.33"W x 30"D, 300 lb. weight capacity
7206-MKM Monitor/Keyboard/Mouse Shelf
Additional Shelves, pages 128-129
MOUNTING RAILS, CASTERS & OTHER ACCESSORIES
9105-ES2P Pair of 19" EIA Mounting Rails to accept 3/8" sq. (M6)
cage nuts; includes hardware
HDW-105-50 Package of 50 M6 cage nuts with screws
(12mm screw length)
AT1 One set of 2 anti-tip legs, to be used with casters
and levelers
G101ES Networking/Ganging Kit
7208-ES One set of 4 casters, all non-locking
(creates 1800 lb. weight capacity)
GL910ES-2442 ACCESSORIES
DIMENSIONS: 84"H x 30"W x 48"D
Maximum rail placement: 35"; Usable inside depth: 46"
13" of dedicated cable management/PDU depth in rear
RACK SPACES: 44 RMU • 19" EIA 310-E Compliant
STOCK COLORS: Black or Advantage White
RAILS RATED AT: 2000 lbs.
SHIPPING WEIGHT AND PALLET SIZE:
525 lbs./90"H x 32"W x 52"D
Shown with optional accessories,
drawings can be found on page 158
GL840ES-3048MS COMPLETE ENCLOSURE
INCLUDES PARTS BELOW
PART NO. DESCRIPTION
8401ES-3048 Frame with two pairs of black powder coated,
universal 19", 3/8" sq. (M6) mounting rails
(with RMU markings) and package of M6
hardware; includes two pairs of PDU button
mount brackets with up to five mounting
positions per side
7209-N One Set of 4 Adjustable Levelers (2.5"H)
TPES-S Solid Top Panel
8402E-MC29 Front Contour Mesh Door with locking handle
8402E-MC29 Rear Contour Mesh Door with locking handle
8410-36ELS Pair of Solid Lift-off Side Panels with lock
and finger release latches
ADDITIONAL CONFIGURATIONS
GL840ES-3048MSS Complete enclosure with Contour Mesh Front
Door and Split Mesh Rear Door
30 Great Lakes Case & Cabinet WeRackYourWorld.com
GL840ES-3048 SERIES
ES
APPROVED
Made in the USA
Country of origin
1.866.TRY.GLCC (879.4522) Great Lakes Case & Cabinet 31
GL840ES-3048 ACCESSORIES
PART NO. DESCRIPTION
DOORS & SIDE PANELS
8402E-29SM Split Mesh Steel Door Set
8403E-SF29 Split Fan Door Set
8403E-29 Solid Steel Door
8411-36ELL Pair of Locking Lift-off Vented Side Panels
Additional Doors, pages 116-119
TOP PANELS
TPES-P Perforated Top Panel
TPES-B Top Panel with Brush Grommet
TPES-F10 Top Panel with fan guard and one 10", 550 CFM fan
TPES-2F10 Top Panel with fan guards and two 10", 550 CFM fans
TPES-F Top Panel with fan guards and three, 75 CFM fans
COOLING EQUIPMENT
3.50-FPTL19 Tool-less Filler Panel for M6 rails, 2 RMU
GLHL10031CP Pack of 10 Universal plastic Filler Panels, 1 RMU
7217LE3 Fan Assembly with fan guards and three, 75 CFM fans;
to mount on contour mesh door
GL-EC-48-1832 Exhaust Chimney for 48"D enclosure with an
adjustable range of 18" to 32"
GL-EC-48-3246 Exhaust Chimney for 48"D enclosure with an
adjustable range of 32" to 46"
GL-ECFT48 Optional Fan Tray for exhaust chimney, 1200 CFM
AM-ES Air Manager Assembly
AM-FTES30 Air Manager Fan Tray, 600 CFM
BGRK30 Brush Grommet Kit, to mount to enclosure rails to
prevent air recirculation
ESSAB11 Side Air Bafe Kit for use with 11 RMU CISCO
and other side-to-side airow equipment; please see
chart on page 51 to ensure bafe kit and equipment
are compatible
Additional Cooling Equipment, pages 135-142
POWER STRIPS AND GROUNDING
7215-20ARTLP 16 position, 20 amp Power Strip;
5-20R receptacle and L5-20P plug
7215-20AR 16 position, 20 amp Power Strip;
5-20R receptacle and 5-20P plug
7215-30A 24 position, 30 amp Power Strip;
5-20R receptacle and L5-30P plug
CBB-72 Copper Bus Bar (isolated)
Additional Power Strips, pages 132-134
CABLE MANAGEMENT
BGS-84-48 Brush Grommet to cover rear vertical cable pass through
BGT Brush Grommet to cover top cable pass
through knockouts
ESC-K12 Cable Management Rail Kit for front or rear rails;
includes 12 sections of “ngers” (each section 7 RMU);
rails will need to be recessed 4.5"
HCM-D36 Horizontal Cable Organizer; to mount from the front
to the rear of the enclosure
LRB-12 Ladder Rack Bracket for 12"W ladder rack;
includes hardware
LRB-24 Ladder Rack Bracket for 18"W and 24"W
ladder rack; includes hardware
TCT30 Top Cable Trough and hardware
VCT-84 Vertical Cable Trough
VCT-84C Cover for VCT-84
VLB-8436 Vertical Lacing Bar Kit (includes 1 vertical bar,
2 horizontal bars and 6 cinch straps)
Additional Cable Management, pages 143-151
SHELVES FOR 19" MOUNTING
7206-FR-A32HD Stationary Shelf, Front/Rear Mount adjustable,
17.50"W x 32"D, 300 lb. weight capacity
7206-FRSL-ADHD Sliding Shelf, Front/Rear Mount adjustable,
17.5"W x 26"D, 100 lb. weight capacity
7206-FRSLA300 Sliding Shelf, Front/Rear Mount adjustable,
14.33"W x 30"D, 300 lb. weight capacity
7206-MKM Monitor/Keyboard/Mouse Shelf
Additional Shelves, pages 128-129
MOUNTING RAILS, CASTERS & OTHER ACCESSORIES
8405-ES2P Pair of 19" EIA Mounting Rails to accept 3/8" sq. (M6)
cage nuts; includes hardware
HDW-105-50 Package of 50 M6 cage nuts with screws
(12mm screw length)
AT1 One set of 2 anti-tip legs, to be used with casters
and levelers
G101ES Networking/Ganging Kit
7208-ES One set of 4 casters, all non-locking
(creates 1800 lb. weight capacity)
ES
Shown with optional accessories,
drawings can be found on page 158
GL840ES-2448MS COMPLETE ENCLOSURE
INCLUDES PARTS BELOW
PART NO. DESCRIPTION
8401ES-2448 Frame with two pairs of black powder coated,
universal 19", 3/8" sq. (M6) mounting rails
(with RMU markings) and package of M6
hardware; includes two pairs of PDU button
mount brackets with up to five mounting
positions per side
7209-N One Set of 4 Adjustable Levelers (2.5"H)
TPES-S Solid Top Panel
8402E-MC24 Front Contour Mesh Door with locking handle
8402E-MC24 Rear Contour Mesh Door with locking handle
8410-36ELS Pair of Solid Lift-off Side Panels with lock
and finger release latches
ADDITIONAL CONFIGURATIONS
GL840ES-2448MSS Complete enclosure with Contour Mesh
Front Door and Split Mesh Rear Door
GL840ES-2448MSFS Complete enclosure with Contour Mesh
Front Door and Split Fan Rear Door
DIMENSIONS: 84"H x 24"W x 48"D
Maximum rail placement: 35"; Usable inside depth: 46"
13" of dedicated cable management/PDU depth in rear
RACK SPACES: 44 RMU • 19" EIA 310-E Compliant
STOCK COLORS: Black or Advantage White
RAILS RATED AT: 2000 lbs.
SHIPPING WEIGHT AND PALLET SIZE:
500 lbs./90"H x 32"W x 52"D
32 Great Lakes Case & Cabinet WeRackYourWorld.com
GL840ES-2448 SERIES
ES
APPROVED
Made in the USA
Country of origin
ES
1.866.TRY.GLCC (879.4522) Great Lakes Case & Cabinet 33
GL840ES-2448 ACCESSORIES
PART NO. DESCRIPTION
DOORS & SIDE PANELS
8402E-24SM Split Mesh Steel Door Set
8403E-SF24 Split Fan Door Set
8403E-24 Solid Steel Door
8411-36ELL Pair of Locking Lift-off Vented Side Panels
Additional Doors, pages 116-119
TOP PANELS
TPES-P Perforated Top Panel
TPES-B Top Panel with Brush Grommet
TPES-F10 Top Panel with fan guard and one 10", 550 CFM fan
TPES-2F10 Top Panel with fan guards and two 10", 550 CFM fans
TPES-F Top Panel with fan guards and three, 75 CFM fans
COOLING EQUIPMENT
3.50-FPTL19 Tool-less Filler Panel for M6 rails, 2 RMU
GLHL10031CP Pack of 10 Universal plastic Filler Panels, 1 RMU
7217LE2 Fan Assembly with fan guards and two, 75 CFM fans;
to mount on contour mesh door
7217ECS Rack mount, 220 CFM enclosure blower, 2 RMU
GL-EC-48-1832 Exhaust Chimney for 48"D enclosure with an
adjustable range of 18" to 32"
GL-EC-48-3246 Exhaust Chimney for 48"D enclosure with an
adjustable range of 32" to 46"
GL-ECFT48 Optional Fan Tray for exhaust chimney, 1200 CFM
AM-ES Air Manager Assembly
AM-FTES24 Air Manager Fan Tray, 600 CFM
BGRK24 Brush Grommet Kit, to mount to enclosure rails to
prevent air recirculation
Additional Cooling Equipment, pages 135-142
POWER STRIPS AND GROUNDING
7215-20ARTLP 16 position, 20 amp Power Strip;
5-20R receptacle and L5-20P plug
7215-20AR 16 position, 20 amp Power Strip;
5-20R receptacle and 5-20P plug
7215-30A 24 position, 30 amp Power Strip;
5-20R receptacle and L5-30P plug
CBB-72 Copper Bus Bar 70" (isolated)
Additional Power Strips, pages 132-134
CABLE MANAGEMENT
BGS-84-48 Brush Grommet for 84"H x 48"D enclosure;
to cover rear vertical cable pass through
CMP Cable Management Post, 3"
ESC-K12 Cable Management Rail Kit for front or rear rails;
includes 12 sections of “ngers” (each section 7 RMU);
rails will need to be recessed 4.5"
LRB-12 Ladder Rack Bracket for 12"W ladder rack;
includes hardware
LRB-24 Ladder Rack Bracket for 18"W and 24"W
ladder rack; includes hardware
TCT24 Top Cable Trough and hardware
VCT-84 Vertical Cable Trough
VCT-84C Cover for VCT-84
VLB-8436 Vertical Lacing Bar Kit (includes 1 vertical bar,
2 horizontal bars and 6 cinch straps)
Additional Cable Management, pages 143-151
SHELVES FOR 19" MOUNTING
7206-FR-A32HD Stationary Shelf, Front/Rear Mount adjustable,
17.5"W x 32"D, 300 lb. weight capacity
7206-FRSL-ADHD Sliding Shelf, Front/Rear Mount adjustable,
17.5"W x 26"D, 100 lb. weight capacity
7206-FRSLA300 Sliding Shelf, Front/Rear Mount adjustable,
14.33"W x 30"D, 300 lb. weight capacity
7206-MKM Monitor/Keyboard/Mouse Shelf
Additional Shelves, pages 128-129
MOUNTING RAILS, CASTERS & OTHER ACCESSORIES
8405-ES2P Pair of 19" EIA Mounting Rails to accept 3/8" sq. (M6)
cage nuts; includes hardware
HDW-105-50 Package of 50 M6 cage nuts with screws
(12mm screw length)
AT1 One set of 2 anti-tip legs, to be used with casters
and levelers
G101ES Networking/Ganging Kit
7208-ES One set of 4 casters, all non-locking
(creates 1800 lb. weight capacity)
34 Great Lakes Case & Cabinet WeRackYourWorld.com
GL840ES-3042 SERIES
Shown with optional accessories,
drawings can be found on page 158
GL840ES-3042MS COMPLETE ENCLOSURE
INCLUDES PARTS BELOW
PART NO. DESCRIPTION
8401ES-3042 Frame with two pairs of black powder coated,
universal 19", 3/8" sq. (M6) mounting rails
(with RMU markings) and package of M6
hardware; includes two pairs of PDU button
mount brackets with up to three mounting
positions per side
7209-N One Set of 4 Adjustable Levelers (2.5"H)
TPES-S Solid Top Panel
8402E-MC29 Front Contour Mesh Door with locking handle
8402E-MC29 Rear Contour Mesh Door with locking handle
8410-36ELS Pair of Solid Lift-off Side Panels with
lock and finger release latches
ADDITIONAL CONFIGURATIONS
GL840ES-3042MSS Complete enclosure with Contour Mesh
Front Door and Split Mesh Rear Door
DIMENSIONS: 84"H x 30"W x 42"D
Maximum rail placement: 35"; Usable inside depth: 40"
9" of dedicated cable management/PDU depth in rear
RACK SPACES: 44 RMU • 19" EIA 310-E Compliant
STOCK COLORS: Black or Advantage White
RAILS RATED AT: 2000 lbs.
SHIPPING WEIGHT AND PALLET SIZE:
515 lbs./90"H x 32"W x 45"D
ES
APPROVED
Made in the USA
Country of origin
1.866.TRY.GLCC (879.4522) Great Lakes Case & Cabinet 35
GL840ES-3042 ACCESSORIES
PART NO. DESCRIPTION
DOORS & SIDE PANELS
8402E-29SM Split Mesh Steel Door Set
8403E-SF29 Split Fan Door Set
8403E-29 Solid Steel Door
8411-36ELL Pair of Locking Lift-off Vented Side Panels
Additional Doors, pages 116-119
TOP PANELS
TPES-P Perforated Top Panel
TPES-B Top Panel with Brush Grommet
TPES-F10 Top Panel with fan guard and one 10", 550 CFM fan
TPES-2F10 Top Panel with fan guards and two 10", 550 CFM fans
TPES-F Top Panel with fan guards and three, 75 CFM fans
COOLING EQUIPMENT
3.50-FPTL19 Tool-less Filler Panel for M6 rails, 2 RMU
GLHL10031CP Pack of 10 Universal plastic Filler Panels, 1 RMU
7217LE3 Fan Assembly with fan guards and three, 75 CFM fans;
to mount on contour mesh door
GL-EC-42-1832 Exhaust Chimney for 42"D enclosure with an
adjustable range of 18" to 32"
GL-EC-42-3246 Exhaust Chimney for 42"D enclosure with an
adjustable range of 32" to 46"
GL-ECFT42 Optional Fan Tray for chimney, 1200 CFM
AM-ES Air Manager Assembly
AM-FTES30 Air Manager Fan Tray, 600 CFM
BGRK30 Brush Grommet Kit, to mount to enclosure rails to
prevent air recirculation
ESSAB11 Side Air Bafe Kit for use with 11 RMU CISCO
and other side-to-side airow equipment; please see
chart on page 51 to ensure bafe kit and equipment
are compatible
Additional Cooling Equipment, pages 135-142
POWER STRIPS AND GROUNDING
7215-20ARTLP 16 position, 20 amp Power Strip;
5-20R receptacle and L5-20P plug
7215-20AR 16 position, 20 amp Power Strip;
5-20R receptacle and 5-20P plug
7215-30A 24 position, 30 amp Power Strip;
5-20R receptacle and L5-30P plug
CBB-72 Copper Bus Bar (isolated)
Additional Power Strips, pages 132-134
CABLE MANAGEMENT
BGS-84 Brush Grommet to cover rear vertical cable pass through
BGT Brush Grommet to cover top cable pass through
ESC-K12 Cable Management Rail Kit for front or rear rails;
includes 12 sections of “ngers” (each section 7 RMU);
rails will need to be recessed 4.5"
HCM-D36 Horizontal Cable Organizer; to mount from the front to the
rear of the enclosure
LRB-12 Ladder Rack Bracket for 12"W ladder rack;
includes hardware
LRB-24 Ladder Rack Bracket for 18"W and 24"W ladder rack;
includes hardware
TCT30 Top Cable Trough and hardware
VCT-84 Vertical Cable Trough
VCT-84C Cover for VCT-84
VLB-8436 Vertical Lacing Bar Kit (includes 1 vertical bar,
2 horizontal bars and 6 cinch straps)
Additional Cable Management, pages 143-151
SHELVES FOR 19" MOUNTING
7206-FR-A32HD Stationary Shelf, Front/Rear Mount adjustable,
17.5"W x 32"D, 300 lb. weight capacity
7206-FRSL-ADHD Sliding Shelf, Front/Rear Mount adjustable,
17.5"W x 26"D, 100 lb. weight capacity
7206-FRSLA300 Sliding Shelf, Front/Rear Mount adjustable,
14.33"W x 30"D, 300 lb. weight capacity
7206-MKM Monitor/Keyboard/Mouse Shelf
Additional Shelves, pages 128-129
MOUNTING RAILS, CASTERS & OTHER ACCESSORIES
8405-ES2P Pair of 19" EIA Mounting Rails to accept 3/8" sq. (M6)
cage nuts; includes hardware
HDW-105-50 Package of 50 M6 cage nuts with screws
(12mm screw length)
ES23K-42 Conversion Kit to convert from 19" to 23" mounting
AT1 One set of 2 anti-tip legs, to be used with casters
and levelers
G101ES Networking/Ganging Kit
7208-ES One set of 4 casters, all non-locking
(creates 1800 lb. weight capacity)
ES
36 Great Lakes Case & Cabinet WeRackYourWorld.com
GL840ES-2442 SERIES
Shown with optional accessories,
drawings can be found on page 158
GL840ES-2442MS COMPLETE ENCLOSURE
INCLUDES PARTS BELOW
PART NO. DESCRIPTION
8401ES-2442 Frame with two pairs of black powder coated,
universal 19", 3/8" sq. (M6) mounting rails
(with RMU markings) and package of M6
hardware; includes two pairs of PDU button
mount brackets with up to three mounting
positions per side
7209-N One Set of 4 Adjustable Levelers (2.5"H)
TPES-S Solid Top Panel
8402E-MC24 Front Contour Mesh Door with locking handle
8402E-MC24 Rear Contour Mesh Door with locking handle
8410-36ELS Pair of Solid Lift-off Side Panels with lock
and finger release latches
ADDITIONAL CONFIGURATIONS
GL840ES-2442MSS Complete enclosure with Contour Mesh
Front Door and Split Mesh Rear Door
GL840ES-2442MSFS Complete enclosure with Contour Mesh
Front Door and Split Fan Rear Door
DIMENSIONS: 84"H x 24"W x 42"D
Maximum rail placement: 35"; Usable inside depth: 40"
9" of dedicated cable management/PDU depth in rear
RACK SPACES: 44 RMU • 19" EIA 310-E Compliant
STOCK COLORS: Black or Advantage White
RAILS RATED AT: 2000 lbs.
SHIPPING WEIGHT AND PALLET SIZE:
490 lbs./90"H x 32"W x 45"D
ES
APPROVED
Made in the USA
Country of origin
1.866.TRY.GLCC (879.4522) Great Lakes Case & Cabinet 37
GL840ES-2442 ACCESSORIES
PART NO. DESCRIPTION
DOORS & SIDE PANELS
8402E-24SM Split Mesh Steel Door Set
8403E-SF24 Split Fan Door Set
8403E-24 Solid Steel Door
8411-36ELL Pair of Locking Lift-off Vented Side Panels
Additional Doors, page 116-119
TOP PANELS
TPES-P Perforated Top Panel
TPES-B Top Panel with Brush Grommet
TPES-F10 Top Panel with fan guard and one 10", 550 CFM fan
TPES-2F10 Top Panel with fan guards and two 10", 550 CFM fans
TPES-F Top Panel with fan guards and three, 75 CFM fans
COOLING EQUIPMENT
3.50-FPTL19 Tool-less Filler Panel for M6 rails, 2 RMU
GLHL10031CP Pack of 10 Universal plastic Filler Panels, 1 RMU
7217LE2 Fan Assembly with fan guards and two, 75 CFM fans;
to mount on contour mesh door
GL-EC-42-1832 Exhaust Chimney for 42"D enclosure with an
adjustable range of 18" to 32"
GL-EC-42-3246 Exhaust Chimney for 42"D enclosure with an
adjustable range of 32" to 46"
GL-ECFT42 Optional Fan Tray for exhaust chimney, 1200 CFM
AM-ES Air Manager Assembly
AM-FTES24 Air Manager Fan Tray, 600 CFM
BGRK24 Brush Grommet Kit, to mount to enclosure rails to
prevent air recirculation
Additional Cooling Equipment, pages 135-142
POWER STRIPS AND GROUNDING
7215-20ARTLP 16 position, 20 amp Power Strip;
5-20R receptacle and L5-20P plug
7215-20AR 16 position, 20 amp Power Strip;
5-20R receptacle and 5-20P plug
7215-30A 24 position, 30 amp Power Strip;
5-20R receptacle and L5-30P plug
CBB-72 Copper Bus Bar (isolated)
Additional Power Strips, pages 132-134
CABLE MANAGEMENT
BGS-84 Brush Grommet to cover rear vertical cable pass through
ESC-K12 Cable Management Rail Kit for front or rear rails;
includes 12 sections of “ngers” (each section 7 RMU);
rails will need to be recessed 4.5"
LRB-12 Ladder Rack Bracket for 12"W ladder rack;
includes hardware
LRB-24 Ladder Rack Bracket for 18"W and 24"W ladder rack;
includes hardware
TCT24 Top Cable Trough and hardware
VCT-84 Vertical Cable Trough
VCT-84C Cover for VCT-84
VLB-8436 Vertical Lacing Bar Kit (includes 1 vertical bar,
2 horizontal bars and 6 cinch straps)
Additional Cable Management, pages 143-151
SHELVES FOR 19" MOUNTING
7206-FR-A32HD Stationary Shelf, Front/Rear Mount adjustable,
17.5"W x 32"D, 300 lb. weight capacity
7206-FRSL-ADHD Sliding Shelf, Front/Rear Mount adjustable,
17.5"W x 26"D, 100 lb. weight capacity
7206-FRSLA300 Sliding Shelf, Front/Rear Mount adjustable,
14.33"W x 30"D, 300 lb. weight capacity
7206-MKM Monitor/Keyboard/Mouse Shelf
Additional Shelves, pages 128-129
MOUNTING RAILS, CASTERS & OTHER ACCESSORIES
8405-ES2P Pair of 19" EIA Mounting Rails to accept 3/8" sq. (M6)
cage nuts; includes hardware
HDW-105-50 Package of 50 M6 cage nuts with screws
(12mm screw length)
AT1 One set of 2 anti-tip legs, to be used with casters
and levelers
G101ES Networking/Ganging Kit
7208-ES One set of 4 casters, all non-locking
(creates 1800 lb. weight capacity)
ES
GL840ES-2442 ACCESSORIES
38 Great Lakes Case & Cabinet WeRackYourWorld.com
GL780ES-3048 SERIES
Shown with optional accessories,
drawings can be found on page 158
DIMENSIONS: 78"H x 30"W x 48"D
Maximum rail placement: 35"; Usable inside depth: 46"
13" of dedicated cable management/PDU depth in rear
RACK SPACES: 42 RMU • 19" EIA 310-E Compliant
STOCK COLORS: Black or Advantage White
RAILS RATED AT: 2000 lbs.
SHIPPING WEIGHT AND PALLET SIZE:
510 lbs./85"H x 32"W x 52"D
GL780ES-3048MS COMPLETE ENCLOSURE
INCLUDES PARTS BELOW
PART NO. DESCRIPTION
7801ES-3048 Frame with two pairs of black powder coated,
universal 19", 3/8" sq. (M6) mounting rails
(with RMU markings) and package of M6
hardware; includes two pairs of PDU button
mount brackets with up to five mounting
positions per side
7209-N One Set of 4 Adjustable Levelers (2.5"H)
TPES-S Solid Top Panel
7802E-MC29 Front Contour Mesh Door with locking handle
7802E-MC29 Rear Contour Mesh Door with locking handle
7810-36ELS Pair of Solid Lift-off Side Panels with lock and
finger release latches
ADDITIONAL CONFIGURATIONS
GL780ES-3048MSS Complete enclosure with Contour Mesh
Front Door and Split Mesh Rear Door
GL780ES-3048MSFS Complete enclosure with Contour Mesh
Front Door and Split Fan Rear Door
Please call for availability.
ES
Made in the USA
Country of origin
1.866.TRY.GLCC (879.4522) Great Lakes Case & Cabinet 39
GL780ES-3048 ACCESSORIES
PART NO. DESCRIPTION
DOORS & SIDE PANELS
7802E-29SM Split Mesh Steel Door Set
7803E-SF29 Split Fan Door Set
7803E-29 Solid Steel Door
7811-36ELL Pair of Locking Lift-off Vented Side Panels
Additional Doors, pages 116-119
TOP PANELS
TPES-P Perforated Top Panel
TPES-B Top Panel with Brush Grommet
TPES-F10 Top Panel with fan guard and one 10", 550 CFM fan
TPES-2F10 Top Panel with fan guards and two 10", 550 CFM fans
TPES-F Top Panel with fan guards and three, 75 CFM fans
COOLING EQUIPMENT
3.50-FPTL19 Tool-less Filler Panel for M6 rails, 2 RMU
GLHL10031CP Pack of 10 Universal plastic Filler Panels, 1 RMU
7217LE3 Fan Assembly with fan guards and three, 75 CFM fans;
to mount on contour mesh door
GL-EC-48-1832 Exhaust Chimney for 48"D enclosure with an
adjustable range of 18" to 32"
GL-EC-48-3246 Exhaust Chimney for 48"D enclosure with an
adjustable range of 32" to 46"
GL-ECFT48 Optional Fan Tray for exhaust chimney, 1200 CFM
AM-ES Air Manager Assembly
AM-FTES30 Air Manager Fan Tray, 600 CFM
BGRK30 Brush Grommet Kit, to mount to enclosure rails to
prevent air recirculation
ESSAB11 Side Air Bafe Kit for use with 11 RMU CISCO
and other side-to-side airow equipment; please see
chart on page 51 to ensure bafe kit and equipment
are compatible
Additional Cooling Equipment, pages 135-142
POWER STRIPS AND GROUNDING
7215-20ARTLP 16 position, 20 amp Power Strip;
5-20R receptacle and L5-20P plug
7215-20AR 16 position, 20 amp Power Strip;
5-20R receptacle and 5-20P plug
7215-30A 24 position, 30 amp Power Strip;
5-20R receptacle and L5-30P plug
CBB-72 Copper Bus Bar (isolated)
Additional Power Strips, pages 132-134
CABLE MANAGEMENT
BGS-78 Brush Grommet to cover rear vertical cable pass through
BGT Brush Grommet to cover top cable pass through
HCM-D36 Horizontal Cable Organizer; to mount from the front
to the rear of the enclosure
ESC-K12 Cable Management Rail Kit for front or rear rails;
includes 12 sections of “ngers” (each section 7 RMU);
rails will need to be recessed 4.5"
LRB-12 Ladder Rack Bracket for 12"W ladder rack;
includes hardware
LRB-24 Ladder Rack Bracket for 18"W and 24"W
ladder rack; includes hardware
TCT30 Top Cable Trough and hardware
VCT-78 Vertical Cable Trough
VCT-78C Cover for VCT-78
VLB-7836 Vertical Lacing Bar Kit (includes 1 vertical bar,
2 horizontal bars and 6 cinch straps)
Additional Cable Management, pages 143-151
SHELVES FOR 19" MOUNTING
7206-FR-A32HD Stationary Shelf, Front/Rear Mount adjustable,
17.5"W x 32"D, 300 lb. weight capacity
7206-FRSL-ADHD Sliding Shelf, Front/Rear Mount adjustable,
17.5"W x 26"D, 100 lb. weight capacity
7206-FRSLA300 Sliding Shelf, Front/Rear Mount adjustable,
14.33"W x 30"D, 300 lb. weight capacity
7206-MKM Monitor/Keyboard/Mouse Shelf
Additional Shelves, pages 128-129
MOUNTING RAILS, CASTERS & OTHER ACCESSORIES
7805-ES2P Pair of 19" EIA Mounting Rails to accept 3/8" sq. (M6)
cage nuts; includes hardware
HDW-105-50 Package of 50 M6 cage nuts with screws
(12mm screw length)
ES23K-42 Conversion Kit to convert from 19" to 23" mounting
AT1 One set of 2 anti-tip legs, to be used with casters
and levelers
G101ES Networking/Ganging Kit
7208-ES One set of 4 casters, all non-locking
(creates 1800 lb. weight capacity)
ES
40 Great Lakes Case & Cabinet WeRackYourWorld.com
GL780ES-2448 SERIES
Shown with optional accessories,
drawings can be found on page 158
DIMENSIONS: 78"H x 24"W x 48"D
Maximum rail placement: 35"; Usable inside depth: 46"
13" of dedicated cable management/PDU depth in rear
RACK SPACES: 42 RMU • 19" EIA 310-E Compliant
STOCK COLORS: Black or Advantage White
RAILS RATED AT: 2000 lbs.
SHIPPING WEIGHT AND PALLET SIZE:
480 lbs./85"H x 32"W x 52"D
GL780ES-2448MS COMPLETE ENCLOSURE
INCLUDES PARTS BELOW
PART NO. DESCRIPTION
7801ES-2448 Frame with two pairs of black powder coated,
universal 19", 3/8" sq. (M6) mounting rails
(with RMU markings) and package of M6
hardware; includes two pairs of PDU button
mount brackets with up to five mounting
positions per side
7209-N One Set of 4 Adjustable Levelers (2.5"H)
TPES-S Solid Top Panel
7802E-MC24 Front Contour Mesh Door with locking handle
7802E-MC24 Rear Contour Mesh Door with locking handle
7810-36ELS Pair of Solid Lift-off Side Panels with lock and
finger release latches
ADDITIONAL CONFIGURATIONS
GL780ES-2448MSS Complete enclosure with Contour Mesh
Front Door and Split Mesh Rear Door
GL780ES-2448MSFS Complete enclosure with Contour Mesh
Front Door and Split Fan Rear Door
Please call for availability.
ES
Made in the USA
Country of origin
1.866.TRY.GLCC (879.4522) Great Lakes Case & Cabinet 41
GL780ES-2448 ACCESSORIES
PART NO. DESCRIPTION
DOORS & SIDE PANELS
7802E-24SM Split Mesh Steel Door Set
7803E-SF24 Split Fan Door Set
7803E-24 Solid Steel Door
7811-36ELL Pair of Locking Lift-off Vented Side Panels
Additional Doors, pages 116-119
TOP PANELS
TPES-P Perforated Top Panel
TPES-B Top Panel with Brush Grommet
TPES-F10 Top Panel with fan guard and one 10", 550 CFM fan
TPES-2F10 Top Panel with fan guards and two 10", 550 CFM fans
TPES-F Top Panel with fan guards and three, 75 CFM fans
COOLING EQUIPMENT
3.50-FPTL19 Tool-less Filler Panel for M6 rails, 2 RMU
GLHL10031CP Pack of 10 Universal plastic Filler Panels, 1 RMU
7217LE2 Fan Assembly with fan guards and three, 75 CFM fans;
to mount on contour mesh door
GL-EC-48-1832 Exhaust Chimney for 48"D enclosure with an
adjustable range of 18" to 32"
GL-EC-48-3246 Exhaust Chimney for 48"D enclosure with an
adjustable range of 32" to 46"
GL-ECFT48 Optional Fan Tray for exhaust chimney, 1200 CFM
AM-ES Air Manager Assembly
AM-FTES24 Air Manager Fan Tray, 600 CFM
BGRK24 Brush Grommet Kit, to mount to enclosure rails to
prevent air recirculation
Additional Cooling Equipment, pages 135-142
POWER STRIPS AND GROUNDING
7215-20ARTLP 16 position, 20 amp Power Strip;
5-20R receptacle and L5-20P plug
7215-20AR 16 position, 20 amp Power Strip;
5-20R receptacle and 5-20P plug
7215-30A 24 position, 30 amp Power Strip;
5-20R receptacle and L5-30P plug
CBB-72 Copper Bus Bar (isolated)
Additional Power Strips, pages 132-134
CABLE MANAGEMENT
BGS-78 Brush Grommet to cover rear vertical cable pass through
ESC-K12 Cable Management Rail Kit for front or rear rails;
includes 12 sections of “ngers” (each section 7 RMU);
rails will need to be recessed 4.5"
LRB-12 Ladder Rack Bracket for 12"W ladder rack;
includes hardware
LRB-24 Ladder Rack Bracket for 18"W and 24"W
ladder rack; includes hardware
TCT24 Top Cable Trough and hardware
VCT-78 Vertical Cable Trough
VCT-78C Cover for VCT-78
VLB-7836 Vertical Lacing Bar Kit (includes 1 vertical bar,
2 horizontal bars and 6 cinch straps)
Additional Cable Management, pages 143-151
SHELVES FOR 19" MOUNTING
7206-FR-A32HD Stationary Shelf, Front/Rear Mount adjustable,
17.5"W x 32"D, 300 lb. weight capacity
7206-FRSL-ADHD Sliding Shelf, Front/Rear Mount adjustable,
17.5"W x 26"D, 100 lb. weight capacity
7206-FRSLA300 Sliding Shelf, Front/Rear Mount adjustable,
14.33"W x 30"D, 300 lb. weight capacity
7206-MKM Monitor/Keyboard/Mouse Shelf
Additional Shelves, pages 128-129
MOUNTING RAILS, CASTERS & OTHER ACCESSORIES
7805-ES2P Pair of 19" EIA Mounting Rails to accept 3/8" sq. (M6)
cage nuts; includes hardware
HDW-105-50 Package of 50 M6 cage nuts with screws
(12mm screw length)
AT1 One set of 2 anti-tip legs, to be used with casters
and levelers
G101ES Networking/Ganging Kit
7208-ES One set of 4 casters, all non-locking
(creates 1800 lb. weight capacity)
ES
42 Great Lakes Case & Cabinet WeRackYourWorld.com
GL780ES-3042 SERIES
Shown with optional accessories,
drawings can be found on page 158
DIMENSIONS: 78"H x 30"W x 42"D
Maximum rail placement: 35"; Usable inside depth: 40"
9" of dedicated cable management/PDU depth in rear
RACK SPACES: 42 RMU • 19" EIA 310-E Compliant
STOCK COLORS: Black or Advantage White
RAILS RATED AT: 2000 lbs.
SHIPPING WEIGHT AND PALLET SIZE:
480 lbs./84"H x 32"W x 45"D
GL780ES-3042MS COMPLETE ENCLOSURE
INCLUDES PARTS BELOW
PART NO. DESCRIPTION
7801ES-3042 Frame with two pairs of black powder coated,
universal 19", 3/8" sq. (M6) mounting rails
(with RMU markings) and package of M6
hardware; includes two pairs of PDU button
mount brackets with up to three mounting
positions per side
7209-N One Set of 4 Adjustable Levelers (2.5"H)
TPES-S Solid Top Panel
7802E-MC29 Front Contour Mesh Door with locking handle
7802E-MC29 Rear Contour Mesh Door with locking handle
7810-36ELS Pair of Solid Lift-off Side Panels with lock and
finger release latches
ADDITIONAL CONFIGURATIONS
GL780ES-3042MSS Complete enclosure with Contour Mesh
Front Door and Split Mesh Rear Door
GL780ES-3042MSFS Complete enclosure with Contour Mesh
Front Door and Split Fan Rear Door
ES
APPROVED
Made in the USA
Country of origin
1.866.TRY.GLCC (879.4522) Great Lakes Case & Cabinet 43
GL780ES-3042 ACCESSORIES
PART NO. DESCRIPTION
DOORS & SIDE PANELS
7802E-29SM Split Mesh Steel Door Set
7803E-SF29 Split Fan Door Set
7803E-29 Solid Steel Door
7811-36ELL Pair of Locking Lift-off Vented Side Panels
Additional Doors, pages 116-119
TOP PANELS
TPES-P Perforated Top Panel
TPES-B Top Panel with Brush Grommet
TPES-F10 Top Panel with fan guard and one 10", 550 CFM fan
TPES-2F10 Top Panel with fan guards and two 10", 550 CFM fans
TPES-F Top Panel with fan guards and three, 75 CFM fans
COOLING EQUIPMENT
3.50-FPTL19 Tool-less Filler Panel for M6 rails, 2 RMU
GLHL10031CP Pack of 10 Universal plastic Filler Panels, 1 RMU
7217LE3 Fan Assembly with fan guards and three, 75 CFM fans;
to mount on contour mesh door
GL-EC-42-1832 Exhaust Chimney for 48"D enclosure with an
adjustable range of 18" to 32"
GL-EC-42-3246 Exhaust Chimney for 48"D enclosure with an
adjustable range of 32" to 46"
GL-ECFT42 Optional Fan Tray for exhaust chimney, 1200 CFM
AM-ES Air Manager Assembly
AM-FTES30 Air Manager Fan Tray, 600 CFM
BGRK30 Brush Grommet Kit, to mount to enclosure rails to
prevent air recirculation
ESSAB11 Side Air Bafe Kit for use with 11 RMU CISCO
and other side-to-side airow equipment; please see
chart on page 51 to ensure bafe kit and equipment
are compatible
Additional Cooling Equipment, pages 135-142
POWER STRIPS AND GROUNDING
7215-20ARTLP 16 position, 20 amp Power Strip;
5-20R receptacle and L5-20P plug
7215-20AR 16 position, 20 amp Power Strip;
5-20R receptacle and 5-20P plug
7215-30A 24 position, 30 amp Power Strip;
5-20R receptacle and L5-30P plug
CBB-72 Copper Bus Bar (isolated)
Additional Power Strips, pages 132-134
CABLE MANAGEMENT
BGS-78 Brush Grommet to cover rear vertical cable pass through
BGT Brush Grommet to cover top cable pass through
HCM-D36 Horizontal Cable Organizer; to mount from the front
to the rear of the enclosure
ESC-K12 Cable Management Rail Kit for front or rear rails;
includes 12 sections of “ngers” (each section 7 RMU);
rails will need to be recessed 4.5"
LRB-12 Ladder Rack Bracket for 12"W ladder rack;
includes hardware
LRB-24 Ladder Rack Bracket for 18"W and 24"W
ladder rack; includes hardware
TCT30 Top Cable Trough and hardware
VCT-78 Vertical Cable Trough
VCT-78C Cover for VCT-78
VLB-7836 Vertical Lacing Bar Kit (includes 1 vertical bar,
2 horizontal bars and 6 cinch straps)
Additional Cable Management, pages 143-151
SHELVES FOR 19" MOUNTING
7206-FR-A32HD Stationary Shelf, Front/Rear Mount adjustable,
17.5"W x 32"D, 300 lb. weight capacity
7206-FRSL-ADHD Sliding Shelf, Front/Rear Mount adjustable,
17.5"W x 26"D, 100 lb. weight capacity
7206-FRSLA300 Sliding Shelf, Front/Rear Mount adjustable,
14.33"W x 30"D, 300 lb. weight capacity
7206-MKM Monitor/Keyboard/Mouse Shelf
Additional Shelves, pages 128-129
MOUNTING RAILS, CASTERS & OTHER ACCESSORIES
7805-ES2P Pair of 19" EIA Mounting Rails to accept 3/8" sq. (M6)
cage nuts; includes hardware
HDW-105-50 Package of 50 M6 cage nuts with screws
(12mm screw length)
ES23K-42 Conversion Kit to convert from 19" to 23" mounting
AT1 One set of 2 anti-tip legs, to be used with casters
and levelers
G101ES Networking/Ganging Kit
7208-ES One set of 4 casters, all non-locking
(creates 1800 lb. weight capacity)
ES
44 Great Lakes Case & Cabinet WeRackYourWorld.com
GL780ES-2442 SERIES
Shown with optional accessories,
drawings can be found on page 158
GL780ES-2442MS COMPLETE ENCLOSURE
INCLUDES PARTS BELOW
PART NO. DESCRIPTION
7801ES-2442 Frame with two pairs of black powder coated,
universal 19", 3/8" sq. (M6) mounting rails
(with RMU markings) and package of M6
hardware; includes two pairs of PDU button
mount brackets with up to three mounting
positions per side
7209-N One Set of 4 Adjustable Levelers (2.5"H)
TPES-S Solid Top Panel
7802E-MC24 Front Contour Mesh Door with locking handle
7802E-MC24 Rear Contour Mesh Door with locking handle
7810-36ELS Pair of Solid Lift-off Side Panels with lock and
finger release latches
ADDITIONAL CONFIGURATIONS
GL780ES-2442MSS Complete enclosure with Contour Mesh Front
Door and Split Mesh Rear Door
GL780ES-2442MSFS Complete enclosure with Contour Mesh Front
Door and Split Fan Rear Door
DIMENSIONS: 78"H x 24"W x 42"D
Maximum rail placement: 35"; Usable inside depth: 40"
9" of dedicated cable management/PDU depth in rear
RACK SPACES: 42 RMU • 19" EIA 310-E Compliant
STOCK COLORS: Black or Advantage White
RAILS RATED AT: 2000 lbs.
SHIPPING WEIGHT AND PALLET SIZE:
470 lbs./84"H x 32"W x 45"D
ES
APPROVED
Made in the USA
Country of origin
1.866.TRY.GLCC (879.4522) Great Lakes Case & Cabinet 45
GL780ES-2442 ACCESSORIES
PART NO. DESCRIPTION
DOORS & SIDE PANELS
7802E-24SM Split Mesh Steel Door Set
7803E-SF24 Split Fan Door Set
7803E-24 Solid Steel Door
7811-36ELL Pair of Locking Lift-off Vented Side Panels
Additional Doors, pages 116-119
TOP PANELS
TPES-P Perforated Top Panel
TPES-B Top Panel with Brush Grommet
TPES-F10 Top Panel with fan guard and one 10", 550 CFM fan
TPES-2F10 Top Panel with fan guards and two 10", 550 CFM fans
TPES-F Top Panel with fan guards and three, 75 CFM fans
COOLING EQUIPMENT
3.50-FPTL19 Tool-less Filler Panel for M6 rails, 2 RMU
GLHL10031CP Pack of 10 Universal plastic Filler Panels, 1 RMU
7217LE2 Fan Assembly with fan guards and two, 75 CFM fans;
to mount on 24"W contour mesh door
GL-EC-42-1832 Exhaust Chimney for 42"D enclosure with an
adjustable range of 18" to 32"
GL-EC-42-3246 Exhaust Chimney for 42"D enclosure with an
adjustable range of 32" to 46"
GL-ECFT42 Optional Fan Tray for exhaust chimney, 1200 CFM
AM-ES Air Manager Assembly
AM-FTES24 Air Manager Fan Tray, 600 CFM
BGRK24 Brush Grommet Kit, to mount to enclosure rails to
prevent air recirculation
Additional Cooling Equipment, pages 135-142
POWER STRIPS AND GROUNDING
7215-20ARTLP 16 position, 20 amp Power Strip;
5-20R receptacle and L5-20P plug
7215-20AR 16 position, 20 amp Power Strip;
5-20R receptacle and 5-20P plug
7215-30A 24 position, 30 amp Power Strip;
5-20R receptacle and L5-30P plug
CBB-72 Copper Bus Bar (isolated)
Additional Power Strips, pages 132-134
CABLE MANAGEMENT
BGS-78 Brush Grommet to cover rear vertical cable pass through
CMP Cable Management Post, 3"
ESC-K12 Cable Management Rail Kit for front or rear rails;
includes 12 sections of “ngers” (each section 7 RMU);
rails will need to be recessed 4.5"
LRB-12 Ladder Rack Bracket for 12"W ladder rack;
includes hardware
LRB-24 Ladder Rack Bracket for 18"W and 24"W
ladder rack; includes hardware
TCT24 Top Cable Trough and hardware
VCT-78 Vertical Cable Trough
VCT-78C Cover for VCT-78
VLB-7836 Vertical Lacing Bar Kit (includes 1 vertical bar,
2 horizontal bars and 6 cinch straps)
Additional Cable Management, pages 143-151
SHELVES FOR 19" MOUNTING
7206-FR-A32HD Stationary Shelf, Front/Rear Mount adjustable,
17.5"W x 32"D, 300 lb. weight capacity
7206-FRSL-ADHD Sliding Shelf, Front/Rear Mount adjustable,
17.5"W x 26"D, 100 lb. weight capacity
7206-FRSLA300 Sliding Shelf, Front/Rear Mount adjustable,
14.33"W x 30"D, 300 lb. weight capacity
7206-MKM Monitor/Keyboard/Mouse Shelf
Additional Shelves, pages 128-129
MOUNTING RAILS, CASTERS & OTHER ACCESSORIES
7805-ES2P Pair of 19" EIA Mounting Rails to accept 3/8" sq. (M6)
cage nuts; includes hardware
HDW-105-50 Package of 50 M6 cage nuts with screws
(12mm screw length)
AT1 One set of 2 anti-tip legs, to be used with casters
and levelers
G101ES Networking/Ganging Kit
7208-ES One set of 4 casters, all non-locking
(creates 1800 lb. weight capacity)
ES
Drawings can be found on page 158
GL480ES-2442MS COMPLETE ENCLOSURE
INCLUDES PARTS BELOW
PART NO. DESCRIPTION
4801ES-2442 Frame with two pairs of black powder coated,
universal 19", 3/8" sq. (M6) mounting rails
(with RMU markings) and package of M6
hardware; includes two pairs of PDU button
mount brackets with up to three mounting
positions per side
7209-N One Set of 4 Adjustable Levelers (2.5"H)
TPES-S Solid Top Panel
4802E-MC24 Front Contour Mesh Door
with locking handle
4802E-MC24 Rear Contour Mesh Door
with locking handle
4810-36ELS Pair of Solid Lift-off Side Panels
with lock and finger release latches
DIMENSIONS: 48"H x 24"W x 42"D
Maximum rail placement: 35"; Usable inside depth: 40"
9" of dedicated cable management/PDU depth in rear
RACK SPACES: 24 RMU • 19" EIA 310-E Compliant
STOCK COLOR: Black
RAILS RATED AT: 2000 lbs.
SHIPPING WEIGHT AND PALLET SIZE:
310 lbs./54"H x 32"W x 45"D
46 Great Lakes Case & Cabinet WeRackYourWorld.com
GL480ES-2442 SERIES
ES
APPROVED
Made in the USA
Country of origin
1.866.TRY.GLCC (879.4522) Great Lakes Case & Cabinet 47
GL480ES-2442 ACCESSORIES
PART NO. DESCRIPTION
DOORS & SIDE PANELS
4803E-SF24 Split Fan Door Set
4804E-24 Perimeter Vented Steel Door
4803E-24 Solid Steel Door
4811-36ELL Pair of Locking Lift-off Vented Side Panels
Additional Doors, pages 116-119
TOP PANELS
TPES-P Perforated Top Panel
TPES-B Top Panel with Brush Grommet
TPES-F10 Top Panel with fan guard and one 10", 550 CFM fan
TPES-2F10 Top Panel with fan guards and two 10", 550 CFM fans
TPES-F Top Panel with fan guards and three, 75 CFM fans
COOLING EQUIPMENT
3.50-FPTL19 Tool-less Filler Panel for M6 rails, 2 RMU
GLHL10031CP Pack of 10 Universal plastic Filler Panels, 1 RMU
7217FT-3 Fan Tray (front/rear mount adjustable) with fan guards
and three 75 CFM fans, 2 RMU
7217LE2 Fan Assembly with fan guards and two, 75 CFM fans;
to mount on 24"W contour mesh door
Additional Cooling Equipment, pages 135-142
POWER STRIPS AND GROUNDING
7219 6 position, 15 amp Power Strip with circuit breaker
and 15’ cord for 19" mounting
7219-SR14 14 position, (6 front/8 back) Power Strip with circuit breaker
and surge suppressor for 19" mounting
CBB-48 Copper Bus Bar 45.75" (isolated)
Additional Power Strips, pages 132-134
CABLE MANAGEMENT
CMP Cable Management Post, 3"
VLB-4836 Vertical Lacing Bar Kit (includes 1 vertical bar,
2 horizontal bars and 6 cinch straps)
Additional Cable Management, pages 143-151
SHELVES FOR 19" MOUNTING
7206-FR-A32HD Stationary Shelf, Front/Rear Mount adjustable,
17.5"W x 32"D, 300 lb. weight capacity
7206-FRSL-ADHD Sliding Shelf, Front/Rear Mount adjustable,
17.5"W x 26"D, 100 lb. weight capacity
7206-FRSLA300 Sliding Shelf, Front/Rear Mount adjustable,
14.33"W x 30"D, 300 lb. weight capacity
Additional Shelves, pages 128-129
MOUNTING RAILS, CASTERS & OTHER ACCESSORIES
4805-E2P Pair of 19" EIA Mounting Rails to accept 3/8" sq. (M6)
cage nuts; includes hardware
HDW-105-50 Package of 50 M6 cage nuts with screws
(12mm screw length)
AT1 One set of 2 anti-tip legs, to be used with casters
and levelers
G101ES Networking/Ganging Kit
7208-ES One set of 4 casters, all non-locking
ES
1
2
3
4
5
9
8
7
10
The EN Enclosure is shipped fully assembled and is capable of handling simple to complex data, switch,
and server requirements. EN Configurations include a complete enclosure (frame, side panels, and doors),
frame and doors, and simply a frame.
Features listed describe both sizes of EN enclosures, except where noted.
1. Frames are designed with no corner posts so that large cable bundles are easily routed up and down the enclosure.
2. Large knockouts allow for top cable access. Optional brush grommet is available to seal knock-outs and still allow cable pass
through. Brush Grommet Top Panels also available.
3. Cable Management Fingers, made up of 7 RMU sections, are pre-installed on all rails (sections are able to be moved). Finger
openings align with RMUs for easy cable pathways. Additional 7 RMU finger sections are available.
4. Two sets of 45 RMU, tapped #10-32 rails (M6 configurations also available); Front rails are fixed and recessed 6.5" from front
of enclosure (8" on GL840ENT-4048) to accommodate equipment airflow requirements. Rear rails are fully adjustable.
5. Optional Baffle Kits direct cool air in and exhaust air out of side-to-side airflow equipment. Kits from 11 to 25 RMU are available
to accommodate popular size switches.
6. A large, open bottom area creates easy under-floor access of cable bundles and large PDUs. Optional Koldlok raised floor
grommets seal floor tile cutouts while allowing cables to pass through.
7. One pair of PDU brackets on each rear rail is pre-installed. Brackets can easily be moved to mount different size PDUs.
8. The "Flexible Mounting Profile" along the frame and rails allow accessories (e.g. cable management rings and mounting
brackets) to be mounted without interfering with mounted equipment. Several series of holes can be found on each rail.
9. Ladder Rack Brackets easily support ladder rack and heavy cable bundles. Brackets eliminate the need of overhead cable
baskets and infrastructure changes. Top Cable Troughs are also available to facilitate overhead cabling.
10. Grounding studs can be found on the bottom of the frame, side panels, rear door, and front door; quick-disconnect grounding kit
is standard; optional copper bus bars easily install to prevent equipment damage.
11. Enclosures gang together at the top of the frame. Because there are no corner posts, the area between two ganged enclosures
accommodates large cable bundles. Please see next page.
12. Front mesh door (split mesh doors on GL840ENT-4048) can open left or right-handed. Split rear doors minimize necessary
clearance behind the enclosure. Please see next page.
1
6
11
12
ENHANCHED NETWORKING (EN)
ENCLOSURE FEATURES & ACCESSORIES
23 4 56
789 10 11 12
50 Great Lakes Case & Cabinet WeRackYourWorld.com
ENHANCED NETWORKING
GANGED ENCLOSURES
EN Enclosures are designed so that the front doors open to the left or right. When two
enclosures are ganged together, the doors can open in opposite directions, giving users
access to a large space between the enclosures. This space can be considered a virtual
"side car," where cable is easily accessible and able to be routed up, down, or to the next
enclosure.
EN CONFIGURATIONS
EN Enclosures are available in three configurations:
as a complete enclosure, with doors only, and just a frame. Rails
can be either tapped #10-32 or 3/8" sq. (M6)
The GL840ENT-4048-FK (pictured) is
an Enclosure frame (#10-32 rails with
cable management fingers on all rails),
8 levelers, and grounding kit.*
The GL840ENT-4048SSS (pictured)
includes #10-32 rails with cable
management fingers on all rails,
8 levelers, solid sides, solid top,
split mesh front and rear doors, and
grounding kit.*
The GL840ENT-4048SSS-NS (pictured)
includes #10-32 rails with cable
management fingers on all rails,
8 levelers, solid top, split mesh front
and rear doors, and grounding kit.*
EN
*
Configuration shown with optional
baffle kit
*
Configuration shown with optional
baffle kit
*
Configuration shown with optional
baffle kit
1.866.TRY.GLCC (879.4522) Great Lakes Case & Cabinet 51
ENHANCED NETWORKING
Baffle Kits
Baffle Kits create proper airflow for switches, and side-to-side airflow equipment, as
suggested by manufacturers such as CISCO. Cool air is channeled into the equipment
along the right side and exhaust air is directed out along the left side of the equipment.
Kits are tool-less and easily attach to rails outside of the EIA mounting profile. Kits
(available for 25, 19, 14, and 11 RMU equipment) are unique to EN and ES enclosures,
creating the perfect fit between switch and enclosure!
Choosing your Baffle Kit and Enclosure
Based on your switch/equipment, choose the appropriate EN or ES enclosure. Take
into consideration your cable management, cooling, and power needs; each enclosure
addresses these needs in different ways. Bafe Kit part numbers are determined by
whether an EN or ES enclosure is selected.
The chart below shows which kits accommodate various CISCO switches. Solutions
for Juniper and Brocade equipment is also available. For more information, please call
1.866.TRY.GLCC.
EN
1 Four post mounting is required with a rail placement of 24". 2 The 7010 has front to rear airflow; no left or ride side clearance is required; when installed in a cabinet, 5.00" rear clearance is required
3 The 7004 requires 11.00" clearance on the right side only; exhaust exits from the rear, no rear clearance required. 4An additional 0.75" of height is required for rail mount brackets; brackets can be
removed after chassis is installed. NOTE: It is important to read and understand CISCO installation guides that are associated with each switch.
Recommended
Great Lakes Enclosure Great Lakes
Bafe Kit Part No.
CICSO Equipment
Dimensions CISCO Recommended Clearances
Cabinet
Installation Rack Installation
(No Side Panels)
EN Series
Enclosure ES Series
Enclosure EN
Bafe Kit
ES
Bafe Kit RMU Depth Distance from chassis
to inside of cabinet
Distance
between racks
Distance from
chassis to wall
7000 Series
7018140"W x 48"D N/A ENSAB25 N/A 25 33.1" 11.00" 6.00" 11.00"
7010232/40"W x 48"D 30"W x 48"D N/A N/A 21 33.1" N/A N/A N/A
7009 40"W x 48"D N/A ENSAB14A N/A 14 24.10" 11.00" 6.00" 11.00"
7004340"W x 48"D N/A ENSAB7A N/A 724.00" 11.00" 6.00" 11.00"
9500 Series
9513 32"W x 42/48"D 30"W x 42/48"D ENSAB14D ESSAB14D 14 28.00" 6.00" 12.00" 6.00"
9509432"W x 42/48"D 30"W x 42/48"D ENSAB14 ESSAB14 14 18.40" 2.50" 6.00" 2.50"
6500 Series
6513(-E) 32"W x 42/48"D 30"W x 42/48"D ENSAB19 ESSAB19 19 18.10" 6.00" 12.00" 6.00"
6509(-E) 32"W x 42/48"D 30"W x 42/48"D ENSAB14 ESSAB14 14 18.10" 6.00" 12.00" 6.00"
6506(-E) 32"W x 42/48"D 30"W x 42/48"D ENSAB11 ESSAB11 11 18.10" 6.00" 12.00" 6.00"
Exhaust baffle
made transparent
for demonstration.
52 Great Lakes Case & Cabinet WeRackYourWorld.com
GL910EN-32 ENCLOSURES
91"H X 32"W X 42"D EN ENCLOSURES
PART NO. DESCRIPTION
GL910ENT-3242MSS Enclosure with two pair of tapped #10-32
mounting rails with “fingers”; includes 8
levelers, solid top, mesh front door, split
mesh rear door, and solid sides
GL910ENT-3242MSS-NS Enclosure with two pair of tapped #10-32
mounting rails with “fingers”; includes 8
levelers, solid top, mesh front door, and
split mesh rear door; sides not included
GL910ENT-3242-FK Frame with two pair of tapped #10-32
mounting rails with “fingers” on all rails;
includes 8 levelers; doors and sides not
included
91"H X 32"W X 48"D EN ENCLOSURES
PART NO. DESCRIPTION
GL910ENT-3248MSS Enclosure with two pair of tapped #10-32
mounting rails with “fingers”; includes 8
levelers, solid top, mesh front door, split
mesh rear door, and solid sides
GL910ENT-3248MSS-NS Enclosure with two pair of tapped #10-32
mounting rails with “fingers”; includes 8
levelers, solid top, mesh front door, and
split mesh rear door; sides not included
GL910ENT-3248-FK Frame with two pair of tapped #10-32
mounting rails with “fingers” on all rails;
includes 8 levelers; doors and sides not
included
For enclosure with 3/8" sq. (M6) rails, remove ‘T’ from part number.
Please call for availability.
DIMENSIONS: 91"H x 32"W x (42" or 48")D
RACK SPACES: 48 RMU • 19" EIA 310-E Compliant
STOCK COLOR: Black
RAILS RATED AT: 2000 lbs.
SHIPPING WEIGHT AND PALLET SIZE:
390 lbs./98"H x 35"W x 45"D, 410 lbs./98"H x 35"W x 45"D
Shown with optional accessories,
drawings can be found on page 159
new!
EN
Made in the USA
Country of origin
1.866.TRY.GLCC (879.4522) Great Lakes Case & Cabinet 53
GL910EN-40 ENCLOSURES
Drawings can be found on page 159
91"H X 40"W X 42"D EN ENCLOSURES
PART NO. DESCRIPTION
GL910ENT-4042SSS Enclosure with two pair of tapped #10-32
mounting rails with “fingers”; includes 8
levelers, solid top, split mesh front and rear
doors, and solid sides
GL910ENT-4042SSS-NS Enclosure with two pair of tapped #10-32
mounting rails with “fingers”; includes 8
levelers, solid top, split mesh front and rear
doors, sides not included
GL910ENT-4042-FK Frame with two pair of tapped #10-32
mounting rails with “fingers” on all rails;
includes 8 levelers; doors and sides not
included
91"H X 40"W X 48"D EN ENCLOSURES
PART NO. DESCRIPTION
GL910ENT-4048SSS Enclosure with two pair of tapped #10-32
mounting rails with “fingers”; includes 8
levelers, solid top, split mesh front and rear
doors, and solid sides
GL910ENT-4048SSS-NS Enclosure with two pair of tapped #10-32
mounting rails with “fingers”; includes 8
levelers, solid top, split mesh front and rear
doors, sides not included
GL910ENT-4048-FK Frame with two pair of tapped #10-32
mounting rails with “fingers” on all rails;
includes 8 levelers; doors and sides not
included
For enclosure with 3/8" sq. (M6) rails, remove ‘T’ from part number.
Please call for availability.
DIMENSIONS: 91"H x 40"W x (42" or 48")D
RACK SPACES: 48 RMU • 19" EIA 310-E Compliant
STOCK COLOR: Black
RAILS RATED AT: 2000 lbs.
SHIPPING WEIGHT AND PALLET SIZE:
480 lbs./98"H x 35"W x 45"D, 500 lbs./98"H x 35"W x 45"D
EN
new!
GL910EN-40 ENCLOSURES
Made in the USA
Country of origin
54 Great Lakes Case & Cabinet WeRackYourWorld.com
GL840EN-32 ENCLOSURES
84"H X 32"W X 42"D EN ENCLOSURES
PART NO. DESCRIPTION
GL840ENT-3242MSS Enclosure with two pair of tapped #10-32
mounting rails with “fingers”; includes 8
levelers, solid top, mesh front door, split
mesh rear door, and solid sides
GL840ENT-3242MSS-NS Enclosure with two pair of tapped #10-32
mounting rails with “fingers”; includes 8
levelers, solid top, mesh front door, and
split mesh rear door; sides not included
GL840ENT-3242-FK Frame with two pair of tapped #10-32
mounting rails with “fingers” on all rails;
includes 8 levelers; doors and sides
not included
84"H X 32"W X 48"D EN ENCLOSURES
PART NO. DESCRIPTION
GL840ENT-3248MSS NEW! Enclosure with two pair of tapped
#10-32 mounting rails with “fingers”;
includes 8 levelers, solid top, mesh front
door, split mesh rear door, and solid sides
GL840ENT-3248MSS-NS NEW! Enclosure with two pair of tapped
#10-32 mounting rails with “fingers”;
includes 8 levelers, solid top, mesh front
door, and split mesh rear door; sides
not included
GL840ENT-3248-FK NEW! Frame with two pair of tapped
#10-32 mounting rails with “fingers” on all
rails; includes 8 levelers; doors and sides
not included
For enclosure with 3/8" sq. (M6) rails, remove ‘T’ from part number.
DIMENSIONS: 84"H x 32"W x (42" or 48")D
RACK SPACES: 45 RMU • 19" EIA 310-E Compliant
STOCK COLOR: Black
RAILS RATED AT: 2000 lbs.
SHIPPING WEIGHT AND PALLET SIZE:
350 lbs./90"H x 35"W x 45"D, 370 lbs./90"H x 35"W x 45"D
Shown with optional accessories,
drawings can be found on page 159
EN
Made in the USA
Country of origin
1.866.TRY.GLCC (879.4522) Great Lakes Case & Cabinet 55
GL840EN-40 ENCLOSURES
Shown with optional accessories,
drawings can be found on page 159
84"H X 40"W X 42"D EN ENCLOSURES
PART NO. DESCRIPTION
GL840ENT-4042SSS NEW! Enclosure with two pair of tapped
#10-32 mounting rails with “fingers”;
includes 8 levelers, solid top,split mesh
front and reardoors, and solid sides
GL840ENT-4042SSS-NS NEW! Enclosure with two pair of tapped
#10-32 mounting rails with “fingers”;
includes 8 levelers, solid top, split mesh
front and rear doors, sides not included
GL840ENT-4042-FK NEW! Frame with two pair of tapped
#10-32 mounting rails with “fingers” on
all rails; includes 8 levelers; doors and
sides not included
84"H X 40"W X 48"D EN ENCLOSURES
PART NO. DESCRIPTION
GL840ENT-4048SSS Enclosure with two pair of tapped #10-32
mounting rails with “fingers”; includes 8
levelers, solid top, split mesh front and rear
doors, and solid sides
GL840ENT-4048SSS-NS Enclosure with two pair of tapped #10-32
mounting rails with “fingers”; includes 8
levelers, solid top, split mesh front and rear
doors, sides not included
GL840ENT-4048-FK Frame with two pair of tapped #10-32
mounting rails with “fingers” on all rails;
includes 8 levelers; doors and sides not
included
For enclosure with 3/8" sq. (M6) rails, remove ‘T’ from part number.
DIMENSIONS: 84"H x 40"W x (42" or 48")D
RACK SPACES: 45 RMU • 19" EIA 310-E Compliant
STOCK COLOR: Black
RAILS RATED AT: 2000 lbs.
SHIPPING WEIGHT AND PALLET SIZE:
455 lbs./90"H x 35"W x 45"D, 475 lbs./90"H x 35"W x 45"D
EN
Made in the USA
Country of origin
56 Great Lakes Case & Cabinet WeRackYourWorld.com
GL780EN-32 ENCLOSURES
78"H X 32"W X 42"D EN ENCLOSURES
PART NO. DESCRIPTION
GL780ENT-3242MSS Enclosure with two pair of tapped #10-32
mounting rails with “fingers”; includes 8
levelers, solid top, mesh front door, split
mesh rear door, and solid sides
GL780ENT-3242MSS-NS Enclosure with two pair of tapped #10-32
mounting rails with “fingers”; includes 8
levelers, solid top, mesh front door, and
split mesh rear door; sides not included
GL780ENT-3242-FK Frame with two pair of tapped #10-32
mounting rails with “fingers” on all rails;
includes 8 levelers; doors and sides not
included
78"H X 32"W X 48"D EN ENCLOSURES
PART NO. DESCRIPTION
GL780ENT-3248MSS Enclosure with two pair of tapped #10-32
mounting rails with “fingers”; includes 8
levelers, solid top, mesh front door, split
mesh rear door, and solid sides
GL780ENT-3248MSS-NS Enclosure with two pair of tapped #10-32
mounting rails with “fingers”; includes 8
levelers, solid top, mesh front door, and
split mesh rear door; sides not included
GL780ENT-3248-FK Frame with two pair of tapped #10-32
mounting rails with “fingers” on all rails;
includes 8 levelers; doors and sides not
included
For enclosure with 3/8" sq. (M6) rails, remove ‘T’ from part number.
Please call for availability.
DIMENSIONS: 78"H x 32"W x (42" or 48")D
RACK SPACES: 42 RMU • 19" EIA 310-E Compliant
STOCK COLOR: Black
RAILS RATED AT: 2000 lbs.
SHIPPING WEIGHT AND PALLET SIZE:
330 lbs./85"H x 35"W x 45"D, 350 lbs./85"H x 35"W x 52"D
Shown with optional accessories,
drawings can be found on page 159
EN GL780EN-32 ENCLOSURES
Made in the USA
Country of origin
new!
1.866.TRY.GLCC (879.4522) Great Lakes Case & Cabinet 57
GL780EN-40 ENCLOSURES
Drawings can be found on page 159
78"H X 40"W X 42"D EN ENCLOSURES
PART NO. DESCRIPTION
GL780ENT-4042SSS Enclosure with two pair of tapped #10-32
mounting rails with “fingers”; includes 8
levelers, solid top, split mesh front and rear
doors, and solid sides
GL780ENT-4042SSS-NS Enclosure with two pair of tapped #10-32
mounting rails with “fingers”; includes 8
levelers, solid top, split mesh front and rear
doors, sides not included
GL780ENT-4042-FK Frame with two pair of tapped #10-32
mounting rails with “fingers” on all rails;
includes 8 levelers; doors and sides not
included
78"H X 40"W X 48"D EN ENCLOSURES
PART NO. DESCRIPTION
GL780ENT-4048SSS Enclosure with two pair of tapped #10-32
mounting rails with “fingers”; includes 8
levelers, solid top, split mesh front and rear
doors, and solid sides
GL780ENT-4048SSS-NS Enclosure with two pair of tapped #10-32
mounting rails with “fingers”; includes 8
levelers, solid top, split mesh front and rear
doors, sides not included
GL780ENT-4048-FK Frame with two pair of tapped #10-32
mounting rails with “fingers” on all rails;
includes 8 levelers; doors and sides not
included
For enclosure with 3/8" sq. (M6) rails, remove ‘T’ from part number.
Please call for availability.
DIMENSIONS: 78"H x 40"W x (42" or 48")D
RACK SPACES: 42 RMU • 19" EIA 310-E Compliant
STOCK COLOR: Black
WEIGHT CAPACITY:
2000 lbs. on levelers or bolted to floor
SHIPPING WEIGHT AND PALLET SIZE:
415 lbs./85"H x 43"W x 45"D, 435 lbs./85"H x 35"W x 52"D
EN
new!
Made in the USA
Country of origin
1
2
38
9
7
4
5
6
E Series Enclosures range from 13 RMU to 44 RMU, ideal for applications in a small ofce/home ofce, or
a large data center. Standard features on each enclosure as well as optional accessories address cooling,
power, cable management, and overall convenience.
• 29"W enclosures are designed for networking, while 24"W enclosures are ideal for server applications
• 19" EIA 310-E compliant rails have innite front to rear adjustability; rails are folded three times to produce a channel effect,
creating a more rigid rail
• Split rear doors (either mesh or fan) aid in enclosure ventilation while also minimizing the amount of oor space needed to
maintain the rear of equipment
The featured enclosure, GL840E-2936, demonstrates these standard and optional features.
1. RMU markings on all rails allow quick installation of equipment; The exible mounting prole (FMP), a series of holes outside the
EIA pattern, allows cable management and other accessories to be mounted without taking up RMU space
2. Vertical lacing bars move independently from enclosure rails to route cable up and down where needed; horizontal lacing bars
route cable from the front to rear
3. Locking swing handles come standard, but additional handles offer varying degrees of security
4. Mesh doors feature a 68% open area, maximizing air ow into the enclosure
5. Choice of solid, perforated, and fan tops; these tops feature horseshoe knockouts that allow interchanging of top panels without
interfering with cables
6. All side panels are locking and easy lift-off; gasketing along the enclosure frame creates a close t between the frame and panel
7. #12 GA rails are formed three times for strength and support cable management with round cable pass through holes as well as
vertical and horizontal tie down slots
8. Three removable hinges allow doors to be easily removed and reversed, while creating 180o open swing
9. PDU1 mounting brackets allow the vertical mounting of any 1 RMU equipment (such as power strips) without occupying any
RMU space within the enclosure (29"W enclosures only)
10. Casters and levelers can be installed together, making moving and placing the enclosure quick; anti-tip legs add extra safety as
the enclosure becomes more populated
11. Grounding studs on the top and bottom of the enclosure are standard; optional copper bus bars and grounding kits easily install
to prevent equipment damage
12. Brush grommet bottom panels allow cable pass through while maintaining raised oor air pressure
E ENCLOSURE FEATURES & ACCESSORIES
10
11
12
21 3 4 5 6
87 9 10 11 12
GL840E-2936P COMPLETE ENCLOSURE
INCLUDES PARTS BELOW
PART NO. DESCRIPTION
8401E-2936 Frame with two pairs of black powder coated,
universal 19", 3/8" sq. (M6) mounting rails
(with RMU markings) and package of M6 hardware
7209-N One Set of 4 Adjustable Levelers (2.5"H)
TPE-29P Removable Vented Top Panel with two
4" horseshoe knockouts
8402E-29 Plexiglas Front Door with locking swing handle
8404E-29 Perimeter Vented Steel Rear Door
with locking swing handle
8410-36ELS Pair of Solid Lift-off Side Panels with lock and
finger release latches
7215 16 position, 15 amp Power Strip;
5-15R receptacle and 5-15P plug
ADDITIONAL CONFIGURATIONS
GL840E-2936F Enclosure with TPE-29F
(top panel with three 75 CFM fans)
GL840E-2936F10 Enclosure with TPE-29F10
(top panel with one 10", 550 CFM fan)
GL840E-2936MP Server Configuration: Enclosure with mesh
front & rear doors and TPE-29P vented top
GL840E-2936MCP Enclosure with mesh front door, mesh contour rear
door and TPE-29P vented top
GL840E-2936MSP Enclosure with mesh front door, split mesh rear
door and TPE-29P vented top (available in black only)
For enclosure without power strip, add ‘NP’ to part number; for
enclosure without side panels, add ‘NS’ to part number.
DIMENSIONS: 84"H x 29"W x 36"D
Maximum rail placement and usable inside depth: 34"
RACK SPACES: 44 RMU • 19" EIA 310-E Compliant
STOCK COLORS: Black, Advantage White, or Nitro Blue
RAILS RATED AT: 1500 lbs.
SHIPPING WEIGHT AND PALLET SIZE:
400 lbs./90"H x 32"W x 38"D
Shown with optional accessories,
drawings can be found on page 160
60 Great Lakes Case & Cabinet WeRackYourWorld.com
GL840E-2936 SERIES
E
APPROVED
Made in the USA
Country of origin
E
1.866.TRY.GLCC (879.4522) Great Lakes Case & Cabinet 61
GL840E-2936 ACCESSORIES
PART NO. DESCRIPTION
DOORS & SIDE PANELS
8402E-29PV Perimeter Vented Plexiglas Door
8403E-29 Solid Door
8402E-M29 Mesh Steel Door
8411-36ELL Pair of Locking Lift-off Vented Side Panels
Additional Doors, pages 116-119
TOP & BOTTOM PANELS
TPE-29F Top Panel and Fan Assembly with two
4" horseshoe knockouts
TPE-29F10 Top Panel and Fan Assembly with one 10",
550 CFM fan
BPF29 Bottom Panel (Filtered), 13"W x 16"D;
includes rear solid panel
BPS29 Bottom Panel (Solid), 13"W x 16"D;
includes rear solid panel
Additional Top and Bottom Panels, pages 124-125
CABLE MANAGEMENT
VLB-8436 Vertical Lacing Bar Kit (includes 1 vertical bar,
2 horizontal bars and 6 cinch straps)
HLB-36 Horizontal Lacing Bar for 36"D enclosure
VLB-84 Vertical Lacing Bar for 84"H enclosure
(includes 6 cinch straps)
HCM-D36 Front to rear horizontal cable manager
ESC-K12 Cable Management Rail Kit for front or rear rails;
includes 12 sections of “ngers” (each section 7 RMU);
rails will need to be recessed 4.5"
19" RACK MOUNT CABLE MANAGEMENT
CM-15 Double-sided Cable Organizer with plastic fingers
and covers, 2 RMU
CM-16 Single-sided Cable Organizer with plastic fingers
and covers, 1 RMU
Additional Cable Management, pages 143-151
STATIONARY SHELVES FOR 19" MOUNTING
7206-FR-AHD Front/Rear Mount adjustable, 17.5"W x 22.25"D,
200 lb. weight capacity
7206-FR-ADHD Front/Rear Mount adjustable, 17.5"W x 27.25"D,
150 lb. weight capacity
7206-FR-A32HD Front/Rear Mount adjustable, 17.5"W x 32"D,
300 lb. weight capacity
SLIDING & SPECIALTY SHELVES FOR 19" MOUNTING
7206-FRSL-AHD Front/Rear Mount adjustable, 17.5"W x 22"D,
110 lb. weight capacity
7206-FRSL-ADHD Front/Rear Mount adjustable, 17.5"W x 26"D,
110 lb. weight capacity
7206-FRSLA300 Front/Rear Mount adjustable, 14.33"W x 30"D,
300 lb. weight capacity
7206-MKM Monitor/Keyboard/Mouse Shelf
7206-PKB-MT Pivoting Keyboard Tray with Mouse Tray
Additional Shelves, pages 128-129
POWER STRIPS, COPPER BUS BAR, & COOLING EQUIPMENT
7215-S 16 position, 15 amp Power Strip (with surge suppressor);
5-15R receptacle and 5-15P plug
7215-20ARTLP 16 position, 20 amp Power Strip;
5-20R receptacle and L5-20P plug
7215-20AR 16 position, 20 amp Power Strip;
5-20R receptacle and 5-20P plug
CBB-72 Copper bus bar 70" (isolated)
7217FT-3 Fan Tray (Front/Rear Mount adjustable)
with fan guards and three 75 CFM fans
Additional Cooling Equipment, pages 135-142
Additional Power Strips, pages 132-134
MOUNTING RAILS, CASTERS & OTHER ACCESSORIES
8405-ES1P Pair of 19" EIA Mounting Rails with #10-32 tapped holes;
includes hardware
8405-ES2P Pair of 19" EIA Mounting Rails to accept 3/8" sq. (M6)
cage nuts; includes hardware
HDW-105-50 Package of 50 M6 cage nuts with screws
(12mm screw length)
E23K-36 Conversion Kit to convert from 19" to 23" mounting
G101 Networking/Ganging Kit
AK101 Seismic Anchor Kit
AT2 Anti-tip Legs
7209-N4 One set of 4 Adjustable Levelers (4"H);
(When using casters and levelers together,
4"H levelers are required)
7208-E One set of 4 Casters, 2 locking and 2 non-locking
7208-EHD One set of 4 Heavy Duty Casters, all locking
(required for 1500 lb. weight capacity)
ZR2 Set of two mounting brackets to allow the vertical
mounting of any 2 RMU equipment (such as cable
organizers) without occupying any RMU space
62 Great Lakes Case & Cabinet WeRackYourWorld.com
GL840E-2932 SERIES
GL840E-2932P COMPLETE ENCLOSURE
INCLUDES PARTS BELOW
PART NO. DESCRIPTION
8401E-2932 Frame with two pairs of black powder coated,
universal 19", 3/8" sq. (M6) mounting rails
(with RMU markings) and package of M6 hardware
7209-N One Set of 4 Adjustable Levelers (2.5"H)
TPE-29P Removable Vented Top Panel with two
4" horseshoe knockouts
8402E-29 Plexiglas Front Door with locking swing handle
8404E-29 Perimeter Vented Steel Rear Door
with locking swing handle
8410-32ELS Pair of Solid Lift-off Side Panels with lock and
finger release latches
7215 16 position, 15 amp Power Strip;
5-15R receptacle and 5-15P plug
ADDITIONAL CONFIGURATIONS
GL840E-2932F Complete enclosure with TPE-29F
(top panel with three 75 CFM fans)
GL840E-2932F10 Complete enclosure with TPE-29F10
(top panel with one 10", 550 CFM fan)
GL840E-2932S Complete enclosure with TPE-29S solid top
For enclosure without power strip, add ‘NP’ to part number; for
enclosure without side panels, add ‘NS’ to part number.
DIMENSIONS: 84"H x 29"W x 32"D
Maximum rail placement and usable inside depth: 30"
RACK SPACES: 44 RMU • 19" EIA 310-E Compliant
STOCK COLORS: Black, Advantage White, or Nitro Blue
RAILS RATED AT: 1500 lbs.
SHIPPING WEIGHT AND PALLET SIZE:
400 lbs./90"H x 32"W x 38"D
Shown with optional accessories,
drawings can be found on page 160
E
APPROVED
Made in the USA
Country of origin
E
1.866.TRY.GLCC (879.4522) Great Lakes Case & Cabinet 63
GL840E-2932 ACCESSORIES
PART NO. DESCRIPTION
DOORS & SIDE PANELS
8402E-29PV Perimeter Vented Plexiglas Door
8403E-29 Solid Door
8402E-M29 Mesh Steel Door
8411-32ELL Pair of Locking Lift-off Vented Side Panels
Additional Doors, pages 116-119
TOP & BOTTOM PANELS
TPE-29F Top Panel and Fan Assembly with two
4" horseshoe knockouts
TPE-29F10 Top Panel and Fan Assembly with one 10",
550 CFM fan
BPF29 Bottom Panel (Filtered), 13"W x 16"D;
includes rear solid panel
BPS29 Bottom Panel (Solid), 13"W x 16"D;
includes rear solid panel
Additional Top and Bottom Panels, pages 124-125
CABLE MANAGEMENT
VLB-8432 Vertical Lacing Bar Kit (includes 1 vertical bar,
2 horizontal bars and 6 cinch straps)
HLB-32 Horizontal Lacing Bar for 32"D enclosure
VLB-84 Vertical Lacing Bar for 84"H enclosure
(includes 6 cinch straps)
ESC-K12 Cable Management Rail Kit for front or rear rails;
includes 12 sections of “ngers” (each section 7 RMU);
rails will need to be recessed 4.5"
19" RACK MOUNT CABLE MANAGEMENT
CM-15 Double-sided Cable Organizer with plastic fingers
and covers, 2 RMU
CM-16 Single-sided Cable Organizer with plastic fingers
and covers, 1 RMU
Additional Cable Management, pages 143-151
STATIONARY SHELVES FOR 19" MOUNTING
7206-FR-AHD Front/Rear Mount adjustable, 17.5"W x 22.25"D,
200 lb. weight capacity
7206-FR-ADHD Front/Rear Mount adjustable, 17.5"W x 27.25"D,
150 lb. weight capacity
7206-FR-A28HD Front/Rear Mount adjustable, 17.5"W x 28"D,
300 lb. weight capacity
SLIDING & SPECIALTY SHELVES FOR 19" MOUNTING
7206-FRSL-AHD Front/Rear Mount adjustable, 17.5"W x 22"D,
110 lb. weight capacity
7206-FRSL-ADHD Front/Rear Mount adjustable, 17.5"W x 26"D,
110 lb. weight capacity
7206-MKM Monitor/Keyboard/Mouse Shelf
7206-PKB-MT Pivoting Keyboard Tray with Mouse Tray
Additional Shelves, pages 128-129
POWER STRIPS, COPPER BUS BAR, & COOLING EQUIPMENT
7215-S 16 position, 15 amp Power Strip (with surge suppressor);
5-15R receptacle and 5-15P plug
7215-20ARTLP 16 position, 20 amp Power Strip;
5-20R receptacle and L5-20P plug
7215-20AR 16 position, 20 amp Power Strip;
5-20R receptacle and 5-20P plug
CBB-72 Copper bus bar 70" (isolated)
7217FT-3 Fan Tray (Front/Rear Mount adjustable)
with fan guards and three 75 CFM fans
Additional Cooling Equipment, pages 135-142
Additional Power Strips, pages 132-134
MOUNTING RAILS, CASTERS & OTHER ACCESSORIES
8405-ES1P Pair of 19" EIA Mounting Rails with #10-32 tapped holes;
includes hardware
8405-ES2P Pair of 19" EIA Mounting Rails to accept 3/8" sq. (M6)
cage nuts; includes hardware
HDW-105-50 Package of 50 M6 cage nuts with screws
(12mm screw length)
E23K-32 Conversion Kit to convert from 19" to 23" mounting
G101 Networking/Ganging Kit
AK101 Seismic Anchor Kit
AT2 Anti-tip Legs
7209-N4 One set of 4 Adjustable Levelers (4"H);
(When using casters and levelers together,
4"H levelers are required)
7208-E One set of 4 Casters, 2 locking and 2 non-locking
7208-EHD One set of 4 Heavy Duty Casters, all locking
(required for 1500 lb. weight capacity)
ZR2 Set of two mounting brackets to allow the vertical
mounting of any 2 RMU equipment (such as cable
organizers) without occupying any RMU space
GL840E-2436P COMPLETE ENCLOSURE
INCLUDES PARTS BELOW
PART NO. DESCRIPTION
8401E-2436 Frame with two pairs of black powder coated,
universal 19", 3/8" sq. (M6) mounting rails
(with RMU markings) and package of M6 hardware
7209-N One Set of 4 Adjustable Levelers (2.5"H)
TPE-24P Removable Vented Top Panel with two
4" horseshoe knockouts
8402E-24 Plexiglas Front Door with locking swing handle
8404E-24 Perimeter Vented Steel Rear Door
with locking swing handle
8410-36ELS Pair of Solid Lift-off Side Panels with lock and
finger release latches
7215 16 position, 15 amp Power Strip;
5-15R receptacle and 5-15P plug
ADDITIONAL CONFIGURATIONS
GL840E-2436F Complete enclosure with TPE-24F
(top panel with three 75 CFM fans)
GL840E-2436MP Complete enclosure with mesh front & rear doors
and TPE-24P vented top
GL840E-2436MCP Complete enclosure with mesh front door,
mesh contour rear door and TPE-24P vented top
GL840E-2436MSP Complete enclosure with mesh front door, split mesh
rear door and TPE-24P vented top
(available in black only)
For enclosure without power strip, add ‘NP’ to part number; for
enclosure without side panels, add ‘NS’ to part number.
DIMENSIONS: 84"H x 24"W x 36"D
Maximum rail placement and usable inside depth: 34"
RACK SPACES: 44 RMU • 19" EIA 310-E Compliant
STOCK COLORS: Black, Advantage White, or Nitro Blue
RAILS RATED AT: 1500 lbs.
SHIPPING WEIGHT AND PALLET SIZE:
350 lbs./90"H x 32"W x 38"D
Shown with optional accessories,
drawings can be found on page 160
64 Great Lakes Case & Cabinet WeRackYourWorld.com
GL840E-2436 SERIES
E
APPROVED
Made in the USA
Country of origin
E
1.866.TRY.GLCC (879.4522) Great Lakes Case & Cabinet 65
GL840E-2436 ACCESSORIES
PART NO. DESCRIPTION
DOORS & SIDE PANELS
8402E-24PV Perimeter Vented Plexiglas Door
8403E-24 Solid Door
8402E-M24 Mesh Steel Door
8411-36ELL Pair of Locking Lift-off Vented Side Panels
Additional Doors, pages 116-119
TOP & BOTTOM PANELS
TPE-24F Top Panel and Fan Assembly with two
4" horseshoe knockouts
TPE-24F10 Top Panel and Fan Assembly with one 10",
550 CFM fan
BPF24 Bottom Panel (Filtered), 13"W x 16"D;
includes rear solid panel
BPS24 Bottom Panel (Solid), 13"W x 16"D;
includes rear solid panel
Additional Top and Bottom Panels, pages 124-125
CABLE MANAGEMENT
VLB-8436 Vertical Lacing Bar Kit (includes 1 vertical bar,
2 horizontal bars and 6 cinch straps)
HLB-36 Horizontal Lacing Bar for 36"D enclosure
VLB-84 Vertical Lacing Bar for 84"H enclosure
(includes 6 cinch straps)
ESC-K12 Cable Management Rail Kit for front or rear rails;
includes 12 sections of “ngers” (each section 7 RMU);
rails will need to be recessed 4.5"
19" RACK MOUNT CABLE MANAGEMENT
CM-15 Double-sided Cable Organizer with plastic fingers
and covers, 2 RMU
CM-16 Single-sided Cable Organizer with plastic fingers
and covers, 1 RMU
Additional Cable Management, pages 143-151
STATIONARY SHELVES FOR 19" MOUNTING
7206-FR-AHD Front/Rear Mount adjustable, 17.5"W x 22.25"D,
200 lb. weight capacity
7206-FR-ADHD Front/Rear Mount adjustable, 17.5"W x 27.25"D,
150 lb. weight capacity
7206-FR-A32HD Front/Rear Mount adjustable, 17.5"W x 32"D,
300 lb. weight capacity
SLIDING & SPECIALTY SHELVES FOR 19" MOUNTING
7206-FRSL-AHD Front/Rear Mount adjustable, 17.5"W x 22"D,
110 lb. weight capacity
7206-FRSL-ADHD Front/Rear Mount adjustable, 17.5"W x 26"D,
110 lb. weight capacity
7206-FRSLA300 Front/Rear Mount adjustable, 14.33"W x 30"D,
300 lb. weight capacity
7206-MKM Monitor/Keyboard/Mouse Shelf
7206-PKB-MT Pivoting Keyboard Tray with Mouse Tray
Additional Shelves, pages 128-129
POWER STRIPS, COPPER BUS BAR, & COOLING EQUIPMENT
7215-S 16 position, 15 amp Power Strip (with surge suppressor);
5-15R receptacle and 5-15P plug
7215-20ARTLP 16 position, 20 amp Power Strip;
5-20R receptacle and L5-20P plug
7215-20AR 16 position, 20 amp Power Strip;
5-20R receptacle and 5-20P plug
CBB-72 Copper bus bar 70" (isolated)
7217FT-3 Fan Tray (Front/Rear Mount adjustable)
with fan guards and three 75 CFM fans
Additional Cooling Equipment, pages 135-142
Additional Power Strips, pages 132-134
MOUNTING RAILS, CASTERS & OTHER ACCESSORIES
8405-ES1P Pair of 19" EIA Mounting Rails with #10-32 tapped holes;
includes hardware
8405-ES2P Pair of 19" EIA Mounting Rails to accept 3/8" sq. (M6)
cage nuts; includes hardware
HDW-105-50 Package of 50 M6 cage nuts with screws
(12mm screw length)
G101 Networking/Ganging Kit
AK101 Seismic Anchor Kit
AT2 Anti-tip Legs
7209-N4 One set of 4 Adjustable Levelers (4"H);
(When using casters and levelers together,
4"H levelers are required)
7208-E One set of 4 Casters, 2 locking and 2 non-locking
7208-EHD One set of 4 Heavy Duty Casters, all locking
(required for 1500 lb. weight capacity)
66 Great Lakes Case & Cabinet WeRackYourWorld.com
GL840E-2432 SERIES
GL840E-2432P COMPLETE ENCLOSURE
INCLUDES PARTS BELOW
PART NO. DESCRIPTION
8401E-2432 Frame with two pairs of black powder coated,
universal 19", 3/8" sq. (M6) mounting rails
(with RMU markings) and package of M6 hardware
7209-N One Set of 4 Adjustable Levelers (2.5"H)
TPE-24P Removable Vented Top Panel with two
4" horseshoe knockouts
8402E-24 Plexiglas Front Door with locking swing handle
8404E-24 Perimeter Vented Steel Rear Door
with locking swing handle
8410-32ELS Pair of Solid Lift-off Side Panels with lock and
finger release latches
7215 16 position, 15 amp Power Strip;
5-15R receptacle and 5-15P plug
ADDITIONAL CONFIGURATIONS
GL840E-2432F Complete enclosure with TPE-24F
(top panel with three 75 CFM fans)
GL840E-2432F10 Complete enclosure with TPE-24F10
(top panel with one 10", 550 CFM fan)
GL840E-2432S Complete enclosure with TPE-24S solid top
For enclosure without power strip, add ‘NP’ to part number; for
enclosure without side panels, add ‘NS’ to part number.
DIMENSIONS: 84"H x 24"W x 32"D
Maximum rail placement and usable inside depth: 30"
RACK SPACES: 44 RMU • 19" EIA 310-E Compliant
STOCK COLORS: Black, Advantage White, or Nitro Blue
RAILS RATED AT: 1500 lbs.
SHIPPING WEIGHT AND PALLET SIZE:
350 lbs./90"H x 32"W x 38"D
E
Shown with optional accessories,
drawings can be found on page 160
APPROVED
Made in the USA
Country of origin
E
1.866.TRY.GLCC (879.4522) Great Lakes Case & Cabinet 67
GL840E-2432 ACCESSORIES
PART NO. DESCRIPTION
DOORS & SIDE PANELS
8402E-24PV Perimeter Vented Plexiglas Door
8403E-24 Solid Door
8402E-M24 Mesh Steel Door
8411-32ELL Pair of Locking Lift-off Vented Side Panels
Additional Doors, pages 116-119
TOP & BOTTOM PANELS
TPE-24F Top Panel and Fan Assembly with two
4" horseshoe knockouts
TPE-24F10 Top Panel and Fan Assembly with one 10",
550 CFM fan
BPF24 Bottom Panel (Filtered), 13"W x 16"D;
includes rear solid panel
BPS24 Bottom Panel (Solid), 13"W x 16"D;
includes rear solid panel
Additional Top and Bottom Panels, pages 124-125
CABLE MANAGEMENT
VLB-8432 Vertical Lacing Bar Kit (includes 1 vertical bar,
2 horizontal bars and 6 cinch straps)
HLB-32 Horizontal Lacing Bar for 32"D enclosure
VLB-84 Vertical Lacing Bar for 84"H enclosure
(includes 6 cinch straps)
ESC-K12 Cable Management Rail Kit for front or rear rails;
includes 12 sections of “ngers” (each section 7 RMU);
rails will need to be recessed 4.5"
19" RACK MOUNT CABLE MANAGEMENT
CM-15 Double-sided Cable Organizer with plastic fingers
and covers, 2 RMU
CM-16 Single-sided Cable Organizer with plastic fingers
and covers, 1 RMU
Additional Cable Management, pages 143-151
STATIONARY SHELVES FOR 19" MOUNTING
7206-FR-AHD Front/Rear Mount adjustable, 17.5"W x 22.25"D,
200 lb. weight capacity
7206-FR-ADHD Front/Rear Mount adjustable, 17.5"W x 27.25"D,
150 lb. weight capacity
7206-FR-A28HD Front/Rear Mount adjustable, 17.5"W x 28"D,
300 lb. weight capacity
SLIDING & SPECIALTY SHELVES FOR 19" MOUNTING
7206-FRSL-AHD Front/Rear Mount adjustable, 17.5"W x 22"D,
110 lb. weight capacity
7206-FRSL-ADHD Front/Rear Mount adjustable, 17.5"W x 26"D,
110 lb. weight capacity
7206-MKM Monitor/Keyboard/Mouse Shelf
7206-PKB-MT Pivoting Keyboard Tray with Mouse Tray
Additional Shelves, pages 128-129
POWER STRIPS, COPPER BUS BAR, & COOLING EQUIPMENT
7215-S 16 position, 15 amp Power Strip (with surge suppressor);
5-15R receptacle and 5-15P plug
7215-20ARTLP 16 position, 20 amp Power Strip;
5-20R receptacle and L5-20P plug
7215-20AR 16 position, 20 amp Power Strip;
5-20R receptacle and 5-20P plug
CBB-72 Copper bus bar 70" (isolated)
7217FT-3 Fan Tray (Front/Rear Mount adjustable)
with fan guards and three 75 CFM fans
Additional Cooling Equipment, pages 135-142
Additional Power Strips, pages 132-134
MOUNTING RAILS, CASTERS & OTHER ACCESSORIES
8405-ES1P Pair of 19" EIA Mounting Rails with #10-32 tapped holes;
includes hardware
8405-ES2P Pair of 19" EIA Mounting Rails to accept 3/8" sq. (M6)
cage nuts; includes hardware
HDW-105-50 Package of 50 M6 cage nuts with screws
(12mm screw length)
G101 Networking/Ganging Kit
AK101 Seismic Anchor Kit
AT2 Anti-tip Legs
7209-N4 One set of 4 Adjustable Levelers (4"H);
(When using casters and levelers together,
4"H levelers are required)
7208-E One set of 4 Casters, 2 locking and 2 non-locking
7208-EHD One set of 4 Heavy Duty Casters, all locking
(required for 1500 lb. weight capacity)
Shown with optional accessories,
drawings can be found on page 160
GL720E-2936P COMPLETE ENCLOSURE
INCLUDES PARTS BELOW
PART NO. DESCRIPTION
7201E-2936 Frame with two pairs of black powder coated,
universal 19", 3/8" sq. (M6) mounting rails
(with RMU markings) and package of M6 hardware
7209-N One Set of 4 Adjustable Levelers (2.5"H)
TPE-29P Removable Vented Top Panel With two
4" horseshoe knockouts
7202E-29 Plexiglas Front Door with locking swing handle
7204E-29 Perimeter Vented Steel Rear Door
with locking swing handle
7210-36ELS Pair of Solid Lift-off Side Panels with lock and
finger release latches
7215 16 position, 15 amp Power Strip;
5-15R receptacle and 5-15P plug
ADDITIONAL CONFIGURATIONS
GL720E-2936F Complete enclosure with TPE-29F
(top panel with three 75 CFM fans)
GL720E-2936F10 Complete enclosure with TPE-29F10
(top panel with one 10", 550 CFM fan)
GL720E-2936S Complete enclosure with TPE-29S solid top
For enclosure without power strip, add ‘NP’ to part number; for
enclosure without side panels, add ‘NS’ to part number.
DIMENSIONS: 72"H x 29"W x 36"D
Maximum rail placement and usable inside depth: 34"
RACK SPACES: 37 RMU • 19" EIA 310-E Compliant
STOCK COLORS: Black, Advantage White, or Nitro Blue
RAILS RATED AT: 1500 lbs.
SHIPPING WEIGHT AND PALLET SIZE:
350 lbs./78"H x 32"W x 38"D
68 Great Lakes Case & Cabinet WeRackYourWorld.com
GL720E-2936 SERIES
E
APPROVED
Made in the USA
Country of origin
1.866.TRY.GLCC (879.4522) Great Lakes Case & Cabinet 69
GL720E-2936 ACCESSORIES
PART NO. DESCRIPTION
DOORS & SIDE PANELS
7202E-29PV Perimeter Vented Plexiglas Door
7203E-29 Solid Door
7202E-M29 Mesh Steel Door
7211-36ELL Pair of Locking Lift-off Vented Side Panels
Additional Doors, pages 116-119
TOP & BOTTOM PANELS
TPE-29F Top Panel and Fan Assembly with two
4" horseshoe knockouts
TPE-29F10 Top Panel and Fan Assembly with one 10",
550 CFM fan
BPF29 Bottom Panel (Filtered), 13"W x 16"D;
includes rear solid panel
BPS29 Bottom Panel (Solid), 13"W x 16"D;
includes rear solid panel
Additional Top and Bottom Panels, pages 124-125
CABLE MANAGEMENT
VLB-7236 Vertical Lacing Bar Kit (includes 1 vertical bar,
2 horizontal bars and 6 cinch straps)
HLB-36 Horizontal Lacing Bar for 36"D enclosure
VLB-72 Vertical Lacing Bar for 72"H enclosure
(includes 6 cinch straps)
HCM-D36 Front to rear horizontal cable manager
19" RACK MOUNT CABLE MANAGEMENT
CM-15 Double-sided Cable Organizer with plastic fingers
and covers, 2 RMU
CM-16 Single-sided Cable Organizer with plastic fingers
and covers, 1 RMU
Additional Cable Management, pages 143-151
STATIONARY SHELVES FOR 19" MOUNTING
7206-FR-AHD Front/Rear Mount adjustable, 17.5"W x 22.25"D,
200 lb. weight capacity
7206-FR-ADHD Front/Rear Mount adjustable, 17.5"W x 27.25"D,
150 lb. weight capacity
7206-FR-A32HD Front/Rear Mount adjustable, 17.5"W x 32"D,
300 lb. weight capacity
SLIDING & SPECIALTY SHELVES FOR 19" MOUNTING
7206-FRSL-AHD Front/Rear Mount adjustable, 17.5"W x 22"D,
110 lb. weight capacity
7206-FRSL-ADHD Front/Rear Mount adjustable, 17.5"W x 26"D,
110 lb. weight capacity
7206-FRSLA300 Front/Rear Mount adjustable, 14.33"W x 30"D,
300 lb. weight capacity
7206-MKM Monitor/Keyboard/Mouse Shelf
7206-PKB-MT Pivoting Keyboard Tray with Mouse Tray
Additional Shelves, pages 128-129
POWER STRIPS, COPPER BUS BAR, & COOLING EQUIPMENT
7215-S 16 position, 15 amp Power Strip (with surge suppressor);
5-15R receptacle and 5-15P plug
7215-20ARTLP 16 position, 20 amp Power Strip;
5-20R receptacle and L5-20P plug
7215-20AR 16 position, 20 amp Power Strip;
5-20R receptacle and 5-20P plug
CBB-60 Copper bus bar 58" (isolated)
7217FT-3 Fan Tray (Front/Rear Mount adjustable)
with fan guards and three 75 CFM fans
Additional Cooling Equipment, pages 135-142
Additional Power Strips, pages 132-134
MOUNTING RAILS, CASTERS & OTHER ACCESSORIES
7205-ES1P Pair of 19" EIA Mounting Rails with #10-32 tapped holes;
includes hardware
7205-ES2P Pair of 19" EIA Mounting Rails to accept 3/8" sq. (M6)
cage nuts; includes hardware
HDW-105-50 Package of 50 M6 cage nuts with screws
(12mm screw length)
E23K-36 Conversion Kit to convert from 19" to 23" mounting
G101 Networking/Ganging Kit
AK101 Seismic Anchor Kit
AT2 Anti-tip Legs
7209-N4 One set of 4 Adjustable Levelers (4"H);
(When using casters and levelers together,
4"H levelers are required)
7208-E One set of 4 Casters, 2 locking and 2 non-locking
7208-EHD One set of 4 Heavy Duty Casters, all locking
(required for 1500 lb. weight capacity)
ZR2 Set of two mounting brackets to allow the vertical
mounting of any 2 RMU equipment (such as cable
organizers) without occupying any RMU space
E
70 Great Lakes Case & Cabinet WeRackYourWorld.com
GL720E-2932 SERIES
GL720E-2932P COMPLETE ENCLOSURE
INCLUDES PARTS BELOW
PART NO. DESCRIPTION
7201E-2932 Frame with two pairs of black powder coated,
universal 19", 3/8" sq. (M6) mounting rails
(with RMU markings) and package of M6 hardware
7209-N One Set of 4 Adjustable Levelers (2.5"H)
TPE-29P Removable Vented Top Panel With two
4" horseshoe knockouts
7202E-29 Plexiglas Front Door with locking swing handle
7204E-29 Perimeter Vented Steel Rear Door
with locking swing handle
7210-32ELS Pair of Solid Lift-off Side Panels with lock and
finger release latches
7215 16 position, 15 amp Power Strip;
5-15R receptacle and 5-15P plug
ADDITIONAL CONFIGURATIONS
GL720E-2932F Complete enclosure with TPE-29F
(top panel with three 75 CFM fans)
GL720E-2932F10
Complete enclosure with TPE-29F10
(top panel with one 10", 550 CFM fan)
GL720E-2932S Complete enclosure with TPE-29S solid top
For enclosure without power strip, add ‘NP’ to part number; for
enclosure without side panels, add ‘NS’ to part number.
DIMENSIONS: 72"H x 29"W x 32"D
Maximum rail placement and usable inside depth: 30"
RACK SPACES: 37 RMU • 19" EIA 310-E Compliant
STOCK COLORS: Black, Advantage White, or Nitro Blue
RAILS RATED AT: 1500 lbs.
SHIPPING WEIGHT AND PALLET SIZE:
350 lbs./78"H x 32"W x 38"D
Shown with optional accessories,
drawings can be found on page 160
E
APPROVED
Made in the USA
Country of origin
1.866.TRY.GLCC (879.4522) Great Lakes Case & Cabinet 71
GL720E-2932 ACCESSORIES
PART NO. DESCRIPTION
DOORS & SIDE PANELS
7202E-29PV Perimeter Vented Plexiglas Door
7203E-29 Solid Door
7202E-M29 Mesh Steel Door
7211-32ELL Pair of Locking Lift-off Vented Side Panels
Additional Doors, pages 116-119
TOP & BOTTOM PANELS
TPE-29F Top Panel and Fan Assembly with two
4" horseshoe knockouts
TPE-29F10 Top Panel and Fan Assembly with one 10",
550 CFM fan
BPF29 Bottom Panel (Filtered), 13"W x 16"D;
includes rear solid panel
BPS29 Bottom Panel (Solid), 13"W x 16"D;
includes rear solid panel
Additional Top and Bottom Panels, pages 124-125
CABLE MANAGEMENT
VLB-7232 Vertical Lacing Bar Kit (includes 1 vertical bar,
2 horizontal bars and 6 cinch straps)
HLB-32 Horizontal Lacing Bar for 32"D enclosure
VLB-72 Vertical Lacing Bar for 72"H enclosure
(includes 6 cinch straps)
19" RACK MOUNT CABLE MANAGEMENT
CM-15 Double-sided Cable Organizer with plastic fingers
and covers, 2 RMU
CM-16 Single-sided Cable Organizer with plastic fingers
and covers, 1 RMU
Additional Cable Management, pages 143-151
STATIONARY SHELVES FOR 19" MOUNTING
7206-FR-AHD Front/Rear Mount adjustable, 17.5"W x 22.25"D,
200 lb. weight capacity
7206-FR-ADHD Front/Rear Mount adjustable, 17.5"W x 27.25"D,
150 lb. weight capacity
7206-FR-A28HD Front/Rear Mount adjustable, 17.5"W x 28"D,
300 lb. weight capacity
SLIDING & SPECIALTY SHELVES FOR 19" MOUNTING
7206-FRSL-AHD Front/Rear Mount adjustable, 17.5"W x 22"D,
110 lb. weight capacity
7206-FRSL-ADHD Front/Rear Mount adjustable, 17.5"W x 26"D,
110 lb. weight capacity
7206-MKM Monitor/Keyboard/Mouse Shelf
7206-PKB-MT Pivoting Keyboard Tray with Mouse Tray
Additional Shelves, pages 128-129
POWER STRIPS, COPPER BUS BAR, & COOLING EQUIPMENT
7215-S 16 position, 15 amp Power Strip (with surge
suppressor); 5-15R receptacle and 5-15P plug
7215-20ARTLP 16 position, 20 amp Power Strip;
5-20R receptacle and L5-20P plug
7215-20AR 16 position, 20 amp Power Strip;
5-20R receptacle and 5-20P plug
CBB-60 Copper bus bar 58" (isolated)
7217FT-3 Fan Tray (Front/Rear Mount adjustable)
with fan guards and three 75 CFM fans
Additional Cooling Equipment, pages 135-142
Additional Power Strips, pages 132-134
MOUNTING RAILS, CASTERS & OTHER ACCESSORIES
7205-ES1P Pair of 19" EIA Mounting Rails with #10-32 tapped
holes; includes hardware
7205-ES2P Pair of 19" EIA Mounting Rails to accept 3/8" sq. (M6)
cage nuts; includes hardware
HDW-105-50 Package of 50 M6 cage nuts with screws
(12mm screw length)
E23K-32 Conversion Kit to convert from 19" to 23" mounting
G101 Networking/Ganging Kit
AK101 Seismic Anchor Kit
AT2 Anti-tip Legs
7209-N4 One set of 4 Adjustable Levelers (4"H);
(When using casters and levelers together,
4"H levelers are required)
7208-E One set of 4 Casters, 2 locking and 2 non-locking
7208-EHD One set of 4 Heavy Duty Casters, all locking
(required for 1500 lb. weight capacity)
ZR2 Set of two mounting brackets to allow the vertical
mounting of any 2 RMU equipment (such as cable
organizers) without occupying any RMU space
E
72 Great Lakes Case & Cabinet WeRackYourWorld.com
GL720E-2436 SERIES
Shown with optional accessories,
drawings can be found on page 160
GL720E-2436P COMPLETE ENCLOSURE
INCLUDES PARTS BELOW
PART NO. DESCRIPTION
7201E-2436 Frame with two pairs of black powder coated,
universal 19", 3/8" sq. (M6) mounting rails
(with RMU markings) and package of M6 hardware
7209-N One Set of 4 Adjustable Levelers (2.5"H)
TPE-24P Removable Vented Top Panel With two
4" horseshoe knockouts
7202E-24 Plexiglas Front Door with locking swing handle
7204E-24 Perimeter Vented Steel Rear Door
with locking swing handle
7210-36ELS Pair of Solid Lift-off Side Panels with lock and
finger release latches
7215 16 position, 15 amp Power Strip;
5-15R receptacle and 5-15P plug
ADDITIONAL CONFIGURATIONS
GL720E-2436F Complete enclosure with TPE-24F
(top panel with three 75 CFM fans)
GL720E-2436F10
Complete enclosure with TPE-24F10
(top panel with one 10", 550 CFM fan)
GL720E-2436S Complete enclosure with TPE-24S solid top
For enclosure without power strip, add ‘NP’ to part number; for
enclosure without side panels, add ‘NS’ to part number.
DIMENSIONS: 72"H x 24"W x 36"D
Maximum rail placement and usable inside depth: 34"
RACK SPACES: 37 RMU • 19" EIA 310-E Compliant
STOCK COLORS: Black, Advantage White, or Nitro Blue
RAILS RATED AT: 1500 lbs.
SHIPPING WEIGHT AND PALLET SIZE:
325 lbs./78"H x 32"W x 38"D
E
APPROVED
Made in the USA
Country of origin
1.866.TRY.GLCC (879.4522) Great Lakes Case & Cabinet 73
GL720E-2436 ACCESSORIES
PART NO. DESCRIPTION
DOORS & SIDE PANELS
7202E-24PV Perimeter Vented Plexiglas Door
7203E-24 Solid Door
7202E-M24 Mesh Steel Door
7211-36ELL Pair of Locking Lift-off Vented Side Panels
Additional Doors, pages 116-119
TOP & BOTTOM PANELS
TPE-24F Top Panel and Fan Assembly with two
4" horseshoe knockouts
TPE-24F10 Top Panel and Fan Assembly with one 10",
550 CFM fan
BPF24 Bottom Panel (Filtered), 13"W x 16"D;
includes rear solid panel
BPS24 Bottom Panel (Solid), 13"W x 16"D;
includes rear solid panel
Additional Top and Bottom Panels, pages 124-125
CABLE MANAGEMENT
VLB-7236 Vertical Lacing Bar Kit (includes 1 vertical bar,
2 horizontal bars and 6 cinch straps)
HLB-36 Horizontal Lacing Bar for 36"D enclosure
VLB-72 Vertical Lacing Bar for 72"H enclosure
(includes 6 cinch straps)
19" RACK MOUNT CABLE MANAGEMENT
CM-15 Double-sided Cable Organizer with plastic fingers
and covers, 2 RMU
CM-16 Single-sided Cable Organizer with plastic fingers
and covers, 1 RMU
Additional Cable Management, pages 143-151
STATIONARY SHELVES FOR 19" MOUNTING
7206-FR-AHD Front/Rear Mount adjustable, 17.5"W x 22.25"D,
200 lb. weight capacity
7206-FR-ADHD Front/Rear Mount adjustable, 17.5"W x 27.25"D,
150 lb. weight capacity
7206-FR-A32HD Front/Rear Mount adjustable, 17.5"W x 32"D,
300 lb. weight capacity
SLIDING & SPECIALTY SHELVES FOR 19" MOUNTING
7206-FRSL-AHD Front/Rear Mount adjustable, 17.5"W x 22"D,
110 lb. weight capacity
7206-FRSL-ADHD Front/Rear Mount adjustable, 17.5"W x 26"D,
110 lb. weight capacity
7206-FRSLA300 Front/Rear Mount adjustable, 14.33"W x 30"D,
300 lb. weight capacity
7206-MKM Monitor/Keyboard/Mouse Shelf
7206-PKB-MT Pivoting Keyboard Tray with Mouse Tray
Additional Shelves, pages 128-129
POWER STRIPS, COPPER BUS BAR, & COOLING EQUIPMENT
7215-S 16 position, 15 amp Power Strip (with surge suppressor);
5-15R receptacle and 5-15P plug
7215-20ARTLP 16 position, 20 amp Power Strip;
5-20R receptacle and L5-20P plug
7215-20AR 16 position, 20 amp Power Strip;
5-20R receptacle and 5-20P plug
CBB-60 Copper bus bar 58" (isolated)
7217FT-3 Fan Tray (Front/Rear Mount adjustable)
with fan guards and three 75 CFM fans
Additional Cooling Equipment, pages 135-142
Additional Power Strips, pages 132-134
MOUNTING RAILS, CASTERS & OTHER ACCESSORIES
7205-ES1P Pair of 19" EIA Mounting Rails with #10-32 tapped holes;
includes hardware
7205-ES2P Pair of 19" EIA Mounting Rails to accept 3/8" sq. (M6)
cage nuts; includes hardware
HDW-105-50 Package of 50 M6 cage nuts with screws
(12mm screw length)
G101 Networking/Ganging Kit
AK101 Seismic Anchor Kit
AT2 Anti-tip Legs
7209-N4 One set of 4 Adjustable Levelers (4"H);
(When using casters and levelers together,
4"H levelers are required)
7208-E One set of 4 Casters, 2 locking and 2 non-locking
7208-EHD One set of 4 Heavy Duty Casters, all locking
(required for 1500 lb. weight capacity)
E
GL720E-2432P COMPLETE ENCLOSURE
INCLUDES PARTS BELOW
PART NO. DESCRIPTION
7201E-2432 Frame with two pairs of black powder coated,
universal 19", 3/8" sq. (M6) mounting rails
(with RMU markings) and package of M6 hardware
7209-N One Set of 4 Adjustable Levelers (2.5"H)
TPE-24P Removable Vented Top Panel with two
4" horseshoe knockouts
7202E-24 Plexiglas Front Door with locking swing handle
7204E-24 Perimeter Vented Steel Rear Door
with locking swing handle
7210-32ELS Pair of Solid Lift-off Side Panels with lock and
finger release latches
7215 16 position, 15 amp Power Strip;
5-15R receptacle and 5-15P plug
ADDITIONAL CONFIGURATIONS
GL720E-2432F Complete enclosure with TPE-24F
(top panel with three 75 CFM fans)
GL720E-2432F10 Complete enclosure with TPE-24F10
(top panel with one 10", 550 CFM fan)
GL720E-2432S Complete enclosure with TPE-24S solid top
For enclosure without power strip, add ‘NP’ to part number; for
enclosure without side panels, add ‘NS’ to part number.
DIMENSIONS: 72"H x 24"W x 32"D
Max. rail placement and usable inside depth: 30"
RACK SPACES: 37 RMU • 19" EIA 310-E Compliant
STOCK COLORS: Black, Advantage White, or Nitro Blue
RAILS RATED AT: 1500 lbs.
SHIPPING WEIGHT AND PALLET SIZE:
325 lbs./78"H x 32"W x 38"D
74 Great Lakes Case & Cabinet WeRackYourWorld.com
GL720E-2432 SERIES
E
APPROVED
Made in the USA
Country of origin
1.866.TRY.GLCC (879.4522) Great Lakes Case & Cabinet 75
GL720E-2432 ACCESSORIES
PART NO. DESCRIPTION
DOORS & SIDE PANELS
7202E-24PV Perimeter Vented Plexiglas Door
7203E-24 Solid Door
7202E-M24 Mesh Steel Door
7211-32ELL Pair of Locking Lift-off Vented Side Panels
Additional Doors, pages 116-119
TOP & BOTTOM PANELS
TPE-24F Top Panel and Fan Assembly with two
4" horseshoe knockouts
TPE-24F10 Top Panel and Fan Assembly with one 10",
550 CFM fan
BPF24 Bottom Panel (Filtered), 13"W x 16"D;
includes rear solid panel
BPS24 Bottom Panel (Solid), 13"W x 16"D;
includes rear solid panel
Additional Top and Bottom Panels, pages 124-125
CABLE MANAGEMENT
VLB-7232 Vertical Lacing Bar Kit (includes 1 vertical bar,
2 horizontal bars and 6 cinch straps)
HLB-32 Horizontal Lacing Bar for 32"D enclosure
VLB-72 Vertical Lacing Bar for 72"H enclosure
(includes 6 cinch straps)
19" RACK MOUNT CABLE MANAGEMENT
CM-15 Double-sided Cable Organizer with plastic fingers
and covers, 2 RMU
CM-16 Single-sided Cable Organizer with plastic fingers
and covers, 1 RMU
Additional Cable Management, pages 143-151
STATIONARY SHELVES FOR 19" MOUNTING
7206-FR-AHD Front/Rear Mount adjustable, 17.5"W x 22.25"D,
200 lb. weight capacity
7206-FR-ADHD Front/Rear Mount adjustable, 17.5"W x 27.25"D,
150 lb. weight capacity
7206-FR-A28HD Front/Rear Mount adjustable, 17.5"W x 28"D,
300 lb. weight capacity
SLIDING & SPECIALTY SHELVES FOR 19" MOUNTING
7206-FRSL-AHD Front/Rear Mount adjustable, 17.5"W x 22"D,
110 lb. weight capacity
7206-FRSL-ADHD Front/Rear Mount adjustable, 17.5"W x 26"D,
110 lb. weight capacity
7206-MKM Monitor/Keyboard/Mouse Shelf
7206-PKB-MT Pivoting Keyboard Tray with Mouse Tray
Additional Shelves, pages 128-129
POWER STRIPS, COPPER BUS BAR, & COOLING EQUIPMENT
7215-S 16 position, 15 amp Power Strip (with surge suppressor);
5-15R receptacle and 5-15P plug
7215-20ARTLP 16 position, 20 amp Power Strip;
5-20R receptacle and L5-20P plug
7215-20AR 16 position, 20 amp Power Strip;
5-20R receptacle and 5-20P plug
CBB-60 Copper bus bar 58" (isolated)
7217FT-3 Fan Tray (Front/Rear Mount adjustable)
with fan guards and three 75 CFM fans
Additional Cooling Equipment, pages 135-142
Additional Power Strips, pages 132-134
MOUNTING RAILS, CASTERS & OTHER ACCESSORIES
7205-ES1P Pair of 19" EIA Mounting Rails with #10-32 tapped holes;
includes hardware
7205-ES2P Pair of 19" EIA Mounting Rails to accept 3/8" sq. (M6)
cage nuts; includes hardware
HDW-105-50 Package of 50 M6 cage nuts with screws
(12mm screw length)
G101 Networking/Ganging Kit
AK101 Seismic Anchor Kit
AT2 Anti-tip Legs
7209-N4 One set of 4 Adjustable Levelers (4"H);
(When using casters and levelers together,
4"H levelers are required)
7208-E One set of 4 Casters, 2 locking and 2 non-locking
7208-EHD One set of 4 Heavy Duty Casters, all locking
(required for 1500 lb. weight capacity)
E
76 Great Lakes Case & Cabinet WeRackYourWorld.com
GL600E-2432 SERIES
GL600E-2432P COMPLETE ENCLOSURE
INCLUDES PARTS BELOW
PART NO. DESCRIPTION
6001E-2432 Frame with two pairs of black powder coated,
universal 19", 3/8" sq. (M6) mounting rails
(with RMU markings) and package of M6 hardware
7209-N One Set of 4 Adjustable Levelers (2.5"H)
TPE-24P Removable Vented Top Panel with two
4" horseshoe knockouts
6002E-24 Plexiglas Front Door with locking swing handle
6004E-24 Perimeter Vented Steel Rear Door
with locking swing handle
6010-32ELS Pair of Solid Lift-off Side Panels with lock and
finger release latches
7218-24 8 position, 15 amp Power Strip;
5-15R receptacle and 5-15P plug
ADDITIONAL CONFIGURATIONS
GL600E-2432F Complete enclosure with TPE-24F
(top panel with three 75 CFM fans)
GL600E-2432F10 Complete enclosure with TPE-24F10
(top panel with one 10", 550 CFM fan)
GL600E-2432S Complete enclosure with TPE-24S solid top
For enclosure without power strip, add ‘NP’ to part number; for
enclosure without side panels, add ‘NS’ to part number.
DIMENSIONS: 60"H x 24"W x 32"D
Maximum rail placement and usable inside depth: 30"
RACK SPACES: 31 RMU • 19" EIA 310-E Compliant
STOCK COLORS: Black, Advantage White, or Nitro Blue
RAILS RATED AT: 600 lbs.
SHIPPING WEIGHT AND PALLET SIZE:
250 lbs./66"H x 32"W x 38"D
Shown with optional accessories,
drawings can be found on page 160
E
APPROVED
Made in the USA
Country of origin
E
1.866.TRY.GLCC (879.4522) Great Lakes Case & Cabinet 77
GL600E-2432 ACCESSORIES
PART NO. DESCRIPTION
DOORS & SIDE PANELS
6003E-24 Solid Door
6002E-M24 Mesh Steel Door
6011-32ELL Pair of Locking Lift-off Vented Side Panels
Additional Doors, pages 116-119
TOP & BOTTOM PANELS
TPE-24F Top Panel and Fan Assembly with two
4" horseshoe knockouts
TPE-24S Solid Top Panel
BP-EF Bottom Panel (Filtered)
BP-ES Bottom Panel (Solid)
Additional Top and Bottom Panels, pages 124-125
19" RACK MOUNT CABLE MANAGEMENT
CM-05 Single-sided Cable Organizer,
5 horizontal rings (2.8"W x 1.3"D)
CM-09 Double-sided Cable Organizer,
4 front horizontal
and 5 rear horizontal rings (2.8"W x 1.3"D)
CM-15 Double-sided Cable Organizer with plastic fingers
and covers, 2 RMU
CM-16 Single-sided Cable Organizer with plastic fingers
and covers, 1 RMU
CM-01 Cable Management Cinch Strap, 12"L x 3/4"W
CM-06 Cable Management Cinch Strap, 6"L x 3/4"W
Additional Cable Management, pages 143-151
STATIONARY SHELVES FOR 19" MOUNTING
7206-FR-AHD Front/Rear Mount adjustable, 17.5"W x 22.25"D,
200 lb. weight capacity
7206-FR-ADHD Front/Rear Mount adjustable, 17.5"W x 27.25"D,
150 lb. weight capacity
7206-FR-A28HD Front/Rear Mount adjustable, 17.5"W x 28"D,
300 lb. weight capacity
SLIDING & SPECIALTY SHELVES FOR 19" MOUNTING
7206-FRSL-AHD Front/Rear Mount adjustable, 17.5"W x 22"D,
110 lb. weight capacity
7206-FRSL-ADHD Front/Rear Mount adjustable, 17.5"W x 26"D,
110 lb. weight capacity
7206-PKB-MT Pivoting Keyboard Tray with Mouse Tray
Additional Shelves, pages 128-129
POWER STRIPS, COPPER BUS BAR, & COOLING EQUIPMENT
7219-SR14 14 position (6 front/8 back) Power Strip;
5-15R receptacle and 5-15P plug with surge protector
7219-20AR 6 position, 20 amp Power Strip;
5-20R receptacle and 5-20P plug
CBB-60 Copper bus bar 58" (isolated)
7217FT Fan Tray with fan guards and three 75 CFM fans
7217FT-3 Fan Tray (Front/Rear Mount adjustable)
with fan guards and three 75 CFM fans
Additional Cooling Equipment, pages 135-142
Additional Power Strips, pages 132-134
MOUNTING RAILS, CASTERS & OTHER ACCESSORIES
6005-E2P Pair of 19" EIA Mounting Rails to accept 3/8" sq. (M6)
cage nuts; includes hardware
HDW-105-50 Package of 50 M6 cage nuts with screws
(12mm screw length)
G101 Networking/Ganging Kit
7209-N4 One set of 4 Adjustable Levelers (4"H);
(When using casters and levelers together,
4"H levelers are required)
7208-E One set of 4 Casters, 2 locking and 2 non-locking
Shown with optional accessories,
drawings can be found on page 160
GL480E-2432P COMPLETE ENCLOSURE
INCLUDES PARTS BELOW
PART NO. DESCRIPTION
4801E-2432 Frame with two pairs of black powder coated,
universal 19", 3/8" sq. (M6) mounting rails
(with RMU markings) and package of M6 hardware
7209-N One Set of 4 Adjustable Levelers (2.5"H)
TPE-24P Removable Vented Top Panel with two
4" horseshoe knockouts
4802E-24 Plexiglas Front Door with locking swing handle
4804E-24 Perimeter Vented Steel Rear Door
with locking swing handle
4810-32ELS Pair of Solid Lift-off Side Panels with lock and
finger release latches
7218-24 8 position, 15 amp Power Strip;
5-15R receptacle and 5-15P plug
ADDITIONAL CONFIGURATIONS
GL480E-2432F Complete enclosure with TPE-24F
(top panel with three 75 CFM fans)
GL480E-2432F10 Complete enclosure with TPE-24F10
(top panel with one 10", 550 CFM fan)
GL480E-2432S Complete enclosure with TPE-24S solid top
For enclosure without power strip, add ‘NP’ to part number; for
enclosure without side panels, add ‘NS’ to part number.
DIMENSIONS: 48"H x 24"W x 32"D
Maximum rail placement and usable inside depth: 30"
RACK SPACES: 24 RMU • 19" EIA 310-E Compliant
STOCK COLORS: Black, Advantage White, or Nitro Blue
RAILS RATED AT: 600 lbs.
SHIPPING WEIGHT AND PALLET SIZE:
210 lbs./54"H x 32"W x 38"D
78 Great Lakes Case & Cabinet WeRackYourWorld.com
GL480E-2432 SERIES
E
APPROVED
Made in the USA
Country of origin
1.866.TRY.GLCC (879.4522) Great Lakes Case & Cabinet 79
PART NO. DESCRIPTION
DOORS & SIDE PANELS
4803E-24 Solid Door
4802E-M24 Mesh Steel Door
4811-32ELL Pair of Locking Lift-off Vented Side Panels
Additional Doors, pages 116-119
TOP & BOTTOM PANELS
TPE-24F Top Panel and Fan Assembly with two
4" horseshoe knockouts
TPE-24S Solid Top Panel
BP-EF Bottom Panel (Filtered)
BP-ES Bottom Panel (Solid)
Additional Top and Bottom Panels, pages 124-125
CABLE MANAGEMENT
VLB-4832 Vertical Lacing Bar Kit (includes 1 vertical bar,
2 horizontal bars and 6 cinch straps)
CM-05 Single-sided Cable Organizer,
5 horizontal rings (2.8"W x 1.3"D)
CM-09 Double-sided Cable Organizer,
4 front horizontal
and 5 rear horizontal rings (2.8"W x 1.3"D)
CM-15 Double-sided Cable Organizer with plastic fingers
and covers, 2 RMU
CM-16 Single-sided Cable Organizer with plastic fingers
and covers, 1 RMU
CM-01 Cable Management Cinch Strap, 12"L x 3/4"W
CM-06 Cable Management Cinch Strap, 6"L x 3/4"W
Additional Cable Management, pages 143-151
STATIONARY SHELVES FOR 19" MOUNTING
7206-FR-AHD Front/Rear Mount adjustable, 17.5"W x 22.25"D,
200 lb. weight capacity
7206-FR-ADHD Front/Rear Mount adjustable, 17.5"W x 27.25"D,
150 lb. weight capacity
7206-FR-A28HD Front/Rear Mount adjustable, 17.5"W x 28"D,
300 lb. weight capacity
SLIDING & SPECIALTY SHELVES FOR 19" MOUNTING
7206-FRSL-AHD Front/Rear Mount adjustable, 17.5"W x 22"D,
110 lb. weight capacity
7206-FRSL-ADHD Front/Rear Mount adjustable, 17.5"W x 26"D,
110 lb. weight capacity
7206-PKB-MT Pivoting Keyboard Tray with Mouse Tray
Additional Shelves, pages 128-129
POWER STRIPS, COPPER BUS BAR, & COOLING EQUIPMENT
7219-SR14 14 position (6 front/8 back) Power Strip;
5-15R receptacle and 5-15P plug with surge protector
CBB-48 Copper bus bar 45.75" (isolated)
7217FT Fan Tray with fan guards and three 75 CFM fans
7217FT-3 Fan Tray (Front/Rear Mount adjustable)
with fan guards and three 75 CFM fans
Additional Cooling Equipment, pages 135-142
Additional Power Strips, pages 132-134
MOUNTING RAILS, CASTERS & OTHER ACCESSORIES
4805-E2P Pair of 19" EIA Mounting Rails to accept 3/8" sq. (M6)
cage nuts; includes hardware
HDW-105-50 Package of 50 M6 cage nuts with screws
(12mm screw length)
G101 Networking/Ganging Kit
7209-N4 One set of 4 Adjustable Levelers (4"H);
(When using casters and levelers together,
4"H levelers are required)
7208-E One set of 4 Casters, 2 locking and 2 non-locking
E
GL480E-2432 ACCESSORIES
80 Great Lakes Case & Cabinet WeRackYourWorld.com
GL300E-2432 SERIES
Drawings can be found on page 160
GL300E-2432P COMPLETE ENCLOSURE
INCLUDES PARTS BELOW
PART NO. DESCRIPTION
3001E-2432 Frame with two pairs of black powder coated,
universal 19", 3/8" sq. (M6) mounting rails
(with RMU markings) and package of M6 hardware
7209-N One Set of 4 Adjustable Levelers (2.5"H)
TPE-24P Removable Vented Top Panel with two
4" horseshoe knockouts
3002E-24 Plexiglas Front Door with locking swing handle
3004E-24 Perimeter Vented Steel Rear Door
with locking swing handle
3010-32ELS Pair of Solid Lift-off Side Panels with lock and
finger release latches
7219 6 position, Power Strip;
5-15R receptacle and 5-15P plug
ADDITIONAL CONFIGURATIONS
GL300E-2432F Complete enclosure with TPE-24F
(top panel with three 75 CFM fans)
GL300E-2432F10 Complete enclosure with TPE-24F10
(top panel with one 10", 550 CFM fan)
GL300E-2432S Complete enclosure with TPE-24FS solid top
For enclosure without power strip, add ‘NP’ to part number; for
enclosure without side panels, add ‘NS’ to part number.
DIMENSIONS: 30"H x 24"W x 32"D
Maximum rail placement and usable inside depth: 30"
RACK SPACES: 13 RMU • 19" EIA 310-E Compliant
STOCK COLORS: Black, Advantage White, or Nitro Blue
RAILS RATED AT: 300 lbs.
SHIPPING WEIGHT AND PALLET SIZE:
160 lbs./36"H x 32"W x 38"D
E
APPROVED
Made in the USA
Country of origin
1.866.TRY.GLCC (879.4522) Great Lakes Case & Cabinet 81
GL300E-2432 ACCESSORIES
PART NO. DESCRIPTION
DOORS & SIDE PANELS
3003E-24 Solid Door
3002E-M24 Mesh Steel Door
3011-32ELL Pair of Locking Lift-off Vented Side Panels
Additional Doors, pages 116-119
TOP & BOTTOM PANELS
TPE-24F Top Panel and Fan Assembly with two
4" horseshoe knockouts
TPE-24S Solid Top Panel
BP-EF Bottom Panel (Filtered)
BP-ES Bottom Panel (Solid)
Additional Top and Bottom Panels, pages 124-125
19" RACK MOUNT CABLE MANAGEMENT
CM-05 Single-sided Cable Organizer,
5 horizontal rings (2.8"W x 1.3"D)
CM-09 Double-sided Cable Organizer,
4 front horizontal
and 5 rear horizontal rings (2.8"W x 1.3"D)
CM-15 Double-sided Cable Organizer with plastic fingers
and covers, 2 RMU
CM-16 Single-sided Cable Organizer with plastic fingers
and covers, 1 RMU
CM-01 Cable Management Cinch Strap, 12"L x 3/4"W
CM-06 Cable Management Cinch Strap, 6"L x 3/4"W
Additional Cable Management, pages 143-151
STATIONARY SHELVES FOR 19" MOUNTING
7206-FR-AHD Front/Rear Mount adjustable, 17.5"W x 22.25"D,
200 lb. weight capacity
7206-FR-ADHD Front/Rear Mount adjustable, 17.5"W x 27.25"D,
150 lb. weight capacity
7206-FR-A28HD Front/Rear Mount adjustable, 17.5"W x 28"D,
300 lb. weight capacity
SLIDING & SPECIALTY SHELVES FOR 19" MOUNTING
7206-FRSL-AHD Front/Rear Mount adjustable, 17.5"W x 22"D,
110 lb. weight capacity
7206-FRSL-ADHD Front/Rear Mount adjustable, 17.5"W x 26"D,
110 lb. weight capacity
Additional Shelves, pages 128-129
POWER STRIPS, COPPER BUS BAR, & COOLING EQUIPMENT
7219-SR14 14 position (6 front/8 back) Power Strip;
5-15R receptacle and 5-15P plug with surge protector
7219-20AR 16 position, 20 amp Power Strip;
5-20R receptacale and 5-20P plug
CBB-30 Copper bus bar 25.5" (isolated)
7217FT Fan Tray with fan guards and three 75 CFM fans
7217FT-3 Fan Tray (Front/Rear Mount adjustable)
with fan guards and three 75 CFM fans
Additional Cooling Equipment, pages 135-142
Additional Power Strips, pages 132-134
MOUNTING RAILS, CASTERS & OTHER ACCESSORIES
3005-E2P Pair of 19" EIA Mounting Rails to accept 3/8" sq. (M6)
cage nuts; includes hardware
HDW-105-50 Package of 50 M6 cage nuts with screws
(12mm screw length)
G101 Networking/Ganging Kit
7209-N4 One set of 4 Adjustable Levelers (4"H);
(When using casters and levelers together,
4"H levelers are required)
7208-E One set of 4 Casters, 2 locking and 2 non-locking
E
82 Great Lakes Case & Cabinet WeRackYourWorld.com
CO-LO ENCLOSURE
PART NO. DESCRIPTION
GL84CL3MM Complete 3 compartment Co-Lo Cabinet (14 RMU per compartment) with mesh
front and rear doors; secure vertical cable management raceways (rear raceway,
54.5"H x 5.75"W x 2.75"D; front raceway 28.5"H x 5.75"W x 2.75"D); two pairs of
powder coated universal 19", 3/8" sq. (M6) mounting rails (with RMU markings) and
package of M6 hardware
GL84CL3PF Same as GL84CL3MM except with perimeter vented plexi front doors
and solid rear doors with built in exhaust fans
ACCESSORIES
PART NO. DESCRIPTION
7219 6 position Power Strip for 19" mounting; 5-15R receptacle and 5-15P plug
7219-20AR 6 position, 20 amp Power Strip for 19" mounting; 5-20R receptacle and 5-20P plug
7206-FR-AHD Stationary Shelf, front/rear mount adjustable,17.5"W x 22.25"D,
200 lb. weight capacity
CM-04 Interbay Cable Organizer with 4 front horizontal rings, 3.25"W x 2.8"D
CBB-19 Copper Bus Bar for 19" mounting (isolated)
GR101 Grounding Kit
AK101 Seismic Anchor Kit (includes 4 torque controlled expansion anchors)
7208-E One Set of 4 Casters, 2 locking and 2 non-locking
7209-N One Set of 4 Adjustable Levelers (2.5"H)
CH-02 Door Handle with three digit combination and key
Additional sizes are available. Please call 1.866.TRY.GLCC
DIMENSIONS: 84"H x 28"W x 36"D
Maximum rail placement: 34"; usable inside depth: 33"
RACK SPACES: 14 RMU per compartment • 19" EIA 310-E Compliant
STOCK COLOR: Black
RAILS RATED AT: 1500 lbs.
SHIPPING WEIGHT AND PALLET SIZE:
500 lbs./90"H x 32"W x 38"D
The Co-Lo provides separate entry for each compartment; approved personnel are able
to access the necessary equipment, while the remaining equipment is protected from
unauthorized use.
• Pre-assembled to your equipment conguration
• Secure vertical cable management raceways
• Cable access provisions located on top and bottom
• Grounding studs on doors, side panels, and base unit
• Fan assembly located on each rear door optional
Shown with optional accessories
CL
Made in the USA
Country of origin
1.866.TRY.GLCC (879.4522) Great Lakes Case & Cabinet 83
CO-LO ENCLOSURE
Shown with optional accessories
PART NO. DESCRIPTION
GL84CL2MM Complete 2 compartment Co-Lo Cabinet (21 RMU per compartment) with mesh
front and rear doors; secure vertical cable management raceways
(44.38"H x 5.75"W x 2.75"D); two pairs of powder coated universal 19", 3/8" sq.
(M6) mounting rails (with RMU markings) and package of M6 hardware
GL84CL2PF Same as GL84CL2MM except with perimeter vented plexi front doors
and solid rear doors with built in exhaust fans
ACCESSORIES
PART NO. DESCRIPTION
7219 6 position Power Strip for 19" mounting; 5-15R receptacle and 5-15P plug
7219-20AR 6 position, 20 amp Power Strip for 19" mounting; 5-20R receptacle and 5-20P plug
7206-FR-AHD Stationary Shelf, front/rear mount adjustable,17.5"W x 22.25"D,
200 lb. weight capacity
CM-04 Interbay Cable Organizer with 4 front horizontal rings, 3.25"W x 2.8"D
CBB-19 Copper Bus Bar for 19" mounting (isolated)
GR101 Grounding Kit
AK101 Seismic Anchor Kit (includes 4 torque controlled expansion anchors)
7208-E One Set of 4 Casters, 2 locking and 2 non-locking
7209-N One Set of 4 Adjustable Levelers (2.5"H)
CH-02 Door Handle with three digit combination and key
Additional sizes are available. Please call 1.866.TRY.GLCC
DIMENSIONS: 84"H x 28"W x 36"D
Maximum rail placement: 34"; usable inside depth: 33"
RACK SPACES: 21 RMU per compartment • 19" EIA 310-E Compliant
STOCK COLOR: Black
RAILS RATED AT: 1500 lbs.
SHIPPING WEIGHT AND PALLET SIZE:
500 lbs./90"H x 32"W x 38"D
The Co-Lo provides separate entry for each compartment; approved personnel are able
to access the necessary equipment, while the remaining equipment is protected from
unauthorized use.
• Pre-assembled to your equipment conguration
• Secure vertical cable management raceways
• Cable access provisions located on top and bottom
• Grounding studs on doors, side panels, and base unit
• Fan assembly located on each rear door optional
CL
Made in the USA
Country of origin
84 Great Lakes Case & Cabinet WeRackYourWorld.com
SEISMIC ENCLOSURE
Drawings can be found on page 161
GL840EZ-3042S COMPLETE ENCLOSURE
INCLUDES PARTS BELOW
PART NO. DESCRIPTION
8401EZ-3042 Seismic frame with two pairs of black powder coated,
universal 19", 3/8" sq. (M6) mounting rails (with RMU
markings) and package of M6 hardware
AK101 Seismic Anchor Kit
TPES-S Solid Top Panel
8402EZ-M30 Seismic Mesh Front Door with locking swing handle
8402EZ-M30 Seismic Mesh Rear Door with locking swing handle
8410-36EZS Pair of Seismic Side Panels
It is important to note that if the construction of the building itself or that of the data center
environment within the building are not seismic rated, the seismic rating of the enclosure can
not alone be expected to completely protect equipment mounted within the enclosure during
exposure to earthquake conditions.
Please call for availability.
DIMENSIONS: 84"H x 30"W x 42"D
Maximum rail placement and usable inside depth: 35"
RACK SPACES: 45 RMU • 19" EIA 310-E Compliant
STOCK COLOR: Black
RAILS RATED AT: 1000 lbs.
SHIPPING WEIGHT AND PALLET SIZE:
500 lbs./90"H x 32"W x 45"D
The Seismic Server Enclosure (EZ) was independently tested
and certified to exceed established Seismic Zone 4 NEBS GR-63-
CORE testing standards. The EZ accepts standard ES Enclosure
accessories, including power strip brackets and cable management.
Additional accessory options such as the Great Lakes Air Manager
can be customized for the EZ.
EZ
APPROVED
Made in the USA
Country of origin
1.866.TRY.GLCC (879.4522) Great Lakes Case & Cabinet 85
SEISMIC ENCLOSURE
PART NO. DESCRIPTION
TOP PANELS
TPES-P Perforated Top Panel
TPES-S Solid Top Panel
TPES-B Top Panel with Brush Grommet
TPES-F10 Top Panel with fan guard and one 10", 550 CFM fan
TPES-F Top Panel with fan guards and three, 75 CFM fans
CABLE MANAGEMENT
BGS-84-48 Brush Grommet for 84"H x 42"D enclosure;
to cover rear vertical cable pass through
BGT Brush Grommet to cover top cable pass
through knockouts
CMP Cable Management Post, 3"
ESC-K12 Cable Management Rail Kit for front or rear rails;
includes 12 sections of “ngers” (each section 7 RMU);
rails will need to be recessed 4.5"
HCM-D36 Horizontal Cable Organizer; to mount from the front to the
rear of the enclosure
LRB-12 Ladder Rack Bracket for 12"W ladder rack;
includes hardware
LRB-24 Ladder Rack Bracket for 18"W and 24"W ladder rack;
includes hardware
TCT30 Top Cable Trough and hardware; 6.5"W x 4"D x 30"L
VCT-84 Vertical Cable Trough
VCT-84C Cover for VCT-84
Additional Cable Management, pages 123-130
STATIONARY SHELVES FOR 19" MOUNTING
7206-FR-ADHD Front/Rear Mount adjustable, 17.50"W x 27.25"D,
150 lb. weight capacity
7206-FR-A32HD Front/Rear Mount adjustable, 17.50"W x 32.00"D,
300 lb. weight capacity
SLIDING & SPECIALTY SHELVES FOR 19" MOUNTING
7206-FRSL-ADHD Front/Rear Mount adjustable, 17.50"W x 26.00"D,
100 lb. weight capacity
7206-FRSLA300 Front/Rear Mount adjustable, 14.33"W x 30.00"D,
300 lb. weight capacity
7206-MKM Monitor/Keyboard/Mouse Shelf
7206-PKB-MT Pivoting Keyboard Tray with Mouse Tray
Additional Shelves, pages 110-111
POWER STRIPS & COPPER BUS BAR
7215-20ARTLP 16 position, 20 amp Power Strip;
5-20R receptacle and L5-20P plug
7215-20AR 16 position, 20 amp Power Strip;
5-20R receptacle and 5-20P plug
7215-30A 24 position, 30 amp Power Strip;
5-20R receptacle and L5-30P plug
CBB-72 Copper Bus Bar 70" (isolated)
Additional Power Strips, pages 114-116
HARDWARE
HDW-105-50 Package of 50 M6 cage nuts with screws
(12mm screw length)
G101ES Networking/Ganging Kit
EZ
Optional Ice Qube
Vertical Mount
AC Unit; installs by
removing two gland
plates from enclosure
Hinge and Gasketing
Heavy Duty
Handle with
3 point latch
Optional Fan Assembly
(includes filter)
NEMA 12 Free Standing Enclosures are
constructed to be compliant with the National
Electrical Manufacturers Association’s Type
12 standard. NEMA 12 enclosures are
intended for indoor use to provide a degree
of protection to the equipment inside the
enclosure against dust, falling dirt, water and
noncorrosive liquids
Show with optional accessories,
drawings can be found on page 162
Cable Access Knockouts
NEMA 12K ENCLOSURE
86 Great Lakes Case & Cabinet WeRackYourWorld.com
FEATURES
• 19" EIA 310-E Compliant Mounting
• 3/8" SQ. (M6) 45 RMU mounting rails
with RMU labels
• Rails rated at 2000 lbs.
• Removable side panels
• Solid side panels and AC unit panels
available
• Side Panel "A" will accept the
following AC units: GL2500V, GL3500V,
GL4500V, and GL6000V
• Side Panel "B" will accept the following
AC units: GL8000VHA, GL10000V, and
GL12000V
• Side Panel “C” will accept the
following AC units: GL14000V,
GL17000V, andGL20000V
• AC Side panels are congured with an
internal bafe kit to direct hot/cold air
• Optional Fan Assemblies and exhaust
lters
• Two vertical lacing bars
(one in each rear corner)
• Heavy duty hinges and handles
• Cable access knockouts on bottom
inside of enclosure
N
Made in the USA
Country of origin
Vertical Lacing
Bar in each rear
corner; allows
PDU mounting
84"H x 24"W x 42"D NEMA 12K ENCLOSURE
PART NO. DESCRIPTION
GL840N12-2442-SS 84"H x 24"W x 42"D, NEMA 12K Enclosure with two
solid side panels (no AC openings)
GL840N12-2442-SA 84"H x 24"W x 42"D, NEMA 12K Enclosure with one
solid side panel and AC side panel “A” (will accept
the following AC units: GL2500V, GL3500V,
GL4500V, and GL6000V)
GL840N12-2442-SB 84"H x 24"W x 42"D, NEMA 12K Enclosure with one
solid side panel and AC side panel “B” (will accept
the following AC units: GL8000VHA, GL10000V, and
GL12000V)
GL840N12-2442-SC 84"H x 24"W x 42"D, NEMA 12K Enclosure with one
solid side panel and AC side panel “C” (will accept
the following AC units: GL14000VHA, GL17000VHA,
and GL20000VHA)
84"H x 30"W x 42"D NEMA 12K ENCLOSURE
PART NO. DESCRIPTION
GL840N12-3042-SS 84"H x 30"W x 42"D, NEMA 12K Enclosure with two
solid side panels (no AC openings)
GL840N12-3042-SA 84"H x 30"W x 42"D, NEMA 12K Enclosure with one
solid side panel and AC side panel “A” (will accept
the following AC units: GL2500V, GL3500V,
GL4500V, and GL6000V)
GL840N12-3042-SB 84"H x 30"W x 42"D, NEMA 12K Enclosure with one
solid side panel and AC side panel “B” (will accept
the following AC units: GL8000HVA, GL10000V, and
GL12000V)
GL840N12-3042-SC 84"H x 30"W x 42"D, NEMA 12K Enclosure with one
solid side panel and AC side panel “C” (will accept
the following AC units: GL14000VHA, GL17000VHA,
and GL20000VHA)
1.866.TRY.GLCC (879.4522) Great Lakes Case & Cabinet 87
NEMA 12K ENCLOSURE
ACCESSORIES
PART NO. DESCRIPTION
GL2500V* Ice Qube AC Unit, 120V, 2500 BTU, 7.3 amps
GL3500V* Ice Qube AC Unit, 120V, 3500 BTU, 8.2 amps
GL4500V* Ice Qube AC Unit, 120V, 4500 BTU, 9.5 amps
GL6000V* Ice Qube AC Unit, 120V, 6000 BTU, 10.9 amps
GL8000VHA* Ice Qube AC Unit designed for high ambient
applications, 120V, 8000 BTU, 14.7 amps
GL10000V* Ice Qube AC Unit, 120V, 10,000 BTU, 15.1 amps
GL12000V* Ice Qube AC Unit, 120V, 12,000 BTU, 19.6 amps
GL14000V* Ice Qube AC Unit, 230V, 14,000 BTU, 15.0/16.5 amps
GL17000V* Ice Qube AC Unit, 230V, 17,000 BTU, 15.5/17.1 amps
GL20000V* Ice Qube AC Unit, 230V, 20,000 BTU, 18.2/20 amps
FFKN12-A1 Fan Assembly (includes lter) and exhaust lter,
230 CFM, 115V
FFKN12-A2 Fan Assembly (includes lter) and exhaust lter,
295 CFM, 115V
FFKN12-A3 Fan Assembly (includes lter) and exhaust lter,
368 CFM, 115V
FILTER-09 Package of ve replacement lters for fan kits
N
NEMA 12K Wall Mount also
available. Please see page
97 for details.
Anyway you want it,
thats the way we’ll ship it,
With a wide variety of height, depth, and
accessory options there is a wall mount
enclosure suitable for any application.
• WM wall mounts feature knockouts, fully
adjustable rails, and accessory options; ideal
for large wiring and network applications
• WS AND WD wall mounts are similar to WM
wall mounts; however, both series are able to
be mounted on casters, allowing additional
weight to be supported.
• NEMA 12K wall mounts provide protection to
equipment in industrial environments
• SWING RACKS, available in 3 heights and
2 depths, are a quick and economical way to
mount 19" EIA equipment
• A number of specialty wall mounts
accommodate small spaces, unique
applications, and frequently used equipment
The following pages compare all Great Lakes’
wall mount features to help you choose the
right wall mount enclosure for your specific
application.
WM Series WS Series WD Series WE Series NEMA 12K
WHY IT’S GREAT
Horseshoe knockouts on the
top and bottom of the enclosure
allow already congured
patch panels to be installed;
Accessory options include
power, cooling and shelves
A feature-rich wall mount,
offering many of the same
options as a full size enclosure;
Accessory options include
power, cooling and shelves
Similar to the WS, the WD
provides additional depth for
larger pieces of equipment;
Accessory options include
power, cooling and shelves
Side mounting reduces the
open space required to mount
equipment; mounting across 3
studs provides extra stability
Provides protection against dust,
dirt, and non-corrosive liquids
HEIGHT 24", 36", 48" 24", 36", 48" 24", 36", 48" 24" 24, 36, 48"
WIDTH 21.25" 24" 24" 36.10" 24"
OVERALL DEPTH 24.5" 24" 32.13" 20.5" 24"
USABLE DEPTH 22" 21" 30" Usable space 34" 22"
RMU 12, 19, 25 11, 18, 25 11, 18, 25 10 12, 19, 26
WT. CAP. 150, 250, 300 lbs. 250, 300, 350 lbs. 250, 300, 350 lbs. 350 lbs. 150, 250, 300 lbs.
EIA 310-E COMPLIANT
MOUNTING RAILS 2 pair of #12-24;
fully adjustable 2 pair of #12-24;
fully adjustable 2 pair of #12-24;
fully adjustable 2 pair of 3/8" sq. (M6);
fully adjustable 2 pair of #12-24;
fully adjustable
FRONT DOOR OPTION Solid Steel, Plexiglas, or Mesh Solid Steel, Plexiglas, or Mesh Solid Steel, Plexiglas, or Mesh Mesh Solid Steel
HINGES Full piano hinge provides
added strength for rear section Industrial grade hinges provide
added strength for rear section Pin hinges provide added
strength for rear section Standard hinges for easy door
opening and removal Industrial grade hinges provide
added strength for rear section
CABLE
MANAGEMENT
1, 2, and 3" conduit knockouts
and horseshoe knockouts on
top and bottom of rear section;
1, 2, and 3" on rear section
1, 2, 3, and 4" conduit
knockouts on top and bottom of
rear section; 1, 2, 3 and 4" on
rear section
1, 2, 3, and 4" conduit
knockouts on top and bottom of
rear section; 1, 2, 3, and 4" on
rear section
1, 2, and 3" conduit knockouts
on top and bottom of the
mounts; 1, 2, and 3" on rear
1, 2, and 3" conduit knockouts
on side; 1, 2, and 3" conduit
knockouts on top and bottom of
rear section
GASKETING Doors fully gasketed Doors and sides fully gasketed Doors fully gasketed Doors fully gasketed Sealing gasket
CASTER MOUNTING N/A Yes Yes N/A N/A
DUST KIT Optional to protect equipment
in high dust/industrial areas N/A Optional to protect equipment
in high dust/industrial areas N/A N/A
FAN ASSEMBLY Optional 2 fan assembly Optional 2 fan assembly Optional 2 fan assembly Optional 2 fan assembly Optional ltered fans
STOCK COLOR Black Black Black Black Black
OTHER KEY
FEATURES
• Center swing-out section
provides front/rear access to
cables
• Reversible cabinet for left or
right hand swing
• Vented sides for airow
• Weight tested to ½" of
deection
• Center swing-out section
provides front/rear access to
cables
• Solid and vented sides
available
• Weight tested to ½" of
deection
• Center swing-out section
provides front/rear access to
cables
• Vented side panels for airow
• Weight tested to ½" of
deection
• Lift-off, lockable front panel • Front door and rear section
lock independently
• Gland plates can be removed
to add fans/lters
CHOOSING THE RIGHT WALL MOUNT
W
90 Great Lakes Case & Cabinet WeRackYourWorld.com
WR Series 15WM Series SR/SRD Series WMR Series TPM Series
WHY IT’S GREAT
Ideal for small switch and patch
panel applications Ideal for classroom and small
store applications where
equipment (DVD players,
switches, etc.) is used daily.
An economical solution to
mounting equipment where
space is limited
Design and features of a rack
in the convenience of a wall
mount.
Mounting rails tilt down 90o for
easy maintenance and access
to the back of patch panels,
switches, and other small
equipment
HEIGHT 4, 7.5" 15" 24, 36, 48" 48" 16.31"
WIDTH 19.75" 22.25" 20.75" 20.25" 19.88"
OVERALL DEPTH 21.63" 17.66" 18, 24" 12.18" 18"
USABLE DEPTH 21" 17" 16, 22" 12" 17"
RMU 2, 4 7 12, 19, 26 24 8
WT. CAP. 50, 75 lbs. 100 lbs. 100 lbs. 250 lbs. 50 lbs.
EIA 310-E COMPLIANT
MOUNTING RAILS One pair of #12-24 One pair of #10-32 One pair of #12-24 One pair of #12-24 One pair of #12-24
FRONT DOOR OPTION N/A Solid Steel or Plexiglas N/A N/A Solid steel cover available
HINGES N/A Standard hinges Hinge Pins for easy opening
and closing N/A N/A
CABLE
MANAGEMENT
Provisions for cable cinch
straps ½, ¾, 1, and 1 ½" conduit
knockouts on top and bottom of
back section; ½, ¾, 1, and 1 ½"
on back section
Provisions for cable cinch
straps N/A Open rear cutout for cable
access
GASKETING N/A N/A N/A N/A N/A
CASTER MOUNTING N/A N/A N/A N/A N/A
DUST KIT N/A N/A N/A N/A N/A
FAN ASSEMBLY N/A Optional one fan assembly N/A N/A N/A
STOCK COLOR Black Black Black Black Black
OTHER KEY
FEATURES
• Bolt on cover panel for easy
access to equipment
• Wall mount holes for
horizontal or vertical mounting
• Side ventilation provides
airow
• Main body separates from
back panel allowing for easy,
one person installation
• Unique security bit required to
remove main body from back
panel
•"Spare" 1 RMU tab on back
panel allows power strip
mounting
• Easy assembly • Easy assembly • Optional solid steel front and
top cover kit for added security
• Perforated pattern for airow
W
CHOOSING THE RIGHT WALL MOUNT
1.866.TRY.GLCC (879.4522) Great Lakes Case & Cabinet 91
W
Shown with optional accessories
92 Great Lakes Case & Cabinet WeRackYourWorld.com
WM SERIES
PART NO. DESCRIPTION
GL2418WM 24"H x 21.25"W x 18"D, Usable depth 15.5", Maximum rail
spacing 11.06", 12 RMU, Plexiglas door
Weight capacity 150 lbs.*, Shipping wt. 85 lbs.
GL2418WMS Same as GL2418WM except solid door
GL2418WMM Same as GL2418WM except mesh door
GL24WM 24"H x 21.25"W x 24.5"D, Usable depth 22", Maximum rail
spacing 17.62", 12 RMU, Plexiglas door
Weight capacity 150 lbs.*, Shipping wt. 95 lbs.
GL24WMS Same as GL24WM except solid door
GL24WMM Same as GL24WM except mesh door
GL36WM 36"H x 21.25"W x 24.5"D, Usable depth 22", Maximum rail
spacing 17.62", 19 RMU, Plexiglas door
Weight capacity 250 lbs.*, Shipping wt. 125 lbs.
GL36WMS Same as GL36WM except solid door
GL36WMM Same as GL36WM except mesh door
GL48WM 48"H x 21.25"W x 24.5"D, Usable depth 22", Maximum rail
spacing 17.62", 25 RMU, Plexiglas door
Weight capacity 300 lbs.*, Shipping wt. 160 lbs.
GL48WMS Same as GL48WM except solid door
GL48WMM Same as GL48WM except mesh door
*All maximum weight capacities determined at minimal deflection.
ACCESSORIES (ADDITIONAL ACCESSORIES ON PAGE 101)
PART NO. DESCRIPTION
7206-14 Stationary Shelf, 17.5"W x 14"D, 80 lb. weight capacity
(for use with GL2418)
7206-EIA Stationary Shelf, 17.468"W x 18"D, 80 lb. weight capacity
7206-FR-A18 Stationary Shelf (front/rear mount adjustable),
17.5"W x 18"D, 150 lb. weight capacity
7206-SL Sliding Shelf, 16.343"W x 17.5"D, 40 lb. weight capacity
7217WS Fan Assembly with Fan Guards and two 75 CFM fans
FFK1 Four Fan Filters
DK2 Dust Resistant Kit; includes 4 cover plates, 4 fan filters
and hardware (not for use with GL2418)
FEATURES
• 19" EIA 310-E Compliant
• Horseshoe knockouts on the top and bottom of the enclosure allow
already congured patch panels to be installed
• 2 pair of #12-24 rails, fully adjustable; includes rack mtg. hardware
• Solid Steel, Plexiglas, or Mesh Doors
• 1, 2, and 3" conduit and horseshoe knockouts on top and
bottom of rear section; 1, 2, and 3" on rear section
• Full piano hinge provides added strength for rear section
• Dust Kit available to protect equipment in high dust/industrial areas
• Center swing-out section provides front/rear access to cables
• Reversible cabinet for left or right hand swing-out
• Vented sides for airow
• Weight tested to ½" of deection
WM SERIES
APPROVED
Made in the USA
Country of origin
W
1.866.TRY.GLCC (879.4522) Great Lakes Case & Cabinet 93
WS SERIES
WS SERIES
PART NO. DESCRIPTION
GL24WS-SS 24"H x 24"W x 24"D, 11 RMU, Weight capacity 250 lbs.*,
Solid Front Door & Solid Sides,Shipping wt. 125 lbs.
GL24WS-SV Same as GL24WS-SS except with Solid Front & Vented Sides
GL24WS-PS Same as GL24WS-SS except with Plexi Front & Solid Sides
GL24WS-PV Same as GL24WS-SS except with Plexi Front & Vented Sides
GL24WS-MS Same as GL24WS-SS except with Mesh Front & Solid Sides
GL24WS-MV Same as GL24WS-SS except with Mesh Front & Vented Sides
GL36WS-SS 36"H x 24"W x 24"D, 18 RMU, Weight capacity 300 lbs*.,
Solid Front Door & Solid Sides, Shipping wt. 150 lbs.
GL36WS-SV Same as GL36WS-SS except with Solid Front & Vented Sides
GL36WS-PS Same as GL36WS-SS except with Plexi Front & Solid Sides
GL36WS-PV Same as GL36WS-SS except with Plexi Front & Vented Sides
GL36WS-MS Same as GL36WS-SS except with Mesh Front & Solid Sides
GL36WS-MV Same as GL36WS-SS except with Mesh Front & Vented Sides
GL48WS-SS 48"H x 24"W x 24"D, 25 RMU, Weight capacity 350 lbs.*,
Solid Front Door & Solid Sides, Shipping wt. 200 lbs.
GL48WS-SV Same as GL48WS-SS except with Solid Front & Vented Sides
GL48WS-PS Same as GL48WS-SS except with Plexi Front & Solid Sides
GL48WS-PV Same as GL48WS-SS except with Plexi Front & Vented Sides
GL48WS-MS Same as GL48WS-SS except with Mesh Front & Solid Sides
GL48WS-MV Same as GL48WS-SS except with Mesh Front & Vented Sides
*All maximum weight capacities determined at minimal deflection.
ACCESSORIES (ADDITIONAL ACCESSORIES ON PAGE 101)
PART NO. DESCRIPTION
7206-FR-A18 Stationary Shelf (front/rear mount adjustable),
17.5"W x 18"D, 150 lb. weight capacity
7206-SL Sliding Shelf, 16.343"W x 17.5"D, 40 lb. weight capacity
7217WS Fan Assembly with Fan Guards and two 75 CFM fans
FFK1 Four Fan Filters
7208WS One Set of 5 Casters, 2 locking and 3 non-locking
Shown with optional accessories
FEATURES
• 19" EIA 310-E Compliant
• A feature-rich wall mount, offering many of the same options as a
full-size enclosure
• 2 pair of #12-24 rails, fully adjustable; includes rack mtg. hardware
• Solid Steel, Plexiglas, or Mesh Doors
• 1, 2, 3, and 4" conduit knockouts on top and bottom of rear section;
1, 2, 3, and 4" on rear section
• Industrial grade hinges provide added strength for rear section
• Doors and sides fully gasketed
• Center swing-out section provides front/rear access to cables
• Solid and vented sides available
• Weight tested to ½" of deection
Made in the USA
Country of origin
W
94 Great Lakes Case & Cabinet WeRackYourWorld.com
WD SERIES
WD SERIES
PART NO. DESCRIPTION
GL24WD 24"H x 24"W x 32.13"D, Usable depth 30", Maximum rail
spacing 23", 11 RMU, Plexiglas door,
Weight Capacity 250 lbs.*, Shipping wt. 125 lbs.
GL24WDS Same as GL24WD except solid door
GL24WDM Same as GL24WD except mesh door
GL36WD 36"H x 24"W x 32.13"D, Usable depth 30", Maximum rail
spacing 23", 18 RMU, Plexiglas door,
Weight Capacity 300 lbs.*, Shipping wt. 150 lbs.
GL36WDS Same as GL36WD except solid door
GL36WDM Same as GL36WD except mesh door
GL48WD 48"H x 24"W x 32.13"D, Usable depth 30", Maximum rail
spacing 23", 25 RMU, Plexiglas door,
Weight Capacity 350 lbs.*, Shipping wt. 200 lbs.
GL48WDS Same as GL48WD except solid door
GL48WDM Same as GL48WD except mesh door
*All maximum weight capacities determined at minimal deflection.
ACCESSORIES (ADDITIONAL ACCESSORIES ON PAGE 101)
PART NO. DESCRIPTION
7219 6 position Power Strip for 19" mounting;
5-15R receptacle and 5-15P plug
7219-SR14 14 position (6 front/8 back) Power Strip for 19" mounting;
5-15R receptacle and 5-15P plug with surge protector
7206-EIA Stationary Shelf, 17.468"W x 18"D, 80 lb. weight capacity
7206-FR-AHD Stationary Shelf (front/rear mount adjustable)
17.5"W x 22.25"D, 200 lb. weight capacity
7206-SL Sliding Shelf, 16.343"W x 17.5"D, 40 lb. weight capacity
7206-FRSL-AHD Sliding Shelf (front/rear mount adjustable)
17.5"W x 22"D, 110 lb. weight capacity
CBB-19 Copper Bus Bar for 19" mounting (isolated)
GR102 Grounding Kit for WM, WD, WS, and WE Wall Mounts
HDW-102-50 Package of 50 Pan Head Phillips #10-32 x 1/2" screws
7217WS Fan Assembly with fan guards and two 75 CFM fans
FFK1 Four Fan Filters
DK1 Dust Resistant Kit
(includes 4 cover plates, 4 fan filters and hardware)
7208WD One Set of 5 Casters, 2 locking and 3 non-locking
FEATURES
• 19" EIA 310-E Compliant
• 2 pair of #12-24 rails, fully adjustable; includes rack mtg. hardware
• The WD provides additional depth for larger pieces of equipment
• Solid Steel, Plexiglas, or Mesh Doors
• 1, 2, 3, and 4" conduit knockouts on top and bottom of rear
section; 1, 2, 3, and 4" on rear section
• Pin hinges provide added strength for rear section
• Dust Kit available to protect equipment in high dust/industrial areas
• Weight tested to ½" of deection
Made in the USA
Country of origin
W
1.866.TRY.GLCC (879.4522) Great Lakes Case & Cabinet 95
15WM SERIES
15WM SERIES
PART NO. DESCRIPTION
GL15WM 15.38"H x 22.25"W x 17.66"D, Usable depth 17",
7 RMU, Plexiglas Front Door, Weight Capacity 100 lbs.,
Shipping wt. 50 lbs.
GL15WMS 15.38"H x 22.25"W x 17.66"D, Usable depth 17",
7 RMU, Solid Front Door, Weight Capacity 100 lbs.,
Shipping wt. 50 lbs.
ACCESSORIES
PART NO. DESCRIPTION
7219 6 position Power Strip for 19" mounting;
5-15R receptacle and 5-15P plug
7219-SR14 14 position (6 front/8 back) Power Strip for 19" mounting;
5-15R receptacle and 5-15P plug with surge protector
7219-20AR 6 position, 20 amp Power Strip for 19" mounting;
5-20R receptacle and 5-20P plug
7206-14 Stationary Shelf, 17.5"W x 14"D,
80 lb. weight capacity
CBB-19 Copper Bus Bar for 19" mounting (isolated)
GR102 Grounding Kit for use with WM, WS, WD and WE Wall Mounts
7217-04 Fan Kit (includes single 75 CFM fan with fan guards and
power cord)
Shown with optional accessories
FEATURES
• 19" EIA 310-E Compliant
• Ideal size for areas where space is limited (e.g. classrooms and
convenience stores)
• One pair of #10-32 rails; includes rack mtg. hardware
• Main body separates from back panel allowing for easy, one
person installation
• Unique security bit required to remove main body from back panel
• “Spare” 1 RMU tab on back panel allows power strip mounting
• Solid Steel or Plexiglas Doors
Made in the USA
Country of origin
®
W
96 Great Lakes Case & Cabinet WeRackYourWorld.com
WE, WR
FEATURES
• 19" EIA 310-E Compliant
• Side mounting reduces the open space required to mount equipment;
mounting across 3 studs provides extra stability
• 2 pair of 3/8" sq. (M6) rails, fully adjustable;
includes rack mtg. hardware
• 1, 2, and 3" conduit knockouts on top and bottom
• 1, 2, and 3" conduit knockouts on rear of wall mount
WE SERIES
PART NO. DESCRIPTION
GL24WE 24"H x 36.1"W x 20.5"D, Usable space 34", Maximum rail
spacing 29", 10 RMU, Weight Capacity 350 lbs., Mesh side
doors and solid front panel; Shipping wt.100 lbs.
ACCESSORIES
PART NO. DESCRIPTION
7219 6 position Power Strip for 19" mounting; 5-15R receptacle
and 5-15P plug
7219-SR14 14 position (6 front/8 back) Power Strip for 19" mounting;
5-15R receptacle and 5-15P plug with surge protector
7217WS Fan Assembly with fan guards and two 75 CFM fans
Shown with optional accessories Shown with optional accessories
FEATURES
• 19" EIA 310-E Compliant
• Ideal for switches and sound equipment when space is limited
• #12-24 mounting holes and three position adjustable rails; includes
rack mtg. hardware
• Removable cover allows for left, right, or vertical equipment orientation
WR SERIES
PART NO. DESCRIPTION
WR2 4"H x 19.75"W x 21.63"D, Usable space 21", 2 RMU,
Weight Capacity 50 lbs., Shipping wt. 17 lbs.
WR4 7.5"H x 19.75"W x 21.63"D, Usable space 21", 4 RMU,
Weight Capacity 75 lbs., Shipping wt. 20 lbs.
Made in the USA
Country of origin
Made in the USA
Country of origin
1.866.TRY.GLCC (879.4522) Great Lakes Case & Cabinet 97
NEMA 12K
NEMA 12K WALL MOUNT
PART NO. DESCRIPTION
GL240N12 24"H x 24"W x 24"D, Usable depth 22", Maximum rail
spacing 16", 12 RMU, Weight Capacity 150 lbs.,
Shipping wt. 105 lbs.; can accept one FFKN12-A4
GL360N12 36"H x 24"W x 24"D, Usable depth 22", Maximum rail
spacing 16”, 19 RMU, Weight Capacity 250 lbs.,
Shipping wt. 140 lbs.; can accept two FFKN12-A4
GL480N12 48"H x 24"W x 24"D, Usable depth 22", Maximum rail
spacing 16", 26 RMU, Weight Capacity 300 lbs.,
Shipping wt. 175 lbs.; can accept three FFKN12-A4
ACCESSORIES
PART NO. DESCRIPTION
FFKN12-A4 Fan Assembly (includes filter) and exhaust filter,
38 CFM, 115V
FILTER-10 Package of five replacement filters for FFKN12-A4
7219-SR14 14 position (6 front/8 back) Power Strip for 19" mounting;
5-15R receptacle and 5-15P plug with surge protector
FEATURES
• 19" EIA 310-E Compliant
• 2 pair of #12-24 rails, fully adjustable; includes rack mtg. hardware
• Reversible mounting
• Keyed locks with dust covers
• Front and rear sections lock independently
• 2" conduit knock-outs on back panel
• Provisions for fan assembly kit
• 14 gauge main body and rear section
NEMA 12K Wall Mount Enclosures have been independently tested
and certied to meet the National Electrical Manufacturers Association’s
Type 12 standard. NEMA 12K enclosures are intended for indoor use
to provide a degree of protection to the equipment inside the enclosure
against dust, falling dirt, water and non-corrosive liquids.
W
Made in the USA
Country of origin
NEMA 12K free-standing
enclosure also available.
Please see page 86
for details.
W
98 Great Lakes Case & Cabinet WeRackYourWorld.com
SRD, SR
FEATURES
• 19" EIA 310-E Compliant
• #12-24 mounting holes; includes rack mtg. hardware
• Deeper than traditional swing racks
• Easy to assemble, install and mount
SRD SERIES SWING RACK (DEEP)
PART NO. DESCRIPTION
GL24SRD 24"H x 20.75"W x 24"D, Usable depth 22",
12 RMU, Weight Capacity 100 lbs., Shipping wt. 34 lbs.,
includes #10-32 screws
GL36SRD 36.25"H x 20.75"W x 24"D, Usable depth 22",
19 RMU, Weight Capacity 100 lbs., Shipping wt. 44 lbs.,
includes #10-32 screws
GL48SRD 48.5"H x 20.75"W x 24"D, Usable depth 22",
26 RMU, Weight Capacity 100 lbs., Shipping wt. 54 lbs.,
includes #10-32 screws
FEATURES
• 19" EIA 310-E Compliant
• #12-24 mounting holes; includes rack mtg. hardware
• 180o positive stop with stay open hinge pins
• Easy to assemble, install and mount
SR SERIES SWING RACK
PART NO. DESCRIPTION
GL24SR 23.75"H x 20.75"W x 18"D, Usable depth 16",
12 RMU, Weight Capacity 100 lbs., Shipping wt. 30 lbs.,
includes #10-32 screws
GL36SR 36"H x 20.75"W x 18"D, Usable depth 16",
19 RMU, Weight Capacity 100 lbs., Shipping wt. 36 lbs.,
includes #10-32 screws
GL48SR 48.75"H x 20.75"W x 18"D, Usable depth 16",
26 RMU, Weight Capacity 100 lbs., Shipping wt. 48 lbs.,
includes #10-32 screws
Made in the USA
Country of origin
Made in the USA
Country of origin
W
1.866.TRY.GLCC (879.4522) Great Lakes Case & Cabinet 99
WMR, TPM
FEATURES
• 19" EIA 310-E Compliant
• Design and features of a 2 post rack in the convenience of a
wall mount
• 12 gauge steel mounting brackets are strong and durable
• #12-24 mounting rails; includes rack mtg. hardware
WALL MOUNT RACK
PART NO. DESCRIPTION
BS2-WMR-24 48"H x 20.52"W x 12.18"D, Usable depth 12",
24 RMU, Weight Capacity 250 lbs., Shipping wt. 20 lbs.
FEATURES
• 19" EIA 310-E Compliant
• Ideal for patch panels and network panels
• Mounting rails tilt down 90o; provides easy access to back of equipment
• Security cover kit available; consists of lift-off front panel and top cover
• #12-24 mounting holes; includes rack mtg. hardware
TILT PANEL MOUNT
PART NO. DESCRIPTION
BS2-TPM-818 16.31"H x 19.88"W x 18"D, 8 RMU, Weight Capacity 50 lbs.,
Shipping wt. 22 lbs.
BS2-TPMC-818 Tilt Panel Mount Cover Kit
(includes top cover and front panel)
Made in the USA
Country of origin
Made in the USA
Country of origin
WOTHER WALL MOUNTS
100 Great Lakes Case & Cabinet WeRackYourWorld.com
FEATURES
• Protect DVD, Blue-ray players and other small
AV equipment
• Mounts under counter, vertically or to a wall or
with optional shelf bracket
• Optional fan for proper ventilation
• #10-32 mounting holes
DVR LOCK BOX
PART NO. DESCRIPTION
BS2-UCB3 6.3"H x 21"W x 21"D, 3 RMU,
Weight Capacity 100 lbs.,
Shipping wt. 24 lbs.
BS2-UCB5 9.8"H x 21"W x 21"D, 5 RMU,
Weight Capacity 100 lbs.,
Shipping wt. 29 lbs.
ACCESSORIES
PART NO. DESCRIPTION
BS2-UCBBKT Shelf bracket for DVR Lock Box
7217-04 Single Fan Assembly with fan guard
and 75 CFM fan
FEATURES
• Mounts CPU towers to the wall to save desk
space
• Adjustable slide (6.21" to 11.08") accepts
nearly any size tower
CPUBKT
PART NO. DESCRIPTION
BS2-CPUBKT Weight Capacity 100 lbs.,
Shipping wt. 18 lbs.
FEATURES
• Provides mounting and access to AV
equipment
• 3 position tilt-out rack for operation and
maintenance
• External knockouts to mount low voltage
devices
TM3 SERIES
PART NO. DESCRIPTION
BS2-TM3S 34.5"H x 23"W x 6"D, 3 RMU,
Weight Capacity 75 lbs.,
Shipping wt. 50 lbs.;
surface mount
BS2-TM3R 34.5"H x 23"W x 5.5"D, 3 RMU,
Weight Capacity 75 lbs.,
Shipping wt. 50 lbs.;
recessed mount
Made in the USA
Country of origin
Made in the USA
Country of origin
Made in the USA
Country of origin
W
PART NO. DESCRIPTION
WS-22 66/110 Block Mounting Panel for use
with WS, WM, WD and WE Wall
Mounts; panel is 19" rack mount and
can be installed in any rack mount
enclosure
PART NO. DESCRIPTION
FFK1 Set of four fan filters, for use with
WS, WM and WD Wall Mounts
DK1 Dust Resistant Kit (includes 4
cover plates, 4 fan filters and
hardware); for use with WD
Wall Mounts
DK2 Dust Resistant Kit (includes 4
cover plates, 4 fan filters and
hardware); for use with WM
Wall Mounts
PART NO. DESCRIPTION
7208WS One set of five Casters, two locking
and three non-locking; for WS
Wall Mounts
7208WD One set of five Casters, two locking
and three non-locking; for WD
Wall Mounts
PART NO. DESCRIPTION
7217WS Fan Assembly with fan guards and
two 75 CFM fans; for use with WS,
WM, WD and WE Wall Mounts
7217-04 Fan Assembly with fan guard and
one 75 CFM fan; for use with
15WM and DVR Lock Box
WALL MOUNT ACCESSORIES
1.866.TRY.GLCC (879.4522) Great Lakes Case & Cabinet 101
PART NO. DESCRIPTION
CBB-19 Copper Bus Bar for 19" mounting
GR102 Grounding Kit for use with WM,
WS, WD and WE wall mounts
All Bus Bars are isolated.
PART NO. DESCRIPTION
7219 6 position Power Strip for 19”
mounting; 5-15R receptacle and
5-15P plug
7219-SR14 14 position (6 front/8 back) Power
Strip for 19" mounting; 5-15R
receptacle and 5-15P plug with
surge protector
We will definetly need
to “tweet” this...
#BestControlDeskEver!
Great Lakes has its own line of console and technical furniture sytems. Our Sentry™ and
ADVANTAGE® lines can be custom designed with an array of configurations and colors.
Contact your Great Lakes Sales Representative for more details. 1.866.TRY.GLCC
This custom SENTRY™ console desk is installed at WQLN Public Media, the PBS affiliate in Erie, PA
Constructed and built to be more
durable than other industry racks,
2 and 4 post racks by Great Lakes
can easily withstand a full load of
equipment.
• VerticalCableManagersand
accessories easily attach to racks to
managedensecableapplications
• 2PostRacksfeaturedoublesided
aluminum and 1/2" assembly bolts
that easily hold 1500 lbs.
• 4PostRacksareavailablein
multipleheightsanddepths;
choosefromtwotypesofmounting
• HeavyDuty4PostRackscan
hold a "ton" of equipment, or can
acceptcastersforeasymovement
• CableManagementRacksare
designedforquickandeasy
maintenance of cable applications
• NewEnhancedRacksfeaturea
variabledepth
1
3
4
2
5
6
Cable Spool; VCM8-Sl (packageof2)
•Helpscreateproperbendradius
• Stores cable slack
•Easilyrepositionable
• Able to be mounted in 6 locations
• For 8" channels only
8" VertiCal Cable organizer
VCM8-Fr(4slackspools,12retainers,front/rearchannel)
VCM8-Fo(2slackspools,6retainers,singlechannel)
•8"x80"Lverticalchannel
•Eachchannelholdsupto384CAT6cablesor738CAT5ecables
•LargengersalignwithRMUs
•Containslargecablepassthroughs(4.8"x2.6")
•Containssmallcablepassthroughs(2.6"x2.6")
•Hingedcoverincluded
5" VertiCal Cable organizer
VCM5-Fr(Front/Rearchannelasshowninphoto)
VCM5-Fo (Singlechannel)
•5"x80"Lverticalchannel
•Eachchannelholdsupto126CAT6cablesor246CAT5ecables
•LargengersalignwithRMUs
•Containscablepassthroughs
•Coverincluded;hingekitavailable
Cable retainerS
VCM8-Wrfor8";(packageof6)
VCM5-Crfor5";(packageof10)
•Attachesanywherealongngerstosecurecablebundles
•Availablefor8"and5"channels
SlaCk loop organizer; VCM5-Sl (packageof2)
• Stores slack cables
• Adjustable to accommodate needed cable slack
• For 5" channels only
19" Cable organizerS
CM-16(1RMU)andCM-17 (2RMU)
•Helpsorganizeanddirectcables
•Largengerspacing
• Includes clips to create proper bend radius
•Coverincluded
Manycustomersprefertheexibilityofferedbyplasticcablemanagement.GreatLakeshasrespondedtothisneedby
workingwithleadingmanufacturersandestablishingacomprehensiveportfolioofplasticcablemanagementproducts.
WhenusedwithGreatLakes2and4PostRacks,plasticcablemanagementcreatesacompletesolutionforpatch
panels and telecommunications equipment.
plaStiC Cable ManageMent
part no. DeSCription
VCM8-FR VerticalFront&RearCable
Management,8"Channel
x80"L;includes4spools,
12 wire retainers, and black
hingecover
VCM8-FO VerticalFrontCable
Management,8"Channelx
80"L;includes2spools,
6 wire retainers, and black
hingecover
VCM8-SL Packoftwo,DuctSlackLoop
Cable Spools, for 8"
channel only
VCM8-WR PackofsixWireRetainers,
for 8" channel only
VCM5-FR VerticalFront&RearCable
Management,5"Channelx
80"L, and black
snap-oncover
VCM5-FO VerticalFrontCable
Management,5"Channelx
80"L, and black
snap-oncover
VCM5-SL PackoftwoDuctSlackLoop
StorageOrganizers,for5"
channel only
VCM5-CR PackoftenCableRetainers,
for 5" channel only
VCM5-HNG DuctCoverHingeKit;
eliminates need to Completely
removecover;for5"
channel only
CM-16 Plastic19"CableOrganizer,
1RMU,1.5"x3";
includescover
CM-17 Plastic19"CableOrganizer,
2RMU,3"x3";
includescover
Cable ManageMent raCk aCCeSSorieS
1.
2.
3.
4.
5.
6.
19" Mounting
part no. DeSCription
GLRR-1984BA-8FR Includes8"VerticalFrontandRearCableManagerwith4spools,
12wireretainersandhingecover;blackanodizedfinish
GLRR-1984BA-2-8FR SameasGLRR-1984BA-8FRexceptwith2cablemanagers
GLRR-1984BA-8FO Includes8"VerticalFrontOnlyCableManagerwith2spools,
6wireretainersandhingecover;blackanodizedfinish
GLRR-1984BA-2-8FO SameasGLRR-1984BA-8FOexceptwith2cablemanagers
GLRR-1984BA-5FR Includes5"VerticalFrontandRearCableManagerwithsnap-on
cover;blackanodizedfinish
GLRR-1984BA-2-5FR SameasGLRR-1984BA-5FRexceptwith2cablemanagers
GLRR-1984BA-5FO Includes5"VerticalFrontOnlyCableManagerwithsnap-oncover;
blackanodizedfinish
GLRR-1984BA-2-5FO SameasGLRR-1984BA-5FOexceptwith2cablemanagers
GLRR-1984 2PostRackwithmountinghardware;millfinish
GLRR-1984BA 2PostRackwithmountinghardware;blackanodizedfinish
23" Mounting
part no. DeSCription
GLRR-2384 2PostRackwithmountinghardware;millfinish
GLRR-2384BA 2PostRackwithmountinghardware;blackanodizedfinish
NOTE: 2 post racks with 23" mounting are not stocked product.
Please call 1.866.TRY.GLCC for details and our best lead time.
DiMenSionS: 84"Hx20.31"Wx3"channels(14"D footprint)
raCk SpaCeS:45RMU•19"EIA310-ECompliant;
includesrackmtg.hardware
WeigHt CapaCitY: 1500 lbs.
ConStruCtion: Doublesidedextrudedaluminumwith#12-24tappedholes
SHipping WeigHt anD Carton Size:30lbs./86"Lx6"Wx4"H
Tapped
holes
No"nuts"
required
for assembly
Uses
large
1/2"
bolts
Optional
RMU
Labels
1/2"Bolts
with tapped
holes;No
"nuts" required
for assembly
106 Great Lakes Case & Cabinet WeRackYourWorld.com
Shown with optional accessories
r2 poSt raCkS
approVeD
Made in the USA
Country of origin
r
1.866.TRY.GLCC (879.4522) Great Lakes Case & Cabinet 107
Inadditiontostandard,84"H2postracks,GreatLakesalsooffersracksranging
from36"Hto108"H.Racksarestillabletoaccepthorizontalcablemanagement
andshelves,makingthemidealforanyamountofequipment.
19" Mounting
part no. DeSCription
GLRR-1936 36"Hx20.31"Wx14"D,18RMU,millnish
GLRR-1936BA 36"Hx20.31"Wx14"D,18RMU,blackanodizednish
GLRR-1948 48"Hx20.31"Wx14"D,24RMU,millnish
GLRR-1948BA 48"Hx20.31"Wx14"D,24RMU,blackanodizednish
GLRR-1960 60"Hx20.31"Wx14"D,31RMU,millnish
GLRR-1960BA 60"Hx20.31"Wx14"D,31RMU,blackanodizednish
GLRR-1966 66"Hx20.31"Wx14"D,35RMU,millnish
GLRR-1966BA 66"Hx20.31"Wx14"D,35RMU,blackanodizednish
GLRR-1972 72"Hx20.31"Wx14"D,38RMU,millnish
GLRR-1972BA 72"Hx20.31"Wx14"D,38RMU,blackanodizednish
GLRR-1984 84"Hx20.31"Wx14"D,45RMU,millnish(in-stock)
GLRR-1984BA 84"Hx20.31"Wx14"D,45RMU,blackanodizednish(in-stock)
GLRR-1996 96"Hx20.31"Wx14"D,52RMU,millnish
GLRR-1996BA 96"Hx20.31"Wx14"D,52RMU,blackanodizednish
GLRR-19108 108"Hx20.31"Wx14"D,59RMU,millnish
GLRR-19108BA 108"Hx20.31"Wx14"D,59RMU,blackanodizednish
NOTE: The above 2 post racks (except 84"H) are not stocked product.
Please call 1.866.TRY.GLCC for details and our best lead time.
aCCeSSorieS
part no. DeSCription
7215 16position,15ampPowerStrip;5-15Rreceptacleand5-15Pplug;
requiresPSBGLRR
7219-SR14 14position(6front/8back)PowerStripfor19"mounting;5-15R
receptacleand5-15Pplugwithsurgeprotector
PSBGLRR VerticalPowerStripMountingBracket
1984-VCM10 7'Hx10"DDouble-sidedVerticalCableManagerwith
6"Wx5"Dcableruns
7206-14 StationaryShelf,17.50"Wx14"D,80lb.weightcapacity
7206-SL SlidingShelf,16.343"Wx17.5"D,40lb.weightcapacity
GL-RMUTA Packageof4RMULabelsinascendingorder
(1onthebottom,45onthetop)
2 poSt raCkS
approVeD
Made in the USA
Country of origin
Shown with optional accessories
DiMenSionS: 84"Hx20.6"Wx(24,29,32or36")D
raCk SpaCeS: 45RMU•19"EIA310-ECompliant;
includesrackmtg.hardware
WeigHt CapaCitY:1500lbs.whennetworked;1000lbs.freestanding
ConStruCtion: 12GaugeColdRolledSteelandExtrudedAluminum
SHipping WeigHt: PleaseseePartNo.Description
4 poSt raCkS WitH 3/8" Sq. (M6) Mounting
part no. DeSCription
4PM6-29-8FR 29"DRack;Includes8"VerticalFrontandRearCableManager
with4spools,12wireretainersandhingecover
4PM6-29-8FO 29"DRack;Includes8"VerticalFrontOnlyCableManagerwith
2spools,6wireretainersandhingecover
4PM6-29-5FR 29"DRack;Includes5"VerticalFrontandRearCableManager
withsnap-oncover
4PM6-24 24"DRack;coldrolledsteelconstruction;3cartonstotaling82lbs.
4PM6-29 Sameasaboveexceptwith29"D;3cartonstotaling83lbs.
4PM6-32 Sameasaboveexceptwith32"D;3cartonstotaling86lbs.
4PM6-36 Sameasaboveexceptwith36"D;3cartonstotaling87lbs.
4 poSt raCkS WitH #12-24 Mounting
part no. DeSCription
4P1224-24 24"DRackwith#12-24Mounting;aluminumuprightconstruction
andsteelbracketset;3cartonstotalling64lbs.
4P1224-29 Sameasaboveexceptwith29"D;3cartonstotaling65lbs.
4P1224-32 Sameasaboveexceptwith32"D;3cartonstotaling68lbs.
4P1224-36 Sameasaboveexceptwith36"D;3cartonstotaling69lbs.
108 Great Lakes Case & Cabinet WeRackYourWorld.com
Shown with optional accessories
r4 poSt raCkS
approVeD
Made in the USA
Country of origin
1.866.TRY.GLCC (879.4522) Great Lakes Case & Cabinet 109
Inadditiontostandard,84"high4postracks,GreatLakesalsooffersracks
rangingfrom36"Hto108"H.Racksarestillabletoaccepthorizontalcable
managementandshelves,makingthemidealforanyamountofequipment.
4 poSt raCkS WitH #12-24 Mounting
part no. DeSCription
4P36-1224-29 36"Hx20.6"Wx29"D,18RMU
4P48-1224-29 48"Hx20.6"Wx29"D,24RMU
4P60-1224-29 60"Hx20.6"Wx29"D,31RMU
4P66-1224-29 66"Hx20.6"Wx29"D,35RMU
4P72-1224-29 72"Hx20.6"Wx29"D,38RMU
4P1224-29 84"Hx20.6"Wx29"D,45RMU(in-stock)
4P96-1224-29 96"Hx20.6"Wx29"D,52RMU
4P108-1224-29 108"Hx20.6"Wx29"D,59RMU
NOTE: The above 4 post racks (except 84"H) are not stocked product.
Please call 1.866.TRY.GLCC for details and our best lead time.
aCCeSSorieS
part no. DeSCription
7215-20ARTLP 16positionPowerStrip;5-20RreceptacleandL5-20Pplug;
requiresPSBGLRR
PSBGLRR VerticalPowerStripMountingBrackets
7206-FR-A32HD StationaryShelf(front/rearmountadjustable)
17.5"Wx32"D,300lb.weightcapacity
7206-FRSL-ADHD SlidingShelf(front/rearmountadjustable)17.5"Wx26"D,
110lb.weightcapacity
GL-RMUTA Packageof4RMULabelsinascendingorder
(1onthebottom,45onthetop)
r
4 poSt raCkS
Shown with optional accessories
approVeD
Made in the USA
Country of origin
110 Great Lakes Case & Cabinet WeRackYourWorld.com
rCable ManageMent raCkS
Made in the USA
Country of origin
part no. DeSCription
CMR-45U16 neW! CableManagementRack,84"Hx24"Wx16.25"Dchannels
(16.25"footprint),#12-24mounting;45RMU;
2000lb.weightcapacity;constructedof12gaugecoldrolledsteel;
featurescablemanagement“fingers”onfrontrails;includesrack
mtg.hardware;adjustableto23"mtg.
CMR-45U CableManagementRack,84"Hx24"Wx12"Dchannels
(21"Dfootprint),#12-24mounting;45RMU;
1000lb.weightcapacity;constructedof12gaugecoldrolledsteel;
includesrackmtg.hardware;adjustableto23"mtg.
aCCeSSorieS
part no. DeSCription
7219 6positionPowerStripfor19"mounting;5-15Rreceptacle
and5-15Pplug
7219-SR14 14position(6front/8back)PowerStripfor19"mounting;
5-15Rreceptacleand5-15Pplugwithsurgeprotector
CM-07 WaterfallCableManagementTrough
CM-01 CableManagementCinchStrap,12"Lx.75"W
CM-04 InterbayCableOrganizerwith4fronthorizontalrings,
3.25"Wx2.8"D
7206-EIA StationaryShelf,17.468"Wx18"D,80lb.weightcapacity
7206-FM StationaryShelf,17.25"Wx18"D,60lb.weightcapacity
7206-FR-AHD StationaryShelf(front/rearmountadjustable)17.5"Wx22.25"D,
200lb.weightcapacity
7206-FR-A18 StationaryShelf(front/rearmountadjustable)17.5"Wx18"D,
150lb.weightcapacity
7206-SL SlidingShelf,16.343"Wx17.5"D,40lb.weightcapacity
AK101 SeismicAnchorKit
(includes4torque-controlledexpansionanchors)
CMR-45U16
new!
1.866.TRY.GLCC (879.4522) Great Lakes Case & Cabinet 111
part no. DeSCription
VD4PHD-2436 neW! 84"Hx20.5"W,VariableDepthHeavyDuty4PostRack,
siderailoffersvariabledepthof24-36"(in1"increments);3/8"sq.
(M6)mounting45RMU;2000lb.weightcapacity;constructedof
12gaugecoldrolledsteel;includesrackmtg.hardware
4PHD29 HeavyDuty4PostRack,80.5"Hx20.5"Wx29"D;3/8"sq.(M6)
mounting;42RMU;2000lb.weightcapacitywhenboltedtofloor;
constructedof12gaugecoldrolledsteel;includesrackmtg.
hardware;designedforoptionalcastermounting
aCCeSSorieS
part no. DeSCription
7219 6positionPowerStripfor19"mounting;5-15Rreceptacle
and5-15Pplug
7219-SR14 14position(6front/8back)PowerStripfor19"mounting;
5-15Rreceptacleand5-15Pplugwithsurgeprotector
1984-VCM10 7.00'Hx10.00"DDouble-sidedVerticalCableManagerwith
6"Wx5"Dcableruns
CM-01 CableManagementCinchStrap,12"Lx.75"W
7206-FR-ADHD StationaryShelf(withadjustabletabsfor29"mounting)
17.5"Wx27.25"D,150lb.weightcapacity
7206-FRA32HD StationaryShelf(front/rearmountadjustable)
17.5"Wx32"D,300lb.weightcapacity
7206-FRSL-ADHD SlidingShelf(withadjustabletabsfor29"mounting)
17.5"Wx26"D,110lb.weightcapacity
7206-FRSLA300 SlidingShelf(front/rearmountadjustable)
14.33"Wx30"D,300lb.weightcapacity
AK101 SeismicAnchorKit
(includes4torque-controlledexpansionanchors)
7208-4PHD OneSetof4Casters(whenused,weightcapacityofrack
becomes750lbs.);forusewith4PHD29only
4PHD29shown with
optional accessories
r
HD 4 poSt raCkS
Made in the USA
Country of origin
r
112 Great Lakes Case & Cabinet WeRackYourWorld.com
Made in the USA
Country of origin
Variable DeptH 4 poSt raCkS
part no. DeSCription
VD4PM6-2436 84"H,VariableDepth4PostRack,siderailoffersvariabledepthfrom24-36"
(in1"increments);3/8"sq.(M6)mounting;45RMU;*
VD4P1224-2436 84"H,VariableDepth4PostRack,siderailoffersvariabledepthfrom24-36"
(in1"increments);#12-24mounting;45RMU;*
*1500lb.weightcapacitywhennetworked;1000lbs.freestanding
4PSPV24-36 RackSidePanelfor4PostRack,variabledepthof24-36";helpseliminate
end-of-rowhot/coldairrecirculationandcreatesa“clean”look
SpaCer braCketS
part no. DeSCription
VSBK6-8 VariableSpacerBracketKit,includes4bracketsadjustablefrom6-8"
(in1"increments);bracketsareforusewheninstallingabafeand/orany
5or8"verticalcablemanagerbetween2racks
VSBK9-14 VariableSpacerBracketKit,includes4bracketsadjustablefrom9-14"
(in1"increments);bracketsareforusewheninstallingabafeand/orany
5or8"verticalcablemanagerbetween2racks
SiDe airFloW baFFleS anD Support FraMeS
part no. DeSCription
4PBK24-36 84"Hbafekitfor4PostRacks,variabledepthof24-36";forusewhenracks
aresetfrom24-36";mustbeusedwithvariablespacerbracketkit
4PBK12 84"HbafekitforCMR-45U,setat12"deep;mustbeusedwithvariable
spacer bracket kit
4PBK16 84"HbafekitforCMR-45U16,setat16.25"deep;mustbeusedwithvariable
spacer bracket kit
4PBSF24-36 BafeSupportFramefor4PostRacks,variabledepthof24-36";mustbeused
whenabafeisneededattheendofarow
laDDer raCk braCketS
part no. DeSCription
4PLRBV4-8 SingleLadderRackBracket,variableheightfrom4-8"(in1"increments);
supports12-24"ladderrack
VertiCal Cable ManagerS
part no. DeSCription
VCM5-FO-ER Vertical5"FrontOnlyCableManager;includesEnhancedRack(ER)bracketkit
VCM8-FO-ER Vertical8"FrontOnlyCableManager;includesERbracketkit
VCM12-FO-ER Vertical12"FrontOnlyCableManager
equipMent Support FraMe
part no. DeSCription
ESF24-29 EquipmentSupportFrametosupportswitchesinstalledinany4PostRack;
variabledepthof24-29"
ESF16 EquipmentSupportFrametosupportswitchesinstalledinCMR-45U16
enHanCeD raCkS
new!
Tool-lessside
rail snaps into
place and is
“locked”with
aplasticrivet
r
1.866.TRY.GLCC (879.4522) Great Lakes Case & Cabinet 113
enHanCeD raCkS
enHanCeD raCk (Variable DeptH)
GreatLakesVariableDepthFourPostRackoffersasingleplatformwhichutilizesaproprietarysiderailto
offeravarietyofdepths,inone-inchincrements,from24to36".Oncethecustomerdeterminestherack
depthdesired,thetool-lesssiderailisassembledbyaligningthetwosectionsandsimply“snapping”the
railsectionstogether,and“locking”theassemblywithaplasticrivet.TheVariableDepthFourPostRack
isavailableineither3/8"sq.(M6)or#12-24mounting.
new!
VD4P1224-2436;
setat24"D
VCM8-FO-ER;
8"verticalcable
managerwithdoor
andERbracketkit
thatallowsVCMs
to be mounted
between 2 racks
CMR-45U16Cable
ManagementRack
4PBK16;side
airowbafefor
CMR-45U16
VCM12-FO-ER;
12"verticalcable
managerwithdoor
(shownopen)
VD4PM6-2436;
setat36"D
4PSPV24-36;
rack side panel
to attach to end
of row rack
4PBK24-36;side
airowbafefor
4 post racks
VSBK9-14;variable
spacer bracket kit
(includes 4 brackets,
2top/2bottom)
ESF16Equipment
Support Frame
to support switch
equipment
Bafes are designed to
work with our enhanced
rack products and offer
degrees of adjustability
in depth, based on
specic manufacturer’s
requirements for side
airow switches and
equipment.
Vertical Spacer Brackets
are used to install a
bafe, 5 or 8" vertical
cable manager between
two racks or at the end
of a row.
4PLRBV4-8;single
LadderRackBracket
aCCeSSorieS For 2 anD 4 poSt raCkS
part no. DeSCription
1984LR LadderRackSupportBracket,mountseitherparallelor
perpendicular to rack
Works with 12", 15", and 18" wide ladder racks.
1984-VCM10 7'Hx10"DDouble-sidedVerticalCableManager
with6"Wx5"Dcableruns
1984-VCM10C SingleHingedCoverfor1984-VCM10
1984-KM KeyboardShelfwithPivotingMouseTray,19"Wx8"D
1984ST09 StationaryShelf,19"Wx9"D,75lb.weightcapacity
1984ST15 StationaryShelf,19"Wx15"D,75lb.weightcapacity
A combination of any two of these shelves can be placed together for extra depth
and weight capacity.
GL-RMUTA Packageof4RMULabelsinascendingorder
(1onthebottom,45onthetop)
GL-RMUTD Packageof4RMULabelsindescendingorder
(1onthetop,45onthebottom)
AK101 SeismicAnchorKit
(includes4torque-controlledexpansionanchors)
Seismic qualifications tested in accordance with ACI 355.2 and ICC-ES AC 193;
Meets ductility requirements of 318 D.3.3
FMSBKT FrontMountSupportBracketKit
(hardwareincluded)
For use with Cable Management and 4 Post Racks
r
114 Great Lakes Case & Cabinet WeRackYourWorld.com
Made in the USA
Country of origin
raCk aCCeSSorieS
Great Lakes Accessory Options allow you to
create custom configured enclosures based on
your needs. Accessories can be ordered with an
enclosure and Great Lakes will install these items
at no charge, prior to shipping. You can also order
product separately. Accessories include:
BASIC ENCLOSURE PARTS:
Doors & Handles • Side Panels • Shelves
Top & Bottom Panels • Hardware
COOLING EQUIPMENT:
Exhaust Chimneys • Air Managers
Raised Floor Grommets • Filler Panels
Fan Trays • Baffle Kits
CABLE MANAGEMENT:
Cable Rings • 19" Cable Organizers
External Cable Manager • Lacing Bars
Vertical Cable Troughs
POWER OPTIONS:
Standard Power Strips • Intelligent PDUs
Grounding Equipment • Mounting Brackets
116 Great Lakes Case & Cabinet WeRackYourWorld.com
ADOORS
PLEXIGLAS DOORS
PART NO. DESCRIPTION
3002E-24 Plexiglas Door, 30"H x 24"W Frame
4802E-24 Plexiglas Door, 48"H x 24"W Frame
6002E-24 Plexiglas Door, 60"H x 24"W Frame
7202E-24 Plexiglas Door, 72"H x 24"W Frame
7202E-29 Plexiglas Door, 72"H x 29"W Frame
8402E-24 Plexiglas Door, 84"H x 24"W Frame
8402E-29 Plexiglas Door for 84"H x 29" and
30"W Frame
SOLID STEEL DOORS
PART NO. DESCRIPTION
3003E-24 Solid Steel Door, 30"H x 24"W Frame
4803E-24 Solid Steel Door, 48"H x 24"W Frame
6003E-24 Solid Steel Door, 60"H x 24"W Frame
7203E-24 Solid Steel Door, 72"H x 24"W Frame
7203E-29 Solid Steel Door, 72"H x 29"W Frame
7803E-24 Solid Steel Door, 78"H x 24"W Frame
7803E-29 Solid Steel Door, 78"H x 30"W Frame
8403E-24 Solid Steel Door, 84"H x 24"W Frame
8403E-29 Solid Steel Door, 84"H x 29" and
30"W Frame
9103E-24 Solid Steel Door, 91"H x 24"W Frame
9103E-29 Solid Steel Door, 91"H x 30"W Frame
MESH DOORS
PART NO. DESCRIPTION
3002E-M24 Mesh Steel Door, 30"H x 24"W Frame
4802E-M24 Mesh Steel Door, 48"H x 24"W Frame
6002E-M24 Mesh Steel Door, 60"H x 24"W Frame
7202E-M24 Mesh Steel Door, 72"H x 24"W Frame
7202E-M29 Mesh Steel Door, 72"H x 29"W Frame
7802E-M24 Mesh Steel Door, 78"H x 24"W Frame
8402E-M24 Mesh Steel Door, 84"H x 24"W Frame
8402E-M29 Mesh Steel Door, 84"H x 29" and
30"W Frame
1.866.TRY.GLCC (879.4522) Great Lakes Case & Cabinet 117
DOORS A
PERIMETER VENTED STEEL DOORS
PART NO. DESCRIPTION
3004E-24 Perimeter Vented Steel Door,
30"H x 24"W Frame
4804E-24 Perimeter Vented Steel Door,
48"H x 24"W Frame
6004E-24 Perimeter Vented Steel Door,
60"H x 24"W Frame
7204E-24 Perimeter Vented Steel Door,
72"H x 24"W Frame
7204E-29 Perimeter Vented Steel Door,
72"H x 29"W Frame
8404E-24 Perimeter Vented Steel Door,
84"H x 24"W Frame
8404E-29 Perimeter Vented Steel Door,
84"H x 29" and 30"W Frame
PERIMETER VENTED PLEXIGLAS DOORS
PART NO. DESCRIPTION
7202E-24PV Perimeter Vented Plexiglas Door,
72"H x 24"W Frame
7202E-29PV Perimeter Vented Plexiglas Door,
72"H x 29"W Frame
8402E-24PV Perimeter Vented Plexiglas Door,
84"H x 24"W Frame
8402E-29PV Perimeter Vented Plexiglas Door,
84"H x 29" and 30"W Frame
PERIMETER VENTED MESH DOORS
PART NO. DESCRIPTION
7202E-24PVM Perimeter Vented Mesh Door,
72"H x 24"W Frame
7202E-29PVM Perimeter Vented Mesh Door,
72"H x 29"W Frame
8402E-24PVM Perimeter Vented Mesh Door,
84"H x 24"W Frame
8402E-29PVM Perimeter Vented Mesh Door,
84"H x 29" and 30"W Frame
118 Great Lakes Case & Cabinet WeRackYourWorld.com
MESH CONTOUR DOORS
PART NO. DESCRIPTION
4802E-MC24 Mesh Contour Door,
48"H x 24"W Frame
7802E-MC24 Mesh Contour Door,
78"H x 24"W Frame
7802E-MC29 Mesh Contour Door,
78"H x 30"W Frame
8402E-MC24 Mesh Contour Door,
84"H x 24"W Frame
8402E-MC29 Mesh Contour Door,
84"H x 29" and 30"W Frame
9102E-MC24 Mesh Contour Door,
91"H x 24"W Frame
9102E-MC29 Mesh Contour Door,
91"H x 30"W Frame
SPLIT MESH DOORS
PART NO. DESCRIPTION
7802E-24SM Split Mesh Steel Door,
78"H x 24"W Frame
7802E-29SM Split Mesh Steel Door,
78"H x 30"W Frame
8402E-24SM Split Mesh Steel Door,
84"H x 24"W Frame
8402E-29SM Split Mesh Steel Door,
84"H x 29" and 30"W Frame
9102E-24SM Split Mesh Steel Door,
91"H x 24"W Frame
9102E-29SM Split Mesh Steel Door,
91"H x 30"W Frame
SPLIT FAN DOORS
PART NO. DESCRIPTION
4803E-SF24 Split Fan Door set,
48"H x 24"W Frame
7803E-SF24 Split Fan Door set,
78"H x 24"W Frame
7803E-SF29 Split Fan Door set,
78"H x 30"W Frame
8403E-SF24 Split Fan Door set,
84"H x 24"W Frame
8403E-SF29 Split Fan Door set,
84"H x 29" and 30"W Frame
9103E-SF24 Split Fan Door set,
91"H x 24"W Frame
9103E-SF29 Split Fan Door set,
91"H x 30"W Frame
ADOORS
Split Mesh
Doors are
available in
black only.
Split Fan
Doors are
available in
black only.
1.866.TRY.GLCC (879.4522) Great Lakes Case & Cabinet 119
PART NO. DESCRIPTION
CH-02 The CH-02 Door Handle
features a low-profile, nested
handle which contains a
three-digit combination lock
and master key (Handle may
be opened individually via
either method).
PART NO. DESCRIPTION
CH-03 The CH-03 Door Handle
features a nested padlock
handle with a secondary
key lock for additional security
(Padlock not included).
PART NO. DESCRIPTION
CH-04 The CH-04 is a nested Door
Handle which may be
secured by padlock.
SPLIT SOLID DOORS
PART NO. DESCRIPTION
7803E-SS24 Split Solid Door set,
78"H x 24"W Frame
7803E-SS29 Split Solid Door set,
78"H x 30"W Frame
8403E-SS24 Split Solid Door set,
84"H x 24"W Frame
8403E-SS29 Split Solid Door set,
84"H x 29" and 30"W Frame
9103E-SS24 Split Solid Door set,
91"H x 24"W Frame
9103E-SS29 Split Solid Door set,
91"H x 30"W Frame
MESH INSERTS FOR PLEXIGLAS DOORS
PART NO. DESCRIPTION
MESH300E-24 Mesh Insert for 300E Door
MESH480E-24 Mesh Insert for 480E Door
MESH600E-24 Mesh Insert for 600E Door
MESH720E-24 Mesh Insert for 720E-24 Door
MESH720E-29 Mesh Insert for 720E-29 Door
MESH840E-24 Mesh Insert for 840E-24 Door
MESH840E-29 Mesh Insert for 840E-29 Door
DOORS AND DOOR HANDLES A
PART NO. DESCRIPTION
GL-KEYS Set of 2 Keys
Split Solid
Doors are
available in
black only.
Great Lakes is pleased to offer ngerprint
access control systems from Digitus
Biometrics Access Security Solutions.
db ngerprint access control systems can
secure any area of your data center from
the front door to the enclosure door.
Ponemon Institute has reported the average cost of a data center break-in
to be $7.2 million. db products are so secure that Digitus Biometrics offers
an Enhanced Warranty that reimburses customers, with Digitus biometric
technology installed, for the costs associated with a physical security breach.
db’s proprietary technology uses an eight-point algorithm to develop a unique
ngerprint signature without requiring the storage of any detailed personal
information on the individual. db technology also includes Live Finger Detection,
LFD, and the technology has never recorded a false positive. Digitus has been
installing product since 2005 with no known security breaches. dbServerRack
Access Control Solutions Control access to server cabinets and boost regulatory
compliance with indisputable audit trails
Digitus Biometrics is a pioneer in biometric access control delivering the
industry’s most complete set of solutions for physically securing your data and
server rack cabinets.
Digitus Biometrics Offers Two System Architecture Choices:
• db BUS* - offers multiple options for authentication, either at the cabinet level
or at the end of a row of cabinets
• db ZERO-U* - a networked solution for server cabinets with a reader/controller
combination in each cabinet
db BUS*
The db Bus access control system
saves cost by eliminating the need
for a controller and dbBUSpower
supply at each cabinet. A sophisticated
bus-architecture distributes fail-safe
signals and electrical power from a single
controller to up to 64 cabinet door locks. The db Bus offers multiple options for
authentication, either at the cabinet level or at the end of a row of cabinets.
db ZERO-U
a networked solution for server
cabinets with a reader/controller
combination in each cabinet,
available in two conguration
options:
1. A single ngerprint sensor can
provide simultaneous access to
front and rear door of the cabinet
2. Separate ngerprint sensors on
the front and rear cabinet doors,
providing independent access to each door
Digitus Biometrics also offers the db Nexis solution which delivers biometric
access control to building and room doors on the same network platform as
the db ServerRack. A customer can now have unied security covering every
access point in the data center, from the front door to the enclosure door.
Originally developed for the U.S. Air Force, db ServerRack Access Control
Solutions secure mission critical IT/telecom rack enclosures within data centers,
colocation facilities, military, government, and educational, healthcare and
industrial environments.
Stopping access control at the data center door provides no protection against
insider theft. That’s why every data privacy rule and regulation – PCI DSS,
HIPAA, FISMA and more – considers the protection of physical assets to be as
important as protecting the data stored or processed in those assets.
db ServerRack Access Control solutions deliver the highest level of compliance
with an indisputable audit trail covering all server cabinet access. When paired
with db Nexus, that audit trail covers the entire enterprise.
For more information about Digitus Biometric and/or other electronic access
solutions, please ask your Great Lakes representative or call us at 1.866.TRY.
GLCC
(*the db guarantee against a data center break-in at the cabinet level is offered
as part of db’s Innity Plus™ extended warranty programs. For more information,
please contact your Great Lakes’ representative.)
A
120 Great Lakes Case & Cabinet WeRackYourWorld.com
BIOMETRIC ACCESS CONTROL
A
SIDE PANELS
1.866.TRY.GLCC (879.4522) Great Lakes Case & Cabinet 121
SOLID SIDE PANELS
PART NO. DESCRIPTION
3010-32ELS Pair Locking Lift-off Solid Side Panels for 30"H x 32"D Frame
4810-32ELS Pair Locking Lift-off Solid Side Panels for 48"H x 32"D Frame
4810-36ELS Pair Locking Lift-off Solid Side Panels for 48"H x 42"D Frame
6010-32ELS Pair Locking Lift-off Solid Side Panels for 60"H x 32"D Frame
7210-32ELS Pair Locking Lift-off Solid Side Panels for 72"H x 32"D Frame
7210-36ELS Pair Locking Lift-off Solid Side Panels for 72"H x 36"D Frame
7810-36ELS Pair Locking Lift-off Solid Side Panels for 78"H x 42" and
48"D Frame
8410-32ELS Pair Locking Lift-off Solid Side Panels for 84"H x 32"D Frame
8410-36ELS Pair Locking Lift-off Solid Side Panels for 84"H x 36", 42" and
48"D Frame
9110-36ELS Pair Locking Lift-off Solid Side Panels for 91"H x 42" and
48"D Frame
VENTED SIDE PANELS
PART NO. DESCRIPTION
3011-32ELL Pair Locking Lift-off Vented Side Panels for 30"H x 32"D Frame
4811-32ELL Pair Locking Lift-off Vented Side Panels for 48"H x 32"D Frame
4811-36ELL Pair Locking Lift-off Vented Side Panels for 48"H x 36"D Frame
6011-32ELL Pair Locking Lift-off Vented Side Panels for 60"H x 32"D Frame
7211-32ELL Pair Locking Lift-off Vented Side Panels for 72"H x 32"D Frame
7211-36ELL Pair Locking Lift-off Vented Side Panels for 72"H x 36"D Frame
7811-36ELL Pair Locking Lift-off Vented Side Panels for 78"H x 42" and
48"D Frame
8411-32ELL Pair Locking Lift-off Vented Side Panels for 84"H x 32"D Frame
8411-36ELL Pair Locking Lift-off Vented Side Panels for 84"H x 36", 42",
and 48"D Frame
9111-36ELL Pair Locking Lift-off Vented Side Panels for 91"H x 42" and
48"D Frame
A TOP PANELS FOR ES/EN ENCLOSURES
122 Great Lakes Case & Cabinet WeRackYourWorld.com
PART NO. DESCRIPTION
TPES-S Solid Top Panel for ES Enclosures
TPEN-S Solid Top Panel for EN Enclosures
PART NO. DESCRIPTION
TPES-P Perforated Top Panel for
ES Enclosures
TPEN-P Perforated Top Panel for
EN Enclosures
PART NO. DESCRIPTION
TPES-F10 Top Panel and Fan Assembly with
one 10", 550 CFM fan (115V) for
ES Enclosures
TPES-F10-230 Top Panel and Fan Assembly with
one 10", 550 CFM fan (230V) for
ES Enclosures
TPEN-F10 Top Panel and Fan Assembly with
one 10", 550 CFM fan (115V) for
EN Enclosures
DC Fans are also available, visit werackyourworld.com
PART NO. DESCRIPTION
TPES-2F10 Top Panel and Fan Assembly
with two 10", 550 CFM fans
(115V) for ES Enclosures
TPES-2F10-230 Top Panel and Fan Assembly
with two 10", 550 CFM fans
(230V) for ES Enclosures
TPEN-2F10 Top Panel and Fan Assembly
with two 10", 550 CFM fans
(115V) for EN Enclosures
DC Fans are also available, visit werackyourworld.com
PART NO. DESCRIPTION
TPES-F Top Panel and Fan Assembly with
three, 75 CFM fans (115V) for
ES Enclosures
TPES-F-230 Top Panel and Fan Assembly with
three, 75 CFM fans (230V) for
ES Enclosures
TPEN-F Top Panel and Fan Assembly with
three, 75 CFM fans (115V) for
EN Enclosures
PART NO. DESCRIPTION
TPES-B Top Panel with brush grommet for
ES Enclosures
TPEN-B Top Panel with brush grommet for
EN Enclosures
A
1.866.TRY.GLCC (879.4522) Great Lakes Case & Cabinet 123
BOTTOM PANELS FOR ES ENCLOSURES
BRUSH GROMMET BOTTOM PANELS
PART NO. DESCRIPTION
BPBES2442 Brush Grommet Bottom Panel
assembly for 24"W x 42"D
ES Enclosures
BPBES3042 Brush Grommet Bottom Panel
assembly for 30"W x 42"D
ES Enclosures
BPBES2448 Brush Grommet Bottom Panel
assembly for 24"W x 48"D
ES Enclosures
BPBES3048 Brush Grommet Bottom Panel
assembly for 30"W x 48"D
ES Enclosures
SOLID BOTTOM PANELS
PART NO. DESCRIPTION
BPSES2442 Solid Bottom Panel assembly for
24"W x 42"D ES Enclosures
BPSES3042 Solid Bottom Panel assembly for
30"W x 42"D ES Enclosures
BPSES2448 Solid Bottom Panel assembly for
24"W x 48"D ES Enclosures
BPSES3048 Solid Bottom Panel assembly for
30"W x 48"D ES Enclosures
CABINET EXTENSIONS
At some point you may decide you need your
enclosure to be deeper. We have a solution, our
4" cabinet extensions are available for Great Lakes’
E Series enclosures. Easy to install kits come in
4" increments and are stackable to get up to 8" of
additional equipment depth on the front, the rear or
both, allowing for up to 16" of additional depth.
PART NO. DESCRIPTION
72E24EXT4 4" Cabinet Extension for
GL720E-24 enclosures
72E29EXT4 4" Cabinet Extension for
GL720E-29 enclosures
84E24EXT4 4" Cabinet Extension for
GL840E-24 enclosures
84E29EXT4 4" Cabinet Extension for
GL840E-29 enclosures
PSBKEXT Powerstrip Mounting Bracket for
cabinet extension; allows mounting
of a single button mounted PDU
ATOP PANELS FOR E ENCLOSURES
124 Great Lakes Case & Cabinet WeRackYourWorld.com
PART NO. DESCRIPTION
TPE-24S Solid Top Panel for 24"W enclosure
TPE-29S Solid Top Panel for 29"W enclosure
PART NO. DESCRIPTION
TPE-24P Perforated Top Panel for
24"W enclosure
TPE-29P Perforated Top Panel for
29"W enclosure
PART NO. DESCRIPTION
TPE-24F10 Top Panel and Fan Assembly
with one 10", 550 CFM fan
(115V) for 24"W enclosure
TPE-29F10 Top Panel and Fan Assembly
with one 10", 550 CFM fan
(115V) for 29"W enclosure
TPE-24F10-230 Top Panel and Fan Assembly
with one 10", 550 CFM fan
(230V) for 24"W enclosure
TPE-29F10-230 Top Panel and Fan Assembly
with one 10", 550 CFM fan
(230V) for 29"W enclosure
DC Fans are also available, visit
werackyourworld.com
PART NO. DESCRIPTION
TPE-242F10 Top Panel and Fan Assembly
with two 10", 550 CFM fans
(115V) for 24"W enclosure
TPE-292F10 Top Panel and Fan Assembly
with two 10", 550 CFM fans
(115V) for 29"W enclosure
TPE-242F10-230 Top Panel and Fan Assembly
with two 10", 550 CFM fans
(230V) for 24"W enclosure
TPE-292F10-230 Top Panel and Fan Assembly
with two 10", 550 CFM fans
(230V) for 29"W enclosure
DC Fans are also available, visit
werackyourworld.com
PART NO. DESCRIPTION
TPE-24F Top Panel and Fan Assembly
with three, 75 CFM fans for
24"W enclosure (115V)
TPE-29F Top Panel and Fan Assembly
with three, 75 CFM fans for
29"W enclosure (115V)
TPE-24F-230 Top Panel and Fan Assembly
with three, 75 CFM fans for
24"W enclosure (230V)
TPE-29F-230 Top Panel and Fan Assembly
with three, 75 CFM fans for
29"W enclosure (230V)
FFK2 Three Fan Filters for use with
TPE-24F, TPE-29F and TPES-F
Horseshoe knockouts (available on all E Enclosure
tops) allow the removal and interchanging of top
panels without interfering with top cable entry.
For Theromostat Controllers, see page 142
A
1.866.TRY.GLCC (879.4522) Great Lakes Case & Cabinet 125
BOTTOM PANELS FOR E ENCLOSURES
PART NO. DESCRIPTION
BP-ES24B Rear Solid Bottom Panel for
24"W E Enclosures
BP-ES29B Rear Solid Bottom Panel for
29"W E Enclosures
PART NO. DESCRIPTION
BPS24 Solid Bottom Panel
(13"W x 16"D) with Rear Solid
Panel for 24"W E Enclosures
BPS29 Solid Bottom Panel
(13"W x 16"D) with Rear Solid
Panel for 29"W E Enclosures
BP-ES Solid Bottom Panel only;
for use with GL300E, GL480E
and GL600E
PART NO. DESCRIPTION
BPF24 Filtered Bottom Panel
(13"W x 16"D) with Rear Solid
Panel for 24"W E Enclosures
BPF29 Filtered Bottom Panel
(13"W x 16"D) with Rear Solid
Panel for 29"W E Enclosures
BP-EF Filtered Bottom Panel only;
for use with GL300E, GL480E
and GL600E
PART NO. DESCRIPTION
BPB24 Brush Grommet with Rear Solid
Panel for 24"W E Enclosures
BPB29 Brush Grommet with Rear Solid
Panel for 29"W E Enclosures
BP-EB Brush Grommet only; for use with
GL300E, GL480E and GL600E
PART NO. DESCRIPTION
FILTER Replacement Filter,
1"H x 10.5"W x 13.5"D
A
PAIR OF EIA #10-32 MOUNTING RAILS
PART NO. DESCRIPTION
7205-ES1P 19" (or 23") tapped #10-32 Mounting Rails for
72"H enclosure
7805-ES1P 19" tapped #10-32 Mounting Rails for 78"H
enclosure
8405-ES1P 19"(or 23") tapped #10-32 Mounting Rails for
84"H enclosure
9105-ES1P 19"(or 23") tapped #10-32 Mounting Rails for
91"H enclosure
PAIR OF EIA 3/8" SQ. (M6) MOUNTING RAILS
PART NO. DESCRIPTION
3005-E2P 19" Mounting Rails to accept 3/8" sq. (M6)
Cage Nuts for 30"H enclosure
4805-E2P 19" Mounting Rails to accept 3/8" sq. (M6)
Cage Nuts for 48"H enclosure
6005-E2P 19" Mounting Rails to accept 3/8" sq. (M6)
Cage Nuts for 60"H enclosure
7205-ES2P 19" (or 23") Mounting Rails to accept 3/8" sq. (M6)
Cage Nuts for 72"H enclosure
7805-ES2P 19" Mounting Rails to accept 3/8" sq. (M6)
Cage Nuts for 78"H enclosure
8405-ES2P 19" (or 23") Mounting Rails to accept 3/8" sq. (M6)
Cage Nuts for 84"H enclosure
9105-ES2P 19" (or 23") Mounting Rails to accept 3/8" sq. (M6)
Cage Nuts for 91"H enclosure
REDUCER BRACKETS
PART NO. DESCRIPTION
2319 Pair of recessed Reducer Brackets, 23" to 19
(8.625"H)
2319-F Pair of flush Reducer Brackets, 23" to 19"
(5.25"H)
2319F1.75 Pair of flush Reducer Brackets, 23" to 19"
(1.75"H)
All Reducer Brackets are tapped #10-32
MOUNTING RAILS
126 Great Lakes Case & Cabinet WeRackYourWorld.com
CONVERSION KITS
PART NO. DESCRIPTION
ES23K-42 Conversion Kit to convert from 19" to 23" mounting for
30"W x 42" and 48"D ES Enclosures (pictured)
E23K-32 Conversion Kit to convert from 19" to 23" mounting for
29"W x 32"D E Enclosures
E23K-36 Conversion Kit to convert from 19" to 23" mounting for
29"W x 36"D E Enclosures
A
1.866.TRY.GLCC (879.4522) Great Lakes Case & Cabinet 127
HARDWARE
#10-32 AND #12-24 SCREWS
PART NO. DESCRIPTION
HDW-102-50 Package of 50 Pan Head Phillips #10-32 x 1/2" screws
HDW-104-50 Package of 50 Pan Head Phillips #12-24 x 1/2" screws
CAGE NUTS AND SCREWS
PART NO. DESCRIPTION
HDW-105-25 Package of 25 M6 Cage Nuts with 12mm, M6 screws
HDW-105-50 Package of 50 M6 Cage Nuts with 12mm, M6 screws
HDW-106-25 Package of 25 Cage Nuts with #10-32 x 1/2" screws
HDW-106-50 Package of 50 Cage Nuts with #10-32 x 1/2" screws
SEISMIC ANCHOR KIT
PART NO. DESCRIPTION
AK101 Seismic Anchor Kit
(includes 4 torque controlled expansion anchors)
Seismic qualifications tested in accordance with ACI 355.2 and ICC-ES AC
193; Meets ductility requirements of 318 D.3.3
GANGING KITS
PART NO. DESCRIPTION
G101 Kit for E Enclosures; no tools required
G101ES Kit for ES Enclosures; no tools required
G101EN Kit for EN Enclosures
G101EN2ES Kit to gang EN to ES Enclosures
A
128 Great Lakes Case & Cabinet WeRackYourWorld.com
STATIONARY SHELVES
PART NO. DESCRIPTION
7206-FM Dimensions 17.25"W X 18"D;
Weight Capacity 60 lbs. ; 2 RMU
PART NO. DESCRIPTION
7206-EIA Dimensions 17.468"W x 18"D;
Weight Capacity 80 lbs. ; 2 RMU
7206-14 Dimensions 17.5"W x 14"D;
Weight Capacity 80 lbs.; 2 RMU
PART NO. DESCRIPTION
7206-FR-A18 Dimensions 17.5"W x 18"D;
Weight Capacity 150 lbs.; 1 RMU
Maximum Tab Placement 21.5"
7206-FR-AHD Dimensions 17.5"W x 22.25"D;
Weight Capacity 200 lbs.; 1 RMU
Maximum Tab Placement 26.125"
7206-FR-ADHD Dimensions 17.5"W x 27.25"D;
Weight Capacity 150 lbs.; 1 RMU
Maximum Tab Placement 32.25"
7206-FR-A28HD Dimensions 17.5"W x 28"D;
Weight Capacity 300 lbs.; 1 RMU
Maximum Tab Placement 30.18"
7206-FR-A32HD* Dimensions 17.5"W x 32"D;
Weight Capacity 300 lbs.; 1 RMU
Maximum Tab Placement 36"
* Fits in 36"D Enclosure
PART NO. DESCRIPTION
7206-BT Dimensions 17" x 20.75";
Weight Capacity 300 lbs.; 3 RMU
Maximum Tab Placement 25.250"
1.866.TRY.GLCC (879.4522) Great Lakes Case & Cabinet 129
SLIDING SHELVES
PART NO. DESCRIPTION
7206-FRSL-AHD Dimensions 17.5"W x 22"D;
Weight Capacity 110 lbs.; 2 RMU
Maximum Tab Placement 26.125"
7206-FRSL-ADHD
Dimensions 17.5"W x 26"D;
Weight Capacity 110 lbs.; 2 RMU
Maximum Tab Placement 32.125"
All weight capacities are determined with shelf pulled
out and weight extended
PART NO. DESCRIPTION
7206-FRSLA300 Dimensions 14.33"W x 30"D;
Weight Capacity 300 lbs.; 2 RMU
Maximum Tab Placement 36.12"
All weight capacities are determined with shelf pulled
out and weight extended
PART NO. DESCRIPTION
7206-SL Dimensions 16.343"W x 17.5"D;
Weight Capacity 40 lbs.; 3 RMU
7206-SL sliding shelf use 14" slides rated at 60 lbs.
All weight capacities are determined with shelf pulled out and
weight extended
PART NO. DESCRIPTION
7206-DR Dimensions 16"W x 18.875"D;
Weight Capacity 100 lbs.; 4 RMU
Maximum Tab Placement 25.500"
7206-DR sliding shelf use 16" slides rated at 120 lbs.; drawer is
7"H All weight capacities are determined with shelf pulled out
and weight extended
MONITOR/KEYBOARD/MOUSE SHELF
PART NO. DESCRIPTION
7206-MKM Dimensions 17"W x 24"D;
Weight Capacity 200 lbs.; 2 RMU
Maximum Tab Placement 36.12"
All weight capacities are determined with shelf pulled
out and weight extended
PIVOTING KEYBOARD/MOUSE TRAY
PART NO. DESCRIPTION
7206-PKB-MT 20.625"W x 9.5"D;
Weight Capacity 110 lbs.; 3 RMU
Maximum Tab Placement 36.12"
All weight capacities are determined with shelf pulled
out and weight extended
Accessories shown for
demonstration only.
A
A
E CASTERS
PART NO. DESCRIPTION
7208-E One set of 4 Casters, 2 locking and
2 non-locking
7208-EALL One set of 4 Casters, all locking
LEVELERS
PART NO. DESCRIPTION
7209-N One set of 4 adjustable levelers,
2.5"H
7209-N4 One set of 4 adjustable levelers,
4"H
ANTI-TIP LEGS
PART NO. DESCRIPTION
AT1 Anti-tip Legs for ES enclosures
AT2 Anti-tip Legs for E enclosures
Non-locking
NON-LOCKING ES CASTERS
PART NO. DESCRIPTION
7208-ES One set of 4 Casters, all
non-locking
130 Great Lakes Case & Cabinet WeRackYourWorld.com
CASTERS AND LEVELERS
NON-LOCKING EN CASTERS
PART NO. DESCRIPTION
7208-EN One set of four caster assemblies
HEAVY DUTY E CASTERS
PART NO. DESCRIPTION
7208-EHD One set of four Heavy Duty
Casters, all locking
Locking
A
GROUNDING KITS
PART NO. DESCRIPTION
GR101 Grounding Kit for enclosures;
includes quick disconnect
grounding wires and hardware
GR102 Grounding Kit for use with WM,
WS, WD and WE wall mounts
COPPER BUS BARS
PART NO. DESCRIPTION
CBB-19 Bus Bar for 19" mounting
CBB-30 Bus Bar for the GL300E enclosure
CBB-48 Bus Bar for 48"H enclosures
CBB-60 Bus Bar for 60"H and
72"H enclosures
CBB-72 Bus Bar for 78"H and
84"H enclosures
CBB-78 Bus Bar for 91"H enclosures
All Bus Bars are isolated.
TINNED COPPER BUS BAR
PART NO. DESCRIPTION
RGB-78 Tinned Copper Ground Bus Bar,
78"H; to be installed prior to any
equipment; fits over existing EIA
holes; recommended for use with
two and four post racks
PDU MOUNTING BRACKETS
PART NO. DESCRIPTION
PSBKE Set of two Power Strip Mounting
Brackets to allow vertical
mounting of single PDU;
for E Series Enclosures
MOUNTING BRACKETS
PART NO. DESCRIPTION
PDU1 Set of two Mounting Brackets to
allow vertical mounting of any 1
RMU equipment (such as power
strips) without occupying any
RMU space; for 30" W ES and
29"W E Series Enclosures
MOUNTING BRACKETS
PART NO. DESCRIPTION
ZR1 Set of two mounting brackets to
allow the vertical mounting of any
1 RMU equipment (such as cable
organizers) without occupying
any RMU space; brackets mount to
the Flexible Mounting Profile of
Great Lakes rails; for 29"W E,
30"W ES, and all EN Enclosures
ZR2 Same as above except allows
vertical mounting of any 2 RMU
equipment
1.866.TRY.GLCC (879.4522) Great Lakes Case & Cabinet 131
GROUNDING & MOUNTING BRACKETS
A
20 & 30 AMP, 125 VOLT POWER STRIPS FOR VERTICAL MOUNTING
Part Number Number of Receptacle Receptacle Plug Plug Surge
Receptacles Type Diagram Type Diagram
7215-20ARTLP 16 5-20R L5-20P
7215-20AR 16 5-20R 5-20P
7215-30A 24 5-20R L5-30P
Great Lakes standard power strips
(listed to the right) are in stock and
available for immediate shipment.
Power Strips can be purchased
with an enclosure and installed,
or shipped separately.
All standard power strips are UL
Listed. Please note the following:
• 15 amp (derated 12 amp)
• 20 amp (derated 16 amp)
• 30 amp (derated 24 amp)
Great Lakes also offers the widest
selection of custom, intelligent
Power Distribution Units (PDUs) in
the enclosure industry. PDUs can be
ordered and installed inside of your
enclosure or shipped individually.
Lead-time on custom PDUs is 7-10
working days.
When ordering a custom PDU, the
following informaiton is required:
• Amperage
• Voltage (120, 240, 3 phase)
• Receptacle Type and Quantity
• Plug Type
• Cord Length
Additional information may include
digital display (metered), remote
monitoring, remote control of outlets
and environmental monitoring.
Page 134 will help you nd the right
PDU for your needs. Visit
werackyourworld.com to download
an Electrical Conguration Order
Form (as seen on page 116). EURO, 250 VOLT POWER STRIP
Part Number Number of Receptacle Receptacle Plug Plug Surge
Receptacles Type Diagram Type Diagram
7215-EURO 12 Schuko Schuko
15 & 20 AMP, 125 VOLT POWER STRIPS FOR 19" MOUNTING
Part Number Number of Receptacle Receptacle Plug Plug Surge
Receptacles Type Diagram Type Diagram
7219 6 5-15R 5-15P
7219-SR14 6 front/8 back 5-15R 5-15P a
7219-20AR 6 5-20R 5-20P
7219-20ARTLP 6 5-20R L5-20P
15 AMP, 125 VOLT POWER STRIPS FOR VERTICAL MOUNTING
Part Number Number of Receptacle Receptacle Plug Plug Surge
Receptacles Type Diagram Type Diagram
7215 16 5-15R 5-15P
7215-S 16 5-15R 5-15P a
7218-24 8 5-15R 5-15P
(Power strip comes with a 9' 10" cord; please call for availability)
132 Great Lakes Case & Cabinet WeRackYourWorld.com
POWER
All standard power strips are UL Listed and
are supplied with a circuit breaker and 15’
cord (unless otherwise noted).
A
1.866.TRY.GLCC (879.4522) Great Lakes Case & Cabinet 133
POWER - ELECTRICAL CONFIGURATION
IEC
NEMA
NEMA
IEC
AMP VOLT STRAIGHT-BLADE
PLUG STRAIGHT-BLADE
RECEPTACLE AMP VOLT STRAIGHT-BLADE
PLUG STRAIGHT-BLADE
RECEPTACLE
15 125 5-15P 5-15R 20 250 6-20P 6-20R
20 125 5-20P 5-20R
AMP VOLT TWIST-LOCK
PLUG TWIST-LOCK
RECEPTACLE AMP VOLT TWIST-LOCK
PLUG TWIST-LOCK
RECEPTACLE
15 125 L5-15P L5-15R 20 120/208 x
3~ WYE L21-20P L21-20R
20 125 L5-20P L5-20R 20 230/400 x
3~ WYE L22-20P L22-20R
30 125 L5-30P L5-30R 30 120/208 x
3~ WYE L21-30P L21-30R
20 250 L6-20P L6-20R 30 230/400 x
3~ WYE L22-30P L22-30R
30 250 L6-30P L6-30R 30 250 x 3~
DELTA L15-30P L15-30R
20 125/250 L14-20P L14-20R AMP VOLT CALIFORNIA STYLE
30 125/250 L14-30P L14-30R 50 250 2P, 3W 2P, 3W
50 250 x 3~
DELTA 3P, 4W 3P, 4W
AMP VOLT POWER INLET POWER
RECEPTACLE AMP VOLT POWER INLET POWER
RECEPTACLE
15/10* 125 or 250 C-14 C-13 20/16* 125 or
250 C-20 C-19
AMP VOLT PIN & SLEEVE AMP VOLT PIN & SLEEVE
20/16* 250/230* 2P, 3W 2P, 3W 60/63* 250/230* 2P, 3W 2P, 3W
20 250 3P, 4W 3P, 4W 60 250 3P, 4W 3P, 4W
30/32* 250/320* 2P, 3W 2P. 3W 20/16* 230/400*
x 3~ WYE 4P, 5W 4P, 5W
30 250 3P, 4W 3P, 4W 30/32* 230/400*
x 3~ WYE 4P, 5W 4P, 5W
*Rating for CE products
APOWER - ELECTRICAL CONFIGURATION
POWER INPUT
QTY.** PLUG TYPE INPUT AMPS INPUT VOLTS
5-15P 15 120
L5-15P 15 120
5-20P 20 120
L5-20P 20 120
6-20P 20 208
L6-20P 20 208
L14-20P 20 120/208
L21-20P 20x3~ 120/208 WYE
L22-20P 20x3~ 230/400 WYE
L5-30P 30 120
L6-30P 30 208
L14-30P 30 120/208
L15-30P 30x3~ 208 DELTA
L21-30P 30x3~ 120/208 WYE
L22-30P 30x3~ 230/400 WYE
Cal. Style
2 Pole/3 Wire 50 208
Cal. Style
3 Pole/4Wire 50x3~ 2508 DELTA
IEC C-14
Inlet (no cord) 15/10* 120 or 208/230*
IEC C-20
Inlet (no cord) 20/16* 120 or 208/230*
IEC Pin & Sleeve
2 Pole/3 Wire 20/16* 208/230*
IEC Pin & Sleeve
3 Pole/4 Wire 20x3~ 208 DELTA
IEC Pin & Sleeve
2 Pole/3 Wire 30/32* 208/230*
IEC Pin & Sleeve
4 Pole/5 Wire 20/16*x3~ 230/400 WYE*
IEC Pin & Sleeve
4 Pole/5 Wire 30/32*x3~ 230/400 WYE*
IEC Pin & Sleeve
3 Pole/4 Wire 30x3~ 208 DELTA
IEC Pin & Sleeve
2 Pole/3 Wire 60/63* 208/230*
IEC Pin & Sleeve
3 Pole/4 Wire 60x3~ 208 DELTA
POWER OUTPUT
QTY. RECEPTACLE
TYPE INPUT AMPS INPUT VOLTS
5-15R Duplex 15 120
5-15R Individual 15 120
L5-15R Duplex 15 120
5-20R Duplex 20 120
5-20R Individual 20 120
L5-20R 20 120
6-20R Duplex 20 208
L6-20R 20 208
L5-30R 30 120
L6-30R 30 208
IEC C-13 15/10* 120 or 208
IEC C-19 20/16* 120 or 208
Other - Please Specify
PHYSICAL CONFIGURATION
DIMENSIONAL LIMITS MOUNTING ORIENTATION
Length Horizontal
Width Vertical
Height
CORD LENGTH
Length in feet
POWER SWITCH
No
Yes
Yes - With Cover
SURGE SUPRESSION
No
Yes
LOCAL CURRENT MONITORING
No
Yes - Current (Amps) Only
REMOTE CURRENT MONITORING
No
Yes, Circuit Level
Yes, Outlet Level
CIRCUIT BREAKERS
No (required by NEC
in some units)
Yes
ENVIRONMENTAL MONITORING
No
Yes
REMOTE SWITCHING
No
Yes
3RD PARTY TESTING COMPLIANCE
UL Listed
FCC Part 15 Class A
CE
Other - Please Speciy
None Required
ADDITIONAL INFORMATION (NOTES)
This worksheet is available to help you nd
the appropriate PDU for your needs. It can be
downloaded from WeRackYourWorld.com
Please call 1.866.TRY.GLCC for assistance.
*Rating for CE products
**Quantity = # of circuits
134 Great Lakes Case & Cabinet WeRackYourWorld.com
A
KOLDLOK® RAISED FLOOR GROMMETS
PART NO. DESCRIPTION
GLKL1010CP Integral Floor Grommet to seal
openings 9.25" x 6.75";
pack of 10
GLKL3030CP Split Integral Floor Grommet to
seal openings 9.25" x 6.75";
pack of 10
PART NO. DESCRIPTION
GLKL2020CP Split Surface Mount Floor
Grommet to seal openings
10" x 7.25"; pack of 10
GLKL2030CP Split Surface Mount Floor
Grommet to seal openings
10" x 9.75"; pack of 10
GLKL2040CP Split Surface Mount Floor
Grommet to seal openings
10" x 13"; pack of 10
PART NO. DESCRIPTION
GLKL10077CP Split Mini Floor Grommet to
seal openings 4" x 6";
pack of 10
PART NO. DESCRIPTION
GLKL20100CP Wave Split Integral Floor
Grommet to seal 7 3/4" x 5 7/8"
openings; pack of 10
GLKL20101CP Cover for Wave Split Integral
Floor Grommet; pack of 10
PART NO. DESCRIPTION
GLKL10012CP Extended Raise Floor Grommet
for sealing perimeter openings,
3"; pack of 10
GLKL10013CP Extended Raise Floor Grommet
for sealing perimeter openings,
6"; pack of 10
RAISED FLOOR GROMMETS*
Floor Grommets are designed to seal a variety of existing or new raised oor tile cutouts allowing the exibility to remove tiles without capturing
cables. Grommets increase static pressure and improve cool air delivery through perforated tiles and oor grates.
1.866.TRY.GLCC (879.4522) Great Lakes Case & Cabinet 135
PART NO. DESCRIPTION
GLKL40001CP 4" Split Round Floor Grommet;
pack of 10
GLKL40003CP 6" Split Round Floor Grommet;
pack of 10
A
PLASTIC FILLER PANELS BY UPSITE TECHNOLOGIES*
PART NO. DESCRIPTION
GLHL10031CP 1 RMU snap-in panels, 19" mounting for use with
3/8" sq. (M6) and #12-24 rails; pack of 10
GLHL10035CP 1 RMU snap-in panels with temperature strip, 19" mounting
for use with 3/8" sq. (M6) and #12-24 rails; pack of 10
GLHL10033CP 2 RMU snap-in panels, 19" mounting for use with
3/8" sq. (M6) and #12-24 rails; pack of 5
GLHL10038CP 2 RMU snap-in panels with temperature strip,19" mounting
for use with 3/8" sq. (M6) and #12-24 rails; pack of 5
GLHL10009CP Pack of 10 temperature strips
136 Great Lakes Case & Cabinet WeRackYourWorld.com
AIRFLOW ACCESSORIES
new!
new!
UNDER RACK PANELS BY UPSITE TECHNOLOGIES*
Under Rack Panels are used to seal openings below enclosures to block
bypass air flow and maximize cooling.
PART NO. DESCRIPTION
GLAL10126CP Under Rack Panel, overall dimensions 27.5" x 4.53" x 1";
pack of 10
GLAL10127CP Under Rack Panel, overall dimensions 31.5" x 4.53" x 1";
pack of 10
ACRYCELL™ SEALING TAPE BY UPSITE TECHNOLOGIES*
Sealing Tape is used to seal openings between enclosures in a row to block
bypass air flow and maximize cooling.
PART NO. DESCRIPTION
GLAL10108-001CP .5" Sealing Tape, 10m roll; pack of 10
GLAL10108-002CP 1" Sealing Tape, 10m roll; pack of 10
GLAL10108-003CP 2" Sealing Tape, 10m roll; pack of 10
For technical specifications, visit werackyourworld.com
PASS THROUGH FILLER PANEL BY UPSITE TECHNOLOGIES*
PART NO. DESCRIPTION
GLHL10112CP 1 RMU Pass Through Filler Panel for 19" mounting, pack of 10
GLHL10113CP 2 RMU Pass Through Filler Panel for 19" mounting, pack of 10
new!
A
TOOL-LESS FILLER PANELS FOR 19" MOUNTING
PART NO. DESCRIPTION
1.75-FPTL19 1.75"H, 1 RMU, for use with 3/8" sq. (M6) rails
3.50-FPTL19 3.50"H, 2 RMU, for use with 3/8" sq. (M6) rails
5.25-FPTL19 5.25"H, 3 RMU, for use with 3/8" sq. (M6) rails
7.00-FPTL19 7.00"H, 4 RMU, for use with 3/8" sq. (M6) rails
8.75-FPTL19 8.75"H, 5 RMU, for use with 3/8" sq. (M6) rails
14.00-FPTL19 14.00"H, 8 RMU, for use with 3/8" sq. (M6) rails
Additional sizes as well as filler panels for 23" mounting are available.
Please call 1.866.TRY.GLCC for details.
FILLER PANELS FOR 19" MOUNTING
PART NO. DESCRIPTION
1.75-FP19 1.75"H, 1 RMU
3.50-FP19 3.50"H, 2 RMU
5.25-FP19 5.25"H, 3 RMU
7.00-FP19 7.00"H, 4 RMU
8.75-FP19 8.75"H, 5 RMU
14.00-FP19 14.00"H, 8 RMU
FILLER PANELS WITH BRUSH GROMMET
PART NO. DESCRIPTION
1.75FP19BG 1 RMU Filler Panel with brush grommet to allow
cable pass through
3.50FP19BG 2 RMU Filler Panel with brush grommet
Locked
Unlocked
AIRFLOW ACCESSORIES
1.866.TRY.GLCC (879.4522) Great Lakes Case & Cabinet 137
BRAND YOUR ENCLOSURES
Filler panels, name plates for mesh doors, and
additional items (id tags, side panels, plexiglas
doors, etc.) can be branded with your company logo
or other graphics.
A
138 Great Lakes Case & Cabinet WeRackYourWorld.com
ADJUSTABLE EXHAUST CHIMNEYS
Great Lakes Exhaust Chimney serves as a duct that assists in the removal of hot
air from ES enclosures. This process of directing and removing exhaust air can
be accelerated through the use of a chimney fan tray.
PART NO. DESCRIPTION
GL-ECHF-48-1832 High Flow Chimney for 48"D enclosure with an adjustable
range of 18" to 32"
GL-ECHF-48-3246 High Flow Chimney for 48"D enclosure with an adjustable
range of 32" to 46"
GL-ECHFFT48 High Flow Fan tray for 48"D enclosure, 2260 CFM
GL-EC-48-1832 Chimney for 48"D enclosure with an adjustable range of
18" to 32"
GL-EC-48-3246 Chimney for 48"D enclosure with an adjustable range of
32" to 46"
GL-ECFT48 Fan tray for 48"D enclosure, 1200 CFM
GL-EC-42-1832 Chimney for 42"D enclosure with an adjustable range of
18" to 32"
GL-EC-42-3246 Chimney for 42"D enclosure with an adjustable range of
32" to 46"
GL-ECFT42 Fan tray for 42"D enclosure, 1200 CFM
Fan Tray
FLEXIBLE DUCT CHIMNEYS
In a data center, enclosures in a row may not align with ceiling tiles and the
overhead duct system. The Flexible Duct Chimney Kit comes with a 24" x 24"
ceiling panel to be installed in a drop ceiling (near the enclosure to be ducted).
A 5 foot section of double ply black polyester hose is attached to the ceiling
panel with a collar; the second end of the hose is attached to an enclosure
adapter which fits over the large rear knockout on the top of 48"D ES Server
Enclosures.
PART NO. DESCRIPTION
ECDHF48 High Flow Flexible Chimney Kit for 48"D Enclosure;
kit includes 24" x 24" ceiling panel, high ow enclosure
adapter, two 5' sections of double ply black polyester fabric
hoses, four duct collars
ECD48 Flexible Chimney Kit for 48"D Enclosure; kit includes
24" x 24" ceiling panel, enclosure adapter, two 5’ sections
of double ply black polyester fabric hoses, four duct collars
GL-ECHFFT48 High Flow Fan tray for 48"D enclosure, 2260 CFM
GL-ECFT48 Fan tray for 48"D enclosure, 1200 CFM
EXHAUST CHIMNEYS
Extended
Compressed
A
1.866.TRY.GLCC (879.4522) Great Lakes Case & Cabinet 139
AIR MANAGER
The Adjustable Air Manager mounts to the bottom of an ES enclosure,
"managing" the ow of conditioned air into the enclosure. An adjustable slide
allows the amount of air to be adjusted as necessary, while maintaining raised
oor pressure throughout the data center. This process can be further enhanced
with use of a fan tray.
PART NO. DESCRIPTION
AM-HFES High Flow Air Manager Assembly, 19" EIA, 2 RMU
AM-HFFTES24 High Flow Air Manager Fan Tray, for 24"W Enclosure,
940 CFM
AM-HFFTES30 High Flow Air Manager Fan Tray, for 30"W Enclosure,
940 CFM
AM-ES Air Manager Assembly, 19" EIA, 1 RMU
AM-FTES24 Air Manager Fan Tray, for 24"W Enclosure, 600 CFM
AM-FTES30 Air Manager Fan Tray, for 30"W Enclosure, 600 CFM
AIR MANAGERS AND BRUSH KITS
BRUSH GROMMET KITS
Brush Grommet Kits help to direct conditioned air and restrict hot air from
recirculating throughout an enclosure. The grommet is quickly installed with
tool-less hardware and mounts directly to the enclosure rails.
PART NO. DESCRIPTION
BGRK24 Kit for 24"W x 78" and 84"H ES enclosures
BGRK30 Kit for 30"W x 78" and 84"H ES enclosures
BGRK91-24 Kit for 24"W x 91"H ES enclosures
BGRK91-30 Kit for 30"W x 91"H ES enclosures
BGRK-32EN Kit for 32"W x 78" and 84"H EN enclosures
BGRK-40EN Kit for 40"W x 78" and 84"H EN enclosures
BGRK91-32EN Kit for 32"W x 91"H EN enclosures
BGRK91-40EN Kit for 40"W x 91"H EN enclosures
BAFFLE KITS FOR SIDE-TO-SIDE
AIRFLOW EQUIPMENT
Baffle Kits create proper airflow for switches, and side-to-side airflow equipment, as suggested by
manufactures such as CISCO. Cool air is channeled into the equipment along the right side and exhaust
air is directed out along the left side of the equipment. Kits are tool-less and easily attach to rails outside
of the EIA mounting profile. Kits are unique to EN and ES enclosures, creating the perfect fit between
switch and enclosure!
Please see chart on page 51 to ensure baffle kit and equipment are compatable.
BAFFLE KITS FOR EN ENCLOSURES
PART NO. DESCRIPTION
ENSAB25 Bafe Kit for use with 28.5"D to 32"D, 14 RMU Cisco and other side-to-side airow
equipment; for proper airow, this size switch and bafe should only be used in
40"W enclosures
ENSAB19 Bafe Kit for use with 15.8"D to 18.5"D, 19 RMU CISCO and other side-to-side
airow equipment; for use with 32"W x 42"D Enclosures
ENSAB14 Bafe Kit for use with 15.8"D to 18.1"D or 18.4"D, 14 RMU CISCO and other side-to-side
airow equipment; for use with 32"W x 42"D Enclosures
ENSAB14A Bafe Kit for use with 21.9"D to 24.1"D, 14 RMU Cisco and other side-to-side airow
equipment; for proper airow, this size switch and bafe should only be used in
40"W enclosures
ENSAB14D Bafe Kit for use with 25.7"D to 28"D, 14 RMU, CISCO and other side-to-side
airow equipment; for use with 32"W x 42"D Enclosures
ENSAB11 Bafe Kit for use with 15.8"D to 18.1"D, 11 RMU CISCO and other side-to-side
airow equipment; for use with 32"W x 42"D Enclosures
ENSAB7A Bafe Kit for use with 21.8"D to 24"D, 7 RMU CISCO and other side-to-side
airow equipment; for use with 40"W Enclosures
BAFFLE KITS FOR 30"W ES ENCLOSURES
ESSAB19 Bafe Kit for use with 15.8"D to 18.5"D, 19 RMU CISCO and other side-to-side
airow equipment
ESSAB14 Bafe Kit for use with 15.8"D to 18.1"D or 18.4"D, 14 RMU CISCO and other side-to-side
airow equipment
ESSAB14D Bafe Kit for use with 25.7"D to 28"D, 14 RMU, CISCO and other side-to-side
airow equipment
ESSAB11 Bafe Kit for use with 15.8"D to 18.1"D, 11 RMU CISCO and other side-to-side
airow equipment
ABAFFLE KITS
140 Great Lakes Case & Cabinet WeRackYourWorld.com
A
1.866.TRY.GLCC (879.4522) Great Lakes Case & Cabinet 141
CONTAINMENT AND AISLE DOORS
AISLE CONTAINMENT DOORS
Today’s data center manager must often find new ways to grow the facility in its existing “footprint.” Using
a “containment” strategy to capture as much conditioned air or to isolate and exhaust as much hot air as
possible within the data center space; containment can be achieved with Aisle Containment Doors.
Great Lakes Aisle Containment doors are designed to accommodate standard 91, 84 and 78"H ES
enclosures in aisle widths from 48-72". The doors are mounted with a trolley assembly to rail which spans
the aisle and attaches to the enclosure at the end of the row. The doors do not require a bottom track, so
there are no obstructions in the aisle way.
PART NO. DESCRIPTION
ACD910ES Aisle Containment Doors for 91"H ES Enclosure; supports aisle width of 48-72"
ACD840ES Aisle Containment Doors for 84"H ES Enclosure; supports aisle width of 48-72"
ACD780ES Aisle Containment Doors for 78"H ES Enclosure; supports aisle width of 48-72"
HORIZONTAL POLARGY PANELS*
Please call 1.866.TRY.GLCC for details
VERTICAL POLARGY PANELS*
Please call 1.866.TRY.GLCC for details
new!
FOAM BLOCKS TO PREVENT BYPASS AIR
Please call 1.866.TRY.GLCC for details
A
142 Great Lakes Case & Cabinet WeRackYourWorld.com
CABLE MANAGEMENT FOR RACKS
FAN ASSEMBLIES
FAN THERMOSTAT CONTROLLER
PART NO. DESCRIPTION
FTC101 Fan Thermostat Controller with
6' cord; consists of 15 amp duplex
outlets, 50o to 90oF/10o to 30oC
temperature range, UL Listed and
CSA Certified
PART NO. DESCRIPTION
7217FT Fan Assembly with Fan Guards
and three 75 CFM Fans, 2 RMU
(115V)
7217FT-220 Fan Assembly with Fan Guards
and three 75 CFM Fans, 2 RMU
(220V)
FTBKT90 Fan Bracket to mount 7217FT at
90o angle
PART NO. DESCRIPTION
7217FT-3 Fan Tray (front/rear mount
adjustable) with Fan Guards and
three 75 CFM Fans (115V), 2 RMU
7217FT-6 Fan Tray (front/rear mount
adjustable) with Fan Guards and
six 75 CFM Fans (115V), 2 RMU
7217FT-9 Fan Tray (front/rear mount
adjustable) with Fan Guards and
nine 75 CFM Fans (115V), 2 RMU
7217FT-3-230 Fan Tray (front/rear mount
adjustable) with Fan Guards and
three 75 CFM Fans (230V), 2 RMU
7217FT-6-230 Fan Tray (front/rear mount
adjustable) with Fan Guards and
six 75 CFM Fans (230V), 2 RMU
7217FT-9-230 Fan Tray (front/rear mount
adjustable) with Fan Guards and
nine 75 CFM Fans (230V), 2 RMU
PART NO. DESCRIPTION
7217LE2 Fan Assembly with fan guards and
two 75 CFM fans; to be mounted to
a 24"W mesh contour door
7217LE3 Fan Assembly with fan guards and
three 75 CFM fans; to be mounted
to a 29"W mesh contour door
FAN THERMOSTAT CONTROLLER
PART NO. DESCRIPTION
FTC103 Variable Speed Fan Controller to
throttle fans from 60 - 100% speed;
Incudes temperature probe with 10’
cord and 3’ outlet cord (C13 to
C14); 95-250V, 2.0 amp load
new!
1.866.TRY.GLCC (879.4522) Great Lakes Case & Cabinet 143
CABLE MANAGEMENT FOR RACKS
VERTICAL CABLE ORGANIZERS
PART NO. DESCRIPTION
VCM12-FO Vertical Front Cable Management, 12" Channel x 80"L; includes black hinge cover
VCM8-FR Vertical Front & Rear Cable Management, 8" Channel x 80"L; includes 4 spools,
12 wire retainers, and black hinge cover
VCM8-FO Vertical Front Cable Management, 8" Channel x 80"L; includes 2 spools,
6 wire retainers, and black hinge cover
VCM5-FR Vertical Front & Rear Cable Management, 5" Channel x 80"L, and black snap-on cover
VCM5-FO Vertical Front Cable Management, 5" Channel x 80"L, and black snap-on cover;
Note: Not compatible with 4 post racks
ACCESSORIES FOR VERTICAL CABLE ORGANIZERS
PART NO. DESCRIPTION
VCM8-SL Pack of two, Duct Slack Loop Cable Spools, for 8" channel only
VCM8-WR Pack of six Wire Retainers, for 8" channel only
VCM8-BKT Pack of two Brackets to secure 8" channel to a second rack (when channel is between
two racks)
VCM5-SL Pack of two Duct Slack Loop Storage Organizers, for 5" channel only
VCM5-CR Pack of ten Cable Retainers, for 5" channel only
VCM5-HNG Duct Cover Hinge Kit; eliminates need to completely remove cover; for 5" channel only
VCM5-BKT Pack of two brackets to secure 5" channel to a second rack
(when channel is between two racks)
19" CABLE ORGANIZERS
PART NO. DESCRIPTION
CM-15 Double-sided Cable Organizer with plastic fingers and covers,
front, 2 RMU, 3" x 3"; rear, 1 RMU, 1.5" x 3"
CM-16 Single-sided Cable Organizer with plastic fingers and covers,
1 RMU, 1.5" x 3"
CM-17 Single-sided Cable Organizer with plastic fingers and covers,
2 RMU, 3" x 3"
VCM8-SL VCM8-WR VCM5-SL VCM5-HNGVCM8-BKT
A
A
144 Great Lakes Case & Cabinet WeRackYourWorld.com
CABLE MANAGEMENT MADE EASY
1
2
3
4
5
6
7
89
10
11
12
13
14
15
1.866.TRY.GLCC (879.4522) Great Lakes Case & Cabinet 145
CABLE MANAGEMENT MADE EASY
1. OVERHEAD CABLING - page 148
LRB, Ladder Rack Brackets & TCT, Top Cable Trough
• Facilitate the ow of cable in and out of the enclosure
• No overhead infrastructure changes needed
• Strength of enclosures can easily handle multiple bundles
2. CABLE RINGS - CM-11, Cable Ring Kit (5 rings) - page 146
• 3"W x 5"D rings support large bundles
• Mounts to rails without interfering with EIA pattern
• Rings can be used alone, or all 5 create a “virtual” cable trough
3. 19" CABLE ORGANIZERS - CM-16 - page 147
• 1 RMU Plastic Organizer
• Helps organize and direct cables between patch panels
• 1.5" x 3" channel
• Covers hide cables to provide protection
4. CABLE MANAGEMENT POST - page 146
CMP, Single Post or CMP-8, package of 8
• 3" post creates separate pathways for large bundles
• Mounts to rails without interfering with EIA pattern
5. TOOL-LESS FILLER PANELS - 3.50-FPTL19, - page 136
• Prevents by-pass airow
• Used to "save" RMU space for future patch panels and equipment
• Quick to install and uninstall
• For M6 rails only
• For complete list of part numbers, visit werackyourworld.com
6. BAFFLE KIT - page 140
ESSAB14, Intake/Exhaust Kits for side-to-side airow equipment
• Directs cool air in and exhaust air out of side-to-side airow equipment
• Easily mounts to rails with no tools
• Kits available for 11, 14 and 19 RMU side-to-side airow equipment
7. BRUSH GROMMET - BGT - page 139, Top Brush Grommet Kit
• Allows cables to pass overhead while “isolating” airow
8. EXTERNAL CABLE MANAGER - SC128442 - page 150
• Complete dimensions 84"H x 12"W x 42"D
• Two adjustable, vertical troughs (front and rear)
• Fingers easily pass cables from enclosure to “side car”
• Repositionable cable management posts create separate pathways
for large bundles
• Large openings to run cable front to rear
• Multiple attachment points for cable straps
9. BOTTOM CABLE ACCESS - page 135
Bottom Cable Opening and Floor Grommets
• Large cable bundles easily pass through bottom of enclosure
• Brush Grommet Bottom Panel (not pictured) available to “isolate” airow
• Koldlok® raised oor grommets seal oor tile cutouts while allowing
cables to pass through
10. WATERFALL CABLE MANAGER - CM-07 - page 147
• Routes cables horizontally across the enclosure
• 1 RMU
• Creates a safe bend radius
11. VERTICAL ORGANIZERS - VCT-84 - page 149
• Safely routes bundles vertically in the enclosure
• Up to 2 (in 42"D enclosure) or 3 (in 48"D enclosure) t in each rear corner
of enclosure
• Can also be installed in front of enclosure (with horizontal lacing bars)
• 3"W x 2.5"D trough
• Optional cover to protect cable
12. STRAIN RELIEF BARS - CM-10 - page 146,
• Provides support for cables across the enclosure
• Attachment points for cable straps
13. LACING BARS - VLB-8436 - page 151,
• Vertical bar fully adjustable front to rear
• Horizontal bars can be placed in any necessary location
• Horizontal & vertical slots as attachment point for cable straps
• Bars are 4" wide
14. HORIZONTAL TROUGH - HCM-D36 - page 149
• Route larger bundles from front to rear
• Can be placed in any vertical location (when not used with VLB-8436 on
same side of enclosure)
15. MOUNTING BRACKETS - ZR1 or ZR2 - page 131
• Vertically mount 1 or 2 RMU wide equipment without taking up RMU space
• Up to an additional 6 RMU of equipment can be mounted on each rail
Great Lakes cable management accessories can be used alone or together to create a complete solution for the equipment in your enclosure.
The specic accessories pictured can be used in any 30"W ES server enclosure; multiple patch panels and a CISCO 6500 Series Switch are installed
in the pictured enclosure. Each accessory “family” varies in its size, shape, material, or features...choose the one based on your needs! While most
accessories are compatible with ES and E Series Enclosures, please note that some parts are intended for ES enclosure use only.
A
CABLE MANAGEMENT POST
PART NO. DESCRIPTION
CMP Single Cable
Management Post,
3"H
CMP-8 Package of 8 Cable
Management Posts
CABLE RING
PART NO. DESCRIPTION
CM-13 Single Cable Ring,
inner dimensions
1.06"W x 2.8"D
CABLE RING
PART NO. DESCRIPTION
CM-44 Single Cable Ring,
inner dimensions
3.8"W x 3.8"D
CABLE RING
PART NO. DESCRIPTION
CM-425 Heavy Duty Cable
Ring, inner dimensions
2.3"W x 3.8"D;
for use with two and
four post racks with
aluminum uprights
CABLE RING
PART NO. DESCRIPTION
CM-11 Cable Management
Ring Kit, includes
five rings, inner
dimensions
3"W x 5"D;
for use with 29"W
E, 30"W ES, and all
EN Enclosures
146 Great Lakes Case & Cabinet WeRackYourWorld.com
CABLE RINGS
CABLE MANAGEMENT PANEL
PART NO. DESCRIPTION
CM-10 Horizontal Panel
for 19" mounting,
.25" x 2" opening,
1 RMU, Ideal for
use with CM-01
cinch straps
STRAIN RELIEF BAR
PART NO. DESCRIPTION
CM-03 Back Side Cable
Management Bar,
for 19" mounting,
1 RMU
STRAIN RELIEF BAR
PART NO. DESCRIPTION
CM-19 Utility Strain Relief Bar
for 19" mounting,
1 RMU
A
A
CABLE RINGS
1.866.TRY.GLCC (879.4522) Great Lakes Case & Cabinet 147
CABLE ORGANIZERS
PART NO. DESCRIPTION
CM-04 Interbay Cable
Organizer, 4 front
horizontal rings
(3.25"W x 2.8"D),
2 RMU
PART NO. DESCRIPTION
CM-05 Single-sided Cable
Organizer, 5 front
horizontal rings
(1.3"W x 2.8"D),
1 RMU
PART NO. DESCRIPTION
CM-08 Standard Front Cable
Organizer,
4 horizontal and
4 vertical rings
(1.4"W x 3"D), 2 RMU
PART NO. DESCRIPTION
CM-09 Double-sided Cable
Organizer, 4 front
horizontal and 5 rear
vertical rings
(1.3"W x 2.8"D),
1 RMU
PART NO. DESCRIPTION
CM-07 Waterfall Cable
Organizer, 1 RMU
PART NO. DESCRIPTION
CM-14 Intra-cabinet Cable
Managment Trough;
to be used when
two 30"W ES
Enclosures are
networked together
without side panels
PART NO. DESCRIPTION
CM-15
Double-sided
Cable Organizer
with plastic fingers
and covers, front,
2 RMU, 3" x 3";
rear, 1 RMU,
1.5" x 3"
PART NO. DESCRIPTION
CM-16 Single-sided Cable
Organizer with
plastic fingers and
cover, 1 RMU
CM-17 Single-sided Cable
Organizer with
plastic fingers and
cover, 2 RMU
SIDE VIEW
A
148 Great Lakes Case & Cabinet WeRackYourWorld.com
CABLE MANAGMENT
CABLE MANAGEMENT RAIL KIT
Cable Management Rail Kits are made of multiple
pieces of 7 RMU sections of “fingers.” When
used with ES and E Enclosures, “fingers” are
installed on the front of the rail using Great Lakes
flexible mounting profile, a series of holes outside
of the EIA pattern (used for “fingers” and other
accessories). EN rails have more than one series
of holes (as pictured), so “fingers” can be installed
on the front, side, or rear of rail. “Fingers” align with
rack mount units on both enclosures, creating clean
cable pathways.
PART NO. DESCRIPTION
ESC-K12 Rail Kit; includes 12 sections of
“fingers” (each section, 7 RMU);
if used with E and ES enclosures,
rails will need to be recessed 4.5"
ENC-K24 Rail Kit; includes 24 sections of
“fingers” (each section, 7 RMU);
if used with E and ES enclosures,
rails will need to be recessed 4.5"
CM-47 Single section of 7 RMU “fingers”; if
used with E and ES enclosures,
rails will need to be recessed 4.5"
TOP CABLE TROUGHS
PART NO. DESCRIPTION
TCT24 Top Cable Trough with hardware for
24"W ES Enclosures;
6.5"W x 4"D x 24"L
TCT30 Top Cable Trough with hardware for
30"W ES Enclosures;
6.5"W x 4"D x 30"L
TCT32 Top Cable Trough with hardware for
32"W EN Enclosures;
6.5"W x 4"D x 32"L
TCT40 Top Cable Trough with hardware for
40"W EN Enclosures;
6.5"W x 4"D x 40"L
LADDER RACK BRACKETS
PART NO. DESCRIPTION
LRB-12A1 One Height Adjustable Bracket
(6.5-11.5") with hardware,
supports 12"W ladder rack;
load rating of 100 lbs. on EN and
ES enclosures
LRB-12A2 One Height Adjustable Bracket
(14-24") with hardware, supports
12"W ladder rack; load rating of 1
00 lbs. on EN and ES enclosures
LRB-24A1 One Height Adjustable Bracket
(6.5-11.5") with hardware,
supports 12, 18, & 24"W ladder
rack; load rating of 100 lbs. on
EN and ES enclosures
LRB-24A2 One Height Adjustable Bracket
(14-24") with hardware, supports
12, 18, & 24"W ladder rack; load
rating of 100 lbs. on EN and
ES enclosures
LRB-12 One Fixed Height Bracket (3")
with hardware, supports 12"W
ladder rack
LRB-24 One Fixed Height Bracket (3")
with hardware, supports 12,18, &
24"W ladder rack
new!
1.866.TRY.GLCC (879.4522) Great Lakes Case & Cabinet 149
CABLE MANAGMENT
VERTICAL CABLE TROUGHS
The increased rear capacity of ES Enclosures
allows Vertical Cable Troughs to be mounted for
added cable management. Up to three troughs
can be mounted in each rear corner.
PART NO. DESCRIPTION
VCT-91 Vertical Cable Trough for
91"H ES Enclosure;
76"H x 3"W x 2.5"D
VCT-91C Cover for VCT-91
VCT-84 Vertical Cable Trough for
84"H ES Enclosure;
68"H x 3"W x 2.5"D
VCT-84C Cover for VCT-84
VCT-78 Vertical Cable Trough for
78"H ES Enclosure;
62"H x 3"W x 2.5"D
VCT-78C Cover for VCT-78
BRUSH GROMMET AND EDGE GROMMET
PART NO. DESCRIPTION
BGT Brush Grommet Kit to cover top
cable pass through knockouts on
30"W ES Enclosures
BGS-78 Brush Grommet Kit to cover rear
vertical cable pass throughs; for
78"H ES Enclosures
BGS-84 Brush Grommet Kit to cover rear
vertical cable pass throughs; for
84"H x 42"D ES Enclosures
BGS-84-48 Brush Grommet Kit to cover rear
vertical cable pass throughs; for
84"H x 48"D ES Enclosures
BGS-91 Brush Grommet Kit to cover rear
vertical cable pass throughs; for
91"H x 42"D ES Enclosures
BGS-91-48 Brush Grommet Kit to cover rear
vertical cable pass throughs; for
91"H x 48"D ES Enclosures
GL-EG Edge Grommet for use around
metal edge after removal of
knockouts; 1/16" edge thickness,
5/16" edge length, available by
the foot
HORIZONTAL CABLE TROUGHS
Use Horizontal Cable Troughs to route cables
from the front to the rear of ES and EN
Enclosures.
PART NO. DESCRIPTION
HCM-D36 Horizontal Cable Manager for
any 30"W ES Enclosure
HCM-EN48 Horizontal Cable Manager for
48"D EN Enclosures
HCM-EN42 Horizontal Cable Manager
for 42"D EN Enclosures
A
new!
A
150 Great Lakes Case & Cabinet WeRackYourWorld.com
CABLE MANAGMENT
Great Lakes offset rail kit allows one set of rails (on
either side of the enclosure) in 30"W ES enclosures
to be shifted inward, creating 6" of space (from
the outside of the rail to the inside edge of the
enclosure). This 6" of space is ideal for routing
high density cable bundles along one side of an
enclosure; either independently or by using vertical
cable troughs.
PART NO. DESCRIPTION
OSRK Offset Rail Kit for 78"H, 84" and
91"H x 30"W ES Enclosures
EXTERNAL CABLE MANAGER
The Great Lakes External Cable Manager or “Side Car” is designed to serve as a facilitator of your cabling
needs, either between two 84"H ES Enclosures or at the end of a row. The side car has two adjustable
vertical cable troughs, “fingers” and attachment points for a variety of cable management accessories.
When attached to an end-cabinet, a cover panel creates a clean appearence.
PART NO. DESCRIPTION
SC68442 External Cable Manager, 84"H x 6"W x 42"D, for use with 84"H x 42"D ES Enclosures
SC68448 External Cable Manager, 84"H x 6"W x 48"D, for use with 84"H x 48"D ES Enclosures
SC128442 External Cable Manager, 84"H x 12"W x 42"D; for use with 84"H x 42"D ES Enclosures
SC128448 External Cable Manager, 84"H x 12"W x 48"D; for use with 84"H x 48"D ES Enclosures
SCP8442 End Panel for External Cable Manager; for use with an 84"H x 42"D end-of-row enclosure
SCP8448 End Panel for External Cable Manager; for use with an 84"H x 48"D end-of-row enclosure
A
HORIZONTAL & VERTICAL LACING BARS
PART NO. DESCRIPTION
HLB-32 Horizontal Lacing Bar for
32"D Enclosure
HLB-36 Horizontal Lacing Bar for 36",
42" and 48"D Enclosures
VLB-48 Vertical Lacing Bar for 48"H
Enclosure; 32"H x 4"W
VLB-72 Vertical Lacing Bar for 72"H
Enclosure; 56"H x 4"W
VLB-78 Vertical Lacing Bar for 78"H
Enclosure; 62"H x 4"W
VLB-84 Vertical Lacing Bar for 84"H
Enclosure; 68"H x 4"W
VLB-91 Vertical Lacing Bar for 91"H
Enclosure; 75"H x 4"W
All Vertical Lacing Bars include six 12" long
cinch straps
LACING BAR KITS
All Lacing Bar Kits include one vertical lacing
bar, two horizontal lacing bars, and six 12" long
cinch straps. Vertical bars are fully adjustable,
moving independently of enclosure rails to route
cable up and down where needed. Combined with
horizontal bars, the lacing bar kit creates a quick
cable management solution for any Great Lakes
enclosure.
PART NO. DESCRIPTION
VLB-4832 Vertical Lacing Bar Kit for
GL480E-2432 Enclosure Only
VLB-4836 Vertical Lacing Bar Kit for
GL480ES-2442 Enclosure Only
VLB-7232 Vertical Lacing Bar Kit for E/ES
Series Enclosure, 72"H x 32"D
VLB-7236 Vertical Lacing Bar Kit for E/ES
Series Enclosure, 72"H x 36"D
VLB-7836 Vertical Lacing Bar Kit for ES
Series Enclosure, 78"H x 42"D
VLB-8432 Vertical Lacing Bar Kit for E
Series Enclosure, 84"H x 32"D
VLB-8436 Vertical Lacing Bar Kit for
E/ES Series Enclosures
84"H x 36", 42" and 48"D
VLB-9136 Vertical Lacing Bar Kit for
E/ES Series Enclosures
91"H x 36", 42" and 48"D
CINCH STRAPS
PART NO. DESCRIPTION
CM-01 Cinch Strap with buckle and grommet
12"L x 3/4"W, color: blue
CM-06 Cinch Strap with buckle and grommet
6"L x 3/4"W, color: black
CABLE MANAGMENT
1.866.TRY.GLCC (879.4522) Great Lakes Case & Cabinet 151
VISIT US ON
Facebook
or
Twitter
DESIGNED, MANUFACTURED
& SHIPPED FROM:
EDINBORO, PA
CORRY, PA
MARION, NC
NAPLES, FL
RENO, NV
CoUntry of origin
As an ISO 9001:2008 registered company, each
product manufactured by Great Lakes is warranted
free from defects in material and workmanship.
Repairs or returns are easily completed by
contacting one of our customer service
representatives, available from 8 AM to 8 PM
Eastern Standard Time, Monday through Friday.
Great Lakes freight policy continues to be the
best in the industry; by choosing Prepay and Add,
orders will arrive by a reliable carrier chosen by
Great Lakes; if inspection of the order reveals
damage, just call within 72 hours of receiving your
order and we will take care of everything!
Complete information about these policies as well
as denitions of accessorial charges are outlined
in the following pages. Should you have any
questions at all, please call 1.866.TRY.GLCC or
visit us on the web.
ENCLOSURE WARRANTY
Great Lakes Case & Cabinet Co., Inc. warrants that each of its standard
products is free from defects in material and workmanship for a period
of one year from date of shipment. If within that period of time, goods
shall be determined defective, these goods should be replaced or
repaired at Great Lakes’ option. Under no circumstances, however,
will Great Lakes be held responsible for any amount beyond the price
of the product or any unauthorized “eld” repair. Such correction or
replacement of defective goods shall constitute a fulllment of all
liabilities in respect to such goods. Electrical components provided
by Great Lakes are warranted for a period of one year from date of
purchase. This applies to all power strips, fan assemblies and blower
units. THIS EXPRESS WARRANTY IS IN LIEU OF AND EXCLUDES
ALL OTHER WARRANTIES, WHETHER EXPRESS OR IMPLIED,
INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
EXCLUDED PRODUCTS: Some products in this catalog are not
manufactured by us and are not covered by our limited warranty.
Products that are marked with this asterisk * are not covered by our
limited warranty. Please contact our sales staff to obtain information
about manufacturer warranties and terms (which may not be
assignable).
Conditions & ExCEptions
Our products must be handled, installed and
shipped according to industry standards for metal
fabrication and solid state electronic equipment.
Claims under this policy must be made by the
original purchaser.
All damages must be reported to Great
Lakes within 72 hours after receipt
of product. Claims beyond this time
period will not be the responsibility of
Great Lakes Case & Cabinet Co., Inc.
Any indentations, punctures, or other
damages to the shipping cartons should
be noted by receiving personnel on the
delivery report. This will help protect our customers from
possible concealed damages (Applies only to Prepay and
Add freight option with carrier specified by Great Lakes).
154 Great Lakes Case & Cabinet WeRackYourWorld.com
REPAIR AND RETURN PROCEDURES
Products being returned for repair or replacement must have prior
approval and an assigned RMA (Return Merchandise Authorization)
number. The RMA number must appear on all packages, which should
be shipped collect to:
Great Lakes Case & Cabinet Co., Inc.
4193 Route 6N East
Edinboro, PA 16412
RMA No. _______________________
Products being returned
due to reasons other
than normal repair or
replacement will be
subject to a 20%
restocking charge.
This charge is based on
invoice prices. The
restocking charge does
not release the customer
from the responsibility of
proper packaging and
return of the product in
reusable condition.
Products held by
customer in excess of
30 days may not be
returned for credit. The
return must have an
RMA assigned and are
the responsibility of the
customer to return to
Great Lakes Case &
Cabinet Co., Inc.
Note: Any special customized cabinets
or cases must rst be approved in
writing by the customer. Once the
customer approves and receives
the special unit, there will be no
return of such product except for
modications or repair of damages.
P POLICIES
Thank you for your business!
Made In U.S.a.
SenSItIve MaterIalS,
InSpect carton contentS
pleaSe note: concealed
daMageS MUSt Be noted
WIthIn 72 hrS. of receIpt
IMMedIately!
Thank you for your business!
Made In U.S.a.
SenSItIve MaterIalS,
InSpect carton contentS
pleaSe note: concealed
daMageS MUSt Be noted
WIthIn 72 hrS. of receIpt
IMMedIately!
1.866.TRY.GLCC (879.4522) Great Lakes Case & Cabinet 155
PAYMENT TERMS
Net 30 day accounts will be opened only after approval of credit.
On approved accounts: net 30 days from date of invoice. Past due
accounts are subject to a 1.5% late charge for each 30 days period
the outstanding balance remains unpaid beyond the 30th day after
invoice date. Past due accounts beyond 60 days are subject to credit
hold. Terms and conditions may not apply to delivery outside the United
States and in the European Economic Community. Please contact your
Great Lakes Representative for details.
FREIGHT HANDLING OPTIONS
1. Great Lakes Prepay & Add: (Carrier specied by Great Lakes)
Great Lakes pays freight charges to the carrier and adds freight
charge costs to the product invoice. Great Lakes offers this service
without an additional handling charge; provided the customer agrees
to the following conditions:
A. Carrier is specied by Great Lakes. Great Lakes has
contractual agreements with selected carriers to minimize
shipping costs.
B. Customer agrees to pay Great Lakes all freight charges
appearing on product invoices without requiring additional freight
cost documentation.
C. Customer agrees to pay Great Lakes for freight costs
associated with an order shipment, but not contained in the initial
product invoice. (Great Lakes will provide a separate invoice for
this cost.) Example: an additional cost from the carrier for inside
delivery service required by the end user and not specied on the
purchase order.
D. Agreement to these conditions is implied when customer
species prepaid freight when placing an order with Great Lakes.
E. Great Lakes Case and Cabinet Co., Inc. reserves the right to
withdraw the prepaid option at any time.
DAMAGES
1. Prepay and Add Freight:
(Carrier chosen by Great Lakes)
A. Great Lakes is responsible for adding freight
charges to product invoice and freight claims.
B. Great Lakes has the option to supply
replacement parts, if needed.
C. Great Lakes has the option to have damaged
product returned to Great Lakes.
2. Third Party Billing:
(Carrier chosen by Customer)
A. Third party customer is responsible for all
freight charges and for ling all freight claims with the freight carrier.
B. All replacement parts must be ordered with a new
purchase order.
3. Freight Collect: (Carrier chosen by Customer)
A. Collect customer is responsible for all freight charges.
B. All replacement parts must be ordered with a new
purchase order.
FREIGHT ESTIMATES
If requested, Great Lakes will provide freight estimates. Great Lakes will
not be liable for the accuracy of these estimates. Great Lakes does not
guarantee transit times, either verbal or inferred. These are estimates
and should be treated as such. Great Lakes reserves the right to
discontinue its freight estimate program at any time. All weights shown
are approximate and obtained from standard packaging procedures.
Skid weight is not included.
Product specication, price and availability are subject to change without prior notice.
Please contact us at our Edinboro ofce to verify orders.
Great Lakes Case & Cabinet Co., Inc. is not responsible for typographical errors.
Terms and conditions may not apply to delivery outside the United States and in the European Economic
Community. Please contact your Great Lakes Representative for details.
2. Third Party Billing: (Carrier specied by Customer) Freight
is billed to a party other than Great Lakes or the Customer. A third
party account number or third party billing address is supplied by the
Customer.
3. Freight Collect: (Carrier specied by Customer) A freight
account number is supplied or freight charges are paid by check at the
destination site upon delivery.
PPOLICIES
156 Great Lakes Case & Cabinet WeRackYourWorld.com
INSIDE DELIVERY
A single driver taking a carton or skid from the receiving area to the
desired room or ofce. The driver must be provided an adequate
loading dock for off loading and an unobstructed path to the room or
ofce to which the carton or skid is destined. The driver will provide any
necessary equipment required for easier handling, such as a hand truck
or pallet jack. If the nal destination is not accessible from the loading
dock, a freight elevator must be provided.
Note: Drivers are not permitted to unpack or remove cartons.
LIFTGATE SERVICE
A liftgate is a small platform installed at the rear of some delivery trucks
used to lower heavy or bulky freight to ground level when no loading
dock is available. Any customer that cannot provide an adequate loading
dock should request a liftgate service when ordering. Liftgate service
only delivers the carton or skid to ground level and does not provide
delivery anywhere but inside the customer’s door. Liftgate service is not
included under the denition of inside delivery. It is a separate service
charge which must be pre-arranged before delivery.
Note: Not all trucks are equipped with a liftgate.
NOTIFICATION
Most carriers will charge a fee anytime they are required to call and
arrange an appointment before delivery.
Note: Great Lakes requires customers to provide a reliable contact
name and phone number for someone at the destination site to eliminate
any confusion about location, time of delivery, and services required
beforehand.
RECONSIGNMENT
Any change from the original delivery destination after the product has
left the shipper’s loading dock results in a reconsignment fee. As a
reconsignment fee can nearly match the original dock-to-dock freight
charges, it is in the customer’s best interest to be absolutely certain of
the delivery destination.
REDELIVERY
Whenever a delivery is refused by a customer (for reasons that are not
the fault of the carrier) and must subsequently be redelivered to the
same site, the carrier will charge a redelivery fee.
The Armed Forces Communications and Electronics Association (AFCEA)
International, established in 1946, is a non-prot membership association
serving the military, government, industry, and academia as an ethical
forum for advancing professional knowledge and relationships in the elds
of communications, IT, intelligence, and global security.
The Building Industry Consulting Service International, Inc. (BICSI) is a
professional association supporting the information transport systems
(ITS) industry with information, education and knowledge assessment
for individuals and companies. BICSI serves more than 24,000 ITS
professionals, including designers, installers and technicians.
The Women’s Business Enterprise National Council (WBENC), founded
in 1997, is the nation’s leading advocate of women-owned businesses
as suppliers to America’s corporations. It also is the largest third-party
certier of businesses owned and operated by women in the United States.
WBENC works to foster diversity in the world of commerce with programs
and policies designed to expand opportunities and eliminate barriers in the
marketplace for women business owners.
ISO 9001 are international, generic management standards related to
quality. Any organization can implement these standards to bring about
continual improvement in meeting customer expectations through
management, manufacturing processes, etc.
UL Logo in the catalog means Great Lakes product is listed to UL60950-1
Standard for Information Technologgy and Communications Equipment,
Wall Mounts, Enclosures and Rack Systems
P POLICIES
APPROVED
The Ofce of Statewide Health Planning and Development (OSHPD) Pre-
approval (OPA) numbers are now available for Great Lakes most popular
racks, enclosures, and wall mounts. Products were independently reviewed
and submitted to OSHPD and are now certied to be in compliance with
the seismic anchorage requirement outlined in Section 1708A.1.3 and
Section 1708.4.2 of the 2010 California Building Code.
Restriction of Hazardous Substances Directive, or RoHS, aims to restrict
certain dangerous substances (that are harmful to people and the
environment) commonly used in electronics and electronic associated
equipment.
Technical Drawings for Great Lakes Enclosures
can be found on the following pages. Drawings
point out the general features of all the enclosures
in a series: dimensions, cable knock-outs,
construction, weight capacity, and more. Detailed
drawings for a specific enclosure can be found by
visiting WeRackYourWorld.com.
Technical drawings for Wall Mounts, Racks and
most Accessories can be found on our web site,
along with a number of design and engineering
tools to help you find the right enclosure to meet
your needs.
Those resources include:
• The Product Configurator
• Revit files for BIM
• Visio Shapes
• DWG and DXF Drawings
158 Great Lakes Case & Cabinet WeRackYourWorld.com
DETAIL B
SECTION A-A
(RIGHT SIDE VIEW)
B
A
A
FRONT VIEW
FRONT VIEW
(DOORS REMOVED)
RIGHT SIDE VIEW
TOP VIEW
BOTTOM VIEW
TOP VIEW
W
H
3.50(42"D)
6.50(48"D)
18.31
CENTERS
17.75
OPENING
RMU
29.54
3.25 D
31.0" - 78"H
34.0" - 84"H
31.0" - 78"H
34.0" - 84"H
3.25(42"D)
6.25(48"D)
29.004.00
14.00
9.57
16.00
3.38
22.00
12.00 3.00
TOP PANEL OPENING (273 sq. in.)
SOLID, VENTED, OR WITH EXHAUST
FANS UP TO 1100 CFM
TOP REAR KNOCKOUT
FOR CABLE ACCESS (112 sq. in.)
OR CHIMNEY EXHAUST
112 sq. in. (42"D)
162 sq. in. (48"D)
PAIR OF SOLID
LIFT OFF SIDE PANELS
w/LOCK AND FINGER
RELEASE LATCHES
REAR CABLE PASS THRU
CABINET TO CABINET
w/OPTIONAL BRUSH GROMMET
(Qty-2, 78"H & 84"H; Qty-1, 48"H)
1.75
1.75
1.75
.63
.50
.63
3/8" SQUARE MTG.
HOLES 19" EIA
310-D COMPLIANT
INDEPENDENT MOUNTING LOCATIONS FOR LADDER
RACK BRACKETS OR TOP MOUNTED CABLE TROUGHS
MESH CONTOUR DOORS
FRONT AND REAR w/EASY
LATCH LOCKING HANDLES
LIFT OFF & FIELD REVERSIBLE
OPTIONAL LEVELING GLIDES
1/2"-13 UNC THREADED HOLES
OPTIONAL CASTER MOUNTING LOCATIONS
Ø0.75" FLOOR MOUNTING HOLE
REAR BOTTOM CABLE
ACCESS AREA
22.5
24.6
13
10.910.4
12.5"
OPTIONAL SPLIT FAN DOORS
SHOWN FOR REFERENCE
180° DOOR SWING
STANDARD MESH CONTOUR
DOOR SHOWN FOR REFERENCE
180° DOOR SWING
6.50(42"D)
12.00"(48"D)
D +1"
CABLE ACCESS KNOCK OUTS
30"W ENCLOSURES ONLY 12.00
CABLE ACCESS
KNOCK OUTS
30"W ENCLS. ONLY
H +2
CASTER HEIGHT
UNIVERSAL PDU BRACKETS
2 PAIR INCLUDED
SPECIFICATIONS:
RACK SPACES : 19" EIA 310-D COMPLIANT - SEE CHART
WEIGHT CAPACITY : 2000 lbs. (BOLTED TO FLOOR, LEVELERS, OR ON CASTERS.)
COLOR : DURABLE TEXTURED BLACK POWDER COATING
CERTIFICATIONS : UL 60950-1 STANDARD FOR I.T. & COMMUNICATIONS EQUIPMENT.
CONSTRUCTION : 2 PAIR MOUNTING RAILS , #12 GA. C.R.S.
FULLY WELDED FRAME, #14 & #12 GA. C.R.S.
DOORS, SIDE PANELS, TOP PANEL, #16 C.R.S.
HARDWARE : PACKAGE OF QTY-50; M6 SCREWS AND CAGE NUTS, INCLUDED.
t ES
Part No. Height Width Depth RMU
910ES-3048 91" 30" 48" 48
910ES-2448 91" 24" 48" 48
910ES-3042 91" 30" 42" 48
910ES-2442 91" 24" 42" 48
840ES-3048 84" 30" 48" 44
840ES-2448 84" 24" 48" 44
840ES-3042 84" 30" 42" 44
840ES-2442 84" 24" 42" 44
780ES-3048 78" 30" 48" 42
780ES-2448 78" 24" 48" 42
780ES-3042 78" 30" 42" 42
780ES-2442 78" 24" 42" 42
480ES-2442 48" 24" 42" 24
1.866.TRY.GLCC (879.4522) Great Lakes Case & Cabinet 159
FRONT VIEWRIGHT SIDE VIEW
TOP VIEW
FRONT VIEW
DOORS AND SIDES REMOVED
TOP VIEW
SECTION B-B
DOORS AND SIDES REMOVED
SECTION A-A
DETAIL C
BB
A
A
C
78.75 (45 RMU)
42.00
18.31
C-TO-C
32.00
33.27 W/
EXTERNAL SIDES
17.75
TOP PANEL OPENING
(273 sq.in.); SOLID,
VENTED, OR WITH
EXHAUST FANS
UP TO 1100 CFM.
84.00
84.88 - 87.00
ON LEVELERS
44.00
SPECIFICATIONS:
CONFIG. # KIT INCLUDES: QTY. 1 8401ENX3242, BASE FRAME UNIT WITH RAILS
QTY. 1 8402EN32SM, SPLIT MESH REAR DOOR ASSEMBLY
QTY. 1 8402ENM32, MESH FRONT DOOR ASSEMBLY
QTY. 2 8410421ENLS, SOLID LIFT-OFF SIDE PANEL ASSEMBLY
DIMENSIONS : 84.0"H x 32.0"W x 42.0"D
RACK SPACES : 45 RMU w/ NUMBERED RMU INDICATORS, 19" EIA 310-D COMPLIANT.
COLOR : DURABLE TEXTURED BLACK POWDER COATING
CONSTRUCTION : FULL WELDED FRAME WITH RECESSED #12 GA CORNER POSTS
1 PAIR FIXED #12 GA RAILS, 1 PAIR ADJUSTABLE DEPTH #12 GA RAILS
DOORS #16 C.R.S. & SIDE PANELS LIGHT-WEIGHT ALUMINUM
HARDWARE : PACKAGE OF QTY-50; #12-24 SCREWS -OR- M6 SCREWS W/ CAGE NUTS, INCLUDED.
SPLIT MESH REAR DOORS
PART # 8402EN32SM
MESH FRONT DOOR
PART # 8402ENM32
30.84
14.91
14.91
22.95
INDEPENDENT MOUNTING LOCATIONS
FOR LADDERRACK BRACKETS OR
TOP MOUNTED CABLE TROUGHS
2.63 x 18.50 CABLE PASS
THROUGH KNOCKOUT
(48.56 sq.in.), 4 PLACES
4.25 x 17.25 CABLE PASS
THROUGH KNOCKOUT
(73.31 sq.in.), 2 PLACES
32.00
36.86
28.80
42.00
22.95
6.5016.53 - 29.75
R. RAIL DEPTH
39.43 LEVELER MTG.
26.50
LEVELER MTG.
.63
.63
.50
1.75 TYP.
19" EIA 310-D COMPLIANT
REF. PART # FOR:
#12-24 TAPPED EQUIP. MTG. HOLES
-OR-
3/8" SQUARE EQUIP. MTG. HOLES
W/ M6 HARDWARE
LEVELER MTG.
LOCATIONS
LEVELING GLIDES (8 INCLUDED)
1/2-13 UNC THREADED HOLES
PLASTIC CABLE MANAGMENT
FINGERS ON BOTH SIDES OF
RMU, ON 2 BOTH MOUNTING RAILS
UNIVERSAL POWER STRIP MOUNTING BRACKETS
KEYED BUTTON MOUNTING
WILL ACCEPT 2 PDU'S
t
EN
Part No. Height Width Depth RMU
910EN-3242 91" 32" 42" 48
910EN-3248 91" 32" 48" 48
910EN-4042 91" 40" 42" 48
910EN-4048 91" 40" 48" 48
840EN-3242 84" 32" 42" 45
840EN-3248 84" 32" 48" 45
840EN-4042 84" 40" 42" 45
840EN-4048 84" 40" 48" 45
780EN-3242 78" 32" 42" 42
780EN-3248 78" 32" 48" 42
780EN-4042 78" 40" 42" 42
780EN-4048 78" 40" 48" 42
160 Great Lakes Case & Cabinet WeRackYourWorld.com
FRONT VIEW RIGHT SIDE VIEW
TOP VIEW
BOTTOM VIEW
SECTION A-A
(RIGHT SIDE VIEW)
FRONT VIEW
(DOORS REMOVED)
DETAIL B
TOP VIEW
A
A
B
18.31
CENTERS
17.75
OPENING
D
W
H
6.4118.25
PAIR OF SOLID
LIFT OFF SIDE PANELS
w/LOCK AND FINGER
RELEASE LATCHES
OPTIONAL LEVELING GLIDES
1/2"-13 UNC THREADED HOLES
RMU
H + 3.85
CASTER HEIGHT
24.91
26.64
.750 FLOOR MOUNTING HOLE
OPTIONAL CASTER MOUNTING LOCATIONS
REAR BOTTOM CABLE ACCESS AREA
.63
.63
.50
1.75
3/8" SQUARE MTG.
HOLES 19" EIA
310-D COMPLIANT
CABLE ACCESS KNOCK OUTS
29"W ENCLOSURES ONLY
CABLE ACCESS KNOCK OUTS
29"W ENCLOSURES ONLY
3.761.75
27.06
21.19(29"W)
18.00(24"W)
PERFORATED TOP PANEL
SHOWN FOR REFERENCE
PLEXIGLASS FRONT DOOR
SHOWN FOR REFERENCE
180° SWING
(TYPICAL FRONT AND REAR)
PLEXI-GLASS FRONT DOOR
LIFT OFF & FIELD REVERSIBLE
(FRONT AND REAR)
SPECIFICATIONS:
RACK SPACES : 19" EIA 310-D COMPLIANT - SEE CHART
WEIGHT CAPACITY : 1500 lbs. 72"H & GREATER / 600 lbs. 60"H & LOWER
(BOLTED TO FLOOR, LEVELERS, OR ON CASTERS.)
COLOR : DURABLE TEXTURED BLACK POWDER COATING
CERTIFICATIONS : UL 60950-1 STANDARD FOR I.T. & COMMUNICATIONS EQUIPMENT.
CONSTRUCTION : 2 PAIR MOUNTING RAILS , #12 GA. C.R.S.
FULLY WELDED FRAME, #16 GA. C.R.S.
DOORS, SIDE PANELS, TOP PANEL, #16 C.R.S.
HARDWARE : PACKAGE OF QTY-50; M6 SCREWS AND CAGE NUTS, INCLUDED.
t E
Part No. Height Width Depth RMU
840E-2936 84" 29" 36" 44
840E-2932 84" 29" 32" 44
840E-2436 84" 24" 36" 44
840E-2432 84" 24" 32" 44
720E-2936 72" 29" 36" 37
720E-2932 72" 29" 32" 37
720E-2436 72" 24" 36" 37
720E-2432 72" 24" 32" 37
600E-2432 60" 24" 32" 31
480E-2432 48" 24" 32" 24
300E-2432 30" 24" 32" 13
1.866.TRY.GLCC (879.4522) Great Lakes Case & Cabinet 161
FRONT VIEWRIGHT SIDE VIEWFRONT VIEW
DOOR REMOVED
SECTION A-A
RIGHT SIDE VIEW
DETAIL B
TOP VIEW
BOTTOM VIEW
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
A A
B B
C C
D D
A
A
B
TOP REAR KNOCKOUT
FOR CABLE ACCESS (112 sq.in.)
OR CHIMNEY EXHAUST
TOP PANEL OPENING (308 sq.in.)
SOLID, VENTED, OR WITH
EXHAUST FANS UP TO 1100 CFM.
BOTTOM OPEN
AREA (639 sq.in.)
PAIR OF SIDE PANELS
SCREW ON FROM INSIDE
78.75 (45 RMU)
STANDARD MESH DOOR
SHOWN FOR REFERENCE
180° DOOR SWING.
SPECIFICATIONS: #840EZ3042
DIMENSIONS : 84.0"H x 30.0"W x 42.0"D
RACK SPACES : 45 RMU w/ NUMBERED RMU INDICATORS, 19" EIA 310-D COMPLIANT.
CERTIFICATIONS : NEBS GR-63-CORE SEISMIC CERTIFIED FOR 1000lbs WEIGHT CAPACITY
NON SEISMIC STATIC WEIGHT CAPACITY, 3000lbs.
CONSTRUCTION : 2 PAIR MOUNTING RAILS , #12 GA. C.R.S.
FULLY WELDED FRAME, #12 GA, #10 GA. & #14 GA SQ. TUBING C.R.S.
DOORS, SIDE PANELS, TOP PANEL, #16 C.R.S.
HARDWARE : PACKAGE OF QTY-50; M6 SCREWS AND CAGE NUTS, INCLUDED.
COLOR : DURABLE TEXTURED BLACK POWDER COATING; ADDITIONAL COLORS
AVAILABLE UPON REQUEST
42.00
3.2529.549.21
34.00
34.00
5.00
44.00
29.004.00
18.39
34.75
.75 FLOOR MOUNTING HOLE
23.93
26.18
23.93
26.18
16.00
7.00
21.00
13.00
84.00
30.00
25.65
17.75
RAIL
OPENING
18.31
RMU
C-TO-C
UNIVERSAL POWER STRIP MOUNTING BRACKETS
KEYED BUTTON MOUNTING.
WILL ACCEPT 3 PDU's, 70"L (MAX.) x 2.5"W PER SIDE.
REAR CABLE PASS THRU
CABINET TO CABINET
w/ OPTIONAL BRUSH GROMMET
MESH DOORS FRONT AND REAR w/
3 POINT LATCHING LOCKING SWING HANDLES
FIELD REVERSIBLE
.63.63.50
1.75
3/8" SQUARE
MTG. HOLES
19" EIA 310-D
COMPLIANT
12.008.50
2.63
SIDE CABLE ACCESS KNOCKOUTS
(4) : 12" X 2.63"
(2) : 8"X 2.63"
24.83
36.86
t
EZ
162 Great Lakes Case & Cabinet WeRackYourWorld.com
tNEma 12K
Part No. Height Width Depth RMU
840N12-2442 84" 24" 42" 45
840N12-3042 84" 30" 42" 45
SECTION A-A
DETAIL C
RAIL DETAIL
SECTION B-B
TOP AND BOTTOM
DETAIL D
A
A
C
BB
D
18.332
C-TO-C
17.770
OPENING
79.000
OPENING
.625
.625
.500
1.750
PATTERN
REPEATS
45 TIMES
FRONT VIEW
DOORS REMOVED FOR CLARITY
18.375 14.740
8.885
42.000
REAR VIEW
8403N12R24
REAR DOOR
8403N12F24
FRONT DOOR
SEE SIDE PANEL CHART
FOR A/C OPTIONS BELOW
REAR VERTICAL
LACING BAR
FRONT
REAR
0.375"
REAR EXHAUST GLAND PLATE
OPTIONAL NEMA-12 EXHAUST FILTER
SOLD SEPARATELY FRONT INTAKE GLAND PLATE
OPTIONAL NEMA-12 FILTER +FAN
SOLD SEPARATELY
AVAILABLE IN 230, 295, OR 368 CFM
85.250
79.000
SWING HANDLE w/ HASP OPTION STD.
KEYED LOCK OPTION,
AVAILABLE PER SPECIAL REQUEST
41.712
USABLE DEPTH
43.863
.116
47.480
25.980
24.000
23.856
20.000 .750 (4)
45.480
2.375 (4) ACTUAL
2" NOMINAL
CABLE KNOCK OUTS
TOP AND BOTTOM
PANELS
3 POINT LATCHING
TOP ROD
TOP PANEL
DOOR GASKETING
1/4" THK "PORON" NEOPRENE
REAR DOOR
DEPTH ADJUSTABLE RAILS
INTERNAL INTAKE
AND EXHAUST
AIR MANAGERS
1.866.TRY.GLCC (879.4522) Great Lakes Case & Cabinet 163
t
iNdEx
PaRt NO. PaGE NO. PaRt NO. PaGE NO. PaRt NO. PaGE NO. PaRt NO. PaGE NO. PaRt NO. PaGE NO.
1.75-FP19 137 4802E-MC24 118 4PM6-298FO 108 7203E-24 116 7208WS 101
1.75FP19BG 137 4803E-24 116 4PM6-29-8FR 108 7203E-29 116 7209-N 130
1.75-FPTL19 137 4803E-SF24 118 4PM6-32 108 7204E-24 117 7209-N4 130
14.00-FP19 137 4804E-24 117 4PM6-36 108 7204E-29 117 7210-32ELS 121
14.00-FPTL19 137 4805-E2P 126 4PSPV24-36 112 7205-ES1P 126 7210-36ELS 121
1984-KM 114 4810-32ELS 121 5.25-FP19 137 7205-ES2P 126 7211-32ELL 121
1984LR 114 4810-36ELS 121 5.25-FPTL19 137 7206-14 128 7211-36ELL 121
1984ST09 114 4811-32ELL 121 6001E-2432 76 7206-BT 128 7215 132
1984ST15 114 4811-36ELL 121 6002E-24 116 7206-DR 129 7215-20AR 132
1984-VCM10 114 4P108-1224-29 109 6002E-M24 116 7206-EIA 128 7215-20ARTLP 132
1984-VCM10C 114 4P1224-24 108 6003E-24 116 7206-FM 128 7215-30A 132
2319 126 4P1224-29 108 6004E-24 117 7206-FR-A18 128 7215-EURO 132
2319-F 126 4P1224-32 108 6005-E2P 126 7206-FR-A28HD 128 7215-S 132
2319F1.175 126 4P1224-36 108 6010-32ELS 121 7206-FR-A32HD 128 7217-04 101
3.50-FP19 137 4P36-1224-29 109 6011-32ELL 121 7206-FR-ADHD 128 7217FT 142
3.50FP19BG 137 4P48-1224-29 109 7.00-FP19 137 7206-FR-AHD 128 7217FT-230 142
3.50-FPTL19 137 4P60-1224-29 109 7.00-FPTL19 137 7206-FRSLA300 129 7217FT-3 142
3001E-2432 80 4P66-1224-29 109 7201E-2432 74 7206-FRSL-ADHD 129 7217FT-3-230 142
3002E-24 116 4P72-1224-29 109 7201E-2436 72 7206-FRSL-AHD 129 7217FT-6 142
3002E-M24 116 4P96-1224-29 109 7201E-2932 70 7206-MKM 129 7217FT-6-230 142
3003E-24 116 4PBK12 112 7201E-2936 68 7206-PKB-MT 129 7217FT-9 142
3004E-24 117 4PBK16 112 7202E-24 116 7206-SL 129 7217FT-9-230 142
3005-E2P 126 4PBK24-36 112 7202E-24PV 117 7208-4PHD 111 7217LE2 142
3010-32ELS 121 4PBSF24-36 112 7202E-24PVM 117 7208-E 130 7217LE3 142
3011-32ELL 121 4PHD29 111 7202E-29 116 7208-EALL 130 7217WS 101
4801E-2432 78 4PLRBV4-8 112 7202E-29PV 117 7208-EHD 130 7218-24 132
4801ES-2442 46 4PM6-24 108 7202E-29PVM 117 7208-EN 130 7219 132
4802E-24 116 4PM6-29 108 7202E-M24 116 7208-ES 130 7219-20AR 132
4802E-M24 116 4PM6-29-5FR 108 7202E-M29 116 7208WD 101 7219-SR14 132
164 Great Lakes Case & Cabinet WeRackYourWorld.com
tiNdEx
PaRt NO. PaGE NO. PaRt NO. PaGE NO. PaRt NO. PaGE NO. PaRt NO. PaGE NO. PaRt NO. PaGE NO.
72E24EXT4 123 8401ES-3042 34 8410-36ELS 121 AM-FTES24 139 BP-ES 125
72E29EXT4 123 8401ES-3048 30 8410-36EZS 84 AM-FTES30 139 BP-ES24B 125
7801ES-2442 44 8401EZ-3042 84 8411-32ELL 121 AM-HFES 139 BP-ES29B 125
7801ES-2448 40 8402E-24 116 8411-36ELL 121 AM-HFFTES24 139 BPF24 125
7801ES-3042 42 8402E-24PV 117 84E24EXT4 123 AM-HFFTES30 139 BPF29 125
7801ES-3048 38 8402E-24PVM 117 84E29EXT4 123 AT1 130 BPS24 125
7802E-24SM 118 8402E-24SM 118 9101ES-2442 28 AT2 130 BPS29 125
7802E-29SM 118 8402E-29 116 9101ES-2448 24 BGRK24 139 BPSES2442 123
7802E-M24 116 8402E-29PV 117 9101ES-3042 26 BGRK30 139 BPSES2448 123
7802E-MC24 118 8402E-29PVM 117 9101ES-3048 22 BGRK-32EN 139 BPSES3042 123
7802E-MC29 118 8402E-29SM 118 9102E-24SM 118 BGRK-40EN 139 BPSES3048 123
7803E-24 116 8402E-M24 116 9102E-29SM 118 BGRK91-24 139 BS2-CPUBKT 100
7803E-29 116 8402E-M29 116 9102E-MC24 118 BGRK91-30 139 BS2-TM3R 100
7803E-SF24 118 8402E-MC24 118 9102E-MC29 118 BGRK91-32EN 139 BS2-TM3S 100
7803E-SF29 118 8402E-MC24 118 9103E-24 116 BGRK91-40EN 139 BS2-TPM-818 99
7803E-SS24 119 8402E-MC29 118 9103E-29 116 BGS-78 149 BS2-TPMC-818 99
7803E-SS29 119 8402E-MC29 118 9103E-SF24 118 BGS-84 149 BS2-UCB3 100
7805-ES1P 126 8402EZ-M30 84 9103E-SF29 118 BGS-84-48 149 BS2-UCB5 100
7805-ES2P 126 8403E-24 116 9103E-SS24 119 BGS-91 149 BS2-UCBBKT 100
7810-36ELS 121 8403E-29 116 9103E-SS29 119 BGS-91-48 149 BS2-WMR-24 99
7811-36ELL 121 8403E-SF24 118 9105ES1P 126 BGT 149 CBB-19 101
8.75-FP19 137 8403E-SF29 118 9105-ES2P 126 BPB24 125 CBB-19 131
8.75-FPTL19 137 8403E-SS24 119 9110-36ELS 121 BPB29 125 CBB-30 131
8401E-2432 66 8403E-SS29 119 9111-36ELL 121 BPBES2442 123 CBB-48 131
8401E-2436 64 8404E-24 117 ACD780ES 141 BPBES2448 123 CBB-60 131
8401E-2932 62 8404E-29 117 ACD840ES 141 BPBES3042 123 CBB-72 131
8401ES-2448 32 8405-ES1P 126 ACD910ES 141 BPBES3048 123 CBB-78 131
8401E-2936 60 8405-ES2P 126 AK101 127 BP-EB 125 CH-02 119
8401ES-2442 36 8410-32ELS 121 AM-ES 139 BP-EF 125 CH-02 119
1.866.TRY.GLCC (879.4522) Great Lakes Case & Cabinet 165
t
iNdEx
PaRt NO. PaGE NO. PaRt NO. PaGE NO. PaRt NO. PaGE NO. PaRt NO. PaGE NO. PaRt NO. PaGE NO.
CH-04 119 ECD48 138 FTBKT90 142 GL24WS-PS 93 GL480E-2432S 78
CM-01 151 ECDHF48 138 FTC101 142 GL24WS-PV 93 GL480ES-2442MS 46
CM-03 146 ENC-K24 148 FTC103 142 GL24WS-SS 93 GL480N12 97
CM-04 147 ENSAB11 140 G101 127 GL24WS-SV 93 GL48SR 98
CM-05 147 ENSAB14 140 G101EN 127 GL2500V*87 GL48SRD 98
CM-06 151 ENSAB14A 140 G101EN2ES 127 GL300E-2432F 80 GL48WD 94
CM-07 147 ENSAB14D 140 G101ES 127 GL300E-2432F10 80 GL48WDM 94
CM-08 147 ENSAB19 140 GL10000V*87 GL300E-2432P 80 GL48WDS 94
CM-09 147 ENSAB25 140 GL12000V*87 GL300E-2432S 80 GL48WM 92
CM-10 146 ENSAB7A 140 GL14000V*87 GL3500V*87 GL48WMM 92
CM-11 146 ES23K-42 126 GL15WM 95 GL360N12 97 GL48WMS 92
CM-13 146 ESC-K12 148 GL15WMS 95 GL36SR 98 GL48WS-MS 93
CM-14 147 ESF16 112 GL17000V*87 GL36SRD 98 GL48WS-MV 93
CM-15 147 ESF24-29 112 GL20000V*87 GL36WD 94 GL48WS-PS 93
CM-16 147 ESSAB11 140 GL240N12 97 GL36WDM 94 GL48WS-PV 93
CM-17 147 ESSAB14 140 GL2418WM 92 GL36WDS 94 GL48WS-SS 93
CM-19 146 ESSAB14D 140 GL2418WMM 92 GL36WM 92 GL48WS-SV 93
CM-425 146 ESSAB19 140 GL2418WMS 92 GL36WMM 92 GL6000V*87
CM-44 146 FFK1 101 GL24SR 98 GL36WMS 92 GL600E-2432F 76
CM-47 148 FFK2 124 GL24SRD 98 GL36WS-MS 93 GL600E-2432F10 76
CMP 146 FFKN12-A1 87 GL24WD 94 GL36WS-MV 93 GL600E-2432P 76
CMP-8 146 FFKN12-A2 87 GL24WDM 94 GL36WS-PS 93 GL600E-2432S 76
CMR-45U 110 FFKN12-A3 87 GL24WDS 94 GL36WS-PV 93 GL720E-2432F 74
CMR-45U16 110 FFKN12-A4 97 GL24WE 96 GL36WS-SS 93 GL720E-2432F10 74
DIGITUS BIOMETRICS*120 FILTER 125 GL24WM 92 GL36WS-SV 93 GL720E-2432P 74
DK1 101 FILTER-09 87 GL24WMM 92 GL4500V*87 GL720E-2432S 74
DK2 101 FILTER-10 97 GL24WMS 92 GL480E-2432F 78 GL720E-2436F 72
E23K-32 126 FMSBKT 114 GL24WS-MS 93 GL480E-2432F10 78 GL720E-2436F10 72
E23K-36 126 FOAM BLOCKS 141 GL24WS-MV 93 GL480E-2432P 78 GL720E-2436P 72
*Products marked with an asterisk are not manufactured by Great Lakes Case & Cabinet Co. Inc. Please see page 154 for third party warranty information.
166 Great Lakes Case & Cabinet WeRackYourWorld.com
tiNdEx
PaRt NO. PaGE NO. PaRt NO. PaGE NO. PaRt NO. PaGE NO. PaRt NO. PaGE NO. PaRt NO. PaGE NO.
GL720E-2436S 72 GL780ES-3042MSS 42 GL840ENT-3248MSS-NS 54 GL84CL3PF 82 GL-EC-48-3246 138
GL720E-2932F 70 GL780ES-3048MS 38 GL840ENT-4042-FK 55 GL910ENT-3242-FK 52 GL-ECFT42 138
GL720E-2932F10 70 GL780ES-3048MSFS 38 GL840ENT-4042SSS 55 GL910ENT-3242MSS 52 GL-ECFT48 138
GL720E-2932P 70 GL780ES-3048MSS 38 GL840ENT-4042SSS-NS 55 GL910ENT-3242MSS-NS 52 GL-ECFT48 138
GL720E-2932S 70 GL8000VHA*87 GL840ENT-4048-FK 55 GL910ENT-3248-FK 52 GL-ECHF-48-1832 138
GL720E-2936F 68 GL840E-2432F 66 GL840ENT-4048SSS 55 GL910ENT-3248MSS 52 GL-ECHF-48-3246 138
GL720E-2936F10 68 GL840E-2432F10 66 GL840ENT-4048SSS-NS 55 GL910ENT-3248MSS-NS 52 GL-ECHFFT48 138
GL720E-2936P 68 GL840E-2432P 66 GL840ES-2442MS 36 GL910ENT-4042-FK 53 GL-ECHFFT48 138
GL720E-2936S 68 GL840E-2432S 66 GL840ES-2442MSFS 36 GL910ENT-4042SSS 53 GL-EG 149
GL780ENT-3242-FK 56 GL840E-2436F 64 GL840ES-2442MSS 36 GL910ENT-4042SSS-NS 53 GLHL10009CP*136
GL780ENT-3242MSS 56 GL840E-2436MCP 64 GL840ES-2448MS 32 GL910ENT-4048-FK 53 GLHL10031CP*136
GL780ENT-3242MSS-NS 56 GL840E-2436MP 64 GL840ES-2448MSFS 32 GL910ENT-4048SSS 53 GLHL10033CP*136
GL780ENT-3248-FK 56 GL840E-2436MSP 64 GL840ES-2448MSS 32 GL910ENT-4048SSS-NS 53 GLHL10035CP*136
GL780ENT-3248MSS 56 GL840E-2436P 64 GL840ES-3042MS 34 GL910ES-2442MS 28 GLHL10038CP*136
GL780ENT-3248MSS-NS 56 GL840E-2932F 62 GL840ES-3042MSS 34 GL910ES-2442MSS 28 GLHL10112CP*136
GL780ENT-4042-FK 57 GL840E-2932F10 62 GL840ES-3048MS 30 GL910ES-2448MS 24 GLHL10113CP*136
GL780ENT-4042SSS 57 GL840E-2932P 62 GL840ES-3048MSS 30 GL910ES-2448MSS 24 GL-KEYS 119
GL780ENT-4042SSS-NS 57 GL840E-2932S 62 GL840EZ-3042S 84 GL910ES-3042MS 26 GLKL10012CP*135
GL780ENT-4048-FK 57 GL840E-2936F 60 GL840N12-2442-SA 87 GL910ES-3042MSS 26 GLKL10013CP*135
GL780ENT-4048SSS 57 GL840E-2936F10 60 GL840N12-2442-SB 87 GL910ES-3048MS 22 GLKL10077CP*135
GL780ENT-4048SSS-NS 57 GL840E-2936MCP 60 GL840N12-2442-SC 87 GL910ES-3048MSS 22 GLKL1010CP*135
GL780ES-2442MS 44 GL840E-2936MP 60 GL840N12-2442-SS 87 GLAL10108-001CP*136 GLKL20100CP*135
GL780ES-2442MSFS 44 GL840E-2936MSP 60 GL840N12-3042-SA 87 GLAL10108-002CP*136 GLKL20101CP*135
GL780ES-2442MSS 44 GL840E-2936P 60 GL840N12-3042-SB 87 GLAL10108-003CP*136 GLKL2020CP*135
GL780ES-2448MS 40 GL840ENT-3242-FK 54 GL840N12-3042-SC 87 GLAL10126CP*136 GLKL2030CP*135
GL780ES-2448MSFS 40 GL840ENT-3242MSS 54 GL840N12-3042-SS 87 GLAL10127CP*136 GLKL2040CP*135
GL780ES-2448MSS 40 GL840ENT-3242MSS-NS 54 GL84CL2MM 83 GL-EC-42-1832 138 GLKL3030CP*135
GL780ES-3042MS 42 GL840ENT-3248-FK 54 GL84CL2PF 83 GL-EC-42-3246 138 GLKL40001CP*135
GL780ES-3042MSFS 42 GL840ENT-3248MSS 54 GL84CL3MM 82 GL-EC-48-1832 138 GLKL40003CP*135
*Products marked with an asterisk are not manufactured by Great Lakes Case & Cabinet Co. Inc. Please see page 154 for third party warranty information.
1.866.TRY.GLCC (879.4522) Great Lakes Case & Cabinet 167
t
iNdEx
PaRt NO. PaGE NO. PaRt NO. PaGE NO. PaRt NO. PaGE NO. PaRt NO. PaGE NO. PaRt NO. PaGE NO.
GL-RMUTA 114 HCM-D36 149 RGB-78 131 TPEN-F 122 VCT-78C 149
GL-RMUTD 114 HCM-EN42 149 SC128442 150 TPEN-F10 122 VCT-84 149
GLRR-19108 107 HCM-EN48 149 SC128448 150 TPEN-N 122 VCT-84C 149
GLRR-19108BA 107 HDW-102-50 127 SC68442 150 TPEN-P 122 VCT-91 149
GLRR-1936 107 HDW-104-50 127 SC68448 150 TPES-2F10 122 VCT-91C 149
GLRR-1936BA 107 HDW-105-25 127 SCP8442 150 TPES-2F10-230 122 VD4P1224-2436 112
GLRR-1948 107 HDW-105-50 127 SCP8448 150 TPES-B 122 VD4PHD-2436 111
GLRR-1948BA 107 HDW-106-25 127 TCT24 148 TPES-F 122 VD4PM6-2436 112
GLRR-1960 107 HDW-106-50 127 TCT30 148 TPES-F10 122 VLB-48 151
GLRR-1960BA 107 HLB-32 151 TCT32 148 TPES-F10-230 122 VLB-4832 151
GLRR-1972 107 HLB-36 151 TCT40 148 TPES-F-230 122 VLB-4836 151
GLRR-1972BA 107 LRB-12 148 TPE-242F10 124 TPES-P 122 VLB-72 151
GLRR-1984 106 LRB-12A1 148 TPE-242F10-230 124 TPES-S 122 VLB-7232 151
GLRR-1984BA 106 LRB-12A2 148 TPE-24F 124 VCM12-FO 143 VLB-7236 151
GLRR-1984BA-2-5FO 106 LRB-24 148 TPE-24F10 124 VCM12-FO-ER 112 VLB-78 151
GLRR-1984BA-2-5FR 106 LRB-24A1 148 TPE-24F10-230 124 VCM5-BKT 143 VLB-7836 151
GLRR-1984BA-2-8FO 106 LRB-24A2 148 TPE-24F-230 124 VCM5-CR 143 VLB-84 151
GLRR-1984BA-2-8FR 106 MESH300E-24 119 TPE-24P 124 VCM5-FO 143 VLB-8432 151
GLRR-1984BA-5FO 106 MESH480E-24 119 TPE-24S 124 VCM5-FO-ER 112 VLB-8436 151
GLRR-1984BA-5FR 106 MESH600E-24 119 TPE-292F10 124 VCM5-FR 143 VLB-91 151
GLRR-1984BA-8FO 106 MESH720E-24 119 TPE-292F10-230 124 VCM5-HNG 143 VLB-9136 151
GLRR-1984BA-8FR 106 MESH720E-29 119 TPE-29F 124 VCM5-SL 143 VSBK6-8 112
GLRR-1996 107 MESH840E-24 119 TPE-29F10 124 VCM8-BKT 143 VSBK9-14 112
GLRR-1996BA 107 MESH840E-29 119 TPE-29F10-230 124 VCM8-FO 143 WR2 96
GLRR-2384 106 OSRK 150 TPE-29F-230 124 VCM8-FO-ER 112 WR4 96
GLRR-2384BA 106 PDU1 131 TPE-29P 124 VCM8-FR 143 WS-22 101
GR101 131 POLARGY PANELS*141 TPE-29S 124 VCM8-SL 143 ZR1 131
GR102 101 PSBKE 131 TPEN-2F10 122 VCM8-WR 143 ZR2 131
GR102 131 PSBKEXT 123 TPEN-B 122 VCT-78 149
Offering complete design, engineering
and manufacturing of custom product -
“art-to-part” in only 10 working days!
Call 1.866.TRY.GLCC
WeRackYourWorld.com
DID YOU NEED TO GET
IT DONE YESTERDAY?
We can help!
Design & Production Service
Corporate
Sponsor
Western
Distribution
4750 Joule Street
Reno, NV 89502
Phone: 775.829.9913
Fax: 775.829.9926
glcc@greatcabinets.com
Great Lakes
ManufacturinG, inc.
1521 Enterprise Road
Corry, PA 16407
Phone: 814.734.2436
Fax: 814.665.7025
werackyourworld.com
glm@greatmanufacturing.net
Great Lakes
internationaL LtD.
Aerbridge House, Unit 14
Dunshaughlin Business Park
Dunshaughlin Co. Meath
Ireland
Phone: 011 353 1 825 8777
Fax: 011 353 1 825 8778
Great Lakes
HunGary kft
Zsurló utca 13
8000 Székesfehérvár
Hungary
Phone: 011 36 22 880 420
Fax: 011 36 22 880 429
corporate
HeaDquarters
P.O. Box 551
Edinboro, PA 16412
1.866.TRY.GLCC
(1.866.879.4522)
Phone: 814.734.7303
Fax: 814.734.3907
glcc@greatcabinets.com
soutHeast
Distribution
3630 Shaw Blvd., Suite 4,
Naples, FL. 34117
Phone: 239.304.1225
Fax: 239.304.1226
glcc@greatcabinets.com
Reno, nV
MaRion, nC
SzékeSfehéRVáR, hungaRy
Dublin, iRelanD
eDinboRo & CoRRy, Pa •
•
•
•
•
•naPleS, fl
