Grounding
Solutions For Comm/Data Applications
CDGRD-10
2
Overview & Table of Contents
Cooper B-Line’s Grounding products for rack & runway provide a complete solution for
grounding metal supports. The offering is designed with products that installers can use to
make BICSI and ANSI/TIA/EIA-607 compliant installations.
Table of Contents
Typical Grounding Application . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 & 3
Vertical Rack Ground Bars & Kits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Horizontal Rack Ground Bar Kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Universal Grounding Bar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Telecommunications Main Grounding Bars & Kits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Telecommunications Grounding Bars & Kits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Ground Rod / Pipe Clamps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
2-Hole Mechanical Lugs & Compression Lugs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Lay-In Lugs & Unit Bonding Conductors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Grounding Strap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Crimp Tool & Dieless Compression Tool . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Joint Compound . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Cross Reference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Comm/Data Products . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
A ) Vertical Rack Ground Bar Kit (see page 4)
B ) Horizontal Rack Ground Bar Kit (see page 5)
C ) Telecommunications Main Grounding Bar (see page 7)
D ) Telecommunications Grounding Bar (see page 8)
E ) Ground Rod / Pipe Clamps (see page 9)
F ) Compression Lugs (see page 10)
G ) Unit Bonding Conductors (see page 11)
Legend For Typical Grounding Application
(layout on following page)
3

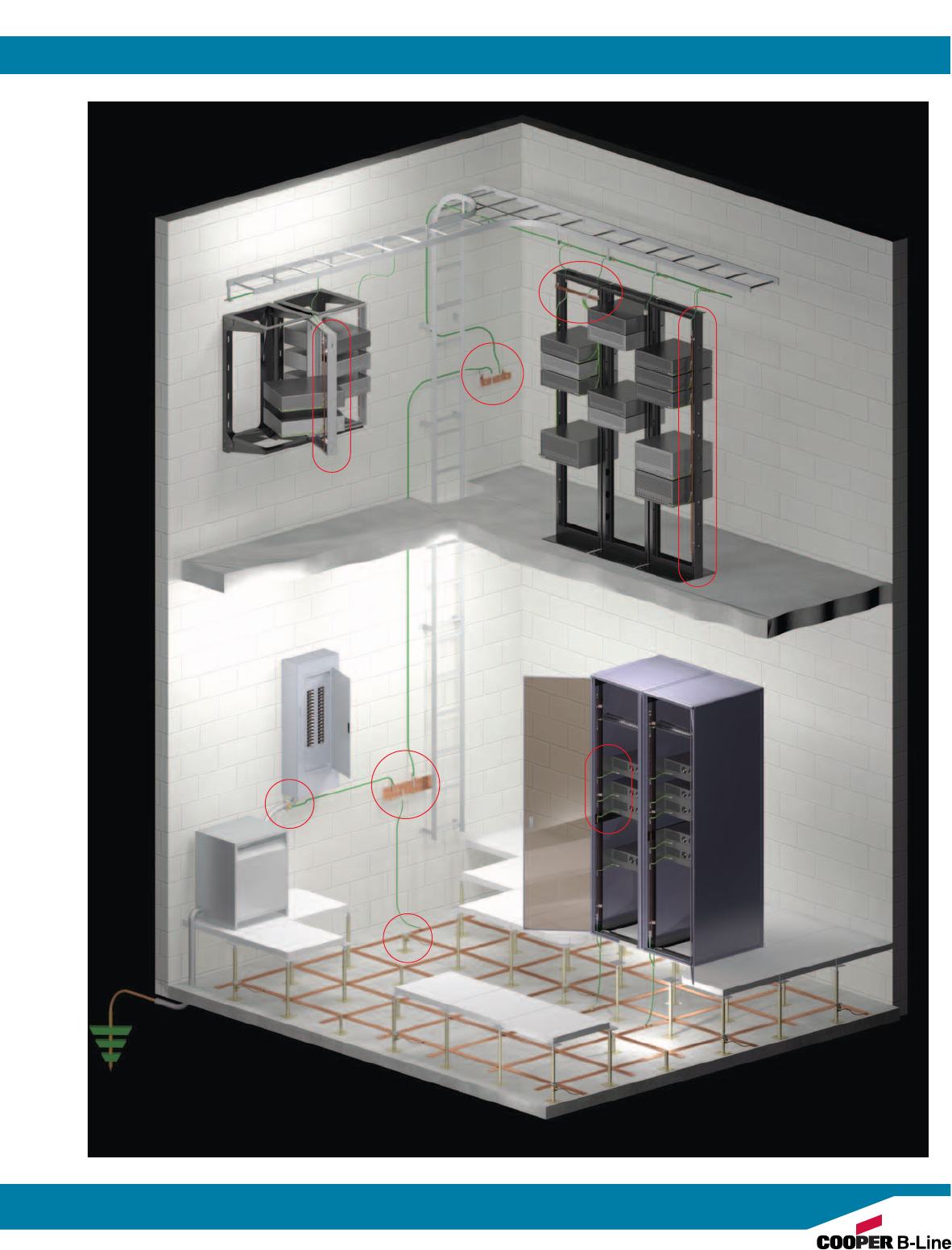

Typical Grounding Application
A
A
B
D
C
E
E
FG
4
Grounding Products

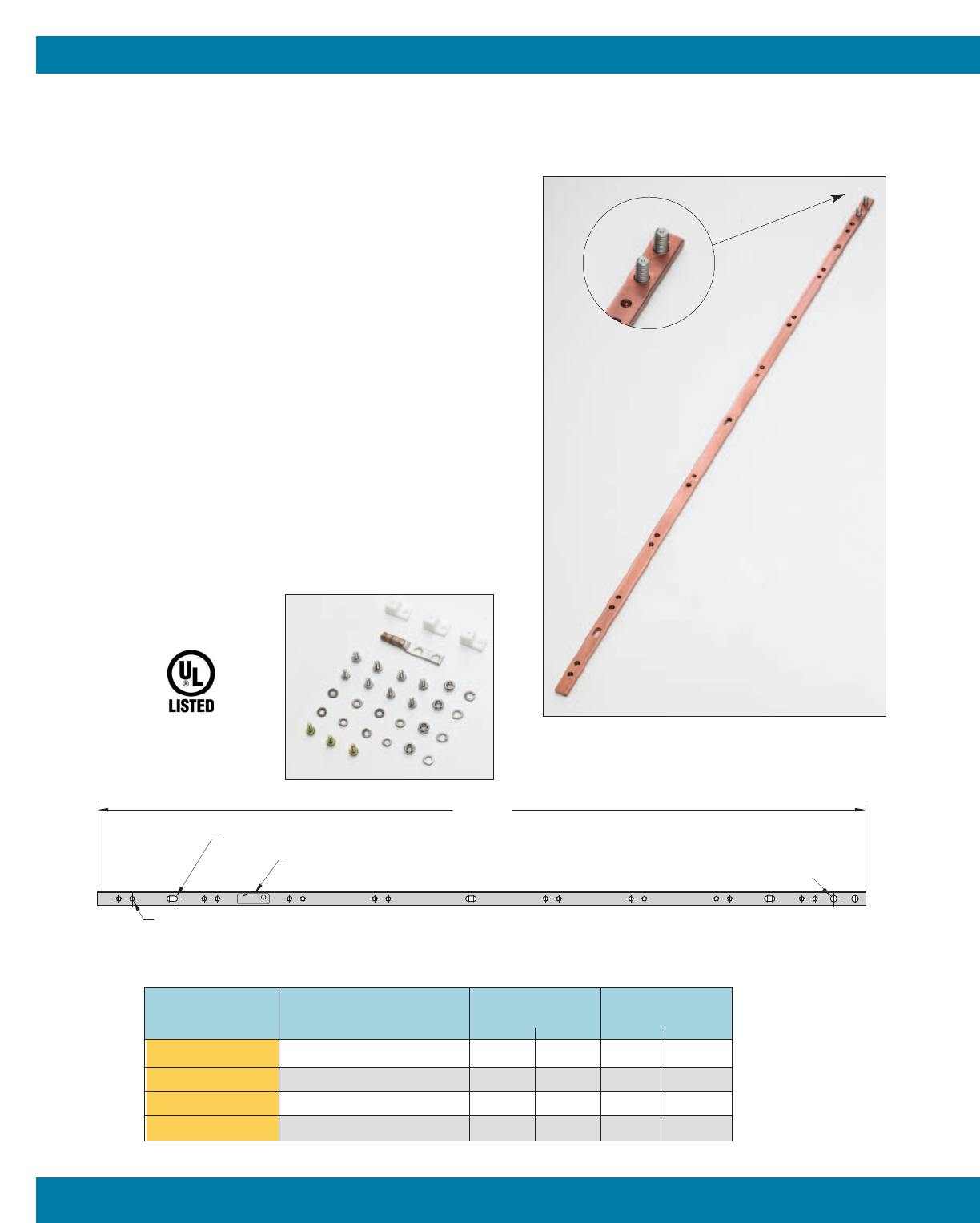

Vertical Rack Ground Bar & Kits
Features:
• Provides a vertical ground path between
equipment mounted on the rack
• Typically used on 2-post or 4-post racks
• Blank end and studded end can be attached
together to splice bars
• Isolators may be used to separate bar from rack
(or omitted depending on application grounding
scheme)
• Kit includes
1 - Vertical rack ground bar
3 - Insulators
1 - #2 compression lug
8 - 1/4”-20 x 1/2” SS4 hex bolts & lock washers
4 - 5/16”-18 SS4 hex nut & lock washers
3 - #12-24 x 5/8” yellow zinc hex washer bolts
• Material: 1/4” x 5/8” copper bar
Part Number Includes Length Wt./Ea.
in. (mm) lbs. (kg)
SBVB36 Ground Bar Only 36” (914) 2.0 (0.91)
SBVB36K Bar & Hardware Kit 36” (914) 2.2 (1.00)
SBVB72 Ground Bar Only 72” (1828) 3.7 (1.69)
SBVB72K Bar & Hardware Kit 72” (1828) 3.9 (1.77)
L
U
LISTED
GROUNDING EQUIPMENT
COOPER B-LINE
.cooperbline.com CUS
2S01
SBVB36
shown
Hardware
Kit
Cooper B-Line ‘UL’ Label
Length
1/4” (6.3mm) x 1/2” (12.7mm) Slots (3 on SBVB36 - 4 on SBVB72) (2) 5/16”-18 Clinch Studs On One End of SBVB36
(4) 5/16”-18 Clinch Studs Two On Each End of SBVB72
See photo insert above
1/4”-20 Tapped Holes (16) On SBVB36
1/4”-20 Tapped Holes (26) On SBVB72
5
Grounding Products

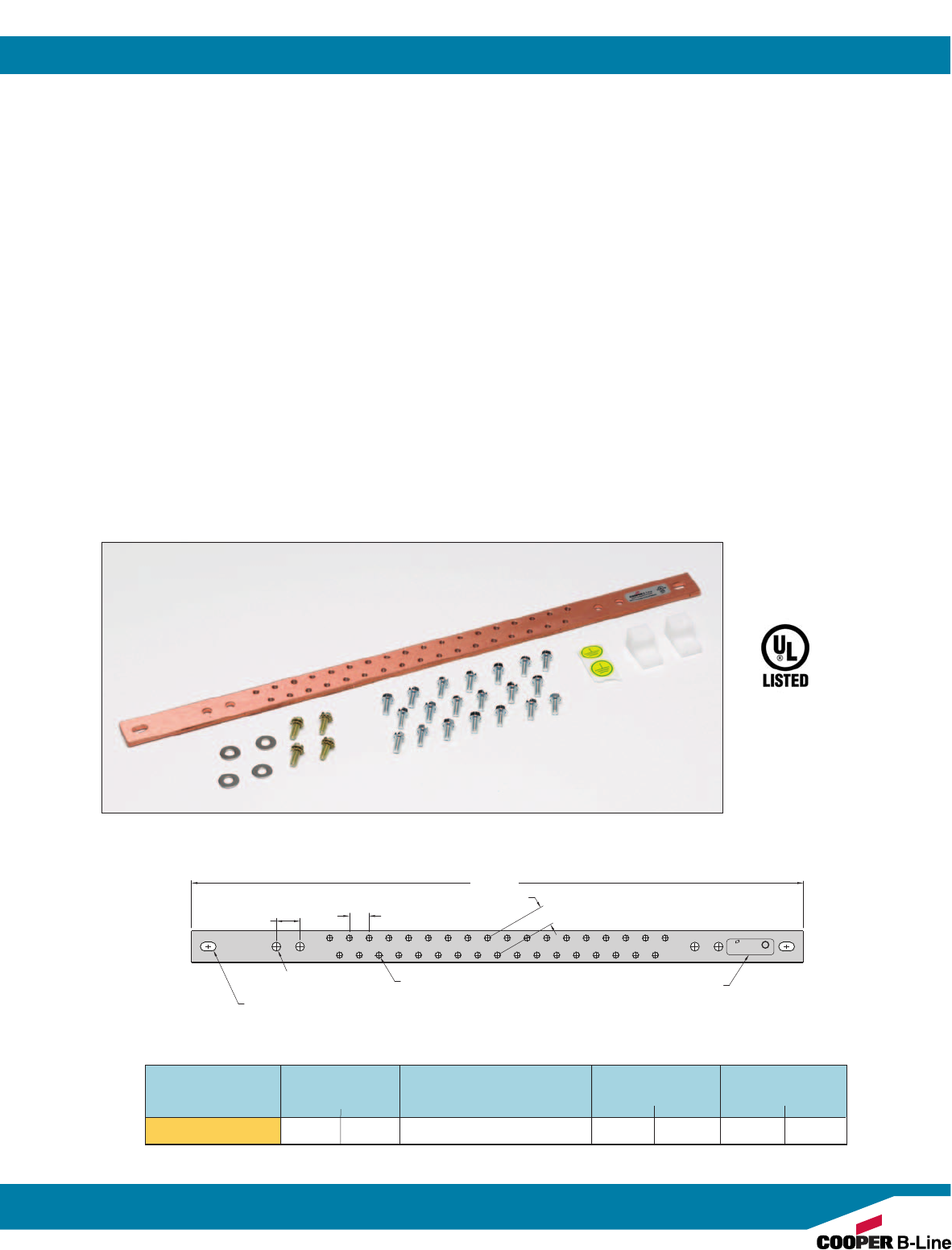

Horizontal Rack Ground Bar Kit
Features:
• Used to consolidate grounds on the equipment rack
• Typically used on 2-post or 4-post racks
• Isolators may be used to separate bar from rack (or omitted depending on application
grounding scheme)
• Kit includes
1 - Horizontal rack ground bar
2 - White insulators
4 - #12-24 x 5/8” (15.9mm) zinc plated screws & flat washers
20 - #12-24 x 1/2” (12.7mm) zinc plated screws
2 - Ground labels
• Material: 3/16” (4.7mm) x 1” (25.4mm) copper bar
Part Number Rack Width Includes Length Wt./Ea.
in. (mm) in. (mm) lbs. (kg)
SBHB119K 19” (482) Bar & Hardware Kit 193/8”(492) 3.0 (1.36)
L
U
LISTED
GROUNDING EQUIPMENT
COOPER B-LINE
www.cooperbline.com CUS
2S01
Cooper B-Line ‘UL’ Label
Length
9/32”∅(7.1mm) (3)
3/4”
(19.0mm) 5/8” (15.9mm) Typ.
5/8” (15.9mm)
#12-24 Tap (35)
9/32” (7.1mm) x 1/2” (12.7mm) Slots (3)
6
Grounding Products

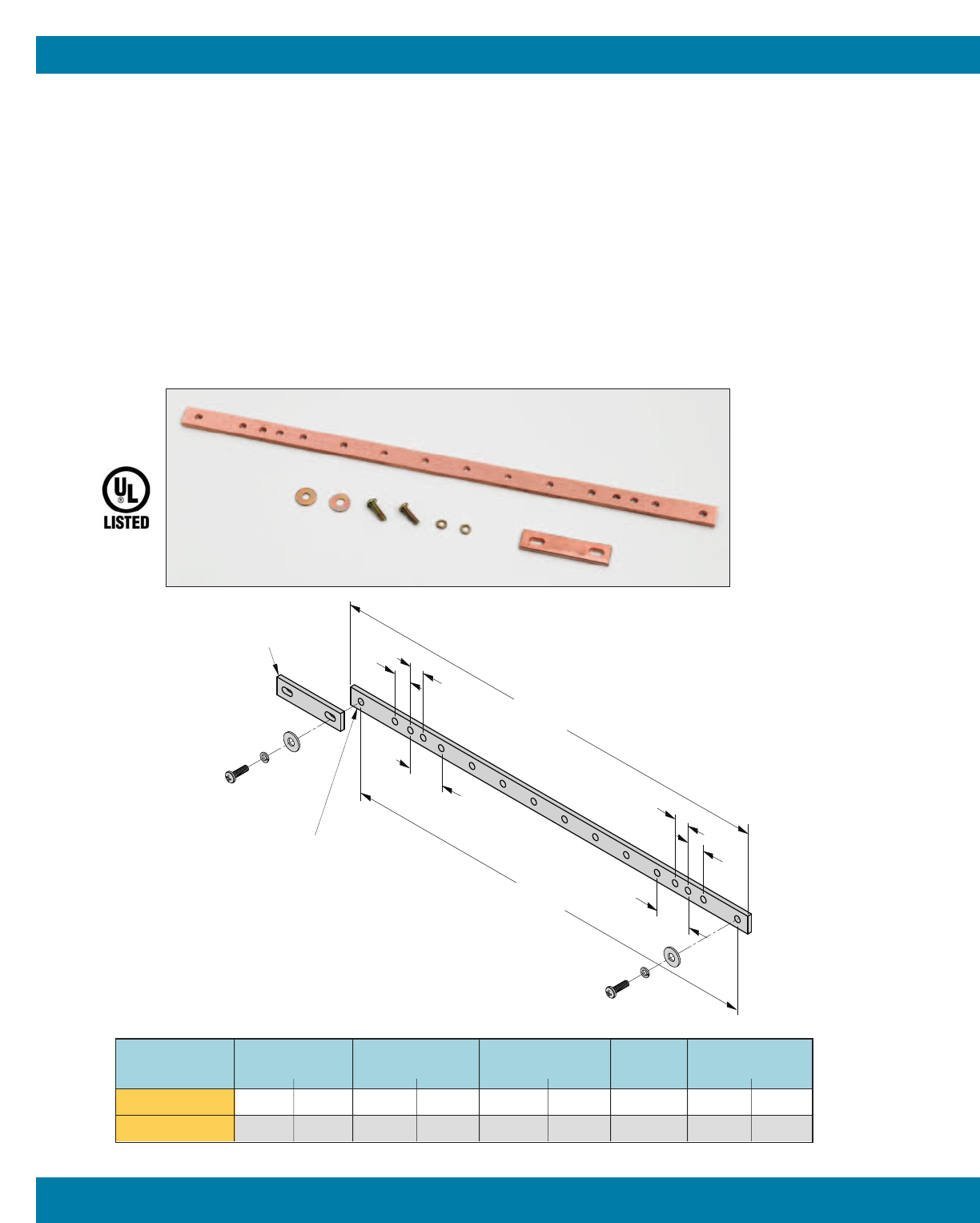

Universal Grounding Bar
Features:
• Used as a rack mounted equipment grounding bus
• Kit includes
1 - Ground bar
1 - Splice plate
2 - #12-24 x 3/4” (19.0mm) yellow zinc plated screws
2 - #12 yellow zinc plated lock washers
2 - 1/4” yellow zinc plated flat washers
• Material: 3/16” (4.7mm) x 3/4” (19.0mm) copper bar
Splice Plate
11/2”
(38mm)
Typ.
5/8”
(16mm)
5/8”
(16mm)
3/4”
(19mm)
3/4”
(19mm)
11/2”
(38mm)
Typ.
Ground Bar
Holes
17/64”∅(7mm)
Length
MCL
SB57903
shown
Part Number Rack Width Length (overall) MC (mtg. centers) Holes Wt./Ea.
in. (mm) in. (mm) in. (mm) lbs. (kg)
SB57903 19” (482) 195/16”(490) 185/16”(465) 16 1.0 (0.04)
SB57904 23” (584) 235/16”(592) 225/16”(567) 18 1.2 (0.05)
7
Grounding Products

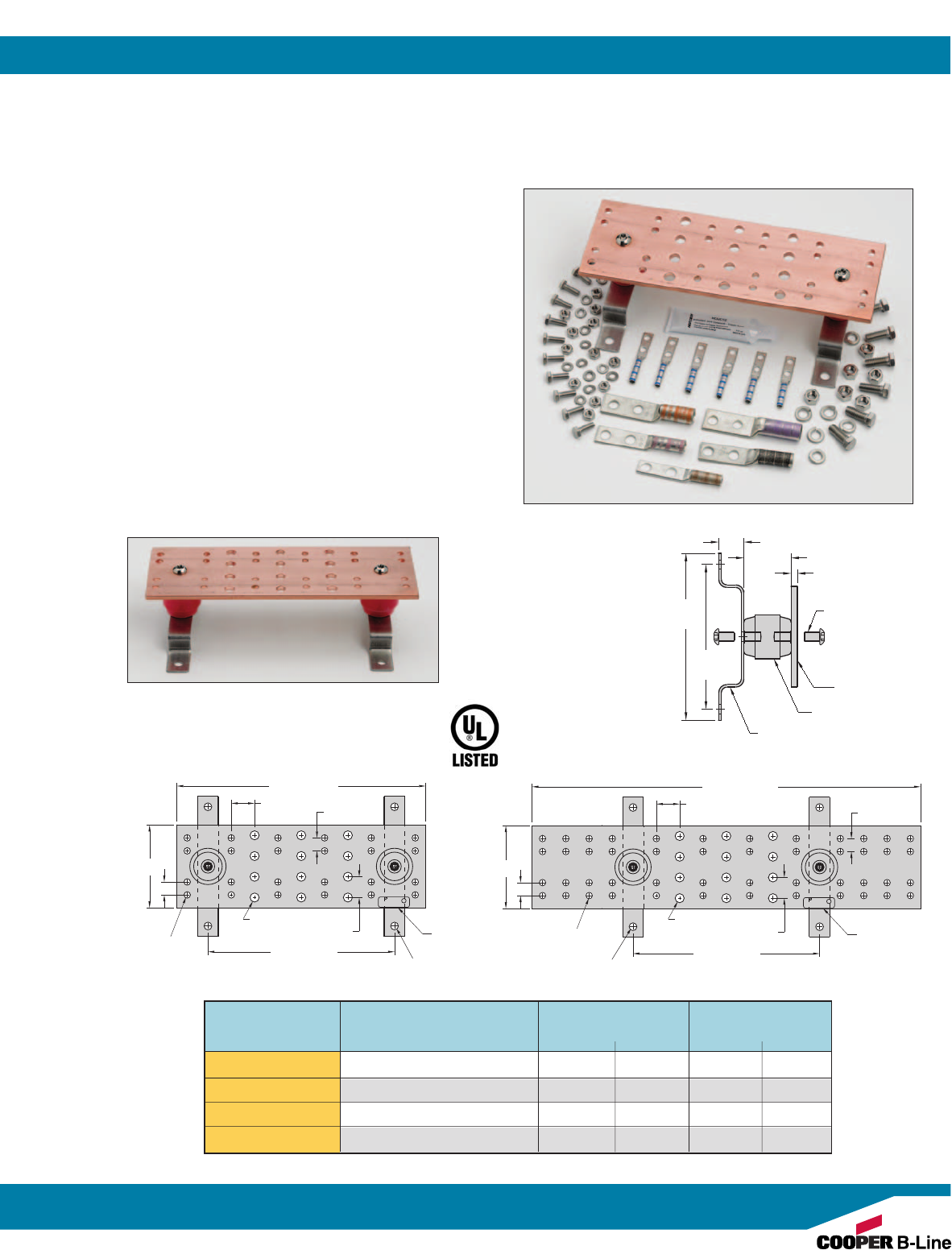

Telecommunications Main Grounding Bar
Features:
• Used as a central consolidation point for
telecommunications and other low voltage
systems within the room
• Typically located on wall or entry room where
exterior ground enters building
• Kit includes
1 - Grounding bar assembly
6 - #6 compression lugs
1 each - #2, 1/0, 2/0, 3/0 compression lugs
12 each - 1/4”-20 x 3/4”(19.0mm) SS4 hex bolts,
hex nuts & lock washers
6 each - 3/8”-16 x 1” (25.4mm) SS4 hex bolts,
hex nuts & lock washers
Part Number Includes Length Wt./Ea.
in. (mm) lbs. (kg)
SBTMGB12 Grounding Bar Assy 12” (305) 4.7 (2.13)
SBTMGB12K Bar Assy & Hardware Kit 12” (305) 7.7 (3.49)
SBTMGB20 Grounding Bar Assy 20” (508) 7.1 (3.22)
SBTMGB20K Bar Assy & Hardware Kit 20” (508) 10.1 (4.58)
L
U
LISTED
GROUNDING EQUIPMENT
COOPER B-LINE
www.cooperbline.com CUS
2S01
L
U
LISTED
GROUNDING EQUIPMENT
COOPER B-LINE
www.cooperbline.com CUS
2S01
SBTMGB12
shown
SBTMGB12K
shown
‘UL’
Label
‘UL’
Label
12” (304.8mm)
9” (228.6mm) 9” (228.6mm)
SBTMBG12 SBTMBG20
‘A’ ‘B’ ‘A’ ‘B’
‘B’
‘B’
‘C’ Typ. ‘C’ Typ.
‘D’ ‘D’
20” (508.0mm)
(2) SS4
Wall Brackets
(2) 2000V Rated
Insulators
Copper Bar
65/8”
(168.3mm)
53/4”
(146.0mm)
1”
(25.5mm)
17/8”
(47.6mm) 1/4” (6.3mm)
(4)
3/8”-16 SS4
Button Head
Screws
H1
(48)
H3
(4)
H1
(24)
H2(14) H2(14)
Dimensional Data
A = 4” (101.6mm)
B = 5/8” (15.8mm)
C = 11/4” (31.7mm)
D = 1” (25.4mm)
H1= 5/16”∅(7.9mm)
H2= 7/16”∅(11.1mm)
H3= 3/8”∅(9.5mm)
H3
(4)
8
Grounding Products

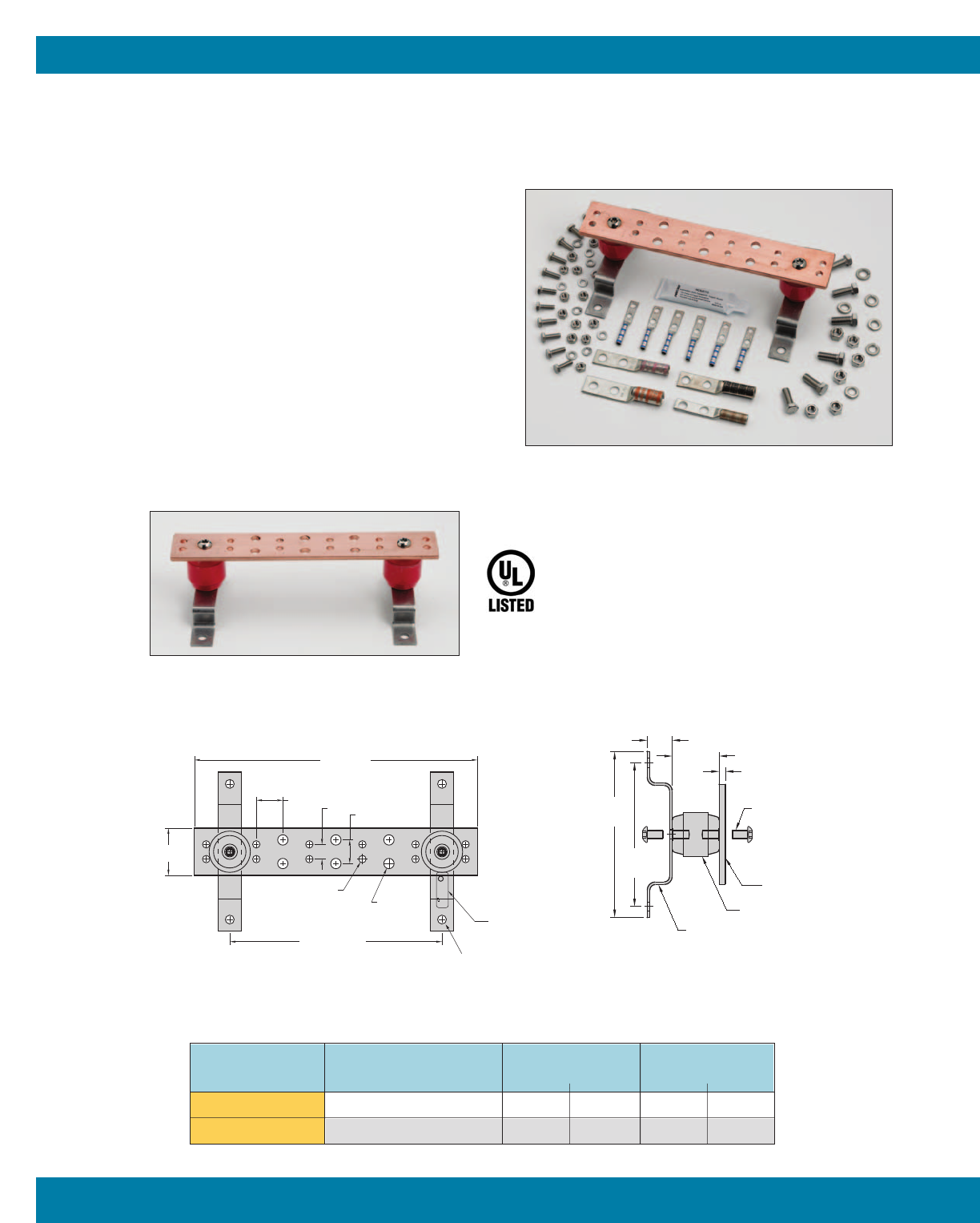

Telecommunications Grounding Bar Kit
Features:
• Provides a common grounding point within
the telecommunications room
• Typically is located on wall of data room
• Kit includes
1 - Grounding bar assembly
6 - #6 compression lugs
1 each - #2, 1/0, 2/0, 3/0 compression lugs
12 each - 1/4”-20 x 3/4”(19.0mm) SS4 hex bolts,
hex nuts & lock washers
6 each - 3/8”-16 x 1” (25.4mm) SS4 hex bolts,
hex nuts & lock washers
• Material: Copper bar & SS4 wall brackets
Part Number Includes Length Wt./Ea.
in. (mm) lbs. (kg)
SBTGB Grounding Bar Assy 12” (305) 2.91 (1.32)
SBTGBK Bar & Hardware Kit 12” (305) 4.91 (2.23)
SBTGB
shown
SBTGBK
shown
L
U
LISTED
GROUNDING EQUIPMENT
COOPER B-LINE
www.cooperbline.com
CUS
2S01
‘UL’
Label
Length)
9” (228.6mm)
SBTGB
‘A’
‘B’
‘C’
Typ. ‘D’
(2) SS4
Wall Brackets
(2) 2000V Rated
Insulators
Copper Bar
65/8”
(168.3mm)
53/4”
(146.0mm)
1”
(25.5mm)
17/8”
(47.6mm) 1/4” (6.3mm)
(4)
3/8”-16 SS4
Button Head
Screws
H3
(4)
H1(12)
H2(8)
Dimensional Data
A = 2” (50.8mm)
B = 5/8” (15.8mm)
C = 11/4” (31.7mm)
D = 1” (25.4mm)
H1= 5/16”∅(7.9mm)
H2= 7/16”∅(11.1mm)
H3= 3/8”∅(9.5mm)
9
Grounding Products

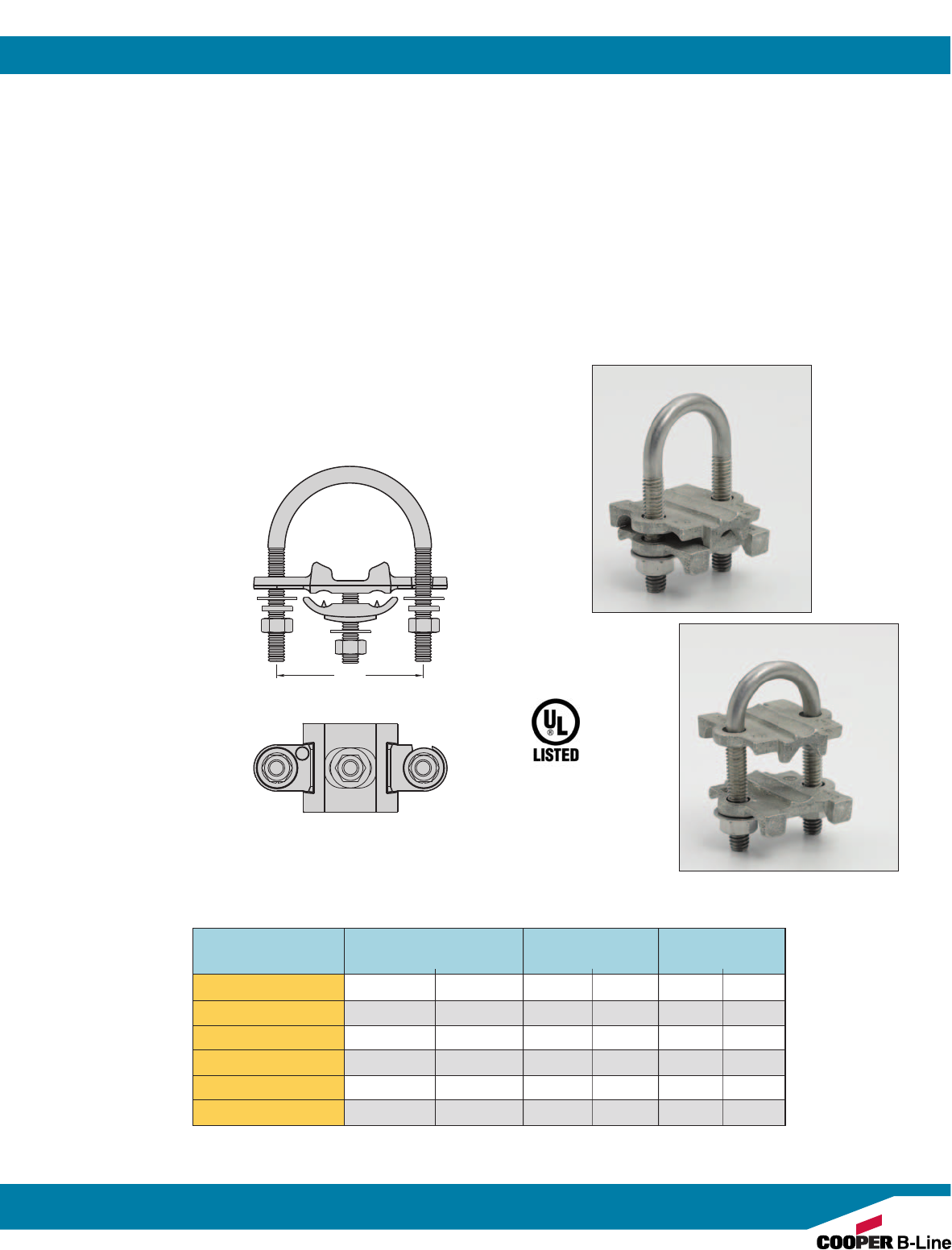

Ground Rod / Pipe Clamps
Features:
• Used to attach ground wire to raised floor pedestals
• Ground wire system inside floor can be used to ground Flextray™ F.A.S.T. System trays
• Sized for ground wires 6 AWG stranded through 250MCM
• 5/16” hardware included
• Material: SS4 U-bolt and hardware - tinned bronze casting
Part Number Pipe Size (nominal) A Wt./Ea.
in. (mm) in. (mm) lbs. (kg)
SBPC050075 1/2” - 3/4”(15 - 20) 1.57” (39.9) 0.47 (0.21)
SBPC100125 1” - 11/4”(25 - 32) 2.03” (51.5) 0.79 (0.36)
SBPC150200 11/2” - 2” (40 - 50) 2.75” (69.8) 0.75 (0.34)
SBPC250300 21/2” - 3” (65 - 80) 3.87” (98.3) 0.95 (0.43)
SBPC350400 31/2” - 4” (90 - 100) 4.87” (123.7) 1.21 (0.55)
SBPC500600 5” - 6” (125 - 150) 7.00” (177.8) 1.70 (0.77)
50H2
HLP
L
U
SBPC050075
closed
SBPC050075
open
‘A’
10
Grounding Products

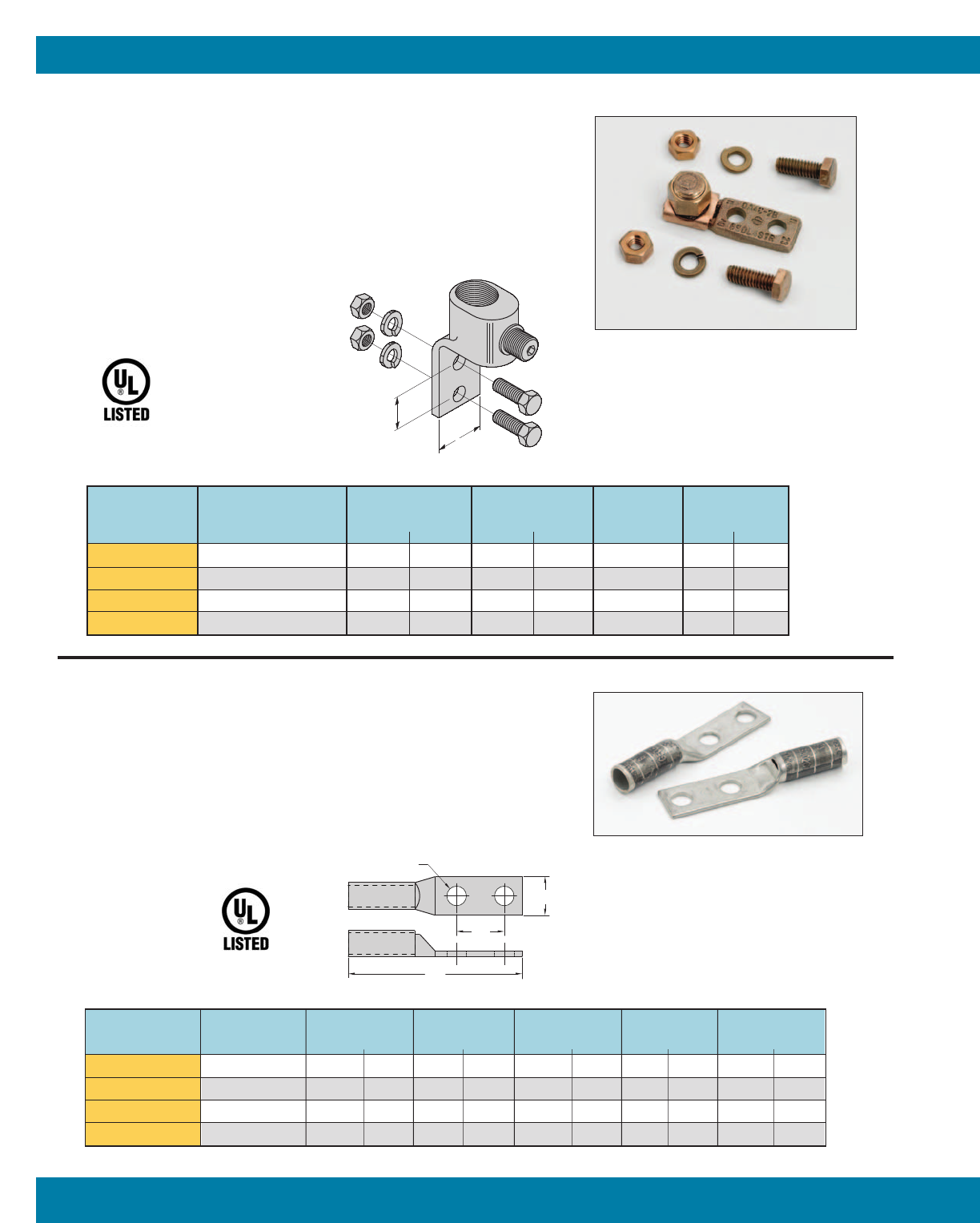

Two-Hole Mechanical Lug
Features:
• Use for connection of electric wire to grounding bus
• Setscrew may be either allen head or hex head
• Includes: silicon bronze hardware
• Additional sizes available
• Sold individually
• Material: Copper alloy
Part Wire ‘C’ ‘W’ Bolt Wt./Ea.
Number Size Size
in. (mm) in. (mm) Lbs. (kg)
SB47801 #14 to #8 5/8”(16) 1/2”(13) #10-24 0.05 (0.02)
SB47802 #8 to #4 5/8”(16) 1/2”(13) 1/4”-20 0.07 (0.03)
SB47803 #4 to #1 3/4”(19) 5/8”(16) 1/4”-20 0.14 (0.06)
SB47804 #1 to 2/0 1” (25) 13/16”(20) 3/8”-16 0.23 (0.10)
‘C’
‘W’
Compression Lugs (Long Barrel)
Features:
• Use for connection of electric grounding wire
to grounding bus
• Sold in package of 10 pcs.
• Material: Tinned Copper
Part Number Lug Size & Hole Dia. ‘W’ ‘L’ ‘C’ Wt./Pkg.
# of Holes in. (mm) in. (mm) in. (mm) in. (mm) lbs. (kg)
SBCL 1 2/0 - 2 Hole 13/32”(10.3) 13/16”(20.6) 321/32”(92.8) 1” (25.4) 6.0 (2.72)
SBCL 2 2/0 - 2 Hole 17/32”(13.5) 13/16”(20.6) 47/8”(123.8) 13/4”(44.4) 14.0 (6.35)
SBCL 3 3/0 - 2 Hole 9/16”(14.3) 15/16”(23.8) 33/4”(95.2) 1” (25.4) 20.0 (9.07)
SBCL 4 4/0 - 2 Hole 9/16”(14.3) 1” (25.4) 329/32”(99.2) 1” (25.4) 20.0 (9.07)
‘L’
‘W’
‘C’
Hole Dia.
11
Grounding Products
9/32”∅(7.1mm) (2 Holes)
Lay-In Lug
Features:
• Used to attach ground wires to racks
or cabinets
• Sold in package of 10 pcs.
• Setscrews (2): 3/8”-24 Hex Head Oval Point
• Material: Aluminum - tin plated
Part Number Lug Size Wt./Pkg.
lbs. (kg)
SBLL 1 2/0 - #14AWG 2.40 (1.09)
LI2/0142
CU9AL
HARGER
U
L

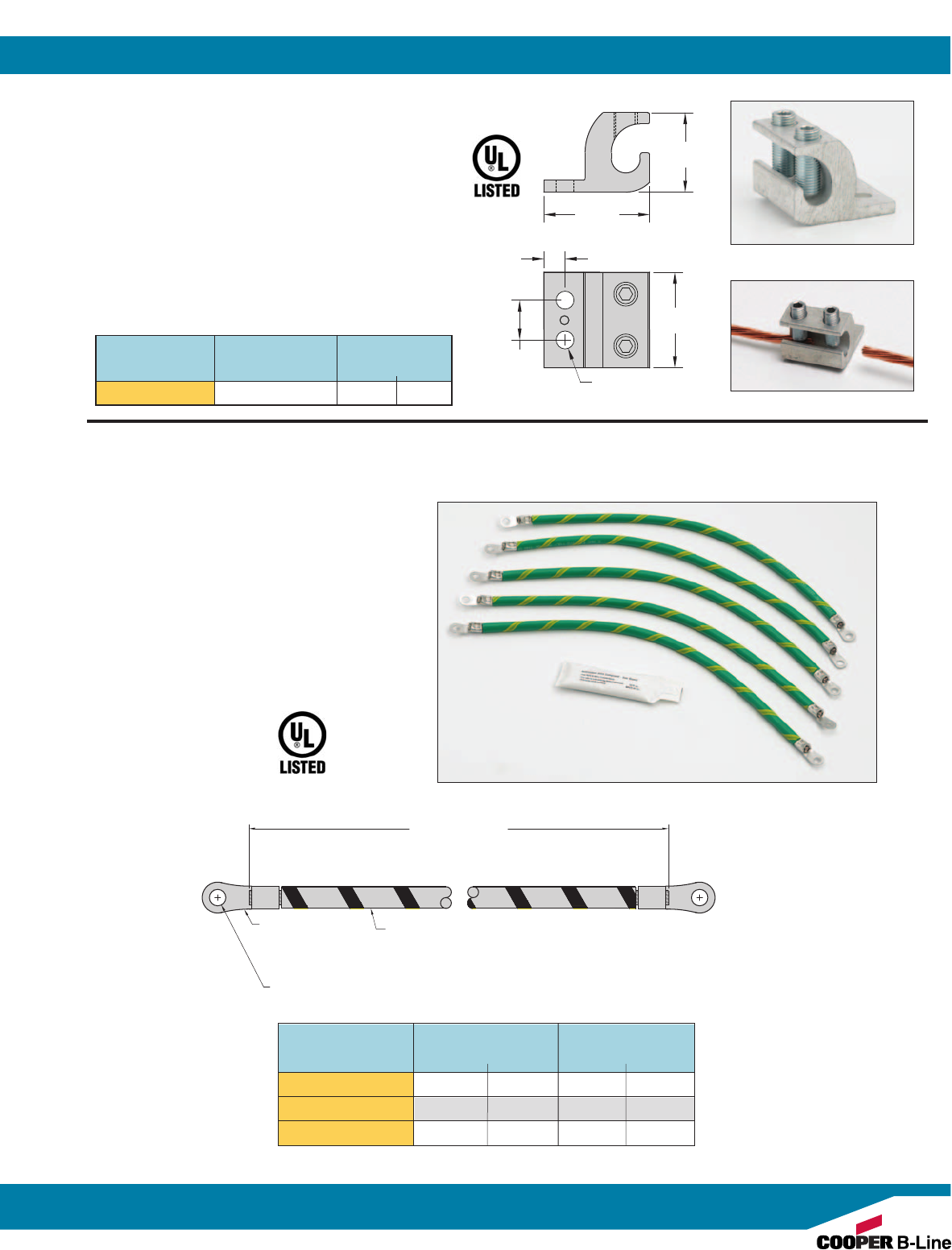

Unit Bonding Conductor
Features:
• Used to bond electronic equipment
to vertical or horizontal rack mount
busbars
• Sold in packages of 5 with
aluminum joint compound
• Material: Copper wire
Part Number Length Wt./Ea.
in. (mm) lbs. (kg)
SBUBC614K 14” (355) 1.45 (0.66)
SBUBC618K 18” (457) 1.45 (0.66)
SBUBC632K 32” (813) 2.54 (1.15)
SBUBC614K
shown
1.660”
(42.1mm)
.330” (8.4mm)
.630”
(16.0mm)
11/4”
(31.7mm)
11/2”
(38.1mm)
Length
#6 MTW Copper Wire with Green Insulation and Yellow Stripe
Holes for 1/4” Both Ends
#6 Compression
Ring Terminal -
Both Ends
12
Grounding Products

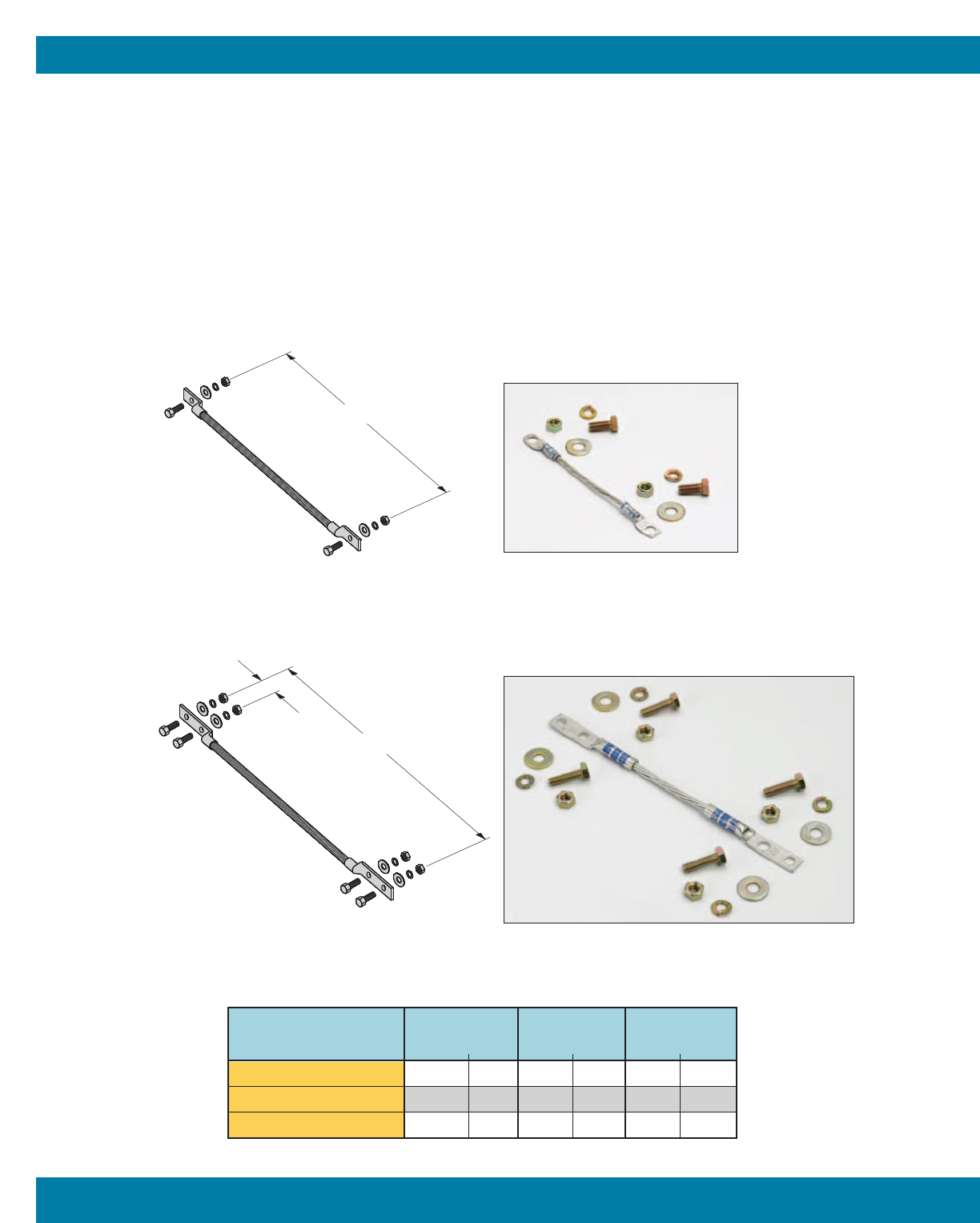

Grounding Strap
Features:
• Use to provide grounding path
• SB6693/4x101/2and SB6691x73/4includes: (1) cable with
crimped lugs and 1/4"-20 hardware
• SB6693/8x63/4includes: (1) cable with crimped lugs and 3/8"-16 hardware
• Material: #6 flexible tin plated copper wire
Part ‘A’‘B’Wt./Ea.
Number In. (mm) In. (mm) Lbs. (kg)
SB6693/4x101/2101/2”(267) 3/4”(19) .36 (0.16)
SB6691x73/473/4”(197) 1” (25) .27 (0.12)
SB6693/8x63/463/4”(171) N/A N/A .20 (0.09)
‘A’
‘B’
‘A’
SB6693/8x63/4
SB6693/4x101/2
&
SB6691x73/4
13
Grounding Products

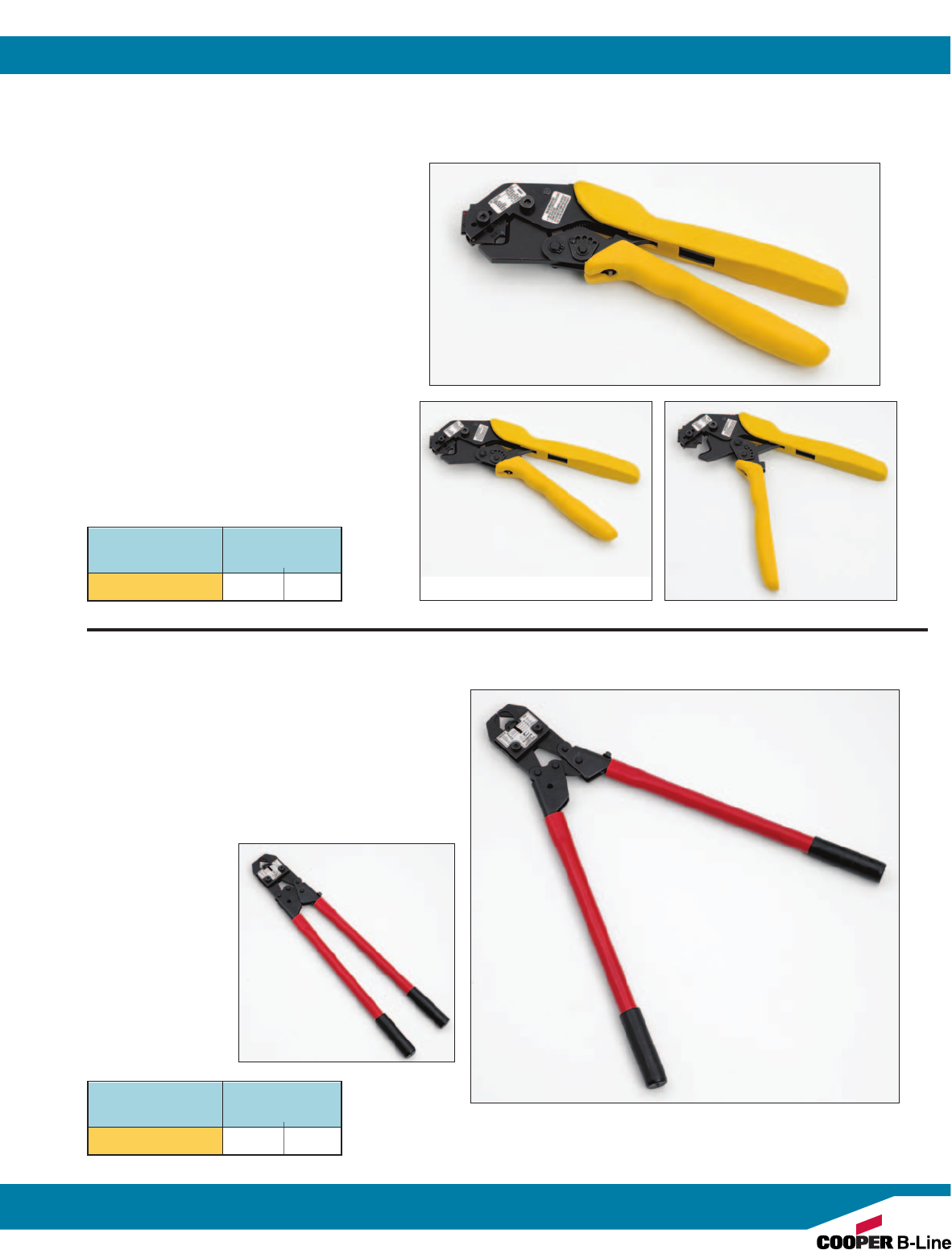

Crimp Tool
Features:
• Used to attach ground lugs to
electrical wire
• Sold per piece
• 101/2” (266mm) in length
Part Number Wt./Ea.
lbs. (kg)
SBTCR 2.00 (0.91)
Part Number Wt./Ea.
lbs. (kg)
SBTCO 5.00 (2.27)
Dieless Compression Tool
Features:
• Used to attach ground lugs to
electrical wire
• Sold per piece
• 24” (609mm) in length
14
Grounding Products
Part Number Material Wt./Pkg.
lbs. (kg)
SBJCA Aluminum 0.37 (0.17)
SBJCC Copper 0.37 (0.17)

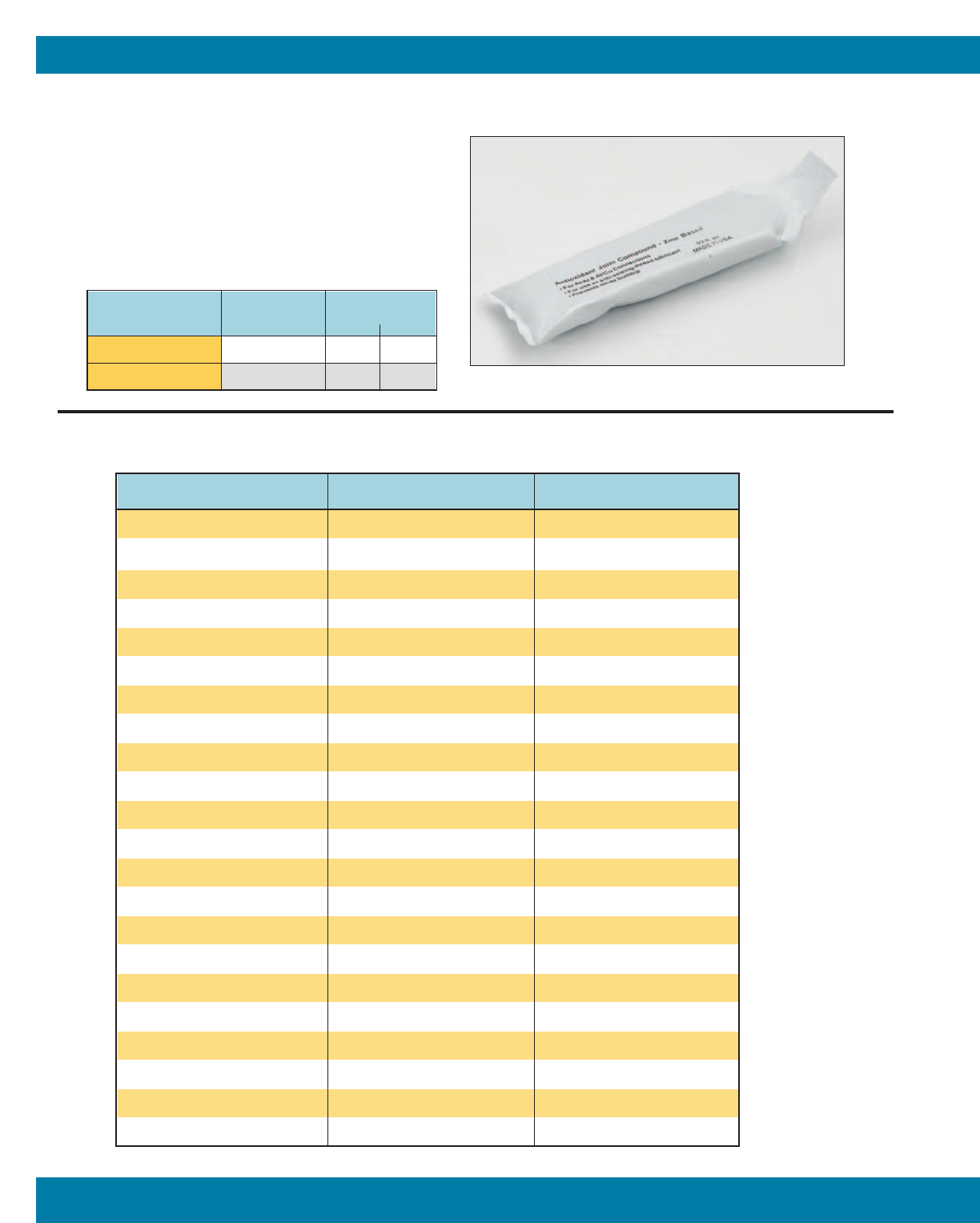

Joint Compound
Features:
• Improves electrical continuity at a
grounding or bonding connection
• Sold in packages of 12
• 1/2ounce per package
Cooper B-Line CPI Panduit
SBCL1 40162-959 LCC2/0-38DW-X
SBCL2 40162-960 LCCX2/0-12-X
SBCL4 40162-961 LCCX4/0-38D-X
SBJCA 40166-812 CMP-300-1
SBJCC 40168-812 CMP-200-1
SBPC050075 40170-001 GPL series
SBPC100125 40170-002 GPL series
SBPC150200 40170-003 GPL series
SBPC250300 40170-004 GPL series
SBPC350400 40170-005 GPL series
SBPC500600 40170-006 GPL series
SBTCO 40165-001 CT-930
SBTCR 40165-002 CT-1700
SBTGB 40156-012
SBTMGB12 40153-012 GB2B0306TPI-1
SBTMGB12K 40158-012
SBTMGB20 40153-020 GB4B0624TPI-1
SBTMGB20K 40158-020
SBVB36 40160-036
SBVB36K 40161-036
SBVB72 40160-072
SBVB72K 40161-072 RGS134-1Y
Cross Reference
15

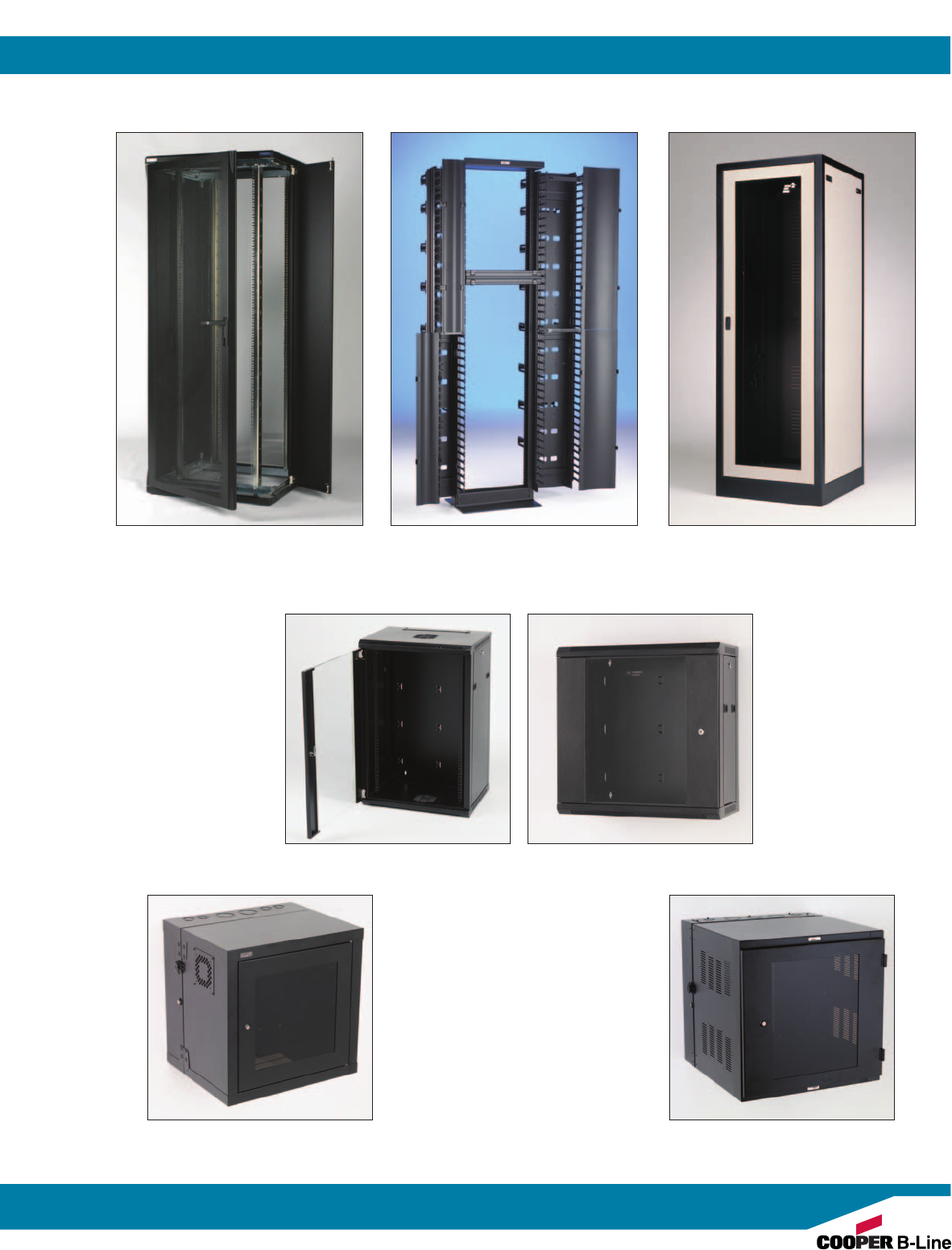

Cooper B-Line Comm/Data Products
Rack & Runway
RCM+ Rack
E2 Zone 4 CabinetsAccess Cabinet
Value Wall Mount Cabinets
E2
Wall Mount
Cabinets
V-LINE
Wall Mount
Cabinets
Cooper B-Line Product Lines
Strut Systems (Bolted Framing)
Cable Tray Systems
Electrical Enclosures
Electronic Enclosures
Metering
Pipe Hangers & Support Systems
Spring Steel Fasteners
Cable Runway & Relay Racks (CommData)
Meter Mounting & Distribution Equipment
Safety Grating
Anchors
CDGRD-10
© 2010 Cooper B-Line, Inc. Printed in U.S.A. 5210
SYSTEMS THAT MAKE SENSE
“B
B-
-V
VO
OC
CA
AL
LS
SM
M
“B
B-
-V
VO
OC
CA
AL
LS
SM
M
Questions, Comments, Suggestions?
with Cooper B-Line”
Voice Of the Customer...Actively Listening
bvocal@cooperindustries.com
877-351-9450
“B
B-
-V
VO
OC
CA
AL
LS
SM
M
Cooper B-Line
509 West Monroe Street
Highland, IL 62249
Phone: 800-851-7415
Fax: 618-654-1917
www.cooperbline.com
Cooper Industries, Ltd.
600 Travis, Ste. 5800
Houston, TX 77002-1001
Phone: 713-209-8400
www.cooperindustries.com
• Contact Information •
