Facility Electrical Protection

Cathodic Protection

Connections

Featuring CADWELD®Molds

Weld Metal and Accessories

E394CT09NAEN:LT0398 3/5/09 4:22 PM Page I

Introduction/Table of Contents

The CADWELD Process

CADWELD connections are the accepted method of

attaching Cathodic Protection leads to pipes (steel or

cast iron), tanks and structures.

CADWELD connections weld the conductors and

the structure to be protected so no galvanic corrosion

can occur at the interface. The CADWELD process is

specifically formulated to provide minimum heat effect

on steel, which is especially important on thin-wall,

high-stress pipes.

CADWELD connections are also used for header cable

taps, conductor splices and terminations, and ground rod

connections.

ERICO®Facts

A CADWELD Connection . . .

• Has current carrying capacity equal to that of

the conductor.

• Is permanent with a low resistance connection that

cannot loosen or corrode.

• Uses lightweight, inexpensive equipment.

• Requires no external source of power or heat.

• Requires no special skills.

• Can be easily checked for quality.

ERICO is the pioneer of the CADWELD Exothermic

Welding Process for permanent Cathodic Protection

connections. Specifying the CADWELD Process in

your construction plans will dramatically extend the

lifespan of infrastructure systems.

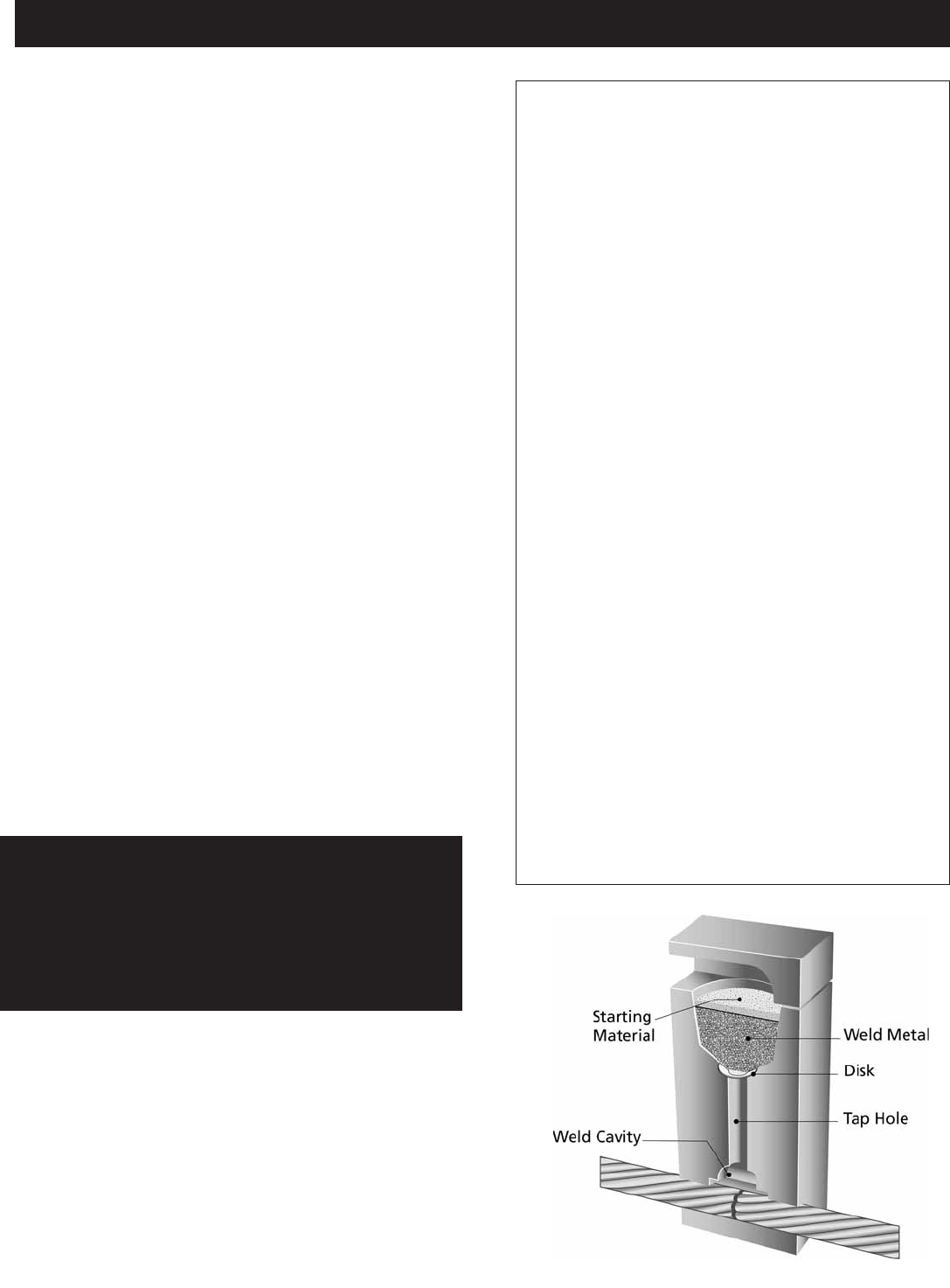

CADWELD connections are made with a semi-permanent

graphite mold, which holds the conductors to be welded.

Weld metal (a mixture of copper oxide and aluminum) is

dumped into the top of the mold. The mold is covered

and the weld metal ignited. The exothermic reaction

produces molten copper, which results in a permanent,

high conductivity connection.

TABLE OF CONTENTS

INTRODUCTION

Connections to Steel Page

CAHA Type 1

CAHC Type 2

CAVS Type 3

Connections to Cast Iron

CAHB Type 4

CAHE Type 4

CAVH Type 4

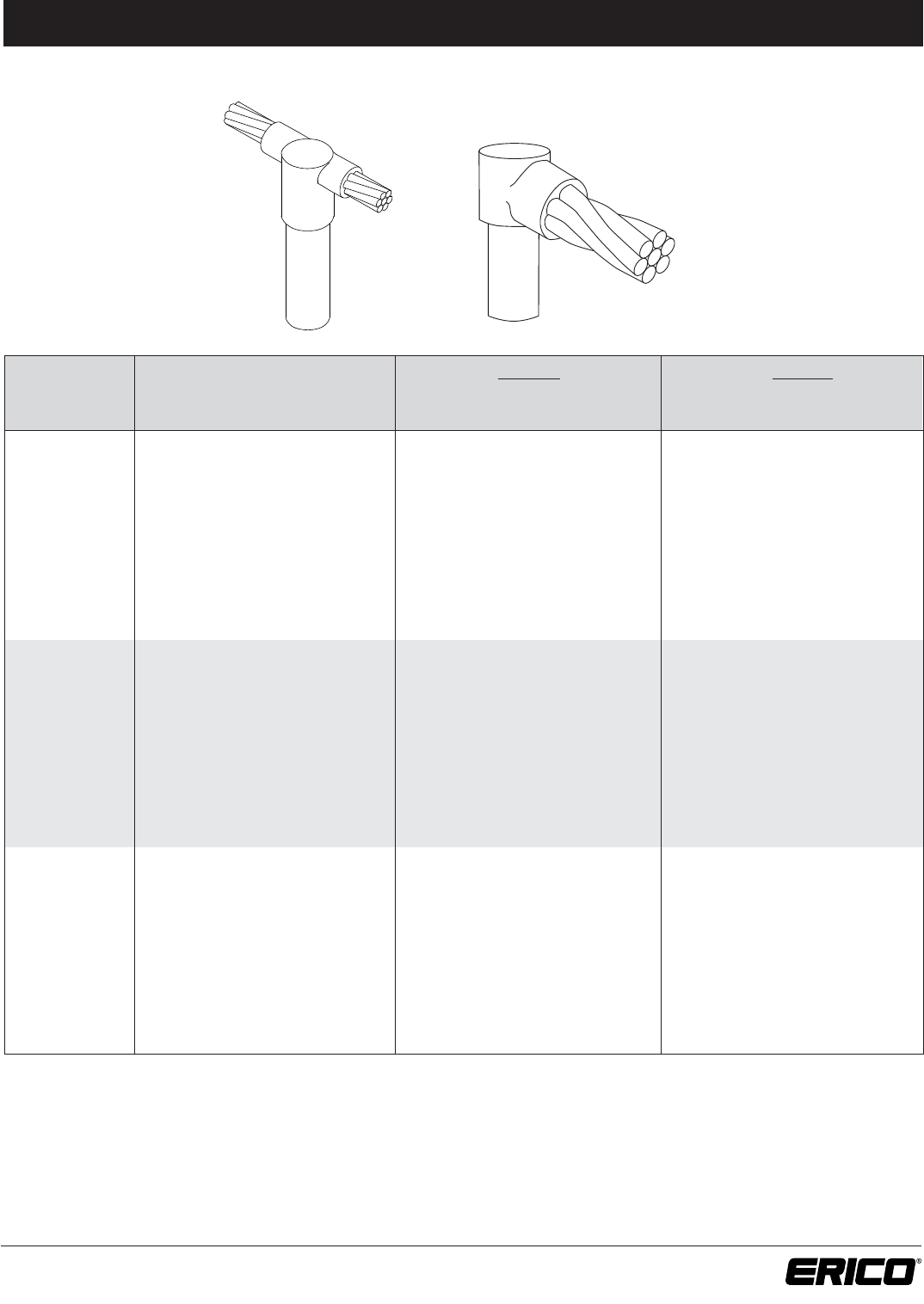

Connections to Ground Rod

Type CAGR 5

Type CAGT 5

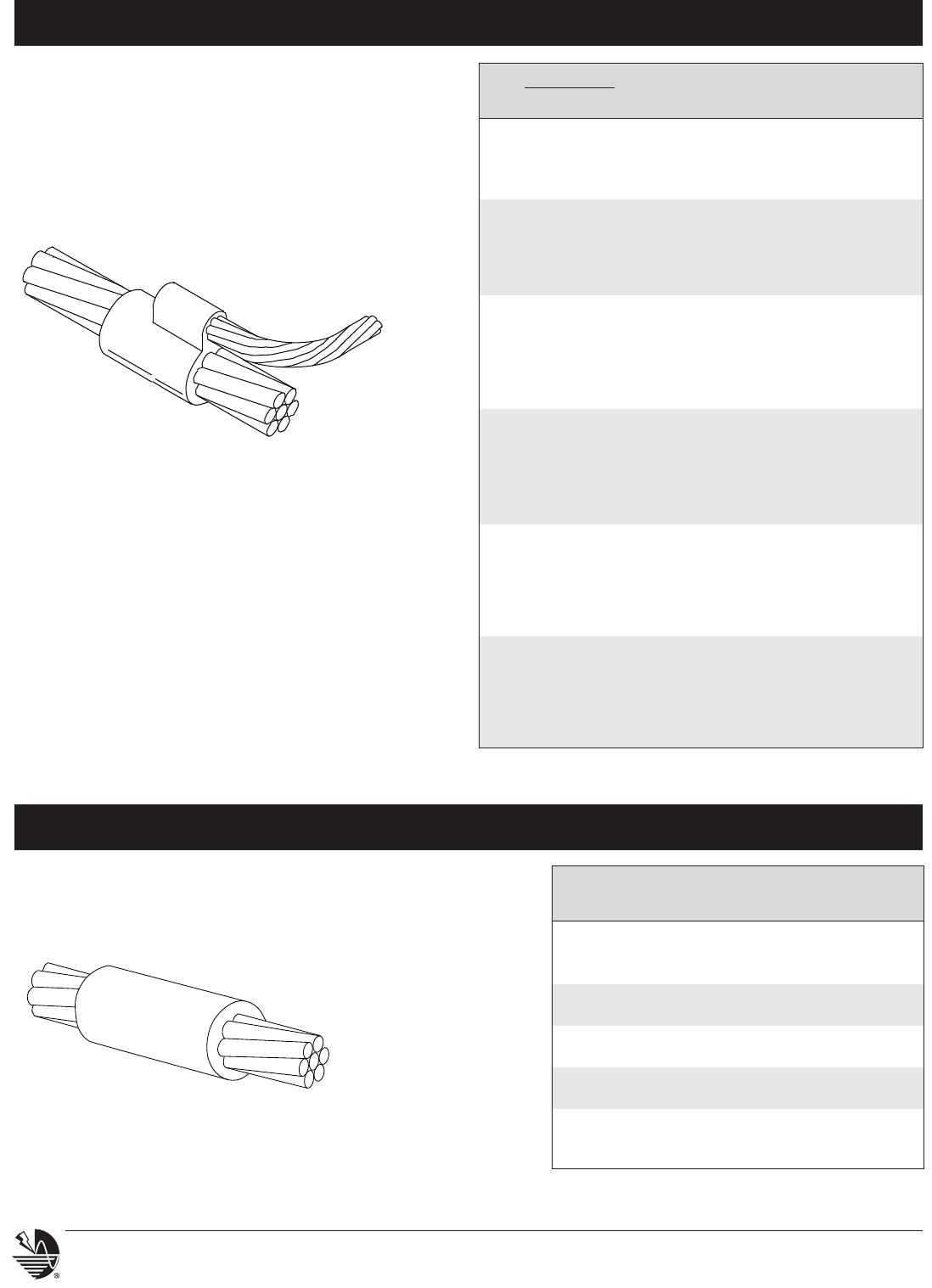

Connections of Cable to Cable

Type CAPC 6

Type CASS 6

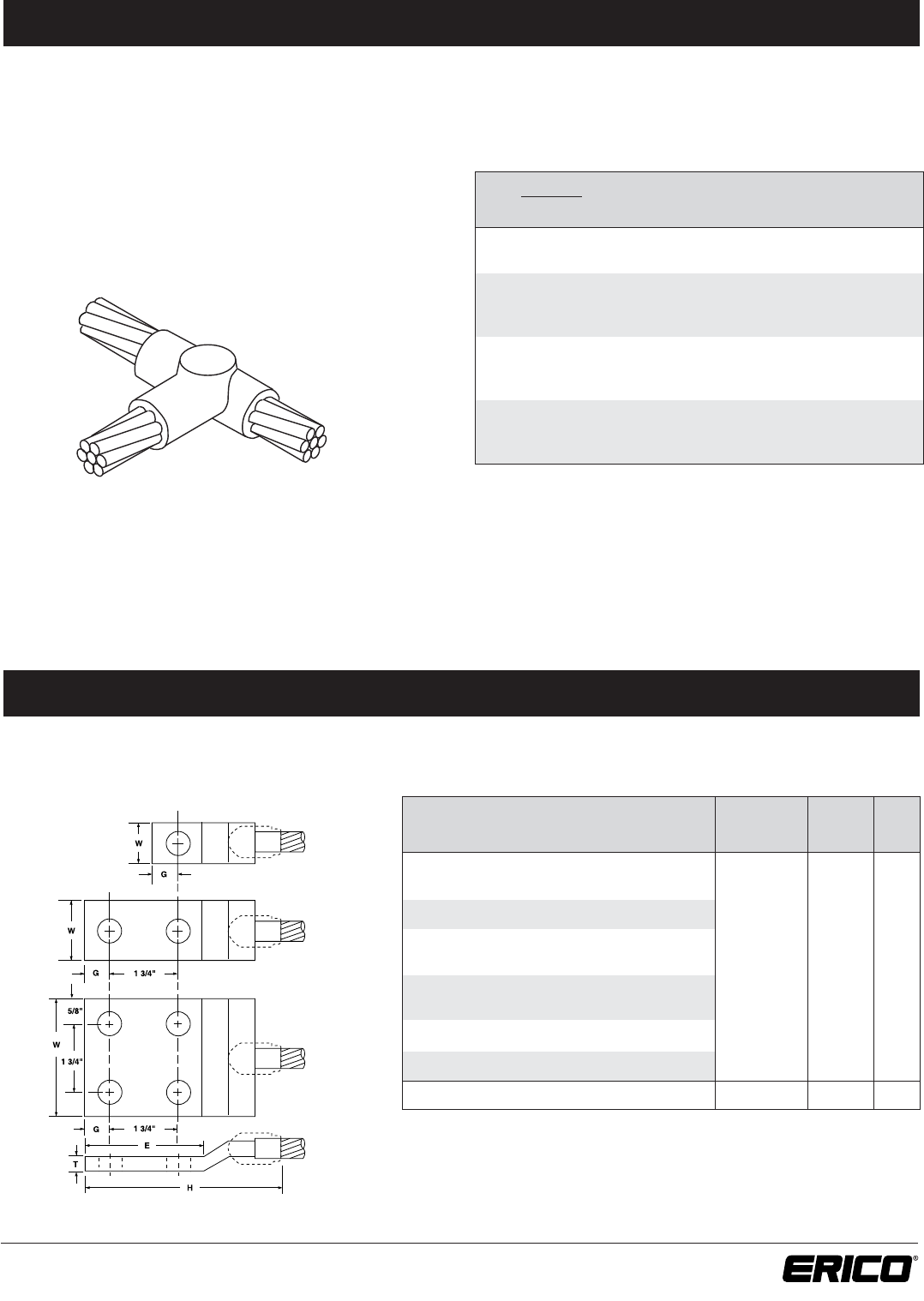

Type CATA 7

Connections of Cable to Lug

Type CALA 7

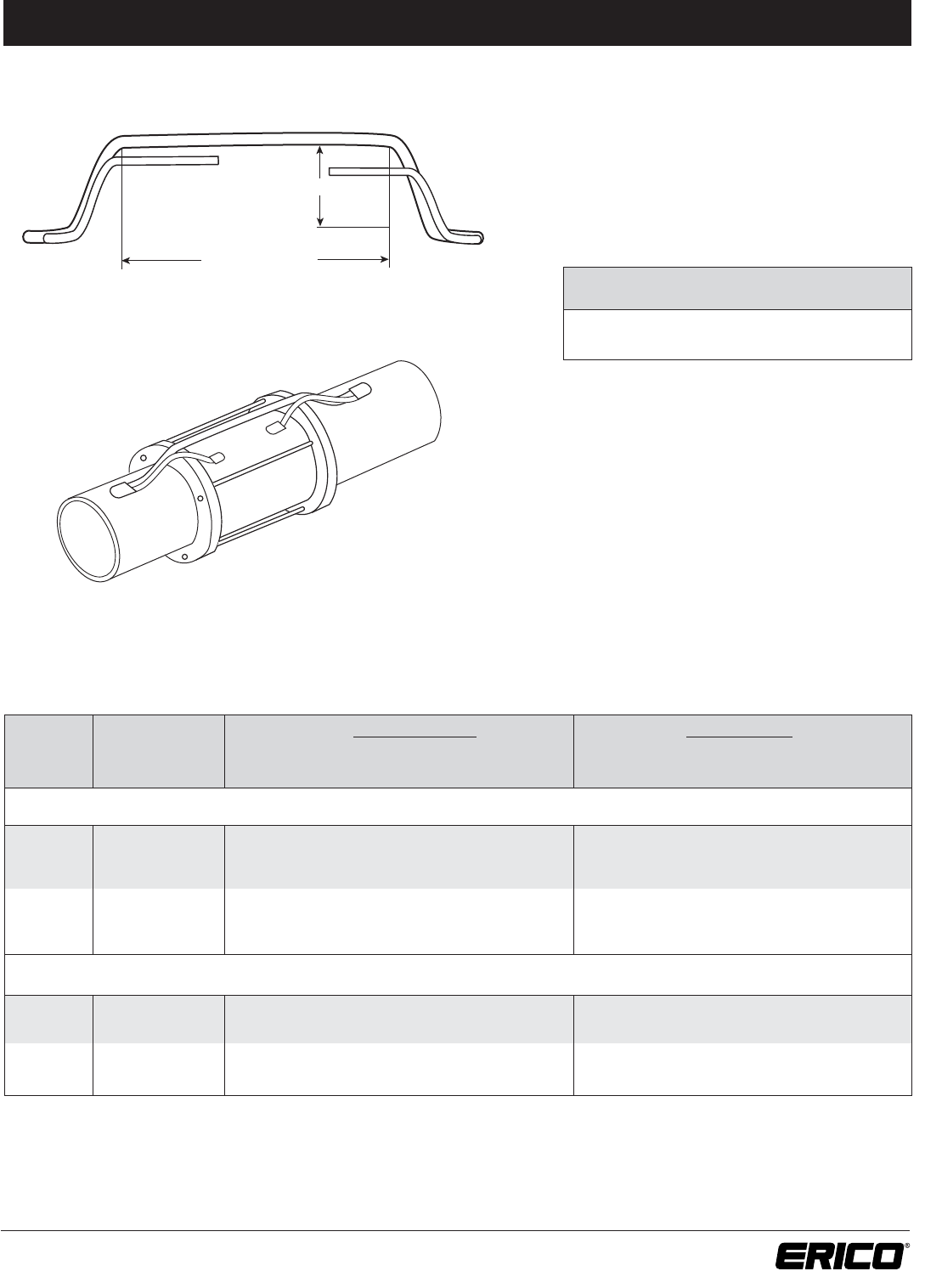

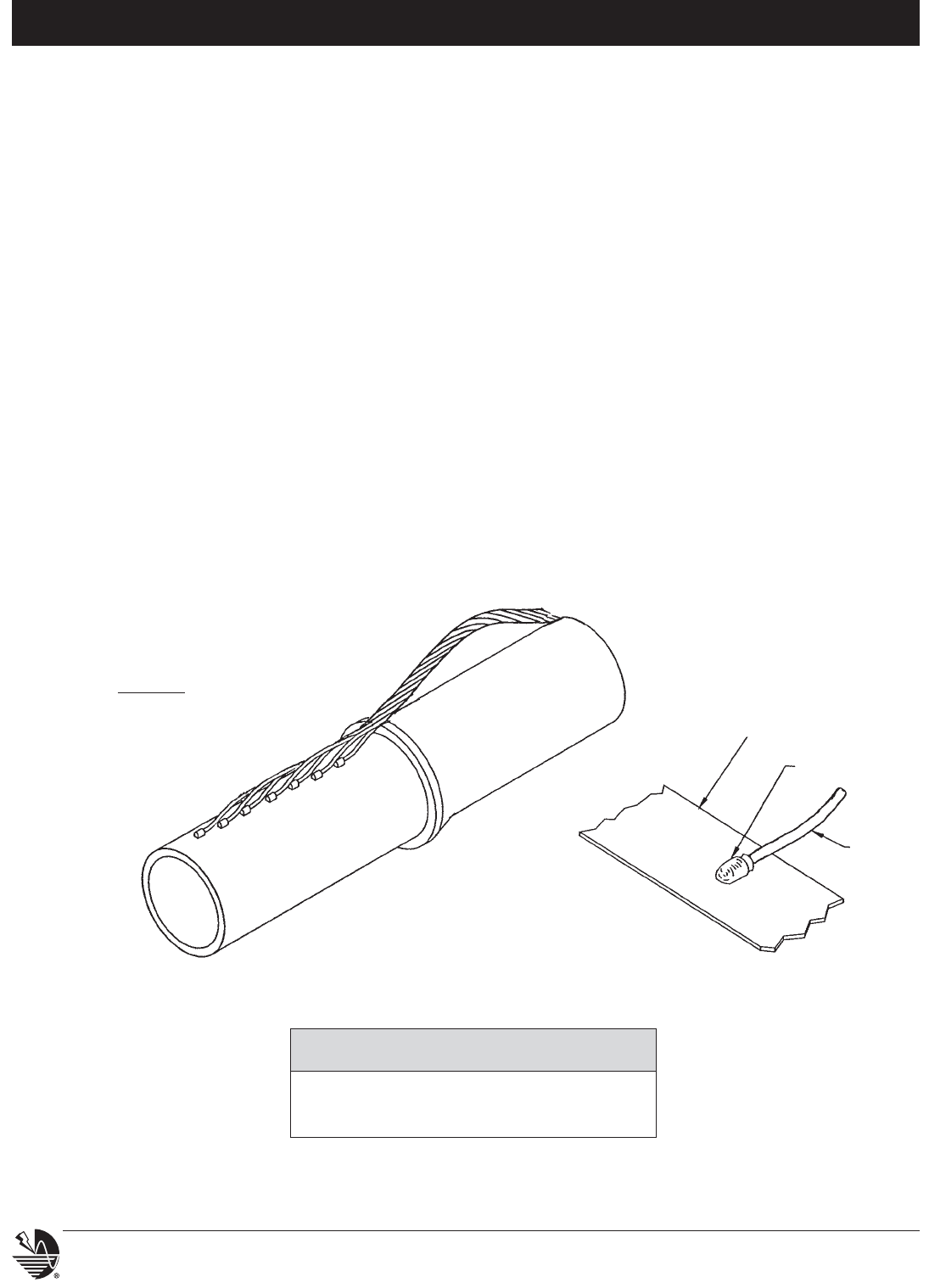

Bonds

Plain Strap Bonds 8

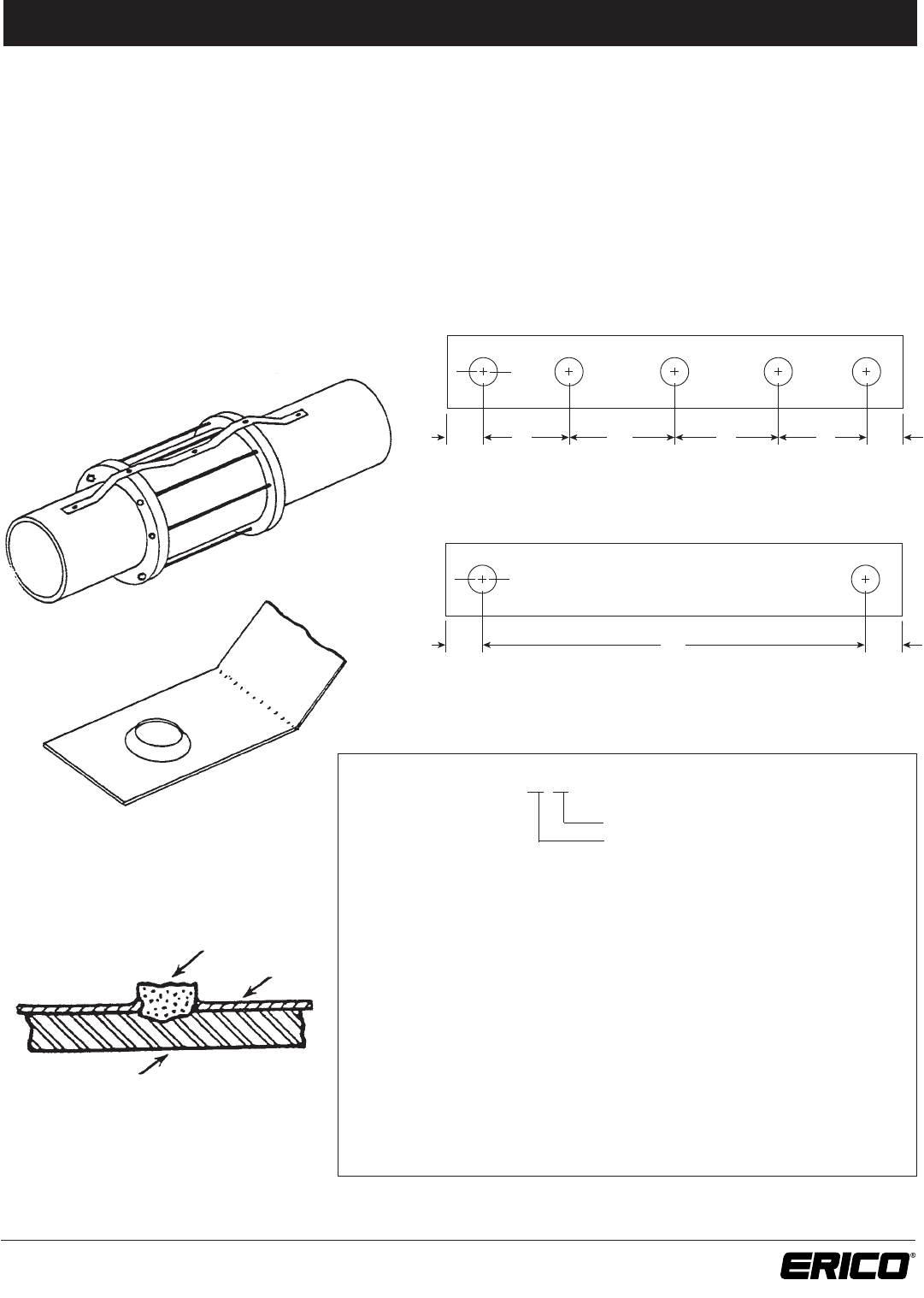

Punched Strap Bonds 9

Formed Terminal - Factory & Field Made 10

Formed Terminal - with Pigtail 11

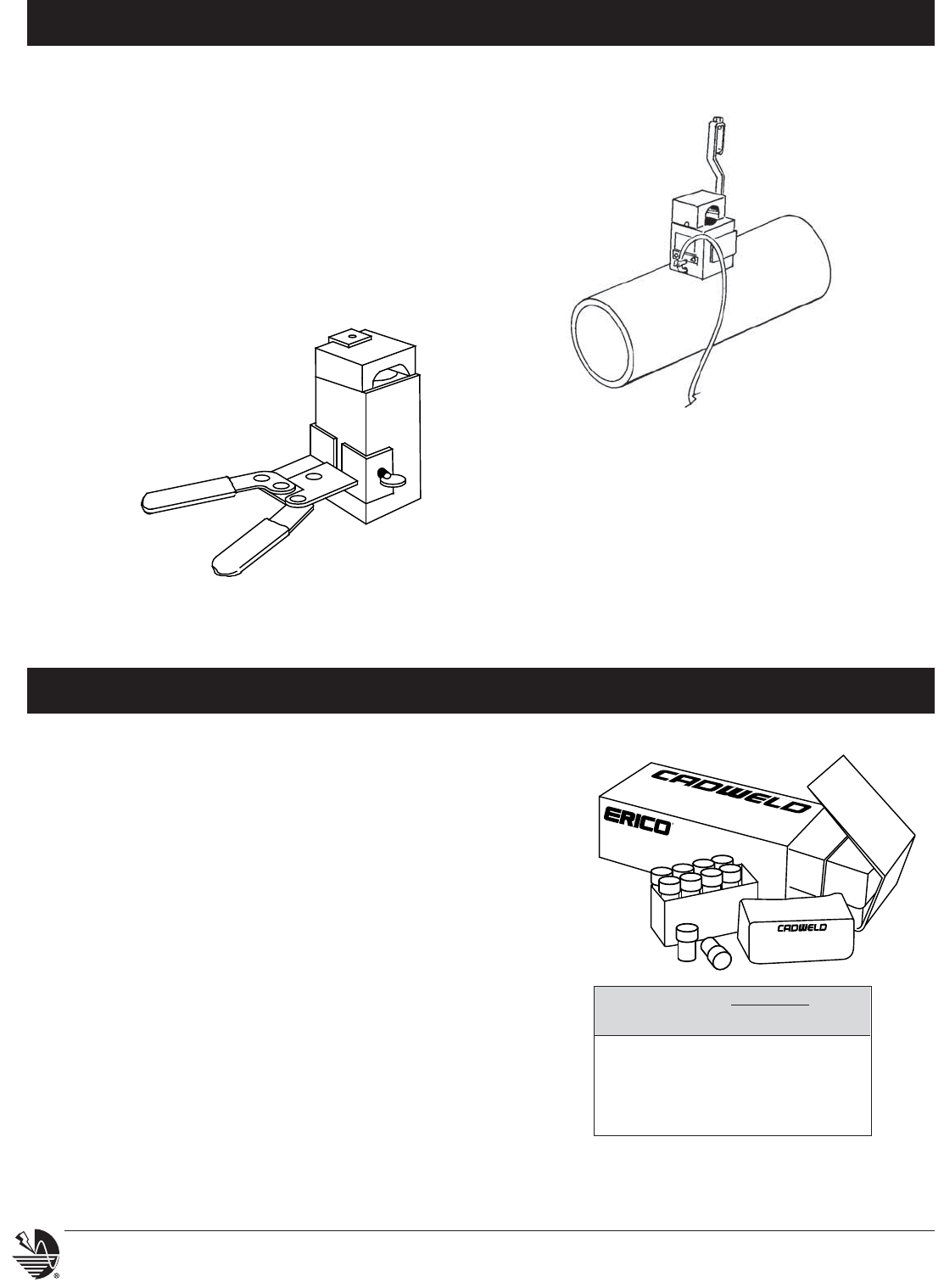

Welders and Molds 12

Weld Metal 12

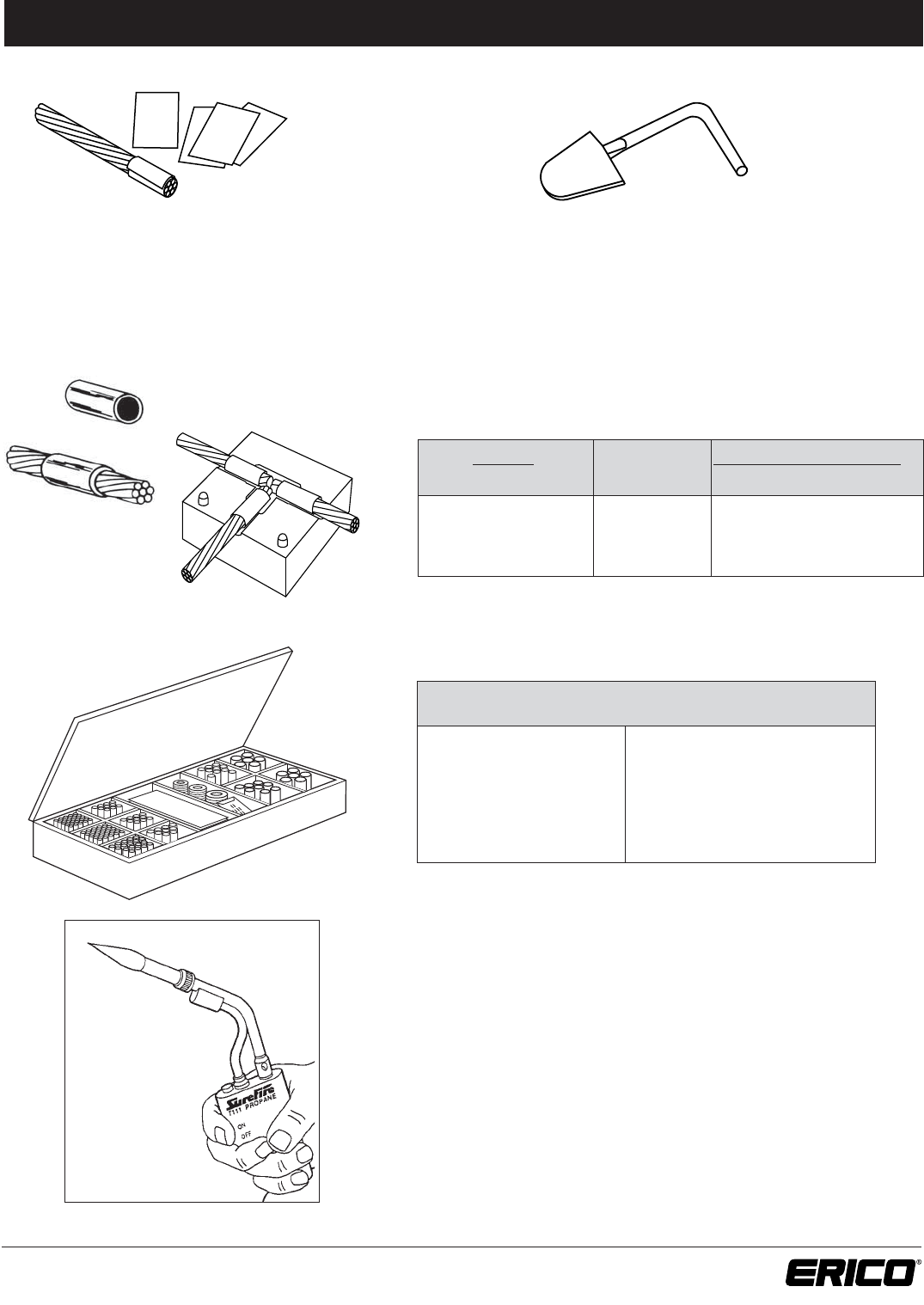

Tools and Materials 13 - 15

Technical Information

PIPING CODE 16

PIPE WALL THICKNESS 17

Ductile Iron 17

Cross Reference 18

E394CT09NAEN:LT0398 3/5/09 4:22 PM Page II

1

Ph: 1-800-677-9089

www.erico.com

Connections to Steel

Tap conductor to top of horizontal STEEL pipe or flat surface.

Note: For DUCTILE IRON, see page 17.

Conductor Surface Welder Welder Weld

Size Part No.†Price Metal

#14 to #10 Solid (use

sleeve CAB-133-1H)* Flat (4" & larger pipe) CAHAA-1G CAA CA15

or #8 Solid or Stranded, 3/4" to 3-1/2" pipe CAHAA-1GA CAA CA15

or #6 Solid

6 Stranded Flat (4" & larger pipe) CAHAA-1H CAA CA15

3/4" to 3-1/2" pipe CAHAA-1HA CAA CA15

Flat (6" & larger pipe) CAHAA-1K CAA CA15

4 Solid 3/4" to 3-1/2" pipe CAHAA-1KA CAA CA15

4" to 5" pipe CAHAA-1KB CAA CA15

Flat (6" & larger pipe) CAHAA-1L CAA CA15

4 Stranded 3/4" to 3-1/2" pipe CAHAA-1LA CAA CA15

4" to 5" pipe CAHAA-1LB CAA CA15

Flat (10" & larger pipe) CAHAA-1T CAA CA25

2 Solid 1" to 3-1/2" pipe CAHAA-1TA CAA CA25

4" to 8" pipe CAHAA-1TB CAA CA25

Flat (16" & larger pipe) CAHAA-1V CAA CA32

2 Stranded 1" to 3-1/2" pipe CAHAA-1VA CAA CA32

4" to 8" pipe CAHAA-1VB CAA CA32

10" to 14" pipe CAHAA-1VC CAA CA32

Flat (16" & larger pipe) CAHAA-1Y CAA CA45

1 Stranded 1-1/2" to 3-1/2" pipe CAHAA-1YA CAA CA45

4" to 8" pipe CAHAA-1YB CAA CA45

10" to 14" pipe CAHAA-1YC CAA CA45

Flat (20" & larger pipe) CAHAA-2C CAA CA65

1/0 Stranded 2-1/2" to 3-1/2" pipe CAHAA-2CA CAA CA65

4" to 8" pipe CAHAA-2CB CAA CA65

10" to 18" pipe CAHAA-2CC CAA CA65

Flat (20" & larger pipe) CAHAA-2G CAA CA65

2/0 Stranded 2-1/2" to 3-1/2" pipe CAHAA-2GA CAA CA65

4" to 8" pipe CAHAA-2GB CAA CA65

10" to 18" pipe CAHAA-2GC CAA CA65

*1 sleeve per connection.

†Welder Part No. includes mold frame. If mold only (less frame) is required, order - Welder Part No. - "M".

Type CAHA

CAHA -

Cable on surface

CAHA - Cable to Horizontal

Steel Pipe

E394CT09NAEN:LT0398 3/5/09 4:22 PM Page III

2Ph: 1-800-677-9089

www.erico.com

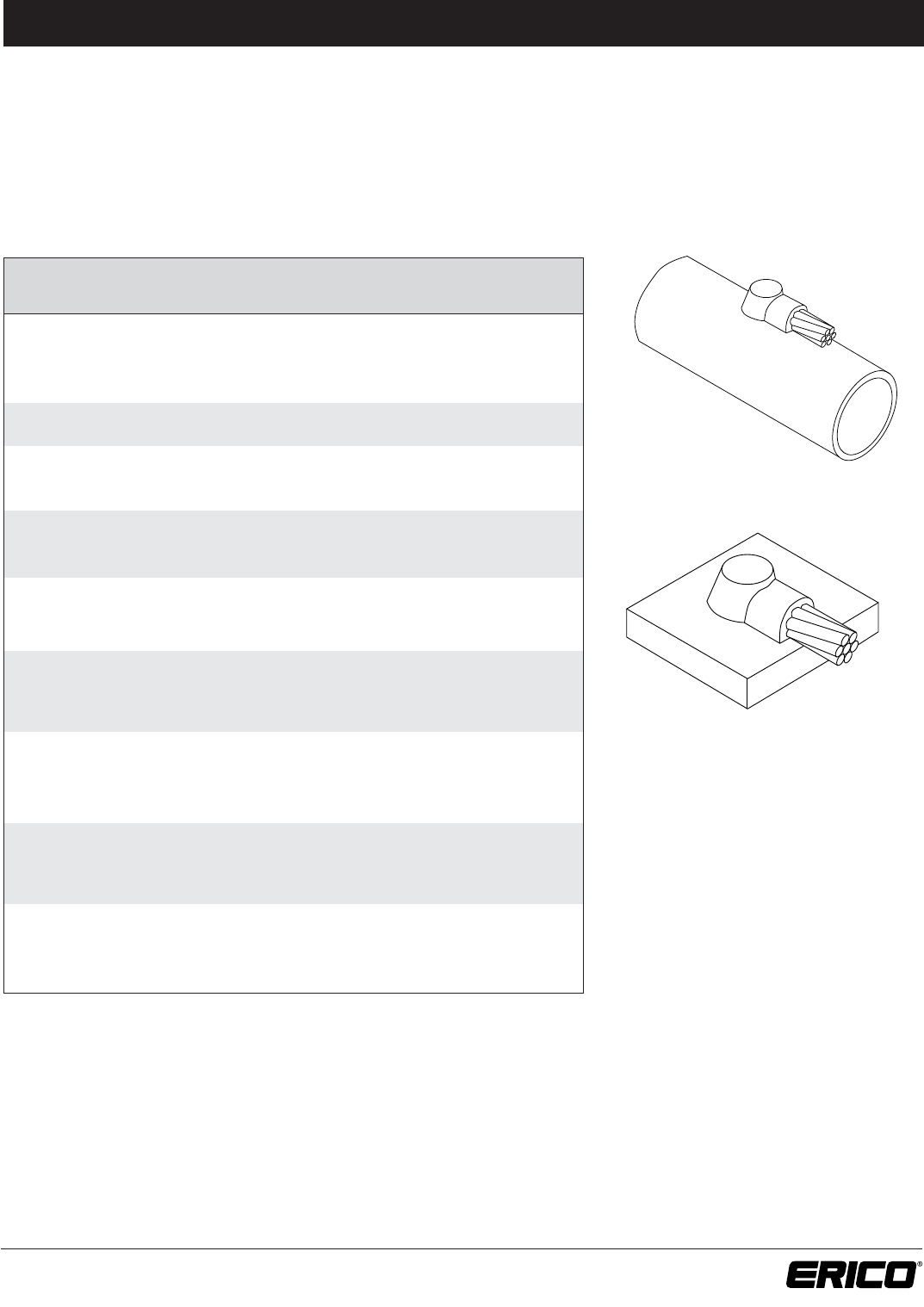

Connections to Steel Type CAHC

Conductor Surface Welder Welder Weld

Size Part No.†Price Metal

#14 to #10 Solid (use Flat (12" & larger pipe) CAHCA-1G CAA CA25

sleeve CAB-133-1H)* 3/4" to 2" pipe CAHCA-1GA CAA CA25

or #8 Solid or Stranded, 2-1/2" to 5" pipe CAHCA-1GB CAA CA25

or #6 Solid 6" to 10" pipe CAHCA-1GC CAA CA25

Flat (12" & larger pipe) CAHCA-1H CAA CA25

6 Stranded 3/4" to 2" pipe CAHCA-1HA CAA CA25

2-1/2" to 5" pipe CAHCA-1HB CAA CA25

6" to 10" pipe CAHCA-1HC CAA CA25

Flat (12" & larger pipe) CAHCA-1K CAA CA25

4 Solid 3/4" to 2" pipe CAHCA-1KA CAA CA25

2-1/2" to 5" pipe CAHCA-1KB CAA CA25

6" to 10" pipe CAHCA-1KC CAA CA25

Flat (12" & larger pipe) CAHCA-1L CAA CA25

4 Stranded 3/4" to 2" pipe CAHCA-1LA CAA CA25

2-1/2" to 5" pipe CAHCA-1LB CAA CA25

6" to 10" pipe CAHCA-1LC CAA CA25

Flat (14" & larger pipe) CAHCA-1T CAA CA32

2 Solid 2" to 3-1/2" pipe CAHCA-1TA CAA CA32

4" to 6" pipe CAHCA-1TB CAA CA32

8" to 10" pipe CAHCA-1TC CAA CA32

Flat (18" & larger pipe) CAHCA-1V CAA CA45

2 Stranded 2" to 3-1/2" pipe CAHCA-1VA CAA CA45

4" to 8" pipe CAHCA-1VB CAA CA45

10" to 16" pipe CAHCA-1VC CAA CA45

Flat (18" & larger pipe) CAHCA-1Y CAA CA45

1 Stranded 2" to 3-1/2" pipe CAHCA-1YA CAA CA45

4" to 8" pipe CAHCA-1YB CAA CA45

10" to 16" pipe CAHCA-1YC CAA CA45

Flat (30" & larger pipe) CAHCA-2C CAA CA65

3" to 4" pipe CAHCA-2CA CAA CA65

1/0 Stranded 5" to 6" pipe CAHCA-2CB CAA CA65

8" to 10" pipe CAHCA-2CC CAA CA65

12" to 28" pipe CAHCA-2CD CAA CA65

Flat (30" & larger pipe) CAHCA-2G CAA CA65

3" to 4" pipe CAHCA-2GA CAA CA65

2/0 Stranded 5" to 6" pipe CAHCA-2GB CAA CA65

8" to 10" pipe CAHCA-2GC CAA CA65

12" to 28" pipe CAHCA-2GD CAA CA65

* 2 sleeves per connection.

†Welder Part No. includes mold frame. If mold only (less frame) is required, order - Welder Part No. - "M".

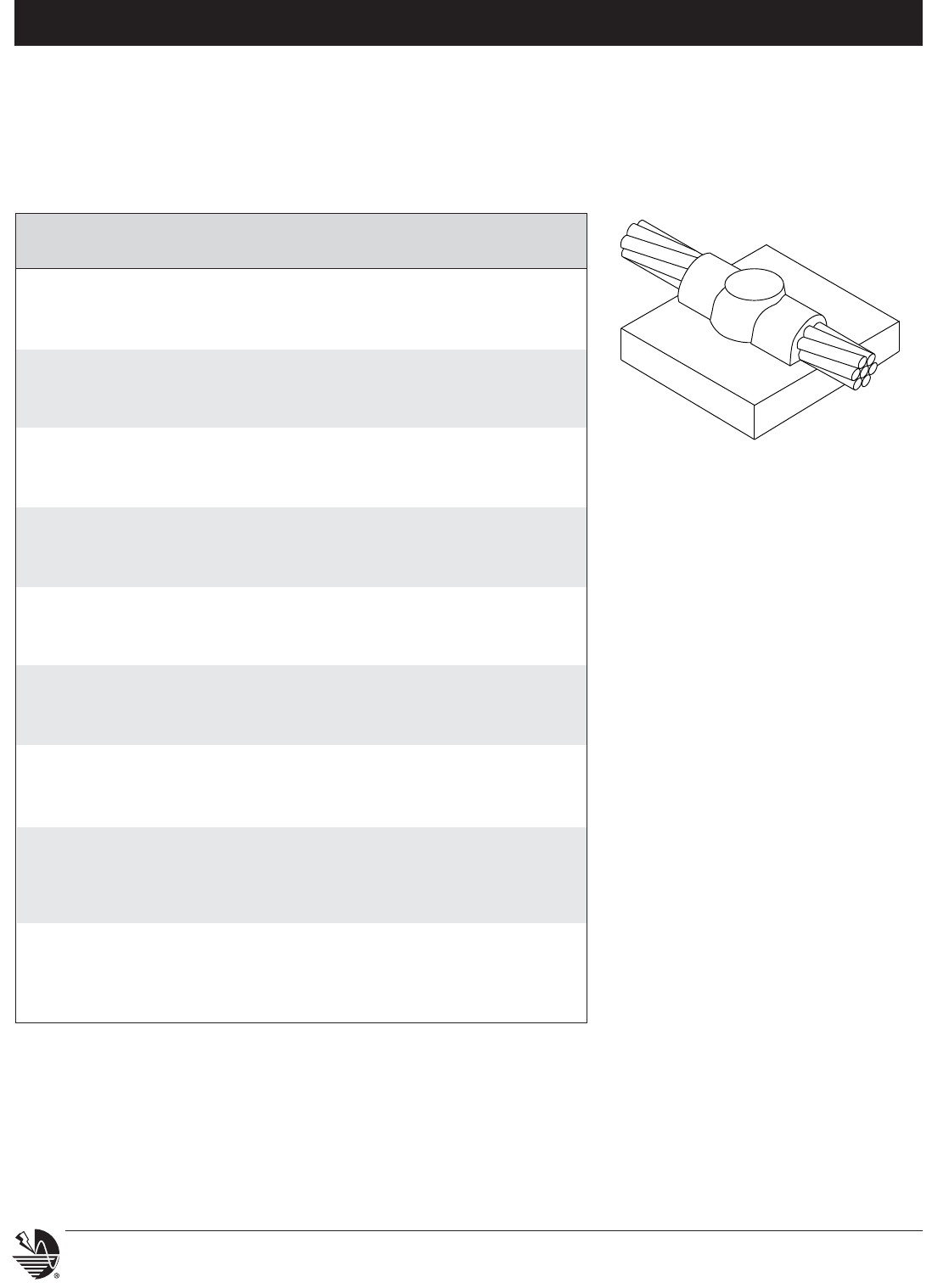

Through conductor to top of horizontal STEEL pipe or flat surface.

NOTE: For DUCTILE IRON, see page 17.

CAHC –

Cable on surface

E394CT09NAEN:LT0398 3/5/09 4:22 PM Page IV

3

Ph: 1-800-677-9089

www.erico.com

Connections to Steel Type CAVS

Conductor Surface Welder Welder Weld

Size Part No.†Price Metal

#14 to #10 Solid (use Flat (12" & larger pipe) CAVST-1G CAT CA15

sleeve CAB-133-1H)* 3/4" to 3-1/2" pipe CAVST-1GA CAT CA15

or #8 Solid or Stranded, 4" to 10" pipe CAVST-1GB CAT CA15

or #6 Solid

Flat (12" & larger pipe) CAVST-1H CAT CA15

6 Stranded 3/4" to 3-1/2" pipe CAVST-1HA CAT CA15

4" to 10" pipe CAVST-1HB CAT CA15

Flat (12" & larger pipe) CAVST-1K CAT CA25

4 Solid 3/4" to 1-1/2" pipe CAVST-1KA CAT CA25

2" to 4" pipe CAVST-1KB CAT CA25

5" to 10" pipe CAVST-1KC CAT CA25

Flat (12" & larger pipe) CAVST-1L CAT CA25

4 Stranded 3/4" to 1-1/2" pipe CAVST-1LA CAT CA25

2" to 4" pipe CAVST-1LB CAT CA25

5" to 10" pipe CAVST-1LC CAT CA25

Flat (14" & larger pipe) CAVST-1T CAT CA25

2 Solid 1" to 1-1/2" pipe CAVST-1TA CAT CA25

2" to 4" pipe CAVST-1TB CAT CA25

5" to 12" pipe CAVST-1TC CAT CA25

Flat (14" & larger pipe) CAVST-1V CAT CA32

1" to 1-1/2" pipe CAVST-1VA CAT CA32

2 Stranded 2" to 3" pipe CAVST-1VB CAT CA32

4" to 6" pipe CAVST-1VC CAT CA32

8" to 12" pipe CAVST-1VD CAT CA32

Flat (18" & larger pipe) CAVSP-1Y CAP CA45

1-1/2" to 2-1/2" pipe CAVSP-1YA CAP CA45

1 Stranded 3" to 4" pipe CAVSP-1YB CAP CA45

5" to 10" pipe CAVSP-1YC CAP CA45

12" to 16" pipe CAVSP-1YD CAP CA45

Flat (18" & larger pipe) CAVSP-2C CAP CA65

2-1/2" to 4" pipe CAVSP-2CA CAP CA65

1/0 Stranded 5" to 10" pipe CAVSP-2CB CAP CA65

12" to 16" pipe CAVSP-2CC CAP CA65

Flat (18" & larger pipe) CAVSP-2G CAP CA65

3" to 4" pipe CAVSP-2GA CAP CA65

2/0 Stranded 5" to 10" pipe CAVSP-2GB CAP CA65

12" to 16" pipe CAVSP-2GC CAP CA65

* 1 sleeve per connection.

† Welder Part No. includes mold frame. If mold only (less frame) is required, order - Welder Part No. - "M".

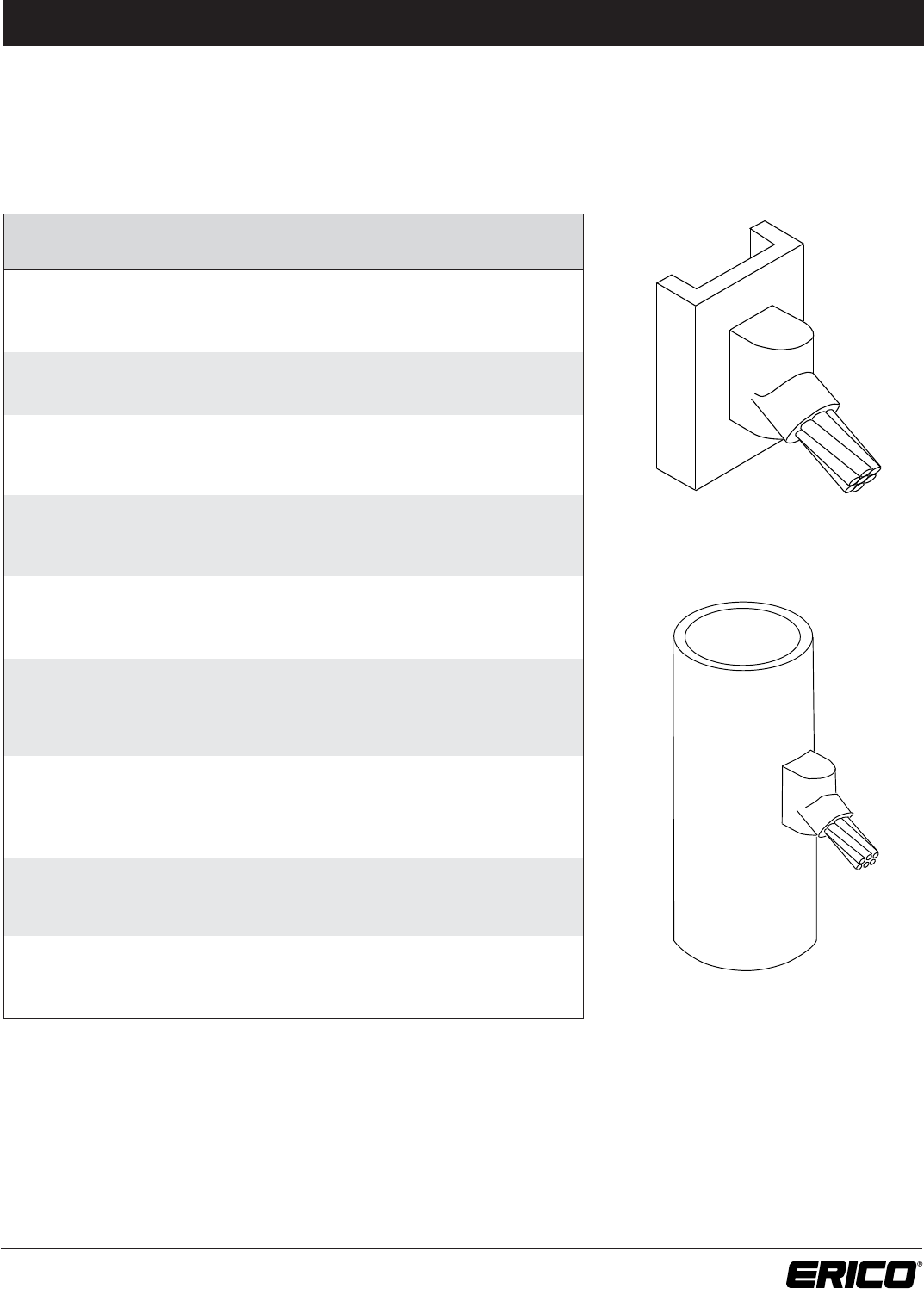

Tap conductor to vertical STEEL pipe or flat surface.

NOTE: For DUCTILE IRON, see page 17.

CAVS

CAVS –

Cable on surface

E394CT09NAEN:LT0398 3/5/09 4:22 PM Page V

4Ph: 1-800-677-9089

www.erico.com

Connections to Cast Iron Type CAHB & CAHE

TYPE CAHB TYPE CAHE

Welder Welder Weld Conductor Size Surface Welder Welder Weld

Part No.†Price Metal Part No. †Price Metal

CAHBA-1G CAA CA25XF-19 #14 to #10 Solid (use Flat (30" & larger pipe) CAHEA-1G CAA CA32XF-19

CAHBA-1G-P.S.* CAA CA25XF-19 sleeve CAB-133-1H)** 4" to 24" pipe CAHEA-1G-P.S.* CAA CA32XF-19

or #8 Solid or Stranded,

or #6 Solid

CAHBA-1H CAA CA25XF-19 6 Stranded Flat (30" & larger pipe) CAHEA-1H CAA CA32XF-19

CAHBA-1H-P.S.* CAA CA25XF-19 4" to 24" pipe CAHEA-1H-P.S.* CAA CA32XF-19

CAHBA-1K CAA CA45XF-19 4 Solid Flat (30" & larger pipe) CAHEA-1K CAA CA45XF-19

CAHBA-1K-P.S.* CAA CA45XF-19 4" to 24" pipe CAHEA-1K-P.S.* CAA CA45XF-19

CAHBA-1L CAA CA45XF-19 4 Stranded Flat (30" & larger pipe) CAHEA-1L CAA CA45XF-19

CAHBA-1L-P.S.* CAA CA45XF-19 4" to 24" pipe CAHEA-1L-P.S.* CAA CA45XF-19

CAHBA-1T CAA CA45XF-19 2 Solid Flat (30" & larger pipe) CAHEA-1T CAA CA45XF-19

CAHBA-1T-P.S.* CAA CA45XF-19 4" to 24" pipe CAHEA-1T-P.S.* CAA CA45XF-19

CAHBA-1V CAA CA45XF-19 2 Stranded Flat (30" & larger pipe) CAHEA-1V CAA CA45XF-19

CAHBA-1V-P.S.* CAA CA45XF-19 4" to 24" pipe CAHEA-1V-P.S.* CAA CA45XF-19

CAHBA-1Y CAA CA65XF-19 1 Stranded Flat (30" & larger pipe) CAHEA-1Y CAA CA65XF-19

CAHBA-1Y-P.S.* CAA CA65XF-19 4" to 24" pipe CAHEA-1Y-P.S.* CAA CA65XF-19

* Specify pipe size. Example: For #2 stranded to 6" pipe. (Type CAHB) CAHBA-1V-6, (Type CAHE) CAHEA-1V-6.

** 1 Sleeve per connection for Type CAHB. 2 Sleeves per connection for Type CAHE.

†Welder Part No. includes mold frame. If mold only (less frame) is required, order - Welder Part No. - "M".

Do not use Types CAHB, CAHE, or CAVH on soil pipe (ASTM A74-82)

A test weld should be made on a section of the pipe being used to determine possibility of detrimental metallurgical effects. For DUCTILE IRON, see page 17.

Conductor Size Surface Welder Weld Weld

Part No.†Price Metal

#14 to #10 Solid (use Flat (30" & larger pipe) CAVHT-1G CAT CA25XF-19

sleeve CAB-133-1H)** 4" to 24" pipe CAVHT-1G-P.S.* CAT CA25XF-19

or #8 Solid or Stranded,

or #6 Solid

6 Stranded Flat (30" & larger pipe) CAVHT-1H CAT CA25XF-19

4" to 24" pipe CAVHT-1H-P.S.* CAT CA25XF-19

4 Solid Flat (30" & larger pipe) CAVHT-1K CAT CA32XF-19

4" to 24" pipe CAVHT-1K-P.S.* CAT CA32XF-19

4 Stranded Flat (30" & larger pipe) CAVHT-1L CAT CA32XF-19

4" to 24" pipe CAVHT-1L-P.S.* CAT CA32XF-19

2 Solid Flat (30" & larger pipe) CAVHP-1T CAP CA45XF-19

4" to 24" pipe CAVHP-1T-P.S.* CAP CA45XF-19

2 Stranded Flat (30" & larger pipe) CAVHP-1V CAP CA45XF-19

4" to 24" pipe CAVHP-1V-P.S.* CAP CA45XF-19

1 Stranded Flat (36" & larger pipe) CAVHP-1Y CAP CA65XF-19

4" to 30" pipe CAVHP-1Y-P.S.* CAP CA65XF-19

* Specify pipe size. Example: For #2 stranded to 6" pipe, CAVHP-1V-6.

**1 sleeve per connection.

†Welder Part No. includes mold frame. If mold only (less frame) is required, order - Welder Part No. - "M".

Type CAHB Tap conductor to top of

horizontal CAST IRON pipe or flat

surface.

Type CAHE Through conductor to

top of horizontal CAST IRON pipe

or flat surface.

Connections to Cast Iron Type CAVH

Type CAVH Tap conductor to vertical

CAST IRON pipe or flat surface.

CAVH

E394CT09NAEN:LT0398 3/5/09 4:22 PM Page VI

5

Ph: 1-800-677-9089

www.erico.com

Connections to Ground Rods Type CAGR & CAGT

STYLE GR STYLE GT

Ground Conductor Size Welder Welder Weld Welder Welder Weld

Rod Size1Part No.†Price Metal Part No.†Price Metal

Nominal 1/2" #14 to #10 Solid (use sleeve CAGRT-151G CAT CA25 CAGTT-151G CAT CA32

(Actual .475 Dia.) CAB-133-1H)* or #8 Solid or Stranded,

or #6 Solid

6 Stranded CAGRT-151H CAT CA25 CAGTT-151H CAT CA32

4 Solid CAGRT-151K CAT CA25 CAGTT-151K CAT CA32

4 Stranded CAGRT-151L CAT CA25 CAGTT-151L CAT CA32

2 Solid CAGRT-151T CAT CA32 CAGTP-151T CAP CA45

2 Stranded CAGRT-151V CAT CA32 CAGTP-151V CAP CA45

1 Stranded CAGRP-151Y CAP CA45 CAGTP-151Y CAP CA65

1/0 Stranded CAGRP-152C CAP CA65 CAGTP-152C CAP CA65

2/0 Stranded CAGRP-152G CAP CA65 CAGTP-152G CAP CA65

Nominal 5/8" #14 to #10 Solid (use sleeve CAGRT-161G CAT CA32 CAGTP-161G CAP CA45

(Actual .563 Dia.) CAB-133-1H)* or #8 Solid or Stranded,

or #6 Solid

6 Stranded CAGRT-161H CAT CA32 CAGTP-161H CAP CA45

4 Solid CAGRT-161K CAT CA32 CAGTP-161K CAP CA65

4 Stranded CAGRT-161L CAT CA32 CAGTP-161L CAP CA65

2 Solid CAGRP-161T CAP CA45 CAGTP-161T CAP CA65

2 Stranded CAGRP-161V CAP CA45 CAGTP-161V CAP CA65

1 Stranded CAGRP-161Y CAP CA45 CAGTP-161Y CAP CA65

1/0 Stranded CAGRP-162C CAP CA65 CAGTN-162C CAN 2-CA45

2/0 Stranded CAGRP-162G CAP CA65 CAGTN-162G CAN 2-CA45

Nominal 3/4" #14 to #10 Solid (use sleeve CAGRT-181G CAT CA32 CAGTP-181G CAP CA45

(Actual .682 Dia.) CAB-133-1H)* or #8 Solid or Stranded,

or #6 Solid

6 Stranded CAGRT-181H CAT CA32 CAGTP-181H CAP CA45

4 Solid CAGRP-181K CAP CA45 CAGTP-181K CAP CA65

4 Stranded CAGRP-181L CAP CA45 CAGTP-181L CAP CA65

2 Solid CAGRP-181T CAP CA45 CAGTP-181T CAP CA65

2 Stranded CAGRP-181V CAP CA45 CAGTP-181V CAP CA65

1 Stranded CAGRP-181Y CAP CA45 CAGTP-181Y CAP CA65

1/0 Stranded CAGRP-182C CAP CA65 CAGTN-182C CAN 2-CA45

2/0 Stranded CAGRP-182G CAP CA65 CAGTN-182G CAN 2-CA45

1For plain (unthreaded) copper-clad ground rods only. For threaded copper-clad rods or for steel rods, contact ERICO for part number.

†Welder Part No. includes mold frame. If mold only (less frame) is required, order - Welder Part No. - "M".

* 1 sleeve per GR connection. 2 sleeves per GT connection.

Style CAGR Tap

conductor to the

top of a ground rod.

Style CAGT

Through conductor to the top

of a ground rod.

E394CT09NAEN:LT0398 3/5/09 4:22 PM Page VII

6Ph: 1-800-677-9089

www.erico.com

Connections of Cable to Cable Type CAPC

Conductor Size* Welder Welder Weld

Run Tap Part No.†Price Metal

6 Stranded 6 Stranded CAPCT-1H1H CAT CA25

6 Solid CAPCT-1H1G CAT CA25

8 Stranded CAPCT-1H1E CAT CA25

8 Solid CAPCT-1H1D CAT CA25

4 Stranded 4 Stranded CAPCT-1L1L CAT CA32

6 Stranded CAPCT-1L1H CAT CA32

6 Solid CAPCT-1L1G CAT CA32

8 Stranded CAPCT-1L1E CAT CA32

8 Solid CAPCT-1L1D CAT CA32

2 Stranded 2 Stranded CAPCP-1V1V CAP CA65

4 Stranded CAPCP-1V1L CAP CA45

6 Stranded CAPCT-1V1H CAT CA32

6 Solid CAPCT-1V1G CAT CA32

8 Stranded CAPCT-1V1E CAT CA32

8 Solid CAPCT-1V1D CAT CA32

1 Stranded 2 Stranded CAPCP-1Y1V CAP CA65

4 Stranded CAPCP-1Y1L CAP CA45

6 Stranded CAPCP-1Y1H CAP CA45

6 Solid CAPCP-1Y1G CAP CA45

8 Stranded CAPCP-1Y1E CAP CA45

8 Solid CAPCP-1Y1D CAP CA45

1/0 Stranded 2 Stranded CAPCP-2C1V CAP CA65

4 Stranded CAPCP-2C1L CAP CA65

6 Stranded CAPCP-2C1H CAP CA45

6 Solid CAPCP-2C1G CAP CA45

8 Stranded CAPCP-2C1E CAP CA45

8 Solid CAPCP-2C1D CAP CA45

2/0 Stranded 2 Stranded CAPCN-2G1V CAN 2-CA45

4 Stranded CAPCP-2G1L CAP CA65

6 Stranded CAPCP-2G1H CAP CA65

6 Solid CAPCP-2G1G CAP CA65

8 Stranded CAPCP-2G1E CAP CA65

8 Solid CAPCP-2G1D CAP CA65

* For #10 Solid through #14 Tap, use sleeve CAB-133-1H on wire in welder for #6 Stranded Tap.

† Welder Part No. includes mold frame. If mold only (less frame) is required, order -

Welder Part No. - "M".

Conductor Welder Welder Weld

Size Part No.†Price Metal

12 Solid CASST-001 CAT CA15

10 Solid CASST-1A CAT CA15

8 Solid CASST-1D CAT CA15

6 Solid CASST-1G CAT CA25

6 Stranded CASST-1H CAT CA25

4 Solid CASST-1K CAT CA25

4 Stranded CASST-1L CAT CA25

2 Solid CASST-1T CAT CA32

2 Stranded CASST-1V CAT CA32

1 Stranded CASST-1Y CAT CA32

1/0 Stranded CASSP-2C CAP CA45

2/0 Stranded CASSP-2G CAP CA65

†Welder Part No. includes mold frame. If mold only (less frame) is required,

order - Welder Part No. - "M".

Type CAPC

Tap cable to a through cable.

Also see Type CATA, page 7

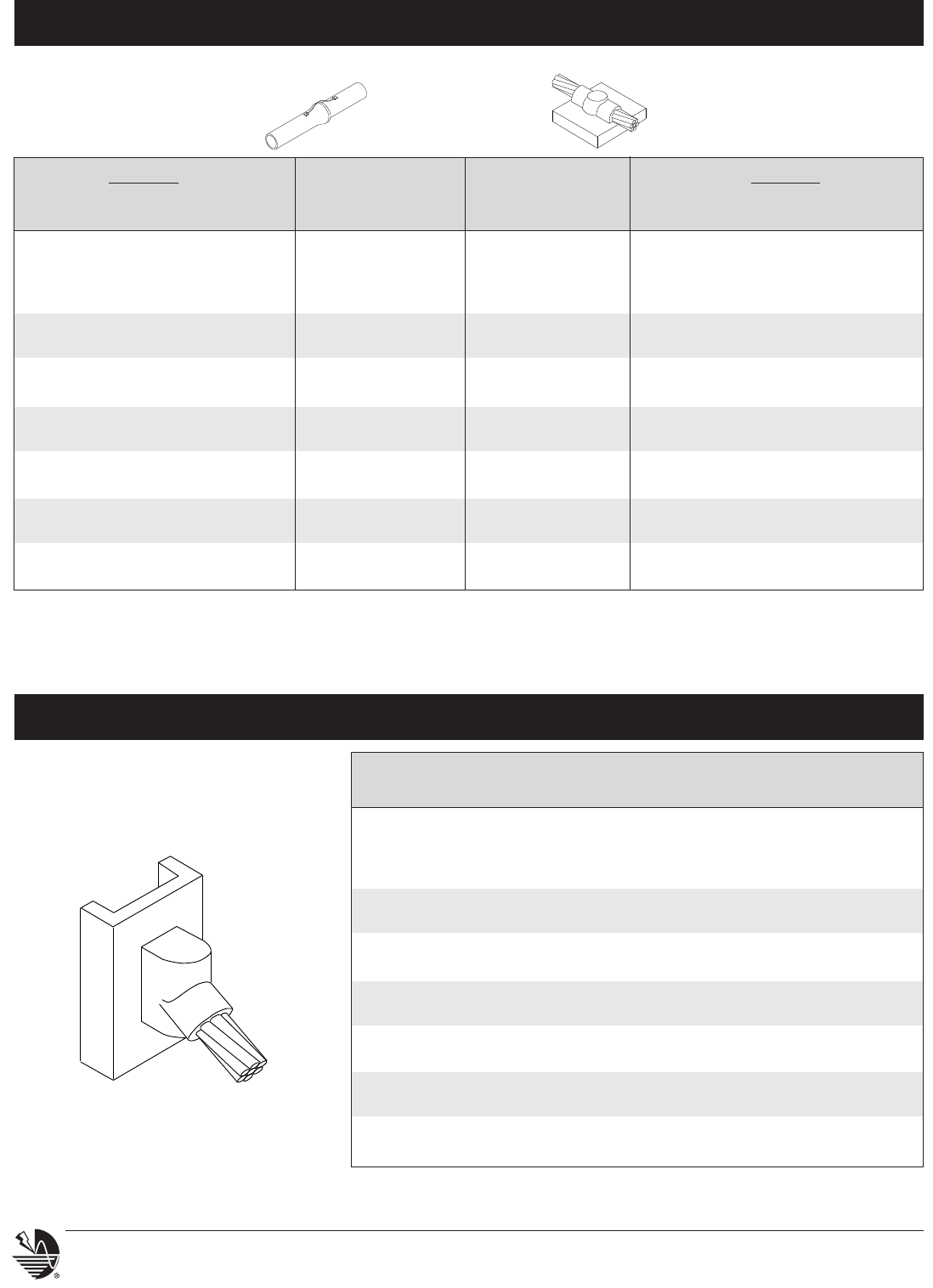

Connections of Cable to Cable Type CASS

Type CASS

Splice of conductors.

E394CT09NAEN:LT0398 3/5/09 4:22 PM Page VIII

7

Ph: 1-800-677-9089

www.erico.com

Connections of Cable to Cable Type CATA

Cable Size Welder Mold Weld

Run Tap Part No. Price Metal

2 2 CATAN-1VIV CAN CA45

4 CATAN-1V1L CAN CA45

1 1 CATAN-1Y1Y CAN CA45

2 CATAN-1Y1V CAN CA45

4 CATAN-1Y1L CAN CA45

1/0 1 CATAN-2C1Y CAN CA45

2 CATAN-2C1V CAN CA45

4 CATAN-2C1L CAN CA45

2/0 1 CATAN-2G1Y CAN CA45

2 CATAN-2G1V CAN CA45

4 CATAN-2G1L CAN CA45

Connections of Cable to Lug Type CALA

Conductor Welder Weld Weld Lug Lug Stud

Size Part No.†Price Metal Part No.3Size Size

#8 Solid or Stranded,

or #6 Solid1CALAT-1G CAT CA25

6 Stranded2CALAT-1H CAT CA25

4 Solid CALAT-1K CAT CA25 CAB-101-AA 1/16X1/2 1/4

4 Stranded CALAT-1L CAT CA25

2 Solid CALAT-1T CAT CA32

2 Stranded CALAT-1V CAT CA32

1 Stranded CALAT-1Y CAT CA32

1/0 Stranded CALAP-2C CAP CA45

2/0 Stranded CALAP-2G CAP CA45 CAB-101-CE 1/8X1 3/8

1 Requires sleeve CAB-133-1L (1 per connection).

2Requires sleeve CAB-112 (1 per connection).

3Two hold lugs also available.

†Welder Part No. includes mold frame. If mold only (less frame) is required, order - Welder Part No. - "M".

Type CATA connections are available for any combination

of run and tap conductor sizes. For small size taps, the

Type CAPC is recommended. Contact your local distributor

or ERICO for additional information.

Concentric Strand Copper Cable

Type CALA

Cable terminals (Lugs).

E394CT09NAEN:LT0398 3/5/09 4:22 PM Page IX

8Ph: 1-800-677-9089

www.erico.com

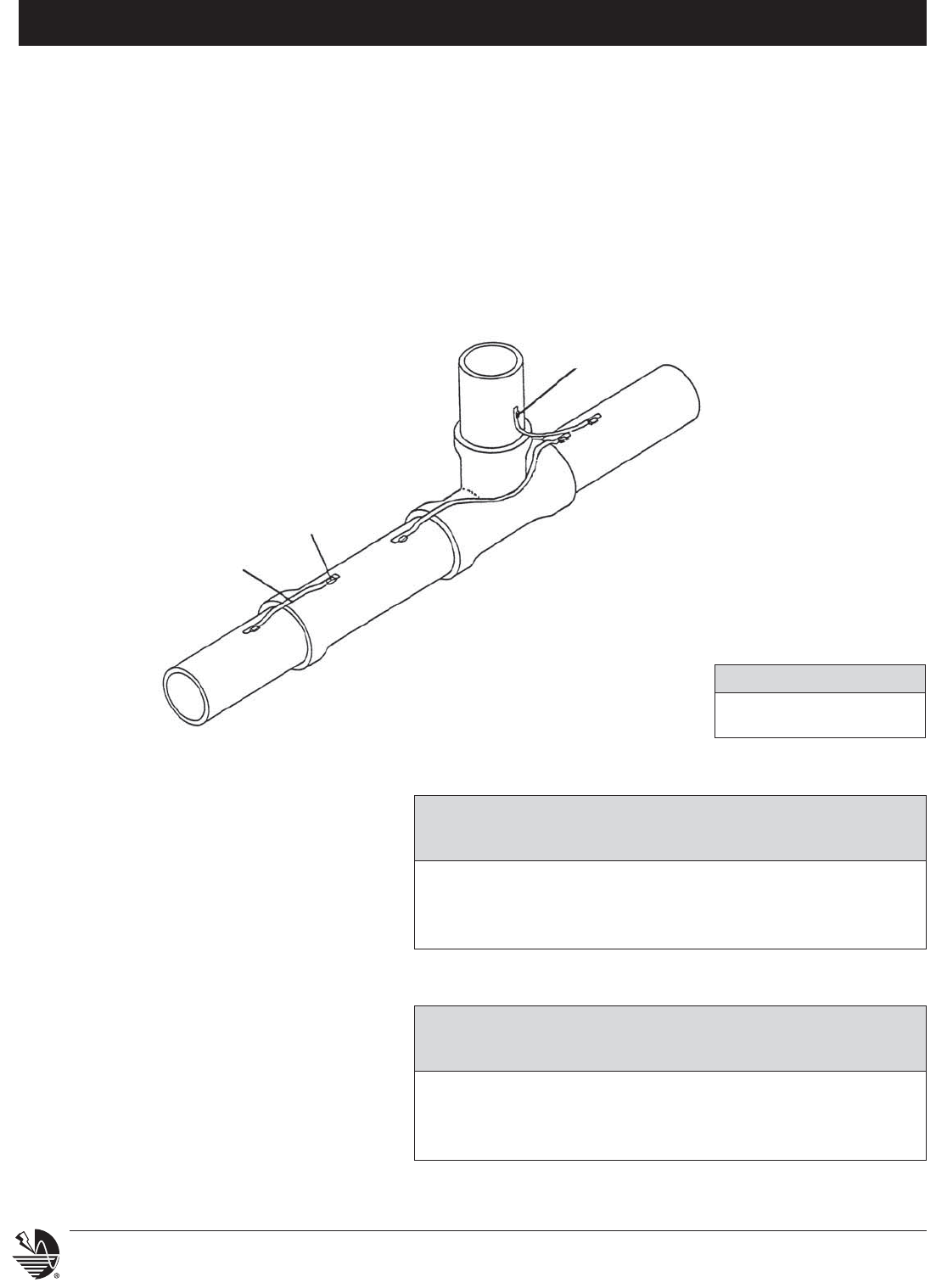

Bonds Bonding Straps for Pipe Thawing

Pipe 1/16" x 3/4" Strap 1/16" x 1" Strap Price Weld

Size Mold Part No.†and Wider Key Metal

Mold Part No.†

4" - 12" CACHA-ADC-A CACHA-AEC-A CAA CA32XF19

14" - 30" CACHA-ADC-B CACHA-AEC-B CAA CA32XF19

Over 30" CACHA-ADC CACHA-AEC CAA CA32XF19

As Specified # CACHA-ADC-(PS)* CACHA-AEC-(PS)* CAA CA32XF19

Pipe 1/16" x 3/4" Strap 1/16" x 1" Strap Price Weld

Size Mold Part No.†and Wider Key Metal

Mold Part No.†

4" - 12" CACHA-ADS-A CACHA-AES-A CAA CA32

14" - 30" CACHA-ADS-B CACHA-AES-B CAA CA32

Over 30" CACHA-ADS CACHA-AES CAA CA32

As Specified # CACHA-ADS-(PS)* CACHA-AES-(PS)* CAA CA32

†

Mold part number listed is mold with frame. For mold only, add suffix - M to part number (e.g., CACHA-ADC-M).

# When only one pipe size is involved, order mold to fit that pipe size.

* Add pipe size (PS).

Size Part No.

1/16" x 3/4" CAA817A - "L"

1/16" x 1" CAA817B - "L"

L = Length in inches

Straps

To Cast Iron or Ductile Iron Pipe

To Steel Pipe

In colder climates, water distribution pipes occasionally

freeze in the winter. To thaw the ice, a high current (for

example, from a welding machine) is applied to heat the

pipe and thaw the ice. To accomplish this, each pipe joint

must be efficiently bonded to control the electrical path

and to prevent burning the pipe gaskets. 3/4" wide copper

bonding straps, welded to the pipe with CADWELD con-

nections, provide the necessary bond or current path across

the pipe joints. The bonding strips have been tested at over

500 amperes.

The straps may also be used to provide continuity for

Cathodic protection or grounding systems.

Bond Strap

CADWELD

Joint

Bonding

Tee

Bonding

Bond Before

Placing Riser

E394CT09NAEN:LT0398 3/5/09 4:22 PM Page X

9

Ph: 1-800-677-9089

www.erico.com

Bonds “Punched Strap” Bond for Steel Pipe

The CADWELD "Punched Strap" Bond allows bonding

across joints of steel pipe with a bond of approximately 1/0

AWG size using a CA15 Weld Metal. This allows larger size

bonds on steel pressure pipe covered by ANSI/ASME B31.

(See page 16).

The Punched Strap bond is fabricated from 1/16" x 1-1/4" soft

copper, allowing easy hand forming over the pipe coupling.

The 5-hole model is used on “Dresser Type” pipe couplings

with two welds to the pipe and three to the coupling,

made through the holes.

A 2-hole model (the 'B' dimensions are zero) is used across

standard mechanical joints or across "Dresser Type" joints

when the coupling does not have to be bonded.

A. BOND; CAB496A B

“B” dimension in fourths 1-3/8"

“A” dimension of an inch min.

Example: a) 5-hole bond

A = 3-3/4" (15 fourths)

B = 6-1/4" (25 fourths)

P/N CAB496A15B25

b) 2-hole bond

A = 16" (64 fourths)

B = 0" (0 fourths)

P/N CAB496A64B0

B. CADWELD BOND;

a) Mold with frame/Handle P/N CAHAA-AF

b) Replacement Mold ONLY P/N CAHAA-AFM

C. CADWELD WELD METAL;

CA15

}}

ORDERING INFORMATION

CADWELD

Steel

Bond

AABB1" 1"

A1" 1"

5-Hole Bond

2-Hole Bond

E394CT09NAEN:LT0398 3/5/09 4:22 PM Page XI

10 Ph: 1-800-677-9089

www.erico.com

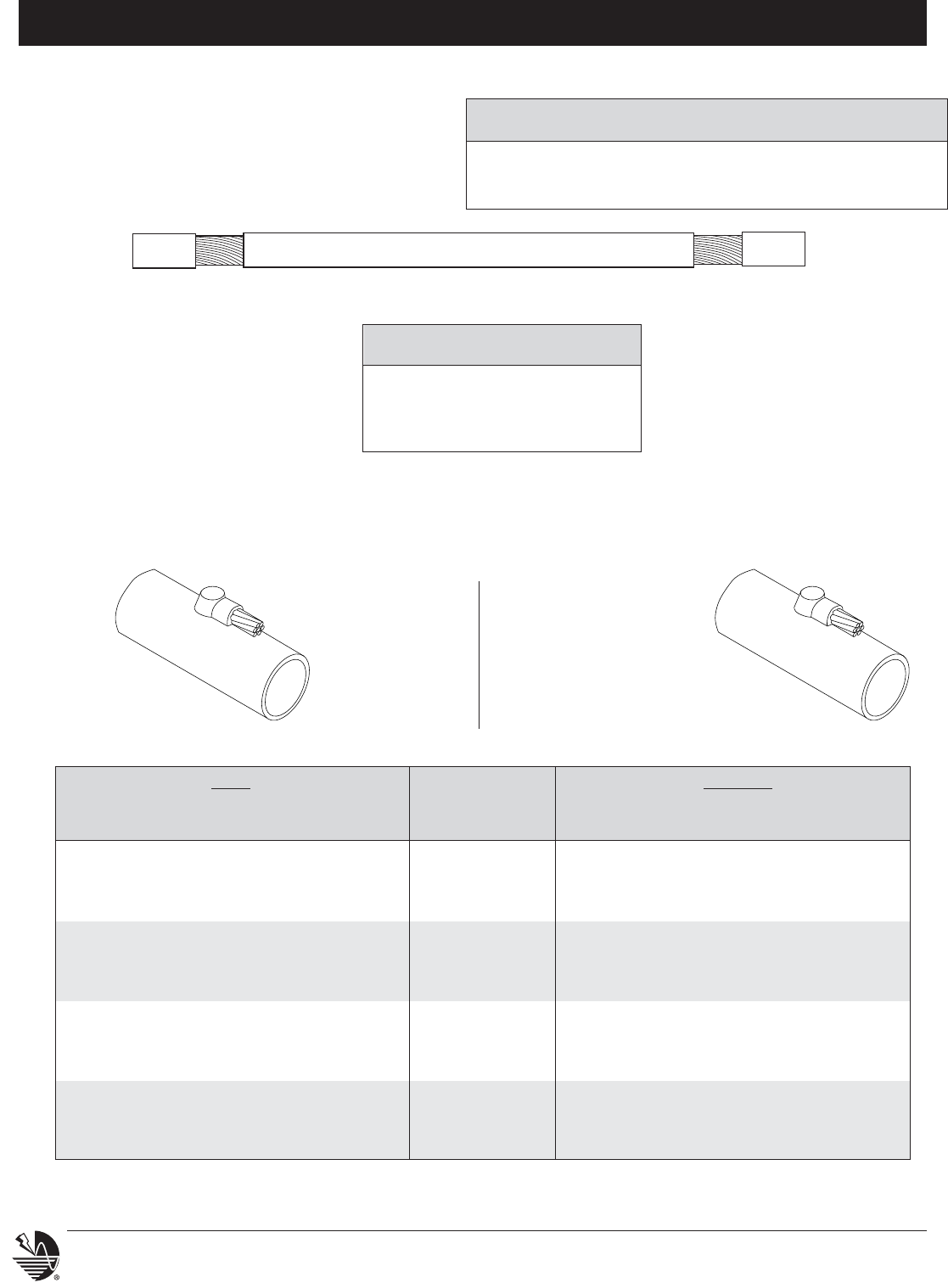

Bonds Formed Terminal

Conductor Insulated Bond Bare Bond

Size Part No. Part No.

#2 CAF1-1V – length in inches CAF2-1V – length in inches

1/0 CAF1-2C – length in inches CAF2-2C – length in inches

2/0 CAF1-2G – length in inches CAF2-2G – length in inches

Conductor Sleeve Hammer Die

Size Part No. Part No.

#4 CAS-20-F JD11

#2 CAS-09-F JD09

1/0 CAS-05-F JD05

2/0 CAS-03-F JD03

STEEL CAST IRON

Surface Welder Welder Weld Conductor Size Surface Welder Welder Weld

Part No.†Price Metal Part No. †Price Metal

Flat (10" &

larger pipe) CAFSA-1L CAA CA25 Flat (30" &

4" pipe CAFSA-1LA CAA CA25 #4 larger pipe) CAFCA-1L CAA CA32XF-19

6 to 8" pipe CAFSA-1LB CAA CA25 4" to 24" pipe CAFCA-1L-P.S* CAA CA32XF-19

Flat (10" &

larger pipe) CAFSA-1V CAA CA25 Flat (30" &

4" pipe CAFSA-1VA CAA CA25 #2 larger pipe) CAFCA-1V CAA CA32XF-19

6 to 8" pipe CAFSA-1VB CAA CA25 4" to 24" pipe CAFCA-1V-P.S* CAA CA32XF-19

Flat (12" &

larger pipe) CAFSA-2C CAA CA32 Flat (30" &

4" pipe CAFSA-2CA CAA CA32 1/0 larger pipe) CAFCA-2C CAA CA45XF-19

6 to 10" pipe CAFSA-2CB CAA CA32 4" to 24" pipe CAFCA-2C-P.S* CAA CA45XF-19

Flat (12" &

larger pipe) CAFSA-2G CAA CA45 Flat (36" &

4" pipe CAFSA-2GA CAA CA45 2/0 larger pipe) CAFCA-2G CAA CA65XF-19

6 to 10" pipe CAFSA-2GB CAA CA45 4" to 30" pipe CAFCA-2G-P.S* CAA CA65XF-19

* Indicate pipe size.

† Replacement molds (graphite portion) are available by ordering Welder Part No. - "M".

FACTORY MADE BONDS

Bonds with terminals formed on the ends are often used

for bonding pipe joints and fittings. The formed terminal

allows a smaller weld metal size to be used.

FIELD MADE BONDS

Formed Terminal Bonds may be made in

the field using sleeves (one per conductor

end) and forming them in the hammer

dies listed.

WELDERS FOR FORMED

TERMINAL BONDS

Type CAFS

Welders for

STEEL Pipe.

For DUCTILE

IRON, see

page 17.

Type CAFC Welders

for CAST IRON Pipe.

Do not use on soil pipe. (ASTM

A74-82).

A test weld should be made on

a section of the pipe being used

to determine possibility of detri-

mental metallurgical effects.

E394CT09NAEN:LT0398 3/5/09 4:22 PM Page XII

11

Ph: 1-800-677-9089

www.erico.com

Bonds Formed Terminal with Pigtails

Conductor Pigtail Bond

Size Size Part No.

#2 #12 Solid CAD1-1V-length in inches

1/0 8 Solid CAD1-2C-length in inches

TERMINAL WELDER PIGTAIL WELDER

Bond1Pipe Size Welder Welder Weld Welder Welder Weld

Part No.†Price Metal Part No. †Price Metal

TYPE CADS WELDERS FOR STEEL PIPE

CAD1-1V 4" pipe CADSA-1VA CAA CA25

(#2) 6" to 8" pipe CADSA-1VB CAA CA25 CAHAA-1G CAA CA15

10" & larger pipe CADSA-1V CAA CA25

CAD1-2C 4" pipe CADSA-2CA CAA CA32

(1/0) 6" to 10" pipe CADSA-2CB CAA CA32 CAHAA-1D CAA CA15

12" & larger pipe CADSA-2C CAA CA32

TYPE CADS WELDERS FOR CAST IRON PIPE

CAD1-1V 4 to 24" pipe CADCA-1VA-P.S* CAA CA32XF-19 CAHBA-1G-P.S.* CAA CA25XF-19

(#2) 30" & larger pipe CADCA-1V CAA CA32XF-19 CAHBA-1G CAA CA25XF-19

CAD1-2C 4 to 24" pipe CADCA-2C-P.S.* CAA CA45XF-19 CAHBA-1D-P.S.* CAA CA25XF-19

(1/0) 30" & larger pipe CADCA-2C CAA CA45XF-19 CAHBA-1D CAA CA25XF-19

* Add pipe size. Example: CADCA-IV-12 for 12" pipe.

†Welder Part No. includes mold frame. If mold only (less frame) is required, order - Welder Part No. - "M".

1For factory made bonds listed above.

FACTORY MADE BONDS with Pigtails for

“Dresser Type” Pipe Couplings

Insulated, formed terminal bonds with insulated

pigtails are used to bond across the joint and to

bond both the middle ring and follower ring of

Dresser Type Couplings.

Type CADS Welders for Steel Pipe

Type DC Welders for

CAST IRON Pipe

Do not use on soil pipe. (ASTM

A-74-82).

A test weld should be made on

a section of the pipe being used

to determine possibility of detri-

mental metallurgical effects.

For DUCTILE IRON, See page 17.

}

}

Length in inches

2 3/8"

E394CT09NAEN:LT0398 3/5/09 4:22 PM Page XIII

12 Ph: 1-800-677-9089

www.erico.com

Welders and Molds

PACKED PER

Size Box** Std. Pkg.

CA15 20 100

CA25 20 100

CA32 20 100

CA45 20 100

CA65 20 100

* XF-19 Alloy packed in same quantities.

XF-19 Alloy not available in 15 size.

**Disks are included.

Weld Metal

CADWELD WELDERS AND MOLDS

When making a CADWELD connection, an accurate control of the

CADWELD process is accomplished by using a semi-permanent

graphite mold. Control is exercised over the direction and speed of

the molten CADWELD weld metal flow and final shape. The graphite

used in a CADWELD mold is a high temperature type that lasts for

an average of 50 to 100 CADWELD connections under normal usage.

Welder Price CAA is a solid block

with a hold-down handle.*

Welder Price CAT, CAP and CAN

are split and use the new Mini E-Z

Change handle.*

* Welder Part No. includes mold frame.

If mold only (less frame) is required, order - Welder Part No. - "M".

CADWELD WELD METAL

CADWELD weld metal is a mixture of copper oxide and

aluminum, packaged by size in plastic tubes. Each tube

contains the starting material at the bottom of the plastic

tube, with the Weld Metal on top. These materials are

not explosive and not subject to spontaneous ignition.

These containers are packaged in boxes along with metal

disks. Each weld uses one disk.

Two types of CADWELD weld metal are used for Cathodic

protection connections:

1. F-33 alloy is used for all connections of cable to cable

and cable to steel or stainless steel pipe. The F-33 weld

metal containers have green caps.

2. XF-19 alloy is used for all connections to cast iron.

XF-19 weld metal containers have orange caps.

NOTE: For DUCTILE IRON, see page 17.

¤

¤

WELD MATERIAL

100

CADWELD

# 65

WELD METAL

E394CT09NAEN:LT0398 3/5/09 4:22 PM Page XIV

13

Ph: 1-800-677-9089

www.erico.com

Tools and Materials

Cable Size Use Adapter Use in Mold for Conductor Size

Stranded Solid Sleeve Part No. Stranded Solid

#12, 14 #10, 12, 14 CAB-133-1H #6 #6

10 8, 10 CAB-133-1K -- 4

7, 8, 10 6, 8 CAB-133-1L 4 --

6 5 CAB-112 2 --

Adapter sleeves can be used when a limited number of connections are to be made with a smaller

conductor in a larger welder.

CADWELD WRAP SLEEVE CAB140A

CADWELD Wrap Sleeve is wrapped around

the cable until the diameter is about the

same as the cable opening in the mold.

MOLD CLEANER CAB-136-A

Mold Cleaners are useful for removing the slag from

CAA molds after making a CADWELD connection.

ADAPTER SLEEVES

Small conductors may be built up to fit the opening of larger size

welders using either adapter sleeves or shim stock.

SUREFIRETM CAT-111

Self-igniting propane torch head. Squeeze the control knob for an

instant flame. Release and it's out. No flame adjusting. And, the

burn tip remains cool during normal use. Operates on its side or

upside down. Can withstand 60-MPH winds without flareout. Saves

fuel. Safer to use. Fits all standard 14 and 16 oz. propane cylinders.

SUREFIRETM is a trademark of IPI.

T427 Includes:

Product# Quantity Product# Quantity

B1331H 25 B1332L 8

B1331L 25 B1332Q 12

B112 18 B140A 10

B1331V 10 B117A 20

B1331Y 10 B117B 10

B1332C 9 B117C 10

B1332G 10 T320A 10

CADWELD Sleeve Kit

E394CT09NAEN:LT0398 3/5/09 4:22 PM Page XV

14 Ph: 1-800-677-9089

www.erico.com

Tools and Materials

Cat. No. Description

CAB-321-30 Extension including Flint Ignitor (30 inches long)

CAT-320 Replacement Flint Ignitor Only

CAT-320-A Replacement Flints

CAB-322 Lead Holding Clip - Fits all CAA Price Welders

LEAD HOLDING CLIP

CAB-320 HORIZONTAL PIPE CLAMP

Holds the welder to a horizontal pipe

while the CADWELD connection is made.

Fits all CAA price welders and pipes to 6

inches.

CAB-319 VERTICAL PIPE CLAMP

Holds the welder to a vertical pipe

while the CADWELD connection is

made. Fits all CAN, CAP or CAT

price welders and pipes to 6 inches.

EXTENSION FLINT IGNITOR

E394CT09NAEN:LT0398 3/5/09 4:22 PM Page XVI

15

Ph: 1-800-677-9089

www.erico.com

Tools and Materials

Item Part No.

TOOL BOXES ONLY CAT-396

COMPLETE KIT BOX AND TOOLS CAT-3431

RASP CAT-321

Replacement blade for Rasp CAT-321-A

Flint Ignitor CAT-320

Screw Driver CAT-305

Wire Brush CAT-336

Crimping Tool CAT-335

Disk Container CAT-328

Card Cloth Brush CAT-313

File and Handle CAT-329

Mold Sealer CAT-403

Tools also available separately.

1Uses tool box CAT-396

TOOL BOXES AND TOOLS

BRUSH

The CAT-313 Card Cloth Brush is used to

clean all types of copper conductors. Its short

stiff bristles provide for easy removal of

oxides.

MOLD SEALER

Mold Sealer is required around the cable

on outside of the CADWELD mold for

Types CAHA, CAHB, CAHC, and CAHE.

CAT-403 - 2# Package

CAT396

CAT321

CAT320

CAT305

CAT336

CAT335

CAT328

CAT329

E394CT09NAEN:LT0398 3/5/09 4:22 PM Page XVII

16 Ph: 1-800-677-9089

www.erico.com

Technical Information Piping Code

Conductor Welder For Each Weld

7 Strand Strand For Steel Pipe Metal

4/0 CAHAA1H CA15

3/0 to #1 CAHAA1G CA15

#2 to #4 CAHAA1G with sleeve B1331H CA15

CADWELD CONNECTIONS TO PIPELINES

1. The American Society of Mechanical Engineers* (ASME)

publishes codes relating to the design and installation of

pressure piping systems:

1.1. ANSI/ASME B31.8- 2000, GAS TRANSMISSION

AND DISTRIBUTION PIPING SYSTEMS.

1.2.

ANSI/ASME B31.4- 1998, LIQUID TRANSPORTATION

SYSTEMS FOR HYDROCARBONS, LIQUID PETROLEUM

GAS, ANHYDROUS AMMONIA, AND ALCOHOLS.

2.

In both, under Corrosion Control, the standard allows the

attachment of electrical leads using exothermic welding

but limits the size of the weld metal used to:

2.1. CA15 for steel pipe.

2.2. CA32XF19 for cast, wrought and ductile iron pipe.

3. These restrictions allow for the welding of #4 AWG and

smaller wire to steel pipe using CADWELD Cathodic Type

CAHA connections and #6 AWG and smaller to cast,

wrought, and ductile iron using Type CAHB connections.

When larger sized conductors must be attached to pres-

sure piping systems covered by these codes, several

alternative solutions are available:

3.1. Using a Formed Terminal Bond (page 10), a #2 AWG

can be welded to cast, wrought and ductile iron

with a CA32XF19.

3.2. Using a CADWELD Bonding Strap (page 8), a

1/6" x 1" copper strip (equivalent to slightly smaller

than a #1 AWG) can be welded to a cast, wrought

and ductile iron pipe with a CA32XF19.

3.3. The "Punched Strap" Bond (page 9) (1/16" x

1-1/4" copper, equivalent to slightly less than a 1/0

AWG) can be welded to steel pipe using a CA15.

The 5-hole model is used for "Dresser Type"

couplings and the 2-hole model for standard joints.

3.4. The strands of a larger 7 strand conductor can be

spread and each strand welded separately (figure 1)

as noted in the following table:

* Available from: The American Society of Mechanical Engineers

United Engineering Center, 345 East 47th Street, New York, NY

10017.

FIGURE 1

Thermite welding of larger

7 STRAND cable to pipeline

WELD DETAIL

Pipe

Cable

Strand

CADWELD CAHA

E394CT09NAEN:LT0398 3/5/09 4:22 PM Page XVIII

17

Ph: 1-800-677-9089

www.erico.com

CADWELD Connections and Pipe Wall Thickness

Ductile Iron

The following is a discussion of the minimum pipe size required for safe installation of CADWELD Cathodic Connections

considering of the service conditions and without special factory testing. Several things must be considered as outlined

below.

For a particular wall thickness:

a. The hoop stress in the pipe will increase as the pipe diameter increases.

b. The heat dissipation will be affected by the thermal characteristics of the material in the pipe.

c. The heat dissipation will be affected by the rate of flow of the material through the pipe while making the weld.

d. The pipe strength will be affected by the temperature of the pipe (material temperature).

e. Any internal coating of the pipe must be checked to find if the temperature of the pipe directly under the weld

will adversely affect it.

Based on a minimum wall thickness of 0.109 inches* (2.769 mm) and using a CA15 Weld Metal (the maximum allowed

to oil or gas piping systems per ANSI/ASME B31.4 and B31.8), the minimum recommended pipe size and schedule is:

Nominal Pipe Size Schedule Wall Thickness

1/2" 40 0.109

3/4" 40 0.113

1 to 2" 10 .0109

2-1/2 to 4" 10 1.120

5 to 8" 5 0.109

10" and larger 5 >0.109

Tests made by operating gas companies indicate no damage to a 4" Grade 52 pipe having a 0.109" wall when making a

weld

to the pipe at 500 psig using a CA15. Welds made to a steel plate 0.109" thick had a maximum copper penetration

depth of less than 0.010". Other tests on tubes with a 0.125" or 0.150" wall showed a copper penetration of 0.005’

maximum.

Tests by ERICO, Inc. indicate that connections to DUCTILE

IRON pipe can be made using the CADWELD molds and

weld metal designated to be used on steel pipe.

However, some reports from the field suggest that all duc-

tile iron is not the same. In some cases the material for

steel will not work. In such cases, the molds and weld

material for cast iron do work.

We therefore, suggest:

1. Whenever possible, make tests on the ductile iron pipe

being used to determine if the material for steel can be

used.

-OR-

2. Use the material for cast iron. It will make satisfactory

connections on all ductile iron.

E394CT09NAEN:LT0398 3/5/09 4:22 PM Page XIX

18 Ph: 1-800-677-9089

www.erico.com

Cross Reference

M100 CAHAA1G

M101 CAHAA1GA

M102 CAHAA1H

M103 CAHAA1HA

M104 CAHAA1K

M105 Call ERICO

M106 CAHAA1L

M107 CAHAA1LA

M108 Call ERICO

M109 CAHAA1T

M110 CAHAA1TA

M111 Call ERICO

M112 CAHAA1V

M113 CAHAA1VA

M114 CAHAA1VA

M115 CAHAA1VB

M116 CAHAA1Y

M117 CAHAA1YA

M118 Call ERICO

M119 Call ERICO

M120 CAHAA2C

M121 CAHAA2CA

M122 Call ERICO

M123 CAHAA2CC

M124 CAHAA2G

M125 Call ERICO

M126 CAHAA2GB

M127 CAHGAA2GC

M142 CAVST1G

M150 CAVST1GA

M151 CAVST1GB

M144 CAVST1H

M152 CAVST1HA

M153 CAVST1HB

M145 CAVST1K

M186 CAVST1KA

M187 CAVST1KB

M188 CAVST1KC

M146 CAVST1L

M189 CAVST1LA

M190 CAVST1LB

M191 CAVST1LC

M147 CAVST1T

M192 CAVST1TA

M193 CAVST1TB

M194 CAVST1TC

M148 CAVST1V

M195 CAVST1VA

M196 CAVST1VB

M197 CAVST1VC

M198 CAVST1VD

M2586 CAVSP2C

M2587 CAVSP2CA

M2588 CAVSP2CB

M2589 CAVSP2CC

M2590 CAVSP2G

M2591 CAVSP2GA

M2592 CAVSP2GB

M2593 CAVSP2GC

M156 CAHBA1G

M157 CAHBA1H

M158 CAHBA1K

M159 CAHBA1L

M160 CAHBA1T

M161 CAHBA1V

M162 Call ERICO

M163 CAHBA1Y

M164 Call ERICO

M165 Call ERICO

M2594S CAVHT1G

M2594 CAVHT1H

M2595S CAVHT1K

M2595 CAVHT1L

M2596S CAVHP1T

M2596 CAVHP1V

M2597S Call ERICO

M2597 CAVHP1Y

M2598 Call ERICO

M2599 Call ERICO

M1960 CAGRT151H

M1961 CAGRT151L

M1962 CAGRT151V

M1963 CAGRT151Y

M1964 CAGRT152C

M1965 CAGRT152G

M1968 CAGRT161H

M1969 CAGRT161L

M1970 CAGRP161V

M1971 CAGRP161Y

M1972 CAGRP162C

M1973 CAGRP162G

M1974 CAGRT181G

M1975 CAGRT181G

M1976 CAGRT181H

M1977 CAGRP181L

M1978 CAGRP181V

M1979 CAGRP181Y

M1980 CAGRP182C

M1981 CAGRP182G

M1982 CAGTT151G

M1983 CAGTT151G

M1984 CAGTT151H

M1985 CAGTT151L

M1986 CAGTP151V

M1987 CAGTP151Y

M1988 CAGTP152C

M1989 CAGTP152G

M1990 CAGTP161G

M1991 CAGTP161G

M1992 CAGTP161H

M1993 CAGTP161L

M1994 CAGTP161V

M1995 CAGTP161Y

M1996 CAGTN162C

M1997 CAGTN162G

M1998 CAGTP181G

M1999 CAGTP181G

M2000 CAGTP181H

M2001 CAGTP181L

M2002 CAGTP181V

M2003 CAGTP181Y

M2004 CAGTN182C

M2005 CAGTN182G

M1927 CAPGT12CU

M1928 CAPGT10CU

M1929 CAPGT08CU

M1930 CAPGT06CU

M1931 CAPGT1G1D

M1932 CAPGT06CU

M1933 CAPGT1G1D

M1934 CAPGT1H1H

M1935 CAPGT1L1E

M1936 CAPGT1L1H

M1937 CAPGT1L1L

M1938 CAPGT1V1E

M1939 CAPGT1V1H

M1940 CAPGP1V1L

M1941 CAPGP1V1V

M1942 CAPGP1Y1E

M1943 CAPGP1Y1H

M1944 CAPGP1Y1L

M1945 CAPGP1Y1Y

M1946 CAPGP2C1E

M1947 CAPGP2C1H

M1948 CAPGP2C1L

M1949 CAPGP2C2C

M1950 CAPGP2G1E

M1951 CAPGP2G1H

M1952 CAPGP2G1L

M1953 CAPGN2G2G

15P CA15

15PS CA15S

25P CA25

32P CA32

45P CA45

65P CA65

15PCI CA15XF19

25PCI CA25XF19

32PCI CA32XF19

45PCI CA45XF19

65PCI CA65XF19

A200 CAB1331H

A201 CAB1331L

A202 CAB112

A203 B1332C

A204 B1332L

A205 B1332Q

A206 B1332G

A304 CAT329

A305 CAT336

A306 CAT313

A309P CAT320

A309PI T320A

A320 B117A

B101 CAT321

B101P CAT321A

Thermoweld

Part Number

CADWELD

Part Number

Thermoweld

Part Number

CADWELD

Part Number

Thermoweld

Part Number

CADWELD

Part Number

TM Thermoweld is a trademark of Continental Industries.

E394CT09NAEN:LT0398 3/5/09 4:22 PM Page XX

19

Ph: 1-800-677-9089

www.erico.com

CADWELD Applications

Buried Cast or Ductile Iron Pipelines

Secure your investment by specifying the CADWELD

Process for Cathodic Protection connections. The

CADWELD exothermic welding process produces a

molecular bond to the surface of the pipe. CADWELD

connections are permanent and ensure the highest

degree of electrical continuity, eliminating the poten-

tial for corrosion problems.

Vertical Steel Applications

ERICO makes Cathodic Protection easy for even the

most difficult vertical steel applications. We offer a

comprehensive line of magnetic clamps, attachments

and tools specifically engineered for the challenges of

vertical steel.

Reinforced Concrete Protection

Chloride contamination of reinforcing steel in con-

crete structures plagues many cold climate communi-

ties. To arrest corrosion, engineers specify Cathodic

Protection systems for concrete road bridges and

parking structures. CADWELD connections can be

easily made to uneven surfaces of reinforcing steel

rods for lasting protection.

Copper Cable Connections

Mechanical connections for electrical cable loosen

and deteriorate with age. For superior performance,

specify CADWELD exothermic connections to assure a

permanent, molecular bond between connecting

cables for full conductivity.

E394CT09NAEN:LT0398 3/5/09 4:22 PM Page XXI

E394CT09NAEN:LT0398 3/5/09 4:22 PM Page XXI

CA1A E394CT09NAEN 0032M9

AUSTRALIA

Phone +61-2-9751-8500

Fax +61-2-9475-5334

BELGIUM

Phone +0800-757-48

Fax +0800-757-60

CANADA

Phone +1-800-677-9089

Fax +1-800-677-8131

CHILE

Phone +56-2-370-2908

Fax +56-2-370-2914

DENMARK

Phone +808-89-373

Fax +808-89-372

FRANCE

Phone +33-4-77-365-656

Fax +33-4-77-553-789

GERMANY

Phone +0-800-189-0272

Fax +0-800-189-0274

HONG KONG

Phone +852-2764-8808

Fax +852-2764-4486

HUNGARY

Phone +068-00-165-38

Fax +31-13-583-5499

INDONESIA

Phone +62-21-575-0941

Fax +62-21-575-0942

ITALY

Phone +39-02-8474-2250

Fax +39-02-8474-2251

MEXICO

Phone +52-55-5260-5991

Fax +52-55-5260-3310

NETHERLANDS

Phone +31-13-583-5400

Fax +31-13-583-5499

NORWAY

Phone +800-100-73

Fax +800-100-66

SINGAPORE

Phone +65-6-268-3433

Fax +65-6-268-1389

SPAIN

Phone +34-93-467-7726

Fax +34-93-467-7725

SWEDEN

Phone +0207-909-08

Fax +0207-989-64

SWITZERLAND

Phone +0800-558-697

Fax +0800-559-615

THAILAND

Phone +66-2-267-5776

Fax +66-2-636-6988

UNITED KINGDOM

Phone +0808-2344-670

Fax +0808-2344-676

UNITED STATES

Phone +1-440-248-0100

Fax +1-440-248-0723

POLAND

Phone +48-71-374-4022

Fax +48-71-374-4043

BRAZIL

Phone +55-11-3623-4333

Fax +55-11-3621-4066

www.erico.com

WARNING

ERICO products shall be installed and used only as indicated in ERICO’s product instruction sheets and training materials. Instruction sheets are available at www.erico.com and from your ERICO customer service representative.

Improper installation, misuse, misapplication or other failure to completely follow ERICO’s instructions and warnings may cause product malfunction, property damage, serious bodily injury and death.

CHINA

Phone +86-21-3430-4878

Fax +86-21-5831-8177

UNITED ARAB

EMIRATES

Phone +971-4-881-7250

Fax +971-4-881-7270

Copyright ©2009 ERICO International Corporation. All rights reserved.

CADDY, CADWELD, CRITEC, ERICO, ERIFLEX, ERITECH, and LENTON are registered trademarks of ERICO International Corporation.

E394CT09NAEN:LT0398 3/5/09 4:23 PM Page XXIV
