Volume 1—Residential and Light Commercial CA08100002E—June 2013 www.eaton.com V1-T4-1

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

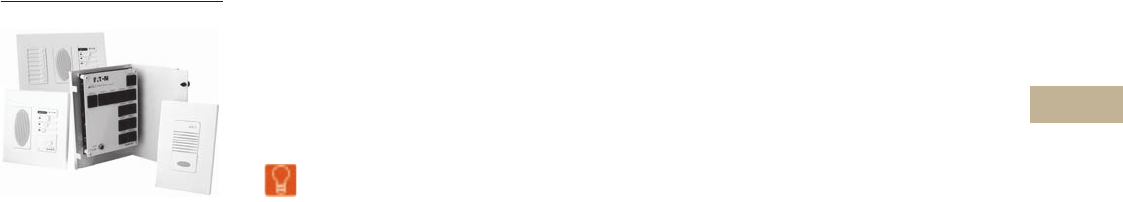

Structured Wiring

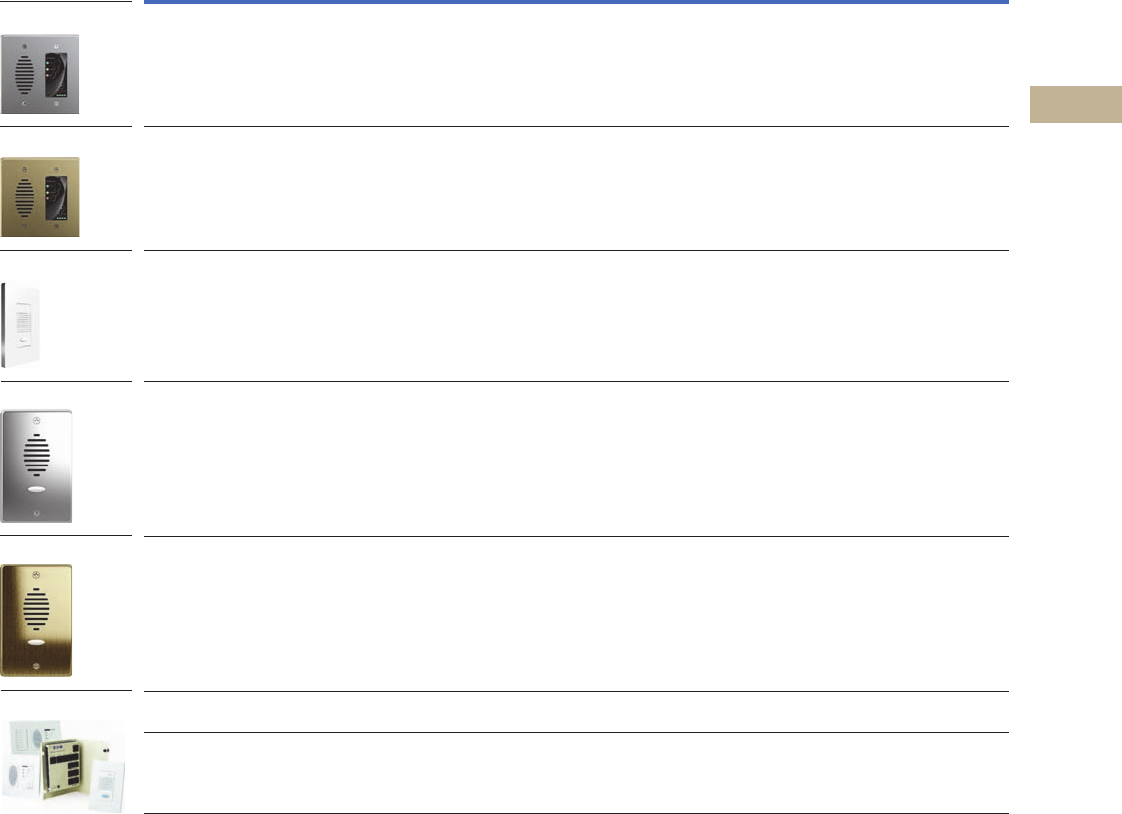

Intercom System

4.1 StructuredWiringSolutions™

Product Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V1-T4-2

Application Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V1-T4-2

Product Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V1-T4-4

Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V1-T4-21

Learn

Online

V1-T4-2 Volume 1—Residential and Light Commercial CA08100002E—June 2013 www.eaton.com

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4.1

Structured Wiring

StructuredWiringSolutions

Intercom System

Contents

Description Page

StructuredWiringSolutions

Product Selection. . . . . . . . . . . . . . . . . . . . . . . V1-T4-4

Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . V1-T4-21

Product Description

Structured wiring is a

simple, affordable way

to wire a home for state-of-

the-art communications,

entertainment and security

now and for many years

to come.

The basic concept is that

all telephone, television,

satellite, coaxial, audio and

data communications cables

are wired in a star topology

(home run) to each room in

the home and terminate

at a central distribution

panel. This distribution

panel allows flexibility for

future modifications and/or

additions to keep pace with

a homeowner’s lifestyle

and needs.

Structured wiring can also

be used as a central hub

to interconnect a security

system, home automation,

HVAC and load control,

providing a complete system

to increase the security,

comfort and convenience

for a homeowner.

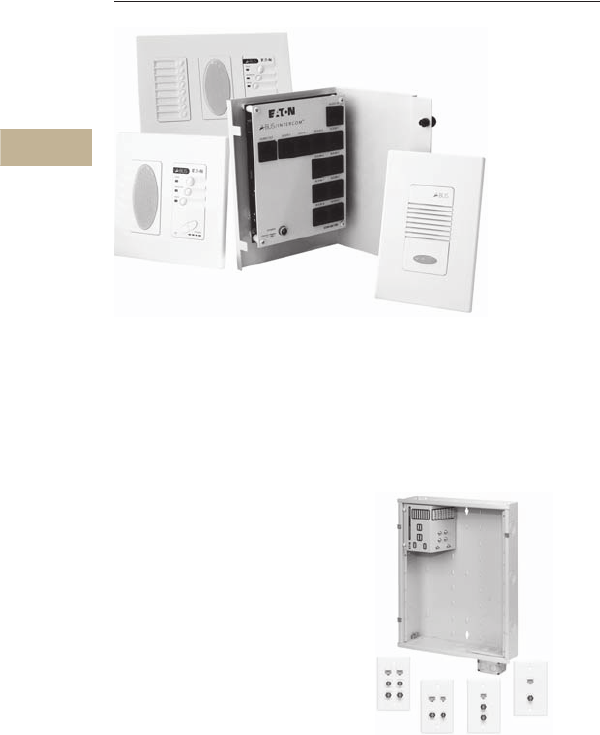

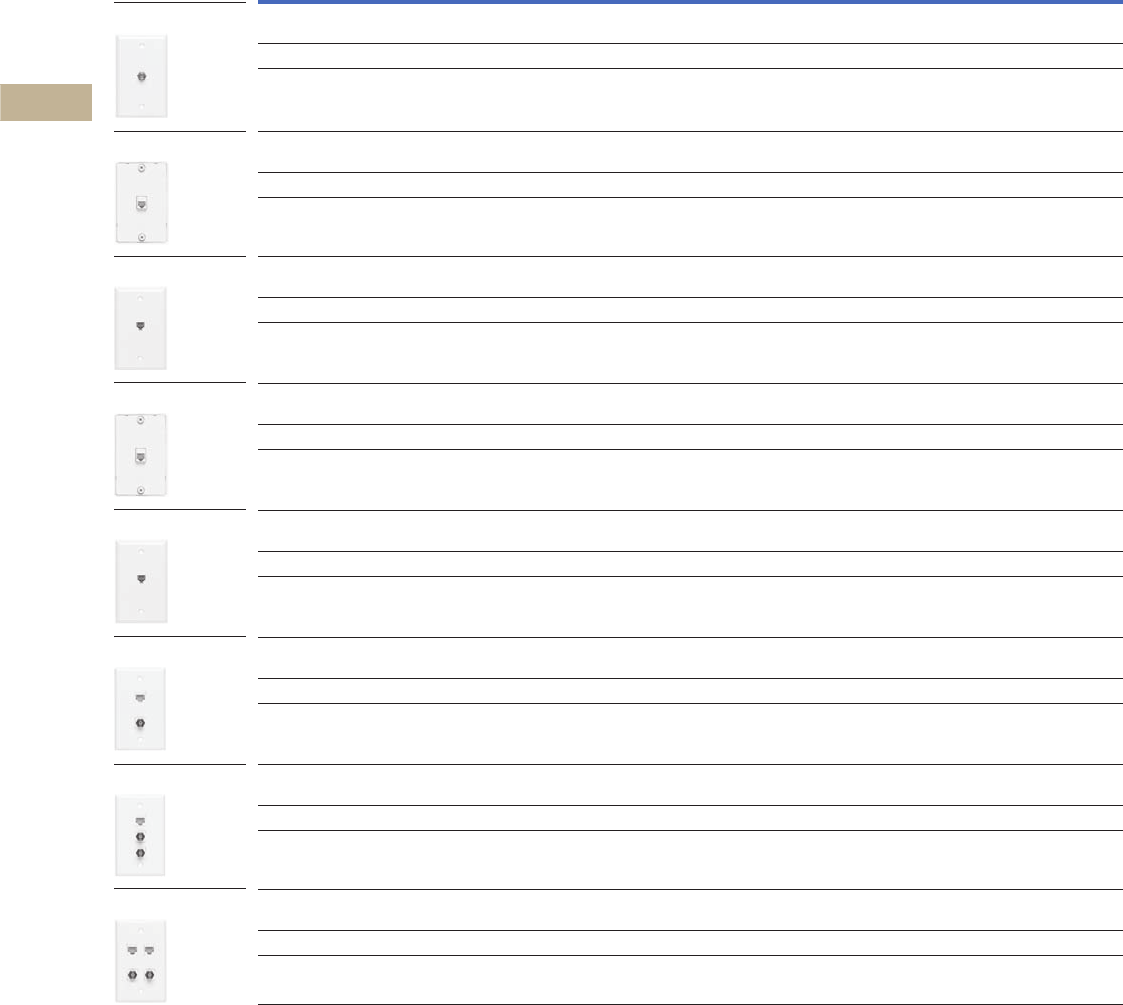

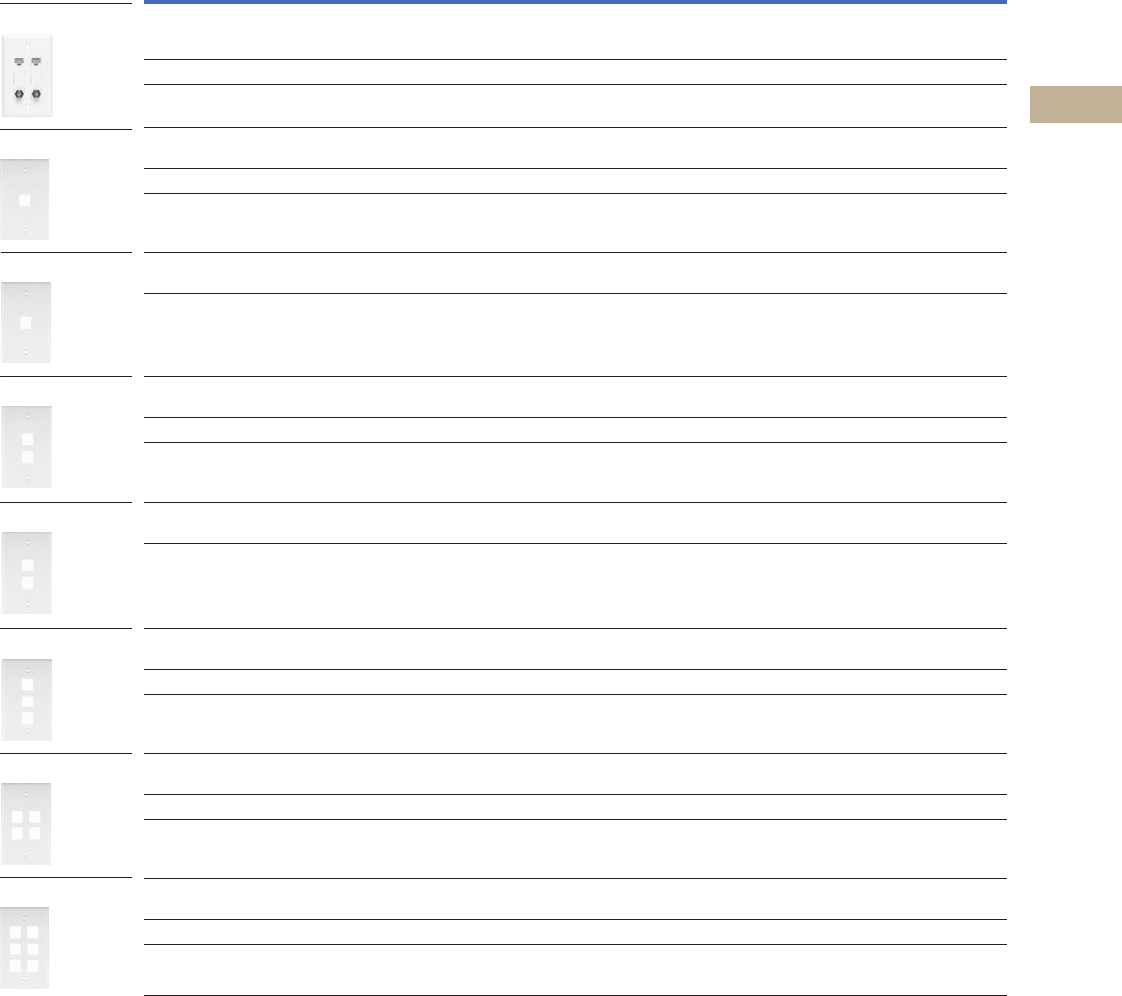

Wall Outlets and Basic Package

Application Description

●Telephone

●High-speed Internet

●Computer networks

●Web-safe Internet router

●Whole-house sound

●Satellite/cable TV

Volume 1—Residential and Light Commercial CA08100002E—June 2013 www.eaton.com V1-T4-3

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4.1

Structured Wiring

StructuredWiringSolutions

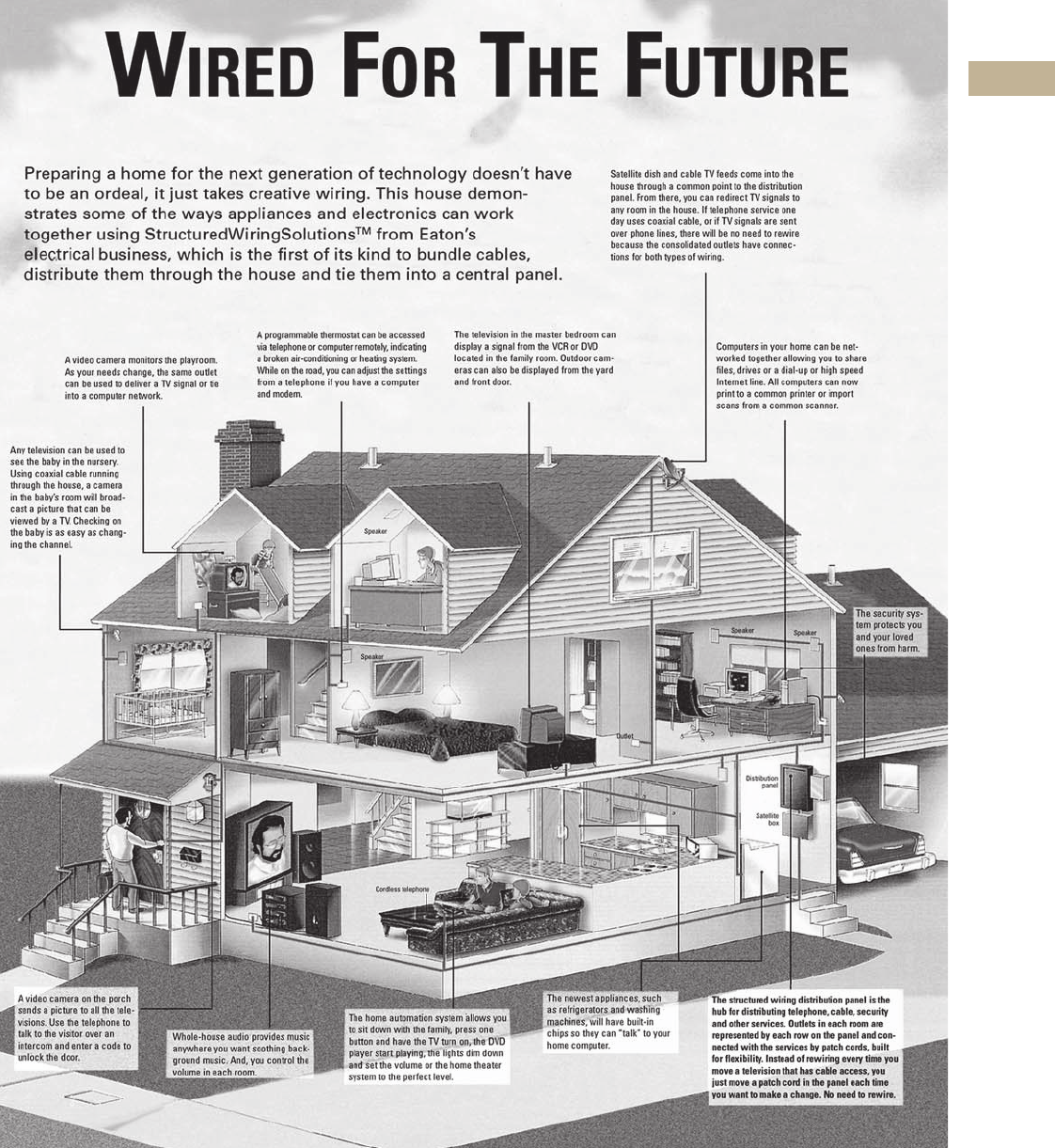

A Home with StructuredWiringSolutions Gives You Ready Control of the Latest in Computing, Audio, Video and

Communications. With the Right Components, Your Dream Home is Ready for Today’s World and Tomorrow’s Advancements.

Your Value is Ensured...and so is Your Peace of Mind

V1-T4-4 Volume 1—Residential and Light Commercial CA08100002E—June 2013 www.eaton.com

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4.1

Structured Wiring

StructuredWiringSolutions

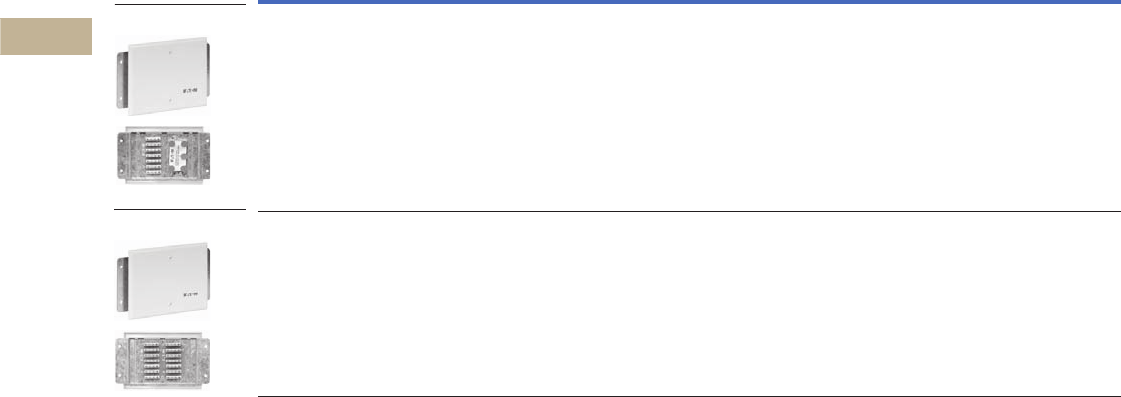

Product Selection

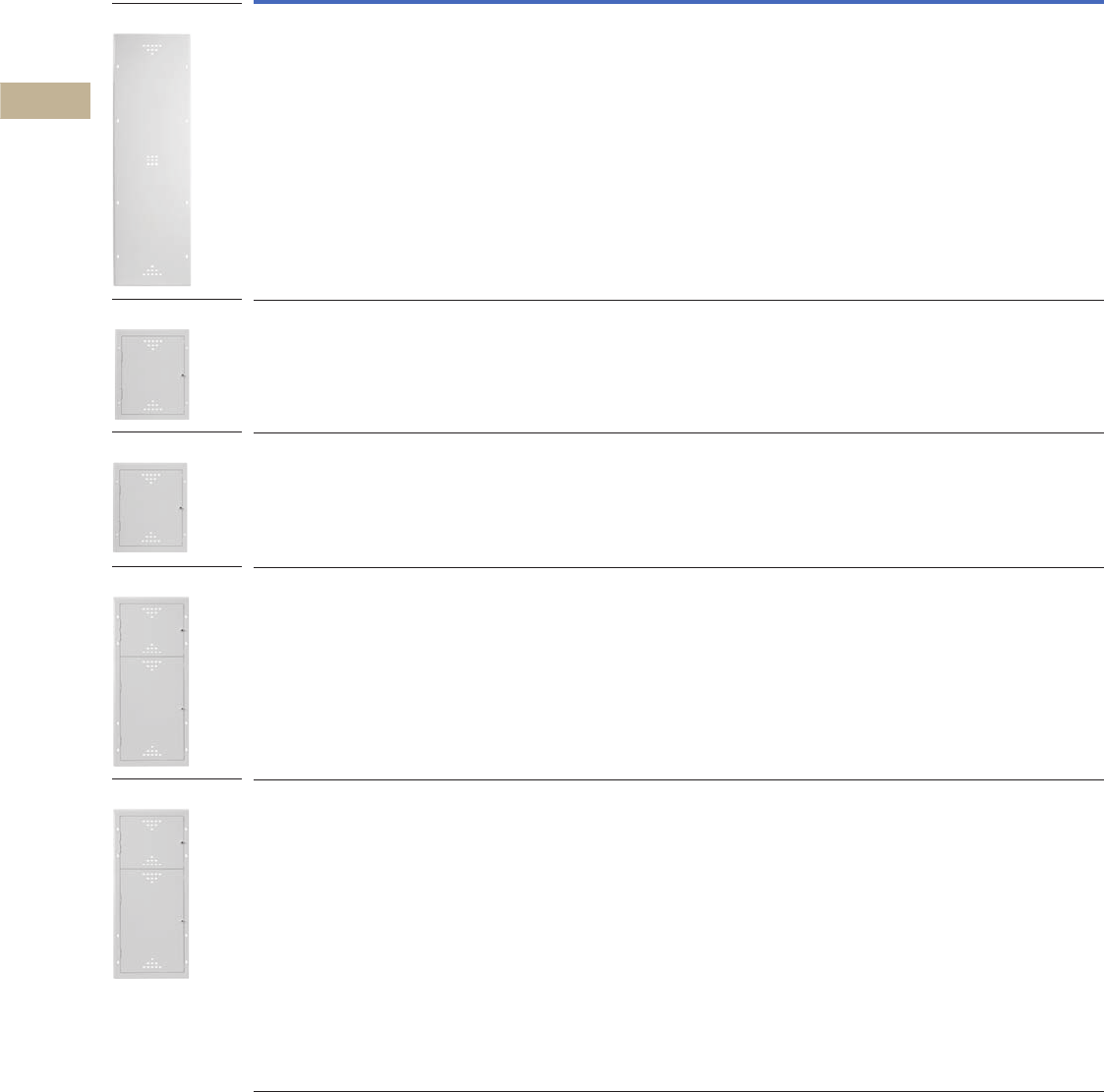

Packaged Products

Product Description UPC Code Catalog Number

Perfect for apartments, condos or even entry level homes. This distribution panel distributes four incoming telephone

lines to six locations, punchdown, and one incoming coax signal to four locations, passive. Installation is easy and a stylish

three-gang wall plate cover provides a professional looking finish.

782116895359 ESWB100

Same as ESWB100, except punchdown for telephone is doubled for 11 locations and there is no coax distribution.

Perfect for commercial and resi applications for phone only, or for six phone locations and/or six computer locations.

782116895366 ESWB100P

ESWB100

ESWB100P

Volume 1—Residential and Light Commercial CA08100002E—June 2013 www.eaton.com V1-T4-5

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4.1

Structured Wiring

StructuredWiringSolutions

Video Modules

Product Description UPC Code Catalog Number

1 x 4 coax module. 1 in, 4 out coax module with four pass-through connectors. 6-inch form factor. 1.0 lb. 782116895502 ESWV10400

1 x 8 coax module. 1 in, 8 out coax module with two pass-through connectors. 6-inch form factor. 1.3 lbs. 782116895496 ESWV10800

1 x 8 amplified coax module. 1 in, 8 out coax module with 12 dB bi-directional amplifier and two pass-through

connectors. 6" form factor. 2.4 lbs.

782116895519 ESWV10800A

5 x 8 coax module. 5 in, 8 out coax module with 20 dB bi-directional amplifier, surge protection, and four pass-through

connectors, and four inputs for modulated signals. 12-inch form factor. 3 lbs.

782116895526 ESWV50800A

5 x 12 coax module. 5 in, 12 out coax module with 20 dB bi-directional amplifier, surge protection, and four pass-through

connectors, and four inputs for modulated signals. 12-inch form factor. 3.5 lbs.

782116895533 ESWV51200A

5 x 16 coax module. 5 in, 16 out coax module with 20 dB bi-directional amplifier, surge protection, with one direct and four

inputs for modulated signals. 12-inch form factor. 3.6 lbs.

782116895557 ESWV51600A

110 Volt video amplifier power supply. Power supply for all amplified video modules. 782116009671 ESWV110

ESWV10400

ESWV10800

ESWV10800A

ESWV50800A

ESWV51200A

ESWV51600A

V1-T4-6 Volume 1—Residential and Light Commercial CA08100002E—June 2013 www.eaton.com

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4.1

Structured Wiring

StructuredWiringSolutions

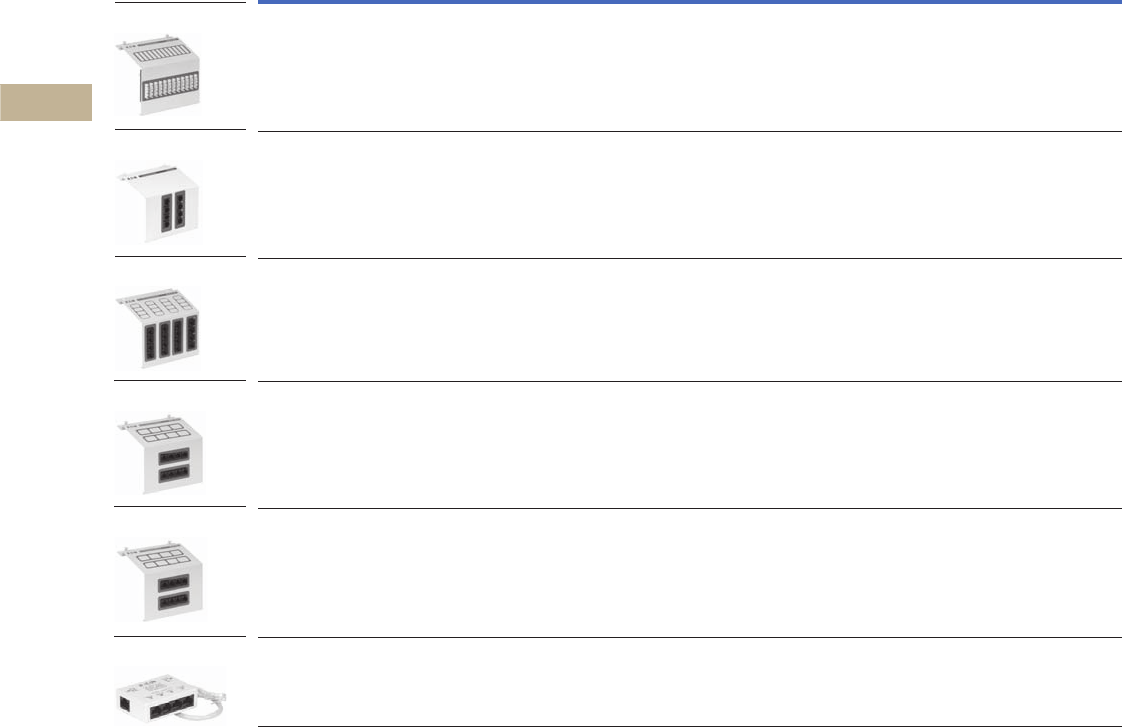

Telephone Modules

Product Description UPC Code Catalog Number

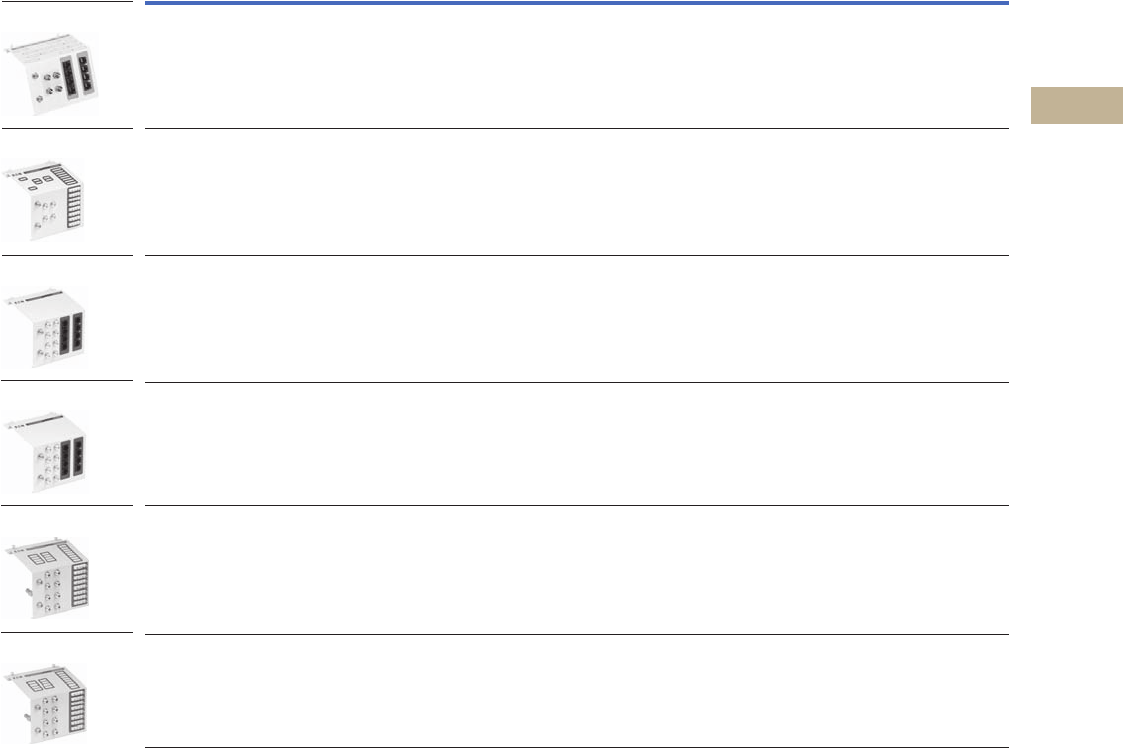

12-port, four-line punchdown telephone module. The 12/4 punchdown telephone module has 12 110 punchdown blocks

that distribute four incoming lines to 12 locations. 6-inch form factor. 1 lb.

782116895434 ESWT41200P

Eight-port, four-line telephone module. Eight RJ-45 ports support four incoming phone lines. One RJ31X port for security.

6-inch form factor. 1.0 lb.

782116895441 ESWT40800

16-port, four-line telephone module. 16 RJ-45 ports support four incoming phone lines. One RJ31X port for security.

6-inch form factor. 1.25 lbs.

782116895458 ESWT41600

4 x 8 telephone breakout module. Distributes four incoming telephone lines to eight locations, RJ-45 style,

eight breakout ports, four-line pass-through. Breakout configurations: 1-2, 2-1, 3-4, 4-3.

782116894499 ESWTB48800

Eight location non-bridged phone module. Eight RJ-45 jacks connected directly to eight 110 punchdown connectors,

(one-to-one) can be bridged together, great for Ethernet switches and routers.

786685255859 ESWTB801

Telephone line breakout module. This module can be hung from an RJ-45 wall plate to break out and put lines 1–4

on individual center pairs so that all four lines in the RJ-45 jack are connectable to a standard RJ11 wired device.

782116895465 ESWTB00

ESWT41200P

ESWT40800

ESWT41600

ESWTB48800

ESWTB801

ESWTB00

Volume 1—Residential and Light Commercial CA08100002E—June 2013 www.eaton.com V1-T4-7

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4.1

Structured Wiring

StructuredWiringSolutions

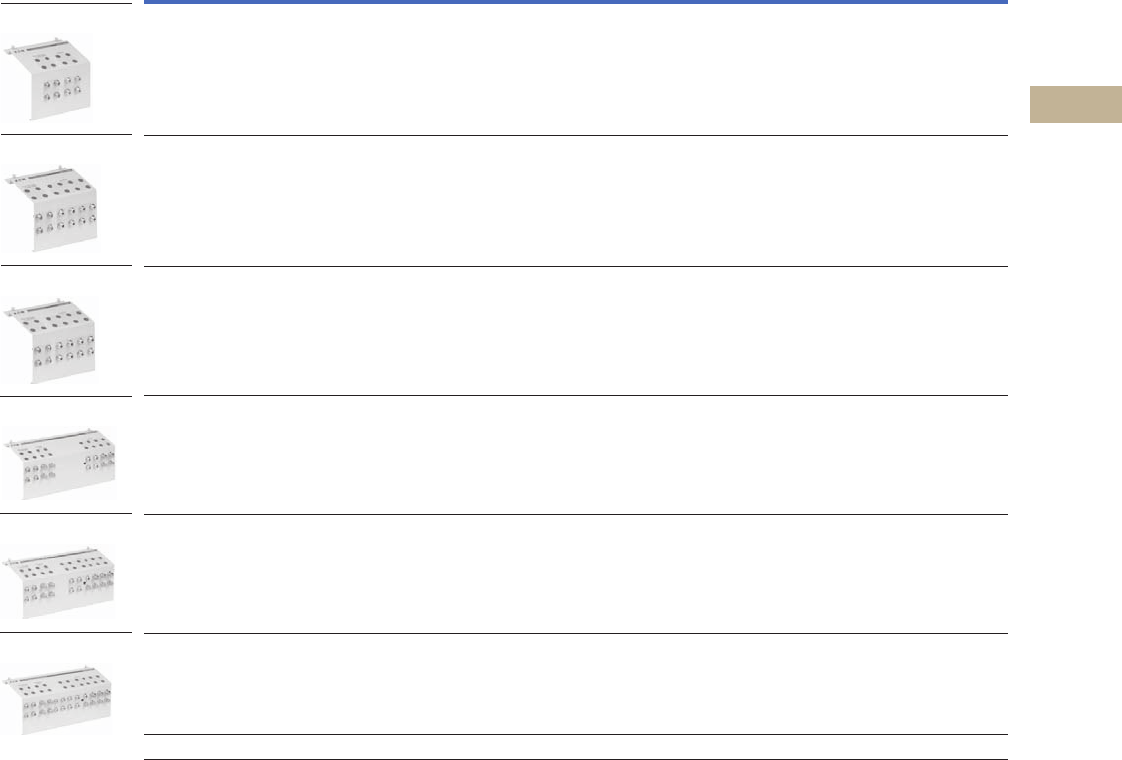

Combination Modules

Product Description UPC Code Catalog Number

Combo 4 x 8 coax/phone distribution module (with RJ-45 patch connectors). Distributes one incoming coax TV line

to four locations (plus two pass-through) and four telephone lines to eight locations. Includes an RJ31X connection.

6-inch form factor. 1.1 lbs.

782116895472 ESWD40800

Combo 4 x 8 coax/phone distribution module (with 110 punchdown connectors). Distributes one incoming coax

TV line to four locations (plus two pass-through) and four telephone lines to eight locations. 6-inch form factor. 1.2 lbs.

782116895489 ESWD40800P

Combo 8 x 8 passive coax/phone distribution module (with RJ-45 patch connectors). Distributes one incoming coax

TV line to eight locations (plus two pass-through) and four telephone lines to eight locations. Includes an RJ31X connection.

6-inch form factor. 1.2 lbs.

782116895380 ESWD80800

Combo 8 x 8 active coax/phone distribution module (with RJ-45 patch connectors). Distributes one incoming coax

TV line to eight locations with built-in amplification (plus two pass-throughs) and four telephone lines to eight locations.

Includes an RJ31X connection. 6-inch form factor. 1.2 lbs.

782116895397 ESWD80800A

Combo 8 x 8 passive coax/phone distribution module (with 110 punchdown connectors). Distributes one incoming

coax TV line to eight locations (plus two pass-through) and four telephone lines to eight locations. 6-inch form factor. 1.2 lbs.

782116895373 ESWD80800P

Combo 8 x 8 active coax/phone distribution module (with 110 punchdown connectors). Distributes one incoming

coax TV line to eight locations with built-in amplification (plus two pass-throughs) and four telephone lines to eight locations.

Includes an RJ31X connection. 6-inch form factor.

782116895403 ESWD80800AP

ESWD40800

ESWD40800P

ESWD80800

ESWD80800A

ESWD80800P

ESWD80800AP

V1-T4-8 Volume 1—Residential and Light Commercial CA08100002E—June 2013 www.eaton.com

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4.1

Structured Wiring

StructuredWiringSolutions

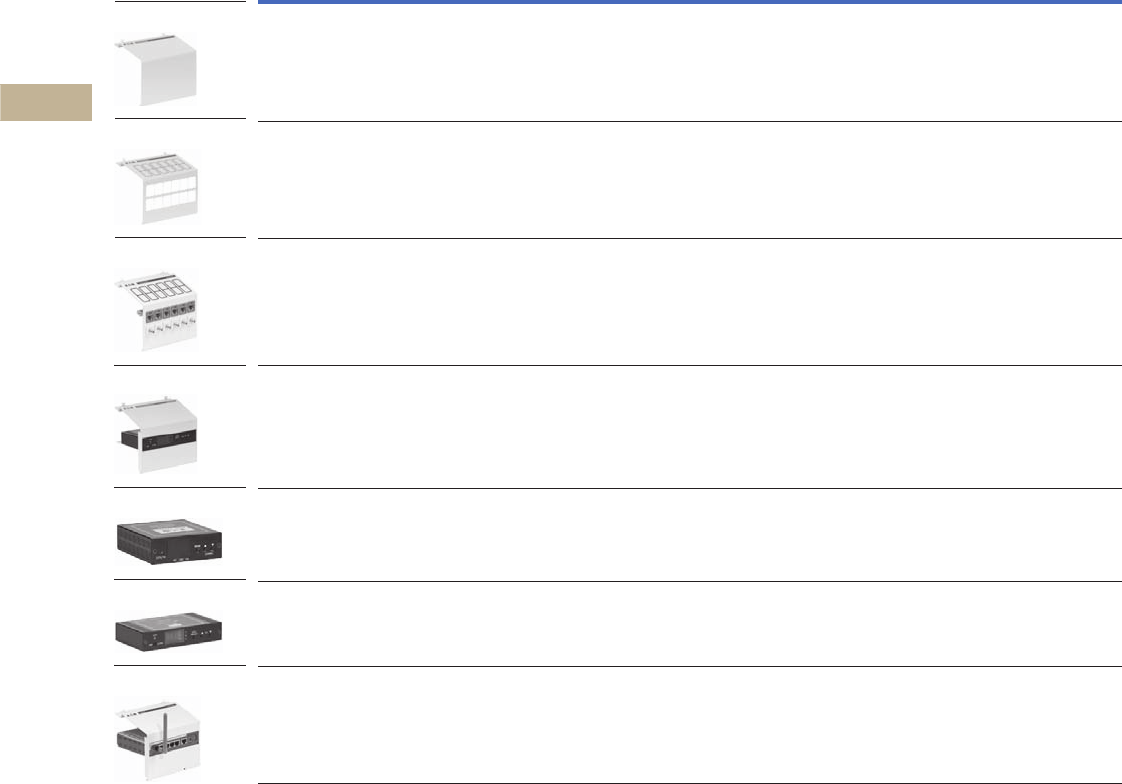

Modules

Product Description UPC Code Catalog Number

Blank filler module. Use this blank filler module to hide cables in the panel. 782116031467 ESWF001

Blank patch module. Use this blank patch module to custom design a zone. The blank patch module accepts any

configuration of CAT5e, RG6 coax or fiber optic inserts. Labeling areas allow you to identify the connections and what

rooms they represent. 6-inch form factor.

782116895427 ESWP100

Three-zone patch module. 12 connection ports (two CAT5 and two coax per zone). 6-inch form factor. 0.8 lbs.

Allows for many room locations (wall plates) to be terminated cleanly and professionally without having to add

expensive service modules. Active wall plates can be patch corded to data, voice or video modules as needed

without complication or added expense. Outlet locations can be permanently labeled for easy consumer plug n’ play,

and changing applications and life styles.

782116895410 ESWMP300

Triple channel modulator module. Used for creating in-home television channels for viewing from any TV in the home.

Signals from three different audio/video sources such as TV, VCR, DVD, DBS, satellite TV and security cameras may be

identified and displayed by any television. 6-inch form factor. 2.1 lbs.

782116895557 ESWM300

One-channel standalone modulator. Distributes one video signal (camera, DVD, SATV, CATV) to any television

in the house.

782116895564 ESWMOD1

Three-channel standalone modulator. Distributes three video signals (camera, DVD, SATV, CATV) to any television

in the house.

782116895571 ESWMOD1

Four-port 10/100 wireless firewall router. Distributes DSL/Broadband service up to four computer locations.

Also provides wireless connectivity.

782116895342 ESWN100

ESWF001

ESWP100

ESWMP300

ESWM300

ESWMOD1

ESWMOD1

ESWN100

Volume 1—Residential and Light Commercial CA08100002E—June 2013 www.eaton.com V1-T4-9

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4.1

Structured Wiring

StructuredWiringSolutions

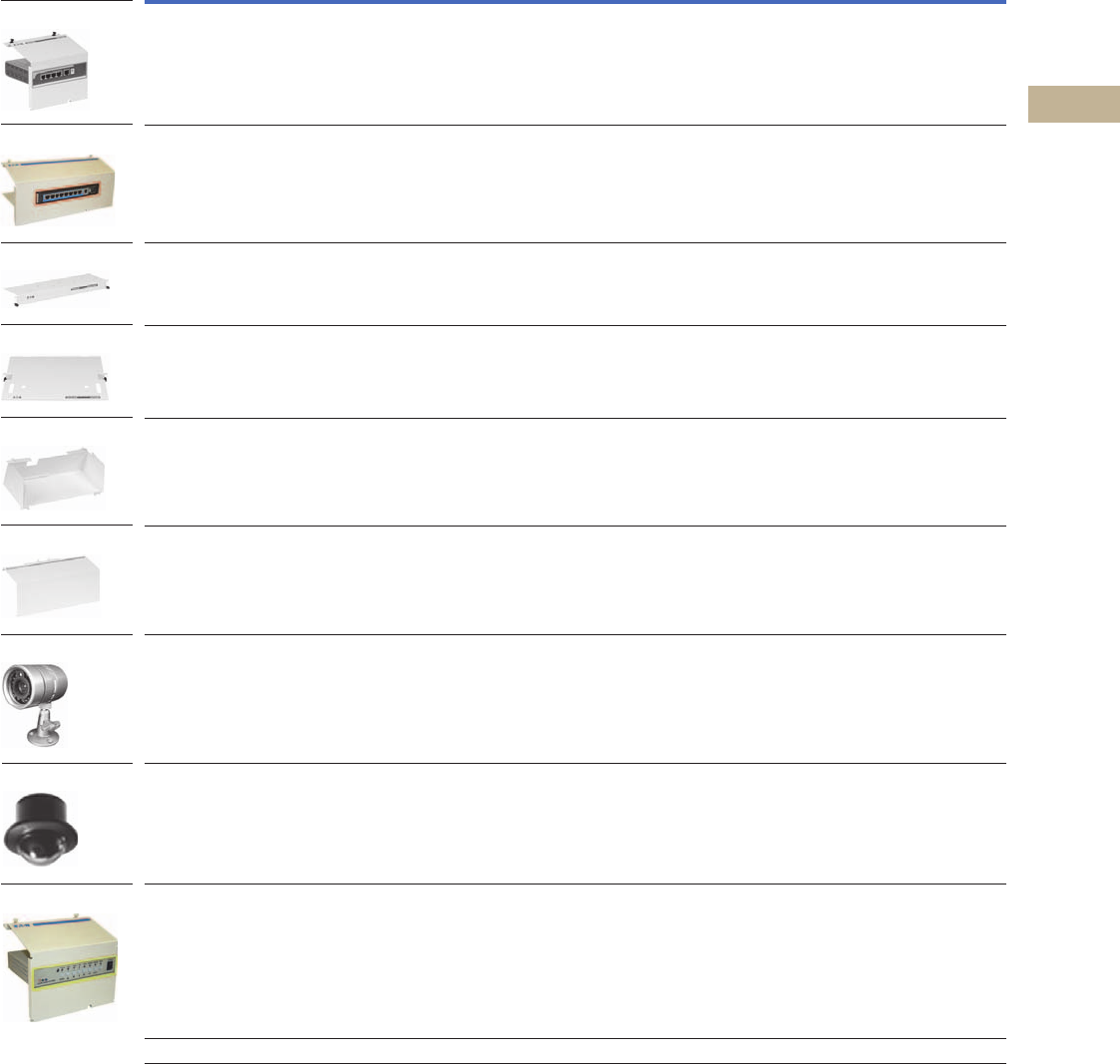

Modules, continued

Product Description UPC Code Catalog Number

DSL or cable router with four-port 10/100M fast ethernet switch. Built-in NAT Firewall. 6-inch form factor. 782116895588 ESWN400

Eight-port 10/100M DSL or cable router. Built-in NAT and parental controls. 786685245768 ESWN800

Product shelf 14 x 4 inches. Can be mounted anywhere in the panel. Allows for third-party products to be mounted

in the panel. (Modems, power strip, etc.)

782116894437 ESWMS100

Service shelf 14 x 8 inches. Can be mounted anywhere in the panel. Designed as a work shelf for the installer. 782116977192 ESWMS200

12-inch blank mounting shelf. Stand-off hole placements for Ademco, First Alert, Caddx, DSC,

and Electronics Line security panels.

782116049318 ESWMS300

12-inch blank mounting shelf cover. Designed to fit over the ESWMS300. 782116049325 ESWMSC300

Camera with IR emitters. 1/4-inch color camera with IR emitters for night-time viewing. Includes mounting bracket.

Does not include power supply.

782116977178 ESWV100

Dome camera. 3.6 mm color dome camera. Can be flush or surface mounted. Does not include the power supply. 782116977185 ESWV200

Four-position video processor. Allows viewing of four cameras on one channel. Includes remote for easy access. 786685245775 ESWVQ4

20-pack of molly rivets and plungers. Use for connecting individual modules to the install can. 782116103126 ESWVRIV

ESWMSC300

ESWV100

ESWV200

ESWN400

ESWMS100

ESWMS200

ESWMS300

ESWN800

ESWVQ4

V1-T4-10 Volume 1—Residential and Light Commercial CA08100002E—June 2013 www.eaton.com

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4.1

Structured Wiring

StructuredWiringSolutions

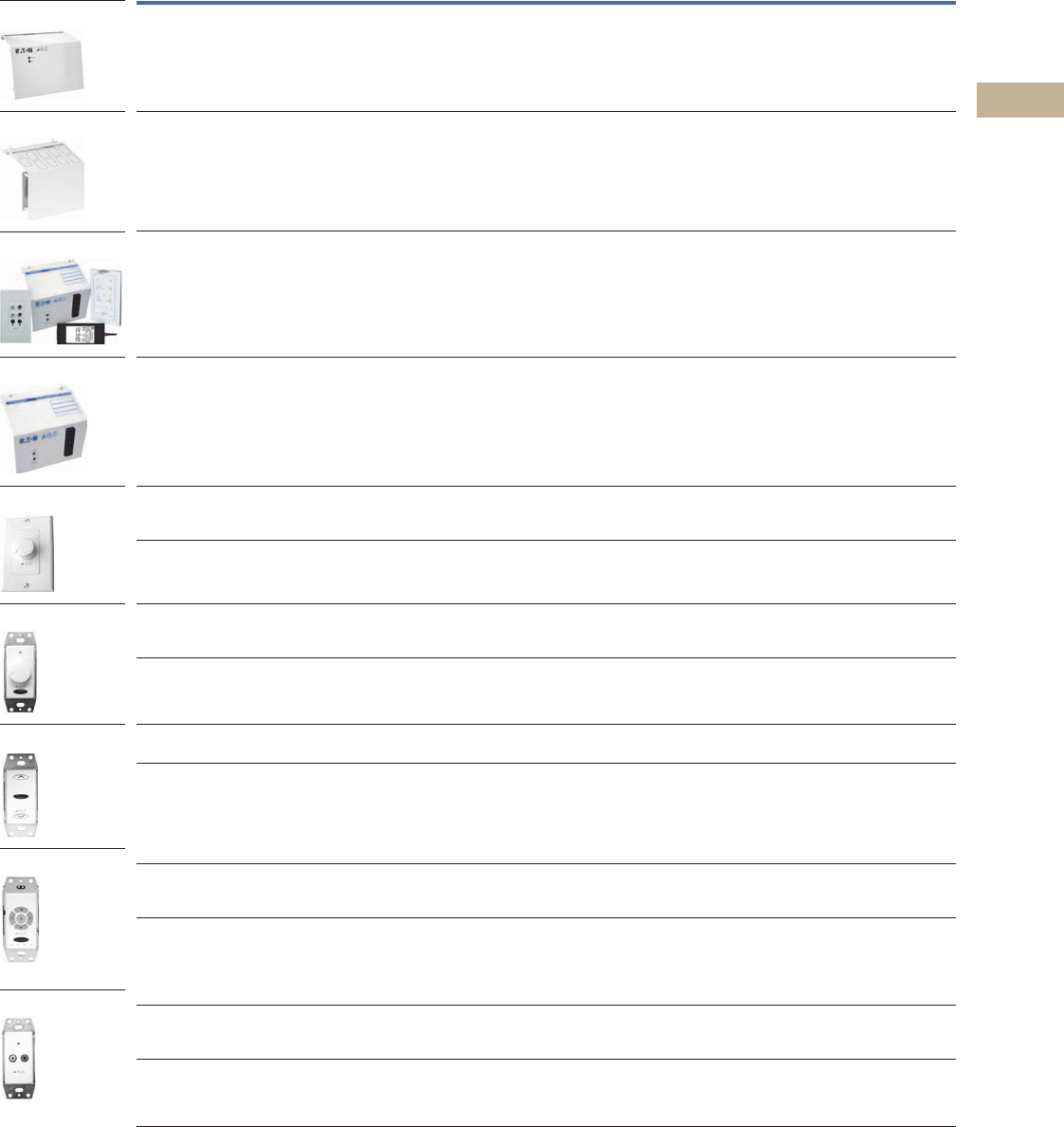

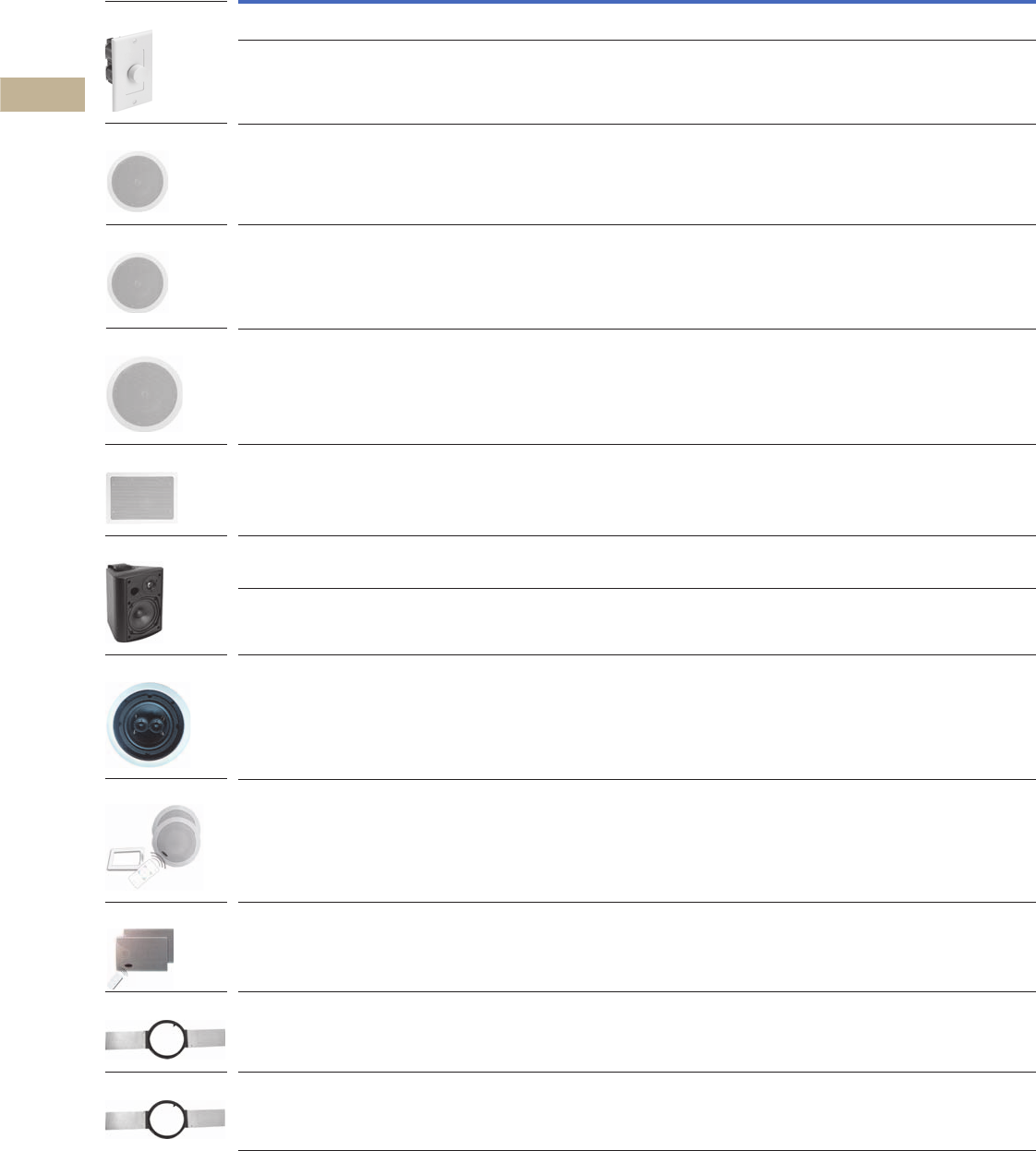

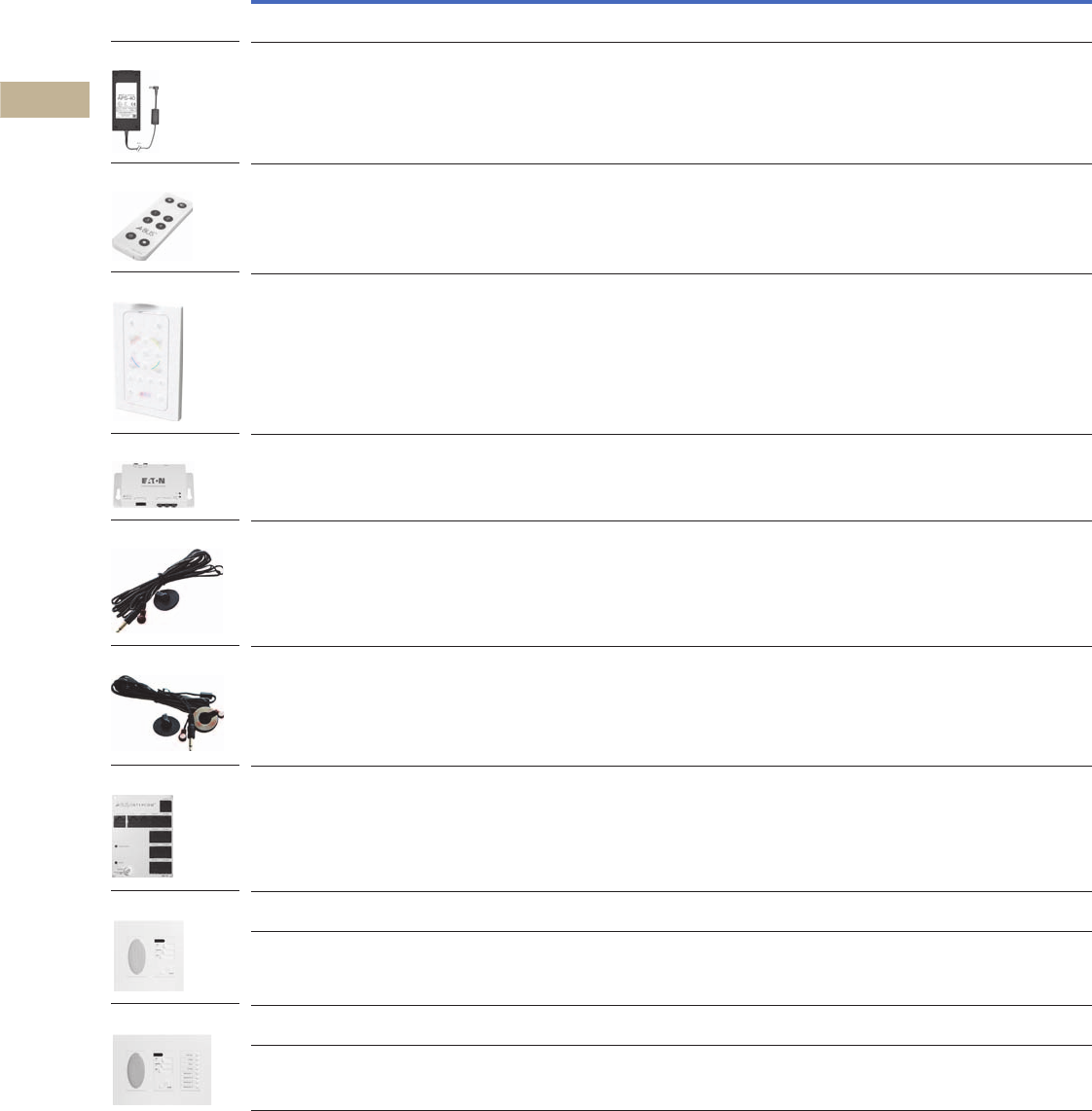

Audio System Components

Product Description UPC Code Catalog Number

75-watt volume control. For analog audio systems.

White 782116895328 ESWA75W

Almond 782116895335 ESWA75A

6.5-inch standard round ceiling speaker. 3/4-inch Mylar swivel tweeter, 80 watts. 782116894413 ESWA6500SC

6.5-inch high-end round ceiling speaker (set of two). In-ceiling, 6.5-inch poly woofer, 1-inch swivel tweeter.

Surround sound capable. Suitable for all audio systems.

782116895304 ESWA6550SC

8-inch round ceiling speaker. 1-inch cloth swivel tweeter, 120 watts. 782116894420 ESWA0800SC

6.5-inch in-wall speakers (set of two). In-wall, 6.5-inch poly woofer, 0.75-inch tweeter. Surround sound capable.

Suitable for all audio systems.

782116895311 ESWA6500SW

5.5-inch outdoor speakers (set of two). Outdoor, 5.5-inch poly woofer, 0.75-inch tweeter. Surround sound capable.

Suitable for all audio systems.

White 782113965918 ESWA5500OW

Black 782113965925 ESWA5500OB

6.5-inch round dual voice coil speaker. Dual 1/2-inch Mylar tweeters, 80 watts. Suitable for small room installations. 786685271491 ESWA65DVC

6.5-inch round A-BUS direct ceiling speaker. Built-in A-BUS amplification. Shipped with multi-function multi-source

remote with cradle.

786685285092 ESWA65ABD

5.5-inch A-BUS direct outdoor speakers. Weather resistant, UV protected. Outdoor speakers with built-in

Class D A-BUS amplifier.

786685366401 ESWA55OABDW

6.5-inch rough-in ring. Designed to fit models ESWA6500SC, ESWA6550SC, ESWA65DVC and ESWA65DVC. 786685366425 ESWA6R

8-inch rough-in ring. Designed to fit model ESWA800SC. 786685366418 ESWA8R

ESWA6550SC

ESWA0800SC

ESWA6500SW

ESWA75W

ESWA6500SC

ESWA5500OW

ESWA65DVC

ESWA65ABD

ESWA6R

ESWA8R

ESWA55OABDW

Volume 1—Residential and Light Commercial CA08100002E—June 2013 www.eaton.com V1-T4-11

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4.1

Structured Wiring

StructuredWiringSolutions

A-BUS Products

Product Description UPC Code Catalog Number

A-BUS audio distribution module (6-inch form factor). The Zone 6 audio distribution module distributes CAT5 audio to six

locations. Can be cascaded to one or two additional modules for 12 or 18 locations.

782116153084 ESWAM600C

Eight-location audio distribution module. Distributes one signal to eight stereo locations via traditional speaker

wire up to 16 gauge.

786685015194 ESWAM800

4 Source, 8 zone A-BUS audio kit. Kit includes power supply, (4) source input plates (ESWA7500CW)

and (1) ESWA300 remote.

786685401331 ESWAMK4801C

4 Source, 8 zone A-BUS audio module. Audio module only with power supply. 786685401317 ESWAM4801C

A-BUS volume control. The volume control is the down line amplifier that converts the distributed audio signal back to an

analog signal that is then distributed over speaker wire to in-wall/ceiling speakers.

White 786685017297 ESWA200CW

Almond 786685017280 ESWA200CA

A-BUS volume control with “IR” input option. The IR allows the entertainment center's wireless remote to be used in

rooms that have this feature. Decora faceplate not included.

White 782116153121 ESWA300CW

Almond 782116153138 ESWA300CA

A-BUS two-button volume control with “IR” input option. Decora faceplate not included.

White. 782116978038 ESWA400CW

Almond 782116978045 ESWA400CA

A-BUS four-position backlit multi-source volume control with “IR” input option. Specifically designed for use

with the ESWAM4800 multi-source module. Decora faceplate not included.

White. 782116894444 ESWA4500CW

Almond 782116894451 ESWA4500CA

A-BUS local input plate. Overrides the whole house music and allows a local source such as MP3 player and TVs

to play in the zone or room.

White 786685359197 ESWA701CW

Almond 786685359205 ESWA701CA

ESWAM800

ESWAM600C

ESWAMK4801C

ESWA200CW

ESWA300CW

ESWA400CW

ESWA4500CW

ESWA701CW

ESWAM4801C

V1-T4-12 Volume 1—Residential and Light Commercial CA08100002E—June 2013 www.eaton.com

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4.1

Structured Wiring

StructuredWiringSolutions

A-BUS Products, continued

Product Description UPC Code Catalog Number

Source input plate for multi-source A-BUS audio A-BUS. Provides one input and pass-through for audio equipment.

Input for one IR emitter and one relay output.

786685401324 ESWA7500CW

A-BUS modules power supply 782116978021 ESWAP

A-BUS four-button remote control. For use with all A-BUS volume controls with IR inputs.

Controls volume and source inputs.

782116894475 ESWA100CR

A-BUS IR remote control. For use with all A-BUS volume controls. Single and multi-source operation. Shipped with

mounting cradle.

786685362175 ESWA300CR

A-BUS component interface unit. The ESWA500C is used when the customer’s amplifier does not have an A-BUS CAT5e

output built in. RCA connectors are run from the amplifier to the ESWA500C, and then a CAT5e homerun is made to the

ESWAM600C in the main distribution panel.

782116153145 ESWA500C

A-BUS single lead “IR” emitter.782116940189 ESWEM100

A-BUS dual lead “IR” emitter.782116940196 ESWEM200

A-BUS two-door intercom module. This module is the core of the incom system. Includes two-door station outputs

and eight room locations.

782116940202 ESWABI100

A-BUS mini master room keypad.

White 782116940219 ESWABI200

Almond 786685138572 ESWABI200A

A-BUS control center (master keypad).

White 782116940226 ESWABI300

Almond 786685138589 ESWABI300A

ESWAP

ESWA100CR

ESWA300CR

ESWA500C

ESWEM100

ESWEM200

ESWABI100

ESWABI200

ESWABI300

Volume 1—Residential and Light Commercial CA08100002E—June 2013 www.eaton.com V1-T4-13

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4.1

Structured Wiring

StructuredWiringSolutions

A-BUS Products, continued

Product Description UPC Code Catalog Number

Intercom outdoor keypad. Weather resistant UV protected, aluminum color. 786685242262 ESWABI200PA

Intercom outdoor keypad. Weather resistant UV protected, brushed brass color. 786685242279 ESWABI200PB

A-BUS door station.

White 782116940233 ESWABI400

Front door cover plate. Weather resistant UV protected, aluminum color. 786685242262 ESWABI500A

Front door cover plate. Weather resistant UV protected, brushed brass color. 786685242279 ESWABI500B

Intercom kit. Kit includes one master keypad, three mini master keypads, one door station and one intercom module.

White keypad 782116940240 ESWABIK311

Almond keypad 786685138725 ESWABIK311A

ESWABI200PA

ESWABI500A

ESWABI500B

ESWABIK311

ESWABI200PB

ESWABI400

V1-T4-14 Volume 1—Residential and Light Commercial CA08100002E—June 2013 www.eaton.com

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4.1

Structured Wiring

StructuredWiringSolutions

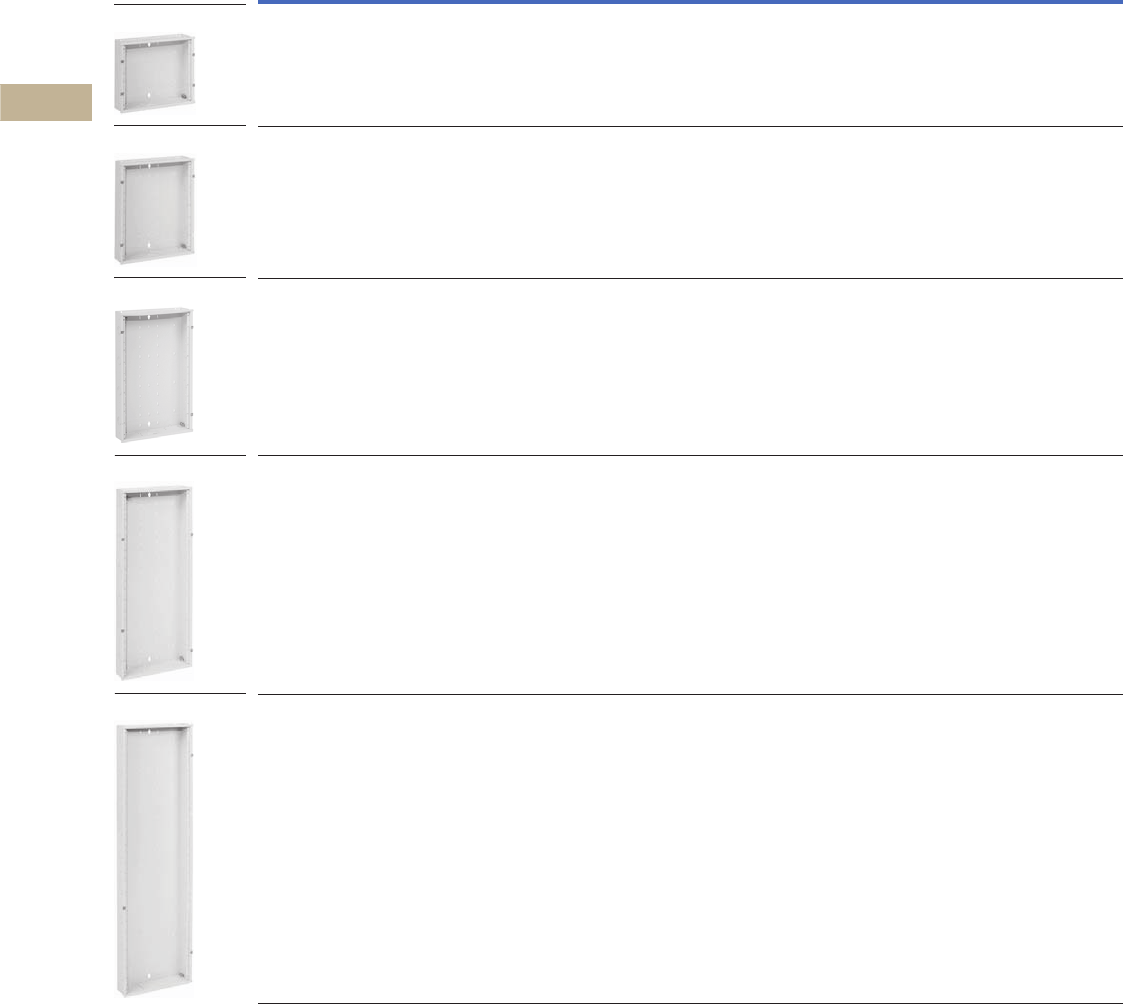

Enclosures

Product Description UPC Code Catalog Number

12 x 14.5 x 4 inch install can. Allows room for three 6-inch modules. Panel includes a

power receptacle and grounding bar.

782116469185 ESWI1200

18 x 14.5 x 4 inch install can with 110V power. Allows room for five 6-inch modules.

Panel includes a power receptacle and grounding bar.

782116904808 ESWI1800

24 x 14.5 x 4 inch install can with 110V power. Allows room for seven 6-inch modules.

Panel includes a power receptacle and grounding bar.

782116904822 ESWI2400

36 x 14.5 x 4 inch install can with 110V power. Allows room for (11) 6-inch modules.

Panel includes a power receptacle and grounding bar.

782116904846 ESWI3600

54 x 14.5 x 4 inch install can with 110V power. Allows room for (17) 6-inch modules.

Panel includes a power receptacle and grounding bar.

78211649284 ESWI5400

ESWI3600

ESWI1200

ESWI1800

ESWI2400

ESWI5400

Volume 1—Residential and Light Commercial CA08100002E—June 2013 www.eaton.com V1-T4-15

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4.1

Structured Wiring

StructuredWiringSolutions

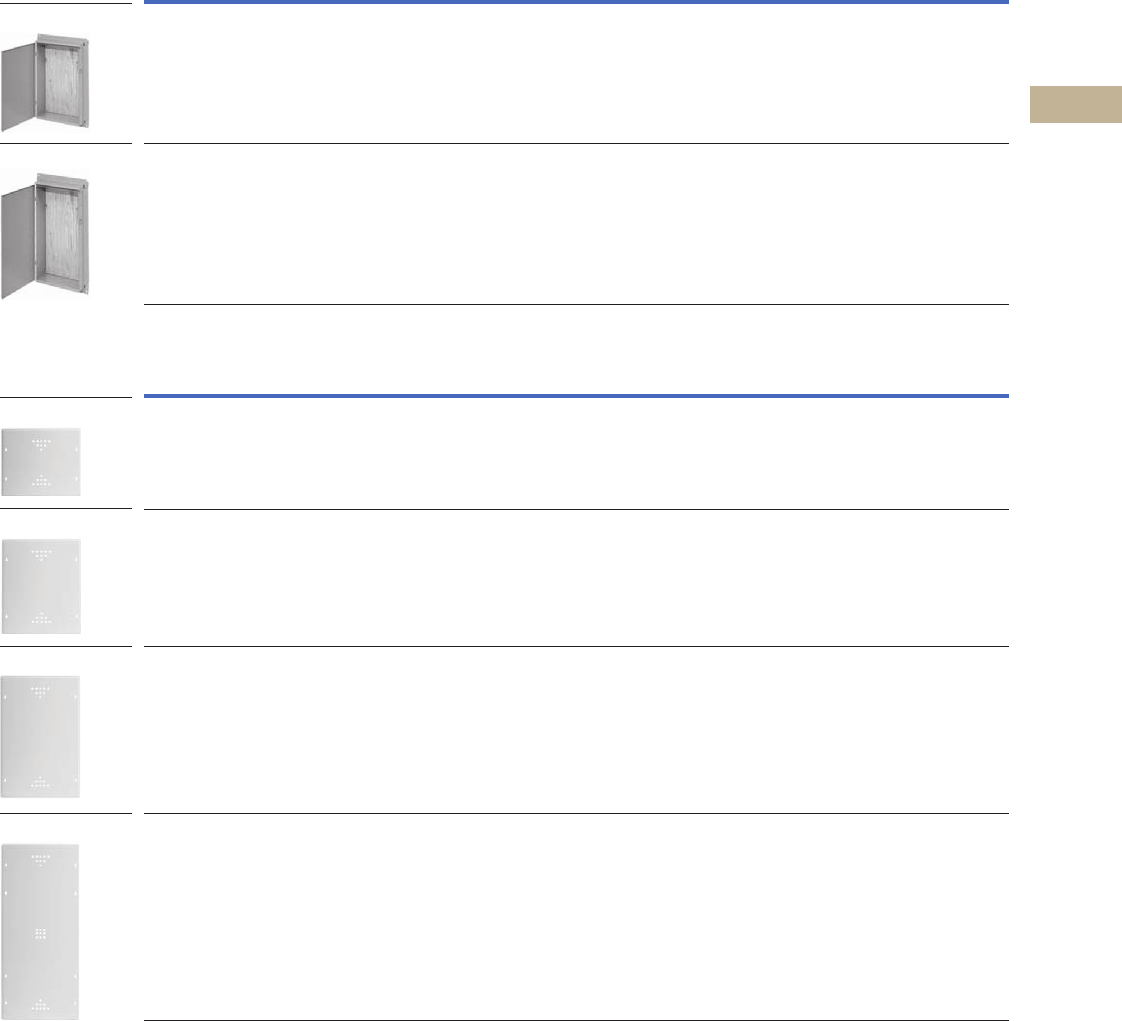

Enclosures, continued

Covers

Product Description UPC Code Catalog Number

24-inch NEMA-3R D-marc box with plywood back. Meets the new SBC and Verizon specifications

for outdoor fiber optic installations. Includes a power receptacle and grounding bar.

782116906581 ESWFDB24

32-inch NEMA-3R D-marc box with plywood back. Meets the new SBC and Verizon specifications

for outdoor fiber optic installations. Includes a power receptacle and grounding bar.

782116906598 ESWFDB32

Product Description UPC Code Catalog Number

17 x 14 inch metal cover for install can ESWI1200. Includes venting for protection

of installed electronic equipment.

782116469192 ESWC1200

17 x 20 inch metal cover for install can ESWI1800. Includes venting for protection

of installed electronic equipment.

782116904815 ESWC1800

17 x 26 inch metal cover for install can ESWI2400. Includes venting for protection

of installed electronic equipment.

782116904839 ESWC2400

17 x 38 inch metal cover for install can ESWI3600. Includes venting for protection

of installed electronic equipment.

782116904853 ESWC3600

ESWFDB24

ESWFDB32

ESWC1200

ESWC1800

ESWC2400

ESWC3600

V1-T4-16 Volume 1—Residential and Light Commercial CA08100002E—June 2013 www.eaton.com

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4.1

Structured Wiring

StructuredWiringSolutions

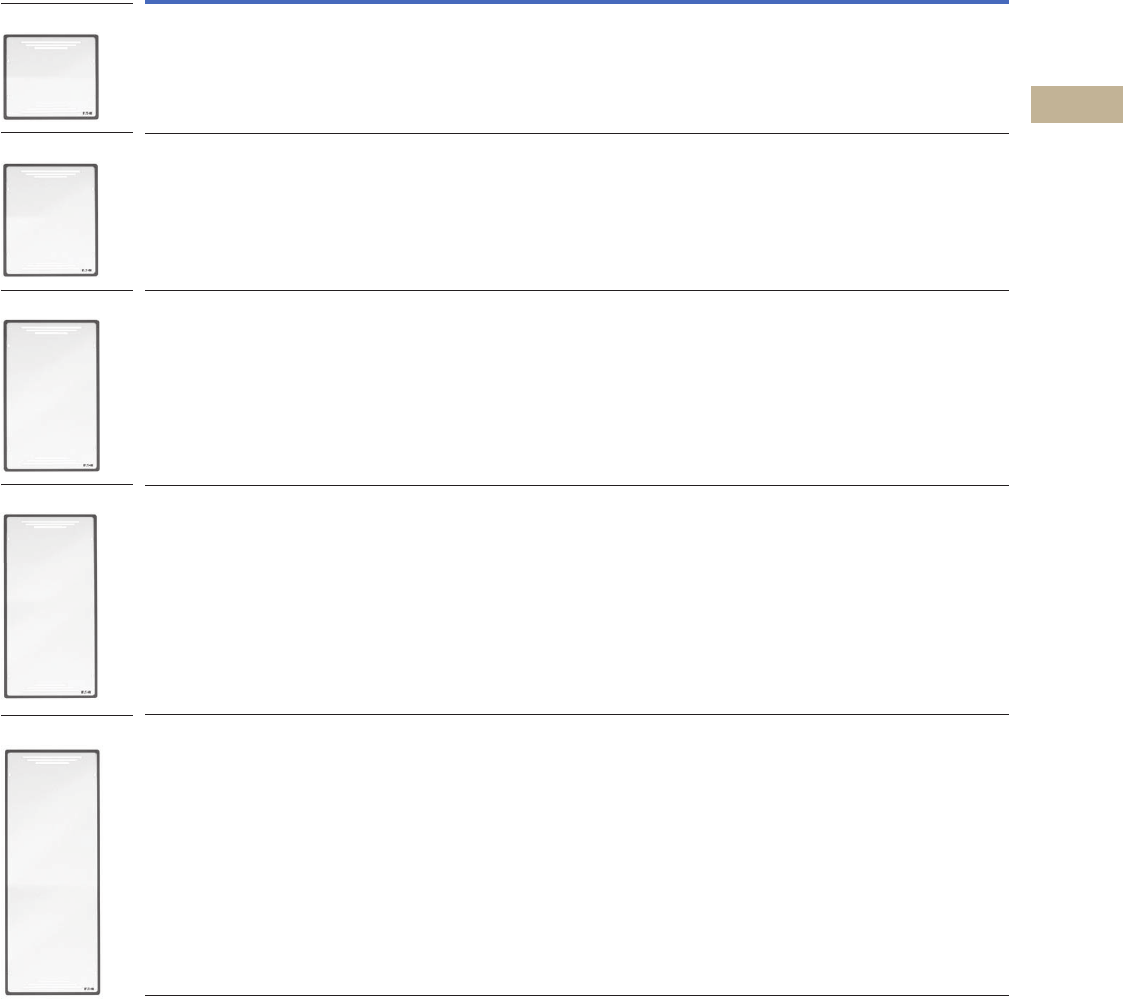

Covers, continued

Product Description UPC Code Catalog Number

17 x 56 inch metal cover for install can ESWI5400. Includes venting for protection

of installed electronic equipment.

782116469291 ESWC5400

17 x 20 inch hinged cover for install can ESWI1800. One cover to a carton. 786685015163 ESWC1800H

17 x 26 inch hinged cover for install can ESWI2400. One cover to a carton. 786685015170 ESWC2400H

17 x 38 inch hinged cover for install can ESWI3600. One cover to a carton. 786685015187 ESWC3600H

17 x 56 inch hinged cover for install can ESWI5400. One cover to a carton. 786685015132 ESWC5400H

ESWC5400

ESWC1800H

ESWC3600H

ESWC2400H

ESWC5400H

Volume 1—Residential and Light Commercial CA08100002E—June 2013 www.eaton.com V1-T4-17

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4.1

Structured Wiring

StructuredWiringSolutions

Covers, continued

Product Description UPC Code Catalog Number

17 x 14 inch clear plastic cover for install can ESWI1200. Includes venting for protection of installed electronic

equipment.

782116469208 ESWC1200P

17 x 20 inch clear plastic cover for install can ESWI1800. Includes venting for protection of installed electronic

equipment.

782116630103 ESWC1800P

17 x 26 inch clear plastic cover for install can ESWI2400. Includes venting for protection of installed electronic

equipment.

782116630110 ESWC2400P

17 x 38 inch clear plastic cover for install can ESWI3600. Includes venting for protection of installed electronic

equipment.

782116630127 ESWC3600P

17 x 56 inch clear plastic cover for install can ESWI5400. Includes venting for protection of installed electronic

equipment.

782116630134 ESWC5400P

ESWC1200P

ESWC1800P

ESWC2400P

ESWC3600P

ESWC3600P

V1-T4-18 Volume 1—Residential and Light Commercial CA08100002E—June 2013 www.eaton.com

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4.1

Structured Wiring

StructuredWiringSolutions

Wall Plates

Product Description UPC Code Catalog Number

One-port wall outlet. One coax TV connection (RG6).

White 782116894703 ESWR100CW

Almond 782116894680 ESWR100CA

Ivory 782116894697 ESWR100CI

Wall hanging telephone wall plate. One CAT5e telephone/data connector.

White 782116894383 ESWR100TW5W

Almond 782116894369 ESWR100TW5A

Ivory 782116894376 ESWR100TW5I

One-port wall outlet. One RJ11 telephone connection (CAT3 rated).

White 782116894765 ESWR100TW

Almond 782116894741 ESWR100TA

Ivory 782116894758 ESWR100TI

One-port wall hanging outlet. One RJ11 telephone connection (CAT3 rated).

White 782116894796 ESWR100TWW

Almond 782116894772 ESWR100TWA

Ivory 782116894789 ESWR100TWI

One-port wall outlet. One RJ45 telephone/data connection (CAT5e rated).

White 782116894734 ESWR100T5W

Almond 782116894710 ESWR100T5A

Ivory 782116894727 ESWR100T5I

Two-port multimedia wall outlet. Telephone/data connection (CAT5e), one coax TV connection (RG6).

White 782116894826 ESWR200W

Almond 782116894802 ESWR200A

Ivory 782116894819 ESWR200I

Three-port multimedia wall outlet. One telephone/data connection (CAT5e), two coax TV connections (RG6).

White 782116894857 ESWR300W

Almond 782116894833 ESWR300A

Ivory 782116894840 ESWR300I

Four-port multimedia wall outlet. Two telephone/data connections (CAT5e), two coax TV connections (RG6).

White 782116894888 ESWR400W

Almond 782116894864 ESWR400A

Ivory 782116894871 ESWR400I

ESWR100CW

ESWR100TW5W

ESWR100TW

ESWR100TWW

ESWR100T5W

ESWR200W

ESWR300W

ESWR400W

Volume 1—Residential and Light Commercial CA08100002E—June 2013 www.eaton.com V1-T4-19

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4.1

Structured Wiring

StructuredWiringSolutions

Wall Plates, continued

Product Description UPC Code Catalog Number

Six-port multimedia wall outlet. Two telephone/data connections (CAT5e), two blanks

(may be populated with CAT5e, coax, or fiber optic connectors), two coax TV connections (RG6),

White 782116894918 ESWR600W

Almond 782116894895 ESWR600A

Ivory 782116894901 ESWR600I

One-port blank receptacle. (Blank face plates.)

White 782116961924 ESWR110W

Almond 782116894925 ESWR110A

Ivory 782116894932 ESWR110I

One-port blank oversized plate.

White 786685242224 ESWRO110W

Almond 786685242231 ESWRO110A

Two-port blank receptacle. (Blank face plates.)

White 782116894970 ESWR210W

Almond 782116894956 ESWR210A

Ivory 782116894963 ESWR210I

Two-port blank oversized plate.

White 786685242248 ESWRO210W

Almond 786685242255 ESWRO210A

Three-port blank receptacle. (Blank face plates.)

White 782116895007 ESWR310W

Almond 782116894987 ESWR310A

Ivory 782116894994 ESWR310I

Four-port blank receptacle. (Blank face plates.)

White 782116895038 ESWR410W

Almond 782116895014 ESWR410A

Ivory 782116895021 ESWR410I

Six-port blank receptacle. (Blank face plates.)

White 782116895069 ESWR610W

Almond 782116895045 ESWR610A

Ivory 782116895052 ESWR610I

ESWR600W

ESWR110W

ESWR210W

ESWR310W

ESWR410W

ESWR610W

ESWR210W

ESWR110W

V1-T4-20 Volume 1—Residential and Light Commercial CA08100002E—June 2013 www.eaton.com

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4.1

Structured Wiring

StructuredWiringSolutions

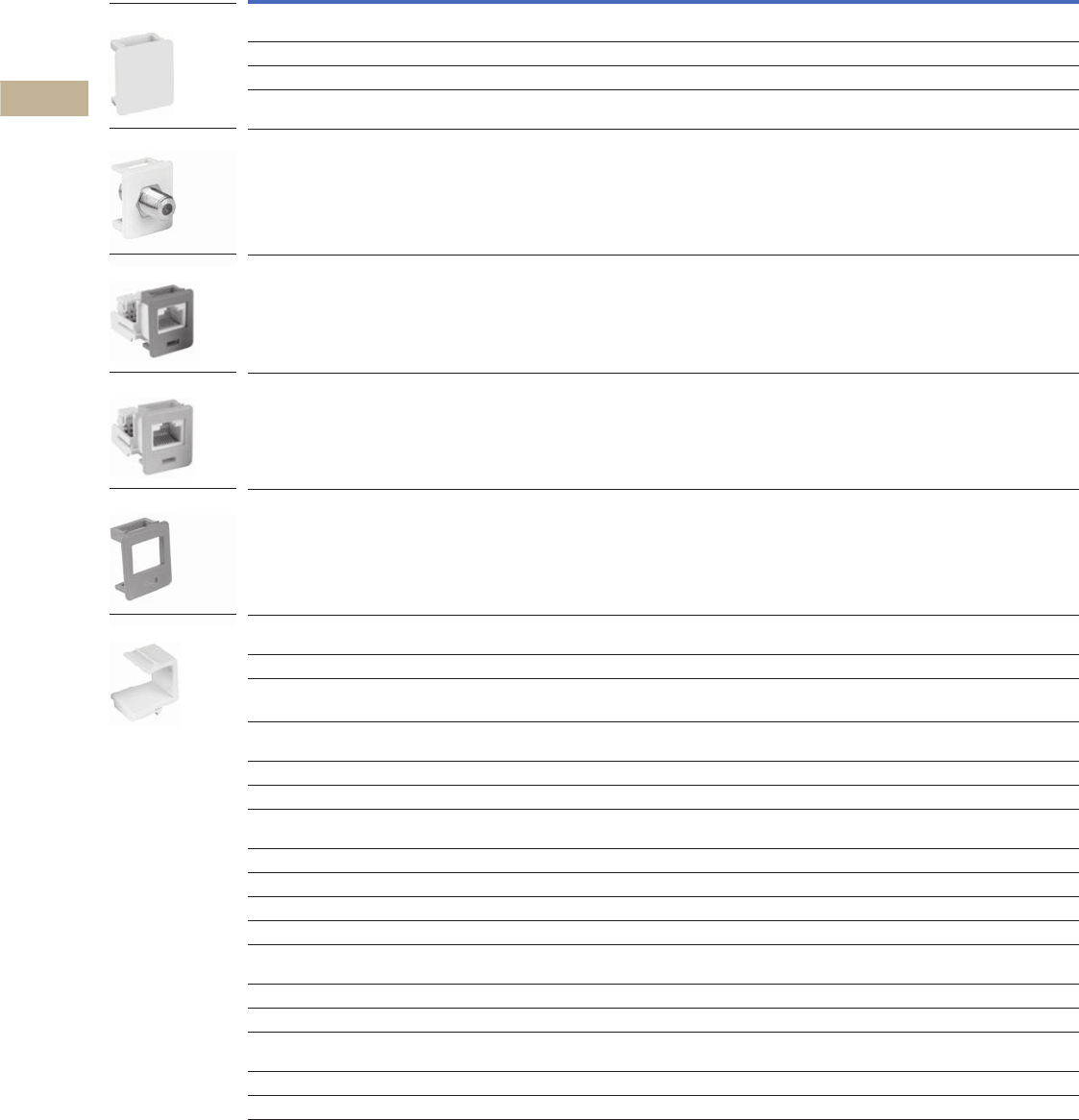

Inserts

Product Description UPC Code Catalog Number

Blank inserts for distribution panel. Sold in 12 pack.

Yellow 782116895106 ESWBLY

Red 782116895083 ESWBLR

Blue 782116895076 ESWBLB

White 782116895090 ESWBLW

RG6 coax connectors for distribution panel. Sold in 12 pack.

Yellow 782116895229 ESWMLC

RJ45, CAT5e rated connectors for distribution panel. Sold in 12 pack.

Blue 782116895212 ESWML5B

CAT5e bezels for distribution panel. Sold in 12 pack.

Orange 782116469215 ESWML5O

CAT5e bezels for distribution panel. Sold in 12 pack.

Blue 782116895113 ESWBZ5

Blank insert for receptacles. Sold in 12 pack.

White 782116895144 ESWINSBLW

Almond 782116895120 ESWINSBLA

Ivory 782116895137 ESWINSBLI

RJ11 wall plate insert. Sold in 12 pack.

White 782116981335 ESWINS11W

Almond 782116981328 ESWINS11A

Ivory 782116981311 ESWINS11I

CAT5e insert for receptacles. Sold in 12 pack.

White 782116895175 ESWINS5W

Almond 782116895151 ESWINS5A

Ivory 782116895168 ESWINS5I

Blue 782116981342 ESWINS5B

Orange 782116981359 ESWINS5O

CAT6 insert for receptacles and patch modules. Sold in 12 pack.

White 786685410609 ESWINS6W

Almond 786685410593 ESWINS6A

Ivory 786685410616 ESWINS6I

RG6 coax inserts for receptacles. Sold in 12 pack.

White 782116895205 ESWINSCW

Almond 782116895182 ESWINSCA

Ivory 782116895199 ESWINSCI

ESWBLY

ESWMLC

ESWML5B

ESWML5O

ESWBZ5

ESWINSBLW

Volume 1—Residential and Light Commercial CA08100002E—June 2013 www.eaton.com V1-T4-21

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4.1

Structured Wiring

StructuredWiringSolutions

Accessories

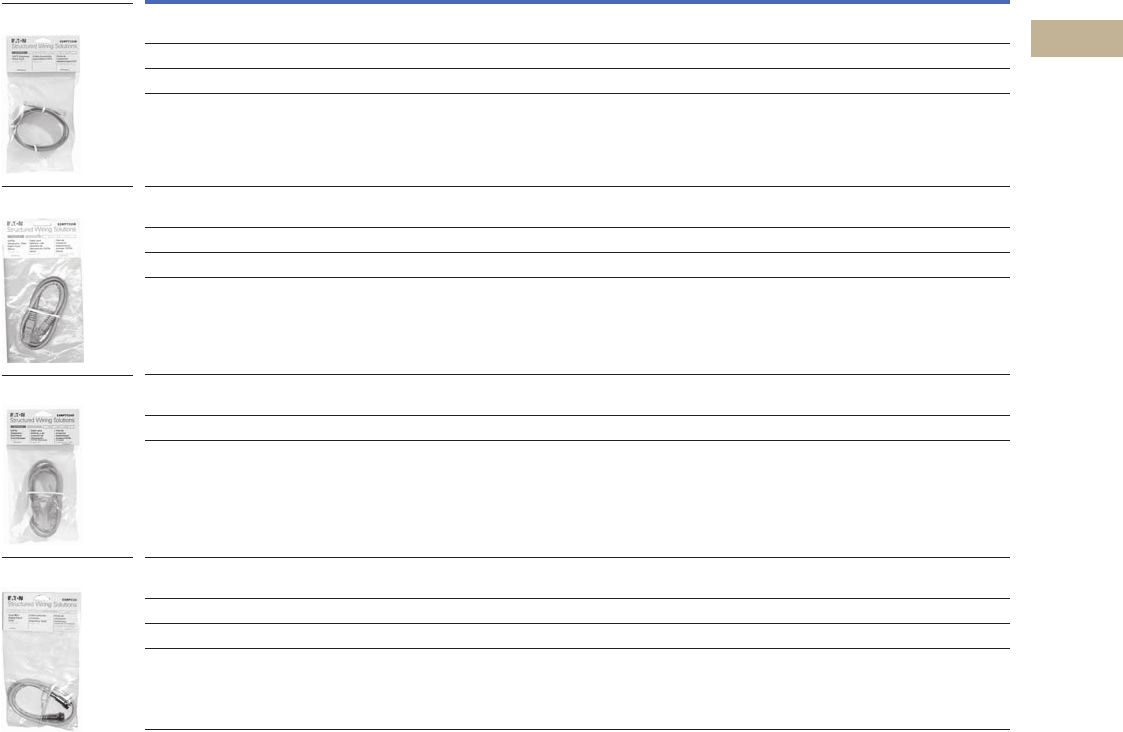

Patch Cords

Product Description UPC Code Catalog Number

Two pair, CAT3 telephone patch cord. Blue

8 inches 782116895267 ESWPT308B

24 inches 782116895274 ESWPT324B

36 inches 782116894390 ESWPT336B

48 inches 782116469239 ESWPT348B

Four pair, CAT5e telephone patch cord. Blue

8 inches 782116895281 ESWPT508B

24 inches 782116895298 ESWPT524B

36 inches 782116894406 ESWPT536B

48 inches 782116469246 ESWPT548B

CAT5e telephone patch cord. Orange

24 inches 782116469253 ESWPT524O

36 inches 782116469260 ESWPT536O

48 inches 782116469277 ESWPT548O

RG6-rated mini digital cable. Yellow

8 inches 782116895236 ESWPC08

24 inches 782116895243 ESWPC24

36 inches 782116895250 ESWPC36

48 inches 782116469222 ESWPC48

ESWPT308B

ESWPT508B

ESWPT524O

ESWPC08

V1-T4-22 Volume 1—Residential and Light Commercial CA08100002E—June 2013 www.eaton.com

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4.1

Structured Wiring

StructuredWiringSolutions
