ELK Products, Inc. | www.elkproducts.com | (800)797-9355
M1 Gold & M1EZ8 Controls
SECURITY • ENERGY & TASK MANAGEMENT • LIGHTING
AUDIO & VIDEO • HOME & BUSINESS CONTROL
M1 Gold & M1EZ8 Controls & Accessories
ELK Products, Inc. | www.elkproducts.com | (800)797-9355
M1 Gold is commonly referred to as a Cross Platform® control due to the fact
that it can be networked with other industry standard systems. A 500+ word
vocabulary pleasantly announces system status, congurable in any sequence,
to alleviate user intimidation. The built-in voice dialer can call up to 8 phone
numbers and alert owners of status changes; such as, critical temperature
levels, water leaks, children arriving home from school, etc. Built-in telephone
remote control allows you to control temperature settings, water heater,
garage door, lighting, and sprinklers plus arming/disarming system and more;
by simply picking up the phone – any phone. Optional Ethernet port allows for
programming,monitoring, and control over LAN or Internet without the need for
a dedicated “24/7” server. Integrators and Installers will value the ash memory
rmware, RS-232 serial port, Ethernet connectivity option, and PC programming
in English text. The LCD keypads have programmable task keys, a navigation
key to access system status and automation tasks, plus large character display.
M1 GOLD
Security & Automation Control
SECURITY • ENERGY & TASK MANAGEMENT • LIGHTING
AUDIO & VIDEO • HOME & BUSINESS CONTROL
M1 GOLD FEATURES:
• Flash Memory - Allows eld updates to rmware
• 16 On-board Input Zones, expandable to 208, analog supported
• Wireless Capability, up to 144 zones with ELK Wireless Receiver
• 13 On-Board Outputs: 1 voice driver/siren, 1 siren driver/voltage,
1 form C relay, and 10 low current (50 mA)
• Two Way Listen-in capability:
- For Central Station alarm verication
- For User, activated through telephone remote control
• Voice announcement of alarms, zone descriptions, status, etc.
- 500+Word / Phrase Vocabulary
- Link up to 6 Words / Phrases per announcement
- 10 custom recordable Words / Phrases
• Built-in Telephone Remote makes any phone a keypad
• Integrated Voice Dialer uses vocabulary or custom word / phrases
• Phone Number Capacity: 8
• On-Board Serial Port, expandable to 8 Serial Ports
• Plug-in Terminals make service and pre-wires a snap!
• Installer Telephone (buttset) Test feature
• Master Power Switch and Low Battery Disconnect
• Multiple Auxiliary Power Terminals
• Built-in Volt and Current Meter
• Time/Date stamped 512 Event History Log
• Menu driven keypad programming - No Manual Required!
• Supports 4 wire (any zone) and 2 wire (zone 16) smoke detectors
• Includes Fire Alarm Verication Routine
• Can be partitioned into 8 separate areas and accounts
• 199 User Codes (4 or 6 digit) with assignable authorities
• Arm levels: Away, Stay, Stay Instant, Nite, Nite Instant,Vacation
• Hardware “Watchdog” and Nonvolatile EEPROM Memory
• Telephone Line Fault with alarm output
• True Modem for fast reliable upload/download
• Digital Dialer: SIA, Contact ID, 4 + 2, and Pager (8 phone numbers)
• ElkRP PC Programming Software includes conict resolution
• Powerful “Whenever/And/Then” RULES Programming
• Rules utilize easy to understand text based references
• Control Lighting using on-board 2-way Power Line Carrier (PLC) or RS-232
Serial Port for On,O, Pre-set Dim, All On, All O, and Scenes/Commands
• Astronomical Clock for Sunset/Sunrise calculation and activation
• Transmit and Receive Custom Serial ASCII strings
• Issue Commands to Distributed Audio Systems (Russound, Nuvo, Procient)
• Read Temperature Sensors and communicate with up to 16 Thermostats
• Turn on Tasks, Lights, and Outputs via Keypad,Touchscreen, and PC browser
• Interfaces with a broad range of other systems
• Heavy duty - 2.5 Amp power supply with 1 Amp continuous
• Dynamic Battery Test, Zone Voltage Display, and Voltmeter
• PTC (fuseless) resettable overload protection
• UL Listed for Residential Burg & Fire, Commercial Burg, and Home Health Care
M1 Gold & M1EZ8 Controls & Accessories
ELK Products, Inc. | www.elkproducts.com | (800)797-9355

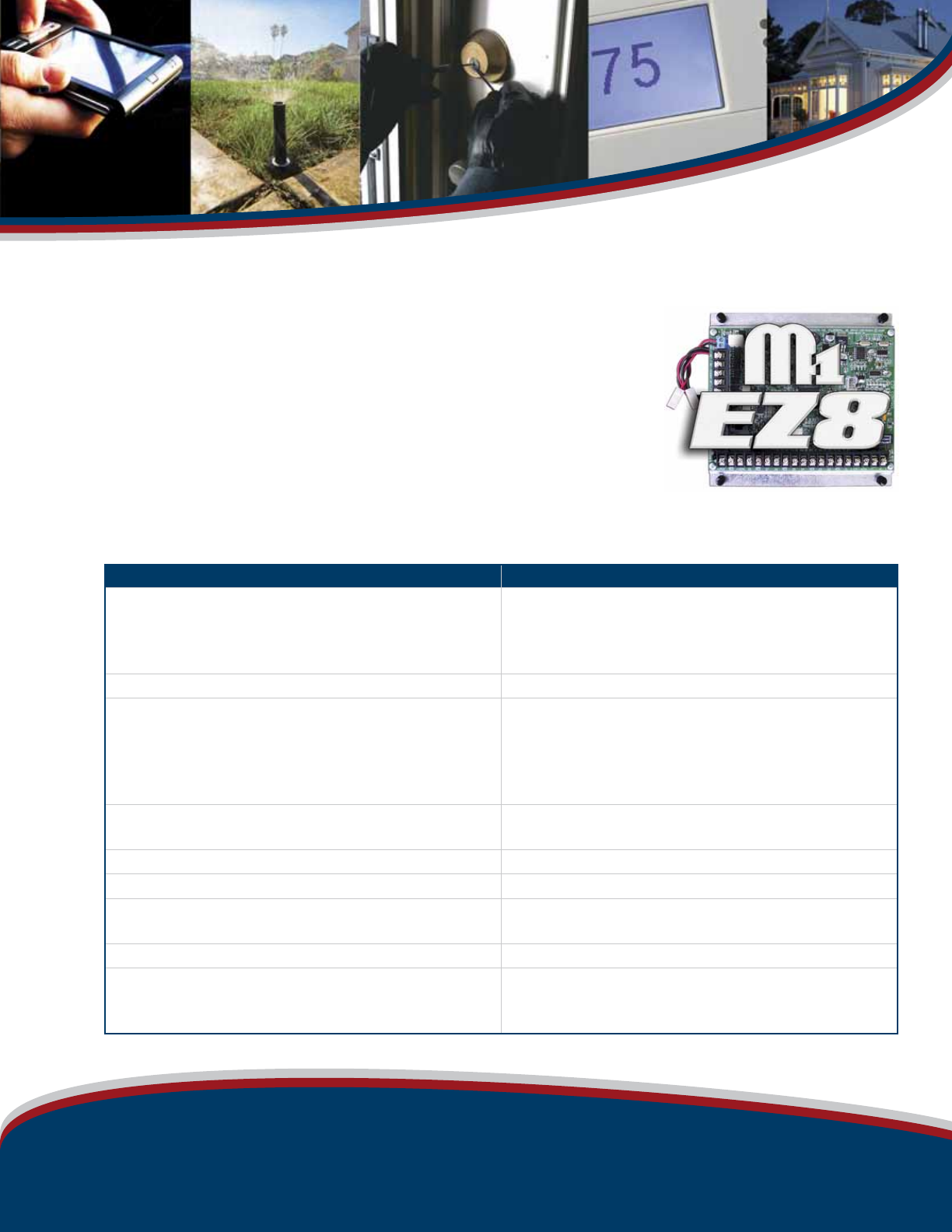

M1EZ8
Economical Security & Automation Control
M1EZ8 offers an economical solution for installations not requiring
the voice and telephone remote control capability of the M1
Gold. Built on the same software architecture as M1 Gold, the
possibilities for expansion, networking with other systems, and
option for programming and control over the internet make M1EZ8
an exceptional value. The chart below outlines the key differences
between the M1 Gold and M1EZ8.
Key Differences Between M1 Gold and M1EZ8
M1 Gold M1EZ8
Voice Capability
• Voice Announcements
• Built-in Telephone Remote Control
• Integrated Voice Dialer
No Voice Capability
16 On-board Input Zones, expandable to 208 8 On-board Input Zones, expandable to 200
13 On-board Outputs, expandable to 205
• 1 voice driver/siren
• 1 siren driver/voltage
• 1 form “C” relay
• 10 low current voltage (50 mA)
12 On-board Outputs, expandable to 204
• 1 siren driver/voltage
• 1 form C relay
• 10 low current voltage (10 mA)
On-Board Serial Port Serial Port available with addition of
ELK-M1EZ8MSI Main Serial Port Interface
Plug-In Terminals Non-removable screw terminals
4 Power Terminals - 3 Auxiliary, 1 Switched Smoke 2 Power Terminals, 1 Auxiliary, 1 Switched Smoke
Master Power Switch and Low Battery Disconnect Master Power Switch and Low Battery Disconnect
switch available with addition of ELK-965
Zone Voltage Display and Volt/Current Meter Zone Voltage Display and Voltmeter
Two Way Listen-In Capability:
• For Central Station Alarm Verication
• User activated through telephone remote control
Two Way Listen-In Capability:
• For Central Station Alarm Verication Only
• Input/Output Expanders
• Two-Way Listen-In Kit
• Wireless Interface
• Audio/Video Interface
• Ethernet Port
• Temperature Sensors
• Door Entry Control
• Serial Port Expanders
Available Options for M1 Gold & M1EZ8 Controls:
M1 Gold & M1EZ8 Controls & Accessories
ELK Products, Inc. | www.elkproducts.com | (800)797-9355

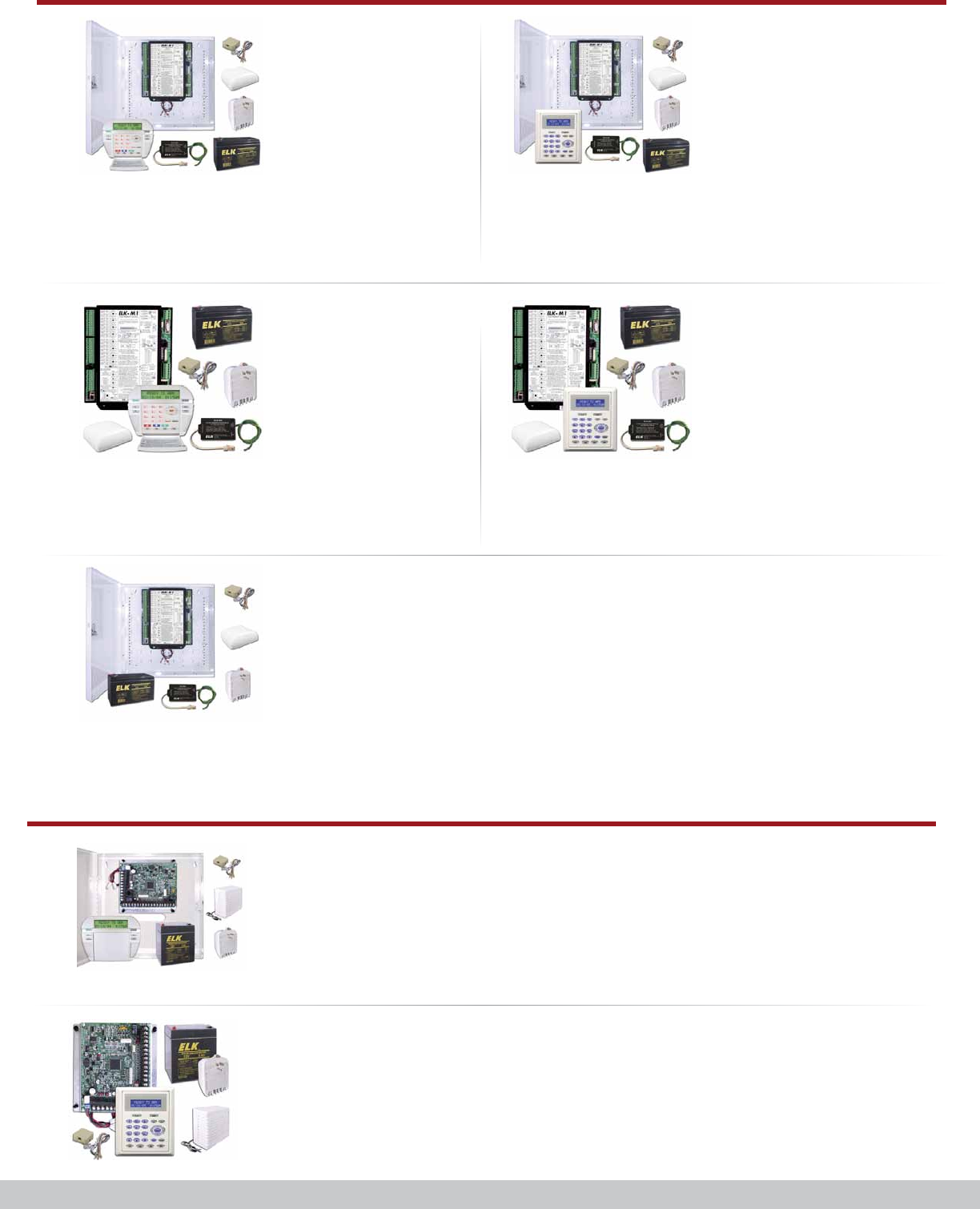

ELK-M1GSYS4
M1 Gold Control Kit
with Enclosure
This “Ready to Install” value
package includes:
• M1 Gold Control Board
• ELK-M1KP LCD Keypad
• ELK-SWB14 Enclosure
• ELK-1280 8Ah Battery
• ELK-TRG1640 AC Transformer
• ELK-73 Echo Paintable
Interior Speaker
• ELK-952 Surge Protector
• ELK-RJSET Telco Jack & Cord
ELK-M1GSYS4S
M1 Gold Control Kit
with Enclosure
This “Ready to Install” value
package includes:
• M1 Gold Control Board
• ELK-M1KP2 LCD Keypad
• ELK-SWB14 Enclosure
• ELK-1280 8Ah Battery
• ELK-TRG1640 AC Transformer
• ELK-73 Echo Paintable
Interior Speaker
• ELK-952 Surge Protector
• ELK-RJSET Telco Jack & Cord
ELK-M1GK
M1 Gold Control Kit
without Enclosure
This “Ready to Install” value
package includes:
• M1 Gold Control Board
• ELK-M1KP LCD Keypad
• ELK-1280 8Ah Battery
• ELK-TRG1640 AC Transformer
• ELK-73 Echo Paintable
Interior Speaker
• ELK-952 Surge Protector
• ELK-RJSET Telco Jack & Cord
ELK-M1GKS
M1 Gold Control Kit
without Enclosure
This “Ready to Install” value
package includes:
• M1 Gold Control Board
• ELK-M1KP2 LCD Keypad
• ELK-1280 8Ah Battery
• ELK-TRG1640 AC Transformer
• ELK-73 Echo Paintable
Interior Speaker
• ELK-952 Surge Protector
• ELK-RJSET Telco Jack & Cord
M1 Gold System Packages
This “ready to install” value package includes:
M1EZ8 Control, UB12 metal enclosure, M1KP LCD
Keypad, ELK-1250 5Ah battery, ELK-RJSET, SP35
speaker, plus Lifetime warranted ELK-TRG1640
transformer.
ELK-M1EZ8KB Pictured
ELK-M1EZ8KB ELK-M1EZ8KBS
This “ready to install” value package includes:
M1EZ8 Control, M1KP LCD Keypad, ELK-1250
5Ah battery, ELK-RJSET, SP35 speaker, plus
Lifetime warranted ELK-TRG1640 transformer.
ELK-M1EZ8KS Pictured
ELK-M1EZ8K ELK-M1EZ8KS
M1EZ8 System Packages
This “ready to install” value package includes:
M1EZ8 Control, UB12 metal enclosure, M1KP2 LCD
Keypad, ELK-1250 5Ah battery, ELK-RJSET, SP35
speaker, plus Lifetime warranted ELK-TRG1640
transformer.
M1EZ8 Control Kits With Enclosure
This “ready to install” value package includes:
M1EZ8 Control, M1KP2 LCD Keypad, ELK-1250
5Ah battery, ELK-RJSET, SP35 speaker, plus Lifetime
warranted ELK-TRG1640 transformer.
M1EZ8 Control Kits Without Enclosure
This “Ready to Install” value package includes:
• M1 Gold Control Board
• ELK-SWB14 Enclosure
• ELK-1280 8Ah Battery
• ELK-TRG1640 AC Transformer
ELK-M1GSYS3
M1 Gold Control Kit with Enclosure (No Keypad)
• ELK-73 Echo Paintable Interior Speaker
• ELK-952 Surge Protector
• ELK-RJSET Telco Jack & Cord
M1 Gold & M1EZ8 Controls & Accessories
ELK Products, Inc. | www.elkproducts.com | (800)797-9355
ELK-M1XEP
Ethernet Interface
Internet
ELK-TS071
7” Touchscreen
ELK-M1DBH
Data Bus Hub
Network & Internet
Connectivity
ELK-M1KAM
Access Module
ELK-M1XOVR
Output Expander
ELK-M1XRF(2G or 2H)
Wireless Receiver
ELK-M1XSP
Serial Expander
ELK-M1XSP
Serial Expander
ELK-106055
Prox Reader
Door Strike
or Mag Lock
Door Contact
Door Entry
Control
Lighting Controller
Lighting Control
Thermostat Control
Sprinkler Systems
Garage Doors Gates
Shades/Blinds
Output Expansion
Up to 16 Thermostats
Compatible transmitters can be purchased through you local distributor. See
wireless receiver specifi cations for information on compatible transmitters
Wireless Expansion
Keychain Remotes Door/Window Contacts Motion Detectors Glass Break
Detectors Smoke Detectors
For more details on integration and
expansion, including manuals and
hookup diagrams, please visit
www.elkproducts.com

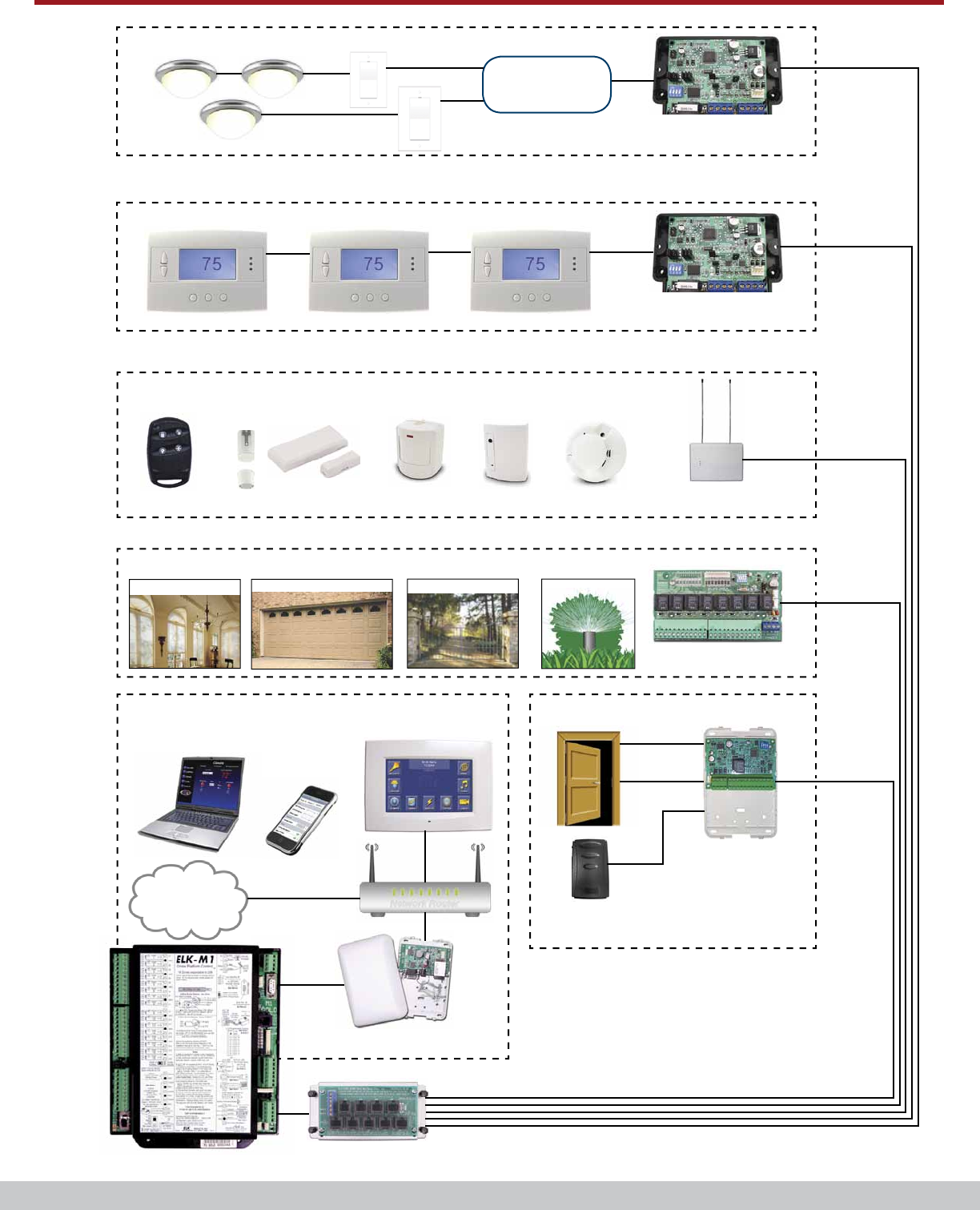

Integration & Expansion at a Glance
M1 Gold & M1EZ8 Controls & Accessories
ELK Products, Inc. | www.elkproducts.com | (800)797-9355

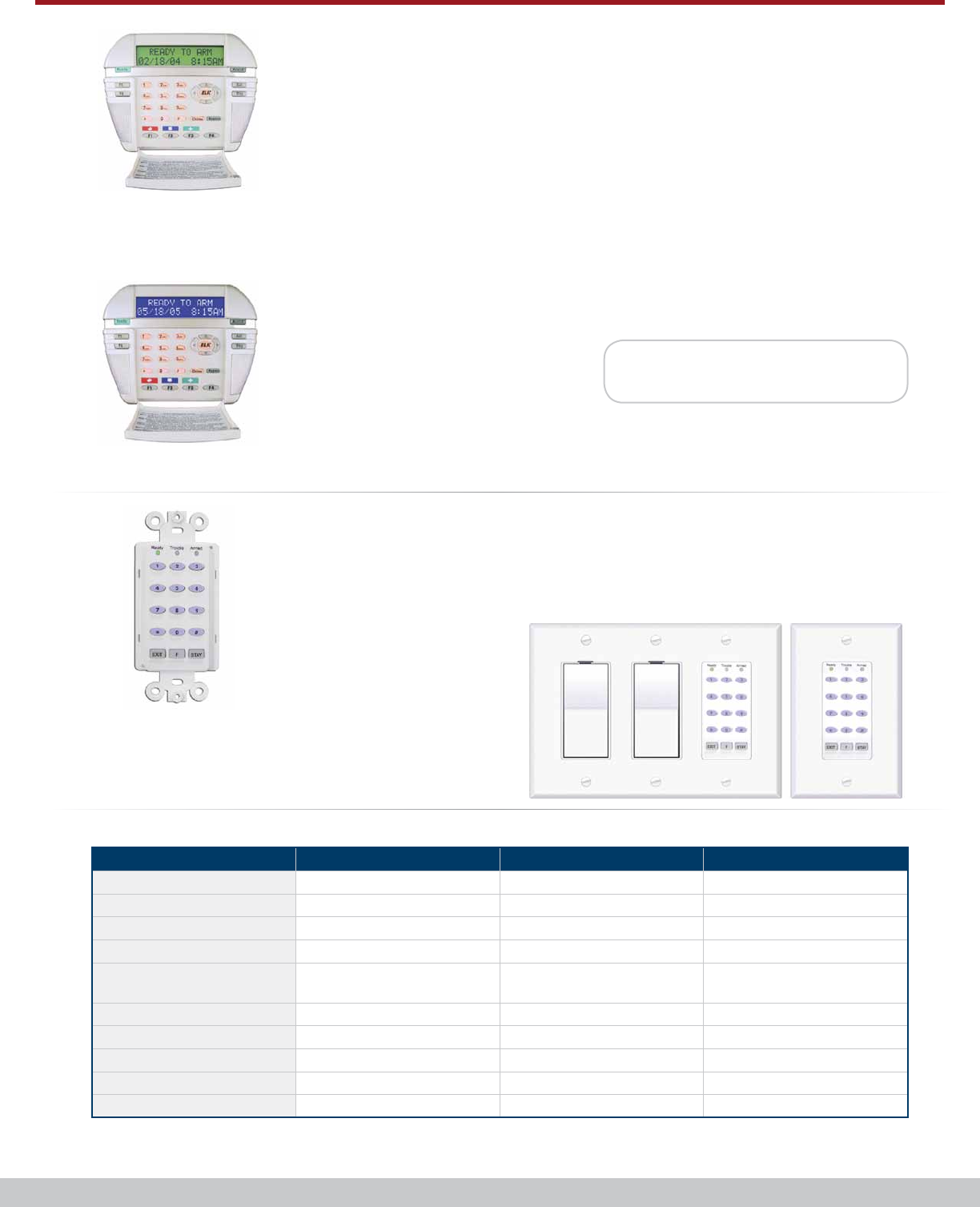

ELK-M1KP ELK-M1KPB ELK-M1KPAS
Physical Dimensions 6.87”W x 5.25”H x 1.32”D 6.87”W x 5.25”H x 1.32”D 1.81”W x 2.75”H x 1”D
Door Cover Yes Yes No
Zone Input Yes (1) Yes (1) No
Programmable Output Yes (1) Yes (1) No
Optional 26-Bit Wiegand
Proximity Reader Yes- Internal & External Yes- Internal & External No
Internal Temp Sensor Yes Yes No
Function “F” Keys 6 6 6- Press “F” Key, then 1-6
LCD Backlighting Green Blue N/A
Key Backlighting Amber Amber Blue
Mounting Options Surface Mount Only Surface Mount Only Mounts in Std. Electrical Box
Keypad Feature Comparison
Arming Station
Small, economical, arm/disarm station for M1 Controls ts into single gang box and utilizes a standard
decorator style faceplate (not included). Displays basic system status with 3 LEDs: Green “Ready”,
Yellow “Trouble”, and Red “Armed”. The 12 button keypad is backlit with blue LEDs and has quick
arm keys for “Exit” and “Stay”. The M1KPAS also provides access to six (6) programmable function
operations by pressing the “F” (Function) key followed by one of the keys (1 thru 6).
ELK-M1KPAS
• Blue Backlit Keys
• Instant Activation of 6 Tasks
• Built-in Piezo Sounder
• Quick Arm Exit & Stay Keys
• LED Status Indication
• Connection: 4 Pin Plug-in
“Flying Lead” Connector (Included)
• Color: White
• Operating Voltage: 13.8VDC
• Size: 1.81” x 2.75” x 1.13”
LCD Keypad
The ELK-M1KP is an addressable LCD Keypad for M1 Controls. It features a 32 character, backlit
display with adjustable intensity and extra large character fonts, improving readability. Six (6) function
(“F”) keys can be programmed to contact emergency services or perform tasks; such as, controlling
lights, watering the lawn, closing or opening the garage door, etc. The ELK navigation keys easily guide
you through the full list of automation tasks, programming, systems diagnostics, and more. An optional
plug-in proximity reader is available allowing prox card or fob arming, disarming, door strike control, etc.
The fold down door features magnetic closure and can be completely removed, if desired.
ELK-M1KP
Green LCD Display
ELK-M1KPB
Blue LCD Display
• Backlit, Large Character LCD Display,
16 x 2 lines
• Six (6) programmable function keys
• Unique Menu Navigation/Direction keys
• Adjustable volume for tones/chime
• Accepts Plug-in Proximity Reader (ELK-M1PR)
or “External” 26 bit Wiegand Prox Reader
• Built-in Temperature Sensor
• Input for 1 Supervised Zone
• One Programmable “Switched Positive”
Voltage Output
• Exit, Stay, Chime, and Bypass Keys
• Programmable display of time,
date, & temperature
• Displays system diagnostics and settings
• Input Connection: 6 Pin Plug-In "Flying Lead"
Connector (Included)
• Operating Voltage: 13.8 Volts DC
• Current Draw: 40-50mA Idle (low backlight,
sound silent) 160mA fully active
• Color: Glacier White
• Size: 6.875" x 5.25" x 1.375"
Connect any 26-bit Wiegand External Proximity
Reader to the ELK-M1KP or ELK-M1KPB using
the ELK-W035A wiring harness (not included).
User Interfaces
M1 Gold & M1EZ8 Controls & Accessories
ELK Products, Inc. | www.elkproducts.com | (800)797-9355
LCD Keypad
The ELK-M1KP3 is an addressable, surface mount LCD Keypad for M1 Controls. It features a 32
character blue/white backlighted display, blue lighted keys, 4 programmable function keys, along with
the ELK menu navigation keys. The M1KP3 is compatible with “external” 26 bit Wiegand proximity
readers, allowing cards or fobs to be used for arming, disarming, or limited door strike control, etc. It
features a hinged door over the keys.
• Blue/white Backlighted Hi-Contrast LCD Display
• Four (4) Programmable Function Keys
• Unique Menu Navigation/Direction Keys
• Tones/Chime
• Accepts “External” 26 bit Wiegand Prox Reader
• Input for 1 Supervised Zone
• One Programmable “Switched Positive”
Voltage Output
• Exit, Stay, Chime, and Bypass Keys
• Programmable display of time & date
• Displays system diagnostics and settings
• Surface mount only without electrical box
• Connection: 6 Pin Plug-in "Flying Lead"
Connector (Included)
• Color: White
• Operating Voltage: 13.8VDC
• Current Draw: 40-50 mA Idle (low back light
level, sounder silent) 160 mA Fully Active (max.
back light & sounder active)
• Size: 3.97" x 5.425" x 1.19"
M1KP2 M1KP3
Physical Dimensions 4.65”W x 5.5”H x 1.32”D 3.97”W x 5.43”H x 1.19”D
Door Cover No Yes
Zone Input Yes (1) Yes (1)
Programmable Output Yes (1) Yes (1)
Optional 26-Bit Wiegand
Proximity Reader Yes- External Only Yes- External Only
Internal Temp Sensor No No
Function “F” Keys 4 4
LCD Backlighting Blue Blue
Key Backlighting Blue Blue
Mounting Options Surface or Flush Mount* Surface Mount Only
ELK-M1KP3
Connect any 26-bit Wiegand External Proximity
Reader to the ELK-M1KP3 using the
ELK-W039A wiring harness (not included).
Low Prole LCD Keypad
The ELK-M1KP2 is a low prole, addressable LCD Keypad for M1 Controls. It features a 32 character
blue/white backlighted display, blue lighted keys, 4 programmable function keys, along with the ELK
menu navigation keys. It may also be recessed, “ush” mounted, using a separately purchased back
box kit (ELK-M1BBK2).The M1KP2 is compatible with “external” 26 bit Wiegand proximity readers,
allowing cards or fobs to be used for arming, disarming, or limited door strike control, etc.
• Blue/white Backlighted Hi-Contrast LCD Display
• Four (4) Programmable Function Keys
• Unique Menu Navigation/Direction Keys
• Tones/Chime
• Accepts “External” 26 bit Wiegand Prox Reader
• Input for 1 Supervised Zone
• One Programmable “Switched Positive”
Voltage Output
• Exit, Stay, Chime, and Bypass Keys
• Programmable display of time & date
• Displays system diagnostics and settings
• Surface mounts to a standard 1 or 2 gang
electrical box
• Optional recessed, “ush” mount, kit available
(ELK-M1BBK2)
• Connection: 6 Pin Plug-in "Flying Lead"
Connector (Included)
• Color: White
• Operating Voltage: 13.8VDC
• Current Draw: 40-50 mA Idle (low back light
level, sounder silent) 160 mA Fully Active (max.
back light & sounder active)
• Size: 4.658" x 5.5" x .95" (.375" D with
recess mount)
• Optional ELK-M1BBK2 Recess Back Box Size:
4.312” x 5.375” x 1”
Connect any 26-bit Wiegand External Proximity
Reader to the ELK-M1KP2 using the
ELK-W039A wiring harness (not included).
Keypad Feature Comparison
ELK-M1KP2
*requires M1BBK2
M1 Gold & M1EZ8 Controls & Accessories
ELK Products, Inc. | www.elkproducts.com | (800)797-9355
Graphic Designer Software for ElkRMS
RM Designer Software allows complete customization of the ElkRM Graphic User Interface Software for
ELK-M1 Security & Automation Controls. Create totally unique custom pages, including backgrounds,
colors, buttons, text, information boxes, etc.
• Provides simple to complex graphic user
interface customization
• Create graphic interfaces of any size
or resolution
• Easy to use background and button
creation tools
• Synchronization feature allows RMDesigner to
display item descriptions programmed into the
M1 Control
• Save setup & graphic changes to individual
project folders for future use
• Build designs directly to USB Flash drives or
other removable storage for easy transfer to
ELK touchscreens
• Built-in setup utility for audio, video, and links
• Easily share designs with Import feature
• Supported Operating Systems: Win 2000, XP,
Vista, Server 2003
• Requires .NET 2.0 Framework
• Requires 20MB or more hard drive space
• Requires minimum 1 GHz Processor
• Requires minimum 1GB RAM
ELK-RMDESIGNER
Due to the licensing requirements, ELK
has chosen to sell this product directly to
the professional installers and not through
distribution. Visit www.elkproducts.com for
more details.
ELK-RM

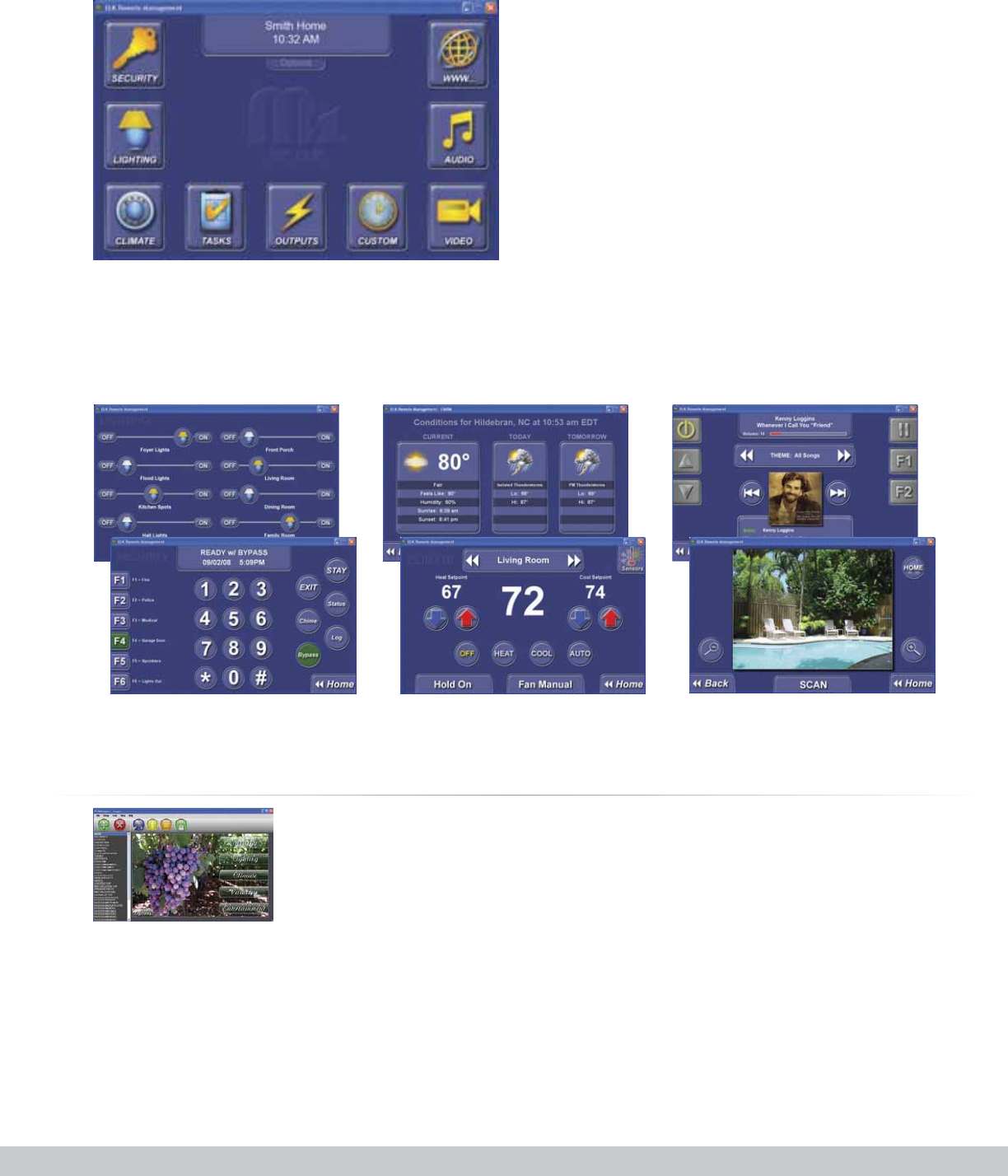

Remote Management Software (RMS)
Consumer Software Designed for PCs and Elk Touchscreens*
RMS provides a powerful graphic interface to the M1Gold and
M1EZ8 controls. This redesigned software allows control of many
aspects of the system including security, lighting, climate, tasks,
outputs, audio** and more. RMS also provides access to video
imagery from certain brands of IP accessible cameras and DVRs,
weather information, and links to frequently visited websites.
The software connects to an M1Gold or M1EZ8 control through
the main serial port or over a local network (network
connectivity requires the ELK-M1XEP Ethernet Interface).
Software setup is a snap with the convenient synchronize feature,
which automatically populates each page based on system
programming. RMS can be customized to the installation by
hiding unused categories.
When Ordering ELK-RM Please Note:
RMS PC Edition requires a product key license to obtain full functionality with a control. A product key license may be purchased through your Authorized
Elk Reseller. The serial number from the control must be provided to the reseller when ordering. Until a product key has been purchased and entered
into RMS, it will run in DEMO mode, allowing only limited functionality. If you wish to receive the license key via email without having a CD shipped to
you, please order Part# ELK-RMNCD
System Requirements:
• Supported Operating Systems (PC): Windows 98SE, ME, 2000 (Service Pack 3) , XP Home & Pro (Service Pack 2), or Server 2003
• Computing Device running Microsoft .NET 2.0 Framework
• Total Disk Space Requirements: 285 MB
(280 MB for .NET 2.0 and 5 MB for ElkRM)
• Memory Requirements: Minimum 64 MB RAM
• Screen Resolution: 800 x 480
** RMS included on ELK Touchscreens
** Distributed Audio partners currently include: Russound, Nuvo, and Procient.
Additional hardware and rmware revisions may be required. For complete
details including a listing of compatible partner product model numbers,
including IP cameras, DVRs, etc. please visit www.elkproducts.com
Not a Graphic Designer? Elk can provide a main (home) screen with your logo for a nominal fee. Ask about- ELK-CFD256.
M1 Gold & M1EZ8 Controls & Accessories
ELK Products, Inc. | www.elkproducts.com | (800)797-9355
M1Gold & M1EZ8 Accessories
Main Serial Port for EZ8
The main serial interface for ELK-M1EZ8, required for interfacing M1EZ8 with a PC for upload/
download. Also required when adding the M1XEP Ethernet port. Baud rate programmable up to
115,200 baud.
• Housing Size: 4.375" x 3" x 1.25"
• Board Size: 3.375" x 2.25"
• Powerline lighting pass-through
connector for PSC05 (or
equivalent) interface
ELK-M1EZ8MSI
M1 Ethernet Port Interface
Allows M1 Controls to be connected to the Internet or LAN (network) for programming, monitoring,
remote control, email notications, etc. Requires permanent broadband connection; Cable Modem,
DSL,T1, etc.
• Includes Web Server with embedded Java
Applet "M1 Virtual Keypad"
• Secure connection with password protection
and HTTPS encryption
• Event notication via Email (SMTP)
• Supports automatic Dynamic DNS Updates with
providers using the DynDNS protocol
• Supports Network Time Protocol for
synchronizing the M1Gold/M1EZ8 clock with an
Internet time server
• LED indicators for Power, Link, and Data
• Flash Memory for rmware updating
• Operating Voltage: 12VDC Regulated
• Current Draw: Approximately 300mA
• Housing Size: 4.25" x 6.375" x 2.125"
• Board Size: 2.25" x 3.95"
• Includes ELK-P1216 Switching Power
Supply and Serial Cable
ELK-M1XEP

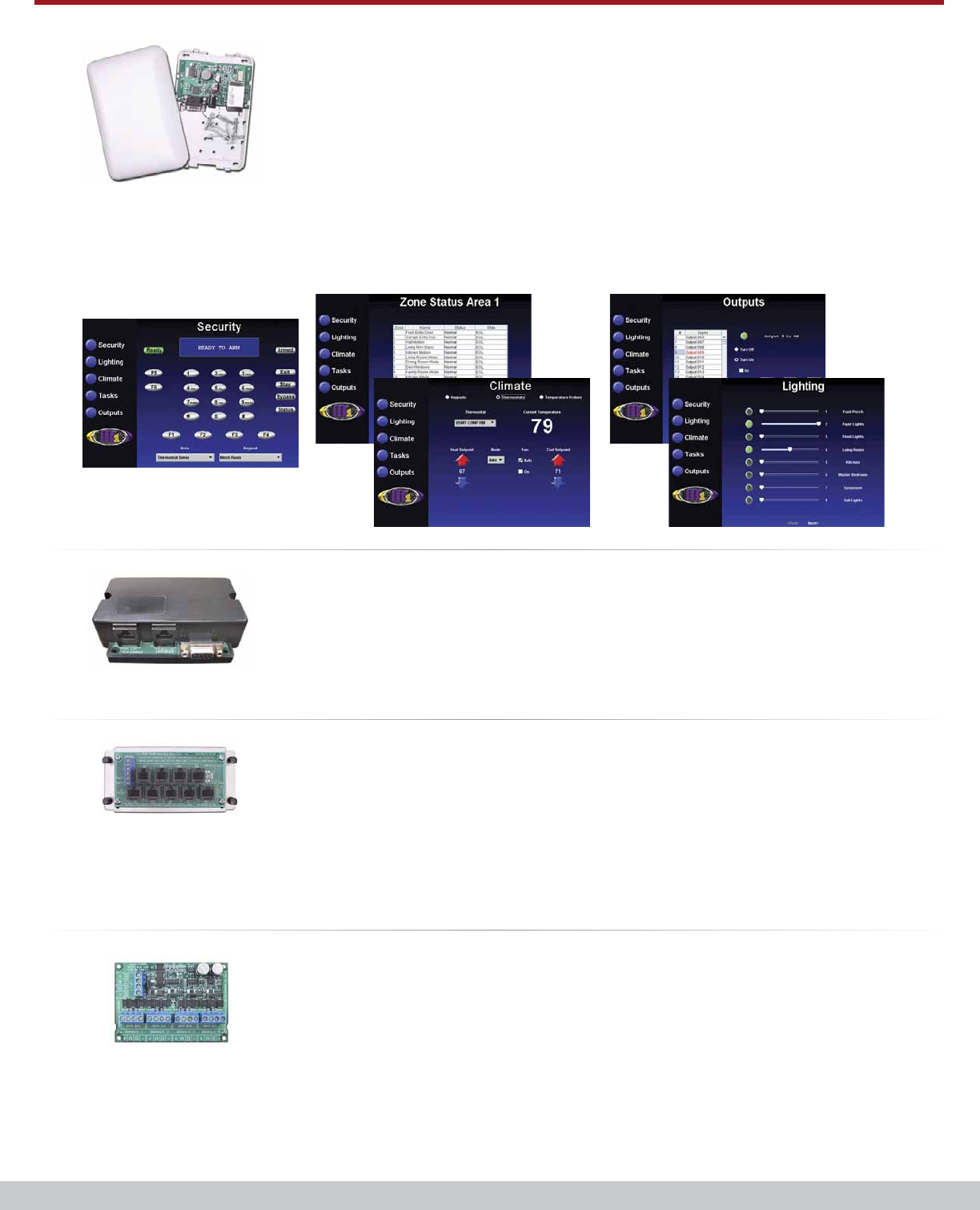

Virtual Keypad Screens
M1 Data Bus Hub for Retrot
Active RS-485 data bus hub for retrotting older panels with multiple home run, 4 conductor keypad/
data wires with M1 Controls. The end of each cable is EOL terminated to insure proper operation
and supervision.
• Splits main data bus into 4 managed
RS-485 branches.
• Each branch can have 2 parallel home run
cables for total of 8 home runs
• Works with standard 4 conductor home
run wiring
• Inputs: Elevator Screw Terminals (4 position)
• Output: Elevator Screw Terminals (4 position)
• Includes ELK-SWG for easy mounting
in ELK enclosure
• Circuit Board Size: 4.9" x 2.75" x .5”
ELK-M1DBHR
M1 Data Bus Hub
For easy connection of expanders & keypads. The M1DBH accepts up to 9, RJ45 equipped CAT5 or
CAT6 cables, and series connects the data A & B lines so the data bus may be terminated properly.
• Designed for multiple home run cables
• Internally connect Data A & B lines from
previous device into next device out
• Multiple Hubs may be connected for expansion
• EOL Bus Termination done on-board with
included RJ-45 Terminator Plug
• Input Connectors: Elevator Screw Terminals
• Output Connections: RJ-45, 8-Pin Jacks
• Mounting Plate Size: 6.5" x 3" x .5"
• Circuit Board Size: 5" x 2.5" x .75”
• Easily snaps into Elk enclosure
ELK-M1DBH
M1 Gold & M1EZ8 Controls & Accessories
ELK Products, Inc. | www.elkproducts.com | (800)797-9355

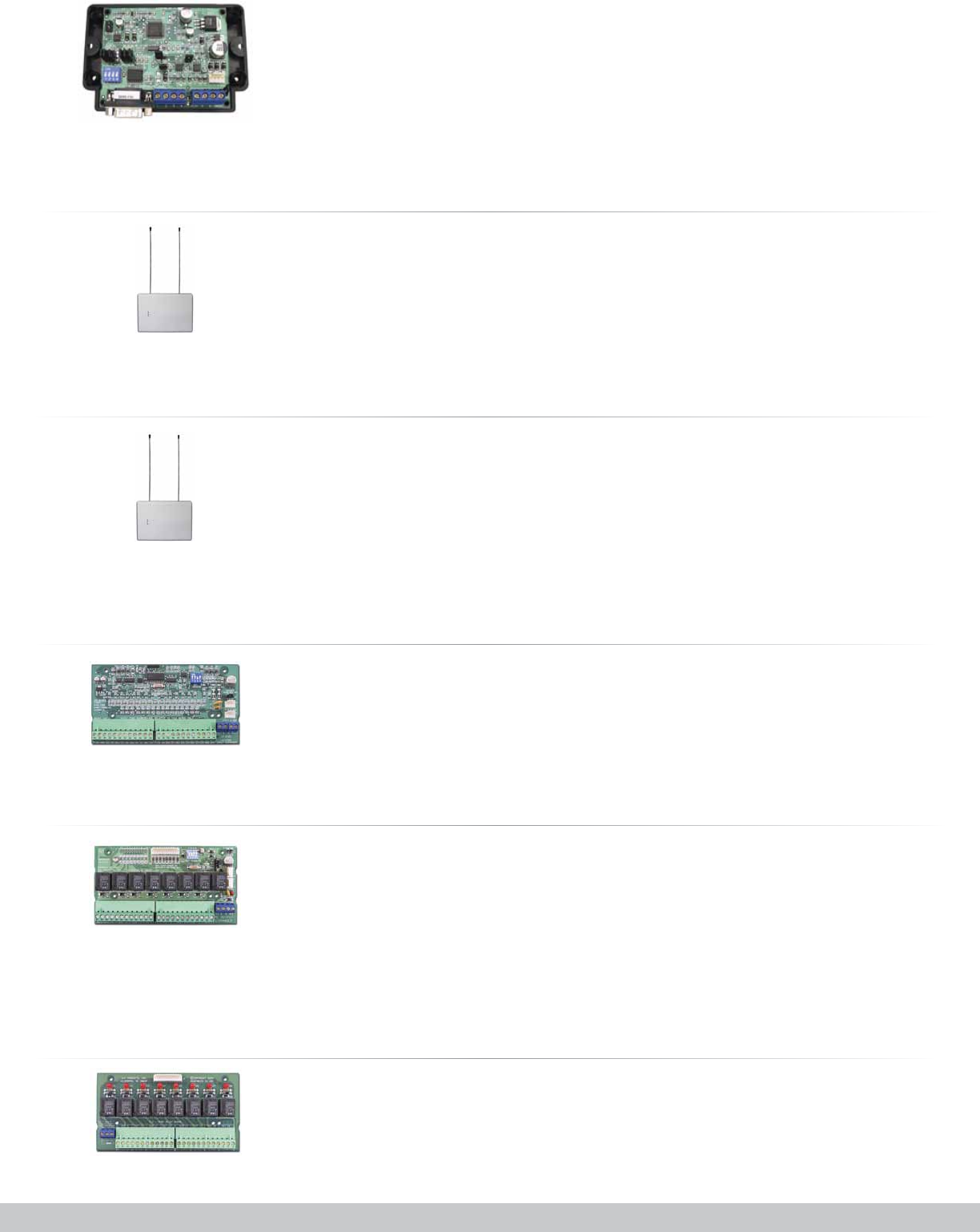

M1 16 Zone Input Expander
Adds 16 hardwired zones (with or without EOL resistor supervised) to the M1 Controls. Up to 12 may be
added, increasing the M1Gold to 208 and the M1EZ8 to 200 total zones (inputs)
• Operates from 4-wire data bus.
• Dip Switch address settings
• Flash Memory for rmware updating
• Plug-in terminal strips
• Status and diagnostic LED
• Operating Power Range: 9 to 14VDC
• Current Draw: 65mA
• Size: 6" x 3.25" x .75"
• Includes ELK-SWG for easy mounting in
ELK enclosure
ELK-M1XIN
M1 16 Output Expander, 8 Voltage & 8 Relays
Adds 16 outputs (8 voltage, 8 relays) to M1 Controls. Voltages can be used to trigger low current
devices (50 mA max. each). Operates from 4-wire data bus. Up to 12 output expanders may be used
for a total of 205 outputs. Option: convert 8 voltage outputs to relays using M1RB Relay Board.
• Operates on the 4 wire Data Bus
• Up to 12 Output Expanders may be added
• DIP Switch address settings
• Flash Memory for Firmware Updating
• Includes 12 conductor "Flying Lead"
Wire Harness
• Status LED with Diagnostic Display
• Relays: SPDT rated for 7A @ 28VDC,
10A @ 125 VAC.
• Voltage Outputs: 12VDC @ 50mA each
• Operating Power Range: 9 to 14VDC
• Current Draw 65mA Nom., 330 mA Max
• Size: 6" x 3.25" x .75"
• Includes ELK-SWG for easy mounting in
ELK enclosure
ELK-M1XOVR
M1 Relay Board, Plug-in
Used to convert the M1 Controls voltage outputs into SPDT relays.
• Relay Contact Ratings: 7A @ 28VDC,
10A @ 125VAC
•Wire harness length: 24”
• Current draw: 0mA idle, 250mA max
• Size: 6” x 3.25” x. 75”
• Provides 8 Relay Outputs
• Plugs directly into M1 Controls or ELK-M1XOVR
• Includes ELK-SWG for easy mounting in
ELK enclosure
ELK-M1RB
M1 Wireless Receiver for GE Crystal Transmitters
Wireless (RF) Receiver and Input Expander for use with M1 Controls.
• Adds up to 144 individual wireless zones
(sensors/points)
• Compatible with GE Crystal Transmitters
• Operates from 4 wire data bus
• Multiple receivers (up to 11) may be connected
to a single M1 or M1EZ8 Control for redundancy
or greater coverage
• Flash Memory for rmware updating
• Sensitivity: >105 dbm
• Operating Temperature: 0 to +120 degrees F
• Operating Voltage: 12 Volts D.C.
• Current Draw: 70mA
• Indoor Range: 300 to 500 ft. line of sight
• Housing Dimensions: 6.5” x 4.5” x 1”
• Antenna Length: 9.25”
ELK-M1XRF2G
M1 Wireless Receiver for Honeywell 5800 Series Transmitters
Wireless (RF) Receiver and Input Expander for use with M1 Controls.
• Adds up to 144 individual wireless zones
(sensors/points)
• Compatible with Honeywell 5800 Series
one way transmitters
• Operates from the 4 wire Data Bus
• Multiple receivers (up to 11) may be
connected to a single M1 or M1EZ8 Control for
redundancy or greater coverage
• Flash Memory for rmware updating
• Sensitivity: >105 dbm
• Operating Temperature: 0 to +120 degrees F
• Operating Voltage: 12 Volts D.C.
• Current Draw: 70mA
• Indoor Range: 300 to 500 ft. line of sight
• Housing Dimensions: 6.5” x 4.5” x 1”
• Antenna Length: 8.6”
ELK-M1XRF2H
M1 Serial Port (RS-232) Expander, Thermostat/Lighting Interface
Additional serial port(s) for M1 Controls to interface other manufacturer’s equipment utilizing RS-232
ASCII commands.
• Adapts HVAC Communicating Thermostats
to M1 Controls
• Allows M1 Controls to interface with a variety of
lighting products
• Adjustable baud rate 300 to 38,400
• Up to 7 M1XSP Expanders may be added to
M1 controls
• Operating Voltage: 12 Volts DC
• Current Draw: 31mA
• Housing Size: 4.375" x 3" x 1.125"
• Circuit Board Size: 3.5" x 2.75"
Some Partner Manufacturers; such as AMX, Control 4, and Crestron, interface through the main serial port. Visit
www.elkproducts.com for more details and a complete list of partner manufacturers.
ELK-M1XSP
M1 Gold & M1EZ8 Controls & Accessories
ELK Products, Inc. | www.elkproducts.com | (800)797-9355

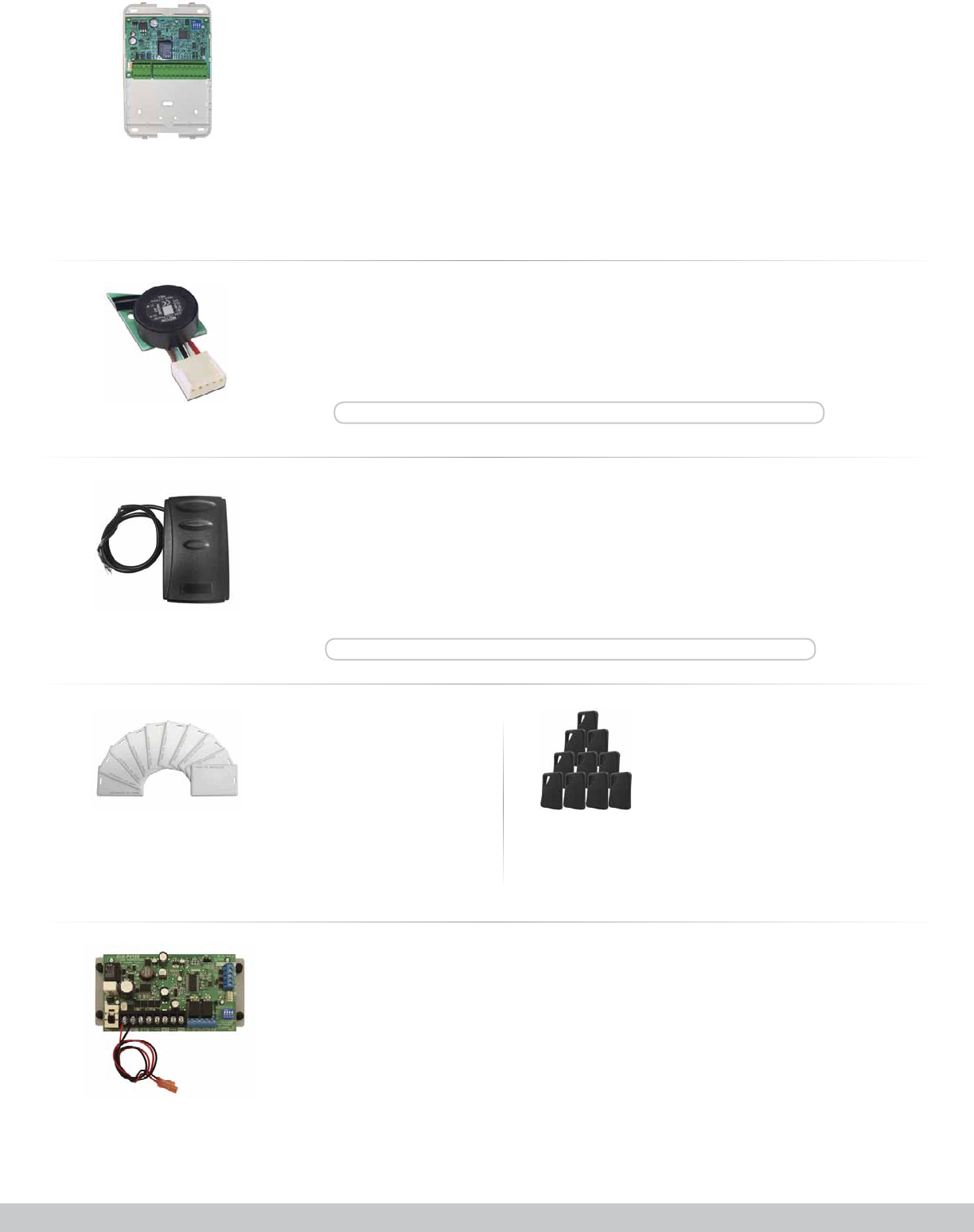

M1 Door Access Module
A single door access interface module for use with M1 Controls. It installs in place of an M1 Keypad and
operates from the RS-485 4-Wire Keypad Data Bus.
• Input for a standard 26 bit Wiegand Reader
• Input for a Dallas iButton Reader
• (3)12VDC Outputs for Door Held Open
Alarm(50mA), Ready To Arm, and System Armed
indications (10mA)
• (2)Supervised Inputs for RTE (Request To Exit)
Button/Device and Door Status Sensor
• Four selectable Time settings for
"Request to Exit" and "Door Held Open"
• Heavy Duty Form “C” Relay Contacts for
Switching Door Strike Power
• Connections: Plug-In Screw Terminals,
16 Position
• Operating Voltage: 13.8VDC
• Current Draw: Less than 30 mA with minimum
activity, 44 mA fully active
• Housing Dimensions: 4.25" x 6.375" x 2.125"
• Circuit Board Dimensions: 3.95" x 2.875" x .95"
• Hardware Watchdog Circuit
ELK-M1KAM
Keypad Plug-in Proximity Reader
Plugs into the connector inside the ELK-M1KP keypad.* Allows a proximity card or fob to be used to
quickly arm, disarm, operate a door strike, etc.
• Reader format: 26 bit Wiegand
• Read Distance: ~3/8"
• 5 pin plug-in connector
• Operating voltage: 5VDC from keypad
• Current Draw: ~20mA
*Will not t other keypads- see ELK-106055
Requires M1PRC cards or M1PRF fobs
ELK-M1PR
M1 Proximity
“Clam Shell” Cards
For use with the add-on proximity
readers: ELK-M1PR for the
ELK-M1KP keypad or ELK-106055
exterior reader.
• Comes in packs of (10) ten
• Credit Card Size
• Color: Off white
• Size: 3.375” x 2.125” x .0625”
ELK-M1PRC
M1 Proximity Key Fobs
For use with the add-on proximity
readers: ELK-M1PR for the
ELK-M1KP keypad or ELK-106055
exterior reader.
• Comes in packs of (10) ten
• Attaches to key chain
• Color: Black
• Size: 2.125” x 1.3125” x .25”
ELK-M1PRF
Exterior Proximity Reader
Allows a proximity card or fob to be used with M1 Controls to quickly arm, disarm, operate a
door strike, etc.
• Weatherproof - suitable for outdoor installation
• Size: 3 1/8” H x 1 7/8”Wx 1”D
• Color: Black
• Operating Voltage: 12VDC
• Current draw: 50mA
• Connects to M1KP Keypad with ELK-W035A
• Connects to M1KP2 & M1KP3 Keypads
with ELK-W039A
• Can be used on any system that is
26 bit Wiegand compatible
ELK-106055
Requires M1PRC cards or M1PRF fobs
Supervised Remote Power Supply
The ELK-P212S is a Supervised Remote Power Supply / Battery Charger, providing 12 VDC output with
up to 2 Amps of total current. It supervises the AC Power Input as well as the rechargeable Battery, and
can report abnormal conditions back to an ELKM1 Control over the RS485 four (4) wire data bus. It also
features relay outputs for AC and Low Battery to allow “stand-alone” operation with other controls.
• M1 Control allows:
- Remote power reset of powered peripherals
- Data-bus supervision of AC and Battery status
• Stand-alone exibility
- Two (2) sets of DC outputs
- On-board relay to supervise battery status
- On-board relay to supervise AC status
• Master AC and Battery ON / OFF Power Switch
• Visual AC Power Indicator
• AC Input: 16.5VAC, 45VA (TRG1640 or equiv.)
• DC Output Voltage: 13.8 Volts D.C. +/- 5%
• Current Rating: 2.0 Amps
• Wattage: 30 Watts
• DC Output Protection: Auto Resetting PTC
• Rechargeable Battery Size: Max. 12 Ah
• Low Battery Cutoff Threshold: ~10 Volts.
• Load Regulation: + / - 2%
ELK-P212S
M1 Gold & M1EZ8 Controls & Accessories
ELK Products, Inc. | www.elkproducts.com | (800)797-9355

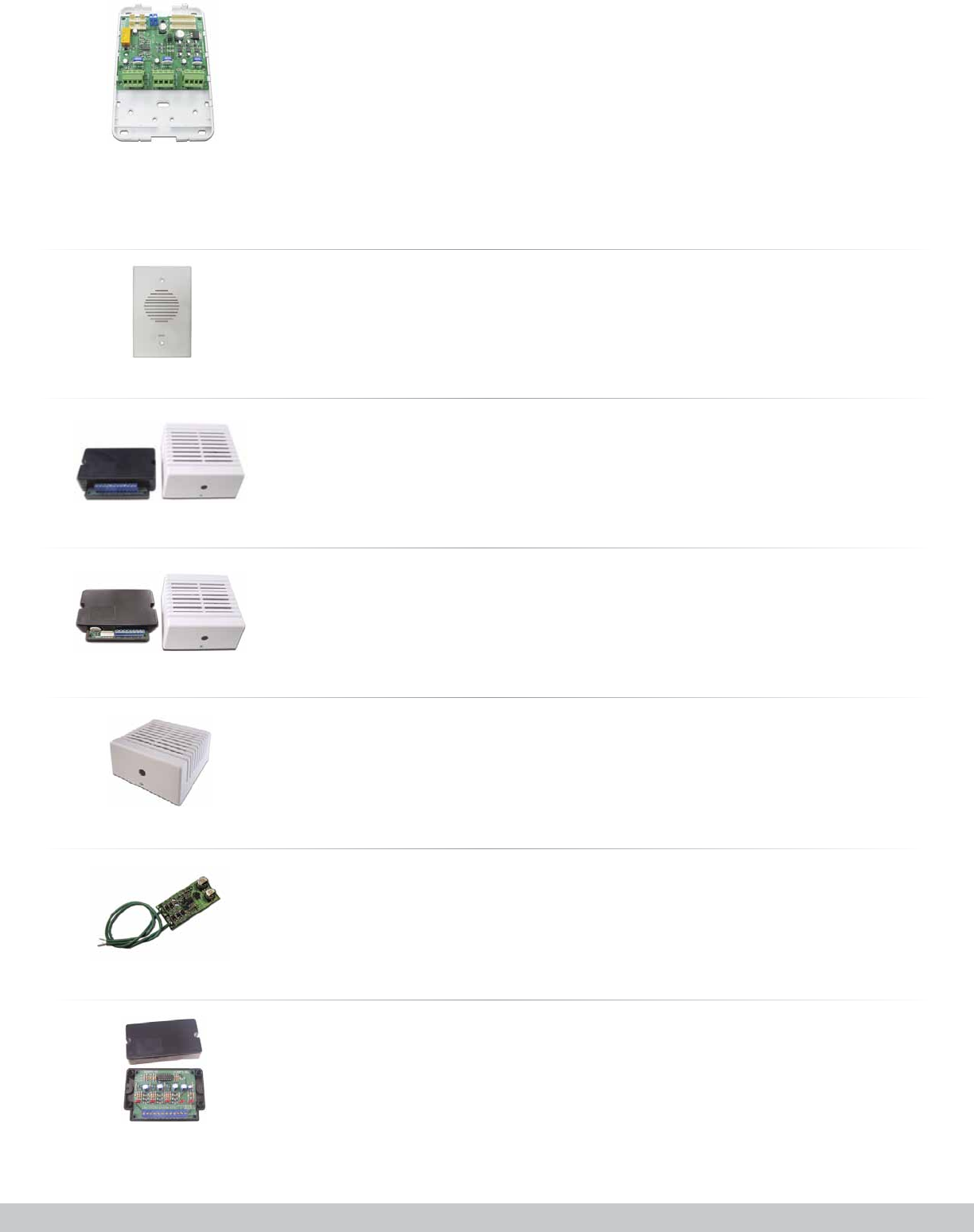

Audio Amplier Module with Two Way Listen-In Capability
Provides 3 zones of amplied speaker outputs with adjustable volume, along with 3 zones of
microphone inputs. The M1TWA can be used to add two way listen-in to M1 Controls or to just add
amplied speakers at keypads and other locations in a building.
• 3 Amplied Speaker Zones
• Adjustable Speaker Volume Control by Zone
• Selectable Mute by Zone
• 3 Microphone Input Zones (up to 4 mics
per zone)
• Selectable Mic Listen by Zone or Select ALL
• Interfaces to ELK-M1 or ELK-M1EZ8 Controls
• Compatible with: ELK-M1TWM, ELK-M1TWS,
ELK-M1TWSF
• Output Impedance Range: ~4 to 32 Ohms per
speaker output
• Amplier Rating: 1/2 Watt per Speaker Output
• Operating Voltage: 9 to 14 Volts D.C.
• Current Draw: 15mA nominal, 1000mA max
• Microphone Current Draw. 5mA each
• Housing Dimensions: 4.25" x 6.375" x 2.125"
• Circuit Board Dimensions: 2.25" x 3.95"
ELK-M1TWA
M1 Two Way Microphone
Microphone only for use with the M1 Controls two way listen-in interfaces.
• Simple two wire connection
• High Sensitivity
• Up to 12 may be connected
• Operating Voltage: Powered from
M1TWI or M1EZ8TWI
• Current Draw: 5mA each
• Circuit Board Dimensions: 1.5" x 1"
ELK-M1TWM
M1 Two Way Speaker/Microphone
Microphone and 20 Watt Speaker combination for use with the M1 Controls two way listen-in interfaces
• Requires 4 conductor cable.
• Up to 12 may be connected.
• Color: White
• Size: 4.25" x 4.25" x 2.13"
ELK-M1TWS
M1 Two Way Flush Mount Speaker/Microphone
Flush Mount 12 Watt Speaker and Microphone combination for use with the M1
Controls two way listen-in interfaces
• Fits single gang electrical boxes
• Requires 4 conductor cable.
• Up to 12 may be connected.
• Color: White
• Size: 4.81" x 3.13" x 1.69"
ELK-M1TWSF
M1EZ8 Two Way Listen-In Kit
Complete kit for two way communication with M1EZ8 control
• Includes two-way interface, ELK-M1EZ8TWI,
plus a two way speaker/microphone,
ELK-M1TWS
• Color: Interface-Black, Speaker- White
• Speaker Size: 4.25" X 4.25" X 2.13"
• Interface Size: 4.5" x 3" x 1.2"
ELK-M1EZ8TWK
M1Gold Two Way Listen-in Kit
Complete kit for two way communication with M1Gold control
• Includes two-way interface, ELK-M1TWI, plus a
two way speaker/microphone, ELK-M1TWS.
• Color: Interface-Black, Speaker- White
• Speaker Size: 4.25" X 4.25" X 2.13"
• Interface Size: 4.5" x 3" x 1.2"
ELK-M1TWK
M1 Gold Two Way Listen-In Interface
This can be used by Central Station to verify an alarm, or by a user from the M1Gold telephone remote
control to check on elderly parents, children, etc.
• Adds up to three (3) zones of two way listen-in
to M1G Control.
• Up to 12 microphones may be connected
• May be removed from included housing and
mounted on optional glides in Elk structured
wiring enclosures
• Module powered by M1 Gold
• Compatible with: ELK-M1TWM, ELK-M1TWS,
ELK-M1TWSF
• Includes 8 conductor interface cable
• Housing: 6.5”W x 4.3”H x 2.0”D
• Board Size: 4.5”W x 3.0”H x 1.2”D
ELK-M1TWI
M1 Gold & M1EZ8 Controls & Accessories
ELK Products, Inc. | www.elkproducts.com | (800)797-9355

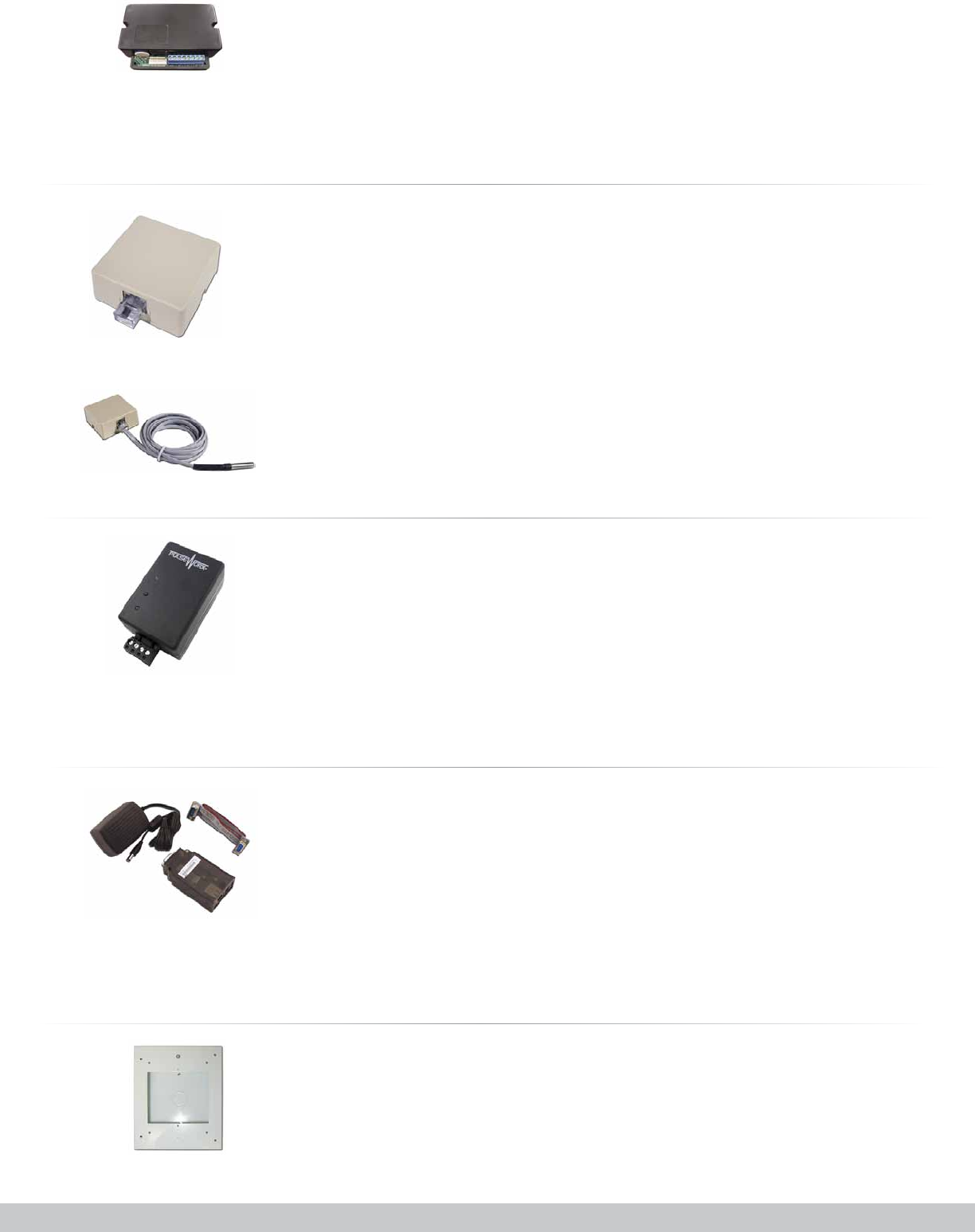

Ethernet to RS-232 Serial Bridge
The ELK-IP232 may be used to connect any standard serial communications device to an Ethernet
network. It is able to both initiate and accept network connections. Once a network connection is made,
the remote networked device is virtually connected to the serial device on the other side of the Bridge.
Both the network device and the serial device can send and receive messages to and from each other.
• Supports both UDP and TCP protocols
• Up to 12 simultaneous TCP-IP connections
• Up to twelve (12) "Rules" may be programmed
to make outgoing connections.
• Selectable baud rate from 300 to 115200 baud
• 802.3 compliant 10/100 Mbit interface
• Software and Hardware Handshaking
• Operating Voltage: 12 Volts D.C.
• Current Draw: Approx. 135 mA
• Dimensions: 3.85” L x 1.7”W x 0.93” D
• RS232, DB9M 9-pin serial port connection
• RJ45 8-pin Network Jack
• LED Indicators for Power, Link, and Data
• Includes: Serial Cable and 12V Supply
ELK-IP232
UPB Interface for M1G & M1EZ8 Controls
The ELK-M1PCSPIM is a special Powerline Interface Module containing a built-in M1XSP Serial Port
chip. This all-in-one device makes it easy to permanently connect the ELK M1 Control to a UPB network.
• Compact, space saving interface
• Easy hookup -- 4-wire data bus connection
• NO 9-Pin Serial Cable Required
• UPB Status light (multicolored)
• M1 Data Bus Status Light (Green)
• Lower cost than purchasing separate and
M1XSP and PCSPIM products.
• Removable 4-pin terminal block connection
• Power:
- UPB Network circuitry – powered from the
AC “Primary” Line.
- M1 Data Bus Device circuitry – powered
(12VDC) from the M1 Data Bus
• Current Draw from M1: ~30mA @ 12 VDC
• M1 Bus Device Address: Preset at Address #7
• Firmware required: Standard Version
(1.0.42 or later)
ELK-M1PCSPIM
M1 Zone Temperature Sensors
Brings temperature information to M1 Controls for processing. Monitor high or low temperatures with
this add-on remote sensor. Applications: wine cellars, server rooms, commercial coolers/freezers,
second homes, agricultural uses, etc.
• Connects to any on-board zone on the
M1 controls.
• Temperature may be accessed from keypad,
touchscreen, telephone remote control, PC,
or rules.
• Interface may be placed up to 1000' from
M1 Control
• Temperature Range: -50 to +140F
• Operating Voltage: 12 Volts DC
• Current Draw: 10mA
• Housing Dimensions: 2.375" x 1.25" x 1"
ELK-M1ZTS
• Interface with Short Probe
• Suitable for Indoor/Outdoor use in a
covered environment
ELK-M1ZTSR
• Interface with Stainless Remote Probe
• Suitable for Indoor/Outdoor use
• Probe Length: 7’
M1EZ8 Two Way Listen-in Interface
This can be used by Central Station to verify alarm from the M1EZ8. Some jurisdictions now require
verication before dispatch.
• Adds up to three (3) zones of two way listen-in
to EZ8 Control
• Up to 12 microphones may be connected
• May be removed from included housing and
mounted on optional glides in Elk structured
wiring enclosures
• Module powered by M1 EZ8
• Compatible with: ELK-M1TWM, ELK-M1TWS,
ELK-M1TWSF
• Includes 8 conductor interface cable
• Housing Size: 6.5"W x 4.3" H x 2" D
• Board size: 3.375" x 2.25" H x .8"D
ELK-M1EZ8TWI
Keypad Conduit Wall Box
The M1KCWB is a two-piece, surface mount metal wall box. Applications include: commercial
installations, schools, businesses, factories, etc., or virtually any situation where a Keypad needs to be
surface mounted with no ability to run or conceal the wiring within the structure’s walls.
• Permits mounting of the ELK-M1KP or
ELK-M1KP2 Keypad backplate
• 1/2” and 3/4” electrical conduit knockouts
on 3 sides and back
ELK-M1KCWB
M1 Gold & M1EZ8 Controls & Accessories
Serial Cable to convert USB to RS-232
This special cable is required for the ELK-RP software to connect with the M1 Controls when the
computer does not provide a conventional RS-232 9 pin port.
• Male USB to Male DB9
• Speed: USB 2.0
• Cable Length: 6'
• Includes CD with Device Drivers
ELK-USB232
4-Pin Ribbon Cable
Used for connecting expanders and other peripherals to the M1 Control.
• 4 pin keyed connector • Approx. 18” long
ELK-W018B
Serial Ribbon Cable
This serial ribbon cable is used to connect the M1 Controls main serial port to the M1XEP.
• Compact design means cable will not interfere
with the enclosure door
• DB9F to DB9M
• Approx. 17" long
ELK-W040A
M1KP2 & M1KP3 Proximity Reader Wiring Harness
This two pin cable is used to connect a 26 bit Wiegand reader (such as the ELK-106055) to the
ELK-M1KP2 or M1KP3 Keypad
• Color Coded
• Pre-stripped wire ends
• Keyed connector
• 22 Gauge Wire
• Wire Length: 12”
ELK-W039A
M1 Accessory Wiring Harness
This 5-pin cable is required for connecting GE Wireless Receivers (GE model NX548E) to the M1 Controls.
It can also be used to connect ELK-106055 proximity reader or any manufacturer’s 26 bit Wiegand
reader to an M1KP keypad.
• Color Coded
• Pre-stripped wire ends
• Keyed connector
• 18 Gauge Wire
• Wire length: 18"
ELK-W035A
Uplink Serial Cable
This cable is used to connect the Uplink 2500 Cellular Transceiver to the ELK-M1XSP Serial Port
Expander for integration to M1 controls
• Female DB9 Connector
• 6 pin at keyed connector
• Approx. 4’ long
ELK-W046A
Utility Box for Power Supplies, etc
Multi-purpose box works well for power supplies and other peripherals.
• Color: White
• Size: 12" x 12" x 3.5"
• Included in some M1EZ8 Control kits
• Can be used to house "special projects"
• Hinged cover with camlock
ELK-UB12
Securing & Simplifying Life (800) 797-9355
www.elkproducts.com
