FO converters-FL MC EF 1300 SM SC-2902856

Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's

documentation. Our General Terms of Use for Downloads are valid

FO converter with SC duplex fiber optic connection (1300 nm), for converting 10/100Base-T(X) to single-mode

fiberglass (9/125 µm). Auto negotiation and auto MDI(X) function. Comprehensive link diagnostics. DIN-rail

mountable, 18 ... 30 V DC supply.

   

Key commercial data

Packing unit 1 pc

Weight per Piece (excluding packing) 180.0 GRM

Custom tariff number 85176200

Country of origin Germany

Technical data

Utilization restriction EMC: class A product, see manufacturer's declaration in the download

Ambient temperature (storage/transport) -40 °C ... 85 °C

08/21/2014Page2/5

FO converters-FL MC EF 1300 SM SC-2902856

Technical data

Ambient conditions

Permissible humidity (operation) 30 % ... 95 % (non-condensing)

Permissible humidity (storage/transport) 30 % ... 95 % (non-condensing)

Altitude 5000 m (For restrictions see manufacturer's declaration)

2000 m (With UL approval)

Degree of protection IP20

Housing material PA 6.6-FR

Color green

MTBF 284 Years (Telcordia standard, 25°C temperature, 21% operating cycle (5

days a week, 8 hours a day))

74 Years (Telcordia standard, 40°C temperature, 34.25% operating cycle

(5 days a week, 12 hours a day))

MTTF 1400 Years (SN 29500 standard, temperature 25°C, operating cycle 21 %

(5 days a week, 8 hours a day))

599 Years (SN 29500 standard, temperature 40 °C, operating cycle 34.25

% (5 days a week, 12 hours a day))

Class I, Zone 2, AEx nA IIC T4

Class I, Zone 2, Ex nA IIC T4 Gc X

Class I, Div. 2, Groups A, B, C, D

Power supply

Supply voltage range 18 V DC ... 30 V DC (Screw connection)

18 V DC ... 30 V DC (as an alternative or redundant, via backplane bus

contact and system current supply)

Typical current consumption < 100 mA (24 V DC)

Protective circuit Protection against polarity reversal

Connection method Plug-in screw terminal block (COMBICON), redundancy possible

08/21/2014Page3/5

FO converters-FL MC EF 1300 SM SC-2902856

Technical data

Power supply

Conductor cross section stranded min. 0.20 mm²

Conductor cross section solid max. 2.50 mm²

Conductor cross section solid min. 0.20 mm²

Max. AWG conductor cross section, stranded 14

Min. AWG conductor cross section, stranded 24

Connection method RJ45 socket, shielded

Transmission medium Copper

Transmission length 100 m (twisted pair, shielded)

Conductor cross section solid min. 0.2 mm²

Conductor cross section solid max. 2.5 mm²

Conductor cross section stranded min. 0.2 mm²

Conductor cross section stranded max. 2.5 mm²

Conductor cross section AWG/kcmil min. 24

Conductor cross section AWG/kcmil max 14

Auto-negotiation modes Auto

Transmit capacity, maximum ≤ -8 dBm ((9/125 µm) dynamic in link mode (average))

Minimum receiver sensitivity -31 dBm (dynamic in link mode (average))

Overrange receiver -7 dBm (dynamic in link mode (average))

Wavelength 1300 nm

Transmission length incl. 3 dB system reserve 36 km (With F-E 9/125 0.36 dB/km)

32 km (With F-E 9/125 0.4 dB/km)

26 km (With F-E 9/125 0.5 dB/km)

Transmission medium Single-mode fiberglass

Connection method SC duplex

08/21/2014Page4/5

FO converters-FL MC EF 1300 SM SC-2902856

eCl@ss 8.0 27143136

ETIM 3.0 EC000310

ETIM 4.0 EC000310

ETIM 5.0 EC001467

UNSPSC 6.01 30211506

UNSPSC 7.0901 39121008

UNSPSC 11 39121008

UNSPSC 12.01 39121008

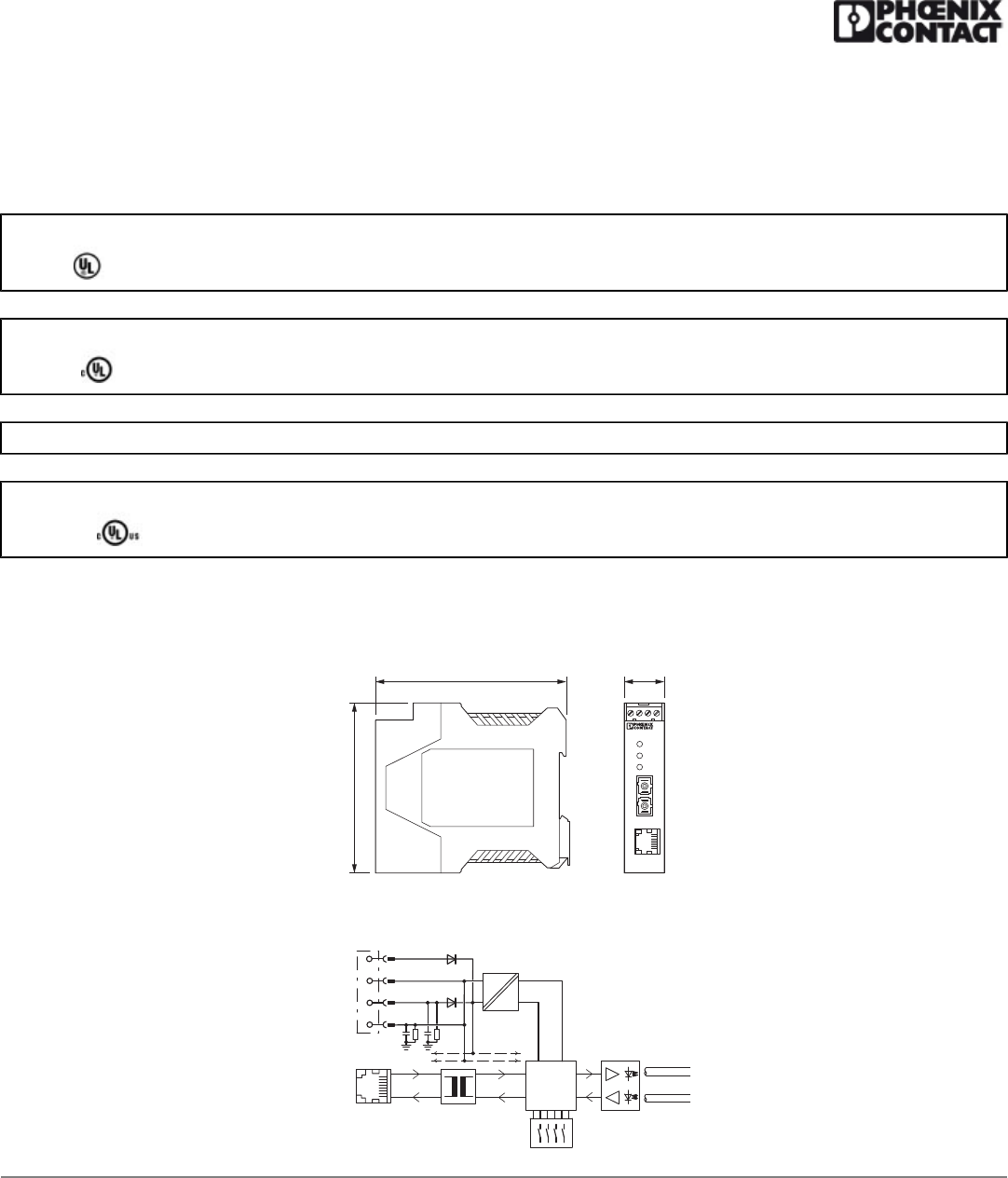

ATEX / UL Listed / cUL Listed / cULus Listed

Approvals submitted

Approval details

08/21/2014Page5/5

FO converters-FL MC EF 1300 SM SC-2902856

UL Listed

cUL Listed

cULus Listed
