204

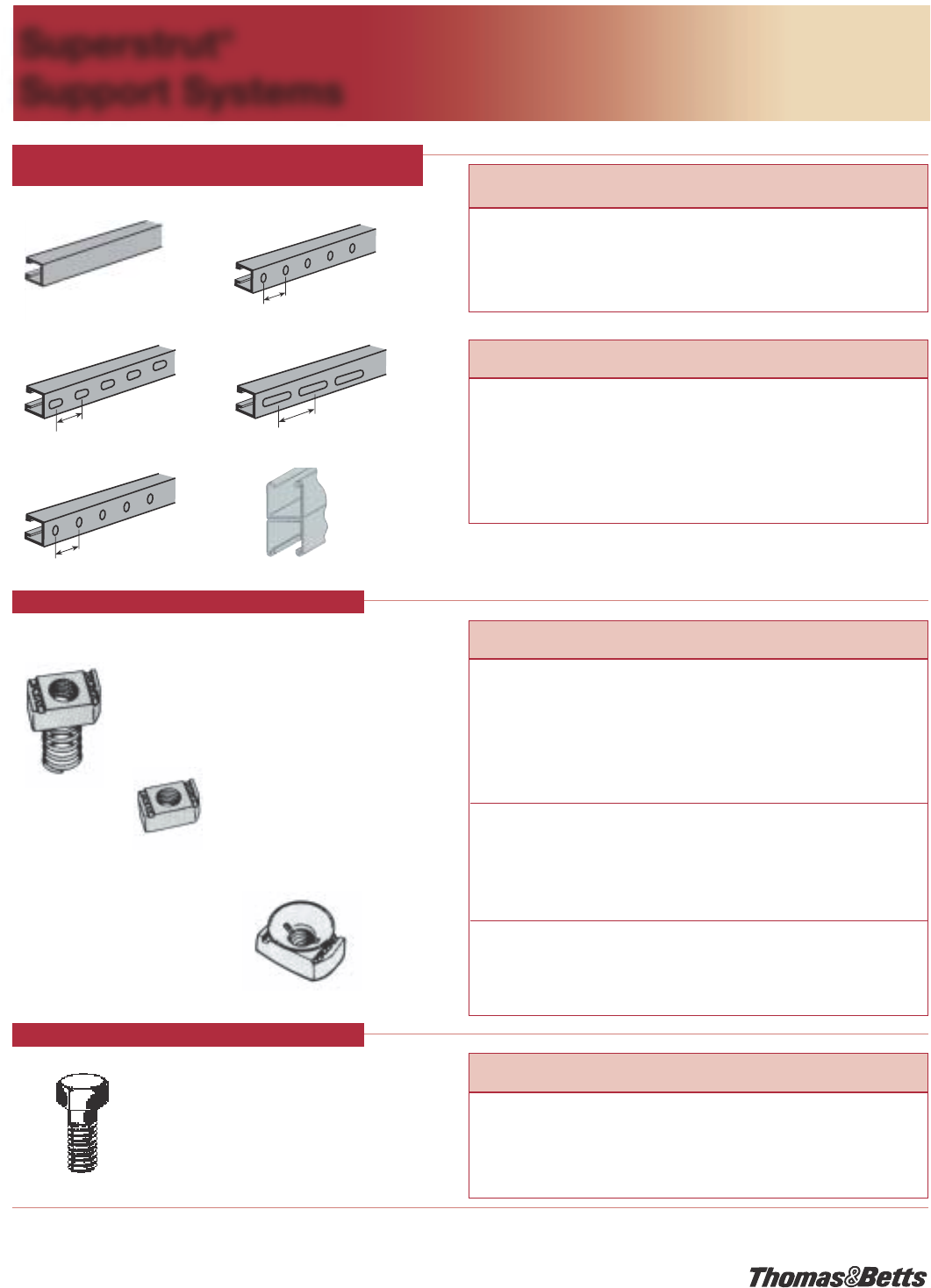

1-5/8” x 1-5/8 Channel

Superstrut®

Support Systems

For our complete selection, consult our Superstrut®catalogue.

A1200 Solid base

A1200-P Punched

A1200-HS Half slots

A1200-S Long slots

A1200-KO Knockouts

A1202 Back to back

Catalogue Number Description

Superstrut® 1-5/8” x 1-5/8”

- 12 Gauge Channel Type A

Finishes & Materials

No Suffix Gold galvanized dichromate finish

ALC Aluminum

EG Electrogalvanized

HDGC Hot dipped galvanized

PGC Pregalvanized

T316L Stainless steel Type 316

1-7/8"

Knockouts

Half Slots Long Slots

2" 4"

6"

PunchedSolid Base

A100-1/4EGC 1/4

A100-5/16EGC 5/16

A100-3/8EGC 3/8

A100-1/2EGC 1/2

A100-5/8EGC 5/8

A100-3/4 3/4

A100-7/8EGC 7/8

Nut is square over 1/2” size.

AC100-1/4EGC 1/4

AC100-3/8EGC 3/8

AC100-1/2EGC 1/2

AC100-5/8 5/8

AC100-3/4 3/4

Nut is square over 1/2” size.

UC100-1/4 1/4

UC100-3/8 3/8

UC100-1/2 1/2

Catalogue Number Size

Channel Nuts

- Offered in 10 or 20 ft lengths.

- Aluminum, hot dipped galvanized or stainless steel channels are

recommended to support aluminum steel or stainless steel cable tray.

Back to Back

A100

Regular Spring Nut

AC100

Springless Nut

UC100

Universal Nylon Cone Nut

For all 1-5/8” and 1-1/2” channels

May be used with ALL Strut Depths.

E142-1/4x100EG 1/4 x 1

E142-1/4x150EG 1/4 x 1-1/2

E142-3/8x100EG 3/8 x 1

E142-3/8x150EG 3/8 x 1-1/2

E142-1/2x100EG 1/2 x 1

E142-1/2x150EG 1/2 x 1-1/2

Catalogue Number Size

Hex. Head Cap Screw

Standard Finish:

Electrogalvanized

Stainless steel channel nuts are

recommended for aluminum channel

and cable tray rungs.

Change suffix to SS6(C).

Not available in stainless steel.

Standard Finish:

Electrogalvanized

Stainless steel channel nuts are

recommended for aluminum channel

and cable tray rungs.

Change suffix to SS6(C).

Standard finish

Electrogalvanized

Available in stainless steel

Change suffix to SS6(C)

Example: A1200HS10ALC, A120020HDGC

205

1-5/8” x 1-5/8 Channel

Superstrut®

Support Systems

For our complete selection, consult our Superstrut®catalogue.

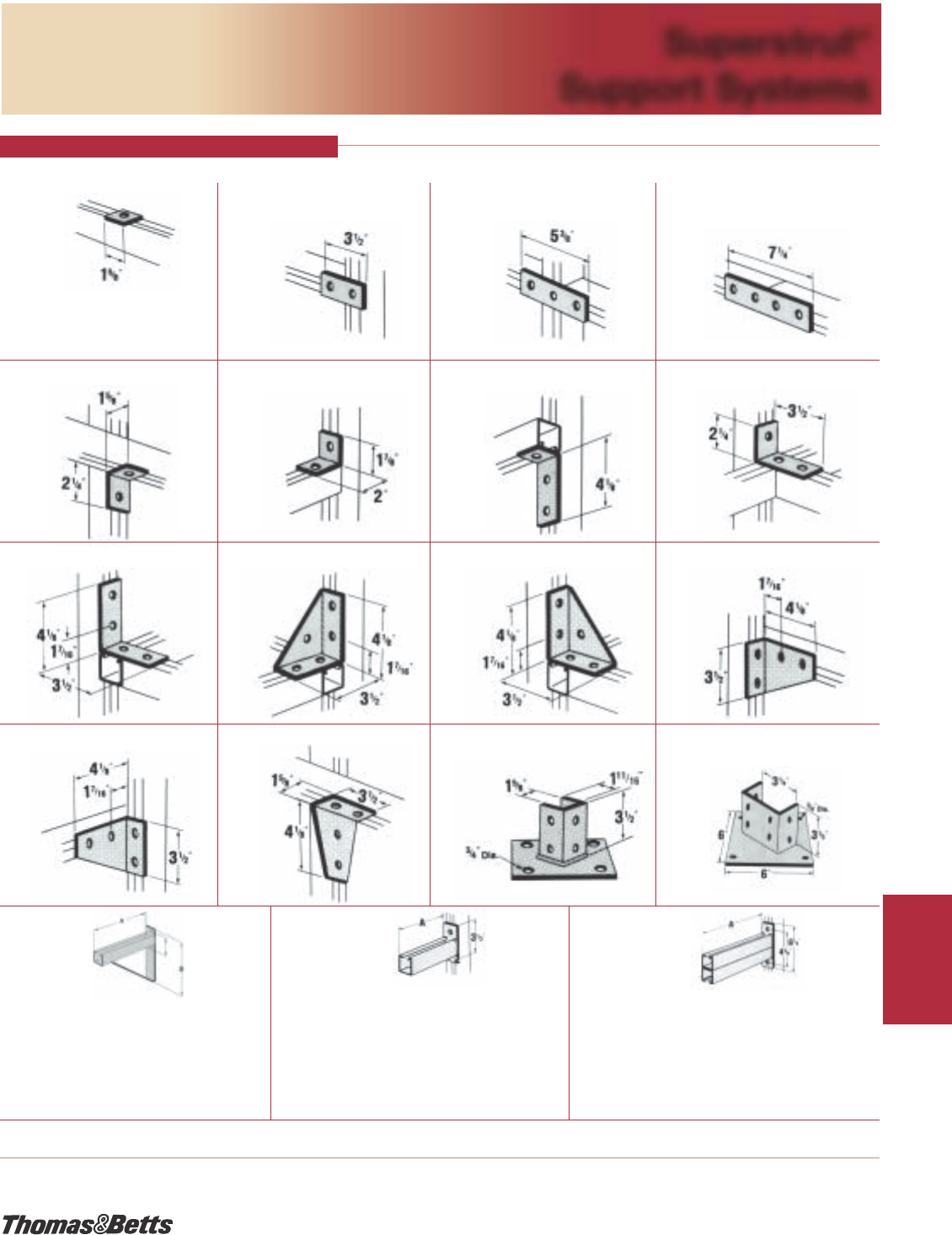

Superstrut® Fittings and Brackets

AB201HDGC

Hot dipped galvanized HDG(C) or stainless steel SS6(C) fittings are recommended to assemble aluminum channel.

Also available in Electrogalvanized (EG) and Gold galvanized dichromate (no suffix).

AB202HDGC AB203HDGC AB204HDGC

AB205HDGC AB213HDGC AB214HDGC AB254-LHDGC

AB254-RHDGC

Cat. No. Hole Size

AB241-1/4HDGC 1/4

AB241-3/8HDGC 3/8

AB241-1/2HDGC 1/2

AB241-3/4HDGC 3/4

Design

Cat. No. A Load/lb

S256-8HDGC 8-1/2 1000

S256-14HDGC 14-1/2 500

S256-20HDGC 20-1/2 300

S256-26HDGC 26-1/2 250

Design

Cat. No. A B Load/lb

S249-8HDG 8-1/2 8 1500

S249-14HDG 14-1/2 9 1500

S249-20HDG 20-1/2 9 1500

S249-26HDG 26-1/2 11-1/2 1500

S249-32HDG 32-1/2 11-1/2 1500

S249-38HDG 38-1/2 11-1/2 1500

When installed in inverted position reduce load

rating 40%. Strut section made from half slot channel.

X289HDGC AP232HDG AP235HDGC

AB241HDGC AB206HDGC AB207HDGC X207HDGC

S249HDG S256HDGC

Design

Cat. No. A Load/lb

S251-14HDGC 14-1/2 1650

S251-20HDGC 20-1/2 800

S251-26HDGC 26-1/2 650

S251-32HDGC 32-1/2 500

S251-38HDGC 38-1/2 500

S251HDGC

Standard Dimensions: Hole Spacing 13/16” from end Hole Spacing 1-7/8” centers

Hole Size 9/16” dia. Fitting width 1-5/8”

Superstrut®

Field-adjustable angle (± 4°) — easy installation even when strut is not square

Embossed J-hooks increase loading capabilities

T&B flex window provides wrapping action around pipes

Easy reconfiguration without complete disassembly — easily accessible angled bolt allows for field adjustments and

closer conduit spacing

Electrogalvanized finish — additional corrosion resistance

Dimension A Dimension A

Catalogue for EMT for Rigid Conduit Quantity

Number inches (mm) inches (mm) per Box

TBQC050 1-5/16 (33.5) 1-1/4 (31.5) 100

TBQC075 1-3/4 (44.5) 1-11/16 (43) 100

TBQC100 1-13/16 (46) 1-3/4 (44.5) 100

TBQC125 2-1/8 (54) 2 (51) 50

TBQC150 2-3/8 (60.5) 2-3/16 (55.5) 50

TBQC200 2-5/8 (66.5) 2-1/2 (63.5) 50

TBQC250 3-1/16 (78) 3-1/16 (78) 25

TBQC300 3-11/16 (93.5) 3-11/16 (93.5) 25

TBQC350 4-3/16 (106.5) 4-3/16 (106.5) 25

TBQC400 4-11/16 (119) 4-11/16 (119) 25

206

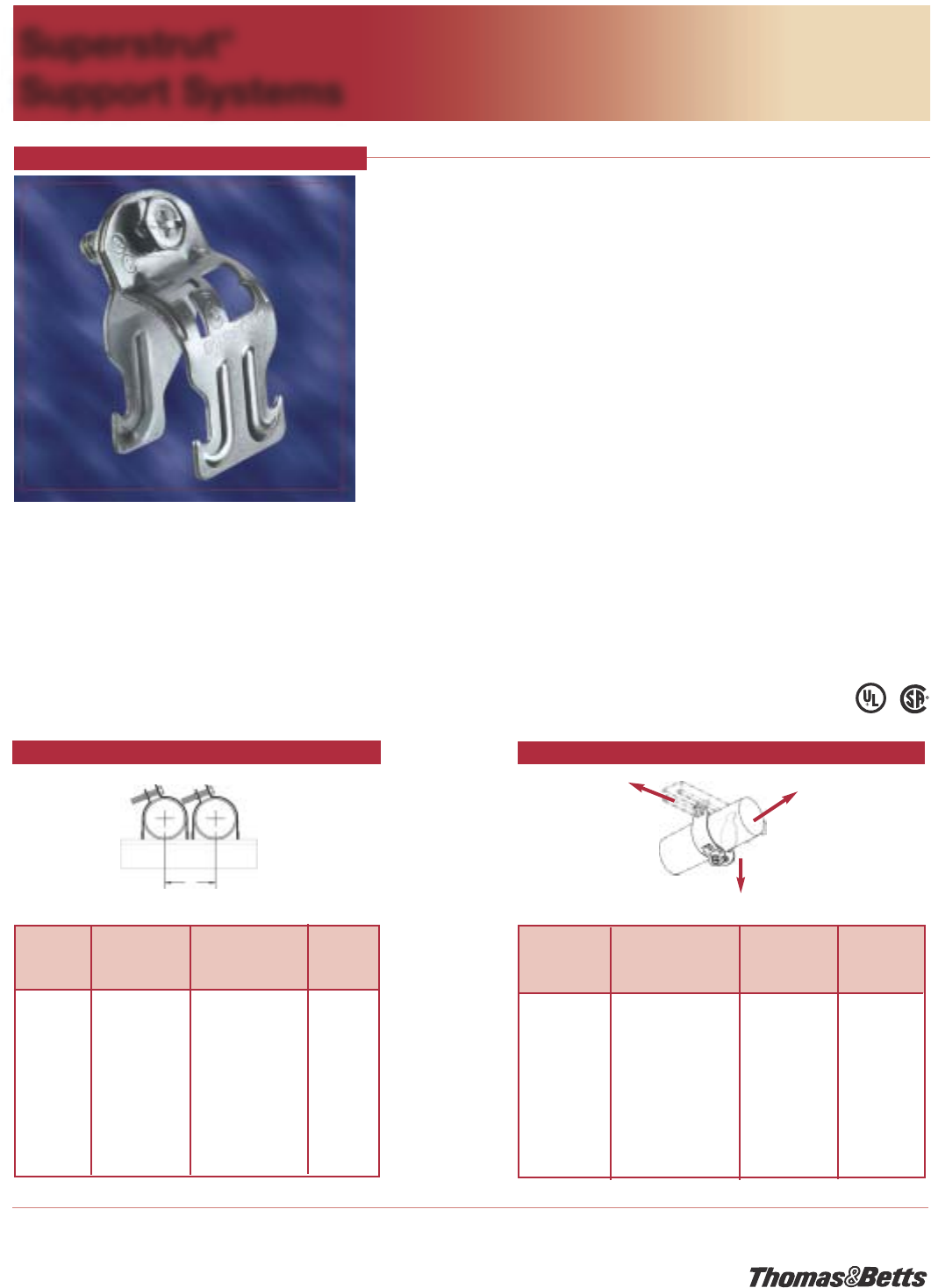

Quick-Clamp II (TBQC)

Superstrut®

Support Systems

For our complete selection, consult our Superstrut®catalogue.

Quik-Clamp II

True one-piece construction — arrives ready to install

NO breaking apart — half the installation time of break apart clamps

Integral bolt and captive nut — no separate pieces to lose

One size fits EMT and rigid conduit — takes the guesswork out of

clamp selection. Pipe size and catalogue number stamped right on

clamp.

Attaches a complete range of EMT and rigid conduit (1/2 in. to 4 in.) to

strut channels

Multi-driver combo bolt head — accepts a wrench, most screwdrivers

or 1/2 in. nut driver

Ordering information

Design Load 1 has a safety factor of 4. Design Loads 2 and 3 have a safety

factor of 1.

Design Load 3

Design Load 1

Design Load 2

A

Loading Data

Design Load 1 Design Load Design Load

Catalogue Static Load Limit 2 3

Number lb (kg) lb (kg) lb (kg)

TBQC050 200 (90) 50 (23) 50 (23)

TBQC075 200 (90) 50 (23) 50 (23)

TBQC100 200 (90) 50 (23) 50 (23)

TBQC125 200 (90) 50 (23) 50 (23)

TBQC150 200 (90) 50 (23) 50 (23)

TBQC200 200 (90) 50 (23) 50 (23)

TBQC250 350 (158) 50 (23) 50 (23)

TBQC300 350 (158) 50 (23) 50 (23)

TBQC350 350 (158) 50 (23) 50 (23)

TBQC400 350 (158) 50 (23) 50 (23)

207

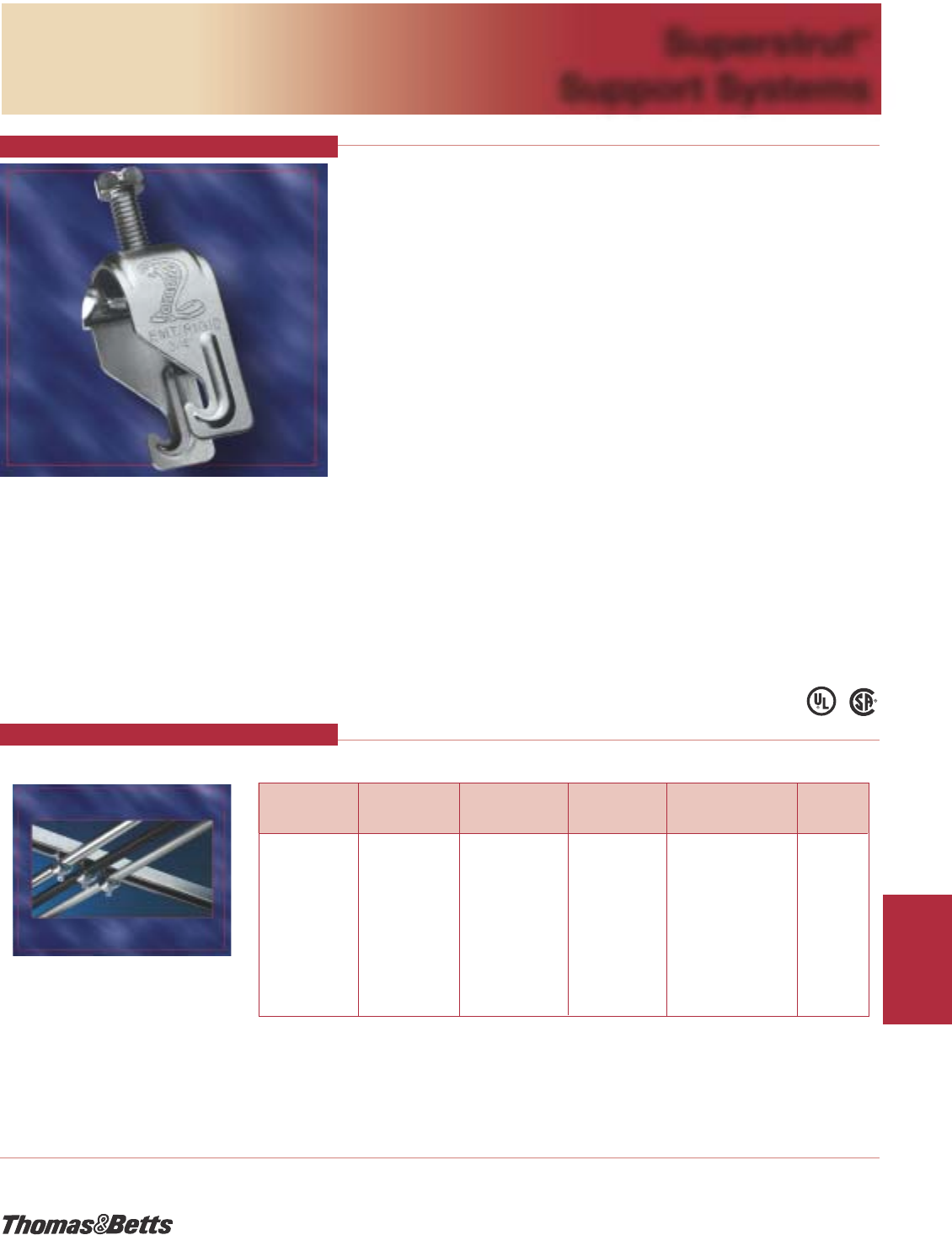

Cobra Cable and

Pipe Clamp (CPC)

Superstrut®

Support Systems

For our complete selection, consult our Superstrut®catalogue.

Catalogue For EMT For Rigid Conduit Cable O.D. Static Load Limit (lb) Quantity

No Trade Size Trade Size Range (in.) Safety Factor = 4 per Box

CPC050 1/2 1/2 0.650 - 0.890 200 100

CPC075 3/4 3/4 0.860 - 1.110 200 100

CPC100 1 1 1.100 - 1.400 200 100

CPC125 1 1/4 1 1/4 1.400 - 1.725 200 50

CPC150 1 1/2 1 1/2 1.690 - 1.980 200 50

CPC200 2 2 1.980 - 2.576 200 50

CPC250 2 1/2 2 1/2 2.576 - 3.060 350 25

CPC300 3 3 3.060 - 3.626 350 25

CPC350 3 1/2 3 1/2 3.626 - 4.126 350 25

CPC400 4 4 4.126 - 4.626 350 25

Cobra

Clear markings on each clamp identify the catalogue number,

min./max. outer cable diameters, EMT/Rigid trade sizes, CSA

and UL stamps.

One size clamp works on equal trade sizes for both EMT and

rigid conduit.

Works with all depths of strut - 13/16” to 3-1/4”.

Two hooks on the same side make the clamp easy to install

and keep conduits and cable square with strut.

Rugged stirrup and wide saddle design holds securely with no

damage to conduit or cable.

Suggested design load is 200 lb (1/2” to 2”); 350lb (2-1/2” to

4”). Safety factor 4:1 (safety factor = ratio of ultimate load to the

design load).

Heavy-duty 5/16” hex bolt with multi-driver head (Robertson

square, Phillips cross-recess and slot) provides full range of

installation options. Virtually any tool will work!

Bright zinc finish - clamps are electogalvanized after fabrication

for additional durability.

Ordering information

Standard material is commercial-grade, bright electrogalvanized steel. Stainless steel 316L is also available; add

the suffix “SS6” to catalogue no. (i.e.: CPC050SS6). Stainless steel bolt head is hexagonal and slotted only. Not

available in aluminum.

Superstrut®

208

Superstrut®

Support Systems

For our complete selection, consult our Superstrut®catalogue.

For EMT For Rigid Conduit

Catalogue Trade Size Trade Size Cable Quantity

Number inches (mm) inches (mm) Range (in.) per Box

KCPC050 1/2 1/2 0.650-0.890 100

KCPC075 3/4 3/4 0.860-1.110 100

KCPC100 1 1 1.100-1.400 100

KCPC125 1-1/4 1-1/4 1.400-1.725 50

KCPC150 1-1/2 1-1/2 1.690-1.980 50

KCPC200 2 2 1.980-2.576 50

KCPC250 2-1/2 2-1/2 2.576-3.060 25

KCPC300 3 3 3.060-3.626 25

KCPC350 3-1/2 3-1/2 3.626-4.126 25

KCPC400 4 4 4.126-4.626 25

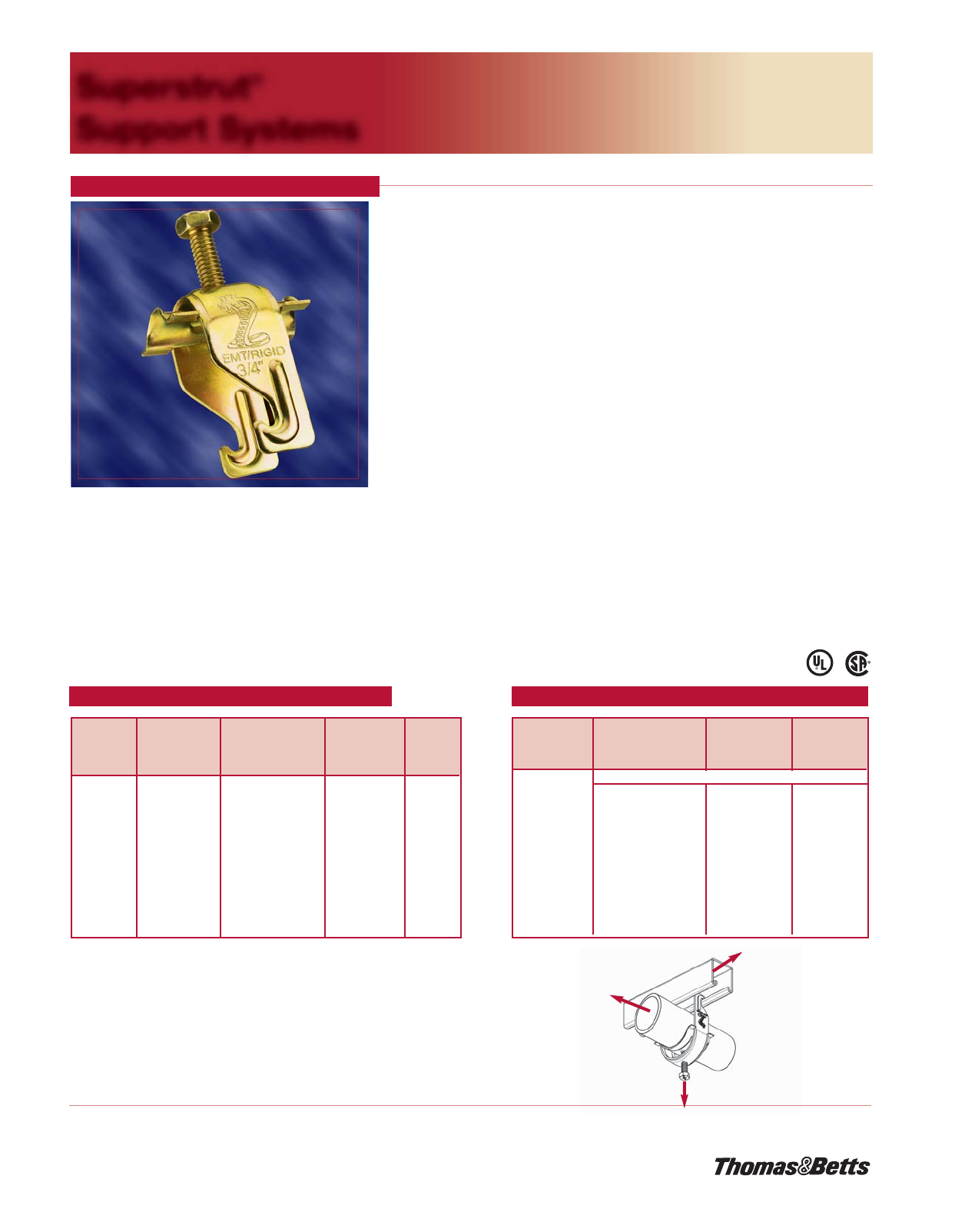

King-Cobra

Superior design load capabilities for industrial applications:350 lb for

1/2” to 2” trade sizes; 450 lb for 2-1/2” to 4” trade sizes.

•

Durable one-piece, heavy-duty steel construction – designed

specifically for use in industrial applications.

•

Embosses on shoulder and hooks increase loading capability and

durability, preventing deformation of clamps.

•

Rugged stirrup provides increased strength for heavier loads,

minimizing deflection.

•

Wider saddle design with anti-rotation tabs distributes load evenly

over a larger surface area, preventing jacket damage.

•

Increased corrosion protection - GoldGalv® (yellow zinc dichromate)

finish stands up to harsh industrial applications.* Compared to

conventional electrogalvanization.

•

Parallel hook design keeps conduit and cable square with strut.

•

Heavy-duty 5/16” hex bolt

•

One size clamp works on equal trade sizes for both EMT and rigid

conduit, simplifying clamp specification.

Ordering information

Design Load 3

Loading Data

Design Load 1 Design Load Design Load

Catalogue Static Load Limit 2 3

Number lb (kg) lb (kg) lb (kg)

KCPC050 350 (159) 50 (23) 50 (23)

KCPC075 350 (159) 50 (23) 50 (23)

KCPC100 350 (159) 50 (23) 50 (23)

KCPC125 350 (159) 50 (23) 50 (23)

KCPC150 350 (159) 50 (23) 50 (23)

KCPC200 350 (159) 50 (23) 50 (23)

KCPC250 350 (159) 50 (23) 50 (23)

KCPC300 450 (204) 50 (23) 50 (23)

KCPC350 450 (204) 50 (23) 50 (23)

KCPC400 450 (204) 50 (23) 50 (23)

Cobra Cable and

Pipe Clamp (KCPC)

Design Load 2

Design Load 1

Safety Factor = 4

208-E.pdf 1 5/31/2011 8:12:39 AM

209

Beam Clamps

and Hanger Rods

Superstrut®

Support Systems

For our complete selection, consult our Superstrut®catalogue.

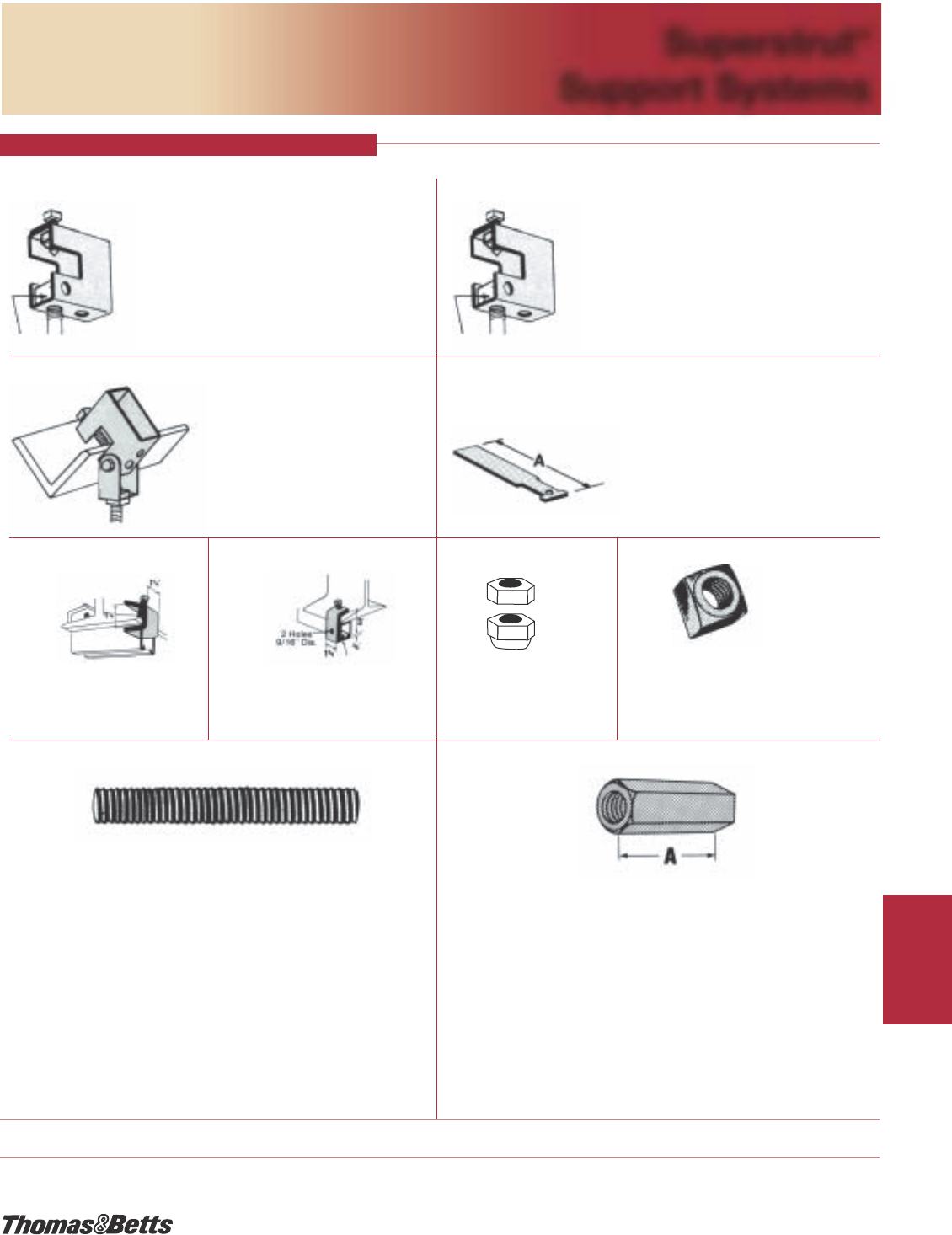

Superstrut®Beam Clamps and Hanger Rods

Finished & Materials: Gold Galv. dichromate (no suffix), Electrogalvanized (EG), Hot dipped Galvanized (HDGC), Stainless Steel Type 316 (SS6C)

U562HDG

Rod Design Load

Size Load/lb

1/2 800

E146 Square nut order separately.

1/2” set screw included.

For 20oswivel application use

ES145-1/2 nut.

Beam

Flange

Cat. no. Width A

U568-3EG 69

U568-4EG 912

U568-5EG 12 15

16 ga. material

UM562HDGC

Rod Design Load

Size Load/lb

1/2 1200

E146 Square nut order separately.

1/2” set screw included.

For 20oswivel application use

ES145-1/2 nut.

US562HDGC

Rod Design Load

Size Load/lb

1/2 800

1/2” set screw included.

U568

3/8” x 1-1/2” set screw

included.

Design Load 750 lb/per pair

Cat. No. Size

ES145-3/8EG 3/8

ES145-1/2EG 1/2

For all “A” series channel.

1/2” x 1-1/2” set screw included.

Design Load 800 lb

Cat. No. Size

E146-1/4EG 1/4

E146-5/16EG 5/16

E146-3/8EG 3/8

E146-1/2EG 1/2

E146-5/8EG 5/8

NATIONAL COARSE THREAD

Threads Design Load

Cat. No. Size per inch lb

H104-1/4x10EGC 1/4 20 150

H104-3/8x10EGC 3/8 16 610

H104-1/2x10EGC 1/2 13 1130

H104-5/8x10EGC 5/8 11 1810

H104-3/4x10EGC 3/4 10 2710

H104-7/8x10EGC 7/8 9 3770

H104-1x10EGC 1 8 4960

Standard length, 10 ft

Also available in stainless steel (304 and 316) in length of 6 ft

Rod

Size A

1/4 7/8

5/16 7/8

3/8 1-1/8

1/2 1-1/4

5/8 2-1/8

3/4 2-1/4

7/8 2-1/2

1 2-1/4

ES145 E146

U514HDGC U515HDGC

H104

Order by product number, rod size, and finish. Example: H119-1/2EGC

H119

E146E146

Superstrut®

210

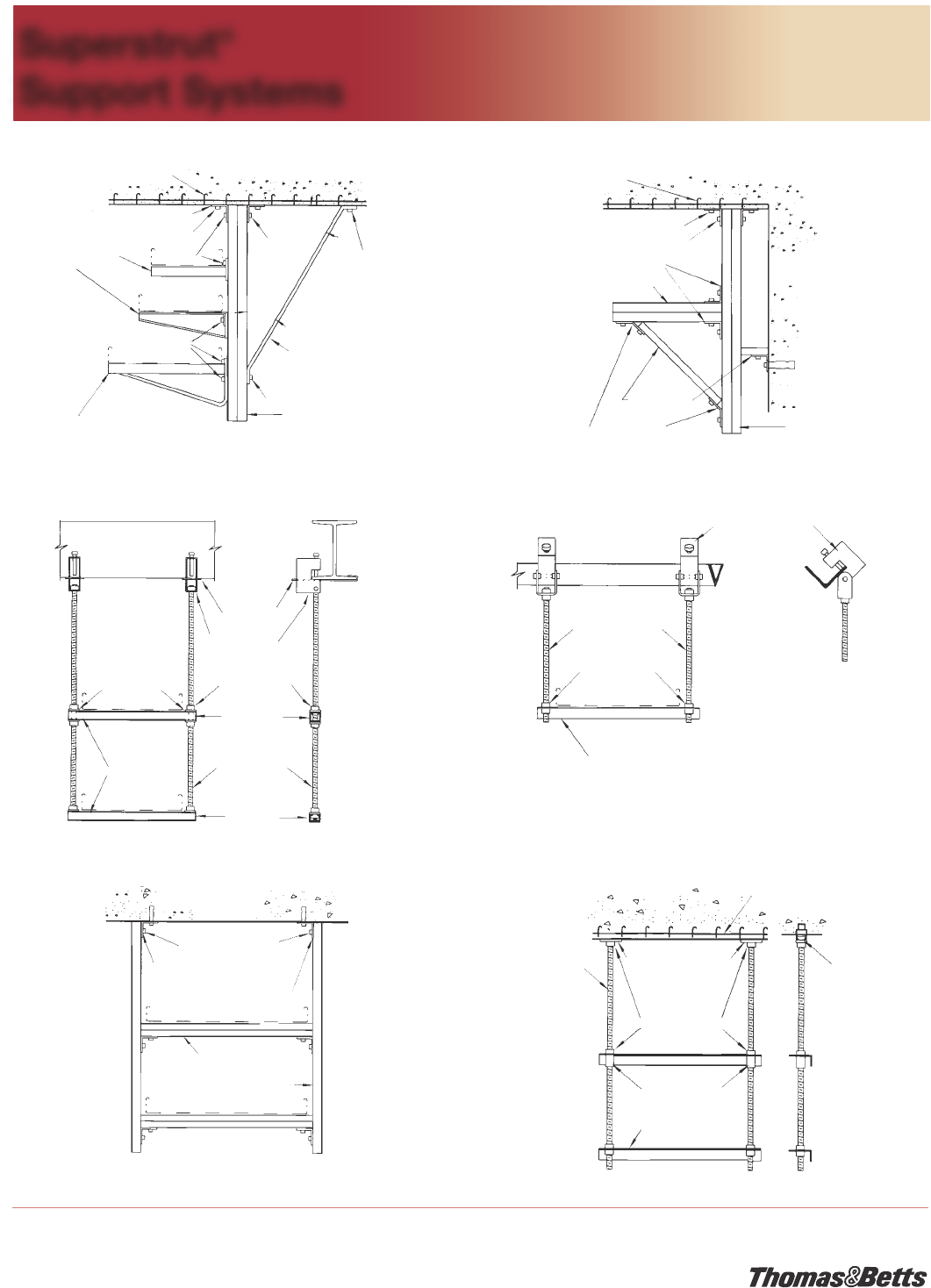

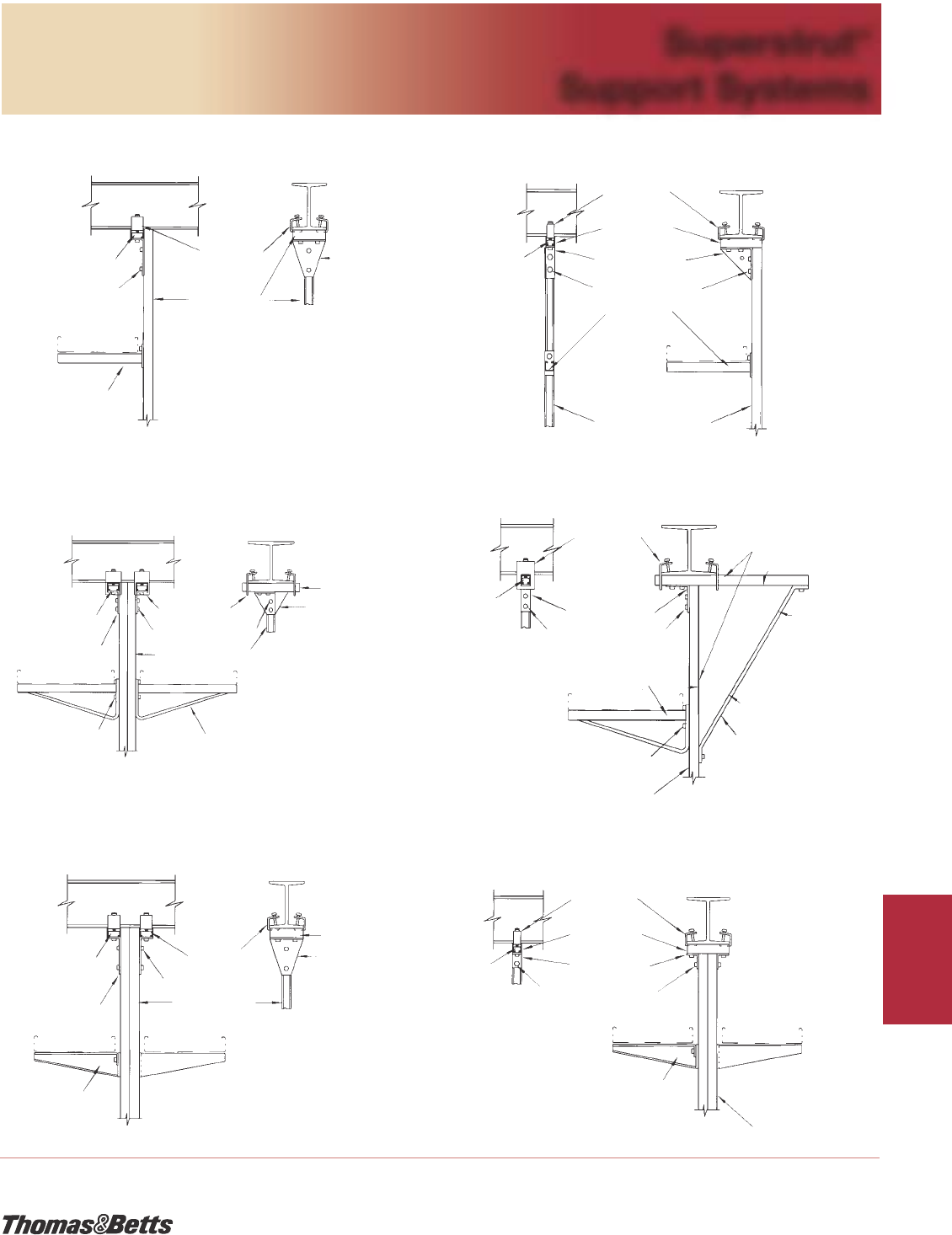

Design Applications

Mechanical Support

Superstrut®

Support Systems

For our complete selection, consult our Superstrut®catalogue.

A302 CONCRETE INSERT

E142-1/2“ x 100 HEX.H.BOLT

A100-1/2 SPRING NUT

AB201 90° ANGLE

AB227

45° ANGLE

A1202

CHANNEL

A1200

CHANNEL

A1202

CHANNEL

A100-1/2 SPRING NUT

A302 CONCRETE INSERT

AB201 90° ANGLE

E142-1/2 x 100 HEX.H.BOLT

A100-1/2 SPRING NUT

S256-12 BRACKET

S203-14 BRACKET

S249-20 BRACKET

a= E142-1/2” x 100

A100-1/2 SPRING NUT

Suspended column, carrying brackets,

braced to the ceiling.

E142-1/2 x 100 HEX.H.BOLT

A100-1/2 SPRING NUT

AB239-2

BRACE

A1202

CHANNEL

Suspended column, holding bracket and

console braced to wall.

Example: 1 Example: 2

Example: 3 Example: 4

Example: 5 Example: 6

AB241-1/2

SQ. WASHER

A1200

CHANNEL

U568

SAFETY

STRAP

U562

H.D. BEAM CLAMP

E146-1/2

HEX. NUT

A1200

CHANNEL

A1200

CHANNEL

H104-1/2

HANGER ROD

H104-1/2

HANGER ROD

AB202-21

CROSS MEMBER

E145-1/2

HEX. NUT

US562

H.D. BEAM CLAMP

Trapeze, T&B channels are used

as cross members.

Sketch depicts the use of beam clamps

on slanted beams.

60°

30°

Trapeze, constructed from T&B

channels, fittings.

The use of spot inserts is shown.

Trapeze, using T&B hanger rods,

cross members.

AB201 90° ANGLE

E142-1/2 x 100

HEX.H.BOLT

A100-1/2 SPRING NUT

A1202

CHANNEL

A1200

CHANNEL

H104-1/2

HANGER ROD

A302

CONCRETE

INSERT

AB241-1/2

SQUARE WASHER

E145-1/2

HEX. NUT

A100-1/2

SPRING

NUT

H119-1/2

ROD COUPLING

H119-1/2

ROD COUPLING

a

a

a

a

211

Design Applications

Mechanical Support

Superstrut®

Support Systems

For our complete selection, consult our Superstrut®catalogue.

Example: 7 Example: 8

Example: 9 Example: 10

Example: 11 Example: 12

Single-sided bracket application

3-1/2“

MIN.

Single-sided bracket application

A100-1/2

SPRING NUT

E142-1/2 X 100

HEX.H. BOLT

S256

CHANNEL

BRACKET

U514

CLAMP

BRACKET

A1200

CHANNEL

X289

CORNER FITTING

* NOTE: BRACE SHOULD BE USED FOR LENGTHS

GREATER THEN 30”

5-3/4“

MIN.

U514

CLAMP

BRACKET

A1200

CHANNEL

AB213

90° ANGLE

SUPPORT FITTING

E142-1/2 X 100

HEX.H.BOLT

S256-18

CHANNEL

BRACKET

A100-1/2

SPRING

NUT

A1200 CHANNEL

Two-sided heavy duty application

Heavy duty bracket application

A100-1/2

SPRING NUT

AB254L-LHDG

CORNER FITTING

90° INS. LEFT

E142 1/2 X 100

HEX.H. BOLT

A597

BEAM CLAMP

BRACKET

E142-1/2 X 100

HEX.H. BOLT

A1202 CHANNEL

S249-20

BRACKET

A1200

CHANNEL

AB254-L

CORNER FITTING

90° INS. LEFT

A597

BEAM CLAMP

BRACKET A1200

CHANNEL

A100-1/2

SPRING

NUT AB205

90° ANGLE

E142-1/2 X 100

HEX.H. BOLT

S249-20

BRACKET

E142-1/2 X 100

HEX.H. BOLT

A1200

CHANNEL

AB239-2

BRACE

60°

30°

Brackets parallel to beam Brackets perpendicular to beam

A100-1/2

SPRING

NUT

X289

CORNER FITTING

S203-20

BRACKET

U514

CLAMP

BRACKET

E142-1/2 X 100

HEX.H. BOLT

A1202

CHANNEL

A1202

X289

CORNER FITTING A100-1/2C

SPRING

NUT

U514-AHDG

CLAMP

BRACKET

A1200-PG

CHANNEL

AB201-HDG

90° ANGLE

SUPPORT FITTING

E142-1/2 X 100EG

HEX.H. BOLT

S203-20HDG

BRACKET

A1202-PG

CHANNEL

Superstrut®
