Residential Combustion

Heating and Cooling Parts

Cross-Reference Guide

Phone:

Residential Technical Support:

1-800-468-1502

Sales Support: 1-800-328-5111

Customer Service: 1-888-793-8193

Residential Zoning: 1-800-828-8367

Online:

www.customer.honeywell.com

www.forwardthinking.honeywell.com

www.literature.honeywell.com

Contractor PRO:

Phone: 1-800-919-4835

Fax: 1-763-954-4097

Exclusive Technical Support

for Contractor PRO members:

1-877-880-3383

www.contractorpro.com

Online Tools

Find everything you need to be successful in selling

Honeywell products online. Product information,

cross-references, demos and more are available at

customer.honeywell.com.

Training

Honeywell offers a variety of on-site and web-based training options

at customer.honeywell.com.

Rewards

Honeywell’s Contractor PRO™ Rewards program gives

contractors reward points ($) back on all Honeywell

purchases year round at contractorpro.com.

Customer Service

Honeywell provides toll-free access to product

application, installation and support experts.

Technical Support: 1-800-468-1502

Customer Service: 1-888-793-8193

Sales Literature

With Honeywell, you’ll have access to sales materials that you can use to

help grow your business. Visit literature.honeywell.com.

Support

How-to-use this cross-reference

The pages in this guide contain Honeywell, OEM and competitive manufacturers

controls and the recommended Honeywell cross reference. To ﬁnd your recommended

cross reference simply turn to the appropriate product section, locate your product

manufacturer and their part number and follow the row to the Honeywell part number.

The cross reference data in this guide is correct to the best of Honeywell's knowledge at

the time of publication. Always refer to installation instructions for application details and

to ensure correct product speciﬁcations prior to installation.

Table Of Contents

GAS CONTROLS

Universal Hot Surface Igniter 4

Gas Valves 5

SmartValve™ System Controls 6

Ignition Modules 7

Universal Electronic Fan Timers 11

Thermocouples/Thermopiles 11

Universal Integrated Furnace Control 12

OIL/HYDRONIC CONTROLS

Oil Primaries 14

Aquastats® 15

HEATING/COOLING DEVICES

Relays/Contactors/Transformers 16

Universal

Product

Universal

Manufacturer Part Number

Honeywell

Unit Pack

Honeywell

6 Pack

American Road Equipment 201W

Q3200U1004 Q3200U2002

Arco Air 1096048

Arco Air 1380680

Armstrong Air 38322B001

Carrier/Bryant/Payne

LH33ZS001

LH33ZS001A

LH33ZS002

LH33ZS002A

LH33ZS003

LH33ZS003A

LH33ZS004

Claire Bros C-238

Claire Bros C-242

Coleman 1474-051

Coleman 1474-052

Comfort Maker 1096048

Detroit Radient 201D

DMO Industries 20834

Dornback Furnace 271W

Ducane 20015201

Enerco Tech 10399

Evcon 1474-051

Evcon 1474-052

Evcon Coleman 025-32625-000

Goodman B1401009

Goodman B1401018

Goodman B1401018S

HB Smith 50018

Heil 1096048

Hupp Industries 09050

Intercity 1009604

Intercity 1096048

Majestic 75-92-104

Majestic 75-92-105

Metzger 201N

Metzger 201W

Modine 5H76032A

Mor-Flo 3200618

Nordyne 105141000

Nordyne 632-0770

Nordyne 632-0880

Norton/St Gobain

201

271

201D

201K

201L

201N

201R

201W

271N

271NM

271P

271W

Manufacturer Part Number

Honeywell

Unit Pack

Honeywell

6 Pack

Raypak 600915

Q3200U1004 Q3200U2002

Rheem 62-22441-01

Roberts Gordon 90434300

Roberts Gordon 90436600

Robertshaw

41-402

41-403

41-404

41-405

41-407

41-408

41-409

41-410

41-412

41-418

Snyder General 1380654

Snyder General 1380672

Snyder General 1380680

Superior Fireplace 94851

Tempstar 1096048

Trane

340039P01

B138196P01

B144676P01

B144676P02

B340039P01

IGN23

IGN26

IGN30

IGN34

Viessman 9302-094

Wayne Home Equipment 62821-001

Wayne Home Equipment 62821-002

Weil Mclain 511-330-139

Weil Mclain 511-330-190

Weil Mclain 511-330-193

White LB 120-07549

White-Rodgers

767A-301

767A-303

767A-306

767A-311

767A-350

767A-353

767A-354

767A-357

767A-361

767A-364

767A-366

767A-370

767A-371

767A-372

767A-373

767A-376

767A-377

767A-382

Williamson 9050

York

025-27766-000

025-27774-000

025-29043-000

025-29050-000

Silicon Nitride 120V Universal Hot

Surface Igniter

With 6 customized brackets, next gerneration Silicon

Nitride and one of a kind six-pack with visual cross-

reference Glowﬂy® is the truck stock choice for the be

ready for anything contractor.

Hot Surface Igniters

Manufacturer Part Number

Honeywell

Universal

Honeywell Direct

Replacement

Honeywell

VR8200A2116 VR8200A2744 VR8200A2124

VR8200A2264 VR8200A2744 VR8200A2124

VR8200A2322 VR8200A2744 VR8200A2124

VR8204A1201 VR8245M2530 VR8204A2076

VR8204A1219 VR8245M2530 VR8204A2076

VR8204A2001 VR8245M2530 VR8204A2076

VR8204A2175 VR8245M2530 VR8204A2076

VR8204A2225 VR8245M2530 VR8204A2076

VR8204A2803 VR8245M2530 VR8204A2076

VR8204H1006 VR8345H4555 VR8304H4503

VR8204H1055 VR8345H4555 VR8304H4503

VR8204M1075 VR8245M2530 VR8204M1091

VR8205H2605 VR8345H4555 VR8205H1003

VR8205M1106 VR8245M2530 VR8245M2530

VR8205M2310 VR8245M2530 VR8245M2530

VR8205M2443 VR8245M2530 VR8245M2530

VR8205M2450 VR8245M2530 VR8245M2530

VR8205M2476 VR8245M2530 VR8245M2530

VR8205Q2381 VR8345Q4563 VR8205Q2555

VR8205Q2662 VR8345Q4563 VR8205Q2555

VR8205Q2746 VR8345Q4563 VR8205Q2555

VR8205Q2787 VR8345Q4563 VR8205Q2555

VR8300A3104 VR8300A4516 VR8300A3500

VR8300A3120 VR8300A4516 VR8300A3500

VR8300A3153 VR8300A4516 VR8300A3500

VR8300A3161 VR8300A4516 VR8300A3500

VR8300A3203 VR8300A4516 VR8300A3500

VR8300A3559 VR8300A4516 VR8300A3500

VR8300A3567 VR8300A4516 VR8300A3500

VR8300A3575 VR8300A4516 VR8300A3500

VR8300A4003 VR8300A4516 VR8300A4508

VR8300A4003 VR8300A4516 VR8300A4516

VR8300A4011 VR8300A4516 VR8300A4508

VR8300A4011 VR8300A4516 VR8300A4516

VR8300A4037 VR8300A4516 VR8300A4508

VR8300A4037 VR8300A4516 VR8300A4516

VR8300A4045 VR8300A4516 VR8300A4508

VR8300A4045 VR8300A4516 VR8300A4516

VR8300A4557 VR8300A4516 VR8300A4508

VR8300A4557 VR8300A4516 VR8300A4516

VR8300A4565 VR8300A4516 VR8300A4508

VR8300A4565 VR8300A4516 VR8300A4516

VR8304M4002 VR8345M4302 VR8304M4507

VR8304Q4453 VR8345Q4563 VR8304Q4511

VR8305H4013 VR8345H4555 VR8205H1003

VR8305H4039 VR8345H4555 VR8205H1003

VR8305M4066 VR8345M4302 VR8305M3506

VR8305M4165 VR8345M4302 VR8305M3506

VR8305M4231 VR8345M4302 VR8305M3506

VR8305Q4146 VR8345Q4563 VR8305Q4500

VS820A1005 VS820A1088 VS820A1054

VS820A1013 VS820A1088 VS820A1054

VS820A1039 VS820A1088 VS820A1088

VS820A1047 VS820A1088 VS820A1054

VS820A1120 VS820A1088 VS820A1336

VS820A1211 VS820A1088 VS820A1336

VS820A1278 VS820A1088 VS820A1054

VS820A1740 VS820A1088 VS820A1336

VS820A1807 VS820A1088 VS820A1088

VS820A1815 VS820A1088 VS820A1088

VS820A1872 VS820A1088 VS820A1336

VS820A1898 VS820A1088 VS820A1336

VS820A1906 VS820A1088 VS820A1336

VS820A1922 VS820A1088 VS820A1054

Manufacturer Part Number

Honeywell

Universal

Honeywell Direct

Replacement

Honeywell

VS820A2003 VS820A1088 VS820A1088

VS820A2011 VS820A1088 VS820A1088

VS820A5204 VS820A1088 VS820A1054

Robertshaw

700-052 VR8345H4555 VR8345H4555

700-400 VR8300A4516 VR8300A4516

720-051 (7200DER) VR8345M4302 VR8305M3506

720-070 (7200IPER-S7C) VR8345H4555 VR8304H4503

720-071 (7200IPER-S7C) VR8345H4555 VR8304H4503

720-072 (7200IPER-S7C VR8345H4555 VR8304H4503

720-073

(7200IPER-LP-S7C) VR8345H4555 VR8304H4503

720-079 (7200IPER) VR8245M2530 VR8245M2530

720-080 (7200IPER-LP) VR8245M2530 VR8245M2530

720-082 (7200IPER2-4) VR8345Q4563 VR8345Q4563

720-400 (7200ER) VR8200A2744 VR8200A2124

720-402 (7200ER) VR8200A2744 VR8200A2124

720-403 VR8300A4516 VR8300A3500

720-404 (7200ER) VR8300A4516 VR8300A3500

720-406 (7200ER) VR8300A4516 VR8300A4508

722-051 (2000DERHC) VR8245M2530 VR8205A2024

722-079 (2000IPERHC) VR8245M2530 VR8204M1091

White-Rodgers

36C01-405 VR8300A4516 VR8300A4508

36C03-258 VR8300A4516 VR8300A3500

36C03-300 VR8300A4516 VR8300A3500

36C03-400 VR8300A4516 VR8300A3500

36C03-433 VR8300A4516 VR8300A3500

36C03U-300 VS820A1088 VS820A1054

36C03U-333 VS820A1088 VS820A1054

36C03U-400 VS820A1088 VS820A1054

36C03U-433 VS820A1088 VS820A1054

36C68-423 VR8345M4302 VR8305M3506

36C68-423 VR8345M4302 VR8345M4302

36C76-406 VR8345Q4563 VR8304Q4511

36C76-420 VR8345Q4563 VR8304Q4511

36C76-463 VR8345Q4563 VR8304Q4511

36D13-208 VR8345Q4563 VR8305Q4500

36D13-405 VR8345Q4563 VR8345Q4563

36E01-204 VR8245M2530 VR8204M1091

36E01-205 VR8245M2530 VR8204M1091

36E01-206 VR8245M2530 VR8204M1091

36E01-305 VR8245M2530 VR8204M1091

36E22-214 VR8245M2530 VR8245M2530

36E24-214 VR8345H4555 VR8345H4555

36E36-304 VR8245M2530 VR8245M2530

36E36-304 VR8345M4302 VR8345M4302

36E52-214 VR8345H4555 VR8345H4555

36E54-214 VR8345Q4563 VR8205Q2555

36E93-304 VR8245M2530 VR8204M1091

36E96-314 VR8345Q4563 VR8345Q4563

36E98-304 VR8345H4555 VR8345H4555

36G22-214 VR8245M2530 VR8205A2024

36G22-214 VR8345M4302 VR8305M3506

36G54-214 VR8345Q4563 VR8305Q4500

36H32-423 VR8345M4302 VR8345M4302

36J22-214 VR8245M2530 VR8205A2024

Universal Gas Valves

Save time and money by stocking the Honeywell

Universal gas valves, you'll complete more jobs and tie

up less in inventory with the right selection of valves.

Gas Valves

Ignition Modules

Manufacturer Part Number

Honeywell Universal

Replacement

A.O. Smith

SV9570A2054 SV9570A2518

SV9570A2062 SV9570A2526

SV9570A2070 SV9570A2518

SV9570A2088 SV9570A2526

SV9570A2096 SV9570A2518

SV9570A2187 SV9570A2526

Armstrong, Concord, AirEase

SV9520H8026 SV9520H8513

SV9520H8034 SV9520H8513

SV9520H8042 SV9520H8513

SV9520H8067 SV9520H8513

Burnham

SV9501P2020 SV9602P4832

SV9501P2046 SV9602P4832

SV9501P2087 SV9602P4824

SV9502P2119 SV9602P4832

SV9502P2127 SV9602P4824

SV9502P2135 SV9602P4832

SV9601P4149 SV9602P4832

SV9601P4164 SV9602P4832

SV9601P4172 SV9602P4824

SV9602P4113 SV9602P4832

SV9602P4121 SV9602P4824

SV9602P4139 SV9602P4832

Burnham, ICP, Heil, Tempstar,

Arcoaire, Comfortmaker, KeepRite

SV9501P2004 SV9602P4816

SV9501P2053 SV9602P4816

SV9502P2101 SV9602P4816

SV9601P4107 SV9602P4816

SV9602P4105 SV9602P4816

ICP, Heil, Tempstar, Arcoaire,

Comfortmaker, KeepRite

SV9501M2031 SV9501M2528

SV9501M2049 SV9501M2528

SV9501M2056 SV9501M2528

SV9501M2064 SV9501M2528

SV9501M2080 SV9501M2528

SV9501M2239 SV9501M2528

SV9501M2700 SV9501M2528

SV9501M2718 SV9501M2528

SV9501M2726 SV9501M2528

SV9501M2734 SV9501M2528

SV9501M2742 SV9501M2528

SV9540Q2464 SV9541Q2561

SV9541Q3098 SV9541Q2561

Manufacturer Part Number

Honeywell Universal

Replacement

ICP, Heil, Tempstar, Arcoaire,

Comfortmaker, KeepRite, Mestek,

Slant/Fin

SV9540M2229 SV9641M4510

SV9540M2245 SV9641M4510

SV9540M2260 SV9641M4510

SV9540M2278 SV9641M4510

SV9541M2094 SV9641M4510

SV9640M3126 SV9641M4510

SV9640M4116 SV9641M4510

SV9640M4124 SV9641M4510

SV9640M4132 SV9641M4510

Laars, Utica, Armstrong, Concord,

AireEase

SV9501H2409 SV9502H2522

SV9501H2417 SV9502H2522

SV9501H2425 SV9502H2522

SV9501H3415 SV9502H2522

SV9501H3423 SV9502H2522

SV9502H1706 SV9502H2522

SV9502H2704 SV9502H2522

Modine

SV9410M2902 SV9510M2511

SV9410M2910 SV9510M2511

SV9510M2347 SV9510M2511

SV9510M2354 SV9510M2511

SV9510M2362 SV9510M2511

SV9510M2388 SV9510M2511

SV9510M2412 SV9510M2511

SV9510M2420 SV9510M2511

Roberts Gordon

SV9510H2228 SV9510K2539

SV9510K2133 SV9510K2539

SV9510K2141 SV9510K2539

SV9510K2158 SV9510K2539

SV9510K2166 SV9510K2539

SV9420M2323 SV9520M2536

SV9420M2331 SV9520M2536

SV9501M8103 SV9501M8129

SV9520M2403 SV9520M2536

SV9601M3003 SV9601M4571

SV9601M4167 SV9601M4571

SV9601M4225 SV9601M4571

SV9601P4115 SV9602P4840

Universal SmartValves

Honeywell SmartValves combine gas ﬂow control and

electronic ignition into a single unit providing smart, safe

control in appliances.

SmartValve™

SmartValve

S8610U3009

Manufacturer Part Number Honeywell Universal

Camstat IPI-24-00

S8610U3009

Fenwal 05-203025-005

Fenwal 05-203026-005

Honeywell

S8600A1001

S8600B1009

S8600B1025

S8600B3005

S8600B3013

S8600C1015

S8600C3003

S8600F1000

S8600F1034

S8600F1042

S8600H1006

S8600H1014

S8600H1022

S8600H1048

S8600H1055

S8600H1063

S8600H1071

S8600H1089

S8600H1097

S8600H1105

S8600H3002

S8600H3010

S8600M1005

S8600M1013

S8600M1021

S8600M2003

S8600M3001

S8600M4009

S860C1000

S860D1009

S860D1017

S8610A1009

S8610B1007

S8610B1015

S8610B1023

S8610B3003

S8610C1005

S8610C1013

S8610C3001

S8610F1008

S8610F1016

S8610F1024

S8610F1032

S8610H1004

S8610H1012

S8610H1020

S8610H1038

S8610H1046

S8610H1053

S8610H1061

S8610H1079

S8610H1095

S8610H3000

S8610H3018

S8610H3026

S8610M1003

S8610U3009

Manufacturer Part Number Honeywell Universal

Honeywell

S8610M1011

S8610U3009

S8610M1029

S8610M3009

S8610M3017

S8610U1003

S8610U1011

S8620C1003

S8620C1011

S8620H1002

S8620H1010

S8620H1028

S8660D1002

S8660D1010

S8660J1008

S8660J1016

S8660J1024

S8660K1006

S8660K1014

S8660K1022

S8670D1000

S8670D1018

S8670D1026

S8670D3006

S8670D3014

S8670E1007

S8670E3003

S8670J3002

S8670J3010

S8670K3000

S8680J1004

S86A1001

S86A1019

S86A1027

S86A1035

S86B1009

S86B1017

S86B1025

S86C1007

S86C1015

S86C1023

S86C1031

S86C1049

S86C1056

S86D1005

S86D1013

S86D1021

S86E1002

S86E1010

S86E1028

S86E1036

S86E1044

Ignition Modules

Universal Intermittent Pilot and

Hot Surface Ignition

Honeywell's ignition controls replace a wide variety of

OEM installed Honeywell and competitive products in

the ﬁeld. Reduce your inventory and complete more

service jobs with Honeywell's Universal ignition controls.

Ignition Modules

S8610U3009

Manufacturer Part Number Honeywell Universal

Honeywell

S86E1051

S8610U3009

S86E1069

S86E1077

S86E1101

S86E1119

S86E1127

S86F1000

S86F1018

S86F1026

S86F1042

S86F1059

S86F1067

S86F1075

S86F1083

S86F1091

S86G1008

S86G1016

S86G1024

S86G1032

S86G1057

S86G1073

S86H1006

S86H1014

S86H1022

S86H1048

S86H1055

S86H1063

S86H1089

S86H1097

S86H1105

S86H1113

S86H1121

S86H1139

S86H1147

S90A1005

S90B1003

S90B1011

HSC 1003-3

HSC 1003-300

Johnson Controls

G600AX-1

G600AX-2

G600AX-3

G600AY-1

G600LX-1

G600LX-2

G600LY-1

G600MX-1

G600NX-1

G600RX-1

G60AAA-1

G60AAG-1

G60AAG-2

G60AAG-3

G60AAG-4

G60AAG-5

G60AAG-6

G60AAG-7

G60CAA-1

S8610U3009

Manufacturer Part Number Honeywell Universal

Johnson Controls

G60CAA-3

S8610U3009

G60CAG-1

G60CAG-2

G60CAG-3

G60CAG-4

G60CAG-5

G60CAG-6

G60CAG-7

G60CAG-8

G60CAG-9

G60CBA-1

G60CBA-2

G60CBA-3

G60CBG-1

G60CBG-10

G60CBG-11

G60CBG-12

G60CBG-13

G60CBG-14

G60CBG-15

G60CBG-16

G60CBG-17

G60CBG-2

G60CBG-3

G60CBG-4

G60CBG-5

G60CBG-6

G60CBG-7

G60CBG-8

G60CBG-9

G60CCA-1

G60CCG-1

G60CPG-1

G60DBG-1

G60DCG-1

G60DCG-2

G60DCG-3

G60DCG-4

G60PAG-1

G60PAG-2

G60PAG-3

G60PAG-4

G60PAG-5

G60PAG-6

G60PAJ-1

G60PAK-1

G60PAK-2

G60PFH-1

G60PFH-2

G60PFL-1

G60PFQ-1

G60PVL-1

G60QAG-1

G60QAG-2

G60QAG-3

G60QAG-4

G60QAK-1

G60QBG-1

Ignition Modules

S8610U3009

Manufacturer Part Number Honeywell Universal

Johnson Controls

G60QBG-2

S8610U3009

G60QBG-3

G60QBG-4

G60QBG-5

G60QBG-6

G60QBG-7

G60QBG-8

G60QBG-9

G60QBH-1

G60QBK-1

G60QBK-2

G60QBK-3

G60QBL-1

G60QBL-2

G60QCG-1

G60QCJ-1

G60QCL-1

G60QDG-1

G60QFL-1

G60QGH-1

G60QHL-1

G60QHL-2

G60QJL-1

G60QLG-1

G60QLK-1

G60QPL-1

G60QRH-1

G60QRH-2

G60QRH-3

G60QRL-1

G60QRL-2

G60QRL-3

G60QSL-1

G60QTH-1

G60QTL-1

G60RAG-1

G60RAK-1

G60RBG-1

G60RBG-2

G60RBG-3

G60RBK-1

G60RBK-2

G60RCG-1

G60RCG-2

G60RCJ-1

G60RDG-1

G60RDK-1

G60RGL-1

G60RHL-1

G60RHP-1

G60RPL-1

G60RSL-1

G60TTL-1

G60ZAG-1

G60ZAG-2

G65BBG-1

G65BBG-2

G65BBG-3

S8610U3009

Manufacturer Part Number Honeywell Universal

Johnson Controls

G65BBG-4

S8610U3009

G65BBG-5

G65BBG-6

G65BBG-7

G65BBG-8

G65BBM-1

G65BBM-2

G65BBM-3

G65BBM-4

G65BCG-1

G65BCM-1

G65BFG-1

G65BFM

G65BKG-1

G65BKG-2

G65BKG-3

G65BKM-1

G65BKM-2

G65BKM-3

G65BLG-1

G65BLG-2

G65DBG

G65DBM-1

G65DBM-2

G65DBM-3

G65DCM-1

G65DFG

G65DFM-1

G65DKG

G65DKM

G65DKM-1

G65DLM-1

G65FBG

G65FFG

G65FKG

G66AG-1

G66AG-2

G66BG-1

G66MG-1

G66MG-2

G66NG-1

G670AW-1

G670AW-2

G670GA-1

G67AG-10

G67AG-11

G67AG-3

G67AG-4

G67AG-7

G67AG-8

G67AG-9

G67BG-2

G67BG-3

G67BG-4

G67BG-5

G67MG-1

G67MG-2

G67MG-3

Ignition Modules

S8610U3009

Manufacturer Part Number Honeywell Universal

Johnson Controls

G67MG-4

S8610U3009

G67NG-2

G67NG-4

G770LGA-1

G770LGA-2

G770LGC-1

G770LGC-2

G770LGC-3

G770LGC-4

G770LHA-1

G770LHA-2

G770LHC-1

G770MGA-1

G770MGA-2

G770MGA-3

G770MGC-1

G770MGC-2

G770MGC-3

G770MGC-4

G770MGC-5

G770MGC-6

G770MHA-1

G770MHA-2

G770MHC-1

G770NGA-1

G770NGC-4

G770NGC-5

G770NGC-6

G770NGC-7

G770NHA-1

G770NHC-1

G770RGA-1

G770RHA-1

G770RHA-2

G775RGA-1

G775RHA-1

G775RHA-2

G779

Y79ABC-1

Y79ABC-2

Y79ABC-3

Y79ABC-4

Y79ABC-5

Y79ABC-6

Y79ABC-7

Y79ABCD-2

Y79ABD-1

Y79BBA-1

Y79BBA-2

Robershaw

780-001

780-002

780-003

780-715

780-735

780-736

780-737

780-845

SP715

S8610U3009

Manufacturer Part Number Honeywell Universal

Robershaw

SP715A S8610U3009

SP735 S8610U3009

SP735D S8610U3009

SP735L S8610U3009

USI715U S8610U3009

White-Rodgers

50D49-350 S8610U3009

50D49-360 S8610U3009

50D49-361 S8610U3009

50D49-401 S8610U3009

50D50-843 S8610U3009

S8910U1000

Manufacturer Part Number Honeywell Universal

Honeywell

S890C1007

S8910U1000

S890D1006

S890G1003

S890G1011

S890G1029

S890G1037

S890H1002

S890H1010

S890H1028

S89C1004

S89C1012

S89C1046

S89C1087

S89C1103

S89D1002

S89G1005

S89G1013

S89G1021

S89G1047

S89H1003

S89H1011

S89H1029

S89J1008

Robertshaw

HS780-17NL-104A

HS780-17NL-108A

HS780-17NL-304A

HS780-17NL-308A

HS780-17NR-104A

HS780-17NR-306A

HS780-17NR-308A

HS780-34NL-108A

HS780-34NL-304A

HS780-34NL-306A

HS780-34NL-308A

HS780-34NL-312A

HS780-34NR-104A

HS780-34NR-306A

HS780-34NR-308A

HS780-34NR-312A

HS780-34PL-308A

White-Rodgers

50E47-1 thru 50E47-79

50E47-101 thru 50E47-179

50E47-201 thru 50E47-279

50E47-301 thru 50E47-379

50F47-1 thru 50F47-79

50F47-101 thru 50F47-179

50F47-201 thru 50F47-279

50F47-301 thru 50F47-379

Ignition Modules

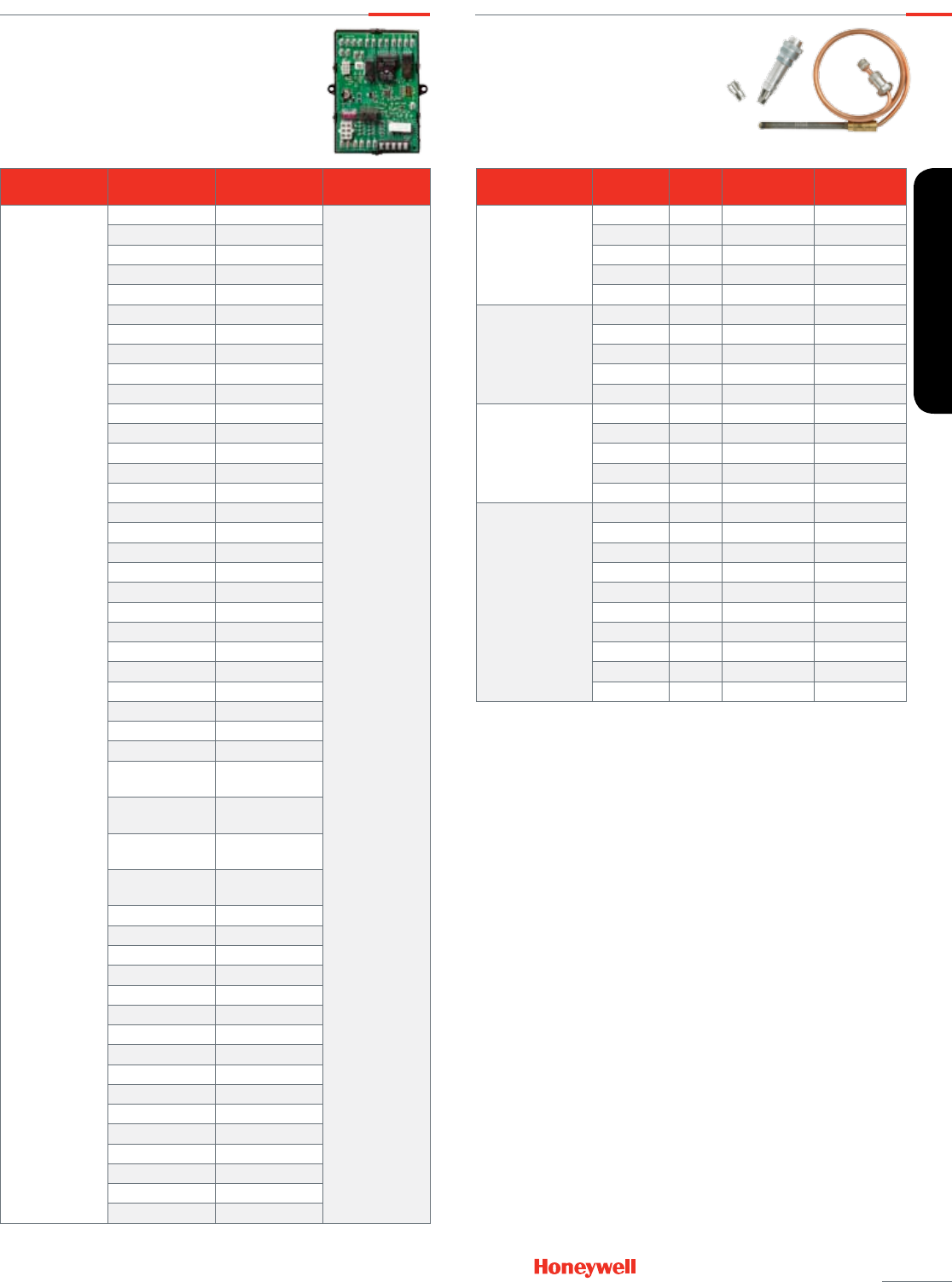

Fan Timers/Thermocouples

Thermocouples

Fan Timers/Thermocouples

Manufacturer Part Number Length

Premium

Thermocouple

Utility

Thermocouple

Husky

K16BT-18 18 Q340A1066 Q390A1095

K16BT-24 24 Q340A1074 Q390A1046

K16BT-30 30 Q340A1082 Q390A1053

K16BT-36 36 Q340A1090 Q390A1061

K16BT-48 48 Q340A1108 Q390A1103

Johnson Controls

K19AT-18 18 Q340A1066 Q390A1095

K19AT-24 24 Q340A1074 Q390A1046

K19AT-30 30 Q340A1082 Q390A1053

K19AT-36 36 Q340A1090 Q390A1061

K19AT-48 48 Q340A1108 Q390A1103

Robertshaw

1970-24 24 Q340A1074 Q390A1046

1980-24 24 Q340A1074 Q390A1046

1970-30 30 Q340A1082 Q390A1053

1970-36 36 Q340A1090 Q390A1061

1980-36 36 Q340A1090 Q390A1061

White-Rodgers

H06E-518 18 Q340A1066 Q390A1095

HO6E-18 18 Q340A1066 Q390A1095

H06E-524 24 Q340A1074 Q390A1046

HO6E-24 24 Q340A1074 Q390A1046

H06E-530 30 Q340A1082 Q390A1053

HO6E-30 30 Q340A1082 Q390A1053

H06E-536 36 Q340A1090 Q390A1061

HO6E-36 36 Q340A1090 Q390A1061

H06E-548 48 Q340A1108 Q390A1103

HO6E-48 48 Q340A1108 Q390A1103

Generate 30 mv in standing

pilot systems

Contractors depend on Honeywell for

easy installation and reliable performance

and we think about that trust in every

component we make.

Fan Timers

Universal Electronic Fan Timer

With a complete set of wiring harness, ﬁeld-adjustable

settings and extensive cross-reference the ST9120U

is a must stock item for every service van.

Manufacturer Part Number

OEM Appliance

Manufacturer

Honeywell

Universal

Honeywell

ST9101A1006 Rheem

ST9120U1011

ST9101A1014 Rheem

ST9101A1022

ST9120A1006 Armstrong

ST9120A2004 Armstrong

ST9120B1005 Ducane

ST9120C1012 Snyder General

ST9120C1020 Nordyne

ST9120C2002 York

ST9120C2010 Ducane

ST9120C2028 Armstrong

ST9120C3000 ICP

ST9120C3018 Bard

ST9120C4008 ICP

ST9120C4016 ICP

ST9120C4040 ICP

ST9120C4057 ICP

ST9120C5005 ICP

ST9120C5013 ICP

ST9120D3009 Goodman

ST9120G2008 ICP

ST9120G2016 ICP

ST9120G2024 Skymark

ST9120G2032 Skymark

ST9120G4004 ICP

ST9120G4012 ICP

ST9120G4038

ST9120U1003

ST9141A1002 Consolidated

Industries

ST9141A1028 Consolidated

Industries

ST9141B1001 Consolidated

Industries

ST9150A1003 Consolidated

Industries

ST9150B2000

ST9150B2018 ICP

ST9150B2026 Ducane

ST9150B2034

ST9160A1002 Armstrong

ST9160B1001

ST9160B1019

ST9160B1027

ST9160B1035

ST9160B1043 ICP

ST9160B1050 ICP

ST9160B1068 Armstrong

ST9160B1076 Ducane

ST9160B1084 ICP

ST9160C1000

ST9160C1018

Manufacturer Part Number Honeywell Universal

Trane D340774P01

S9200U1000

D341235P01

United Technologies

1012-83-9336AHSC1

1012-83-9337A

1012-83-9651B

1012-925

1012-925B

1012-925C

1012933D

1012-933D

1012955A

1012-955A

White-Rodgers

50A50-110

50A50-111

50A50-112

50A50-113

50A50-142

50A50-143

50A50-205

50A50-206

50A50-207

50A50-209

50A50-230

50A50-241

50A50-285

50A50-286

50A50-288

50A50-295

50A50-296

50A50-405

50A50-406

50A50-408

50A50-438

50A50-471

50A50-473

50A50-474

50A50-571

50A55-120

50A55-143

50A55-241

50A55-285

50A55-286

50A55-288

50A55-438

50A55-474

50A55-571

50A55-843

50T35730

50T35-730

50T35743

50T35-743

D330927P01

D330930P01

D330934P01

D340035P01

D340354P01

D340774P01

D341235P01

York 031-01234-000

Manufacturer Part Number Honeywell Universal

Amana

10207701

S9200U1000

10207702

10207703

10207710

Goodman 1809913

Goodman B1809913

Goodman B18099-13

ICM ICM280

Lennox 1214201

Nordyne

624557

6245570

624557-0

624564

6245640

624591A

624591-A

624591-B

624591-C

624591-D

624628

624628-0

6246310

624631-0

624631A

624631-A

624631-B

710128A

902378

902696

903106

CAR903106

Rheem/Robertshaw

62-24268-01

62-24268-02

62-24268-03

695-200

Texas Instruments

41F-5

61F3

6DT-1

6DT-2

Trane

50A50-405

50A50-406

50A50-471

50A50-473

50A50-474

50A50-571

50A55-474

50A55-571

D330927P01

D330930P01

D330934P01

D340035P01

D340354P01

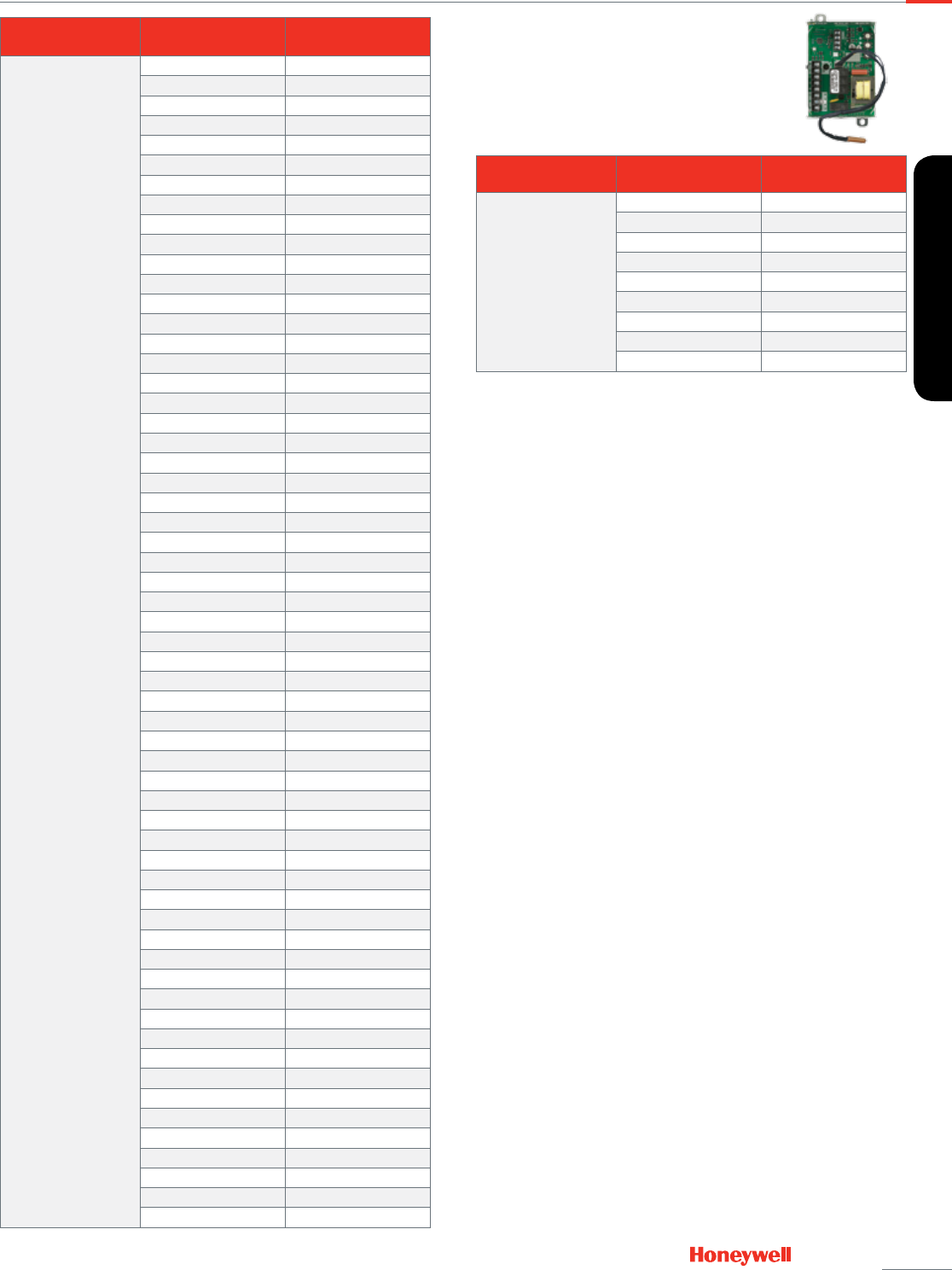

Single-Stage 120V Hot Surface Ignition

Honeywell's Universatl Integrated control provides

contractors with the application ﬂexibility and ease of

use they require to get the job done fast and right, the

ﬁrst time!

Integrated Furnace Controls

Manufacturer Part Number Honeywell Universal

York

031-00662

S9200U1000

03100662000

031-00662-000

031-00662-700

031011140002

031-01140-000

031-01140-001

031-01140-002

031-01140-701

031-01140-702

031-01234-700

031-01235-000

031-01235-700

031-01250-000

031-01266-000

031-01267-000

031-01267-001

031-01267-001A

031-01284-000

031-01933-000

031-01972-000

031-01973-000

031-02166-000

031-09166-000

031-09167-000

31-01267-00

331-01933-000

331-01972-200

CAR03101973000

CAR33101972200

CAR50A55843

G951ADB1401

G951ADB1401C

G951ADB-1401C

G951ADB1402

G951ADB-1402

G951AEB-1403

P03101267001

P031-01267-001

PTH031011400-00

Integrated Furnace Controls

Manufacturer Part Number

Honeywell

Universal

Honeywell Direct

replacement

Honeywell R8184G4108

R7284U1004

White-Rodgers

669-640

669-670

669-440

669-445

669-470

669-540

668-601

668-670

668-501

668-401

668-0415

668-430

668-515

668-430

668-441 R8184M1002

668-451 R8184M1002

668-454 R8184M1002

Manufacturer Part Number

Honeywell

Universal

Honeywell Direct

replacement

Beckett

7505P125M

R7284U1004

7505A0000

7505B1500 R7284B1024

7505P1515

Carlin

50200-02S

602000-02S

6020002S015120

6020002S030015

6020002S030030

6020002S030120

6020002S030300

6020002S030010

40200-02S

42230-02S

48245-S

Honeywell

R7184U1004

R7184P1031

R7184P1049

R7184P1056

R7184P1064

R7184P1072

R7184A1026

R7184A1075

R7184A1000

R7184B1024 R7284B1024

R7184B1032 R7284B1024

R7184B1016 R7284B1024

R7184P1080

R7184P1098

R7184U1012

R7184A1018

R7184A1034

R7184U1020

R7184A1042

R8184G1294

R8184G1302

R8184G4066

R8184G4074

R8184G4033

R8184G4090

R8184G1427

R8184G4058

R8184G1393

R8184G1302

R8184G4074

R8184G4033

R8184G1286

R8184G1427

R8184G1458

R8184G4009

R8184G4025

R8184G4082

Universal Digital Electronic Oil Primary

With the most advanced features our new oil primary

helps you optimize your service department by telling

you what's wrong up front, so you'll spend less time

diagnosing systems and more time keeping your

customers comfortable and happy.

Oil Primaries

Manufacturer Honeywell OEM Part

Honeywell

Cross-reference

Honeywell

L6006A1160 L6006A1012

L6006A1269 L6006A1012

L6006A1301 L6006A1012

L6006A1327 L6006A1012

L6006A1335 L6006A1012

L4006A1004 L6006A1145

L6006C1034 L6006C1018

L6006C1059 L6006C1018

L6008A1010 L6008A1093

Aquastat

Manufacturer Honeywell OEM Part

Honeywell

Cross-reference

Honeywell

L6081A1069 L6081A1010

L4081A1023 L6081A1036

L4081A1148 L6081A1036

L4081A1155 L6081A1036

L4081A1171 L6081A1036

L4081A1189 L6081A1036

L4081A1197 L6081A1036

L8148E1158 L8148E1265

L8148E1182 L8148E1265

L8148E1216 L8148E1265

L8148E1065 L8148E1265

L8124A L7224U1002

L8124C L7224U1002

L8148A L7224U1002

L8148C L7224U1002

L7224A L7224U1002

L7224C L7224U1002

L7248A L7224U1002

L7248C L7224U1002

L8151C L7224U1002

L8124A1015 L8124A1007

L8124A1049 L8124A1007

L8124A1106 L8124A1007

L8124A1114 L8124A1007

L8124A1130 L8124A1007

L8124A1155 L8124A1007

L8124A1015 L8124A1007

L8124C1003 L8124C1094

L8124C1003 L8124C1102

L8124G1020 L8124G1004

L8124G1020 L8124G1012

L8124L1011 L8124L1003

L8124L1011 L8124L1029

L8124L1011 L8124G1038

L8124L1011 L8124G1046

L8148A1017 L8148A1165

L8148A1017 L8148A1157

L8148A1017 L8148A1124

L8148A1017 L8148A1090

L8148A1017 L8148A1082

L8148A1017 L8148A1009

L4080B L4006A1017

L4080D L4006A1017

L4006A1058 L4006A1017

L4006A1827 L4006A1017

L4006A2015 L4006A1017

L4006A2023 L4006A1132

L4006E1091 L4006E1067

L4006E1109 L4006E1067

L4006E1117 L4006E1067

L4006E1125 L4006E1067

L4006E1133 L4006E1067

L4008E1040 L4008E1156

L4008E1248 L4008E1156

L4008E1321 L4008E1156

L4008E1271 L4008E1305

L4008E1313 L4008E1305

L4006B1189 L4006B1155

L4008B1163 L4006B1155

Honeywell Aquastats

A boiler industry standard, Honeywell Aquastats have

a proven track record and a large installed base, keep

your customers' heat on all winter with our Universal

electronic Aquastats.

Aquastat®

Economy Contactors

Manufacturer Part Number

Honeywell

Cross-reference

Cutler Hammer

C25BNB230A DP2030B1002

C25BNB230B DP2030C1001

C25BNB230T DP2030A1003

C25BNB240A DP2040B1001

C25BNB240B DP2040C1000

C25BNB240T DP2040A1002

C25CNB130T DP1030A1000

Siemens/Furnas

45EG10AJA DP1030A1000

45EG2OAF DP2030B1002

45EG2OAG DP2030C1001

45EG2OAJ DP2030A1003

45GG20AF DP2040B1001

45GG20AG DP2040C1000

45GG20AJ DP2040A1002

Mars

17311 DP1030A1000

17321 DP2030A1003

17322 DP2030B1002

17323 DP2030C1001

17421 DP2040A1002

17422 DP2040B1001

17423 DP2040C1000

61346 DP2030B1002

61347 DP2030C1001

61354 DP2030A1003

61355 DP2040A1002

61356 DP2040B1001

61357 DP2040C1000

91320 DP1030A1000

SquareD

8910DP31V14 DP1030A1000

8910DP32V02 DP2030B1002

8910DP32V09 DP2030C1001

8910DP32V14 DP2030A1003

8910DP42V02 DP2040B1001

8910DP42V09 DP2040C1000

8910DP42V14 DP2040A1002

Heating and Cooling Components

Honeywell offers a full lineup of contactors, relays and transformers for all your

residential HVAC applications. PowerPro Contactors

Manufacturer Part Number

Honeywell

Cross-reference

Cutler Hammer

C25DND230A DP2030B5003

C25DND230B DP2030C5002

C25DND230T DP2030A5004

C25DND330A DP3030B5002

C25DND330B DP3030C5001

C25DND330T DP3030A5003

C25DNF240A DP2040B5002

C25DNF240B DP2040C5001

C25DNF240T DP2040A5003

C25DNF340A DP3040B5001

C25DNF340B DP3040C5000

C25DNF340T DP3040A5002

C25DNJ350A DP3050B5000

C25DNJ350B DP3050C5009

C25DNJ350T DP3050A5001

C25ENF440A DP4040B5000

C25ENF440B DP4040C5009

C25ENF440T DP4040A5001

C25FNF360A DP3060B5009

C25FNF360B DP3060C5008

C25FNF360T DP3060A5000

C25FNF375A DP3075B5015

C25FNF375B DP3075C5014

C25FNF375T DP3075A5016

C25GNF390A DP3090B5006

C25GNF390B DP3090C5005

Mars

13007 DP3030A5003

13009 DP3030C5001

13013 DP3040A5002

13015 DP3040C5000

13016 DP4040A5001

13101 DP1030A5013

13104 DP2030A5004

13105 DP2030B5003

13106 DP2030C5002

13107 DP2040A5003

13108 DP2040B5002

13109 DP2040C5001

13113 DP3030A5003

13114 DP3030B5002

13115 DP3030C5001

13240 DP3075A5016

13242 DP3075C5014

13262 DP3090C5005

13619 DP3050A5001

13621 DP3050C5009

13625 DP3060A5000

13627 DP3060C5008

14122 DP2020B5038

14423 DP2040C5001

14423 DP3040A5002

60031 DP2030B5011

60032 DP2030C5002

60153 DP2030D5001

60182 DP3040C5000

60202 DP3050C5009

60207 DP3060C5008

60217 DP3050C5009

60227 DP3060C5008

60235 DP3075A5016

60237 DP3075B5015

60245 DP3075C5014

Heating and Cooling Components

PowerPro Contactors

Manufacturer Part Number

Honeywell

Cross-reference

Mars

60247 DP3090C5005

60510 DP2030A5004

60510 DP2030A5012

60512 DP2030C5002

60512 DP2030C5010

60515 DP3030A5003

60517 DP3030C5001

60525 DP2040A5003

60527 DP2040C5001

60530 DP3040A5002

60532 DP3040C5000

61310 DP2020A5021

61315 DP1025A5005

61320 DP1030A5013

61330 DP1040A5004

61336 DP2020B5038

61345 DP2030A5004

61346 DP2030B5003

61347 DP2030C5002

61355 DP2040A5003

61356 DP2040B5002

61357 DP2040C5001

61430 DP3030A5003

61431 DP3030B5002

61432 DP3030C5001

61445 DP3040A5002

61446 DP3040B5001

61447 DP3040C5000

61450 DP4040A5001

61451 DP4040B5000

61452 DP4040C5009

61460 DP3050A5001

61461 DP3050B5000

61462 DP3050C5009

61470 DP3060A5000

61471 DP3060B5009

61472 DP3060C5008

61475 DP3075A5016

61476 DP3075B5015

61477 DP3075C5014

61491 DP3090B5006

61492 DP3090C5005

61720 DP1030A5013

61755 DP2040A5003

61756 DP2040B5002

61757 DP2040C5001

91321 DP2030A5004

91323 DP2030C5010

91331 DP3030A5003

91332 DP3030B5002

91421 DP2040A5003

91422 DP2040B5002

91423 DP2040C5001

91431 DP3040A5002

91433 DP3040C5000

91531 DP3050A5001

91533 DP3050C5009

91631 DP3060A5000

91633 DP3060C5008

91731 DP3075A5016

91733 DP3075C5014

91333, DP3030C5001

PowerPro Contactors

Manufacturer Part Number

Honeywell

Cross-reference

Siemens/Furnas

42BF35AF DP3030B5002

42BF35AG DP3030C5001

42BF35AJ DP3030A5003

42CF25AF DP4040B5000

42CF25AG DP4040C5009

42CF25AJ DP4040A5001

42CF35AF DP3040B5001

42CF35AG DP3040C5000

42CF35AJ DP3040A5002

42DF35AF DP3050B5000

42DF35AG DP3050C5009

42DF35AJ DP3050A5001

42EF35AF DP3060B5009

42EF35AG DP3060C5008

42EF35AJ DP3060A5000

42FE35AF DP3075B5015

42FE35AG DP3075C5014

42FE35AJ DP3075A5016

42GE35AF DP3090B5006

42GE35AG DP3090C5005

45CG20AF DP2020B5038

45CG20AJ DP2020A5021

45DG10AJA DP1025A5005

45EG10AJA DP1030A5013

45EG2OAF DP2030B5003

45EG2OAG DP2030C5002

45EG2OAJ DP2030A5004

45GG10AJA DP1040A5004

45GG20AF DP2040B5002

45GG20AG DP2040C5001

45GG20AJ DP2040A5003

SquareD

8910DPA12V02 DP2020B5038

8910DPA12V14 DP2020A5021

8910DPA32V02 DP2030B5003

8910DPA32V09 DP2030C5002

8910DPA32V14 DP2030A5004

8910DPA33V02 DP3030B5002

8910DPA33V09 DP3030C5001

8910DPA33V14 DP3030A5003

8910DPA42V02 DP2040B5002

8910DPA42V09 DP2040C5001

8910DPA42V14 DP2040A5003

8910DPA43V02 DP3040B5001

8910DPA43V09 DP3040C5000

8910DPA43V14 DP3040A5002

8910DPA44V02 DP4040B5000

8910DPA44V09 DP4040C5009

8910DPA44V14 DP4040A5001

8910DPA53V02 DP3050B5000

8910DPA53V09 DP3050C5009

8910DPA53V14 DP3050A5001

8910DPA63V02 DP3060B5009

8910DPA63V09 DP3060C5008

8910DPA63V14 DP3060A5000

8910DPA73V02 DP3075B5015

8910DPA73V09 DP3075C5014

8910DPA73V14 DP3075A5016

8910DPA93V02 DP3090B5006

8910DPA93V09 DP3090C5005

Transformers

Manufacturer Part Number

Honeywell

Cross-reference

Edwards

599 AT140A1000

599/599Y AT140A1018

599Y AT140B1024

General

T277-50 AT150B1252

T500 AT150A1007

T500C/B AT150F1022

T750 AT175A1008

T750C/B AT175F1023

T750C/B AT175F1031

TR123 AT140B1214

TR402 AT140A1018

TR403 AT140A1000

TR405 AT140B1206

TR405 AT140B1016

TR406 AT140B1024

Jard

4011F AT140B1206

4011F AT140B1016

4011M AT140A1000

4021F AT140B1024

4031F AT140B1214

5027F AT150B1252

5031M AT150A1007

5032M AT140A1018

5041C AT150F1022

7541C AT175F1023

7541C AT175F1031

Mars

50201 AT140B1206

50201 AT140B1016

50202 AT140B1024

50205 AT140B1214

50210 AT140A1000

50211 AT140A1018

50216 AT150A1007

50225 AT175A1008

50227 AT150F1022

50231 AT175F1023

50231 AT175F1031

White Rodgers

90-T40F1 AT140B1206

90-T40F1 AT140B1016

90-T40F2 AT140B1024

90-T40F3 AT140B1214

90-T40M1 AT140A1000

90-T40M3/ S82A-310 AT140A1018

90-T50F3/90-T50C3 AT150B1146

90-T75C3 AT175F1023

Heating and Cooling Components

Relays

Manufacturer Part Number

Honeywell

Cross-reference Notes

White-Rodgers

24A01G-3 R841C1169/

R841C1029

24A01Z-10 R841C1144

24A05A-1 R841D1036

requires separate

120-24V

transformer

24A05E-1 R841C1169

24A05Z-1 NA

24A06G-1 R841E1068

24A07E-1 R841C1169 WR product has no

enclosure

24A07G-1 R841C1169/

R841C1029

WR product has no

enclosure

24A52-1 R8229A1005

24A56-1 R8330D1039

829A-832 R8225D1003

8A04-1 R8225A1017 R8225B1007

90-112 R8285B1053 Not a direct match

90-113 R8285A1048

90-117 R8285A1048 Not a direct match

90-118E R8285B1053 Not a direct match

90-130 R8285B1053

90-340 R8222D1014

90-341 R4222D1013

90-342 R4222D1021

Fan and Limit Controls

Manufacturer

Honeywell

OEM Part

Honeywell

Cross-reference Notes

Honeywell

L4064W1171

L4064W1098

L4064W1130

L4064W1221

L4064W1205

L4064W1288

L4064T1707

L4064T1715

L4064T1780

L4064T2093

L4064T2440

L4064W1015

L4064Y1573

L4064A1321

L4064B2210

L4064A1453

L4064A2758

L4064A3046

L4064B3580

L4064B3465

L4064B1592

L4064B1725

L4064B1931

L4064B2210

L4064B2723

L4064B2863

L4064B2954

L4064B3036

L4064B3044

L4064B3077

L4064B2756

L4064B3069

L4064E2551

L4064R1100

L4064R1134 Canada

L4064R1068

L4064R1035

L4064R1027

L4064T1046

L4064W1106

L4064T2457

L4064W1213

L4064W1254

L4064Y1540

L6064A1094 L6064A1052

Canada

L6064E1020 L6064A1052

L6064A1086 L6064A1045

L6064A1003 L6064A1037

L6064A1078 L6064A1037

L6064A1151 L6064A1037

Manufacturer

Honeywell

OEM Part

Honeywell

Cross-reference Notes

Honeywell

L4064A1503

L4064B2228

L4064A1339

L4064A2501

L4064F1098

L4064E2528

L4064E2585

L4064E2502

L4064B3515

L4064B3598

L4064B2897

L4064B3432

L4064B3374

L4064B2947

L4064B2889

L4064B2640

L4064B2228

L4064B1683

L4064B3010

L4064B3440

L4064B1600

L4064W1072

L4064W1080

L4064W1163

L4064W1197

L4064W1056

L4064W1064

L4064W1296

L4064Y1565

L4064A2774

L4064B2236

L4064A1511

L4064A1347

L4064A1735

L4064A2030

L4064A2998

L4064A2279

L4064E2544

L4064E2452

L4064B3390

L4064B3481

L4064B3499

L4064B3085

L4064B3051

L4064B3572

L4064B2772

L4064B2962

L4064B2905

L4064B2608

L4064B1691

L4064B1618

L4064B3457

L4064R1019

L4064R1142 CanadaL4064R1118

L4064R1126

L4064W1007 L4064W1098

Honeywell fan and limits combines high temperature

limit with circulating blower control. As an industry

standard for many years, these controls have a large

and varied installed base. You’ll ﬁnd Honeywell fan and

limits on a wide range of furnace equipment.

Learn More

Call toll-free 1-800-328-5111,

e-mail info@honeywell.com or

visit customer.honeywell.com.

Automation and Control Solutions

In the U.S.:

Honeywell

1985 Douglas Drive North

Golden Valley, MN 55422-3992

In Canada:

Honeywell Limited

35 Dynamic Drive

Toronto, Ontario M1V 4Z9

www.honeywell.com

67-7518 PR

June 2011

Product Detail Manual

66163-Attachment 66163-Attachment 66163-Attachment 085267 Batch12 unilog cesco-content

Navigation menu

Versions of this User Manual:

Views

Navigation
