Cross-reference guide
for discontinued
ballasts and drivers
updated April 2013
Table of contents
1 Hi-lume® LED Drivers
1 EcoSystem® H-Series
2 Eco-10®
6 Hi-lume
7 Compact SETM
9 Eco-10 TVE
10 Adapter plates
12 Case type dimensions
15 Warranty
1 | Lutron email: oemorders@lutron.com
EcoSystem® H-Series
Ballast Family
Date of
Discontinuation Discontinued Model Dimming
Case
Size
Ballast
Factor Replacement Model Dimming
Case
Size*
Ballast
Factor
EcoSystem
H-Series
02/01/12 EHDT832CU110 1% C 1.00 EHDT832MU110 1% M 1.00
EHDT832CU117 1% C 1.17 EHDT832MU117 1% M 1.17
EHDT832CU210 1% C 1.00 EHDT832MU210 1% M 1.00
EHDT832CU217 1% C 1.17 EHDT832MU217 1% M 1.17
EHD T554CU110 1% C 1.00 EHDT554MU110 1% M 1.00
EHDT554CU210 1% C 1.00 EHDT554MU210 1% M 1.00
EHDT528CU110 1% C 1.00 EHDT528MU110 1% M 1.00
EHDT528CU210 1% C 1.00 EHDT528MU210 1% M 1.00
ECDT832C347110 10% C 1.00 EHDT832C347110 1% C 1.00
ECDT832C347117 10% C 1.17 EHDT832C347117 1% C 1.17
ECDT832C347210 10% C 1.00 EHDT832C347210 1% C 1.00
ECDT832C347217 10% C 1.17 EHDT832C347217 1% C 1.17
ECDT528C347110 10% C 1.00 EHDT528C347110 1% C 1.00
ECDT528C347210 10% C 1.00 EHDT528C347210 1% C 1.00
ECDT554C347110 10% C 1.00 EHDT554C347110 1% C 1.00
ECDT554C347210 10% C 1.00 EHDT554C347210 1% C 1.00
DISCONTINUATION AND CROSS-REFERENCE SUMMARY
Hi-lume® LED drivers
Driver Family
Date of
Discontinuation Discontinued Model
Case
Size
Current
Level Replacement Model1
Voltage
Range
Case
Size
Current
Level
Hi-lume LED 6/30/11 L3D25070AUNV1S A 700 mA L3DA4U1UKS-HC070 15-38 V K 700 mA
L3D25070AUNV1S A 700 mA L3DA4U1UKS-GC070 8-20 V K 700 mA
L3D25070AUNV1 A 700 mA L3DA4U1UKN-HC070 15-38 V K 700 mA
L3D25070AUNV1 A 700 mA L3DA4U1UKN-GC070 8-20 V K 700 mA
L3D25105AUNV1S A 1.05 Amp L3DA4U1UKS-JC105 15-38 V K 1.05 Amp
L3D25105AUNV1S A 1.05 Amp L3DA4U1UKS-IC105 8-20 V K 1.05 Amp
L3D25105AUNV1 A 1.05 Amp L3DA4U1UKN-JC105 15-38 V K 1.05 Amp
L3D25105AUNV1 A 1.05 Amp L3DA4U1UKN-IC105 8-20 V K 1.05 Amp
L3D25140AUNV1S A 1.4 Amp L3DA4U1UKS-LC140 15-38 V K 1.4 Amp
L3D25140AUNV1S A 1.4 Amp L3DA4U1UKS-KC140 8-20 V K 1.4 Amp
L3D25140AUNV1 A 1.4 Amp L3DA4U1UKN-LC140 15-38 V K 1.4 Amp
L3D25140AUNV1 A 1.4 Amp L3DA4U1UKN-KC140 8-20 V K 1.4 Amp
L3D25210AUNV1S A 2.1 Amp L3DA4U1UKS-MC210 8-20 V K 2.1 Amp
L3D25210AUNV1 A 2.1 Amp L3DA4U1UKN-MC210 8-20 V K 2.1 Amp
As Lutron has continued to innovate and develop new products, older technologies have been discontinued. The following list
is a summary of all Lutron ballast part numbers that have been discontinued since September 2009. Contact your Lutron account
manager or customer service representative if you have any questions regarding this summary of discontinued ballasts.
* In some applications,
the replacement ballast case
size may be different. Review
dimensions for proper fit.
For questions about
replacement ballasts or
drivers, please contact
Lutron Technical Support
at 1.800.523.9466.
1 The model number suffix
will depend on the voltage
range that the LED fixture
needs. An update to the
OEM luminaire UL file may
be needed. For questions,
please contact the LED
Control Center of Excellence
at 1.877.DIM.LED8.
2 | Lutron email: oemorders@lutron.com
Eco-10®
Ballast Family
Date of
Discontinuation Discontinued Model Dimming
Case
Size
Ballast
Factor Replacement Model Dimming
Case
Size*
Ballast
Factor
Eco-10 12/31/11 E3T514C1201 10% C 1.0 EC5T514JUNV1 10% J 1.00
E3T514C1202 10% C 1.0 EC5T514JUNV2 10% J 1.00
E3T514C2771 10% C 1.0 EC5T514JUNV1 10% J 1.00
E3T514C2772 10% C 1.0 EC5T514JUNV2 10% J 1.00
E3T521C1201 10% C 1.0 EC5T521JUNV1 10% J 1.00
E3T521C1202 10% C 1.0 EC5T521JUNV2 10% J 1.00
E3T521C2771 10% C 1.0 EC5T521JUNV1 10% J 1.00
E3T521C2772 10% C 1.0 EC5T521JUNV2 10% J 1.00
ECO-T524-120-1 10% C 1.0 EC5T524JUNV1 10% J 1.00
ECO-T524-120-2 10% C 1.0 EC5T524JUNV2 10% J 1.00
ECO-T524-277-1 10% C 1.0 EC5T524JUNV1 10% J 1.00
ECO-T524-277-2 10% C 1.0 EC5T524JUNV2 10% J 1.00
ECO-T528-120-1 10% C 1.0 EC5T528JUNV1 10% J 1.00
ECO-T528-120-2 10% C 1.0 EC5T528JUNV2 10% J 1.00
ECO-T528-277-1 10% C 1.0 EC5T528JUNV1 10% J 1.00
ECO-T528-277-2 10% C 1.0 EC5T528JUNV2 10% J 1.00
ECO-T554-120-1 10% C 1.0 EC5T554JUNV1 10% J 1.00
ECO-T554-120-2 10% C 1.0 EC5T554JUNV2 10% J 1.00
ECO-T554-277-1 10% C 1.0 EC5T554JUNV1 10% J 1.00
ECO-T554-277-2 10% C 1.0 EC5T554JUNV2 10% J 1.00
ECO-T5H39-120-1 10% C 1.0 EC5T539JUNV1 10% J 1.00
ECO-T5H39-120-2 10% C 1.0 EC5T539JUNV2 10% J 1.00
ECO-T5H39-277-1 10% C 1.0 EC5T539JUNV1 10% J 1.00
ECO-T5H39-277-2 10% C 1.0 EC5T539JUNV2 10% J 1.00
EC3T817GU110 10% G 1.0 H3DT817GU11011% G 1.00
EC5T817JUNV1210% J 0.85
EC3T817GU210 10% G 1.0 H3DT817GU21011% G 1.00
EC5T817JUNV2210% J 0.85
EC3T817GU310 10% G 1.0 H3DT817GU310 1% G 1.00
EC3T817CU110 10% C 1.0 H3DT817CU11011% C 1.00
EC5T817JUNV1210% J 0.85
EC3T817CU210 10% C 1.0 H3DT817CU210 1% C 1.00
EC3T825GU110 10% G 1.0 Contact Lutron
Technical Support - - -
EC3T825GU210 10% G 1.0 Contact Lutron
Technical Support - - -
EC3T825CU110 10% C 1.0 EC5T825JUNV1 10% J 0.85
EC3T825CU210 10% C 1.0 EC5T825JUNV2 10% J 0.85
DISCONTINUATION AND CROSS-REFERENCE SUMMARY
* In some applications, the replacement ballast case size may be different. Review dimensions for proper fit.
For questions about replacement ballasts or drivers, please contact Lutron Technical Support at 1.800.523.9466.
1 Recommended for new application
2 Recommended for ballast replacement
3 | Lutron email: oemorders@lutron.com
Eco-10 (continued)
Ballast Family
Date of
Discontinuation Discontinued Model Dimming
Case
Size
Ballast
Factor Replacement Model Dimming
Case
Size*
Ballast
Factor
Eco-10 12/31/11
(continued) EC3T832GU110 10% G 1.0 H3DT832GU11011% G 1.00
EC5T832JUNV1210% J 0.85
EC3T832GU210 10% G 1.0 H3DT832GU21011% G 1.00
EC5T832GUNV2210% G 0.85
EC3T832GU310 10% G 1.0 H3DT832GU31011% G 1.00
EC5T832GUNV3L210% G 0.85
EC3T832GU117 10% G 1.17 H3DT832GU117 1% G 1.17
EC3T832GU217 10% G 1.17 H3DT832GU217 1% G 1.17
EC3T832GU317 10% G 1.17 H3DT832GU31711% G 1.17
EC5T832GUNV317L210% G 1.17
EC3T832CU110 10% C 1.0 H3DT832CU11011% C 1.00
EC5T832JUNV1210% J 0.85
EC3T832CU210 10% C 1.0 H3DT832CU21011% C 1.00
EC5T832JUNV2210% J 0.85
EC3T832CU117 10% C 1.17 H3DT832CU11711% C 1.17
EC5T832JUNV1210% J 0.85
EC3T832CU217 10% C 1.17 H3DT832CU21711% C 1.17
EC5T832JUNV2210% J 0.85
12/31/09 ECO-T817-120-1 10% F 0.85 H3DT817GU11011% G 1.00
EC5T817JUNV1210% J 0.85
ECO-T817-277-1 10% F 0.85 H3DT817GU11011% G 1.00
EC5T817JUNV1210% J 0.85
ECO-T817-120-2 10% F 0.85 H3DT817GU21011% G 1.00
EC5T817JUNV2210% J 0.85
ECO-T817-277-2 10% F 0.85 H3DT817GU21011% G 1.00
EC5T817JUNV2210% J 0.85
ECO-T817-120-3 10% F 0.85 H3DT817GU309 1% G 1.00
ECO-T817-277-3 10% F 0.85 H3DT817GU310 1% G 1.00
ECO-T825-120-1 10% F 0.85 EC5T825JUNV1 10% J 0.85
ECO-T825-277-1 10% F 0.85 EC5T825JUNV1 10% J 0.85
ECO-T825-120-2 10% F 0.85 EC5T825JUNV2 10% J 0.85
ECO-T825-277-2 10% F 0.85 EC5T825JUNV2 10% J 0.85
ECO-T832-120-1 10% F 0.85 H3DT832GU11011% G 1.00
EC5T832JUNV1210% J 0.85
ECO-T832-120-1-L 10% D 0.85 H3DT832GU11011% G 1.00
EC5T832JUNV1210% J 0.85
ECO-T832-120-2-T 10% D 0.85 H3DT832GU11011% G 1.00
EC5T832JUNV1210% J 0.85
DISCONTINUATION AND CROSS-REFERENCE SUMMARY
* In some applications, the replacement ballast case size may be different. Review dimensions for proper fit.
For questions about replacement ballasts or drivers, please contact Lutron Technical Support at 1.800.523.9466.
1 Recommended for new application
2 Recommended for ballast replacement
4 | Lutron email: oemorders@lutron.com
Eco-10 (continued)
Ballast Family
Date of
Discontinuation Discontinued Model Dimming
Case
Size
Ballast
Factor Replacement Model Dimming
Case
Size*
Ballast
Factor
Eco-10 12/31/09
(continued) ECO-T832-277-1 10% F 0.85 H3DT832GU11011% G 1.00
EC5T832JUNV1210% J 0.85
ECO-T832-277-1-L 10% D 0.85 H3DT832GU11011% G 1.00
EC5T832JUNV1210% J 0.85
ECO-T832-277-1-T 10% D 0.85 H3DT832GU11011% G 1.00
EC5T832JUNV1210% J 0.85
ECO-T832-120-2 10% F 0.85 H3DT832GU21011% G 1.00
EC5T832GUNV2210% G 0.85
ECO-T832-120-1-L 10% D 0.85 H3DT832GU21011% G 1.00
EC5T832GUNV2L210% G 0.85
ECO-T832-120-2-T 10% D 0.85 H3DT832GU21011% G 1.00
EC5T832GUNV2L210% G 0.85
ECO-T832-277-2 10% F 0.85 H3DT832GU21011% G 1.00
EC5T832GUNV2210% G 0.85
ECO-T832-277-2-L 10% D 0.85 H3DT832GU21011% G 1.00
EC5T832GUNV2210% G 0.85
ECO-T832-277-2-T 10% D 0.85 H3DT832GU21011% G 1.00
EC5T832GUNV2210% G 0.85
ECO-T832-120-3 10% F 0.85 EC5T832GUNV3L 10% G 0.85
ECO-T832-277-3 10% F 0.85 EC5T832GUNV3L 10% G 0.85
ECO-T539-120-1 10% F 0.85 H3DT536GU110 5% G 1.00
ECO-T539-277-1 10% F 0.85 H3DT536GU110 5% G 1.00
ECO-T539-120-2 10% F 0.85 H3DT536GU210 5% G 1.00
ECO-T539-277-2 10% F 0.85 H3DT536GU210 5% G 1.00
ECO-T539-120-3 10% F 0.85 None Available – – –
ECO-T539-277-3 10% F 0.85 None Available – – –
ECO-T540-120-1 10% F 0.85 H3DT540GU110 5% G 1.00
ECO-T540-277-1 10% F 0.85 H3DT540GU110 5% G 1.00
ECO-T540-120-2 10% F 0.85 H3DT540GU210 5% G 1.00
ECO-T540-277-2 10% F 0.85 H3DT540GU210 5% G 1.00
ECO-T540-120-3 10% F 0.85 H3DT540GU310 5% G 1.00
ECO-T540-277-3 10% F 0.85 H3DT540GU310 5% G 1.00
ECO-T550-120-1 10% F 0.85 H3DT550GU110 5% G 1.00
ECO-T550-277-1 10% F 0.85 H3DT550GU110 5% G 1.00
ECO-T550-120-2 10% F 0.85 H3DT550GU210 5% G 1.00
ECO-T550-277-2 10% F 0.85 H3DT550GU210 5% G 1.00
DISCONTINUATION AND CROSS-REFERENCE SUMMARY
* In some applications, the replacement ballast case size may be different. Review dimensions for proper fit.
For questions about replacement ballasts or drivers, please contact Lutron Technical Support at 1.800.523.9466.
1 Recommended for new application
2 Recommended for ballast replacement
5 | Lutron email: oemorders@lutron.com
Eco-10 (continued)
Ballast Family
Date of
Discontinuation Discontinued Model Dimming
Case
Size
Ballast
Factor Replacement Model Dimming
Case
Size*
Ballast
Factor
Eco-10 11/01/09 ECO-T536-240-1 10% F 0.95 H3DT536GU110 5% G 1.00
ECO-T536-240-2 10% F 0.95 H3DT536GU210 5% G 1.00
ECO-T818-240-1 10% F 0.95 None Available – – –
ECO-T818-240-2 10% F 0.95 None Available – – –
ECO-T832-240-2 10% F 0.95 EC5T832GUNV2L 10% G 0.85
ECO-T836-240-1 10% F 0.95 None Available – – –
ECO-T836-240-2 10% F 0.95 None Available – – –
ECO-T858-240-1 10% F 0.95 None Available – – –
ECO-T858-240-2 10% F 0.95 None Available – – –
ECO-T870-240-1 10% F 0.95 None Available – – –
DISCONTINUATION AND CROSS-REFERENCE SUMMARY
* In some applications, the replacement ballast case size may be different. Review dimensions for proper fit.
For questions about replacement ballasts or drivers, please contact Lutron Technical Support at 1.800.523.9466.
6 | Lutron email: oemorders@lutron.com
* In some applications, the replacement ballast case size may be different. Review dimensions for proper fit.
** For applications where a Hi-lume studded ballast was used, Lutron adapter plate CFL-JBA-FAB may be required to retrofit
the replacement studded ballast. Dimensions for the adapter plate are shown on page 10.
For questions about replacement ballasts or drivers, please contact Lutron Technical Support at 1.800.523.9466.
Hi-lume®
Ballast Family
Date of
Discontinuation Discontinued Model Dimming
Case
Size
Ballast
Factor Replacement Model Dimming
Case
Size*
Ballast
Factor
Hi-lume 12/31/09 FDB-2427-120-1 1% F 0.85 H3DT817GU110 1% G 1.00
FDB-2427-277-1 1% F 0.85 H3DT817GU110 1% G 1.00
FDB-2427-120-2 1% F 0.85 H3DT817GU210 1% G 1.00
FDB-2427-277-2 1% F 0.85 H3DT817GU210 1% G 1.00
FDB-2427-120-3 1% F 0.85 H3DT817GU310 1% G 1.00
FDB-2427-277-3 1% F 0.85 H3DT817GU310 1% G 1.00
FDB-3627-120-1 1% F 0.85 H3DT825CU110 1% C 1.00
FDB-3627-277-1 1% F 0.85 H3DT825CU110 1% C 1.00
FDB-3627-120-2 1% F 0.85 H3DT825CU210 1% C 1.00
FDB-3627-277-2 1% F 0.85 H3DT825CU210 1% C 1.00
FDB-3627-120-3 1% F 0.85 None Available – – –
FDB-3627-277-3 1% F 0.85 None Available – – –
FDB-4827-120-1 1% F 0.85 H3DT832GU110 1% G 1.00
FDB-4827-277-1 1% F 0.85 H3DT832GU110 1% G 1.00
FDB-4827-120-2 1% F 0.85 H3DT832GU210 1% G 1.00
FDB-4827-277-2 1% F 0.85 H3DT832GU210 1% G 1.00
FDB-4827-120-3 1% F 0.85 H3DT832GU310 1% G 1.00
FDB-4827-277-3 1% F 0.85 H3DT832GU310 1% G 1.00
FDB-6027-120-1 1% F 0.85 H3DT840CU110 1% C 1.00
FDB-6027-277-1 1% F 0.85 H3DT840CU110 1% C 1.00
FDB-6027-120-2 1% F 0.85 H3DT840CU210 1% C 1.00
FDB-6027-277-2 1% F 0.85 H3DT840CU210 1% C 1.00
11/1/09 FCE-0626-240-1 5% F 0.85 None Available – – –
FCE-0626-240-2 5% F 0.85 None Available – – –
FCE-1226-240-1 5% F 0.85 None Available – – –
FCE-1226-240-2 5% F 0.85 None Available – – –
FCE-1526-240-1 5% F 0.85 None Available – – –
FCE-1526-240-2 5% F 0.85 None Available – – –
FCE-1826-240-1 5% F 0.85 None Available – – –
FCE-CF18-240-1 5% F 0.85 EC3DT418KU1 5% K** 0.95
FCE-CF18-240-2 5% F 0.85 EC3DT418KU2 5% K** 0.95
FCE-CF26-240-1 5% F 0.85 EC3DT4MWKU1 5% K** 0.95
FCE-CF26-240-2 5% F 0.85 EC3DT4MWKU2 5% K** 0.95
FCE-CFL36-240-1 5% F 0.85 None Available – – –
FCE-CFL36-240-2 5% F 0.85 None Available – – –
FDB-4827-240-1 1% F 0.85 H3DT832GU110 1% G 1.00
FDB-4827-240-2 1% F 0.85 H3DT832GU210 1% G 1.00
DISCONTINUATION AND CROSS-REFERENCE SUMMARY
7 | Lutron email: oemorders@lutron.com
* In some applications, the replacement ballast case size may be different. Review dimensions for proper fit.
** For applications where a Compact SE studded ballast was used, Lutron adapter plate CFL-BEA-BK may be required
to retrofit the replacement studded ballast. Dimensions for the adapter plate are shown on page 10.
For questions about replacement ballasts or drivers, please contact Lutron Technical Support at 1.800.523.9466.
Compact SETM
Ballast Family
Date of
Discontinuation Discontinued Model Dimming
Case
Size
Ballast
Factor Replacement Model Dimming
Case
Size*
Ballast
Factor
Compact SE 12/31/11 FDB-T418-120-1 5% A 0.95 EC3DT418KU1 5% K 0.95
FDB-T418-277-1 5% A 0.95 EC3DT418KU1 5% K 0.95
FDB-T426-120-1 5% A 0.95 EC3DT4MWKU1 5% K 0.95
FDB-T426-120-1-S 5% A 0.95 EC3DT4MWKU1S 5% K 0.95
FDB-T426-277-1 5% A 0.95 EC3DT4MWKU1 5% K 0.95
FDB-T426-277-1-S 5% A 0.95 EC3DT4MWKU1S 5% K 0.95
FDB-T432-120-1 5% A 0.95 EC3DT4MWKU1 5% K 0.95
FDB-T432-120-1-S 5% A 0.95 EC3DT4MWKU1S 5% K 0.95
FDB-T432-277-1 5% A 0.95 EC3DT4MWKU1 5% K 0.95
FDB-T432-277-1-S 5% A 0.95 EC3DT4MWKU1S 5% K 0.95
EC3T536GU110 5% G 1.00 H3DT536GU110 5% G 1.00
EC3T536GU210 5% G 1.00 H3DT536GU210 5% G 1.00
EC3T540GU110 5% G 1.00 H3DT540GU110 5% G 1.00
EC3T540GU210 5% G 1.00 H3DT540GU210 5% G 1.00
EC3T540GU310 5% G 1.00 H3DT540GU310 5% G 1.00
EC3T550GU110 5% G 1.00 H3DT550GU110 5% G 1.00
EC3T550GU210 5% G 1.00 H3DT550GU210 5% G 1.00
9/30/10 FDB-T418-120-2 5% B 0.95 EC3DT418KU2 5% K** 0.95
FDB-T418-277-2 5% B 0.95 EC3DT418KU2 5% K** 0.95
FDB-T426-120-2 5% B 0.95 EC3DT4MWKU2 5% K** 0.95
FDB-T426-277-2 5% B 0.95 EC3DT4MWKU2 5% K** 0.95
FDB-T432-120-2 5% B 0.95 EC3DT4MWKU2 5% K** 0.95
FDB-T432-277-2 5% B 0.95 EC3DT4MWKU2 5% K** 0.95
FDB-T442-120-2 5% B 0.95 EC3DT442KU2 5% K** 0.95
FDB-T442-277-2 5% B 0.95 EC3DT442KU2 5% K** 0.95
FDB-T442-120-1 5% B 0.95 EC3DT442KU1 5% K** 0.95
FDB-T442-277-1 5% B 0.95 EC3DT442KU1 5% K** 0.95
FDB-T418-120-2-S 5% B 0.95 EC3DT418KU2S 5% K** 0.95
FDB-T418-277-2-S 5% B 0.95 EC3DT418KU2S 5% K** 0.95
FDB-T426-120-2-S 5% B 0.95 EC3DT4MWKU2S 5% K** 0.95
FDB-T426-277-2-S 5% B 0.95 EC3DT4MWKU2S 5% K** 0.95
FDB-T432-120-2-S 5% B 0.95 EC3DT4MWKU2S 5% K** 0.95
FDB-T432-277-2-S 5% B 0.95 EC3DT4MWKU2S 5% K** 0.95
FDB-T442-120-2-S 5% B 0.95 EC3DT442KU2S 5% K** 0.95
FDB-T442-277-2-S 5% B 0.95 EC3DT442KU2S 5% K** 0.95
FDB-T442-120-1-S 5% B 0.95 EC3DT442KU1S 5% K** 0.95
FDB-T442-277-1-S 5% B 0.95 EC3DT442KU1S 5% K** 0.95
DISCONTINUATION AND CROSS-REFERENCE SUMMARY
8 | Lutron email: oemorders@lutron.com
Compact SE (continued)
Ballast Family
Date of
Discontinuation Discontinued Model Dimming
Case
Size
Ballast
Factor Replacement Model Dimming
Case
Size*
Ballast
Factor
Compact SE 12/31/09 FDB-1643-120-1 5% F 0.85 H3DT536GU110 5% G 1.00
FDB-1643-277-1 5% F 0.85 H3DT536GU110 5% G 1.00
FDB-1643-120-2 5% F 0.85 H3DT536GU210 5% G 1.00
FDB-1643-277-2 5% F 0.85 H3DT536GU210 5% G 1.00
FDB-1643-120-3 5% F 0.85 None Available – – –
FDB-1643-277-3 5% F 0.85 None Available – – –
FDB-2227-120-1 5% F 0.85 H3DT540GU110 5% G 1.00
FDB-2227-277-1 5% F 0.85 H3DT540GU110 5% G 1.00
FDB-2227-120-2 5% F 0.85 H3DT540GU210 5% G 1.00
FDB-2227-277-2 5% F 0.85 H3DT540GU210 5% G 1.00
FDB-2227-120-3 5% F 0.85 H3DT540GU310 5% G 1.00
FDB-2227-277-3 5% F 0.85 H3DT540GU310 5% G 1.00
FDB-2243-120-1 5% F 0.85 H3DT550GU110 5% G 1.00
FDB-2243-277-1 5% F 0.85 H3DT550GU110 5% G 1.00
FDB-2243-120-2 5% F 0.85 H3DT550GU210 5% G 1.00
FDB-2243-277-2 5% F 0.85 H3DT550GU210 5% G 1.00
FDB-T418-240-1-S 5% A 0.95 EC3DT418KU1S 5% K** 0.95
FDB-T426-240-1-S 5% A 0.95 EC3DT4MWKU1S 5% K** 0.95
FDB-T432-240-1-S 5% A 0.95 EC3DT4MWKU1S 5% K** 0.95
* In some applications, the replacement ballast case size may be different. Review dimensions for proper fit.
** For applications where a Compact SE studded ballast was used, Lutron adapter plate CFL-BEA-BK may be required
to retrofit the replacement studded ballast. Dimensions for the adapter plate are shown on page 10.
For questions about replacement ballasts or drivers, please contact Lutron Technical Support at 1.800.523.9466.
DISCONTINUATION AND CROSS-REFERENCE SUMMARY
9 | Lutron email: oemorders@lutron.com
Eco-10® TVE
Ballast Family
Date of
Discontinuation Discontinued Model Dimming
Case
Size
Ballast
Factor Replacement Model
Case
Size
Ballast
Factor
Eco-10 TVE 6/30/11 TVE-T832-347-1 10% F 0.85 Contact Technical Support – –
TVE-T832-347-2 10% F 0.85 Contact Technical Support – –
10/1/09 BTVF-T832-120-2 10% F 0.85 Contact Technical Support – –
BTVF-T832-120-3 10% F 0.85 Contact Technical Support – –
BTVF-T832-277-2 10% F 0.85 Contact Technical Support – –
BTVF-T832-277-3 10% F 0.85 Contact Technical Support – –
TVE-T540-120-2 10% F 0.85 Contact Technical Support – –
TVE-T540-120-3 10% F 0.85 Contact Technical Support – –
TVE-T540-277-2 10% F 0.85 Contact Technical Support – –
TVE-T817-120-1 10% F 0.85 Contact Technical Support – –
TVE-T825-120-1 10% F 0.85 Contact Technical Support – –
TVE-T832-120-1 10% F 0.85 Contact Technical Support – –
TVE-T832-120-2 10% F 0.85 Contact Technical Support – –
TVE-T832-120-3 10% F 0.85 Contact Technical Support – –
TVE-T832-277-1 10% F 0.85 Contact Technical Support – –
TVE-T832-277-2 10% F 0.85 Contact Technical Support – –
TVE-T832-277-3 10% F 0.85 Contact Technical Support – –
TVE-T832-277-3N 10% F 0.85 Contact Technical Support – –
For questions about replacement ballasts or drivers, please contact Lutron Technical Support at 1.800.523.9466.
DISCONTINUATION AND CROSS-REFERENCE SUMMARY
10 | Lutron email: oemorders@lutron.com

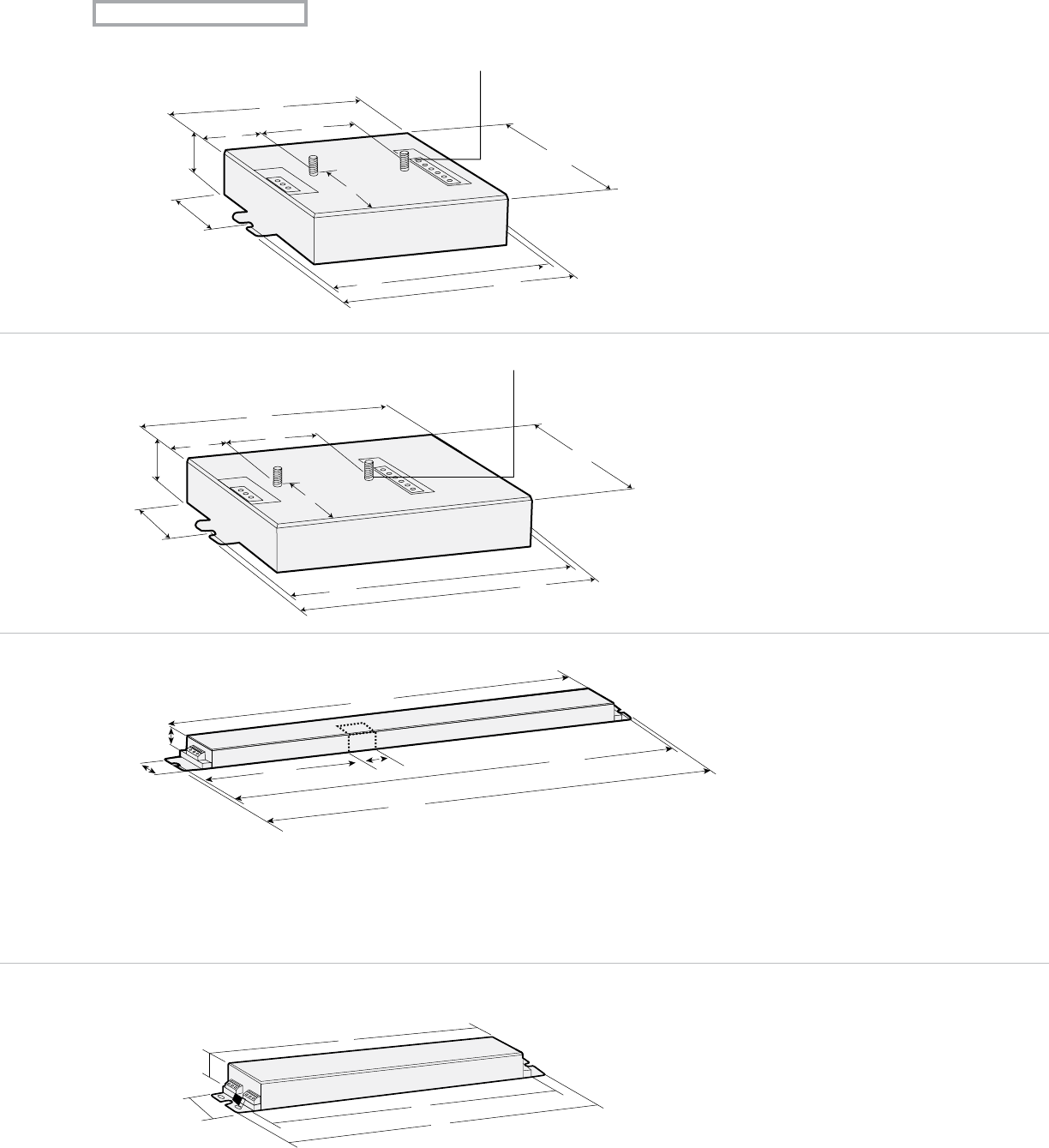

CASE TYPE DIMENSIONS
A 6.00 in (152 mm)
B 2.96 in (75 mm)
C 6.73 in (171 mm)
D 6.41 in (163 mm)
(mounting centers)
E 1.58 in (40 mm)
F 0.69 in (18 mm)
G 4.61 in (117 mm)
H 1.43 in (36 mm)
For applications where the Compact SE ballast was flange mounted,
Lutron adapter plate CFL-BEA-BK may be required to retrofit the
replacement ballast. Dimensions for the adapter plate are shown below.
8-32 Threaded Stud
0.29 in (7.37 mm)
Adapter Plate
CASE TYPE DIMENSIONS
A 6.00 in (152 mm)
B 2.96 in (75 mm)
C 6.73 in (171 mm)
D 6.41 in (163 mm)
(mounting centers)
E 1.58 in (40 mm)
F 0.69 in (18 mm)
G 4.61 in (117 mm)
H 1.43 in (36 mm)
For applications where the Compact SE ballast was flange mounted,
Lutron adapter plate CFL-BEA-BK may be required to retrofit the
replacement ballast. Dimensions for the adapter plate are shown below.
8-32 Threaded Stud
0.29 in (7.37 mm)
Adapter Plate
A 4.19 in (106 mm)
B 2.96 in (75 mm)
C 2.04 in (52 mm)
D 1.09 in (28 mm)
E 2.00 in (51 mm)
F .52 in (13 mm)
Adapter plates
Lutron adapter plates CFL-BEA-BK or CFL-JBA-FAB may be required to retrofit replacement ballasts.
The CFL-BEA-BK is used when a non-studded B-can is being replaced by a non-studded K-can. The CFL-JBA-FAB is
used when a studded F-can is being replaced by a studded A-can, B-can or K-can. Dimensions for the adapter plates
are shown below.
A 6.00 in (152 mm)
B 2.96 in (75 mm)
C 6.73 in (171 mm)
D 6.41 in (163 mm)
(mounting centers)
E 1.58 in (40 mm)
F 0.69 in (18 mm)
G 4.61 in (117 mm)
H 1.43 in (36 mm)
ADAPTER PLATES
11 | Lutron email: oemorders@lutron.com
* Need to drill new mounting holes in the fixture
Notes
1. When replacing the F-can or B-can with a K-can, it is important to know whether the ballast is mounted by the
studs or the flanges.
2. K-can ballast is wider than the F-can. This may be an issue in narrow fixtures.
3. K-can connector locations don’t exactly match the B-can. They may not line up with fixture mounting plates
in someinstallations.
K-can Replacement Scenarios for T4 CFL Lamps
Replacement Hardware
Existing installation Sample Model Ballast Can Adapter Plate
F-can with studs FDB-CF18-120-2-B K-can with studs CFL-JBA-FAB
F-can without studs FDB-T418-120-2-E K-can without studs N/A*
B-can with studs FDB-T418-120-2-S K-can with studs N/A
B-can without studs FDB-T418-120-2 K-can without studs CFL-BEA-BK
ADAPTER PLATES
12 | Lutron email: oemorders@lutron.com
A
A
G
C
F
H
ED
8-32 Threaded Stud
0.29 in (.736 mm) long
I
B
A 4.20 in (107 mm)
B 1.00 in (25 mm)
C 3.00 in (76 mm)
D 4.90 in (124 mm)
E 4.60 in (117 mm)
(mounting centers)
F 2.00 in (51 mm)
G 1.08 in (27 mm)
H 1.60 in (41 mm)
I 1.39 in (35 mm)
B
I
H
B
A
ED
C
8-32 Threaded Stud
0.29 in (.736 mm) long
F
G
A 6.00 in (152 mm)
B 1.00 in (25 mm)
C 3.00 in (76 mm)
D 6.75 in (171mm)
E 6.50 in (165 mm)
(mounting centers)
F 2.00 in (51 mm)
G 1.16 in (29 mm)
H 1.60 in (41 mm)
I 1.39 in (35 mm)
A
E
B
C
D
FG
Note: Dotted area for sensor attachment applies
for EcoSystem J case only.
C or J A 16.12 in (409 mm)
B 1.00 in (25 mm)
C 1.18 in (30 mm)
D 18.00 in (457 mm)
E 17.70 in (450 mm)
(mounting centers)
F 6.82 in (173 mm)
(J only)
G 0.394 in(10 mm)
(J only)
G
CASE TYPE DIMENSIONS
C
A 7.13 in (181 mm)
B 1.00 in (25 mm)
C 2.38 in (60 mm)
(slot mounting centers)
D 9.50 in (241 mm)
E 8.91 in (226 mm)
If using 4-hole mount,
mounting centers are 9.00 in
(229 mm) x 1.06 in (27 mm).
D
B
A
E
Lamp wires are
36 in (0.90 m)
for leaded models
Power and control
wires are 18 in (0.45 m)
for leaded models
13 | Lutron email: oemorders@lutron.com
KA 4.20 in (107 mm)
B 1.00 in (25 mm)
C 3.00 in (76 mm)
D 4.90 in (124 mm)
E 4.60 in (117 mm)
(mounting centers)
F 1.42 in (36 mm)
G 1.99 in (51 mm)
For Studded Models Only:
H 1.09 in (28 mm)
I 2.00 in (51 mm)
J 1.60 in (41 mm)
8-32 Threaded Stud
0.29 in (.736 mm) long
AC
E
D
B
F
G
H
I
J
AC
E
D
B
F
G
(Ballast)
K(LED Driver) A 4.20 in (107 mm)
B 1.00 in (25 mm)
C 3.00 in (76 mm)
D 4.90 in (124 mm)
E 4.60 in (117 mm)
(mounting centers)
F 1.42 in (36 mm)
G 1.99 in (51 mm)
For Studded Models Only:
H 1.09 in (28 mm)
I 2.00 in (51 mm)
J 1.60 in (41 mm)
8-32 Threaded Stud
0.29 in (.736 mm) long
ST
UV
For Non-Studded Models Only:
S 1.38 in (35 mm)
T 0.64 in (16 mm)
U 0.88 in (22 mm)
V 1.53 in (39 mm)
A
I
H
C
F
G
E
D
J
B
CASE TYPE DIMENSIONS
Non-studded:
Non-studded:
Studded:
Studded:
14 | Lutron email: oemorders@lutron.com
MA 14.13 in (359 mm)
B 13.78 in (350 mm)
(mounting centers)
C 1.18 in (30 mm)
D 0.98 in (25 mm)
P
A
C
B
A 31.8 mm
B 90.0 mm
C 154.7 mm
D 134.6 mm
E 13.6 mm
F 6.95 mm
G 76.05 mm
D
G
E
F
A 31.8 mm
B 90 mm
C 154.7 mm
D 134.6 mm
E 13.6 mm
F 6.95 mm
G 76.05 mm
MOUNTING CENTERS
CASE TYPE DIMENSIONS
LUTRON ELECTRONICS CO., INC.
BALLAST/DRIVER 3-YEAR LIMITED WARRANTY
For a period of three years from the date of shipment by
Lutron, Lutron warrants each new ballast/driver to be free from
manufacturing defects. Lutron will, at its option, repair or provide
a comparable replacement for any defective ballast/driver that, in
the opinion of Lutron, has been installed and operated pursuant
to Lutron product specifications and the applicable provisions
of the National Electrical Code and of the Safety Standards of
Underwriters Laboratories so long as Lutron is promptly notified
of the defect within the 3-year warranty period and, if requested
by Lutron, the ballast/driver is returned to Lutron.
This warranty is in lieu of all other express warranties
and all implied warranties, including implied warranties of
merchantability and of fitness for a particular purpose. This
warranty does not cover: the cost of installation, removal or
reinstallation; damage resulting from misuse, abuse, or improper
or incorrect repair; damage from improper wiring or installation;
or incidental or consequential damages. Lutron liability on any
claim for damages arising out of or relating to the manufacture,
sale, installation, delivery, or use of the ballast/driver is limited to
the purchase price of the ballast/driver.
No Lutron agent, employee or representative has any
authority to bind Lutron to any affirmation, representation or
warranty concerning the ballast/driver. Unless an affirmation,
representation or warranty made by an agent, employee or
representative is specifically included herein, or in standard
printed materials provided by Lutron, it does not form a part of
the basis of any bargain between Lutron and customer and will
not in any way be enforceable by customer.
In no event will Lutron or any other seller be liable or responsible
for any (i) consequential or special damages, (ii)repair work
undertaken without Lutron prior consent, (iii)ancillary equipment
not furnished by Lutron which is attached to or used in
connection with the ballast/driver, all such equipment being
expressly excluded from this warranty, or (iv) damage to the
ballast/driver resulting from the use of ancillary equipment not
furnished by Lutron for use with the ballast/driver.
This warranty provides specific legal rights. Other rights, which
vary from state to state, may exist. Some states do not allow
limitations on how long an implied warranty lasts or the exclusion
or limitation of incidental or consequential damages, so the above
limitations or exclusions may not apply.
Contact the Lutron Technical Support Center at the numbers
provided below or your local Lutron sales representative with
questions concerning the installation or operation of a covered
ballast/driver or this Warranty, or to make a warranty claim.
Please provide the exact model number when calling.
USA and Canada (24 hrs/7days)
800.523.9466
Other countries (8 a.m. – 8 p.m. ET)
610.282.3800
Fax 610.282.3090
http://www.lutron.com
©2011 Lutron Electronics Co., Inc.
5-year warranty (limited) is available with field
servicecommissioning.
Lutron standard 3-year ballast/driver warranty is automatically
extended to a 5-year warranty if the project is commissioned
by the Lutron Services Company. For questions about factory
commissioning or to schedule a system startup please call
the Lutron Services Company scheduling department at
1.800.523.9466.
BALLAST WARRANTY / LED DRIVER WARRANTY
www.lutron.com
Lutron Electronics Co., Inc.
7200 Suter Road
Coopersburg, PA 18036-1299
World Headquarters 1.610.282.3800
© 04/2013 Lutron Electronics Co., Inc. | P/N 368-2376 REV B

Navigation menu
