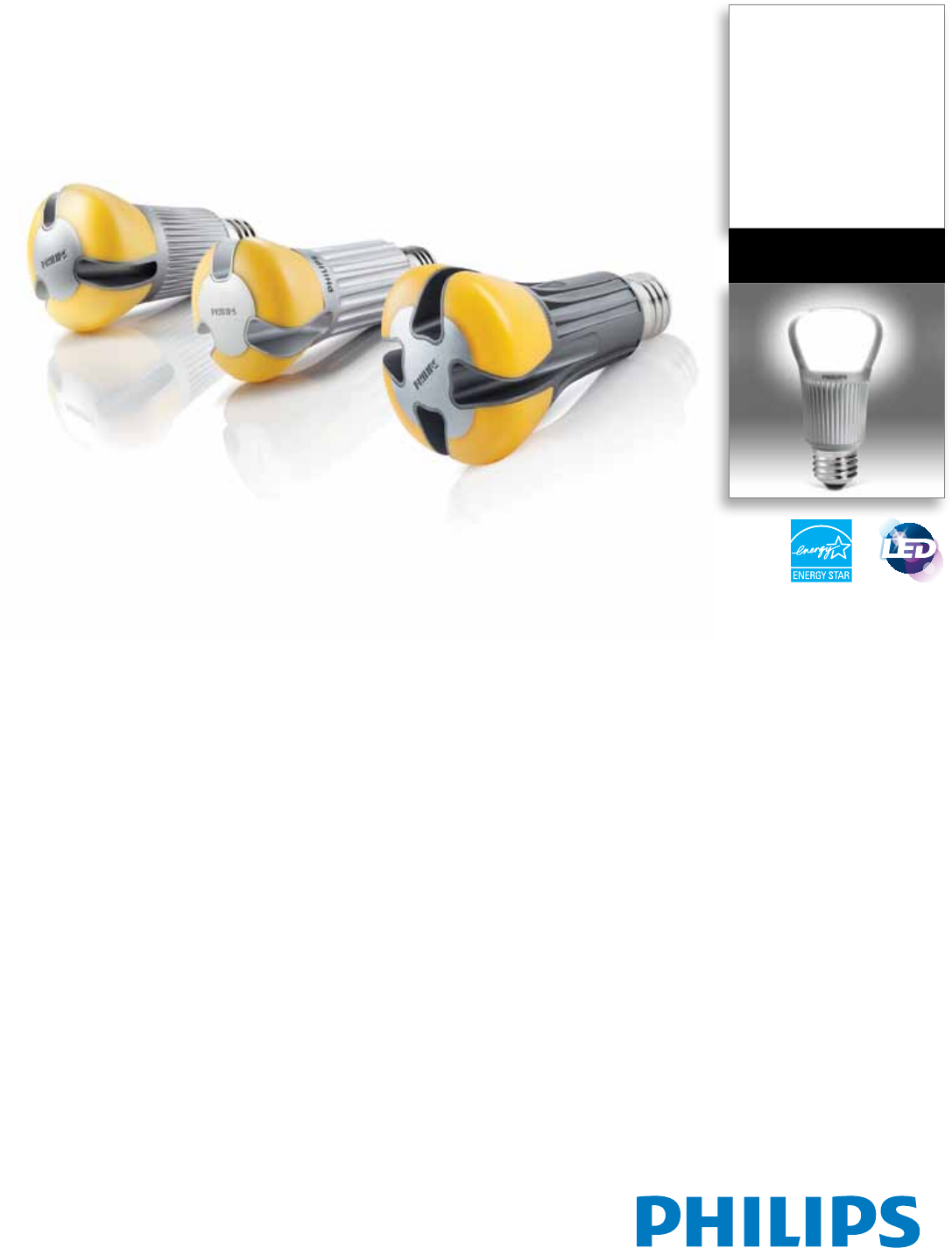

Philips A-shape
Dimmable LED Lamp
Ideal for decorative and
ambient lighting in retail
outlets, hotels, restaurants,
government buildings, and
multi-unit residences
Philips LED
Attractive, dimmable LED
alternative to popular incandescents
Philips A-shape Dimmable LED Lamps are the smart LED alternative to
standard incandescent A-shape lamps. The unique lamp design provides
omni-directional light with excellent dimming performance.
High efficacy LED accent light
• First 60W incandescent equivalent A19 LED bulb to be ENERGY STAR® Qualied
• New 8W design is ENERGY STAR® Qualied, and replaces a 40W incandescent equivalent
A19 LED bulb1
• 17W A21 ENERGY STAR® Qualied bulb replaces a 75W standard incandescent
equivalent A21 bulb**
• 22W A21 bulb replaces a 100W standard incandescent equivalent A21 bulb†
• Smooth dimming to 10% of full light levels*
• 25,000 hour rated average life2
• Emits virtually no UV/IR light in the beam
• Contains no mercury
• Remote phosphor (yellow) disappears when energized to create even, soft, white light
Easy to experience
• Long life properties—lowers maintenance costs by reducing re-lamp frequency
• Will not fade colors, avoids inventory spoilage
• 3-year or 5-year limited warranty depending upon operating hours
(1,2, *, **, † See back page for footnotes)
Energized
Philips A-shape Dimmable LED Lamp
© 2012 Philips Lighting Company, A Division of
Philips Electronics North America Corporation.
All rights reserved.
Printed in USA 10/12
P-6107-F
www.philips.com
Philips Lighting Company
200 Franklin Square Drive
Somerset, NJ 08873
1-800-555-0050
Philips Lighting
281 Hillmount Road
Markham, Ontario
Canada L6C 2S3
1-800-555-0050
A Division of Philips Electronics Ltd.
LISTED
LED LampS 3pm5 E335104
1) When comparing this 8W LED A19 having 470 lumens to the standard 40W incandescent A19 having 400 lumens.
2) Rated average life is based on engineering testing and probability analysis.
3) Based on photometric testing consistent with IES LM-79.
* Dimmable when using leading edge dimmers (see Philips Website: www.philips.com/ledtechguide for compatible leading edge dimmers).
** When comparing this 17W LED A21 having 1100 lumens to the standard 75W incandescent A21 having 1100 lumens.
† When comparing this 22W Philips LED A21 having 1780 to the standard 100W incandescent A21 having 1440 lumens
This lamp is ENERGY STAR® Qualified.
WARNINGS AND CAUTIONS
• Suitable for damp locations.
• Not for use in totally enclosed luminaires (xtures).
• This device is not intended for use with emergency
exit xtures or emergency lights.
• Before replacing, turn off power and let lamp cool
to avoid electrical shock or burn.
CAUTION: Risk of electric shock. Do not use where
directly exposed to water.
NOTES: This device complies with Part15 of the FCC
Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference that may cause
undesired operation. This Class B digital apparatus complies
with Canadian ICES-003.
This energy saving example shows an application of
100 lamps in a space currently using 100 incandescent
100W, 1780 lumen A21 lamps, operating 4,000 hours
per year at a cost of $0.11 per kWh.† Your actual
savings may vary depending on the energy costs in
your geographic location.
Replacing 100 standard incandescent 100W 1780 lumen
A-lamps with Philips 22W Philips LED A21 lamps can
provide signicant energy cost savings of $3,432,00 per
year! Potential savings from the reduction in HVAC costs
as a result of using a lower wattage lamp that emits less
heat is an additional benet not included in this example.
† Light output of the 22W Philips A21 1780 lumens compares to the 100W standard
incandescent A21 at 1780 lumens
Energy Efficiency
Estimated Lighting Costs Using a Standard 100W Incandescent A21 Lamp
Present Wattage 100 W
x Annual Operating Hours 4,000 hrs
= 400,000 watt-hours
. . .
÷1,000 = 400 kWh per year
x kWh rate of $0.11 = $44.00 per year
x 100 lamps per space = $4,400 annual energy cost per space
. . .
Estimated Lighting Costs Using a Philips 22W Philips A21 LED Lamp
Present Wattage 22 W
x Annual Operating Hours 4,000 hrs
= 88,000 watt-hours
. . .
÷1,000 = 88 kWh per year
x kWh rate of $0.11 = $9.68 per year
x 100 lamps per space = $968 annual energy cost per space
. . .
Total Estimated Annual Savings◊= $3,432.00
◊ Based on 100 lamps per space operating at 4,000 hours per year.
Ordering, Electrical and Technical Data (Subject to change without notice)
Lamps Rated Color
Product Nom. per Bulb Avg. Life Approx. Temp. MOL
Number Ordering Code Watts Volts SKU Description Type Base (Hrs.)2 Lumens3 CRI (Kelvin) (In.)
A19
41483-9 8A19/END/2700-470 8 120 1 120V Philips LED Dimmable 8W A19 A19 Med. 25,000 470 81 2700 4.3
DIM 6/1
40994-6 12A19/END/2700-800 12.5 120 1 120V Philips LED Dimmable 12W A19 A19 Med. 25,000 800 80 2700 4.2
DIM 6/1
A21
41859-0 17A21/END/2700-1100 17 120 1 120V Philips LED Dimmable 17W A21 A21 Med. 25,000 1100 80 2700 4.8
DIM 6/1
42352-5 22A21/END/2700 DIM 22 120 1 120V Philips LED Dimmable 22W A21 A21 Med. 25,000 1780 80 2700 4.8
Shipping Data (Subject to change without notice)
Outer Case Case SKUs
Product SKU UPC Bar Code Case Weight Cube Pallet Per Layers SKU Dimensions Case Dimensions Pallet Dimensions
Number (0-46677) (5-00-46677) Qty. (lbs.) (cu. ft.) Qty. Layer High (W x D x H) (In.) (W x D x H) (In.) (W x D x H) (In.)
A19
41483-9 41483-2 41483-7 6 2.45 0.131 1224 204 6 2.72 x 2.72 x 4.80 8.40 x 5.60 x 4.80 47.20 x 39.40 x 34.90
40994-6 40994-4 40994-2 6 3.27 0.155 1224 204 6 2.72 x 2.72 x 4.80 5.83 x 8.62 x 5.31 39.40 x 47.20 x 35.00
A21
41859-0 41859-5 41859-0 4 0.843 0.297 384 96 4 4.02 x 3.23 x 7.87 4.92 x 14.02 x 8.62 39.97 x 47.24 x 40.20
42352-5 42335-3 42335-8 4 0.843 0.297 384 96 4 4.02 x 3.23 x 7.87 4.92 x 14.02 x 8.62 39.97 x 47.24 x 40.20
